26.0mm Medium Beam Diffuse Linear | Carclo Optics

60166 Medium Beam

26.0mm Medium Beam Diffuse Linear

Part number

60166

Dimensions

26.0mm

Optic type

Linear

Finish

Diffuse

Beam type

Medium Beam

Applications

Architectural

Horticultural

Industrial

Landscape & Garden

Retail

Warehouse

Wide Area

Housing assembly components are also available to order separately, see assembly drawing for part numbers or contact sales.

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

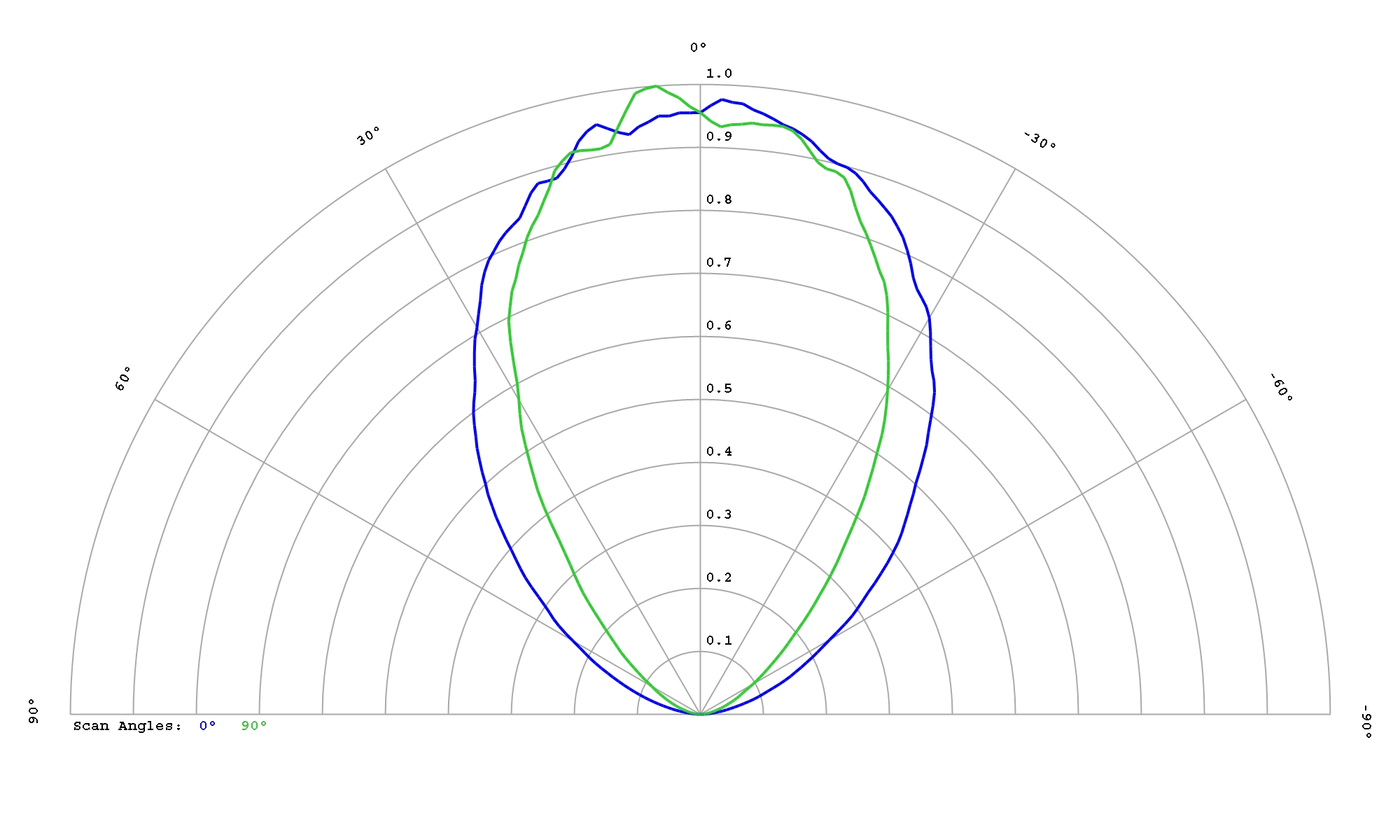

Bridgelux SMD 3030 Gen2 White

Eff:

81.5%

FWHM:

87 x 68°

Cd/Im:

0.6


Download

Cree JB2835B 3V G-Class White

Eff:

81.0%

FWHM:

86 x 66°

Cd/Im:

0.6


Download

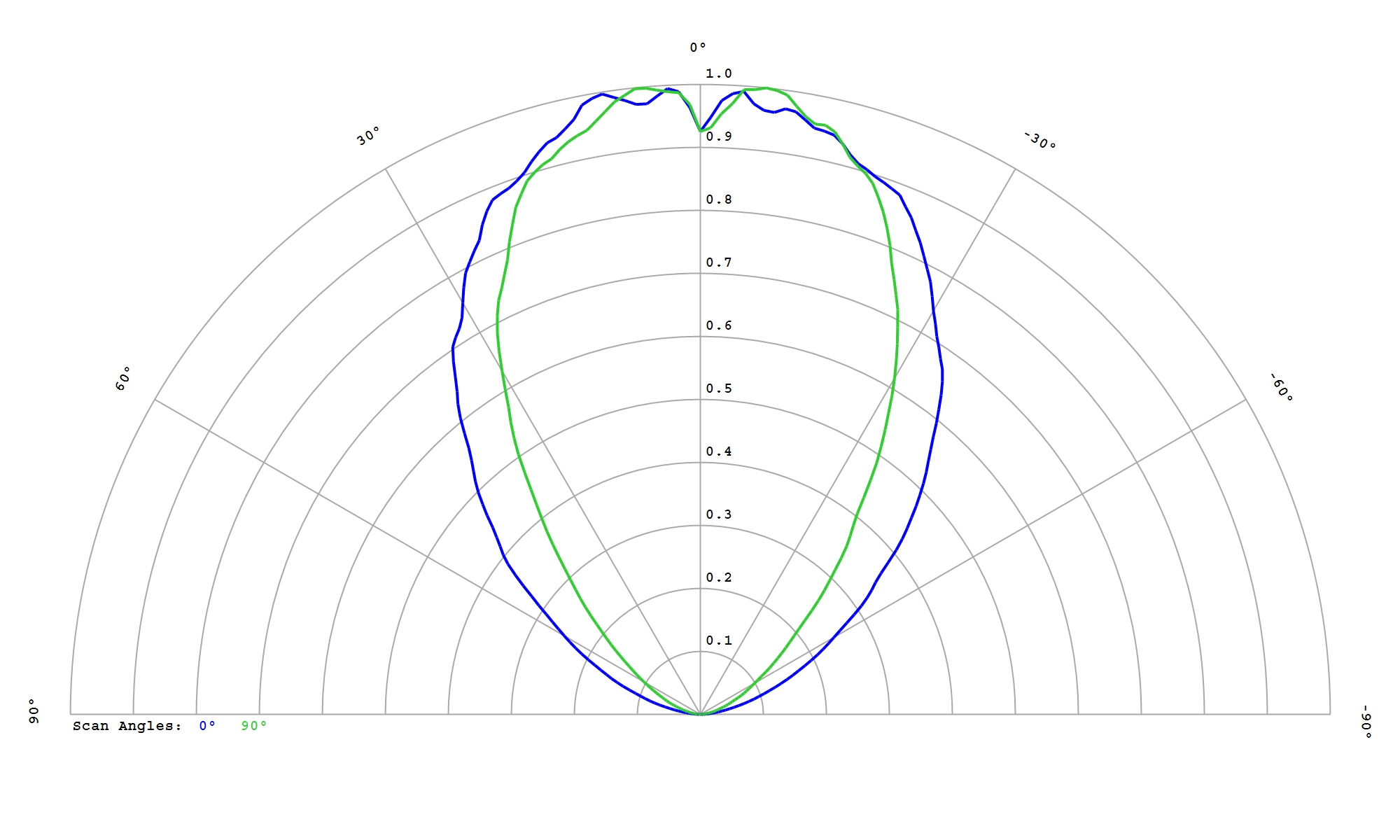

Cree JB2835B 3V J-Class White

Eff:

81.0%

FWHM:

89 x 68°

Cd/Im:

0.6


Download

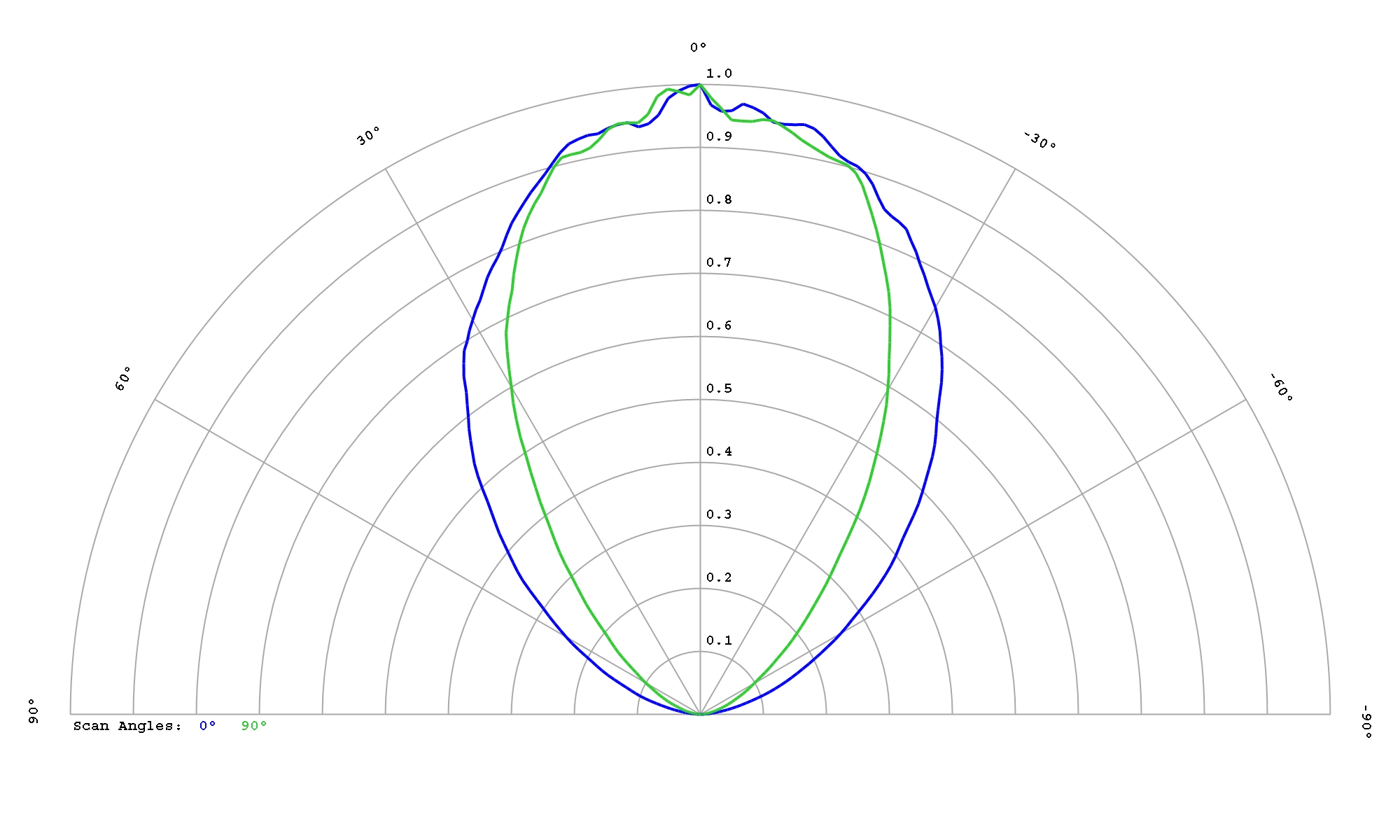

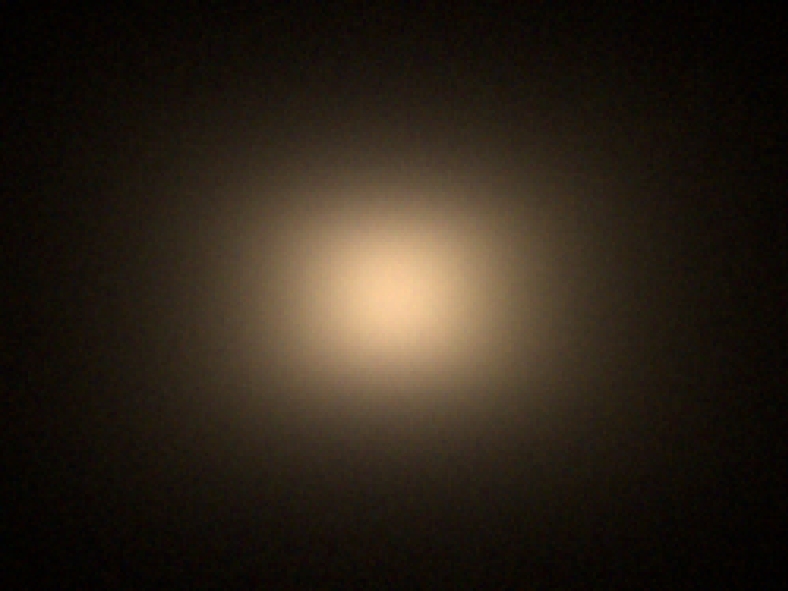

Cree JB3030C 3V E-Class White

Eff:

80.5%

FWHM:

89 x 67°

Cd/Im:

0.6


Download

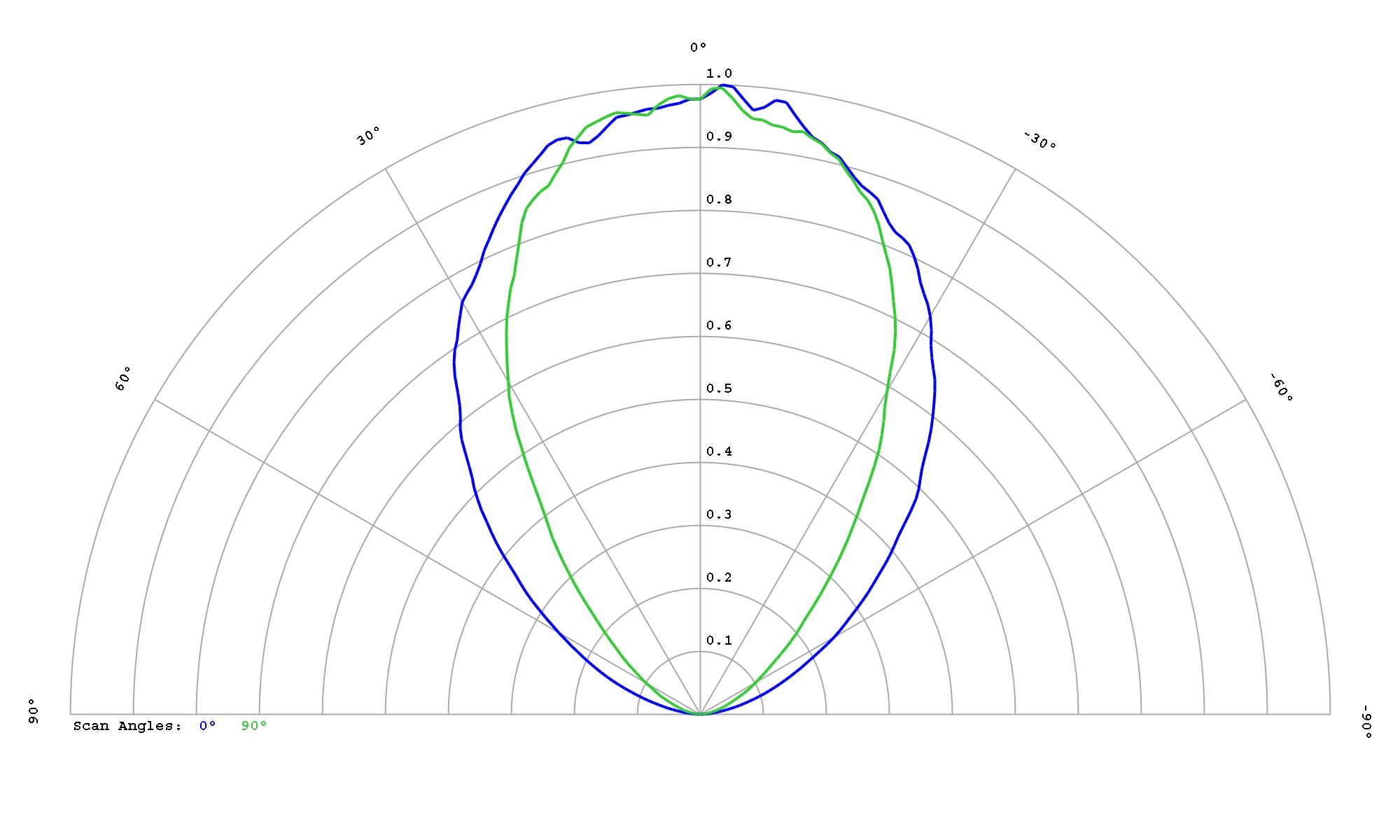

Cree JB3030C 3V F-Class White

Eff:

81.0%

FWHM:

86 x 68°

Cd/Im:

0.6


Download

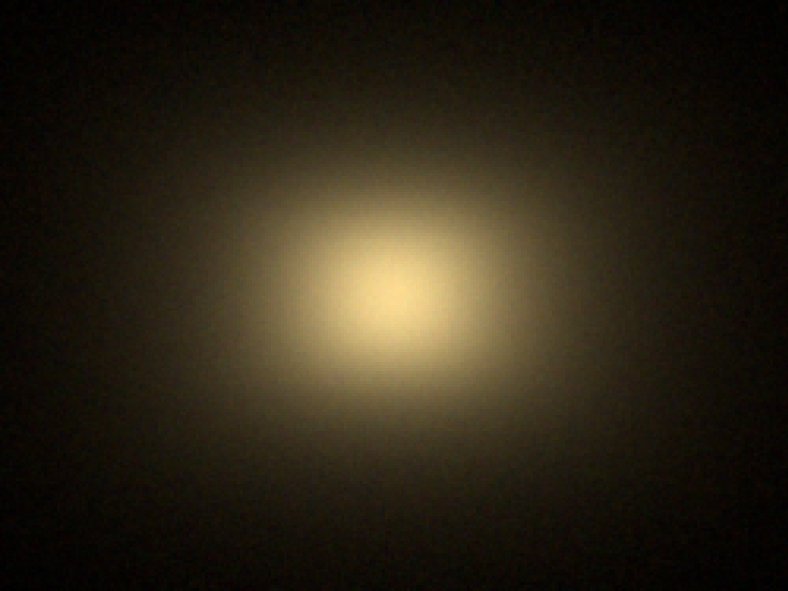

Cree JE2835 3V White

Eff:

81.5%

FWHM:

86 x 69°

Cd/Im:

0.6

Download

Cree JQ5050 9V White

Eff:

81.0%

FWHM:

89 x 64°

Cd/Im:

0.8

Download

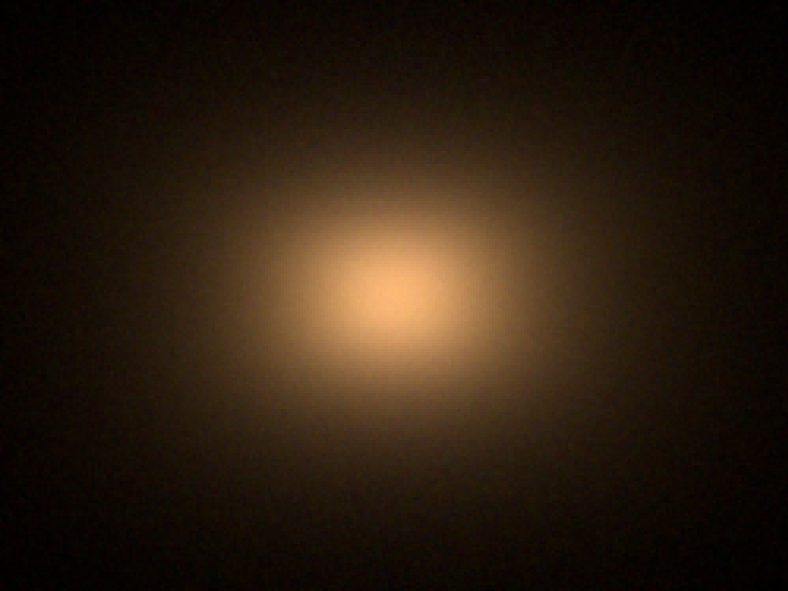

Cree JR5050 24V White

Eff:

81.0%

FWHM:

86 x 64°

Cd/Im:

0.6

Download

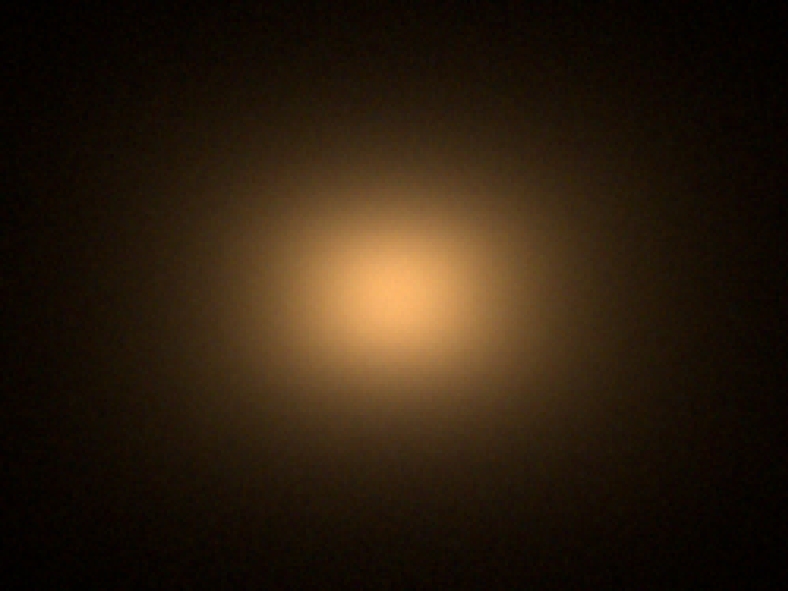

Cree JR5050 36V White

Eff:

81.0%

FWHM:

87 x 64°

Cd/Im:

0.6

Download

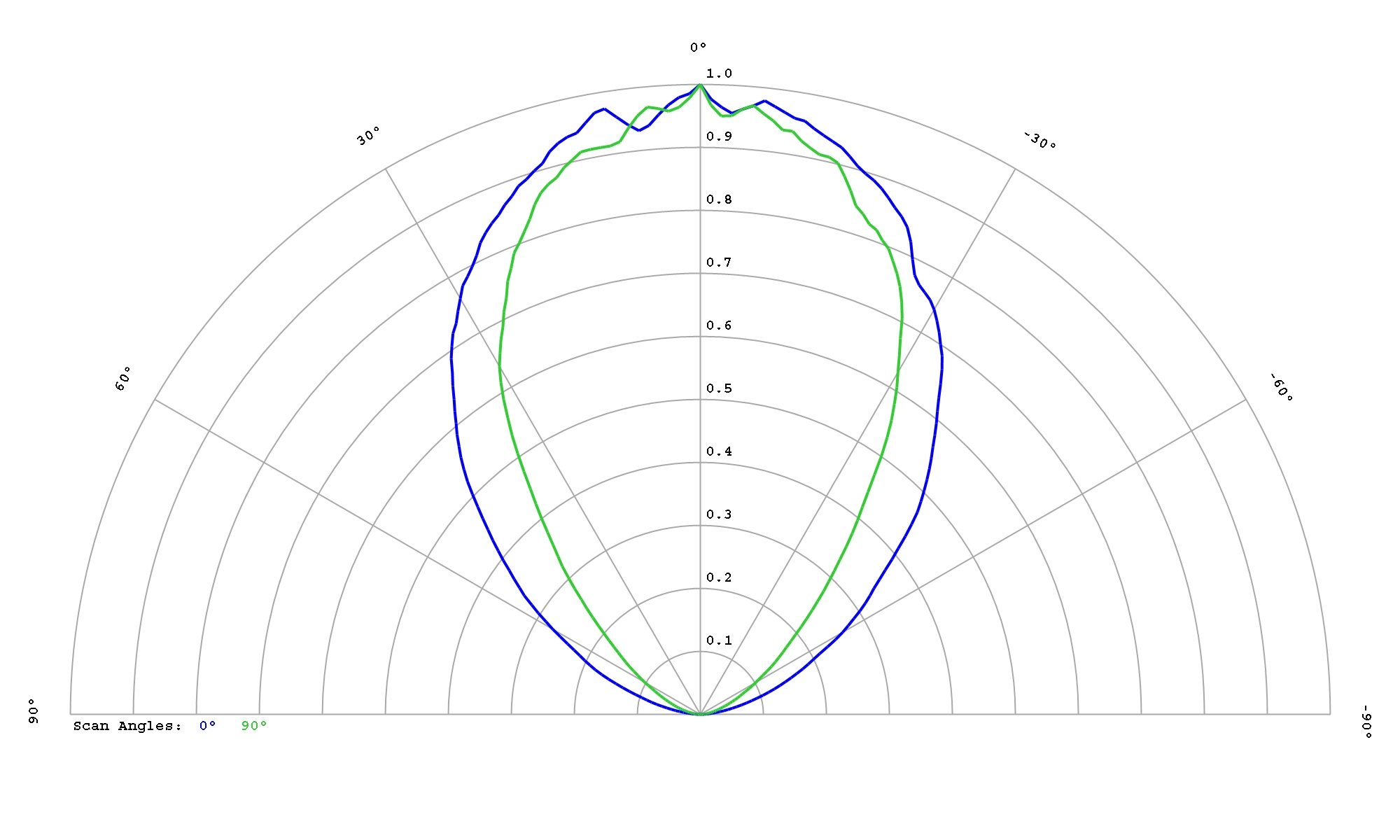

Cree XLamp CSP XD16 Premium White

Eff:

79.5%

FWHM:

91 x 70°

Cd/Im:

0.6

Download

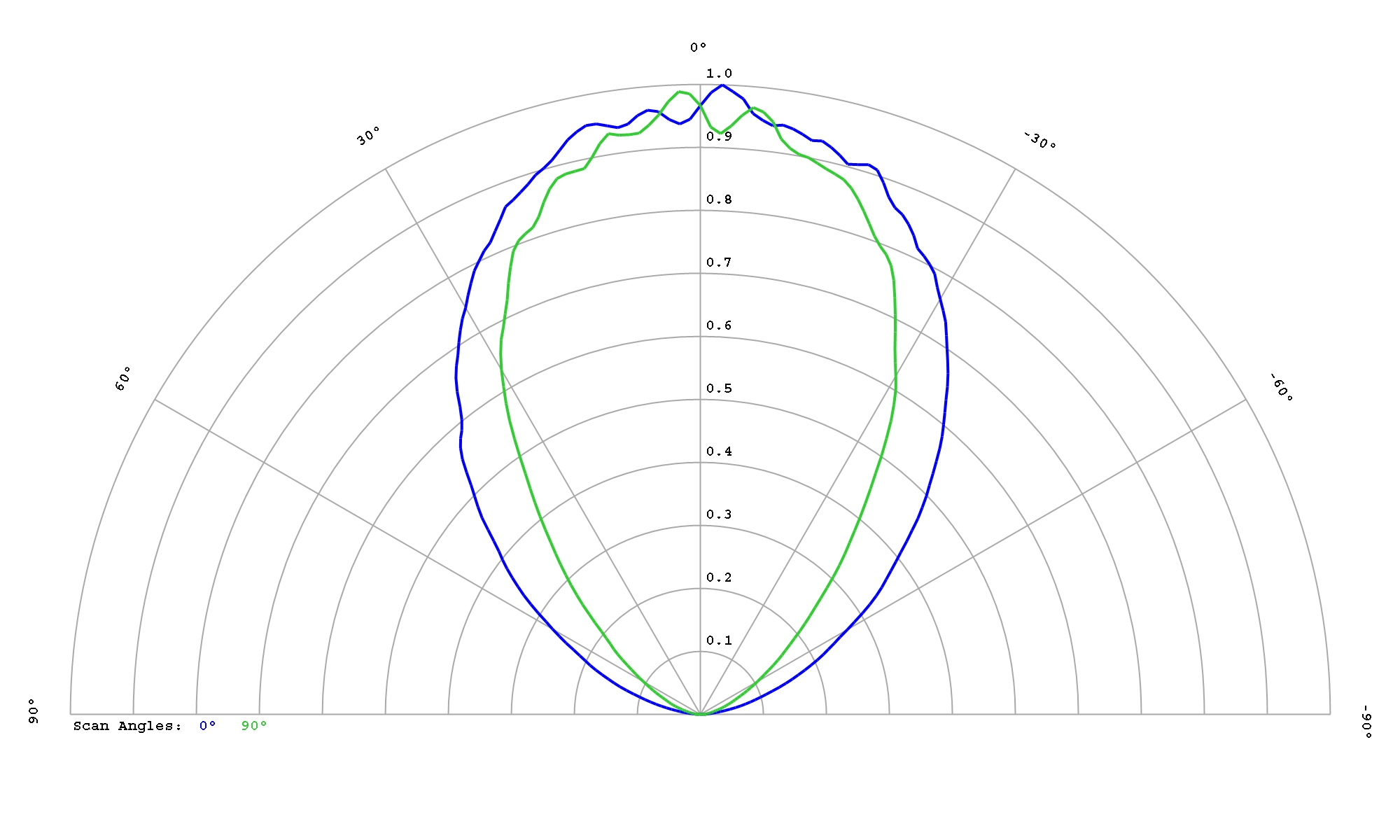

Cree XLamp XE-G White

Eff:

78.5%

FWHM:

90 x 70°

Cd/Im:

0.5

Download

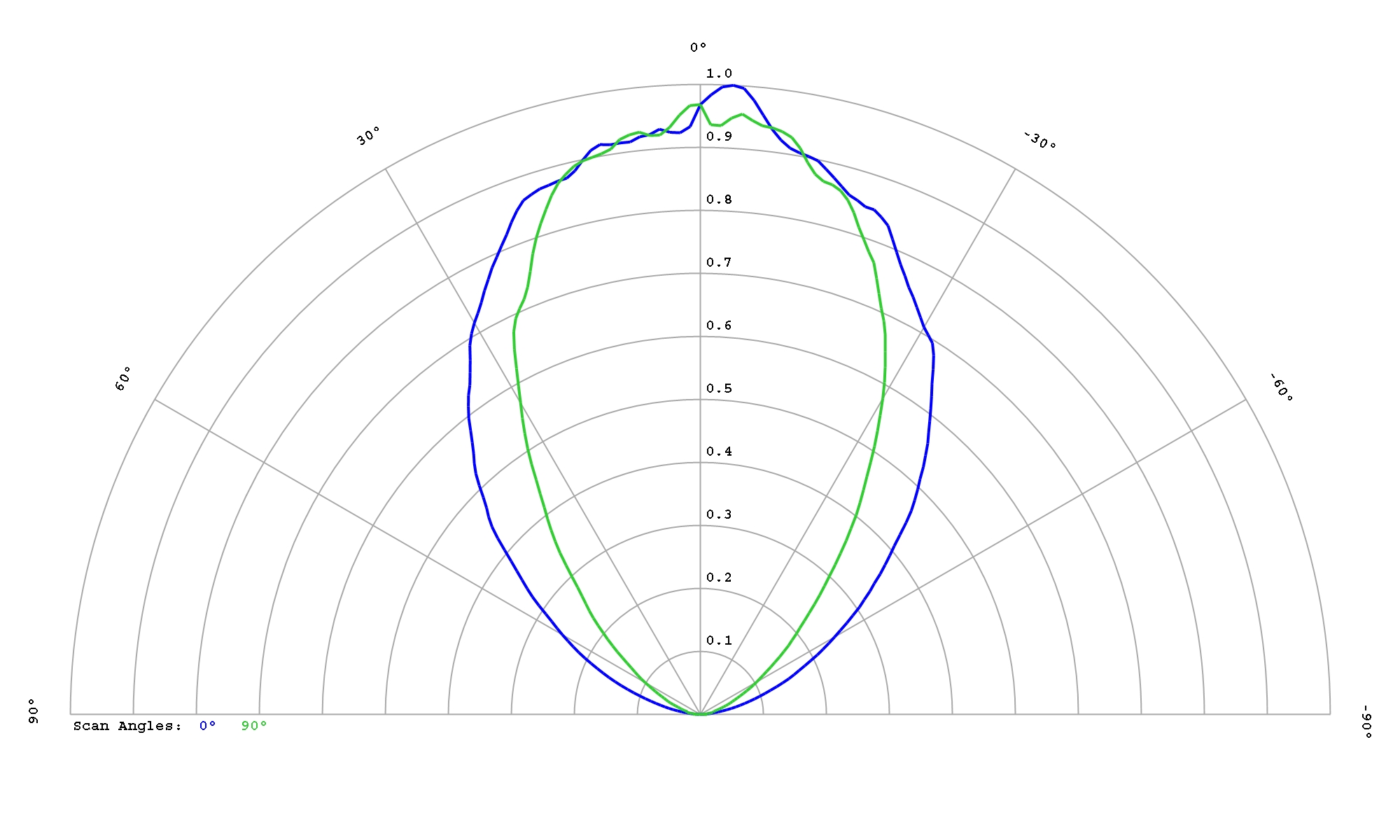

Cree XLamp XHP35.2 HI White

Eff:

79.0%

FWHM:

88 x 68°

Cd/Im:

0.6



Download

Cree XLamp XM-L Color G2 HD RGBW

Eff:

81.5%

FWHM:

91 x 70°

Cd/Im:

0.6

Download

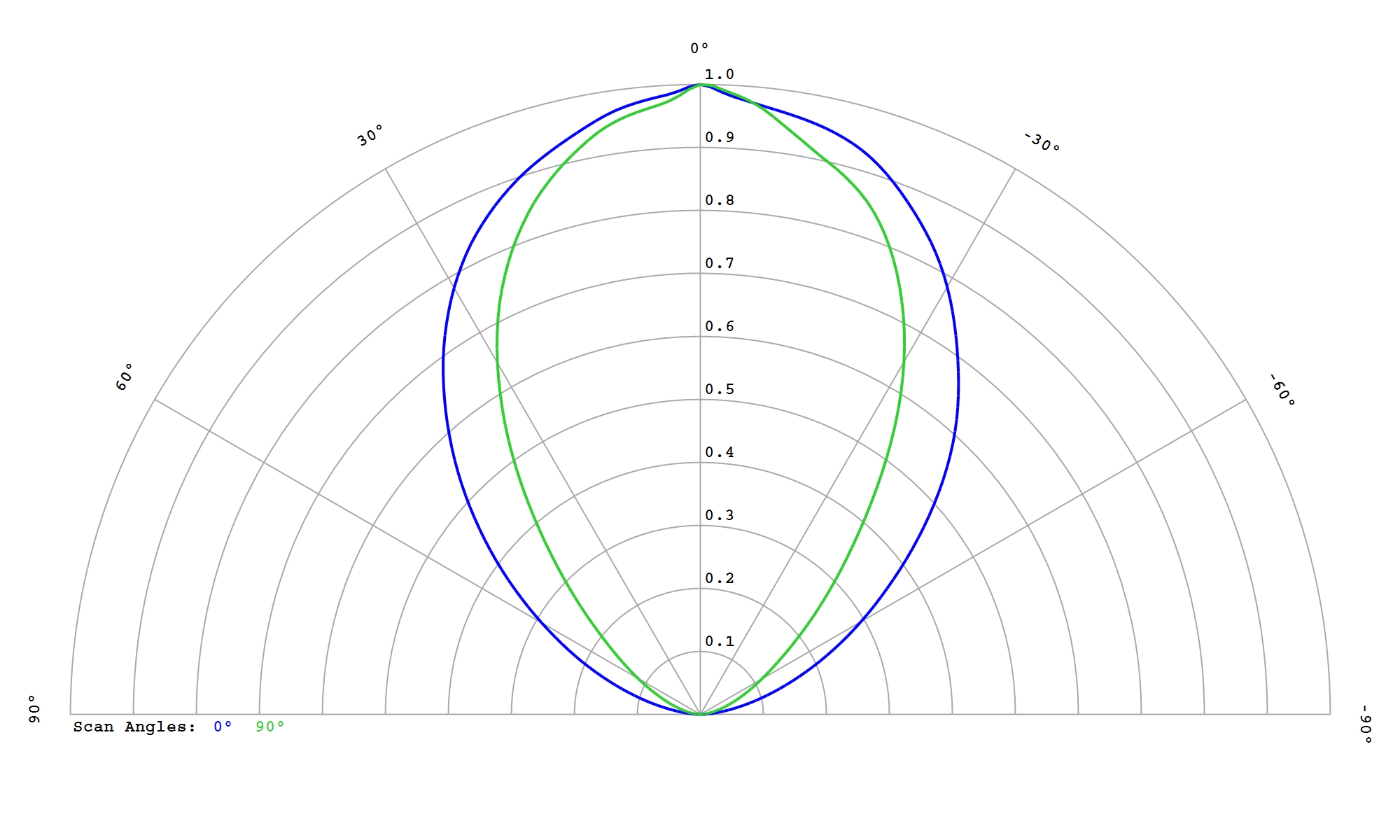

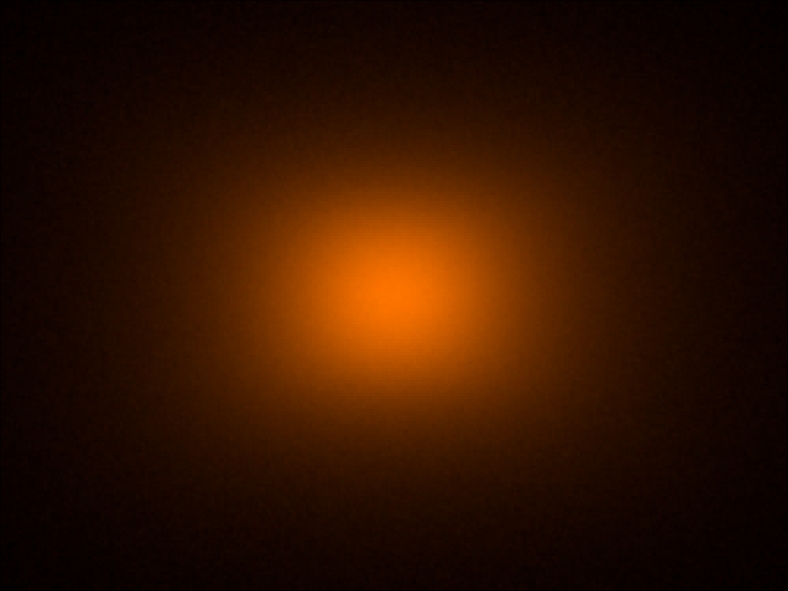

Cree XLamp XP-E2 Amber

Eff:

80.0%

FWHM:

95 x 72°

Cd/Im:

0.5

Download

Cree XLamp XP-E2 Blue

Eff:

82.0%

FWHM:

94 x 69°

Cd/Im:

0.6

Download

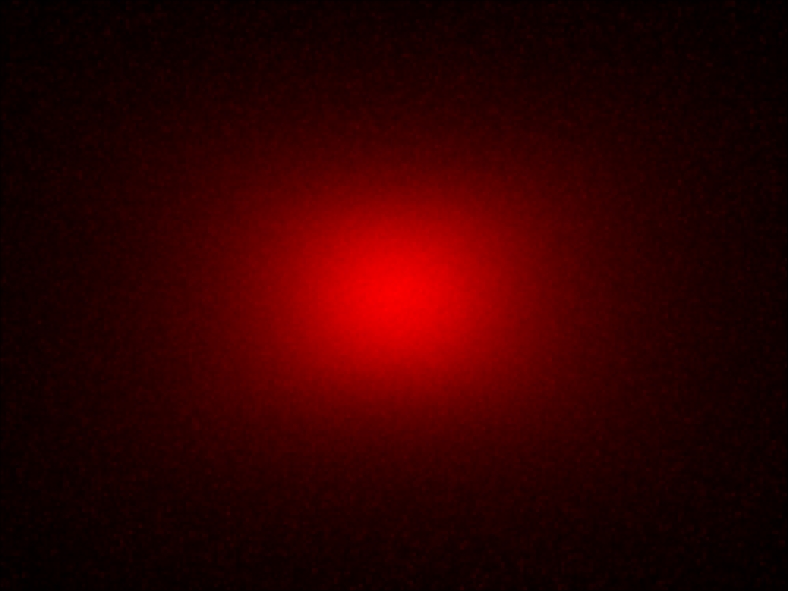

Cree XLamp XP-E2 Far Red

Eff:

82.5%

FWHM:

100 x 71°

Ipk/W:

0.5

Download

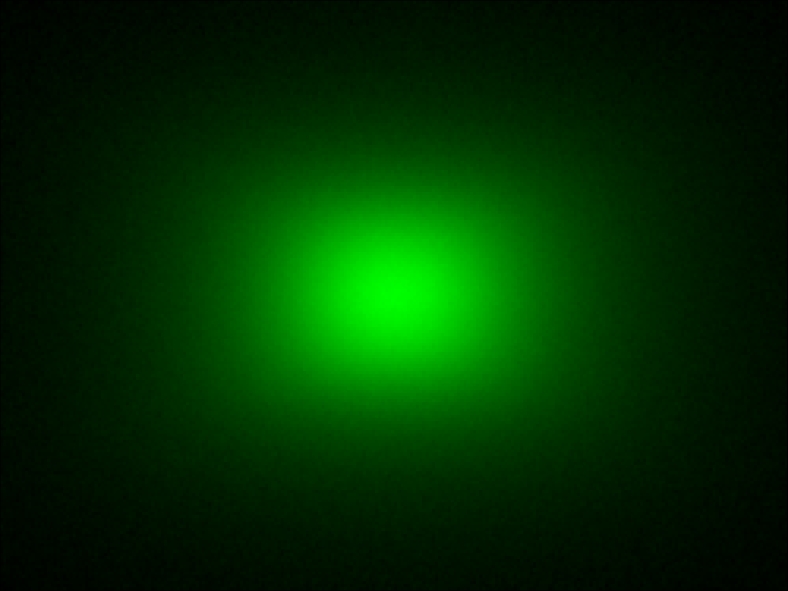

Cree XLamp XP-E2 Green

Eff:

80.0%

FWHM:

95 x 70°

Cd/Im:

0.6

Download

Cree XLamp XP-E2 PC Amber

Eff:

81.0%

FWHM:

78°

Cd/Im:

0.6


Download

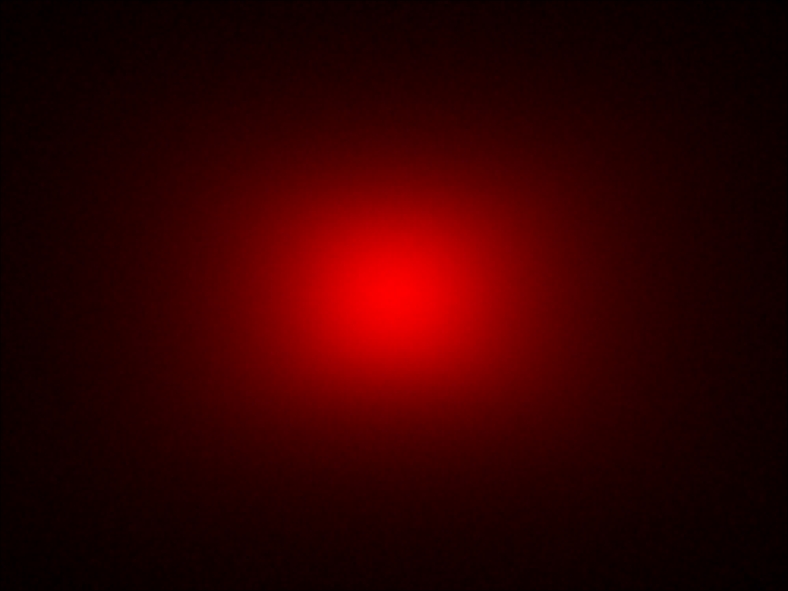

Cree XLamp XP-E2 Photo Red

Eff:

82.0%

FWHM:

93 x 69°

Ipk/W:

0.6


Download

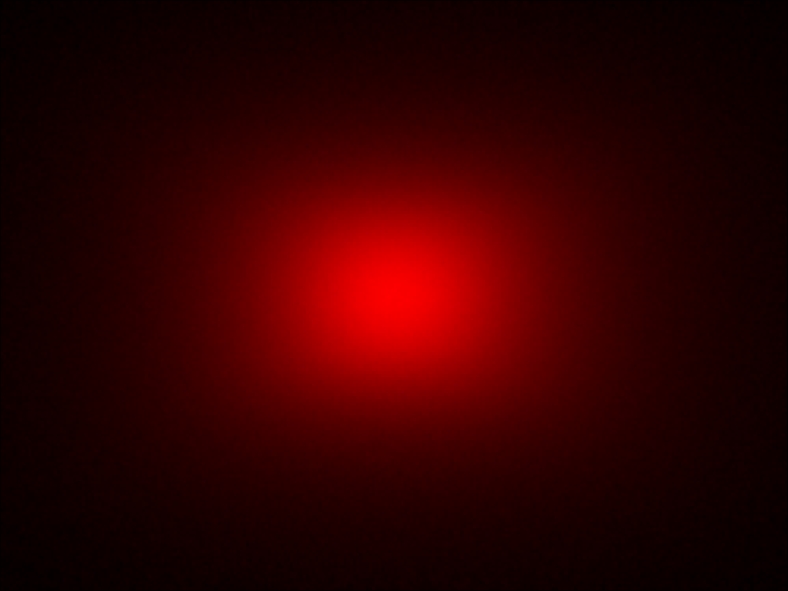

Cree XLamp XP-E2 Red

Eff:

81.0%

FWHM:

95 x 71°

Cd/Im:

0.5

Download

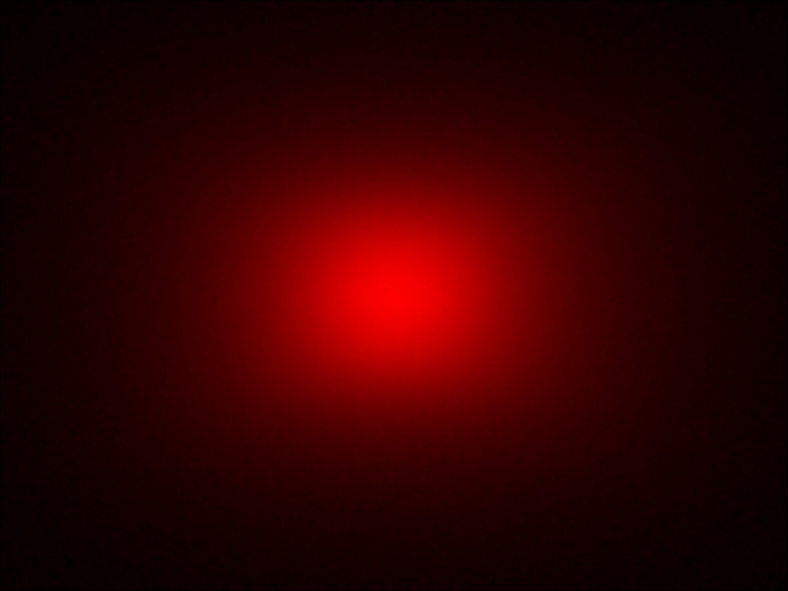

Cree XLamp XP-E2 Red-Orange

Eff:

81.0%

FWHM:

94 x 73°

Cd/Im:

0.6


Download

Cree XLamp XP-E2 Royal Blue

Eff:

81.5%

FWHM:

95 x 70°

Ipk/W:

0.6


Download

Cree XLamp XP-E2 White

Eff:

80.5%

FWHM:

89 x 72°

Cd/Im:

0.6

Download

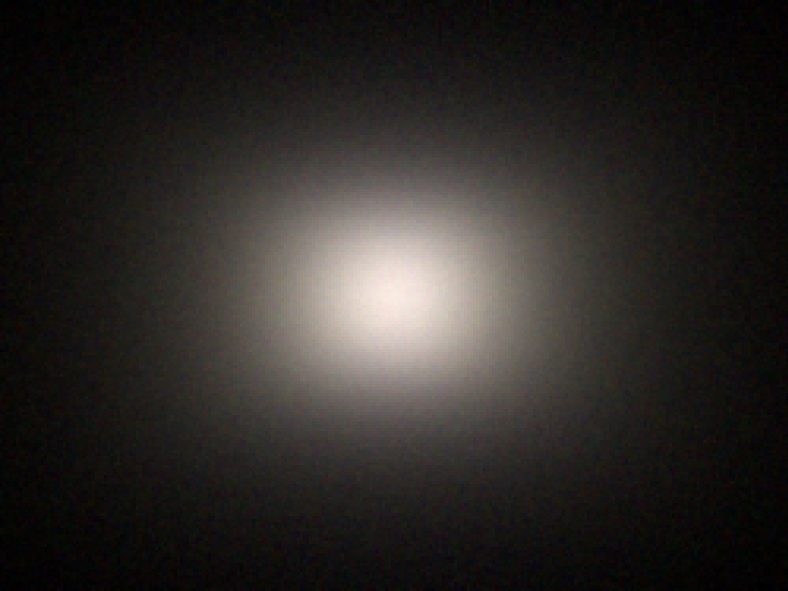

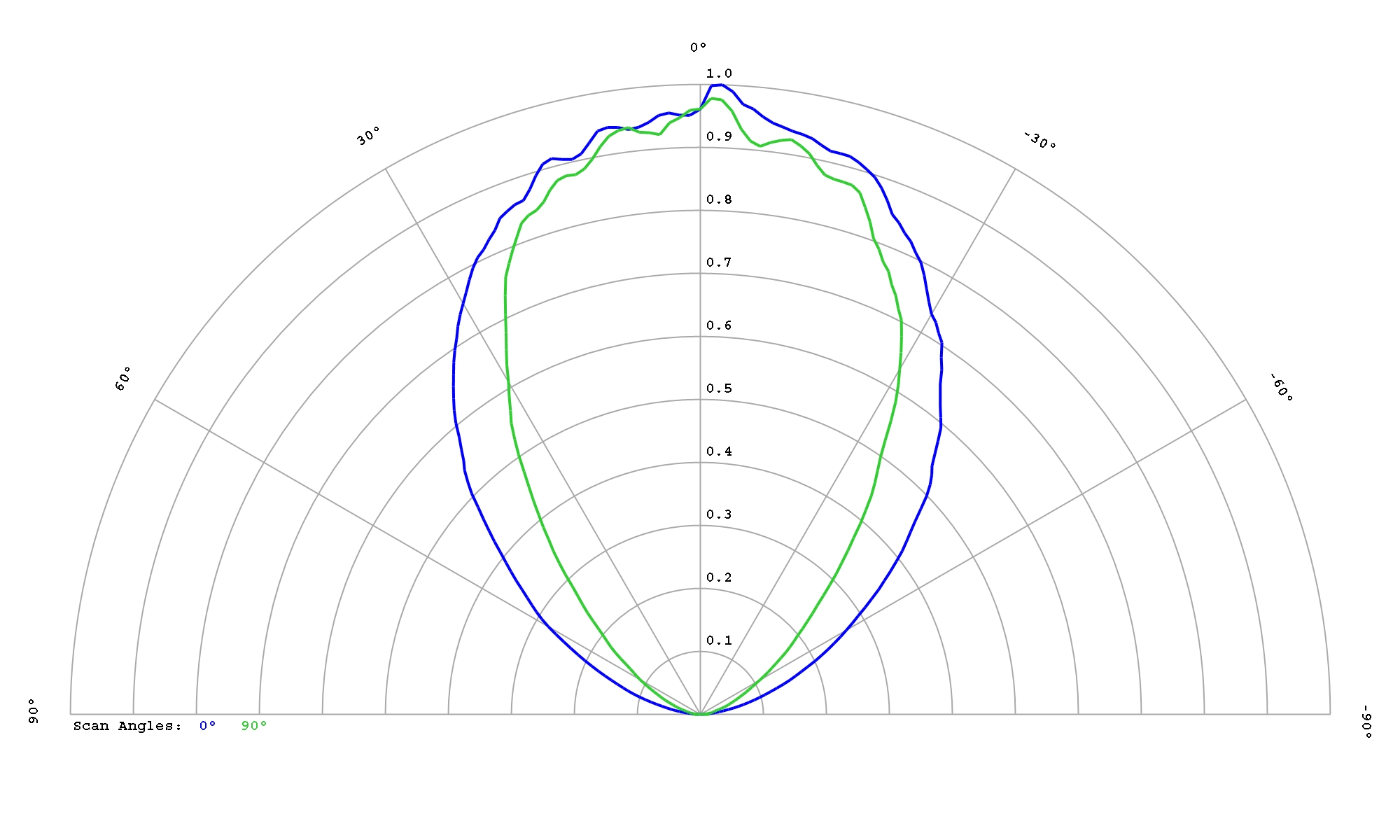

Cree XLamp XP-G4 HI White

Eff:

79.0%

FWHM:

88 x 70°

Cd/Im:

0.6

Download

Cree XLamp XP-G4 White

Eff:

82.0%

FWHM:

84 x 69°

Cd/Im:

0.6

Download

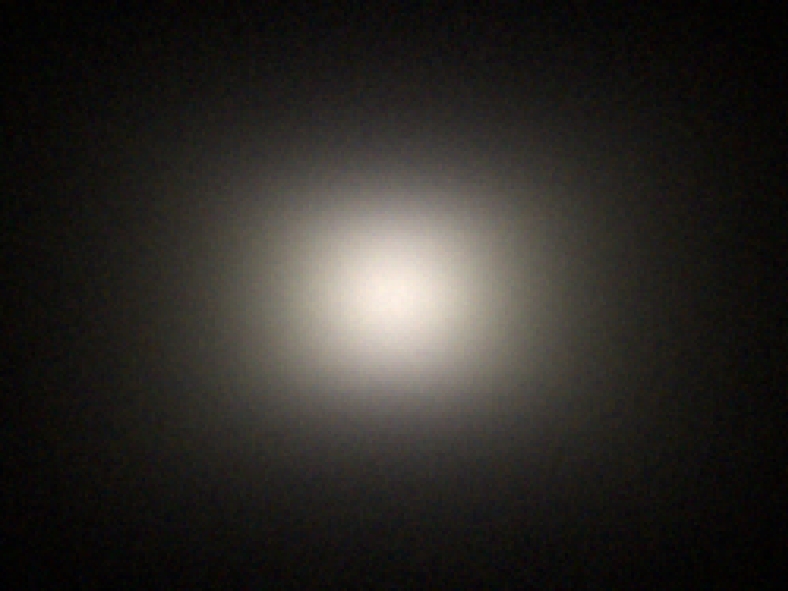

Cree XLamp XP-GR White

Eff:

81.0%

FWHM:

87 x 71°

Cd/Im:

0.6

Download

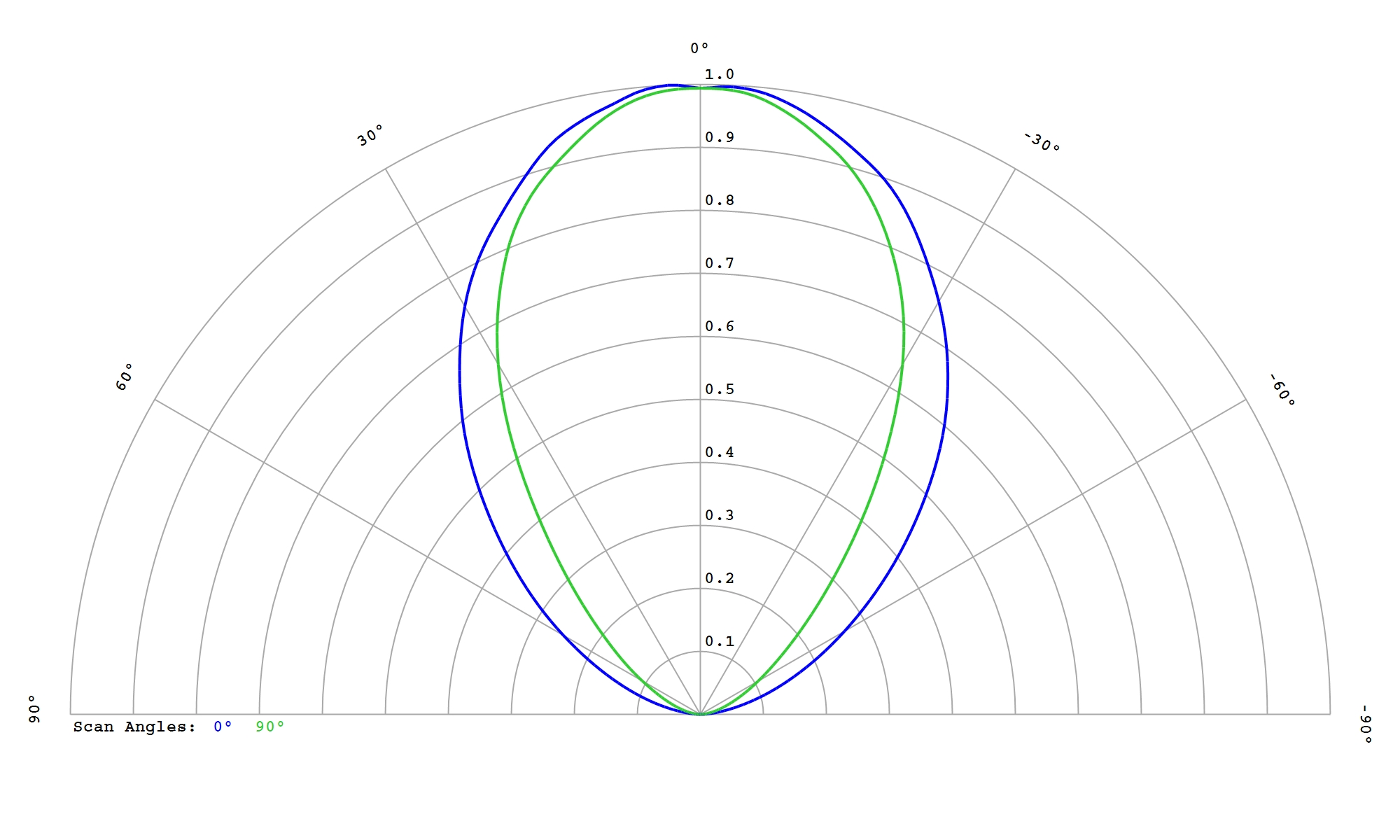

Cree XLamp XP-LR White

Eff:

81.5%

FWHM:

87 x 70°

Cd/Im:

0.6

Download

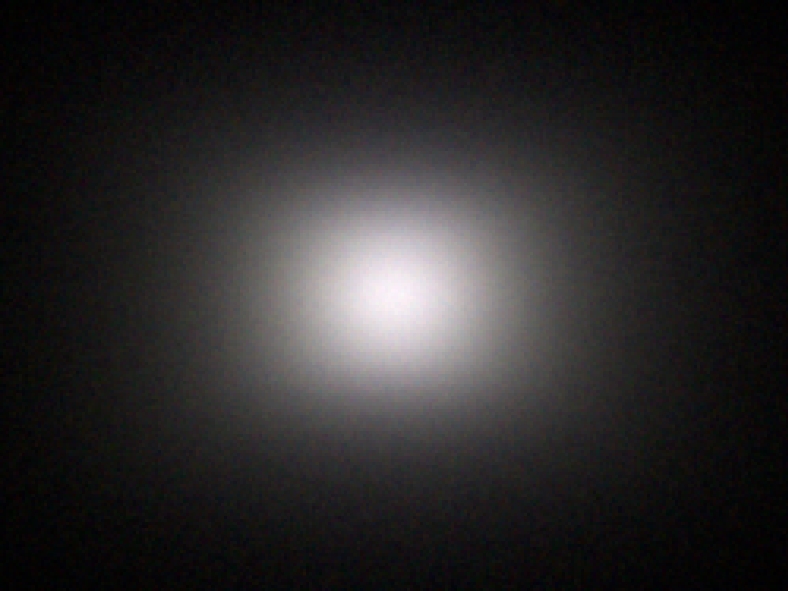

Cree XLamp XP-P White

Eff:

81.0%

FWHM:

86 x 68°

Cd/Im:

0.7

Download

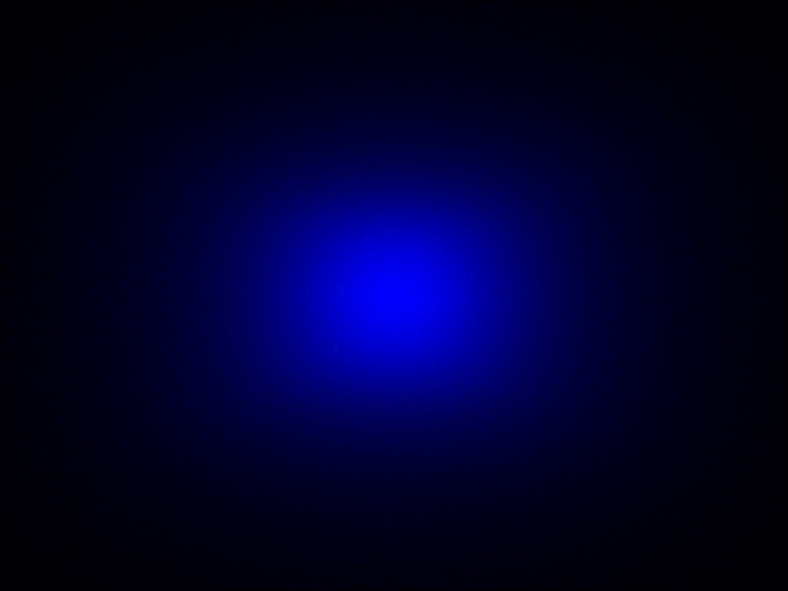

Cree XLamp XQ-A Blue

Eff:

82.0%

FWHM:

86 x 69°

Cd/Im:

0.6

Download

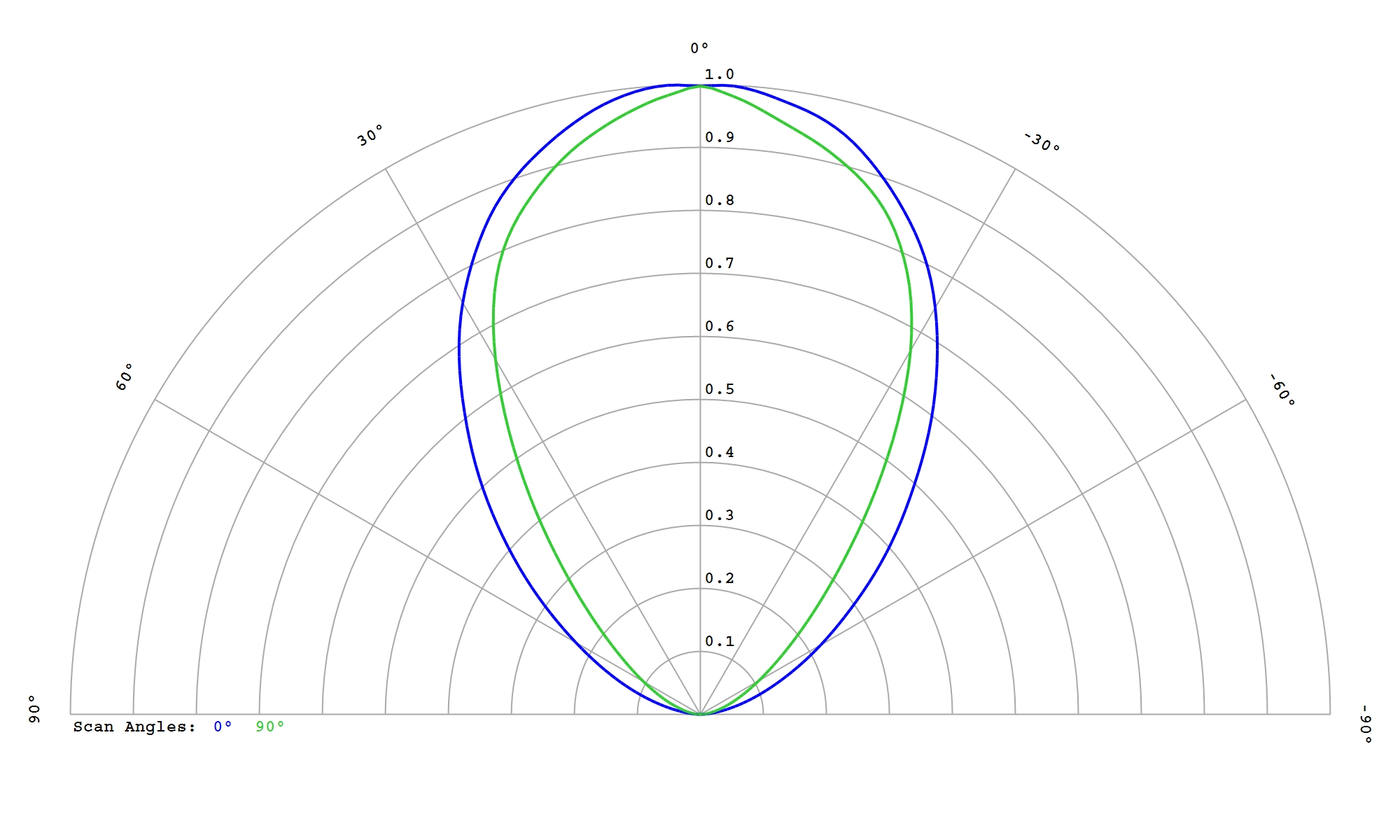

Cree XLamp XQ-A Green

Eff:

81.0%

FWHM:

77°

Cd/Im:

0.6

Download

Cree XLamp XQ-A PC Amber

Eff:

79.5%

FWHM:

88 x 72°

Cd/Im:

0.6

Download

Cree XLamp XQ-A PC Blue

Eff:

78.5%

FWHM:

92 x 71°

Cd/Im:

0.6

Download

Cree XLamp XQ-A Red

Eff:

82.0%

FWHM:

88 x 71°

Cd/Im:

0.6

Download

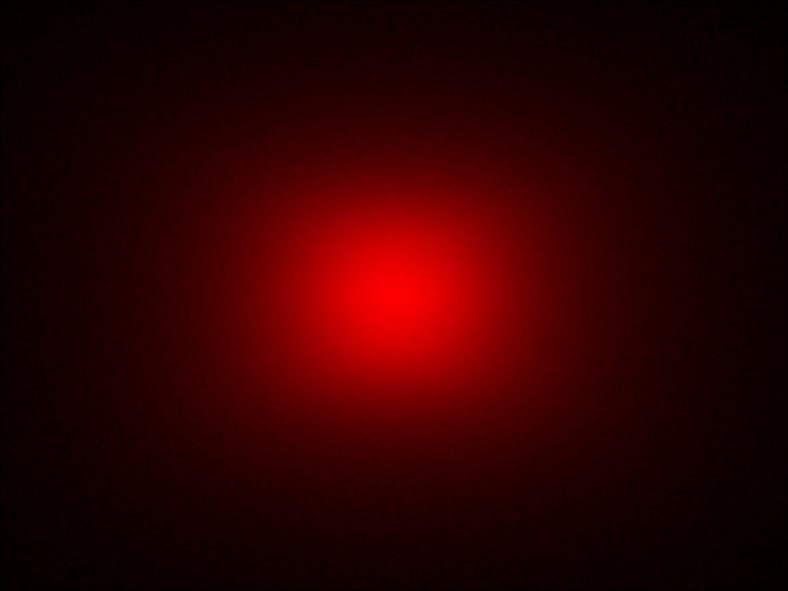

Cree XLamp XQ-A Red-Orange

Eff:

81.5%

FWHM:

88 x 72°

Cd/Im:

0.6


Download

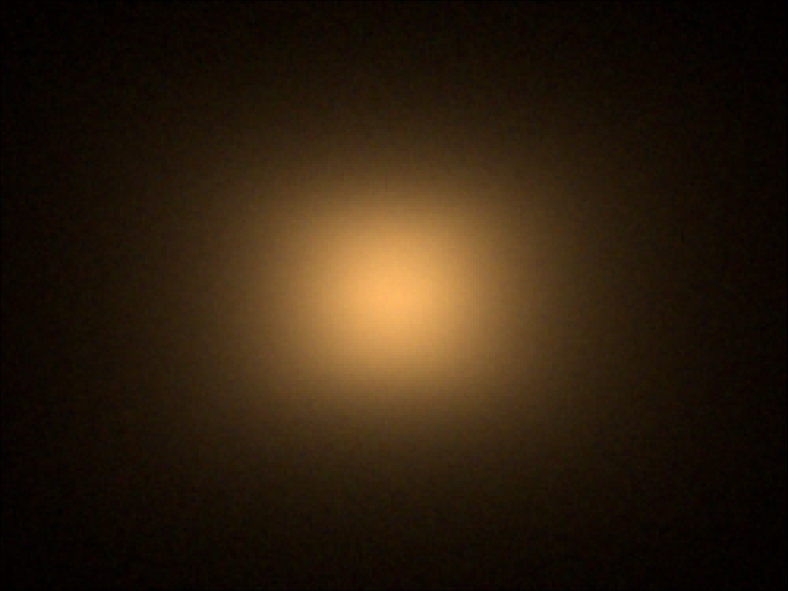

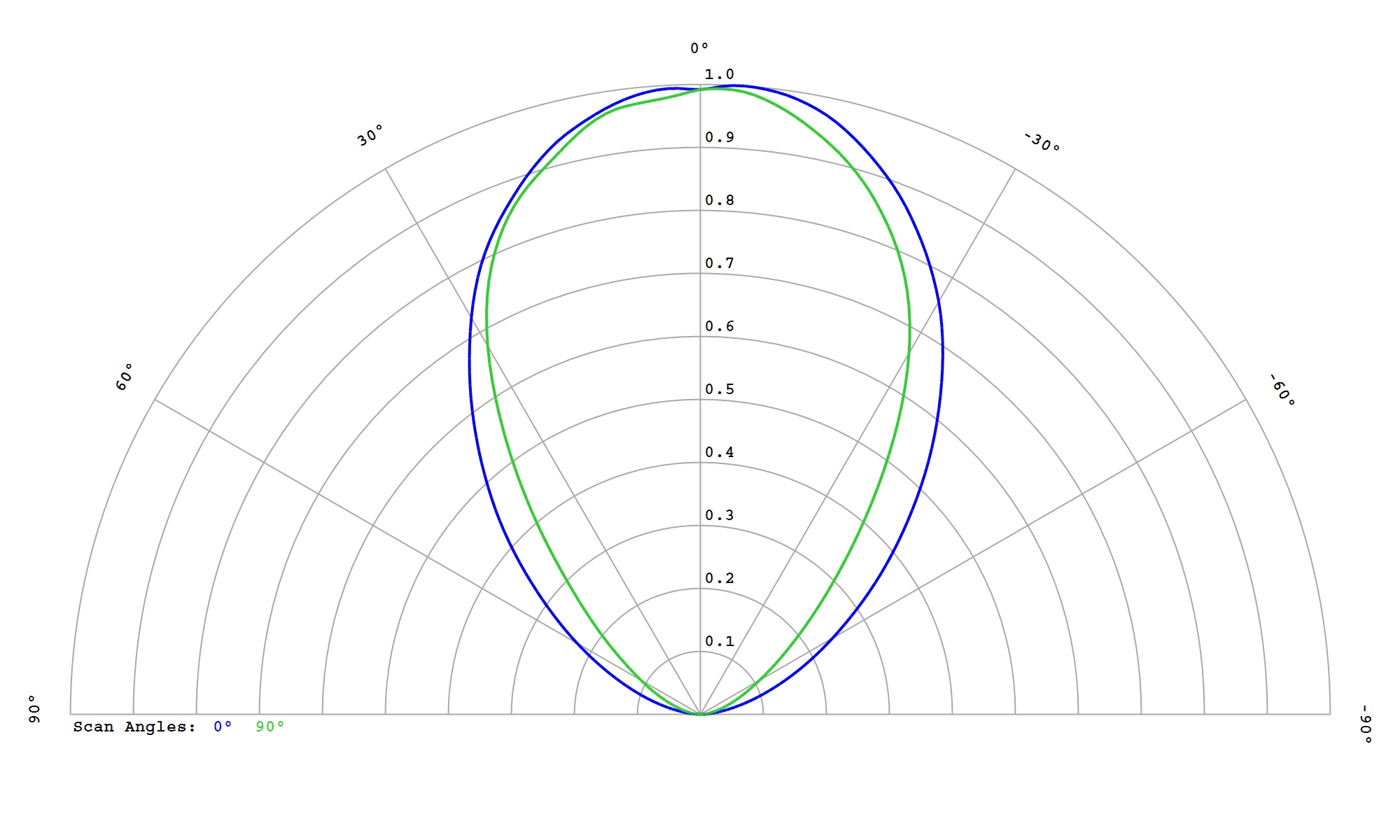

Cree XLamp XQ-A White

Eff:

80.0%

FWHM:

77°

Cd/Im:

0.6

Download

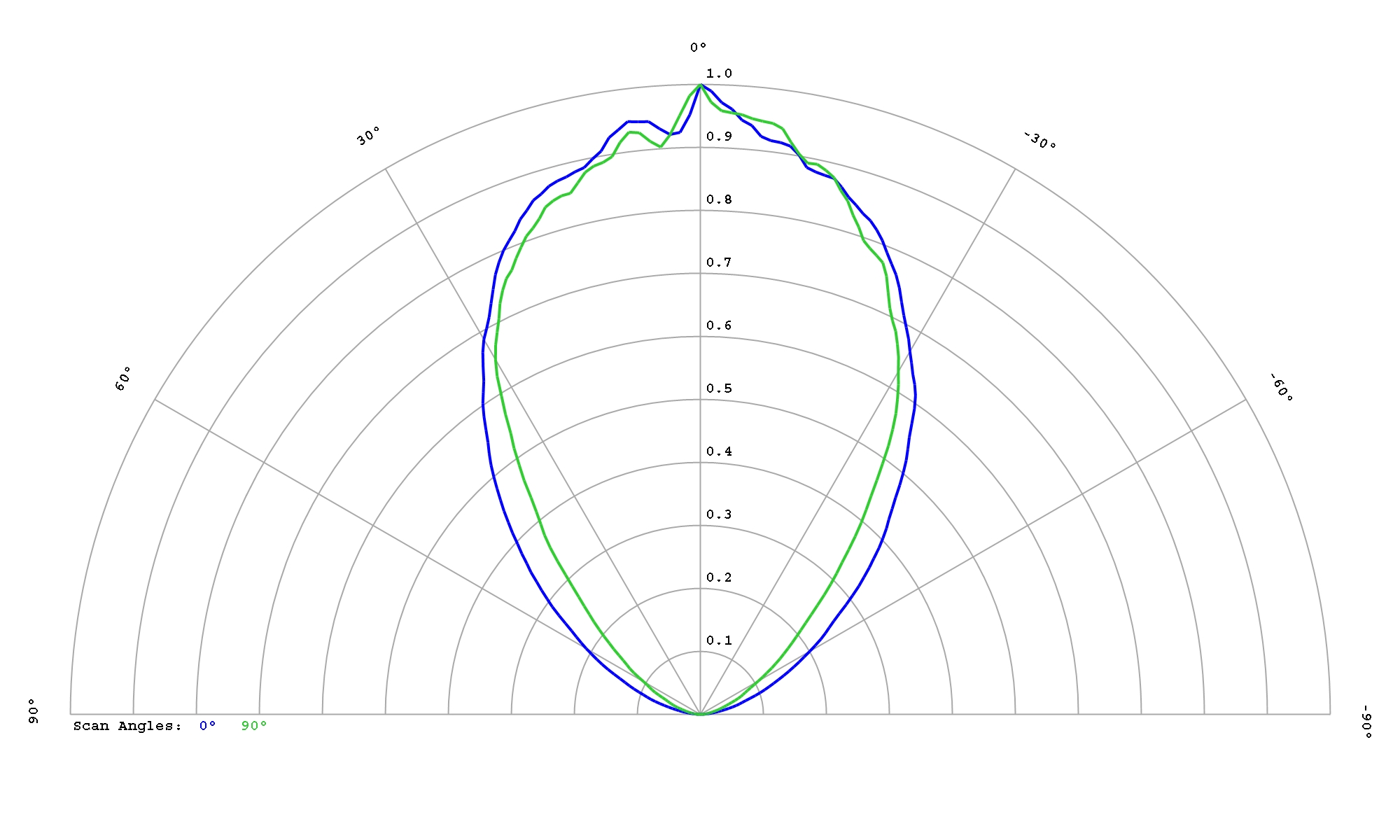

Cree XLamp XQ-E HD White

Eff:

80.5%

FWHM:

76°

Cd/Im:

0.6

Download

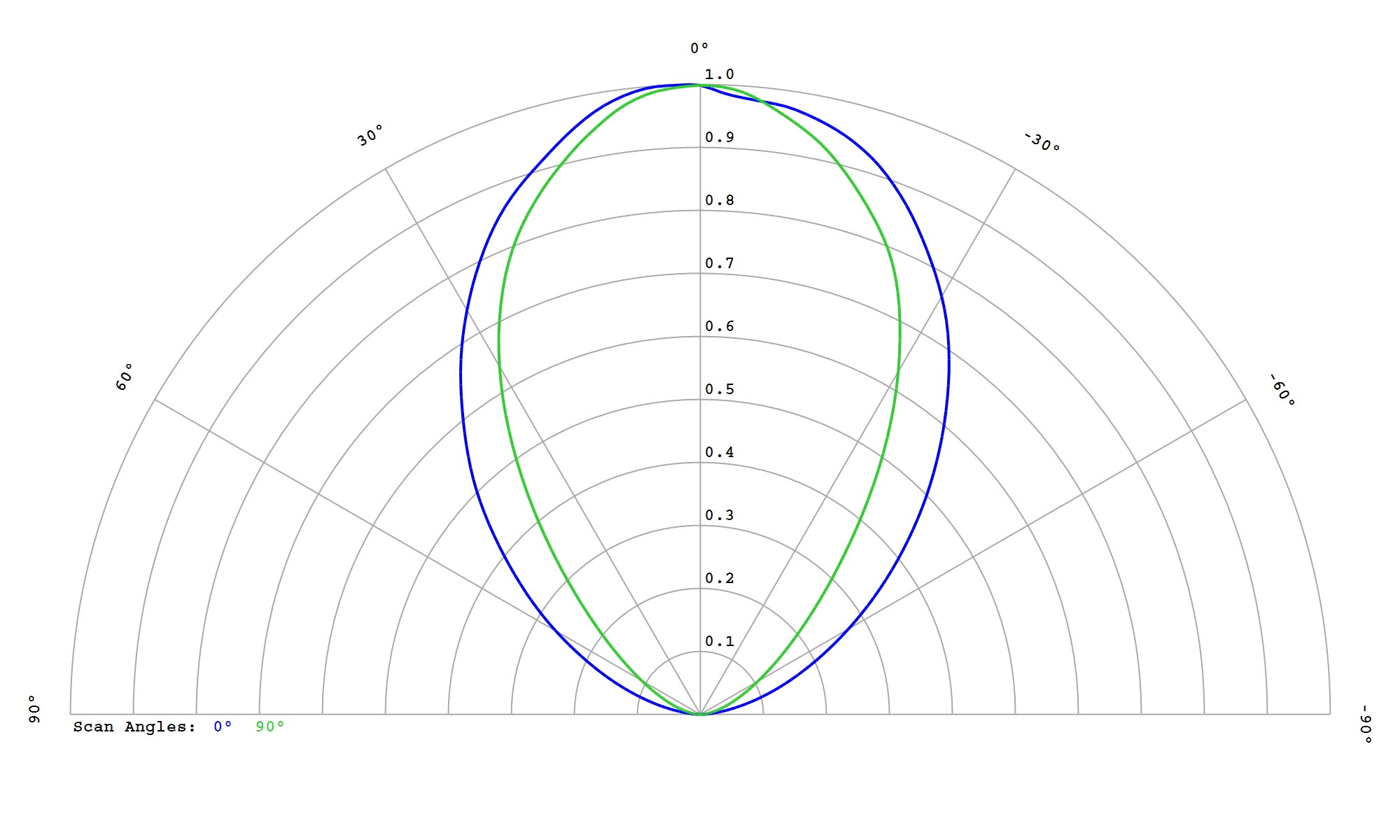

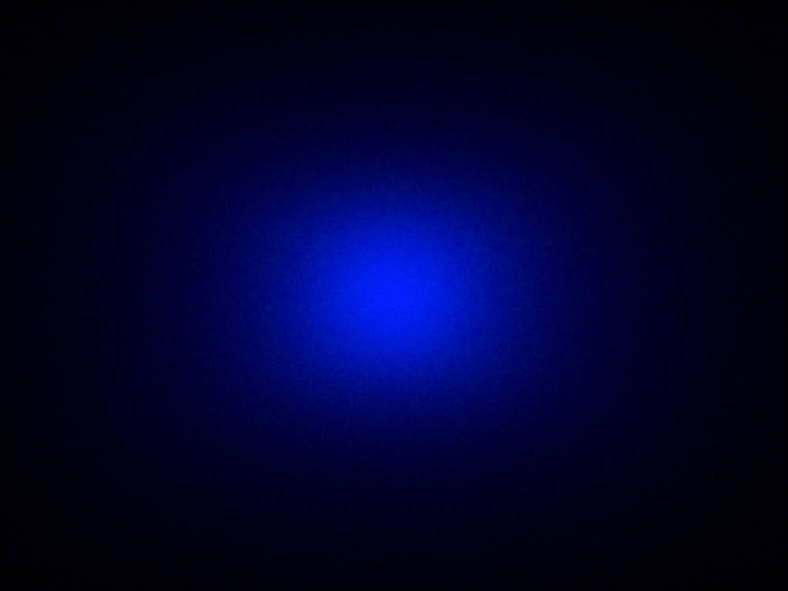

Cree XLamp XQ-E Plus HD Blue

Eff:

80.5%

FWHM:

90 x 69°

Cd/Im:

0.6


Download

Cree XLamp XQ-E Plus HD Green

Eff:

79.5%

FWHM:

87 x 69°

Cd/Im:

0.5


Download

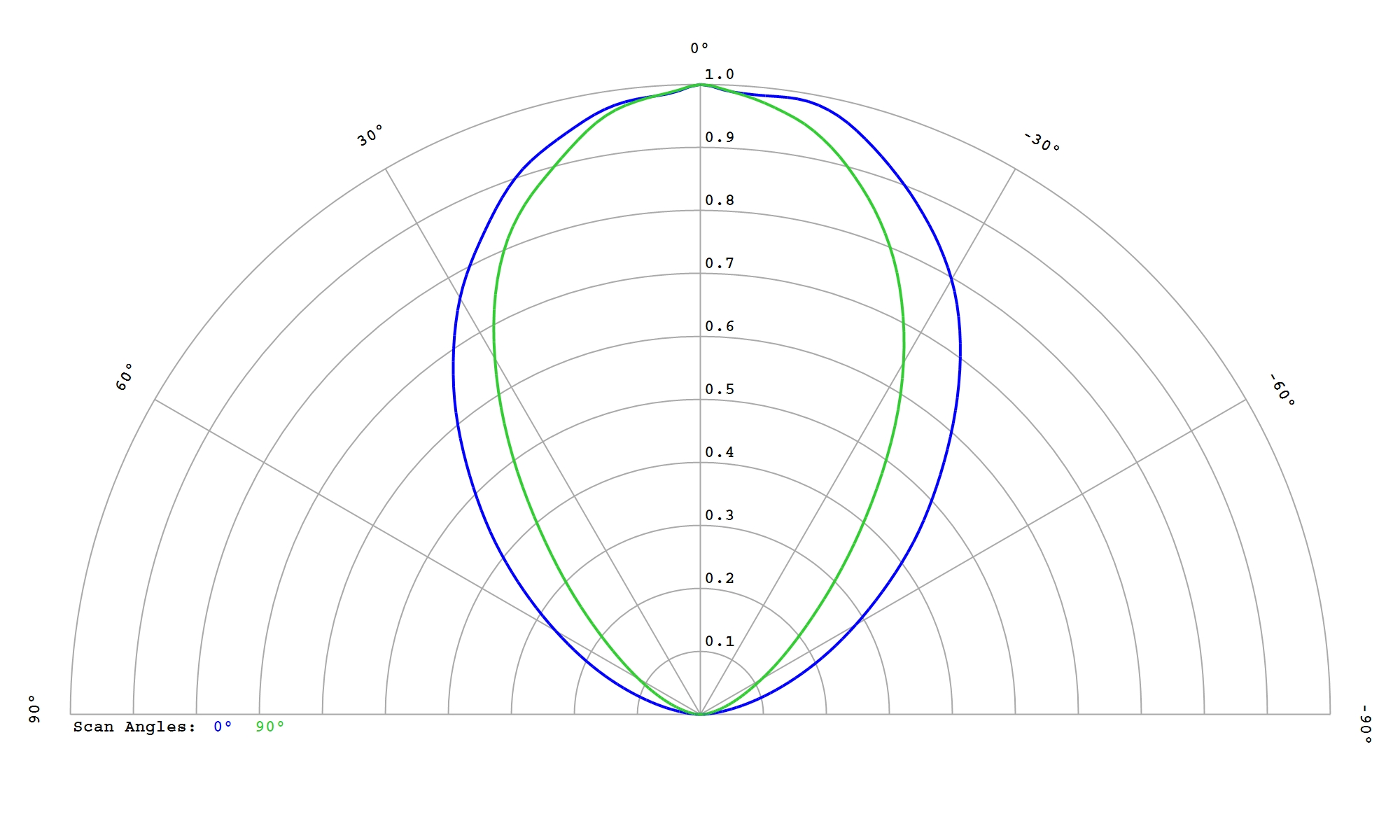

Cree XLamp XQ-E Plus HD PC Amber

Eff:

79.0%

FWHM:

86 x 67°

Cd/Im:

0.5


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

81.0%

FWHM:

90 x 69°

Ipk/W:

0.6


Download

Cree XLamp XQ-E Plus HD White

Eff:

78.5%

FWHM:

91 x 71°

Cd/Im:

0.7


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

79.0%

FWHM:

96 x 71°

Cd/Im:

0.6


Download

Cree XLamp XQ-E Plus HI Green

Eff:

77.5%

FWHM:

94 x 68°

Cd/Im:

0.5


Download

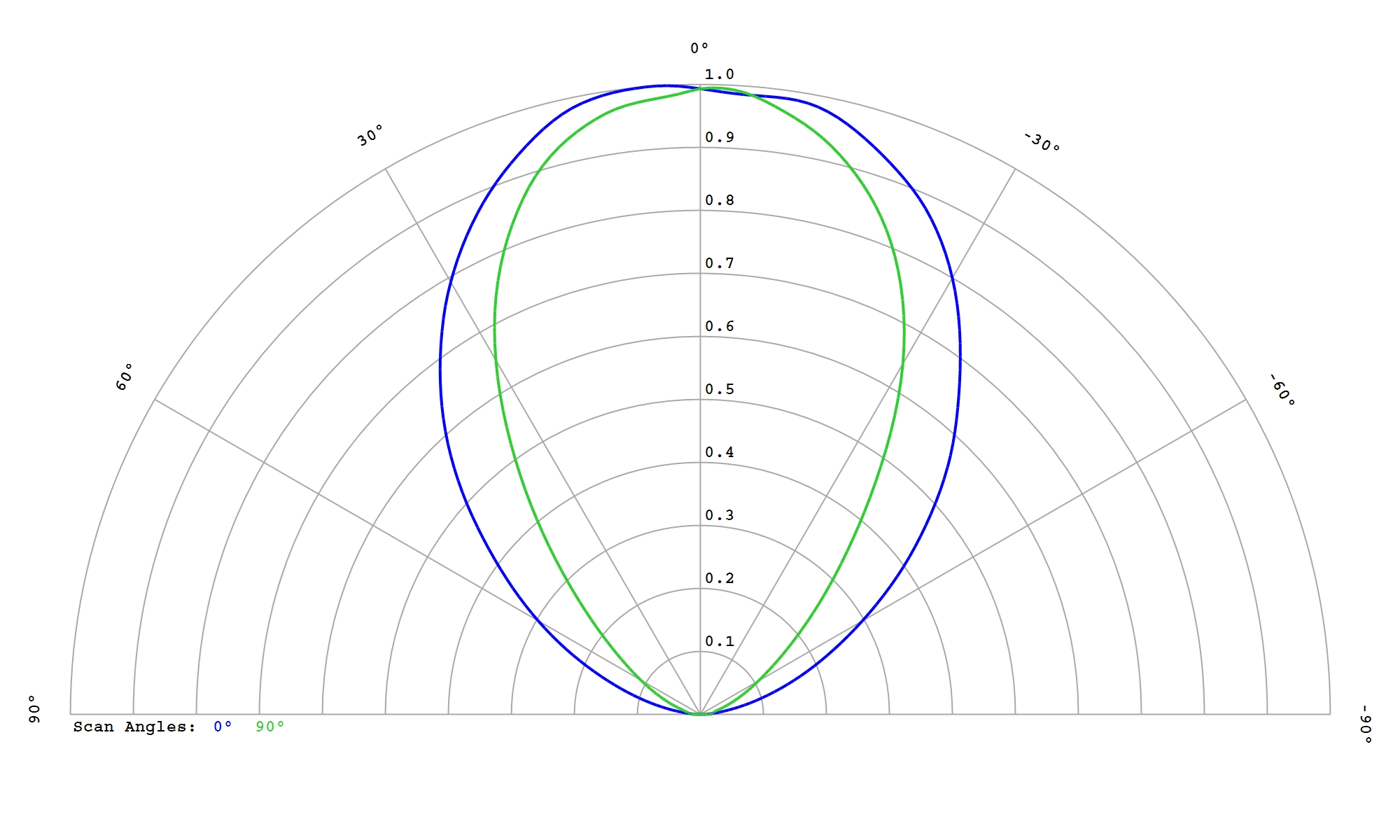

Cree XLamp XQ-E Plus HI PC Amber

Eff:

77.5%

FWHM:

96 x 70°

Cd/Im:

0.5


Download

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

79.5%

FWHM:

93 x 69°

Ipk/W:

0.5


Download

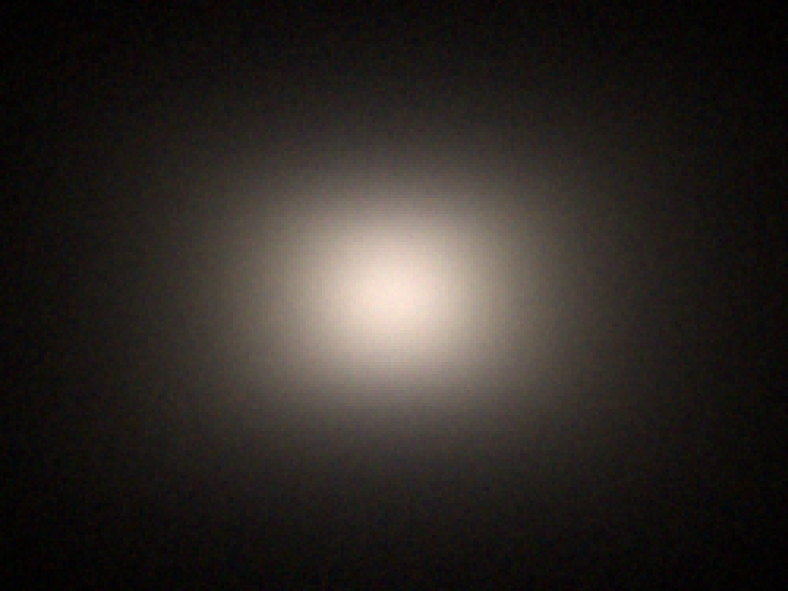

Cree XLamp XQ-E Plus HI White

Eff:

79.5%

FWHM:

90 x 68°

Cd/Im:

0.6


Download

LUMILEDS LUXEON 2835C 6V White

Eff:

81.0%

FWHM:

88 x 68°

Cd/Im:

0.6

Download

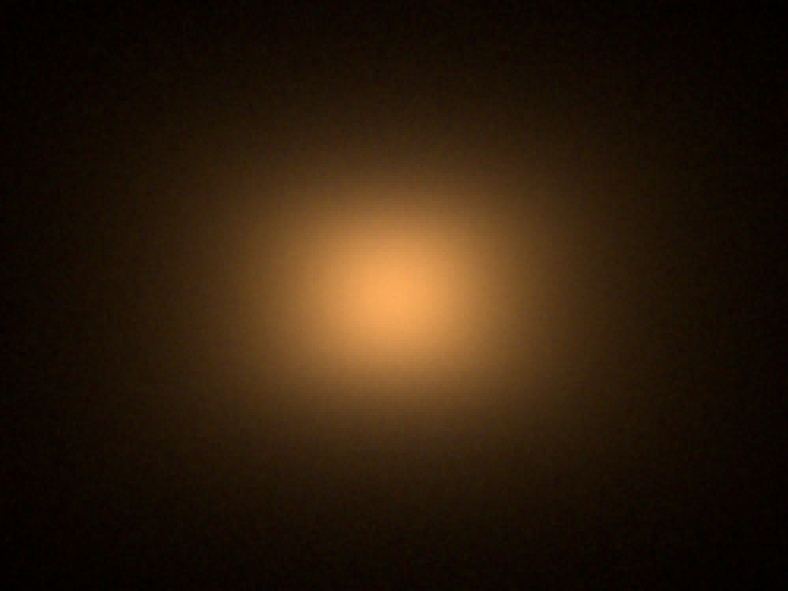

LUMILEDS LUXEON 2835E 9V White

Eff:

81.0%

FWHM:

87 x 69°

Cd/Im:

0.6

Download

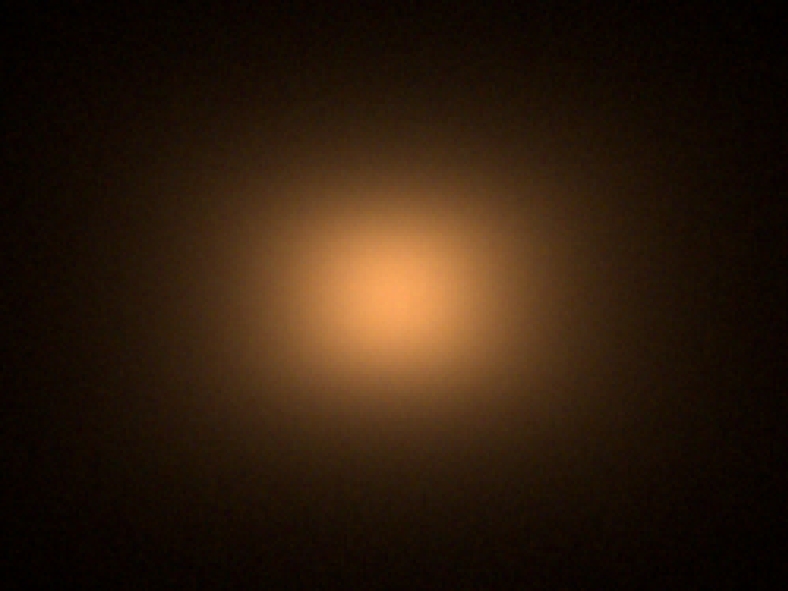

LUMILEDS LUXEON 2835N 3V White

Eff:

80.5%

FWHM:

91 x 66°

Cd/Im:

0.6

Download

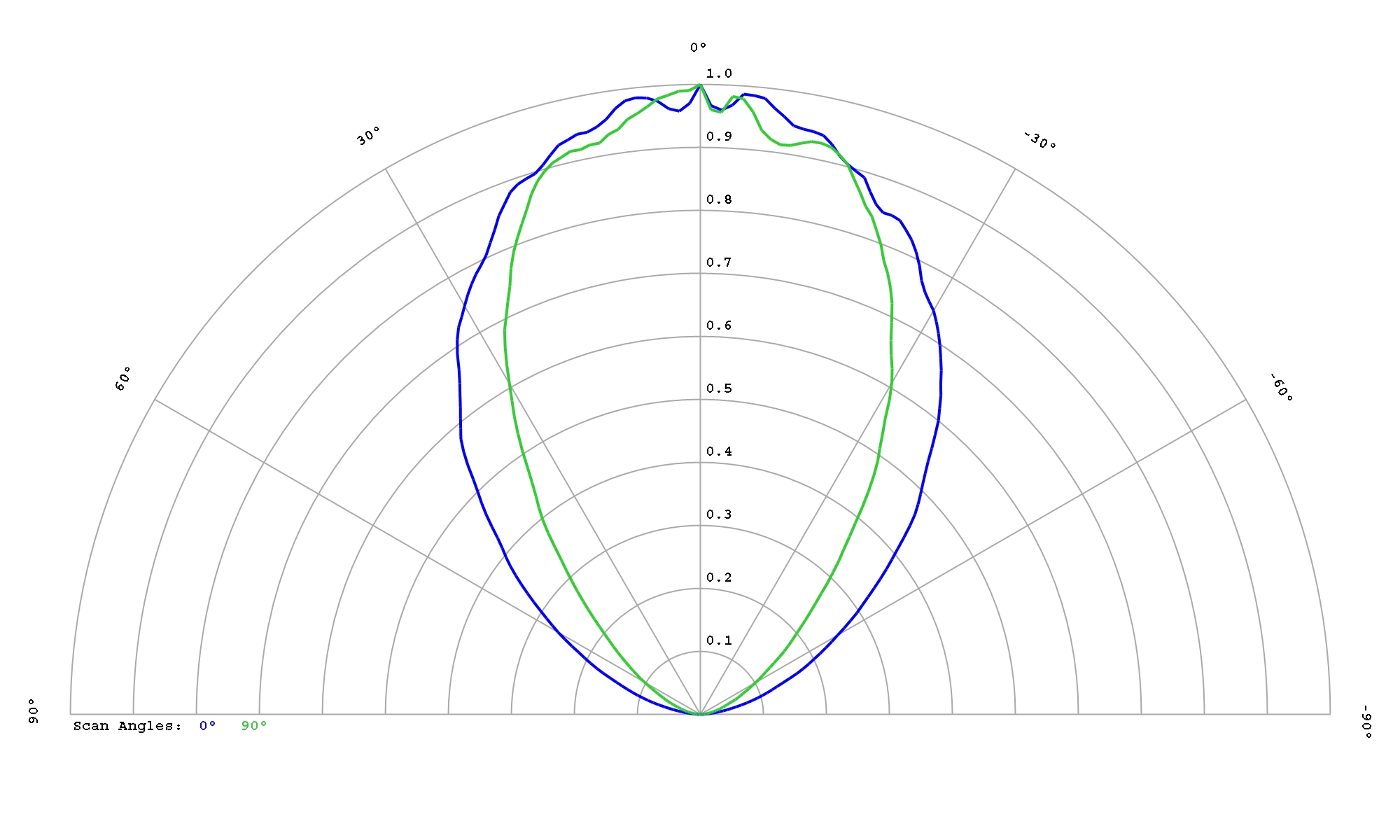

LUMILEDS LUXEON 2835S 3V White

Eff:

80.5%

FWHM:

90 x 68°

Cd/Im:

0.6

Download

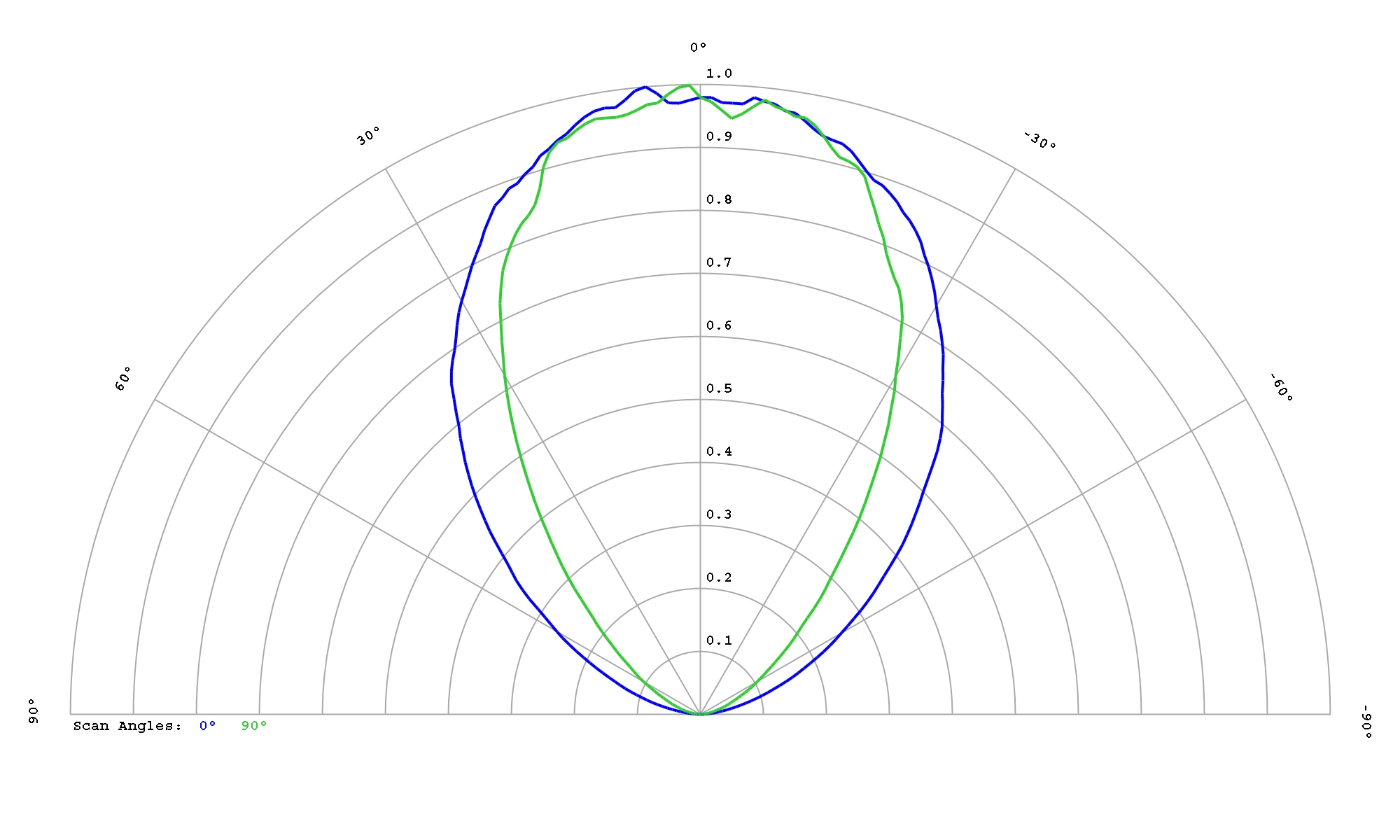

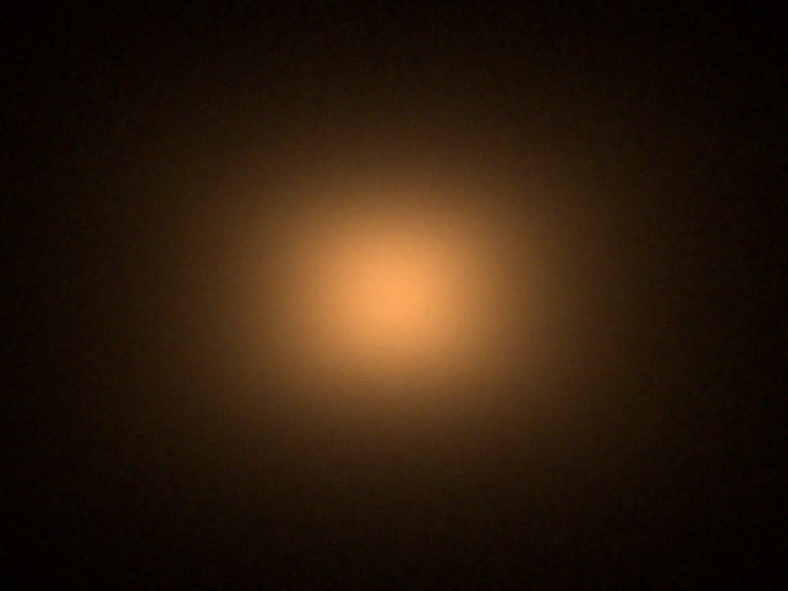

LUMILEDS LUXEON 2835S 6V White

Eff:

81.0%

FWHM:

90 x 68°

Cd/Im:

0.6

Download

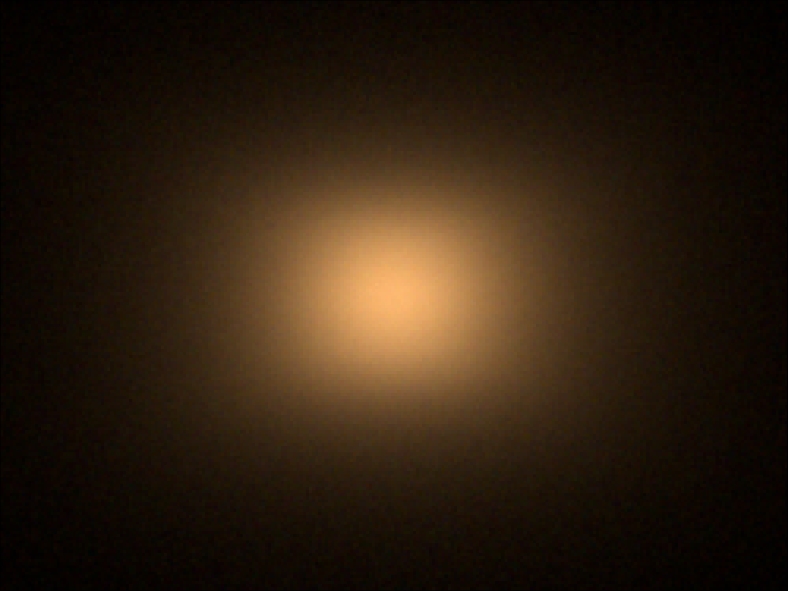

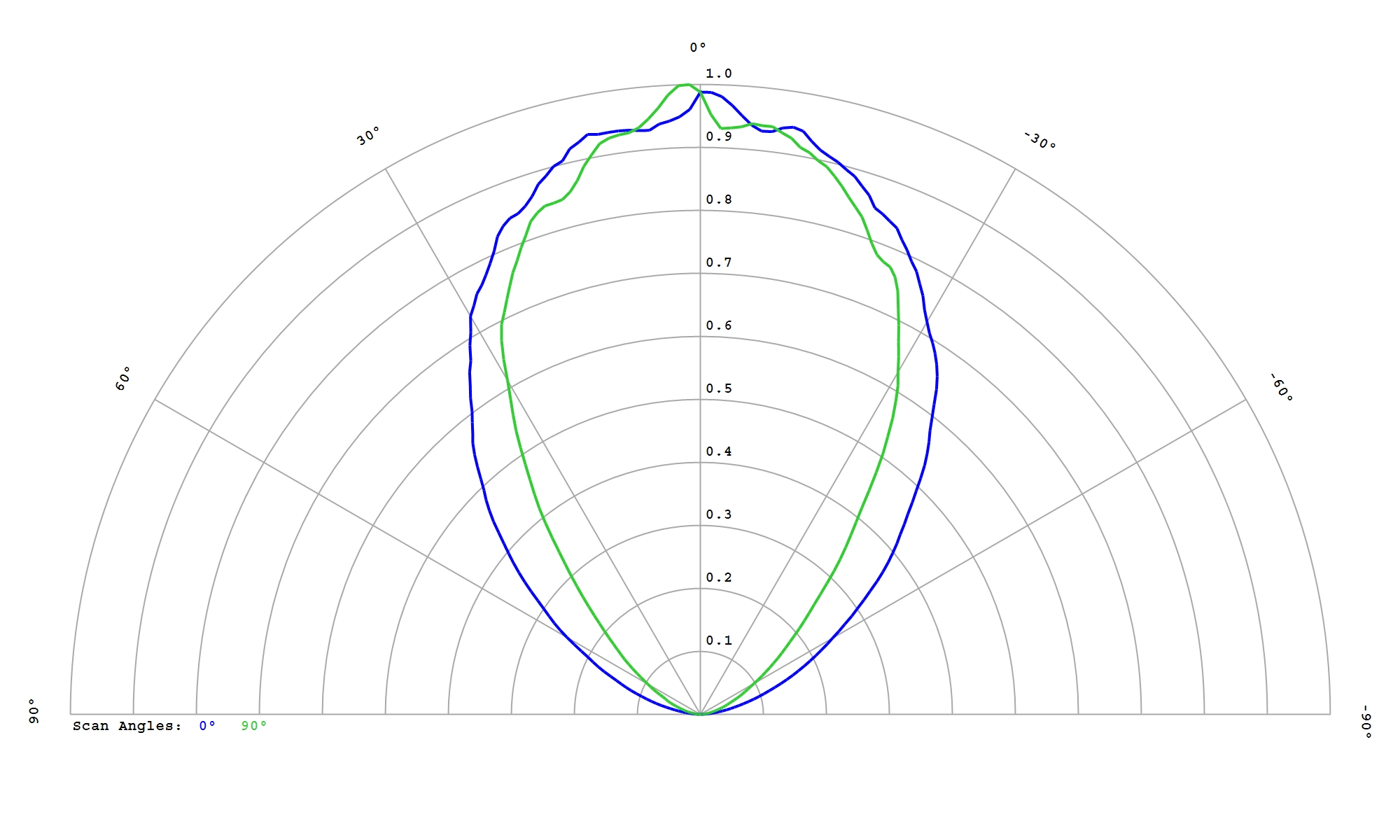

LUMILEDS LUXEON 3014 White

Eff:

81.0%

FWHM:

90 x 69°

Cd/Im:

0.6

Download

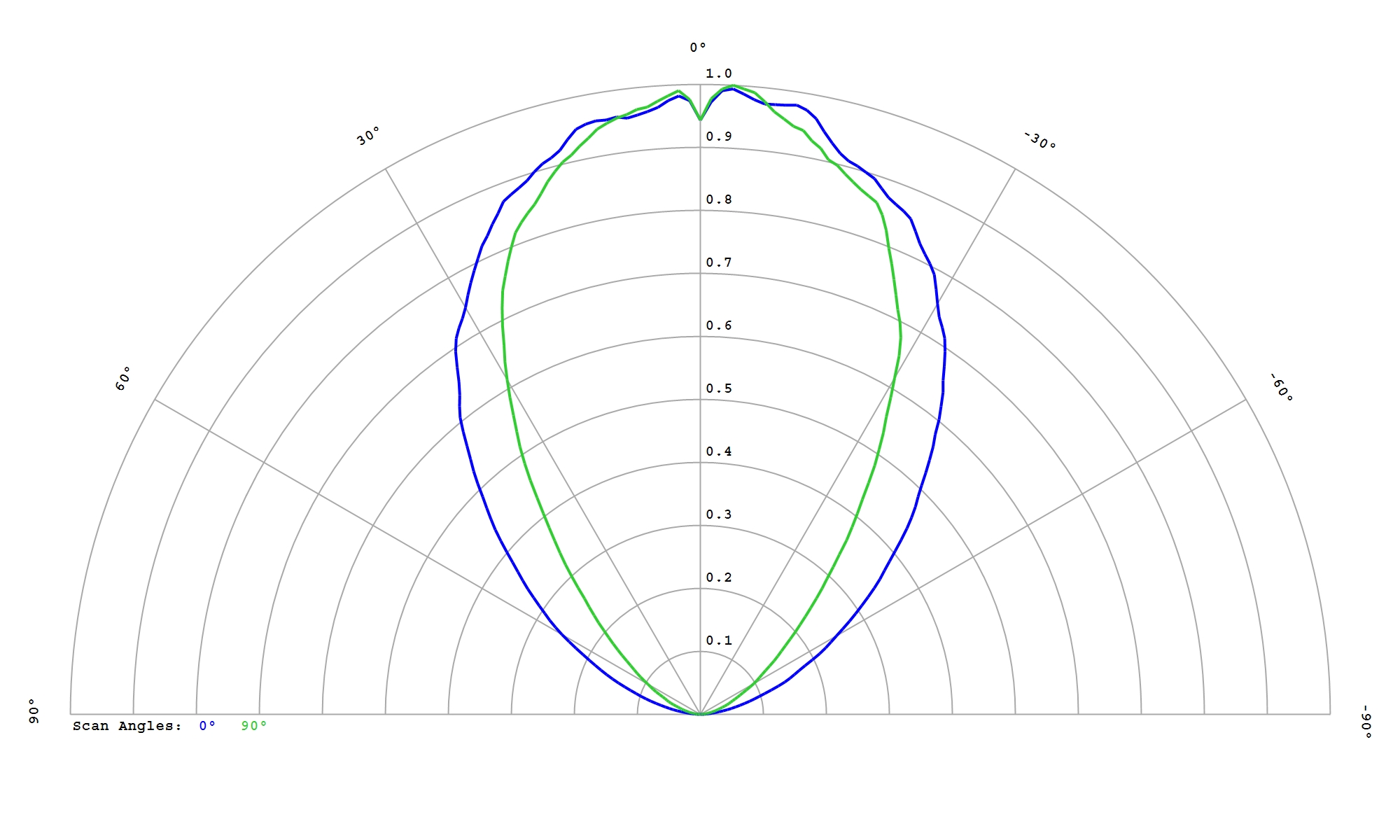

LUMILEDS LUXEON 3020 White

Eff:

80.5%

FWHM:

88 x 68°

Cd/Im:

0.6

Download

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

80.5%

FWHM:

89 x 70°

Cd/Im:

0.6


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

80.5%

FWHM:

90 x 68°

Cd/Im:

0.6


Download

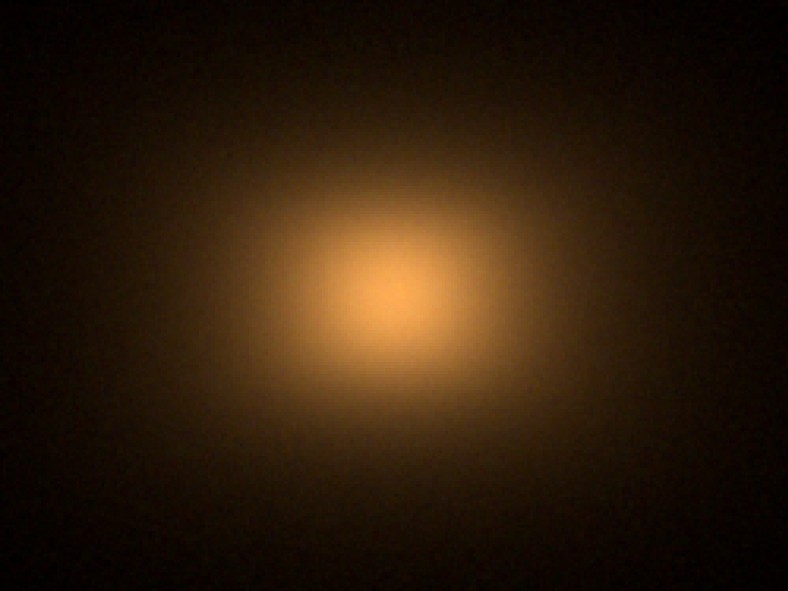

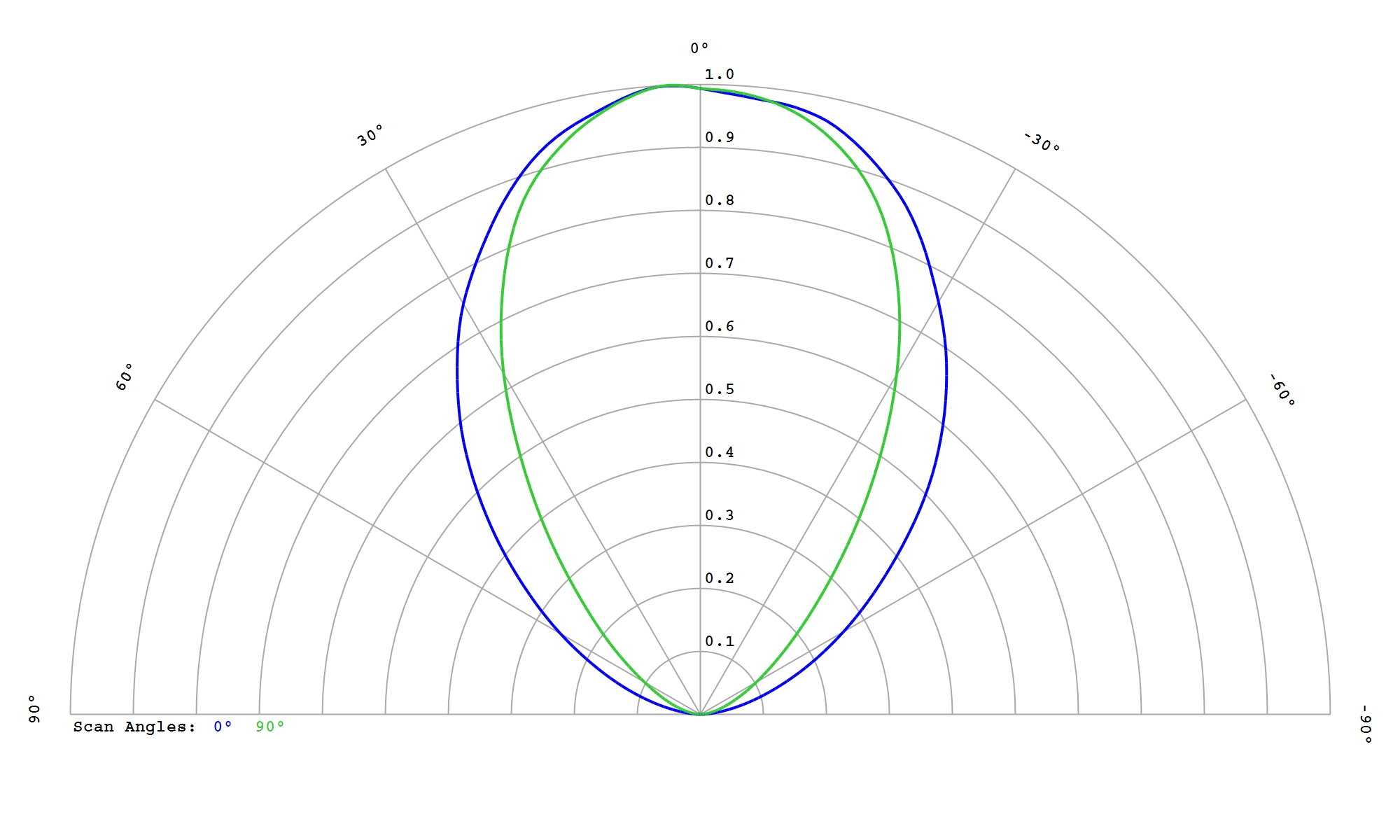

LUMILEDS LUXEON 3030 2D Square White

Eff:

81.0%

FWHM:

88 x 67°

Cd/Im:

0.6


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

80.5%

FWHM:

89 x 66°

Cd/Im:

0.6

Download

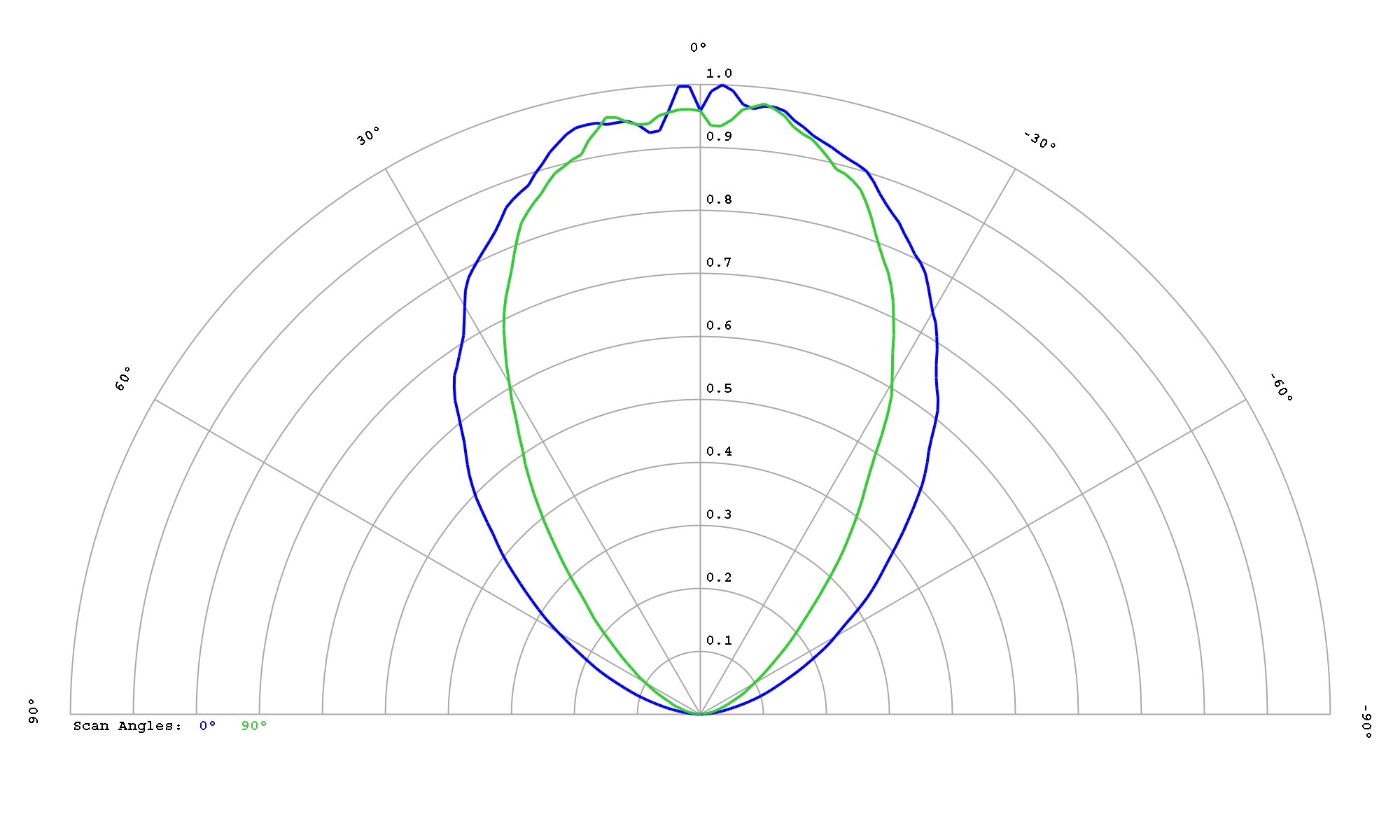

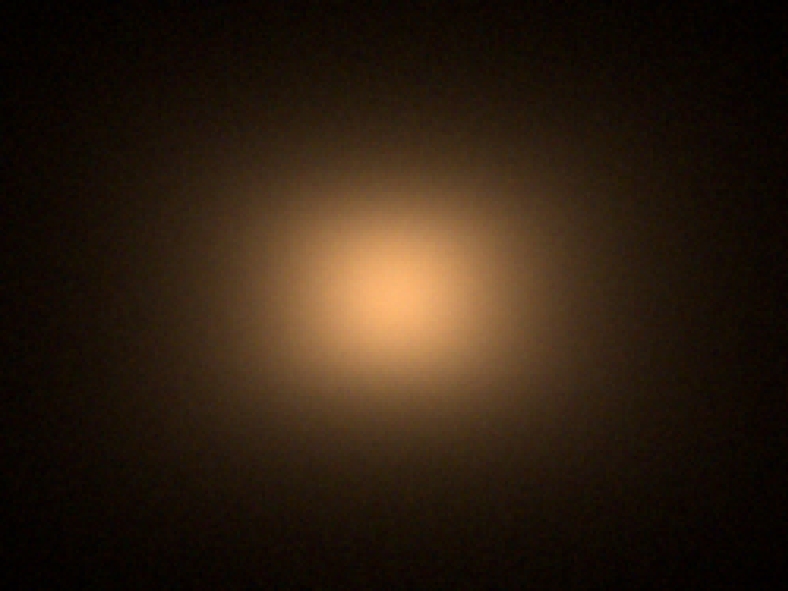

LUMILEDS LUXEON 3030 HE White

Eff:

80.5%

FWHM:

88 x 69°

Cd/Im:

0.6

Download

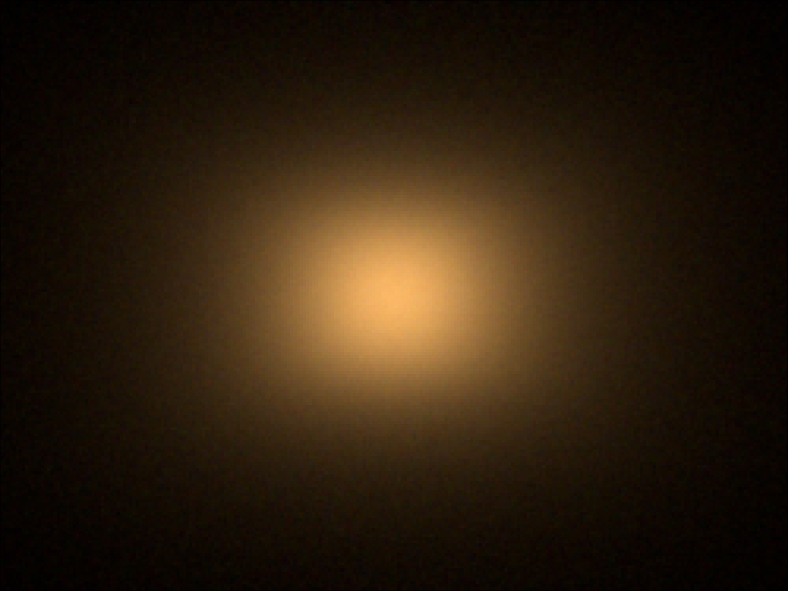

LUMILEDS LUXEON 3535 L White

Eff:

81.0%

FWHM:

85 x 65°

Cd/Im:

0.7

Download

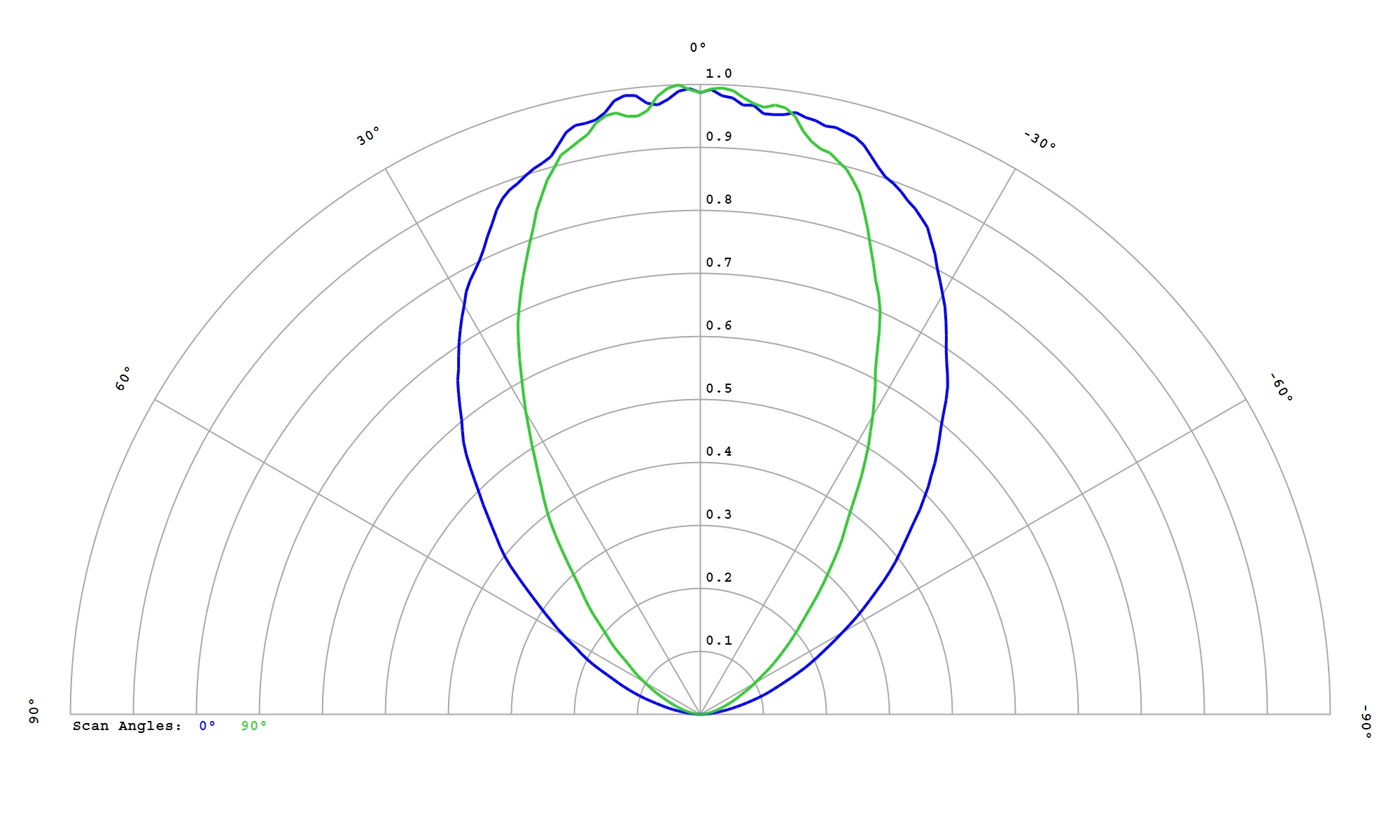

LUMILEDS LUXEON 5050 HE 24V White

Eff:

80.0%

FWHM:

90 x 64°

Cd/Im:

0.6

Download

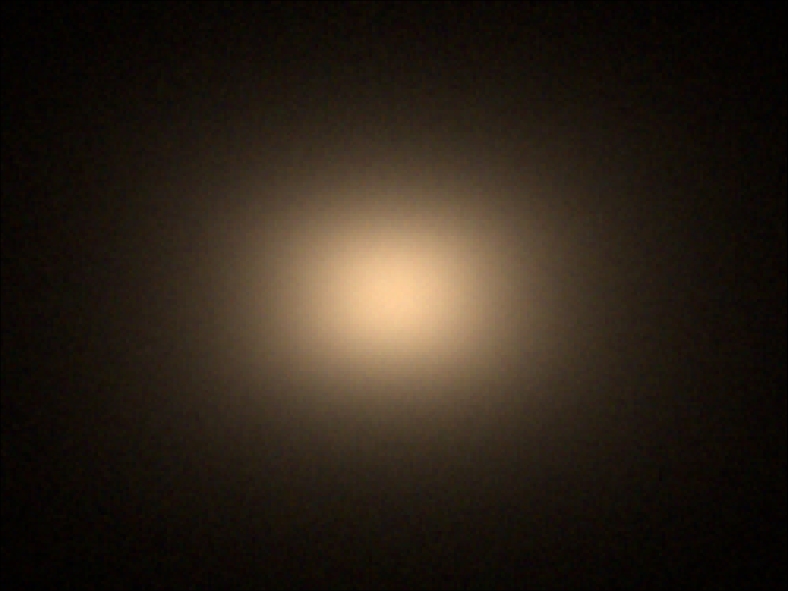

LUMILEDS LUXEON 5050 HE 6V White

Eff:

80.0%

FWHM:

89 x 60°

Cd/Im:

0.6

Download

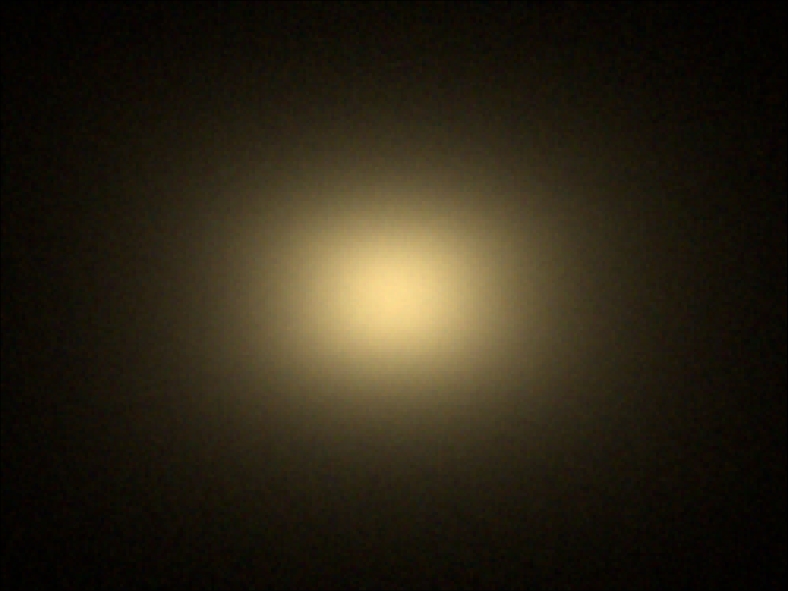

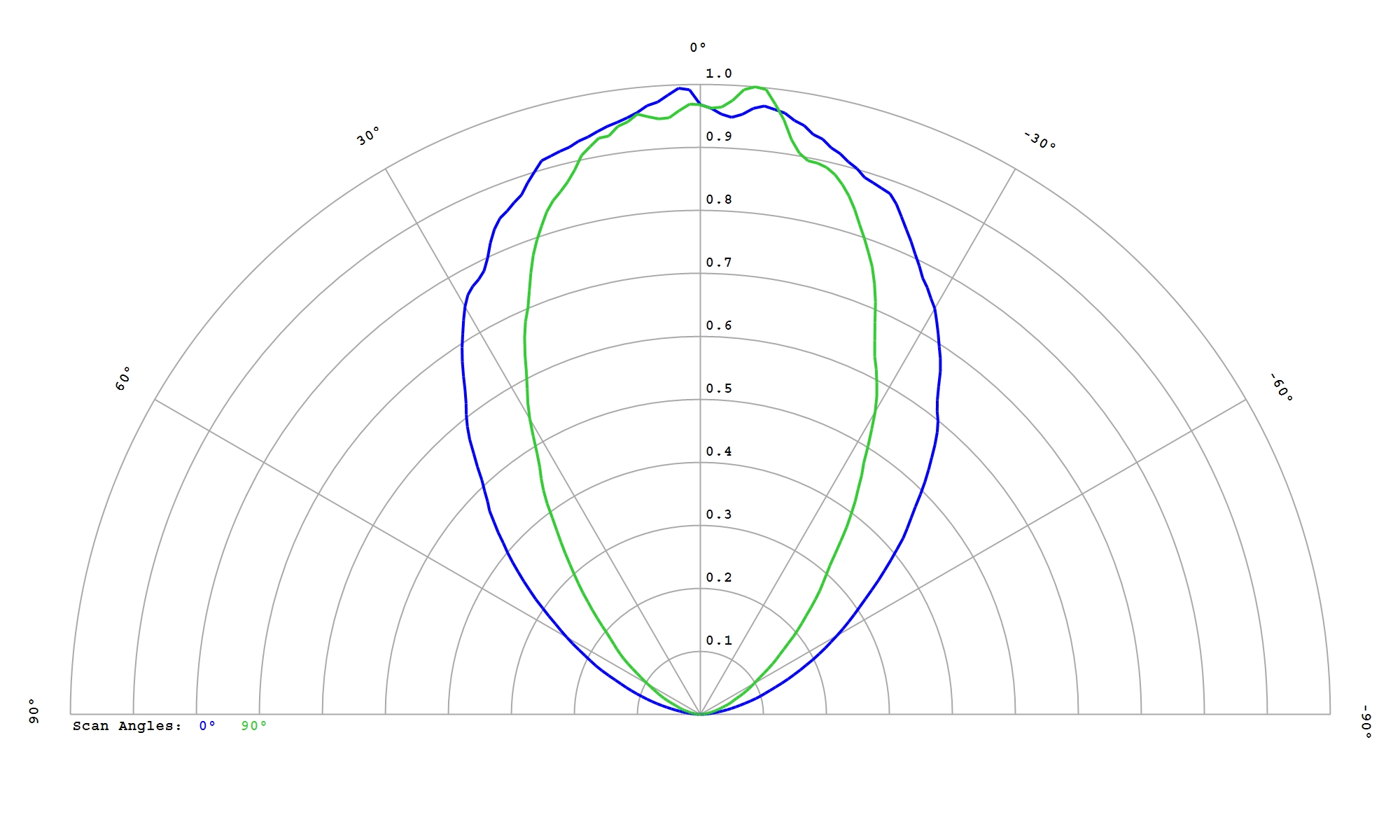

LUMILEDS LUXEON 5050 Round 24V White

Eff:

80.5%

FWHM:

85 x 63°

Cd/Im:

0.6


Download

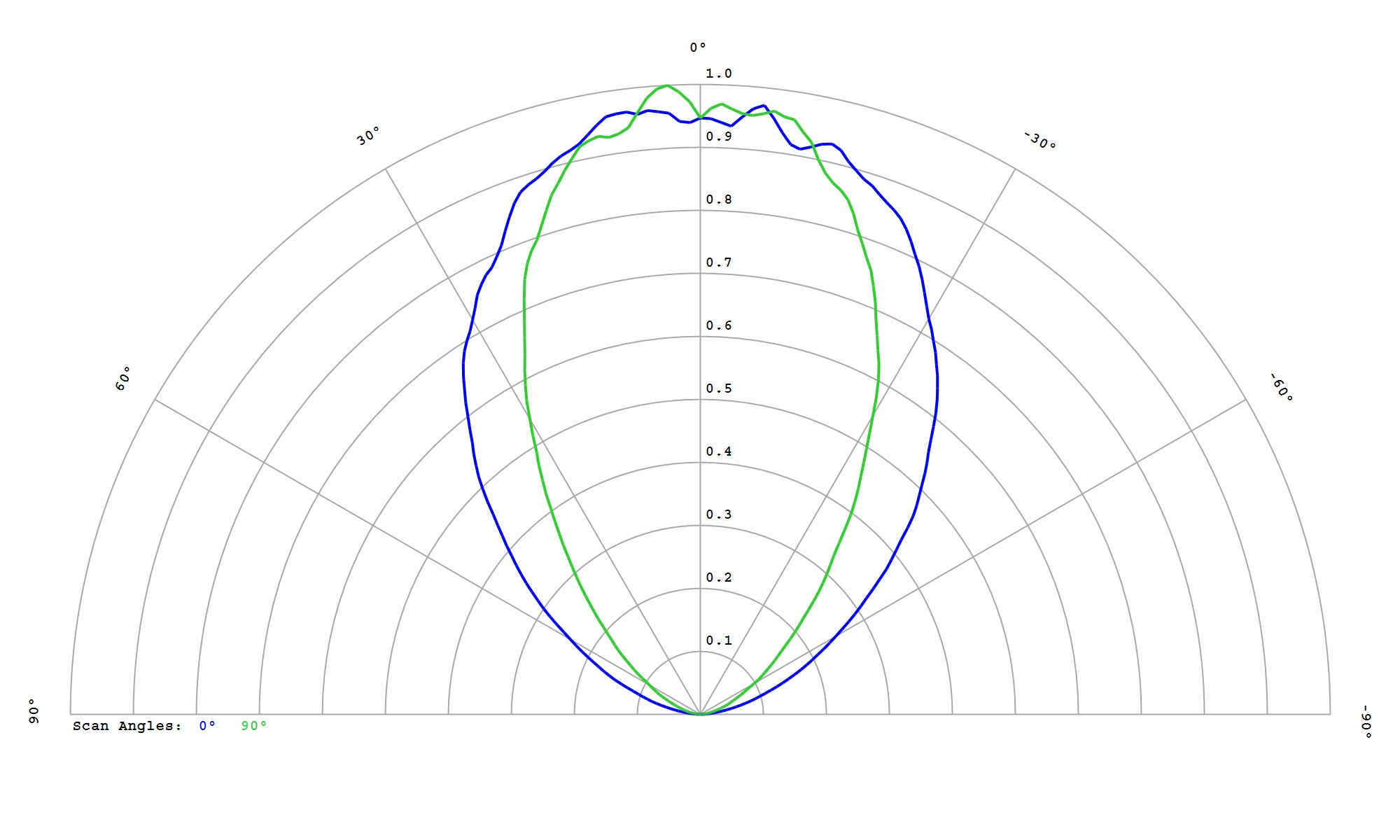

LUMILEDS LUXEON 5050 Round 6V White

Eff:

80.5%

FWHM:

89 x 63°

Cd/Im:

0.6


Download

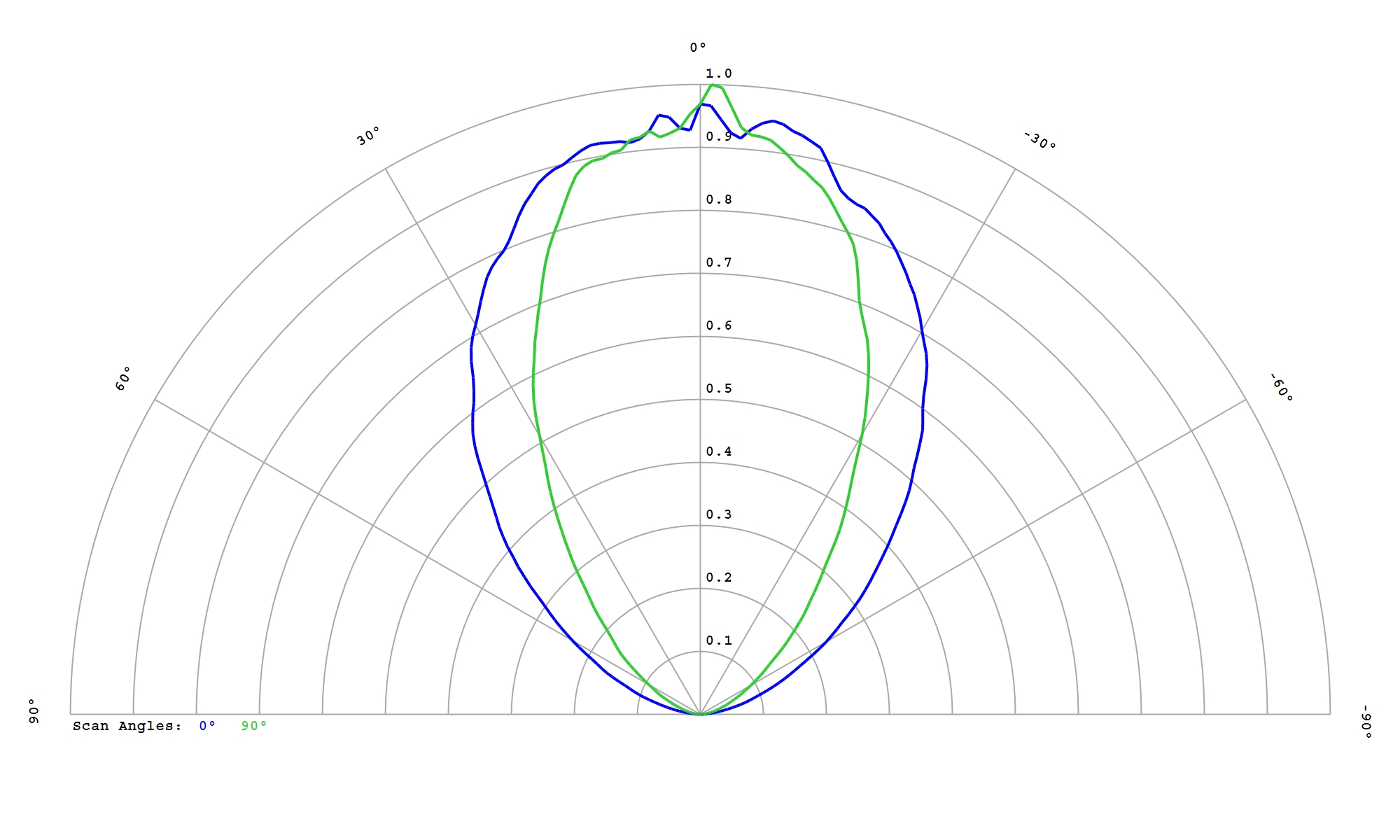

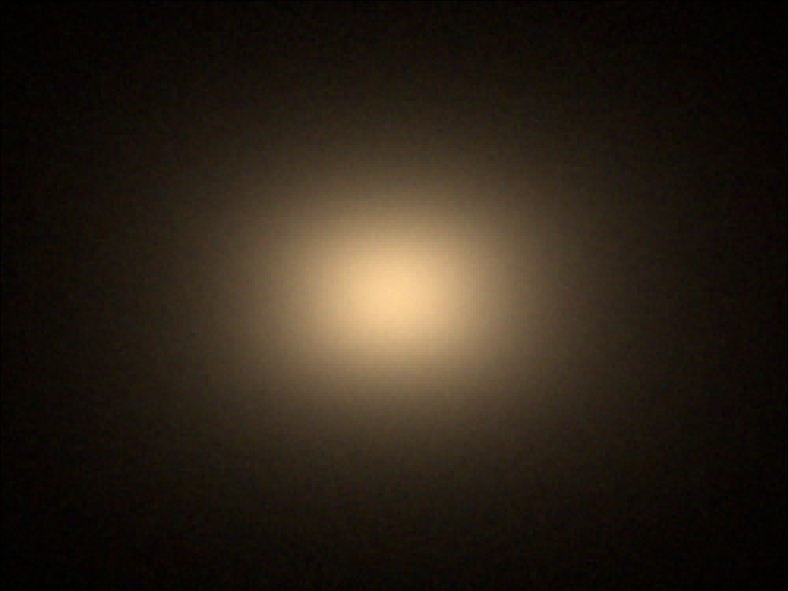

LUMILEDS LUXEON 5050 Square 30V White

Eff:

80.5%

FWHM:

87 x 60°

Cd/Im:

0.7


Download

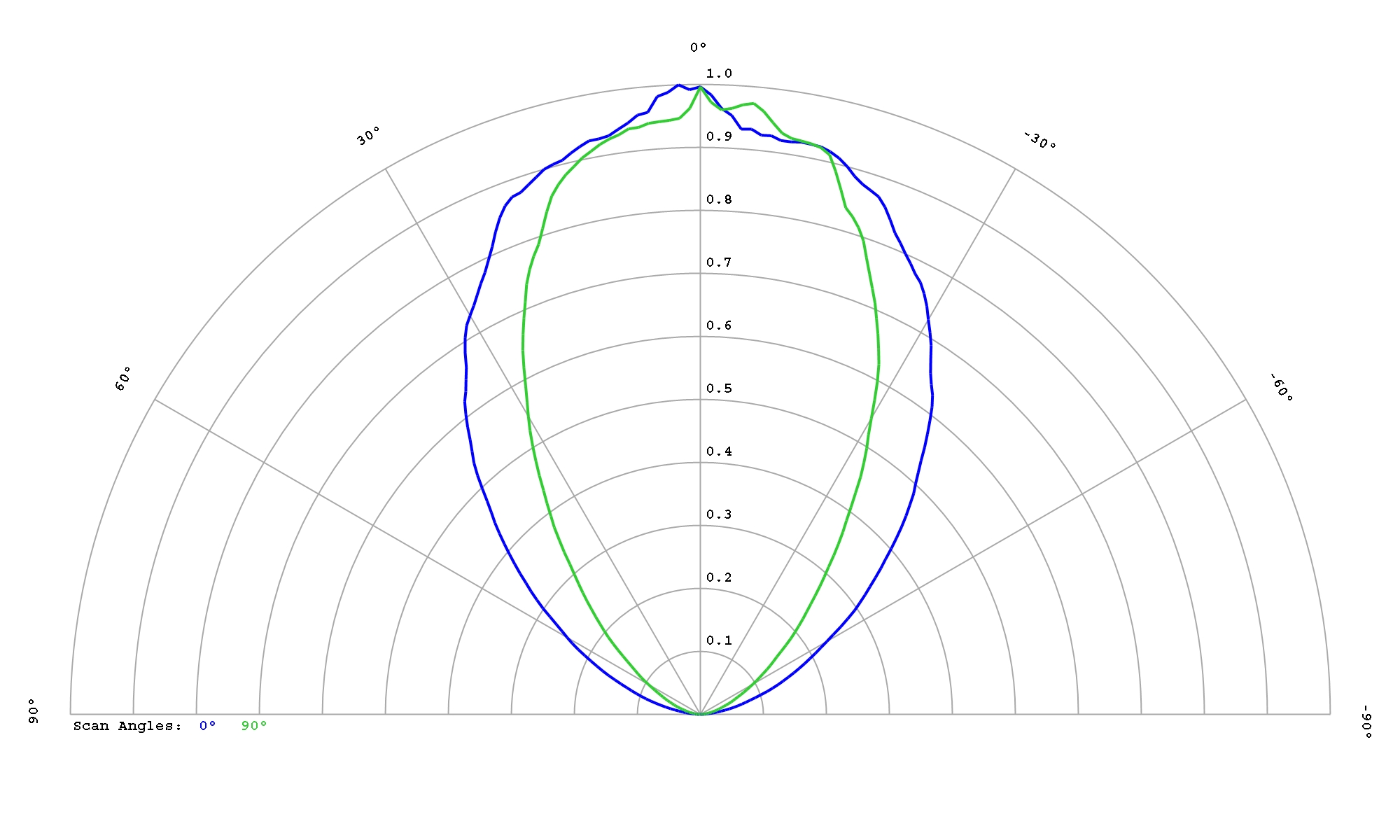

LUMILEDS LUXEON 5050 Square 6V White

Eff:

81.0%

FWHM:

85 x 65°

Cd/Im:

0.6


Download

LUMILEDS LUXEON 5052 RGBW

Eff:

77.5%

FWHM:

92 x 67°

Cd/Im:

0.5

Download

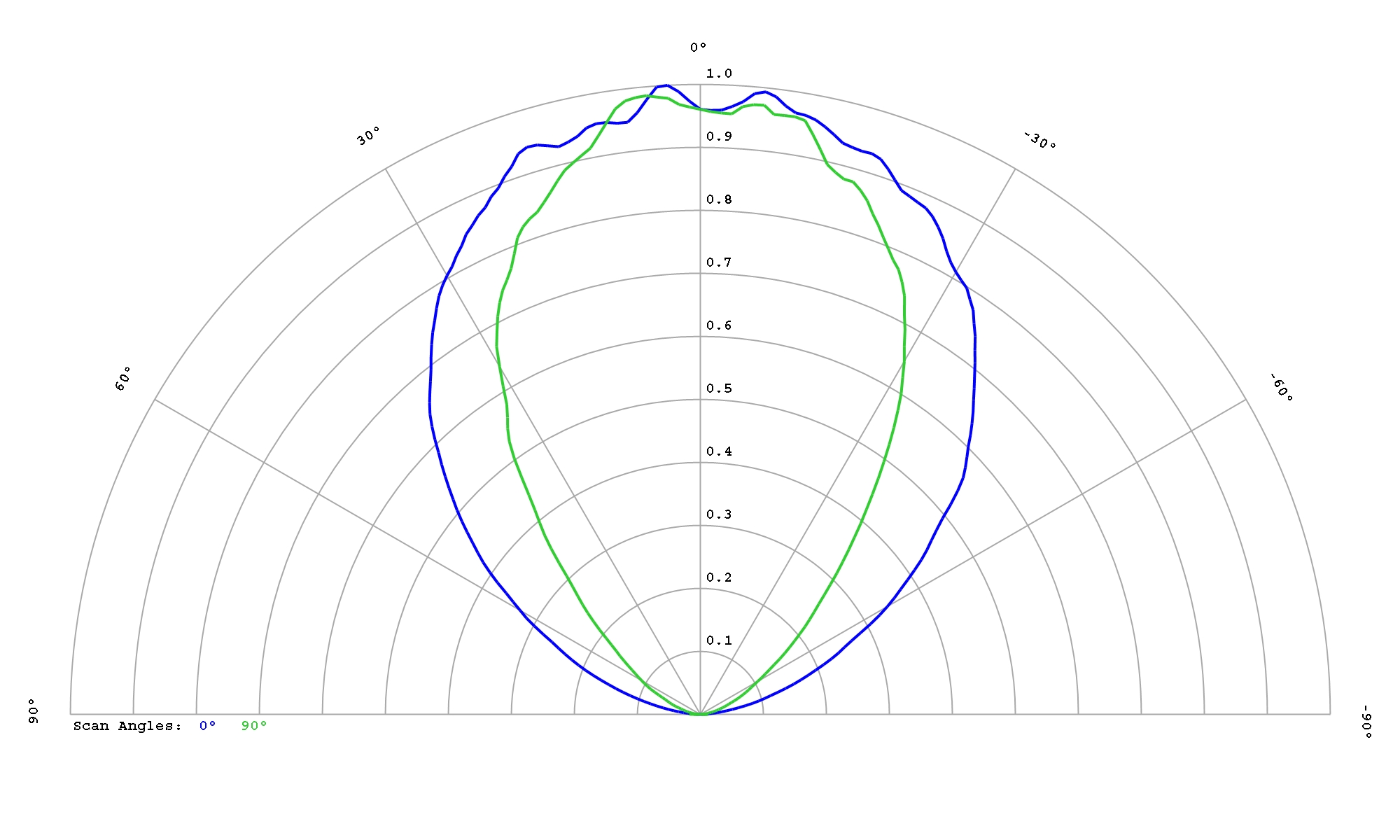

LUMILEDS LUXEON C White

Eff:

74.0%

FWHM:

101 x 73°

Cd/Im:

0.5

Download

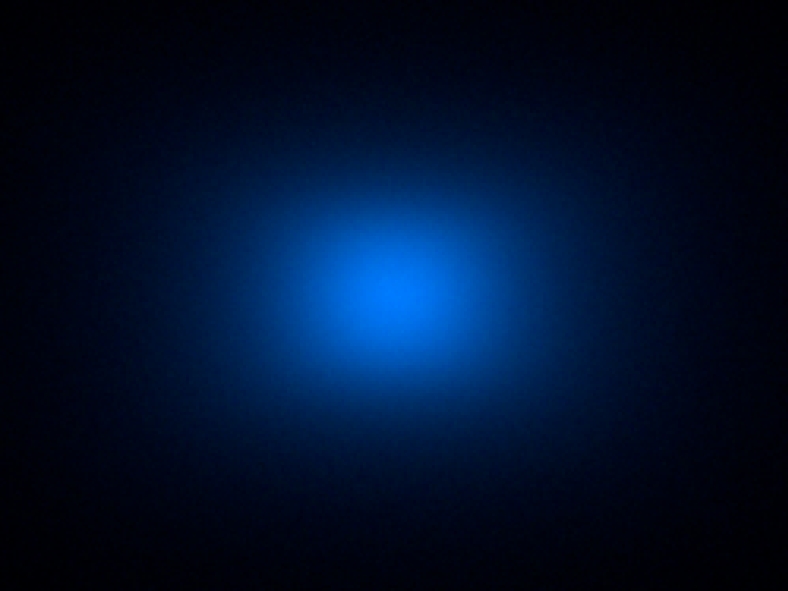

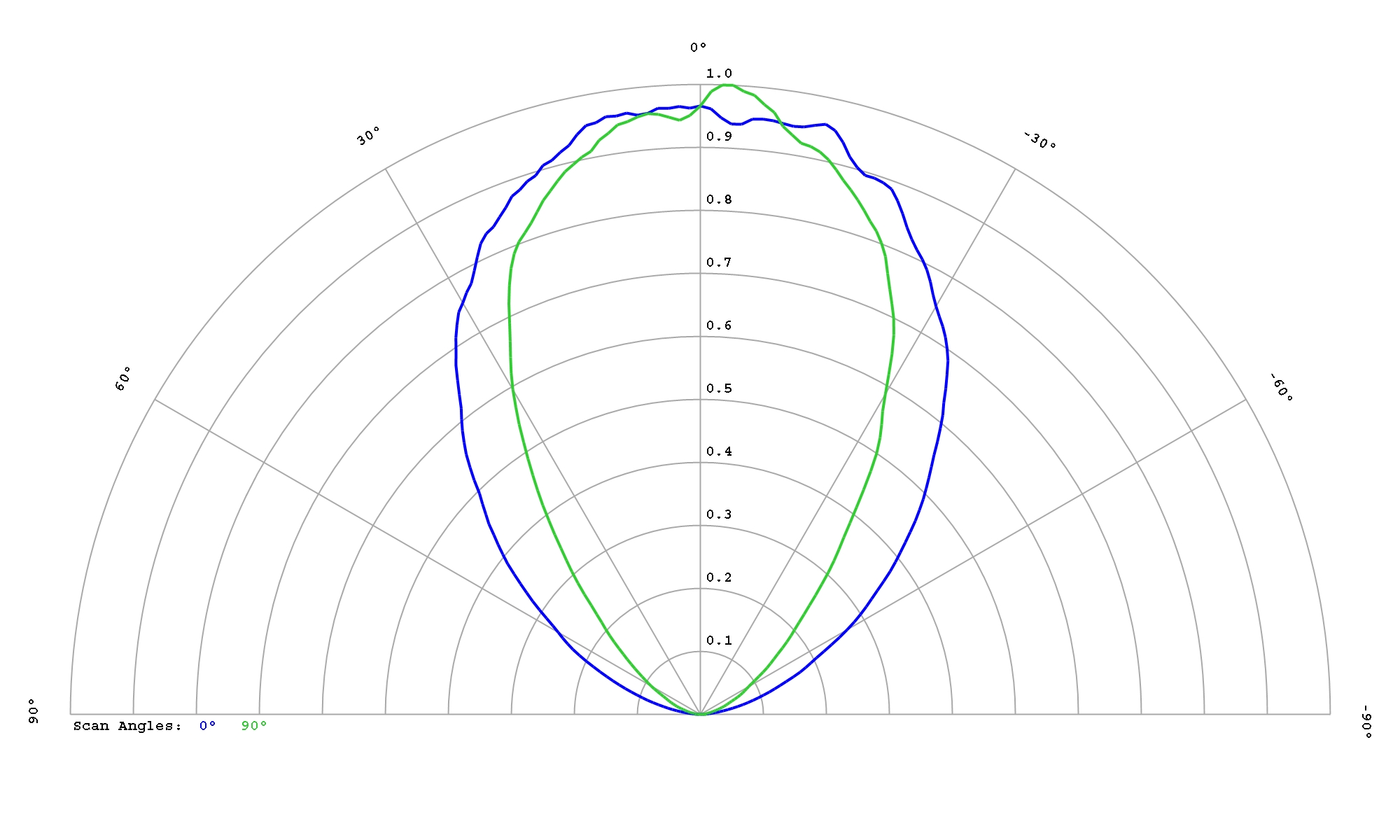

LUMILEDS LUXEON HL1Z Color Blue

Eff:

77.5%

FWHM:

92 x 65°

Cd/Im:

0.6

Download

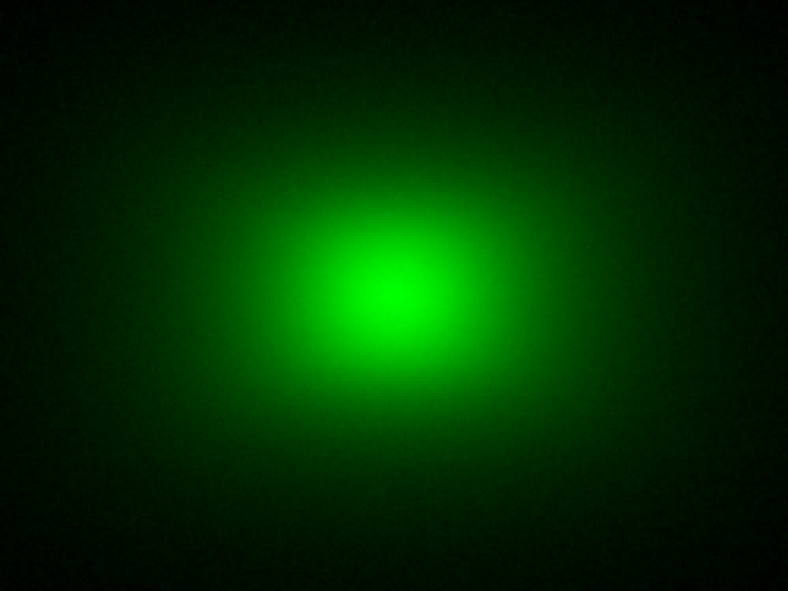

LUMILEDS LUXEON HL1Z Color Green

Eff:

76.0%

FWHM:

91 x 67°

Cd/Im:

0.5

Download

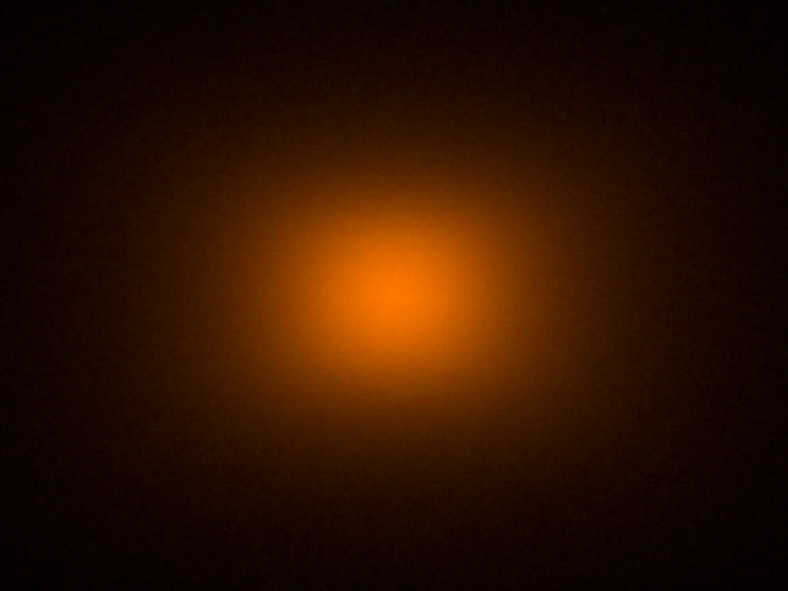

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

77.5%

FWHM:

90 x 66°

Cd/Im:

0.6


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

75.0%

FWHM:

93 x 67°

Cd/Im:

0.5


Download

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

78.0%

FWHM:

85 x 66°

Cd/Im:

0.7

Download

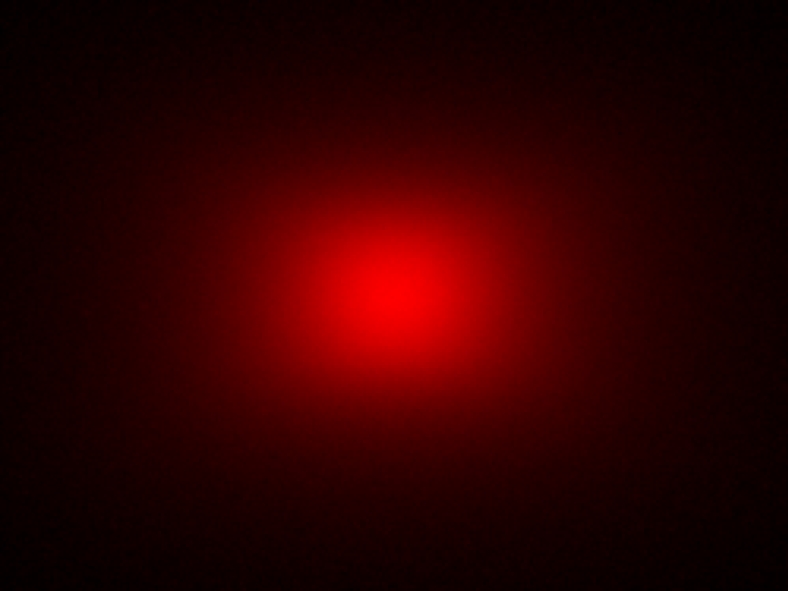

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

78.0%

FWHM:

87 x 67°

Cd/Im:

0.6


Download

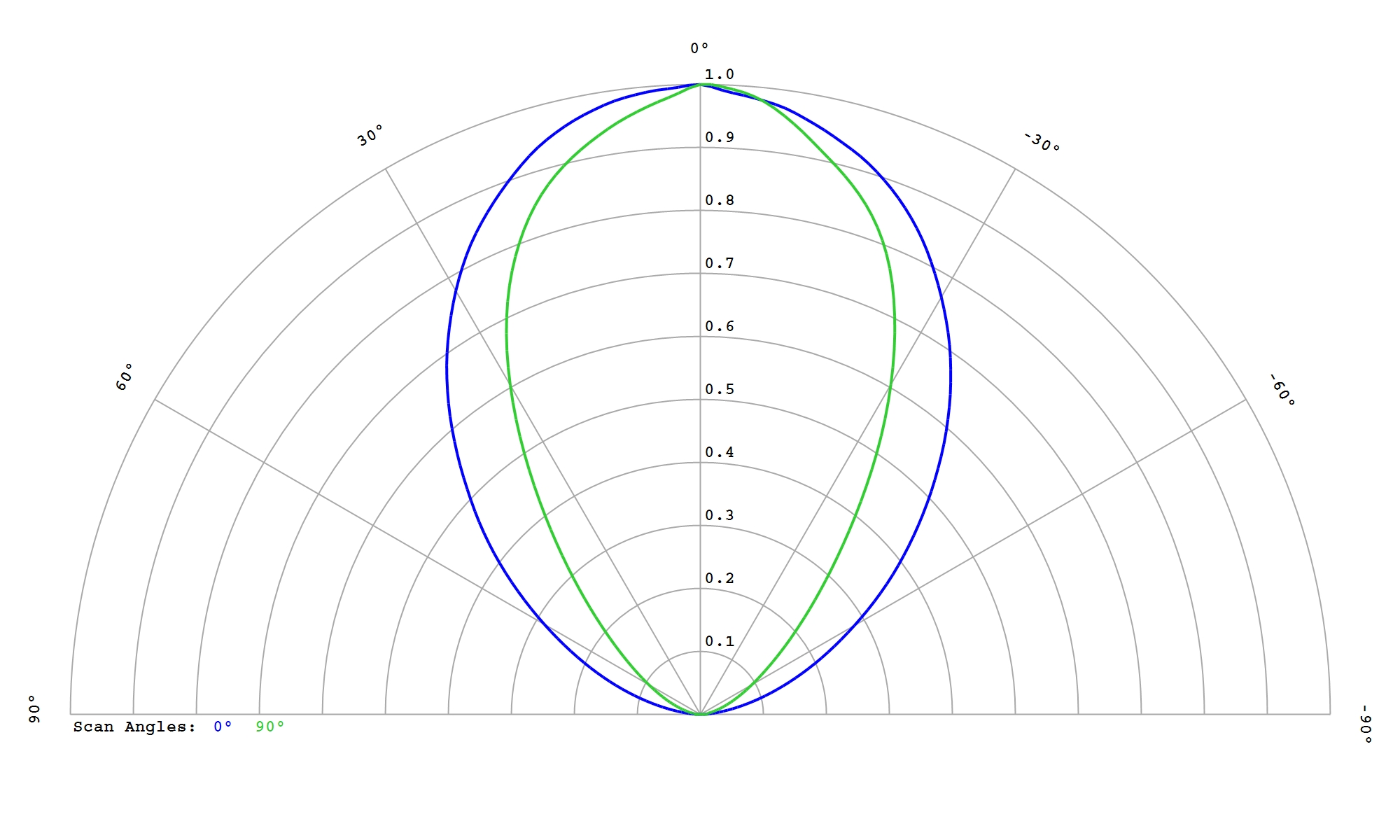

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

78.5%

FWHM:

91 x 67°

Ipk/W:

0.6


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

78.0%

FWHM:

90 x 67°

Cd/Im:

0.5

Download

LUMILEDS LUXEON HL1Z Fusion Tunable White 1800-6500K

Eff:

78.0%

FWHM:

88 x 68°

Cd/Im:

0.6

optic-60166-Luxeon-HL1Z-Fusion-Colour-Spots


Download

LUMILEDS LUXEON HL2X-D White

Eff:

80.5%

FWHM:

90 x 69°

Cd/Im:

0.5

Download

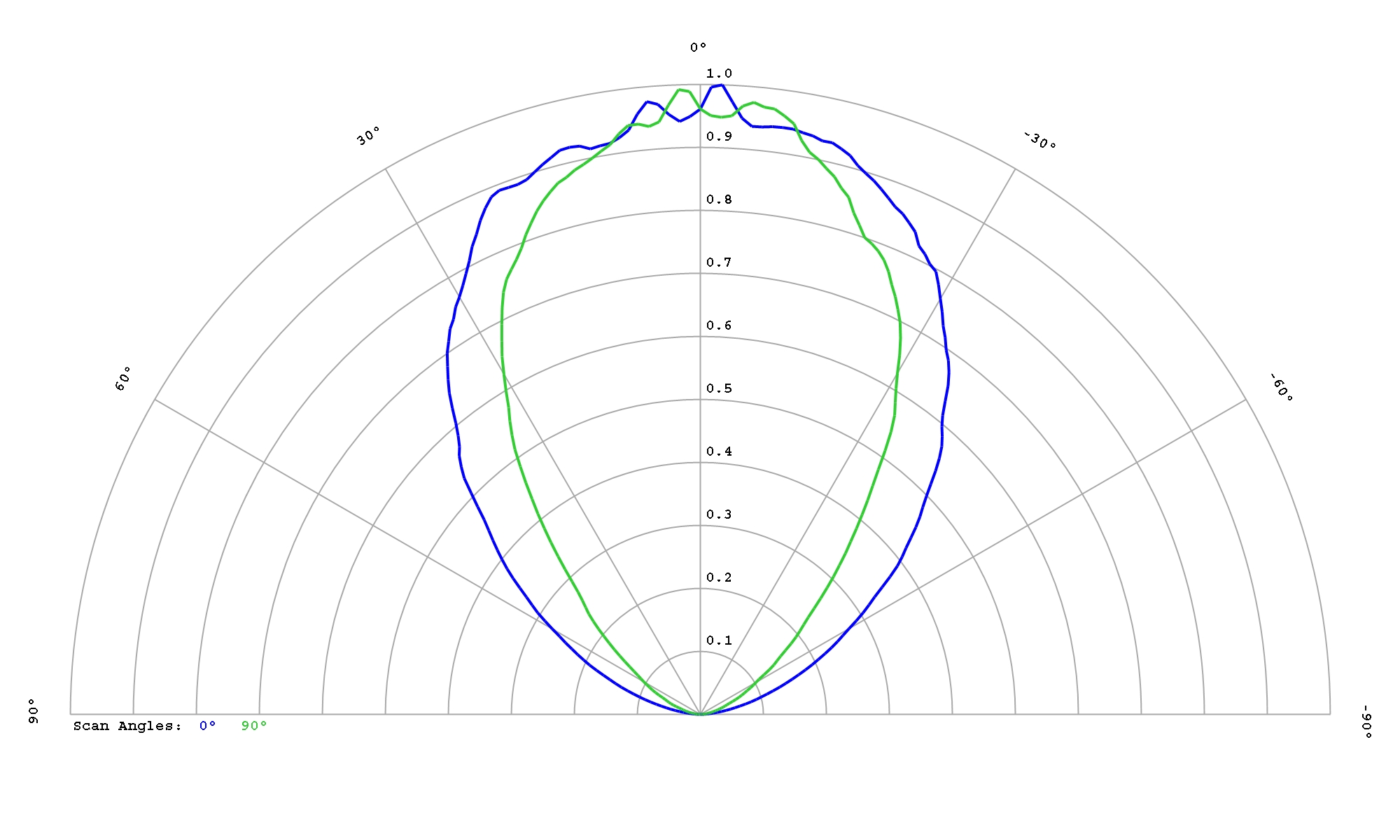

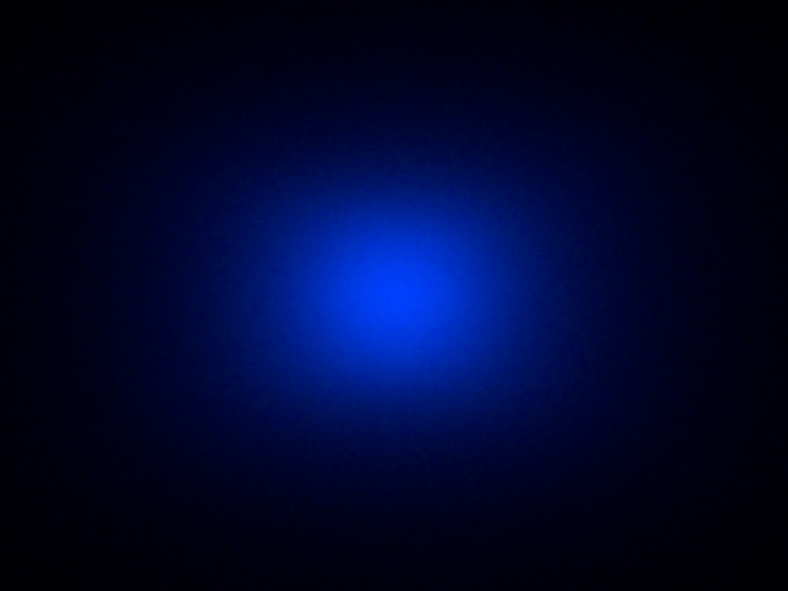

LUMILEDS LUXEON Rubix Blue

Eff:

81.5%

FWHM:

90 x 71°

Cd/Im:

0.6

Download

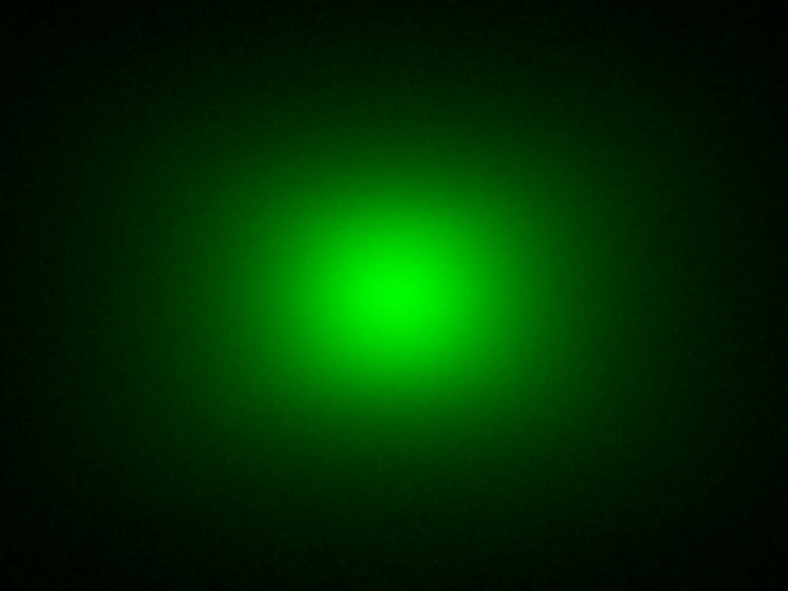

LUMILEDS LUXEON Rubix Green

Eff:

80.0%

FWHM:

93 x 72°

Cd/Im:

0.5

Download

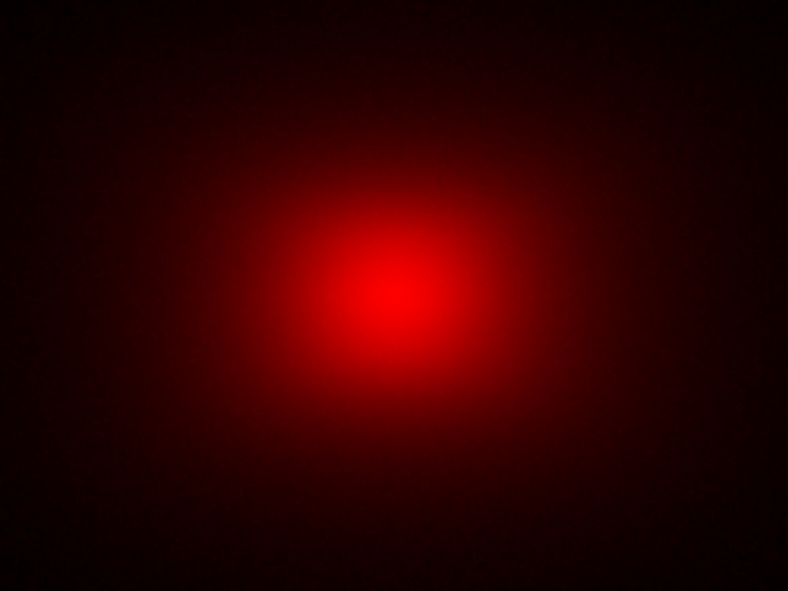

LUMILEDS LUXEON Rubix Red

Eff:

82.0%

FWHM:

90 x 70°

Cd/Im:

0.6

Download

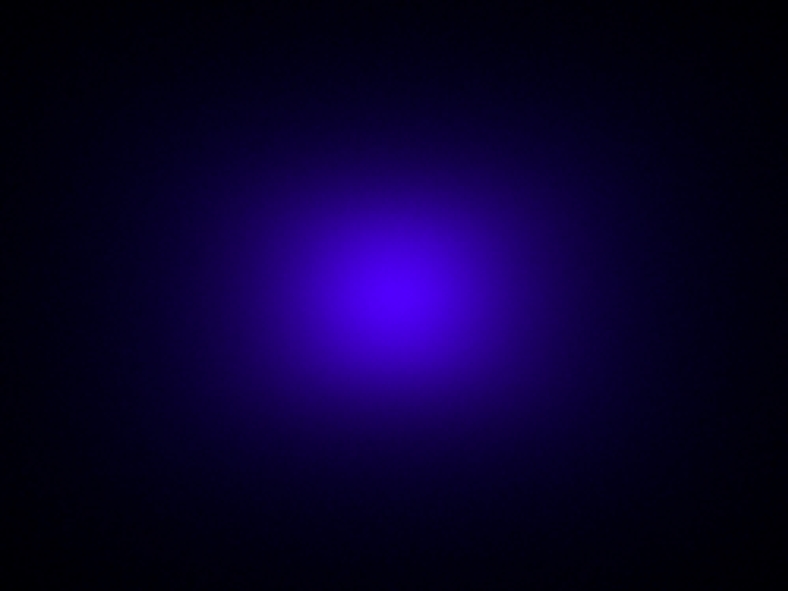

LUMILEDS LUXEON Rubix Royal Blue

Eff:

83.0%

FWHM:

90 x 70°

Ipk/W:

0.5


Download

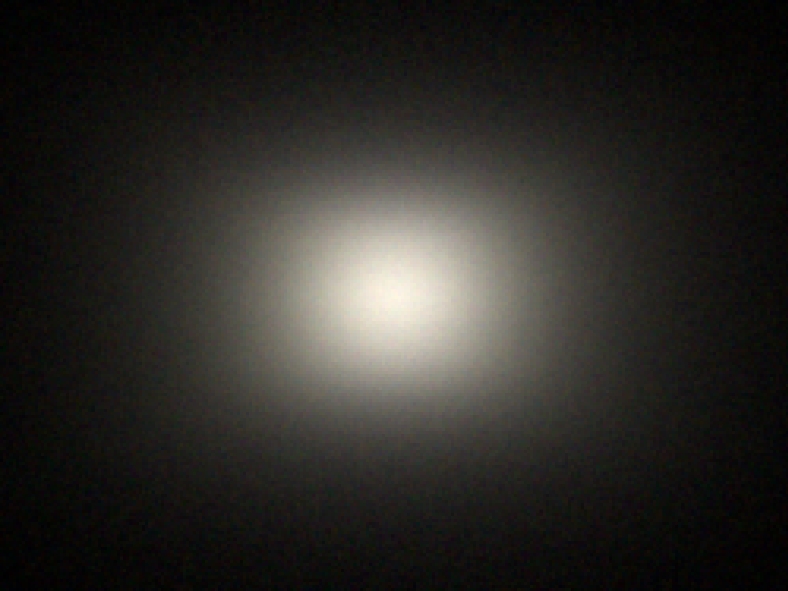

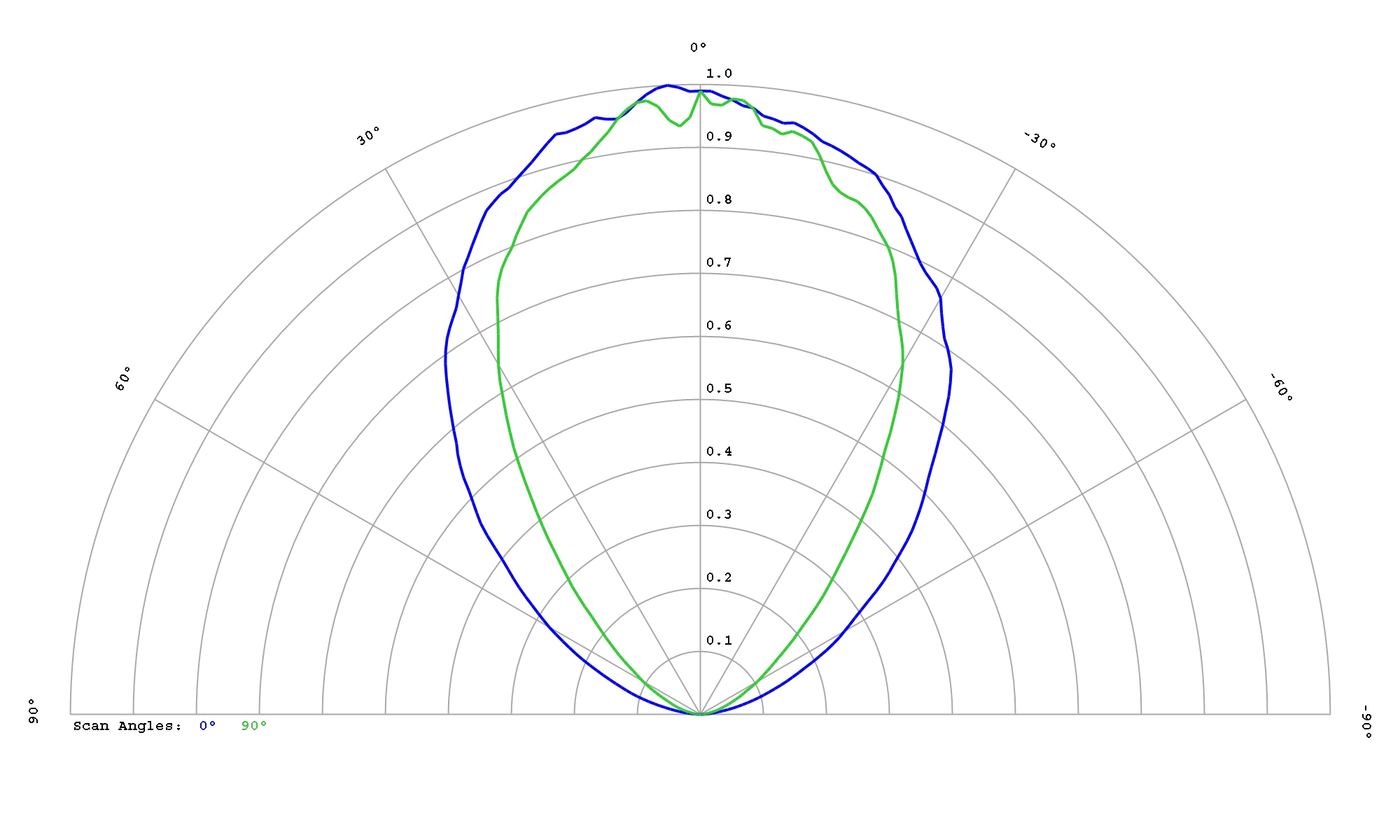

LUMILEDS LUXEON Rubix White

Eff:

80.0%

FWHM:

89 x 71°

Cd/Im:

0.6

Download

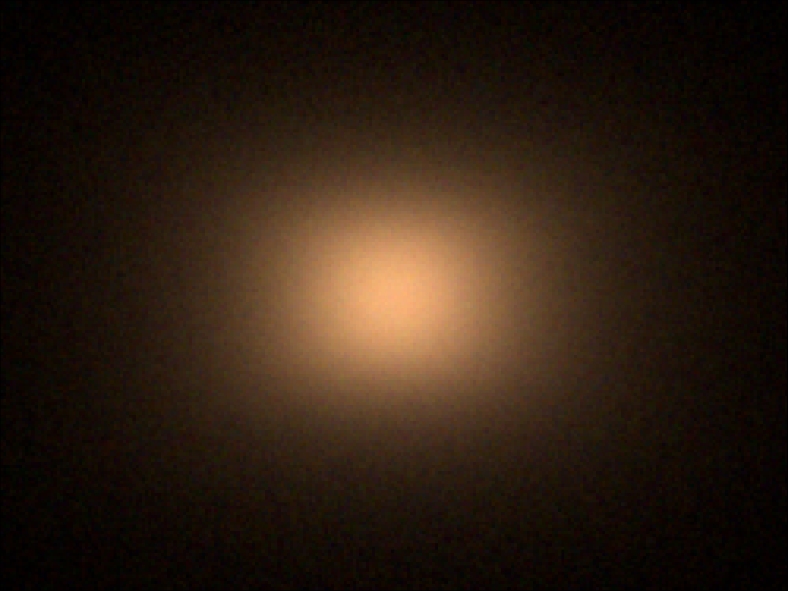

Luminus Devices MP-3030-11F2 White

Eff:

81.5%

FWHM:

88 x 69°

Cd/Im:

0.7


Download

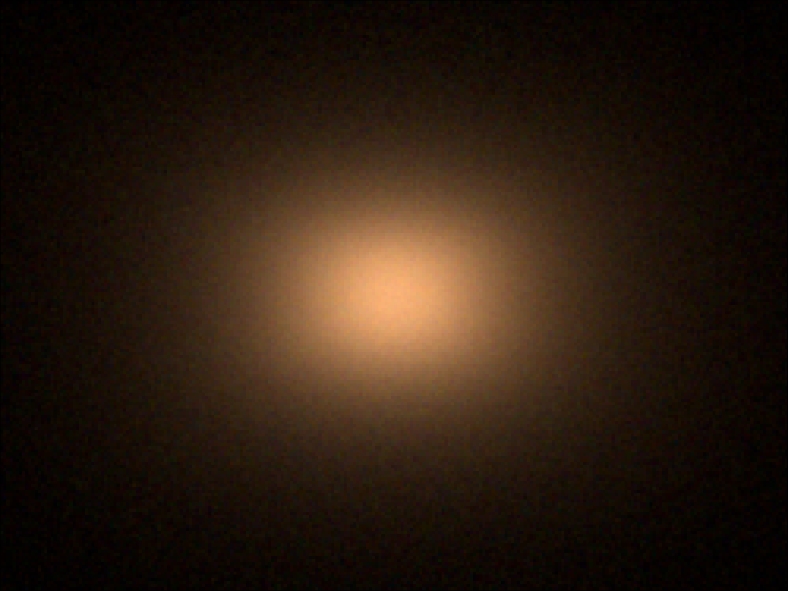

Luminus Devices MP-5050-240E White

Eff:

80.5%

FWHM:

84 x 61°

Cd/Im:

0.7


Download

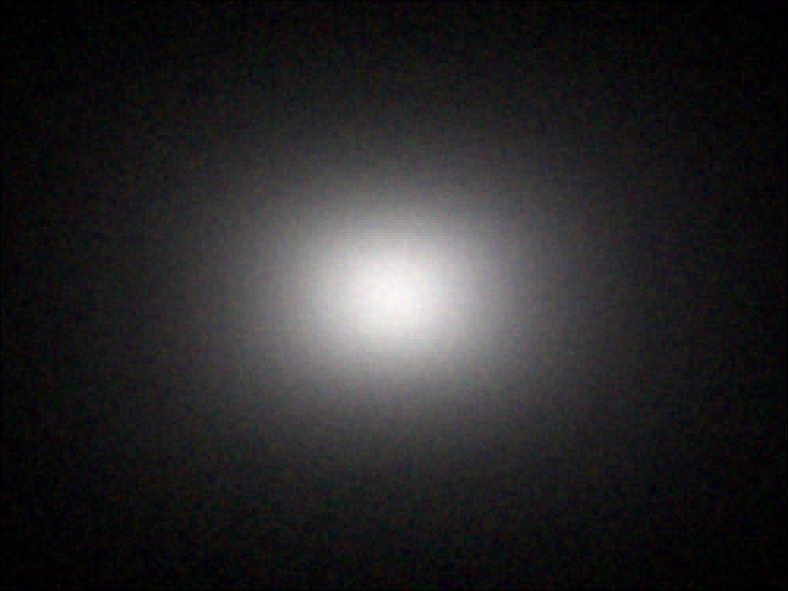

Luminus Devices MP-5050-810E White

Eff:

80.0%

FWHM:

85 x 54°

Cd/Im:

0.7


Download

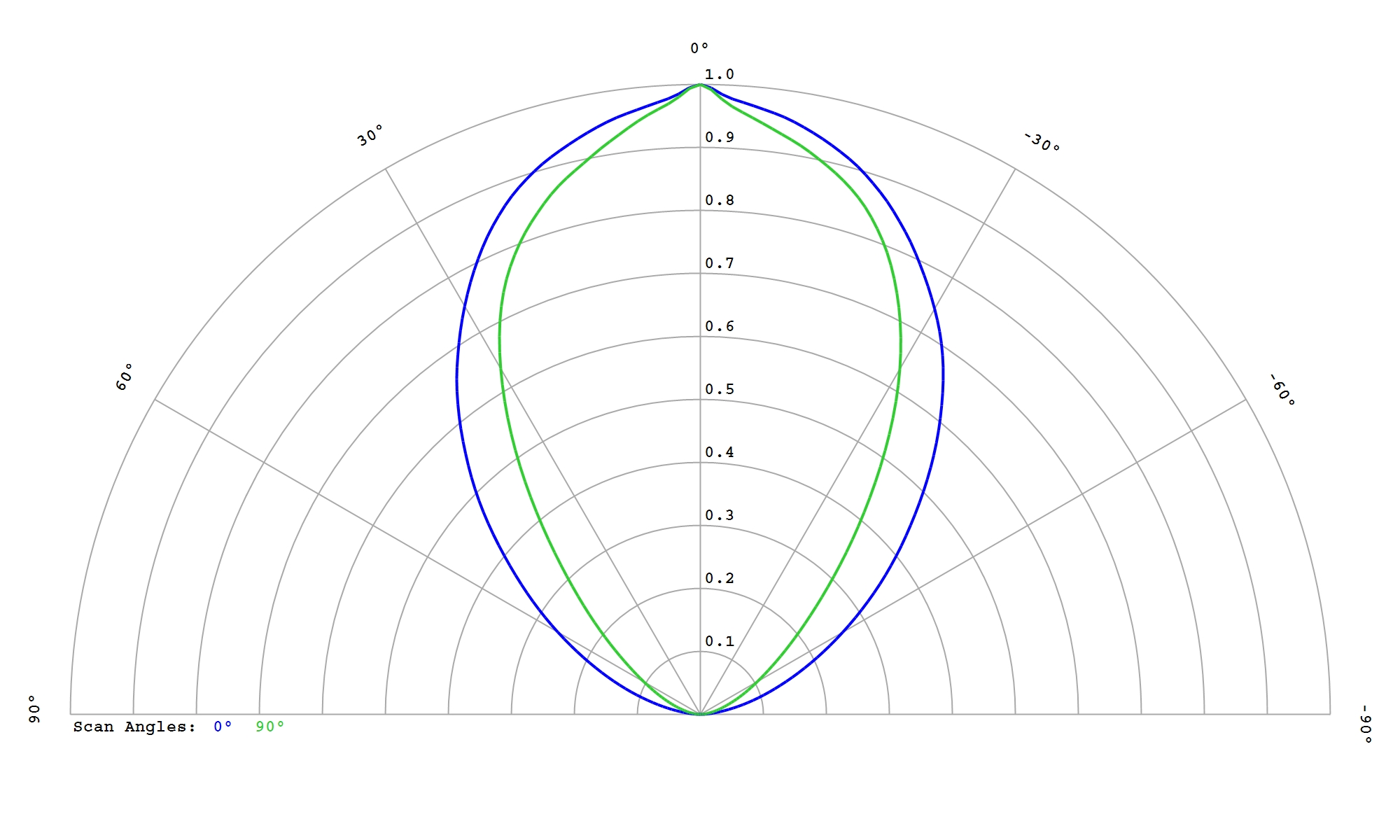

Luminus Devices SFT-12R-WES-A White

Eff:

81.0%

FWHM:

90 x 71°

Cd/Im:

0.7


Download

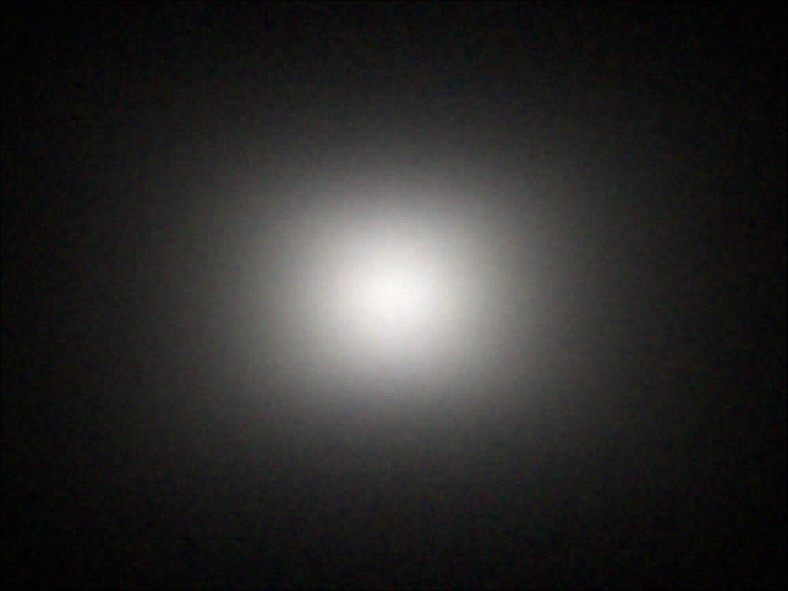

Luminus Devices SFT-12R-WES-F White

Eff:

81.0%

FWHM:

76°

Cd/Im:

0.6


Download

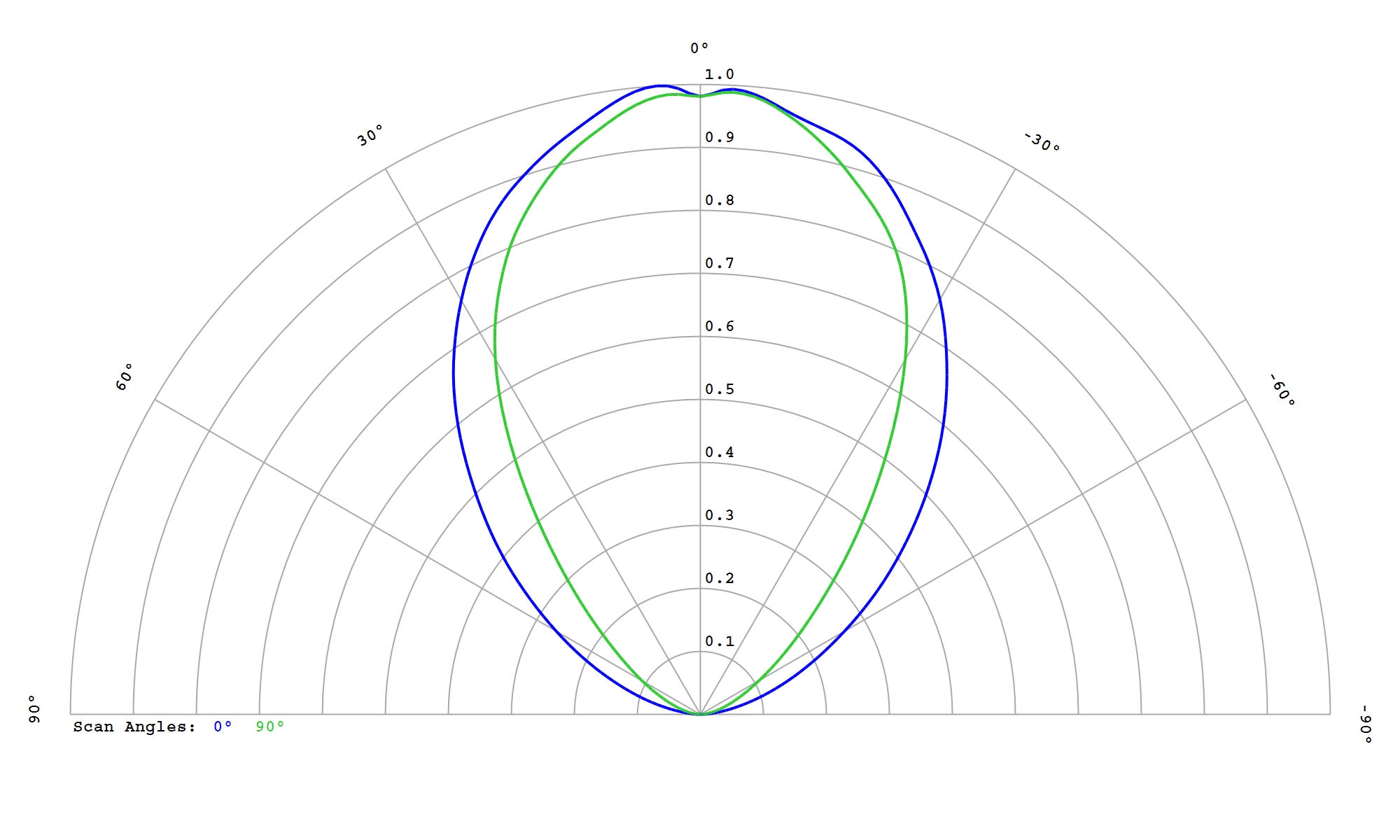

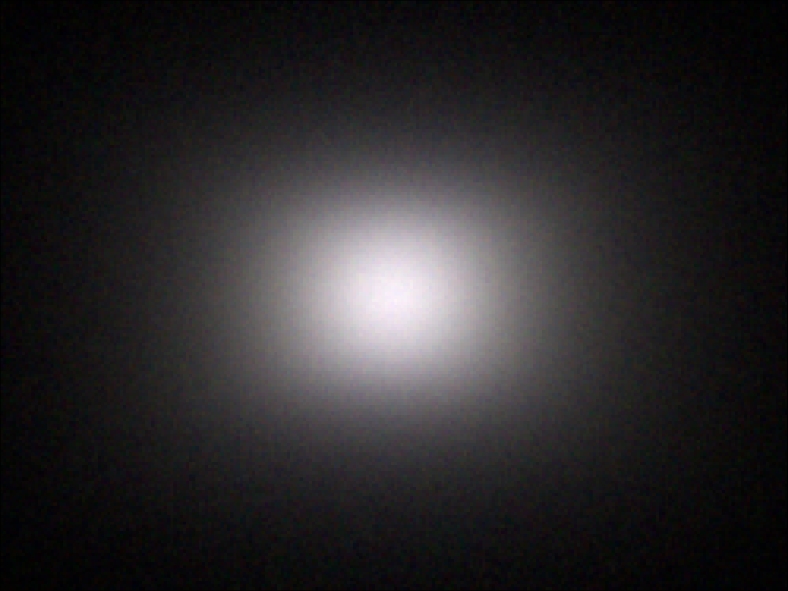

Luminus Devices SFT-25R-WES-A White

Eff:

81.0%

FWHM:

88 x 72°

Cd/Im:

0.6


Download

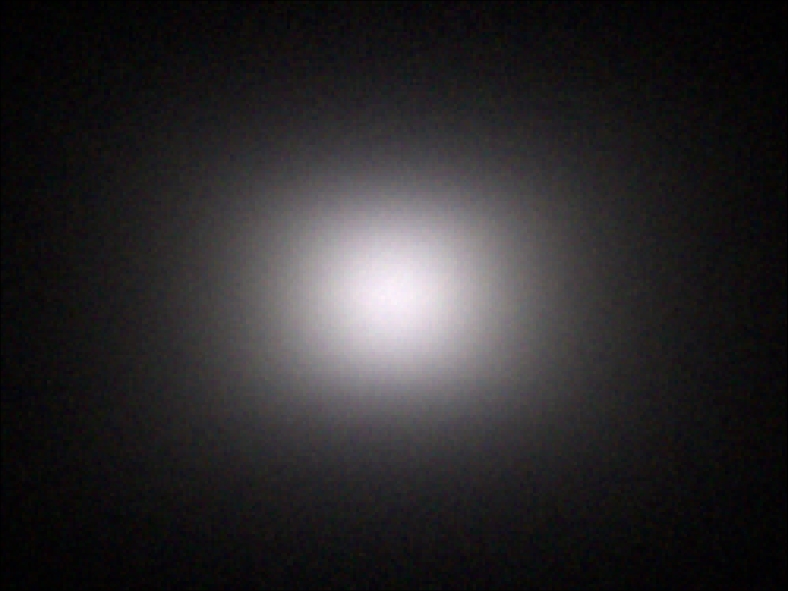

Luminus Devices SFT-25R-WES-F White

Eff:

81.0%

FWHM:

90 x 71°

Cd/Im:

0.6


Download

Luminus Devices SFT-40-W Gen2 White

Eff:

81.0%

FWHM:

88 x 67°

Cd/Im:

0.7


Download

Luminus Devices SFT-40-WxS White

Eff:

81.0%

FWHM:

90 x 70°

Cd/Im:

0.6

Download

Luminus Devices SFT-70X-WxS White

Eff:

81.0%

FWHM:

91 x 68°

Cd/Im:

0.6

Download

Luminus Devices SST 20-WxH White Hi CRI

Eff:

79.0%

FWHM:

89 x 69°

Cd/Im:

0.6

Download

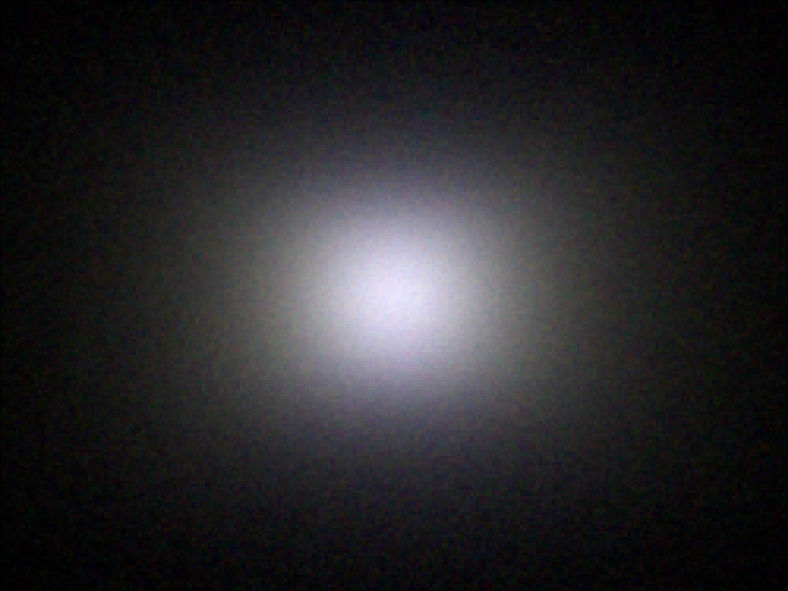

Luminus Devices SST-12-WS Gen2 White

Eff:

80.0%

FWHM:

90 x 69°

Cd/Im:

0.7


Download

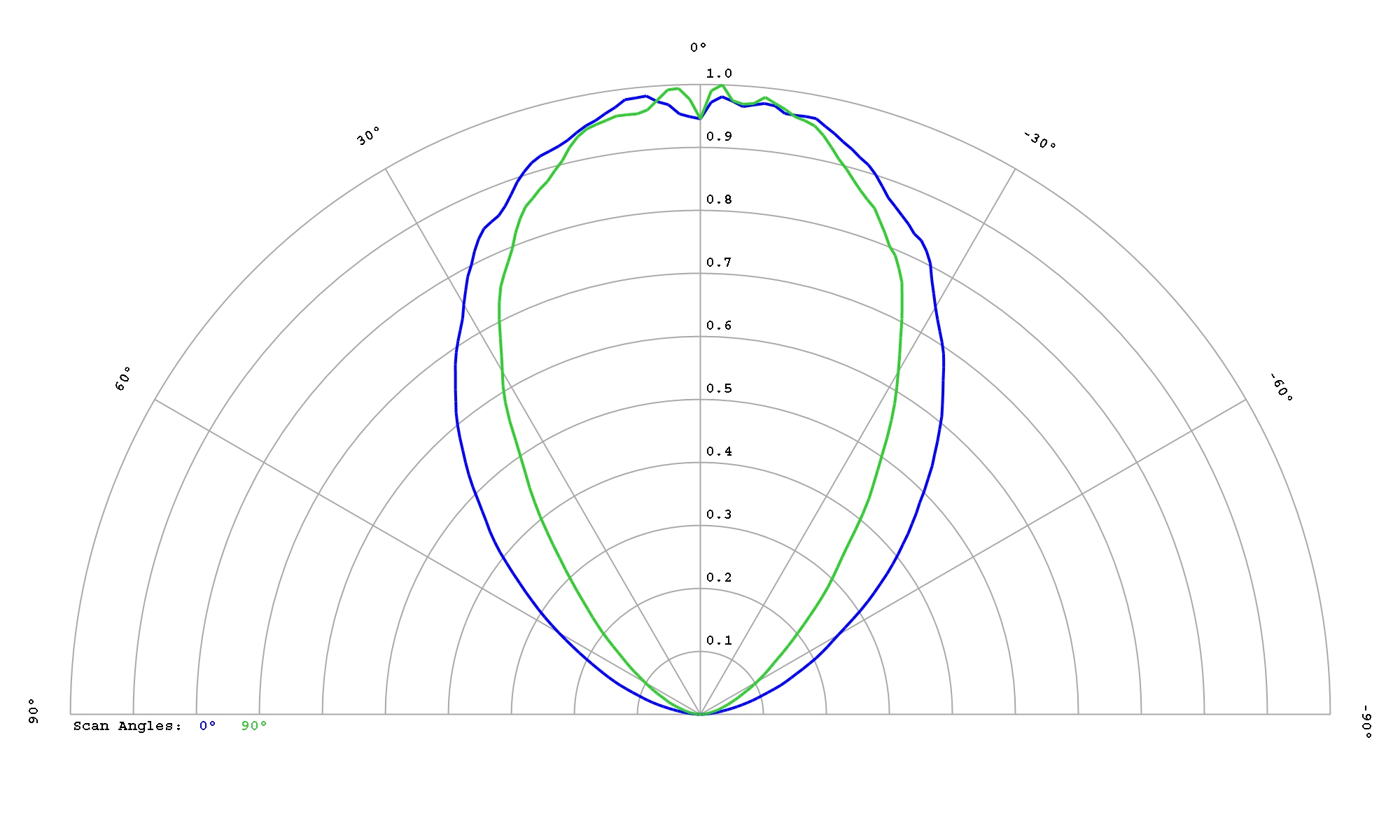

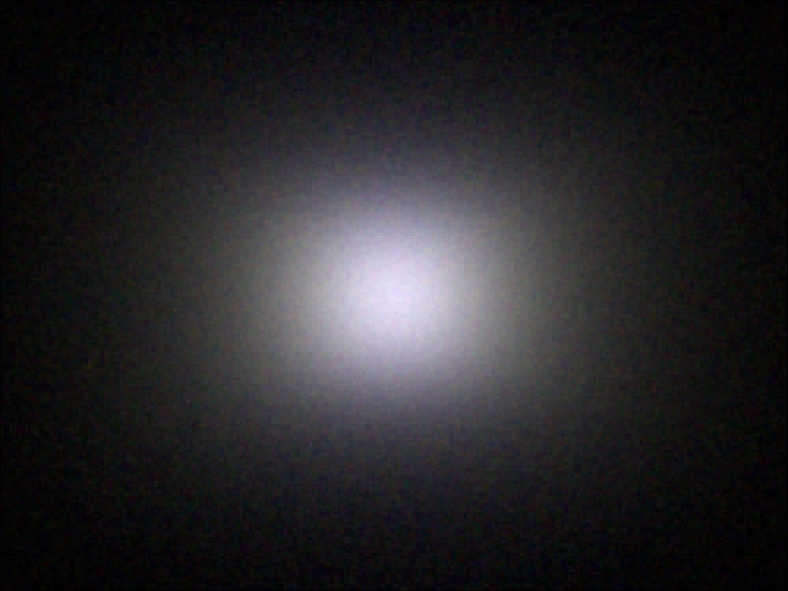

Luminus Devices SST-20-W Gen2 White

Eff:

79.5%

FWHM:

88 x 69°

Cd/Im:

0.7


Download

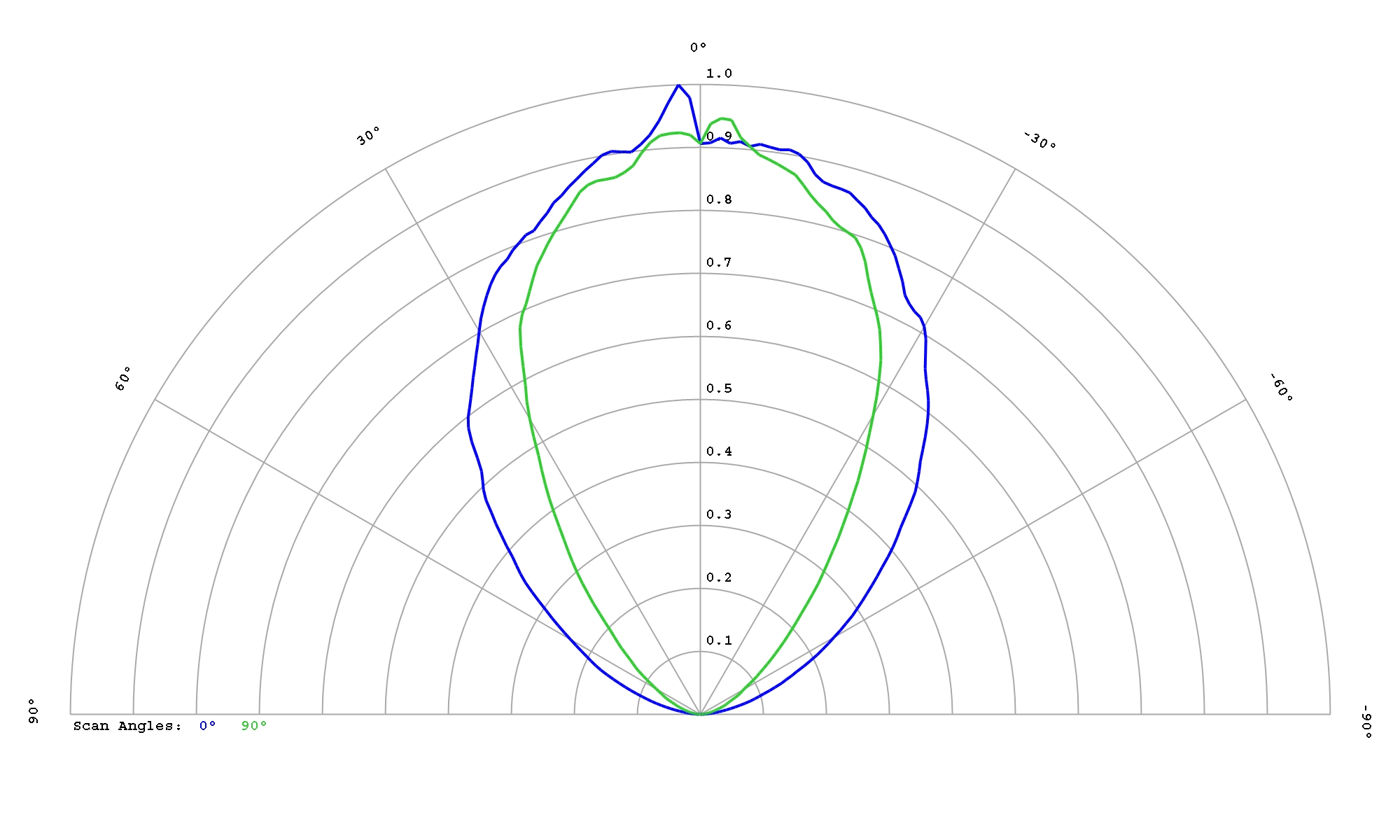

Nichia NCSW CSP E17A White

Eff:

77.0%

FWHM:

84 x 65°

Cd/Im:

0.6

Download

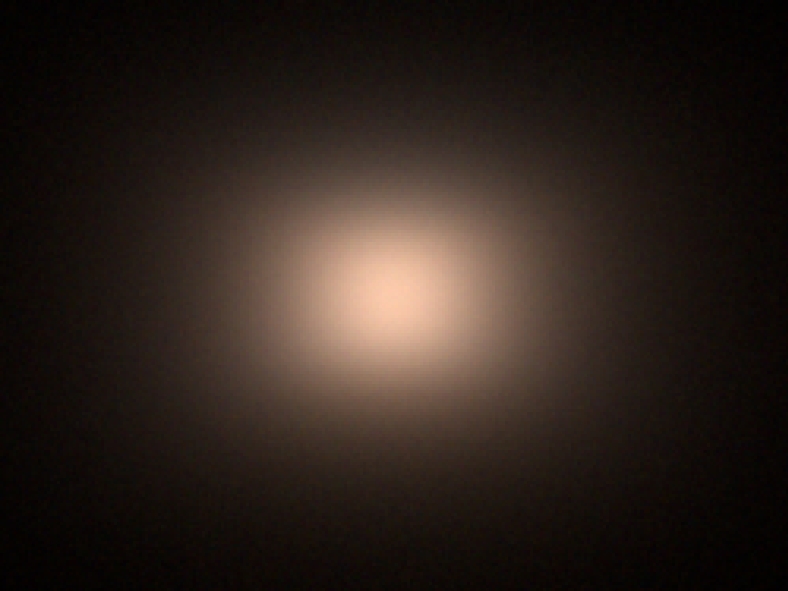

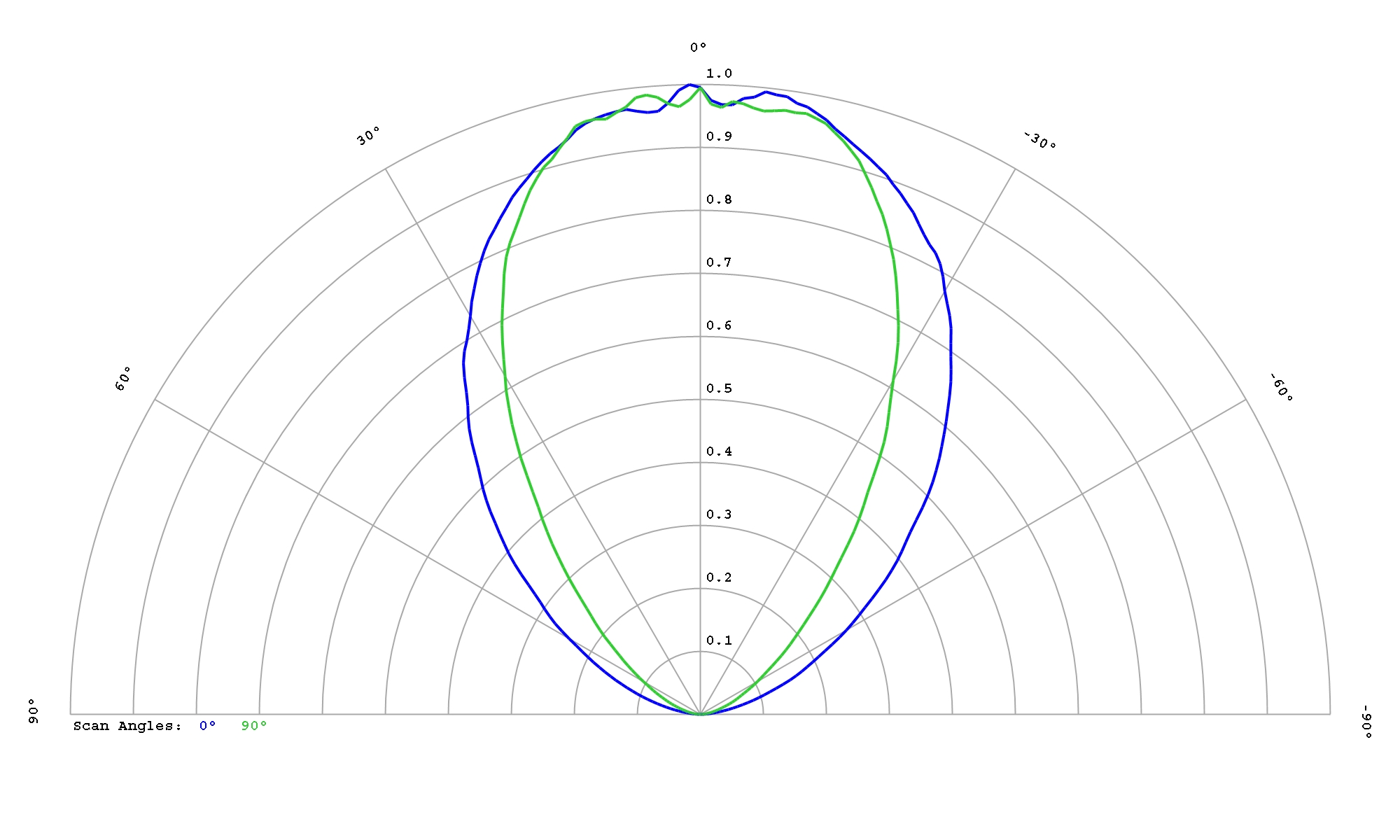

Nichia NF2W 757G-MT Tunable

Eff:

81.0%

FWHM:

90 x 70°

Cd/Im:

0.6


Download

Nichia NFSW 757G-V3 White

Eff:

81.0%

FWHM:

87 x 66°

Cd/Im:

0.6

Download

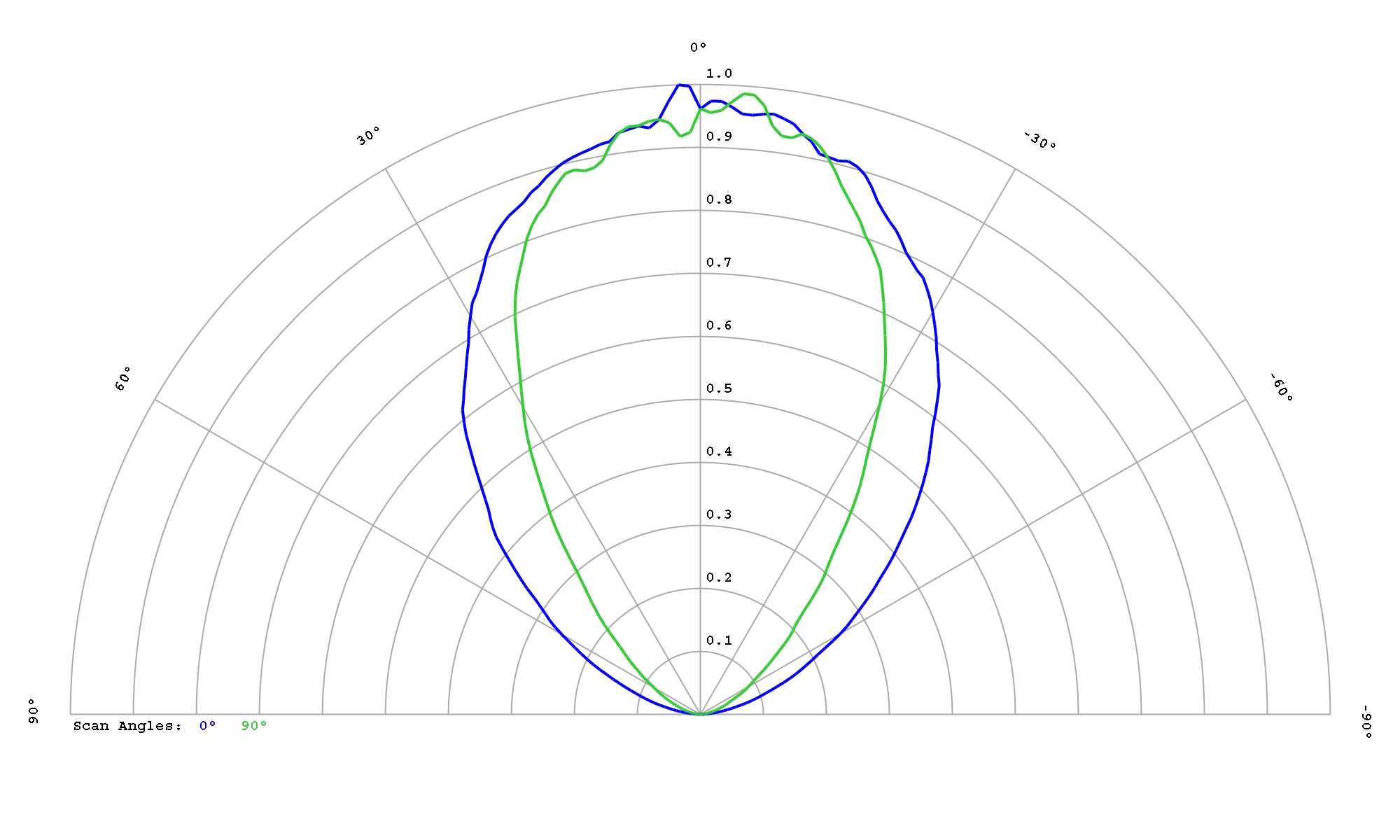

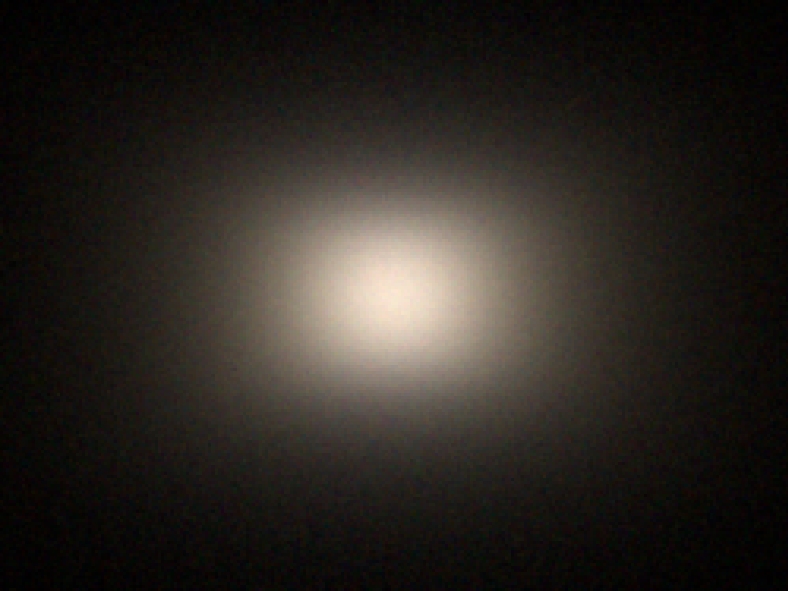

Nichia NVSW CSP E21A White

Eff:

77.5%

FWHM:

85 x 64°

Cd/Im:

0.6

Download

Osram DURIS E5 White

Eff:

79.0%

FWHM:

86 x 61°

Cd/Im:

0.6

Download

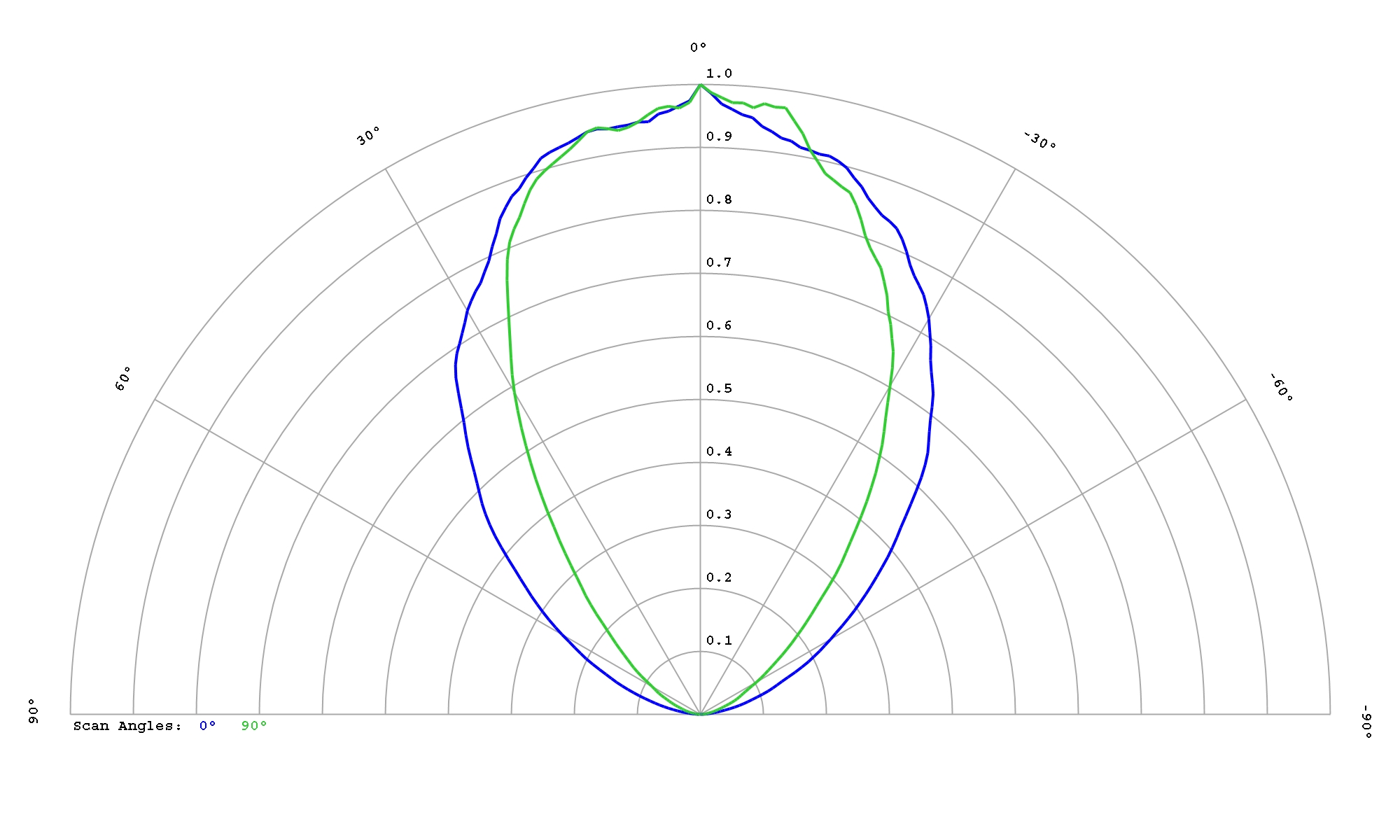

Osram DURIS S5 White

Eff:

81.0%

FWHM:

85 x 65°

Cd/Im:

0.6

Download

Osram DURIS S8 Gen3 White

Eff:

80.5%

FWHM:

84 x 62°

Cd/Im:

0.6


Download

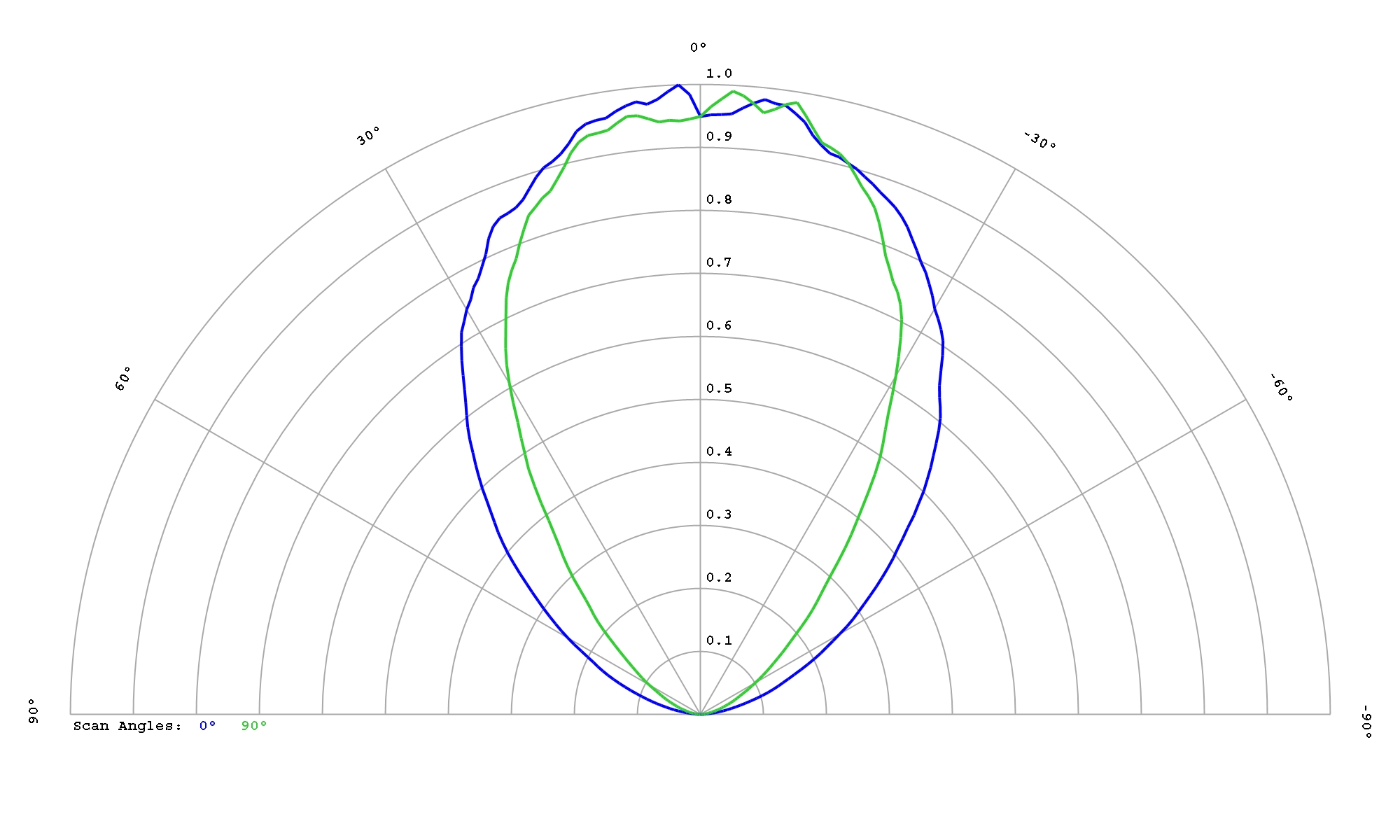

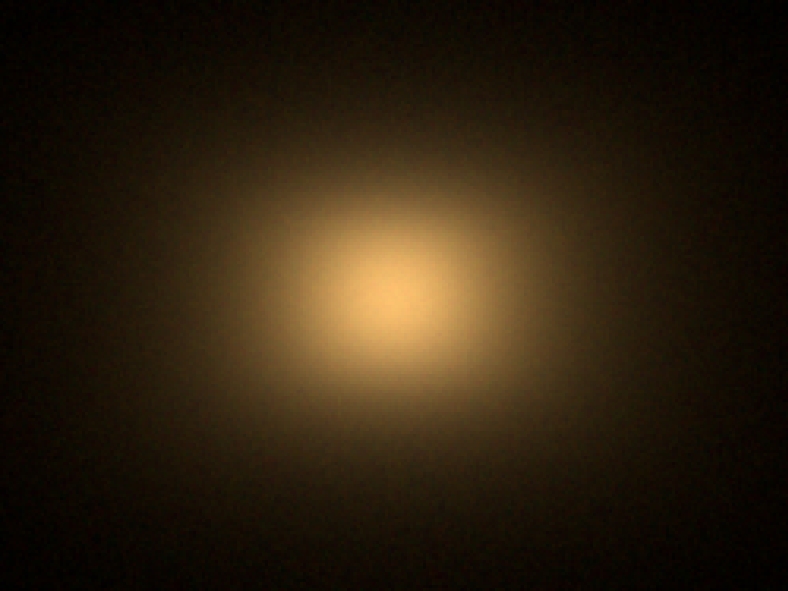

Osram OSCONIQ C 2424 White

Eff:

80.5%

FWHM:

88 x 69°

Cd/Im:

0.6


Download

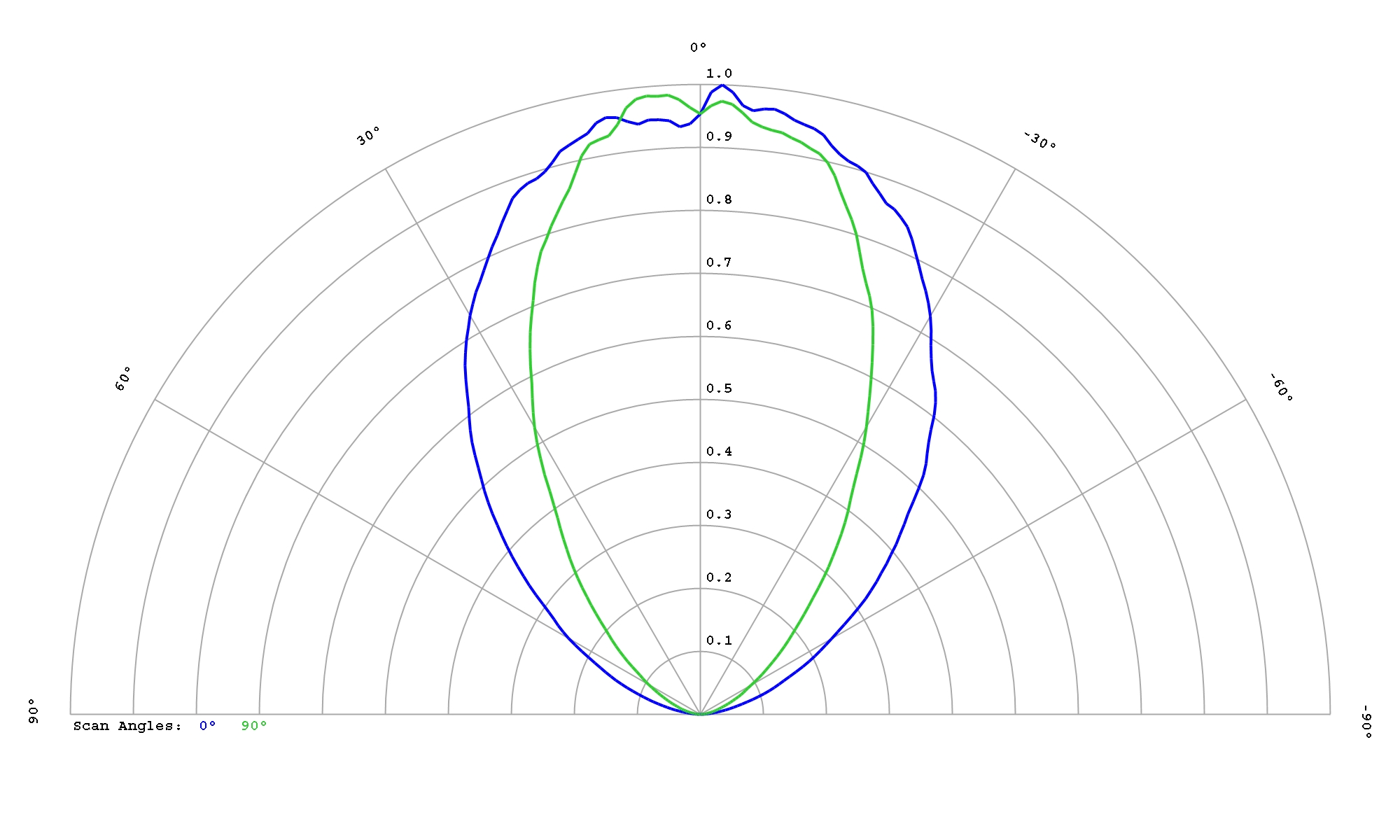

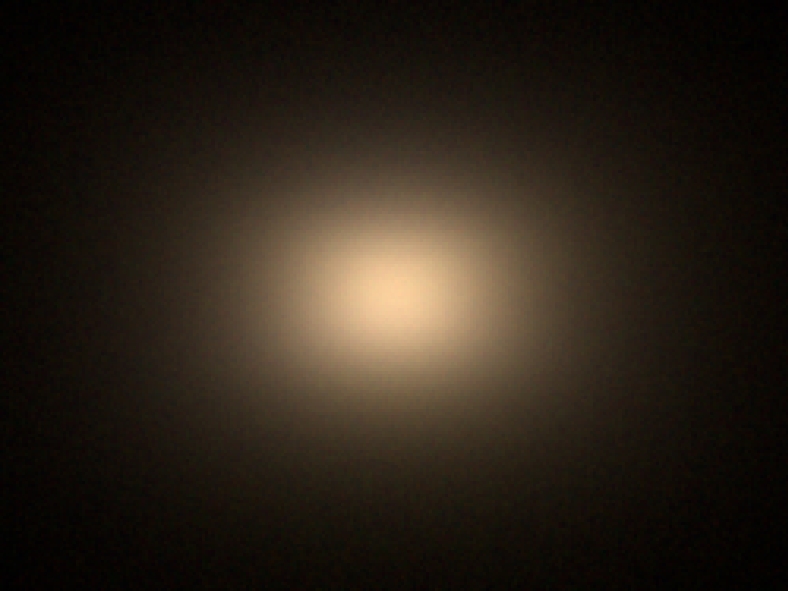

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

80.5%

FWHM:

86 x 63°

Cd/Im:

0.6



Download

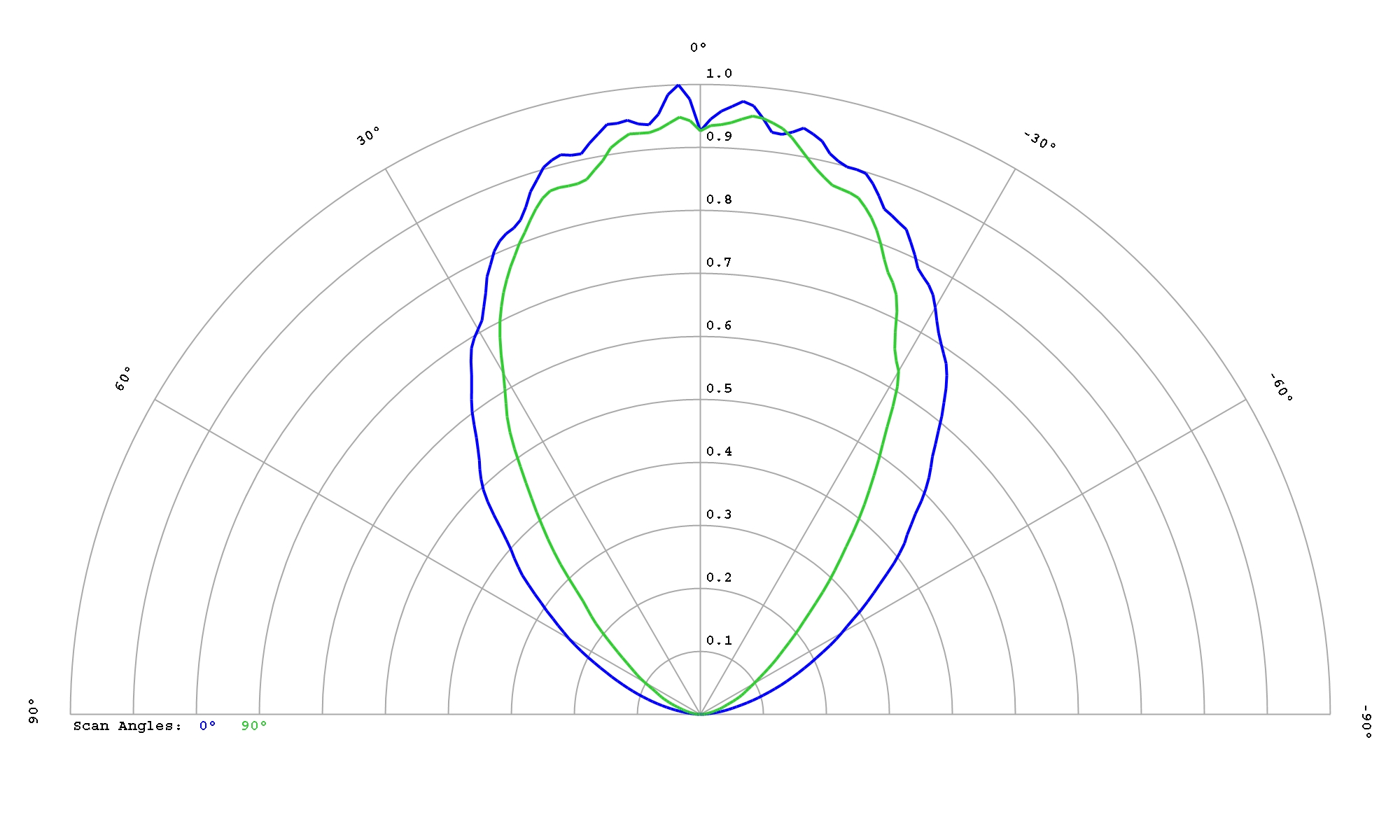

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

81.5%

FWHM:

90 x 67°

Cd/Im:

0.9


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

81.5%

FWHM:

88 x 67°

Cd/Im:

0.7


Download

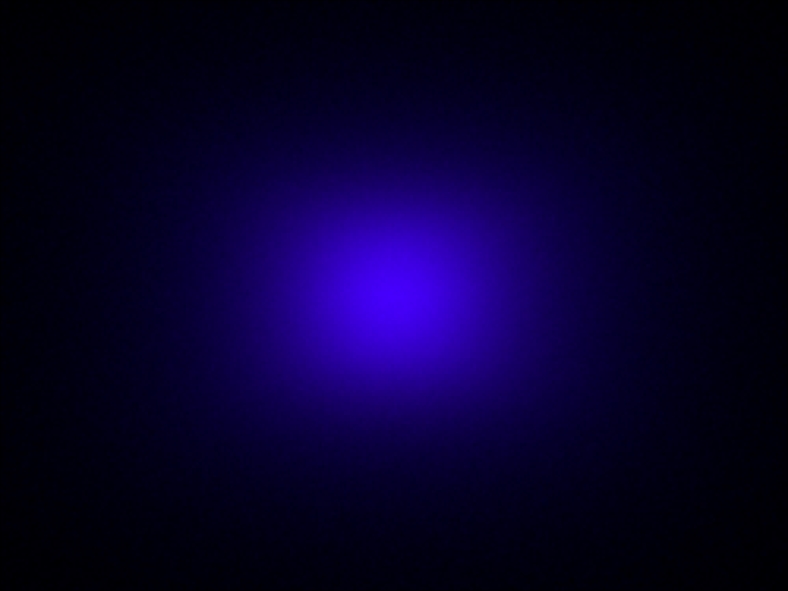

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

81.5%

FWHM:

85 x 70°

Ipk/W:

0.6


Download

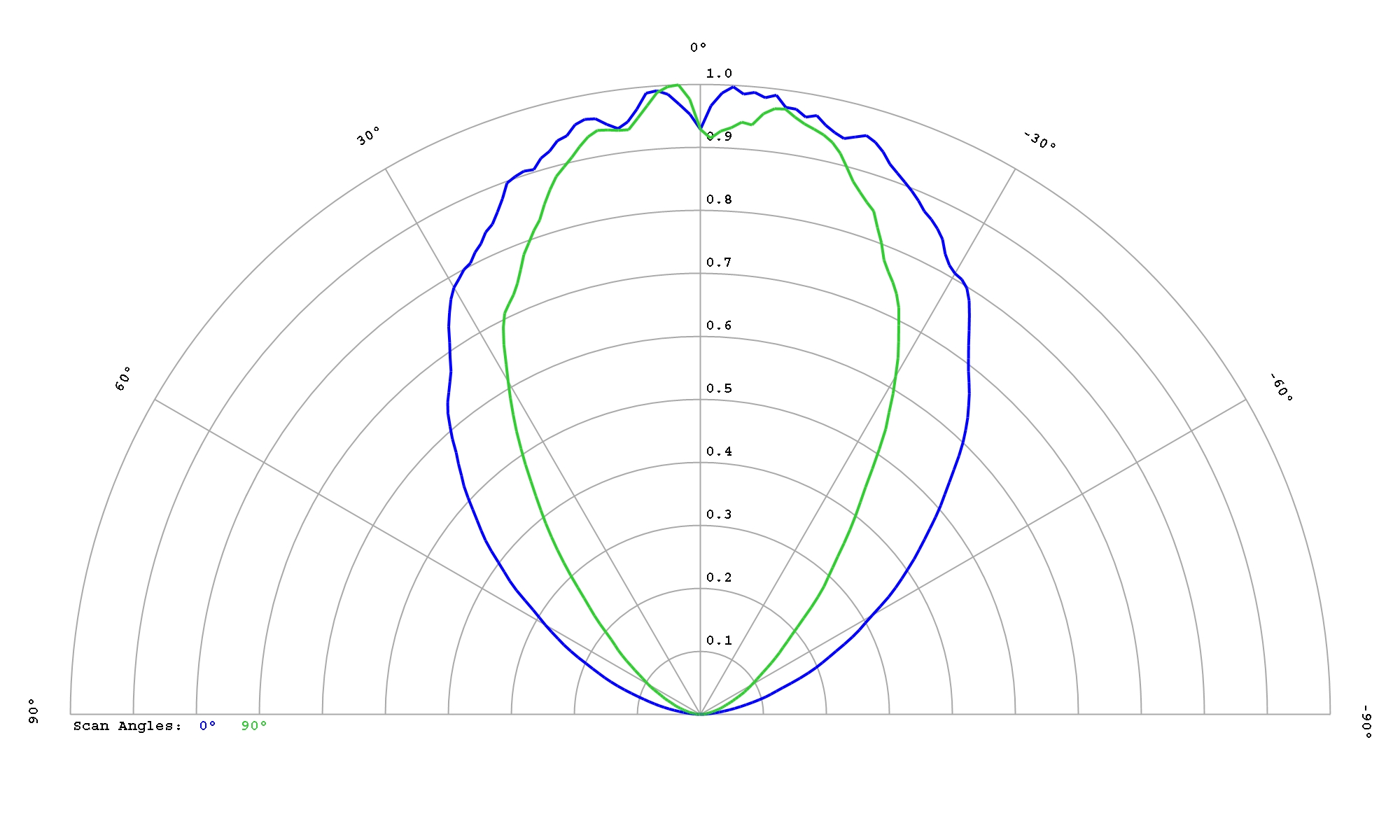

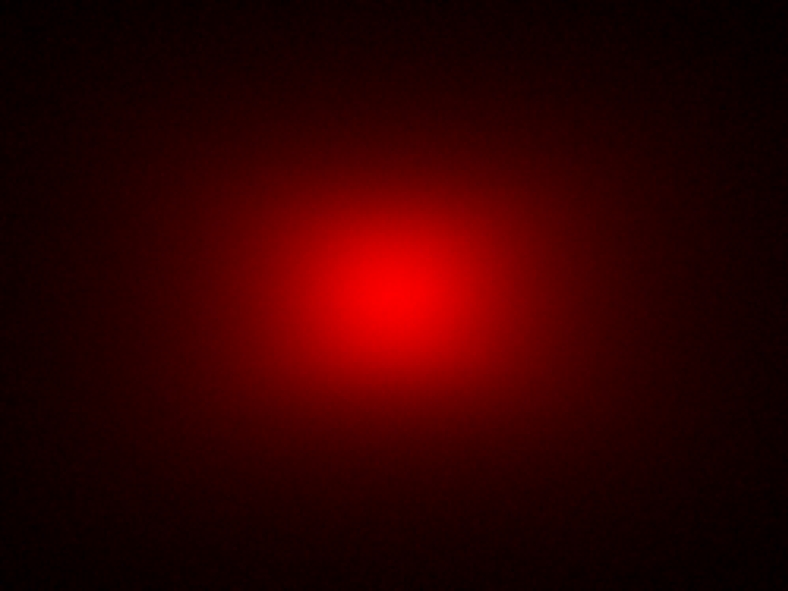

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

77.5%

FWHM:

96 x 69°

Cd/Im:

0.5


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

81.0%

FWHM:

87 x 69°

Cd/Im:

0.6


Download

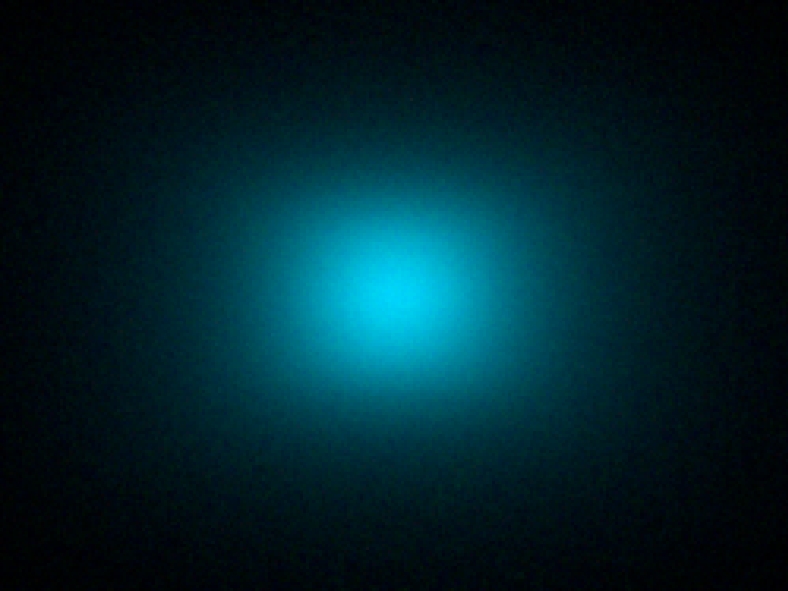

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

81.0%

FWHM:

86 x 66°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

80.5%

FWHM:

87 x 68°

Cd/Im:

0.7

Download

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

80.5%

FWHM:

88 x 70°

Cd/Im:

0.6


Download

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

80.5%

FWHM:

88 x 71°

Cd/Im:

0.7


Download

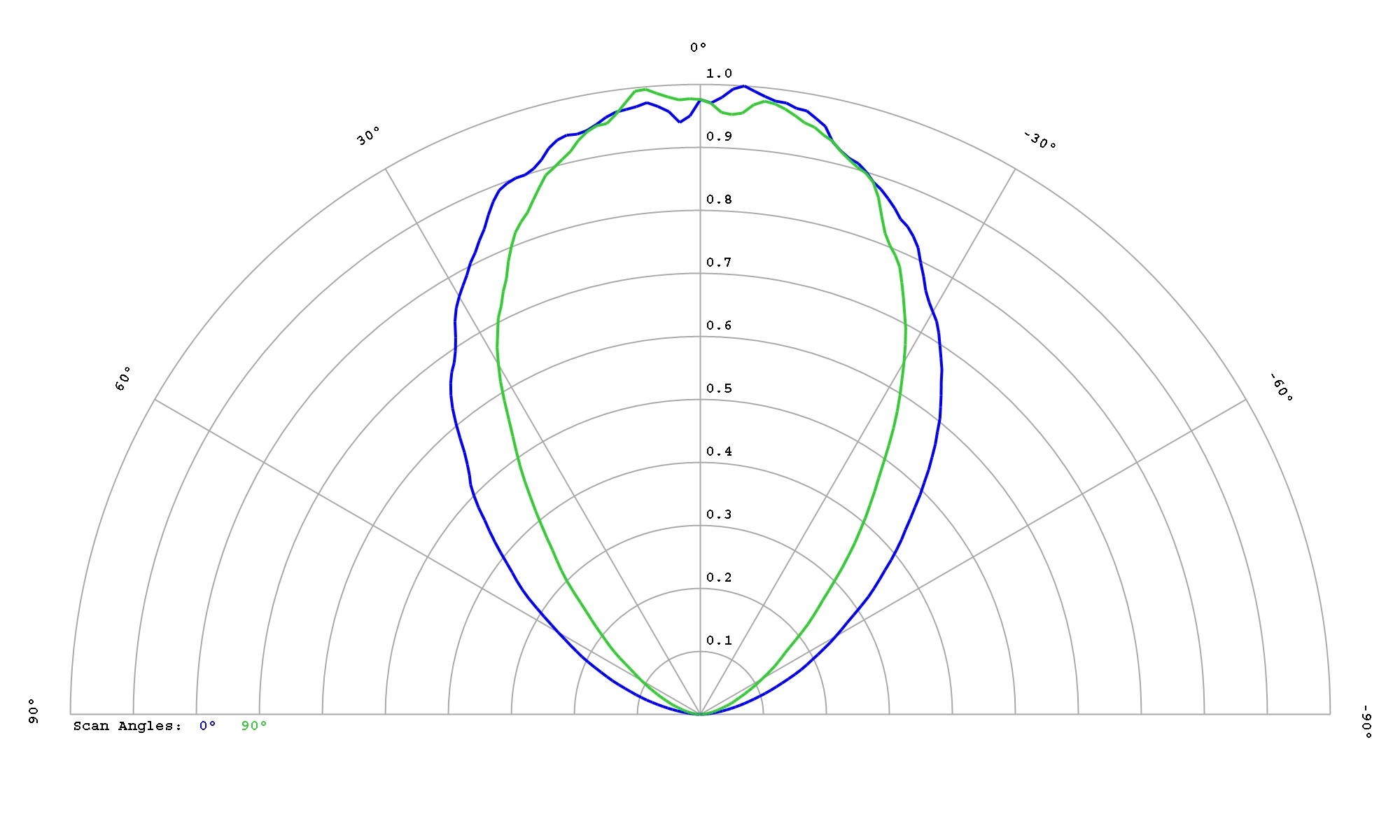

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

80.0%

FWHM:

90 x 71°

Cd/Im:

0.6



Download

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

79.5%

FWHM:

93 x 67°

Cd/Im:

0.6


Download

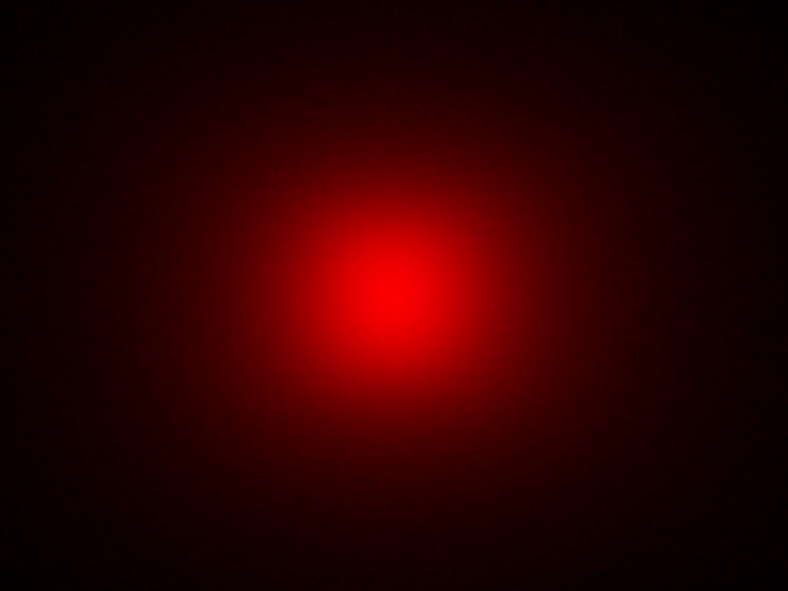

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

83.5%

FWHM:

76°

Ipk/W:

0.6


Download

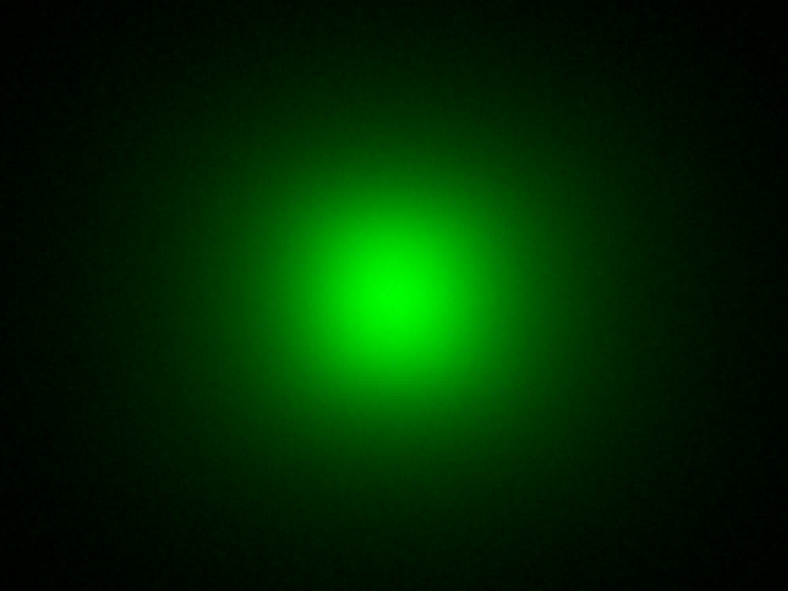

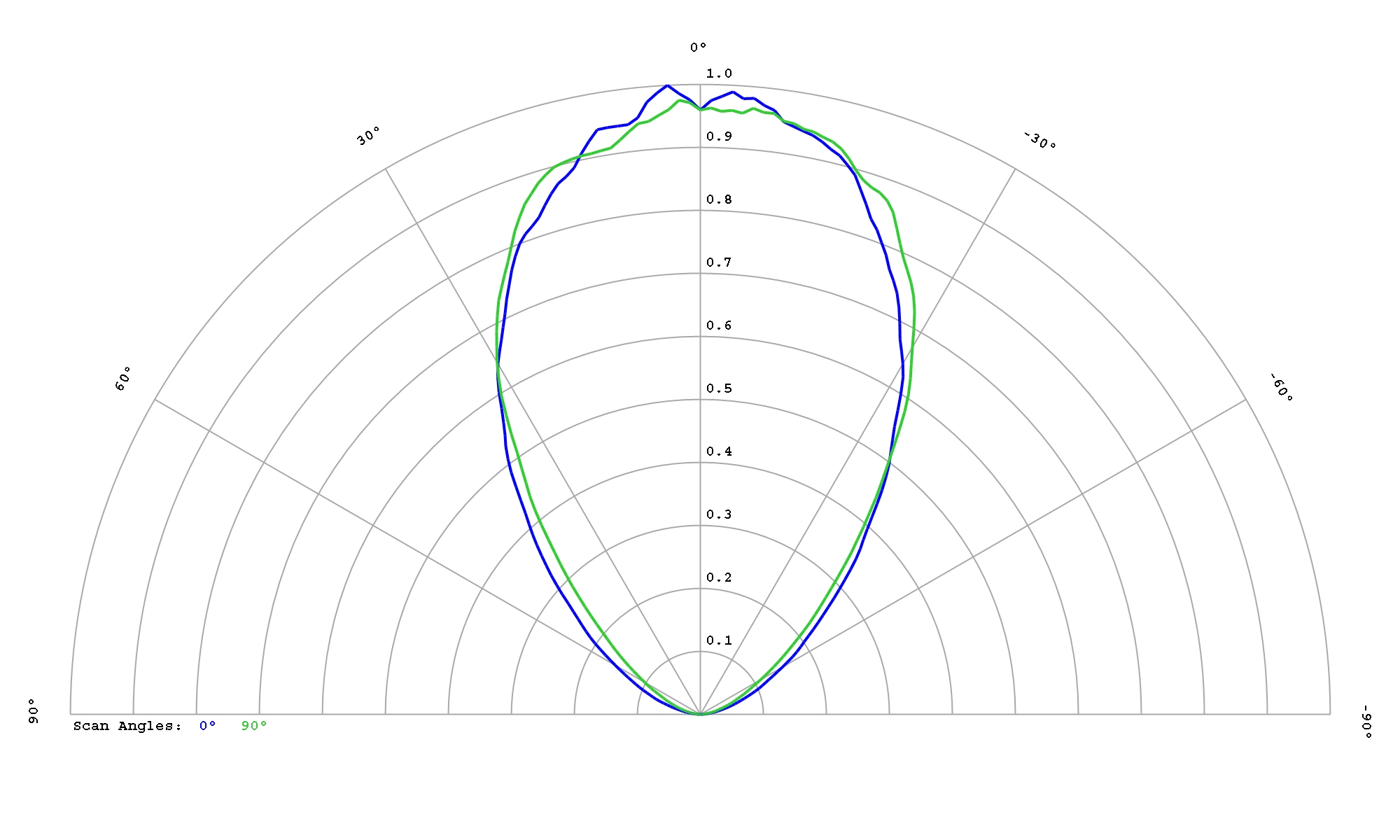

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

83.5%

FWHM:

73°

Cd/Im:

0.6


Download

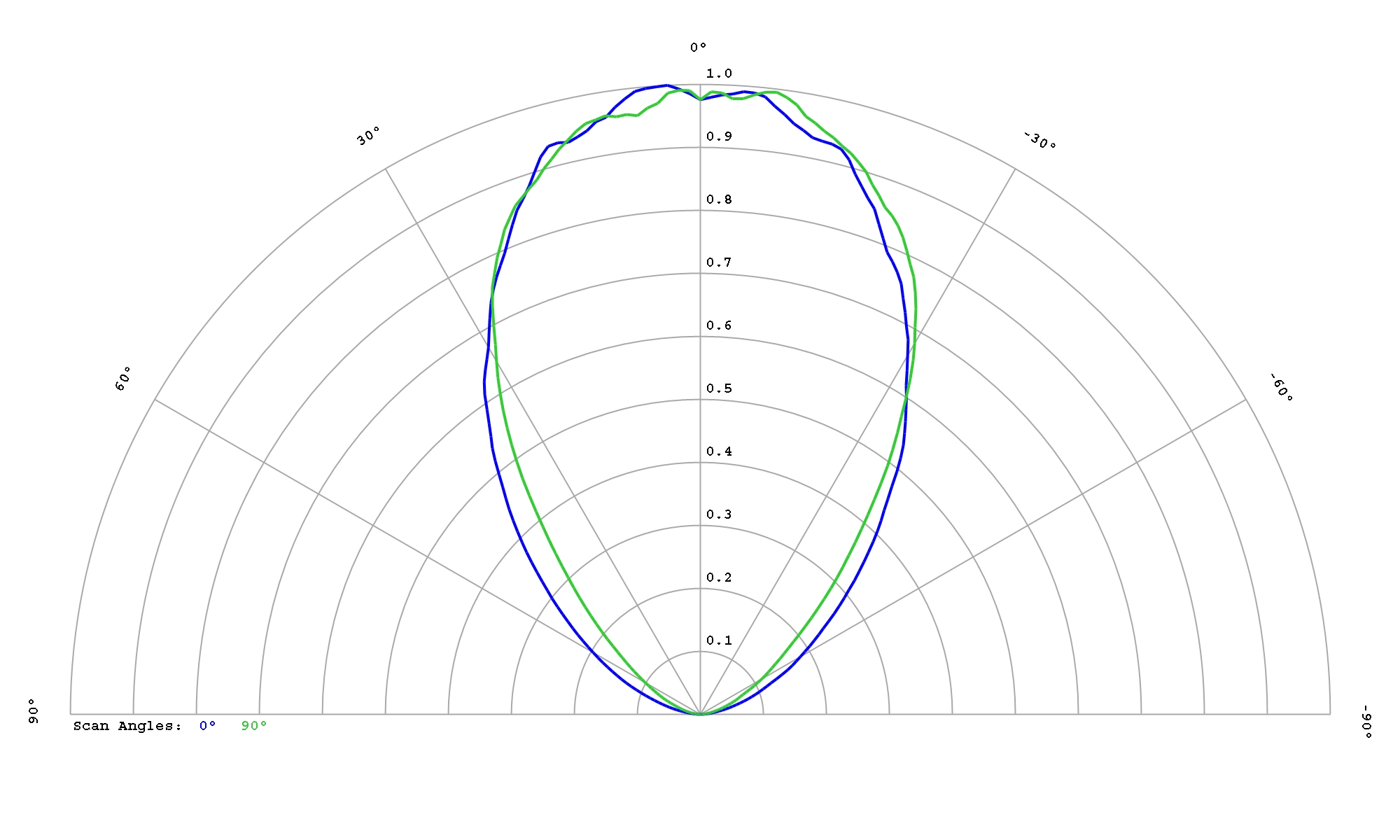

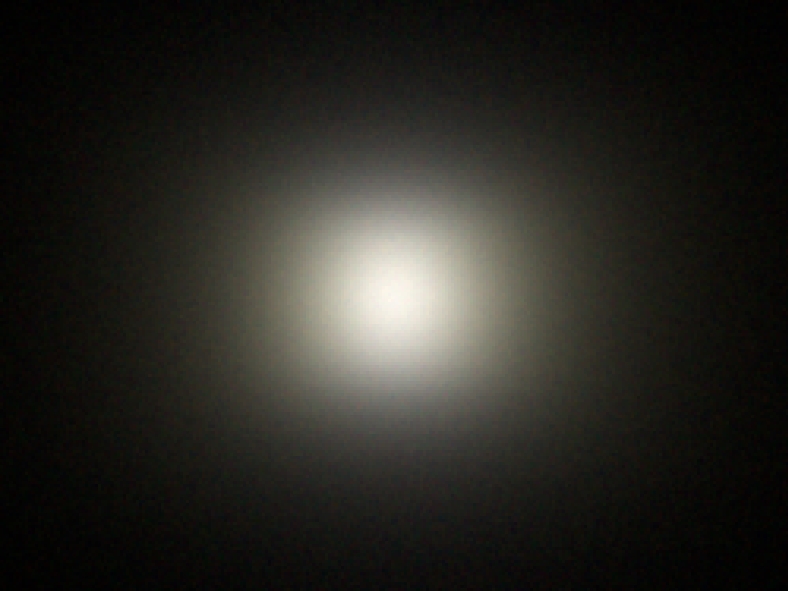

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

81.5%

FWHM:

74°

Cd/Im:

0.6


Download

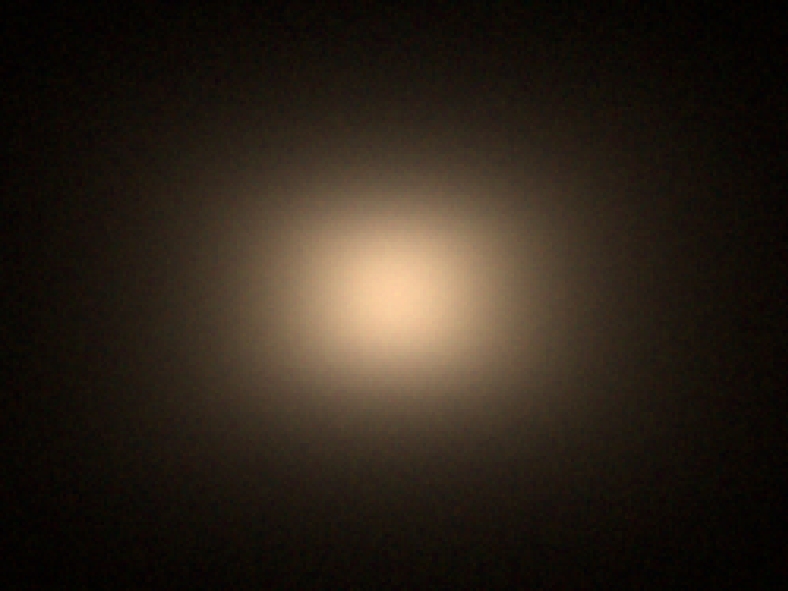

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

80.5%

FWHM:

89 x 66°

Cd/Im:

0.6

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

81.0%

FWHM:

81 x 66°

Cd/Im:

0.6

Download

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

78.5%

FWHM:

91 x 68°

Cd/Im:

0.5

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

81.0%

FWHM:

91 x 68°

Cd/Im:

0.6

Download

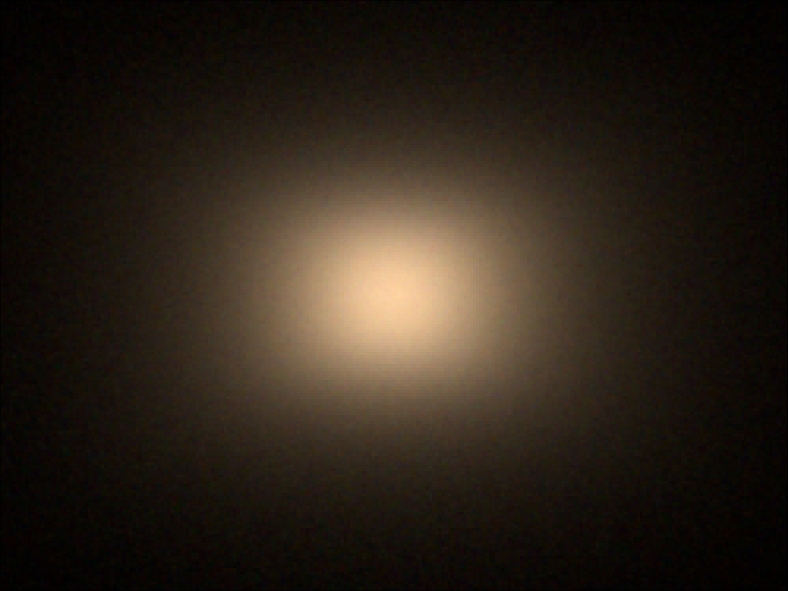

Signify Philips Fortimo LED Strip 1120mm 4400lm 830 HV5B

Eff:

79.5%

FWHM:

89 x 68°

Cd/Im:

0.5



Download

Signify Philips Fortimo LED Strip 1120mm 4400lm 830 LV5B

Eff:

79.5%

FWHM:

88 x 66°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip 1120mm 4400lm 840 BC HV6

Eff:

81.0%

FWHM:

83 x 68°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip 1ft 1100lm 840 BC HV6/LV6

Eff:

81.0%

FWHM:

86 x 67°

Cd/Im:

0.7



Download

Signify Philips Fortimo LED Strip 1ft 1100lm 940 BC HV6

Eff:

81.0%

FWHM:

88 x 68°

Cd/Im:

0.7



Download

Signify Philips Fortimo LED Strip 1ft 2000lm 840 BC HV6

Eff:

81.0%

FWHM:

88 x 67°

Cd/Im:

0.7



Download

Signify Philips Fortimo LED Strip 2ft 2200lm 840 BC HV6/LV6

Eff:

81.0%

FWHM:

86 x 68°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip 2ft 2200lm 940 BC HV6/LV6

Eff:

81.0%

FWHM:

87 x 68°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip 2ft 4000lm 840 BC HV6

Eff:

81.0%

FWHM:

89 x 68°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 1ft 1100lm 840 BC HV5

Eff:

79.5%

FWHM:

86 x 67°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 1ft 1100lm 840 BC LV5

Eff:

79.5%

FWHM:

87 x 66°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 1ft 1100lm 940 BC HV5

Eff:

79.5%

FWHM:

89 x 67°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 1ft 1100lm 940 BC LV5

Eff:

79.5%

FWHM:

86 x 67°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 2ft 2200lm 840 BC HV5

Eff:

79.5%

FWHM:

88 x 68°

Cd/Im:

0.5



Download

Signify Philips Fortimo LED Strip OC 2ft 2200lm 840 BC LV5

Eff:

79.5%

FWHM:

88 x 66°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 2ft 2200lm 940 BC HV5

Eff:

79.5%

FWHM:

88 x 68°

Cd/Im:

0.6



Download

Signify Philips Fortimo LED Strip OC 2ft 2200lm 940 BC LV5

Eff:

79.5%

FWHM:

88 x 67°

Cd/Im:

0.6



Download

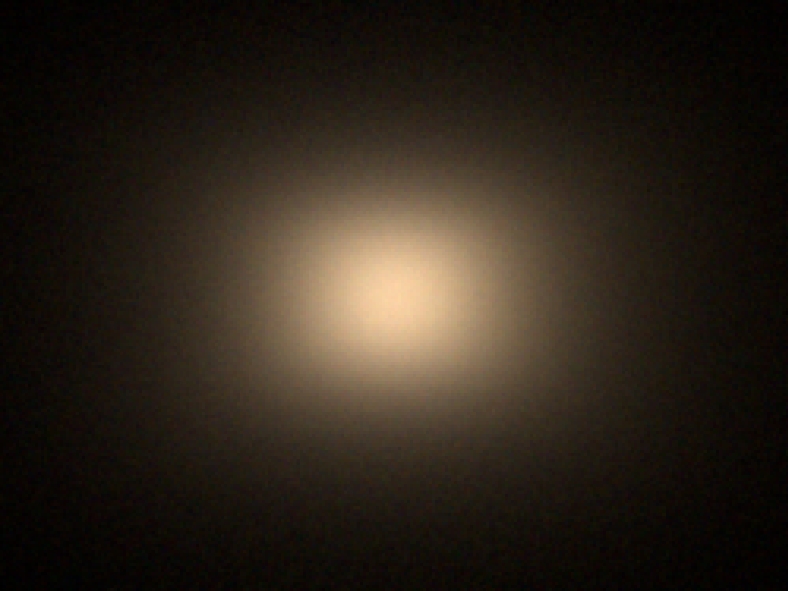

Samsung 2835 LM281B+ White

Eff:

80.5%

FWHM:

88 x 66°

Cd/Im:

0.6



Download

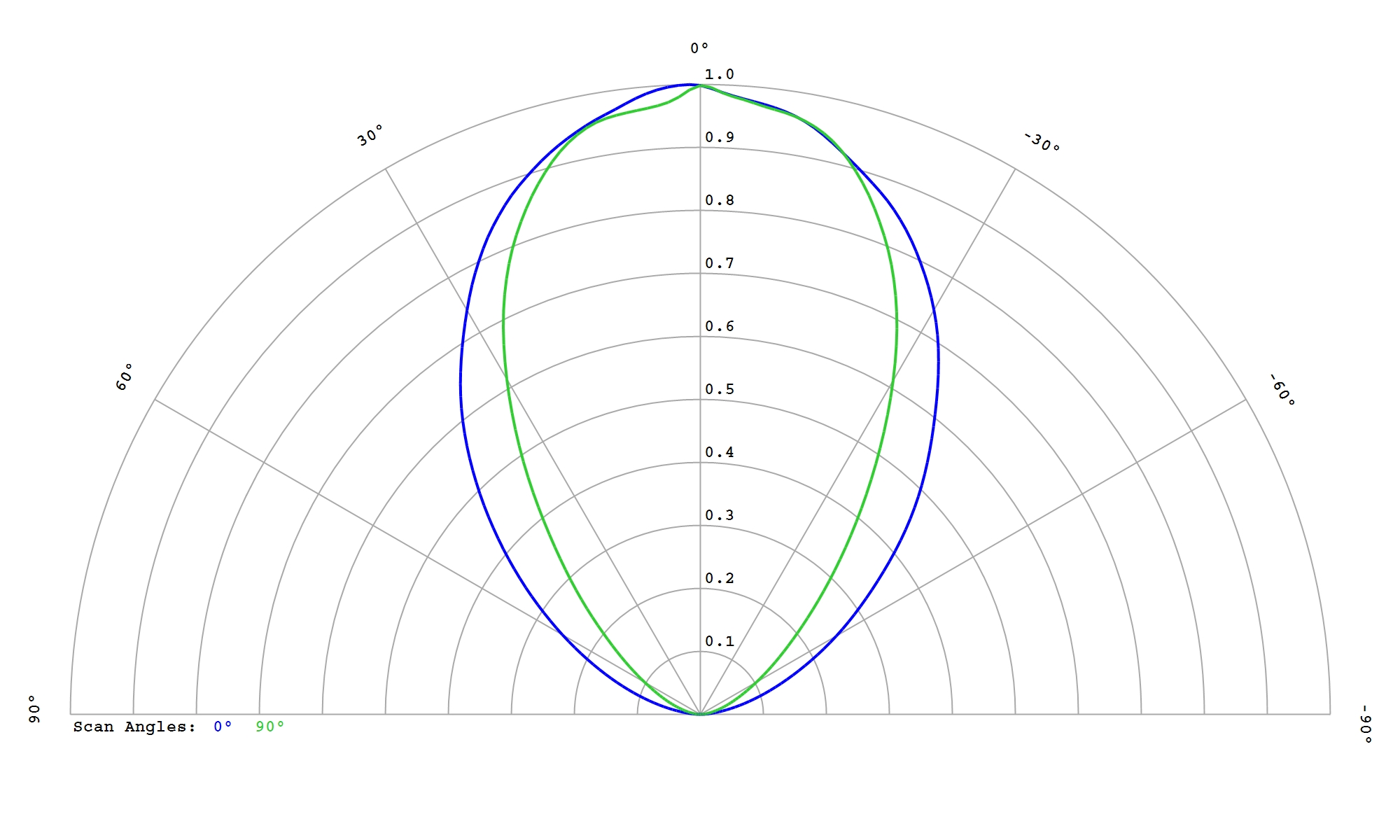

Samsung 2835 LM282B+ White

Eff:

81.5%

FWHM:

87 x 67°

Cd/Im:

0.6



Download

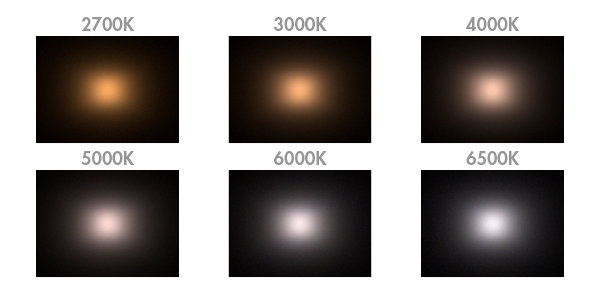

Samsung 3030 LM301B (TW) Tunable White 2700-6500K

Eff:

81.5%

FWHM:

89 x 70°

Cd/Im:

0.5

Download

Samsung 3030 LM301B White

Eff:

81.5%

FWHM:

87 x 67°

Cd/Im:

0.6


Download

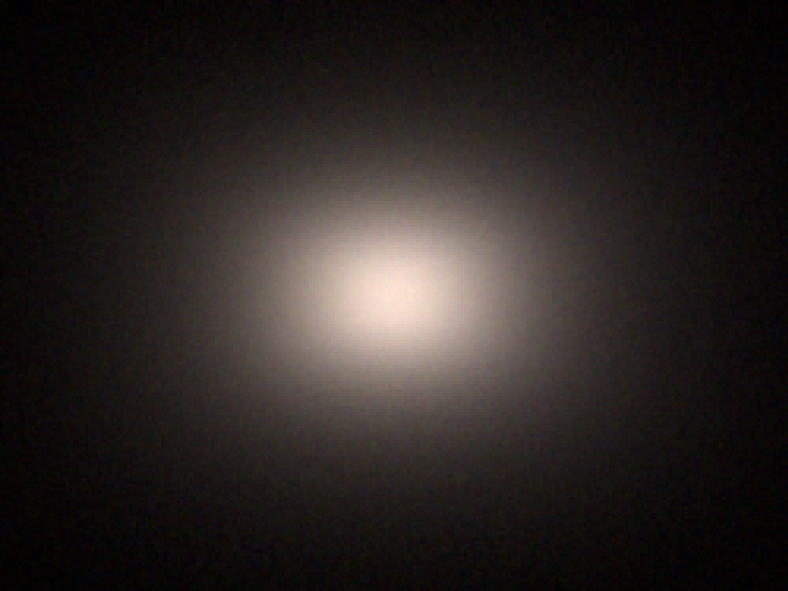

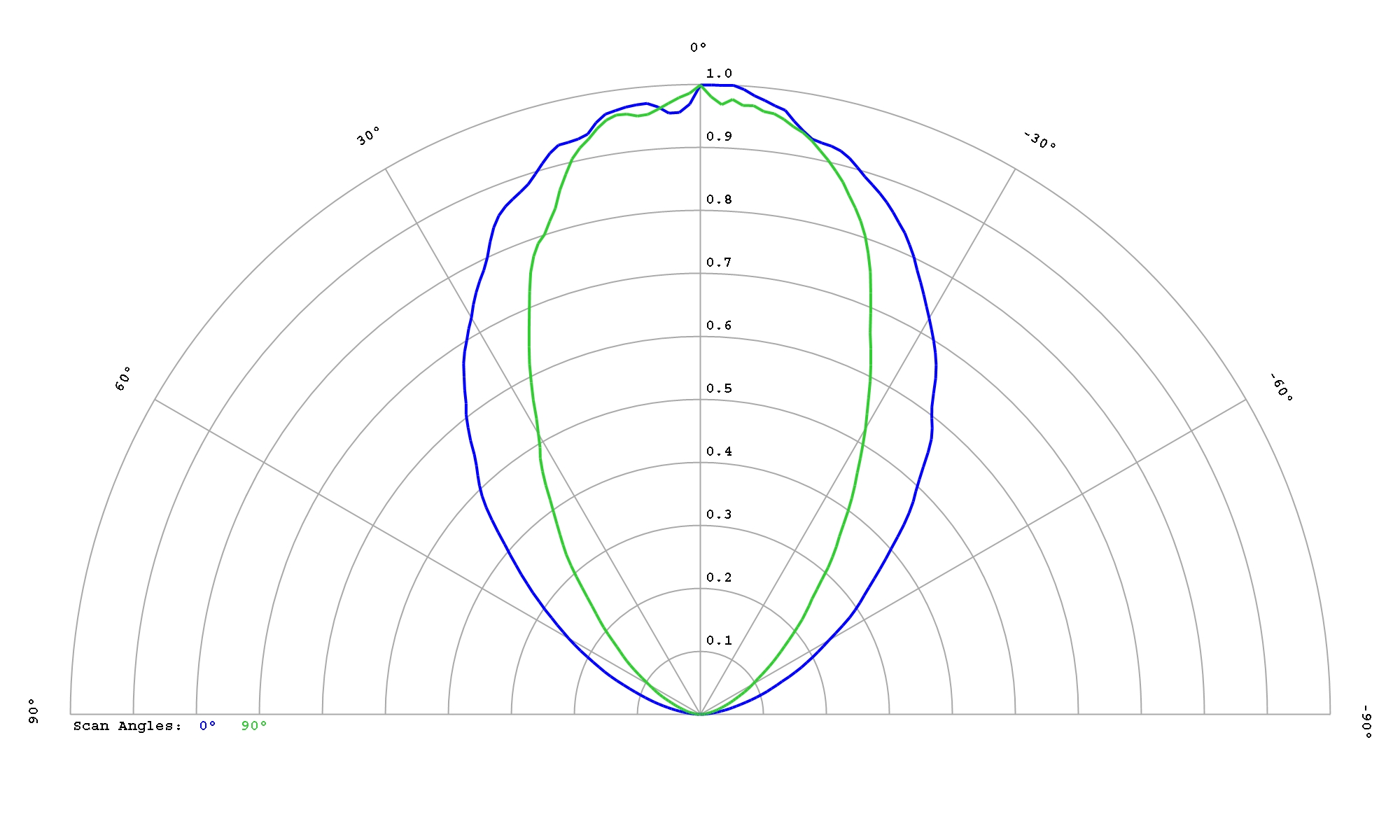

Samsung 5050 LH502C White

Eff:

80.5%

FWHM:

87 x 61°

Cd/Im:

0.7


Download

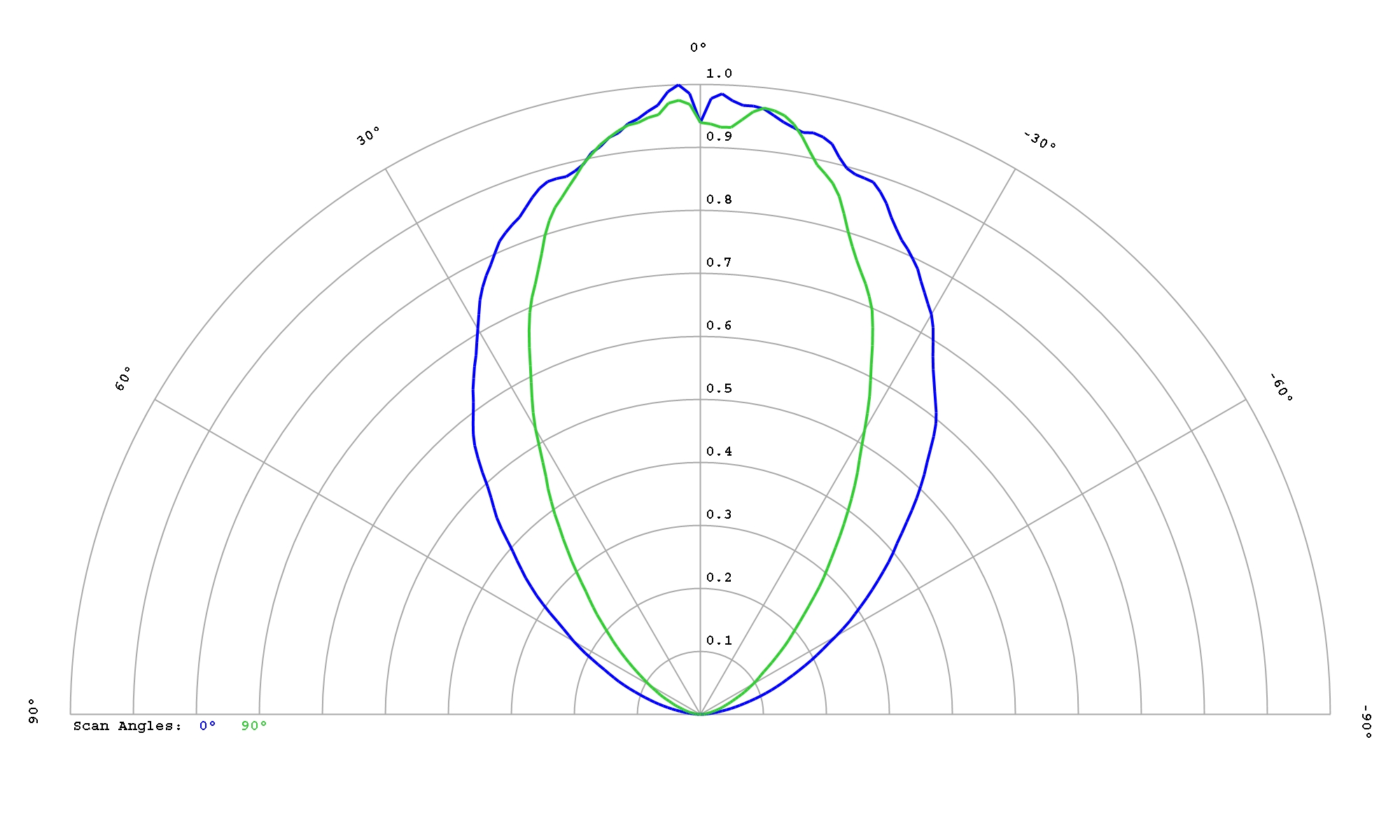

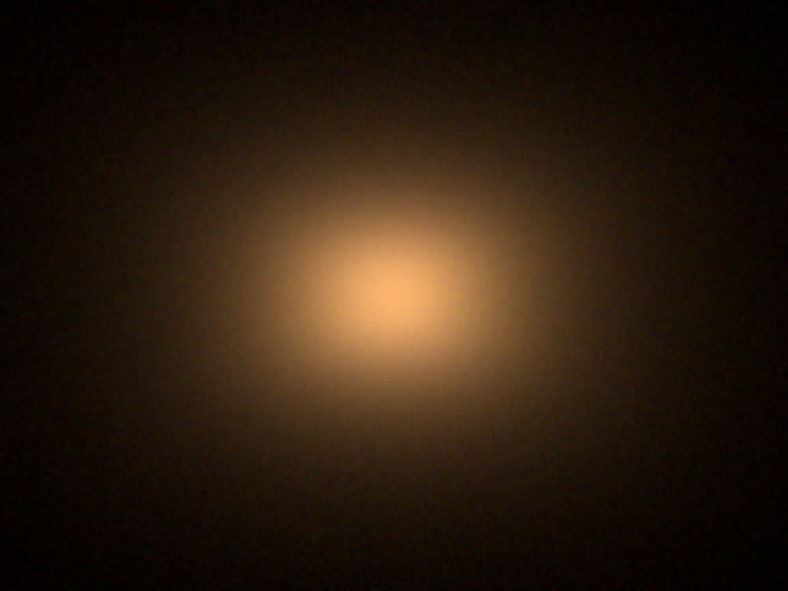

Samsung 5050 LH502D White

Eff:

80.0%

FWHM:

85 x 61°

Cd/Im:

0.6


Download

Samsung 5050 LH508C White

Eff:

80.5%

FWHM:

86 x 62°

Cd/Im:

0.7


Download

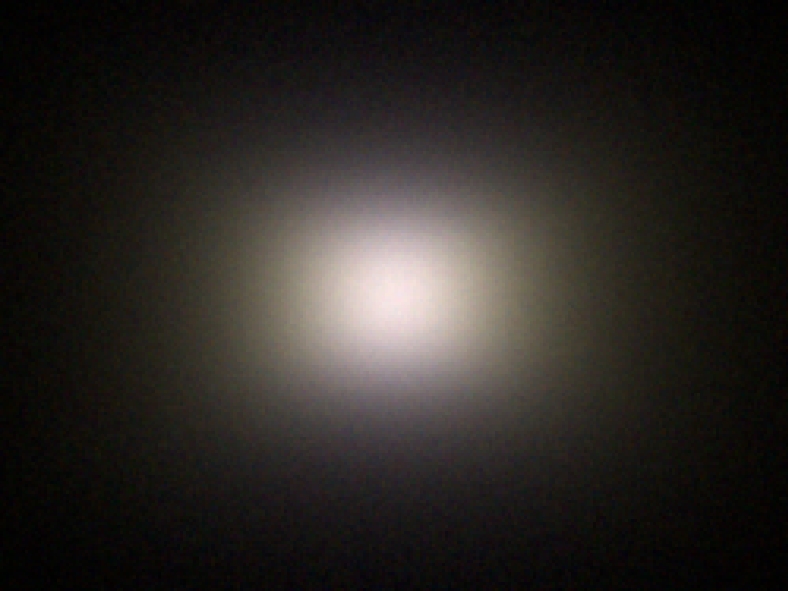

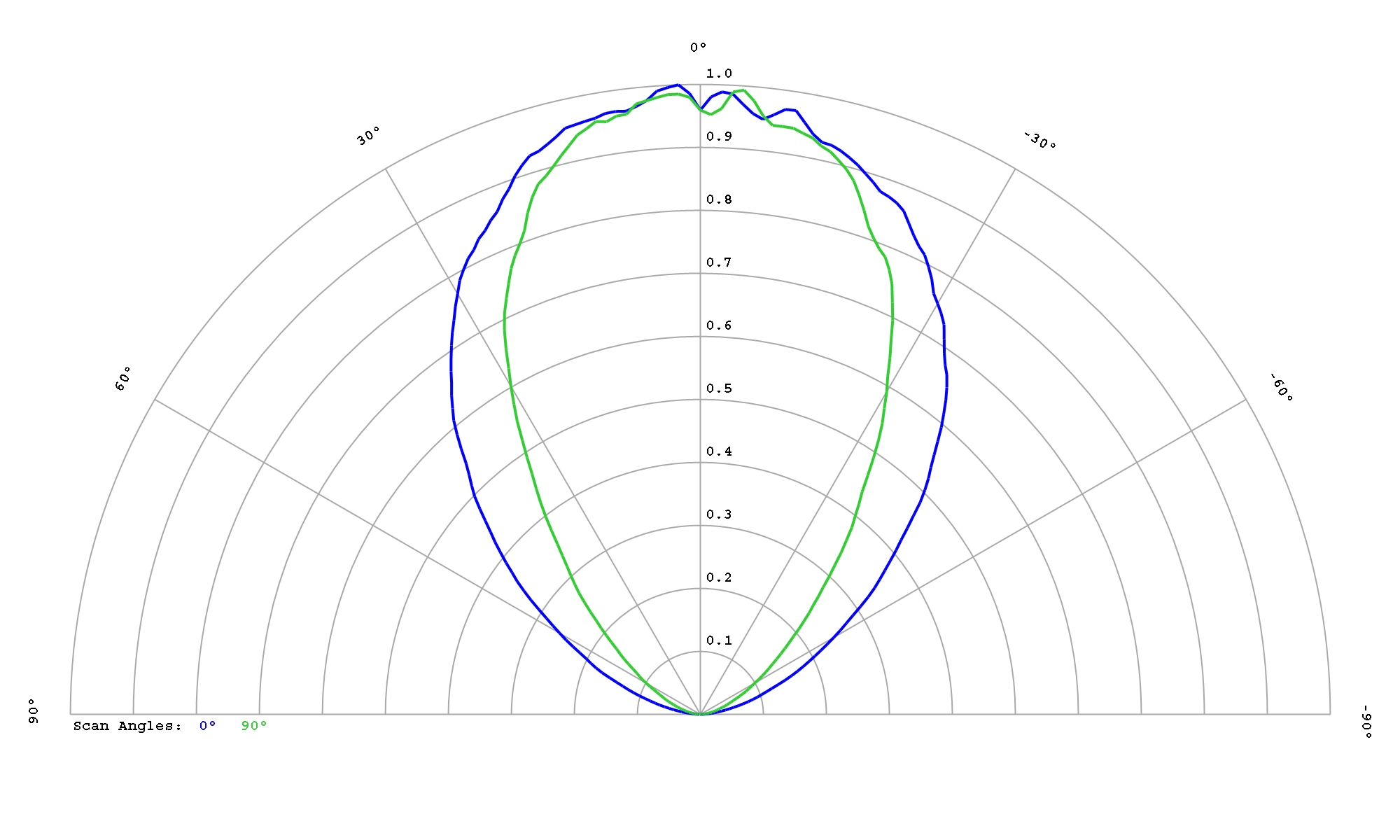

Samsung CSP LH151B White

Eff:

81.0%

FWHM:

89 x 66°

Cd/Im:

0.6

Download

Samsung CSP LH181B White

Eff:

79.5%

FWHM:

88 x 67°

Cd/Im:

0.6


Download

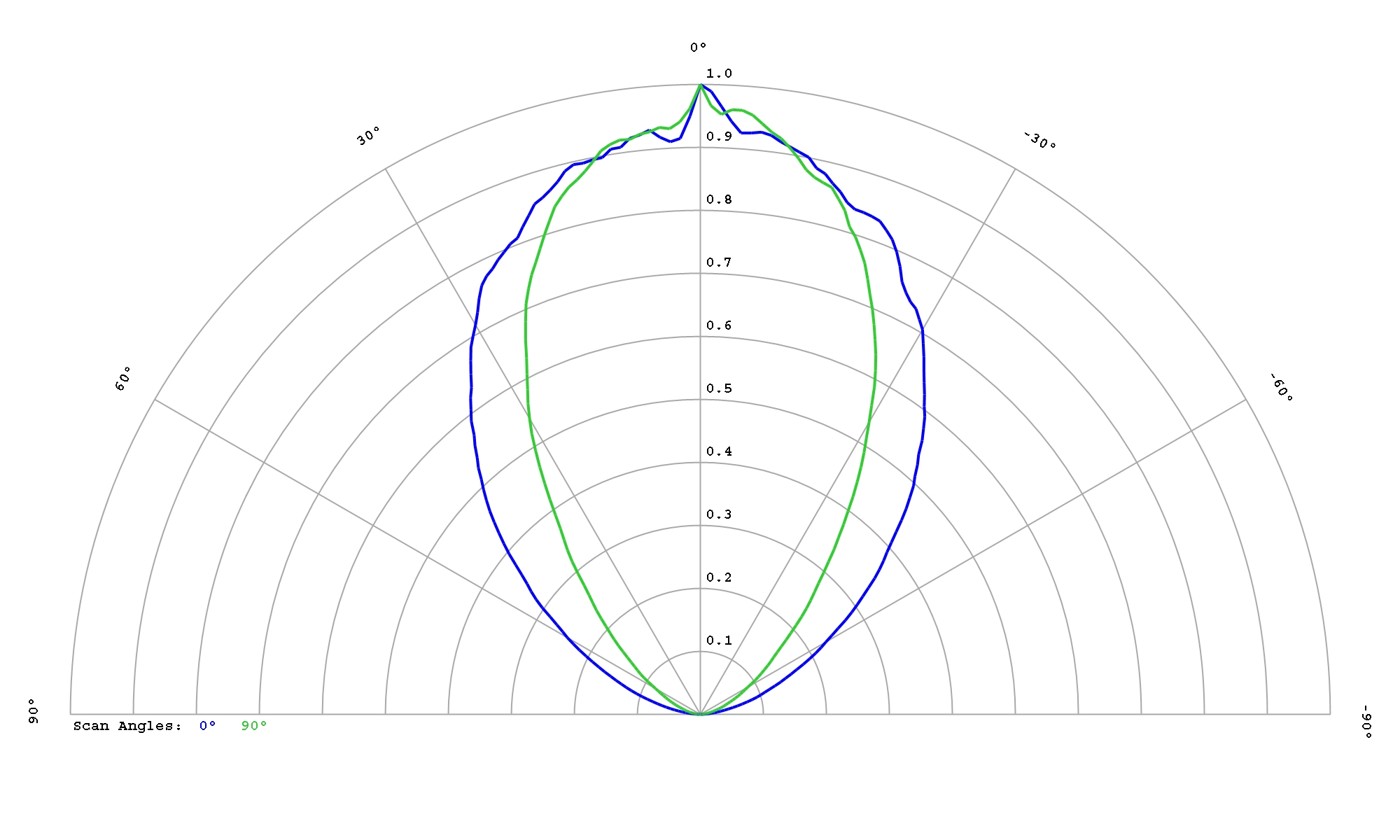

Samsung CSP LH231B White

Eff:

79.5%

FWHM:

82 x 62°

Cd/Im:

0.6


Download

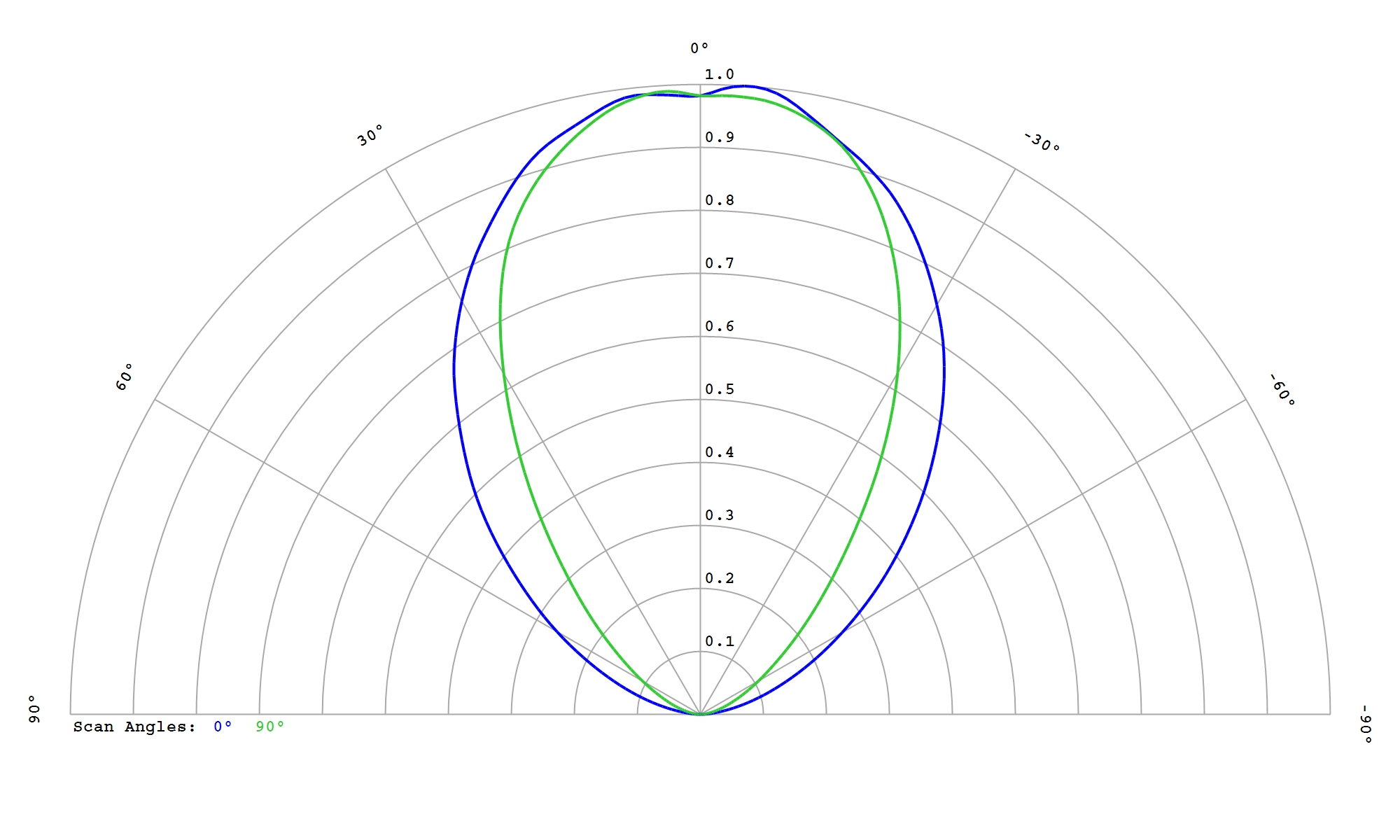

Seoul 3030 STW8C12E-E0 White

Eff:

81.0%

FWHM:

85 x 68°

Cd/Im:

0.6

Download

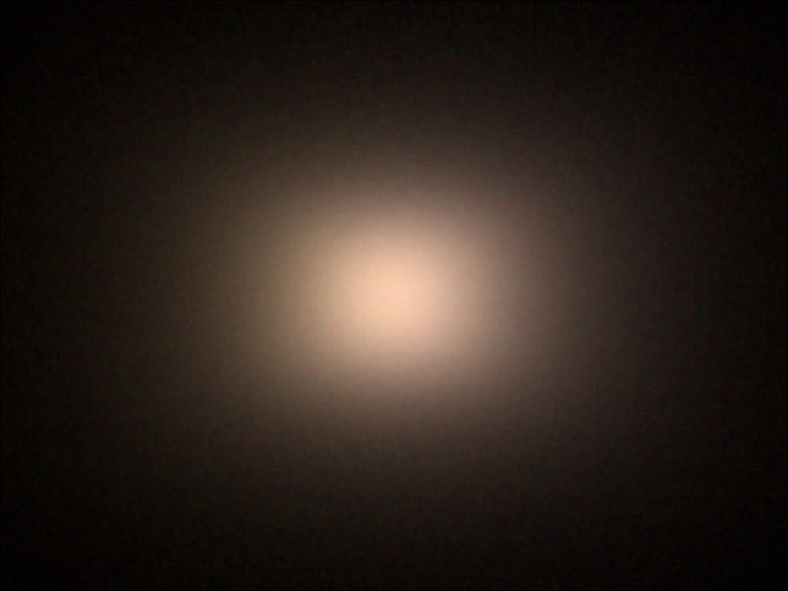

Seoul 3528 G STW8A2PD-G700 White

Eff:

81.0%

FWHM:

89 x 66°

Cd/Im:

0.6

Download

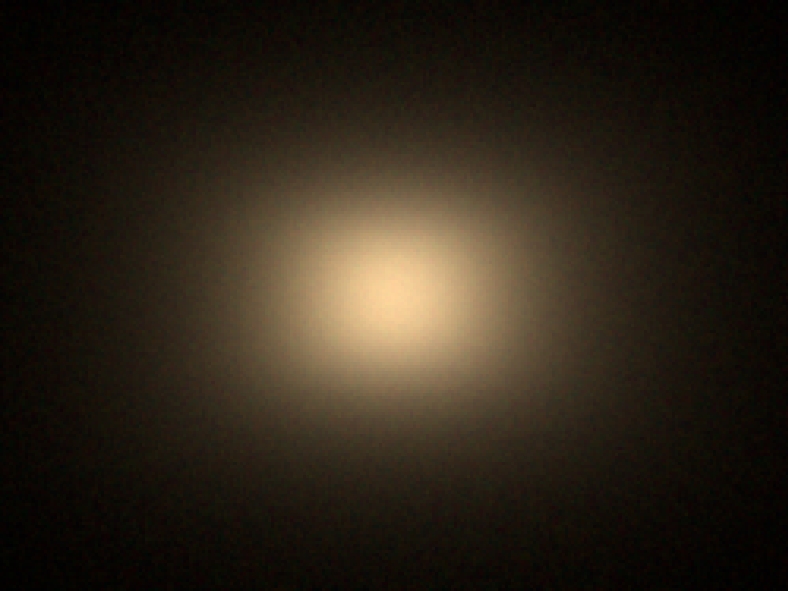

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

80.5%

FWHM:

86 x 67°

Cd/Im:

0.6


Download

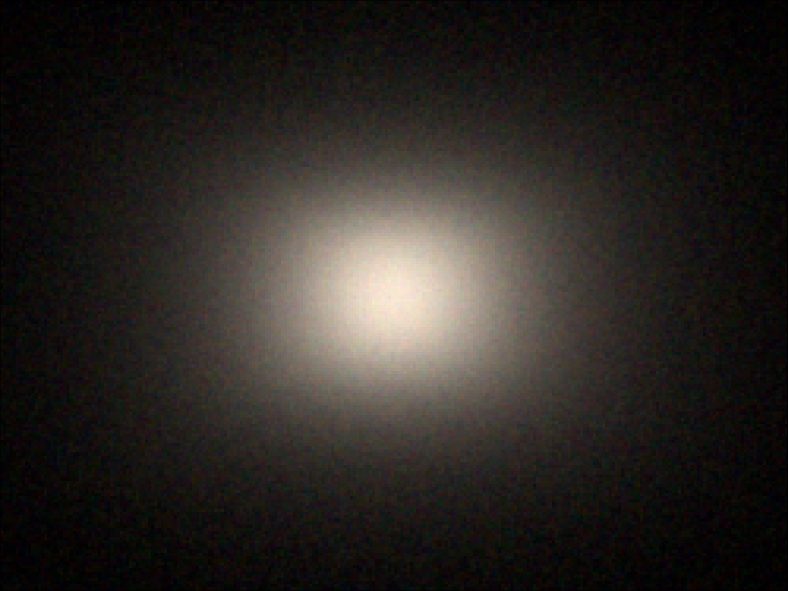

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

81.0%

FWHM:

89 x 66°

Cd/Im:

0.7

Download

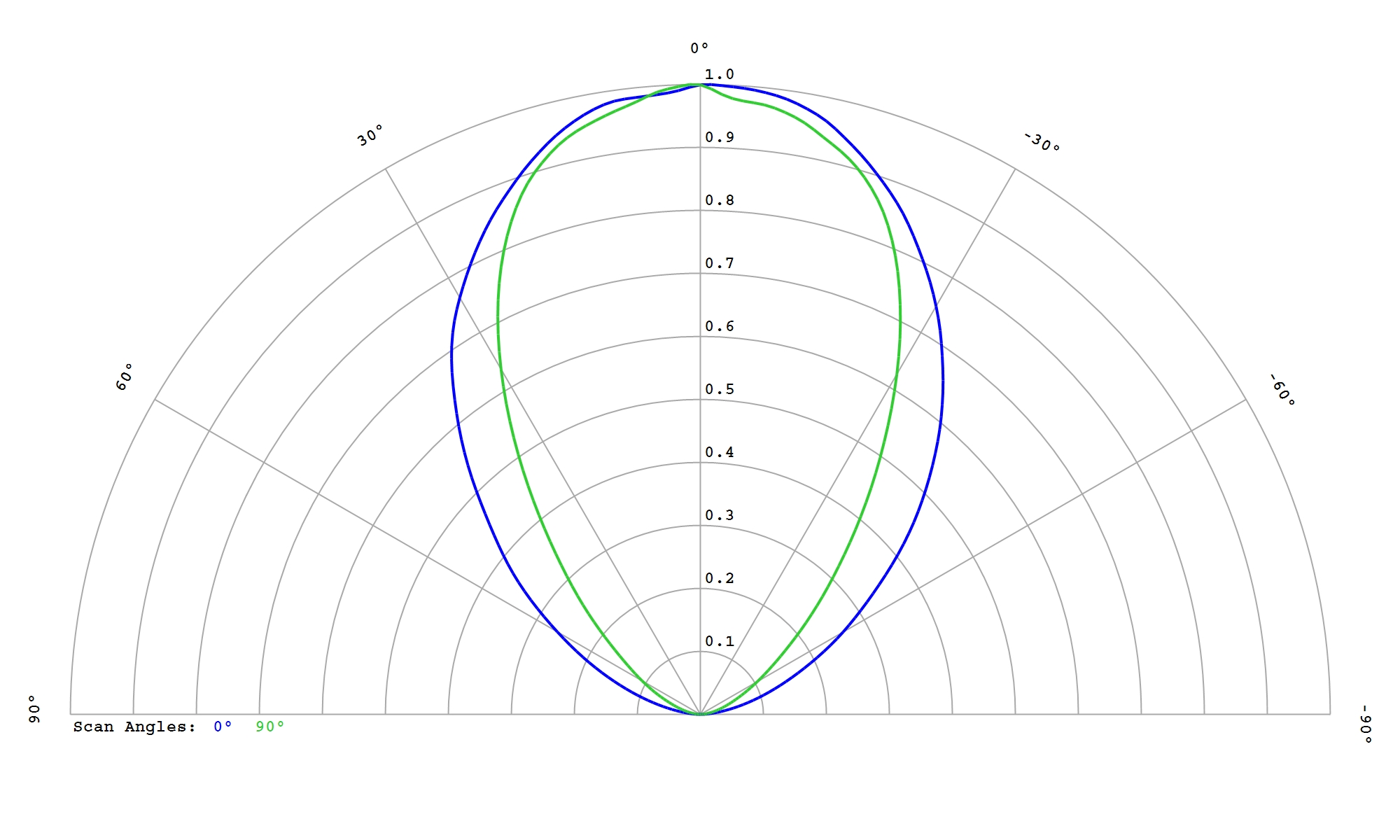

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

81.0%

FWHM:

87 x 67°

Cd/Im:

0.7

Download

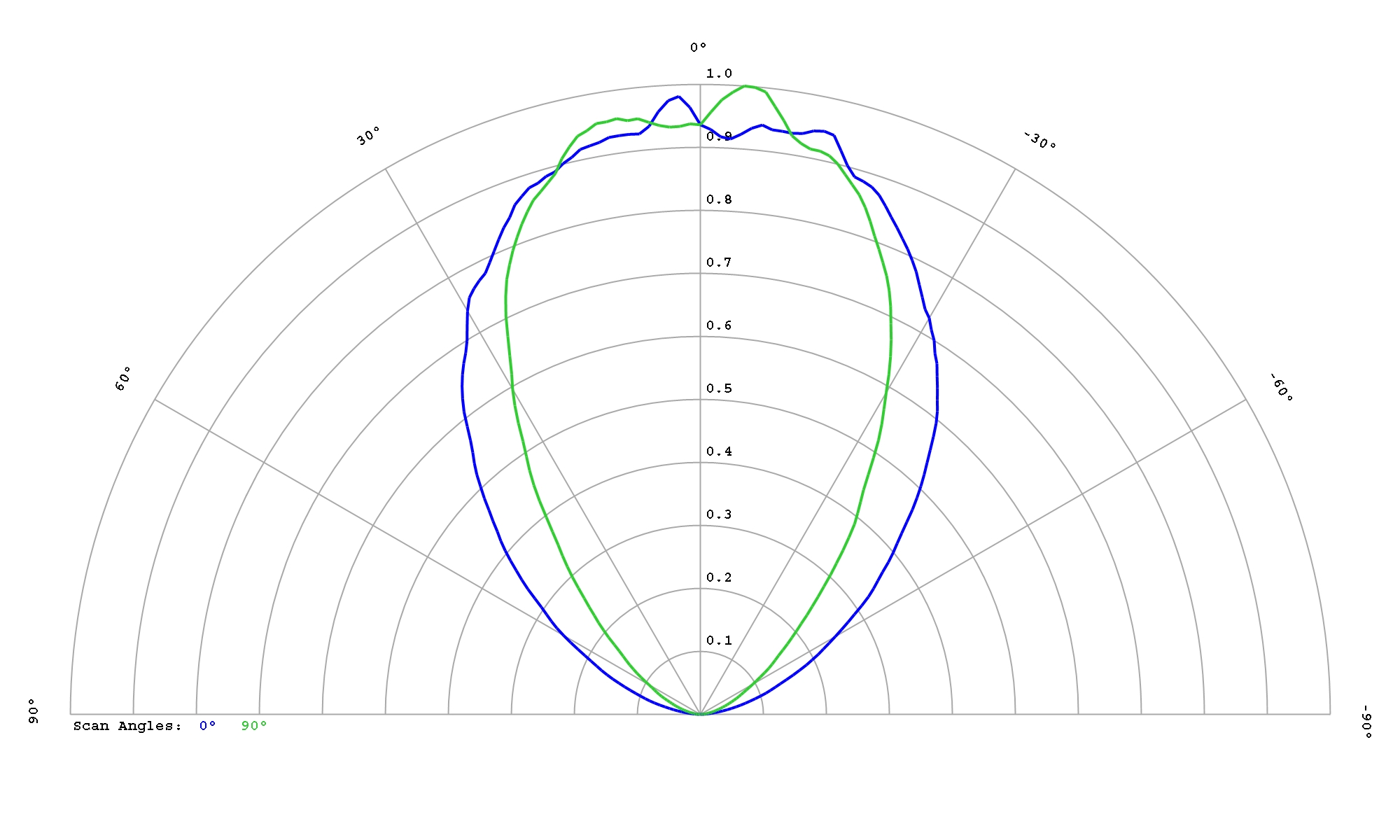

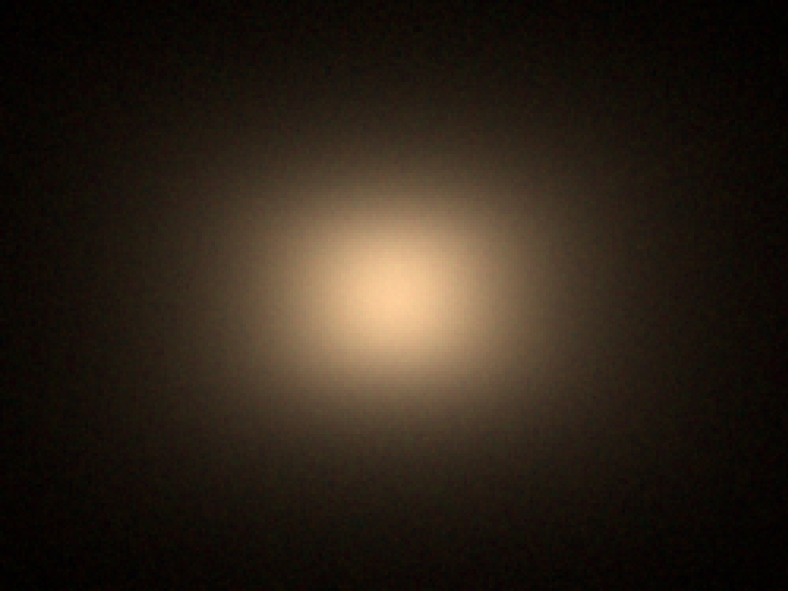

Seoul SunLike 3030 STW9C2SB-S White

Eff:

80.5%

FWHM:

88 x 67°

Cd/Im:

0.6


Download

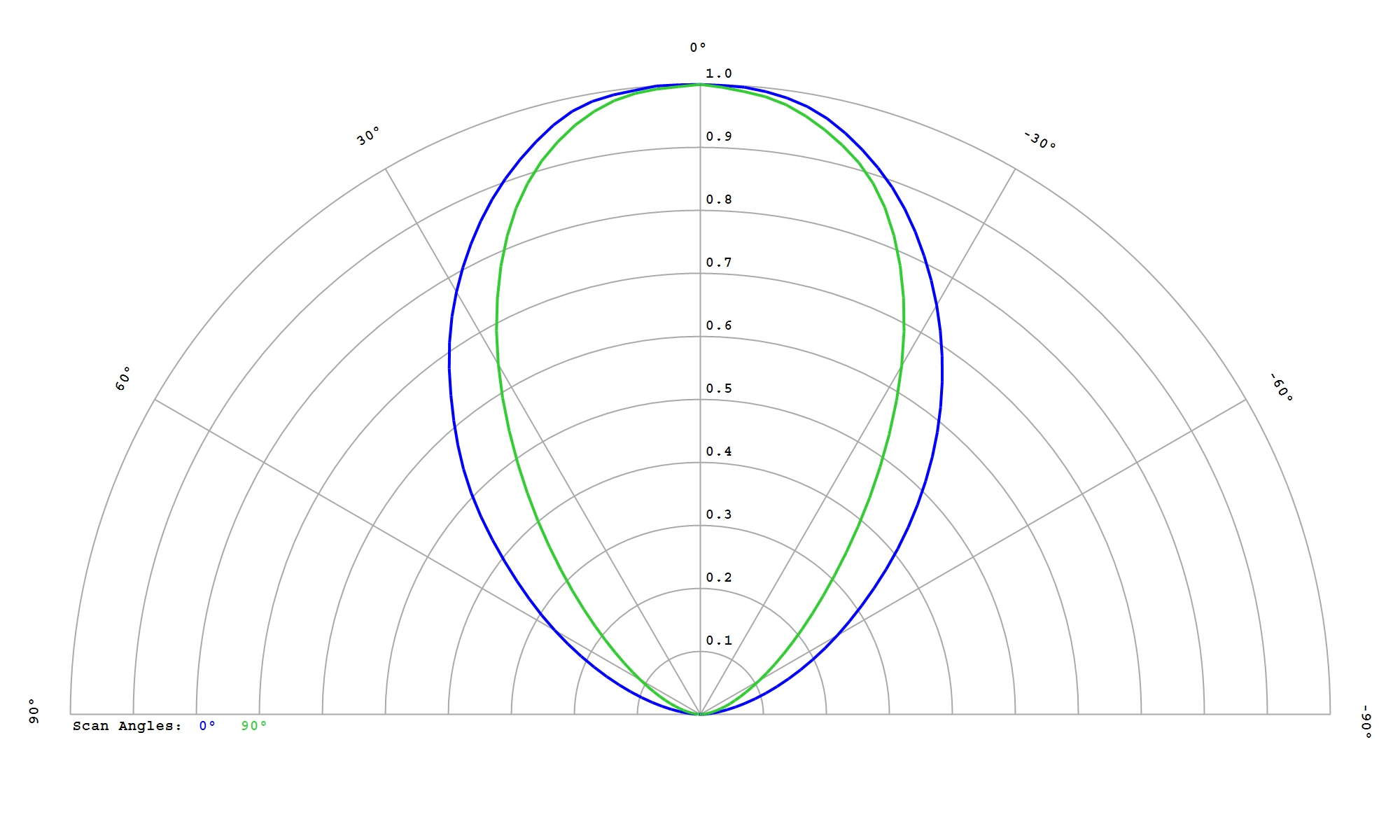

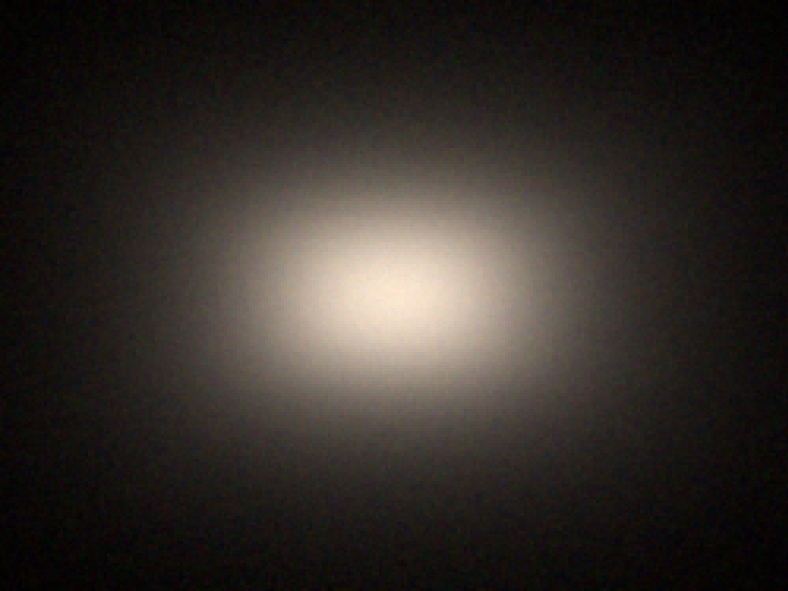

Signify Philips Fortimo LEDFlex 2000lm/m 940 PW C5 G1

Eff:

81.5%

FWHM:

90 x 70°

Cd/Im:

0.6


Download

Tron 20mm Ind LMIDS-0280-E-H30-D White

Eff:

81.5%

FWHM:

88 x 68°

Cd/Im:

0.6



Download

Tron 20mm Ind LMIDS-0280-P-H30-D White

Eff:

81.5%

FWHM:

85 x 69°

Cd/Im:

0.6



Download

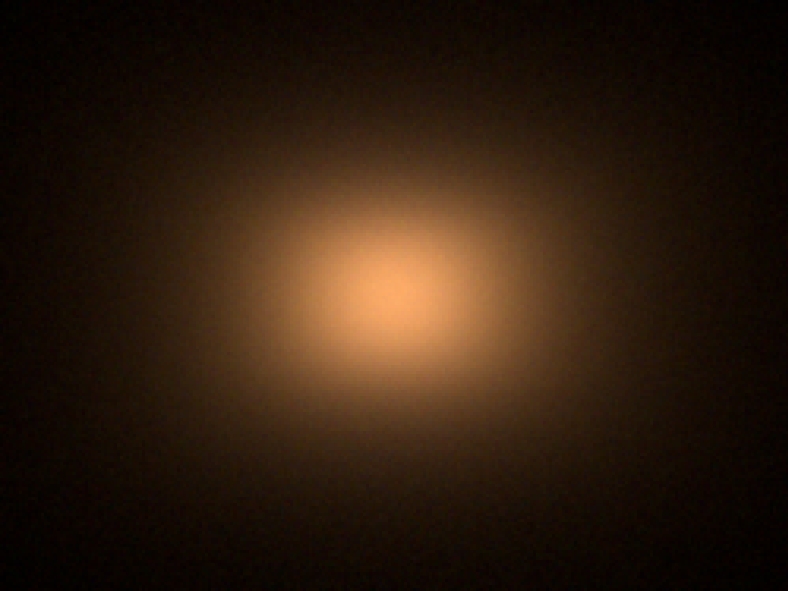

Tron 20mm Ind LMIDS-0560-E-H30-D White

Eff:

81.5%

FWHM:

89 x 67°

Cd/Im:

0.6



Download

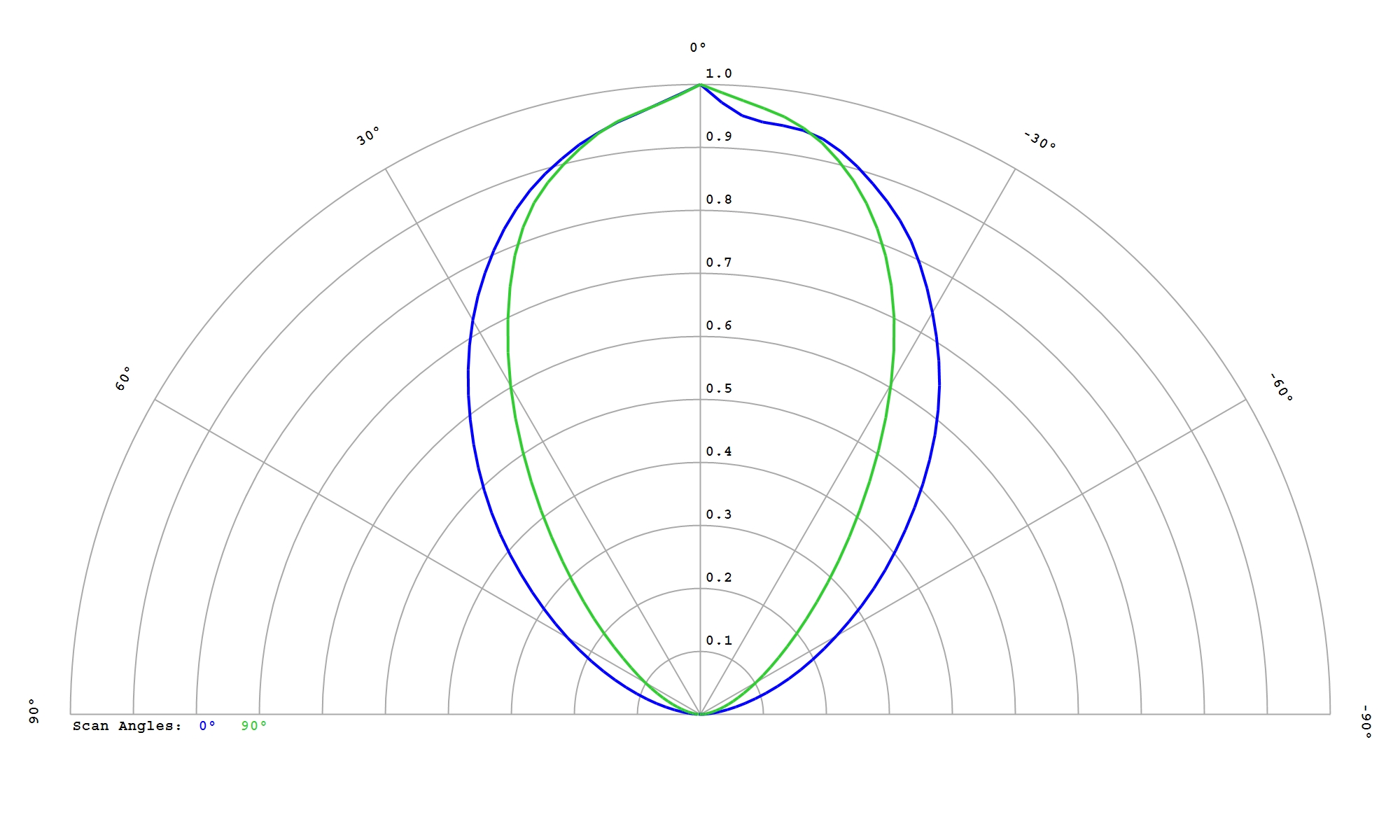

Tron 20mm Ind LMIDS-0560-P-H30-D White

Eff:

81.5%

FWHM:

87 x 69°

Cd/Im:

0.7



Download

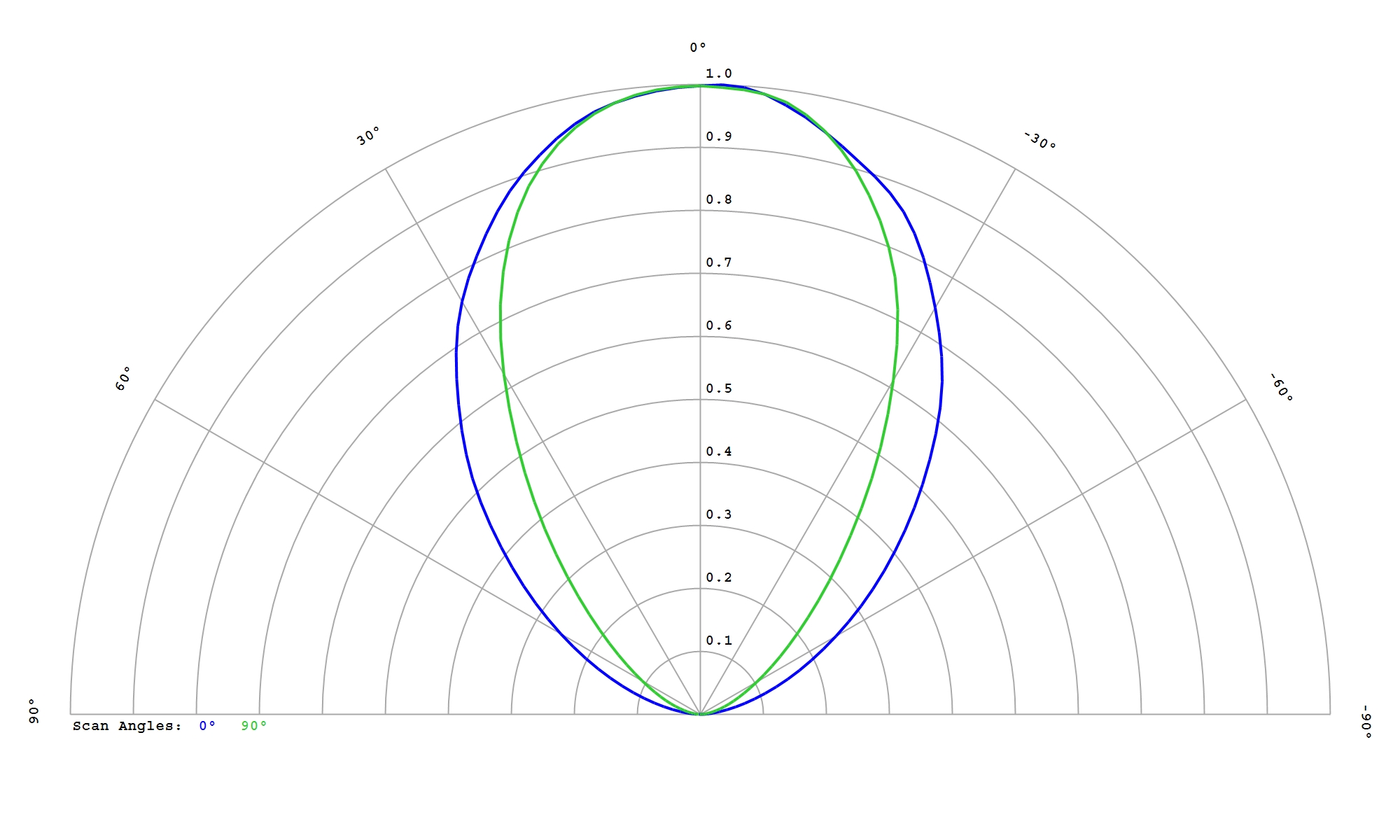

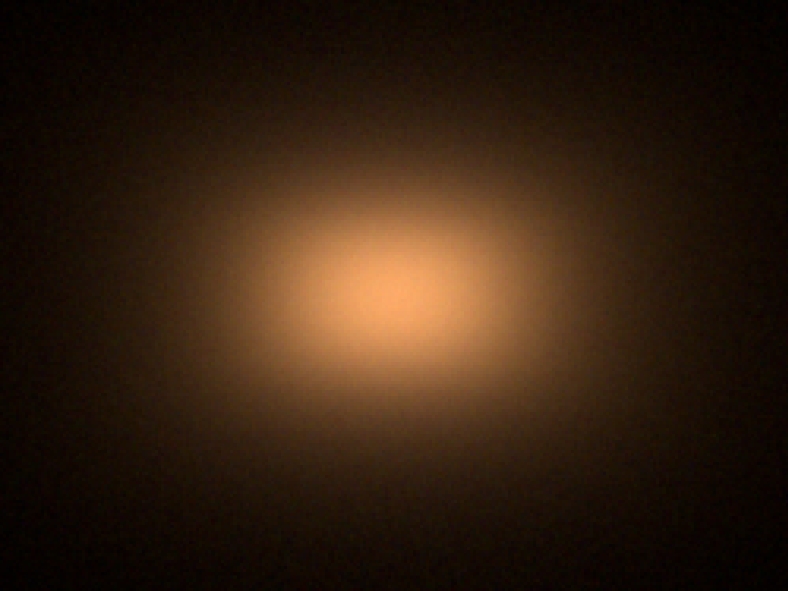

Tron 20mm Ind LMIDS-1120-E-H30-D White

Eff:

81.5%

FWHM:

88 x 67°

Cd/Im:

0.6



Download

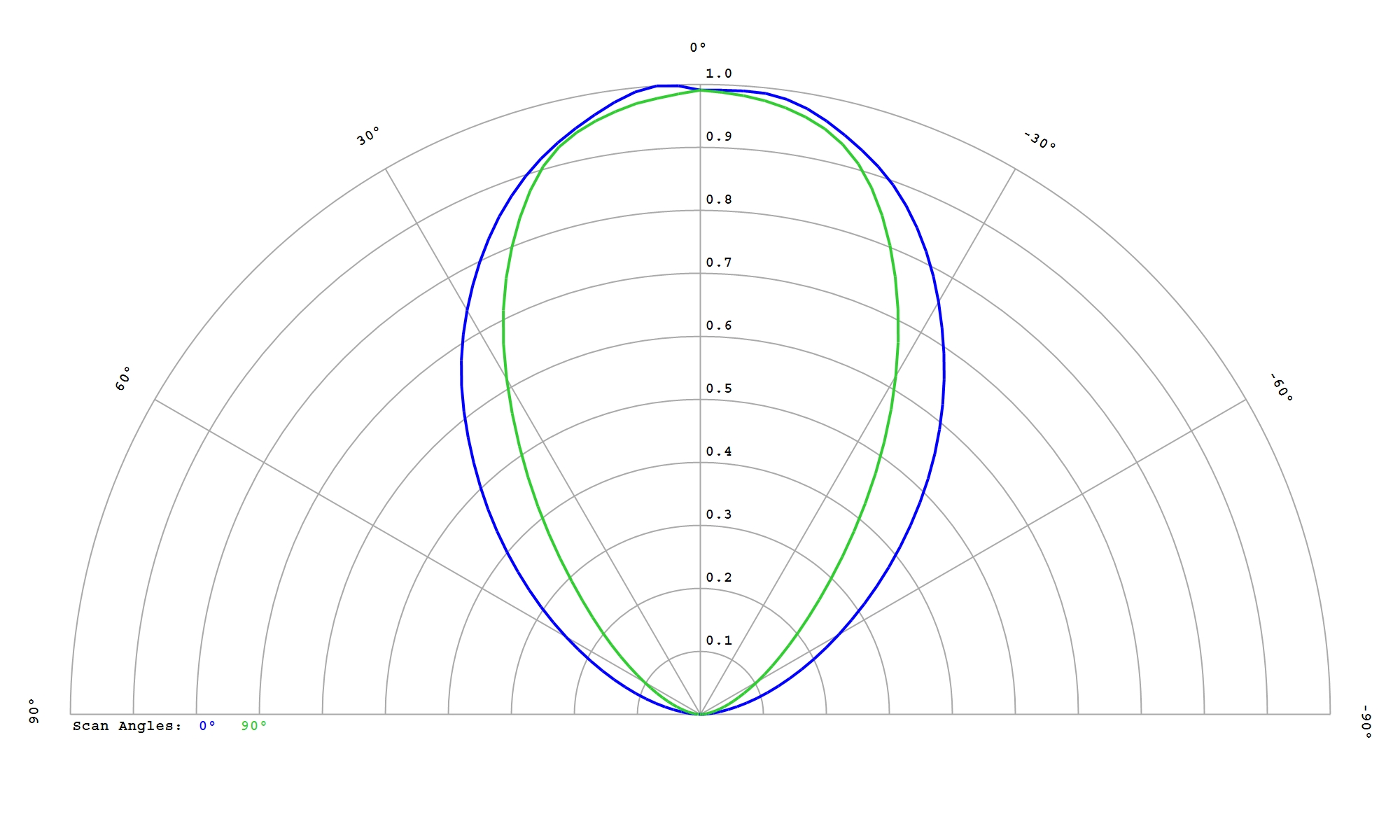

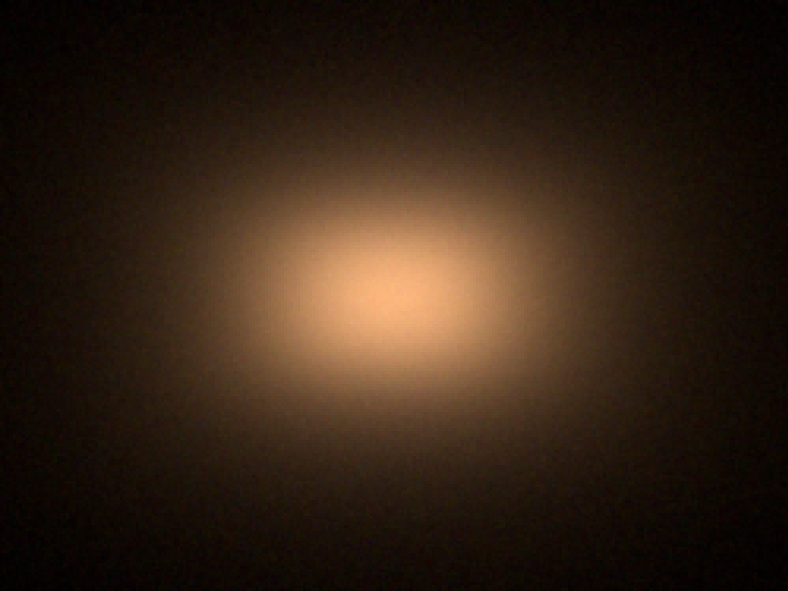

Tron 20mm Ind LMIDS-1120-P-H30-D White

Eff:

81.0%

FWHM:

86 x 69°

Cd/Im:

0.6



Download
