26.0mm Narrow Beam Diffuse Linear

Part number

60165

Dimensions

26.0mm

Optic type

Linear

Finish

Diffuse

Beam type

Narrow Beam

Applications

Architectural

Horticultural

Industrial

Landscape & Garden

Retail

Warehouse

Complete kit pack of 5 available: See PN: 60214
Housing assembly components are also available to order separately, see assembly drawing for part numbers or contact sales.

Downloads

Request a sample

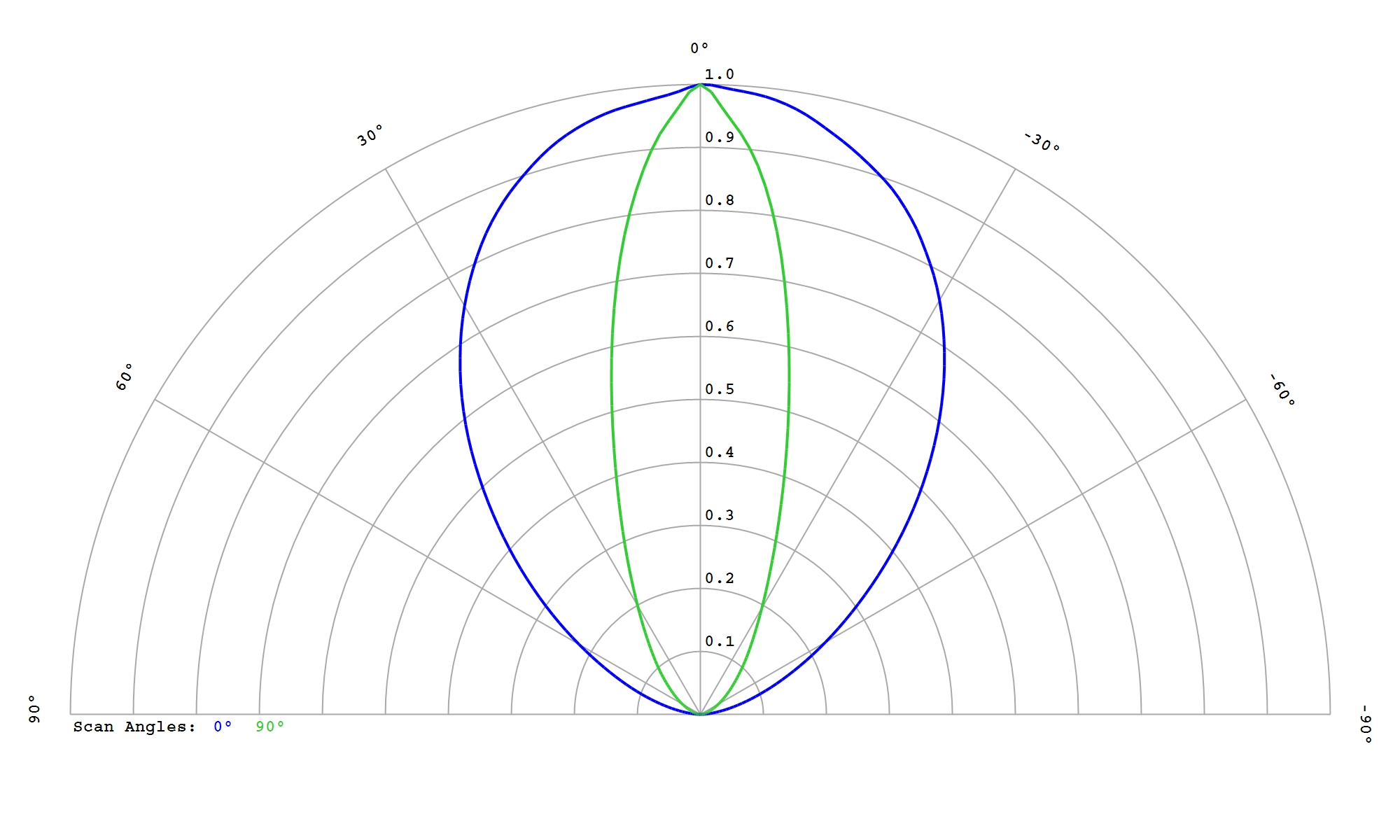

LEDs and Performances

Select and filter based on manufacturer(s)

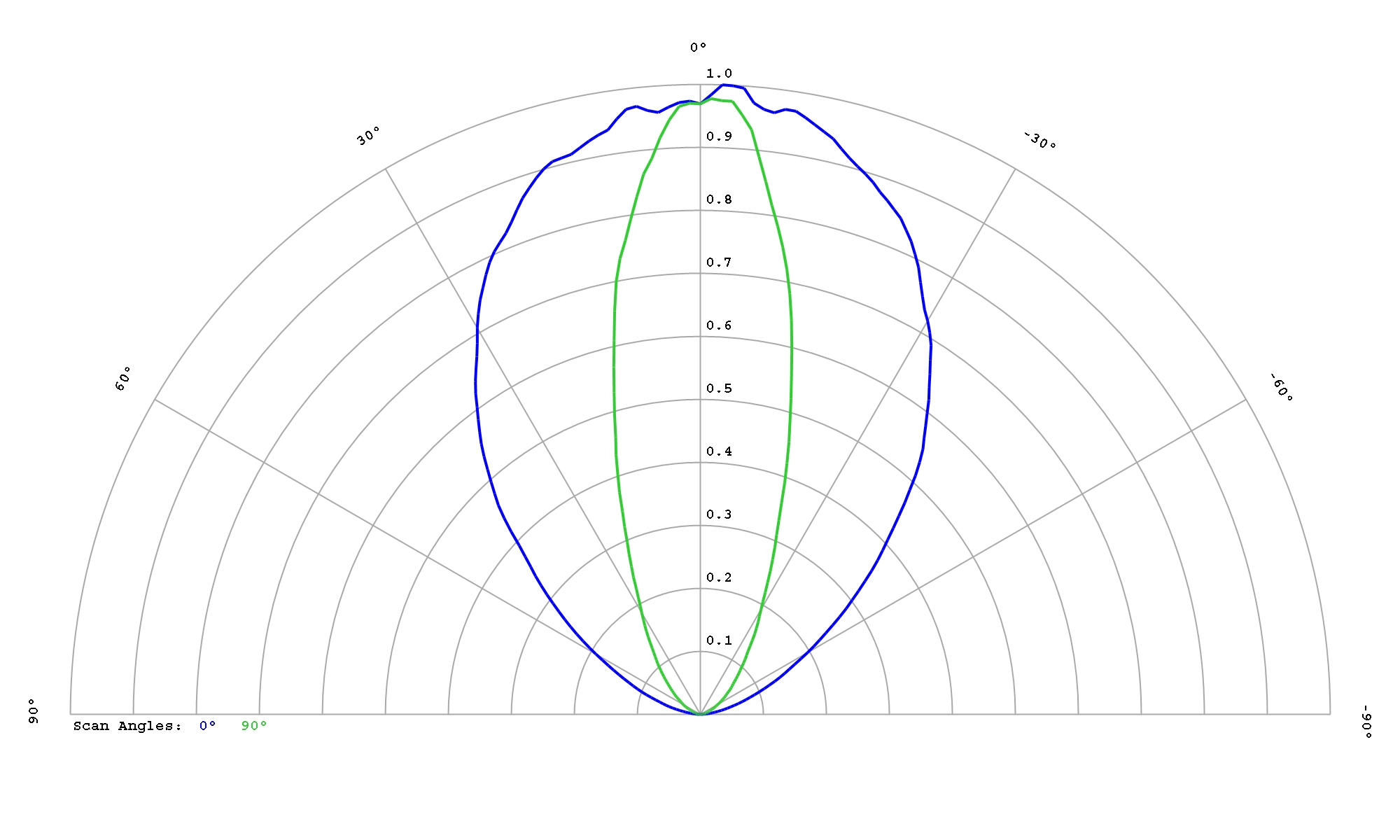

Bridgelux SMD 3030 Gen2 White

Eff:

83.0%

FWHM:

84 x 33°

Cd/Im:

1.0


Download

Cree JB2835B 3V G-Class White

Eff:

82.5%

FWHM:

84 x 33°

Cd/Im:

1.0


Download

Cree JB2835B 3V J-Class White

Eff:

83.0%

FWHM:

84 x 33°

Cd/Im:

1.0


Download

Cree JB3030C 3V E-Class White

Eff:

82.0%

FWHM:

85 x 34°

Cd/Im:

1.0


Download

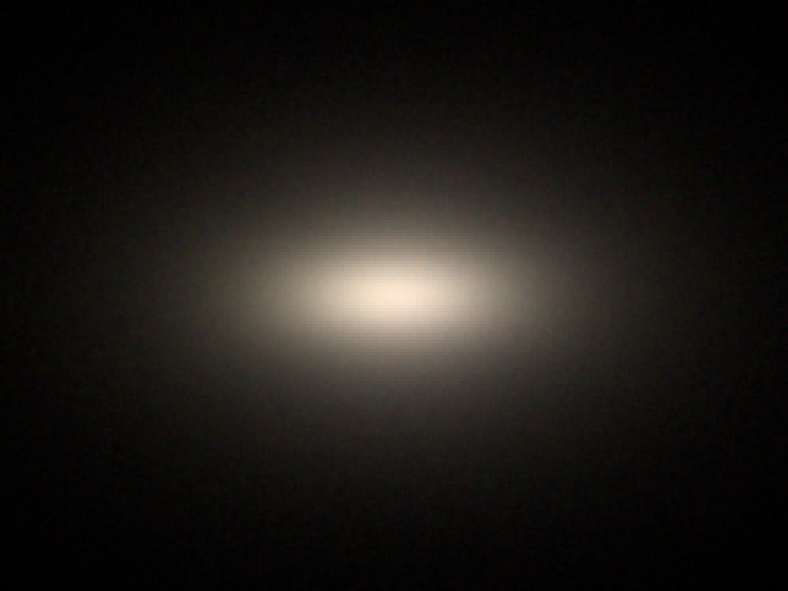

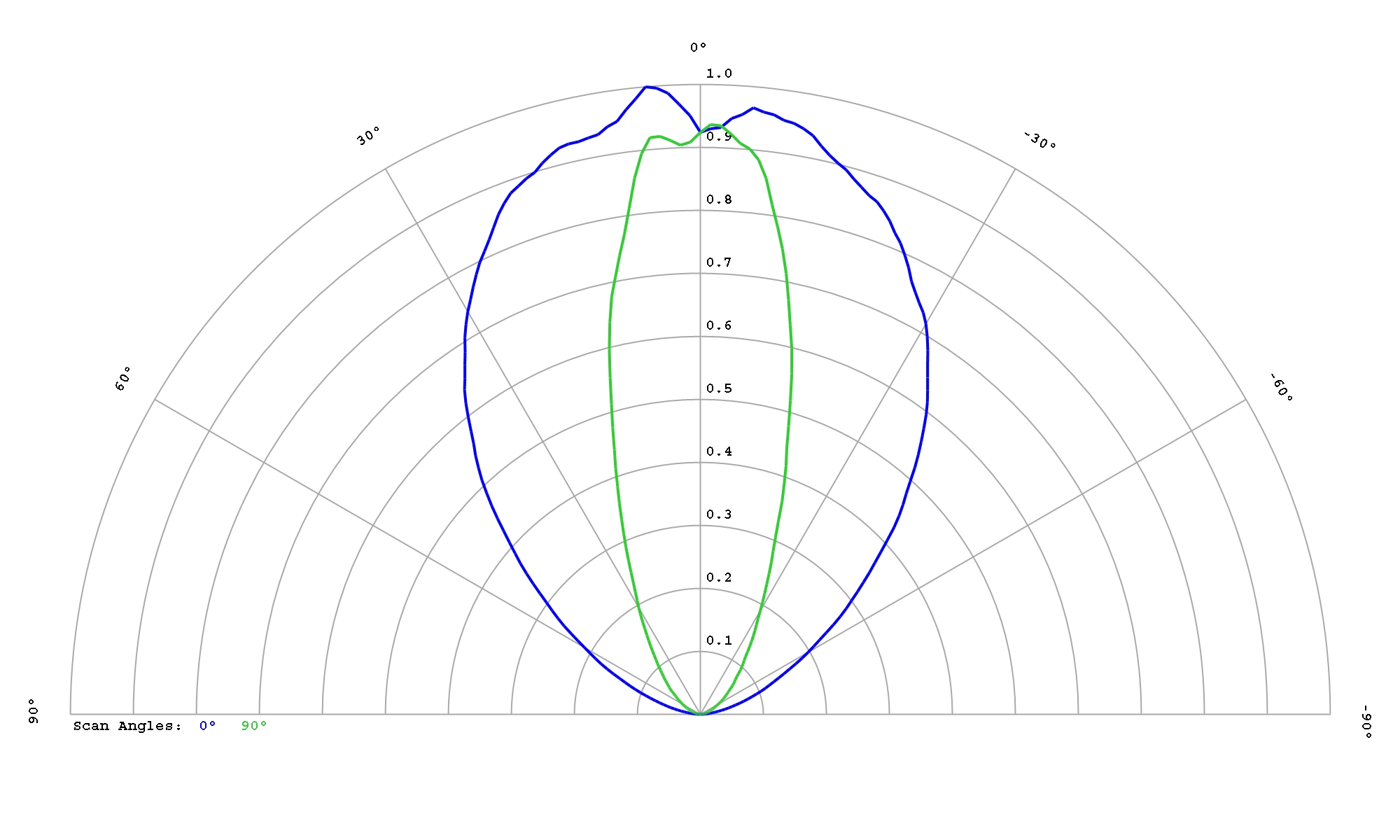

Cree JB3030C 3V F-Class White

Eff:

82.5%

FWHM:

85 x 34°

Cd/Im:

1.1


Download

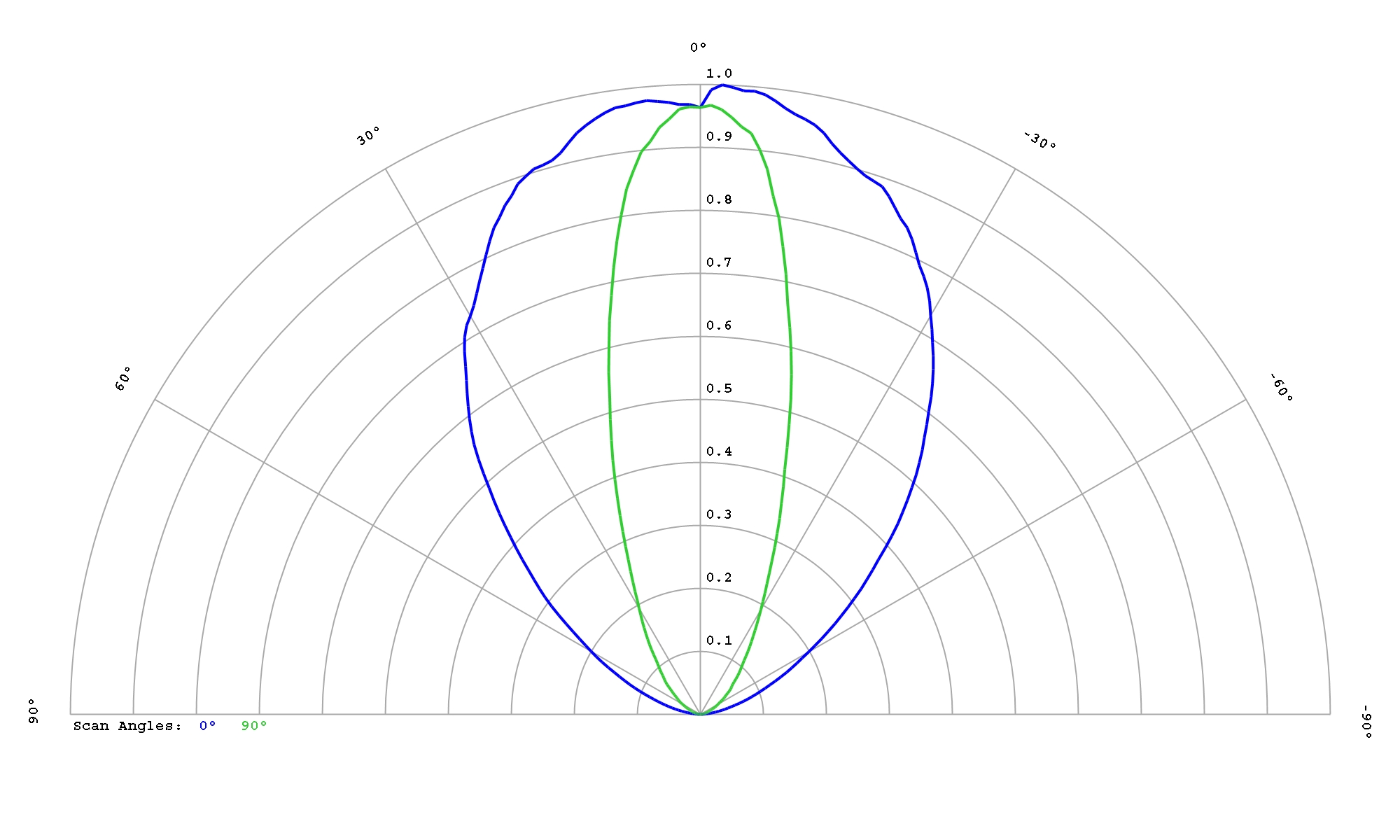

Cree JE2835 3V White

Eff:

82.5%

FWHM:

83 x 34°

Cd/Im:

1.0

Download

Cree JQ5050 9V White

Eff:

82.0%

FWHM:

83 x 39°

Cd/Im:

0.9

Download

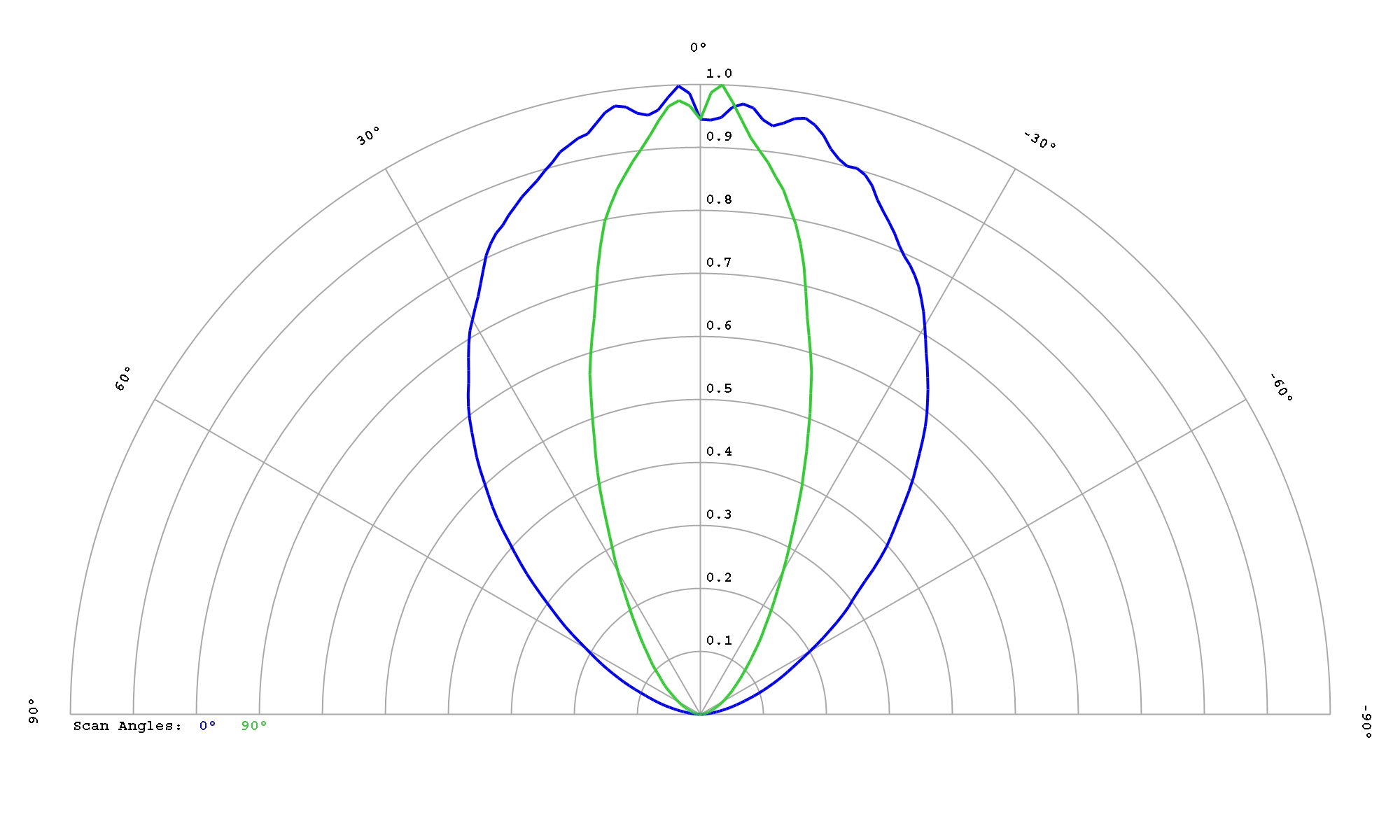

Cree JR5050 24V White

Eff:

81.5%

FWHM:

84 x 39°

Cd/Im:

0.9

Download

Cree JR5050 36V White

Eff:

82.0%

FWHM:

83 x 38°

Cd/Im:

0.9

Download

Cree XLamp CSP XD16 Premium White

Eff:

81.0%

FWHM:

86 x 34°

Cd/Im:

1.0

Download

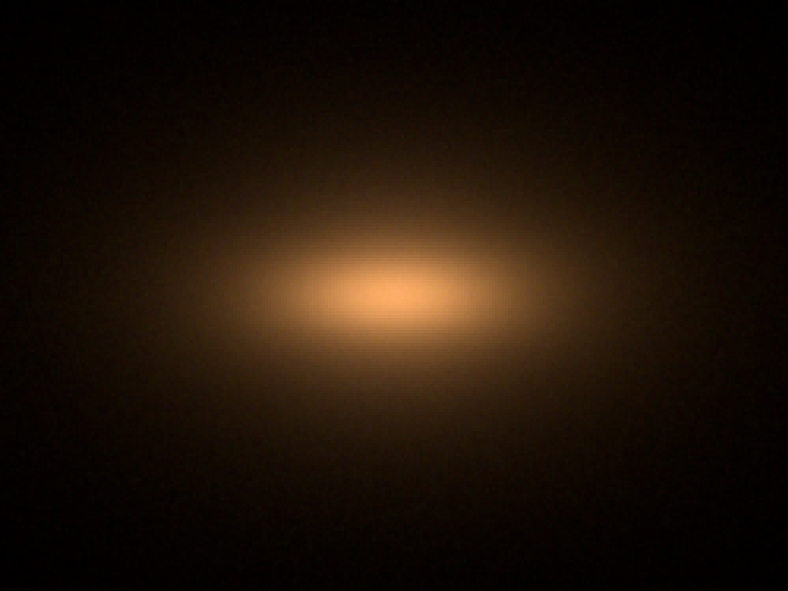

Cree XLamp XE-G White

Eff:

80.5%

FWHM:

87 x 32°

Cd/Im:

0.9

Download

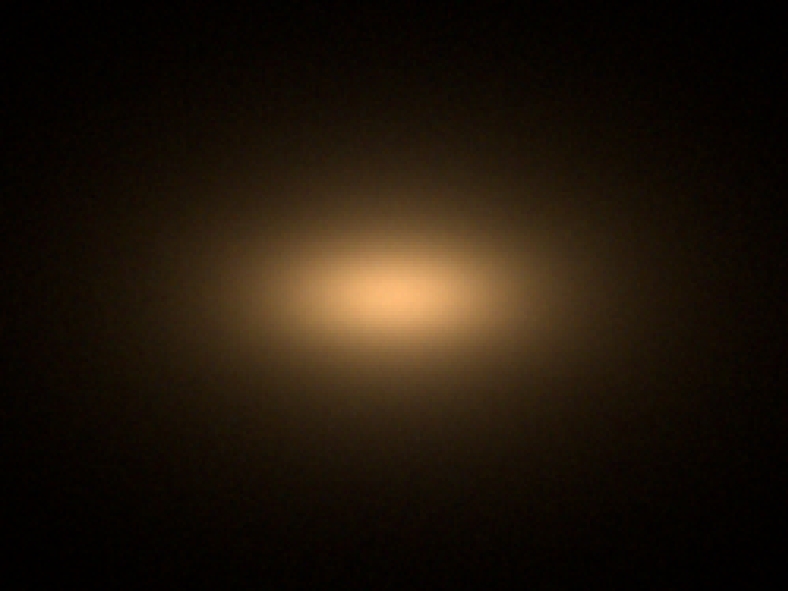

Cree XLamp XHP35.2 HI White

Eff:

80.5%

FWHM:

87 x 35°

Cd/Im:

0.9



Download

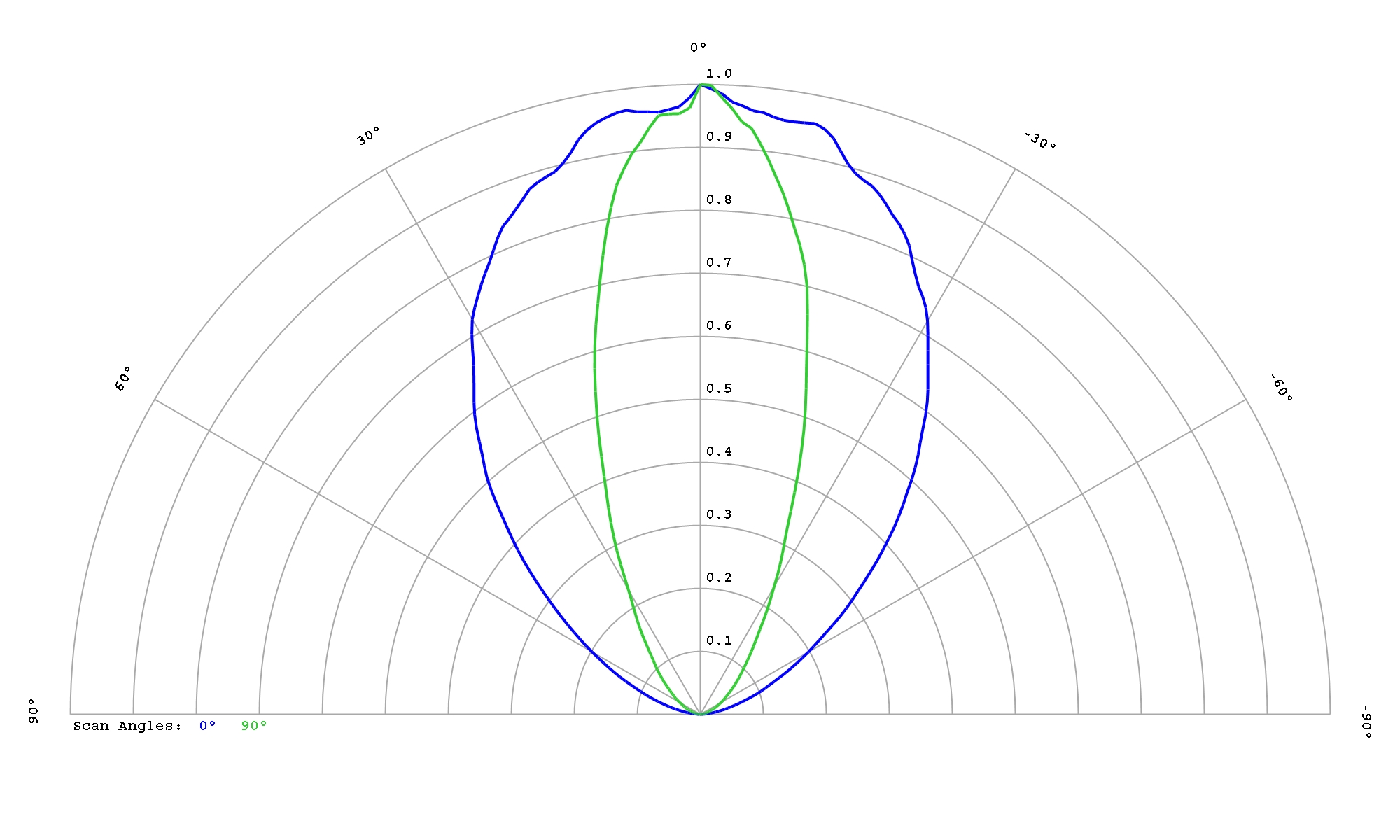

Cree XLamp XM-L Color G2 HD RGBW

Eff:

83.5%

FWHM:

84 x 38°

Cd/Im:

0.9

Download

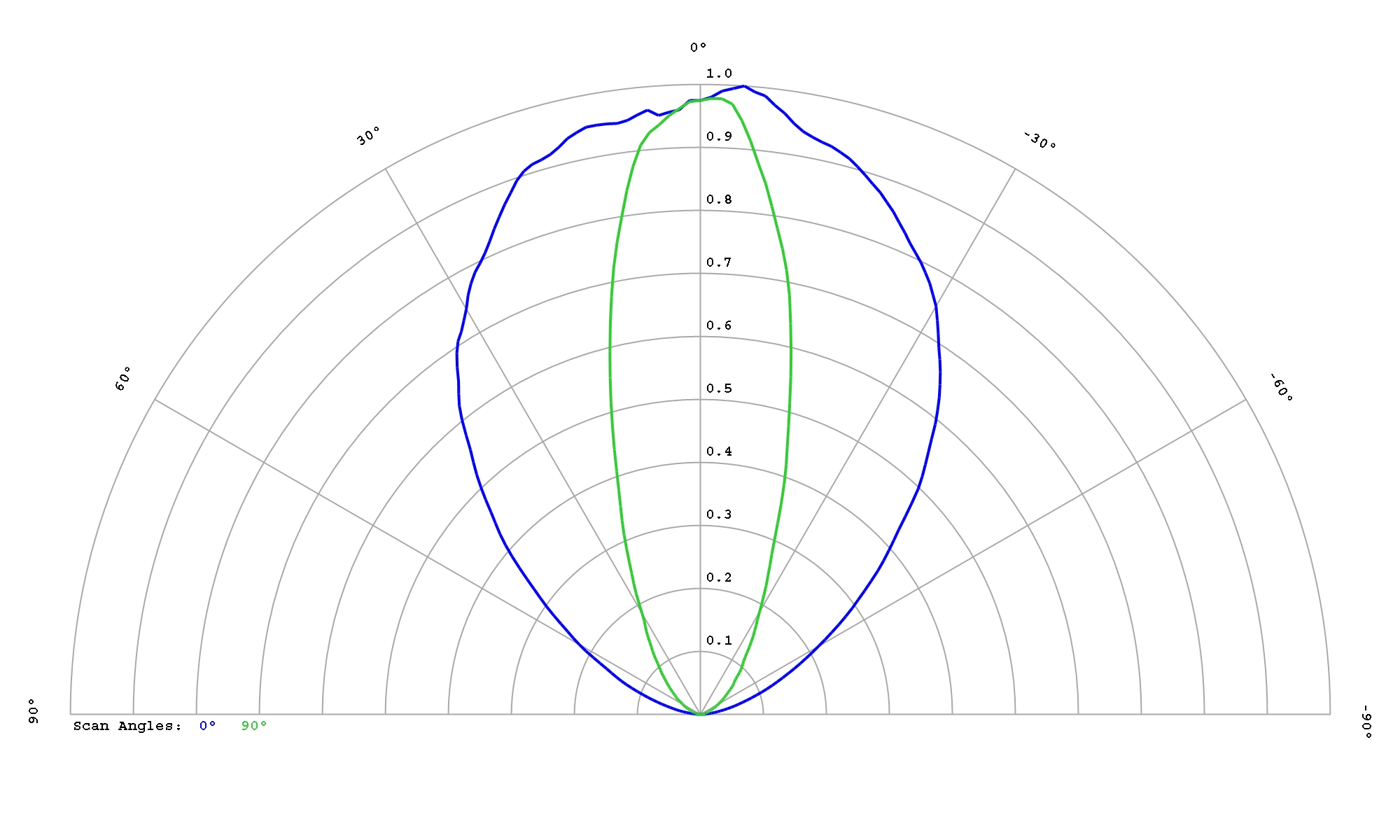

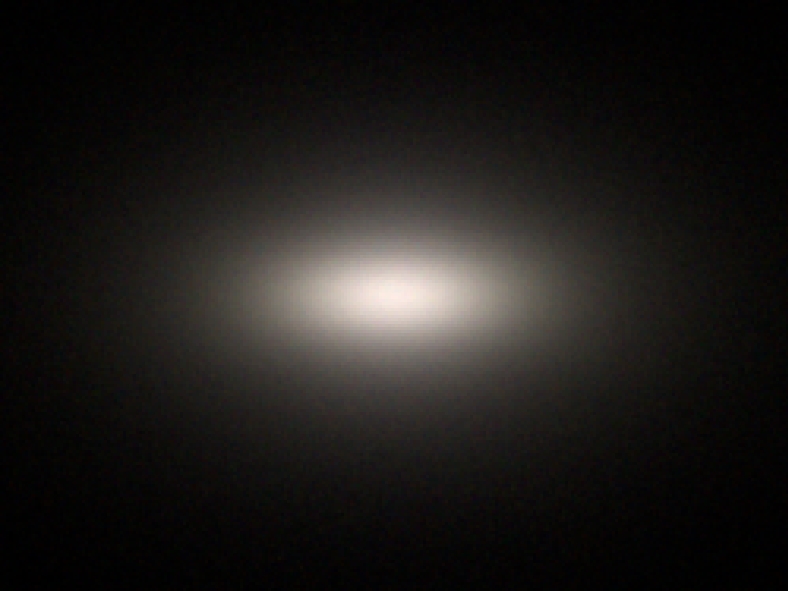

Cree XLamp XP-G4 HI White

Eff:

81.0%

FWHM:

88 x 33°

Cd/Im:

0.9

Download

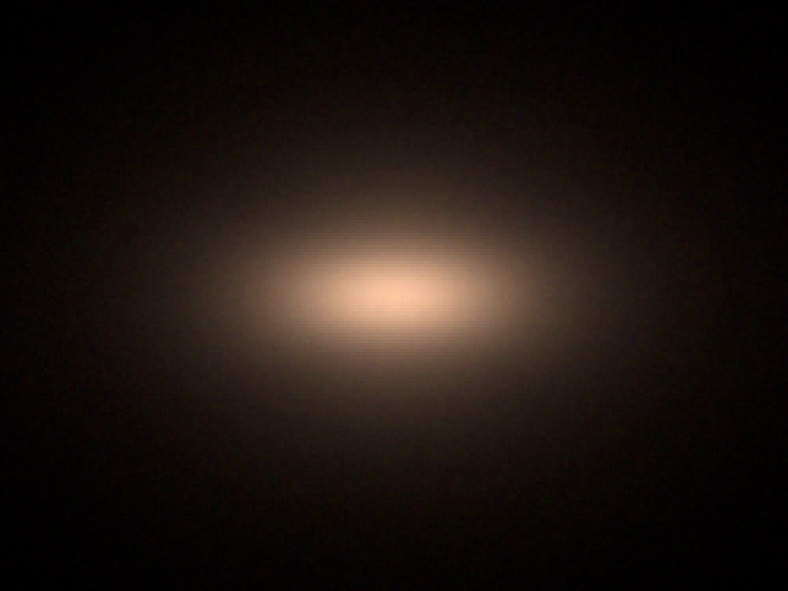

Cree XLamp XP-G4 White

Eff:

84.0%

FWHM:

82 x 33°

Cd/Im:

1.1

Download

Cree XLamp XP-P White

Eff:

83.0%

FWHM:

84 x 31°

Cd/Im:

1.1

Download

Cree XLamp XQ-E HD White

Eff:

82.5%

FWHM:

80 x 32°

Cd/Im:

1.0

Download

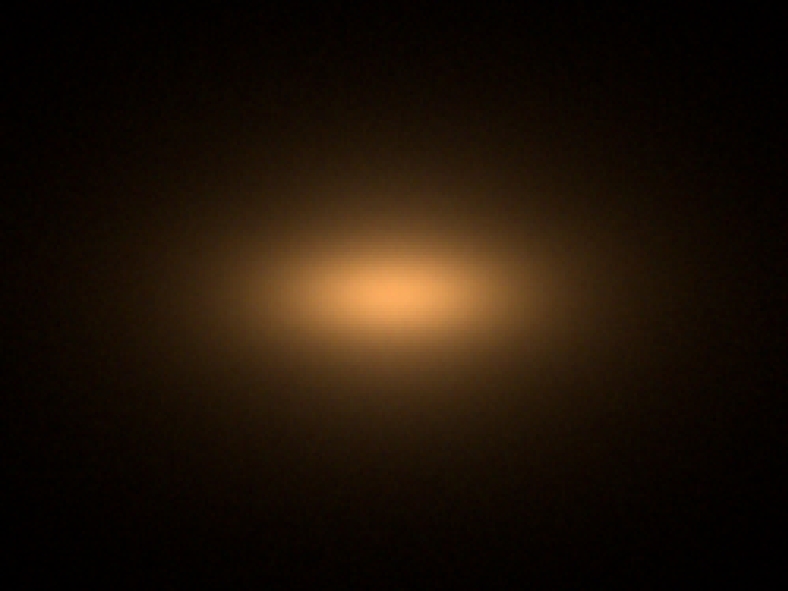

LUMILEDS LUXEON 2835C 6V White

Eff:

82.5%

FWHM:

86 x 31°

Cd/Im:

1.0

Download

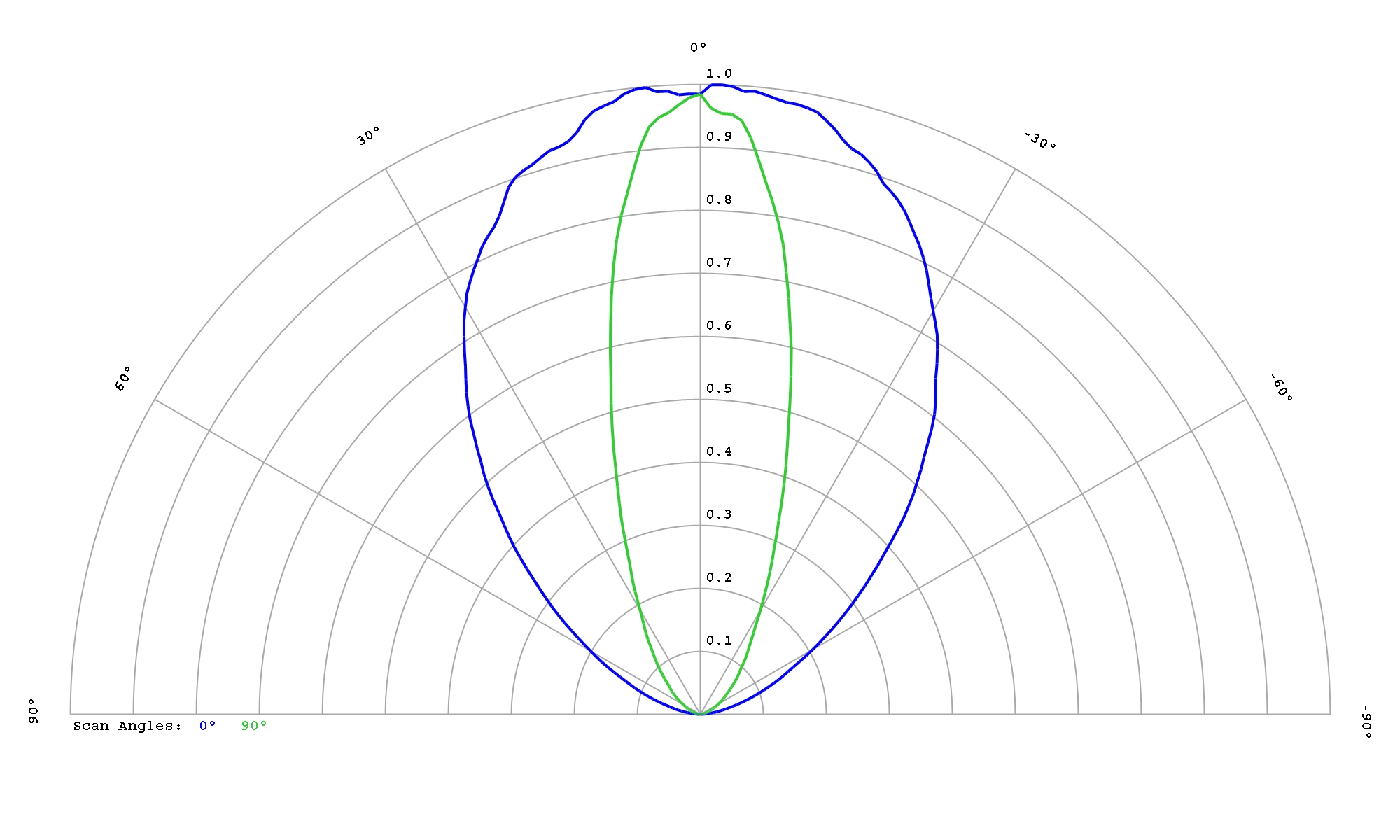

LUMILEDS LUXEON 2835E 9V White

Eff:

83.0%

FWHM:

85 x 33°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

82.0%

FWHM:

86 x 33°

Cd/Im:

1.0

Download

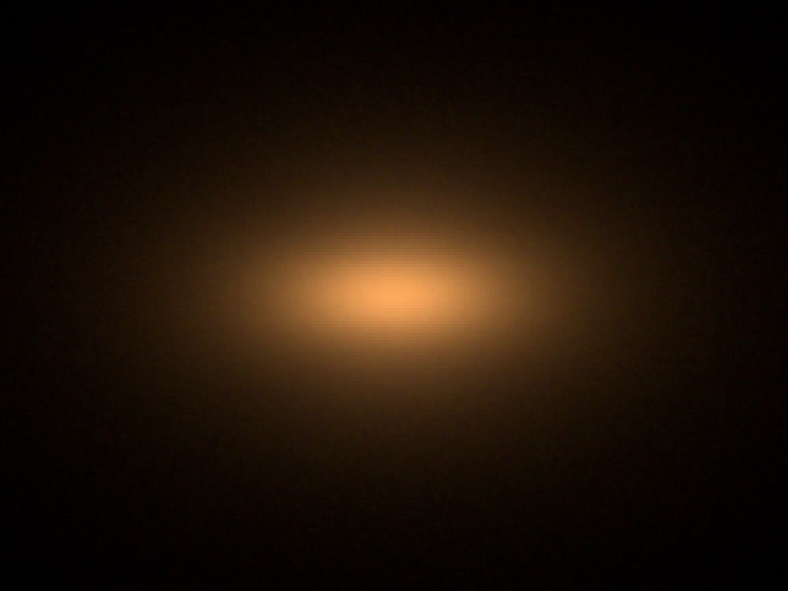

LUMILEDS LUXEON 2835S 3V White

Eff:

82.5%

FWHM:

86 x 32°

Cd/Im:

1.0

Download

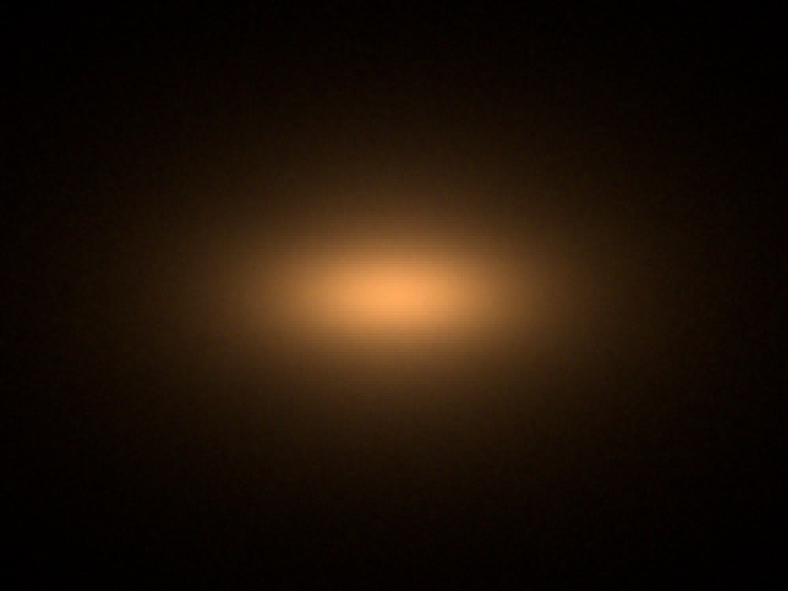

LUMILEDS LUXEON 2835S 6V White

Eff:

82.5%

FWHM:

85 x 34°

Cd/Im:

1.0

Download

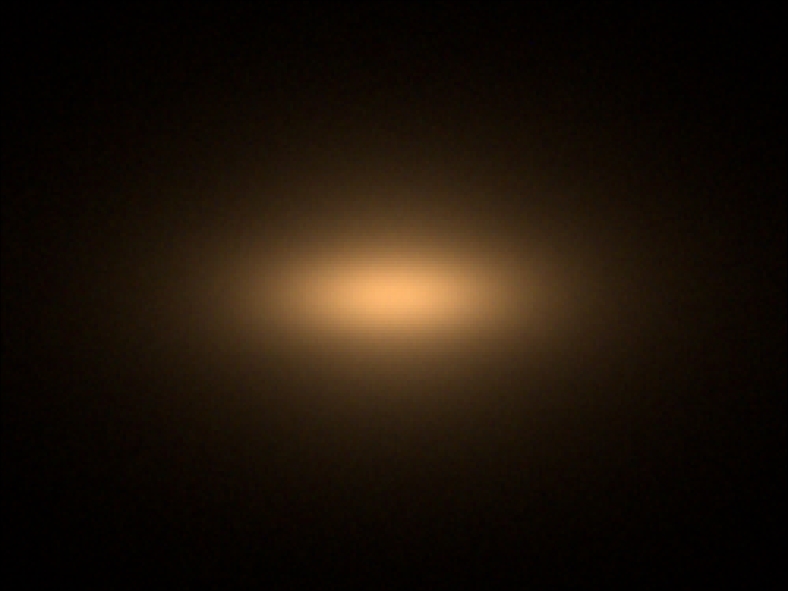

LUMILEDS LUXEON 3014 White

Eff:

83.0%

FWHM:

83 x 32°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 3020 White

Eff:

81.5%

FWHM:

85 x 30°

Cd/Im:

1.0

Download

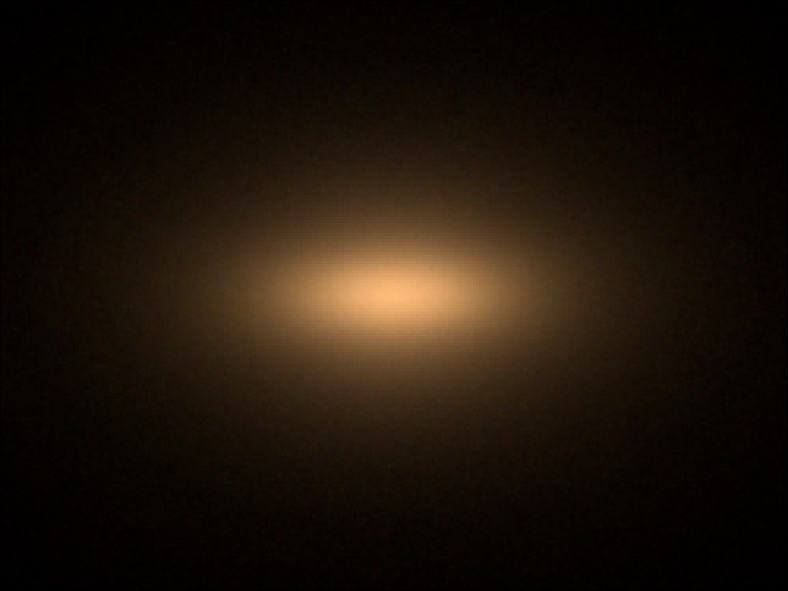

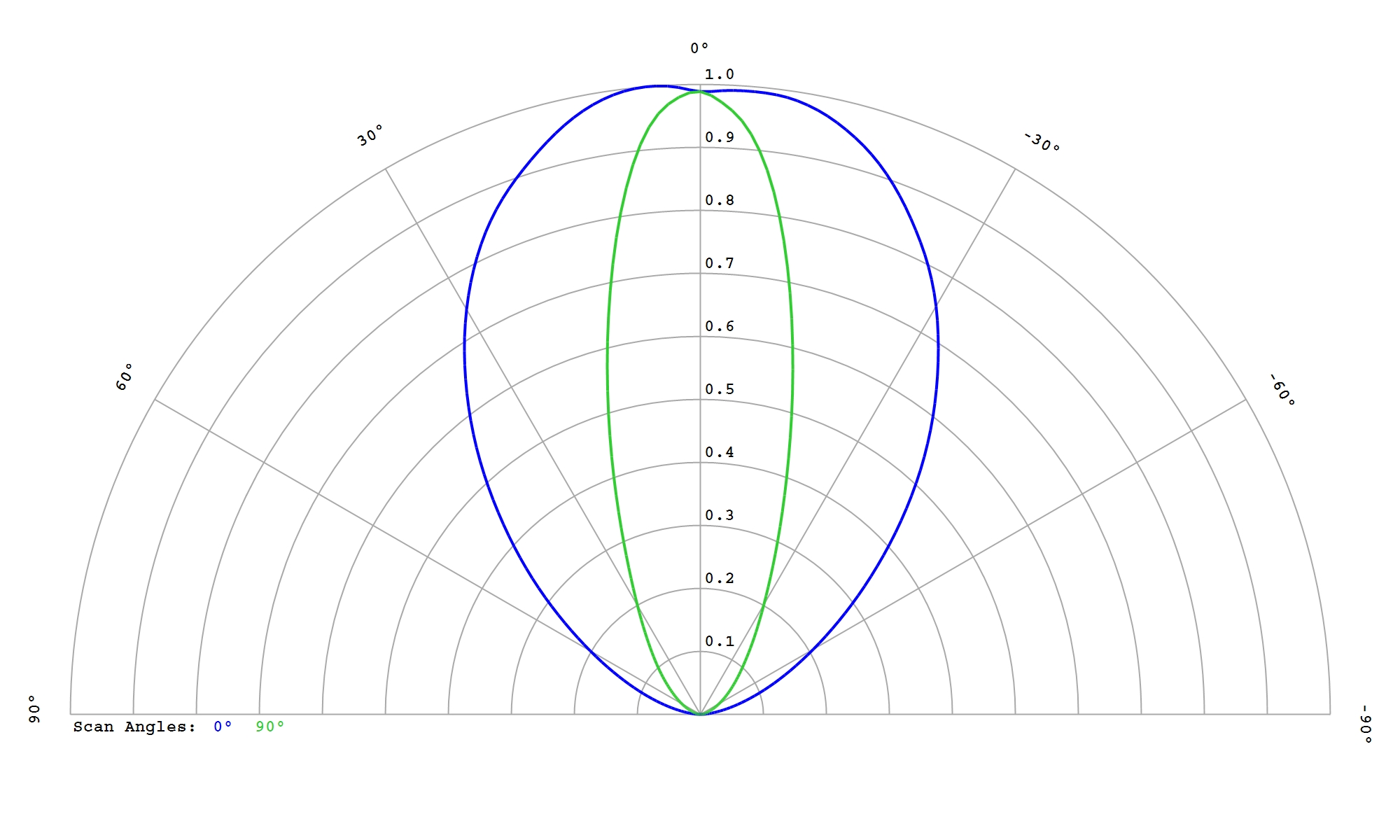

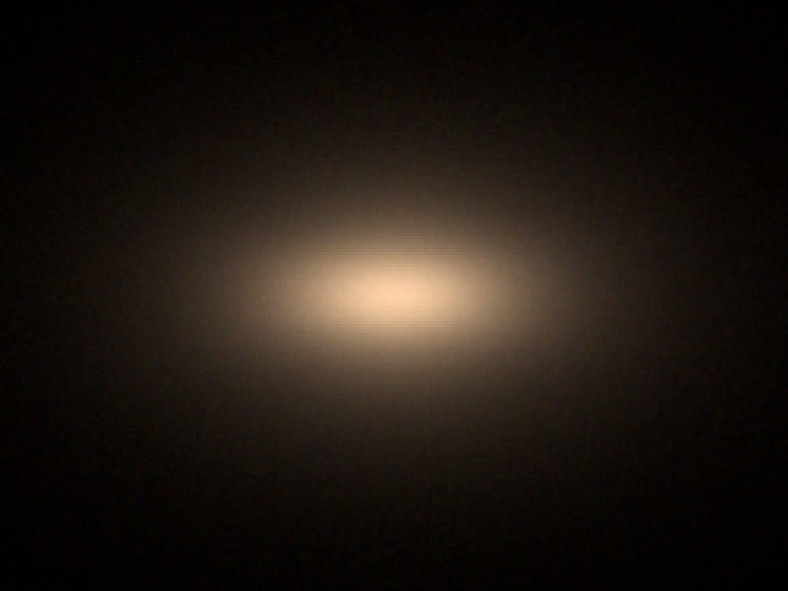

LUMILEDS LUXEON 3030 2D White

Eff:

82.0%

FWHM:

86 x 32°

Cd/Im:

1.0

Download

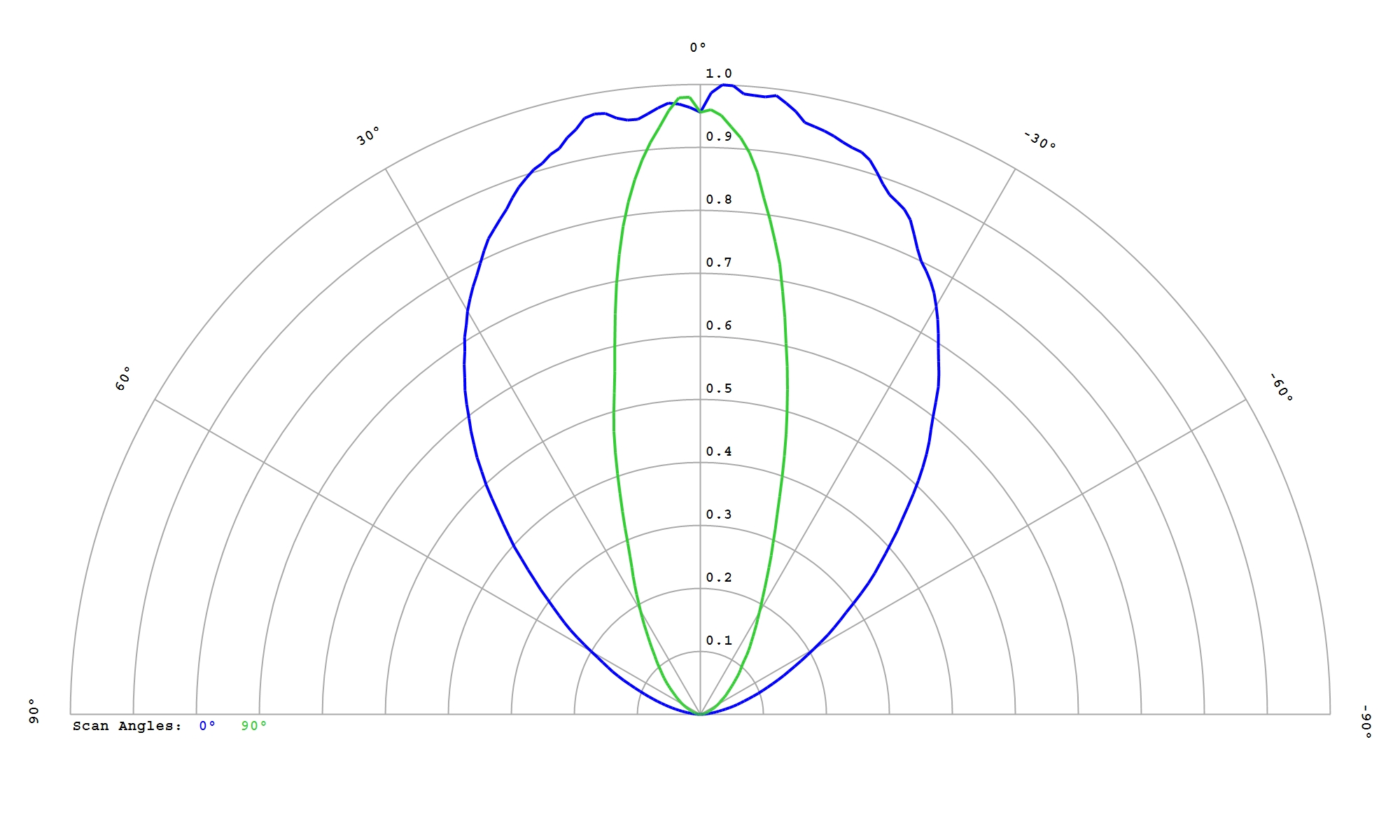

LUMILEDS LUXEON 3030 HE White

Eff:

82.0%

FWHM:

86 x 31°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 3535 L White

Eff:

82.5%

FWHM:

84 x 33°

Cd/Im:

1.0

Download

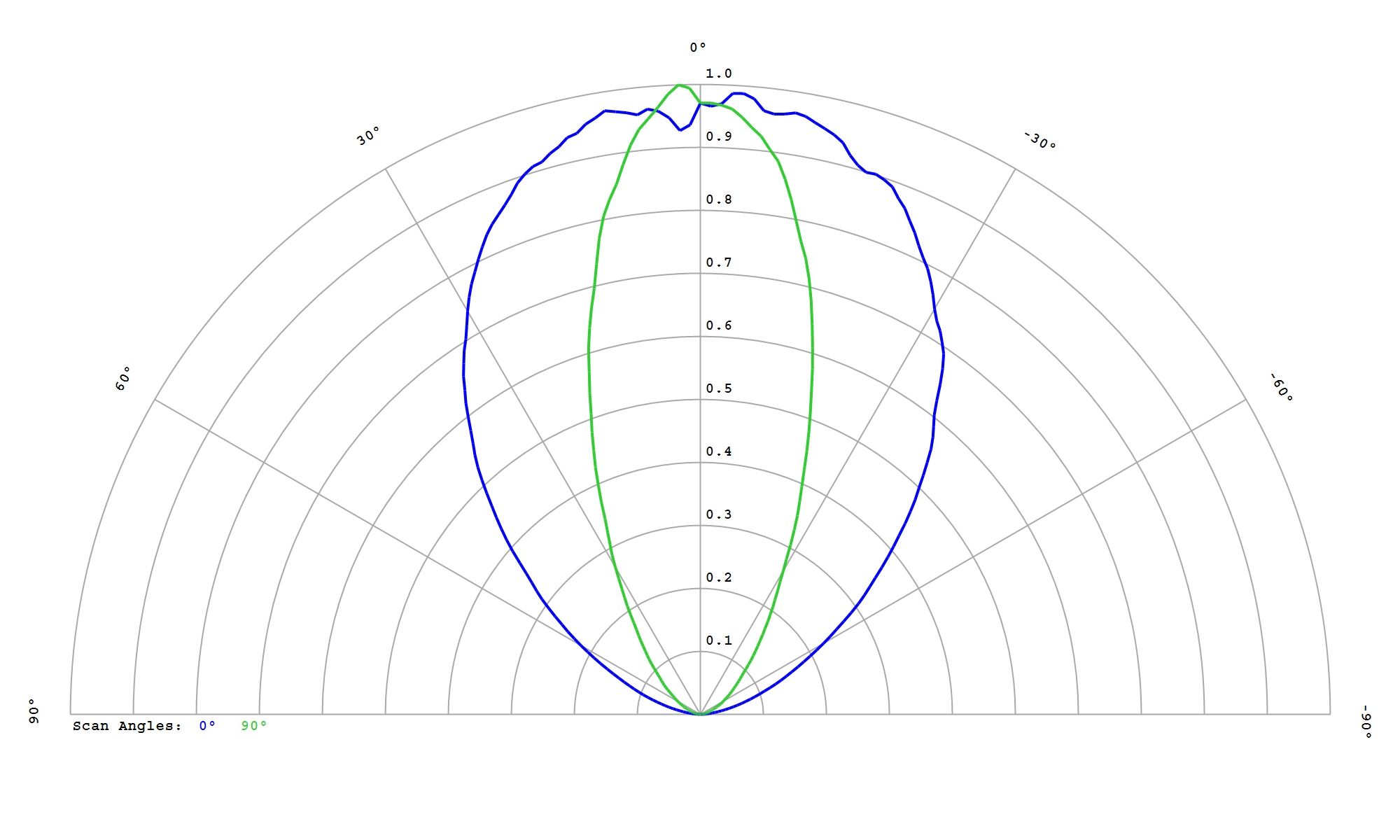

LUMILEDS LUXEON 5050 HE 24V White

Eff:

81.0%

FWHM:

88 x 41°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

81.0%

FWHM:

87 x 41°

Cd/Im:

0.8

Download

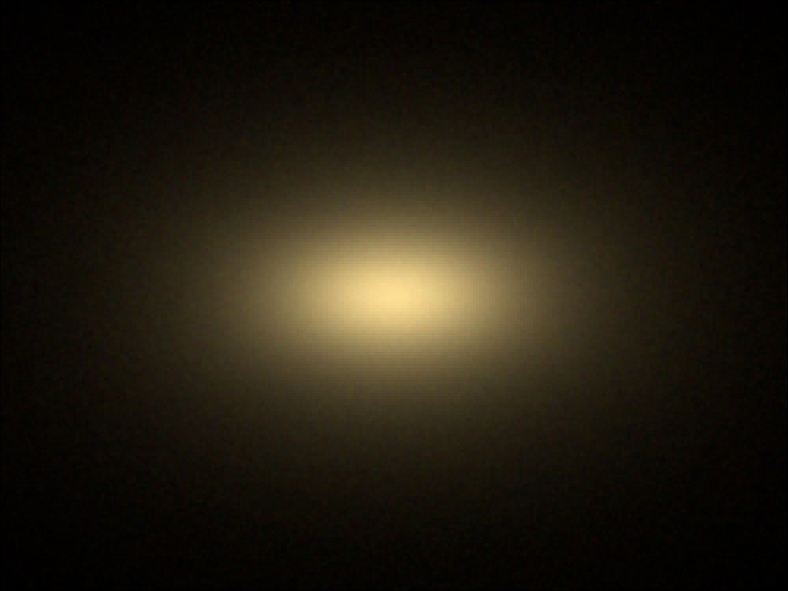

LUMILEDS LUXEON 5050 Round 24V White

Eff:

81.5%

FWHM:

83 x 38°

Cd/Im:

0.8


Download

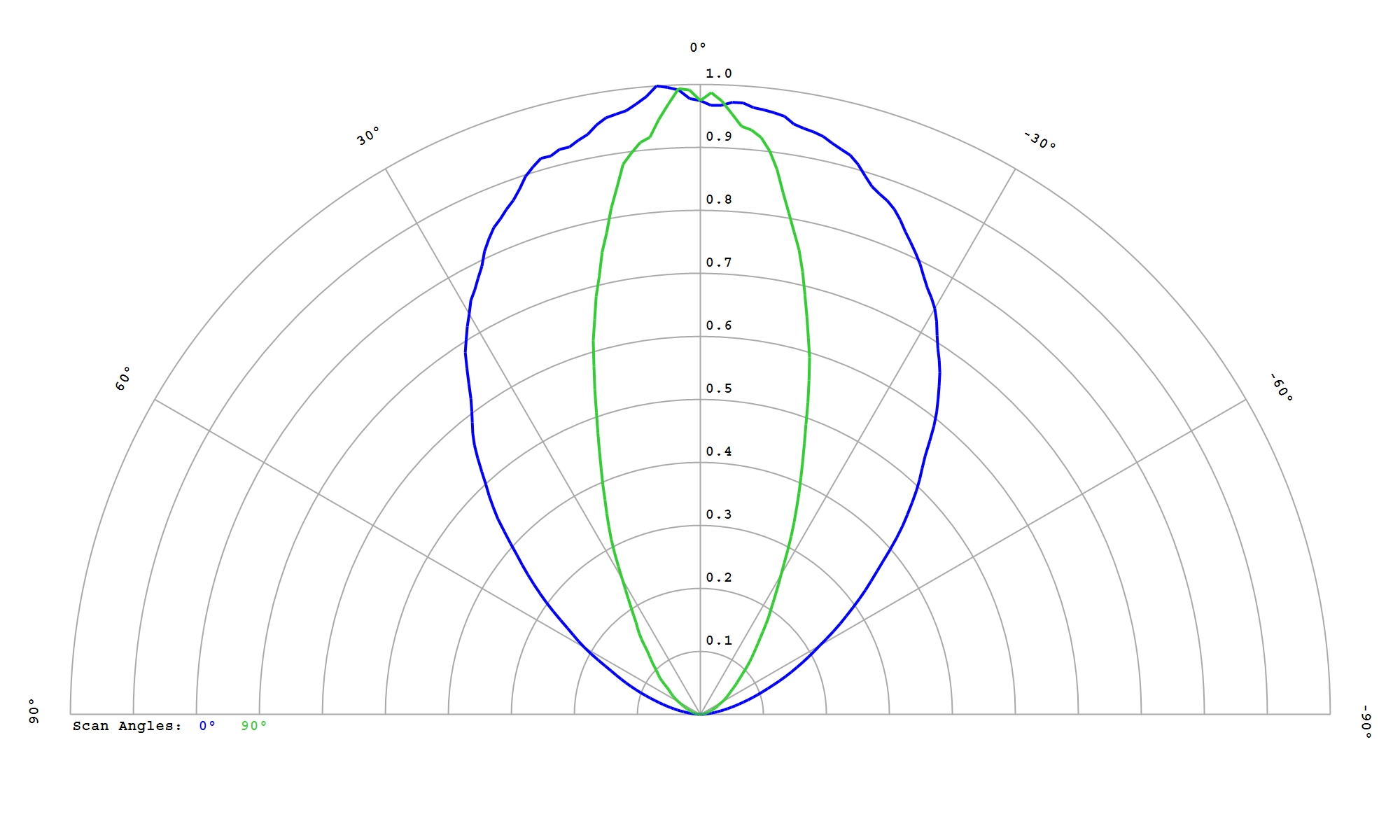

LUMILEDS LUXEON 5050 Round 6V White

Eff:

81.5%

FWHM:

87 x 37°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

81.5%

FWHM:

85 x 43°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

82.0%

FWHM:

83 x 39°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 5052 RGBW

Eff:

79.0%

FWHM:

86 x 34°

Cd/Im:

0.8

Download

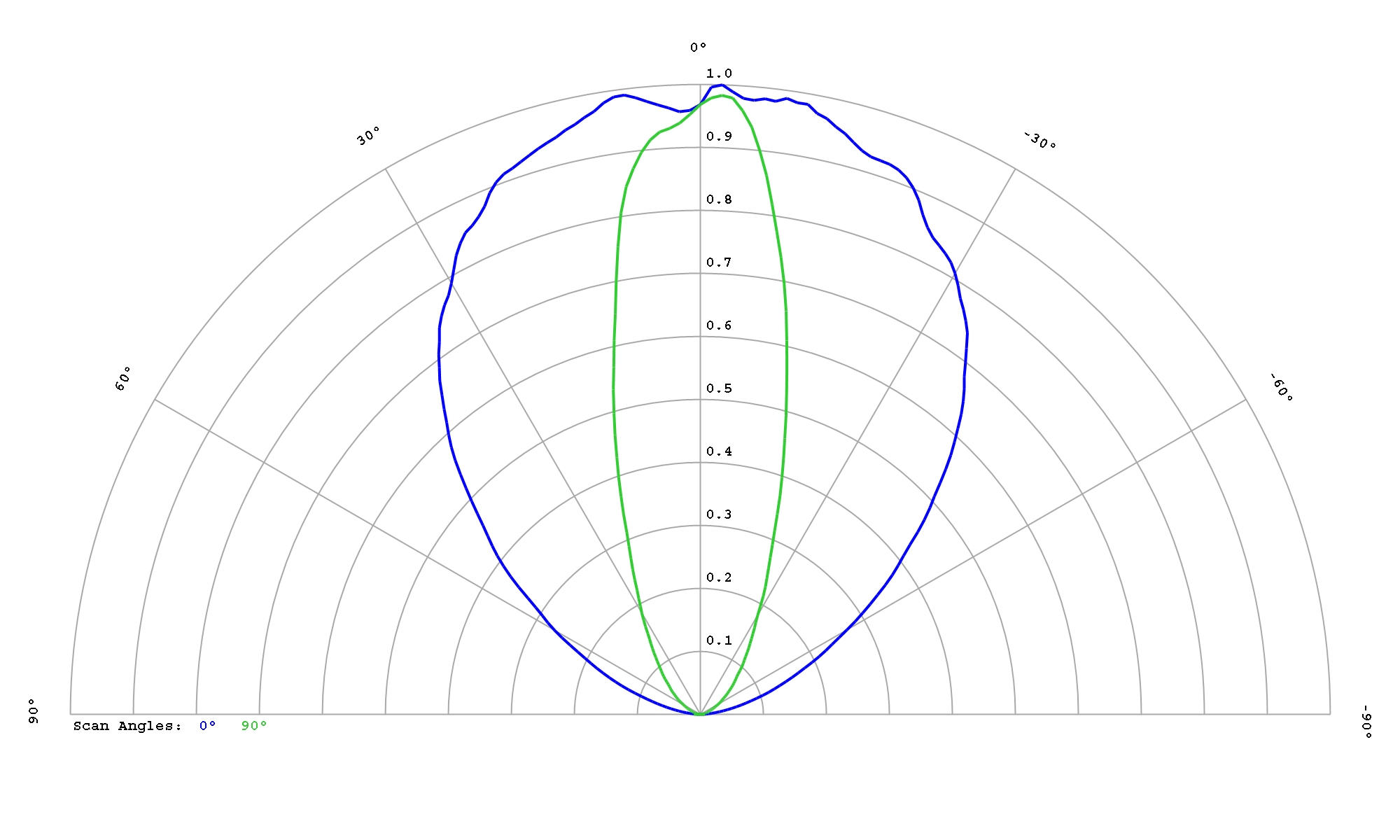

LUMILEDS LUXEON C White

Eff:

76.0%

FWHM:

93 x 32°

Cd/Im:

0.9

Download

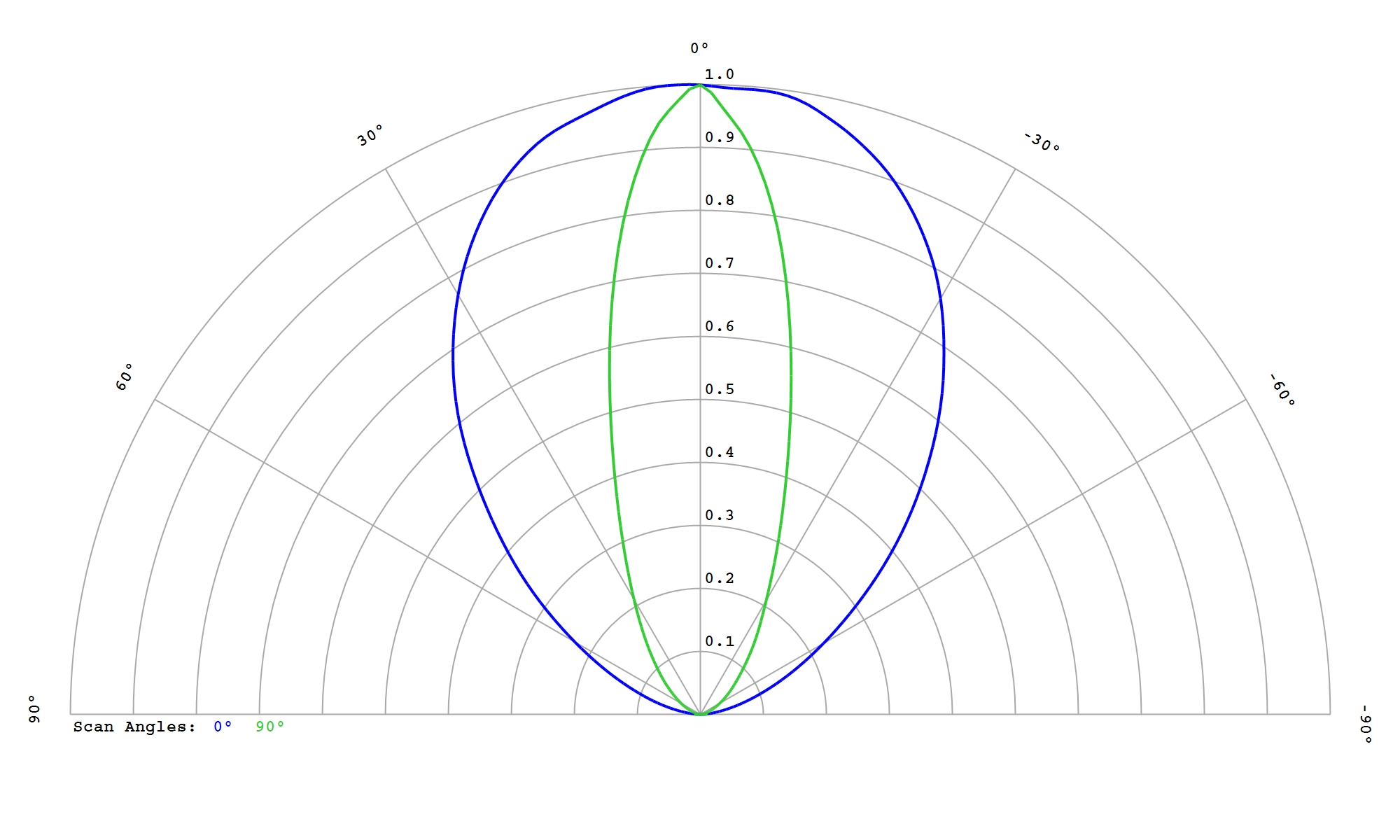

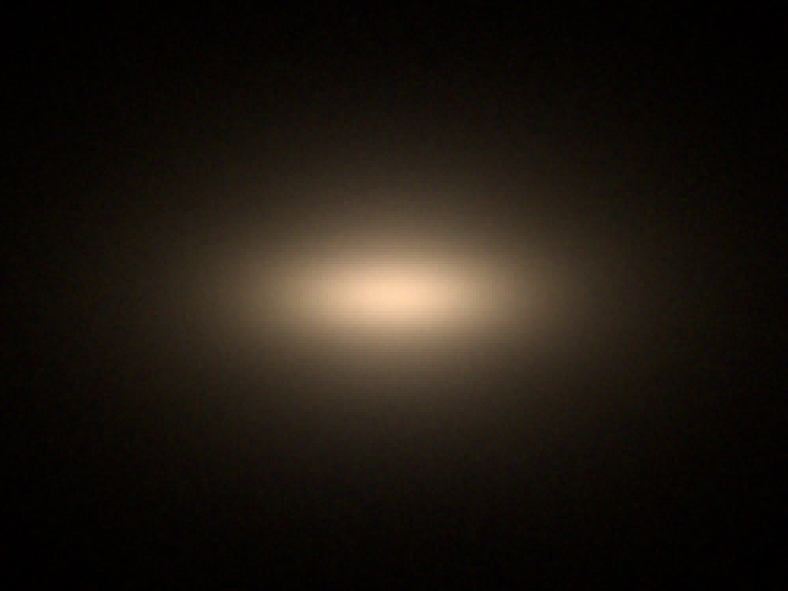

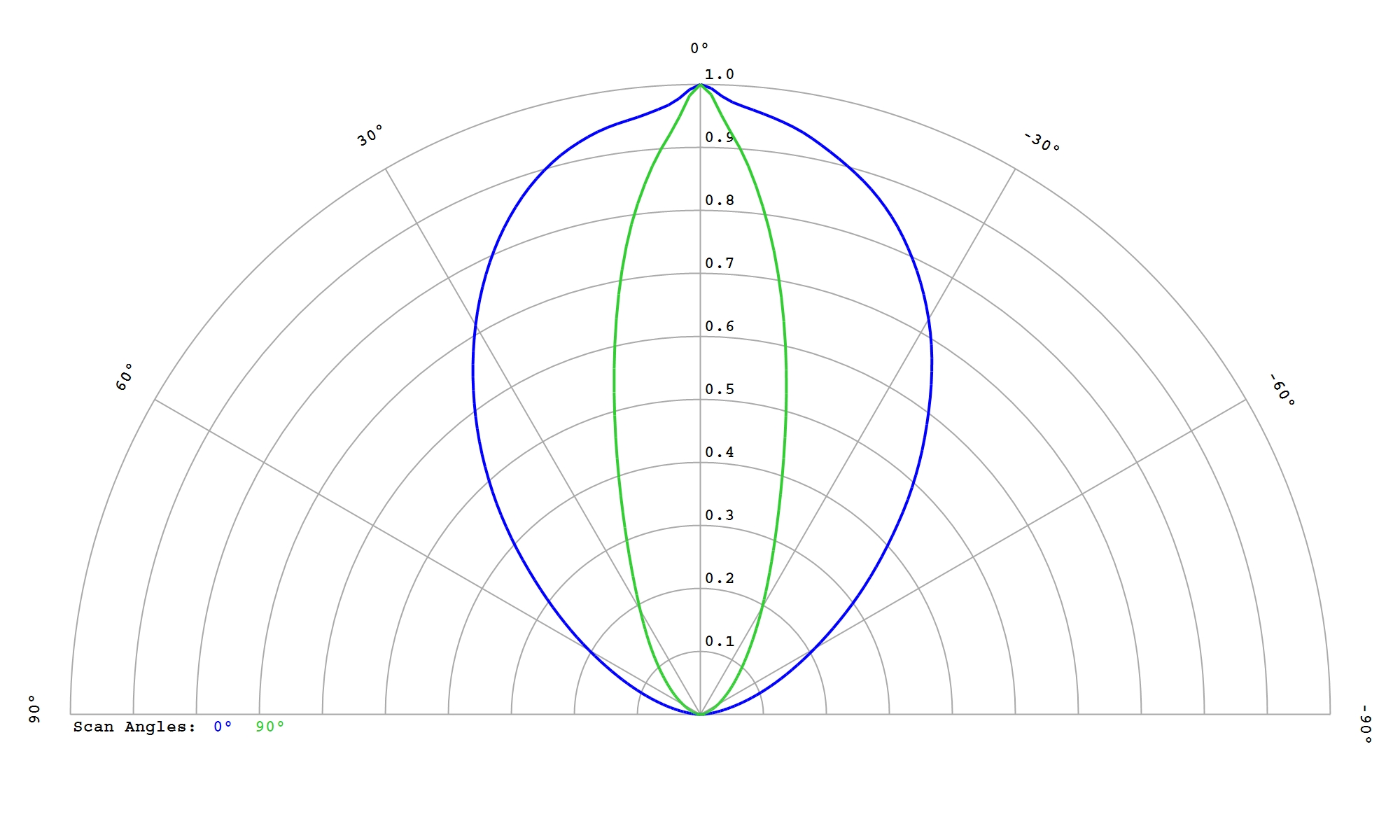

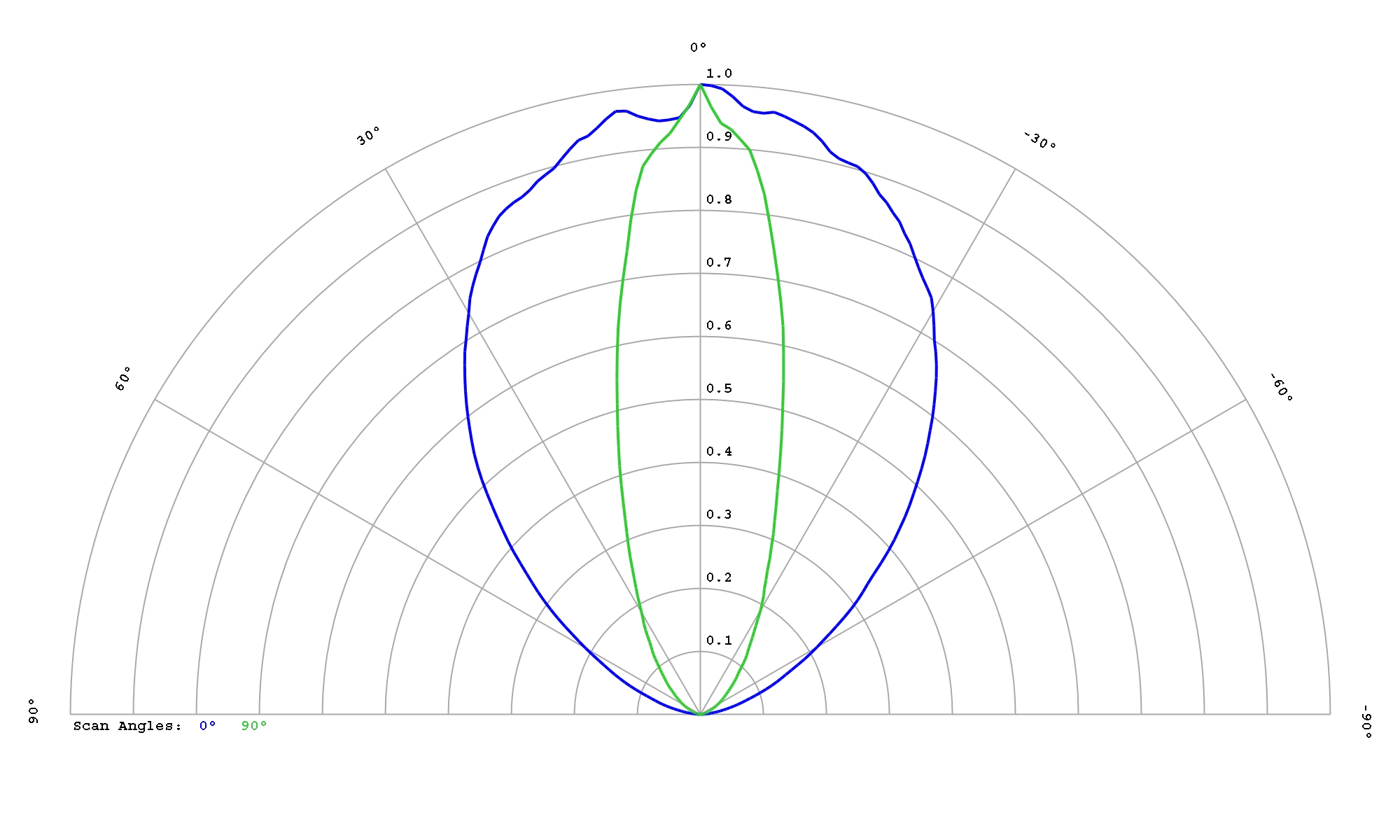

LUMILEDS LUXEON HL1Z CSP White

Eff:

79.0%

FWHM:

87 x 32°

Cd/Im:

1.0

Download

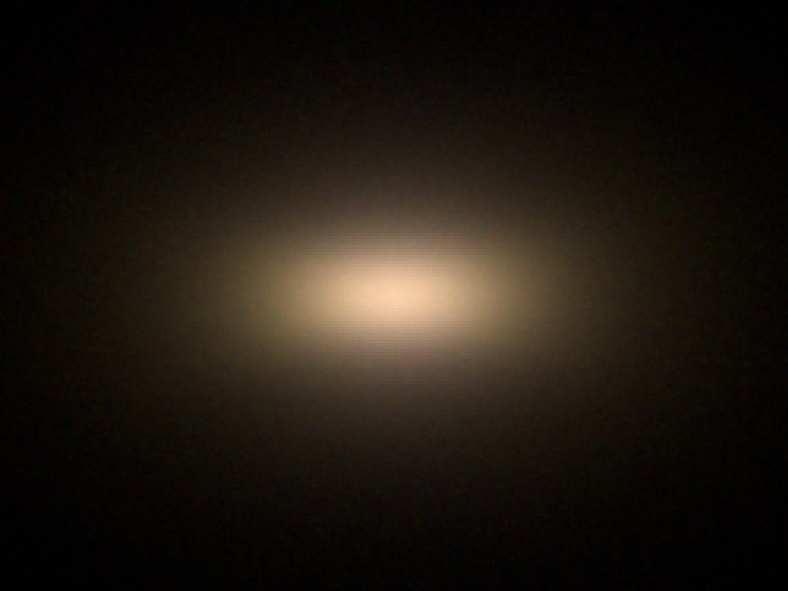

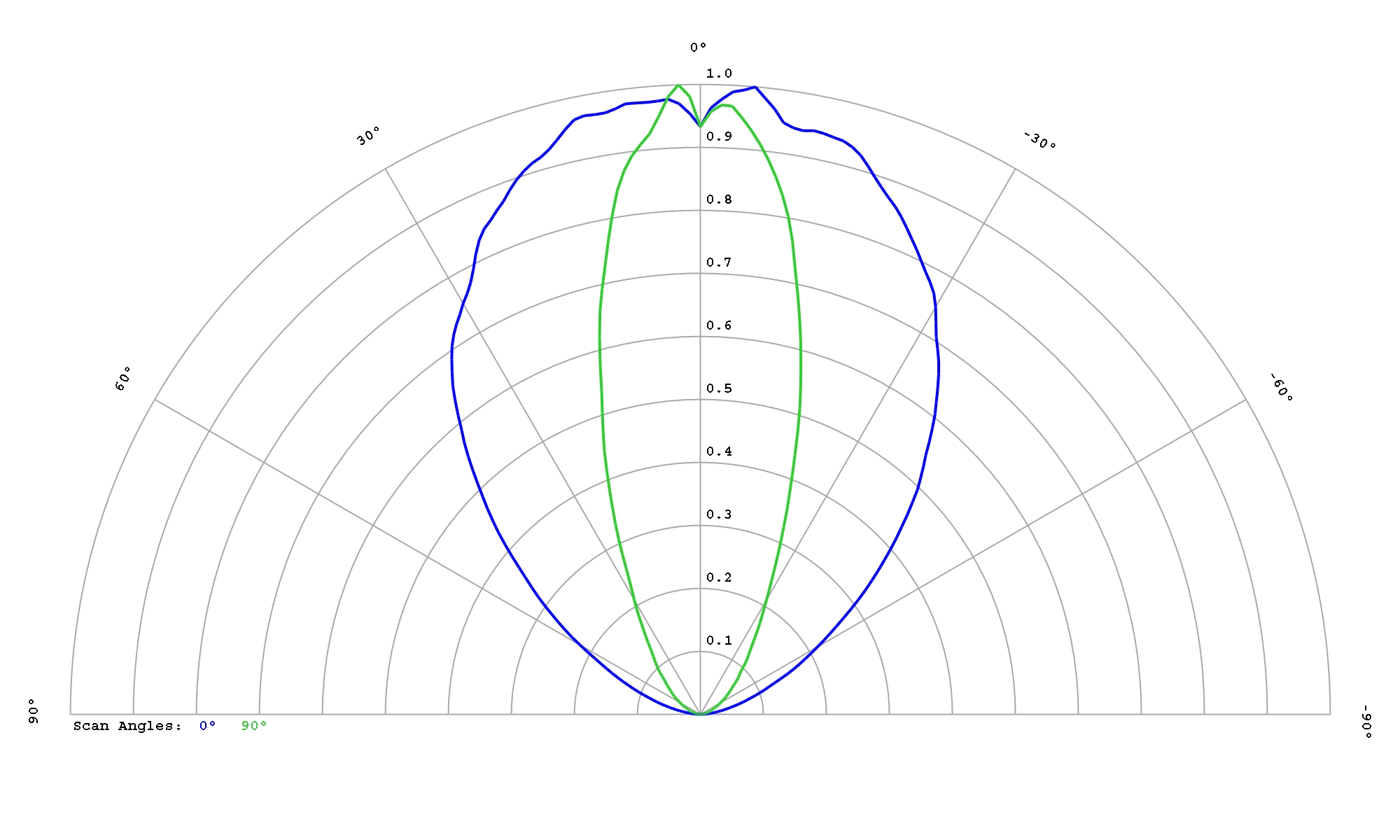

LUMILEDS LUXEON HL2X-D White

Eff:

83.0%

FWHM:

87 x 36°

Cd/Im:

0.9

Download

LUMILEDS LUXEON Rubix Blue

Eff:

83.5%

FWHM:

88 x 30°

Cd/Im:

1.1

Download

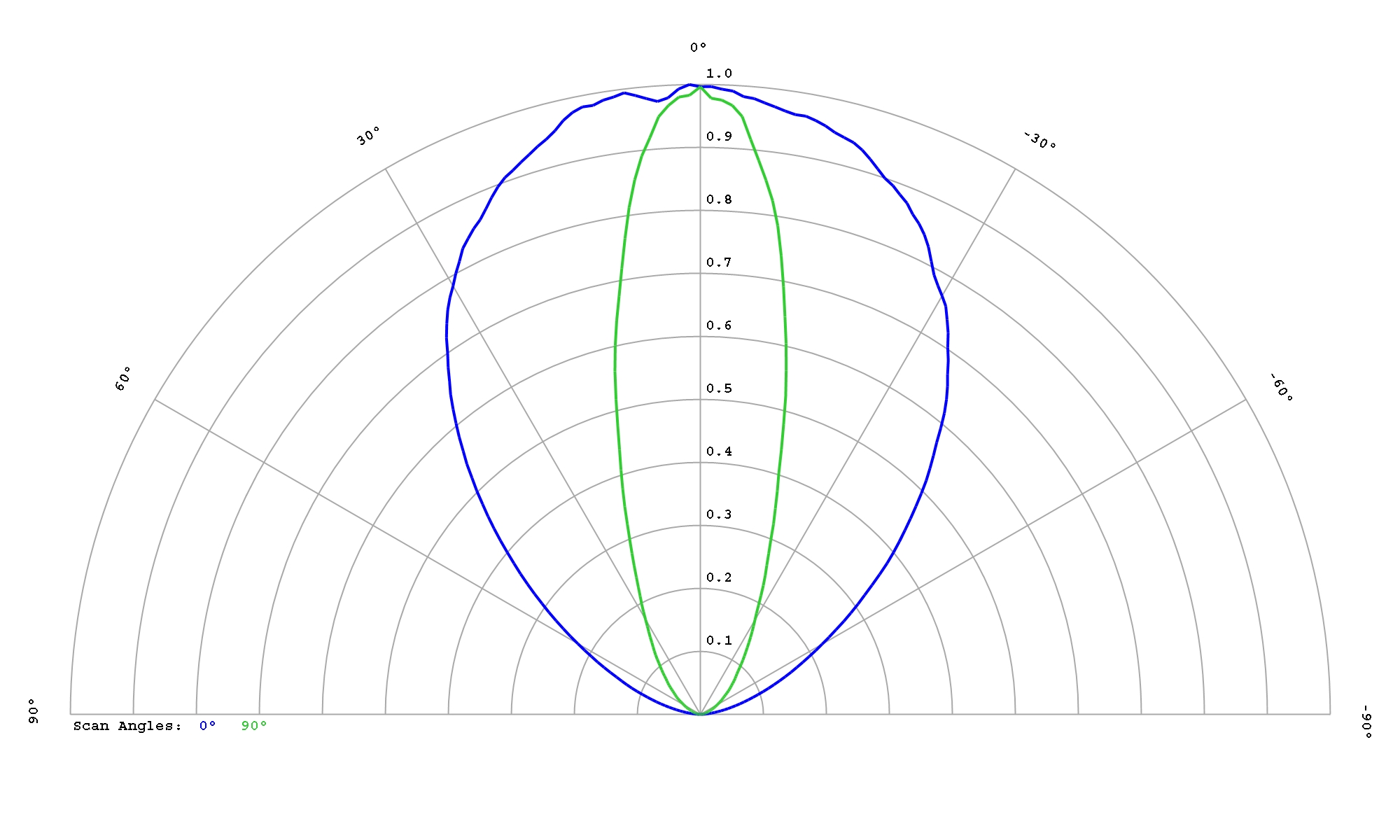

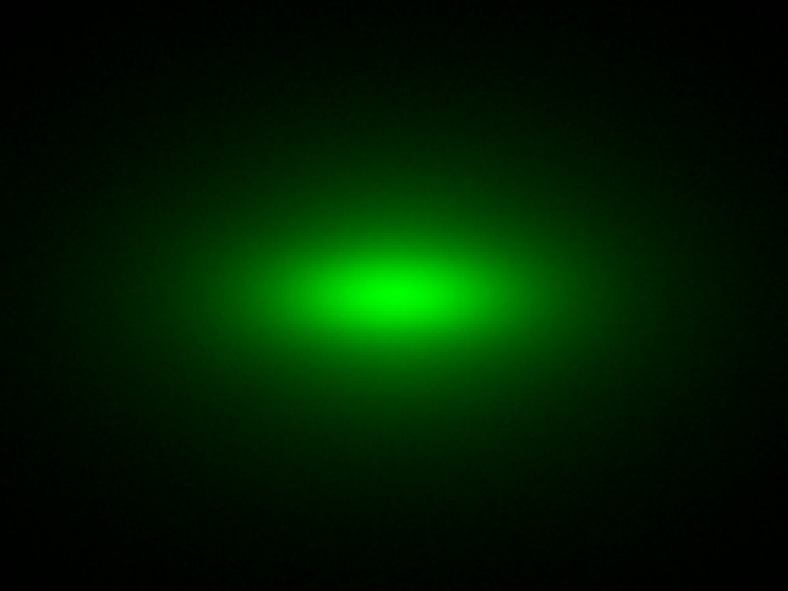

LUMILEDS LUXEON Rubix Green

Eff:

82.0%

FWHM:

89 x 31°

Cd/Im:

1.0

Download

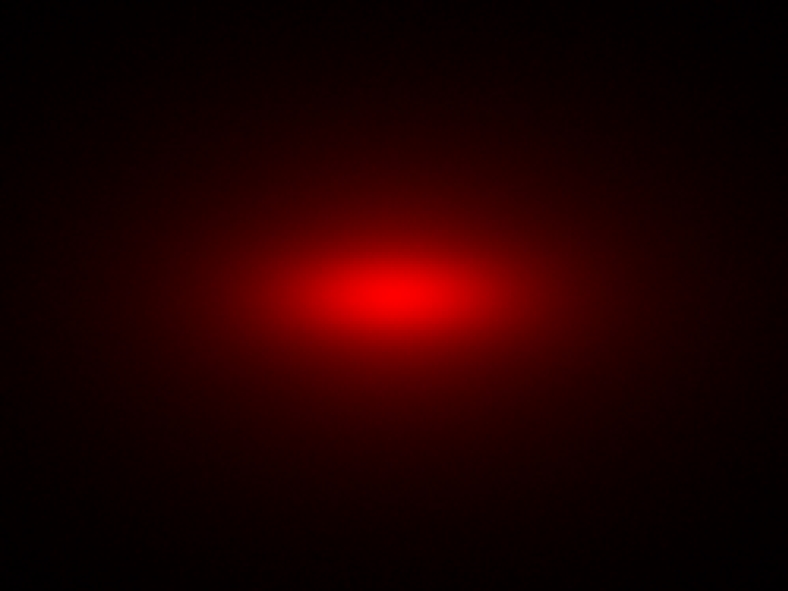

LUMILEDS LUXEON Rubix Red

Eff:

84.0%

FWHM:

86 x 30°

Cd/Im:

1.0

Download

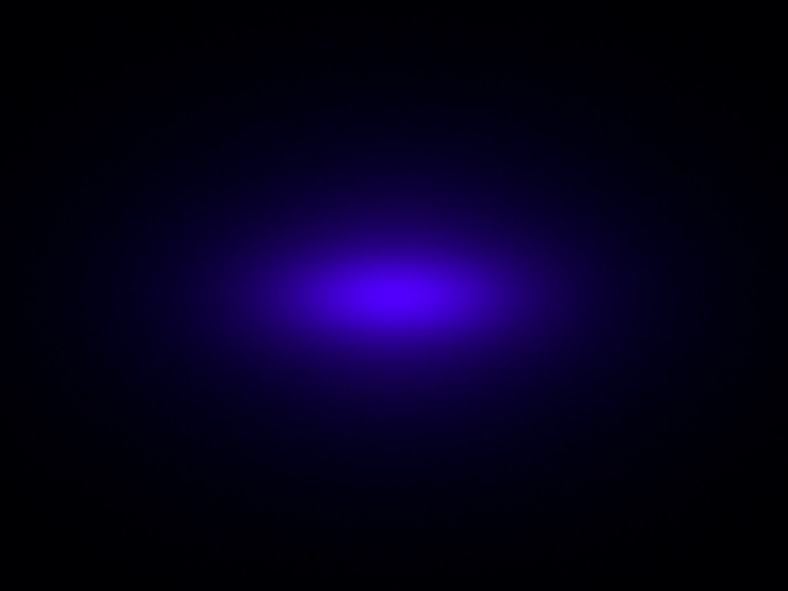

LUMILEDS LUXEON Rubix Royal Blue

Eff:

85.0%

FWHM:

87 x 30°

Ipk/W:

1.0


Download

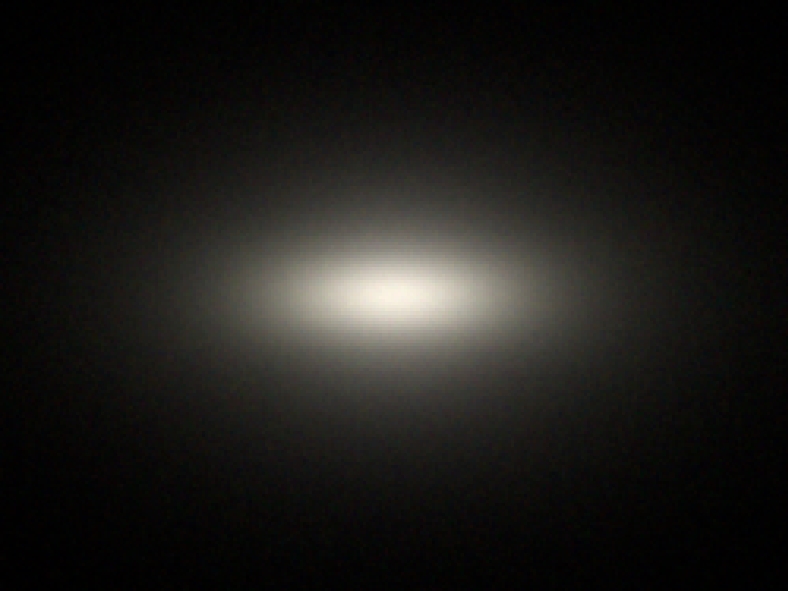

LUMILEDS LUXEON Rubix White

Eff:

82.0%

FWHM:

87 x 29.5°

Cd/Im:

1.0

Download

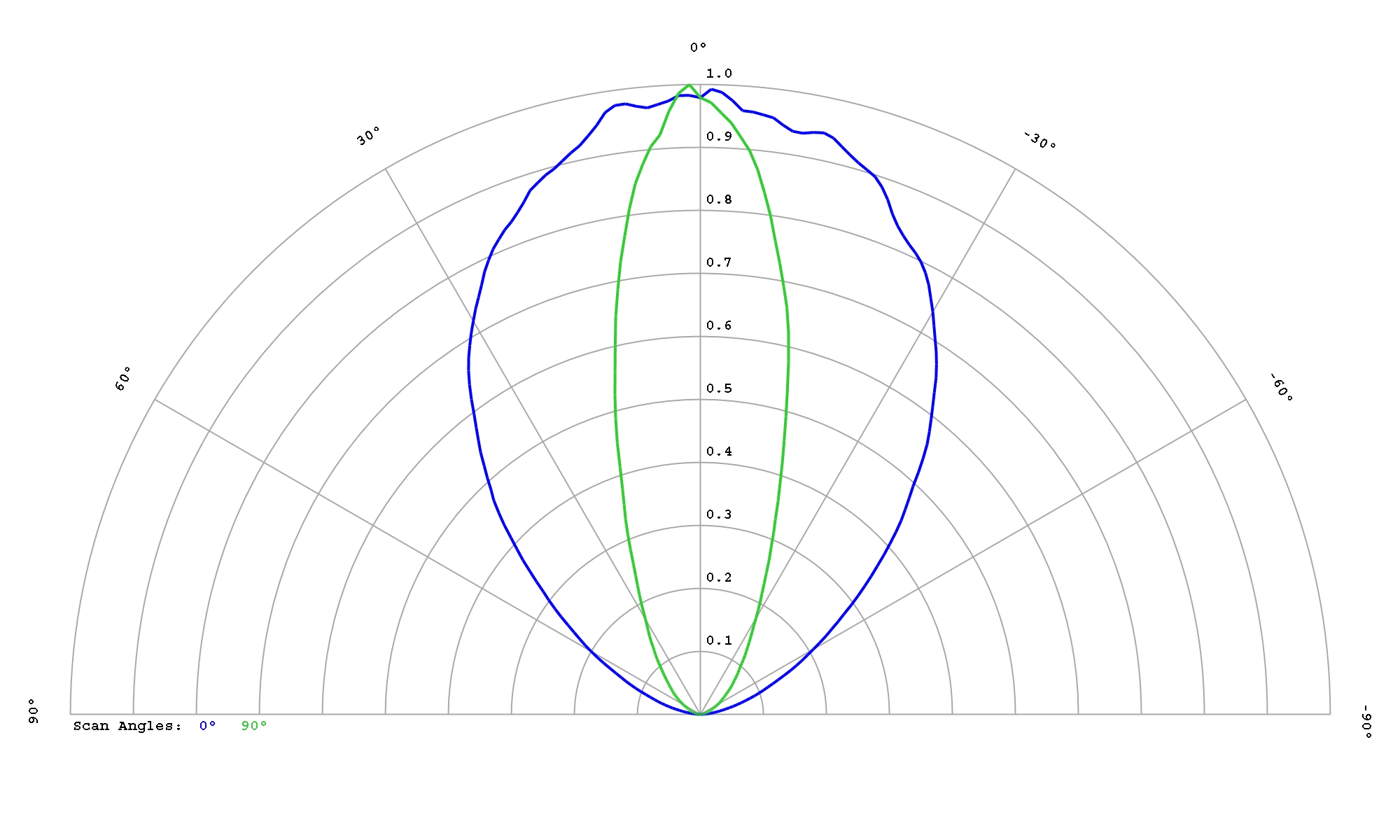

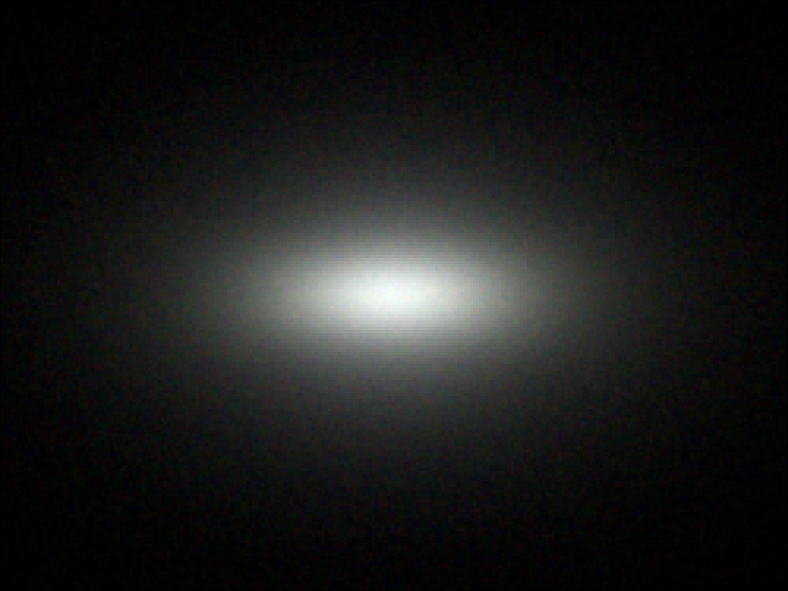

Luminus Devices SFT-40-WxS White

Eff:

83.0%

FWHM:

85 x 31°

Cd/Im:

1.0

Download

Luminus Devices SFT-70X-WxS White

Eff:

83.0%

FWHM:

87 x 33°

Cd/Im:

1.0

Download

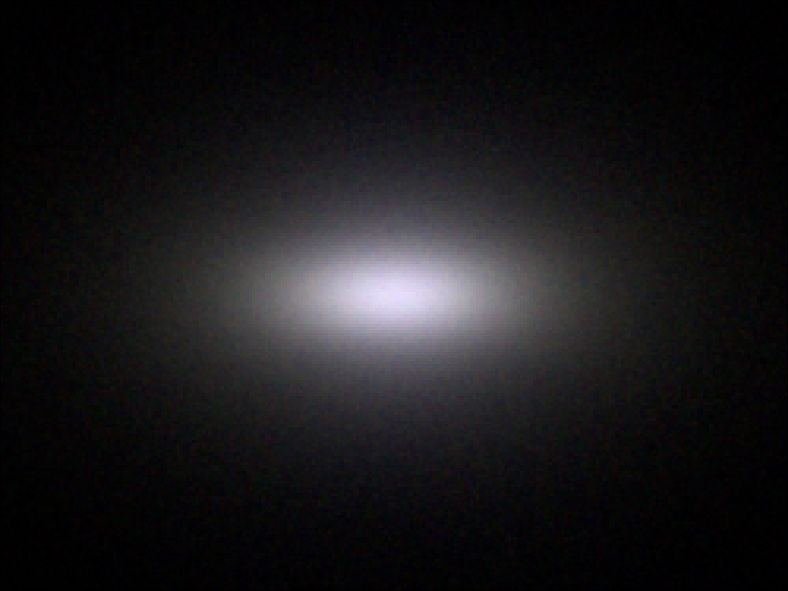

Luminus Devices SST 20-WxH White Hi CRI

Eff:

80.5%

FWHM:

86 x 33°

Cd/Im:

0.9

Download

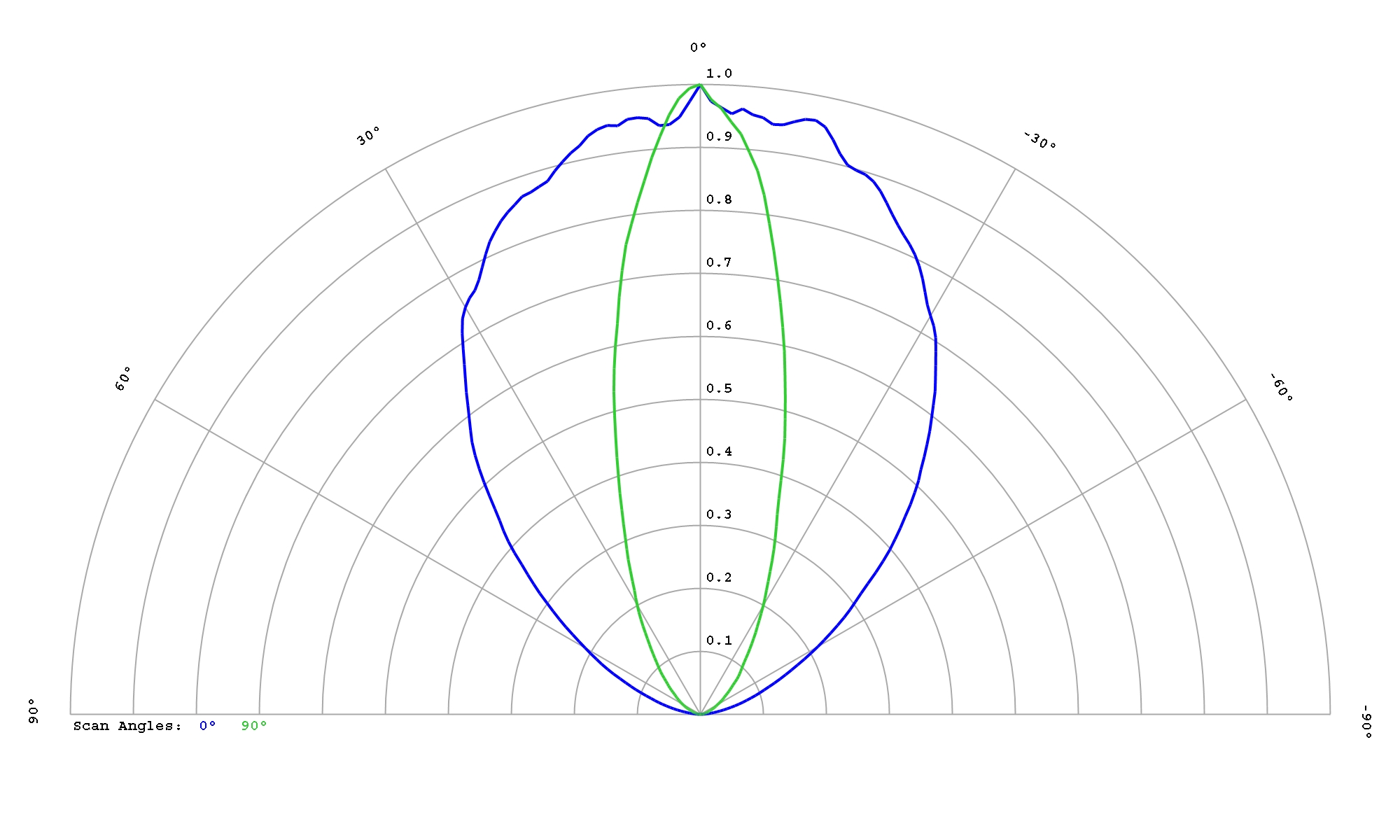

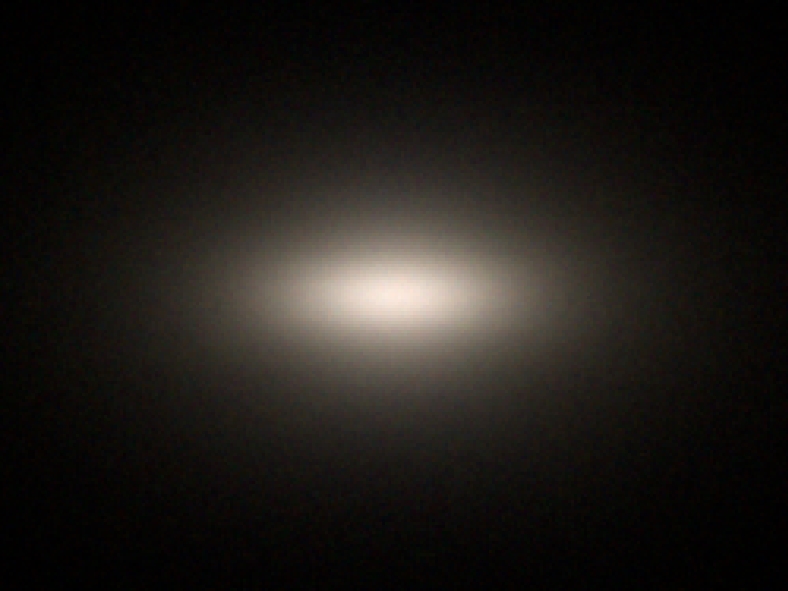

Nichia NCSW CSP E17A White

Eff:

78.0%

FWHM:

88 x 31°

Cd/Im:

1.0

Download

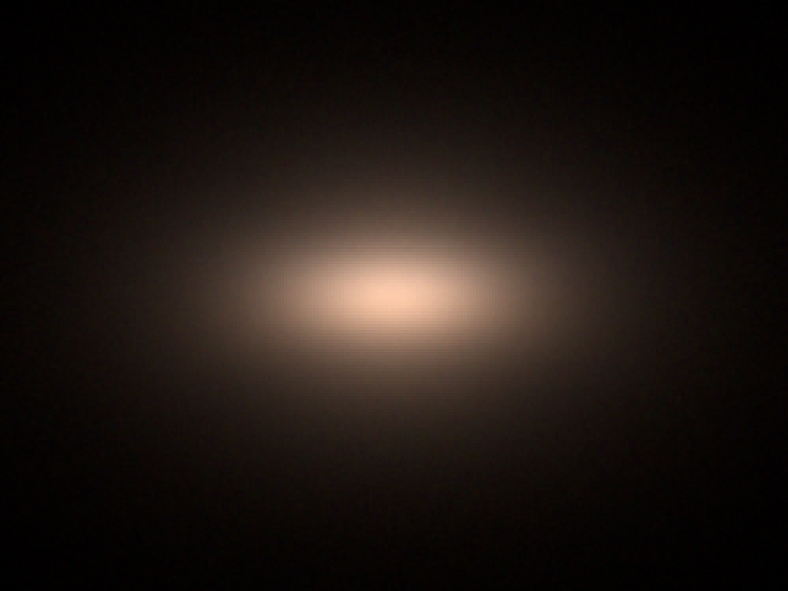

Nichia NF2W 757G-MT Tunable

Eff:

83.0%

FWHM:

85 x 34°

Cd/Im:

0.9


Download

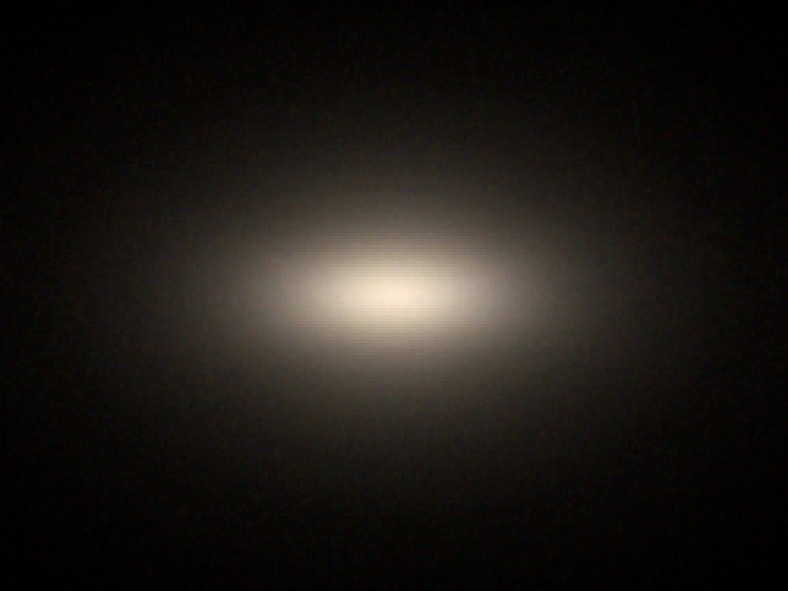

Nichia NFSW 757G-V3 White

Eff:

82.5%

FWHM:

85 x 33°

Cd/Im:

1.0

Download

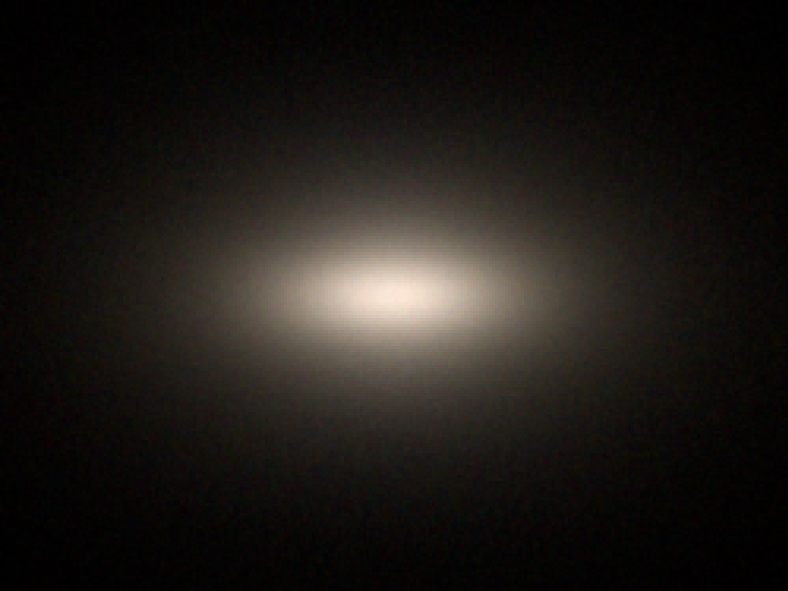

Nichia NVSW CSP E21A White

Eff:

78.5%

FWHM:

87 x 33°

Cd/Im:

0.9

Download

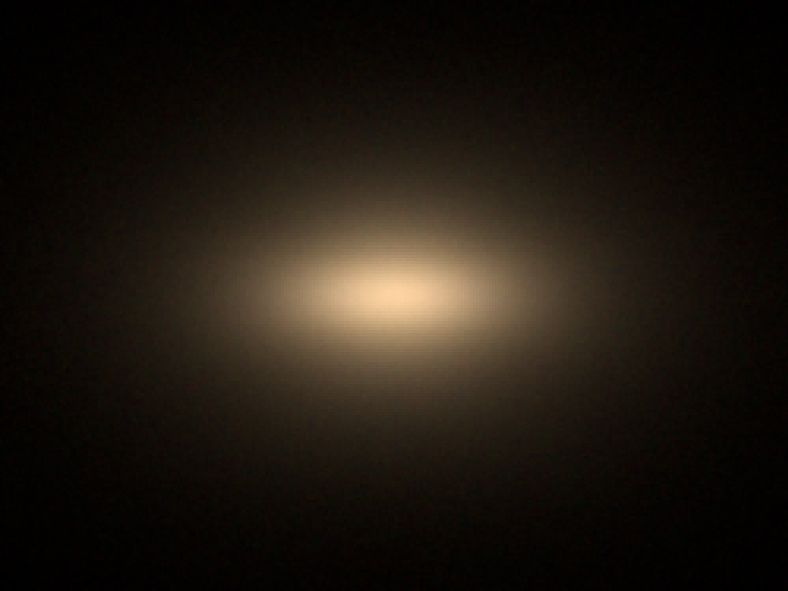

Osram OS DURIS E5 White

Eff:

79.5%

FWHM:

85 x 33°

Cd/Im:

0.9

Download

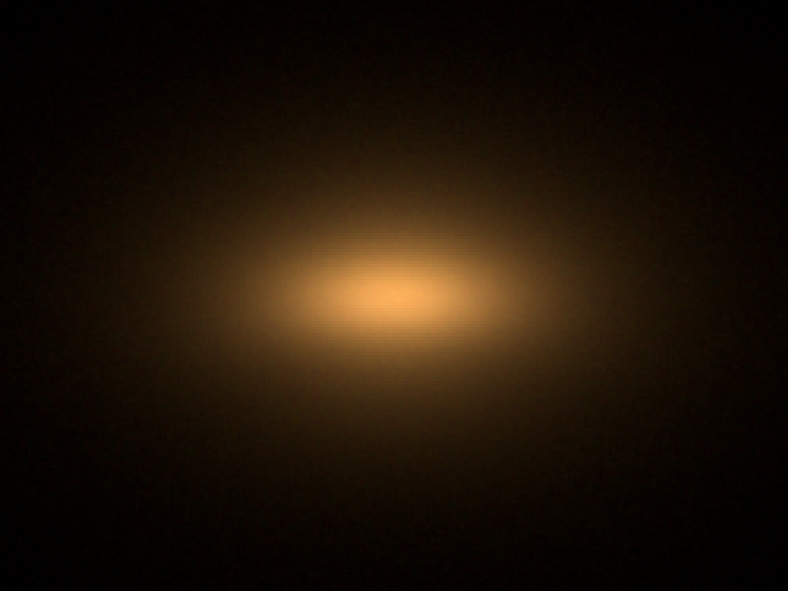

Osram OS DURIS S5 White

Eff:

82.5%

FWHM:

85 x 34°

Cd/Im:

1.0

Download

Osram OS DURIS S8 Gen3 White

Eff:

81.0%

FWHM:

87 x 41°

Cd/Im:

0.8


Download

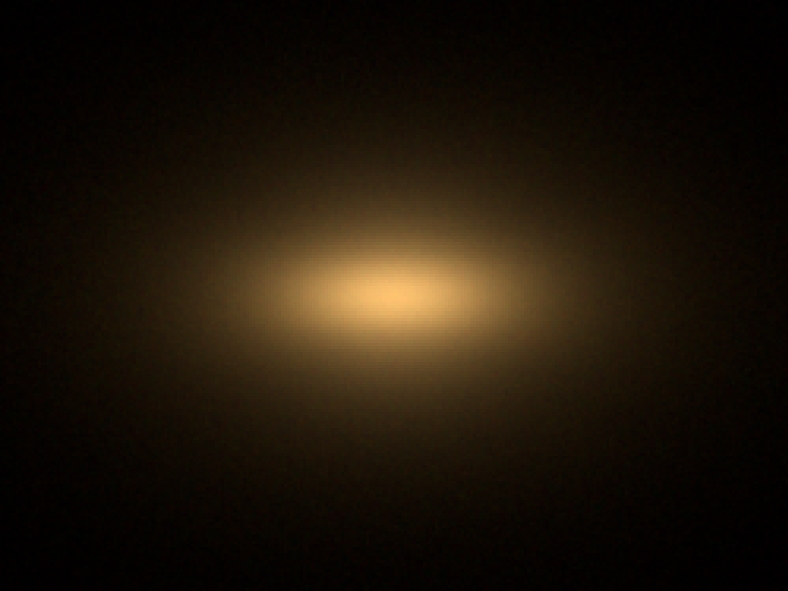

Osram OS OSCONIQ C 2424 White

Eff:

82.0%

FWHM:

83 x 32°

Cd/Im:

1.0


Download

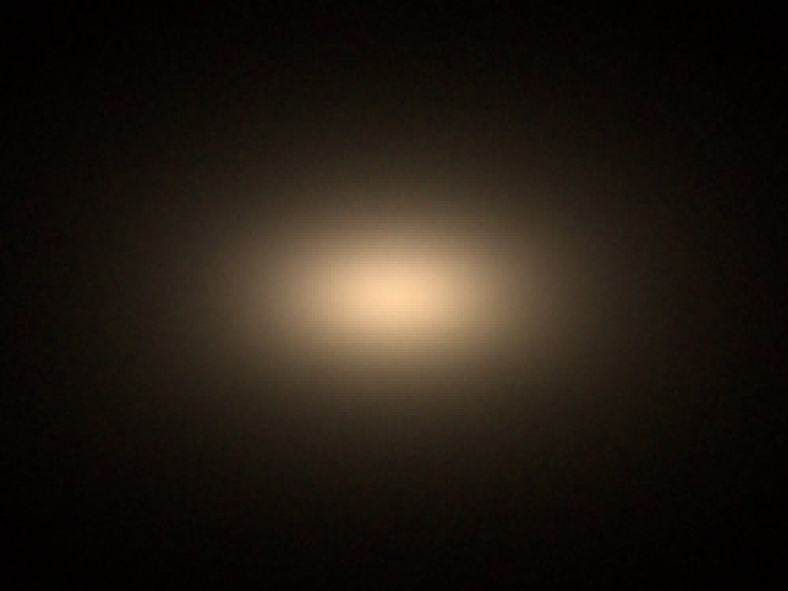

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

81.0%

FWHM:

86 x 40°

Cd/Im:

0.8



Download

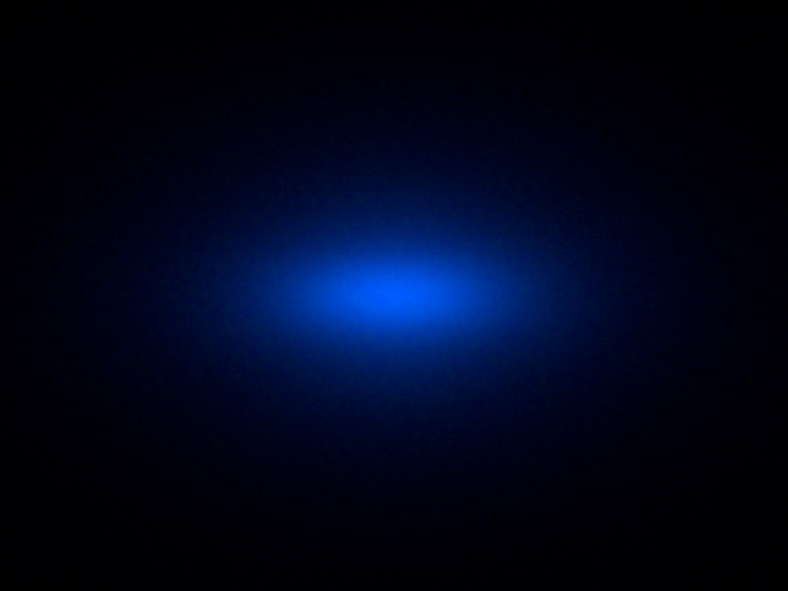

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

83.5%

FWHM:

83 x 29.5°

Cd/Im:

1.4


Download

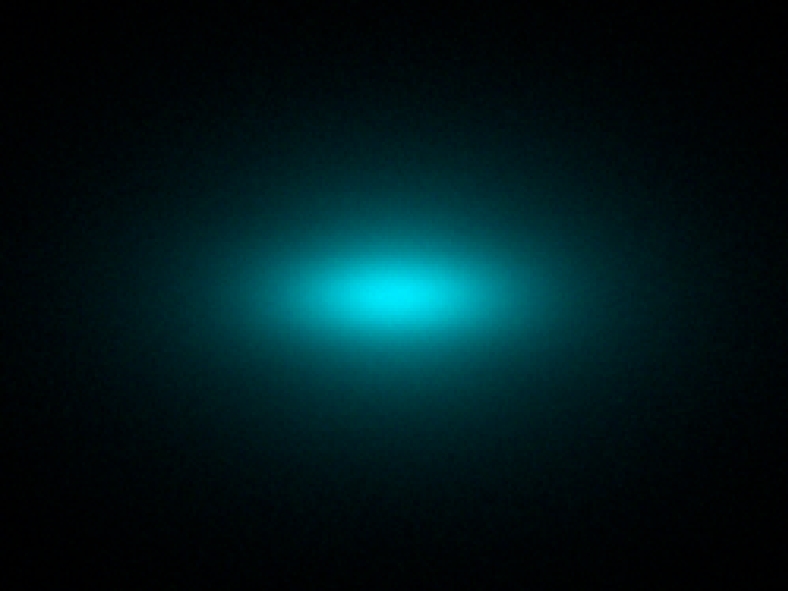

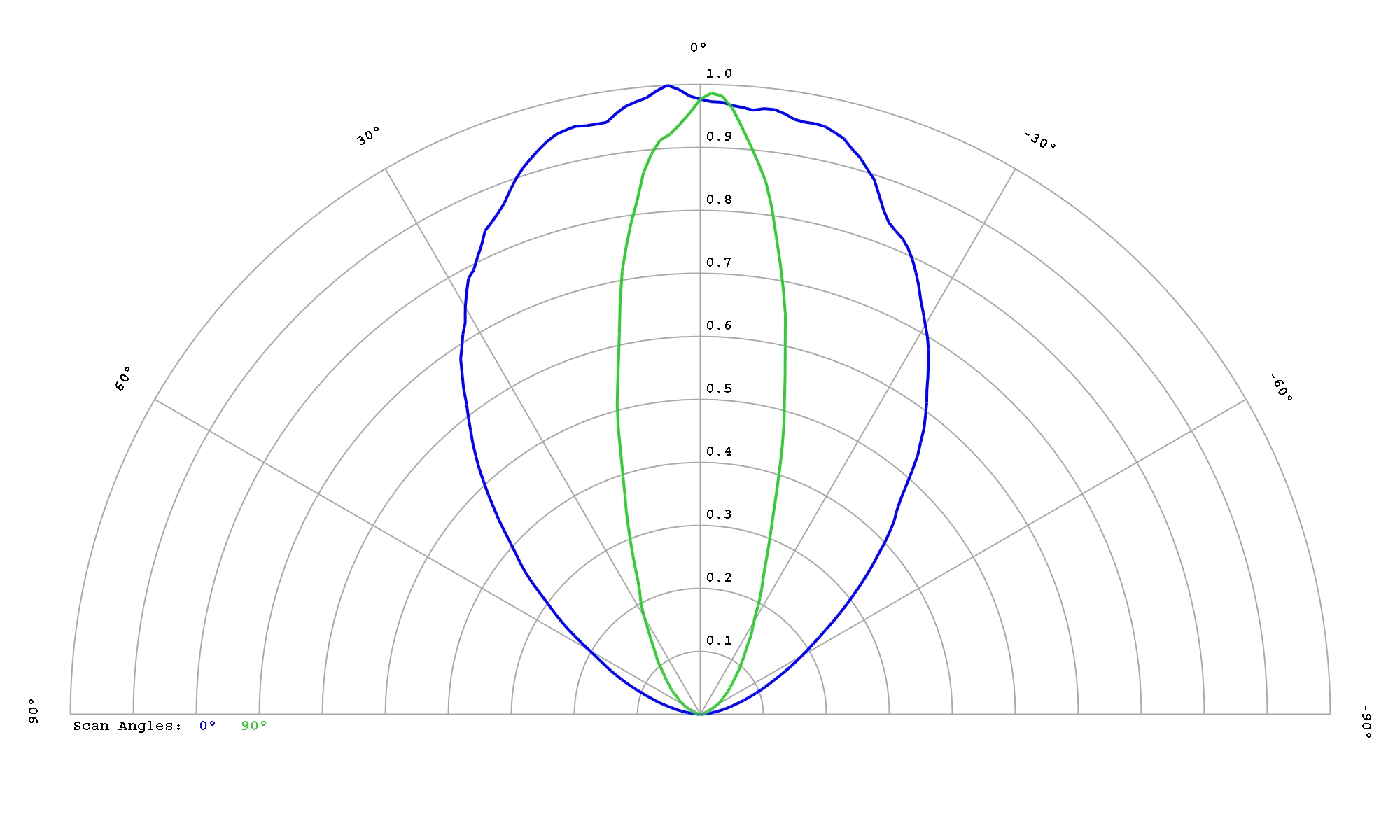

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

83.0%

FWHM:

84 x 31°

Cd/Im:

1.1


Download

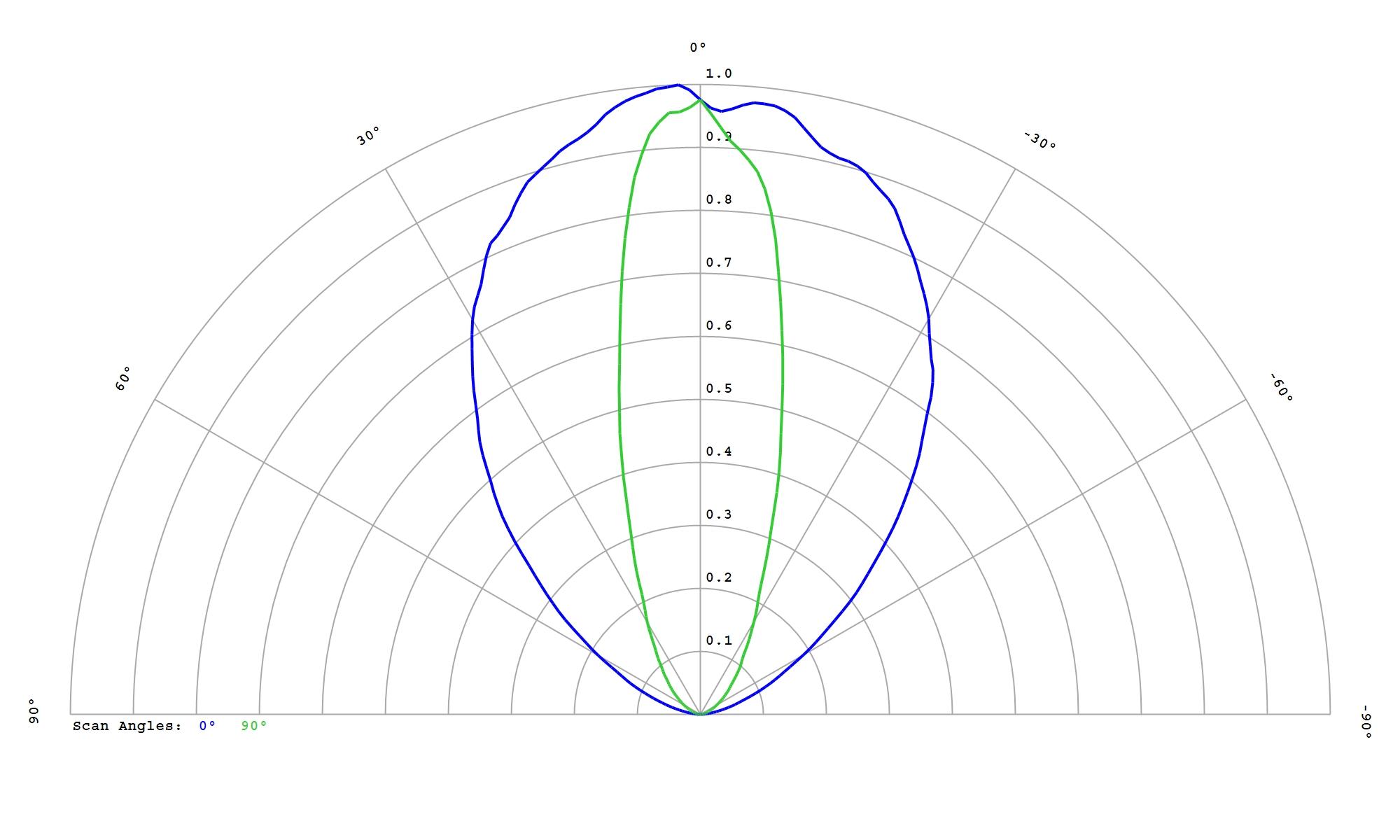

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

83.5%

FWHM:

83 x 30°

Ipk/W:

1.2


Download

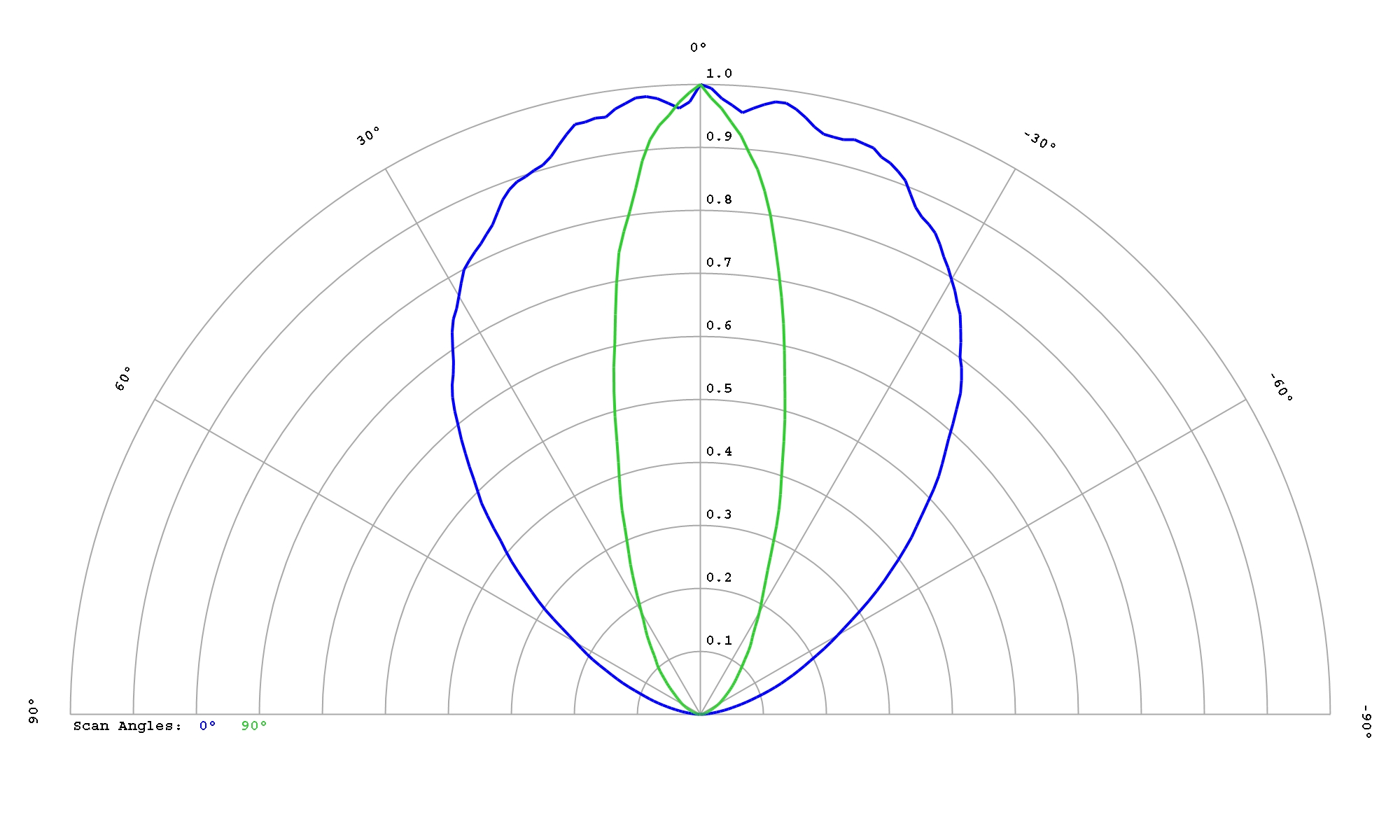

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

79.0%

FWHM:

92 x 31°

Cd/Im:

0.9


Download

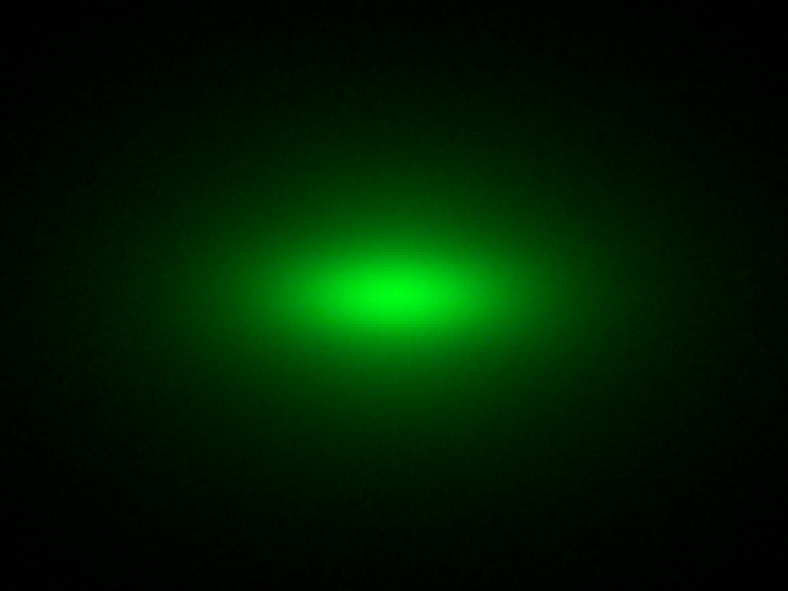

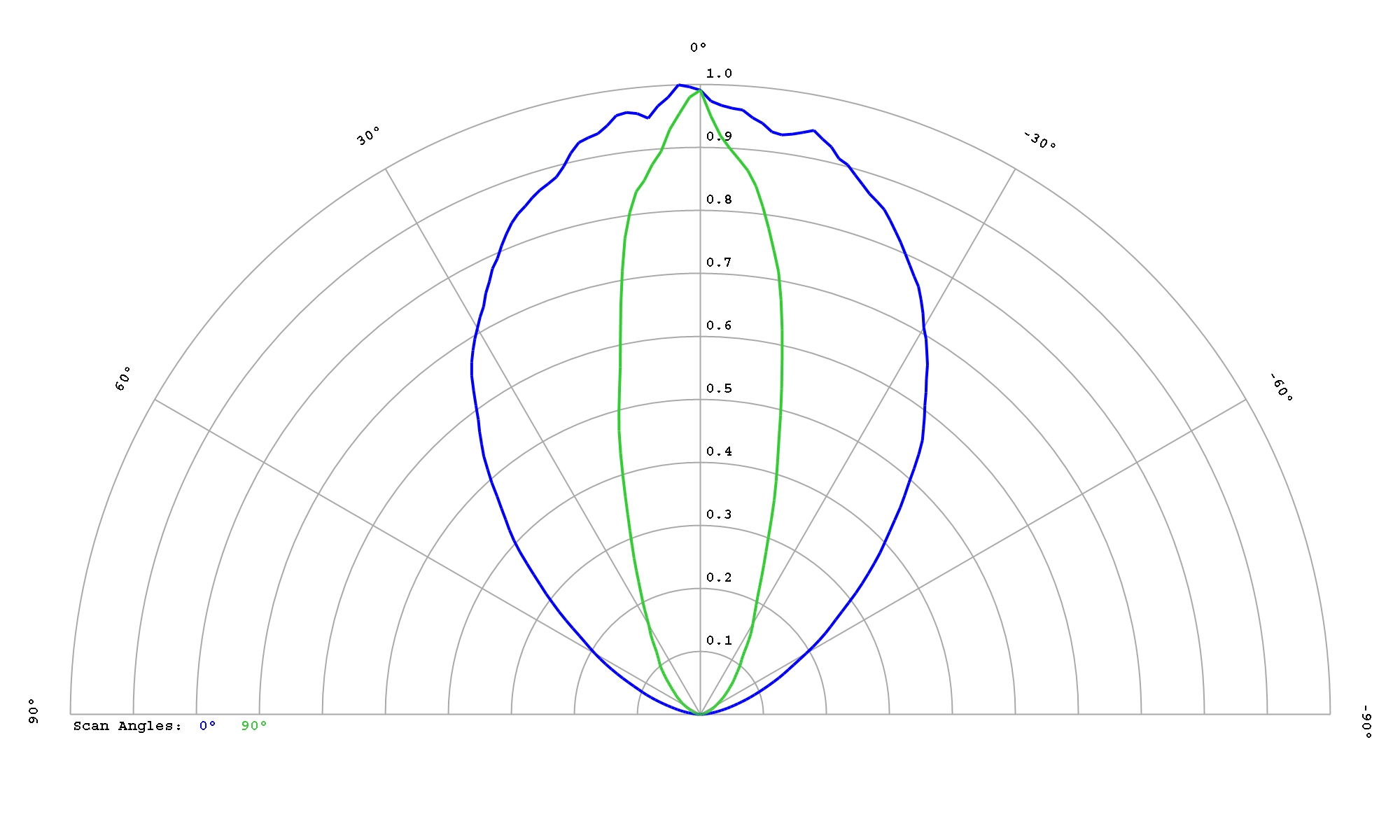

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

82.5%

FWHM:

82 x 29.5°

Cd/Im:

1.1


Download

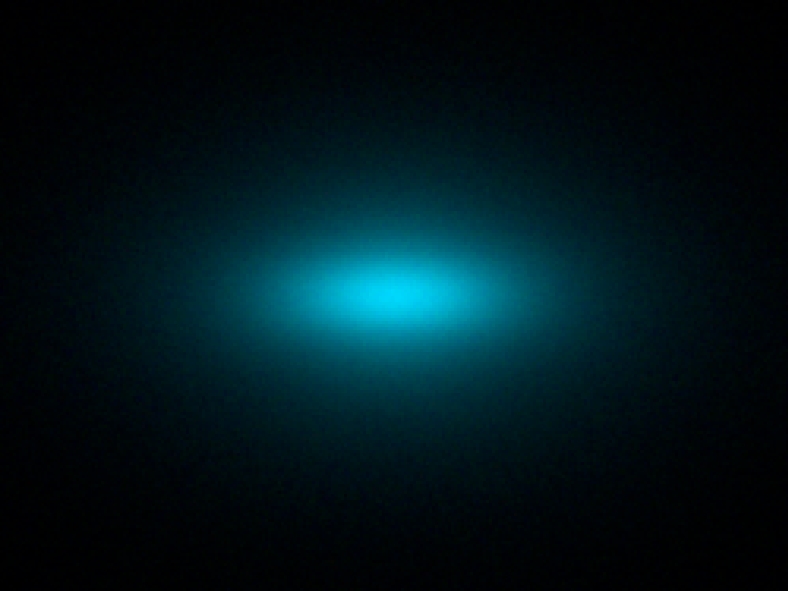

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

82.5%

FWHM:

83 x 29.5°

Cd/Im:

1.2


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

82.0%

FWHM:

86 x 30°

Cd/Im:

1.1

Download

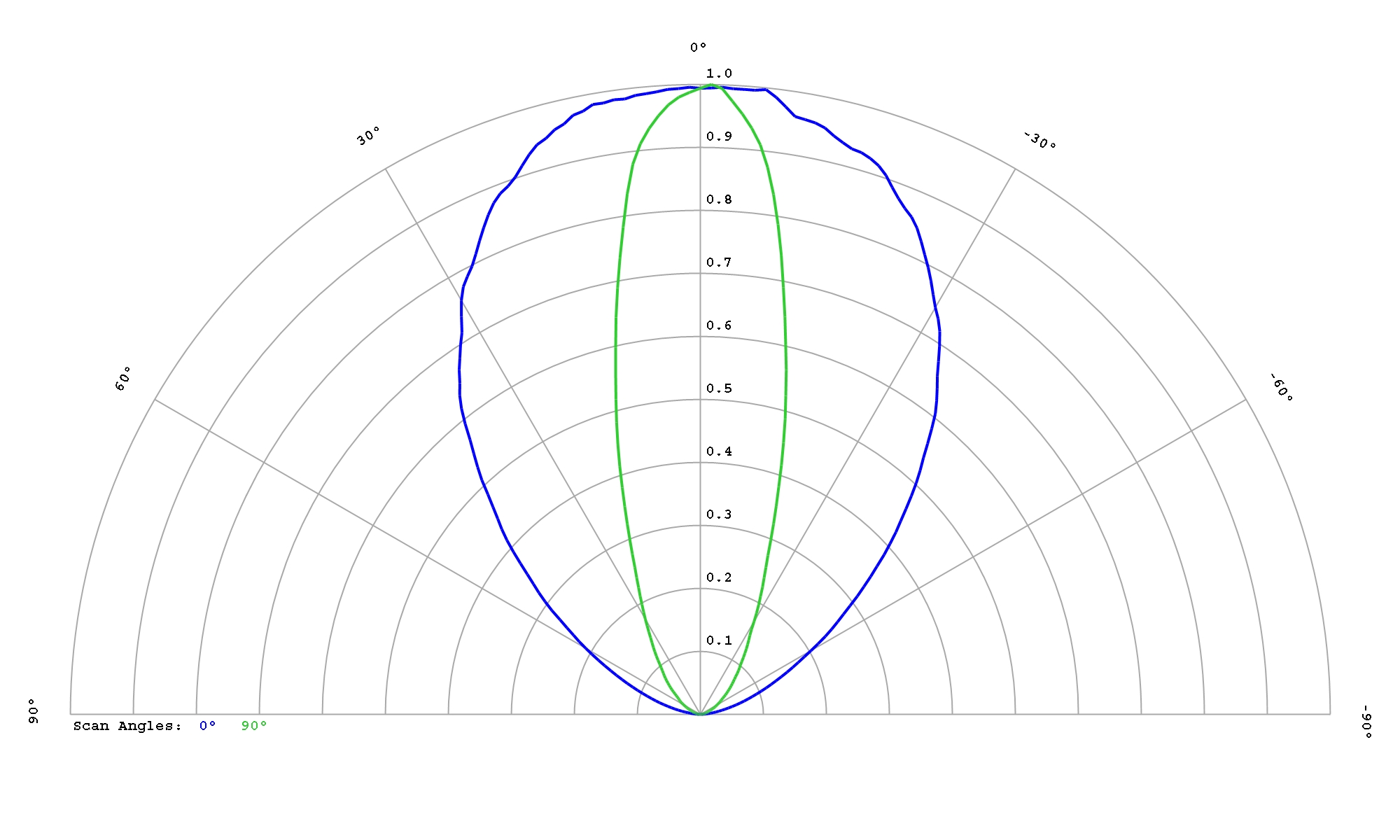

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

82.5%

FWHM:

86 x 31°

Cd/Im:

1.0


Download

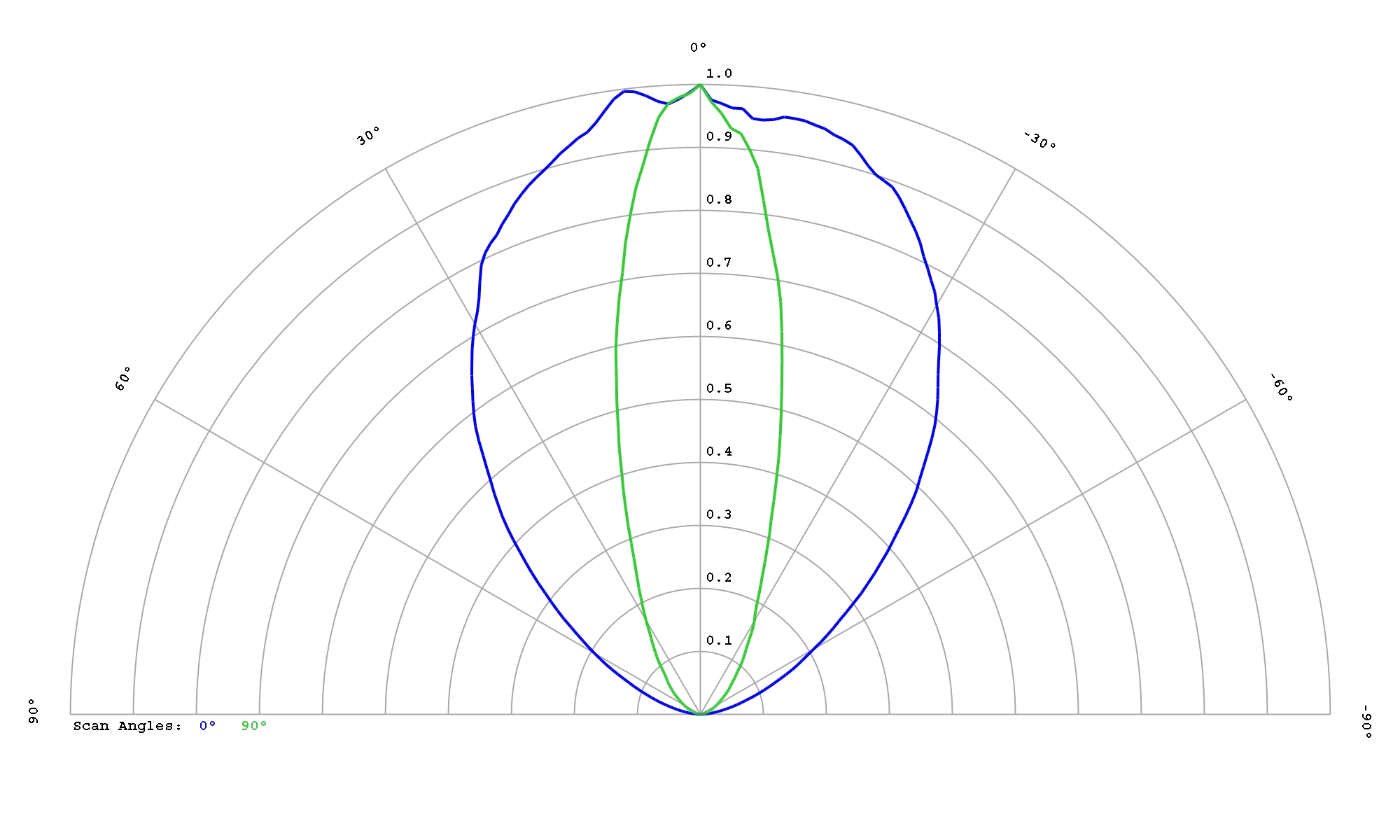

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

82.5%

FWHM:

85 x 31°

Cd/Im:

1.1


Download

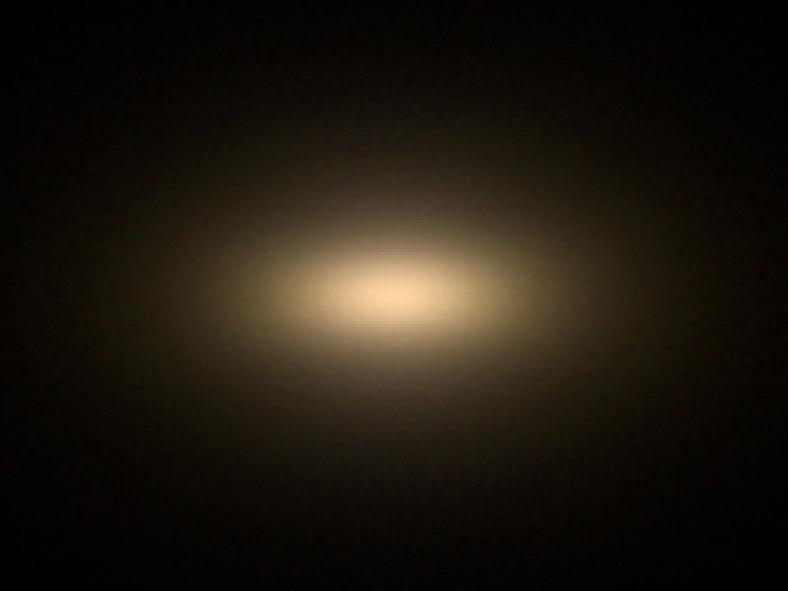

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

82.0%

FWHM:

84 x 33°

Cd/Im:

1.0



Download

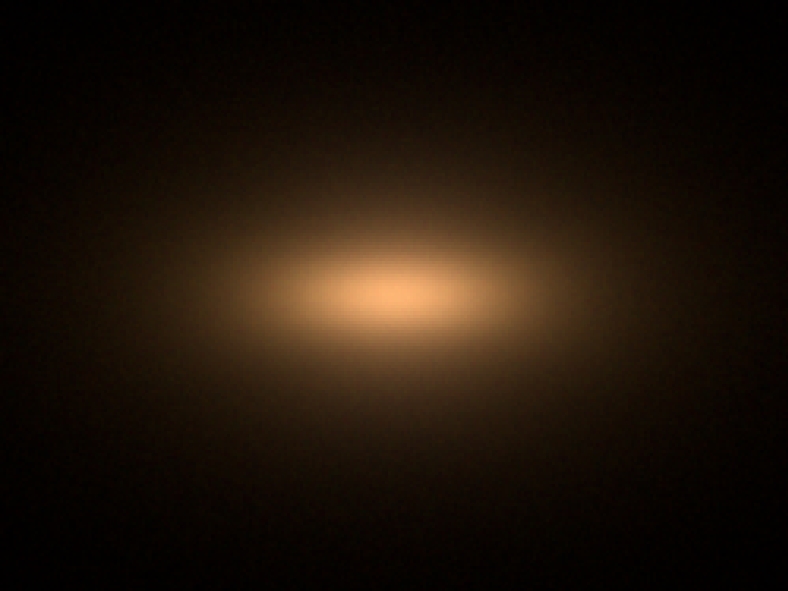

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

81.5%

FWHM:

91 x 31°

Cd/Im:

1.0


Download

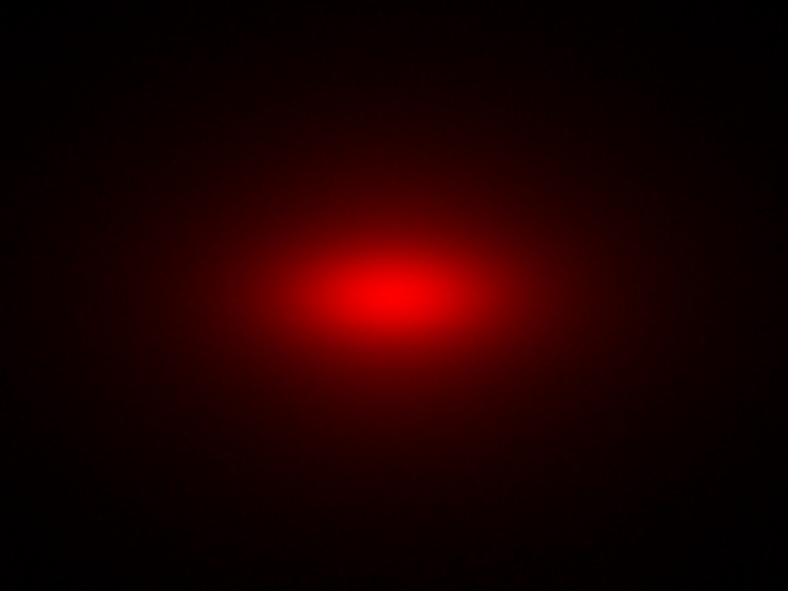

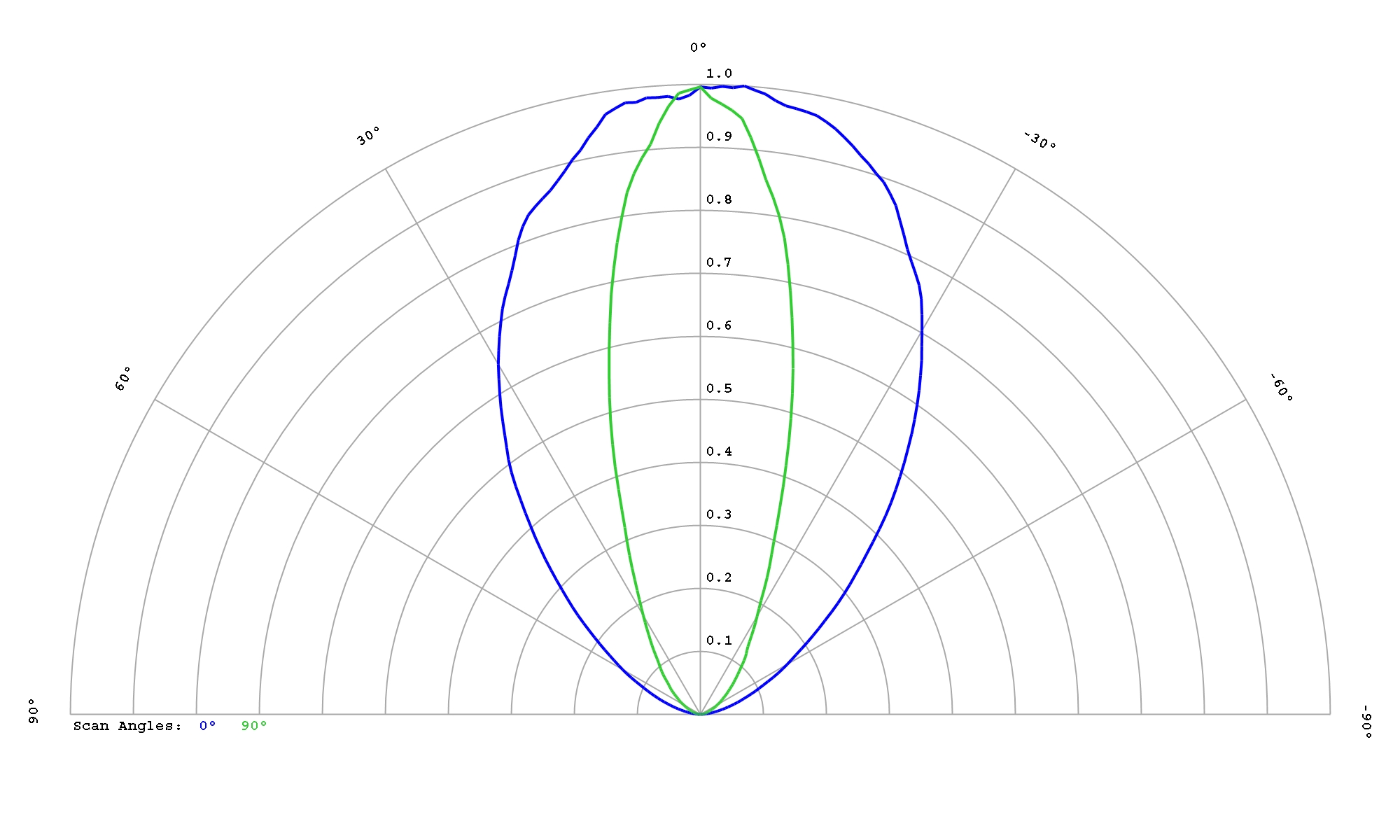

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

85.0%

FWHM:

77 x 33°

Ipk/W:

1.0


Download

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

85.0%

FWHM:

69 x 32°

Cd/Im:

1.2


Download

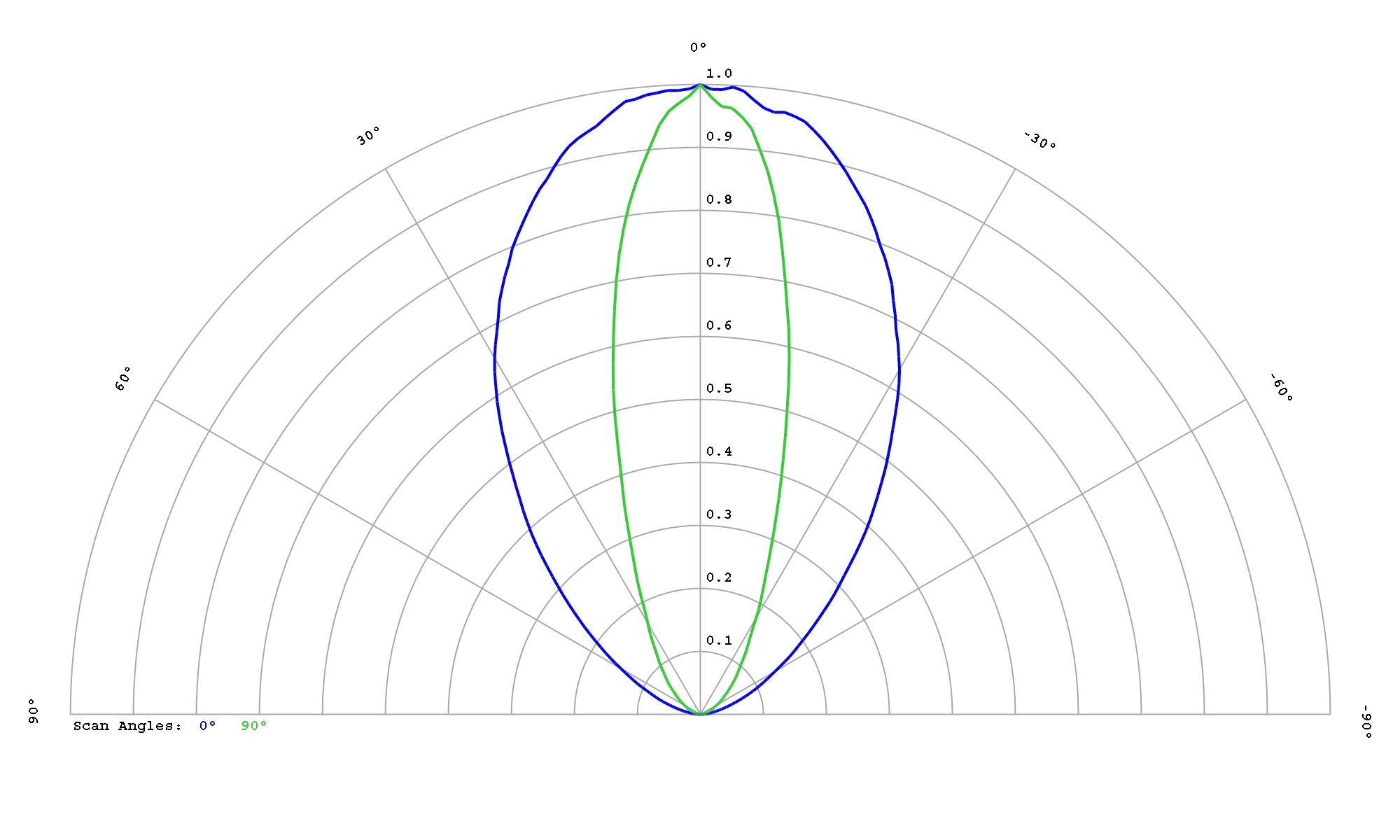

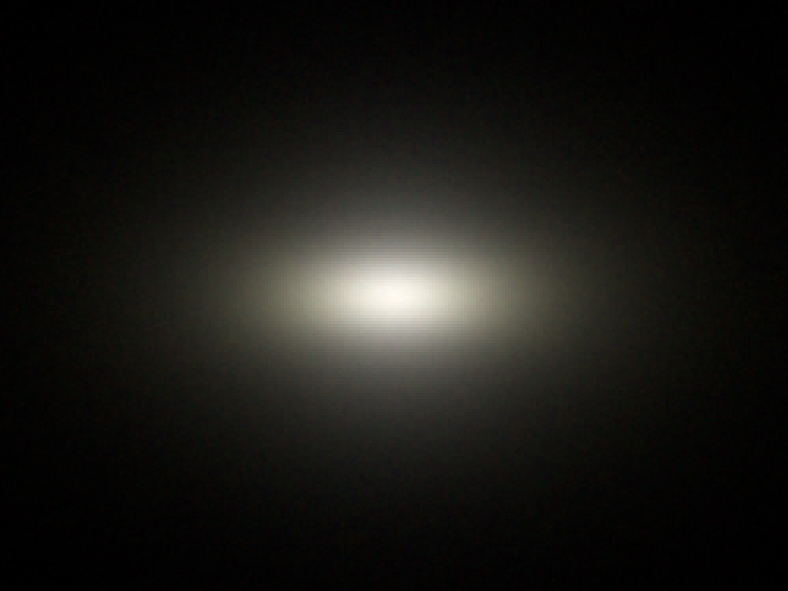

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

83.0%

FWHM:

74 x 32°

Cd/Im:

1.2


Download

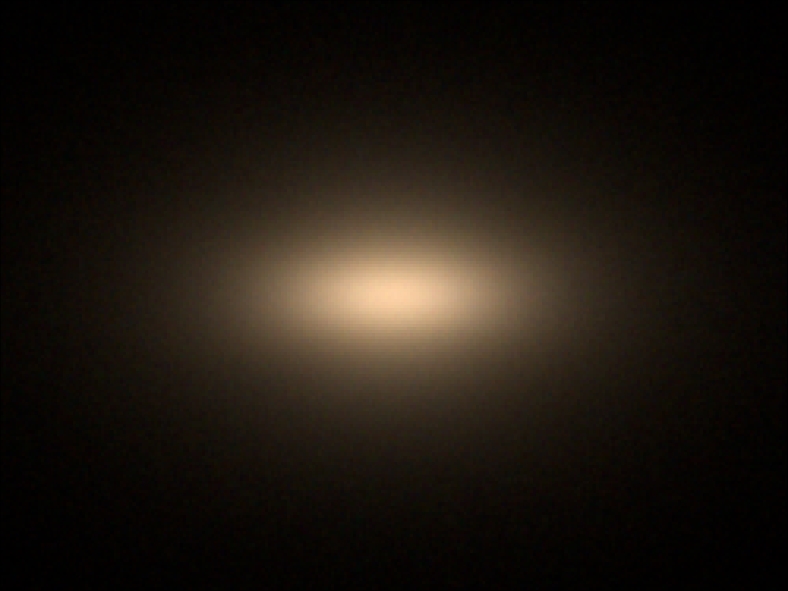

Philips Fortimo LED Strip 1120mm 4400lm 830 HV5B

Eff:

80.5%

FWHM:

84 x 33°

Cd/Im:

0.9



Download

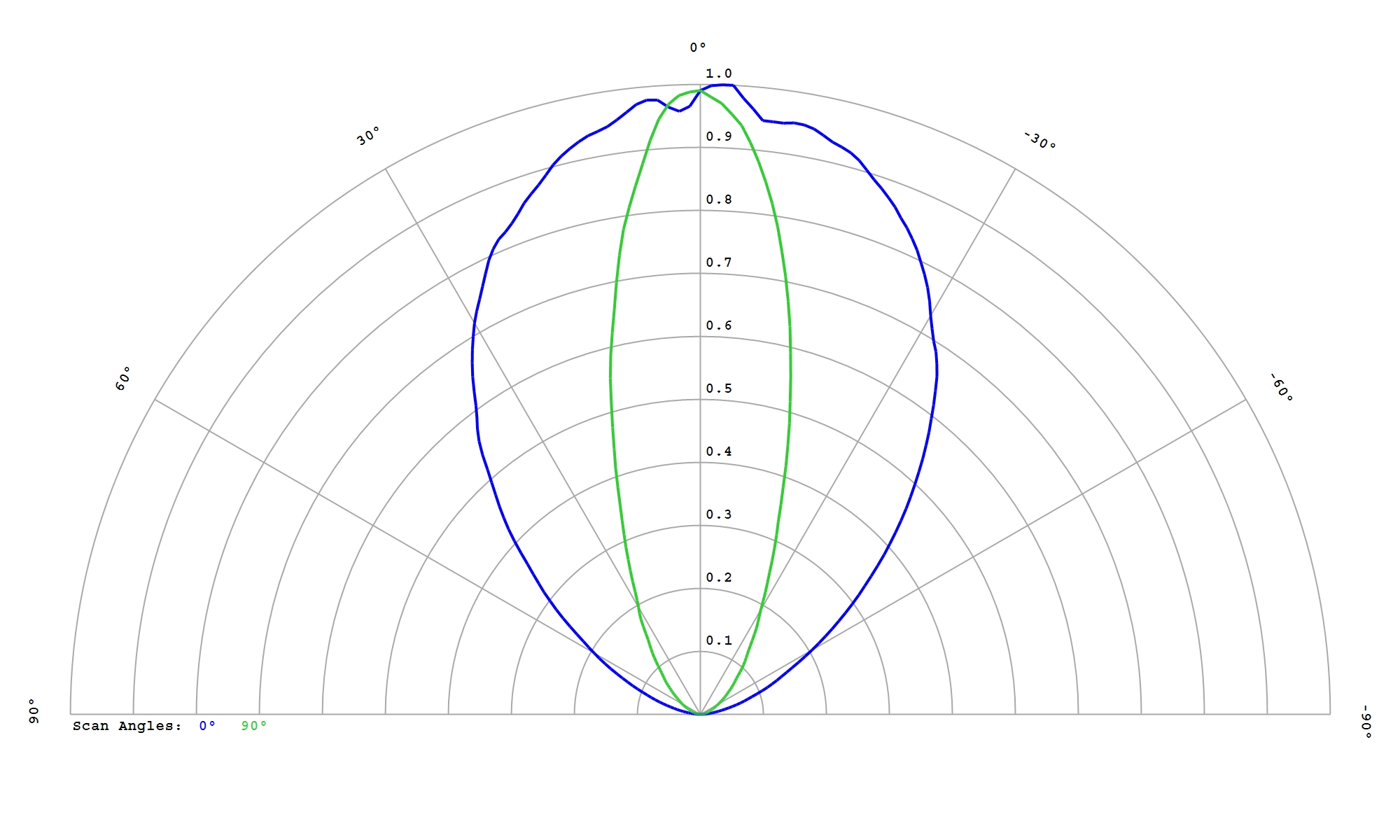

Philips Fortimo LED Strip 1120mm 4400lm 830 LV5B

Eff:

80.5%

FWHM:

83 x 32°

Cd/Im:

1.0



Download

Signify Philips Fortimo LED Strip 1120mm 4400lm 840 BC HV6

Eff:

82.5%

FWHM:

85 x 33°

Cd/Im:

1.0



Download

Signify Fortimo LED Strip 1ft 1100lm 840 BC HV6/LV6

Eff:

82.0%

FWHM:

85 x 32°

Cd/Im:

1.0



Download

Philips Fortimo LED Strip 1ft 1100lm 940 BC HV6

Eff:

82.5%

FWHM:

84 x 33°

Cd/Im:

1.0



Download

Signify Philips Fortimo LED Strip 1ft 2000lm 840 BC HV6

Eff:

82.5%

FWHM:

86 x 33°

Cd/Im:

1.0



Download

Signify Fortimo LED Strip 2ft 2200lm 840 BC HV6/LV6

Eff:

82.0%

FWHM:

83 x 32°

Cd/Im:

1.0



Download

Signify Philips Fortimo LED Strip 2ft 2200lm 940 BC HV6/LV6

Eff:

82.0%

FWHM:

84 x 33°

Cd/Im:

1.0



Download

Signify Philips Fortimo LED Strip 2ft 4000lm 840 BC HV6

Eff:

82.5%

FWHM:

84 x 33°

Cd/Im:

1.1



Download

Philips Fortimo LED Strip OC 1ft 1100lm 840 BC HV5

Eff:

80.5%

FWHM:

86 x 32°

Cd/Im:

0.9



Download

Philips Fortimo LED Strip OC 1ft 1100lm 840 BC LV5

Eff:

80.5%

FWHM:

85 x 33°

Cd/Im:

0.9



Download

Philips Fortimo LED Strip OC 1ft 1100lm 940 BC HV5

Eff:

80.5%

FWHM:

83 x 33°

Cd/Im:

1.0



Download

Philips Fortimo LED Strip OC 1ft 1100lm 940 BC LV5

Eff:

80.5%

FWHM:

85 x 32°

Cd/Im:

0.9



Download

Philips Fortimo LED Strip OC 2ft 2200lm 840 BC HV5

Eff:

80.5%

FWHM:

84 x 32°

Cd/Im:

1.0



Download

Philips Fortimo LED Strip OC 2ft 2200lm 840 BC LV5

Eff:

80.5%

FWHM:

85 x 32°

Cd/Im:

0.9



Download

Philips Fortimo LED Strip OC 2ft 2200lm 940 BC HV5

Eff:

80.5%

FWHM:

85 x 33°

Cd/Im:

0.9



Download

Philips Fortimo LED Strip OC 2ft 2200lm 940 BC LV5

Eff:

81.0%

FWHM:

83 x 32°

Cd/Im:

0.9



Download

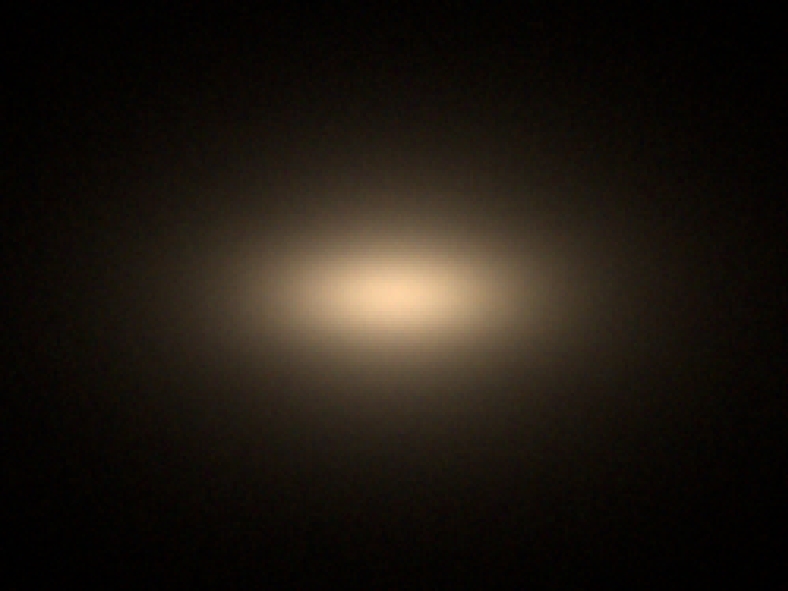

Samsung 2835 LM281B+ White

Eff:

82.0%

FWHM:

86 x 33°

Cd/Im:

1.0



Download

Samsung 3030 LM301B (TW) Tunable White 2700-6500K

Eff:

83.5%

FWHM:

84 x 34°

Cd/Im:

1.0

Download

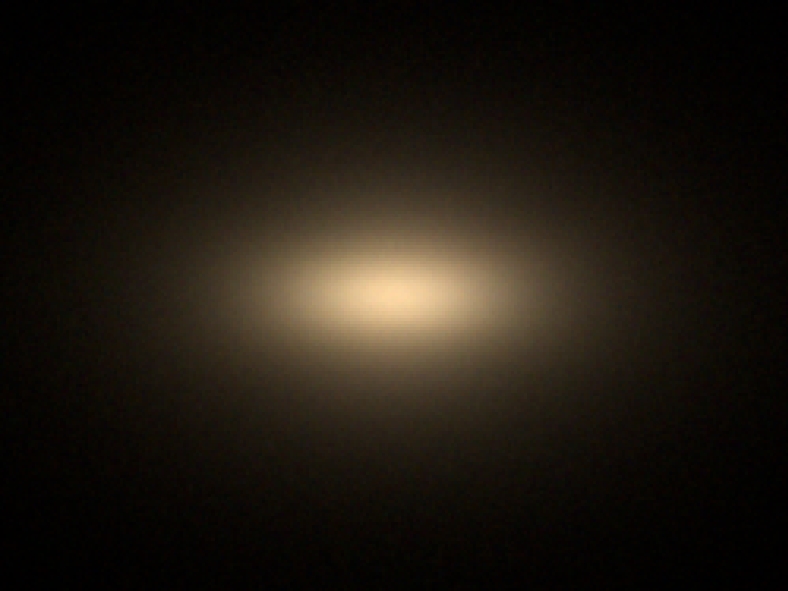

Samsung 3030 LM301B White

Eff:

82.5%

FWHM:

85 x 32°

Cd/Im:

1.0


Download

Samsung 5050 LH502C White

Eff:

81.0%

FWHM:

86 x 41°

Cd/Im:

0.8


Download

Samsung 5050 LH502D White

Eff:

81.0%

FWHM:

87 x 41°

Cd/Im:

0.9


Download

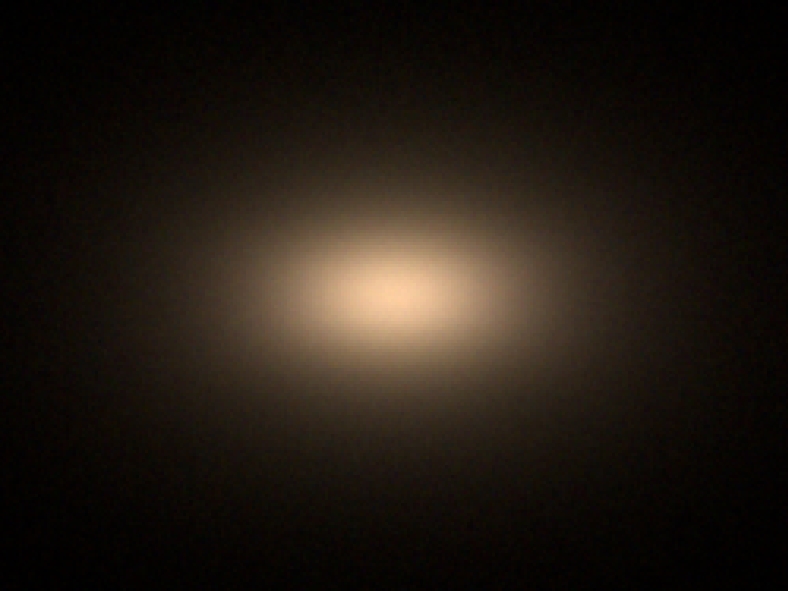

Samsung 5050 LH508C White

Eff:

81.5%

FWHM:

85 x 41°

Cd/Im:

0.9


Download

Samsung CSP LH151B White

Eff:

82.5%

FWHM:

88 x 32°

Cd/Im:

1.0

Download

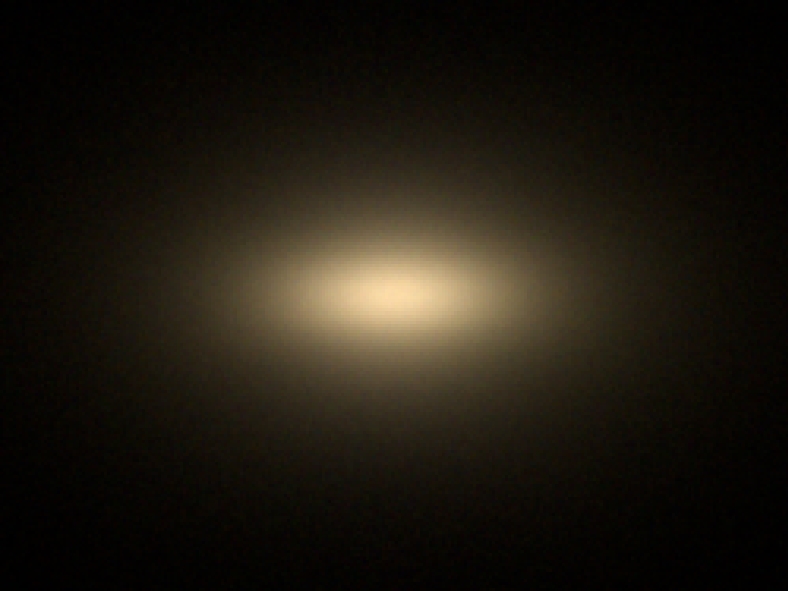

Samsung CSP LH181B White

Eff:

80.5%

FWHM:

86 x 34°

Cd/Im:

1.0


Download

Samsung CSP LH231B White

Eff:

80.0%

FWHM:

87 x 35°

Cd/Im:

0.9


Download

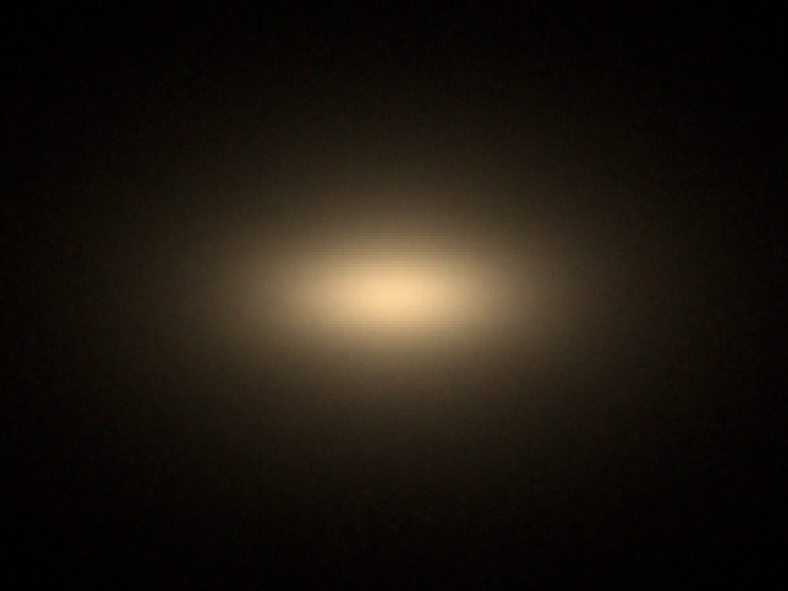

Seoul STWS C2PB-E0 White

Eff:

82.0%

FWHM:

81 x 32°

Cd/Im:

1.0


Download

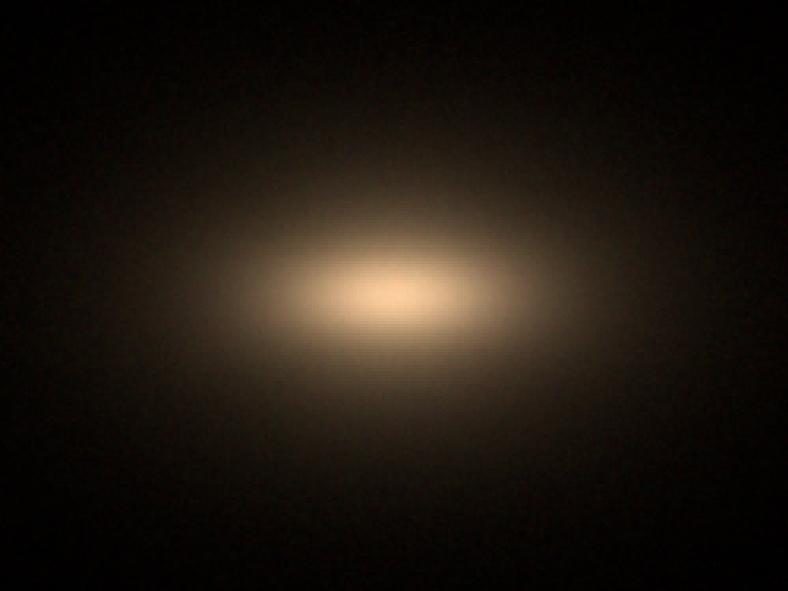

Seoul SunLike STW9 C2SB-S

Eff:

82.0%

FWHM:

86 x 33°

Cd/Im:

1.0


Download

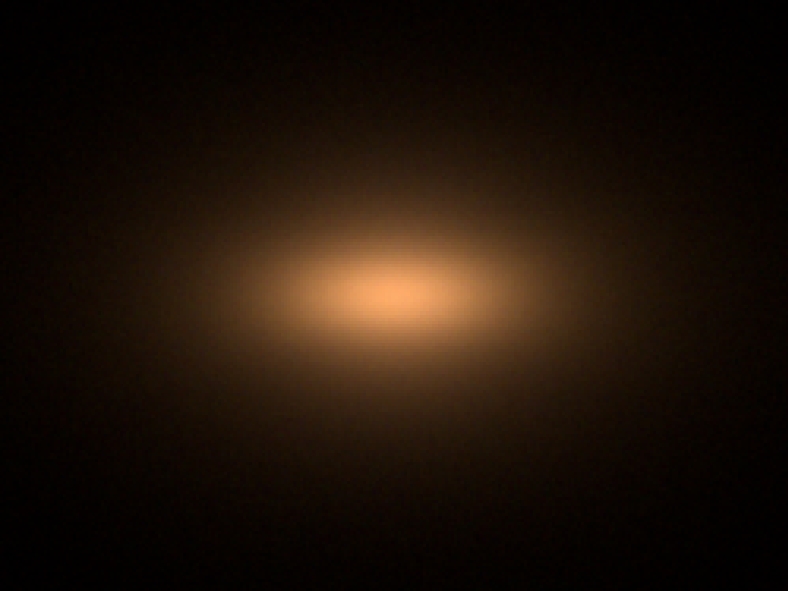

Tron 20mm LMIDS-0280-E-H30-D White

Eff:

82.5%

FWHM:

83 x 32°

Cd/Im:

1.0



Download

Tron 20mm LMIDS-0280-P-H30-D White

Eff:

82.5%

FWHM:

84 x 32°

Cd/Im:

1.0



Download

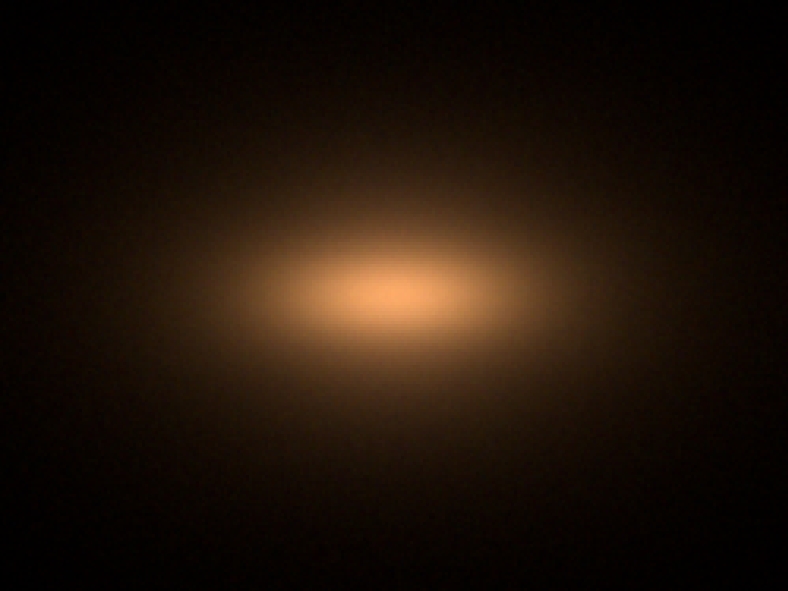

Tron 20mm LMIDS-0560-E-H30-D White

Eff:

83.0%

FWHM:

84 x 33°

Cd/Im:

0.8



Download

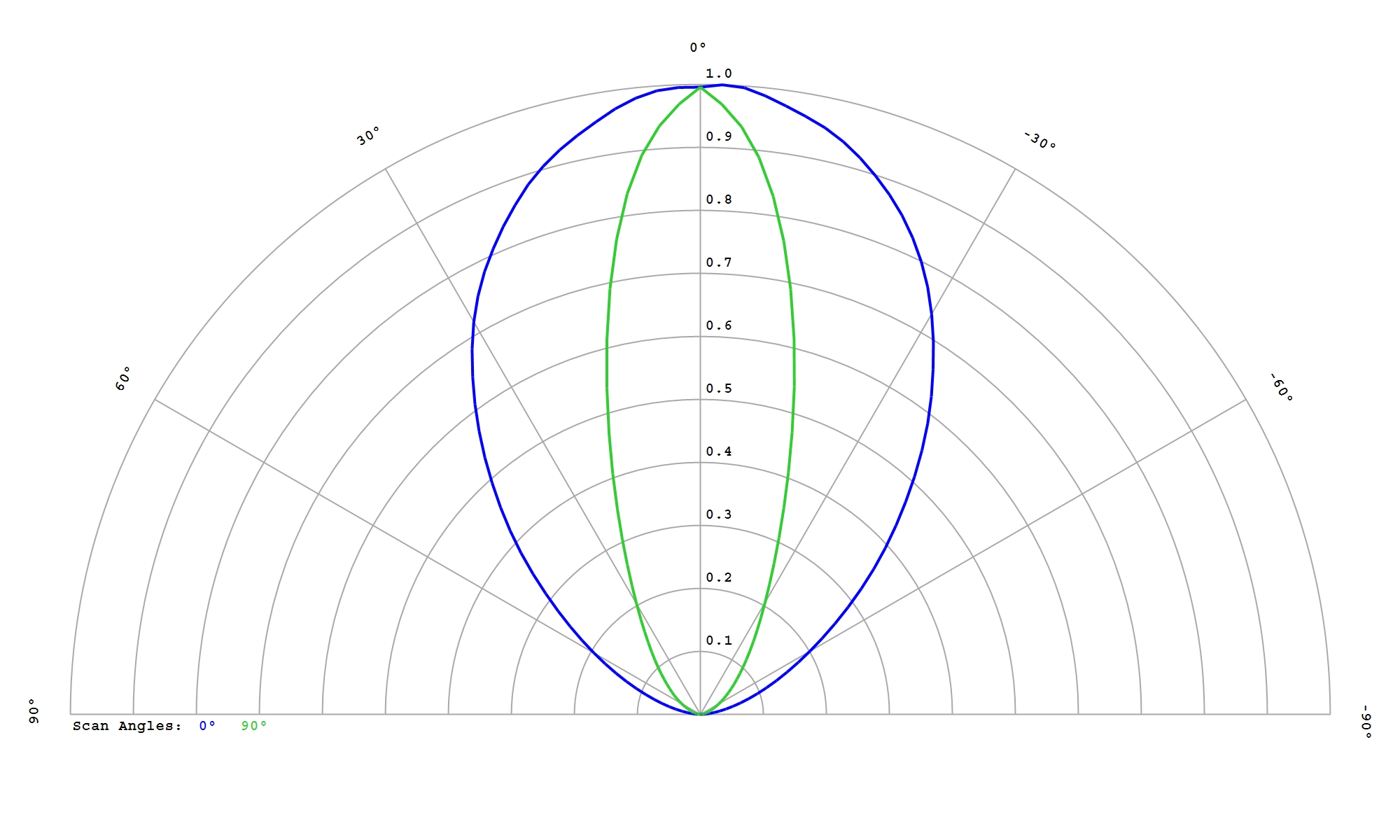

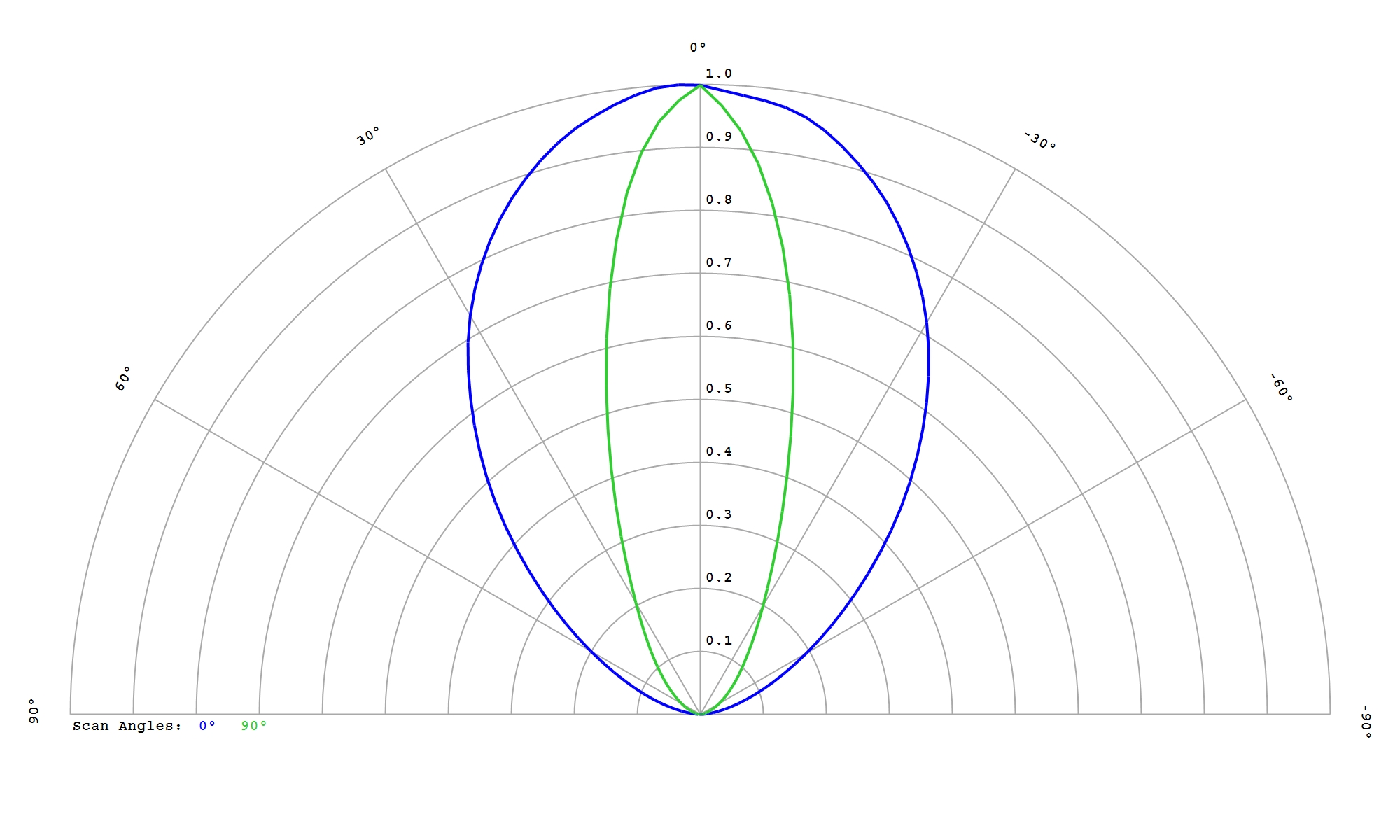

Tron 20mm LMIDS-0560-P-H30-D White

Eff:

83.0%

FWHM:

85 x 34°

Cd/Im:

0.9



Download

Tron 20mm LMIDS-1120-E-H30-D White

Eff:

83.0%

FWHM:

82 x 32°

Cd/Im:

0.5



Download

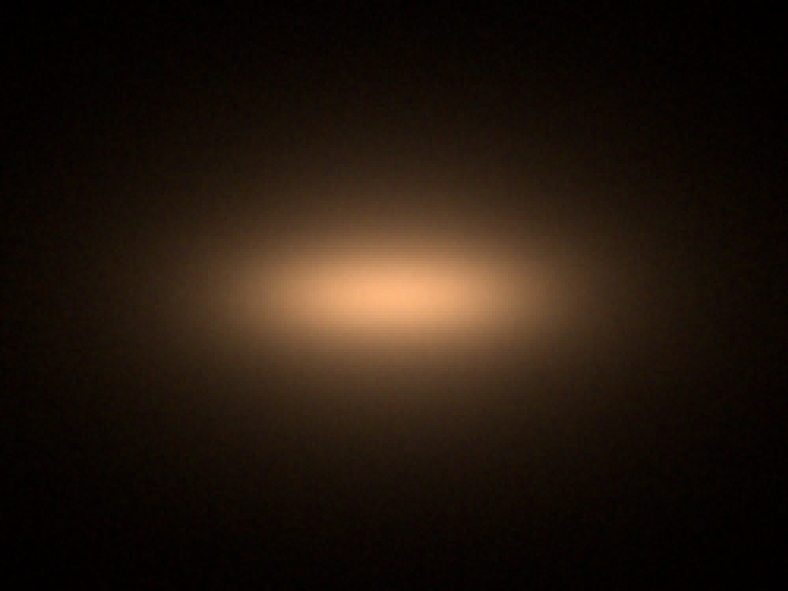

Tron 20mm LMIDS-1120-P-H30-D White

Eff:

82.5%

FWHM:

84 x 34°

Cd/Im:

0.5



Download
