26.0mm Flat Cover Opal Diffuse Linear | Carclo Optics

60217 Flat Top Opal Diffuse

26.0mm Flat Cover Opal Diffuse Linear

Part number

60217

Dimensions

26.0mm

Optic type

Linear

Finish

Opal Diffuse

Beam type

Flat Cover

Applications

Architectural

Landscape & Garden

Office

Retail

Industrial

Humancentric

Housing assembly components are also available to order separately, see assembly drawing for part numbers or contact sales.

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

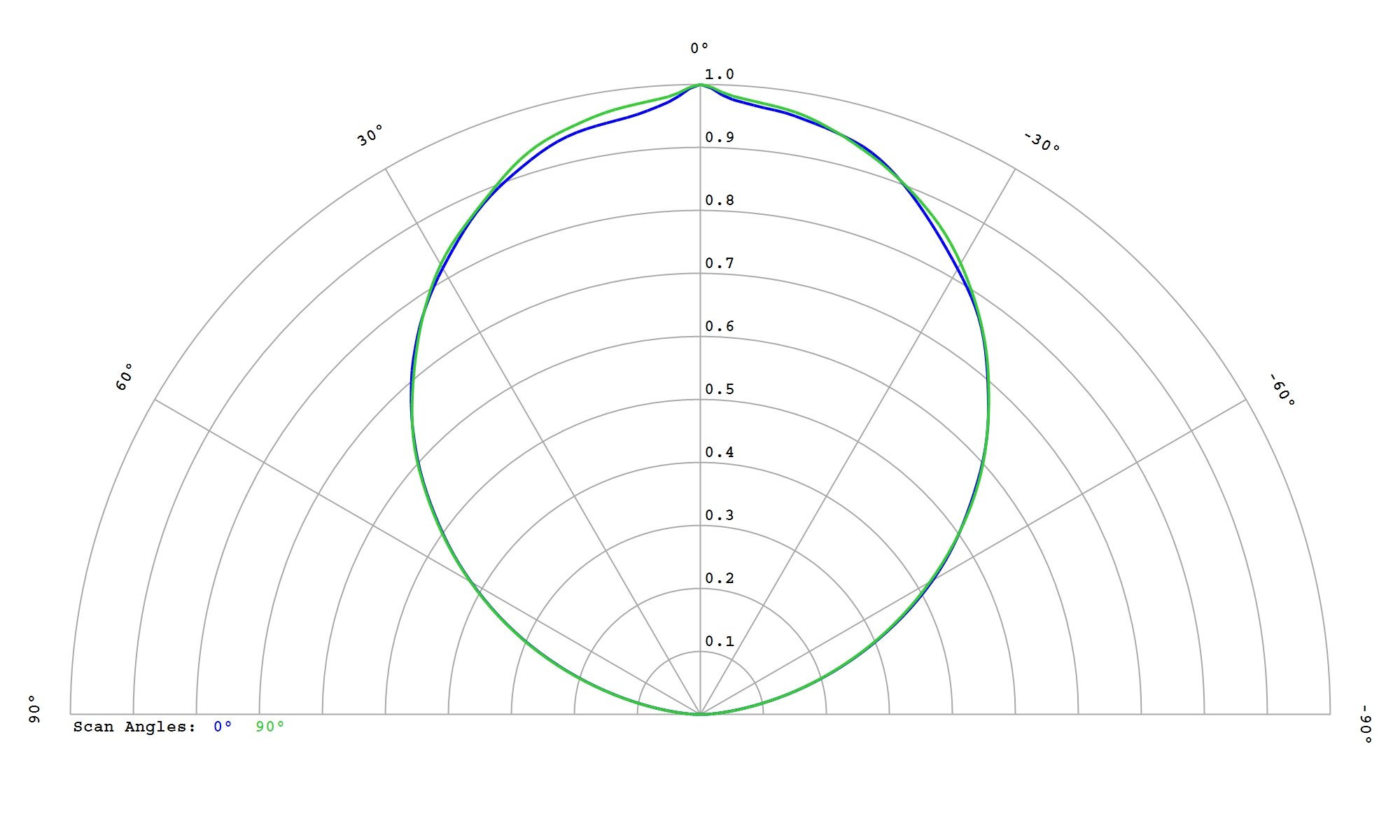

LUMILEDS LUXEON 3528 RGB

Eff:

48.0%

FWHM:

111°

Cd/Im:

0.2

Download

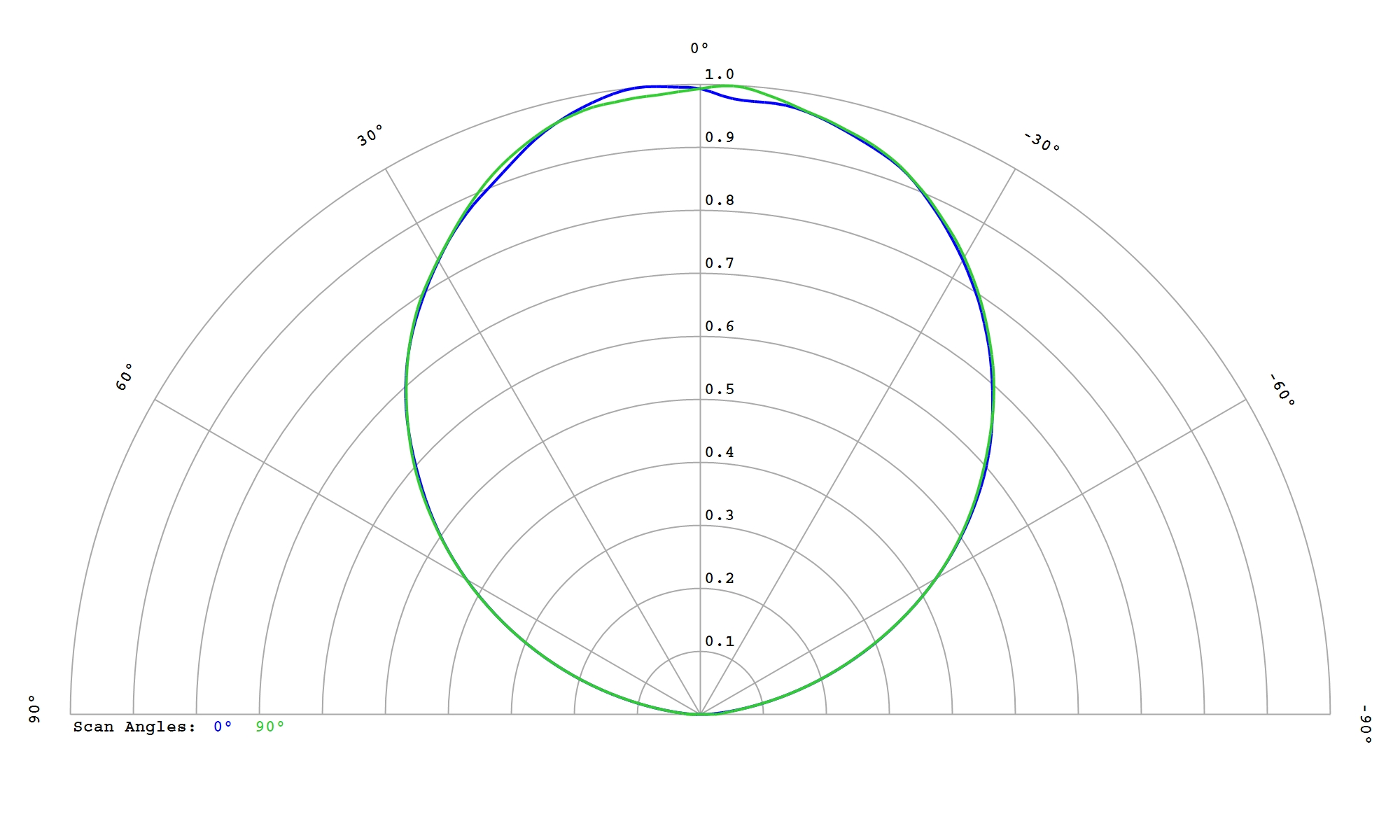

LUMILEDS LUXEON HL1Z Color Blue

Eff:

47.0%

FWHM:

111°

Cd/Im:

0.2

Download

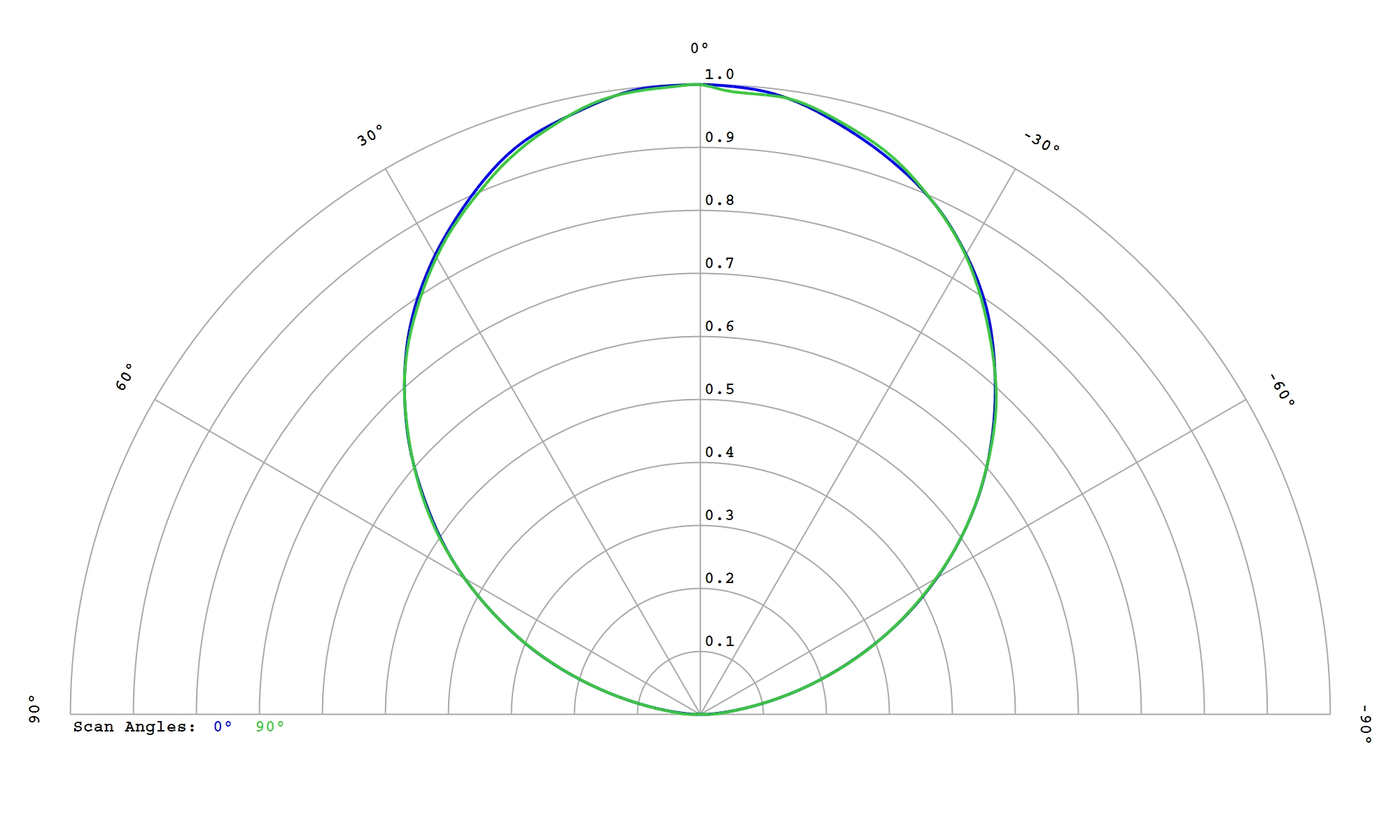

LUMILEDS LUXEON HL1Z Color Green

Eff:

46.0%

FWHM:

111°

Cd/Im:

0.2

Download

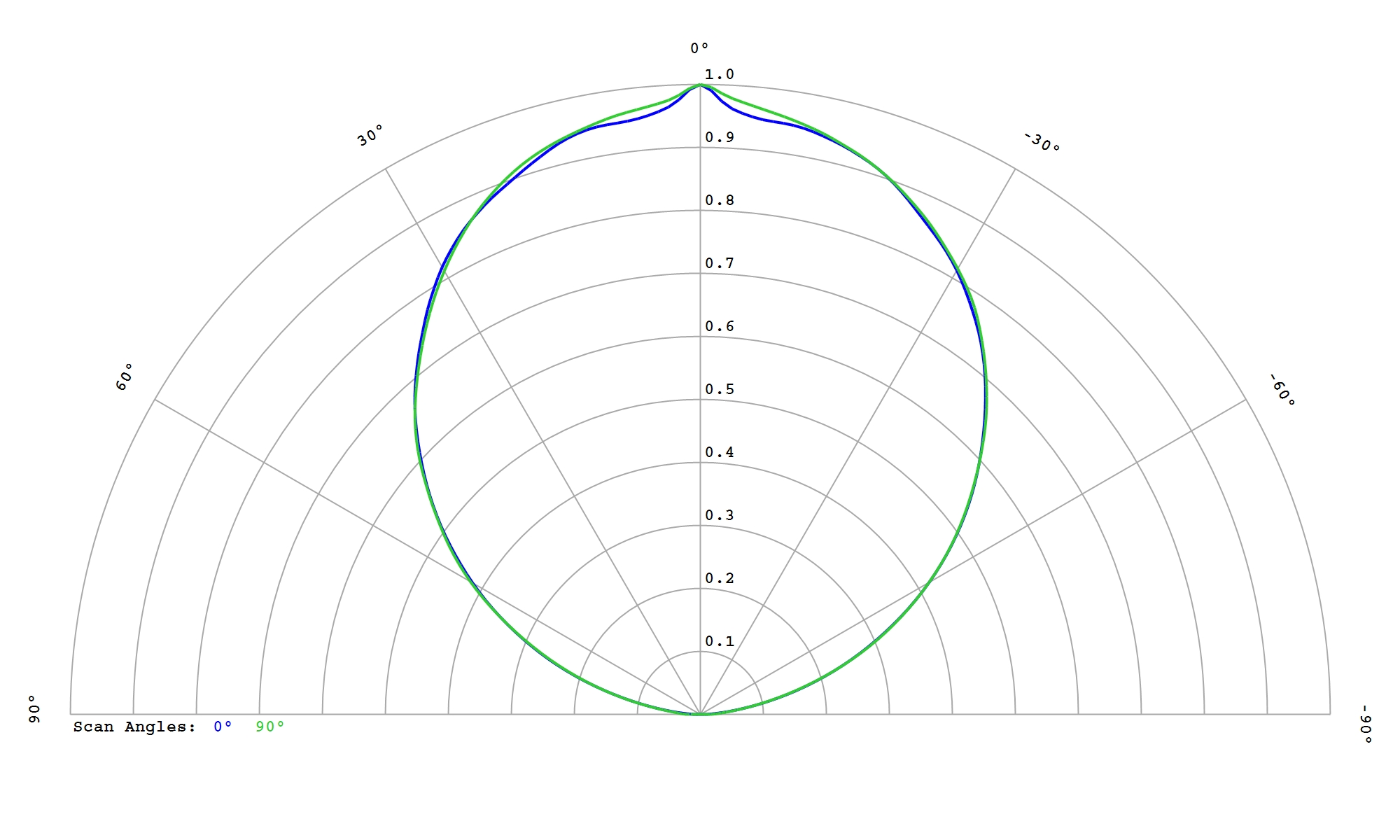

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

45.0%

FWHM:

111°

Cd/Im:

0.2


Download

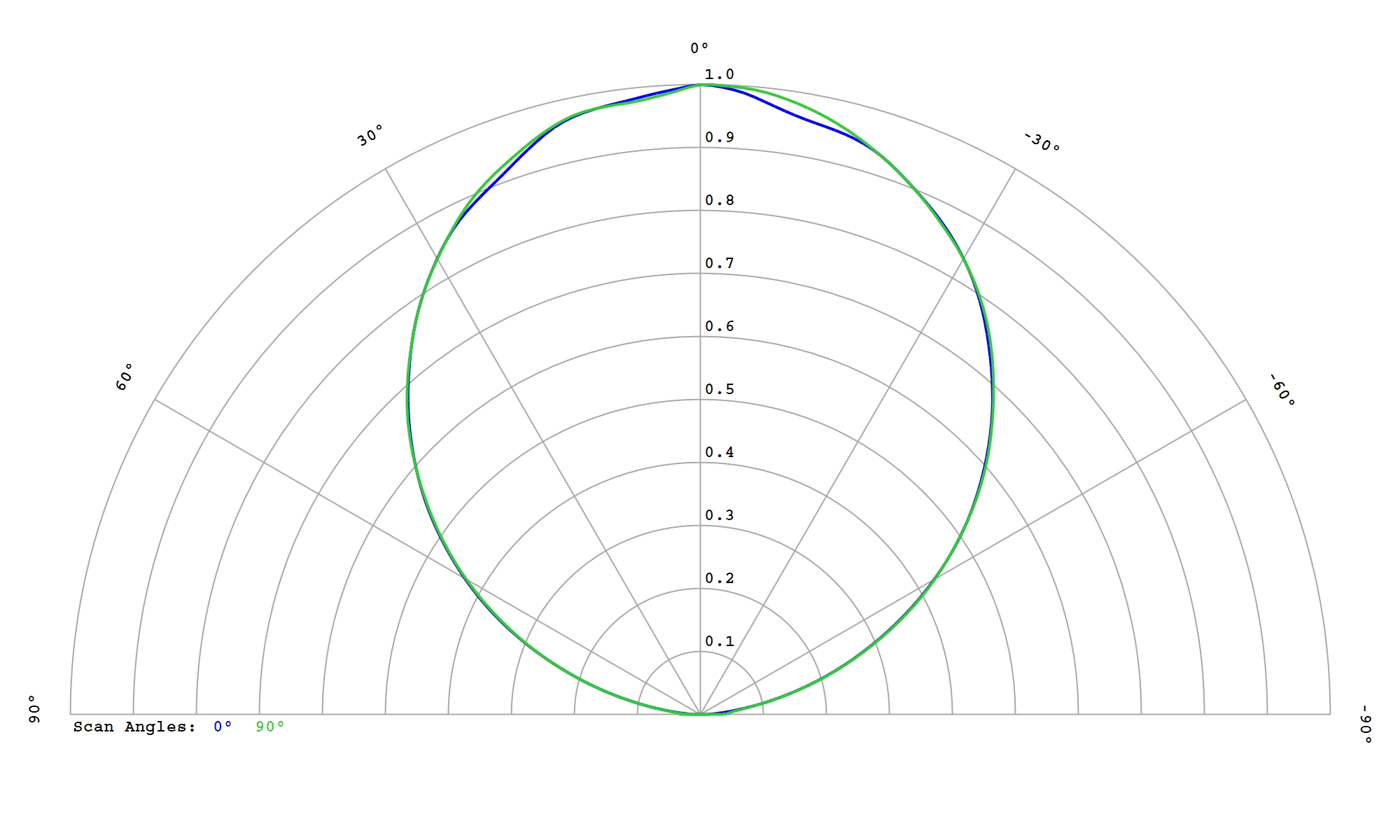

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

44.5%

FWHM:

111°

Cd/Im:

0.2


Download

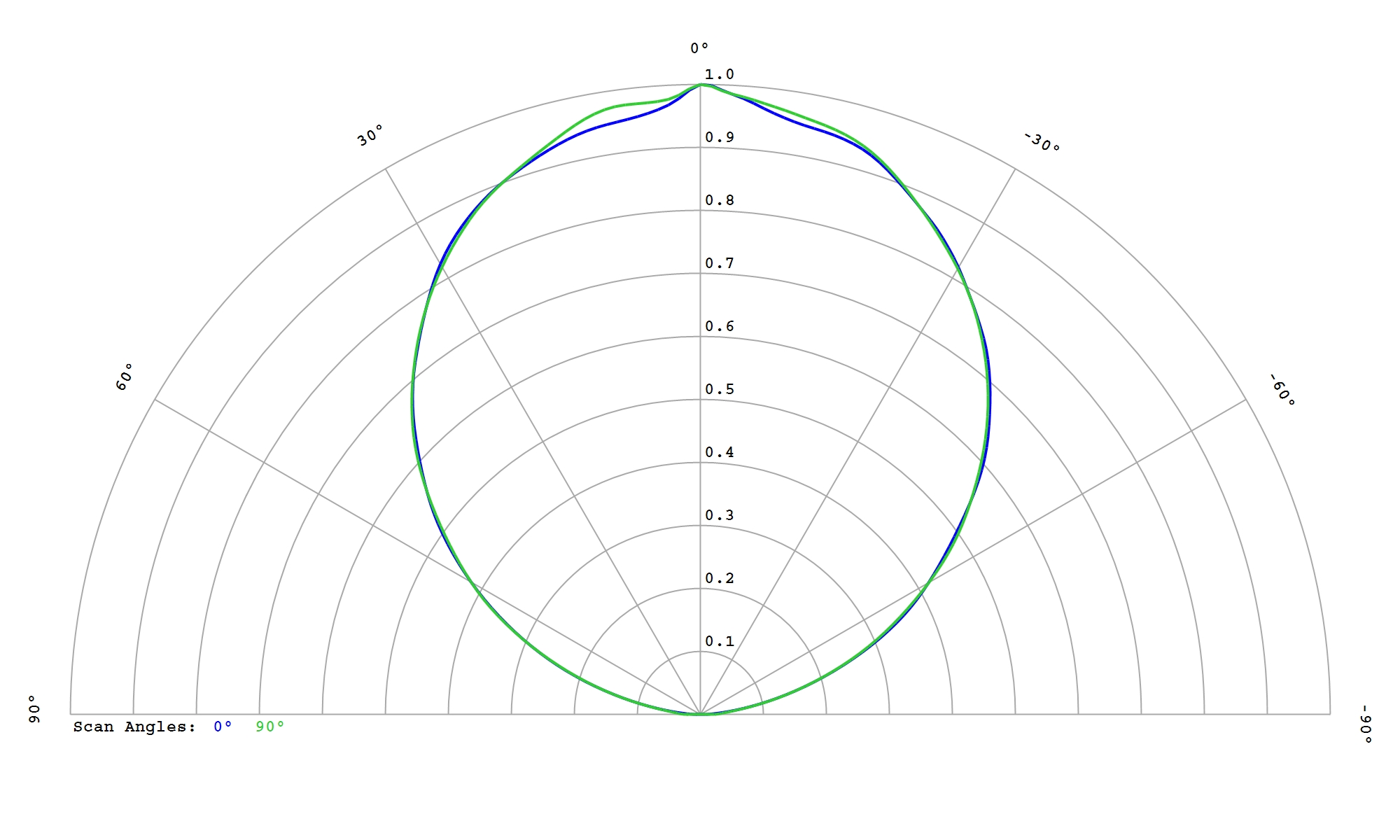

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

45.5%

FWHM:

111°

Cd/Im:

0.3

Download

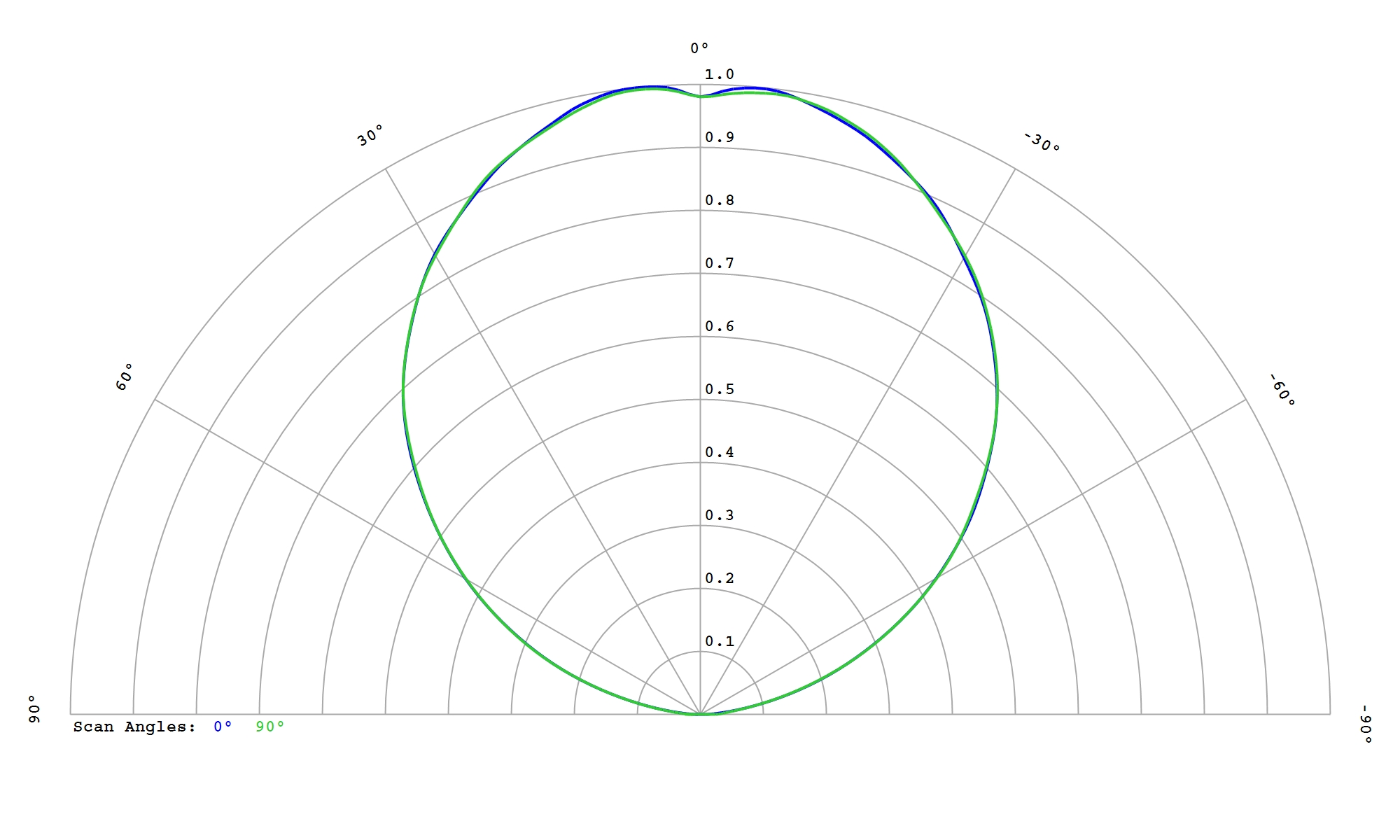

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

46.0%

FWHM:

111°

Cd/Im:

0.2


Download

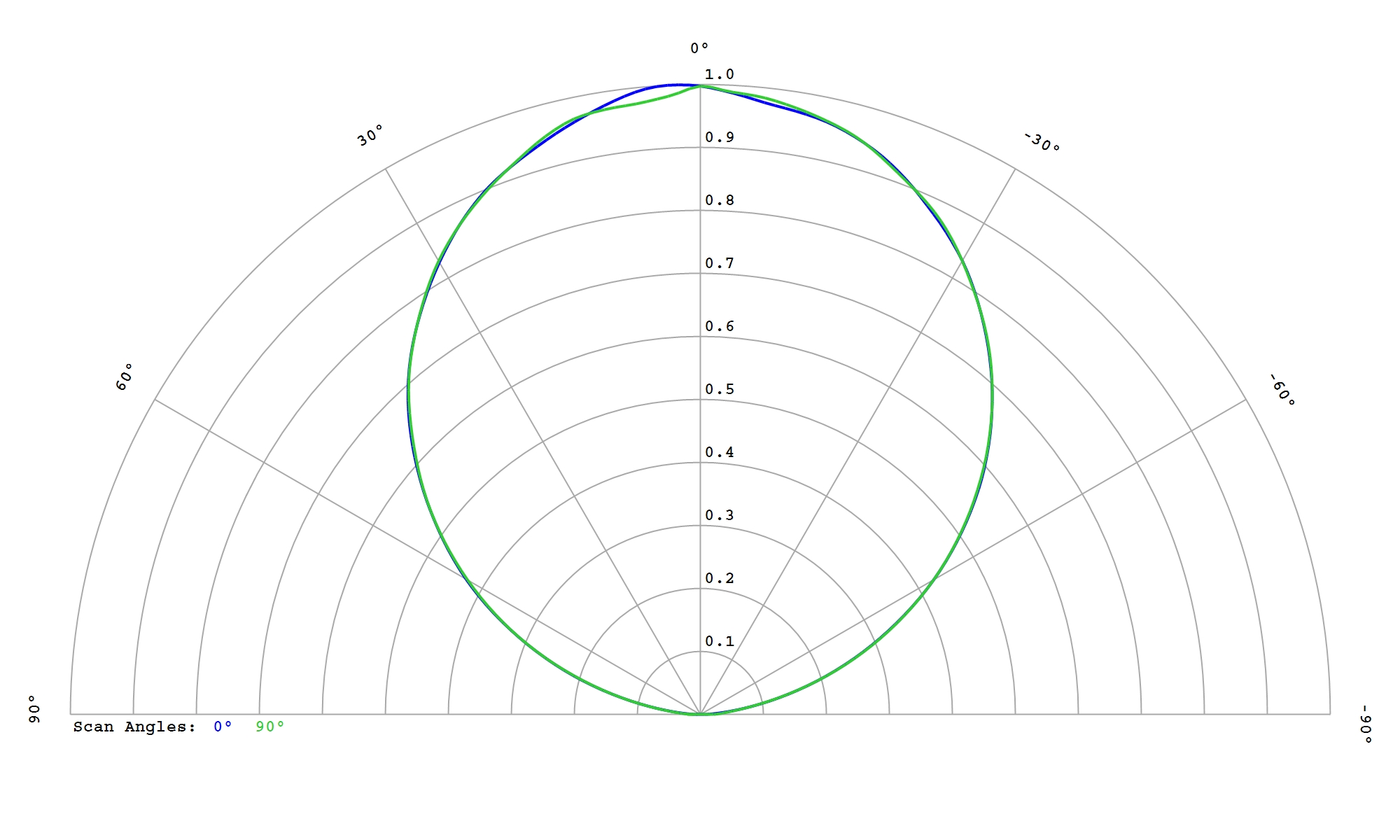

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

44.0%

FWHM:

111°

Ipk/W:

0.2


Download

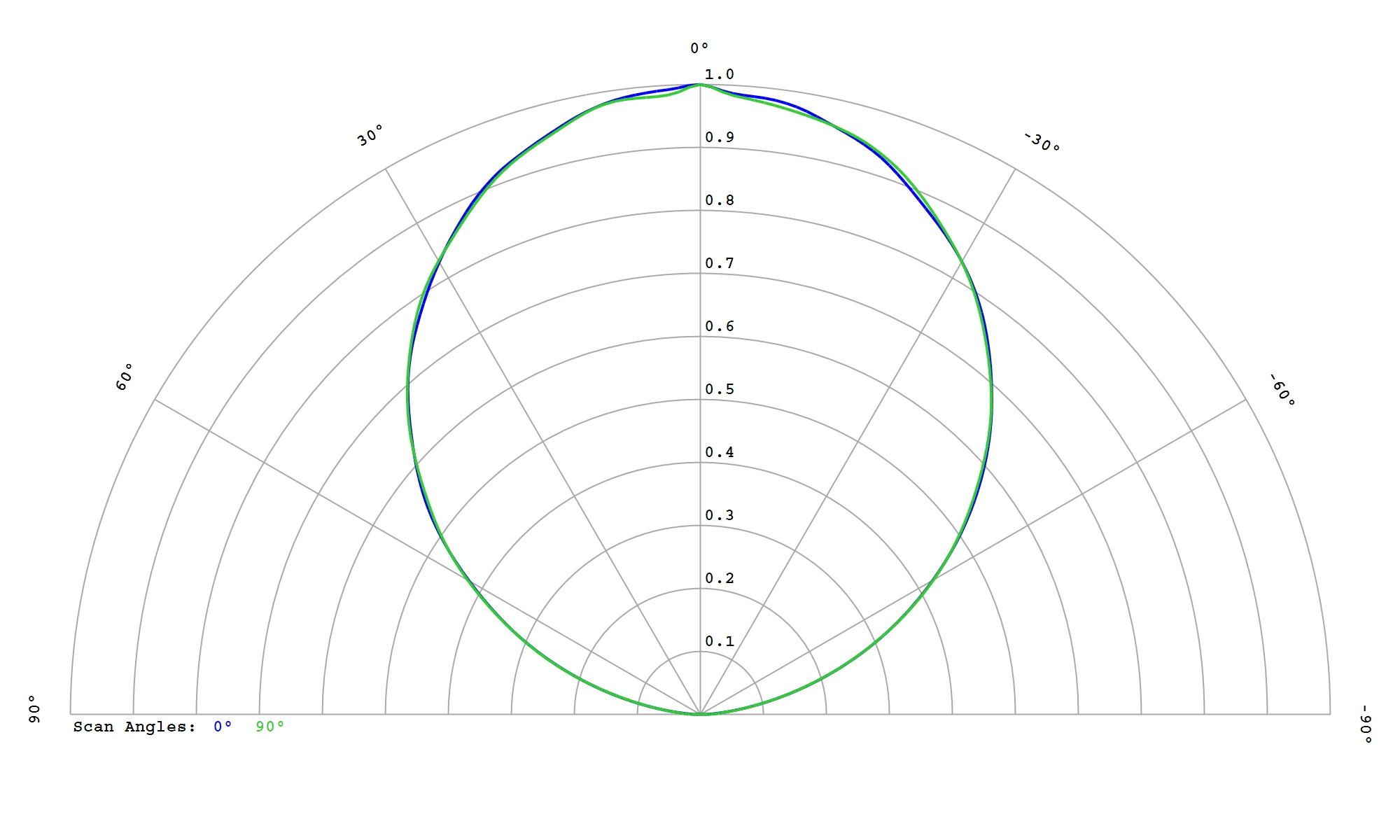

LUMILEDS LUXEON HL1Z CSP White

Eff:

46.0%

FWHM:

111°

Cd/Im:

0.2

Download

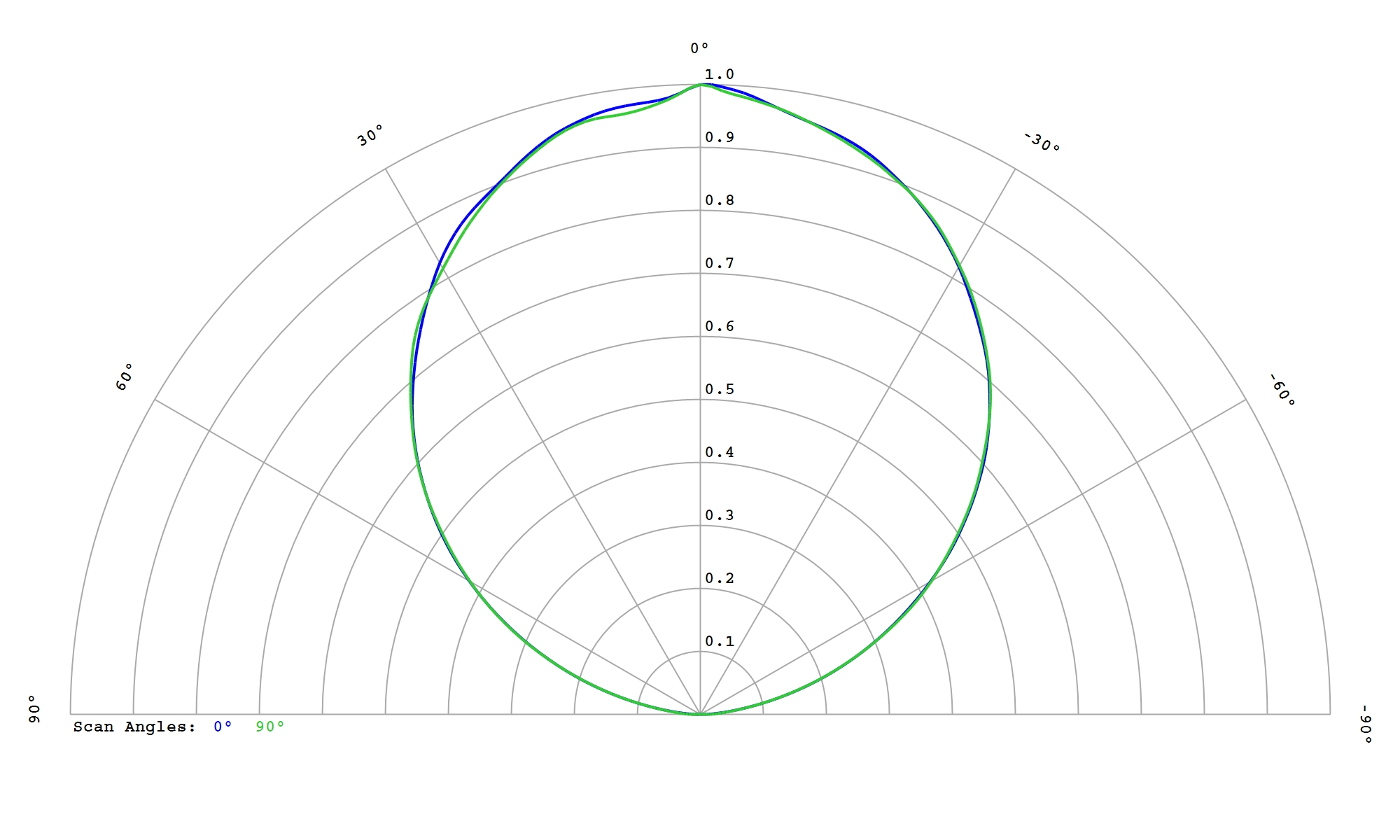

LUMILEDS LUXEON HL1Z Fusion Tunable White 1800-6500K

Eff:

46.0%

FWHM:

111°

Cd/Im:

0.2


Download

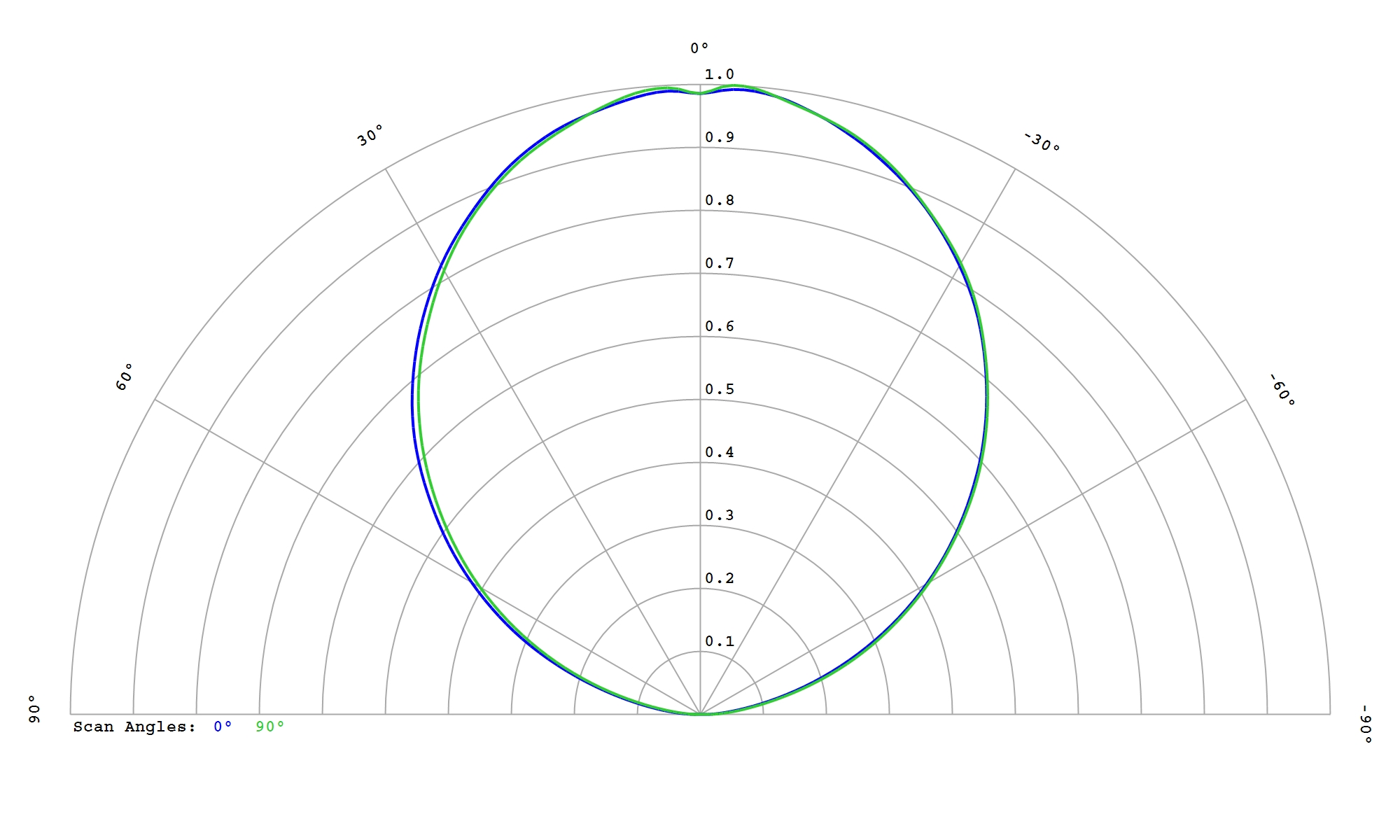

Signify Philips Fortimo LEDFlex 2000lm/m 940 PW C5 G1

Eff:

0.5%

FWHM:

109°

Cd/Im:

0.5


Download
