10.0mm Wide Spot Frosted TIR LED Lenses | Carclo Optics

60168 Optic

10.0mm Wide Spot Frosted TIR LED Lenses

Part number

60168

Dimensions

10.0mm

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Industrial

Landscape & Garden

Office

Horticultural

Retail

Warehouse

Wide Area

Security

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

92.0%

FWHM:

43°

Cd/Im:

1.7


Download

IES

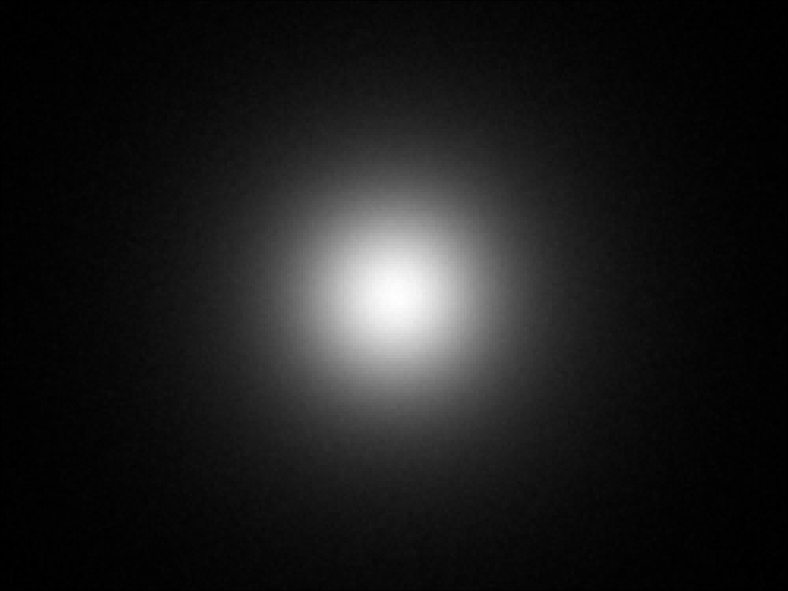

Cree JB2835B 3V G-Class White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5


Download

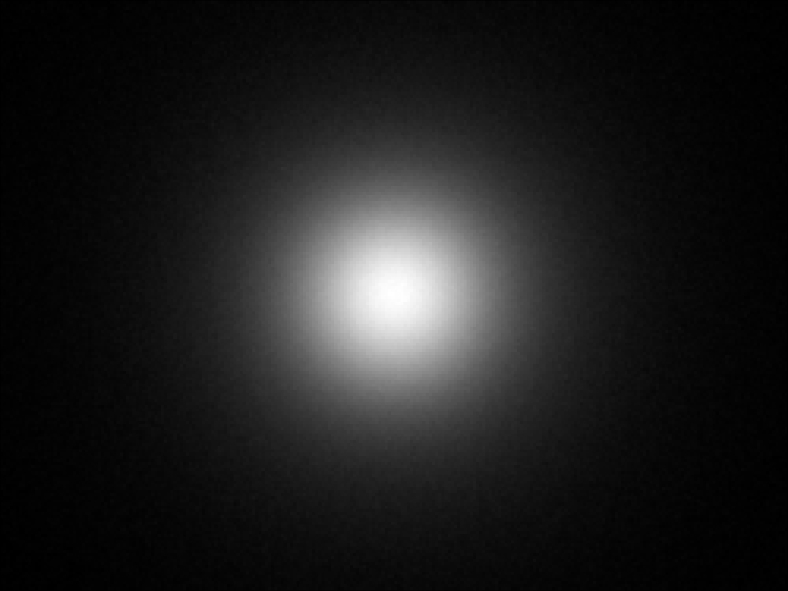

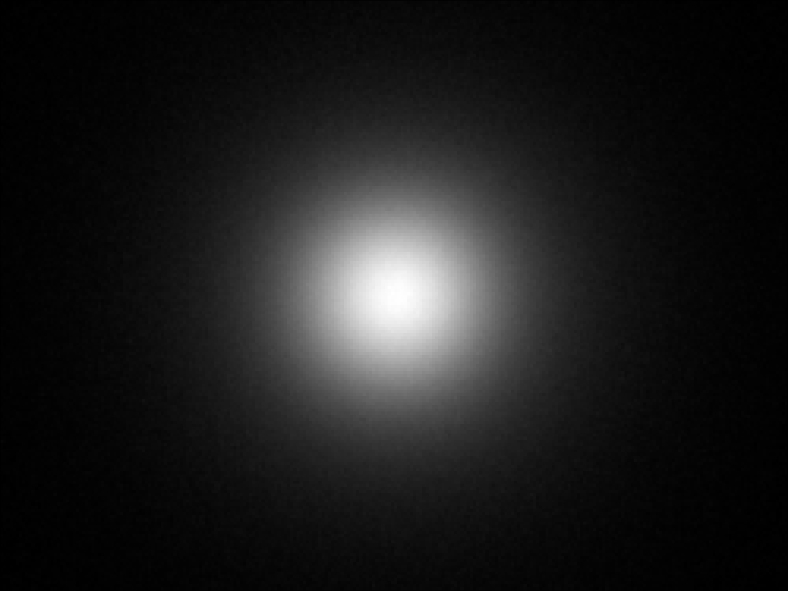

Cree JB2835B 3V J-Class White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.4


Download

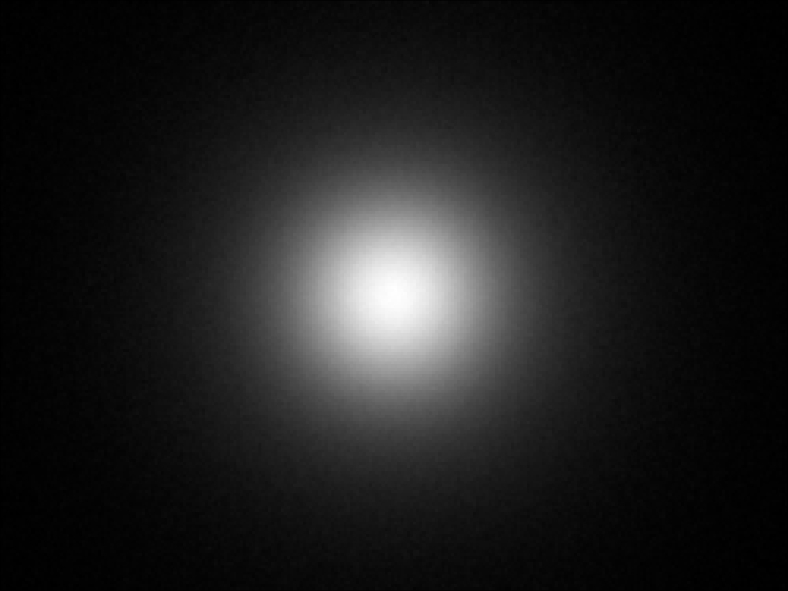

Cree JB3030C 3V E-Class White

Eff:

91.5%

FWHM:

47°

Cd/Im:

1.4


Download

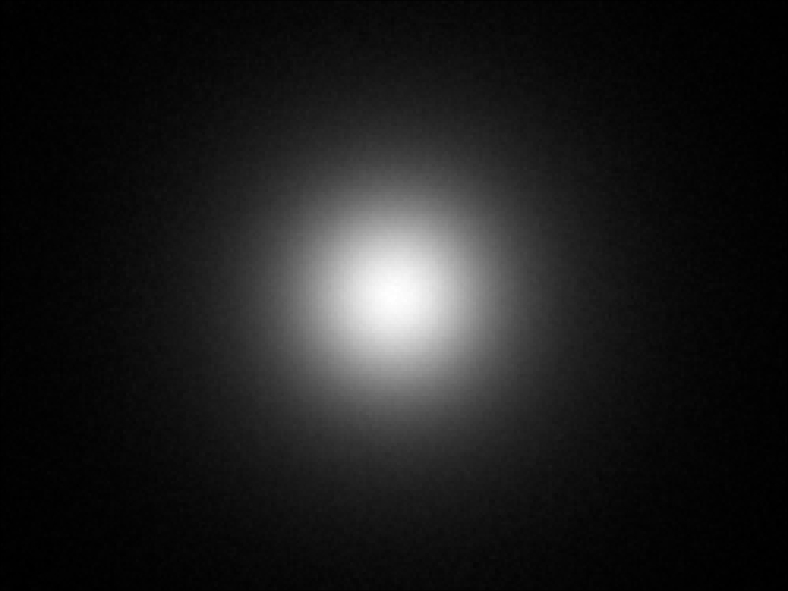

Cree JB3030C 3V F-Class White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5


Download

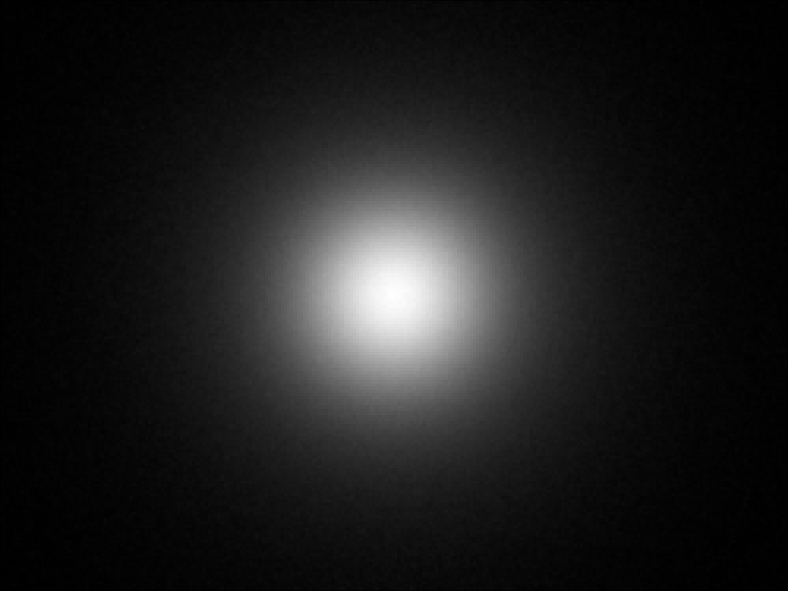

Cree JE2835 3V White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.4

Download

Cree JK2835 6V White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.6

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

91.0%

FWHM:

44°

Cd/Im:

1.6

Download

IES

Cree XLamp XB-D White

Eff:

89.5%

FWHM:

45°

Cd/Im:

1.4

Download

IES

Cree XLamp XE-G Blue

Eff:

90.5%

FWHM:

53°

Cd/Im:

1.2

Download

IES

Cree XLamp XE-G Green

Eff:

90.5%

FWHM:

54°

Cd/Im:

1.1

Download

IES

Cree XLamp XE-G Red

Eff:

90.0%

FWHM:

50°

Cd/Im:

1.3

Download

IES

Cree XLamp XE-G White

Eff:

90.5%

FWHM:

51°

Cd/Im:

1.2

Download

IES

Cree XLamp XP-C White

Eff:

91.0%

FWHM:

49°

Cd/Im:

1.3

Download

IES

Cree XLamp XP-E White

Eff:

91.0%

FWHM:

54°

Cd/Im:

1.2

Download

IES

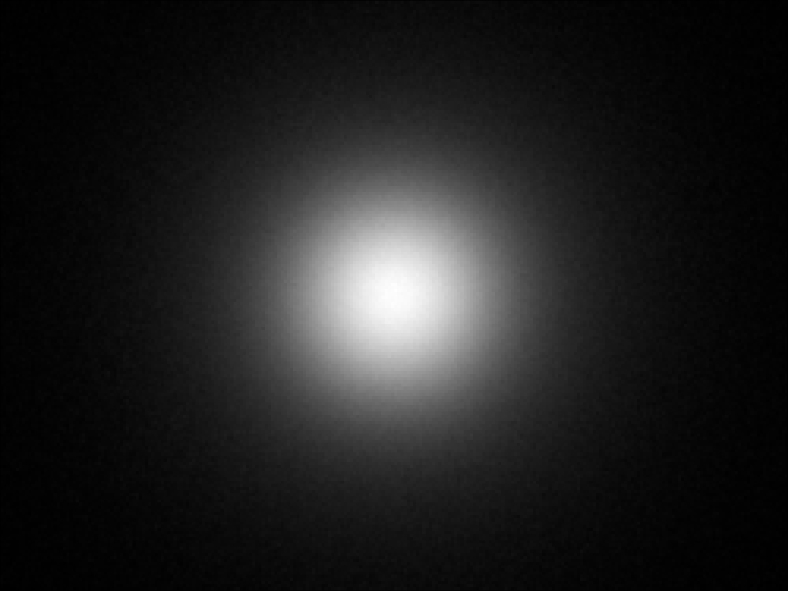

Cree XLamp XP-E2 White

Eff:

91.0%

FWHM:

57°

Cd/Im:

1.1

Download

IES

Cree XLamp XP-G White

Eff:

90.0%

FWHM:

57°

Cd/Im:

1.1

Download

IES

Cree XLamp XP-G2 White

Eff:

91.0%

FWHM:

54°

Cd/Im:

1.1

Download

IES

Cree XLamp XP-G4 White

Eff:

91.0%

FWHM:

57°

Cd/Im:

1.0

Download

IES

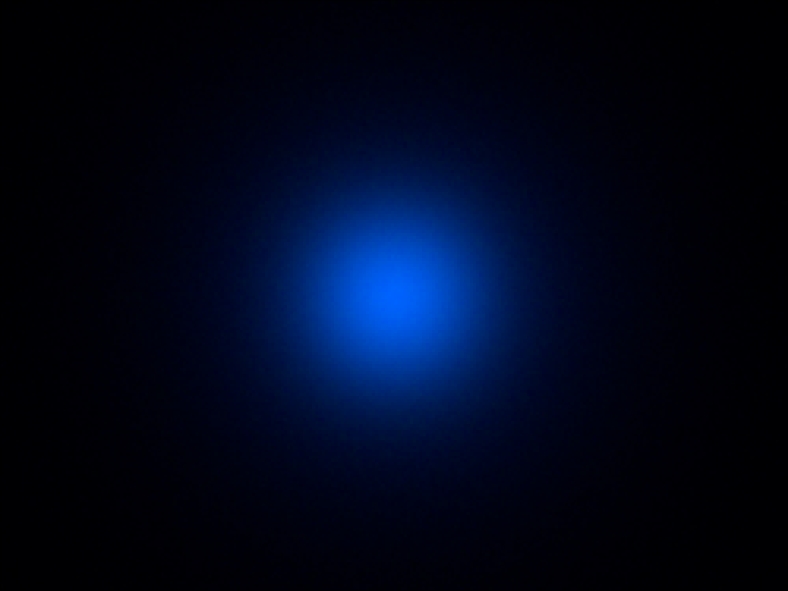

Cree XLamp XQ-A Blue

Eff:

91.0%

FWHM:

46°

Cd/Im:

1.5

Download

IES

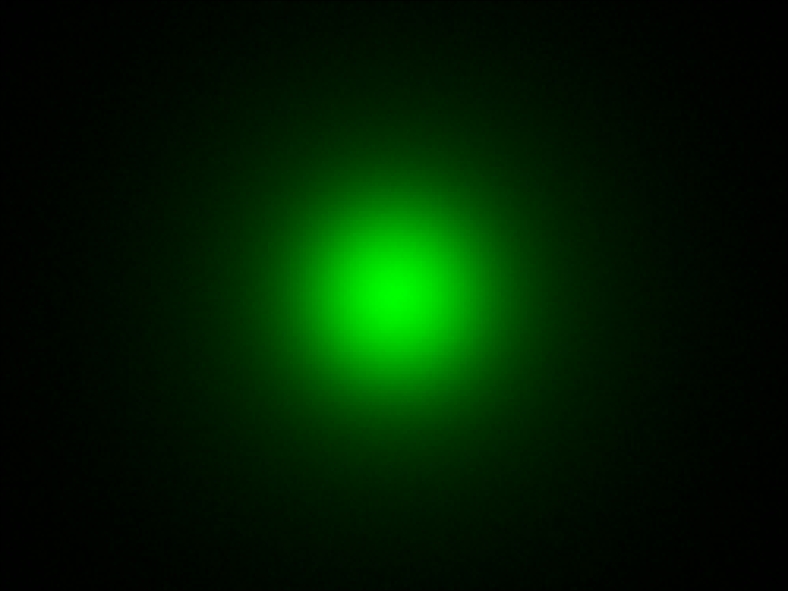

Cree XLamp XQ-A Green

Eff:

91.0%

FWHM:

46°

Cd/Im:

1.5

Download

IES

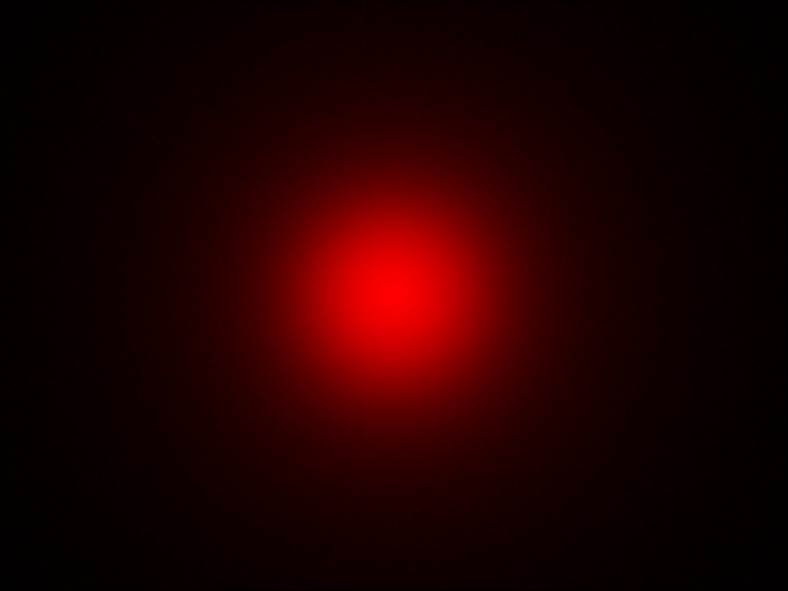

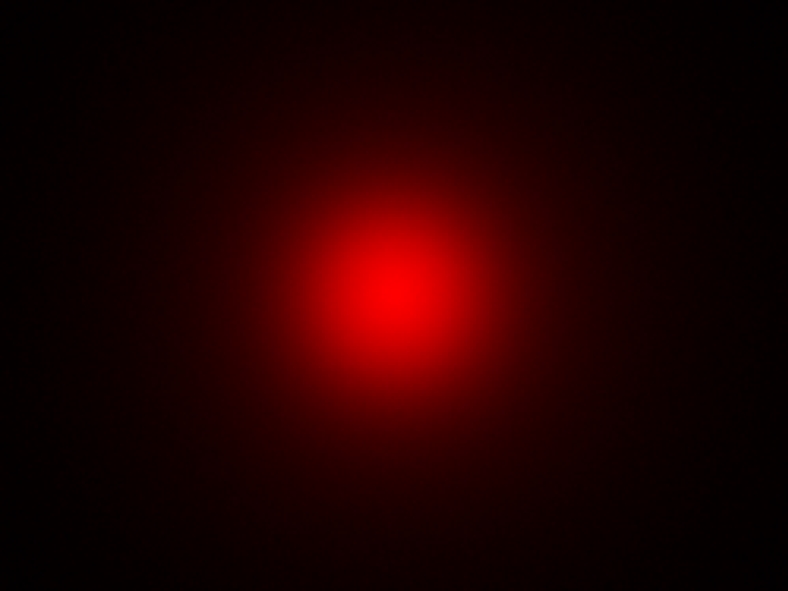

Cree XLamp XQ-A Red

Eff:

91.5%

FWHM:

48°

Cd/Im:

1.4

Download

IES

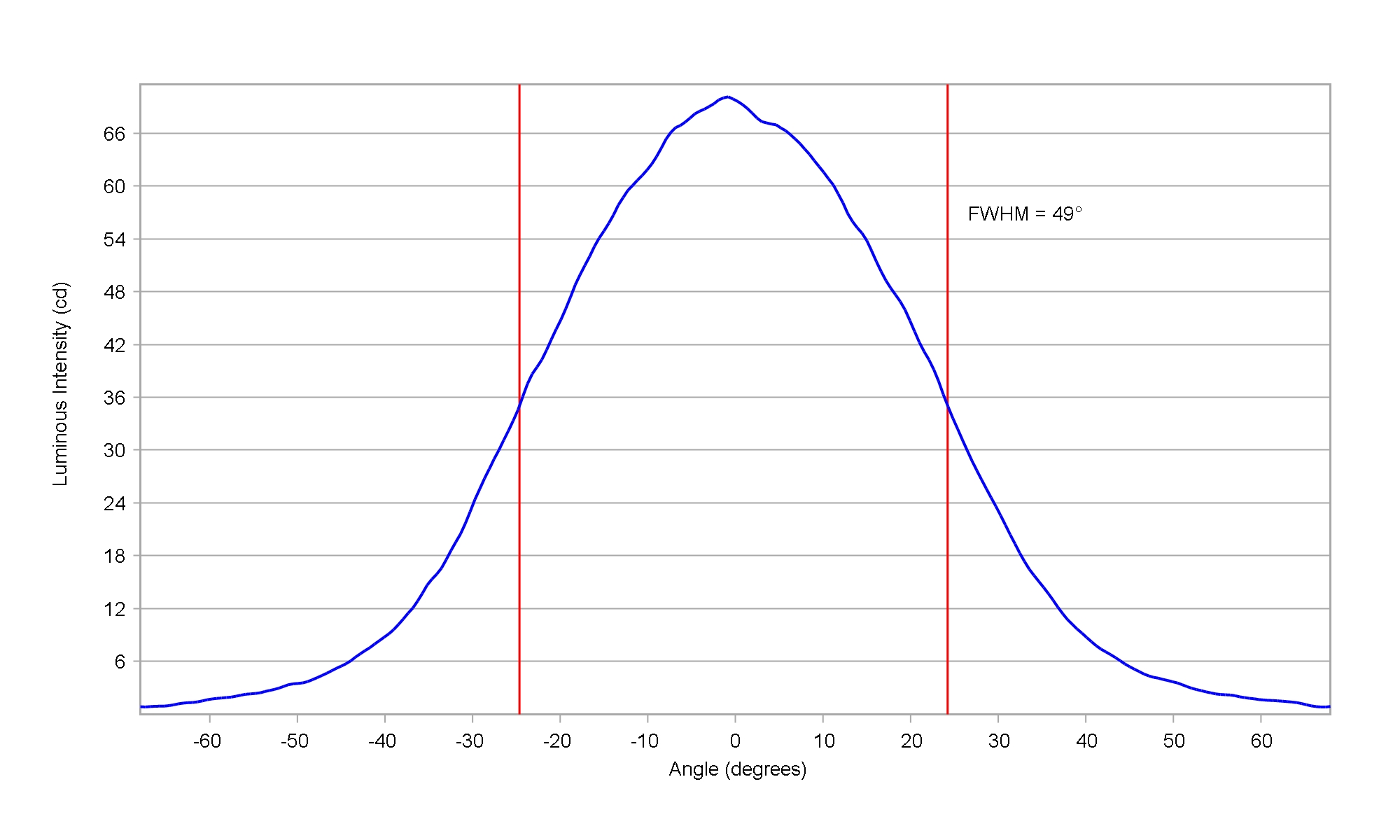

Cree XLamp XQ-A White

Eff:

90.5%

FWHM:

49°

Cd/Im:

1.5

Download

IES

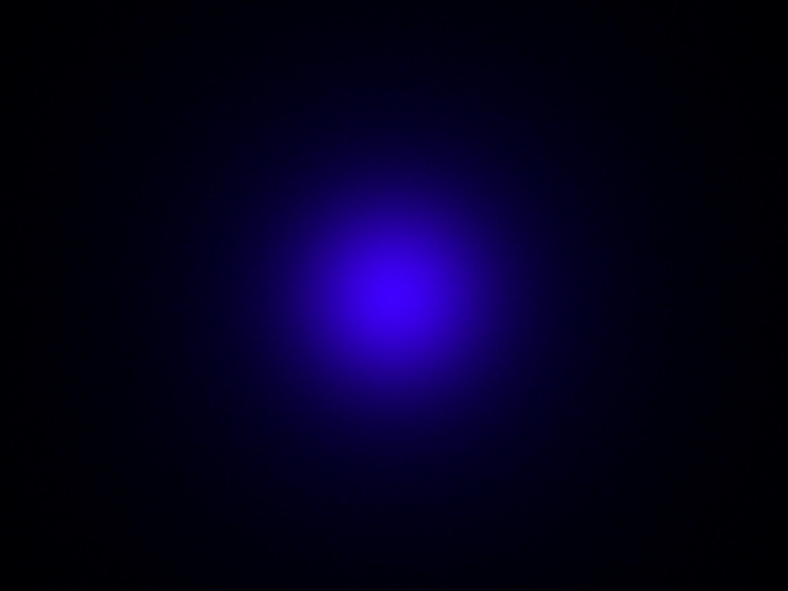

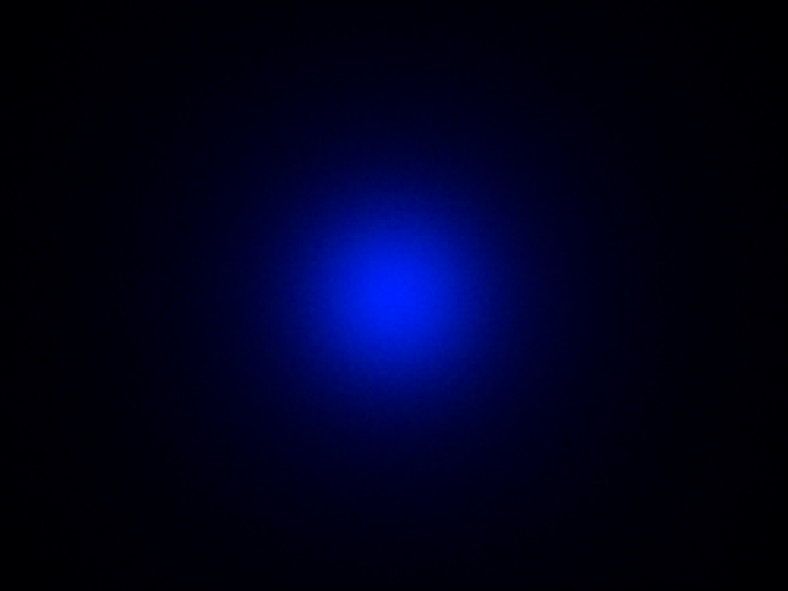

Cree XLamp XQ-E HI Blue

Eff:

91.5%

FWHM:

44°

Cd/Im:

1.5

Download

IES

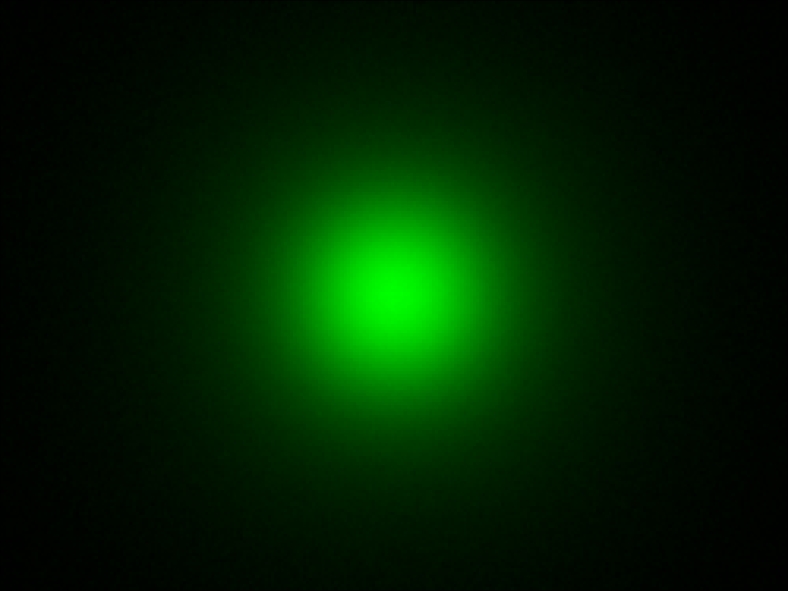

Cree XLamp XQ-E HI Green

Eff:

91.0%

FWHM:

44°

Cd/Im:

1.4

Download

IES

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

43°

Cd/Im:

1.5

Download

IES

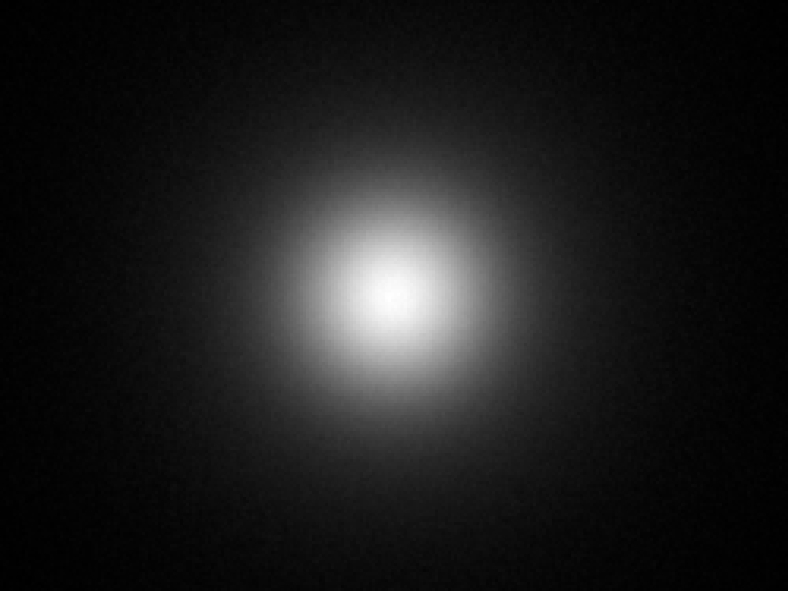

Cree XLamp XQ-E HI White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.5

Download

IES

Cree XLamp XT-E White

Eff:

90.0%

FWHM:

46°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

92.0%

FWHM:

45°

Cd/Im:

1.6

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

92.0%

FWHM:

46°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

91.5%

FWHM:

47°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

91.5%

FWHM:

47°

Cd/Im:

1.4

Download

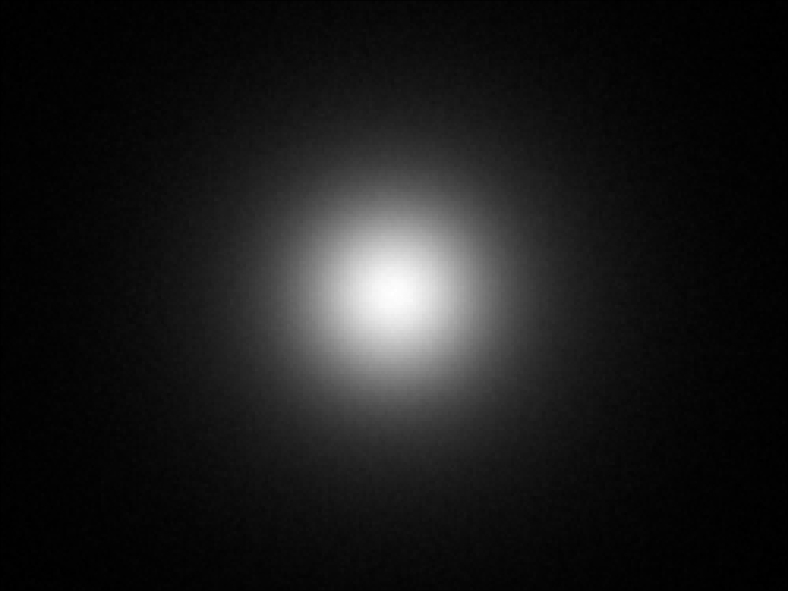

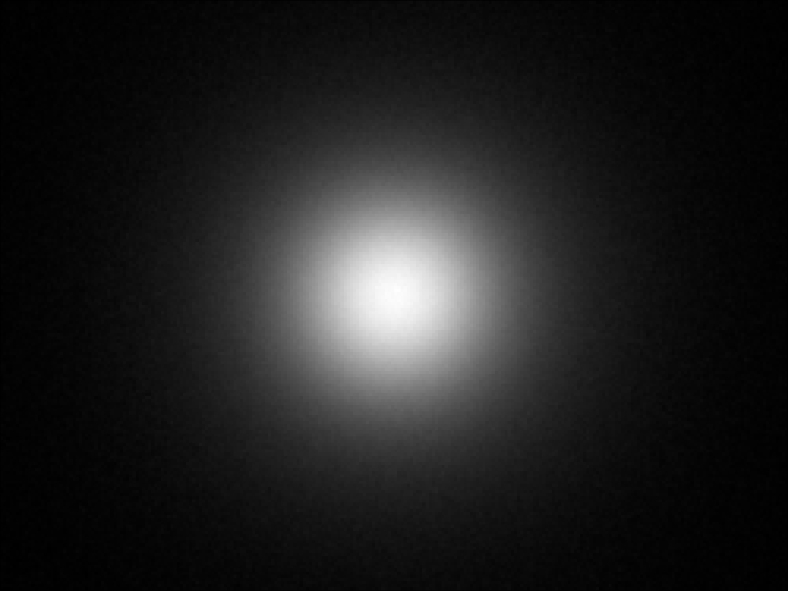

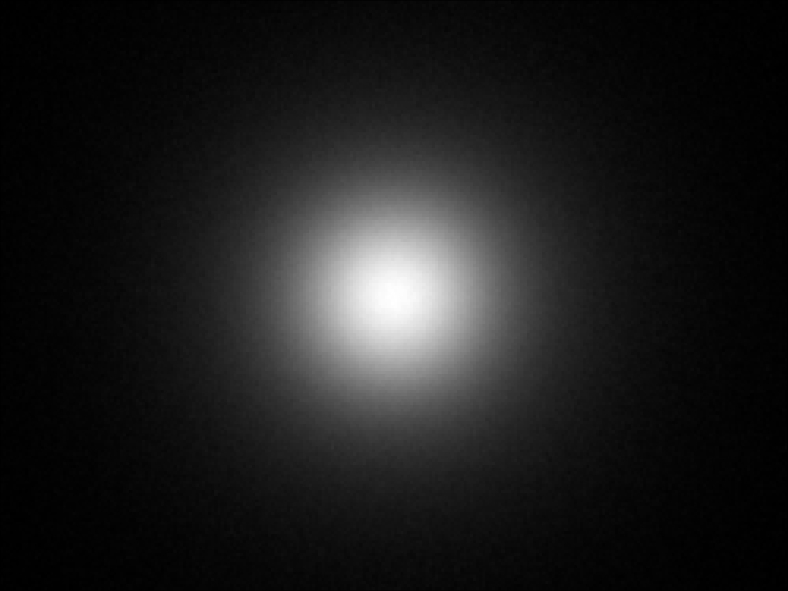

LUMILEDS LUXEON 3030 2D White

Eff:

92.0%

FWHM:

44°

Cd/Im:

1.6

Download

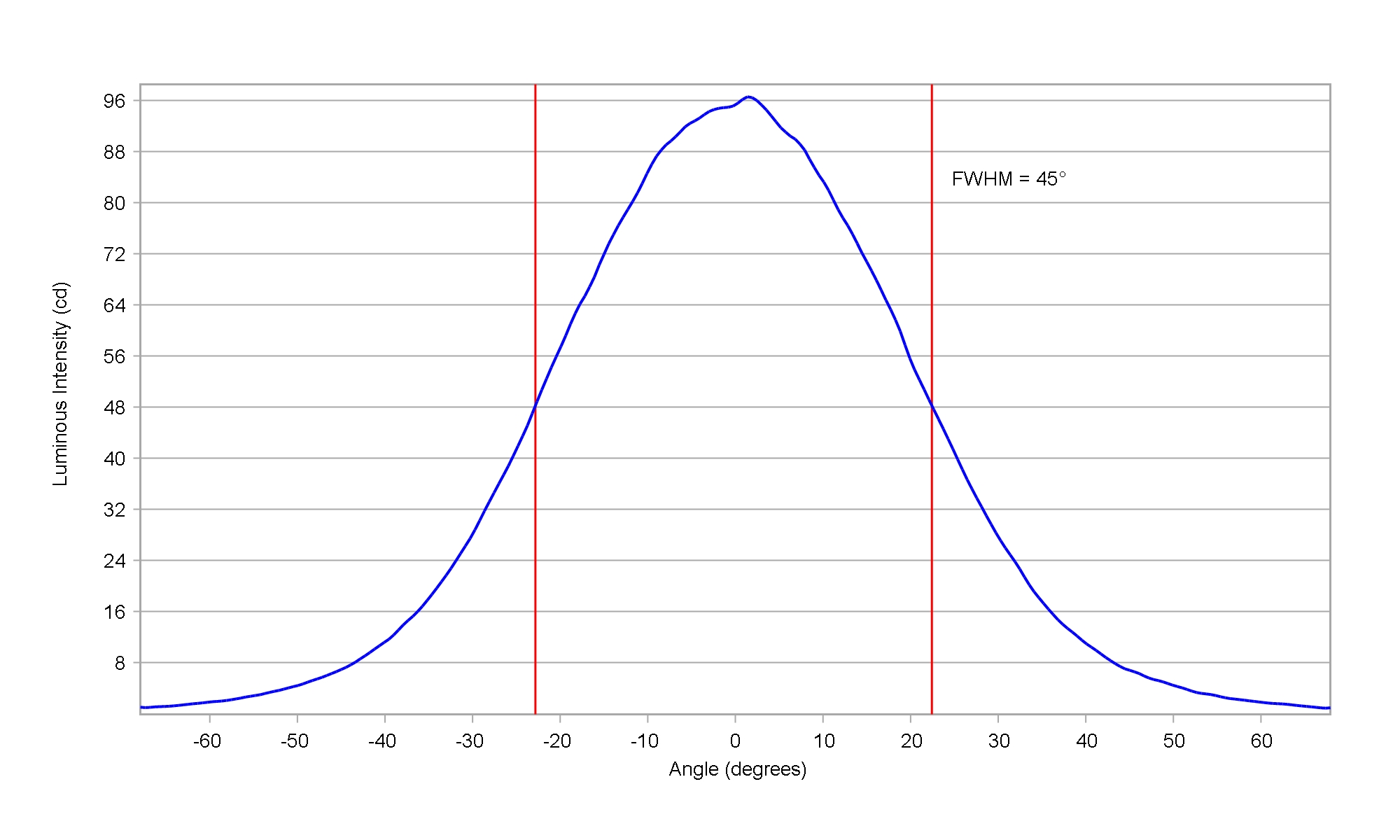

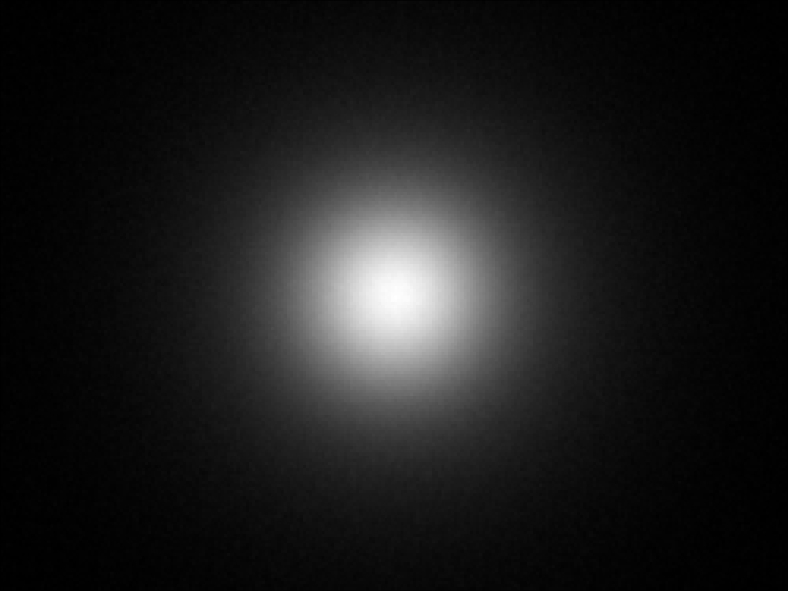

LUMILEDS LUXEON 3030 HE Plus White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.4


Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON C Blue

Eff:

85.5%

FWHM:

44°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON C Lime

Eff:

87.0%

FWHM:

49°

Cd/Im:

1.3

Download

IES

LUMILEDS LUXEON C Red

Eff:

85.0%

FWHM:

48°

Cd/Im:

1.3

Download

IES

LUMILEDS LUXEON C White

Eff:

86.5%

FWHM:

47°

Cd/Im:

1.5

Download

LUMILEDS LUXEON CZ White

Eff:

91.5%

FWHM:

43°

Cd/Im:

1.7

Download

IES

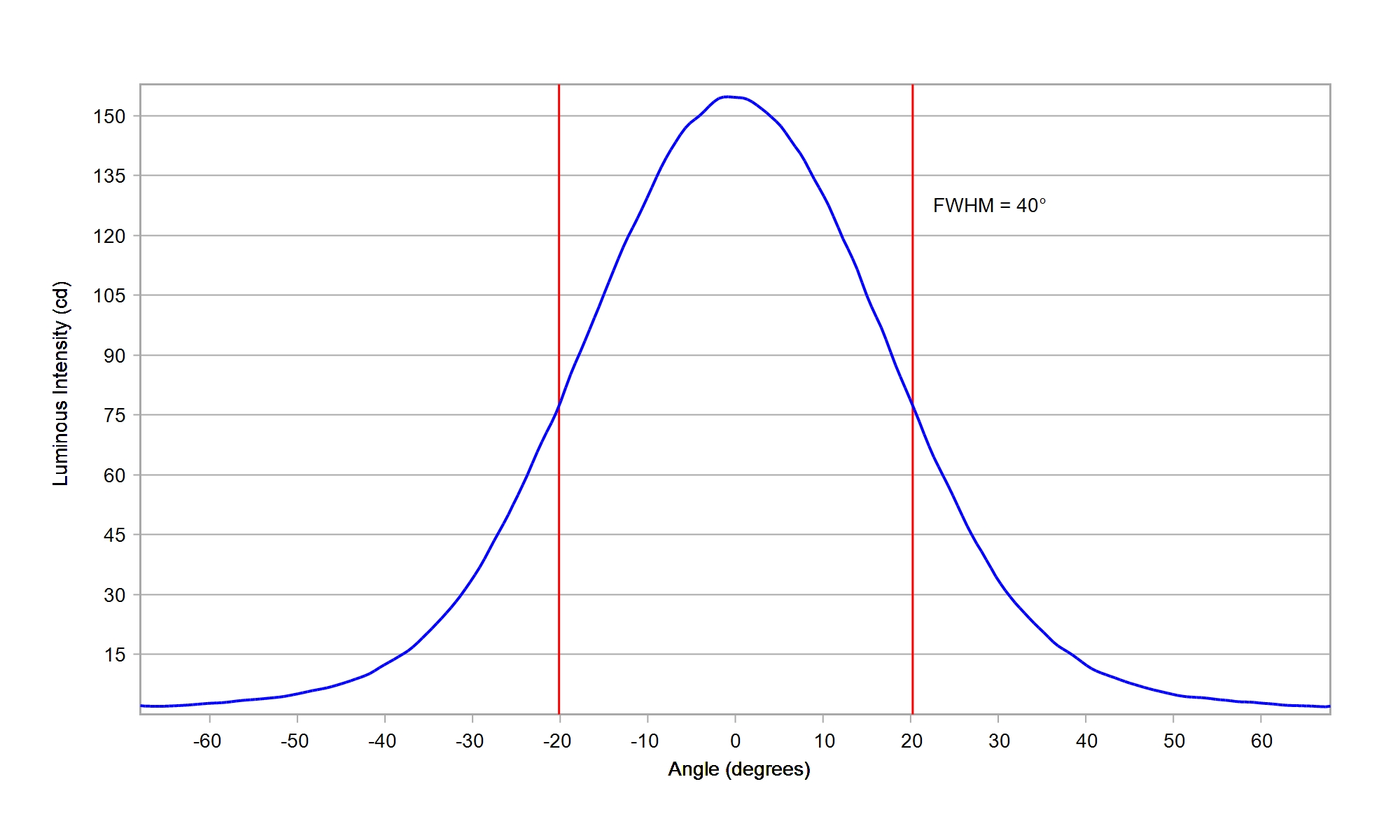

LUMILEDS LUXEON HL1Z CSP White

Eff:

91.5%

FWHM:

40°

Cd/Im:

1.6

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

93.5%

FWHM:

42°

Ipk/W:

1.6

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

92.0%

FWHM:

42°

Ipk/W:

1.7


Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

92.0%

FWHM:

49°

Ipk/W:

1.3


Download

IES

LUMILEDS LUXEON MZ White

Eff:

91.0%

FWHM:

52°

Cd/Im:

1.2

Download

IES

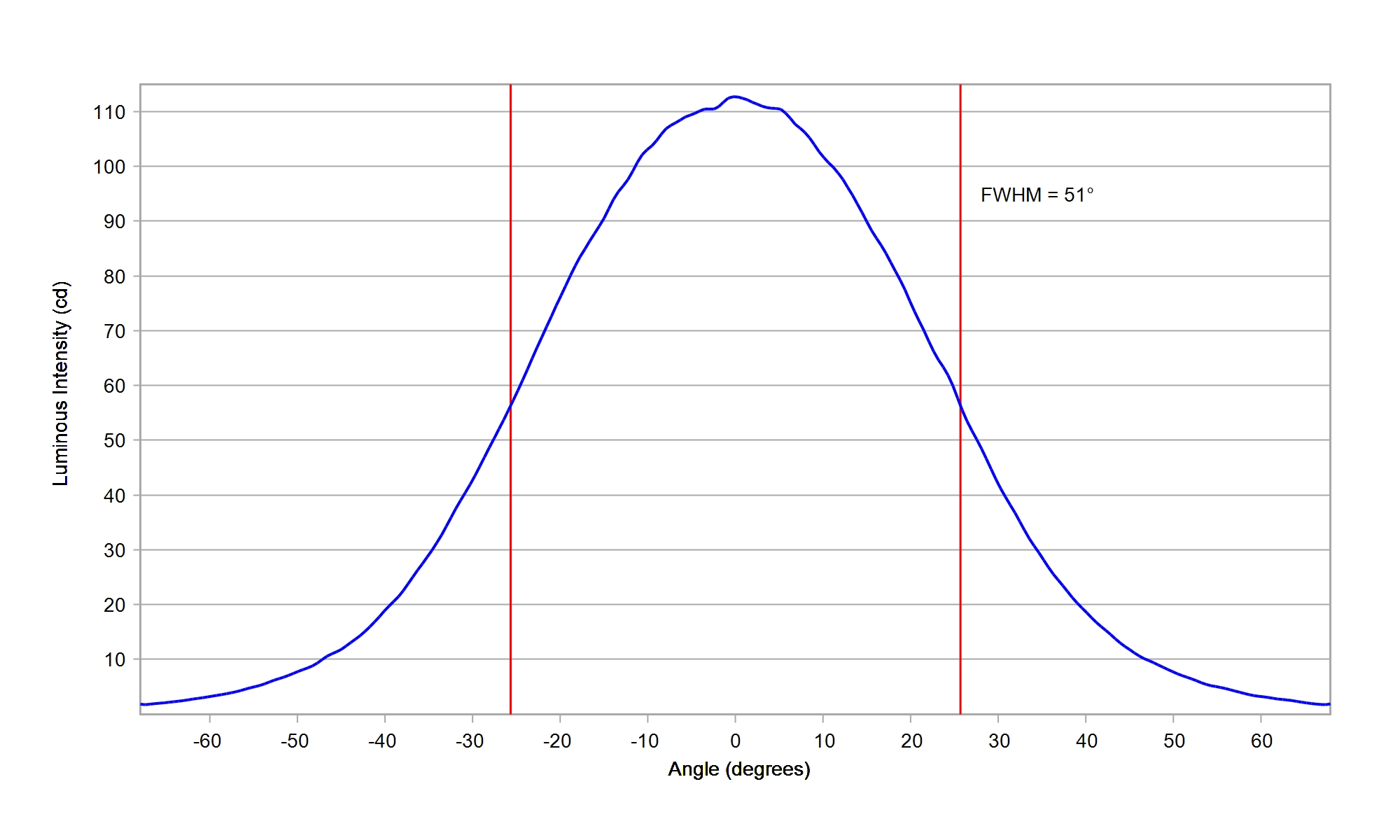

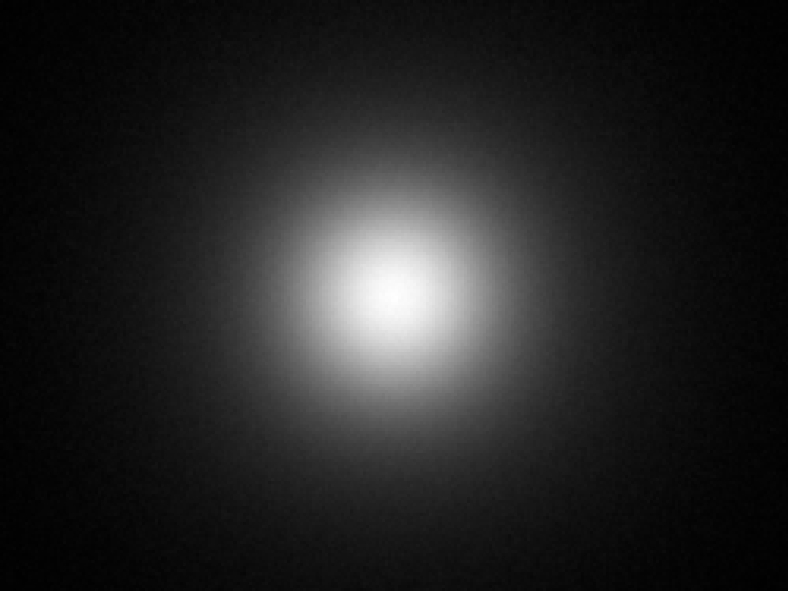

LUMILEDS LUXEON Rebel ES White

Eff:

89.5%

FWHM:

51°

Cd/Im:

1.1

Download

IES

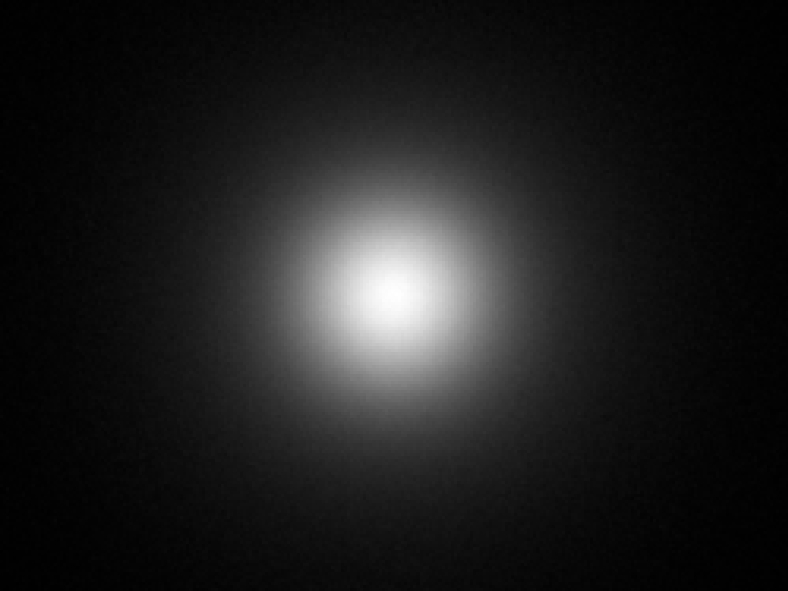

LUMILEDS LUXEON Rebel White

Eff:

90.0%

FWHM:

48°

Cd/Im:

1.4

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.6

Download

IES

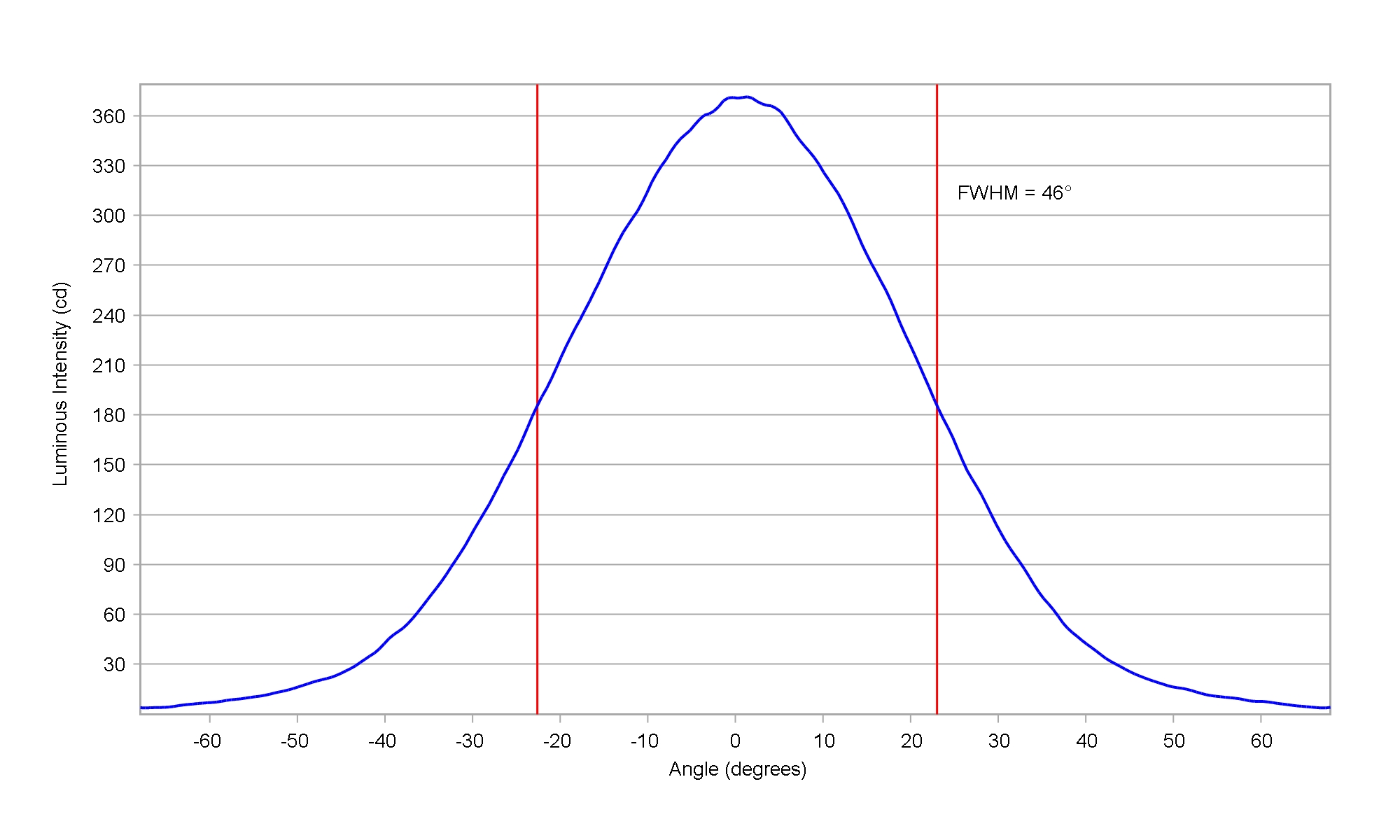

LUMILEDS LUXEON Rubix Green

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

92.5%

FWHM:

46°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

91.0%

FWHM:

46°

Cd/Im:

1.8


Download

IES

LUMILEDS LUXEON Rubix White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.6

Download

IES

LUMILEDS LUXEON TX White

Eff:

90.5%

FWHM:

49°

Cd/Im:

1.3

Download

IES

LUMILEDS LUXEON Z White

Eff:

91.5%

FWHM:

42°

Cd/Im:

1.6

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

90.5%

FWHM:

43°

Cd/Im:

1.6


Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

92.0%

FWHM:

49°

Cd/Im:

1.4


Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

91.5%

FWHM:

43°

Cd/Im:

1.6


Download

IES

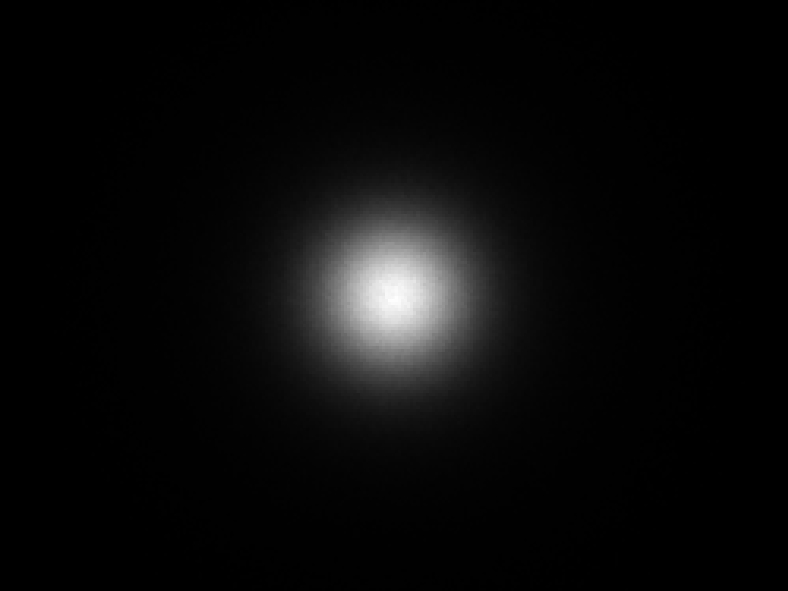

Luminus Devices SST 10-IR-B130 940nm

Eff:

93.5%

FWHM:

46°

Ipk/W:

1.5


Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.5%

FWHM:

45°

Ipk/W:

1.6


Download

IES

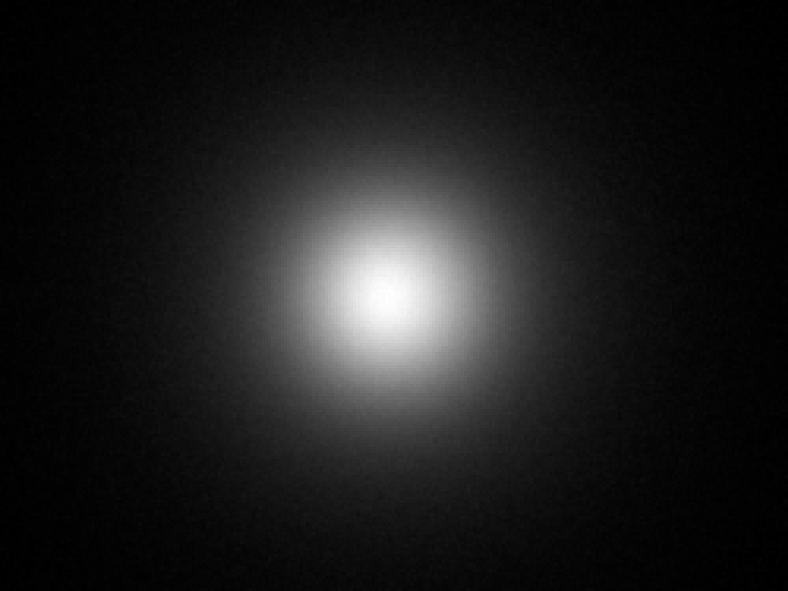

Nichia 757G White

Eff:

92.0%

FWHM:

45°

Cd/Im:

1.5

Download

IES

Nichia NCSW CSP E17A White

Eff:

91.5%

FWHM:

40°

Cd/Im:

1.7

Download

IES

Nichia NVSL 219B White

Eff:

90.0%

FWHM:

46°

Cd/Im:

1.6

Download

IES

Nichia NVSW 319A White

Eff:

89.5%

FWHM:

54°

Cd/Im:

1.1

Download

IES

Nichia NVSW CSP E21A White

Eff:

91.5%

FWHM:

42°

Cd/Im:

1.8

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

92.0%

FWHM:

44°

Cd/Im:

1.6



Download

IES

Osram OS DURIS E 2835 White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.5


Download

IES

Osram OS DURIS E2 White

Eff:

92.0%

FWHM:

41°

Cd/Im:

1.8


Download

IES

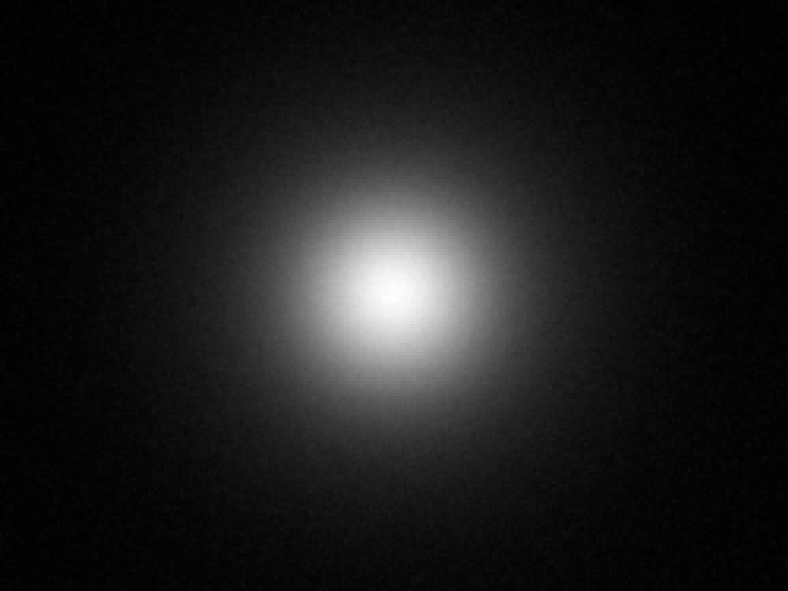

Osram OS DURIS S2 White

Eff:

91.0%

FWHM:

45°

Cd/Im:

1.5


Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

91.0%

FWHM:

45°

Cd/Im:

1.4

Download

IES

Osram OS DURIS S5 Green

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.5

Download

IES

Osram OS DURIS S5 Red

Eff:

92.0%

FWHM:

44°

Cd/Im:

1.6

Download

IES

Osram OS DURIS S5 White

Eff:

92.0%

FWHM:

46°

Cd/Im:

1.6

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

92.0%

FWHM:

43°

Cd/Im:

1.8


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

93.0%

FWHM:

40°

Ipk/W:

1.8


Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

91.5%

FWHM:

44°

Cd/Im:

1.6


Download

IES

Osram OS OSLON Square Flat White

Eff:

91.5%

FWHM:

44°

Cd/Im:

1.5


Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

91.0%

FWHM:

52°

Cd/Im:

1.2


Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

91.0%

FWHM:

50°

Cd/Im:

1.4


Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

91.5%

FWHM:

40°

Cd/Im:

1.7


Download

IES

Osram OS OSLON SSL 80 White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.6


Download

IES

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

91.5%

FWHM:

47°

Ipk/W:

1.4


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

91.5%

FWHM:

48°

Cd/Im:

1.4



Download

IES

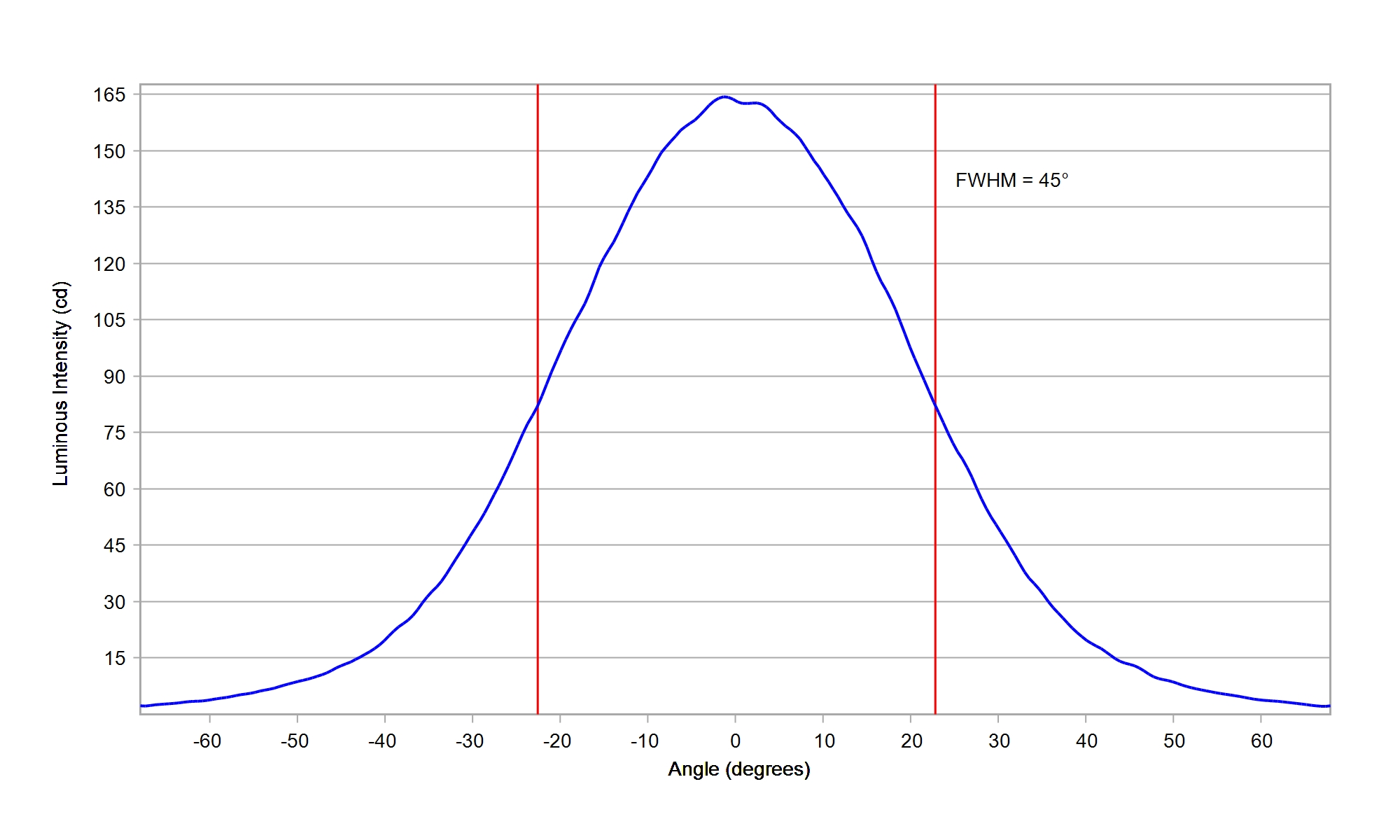

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

91.0%

FWHM:

45°

Cd/Im:

1.5


Download

IES

Samsung 2835 LM281B+ White

Eff:

91.0%

FWHM:

46°

Cd/Im:

1.4



Download

Samsung 3030 LM301B White

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.4


Download

IES

Samsung 3535 LH351B White

Eff:

90.5%

FWHM:

53°

Cd/Im:

1.2

Download

IES

Seoul STW8 C2SB-NT White

Eff:

91.5%

FWHM:

46°

Cd/Im:

1.6

Download

IES

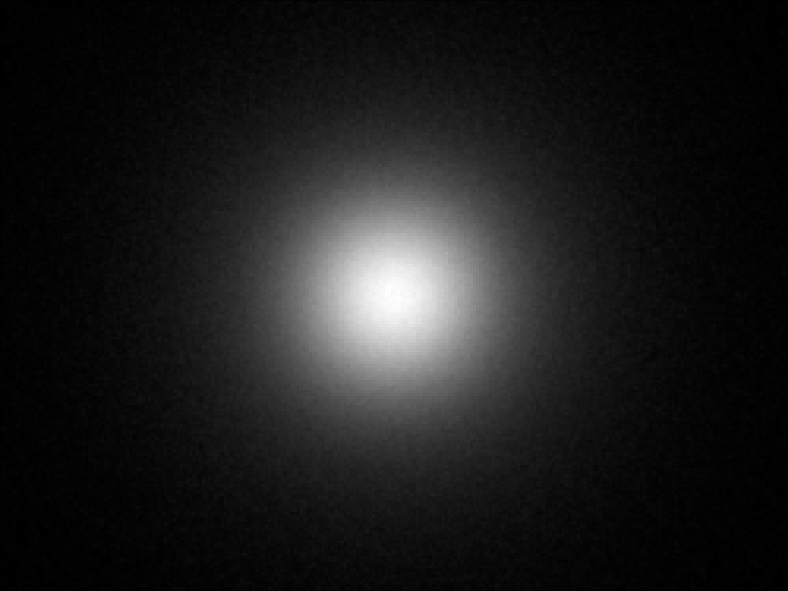

Seoul STWS C2PB-E0 White

Eff:

92.0%

FWHM:

46°

Cd/Im:

1.5


Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

91.5%

FWHM:

45°

Cd/Im:

1.6


Download

IES

Seoul Z - Power Z5 M4 White

Eff:

91.0%

FWHM:

54°

Cd/Im:

1.1

Download

IES

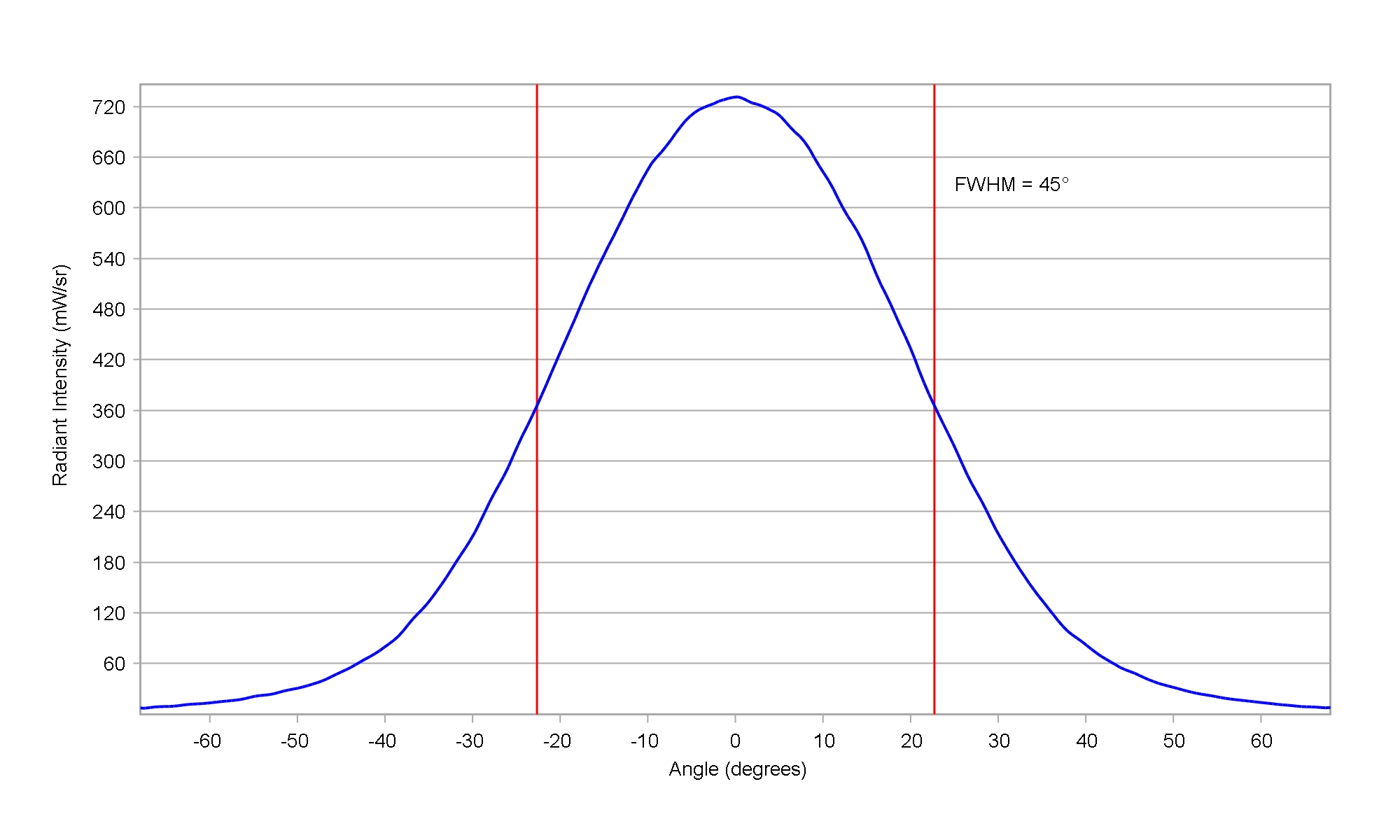

Stanley FWR1108MS IR 755nm

Eff:

93.5%

FWHM:

45°

Ipk/W:

1.4


Download
