60153 Wall Washer

26.0mm Wall Washer Diffuse Linear

Part number

60153

Dimensions

26.0mm

Optic type

Linear

Finish

Diffuse

Beam type

Wall Washer

Applications

Architectural

Landscape & Garden

Housing assembly components are available to order separately, see assembly drawing for part numbers or contact sales.

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

79.0%

FWHM:

73 x 29.5 x 15°

Cd/Im:

1.0

optic-60153-Bridgelux_3030_Gen2-colour_spot-image


Download

IES

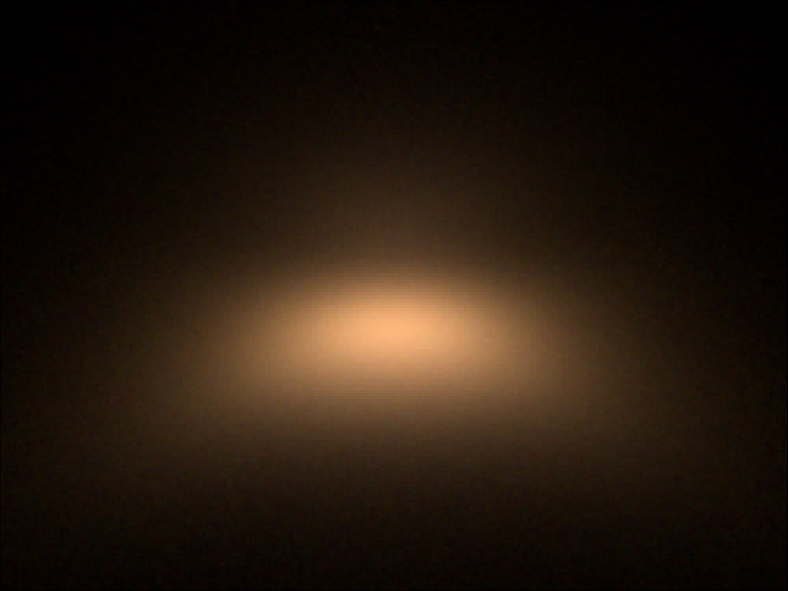

Cree JB2835B 3V G-Class White

Eff:

79.0%

FWHM:

81 x 30 x 16°

Cd/Im:

0.9


Download

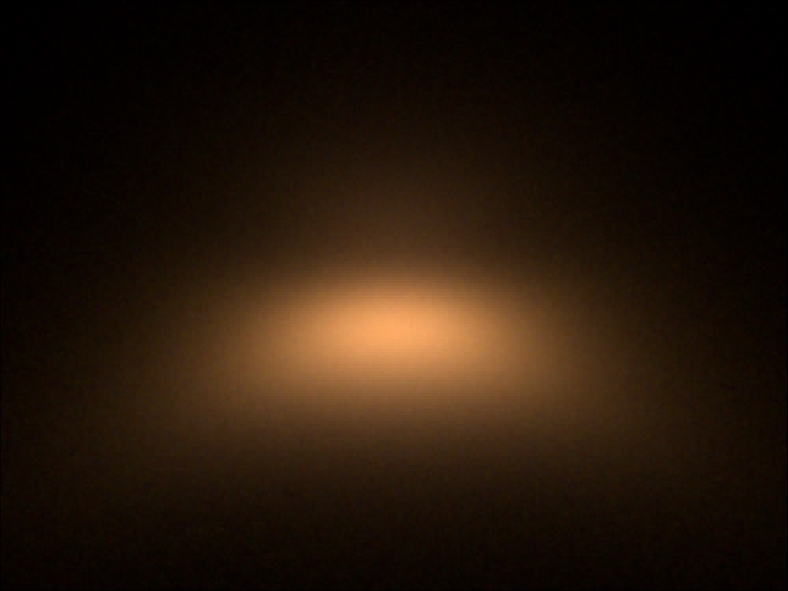

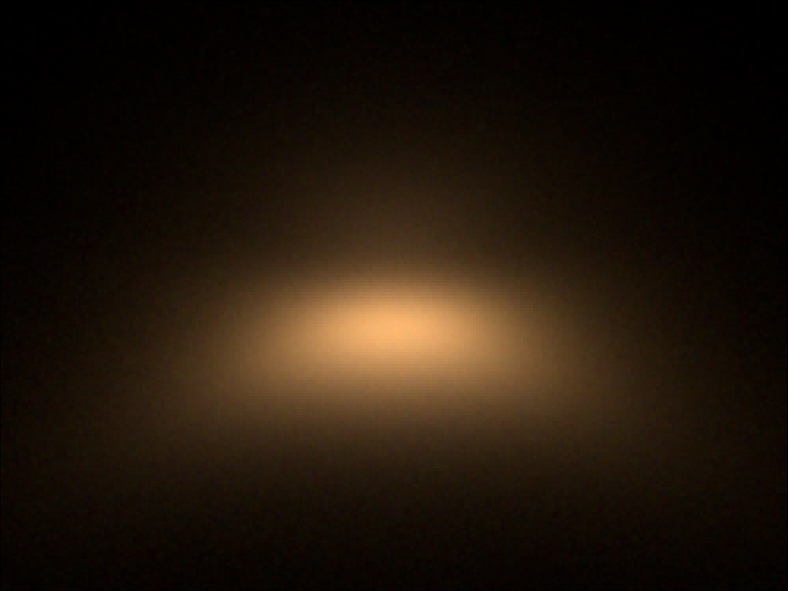

Cree JB2835B 3V J-Class White

Eff:

79.0%

FWHM:

77 x 29.5 x 15°

Cd/Im:

0.9


Download

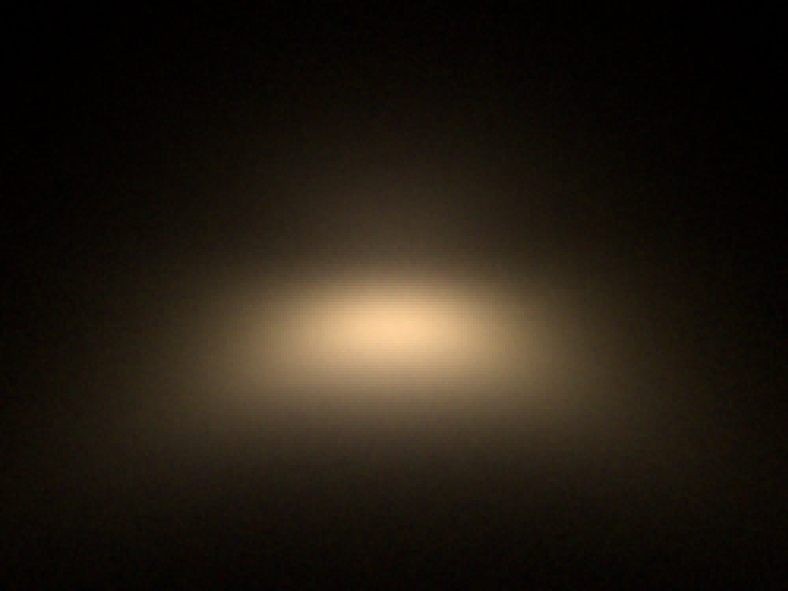

Cree JB3030C 3V E-Class White

Eff:

78.5%

FWHM:

77 x 31 x 15°

Cd/Im:

0.9


Download

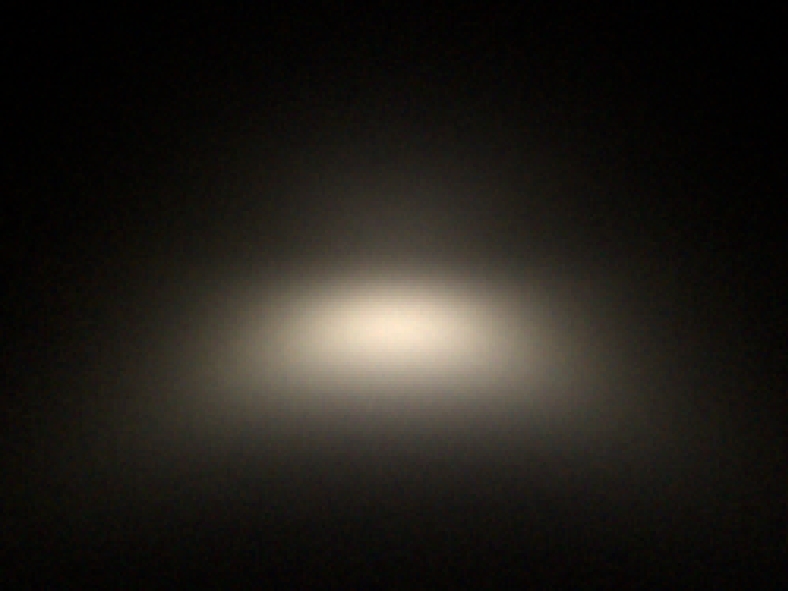

Cree JB3030C 3V F-Class White

Eff:

78.5%

FWHM:

82 x 31 x 15°

Cd/Im:

0.9


Download

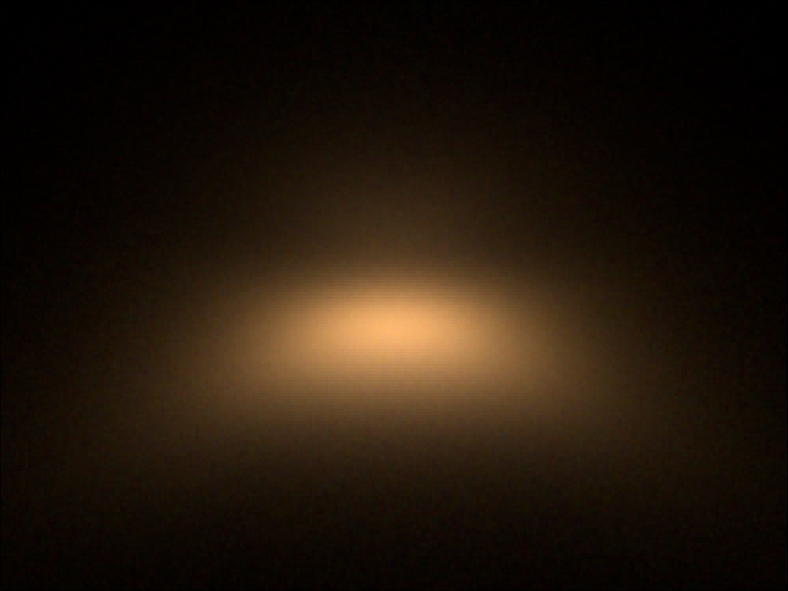

Cree JE2835 3V White

Eff:

79.0%

FWHM:

81 x 29.5 x 15°

Cd/Im:

0.9

Download

IES

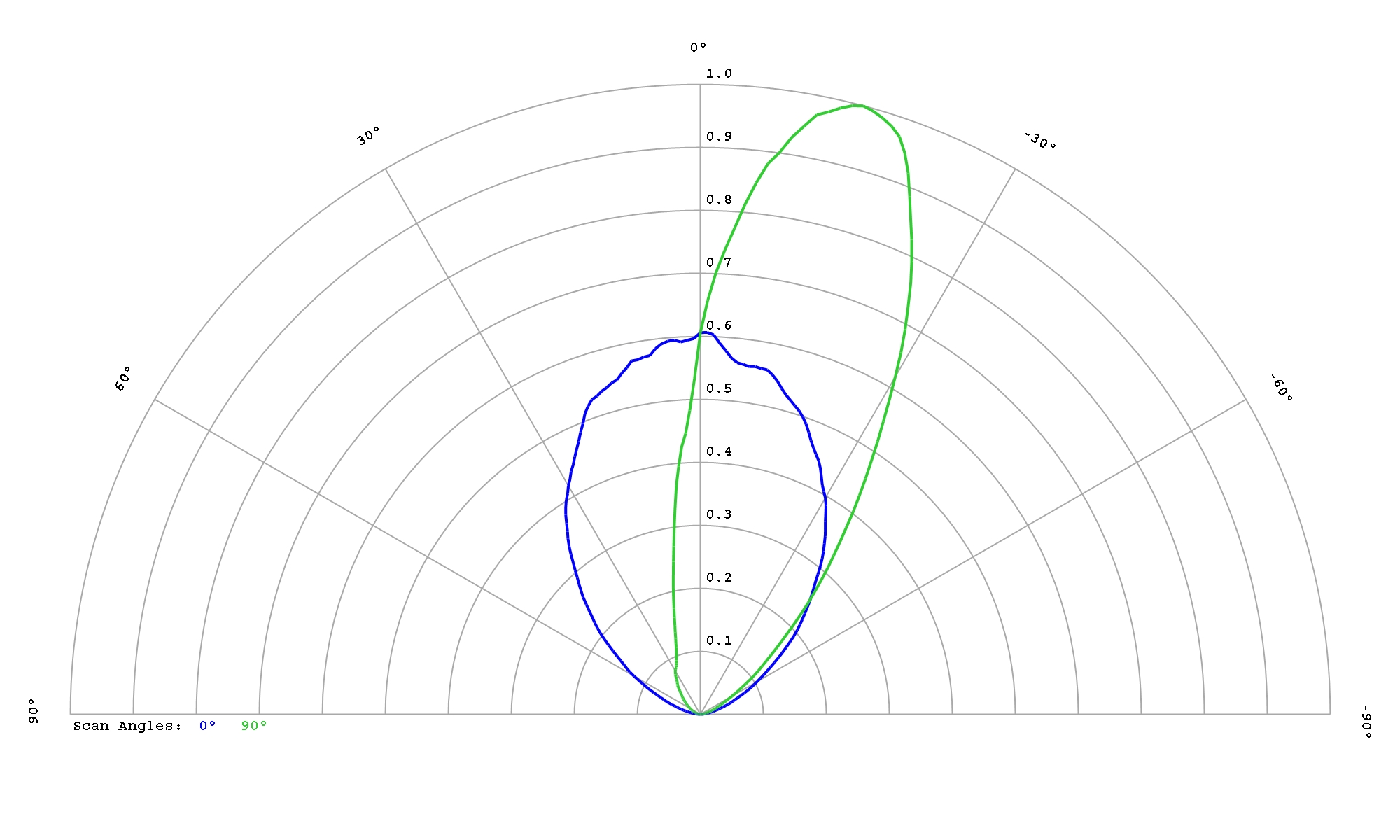

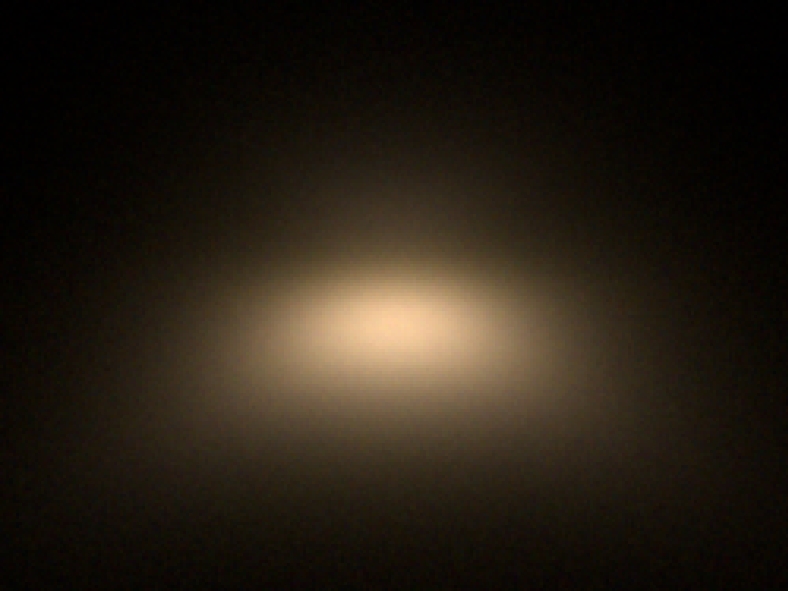

Cree JQ5050 9V White

Eff:

78.5%

FWHM:

79 x 34 x 15°

Cd/Im:

0.8

Download

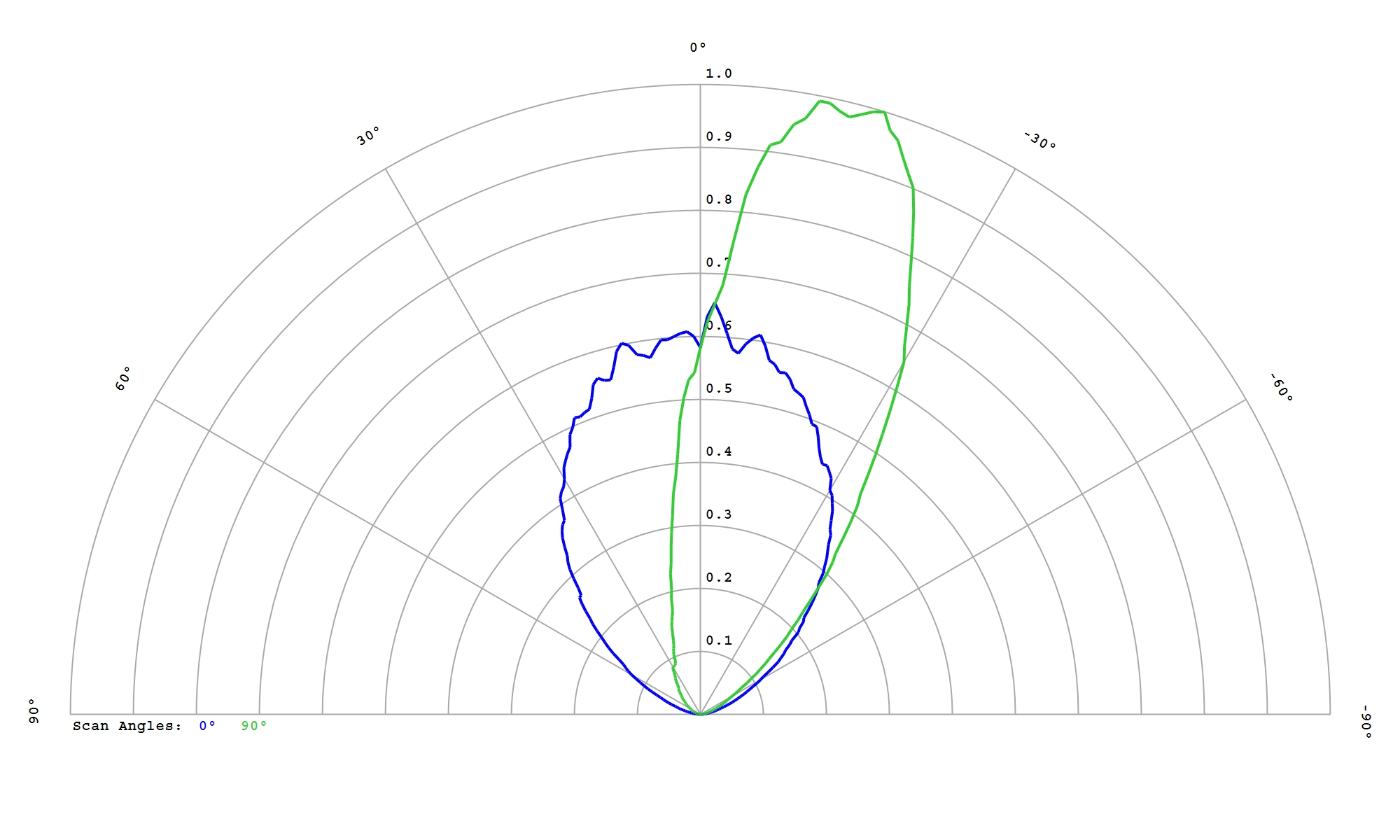

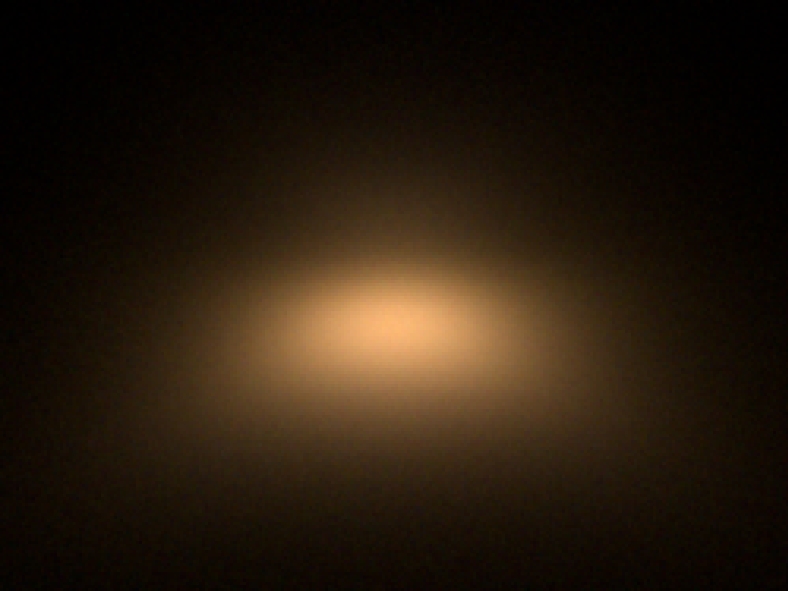

Cree JR5050 24V White

Eff:

78.0%

FWHM:

81 x 36 x 15°

Cd/Im:

0.8

Download

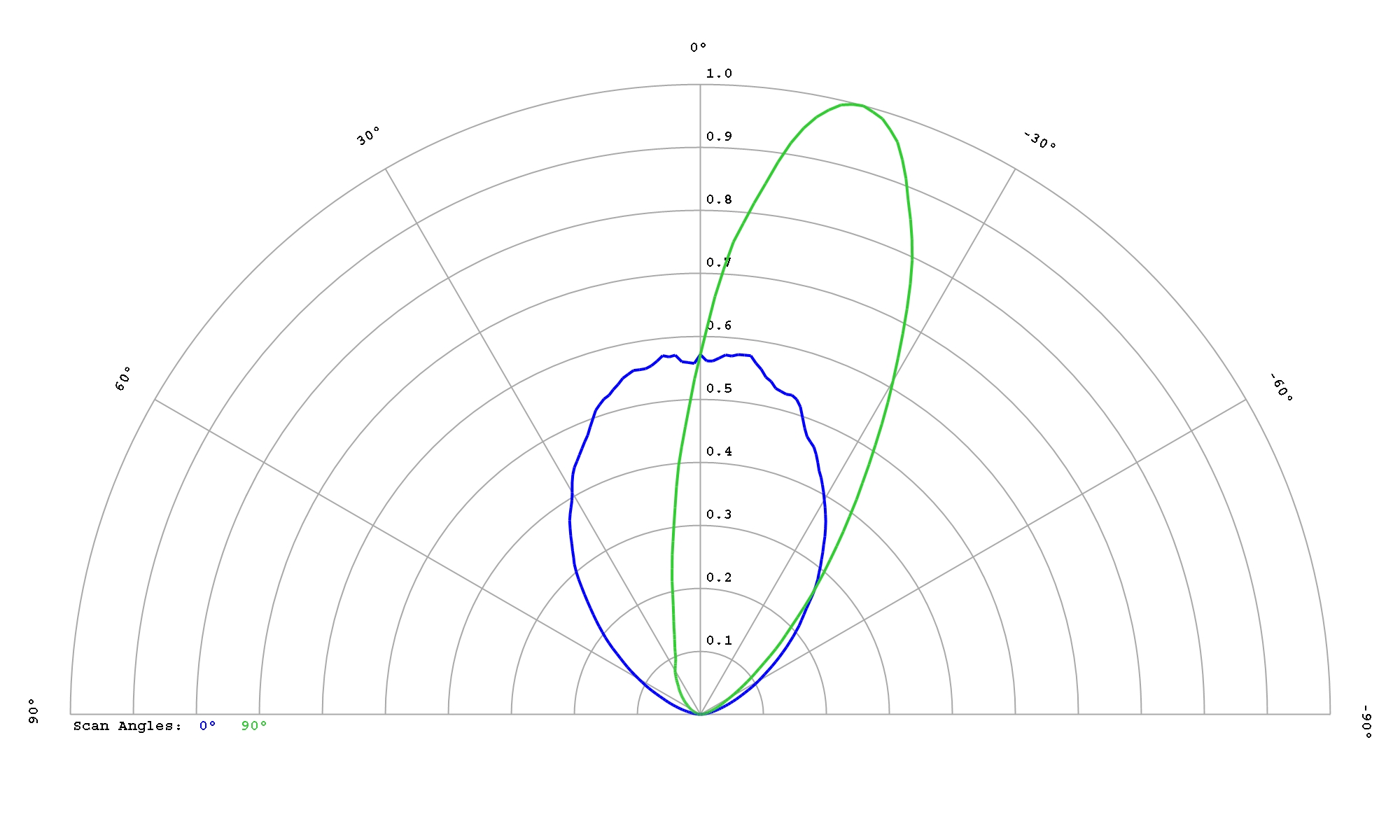

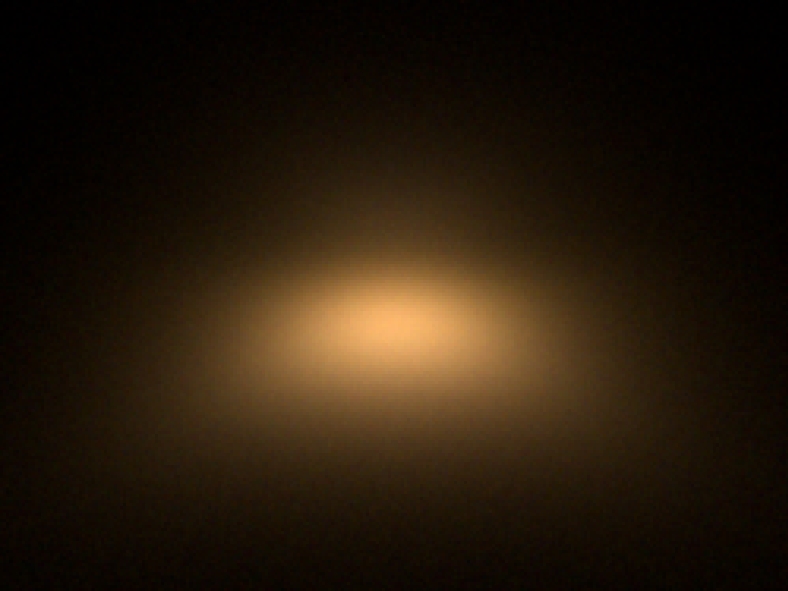

Cree JR5050 36V White

Eff:

78.5%

FWHM:

83 x 35 x 15°

Cd/Im:

0.8

Download

Cree XLamp CSP XD16 Premium White

Eff:

77.5%

FWHM:

84 x 29.5 x 15°

Cd/Im:

0.9

optic-60153-Cree_XD16-PW-colour_spot-image

Download

IES

Cree XLamp XE-G White

Eff:

76.5%

FWHM:

85 x 32 x 15°

Cd/Im:

0.8

optic-60153-Cree-XEG-WarmWhite-colour_spot-image

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

77.0%

FWHM:

80 x 34 x 16°

Cd/Im:

0.8

optic-60153-Cree-XHP35B.2-HI-WW-colour_spot-image


Download

2-HI-WW

Cree XLamp XM-L Color G2 HD RGBW

Eff:

79.0%

FWHM:

77 x 40 x 18°

Cd/Im:

0.7

Download

IES

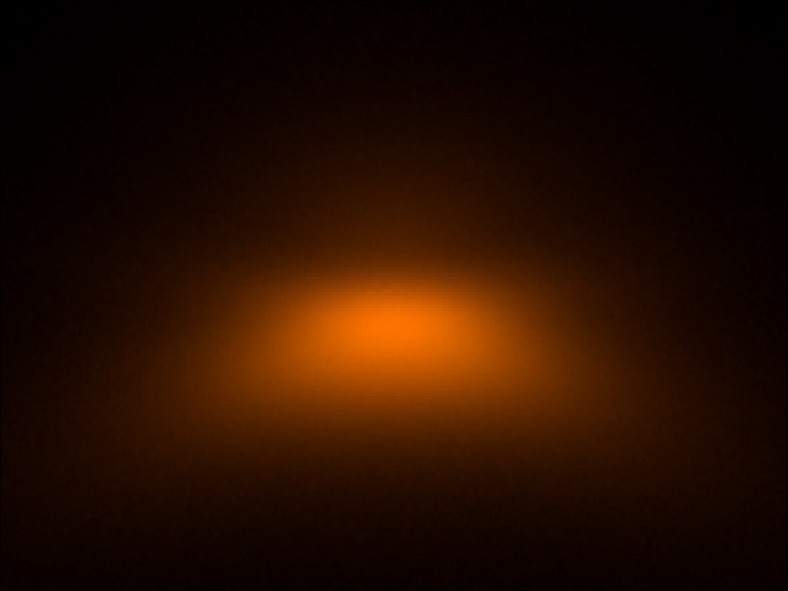

Cree XLamp XP-E2 Amber

Eff:

78.0%

FWHM:

86 x 34 x 17°

Cd/Im:

0.8

Download

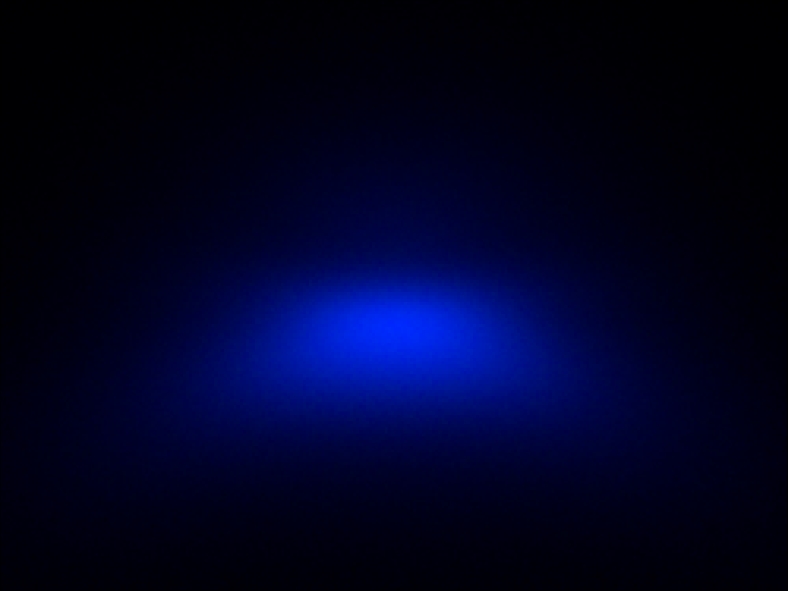

Cree XLamp XP-E2 Blue

Eff:

78.0%

FWHM:

86 x 33 x 14°

Cd/Im:

0.8

Download

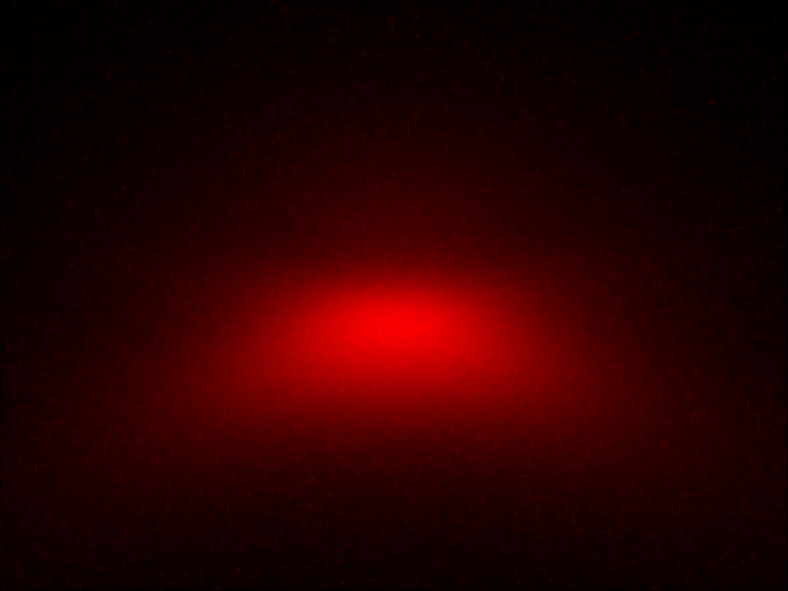

Cree XLamp XP-E2 Far Red

Eff:

81.5%

FWHM:

89 x 35 x 13°

Ipk/W:

0.8

Download

Cree XLamp XP-E2 Green

Eff:

78.0%

FWHM:

89 x 32 x 16°

Cd/Im:

0.8

Download

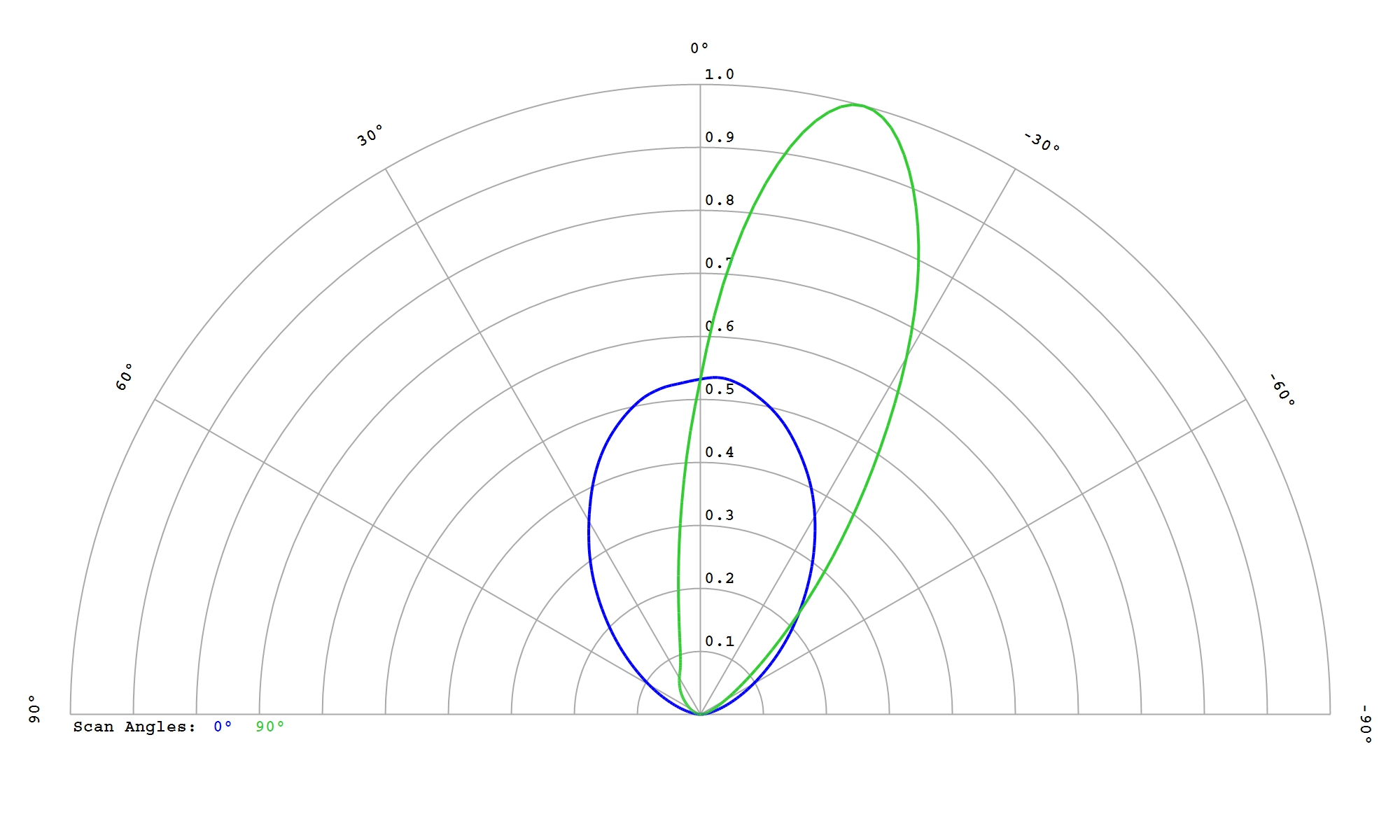

Cree XLamp XP-E2 PC Amber

Eff:

78.5%

FWHM:

75 x 34 x 15°

Cd/Im:

0.8


Download

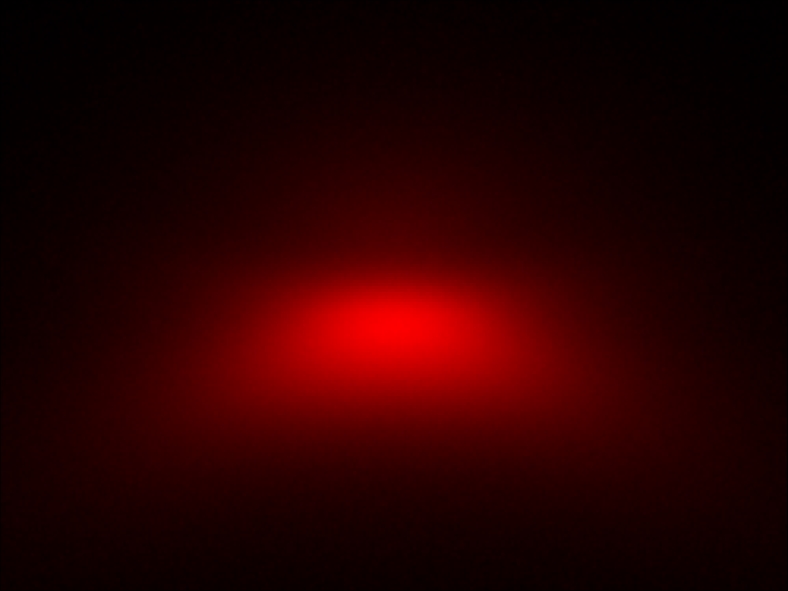

Cree XLamp XP-E2 Photo Red

Eff:

78.0%

FWHM:

86 x 35 x 15°

Ipk/W:

0.8


Download

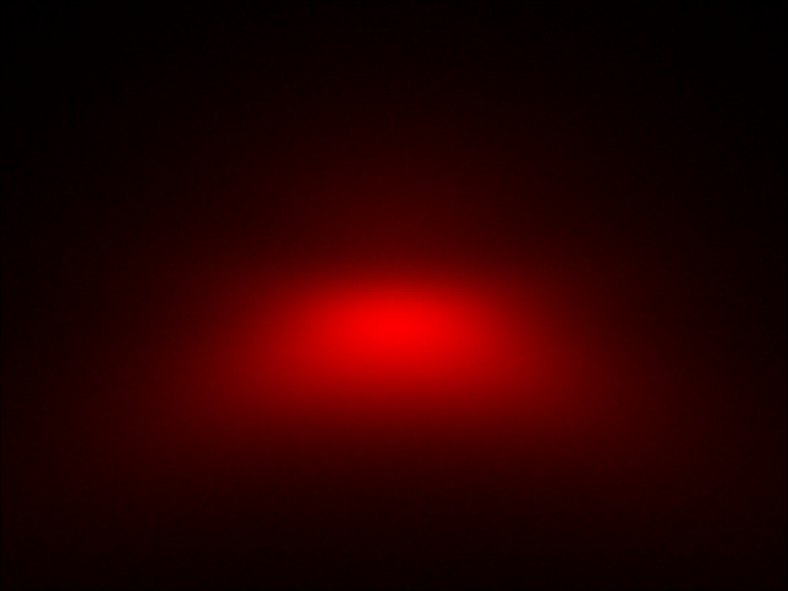

Cree XLamp XP-E2 Red

Eff:

79.0%

FWHM:

90 x 35 x 14°

Cd/Im:

0.8

Download

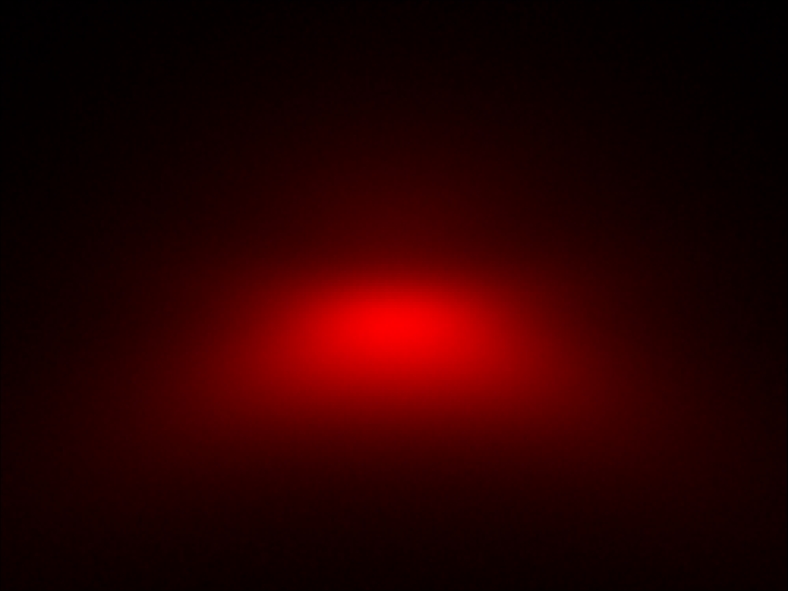

Cree XLamp XP-E2 Red-Orange

Eff:

79.0%

FWHM:

83 x 35 x 15°

Cd/Im:

0.8


Download

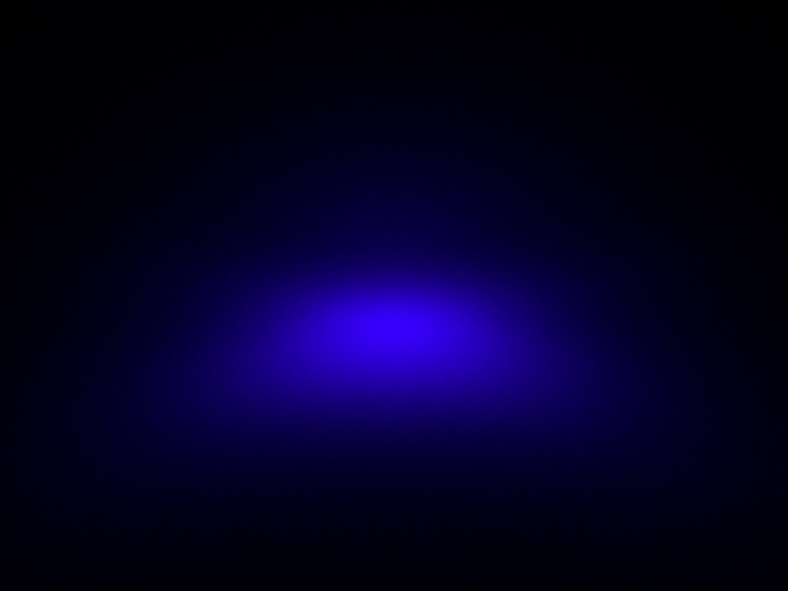

Cree XLamp XP-E2 Royal Blue

Eff:

76.0%

FWHM:

89 x 33 x 14°

Ipk/W:

0.8


Download

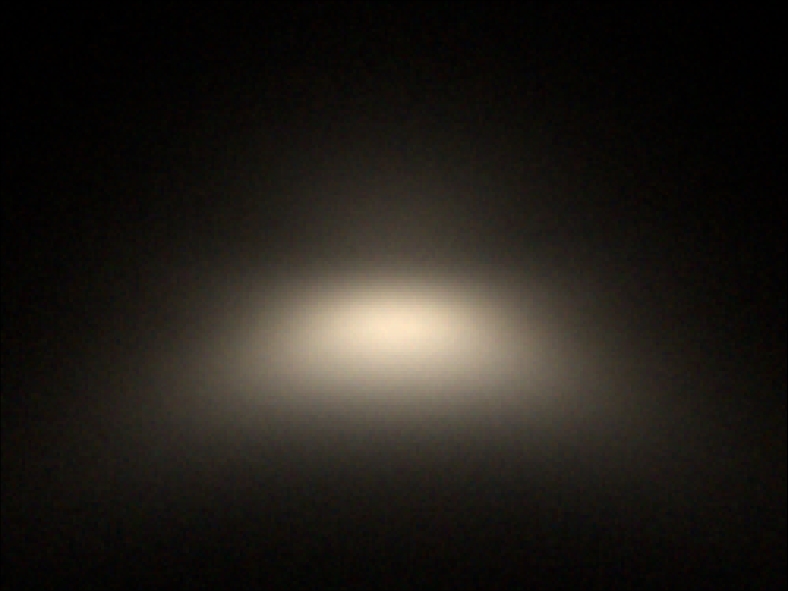

Cree XLamp XP-E2 White

Eff:

78.5%

FWHM:

75 x 32 x 16°

Cd/Im:

0.9

Download

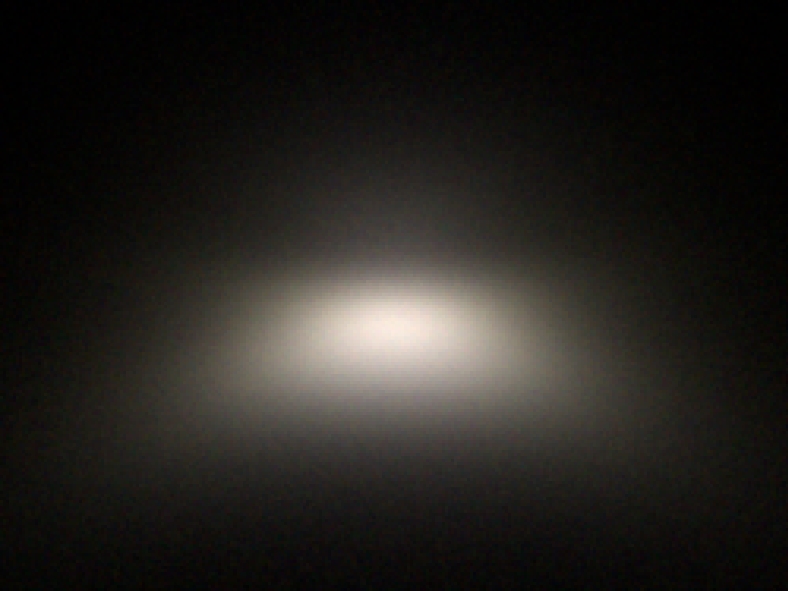

Cree XLamp XP-G4 HI White

Eff:

77.0%

FWHM:

86 x 34 x 15°

Cd/Im:

0.8

Download

Cree XLamp XP-G4 White

Eff:

80.0%

FWHM:

75 x 33 x 14°

Cd/Im:

0.9

Download

IES

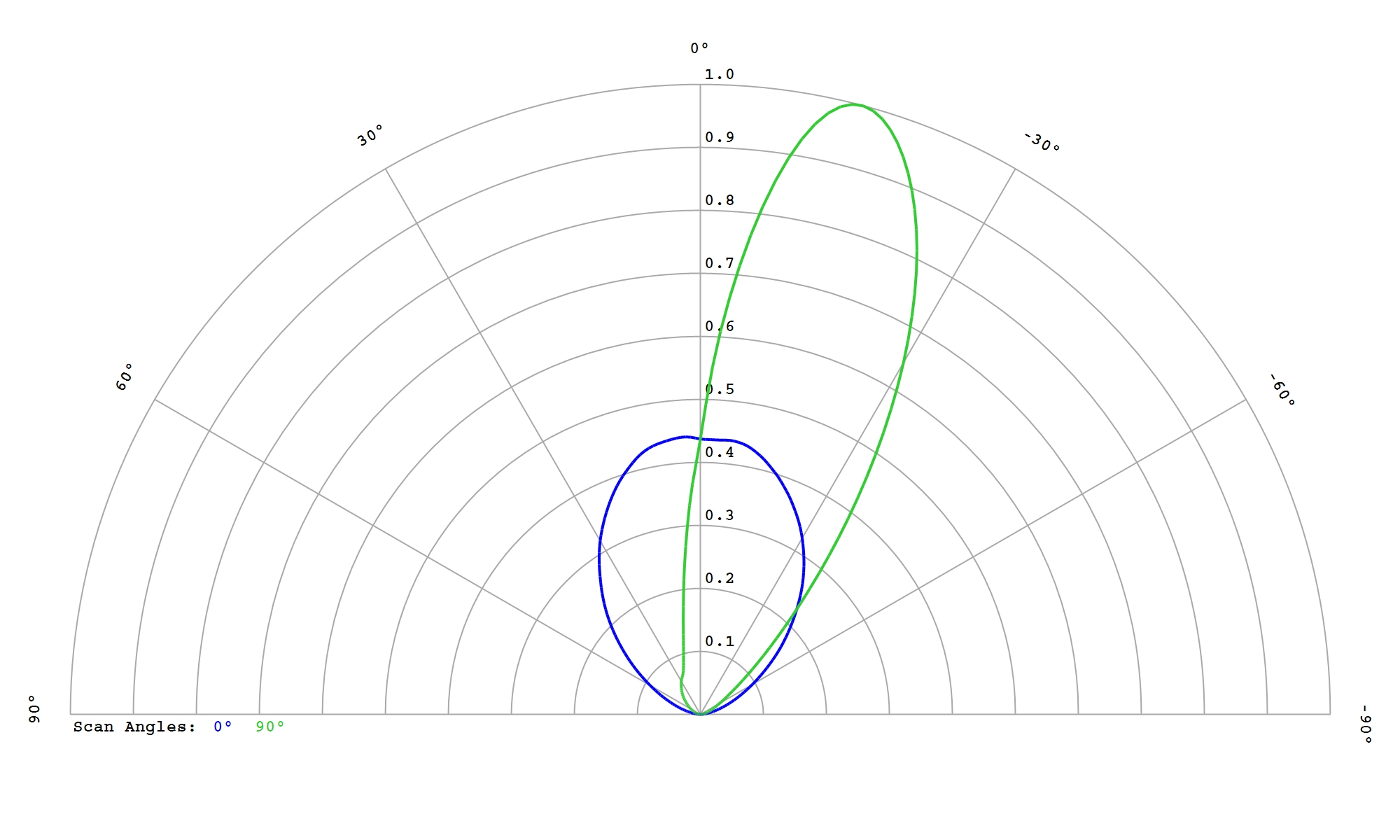

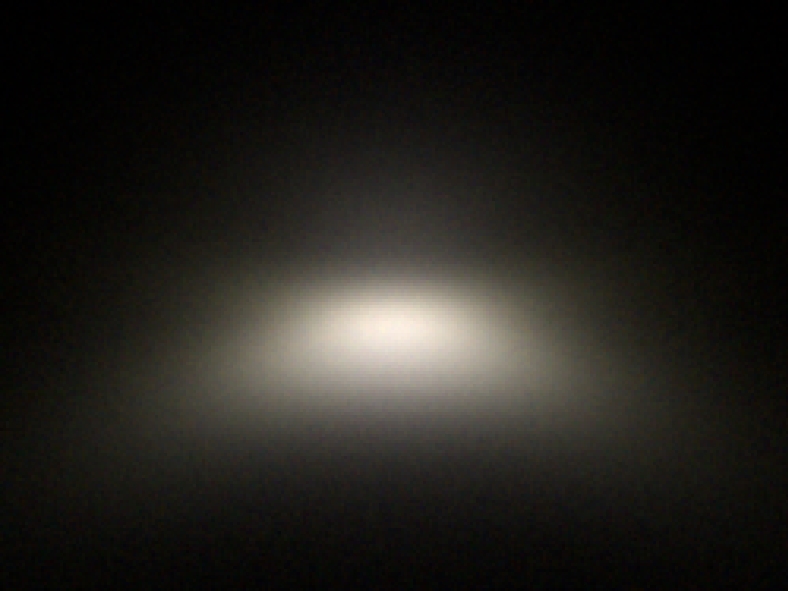

Cree XLamp XP-GR White

Eff:

78.5%

FWHM:

79 x 32 x 15°

Cd/Im:

0.9

Download

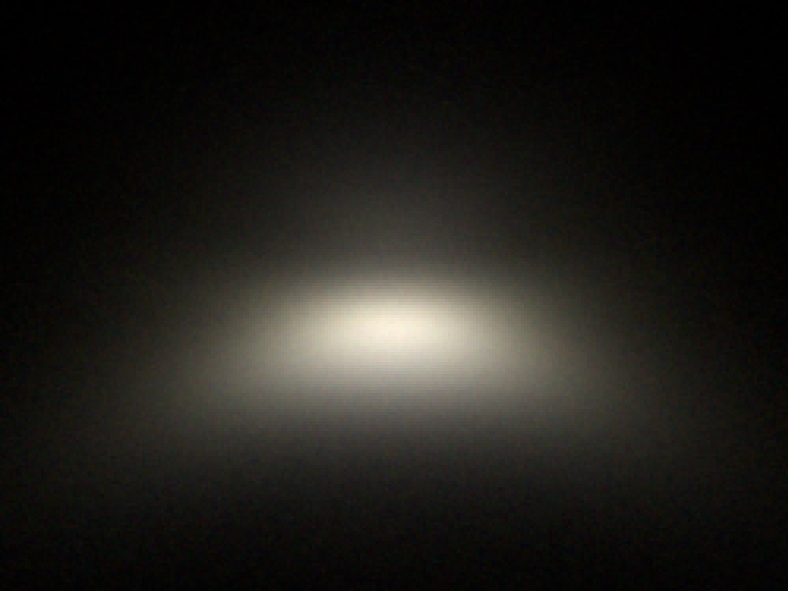

Cree XLamp XP-LR White

Eff:

79.0%

FWHM:

82 x 30 x 15°

Cd/Im:

1.0

Download

Cree XLamp XP-P White

Eff:

79.0%

FWHM:

75 x 31 x 15°

Cd/Im:

0.9

Download

IES

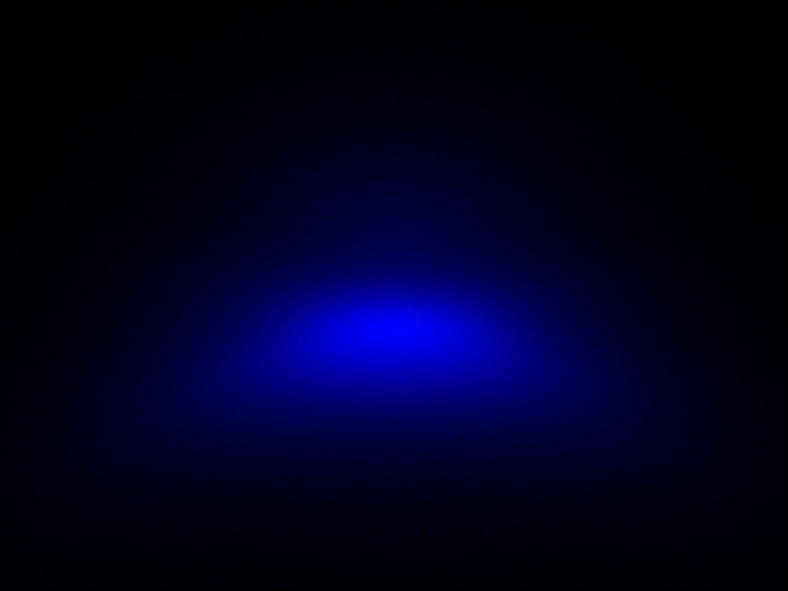

Cree XLamp XQ-A Blue

Eff:

78.5%

FWHM:

85 x 28 x 15°

Cd/Im:

1.0

Download

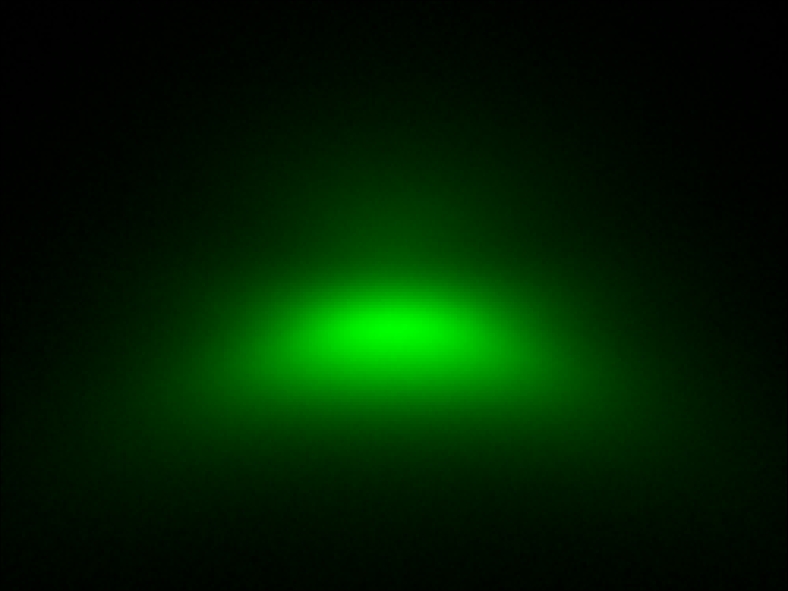

Cree XLamp XQ-A Green

Eff:

79.0%

FWHM:

83 x 27.5 x 15°

Cd/Im:

1.0

Download

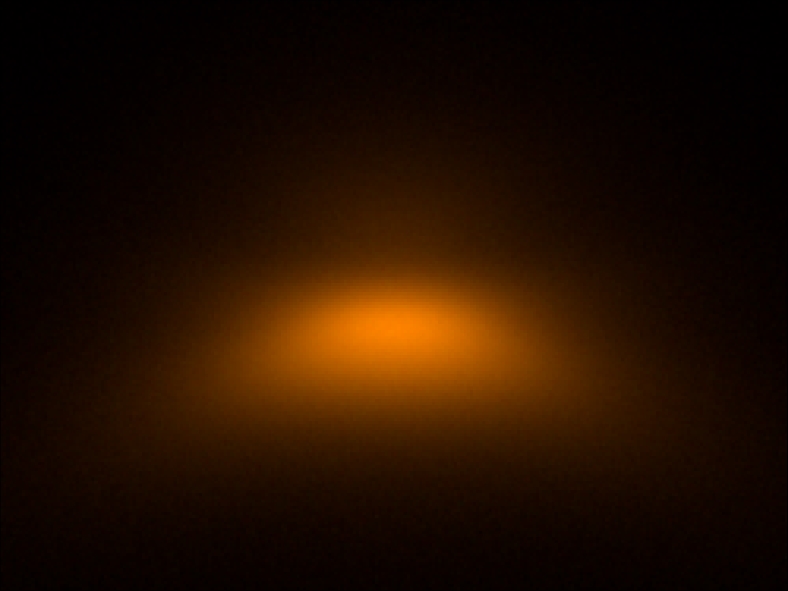

Cree XLamp XQ-A PC Amber

Eff:

77.5%

FWHM:

77 x 29.5 x 15°

Cd/Im:

0.9

Download

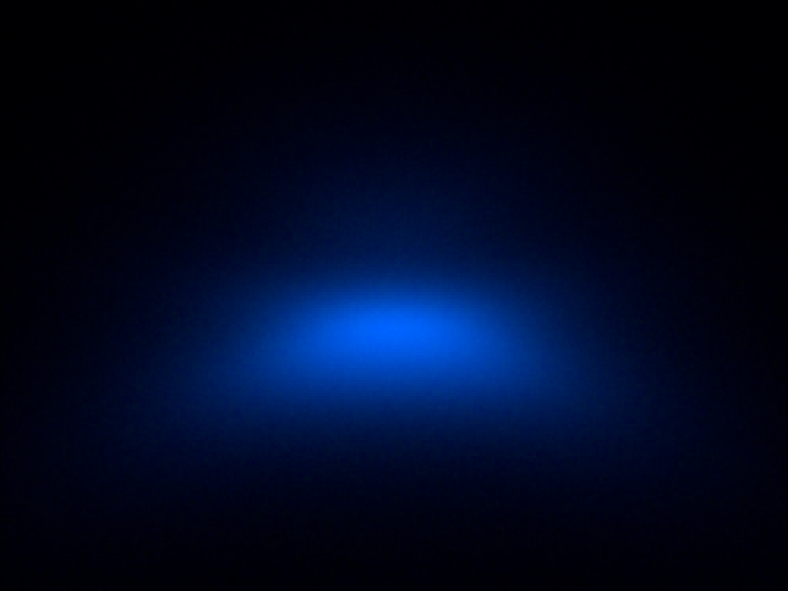

Cree XLamp XQ-A PC Blue

Eff:

76.0%

FWHM:

92 x 28 x 15°

Cd/Im:

0.9

Download

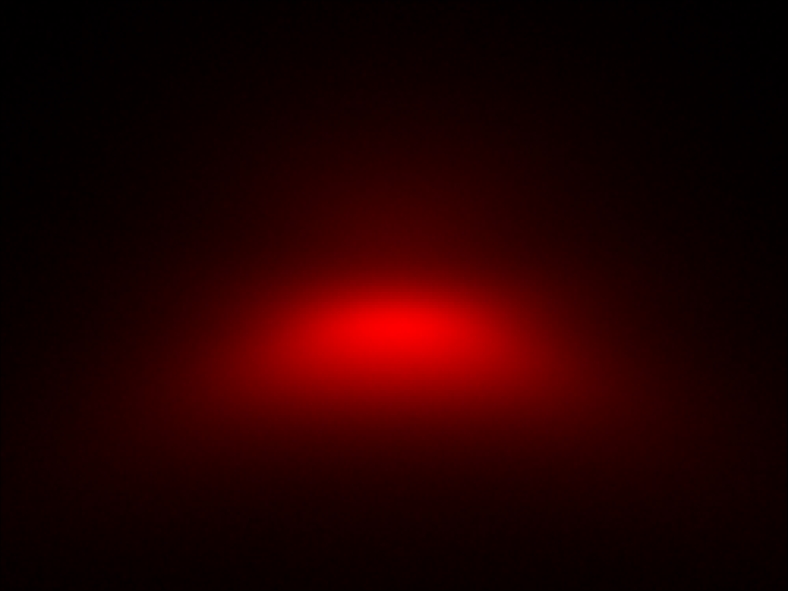

Cree XLamp XQ-A Red

Eff:

80.5%

FWHM:

84 x 29 x 15°

Cd/Im:

1.0

Download

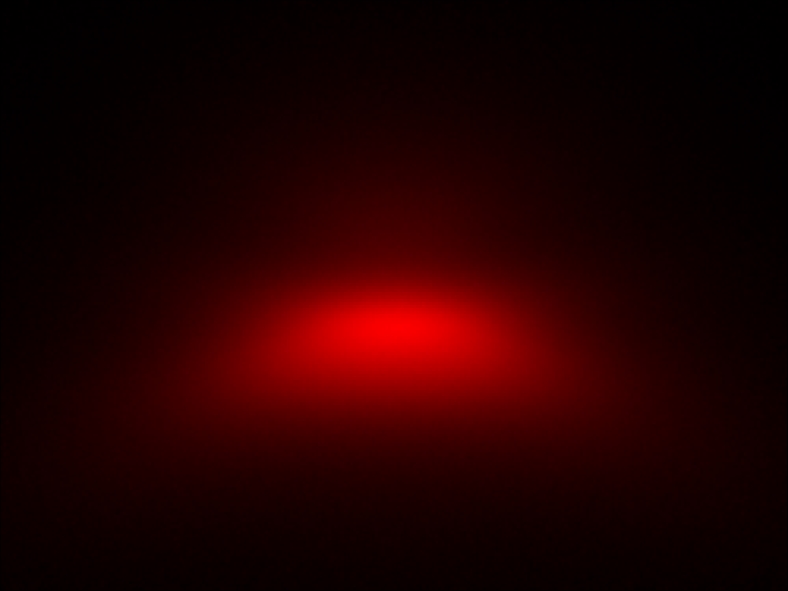

Cree XLamp XQ-A Red-Orange

Eff:

80.0%

FWHM:

83 x 29 x 14°

Cd/Im:

1.0


Download

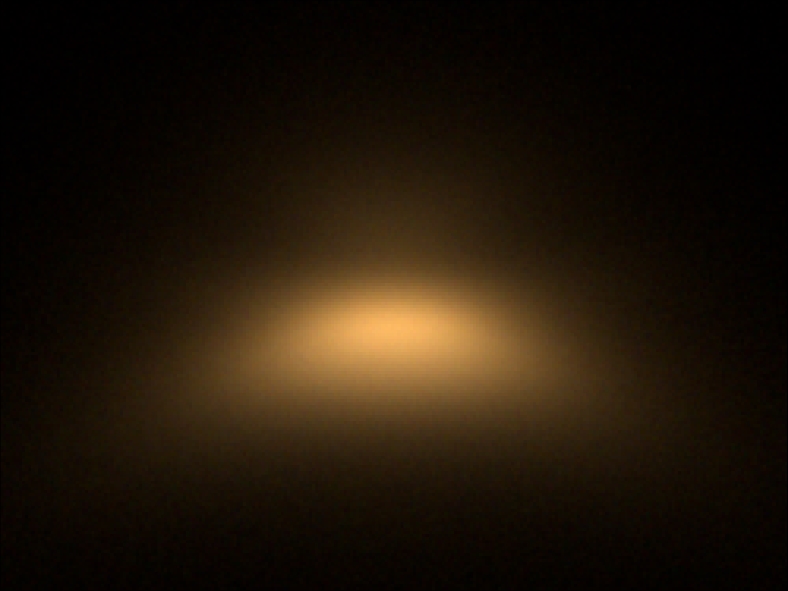

Cree XLamp XQ-A White

Eff:

78.0%

FWHM:

77 x 28.5 x 15°

Cd/Im:

1.0

Download

Cree XLamp XQ-E HD White

Eff:

79.0%

FWHM:

70 x 31 x 14°

Cd/Im:

1.0

optic-60153-Cree_XQ-E-colour_spot-image

Download

IES

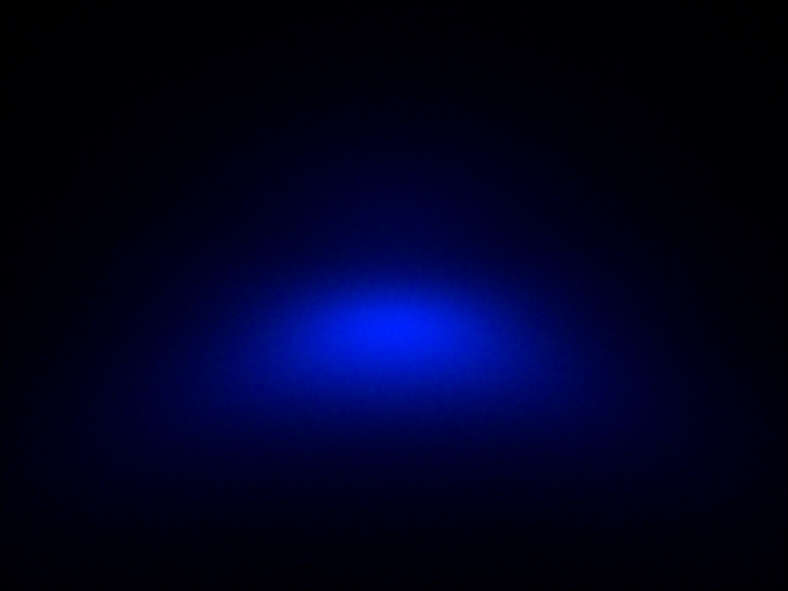

Cree XLamp XQ-E Plus HD Blue

Eff:

77.0%

FWHM:

81 x 29.5 x 16°

Cd/Im:

0.9


Download

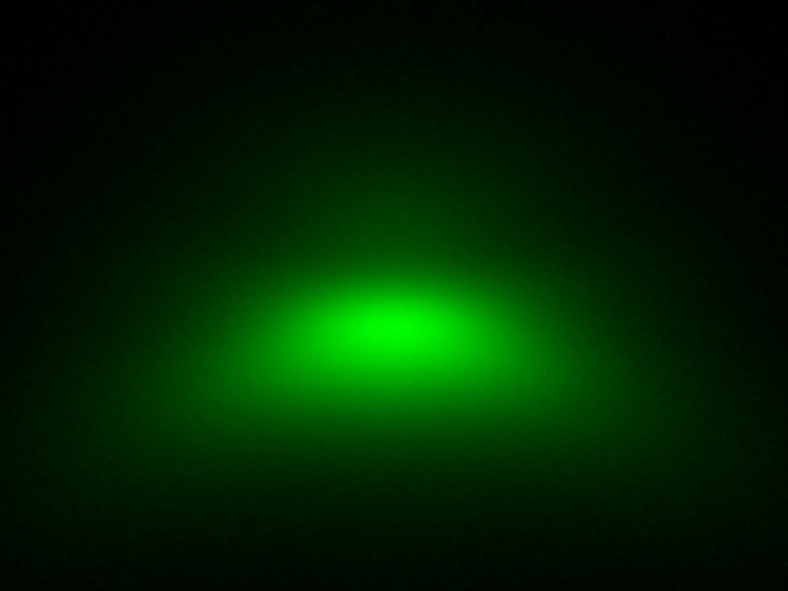

Cree XLamp XQ-E Plus HD Green

Eff:

77.0%

FWHM:

82 x 31 x 15°

Cd/Im:

0.9


Download

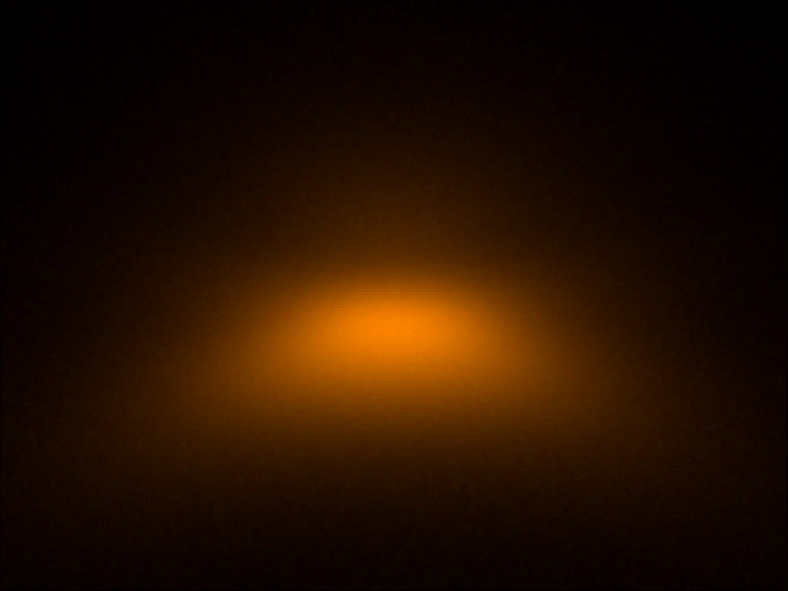

Cree XLamp XQ-E Plus HD PC Amber

Eff:

76.5%

FWHM:

81 x 32 x 15°

Cd/Im:

0.8


Download

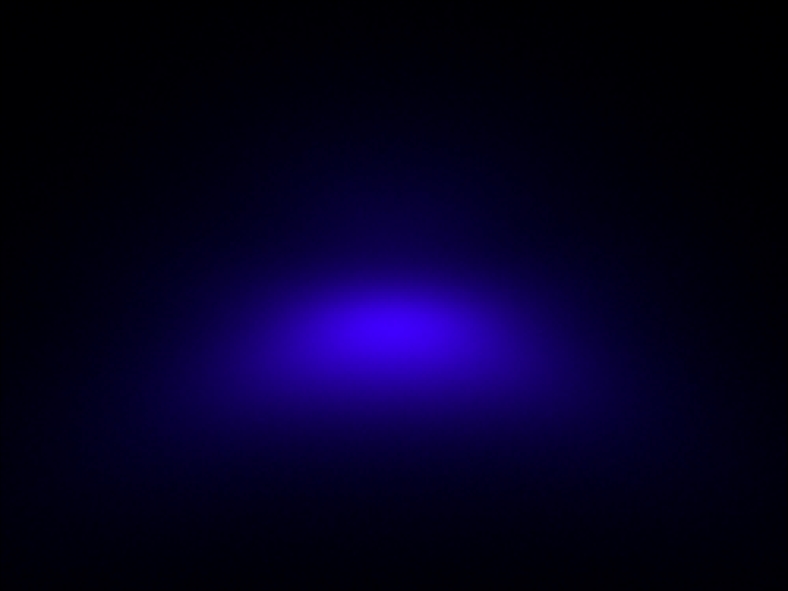

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

75.0%

FWHM:

82 x 29.5 x 15°

Ipk/W:

0.9


Download

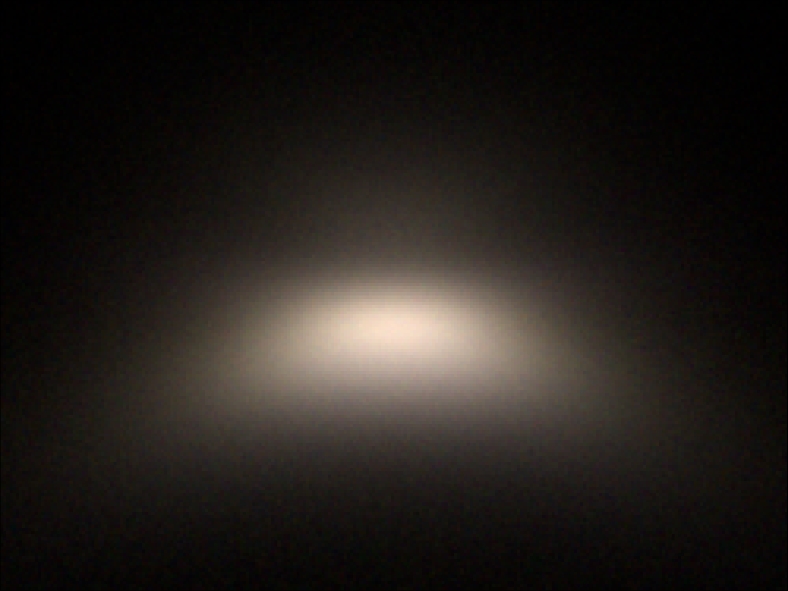

Cree XLamp XQ-E Plus HD White

Eff:

76.5%

FWHM:

85 x 31 x 16°

Cd/Im:

0.8


Download

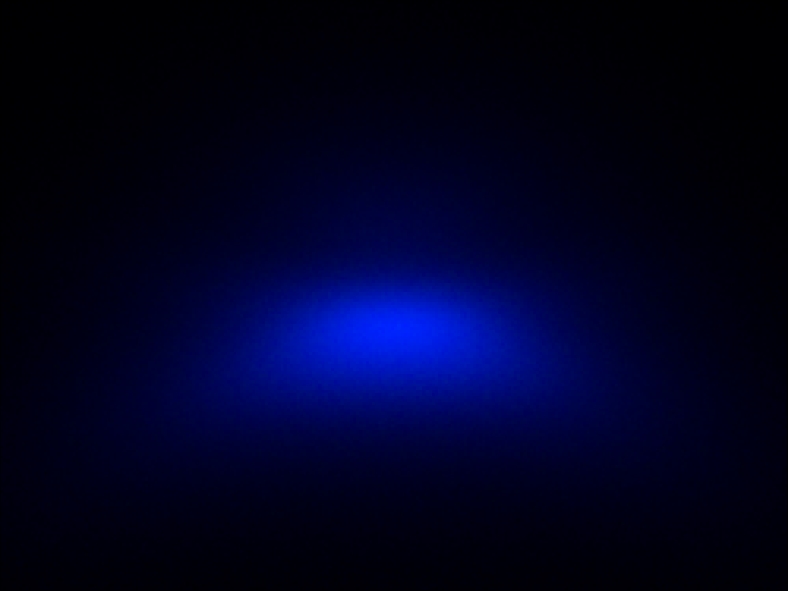

Cree XLamp XQ-E Plus HI Blue

Eff:

75.5%

FWHM:

87 x 30 x 15°

Cd/Im:

0.8


Download

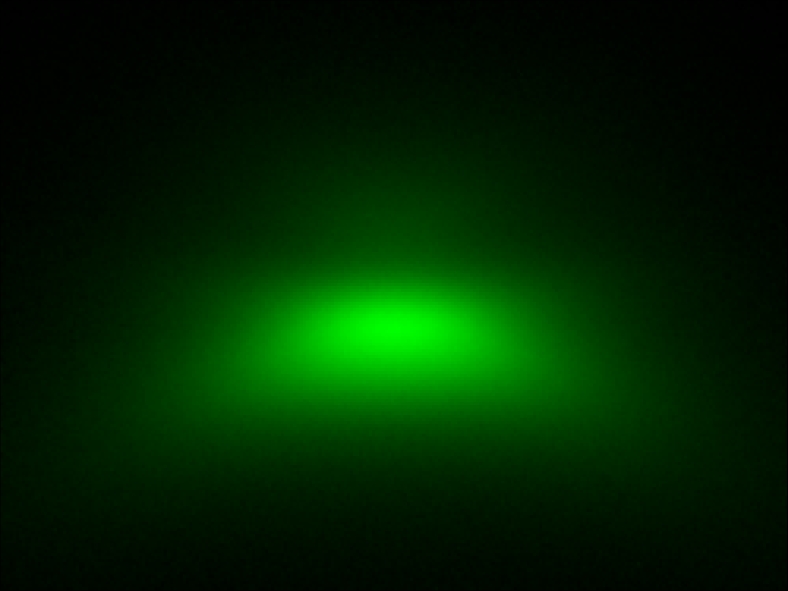

Cree XLamp XQ-E Plus HI Green

Eff:

75.5%

FWHM:

90 x 30 x 15°

Cd/Im:

0.8


Download

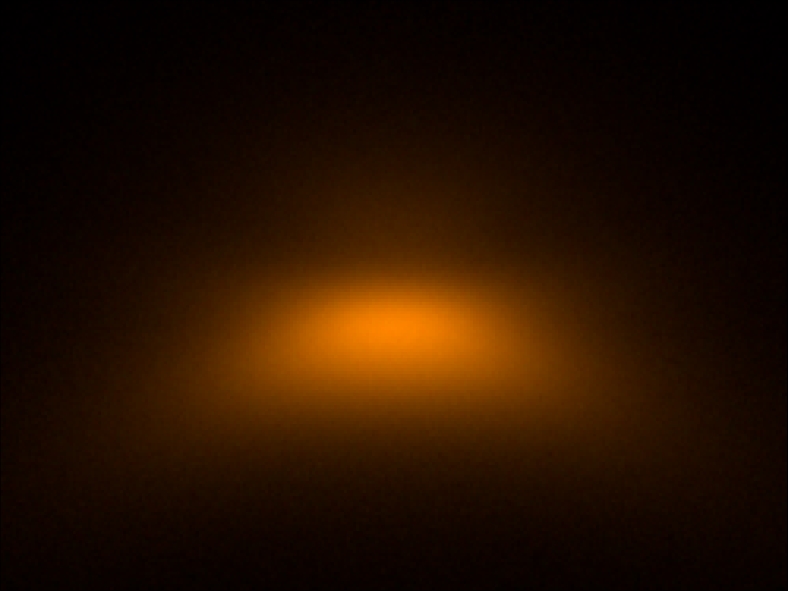

Cree XLamp XQ-E Plus HI PC Amber

Eff:

75.5%

FWHM:

89 x 31 x 15°

Cd/Im:

0.8


Download

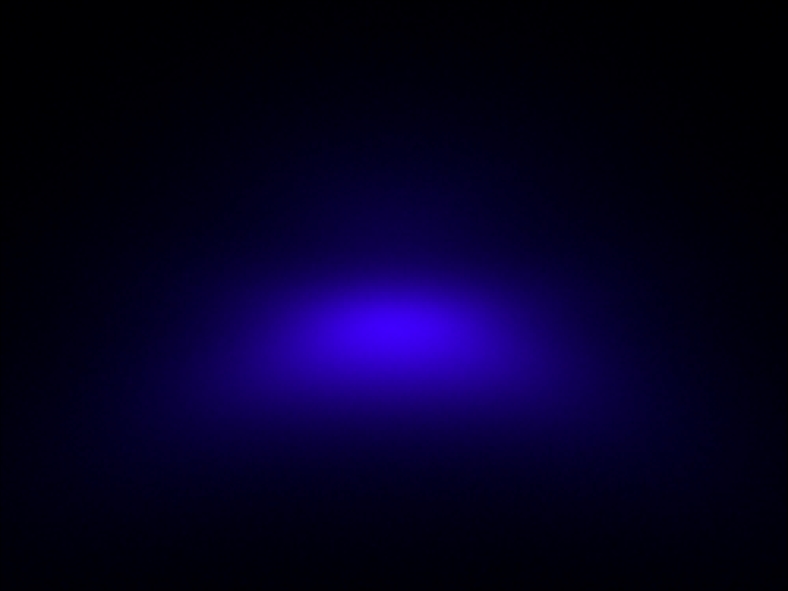

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

74.0%

FWHM:

89 x 30 x 15°

Ipk/W:

0.8


Download

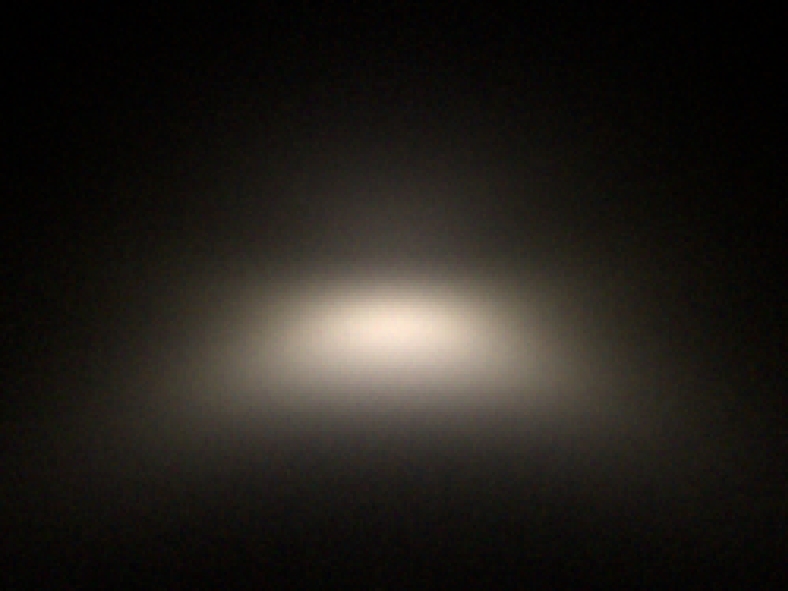

Cree XLamp XQ-E Plus HI White

Eff:

76.5%

FWHM:

83 x 31 x 14°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 2835C 6V White

Eff:

79.0%

FWHM:

79 x 29.5 x 14°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

79.0%

FWHM:

81 x 31 x 15°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

78.5%

FWHM:

85 x 30 x 15°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

78.5%

FWHM:

82 x 31 x 15°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

78.5%

FWHM:

82 x 32 x 16°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3014 White

Eff:

79.0%

FWHM:

84 x 29 x 15°

Cd/Im:

1.0

optic-60153-LUXEON_3014-colour_spot-image

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

78.0%

FWHM:

81 x 28 x 16°

Cd/Im:

1.0

optic-60153-Luxeon_3020-colour_spot-image

Download

IES

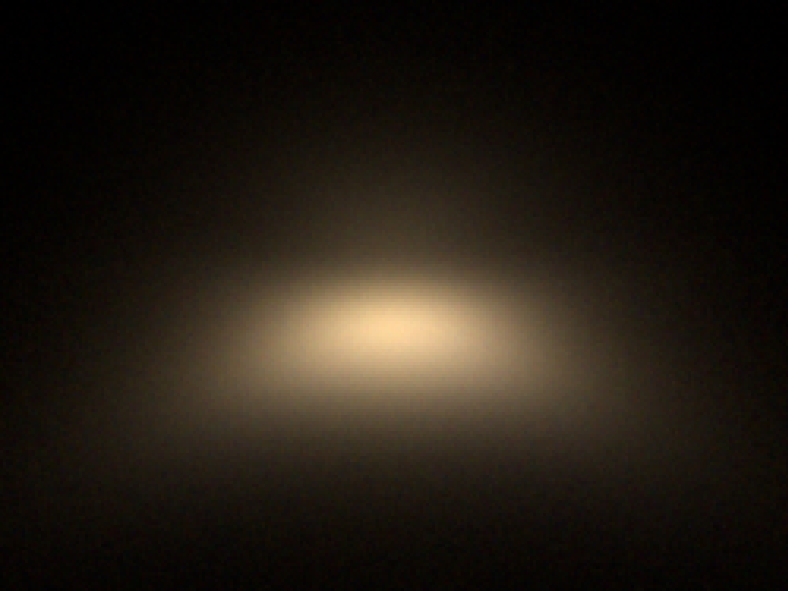

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

78.5%

FWHM:

82 x 31 x 15°

Cd/Im:

0.9


Download

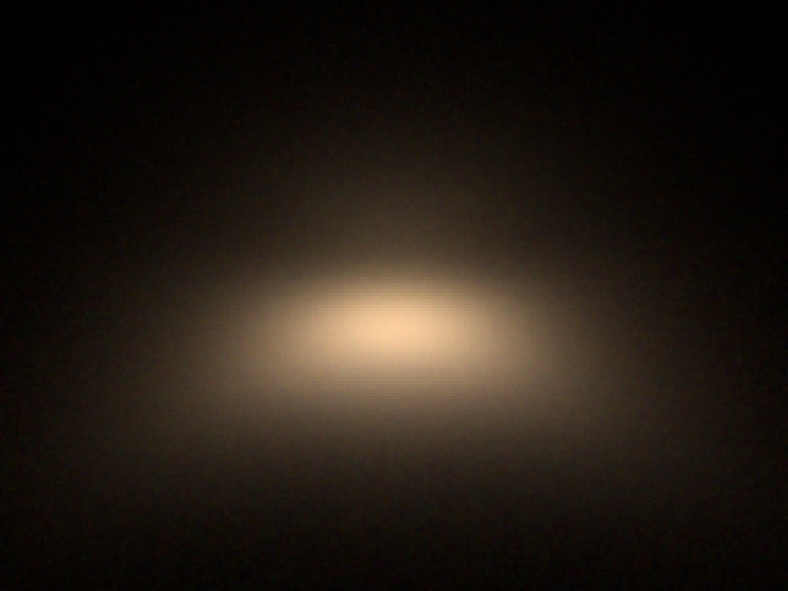

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

78.0%

FWHM:

82 x 32 x 15°

Cd/Im:

0.9


Download

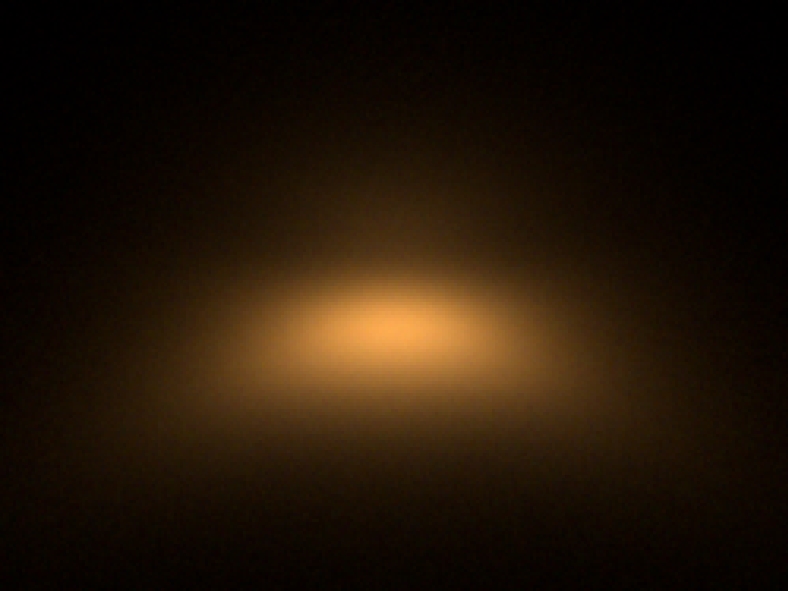

LUMILEDS LUXEON 3030 2D Square White

Eff:

79.0%

FWHM:

84 x 30 x 15°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

78.5%

FWHM:

81 x 27 x 15°

Cd/Im:

1.0

Download

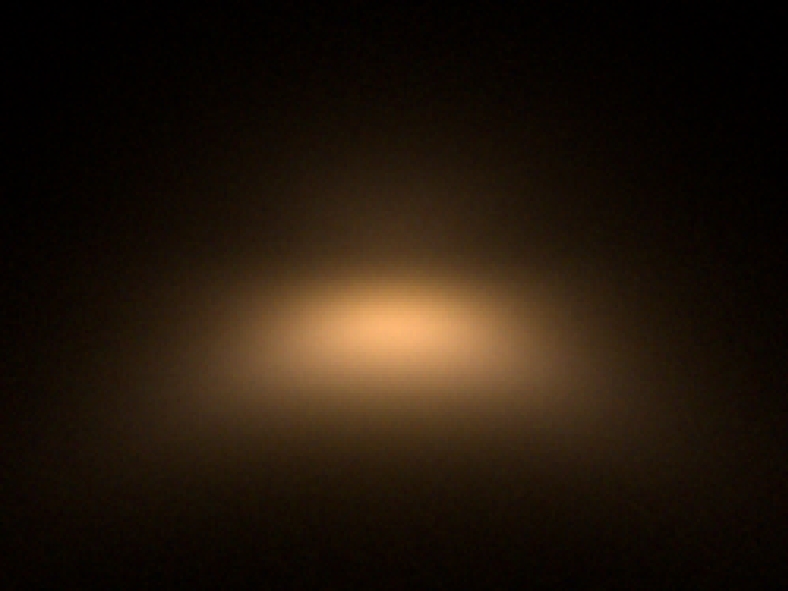

LUMILEDS LUXEON 3030 HE White

Eff:

78.5%

FWHM:

84 x 29.5 x 15°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3535 L White

Eff:

79.0%

FWHM:

79 x 29.5 x 15°

Cd/Im:

0.9

Download

IES

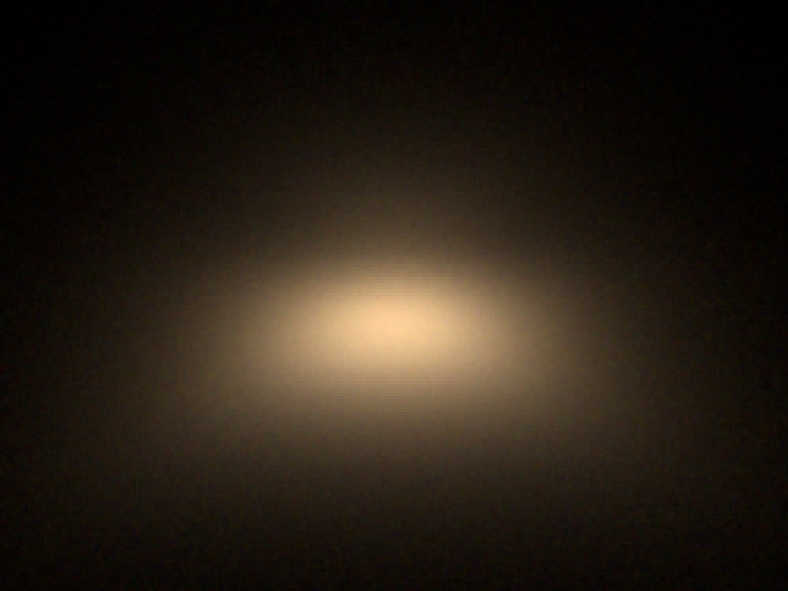

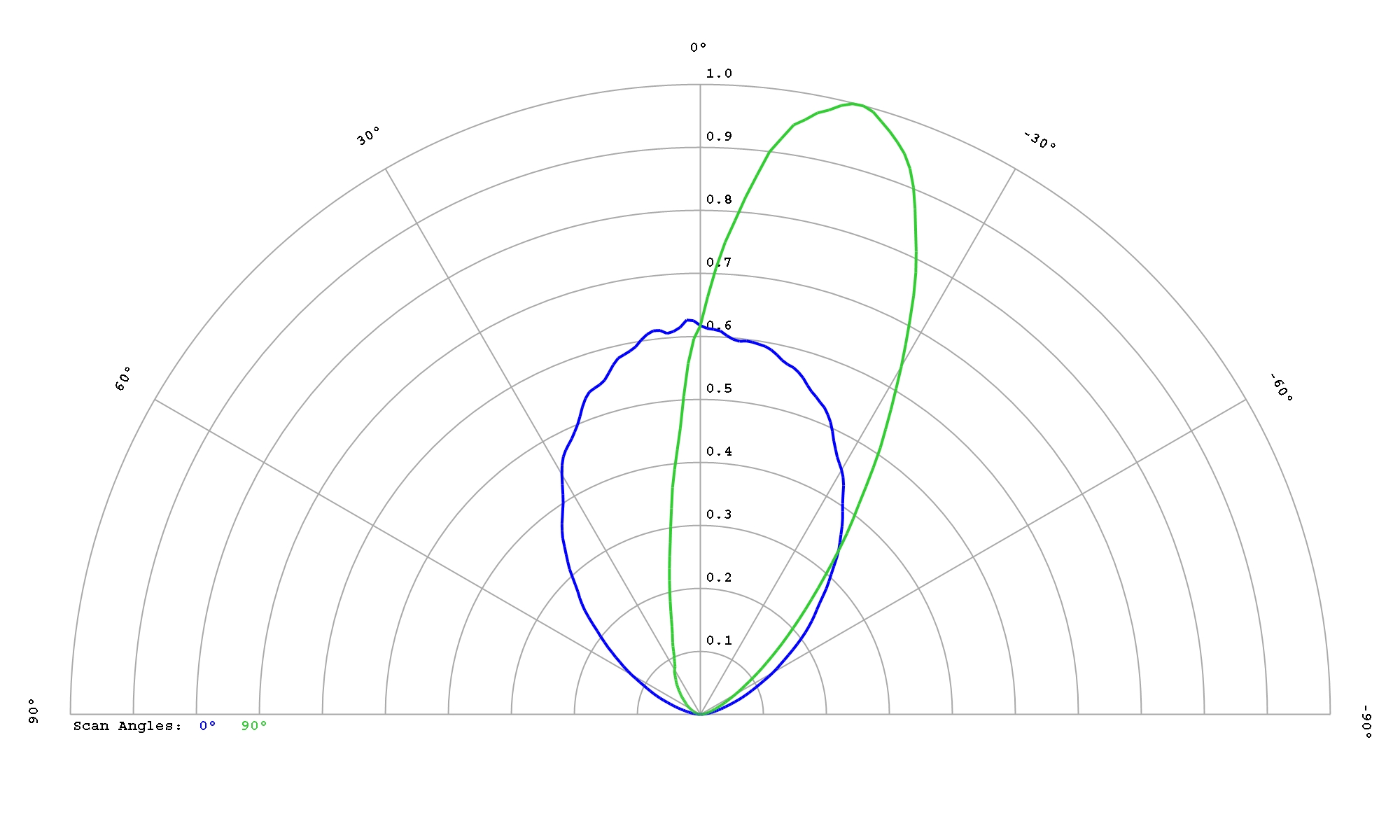

LUMILEDS LUXEON 5050 HE 24V White

Eff:

77.5%

FWHM:

83 x 38 x 15°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

77.5%

FWHM:

80 x 36 x 16°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

78.0%

FWHM:

83 x 37 x 15°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

78.0%

FWHM:

82 x 37 x 14°

Cd/Im:

0.8

optic-60153-Luxeon_5050-colour_spot-image

Download

IES

LUMILEDS LUXEON 5050 Square 30V White

Eff:

78.0%

FWHM:

79 x 39 x 15°

Cd/Im:

0.7


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

78.5%

FWHM:

79 x 35 x 15°

Cd/Im:

0.8


Download

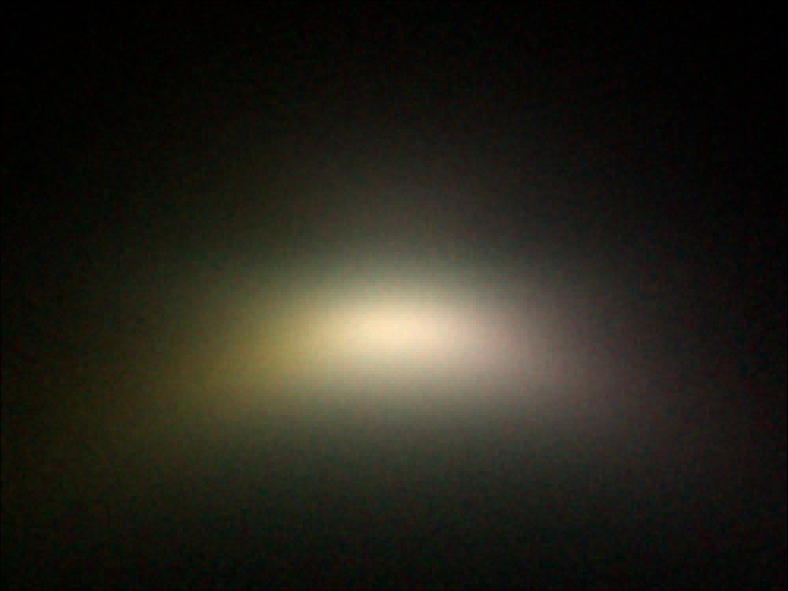

LUMILEDS LUXEON 5052 RGBW

Eff:

75.0%

FWHM:

87 x 32 x 15°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON C White

Eff:

71.5%

FWHM:

96 x 34 x 15°

Cd/Im:

0.7

Download

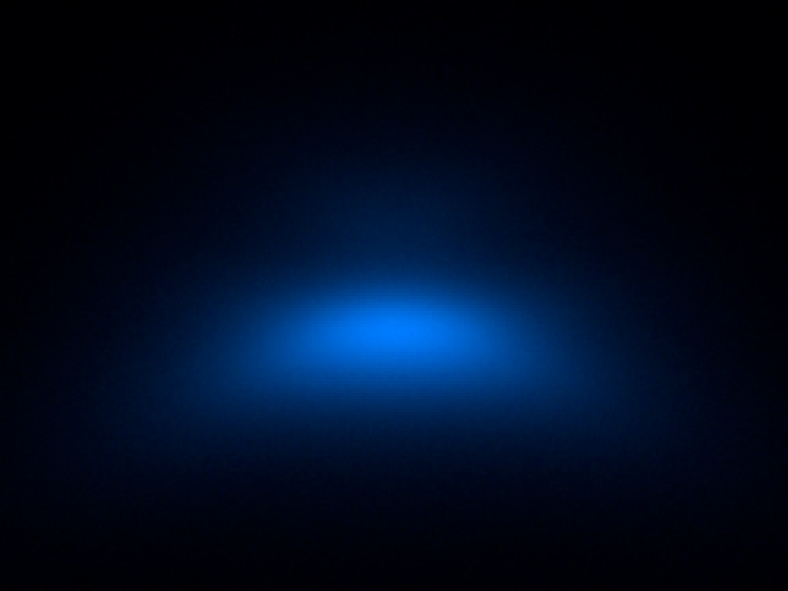

LUMILEDS LUXEON HL1Z Color Blue

Eff:

74.5%

FWHM:

82 x 26 x 16°

Cd/Im:

0.9

Download

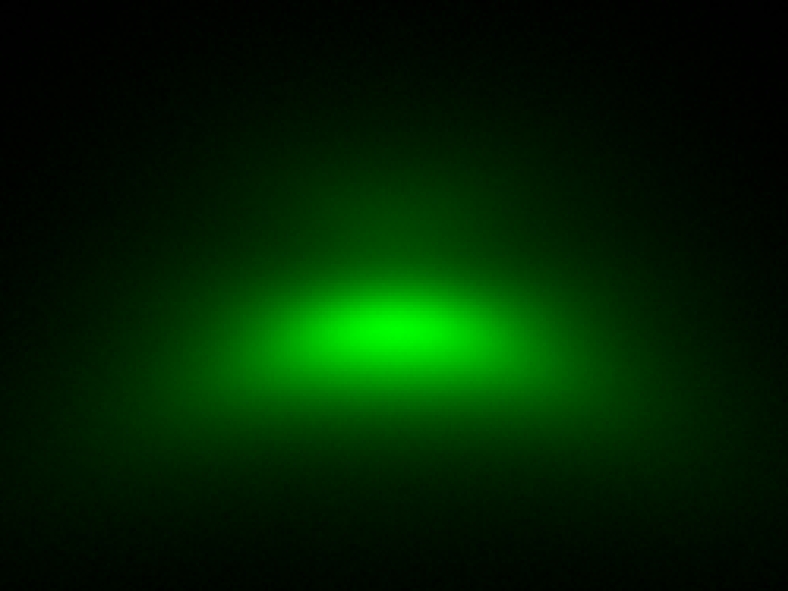

LUMILEDS LUXEON HL1Z Color Green

Eff:

74.0%

FWHM:

89 x 26 x 16°

Cd/Im:

0.9

Download

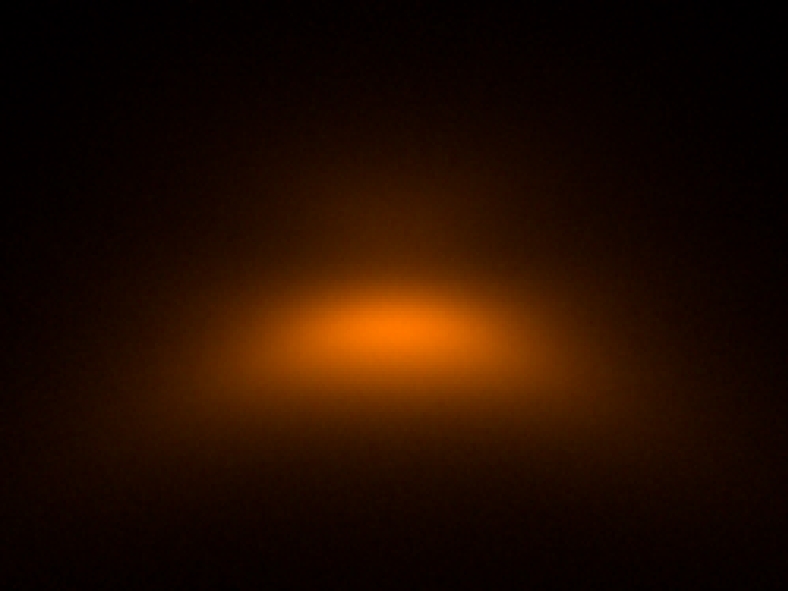

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

75.0%

FWHM:

87 x 26 x 16°

Cd/Im:

1.0


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

72.5%

FWHM:

90 x 26 x 16°

Cd/Im:

0.9


Download

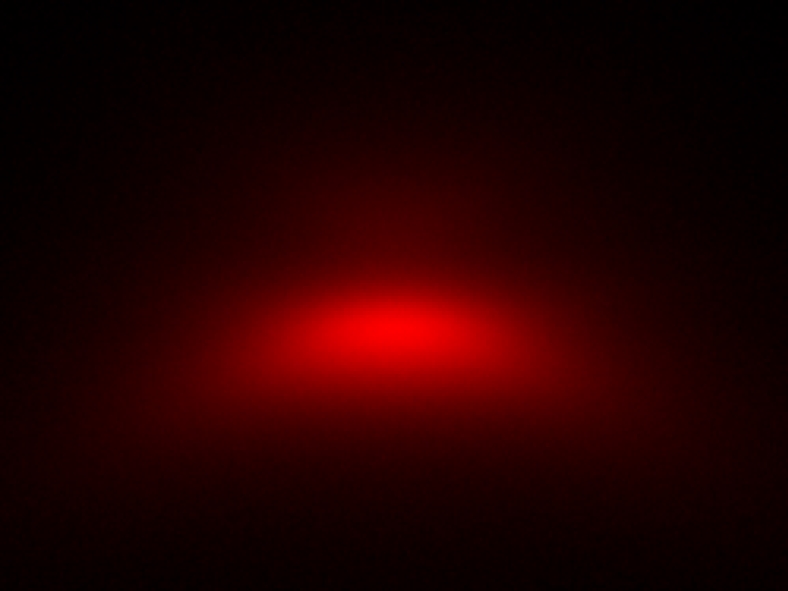

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

75.5%

FWHM:

82 x 26 x 16°

Cd/Im:

1.0

Download

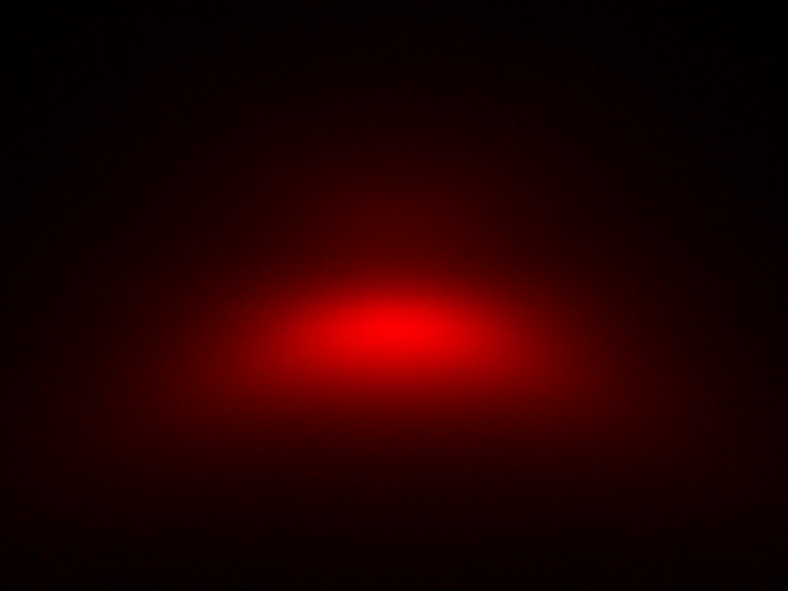

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

76.0%

FWHM:

87 x 26 x 16°

Cd/Im:

1.0


Download

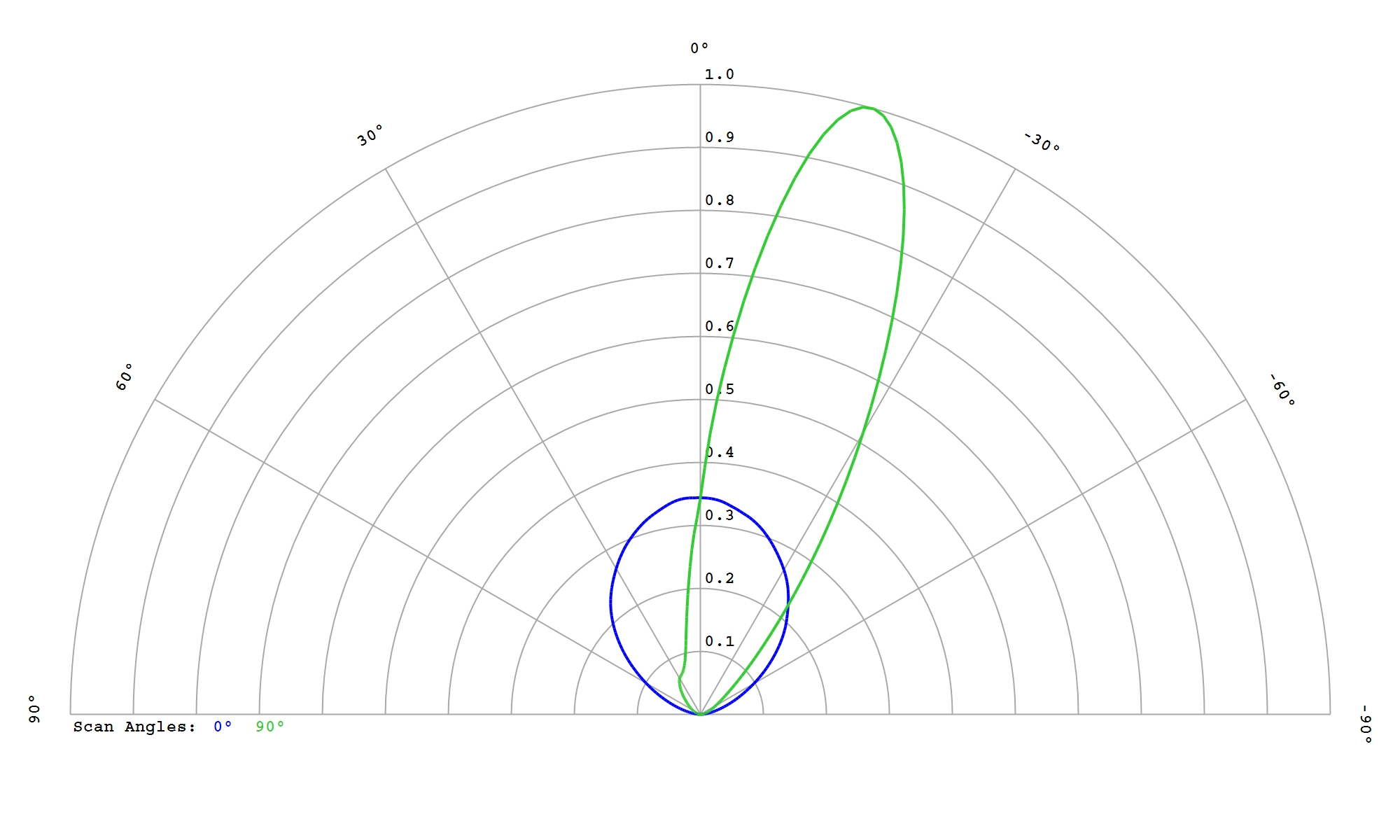

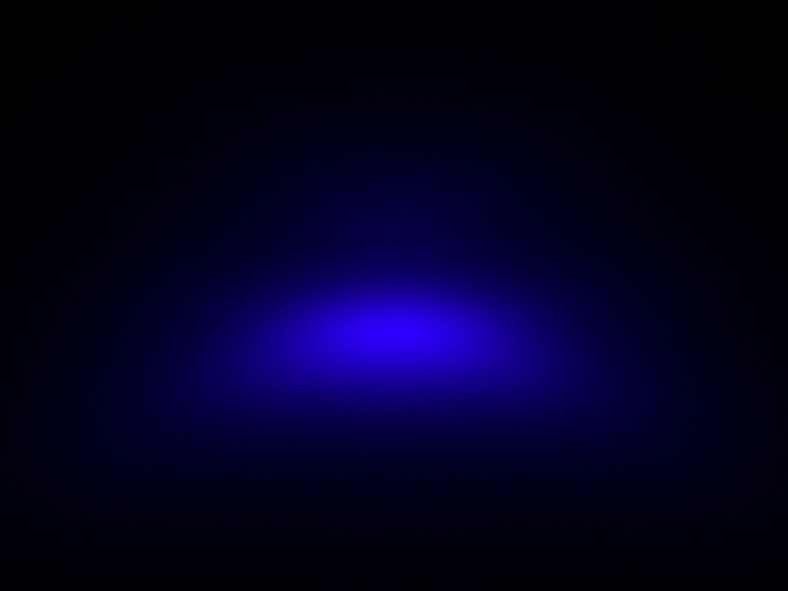

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

73.0%

FWHM:

90 x 26 x 16°

Ipk/W:

0.9


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

75.5%

FWHM:

91 x 26 x 16°

Cd/Im:

1.0

optic-60153-LUXEON_HL1Z-colour_spot-image

Download

IES

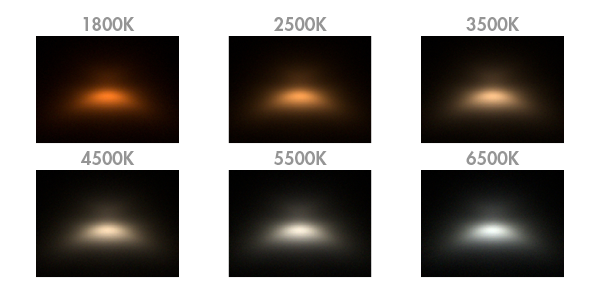

LUMILEDS LUXEON HL1Z Fusion Tunable White 1800-6500K

Eff:

75.5%

FWHM:

83 x 26 x 15°

Cd/Im:

1.0

optic-60153-Luxeon-HL1Z-Fusion-Colour-Spots


Download

LUMILEDS LUXEON HL2X-D White

Eff:

78.0%

FWHM:

82 x 39 x 15°

Cd/Im:

0.7

optic-60153-LUXEON_HL2X-D-colour_spot-image

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

78.5%

FWHM:

85 x 31 x 14°

Cd/Im:

0.9

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

78.0%

FWHM:

86 x 31 x 16°

Cd/Im:

0.9

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

80.0%

FWHM:

81 x 31 x 16°

Cd/Im:

0.9

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

77.0%

FWHM:

84 x 30 x 16°

Cd/Im:

0.9


Download

IES

LUMILEDS LUXEON Rubix White

Eff:

78.0%

FWHM:

83 x 31 x 16°

Cd/Im:

0.9

optic-60153-Luxeon_C_White-colour_spot-image

Download

IES

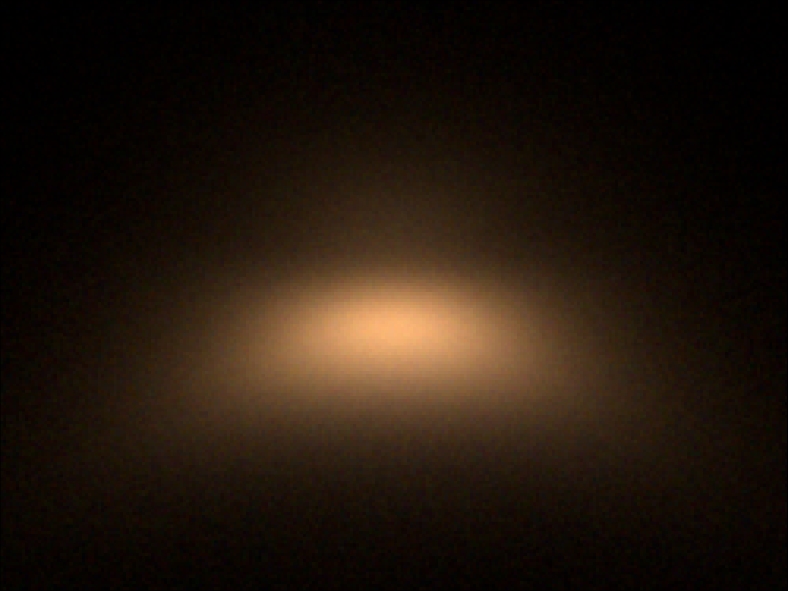

Luminus Devices MP-3030-11F2 White

Eff:

79.0%

FWHM:

81 x 31 x 17°

Cd/Im:

1.0


Download

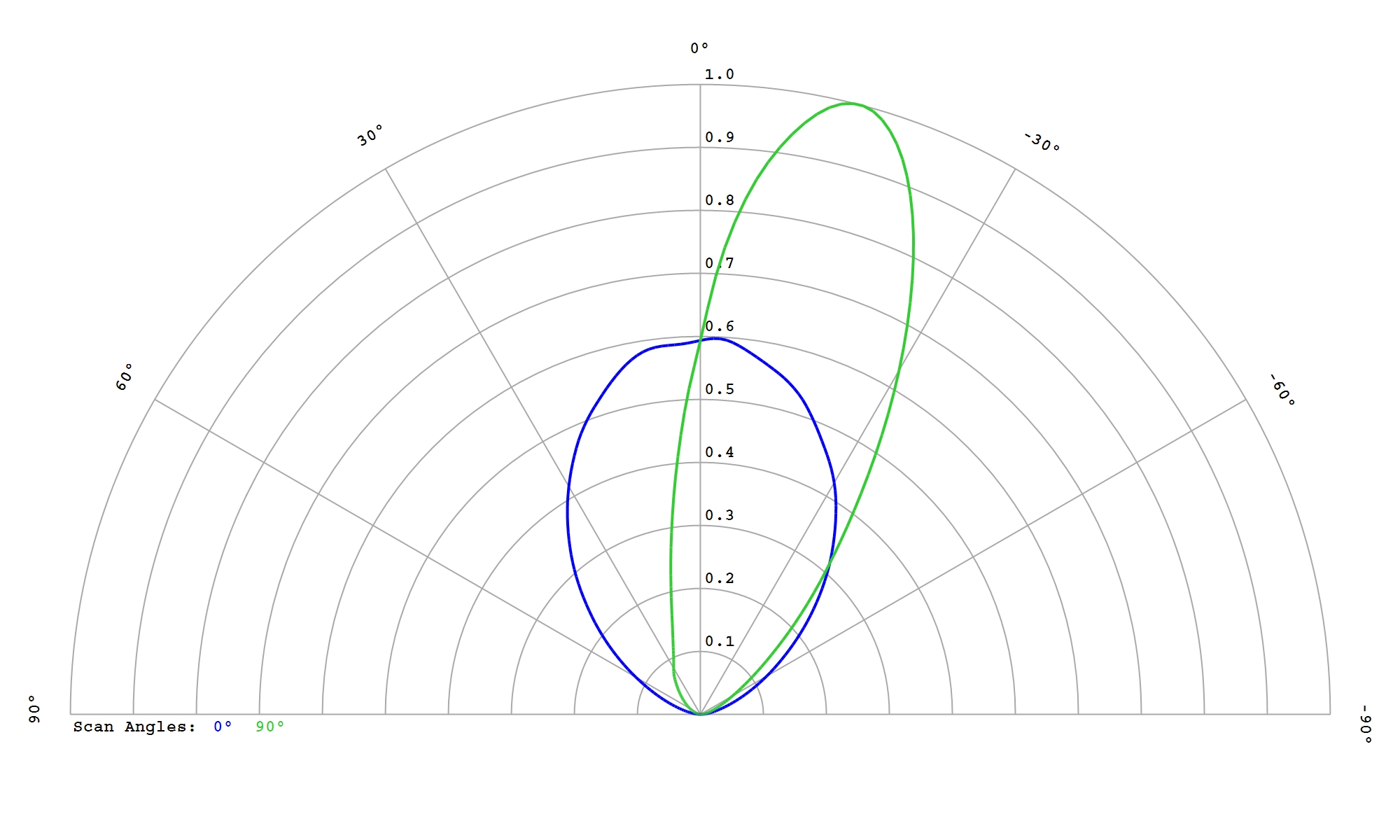

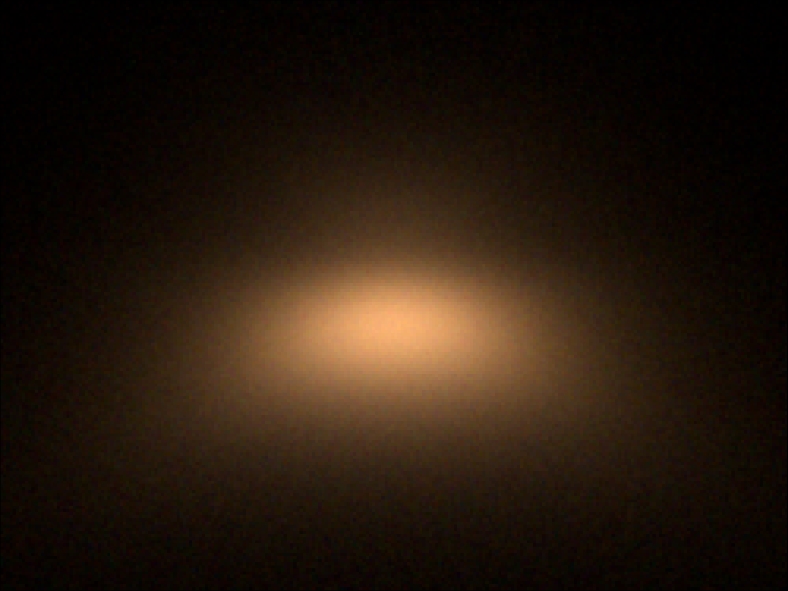

Luminus Devices MP-5050-240E White

Eff:

78.0%

FWHM:

77 x 36 x 14°

Cd/Im:

0.8


Download

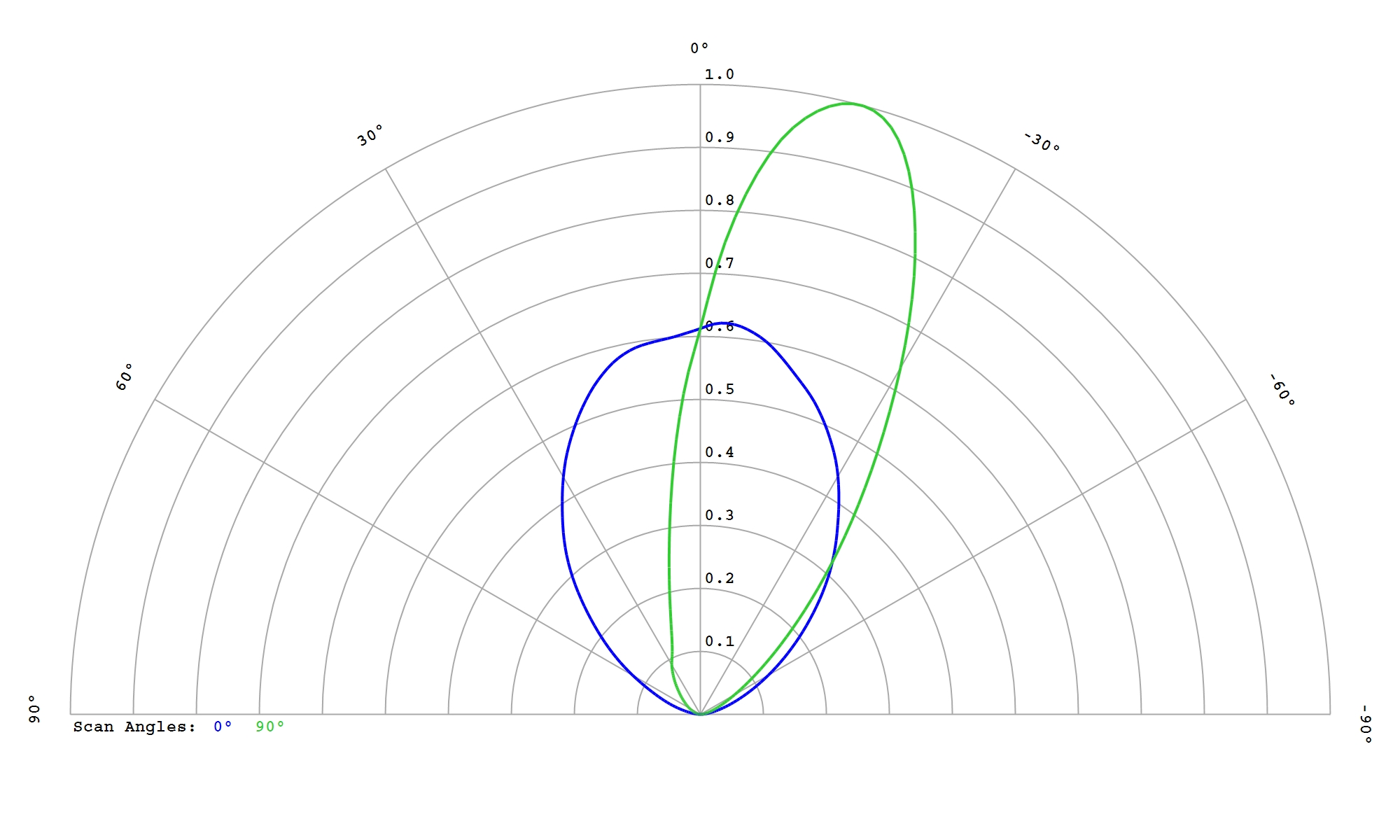

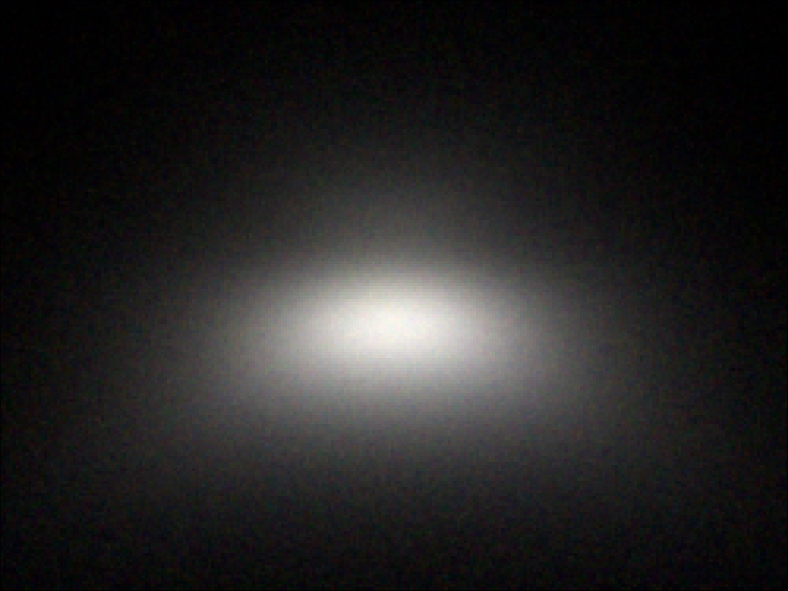

Luminus Devices MP-5050-810E White

Eff:

77.5%

FWHM:

76 x 37 x 17°

Cd/Im:

0.8


Download

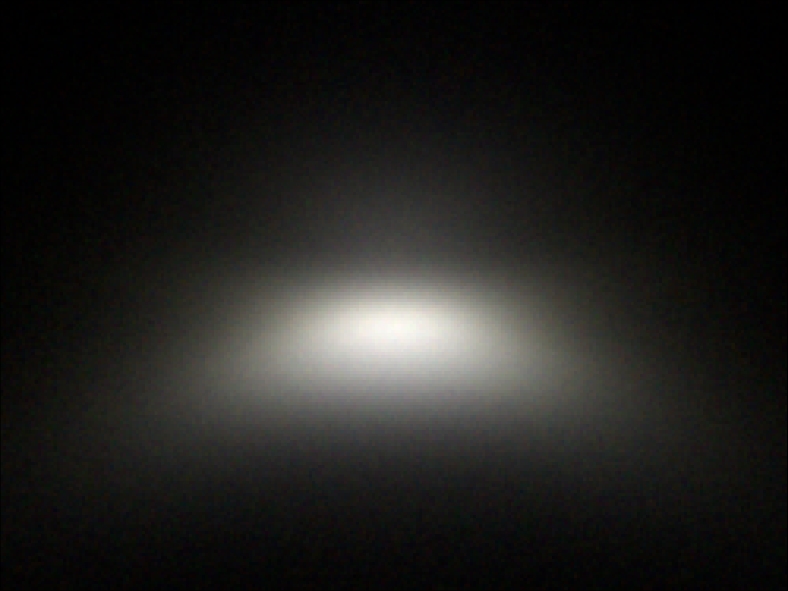

Luminus Devices SFT-12R-WES-A White

Eff:

79.0%

FWHM:

80 x 30 x 14°

Cd/Im:

0.9


Download

Luminus Devices SFT-12R-WES-F White

Eff:

79.0%

FWHM:

79 x 32 x 16°

Cd/Im:

0.9


Download

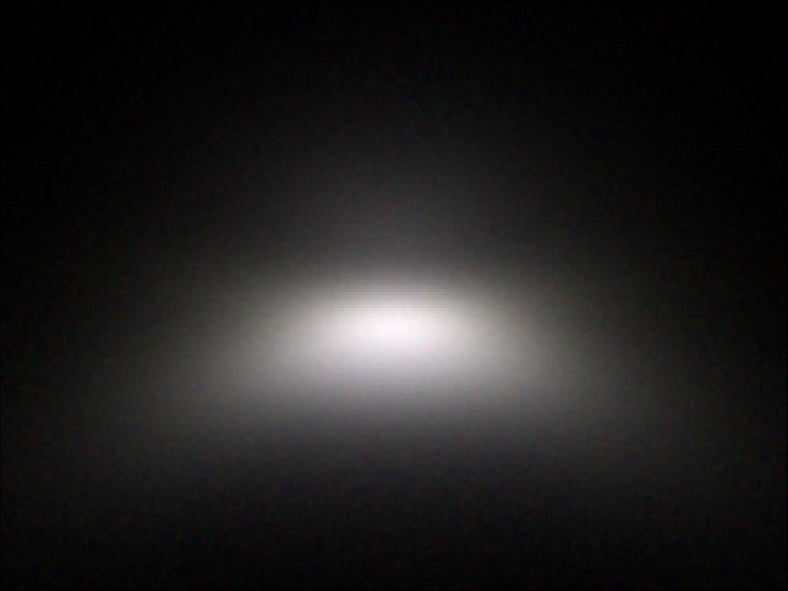

Luminus Devices SFT-25R-WES-A White

Eff:

79.0%

FWHM:

83 x 31 x 15°

Cd/Im:

0.9


Download

Luminus Devices SFT-25R-WES-F White

Eff:

79.0%

FWHM:

79 x 33 x 15°

Cd/Im:

0.9


Download

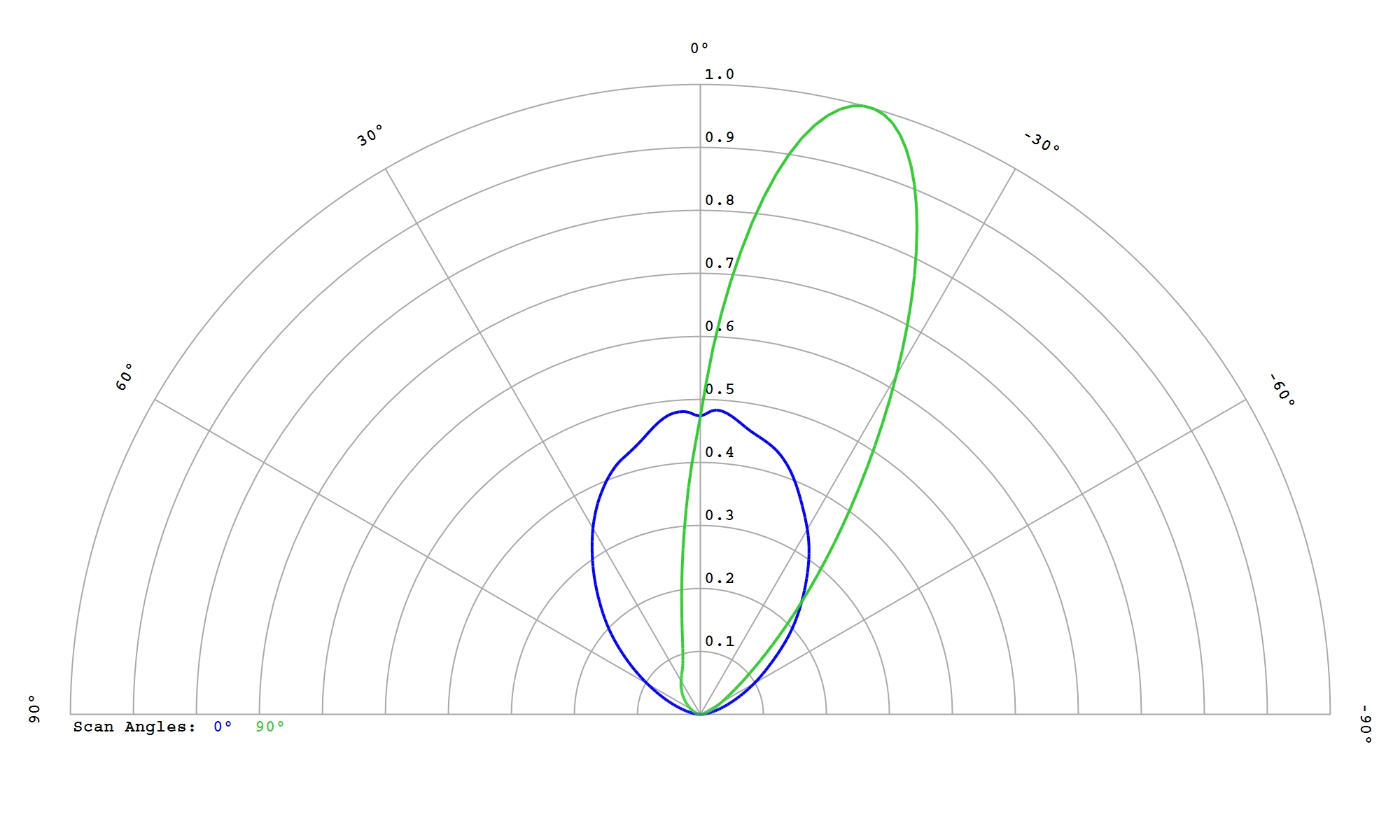

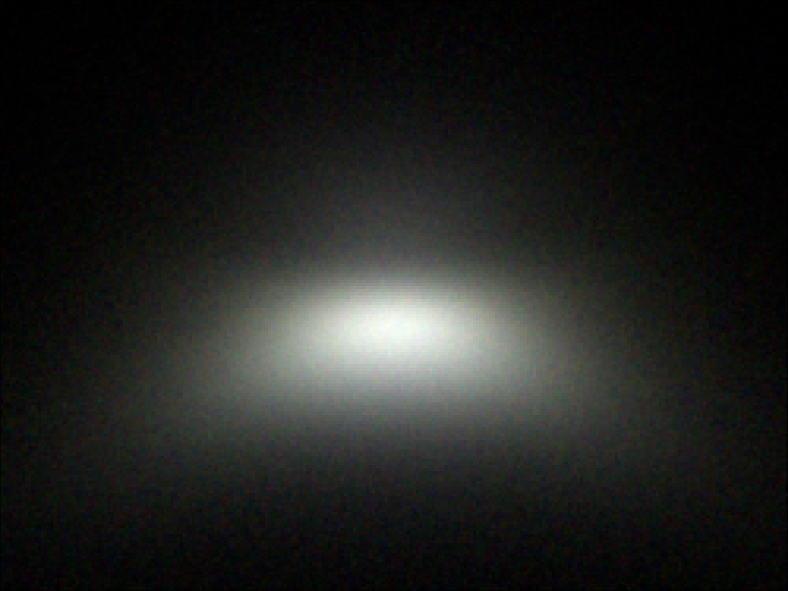

Luminus Devices SFT-40-W Gen2 White

Eff:

79.0%

FWHM:

76 x 32 x 17°

Cd/Im:

0.9


Download

Luminus Devices SFT-40-WxS White

Eff:

79.0%

FWHM:

83 x 31 x 15°

Cd/Im:

0.9

optic-60153-Luminus_SFT-40-WxS-colour_spot-image

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

79.0%

FWHM:

81 x 32 x 17°

Cd/Im:

0.9

optic-60153-Luminus_SFT-70X-W-colour_spot-image

Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

78.0%

FWHM:

78 x 34 x 16°

Cd/Im:

0.9


Download

IES

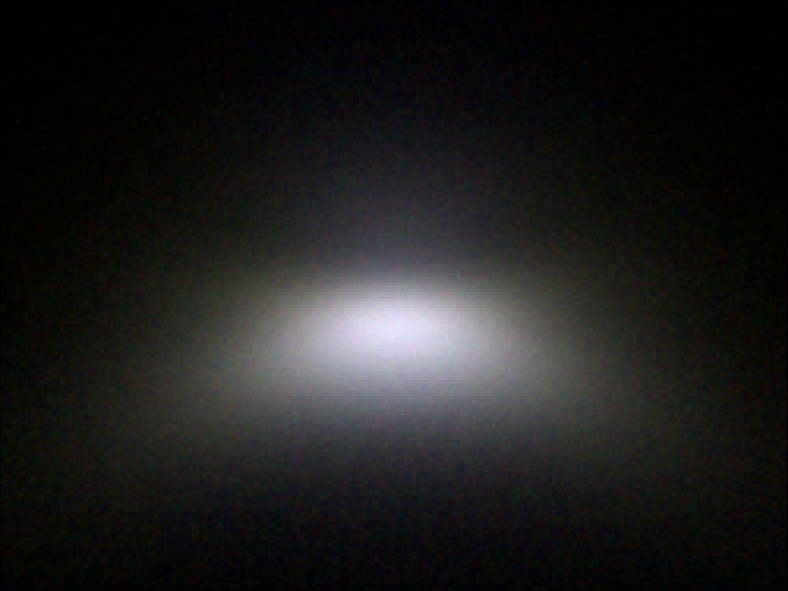

Luminus Devices SST-12-WS Gen2 White

Eff:

78.0%

FWHM:

77 x 32 x 15°

Cd/Im:

0.9


Download

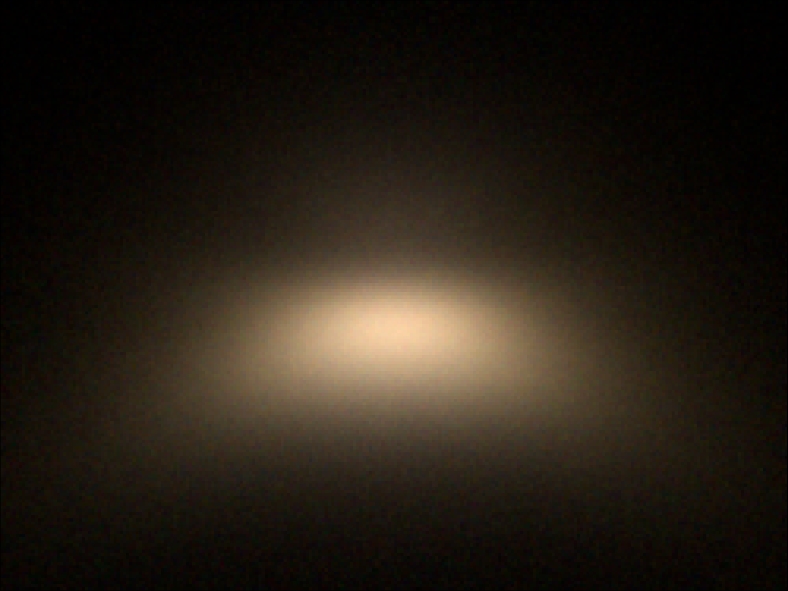

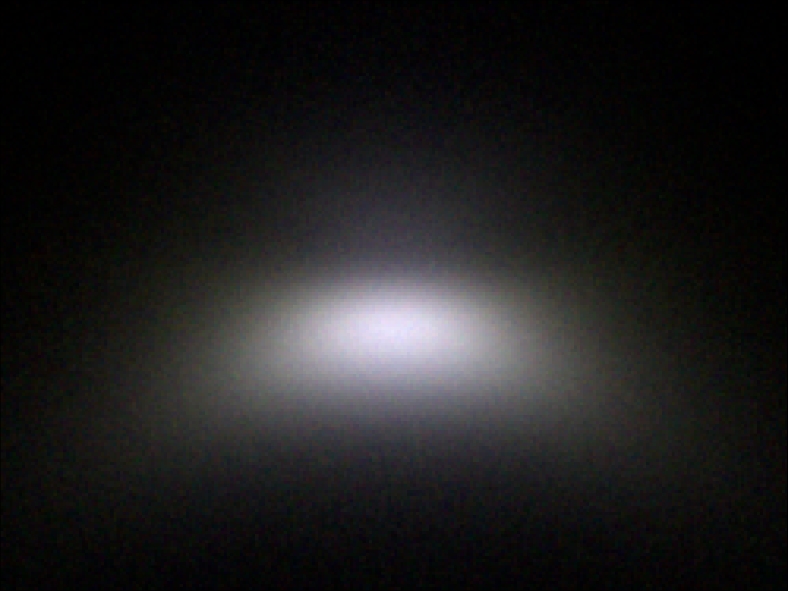

Luminus Devices SST-20-W Gen2 White

Eff:

77.5%

FWHM:

79 x 32 x 15°

Cd/Im:

0.9


Download

Nichia NCSW CSP E17A White

Eff:

75.0%

FWHM:

87 x 25.5 x 16°

Cd/Im:

1.0

optic-60153-Nichia_E17A-colour_spot-image

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

79.0%

FWHM:

78 x 32 x 16°

Cd/Im:

0.9

optic-60153-Nichia-757G-MT_4000K-colour_spot-image


Download

IES

Nichia NFSW 757G-V3 White

Eff:

78.5%

FWHM:

80 x 29 x 15°

Cd/Im:

0.9

Download

IES

Nichia NFSW 757H-V1H6 White

Eff:

79.0%

FWHM:

81 x 31 x 15°

Cd/Im:

0.9



Download

IES

Nichia NVSW CSP E21A White

Eff:

75.0%

FWHM:

85 x 26.5 x 15°

Cd/Im:

1.0

optic-60153-Nichia_E21A-colour_spot-image

Download

IES

Osram DURIS E3 Gen2 White

Eff:

78.5%

FWHM:

86 x 28 x 15°

Cd/Im:

1.0

optic-60153-Duris_E3_Gen2-colour-spot-image

Download

IES

Osram DURIS E5 White

Eff:

76.5%

FWHM:

80 x 27 x 16°

Cd/Im:

1.0

optic-60153-Duris_E5_JDSTS1em-colour_spot-image

Download

IES

Osram DURIS S5 White

Eff:

78.5%

FWHM:

75 x 31 x 16°

Cd/Im:

0.9

optic-60153-Duris_S5_PSLR31em-colour_spot-image

Download

IES

Osram DURIS S8 Gen3 White

Eff:

78.0%

FWHM:

81 x 37 x 12°

Cd/Im:

0.8

optic-60153-Duris_S8_Gen3_P9LR34em-colour_spot-image


Download

IES

Osram OSCONIQ C 2424 White

Eff:

78.5%

FWHM:

80 x 29.5 x 15°

Cd/Im:

1.0

optic-60153-OSCONIQ_C2424_GW_PLLRA_cm-colour_spot-image


Download

IES

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

77.5%

FWHM:

81 x 38 x 15°

Cd/Im:

0.7

optic-60153-Osram_OSCONIQ_S_5050_GW_QP9LR32.PM-colour_spot-image


Download

PM

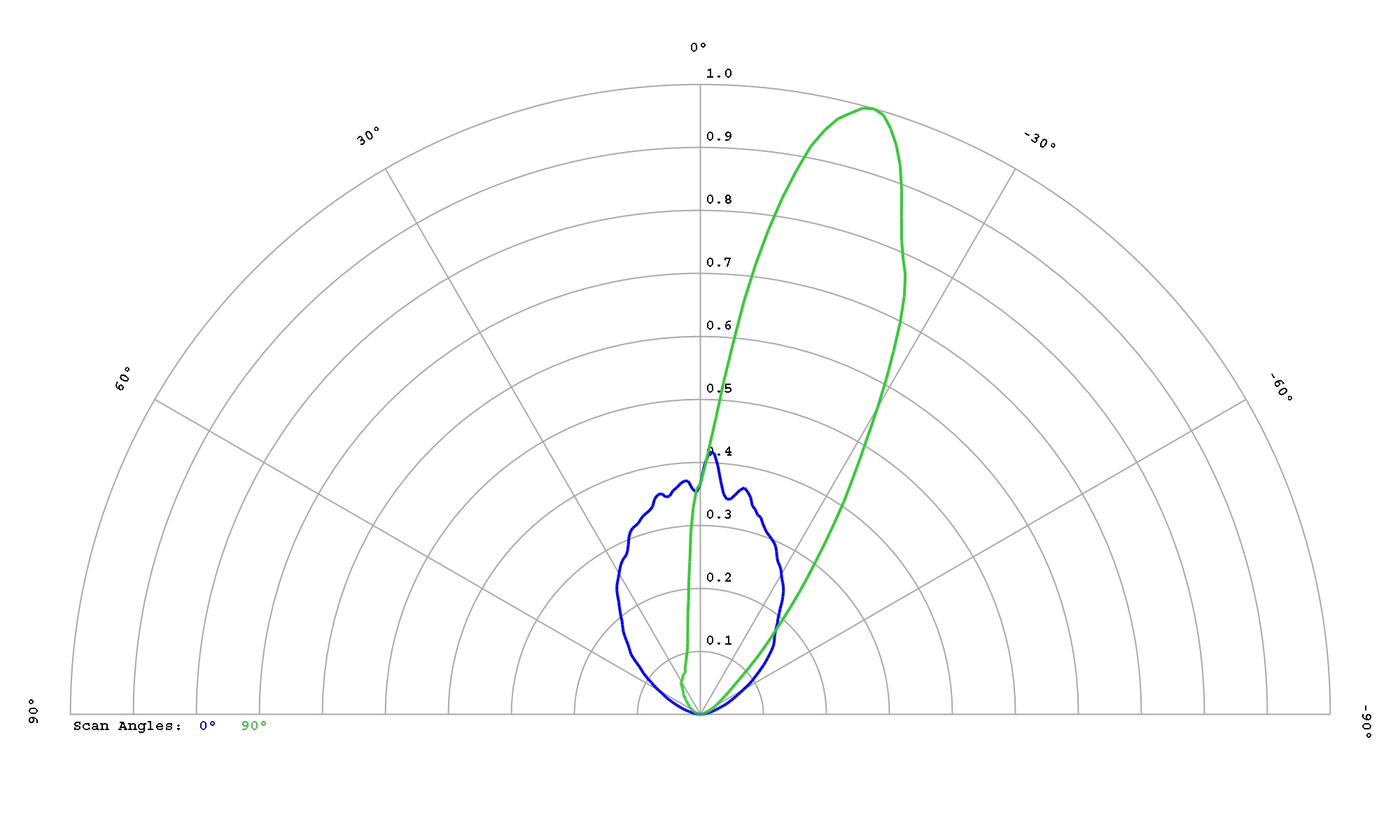

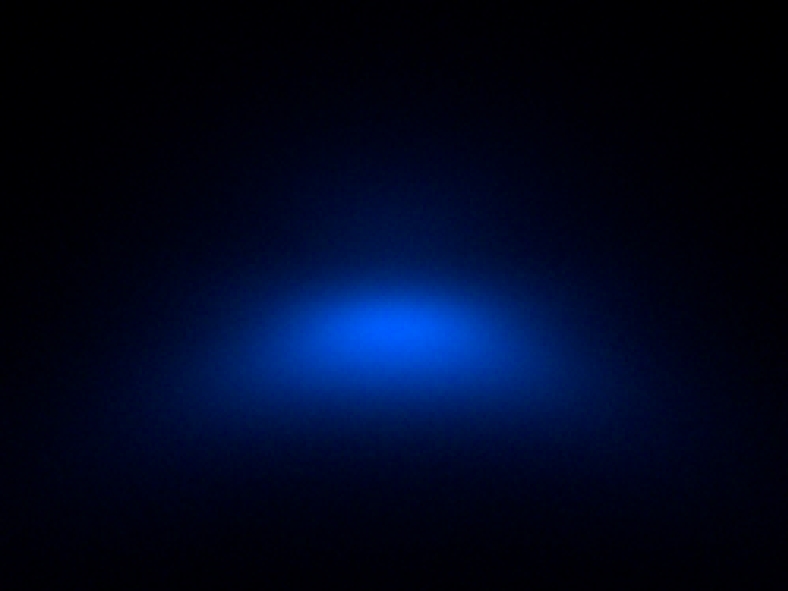

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

78.5%

FWHM:

73 x 27.5 x 16°

Cd/Im:

1.0


Download

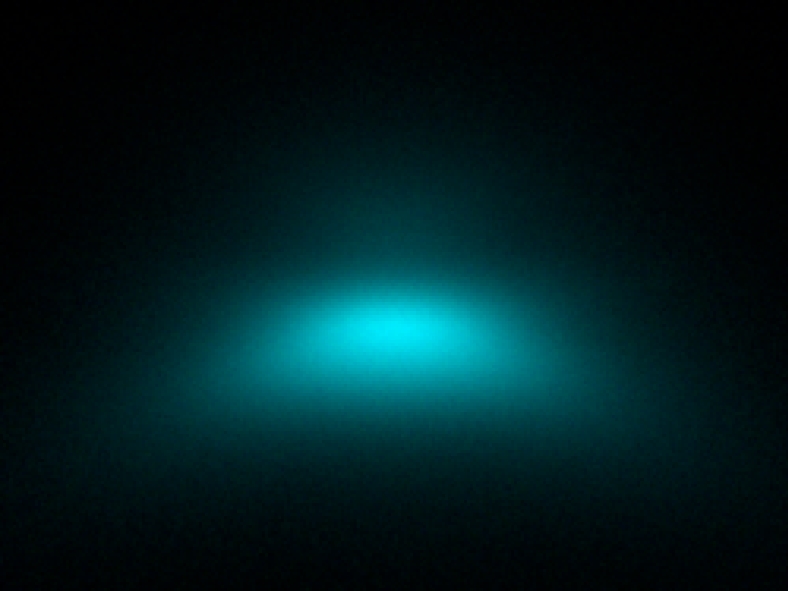

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

79.0%

FWHM:

76 x 28.5 x 15°

Cd/Im:

1.0


Download

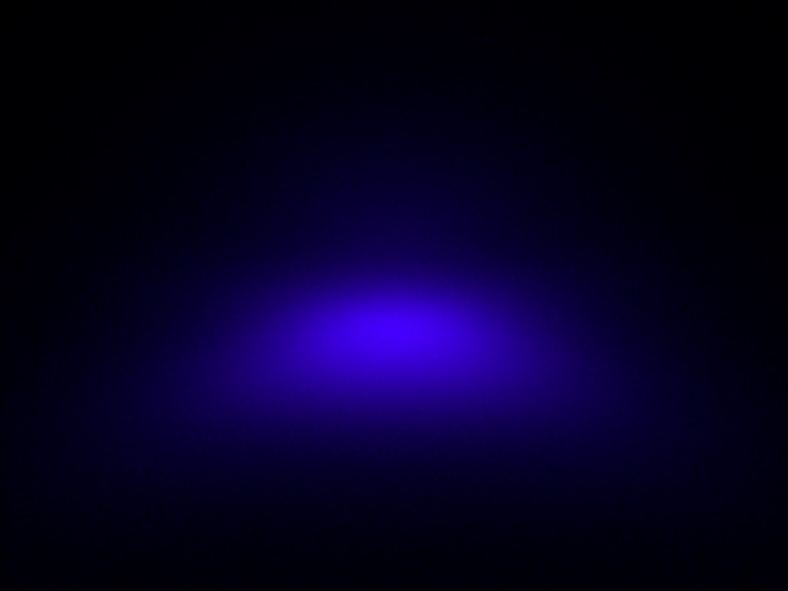

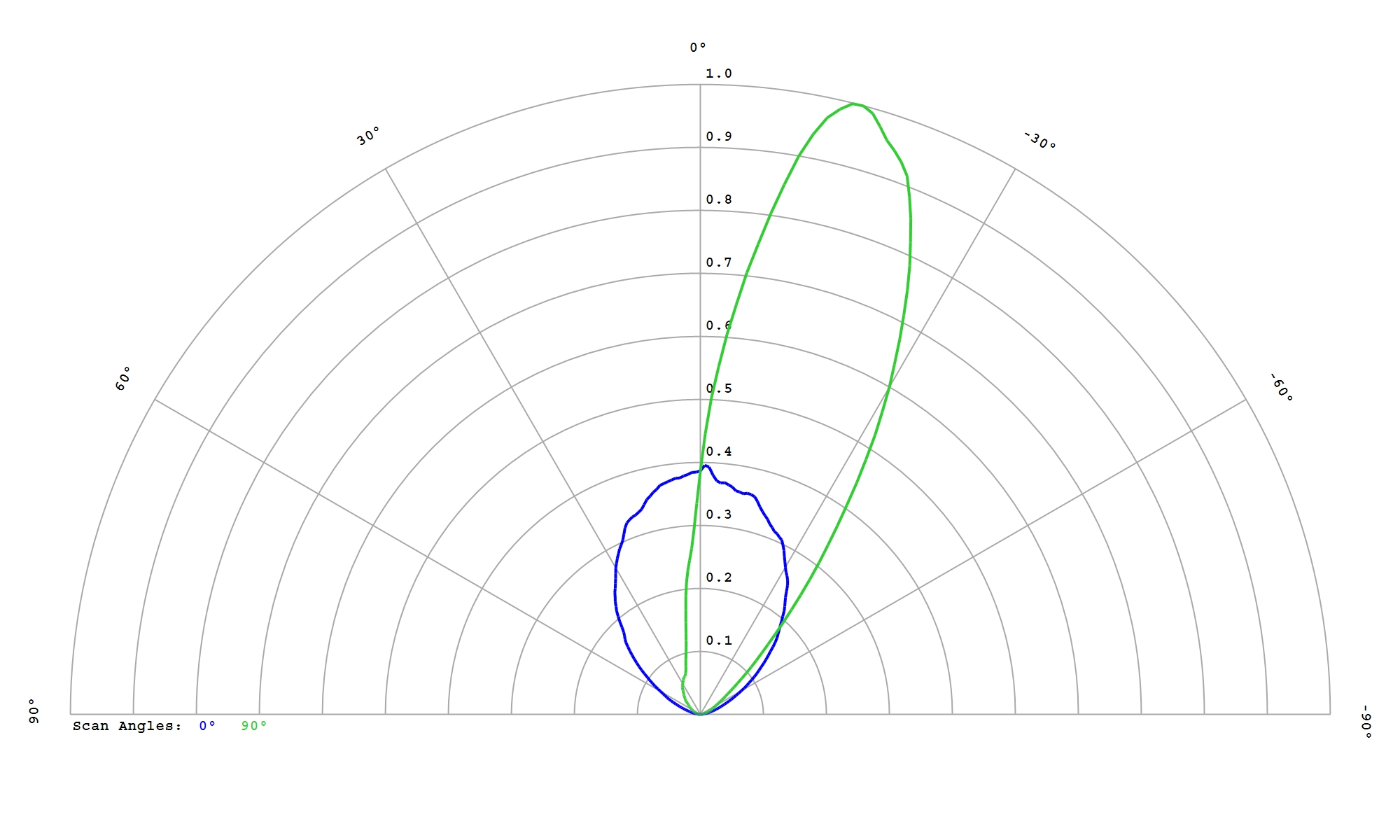

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

76.5%

FWHM:

80 x 30 x 15°

Ipk/W:

0.9


Download

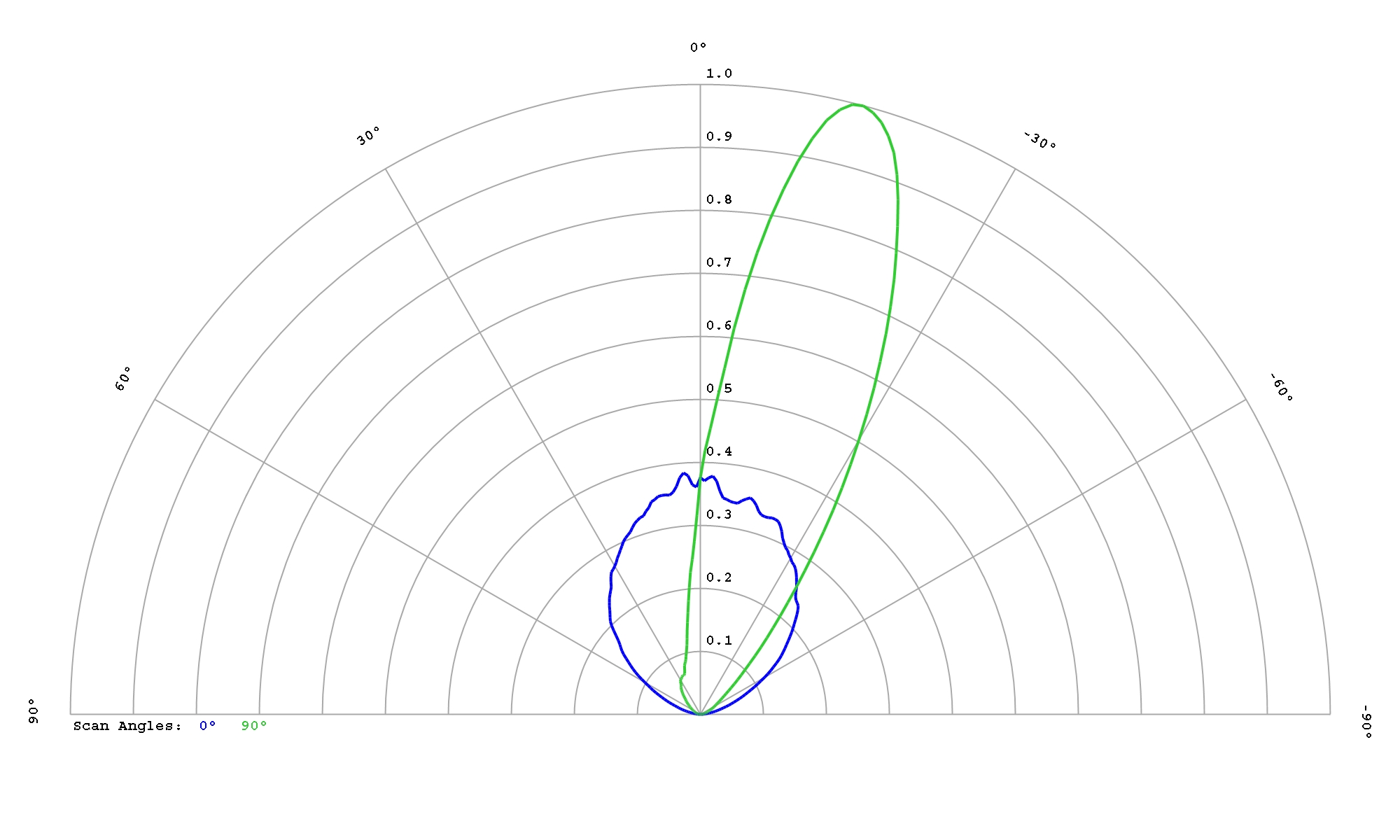

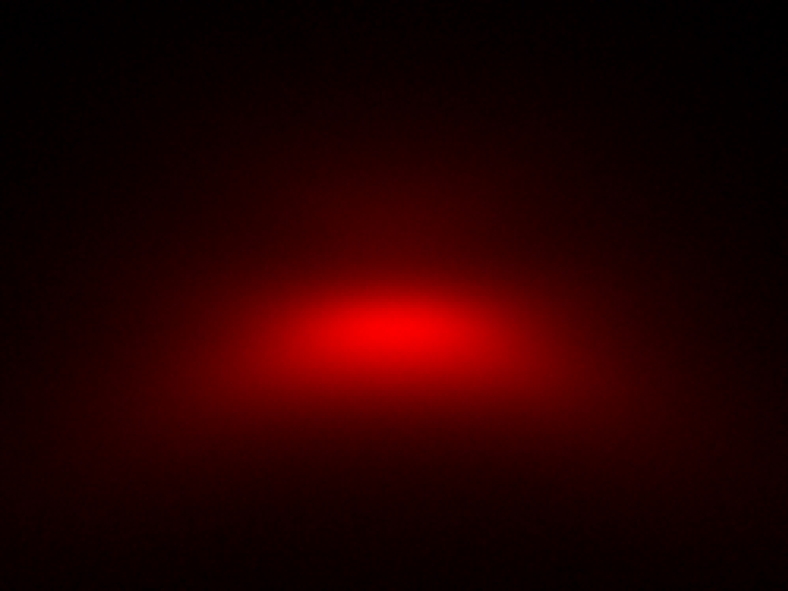

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

76.5%

FWHM:

94 x 26.5 x 15°

Cd/Im:

0.9


Download

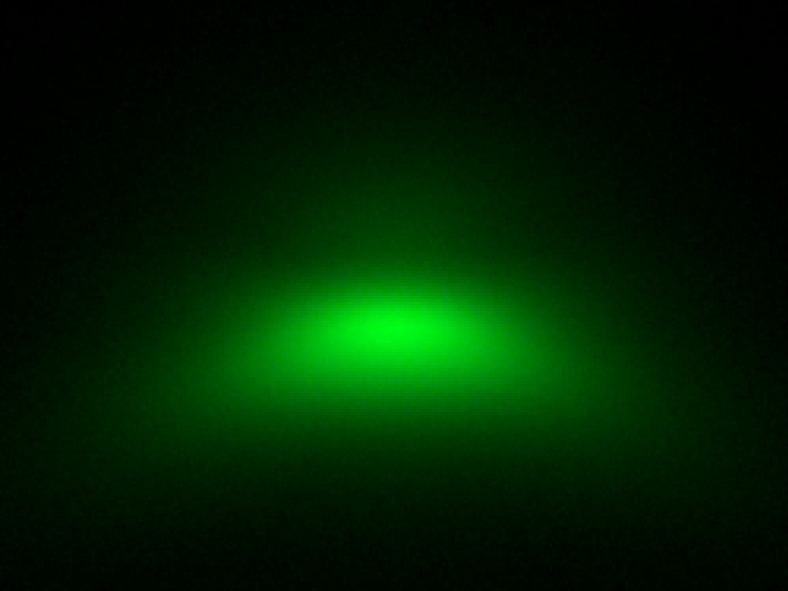

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

79.0%

FWHM:

76 x 28 x 15°

Cd/Im:

1.0


Download

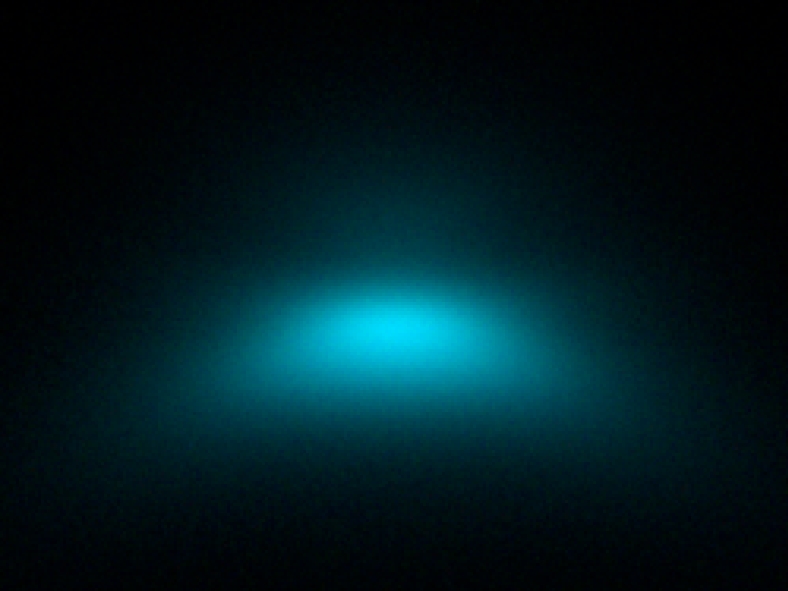

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

78.5%

FWHM:

81 x 28.5 x 16°

Cd/Im:

1.0


Download

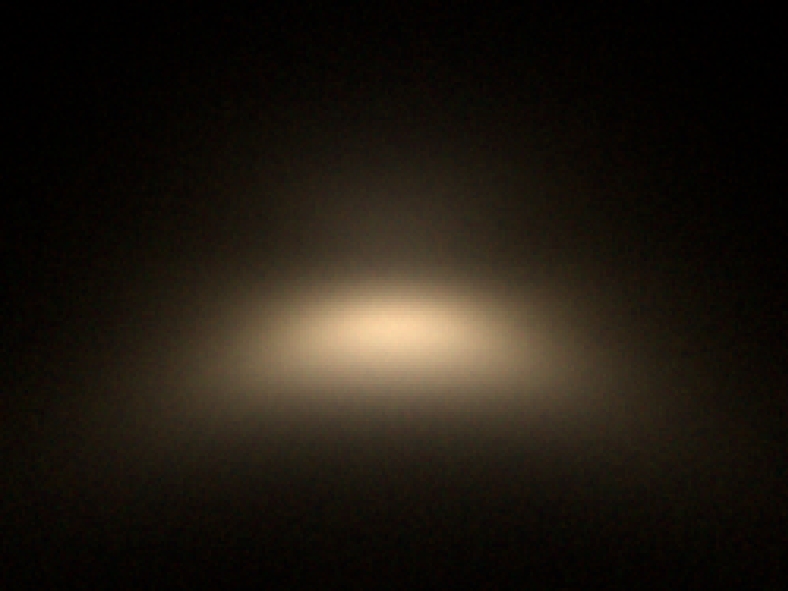

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

78.5%

FWHM:

84 x 27 x 15°

Cd/Im:

1.0

Download

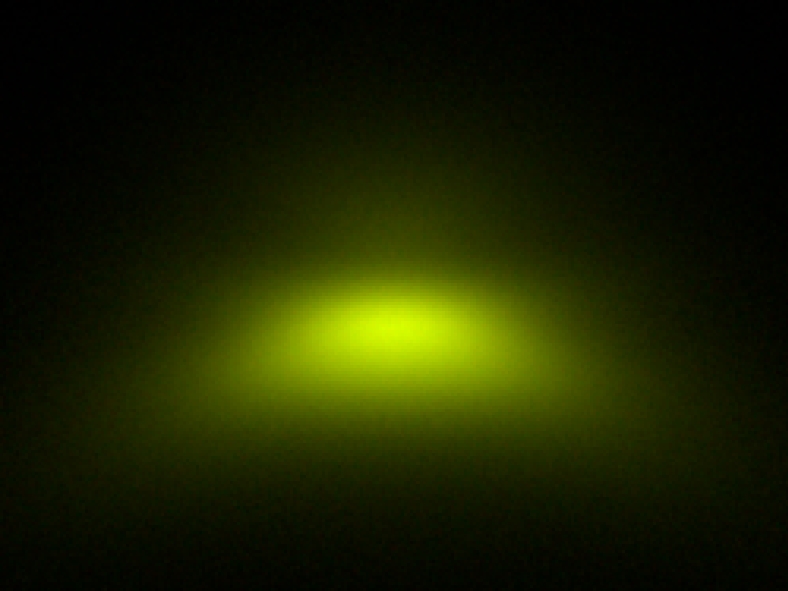

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

78.5%

FWHM:

79 x 31 x 15°

Cd/Im:

0.9


Download

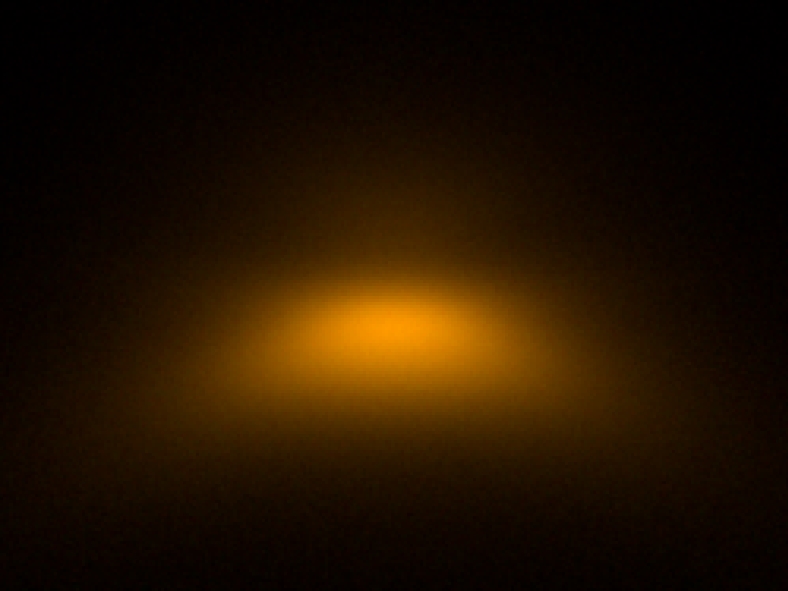

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

78.5%

FWHM:

79 x 29.5 x 15°

Cd/Im:

0.9


Download

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

78.0%

FWHM:

83 x 33 x 16°

Cd/Im:

0.9

optic-60153-Oslon_Square_Gen5_GW_CSSRM3pm-colour_spot-image


Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

77.0%

FWHM:

84 x 32 x 15°

Cd/Im:

0.8

optic-60153-Oslon_SSL_150_GW_CSHPM1pm-colour_spot-image


Download

IES

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

80.0%

FWHM:

62 x 32 x 15°

Ipk/W:

1.0


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

81.0%

FWHM:

62 x 32 x 15°

Cd/Im:

1.1


Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

79.0%

FWHM:

66 x 30 x 14°

Cd/Im:

1.1


Download

IES

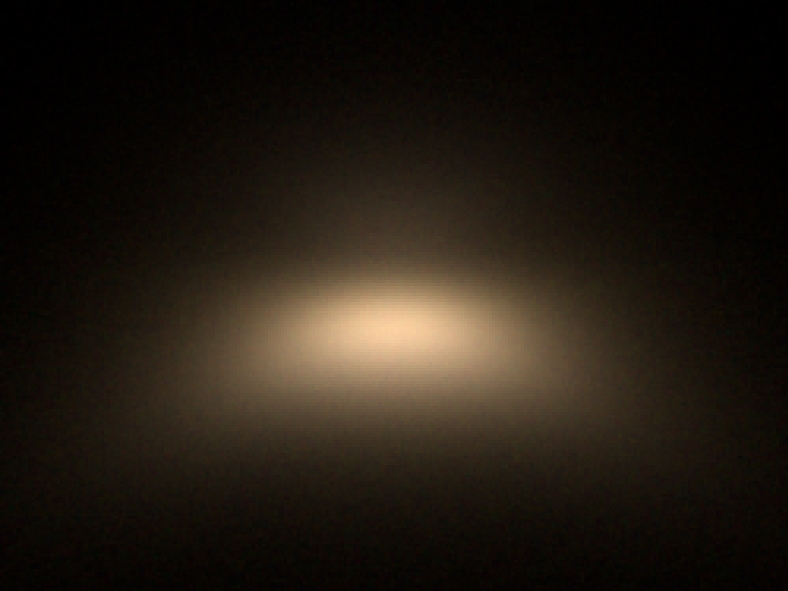

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

78.5%

FWHM:

79 x 30 x 16°

Cd/Im:

0.9

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

78.5%

FWHM:

79 x 29 x 15°

Cd/Im:

0.9

Download

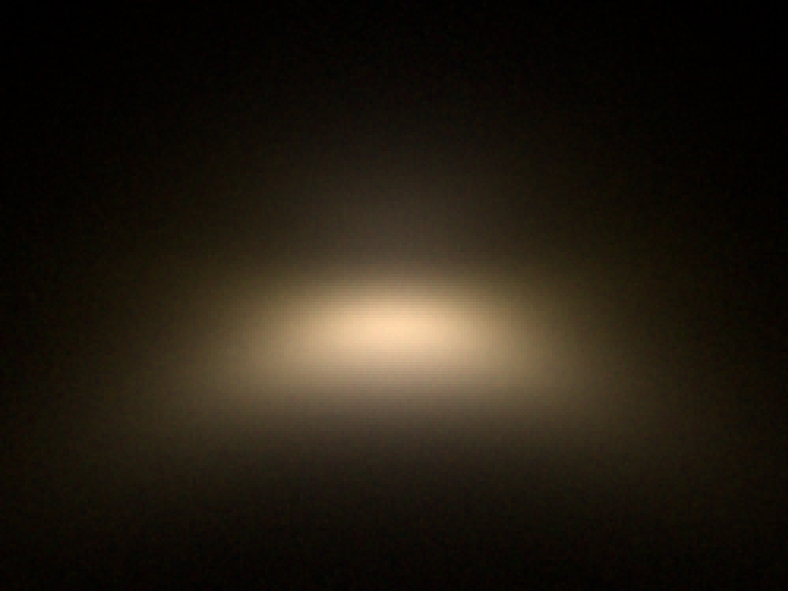

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

76.5%

FWHM:

83 x 28.5 x 15°

Cd/Im:

0.9

Download

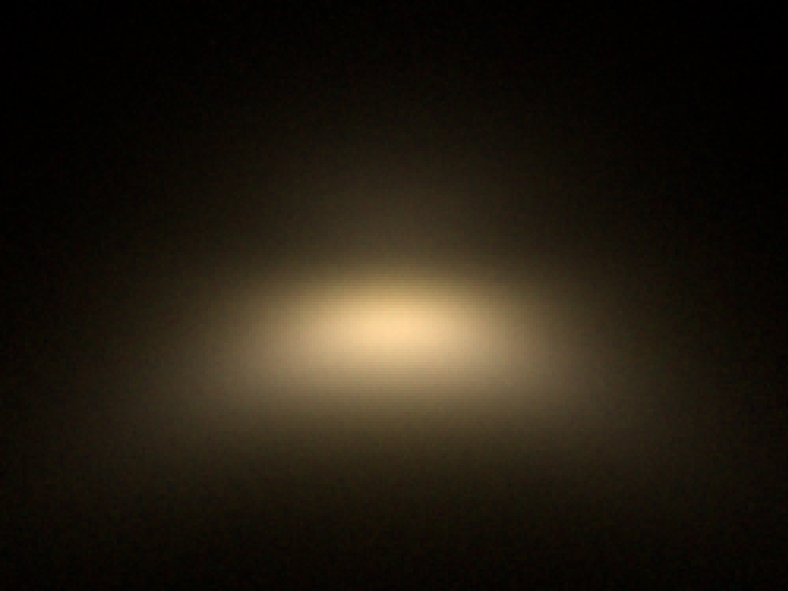

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

79.0%

FWHM:

82 x 31 x 14°

Cd/Im:

0.9

Download

Signify Philips Fortimo LED Strip 1120mm 4400lm 830 HV5B

Eff:

78.0%

FWHM:

79 x 28 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_1120mm_4400lm_830_HV5B-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip 1120mm 4400lm 830 LV5B

Eff:

78.0%

FWHM:

81 x 28 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_1120mm_4400lm_830_LV5B-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip 1120mm 4400lm 840 BC HV6

Eff:

78.5%

FWHM:

83 x 28 x 16°

Cd/Im:

1.0



Download

IES

Signify Philips Fortimo LED Strip 1ft 1100lm 840 BC HV6/LV6

Eff:

78.5%

FWHM:

80 x 28 x 15°

Cd/Im:

1.0



Download

IES

Signify Philips Fortimo LED Strip 1ft 1100lm 940 BC HV6

Eff:

78.5%

FWHM:

80 x 28 x 15°

Cd/Im:

1.0



Download

IES

Signify Philips Fortimo LED Strip 1ft 2000lm 840 BC HV6

Eff:

79.0%

FWHM:

80 x 31 x 16°

Cd/Im:

0.9



Download

IES

Signify Philips Fortimo LED Strip 2ft 2200lm 840 BC HV6/LV6

Eff:

78.5%

FWHM:

79 x 28 x 15°

Cd/Im:

1.0



Download

IES

Signify Philips Fortimo LED Strip 2ft 2200lm 940 BC HV6/LV6

Eff:

78.5%

FWHM:

76 x 28.5 x 15°

Cd/Im:

1.0



Download

IES

Signify Philips Fortimo LED Strip 2ft 4000lm 840 BC HV6

Eff:

79.0%

FWHM:

79 x 30 x 16°

Cd/Im:

0.9



Download

IES

Signify Philips Fortimo LED Strip OC 1ft 1100lm 840 BC HV5

Eff:

78.0%

FWHM:

83 x 29 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_1ft_1100lm_840_BC_HV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 1ft 1100lm 840 BC LV5

Eff:

78.0%

FWHM:

82 x 29.5 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_1ft_1100lm_840_BC_LV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 1ft 1100lm 940 BC HV5

Eff:

77.5%

FWHM:

82 x 28.5 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_1ft_1100lm_940_BC_HV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 1ft 1100lm 940 BC LV5

Eff:

77.5%

FWHM:

81 x 28 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_1ft_1100lm_940_BC_LV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 2ft 2200lm 840 BC HV5

Eff:

78.0%

FWHM:

82 x 28 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_2ft_2200lm_840_BC_HV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 2ft 2200lm 840 BC LV5

Eff:

77.5%

FWHM:

80 x 29 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_2ft_2200lm_840_BC_LV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 2ft 2200lm 940 BC HV5

Eff:

77.5%

FWHM:

75 x 28.5 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_2ft_2200lm_940_BC_HV5-colour_spot-image


Download

IES

Signify Philips Fortimo LED Strip OC 2ft 2200lm 940 BC LV5

Eff:

78.0%

FWHM:

80 x 29 x 15°

Cd/Im:

0.9

optic-60153-Fortimo_LED_Strip_OC_2ft_2200lm_940_BC_LV5-colour_spot-image


Download

IES

Samsung 2835 LM281B+ White

Eff:

79.0%

FWHM:

79 x 30 x 15°

Cd/Im:

0.9



Download

IES

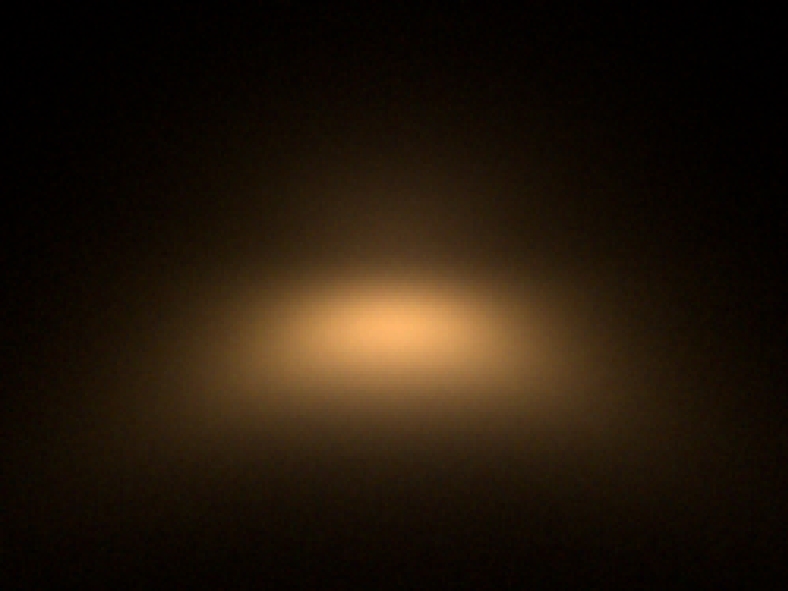

Samsung 2835 LM282B+ White

Eff:

79.0%

FWHM:

81 x 30 x 16°

Cd/Im:

0.9



Download

Samsung 3030 LM301B (TW) Tunable White 2700-6500K

Eff:

79.0%

FWHM:

76 x 32 x 16°

Cd/Im:

0.9


Download

IES

Samsung 3030 LM301B White

Eff:

79.0%

FWHM:

82 x 30 x 16°

Cd/Im:

0.9


Download

IES

Samsung 5050 LH502C White

Eff:

77.5%

FWHM:

79 x 38 x 14°

Cd/Im:

0.7


Download

IES

Samsung 5050 LH502D White

Eff:

77.5%

FWHM:

81 x 36 x 15°

Cd/Im:

0.8


Download

IES

Samsung 5050 LH508C White

Eff:

78.0%

FWHM:

78 x 38 x 14°

Cd/Im:

0.8


Download

IES

Samsung CSP LH151B White

Eff:

77.5%

FWHM:

84 x 25.5 x 16°

Cd/Im:

1.0

optic-60153-Samsung_LH151B-colour_spot-image

Download

IES

Samsung CSP LH181B White

Eff:

77.0%

FWHM:

80 x 27.5 x 16°

Cd/Im:

1.0

optic-60153-Samsung_LH181B_4000K-colour_spot-image


Download

IES

Samsung CSP LH231B White

Eff:

77.0%

FWHM:

82 x 29 x 16°

Cd/Im:

0.9

optic-60153-Samsung_LH231B_5000K-colour_spot-image


Download

IES

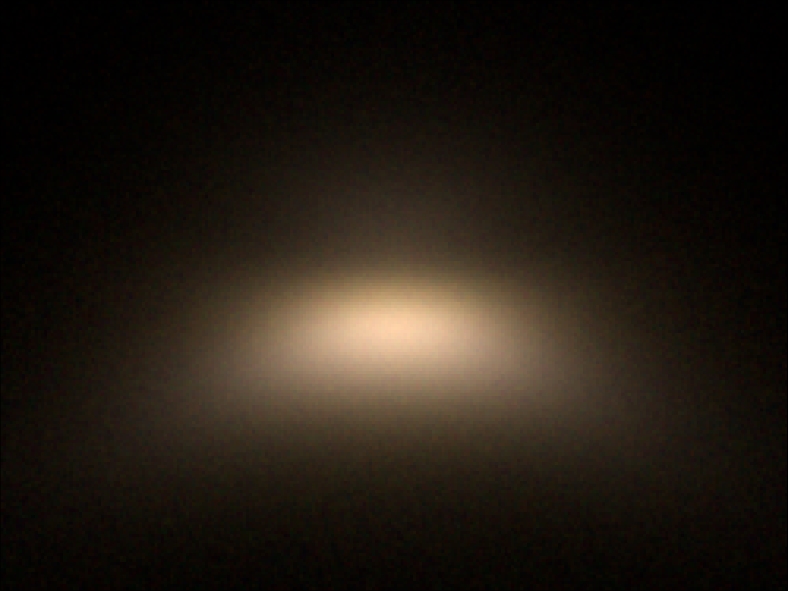

Seoul 3030 STW8C12E-E0 White

Eff:

78.5%

FWHM:

81 x 29.5 x 15°

Cd/Im:

0.9

Download

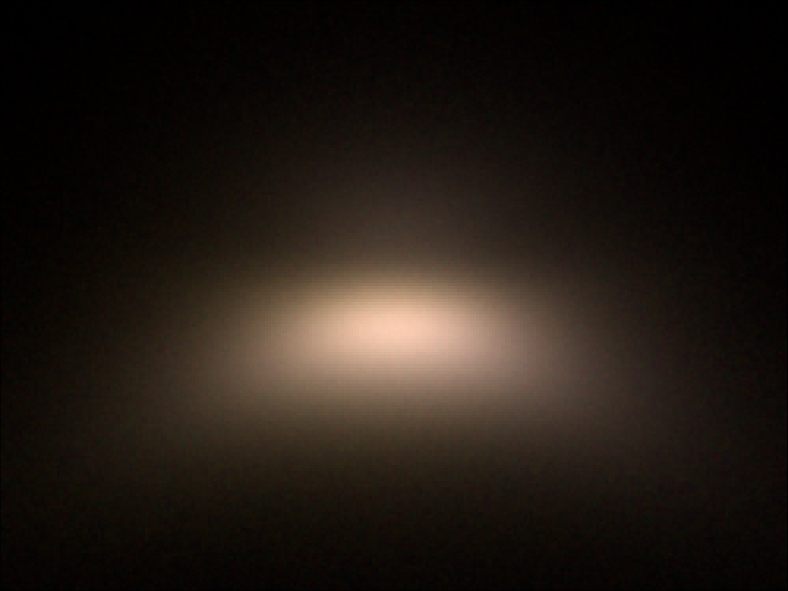

Seoul 3528 G STW8A2PD-G700 White

Eff:

78.5%

FWHM:

82 x 30 x 16°

Cd/Im:

0.9

Download

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

78.5%

FWHM:

81 x 30 x 16°

Cd/Im:

0.9

optic-60153-Seoul_STW8C2SB-NT-colour_spot-image


Download

IES

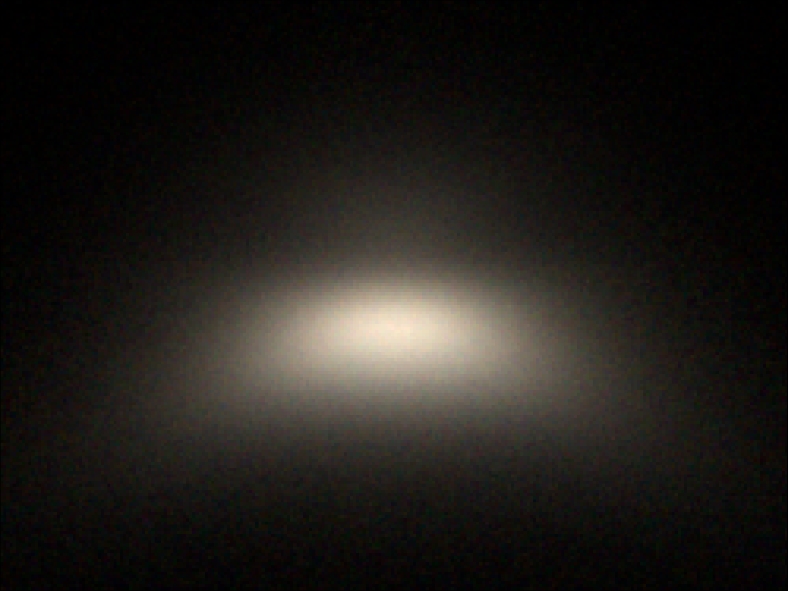

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

78.5%

FWHM:

77 x 29.5 x 15°

Cd/Im:

1.0

Download

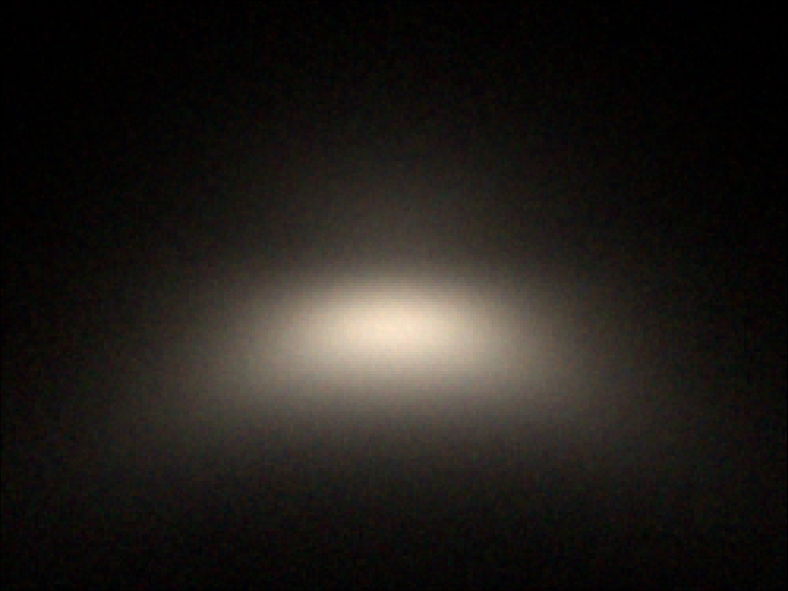

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

79.0%

FWHM:

78 x 30 x 16°

Cd/Im:

0.9

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

78.5%

FWHM:

80 x 29.5 x 14°

Cd/Im:

0.9

optic-60153-Seoul_STW9C2SB-S-4000K-colour_spot-image


Download

IES

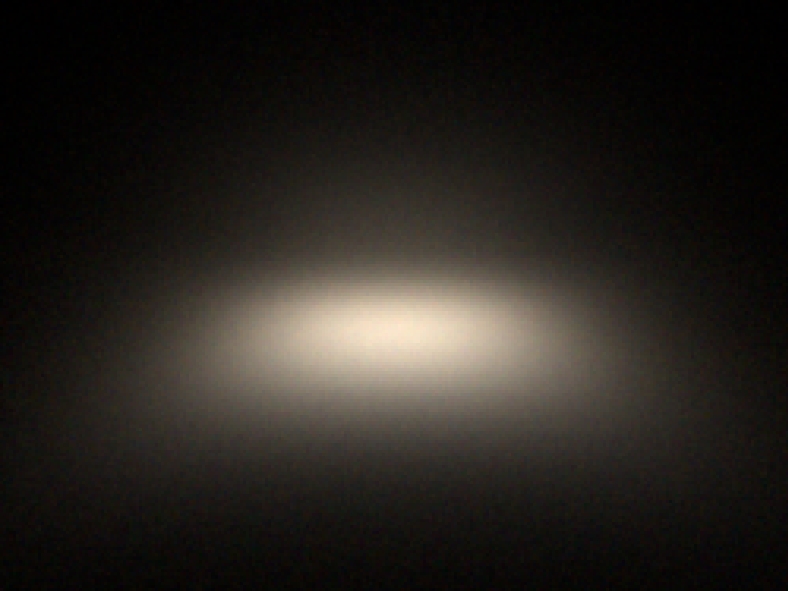

Signify Philips Fortimo LEDFlex 2000lm/m 940 PW C5 G1

Eff:

79.0%

FWHM:

81 x 31 x 15°

Cd/Im:

0.9


Download

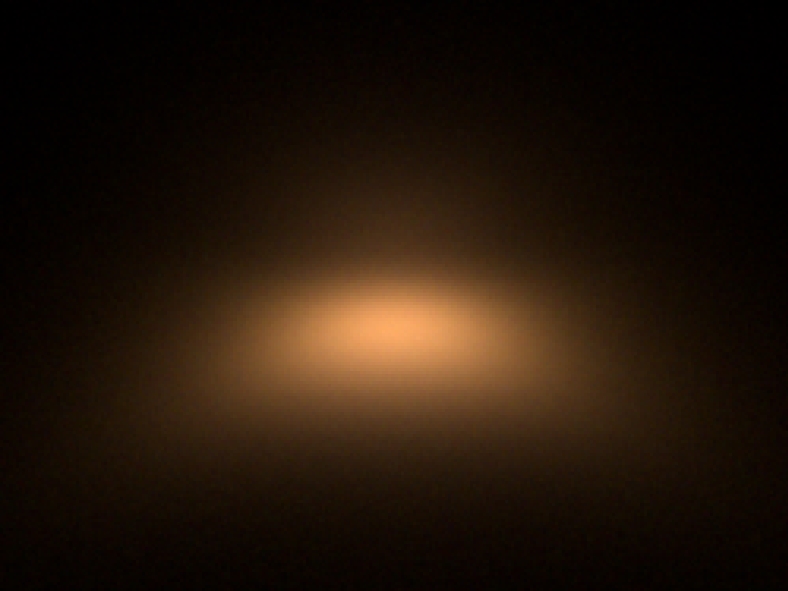

Tron 20mm Ind LMIDS-0280-E-H30-D White

Eff:

79.0%

FWHM:

78 x 30 x 15°

Cd/Im:

0.9



Download

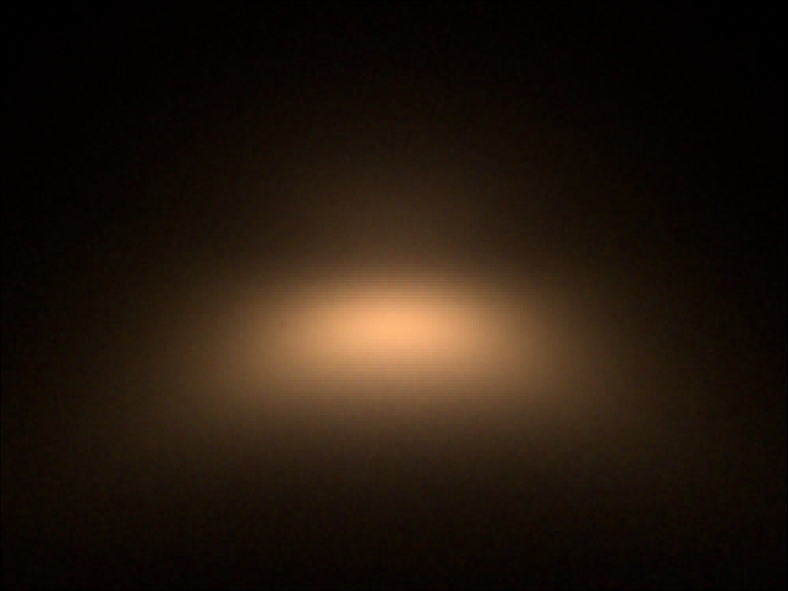

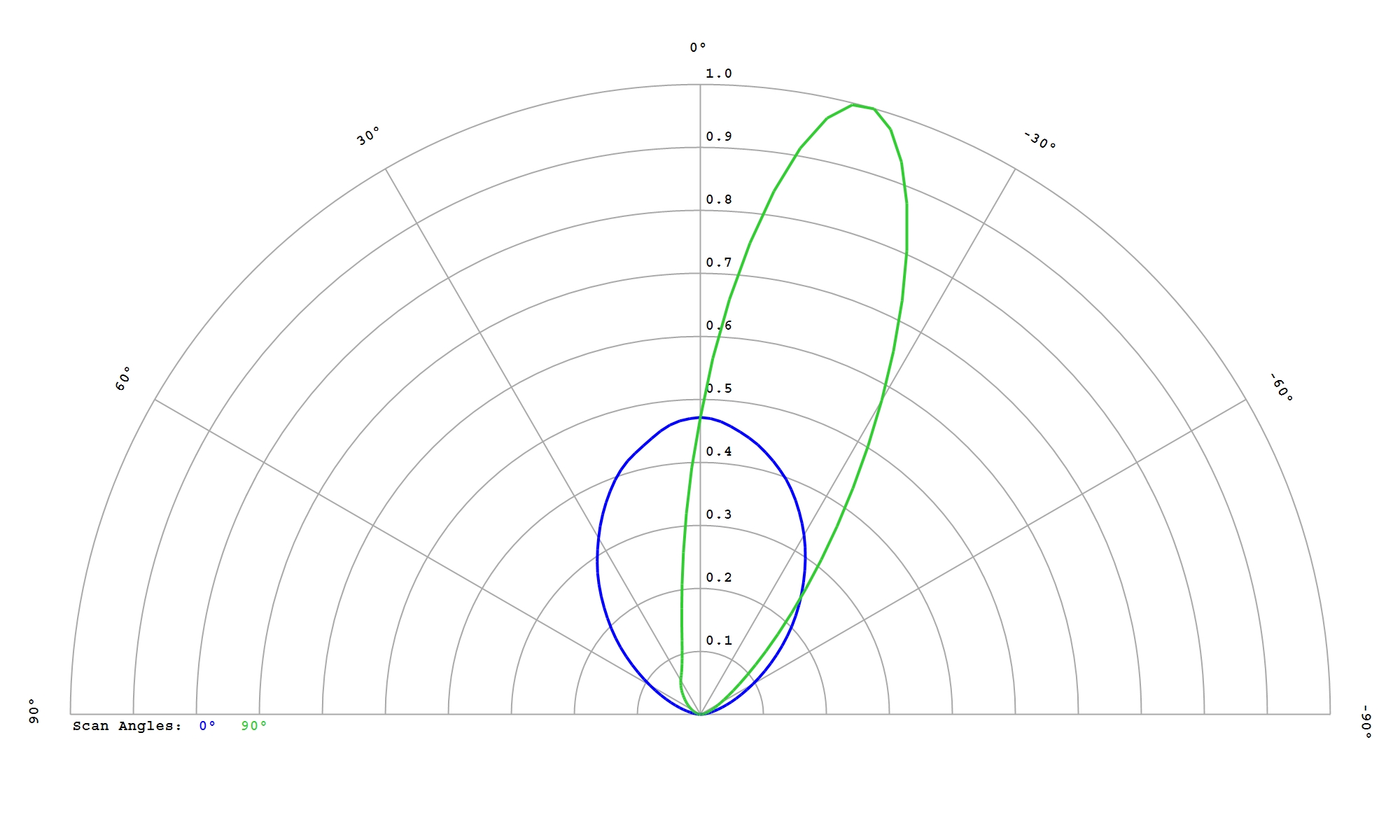

Tron 20mm Ind LMIDS-0280-P-H30-D White

Eff:

79.0%

FWHM:

76 x 29.5 x 15°

Cd/Im:

0.9



Download

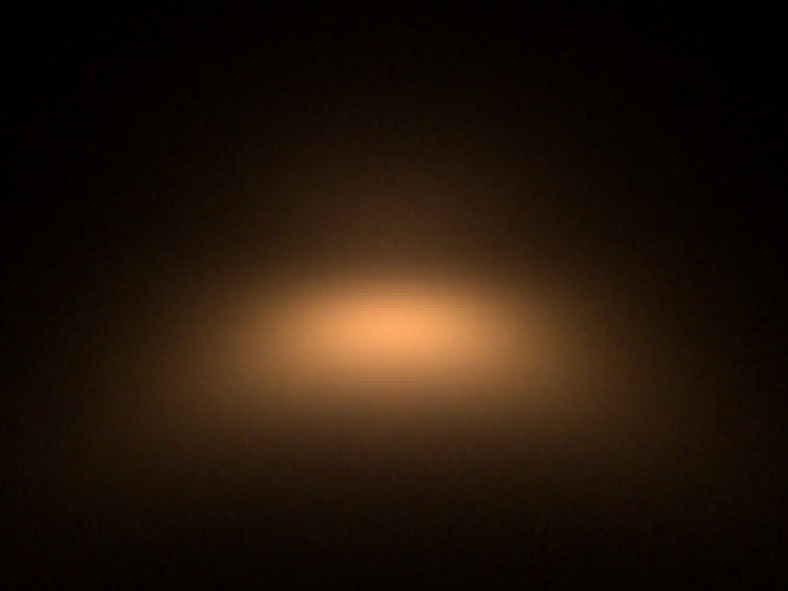

Tron 20mm Ind LMIDS-0560-E-H30-D White

Eff:

79.0%

FWHM:

81 x 30 x 15°

Cd/Im:

0.9



Download

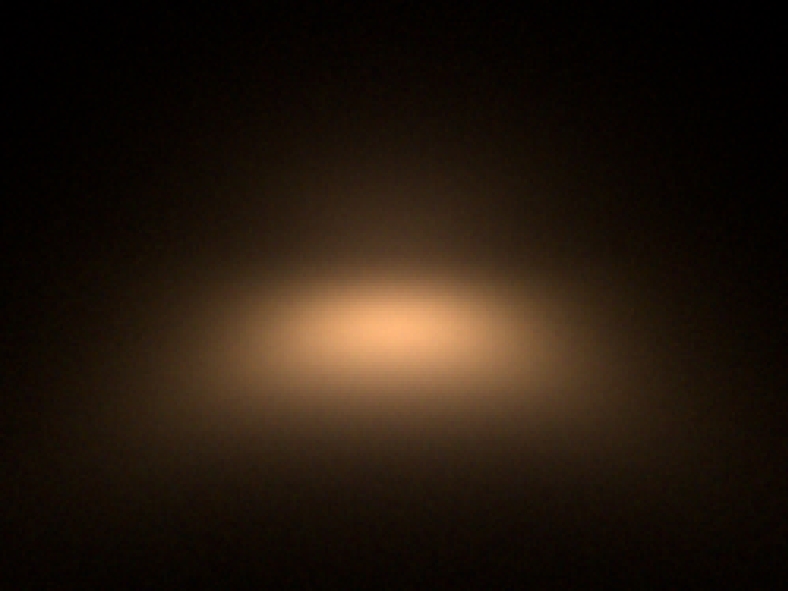

Tron 20mm Ind LMIDS-0560-P-H30-D White

Eff:

79.0%

FWHM:

82 x 30 x 15°

Cd/Im:

0.9



Download

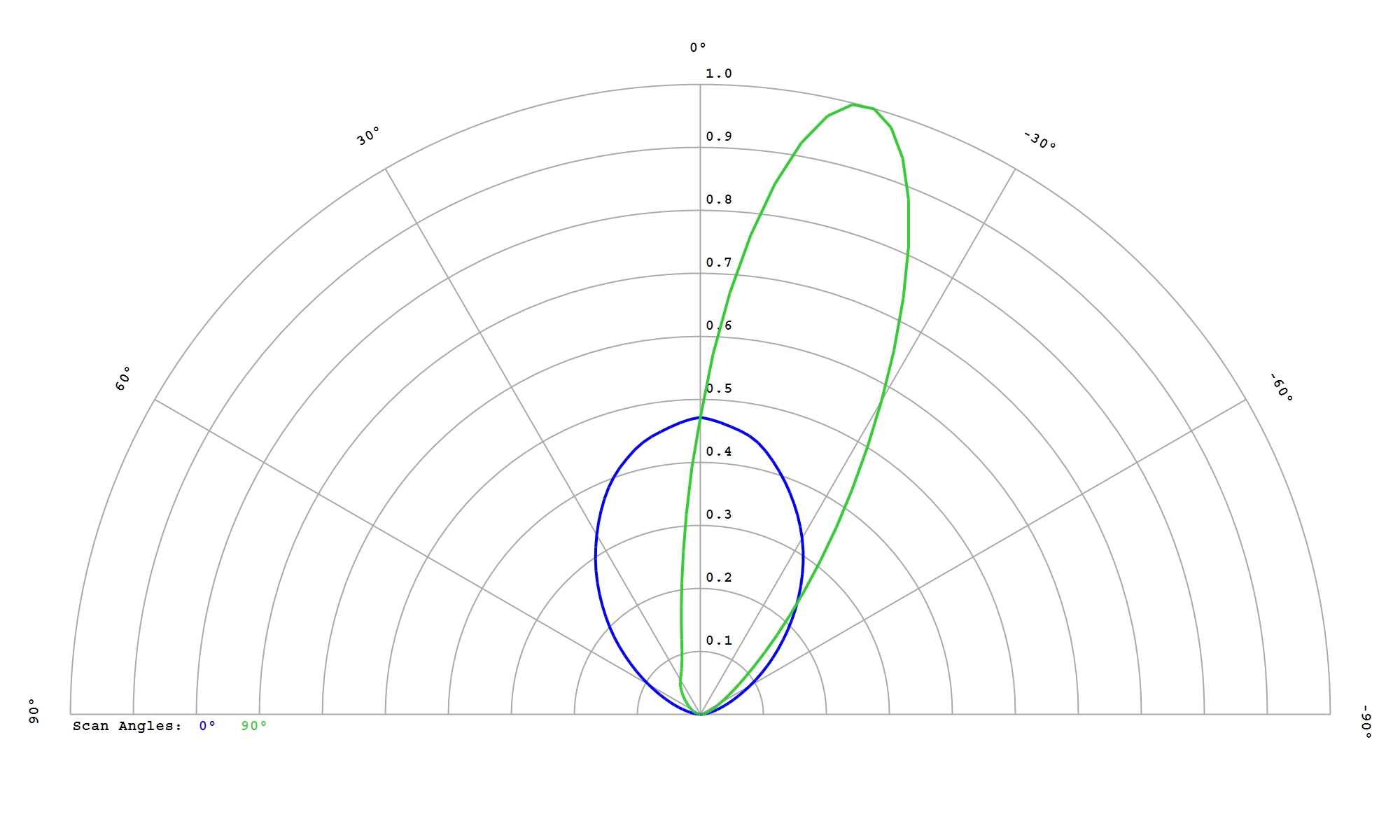

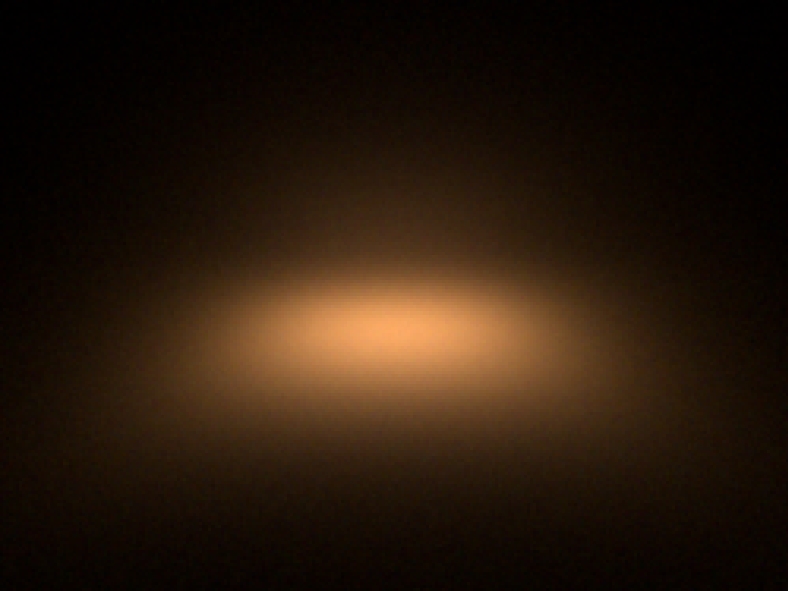

Tron 20mm Ind LMIDS-1120-E-H30-D White

Eff:

79.0%

FWHM:

77 x 29.5 x 15°

Cd/Im:

0.9



Download

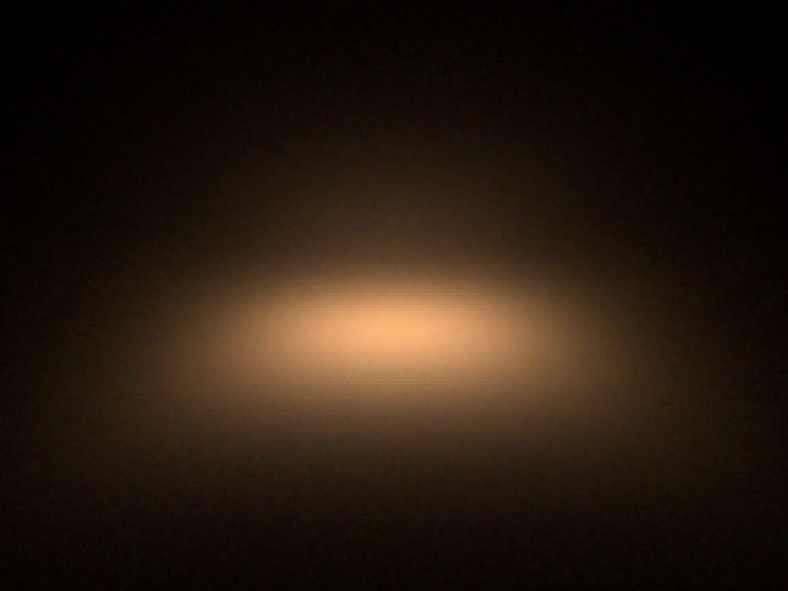

Tron 20mm Ind LMIDS-1120-P-H30-D White

Eff:

79.0%

FWHM:

81 x 31 x 16°

Cd/Im:

0.9



Download
