26.0mm Wall Grazer Diffuse Strip | Carclo Optics

60152 Wall Grazer

26.0mm Wall Grazer Diffuse Strip

Part number

60152

Dimensions

26.0mm

Optic type

Strip

Finish

Diffuse

Beam type

Wall Grazer

Applications

Architectural

Landscape & Garden

Complete kit: Part number 60179
Kit includes Wall Grazer strip optic, housing with insert, gasket and endcaps. 5x kits per box.
Housing assembly components are available to order separately, see assembly drawing for part numbers or contact sales.

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

81.0%

FWHM:

81 x 20°

Cd/Im:

1.7

optic-60152-Bridgelux_3030_Gen2-colour_spot-image


Download

IES

Cree JE2835 3V White

Eff:

81.0%

FWHM:

82 x 20°

Cd/Im:

1.6

Download

IES

Cree JR5050 24V White

Eff:

80.0%

FWHM:

86 x 27°

Cd/Im:

1.4

optic-60152-Cree_JR5050_24V-colour_spot-image

Download

IES

Cree JR5050 36V White

Eff:

80.5%

FWHM:

83 x 24.5°

Cd/Im:

1.3

optic-60152-Cree_JR5050_36V-colour_spot-image

Download

IES

Cree JR5050 6V White

Eff:

80.5%

FWHM:

85 x 26.5°

Cd/Im:

1.4

optic-60152-Cree_JR5050_6V-colour_spot-image

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

79.5%

FWHM:

82 x 17°

Cd/Im:

1.7

optic-60152-Cree_XD16-PW-colour_spot-image

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

79.0%

FWHM:

82 x 22°

Cd/Im:

1.6

optic-60152-Cree-XHP35B.2-HI-WW-colour_spot-image


Download

2-HI-WW

Cree XLamp XP-G4 White

Eff:

83.0%

FWHM:

79 x 18.5°

Cd/Im:

1.8

Download

IES

Cree XLamp XP-P White

Eff:

82.0%

FWHM:

78 x 15.5°

Cd/Im:

2.0

Download

IES

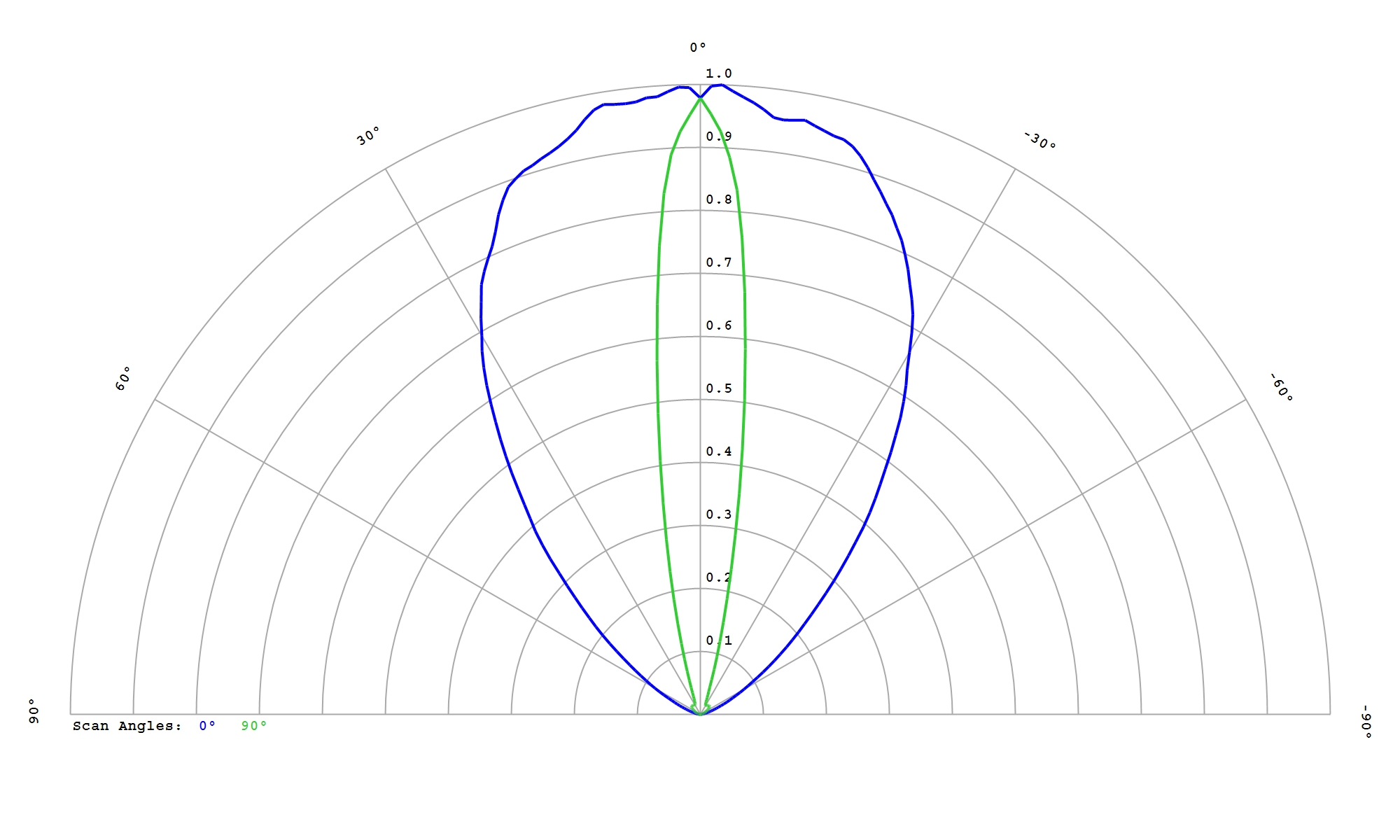

Cree XLamp XQ-E HD White

Eff:

81.5%

FWHM:

74 x 16.5°

Cd/Im:

2.2

optic-60152-Cree_XQ-E-colour_spot-image

Download

IES

Cree XLamp XQ-E HI White

Eff:

79.0%

FWHM:

81 x 16°

Cd/Im:

2.0

optic-60152-Cree_XQ-E_HI-colour_spot-image

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

81.0%

FWHM:

82 x 19°

Cd/Im:

1.6

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

81.5%

FWHM:

82 x 19.5°

Cd/Im:

1.6

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

80.5%

FWHM:

84 x 20°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

81.0%

FWHM:

84 x 21°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

81.0%

FWHM:

82 x 20°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 3014 White

Eff:

81.5%

FWHM:

79 x 16°

Cd/Im:

1.9

optic-60152-LUXEON_3014-colour_spot-image

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

80.0%

FWHM:

80 x 17°

Cd/Im:

1.7

optic-60152-Luxeon_3020-colour_spot-image

Download

IES

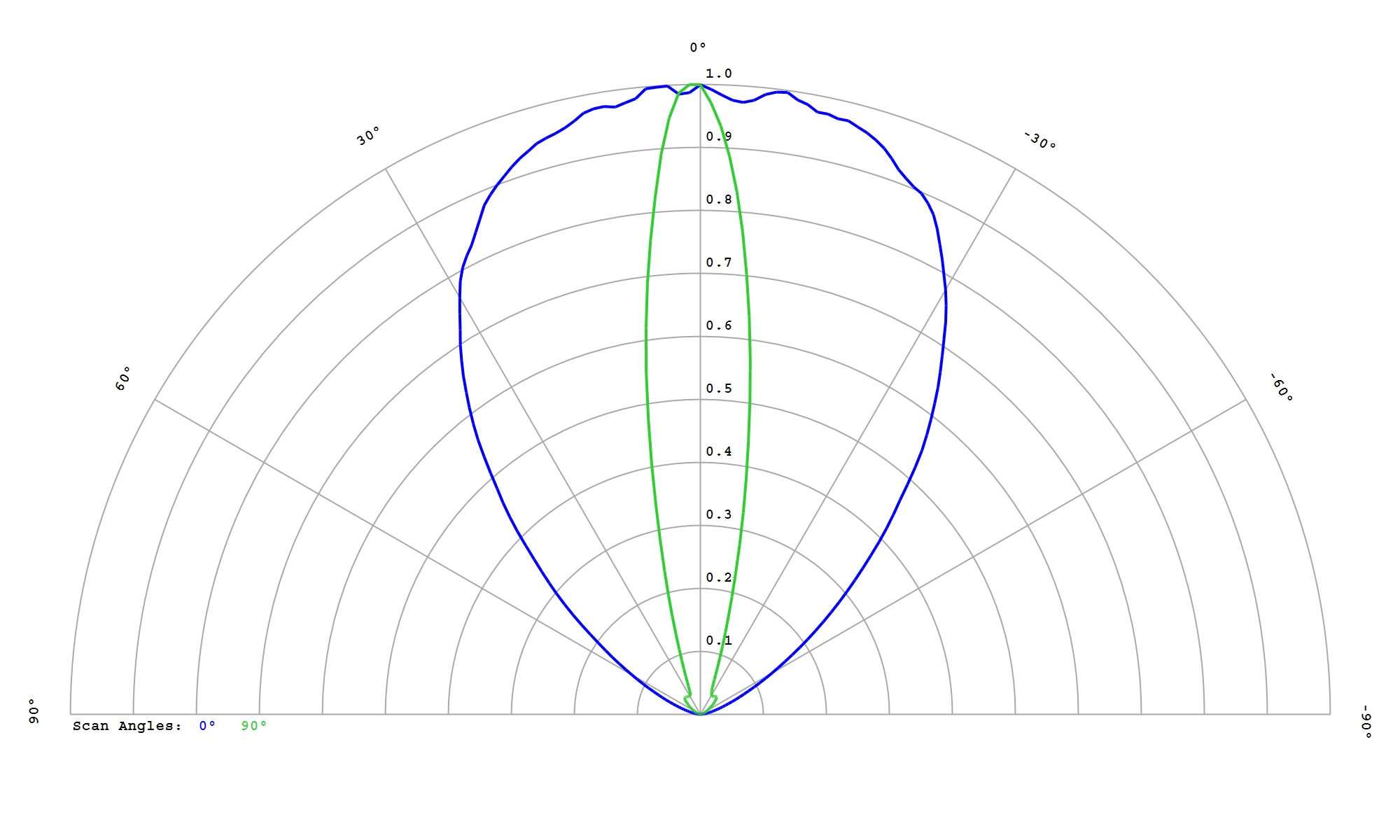

LUMILEDS LUXEON 3030 2D White

Eff:

80.5%

FWHM:

83 x 18.5°

Cd/Im:

1.7

Download

LUMILEDS LUXEON 3535 L White

Eff:

81.5%

FWHM:

81 x 17.5°

Cd/Im:

1.8

Download

IES

LUMILEDS LUXEON 5050 HE 24V White

Eff:

79.5%

FWHM:

86 x 26°

Cd/Im:

1.1

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

79.5%

FWHM:

87 x 26.5°

Cd/Im:

1.1

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

80.0%

FWHM:

86 x 26°

Cd/Im:

1.2


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

80.0%

FWHM:

84 x 29.5°

Cd/Im:

1.1


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

80.5%

FWHM:

85 x 27°

Cd/Im:

1.2


Download

LUMILEDS LUXEON 5052 RGBW

Eff:

77.0%

FWHM:

83 x 19.5°

Cd/Im:

1.5

Download

IES

LUMILEDS LUXEON C White

Eff:

74.0%

FWHM:

83 x 15.5°

Cd/Im:

1.6

Download

LUMILEDS LUXEON CZ White

Eff:

80.5%

FWHM:

80 x 15.5°

Cd/Im:

2.1

optic-60152-Luxeon_CZ_5M_CW-colour_spot-image

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

82.0%

FWHM:

81 x 20°

Cd/Im:

1.5

optic-60152-LUXEON_HL2X-D-colour_spot-image

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

81.0%

FWHM:

79 x 15.5°

Cd/Im:

2.2

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

81.0%

FWHM:

83 x 15.5°

Cd/Im:

1.9

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

82.5%

FWHM:

80 x 15.5°

Cd/Im:

2.1

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

80.0%

FWHM:

78 x 14.5°

Cd/Im:

2.3


Download

IES

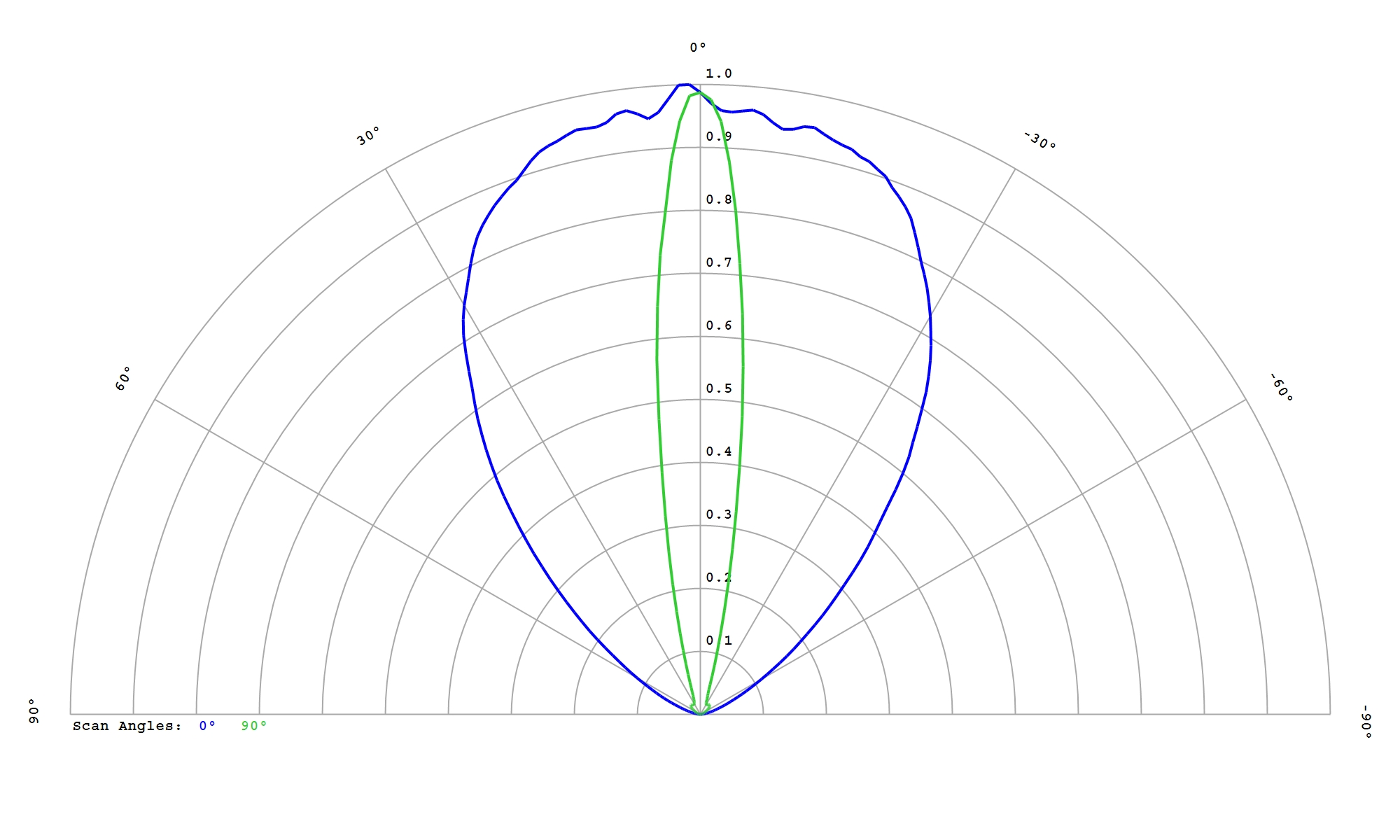

LUMILEDS LUXEON Rubix White

Eff:

80.5%

FWHM:

80 x 15°

Cd/Im:

2.1

optic-60152-LUXEON_Rubix_White-colour_spot-image

Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

80.5%

FWHM:

80 x 17°

Cd/Im:

1.9


Download

IES

Osram OS DURIS E3 Gen2 White

Eff:

81.0%

FWHM:

81 x 17°

Cd/Im:

1.8

Download

IES

Osram OS DURIS S5 White

Eff:

81.0%

FWHM:

83 x 21°

Cd/Im:

1.6

optic-60152-Duris_S5_PSLR31em-colour_spot-image

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

79.5%

FWHM:

86 x 27.5°

Cd/Im:

1.2

optic-60152-Duris_S8_Gen3_P9LR34em-colour_spot-image


Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

80.5%

FWHM:

82 x 19°

Cd/Im:

1.7

optic-60152-OSCONIQ_C2424_GW_PLLRA_cm-colour_spot-image


Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

80.5%

FWHM:

80 x 19°

Cd/Im:

1.8

optic-60152-Oslon_Square_Gen5_GW_CSSRM3pm-colour_spot-image


Download

IES

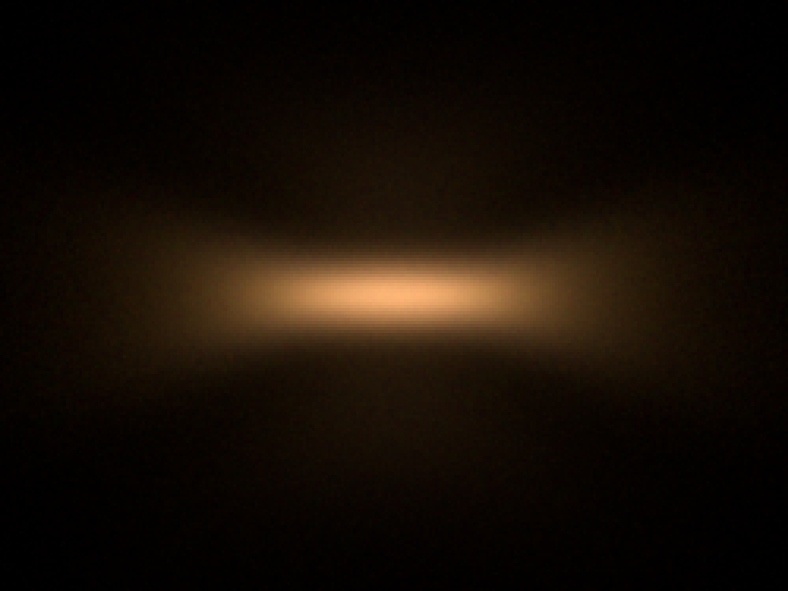

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

80.0%

FWHM:

84 x 15.5°

Cd/Im:

1.9

optic-60152-Oslon_SSL_150_GW_CSHPM1pm-colour_spot-image


Download

IES

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

82.0%

FWHM:

71 x 19°

Ipk/W:

1.9


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

83.5%

FWHM:

66 x 18.5°

Cd/Im:

2.2


Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

81.5%

FWHM:

66 x 18°

Cd/Im:

2.2


Download

IES

Philips Fortimo LED Strip 1120mm 4400lm 830 HV5B

Eff:

79.5%

FWHM:

82 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_1120mm_4400lm_830_HV5B-colour_spot-image


Download

IES

Philips Fortimo LED Strip 1120mm 4400lm 830 LV5B

Eff:

79.5%

FWHM:

82 x 20°

Cd/Im:

1.6

optic-60152-Fortimo_LED_Strip_1120mm_4400lm_830_LV5B-colour_spot-image


Download

IES

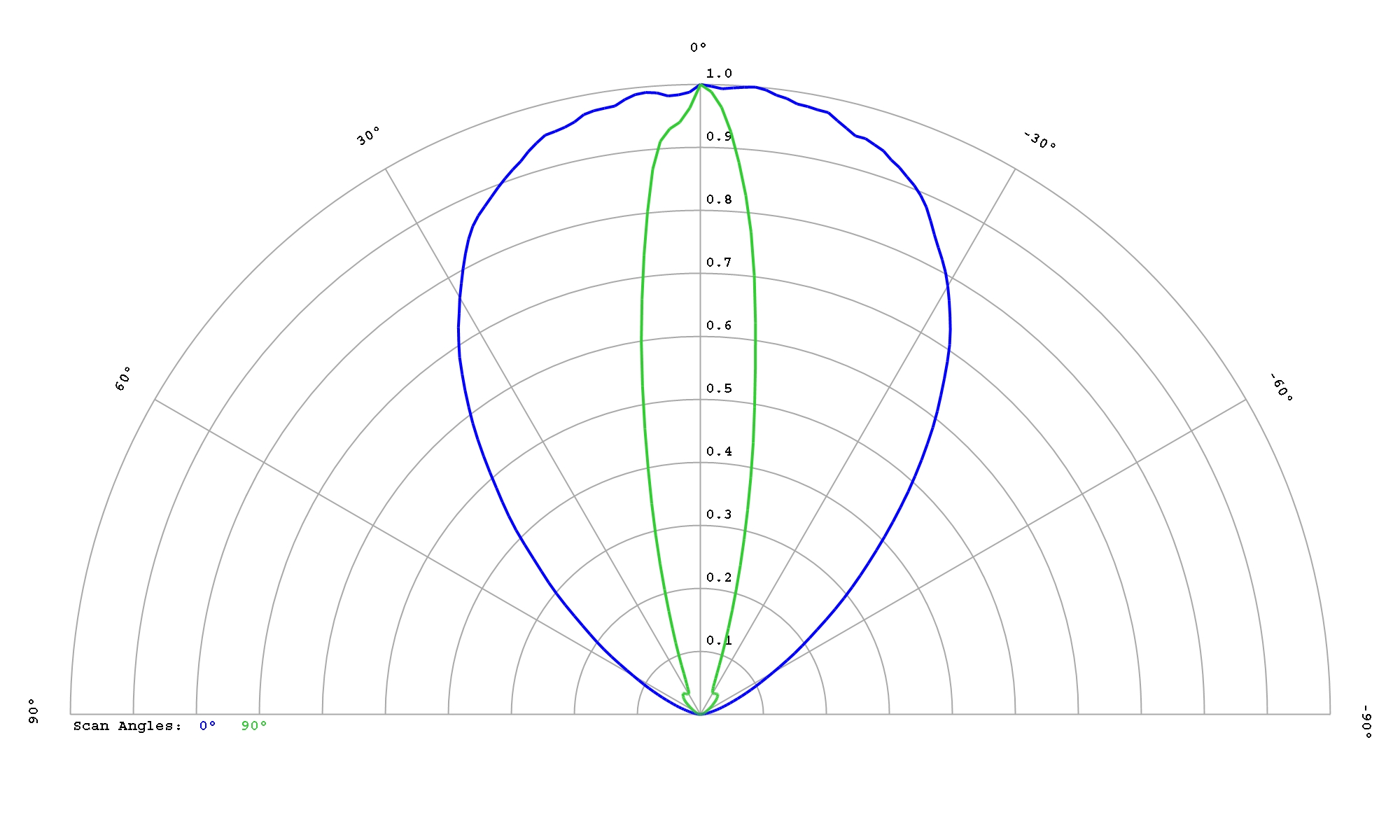

Philips Fortimo LED Strip 1120mm 4400lm 840 BC HV6

Eff:

80.5%

FWHM:

84 x 20.5°

Cd/Im:

1.5



Download

IES

Philips Fortimo LED Strip 1ft 1100lm 840 BC HV6/LV6

Eff:

80.5%

FWHM:

83 x 20.5°

Cd/Im:

1.5



Download

IES

Philips Fortimo LED Strip 1ft 1100lm 940 BC HV6

Eff:

80.5%

FWHM:

82 x 20.5°

Cd/Im:

1.6



Download

IES

Philips Fortimo LED Strip 1ft 2000lm 840 BC HV6

Eff:

81.0%

FWHM:

82 x 21°

Cd/Im:

1.5



Download

IES

Philips Fortimo LED Strip 2ft 2200lm 840 BC HV6/LV6

Eff:

80.5%

FWHM:

82 x 20°

Cd/Im:

1.6



Download

IES

Philips Fortimo LED Strip 2ft 2200lm 940 BC HV6/LV6

Eff:

80.5%

FWHM:

84 x 20.5°

Cd/Im:

1.5



Download

IES

Philips Fortimo LED Strip 2ft 4000lm 840 BC HV6

Eff:

81.0%

FWHM:

82 x 20.5°

Cd/Im:

1.5



Download

IES

Philips Fortimo LED Strip OC 1ft 1100lm 840 BC HV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.6

optic-60152-Fortimo_LED_Strip_OC_1ft_1100lm_840_BC_HV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 1ft 1100lm 840 BC LV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.6

optic-60152-Fortimo_LED_Strip_OC_1ft_1100lm_840_BC_LV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 1ft 1100lm 940 BC HV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_1ft_1100lm_940_BC_HV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 1ft 1100lm 940 BC LV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_1ft_1100lm_940_BC_LV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 2ft 2200lm 840 BC HV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_2ft_2200lm_840_BC_HV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 2ft 2200lm 840 BC LV5

Eff:

79.5%

FWHM:

82 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_1ft_1100lm_840_BC_LV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 2ft 2200lm 940 BC HV5

Eff:

79.5%

FWHM:

83 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_2ft_2200lm_940_BC_HV5-colour_spot-image


Download

IES

Philips Fortimo LED Strip OC 2ft 2200lm 940 BC LV5

Eff:

79.5%

FWHM:

84 x 20°

Cd/Im:

1.5

optic-60152-Fortimo_LED_Strip_OC_2ft_2200lm_940_BC_LV5-colour_spot-image


Download

IES

Samsung 2835 LM281B+ White

Eff:

81.0%

FWHM:

83 x 20.5°

Cd/Im:

1.5



Download

IES

Samsung 3030 LM301B (TW) Tunable White 2700-6500K

Eff:

82.0%

FWHM:

81 x 19.5°

Cd/Im:

1.8


Download

IES

Samsung 3030 LM301B White

Eff:

81.0%

FWHM:

82 x 20.5°

Cd/Im:

1.5

optic-60152-Samsung_LM301B_4000K-colour_spot-image


Download

IES

Samsung 5050 LH502C White

Eff:

79.5%

FWHM:

85 x 29°

Cd/Im:

1.0


Download

IES

Samsung 5050 LH502D White

Eff:

79.0%

FWHM:

86 x 28°

Cd/Im:

1.1


Download

IES

Samsung 5050 LH508C White

Eff:

79.5%

FWHM:

87 x 30°

Cd/Im:

1.1


Download

IES

Samsung CSP LH181B White

Eff:

78.5%

FWHM:

84 x 21°

Cd/Im:

1.5

optic-60152-Samsung_LH181B_4000K-colour_spot-image


Download

IES

Samsung CSP LH231B White

Eff:

78.5%

FWHM:

86 x 23.5°

Cd/Im:

1.3

optic-60152-Samsung_LH231B_5000K-colour_spot-image


Download

IES

Samsung CSP LM101B White

Eff:

77.5%

FWHM:

84 x 18.5°

Cd/Im:

1.6

optic-60152-Samsung_LM101B_5000K-colour_spot-image


Download

IES

Seoul CSP SZ8Y11 White

Eff:

66.0%

FWHM:

92 x 18.5°

Cd/Im:

1.4

optic-60152-Seoul_Z8Y11-colour_spot-image

Download

IES

Seoul STWS C2PB-E0 White

Eff:

80.5%

FWHM:

84 x 20.5°

Cd/Im:

1.7

optic-60152-Seoul_STWSC2PB-E0-4000K-colour_spot-image


Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

80.5%

FWHM:

81 x 20°

Cd/Im:

1.6

optic-60152-Seoul_STW9C2SB-S-4000K-colour_spot-image


Download

IES
