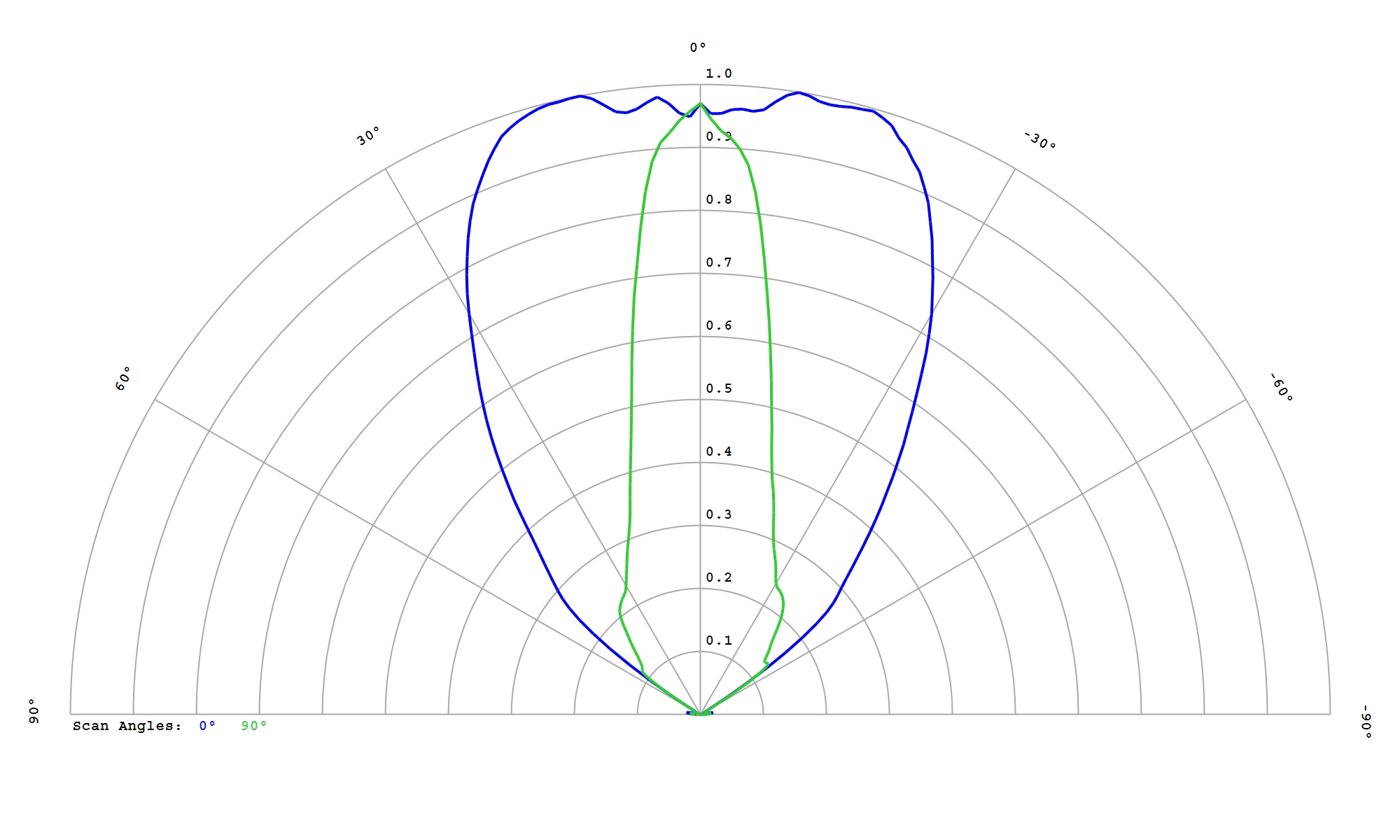

Carclo Optics 12818
50.0 x 50.0mm Elliptical Freeform
Part number
12818
Dimensions
50.0 x 50.0mm
Drawing Number
70302
Optic type
Freeform
Beam type
Elliptical
Applications
Industrial
Horticultural
Warehouse
Emergency
Downloads

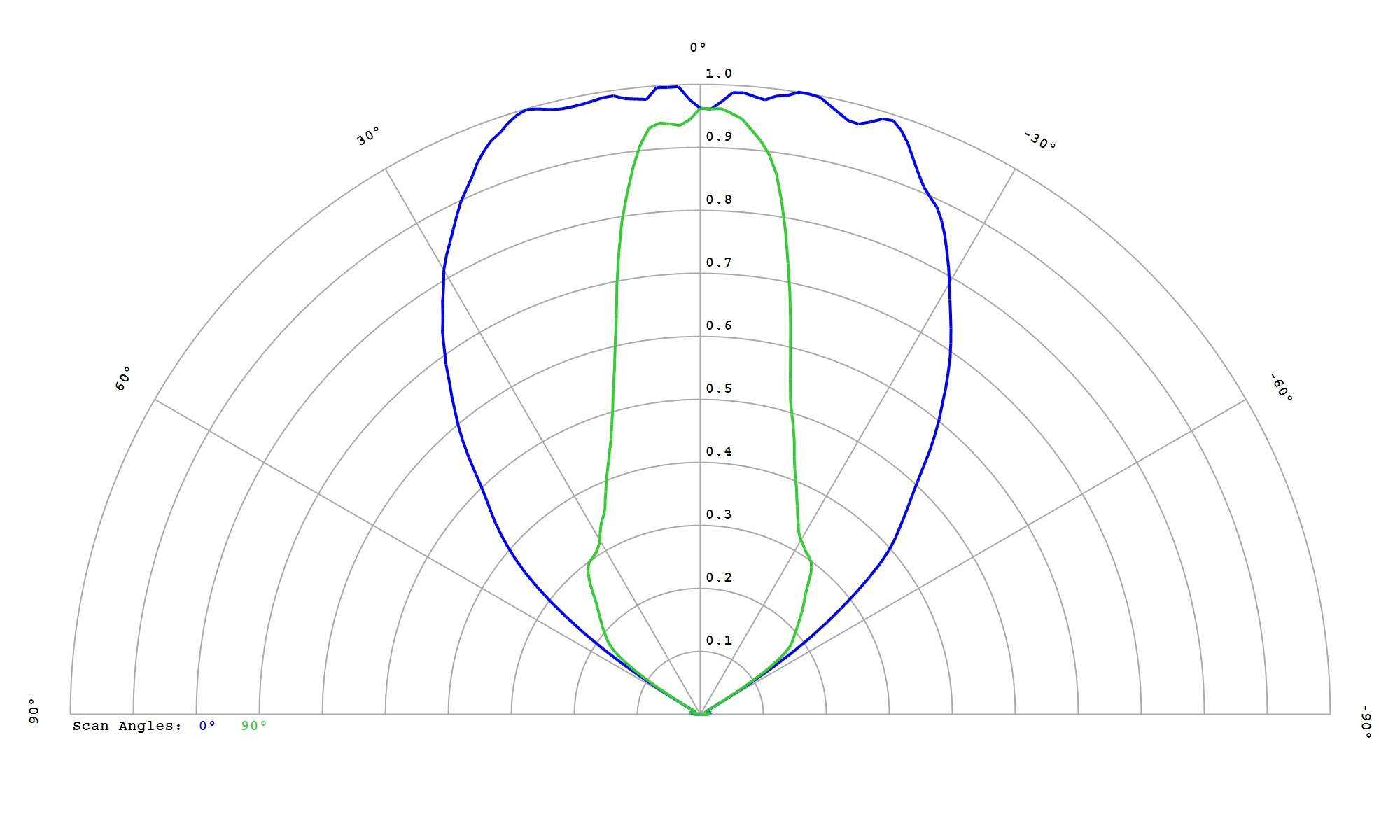

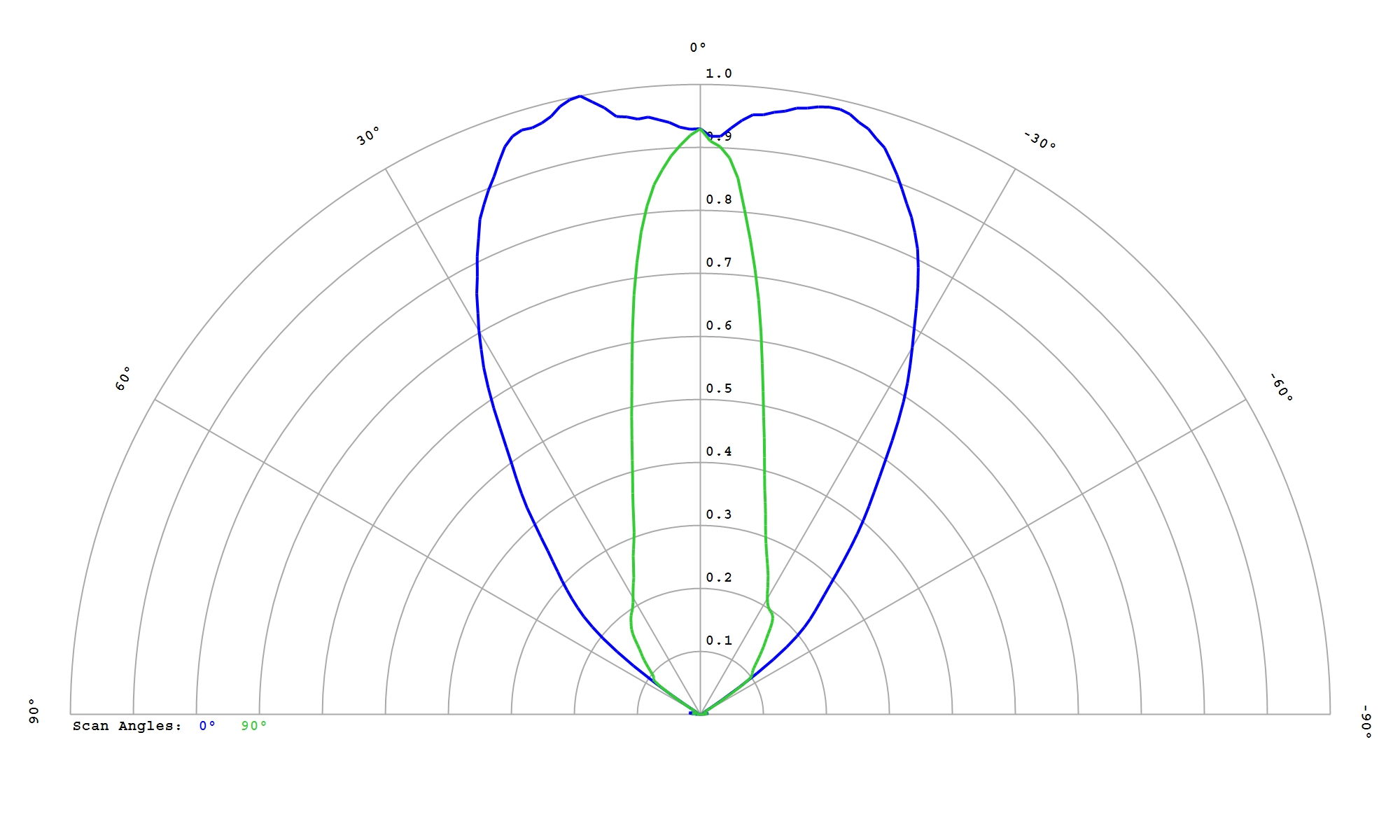

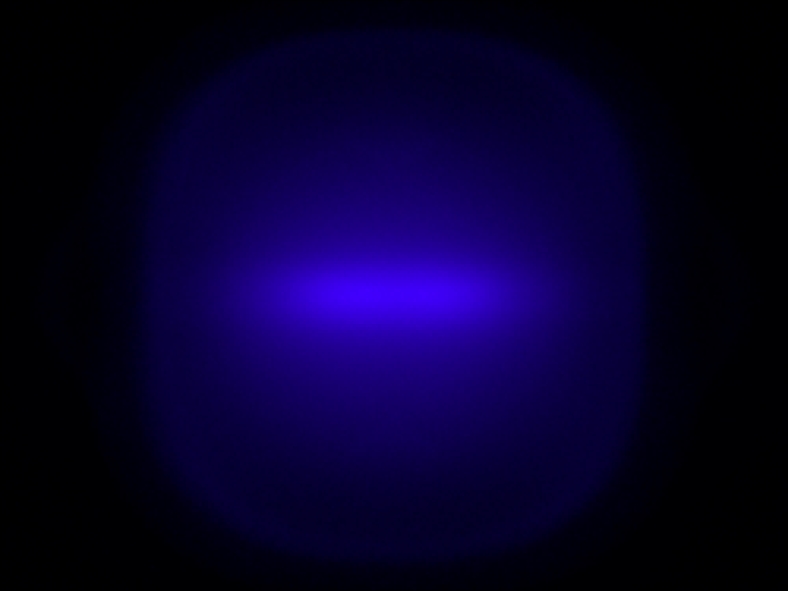

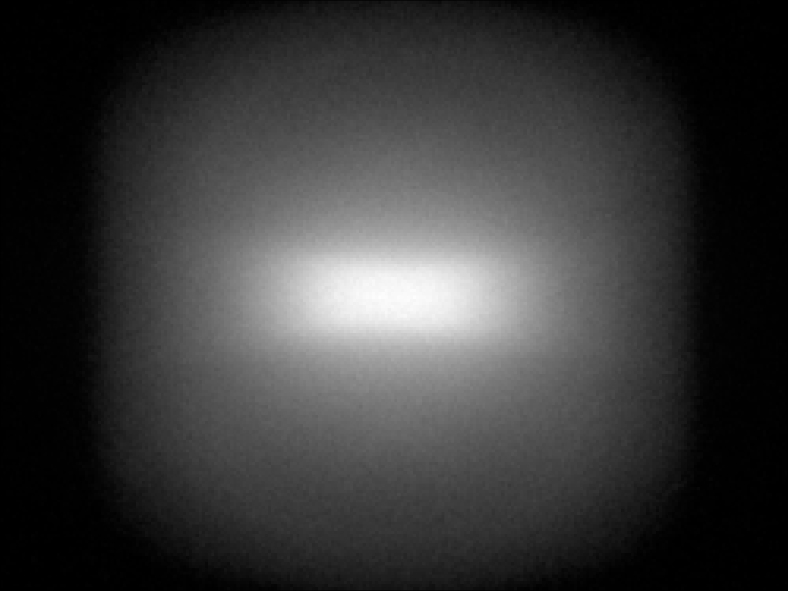

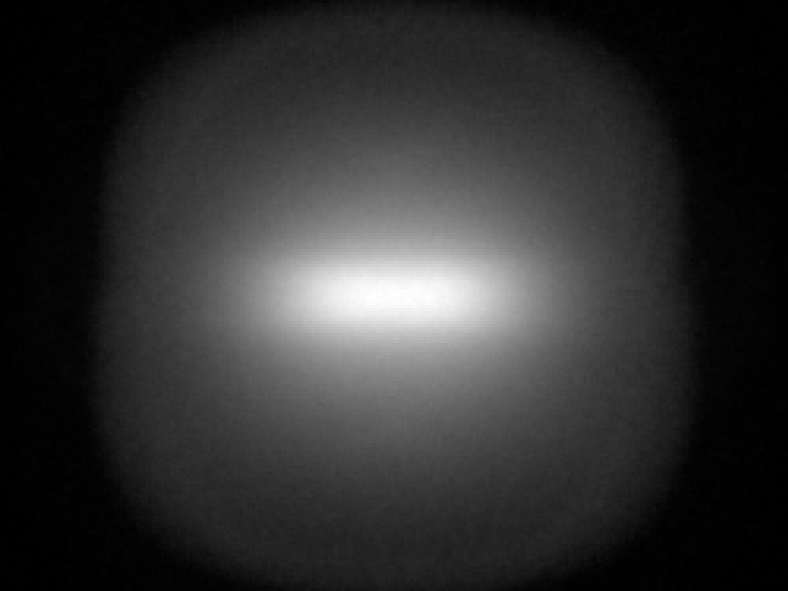

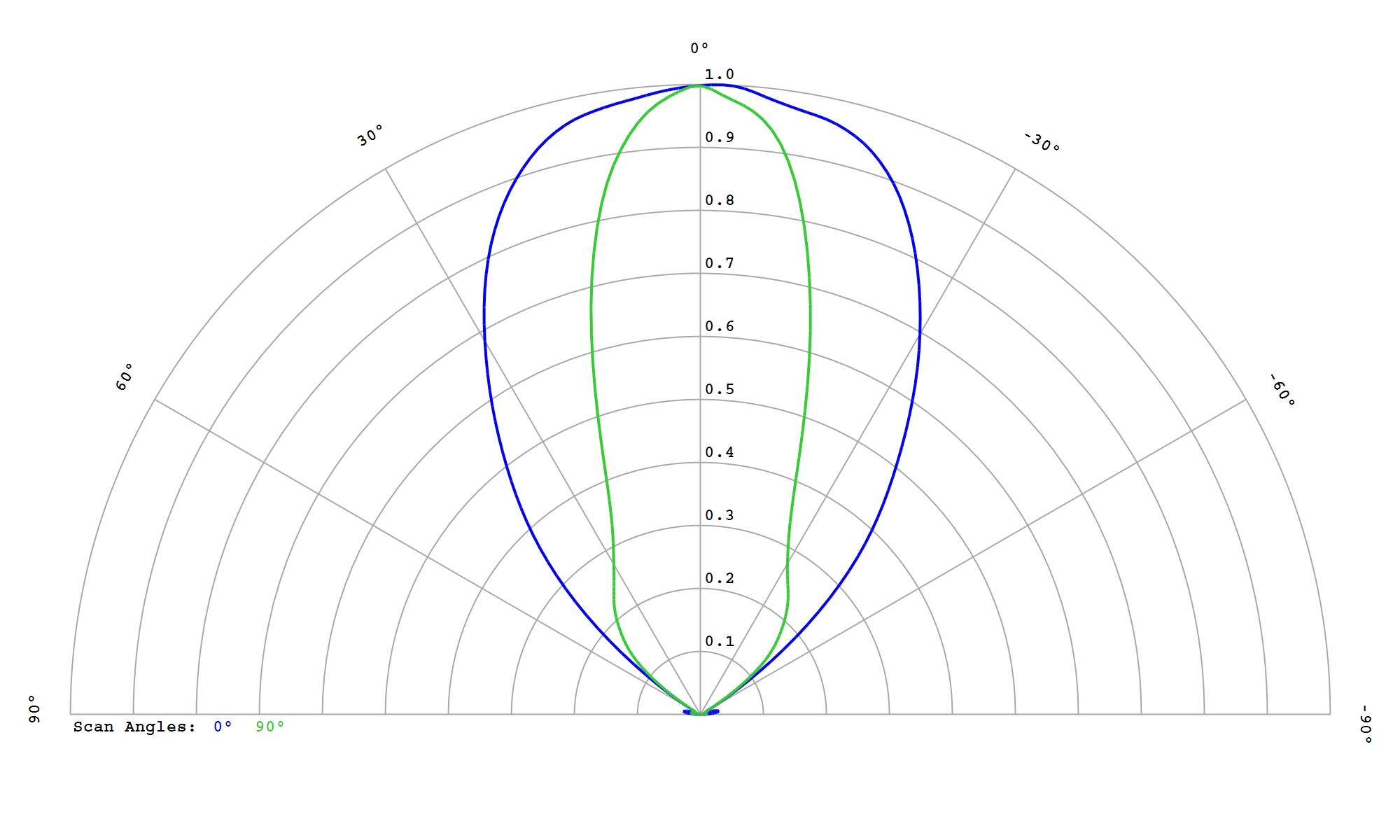

LEDs and Performances

Select and filter based on manufacturer(s)

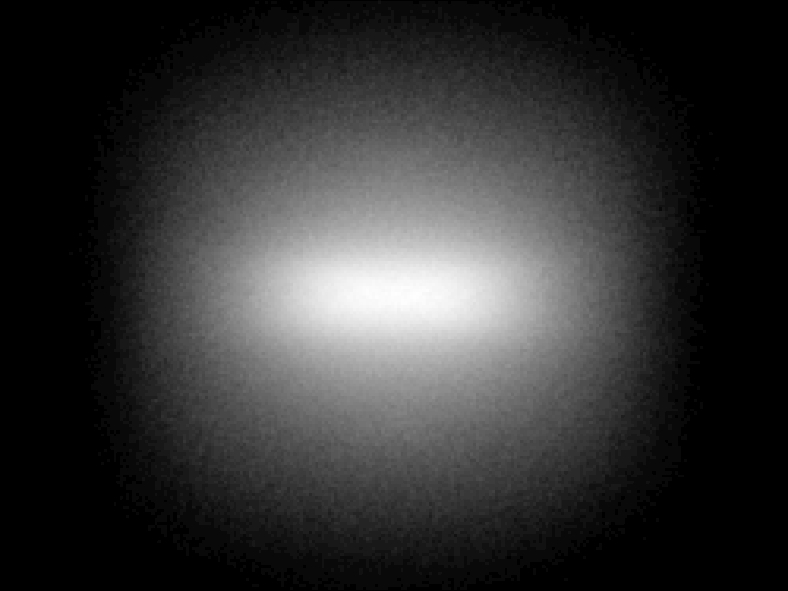

Bridgelux SMD 3030 Gen2 White
Eff:
96.0%
FWHM:
72 x 23.5°
Cd/Im:
1.4
Download

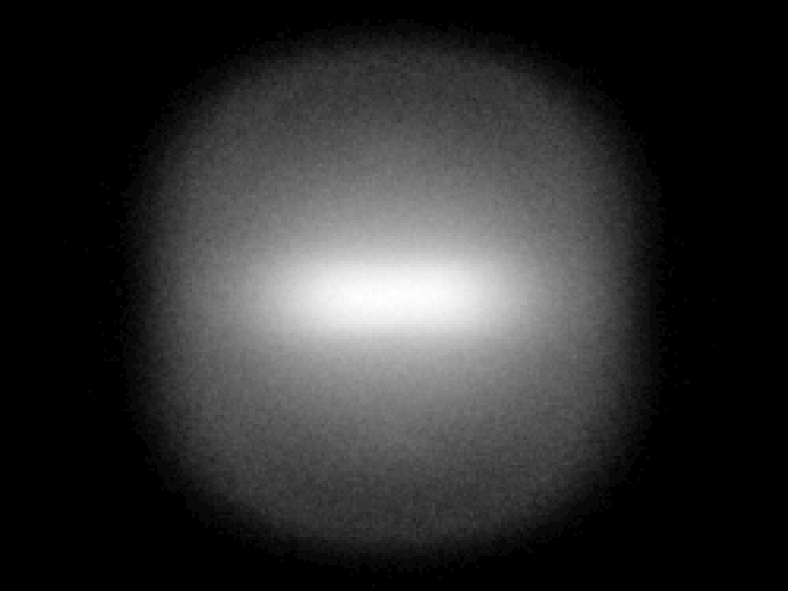

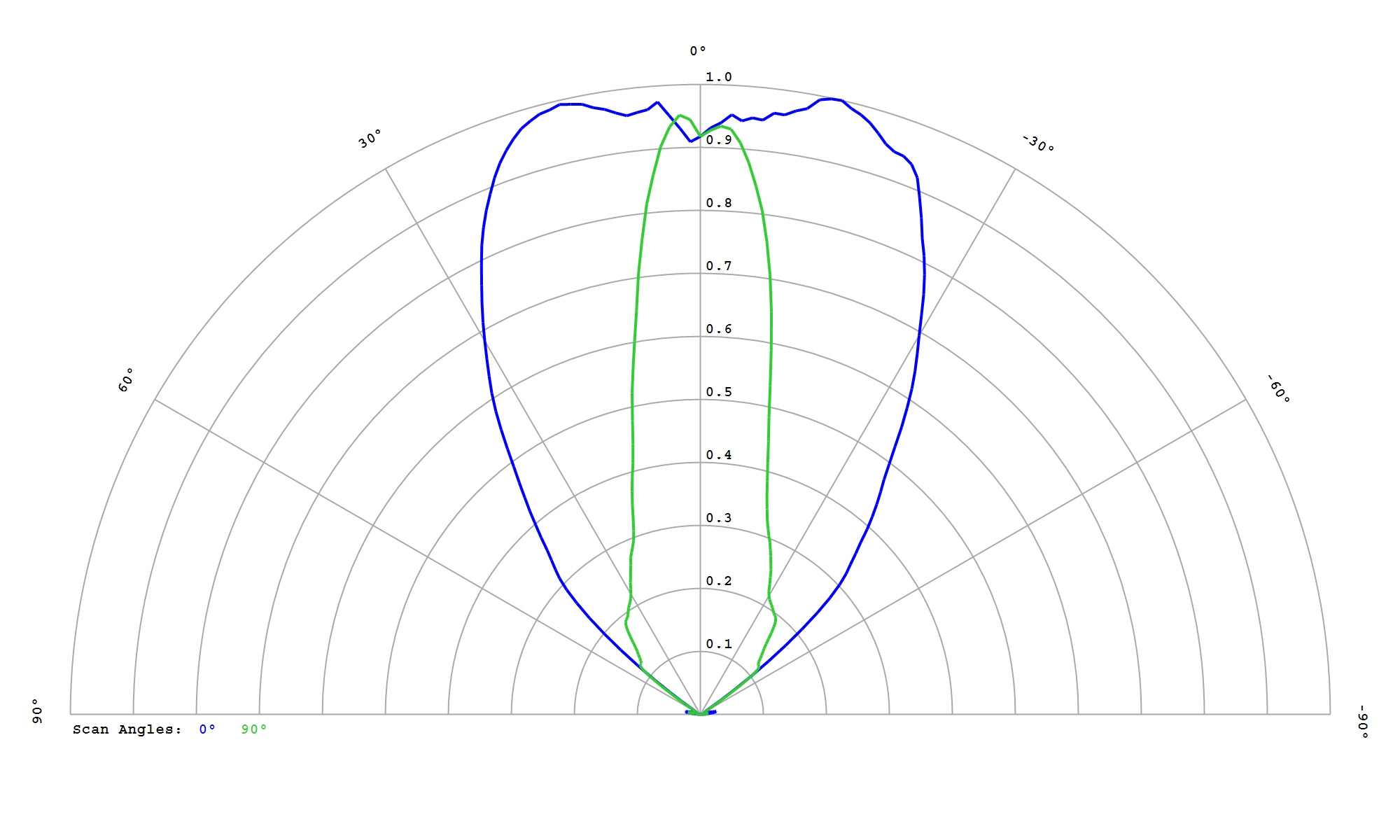

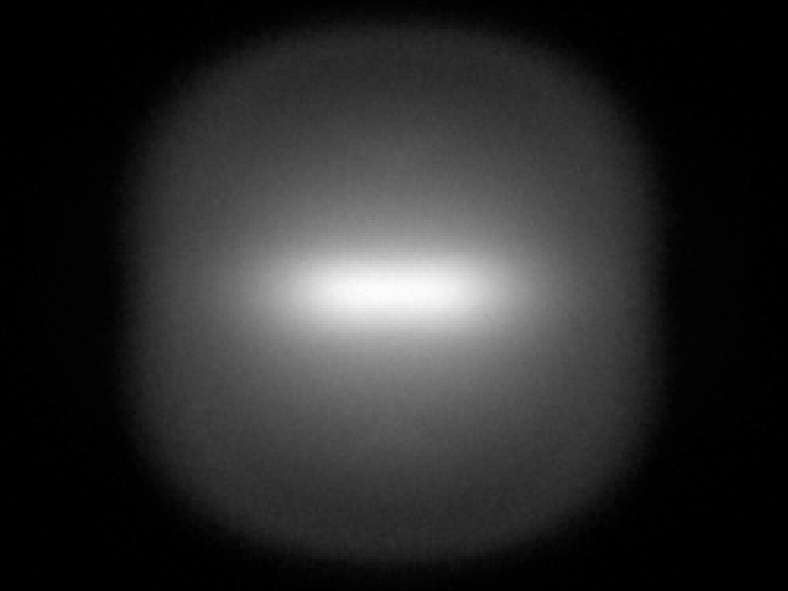

Cree JB3030 3V P-Class White
Eff:
95.5%
FWHM:
73 x 25°
Cd/Im:
1.4
Download

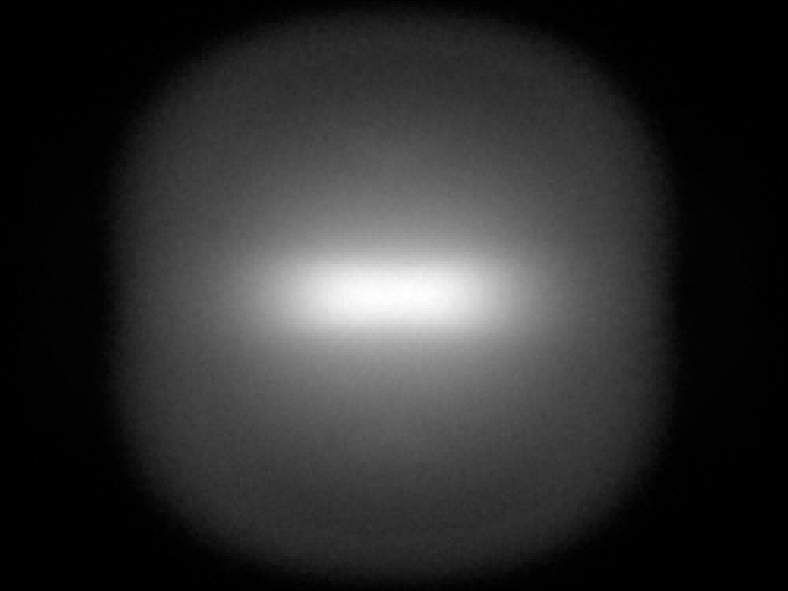

Cree JB3030C 3V E-Class White
Eff:
96.0%
FWHM:
75 x 26.5°
Cd/Im:
1.2
Download
Cree JB3030C 3V F-Class White
Eff:
96.0%
FWHM:
75 x 26°
Cd/Im:
1.2
Download

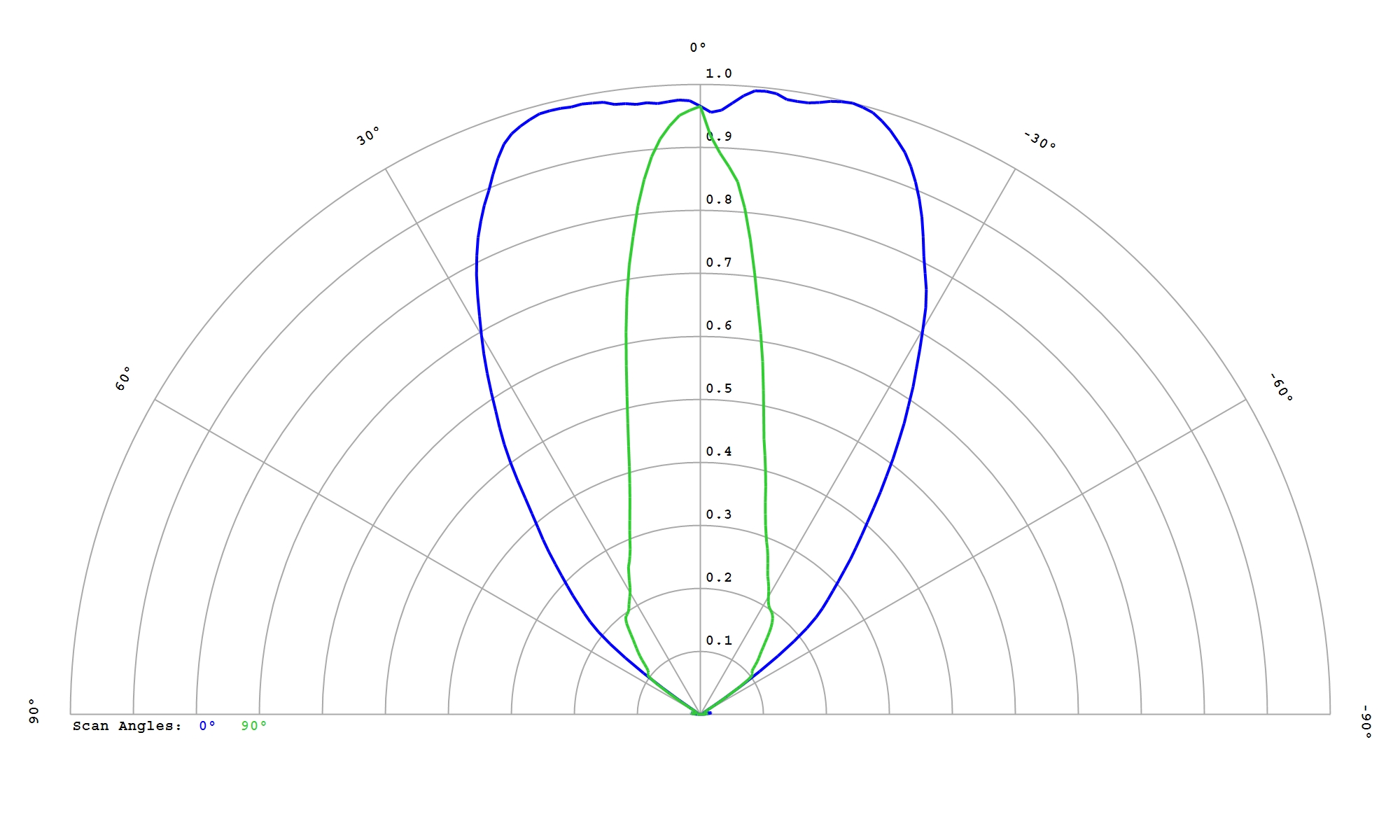

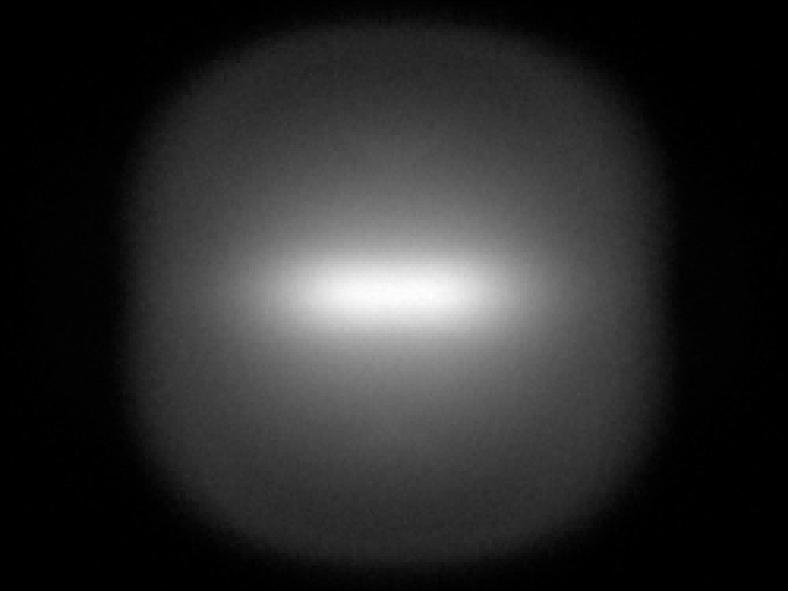

Cree JK2835 6V White
Eff:
96.0%
FWHM:
73 x 24.5°
Cd/Im:
1.4
Download
Cree JQ5050 9V White
Eff:
96.0%
FWHM:
74 x 36°
Cd/Im:
1.2
Download

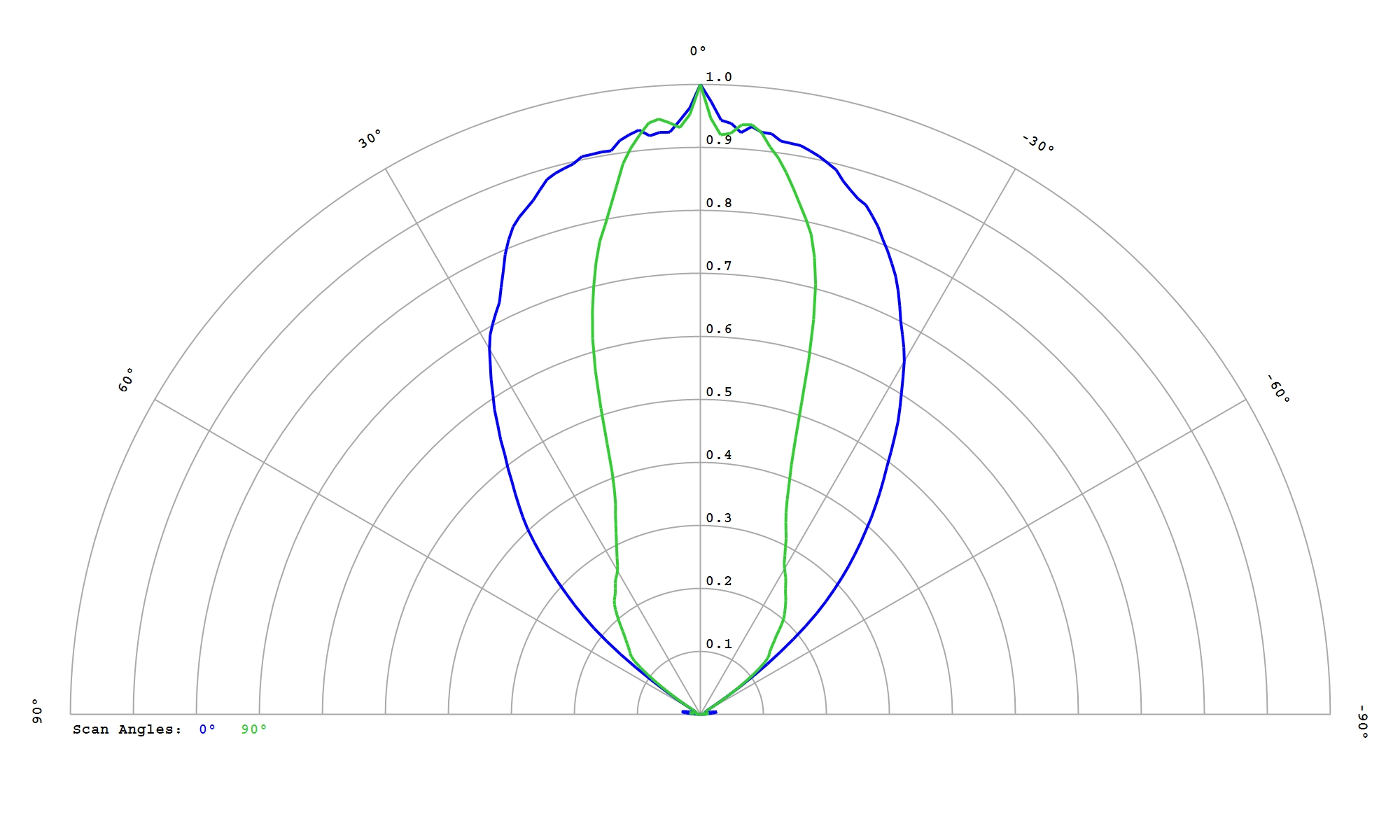

Cree JR5050 24V White
Eff:
95.5%
FWHM:
75 x 37°
Cd/Im:
1.1
Download
Cree JR5050 36V White
Eff:
96.0%
FWHM:
75 x 34°
Cd/Im:
1.5
Download
Cree JR5050 6V White
Eff:
96.0%
FWHM:
76 x 37°
Cd/Im:
1.2
Download

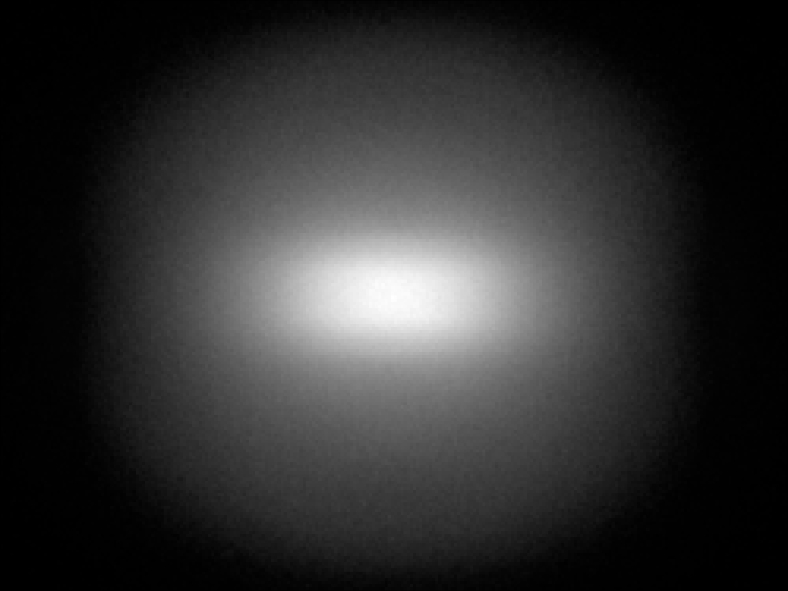

Cree JR5050C 6V E-Class White
Eff:
96.0%
FWHM:
77 x 36°
Cd/Im:
1.2
Download
Cree XLamp CSP XD16 Cool White
Eff:
93.5%
FWHM:
79 x 24.0°
Cd/Im:
0.9
Download

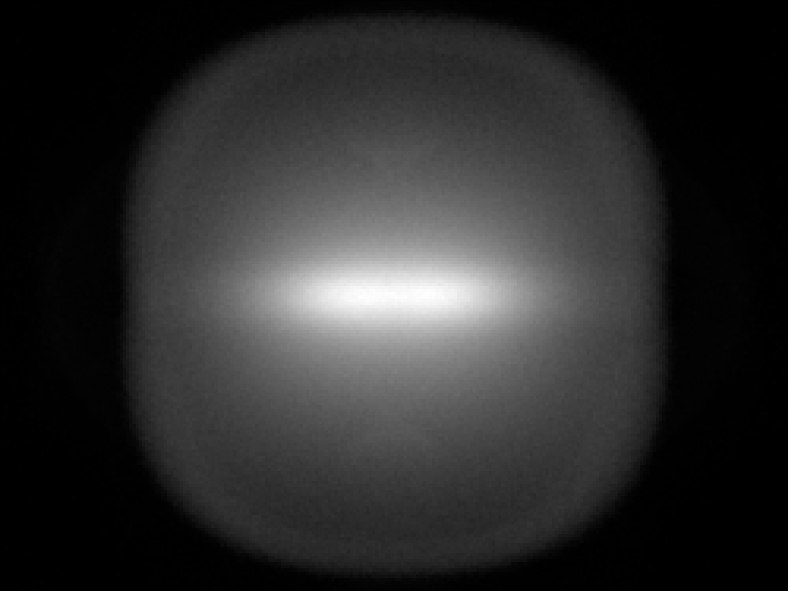

Cree XLamp CSP XD16 Premium White
Eff:
95.5%
FWHM:
74 x 20.5°
Cd/Im:
1.3
Download

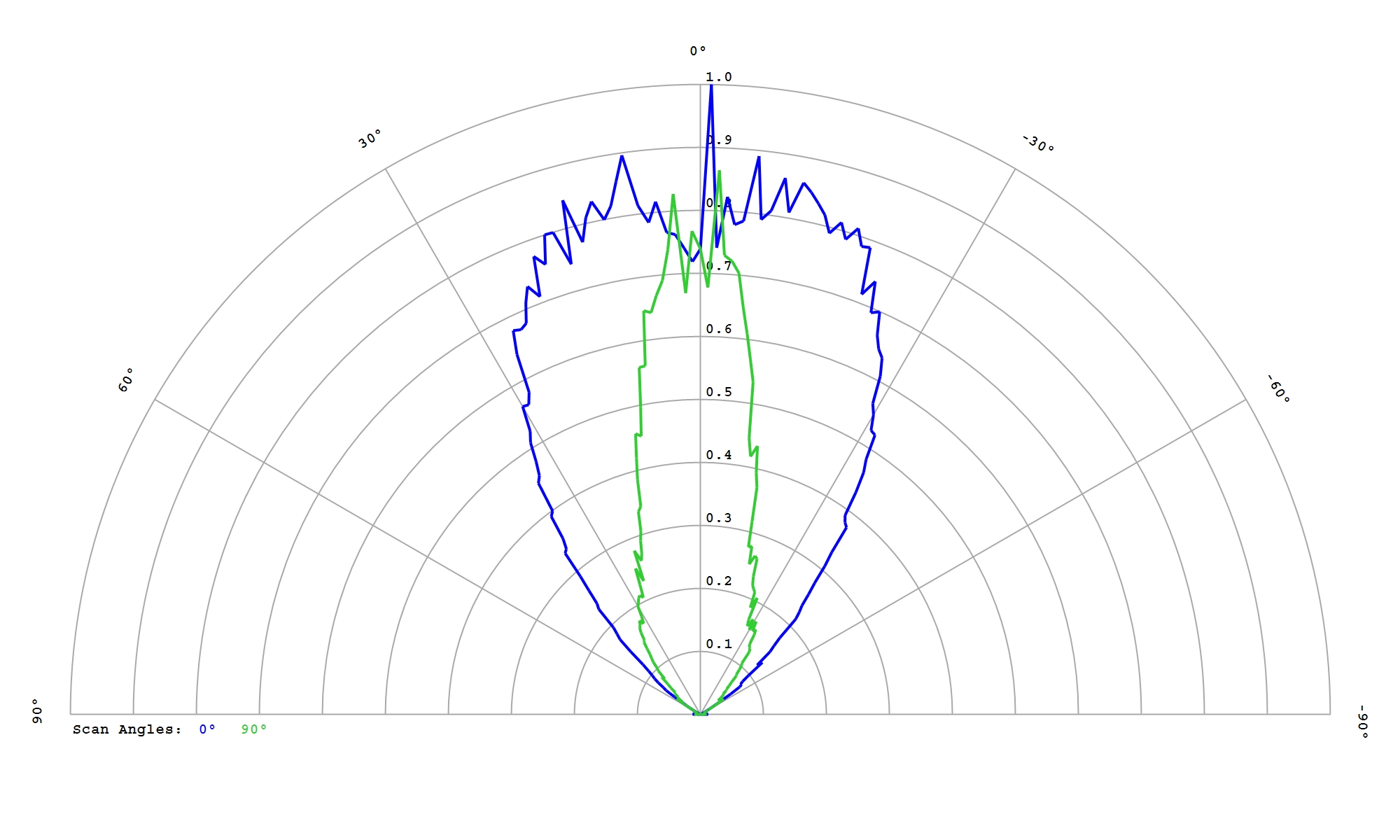

Cree XLamp XB-H White
Eff:
95.5%
FWHM:
71 x 28°
Cd/Im:
1.4
Download
Cree XLamp XE-G White
Eff:
94.5%
FWHM:
76 x 23°
Cd/Im:
1.2
Download
Cree XLamp XHP35.2 HI White
Eff:
94.0%
FWHM:
75 x 31°
Cd/Im:
1.2
Download
Cree XLamp XHP35.2 HD White
Eff:
91.5%
FWHM:
81 x 39°
Cd/Im:
0.9
Download

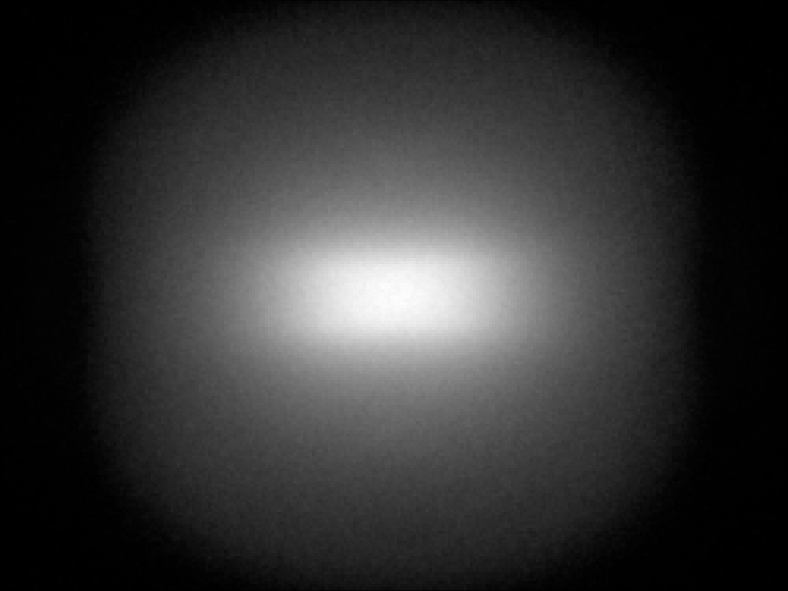

Cree XLamp XHP50.3 HI White
Eff:
94.5%
FWHM:
78 x 36°
Cd/Im:
1.1
Download

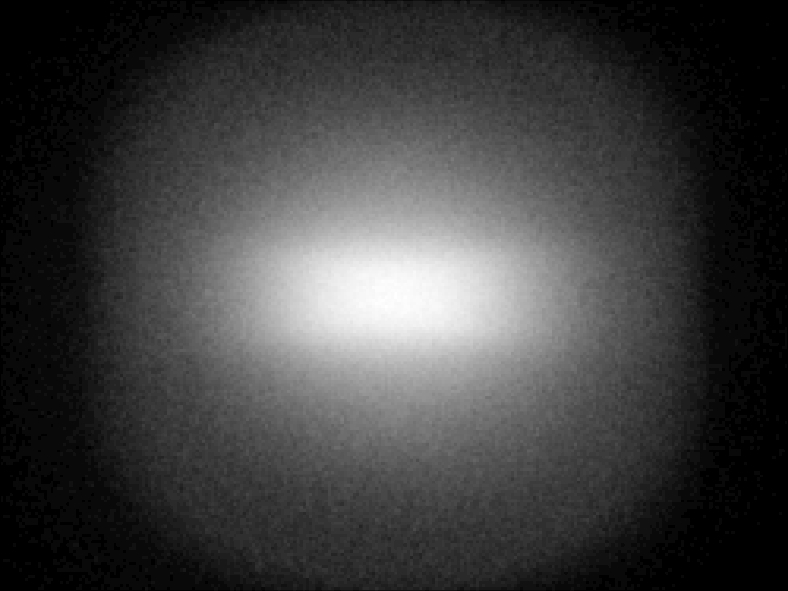

Cree XLamp XM-L3 White
Eff:
94.5%
FWHM:
80 x 36°
Cd/Im:
1.1
Download

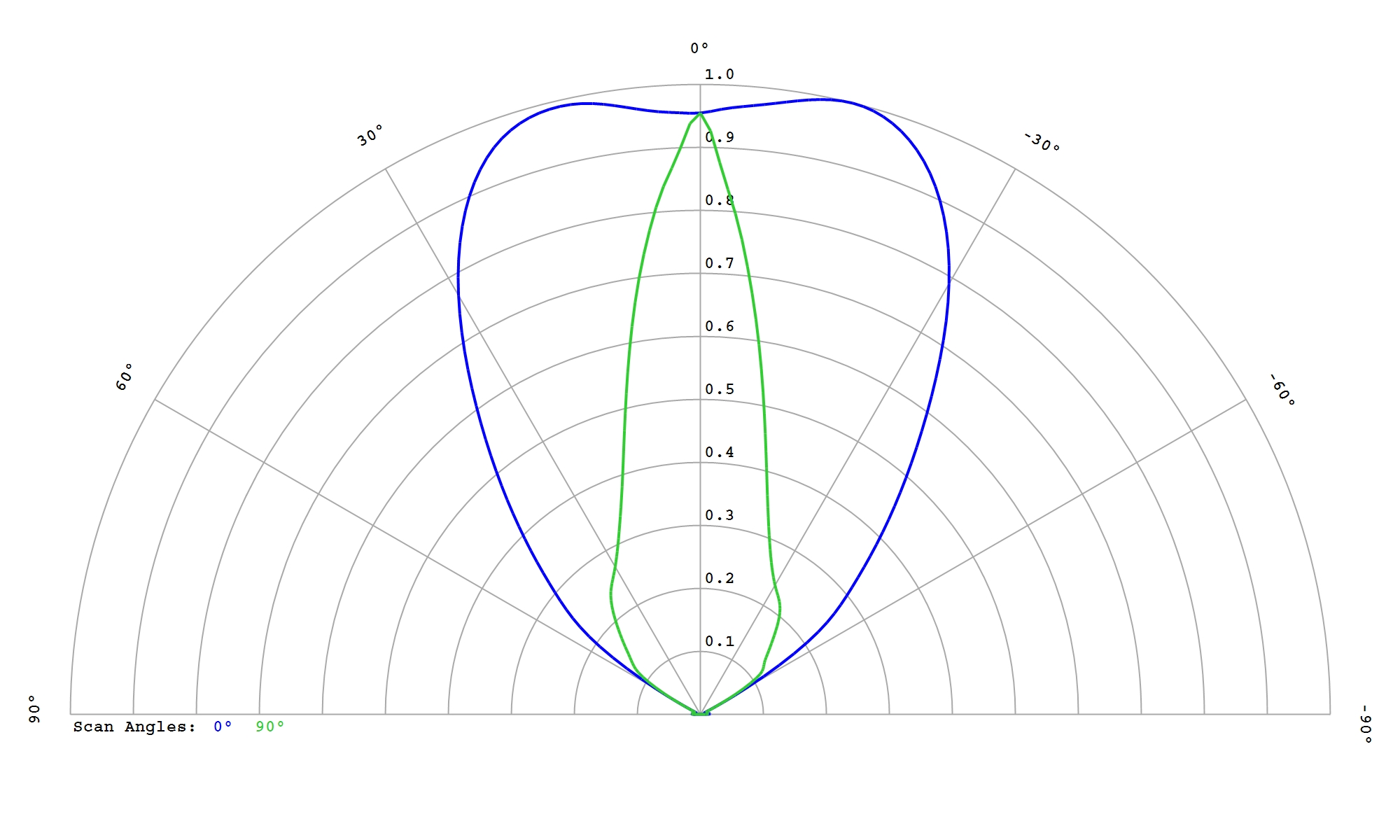

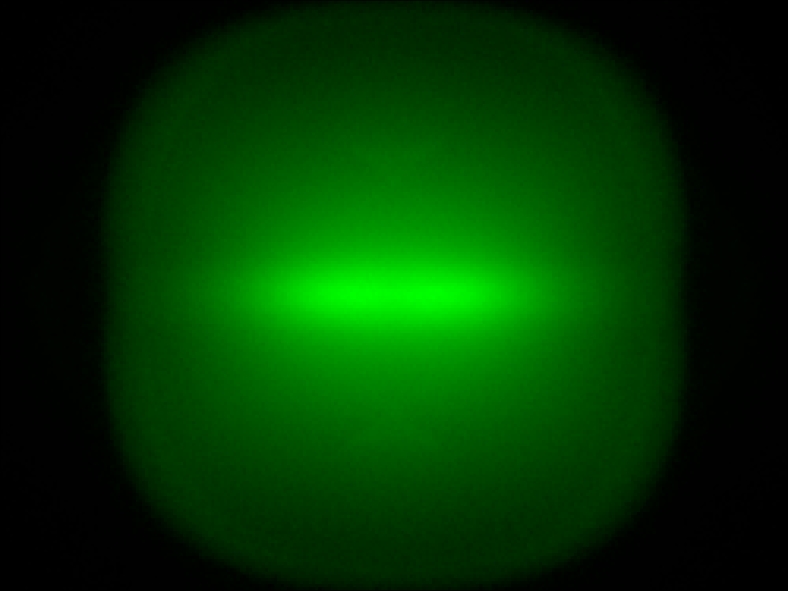

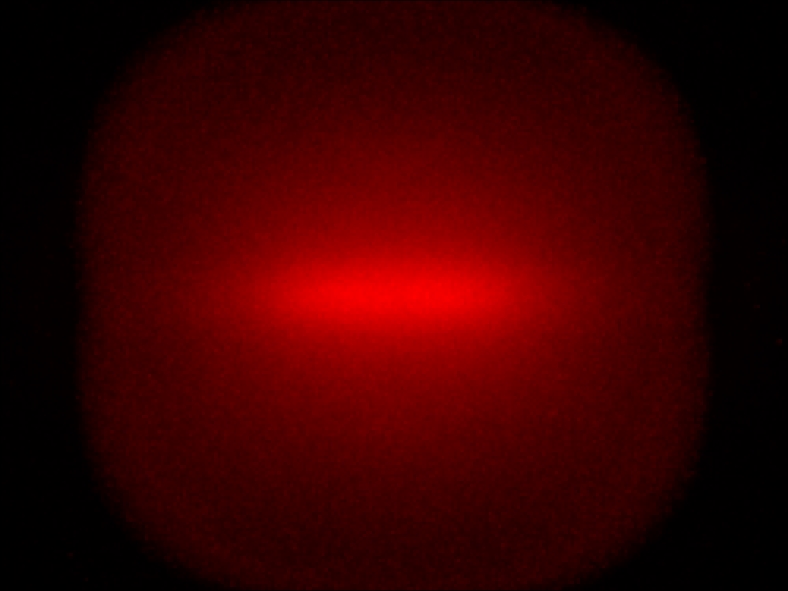

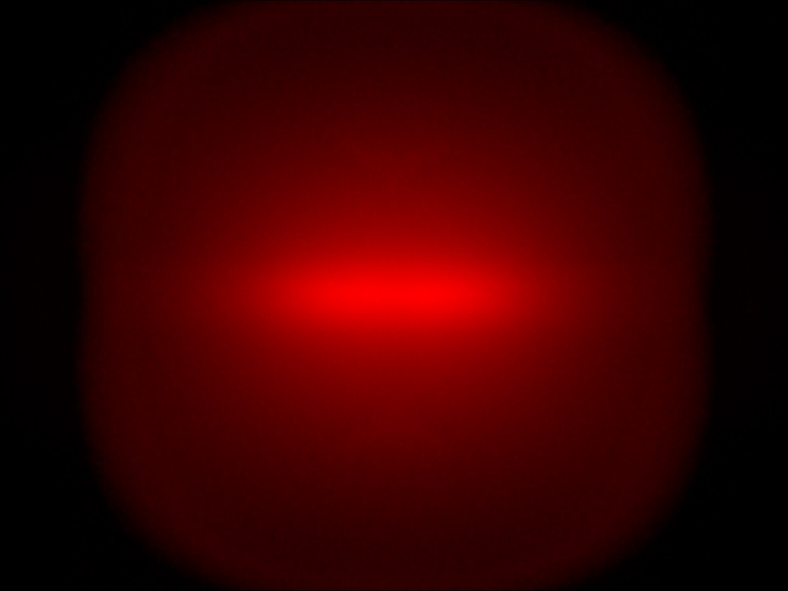

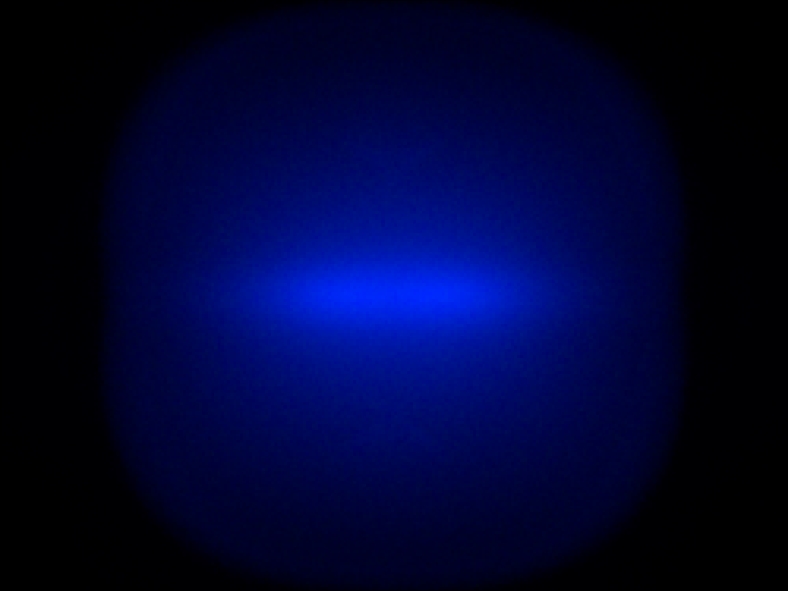

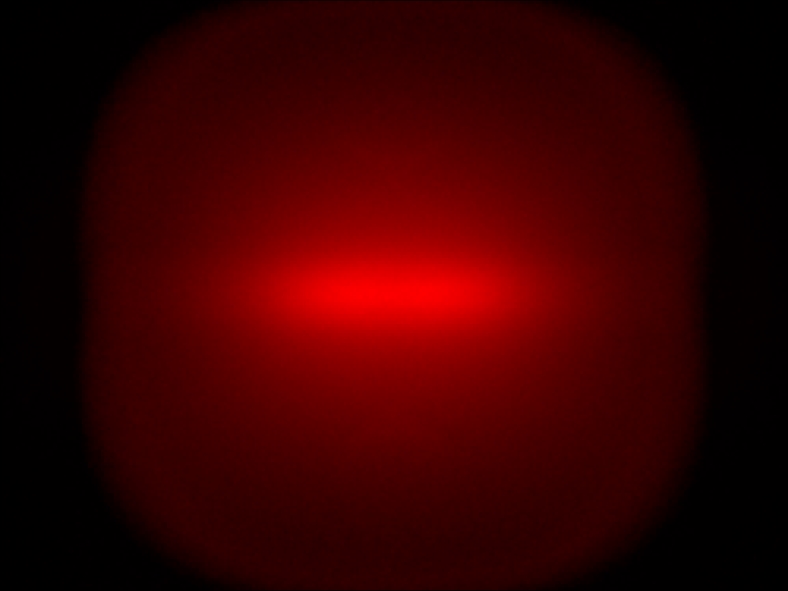

Cree XLamp XP-E2 Far Red
Eff:
96.0%
FWHM:
73 x 27.5°
Cd/Im:
2.1
Download

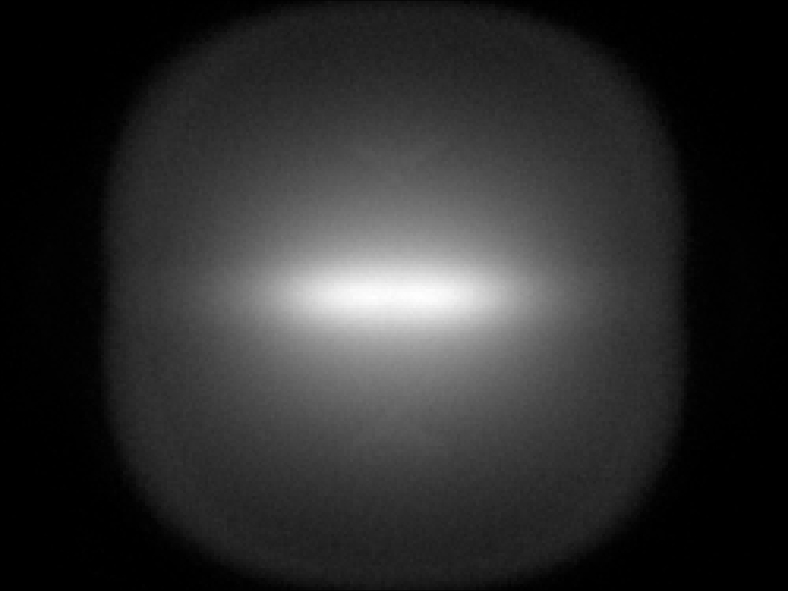

Cree XLamp XP-E2 White
Eff:
96.0%
FWHM:
74 x 24.5°
Cd/Im:
1.4
Download

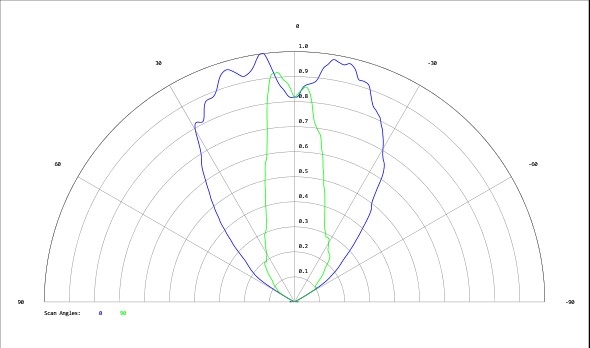

Cree XLamp XP-G2 White
Eff:
91.0%
FWHM:
80x26°
Cd/Im:
1.0
Download
Cree XLamp XP-G3 Photo Red
Eff:
96.5%
FWHM:
80 x 30°
Cd/Im:
1.1
Download
Cree XLamp XP-G3 Royal Blue
Eff:
91.5%
FWHM:
82 x 30°
Cd/Im:
1.1
Download

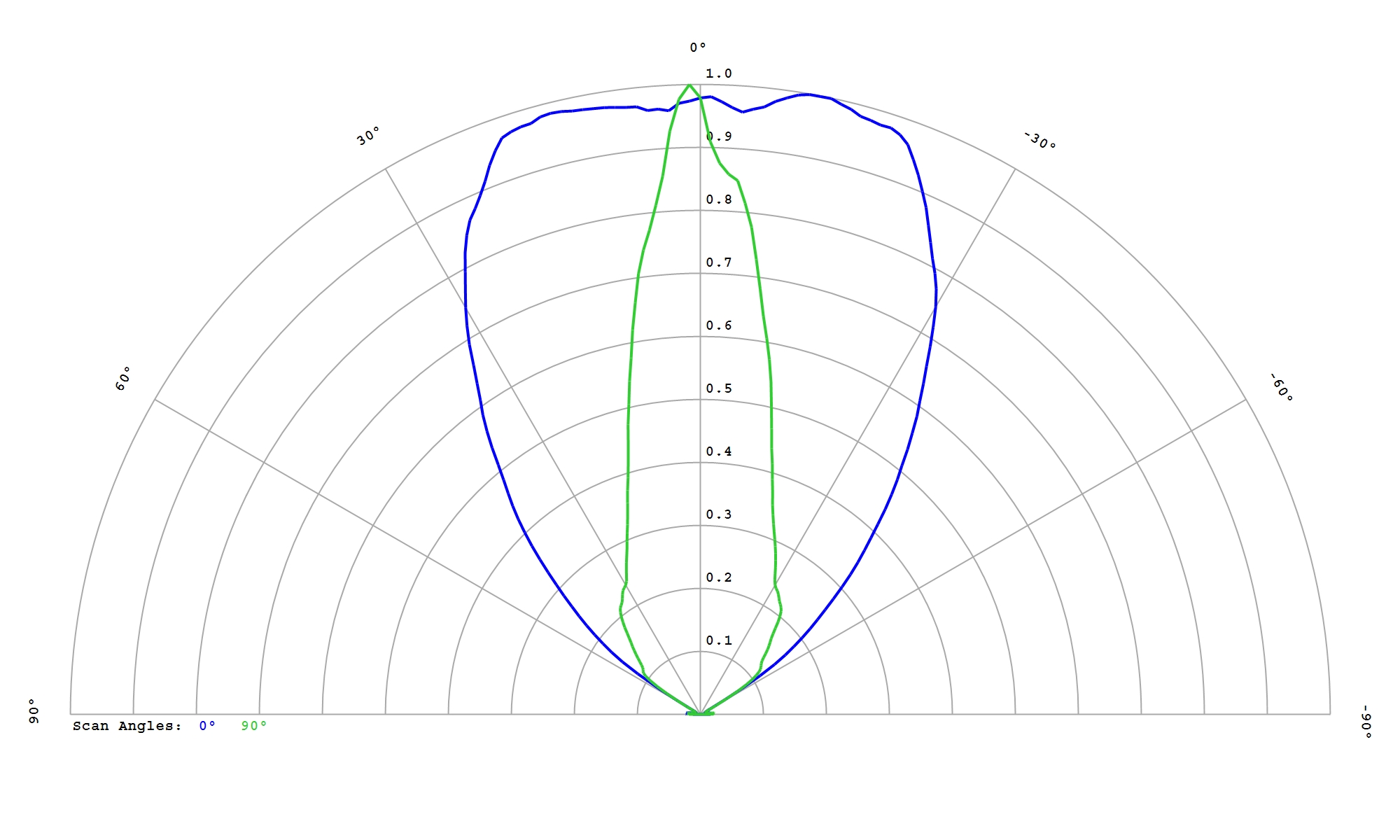

Cree XLamp XP-G4 HI White
Eff:
95.0%
FWHM:
78 x 25°
Cd/Im:
1.2
Download
Cree XLamp XP-G4 White
Eff:
96.0%
FWHM:
79 x 29.5°
Cd/Im:
1.3
Download
Cree XLamp XP-L2 White
Eff:
94.0%
FWHM:
77 x 33°
Cd/Im:
0.8
Download

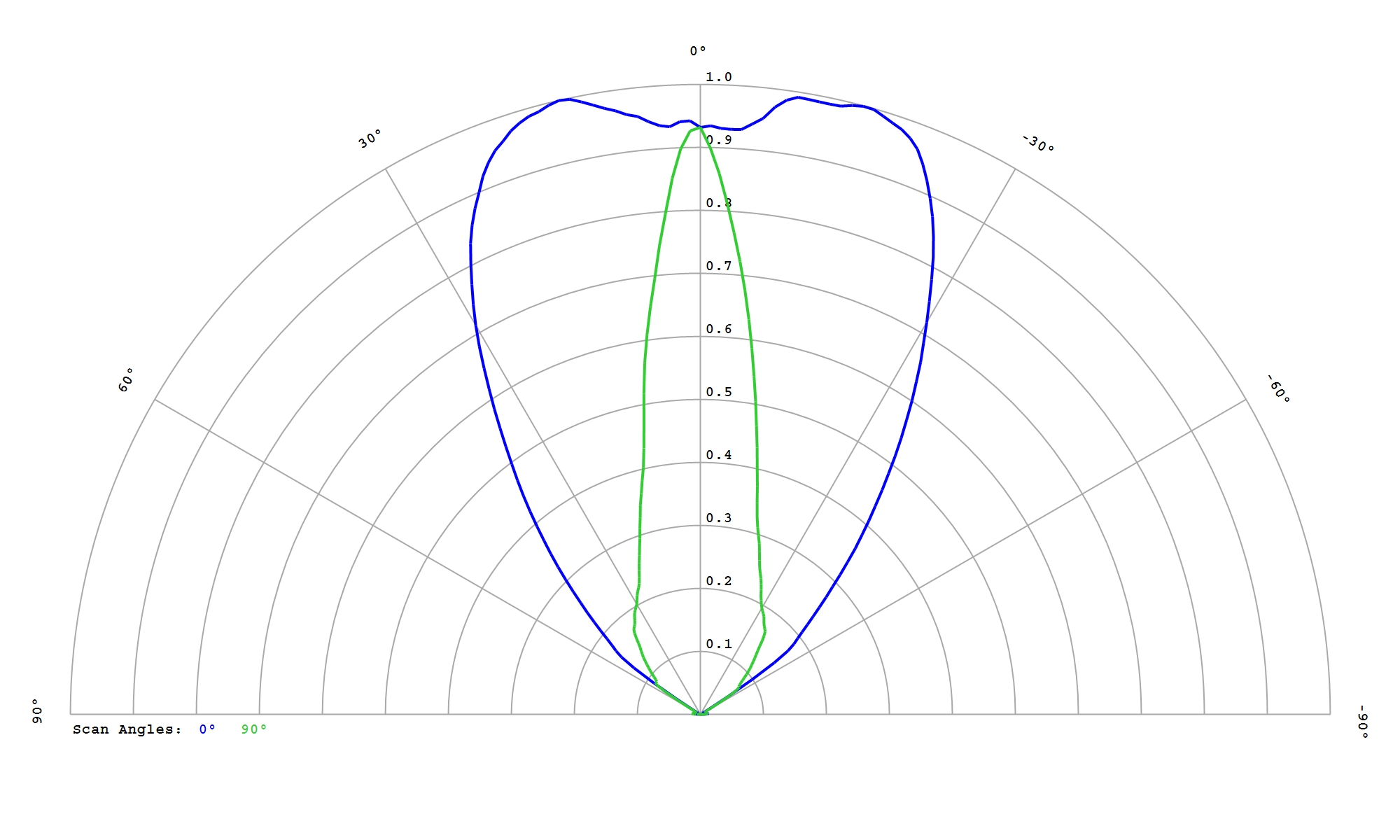

Cree XLamp XP-P White
Eff:
96.5%
FWHM:
74 x 22.5°
Cd/Im:
1.4
Download

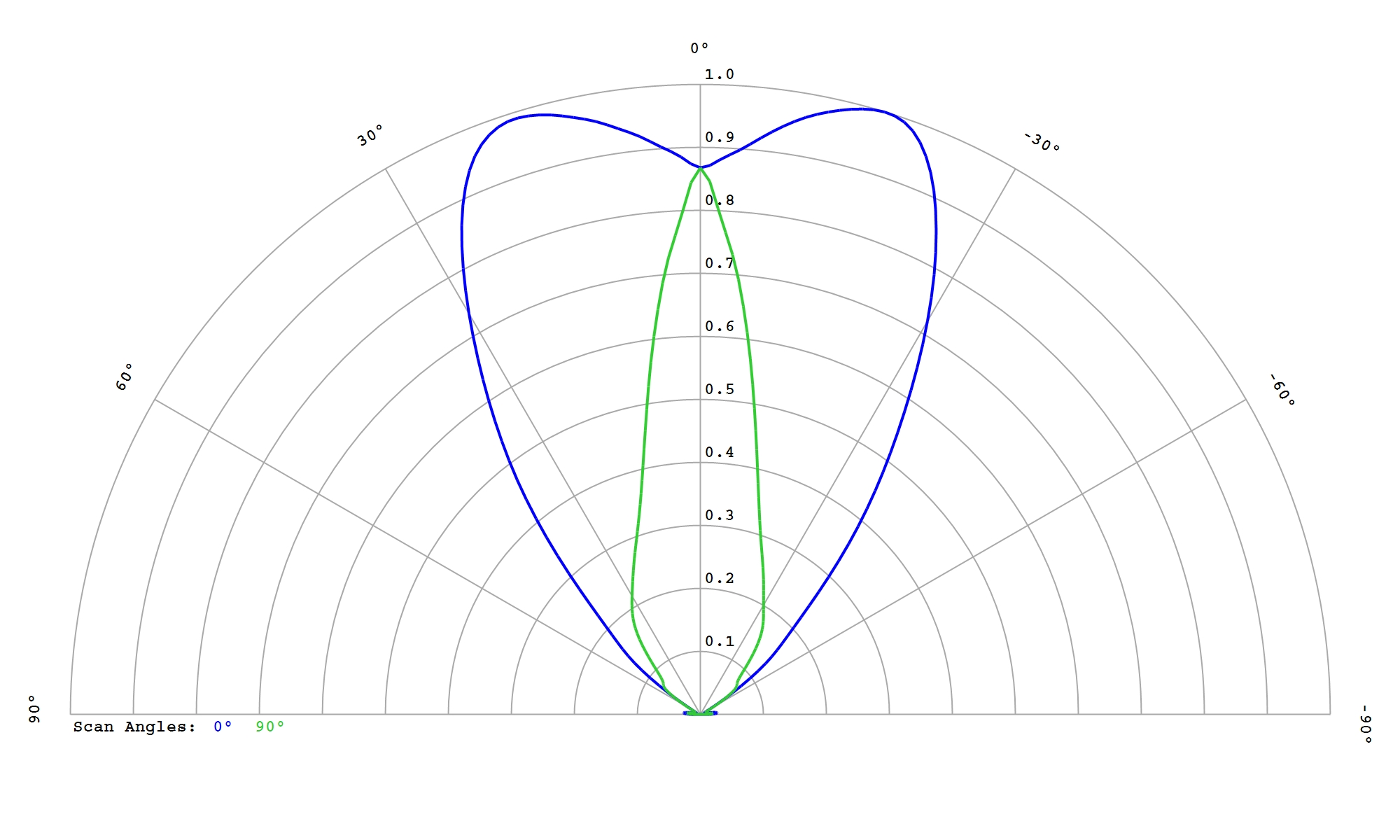

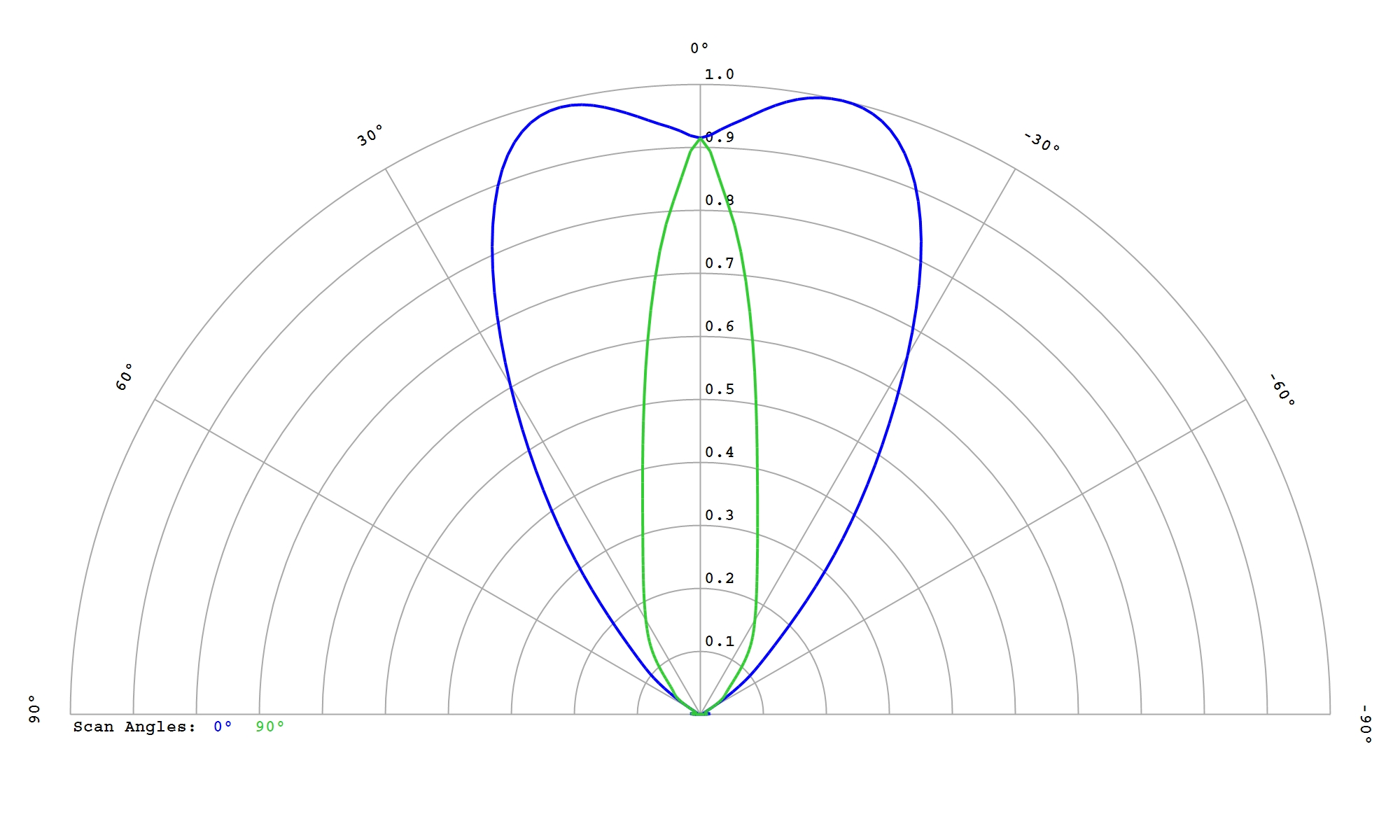

Cree XLamp XQ-A Blue
Eff:
96.0%
FWHM:
67 x 22°
Cd/Im:
1.5
Download

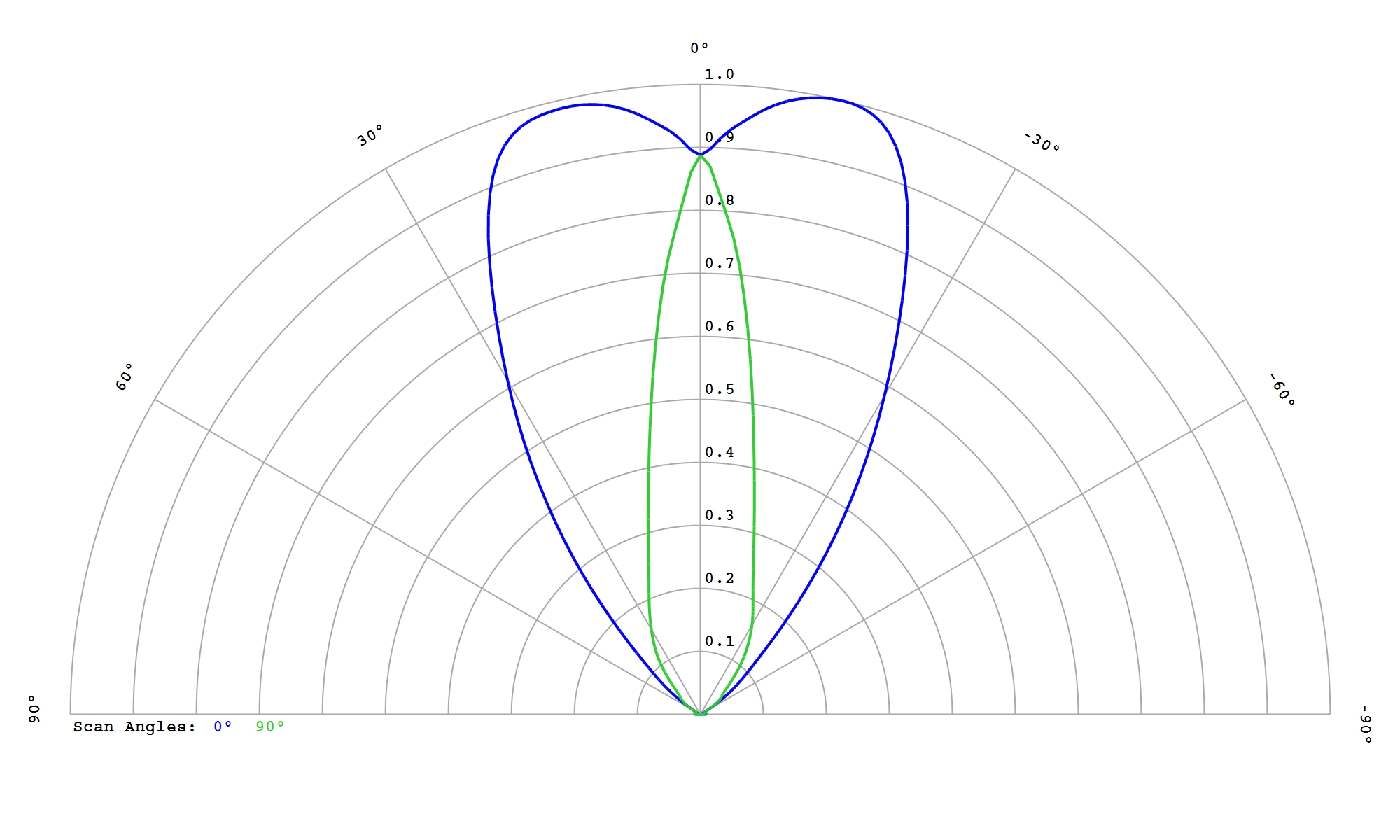

Cree XLamp XQ-A Green
Eff:
95.5%
FWHM:
68 X 22.5°
Cd/Im:
1.5
Download

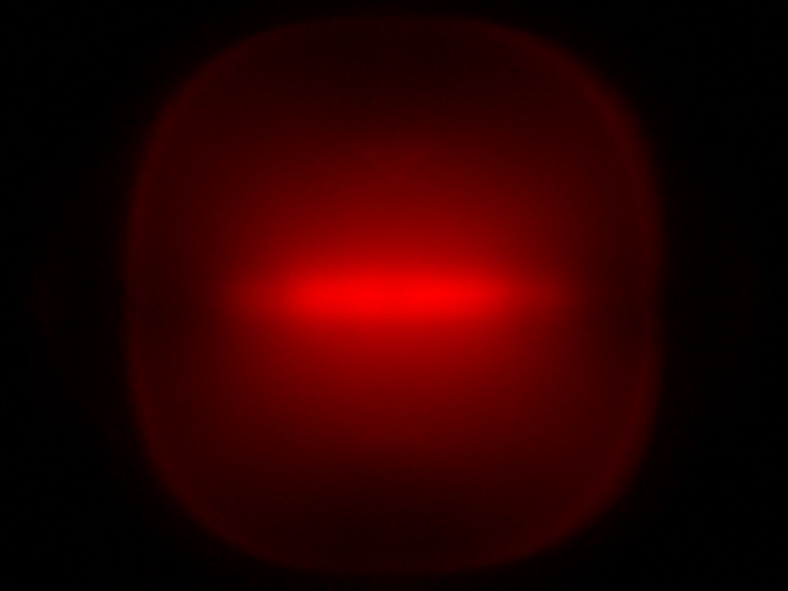

Cree XLamp XQ-A Red
Eff:
96.0%
FWHM:
72 x 22.5°
Cd/Im:
1.3
Download

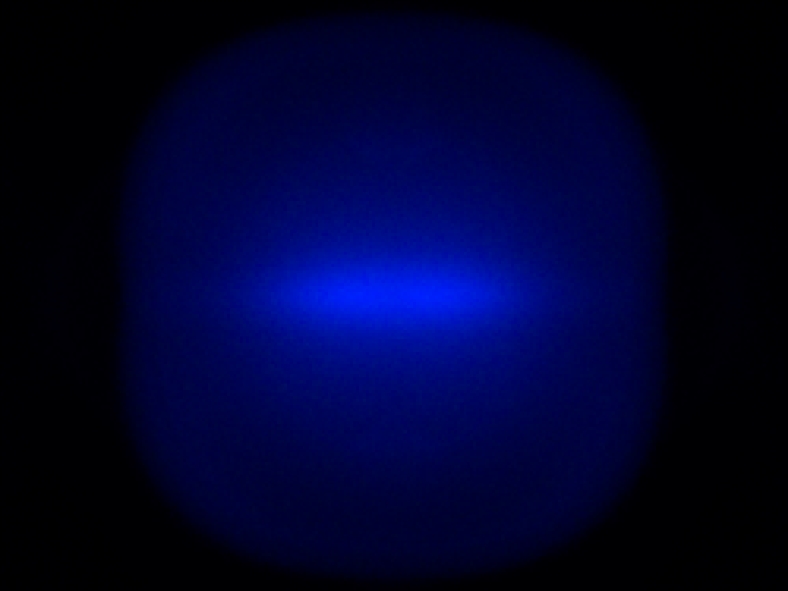

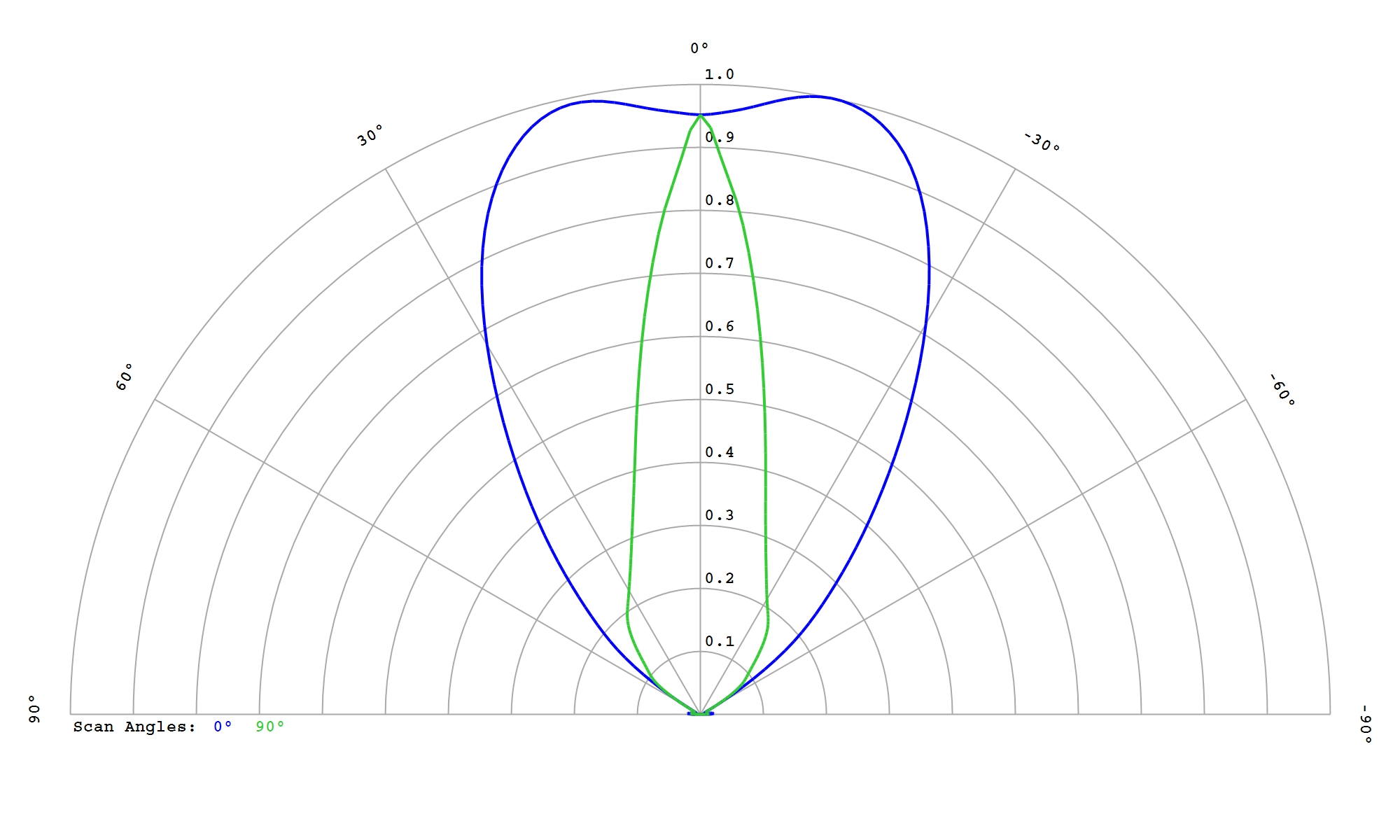

Cree XLamp XQ-E HI Blue
Eff:
95.5%
FWHM:
76.0 x 24.0°
Cd/Im:
1.1
Download
Cree XLamp XQ-E HI Green
Eff:
94.5%
FWHM:
77 x 24.5°
Cd/Im:
1.0
Download
Cree XLamp XQ-E HI Red
Eff:
95.0%
FWHM:
75 x 22.5°
Cd/Im:
1.1
Download
Cree XLamp XT-E HE White
Eff:
96.5%
FWHM:
77 x 27.5°
Cd/Im:
1.1
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
96.0%
FWHM:
73 x 25°
Cd/Im:
1.3
Download

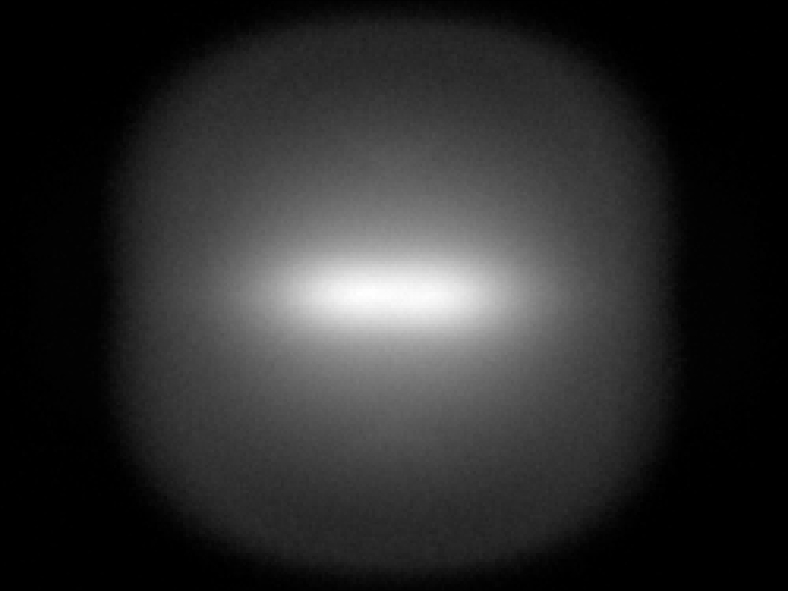

LUMILEDS LUXEON 2835E 9V White
Eff:
96.5%
FWHM:
73 x 24°
Cd/Im:
1.2
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
96.0%
FWHM:
75 x 26.5°
Cd/Im:
1.2
Download
LUMILEDS LUXEON 2835S 3V White
Eff:
96.0%
FWHM:
75 x 26.5°
Cd/Im:
1.2
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
96.0%
FWHM:
75 x 26.5°
Cd/Im:
1.2
Download

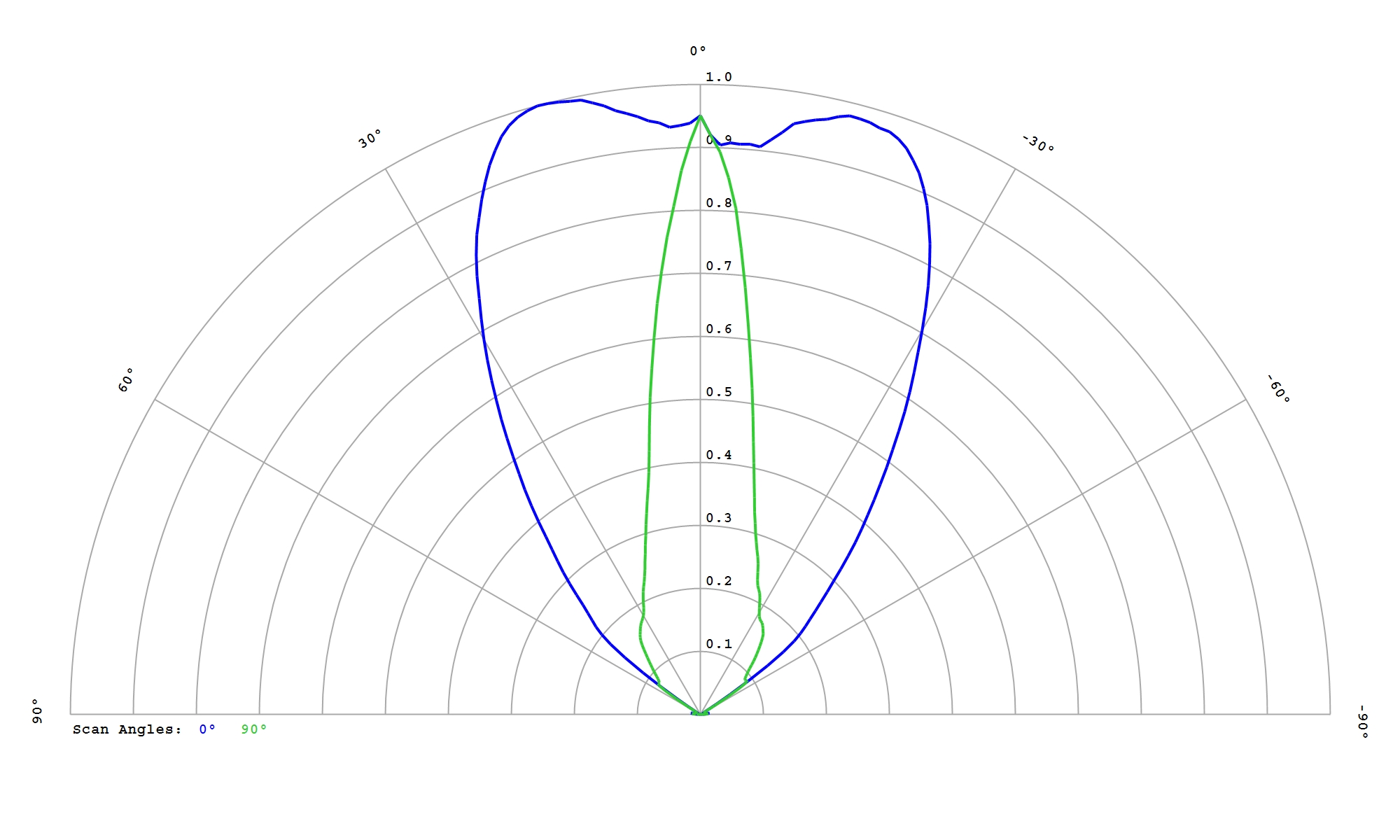

LUMILEDS LUXEON 3014 White
Eff:
96.0%
FWHM:
73 x 19.5°
Cd/Im:
1.4
Download

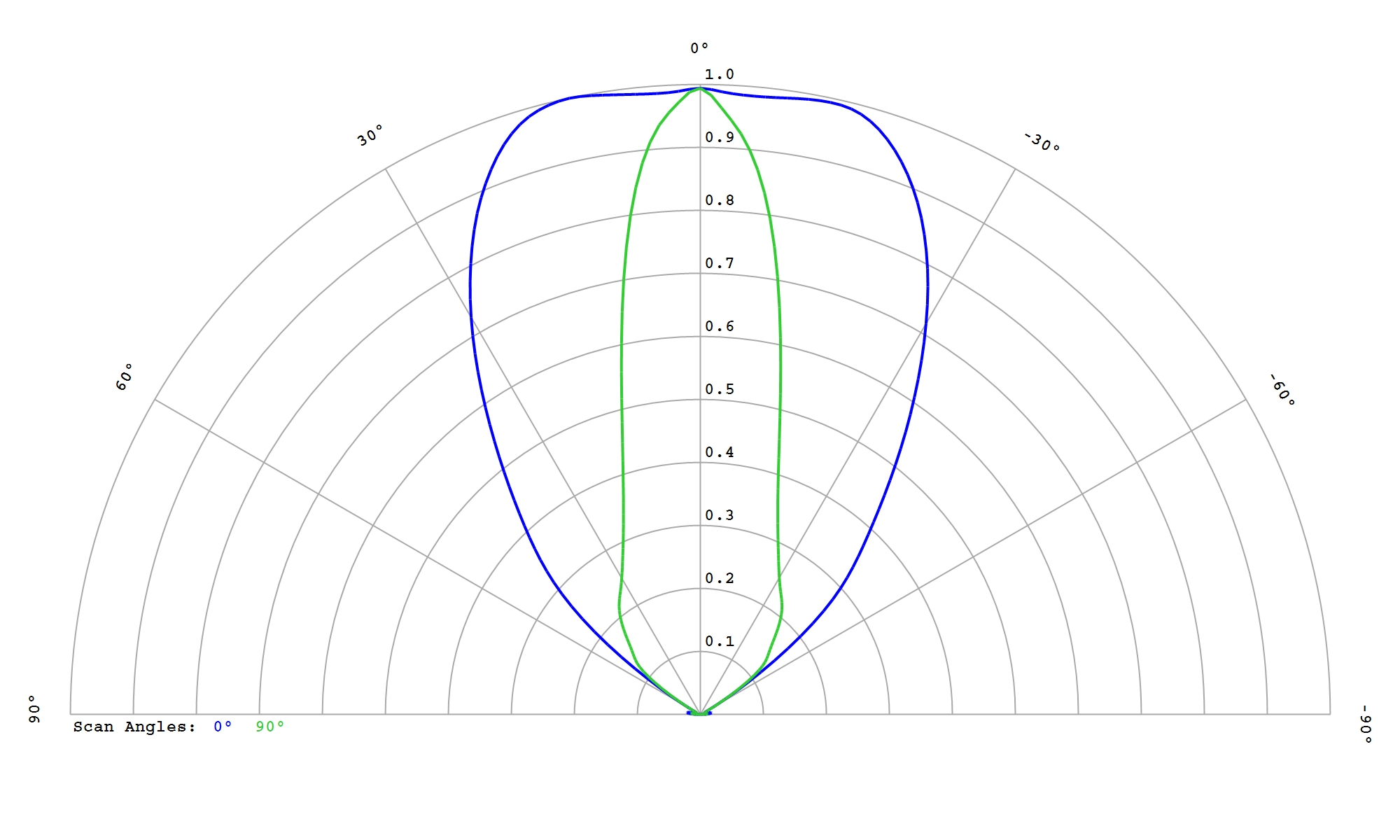

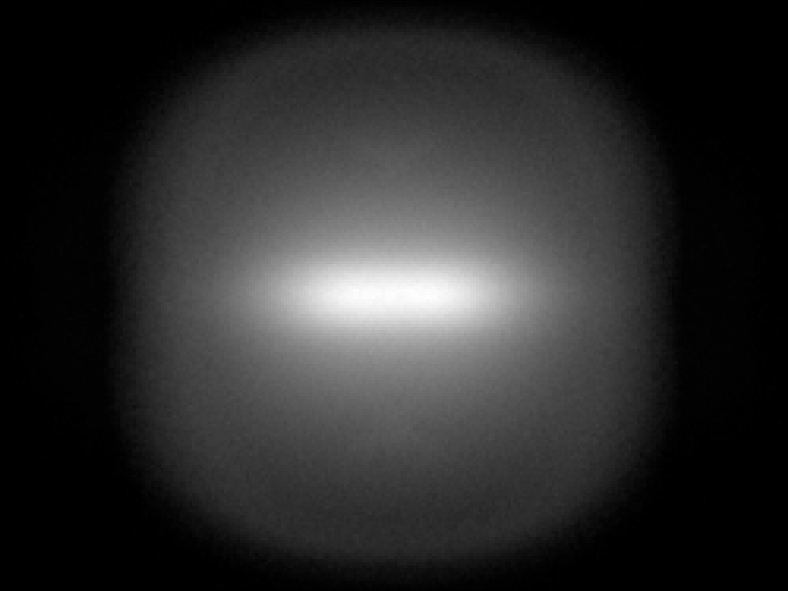

LUMILEDS LUXEON 3030 2D White
Eff:
96.0%
FWHM:
73 x 21°
Cd/Im:
1.4
Download

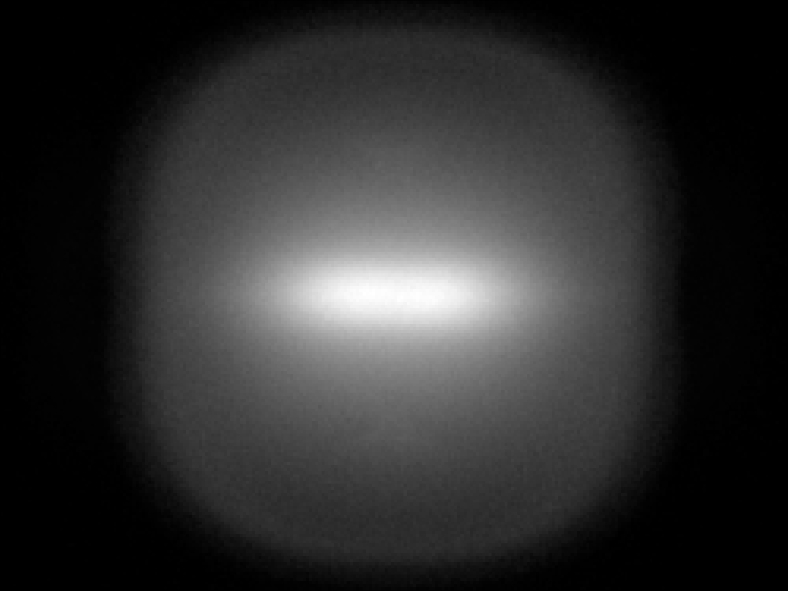

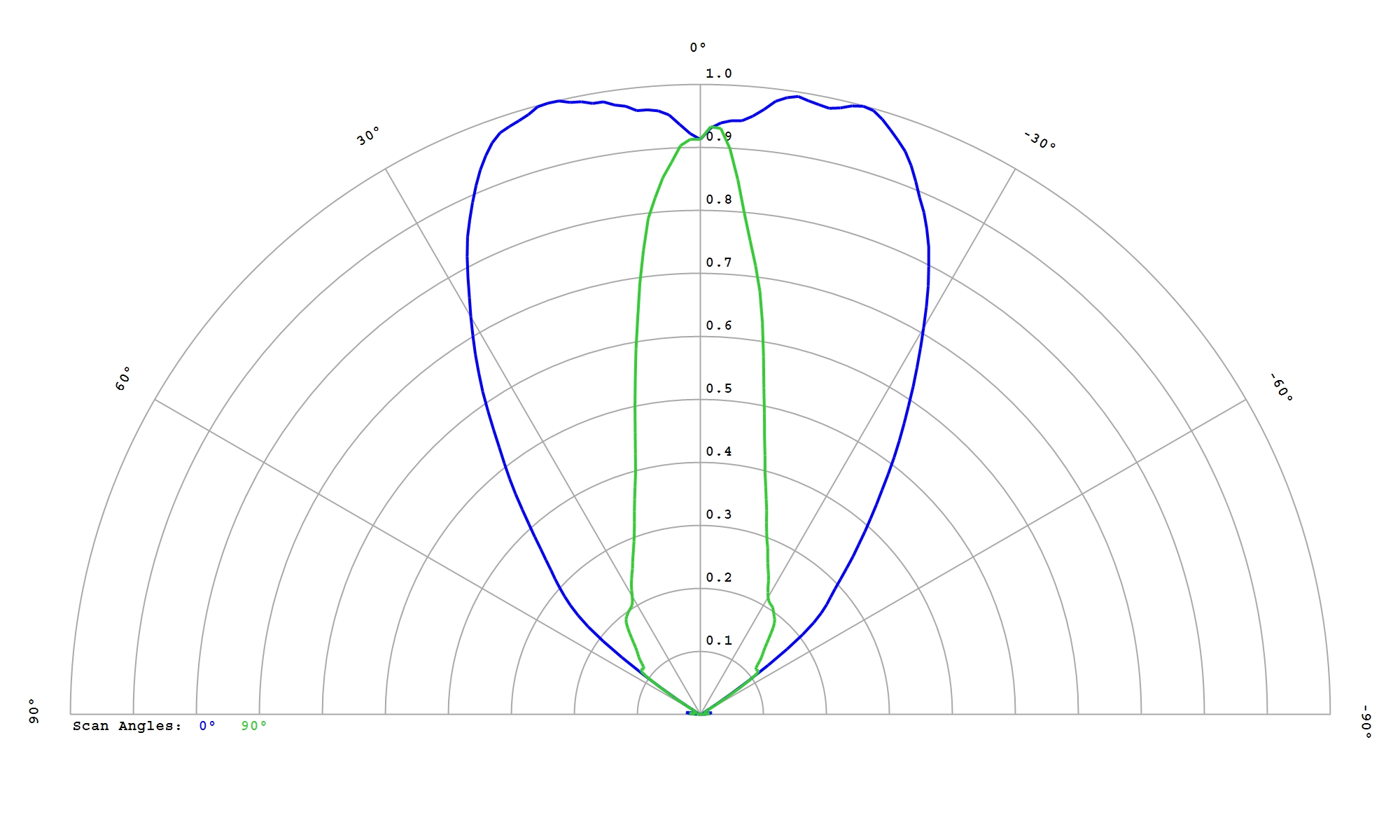

LUMILEDS LUXEON 3030 HE Plus White
Eff:
96.0%
FWHM:
74 x 24.5°
Cd/Im:
1.3
Download
LUMILEDS LUXEON 3535L Blue
Eff:
96.5%
FWHM:
82 x 24°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 3535L Green
Eff:
96.0%
FWHM:
85 x 28°
Cd/Im:
0.9
Download

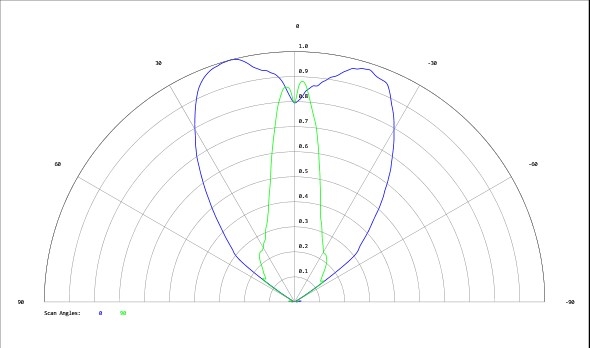

LUMILEDS LUXEON 3535L Red
Eff:
25.5%
FWHM:
83°
Cd/Im:
1.0
Download

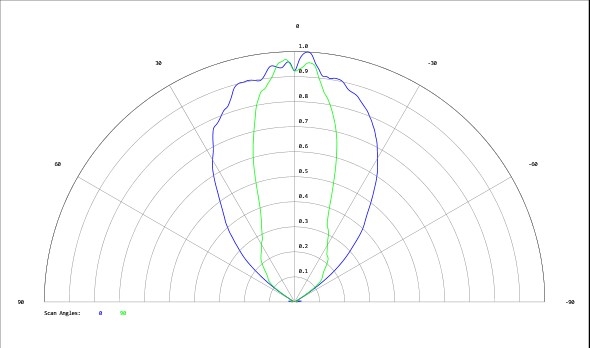

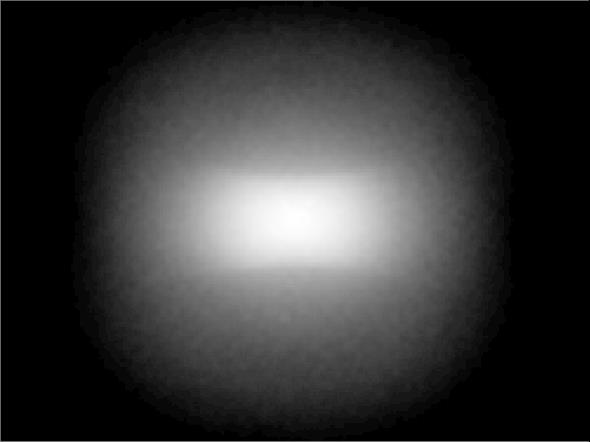

LUMILEDS LUXEON 5050 HE 24V White
Eff:
95.5%
FWHM:
77 x 39°
Cd/Im:
1.0
Download

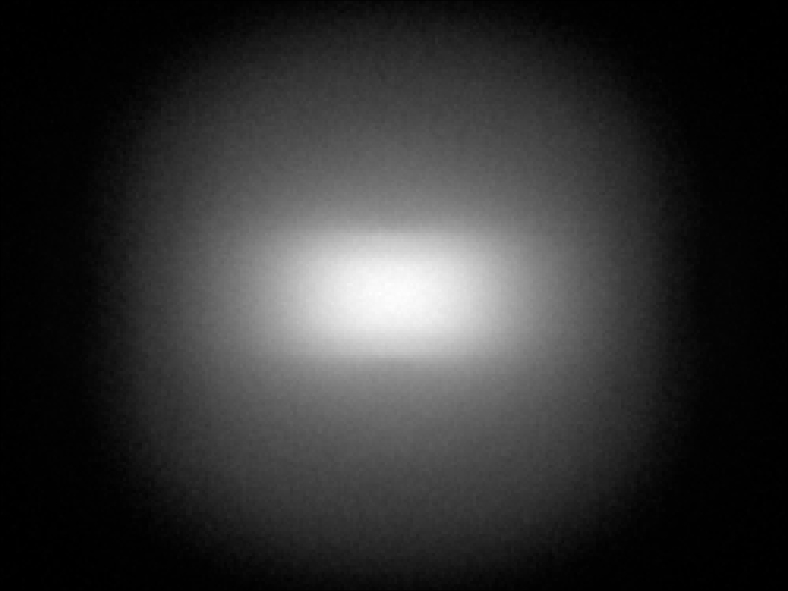

LUMILEDS LUXEON 5050 HE 6V White
Eff:
95.5%
FWHM:
78 x 39°
Cd/Im:
1.1
Download

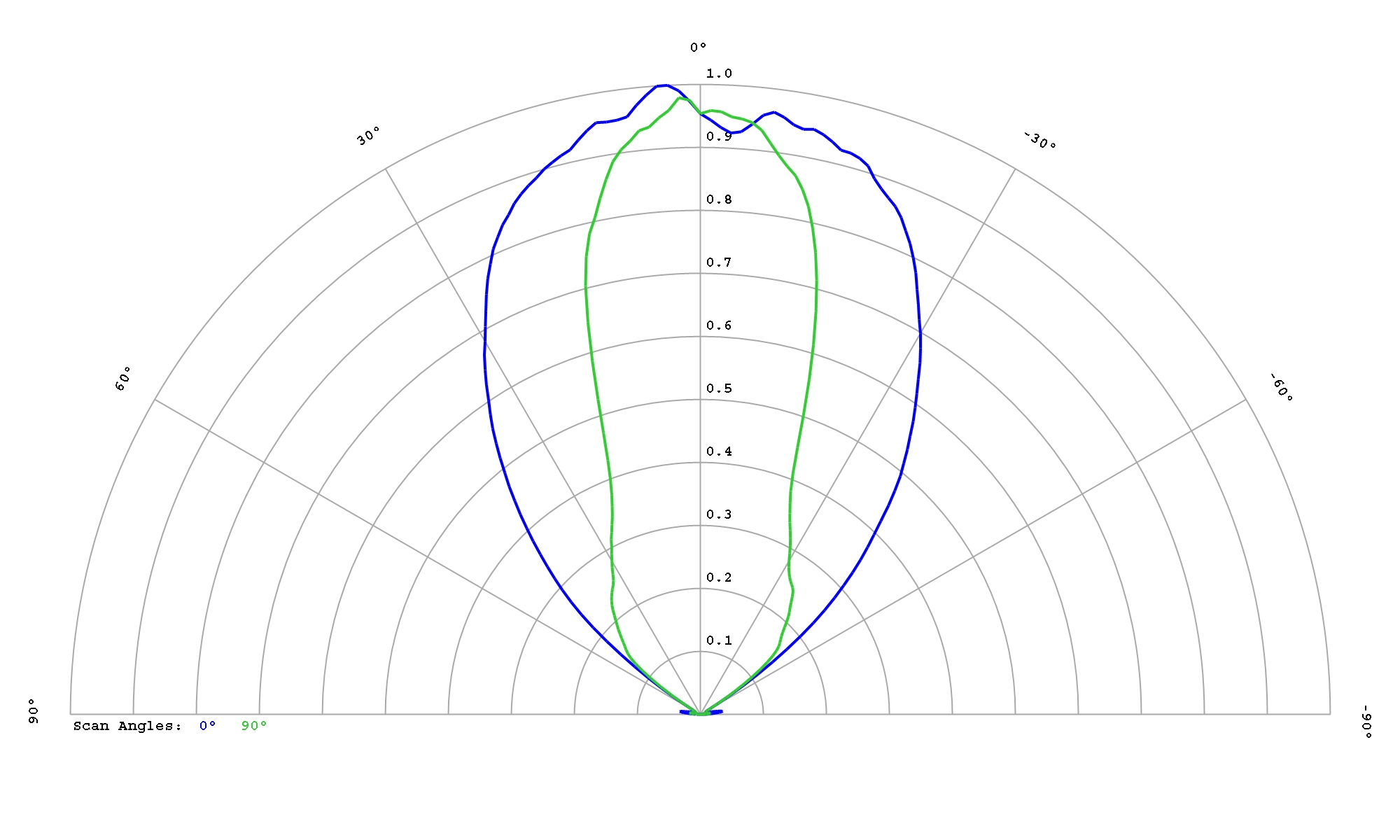

LUMILEDS LUXEON 5050 Round 24V White
Eff:
95.5%
FWHM:
78 x 38°
Cd/Im:
1.0
Download
LUMILEDS LUXEON 5050 Square 30V White
Eff:
96.0%
FWHM:
79 x 39°
Cd/Im:
1.1
Download

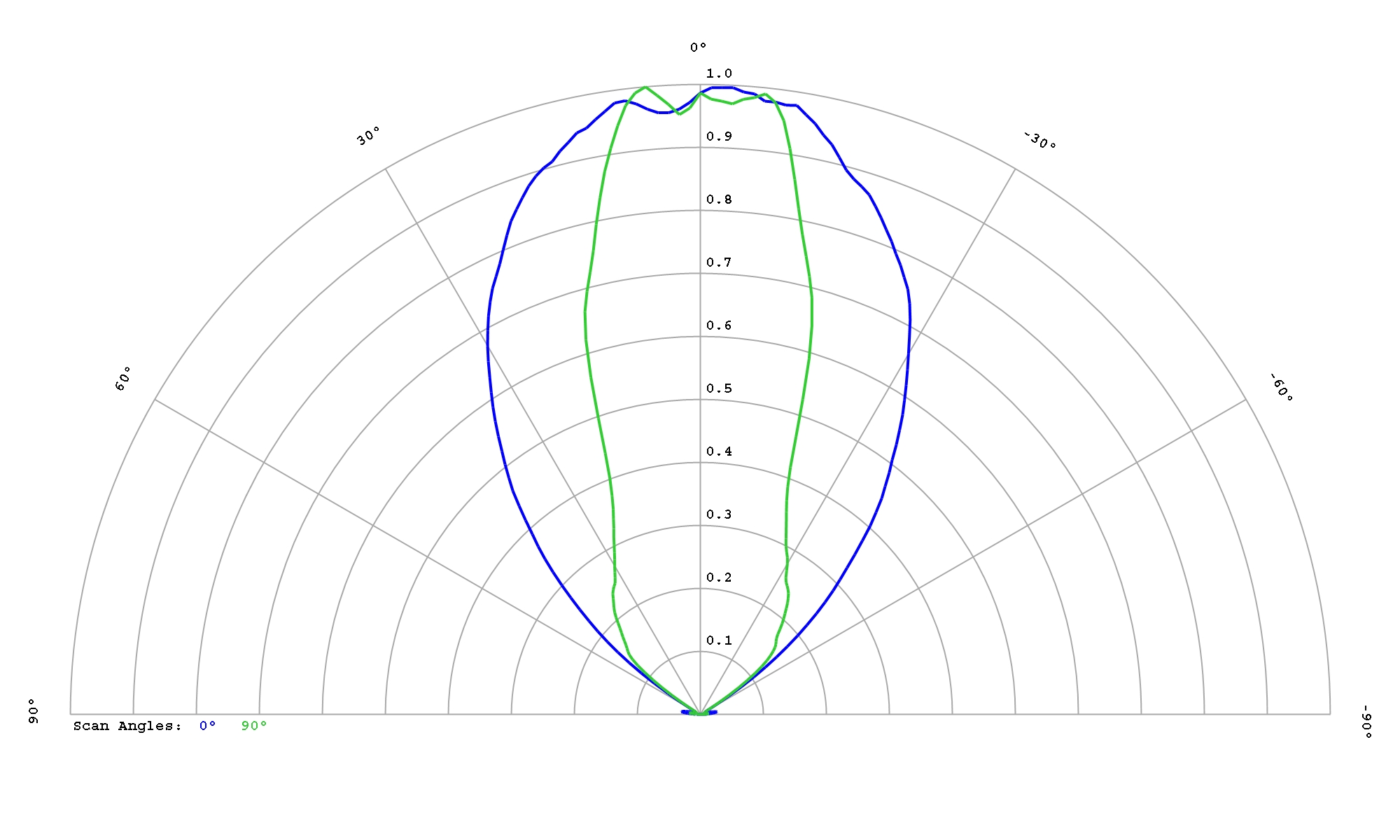

LUMILEDS LUXEON 5050 Square 6V White
Eff:
96.0%
FWHM:
74 x 37°
Cd/Im:
1.1
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
96.0%
FWHM:
73.0 x 36.0°
Cd/Im:
0.9
Download
LUMILEDS LUXEON C Blue
Eff:
91.0%
FWHM:
90.0 x 23.0°
Cd/Im:
0.7
Download

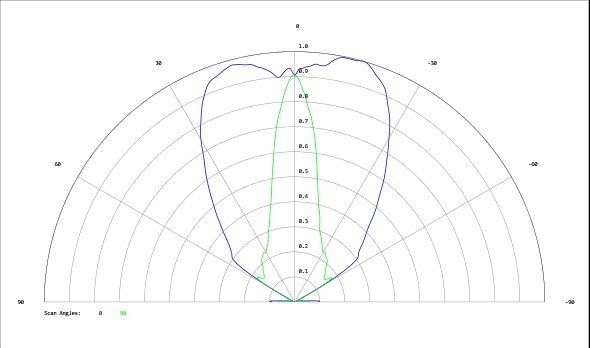

LUMILEDS LUXEON C Lime
Eff:
92.0%
FWHM:
81 x 21°
Cd/Im:
0.9
Download
LUMILEDS LUXEON C Red
Eff:
90.0%
FWHM:
88.0 x 24.0°
Cd/Im:
0.7
Download

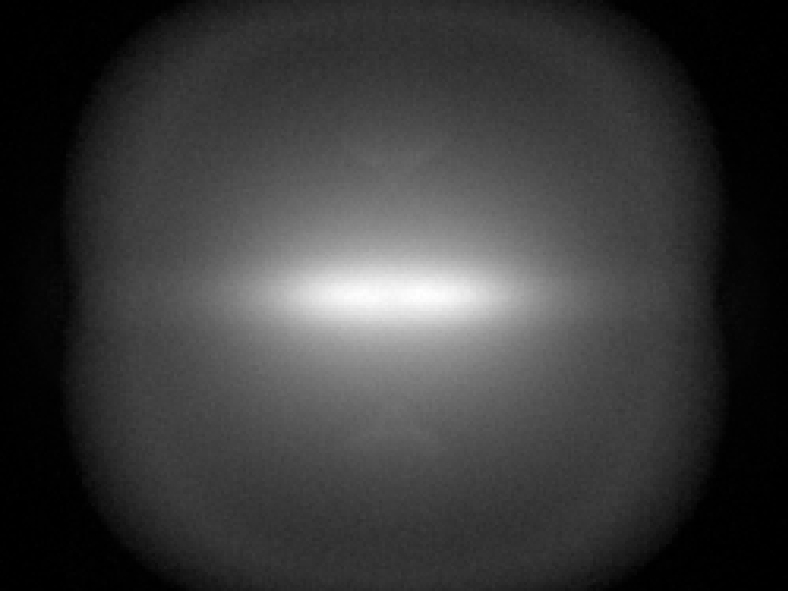

LUMILEDS LUXEON C White
Eff:
90.5%
FWHM:
82 x 23.5°
Cd/Im:
1.0
Download

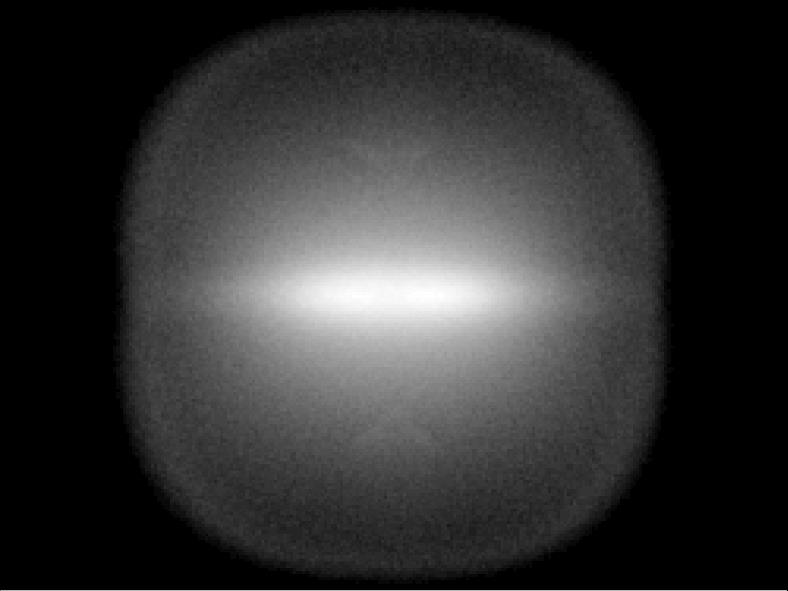

LUMILEDS LUXEON CZ White
Eff:
96.0%
FWHM:
74 x 22.5°
Cd/Im:
1.3
Download

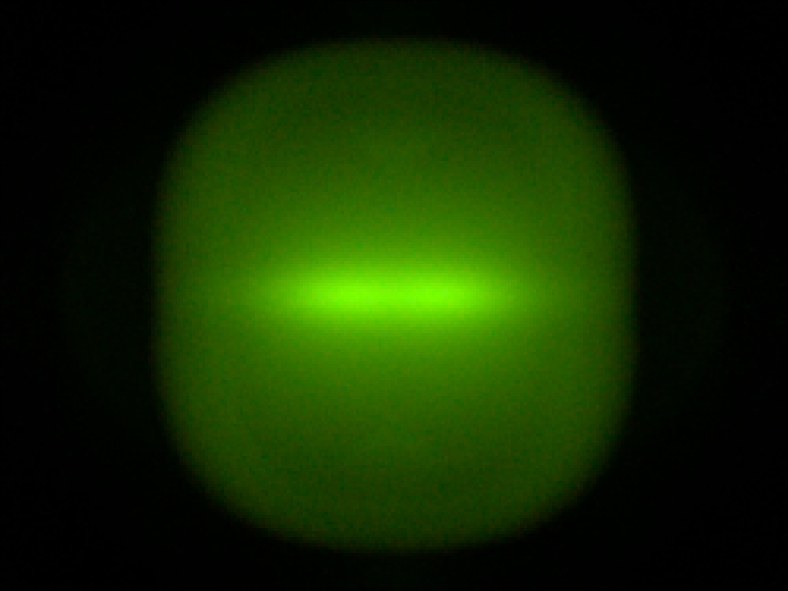

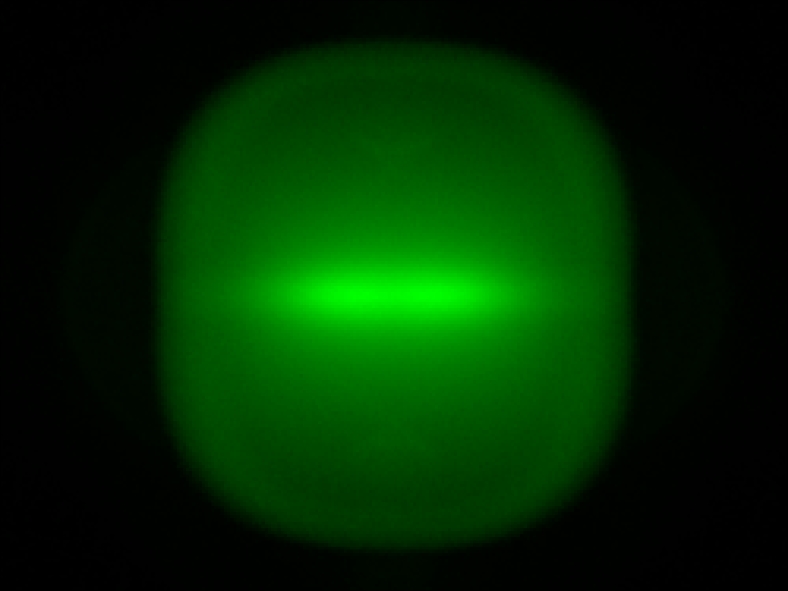

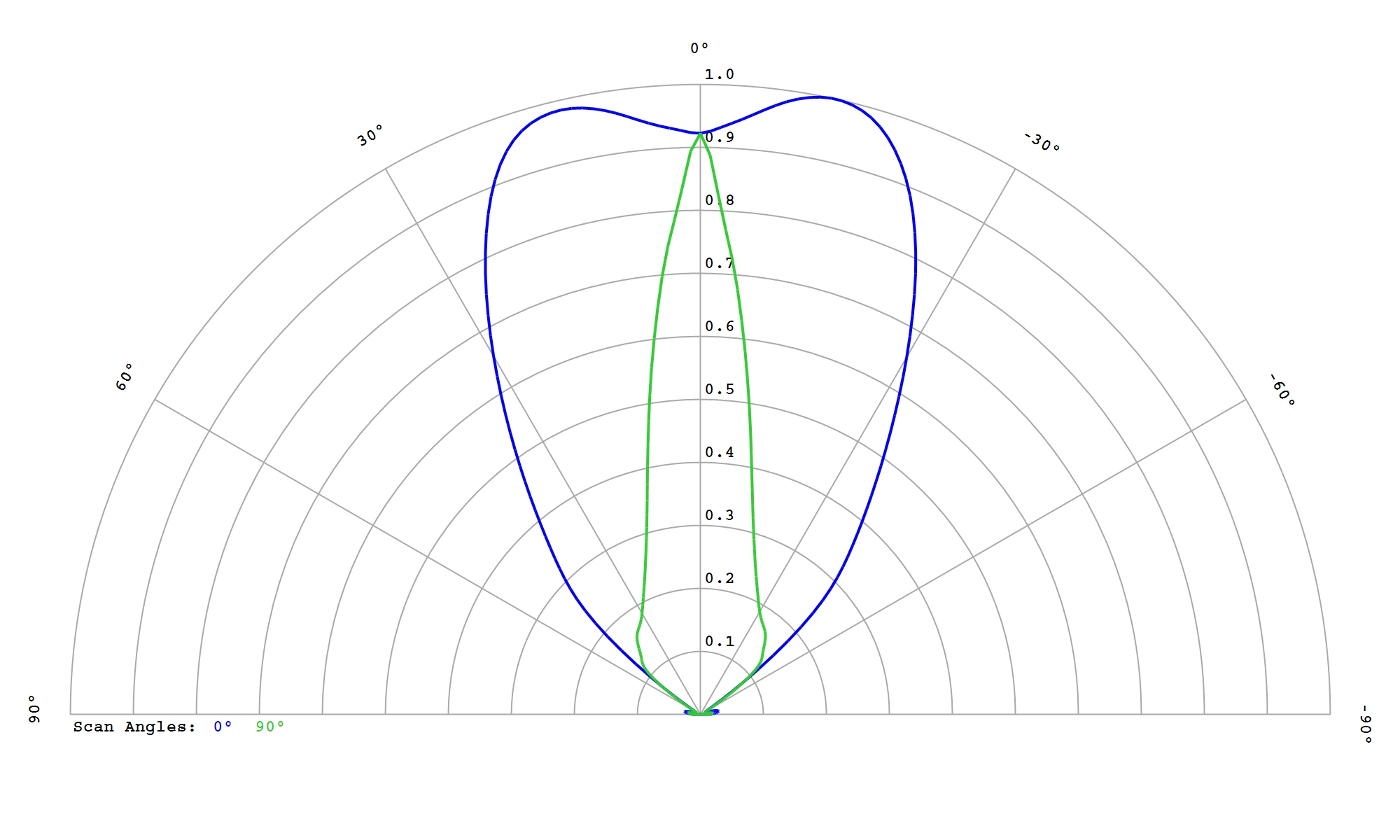

LUMILEDS LUXEON HL1Z CSP White
Eff:
94.5%
FWHM:
73 x 18°
Cd/Im:
1.3
Download

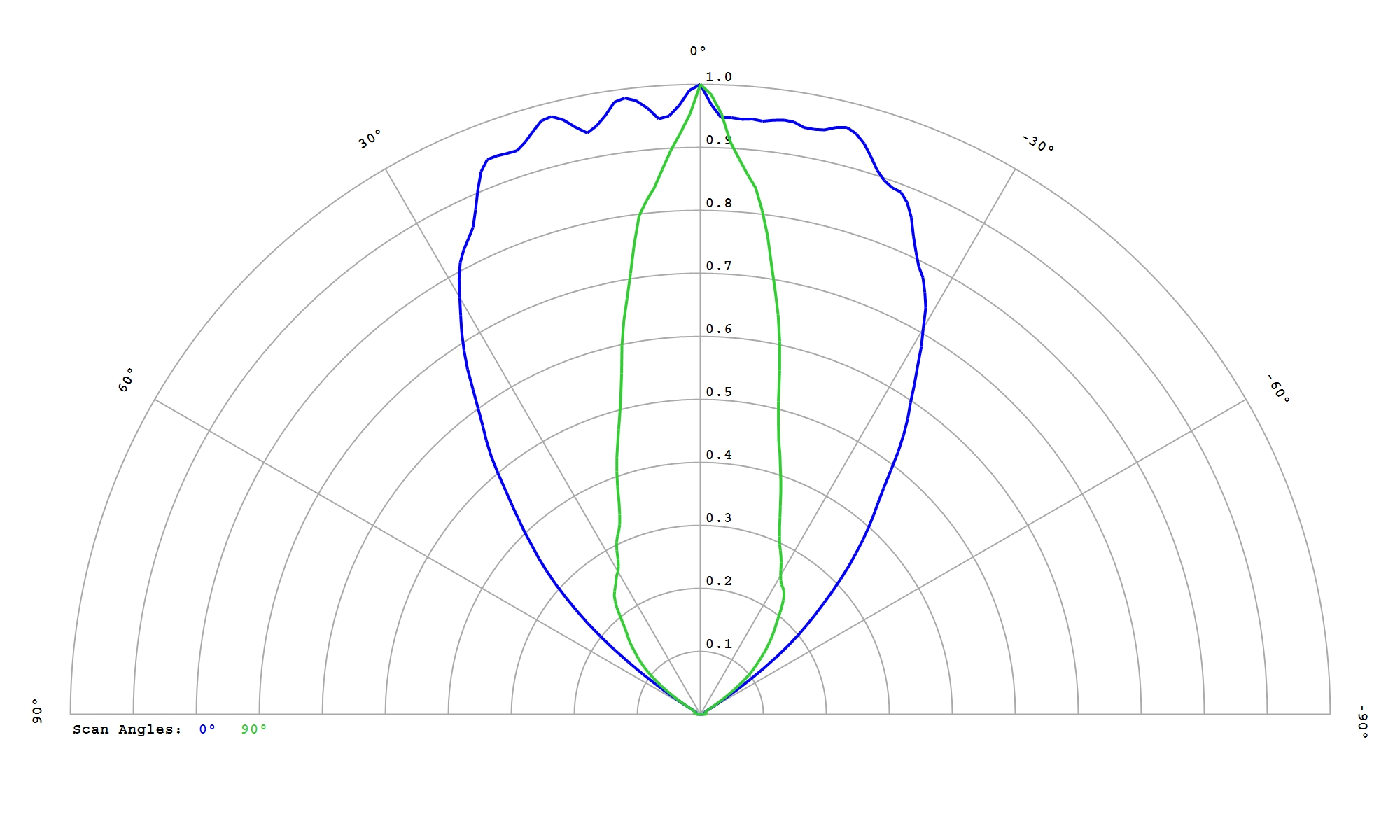

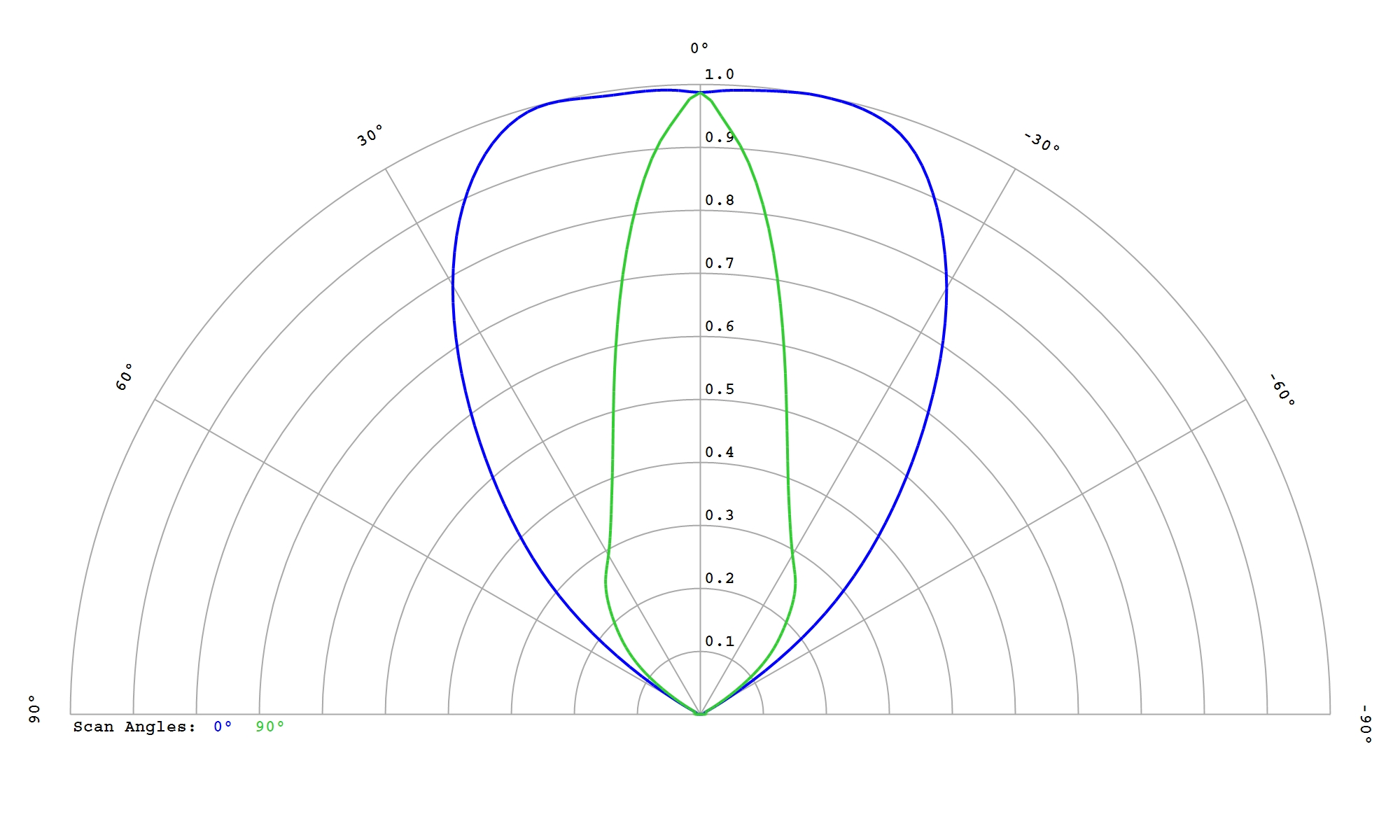

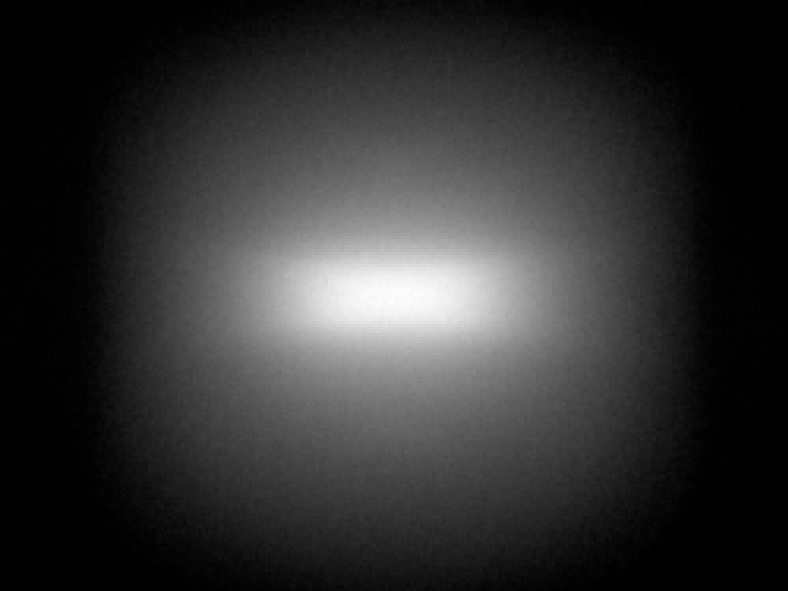

LUMILEDS LUXEON HL2X White
Eff:
95.5%
FWHM:
77 x 30°
Cd/Im:
1.3
Download

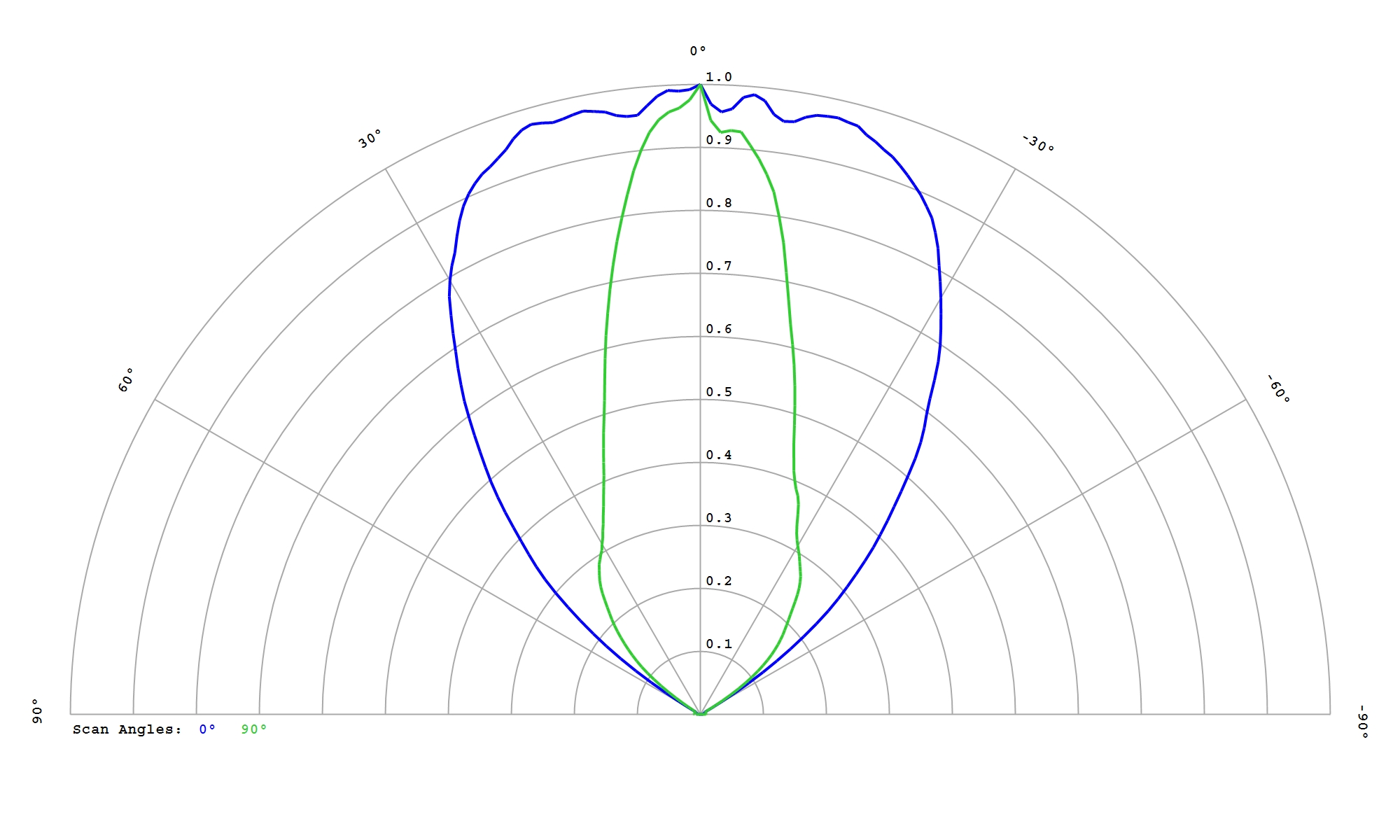

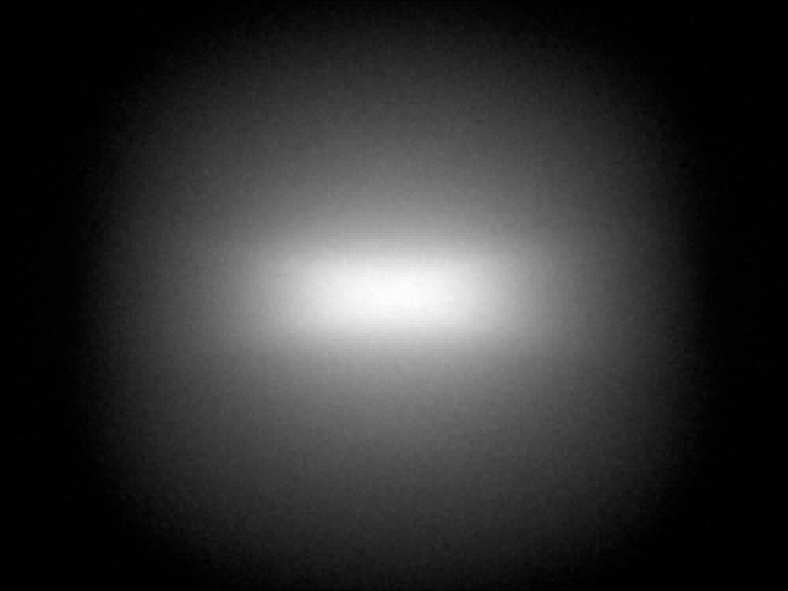

LUMILEDS LUXEON HL2X-D White
Eff:
95.5%
FWHM:
82 x 35°
Cd/Im:
1.0
Download

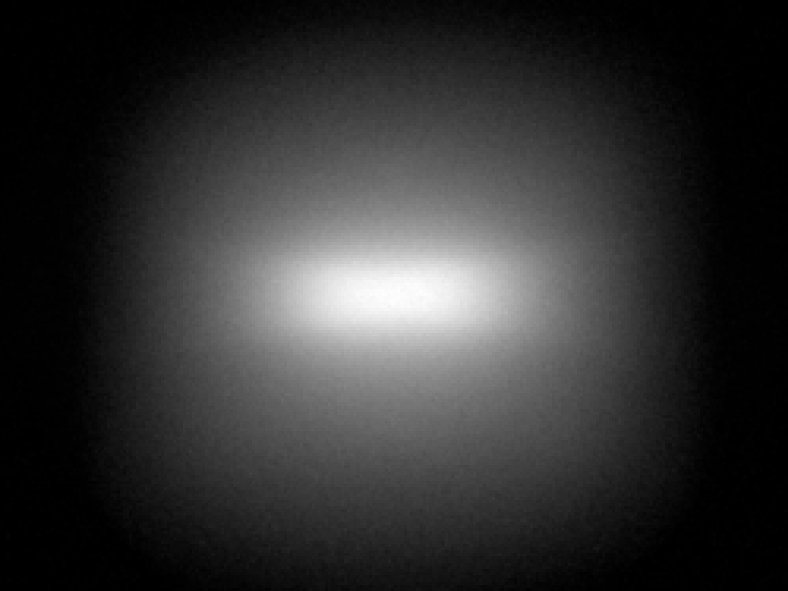

LUMILEDS LUXEON HL2X-P White
Eff:
95.5%
FWHM:
81 x 33°
Cd/Im:
1.1
Download
LUMILEDS LUXEON HL2Z White
Eff:
95.0%
FWHM:
74 x 21.5°
Cd/Im:
1.2
Download

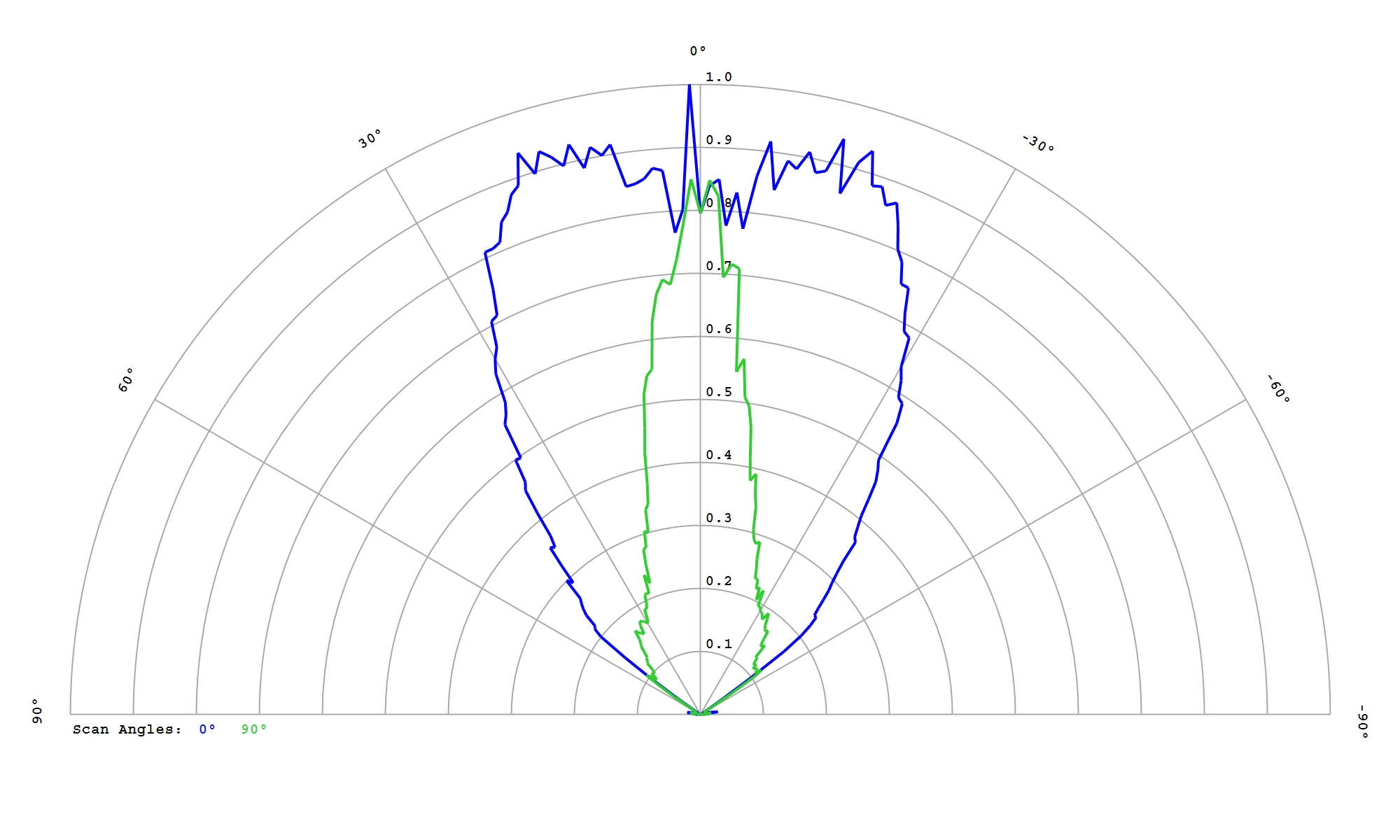

LUMILEDS LUXEON IR 2720
Eff:
97.0%
FWHM:
74/23.5°
Ipk/W:
1.2
Download
LUMILEDS LUXEON Rebel ES White
Eff:
90.0%
FWHM:
80*30°
Cd/Im:
0.9
Download

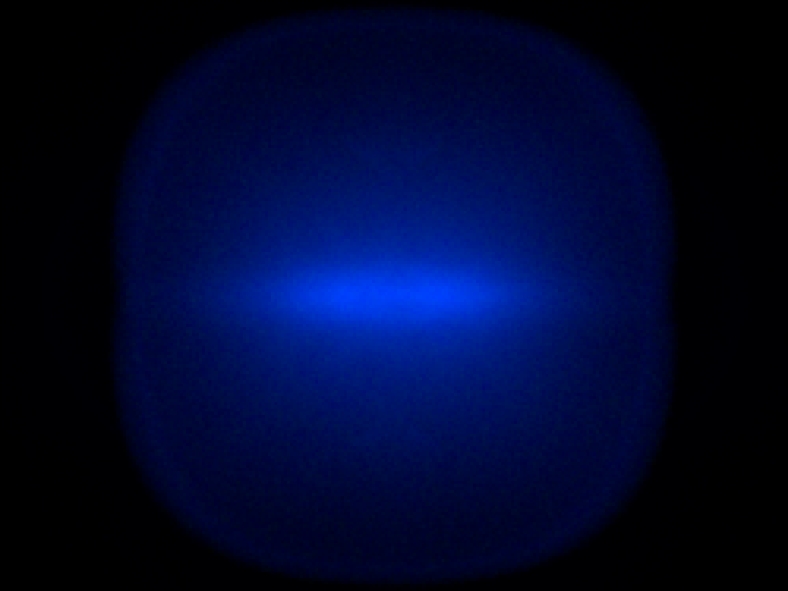

LUMILEDS LUXEON Rubix Blue
Eff:
96.5%
FWHM:
77 x 23°
Cd/Im:
1.4
Download

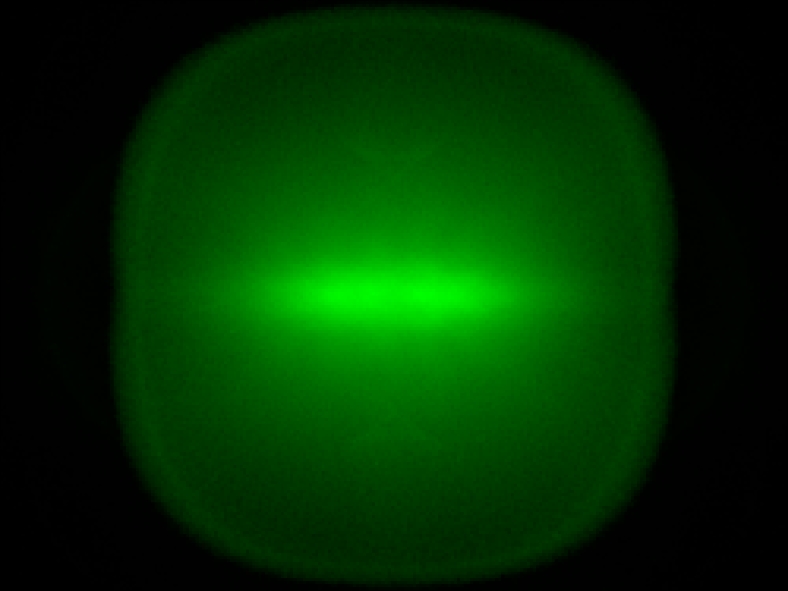

LUMILEDS LUXEON Rubix Green
Eff:
96.5%
FWHM:
77 x 25.5°
Cd/Im:
1.2
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.5%
FWHM:
76 x 22.5°
Cd/Im:
1.3
Download

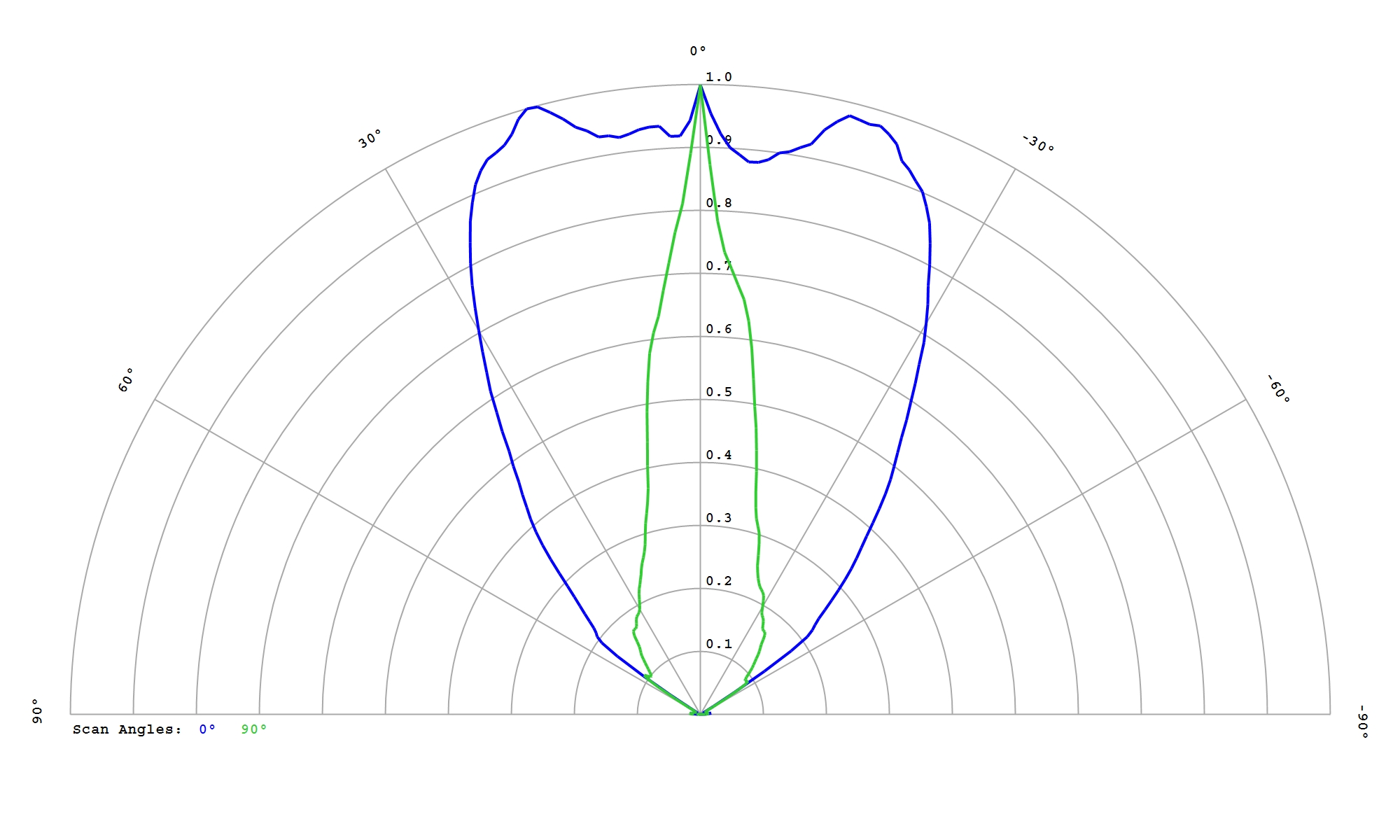

LUMILEDS LUXEON Rubix Royal Blue
Eff:
97.0%
FWHM:
73 x 21.5°
Cd/Im:
1.7
Download
LUMILEDS LUXEON Rubix White
Eff:
96.0%
FWHM:
76 x 23°
Cd/Im:
1.3
Download

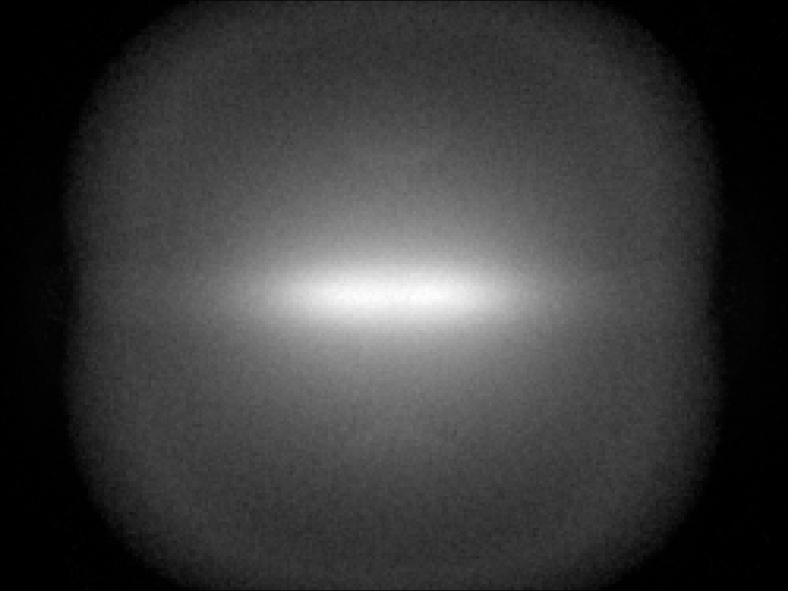

LUMILEDS LUXEON SunPlus 20 Line Cool White
Eff:
93.0%
FWHM:
81 x 22.5°
Cd/Im:
1.1
Download

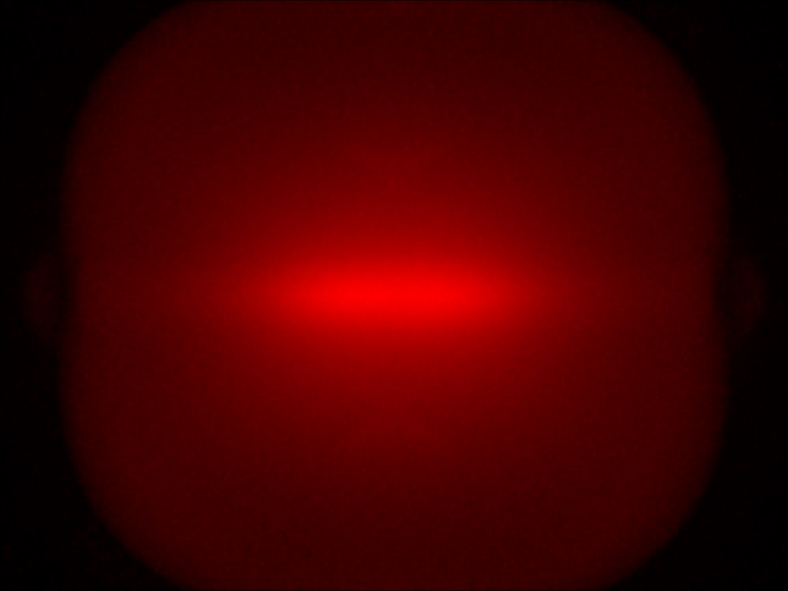

LUMILEDS LUXEON SunPlus 20 Line Deep Red
Eff:
88.0%
FWHM:
88 x 27.5°
Cd/Im:
0.8
Download

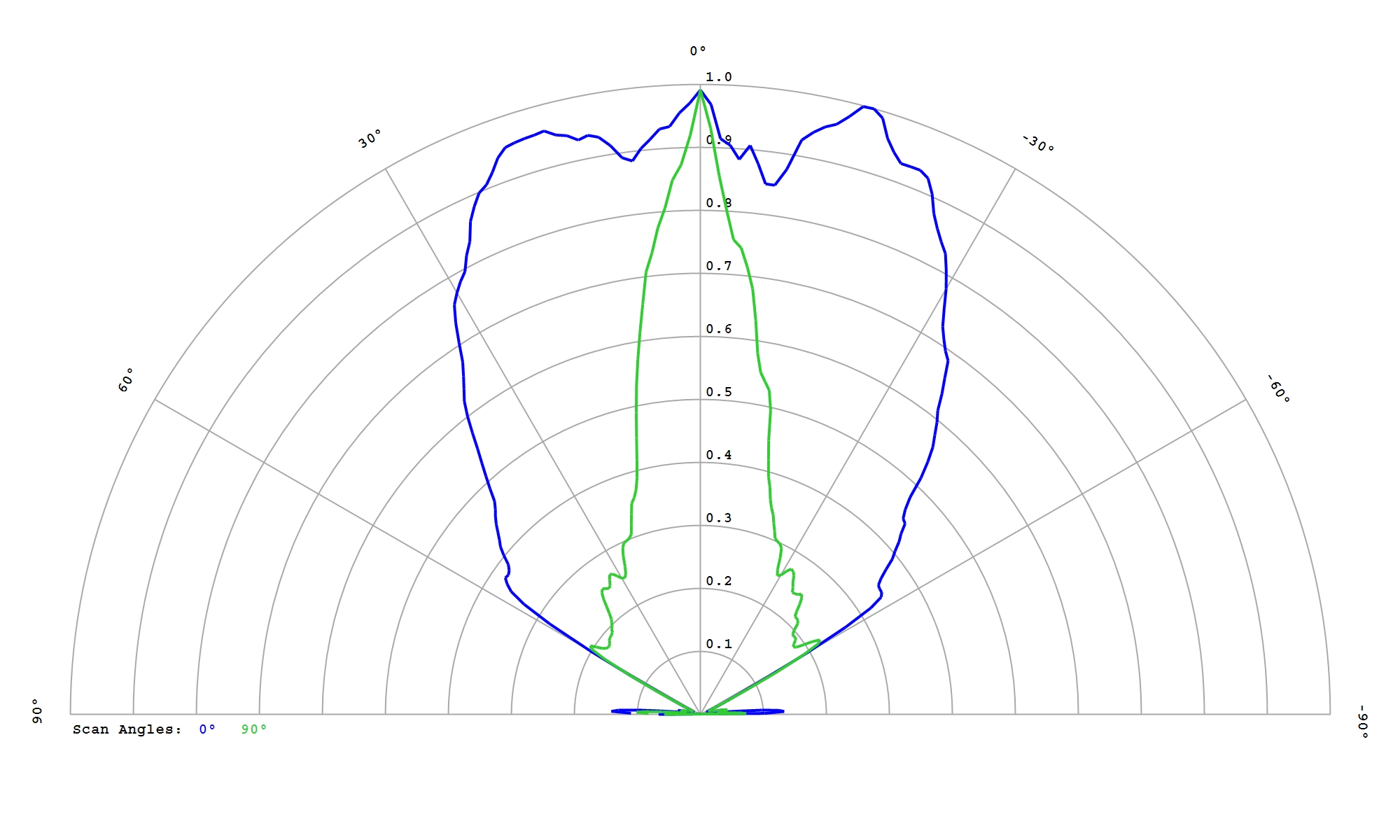

LUMILEDS LUXEON SunPlus 20 Line Far Red
Eff:
88.5%
FWHM:
83 x 24°
Cd/Im:
1.8
Download

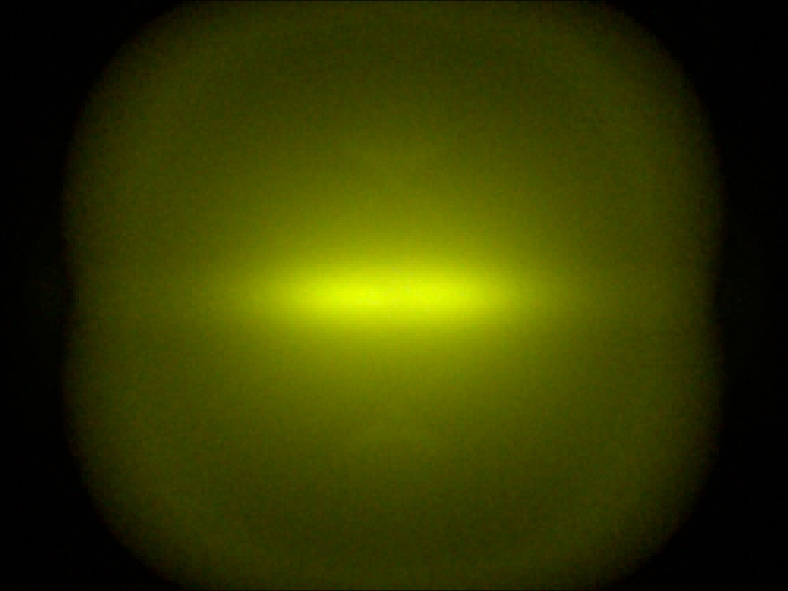

LUMILEDS LUXEON SunPlus 20 Line Lime
Eff:
91.0%
FWHM:
83 x 21.5°
Cd/Im:
0.9
Download

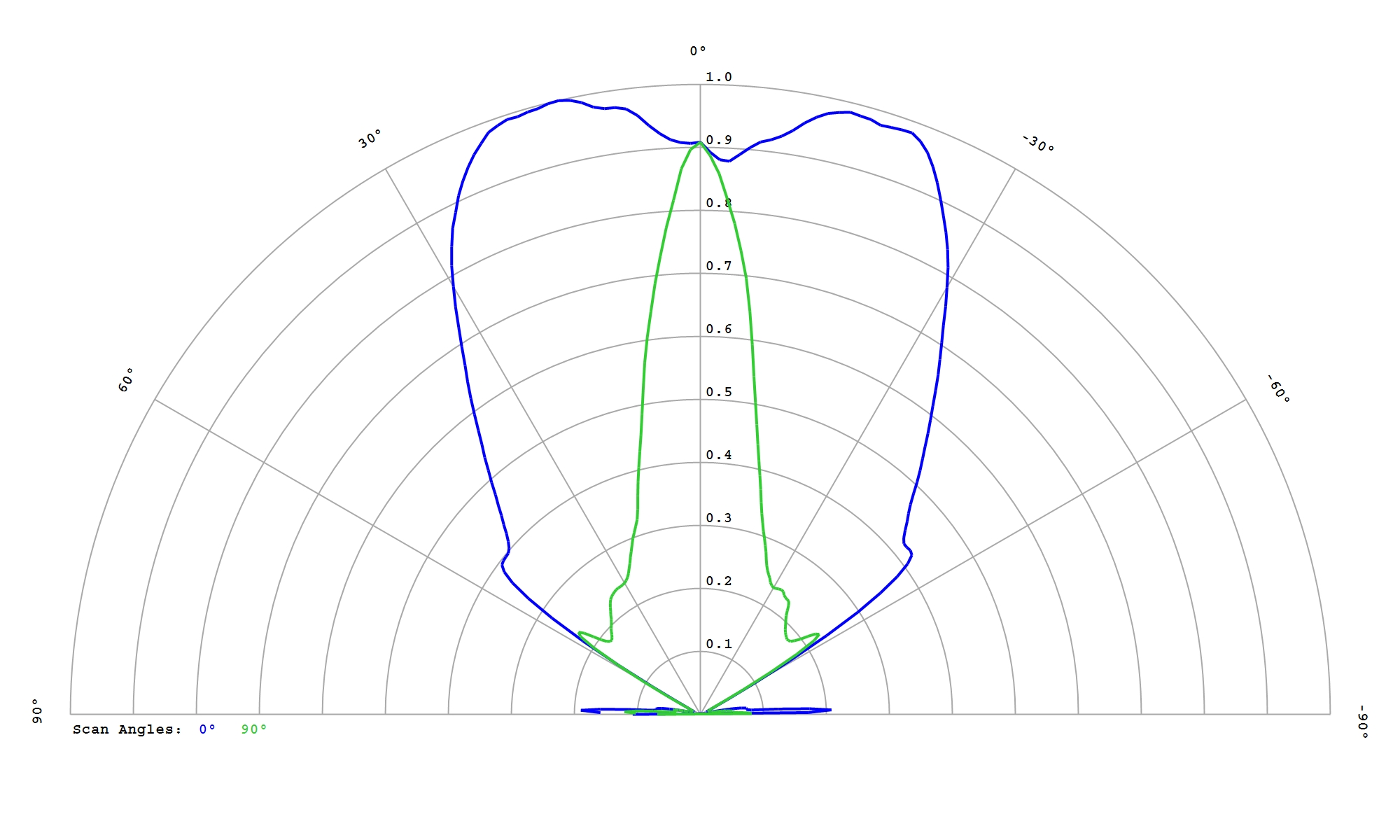

LUMILEDS LUXEON SunPlus 20 Line Royal Blue
Eff:
90.0%
FWHM:
84 x 22.5°
Cd/Im:
0.9
Download
LUMILEDS LUXEON V White
Eff:
93.0%
FWHM:
77 x 34°
Cd/Im:
0.8
Download

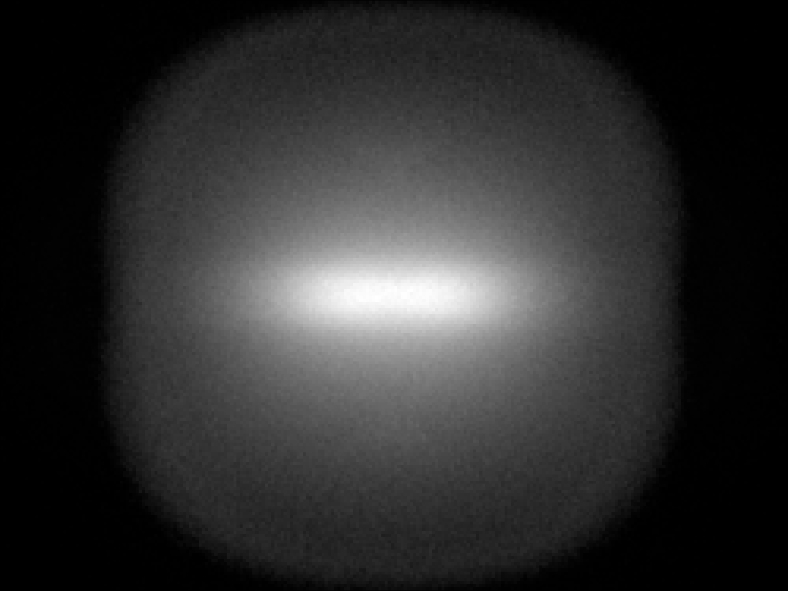

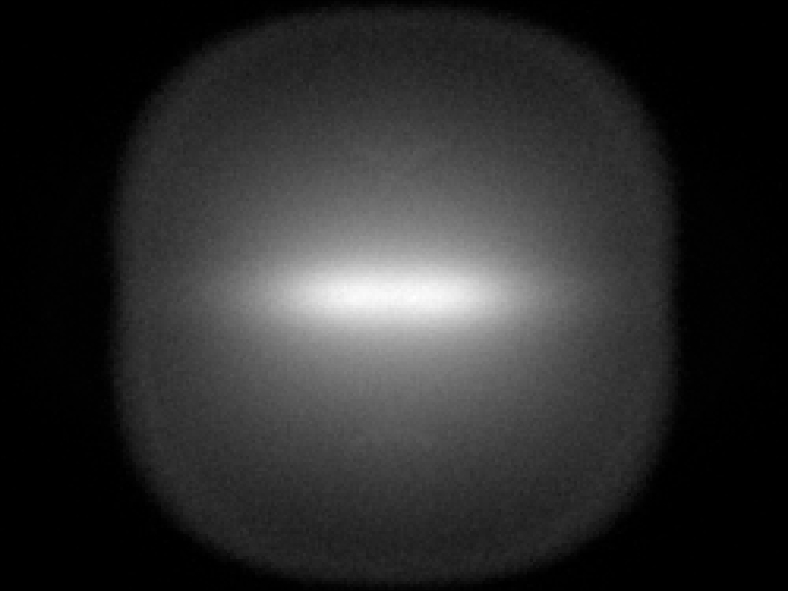

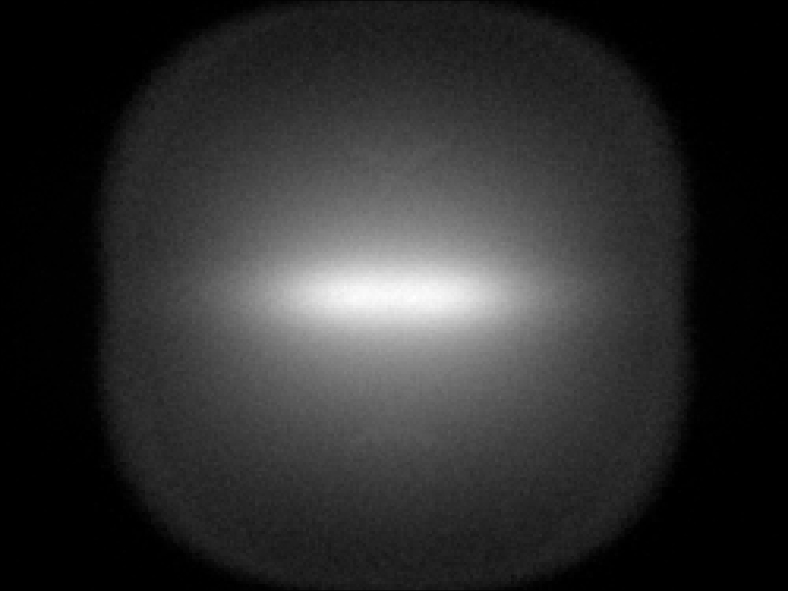

Luminus Devices SFT-40-WxS White
Eff:
96.5%
FWHM:
75 x 23°
Cd/Im:
1.5
Download

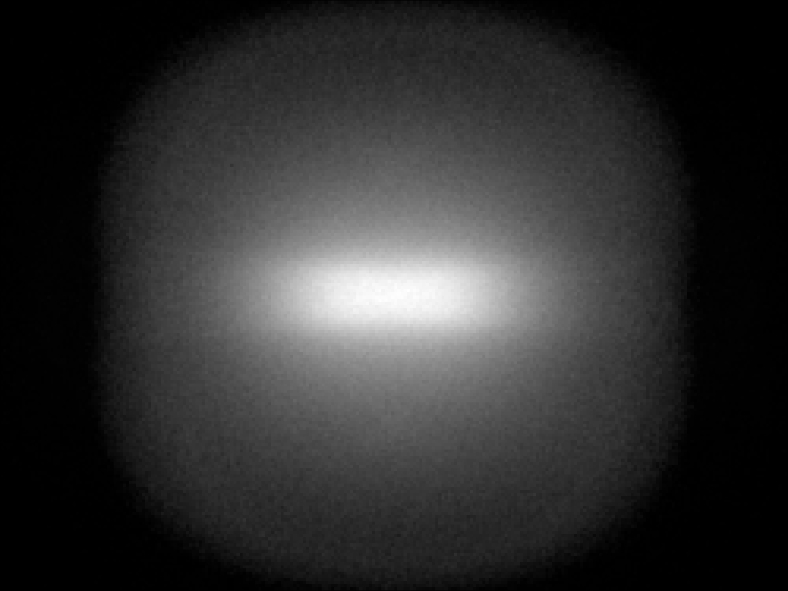

Luminus Devices SFT-70X-WxS White
Eff:
96.5%
FWHM:
74 x 27.5°
Cd/Im:
1.3
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
96.0%
FWHM:
33 x 15.5°
Ipk/W:
4.3
Download

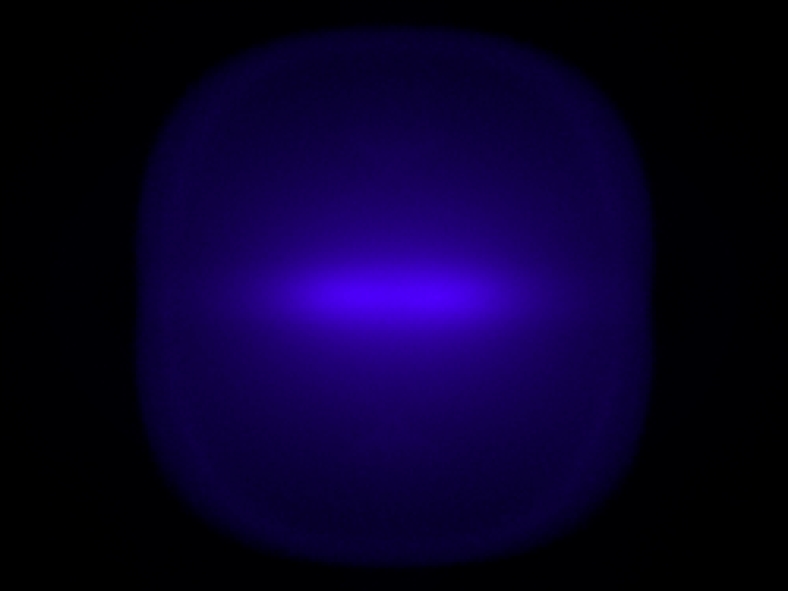

Luminus Devices SST 10-B-B130 Blue
Eff:
96.0%
FWHM:
70 x 21°
Cd/Im:
1.4
Download

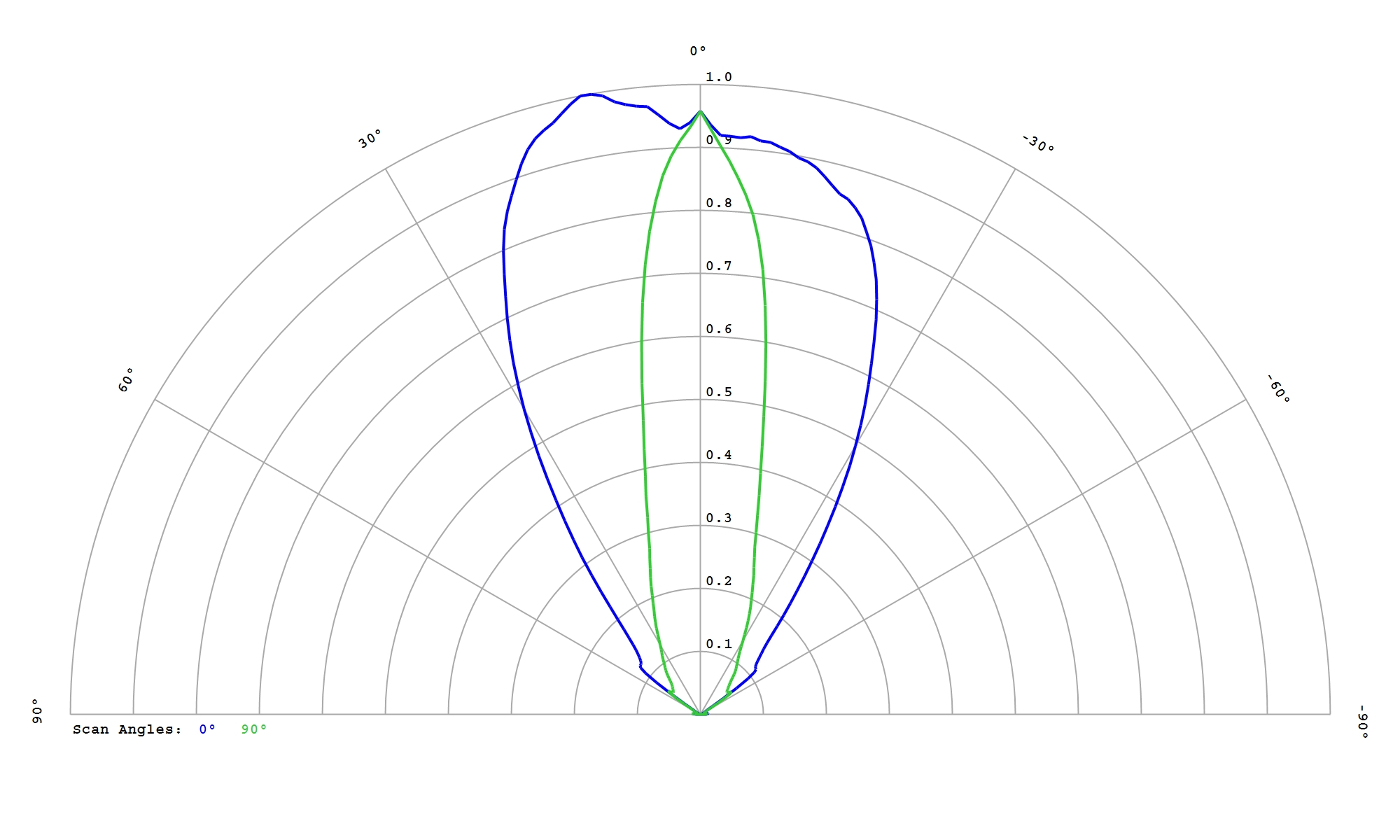

Luminus Devices SST 10-B-B90 Blue
Eff:
95.5%
FWHM:
61 x 23.5°
Cd/Im:
1.7
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
96.0%
FWHM:
81 x 25°
Cd/Im:
1.1
Download

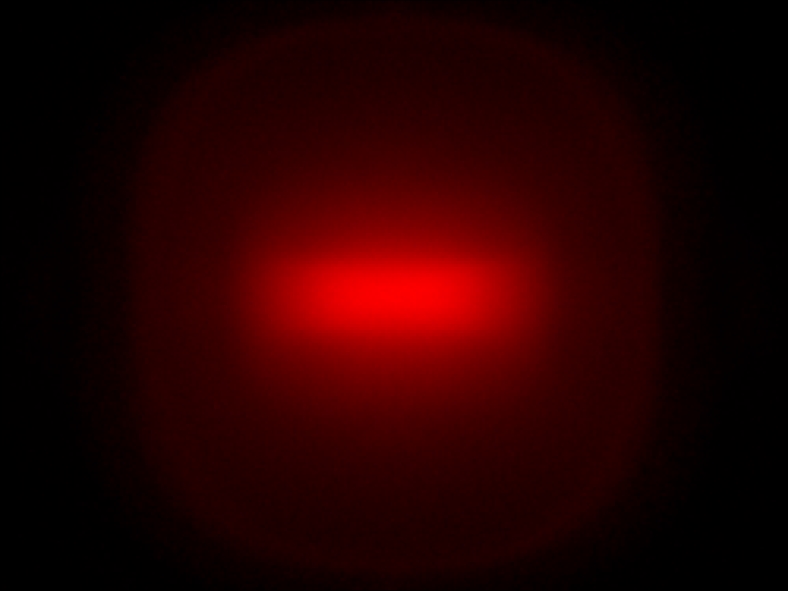

Luminus Devices SST 10-DR-B90 Deep Red
Eff:
95.5%
FWHM:
66 x 25°
Cd/Im:
1.7
Download

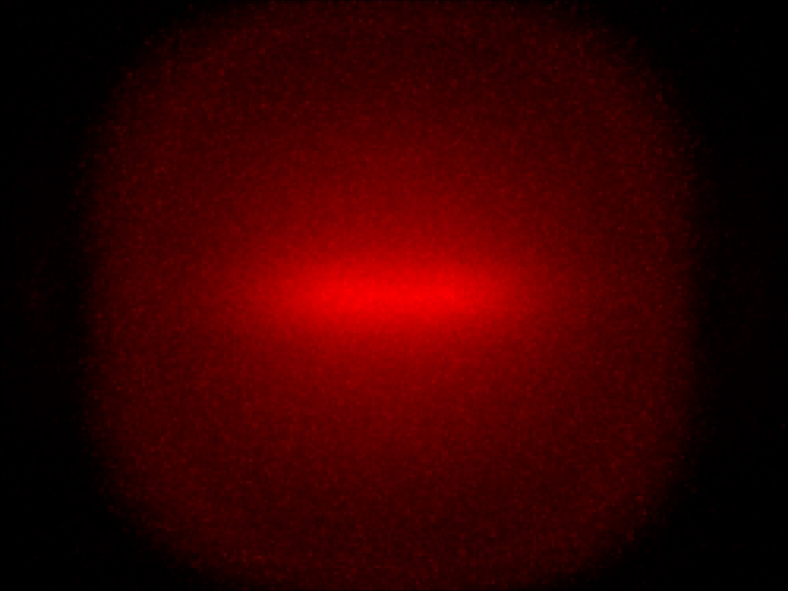

Luminus Devices SST 10-FR-B130 Far Red
Eff:
95.5%
FWHM:
76 x 20.5°
Cd/Im:
2.5
Download
Luminus Devices SST 10-FR-B90 Far Red
Eff:
96.0%
FWHM:
61 x 23.5°
Cd/Im:
3.7
Download
Luminus Devices SST 10-G-B130 Green
Eff:
95.5%
FWHM:
71 x 21.5°
Cd/Im:
1.3
Download
Luminus Devices SST 10-G-B90 Green
Eff:
94.5%
FWHM:
61 x 23.5°
Cd/Im:
1.8
Download

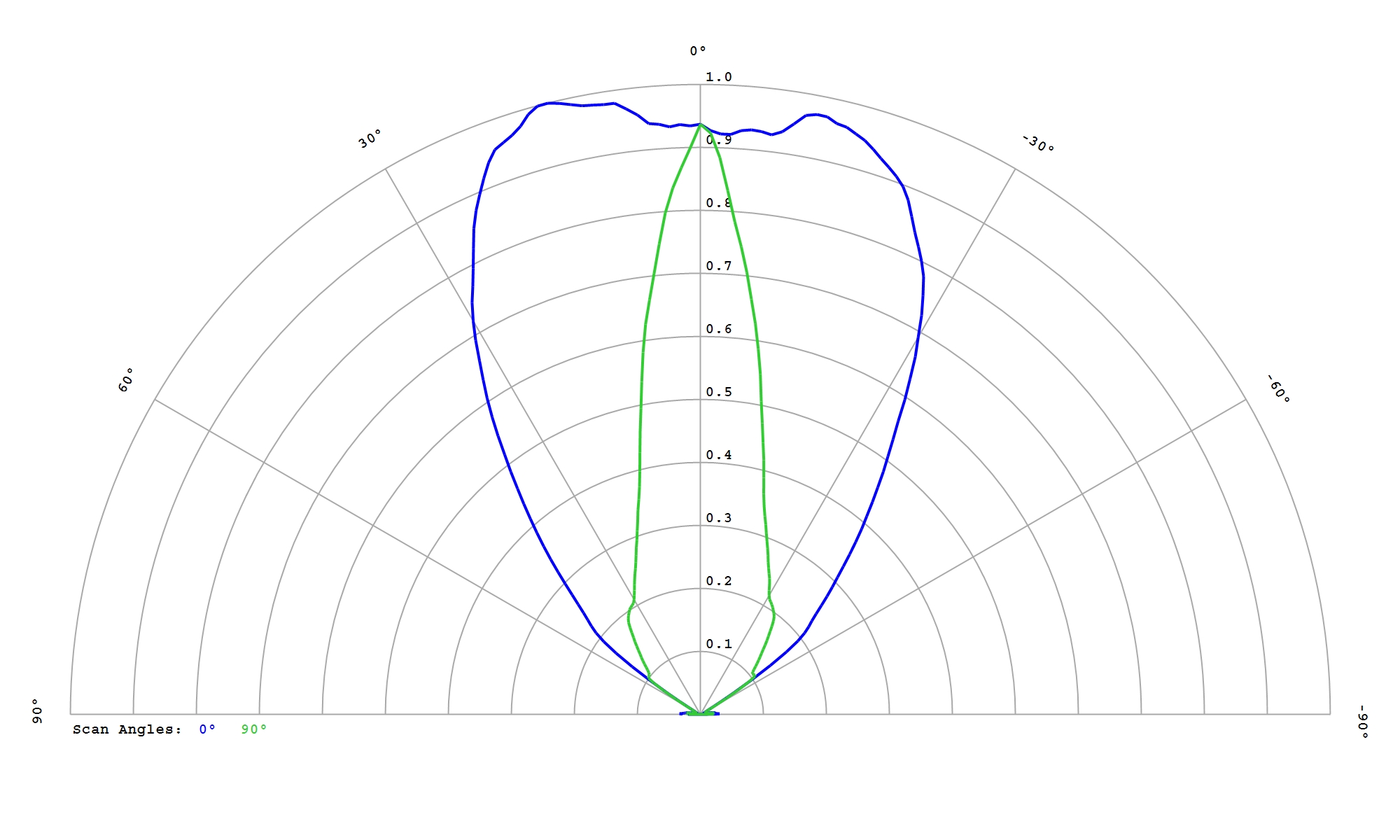

Luminus Devices SST 10-IR-B130 940nm
Eff:
96.5%
FWHM:
74 x 23.5°
Ipk/W:
1.2
Download

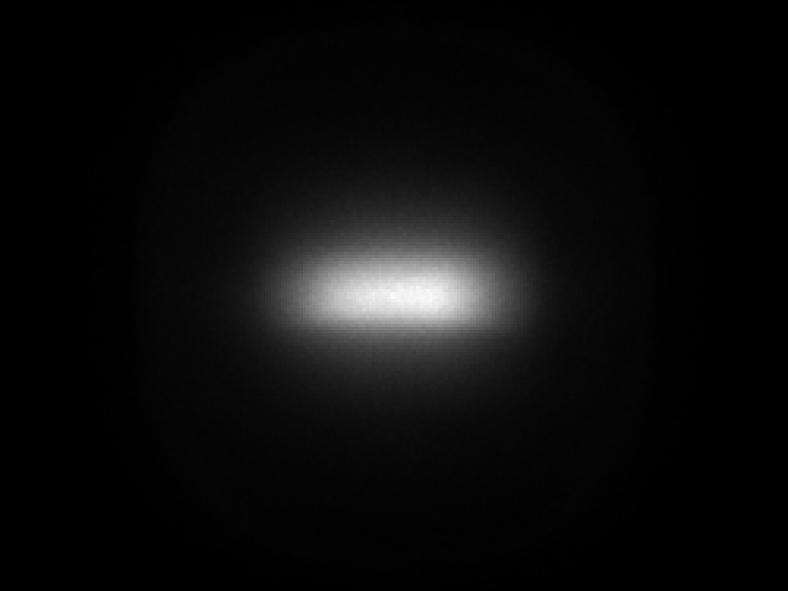

Luminus Devices SST 10-IR-B90 940nm
Eff:
96.0%
FWHM:
62 x 24°
Ipk/W:
1.6
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
96.5%
FWHM:
76 x 23.5°
Ipk/W:
1.3
Download

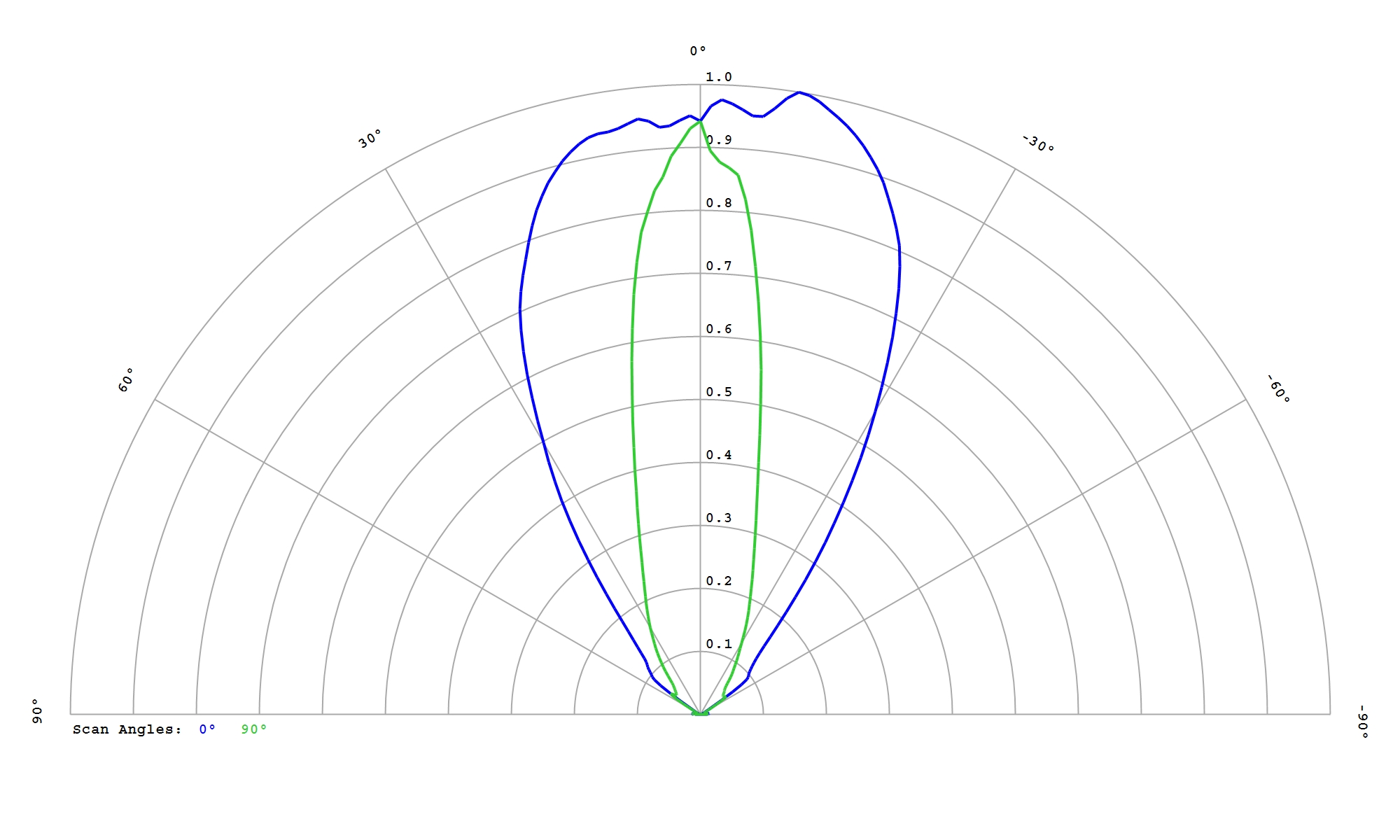

Luminus Devices SST 10-IRD-B90 810nm
Eff:
96.0%
FWHM:
61 x 24.5°
Ipk/W:
1.8
Download

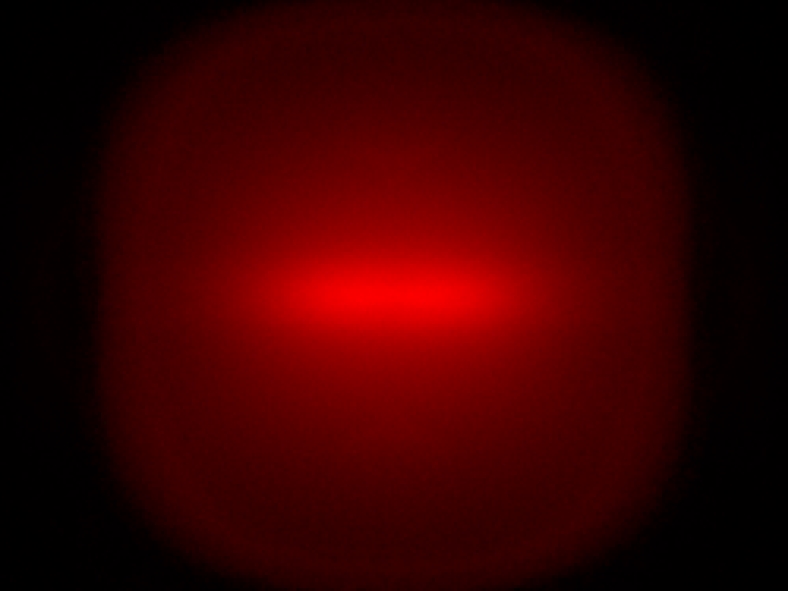

Luminus Devices SST 10-R-B130 Red
Eff:
95.5%
FWHM:
81 x 23.5°
Cd/Im:
1.2
Download

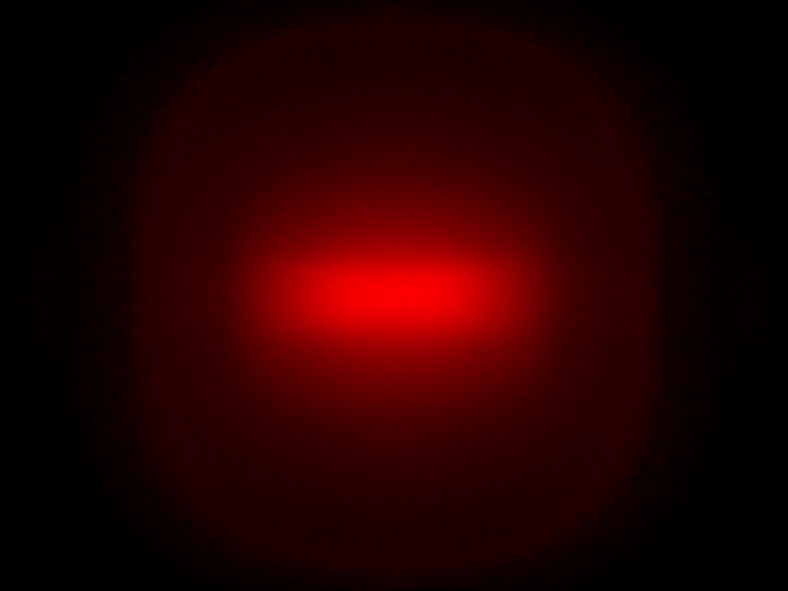

Luminus Devices SST 10-R-B90 Red
Eff:
95.0%
FWHM:
65 x 25°
Cd/Im:
1.7
Download

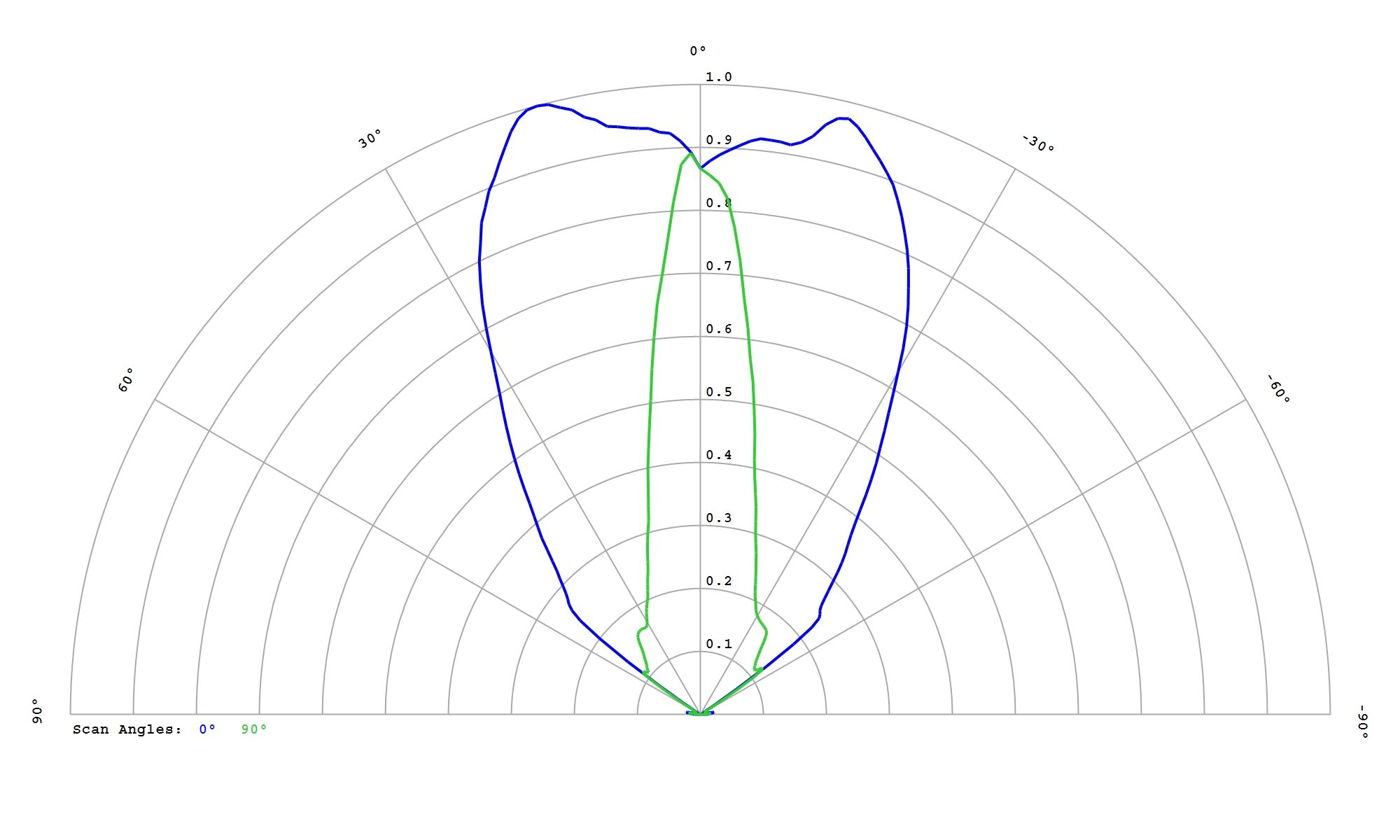

Luminus Devices SST 10-SB-B130 Sky Blue
Eff:
96.0%
FWHM:
70 x 20.5°
Cd/Im:
1.5
Download
Luminus Devices SST 10-SB-B90 Sky Blue
Eff:
95.5%
FWHM:
61 x 24°
Cd/Im:
2.2
Download

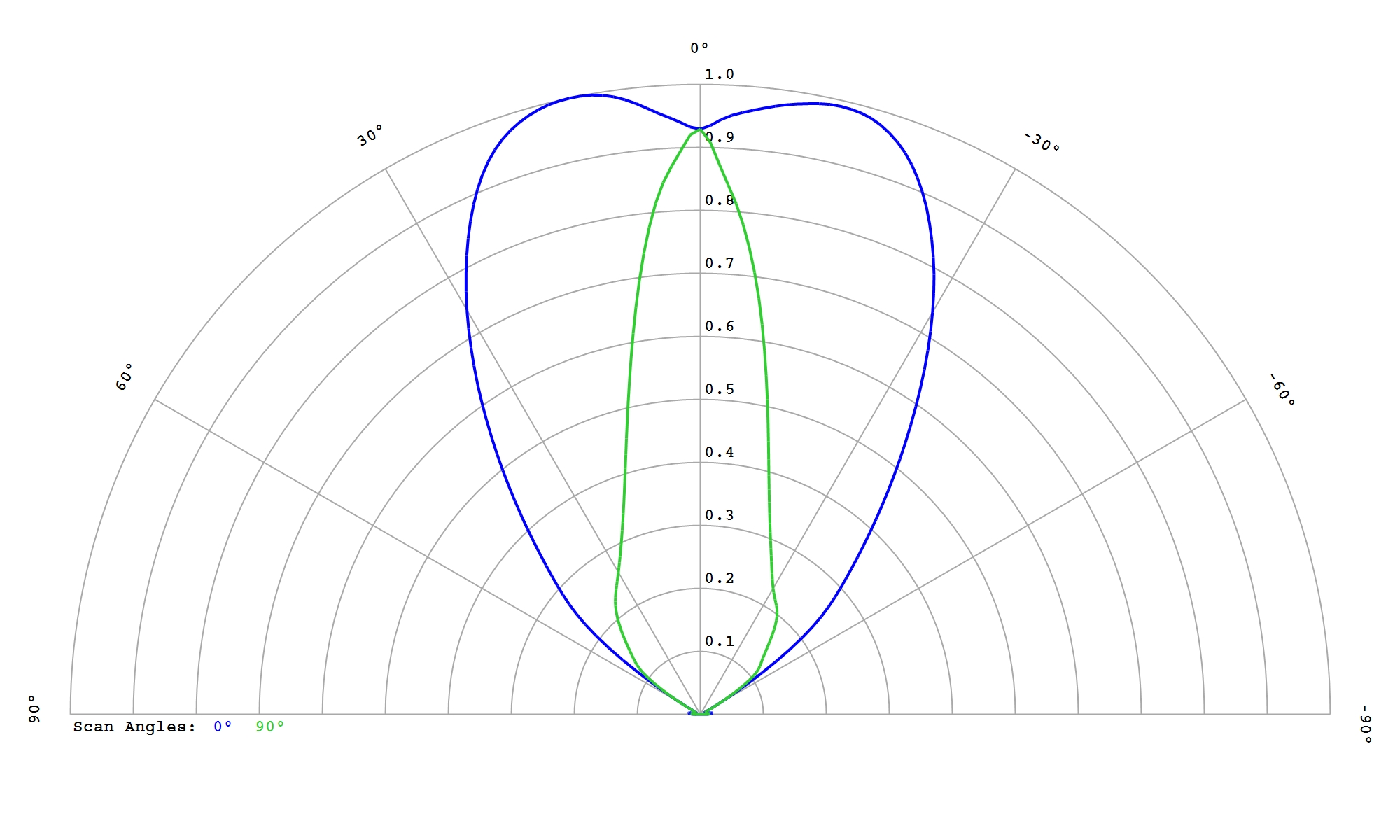

Luminus Devices SST 20-WxH White Hi CRI
Eff:
95.5%
FWHM:
74 x 23.5°
Cd/Im:
1.3
Download

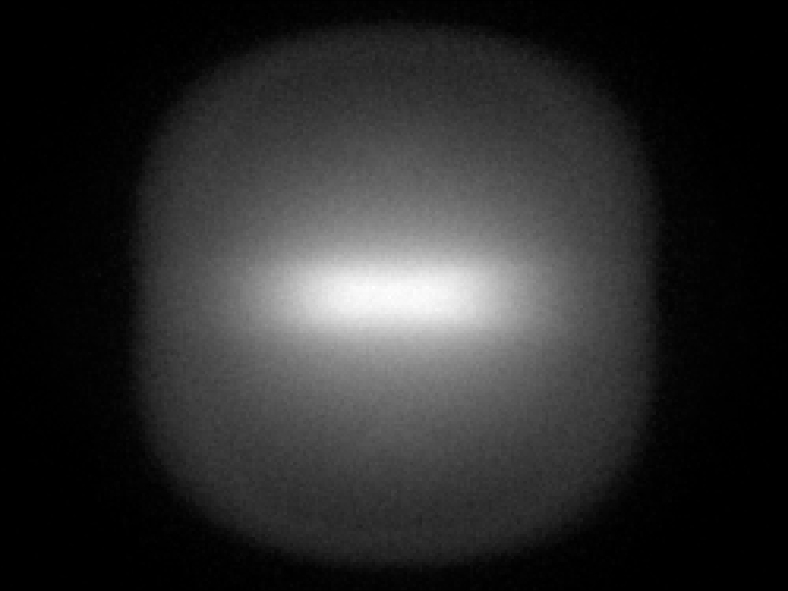

Luminus Devices SST 40-W White
Eff:
94.5%
FWHM:
88 x 37°
Cd/Im:
1.0
Download

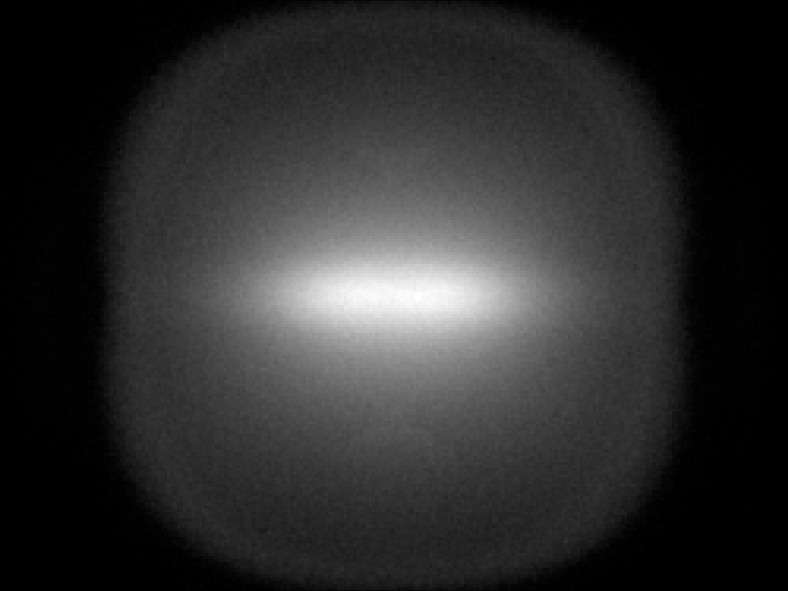

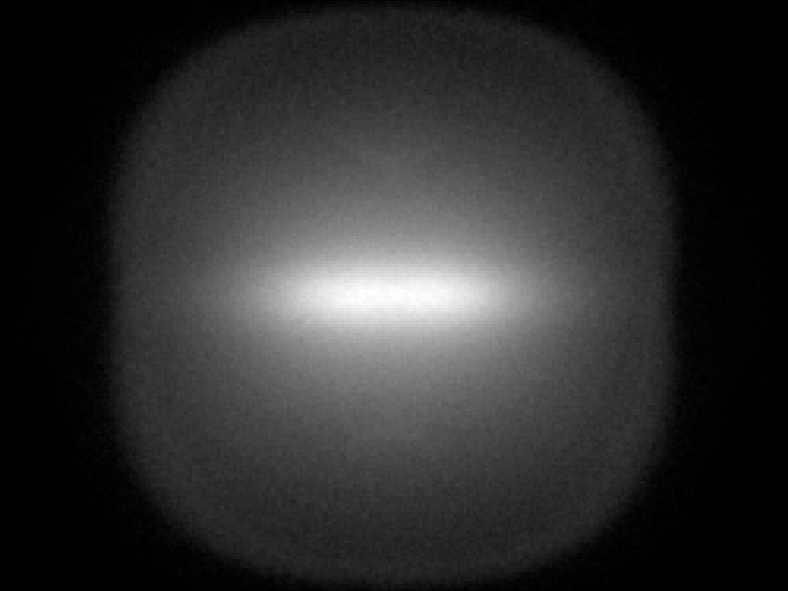

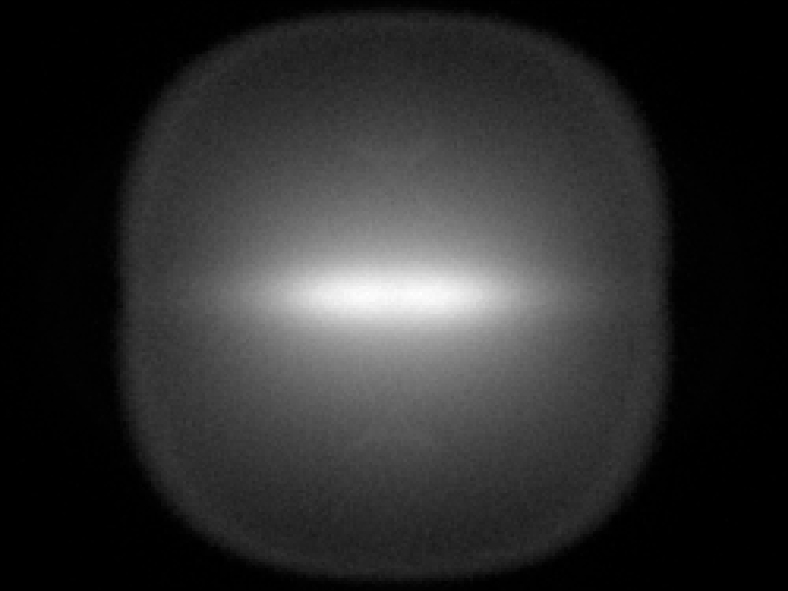

Luminus Devices SST-12-WxS White
Eff:
95.5%
FWHM:
76 x 23.5°
Cd/Im:
1.3
Download
Luminus Devices SST-70X-W White
Eff:
95.5%
FWHM:
85 x 36°
Cd/Im:
1.1
Download

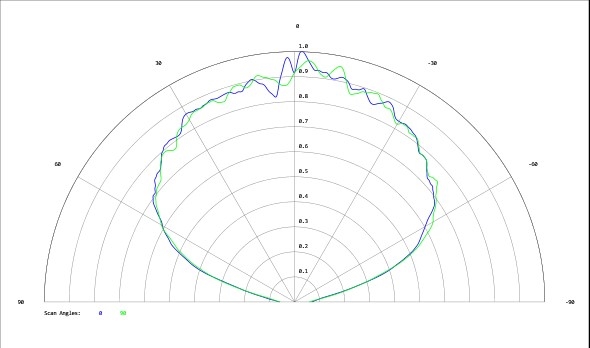

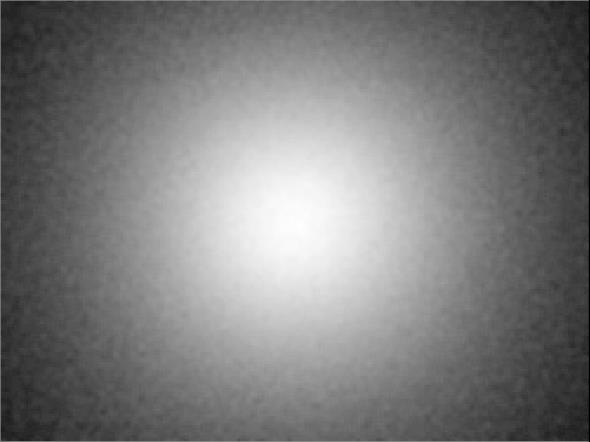

Nichia 229A White
Eff:
98.5%
FWHM:
133°
Cd/Im:
0.3
Download

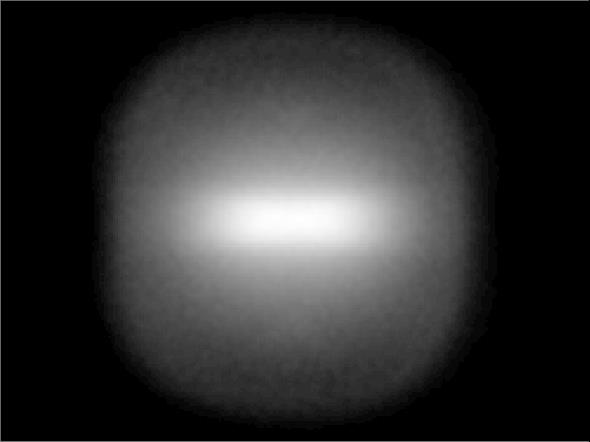

Nichia 757G White
Eff:
96.0%
FWHM:
72 x 25.5°
Cd/Im:
1.1
Download

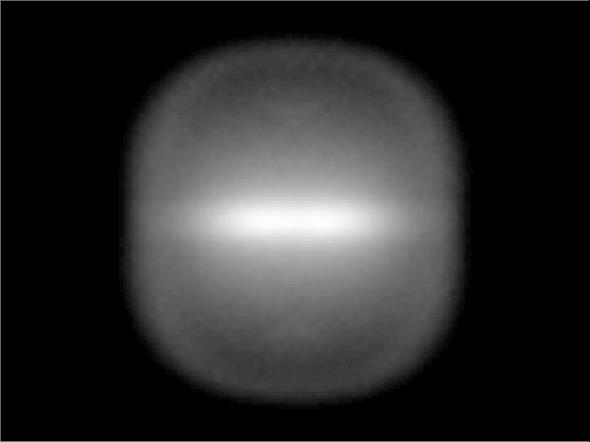

Nichia NCSW CSP E17A White
Eff:
94.0%
FWHM:
71 x 18°
Cd/Im:
1.2
Download
Nichia NF2W 385AR-V2 White
Eff:
95.5%
FWHM:
75 x 32°
Cd/Im:
0.9
Download
Nichia NF2W 757G-MT Tunable
Eff:
96.0%
FWHM:
74 x 24.5°
Cd/Im:
1.4
Download

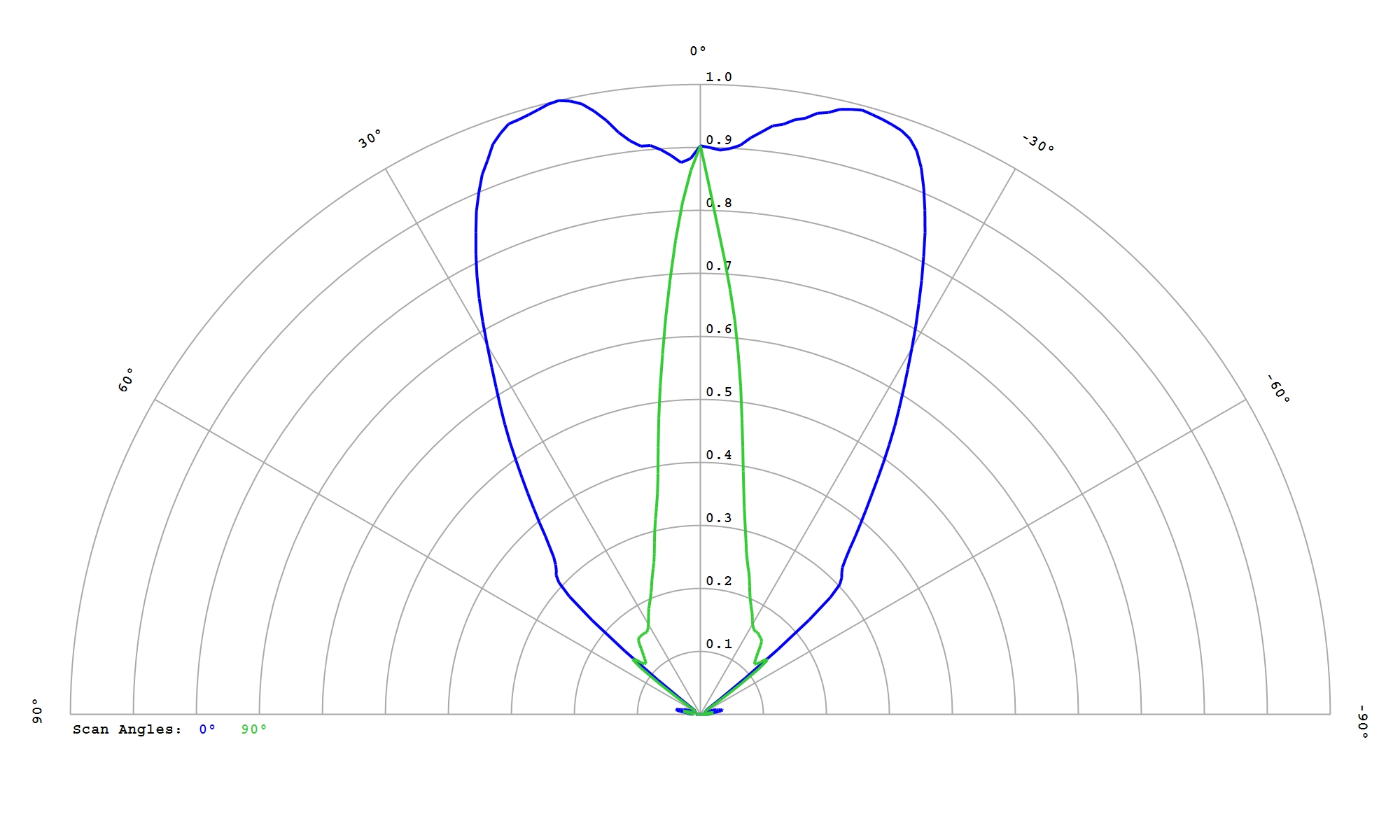

Nichia NFSW CSP E11A White
Eff:
93.5%
FWHM:
71 x 18°
Cd/Im:
1.4
Download

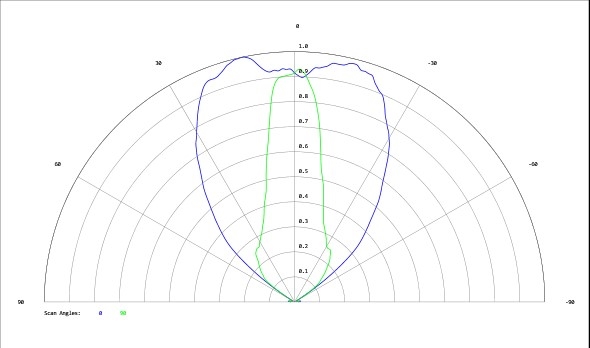

Nichia NVSW 219C White
Eff:
95.0%
FWHM:
82 x 27°
Cd/Im:
0.9
Download

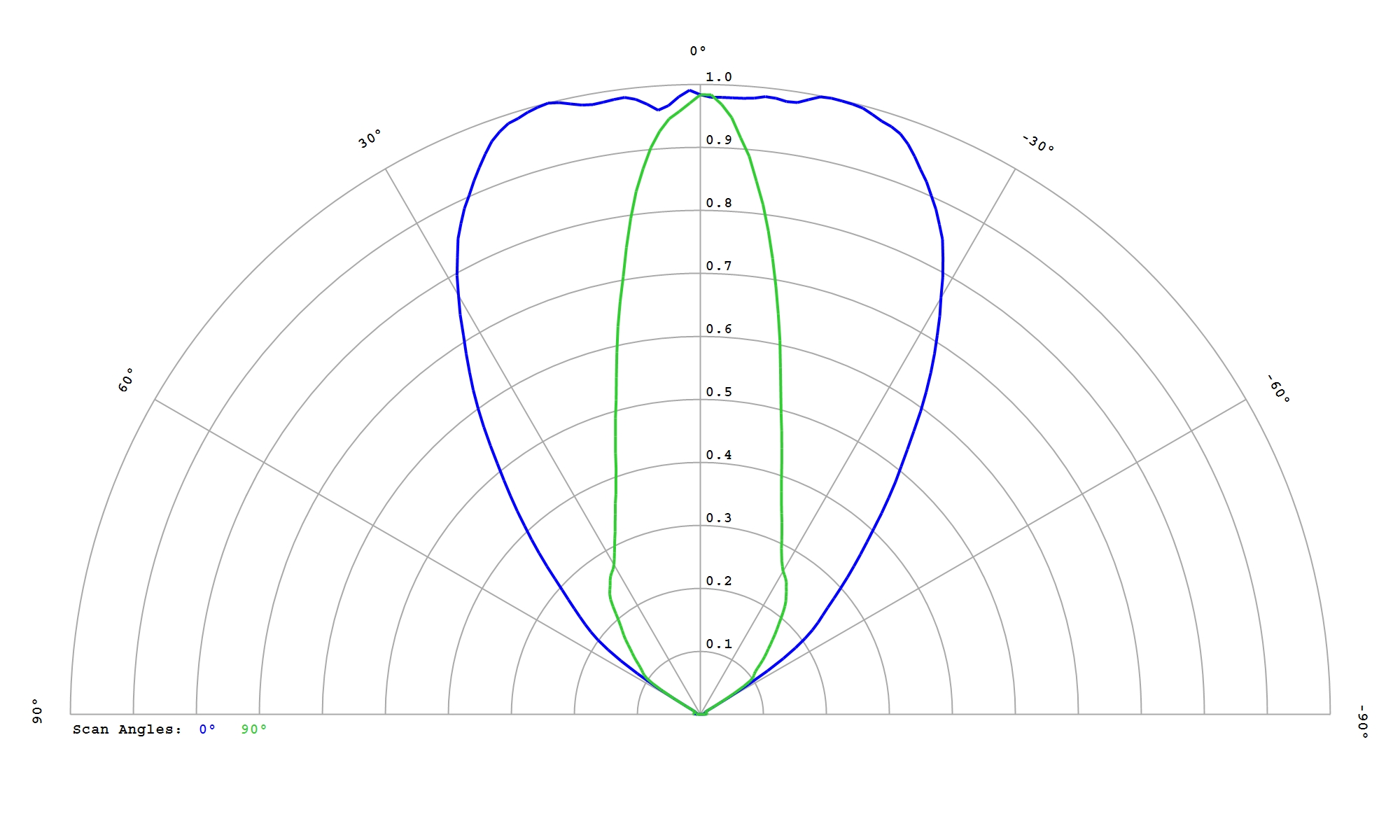

Nichia NVSW 219F White
Eff:
95.5%
FWHM:
77 x 30°
Cd/Im:
1.0
Download
Nichia NVSW 319A White
Eff:
94.0%
FWHM:
84 x 29°
Cd/Im:
0.8
Download

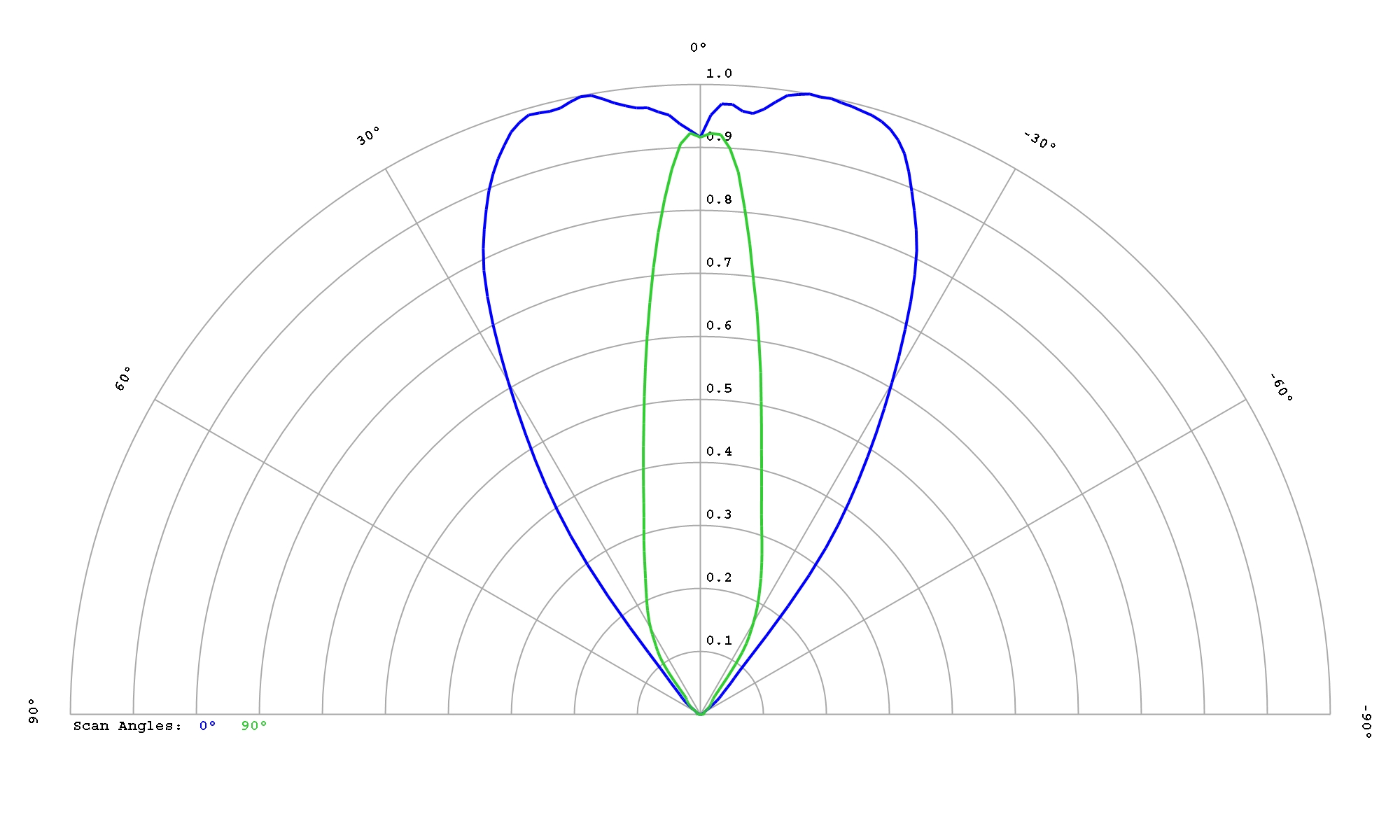

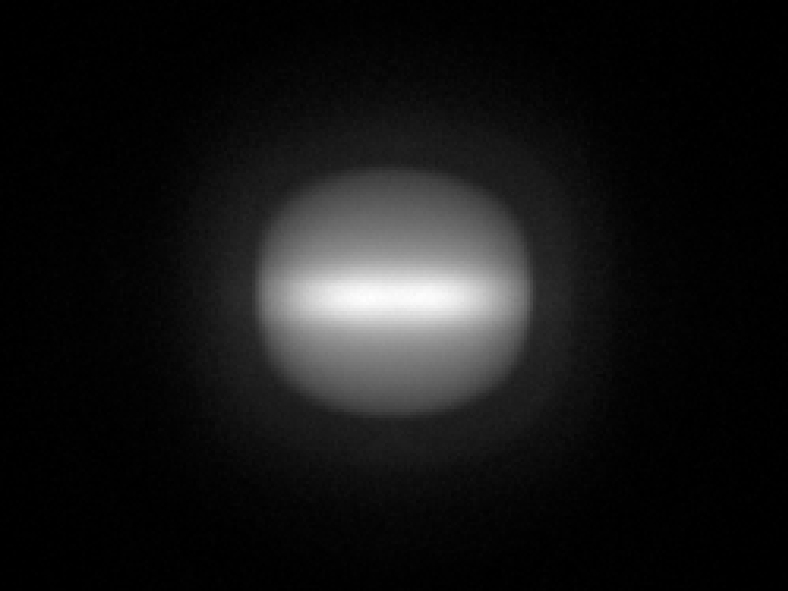

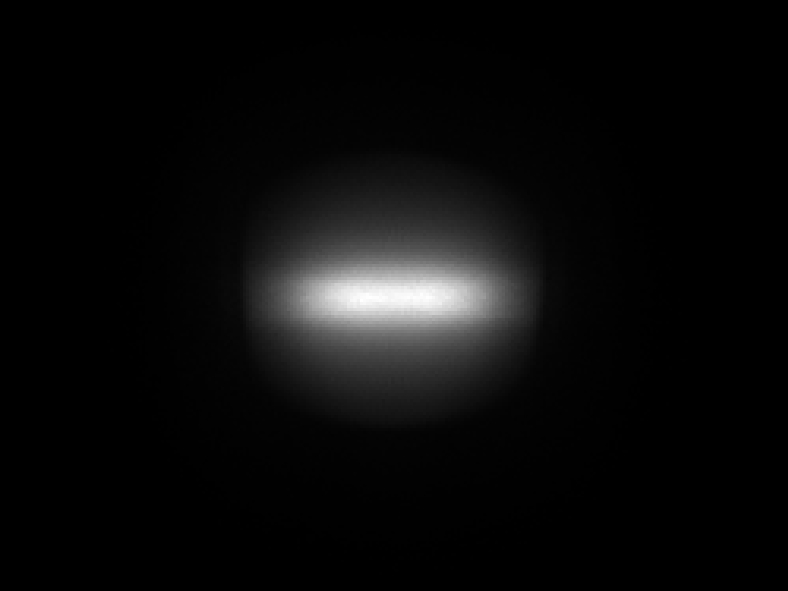

Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
97.5%
FWHM:
65 x 21.5°
Ipk/W:
1.9
Download

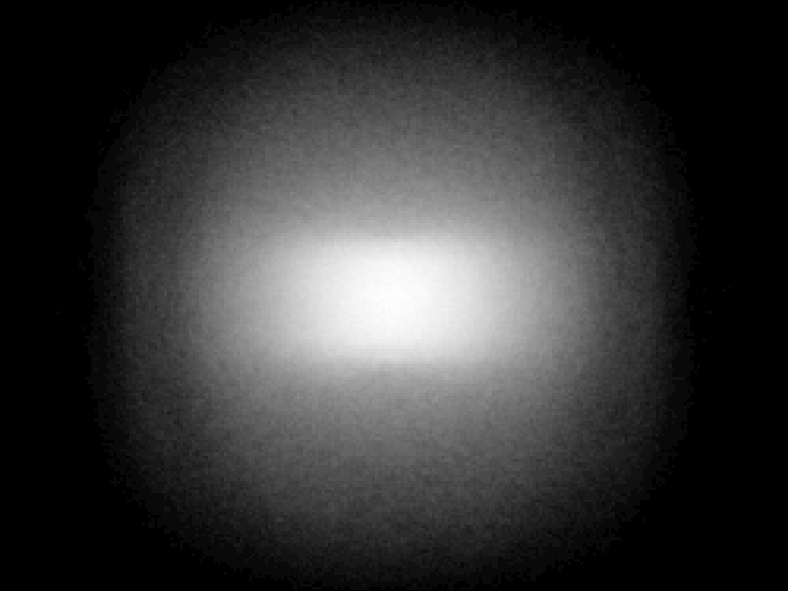

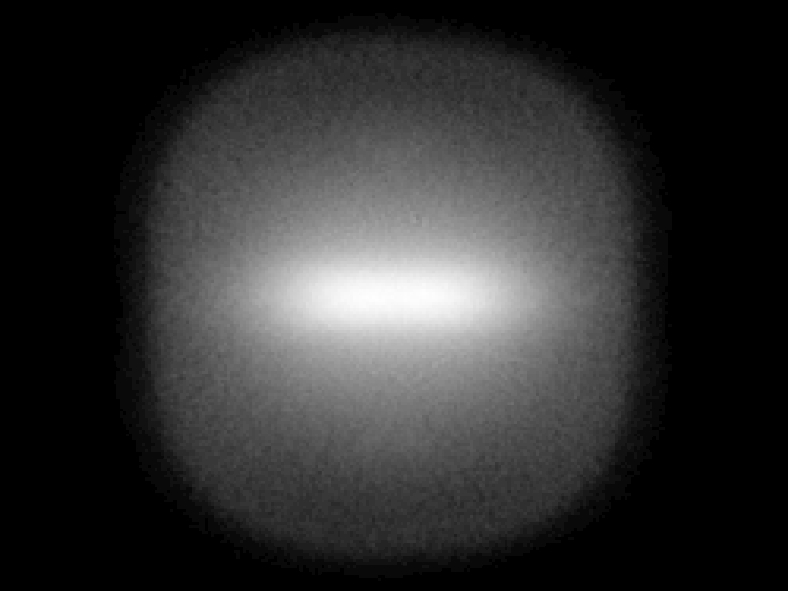

Osram OS DURIS E 2835 Gen2
Eff:
96.0%
FWHM:
74 x 24.5°
Cd/Im:
1.4
Download

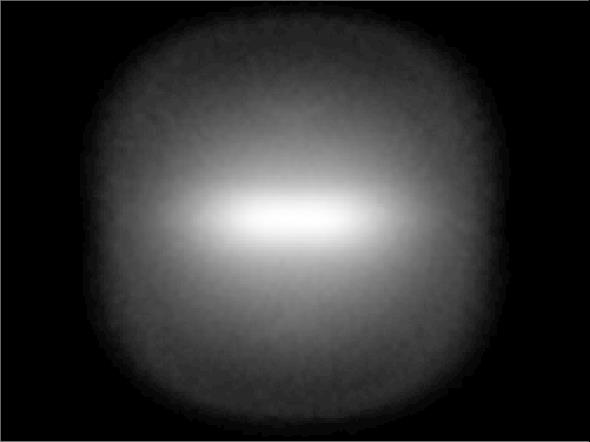

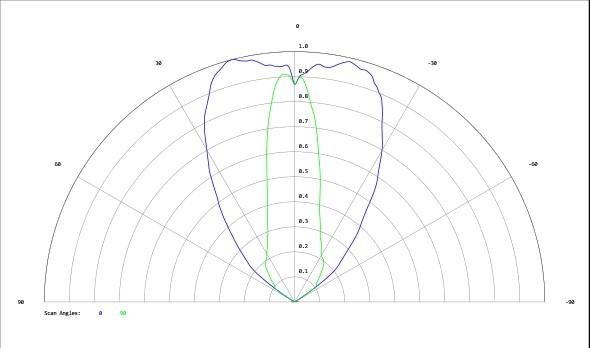

Osram OS DURIS E 2835 White
Eff:
69.0%
FWHM:
74 x 25°
Cd/Im:
1.1
Download

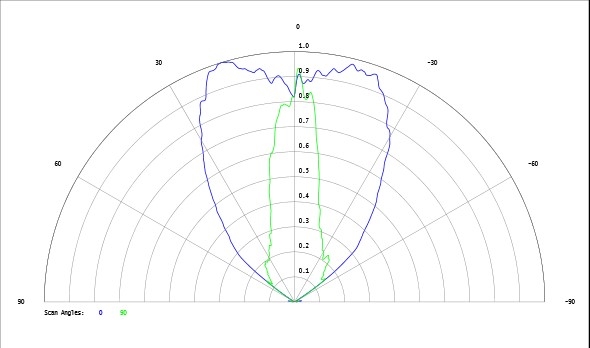

Osram OS DURIS S5 Deep Blue
Eff:
96.5%
FWHM:
89 x 25°
Cd/Im:
1.1
Download
Osram OS DURIS S5 GP PSLM31.14 Purple
Eff:
96.5%
FWHM:
75 x 22.5°
Cd/Im:
1.7
Download
Osram OS DURIS S5 GP PSLR31.14 Purple
Eff:
96.0%
FWHM:
74 x 23.5°
Cd/Im:
1.4
Download
Osram OS DURIS S5 Green
Eff:
96.0%
FWHM:
72 x 22°
Cd/Im:
1.2
Download
Osram OS DURIS S5 Red
Eff:
96.5%
FWHM:
71 x 20.5°
Cd/Im:
1.3
Download

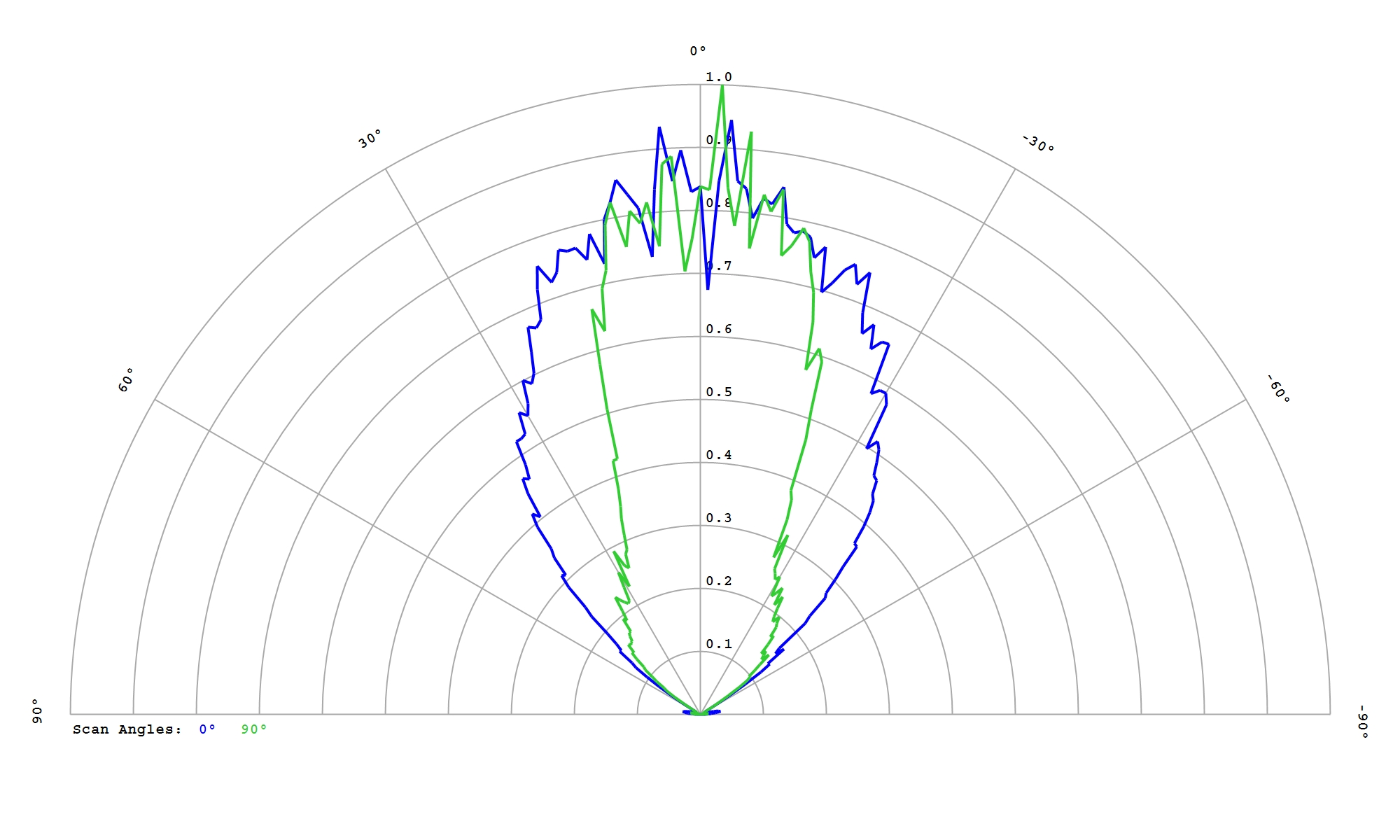

Osram OS DURIS S8 Gen3 White
Eff:
96.0%
FWHM:
75 x 39°
Cd/Im:
1.2
Download
Osram OS OSCONIQ C 2424 White
Eff:
96.0%
FWHM:
72 x 22°
Cd/Im:
1.6
Download
Osram OS OSCONIQ P3737 White
Eff:
93.0%
FWHM:
75 x 31°
Cd/Im:
1.2
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
96.0%
FWHM:
75 x 40°
Cd/Im:
1.0
Download

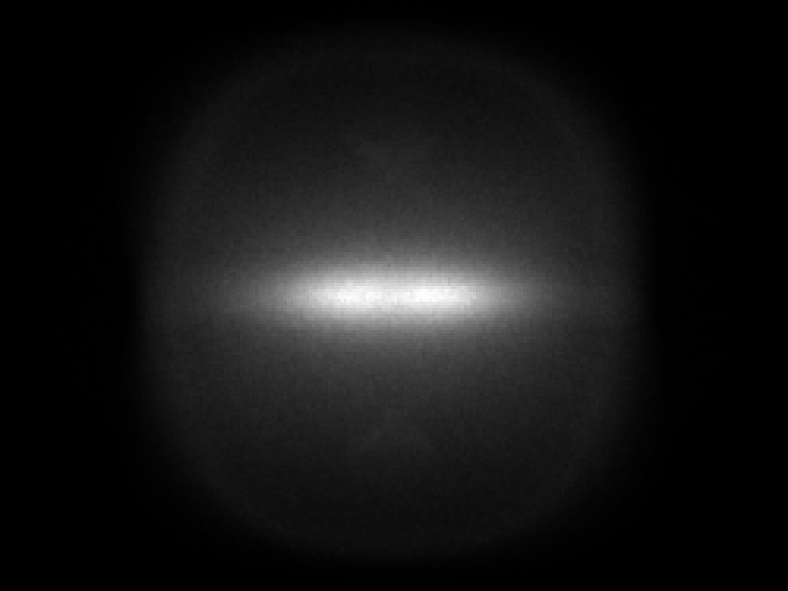

Osram OS OSLON Black SFH 4716AS IR
Eff:
96.0%
FWHM:
102 x 21°
Ipk/W:
1.0
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
96.5%
FWHM:
62 x 19°
Cd/Im:
1.9
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
96.0%
FWHM:
75 x 22.5°
Cd/Im:
1.4
Download

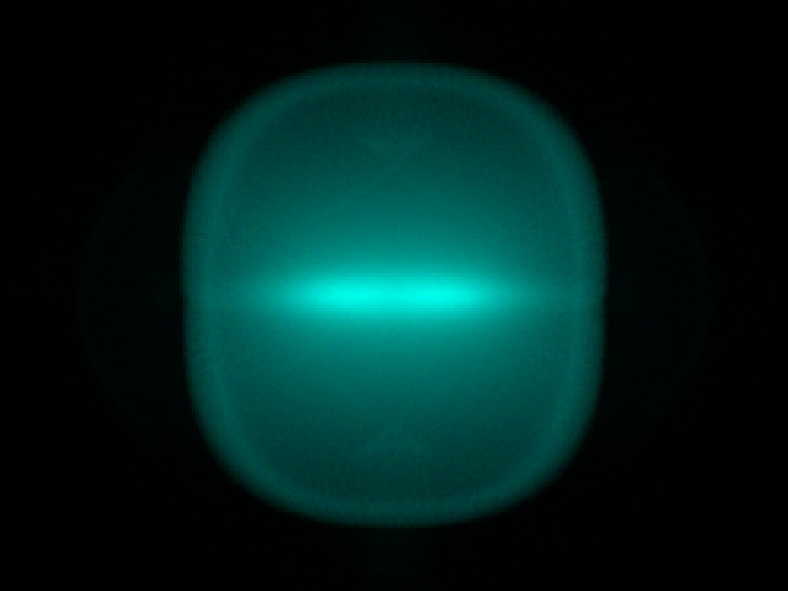

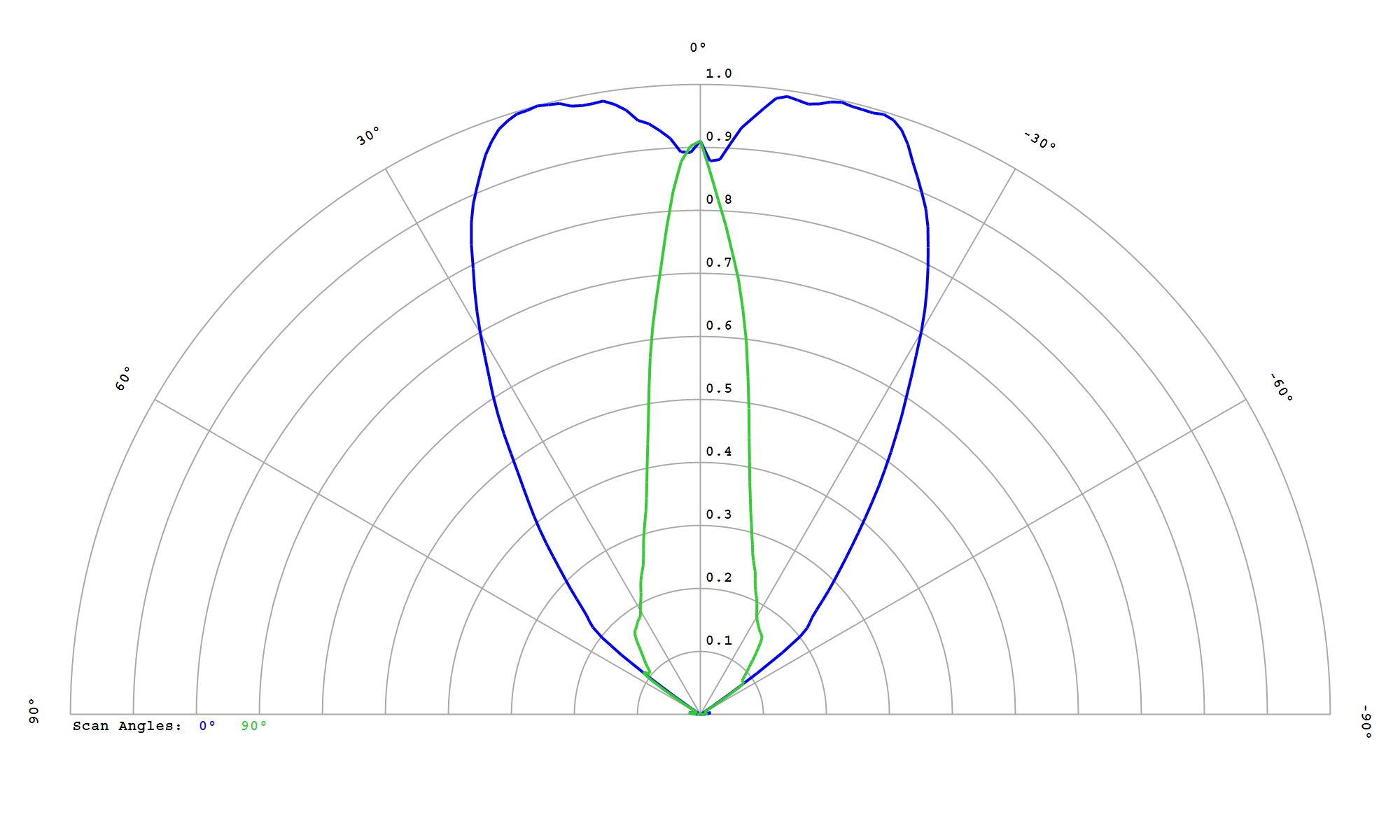

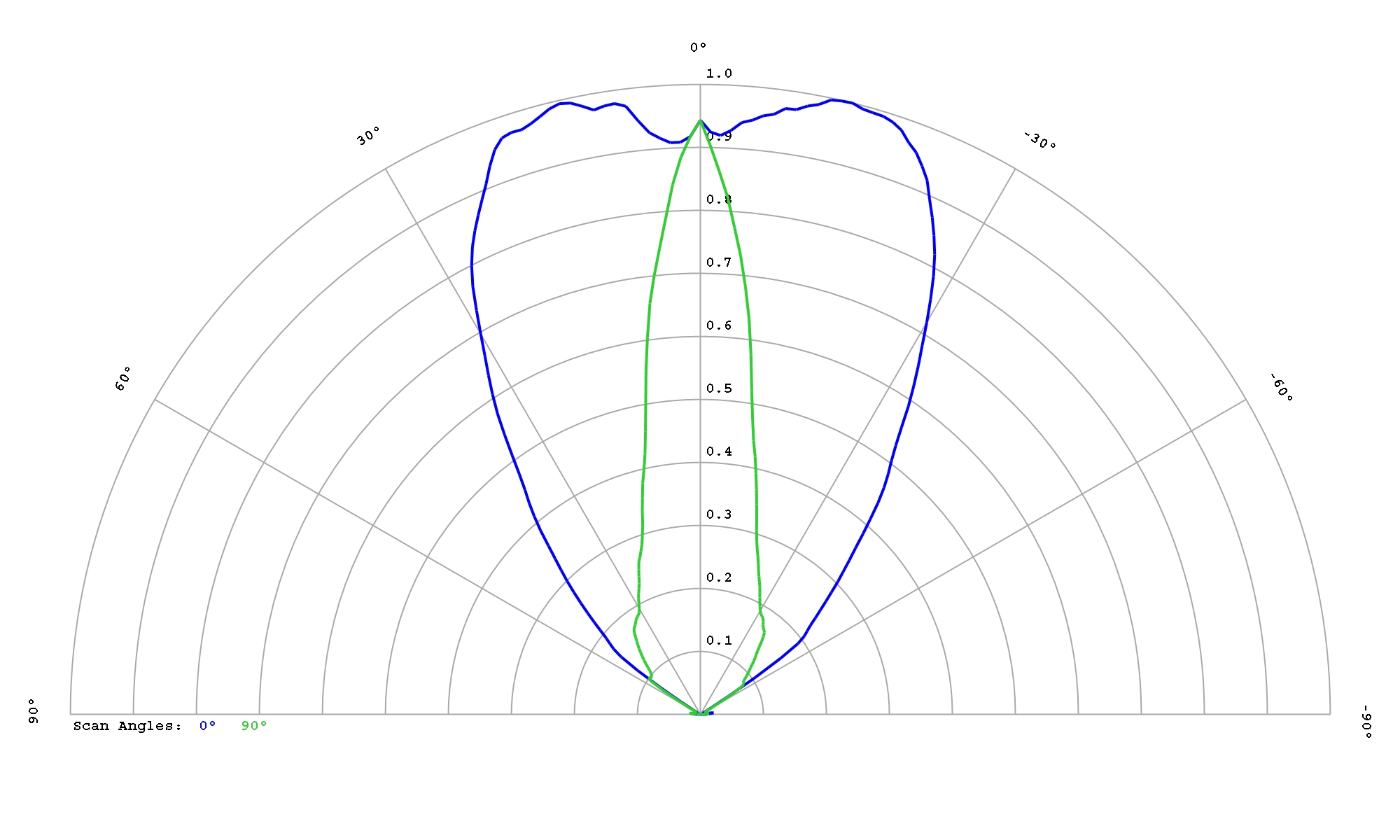

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
95.0%
FWHM:
69 x 16.5°
Cd/Im:
1.5
Download

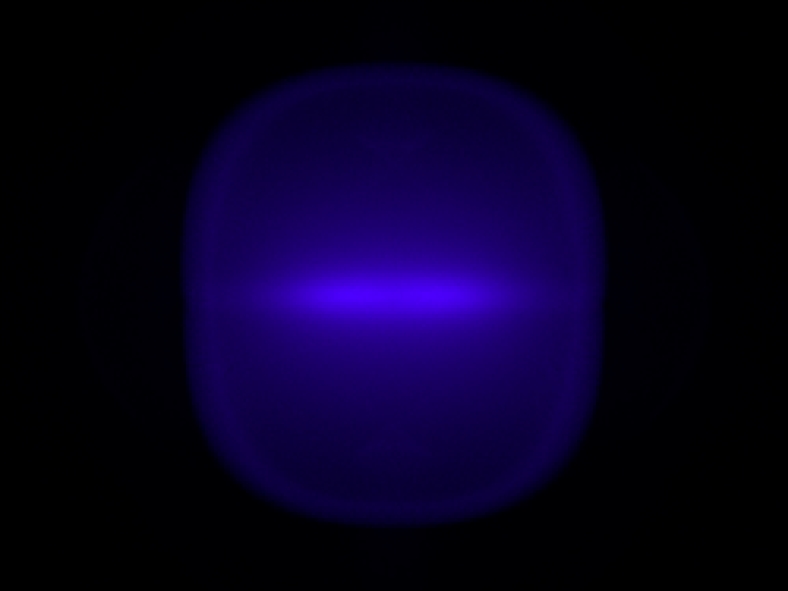

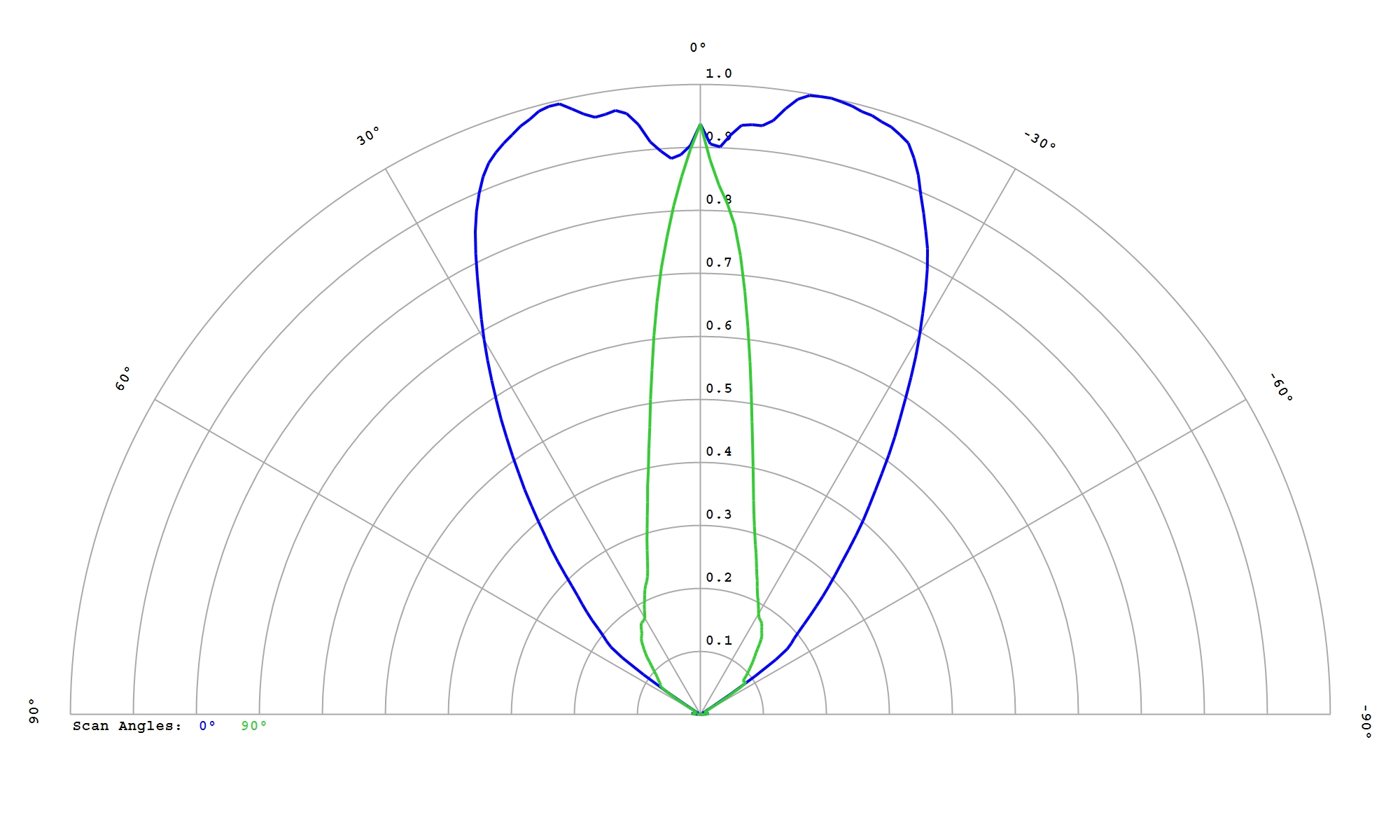

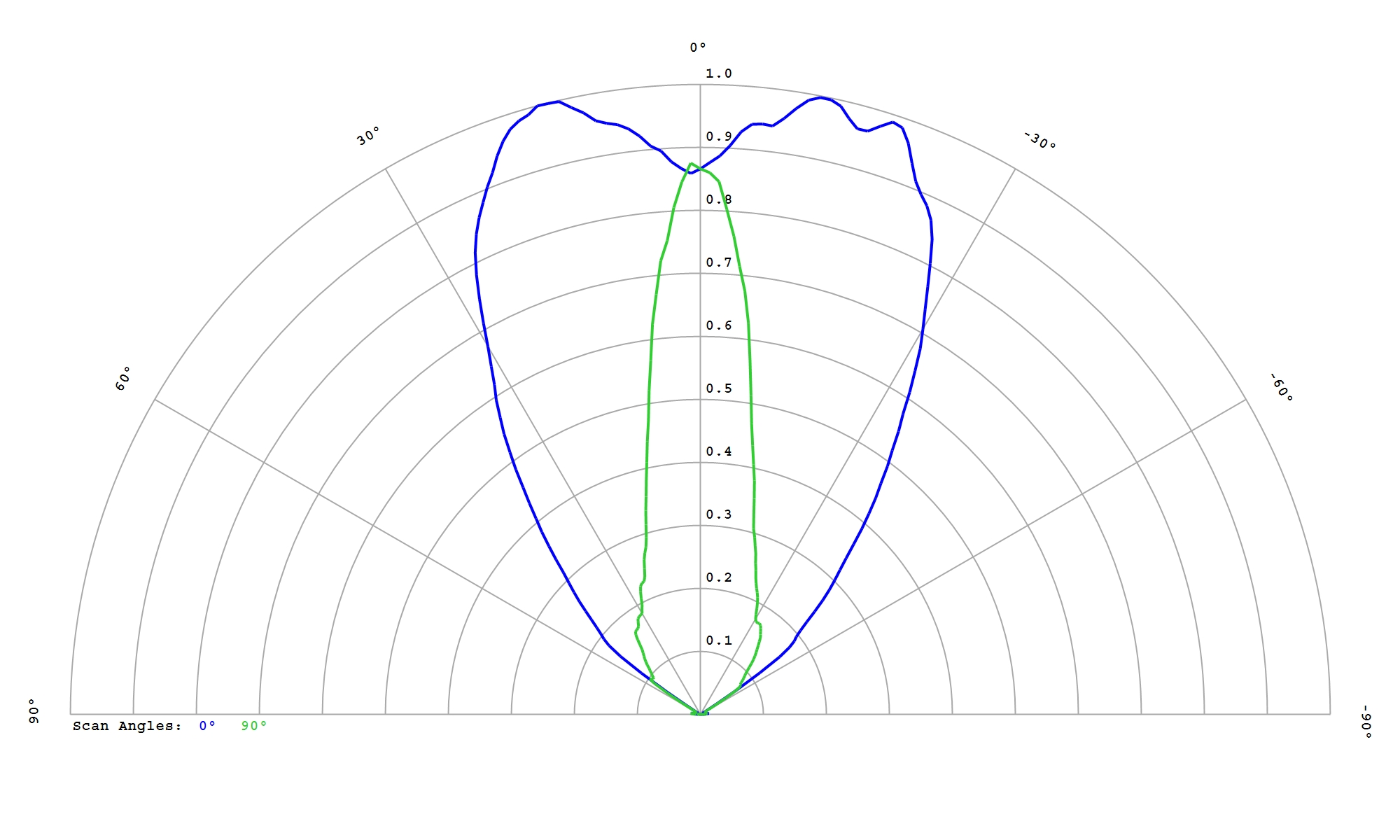

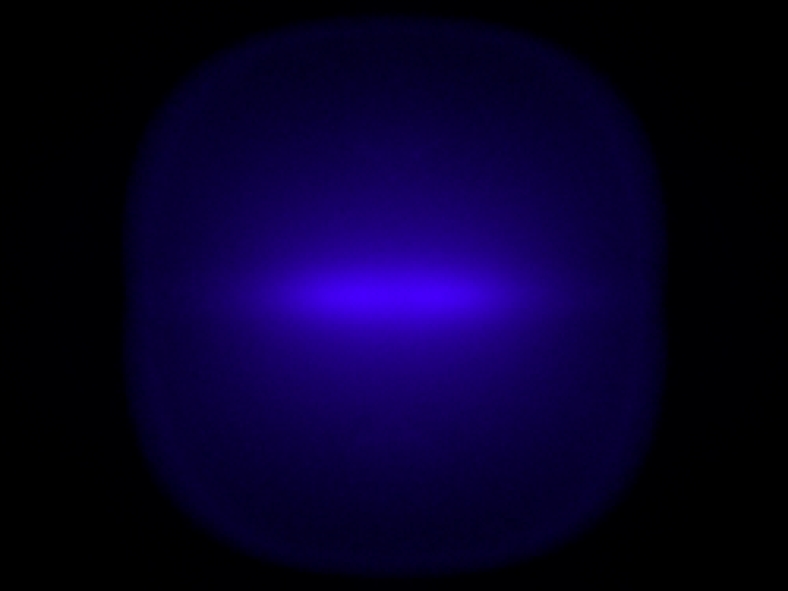

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
95.5%
FWHM:
67 x 16°
Ipk/W:
1.6
Download

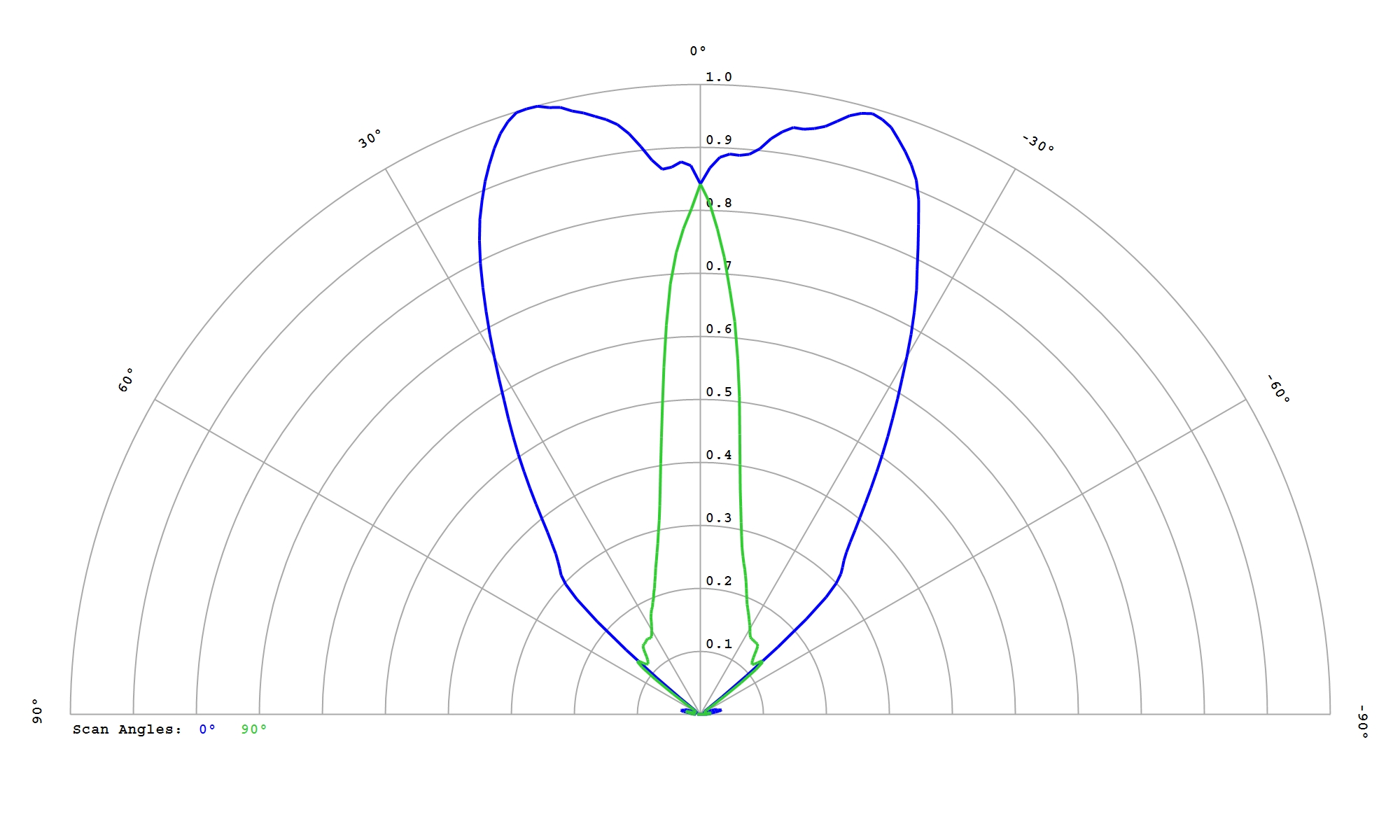

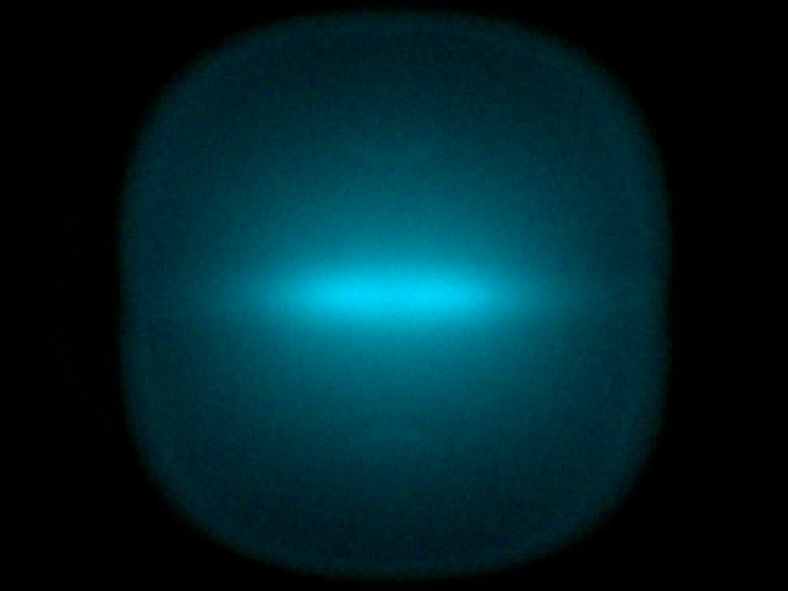

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
94.5%
FWHM:
70 x 17°
Cd/Im:
1.5
Download

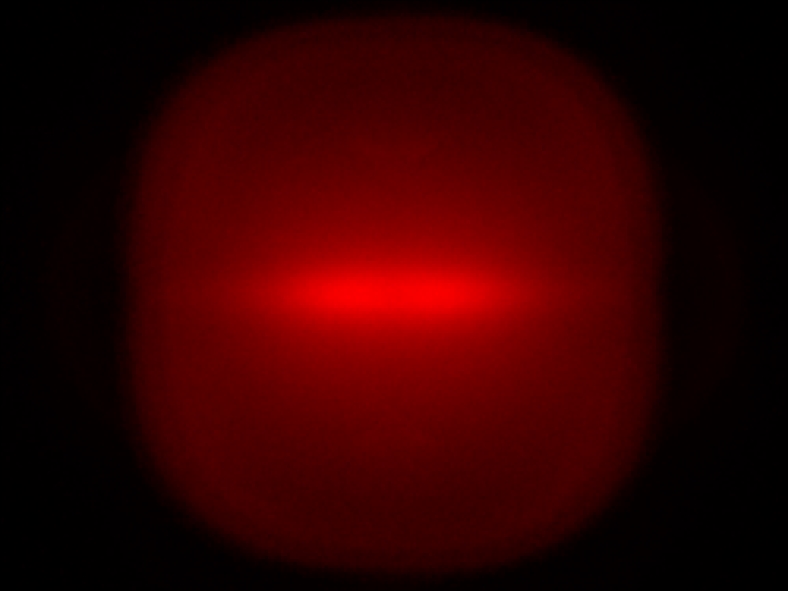

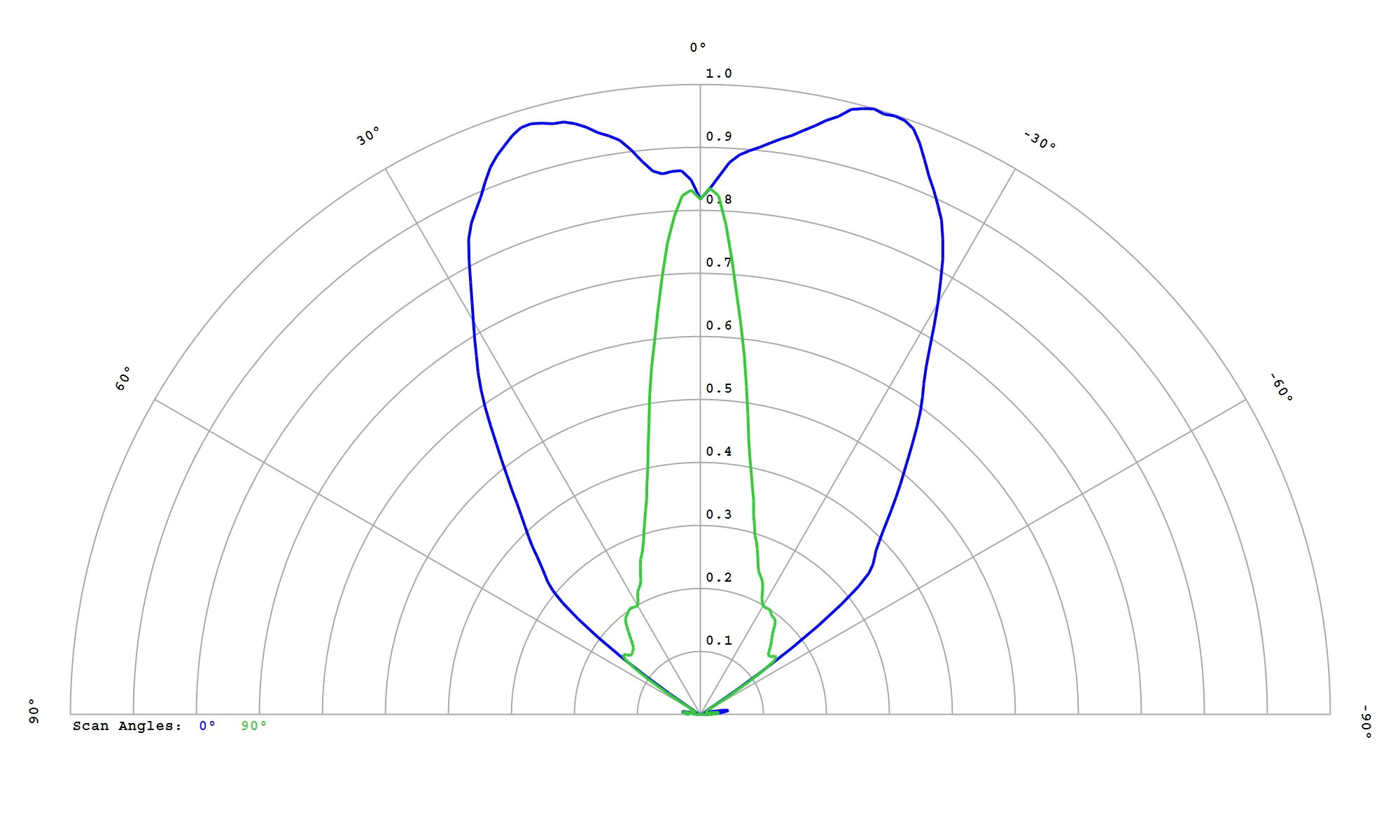

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
93.5%
FWHM:
73 x 18.5°
Cd/Im:
1.4
Download

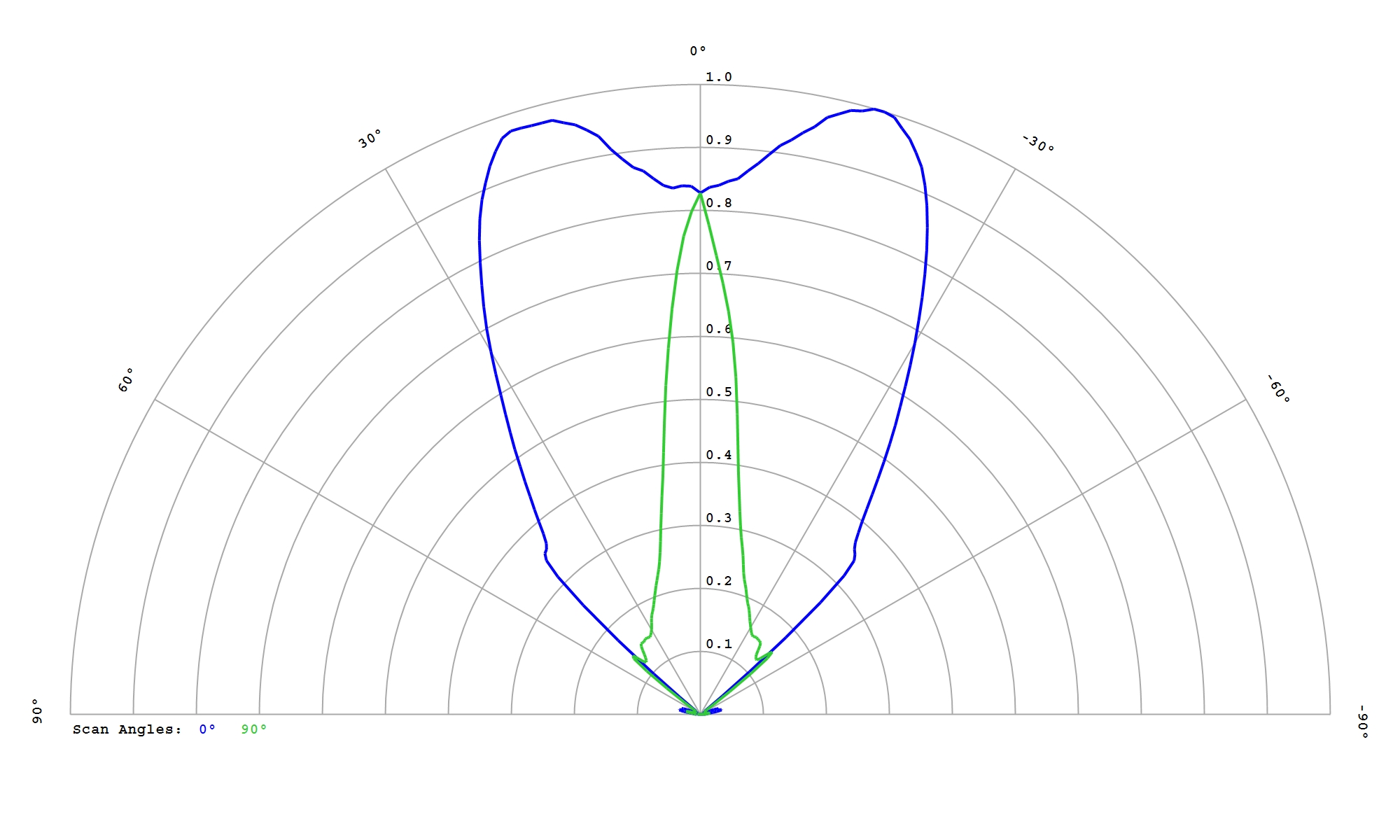

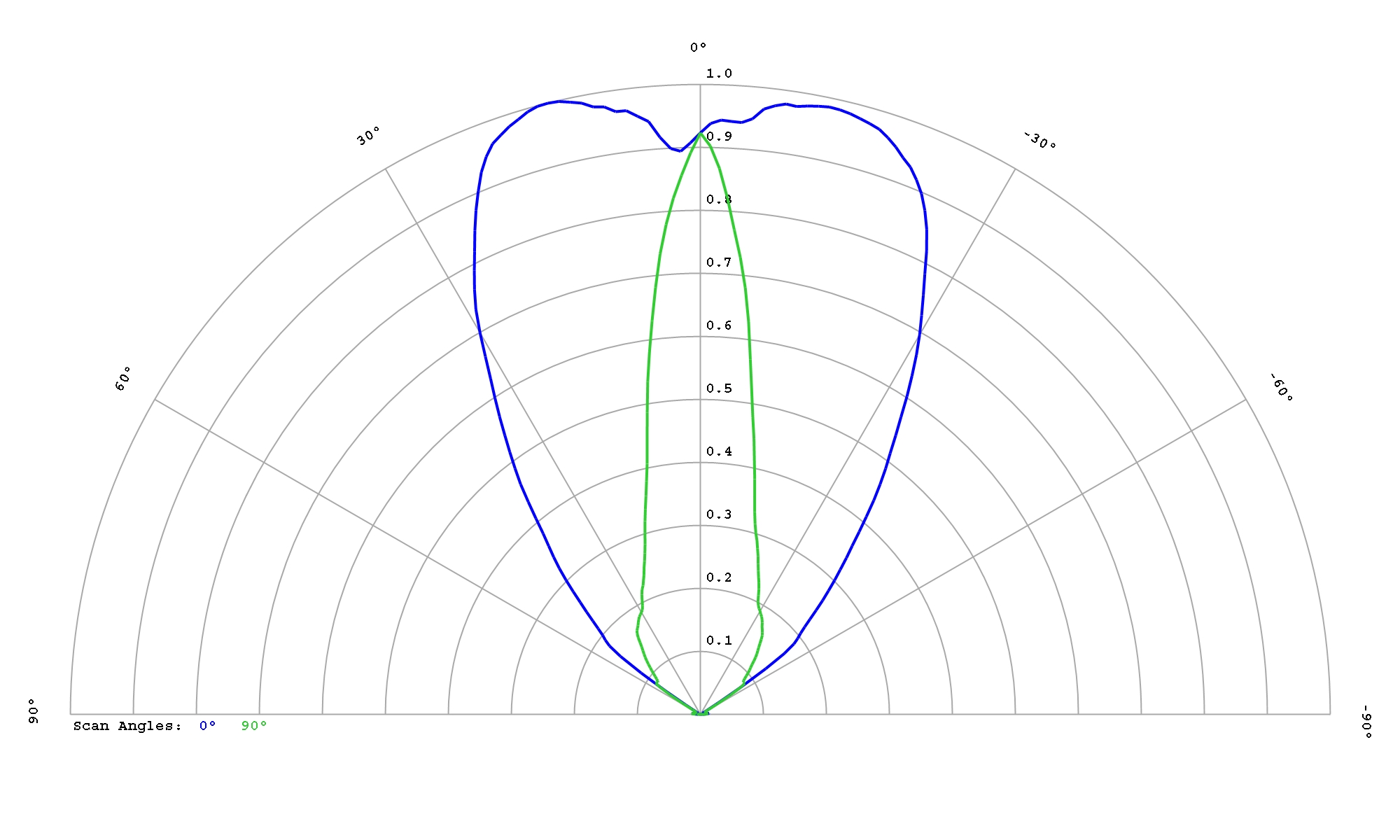

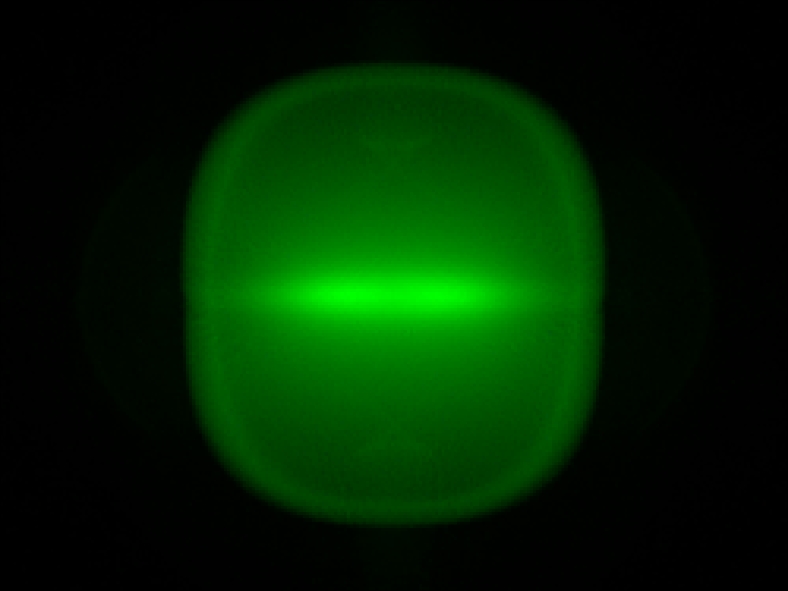

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
95.0%
FWHM:
71 x 17°
Cd/Im:
1.4
Download

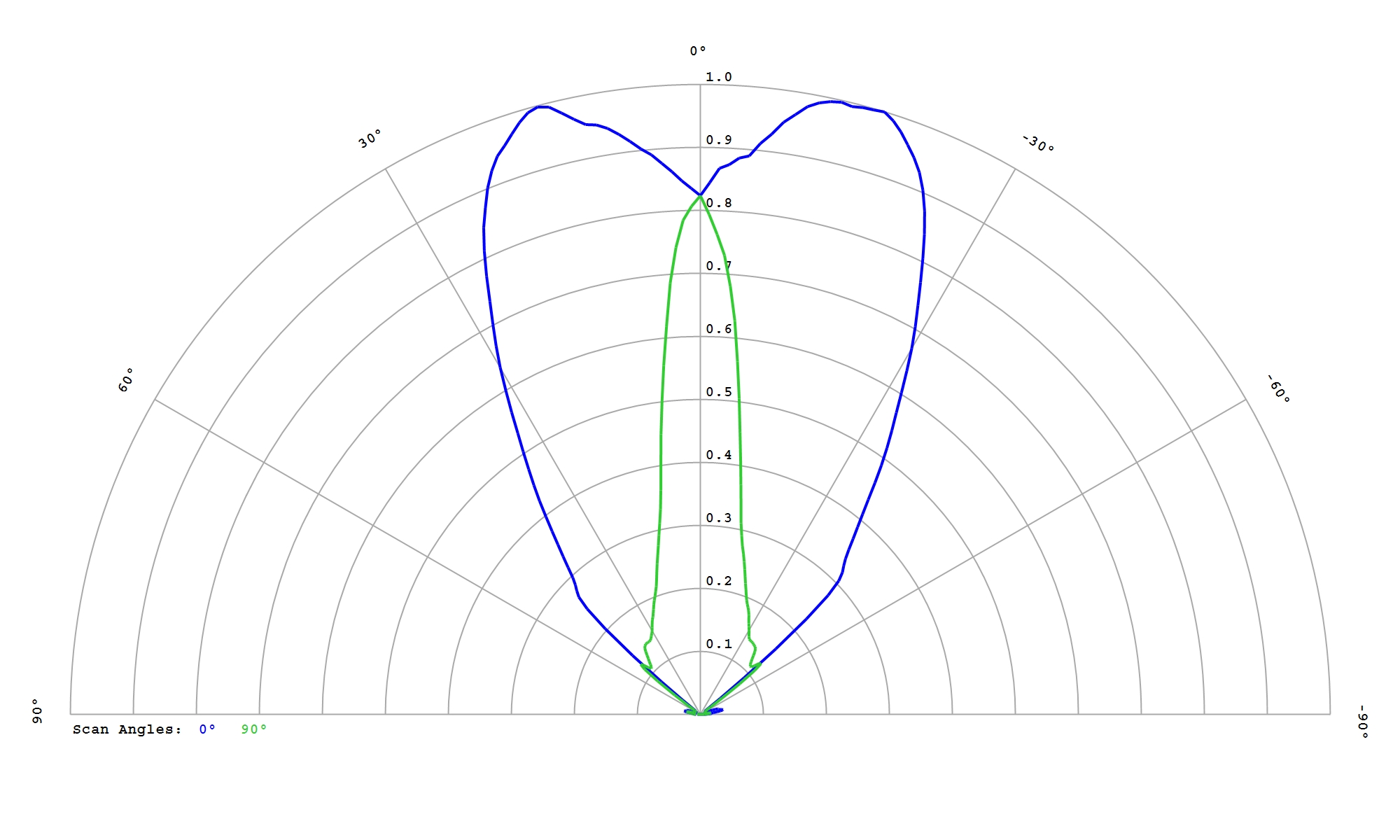

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
94.0%
FWHM:
70 x 17.5°
Cd/Im:
1.6
Download

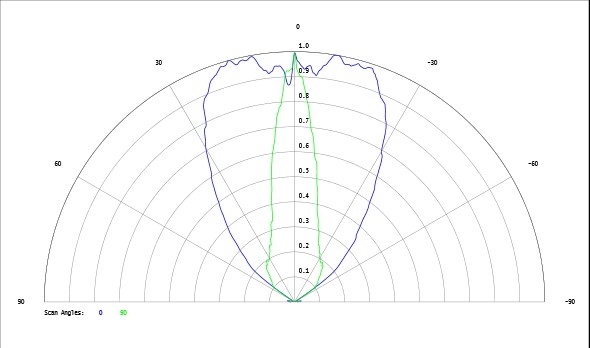

Osram OS OSLON Square Flat White
Eff:
95.5%
FWHM:
74 x 21.5°
Cd/Im:
1.1
Download

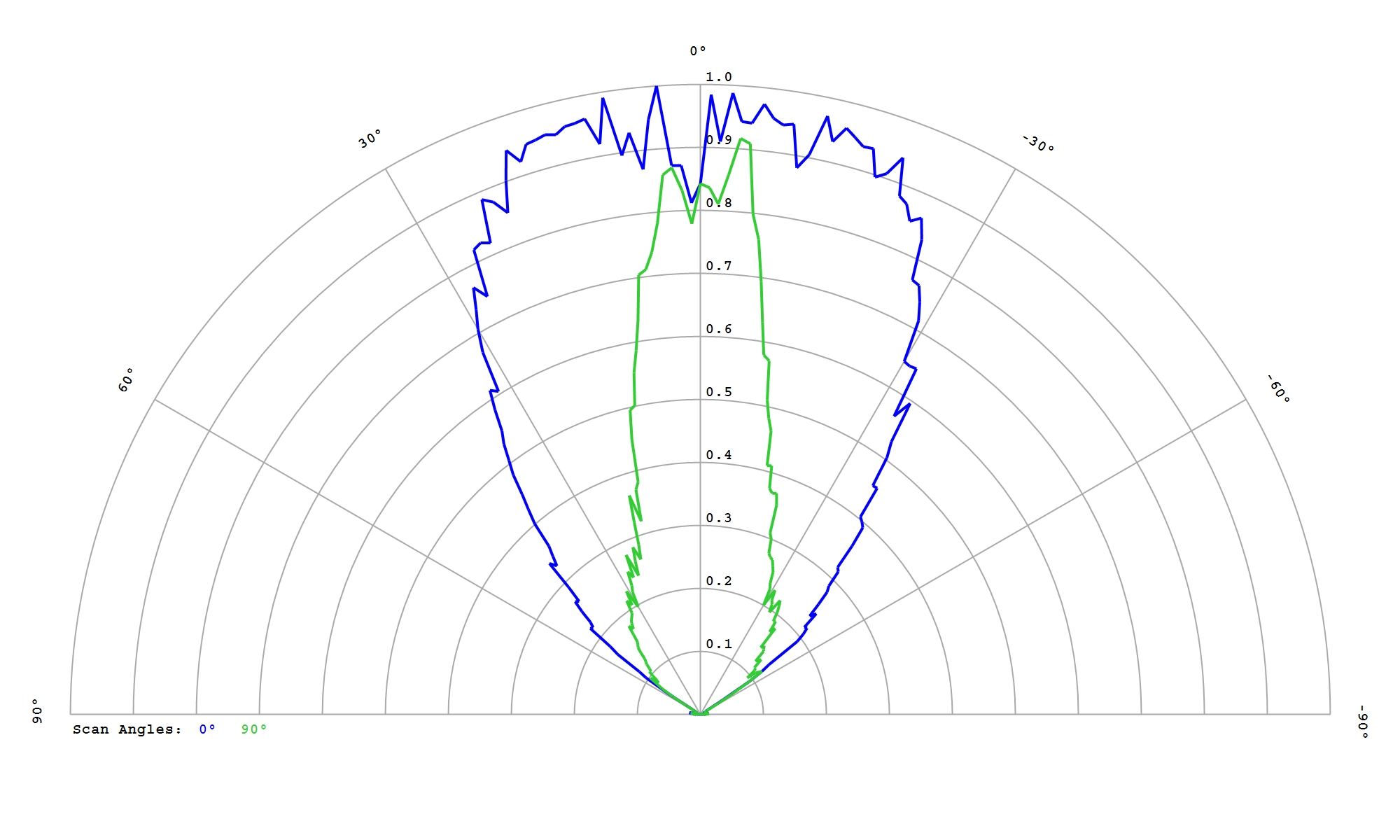

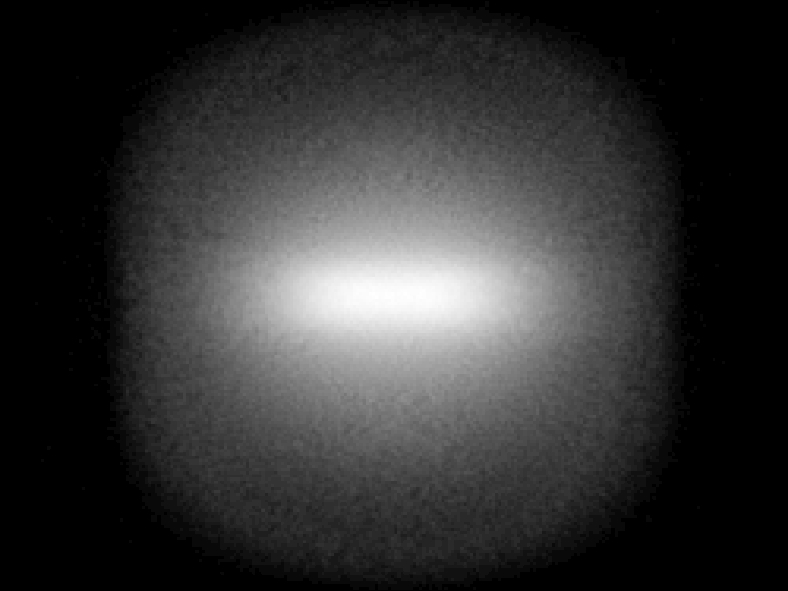

Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
95.5%
FWHM:
74 x 28.5°
Cd/Im:
1.3
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
95.5%
FWHM:
74 x 28.5°
Cd/Im:
1.3
Download
Osram OS OSLON Square White
Eff:
90.0%
FWHM:
80*29°
Cd/Im:
0.9
Download
Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue
Eff:
96.0%
FWHM:
76 x 22.5°
Cd/Im:
1.5
Download
Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red
Eff:
96.5%
FWHM:
78 x 19.5°
Cd/Im:
2.9
Download

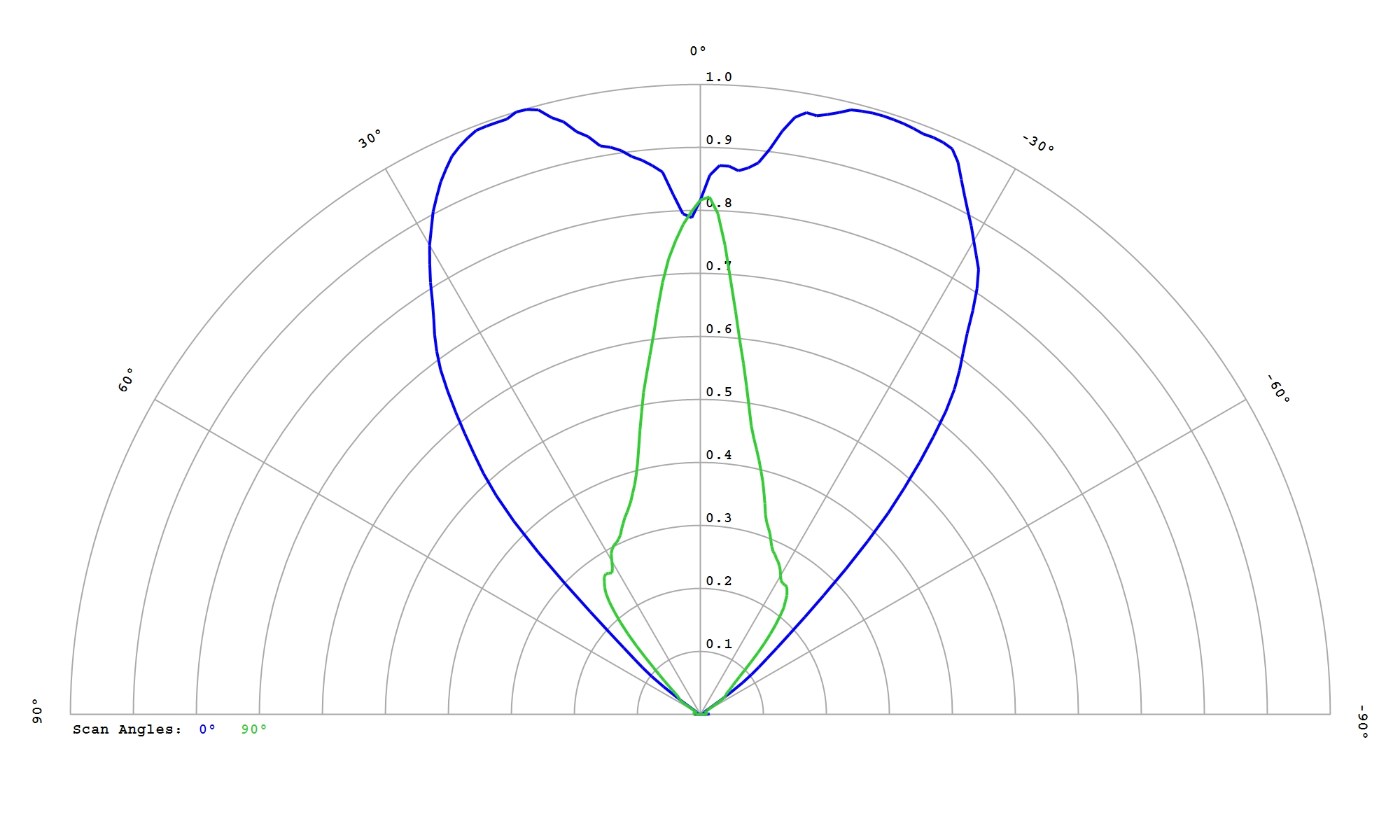

Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red
Eff:
96.5%
FWHM:
84 x 25.5°
Cd/Im:
1.3
Download

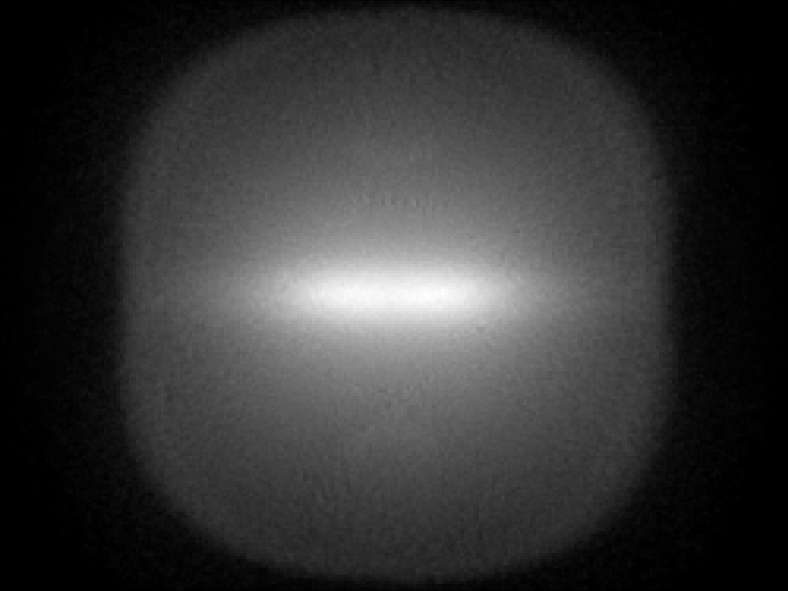

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
96.0%
FWHM:
83 x 23.5°
Cd/Im:
1.1
Download
Philips Fortimo FastFlex 2x2 730 DA G4
Eff:
96.0%
FWHM:
76 x 29°
Cd/Im:
1.0
Download

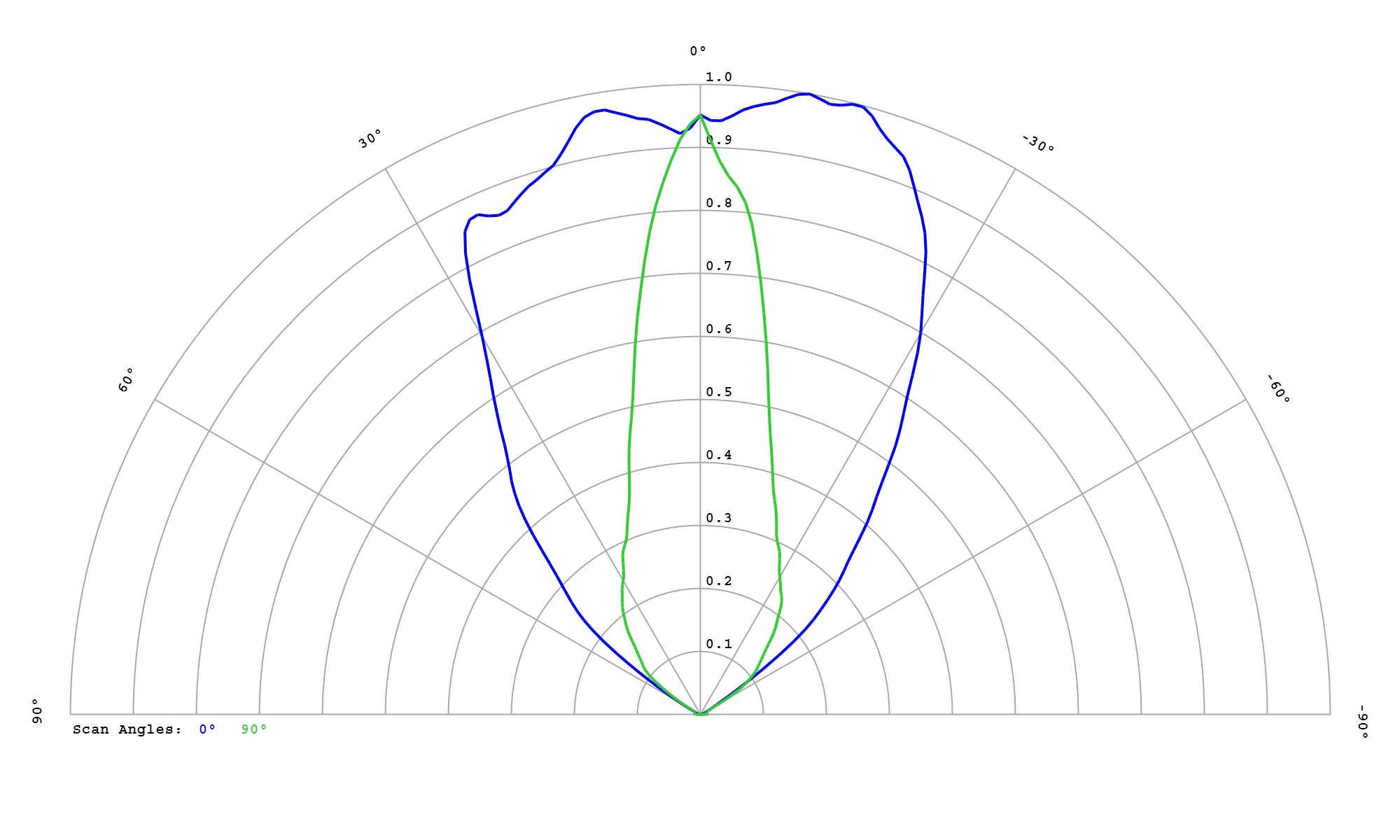

Philips Fortimo FastFlex 2x4 730 DA G4
Eff:
96.0%
FWHM:
74 x 26.5°
Cd/Im:
1.1
Download

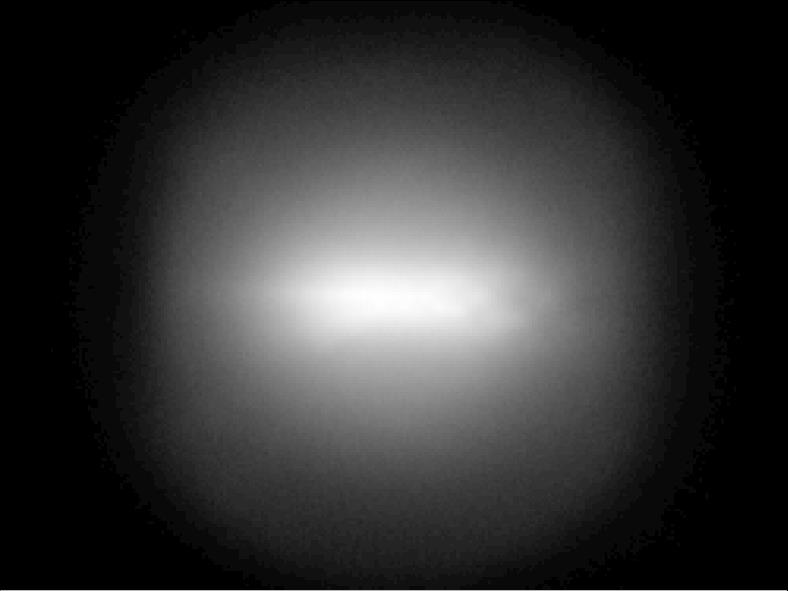

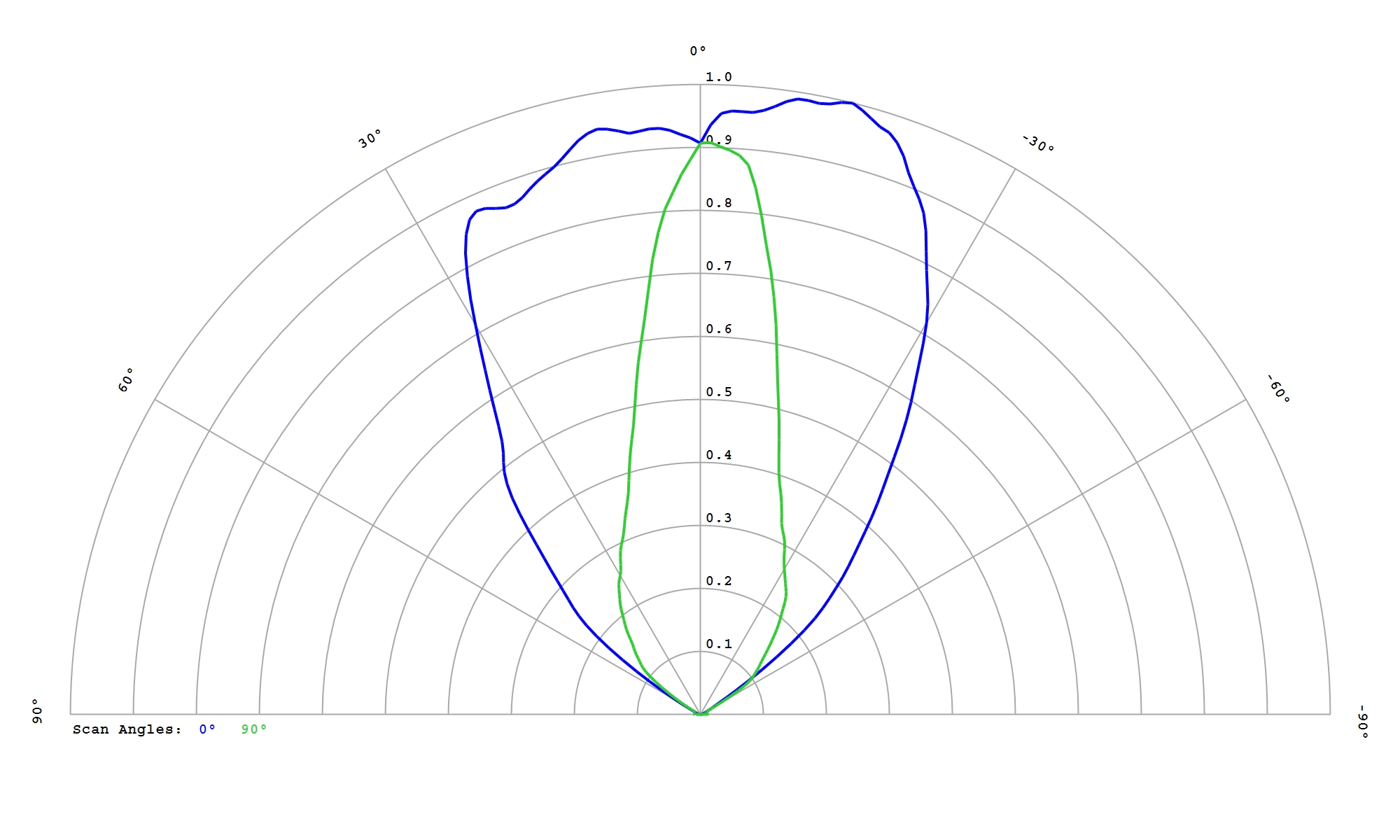

Philips Fortimo FastFlex 2x6 730 DA G4
Eff:
95.0%
FWHM:
75 x 29°
Cd/Im:
1.0
Download

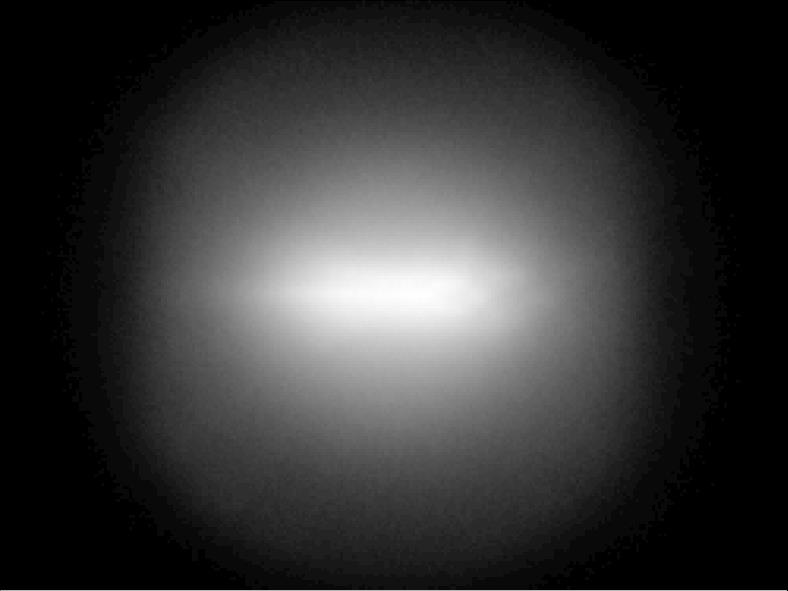

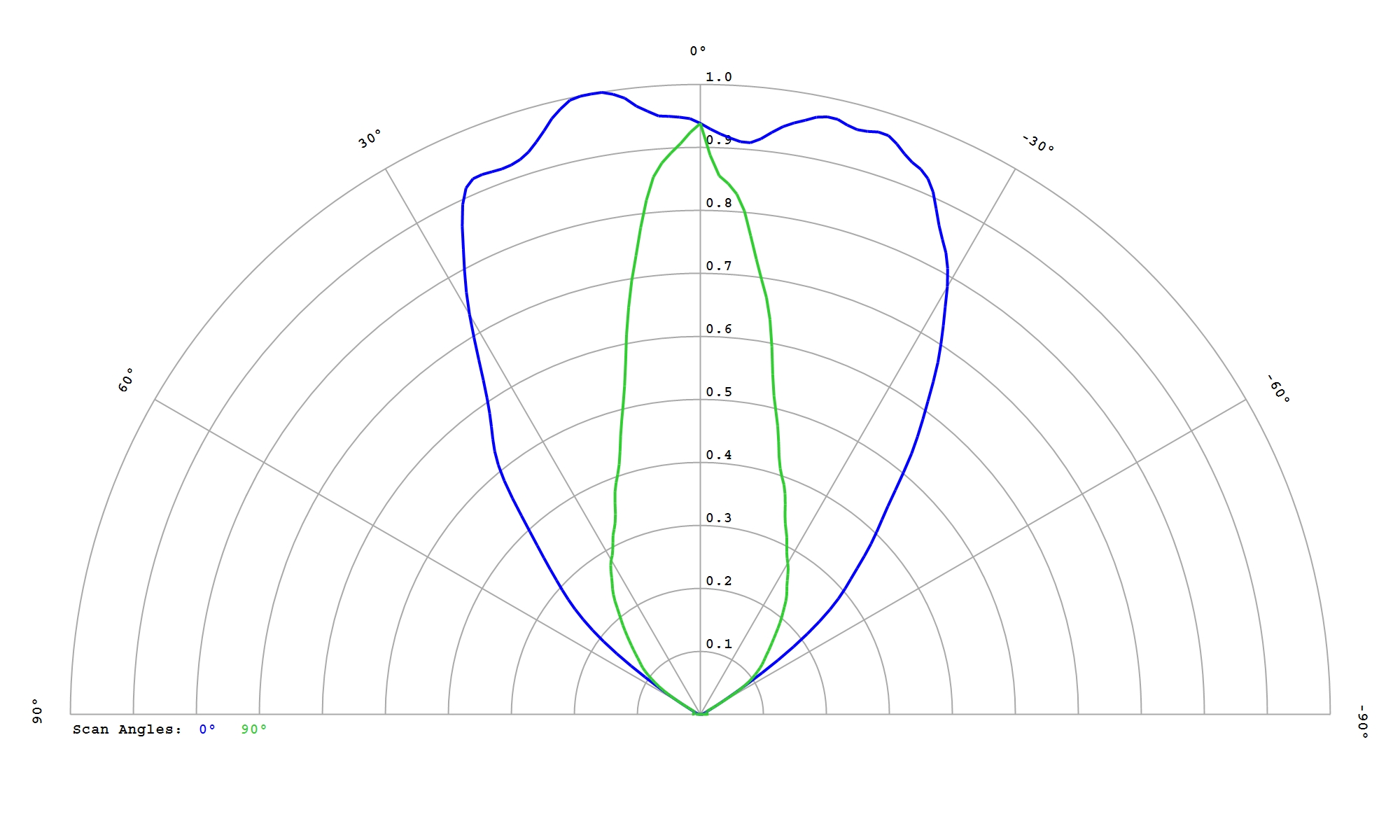

Philips Fortimo FastFlex 2x8 730 DA G3
Eff:
96.0%
FWHM:
79 x 31°
Cd/Im:
1.0
Download

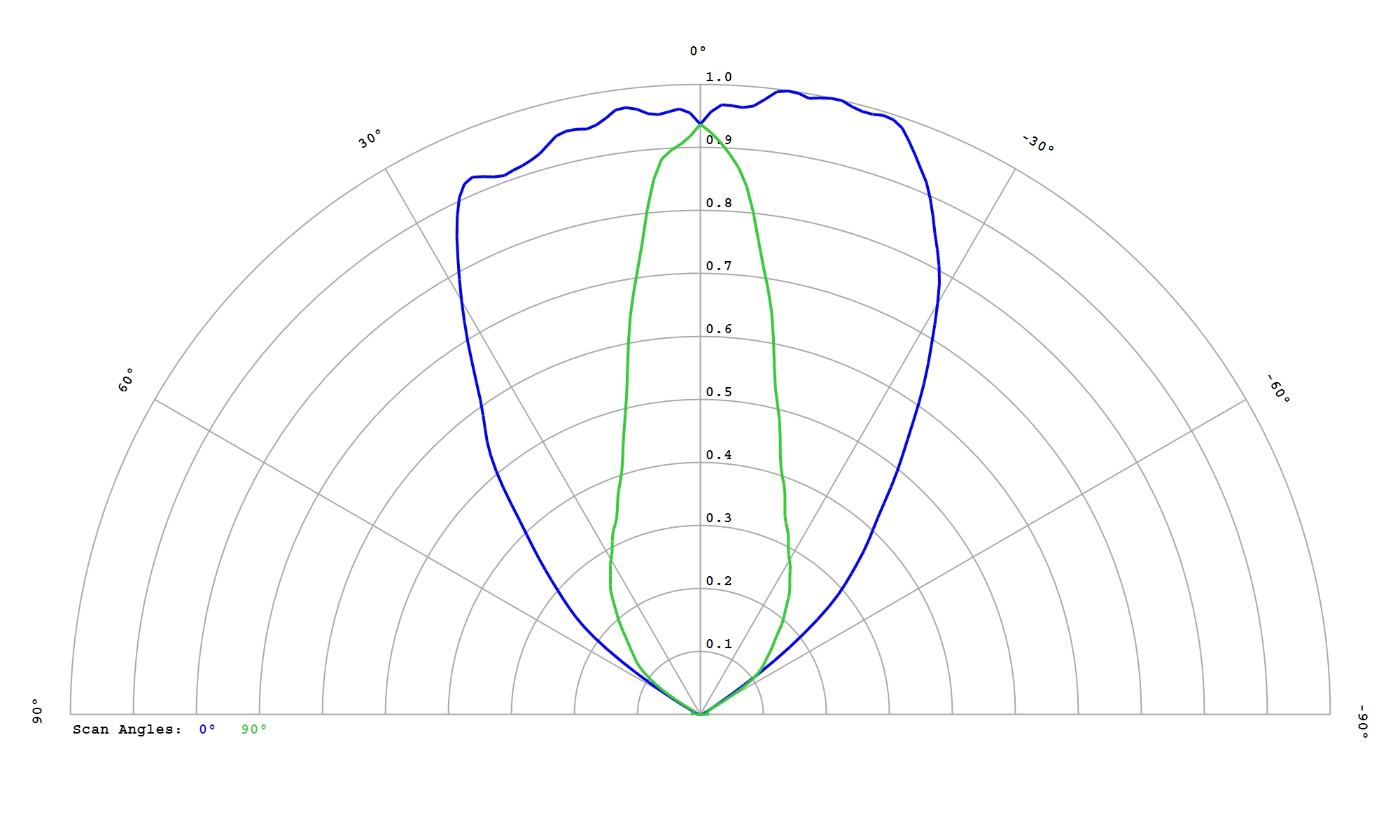

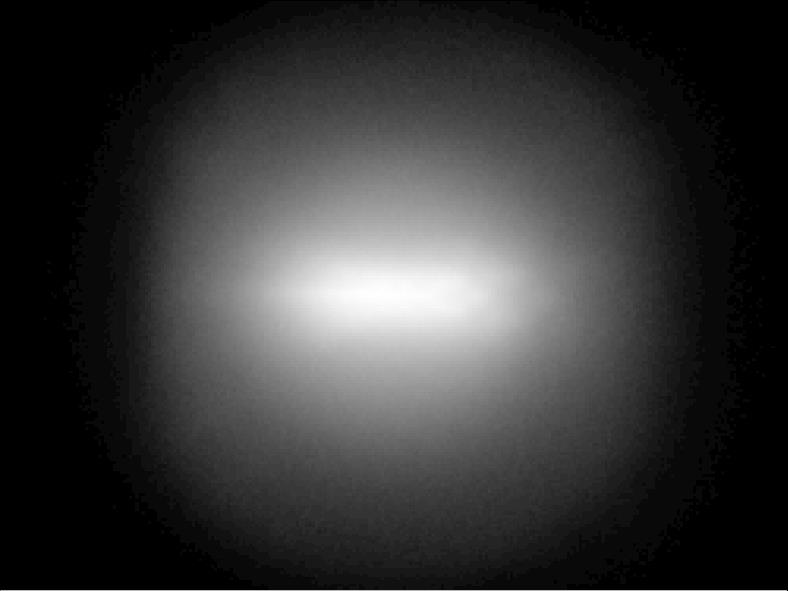

Philips Fortimo FastFlex 2x8 730 DA G4
Eff:
96.5%
FWHM:
79 x 31.5°
Cd/Im:
1.0
Download

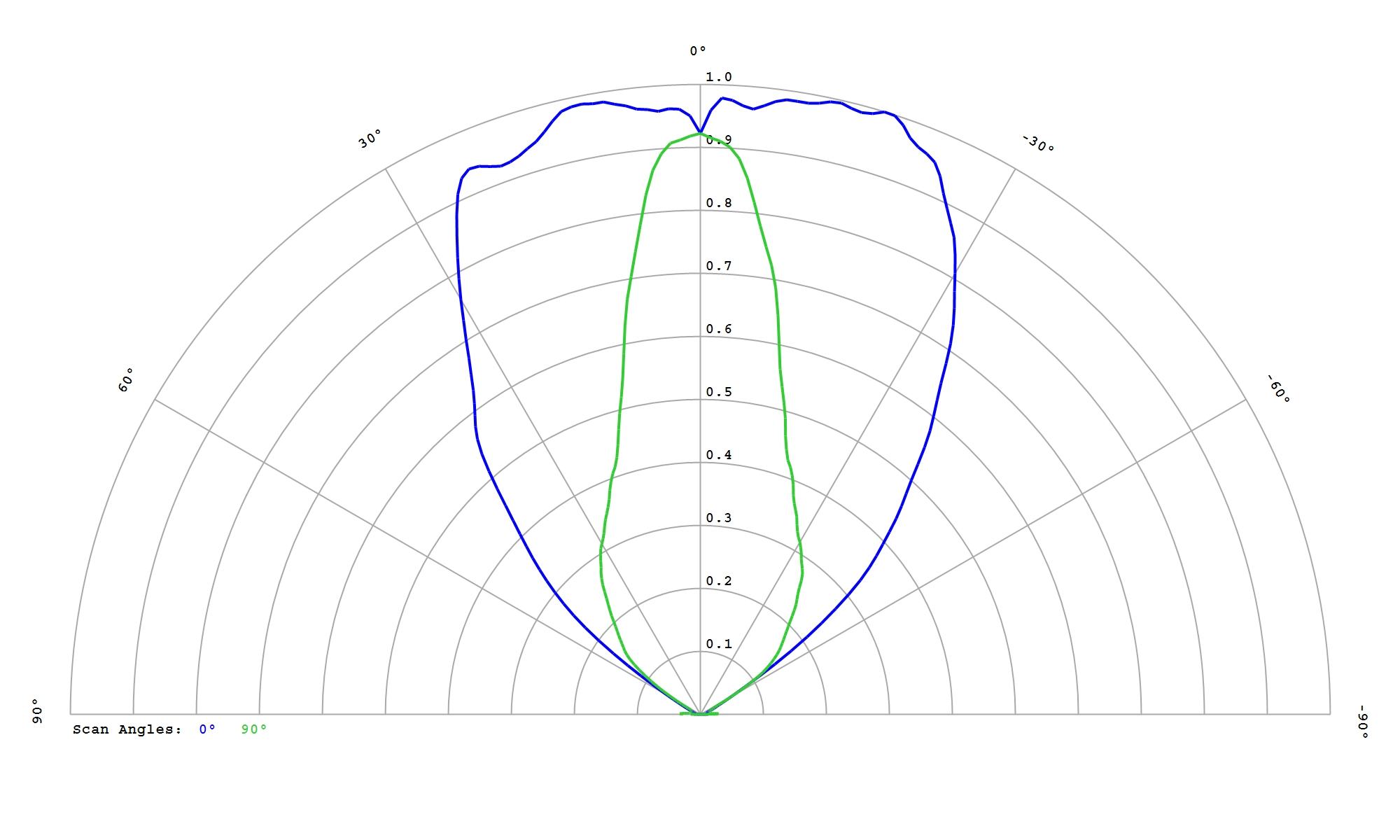

Philips Fortimo FastFlex 2x8 730 DAX G4
Eff:
96.0%
FWHM:
83 x 33°
Cd/Im:
0.9
Download

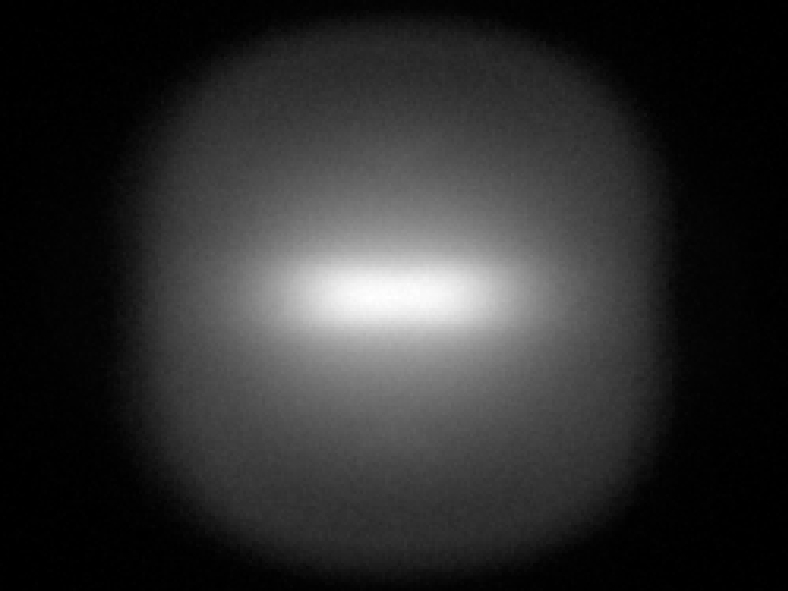

Samsung 2835 LM281B+ White
Eff:
95.0%
FWHM:
74 x 25.5°
Cd/Im:
1.3
Download

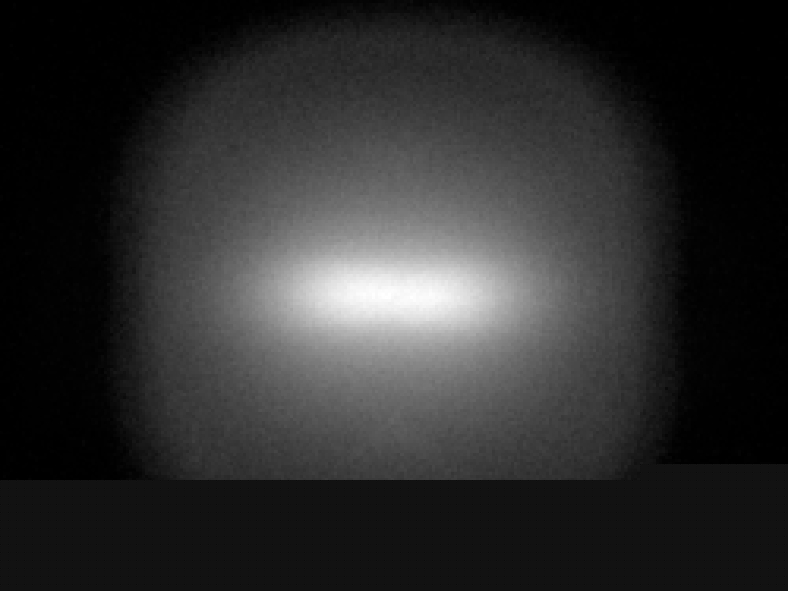

Samsung 3030 LM301B White
Eff:
96.0%
FWHM:
72 x 23.5°
Cd/Im:
1.3
Download
Samsung 3535 LH351D White
Eff:
88.0%
FWHM:
45.5 x 17.5°
Cd/Im:
1.7
Download

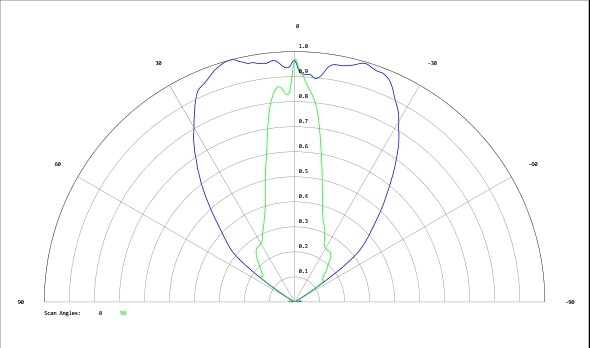

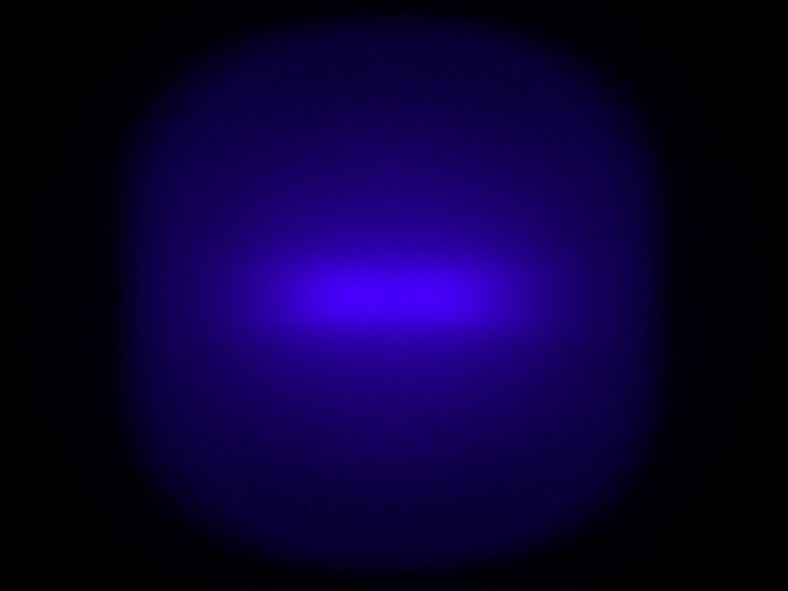

Samsung 3535 LH351H Blue
Eff:
96.0%
FWHM:
83 x 24°
Cd/Im:
1.0
Download
Samsung 3535 LH351H Deep Red
Eff:
96.0%
FWHM:
79 x 25°
Cd/Im:
1.1
Download

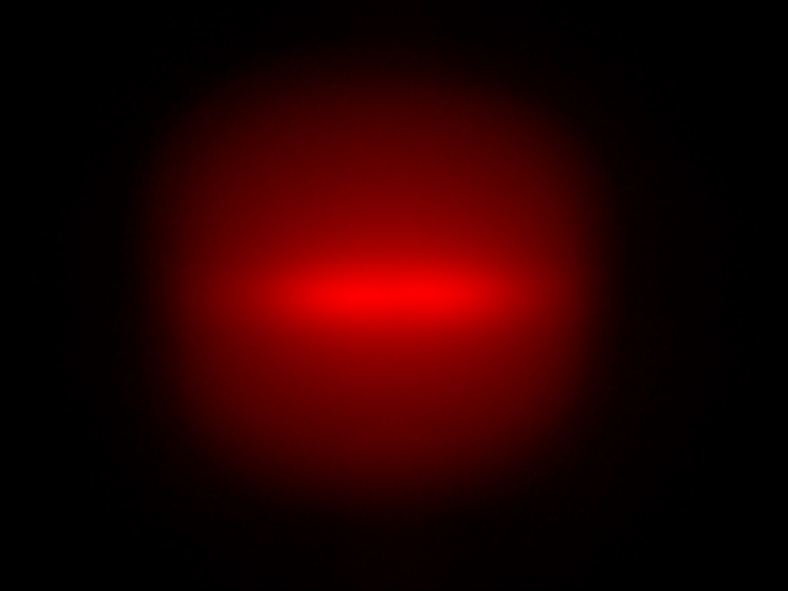

Samsung 3535 LH351H Red
Eff:
97.0%
FWHM:
76 x 22°
Cd/Im:
1.4
Download

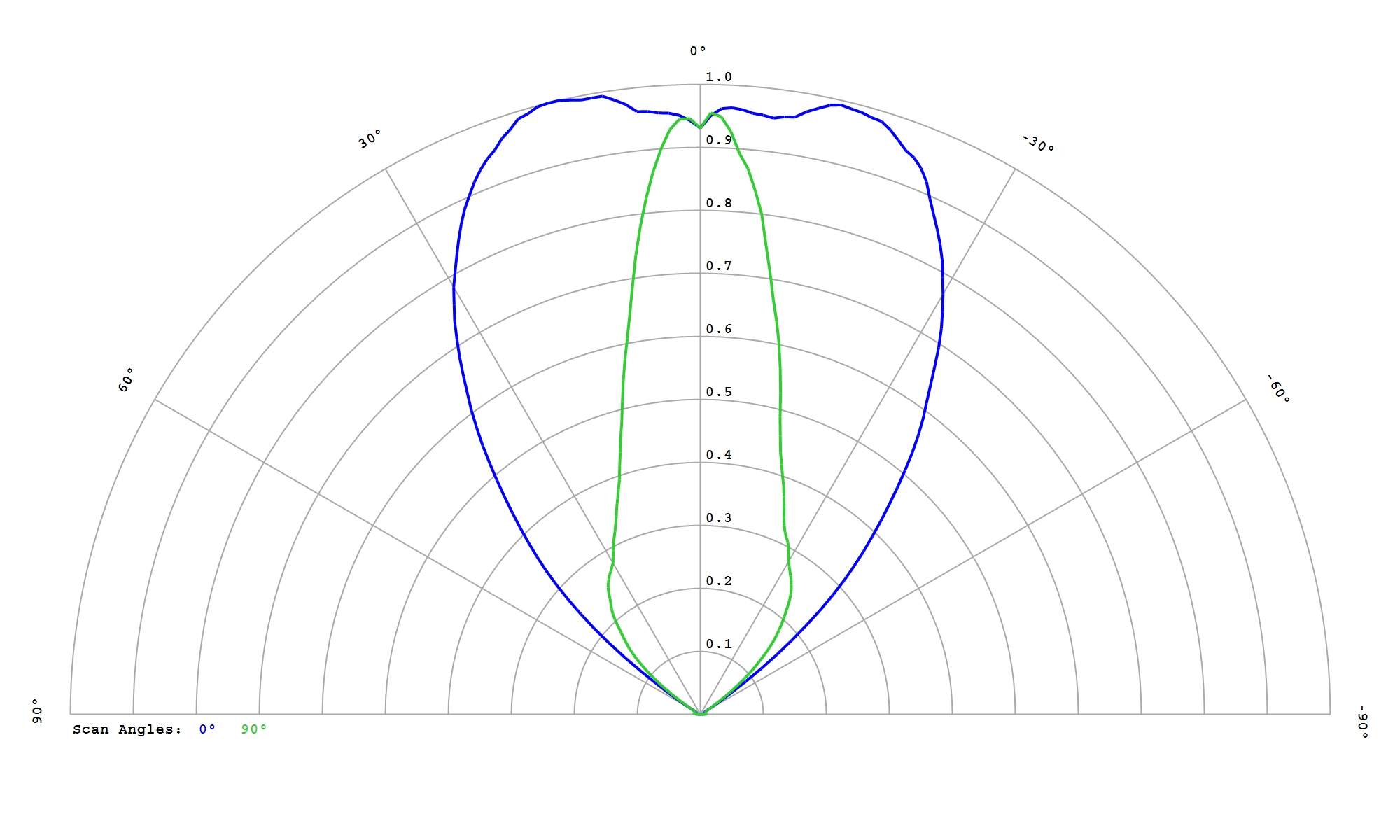

Samsung 3535 LH351H-B White
Eff:
95.5%
FWHM:
80 x 28.5°
Cd/Im:
1.2
Download

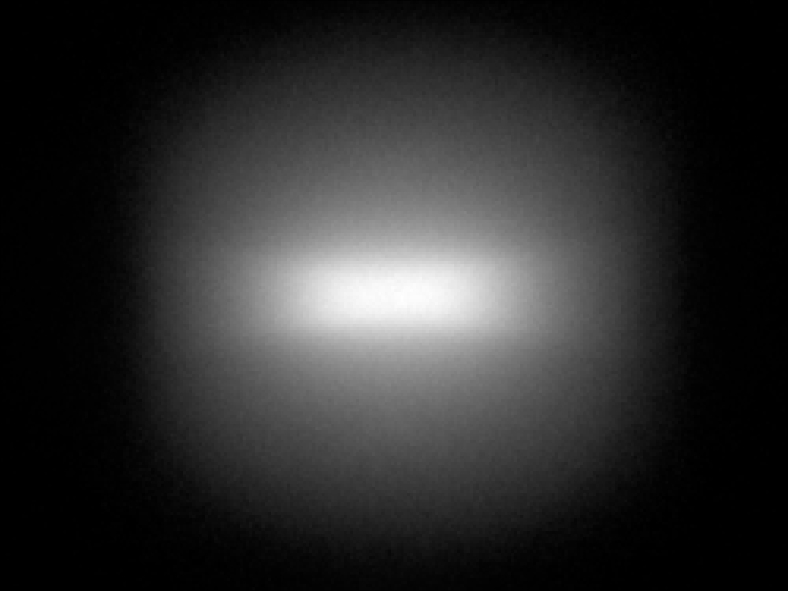

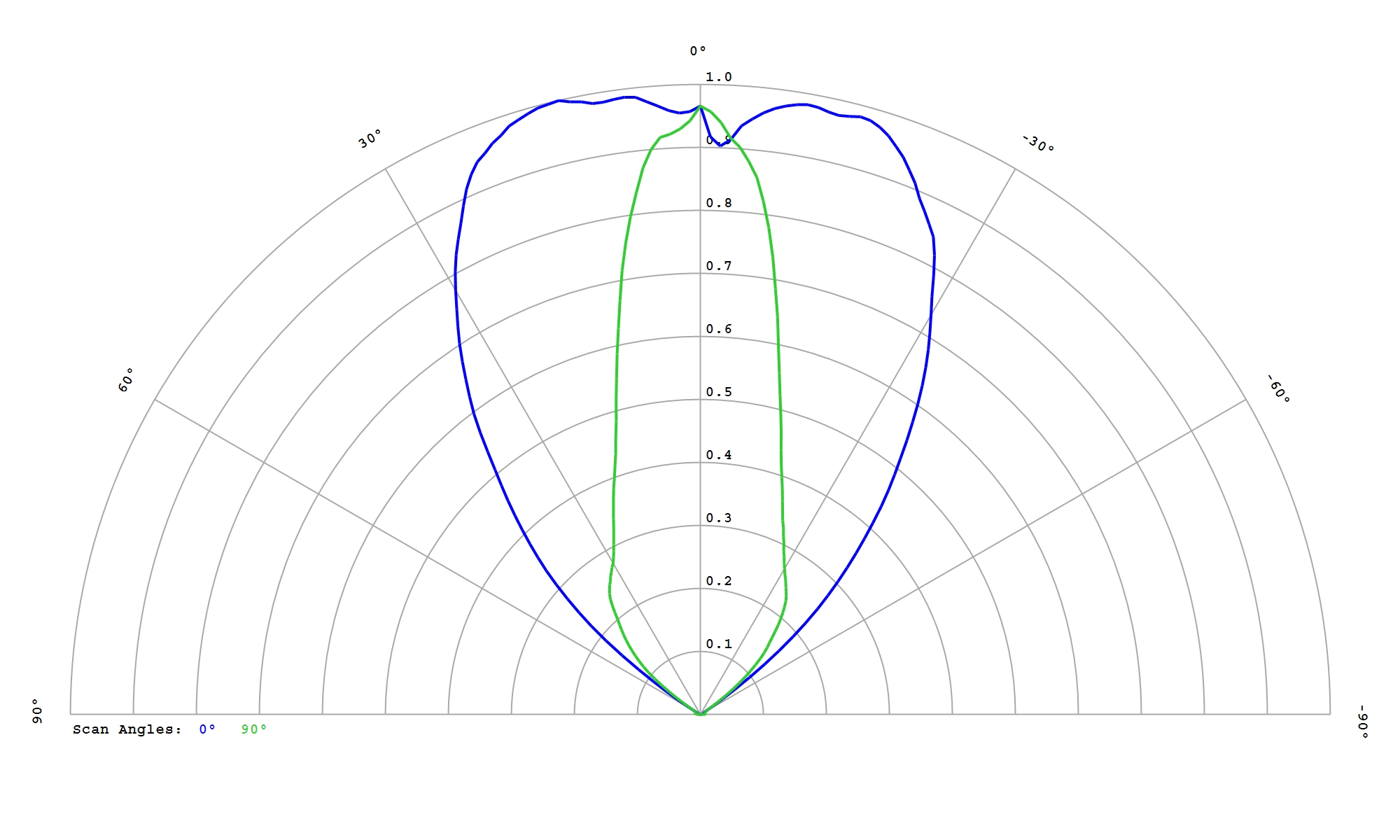

Samsung 3535 LH351H-C White
Eff:
96.0%
FWHM:
79 x 33°
Cd/Im:
1.2
Download

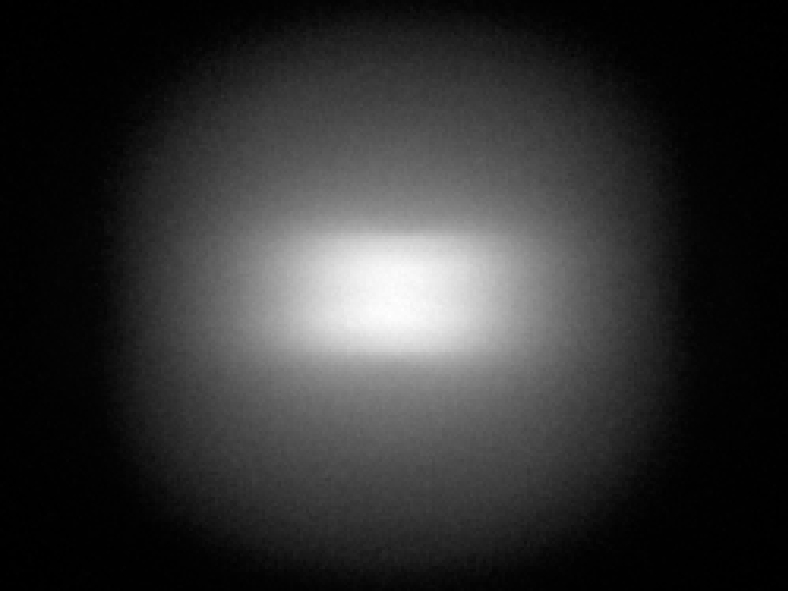

Samsung 5050 LH502C White
Eff:
95.5%
FWHM:
77 x 40°
Cd/Im:
1.1
Download
Samsung 5050 LH502D White
Eff:
95.5%
FWHM:
74 x 39°
Cd/Im:
1.0
Download

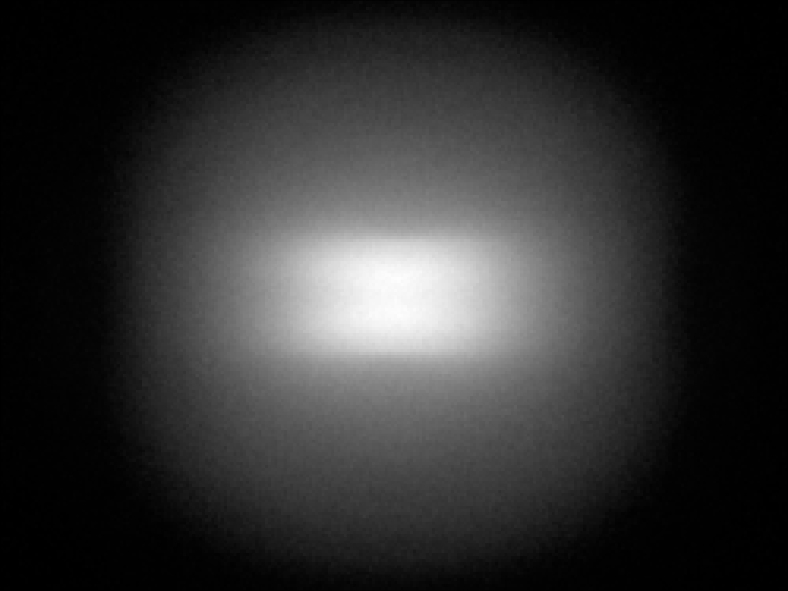

Samsung 5050 LH508C White
Eff:
96.0%
FWHM:
77 x 39°
Cd/Im:
1.0
Download
Samsung CSP LH151B White
Eff:
95.0%
FWHM:
70 x 18°
Cd/Im:
1.5
Download
Samsung CSP LH231B White
Eff:
95.0%
FWHM:
74 x 25°
Cd/Im:
1.2
Download
Samsung CSP LM101B White
Eff:
95.0%
FWHM:
73 x 18.5°
Cd/Im:
1.5
Download
Samsung LM 101A White
Eff:
91.5%
FWHM:
79 x 18°
Cd/Im:
1.0
Download

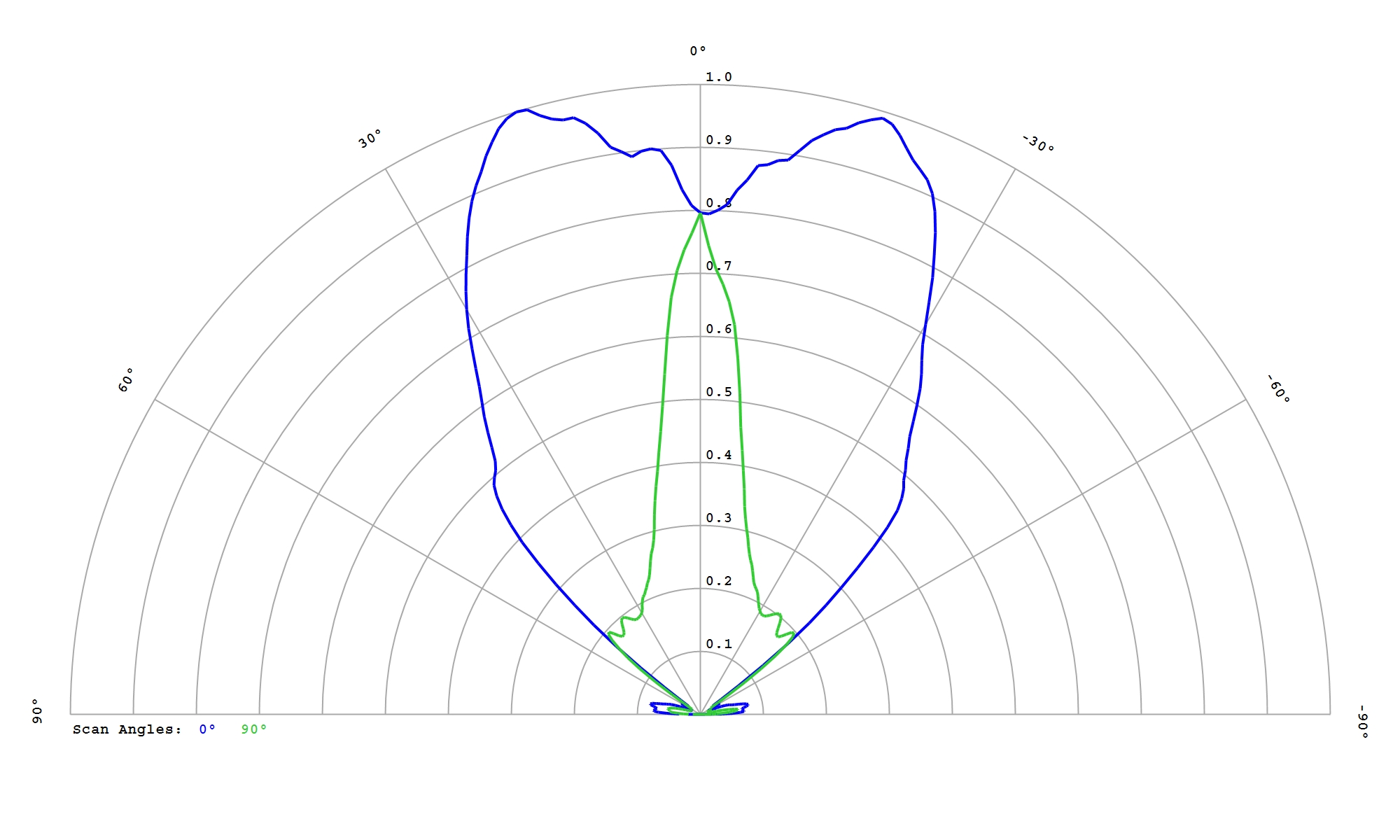

Seoul CSP SZ8Y11 White
Eff:
90.5%
FWHM:
80 x 18°
Cd/Im:
1.0
Download
Seoul CSP SZ8Y22 White
Eff:
93.0%
FWHM:
82 x 25.5°
Cd/Im:
1.0
Download

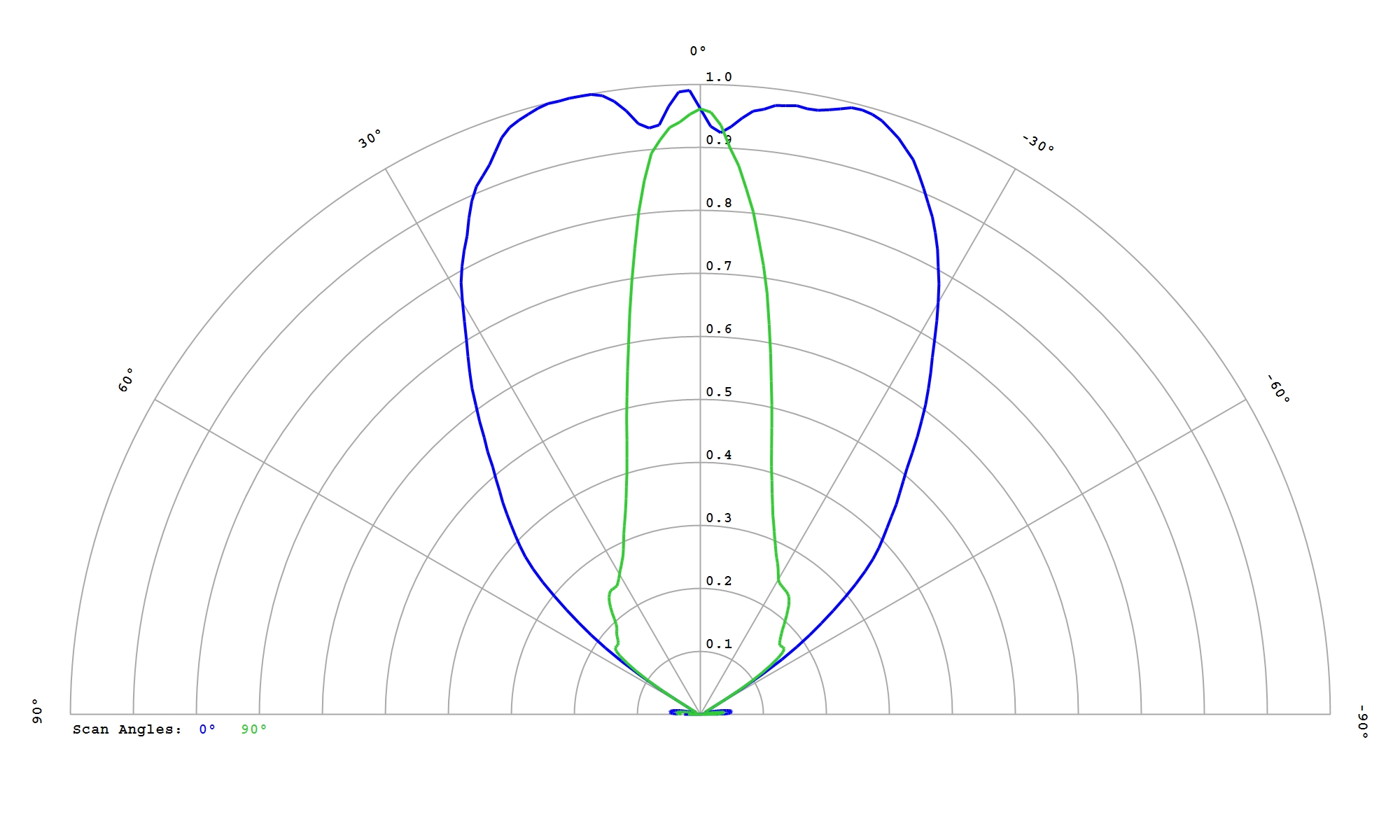

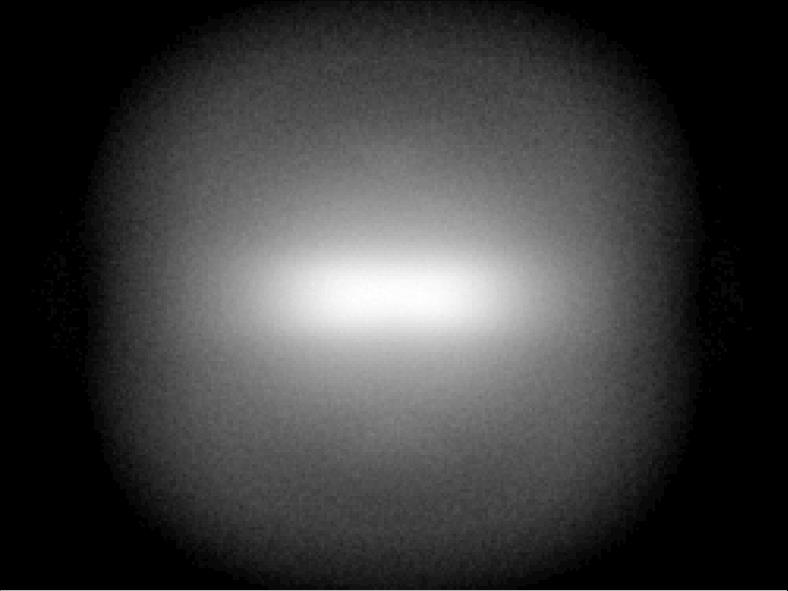

Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
81 x 27°
Cd/Im:
1.0
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
81 x 27°
Cd/Im:
1.0
Download
Seoul MidPower 3030 STB0C2PB Blue
Eff:
96.5%
FWHM:
77 x 26.5°
Cd/Im:
1.1
Download
Seoul MidPower 3030 STDRC12B Deep Red
Eff:
95.5%
FWHM:
76 x 24.5°
Cd/Im:
1.1
Download
Seoul MidPower 3030 STFRC12B Far Red
Eff:
96.5%
FWHM:
80 x 20°
Cd/Im:
1.6
Download
Seoul STW8 C2SB-NT White
Eff:
96.0%
FWHM:
74 x 25.5°
Cd/Im:
1.3
Download

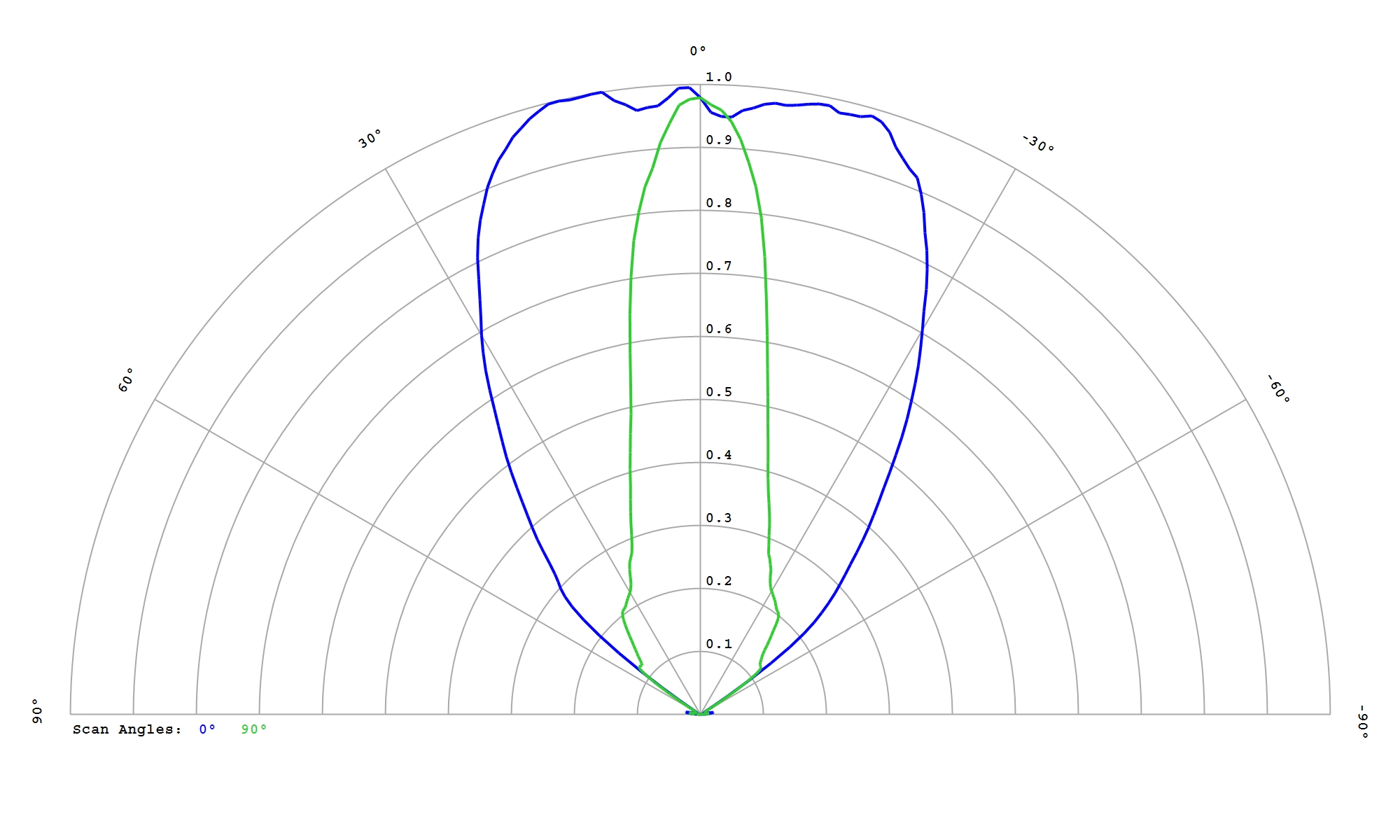

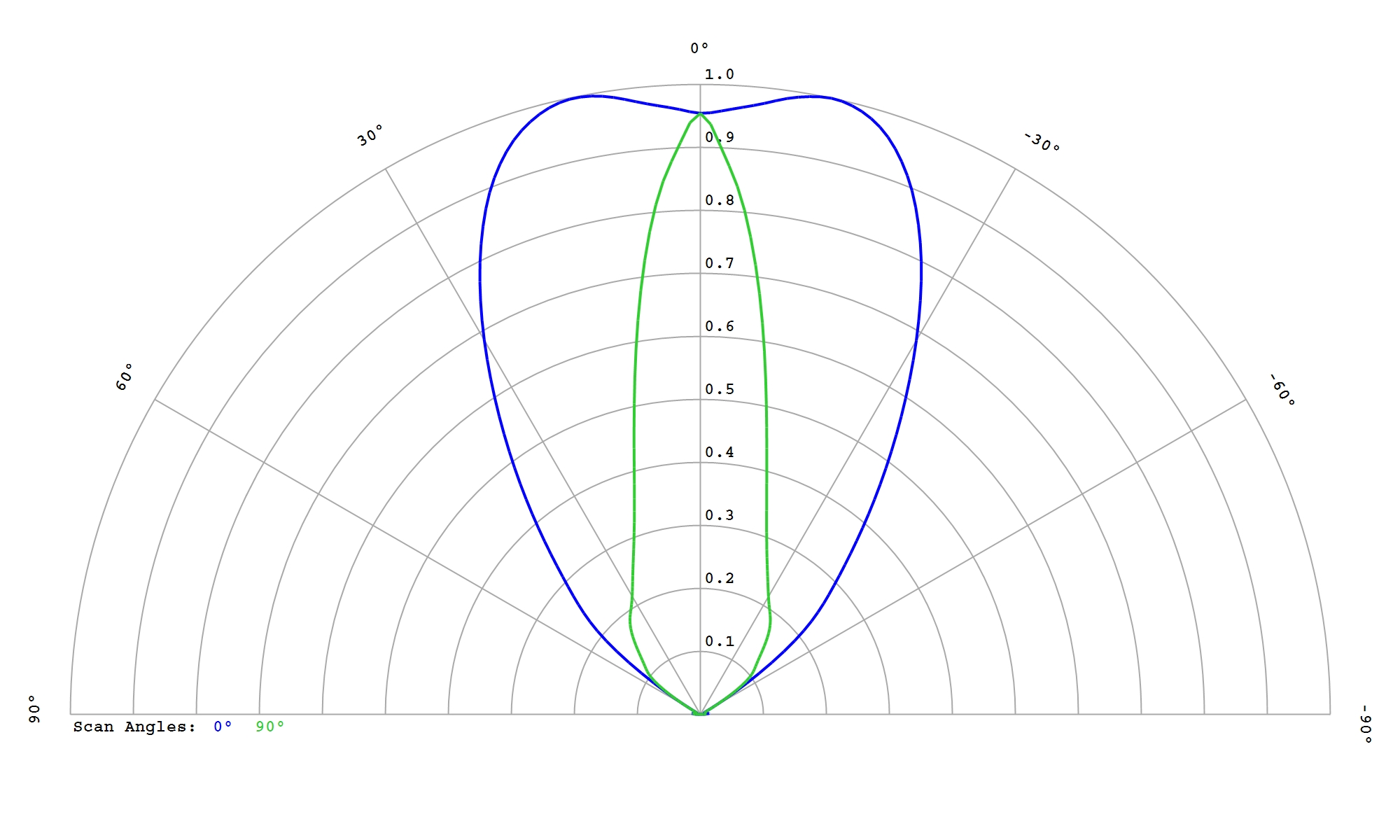

Seoul STWS C2PB-E0 White
Eff:
96.0%
FWHM:
74 x 25.5°
Cd/Im:
1.3
Download
Seoul SunLike STW9 C2SB-S
Eff:
96.0%
FWHM:
72 x 24°
Cd/Im:
1.3
Download
Seoul Z - Power Z5 M4 White
Eff:
95.5%
FWHM:
79 x 30°
Cd/Im:
1.1
Download
