25.0mm Wide Spot Bubble

Part number

12815

Dimensions

25.0mm

Drawing Number

70300

Optic type

Bubble

Beam type

Wide Spot

Applications

Industrial

Horticultural

Warehouse

Emergency / Hazard

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.1

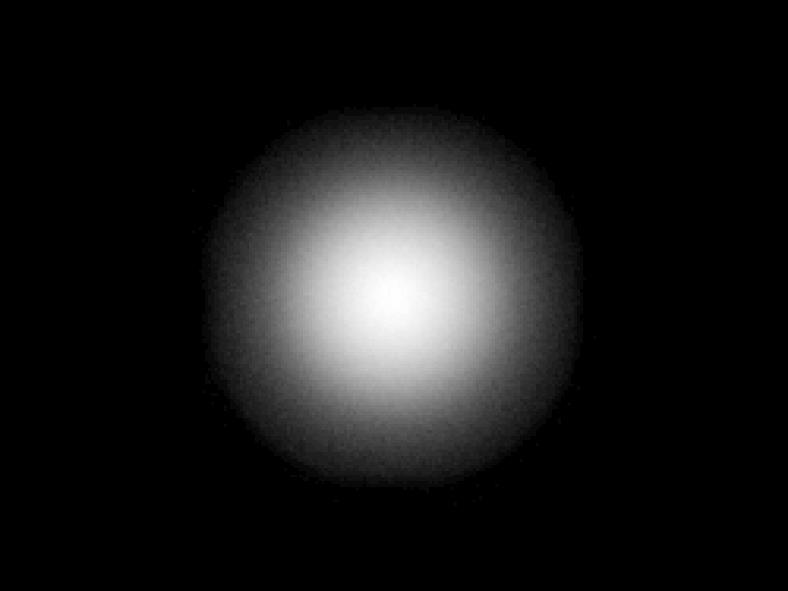

Carclo Optics - 12815 Bubble Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12815 Bubble Cross Section Bridgelux 3030 Gen2

Download

IES

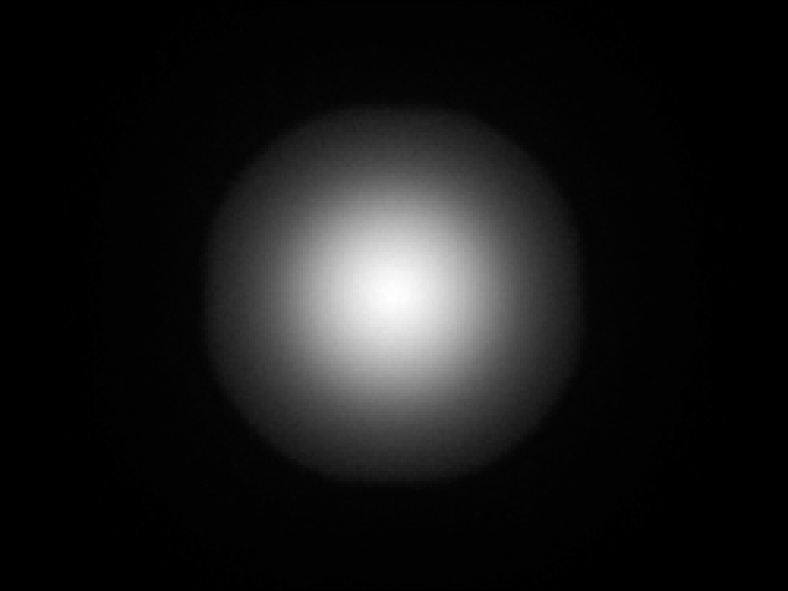

Cree JB2835B 3V G-Class White

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.0


Download

Cree JB2835B 3V J-Class White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.0


Download

Cree JB3030 3V P-Class White

Eff:

96.0%

FWHM:

68.0°

Cd/Im:

1.1

Carclo Optics - 12815 Spot Image Cree JB3030 3V White

Carclo Optics - 12815 Cross Section Cree JB3030 3V White

Download

IES

Cree JB3030C 3V E-Class White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0


Download

Cree JB3030C 3V F-Class White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0


Download

Cree JE2835 3V White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.1

Download

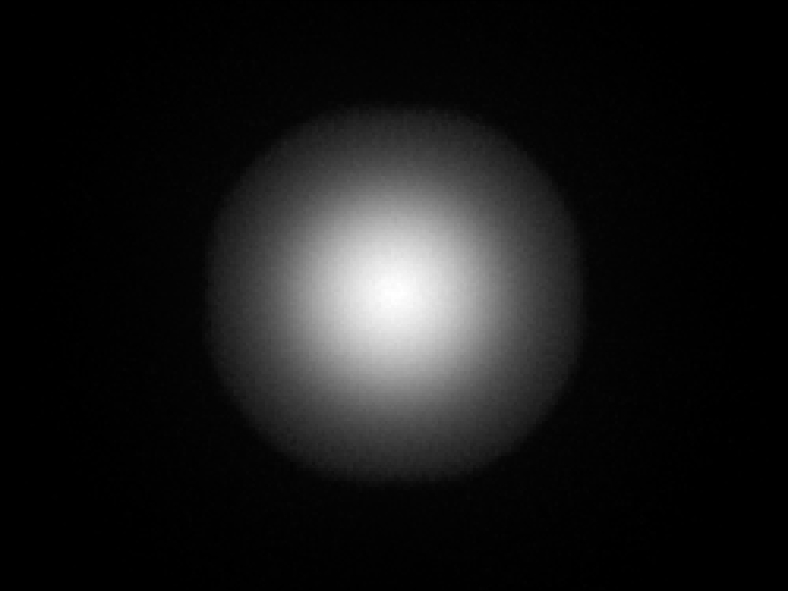

Cree JK2835 6V White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.2

Download

IES

Cree JQ5050 9V White

Eff:

96.5%

FWHM:

73.0°

Cd/Im:

0.9

Carclo Optics - 12815 Spot Image Cree JQ5050 9V White

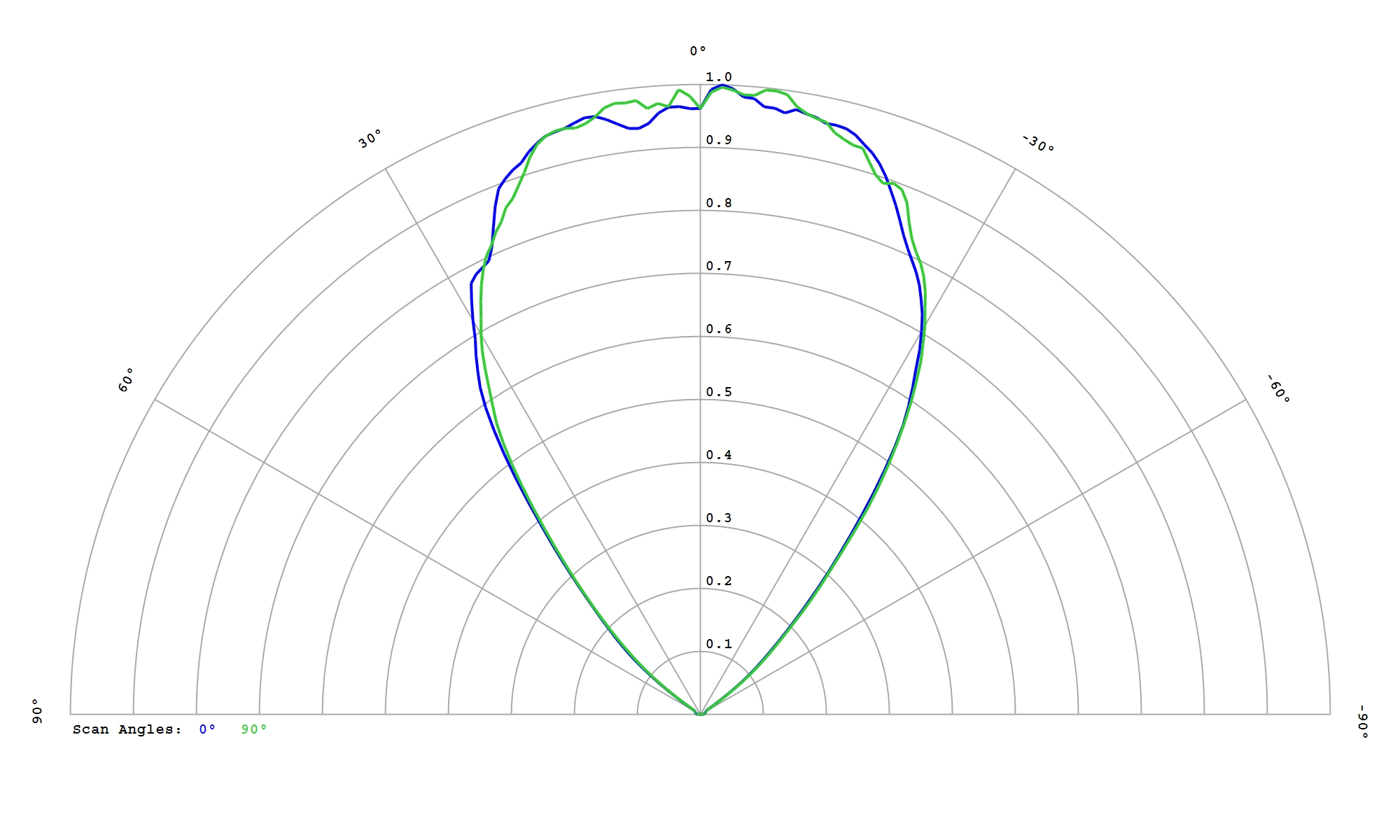

Carclo Optics - 12815 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

96.5%

FWHM:

72.0°

Cd/Im:

1.0

Carclo Optics - 10815 Spot Image Cree JR5050 24V White

Carclo Optics - 10815 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

96.5%

FWHM:

71.0°

Cd/Im:

1.1

Carclo Optics - 12815 Spot Image Cree JR5050 36V White

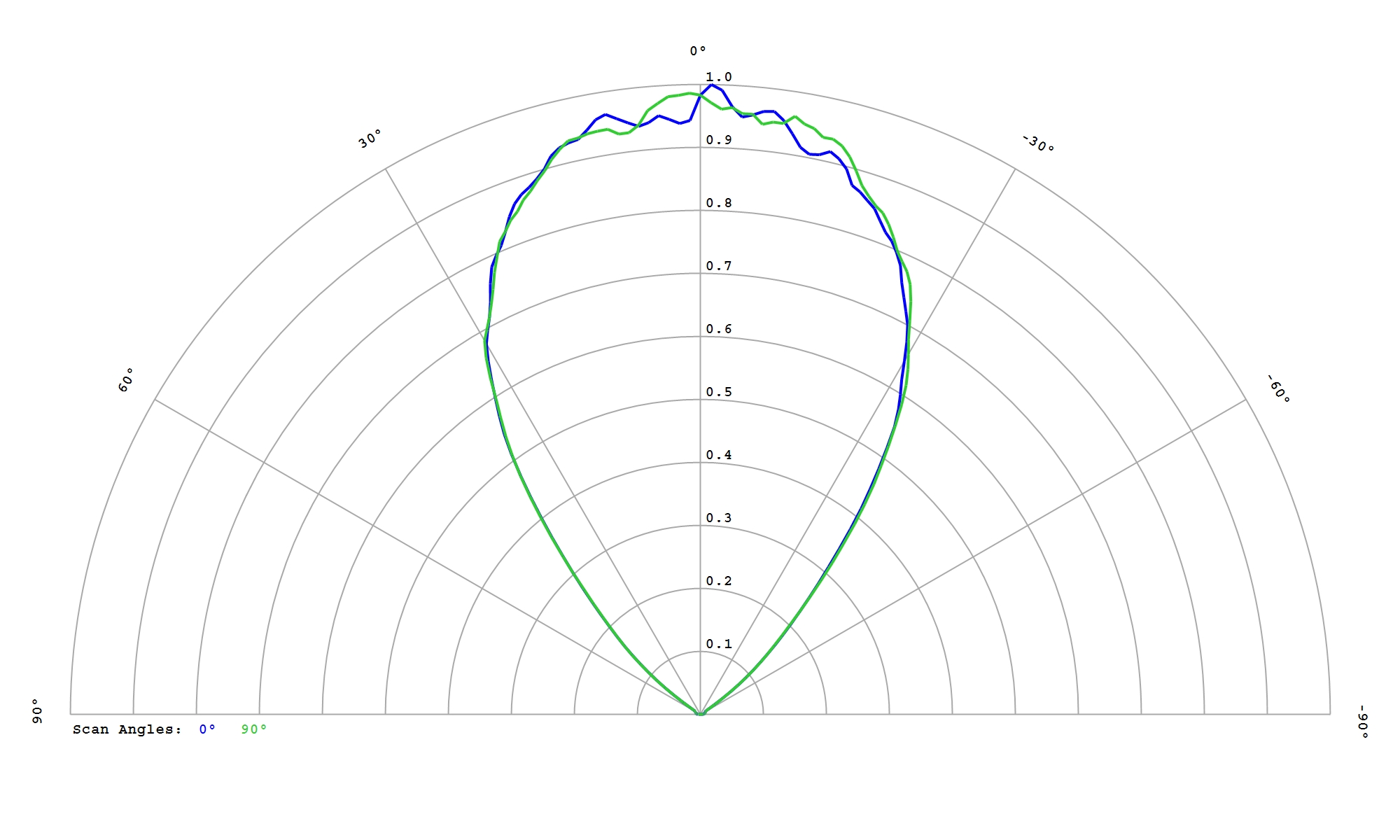

Carclo Optics - 12815 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

96.5%

FWHM:

74.0°

Cd/Im:

1.0

Carclo Optics - 12815 Spot Image Cree JR5050 6V White

Carclo Optics - 12815 Cross Section Cree JR5050 6V White

Download

IES

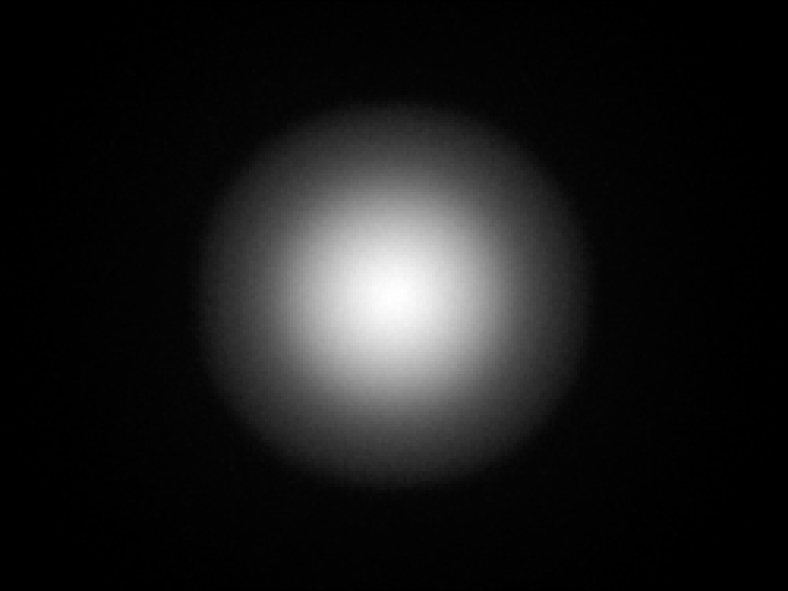

Cree JR5050C 6V E-Class White

Eff:

96.5%

FWHM:

74°

Cd/Im:

1.0


Download

IES

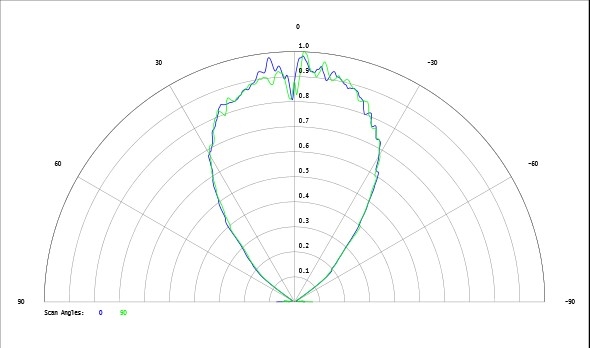

Cree XLamp CSP XD16 Cool White

Eff:

94.5%

FWHM:

75°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

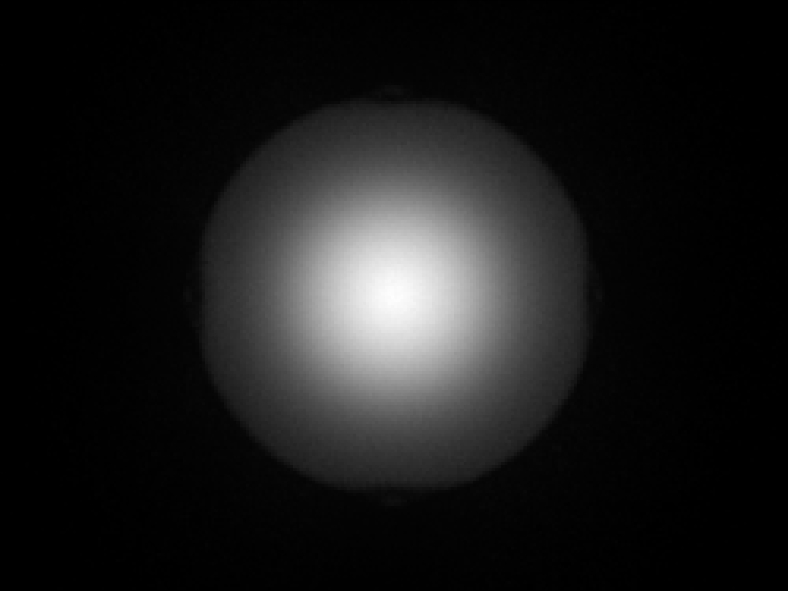

Cree XLamp CSP XD16 Premium White

Eff:

96.0%

FWHM:

69°

Cd/Im:

1.0

Download

IES

Cree XLamp XB-H White

Eff:

95.5%

FWHM:

67 x 66°

Cd/Im:

1.3

Carclo Optics - 12815 Bubble Spot Image Cree XLamp XB-H

Carclo Optics - 12185 Bubble Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G White

Eff:

95.0%

FWHM:

72°

Cd/Im:

0.9

Download

IES

Cree XLamp XHP35 HI White

Eff:

92.0%

FWHM:

75.3°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

89.6%

FWHM:

80.3°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

94.5%

FWHM:

72°

Cd/Im:

1.1

Carclo Optics – 12815 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12815 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP50.3 HI White

Eff:

95.0%

FWHM:

75°

Cd/Im:

0.9

optic-12815-Cree_XHP50.3 HI-spot-image.jpg

optic-12815-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

95.5%

FWHM:

72°

Cd/Im:

0.9

Download

IES

Cree XLamp XP-E2 Far Red

Eff:

94.5%

FWHM:

79°

Cd/Im:

1.6

Carclo Optics – 12815 Cree Xlamp XP-E2 Far Red - Spot Image

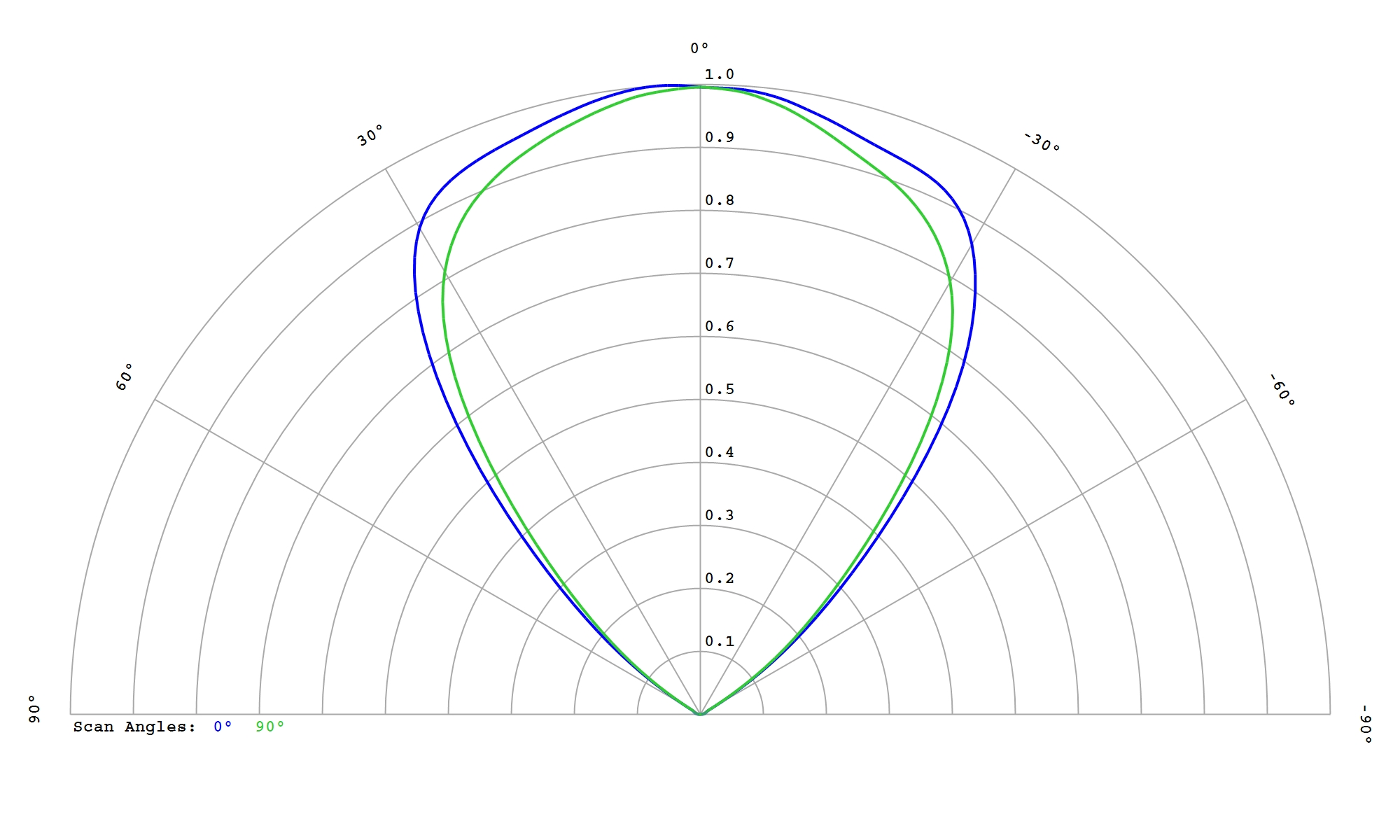

Carclo Optics – 12815 Cree Xlamp XP-E2 Far Red - Cross-Section

Download

IES

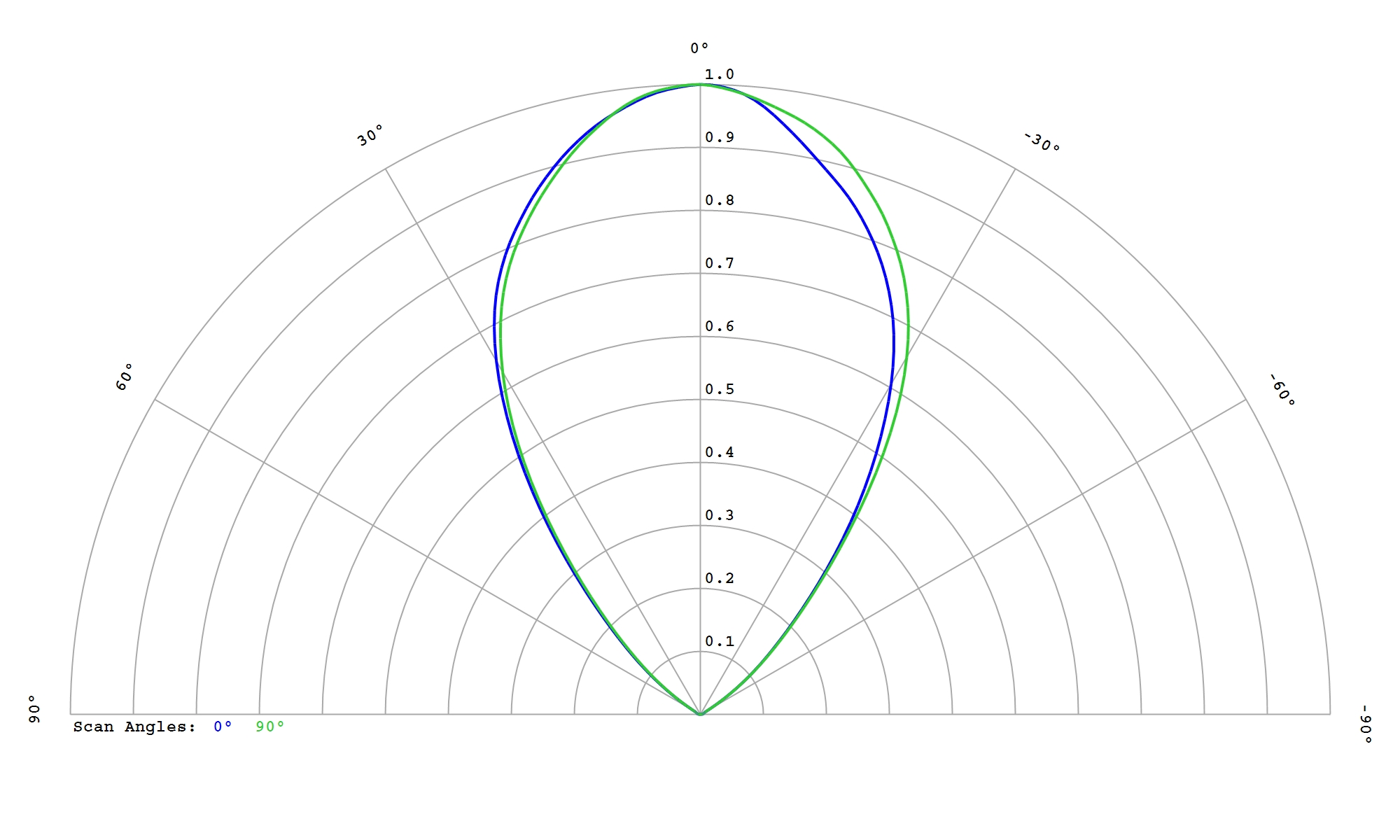

Cree XLamp XP-E2 White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0

Download

IES

Cree XLamp XP-G2 White

Eff:

91.0%

FWHM:

74°

Cd/Im:

0.7

Simulation Data

Simulation Data

Download

1

Cree XLamp XP-G3 Photo Red

Eff:

95.0%

FWHM:

80°

Cd/Im:

0.8

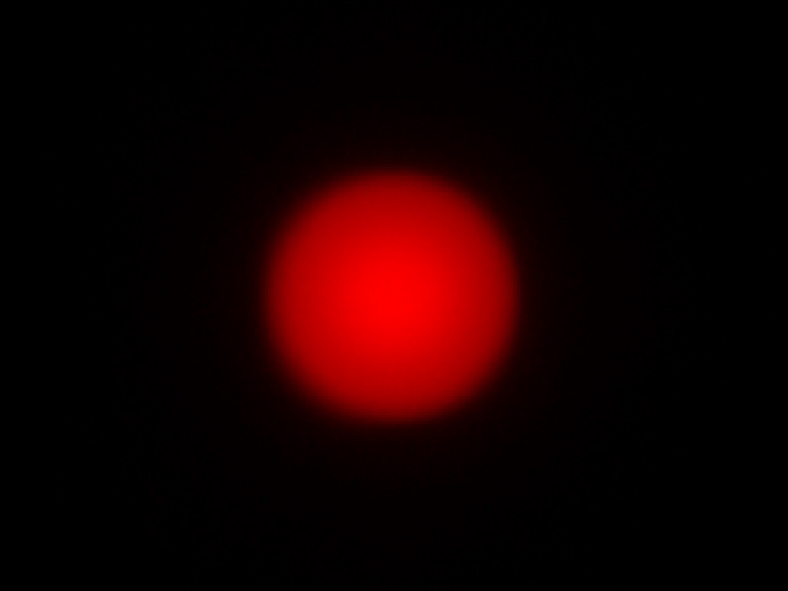

Carclo Optics – 12815 Cree Xlamp XP-G3 Photo Red - Spot Image

Carclo Optics – 12815 Cree Xlamp XP-G3 Photo Red - Cross-Section

Download

IES

Cree XLamp XP-G3 Royal Blue

Eff:

91.5%

FWHM:

78°

Cd/Im:

1.0

Carclo Optics – 12815 Cree Xlamp XP-G3 Royal Blue - Spot Image

Carclo Optics – 12815 Cree Xlamp XP-G3 Royal Blue - Cross-Section

Download

IES

Cree XLamp XP-G3 White

Eff:

90.0%

FWHM:

77.0°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-G4 HI White

Eff:

95.5%

FWHM:

75°

Cd/Im:

0.9

Download

Cree XLamp XP-G4 White

Eff:

96.5%

FWHM:

75°

Cd/Im:

0.9

Download

IES

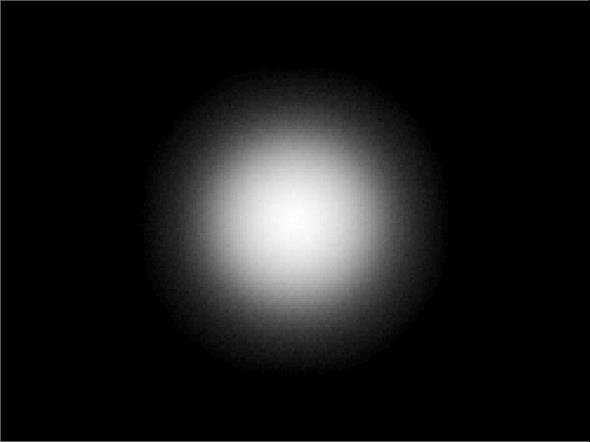

Cree XLamp XP-L HI White

Eff:

91.7%

FWHM:

74.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

96.5%

FWHM:

69°

Cd/Im:

1.1

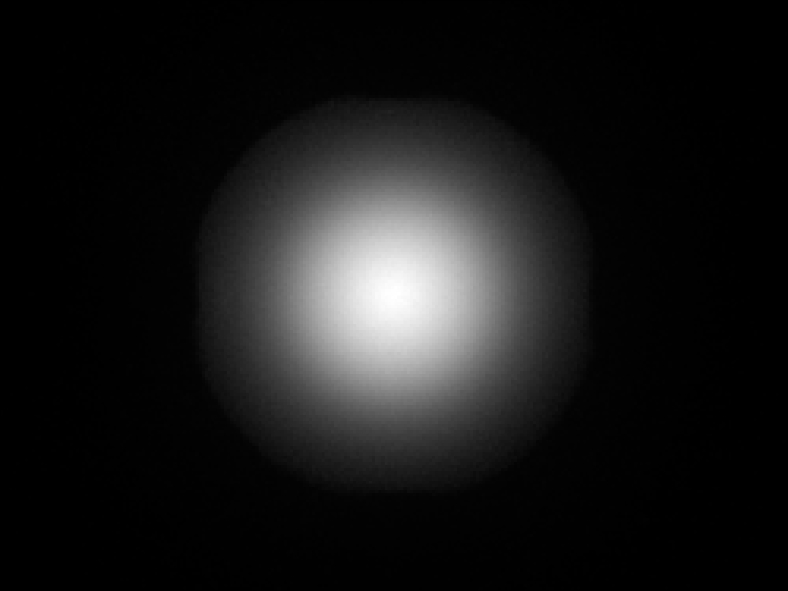

Carclo Optics – 12815 Cree XP-P - Spot Image

Carclo Optics – 12815 Cree XP-P - Cross Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

96.5%

FWHM:

59.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

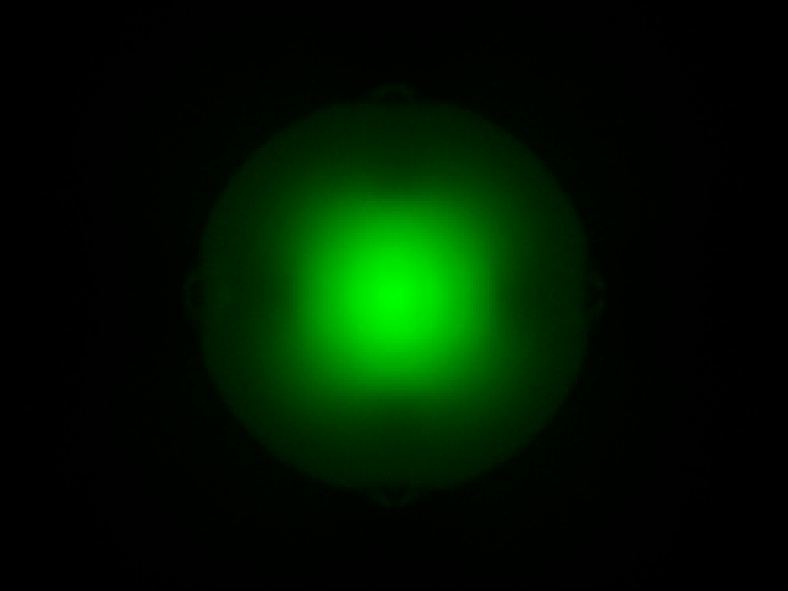

Cree XLamp XQ-A Green

Eff:

96.0%

FWHM:

61°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

96.5%

FWHM:

66.0°

Cd/Im:

0.9

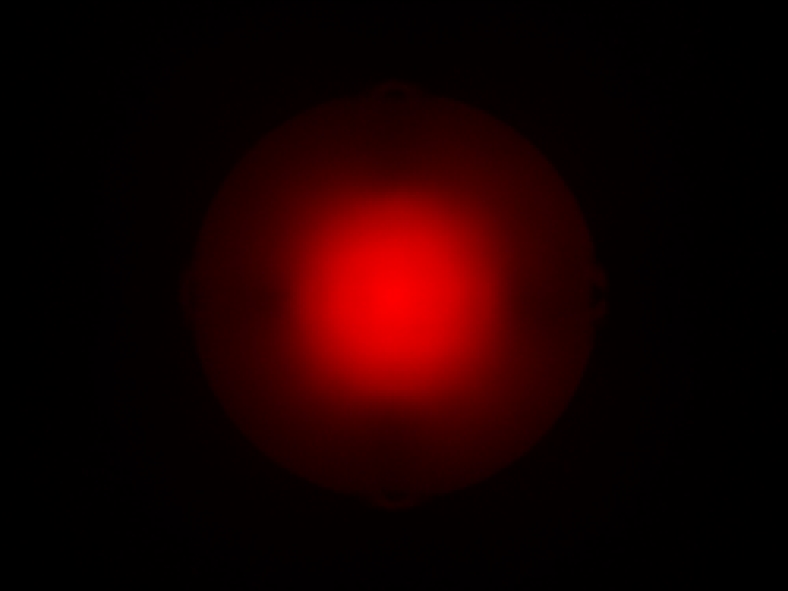

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

91.0%

FWHM:

60°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

96.0%

FWHM:

72.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

95.0%

FWHM:

70°

Cd/Im:

0.7

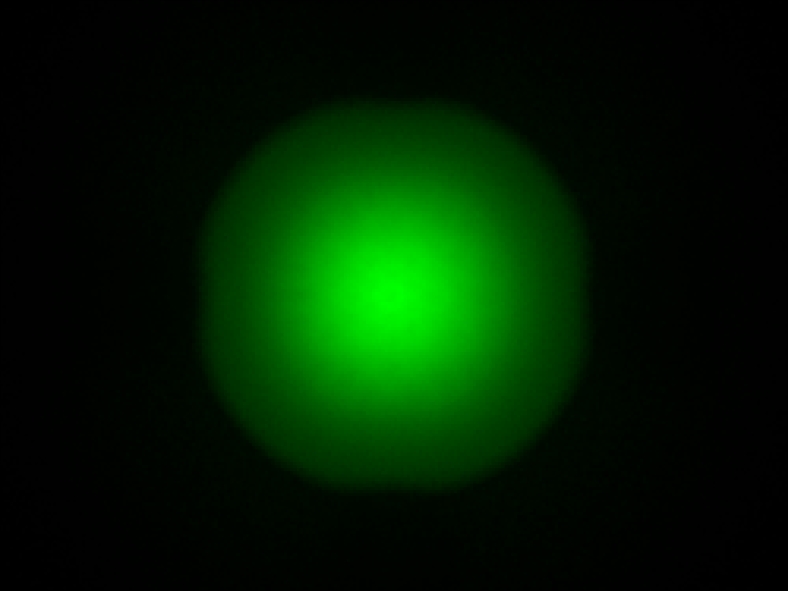

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

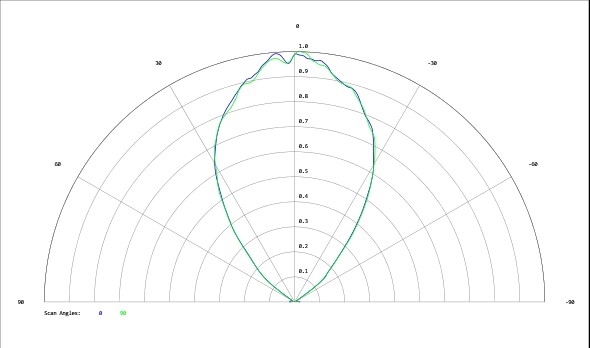

Cree XLamp XQ-E HI Red

Eff:

95.5%

FWHM:

69.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

91.0%

FWHM:

71°

Cd/Im:

0.7

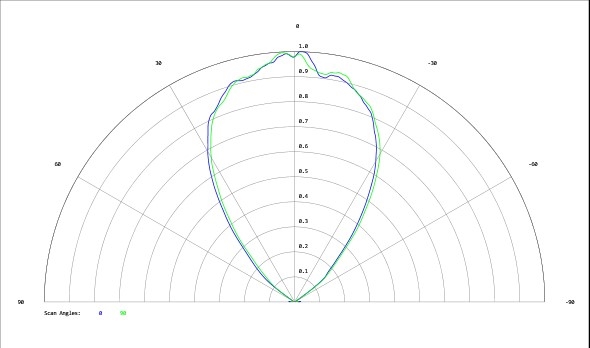

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0

Download

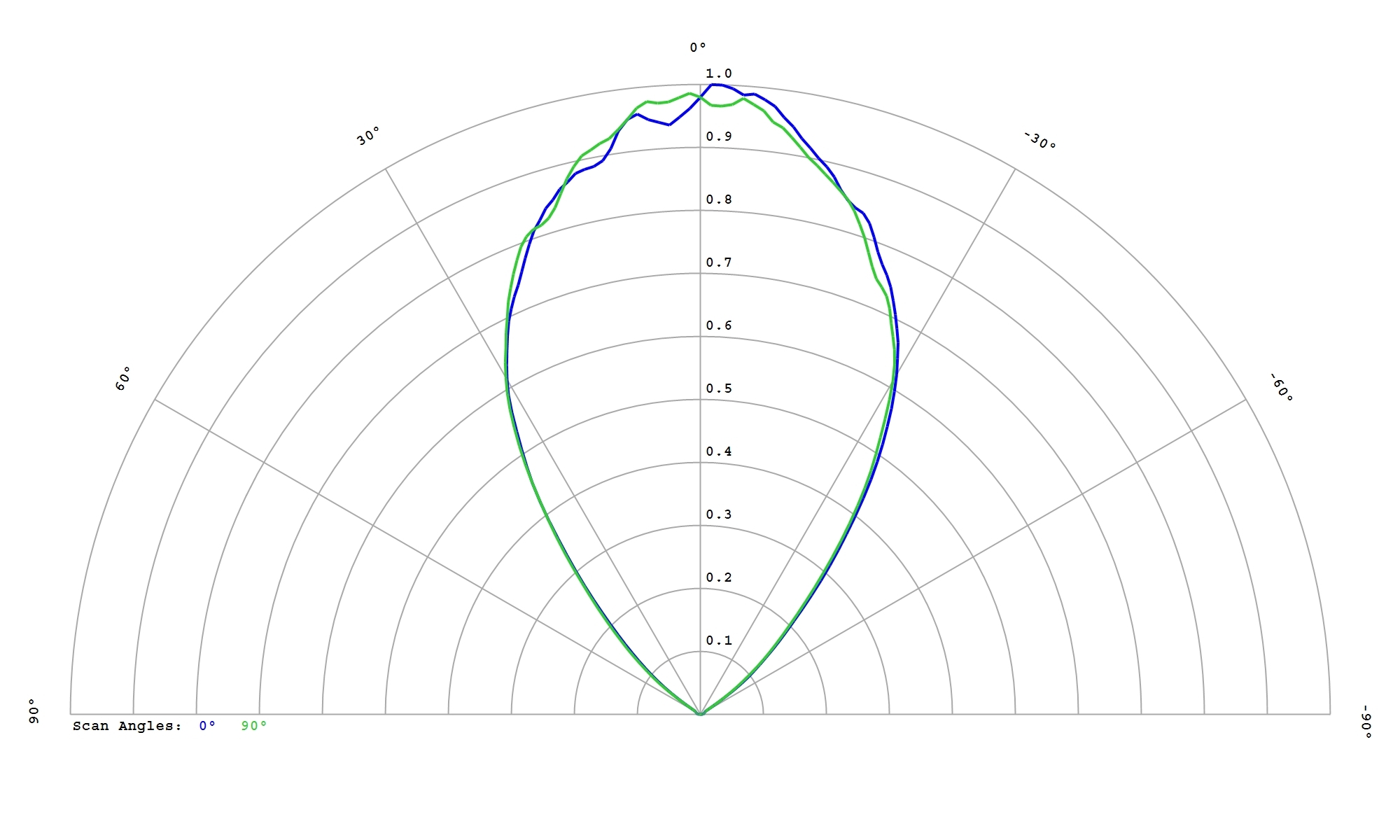

LUMILEDS LUXEON 2835E 9V White

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

96.5%

FWHM:

71°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0

Download

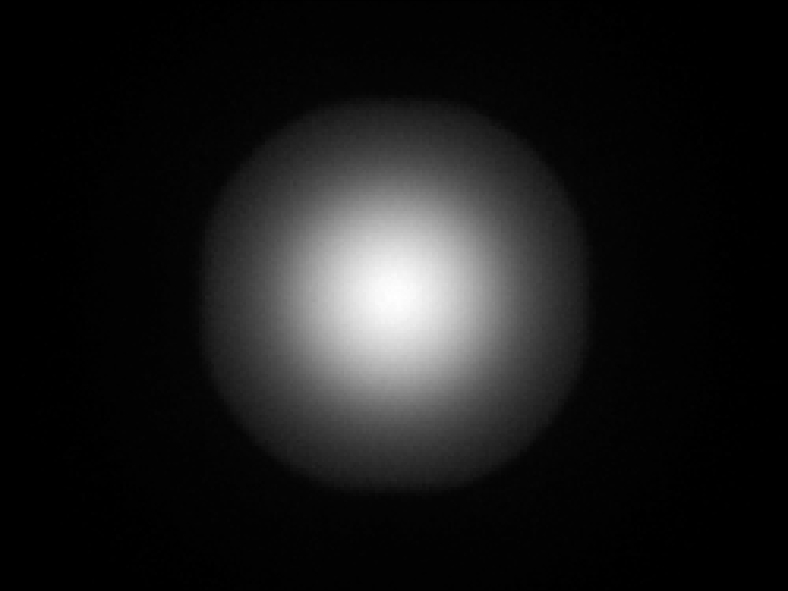

LUMILEDS LUXEON 2835S 6V White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.0

Download

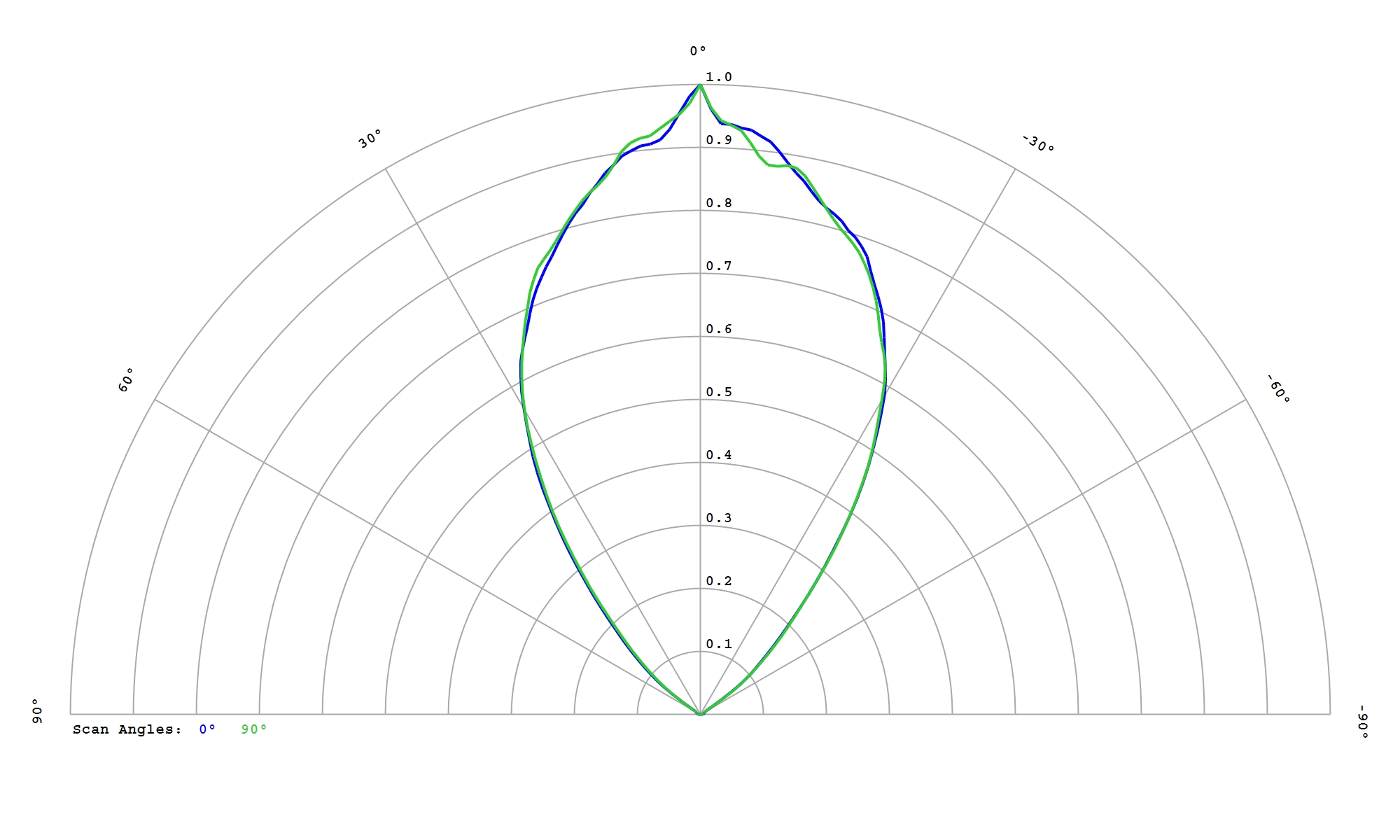

LUMILEDS LUXEON 3014 White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.1

Download

IES

LUMILEDS LUXEON 3030 2D White

Eff:

96.5%

FWHM:

65°

Cd/Im:

1.1

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.1

Carclo Optics – 12815 – Luxeon_3030_HE_Plus_spot-image

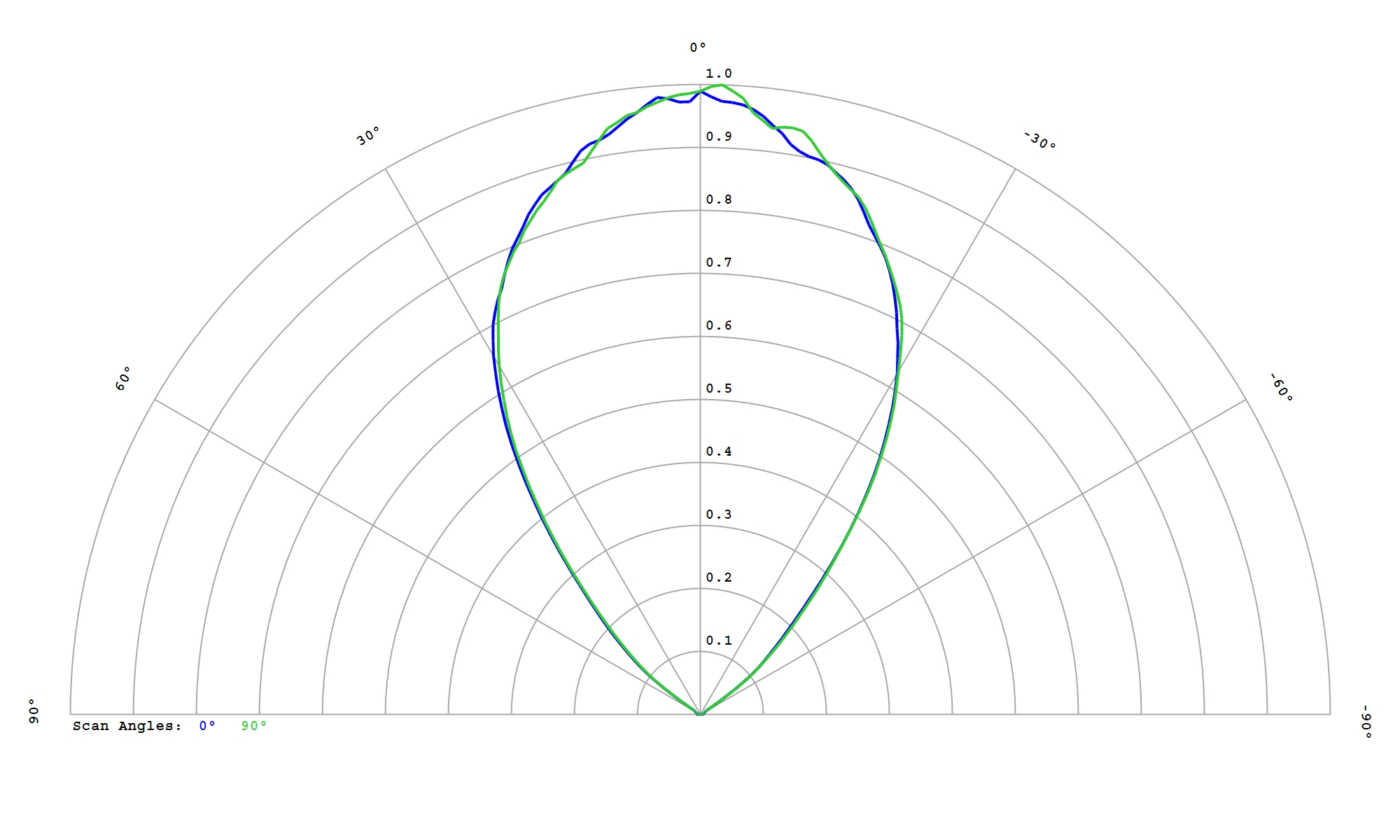

Carclo Optics – 12815 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 HE White

Eff:

96.5%

FWHM:

71°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 3535L Blue

Eff:

97.0%

FWHM:

79°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

96.5%

FWHM:

78°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

97.0%

FWHM:

76°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

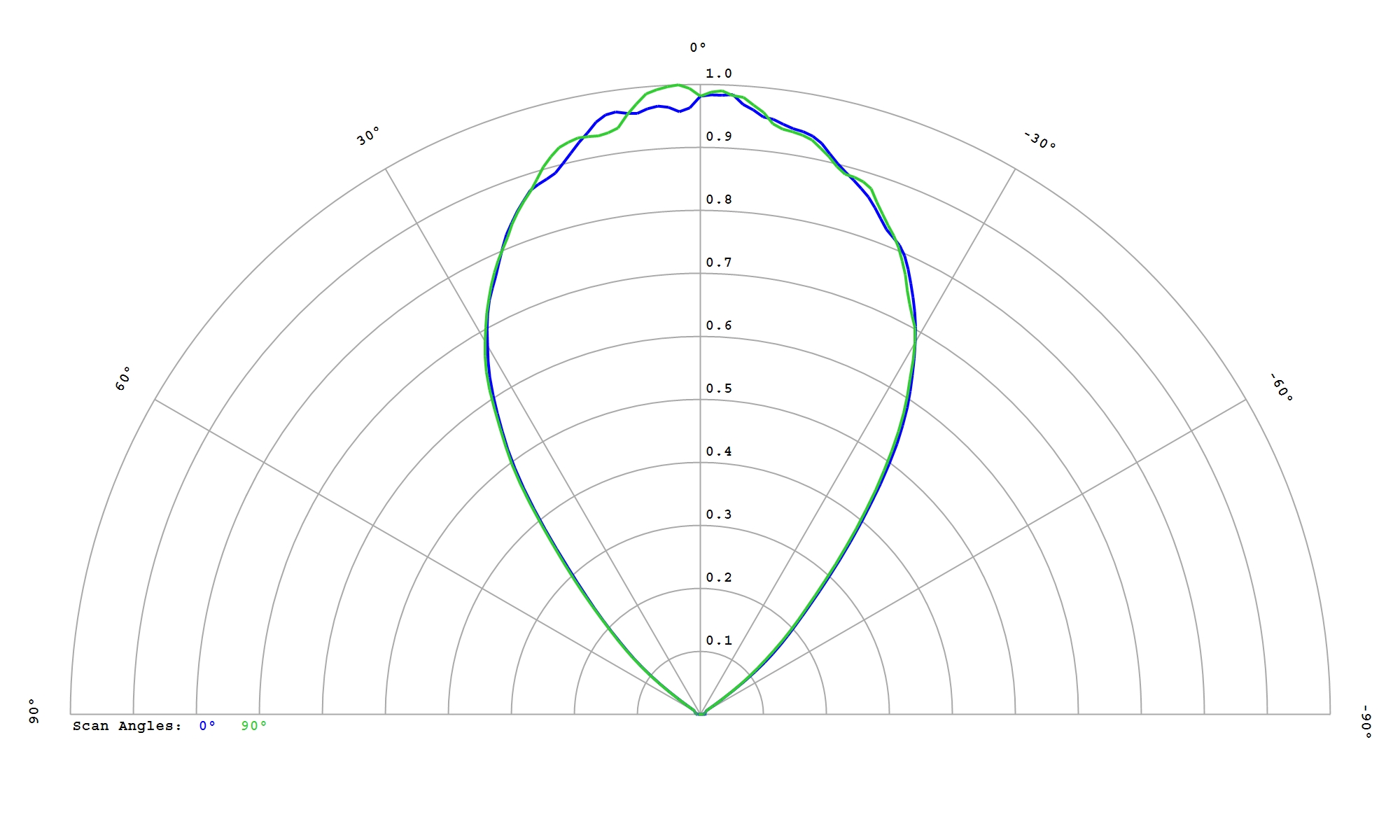

LUMILEDS LUXEON 5050 HE 24V White

Eff:

96.0%

FWHM:

73°

Cd/Im:

1.0

Download

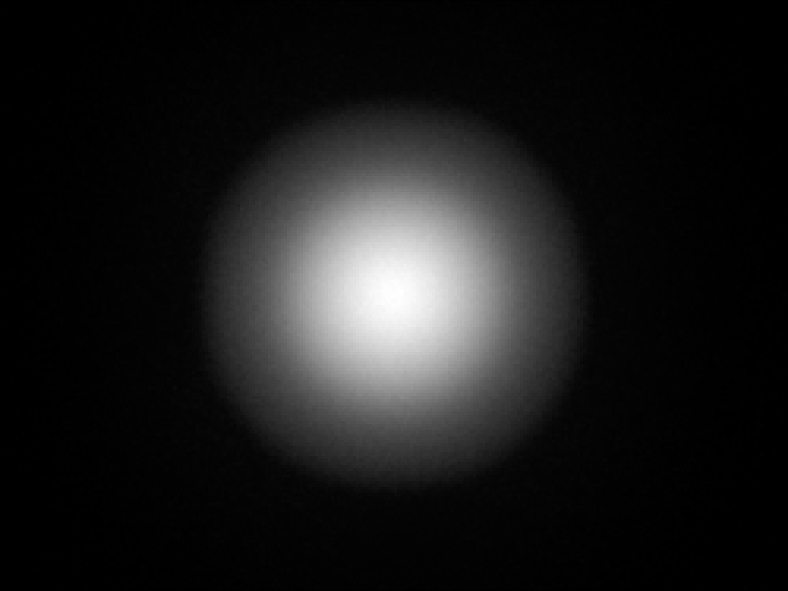

LUMILEDS LUXEON 5050 HE 6V White

Eff:

96.0%

FWHM:

73°

Cd/Im:

0.9

Download

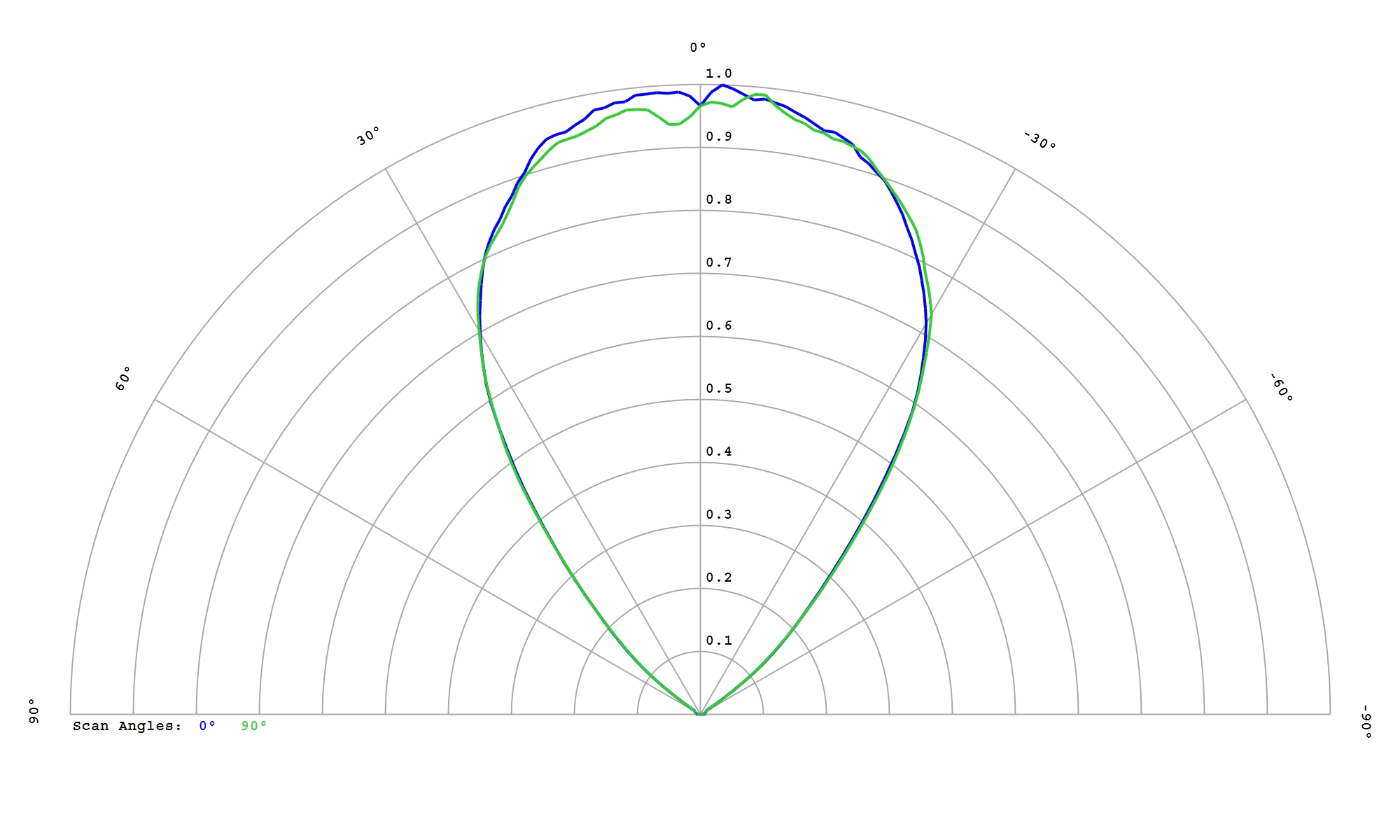

LUMILEDS LUXEON 5050 Round 24V White

Eff:

96.0%

FWHM:

74°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

96.0%

FWHM:

74°

Cd/Im:

0.9


Download

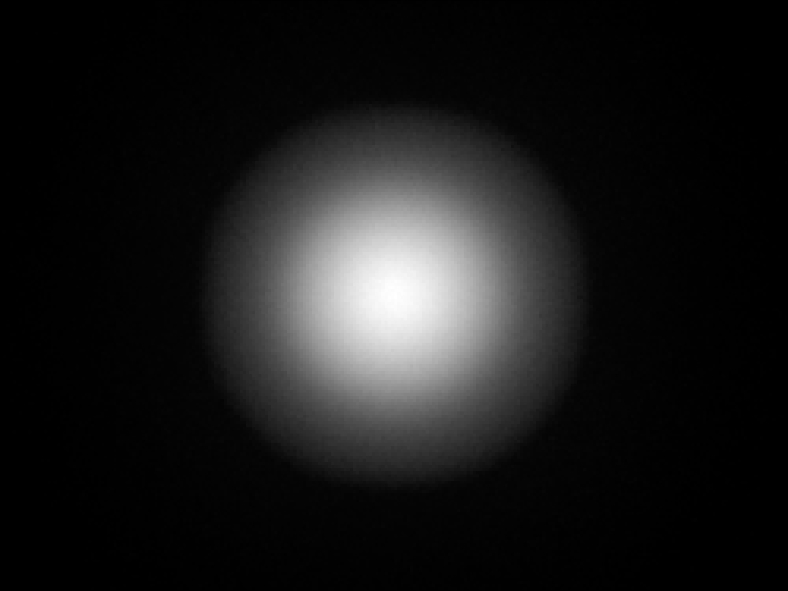

LUMILEDS LUXEON 5050 Square 6V White

Eff:

96.5%

FWHM:

72°

Cd/Im:

1.0


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

96.5%

FWHM:

70.0°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

91.0%

FWHM:

86.0°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

92.0%

FWHM:

78.0°

Cd/Im:

0.6

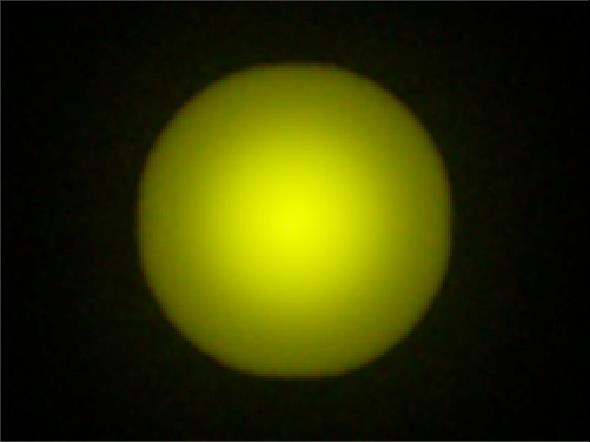

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

90.5%

FWHM:

86.0°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

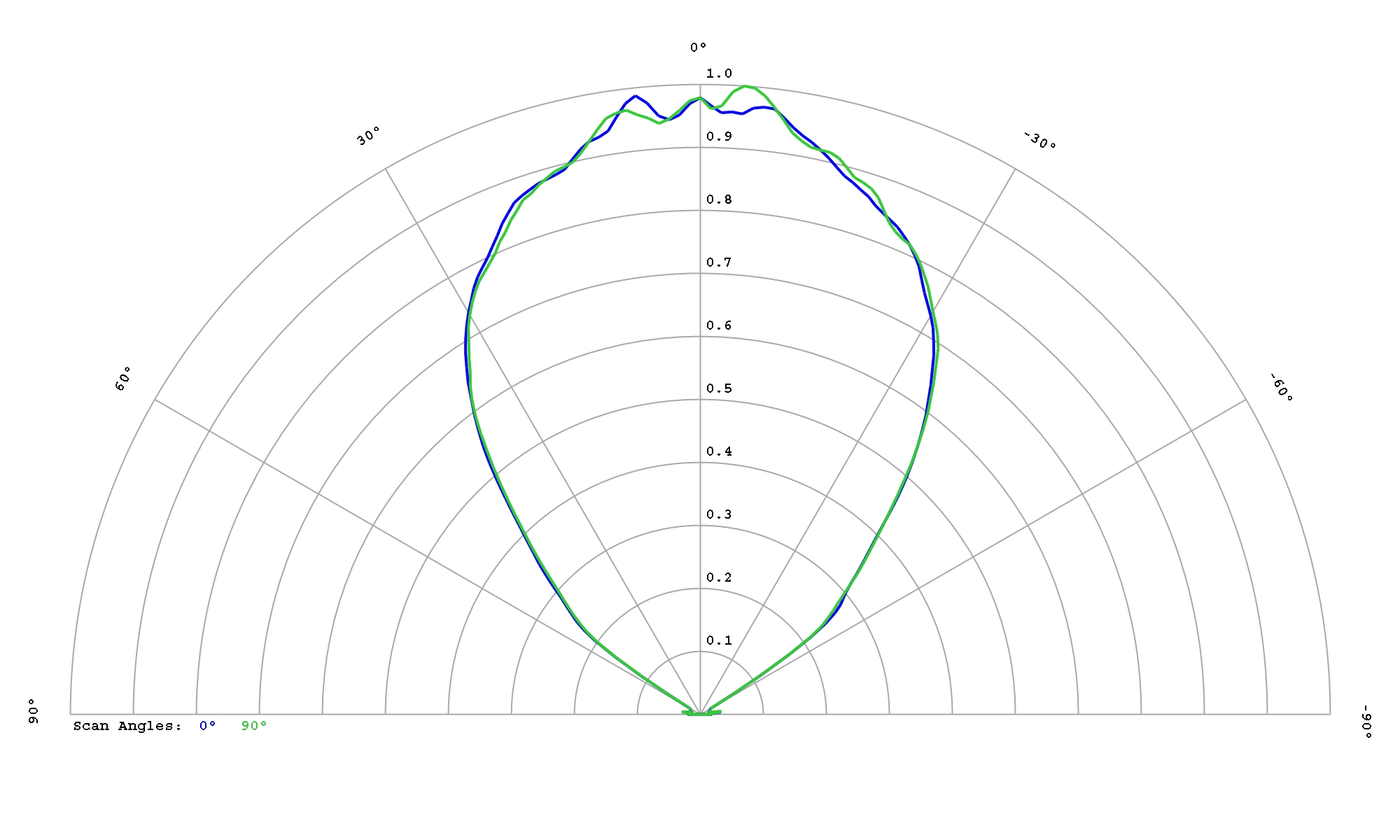

LUMILEDS LUXEON C White

Eff:

91.5%

FWHM:

81°

Cd/Im:

0.8

Download

LUMILEDS LUXEON CZ White

Eff:

96.5%

FWHM:

70 x 67°

Cd/Im:

1.1

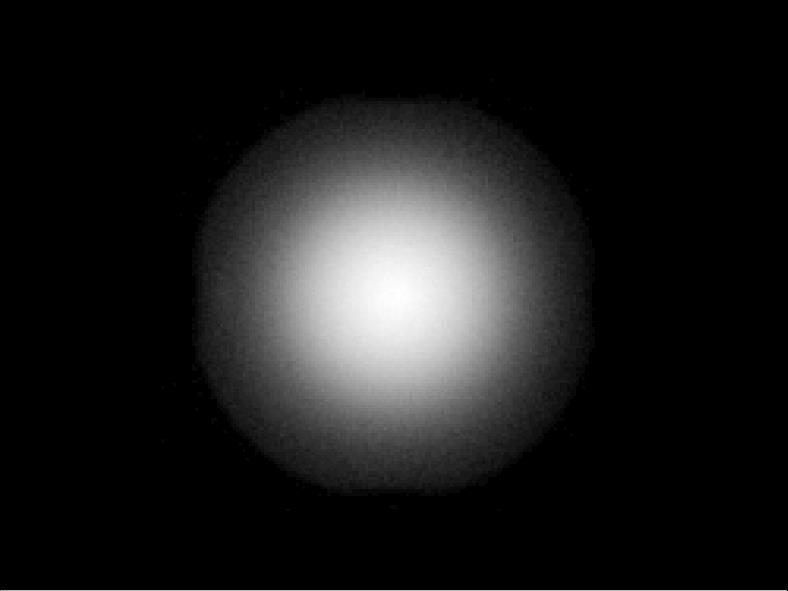

Carclo Optics 12815 Spot Image Luxeon CZ 5M CW

Carclo Optics 12815 Cross Section Luxeon CZ 5M CW

Download

IES

LUMILEDS LUXEON HL1Z CSP White

Eff:

95.0%

FWHM:

66°

Cd/Im:

1.0

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

94.0%

FWHM:

69°

Cd/Im:

1.1

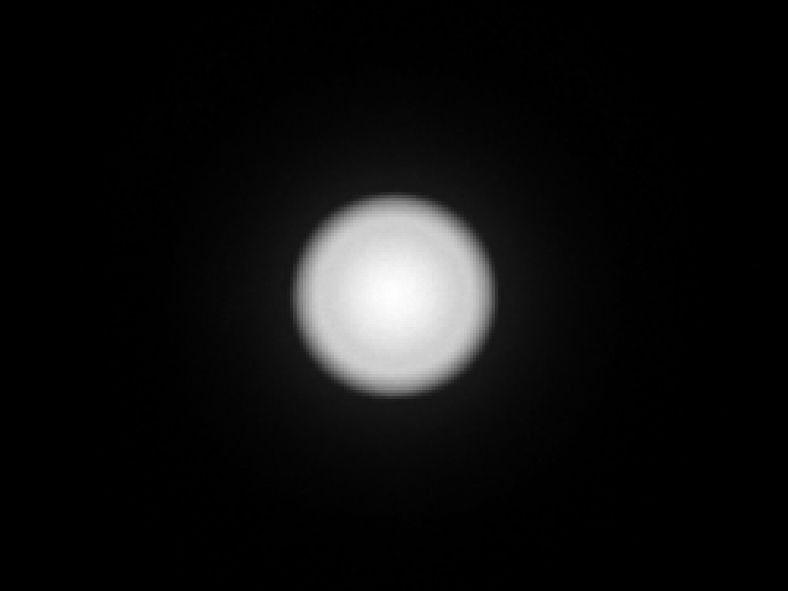

Carclo Optics – 12815 Lumileds Luxeon HL2Z - Spot Image

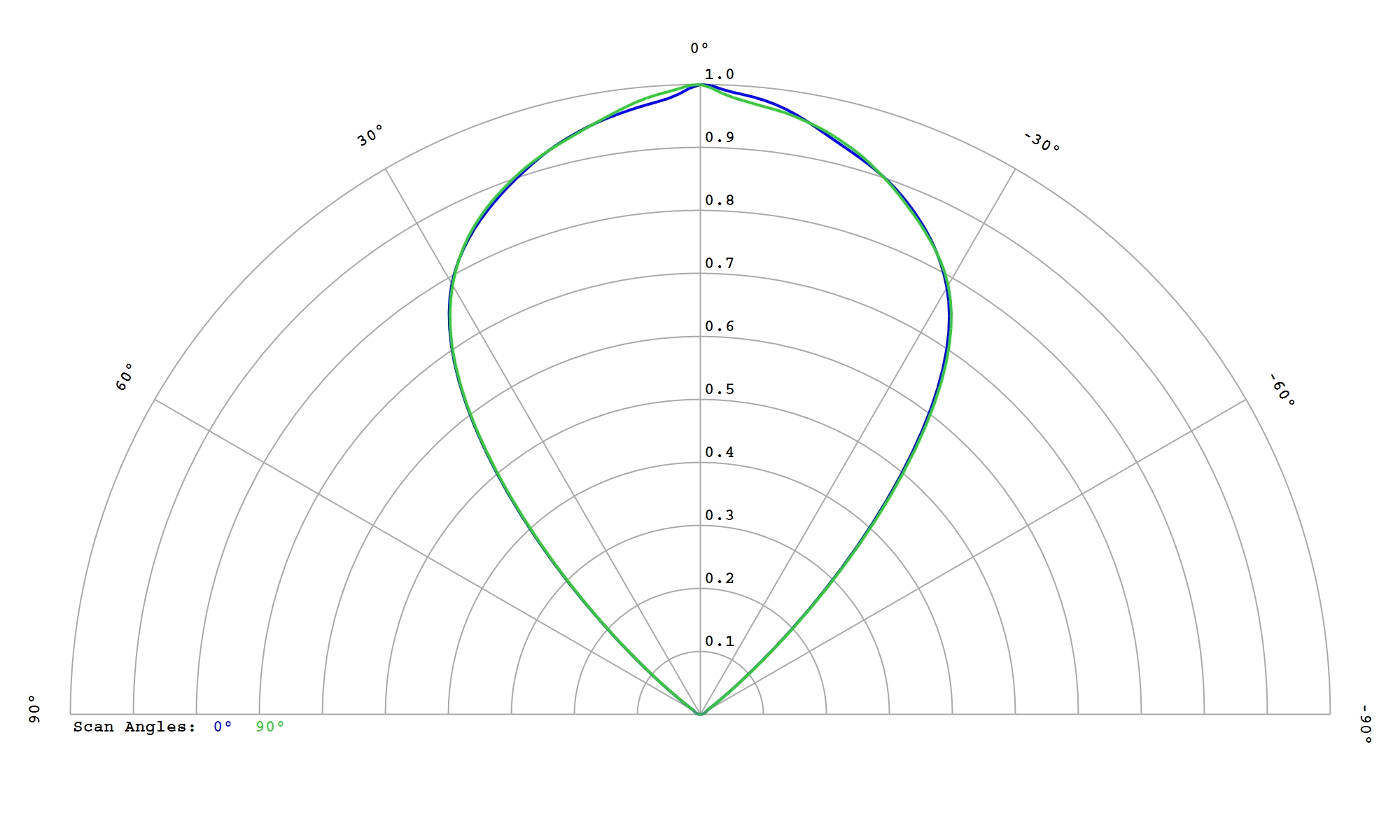

Carclo Optics – 12815 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON HL4Z White

Eff:

96.5%

FWHM:

72°

Cd/Im:

0.9

Download

LUMILEDS LUXEON IR 2720

Eff:

97.5%

FWHM:

66 / 68°

Ipk/W:

1.0

Carclo Optics - 12813 Wide Spot Image Luxeon IR 2720

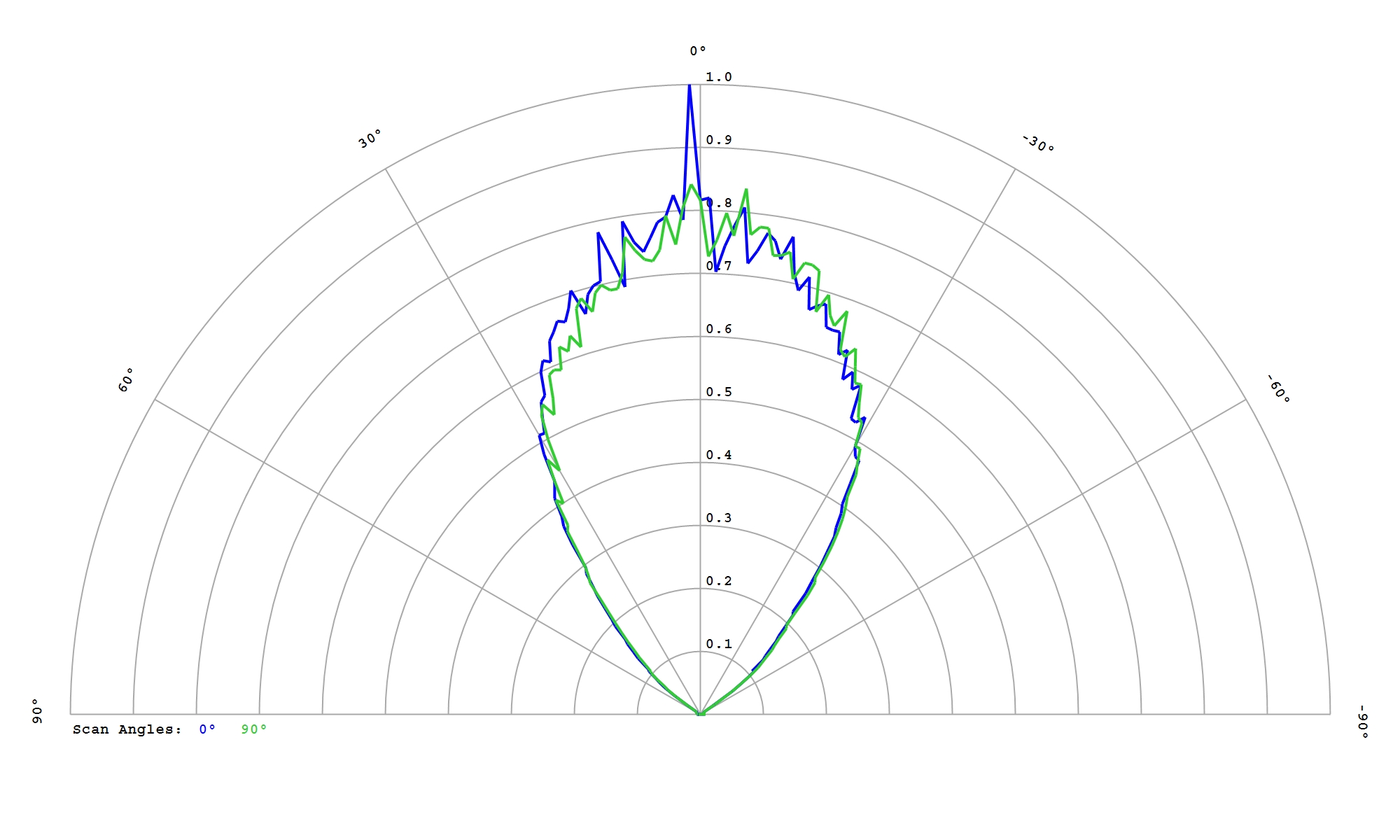

Carclo Optics - 12813 Wide Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

90.0%

FWHM:

74°

Cd/Im:

0.7

Simulation Data

Simulation Data

Download

1

LUMILEDS LUXEON Rubix Blue

Eff:

97.0%

FWHM:

73°

Cd/Im:

1.2

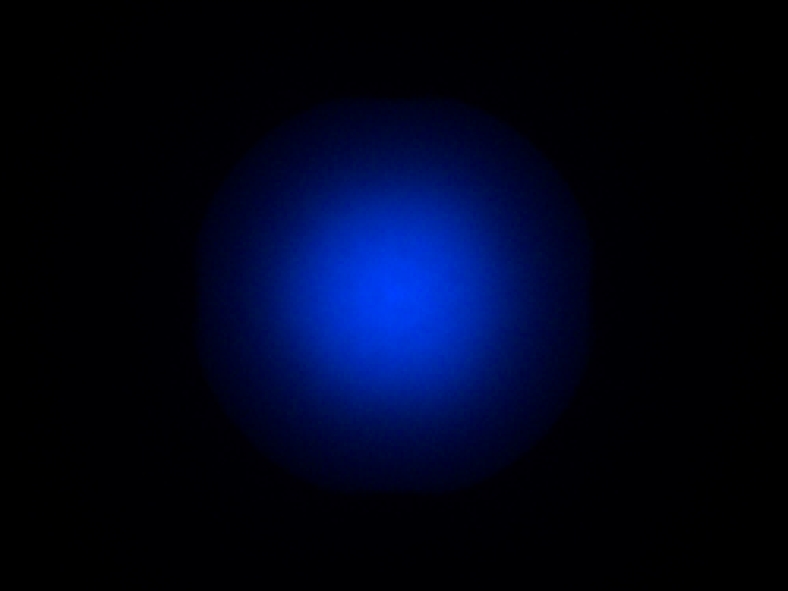

Carclo Optics – 12815 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12815 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

96.5%

FWHM:

75°

Cd/Im:

0.9

Carclo Optics – 12815 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12815 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

97.0%

FWHM:

70°

Cd/Im:

1.0

Carclo Optics – 12815 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12815 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

97.0%

FWHM:

67°

Cd/Im:

1.3

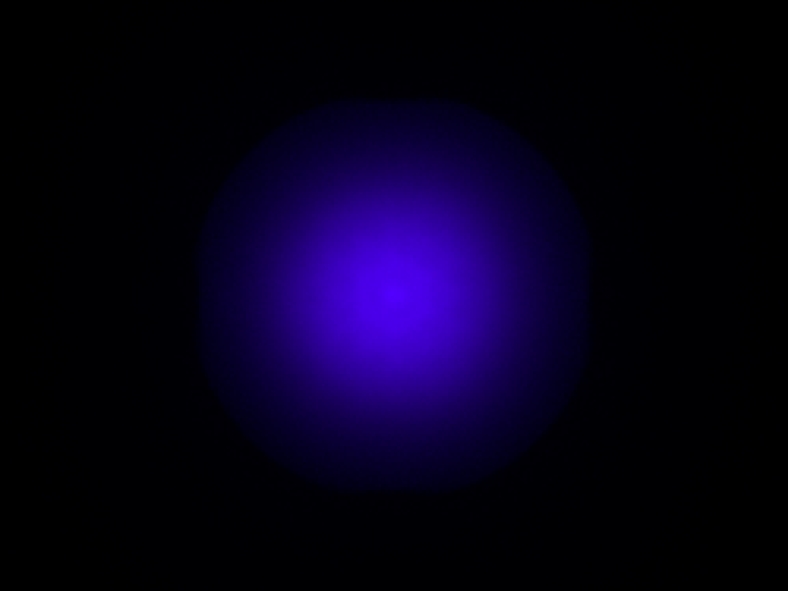

Carclo Optics – 12815 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12815 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

96.5%

FWHM:

72.0°

Cd/Im:

1.2

Carclo Optics - 12815 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12815 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

90.5%

FWHM:

81°

Cd/Im:

0.9

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

87.0%

FWHM:

83°

Cd/Im:

0.8

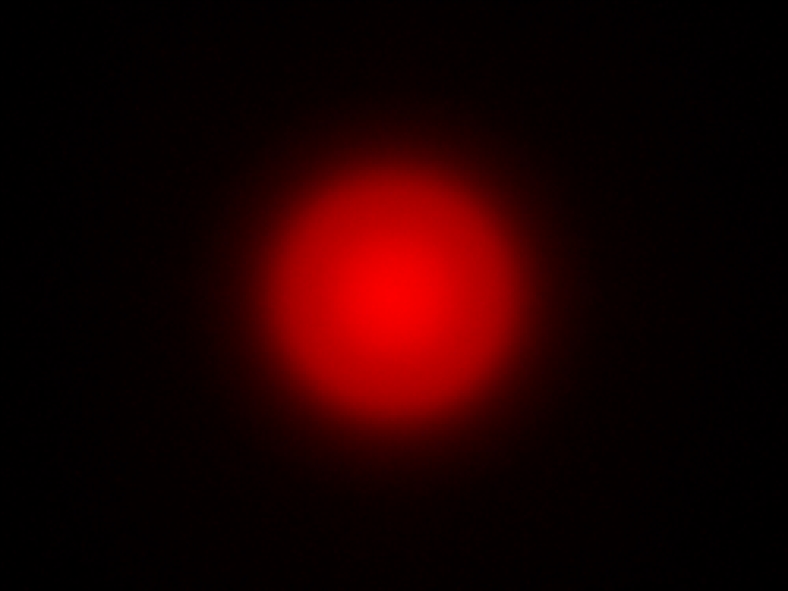

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section

Download

IES

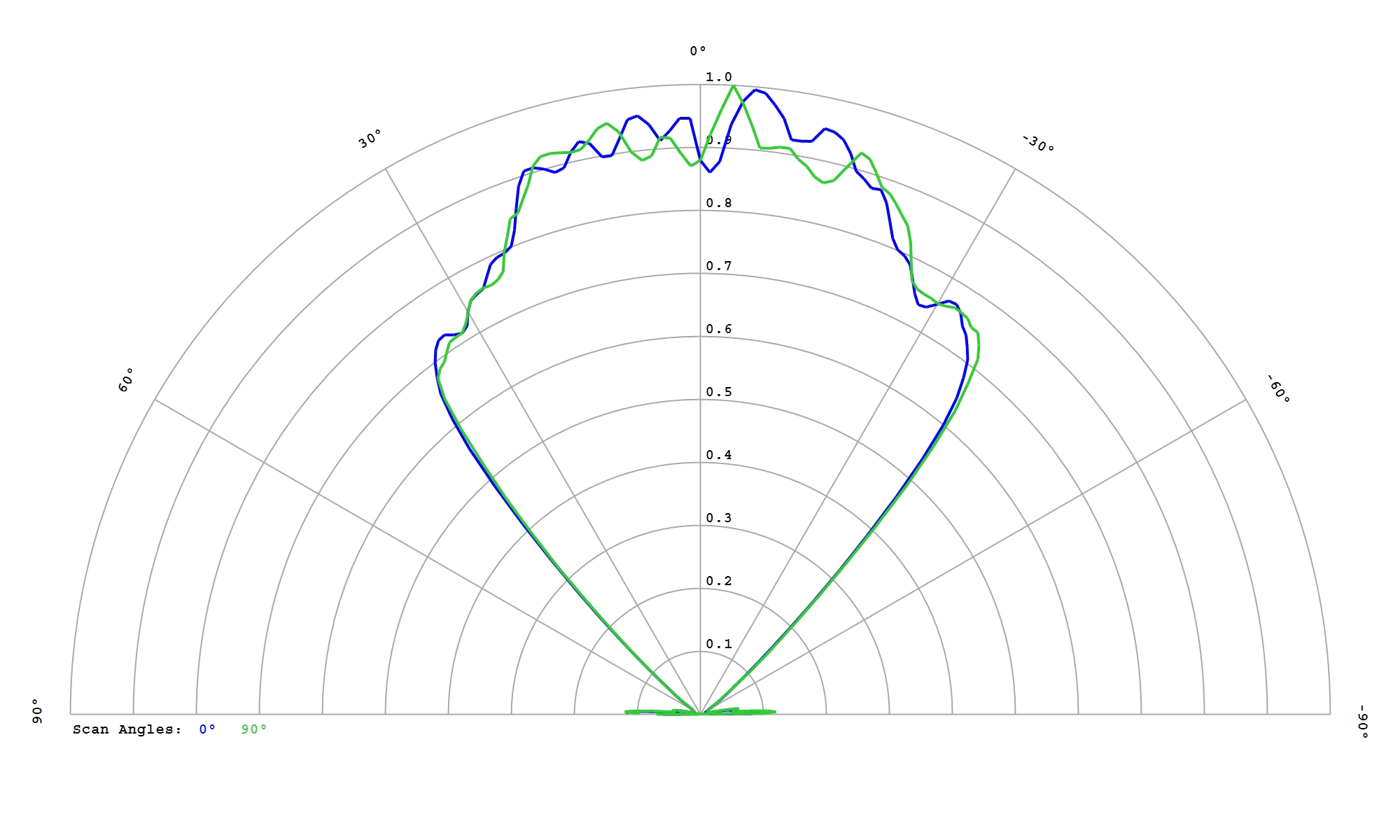

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

87.5%

FWHM:

83°

Cd/Im:

1.2

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

89.0%

FWHM:

80°

Cd/Im:

0.8

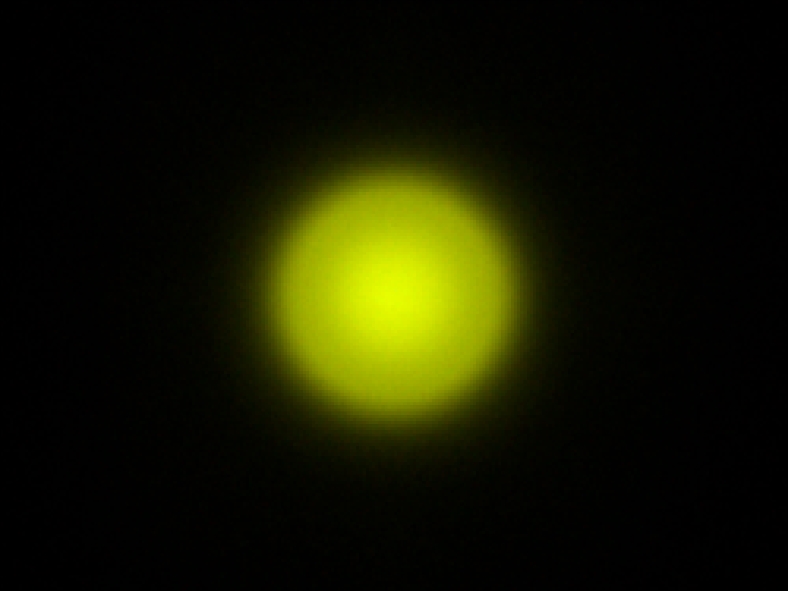

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line - Lime - Spot Image

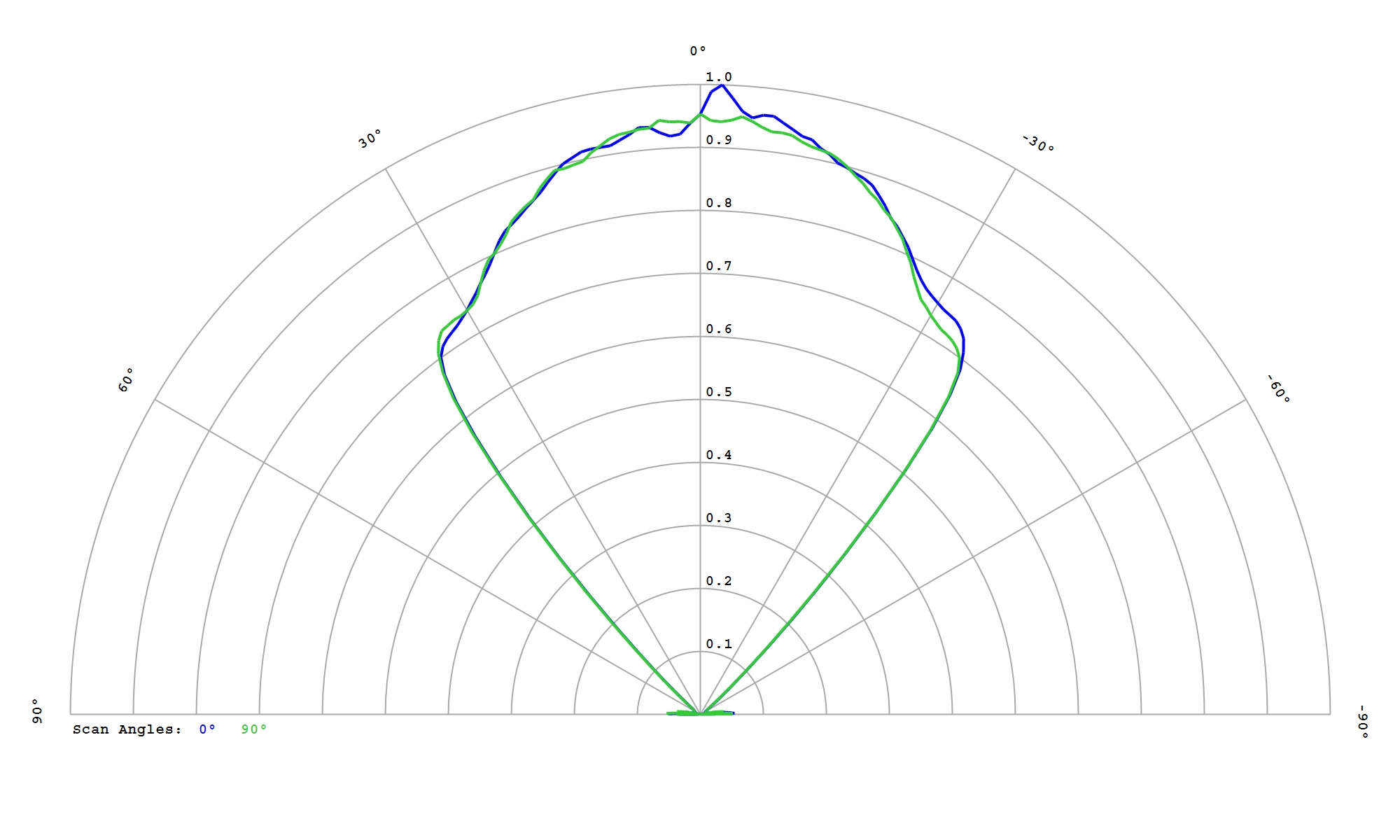

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line - Lime - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

87.5%

FWHM:

81°

Cd/Im:

0.7

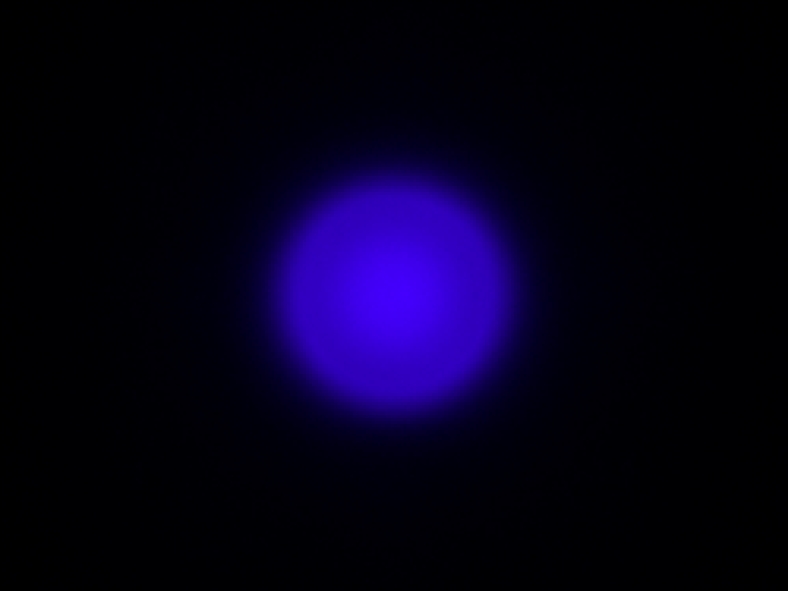

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image

Carclo Optics – 12815 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section

Download

IES

LUMILEDS LUXEON TX White

Eff:

91.1%

FWHM:

76.6°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

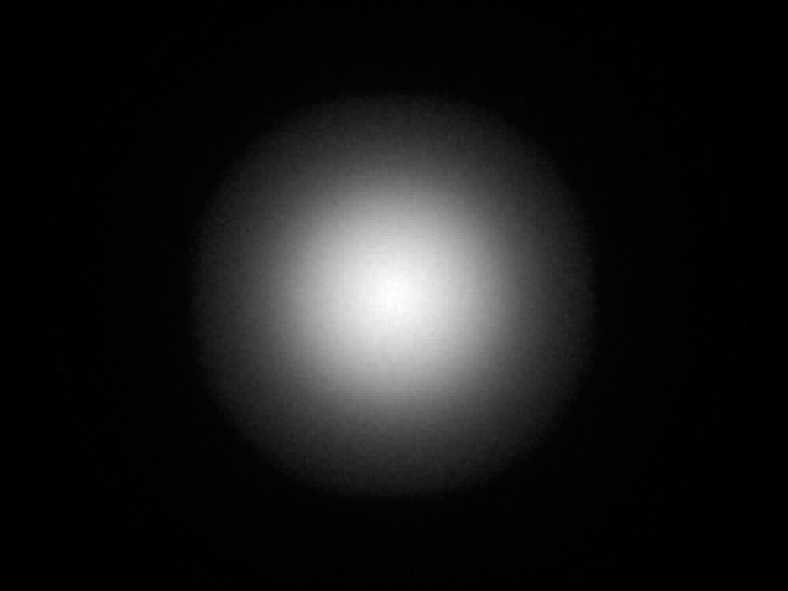

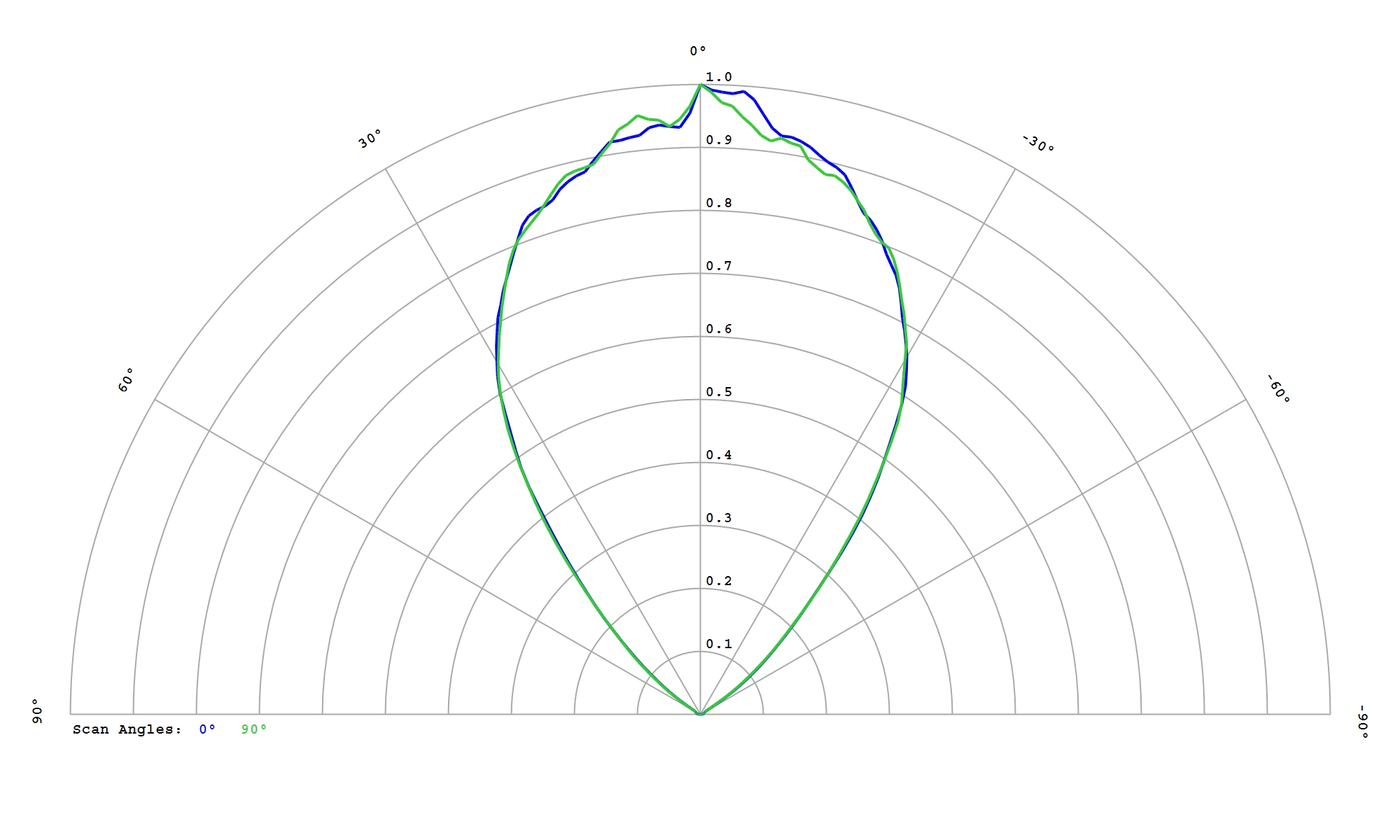

Luminus Devices SFT-40-WxS White

Eff:

96.5%

FWHM:

70°

Cd/Im:

1.1

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

96.5%

FWHM:

73°

Cd/Im:

1.1

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

96.5%

FWHM:

66°

Cd/Im:

1.0

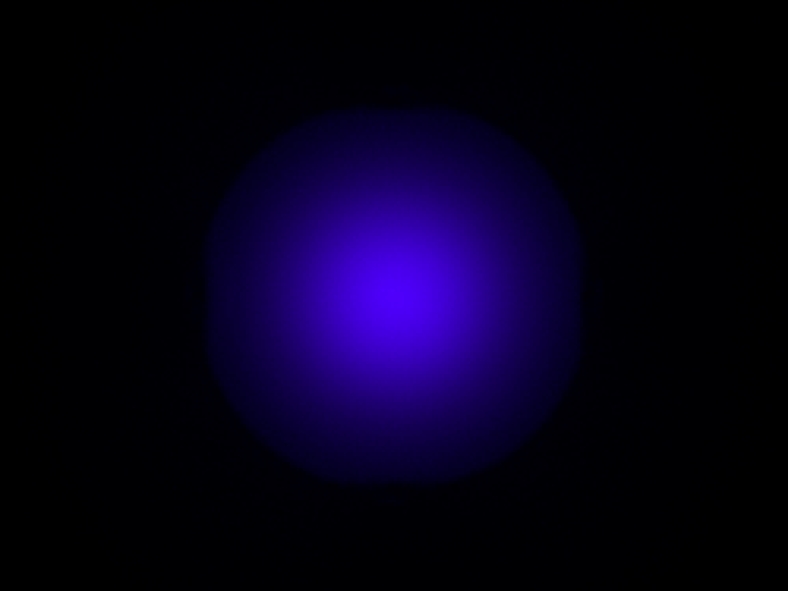

Carclo Optics - 12815 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 12815 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

96.0%

FWHM:

79°

Cd/Im:

0.8

Carclo Optics – 12815 Luminus_SST-10_DR_B130- Spot - image

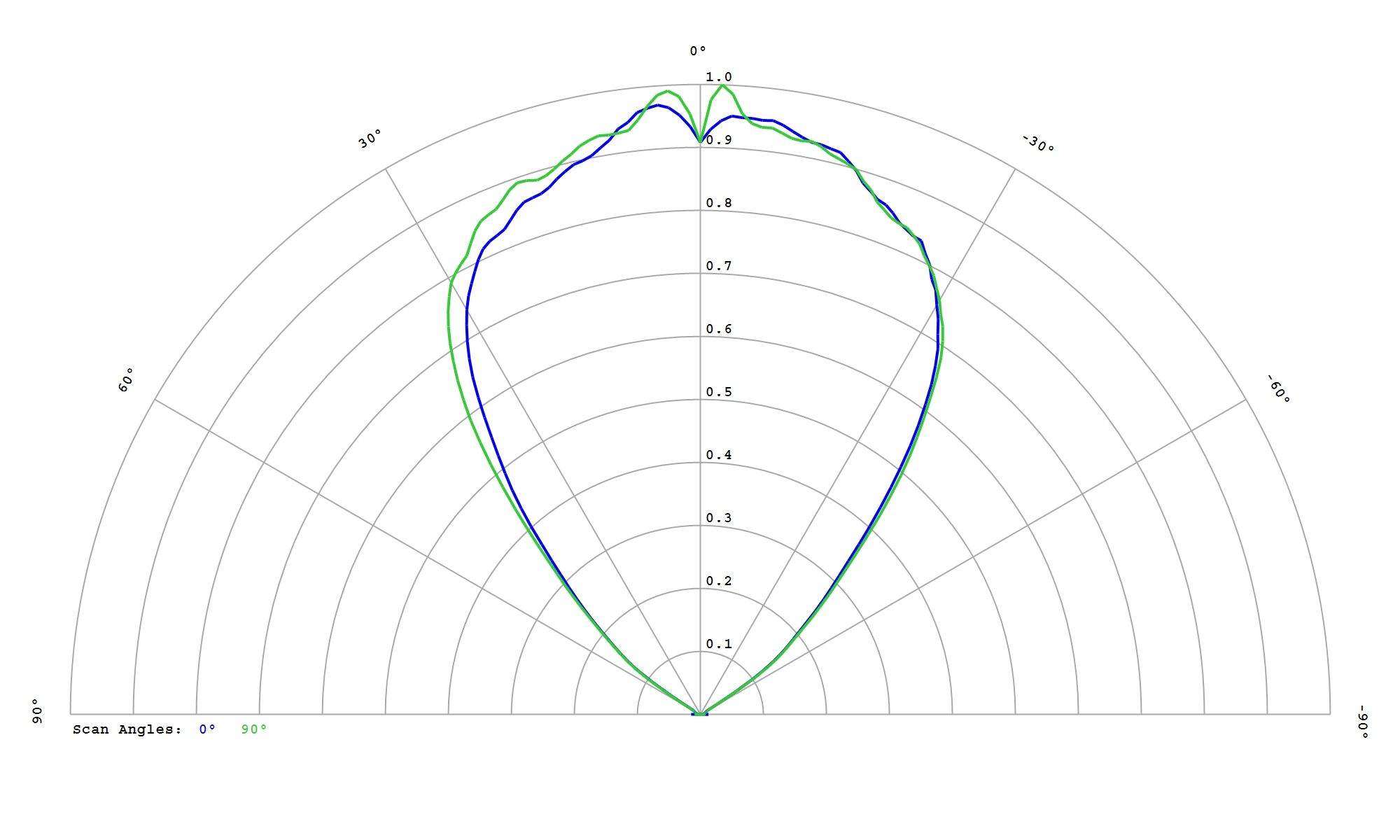

Carclo Optics – 12815 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-FR-B130 Far Red

Eff:

94.0%

FWHM:

81°

Cd/Im:

2.3

Carclo Optics – 12815 Luminus_SST-10_FR_B130- Spot – image

Carclo Optics – 12815 Luminus_SST-10_FR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

96.0%

FWHM:

67°

Cd/Im:

1.0

Carclo Optics - 12815 Luminus_SST-10_G_B130 - spot - image

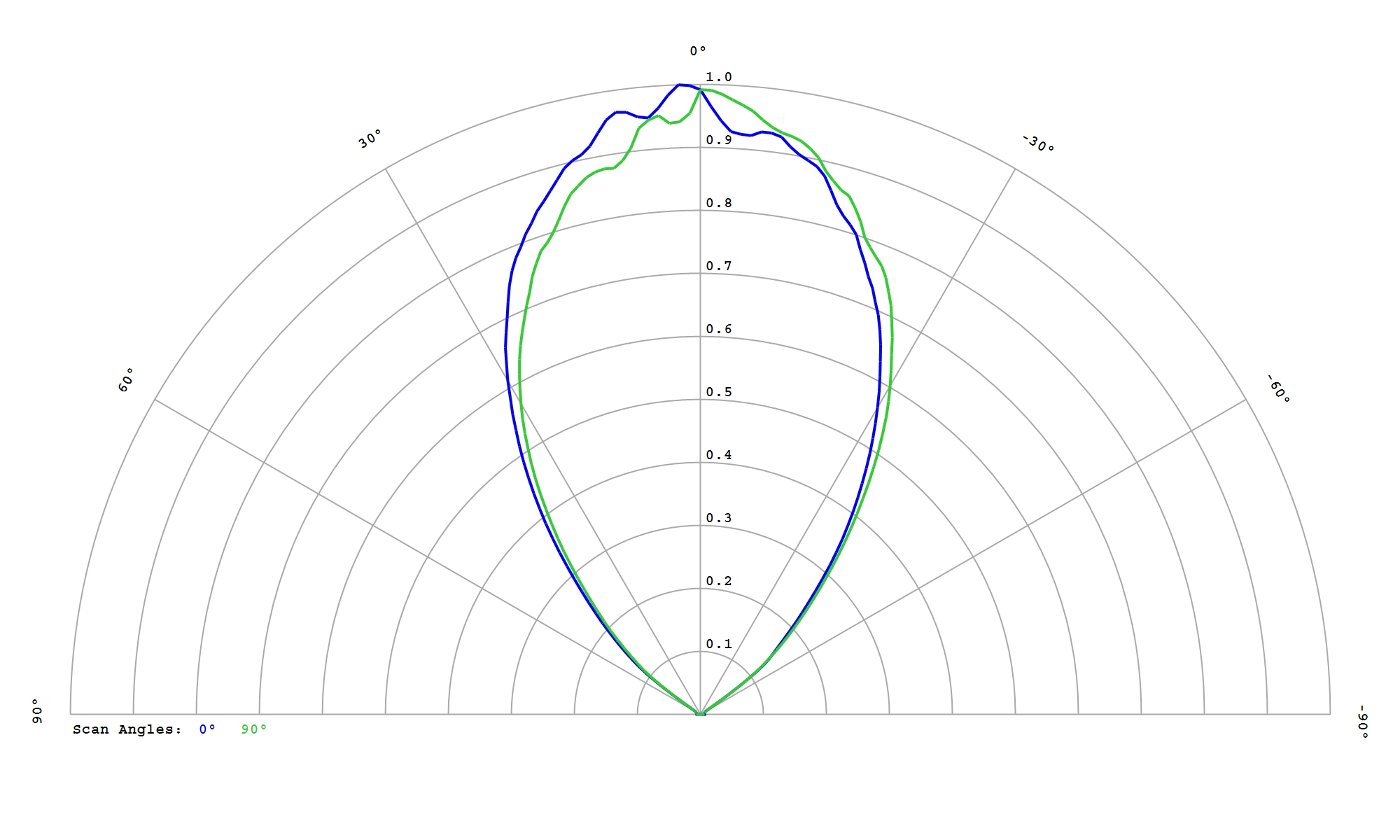

Carclo Optics - 12815 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.3

Carclo Optics - 12815 Luminus_SST-10_G_B90- Spot - image

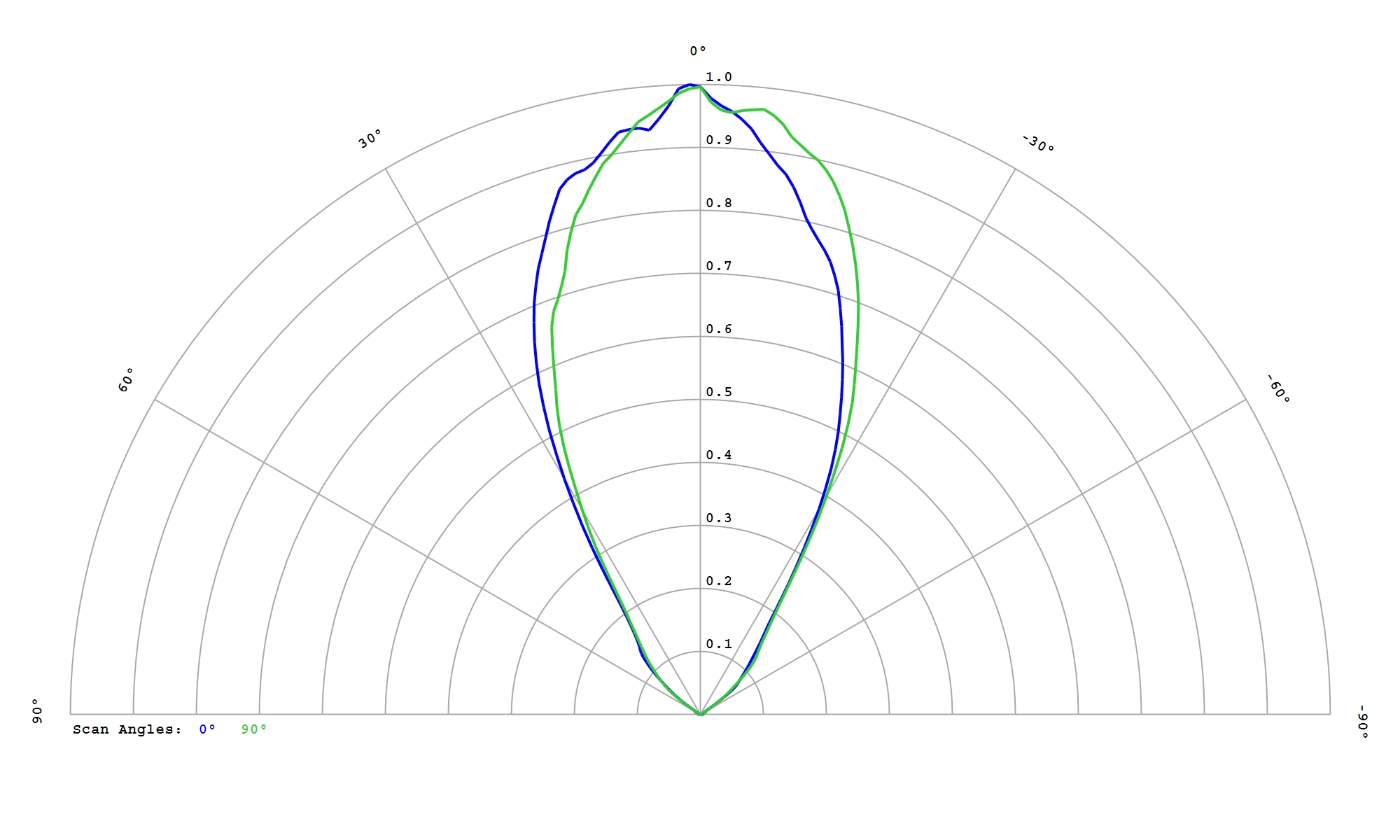

Carclo Optics - 12815 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

96.5%

FWHM:

71.0°

Ipk/W:

0.9

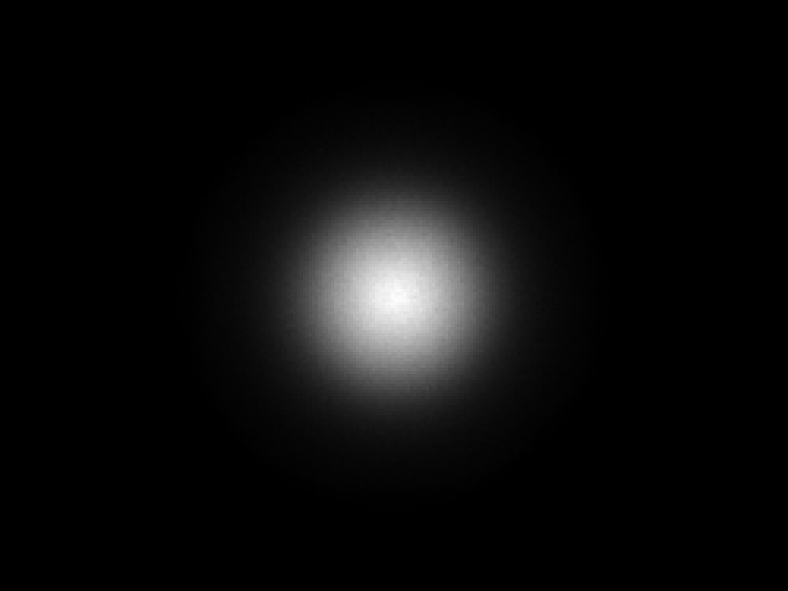

Carclo Optic - 12815 Spot Image Luminus SST-10-IR-B130

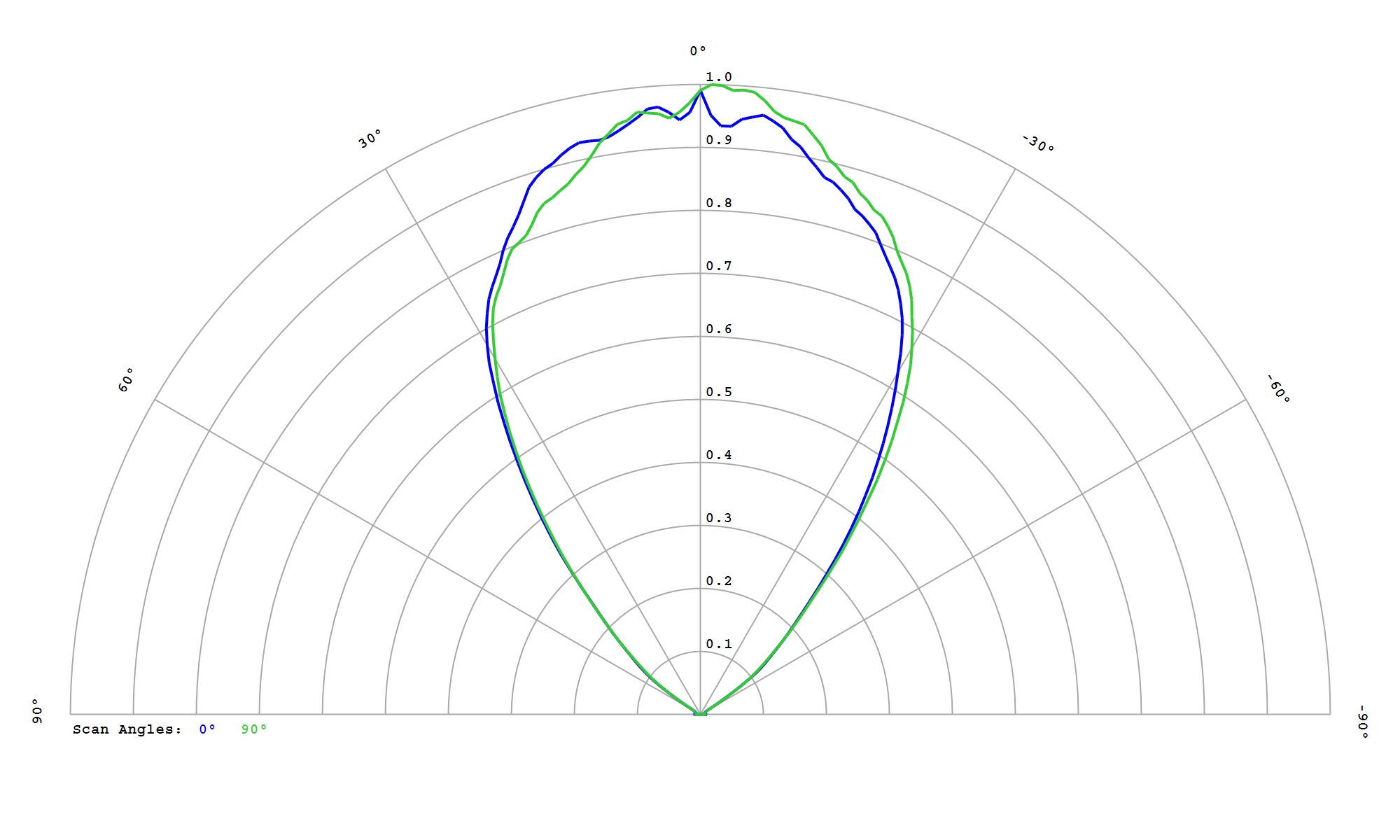

Carclo Optic - 12815 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

97.0%

FWHM:

73°

Ipk/W:

1.0


Download

IES

Luminus Devices SST 10-R-B130 Red

Eff:

94.0%

FWHM:

80°

Cd/Im:

1.0

Carclo Optics – 12815 Luminus_SST-10_R_B130- Spot – image

Carclo Optics – 12815 Luminus_SST-10_R_B130- Cross section – image

Download

IES

Luminus Devices SST 10-SB-B130 Sky Blue

Eff:

95.0%

FWHM:

74°

Cd/Im:

1.3

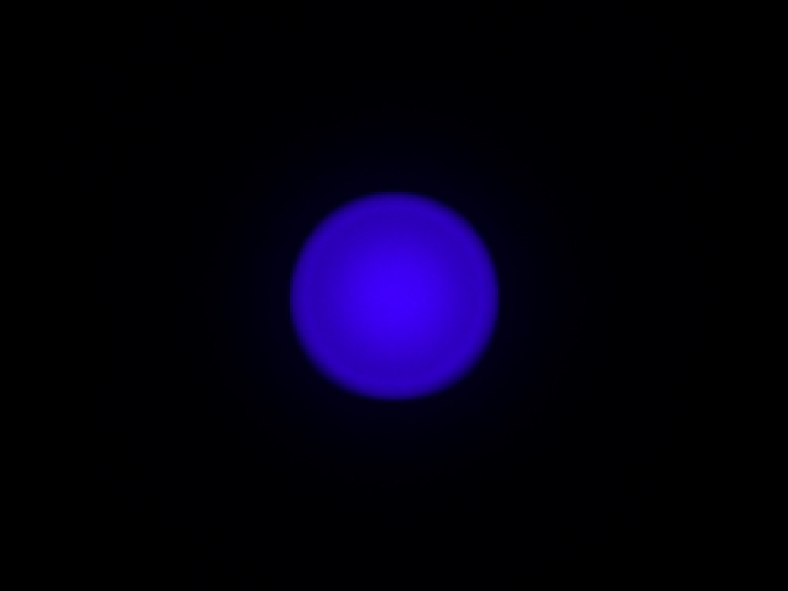

Carclo Optics – 12815 Luminus_SST-10_SB_B130- Spot – image

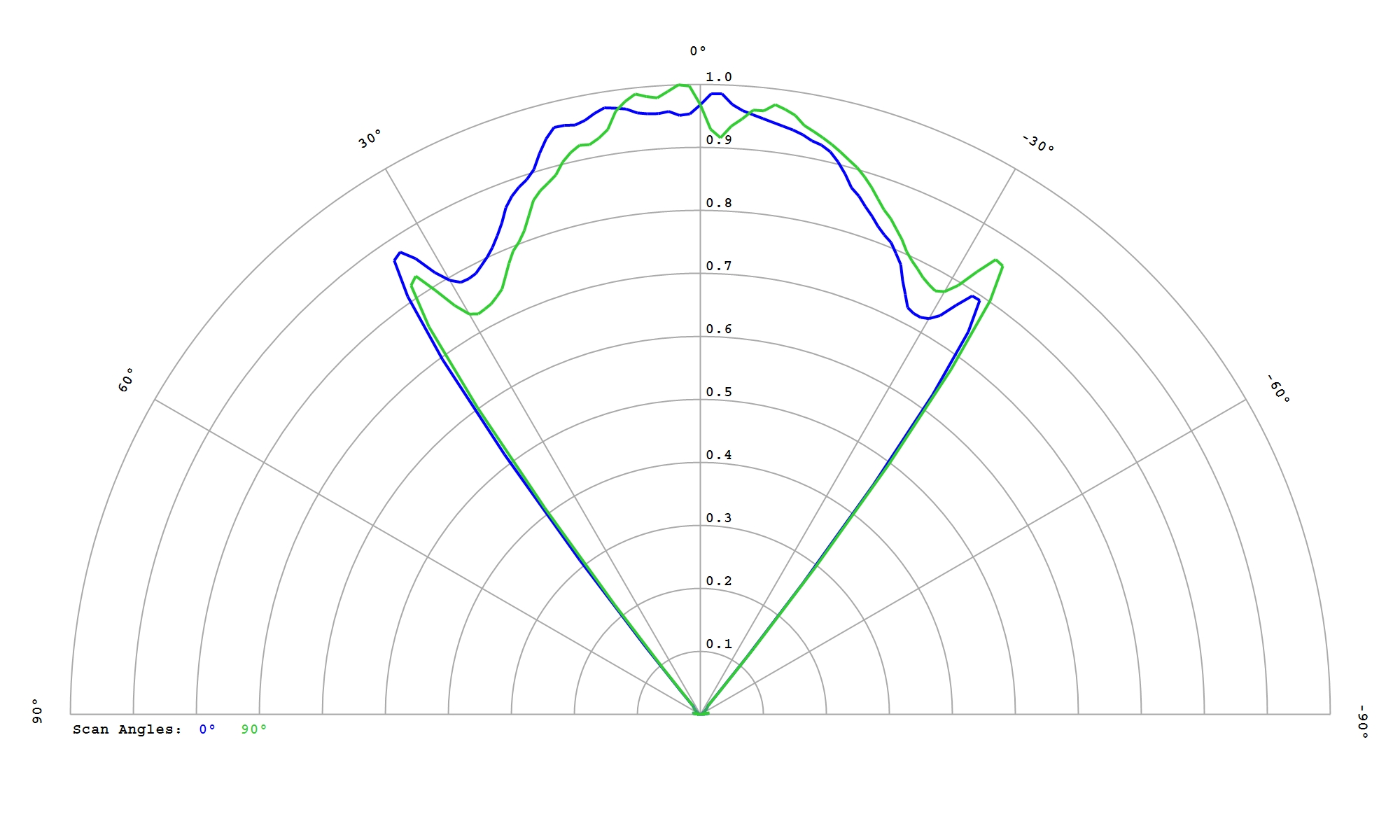

Carclo Optics – 12815 Luminus_SST-10_SB_B130- Cross section – image

Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.5%

FWHM:

69°

Cd/Im:

1.0

Carclo Optics – 12815 - Luxeon_SST_20_W_spot-image

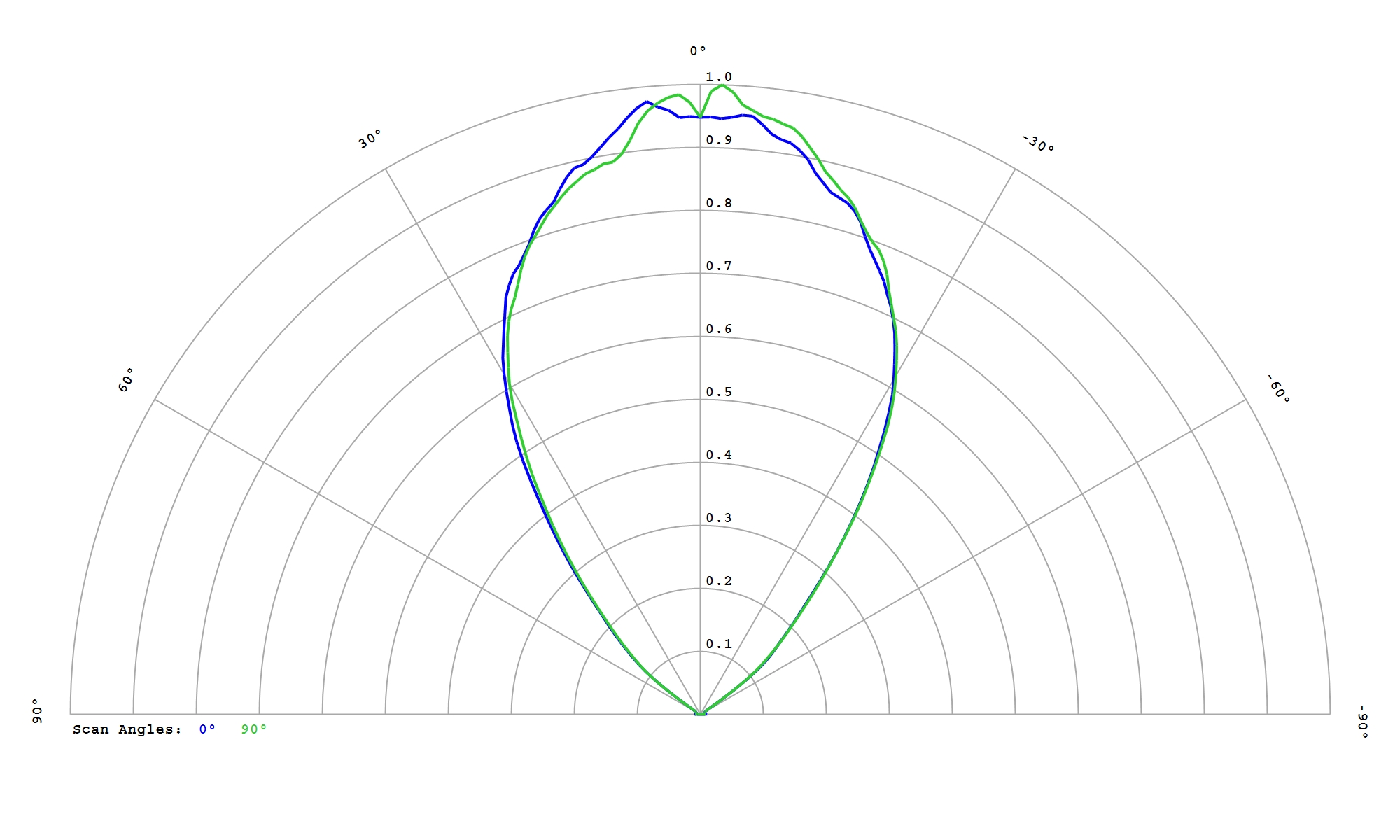

Carclo Optics – 12815 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST-12-WxS White

Eff:

96.0%

FWHM:

71°

Cd/Im:

1.1

Download

IES

Nichia 757G White

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.1

Carclo Optics 12815 Simulated Spot Image Nichia 757G-MT

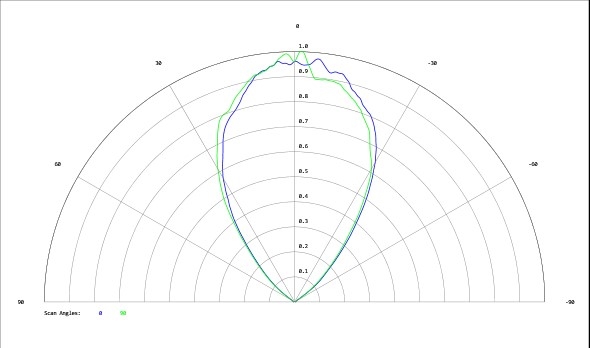

Carclo Optics 12815 Cross section Image Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

96.5%

FWHM:

66.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

94.5%

FWHM:

64.0°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

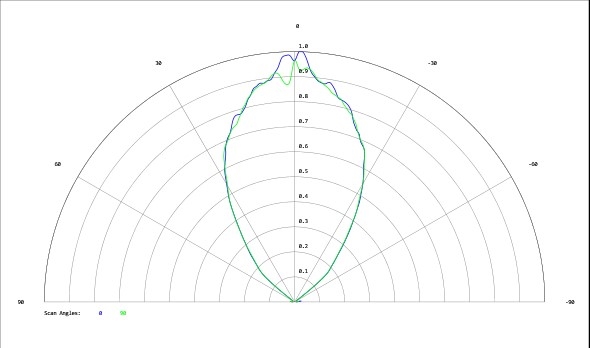

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

96.0%

FWHM:

81 x 67°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

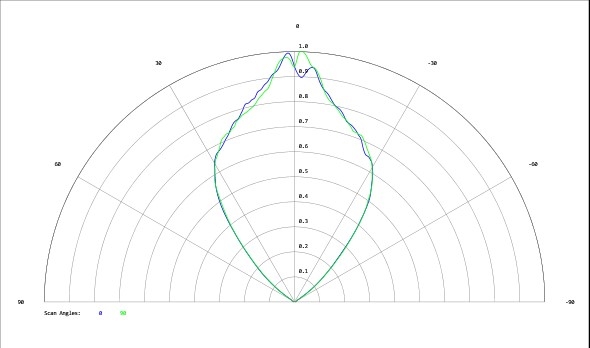

Nichia NFMW 481AR White

Eff:

87.0%

FWHM:

70°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

96.5%

FWHM:

75°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

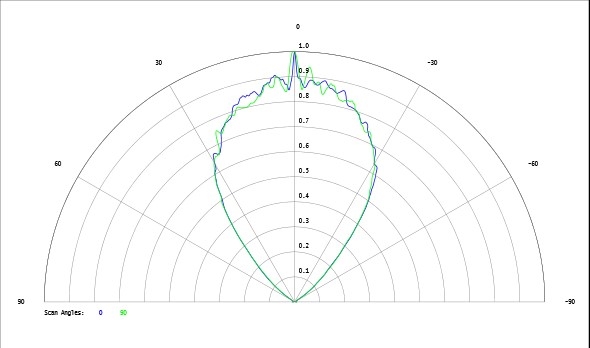

Nichia NFMW 486AR White

Eff:

96.5%

FWHM:

73°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

96.5%

FWHM:

73°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

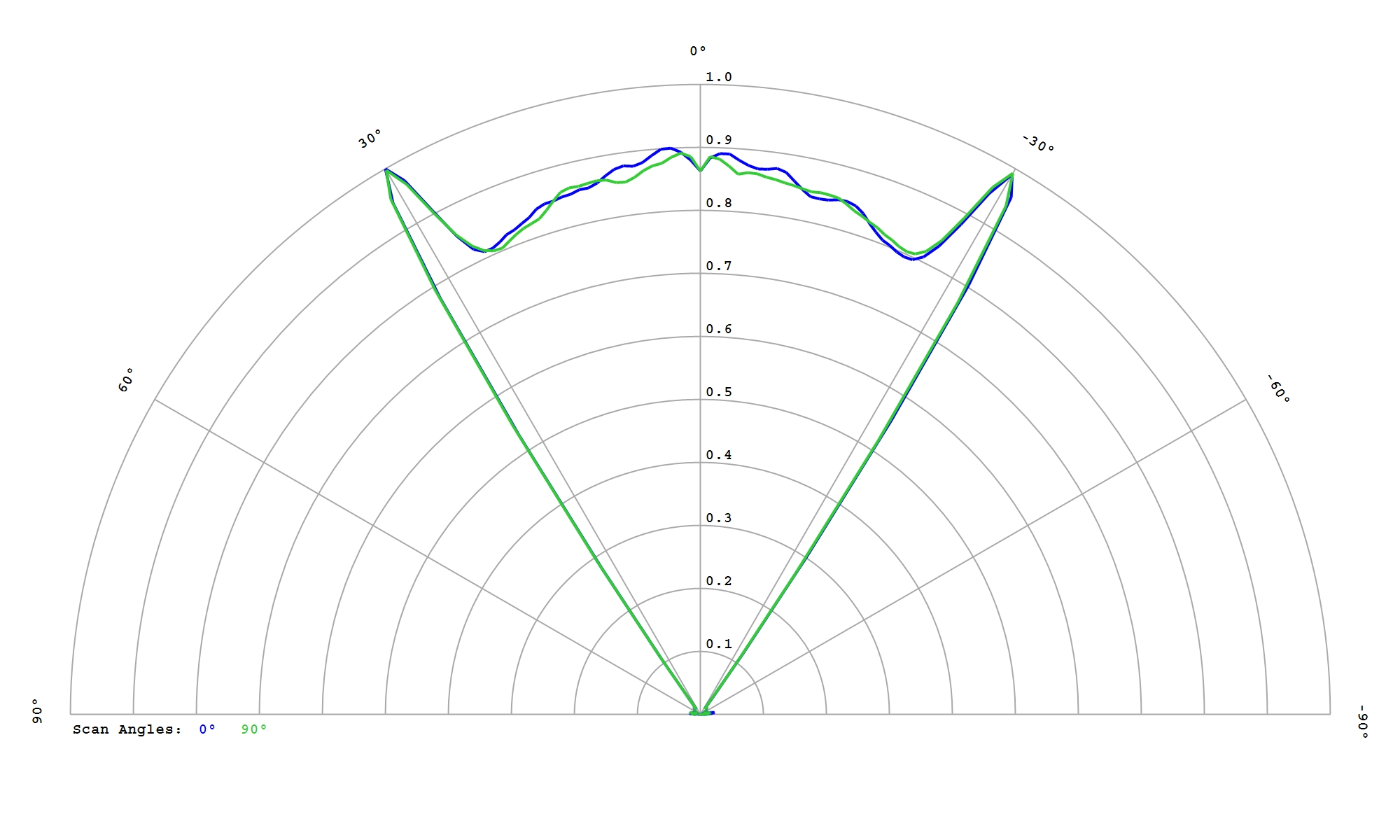

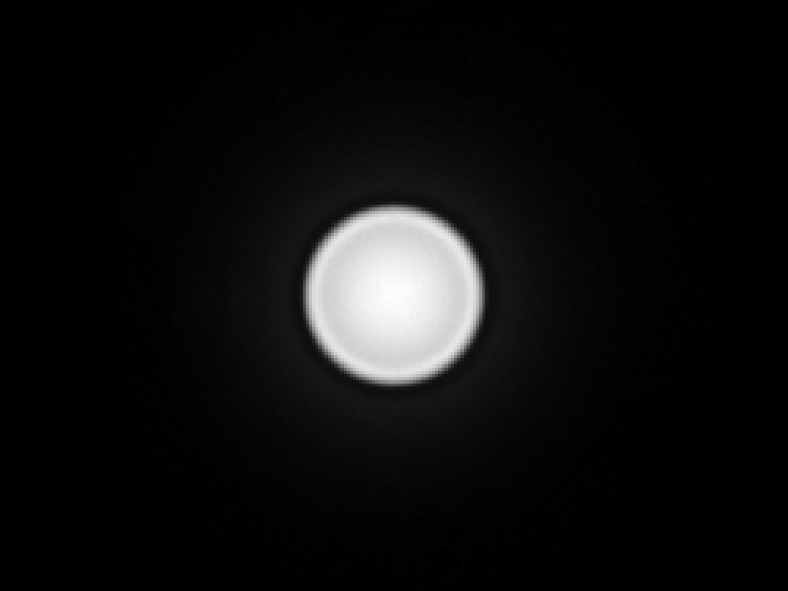

Nichia NFSW CSP E11A White

Eff:

92.5%

FWHM:

66°

Cd/Im:

1.1

Download

IES

Nichia NVSL 219B White

Eff:

94.5%

FWHM:

73.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

95.0%

FWHM:

77.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 319A White

Eff:

94.5%

FWHM:

82°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

89.0%

FWHM:

67°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

98.0%

FWHM:

58°

Ipk/W:

1.5

Download

IES

Osram Led Engin LuxiGen LZ4 01MWCA RGBW

Eff:

15.0%

FWHM:

106°

Cd/Im:

0.2

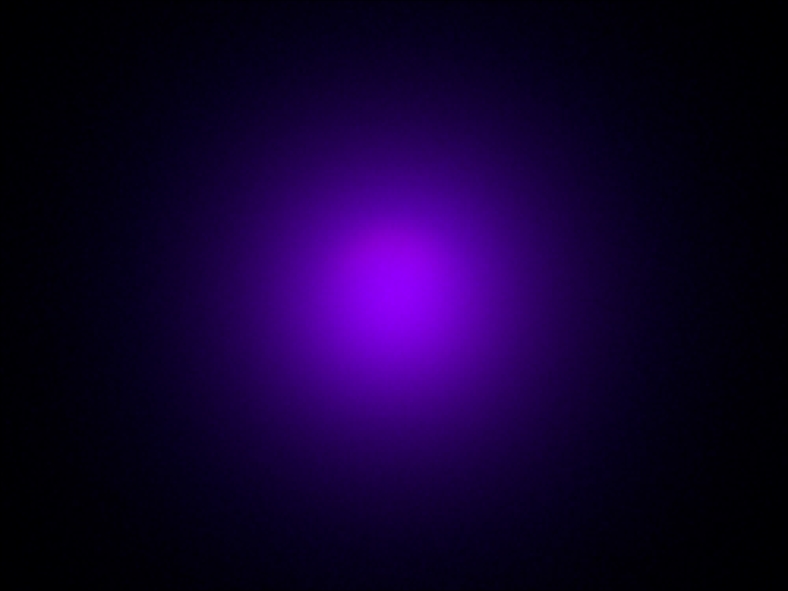

Carclo Optics – 12815 Spot Image OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Carclo Optics – 12815 Cross Section OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.2

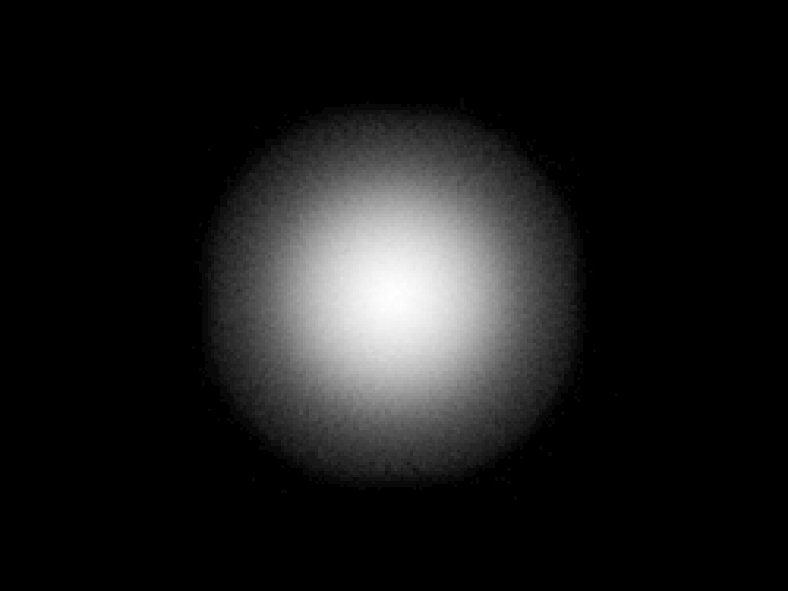

Carclo Optics - 12815 Bubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12815 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

96.5%

FWHM:

69°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

92.0%

FWHM:

70°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

95.8%

FWHM:

74.2°

Cd/Im:

0.7

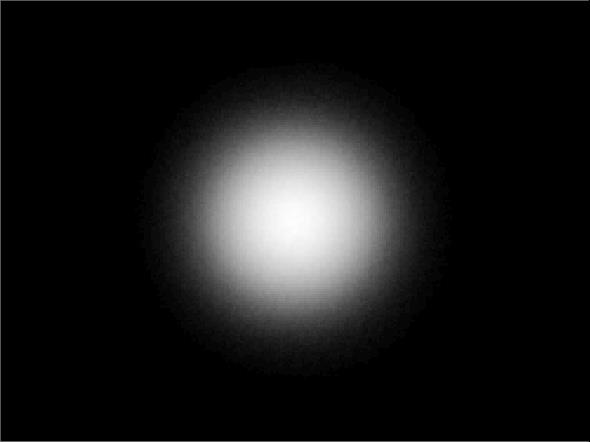

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OS DURIS P8 White

Eff:

92.2%

FWHM:

68.8°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S2 White

Eff:

94.8%

FWHM:

81°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

97.0%

FWHM:

74.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 GP PSLM31.14 Purple

Eff:

95.0%

FWHM:

71°

Cd/Im:

1.3

Carclo Optics – 12815 Osram Duris S5 GP PSLM31.14 Purple - Spot Image

Carclo Optics – 12815 Osram Duris S5 GP PSLM31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 GP PSLR31.14 Purple

Eff:

95.0%

FWHM:

71°

Cd/Im:

1.2

Carclo Optics – 12815 Osram Duris S5 GP PSLR31.14 Purple - Spot Image

Carclo Optics – 12815 Osram Duris S5 GP PSLR31.14 Purple - Cross-Section

Download

14

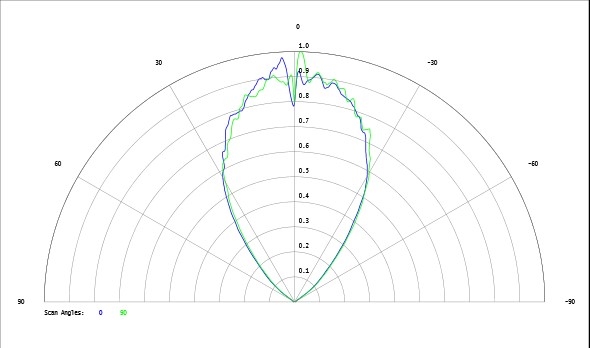

Osram OS DURIS S5 Green

Eff:

96.5%

FWHM:

67°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

97.0%

FWHM:

67°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

92.0%

FWHM:

69°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

67.0%

FWHM:

69.6°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

96.5%

FWHM:

72 x 71°

Cd/Im:

1.0

Carclo Optics - 12815 Bubble Spot Image Oslon DURIS S8 Gen3

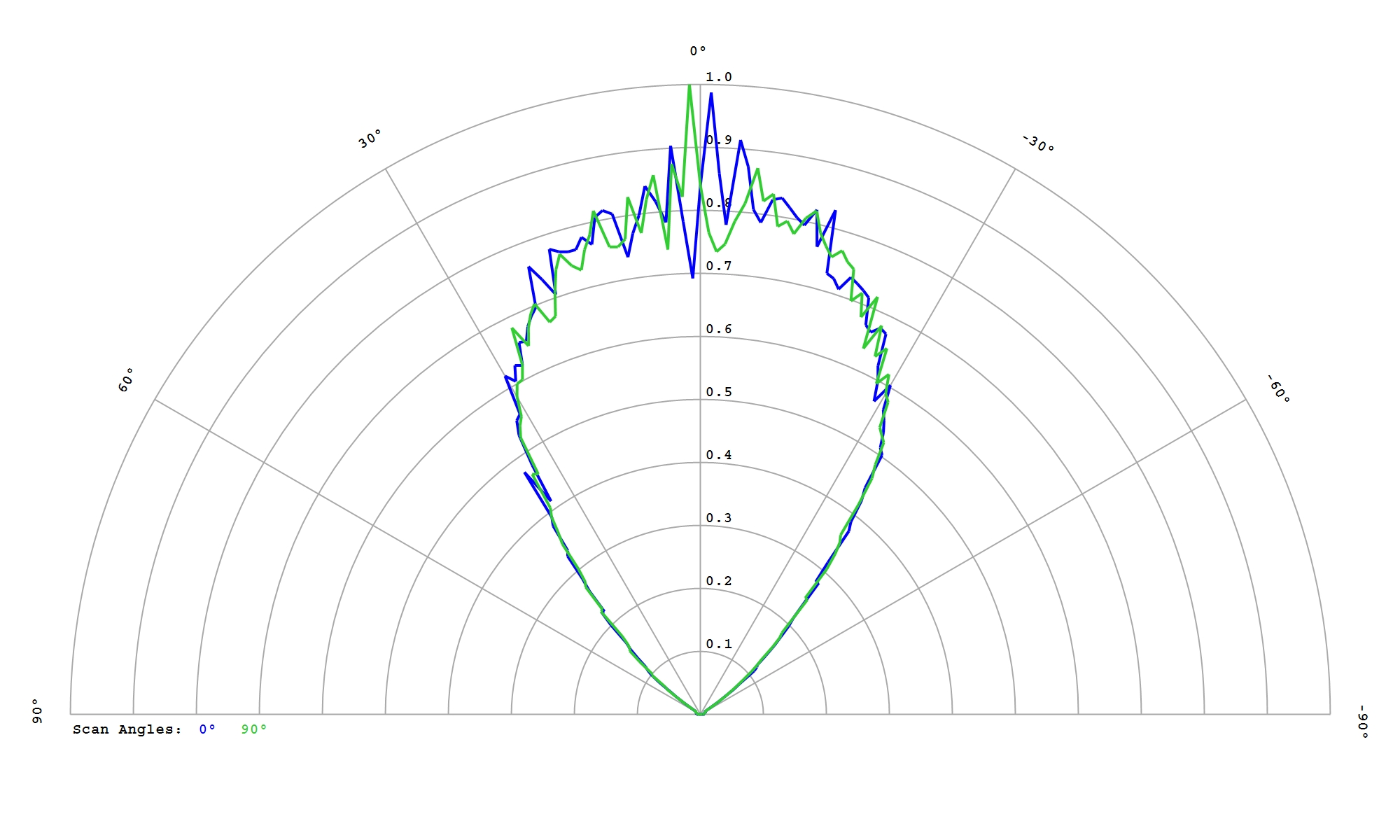

Carclo Optics - 12815 Bubble Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS DURIS S8 White

Eff:

97.2%

FWHM:

73.58°

Cd/Im:

0.7

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

96.5%

FWHM:

66.0°

Cd/Im:

1.1

Carclo Optics - 12815 Spot Image OSCONIQ C2424

Carclo Optics - 12815 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

96.5%

FWHM:

74°

Cd/Im:

1.0



Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

96.5%

FWHM:

89°

Ipk/W:

0.7

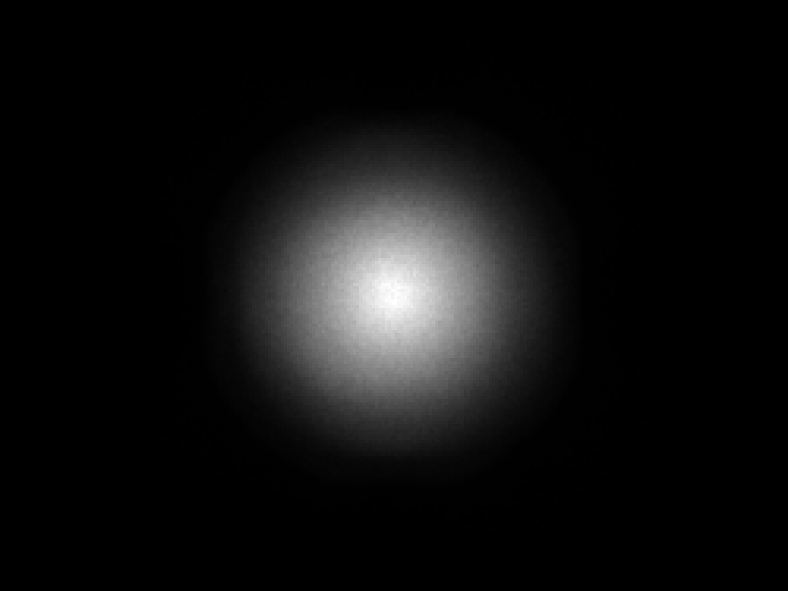

Carclo Optics – 12815 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12815 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

96.5%

FWHM:

69°

Cd/Im:

1.0

Carclo Optics – 12815 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12815 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

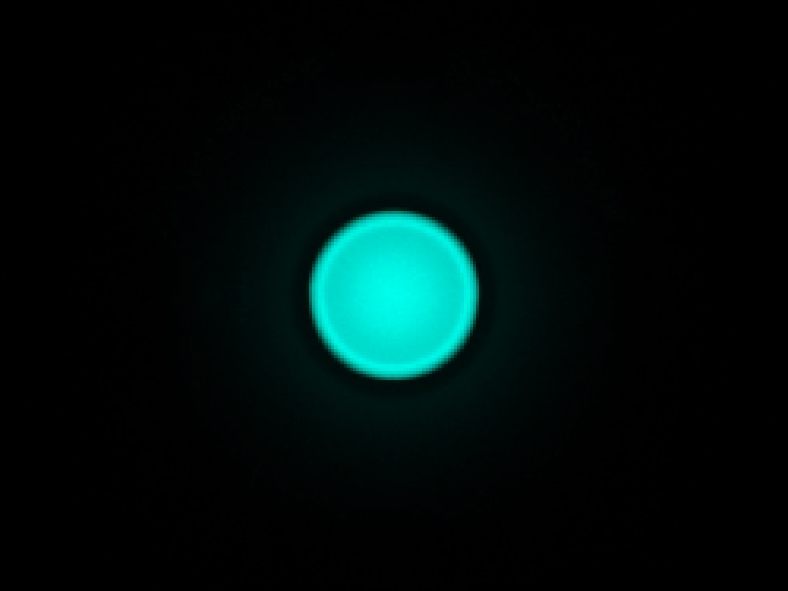

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

94.0%

FWHM:

63°

Cd/Im:

1.4


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

95.0%

FWHM:

63°

Ipk/W:

1.4


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

93.5%

FWHM:

65°

Cd/Im:

1.2


Download

IES

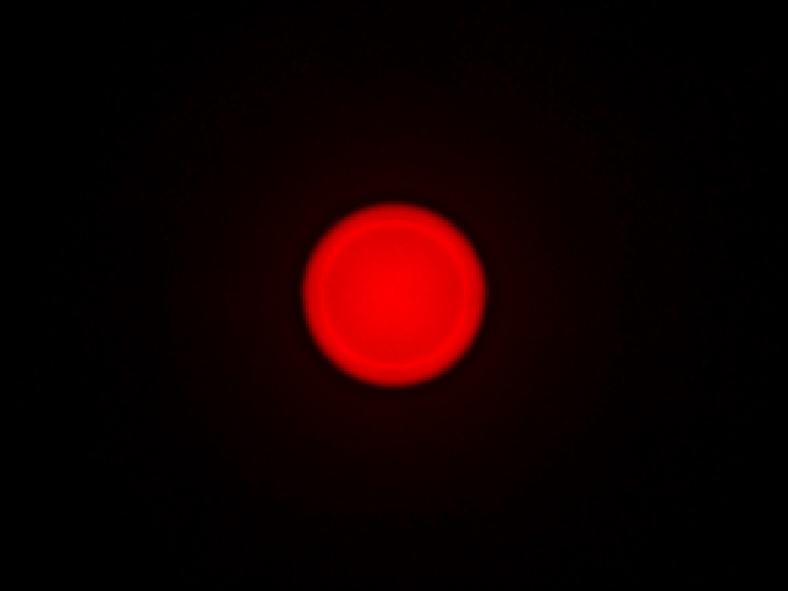

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

92.5%

FWHM:

67°

Cd/Im:

1.2


Download

IES

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

93.5%

FWHM:

63°

Cd/Im:

1.4


Download

IES

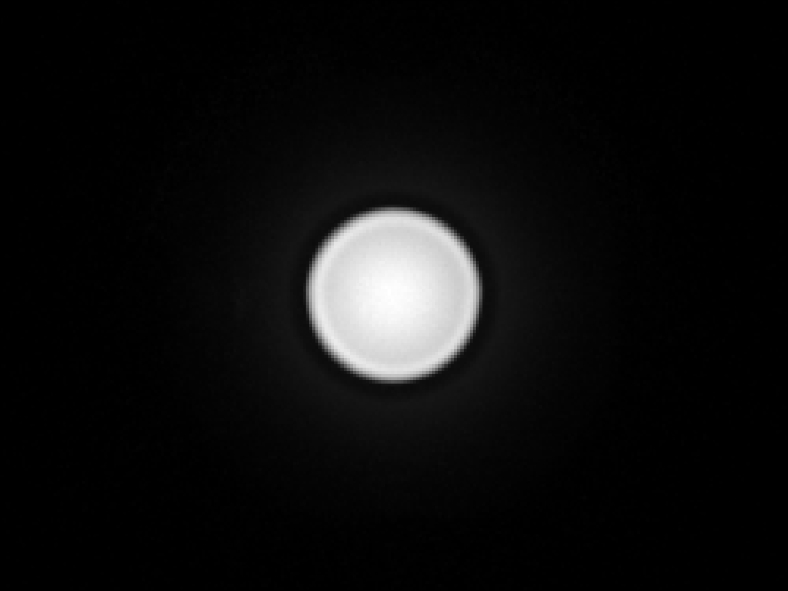

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

93.0%

FWHM:

64°

Cd/Im:

1.2



Download

IES

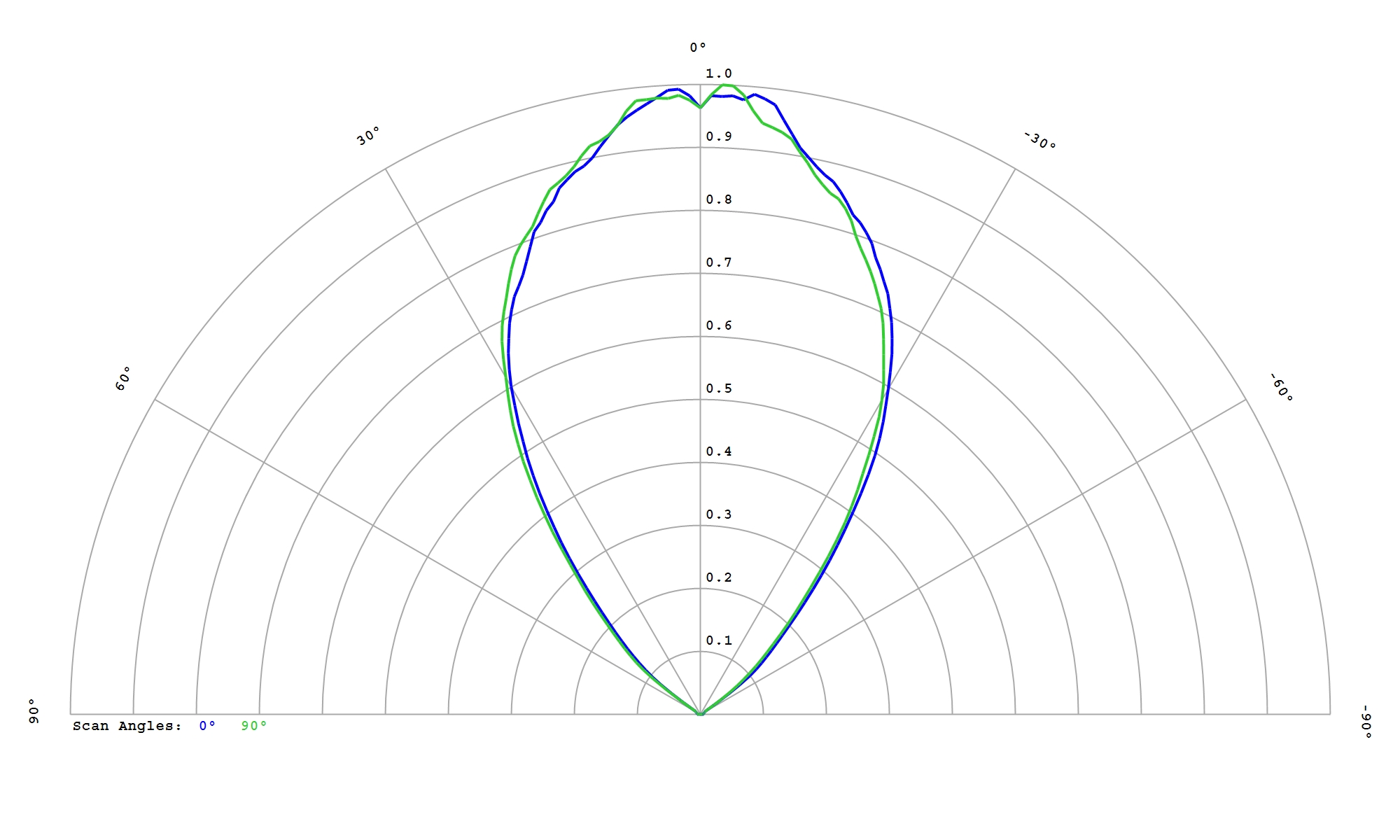

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

97.0%

FWHM:

67°

Cd/Im:

1.2


Download

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

97.0%

FWHM:

67°

Cd/Im:

1.1


Download

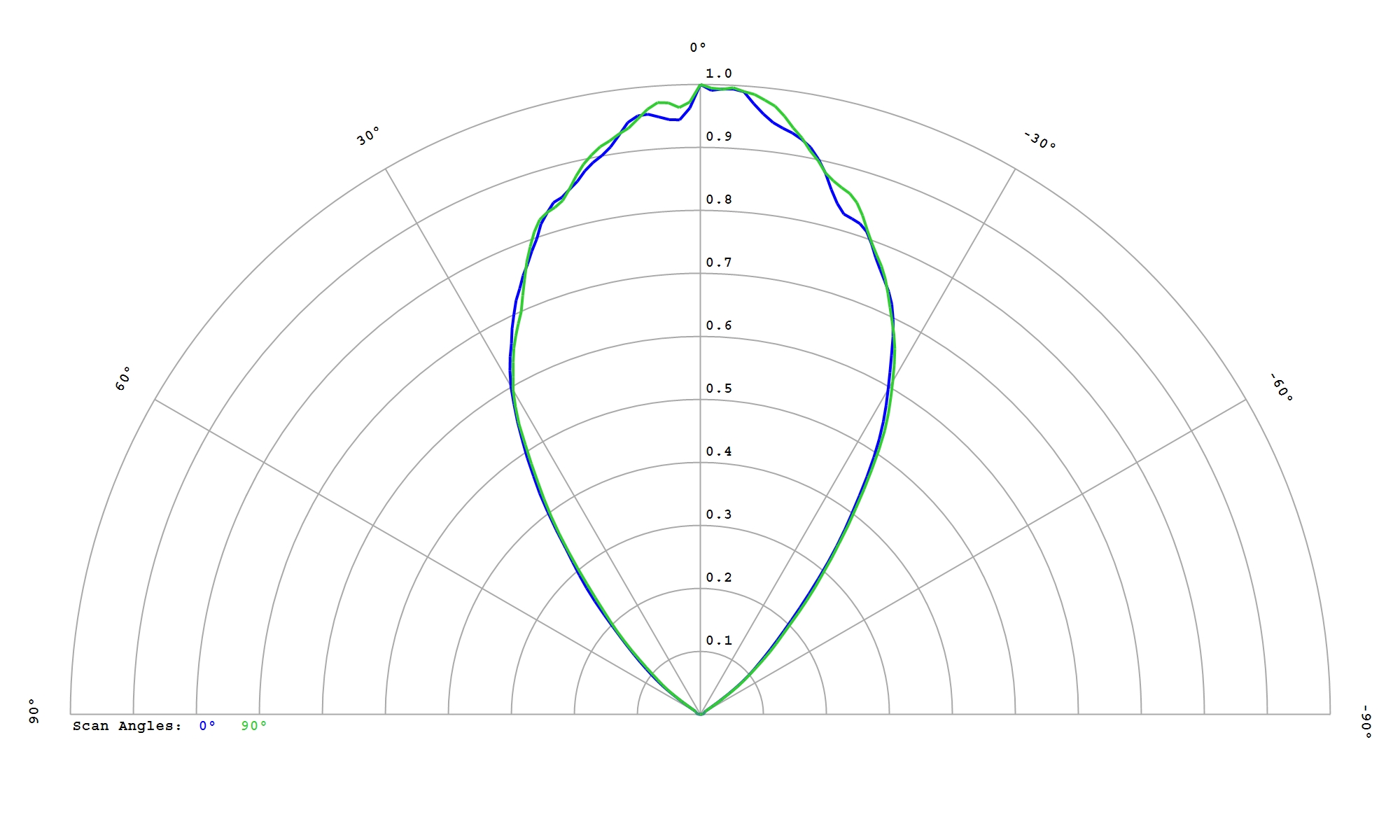

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

97.5%

FWHM:

67°

Ipk/W:

1.1


Download

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

96.0%

FWHM:

74°

Cd/Im:

1.0


Download

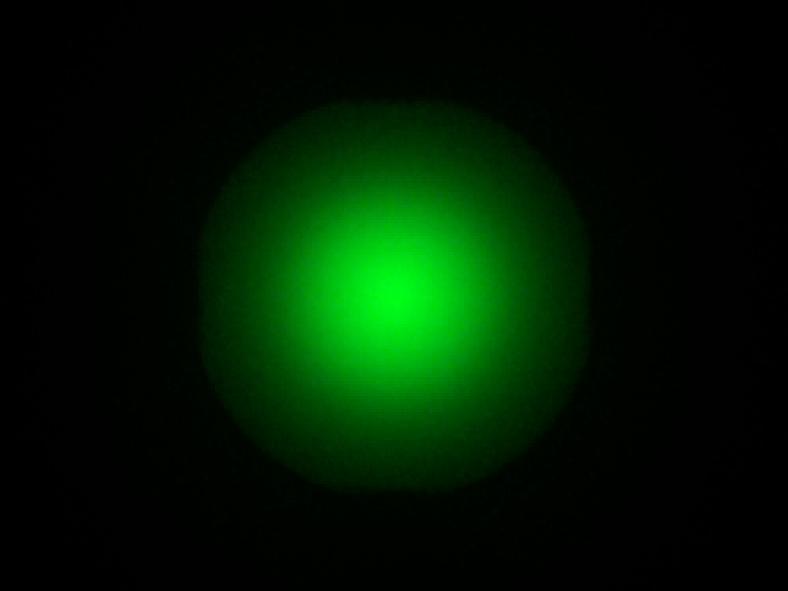

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.1


Download

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

96.5%

FWHM:

68°

Cd/Im:

1.1


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.2

Download

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

96.5%

FWHM:

69°

Cd/Im:

1.0


Download

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

96.5%

FWHM:

66°

Cd/Im:

1.0


Download

Osram OS OSLON Square Gen 3 White

Eff:

91.9%

FWHM:

72.9°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

96.0%

FWHM:

71 x 70°

Cd/Im:

1.1

Carclo Optics - 12815 Bubble Spot Image Oslon Square Gen 5

Carclo Optics - 12815 Bubble Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

92.0%

FWHM:

73°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue

Eff:

95.5%

FWHM:

72°

Cd/Im:

1.2

Carclo Optics – 12815 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image

Carclo Optics – 12815 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section

Download

IES

Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red

Eff:

9.5%

FWHM:

73°

Cd/Im:

3.9

Carclo Optics – 12815 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image

Carclo Optics – 12815 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section

Download

IES

Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red

Eff:

96.5%

FWHM:

76°

Cd/Im:

1.0

Carclo Optics – 12815 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image

Carclo Optics – 12815 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

96.0%

FWHM:

82°

Cd/Im:

0.8

Carclo Optics – 12815 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12815 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSTAR Stage LE-UW-S2WN

Eff:

96.0%

FWHM:

76°

Cd/Im:

0.9

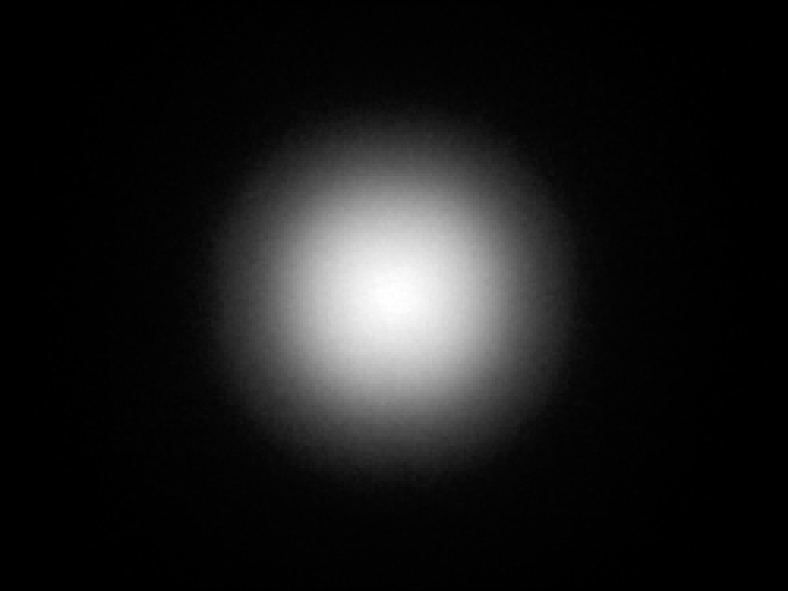

Carclo Optics – 12815 Osram Ostar Stage LE-UW-S2WN - Spot Image

Carclo Optics – 12815 Osram Ostar Stage LE-UW-S2WN - Cross-Section

Download

IES

Samsung 2835 LM281B+ White

Eff:

96.0%

FWHM:

69°

Cd/Im:

1.1



Download

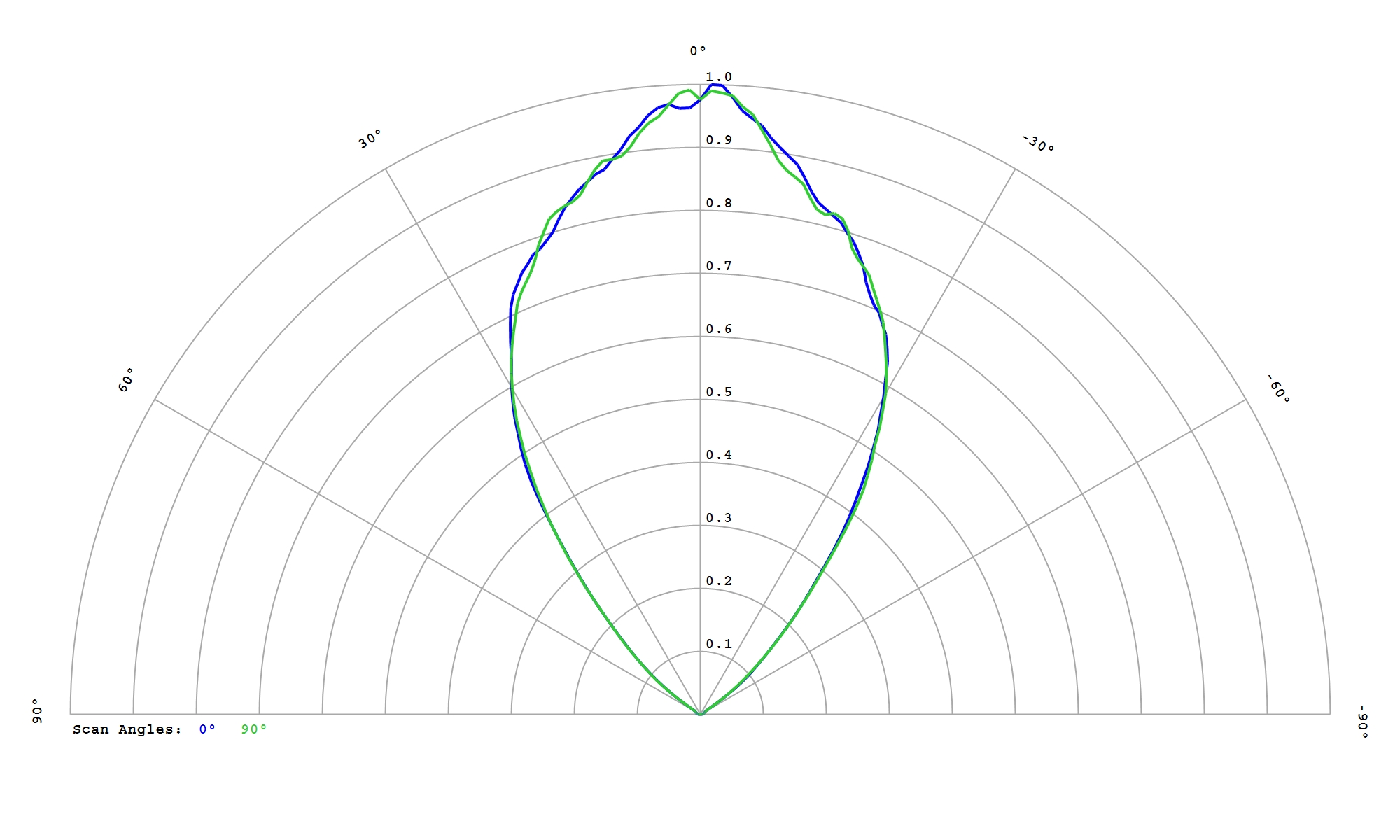

Samsung 3030 LM301B White

Eff:

96.5%

FWHM:

67°

Cd/Im:

1.3

Download

IES

Samsung 3535 LH351H Blue

Eff:

95.0%

FWHM:

76°

Cd/Im:

0.9

Carclo Optics – 12815 Samsung_3535_LH351H_B - Spot – image

Carclo Optics – 12815 Samsung_3535_LH351H_B - Cross section – image

Download

IES

Samsung 3535 LH351H Deep Red

Eff:

94.5%

FWHM:

78°

Cd/Im:

0.9

Carclo Optics – 12815 Samsung_3535_LH351H_DR - Spot – image

Carclo Optics – 12815 Samsung_3535_LH351H_DR - Cross section – image

Download

IES

Samsung 3535 LH351H Red

Eff:

96.0%

FWHM:

71°

Cd/Im:

1.1

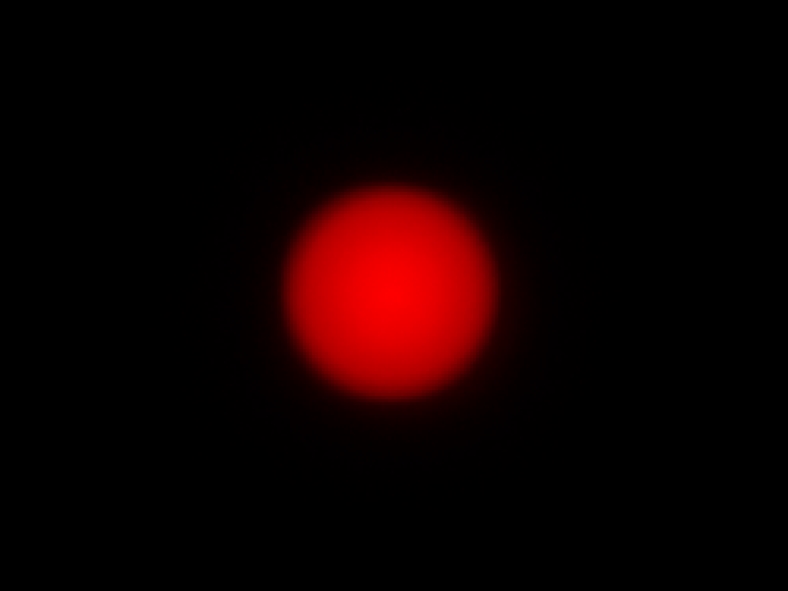

Carclo Optics – 12815 Samsung_3535_LH351H_R - Spot – image

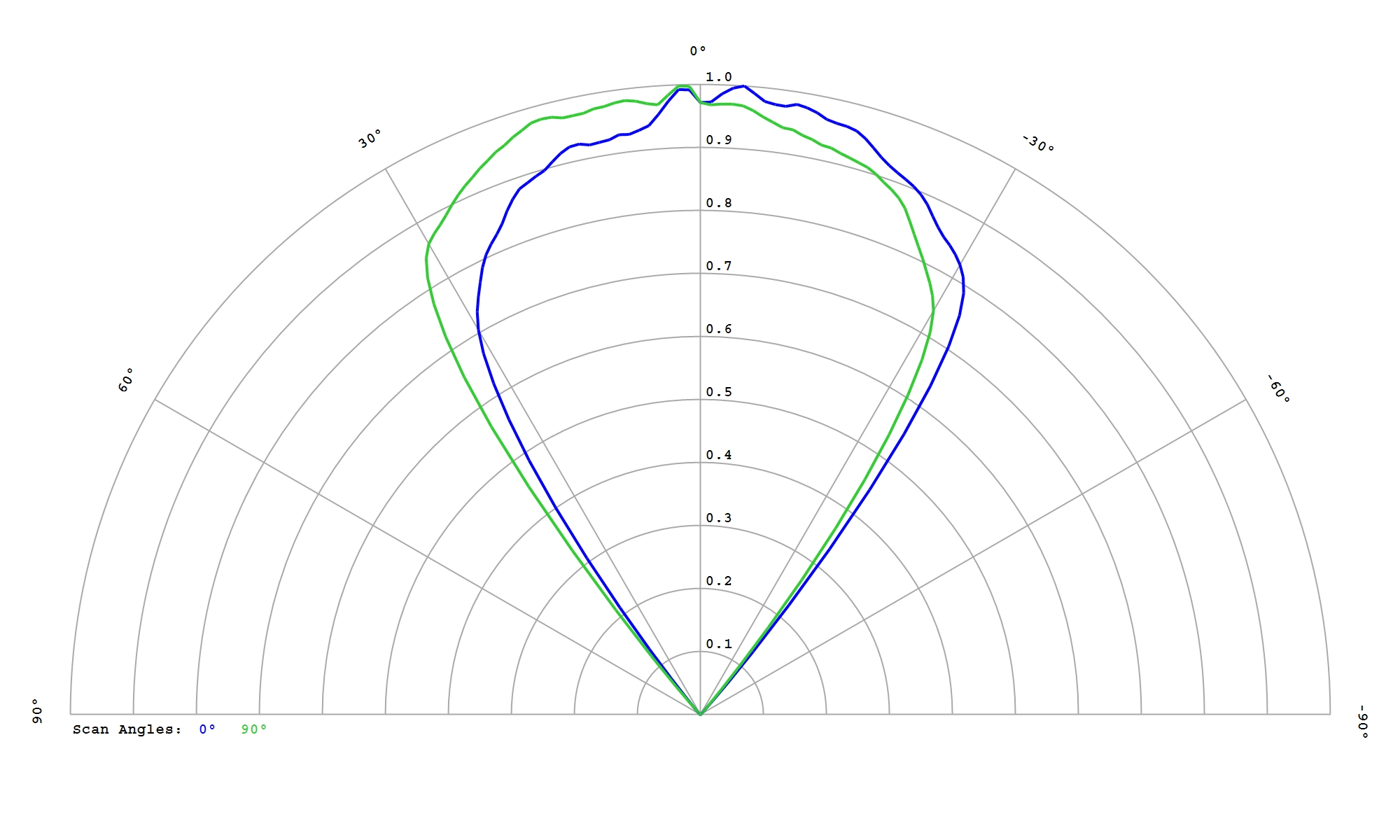

Carclo Optics – 12815 Samsung_3535_LH351H_R - Cross section – image

Download

IES

Samsung 3535 LH351H-B White

Eff:

94.5%

FWHM:

74°

Cd/Im:

0.9

Carclo Optics – 12815 Samsung_3535_LH351H-B_White - Spot – image

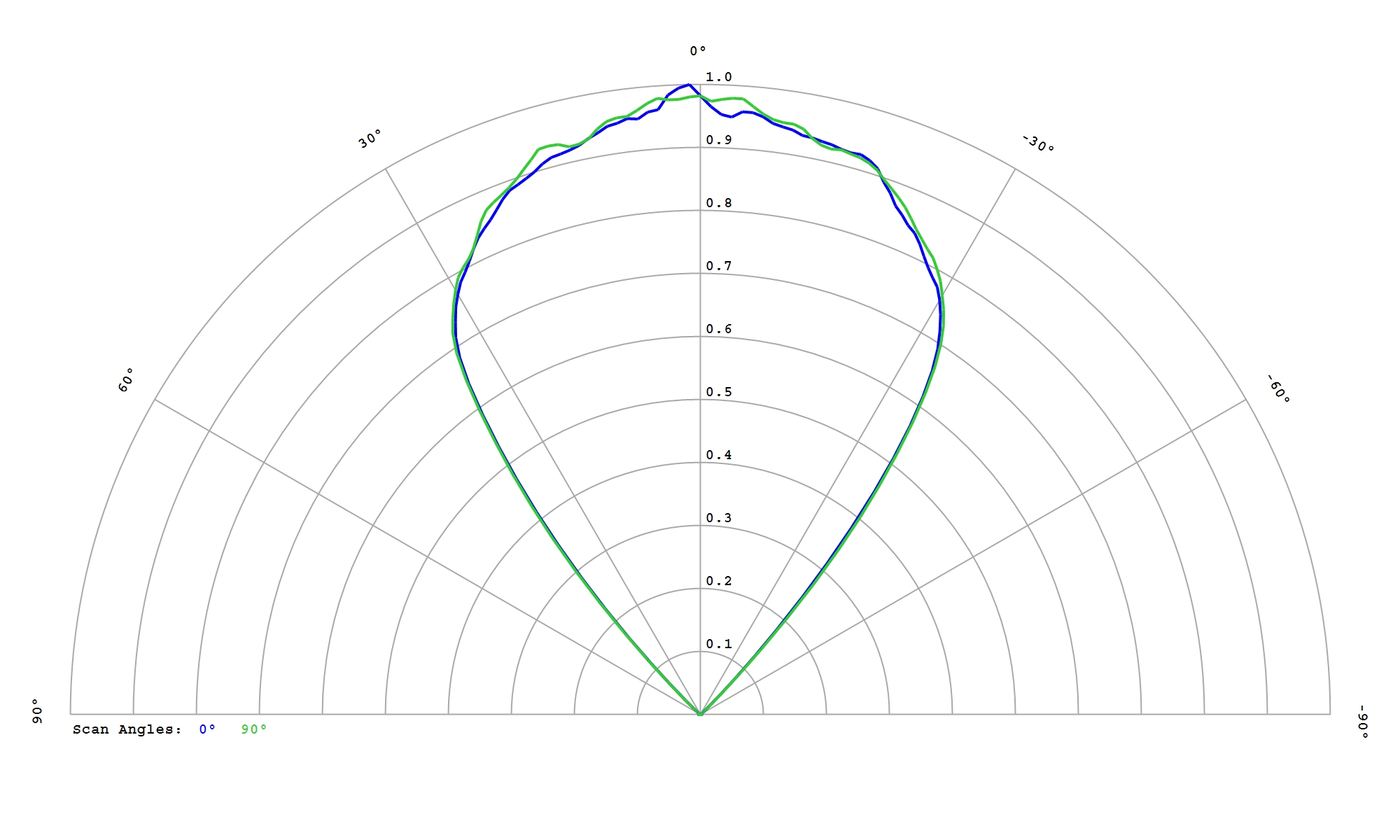

Carclo Optics – 12815 Samsung_3535_LH351H-B_White - Cross section – image

Download

IES

Samsung 5050 LH502C White

Eff:

96.0%

FWHM:

73°

Cd/Im:

0.9


Download

IES

Samsung 5050 LH502D White

Eff:

96.0%

FWHM:

72°

Cd/Im:

0.9


Download

IES

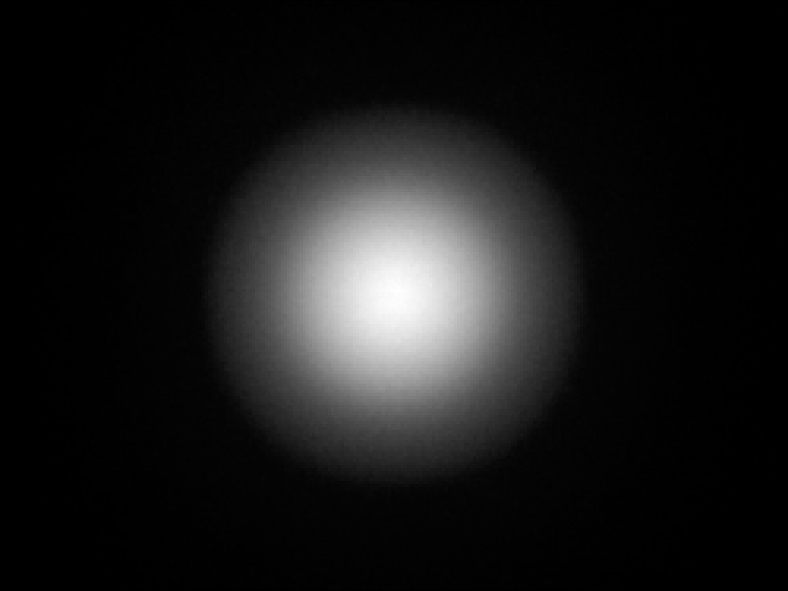

Samsung 5050 LH508C White

Eff:

96.5%

FWHM:

71°

Cd/Im:

1.0


Download

IES

Samsung CSP LH151B White

Eff:

94.0%

FWHM:

67°

Cd/Im:

1.2

Carclo Optics – 12815 – Samsung_LH151B_spot-image

Carclo Optics – 12815 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

95.5%

FWHM:

61 x 65°

Cd/Im:

1.1

Carclo Optics -12815 Sport Image - Samsung LH181B 4000K

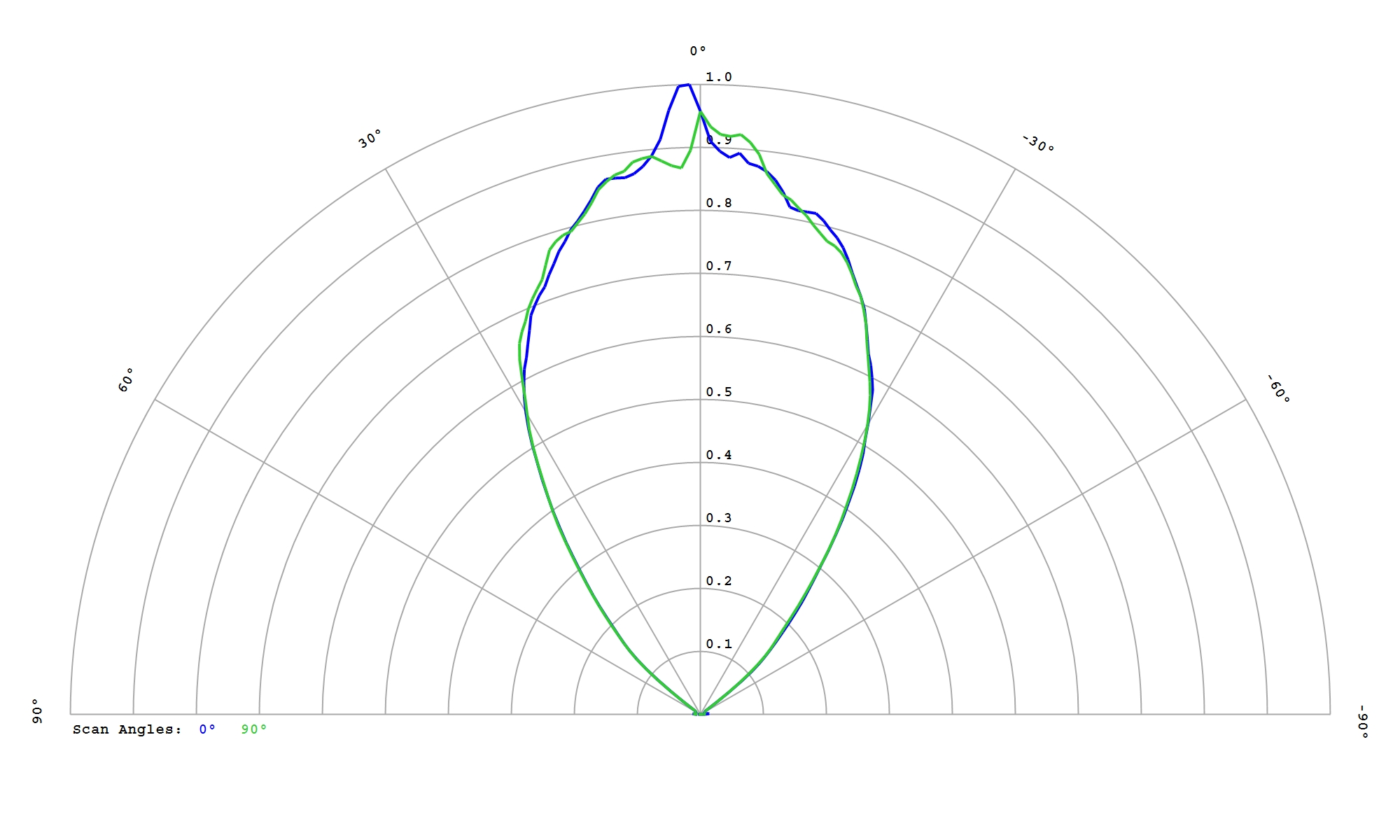

Carclo Optics -12815 Cross Section Image - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

95.5%

FWHM:

68°

Cd/Im:

1.0

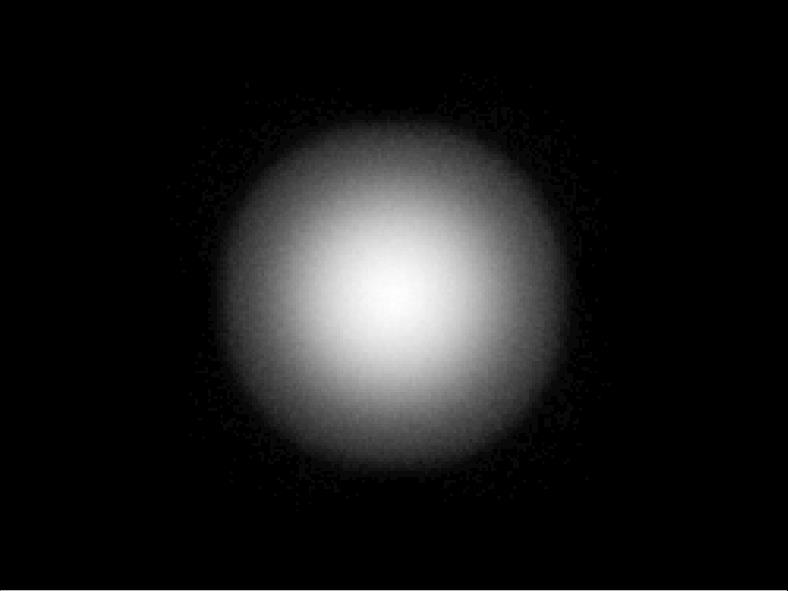

Carclo Optics -12815 Spot Image - Samsung LH231B 5000KL

Carclo Optics -12815 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

95.5%

FWHM:

65 x 66°

Cd/Im:

1.2

Carclo Optics -12815 Sport Image - Samsung LM101B 5000K

Carclo Optics -12815 Cross Section Image - Samsung LM101B 5000K

Download

IES

Seoul CSP SZ8Y11 White

Eff:

90.5%

FWHM:

69°

Cd/Im:

0.9

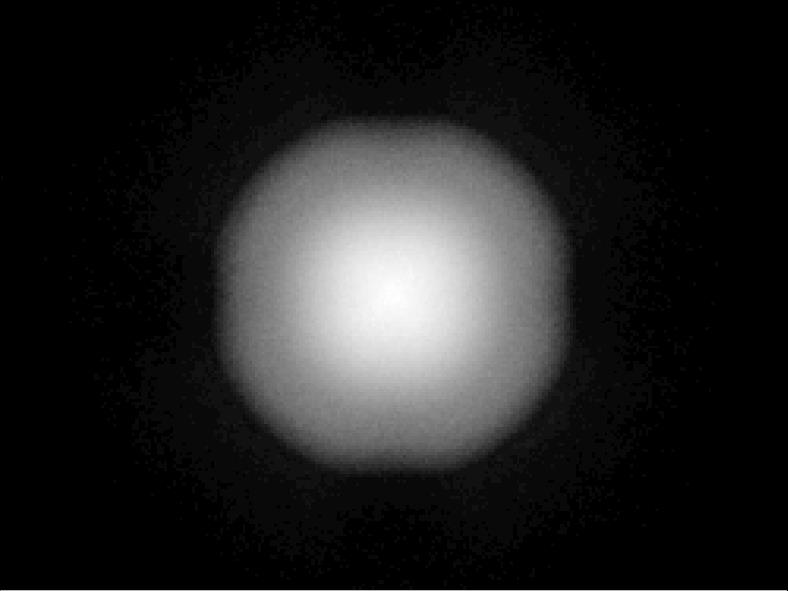

Carclo Optics -12815 Spot Image - Seoul Z8Y11

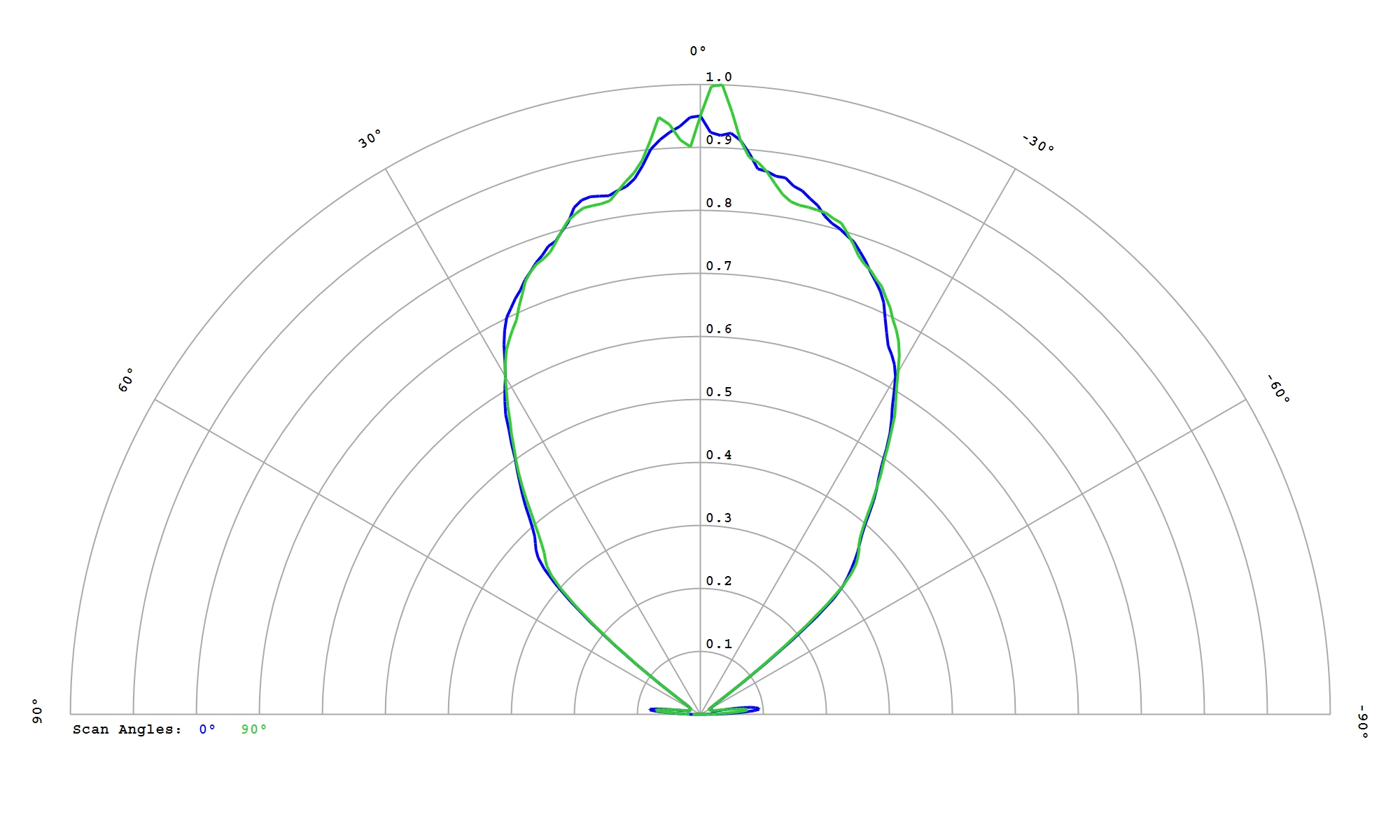

Carclo Optics -12815 Cross Section Image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

92.0%

FWHM:

70°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

87.0%

FWHM:

67.3°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

93.5%

FWHM:

73°

Cd/Im:

0.8

Carclo Optics -12815 Spot Image - Seoul SZ8Y22

Carclo Optics -12815 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

95.0%

FWHM:

77°

Cd/Im:

0.9

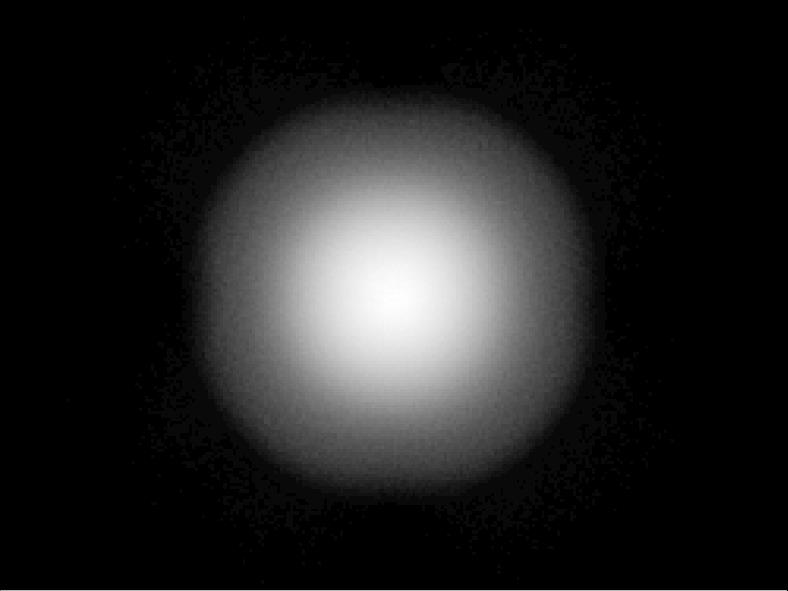

Carclo Optics - 12815 Spot Image - Seoul SZ8Y22P

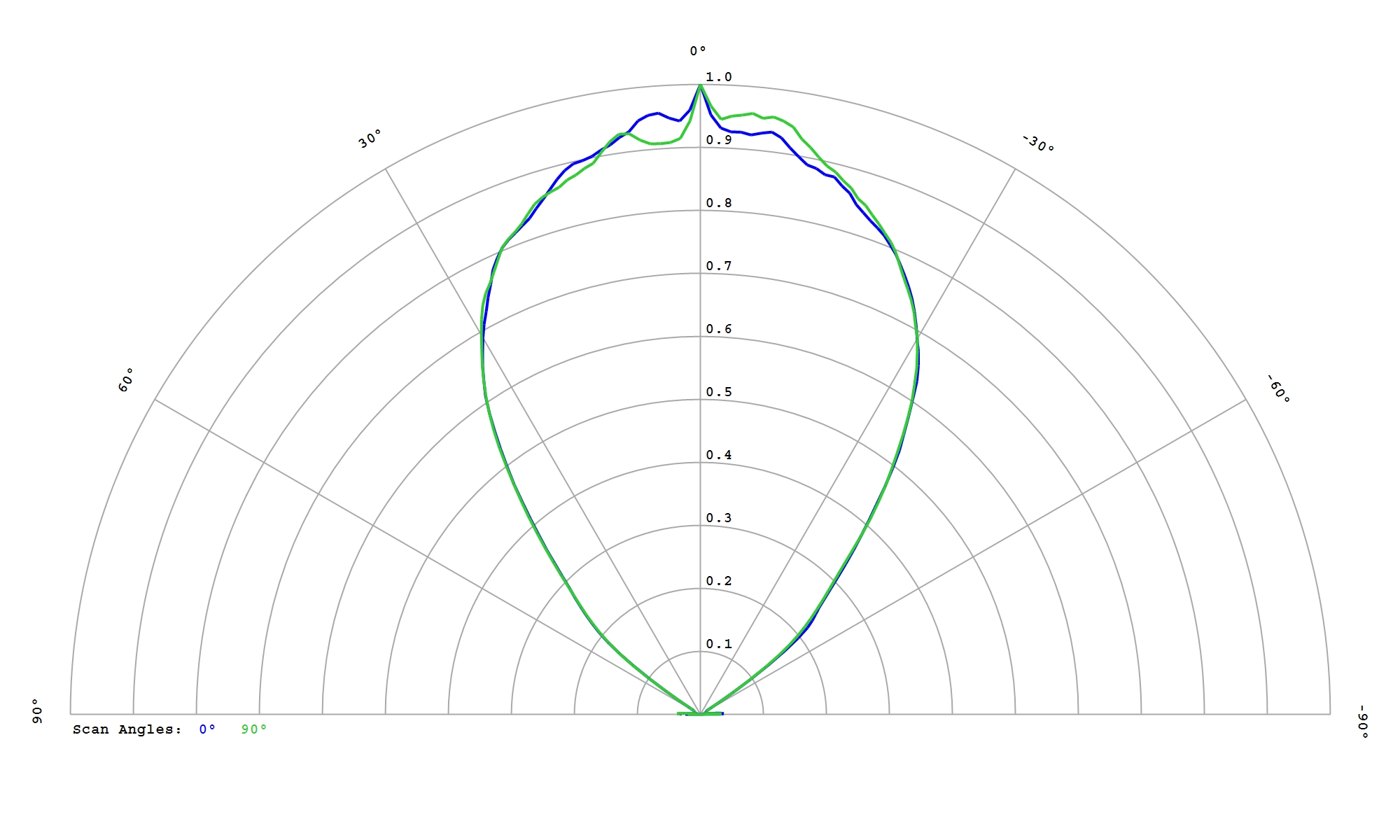

Carclo Optics - 12815 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y22P White

Eff:

95.0%

FWHM:

77°

Cd/Im:

0.9

Carclo Optics - 12815 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12815 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y50 White

Eff:

94.5%

FWHM:

79°

Cd/Im:

0.9

Carclo Optics - 12815 Spot Image - Seoul SSC SZ8Y50

Carclo Optics - 12815 Cross section Image - Seoul SSC SZ8Y50

Download

IES

Seoul MidPower 3030 STB0C2PB Blue

Eff:

95.5%

FWHM:

73°

Cd/Im:

1.0

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Spot – image

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Cross section – image

Download

IES

Seoul MidPower 3030 STDRC12B Deep Red

Eff:

96.0%

FWHM:

68°

Cd/Im:

1.0

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Spot – image

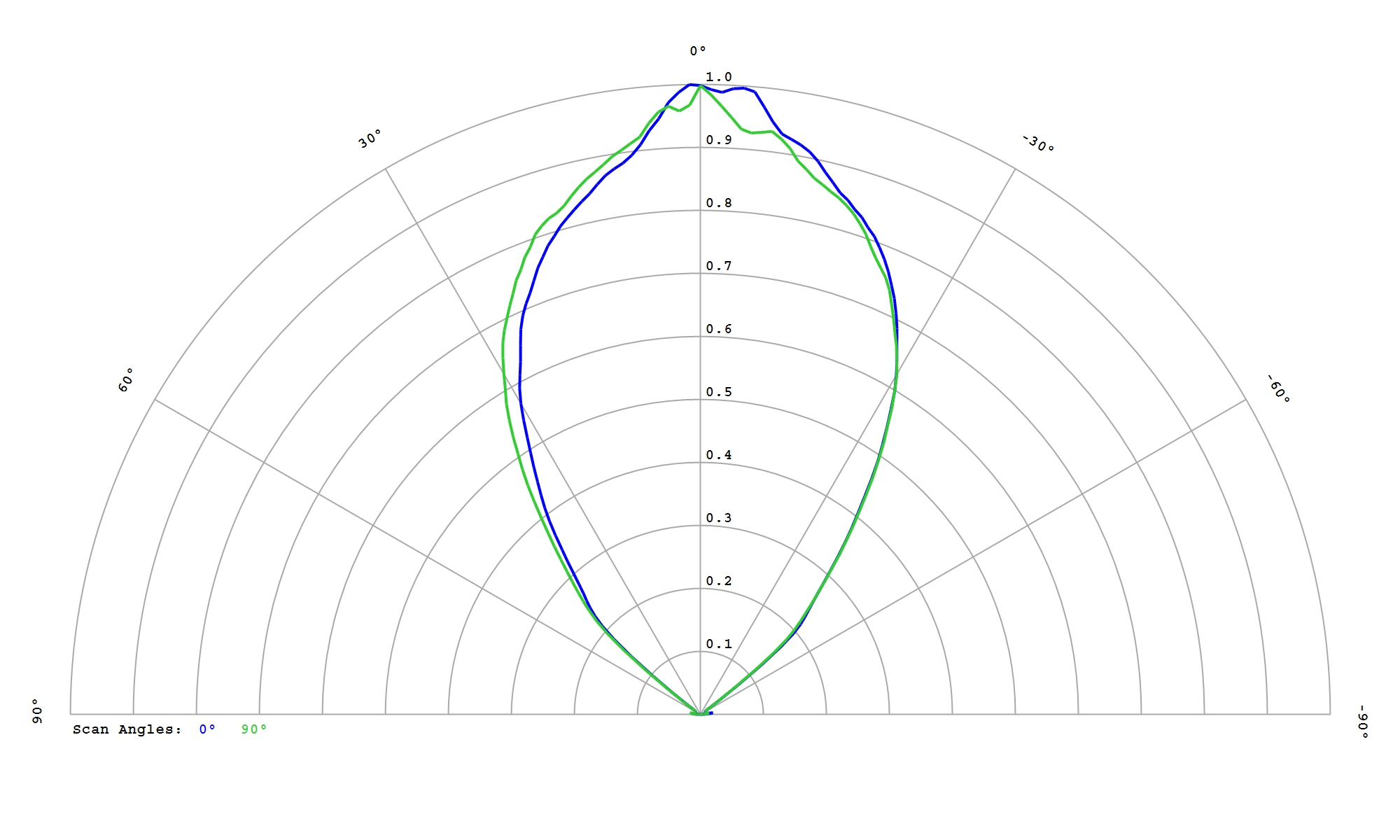

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Cross section – image

Download

IES

Seoul MidPower 3030 STFRC12B Far Red

Eff:

97.0%

FWHM:

73°

Cd/Im:

1.5

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Spot – image

Carclo Optics – 12815 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Cross section – image

Download

IES

Seoul MJT 5050 White

Eff:

92.0%

FWHM:

73.0 x 5.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul STW8 C2SB-NT White

Eff:

96.5%

FWHM:

69.0°

Cd/Im:

1.1

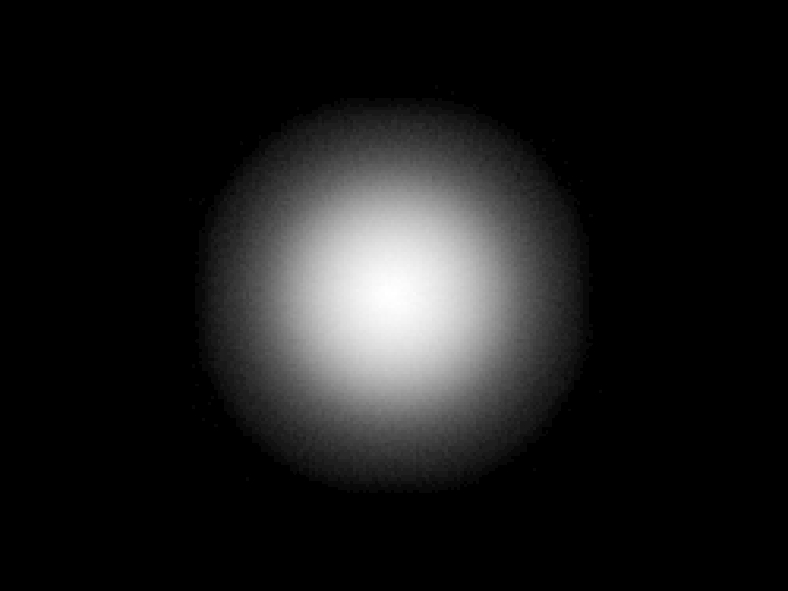

Carclo Optics - 12815 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12815 Cross Section Seoul STW8 C2SB-NT

Download

IES

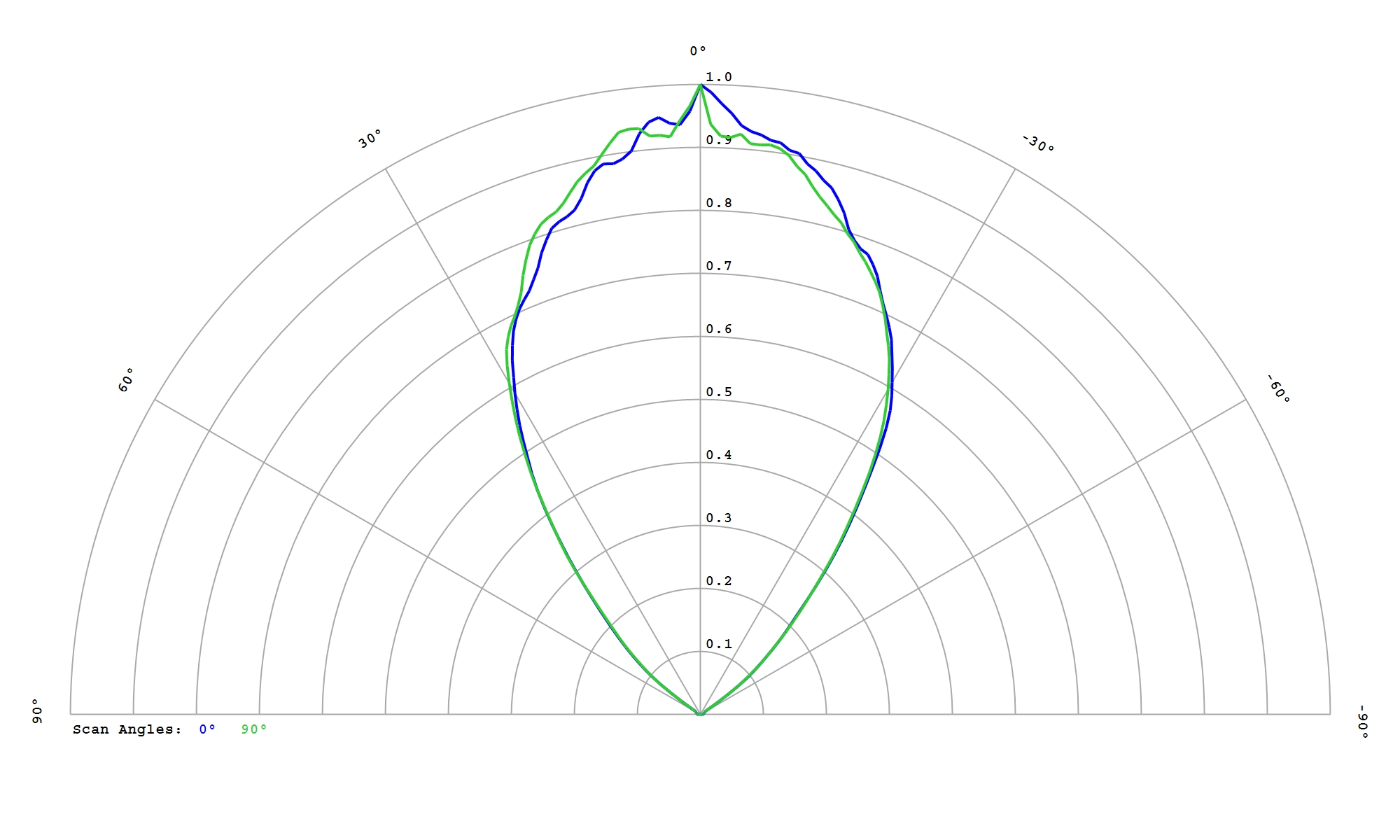

Seoul STWS C2PB-E0 White

Eff:

96.5%

FWHM:

69.0°

Cd/Im:

1.1

Carclo Optics - 10815 Spot Image STWS C2PB-E0

Carclo Optics - 10815 Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

96.5%

FWHM:

65°

Cd/Im:

1.1

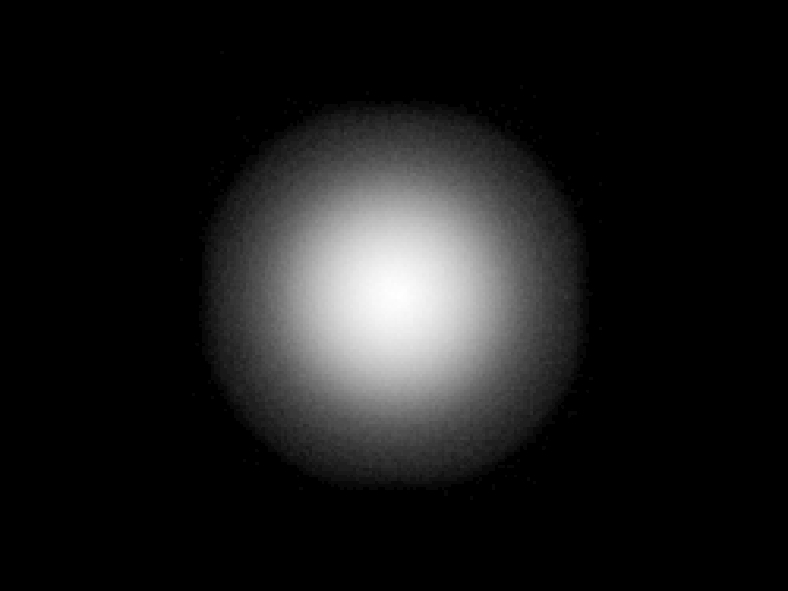

Carclo Optics - 12815 Bubble Spot Image Seoul Sunlike 3030

Carclo Optics - 12815 Bubble Cross Section Seoul Sunlike 3030

Download

IES

Stanley 6J White

Eff:

92.0%

FWHM:

78°

Cd/Im:

0.6

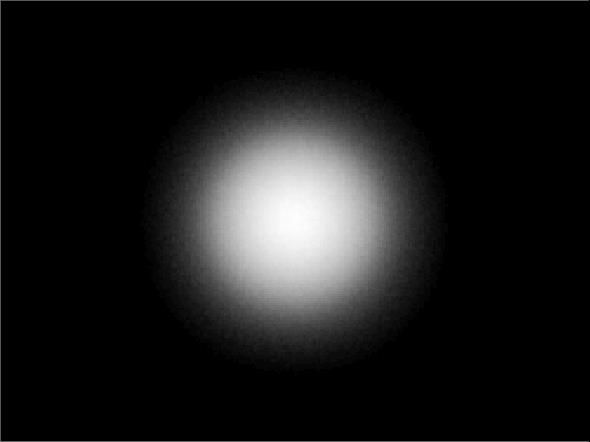

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L2 White

Eff:

89.0%

FWHM:

76°

Cd/Im:

0.6

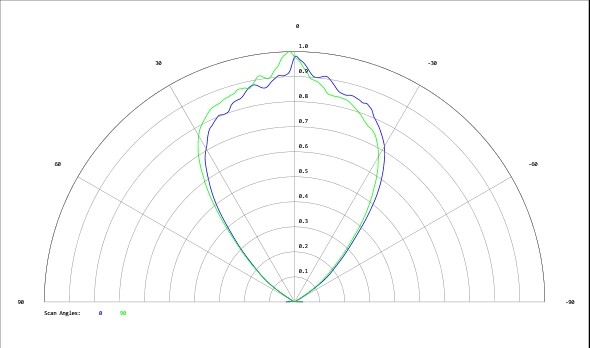

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

91.0%

FWHM:

74.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

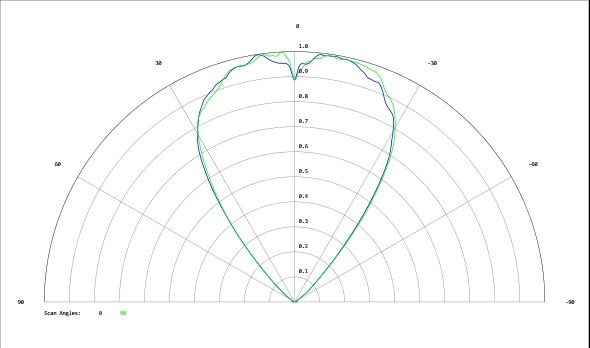

Carclo Optics - Simulated Cross Section

Download

IES
