Mini Hubble
25.0mm Asymmetrical III Medium Freeform
Part number
12771
Dimensions
25.0mm
Drawing Number
70250
Optic type
Freeform
Beam type
Asymmetrical III Medium
Applications
Street
Amber LEDs
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
94.0%
FWHM:
134 x 30.5°
Cd/Im:
0.9
Download

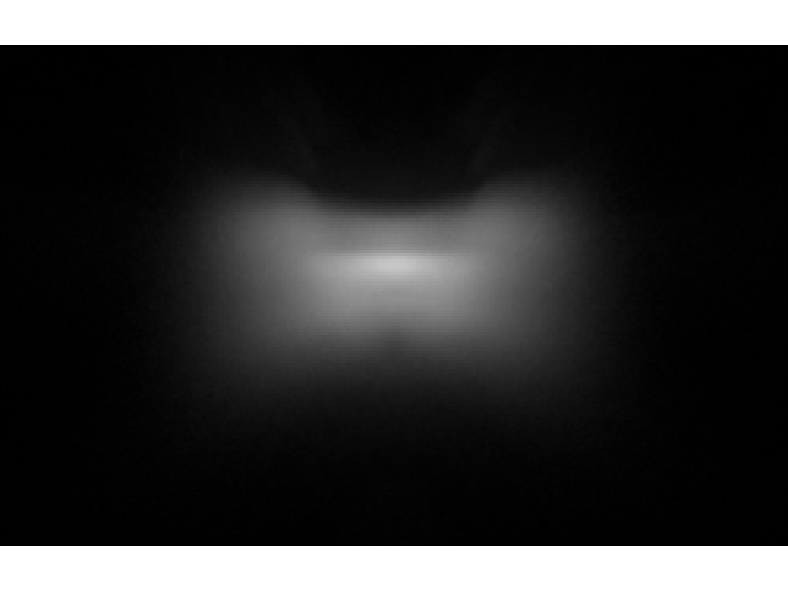

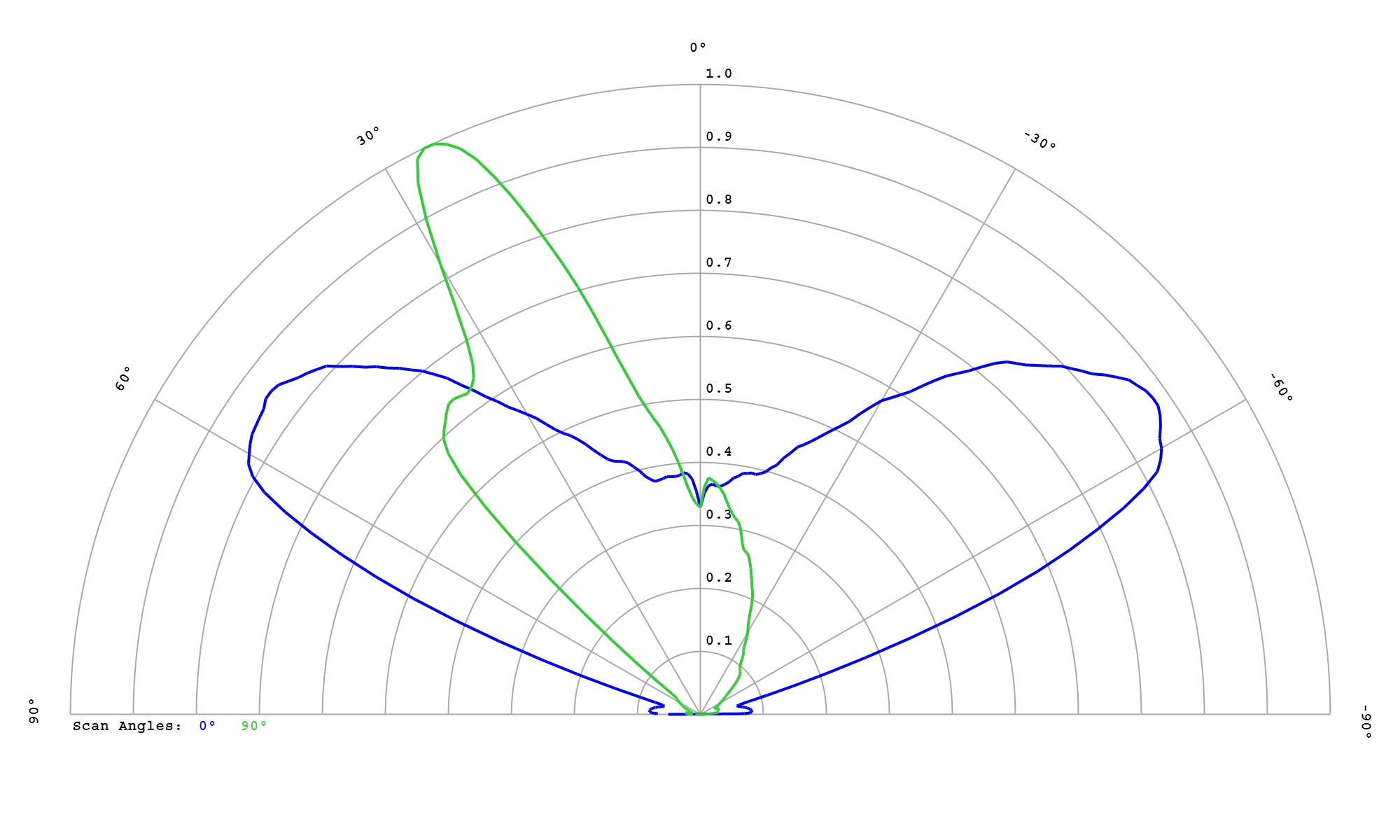

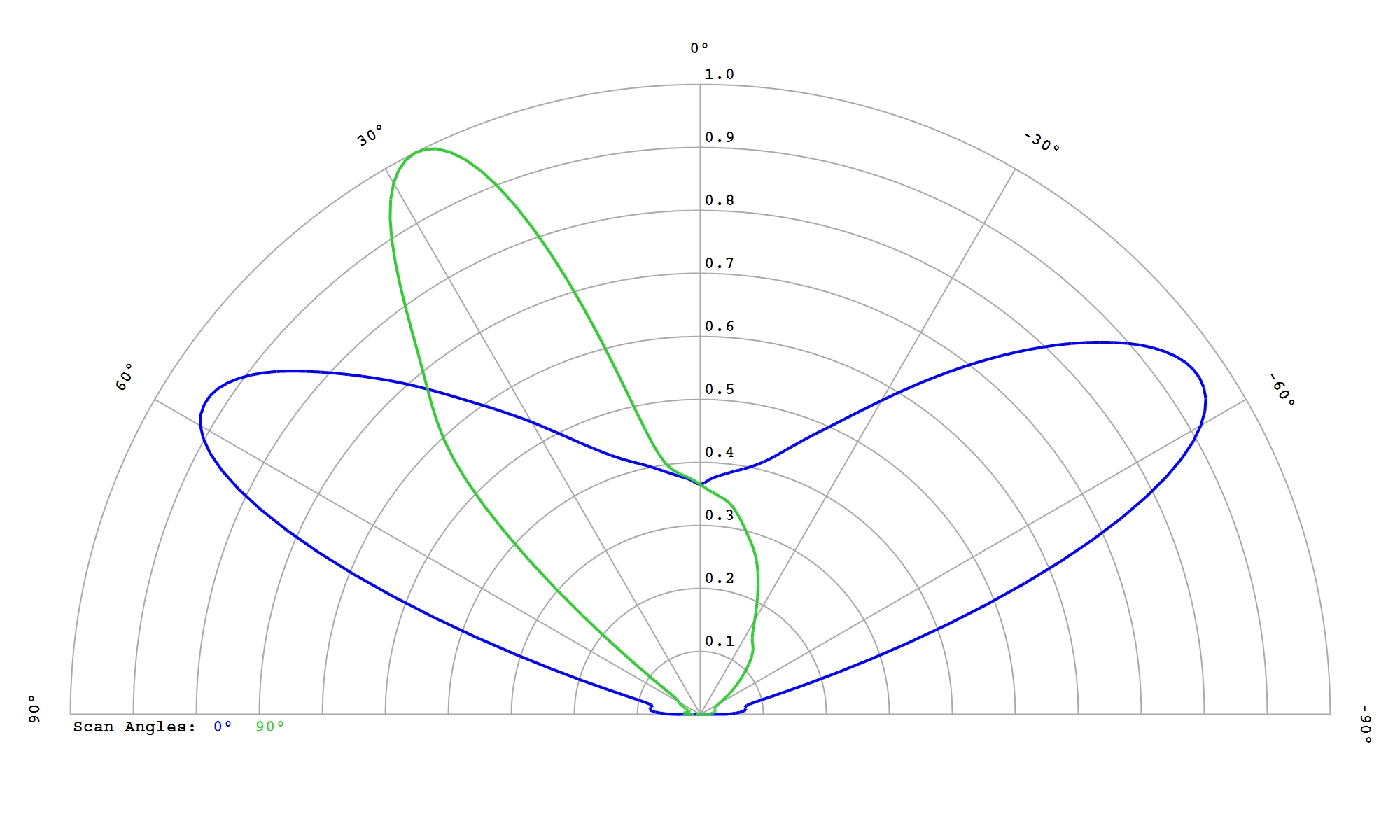

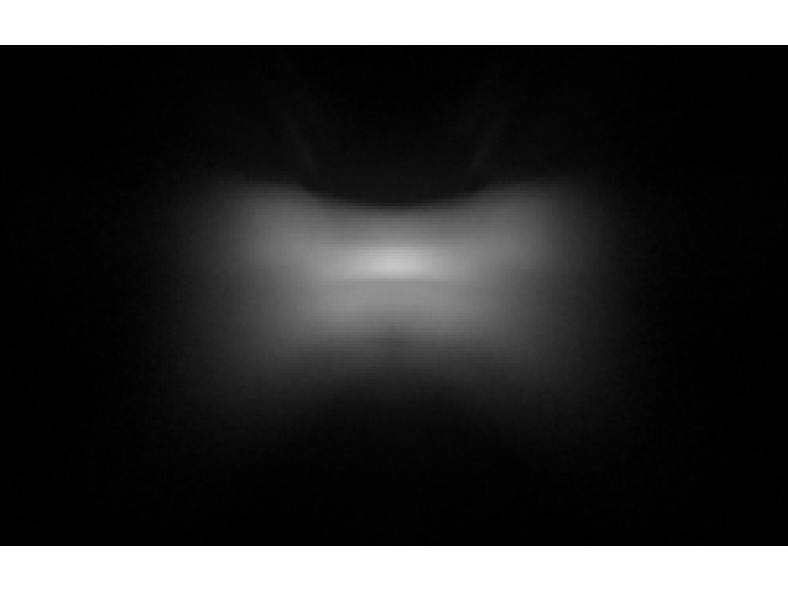

Cree JB2835B 3V G-Class White
Eff:
93.5%
FWHM:
138 x 35 x 26°
Cd/Im:
0.7
Download

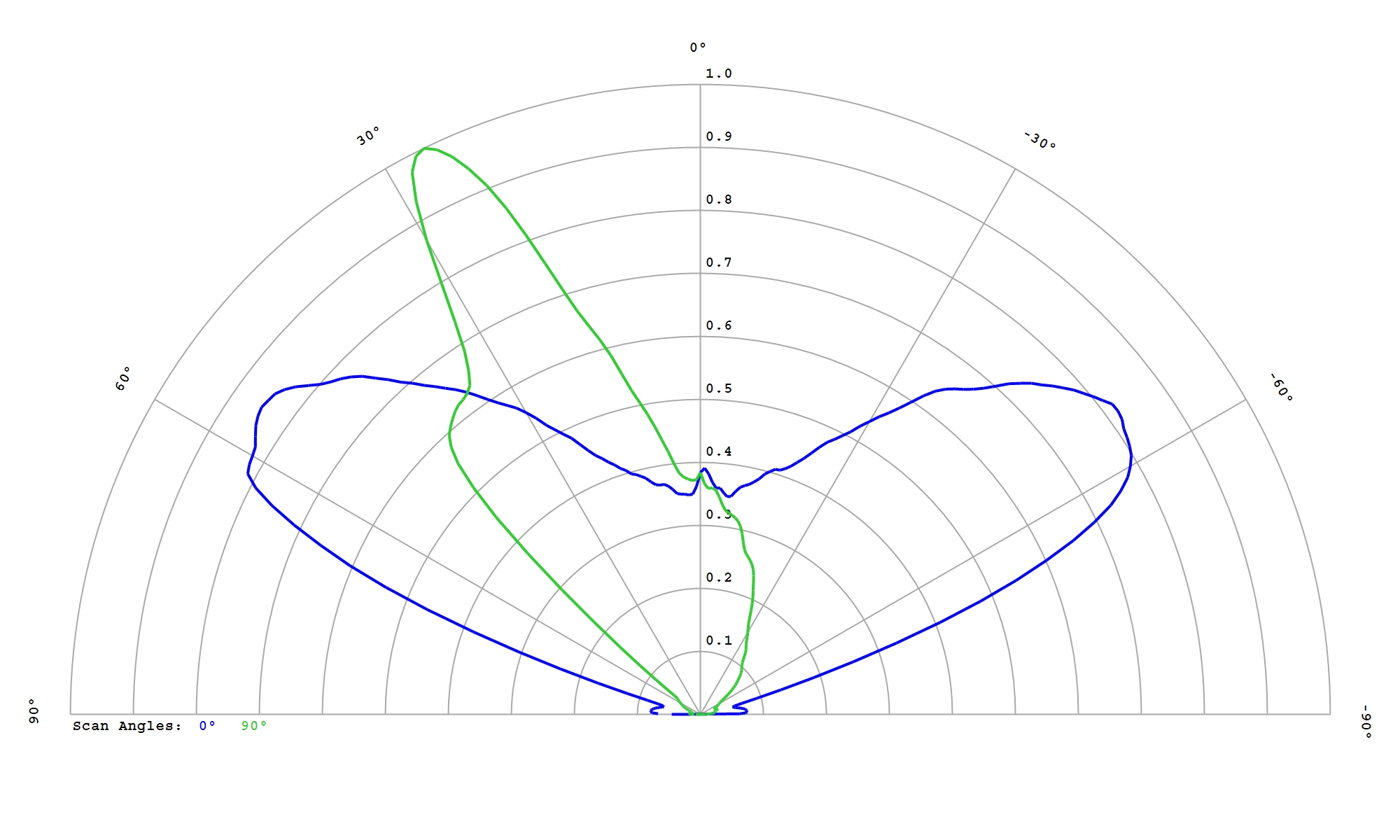

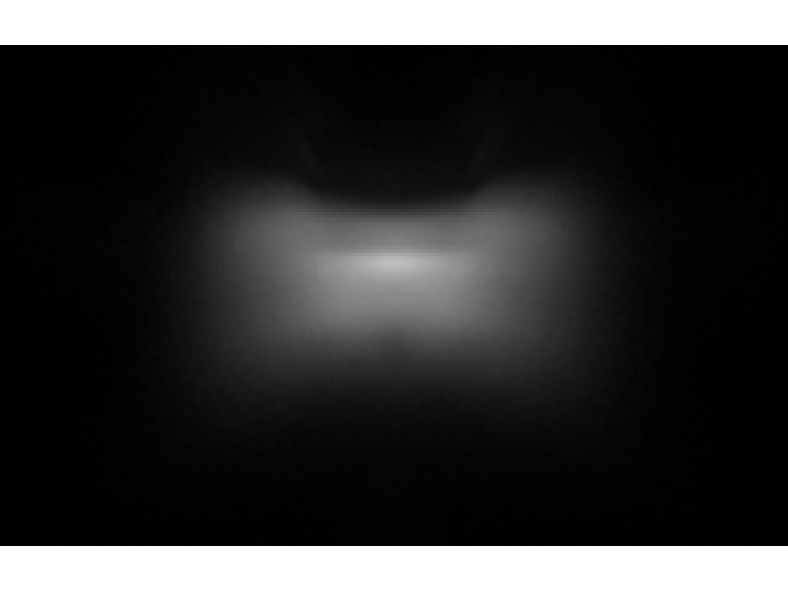

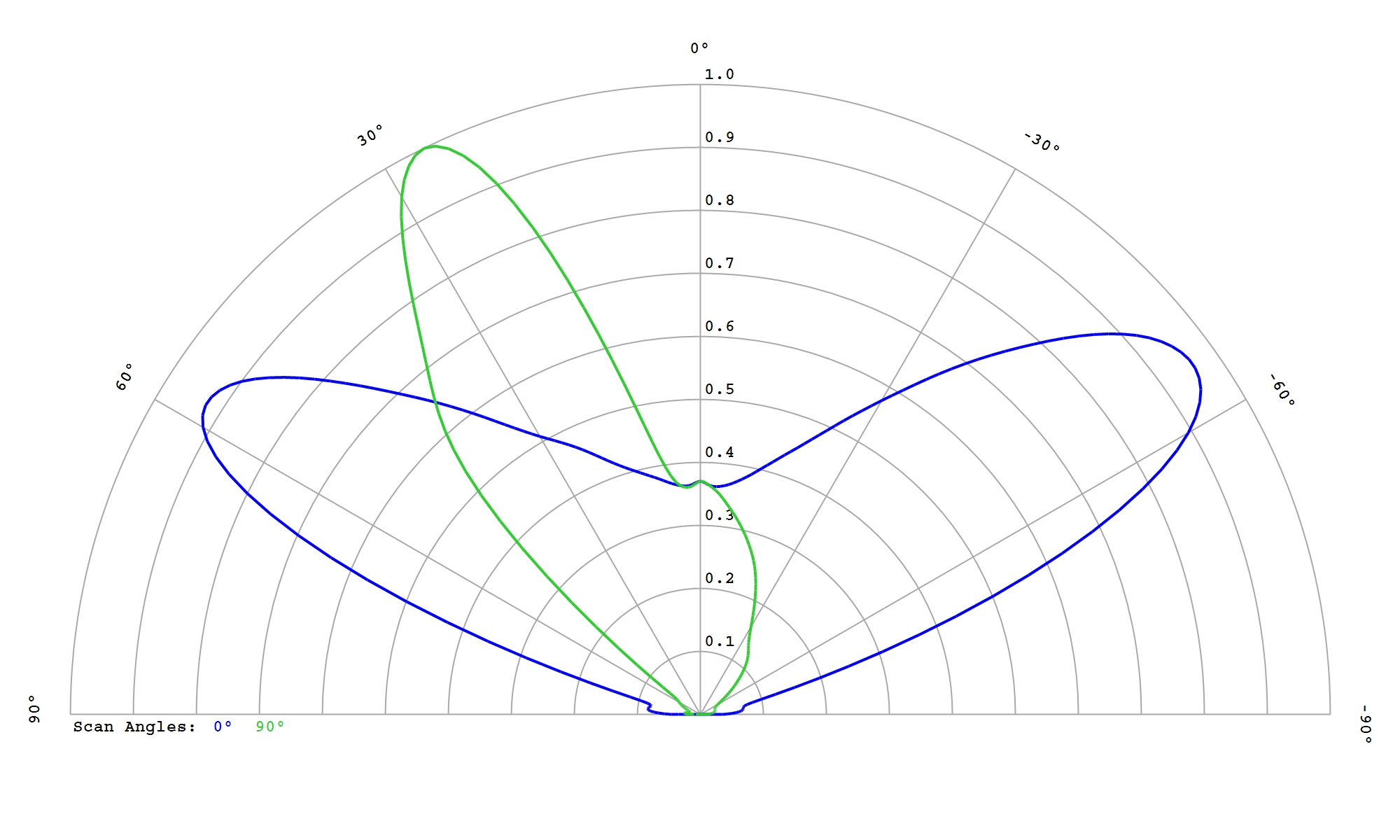

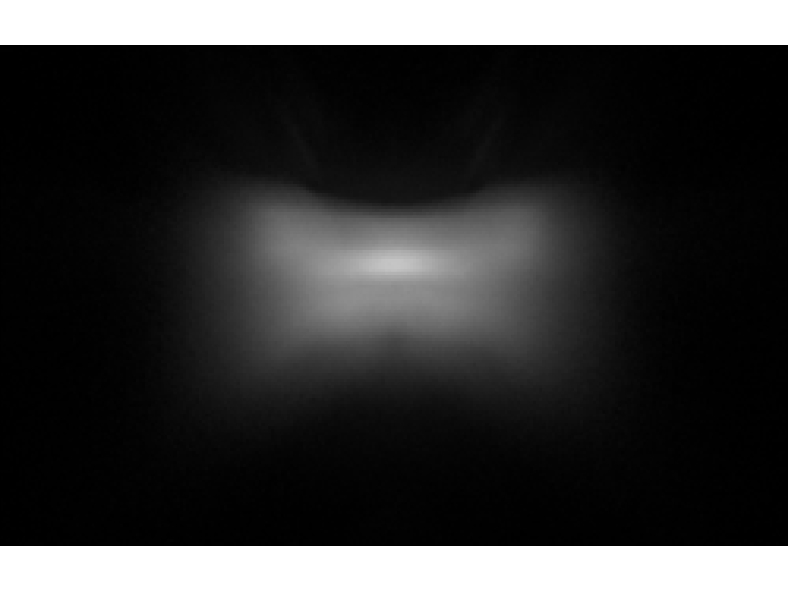

Cree JB2835B 3V J-Class White
Eff:
93.5%
FWHM:
138 x 35 x 27°
Cd/Im:
0.7
Download
Cree JB3030 3V P-Class White
Eff:
92.5%
FWHM:
135 x 33 x 25°
Cd/Im:
0.7
Download

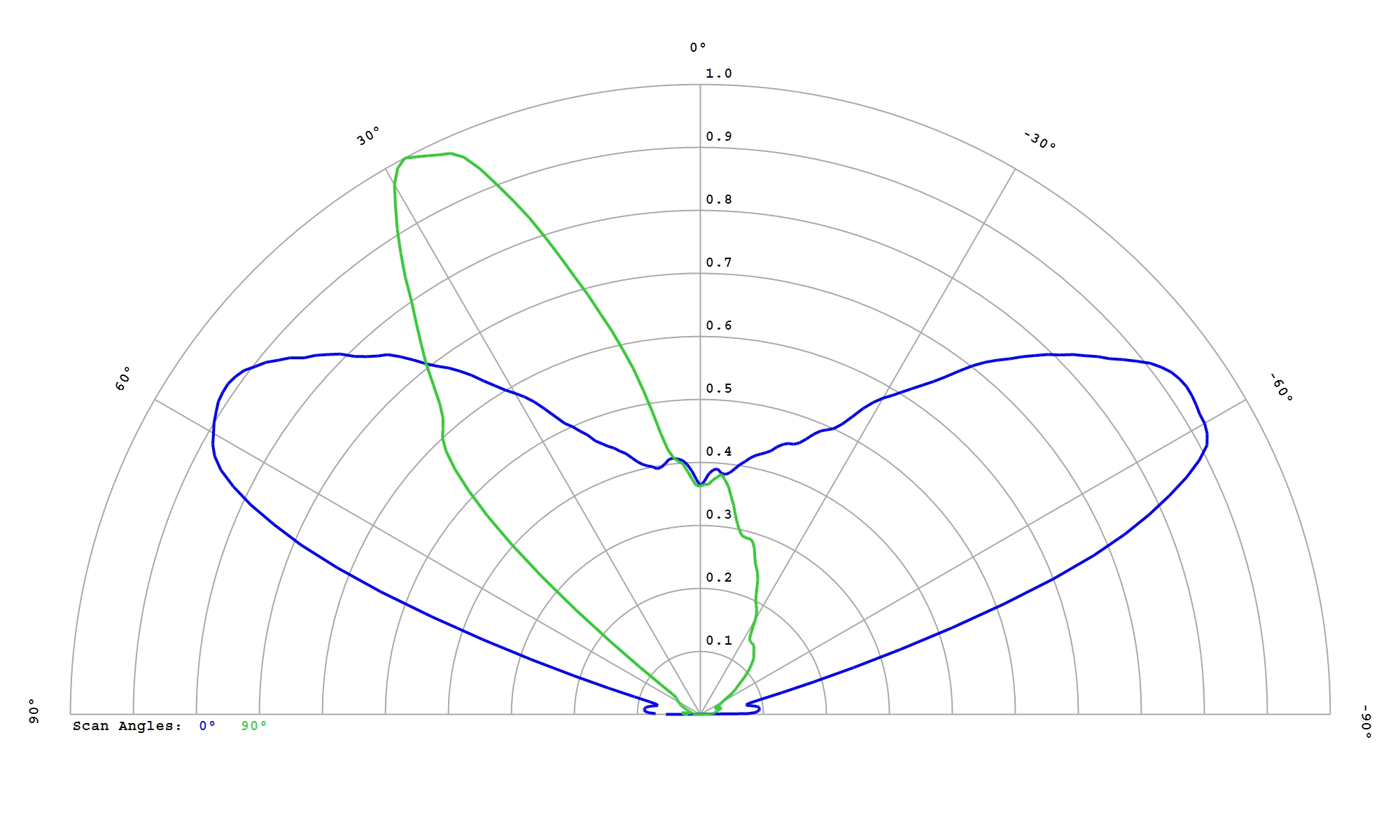

Cree JB3030C 3V E-Class White
Eff:
94.0%
FWHM:
140 x 37 x 28°
Cd/Im:
0.7
Download

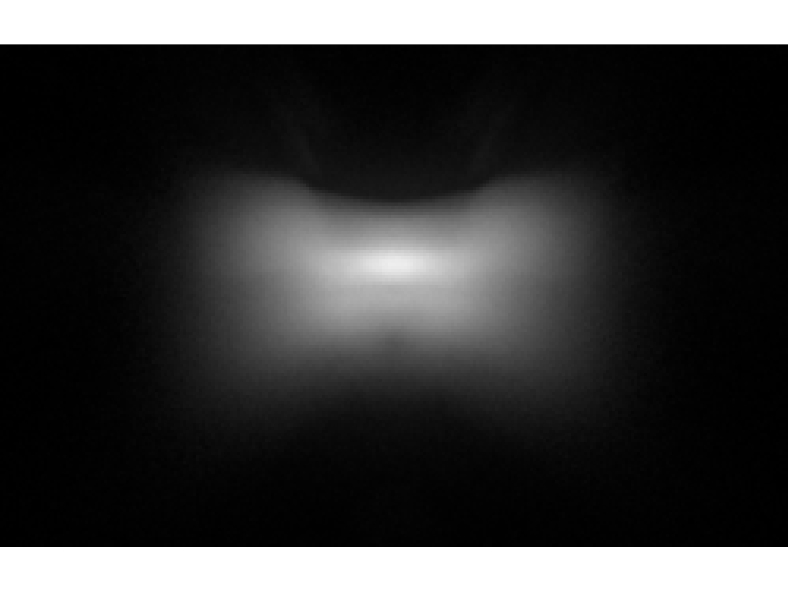

Cree JB3030C 3V F-Class White
Eff:
94.0%
FWHM:
140 x 35 x 27°
Cd/Im:
0.7
Download
Cree JE2835 3V PC Amber
Eff:
94.0%
FWHM:
142 x 19.5 x 27°
Cd/Im:
1.6
Download

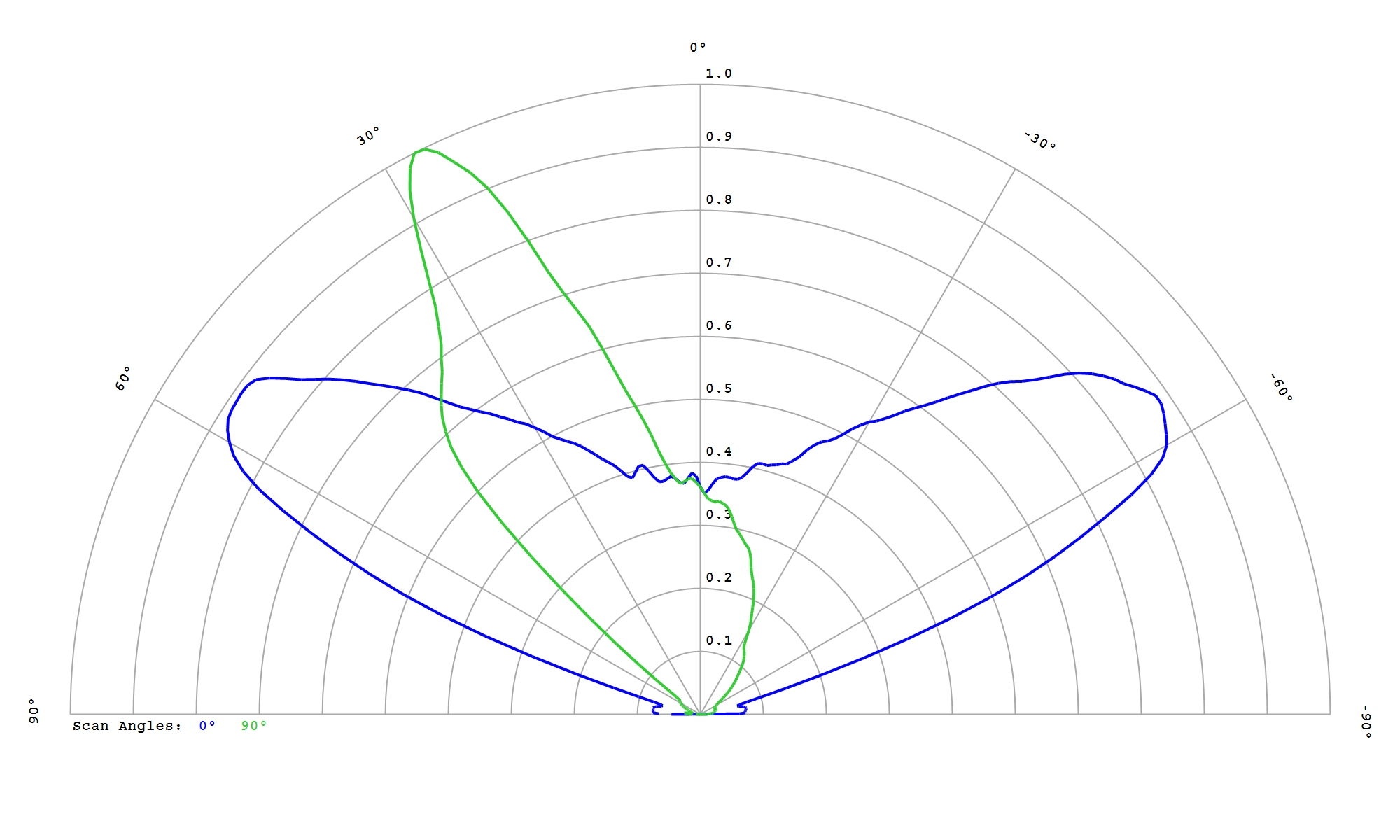

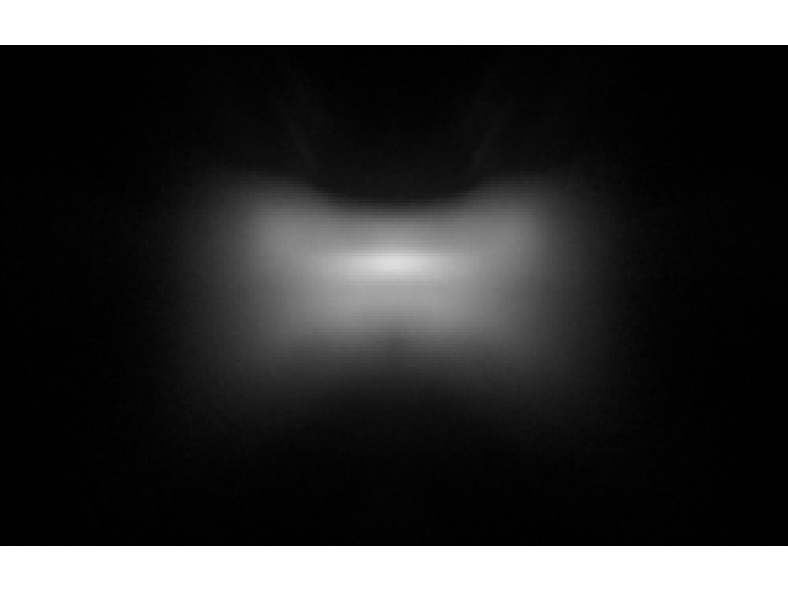

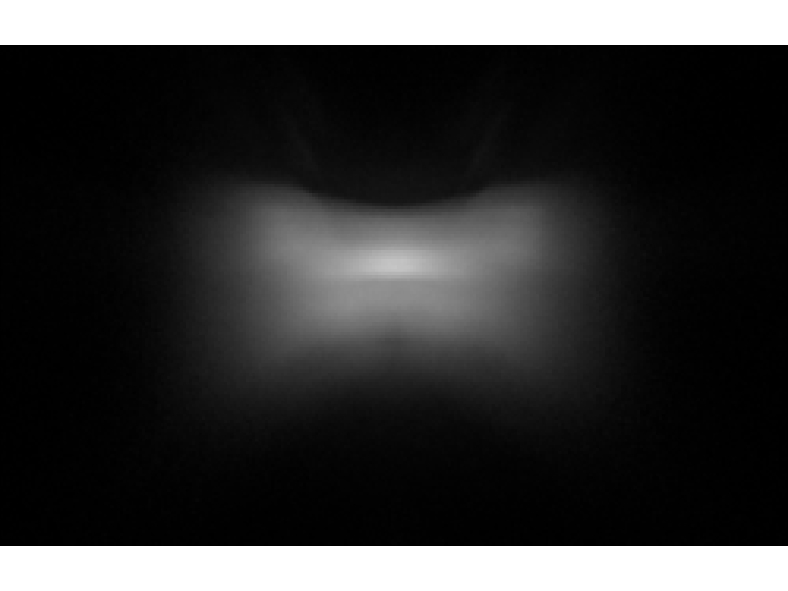

Cree JE2835 3V White
Eff:
94.0%
FWHM:
138 x 33 x 27°
Cd/Im:
0.8
Download
Cree JK2835 6V White
Eff:
94.0%
FWHM:
137 x 35 x 24°
Cd/Im:
0.8
Download
Cree XLamp CSP XD16 Cool White
Eff:
90.5%
FWHM:
137 x 29°
Cd/Im:
0.8
Download
Cree XLamp CSP XD16 Premium White
Eff:
93.0%
FWHM:
139 x 28 x 28°
Cd/Im:
1.0
Download
Cree XLamp XB-D PC Amber
Eff:
90.0%
FWHM:
144 x 39 x 31°
Cd/Im:
0.6
Download
Cree XLamp XB-D White
Eff:
85.6%
FWHM:
131x28x30°
Cd/Im:
0.4
Download
Cree XLamp XB-H White
Eff:
92.0%
FWHM:
139 x 49.5°
Cd/Im:
0.6
Download

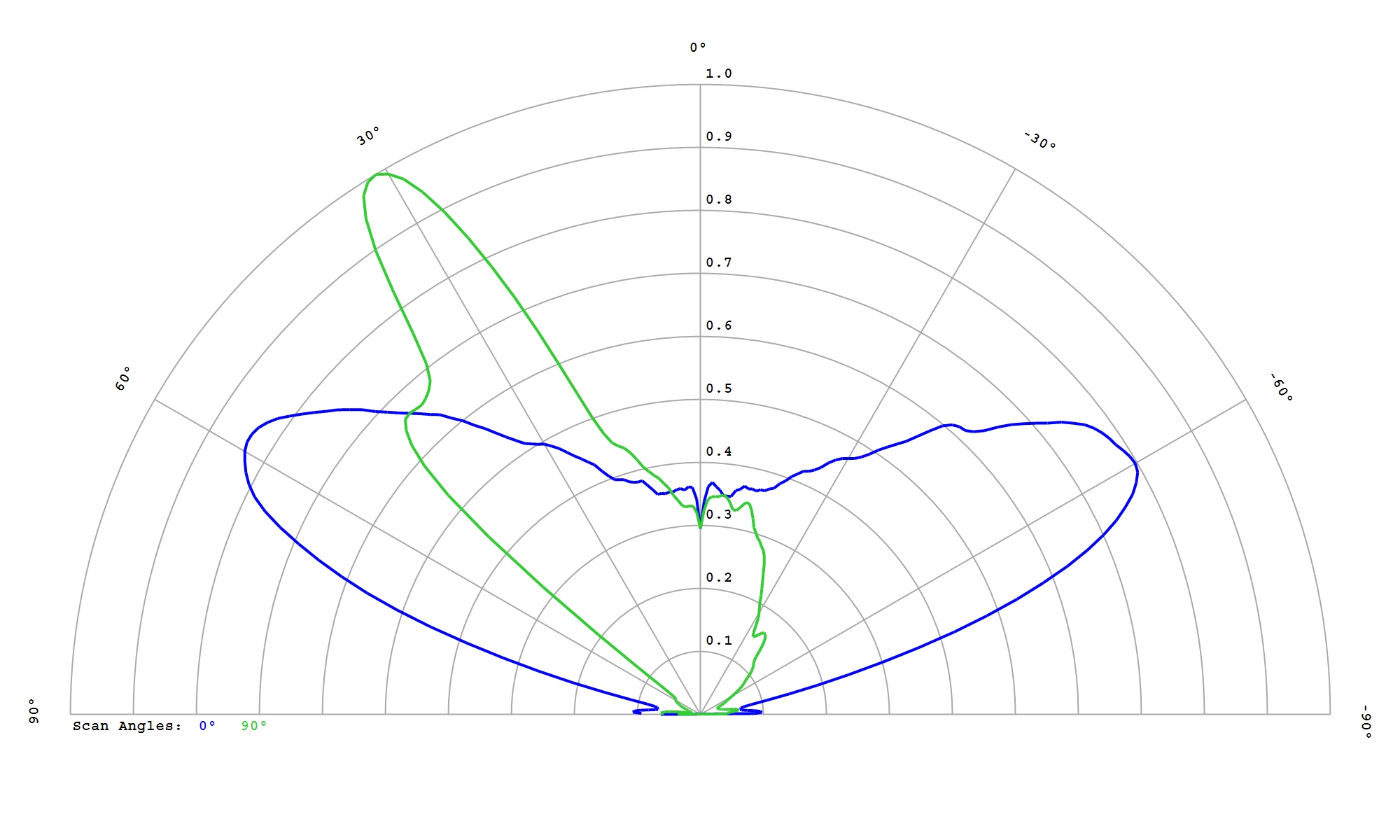

Cree XLamp XE-G PC Amber
Eff:
90.5%
FWHM:
145 x 29.5 x 32°
Cd/Im:
0.8
Download
Cree XLamp XE-G White
Eff:
91.0%
FWHM:
143 x 26.5 x 32°
Cd/Im:
0.9
Download
Cree XLamp XHP35 HI White
Eff:
86.5%
FWHM:
143 x 50 x 29°
Cd/Im:
0.6
Download
Cree XLamp XHP35.2 HI White
Eff:
86.0%
FWHM:
144 x 52 x 30°
Cd/Im:
0.5
Download
Cree XLamp XP-E2 PC Amber
Eff:
91.0%
FWHM:
142 x 56 x 32°
Cd/Im:
0.6
Download
Cree XLamp XP-G2 White
Eff:
83.0%
FWHM:
148x40x30°
Cd/Im:
0.3
Download
Cree XLamp XP-G3 White 1800K
Eff:
90.0%
FWHM:
145 x 52 x 30°
Cd/Im:
0.5
Download

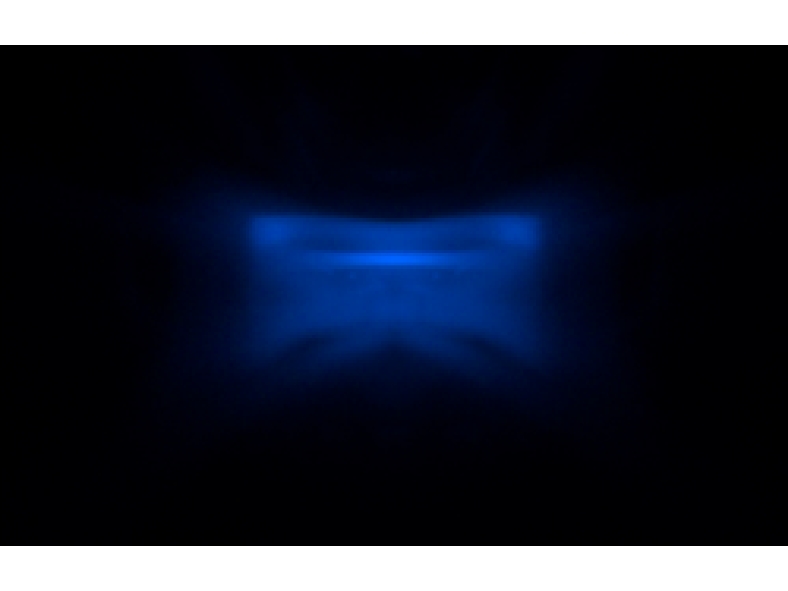

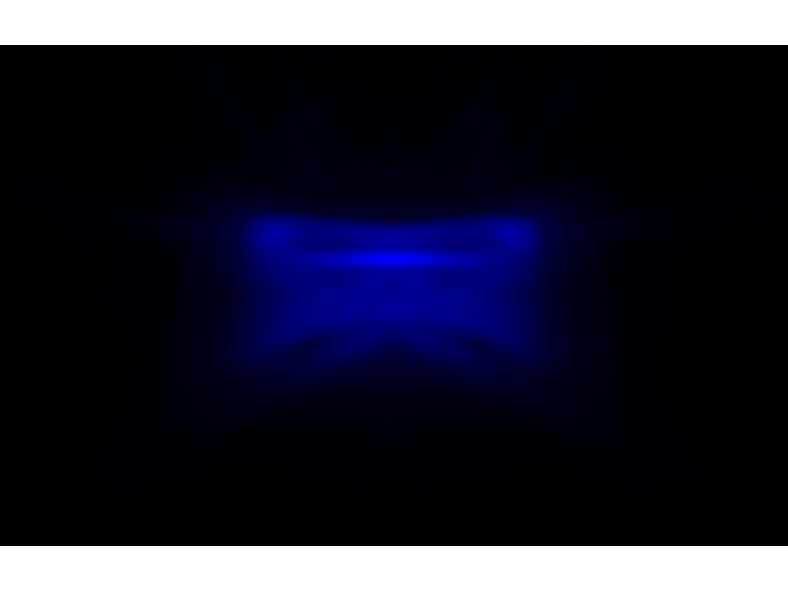

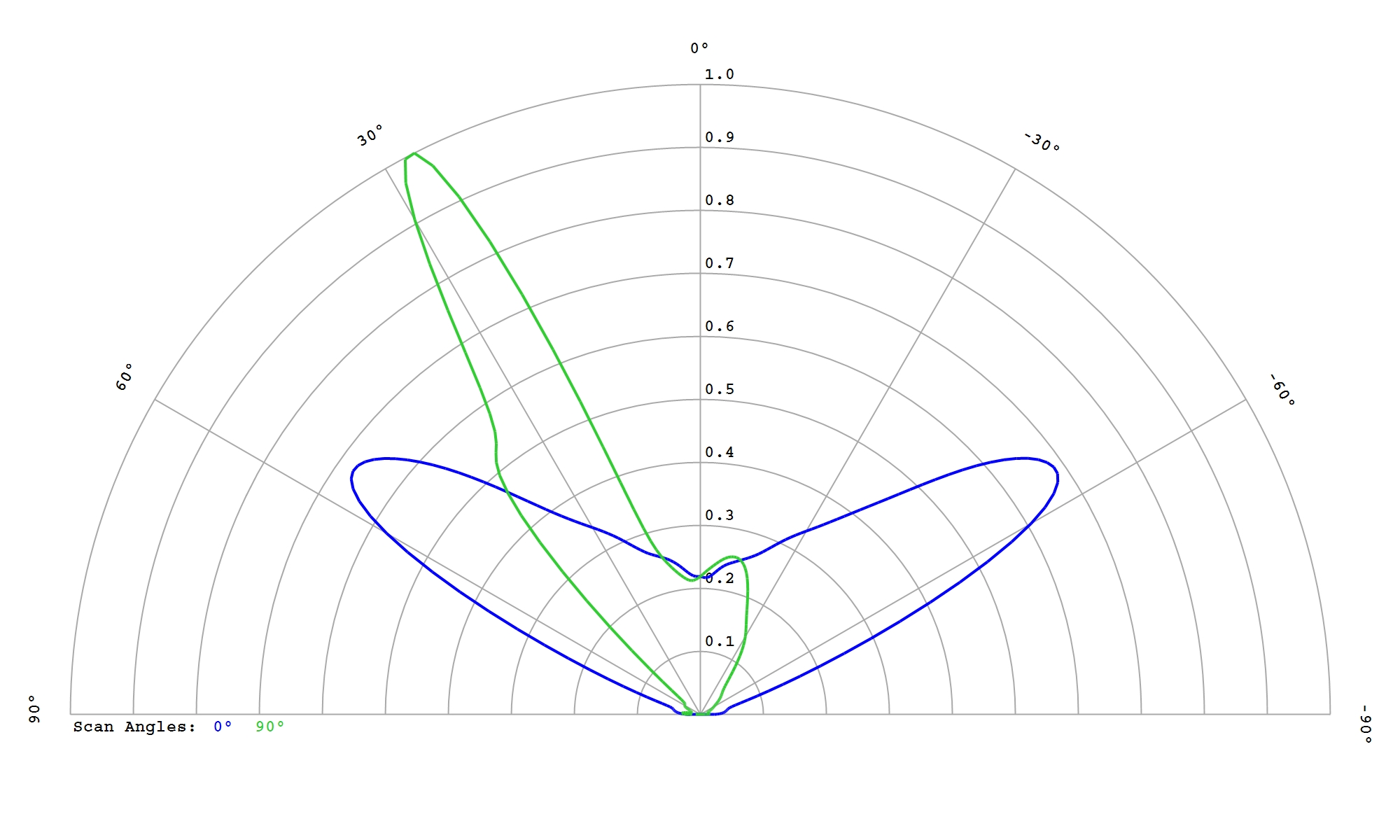

Cree XLamp XQ-A Blue
Eff:
94.0%
FWHM:
122 x 19 x 27°
Cd/Im:
2.3
Download

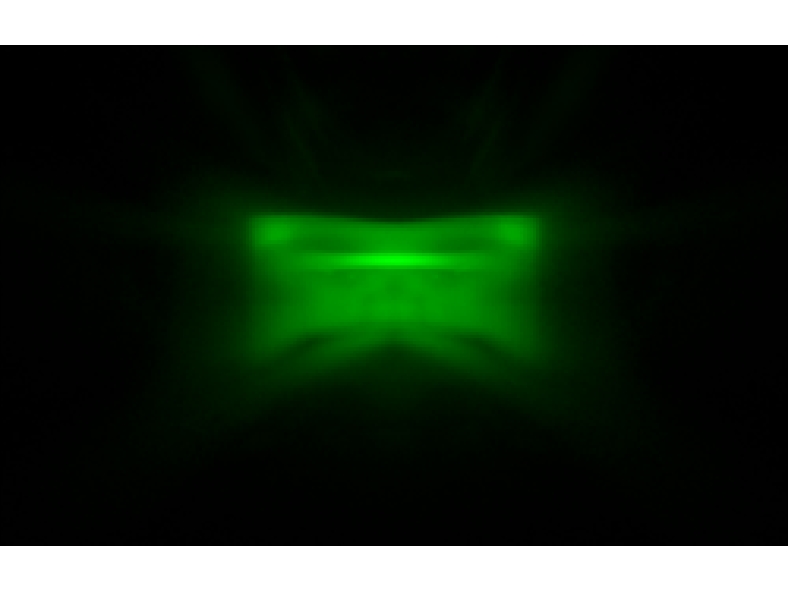

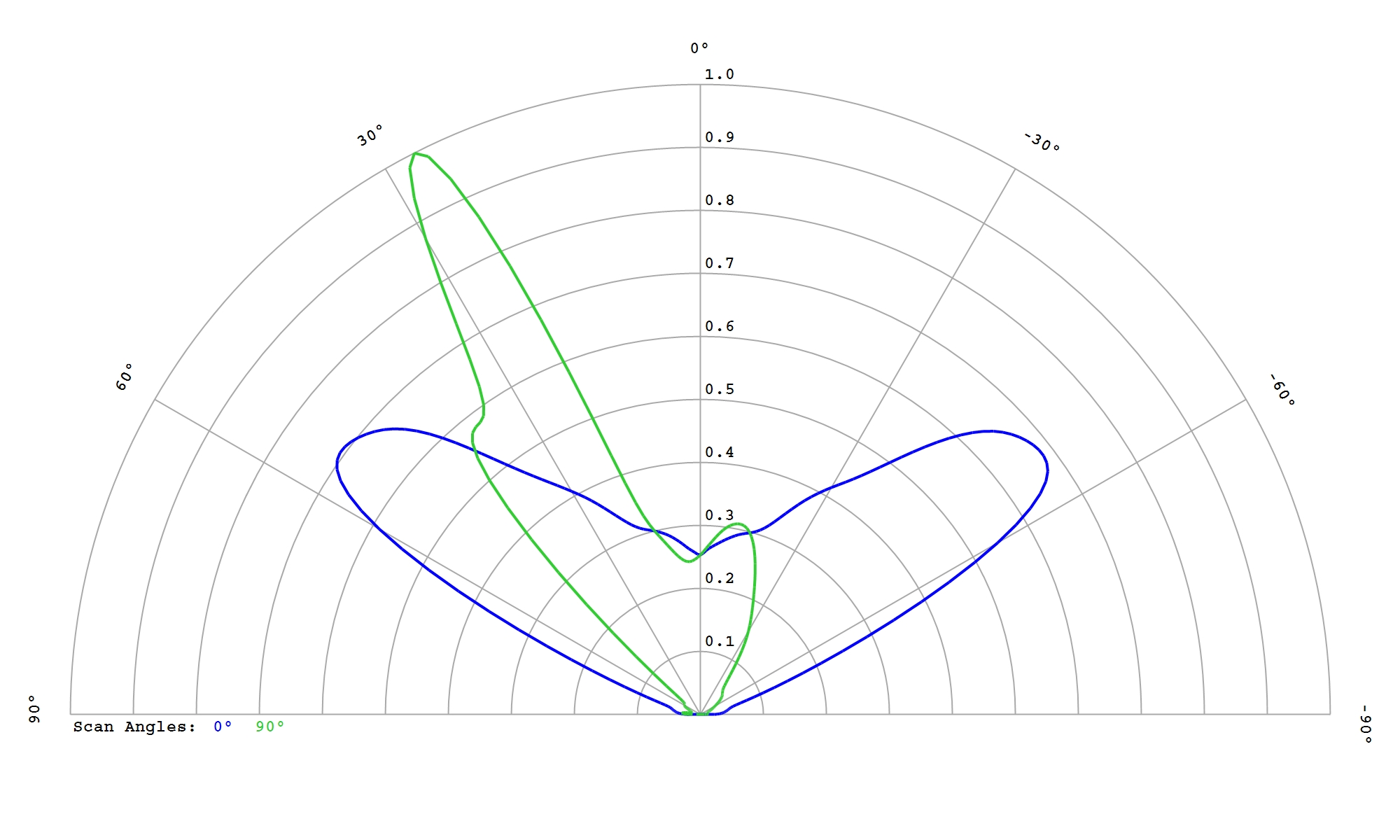

Cree XLamp XQ-A Green
Eff:
92.5%
FWHM:
122 x 16.5 X 28°
Cd/Im:
2.3
Download

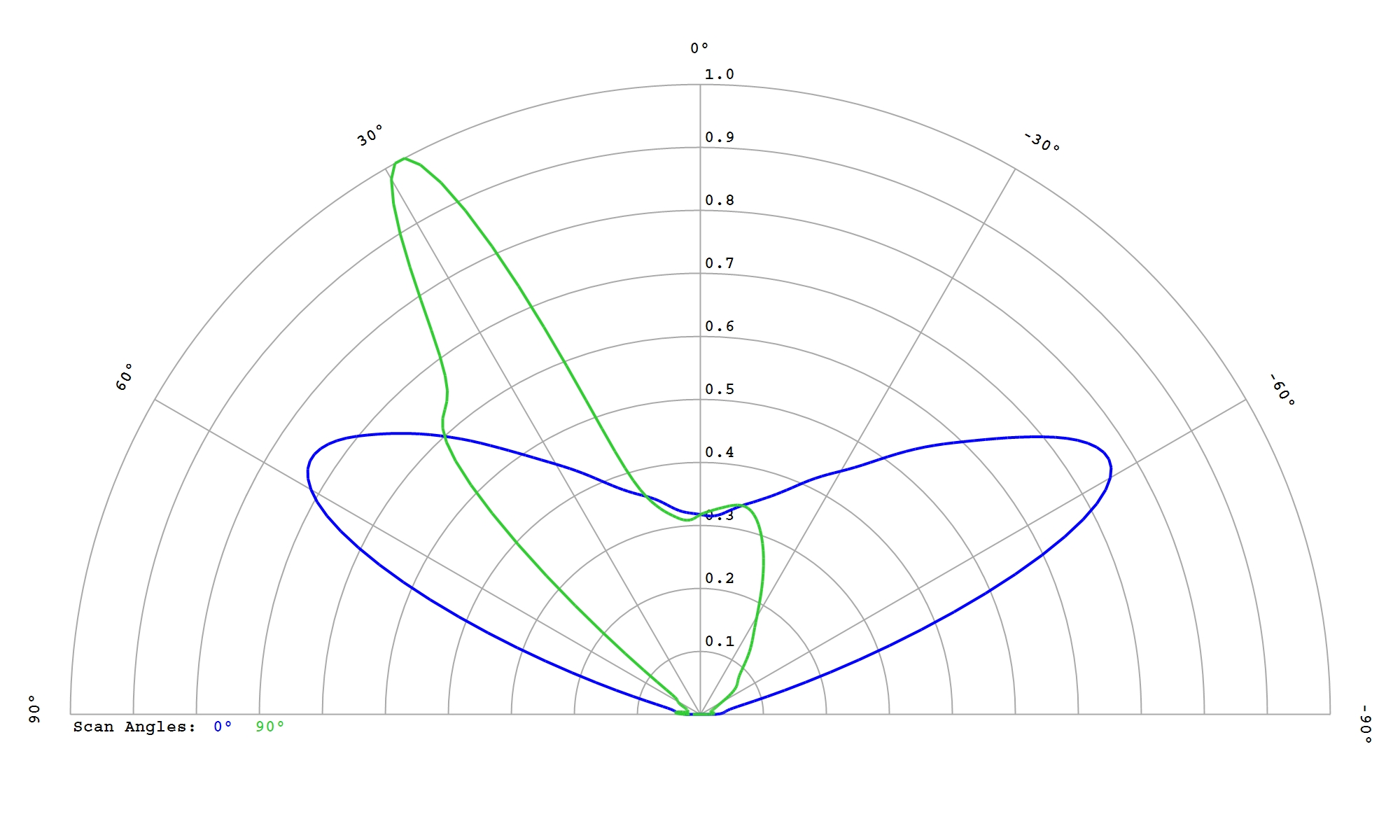

Cree XLamp XQ-A PC Amber
Eff:
92.5%
FWHM:
130 x 22 x 29°
Cd/Im:
1.4
Download

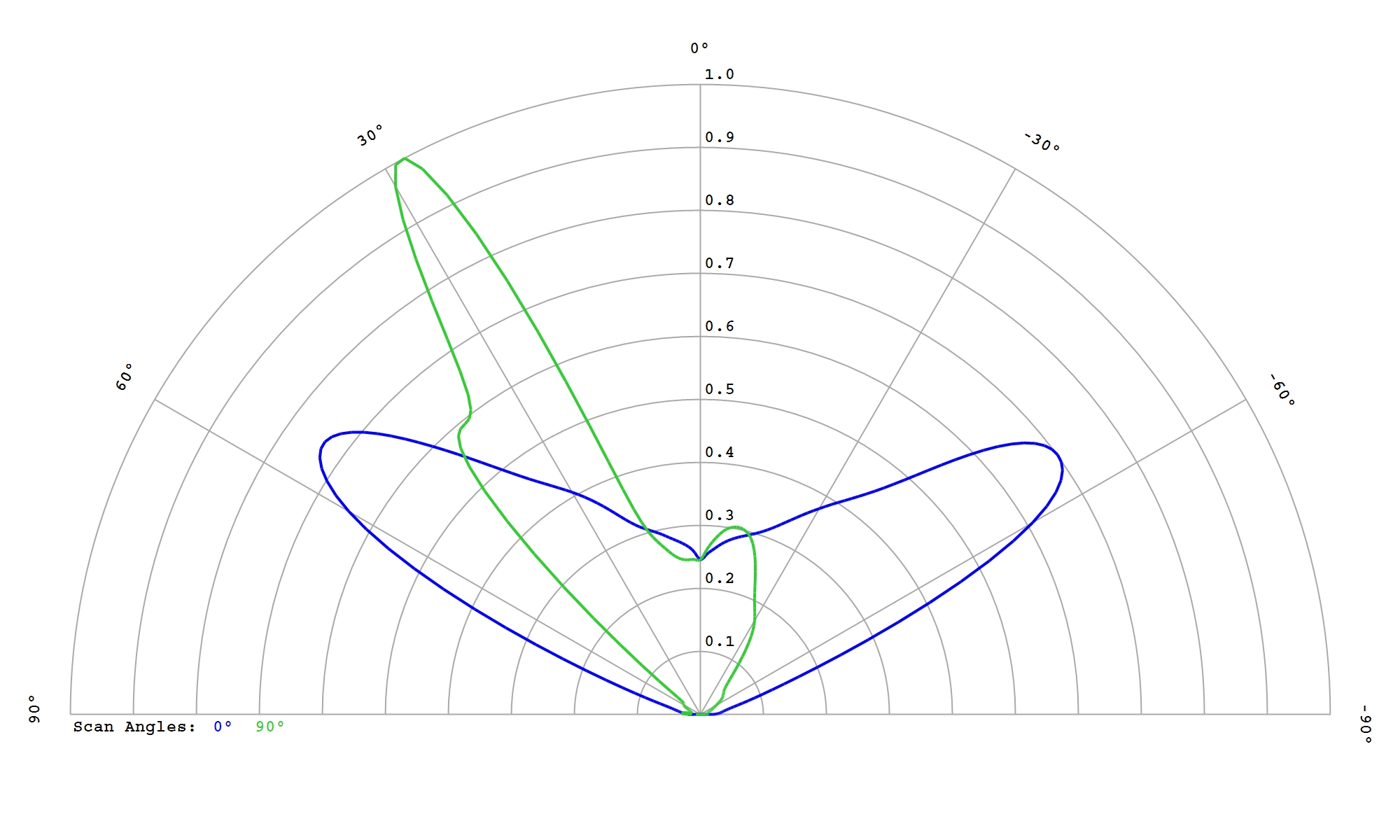

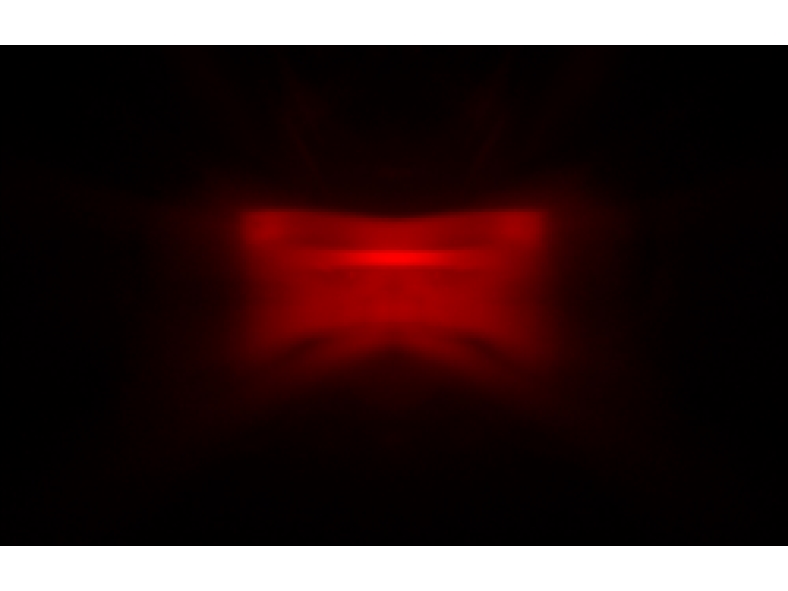

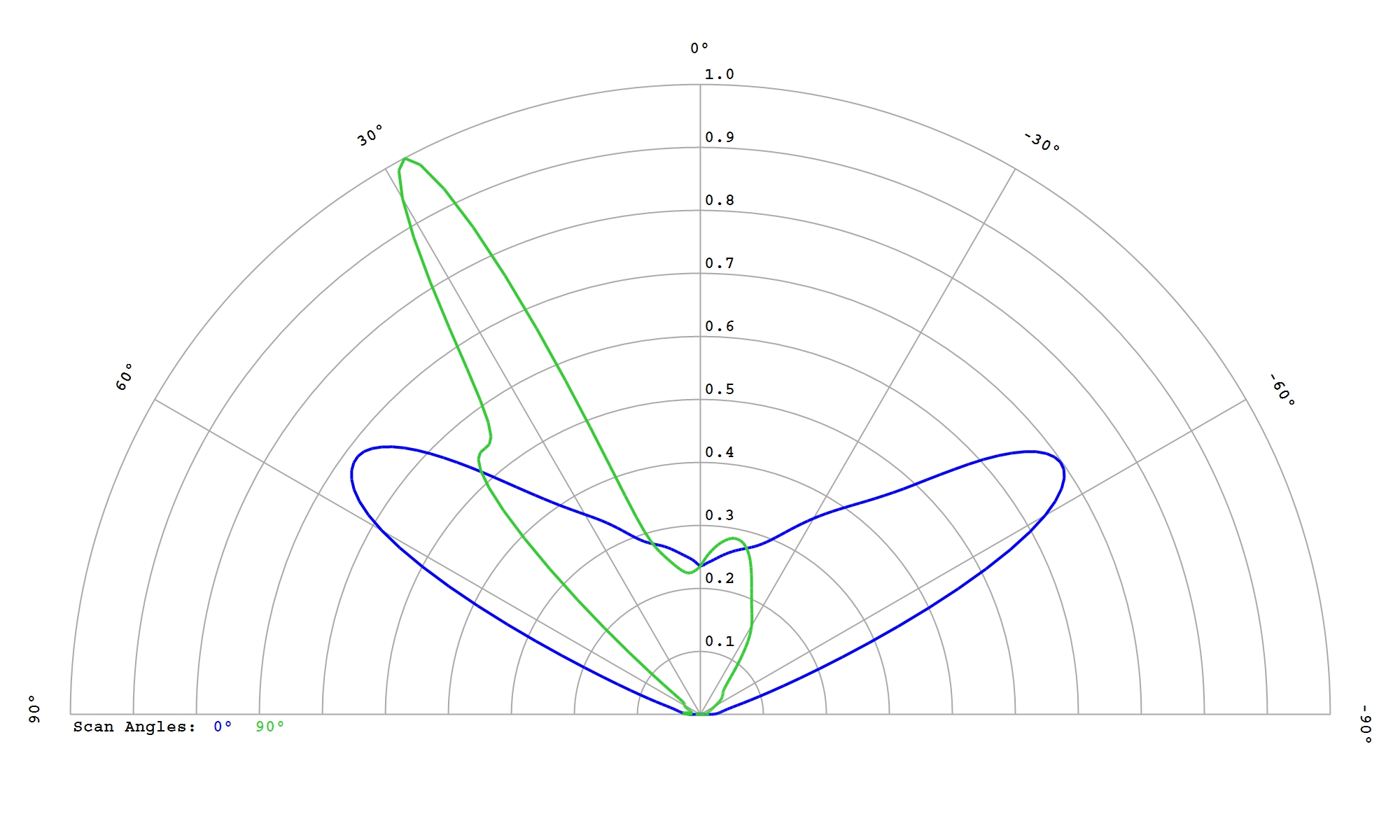

Cree XLamp XQ-A Red
Eff:
93.5%
FWHM:
128 x 22 x 29°
Cd/Im:
1.7
Download

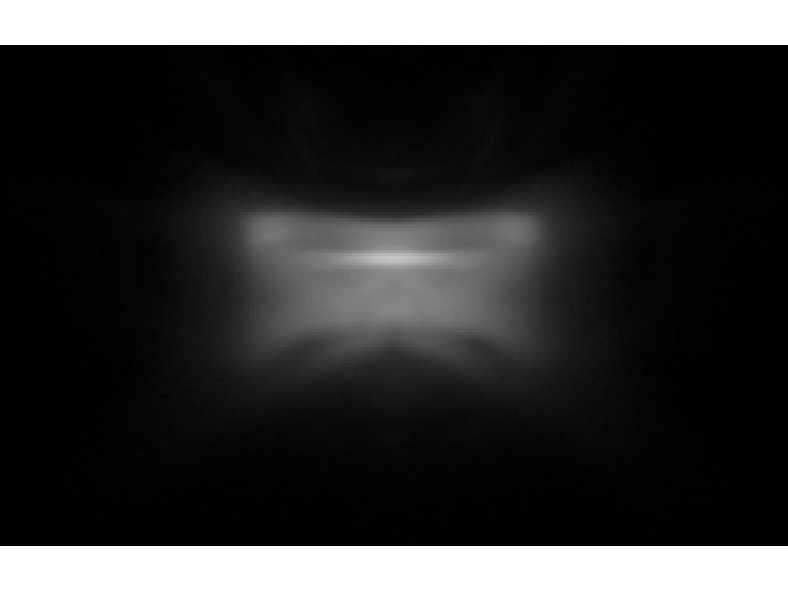

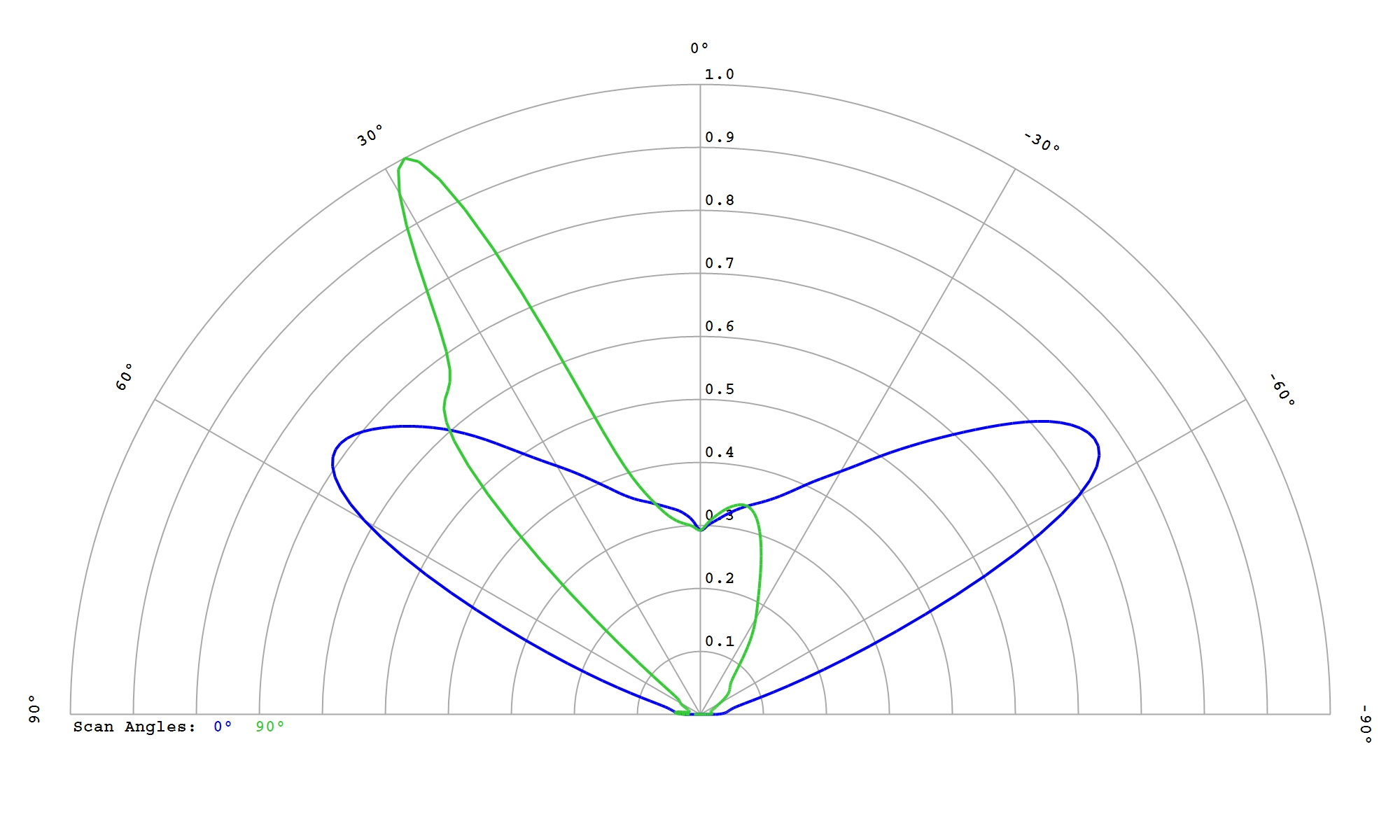

Cree XLamp XQ-A White
Eff:
92.5%
FWHM:
122 x 18 x 28°
Cd/Im:
2.0
Download

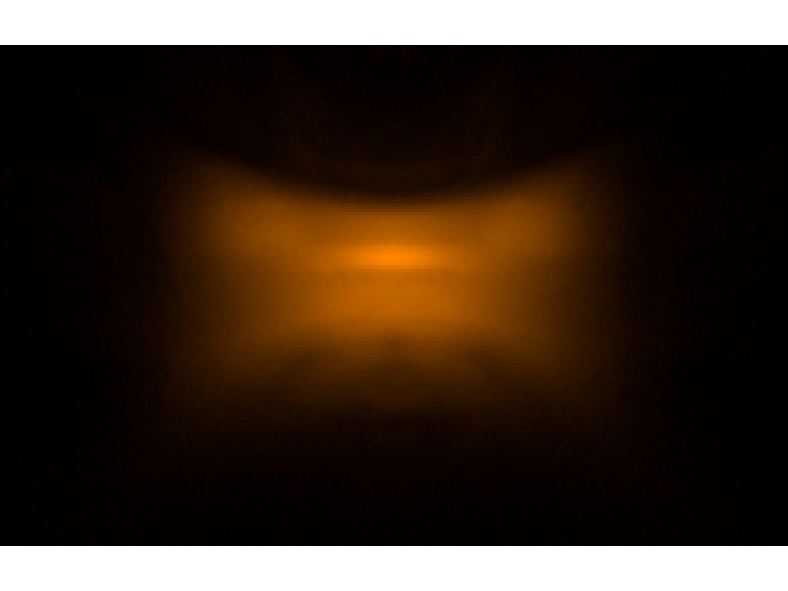

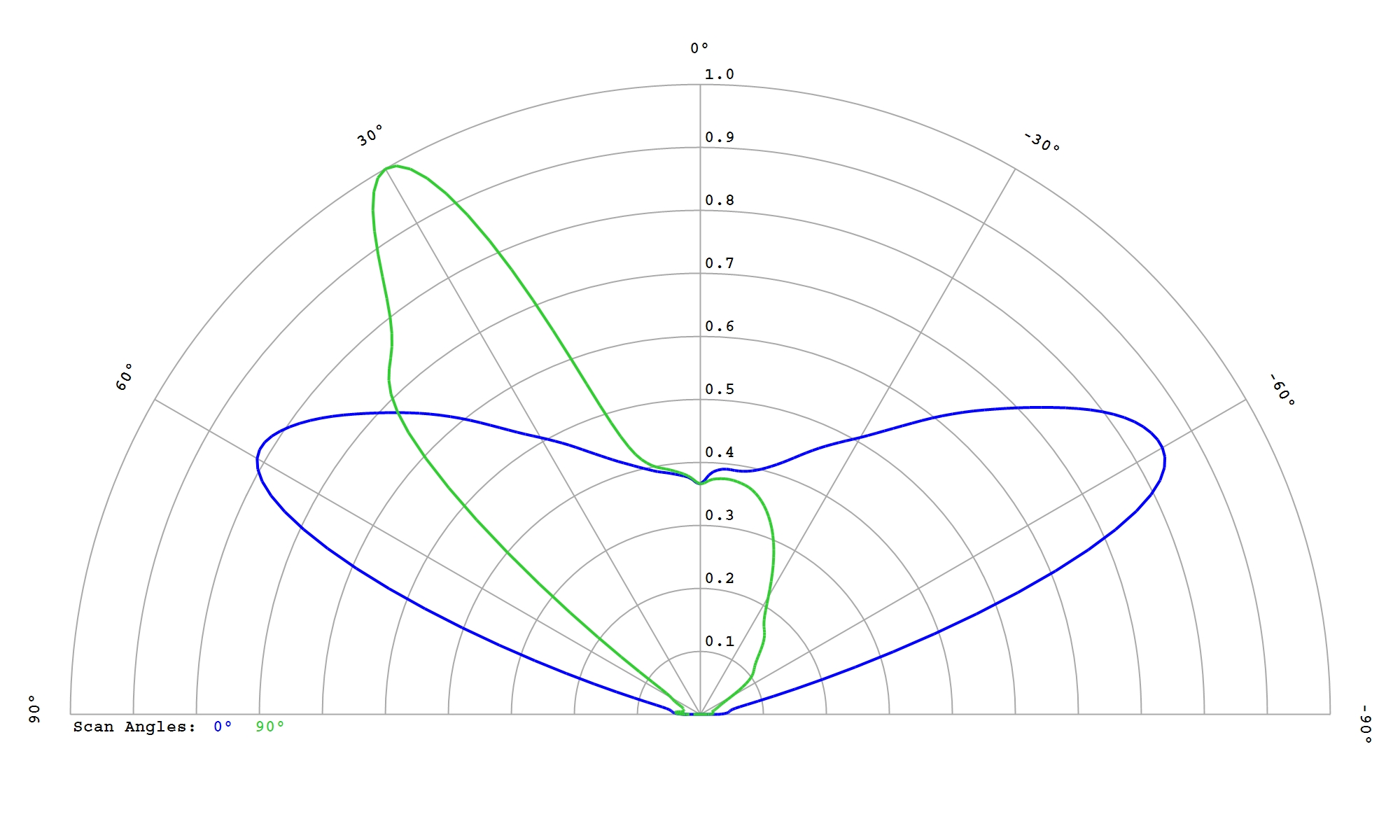

Cree XLamp XQ-E HD PC Amber
Eff:
91.5%
FWHM:
140 x 28.5 x 30°
Cd/Im:
0.9
Download

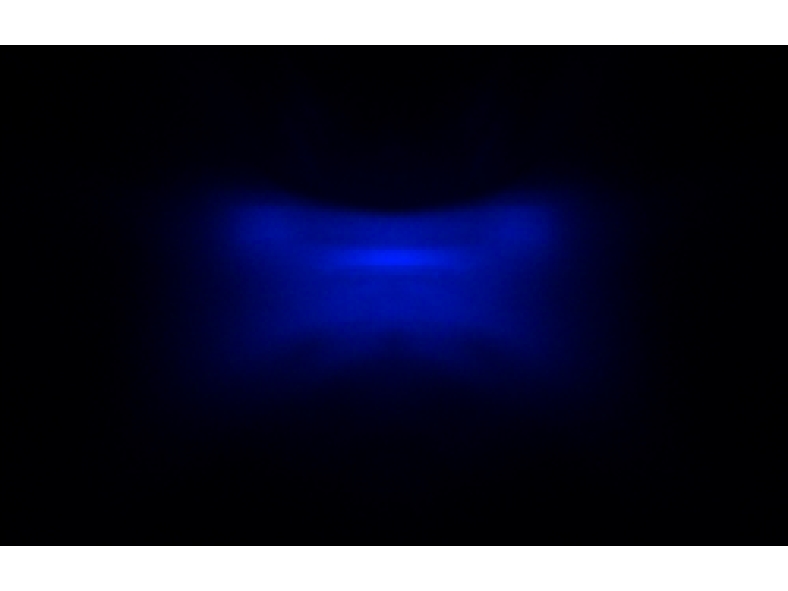

Cree XLamp XQ-E HI Blue
Eff:
92.5%
FWHM:
139 X 23.5 X 29°
Cd/Im:
1.2
Download

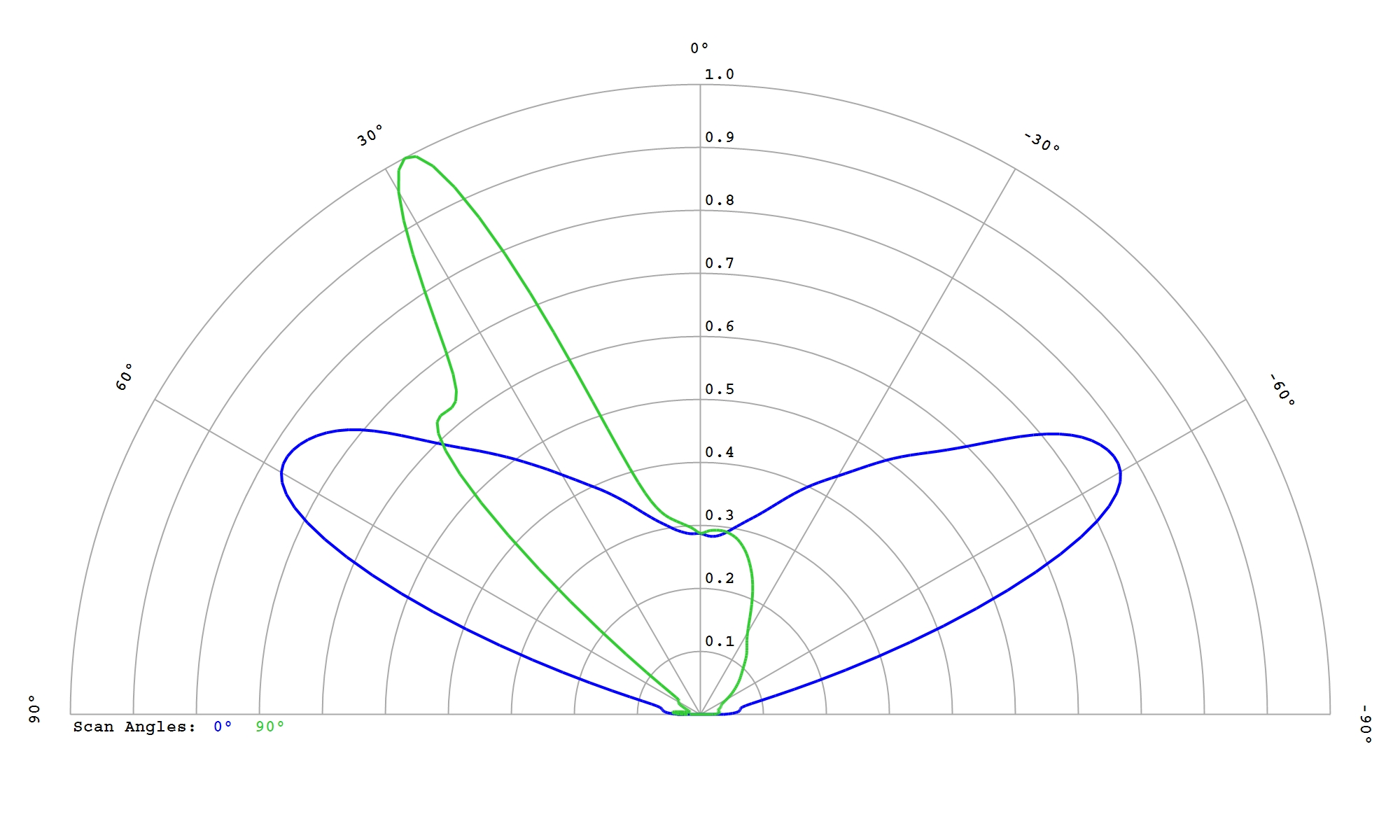

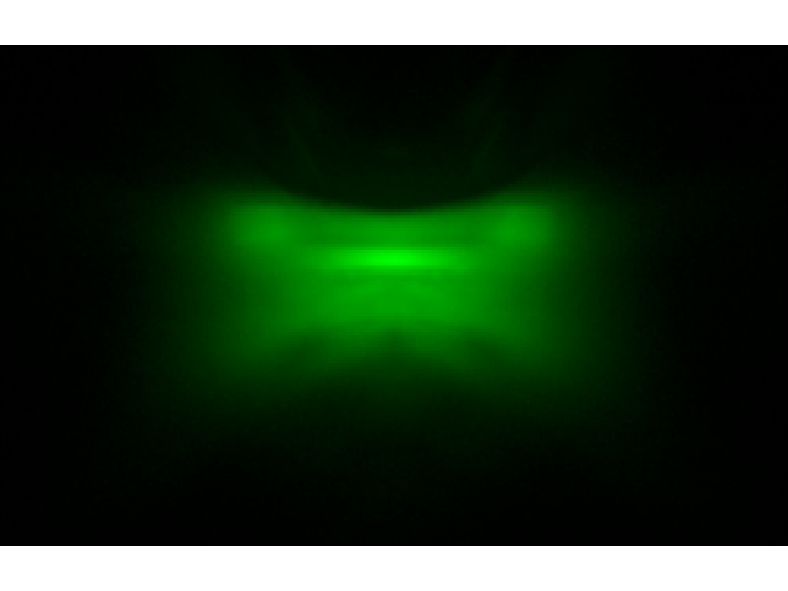

Cree XLamp XQ-E HI Green
Eff:
90.5%
FWHM:
138 x 23.5 x 28°
Cd/Im:
1.2
Download

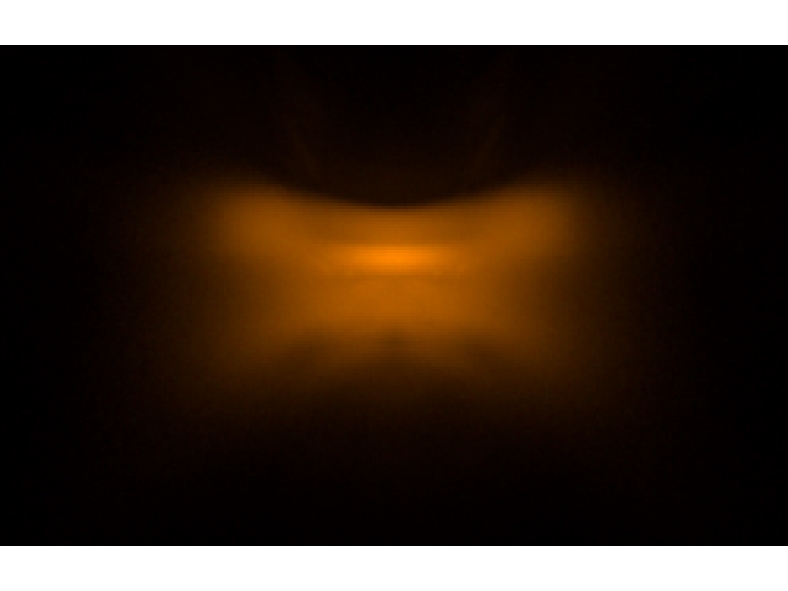

Cree XLamp XQ-E HI PC Amber
Eff:
93.0%
FWHM:
141 x 25 x 31°
Cd/Im:
1.3
Download
Cree XLamp XQ-E HI Red
Eff:
92.0%
FWHM:
136 x 22.5 x 28°
Cd/Im:
1.3
Download

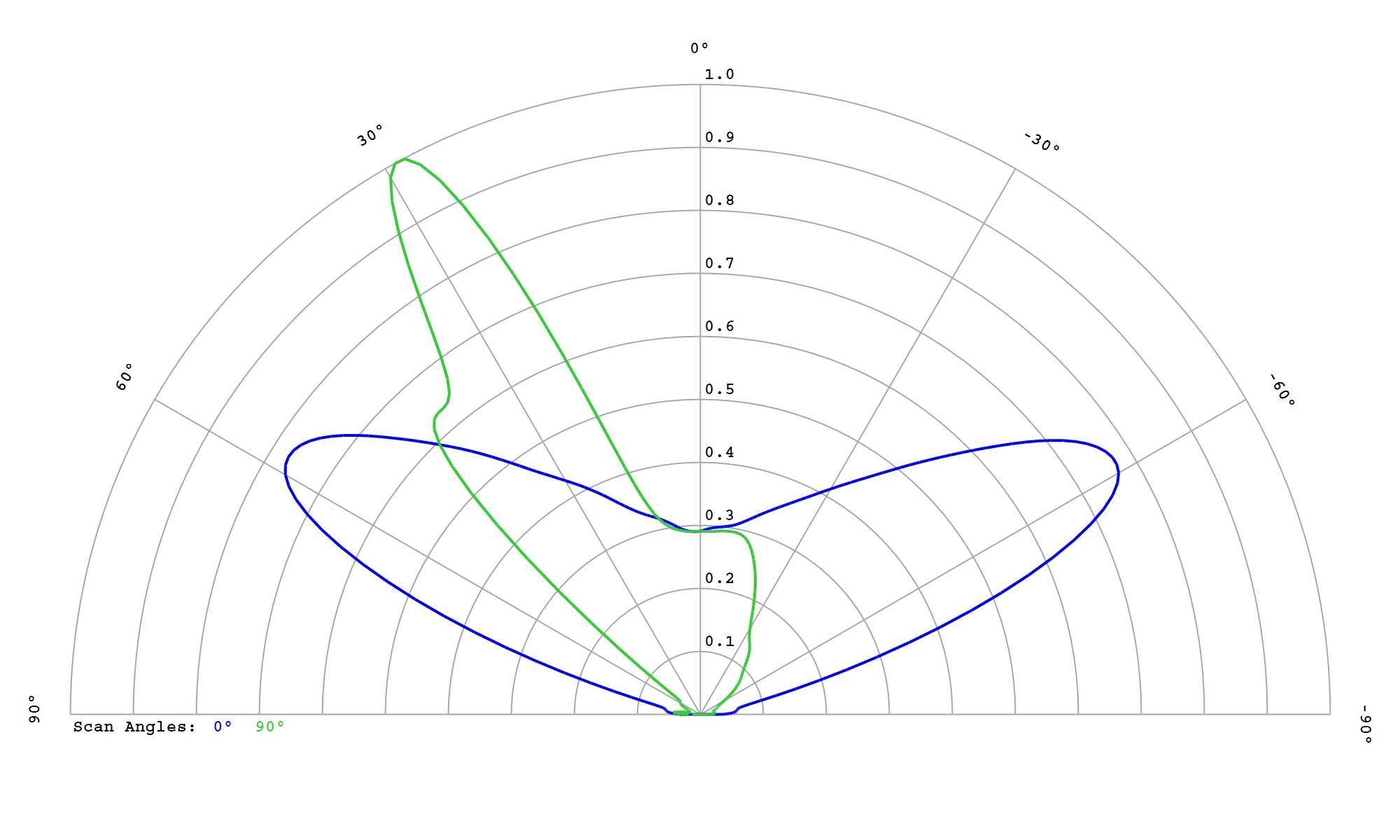

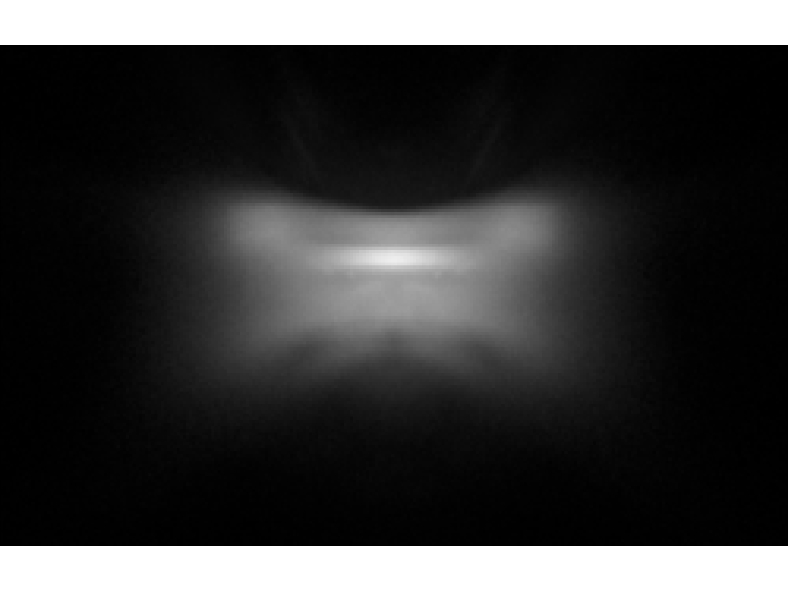

Cree XLamp XQ-E HI White
Eff:
92.0%
FWHM:
139 x 24 x 29°
Cd/Im:
1.4
Download

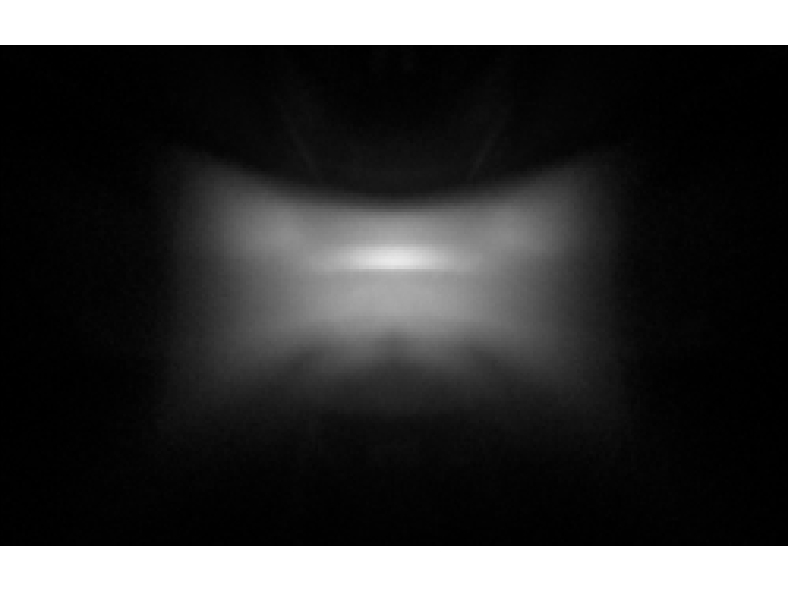

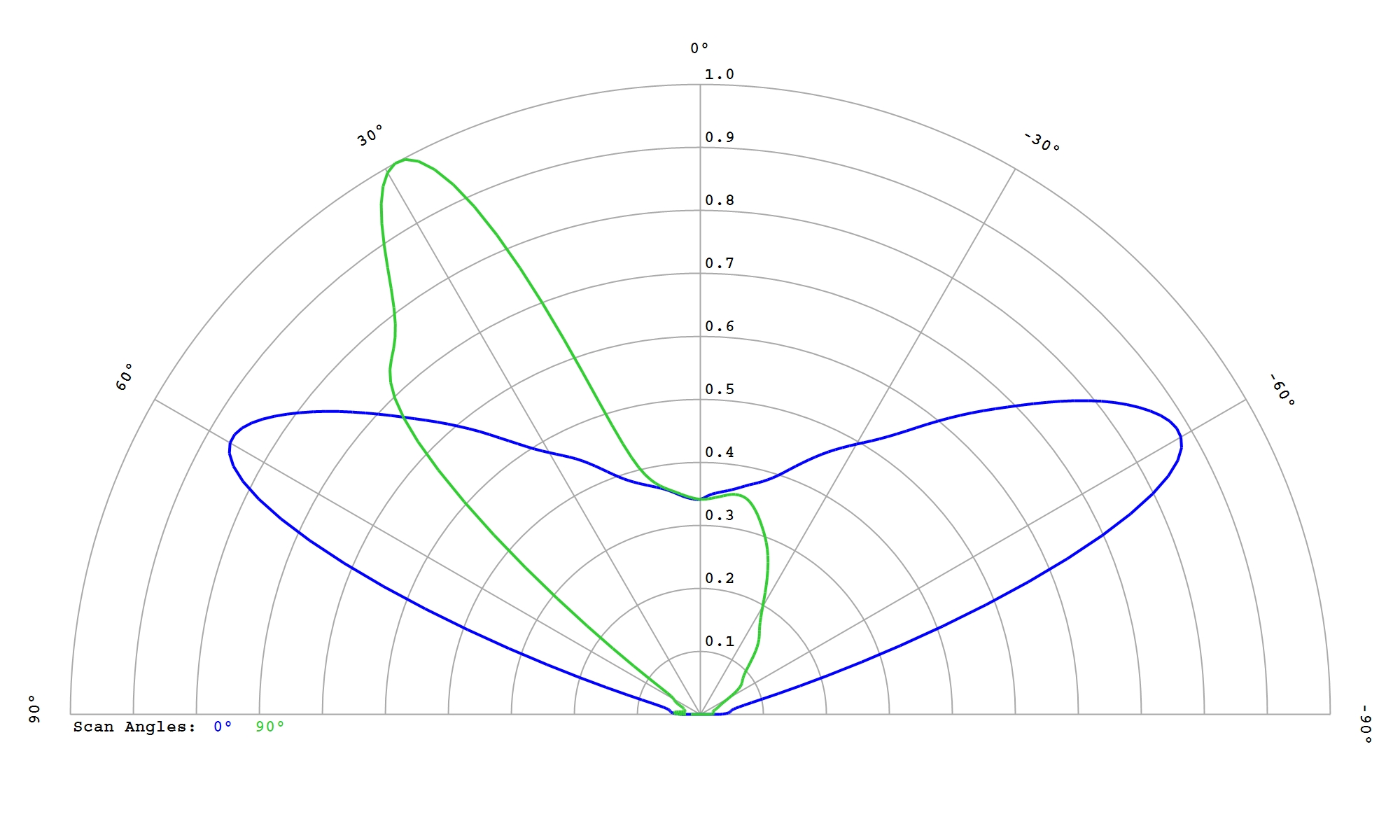

Cree XLamp XQ-E HD White
Eff:
83.0%
FWHM:
130x30x28°
Cd/Im:
1.0
Download
Cree XLamp XT-E White
Eff:
84.5%
FWHM:
138x39x26°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 2835 PC Amber
Eff:
94.0%
FWHM:
137 x 31 x 26°
Cd/Im:
1.0
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
94.0%
FWHM:
138 x 33 x 26°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 2835E 9V White
Eff:
94.0%
FWHM:
140 x 31 x 28°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
94.0%
FWHM:
140 x 37 x 24°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 2835S 3V White
Eff:
94.0%
FWHM:
140 x 36 x 25°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
94.0%
FWHM:
140 x 36 x 25°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3014 White
Eff:
94.0%
FWHM:
136 x 27.5 x 26°
Cd/Im:
1.3
Download

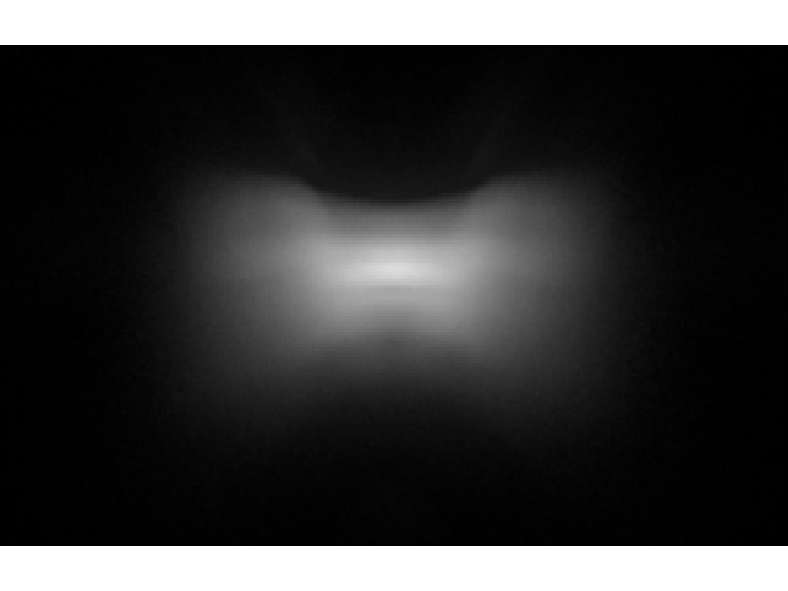

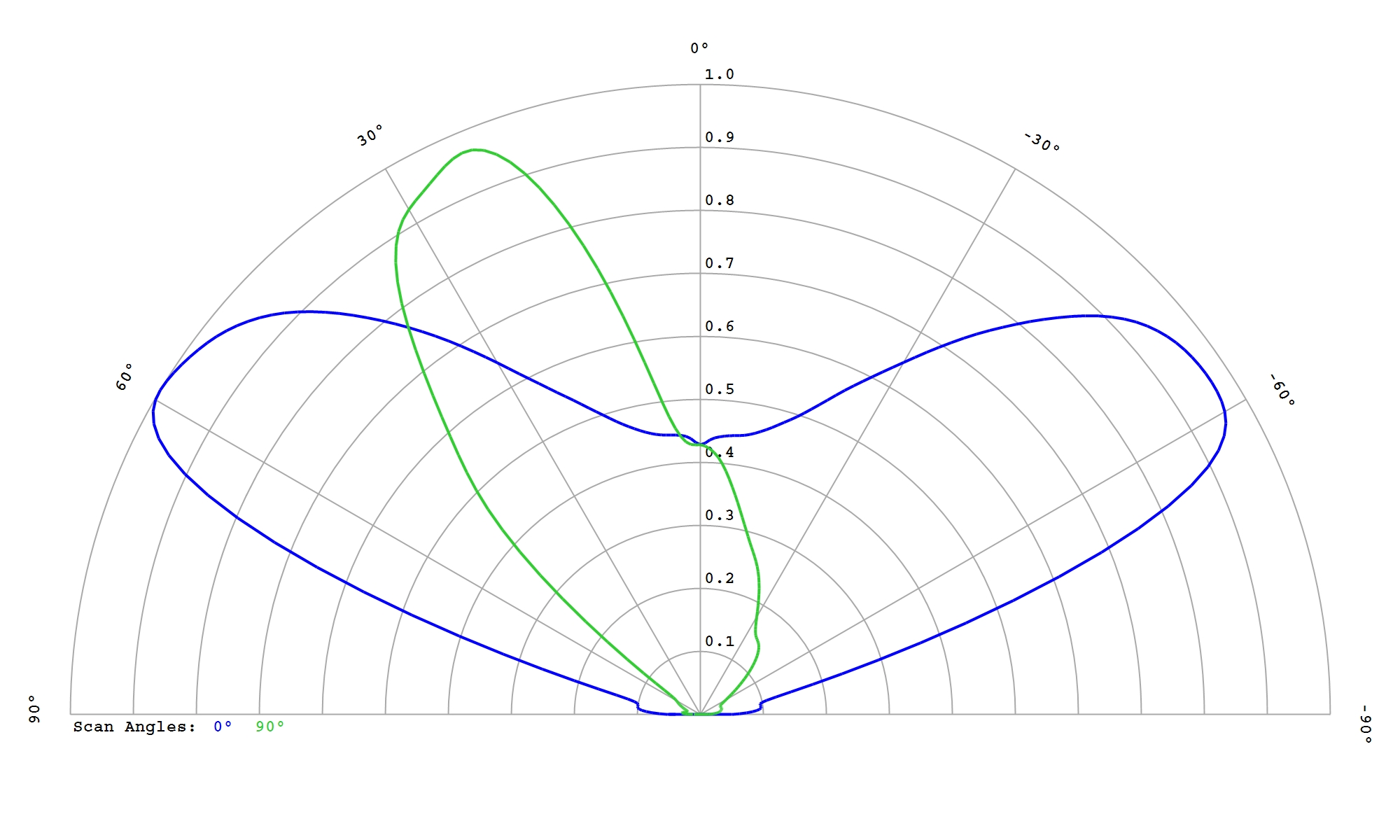

LUMILEDS LUXEON 3030 2D White
Eff:
94.0%
FWHM:
135 x 28 x 25°
Cd/Im:
0.9
Download

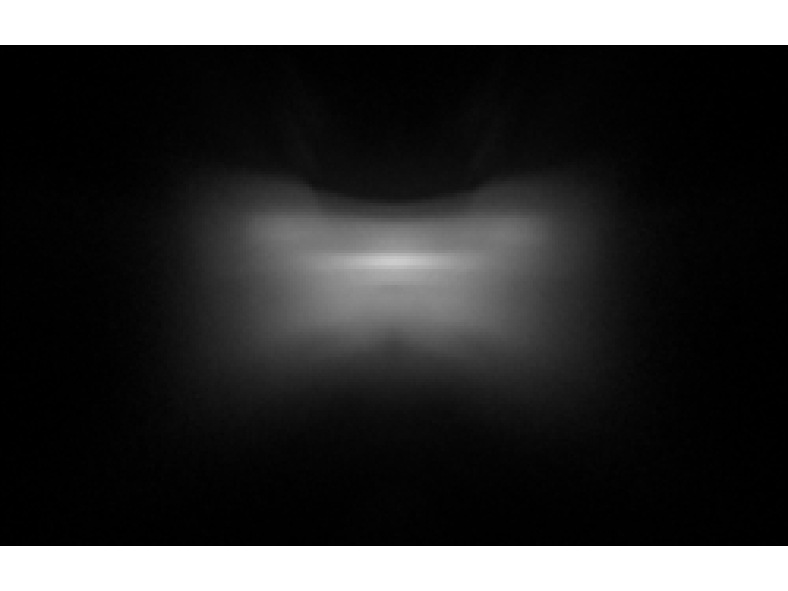

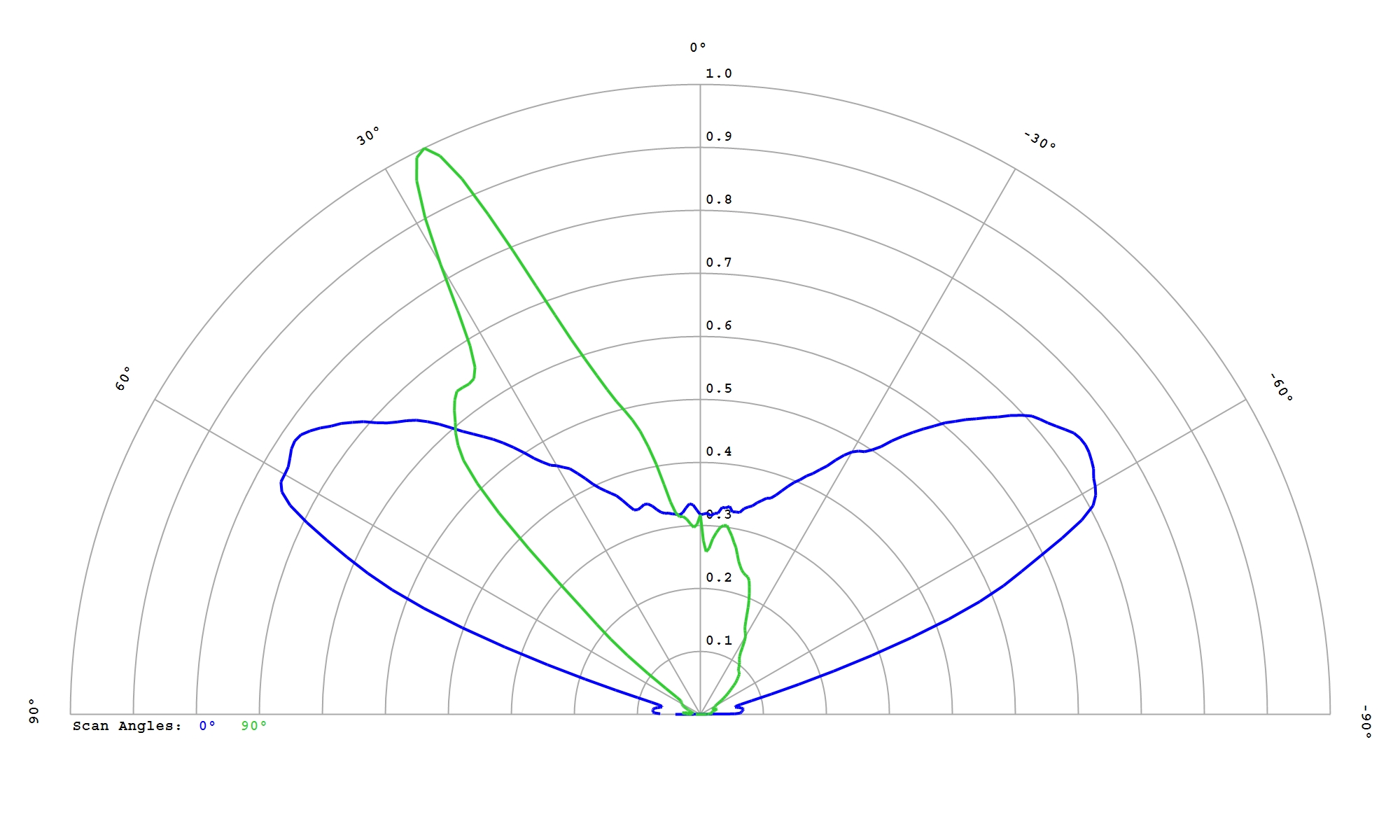

LUMILEDS LUXEON 3030 HE White
Eff:
94.0%
FWHM:
140 x 29.5 x 26°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 3535L PC Amber
Eff:
94.0%
FWHM:
139 x 28 x 27°
Cd/Im:
0.9
Download
LUMILEDS LUXEON C Blue
Eff:
88.0%
FWHM:
153 x 27.5 x 31°
Cd/Im:
0.9
Download
LUMILEDS LUXEON C Lime
Eff:
88.5%
FWHM:
150 x 28.0 x 31°
Cd/Im:
0.9
Download
LUMILEDS LUXEON C PC Amber
Eff:
84.0%
FWHM:
153 x 30 x 32°
Cd/Im:
0.8
Download
LUMILEDS LUXEON C Red
Eff:
87.0%
FWHM:
152 x 29.5 x 30°
Cd/Im:
0.8
Download
LUMILEDS LUXEON C White
Eff:
86.5%
FWHM:
150 x 28 x 32°
Cd/Im:
0.9
Download
LUMILEDS LUXEON CZ White
Eff:
94.0%
FWHM:
139 x 24 x 29°
Cd/Im:
1.3
Download
LUMILEDS LUXEON CZ PC Amber
Eff:
94.0%
FWHM:
138 x 24 x 29°
Cd/Im:
1.3
Download

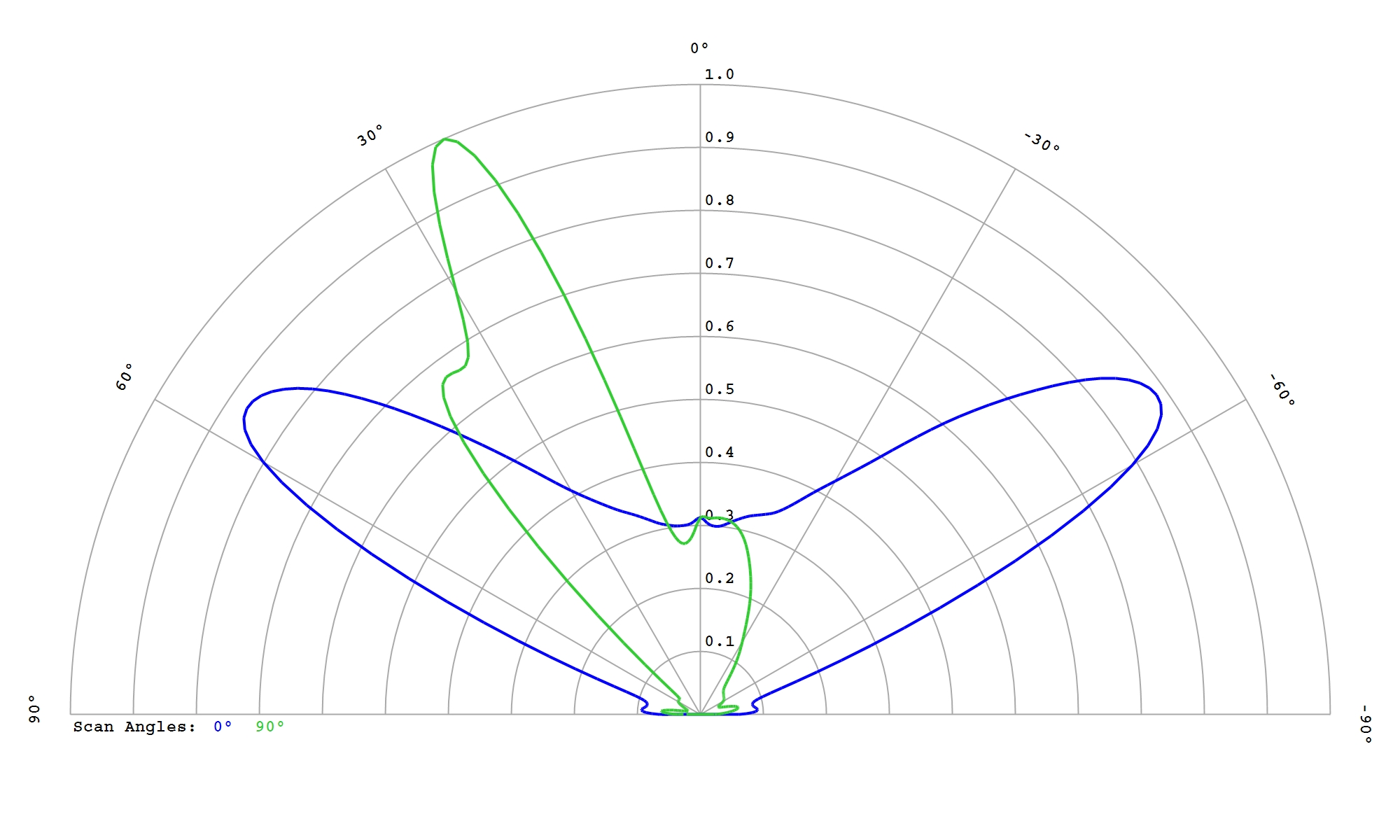

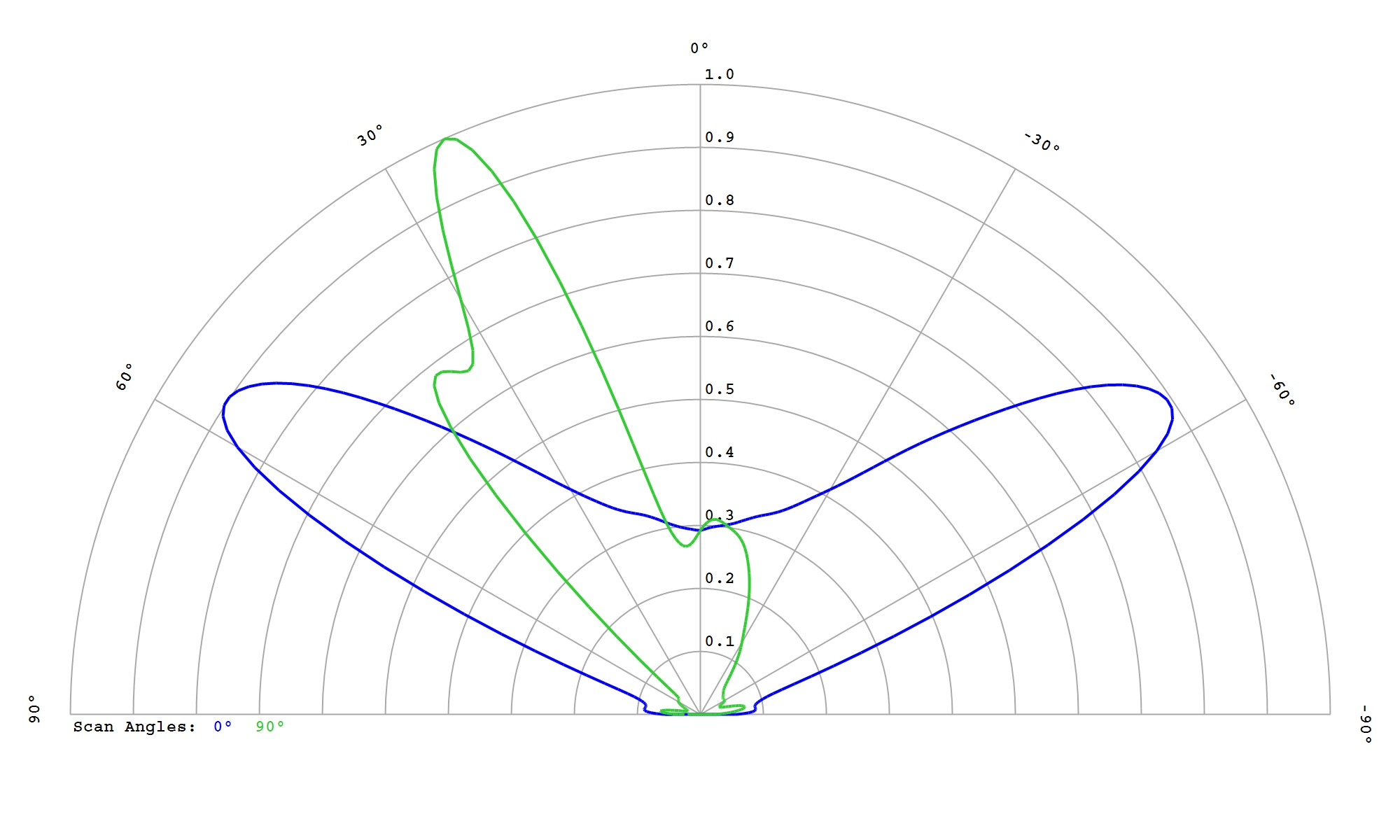

LUMILEDS LUXEON HL1Z CSP White
Eff:
92.5%
FWHM:
132 x 27 x 24°
Cd/Im:
1.3
Download
LUMILEDS LUXEON HL2X White
Eff:
91.5%
FWHM:
145 x 54 x 31°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL2Z White
Eff:
93.0%
FWHM:
133 x 32 x 26°
Cd/Im:
0.9
Download
LUMILEDS LUXEON IR 2720
Eff:
95.0%
FWHM:
136 x 26 x 28°
Ipk/W:
0.5
Download
LUMILEDS LUXEON Rebel ES White
Eff:
83.0%
FWHM:
144x38x28°
Cd/Im:
0.3
Download
LUMILEDS LUXEON Rebel PC Amber
Eff:
92.5%
FWHM:
139 x 31 x 29°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Blue
Eff:
94.5%
FWHM:
142 x 23.5 x 31°
Cd/Im:
1.4
Download
LUMILEDS LUXEON Rubix Green
Eff:
94.0%
FWHM:
141 x 24 x 30°
Cd/Im:
1.4
Download
LUMILEDS LUXEON Rubix Red
Eff:
94.5%
FWHM:
140 x 23 x 30°
Cd/Im:
1.4
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
94.5%
FWHM:
141 x 23 x 30°
Cd/Im:
1.4
Download
LUMILEDS LUXEON Rubix White
Eff:
94.0%
FWHM:
141 x 24 x 30°
Cd/Im:
1.3
Download
LUMILEDS LUXEON TX White
Eff:
92.0%
FWHM:
143 x 33 x 29°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Z ES White
Eff:
87.3%
FWHM:
134x27x28°
Cd/Im:
1.1
Download
LUMILEDS LUXEON Z PC Amber
Eff:
94.0%
FWHM:
138 x 23.5 x 29°
Cd/Im:
1.3
Download
Luminus Devices SST 10-G-B90 Green
Eff:
92.0%
FWHM:
126 x 25 x 27°
Cd/Im:
0.9
Download
Nichia 219 White
Eff:
82.0%
FWHM:
144x38x25°
Cd/Im:
0.3
Download

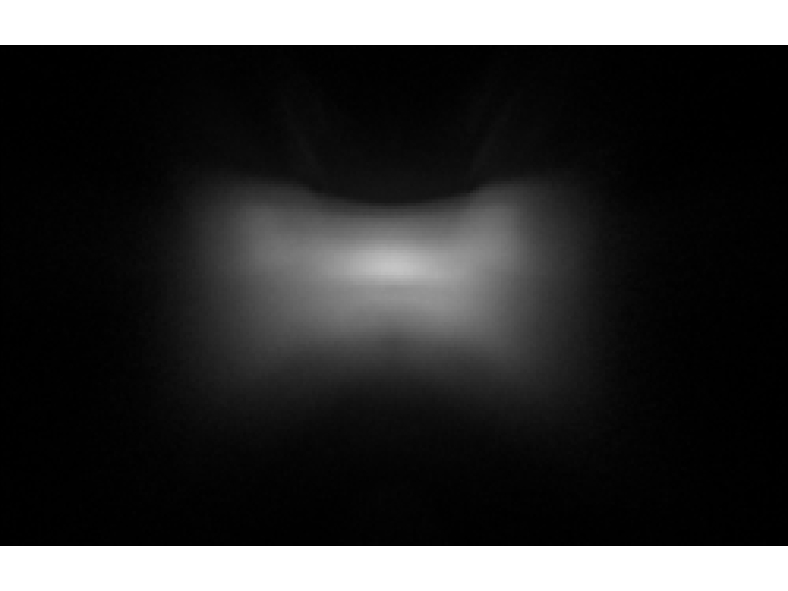

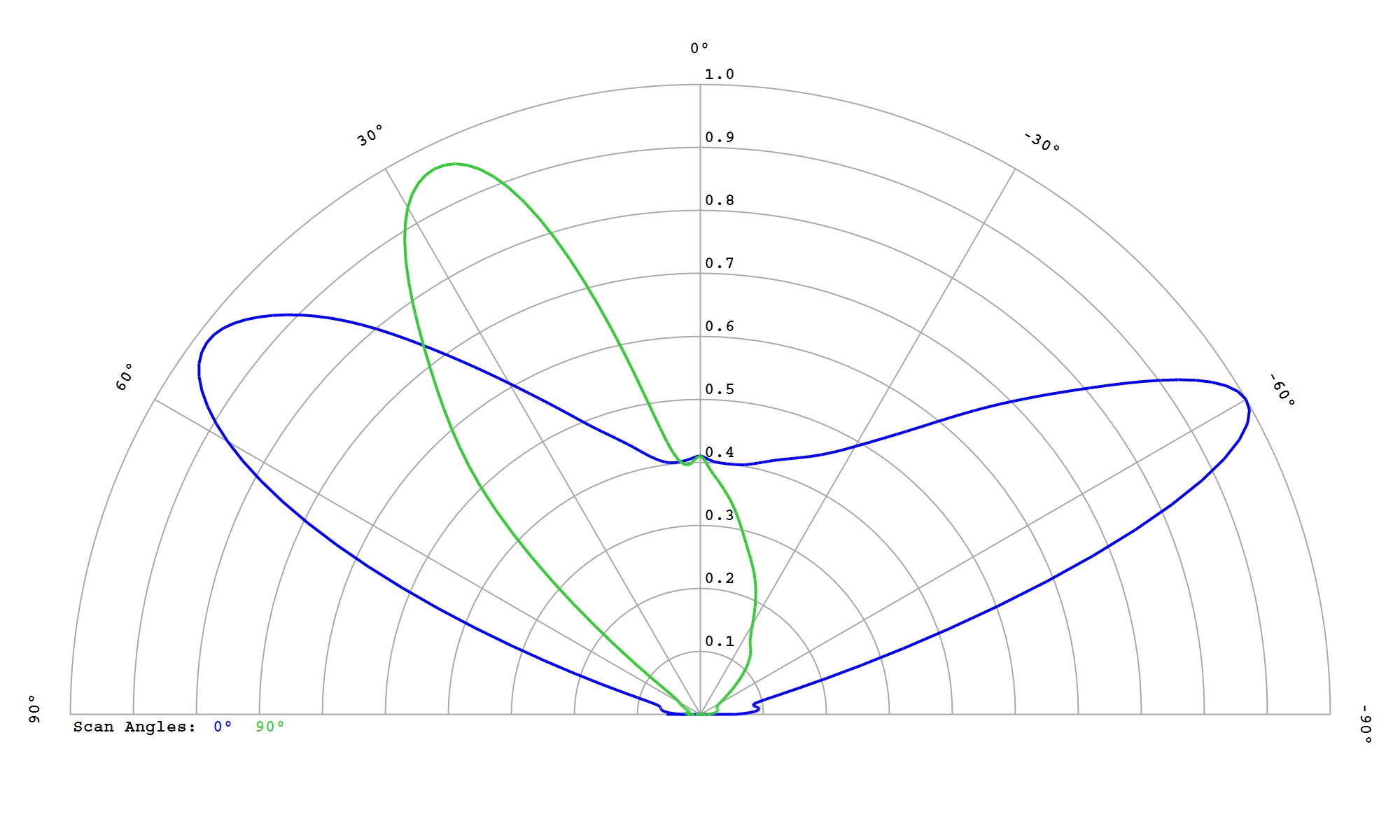

Nichia 757G White
Eff:
93.5%
FWHM:
136 x 35.5 x 24°
Cd/Im:
0.8
Download
Nichia NCSW CSP E17A White
Eff:
92.0%
FWHM:
130 x 28.5 x 23.0°
Cd/Im:
1.2
Download
Nichia NFSW CSP E11A White
Eff:
92.0%
FWHM:
130 x 24.5 x 23°
Cd/Im:
1.7
Download
Nichia NVSW CSP E21A White
Eff:
92.5%
FWHM:
130 x 32 x 23°
Cd/Im:
0.9
Download
Osram PL-Brick HP 3800 740 2x8
Eff:
93.5%
FWHM:
142 x 34 x 31°
Cd/Im:
0.6
Download
Osram DURIS E 2835 Gen2
Eff:
94.0%
FWHM:
137 x 30 x 25°
Cd/Im:
0.9
Download
Osram DURIS E2 White
Eff:
94.0%
FWHM:
135 X 22.5 X 27°
Cd/Im:
1.6
Download

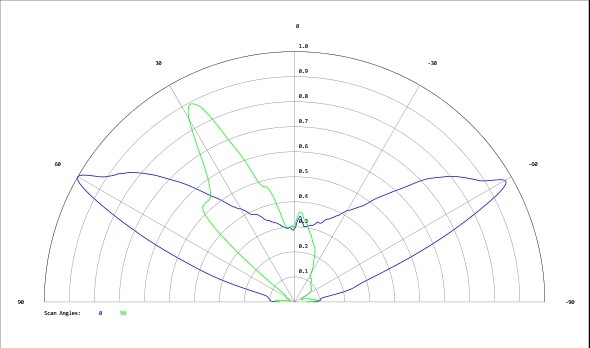

Osram DURIS S2 White
Eff:
92.0%
FWHM:
138 x 35 x 28°
Cd/Im:
0.9
Download
Osram DURIS S5 Deep Blue
Eff:
94.5%
FWHM:
140 x 28 x 25°
Cd/Im:
1.0
Download
Osram DURIS S5 Green
Eff:
93.5%
FWHM:
138 x 26.5 x 27°
Cd/Im:
0.8
Download
Osram DURIS S5 Red
Eff:
94.0%
FWHM:
137 x 25.5 x 27°
Cd/Im:
1.0
Download
Osram DURIS S5 White
Eff:
94.0%
FWHM:
138 X 22.5 X 29°
Cd/Im:
0.8
Download
Osram OSCONIQ C 2424 White
Eff:
94.0%
FWHM:
135 x 31 x 23°
Cd/Im:
0.9
Download
Osram OSLON Boost HM KW CELMM1.TG
Eff:
94.0%
FWHM:
139 x 21.5 x 29°
Cd/Im:
1.8
Download
Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
93.0%
FWHM:
127 x 25 x 21°
Cd/Im:
2.1
Download
Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
94.0%
FWHM:
127 x 24.5 x 22°
Ipk/W:
2.0
Download

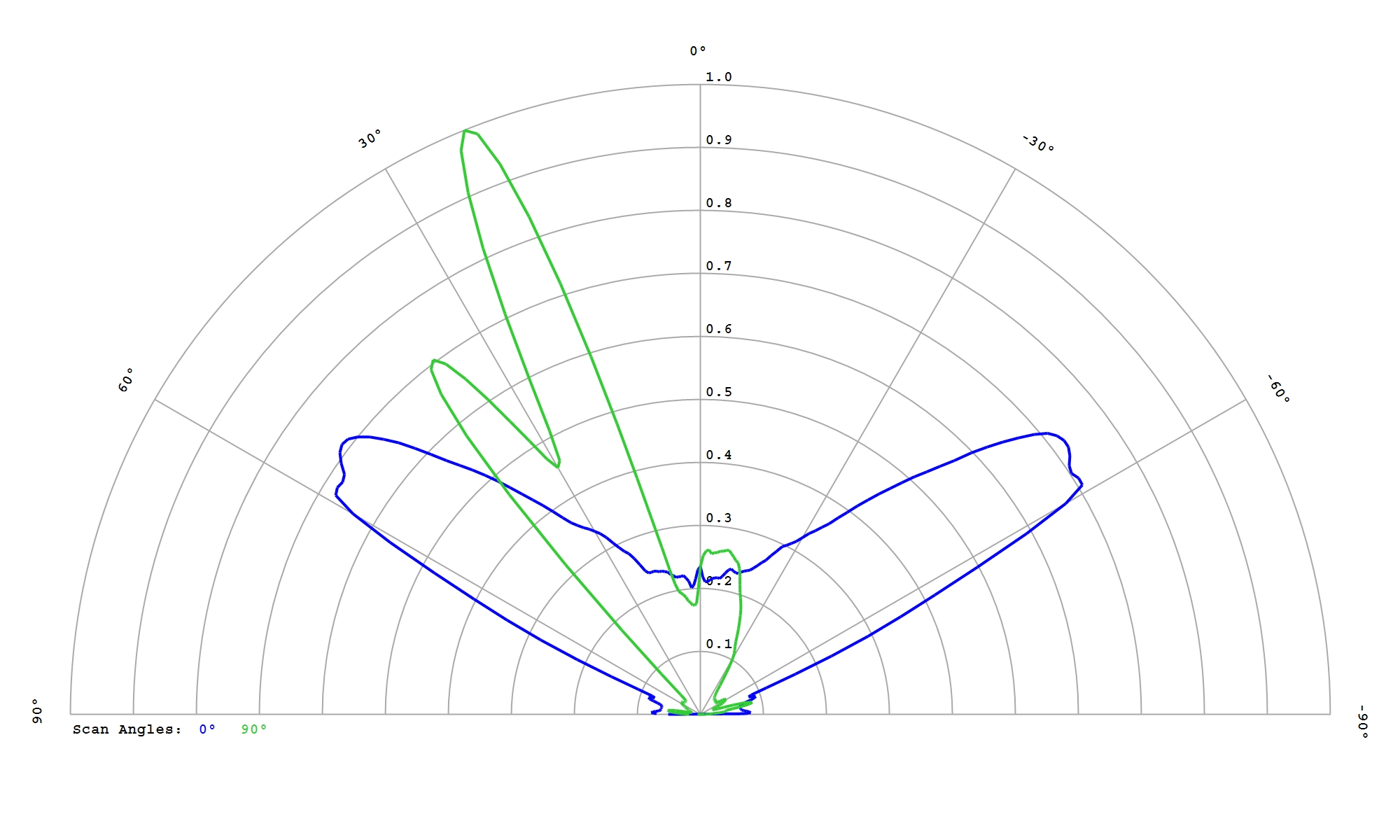

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
92.5%
FWHM:
127 x 24.5 x 22°
Cd/Im:
2.0
Download
Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
92.0%
FWHM:
129 x 24 x 24°
Cd/Im:
1.7
Download
Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
92.5%
FWHM:
126 x 25 x 21°
Cd/Im:
2.1
Download
Osram OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
92.5%
FWHM:
127 x 24.5 x 22°
Cd/Im:
2.0
Download

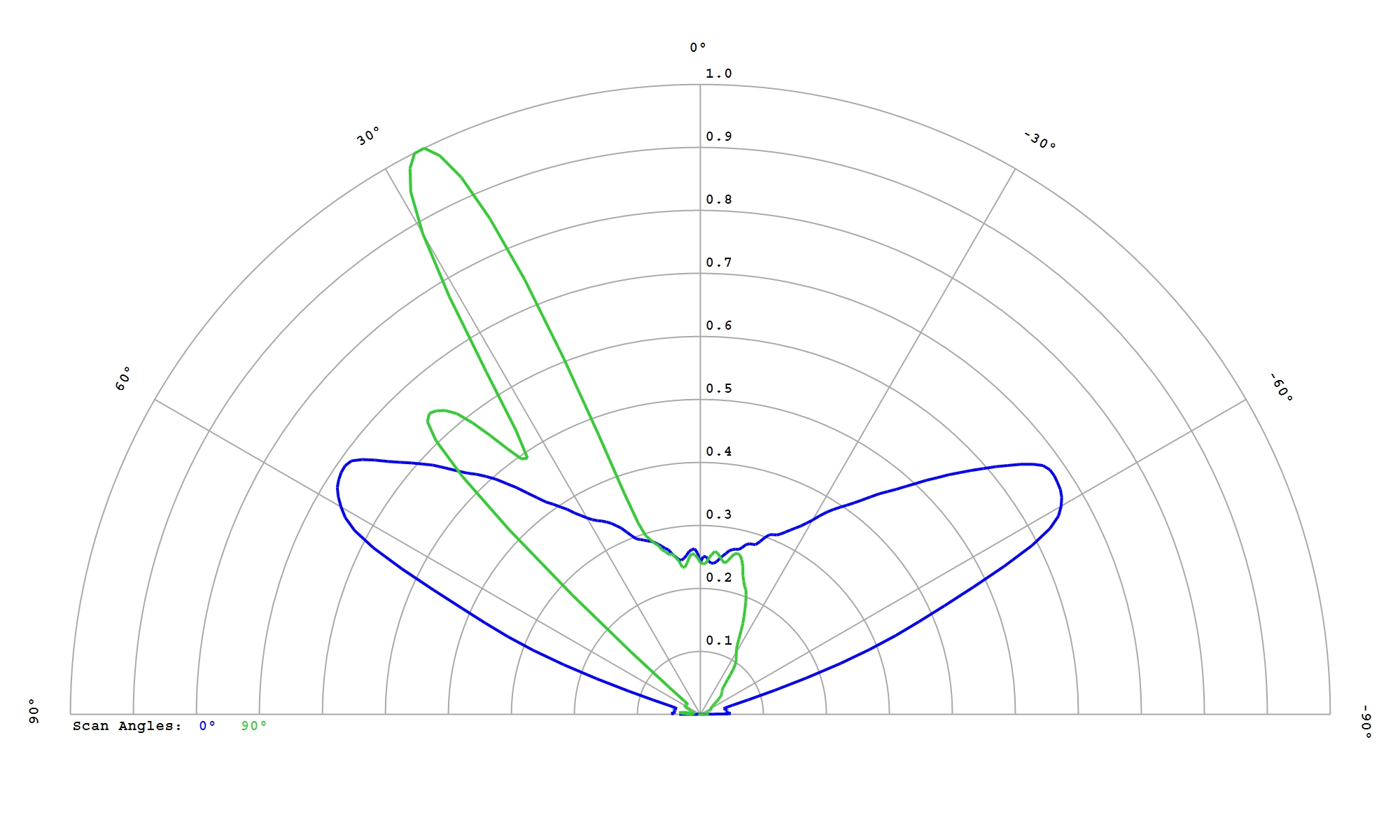

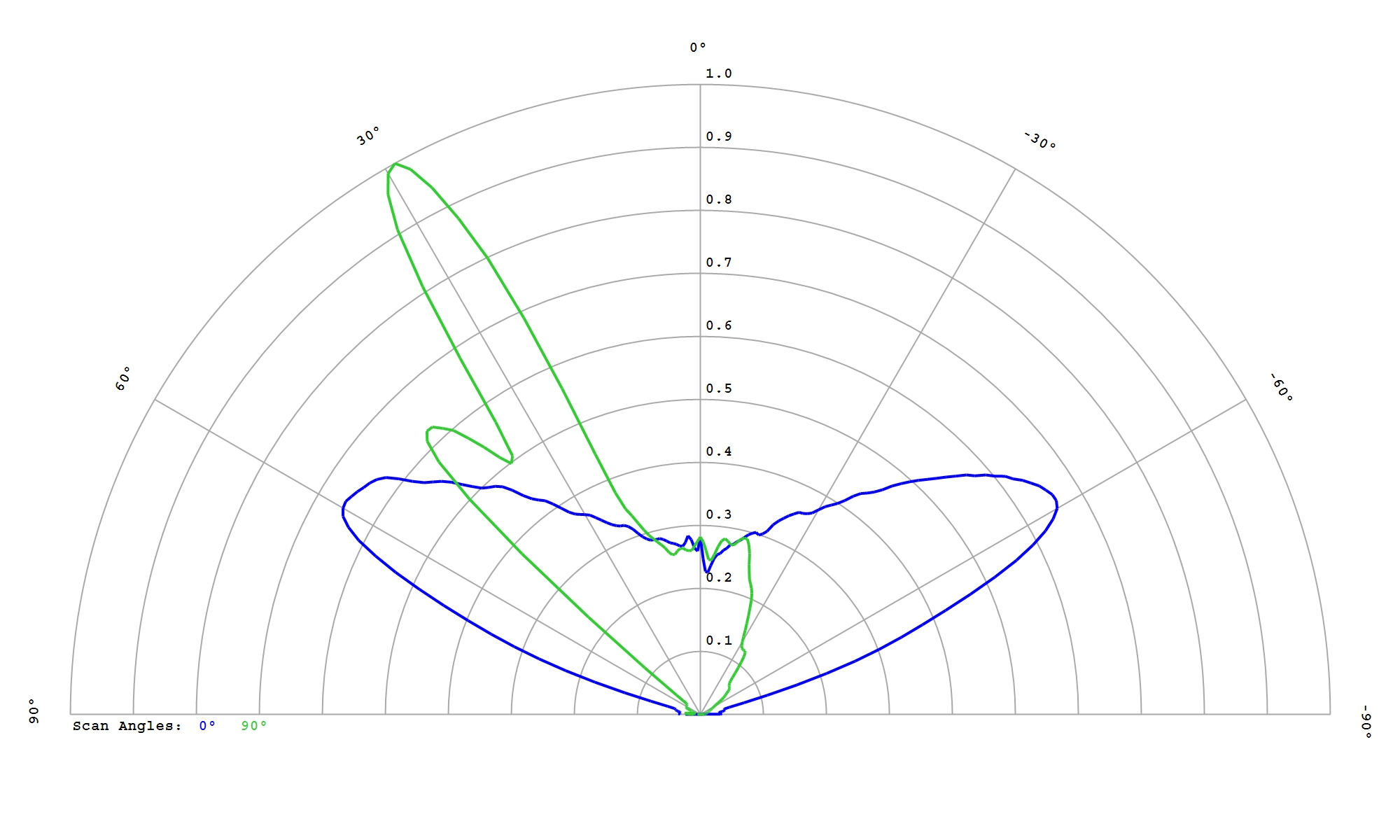

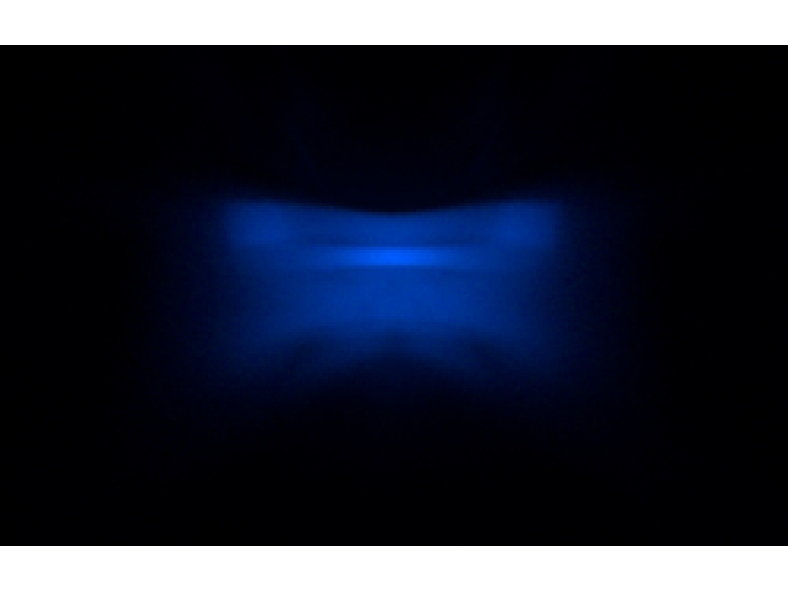

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
94.5%
FWHM:
137 x 24 x 29°
Cd/Im:
1.2
Download

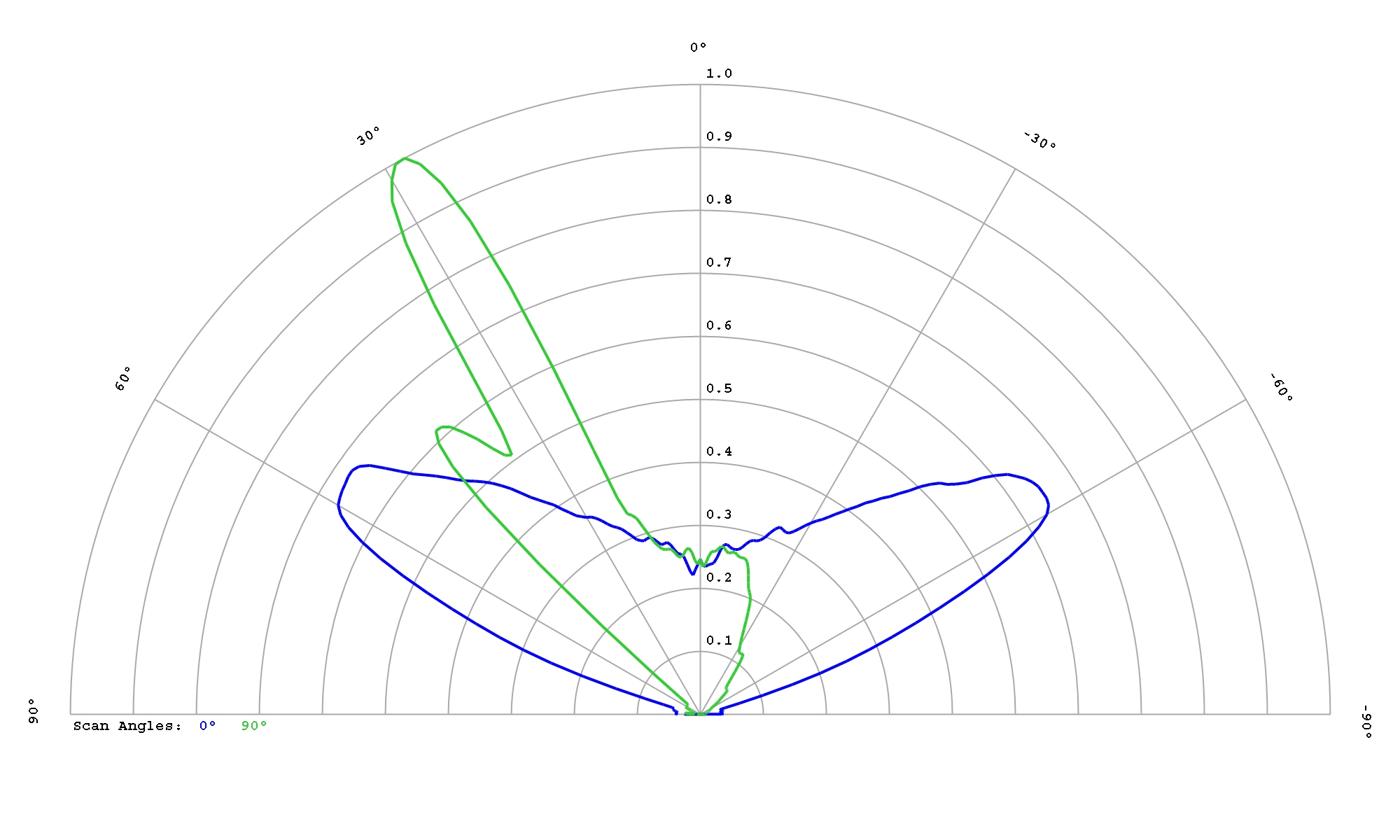

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
94.5%
FWHM:
137 x 23.5 x 29°
Cd/Im:
1.3
Download

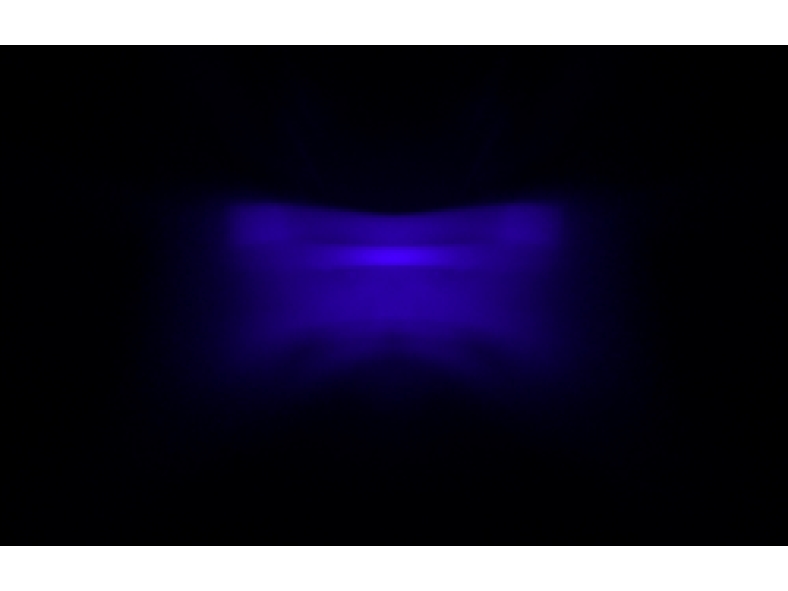

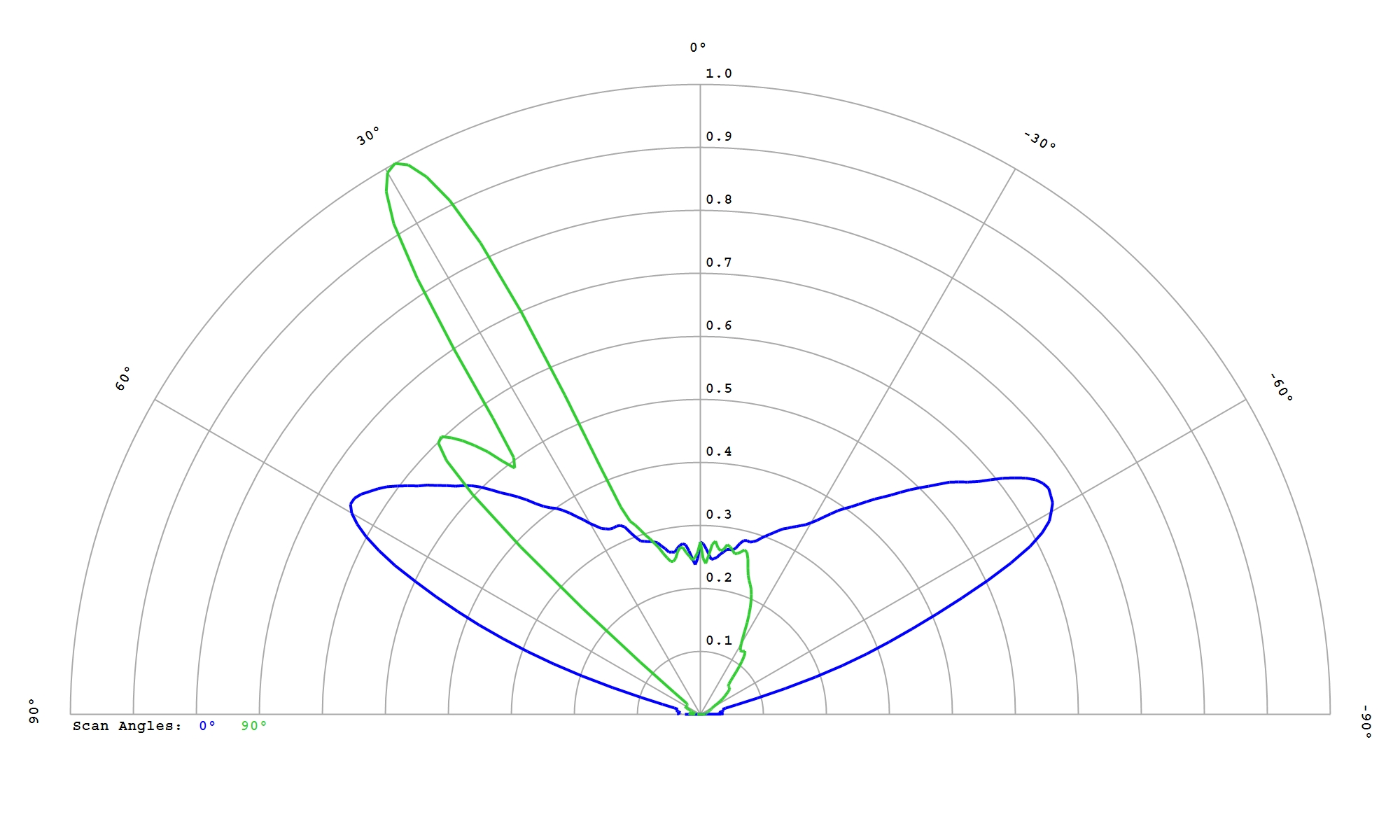

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
95.0%
FWHM:
138 x 23.5 x 29°
Ipk/W:
1.3
Download

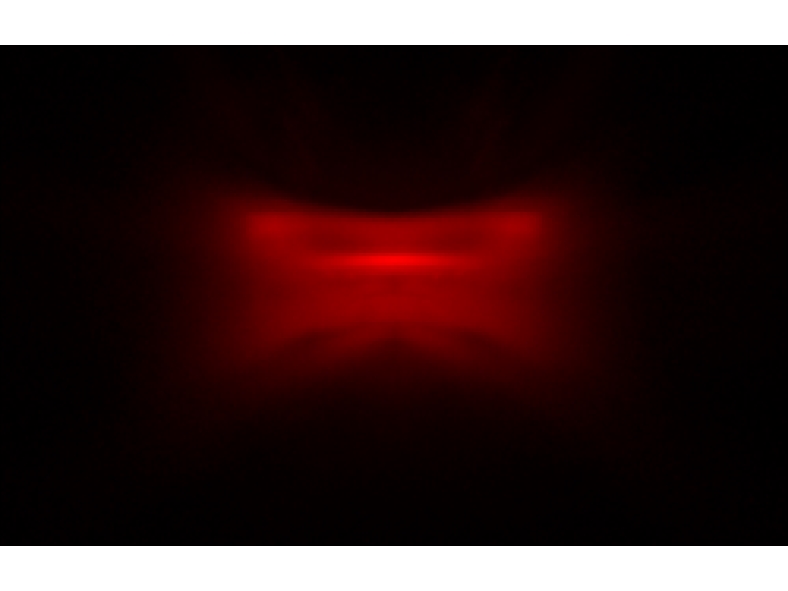

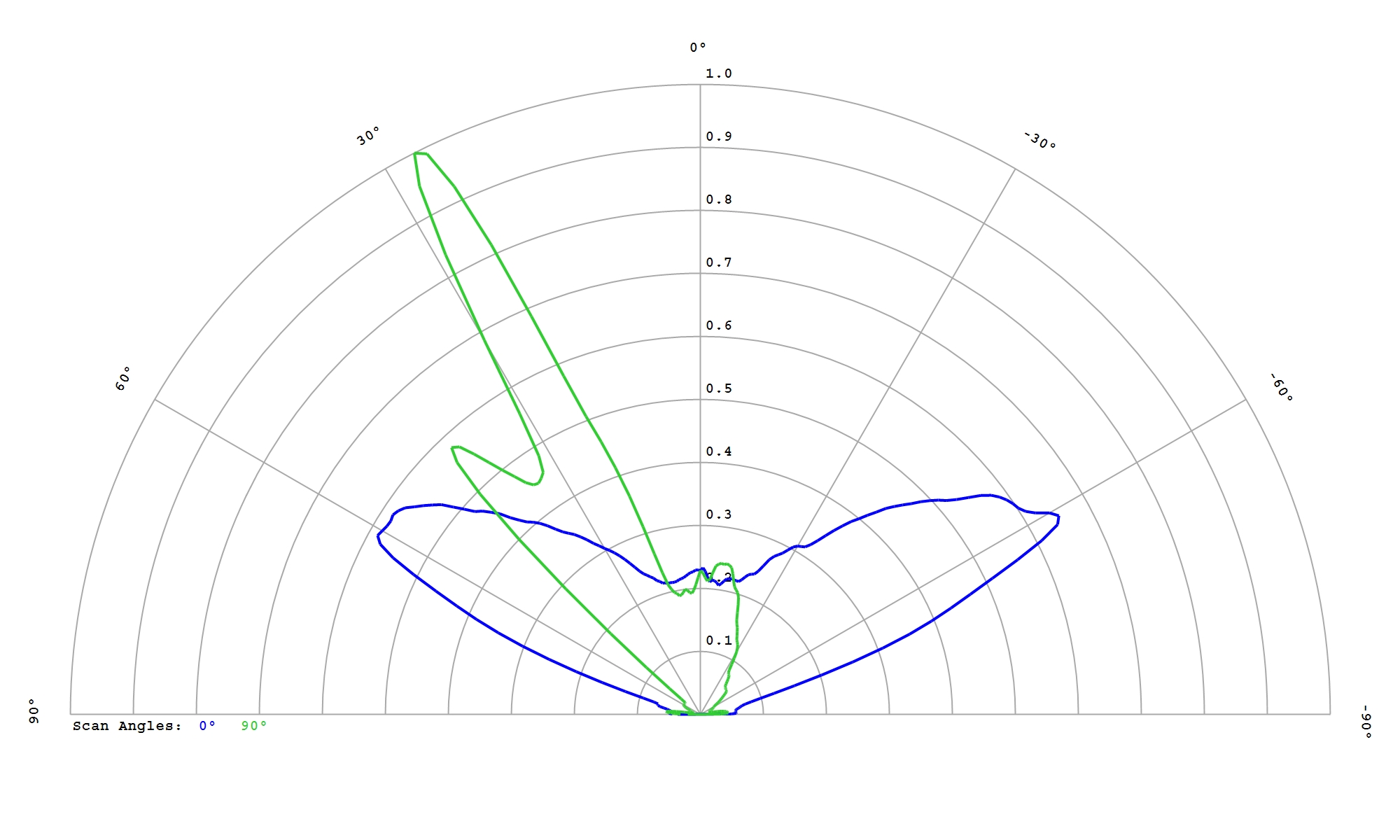

Osram OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
93.5%
FWHM:
138 x 24 x 27°
Cd/Im:
1.6
Download

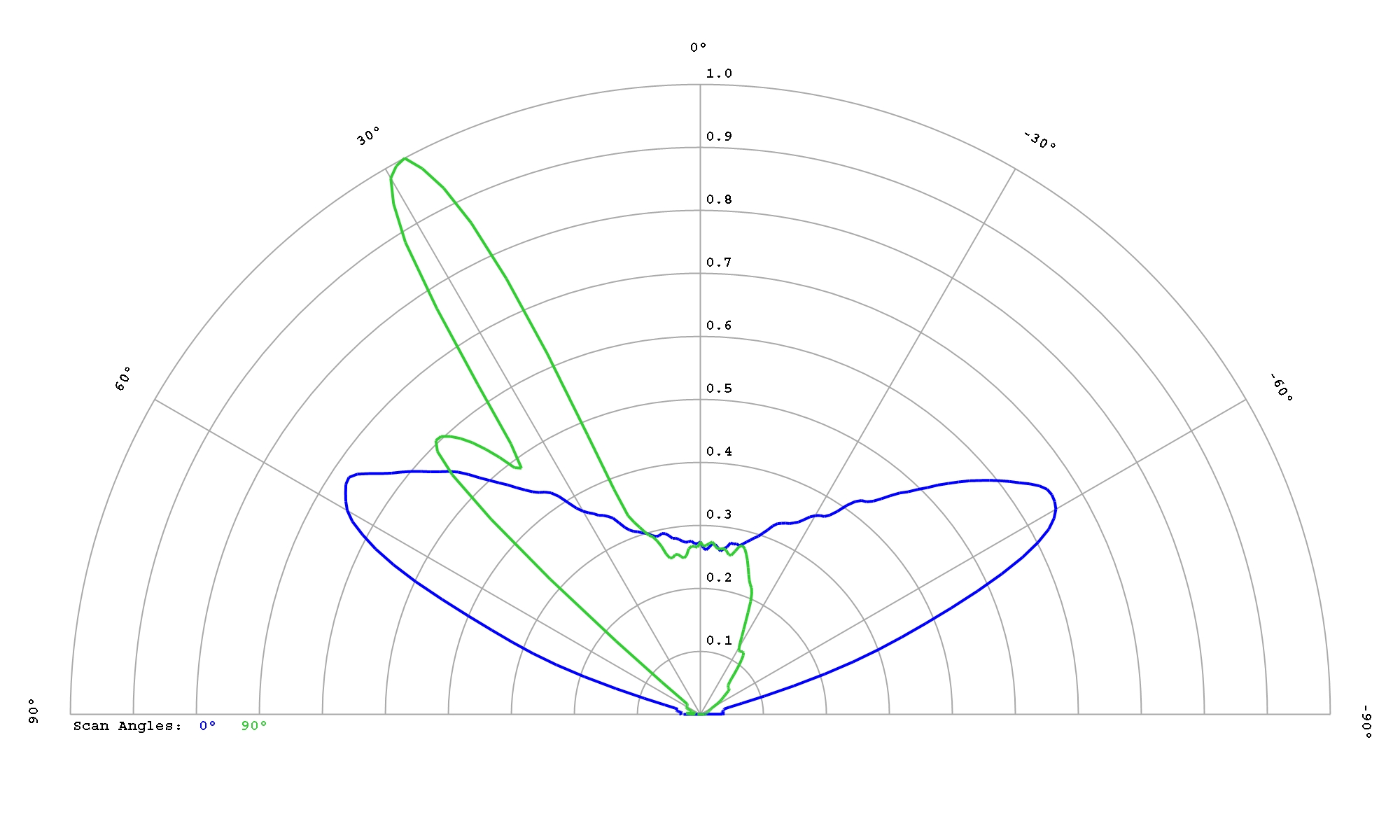

Osram OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
94.0%
FWHM:
137 x 24.5 x 29°
Cd/Im:
1.3
Download

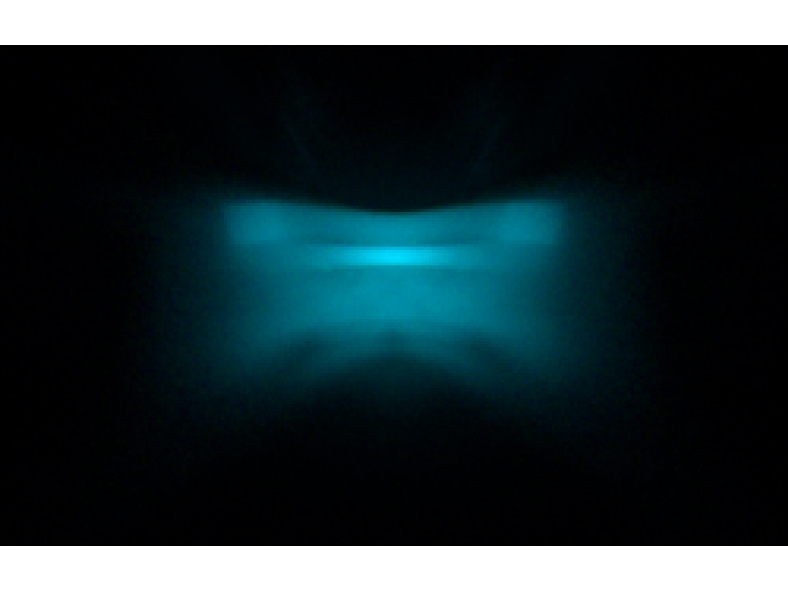

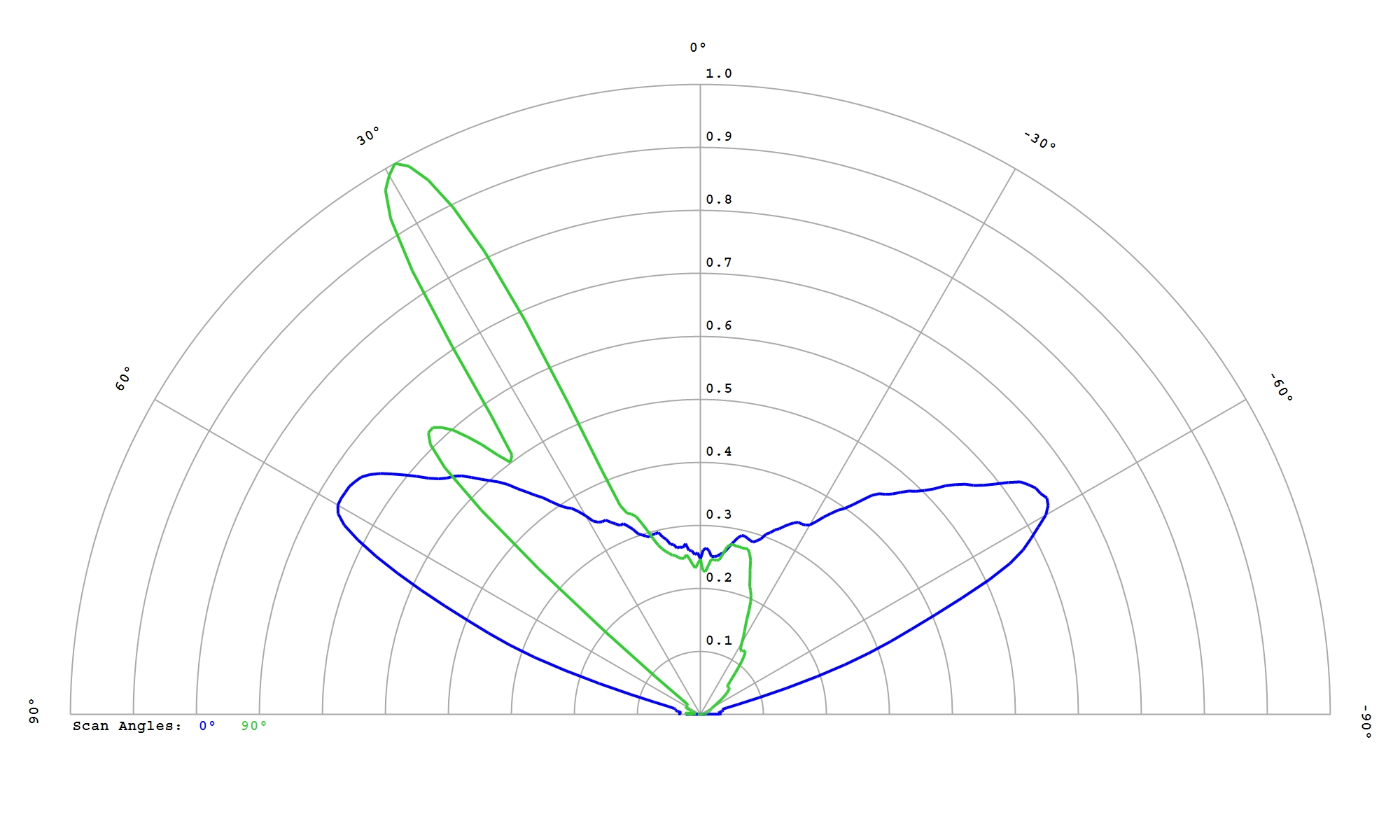

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
94.0%
FWHM:
138 x 24 x 29°
Cd/Im:
1.2
Download
Osram OSLON Pure 1414 GW VJLPL1.CM White
Eff:
94.0%
FWHM:
135 x 25 x 27°
Cd/Im:
1.3
Download
Osram OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
94.0%
FWHM:
139 x 24.5 x 29°
Cd/Im:
1.2
Download

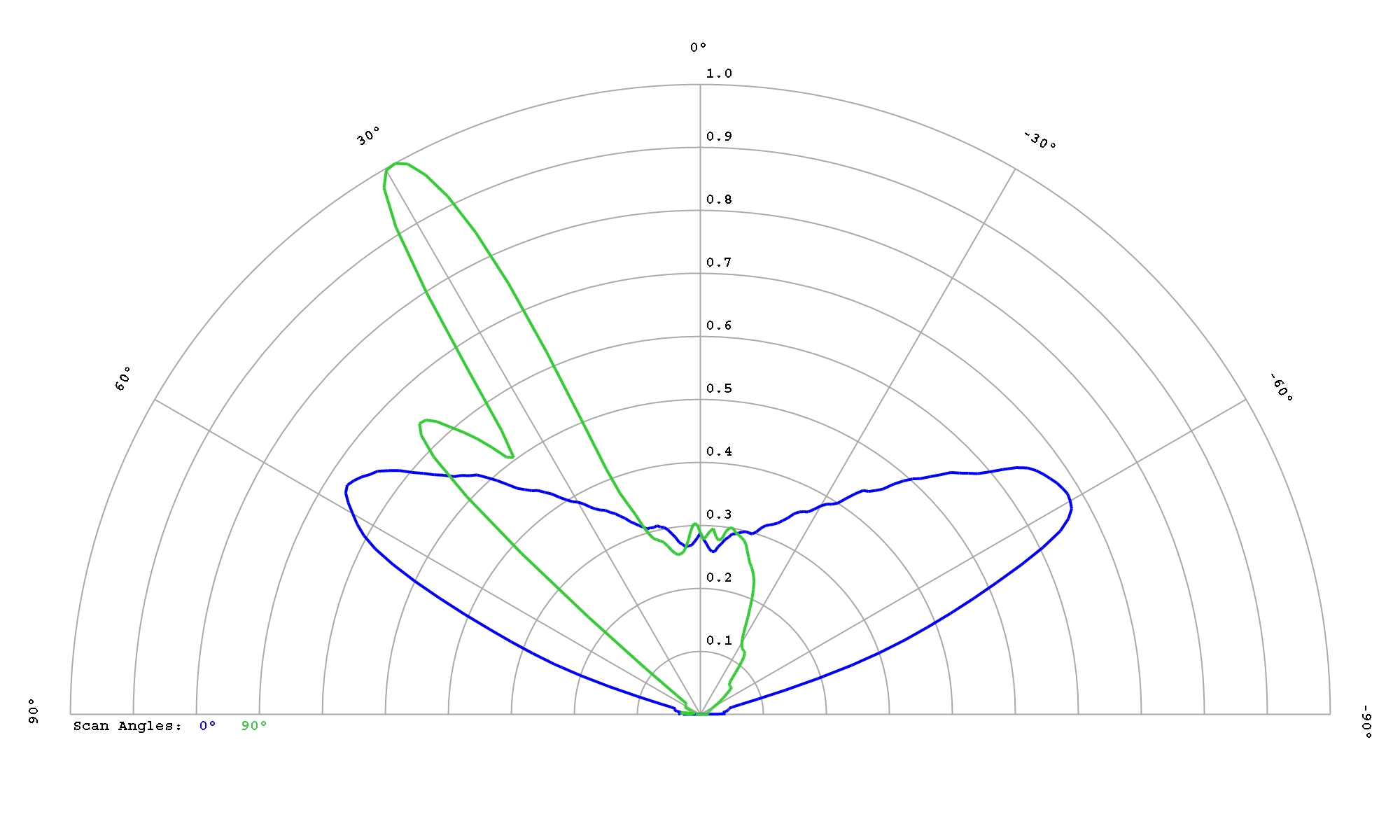

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
94.0%
FWHM:
139 x 25 x 30°
Cd/Im:
1.2
Download
Osram OSLON Square Gen 3 White
Eff:
93.5%
FWHM:
141 x 34 x 26°
Cd/Im:
0.7
Download
Osram OSLON Square Gen 3 White
Eff:
86.4%
FWHM:
138.5 x 33.3 x °
Cd/Im:
0.7
Download
Osram OSLON Square Gen 5 GW CSSRM3
Eff:
93.5%
FWHM:
142 x 49°
Cd/Im:
0.7
Download
Osram OSLON Square White
Eff:
86.0%
FWHM:
136 x 29 x 27.5°
Cd/Im:
0.7
Download
Osram OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
94.0%
FWHM:
146 x 28.5 x 31°
Cd/Im:
1.0
Download
Osram OSLON SSL 150 degree White
Eff:
93.5%
FWHM:
143 x 27.5 x 28°
Cd/Im:
1.1
Download
Osram OSLON SSL 150 degree White
Eff:
86.3%
FWHM:
138x26x28°
Cd/Im:
1.1
Download
Osram OSLON SSL 80 White
Eff:
94.0%
FWHM:
124 x 25.5 x 28°
Cd/Im:
0.9
Download
Osram OSLON SSL 80 White
Eff:
87.5%
FWHM:
122x24x28°
Cd/Im:
0.9
Download
Samsung 2835 LM281B+ White
Eff:
91.5%
FWHM:
138 x 35 x 24°
Cd/Im:
0.7
Download

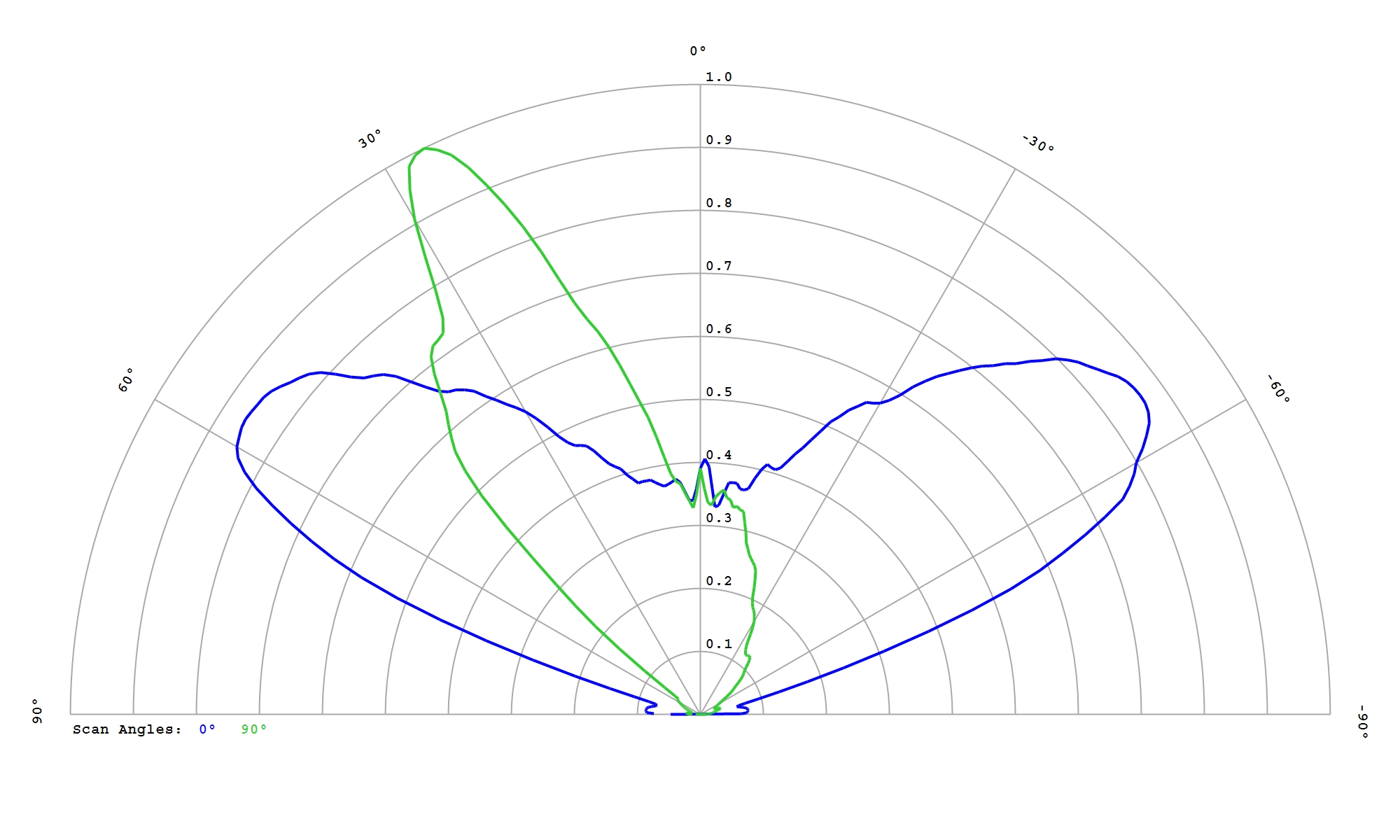

Samsung 3030 LM301B White
Eff:
93.5%
FWHM:
139 x 34 x 27°
Cd/Im:
0.8
Download
Samsung 3535 LH351B White
Eff:
83.0%
FWHM:
140x40x28°
Cd/Im:
0.6
Download
Samsung 3535 LH351Z White
Eff:
83.0%
FWHM:
140x38x28°
Cd/Im:
0.6
Download
Samsung CSP LH151B White
Eff:
93.0%
FWHM:
129 x 27.5 x 23°
Cd/Im:
1.3
Download
Samsung CSP LH181B White
Eff:
93.0%
FWHM:
131 x 33.5 x26°
Cd/Im:
0.8
Download
Samsung CSP LH231B White
Eff:
92.5%
FWHM:
133 x 32.5 x 25°
Cd/Im:
0.7
Download
Samsung CSP LM101B White
Eff:
93.0%
FWHM:
130 x 26 x 24°
Cd/Im:
1.2
Download
Samsung LM 101A White
Eff:
90.0%
FWHM:
129 x 29.5 x 24°
Cd/Im:
1.1
Download
Samsung LM 101A White
Eff:
90.0%
FWHM:
129 x 29.5°
Cd/Im:
1.1
Download
Seoul CSP SZ8Y11 White
Eff:
89.5%
FWHM:
131 x 29.5 x 26°
Cd/Im:
1.2
Download
Seoul CSP SZ8Y15 White
Eff:
90.5%
FWHM:
132 x 27 x 25°
Cd/Im:
1.4
Download
Seoul CSP SZ8Y19 White
Eff:
90.5%
FWHM:
132 x 33.5 x 27°
Cd/Im:
0.9
Download
Seoul CSP SZ8Y22 White
Eff:
91.0%
FWHM:
133 x 36.5 x 28°
Cd/Im:
0.7
Download
Seoul MidPower MJT4040 White
Eff:
86.0%
FWHM:
131x35x25°
Cd/Im:
0.7
Download
Seoul STW8 C2SB-NT White
Eff:
94.0%
FWHM:
139 x 36 x 24°
Cd/Im:
0.7
Download
Seoul STWS C2PB-E0 White
Eff:
94.0%
FWHM:
138 x 38 x 25°
Cd/Im:
0.7
Download
Seoul Z - Power Z5 M0 White
Eff:
83.0%
FWHM:
150x40x35°
Cd/Im:
0.3
Download

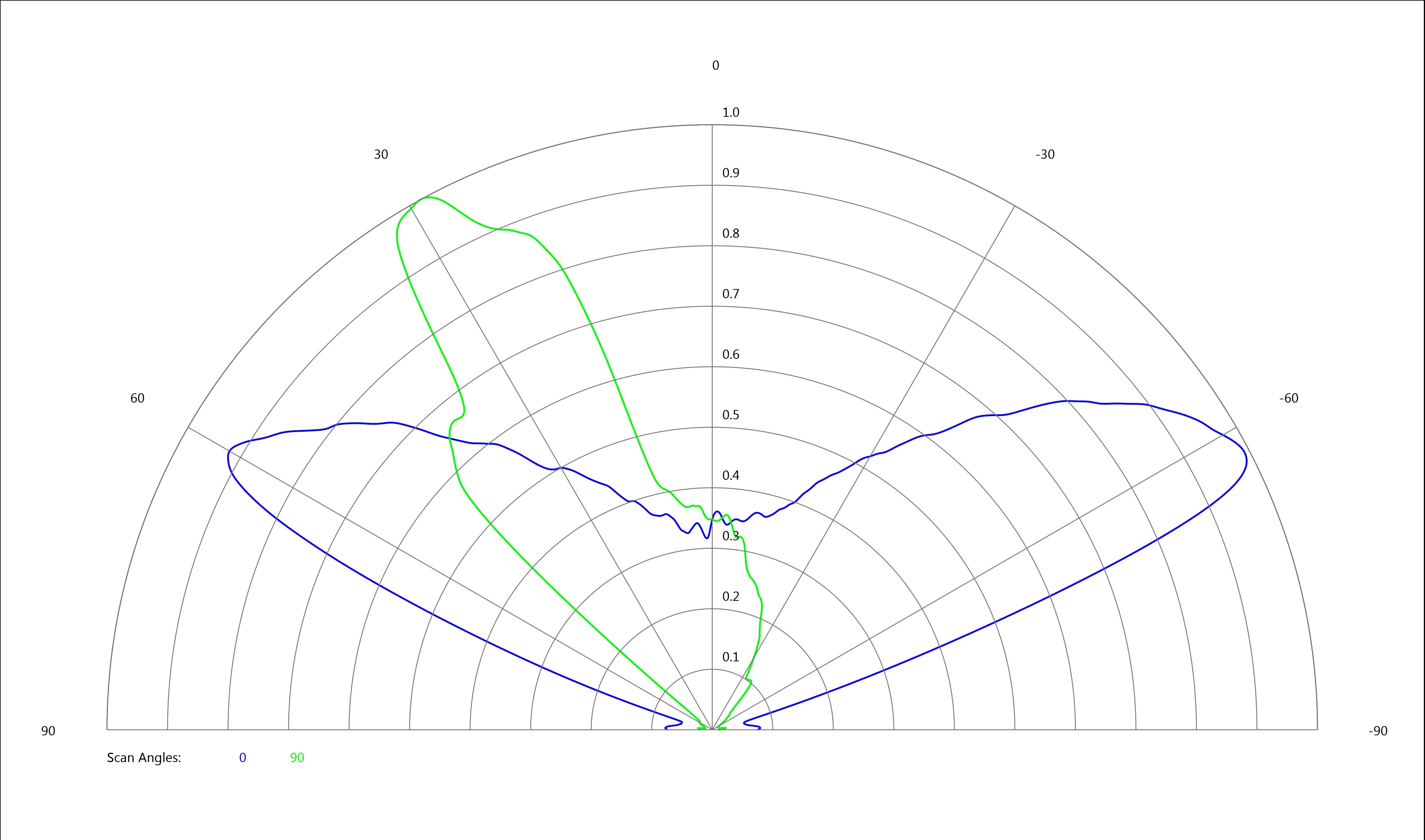

Seoul Z - Power Z5 M1 White
Eff:
93.0%
FWHM:
109 x 36 x 29°
Cd/Im:
0.7
Download
Seoul Z - Power Z5 M1 White
Eff:
86.5%
FWHM:
136 x 52 x 30°
Cd/Im:
0.7
Download
Toshiba TL 1L2 White
Eff:
90.0%
FWHM:
145 X 52 X 29°
Cd/Im:
0.6
Download
Toshiba TL 1L4 White
Eff:
92.0%
FWHM:
135 x 32.5 x 30°
Cd/Im:
0.7
Download
