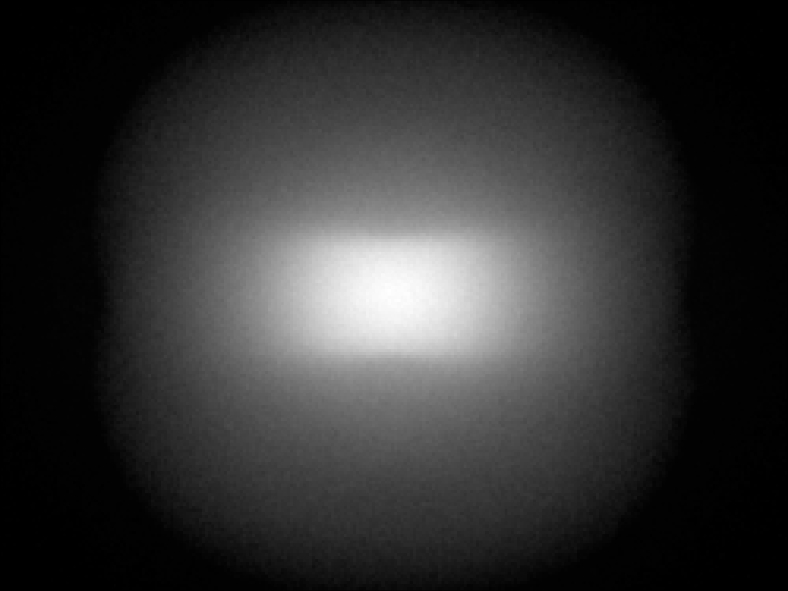

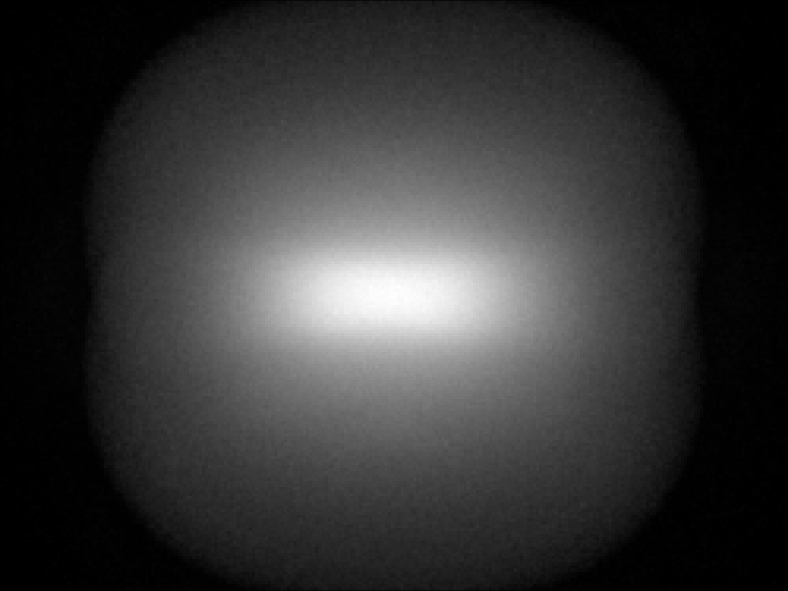

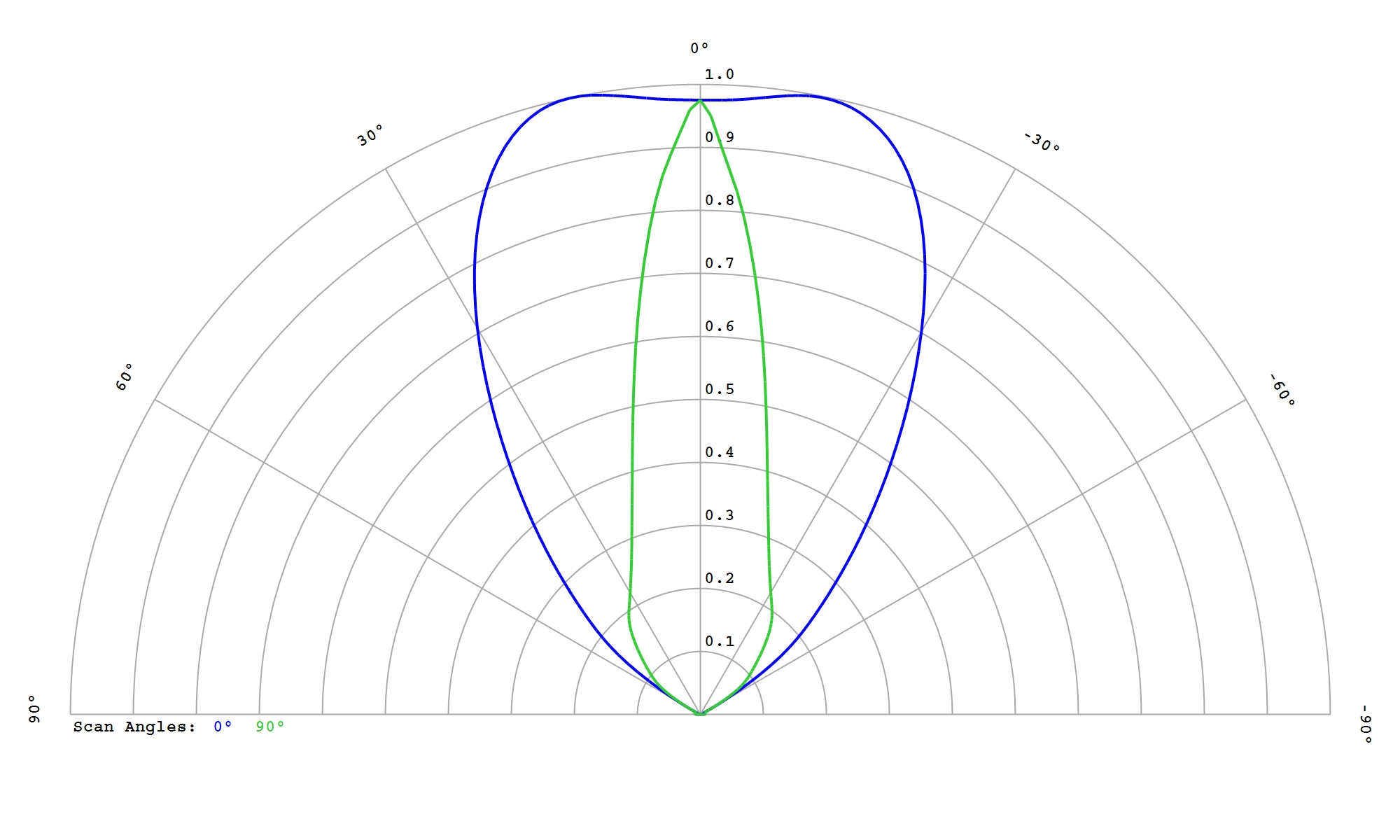

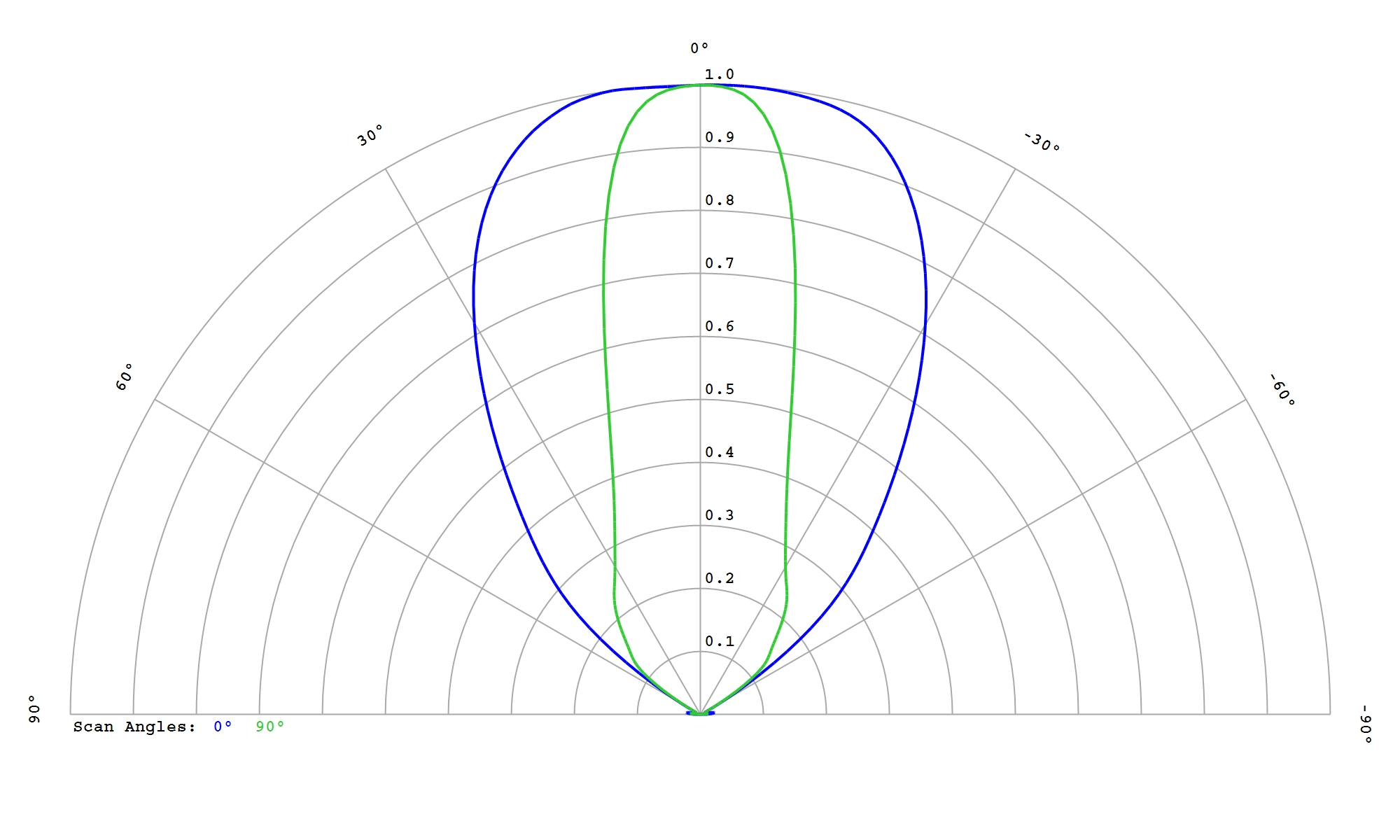

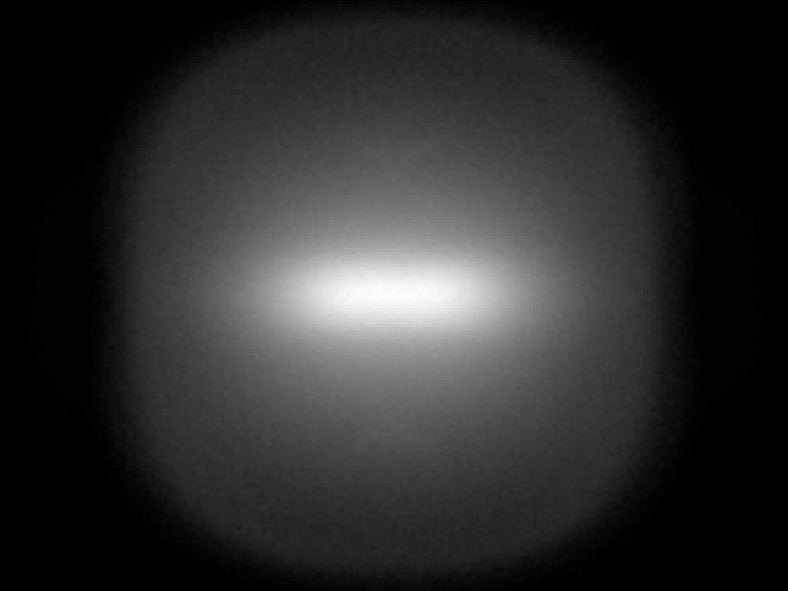

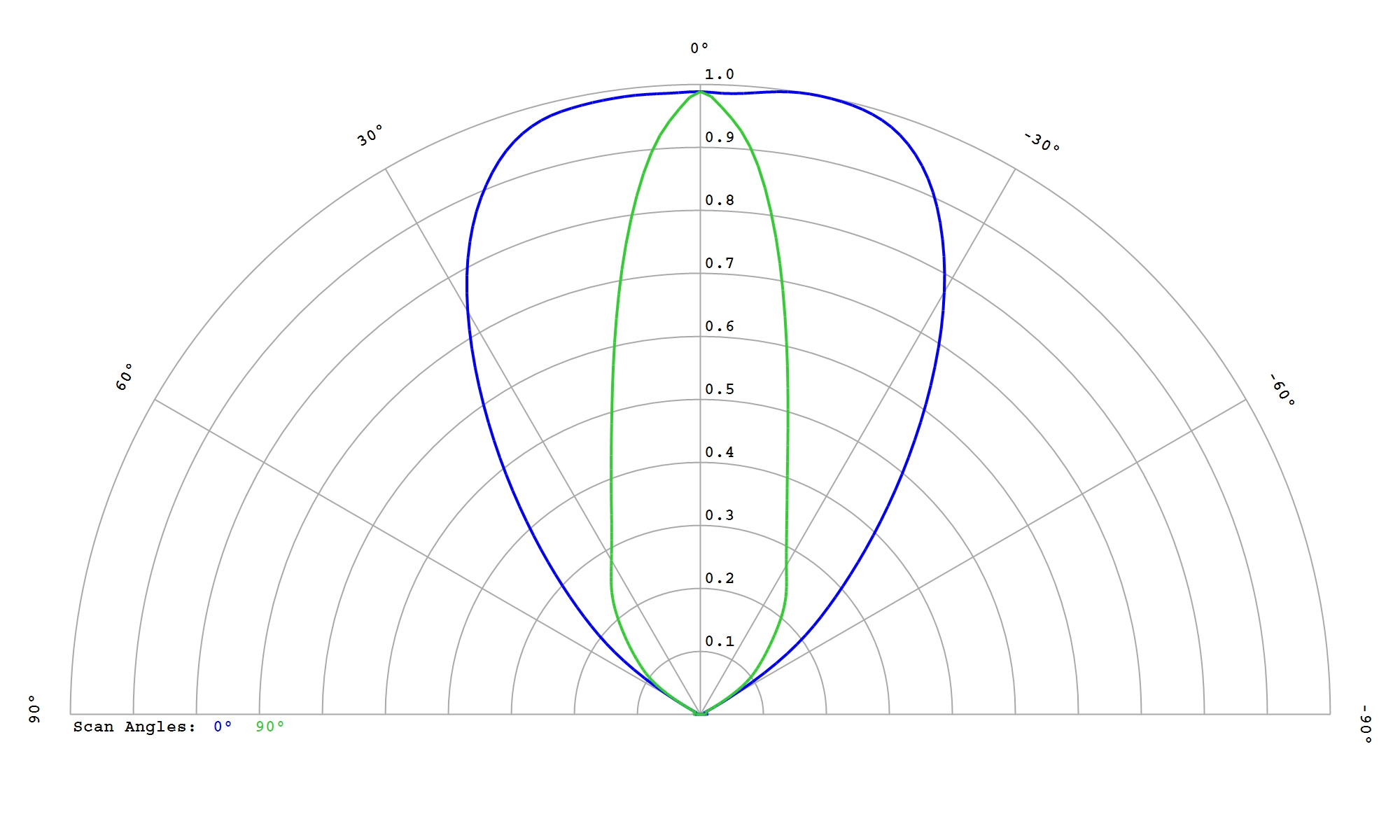

50.0 x 50.0mm Elliptical Freeform

Part number

12818

Dimensions

50.0 x 50.0mm

Drawing Number

70302

Optic type

Freeform

Beam type

Elliptical

Applications

Industrial

Horticultural

Warehouse

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.0%

FWHM:

72 x 23.5°

Cd/Im:

1.4

Carclo Optics - 12818 Mini Hubble Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12818 Mini Hubble Cross Section Bridgelux 3030 Gen2

Download

ies

Cree JB2835B 3V G-Class White

Eff:

96.0%

FWHM:

74 x 26°

Cd/Im:

1.2


Download

Cree JB2835B 3V J-Class White

Eff:

96.0%

FWHM:

72 x 26.5°

Cd/Im:

1.2


Download

Cree JB3030 3V P-Class White

Eff:

95.5%

FWHM:

73 x 25°

Cd/Im:

1.4

Carclo Optics - 12818 Spot Image Cree JB3030 3V White

Carclo Optics - 12818 Cross Section Cree JB3030 3V White

Download

ies

Cree JB3030C 3V E-Class White

Eff:

96.0%

FWHM:

75 x 26.5°

Cd/Im:

1.2


Download

Cree JB3030C 3V F-Class White

Eff:

96.0%

FWHM:

75 x 26°

Cd/Im:

1.2


Download

Cree JE2835 3V White

Eff:

96.0%

FWHM:

74 x 26.5°

Cd/Im:

1.2

Download

Cree JK2835 6V White

Eff:

96.0%

FWHM:

73 x 24.5°

Cd/Im:

1.4

Download

ies

Cree JQ5050 9V White

Eff:

96.0%

FWHM:

74 x 36°

Cd/Im:

1.2

Carclo Optics - 12818 Spot Image Cree JQ5050 9V White

Carclo Optics - 12818 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

95.5%

FWHM:

75 x 37°

Cd/Im:

1.1

Carclo Optics - 12818 Spot Image Cree JR5050 24V White

Carclo Optics - 12818 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

96.0%

FWHM:

75 x 34°

Cd/Im:

1.5

Carclo Optics - 12818 Spot Image Cree JR5050 36V White

Carclo Optics - 12818 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

96.0%

FWHM:

76 x 37°

Cd/Im:

1.2

Carclo Optics - 12818 Spot Image Cree JR5050 6V White

Carclo Optics - 12818 Cross Section Cree JR5050 6V White

Download

ies

Cree JR5050C 6V E-Class White

Eff:

96.0%

FWHM:

77 x 36°

Cd/Im:

1.2


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

93.5%

FWHM:

79 x 24.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

95.5%

FWHM:

74 x 20.5°

Cd/Im:

1.3

Download

IES

Cree XLamp XB-H White

Eff:

95.5%

FWHM:

71 x 28°

Cd/Im:

1.4

Carclo Optics - 12818 Mini Hubble Spot Image Cree XLamp XB-H

Carclo Optics - 12818 Mini Hubble Cross Section Cree XLamp XB-H

Download

ies

Cree XLamp XE-G White

Eff:

94.5%

FWHM:

76 x 23°

Cd/Im:

1.2

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

94.0%

FWHM:

75 x 31°

Cd/Im:

1.2

Carclo Optics – 12818 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12818 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

91.5%

FWHM:

81 x 39°

Cd/Im:

0.9

Carclo Optics - 12818 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 12818 Cross Section Cree XLamp XHP35.2 White

Download

ies

Cree XLamp XHP50.3 HI White

Eff:

94.5%

FWHM:

78 x 36°

Cd/Im:

1.1

optic-12818-Cree_XHP50.3 HI-spot-image.jpg

optic-12818-Cree_XHP50.3 HI-cross-section-image.jpg

Download

ies

Cree XLamp XM-L3 White

Eff:

94.5%

FWHM:

80 x 36°

Cd/Im:

1.1

Carclo Optics - 12818 Spot Image Cree XM-L3

Carclo Optics - 12818 Cross Section Cree XM-L3

Download

ies

Cree XLamp XP-E2 Amber

Eff:

95.5%

FWHM:

81 x 25.5°

Cd/Im:

1.0

Download

Cree XLamp XP-E2 Blue

Eff:

96.5%

FWHM:

84 x 26.5°

Cd/Im:

1.0

Download

Cree XLamp XP-E2 Far Red

Eff:

96.5%

FWHM:

87 x 27.5°

Cd/Im:

2.1

Ipk/W:

1.0

Download

Cree XLamp XP-E2 Green

Eff:

96.0%

FWHM:

85 x 26.5°

Cd/Im:

1.0

Download

Cree XLamp XP-E2 PC Amber

Eff:

95.0%

FWHM:

71 x 27°

Cd/Im:

1.3


Download

Cree XLamp XP-E2 Photo Red

Eff:

96.5%

FWHM:

82 x 25.5°

Ipk/W:

1.1


Download

Cree XLamp XP-E2 Red

Eff:

96.0%

FWHM:

83 x 25.5°

Cd/Im:

1.0

Download

Cree XLamp XP-E2 Red-Orange

Eff:

96.0%

FWHM:

80 x 25°

Cd/Im:

1.1


Download

Cree XLamp XP-E2 Royal Blue

Eff:

96.0%

FWHM:

81 x 22.5°

Ipk/W:

1.1


Download

Cree XLamp XP-E2 White

Eff:

96.0%

FWHM:

73 x 24.5°

Cd/Im:

1.4

Download

Cree XLamp XP-G2 White

Eff:

91.0%

FWHM:

80x26°

Cd/Im:

1.0

Simulation Data

Simulation Data

Download

1

Cree XLamp XP-G3 Photo Red

Eff:

96.5%

FWHM:

80 x 30°

Cd/Im:

1.1

Carclo Optics – 12818 Cree Xlamp XP-G3 Photo Red - Spot Image

Carclo Optics – 12818 Cree Xlamp XP-G3 Photo Red - Cross-Section

Download

ies

Cree XLamp XP-G3 Royal Blue

Eff:

91.5%

FWHM:

82 x 30°

Cd/Im:

1.1

Carclo Optics – 12818 Cree Xlamp XP-G3 Royal Blue - Spot Image

Carclo Optics – 12818 Cree Xlamp XP-G3 Royal Blue - Cross-Section

Download

ies

Cree XLamp XP-G4 HI White

Eff:

95.0%

FWHM:

78 x 25°

Cd/Im:

1.2

Download

Cree XLamp XP-G4 White

Eff:

96.0%

FWHM:

79 x 29.5°

Cd/Im:

1.3

Download

IES

Cree XLamp XP-L2 White

Eff:

94.0%

FWHM:

77 x 33°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-P White

Eff:

96.5%

FWHM:

74 x 22.5°

Cd/Im:

1.4

Carclo Optics – 12818 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12818 Cree Xlamp XP-P - Cross-Section

Download

ies

Cree XLamp XQ-A Blue

Eff:

95.5%

FWHM:

72 x 18.5°

Cd/Im:

1.4

Download

Cree XLamp XQ-A Green

Eff:

95.0%

FWHM:

67 x 19.5°

Cd/Im:

1.5

Download

Cree XLamp XQ-A PC Amber

Eff:

94.0%

FWHM:

72 x 22°

Cd/Im:

1.4

Download

Cree XLamp XQ-A PC Blue

Eff:

94.0%

FWHM:

74 x 22.5°

Cd/Im:

1.2

Download

Cree XLamp XQ-A Red

Eff:

95.5%

FWHM:

73 x 22.5°

Cd/Im:

1.3

Download

Cree XLamp XQ-A Red-Orange

Eff:

95.5%

FWHM:

72 x 22°

Cd/Im:

1.3


Download

Cree XLamp XQ-A White

Eff:

94.0%

FWHM:

68 x 21°

Cd/Im:

1.4

Download

Cree XLamp XQ-E HI Blue

Eff:

95.5%

FWHM:

76.0 x 24.0°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

94.5%

FWHM:

77 x 24.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

95.0%

FWHM:

75 x 22.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E Plus HD Blue

Eff:

94.5%

FWHM:

76 x 21.5°

Cd/Im:

1.3


Download

Cree XLamp XQ-E Plus HD Green

Eff:

93.5%

FWHM:

75 x 23°

Cd/Im:

1.2


Download

Cree XLamp XQ-E Plus HD PC Amber

Eff:

93.5%

FWHM:

74 x 24°

Cd/Im:

1.2


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

94.5%

FWHM:

74 x 22°

Ipk/W:

1.3


Download

Cree XLamp XQ-E Plus HD White

Eff:

93.5%

FWHM:

77 x 23.5°

Cd/Im:

1.2


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

94.5%

FWHM:

73 x 23°

Cd/Im:

1.1


Download

Cree XLamp XQ-E Plus HI Green

Eff:

94.0%

FWHM:

73 x 23.5°

Cd/Im:

1.1


Download

Cree XLamp XQ-E Plus HI PC Amber

Eff:

94.0%

FWHM:

75 x 23°

Cd/Im:

1.2


Download

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

95.0%

FWHM:

75 x 23°

Ipk/W:

1.1


Download

Cree XLamp XQ-E Plus HI White

Eff:

94.5%

FWHM:

75 x 22°

Cd/Im:

1.1


Download

Cree XLamp XT-E HE White

Eff:

96.5%

FWHM:

77 x 27.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

96.0%

FWHM:

73 x 25°

Cd/Im:

1.3

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

96.5%

FWHM:

73 x 24°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

96.0%

FWHM:

75 x 26.5°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

96.0%

FWHM:

75 x 26.5°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

96.0%

FWHM:

75 x 26.5°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 3014 White

Eff:

96.0%

FWHM:

73 x 19.5°

Cd/Im:

1.4

Download

IES

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

96.0%

FWHM:

75 x 24°

Cd/Im:

1.2


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

96.0%

FWHM:

76 x 28°

Cd/Im:

1.2


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

96.0%

FWHM:

73 x 24.5°

Cd/Im:

1.3


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

96.0%

FWHM:

73 x 21°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

96.0%

FWHM:

74 x 24.5°

Cd/Im:

1.3

Carclo Optics – 12818 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12818 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

LUMILEDS LUXEON 3030 HE White

Eff:

96.0%

FWHM:

75 x 25°

Cd/Im:

1.2

Download

LUMILEDS LUXEON 3535L Blue

Eff:

96.5%

FWHM:

82 x 24°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L Green

Eff:

96.0%

FWHM:

85 x 28°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L Red

Eff:

25.5%

FWHM:

83°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 5050 HE 24V White

Eff:

95.5%

FWHM:

77 x 39°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

95.5%

FWHM:

78 x 39°

Cd/Im:

1.1

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

95.5%

FWHM:

78 x 38°

Cd/Im:

1.0


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

96.0%

FWHM:

79 x 39°

Cd/Im:

1.1


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

96.0%

FWHM:

74 x 37°

Cd/Im:

1.1


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

96.0%

FWHM:

73.0 x 36.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

91.0%

FWHM:

90.0 x 23.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

92.0%

FWHM:

81 x 21°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

90.0%

FWHM:

88.0 x 24.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C White

Eff:

90.5%

FWHM:

82 x 23.5°

Cd/Im:

1.0

Download

LUMILEDS LUXEON CZ White

Eff:

96.0%

FWHM:

74 x 22.5°

Cd/Im:

1.3

Carclo Optics 12818 Spot Image Luxeon CZ 5M CW

Carclo Optics 12818 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON HL1Z Color Blue

Eff:

94.0%

FWHM:

72 x 18.5°

Cd/Im:

1.3

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

93.5%

FWHM:

74 x 20°

Cd/Im:

1.2

Download

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

94.0%

FWHM:

73 x 20°

Cd/Im:

1.3


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

92.0%

FWHM:

74 x 19.5°

Cd/Im:

1.2


Download

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

93.5%

FWHM:

71 x 18.5°

Cd/Im:

1.4

Download

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

94.0%

FWHM:

71 x 19.5°

Cd/Im:

1.3


Download

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

94.5%

FWHM:

73 x 19°

Ipk/W:

1.3


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

94.5%

FWHM:

73 x 18°

Cd/Im:

1.3

Download

ies

LUMILEDS LUXEON HL2X White

Eff:

95.5%

FWHM:

77 x 30°

Cd/Im:

1.3

Carclo Optics - 12818 Spot Image Luxeon HL2X

Carclo Optics - 12818 Cross Section Luxeon HL2X

Download

ies

LUMILEDS LUXEON HL2X-D White

Eff:

95.5%

FWHM:

82 x 35°

Cd/Im:

1.0

Download

IES

LUMILEDS LUXEON HL2X-E White

Eff:

96.0%

FWHM:

81 x 33°

Cd/Im:

1.1

Download

LUMILEDS LUXEON HL2X-P White

Eff:

95.5%

FWHM:

81 x 33°

Cd/Im:

1.1

Download

ies

LUMILEDS LUXEON HL2X-V White

Eff:

96.0%

FWHM:

81 x 31°

Cd/Im:

1.0

Download

LUMILEDS LUXEON HL2Z White

Eff:

95.0%

FWHM:

74 x 21.5°

Cd/Im:

1.2

Carclo Optics – 12818 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12818 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON HL4X White

Eff:

94.5%

FWHM:

86 x 35°

Cd/Im:

0.9

Download

LUMILEDS LUXEON HL4Z White

Eff:

96.0%

FWHM:

77 x 27°

Cd/Im:

1.1

Download

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

74/23.5°

Ipk/W:

1.2

Carclo Optics - 12818 50x50mm Elliptical Spot Image Luxeon IR 2720

Carclo Optics - 12818 50x50mm Elliptical Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

90.0%

FWHM:

80*30°

Cd/Im:

0.9

Simulation Data

Simulation Data

Download

1

LUMILEDS LUXEON Rubix Blue

Eff:

96.5%

FWHM:

77 x 23°

Cd/Im:

1.4

Carclo Optics – 12818 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12818 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

96.5%

FWHM:

77 x 25.5°

Cd/Im:

1.2

Carclo Optics – 12818 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12818 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

96.5%

FWHM:

76 x 22.5°

Cd/Im:

1.3

Carclo Optics – 12818 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12818 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

97.0%

FWHM:

73 x 21.5°

Cd/Im:

1.7

Carclo Optics – 12818 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12818 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

96.0%

FWHM:

76 x 23°

Cd/Im:

1.3

Carclo Optics - 12818 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12818 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

93.0%

FWHM:

81 x 22.5°

Cd/Im:

1.1

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

88.0%

FWHM:

88 x 27.5°

Cd/Im:

0.8

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

88.5%

FWHM:

83 x 24°

Cd/Im:

1.8

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

91.0%

FWHM:

83 x 21.5°

Cd/Im:

0.9

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line - Lime - Spot Image

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line - Lime - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

90.0%

FWHM:

84 x 22.5°

Cd/Im:

0.9

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image

Carclo Optics – 12818 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section

Download

ies

LUMILEDS LUXEON V White

Eff:

93.0%

FWHM:

77 x 34°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Luminus Devices MP-3030-11F2 White

Eff:

96.5%

FWHM:

73 x 23.5°

Cd/Im:

1.3


Download

Luminus Devices MP-5050-240E White

Eff:

96.0%

FWHM:

74 x 36°

Cd/Im:

1.1


Download

Luminus Devices MP-5050-810E White

Eff:

95.5%

FWHM:

76 x 38°

Cd/Im:

1.2


Download

Luminus Devices SFT-12R-WES-A White

Eff:

96.5%

FWHM:

75 x 22.5°

Cd/Im:

1.4


Download

Luminus Devices SFT-12R-WES-F White

Eff:

96.5%

FWHM:

76 x 24.5°

Cd/Im:

1.4


Download

Luminus Devices SFT-25R-WES-A White

Eff:

96.5%

FWHM:

75 x 24°

Cd/Im:

1.3


Download

Luminus Devices SFT-25R-WES-F White

Eff:

96.5%

FWHM:

76 x 25°

Cd/Im:

1.4


Download

Luminus Devices SFT-40-W Gen2 White

Eff:

96.5%

FWHM:

76 x 24.5°

Cd/Im:

1.5


Download

Luminus Devices SFT-40-WxS White

Eff:

96.5%

FWHM:

75 x 23°

Cd/Im:

1.5

Download

ies

Luminus Devices SFT-70X-WxS White

Eff:

96.5%

FWHM:

74 x 27.5°

Cd/Im:

1.3

Download

ies

Luminus Devices SST 05-IR-B40 850nm

Eff:

96.0%

FWHM:

33 x 15.5°

Ipk/W:

4.3

Carclo Optics - 12818 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 12818 Cross Section Luminus SST-05-IR-B40

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

96.0%

FWHM:

70 x 21°

Cd/Im:

1.4

Carclo Optics - 12818 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 12818 Luminus_SST-10_B_B130 - cross Image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

95.5%

FWHM:

61 x 23.5°

Cd/Im:

1.7

Carclo Optics - 12818 Luminus_SST-10_B_B90 - cross section image

Carclo Optics - 12818 Luminus_SST-10_B_B90 - cross section image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

96.0%

FWHM:

81 x 25°

Cd/Im:

1.1

Carclo Optics – 12818 Luminus_SST-10_DR_B130- Spot – image

Carclo Optics – 12818 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

95.5%

FWHM:

66 x 25°

Cd/Im:

1.7

Carclo Optics – 12818 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics – 12818 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-FR-B130 Far Red

Eff:

95.5%

FWHM:

76 x 20.5°

Cd/Im:

2.5

Carclo Optics – 12818 Luminus_SST-10_FR_B130- Spot – image

Carclo Optics – 12818 Luminus_SST-10_FR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-FR-B90 Far Red

Eff:

96.0%

FWHM:

61 x 23.5°

Cd/Im:

3.7

Carclo Optics – 12818 Luminus_SST-10_FR_B90- Spot – image

Carclo Optics – 12818 Luminus_SST-10_FR_B90- Cross section – image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

95.5%

FWHM:

71 x 21.5°

Cd/Im:

1.3

Carclo Optics - 12818 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 12818 Luminus_SST-10_G_B130 - cross section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

94.5%

FWHM:

61 x 23.5°

Cd/Im:

1.8

Carclo Optics - 12818 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12818 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

96.5%

FWHM:

74 x 23.5°

Ipk/W:

1.2

Carclo Optics - 12818 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12818 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

96.0%

FWHM:

62 x 24°

Ipk/W:

1.6

Carclo Optics - 12818 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12818 Cross Section Luminus SST-10-IR-B90

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

96.5%

FWHM:

76 x 23.5°

Ipk/W:

1.3


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

96.0%

FWHM:

61 x 24.5°

Ipk/W:

1.8


Download

ies

Luminus Devices SST 10-R-B130 Red

Eff:

95.5%

FWHM:

81 x 23.5°

Cd/Im:

1.2

Carclo Optics – 12818 Luminus_SST-10_R_B130 - Spot – image

Carclo Optics – 12818 Luminus_SST-10_R_B130 - Cross section – image

Download

ies

Luminus Devices SST 10-R-B90 Red

Eff:

95.0%

FWHM:

65 x 25°

Cd/Im:

1.7

Carclo Optics – 12818 Luminus_SST-10_R_B90- Spot – image

Carclo Optics – 12818 Luminus_SST-10_R_B90- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B130 Sky Blue

Eff:

96.0%

FWHM:

70 x 20.5°

Cd/Im:

1.5

Carclo Optics – 12818 Luminus_SST-10_SB_B130- Spot – image

Carclo Optics – 12818 Luminus_SST-10_SB_B130- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B90 Sky Blue

Eff:

95.5%

FWHM:

61 x 24°

Cd/Im:

2.2

Carclo Optics – 12818 Luminus_SST-10_SB_B90- Spot – image

Carclo Optics – 12818 Luminus_SST-10_SB_B90- Cross section – image

Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.5%

FWHM:

74 x 23.5°

Cd/Im:

1.3

Carclo Optics – 12818 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12818 - Luxeon_SST_20_W_cross vertical section

Download

ies

Luminus Devices SST 40-W White

Eff:

94.5%

FWHM:

88 x 37°

Cd/Im:

1.0

Carclo Optics – 12818 - Luxeon_SST_40_W_spot-image

Carclo Optics – 12818 - Luxeon_SST_40_W_cross vertical section

Download

ies

Luminus Devices SST-12-WS Gen2 White

Eff:

95.5%

FWHM:

75 x 26°

Cd/Im:

1.4


Download

Luminus Devices SST-12-WxS White

Eff:

95.5%

FWHM:

76 x 23.5°

Cd/Im:

1.3

Download

ies

Luminus Devices SST-20-W Gen2 White

Eff:

95.5%

FWHM:

78 x 25°

Cd/Im:

1.2


Download

Luminus Devices SST-25-WES White

Eff:

95.0%

FWHM:

76 x 25.5°

Cd/Im:

1.4

Download

Luminus Devices SST-70X-W White

Eff:

95.5%

FWHM:

85 x 36°

Cd/Im:

1.1

Download

ies

Nichia 229A White

Eff:

98.5%

FWHM:

133°

Cd/Im:

0.3

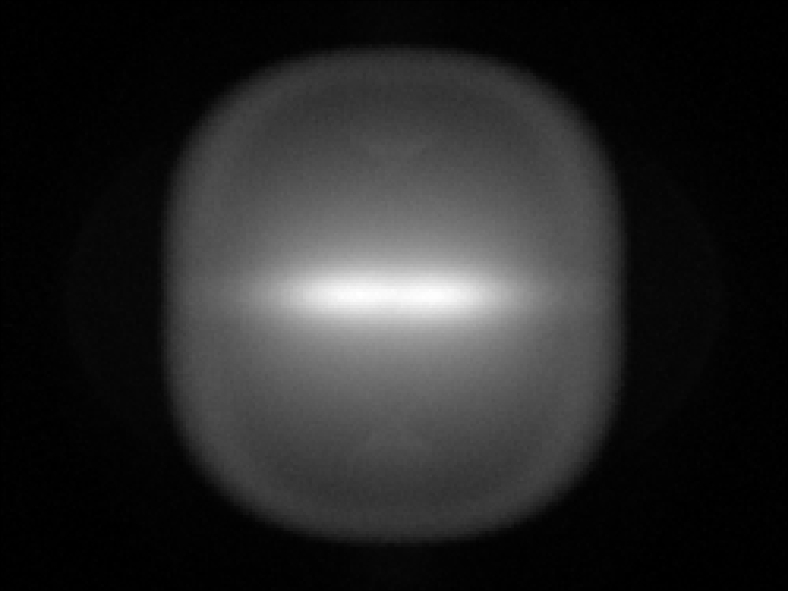

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

96.0%

FWHM:

72 x 25.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

94.0%

FWHM:

71 x 18°

Cd/Im:

1.2

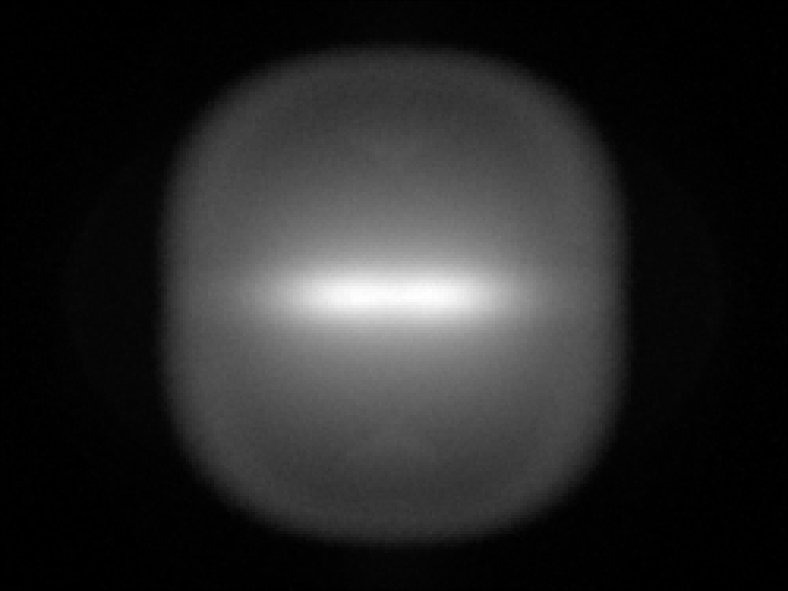

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

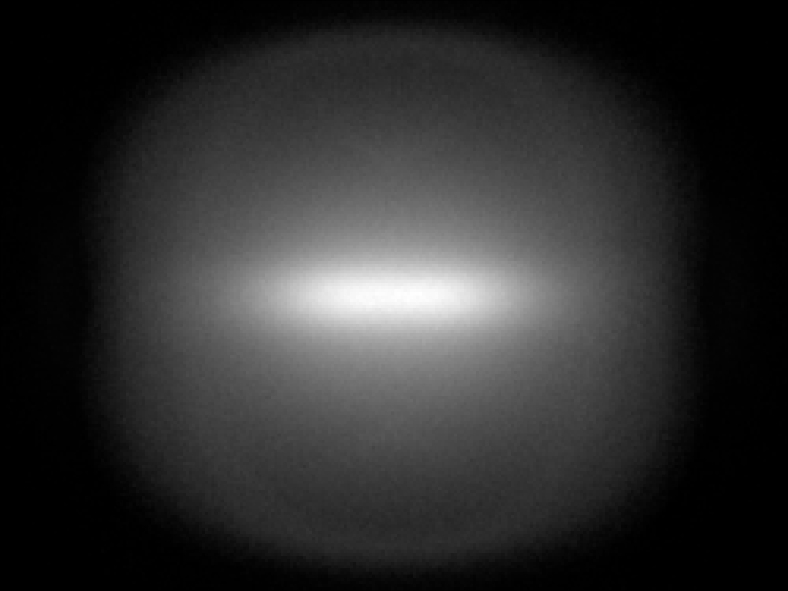

Nichia NF2W 385AR-V2 White

Eff:

95.5%

FWHM:

75 x 32°

Cd/Im:

0.9

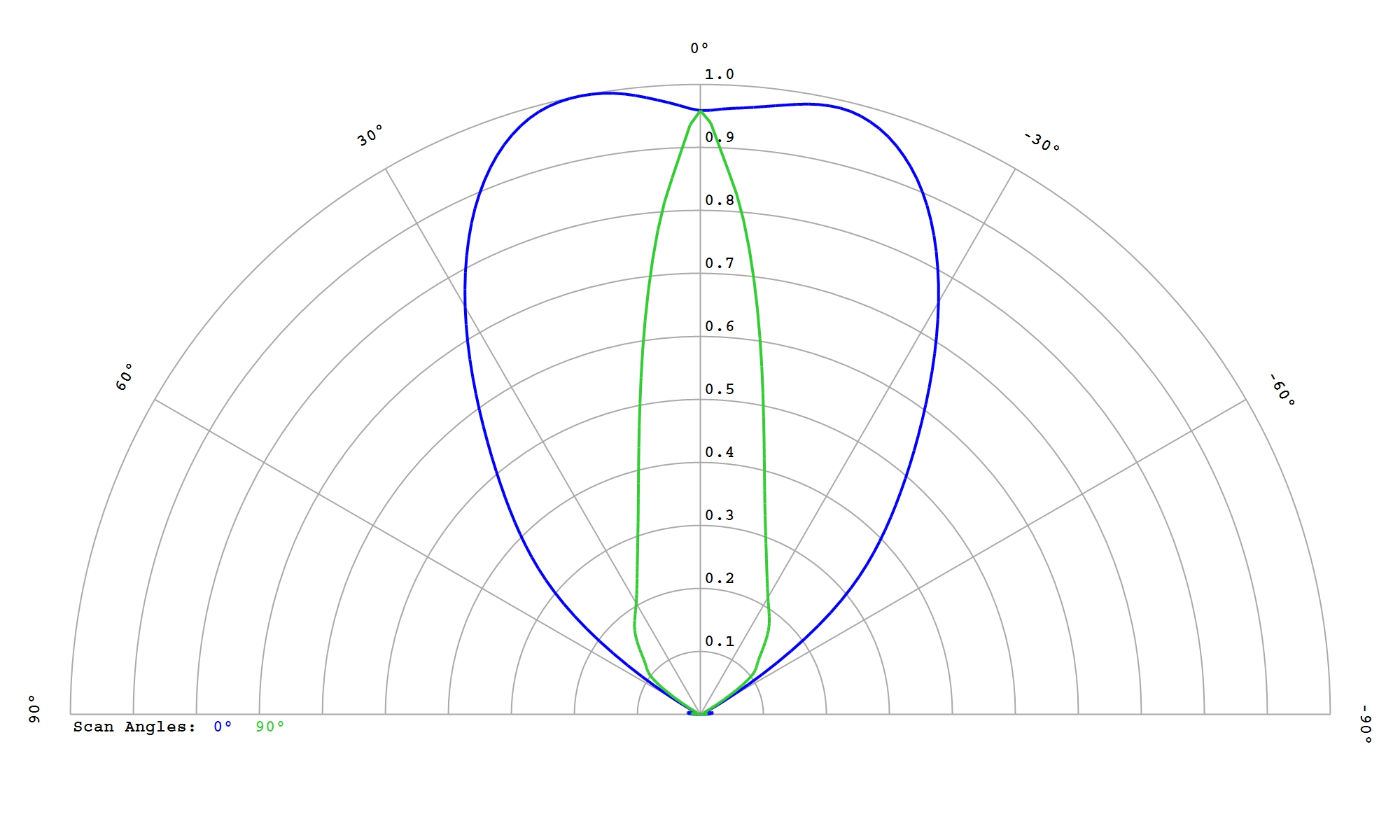

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 757G-MT Tunable

Eff:

96.0%

FWHM:

74 x 24.5°

Cd/Im:

1.4

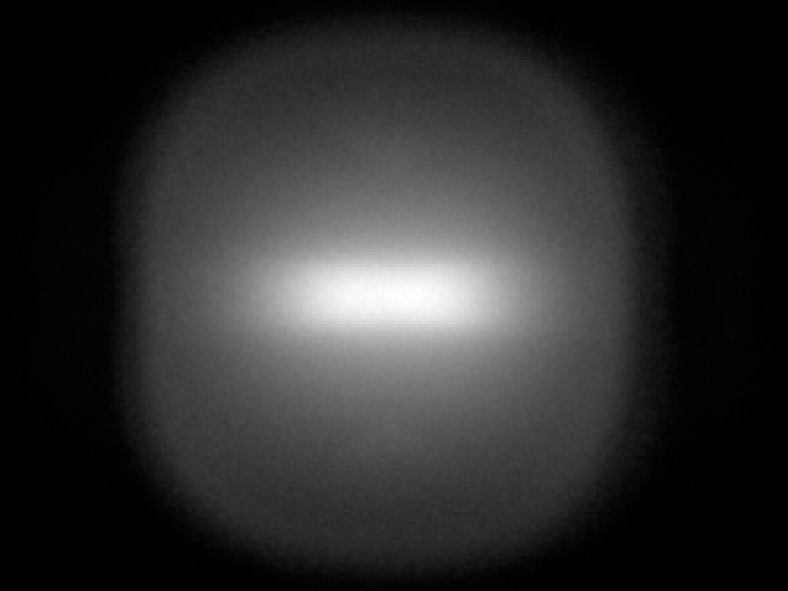

Carclo Optics 12818 Simulated Spot Image Nichia 757G-MT

Carclo Optics 12818 Cross section Image Nichia 757G-MT

Download

ies

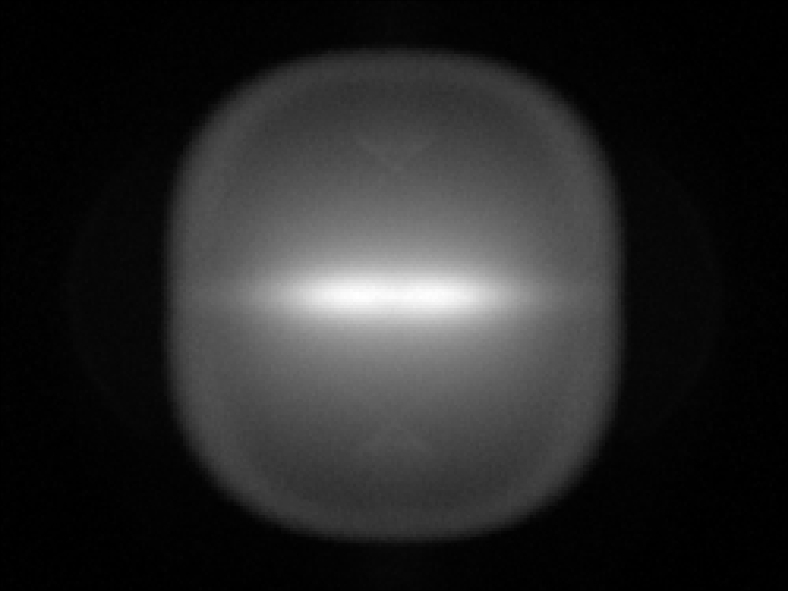

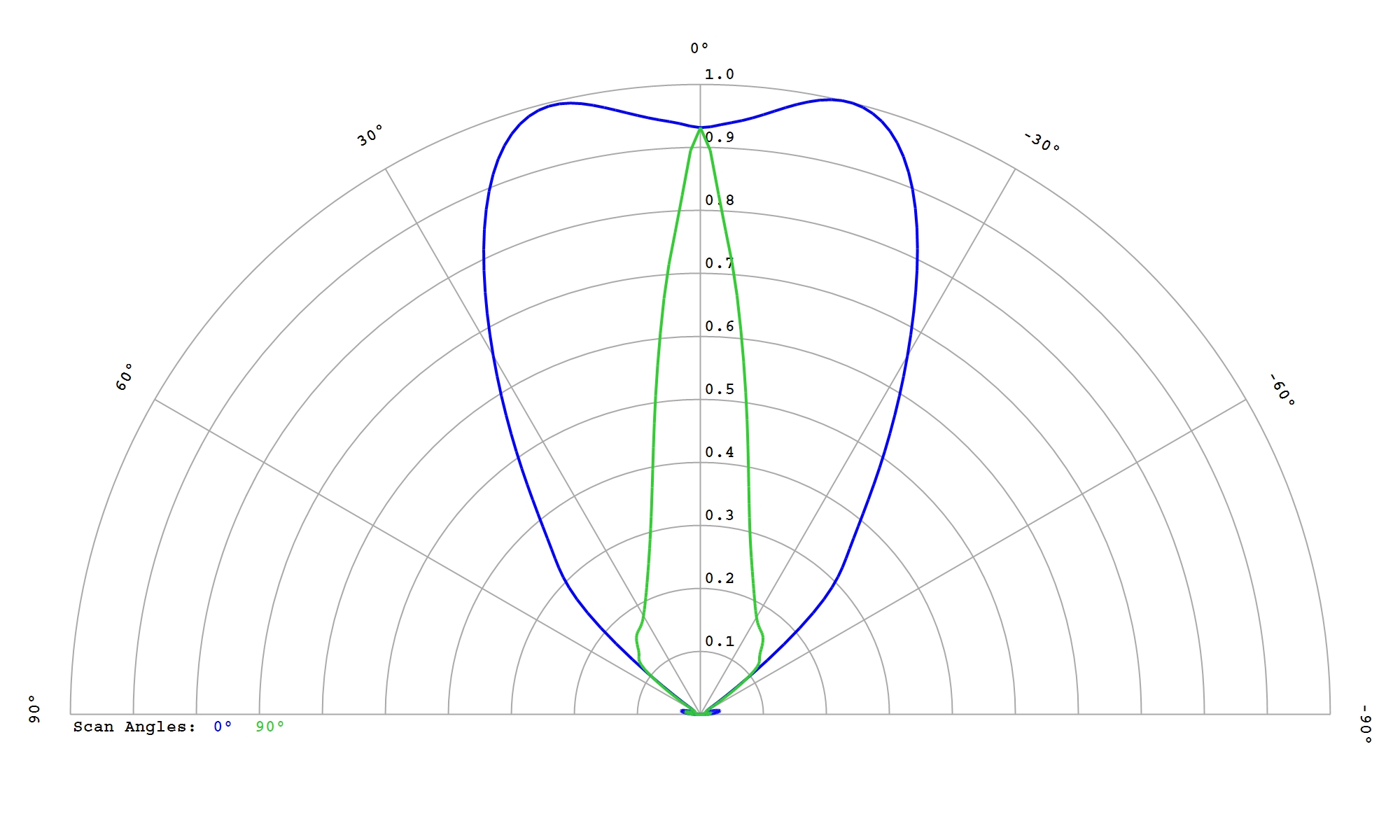

Nichia NFSW CSP E11A White

Eff:

93.5%

FWHM:

71 x 18°

Cd/Im:

1.4

Download

ies

Nichia NVSW 219C White

Eff:

95.0%

FWHM:

82 x 27°

Cd/Im:

0.9

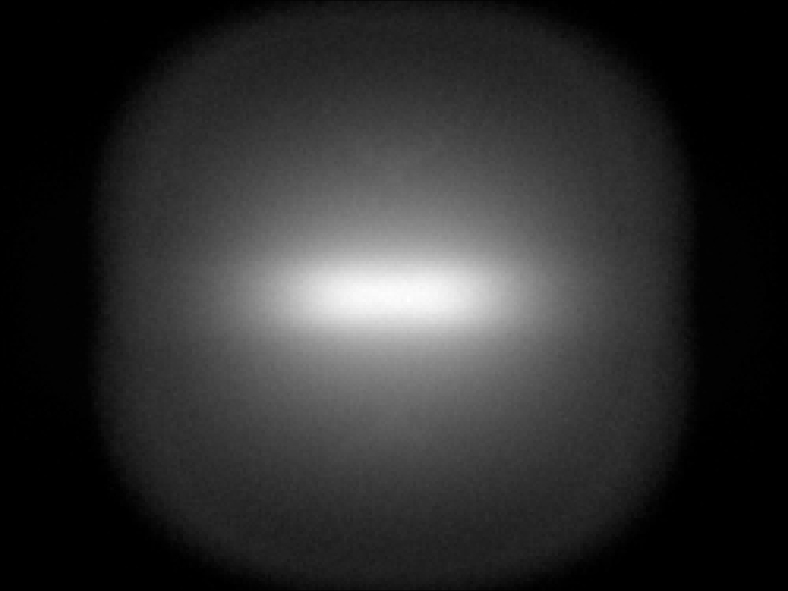

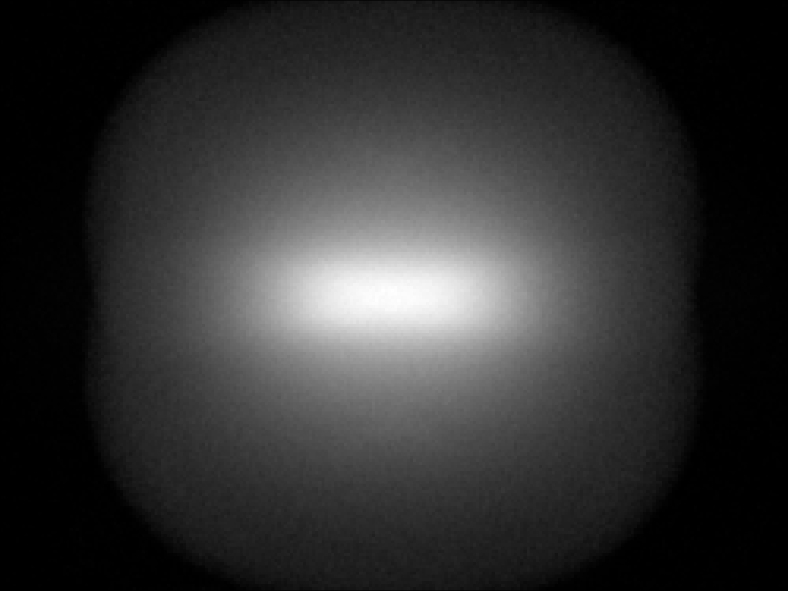

Carclo Optics - Simulated Spot Image

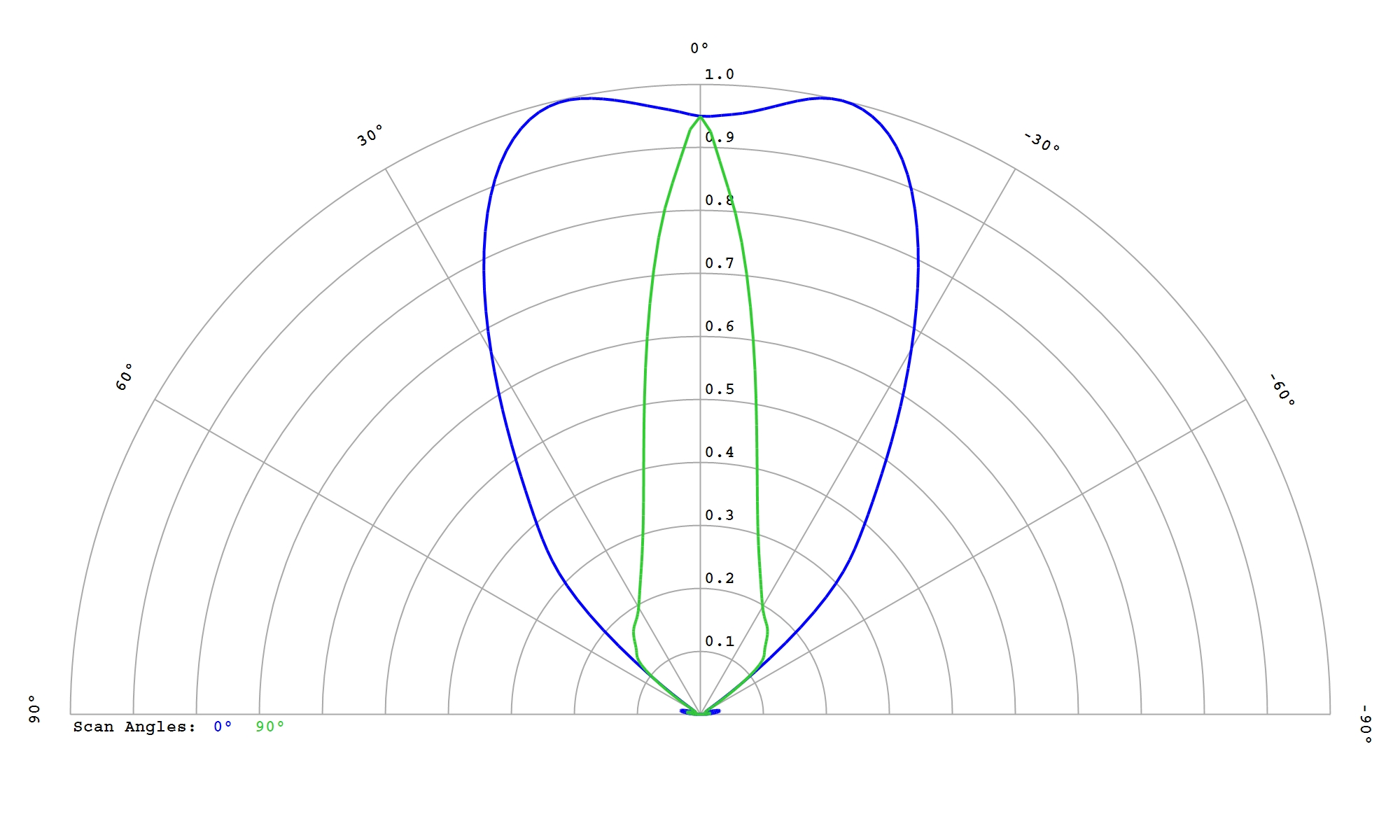

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219F White

Eff:

95.5%

FWHM:

77 x 30°

Cd/Im:

1.0

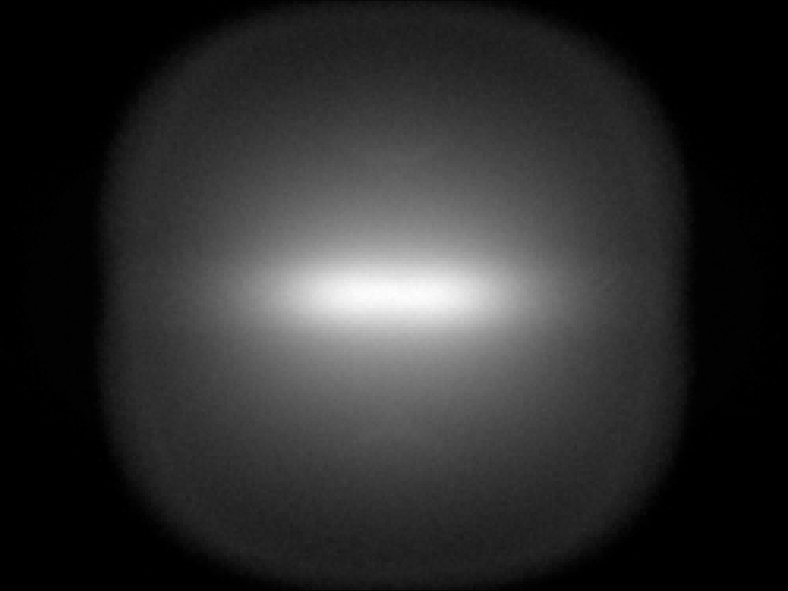

Carclo Optics – 12818 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12818 Nichia NVSW 219F White - Cross-Section

Download

ies

Nichia NVSW 319A White

Eff:

94.0%

FWHM:

84 x 29°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

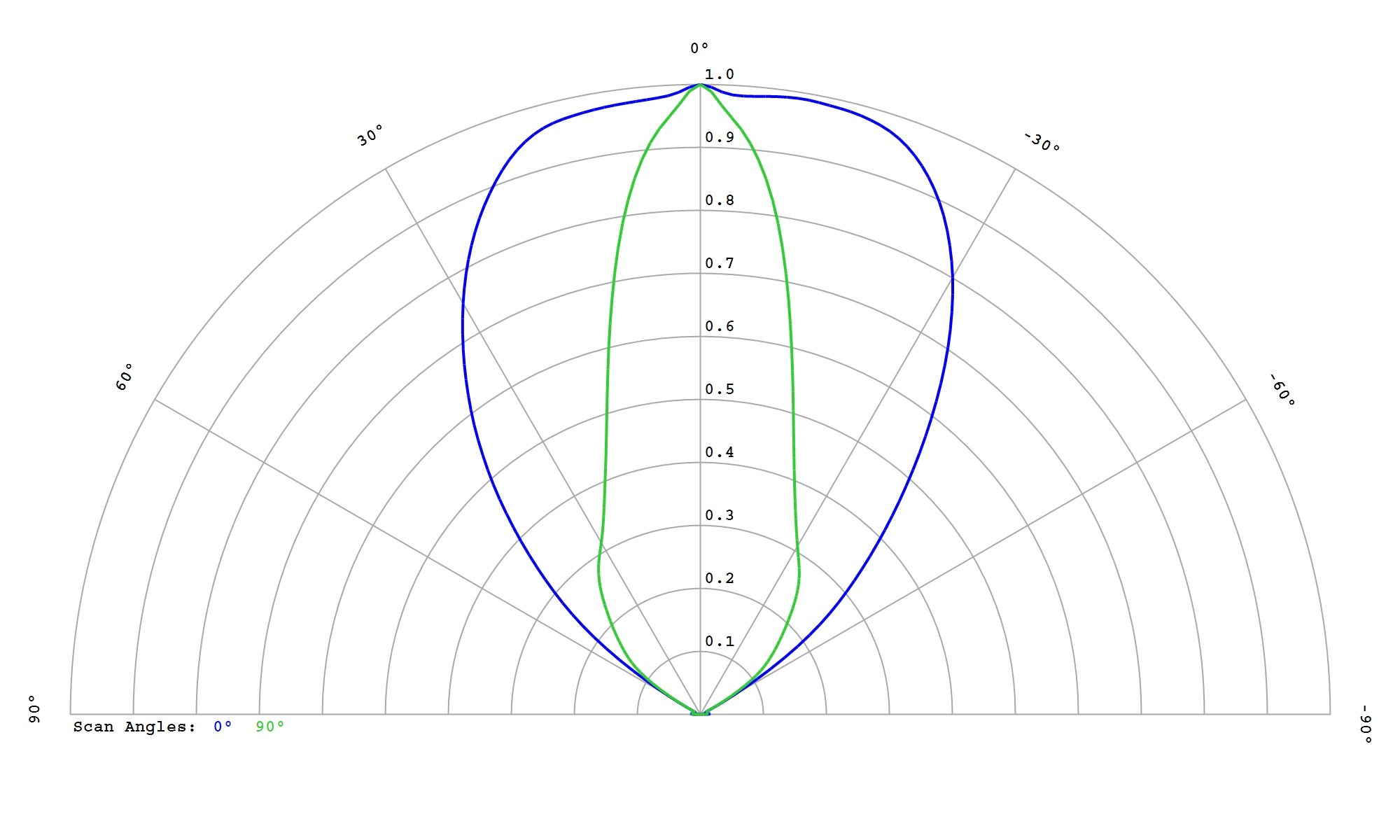

Carclo Optics - Simulated Cross Section

Download

ies

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

96.0%

FWHM:

63 x 19.5°

Cd/Im:

2.2

Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

97.5%

FWHM:

65 x 21.5°

Ipk/W:

1.9

Download

IES

Osram DURIS E 2835 Gen2

Eff:

96.0%

FWHM:

74 x 24.5°

Cd/Im:

1.4

Carclo Optics - 12818 Mini Hubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12818 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E 2835 White

Eff:

69.0%

FWHM:

74 x 25°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Deep Blue

Eff:

96.5%

FWHM:

89 x 25°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 GP PSLM31.14 Purple

Eff:

96.5%

FWHM:

75 x 22.5°

Cd/Im:

1.7

Carclo Optics – 12818 Osram Duris S5 GP PSLM31.14 Purple - Spot Image

Carclo Optics – 12818 Osram Duris S5 GP PSLM31.14 Purple - Cross-Section

Download

14

Osram DURIS S5 GP PSLR31.14 Purple

Eff:

96.0%

FWHM:

74 x 23.5°

Cd/Im:

1.4

Carclo Optics – 12818 Osram Duris S5 GP PSLR31.14 Purple - Spot Image

Carclo Optics – 12818 Osram Duris S5 GP PSLR31.14 Purple - Cross-Section

Download

14

Osram DURIS S5 Green

Eff:

96.0%

FWHM:

72 x 22°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Red

Eff:

96.5%

FWHM:

71 x 20.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S8 Gen3 White

Eff:

96.0%

FWHM:

75 x 39°

Cd/Im:

1.2

Carclo Optics - 12818 Mini Hubble Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12818 Mini Hubble Cross Section Oslon DURIS S8 Gen3

Download

ies

Osram OSCONIQ C 2424 White

Eff:

96.0%

FWHM:

72 x 22°

Cd/Im:

1.6

Carclo Optics 12818 Spot Image Osram Osconiq C2424

Carclo Optics 12818 Cross Section Osram Osconiq C2424

Download

ies

Osram OSCONIQ P3737 White

Eff:

93.0%

FWHM:

75 x 31°

Cd/Im:

1.2

Carclo Optics 12818 Spot Image Osram Osconiq P3737

Carclo Optics 12818 Cross Section Osram Osconiq P3737

Download

ies

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

96.0%

FWHM:

75 x 40°

Cd/Im:

1.0



Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

96.0%

FWHM:

102 x 21°

Ipk/W:

1.0

Carclo Optics – 12818 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12818 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Black SFH 4725S IR

Eff:

96.5%

FWHM:

62 x 19°

Ipk/W:

1.9

Carclo Optics 12818 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 12818 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

96.0%

FWHM:

75 x 22.5°

Cd/Im:

1.4

Carclo Optics – 12818 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12818 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

95.0%

FWHM:

69 x 16.5°

Cd/Im:

1.5


Download

ies

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

95.5%

FWHM:

67 x 16°

Ipk/W:

1.6


Download

ies

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

94.5%

FWHM:

70 x 17°

Cd/Im:

1.5


Download

ies

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

93.5%

FWHM:

73 x 18.5°

Cd/Im:

1.4


Download

ies

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

95.0%

FWHM:

71 x 17°

Cd/Im:

1.4


Download

ies

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

94.0%

FWHM:

70 x 17.5°

Cd/Im:

1.6



Download

ies

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

96.5%

FWHM:

73 x 19.5°

Cd/Im:

1.7


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

96.5%

FWHM:

73 x 20.5°

Cd/Im:

1.5


Download

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

97.0%

FWHM:

72 x 19°

Ipk/W:

1.4


Download

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

95.0%

FWHM:

78 x 21°

Cd/Im:

1.1


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

96.5%

FWHM:

73 x 20°

Cd/Im:

1.5


Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

96.5%

FWHM:

73 x 22.5°

Cd/Im:

1.5


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

96.0%

FWHM:

73 x 20°

Cd/Im:

1.5

Download

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

96.5%

FWHM:

74 x 22°

Cd/Im:

1.3


Download

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

96.0%

FWHM:

73 x 20°

Cd/Im:

1.5


Download

Osram OSLON Square Flat White

Eff:

95.5%

FWHM:

74 x 21.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

95.5%

FWHM:

74 x 28.5°

Cd/Im:

1.3

Carclo Optics - 12818 Mini Hubble Spot Image Oslon Square Gen 5

Carclo Optics - 12818 Mini Hubble Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

95.5%

FWHM:

74 x 28.5°

Cd/Im:

1.3

Carclo Optics - 12818 Mini Hubble Spot Image Oslon Square Gen 5

Carclo Optics - 12818 Mini Hubble Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square White

Eff:

90.0%

FWHM:

80*29°

Cd/Im:

0.9

Simulation Data

Simulation Data

Download

1

Osram OSLON SSL 120 GD CSSPM1.14 Deep Blue

Eff:

96.0%

FWHM:

76 x 22.5°

Cd/Im:

1.5

Carclo Optics – 12818 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image

Carclo Optics – 12818 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section

Download

ies

Osram OSLON SSL 120 GF CSSPM1.24 Far Red

Eff:

96.5%

FWHM:

78 x 19.5°

Cd/Im:

2.9

Carclo Optics – 12818 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image

Carclo Optics – 12818 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section

Download

ies

Osram OSLON SSL 120 GH CSSPM1.24 Hyper Red

Eff:

96.5%

FWHM:

84 x 25.5°

Cd/Im:

1.3

Carclo Optics – 12818 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image

Carclo Optics – 12818 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

96.0%

FWHM:

83 x 23.5°

Cd/Im:

1.1

Carclo Optics – 12818 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12818 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Inventronics PL-Brick HP 3800 740 2x8

Eff:

95.5%

FWHM:

76 x 27°

Cd/Im:

1.3



Download

Signify Philips Fortimo FastFlex 2x2 730 DA G4

Eff:

96.0%

FWHM:

76 x 29°

Cd/Im:

1.0

Carclo Optics 12818 Spot Image FastFlex_LED_2x2_730_DA_G4

Carclo Optics 12818 Cross Section FastFlex_LED_2x2_730_DA_G4

Download

IES

Signify Philips Fortimo FastFlex 2x4 730 DA G4

Eff:

96.0%

FWHM:

74 x 26.5°

Cd/Im:

1.1

Carclo Optics 12818 Spot Image FastFlex_LED_2x4_730_DA_G4

Carclo Optics 12818 Cross Section FastFlex_LED_2x4_730_DA_G4

Download

IES

Signify Philips Fortimo FastFlex 2x6 730 DA G4

Eff:

95.0%

FWHM:

75 x 29°

Cd/Im:

1.0

Carclo Optics 12818 Spot Image FastFlex_LED_2x6_730_DA_G4

Carclo Optics 12818 Cross Section FastFlex_LED_2x6_730_DA_G4

Download

IES

Signify Philips Fortimo FastFlex 2x8 730 DA G3

Eff:

96.0%

FWHM:

79 x 31°

Cd/Im:

1.0

Carclo Optics 12818 Spot Image FastFlex_LED_2x8_730_DA_G3

Carclo Optics 12818 Cross Section FastFlex_LED_2x8_730_DA_G3

Download

IES

Signify Philips Fortimo FastFlex 2x8 730 DA G4

Eff:

96.5%

FWHM:

79 x 31.5°

Cd/Im:

1.0

Carclo Optics 12818 Spot Image FastFlex_LED_2x8_730_DA_G4

Carclo Optics 12818 Cross Section FastFlex_LED_2x8_730_DA_G4

Download

IES

Signify Philips Fortimo FastFlex 2x8 730 DAX G4

Eff:

96.0%

FWHM:

83 x 33°

Cd/Im:

0.9

Carclo Optics 12818 Spot Image FastFlex_LED_2x8_730_DAX_G4

Carclo Optics 12818 Cross Section FastFlex_LED_2x8_730_DAX_G4

Download

IES

Samsung 2835 LM281B+ White

Eff:

95.0%

FWHM:

74 x 25.5°

Cd/Im:

1.3



Download

Samsung 2835 LM282B+ White

Eff:

96.0%

FWHM:

72 x 25.5°

Cd/Im:

1.3



Download

Samsung 3030 LM301B White

Eff:

96.0%

FWHM:

72 x 23.5°

Cd/Im:

1.3

Download

ies

Samsung 3535 LH351D White

Eff:

88.0%

FWHM:

45.5 x 17.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 3535 LH351H Blue

Eff:

96.0%

FWHM:

83 x 24°

Cd/Im:

1.0

Carclo Optics – 12818 Samsung_3535_LH351H_B - Spot – image

Carclo Optics – 12818 Samsung_3535_LH351H_B - Cross section – image

Download

ies

Samsung 3535 LH351H Deep Red

Eff:

96.0%

FWHM:

79 x 25°

Cd/Im:

1.1

Carclo Optics – 12818 Samsung_3535_LH351H_DR - Spot – image

Carclo Optics – 12818 Samsung_3535_LH351H_DR - Cross section – image

Download

ies

Samsung 3535 LH351H Red

Eff:

97.0%

FWHM:

76 x 22°

Cd/Im:

1.4

Carclo Optics – 12818 Samsung_3535_LH351H_R - Spot – image

Carclo Optics – 12818 Samsung_3535_LH351H_R - Cross section – image

Download

ies

Samsung 3535 LH351H-B White

Eff:

95.5%

FWHM:

80 x 28.5°

Cd/Im:

1.2

Carclo Optics – 12818 Samsung_3535_LH351H-B_White - Spot – image

Carclo Optics – 12818 Samsung_3535_LH351H-B_White - Cross section – image

Download

ies

Samsung 3535 LH351H-C White

Eff:

96.0%

FWHM:

79 x 33°

Cd/Im:

1.2

Carclo Optics – 12818 Samsung_3535_LH351H-C_White - Spot – image

Carclo Optics – 12818 Samsung_3535_LH351H-C_White - Cross section – image

Download

ies

Samsung 5050 LH502C White

Eff:

95.5%

FWHM:

77 x 40°

Cd/Im:

1.1


Download

IES

Samsung 5050 LH502D White

Eff:

95.5%

FWHM:

74 x 39°

Cd/Im:

1.0


Download

IES

Samsung 5050 LH508C White

Eff:

96.0%

FWHM:

77 x 39°

Cd/Im:

1.0


Download

IES

Samsung CSP LH151B White

Eff:

95.0%

FWHM:

70 x 18°

Cd/Im:

1.5

Carclo Optics – 12818 – Samsung_LH151B_spot-image

Carclo Optics – 12818 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH231B White

Eff:

95.0%

FWHM:

74 x 25°

Cd/Im:

1.2

Carclo Optics -12818 Spot Image - Samsung LH231B 5000K

Carclo Optics -12818 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

95.0%

FWHM:

73 x 18.5°

Cd/Im:

1.5

Carclo Optics -12818 Spot Image - Samsung LM101B 5000K

Carclo Optics -12818 Cross Section Image - Samsung LM101B 5000K

Download

ies

Samsung LM 101A White

Eff:

91.5%

FWHM:

79 x 18°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul 3030 STW8C12E-E0 White

Eff:

96.0%

FWHM:

74 x 24.5°

Cd/Im:

1.3

Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

96.0%

FWHM:

73 x 24.5°

Cd/Im:

1.3

Download

Seoul CSP SZ8Y11 White

Eff:

90.5%

FWHM:

80 x 18°

Cd/Im:

1.0

Carclo Optics -12818 Spot Image - Seoul Z8Y11

Carclo Optics -12818 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y22 White

Eff:

93.0%

FWHM:

82 x 25.5°

Cd/Im:

1.0

Carclo Optics -12818 Spot Image - Seoul SZ8Y22

Carclo Optics -12818 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

94.0%

FWHM:

81 x 27°

Cd/Im:

1.0

Carclo Optics - 12818 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12818 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul CSP SZ8Y22P White

Eff:

94.0%

FWHM:

81 x 27°

Cd/Im:

1.0

Carclo Optics - 12818 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12818 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul 3030 STB0C2PB Blue

Eff:

96.5%

FWHM:

77 x 26.5°

Cd/Im:

1.1

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Spot – image

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Cross section – image

Download

ies

Seoul 3030 STDRC12B Deep Red

Eff:

95.5%

FWHM:

76 x 24.5°

Cd/Im:

1.1

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Spot – image

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Cross section – image

Download

ies

Seoul 3030 STFRC12B Far Red

Eff:

96.5%

FWHM:

80 x 20°

Cd/Im:

1.6

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Spot – image

Carclo Optics – 12818 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Cross section – image

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

96.0%

FWHM:

74 x 25.5°

Cd/Im:

1.3

Carclo Optics - 12818 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12818 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

96.0%

FWHM:

74 x 25.5°

Cd/Im:

1.3

Carclo Optics - 12818 Spot Image STWS C2PB-E0

Carclo Optics - 12818 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

96.0%

FWHM:

73 x 25°

Cd/Im:

1.3

Download

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

96.0%

FWHM:

74 x 24.5°

Cd/Im:

1.4

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

96.0%

FWHM:

72 x 24°

Cd/Im:

1.3

Carclo Optics - 12818 Mini Hubble Spot Image Seoul Sunlike 3030

Carclo Optics - 12818 Mini Hubble Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

95.5%

FWHM:

79 x 30°

Cd/Im:

1.1

Carclo Optics – 12818 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 12818 Seoul Z-Power Z5 - Cross-Section

Download

ies

Seoul Z - Power Z5-M5 White

Eff:

95.0%

FWHM:

83 x 31°

Cd/Im:

1.0

Download
