10.0mm Wide Spot Frosted TIR LED Lenses

Part number

60169

Dimensions

10.0mm

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Industrial

Landscape & Garden

Office

Horticultural

Retail

Warehouse

Wide Area

Security

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

91.5%

FWHM:

59°

Cd/Im:

1.0


Download

IES

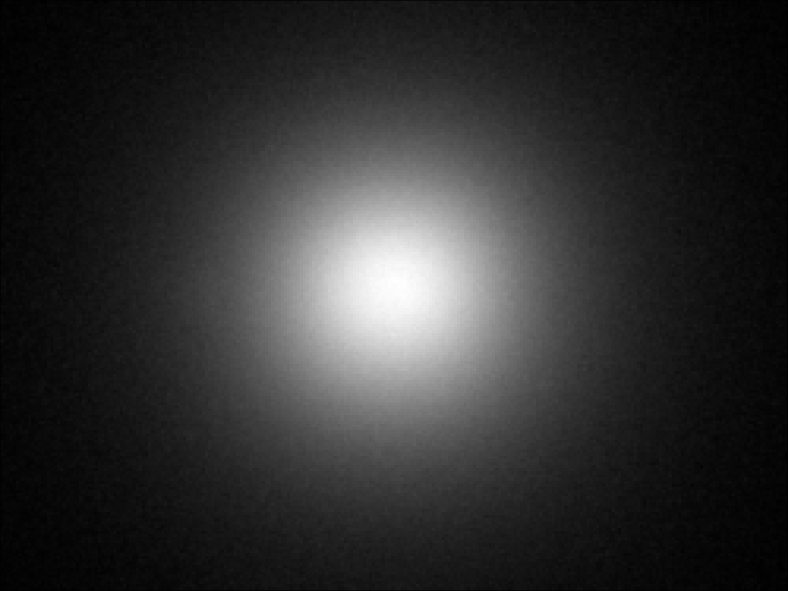

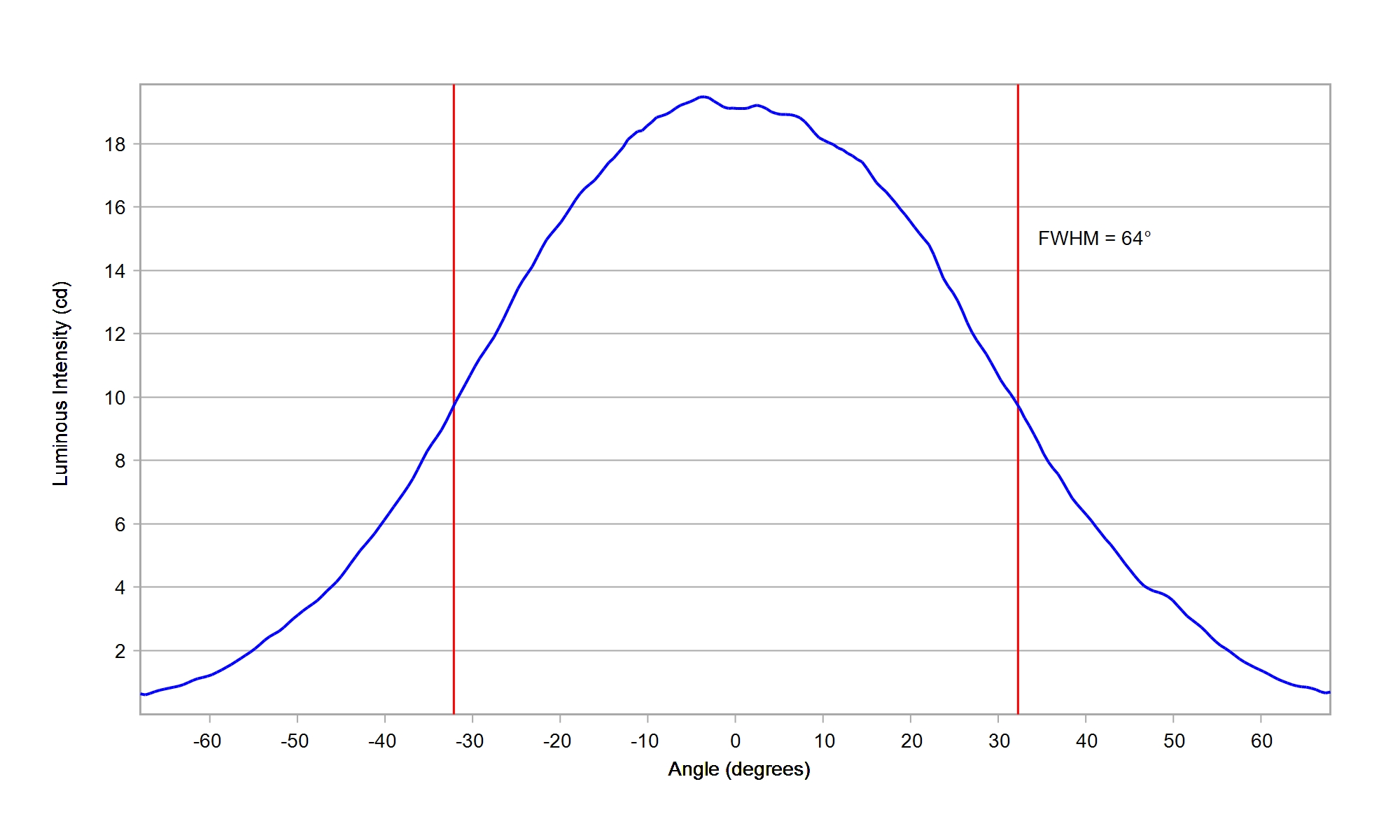

Cree JB2835B 3V G-Class White

Eff:

91.0%

FWHM:

64°

Cd/Im:

0.9


Download

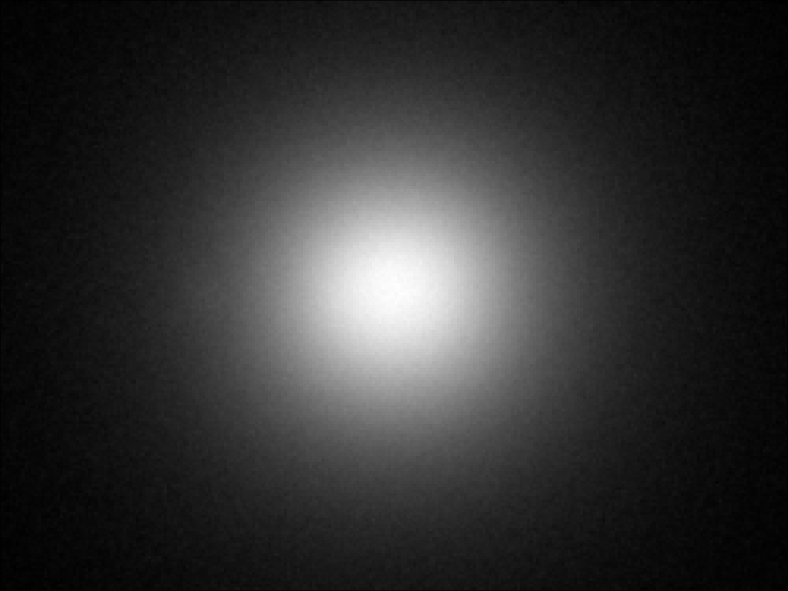

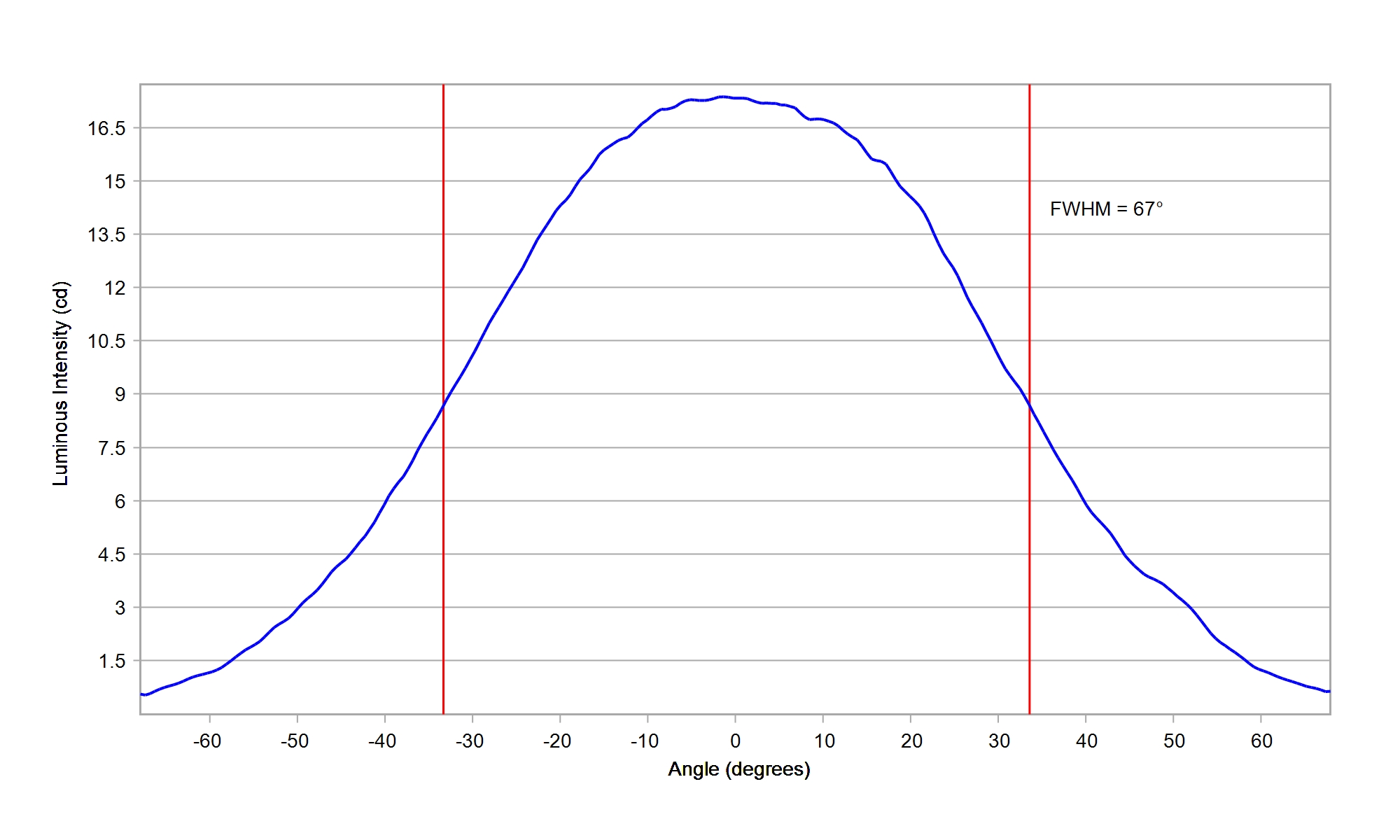

Cree JB2835B 3V J-Class White

Eff:

91.0%

FWHM:

67°

Cd/Im:

0.8


Download

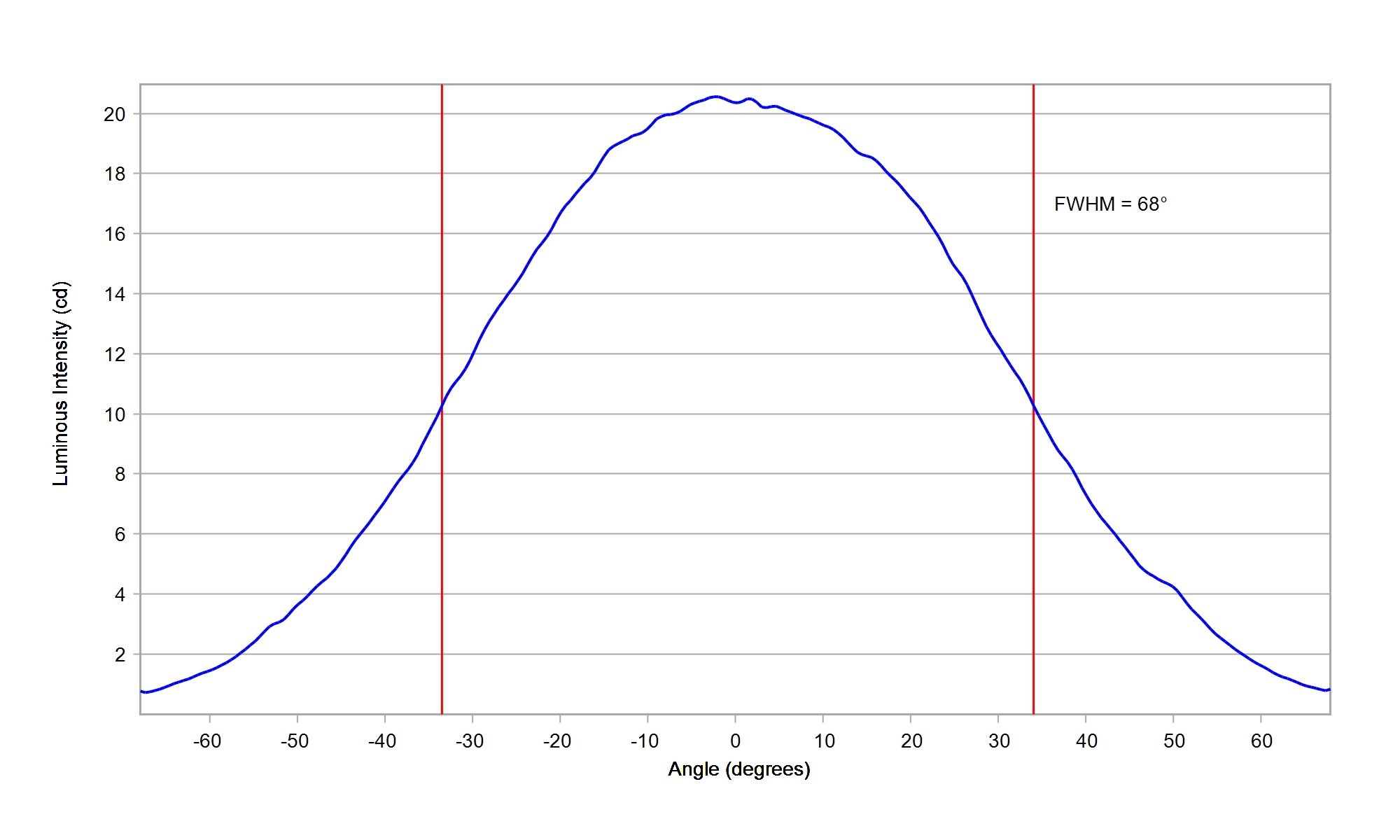

Cree JB3030C 3V E-Class White

Eff:

91.0%

FWHM:

68°

Cd/Im:

0.8


Download

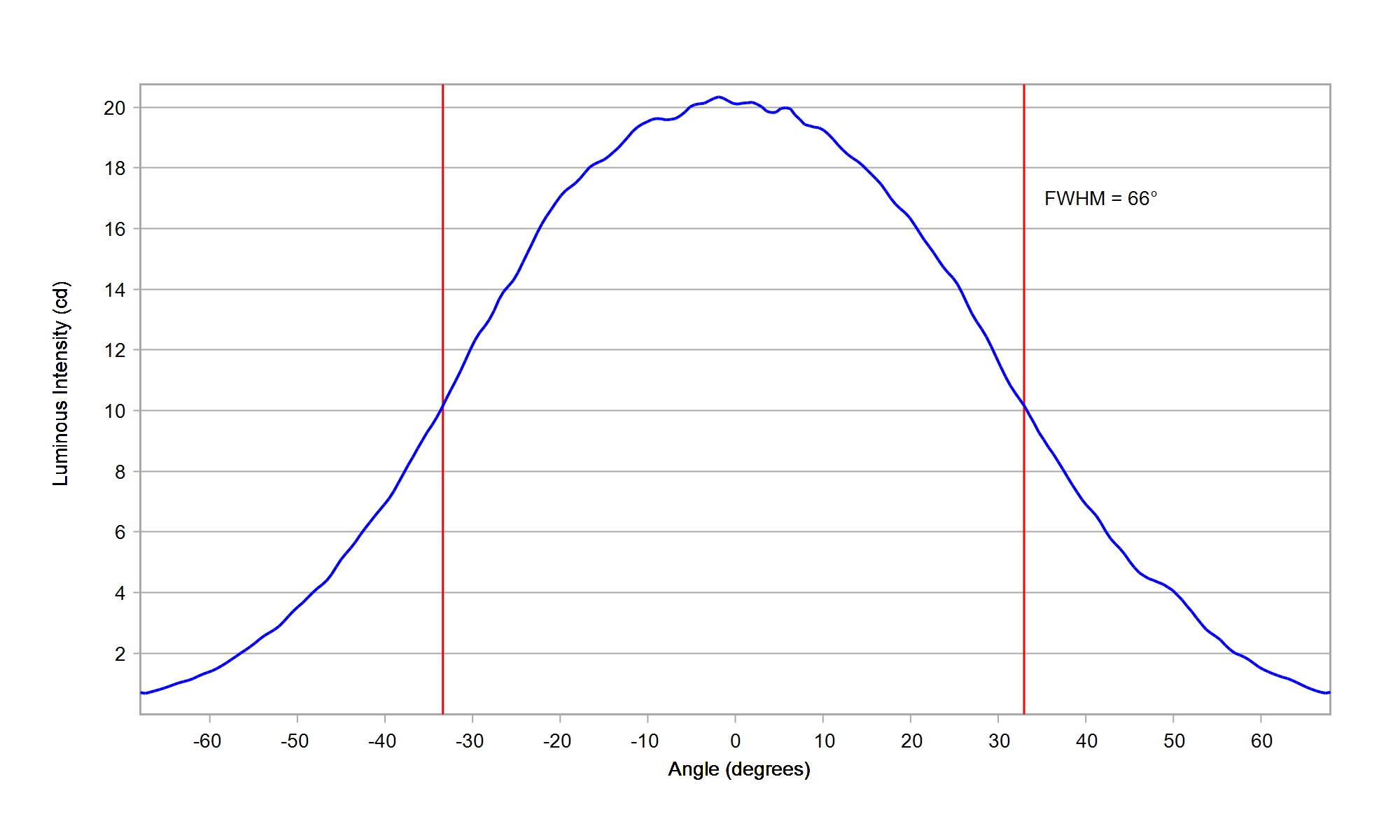

Cree JB3030C 3V F-Class White

Eff:

91.0%

FWHM:

66°

Cd/Im:

0.8


Download

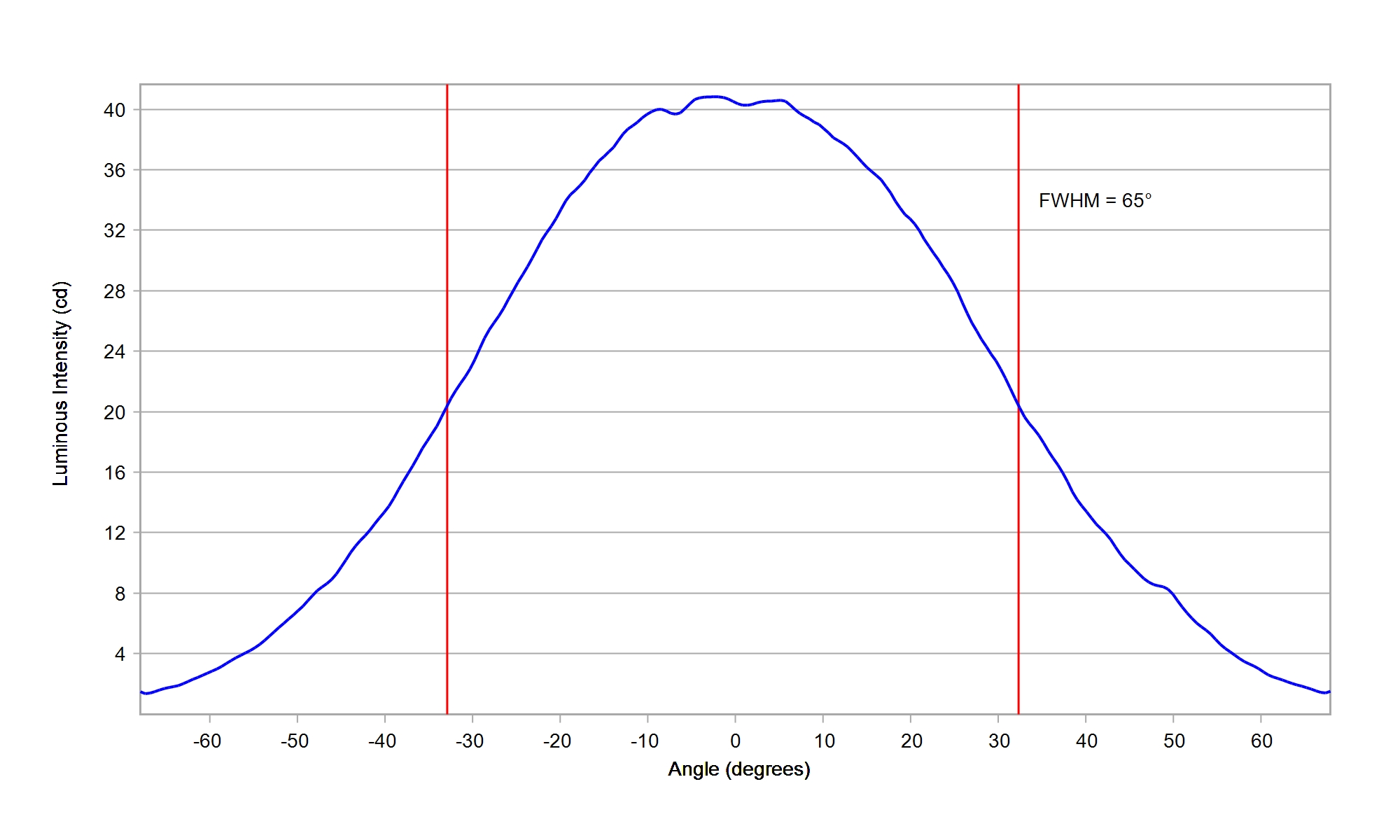

Cree JE2835 3V White

Eff:

91.0%

FWHM:

65°

Cd/Im:

0.8

Download

Cree JK2835 6V White

Eff:

91.0%

FWHM:

61°

Cd/Im:

1.0

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

90.5%

FWHM:

66°

Cd/Im:

0.8

Download

IES

Cree XLamp XB-D White

Eff:

88.5%

FWHM:

74°

Cd/Im:

0.7

Download

IES

Cree XLamp XE-G Blue

Eff:

89.0%

FWHM:

84°

Cd/Im:

0.6

Download

IES

Cree XLamp XE-G Green

Eff:

89.5%

FWHM:

85°

Cd/Im:

0.5

Download

IES

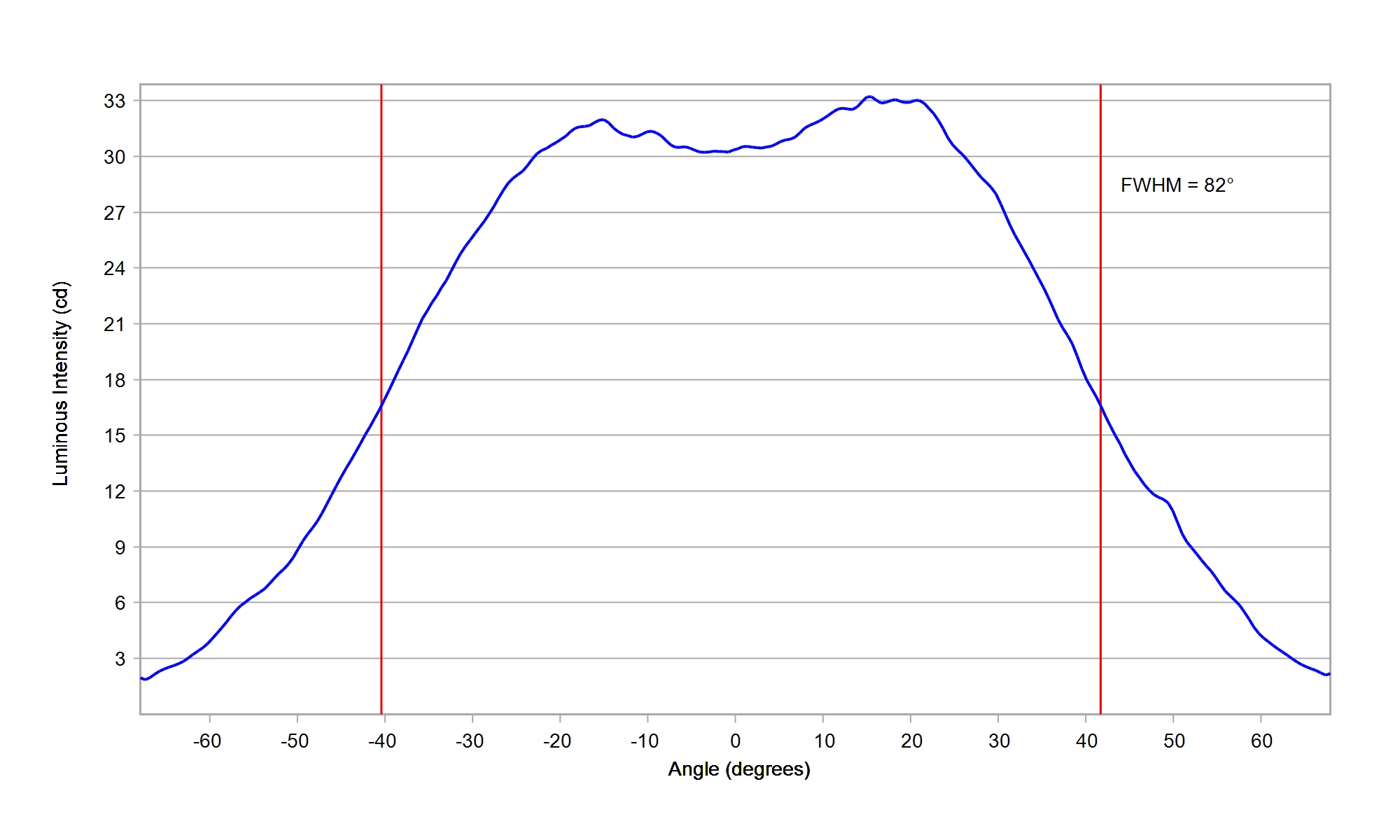

Cree XLamp XE-G Red

Eff:

89.0%

FWHM:

82°

Cd/Im:

0.5

Download

IES

Cree XLamp XE-G White

Eff:

89.0%

FWHM:

83°

Cd/Im:

0.5

Download

IES

Cree XLamp XP-E White

Eff:

90.0%

FWHM:

82°

Cd/Im:

0.6

Download

IES

Cree XLamp XP-E2 White

Eff:

89.5%

FWHM:

84°

Cd/Im:

0.6

Download

IES

Cree XLamp XP-G White

Eff:

89.0%

FWHM:

84°

Cd/Im:

0.6

Download

IES

Cree XLamp XP-G2 White

Eff:

90.0%

FWHM:

85°

Cd/Im:

0.6

Download

IES

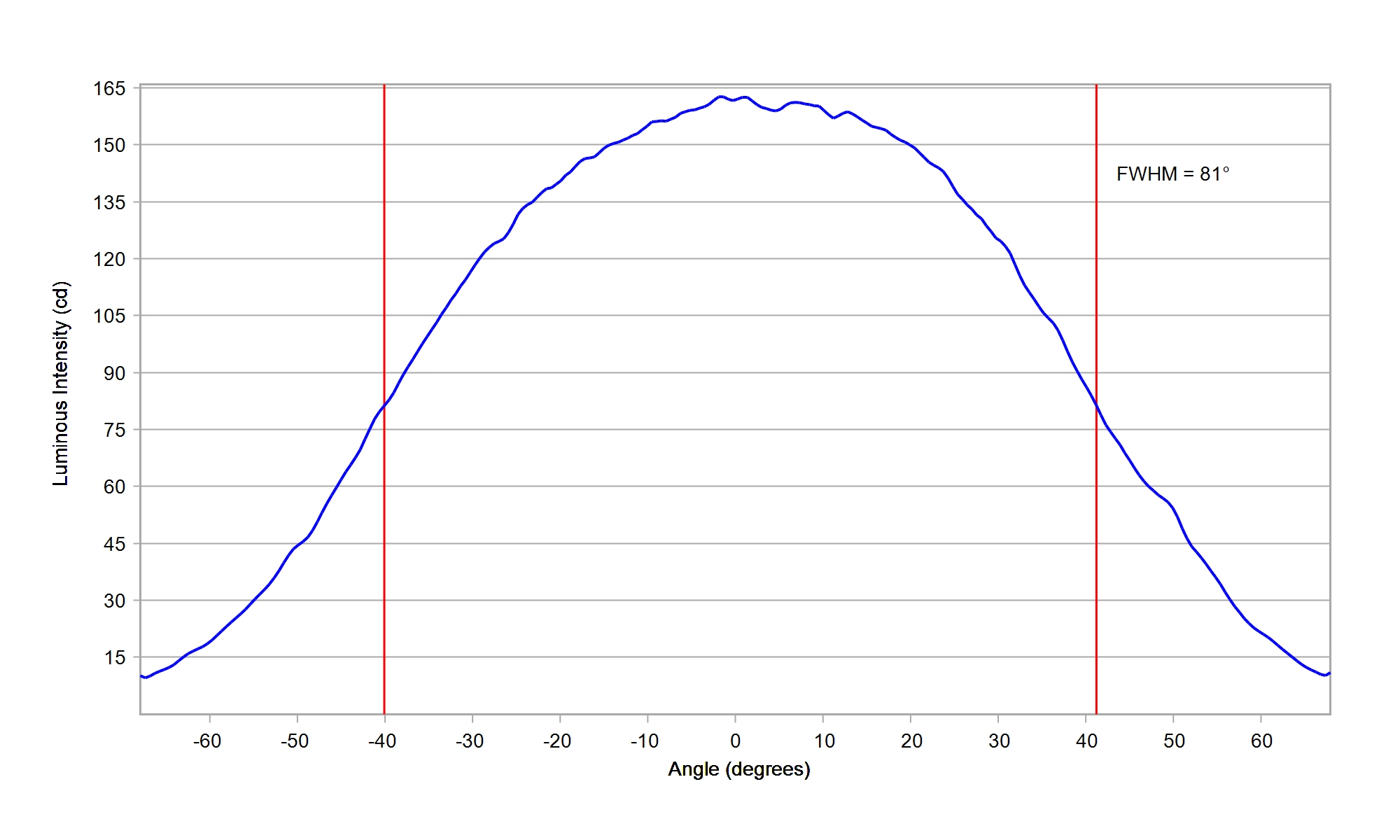

Cree XLamp XP-G4 White

Eff:

90.0%

FWHM:

81°

Cd/Im:

0.6

Download

IES

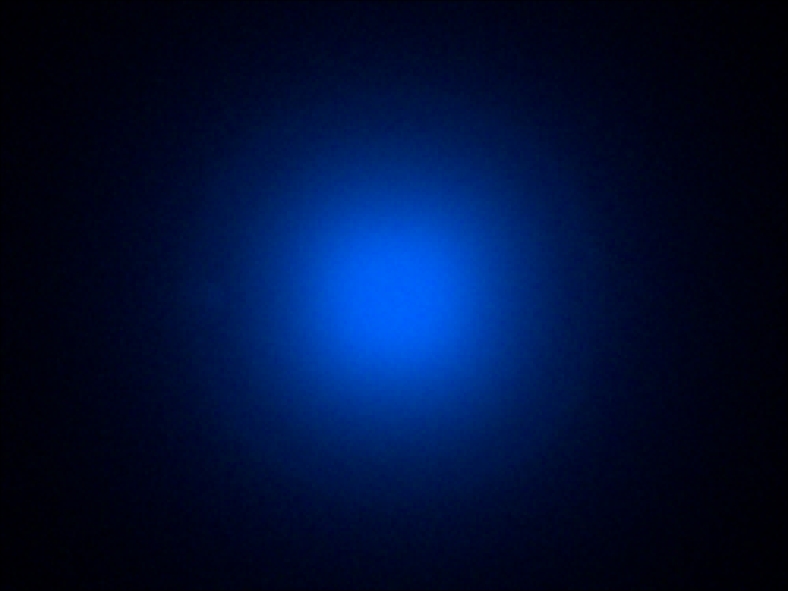

Cree XLamp XQ-A Blue

Eff:

90.0%

FWHM:

67°

Cd/Im:

0.8

Download

IES

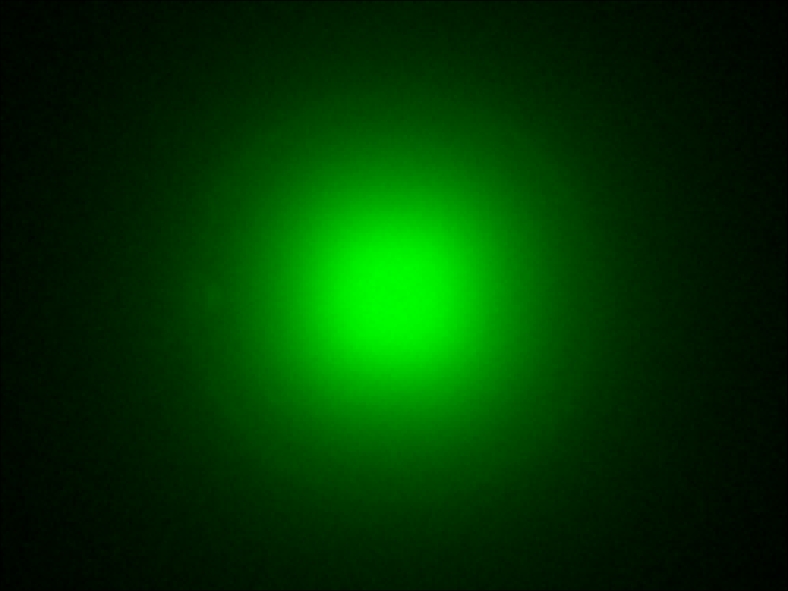

Cree XLamp XQ-A Green

Eff:

90.0%

FWHM:

67°

Cd/Im:

0.7

Download

IES

Cree XLamp XQ-A Red

Eff:

91.0%

FWHM:

74°

Cd/Im:

0.7

Download

IES

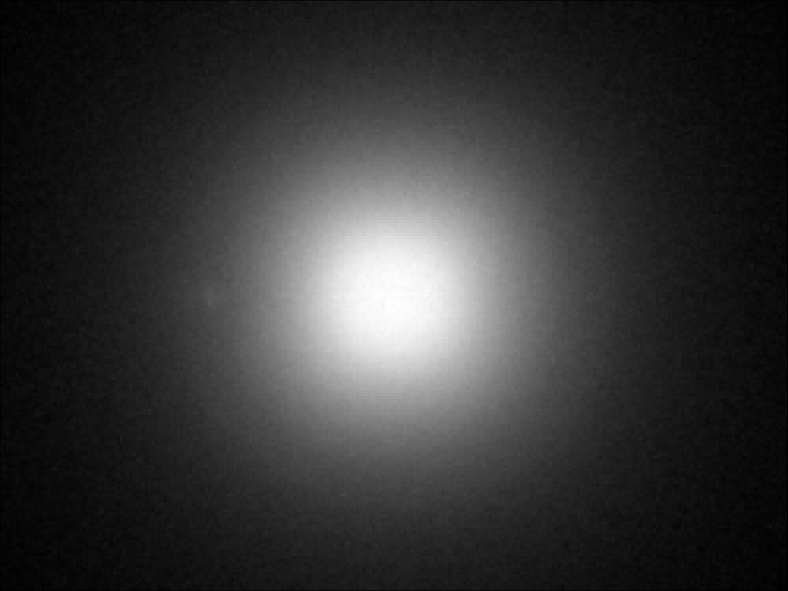

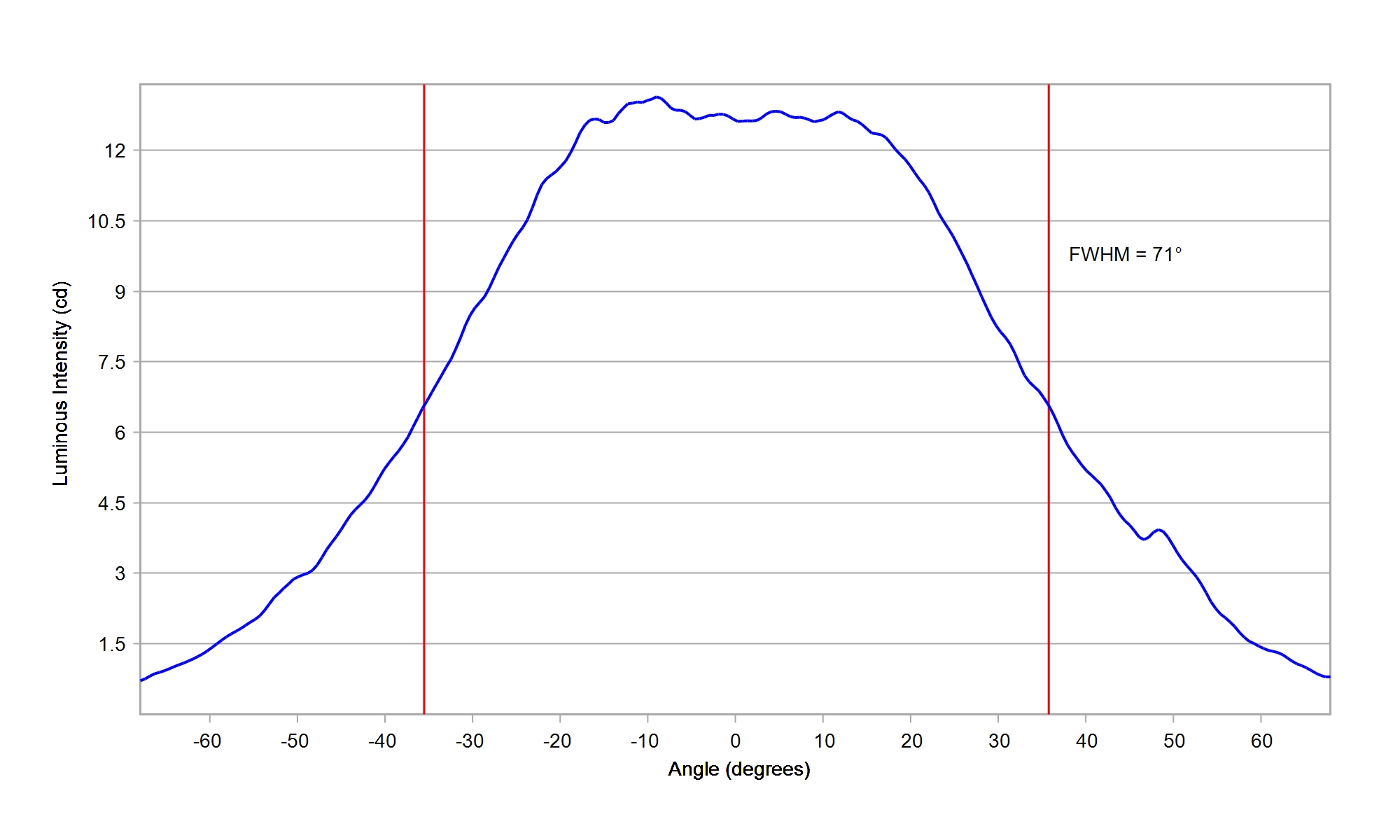

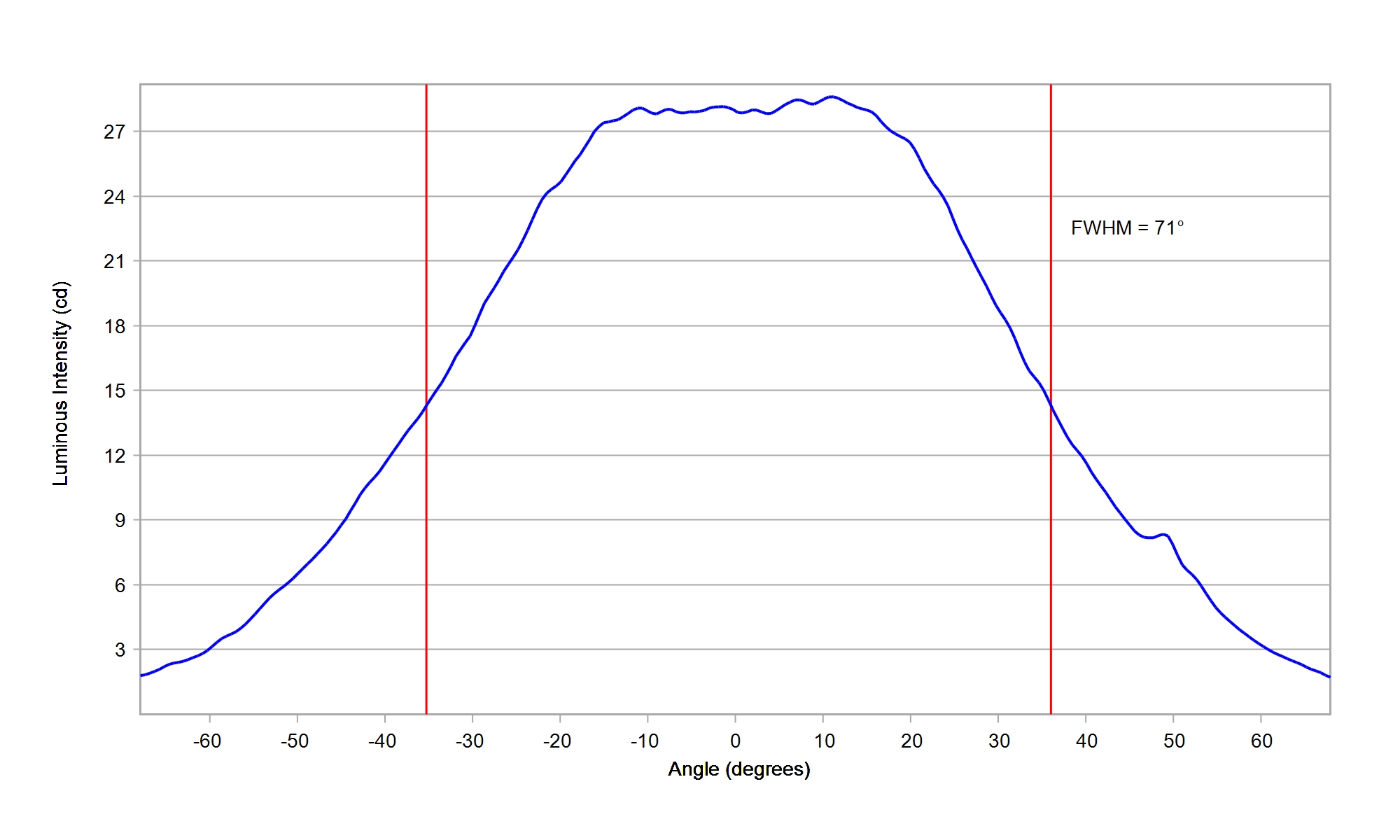

Cree XLamp XQ-A White

Eff:

90.0%

FWHM:

70°

Cd/Im:

0.8

Download

IES

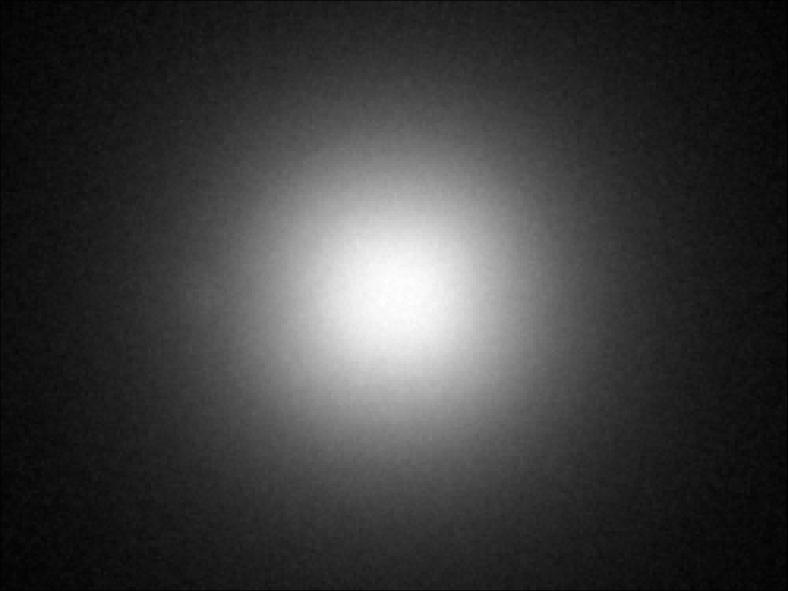

Cree XLamp XQ-E HD White

Eff:

90.0%

FWHM:

71°

Cd/Im:

0.7

Download

IES

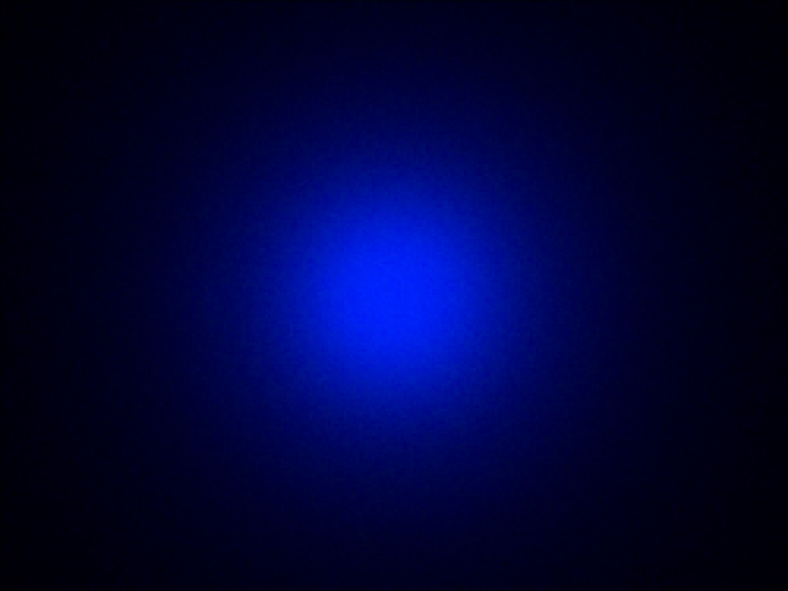

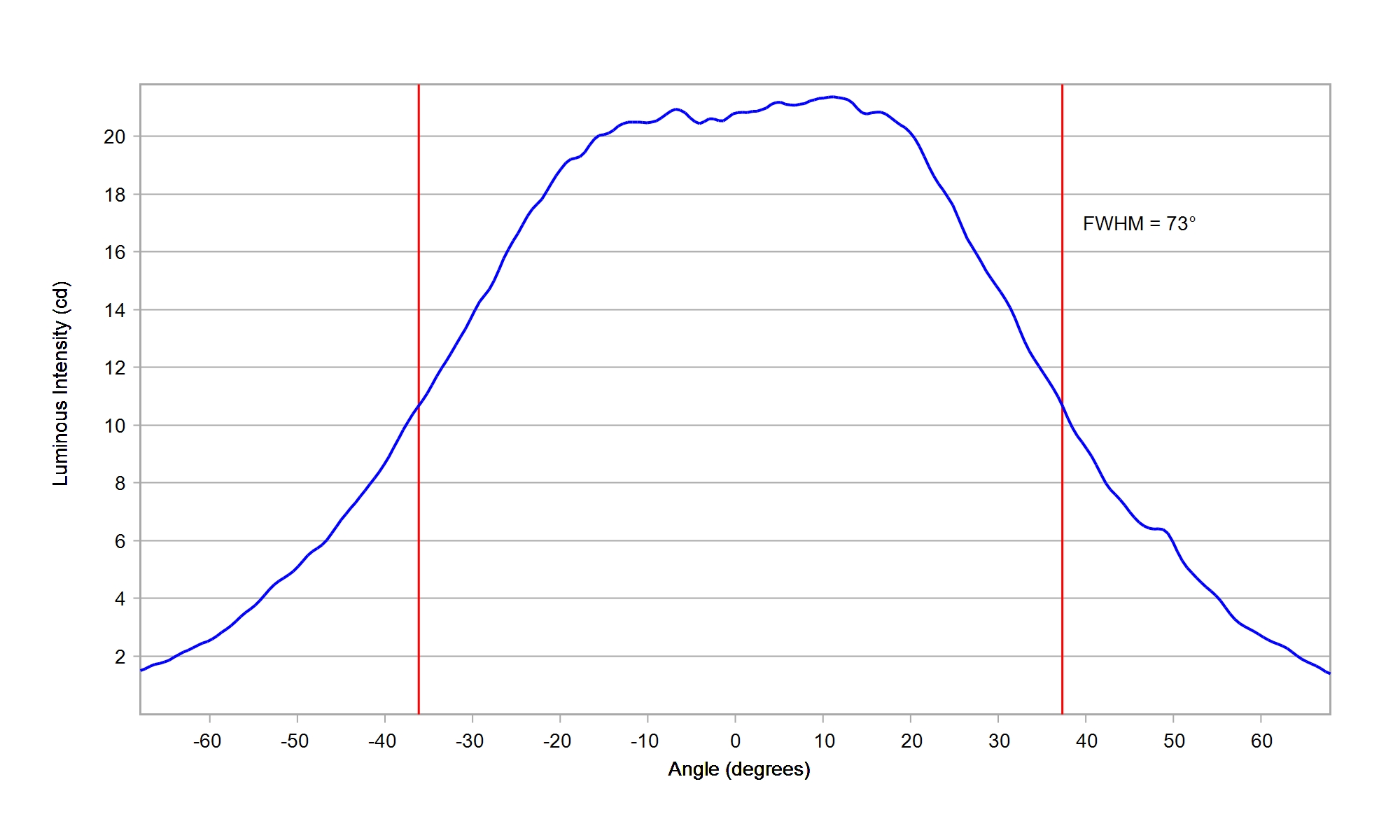

Cree XLamp XQ-E HI Blue

Eff:

90.5%

FWHM:

72°

Cd/Im:

0.7

Download

IES

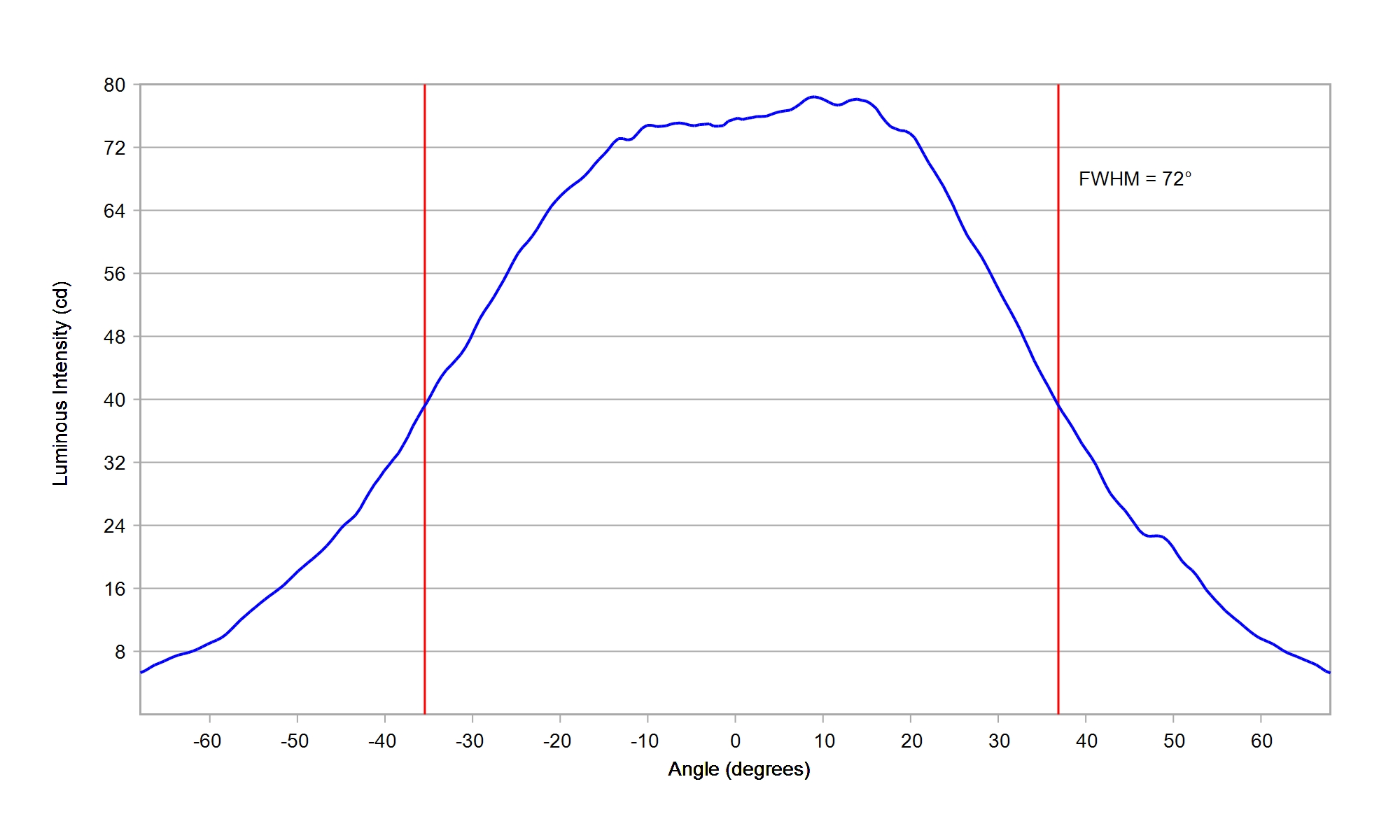

Cree XLamp XQ-E HI Green

Eff:

90.5%

FWHM:

70°

Cd/Im:

0.7

Download

IES

Cree XLamp XQ-E HI Red

Eff:

91.5%

FWHM:

68°

Cd/Im:

0.8

Download

IES

Cree XLamp XQ-E HI White

Eff:

90.5%

FWHM:

73°

Cd/Im:

0.7

Download

IES

Cree XLamp XT-E White

Eff:

89.0%

FWHM:

77°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

91.0%

FWHM:

67°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

91.0%

FWHM:

70°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

91.0%

FWHM:

65°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

91.0%

FWHM:

67°

Cd/Im:

0.8

Download

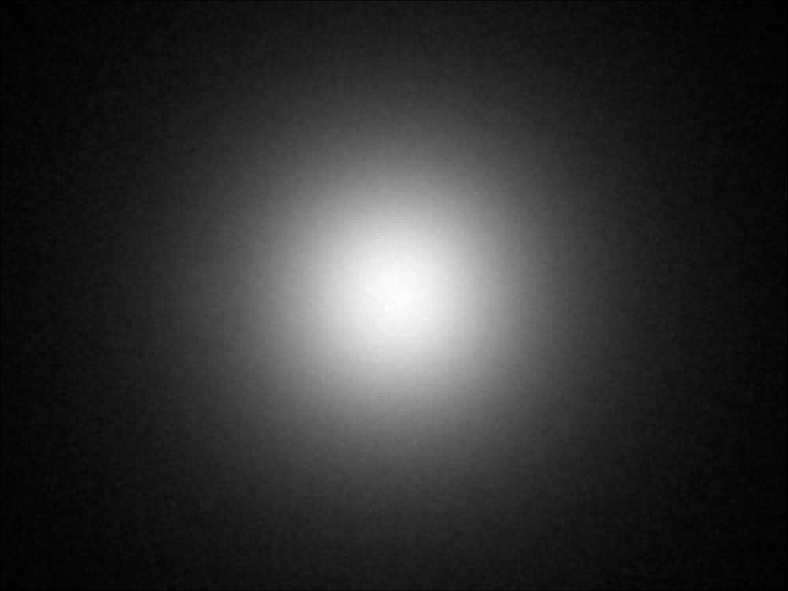

LUMILEDS LUXEON 2835S 6V White

Eff:

91.0%

FWHM:

67°

Cd/Im:

0.8

Download

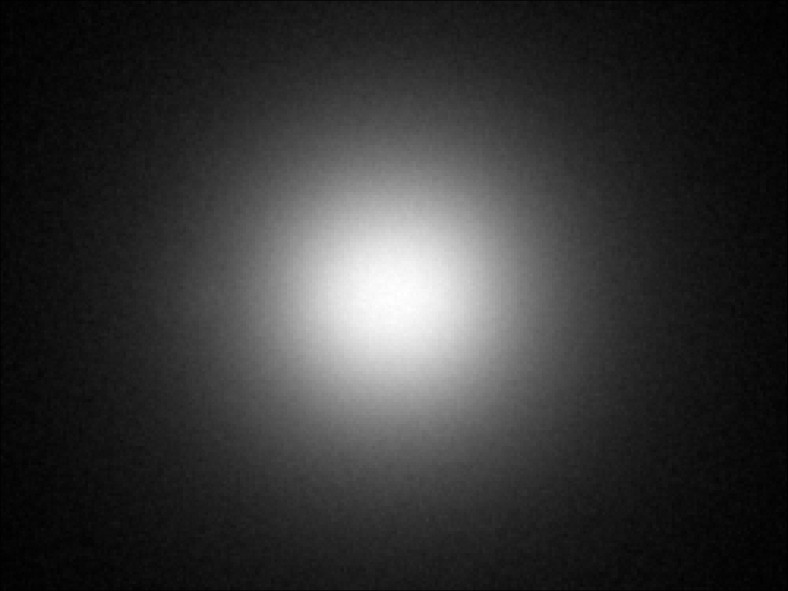

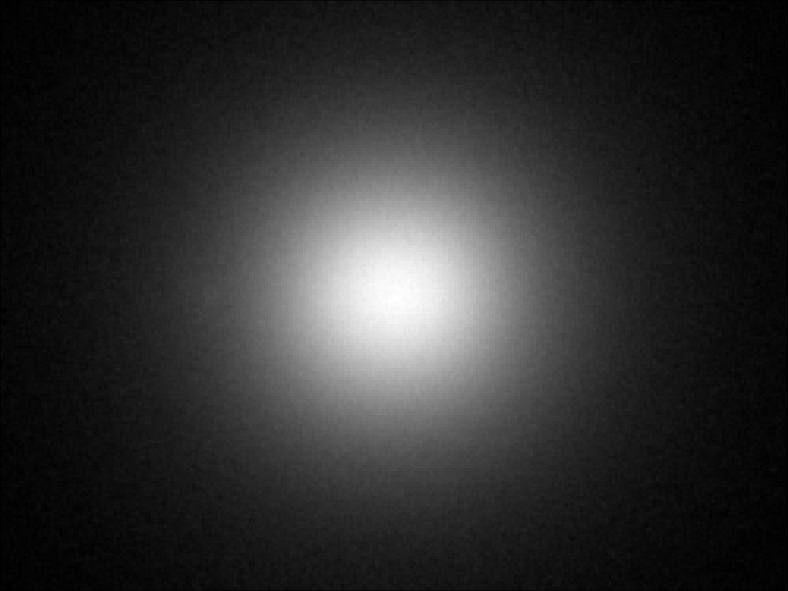

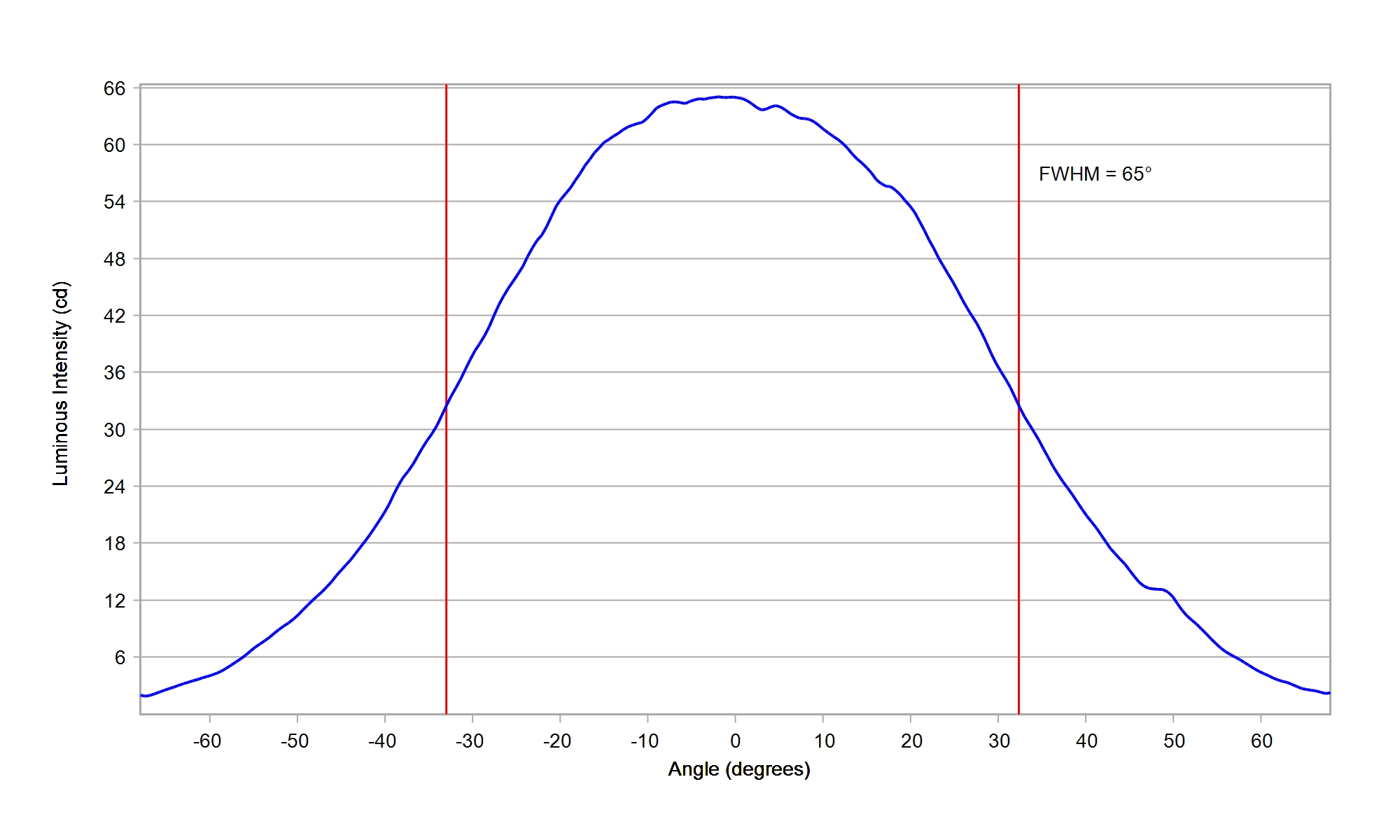

LUMILEDS LUXEON 3030 2D White

Eff:

91.5%

FWHM:

61°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

91.0%

FWHM:

62°

Cd/Im:

0.9


Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

90.5%

FWHM:

73°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON C Blue

Eff:

84.0%

FWHM:

84°

Cd/Im:

0.6

Download

IES

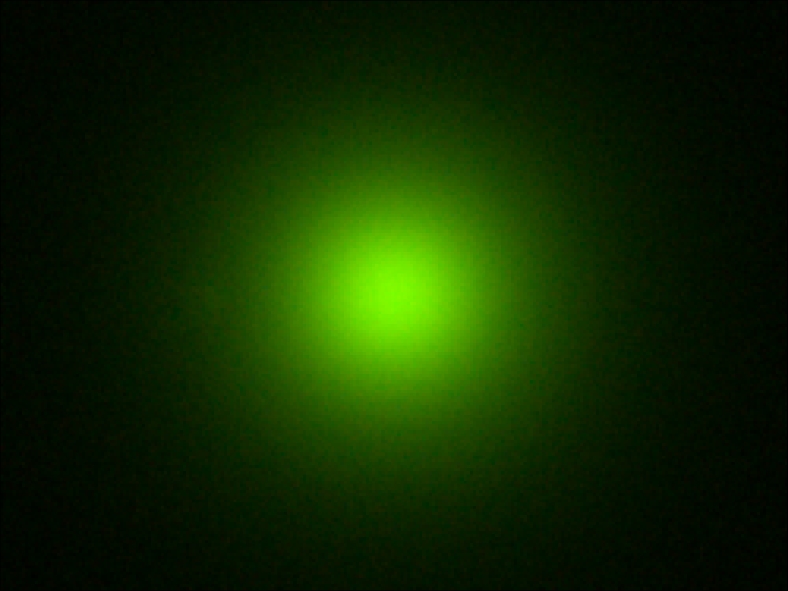

LUMILEDS LUXEON C Lime

Eff:

86.0%

FWHM:

86°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON C Red

Eff:

84.0%

FWHM:

89°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON C White

Eff:

85.5%

FWHM:

85°

Cd/Im:

0.5

Download

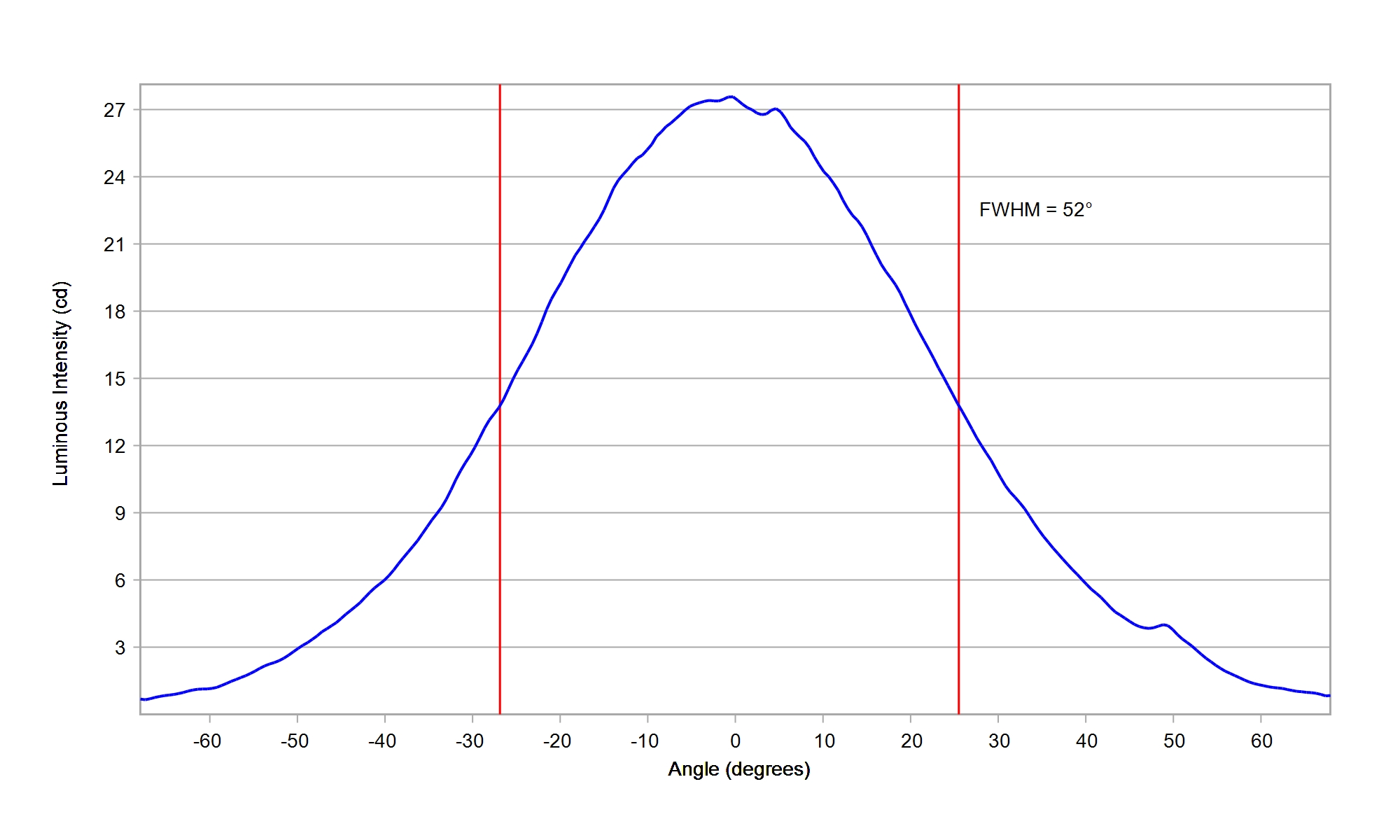

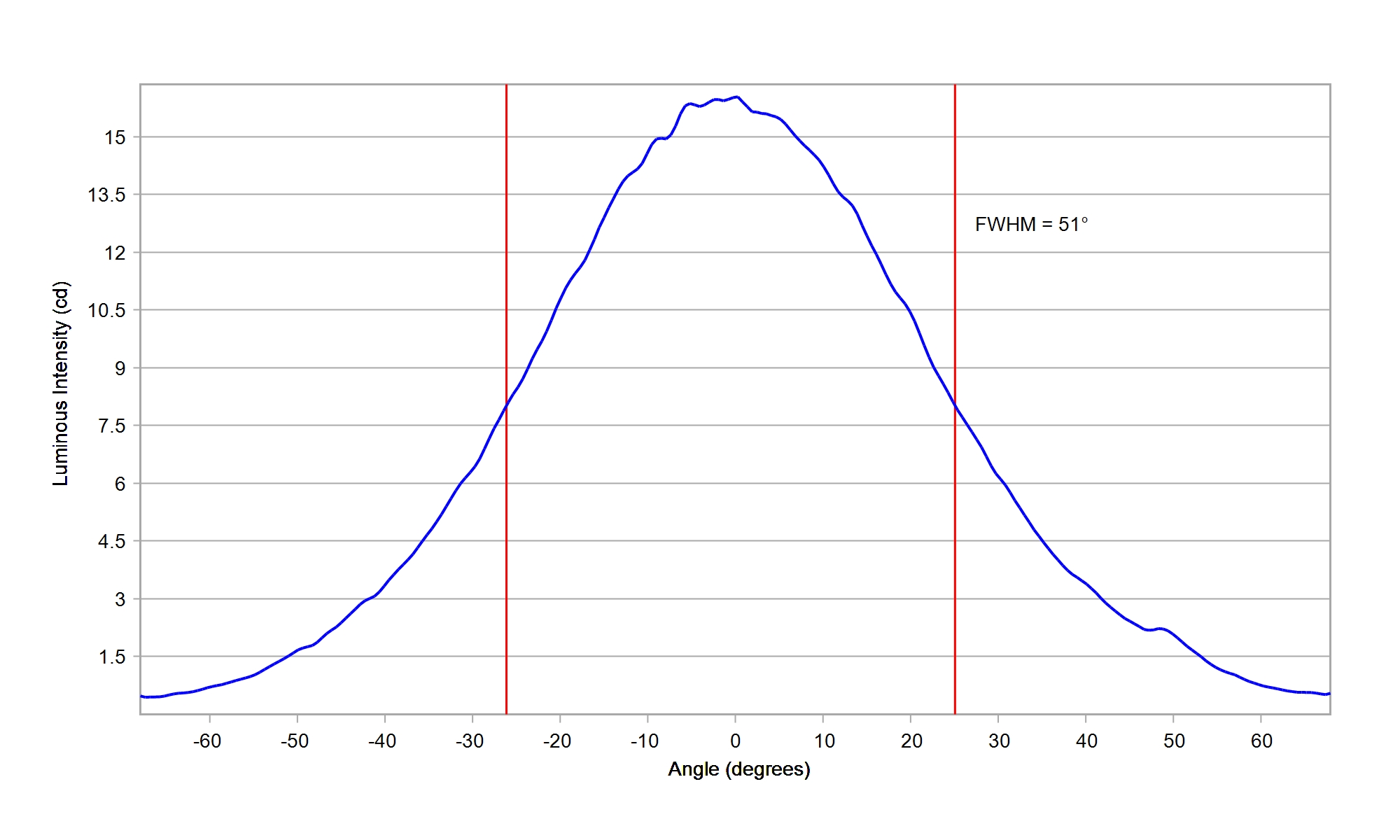

LUMILEDS LUXEON HL1Z CSP White

Eff:

91.5%

FWHM:

53°

Cd/Im:

1.0

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

93.0%

FWHM:

62°

Ipk/W:

0.9

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.0%

FWHM:

73°

Ipk/W:

0.7


Download

IES

LUMILEDS LUXEON MZ White

Eff:

91.0%

FWHM:

61°

Cd/Im:

0.9

Download

IES

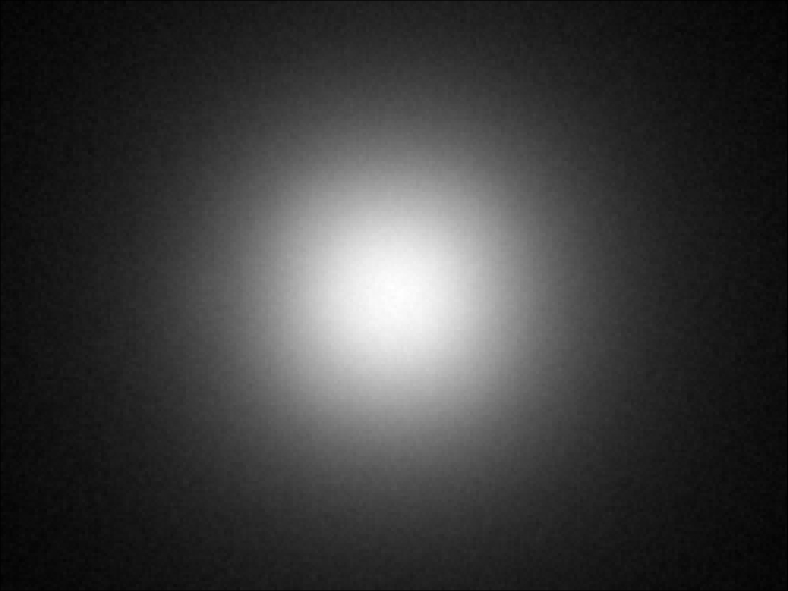

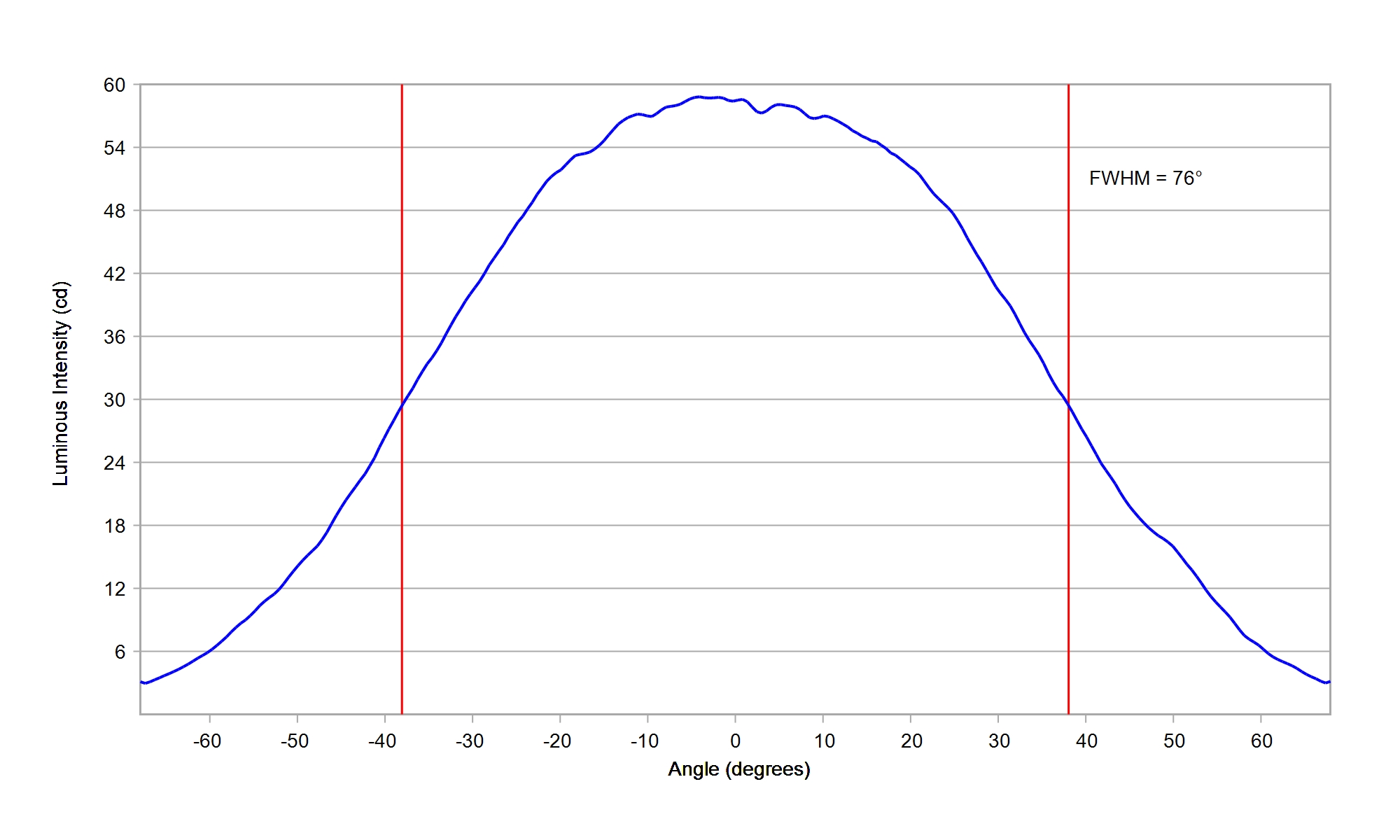

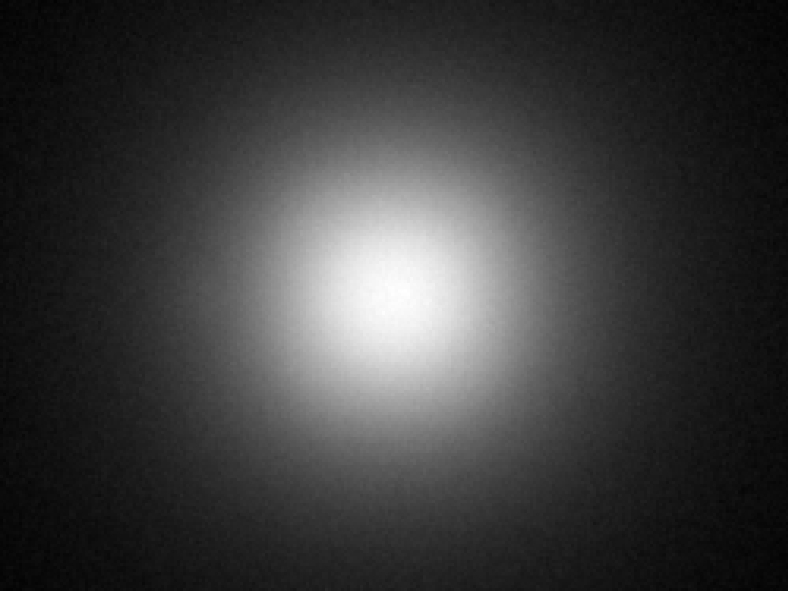

LUMILEDS LUXEON Rebel ES White

Eff:

89.0%

FWHM:

76°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON Rebel White

Eff:

89.0%

FWHM:

72°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON TX White

Eff:

89.5%

FWHM:

77°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON Z White

Eff:

90.5%

FWHM:

68°

Cd/Im:

0.7

Download

IES

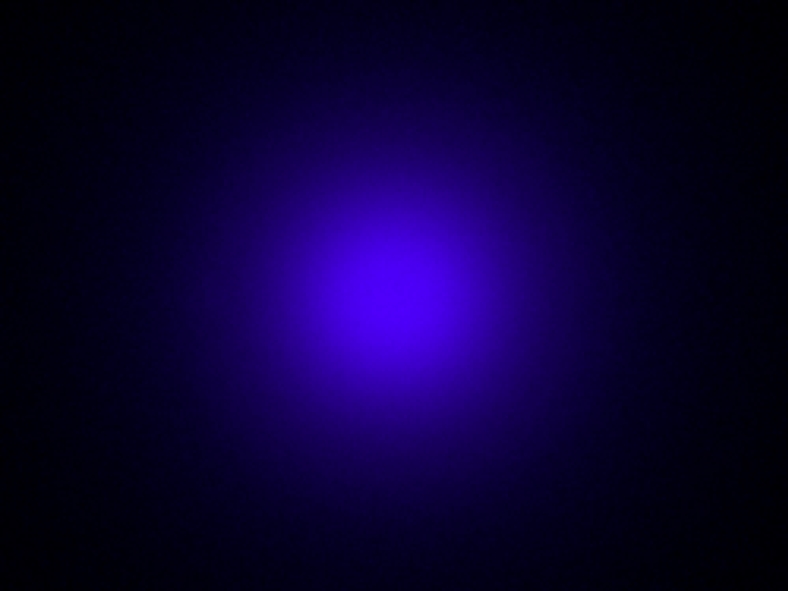

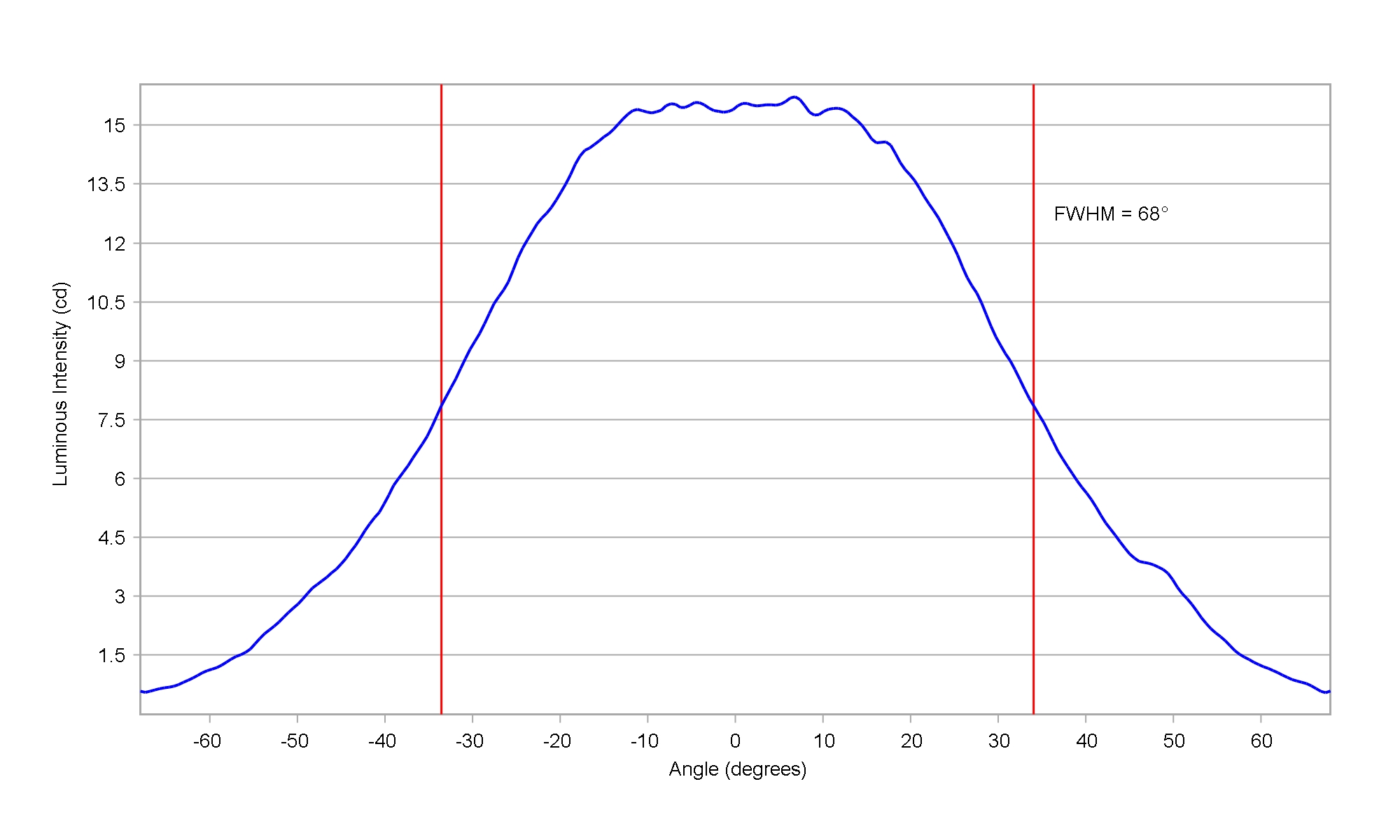

Luminus Devices SST 10-B-B130 Blue

Eff:

89.5%

FWHM:

68°

Cd/Im:

0.8


Download

IES

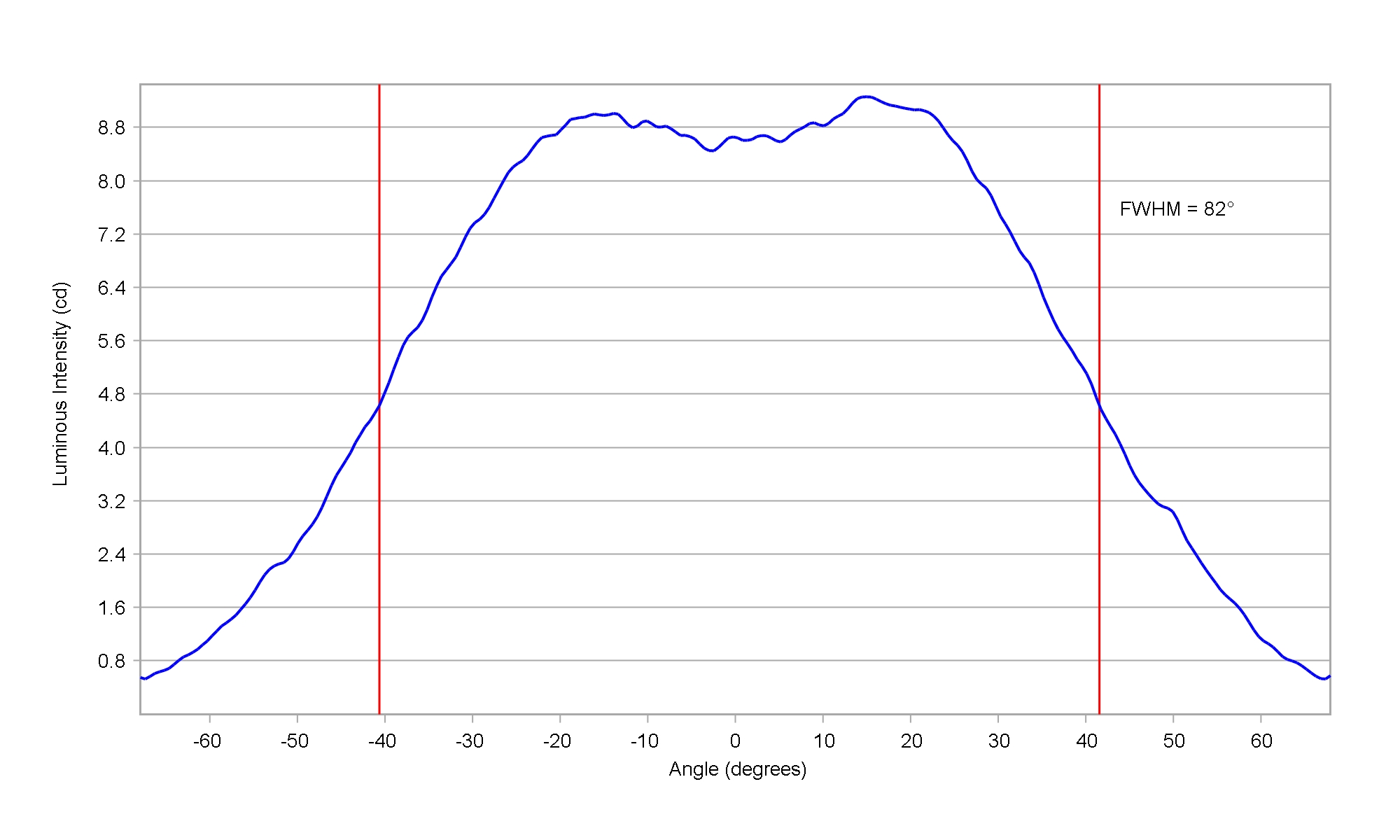

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.5%

FWHM:

82°

Cd/Im:

0.7


Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

90.5%

FWHM:

67°

Cd/Im:

0.8


Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

93.0%

FWHM:

73°

Ipk/W:

0.8


Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

73°

Ipk/W:

0.7


Download

IES

Nichia 757G White

Eff:

91.0%

FWHM:

59°

Cd/Im:

1.1

Download

IES

Nichia NCSW CSP E17A White

Eff:

91.0%

FWHM:

48°

Cd/Im:

1.3

Download

IES

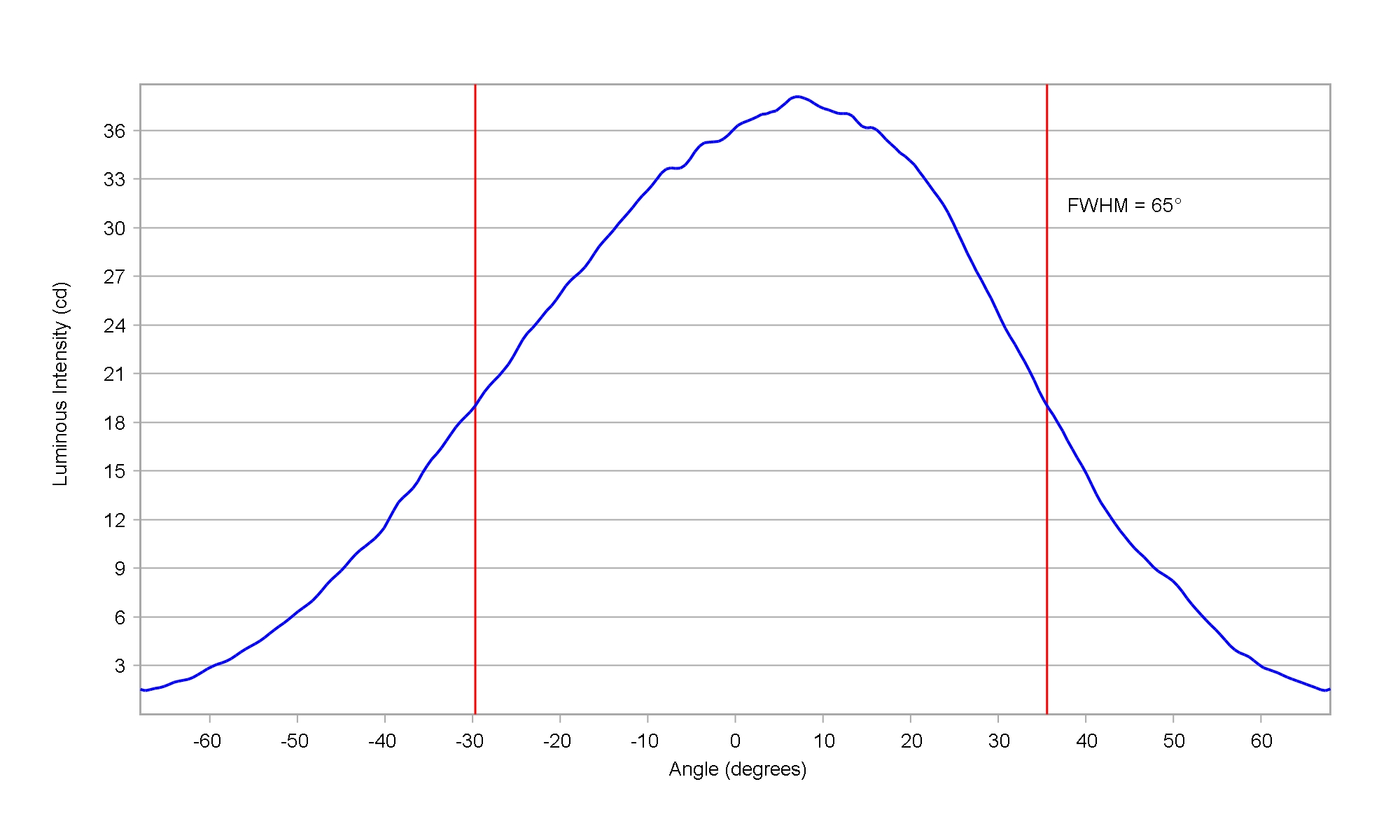

Nichia NF2W 757G-MT Tunable

Eff:

91.0%

FWHM:

65°

Cd/Im:

0.8


Download

IES

Nichia NVSL 219B White

Eff:

89.0%

FWHM:

68°

Cd/Im:

1.0

Download

IES

Nichia NVSW 319A White

Eff:

88.5%

FWHM:

75°

Cd/Im:

0.8

Download

IES

Nichia NVSW CSP E21A White

Eff:

91.0%

FWHM:

48°

Cd/Im:

1.2

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

91.5%

FWHM:

60°

Cd/Im:

0.9



Download

IES

Osram OS DURIS E 2835 White

Eff:

91.0%

FWHM:

69°

Cd/Im:

0.8


Download

IES

Osram OS DURIS E2 White

Eff:

91.0%

FWHM:

63°

Cd/Im:

0.9


Download

IES

Osram OS DURIS E3 White

Eff:

89.5%

FWHM:

99°

Cd/Im:

0.6

Download

IES

Osram OS DURIS S2 White

Eff:

90.5%

FWHM:

62°

Cd/Im:

0.9


Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

90.5%

FWHM:

66°

Cd/Im:

0.9

Download

IES

Osram OS DURIS S5 Green

Eff:

91.0%

FWHM:

66°

Cd/Im:

0.8

Download

IES

Osram OS DURIS S5 Red

Eff:

91.5%

FWHM:

67°

Cd/Im:

0.9

Download

IES

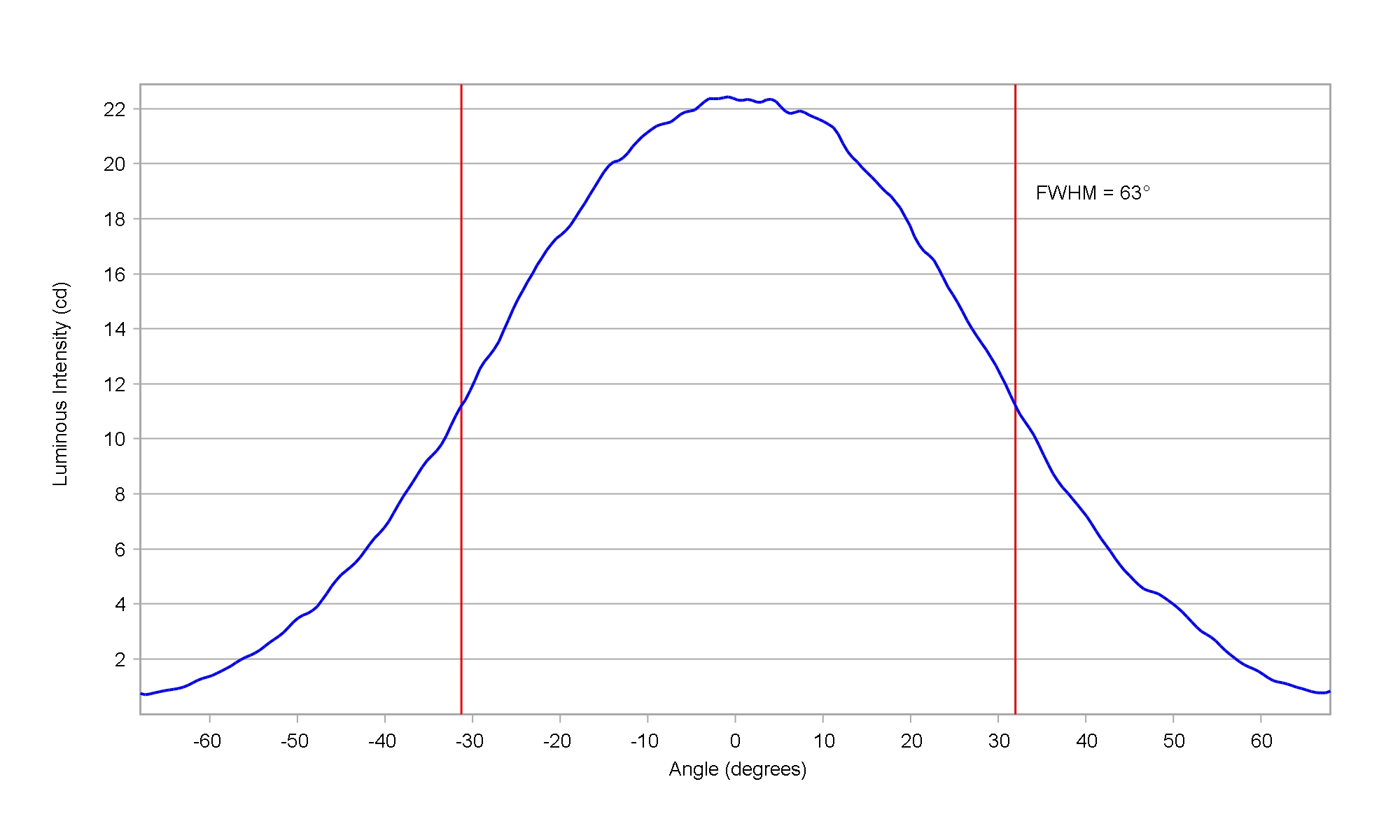

Osram OS DURIS S5 White

Eff:

91.0%

FWHM:

63°

Cd/Im:

1.0

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

91.5%

FWHM:

61°

Cd/Im:

1.0


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

92.5%

FWHM:

61°

Ipk/W:

1.0


Download

IES

Osram OS OSLON Square Flat White

Eff:

90.5%

FWHM:

68°

Cd/Im:

0.8


Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

90.0%

FWHM:

78°

Cd/Im:

0.7


Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

90.5%

FWHM:

67°

Cd/Im:

0.9


Download

IES

Osram OS OSLON SSL 80 White

Eff:

91.0%

FWHM:

62°

Cd/Im:

1.0


Download

IES

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

91.0%

FWHM:

66°

Ipk/W:

0.8


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

91.0%

FWHM:

61°

Cd/Im:

0.9



Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

90.5%

FWHM:

62°

Cd/Im:

0.9


Download

IES

Samsung 2835 LM281B+ White

Eff:

90.5%

FWHM:

63°

Cd/Im:

0.8



Download

Samsung 3030 LM301B White

Eff:

91.0%

FWHM:

67°

Cd/Im:

0.8


Download

IES

Samsung 3535 LH351B White

Eff:

89.5%

FWHM:

80°

Cd/Im:

0.7

Download

IES

Seoul STW8 C2SB-NT White

Eff:

91.0%

FWHM:

64°

Cd/Im:

0.9

Download

IES

Seoul STWS C2PB-E0 White

Eff:

91.0%

FWHM:

60°

Cd/Im:

1.0


Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

91.0%

FWHM:

61°

Cd/Im:

1.0


Download

IES

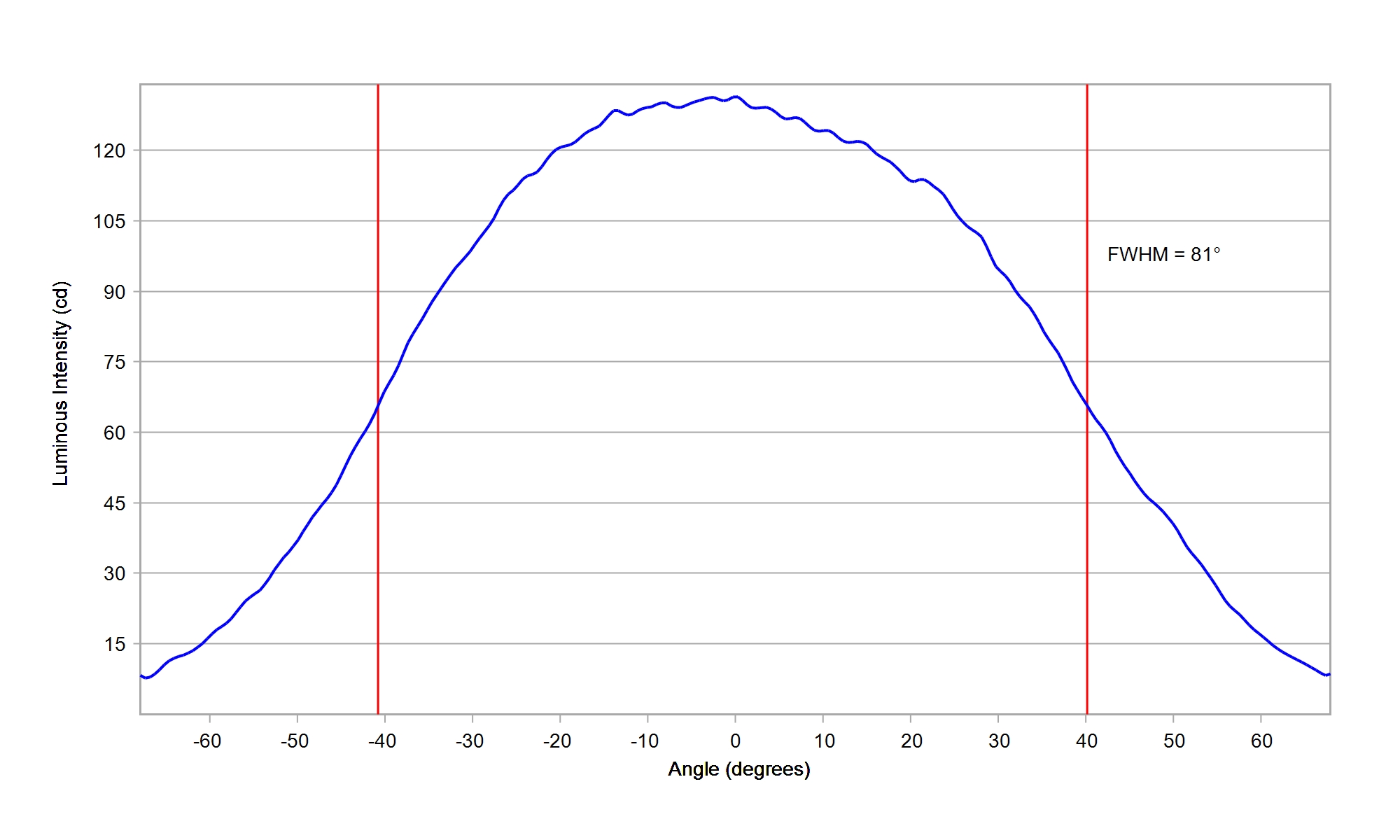

Seoul Z - Power Z5 M4 White

Eff:

90.0%

FWHM:

81°

Cd/Im:

0.6

Download

IES

Stanley FWR1108MS IR 755nm

Eff:

93.0%

FWHM:

75°

Ipk/W:

0.7


Download
