292 x 61mm Ultra Wide Plain Bubble | Carclo Optics

60160 33UP Ultra Wide

292 x 61mm Ultra Wide Plain Bubble

Part number

60160

Dimensions

292 x 61mm

Optic type

Bubble

Finish

Plain

Beam type

Ultra Wide

Applications

Horticultural

Industrial

Warehouse

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.0%

FWHM:

120°

Cd/Im:

0.5


Download

IES

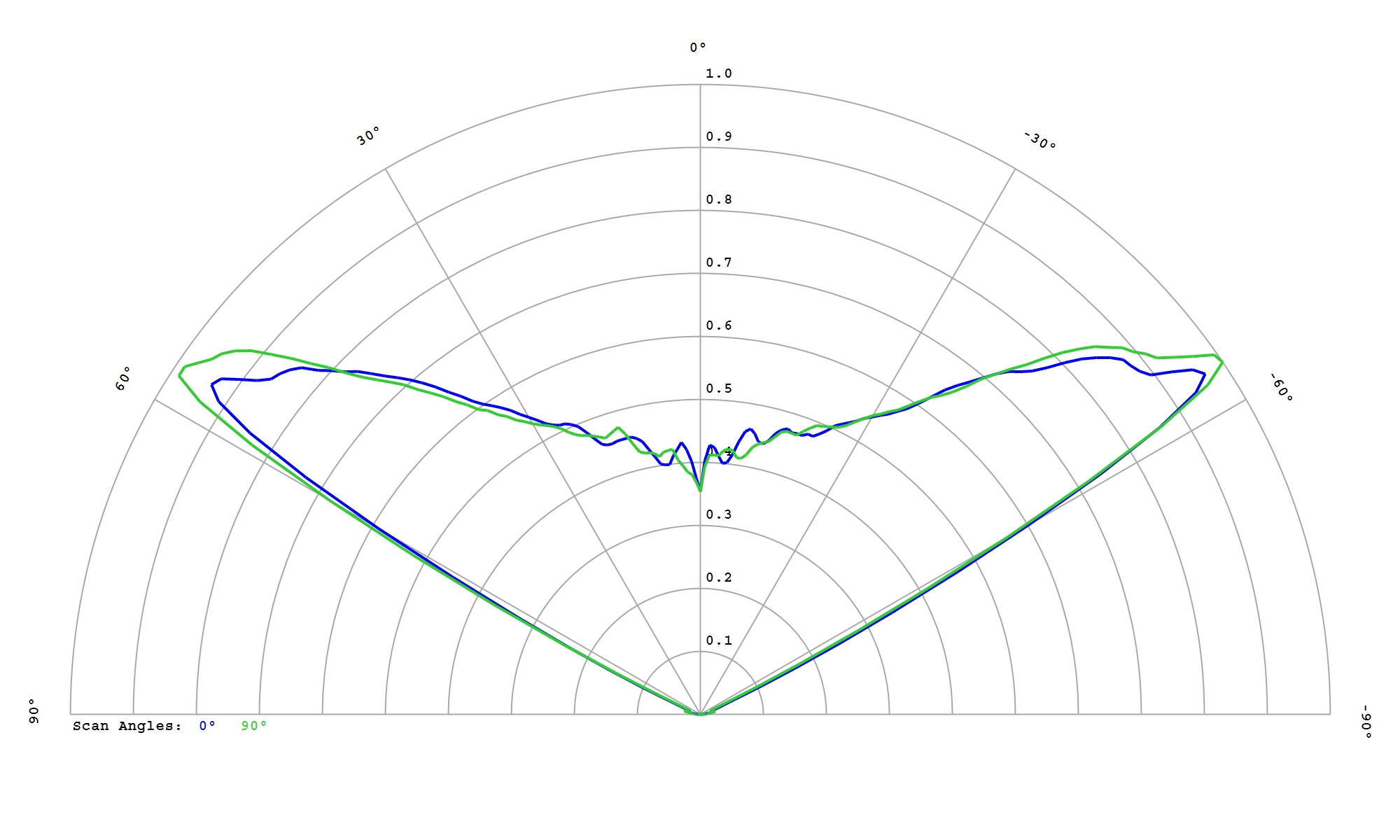

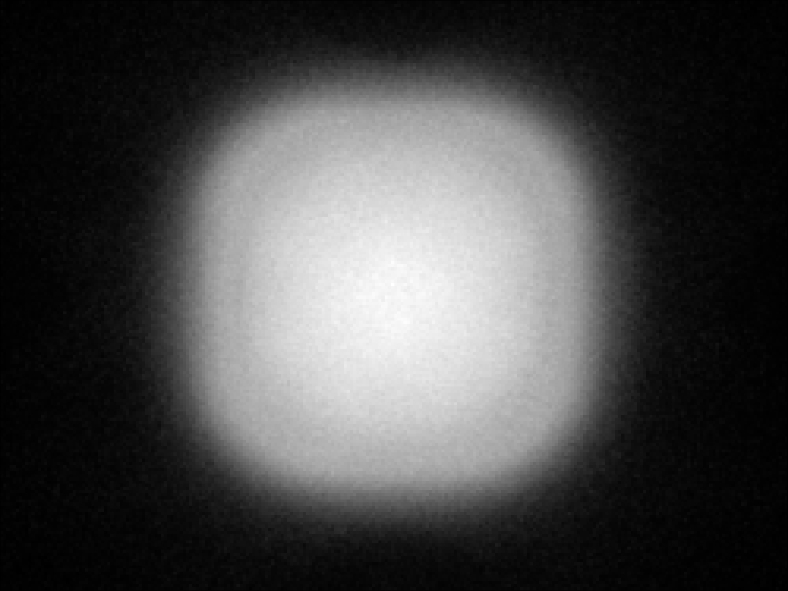

Cree JB2835B 3V G-Class White

Eff:

96.0%

FWHM:

121°

Cd/Im:

0.5


Download

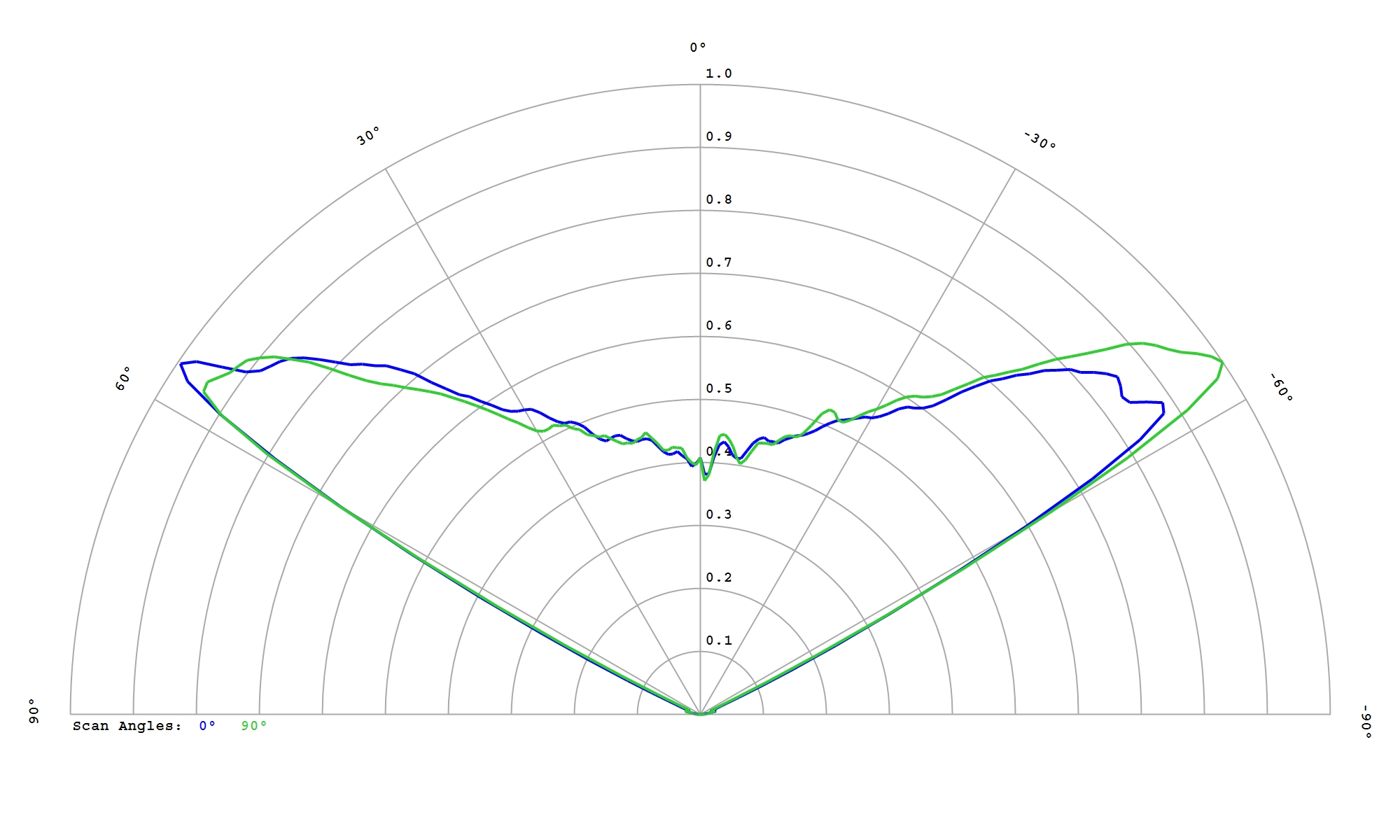

Cree JB2835B 3V J-Class White

Eff:

96.0%

FWHM:

122°

Cd/Im:

0.5


Download

Cree JB3030 3V P-Class White

Eff:

95.5%

FWHM:

118°

Cd/Im:

0.5

Download

IES

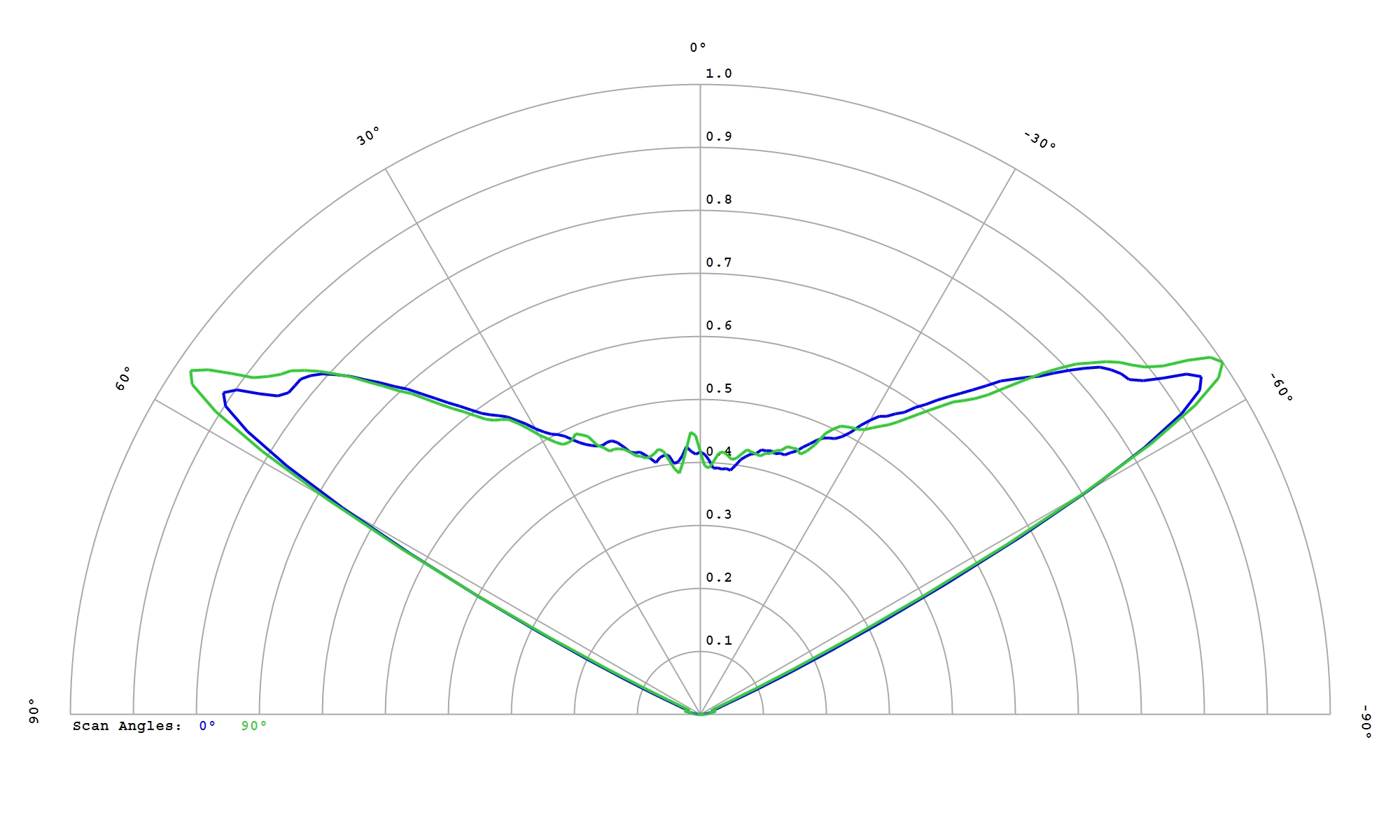

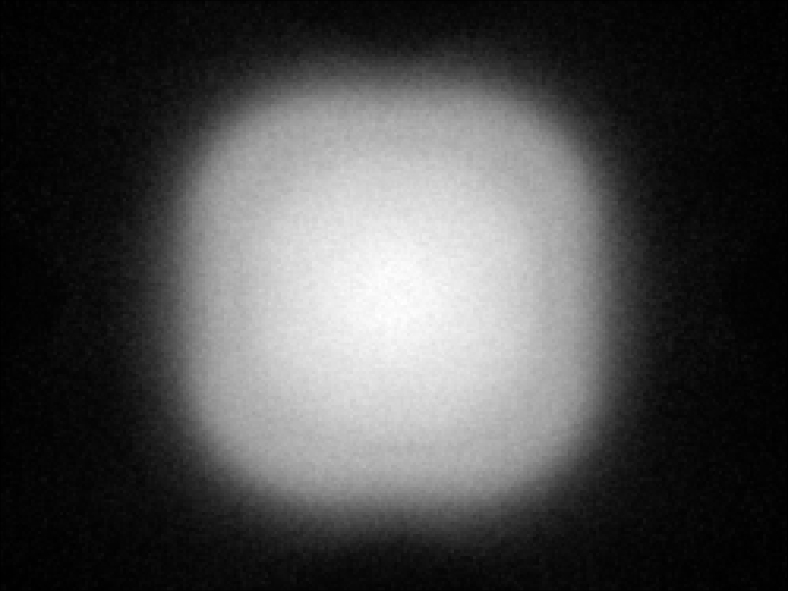

Cree JB3030C 3V E-Class White

Eff:

95.5%

FWHM:

123°

Cd/Im:

0.5


Download

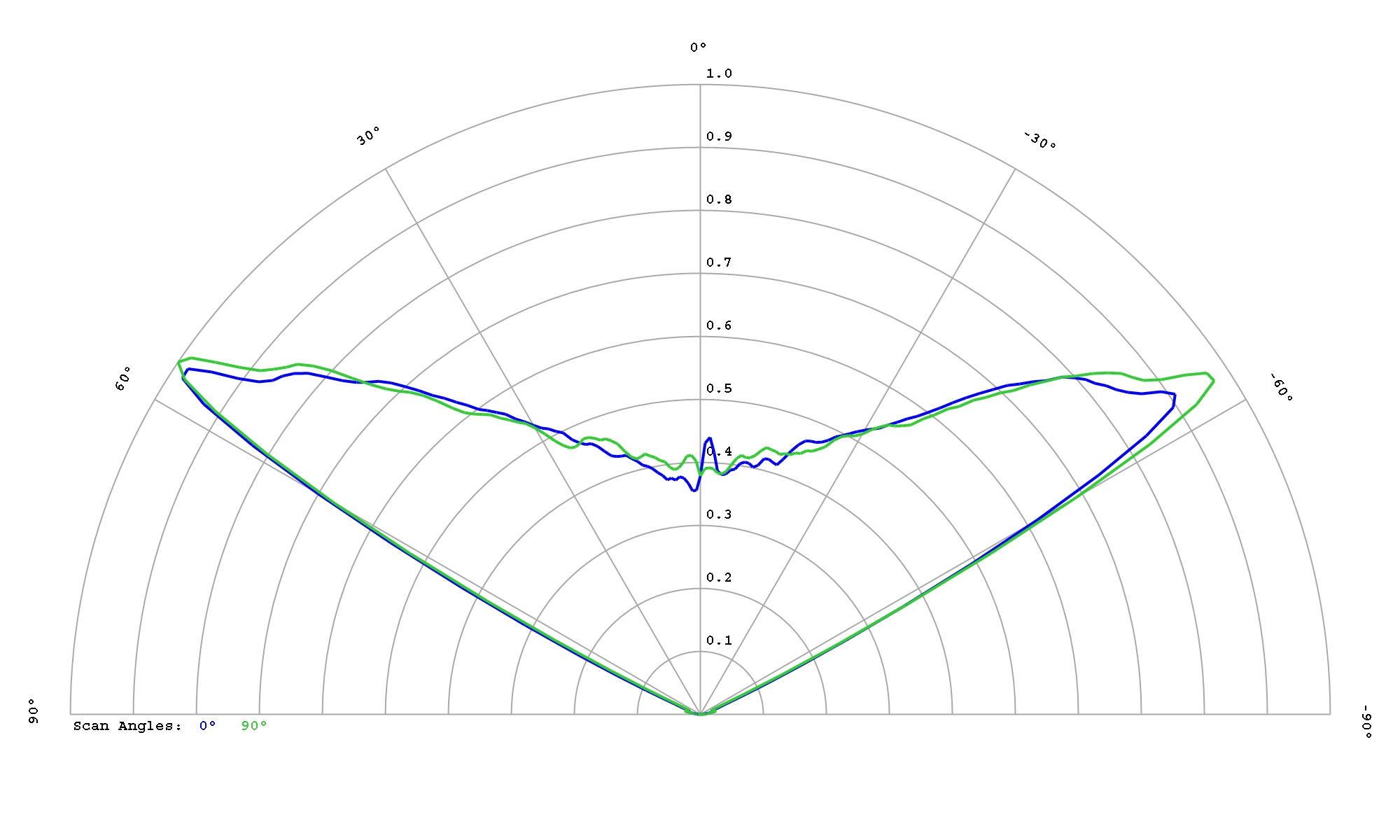

Cree JB3030C 3V F-Class White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.5


Download

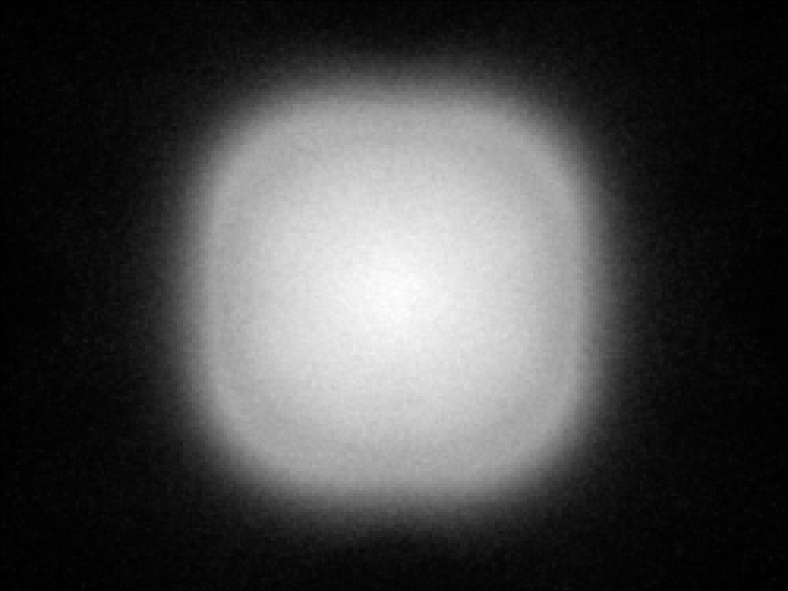

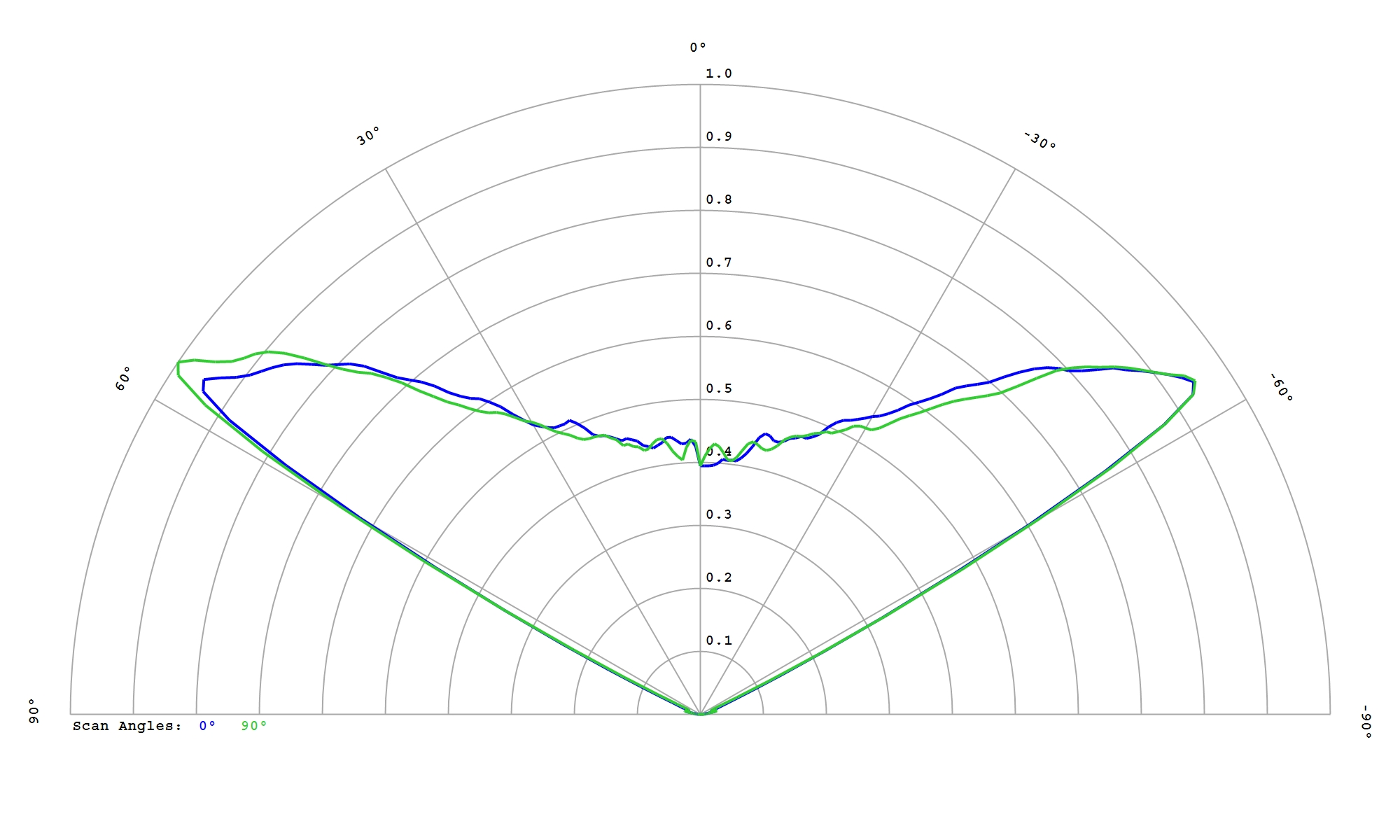

Cree JE2835 3V White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.5

Download

Cree JK2835 6V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5

Download

IES

Cree JQ5050 9V White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.4

Download

IES

Cree JR5050 24V White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.4

Download

IES

Cree JR5050 36V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4

Download

IES

Cree JR5050 6V White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.4

Download

IES

Cree JR5050C 6V E-Class White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.4


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

95.0%

FWHM:

123°

Cd/Im:

0.6

Download

IES

Cree XLamp XE-G White

Eff:

94.5%

FWHM:

127°

Cd/Im:

0.5

Download

IES

Cree XLamp XH-B White

Eff:

92.0%

FWHM:

128°

Cd/Im:

0.4

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

94.5%

FWHM:

125°

Cd/Im:

0.4



Download

2-HI-WW

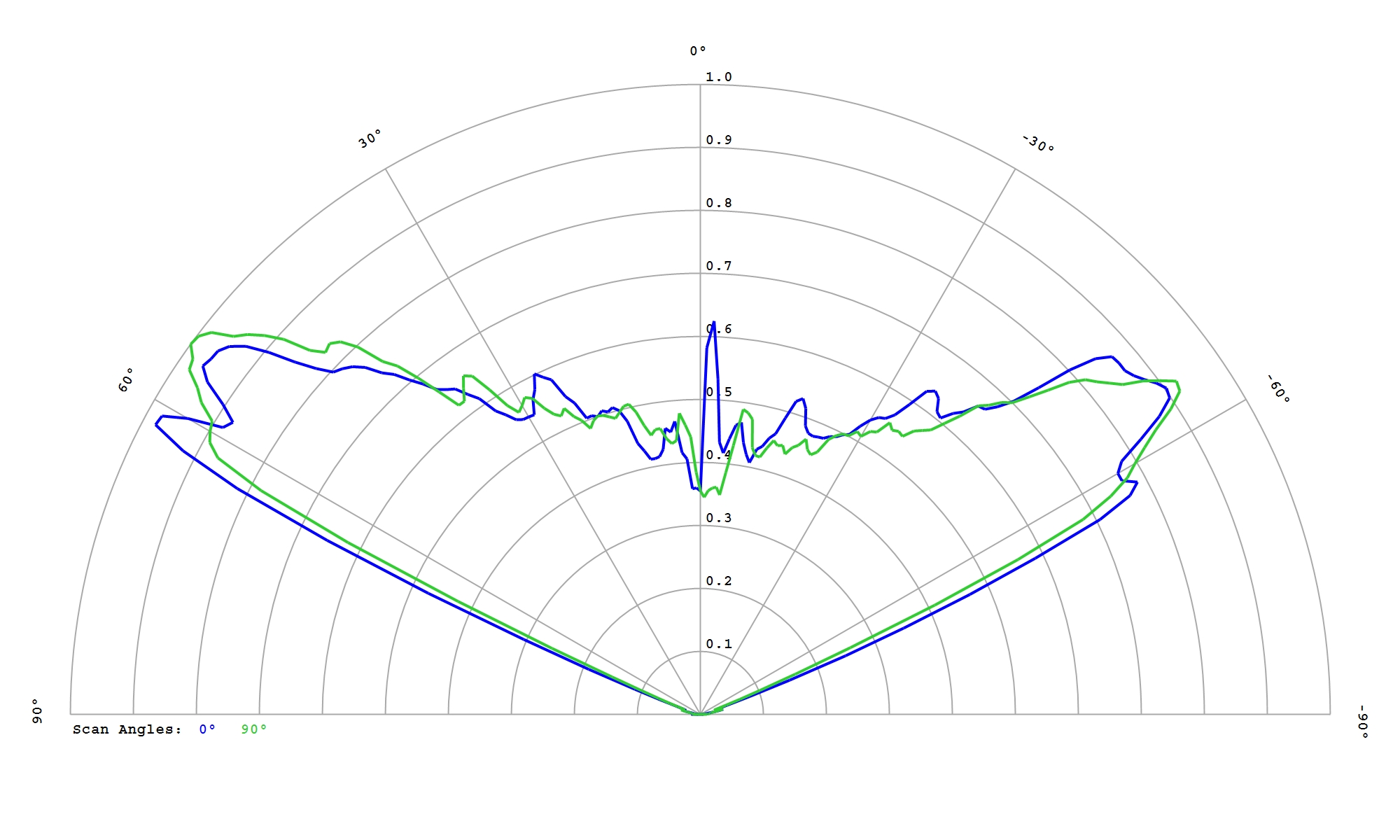

Cree XLamp XP-E2 Far Red

Eff:

96.0%

FWHM:

130°

Cd/Im:

1.4

Download

IES

Cree XLamp XP-G3 Photo Red

Eff:

96.0%

FWHM:

127°

Cd/Im:

0.5


Download

IES

Cree XLamp XP-G3 Royal Blue

Eff:

94.5%

FWHM:

125°

Cd/Im:

0.5


Download

IES

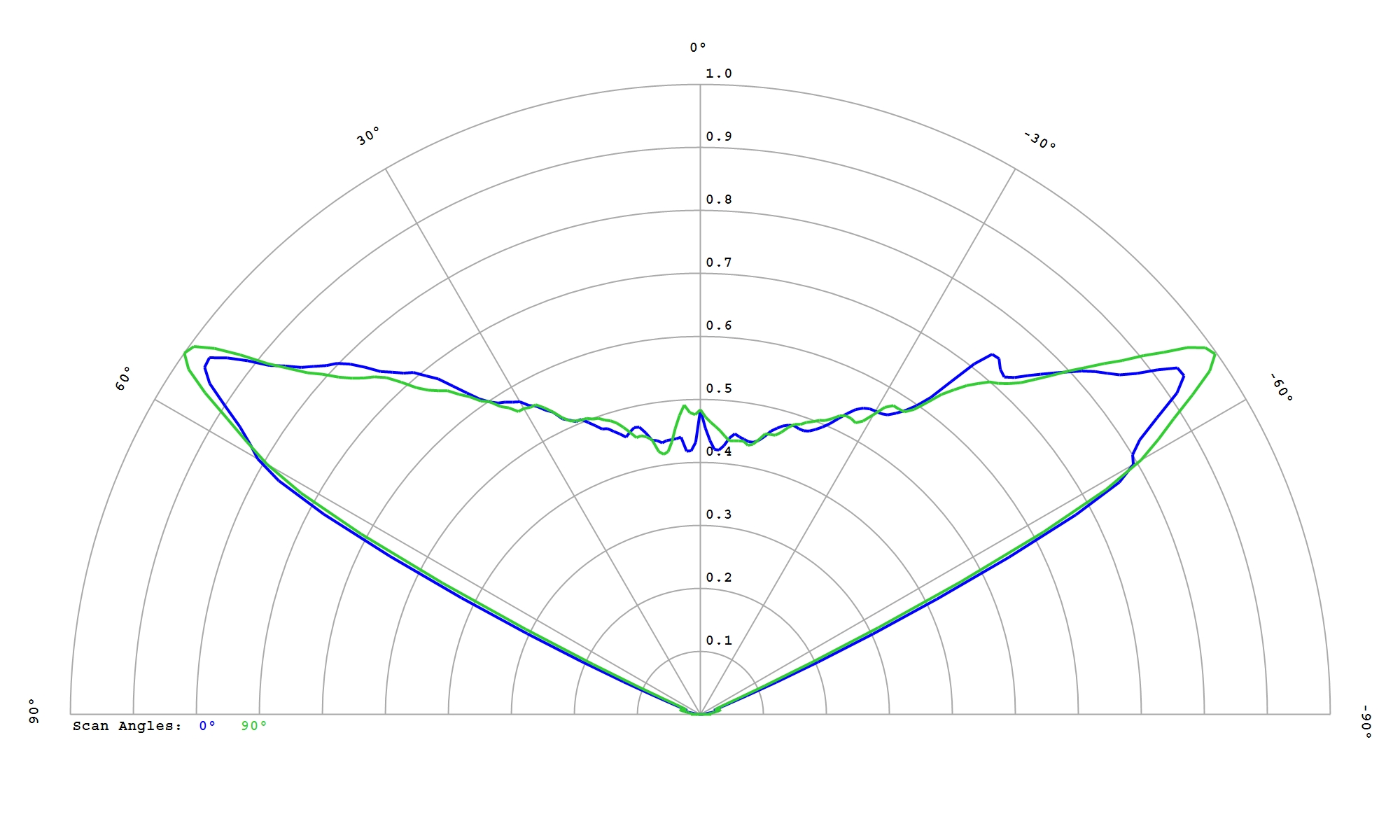

Cree XLamp XP-G4 HI White

Eff:

95.0%

FWHM:

126°

Cd/Im:

0.4

Download

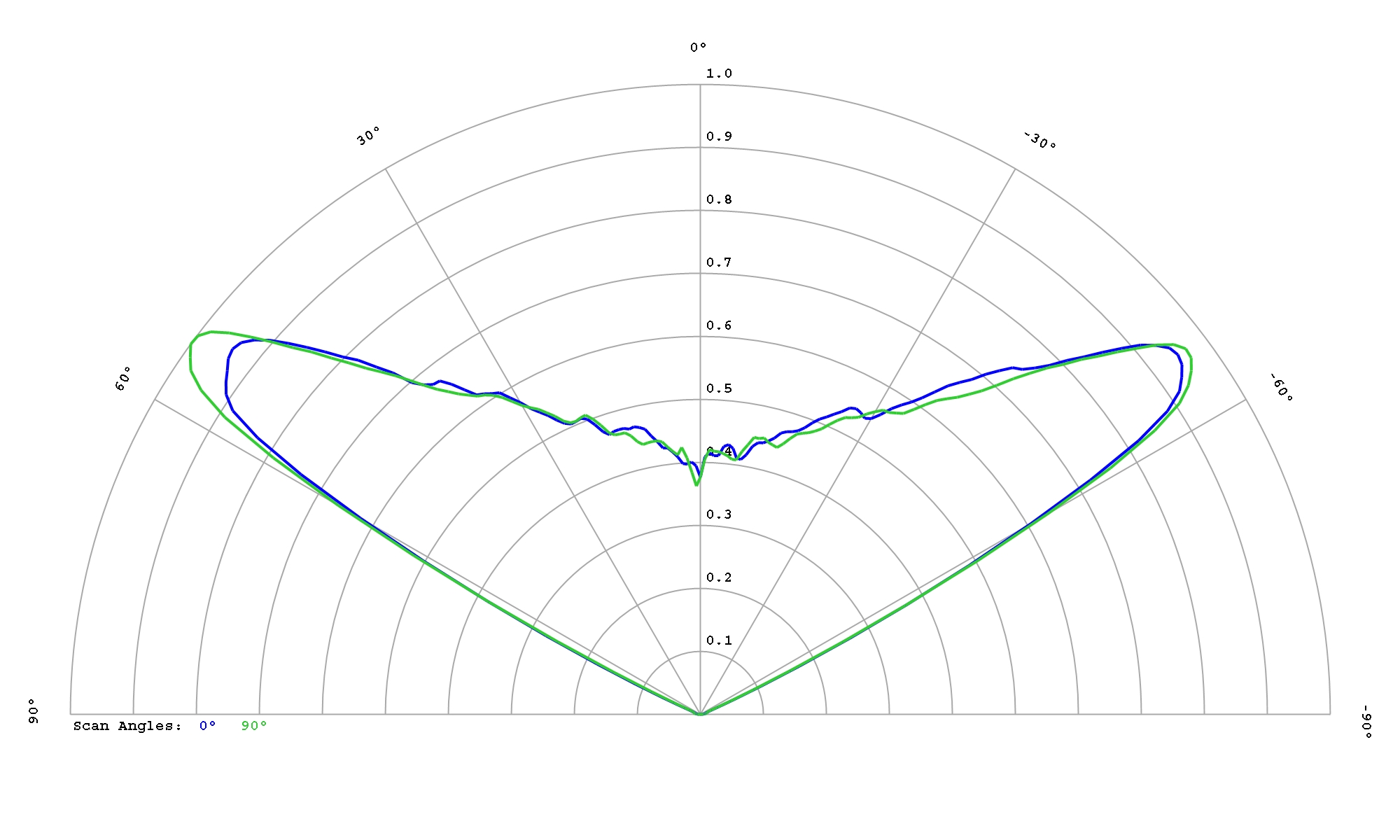

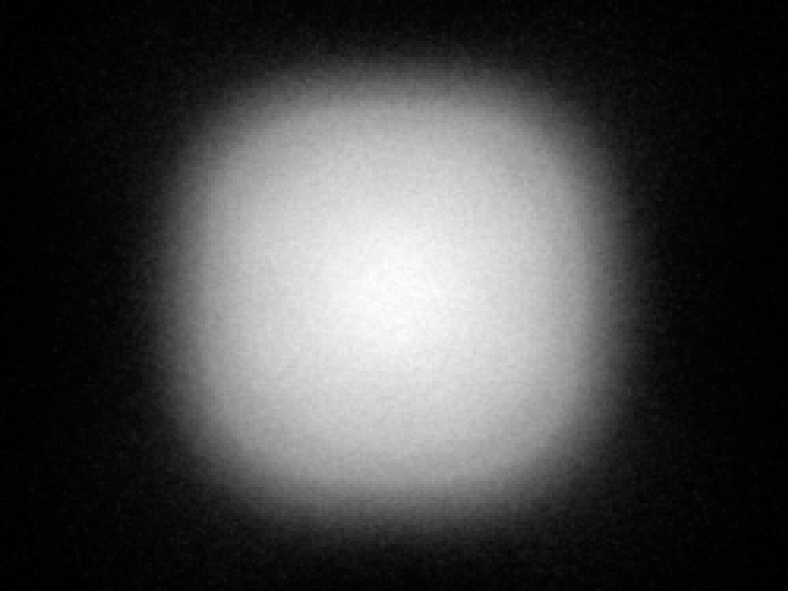

Cree XLamp XP-G4 White

Eff:

96.0%

FWHM:

122°

Cd/Im:

0.4

Download

IES

Cree XLamp XP-P White

Eff:

96.0%

FWHM:

125°

Cd/Im:

0.6

Download

IES

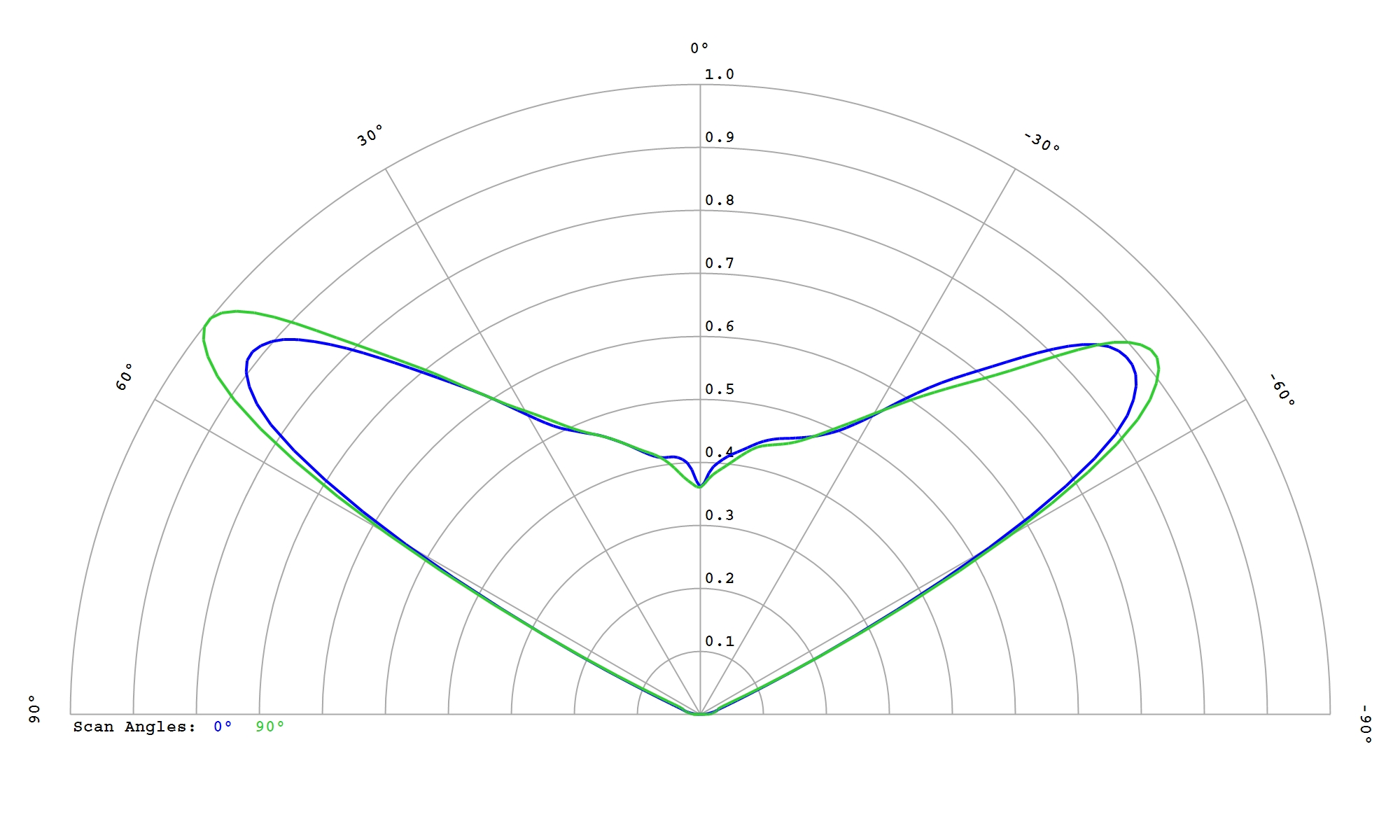

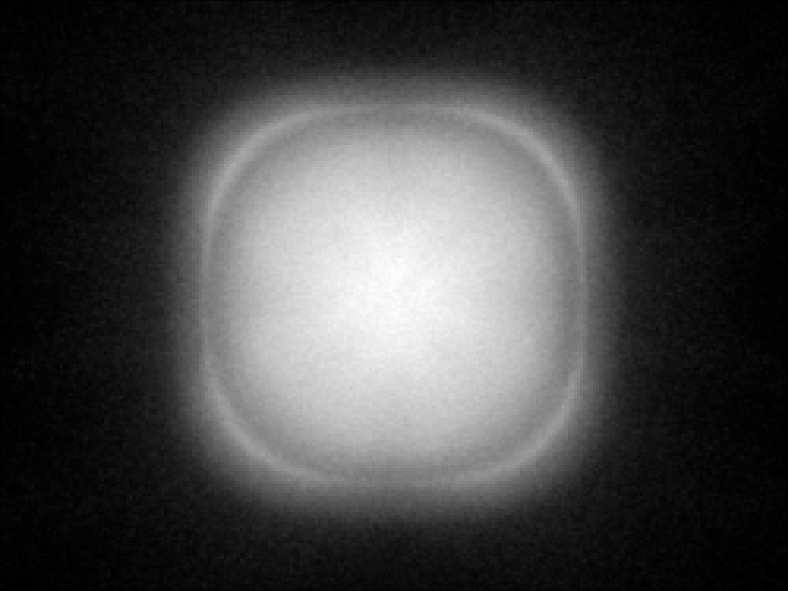

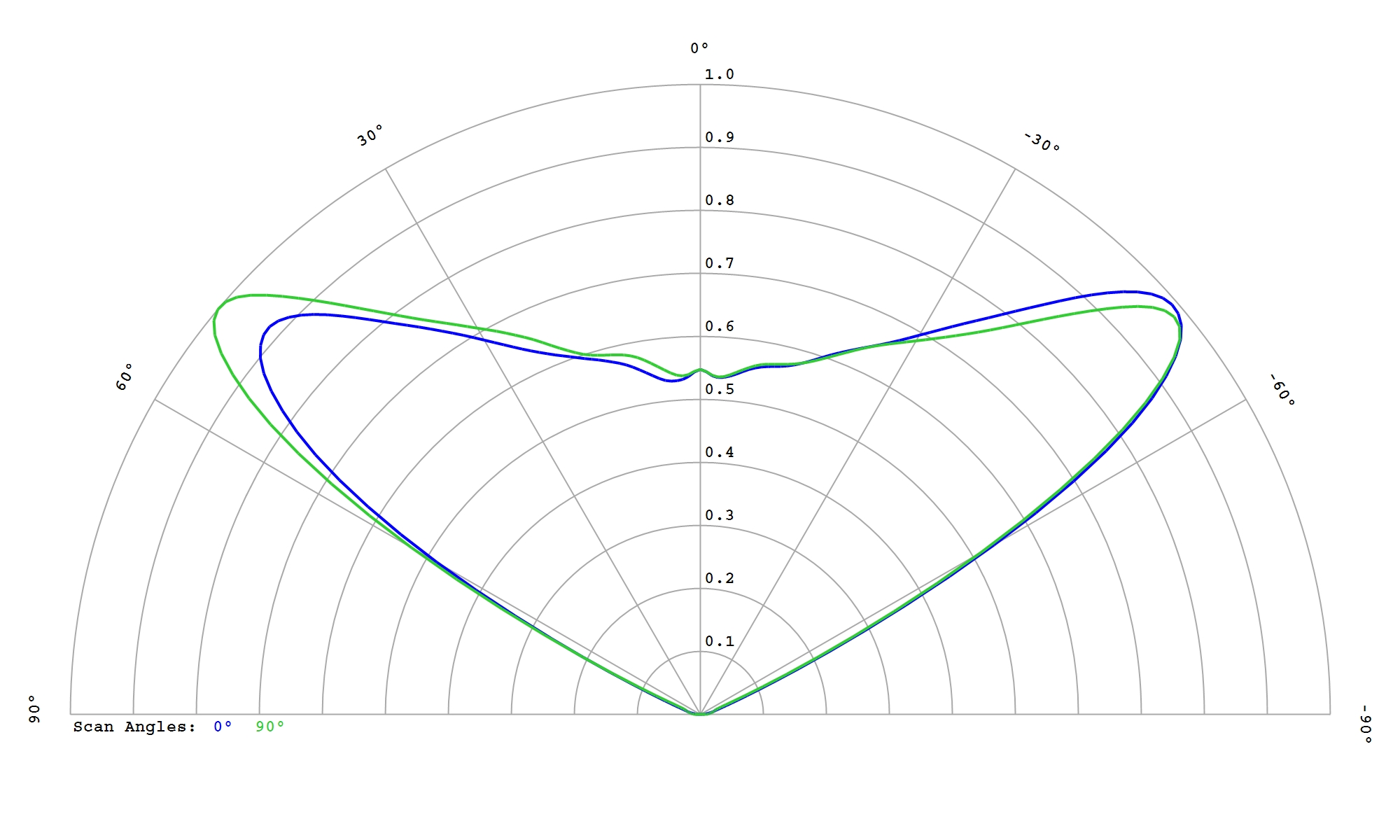

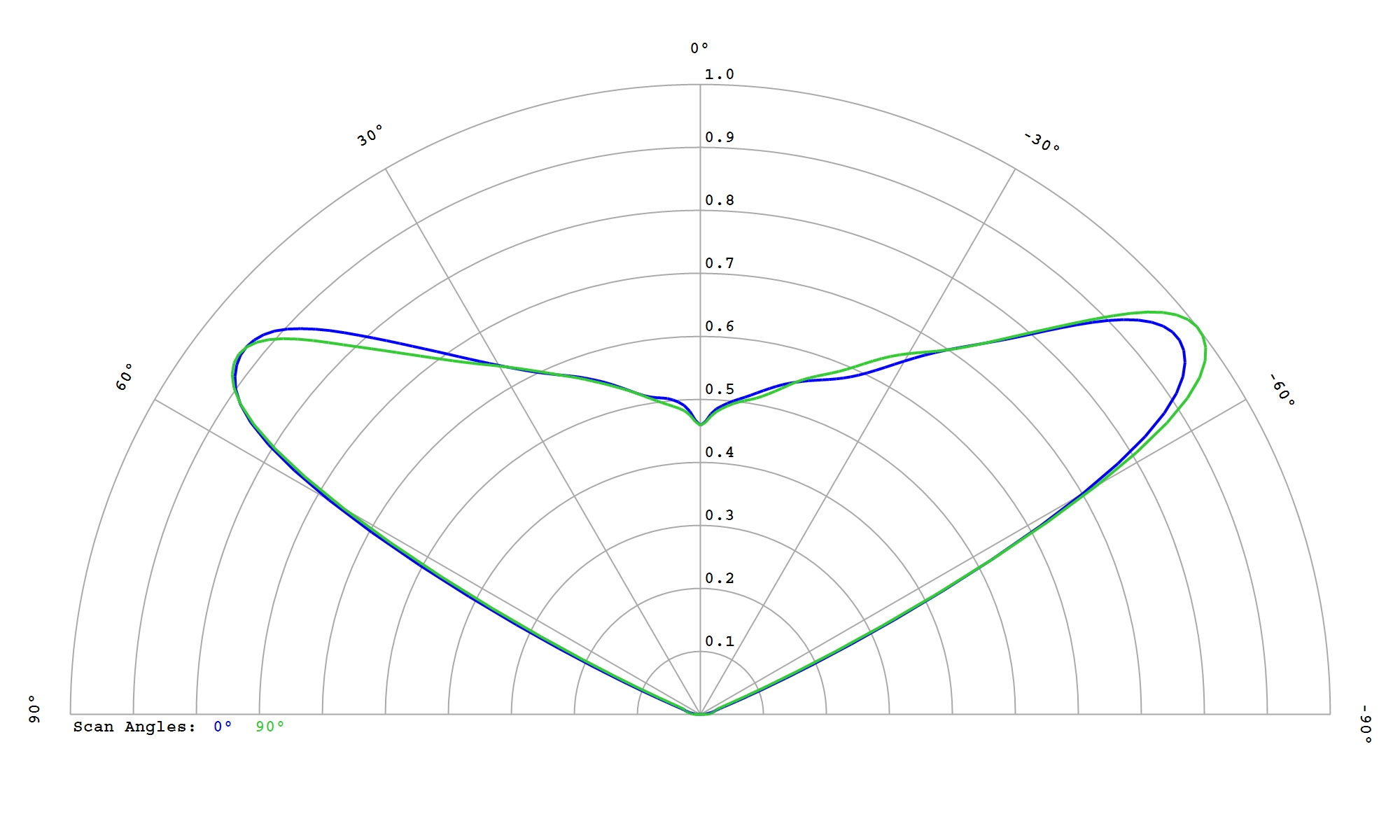

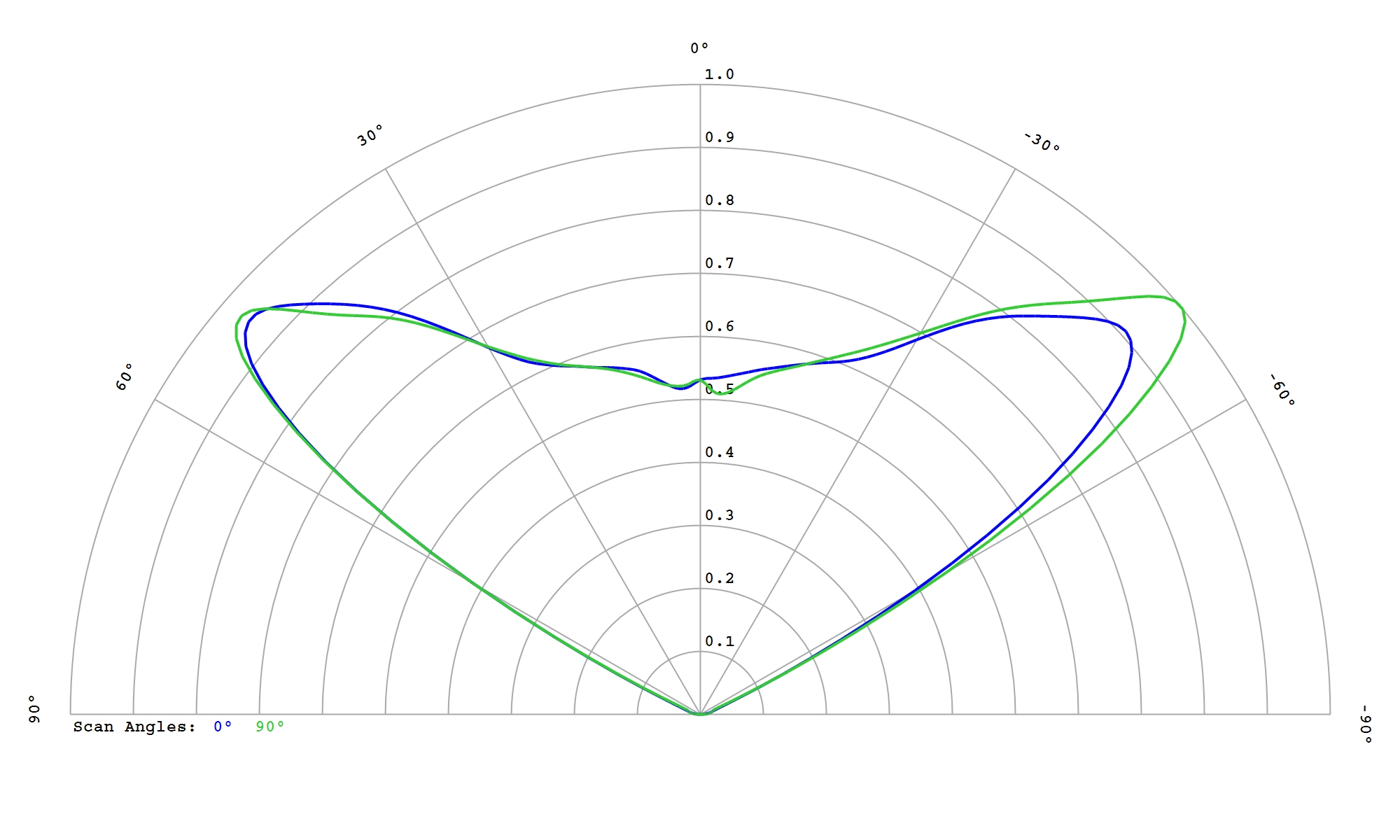

Cree XLamp XQ-A White

Eff:

95.0%

FWHM:

116°

Cd/Im:

0.6

Download

IES

Cree XLamp XQ-E HI White

Eff:

95.0%

FWHM:

124°

Cd/Im:

0.6

Download

IES

Cree XLamp XQ-E HD White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.4

Download

IES

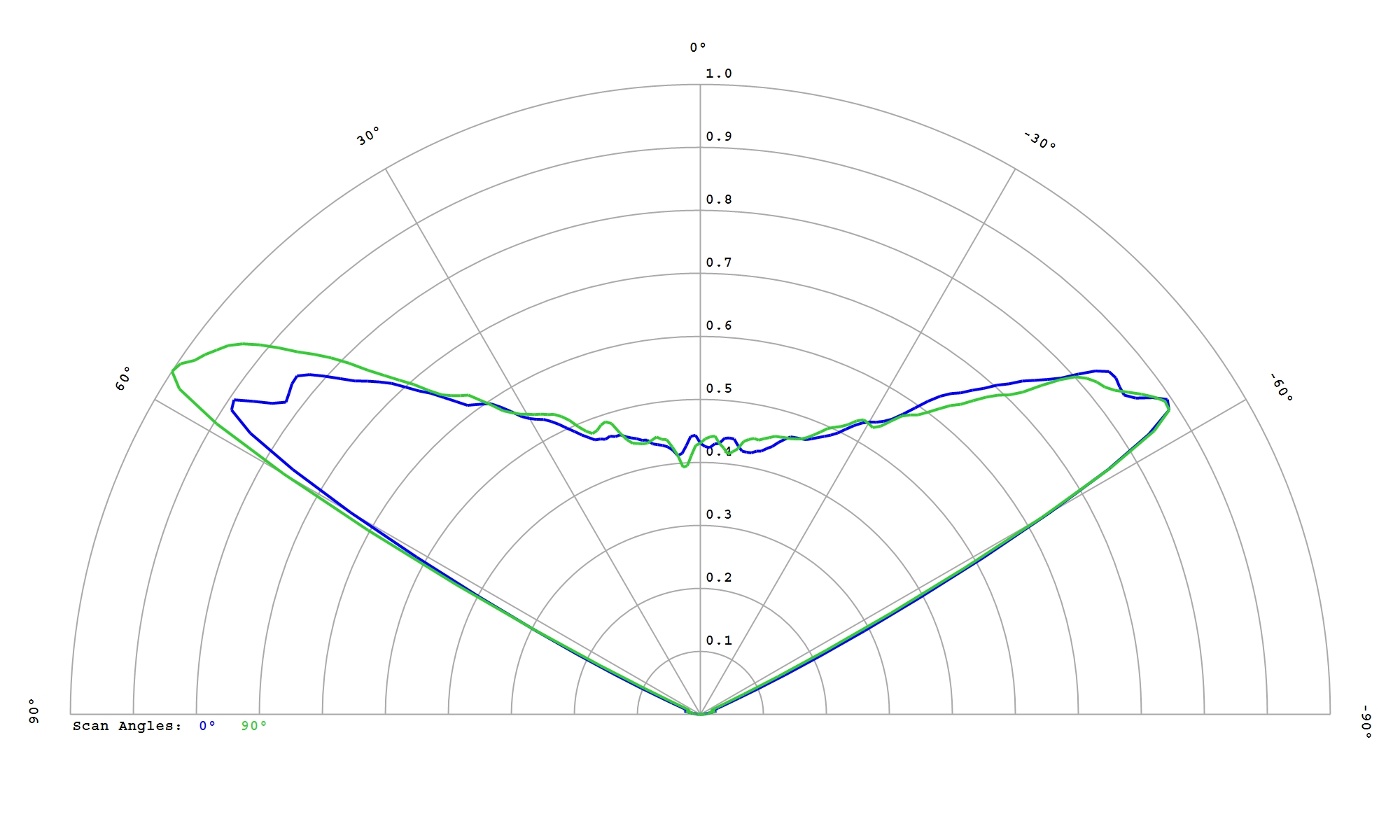

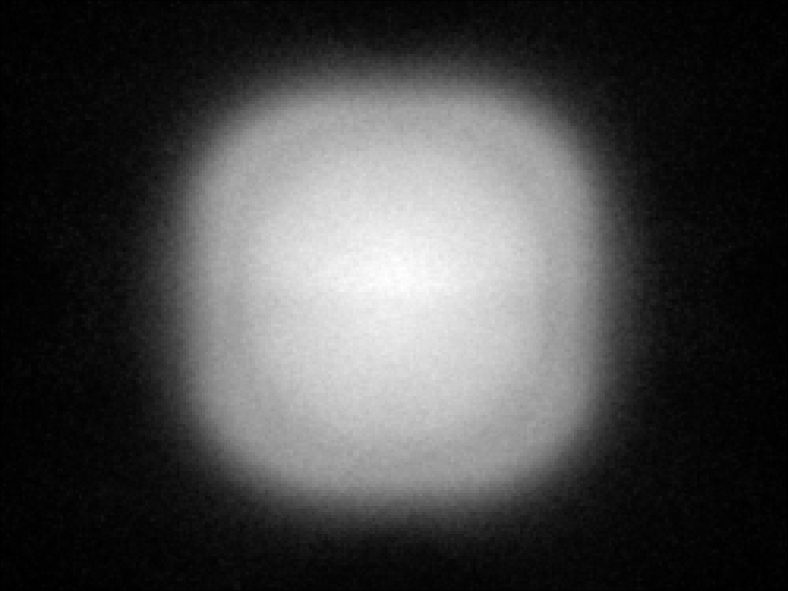

LUMILEDS LUXEON 2835C 6V White

Eff:

89.0%

FWHM:

122°

Cd/Im:

0.5

Download

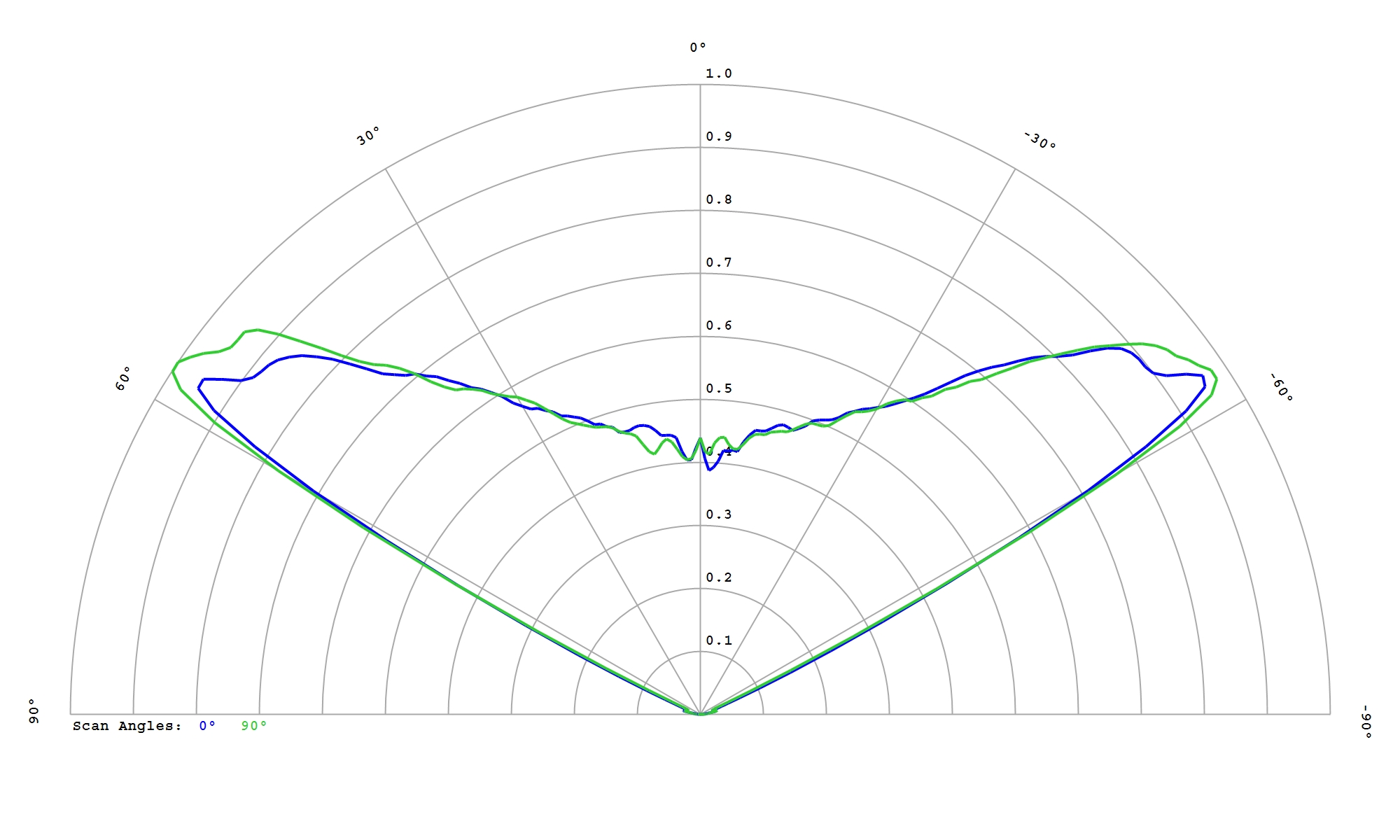

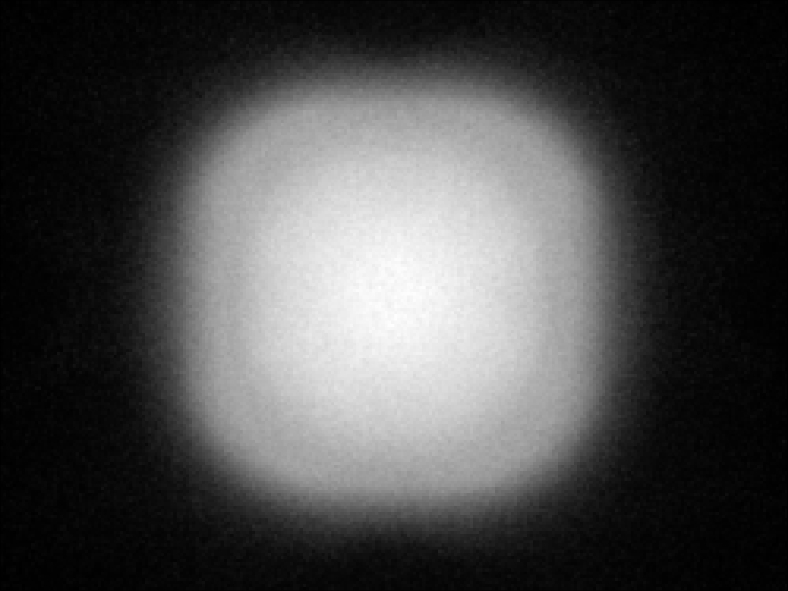

LUMILEDS LUXEON 2835E 9V White

Eff:

96.0%

FWHM:

123°

Cd/Im:

0.5

Download

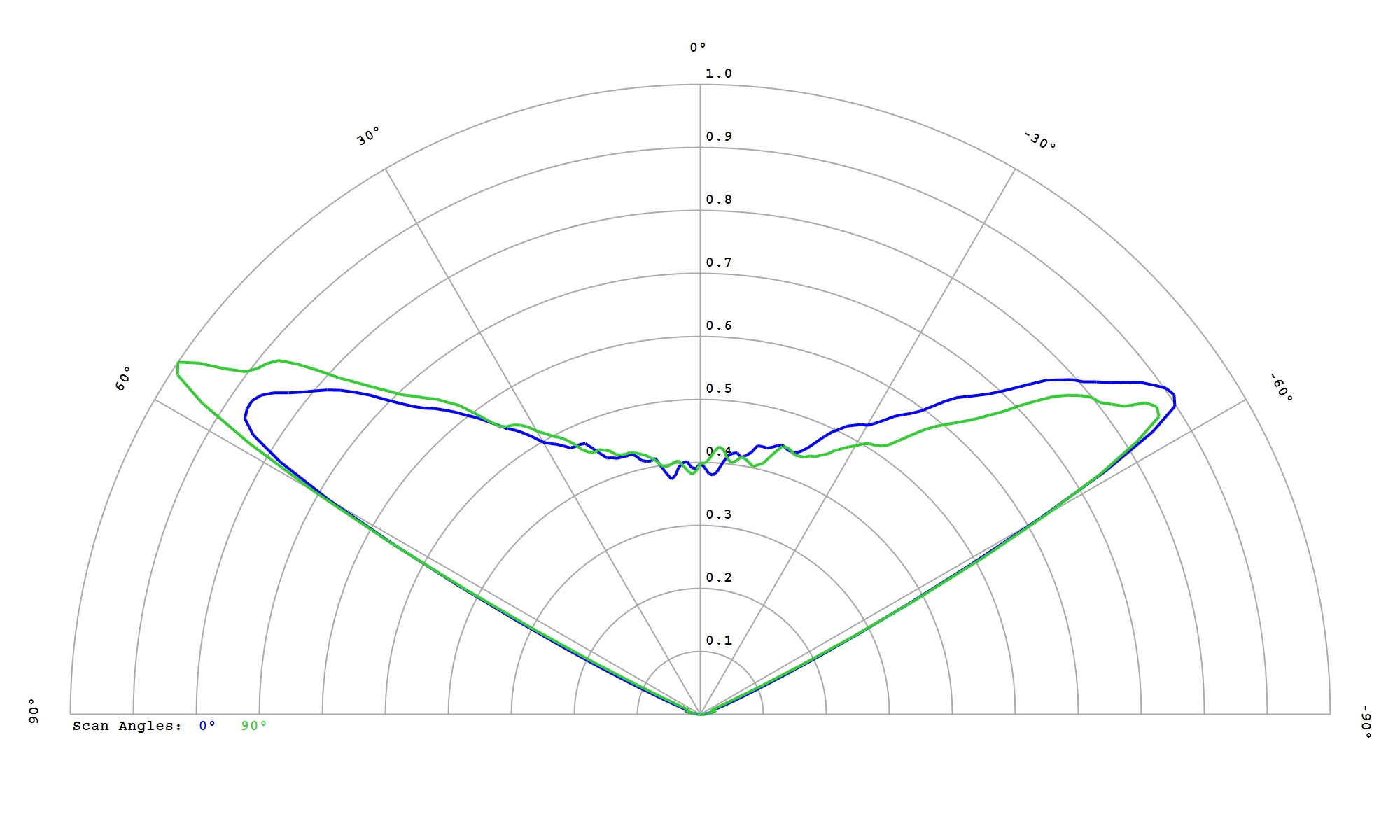

LUMILEDS LUXEON 2835N 3V White

Eff:

89.0%

FWHM:

122°

Cd/Im:

0.5

Download

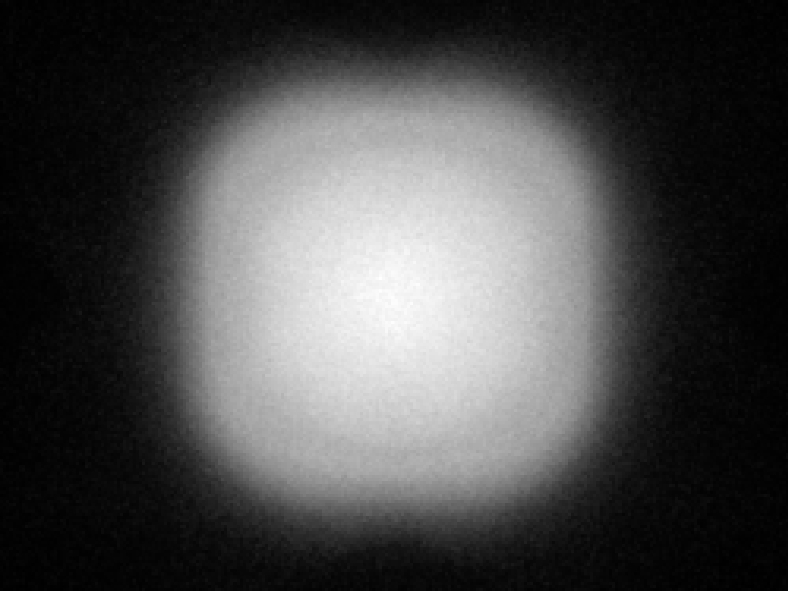

LUMILEDS LUXEON 2835S 3V White

Eff:

95.5%

FWHM:

123°

Cd/Im:

0.5

Download

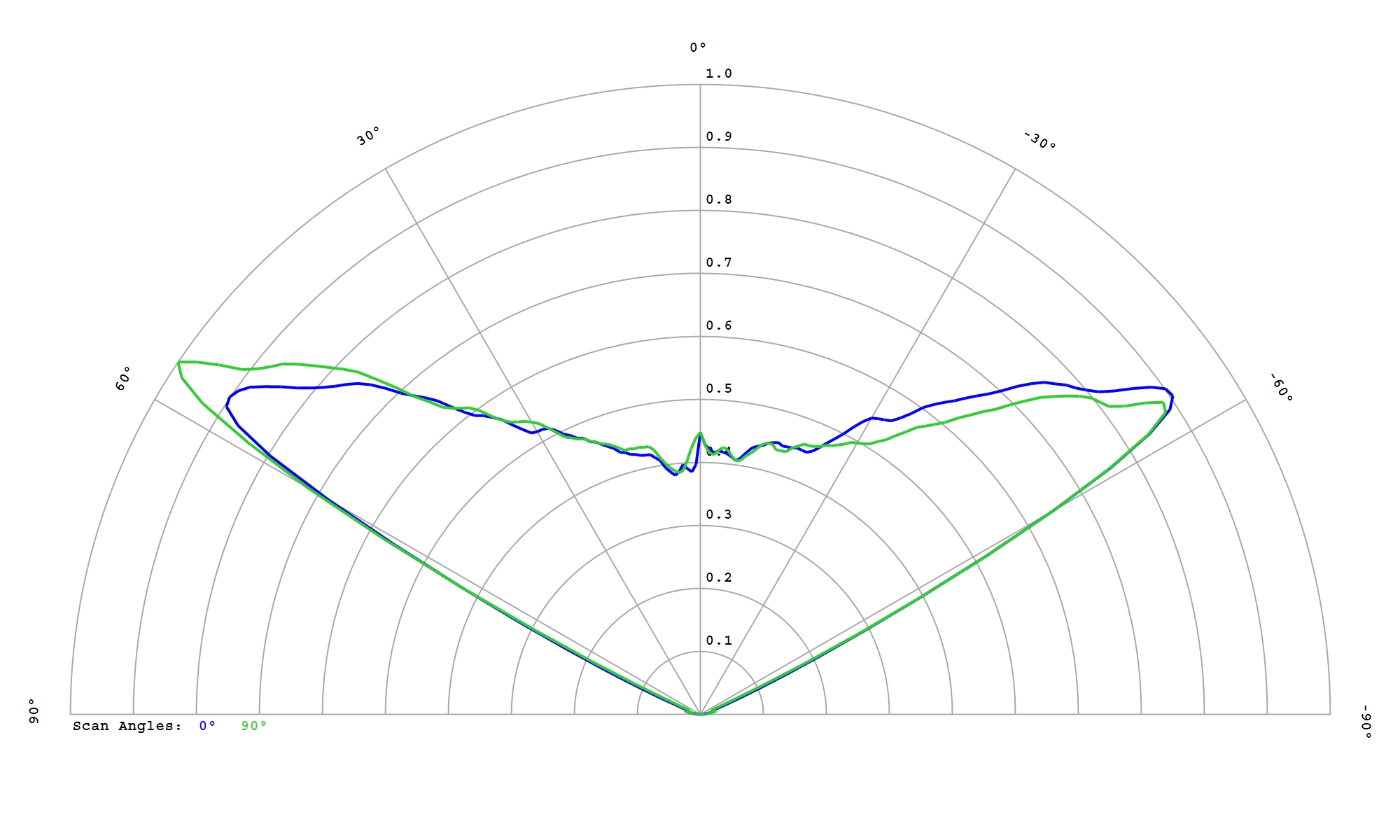

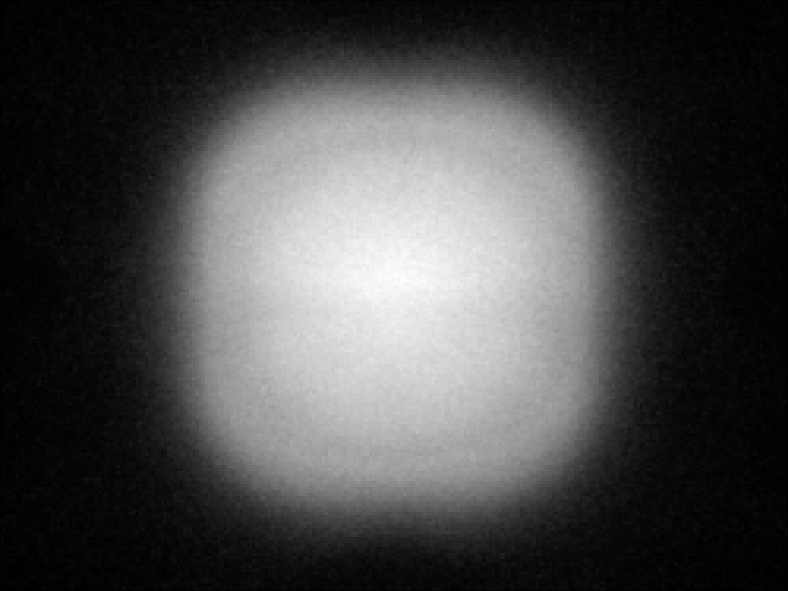

LUMILEDS LUXEON 2835S 6V White

Eff:

89.0%

FWHM:

123°

Cd/Im:

0.5

Download

LUMILEDS LUXEON 3014 White

Eff:

96.0%

FWHM:

123°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.6

Download

IES

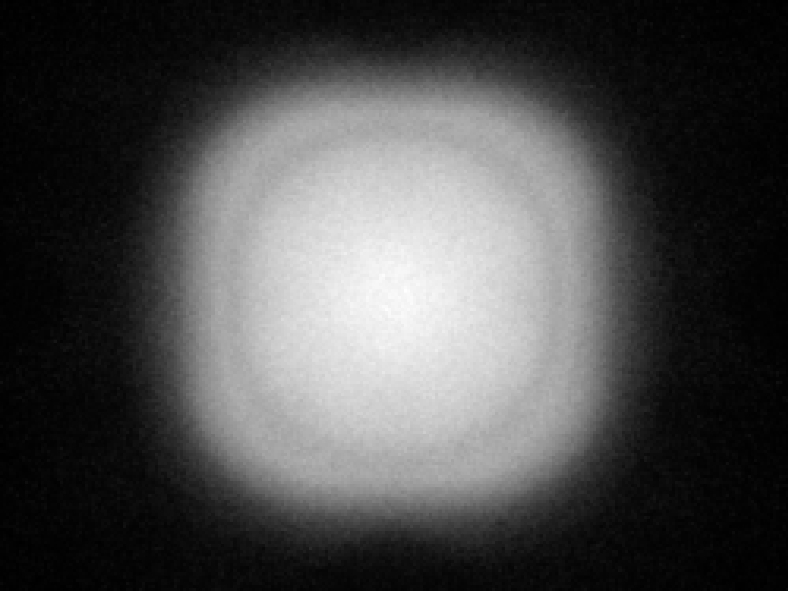

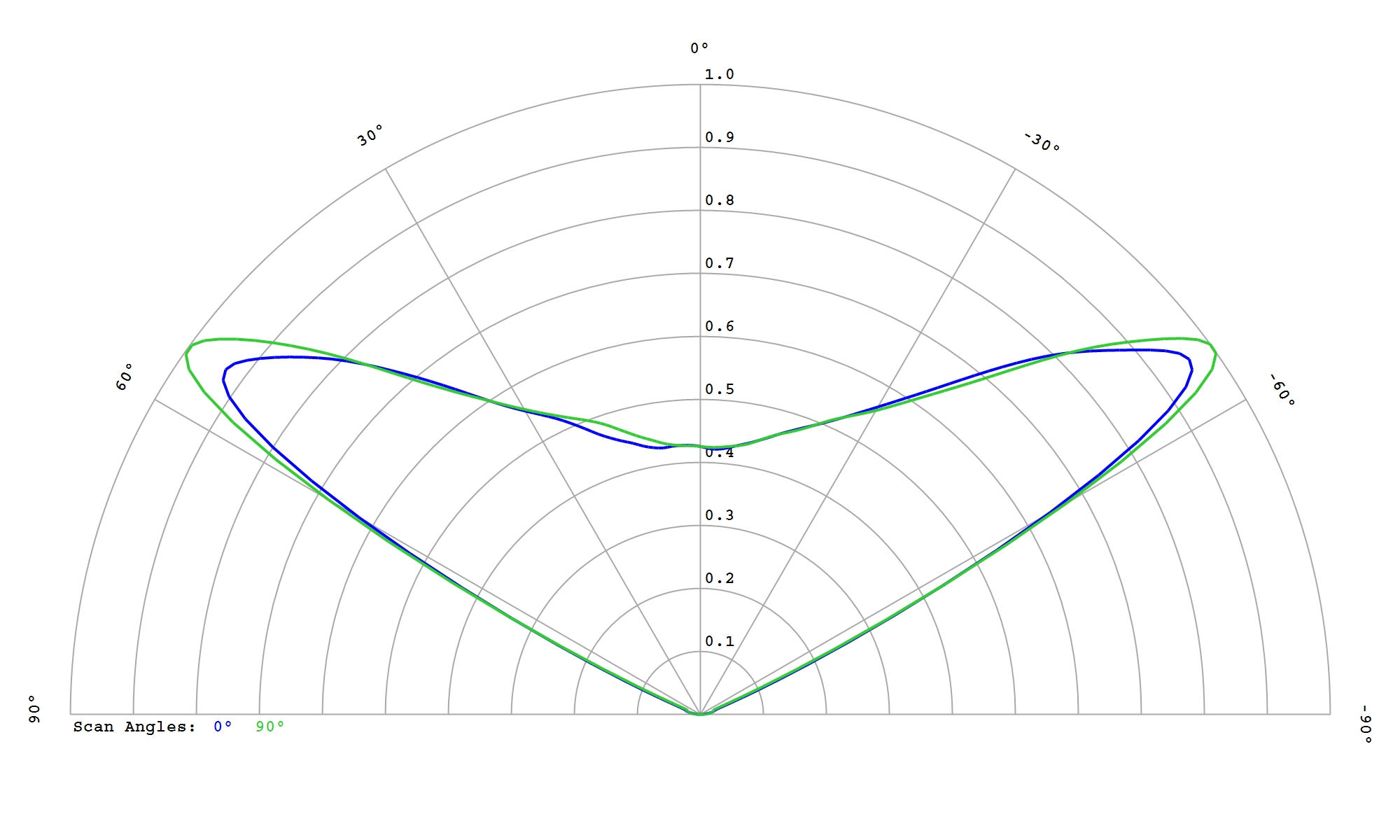

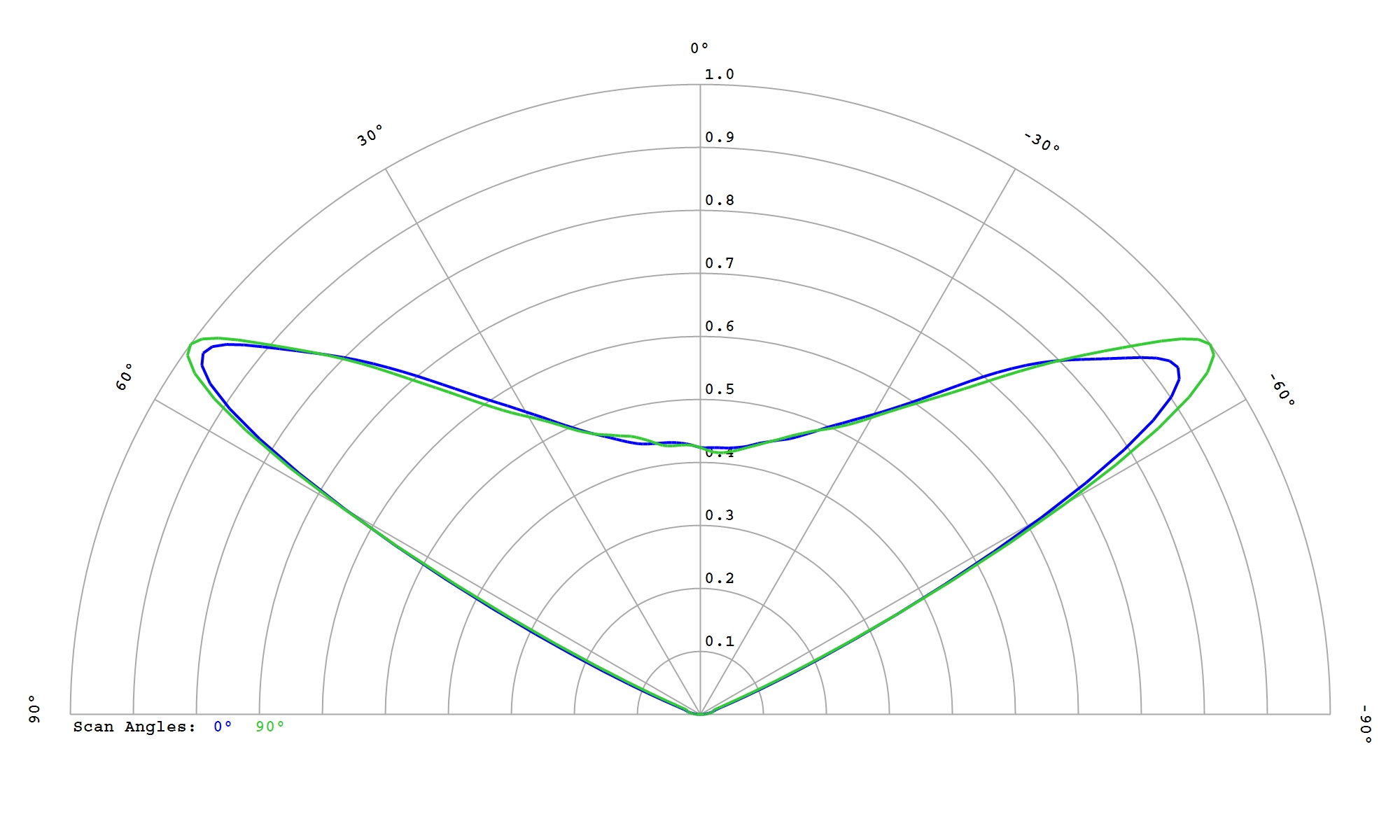

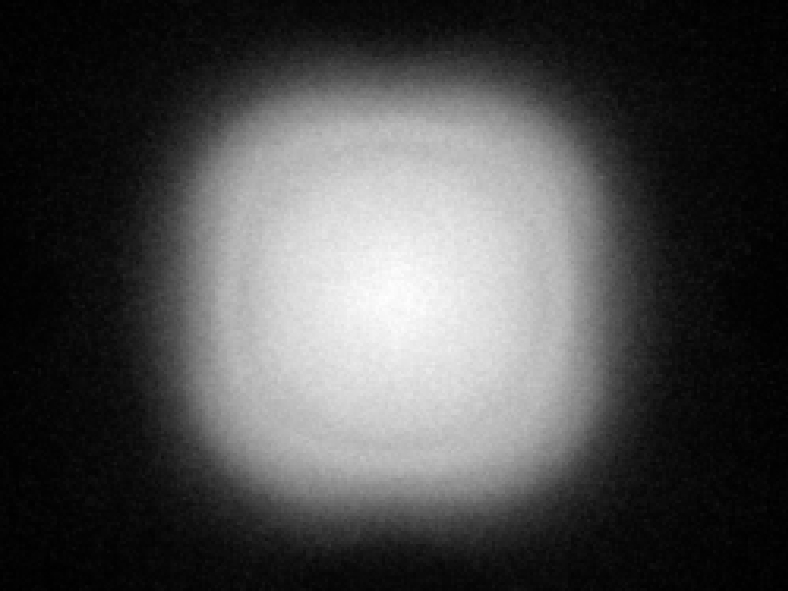

LUMILEDS LUXEON 3030 2D White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.6

Download

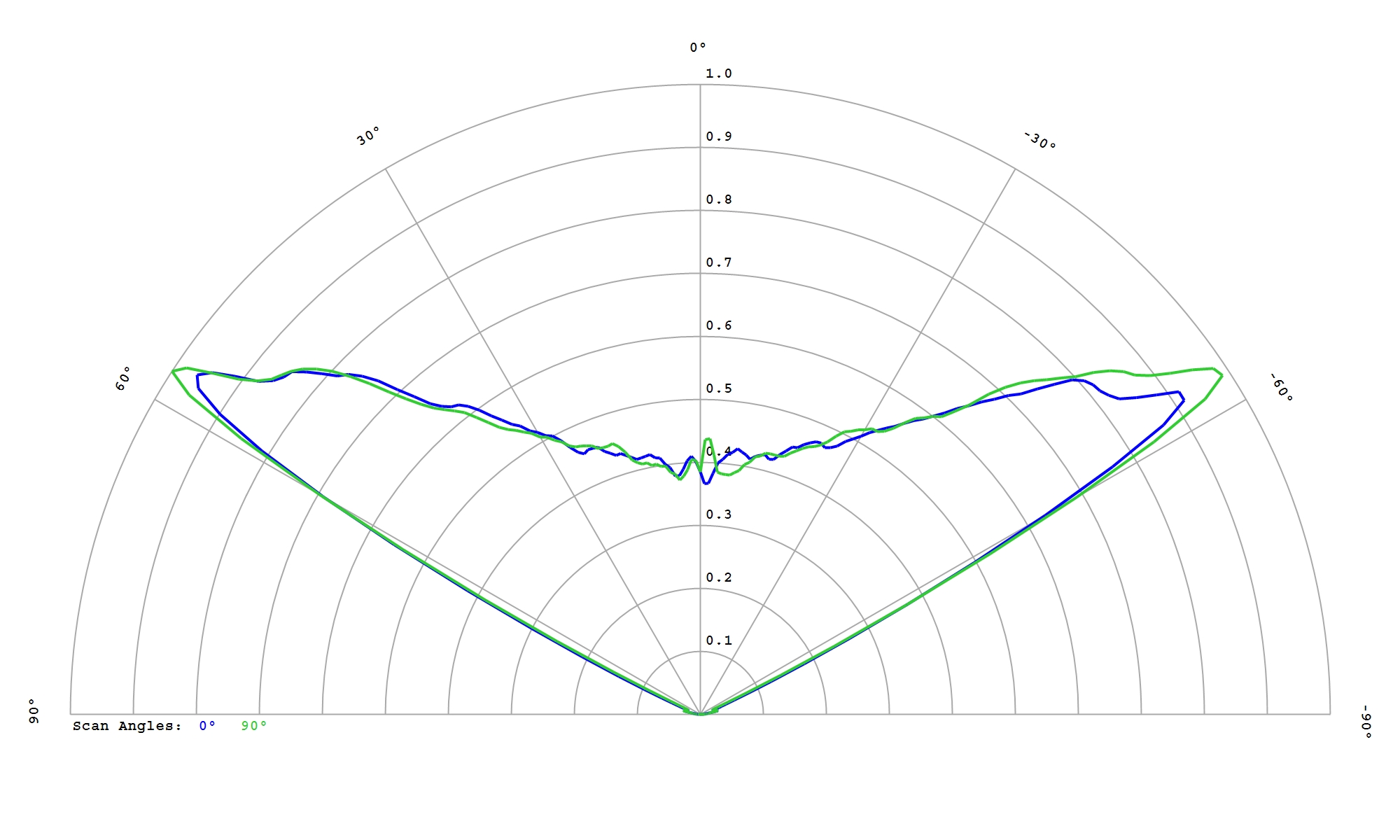

LUMILEDS LUXEON 3030 HE Plus White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5


Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

95.5%

FWHM:

124°

Cd/Im:

0.5

Download

IES

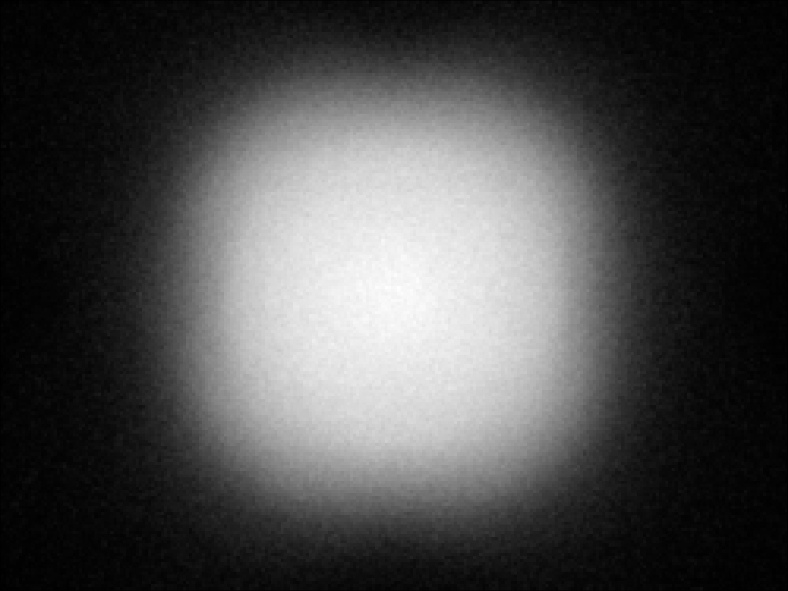

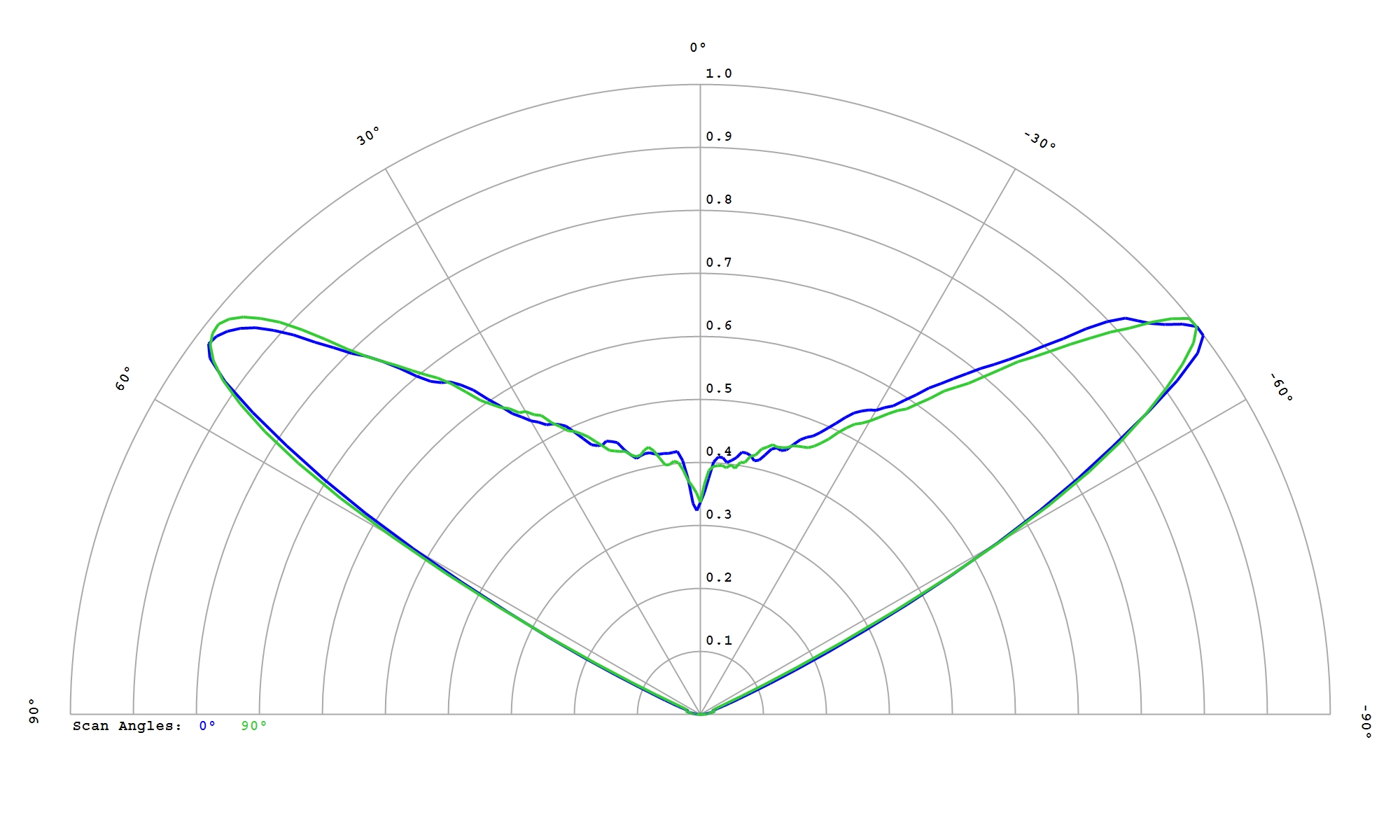

LUMILEDS LUXEON 5050 HE 24V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4

Download

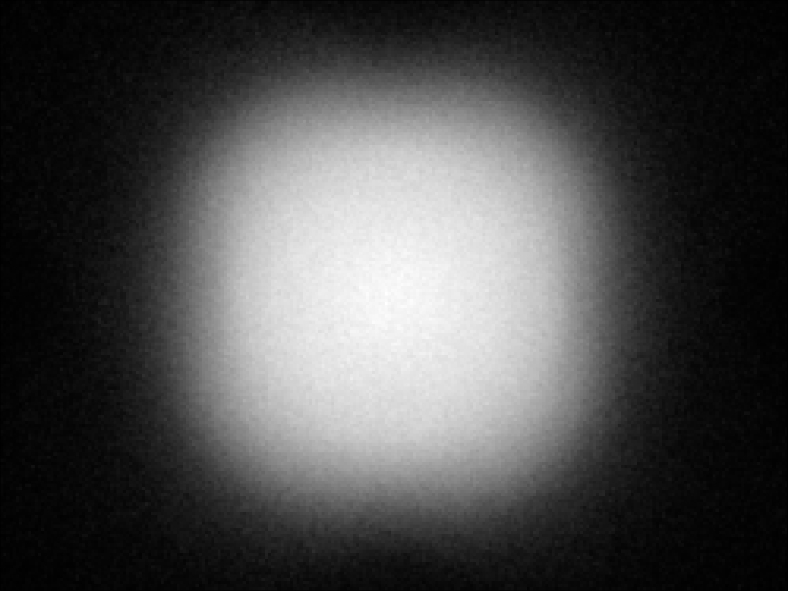

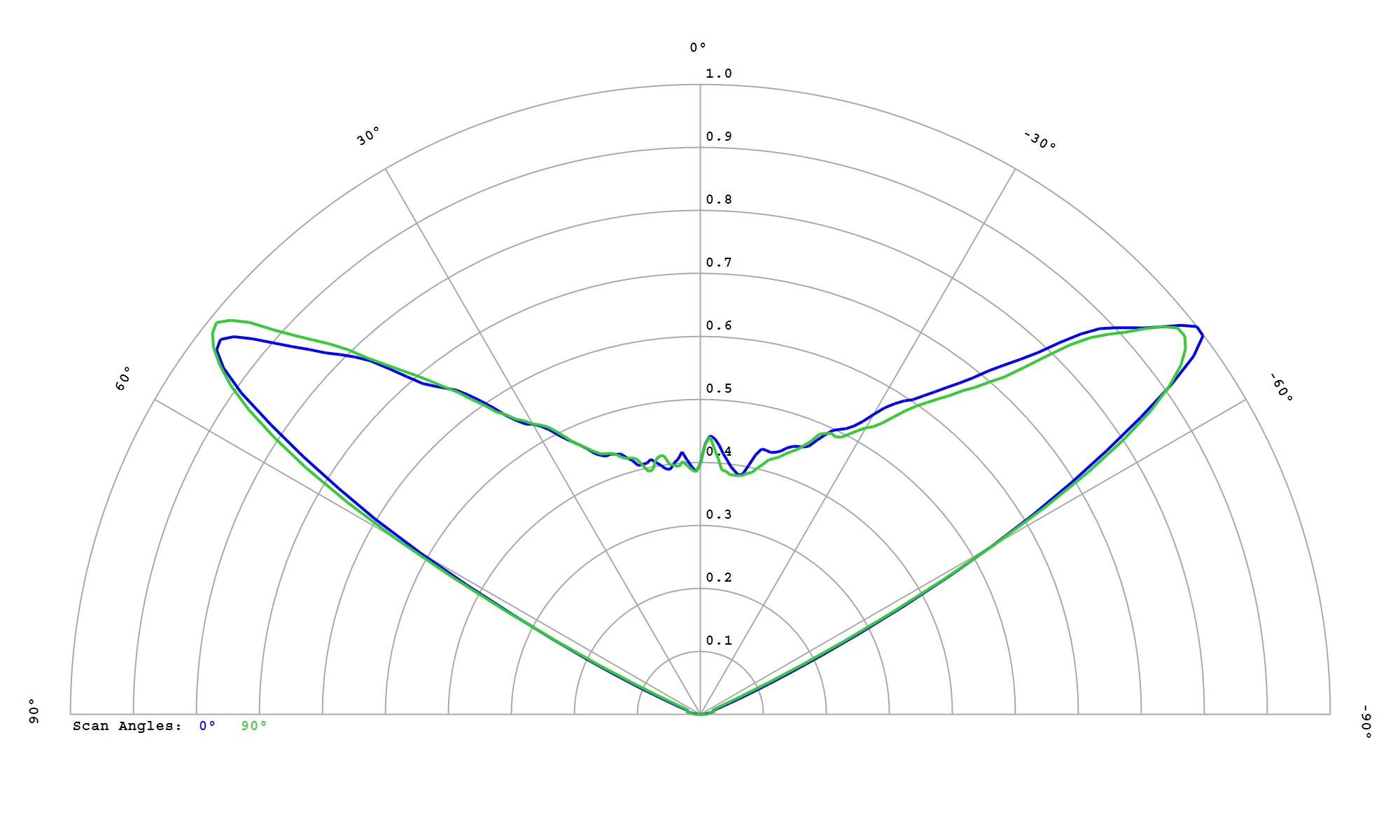

LUMILEDS LUXEON 5050 HE 6V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4

Download

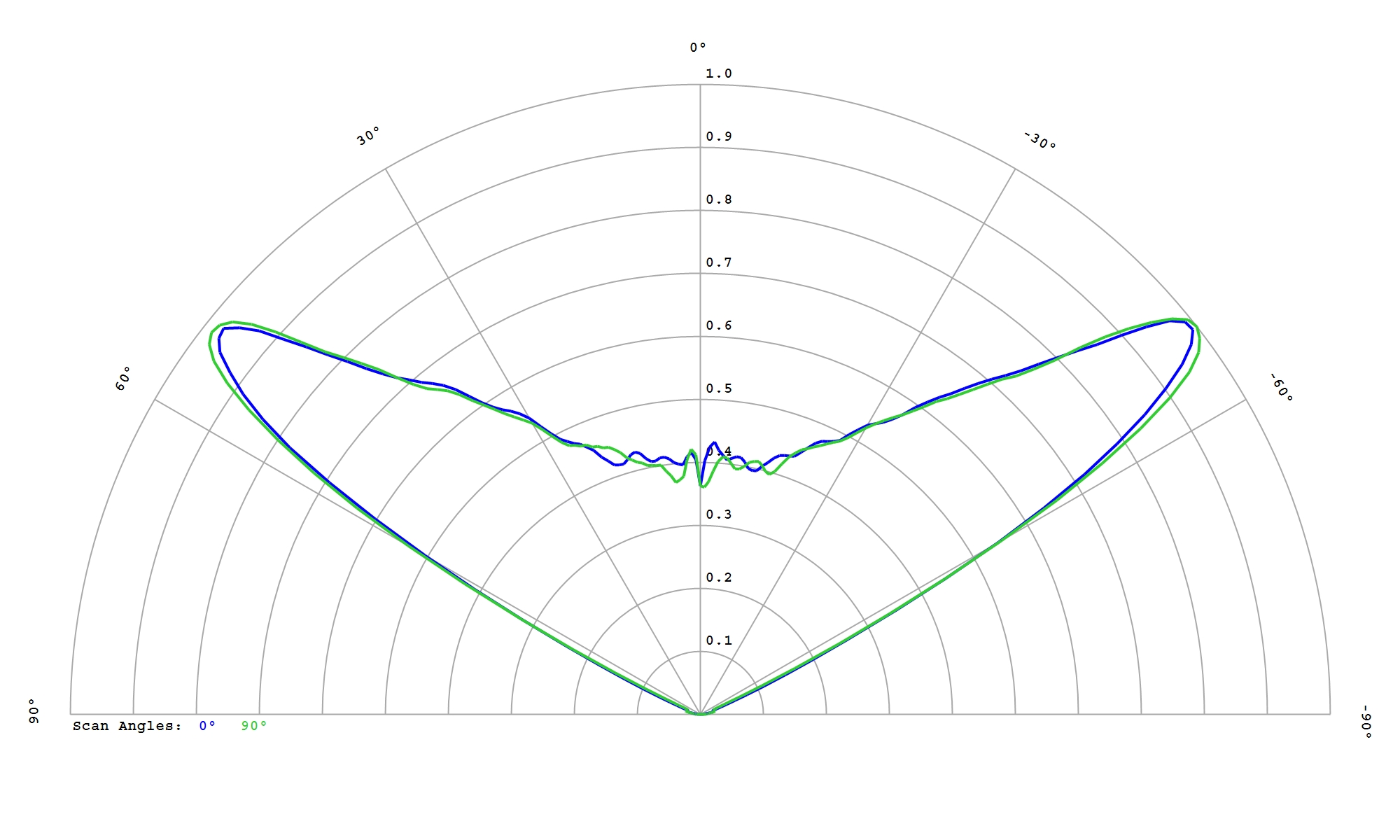

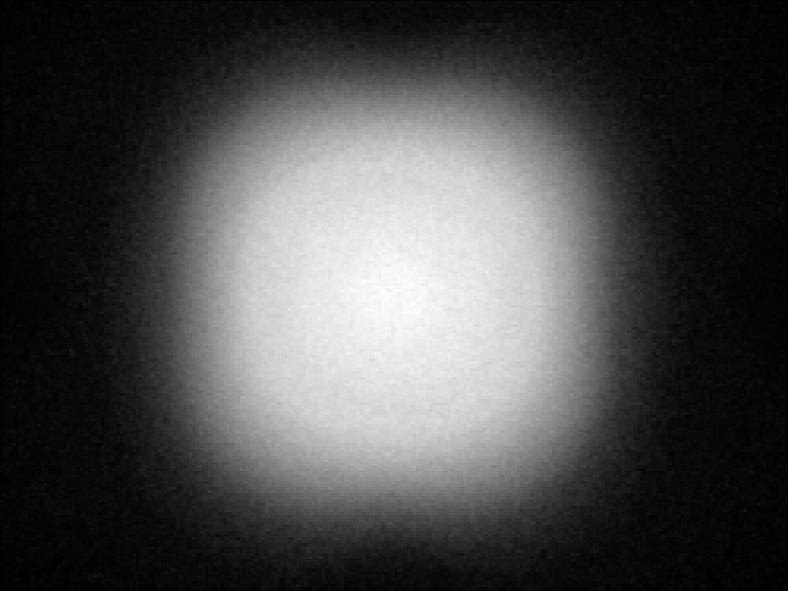

LUMILEDS LUXEON 5050 Round 24V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4

Download

IES

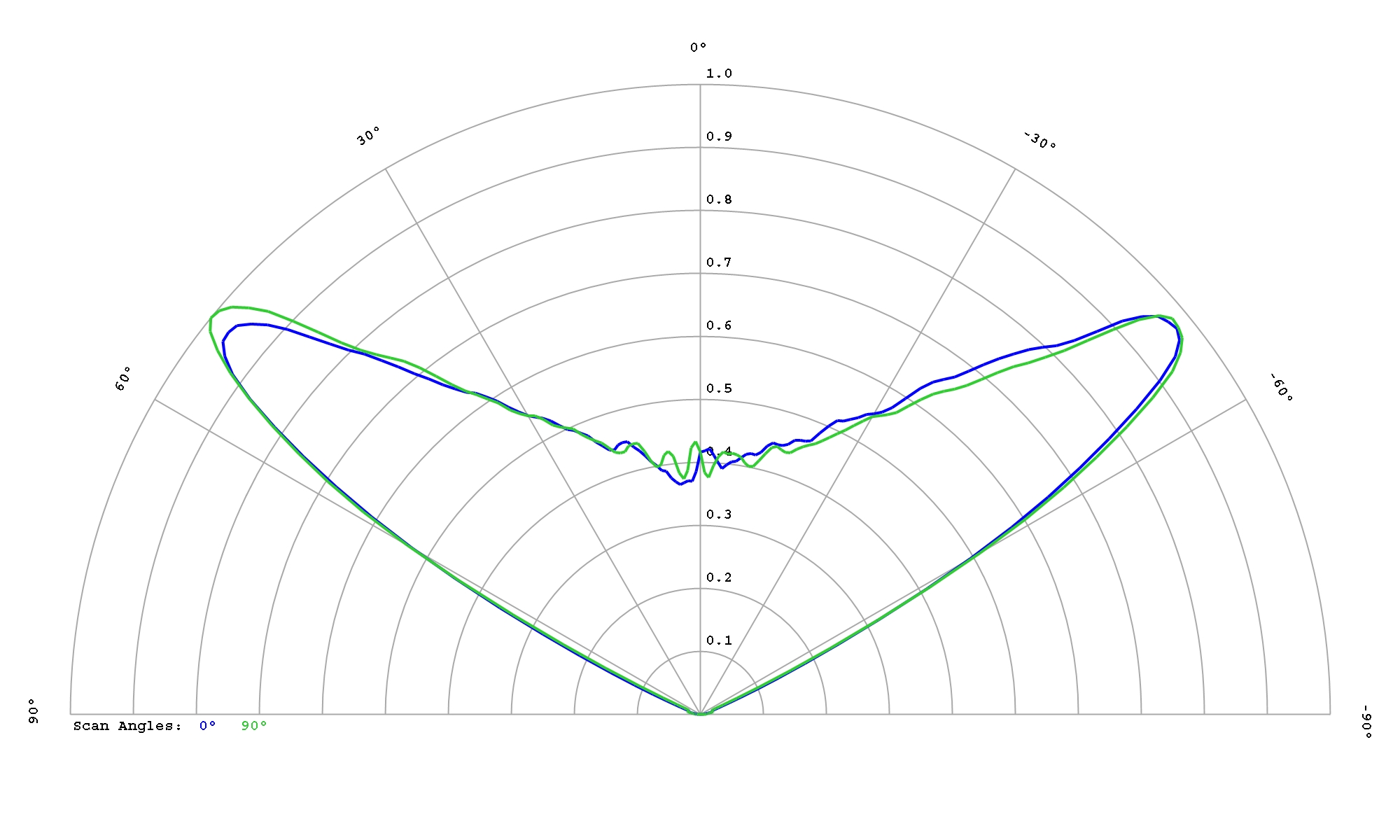

LUMILEDS LUXEON 5050 Square 30V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4


Download

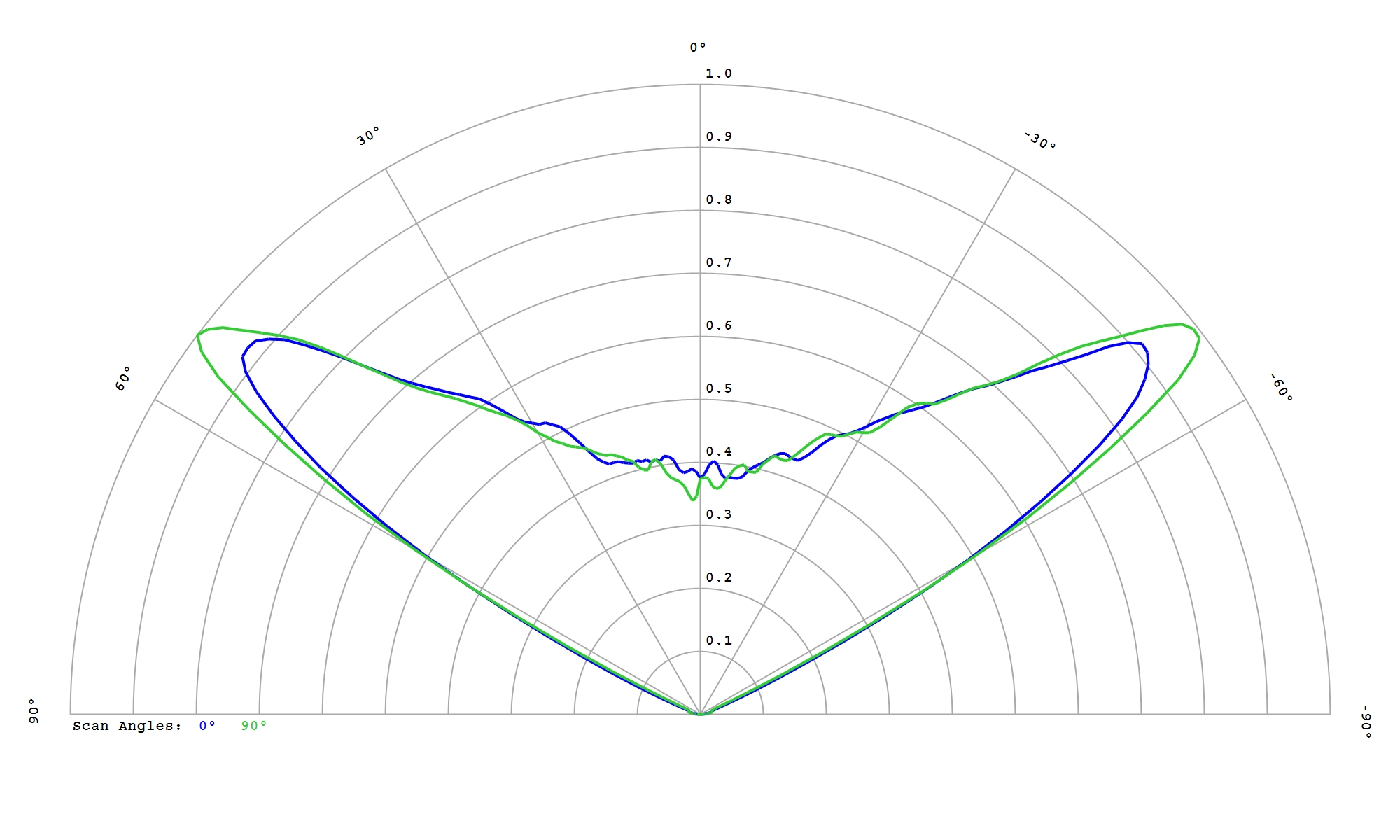

LUMILEDS LUXEON 5050 Square 6V White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4


Download

LUMILEDS LUXEON 7070 White

Eff:

95.5%

FWHM:

123°

Cd/Im:

0.4

Download

IES

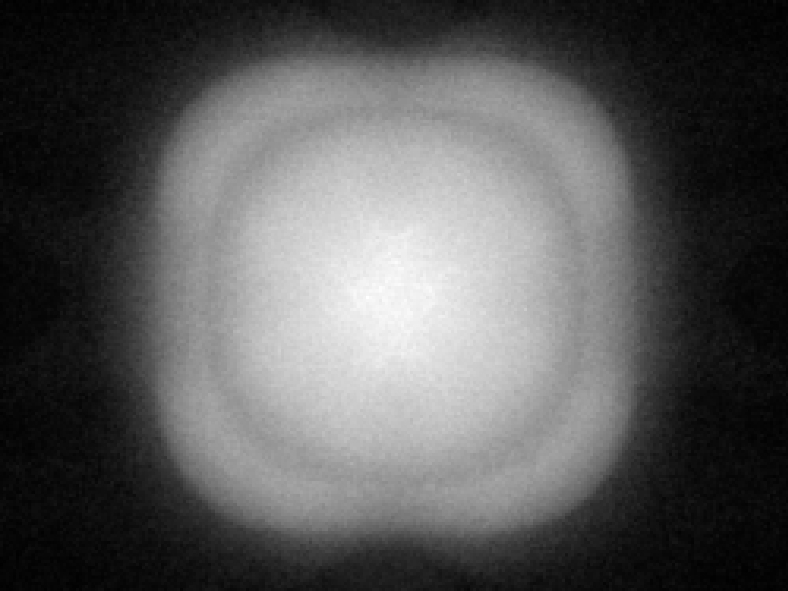

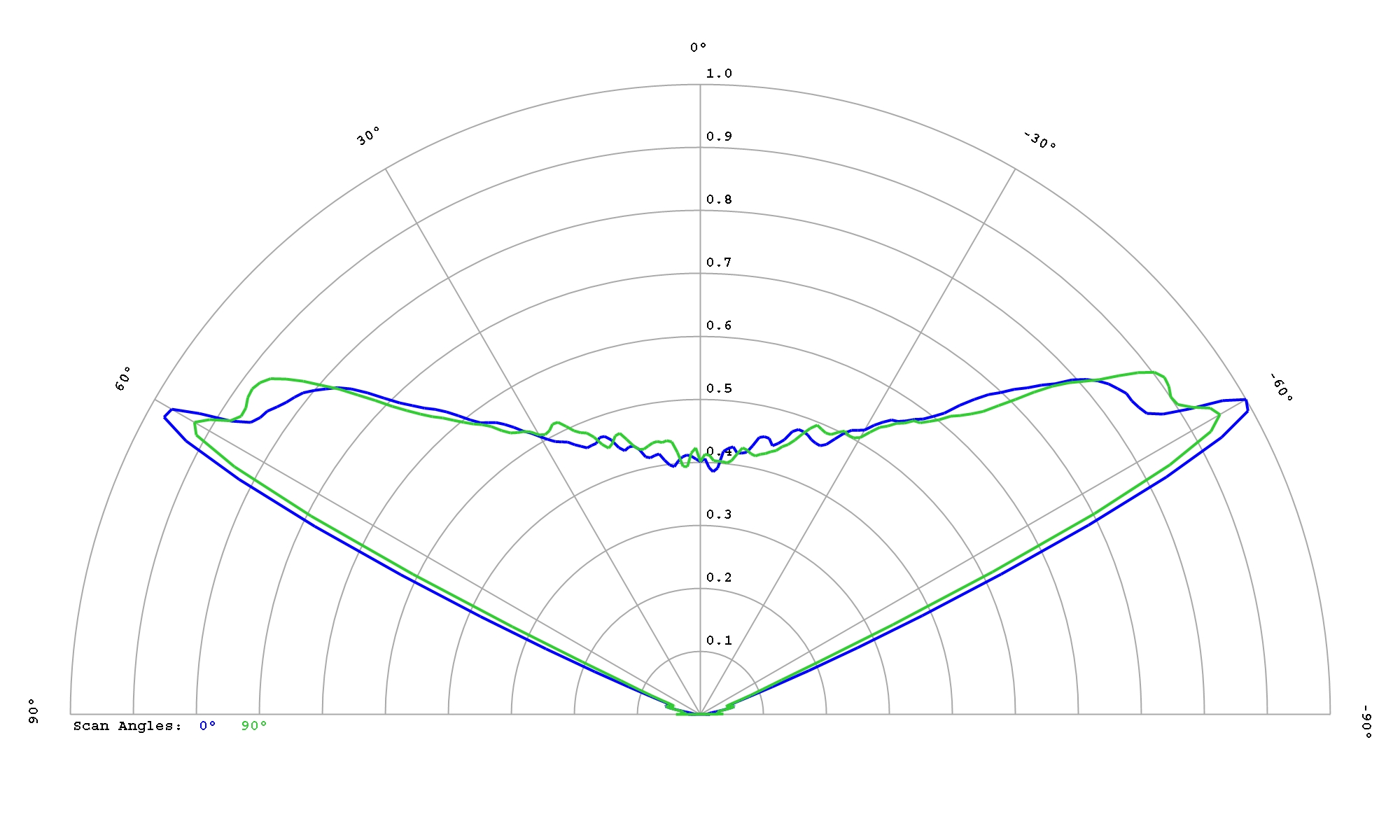

LUMILEDS LUXEON C White

Eff:

91.5%

FWHM:

129°

Cd/Im:

0.5

Download

LUMILEDS LUXEON CZ White

Eff:

95.5%

FWHM:

124°

Cd/Im:

0.6

Download

IES

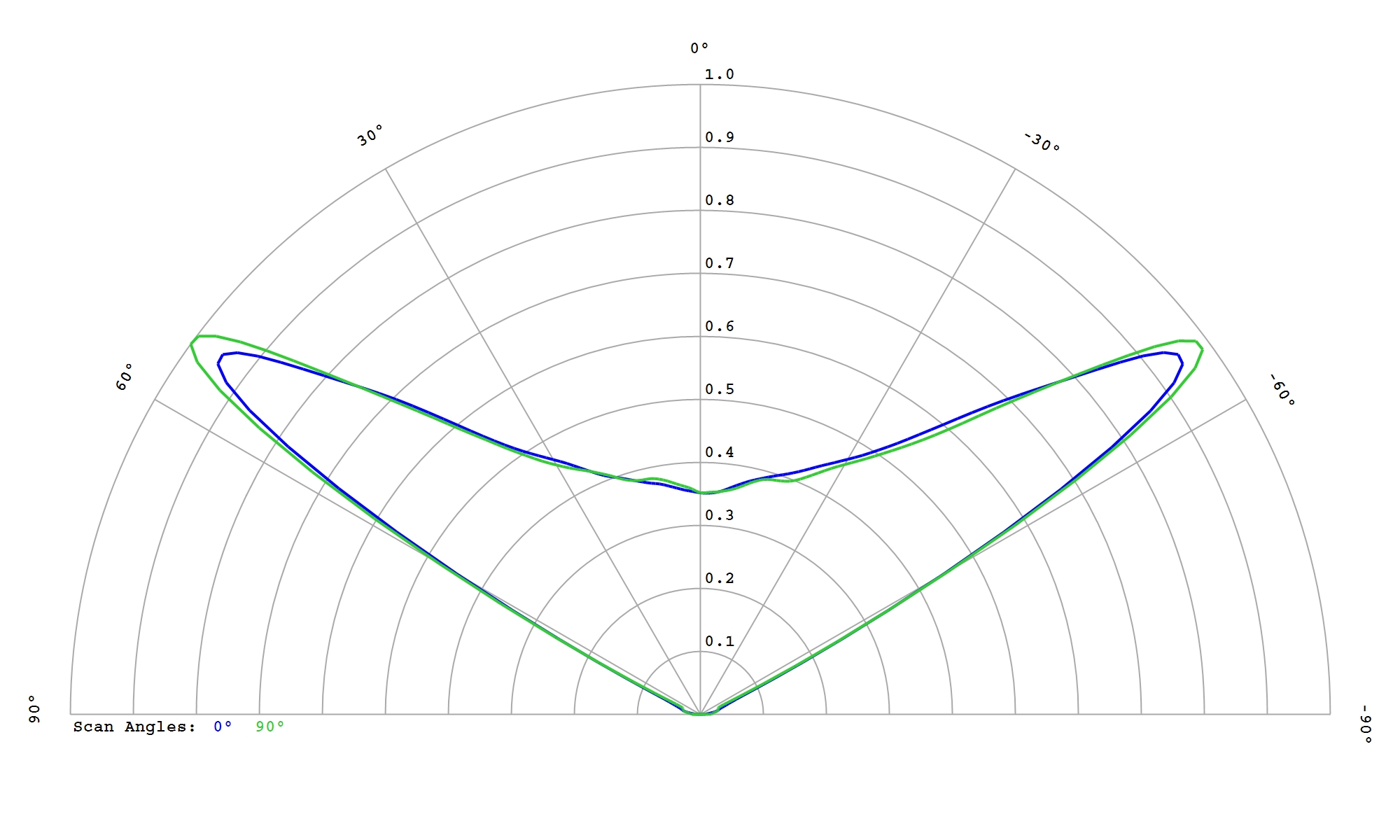

LUMILEDS LUXEON HL1Z CSP White

Eff:

95.0%

FWHM:

118°

Cd/Im:

0.7

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

121°

Ipk/W:

0.6

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

96.5%

FWHM:

125°

Cd/Im:

0.7

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

95.5%

FWHM:

125°

Cd/Im:

0.7

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

96.5%

FWHM:

126°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

96.5%

FWHM:

125°

Cd/Im:

0.7


Download

IES

LUMILEDS LUXEON Rubix White

Eff:

95.5%

FWHM:

125°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

93.0%

FWHM:

129°

Cd/Im:

0.6


Download

IES

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

90.5%

FWHM:

132°

Cd/Im:

0.5


Download

IES

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

91.0%

FWHM:

132°

Cd/Im:

0.9


Download

IES

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

91.5%

FWHM:

129°

Cd/Im:

0.5


Download

IES

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

92.0%

FWHM:

128°

Cd/Im:

0.6


Download

IES

Luminus Devices MP 7070-T200 White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4


Download

IES

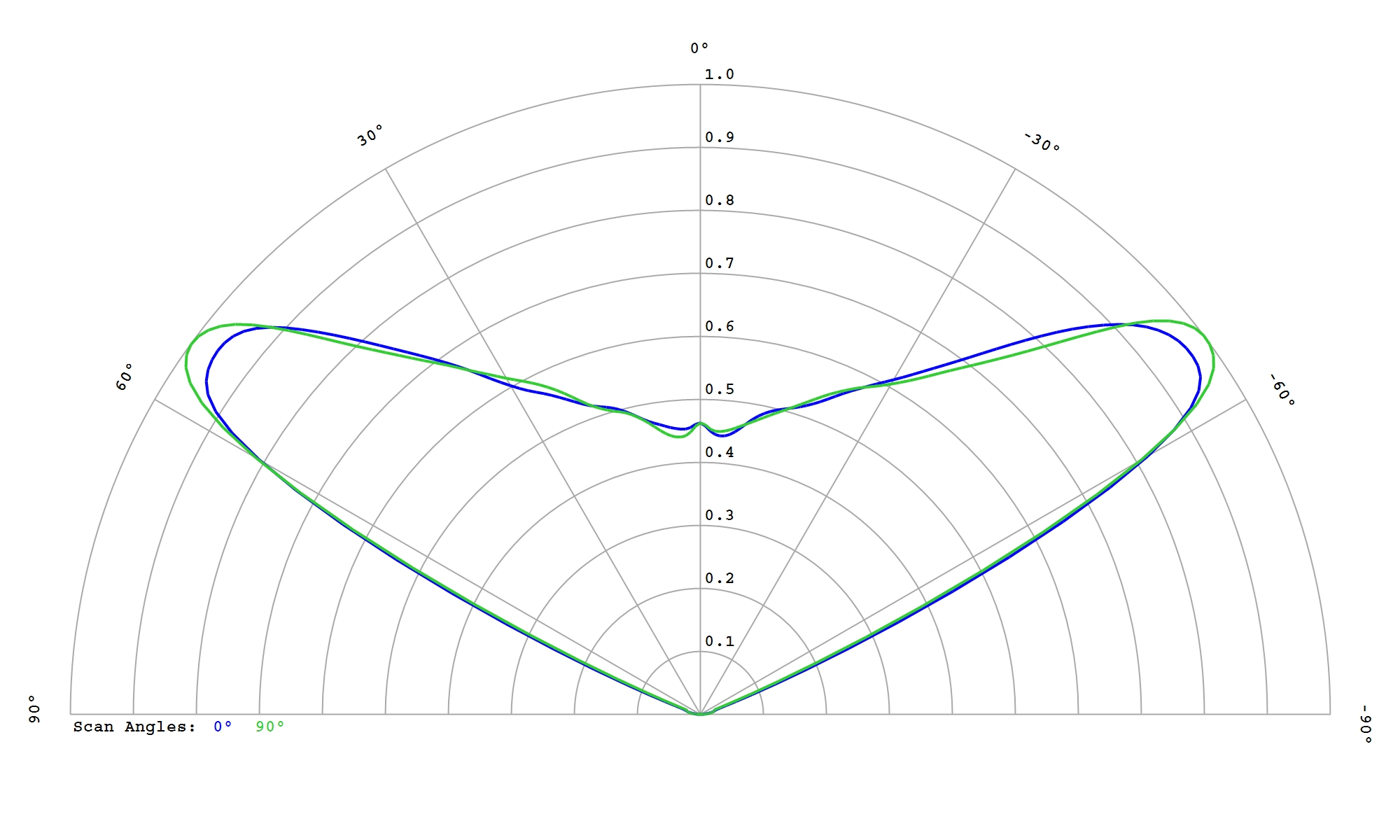

Luminus Devices SFT-40-WxS White

Eff:

96.0%

FWHM:

125°

Cd/Im:

0.5

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

95.5%

FWHM:

125°

Cd/Im:

0.4

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

96.5%

FWHM:

122°

Cd/Im:

0.7


Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

95.5%

FWHM:

127°

Cd/Im:

0.5


Download

IES

Luminus Devices SST 10-FR-B130 Far Red

Eff:

96.0%

FWHM:

127°

Cd/Im:

1.4



Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.6


Download

IES

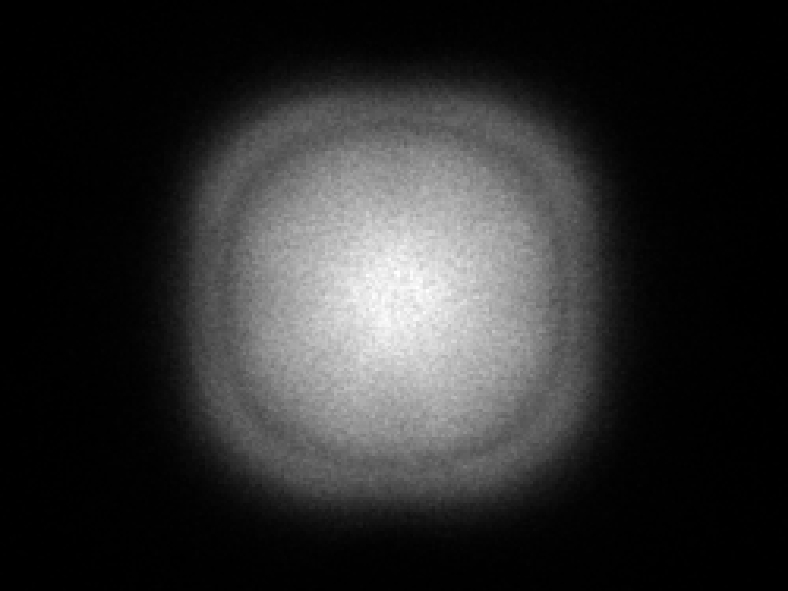

Luminus Devices SST 10-IR-B130 940nm

Eff:

97.0%

FWHM:

124°

Ipk/W:

0.5


Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

96.5%

FWHM:

124°

Ipk/W:

0.5


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

96.5%

FWHM:

119°

Ipk/W:

0.5


Download

IES

Luminus Devices SST 10-R-B130 Red

Eff:

95.5%

FWHM:

127°

Cd/Im:

0.5


Download

IES

Luminus Devices SST 10-SB-B130 Sky Blue

Eff:

96.5%

FWHM:

122°

Cd/Im:

0.7



Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.0%

FWHM:

122°

Cd/Im:

0.5

Download

IES

Luminus Devices SST-12-WxS White

Eff:

95.0%

FWHM:

126°

Cd/Im:

0.5

Download

IES

Luminus Devices SST-70X-W White

Eff:

95.5%

FWHM:

126°

Cd/Im:

0.5

Download

IES

Nichia 757G White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.5

Download

IES

Nichia NCSW CSP E17A White

Eff:

94.5%

FWHM:

116°

Cd/Im:

0.7

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

95.5%

FWHM:

123°

Cd/Im:

0.5


Download

IES

Nichia NVSW CSP E21A White

Eff:

94.5%

FWHM:

116°

Cd/Im:

0.7

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.6



Download

IES

Osram OS DURIS E5 White

Eff:

95.0%

FWHM:

112°

Cd/Im:

0.7

Download

IES

Osram OS DURIS S5 GP PSLM31.14 Purple

Eff:

96.0%

FWHM:

121°

Cd/Im:

0.5



Download

14

Osram OS DURIS S5 GP PSLR31.14 Purple

Eff:

96.0%

FWHM:

120°

Cd/Im:

0.5



Download

14

Osram OS DURIS S5 White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.4


Download

IES

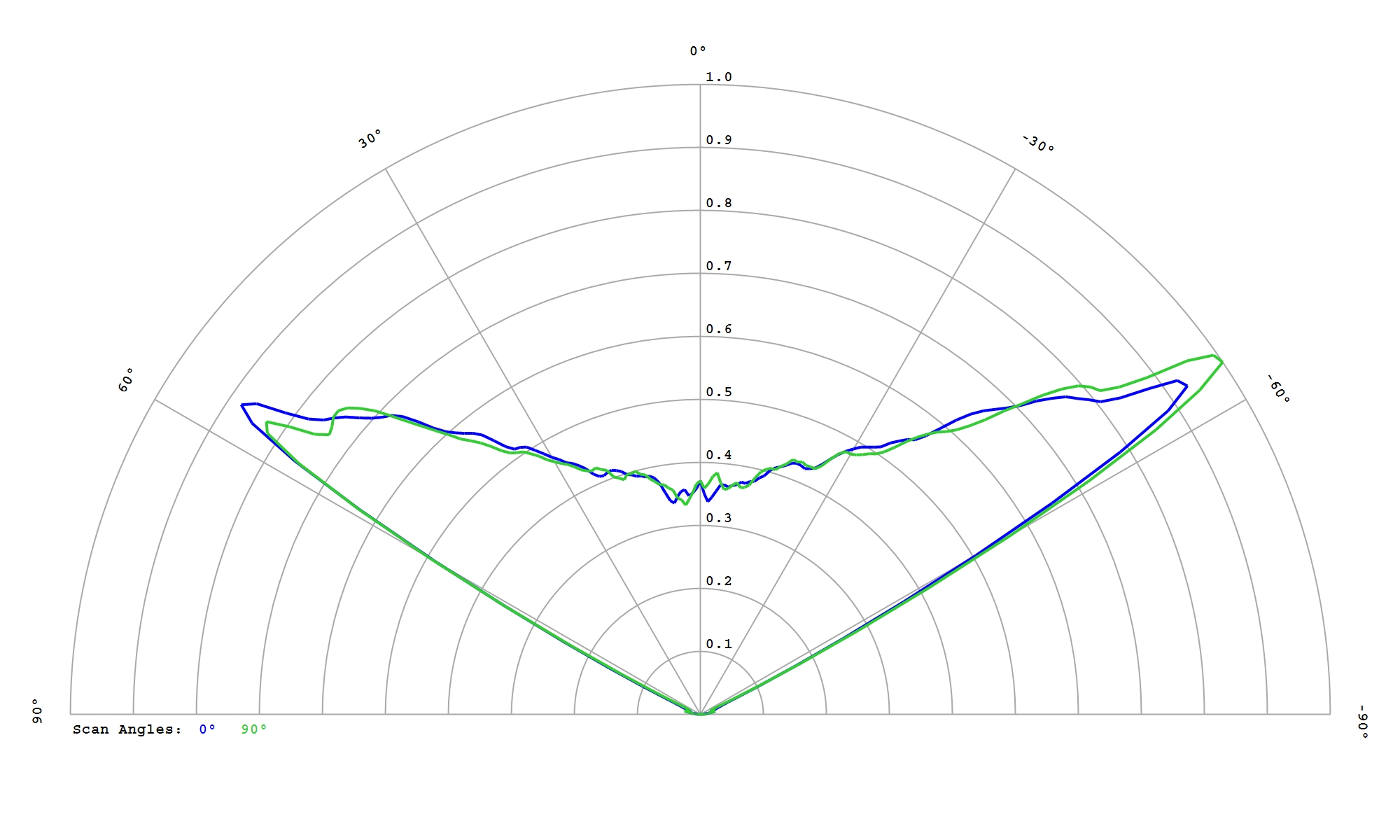

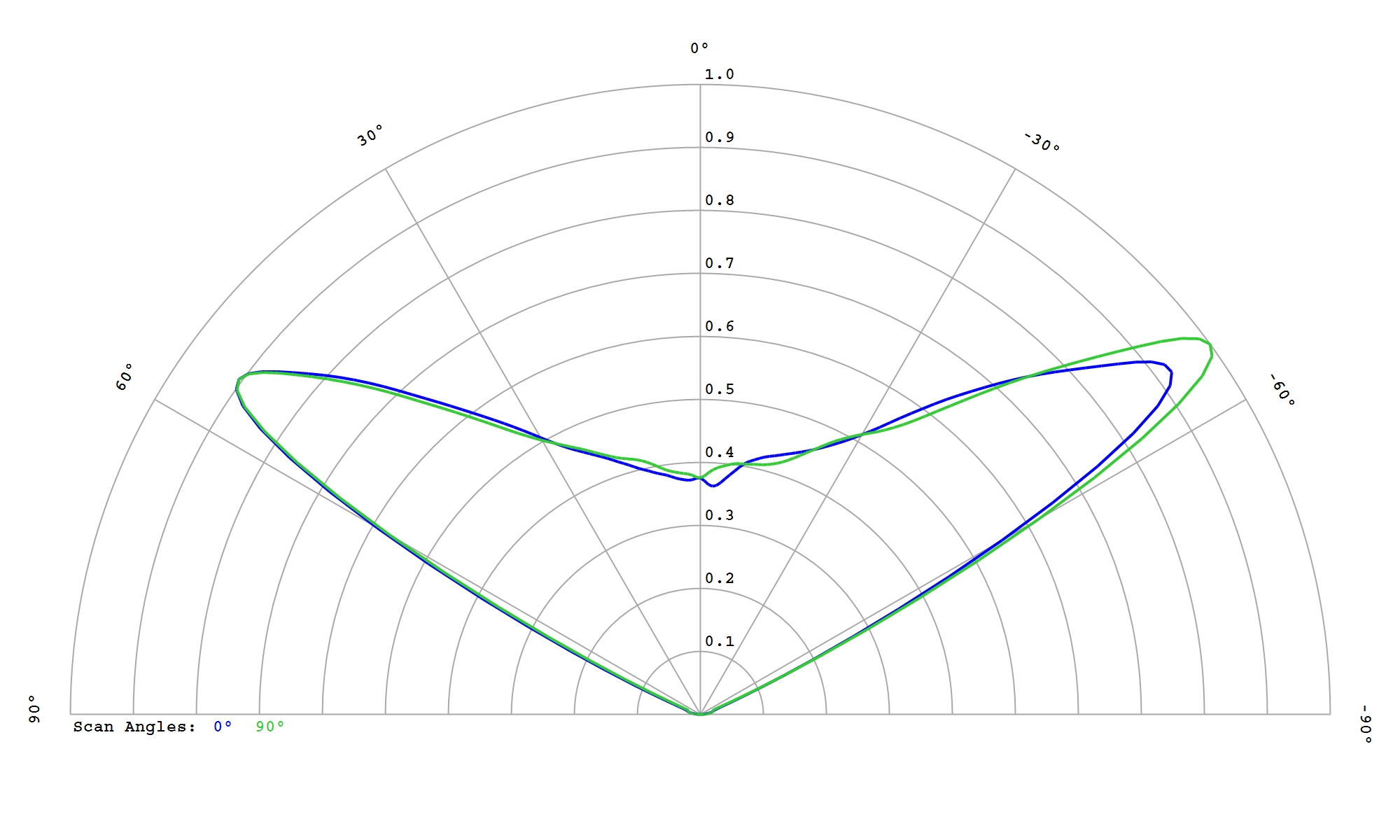

Osram OS OSCONIQ C 2424 White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.6


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

94.5%

FWHM:

122°

Ipk/W:

0.7


Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

95.5%

FWHM:

124°

Cd/Im:

0.7


Download

IES

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

94.5%

FWHM:

114°

Cd/Im:

0.8



Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

95.5%

FWHM:

124°

Cd/Im:

0.5



Download

IES

Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue

Eff:

96.0%

FWHM:

120°

Cd/Im:

0.6


Download

IES

Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red

Eff:

96.0%

FWHM:

120°

Cd/Im:

2.0


Download

IES

Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red

Eff:

96.0%

FWHM:

120°

Cd/Im:

0.6


Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

95.5%

FWHM:

127°

Cd/Im:

0.5


Download

IES

Osram OS Prevaled Bar G4

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.6


Download

IES

Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

95.0%

FWHM:

119°

Cd/Im:

0.5

Download

IES

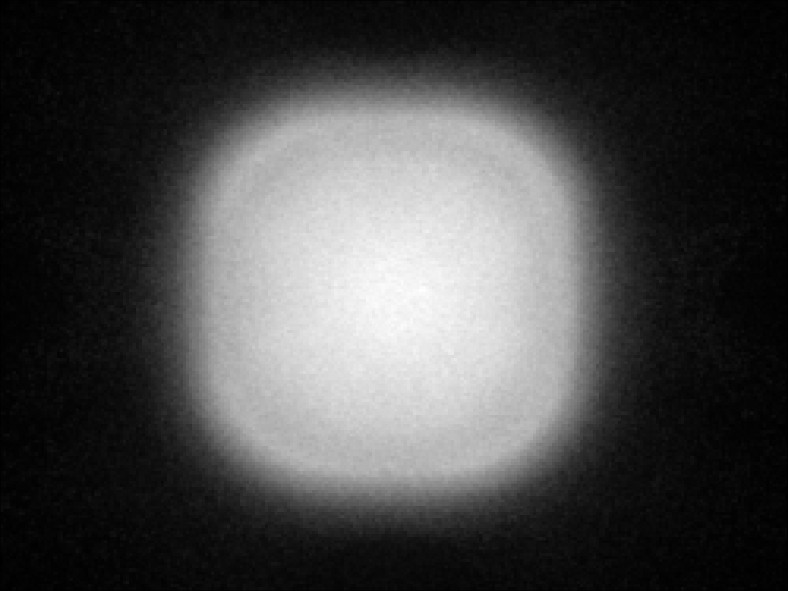

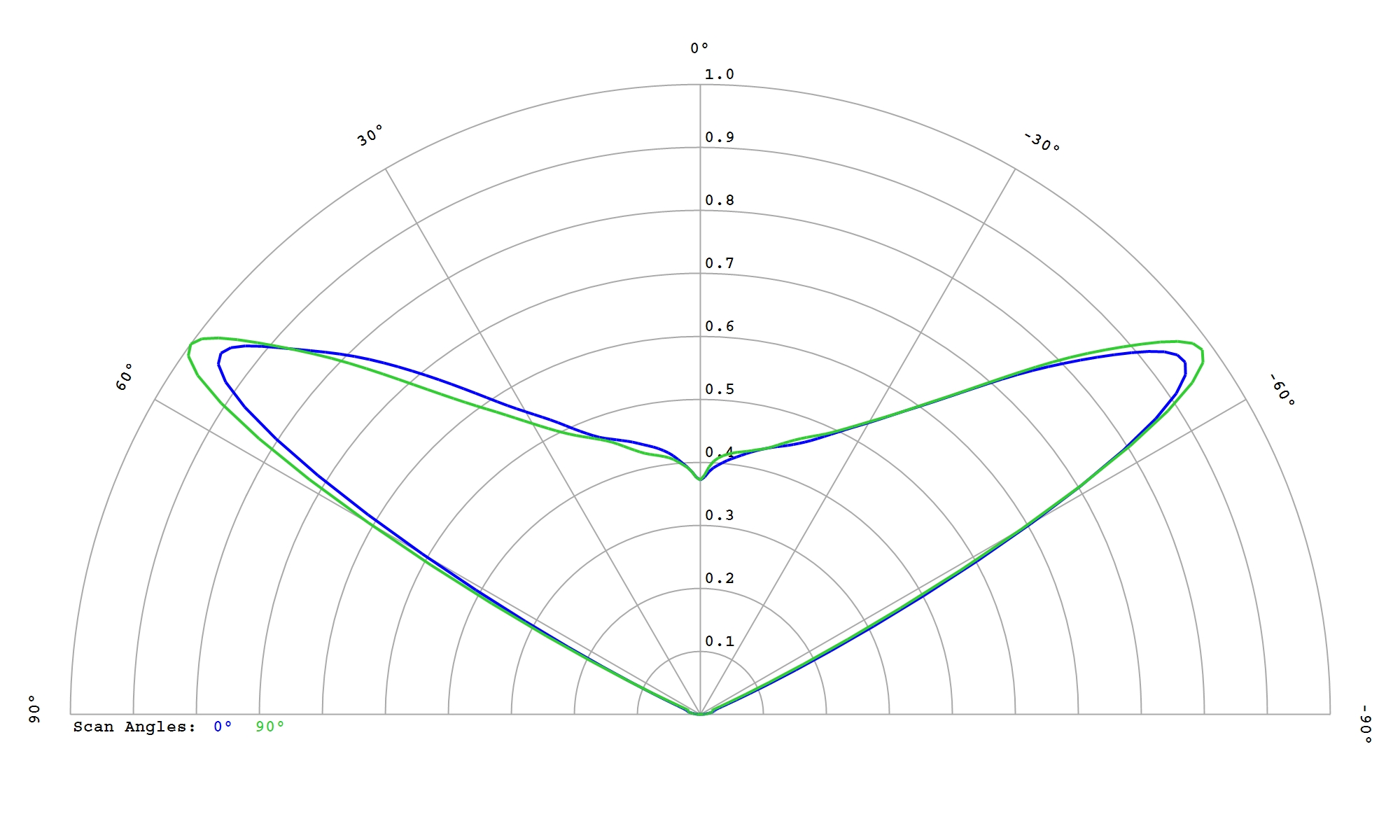

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.5


Download

IES

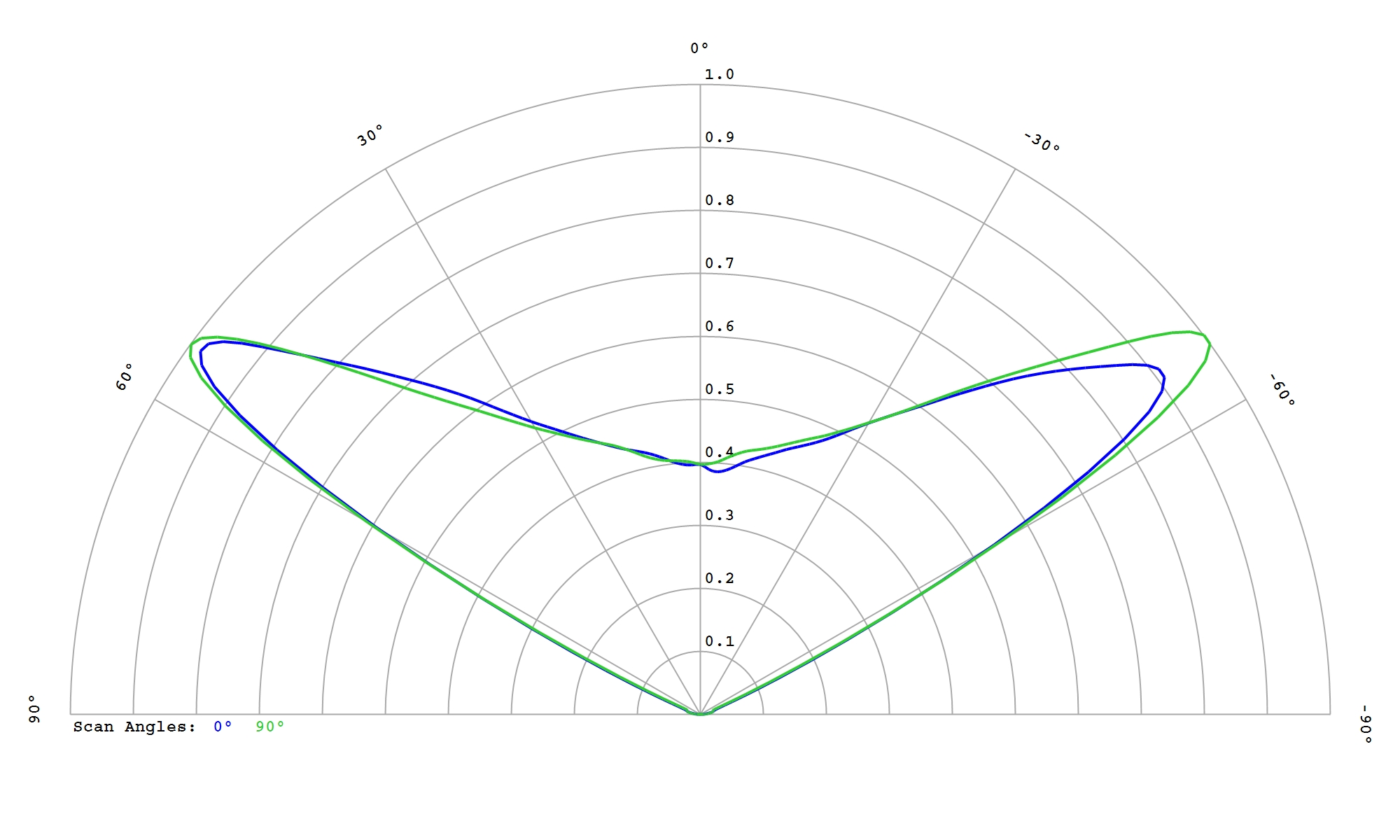

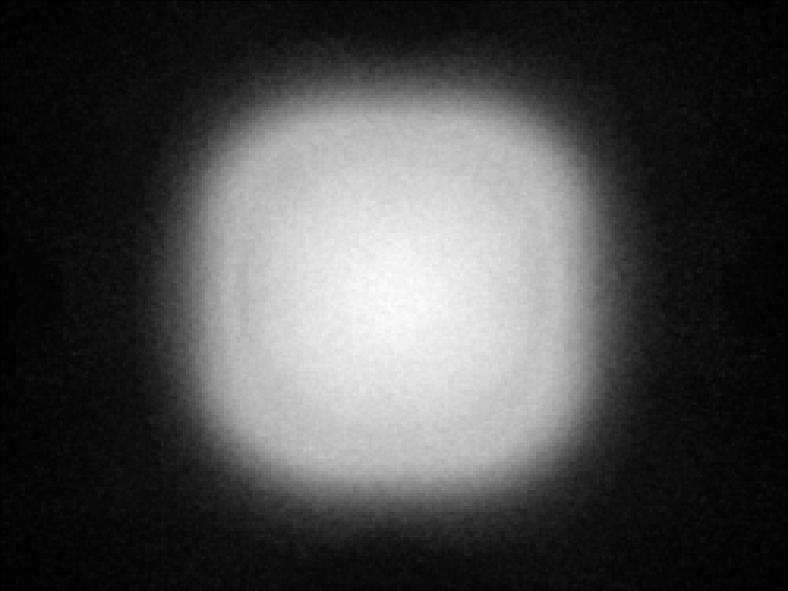

Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

95.0%

FWHM:

120°

Cd/Im:

0.5


Download

IES

Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm

Eff:

93.5%

FWHM:

122°

Cd/Im:

0.5


Download

IES

Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm

Eff:

93.5%

FWHM:

122°

Cd/Im:

0.5

Download

IES

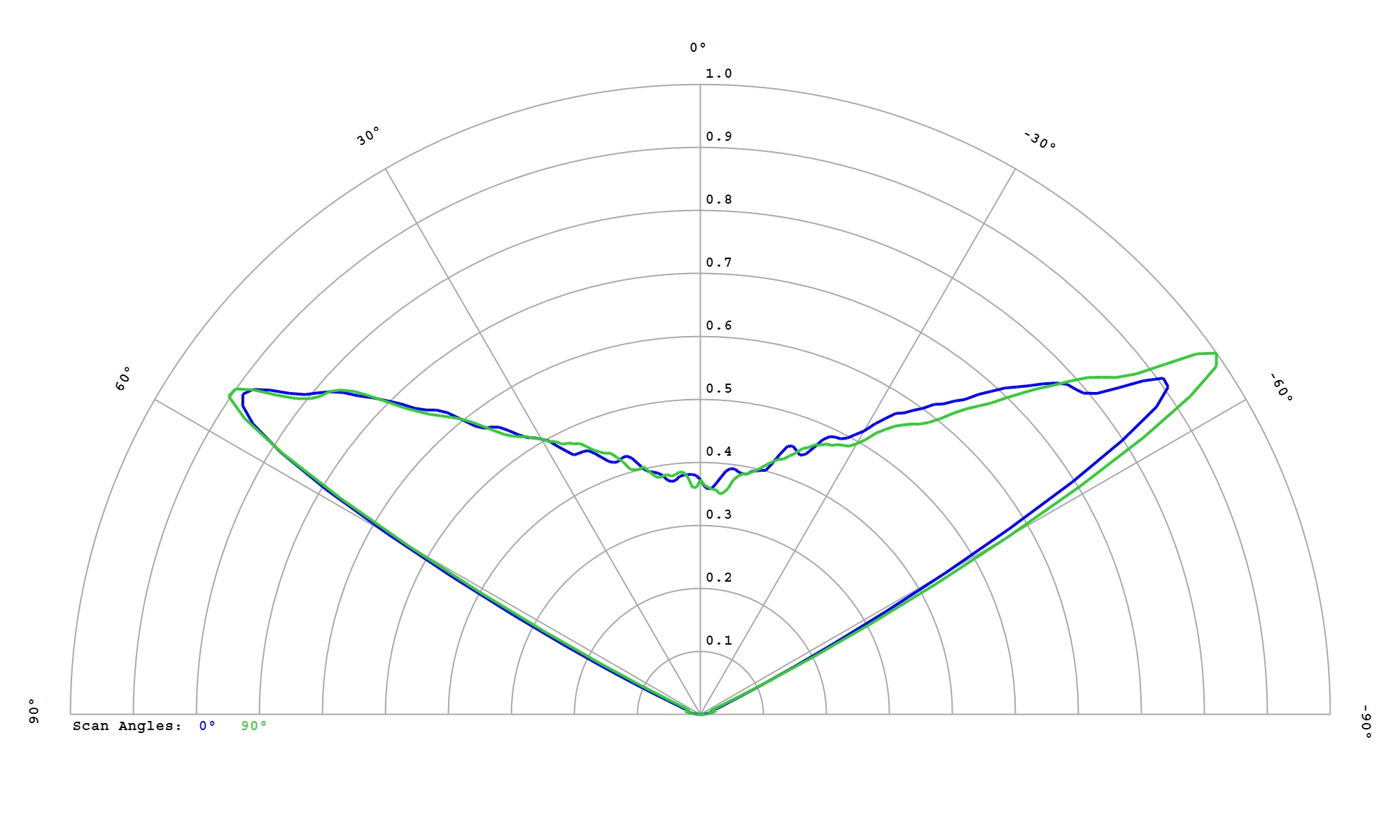

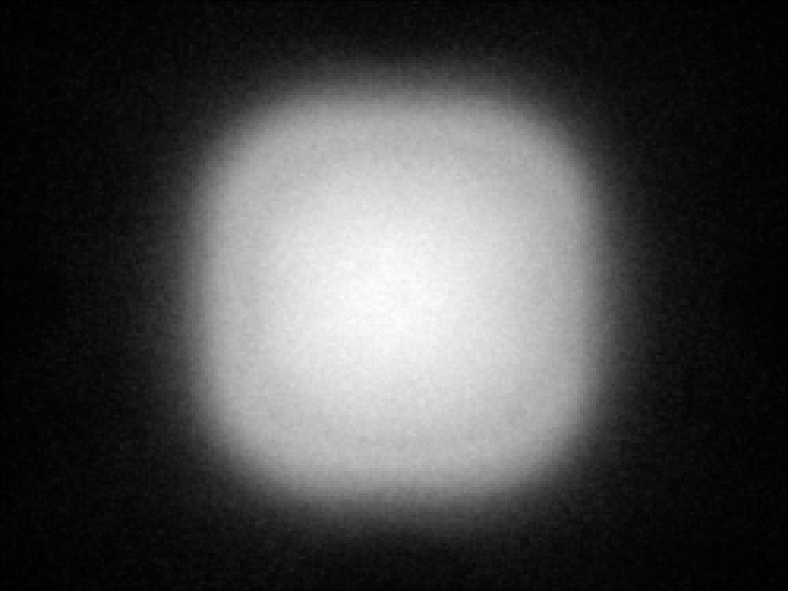

Samsung 2835 LM281B+ White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5



Download

Samsung 3535 LH351H Blue

Eff:

96.0%

FWHM:

123°

Cd/Im:

0.6


Download

IES

Samsung 3535 LH351H Deep Red

Eff:

96.0%

FWHM:

125°

Cd/Im:

0.5


Download

IES

Samsung 3535 LH351H Red

Eff:

96.5%

FWHM:

120°

Cd/Im:

0.5

Download

IES

Samsung 3535 LH351H-B White

Eff:

95.5%

FWHM:

126°

Cd/Im:

0.4


Download

IES

Samsung 5050 LH502C White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.4


Download

IES

Samsung 5050 LH502D White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.4


Download

IES

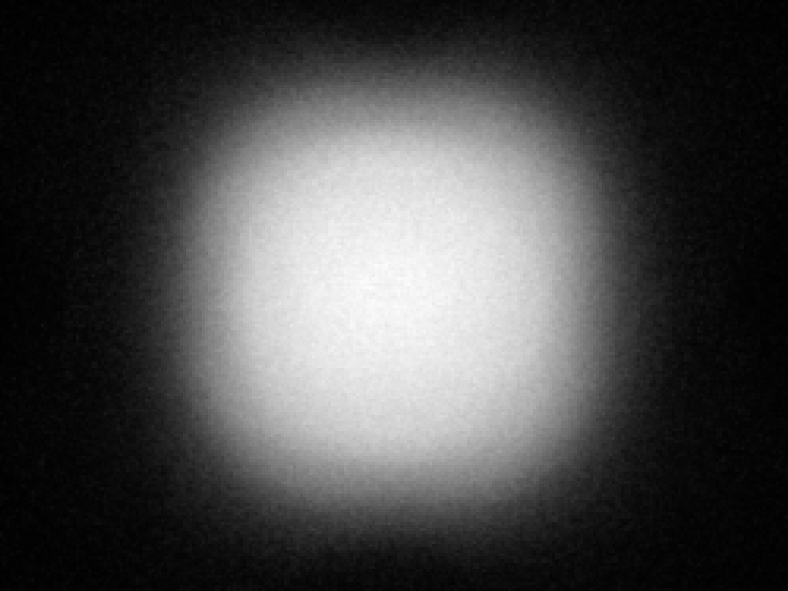

Samsung 5050 LH508C White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.4


Download

IES

Samsung CSP LH151B White

Eff:

95.5%

FWHM:

116°

Cd/Im:

0.7

Download

IES

Samsung CSP LH181B White

Eff:

95.5%

FWHM:

117°

Cd/Im:

0.6


Download

IES

Samsung CSP LH231B White

Eff:

95.5%

FWHM:

117°

Cd/Im:

0.5


Download

IES

Samsung CSP LM101B White

Eff:

95.0%

FWHM:

116°

Cd/Im:

0.7


Download

IES

Seoul CSP SZ8Y11 White

Eff:

92.0%

FWHM:

117°

Cd/Im:

0.7

Download

IES

Seoul CSP SZ8Y22 White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.6

Download

IES

Seoul CSP SZ8Y22P White

Eff:

94.0%

FWHM:

124°

Cd/Im:

0.5

Download

IES

Seoul MidPower 3030 STB0C2PB Blue

Eff:

96.5%

FWHM:

120°

Cd/Im:

0.6


Download

IES

Seoul MidPower 3030 STDRC12B Deep Red

Eff:

96.0%

FWHM:

115°

Cd/Im:

0.9

Download

IES

Seoul MidPower 3030 STFRC12B Far Red

Eff:

96.5%

FWHM:

121°

Cd/Im:

1.8

Download

IES

Seoul MidPower 5630 STW8Q14D White

Eff:

95.5%

FWHM:

120°

Cd/Im:

0.5

Download

IES

Seoul STW8 C2SB-NT White

Eff:

95.5%

FWHM:

122°

Cd/Im:

0.5

Download

IES

Seoul STWS C2PB-E0 White

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5


Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

95.5%

FWHM:

121°

Cd/Im:

0.5


Download

IES
