Carclo_Optics_60148_20mm_60_Degree_TIR
20.0mm Wide Spot Frosted TIR LED Lenses
Part number
60148
Dimensions
20.0mm
Drawing Number
60148
Optic type
TIR LED Lenses
Finish
Frosted
Beam type
Wide Spot
Applications
Architectural
Landscape & Garden
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Cree JB2835B 3V G-Class White
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download

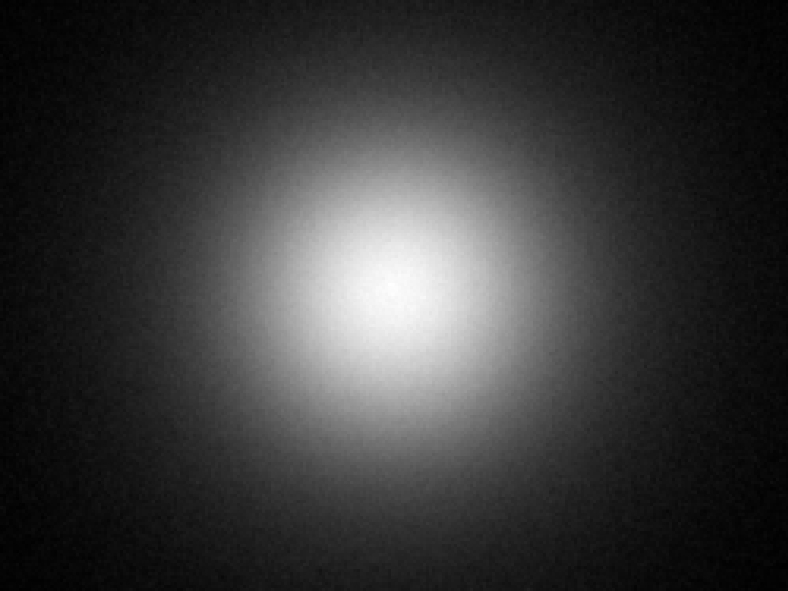

Cree JB2835B 3V J-Class White
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.8
Download
Cree JB3030C 3V E-Class White
Eff:
88.0%
FWHM:
62°
Cd/Im:
0.8
Download

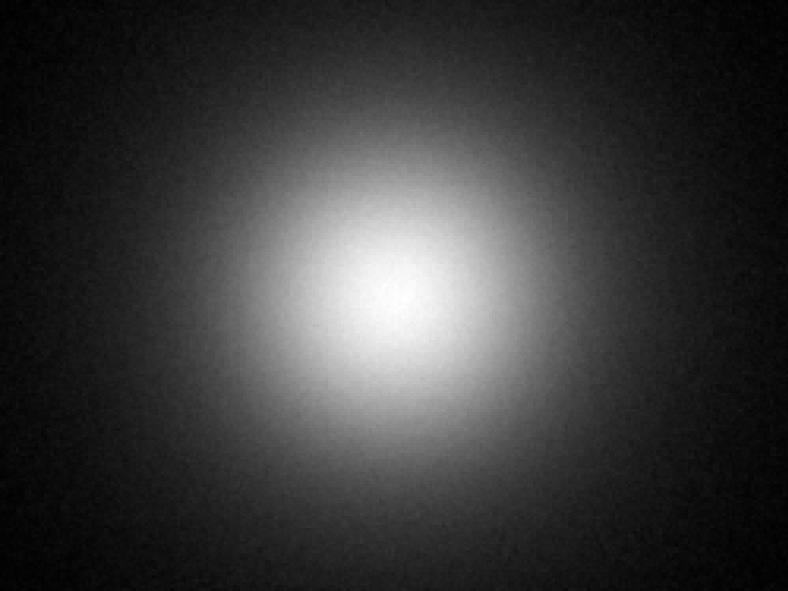

Cree JB3030C 3V F-Class White
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download
Cree JE2835 3V White
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download
Cree JK2835 6V White
Eff:
88.0%
FWHM:
58°
Cd/Im:
0.8
Download

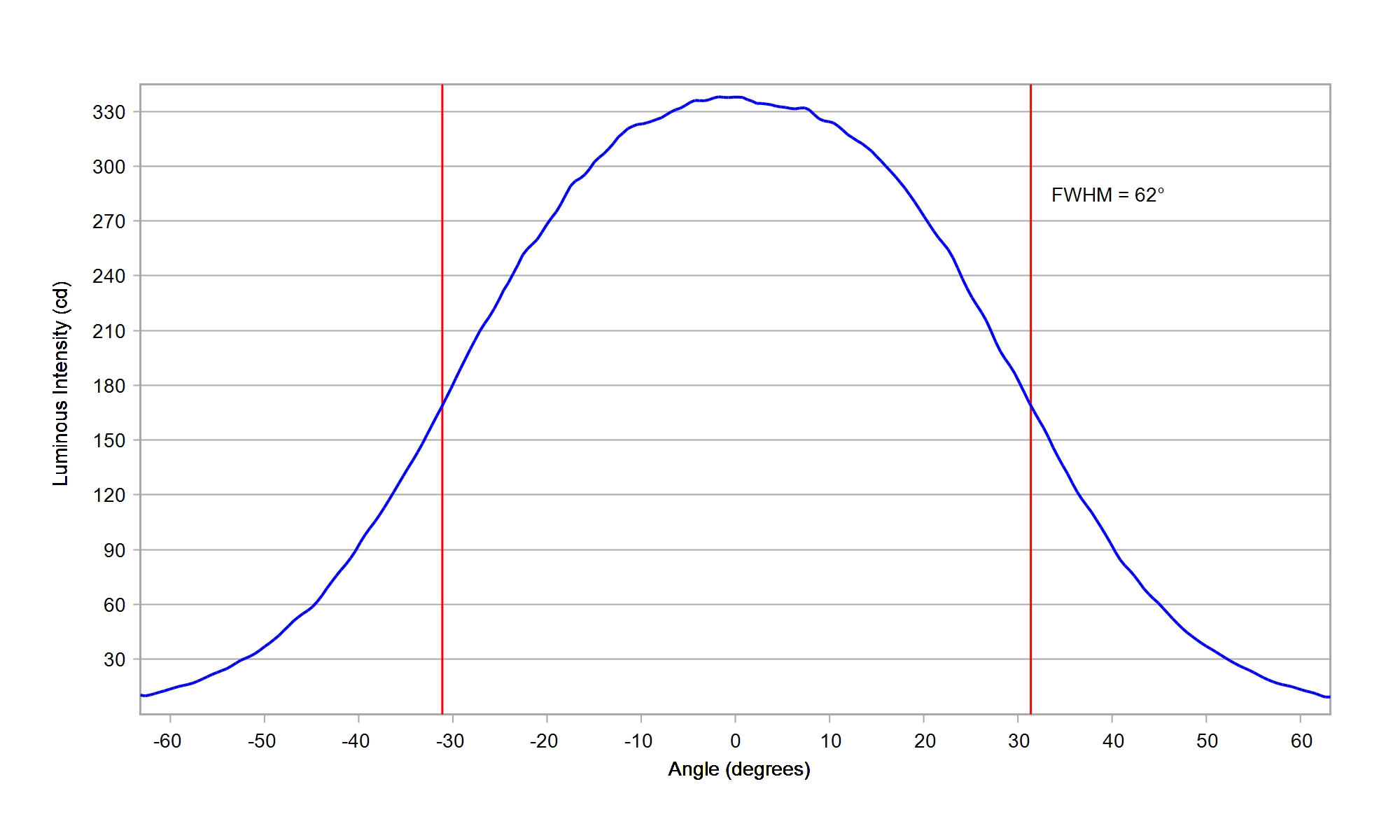

Cree JR5050C 6V E-Class White
Eff:
88.0%
FWHM:
62°
Cd/Im:
0.7
Download
Cree XLamp CSP XD16 Premium White
Eff:
88.0%
FWHM:
60°
Cd/Im:
0.8
Download

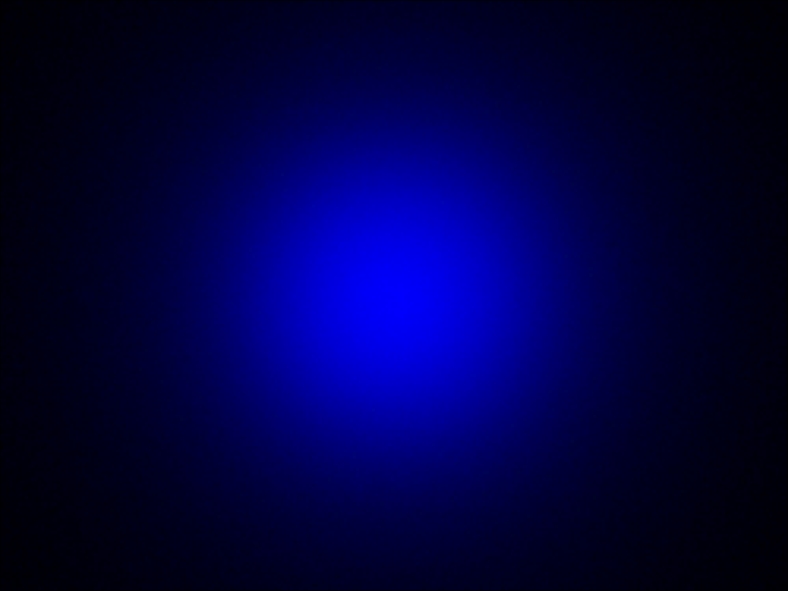

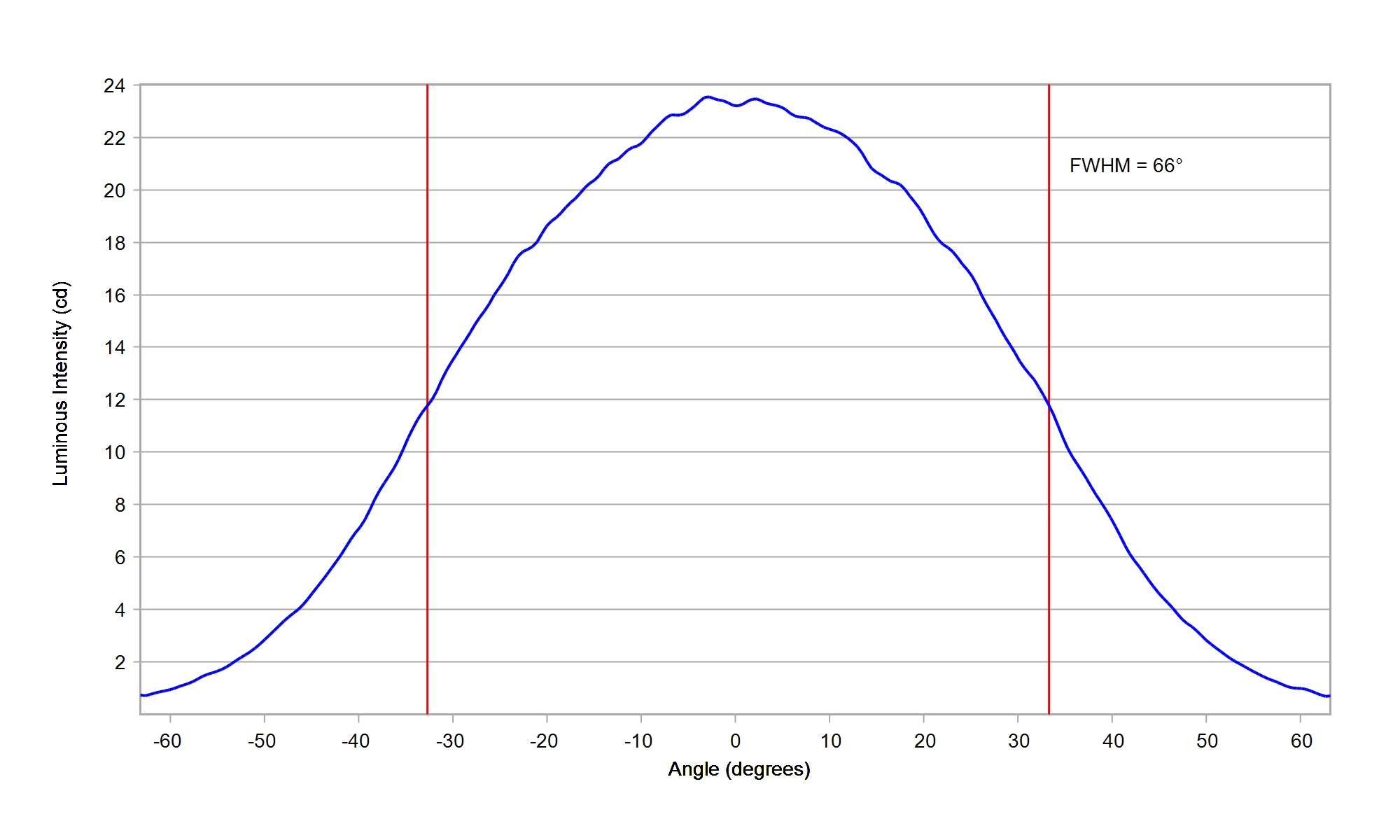

Cree XLamp XE-G Blue
Eff:
88.0%
FWHM:
66°
Cd/Im:
0.7
Download

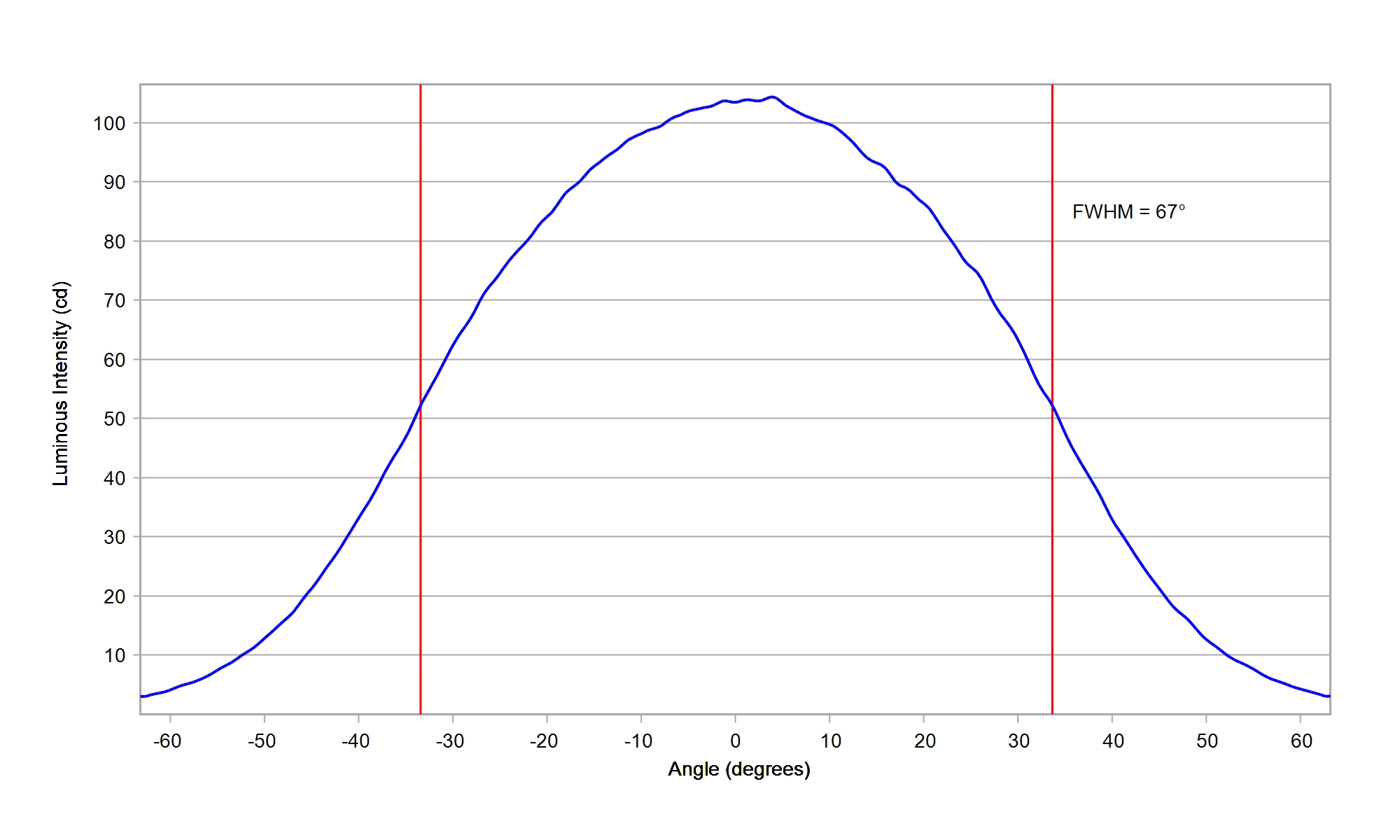

Cree XLamp XE-G Green
Eff:
88.0%
FWHM:
67°
Cd/Im:
0.7
Download

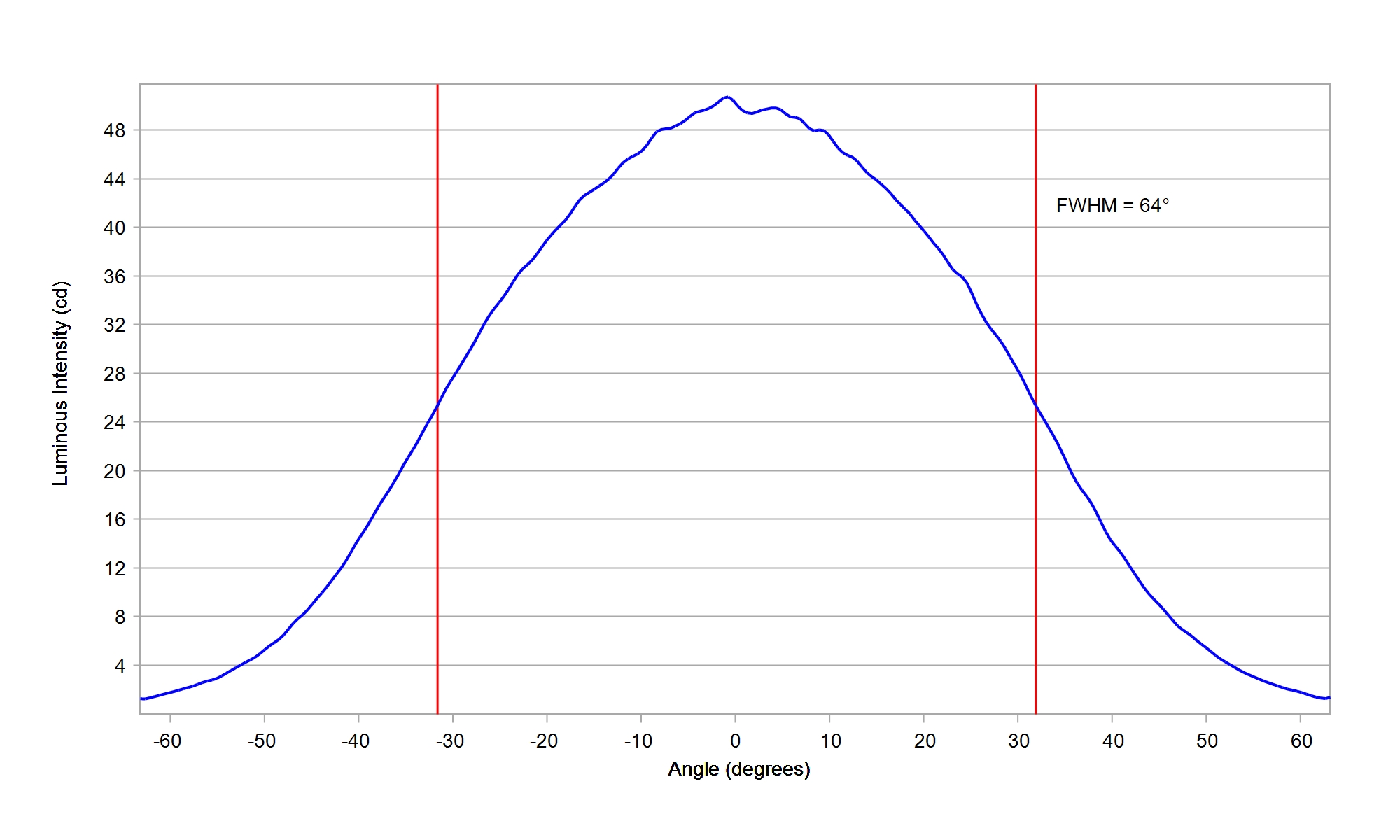

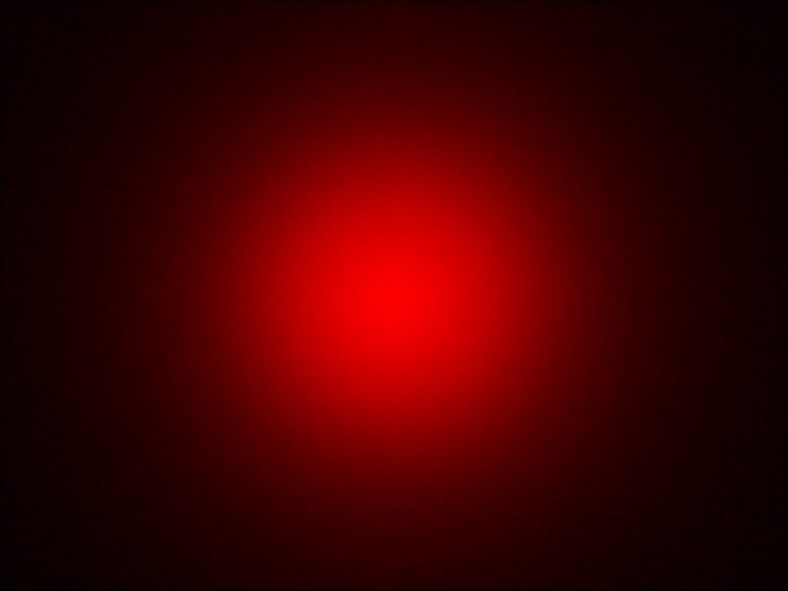

Cree XLamp XE-G Red
Eff:
87.0%
FWHM:
64°
Cd/Im:
0.7
Download
Cree XLamp XE-G White
Eff:
87.5%
FWHM:
64°
Cd/Im:
0.7
Download

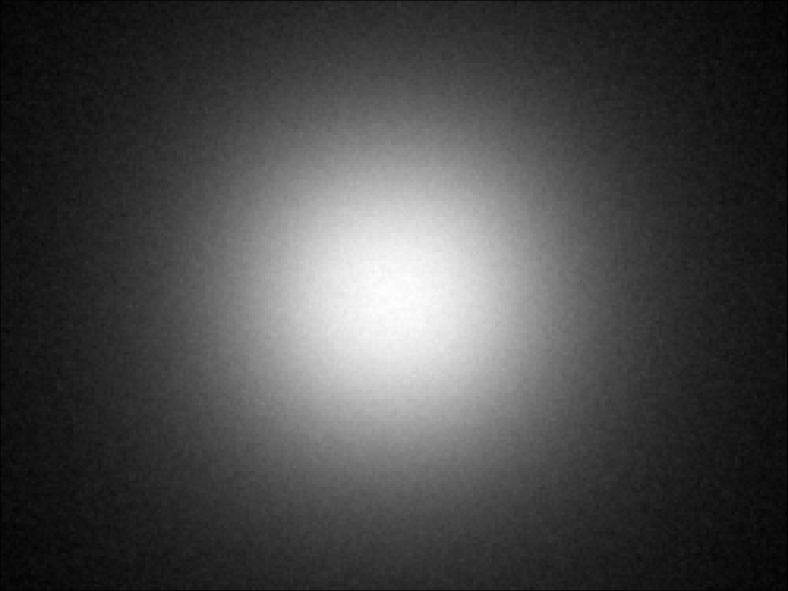

Cree XLamp XHP-50 Gen 2 White
Eff:
86.0%
FWHM:
70°
Cd/Im:
0.6
Download

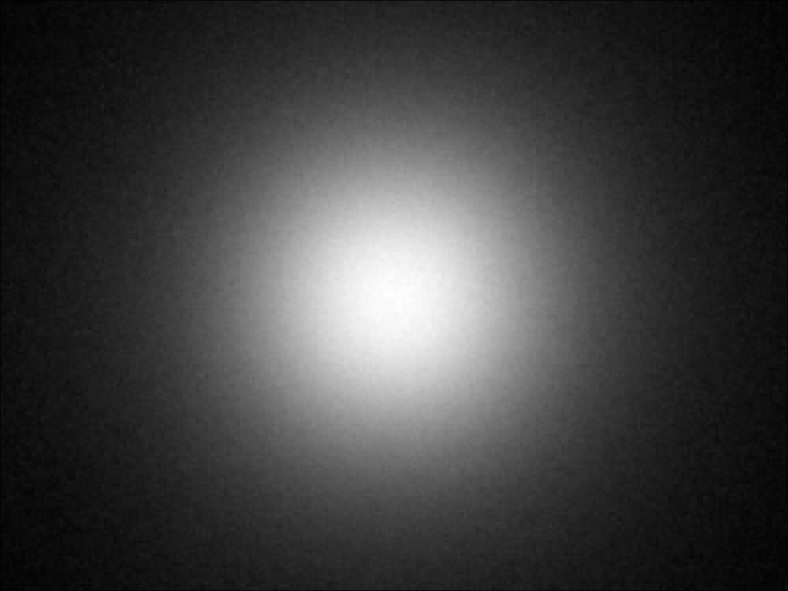

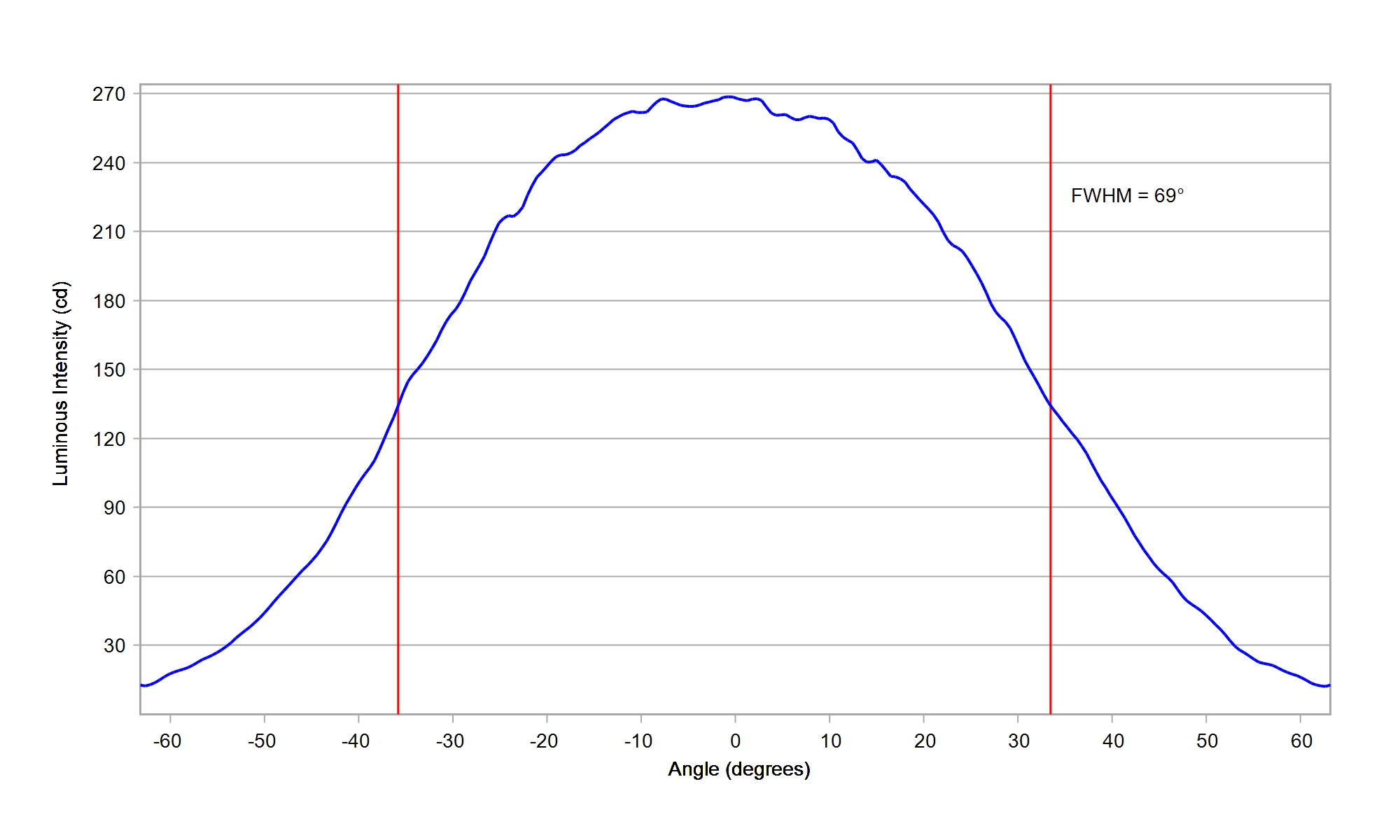

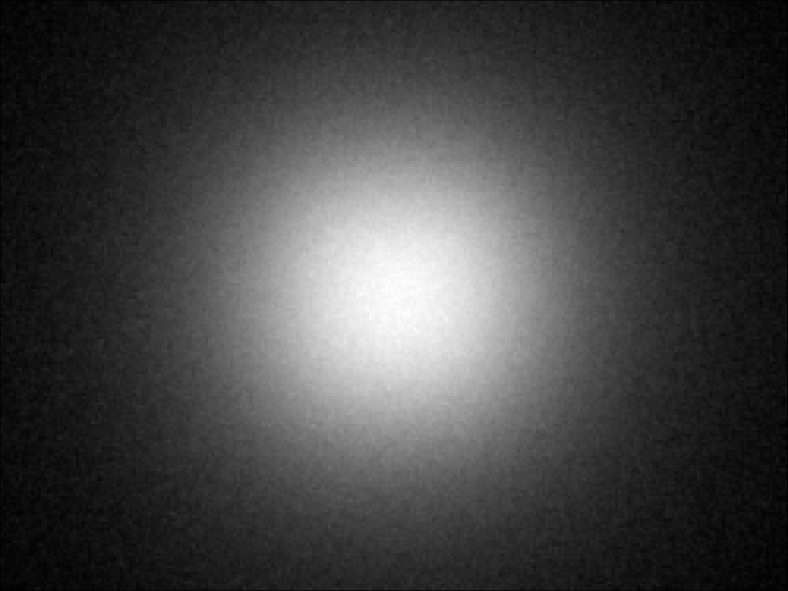

Cree XLamp XHP35 HD White
Eff:
87.0%
FWHM:
69°
Cd/Im:
0.6
Download

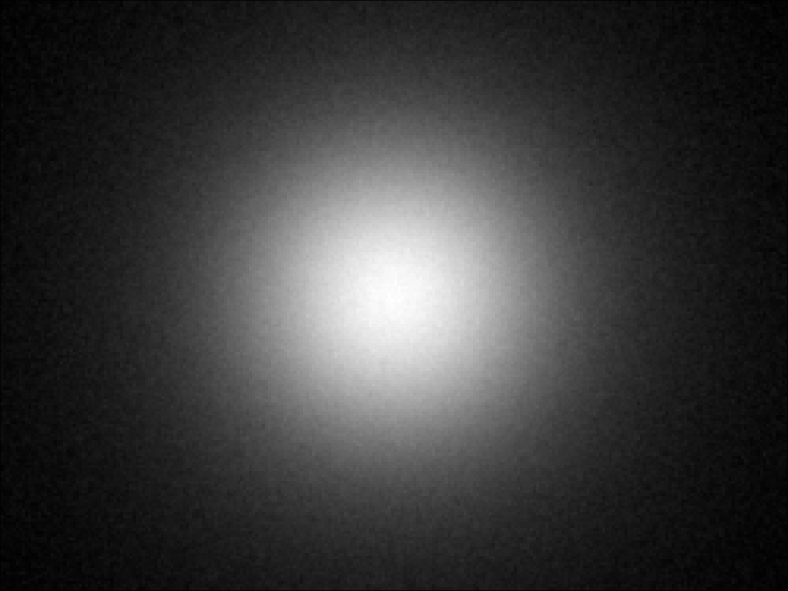

Cree XLamp XHP35 HI White
Eff:
87.5%
FWHM:
60°
Cd/Im:
0.8
Download
Cree XLamp XHP35.2 HD White
Eff:
85.5%
FWHM:
65°
Cd/Im:
0.6
Download
Cree XLamp XHP35.2 HI White
Eff:
87.0%
FWHM:
61°
Cd/Im:
0.7
Download
Cree XLamp XHP50.3 HI White
Eff:
87.5%
FWHM:
62°
Cd/Im:
0.7
Download
Cree XLamp XHP50.3 White
Eff:
86.0%
FWHM:
65°
Cd/Im:
0.6
Download

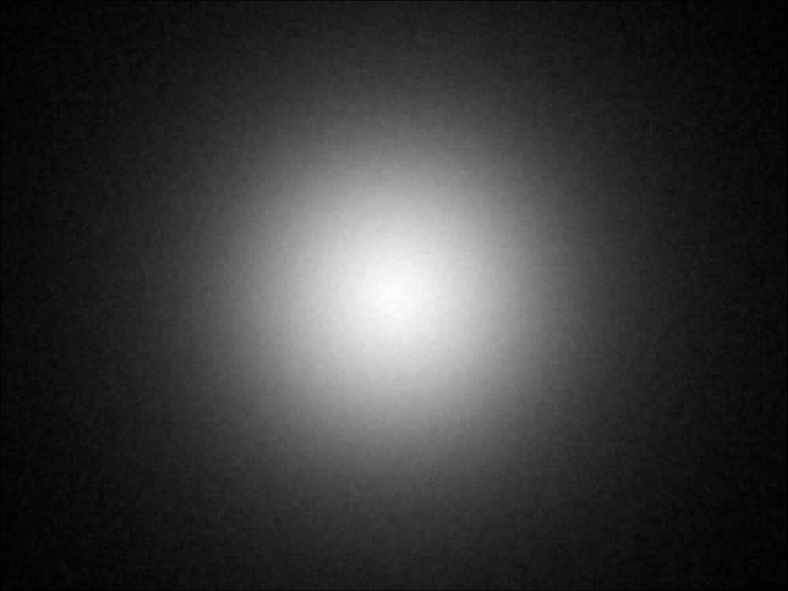

Cree XLamp XP-E2 White
Eff:
88.0%
FWHM:
61°
Cd/Im:
0.8
Download

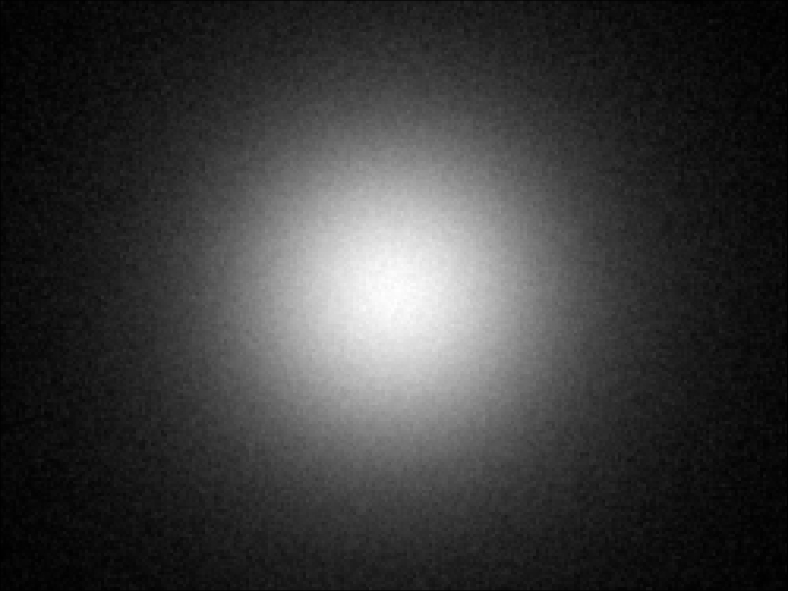

Cree XLamp XP-G2 White
Eff:
88.0%
FWHM:
61°
Cd/Im:
0.8
Download

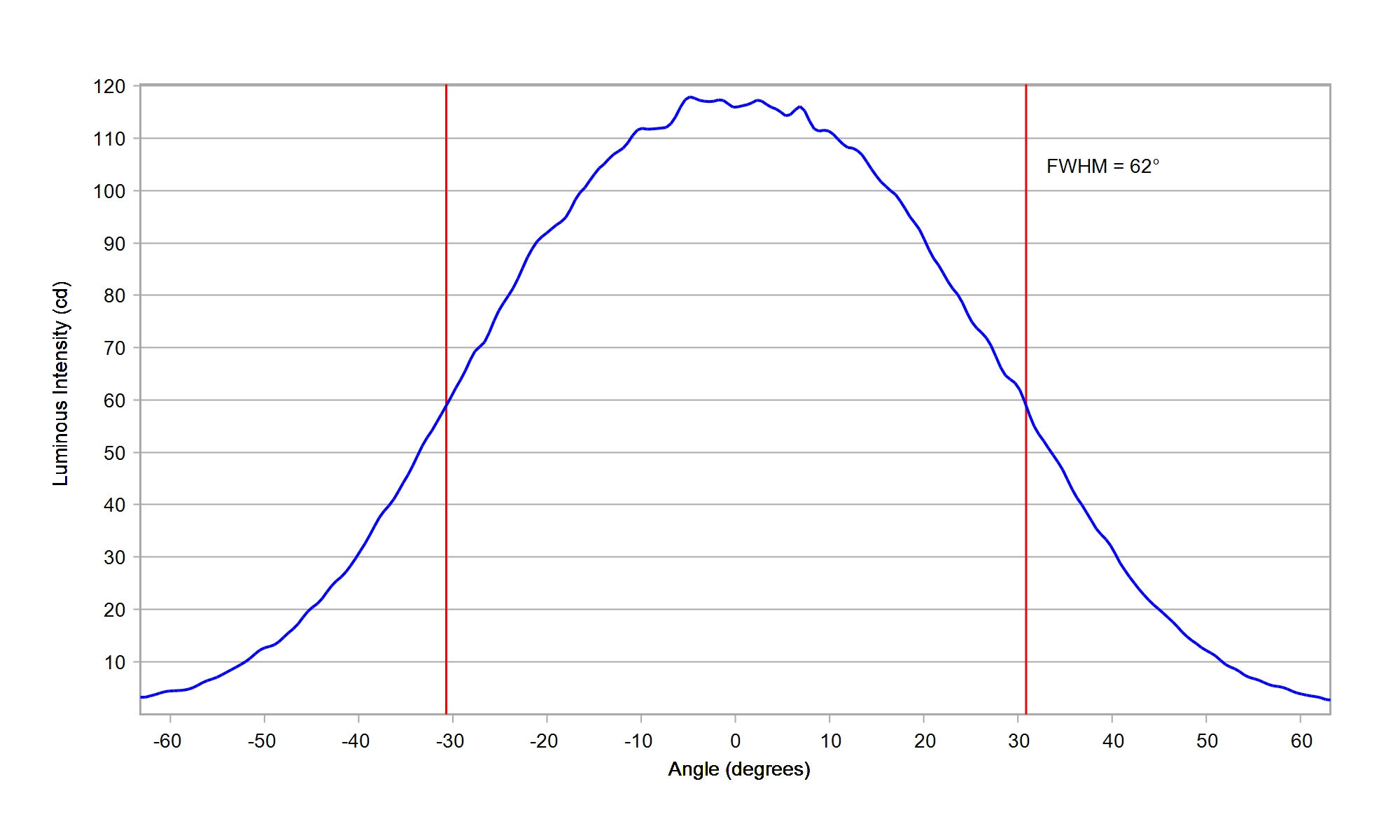

Cree XLamp XP-G3 White
Eff:
87.0%
FWHM:
62°
Cd/Im:
0.7
Download

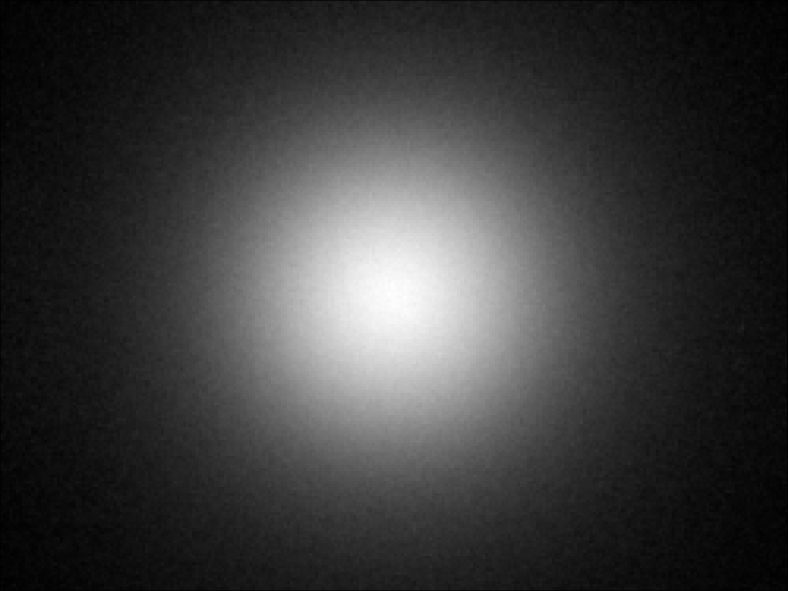

Cree XLamp XP-G4 HI White
Eff:
87.5%
FWHM:
62°
Cd/Im:
0.7
Download

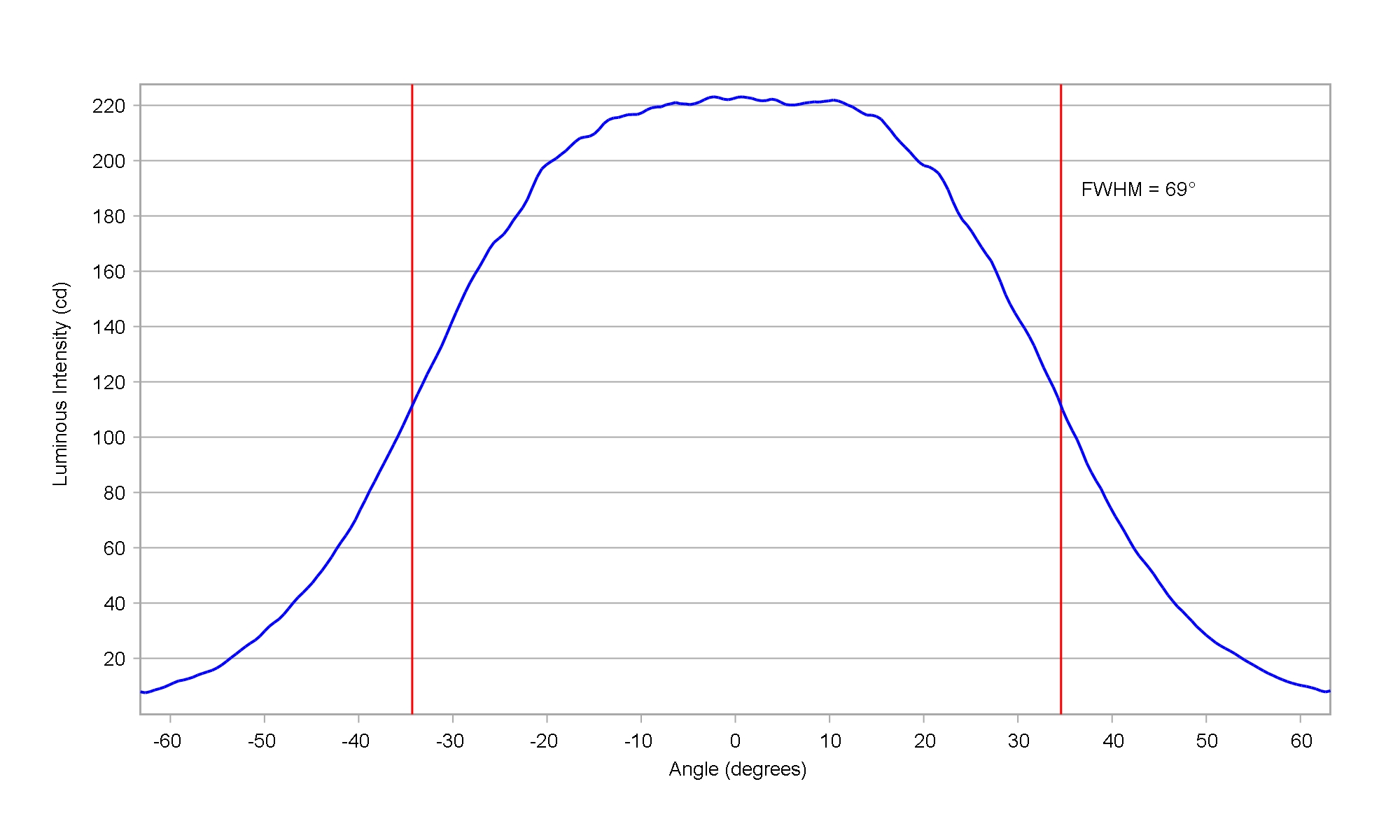

Cree XLamp XP-G4 White
Eff:
88.0%
FWHM:
69°
Cd/Im:
0.6
Download

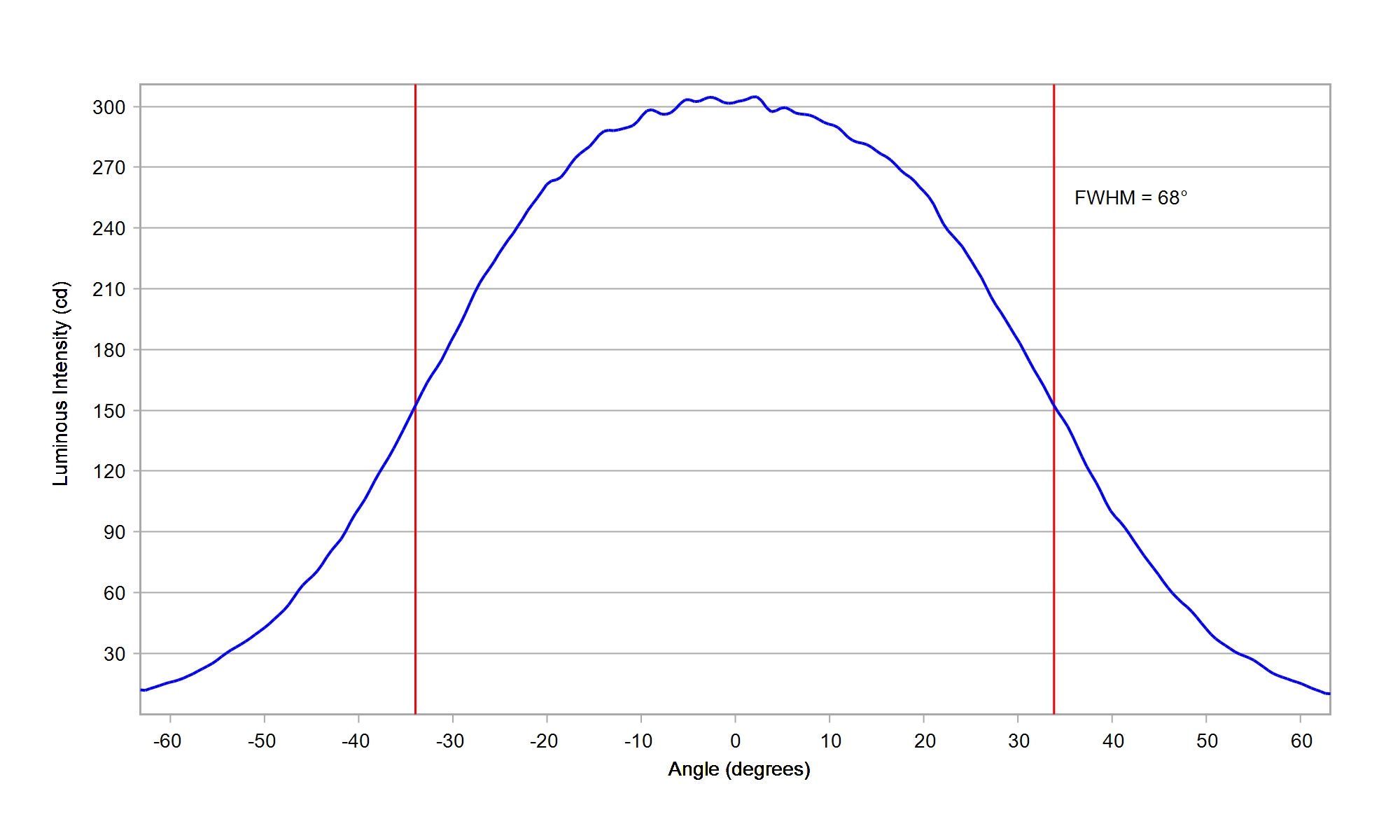

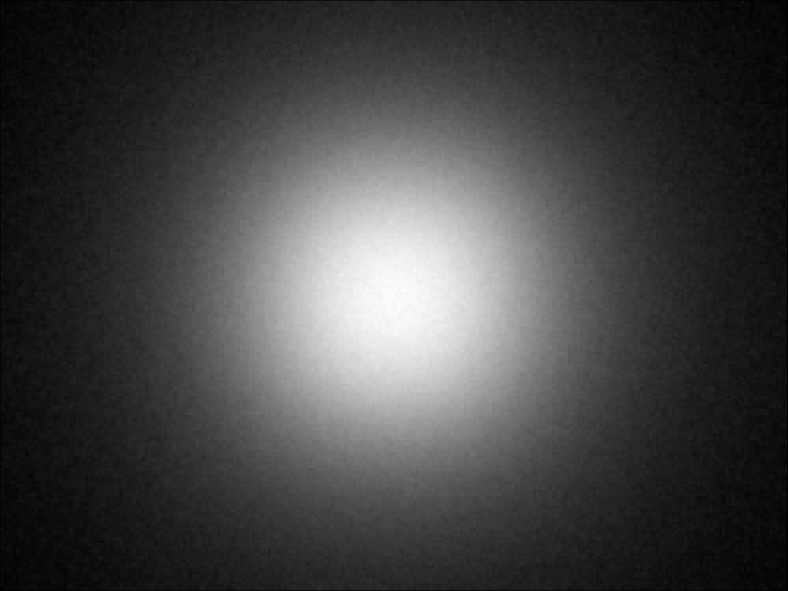

Cree XLamp XP-L2 White
Eff:
86.5%
FWHM:
68°
Cd/Im:
0.6
Download

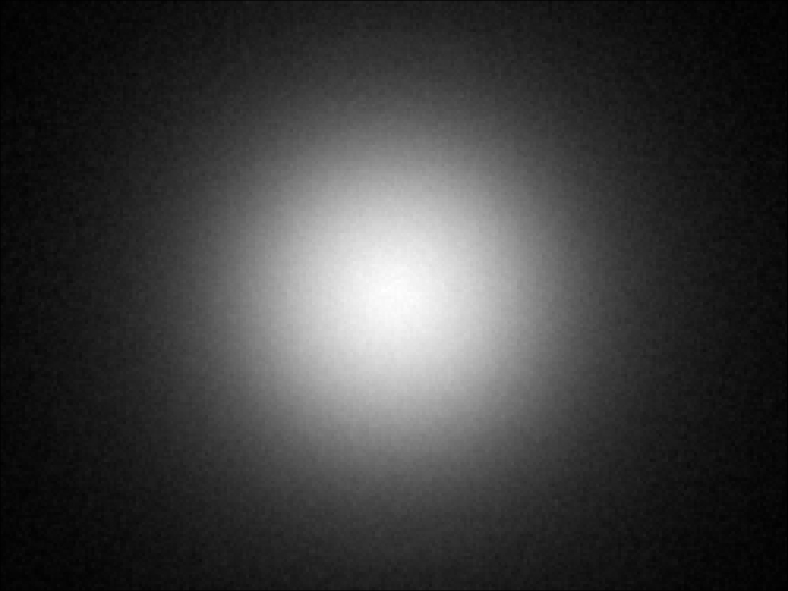

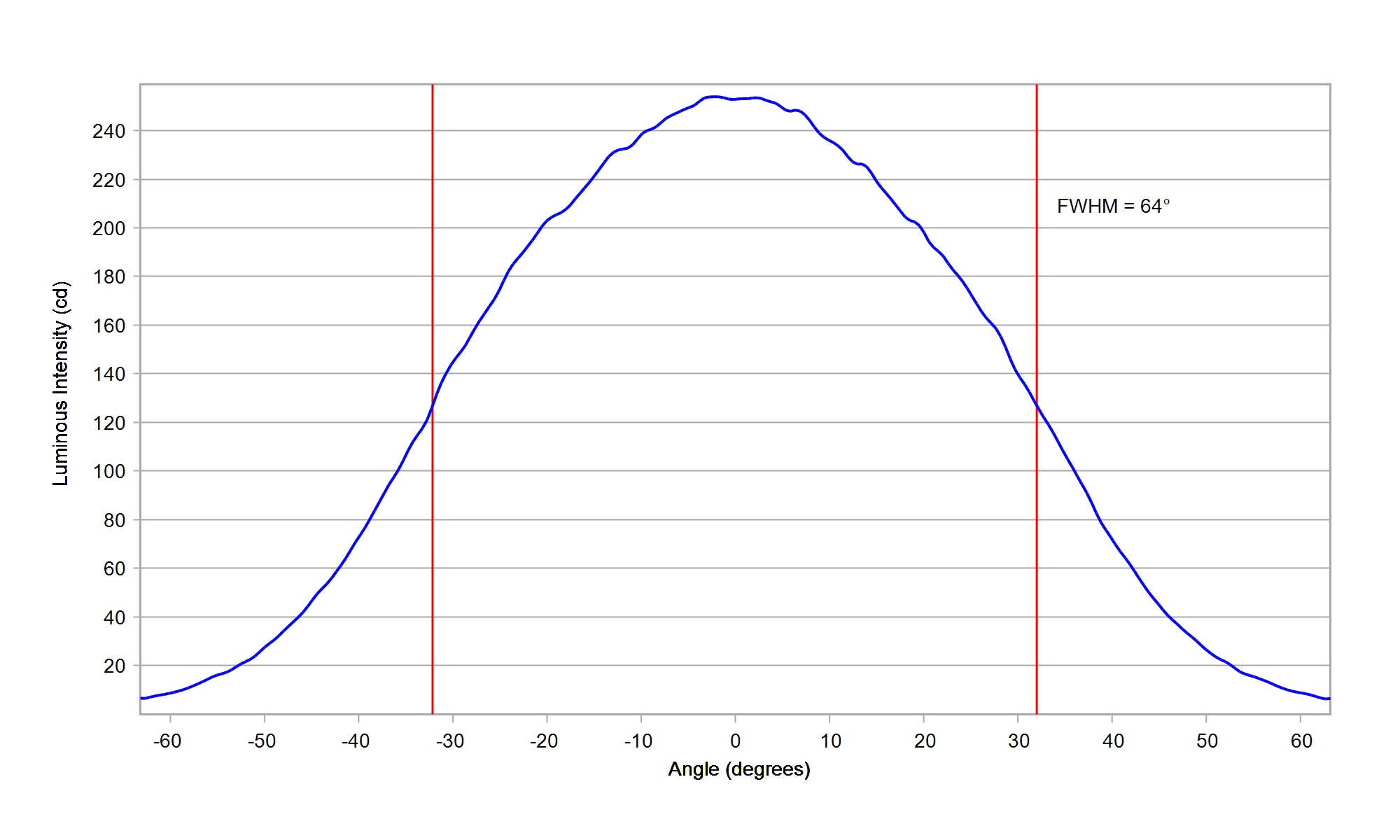

Cree XLamp XP-P White
Eff:
88.5%
FWHM:
64°
Cd/Im:
0.7
Download

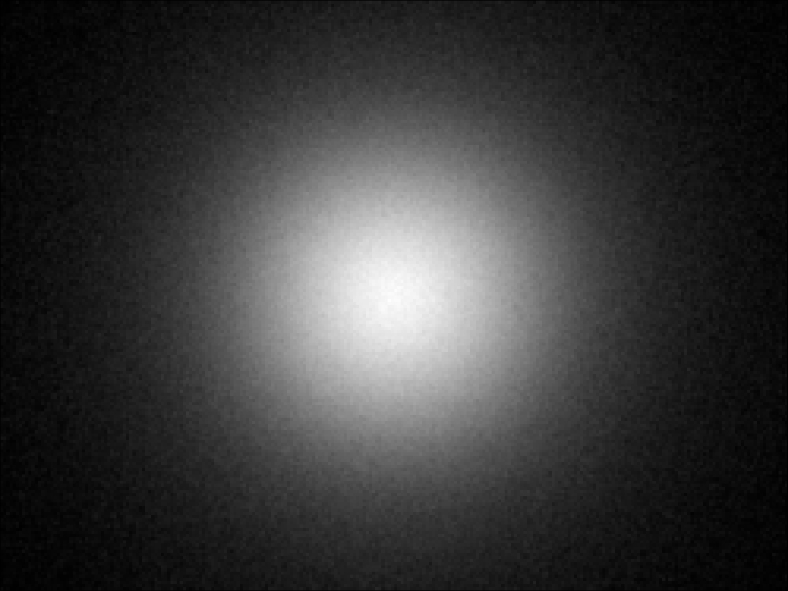

Cree XLamp XT-E White
Eff:
86.5%
FWHM:
58°
Cd/Im:
0.8
Download

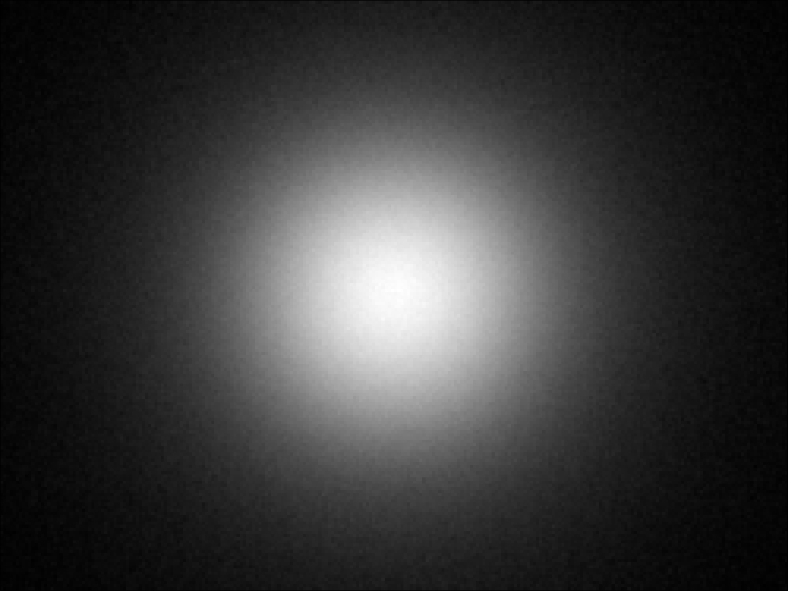

LUMILEDS LUXEON 2835C 6V White
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download

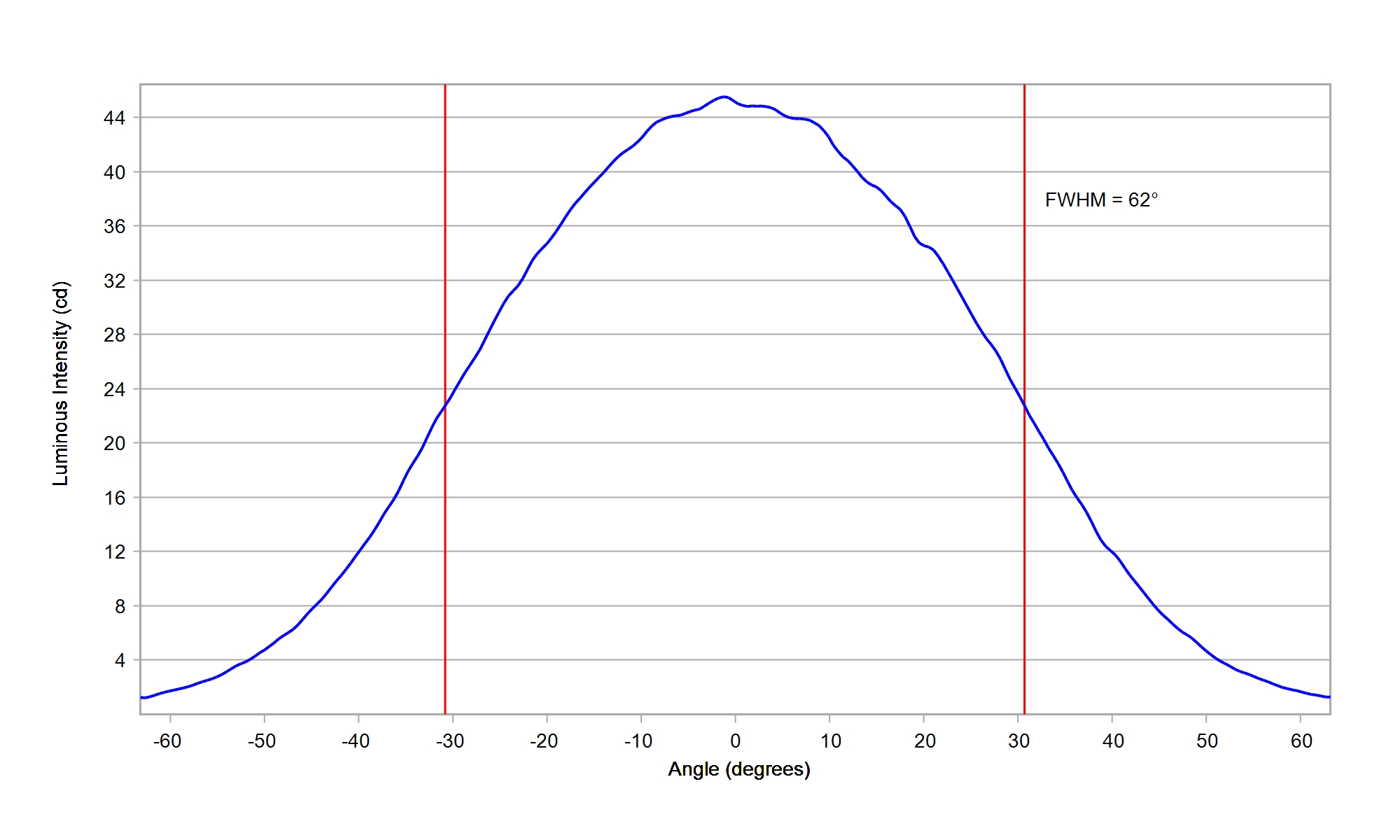

LUMILEDS LUXEON 2835E 9V White
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download

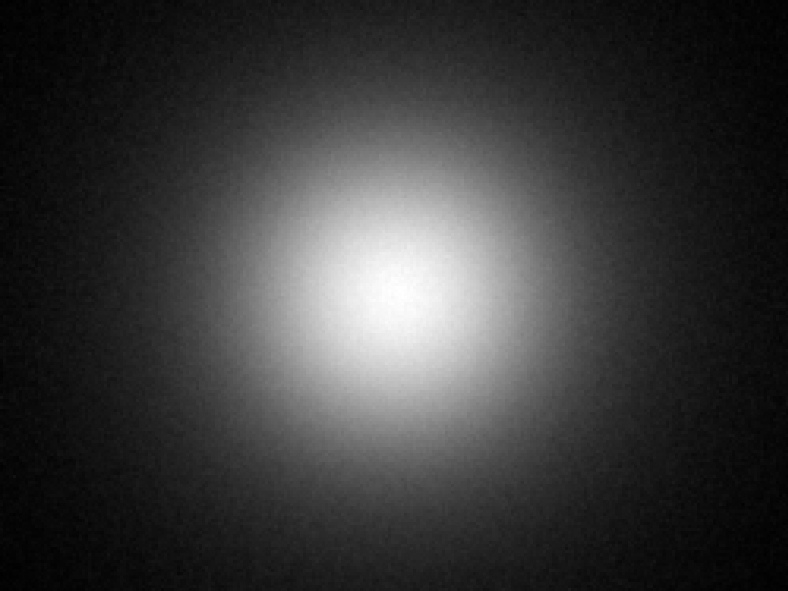

LUMILEDS LUXEON 2835S 3V White
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3014 White
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.8
Download

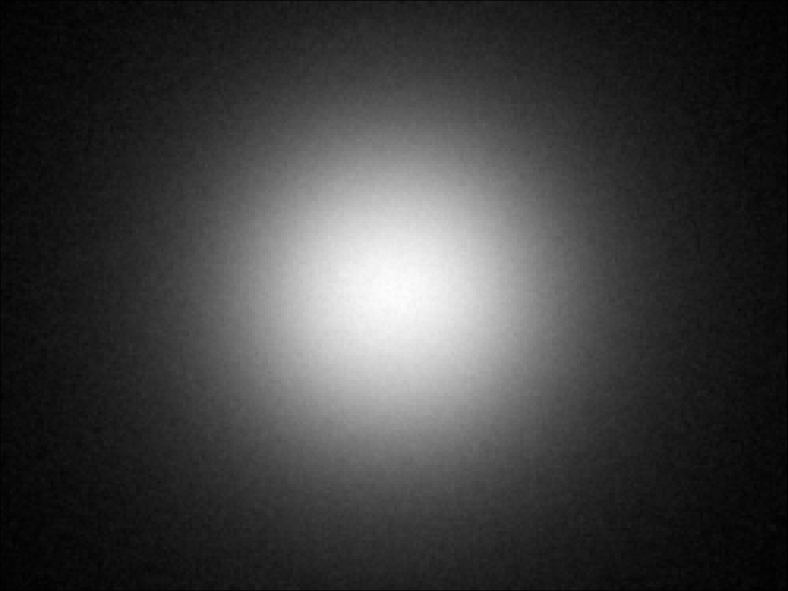

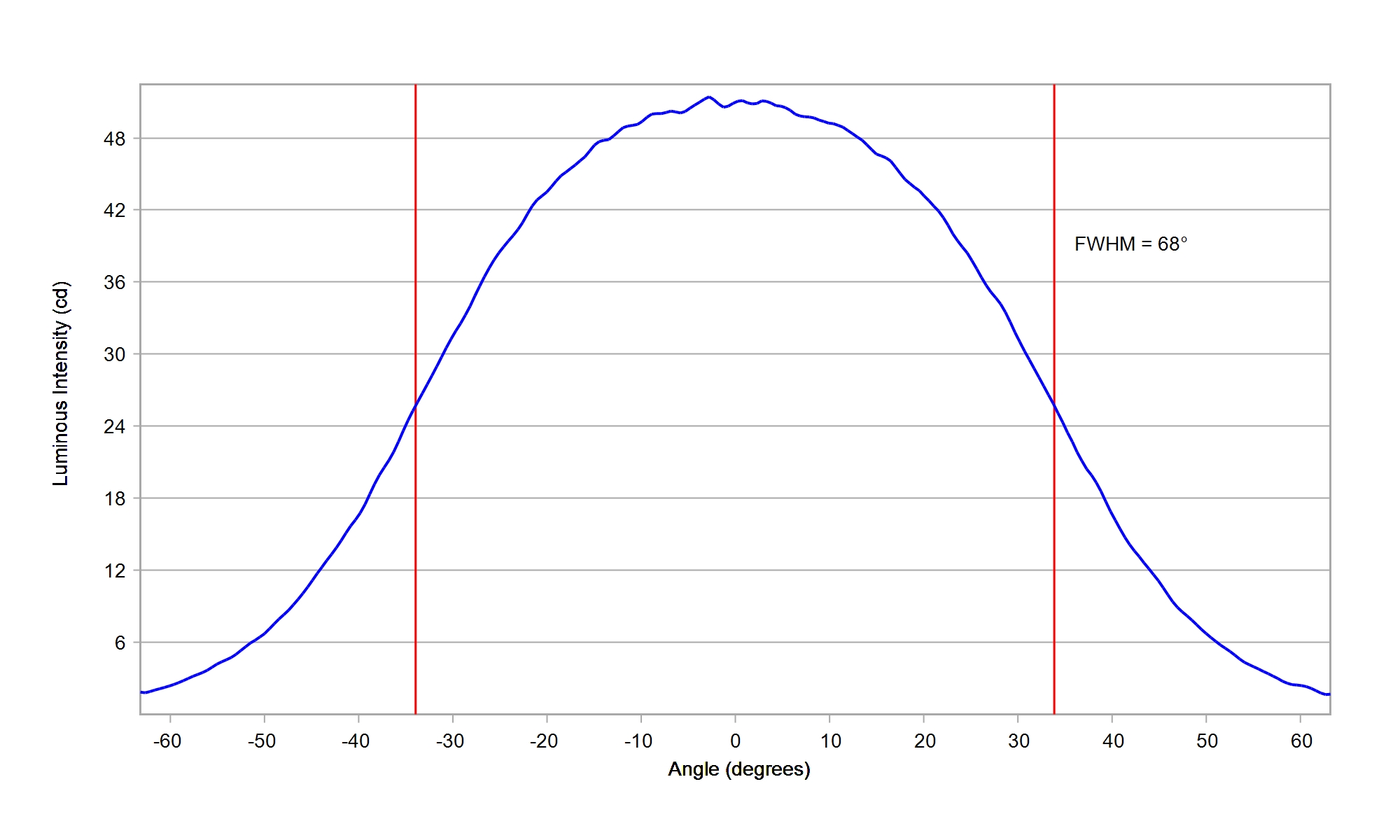

LUMILEDS LUXEON 3030 2D White
Eff:
88.5%
FWHM:
68°
Cd/Im:
0.7
Download

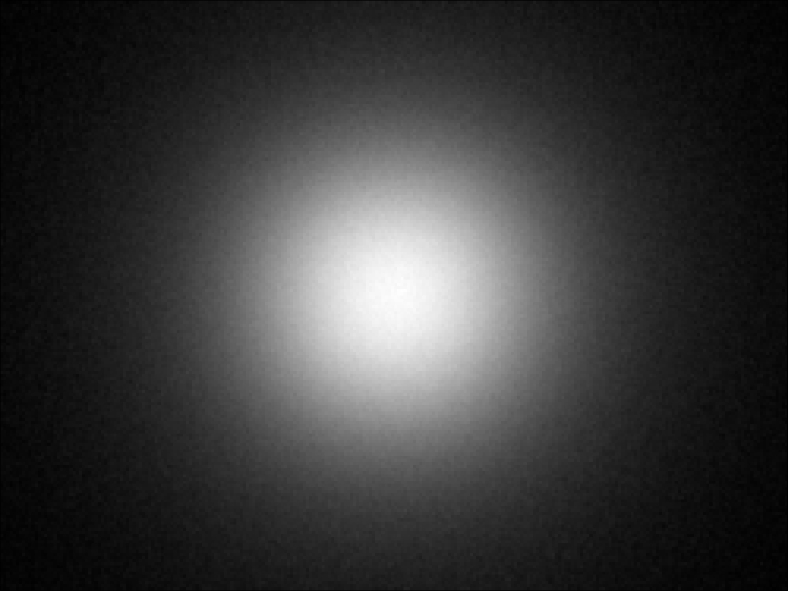

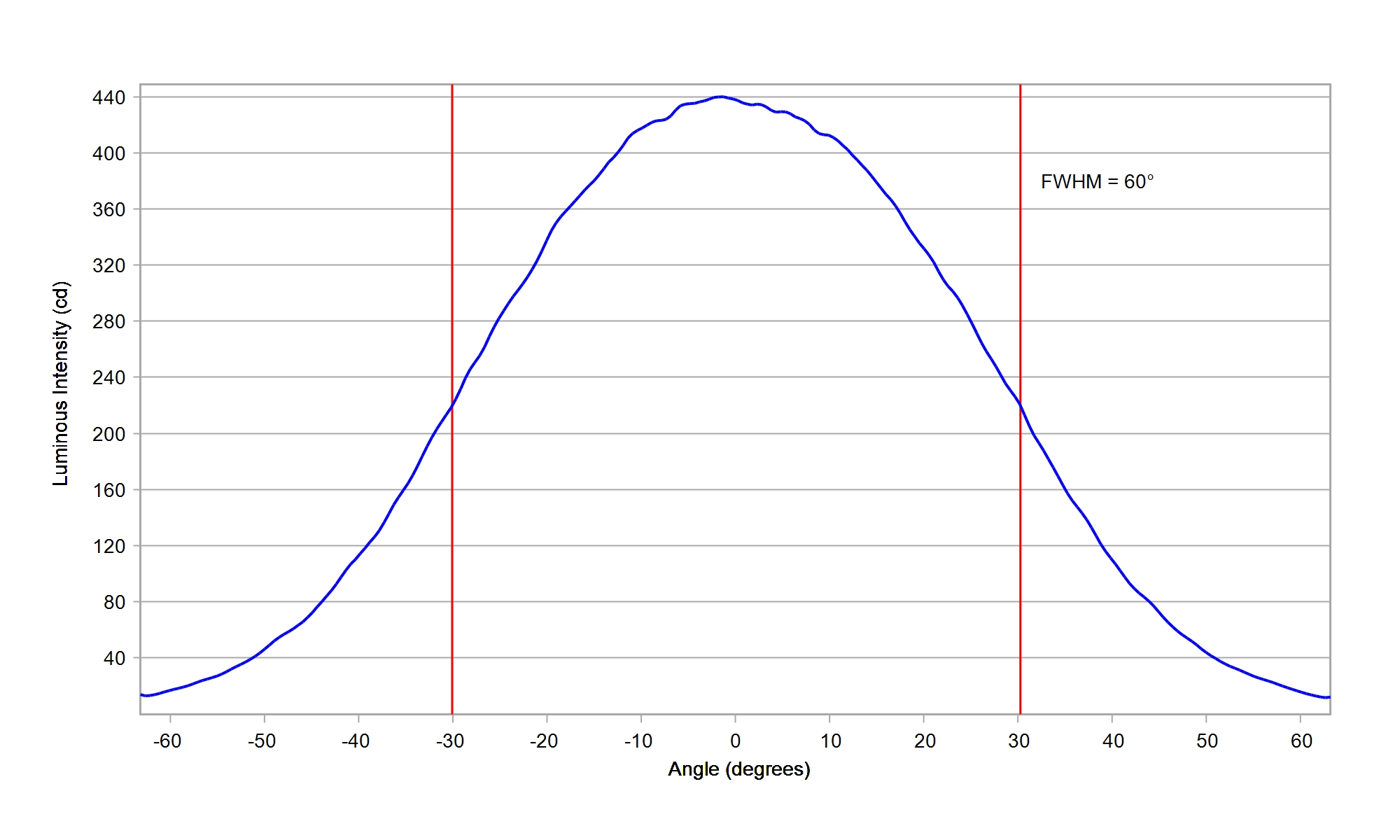

LUMILEDS LUXEON 5050 HE 24V White
Eff:
87.5%
FWHM:
60°
Cd/Im:
0.8
Download

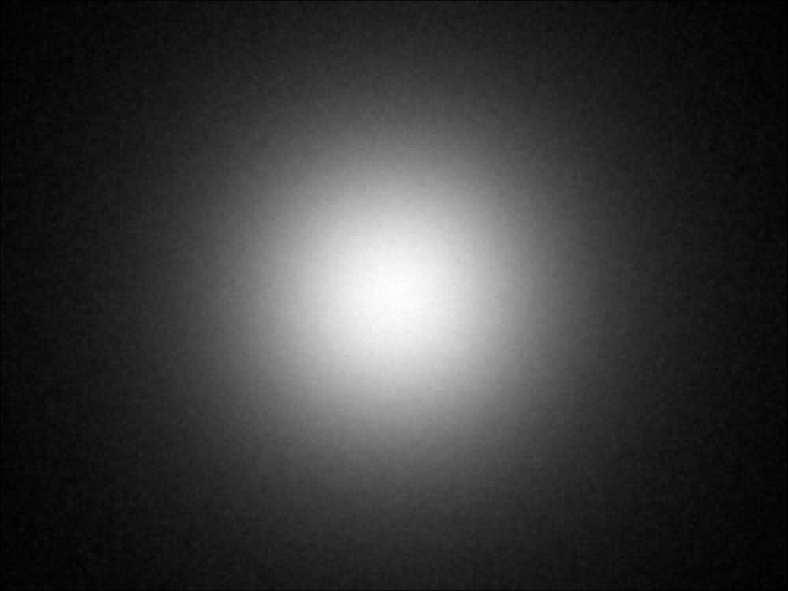

LUMILEDS LUXEON 5050 HE 6V White
Eff:
87.5%
FWHM:
60°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 5050 Round 24V White
Eff:
87.0%
FWHM:
58°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 5050 Square 30V White
Eff:
87.5%
FWHM:
61°
Cd/Im:
0.7
Download

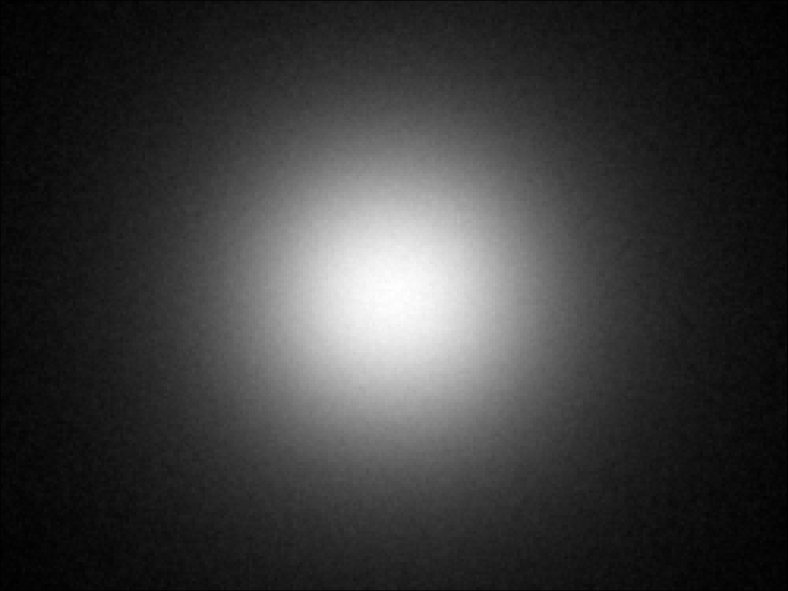

LUMILEDS LUXEON 5050 Square 6V White
Eff:
87.5%
FWHM:
61°
Cd/Im:
0.8
Download
LUMILEDS LUXEON C White
Eff:
84.0%
FWHM:
58°
Cd/Im:
0.8
Download
LUMILEDS LUXEON CZ White
Eff:
88.0%
FWHM:
60°
Cd/Im:
0.8
Download
LUMILEDS LUXEON HL1Z CSP White
Eff:
88.0%
FWHM:
66°
Cd/Im:
0.7
Download

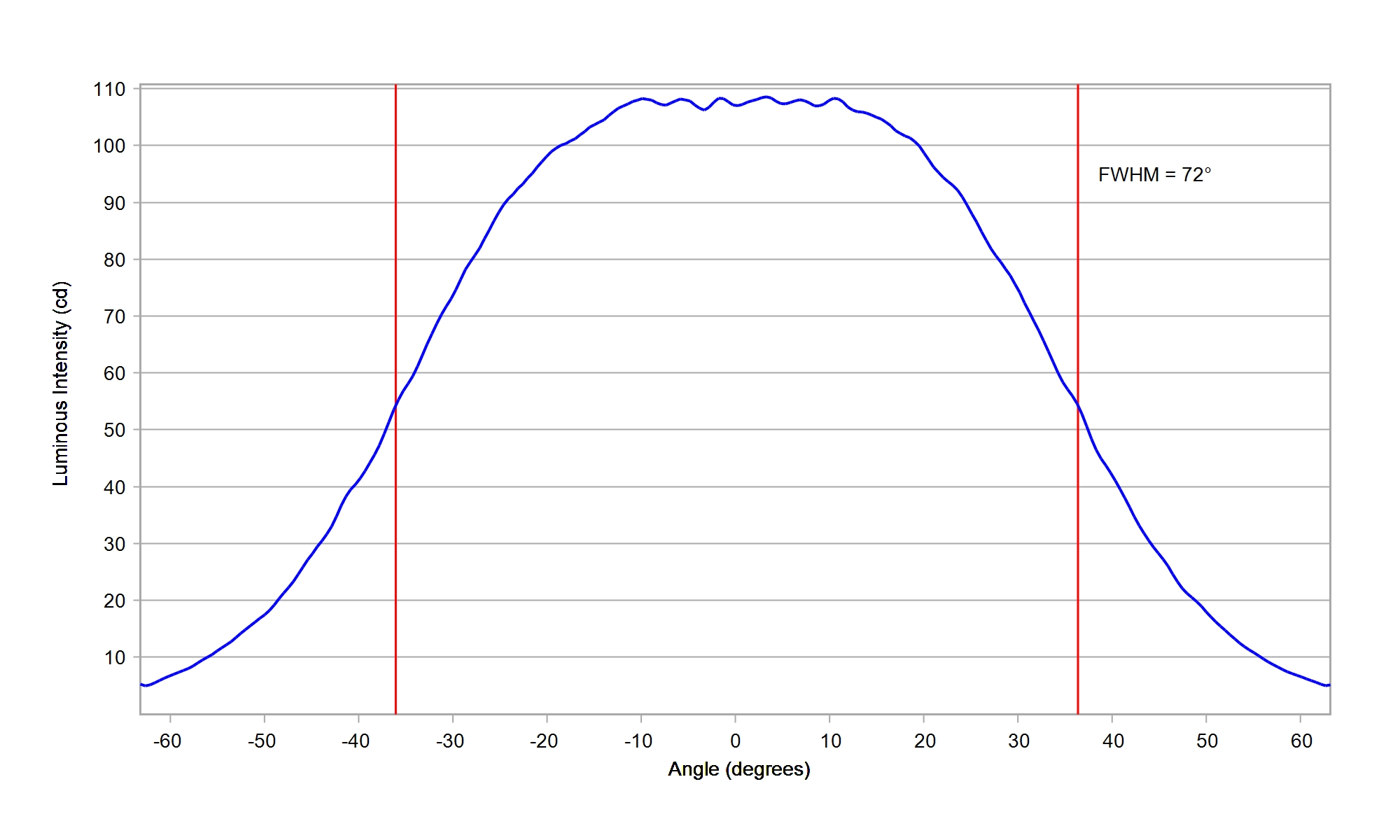

LUMILEDS LUXEON HL2X-D White
Eff:
88.0%
FWHM:
72°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL2X-P White
Eff:
87.5%
FWHM:
71°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL2Z White
Eff:
88.0%
FWHM:
63°
Cd/Im:
0.7
Download

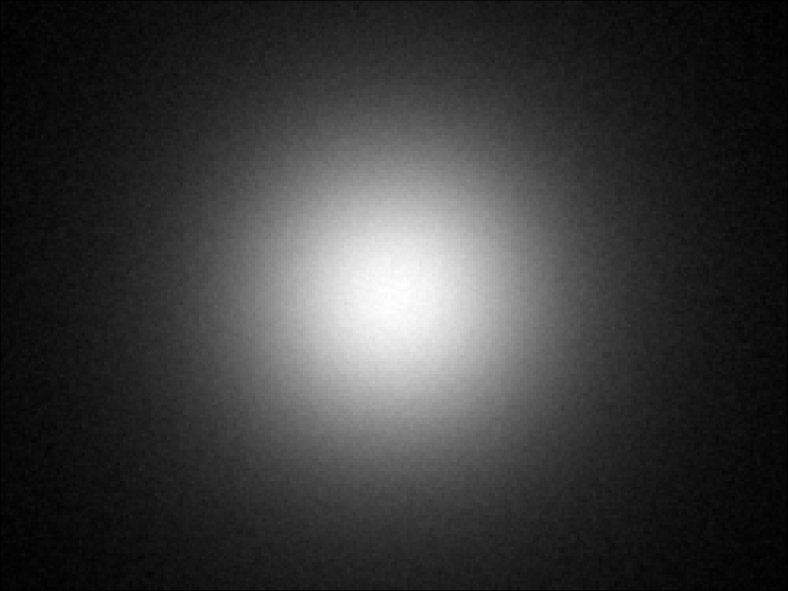

LUMILEDS LUXEON HL4X White
Eff:
86.5%
FWHM:
59°
Cd/Im:
0.8
Download

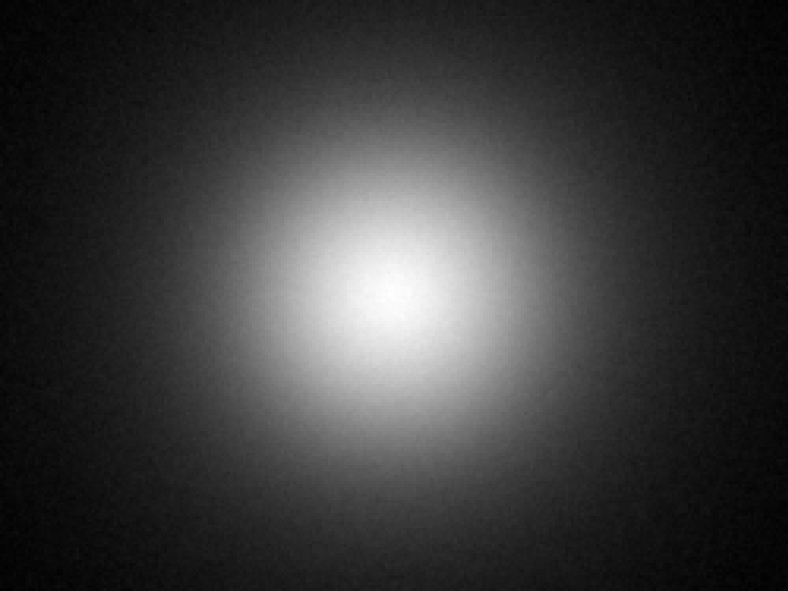

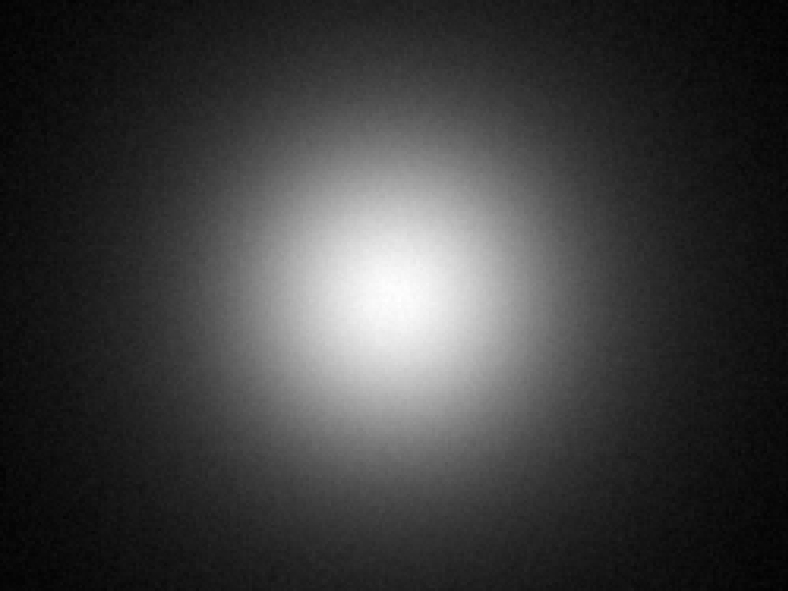

LUMILEDS LUXEON Rebel White
Eff:
87.0%
FWHM:
62°
Cd/Im:
0.7
Download
LUMILEDS LUXEON TX White
Eff:
87.0%
FWHM:
62°
Cd/Im:
0.7
Download

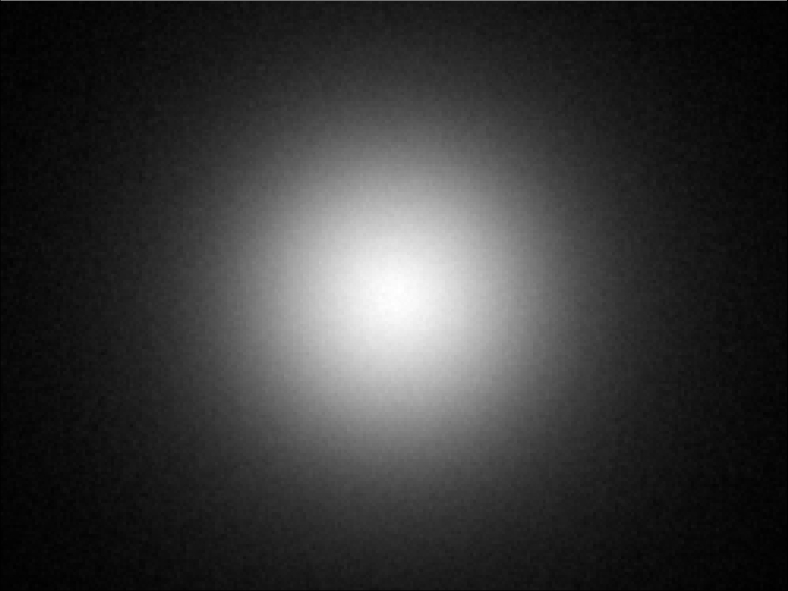

LUMILEDS LUXEON Z ES White
Eff:
88.0%
FWHM:
57°
Cd/Im:
0.8
Download

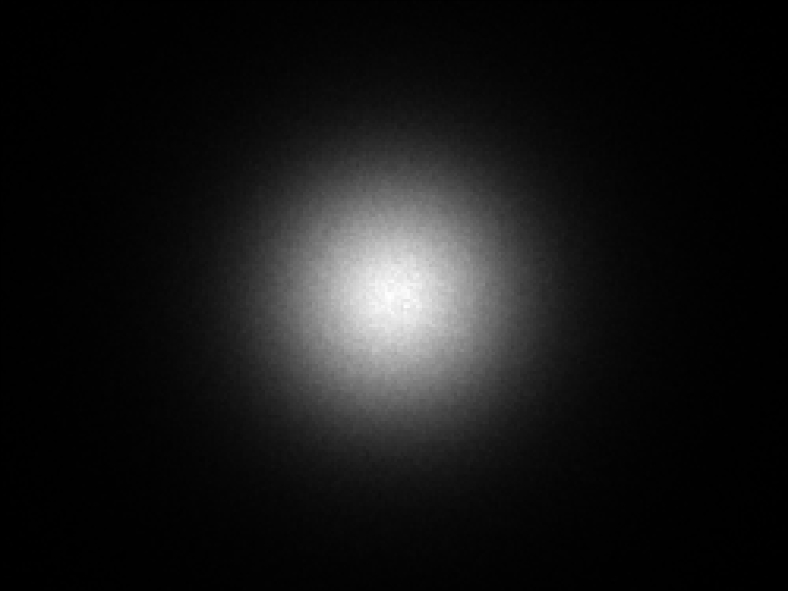

Luminus Devices SST 10-IRD-B130 810nm
Eff:
92.0%
FWHM:
60°
Ipk/W:
0.8
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
91.5%
FWHM:
65°
Ipk/W:
0.7
Download

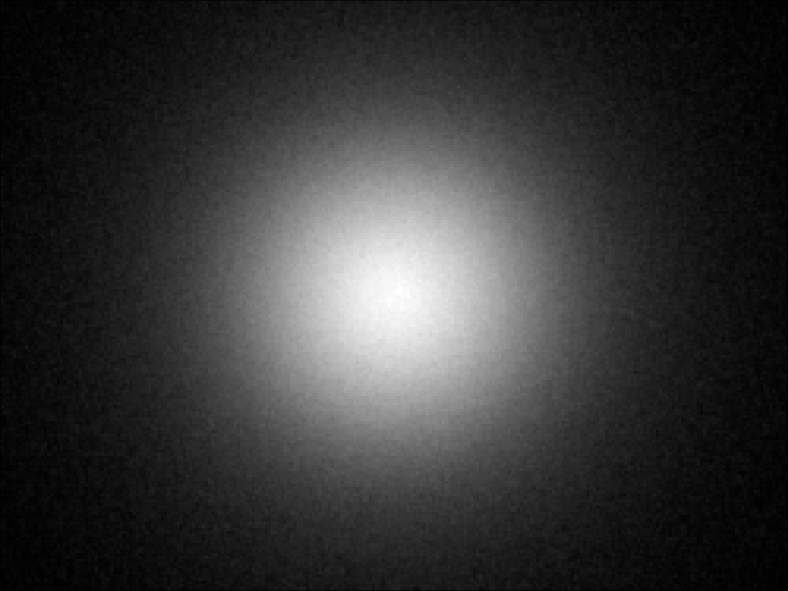

Luminus Devices SST-12-WxS White
Eff:
88.0%
FWHM:
64°
Cd/Im:
0.7
Download

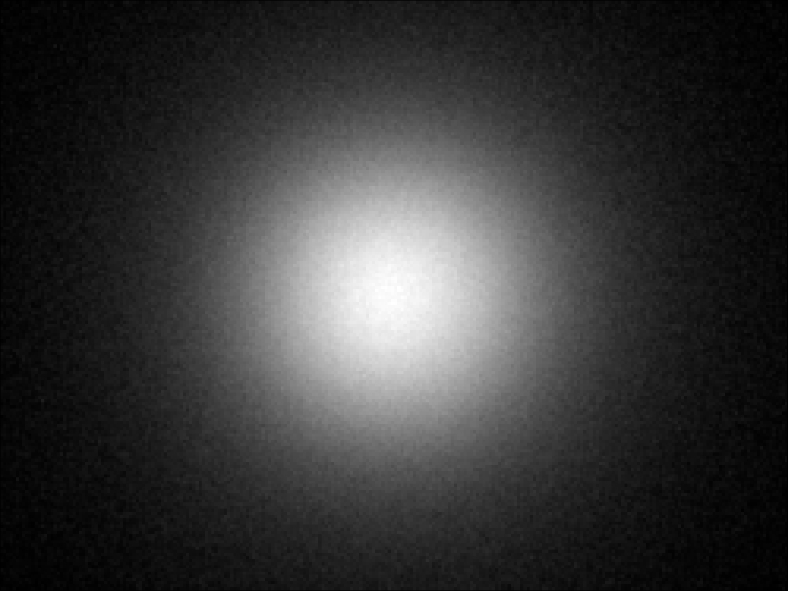

Nichia 757G White
Eff:
88.0%
FWHM:
57°
Cd/Im:
0.8
Download

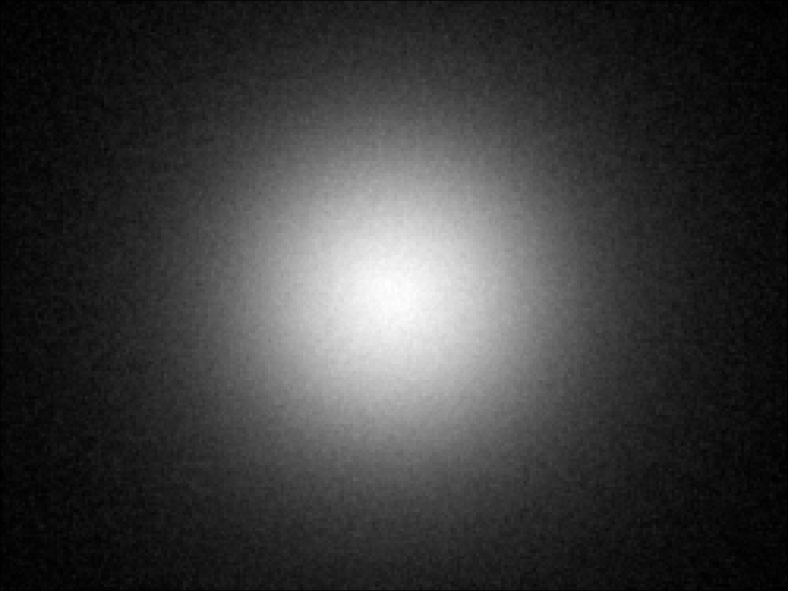

Nichia NCSW CSP E17A White
Eff:
87.5%
FWHM:
62°
Cd/Im:
0.7
Download

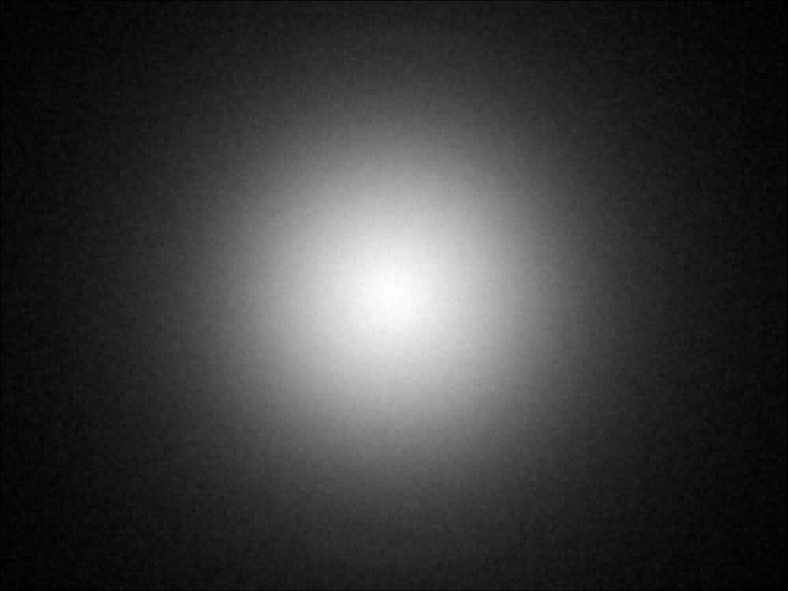

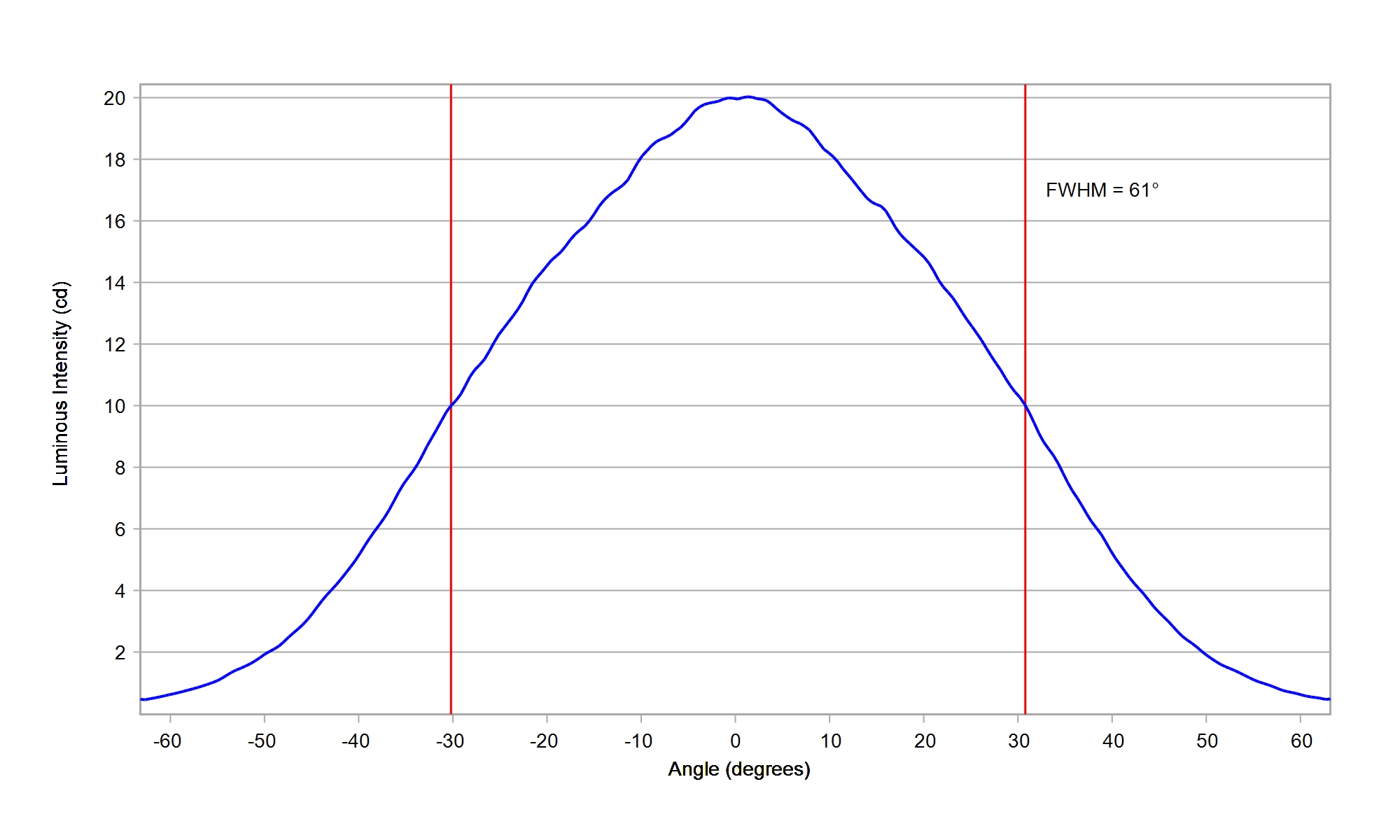

Nichia NFSW CSP E11A White
Eff:
87.0%
FWHM:
61°
Cd/Im:
0.7
Download

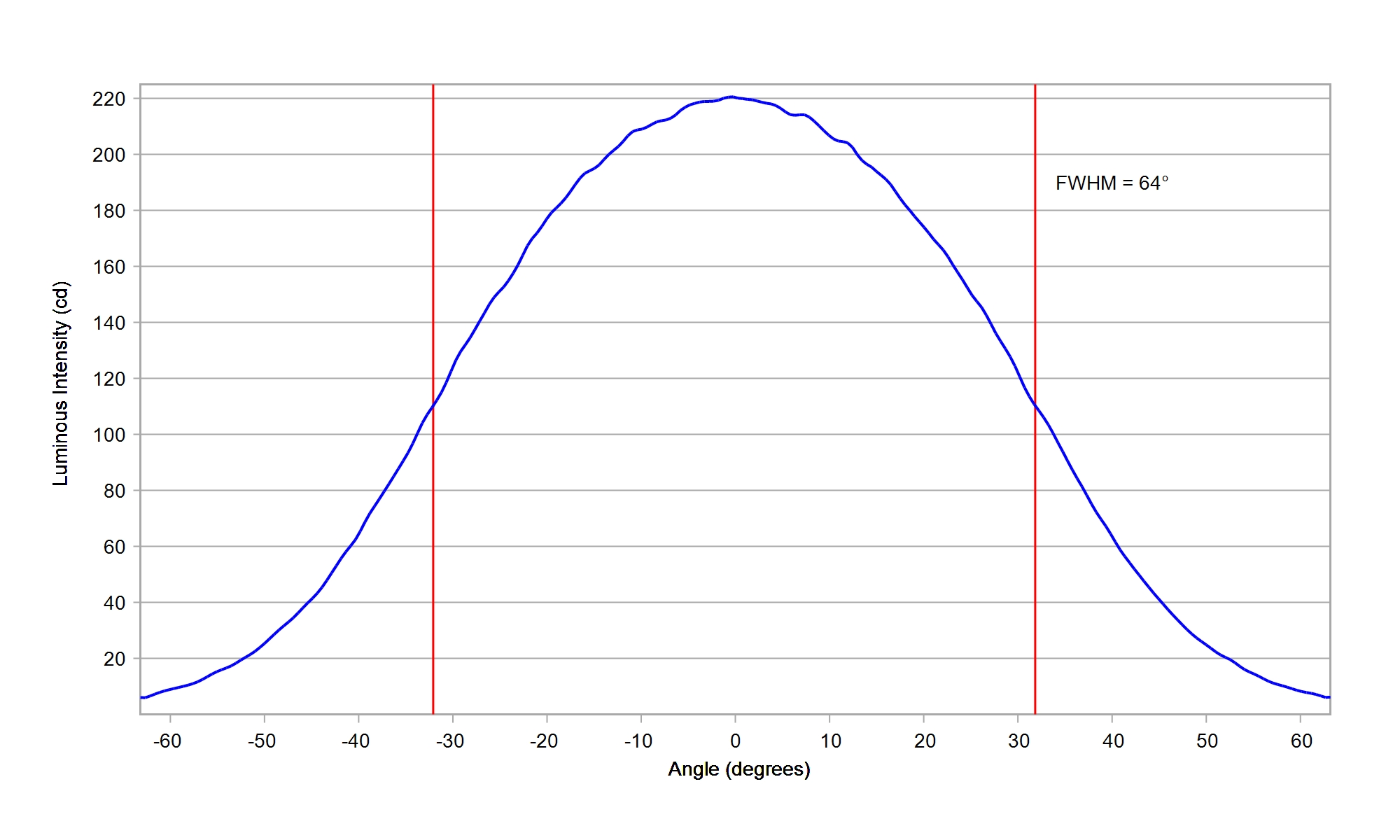

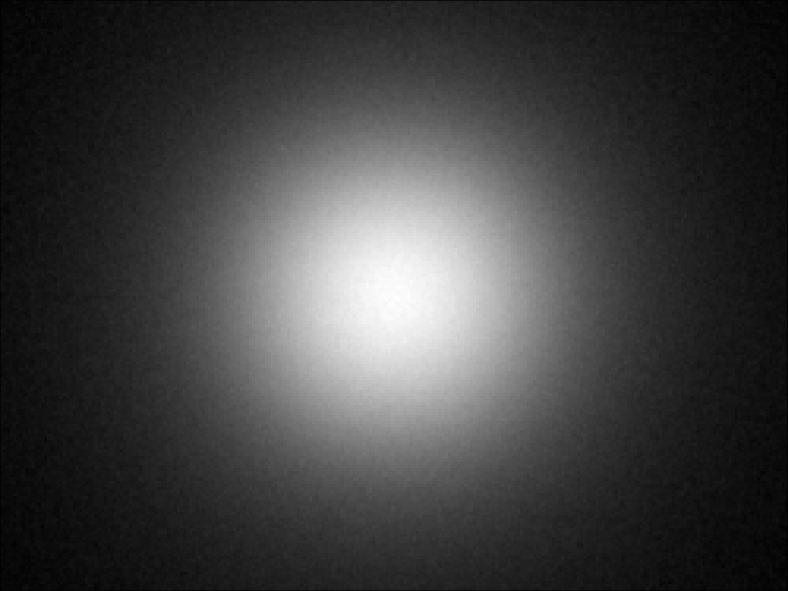

Nichia NVSW 219F White
Eff:
87.0%
FWHM:
64°
Cd/Im:
0.7
Download

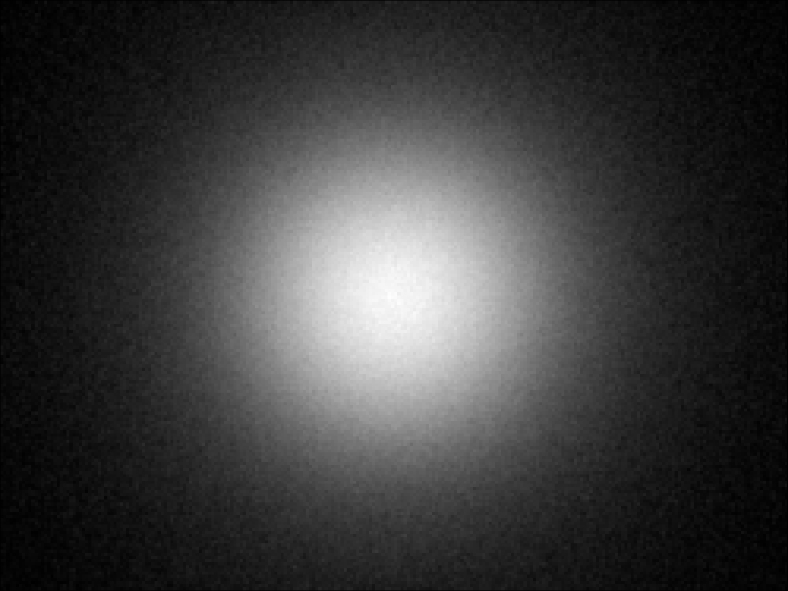

Nichia NVSW CSP E21A White
Eff:
87.5%
FWHM:
63°
Cd/Im:
0.7
Download

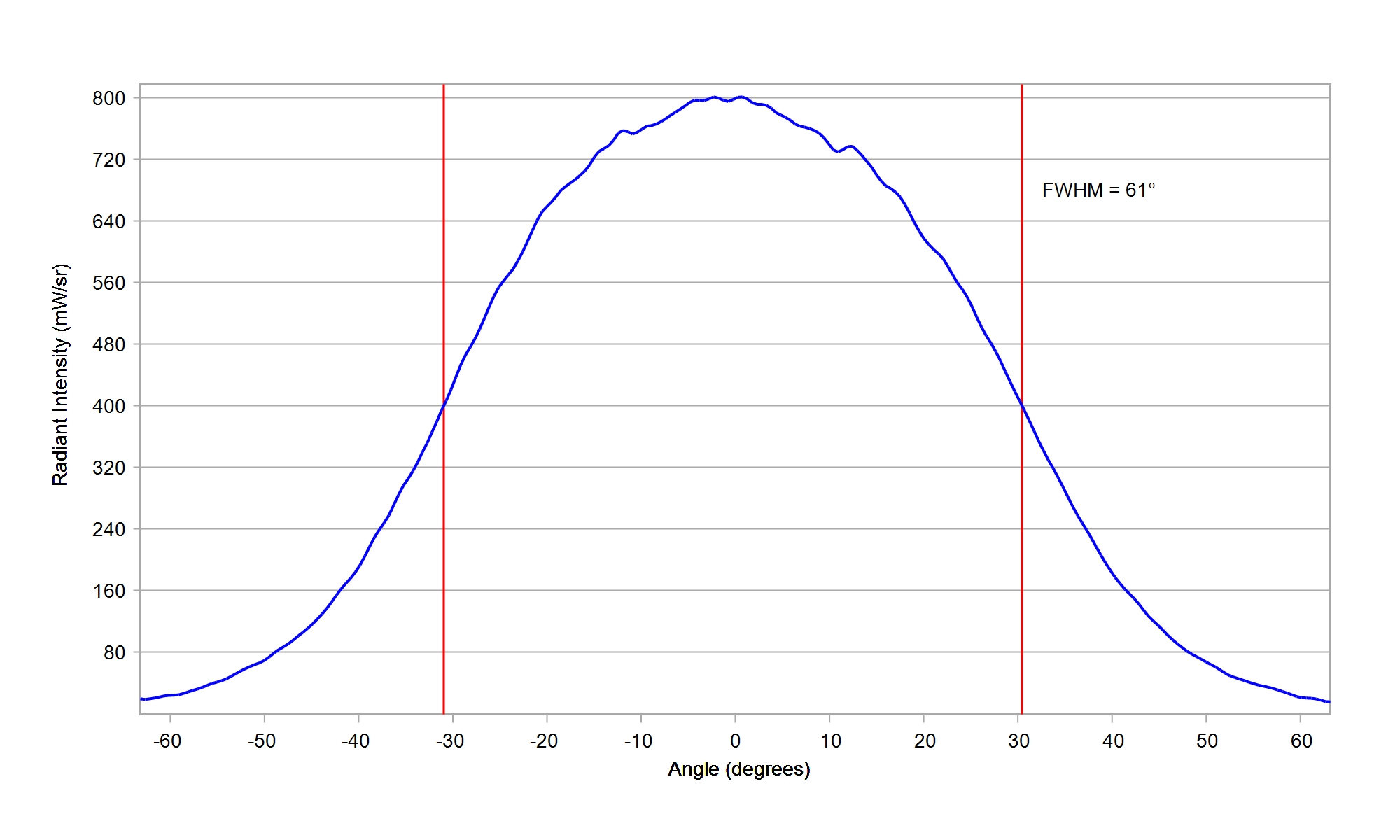

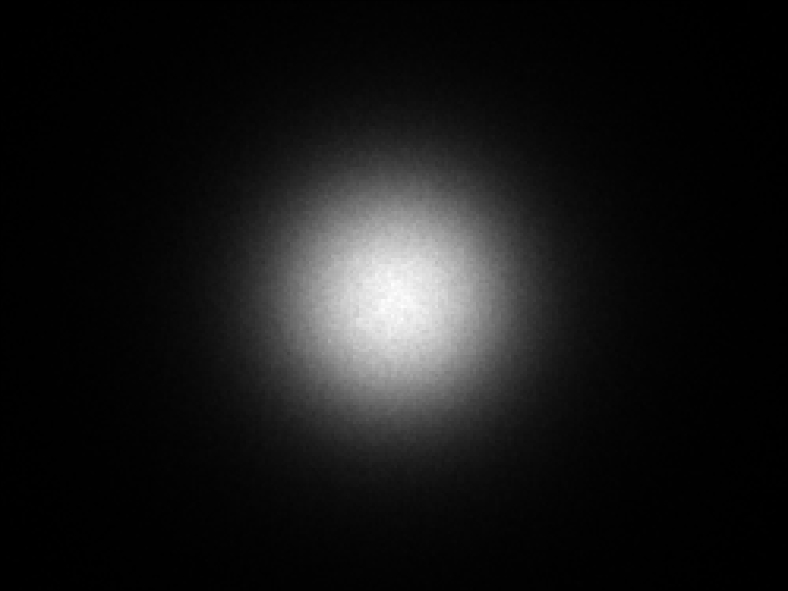

Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
92.5%
FWHM:
61°
Ipk/W:
0.8
Download

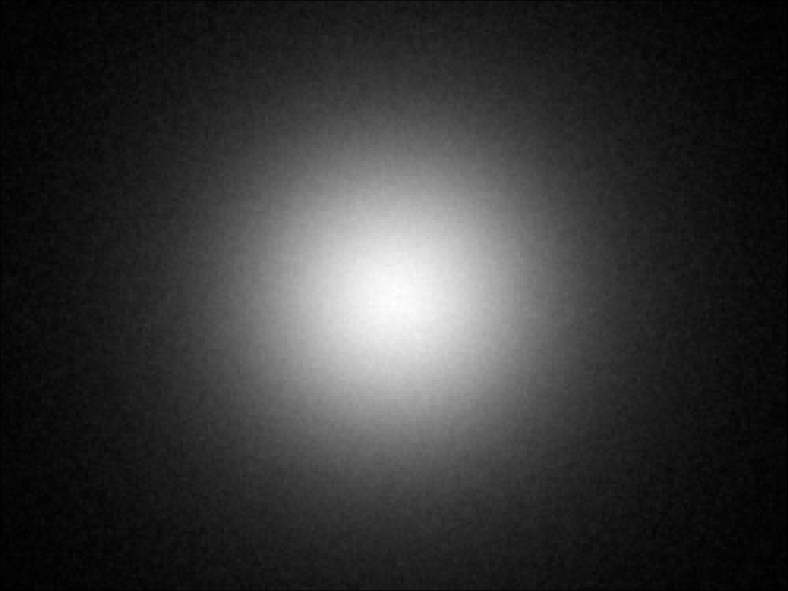

Osram OS DURIS E 2835 Gen2
Eff:
88.0%
FWHM:
57°
Cd/Im:
0.8
Download

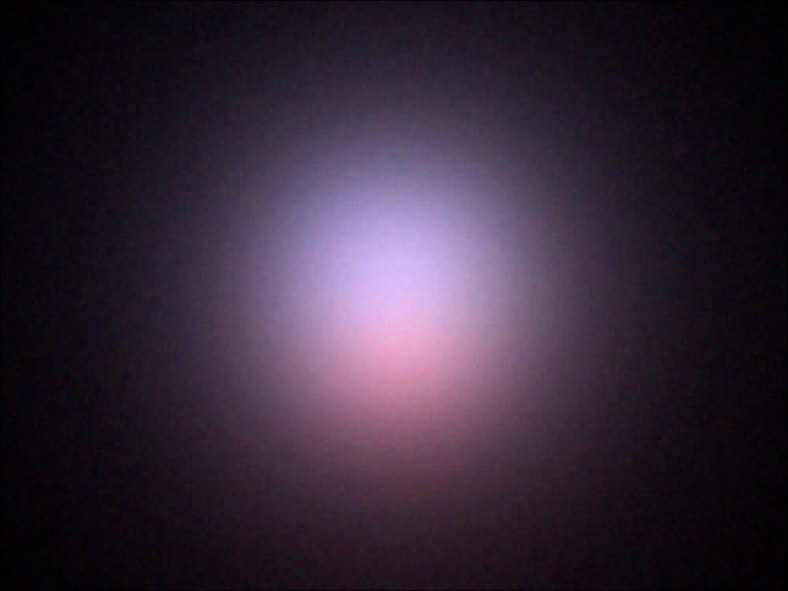

Osram OS DURIS E 5050 GW J9LHS1.4M RGBW
Eff:
88.0%
FWHM:
58°
Cd/Im:
0.8
Download

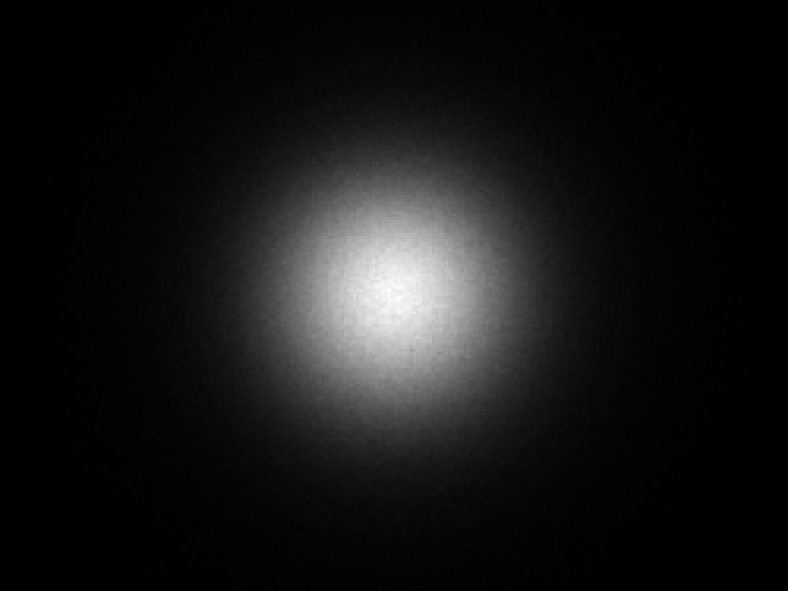

Osram OS OSLON Black SFH 4715AS IR
Eff:
91.0%
FWHM:
60°
Ipk/W:
0.8
Download

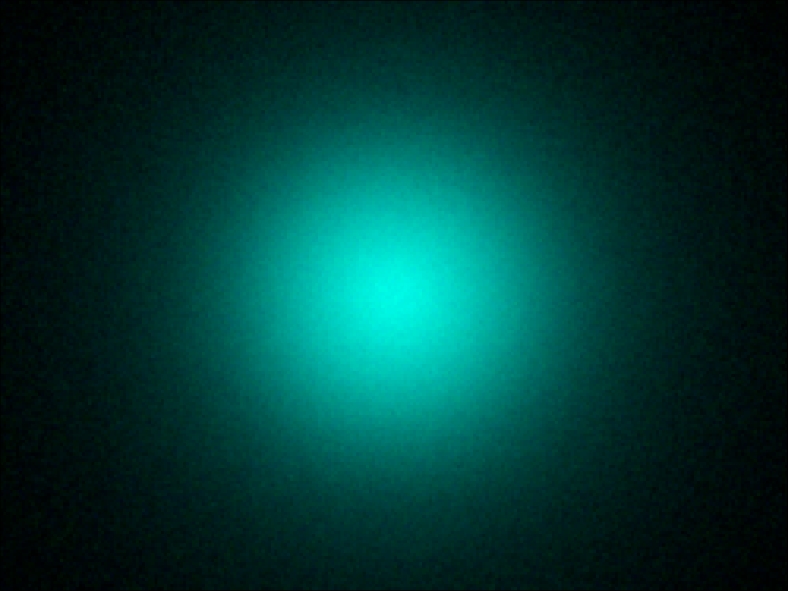

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
89.0%
FWHM:
59°
Cd/Im:
0.8
Download

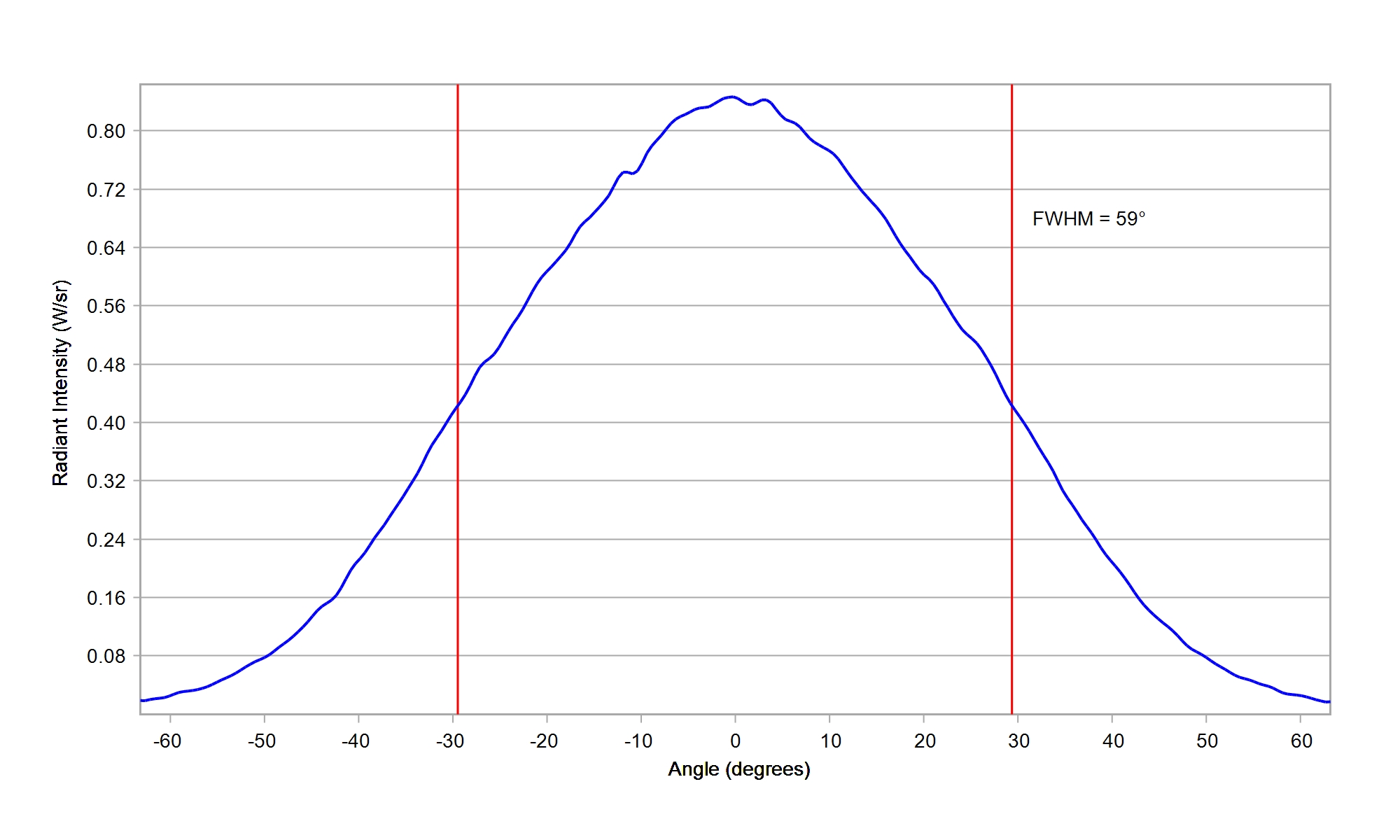

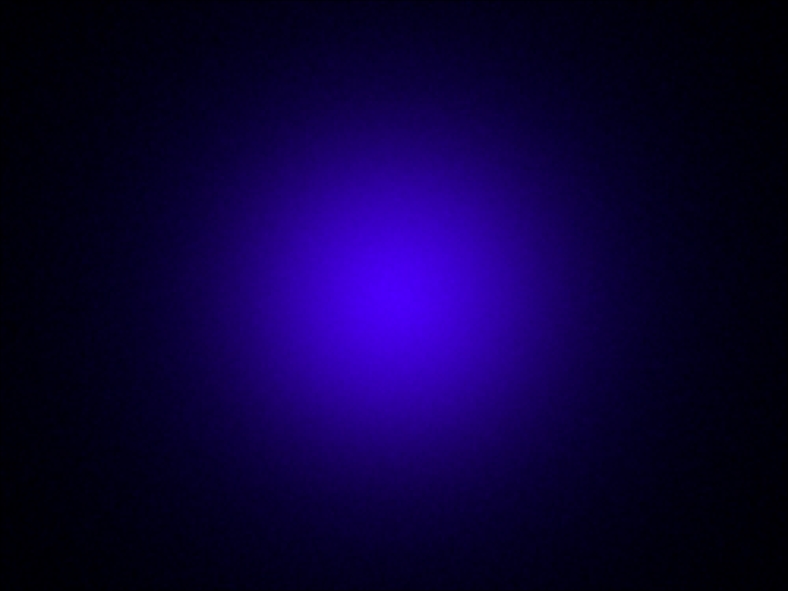

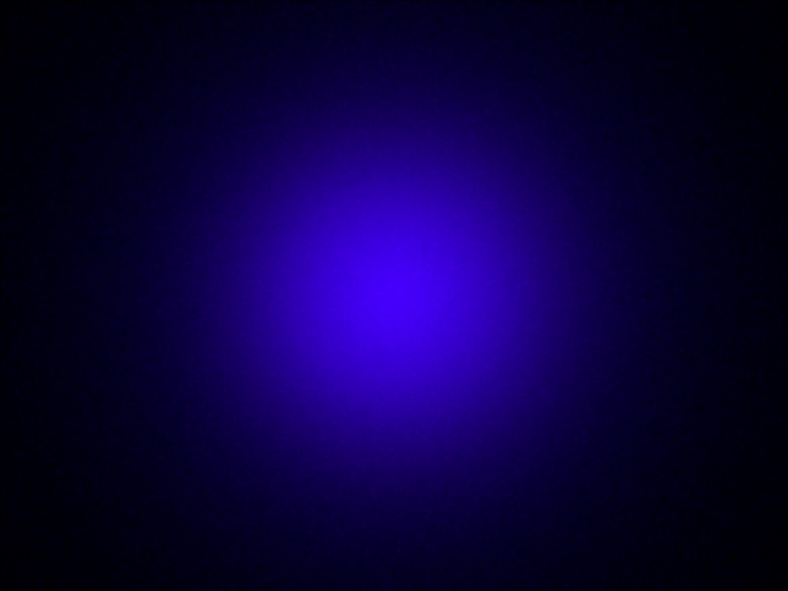

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
87.0%
FWHM:
59°
Ipk/W:
0.8
Download

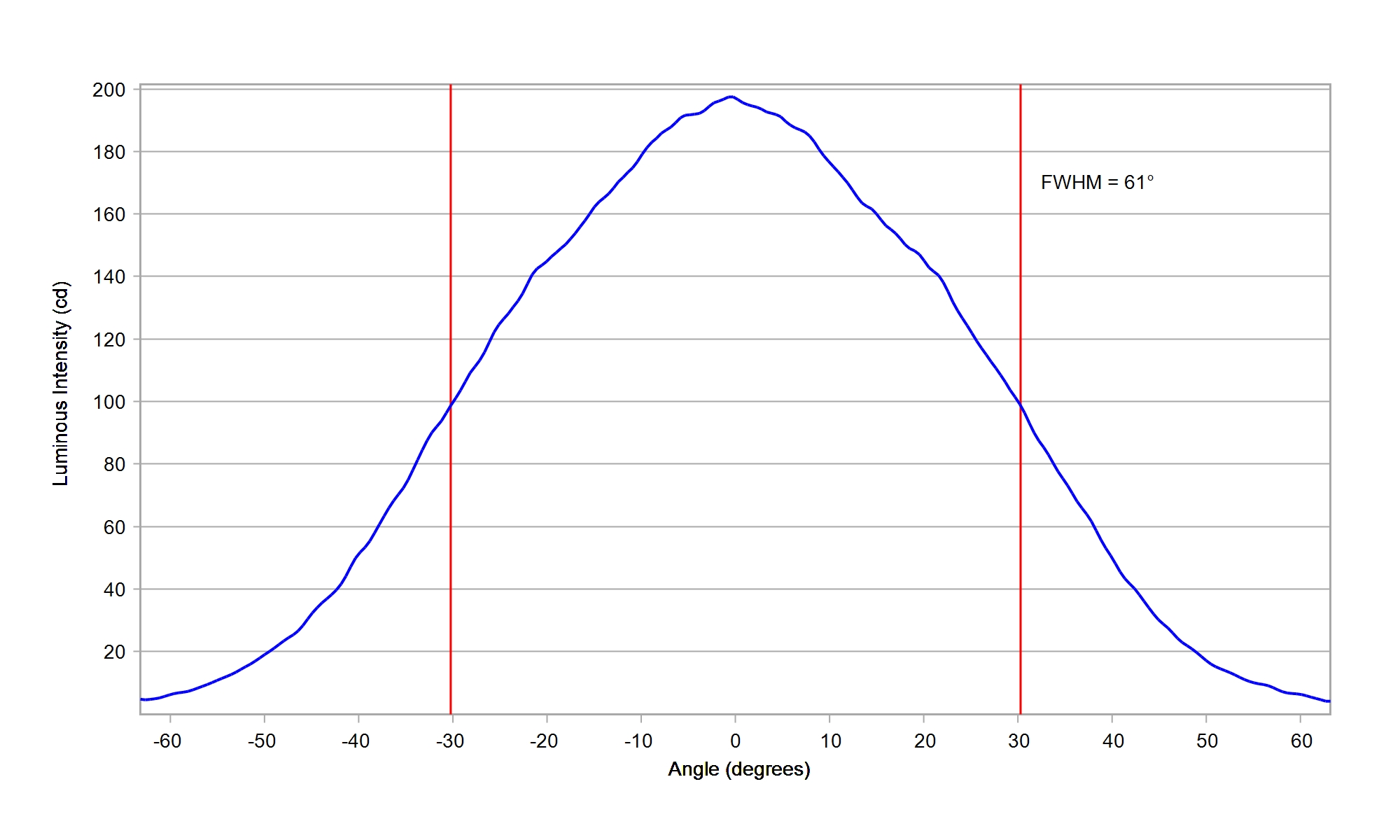

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download

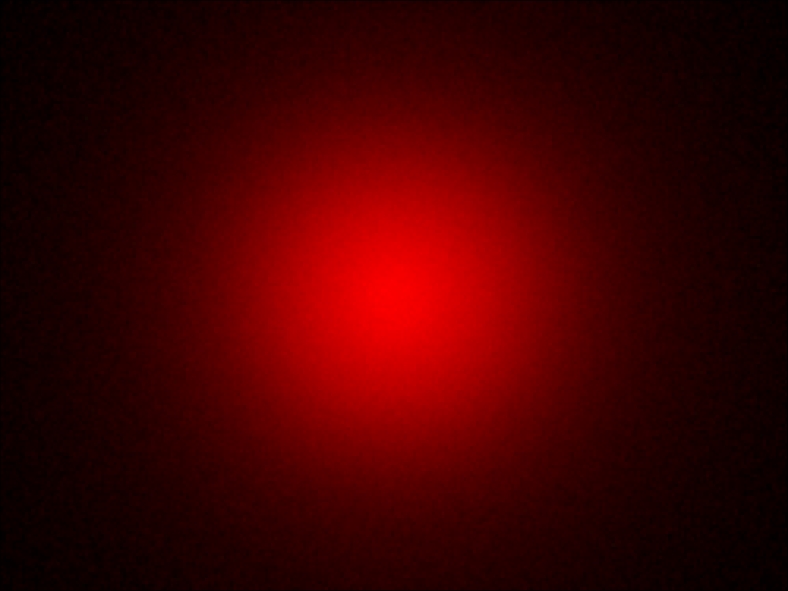

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
88.5%
FWHM:
62°
Cd/Im:
0.7
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
88.5%
FWHM:
59°
Cd/Im:
0.8
Download

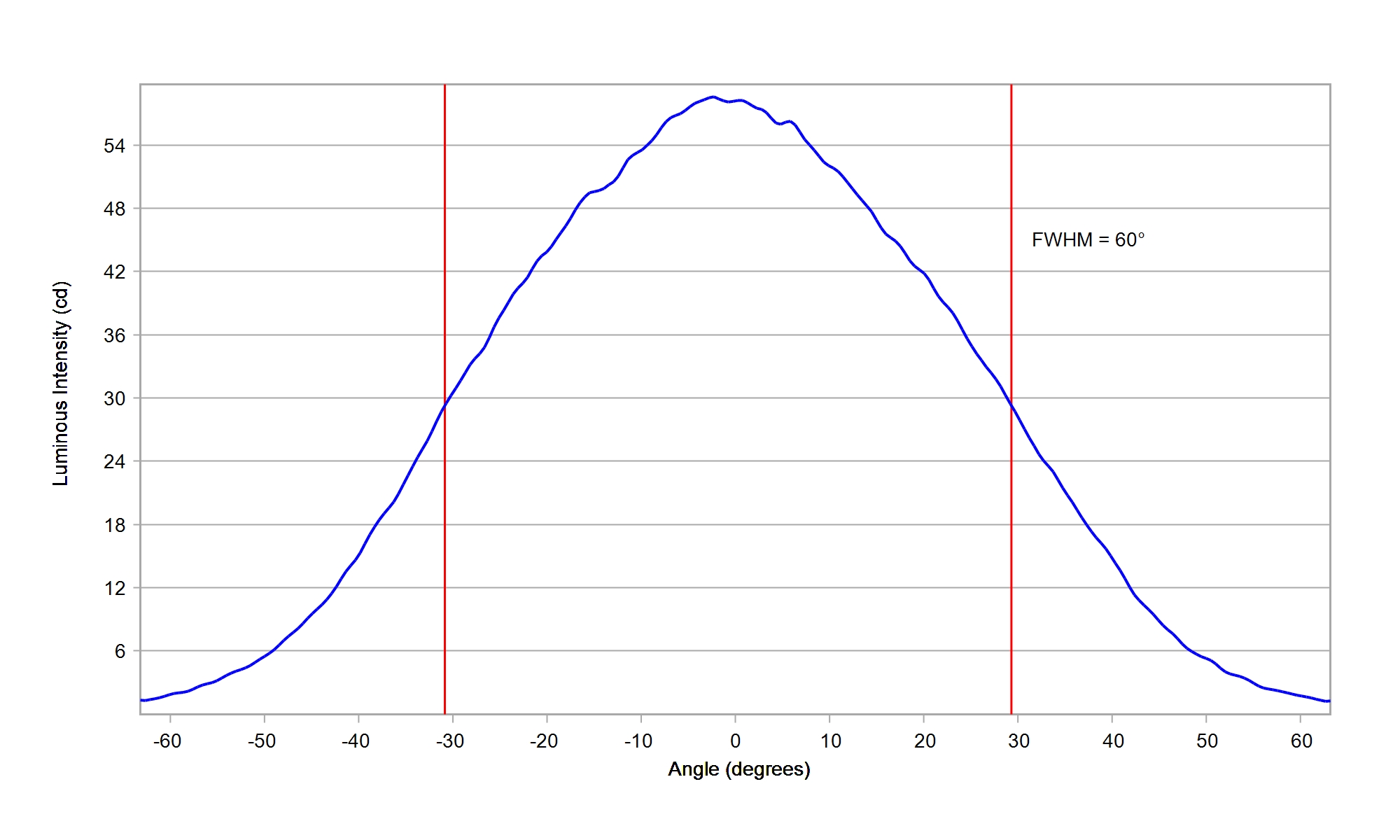

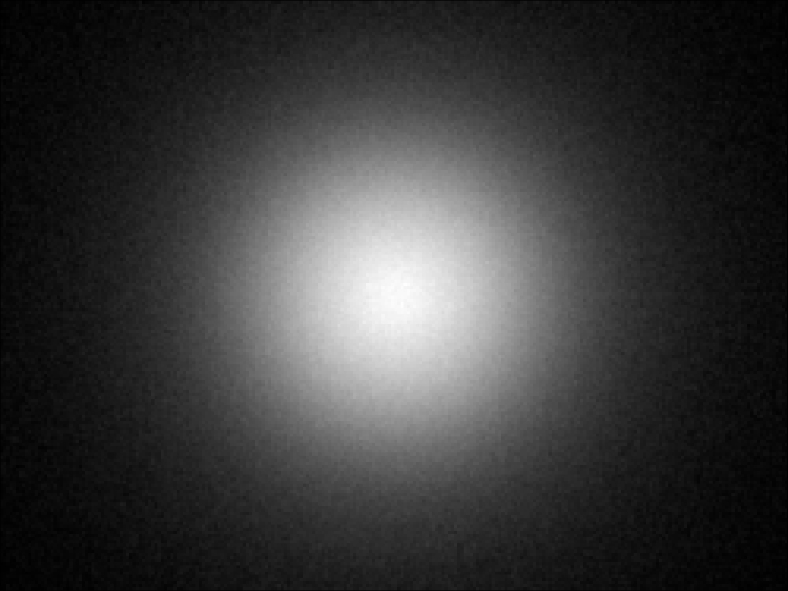

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
88.0%
FWHM:
60°
Cd/Im:
0.8
Download
Osram OS OSLON Square Gen 3 White
Eff:
87.0%
FWHM:
61°
Cd/Im:
0.7
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
87.5%
FWHM:
61°
Cd/Im:
0.7
Download

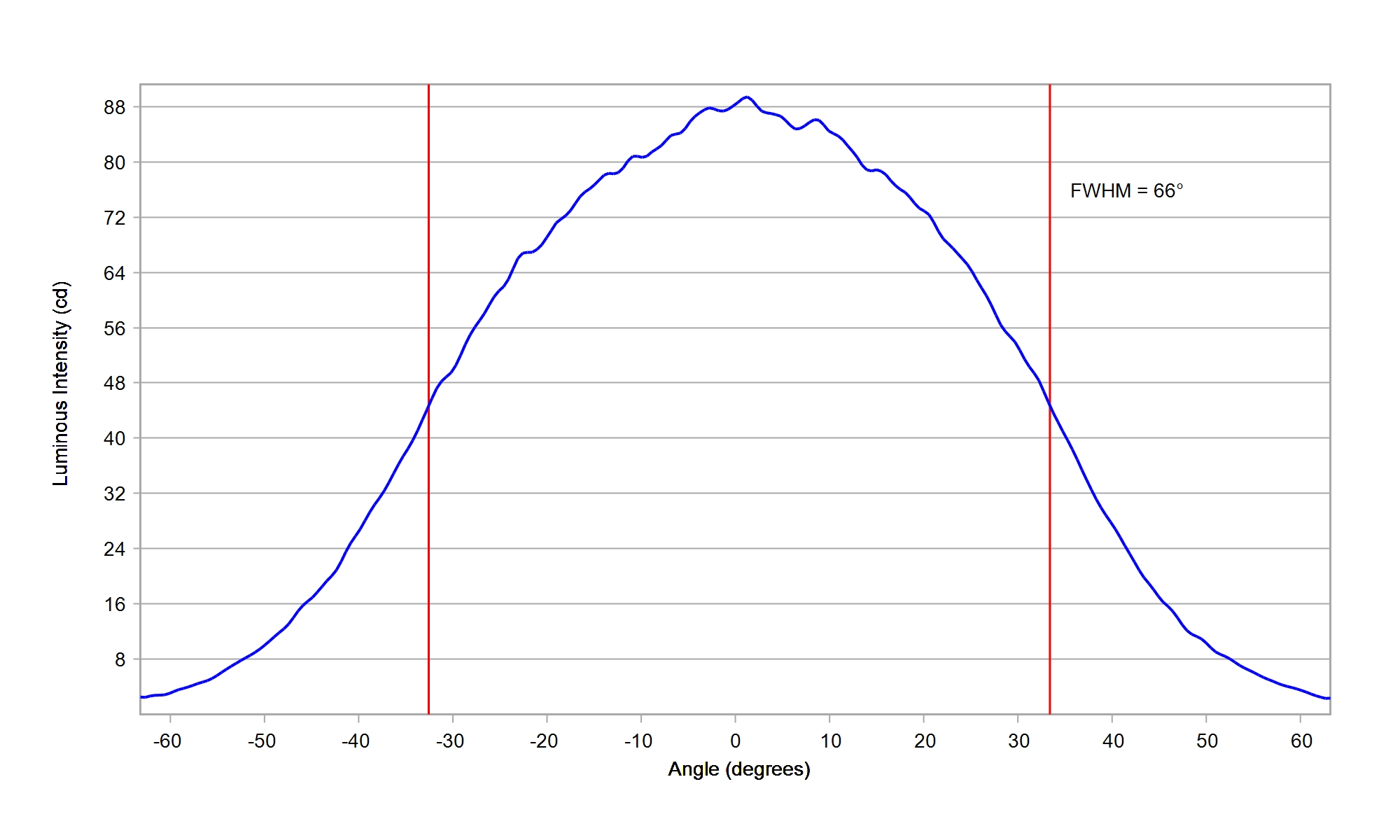

Osram OS OSLON SSL 150 degree White
Eff:
87.5%
FWHM:
66°
Cd/Im:
0.7
Download
Osram OS OSLON SSL 80 White
Eff:
88.5%
FWHM:
57°
Cd/Im:
0.8
Download

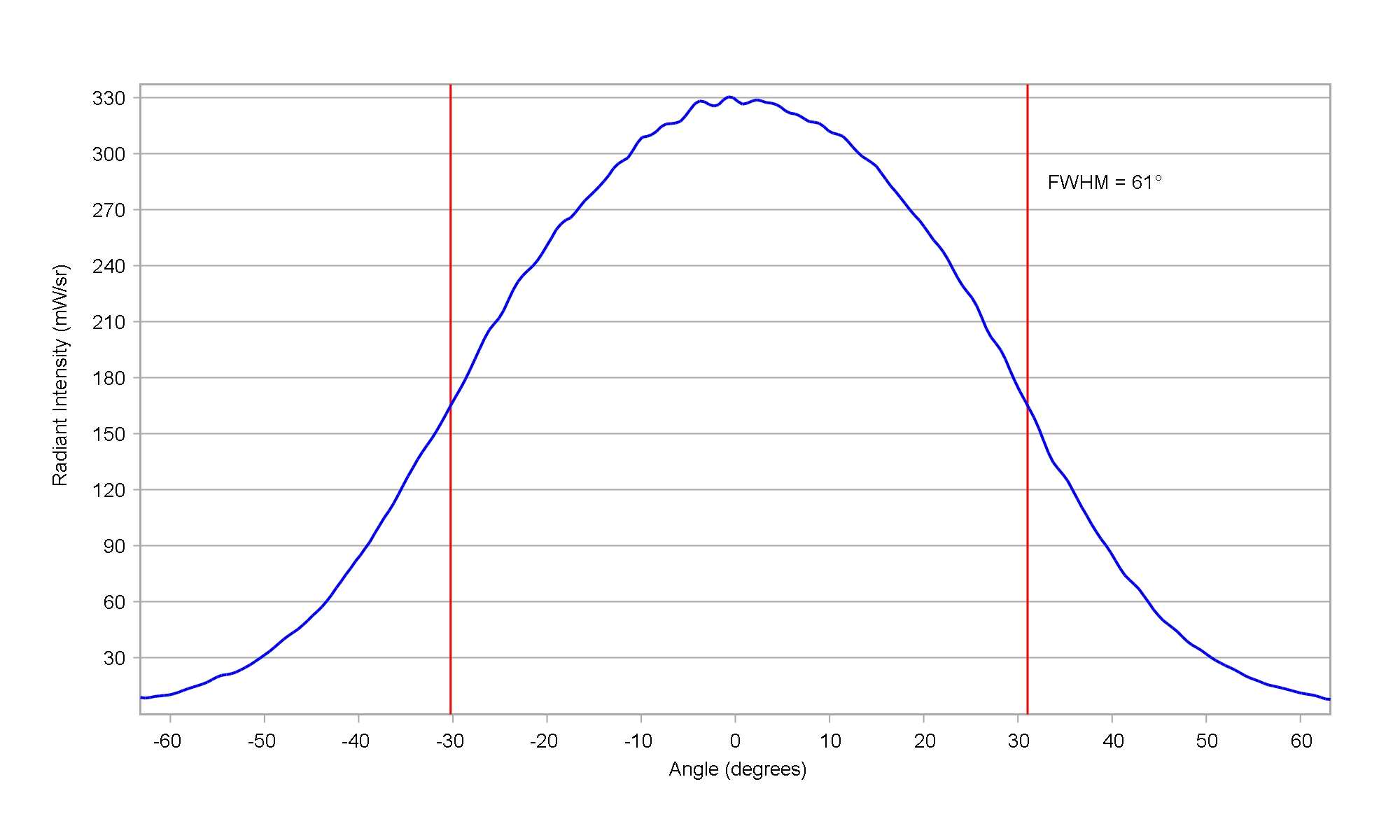

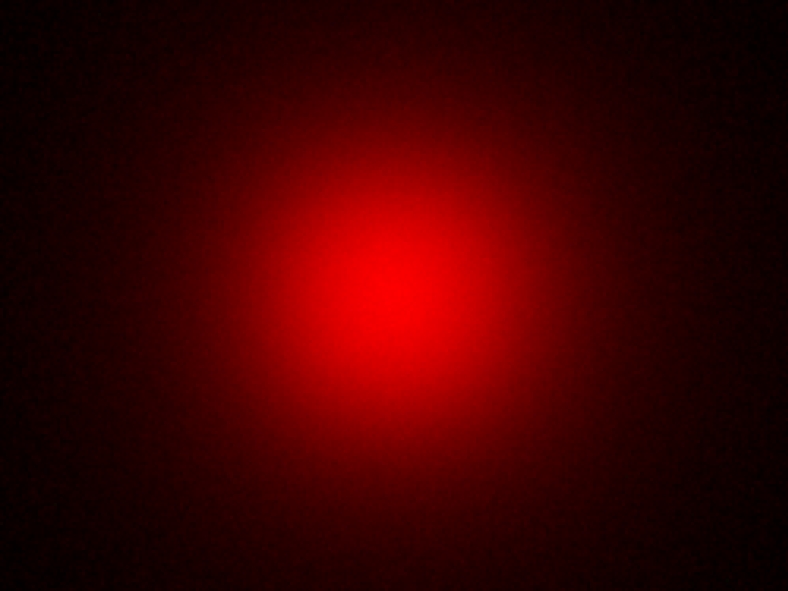

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red
Eff:
88.5%
FWHM:
61°
Ipk/W:
0.8
Download

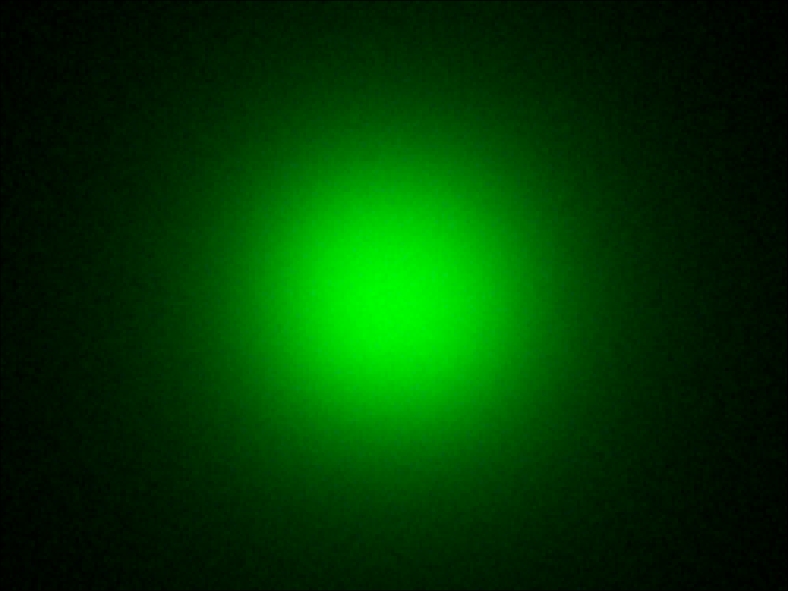

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green
Eff:
88.5%
FWHM:
61°
Cd/Im:
0.8
Download

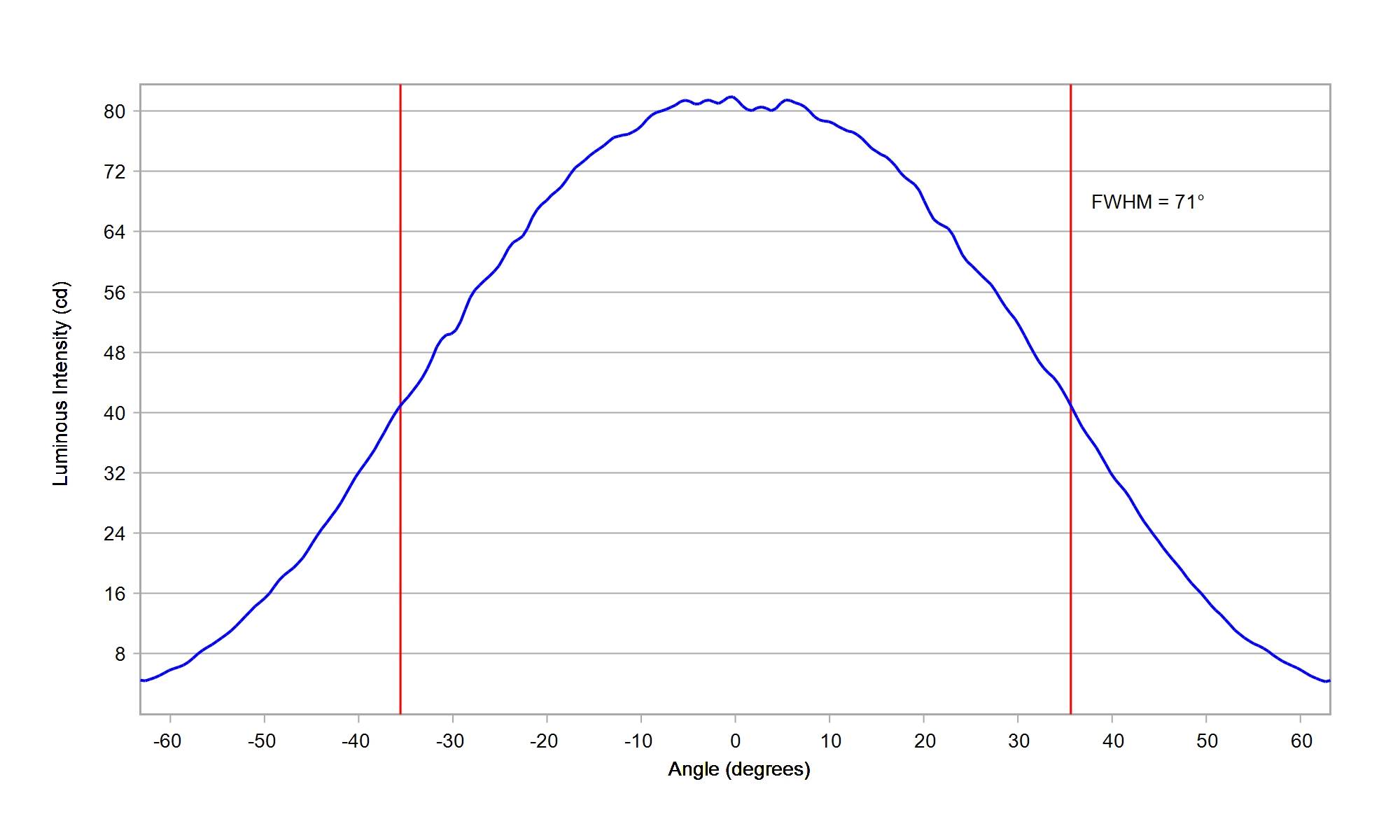

Osram OS OSLON SSL 80 GW CS8PM1.PM White
Eff:
86.5%
FWHM:
71°
Cd/Im:
0.6
Download

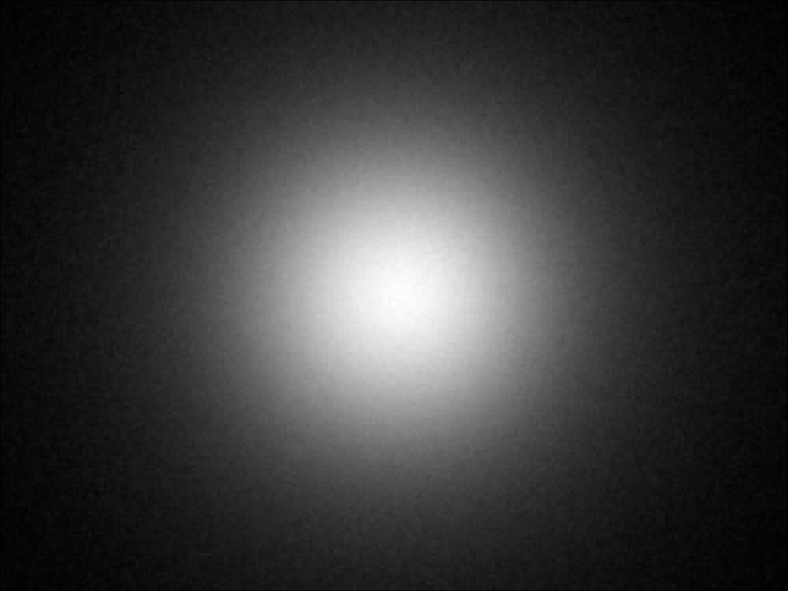

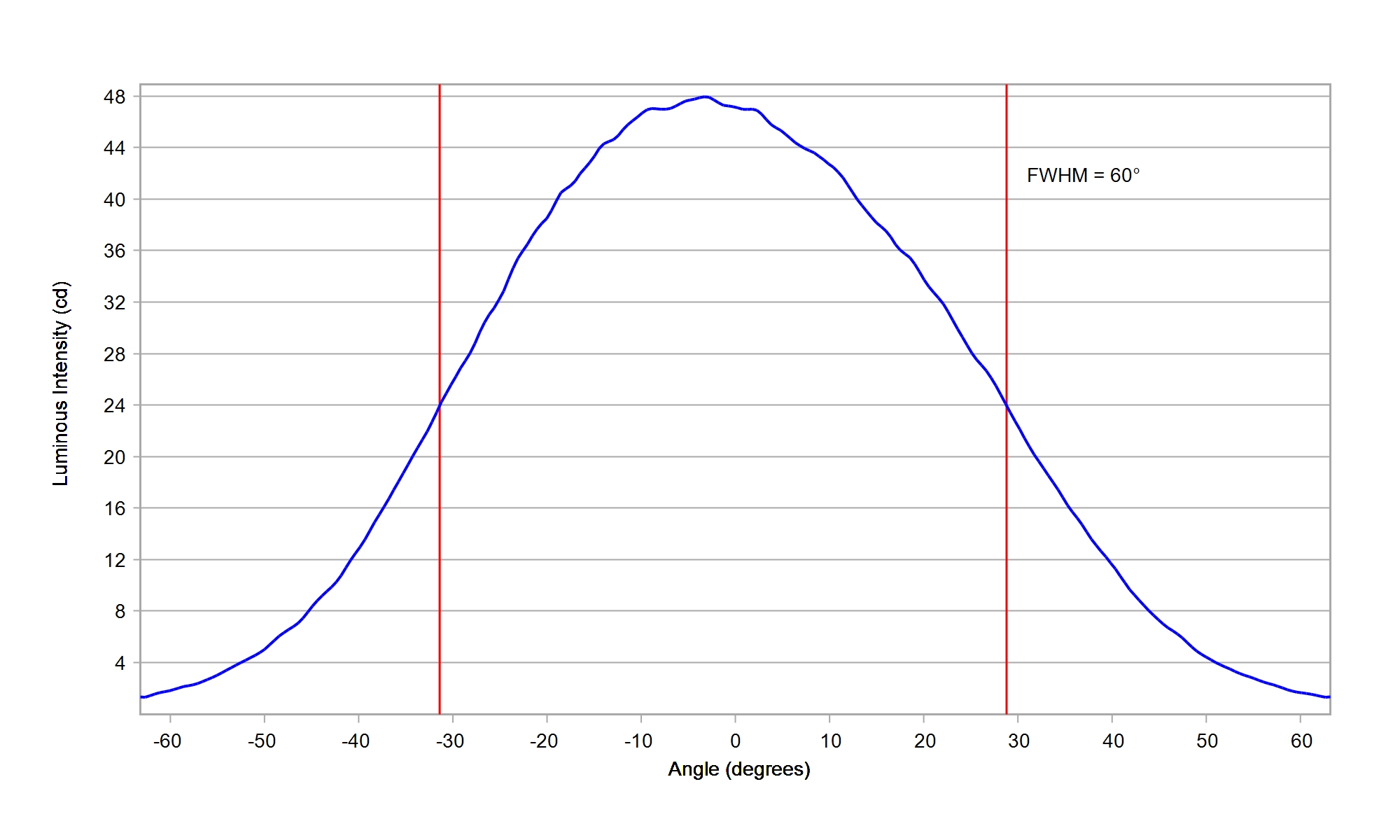

Samsung 2835 LM281B+ White
Eff:
88.0%
FWHM:
60°
Cd/Im:
0.8
Download
Samsung 3030 LM301B White
Eff:
88.5%
FWHM:
60°
Cd/Im:
0.8
Download

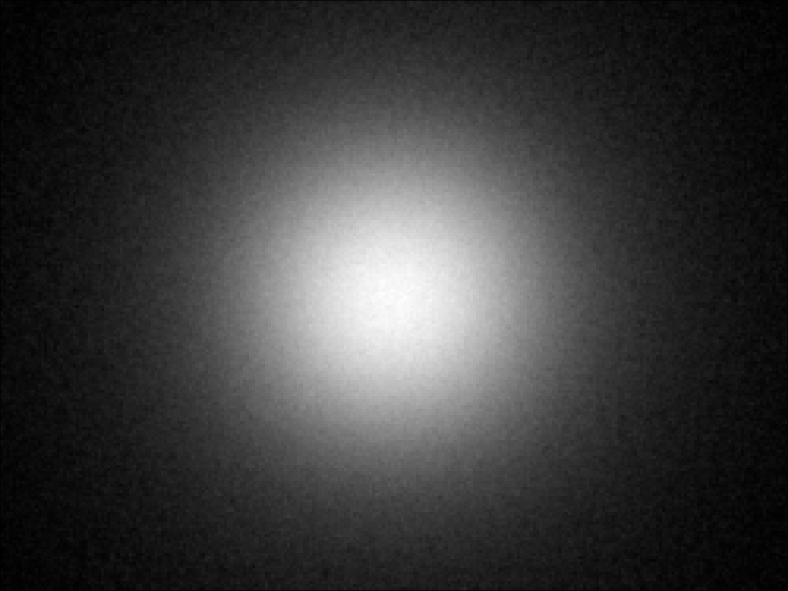

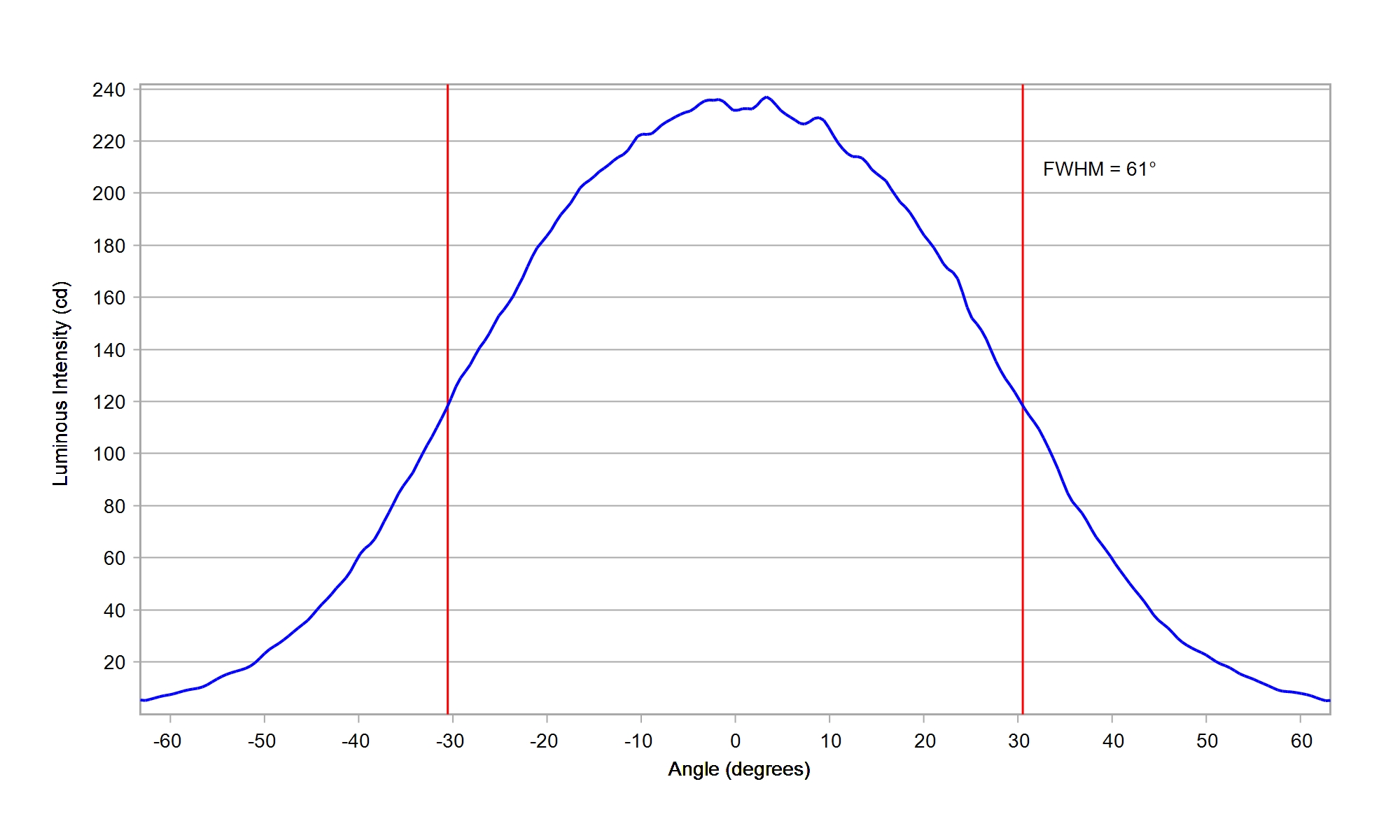

Samsung 3535 LH351B White
Eff:
87.5%
FWHM:
61°
Cd/Im:
0.7
Download
Samsung CSP LH181B White
Eff:
88.0%
FWHM:
62°
Cd/Im:
0.8
Download

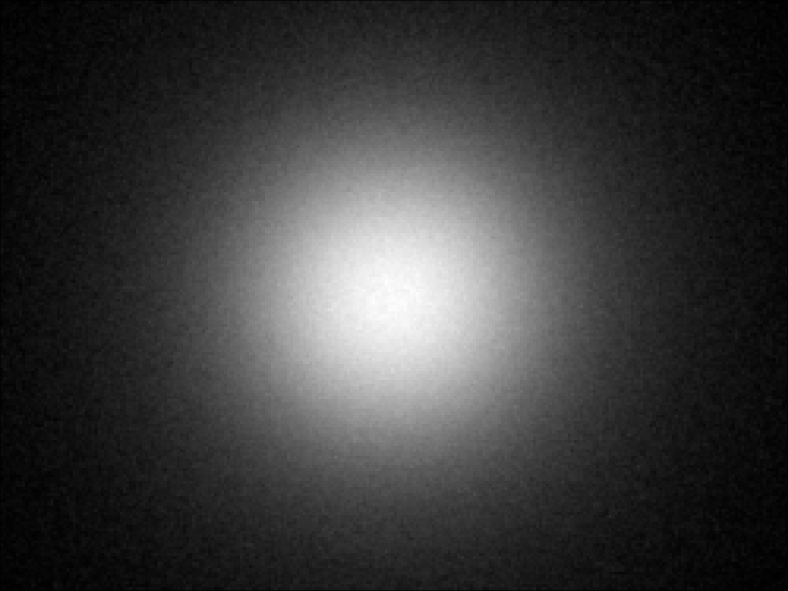

Samsung CSP LH231B White
Eff:
88.0%
FWHM:
62°
Cd/Im:
0.8
Download

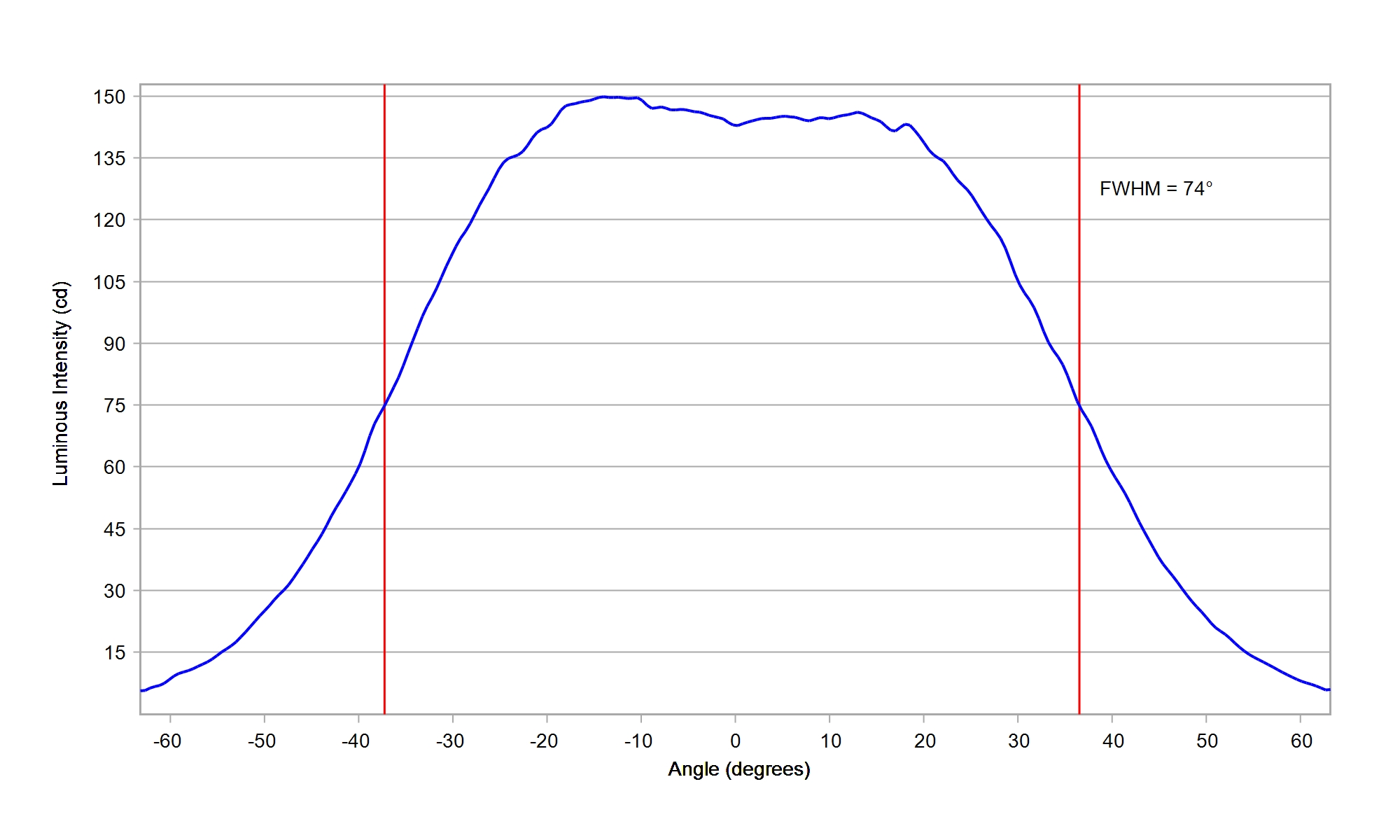

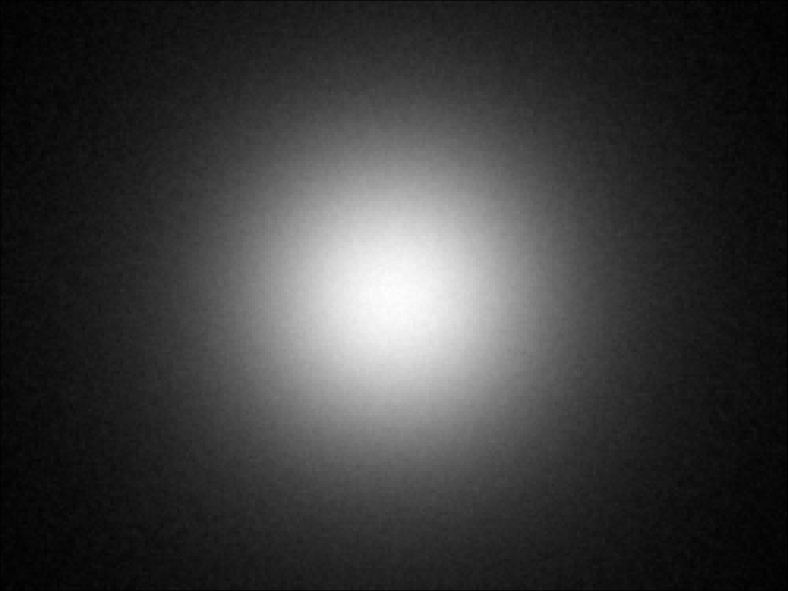

Seoul Z - Power Z5 M4 White
Eff:
87.5%
FWHM:
74°
Cd/Im:
0.6
Download
Stanley FWR1108MS IR 755nm
Eff:
92.0%
FWHM:
60°
Ipk/W:
0.8
Download
