60039 Silicone Optic
67mm Wide Spot Frosted Silicone
Part number
60039
Dimensions
67mm
Optic type
Silicone
Finish
Frosted
Beam type
Wide Spot
Applications
Architectural
Industrial
Landscape & Garden
Retail
Security
Humancentric
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux V Series V10B Gen 8
Eff:
82.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V13B Gen8
Eff:
79.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Bridgelux V Series V13B Gen8
Eff:
81.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V18C White
Eff:
90.0%
FWHM:
50°
Cd/Im:
1.1
Interconnect: 639b 47882 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V22C White
Eff:
81.0%
FWHM:
47°
Cd/Im:
0.9
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V4 HD White
Eff:
87.5%
FWHM:
34°
Cd/Im:
2.3
Interconnect: 660a 47957 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V6 HD White
Eff:
87.5%
FWHM:
35°
Cd/Im:
2.2
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V6 White
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.2
Interconnect: 660a 47957 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V8E White
Eff:
86.5%
FWHM:
36°
Cd/Im:
2.0
Interconnect: 660a 47957 Bender + Wirth 630 3Hook
Download
Bridgelux V Series V9 HD White
Eff:
87.5%
FWHM:
36°
Cd/Im:
2.0
Interconnect: 633d 47565 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU02J White
Eff:
84.5%
FWHM:
37°
Cd/Im:
1.8
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU03J White
Eff:
83.5%
FWHM:
41°
Cd/Im:
1.3
Interconnect: 633a 47562 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU03J White
Eff:
81.5%
FWHM:
42°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Citizen CITILED COB CLU04J White
Eff:
79.0%
FWHM:
49°
Cd/Im:
0.8
Interconnect: 631a 47582 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU702 White
Eff:
86.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU712 White
Eff:
86.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU7A2 White
Eff:
86.5%
FWHM:
34°
Cd/Im:
2.2
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU7A2 White
Eff:
86.5%
FWHM:
34°
Cd/Im:
2.2
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED COB CLU7B2 White
Eff:
83.0%
FWHM:
32°
Cd/Im:
2.3
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU028 White
Eff:
85.0%
FWHM:
37°
Cd/Im:
1.8
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU038 White
Eff:
85.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: 633a 47562 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU038 White
Eff:
82.5%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Citizen CITILED VIVID CLU048 White
Eff:
80.0%
FWHM:
49°
Cd/Im:
0.9
Interconnect: 631a 47582 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU701 White
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU711 White
Eff:
86.0%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 633a 47563 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU721 White
Eff:
85.5%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Citizen CITILED VIVID CLU721 White
Eff:
83.5%
FWHM:
38°
Cd/Im:
1.6
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Citizen CITILED VIVID CLU731 White
Eff:
84.0%
FWHM:
40°
Cd/Im:
1.5
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Cree CMT 1930
Eff:
83.0%
FWHM:
40.5°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CMA1303 White
Eff:
88.0%
FWHM:
34°
Cd/Im:
81.9
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download
Cree XLamp CMA1306 White
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.2
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download
Cree XLamp CMA1516 White
Eff:
86.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 641a 47460 Bender + Wirth 630 3Hook
Download
Cree XLamp CMA1825 White
Eff:
84.5%
FWHM:
39°
Cd/Im:
1.6
Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CMA1825 White
Eff:
86.5%
FWHM:
39°
Cd/Im:
1.7
Download
Cree XLamp CMA1840 White
Eff:
85.0%
FWHM:
41°
Cd/Im:
1.5
Interconnect: 637a 47472 Bender + Wirth 630 3Hook
Download
Cree XLamp CMA2550 White
Eff:
82.5%
FWHM:
45°
Cd/Im:
1.1
Interconnect: 639a 47585 Bender + Wirth 630 3Hook
Download
Cree XLamp CMA2550 White
Eff:
80.5%
FWHM:
46°
Cd/Im:
1.1
Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CMT1412 White
Eff:
85.0%
FWHM:
37°
Cd/Im:
1.8
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT1420 White
Eff:
86.0%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT1922 White
Eff:
83.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CMT1922 White
Eff:
84.5%
FWHM:
41°
Cd/Im:
1.5
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT1930 White
Eff:
84.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT1945 White
Eff:
84.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT1945 White
Eff:
82.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CMT2850 White
Eff:
81.0%
FWHM:
49°
Cd/Im:
0.9
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT2870 White
Eff:
81.0%
FWHM:
49°
Cd/Im:
0.9
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Cree XLamp CMT2890 White
Eff:
81.0%
FWHM:
49°
Cd/Im:
0.9
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB 2540
Eff:
82.5%
FWHM:
45°
Cd/Im:
1.1
Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB1304 White
Eff:
87.5%
FWHM:
35°
Cd/Im:
2.2
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1310 White
Eff:
87.5%
FWHM:
35°
Cd/Im:
2.2
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1507 White
Eff:
87.0%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 641a 47460 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1520 White
Eff:
86.0%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 641a 47460 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1816 White
Eff:
72.5%
FWHM:
38°
Cd/Im:
1.5
Interconnect: 637a 47472 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1816 White
Eff:
71.0%
FWHM:
38°
Cd/Im:
1.4
Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB1816 White
Eff:
85.0%
FWHM:
38.5°
Cd/Im:
1.6
Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB1820 White
Eff:
86.5%
FWHM:
39°
Cd/Im:
1.7
Interconnect: 637a 47472 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB1820 White
Eff:
85.0%
FWHM:
38.5°
Cd/Im:
1.7
Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB1830
Eff:
84.0%
FWHM:
40.5°
Cd/Im:
1.5
Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB1830 White
Eff:
85.5%
FWHM:
40°
Cd/Im:
1.5
Interconnect: 637b 47871 Bender + Wirth 630 3Hook
Download
Cree XLamp CXB2530
Eff:
82.5%
FWHM:
44°
Cd/Im:
1.2
Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1
Download
Cree XLamp CXB2530 White
Eff:
83.5%
FWHM:
45°
Cd/Im:
1.2
Interconnect: 639a 47585 Bender + Wirth 630 3Hook
Download

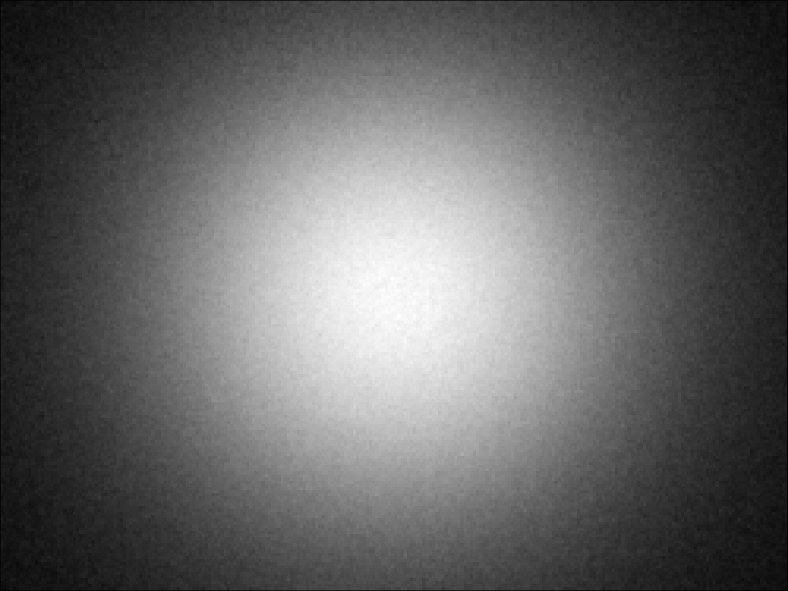

Cree XLamp CXB2540 White
Eff:
83.5%
FWHM:
45°
Cd/Im:
1.1
Interconnect: 639a 47585 Bender + Wirth 630 3Hook
Download
LUMILEDS 1205 HD
Eff:
83.0%
FWHM:
39°
Cd/Im:
1.5
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS 1205 HD
Eff:
86.5%
FWHM:
38°
Cd/Im:
1.8
Interconnect: 0005 Molex 180580
Download

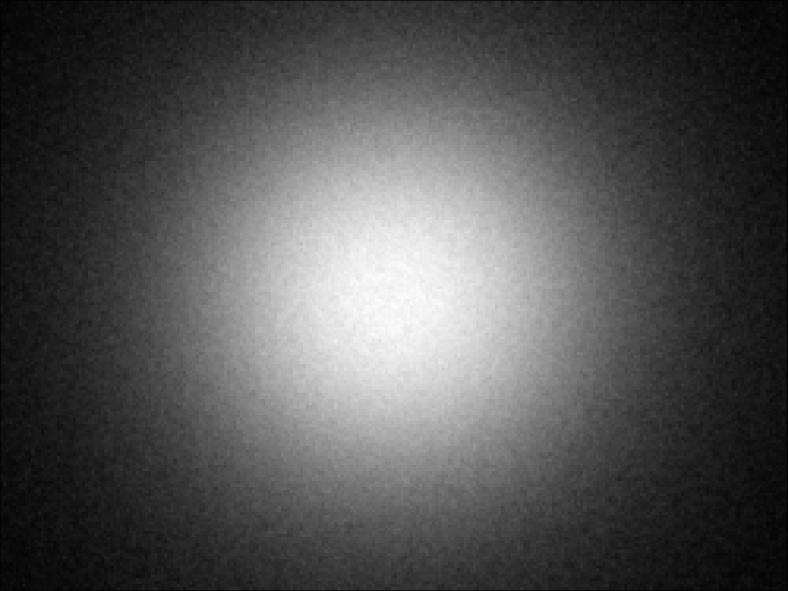

LUMILEDS CX Plus (Gen 2) L04
Eff:
80.5%
FWHM:
39°
Cd/Im:
1.6
Interconnect: 637a 47472 Bender + Wirth 630 3Hook
Download
LUMILEDS CX Plus (Gen 2) L08 White
Eff:
79.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 637a 47472 Bender + Wirth 630 3Hook
Download
LUMILEDS CX Plus (Gen 2) M03 White
Eff:
82.0%
FWHM:
35°
Cd/Im:
1.8
Interconnect: 641a 47460 Bender + Wirth 630 3Hook
Download
LUMILEDS CX Plus (Gen 2) S01 White
Eff:
86.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 634c 47867 Bender + Wirth 630 3Hook
Download

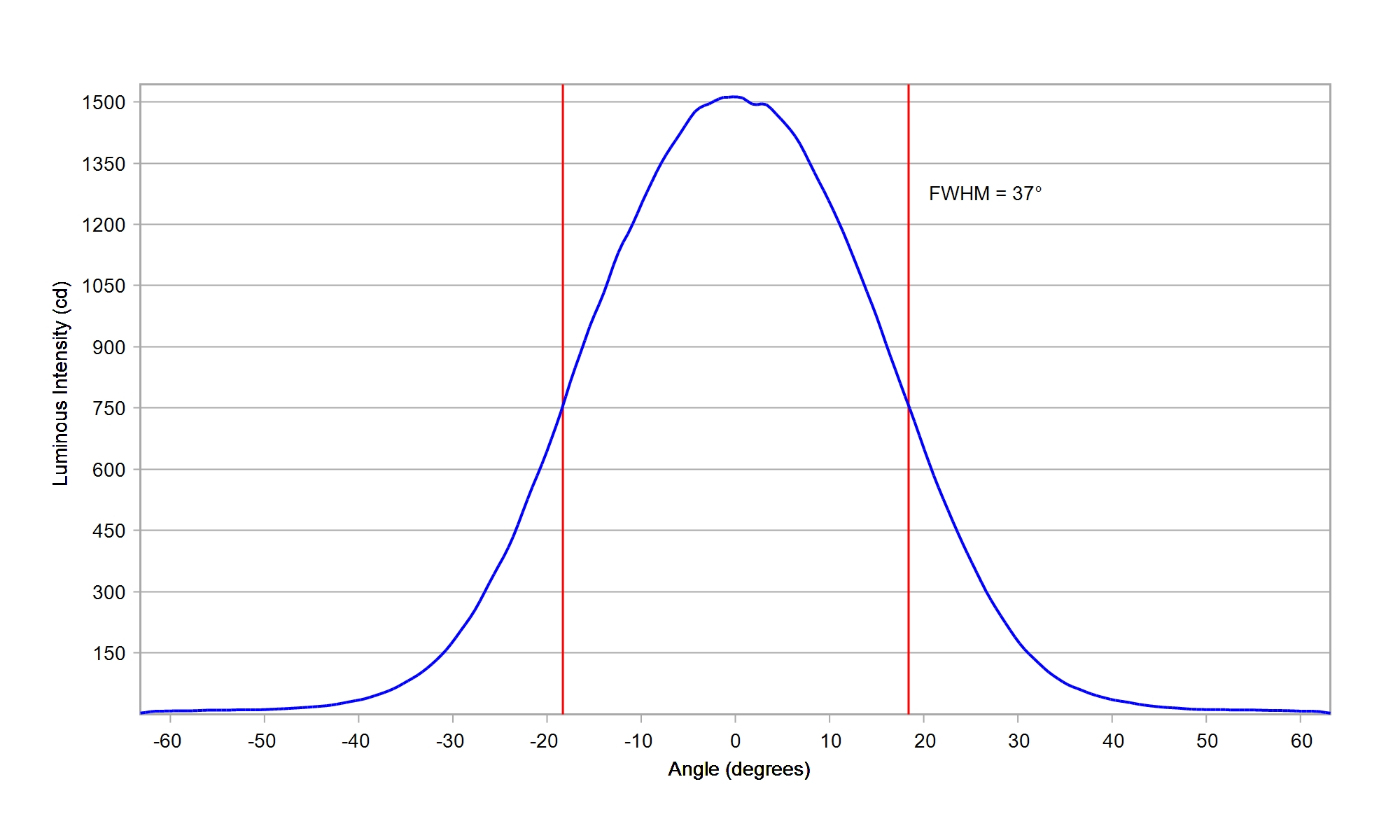

LUMILEDS LUXEON 1202
Eff:
86.0%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 638b 47877 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1202 HD
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 652a 47456 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1202s
Eff:
85.0%
FWHM:
35°
Cd/Im:
2.0
Interconnect: 652a 47456 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1203
Eff:
87.0%
FWHM:
36°
Cd/Im:
2.0
Interconnect: 0005 Molex 180580
Download
LUMILEDS LUXEON 1203
Eff:
86.5%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 638b 47877 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1203
Eff:
84.5%
FWHM:
36.5°
Cd/Im:
1.8
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS LUXEON 1204
Eff:
82.5%
FWHM:
39.5°
Cd/Im:
1.5
Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS LUXEON 1204
Eff:
83.5%
FWHM:
39°
Cd/Im:
1.6
Interconnect: 632a 47580 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1204 HD
Eff:
85.0%
FWHM:
36.5°
Cd/Im:
1.9
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS LUXEON 1204 HD
Eff:
87.5%
FWHM:
36.5°
Cd/Im:
2.0
Interconnect: 0005 Molex 180580
Download
LUMILEDS LUXEON 1204 HD
Eff:
86.5%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 638b 47877 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1205
Eff:
83.0%
FWHM:
39°
Cd/Im:
1.5
Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS LUXEON 1205 HD
Eff:
86.0%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 638b 47877 Bender + Wirth 630 3Hook
Download

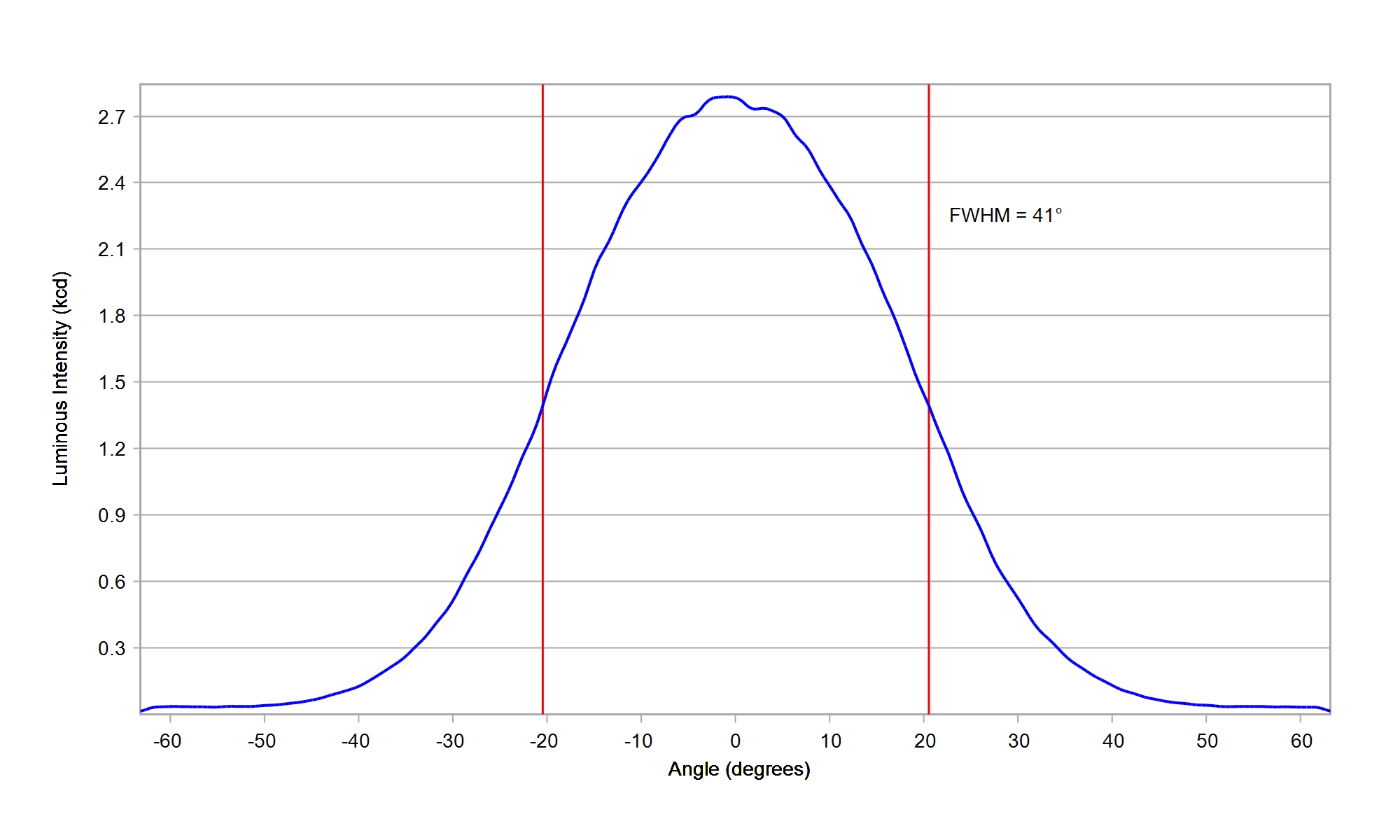

LUMILEDS LUXEON 1208
Eff:
83.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1
Download
LUMILEDS LUXEON 1208 E15
Eff:
84.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 632a 47580 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1208 F15
Eff:
84.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 632a 47580 Bender + Wirth 630 3Hook
Download

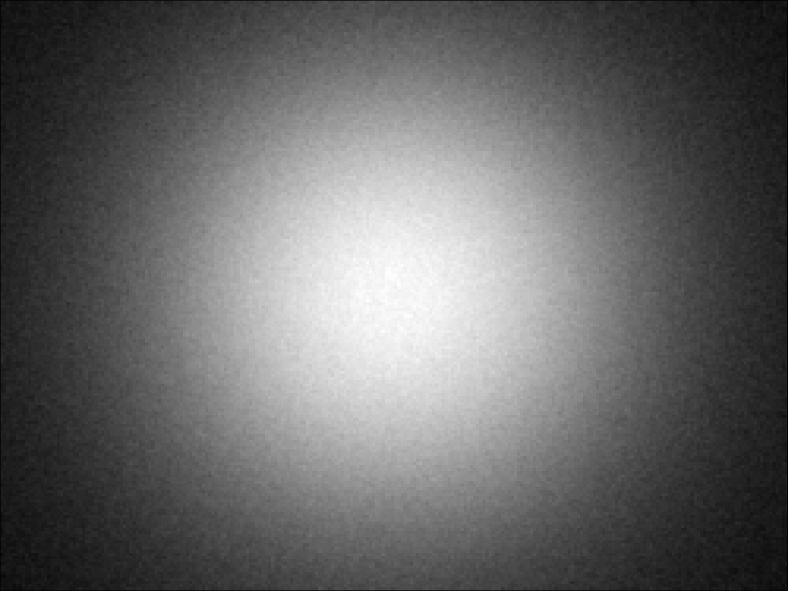

LUMILEDS LUXEON 1211 E19
Eff:
83.0%
FWHM:
46°
Cd/Im:
1.1
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1211 F19
Eff:
83.0%
FWHM:
46°
Cd/Im:
1.1
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1216 E23
Eff:
78.5%
FWHM:
51°
Cd/Im:
0.8
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1216 F23
Eff:
79.5%
FWHM:
51°
Cd/Im:
0.8
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON 1812
Eff:
79.5%
FWHM:
50°
Cd/Im:
0.8
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
LUMILEDS LUXEON HD S04H9
Eff:
85.5%
FWHM:
37°
Cd/Im:
1.8
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CDM-14 TW
Eff:
81.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: 632b 47858 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CXM-11 White
Eff:
85.5%
FWHM:
39°
Cd/Im:
1.6
Interconnect: 633a 47562 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CXM-11 White
Eff:
83.0%
FWHM:
39°
Cd/Im:
1.5
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Luminus Devices COB CXM-14 White
Eff:
84.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633a 47562 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CXM-14 White
Eff:
82.0%
FWHM:
41°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Luminus Devices COB CXM-3 White
Eff:
87.5%
FWHM:
33°
Cd/Im:
2.3
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CXM-6 White
Eff:
86.0%
FWHM:
35°
Cd/Im:
2.0
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Luminus Devices COB CXM-9 White
Eff:
85.0%
FWHM:
38°
Cd/Im:
1.8
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Nichia 024Z
Eff:
86.5%
FWHM:
38°
Cd/Im:
1.8
Interconnect: 0005 Molex 180580
Download
Nichia 024Z
Eff:
84.5%
FWHM:
37.5°
Cd/Im:
1.7
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia L 016 Z
Eff:
87.0%
FWHM:
36.5°
Cd/Im:
2.1
Interconnect: 0005 Molex 180580
Download
Nichia L 016 Z
Eff:
84.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia NFCWJ 108B White
Eff:
84.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: 663a 47947 Bender + Wirth 630 3Hook
Download
Nichia NFCWJ 108B White
Eff:
83.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia NFCWL 036B White
Eff:
86.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 638a 47466 Bender + Wirth 630 3Hook
Download
Nichia NFCWL 036B White
Eff:
85.0%
FWHM:
36°
Cd/Im:
1.9
Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia NFCWL 036B White
Eff:
87.0%
FWHM:
36°
Cd/Im:
2.0
Interconnect: 0005 Molex 180580
Download
Nichia NFCWL 060B White
Eff:
86.0%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 638a 47466 Bender + Wirth 630 3Hook
Download

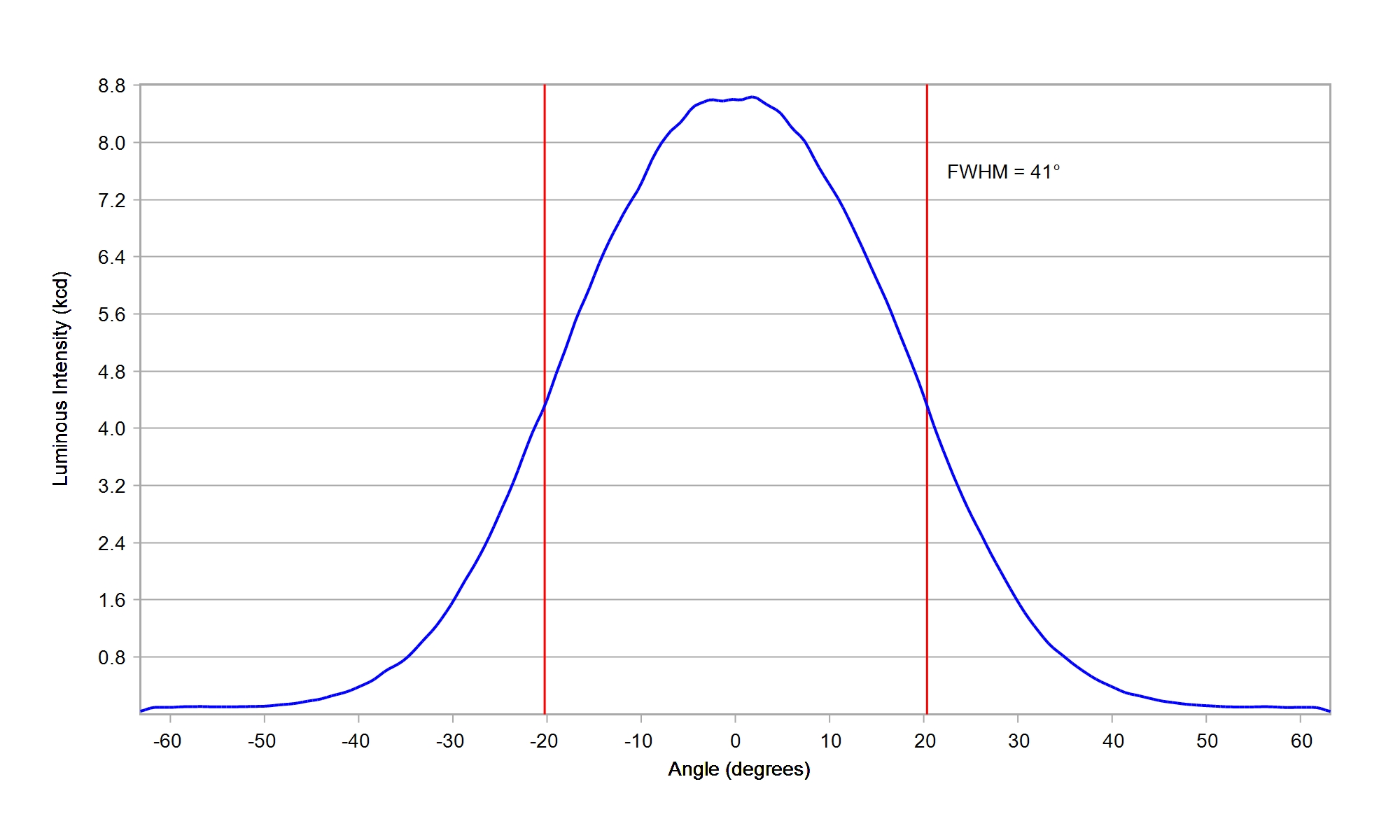

Nichia NFDWJ 130B White
Eff:
84.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 663a 47947 Bender + Wirth 630 3Hook
Download
Nichia NFDWJ 130B White
Eff:
83.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia NJCW S024Z White
Eff:
86.0%
FWHM:
36°
Cd/Im:
2.0
Interconnect: 652a 47456 Bender + Wirth 630 3Hook
Download
Nichia NTCWS 024B White
Eff:
86.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 652a 47456 Bender + Wirth 630 3Hook
Download
Nichia NVCWL 024Z White
Eff:
86.0%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 638a 47466 Bender + Wirth 630 3Hook
Download
Nichia NVEWJ 048Z White
Eff:
83.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 663a 47947 Bender + Wirth 630 3Hook
Download
Nichia NVEWJ 048Z White
Eff:
83.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1
Download
Nichia NVEWL 016Z White
Eff:
86.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 638a 47466 Bender + Wirth 630 3Hook
Download
Nichia NVNWS 007Z White
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 652a 47456 Bender + Wirth 630 3Hook
Download
Osram OS SOLERIQ S19 KAHQB2
Eff:
81.5%
FWHM:
44.5°
Cd/Im:
1.1
Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung C Series LC010C White
Eff:
87.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Samsung C Series LC020C White
Eff:
85.0%
FWHM:
36°
Cd/Im:
1.8
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung C Series LC020C White
Eff:
87.0%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Samsung C Series LC030C White
Eff:
86.5%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Samsung C Series LC030C White
Eff:
84.5%
FWHM:
38°
Cd/Im:
1.6
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung C Series LC040C White
Eff:
86.5%
FWHM:
38°
Cd/Im:
1.7
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Samsung C Series LC040C White
Eff:
84.0%
FWHM:
38°
Cd/Im:
1.6
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung D Series LC006D White
Eff:
86.0%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Samsung D Series LC009D White
Eff:
85.5%
FWHM:
36°
Cd/Im:
1.9
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Samsung D Series LC013D White
Eff:
85.5%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Samsung D Series LC016D White
Eff:
83.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung D Series LC019D White
Eff:
83.5%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung D Series LC026D White
Eff:
82.5%
FWHM:
42°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download

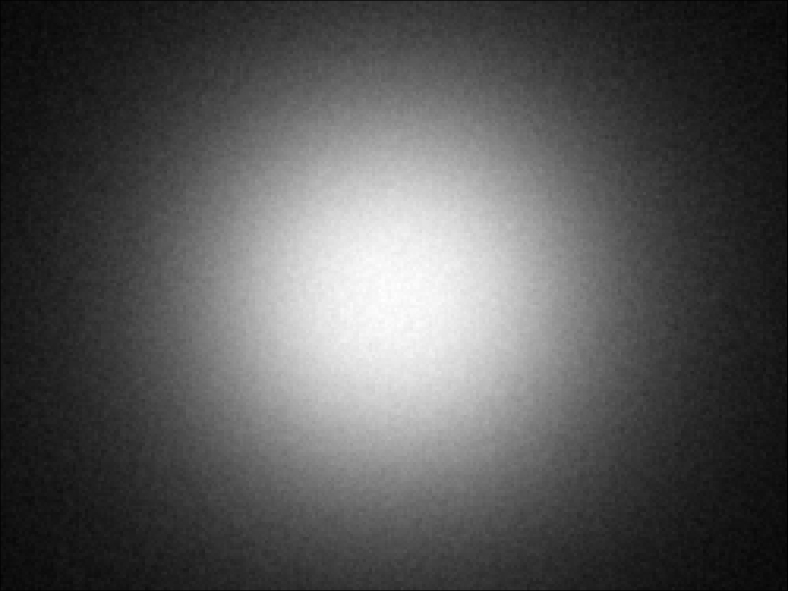

Samsung D Series LC033D White
Eff:
83.5%
FWHM:
39°
Cd/Im:
1.5
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Samsung D Series LC040D White
Eff:
82.0%
FWHM:
45°
Cd/Im:
1.0
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Samsung D Series LC060D White
Eff:
81.0%
FWHM:
47°
Cd/Im:
1.0
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Samsung D Series LC080D White
Eff:
81.5%
FWHM:
46°
Cd/Im:
1.0
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Seoul MJT COB S4WM-1564 White
Eff:
83.0%
FWHM:
42°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download

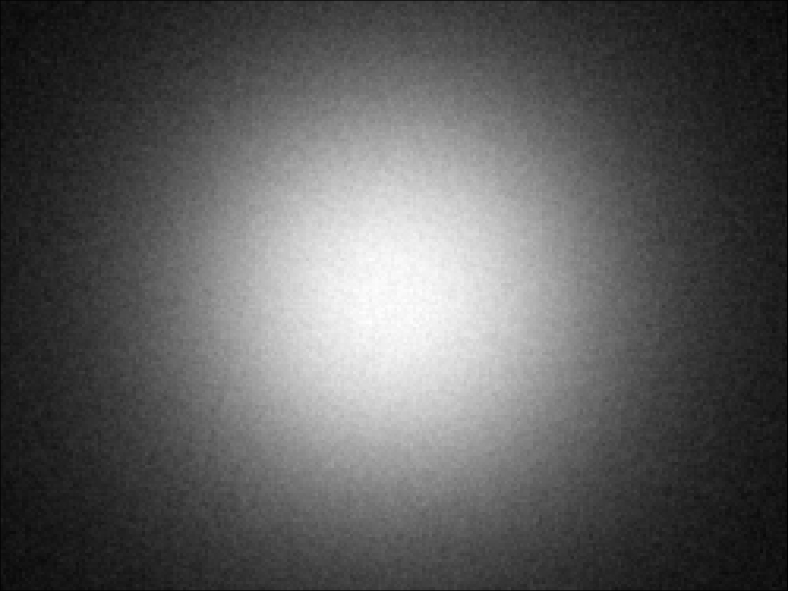

Seoul MJT COB S4WM-1565 White
Eff:
83.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download

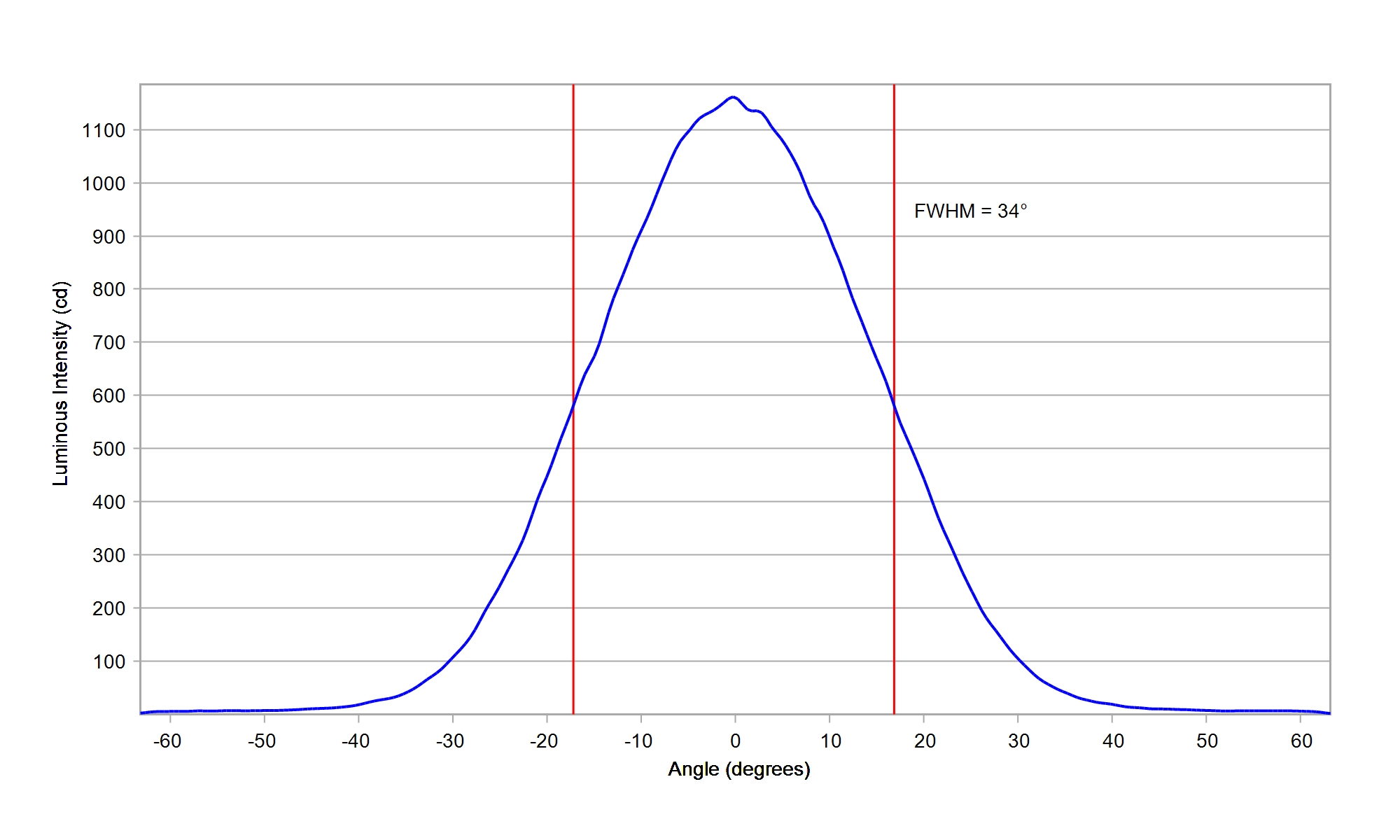

Seoul SAWS0661A White
Eff:
87.5%
FWHM:
34°
Cd/Im:
2.2
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download
Seoul SAWS1063A White
Eff:
86.5%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download
Seoul SAWS1564A White
Eff:
84.5%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Seoul SAWS1564A White
Eff:
82.5%
FWHM:
41°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Seoul SAWS1566A White
Eff:
82.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Seoul SAWS1566A White
Eff:
79.5%
FWHM:
41°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Seoul SAWS226AA White
Eff:
78.0%
FWHM:
50°
Cd/Im:
0.8
Interconnect: 631a 47582 Bender + Wirth 630 3Hook
Download
Tridonic COB SLE GEN7 LES13 White
Eff:
85.5%
FWHM:
40°
Cd/Im:
1.5
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Tridonic COB SLE GEN7 LES13 White
Eff:
83.5%
FWHM:
40°
Cd/Im:
1.5
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Tridonic COB SLE GEN7 LES15 White
Eff:
85.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Tridonic COB SLE GEN7 LES15 White
Eff:
83.0%
FWHM:
41°
Cd/Im:
1.3
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
Tridonic COB SLE GEN7 LES9 White
Eff:
86.0%
FWHM:
37°
Cd/Im:
1.9
Interconnect: 634a 47441 Bender + Wirth 630 3Hook
Download
Vossloh-Schwabe COB VCA102-830 White
Eff:
86.5%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download
Vossloh-Schwabe COB VCA1210-830 White
Eff:
83.0%
FWHM:
43°
Cd/Im:
1.2
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download

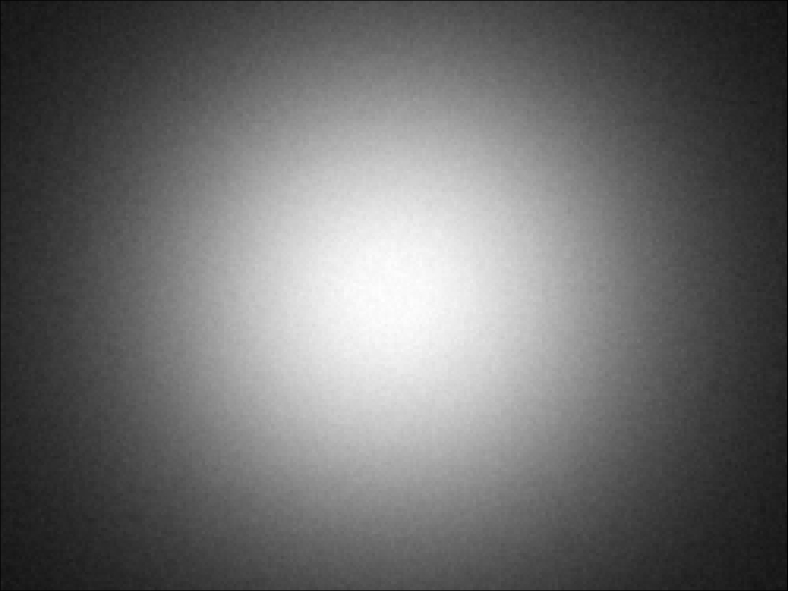

Vossloh-Schwabe COB VCA1212-830 White
Eff:
81.5%
FWHM:
47°
Cd/Im:
1.0
Interconnect: 631b 47583 Bender + Wirth 630 3Hook
Download
Vossloh-Schwabe COB VCA123-830 White
Eff:
84.5%
FWHM:
37°
Cd/Im:
1.8
Interconnect: 634b 47863 Bender + Wirth 630 3Hook
Download

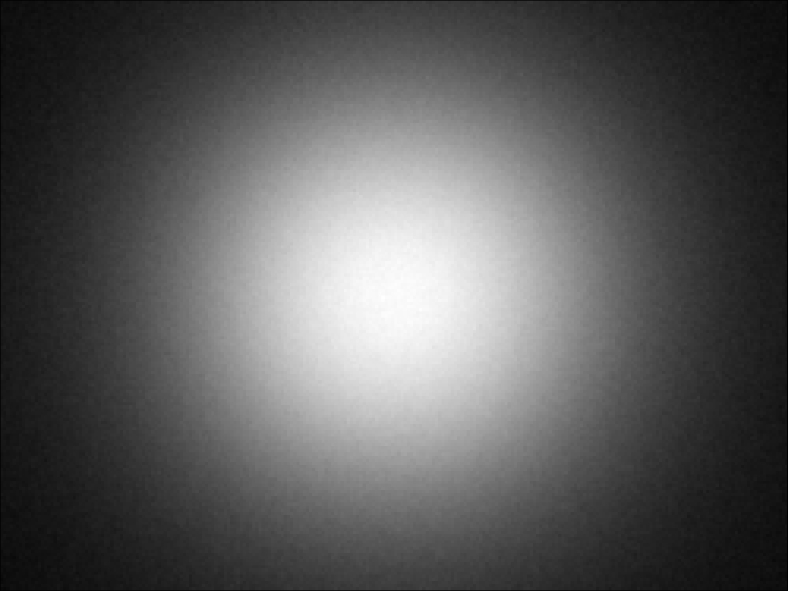

Vossloh-Schwabe COB VCA125-830 White
Eff:
85.0%
FWHM:
40°
Cd/Im:
1.5
Interconnect: 633c 47564 Bender + Wirth 630 3Hook
Download
Vossloh-Schwabe COB VCA125-830 White
Eff:
83.0%
FWHM:
40°
Cd/Im:
1.4
Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1
Download
