67mm Medium Spot Plain Silicone | Carclo Optics

60038 Silicone Optic

67mm Medium Spot Plain Silicone

Part number

60038

Dimensions

67mm

Optic type

Silicone

Finish

Plain

Beam type

Medium Spot

Applications

Architectural

Retail

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux V Series V10B Gen 8

Eff:

85.0%

FWHM:

28.5°

Cd/Im:

2.6

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Bridgelux_V Series_V10B_spot-image

Carclo Optics – 60038 – Bridgelux_V Series_V10B_cross section

Download

IES

Bridgelux V Series V13B Gen8

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 – Bridgelux_V Series_V13B_spot-image

Carclo Optics – 60038 – Bridgelux_V Series_V13B_cross section

Download

IES

Bridgelux V Series V13B Gen8

Eff:

84.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Bridgelux_V Series_V13B_spot-image

Carclo Optics – 60038 – Bridgelux_V Series_V13B_cross section

Download

IES

Bridgelux V Series V22C White

Eff:

83.0%

FWHM:

42°

Cd/Im:

1.1

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Bridgelux V22C - Spot Image

Carclo Optics – 60038 Bridgelux V22C - Cross Section

Download

IES

Bridgelux V Series V6 HD White

Eff:

87.5%

FWHM:

21.5°

Cd/Im:

3.7

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Bridgelux V6 HD - Spot Image

Carclo Optics – 60038 Bridgelux V6 HD - Cross Section

Download

IES

Bridgelux V Series V6 White

Eff:

86.5%

FWHM:

20°

Cd/Im:

4.1

Interconnect: 660a 47957 Bender + Wirth 630 3Hook

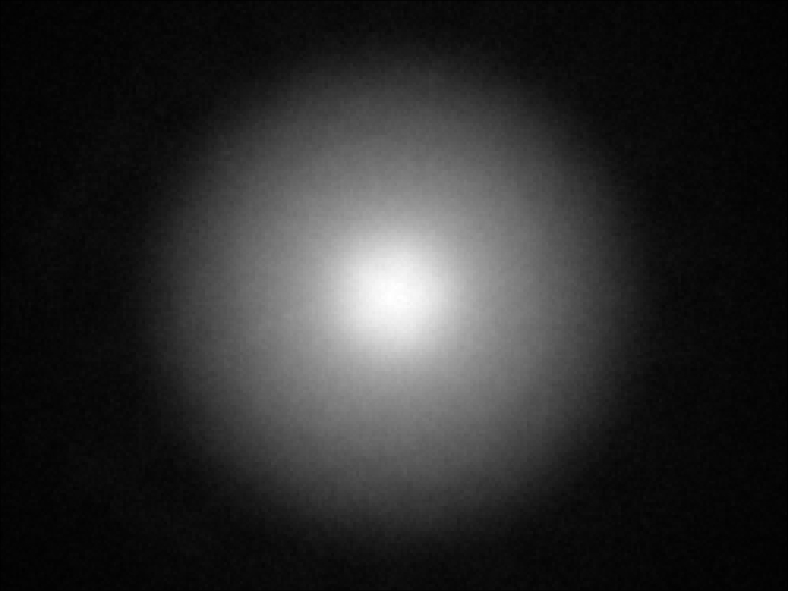

Carclo Optics – 60038 Bridgelux V6 - Spot Image

Carclo Optics – 60038 Bridgelux V6 - Cross Section

Download

IES

Bridgelux V Series V8E White

Eff:

86.5%

FWHM:

25°

Cd/Im:

3.2

Interconnect: 660a 47957 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Bridgelux V8 - Spot Image

Carclo Optics – 60038 Bridgelux V8 - Cross Section

Download

IES

Bridgelux V Series V9 HD White

Eff:

87.5%

FWHM:

27.5°

Cd/Im:

2.8

Interconnect: 633d 47565 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Bridgelux V9 HD - Spot Image

Carclo Optics – 60038 Bridgelux V9 HD - Cross Section

Download

IES

Citizen CITILED COB CLU02J White

Eff:

84.5%

FWHM:

30°

Cd/Im:

2.4

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU02J - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU02J - Cross Section

Download

IES

Citizen CITILED COB CLU03J White

Eff:

84.5%

FWHM:

37°

Cd/Im:

1.6

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU03J - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU03J - Cross Section

Download

IES

Citizen CITILED COB CLU03J White

Eff:

83.0%

FWHM:

37°

Cd/Im:

1.5

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Citizen CITILED COB CLU03J - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU03J - Cross Section

Download

IES

Citizen CITILED COB CLU04J White

Eff:

80.0%

FWHM:

44°

Cd/Im:

1.0

Interconnect: 631a 47582 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU04J - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU04J - Cross Section

Download

IES

Citizen CITILED COB CLU702 White

Eff:

85.5%

FWHM:

21.5°

Cd/Im:

3.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU702 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU702 - Cross Section

Download

IES

Citizen CITILED COB CLU712 White

Eff:

86.5%

FWHM:

27°

Cd/Im:

2.8

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU712 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU712 - Cross Section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

85.0%

FWHM:

16°

Cd/Im:

4.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

84.5%

FWHM:

16°

Cd/Im:

4.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

optic-60038-Citizen_CITILED COB_CLU7A2-spot-image.jpg

optic-60038-Citizen_CITILED COB_CLU7A2-cross-section-image.jpg

Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

85.0%

FWHM:

13.5°

Cd/Im:

5.9

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 60038 – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Citizen CITILED VIVID CLU028 White

Eff:

85.0%

FWHM:

29.5°

Cd/Im:

2.5

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU028 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU028 - Cross Section

Download

IES

Citizen CITILED VIVID CLU038 White

Eff:

86.0%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU038 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU038 - Cross Section

Download

IES

Citizen CITILED VIVID CLU038 White

Eff:

84.0%

FWHM:

36°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Citizen CITILED COB CLU038 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU038 - Cross Section

Download

IES

Citizen CITILED VIVID CLU048 White

Eff:

81.5%

FWHM:

43°

Cd/Im:

1.0

Interconnect: 631a 47582 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU048 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU048 - Cross Section

Download

IES

Citizen CITILED VIVID CLU701 White

Eff:

86.5%

FWHM:

21°

Cd/Im:

3.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU701 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU701 - Cross Section

Download

IES

Citizen CITILED VIVID CLU711 White

Eff:

86.0%

FWHM:

27°

Cd/Im:

2.8

Interconnect: 633a 47563 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU711 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU711 - Cross Section

Download

IES

Citizen CITILED VIVID CLU721 White

Eff:

86.0%

FWHM:

32°

Cd/Im:

2.2

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU721 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU721 - Cross Section

Download

IES

Citizen CITILED VIVID CLU721 White

Eff:

84.0%

FWHM:

32°

Cd/Im:

2.1

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Citizen CITILED COB CLU721 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU721 - Cross Section

Download

IES

Citizen CITILED VIVID CLU731 White

Eff:

85.0%

FWHM:

35°

Cd/Im:

1.8

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Citizen CITILED COB CLU731 - Spot Image

Carclo Optics – 60038 Citizen CITILED COB CLU731 - Cross Section

Download

IES

Cree CMT 1930

Eff:

83.5%

FWHM:

36.5°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CHA0304 White

Eff:

85.5%

FWHM:

13°

Cd/Im:

6.1

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0410 White

Eff:

86.0%

FWHM:

16°

Cd/Im:

4.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0612 White

Eff:

86.0%

FWHM:

21°

Cd/Im:

3.7

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0825 White

Eff:

83.5%

FWHM:

27°

Cd/Im:

2.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Cross Section

Download

IES

Cree XLamp CHA0825 White

Eff:

86.0%

FWHM:

27°

Cd/Im:

2.8

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMA1303 White

Eff:

86.5%

FWHM:

16.5°

Cd/Im:

79.8

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Cree_Xlamp_CMA 1303_spot-image

Carclo Optics – 60038 – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMA1306 White

Eff:

86.5%

FWHM:

20.5°

Cd/Im:

3.9

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMA1306

Carclo Optics – 60038 Cross Section Cree CMA1306

Download

IES

Cree XLamp CMA1516 White

Eff:

87.0%

FWHM:

28°

Cd/Im:

2.7

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMA1516

Carclo Optics – 60038 Cross Section Cree CMA1516

Download

IES

Cree XLamp CMA1825 White

Eff:

85.0%

FWHM:

34°

Cd/Im:

1.9

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

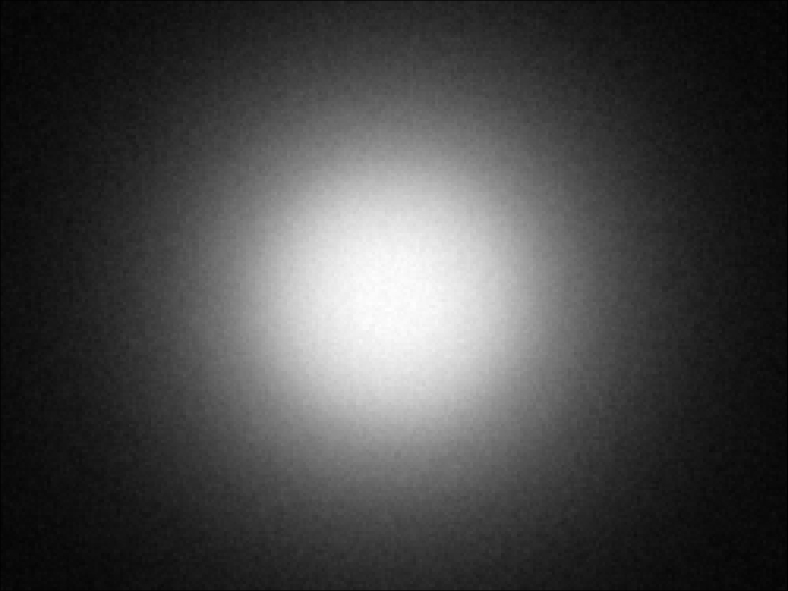

Carclo Optics – 60038 Spot Image Cree CMA1825

Carclo Optics – 60038 Cross Section Cree CMA1825

Download

IES

Cree XLamp CMA1825 White

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.0

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMA1825

Carclo Optics – 60038 Cross Section Cree CMA1825

Download

IES

Cree XLamp CMA1840 White

Eff:

86.0%

FWHM:

37°

Cd/Im:

1.8

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMA1840

Carclo Optics – 60038 Cross Section Cree CMA1840

Download

IES

Cree XLamp CMA2550 White

Eff:

84.0%

FWHM:

40°

Cd/Im:

1.3

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMA2550

Carclo Optics – 60038 Cross Section Cree CMA2550

Download

IES

Cree XLamp CMA2550 White

Eff:

82.5%

FWHM:

41°

Cd/Im:

1.2

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Spot Image Cree CMA2550

Carclo Optics – 60038 Cross Section Cree CMA2550

Download

IES

Cree XLamp CMB1304 White

Eff:

86.0%

FWHM:

20.5°

Cd/Im:

3.7

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1306 White

Eff:

86.0%

FWHM:

20.5°

Cd/Im:

3.7

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1510 White

Eff:

85.5%

FWHM:

27.5°

Cd/Im:

2.7

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1516 White

Eff:

85.5%

FWHM:

28°

Cd/Im:

2.6

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1818 White

Eff:

86.0%

FWHM:

34°

Cd/Im:

2.0

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1818 White

Eff:

84.0%

FWHM:

34°

Cd/Im:

1.9

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Cross Section

Download

IES

Cree XLamp CMB1825 White

Eff:

84.0%

FWHM:

34°

Cd/Im:

1.8

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Cross Section

Download

IES

Cree XLamp CMB1825 White

Eff:

85.5%

FWHM:

34°

Cd/Im:

1.9

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1840 White

Eff:

85.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB2550 White

Eff:

83.0%

FWHM:

42°

Cd/Im:

1.2

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMT1412 White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT1412

Carclo Optics – 60038 Cross Section Cree CMT1412

Download

IES

Cree XLamp CMT1420 White

Eff:

86.0%

FWHM:

29°

Cd/Im:

2.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT1420

Carclo Optics – 60038 Cross Section Cree CMT1420

Download

IES

Cree XLamp CMT1922 White

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.8

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT1922

Carclo Optics – 60038 Cross Section Cree CMT1922

Download

IES

Cree XLamp CMT1922 White

Eff:

84.0%

FWHM:

37°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Spot Image Cree CMT1922

Carclo Optics – 60038 Cross Section Cree CMT1922

Download

IES

Cree XLamp CMT1930 White

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT1930

Carclo Optics – 60038 Cross Section Cree CMT1930

Download

IES

Cree XLamp CMT1945 White

Eff:

85.0%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT1945

Carclo Optics – 60038 Cross Section Cree CMT1945

Download

IES

Cree XLamp CMT1945 White

Eff:

84.0%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Spot Image Cree CMT1945

Carclo Optics – 60038 Cross Section Cree CMT1945

Download

IES

Cree XLamp CMT2850 White

Eff:

83.0%

FWHM:

44°

Cd/Im:

1.0

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT2850

Carclo Optics – 60038 Cross Section Cree CMT2850

Download

IES

Cree XLamp CMT2870 White

Eff:

83.0%

FWHM:

44°

Cd/Im:

1.0

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT2870

Carclo Optics – 60038 Cross Section Cree CMT2870

Download

IES

Cree XLamp CMT2890 White

Eff:

83.5%

FWHM:

43°

Cd/Im:

1.0

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CMT2890

Carclo Optics – 60038 Cross Section Cree CMT2890

Download

IES

Cree XLamp CMU1003 White

Eff:

85.5%

FWHM:

29°

Cd/Im:

2.5

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1006 White

Eff:

85.5%

FWHM:

29.5°

Cd/Im:

2.5

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1010 White

Eff:

85.0%

FWHM:

29.5°

Cd/Im:

2.4

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1013 White

Eff:

85.5%

FWHM:

29°

Cd/Im:

2.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1516 White

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1519 White

Eff:

85.0%

FWHM:

38°

Cd/Im:

1.6

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1526 White

Eff:

85.0%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1532 White

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CXB 2540

Eff:

83.0%

FWHM:

40.0°

Cd/Im:

1.3

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Cree CXB 2540

Carclo Optics - 60038 Silicone S1 Cross Section Cree CXB 2540

Download

IES

Cree XLamp CXB1304 White

Eff:

87.0%

FWHM:

20°

Cd/Im:

4.1

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1304

Carclo Optics – 60038 Cross Section Cree CXB1304

Download

IES

Cree XLamp CXB1310 White

Eff:

87.0%

FWHM:

21°

Cd/Im:

3.8

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1310

Carclo Optics – 60038 Cross Section Cree CXB1310

Download

IES

Cree XLamp CXB1507 White

Eff:

87.0%

FWHM:

28°

Cd/Im:

2.7

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1507

Carclo Optics – 60038 Cross Section Cree CXB1507

Download

IES

Cree XLamp CXB1520 White

Eff:

86.5%

FWHM:

28.5°

Cd/Im:

2.7

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1520

Carclo Optics – 60038 Cross Section Cree CXB1520

Download

IES

Cree XLamp CXB1816 White

Eff:

72.5%

FWHM:

34°

Cd/Im:

1.8

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1816

Carclo Optics – 60038 Cross Section Cree CXB1816

Download

IES

Cree XLamp CXB1816 White

Eff:

71.0%

FWHM:

33°

Cd/Im:

1.8

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Spot Image Cree CXB1816

Carclo Optics – 60038 Cross Section Cree CXB1816

Download

IES

Cree XLamp CXB1816 White

Eff:

77.5%

FWHM:

33.5°

Cd/Im:

1.9

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Cree CXB CoB 1816

Carclo Optics - 60038 Silicone S1 Cross Section Cree CXB CoB 1816

Download

IES

Cree XLamp CXB1820 White

Eff:

84.0%

FWHM:

33.5°

Cd/Im:

2.0

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Cree CXB 1820

Carclo Optics 60038 Silicone S1 Cross Section Cree CXB 1820

Download

IES

Cree XLamp CXB1820 White

Eff:

87.0%

FWHM:

34°

Cd/Im:

2.1

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1820

Carclo Optics – 60038 Cross Section Cree CXB1820

Download

IES

Cree XLamp CXB1830

Eff:

77.0%

FWHM:

35.5°

Cd/Im:

1.7

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Cree CXB CoB 1830

Carclo Optics - 60038 Silicone S1 Cross Section Cree CXB CoB 1830

Download

IES

Cree XLamp CXB1830 White

Eff:

86.5%

FWHM:

36°

Cd/Im:

1.8

Interconnect: 637b 47871 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB1830

Carclo Optics – 60038 Cross Section Cree CXB1830

Download

IES

Cree XLamp CXB2530

Eff:

83.5%

FWHM:

39°

Cd/Im:

1.3

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 _Image Spot_ Cree_CXB2530

Carclo Optics 60038 Silicone S1 _Cross Section_ Cree_CXB2530

Download

IES

Cree XLamp CXB2530 White

Eff:

85.0%

FWHM:

39°

Cd/Im:

1.4

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB2530

Carclo Optics – 60038 Cross Section Cree CXB2530

Download

IES

Cree XLamp CXB2540 White

Eff:

85.0%

FWHM:

40°

Cd/Im:

1.3

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Cree CXB2540

Carclo Optics – 60038 Cross Section Cree CXB2540

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) L04 White

Eff:

80.0%

FWHM:

33°

Cd/Im:

2.0

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luxeon CX Plus L04 – Spot - image

Carclo Optics – 60038 Luxeon CX Plus L04 - Cross section – image

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) L08 White

Eff:

79.0%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

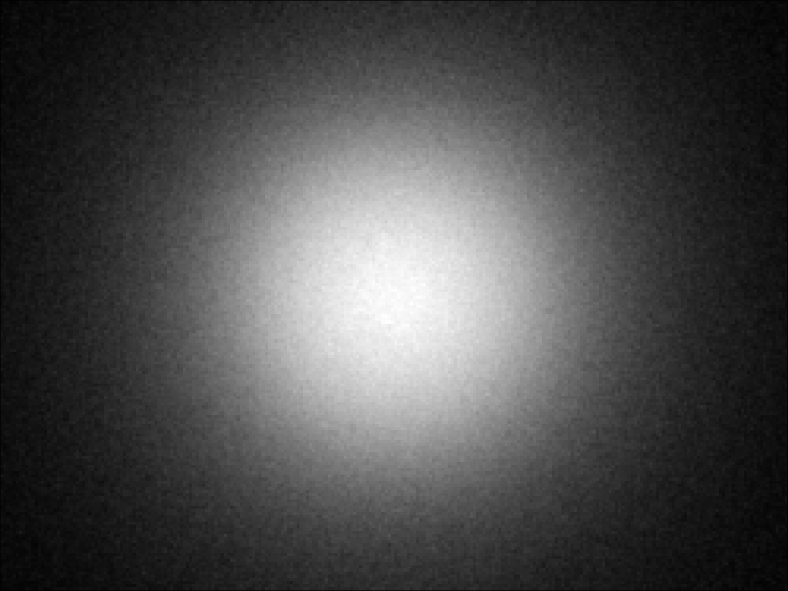

Carclo Optics – 60038 Luxeon CX Plus L08 – Spot - image

Carclo Optics – 60038 Luxeon CX Plus L08 - Cross section – image

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) M03 White

Eff:

84.5%

FWHM:

27.5°

Cd/Im:

2.6

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Carclo Optics - 60038 - Luxeon_CX_Plus_CoB_M03_WW-spot-image

Carclo Optics - 60038 - Luxeon_CX_Plus_CoB_M03_WW- cross vertical section

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) S01 White

Eff:

84.0%

FWHM:

19.5°

Cd/Im:

3.9

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luxeon CX Plus S01- Spot - image

Carclo Optics – 60038 Luxeon CX Plus S01- Cross section – image

Download

IES

LUMILEDS LUXEON 1202

Eff:

86.5%

FWHM:

28.5°

Cd/Im:

2.7

Interconnect: 638b 47877 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1202

Carclo Optics – 60038 Cross Section Luxeon 1202

Download

IES

LUMILEDS LUXEON 1202 HD

Eff:

86.5%

FWHM:

22.5°

Cd/Im:

3.5

Interconnect: 652a 47456 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1202 HD

Carclo Optics – 60038 Cross Section Luxeon 1202 HD

Download

IES

LUMILEDS LUXEON 1202s

Eff:

85.0%

FWHM:

22.5°

Cd/Im:

3.4

Interconnect: 652a 47456 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1202s

Carclo Optics – 60038 Cross Section Luxeon 1202s

Download

IES

LUMILEDS LUXEON 1203

Eff:

83.5%

FWHM:

28.0°

Cd/Im:

2.5

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1203

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1203

Download

IES

LUMILEDS LUXEON 1203

Eff:

85.5%

FWHM:

28.5°

Cd/Im:

2.7

Interconnect: 0005 Molex 180580

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1203

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1203

Download

IES

LUMILEDS LUXEON 1203

Eff:

86.5%

FWHM:

28°

Cd/Im:

2.7

Interconnect: 638b 47877 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1203

Carclo Optics – 60038 Cross Section Luxeon 1203

Download

IES

LUMILEDS LUXEON 1204

Eff:

84.0%

FWHM:

35°

Cd/Im:

1.9

Interconnect: 632a 47580 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1204

Carclo Optics – 60038 Cross Section Luxeon 1204

Download

IES

LUMILEDS LUXEON 1204

Eff:

82.0%

FWHM:

35°

Cd/Im:

1.7

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1204

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1204

Download

IES

LUMILEDS LUXEON 1204 HD

Eff:

87.0%

FWHM:

28.5°

Cd/Im:

2.6

Interconnect: 638b 47877 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1204 HD

Carclo Optics – 60038 Cross Section Luxeon 1204 HD

Download

IES

LUMILEDS LUXEON 1204 HD

Eff:

84.0%

FWHM:

28.0°

Cd/Im:

2.5

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Luxeon COB 1204 HD

Carclo Optics 60038 Silicone S1 Spot Image Luxeon COB 1204 HD

Download

IES

LUMILEDS LUXEON 1204 HD

Eff:

86.0%

FWHM:

28.5°

Cd/Im:

2.7

Interconnect: 0005 Molex 180580

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1204HD

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1204HD

Download

IES

LUMILEDS LUXEON 1205

Eff:

82.5%

FWHM:

35°

Cd/Im:

1.8

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Luxeon Cob 1205

Carclo Optics 60038 Silicone S1 Cross Section Luxeon Cob 1205

Download

IES

LUMILEDS LUXEON 1205 HD

Eff:

86.5%

FWHM:

33°

Cd/Im:

2.1

Interconnect: 638b 47877 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1205 HD

Carclo Optics – 60038 Cross Section Luxeon 1205 HD

Download

IES

LUMILEDS LUXEON 1205 HD

Eff:

84.0%

FWHM:

32.5°

Cd/Im:

2.0

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1205 HD

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1205 HD

Download

IES

LUMILEDS LUXEON 1205 HD

Eff:

85.5%

FWHM:

32°

Cd/Im:

2.3

Interconnect: 0005 Molex 180580

Carclo Optics - 60038 Silicone S1 Spot Image Luxeon CoB 1205 HD

Carclo Optics - 60038 Silicone S1 Cross Section Luxeon CoB 1205 HD

Download

IES

LUMILEDS LUXEON 1208

Eff:

84.0%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Luxeon Cob 1208

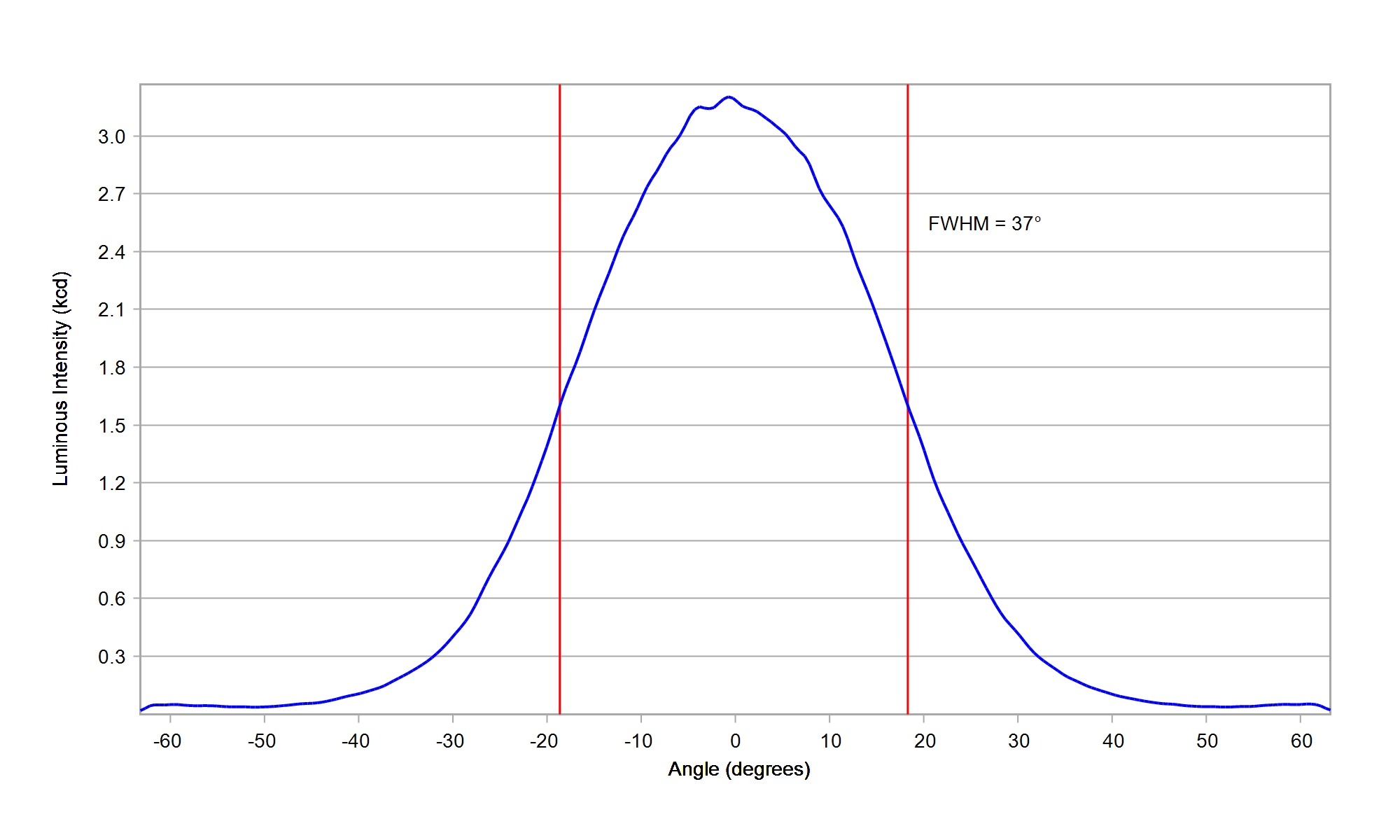

Carclo Optics 60038 Silicone S1 Cross Section Luxeon Cob 1208

Download

IES

LUMILEDS LUXEON 1208 E15

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 632a 47580 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1208

Carclo Optics – 60038 Cross Section Luxeon 1208

Download

IES

LUMILEDS LUXEON 1208 F15

Eff:

85.0%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 632a 47580 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1208

Carclo Optics – 60038 Cross Section Luxeon 1208

Download

IES

LUMILEDS LUXEON 1211 E19

Eff:

84.5%

FWHM:

41°

Cd/Im:

1.2

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1211

Carclo Optics – 60038 Cross Section Luxeon 1211

Download

IES

LUMILEDS LUXEON 1211 F19

Eff:

84.5%

FWHM:

41°

Cd/Im:

1.2

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1211

Carclo Optics – 60038 Cross Section Luxeon 1211

Download

IES

LUMILEDS LUXEON 1216 E23

Eff:

80.5%

FWHM:

45°

Cd/Im:

0.9

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1216

Carclo Optics – 60038 Cross Section Luxeon 1216

Download

IES

LUMILEDS LUXEON 1216 F23

Eff:

82.0%

FWHM:

45°

Cd/Im:

0.9

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1216

Carclo Optics – 60038 Cross Section Luxeon 1216

Download

IES

LUMILEDS LUXEON 1812

Eff:

81.5%

FWHM:

44°

Cd/Im:

1.0

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon 1812

Carclo Optics – 60038 Cross Section Luxeon 1812

Download

IES

LUMILEDS LUXEON HD S04H9

Eff:

86.0%

FWHM:

28.5°

Cd/Im:

2.6

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Spot Image Luxeon HD S04H9

Carclo Optics – 60038 Cross Section Luxeon HD S04H9

Download

IES

Luminus Devices COB CXM-11 White

Eff:

84.5%

FWHM:

34°

Cd/Im:

1.9

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Luminus COB CXM-11 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-11 - Cross Section

Download

IES

Luminus Devices COB CXM-11 White

Eff:

86.5%

FWHM:

34°

Cd/Im:

2.0

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luminus COB CXM-11 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-11 - Cross Section

Download

IES

Luminus Devices COB CXM-14 White

Eff:

85.5%

FWHM:

37°

Cd/Im:

1.6

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luminus COB CXM-14 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-14 - Cross Section

Download

IES

Luminus Devices COB CXM-14 White

Eff:

83.5%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Luminus COB CXM-14 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-14 - Cross Section

Download

IES

Luminus Devices COB CXM-6 White

Eff:

86.0%

FWHM:

23°

Cd/Im:

3.5

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luminus COB CXM-6 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-6 - Cross Section

Download

IES

Luminus Devices COB CXM-9 White

Eff:

85.5%

FWHM:

31°

Cd/Im:

2.4

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Luminus COB CXM-9 - Spot Image

Carclo Optics – 60038 Luminus COB CXM-9 - Cross Section

Download

IES

Nichia 024Z

Eff:

84.0%

FWHM:

31.5°

Cd/Im:

2.2

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

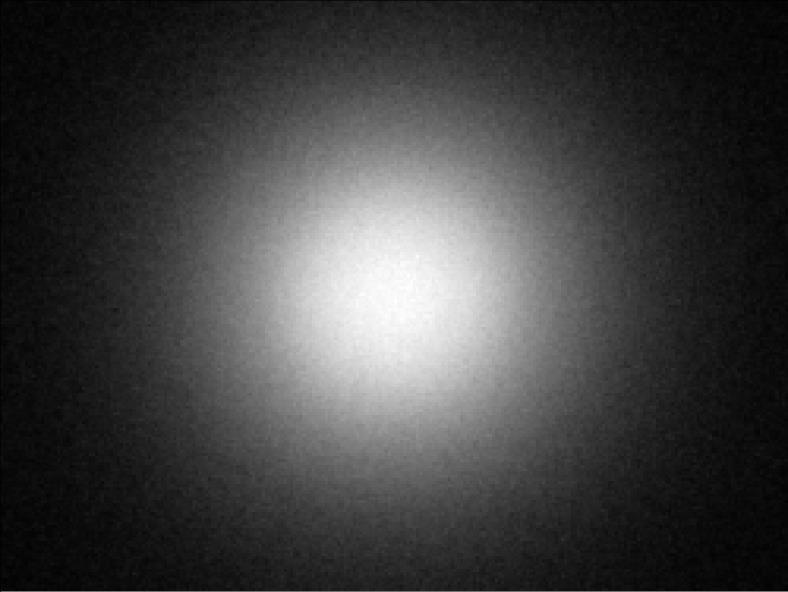

Carclo Optics - Simulated Spot Image

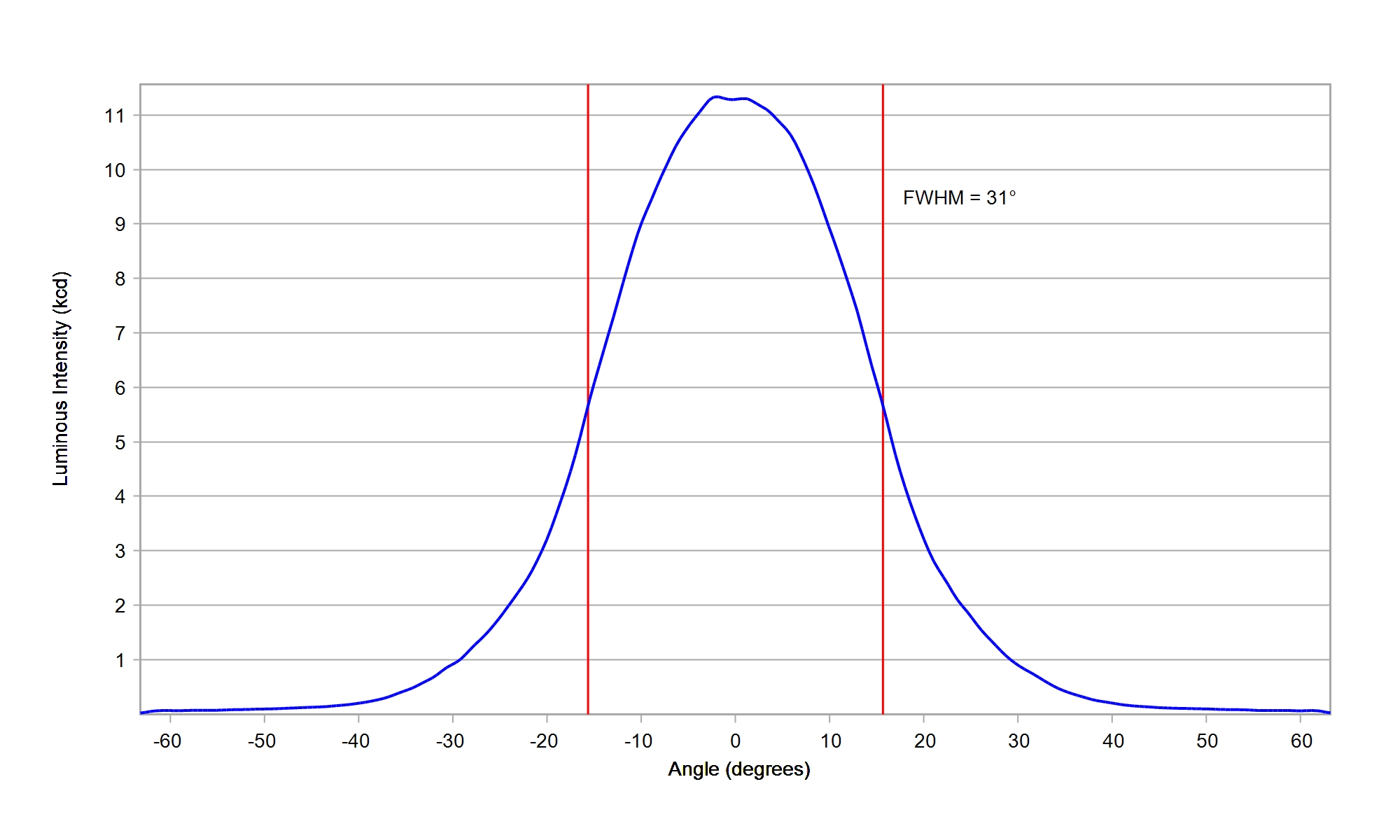

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 024Z

Eff:

85.5%

FWHM:

31.0°

Cd/Im:

2.5

Interconnect: 0005 Molex 180580

Carclo Optics - 60038 Silicone S1 Spot Image Nichia 024Z

Carclo Optics - 60038 Silicone S1 Cross Section Nichia 024Z

Download

IES

Nichia L 016 Z

Eff:

86.0%

FWHM:

27.5°

Cd/Im:

2.9

Interconnect: 0005 Molex 180580

Carclo Optics - 60038 Silicone S1 Spot Image Nichia L016Z

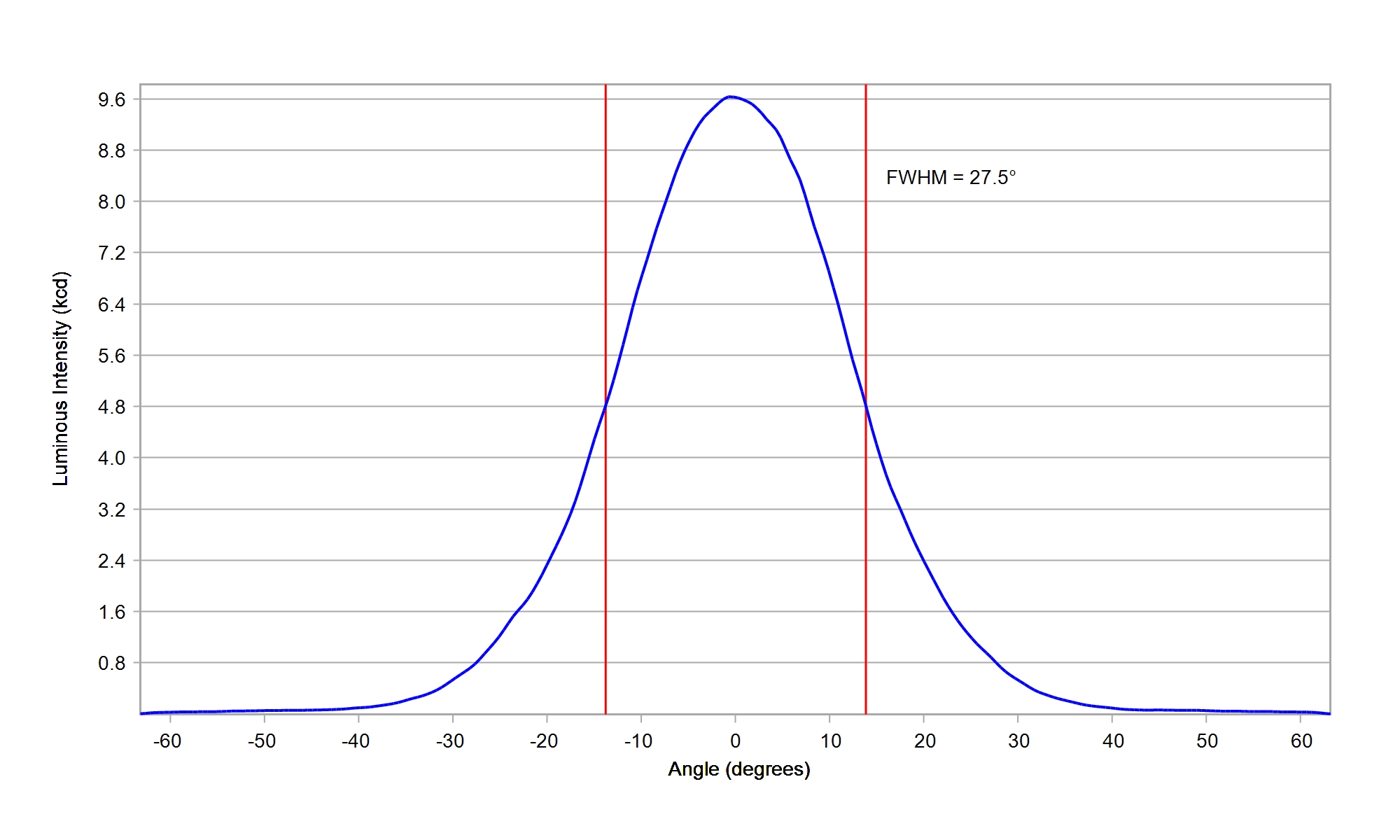

Carclo Optics - 60038 Silicone S1 Cross Section Nichia L016Z

Download

IES

Nichia L 016 Z

Eff:

84.0%

FWHM:

27.0°

Cd/Im:

2.7

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image L016Z

Carclo Optics - 60038 Silicone S1 Cross Section Nichia L016Z

Download

IES

Nichia NFCWJ 108B White

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Nichia NFCWJ108B-V4 - Spot Image

Carclo Optics – 60038 Nichia NFCWJ108B-V4 - Cross Section

Download

IES

Nichia NFCWJ 108B White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 663a 47947 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NFCWJ108B-V4 - Spot Image

Carclo Optics – 60038 Nichia NFCWJ108B-V4 - Cross Section

Download

IES

Nichia NFCWL 036B White

Eff:

84.0%

FWHM:

26.5°

Cd/Im:

2.7

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

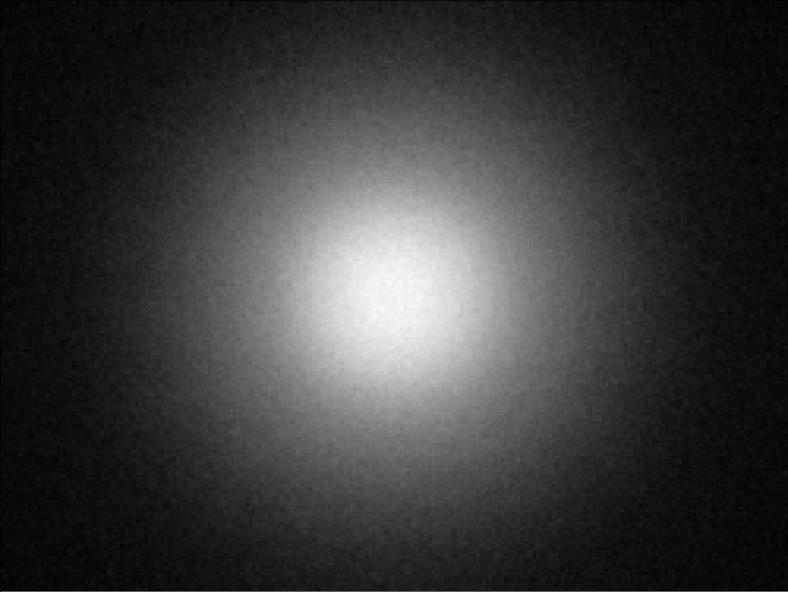

Carclo Optics 60038 Silicone S1 Spot Image Nichia 036B

Carclo Optics 60038 Silicone S1 Cross Section Nichia 036B

Download

IES

Nichia NFCWL 036B White

Eff:

86.0%

FWHM:

27.0°

Cd/Im:

2.9

Interconnect: 0005 Molex 180580

Carclo Optics 60038 Silicone S1 Spot Image Nichia 036B

Carclo Optics - 60038 Silicone S1 Cross Section Nichia 036B

Download

IES

Nichia NFCWL 036B White

Eff:

85.5%

FWHM:

26°

Cd/Im:

2.8

Interconnect: 638a 47466 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NFCWL036B-V4 - Spot Image

Carclo Optics – 60038 Nichia NFCWL036B-V4 - Cross Section

Download

IES

Nichia NFCWL 060B White

Eff:

85.0%

FWHM:

32°

Cd/Im:

2.1

Interconnect: 638a 47466 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NFCWL060B-V4 - Spot Image

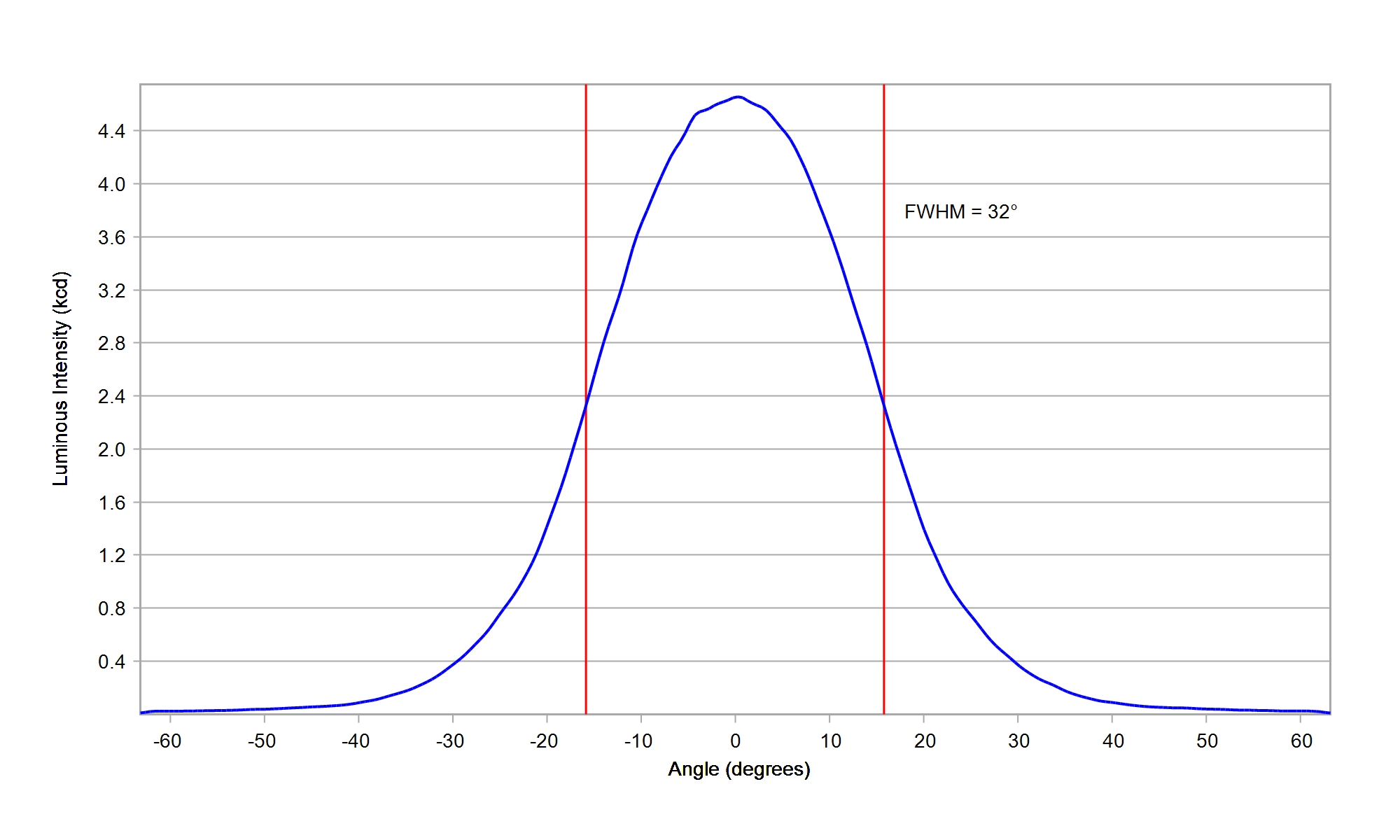

Carclo Optics – 60038 Nichia NFCWL060B-V4 - Cross Section

Download

IES

Nichia NFDWJ 130B White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 663a 47947 Bender + Wirth 630 3Hook

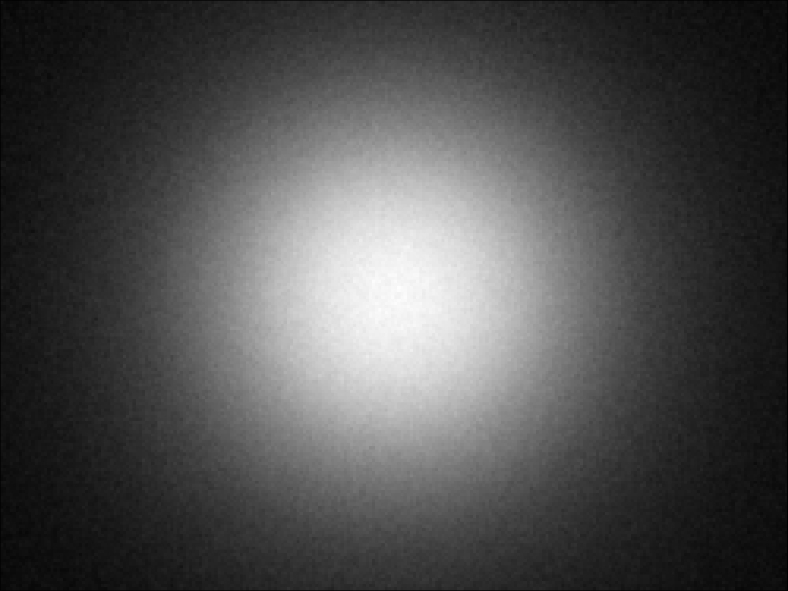

Carclo Optics – 60038 Nichia NFDWJ130B-V4 - Spot Image

Carclo Optics – 60038 Nichia NFDWJ130B-V4 - Cross Section

Download

IES

Nichia NFDWJ 130B White

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Nichia NFDWJ130B-V4 - Spot Image

Carclo Optics – 60038 Nichia NFDWJ130B-V4 - Cross Section

Download

IES

Nichia NJCW S024Z White

Eff:

84.5%

FWHM:

23°

Cd/Im:

3.3

Interconnect: 652a 47456 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NJCWS024Z-V1 - Spot Image

Carclo Optics – 60038 Nichia NJCWS024Z-V1 - Cross Section

Download

IES

Nichia NTCWS 024B White

Eff:

84.5%

FWHM:

22°

Cd/Im:

3.4

Interconnect: 652a 47456 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NTCWS024B-V4 - Spot Image

Carclo Optics – 60038 Nichia NTCWS024B-V4 - Cross Section

Download

IES

Nichia NVCWL 024Z White

Eff:

85.0%

FWHM:

31°

Cd/Im:

2.2

Interconnect: 638a 47466 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NVCWL024Z-V1 - Spot Image

Carclo Optics – 60038 Nichia NVCWL024Z-V1 - Cross Section

Download

IES

Nichia NVEWJ 048Z White

Eff:

83.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 663a 47947 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NVWJ048Z-V1 - Spot Image

Carclo Optics – 60038 Nichia NVWJ048Z-V1 - Cross Section

Download

IES

Nichia NVEWJ 048Z White

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE 2213580-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Nichia NVWJ048Z-V1 - Spot Image

Carclo Optics – 60038 Nichia NVWJ048Z-V1 - Cross Section

Download

IES

Nichia NVEWL 016Z White

Eff:

85.0%

FWHM:

27°

Cd/Im:

2.7

Interconnect: 638a 47466 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NVEWL016Z-V1 - Spot Image

Carclo Optics – 60038 Nichia NVEWL016Z-V1 - Cross Section

Download

IES

Nichia NVNWS 007Z White

Eff:

85.0%

FWHM:

19.5°

Cd/Im:

3.8

Interconnect: 652a 47456 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Nichia NVNWS007Z-V1 - Spot Image

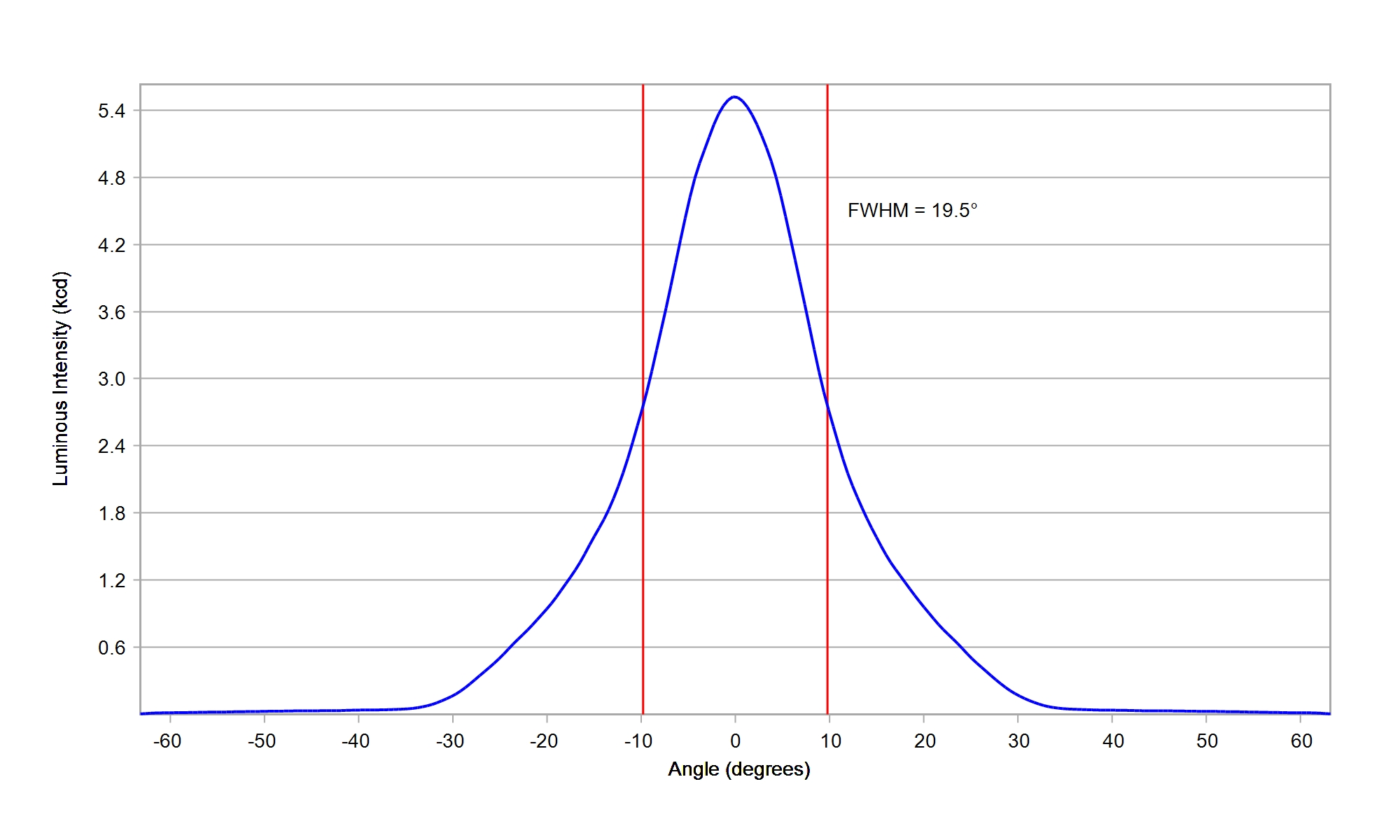

Carclo Optics – 60038 Nichia NVNWS007Z-V1 - Cross Section

Download

IES

Osram OS SOLERIQ S19 KAHQB2

Eff:

82.5%

FWHM:

40°

Cd/Im:

1.3

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60038 Silicone S1 Spot Image Osram_Soleriq_S19_KAHQB2

Carclo Optics 60038 Silicone S1 Cross Section Osram_Soleriq_S19_KAHQB2

Download

IES

Samsung C Series LC010C White

Eff:

87.0%

FWHM:

21.5°

Cd/Im:

3.7

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung C Series LC010C - Spot Image

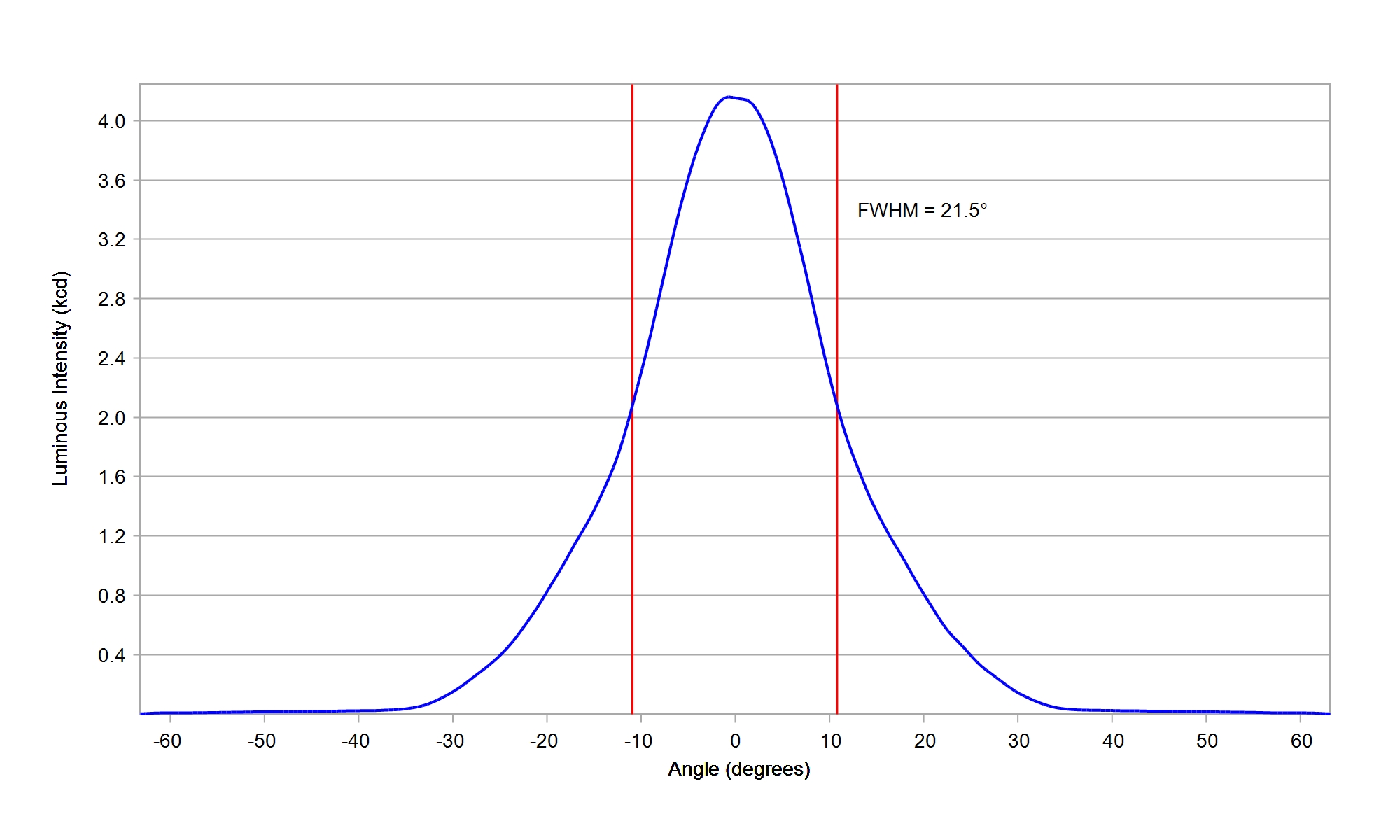

Carclo Optics – 60038 Samsung C Series LC010C - Cross Section

Download

IES

Samsung C Series LC020C White

Eff:

85.5%

FWHM:

28.5°

Cd/Im:

2.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

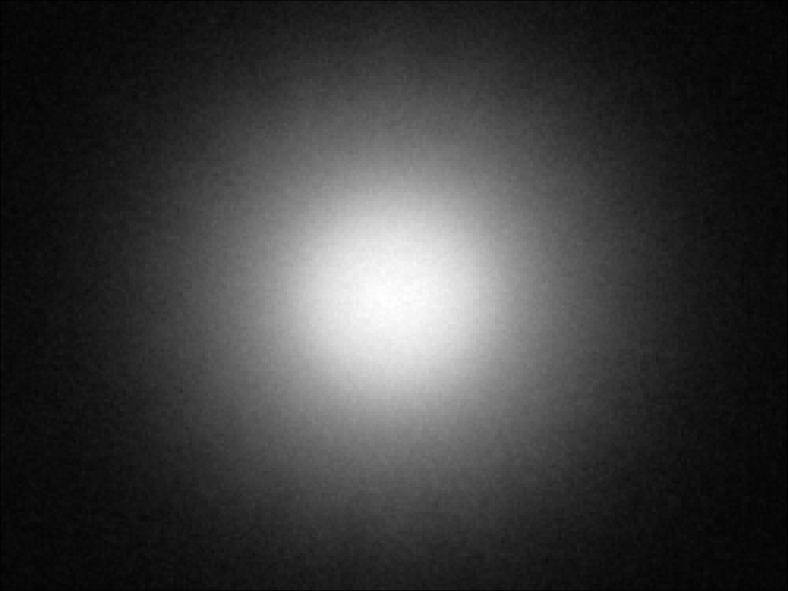

Carclo Optics – 60038 Samsung C Series LC020C - Spot Image

Carclo Optics – 60038 Samsung C Series LC020C - Cross Section

Download

IES

Samsung C Series LC020C White

Eff:

87.5%

FWHM:

28.5°

Cd/Im:

2.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung C Series LC020C - Spot Image

Carclo Optics – 60038 Samsung C Series LC020C - Cross Section

Download

IES

Samsung C Series LC030C White

Eff:

87.5%

FWHM:

33°

Cd/Im:

2.1

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung C Series LC030C - Spot Image

Carclo Optics – 60038 Samsung C Series LC030C - Cross Section

Download

IES

Samsung C Series LC030C White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.0

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung C Series LC030C - Spot Image

Carclo Optics – 60038 Samsung C Series LC030C - Cross Section

Download

IES

Samsung C Series LC040C White

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.1

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung C Series LC040C - Spot Image

Carclo Optics – 60038 Samsung C Series LC040C - Cross Section

Download

IES

Samsung C Series LC040C White

Eff:

85.0%

FWHM:

34°

Cd/Im:

2.0

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung C Series LC040C - Spot Image

Carclo Optics – 60038 Samsung C Series LC040C - Cross Section

Download

IES

Samsung D Series LC006D White

Eff:

86.5%

FWHM:

27.5°

Cd/Im:

2.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC006D - Spot Image

Carclo Optics – 60038 Samsung D Series LC006D - Cross Section

Download

IES

Samsung D Series LC009D White

Eff:

86.0%

FWHM:

27.5°

Cd/Im:

2.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC009D - Spot Image

Carclo Optics – 60038 Samsung D Series LC009D - Cross Section

Download

IES

Samsung D Series LC013D White

Eff:

86.0%

FWHM:

27.5°

Cd/Im:

2.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC013D - Spot Image

Carclo Optics – 60038 Samsung D Series LC013D - Cross Section

Download

IES

Samsung D Series LC016D White

Eff:

84.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung D Series LC016D - Spot Image

Carclo Optics – 60038 Samsung D Series LC016D - Cross Section

Download

IES

Samsung D Series LC019D White

Eff:

84.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung D Series LC019D - Spot Image

Carclo Optics – 60038 Samsung D Series LC019D - Cross Section

Download

IES

Samsung D Series LC026D White

Eff:

84.5%

FWHM:

37°

Cd/Im:

1.5

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung D Series LC026D - Spot Image

Carclo Optics – 60038 Samsung D Series LC026D - Cross Section

Download

IES

Samsung D Series LC033D White

Eff:

84.5%

FWHM:

36°

Cd/Im:

1.8

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Samsung D Series LC033D - Spot Image

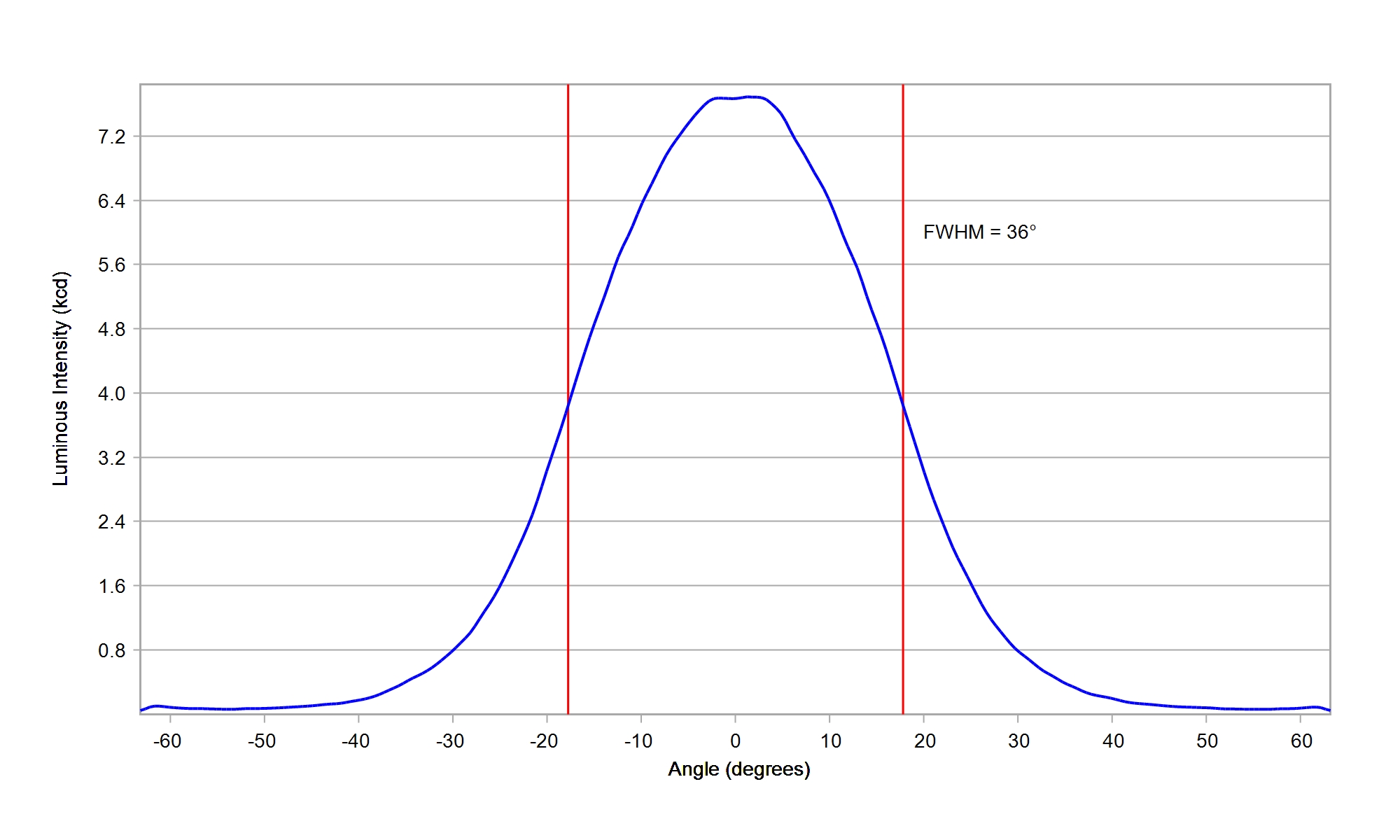

Carclo Optics – 60038 Samsung D Series LC033D - Cross Section

Download

IES

Samsung D Series LC040D White

Eff:

84.0%

FWHM:

40°

Cd/Im:

1.2

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC040D - Spot Image

Carclo Optics – 60038 Samsung D Series LC040D - Cross Section

Download

IES

Samsung D Series LC060D White

Eff:

83.5%

FWHM:

41°

Cd/Im:

1.1

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC060D - Spot Image

Carclo Optics – 60038 Samsung D Series LC060D - Cross Section

Download

IES

Samsung D Series LC080D White

Eff:

83.5%

FWHM:

41°

Cd/Im:

1.2

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Samsung D Series LC080D - Spot Image

Carclo Optics – 60038 Samsung D Series LC080D - Cross Section

Download

IES

Seoul MJT COB S4WM-1564 White

Eff:

83.0%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Seoul MJT COB S4WM-1564

Carclo Optics - 60038 Silicone S1 Cross Section Seoul MJT COB S4WM-1564

Download

IES

Seoul MJT COB S4WM-1565 White

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60038 Silicone S1 Spot Image Seoul MJT COB S4WM-1565

Carclo Optics - 60038 Silicone S1 Cross Section Seoul MJT COB S4WM-1565

Download

IES

Seoul SAWS0661A White

Eff:

87.5%

FWHM:

20.5°

Cd/Im:

4.0

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Seoul SAWS0661A Spot Image

Carclo Optics – 60038 Seoul SAWS0661A Cross Section

Download

IES

Seoul SAWS1063A White

Eff:

87.0%

FWHM:

29°

Cd/Im:

2.6

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Seoul SAWS1063A Spot Image

Carclo Optics – 60038 Seoul SAWS1063A Cross Section

Download

IES

Seoul SAWS1564A White

Eff:

85.5%

FWHM:

38°

Cd/Im:

1.6

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Seoul SAWS1564A Spot Image

Carclo Optics – 60038 Seoul SAWS1564A Cross Section

Download

IES

Seoul SAWS1564A White

Eff:

84.0%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Seoul SAWS1564A Spot Image

Carclo Optics – 60038 Seoul SAWS1564A Cross Section

Download

IES

Seoul SAWS1566A White

Eff:

85.5%

FWHM:

38°

Cd/Im:

1.6

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Seoul_SAWS1556A_spot-image

Carclo Optics – 60038 – Seoul_SAWS1556A_cross vertical section

Download

IES

Seoul SAWS1566A White

Eff:

83.5%

FWHM:

38°

Cd/Im:

1.5

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 – Seoul_SAWS1556A_spot-image

Carclo Optics – 60038 – Seoul_SAWS1556A_cross vertical section

Download

IES

Seoul SAWS226AA White

Eff:

82.5%

FWHM:

44°

Cd/Im:

1.0

Interconnect: 631a 47582 Bender + Wirth 630 3Hook

Carclo Optics – 60038 – Seoul_SAWS226AA_spot-image

Carclo Optics – 60038 – Seoul_SAWS226AA_cross vertical section

Download

IES

Tridonic COB SLE GEN7 LES13 White

Eff:

85.0%

FWHM:

35°

Cd/Im:

1.8

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Tridonic COB SLE G7, LES 13 - Spot Image

Carclo Optics – 60038 Tridonic COB SLE G7, LES 13 - Cross Section

Download

IES

Tridonic COB SLE GEN7 LES13 White

Eff:

83.0%

FWHM:

36°

Cd/Im:

1.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Tridonic COB SLE G7, LES 13 - Spot Image

Carclo Optics – 60038 Tridonic COB SLE G7, LES 13 - Cross Section

Download

IES

Tridonic COB SLE GEN7 LES15 White

Eff:

84.5%

FWHM:

37°

Cd/Im:

1.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Tridonic COB SLE G7, LES 15 - Spot Image

Carclo Optics – 60038 Tridonic COB SLE G7, LES 15 - Cross Section

Download

IES

Tridonic COB SLE GEN7 LES15 White

Eff:

83.0%

FWHM:

37°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Tridonic COB SLE G7, LES 15 - Spot Image

Carclo Optics – 60038 Tridonic COB SLE G7, LES 15 - Cross Section

Download

IES

Tridonic COB SLE GEN7 LES9 White

Eff:

84.5%

FWHM:

27.5°

Cd/Im:

2.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Tridonic COB SLE G7, LES 9 - Spot Image

Carclo Optics – 60038 Tridonic COB SLE G7, LES 9 - Cross Section

Download

IES

Vossloh-Schwabe COB VCA1210-830 White

Eff:

83.0%

FWHM:

38°

Cd/Im:

1.4

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Vossloh-Schwabe COB VCA1210-830 - Spot Image

Carclo Optics – 60038 Vossloh-Schwabe COB VCA1210-830 - Cross Section

Download

IES

Vossloh-Schwabe COB VCA1212-830 White

Eff:

82.5%

FWHM:

41°

Cd/Im:

1.1

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Vossloh-Schwabe COB VCA1212-830 - Spot Image

Carclo Optics – 60038 Vossloh-Schwabe COB VCA1212-830 - Cross Section

Download

IES

Vossloh-Schwabe COB VCA123-830 White

Eff:

83.5%

FWHM:

27.5°

Cd/Im:

2.6

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Vossloh-Schwabe COB VCA123-830 - Spot Image

Carclo Optics – 60038 Vossloh-Schwabe COB VCA123-830 - Cross Section

Download

IES

Vossloh-Schwabe COB VCA125-830 White

Eff:

84.5%

FWHM:

36°

Cd/Im:

1.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60038 Vossloh-Schwabe COB VCA125-830 - Spot Image

Carclo Optics – 60038 Vossloh-Schwabe COB VCA125-830 - Cross Section

Download

IES

Vossloh-Schwabe COB VCA125-830 White

Eff:

82.5%

FWHM:

36°

Cd/Im:

1.6

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60038 Vossloh-Schwabe COB VCA125-830 - Spot Image

Carclo Optics – 60038 Vossloh-Schwabe COB VCA125-830 - Cross Section

Download

IES
