60036 Silicone Optic

67mm Ultra Narrow Plain Silicone

Part number

60036

Dimensions

67mm

Optic type

Silicone

Finish

Plain

Beam type

Ultra Narrow

Applications

Architectural

Retail

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux V Series V10B Gen 8

Eff:

84.0%

FWHM:

9.9°

Cd/Im:

17.1

Interconnect: 634b 47863 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Bridgelux_V Series_V10B_spot-image

Carclo Optics – 60036 – Bridgelux_V Series_V10B_cross section

Download

IES

Bridgelux V Series V13B Gen8

Eff:

84.0%

FWHM:

15°

Cd/Im:

6.8

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Bridgelux_V Series_V13B_spot-image

Carclo Optics – 60036 – Bridgelux_V Series_V13B_cross section

Download

IES

Bridgelux V Series V13B Gen8

Eff:

82.5%

FWHM:

14°

Cd/Im:

6.8

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 – Bridgelux_V Series_V13B_spot-image

Carclo Optics – 60036 – Bridgelux_V Series_V13B_cross section

Download

IES

Bridgelux V Series V4 HD White

Eff:

87.0%

FWHM:

5.4°

Cd/Im:

65.1

Interconnect: 660a 47957 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Bridgelux V4 HD - Spot Image

Carclo Optics – 60036 Bridgelux V4 HD - Cross Section

Download

IES

Bridgelux V Series V6 HD White

Eff:

87.0%

FWHM:

7.1°

Cd/Im:

36.2

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

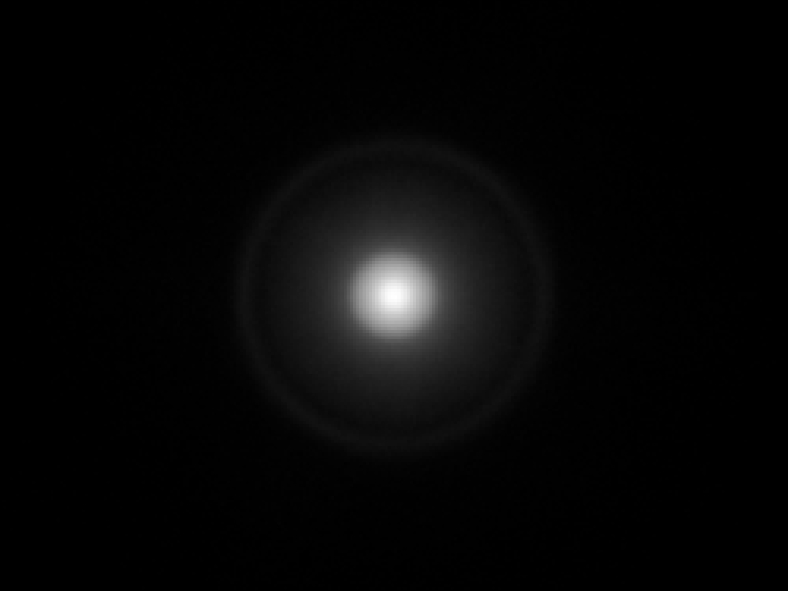

Carclo Optics – 60036 Bridgelux V6 HD - Spot Image

Carclo Optics – 60036 Bridgelux V6 HD - Cross Section

Download

IES

Bridgelux V Series V6 White

Eff:

86.0%

FWHM:

6.5°

Cd/Im:

42.5

Interconnect: 660a 47957 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Bridgelux V6 - Spot Image

Carclo Optics – 60036 Bridgelux V6 - Cross Section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

84.5%

FWHM:

5.5°

Cd/Im:

59.3

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

84.5%

FWHM:

5.5°

Cd/Im:

59.1

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

optic-60036-Citizen_CITILED COB_CLU7A2-spot-image.jpg

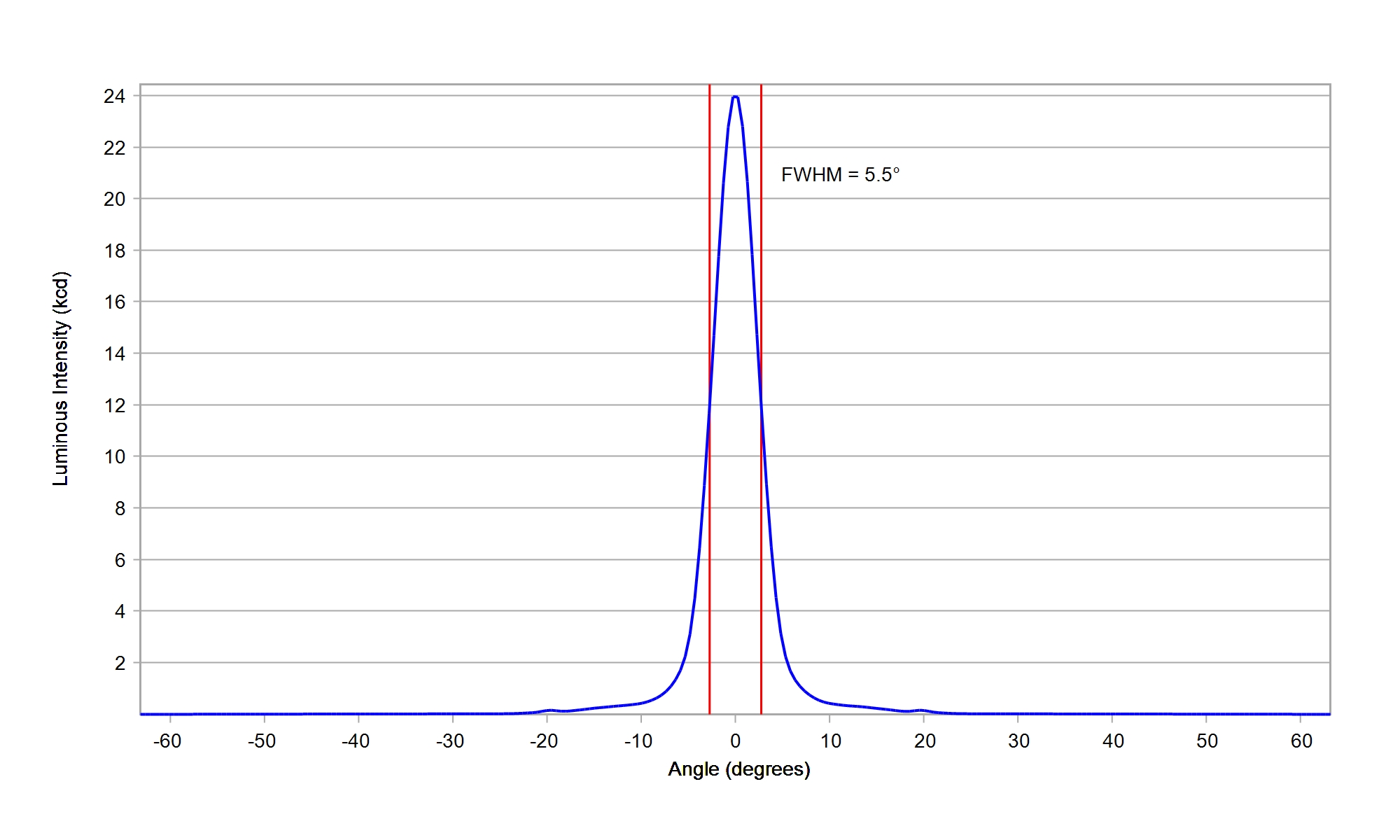

optic-60036-Citizen_CITILED COB_CLU7A2-cross-section-image.jpg

Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

84.5%

FWHM:

4.6°

Cd/Im:

85.2

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 60036 – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Cree CMT 1930

Eff:

82.5%

FWHM:

14.5°

Cd/Im:

6.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CHA0304 White

Eff:

85.5%

FWHM:

4.4°

Cd/Im:

90.2

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0410 White

Eff:

85.5%

FWHM:

5.5°

Cd/Im:

59.4

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0612 White

Eff:

85.5%

FWHM:

7°

Cd/Im:

34.9

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0825 White

Eff:

85.5%

FWHM:

9.6°

Cd/Im:

18.1

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CHA0825 White

Eff:

83.0%

FWHM:

9.1°

Cd/Im:

17.9

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Cross Section

Download

IES

Cree XLamp CMA1303 White

Eff:

86.0%

FWHM:

5.4°

Cd/Im:

82.7

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Cree_Xlamp_CMA 1303_spot-image

Carclo Optics – 60036 – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMA1306 White

Eff:

86.0%

FWHM:

7.1°

Cd/Im:

37.7

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMA1306

Carclo Optics – 60036 Cross Section Cree CMA1306

Download

IES

Cree XLamp CMA1825 White

Eff:

84.5%

FWHM:

13°

Cd/Im:

9.4

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 Spot Image Cree CMA1825

Carclo Optics – 60036 Cross Section Cree CMA1825

Download

IES

Cree XLamp CMA1825 White

Eff:

86.0%

FWHM:

13.5°

Cd/Im:

9.4

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMA1825

Carclo Optics – 60036 Cross Section Cree CMA1825

Download

IES

Cree XLamp CMA1840 White

Eff:

85.0%

FWHM:

16°

Cd/Im:

6.7

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMA1840

Carclo Optics – 60036 Cross Section Cree CMA1840

Download

IES

Cree XLamp CMA2550 White

Eff:

83.5%

FWHM:

20°

Cd/Im:

4.0

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMA2550

Carclo Optics – 60036 Cross Section Cree CMA2550

Download

IES

Cree XLamp CMA2550 White

Eff:

82.0%

FWHM:

19°

Cd/Im:

4.0

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 Spot Image Cree CMA2550

Carclo Optics – 60036 Cross Section Cree CMA2550

Download

IES

Cree XLamp CMB1304 White

Eff:

85.5%

FWHM:

7°

Cd/Im:

36.1

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1306 White

Eff:

85.5%

FWHM:

7.1°

Cd/Im:

35.1

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1510 White

Eff:

85.0%

FWHM:

10°

Cd/Im:

16.8

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1516 White

Eff:

85.0%

FWHM:

10.5°

Cd/Im:

16.4

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1818 White

Eff:

85.0%

FWHM:

13.5°

Cd/Im:

9.5

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1818 White

Eff:

83.0%

FWHM:

12.5°

Cd/Im:

9.5

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

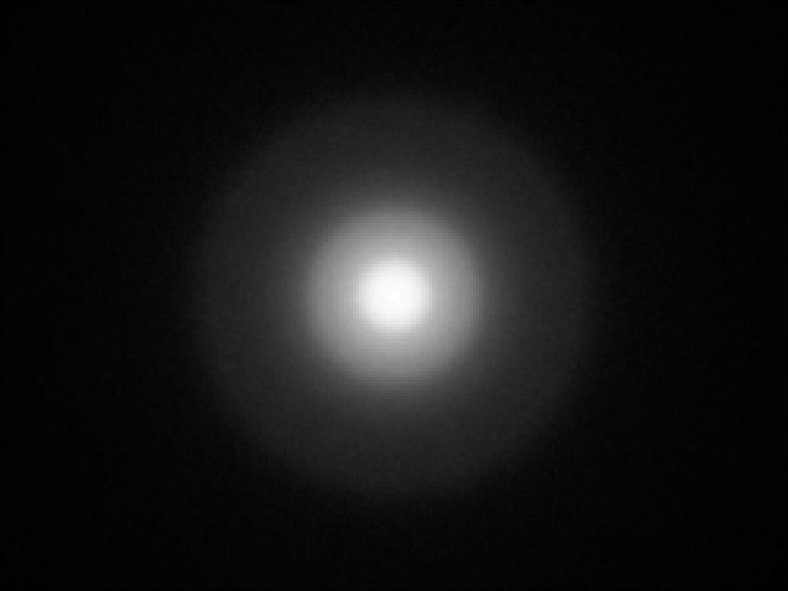

spot image

cross section

Download

IES

Cree XLamp CMB1825 White

Eff:

85.0%

FWHM:

13.5°

Cd/Im:

9.1

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB1825 White

Eff:

83.0%

FWHM:

13°

Cd/Im:

9.2

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Download

IES

Cree XLamp CMB1840 White

Eff:

84.5%

FWHM:

15.5°

Cd/Im:

7.3

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMB2550 White

Eff:

82.5%

FWHM:

20.5°

Cd/Im:

3.7

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMT1922 White

Eff:

84.5%

FWHM:

15.5°

Cd/Im:

6.8

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMT1922

Carclo Optics – 60036 Cross Section Cree CMT1922

Download

IES

Cree XLamp CMT1922 White

Eff:

83.0%

FWHM:

15°

Cd/Im:

6.8

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 Spot Image Cree CMT1922

Carclo Optics – 60036 Cross Section Cree CMT1922

Download

IES

Cree XLamp CMT1930 White

Eff:

84.5%

FWHM:

15.5°

Cd/Im:

6.7

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMT1930

Carclo Optics – 60036 Cross Section Cree CMT1930

Download

IES

Cree XLamp CMT1945 White

Eff:

84.5%

FWHM:

15.5°

Cd/Im:

6.6

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CMT1945

Carclo Optics – 60036 Cross Section Cree CMT1945

Download

IES

Cree XLamp CMT1945 White

Eff:

83.0%

FWHM:

14.5°

Cd/Im:

6.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 Spot Image Cree CMT1945

Carclo Optics – 60036 Cross Section Cree CMT1945

Download

IES

Cree XLamp CMU1003 White

Eff:

84.5%

FWHM:

10°

Cd/Im:

16.3

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1006 White

Eff:

85.0%

FWHM:

10.5°

Cd/Im:

14.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1010 White

Eff:

84.5%

FWHM:

10.5°

Cd/Im:

14.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1013 White

Eff:

84.5%

FWHM:

10.5°

Cd/Im:

15.8

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1516 White

Eff:

85.0%

FWHM:

15.5°

Cd/Im:

6.9

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1519 White

Eff:

84.5%

FWHM:

16°

Cd/Im:

6.3

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

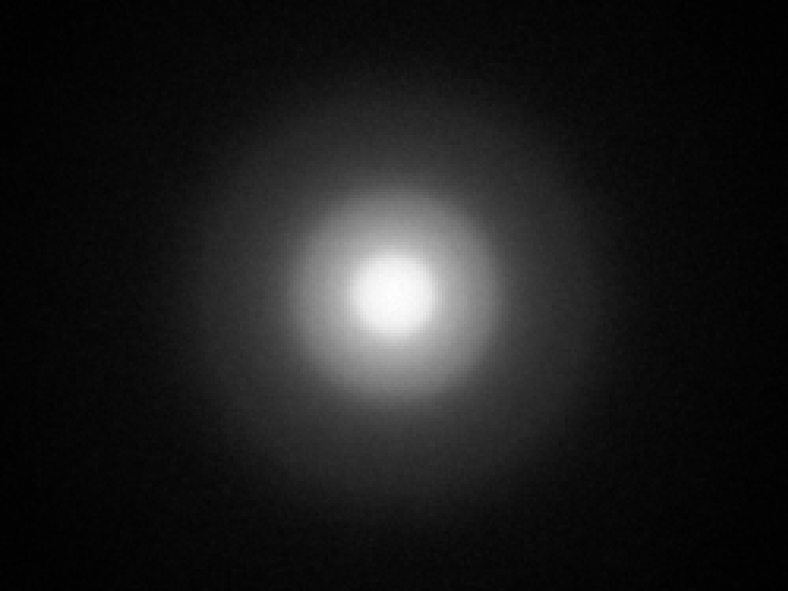

Cree XLamp CMU1526 White

Eff:

84.5%

FWHM:

15°

Cd/Im:

7.1

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CMU1532 White

Eff:

84.5%

FWHM:

15.5°

Cd/Im:

6.7

Interconnect: 633a 47562 Bender + Wirth 630 3Hook

Download

IES

Cree XLamp CXB 2540

Eff:

82.5%

FWHM:

19.0°

Cd/Im:

4.1

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone S1 Spot Image

Carclo Optics 60036 Silicone S1 Cross Section

Download

IES

Cree XLamp CXB1304 White

Eff:

86.5%

FWHM:

6.5°

Cd/Im:

43.0

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

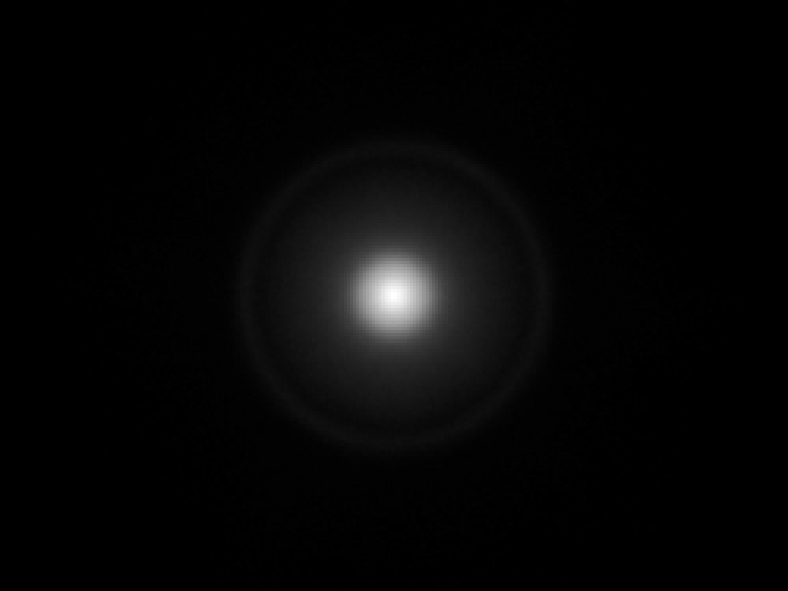

Carclo Optics – 60036 Spot Image Cree CXB1304

Carclo Optics – 60036 Cross Section Cree CXB1304

Download

IES

Cree XLamp CXB1310 White

Eff:

86.5%

FWHM:

6.9°

Cd/Im:

37.8

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CXB1310

Carclo Optics – 60036 Cross Section Cree CXB1310

Download

IES

Cree XLamp CXB1816 White

Eff:

71.5%

FWHM:

11.5°

Cd/Im:

9.6

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CXB1816

Carclo Optics – 60036 Cross Section Cree CXB1816

Download

IES

Cree XLamp CXB1816 White

Eff:

70.0%

FWHM:

11°

Cd/Im:

9.7

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 Spot Image Cree CXB1816

Carclo Optics – 60036 Cross Section Cree CXB1816

Download

IES

Cree XLamp CXB1820 White

Eff:

83.5%

FWHM:

12.5°

Cd/Im:

9.7

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone Spot Image Cree CXB 1820

Carclo Optics 60036 Silicone S1 Cross Section Cree CXB 1820

Download

IES

Cree XLamp CXB1820 White

Eff:

71.5%

FWHM:

11.5°

Cd/Im:

9.6

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics 60036 Silicone Spot Image Cree CXB 1820

Carclo Optics 60036 Silicone S1 Cross Section Cree CXB 1820

Download

IES

Cree XLamp CXB1830

Eff:

77.0%

FWHM:

14.5°

Cd/Im:

7.1

Interconnect: TE 2213401-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Cree CXB CoB 1830

Carclo Optics - 60035 Silicone S1 Cross Section Cree CXB CoB 1830

Download

IES

Cree XLamp CXB2530

Eff:

82.5%

FWHM:

18°

Cd/Im:

4.5

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone S1 Spot Image Cree_CXB2530

Carclo Optics 60036 Silicone S1 Cross Section Cree_CXB2530

Download

IES

Cree XLamp CXB2530 White

Eff:

84.5%

FWHM:

18.5°

Cd/Im:

4.6

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CXB2530

Carclo Optics – 60036 Cross Section Cree CXB2530

Download

IES

Cree XLamp CXB2540 White

Eff:

84.5%

FWHM:

20°

Cd/Im:

4.2

Interconnect: 639a 47585 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Cree CXB2540

Carclo Optics – 60036 Cross Section Cree CXB2540

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) L04 White

Eff:

79.5%

FWHM:

13°

Cd/Im:

9.7

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Luxeon CX Plus L04 – Spot - image

Carclo Optics – 60036 Luxeon CX Plus L04 - Cross section – image

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) L08 White

Eff:

78.0%

FWHM:

15.5°

Cd/Im:

6.5

Interconnect: 637a 47472 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Luxeon CX Plus L08 – Spot - image

Carclo Optics – 60036 Luxeon CX Plus L08 - Cross section – image

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) M03 White

Eff:

84.0%

FWHM:

10°

Cd/Im:

16.5

Interconnect: 641a 47460 Bender + Wirth 630 3Hook

Carclo Optics - 60036 - Luxen_CX_Plus_CoB_M03_WW-spot-image

Carclo Optics - 60036 - Luxeon_CX_Plus_CoB_M03_WW- cross vertical section

Download

IES

LUMILEDS LUXEON CX Plus COB (Gen2) S01 White

Eff:

84.0%

FWHM:

6.9°

Cd/Im:

37.5

Interconnect: 634c 47867 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Luxeon CX Plus S01- Spot - image

Carclo Optics – 60036 Luxeon CX Plus S01- Cross section – image

Download

IES

LUMILEDS LUXEON 1203

Eff:

82.5%

FWHM:

9.6°

Cd/Im:

16.3

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1203

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1203

Download

IES

LUMILEDS LUXEON 1203

Eff:

85.0%

FWHM:

10.5°

Cd/Im:

16.5

Interconnect: 0005 Molex 180580

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1203

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1203

Download

IES

LUMILEDS LUXEON 1204

Eff:

81.5%

FWHM:

11.5°

Cd/Im:

9.5

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1204

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1204

Download

IES

LUMILEDS LUXEON 1204 HD

Eff:

83.5%

FWHM:

9.9°

Cd/Im:

15.9

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1204 HD

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1204 HD

Download

IES

LUMILEDS LUXEON 1204 HD

Eff:

85.5%

FWHM:

10.5°

Cd/Im:

16.3

Interconnect: 0005 Molex 180580

Carclo Optics 60036 Silicone S1 Spot Image Luxeon COB 1204 HD

Carclo Optics 60036 Silicone S1 Cross Section Luxeon COB 1204 HD

Download

IES

LUMILEDS LUXEON 1205

Eff:

82.0%

FWHM:

12.5°

Cd/Im:

8.6

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone S1 Spot Image Luxeon Cob 1205

Carclo Optics 60036 Silicone S1 Cross Section Luxeon Cob 1205

Download

IES

LUMILEDS LUXEON 1205 HD

Eff:

83.5%

FWHM:

12°

Cd/Im:

10.8

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

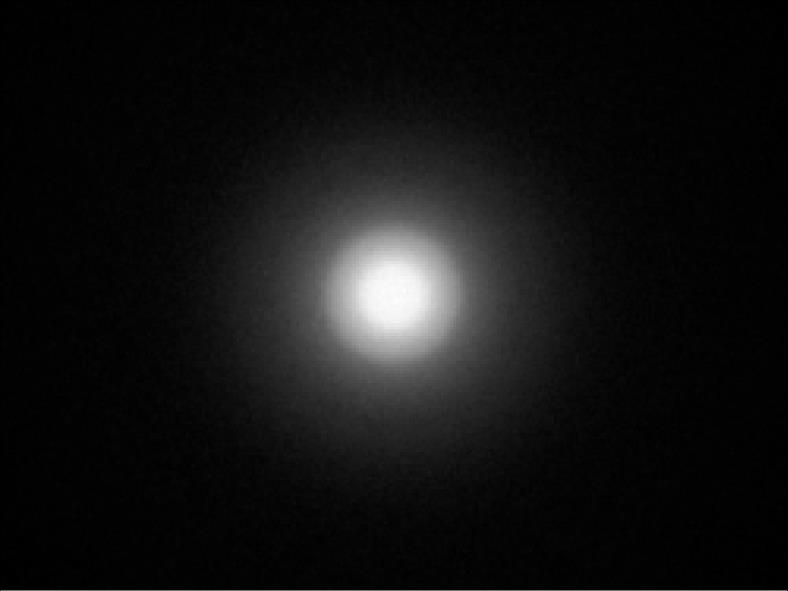

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1205 HD

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1205 HD

Download

IES

LUMILEDS LUXEON 1205 HD

Eff:

84.5%

FWHM:

13.0°

Cd/Im:

10.9

Interconnect: 0005 Molex 180580

Carclo Optics - 60036 Silicone S1 Spot Image Luxeon CoB 1205 HD

Carclo Optics - 60036 Silicone S1 Cross Section Luxeon CoB 1205 HD

Download

IES

LUMILEDS LUXEON 1208

Eff:

83.0%

FWHM:

14.5°

Cd/Im:

6.5

Interconnect: TE 2213130-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone S1 Spot Image Luxeon Cob 1208

Carclo Optics 60036 Silicone S1 Cross Section Luxeon Cob 1208

Download

IES

LUMILEDS LUXEON 1216 E23

Eff:

80.5%

FWHM:

23.5°

Cd/Im:

2.6

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Luxeon 1216

Carclo Optics – 60036 Cross Section Luxeon 1216

Download

IES

LUMILEDS LUXEON 1216 F23

Eff:

82.0%

FWHM:

23.5°

Cd/Im:

2.6

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Luxeon 1216

Carclo Optics – 60036 Cross Section Luxeon 1216

Download

IES

LUMILEDS LUXEON 1812

Eff:

81.5%

FWHM:

22.5°

Cd/Im:

2.7

Interconnect: 631b 47583 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Spot Image Luxeon 1812

Carclo Optics – 60036 Cross Section Luxeon 1812

Download

IES

Luminus Devices COB CXM-3 White

Eff:

87.0%

FWHM:

4.7°

Cd/Im:

87.6

Interconnect: 634a 47441 Bender + Wirth 630 3Hook

Carclo Optics – 60036 Luminus COB CXM-3 - Spot Image

Carclo Optics – 60036 Luminus COB CXM-3 - Cross Section

Download

IES

Nichia 024Z

Eff:

84.5%

FWHM:

12.0°

Cd/Im:

12.7

Interconnect: 0005 Molex 180580

Carclo Optics 60036 Silicone S1 Spot Image Nichia 024Z

Carclo Optics 60036 Silicone S1 Cross Section Nichia 024Z

Download

IES

Nichia 024Z

Eff:

83.0%

FWHM:

11°

Cd/Im:

12.5

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia L 016 Z

Eff:

85.0%

FWHM:

9.9°

Cd/Im:

17.9

Interconnect: 0005 Molex 180580

Carclo Optics - 60036 Silicone S1 Spot Image Nichia L016Z

Carclo Optics - 60036 Silicone S1 Cross Section Nichia L016Z

Download

IES

Nichia L 016 Z

Eff:

83.0%

FWHM:

9.5°

Cd/Im:

17.7

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Nichia L016Z

Carclo Optics - 60036 Silicone S1 Cross Section Nichia L016Z

Download

IES

Nichia NFCWL 036B White

Eff:

83.0%

FWHM:

9.4°

Cd/Im:

18.2

Interconnect: TE-2213382-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Nichia 036B

Carclo Optics - 60036 Silicone S1 Cross Section Nichia 036B

Download

IES

Nichia NFCWL 036B White

Eff:

85.0%

FWHM:

9.8°

Cd/Im:

18.7

Interconnect: 0005 Molex 180580

Carclo Optics 60036 Silicone S1 Spot Image Nichia 036B

Carclo Optics - 60036 Silicone S1 Cross Section Nichia 036B6

Download

IES

Osram OS SOLERIQ S19 KAHQB2

Eff:

82.0%

FWHM:

18°

Cd/Im:

4.3

Interconnect: TE 2213407-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics 60036 Silicone S1 Spot Image Osram_Soleriq_S19_KAHQB2

Carclo Optics 60036 Silicone S1 Cross Section Osram_Soleriq_S19_KAHQB2

Download

IES

Samsung C Series LC040C White

Eff:

84.5%

FWHM:

12°

Cd/Im:

10.4

Interconnect: 2213254-2 interconnect and 2213194-1 clip TE Connectivity TE1

Download

IES

Seoul MJT COB S4WM-1564 White

Eff:

78.4%

FWHM:

15°

Cd/Im:

82.0

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Seoul MJT COB S4WM-1564

Carclo Optics - 60036 Silicone S1 Cross Section Seoul MJT COB S4WM-1564

Download

IES

Seoul MJT COB S4WM-1565 White

Eff:

82.0%

FWHM:

15°

Cd/Im:

78.4

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics - 60036 Silicone S1 Spot Image Seoul MJT COB S4WM-1565

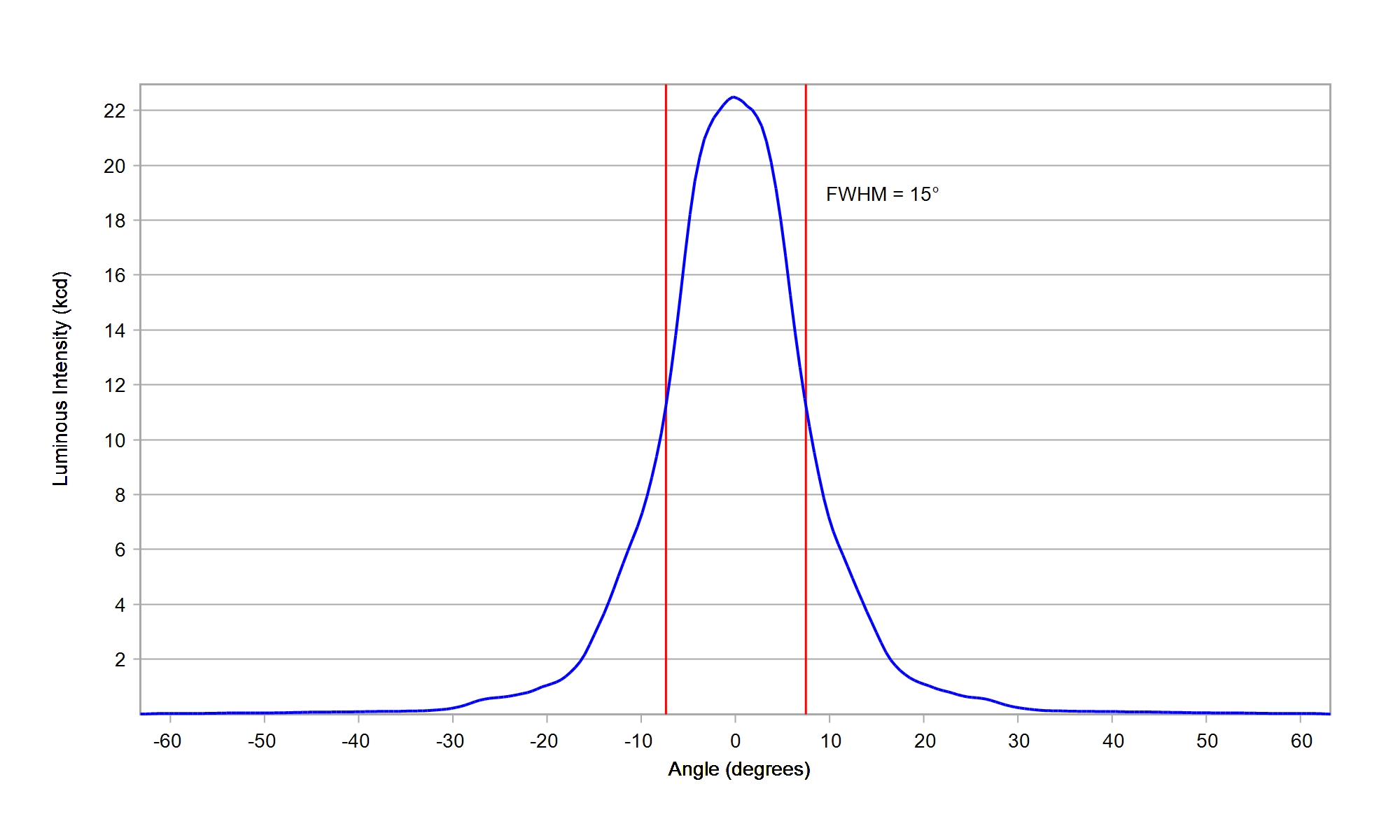

Carclo Optics - 60036 Silicone S1 Cross Section Seoul MJT COB S4WM-1565

Download

IES

Seoul SAWS1566A White

Eff:

84.5%

FWHM:

17.5°

Cd/Im:

5.6

Interconnect: 633c 47564 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Seoul_SAWS1556A_spot-image

Carclo Optics – 60036 – Seoul_SAWS1556A_cross vertical section

Download

IES

Seoul SAWS1566A White

Eff:

82.5%

FWHM:

16°

Cd/Im:

5.7

Interconnect: TE-2213254-2 and 2213194-1 clip TE Connectivity TE1

Carclo Optics – 60036 – Seoul_SAWS1556A_spot-image

Carclo Optics – 60036 – Seoul_SAWS1556A_cross vertical section

Download

IES

Seoul SAWS226AA White

Eff:

82.5%

FWHM:

23.5°

Cd/Im:

2.7

Interconnect: 631a 47582 Bender + Wirth 630 3Hook

Carclo Optics – 60036 – Seoul_SAWS226AA_spot-image

Carclo Optics – 60036 – Seoul_SAWS226AA_cross vertical section

Download

IES
