60030 Silicone Optic Fortimo Medium
67mm Medium Spot Plain Silicone
Part number
60030
Dimensions
67mm
Optic type
Silicone
Finish
Plain
Beam type
Medium Spot
Applications
Architectural
Retail
Downloads
PDF
STEP

LEDs and Performances

Select and filter based on manufacturer(s)
LUMILEDS LUXEON 1203
Eff:
87.0%
FWHM:
29.5°
Cd/Im:
2.7
Interconnect: 1031 Molex 180555

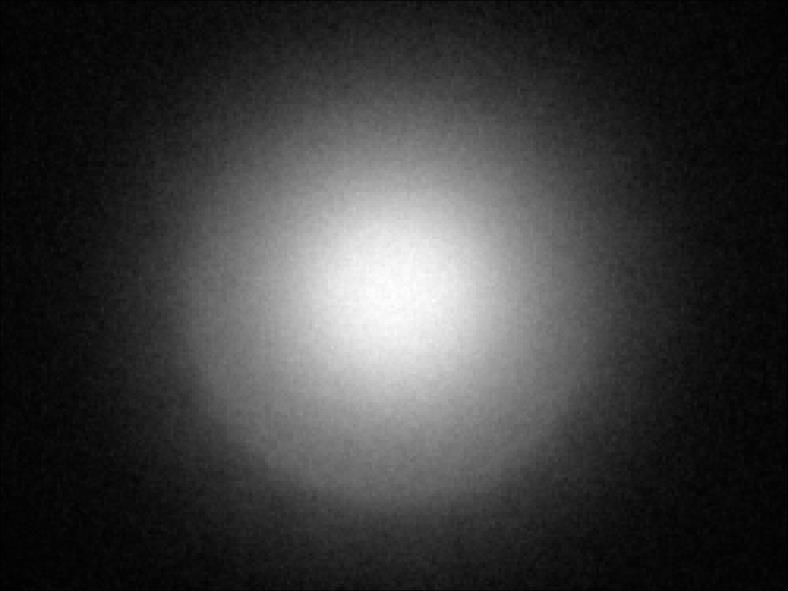

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1203

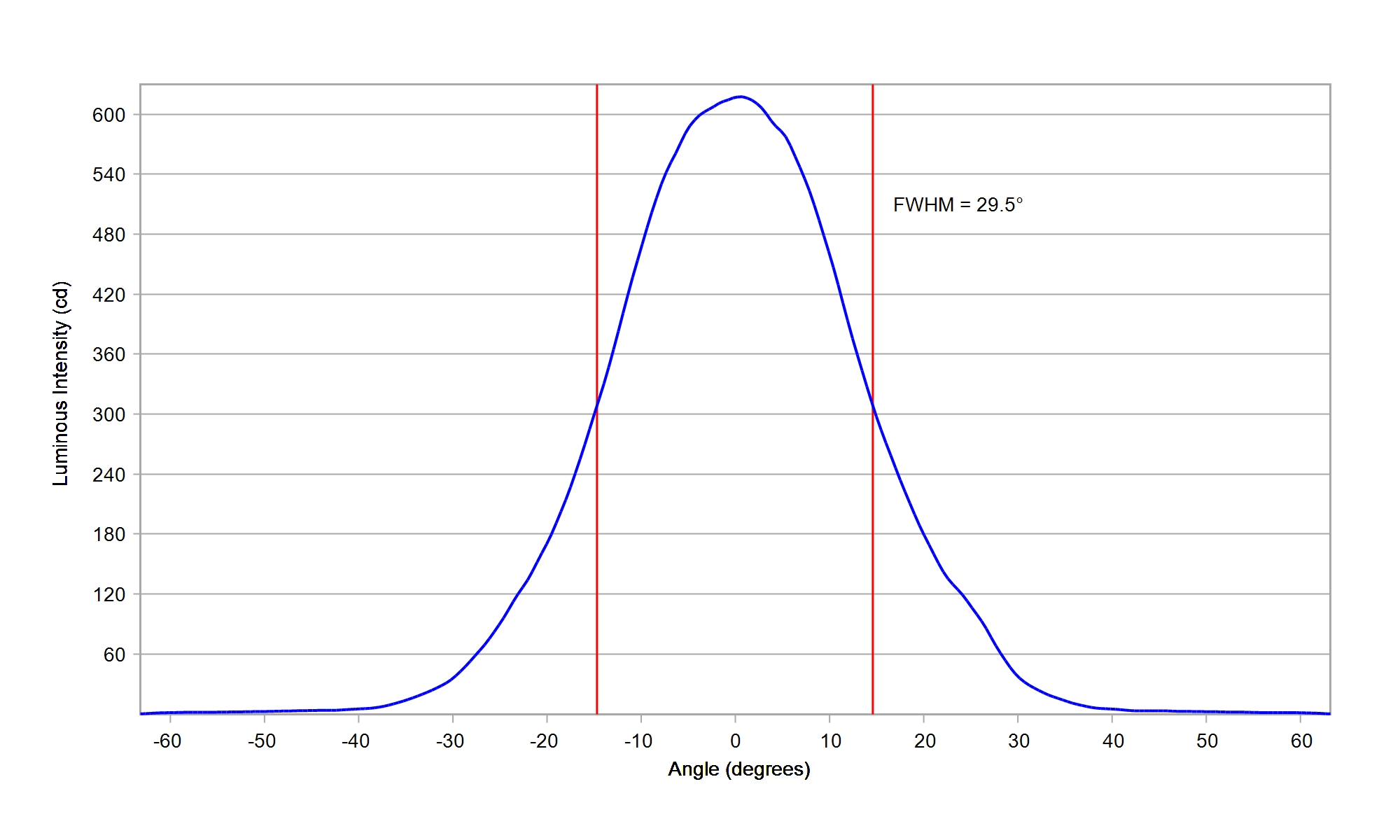

Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1203
Download
Details
LUMILEDS LUXEON 1203
Eff:
87.0%
FWHM:
29.5°
Cd/Im:
2.7
Interconnect: H 1619 Philips Fortimo SLM

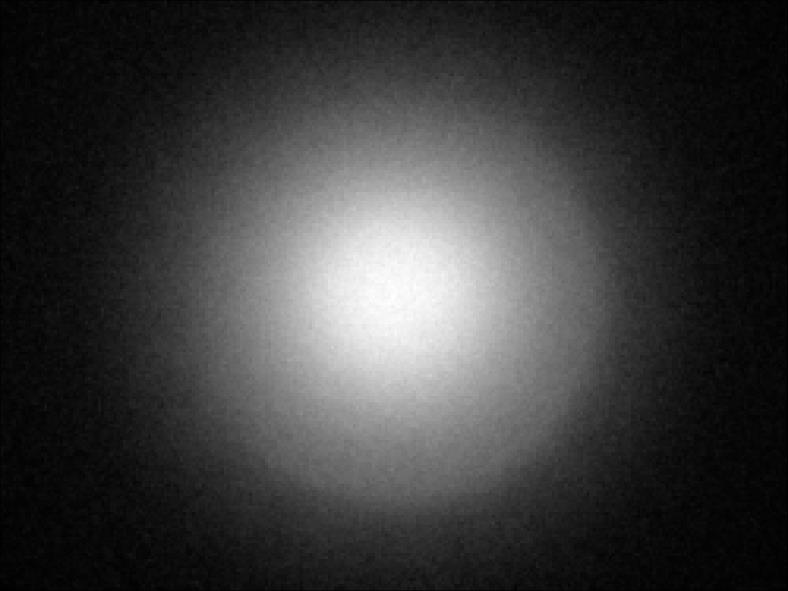

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1203
Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1203
Download
Details
LUMILEDS LUXEON 1204
Eff:
87.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: 1041 Molex 180555

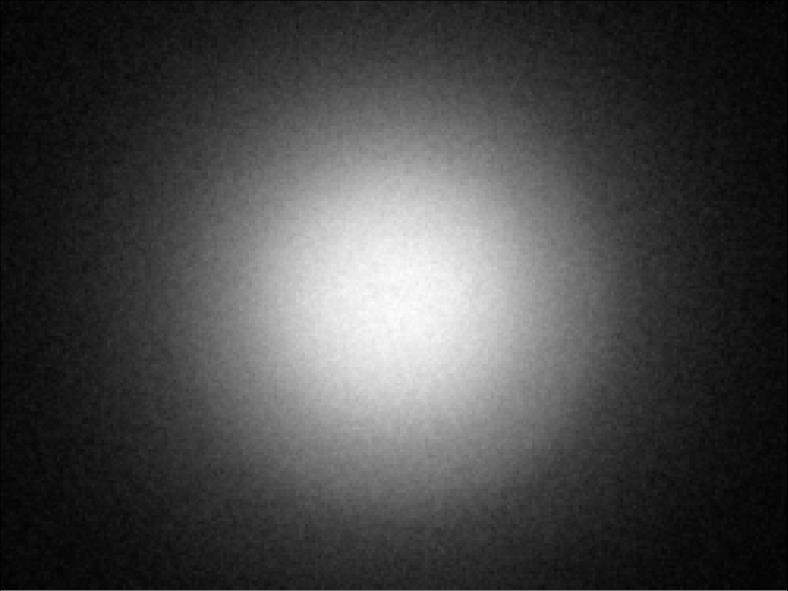

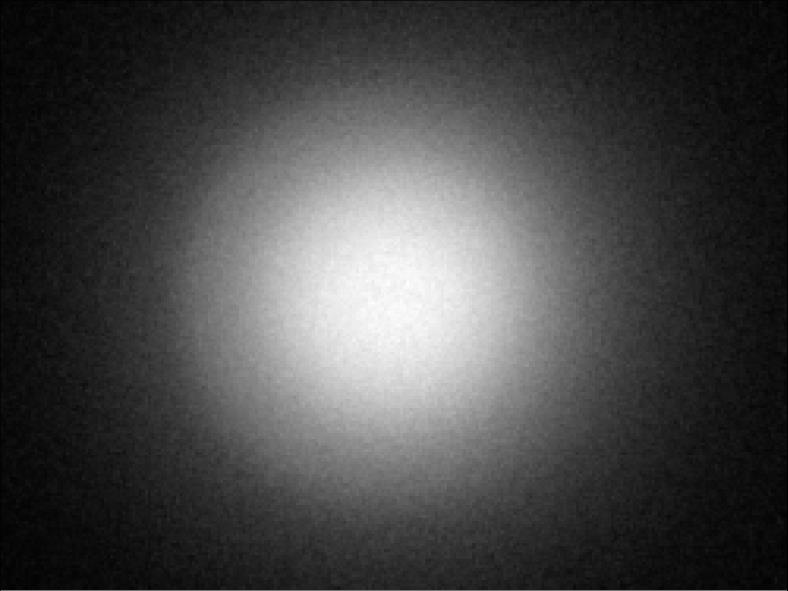

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1204
Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1204
Download
Details
LUMILEDS LUXEON 1204
Eff:
87.0%
FWHM:
35°
Cd/Im:
2.1
Interconnect: H 2024 G1 Philips Fortimo SLM

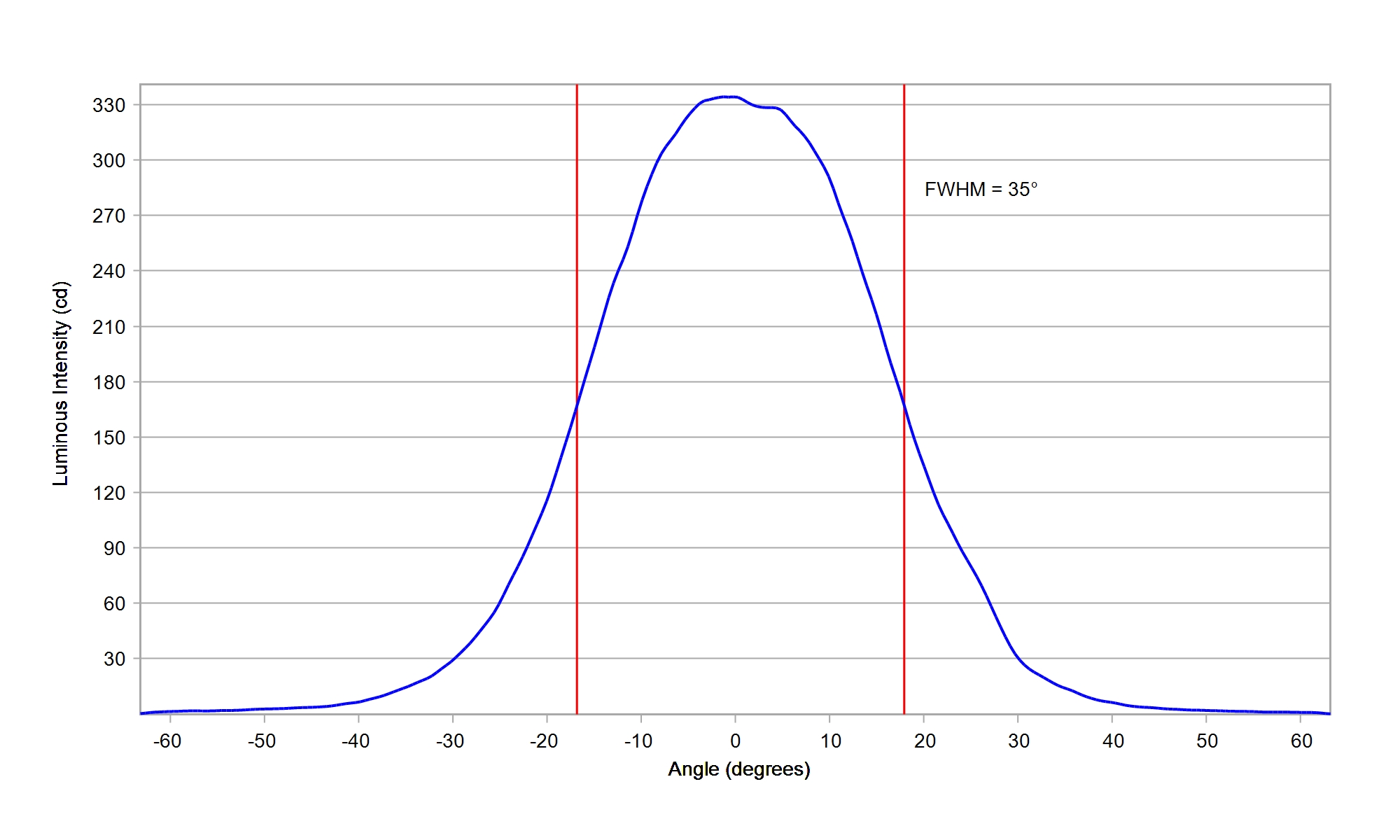

Carclo Optics - 60030 Simulated spot image - Luxeon CoB 1204 , Carclo Optics - 60030 Simulated cross section image - Luxeon CoB 1204
Download
Details
LUMILEDS LUXEON 1204 HD
Eff:
88.5%
FWHM:
29.5°
Cd/Im:
2.8
Interconnect: H 1619 Philips Fortimo SLM

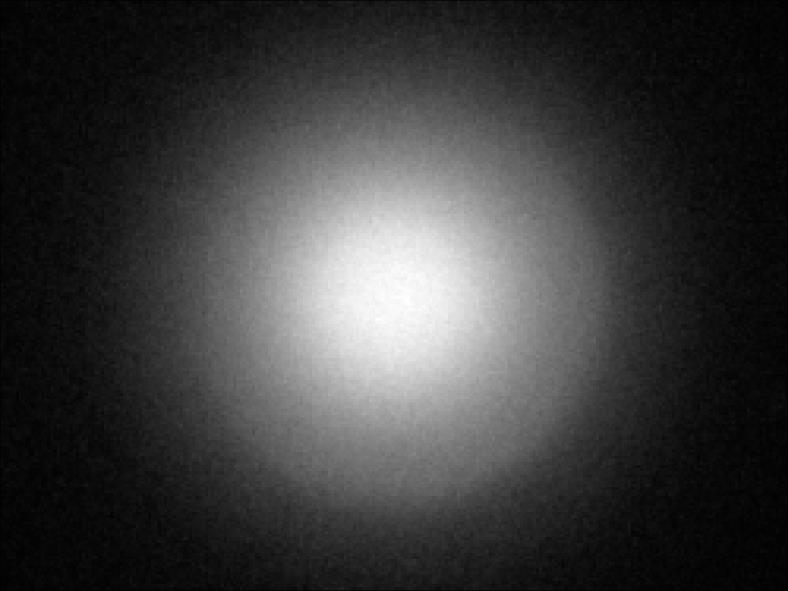

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1204 HD

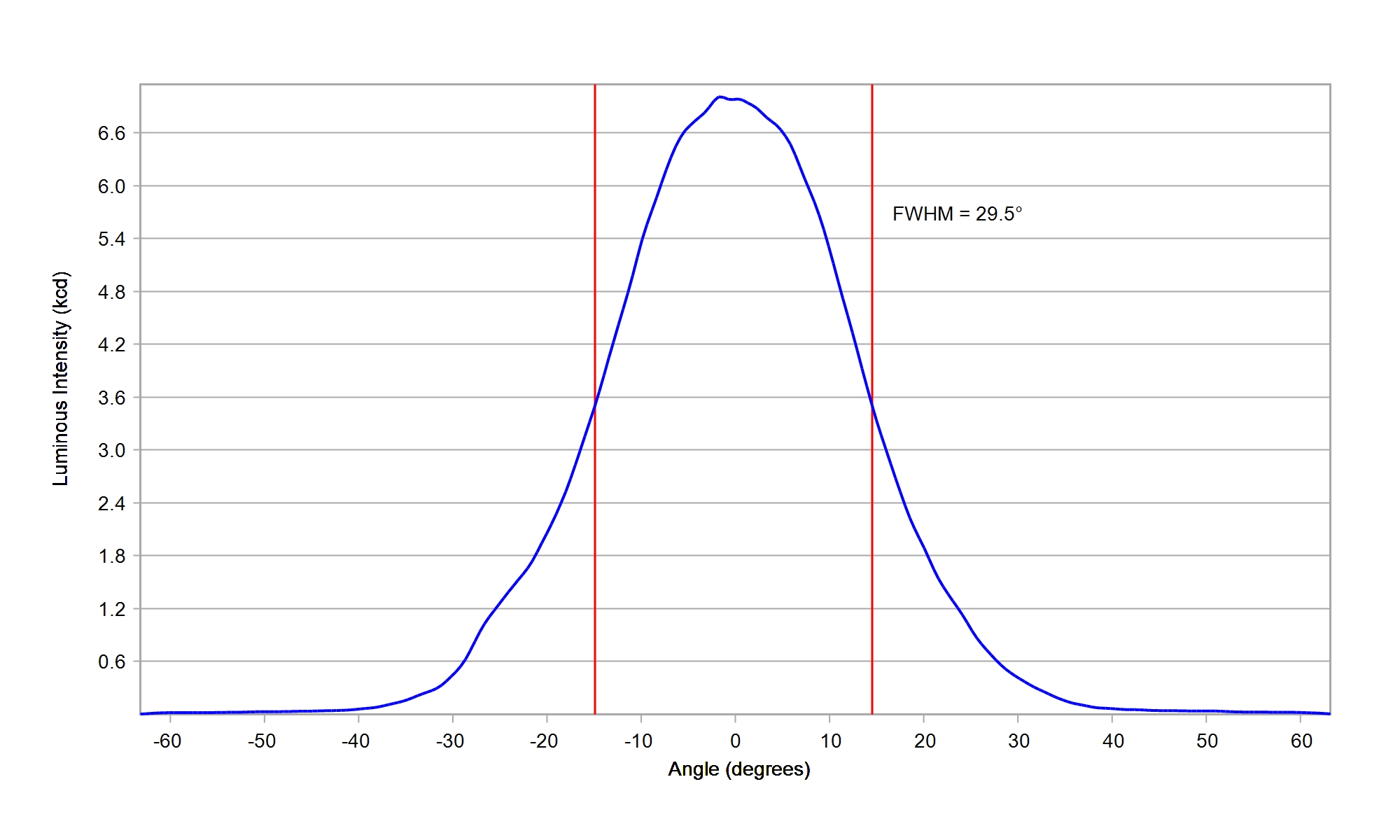

Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1204 HD
Download
Details
LUMILEDS LUXEON 1204 HD
Eff:
88.5%
FWHM:
29.5°
Cd/Im:
2.8
Interconnect: 1031 Molex 180555

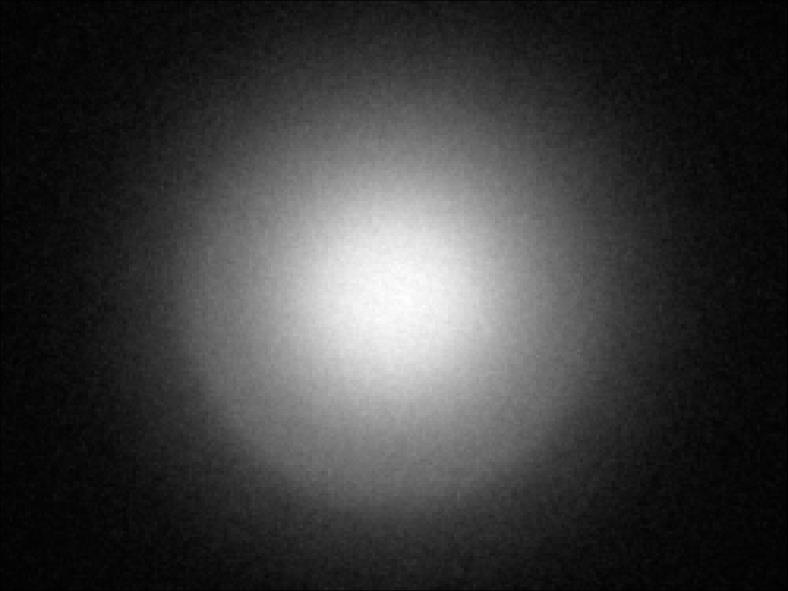

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1204 HD
Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1204 HD
Download
Details
LUMILEDS LUXEON 1205
Eff:
87.5%
FWHM:
34.5°
Cd/Im:
2.1
Interconnect: 1041 Molex 180555

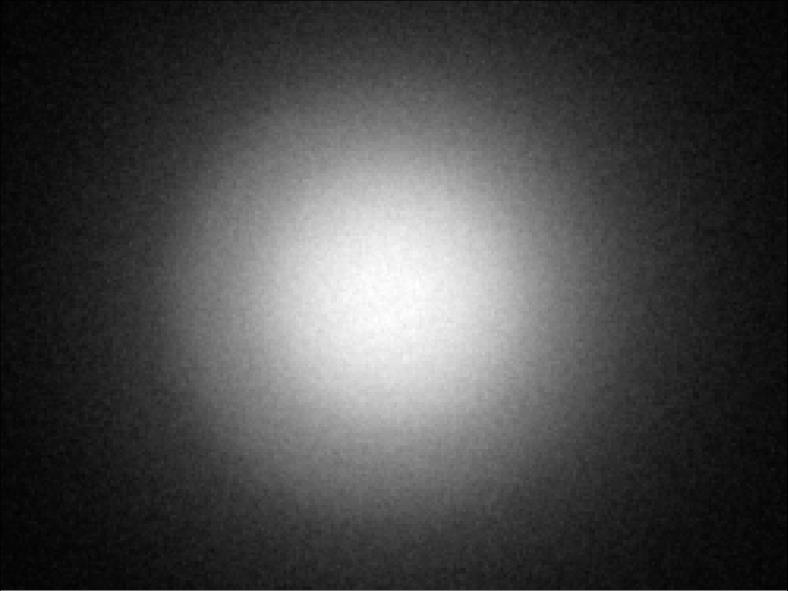

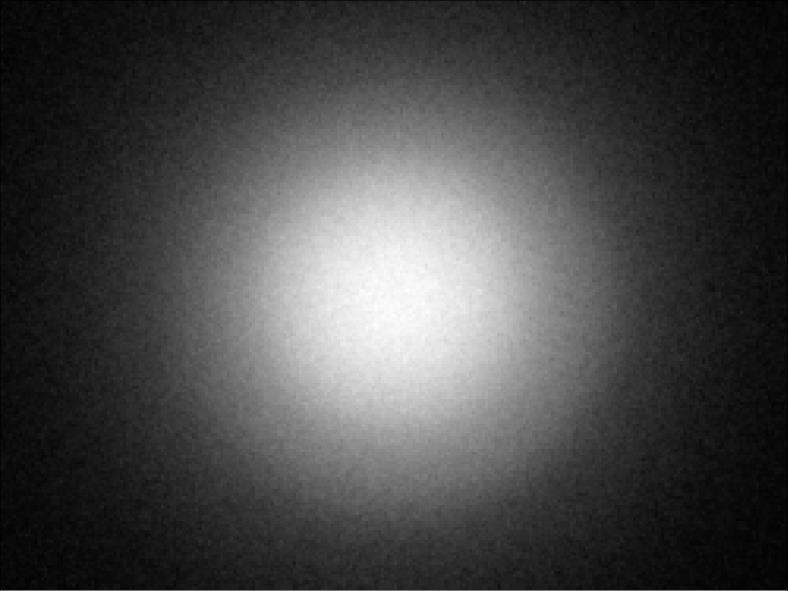

Carclo Optics 60030 Silicone S1 Spot Image Luxeon Cob 1205

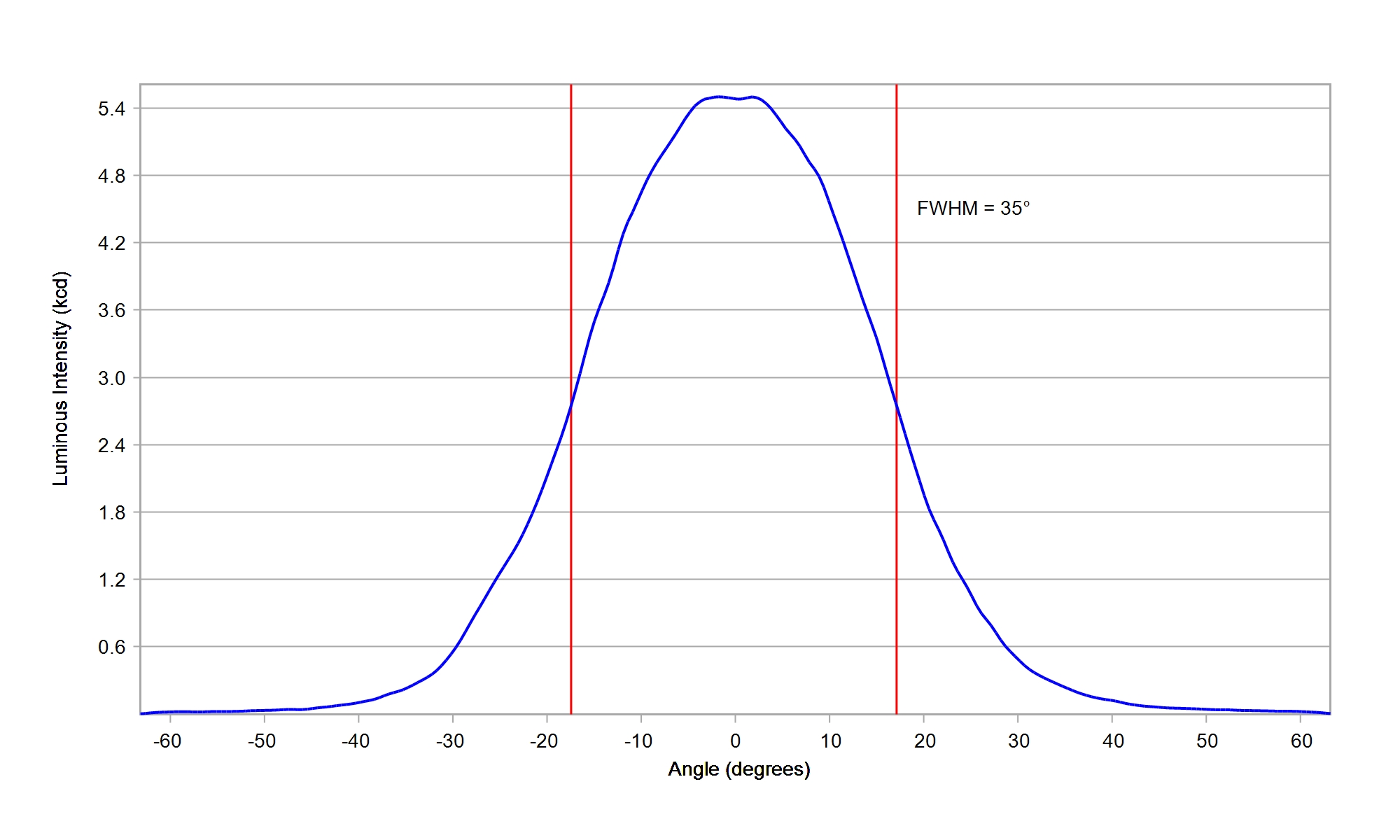

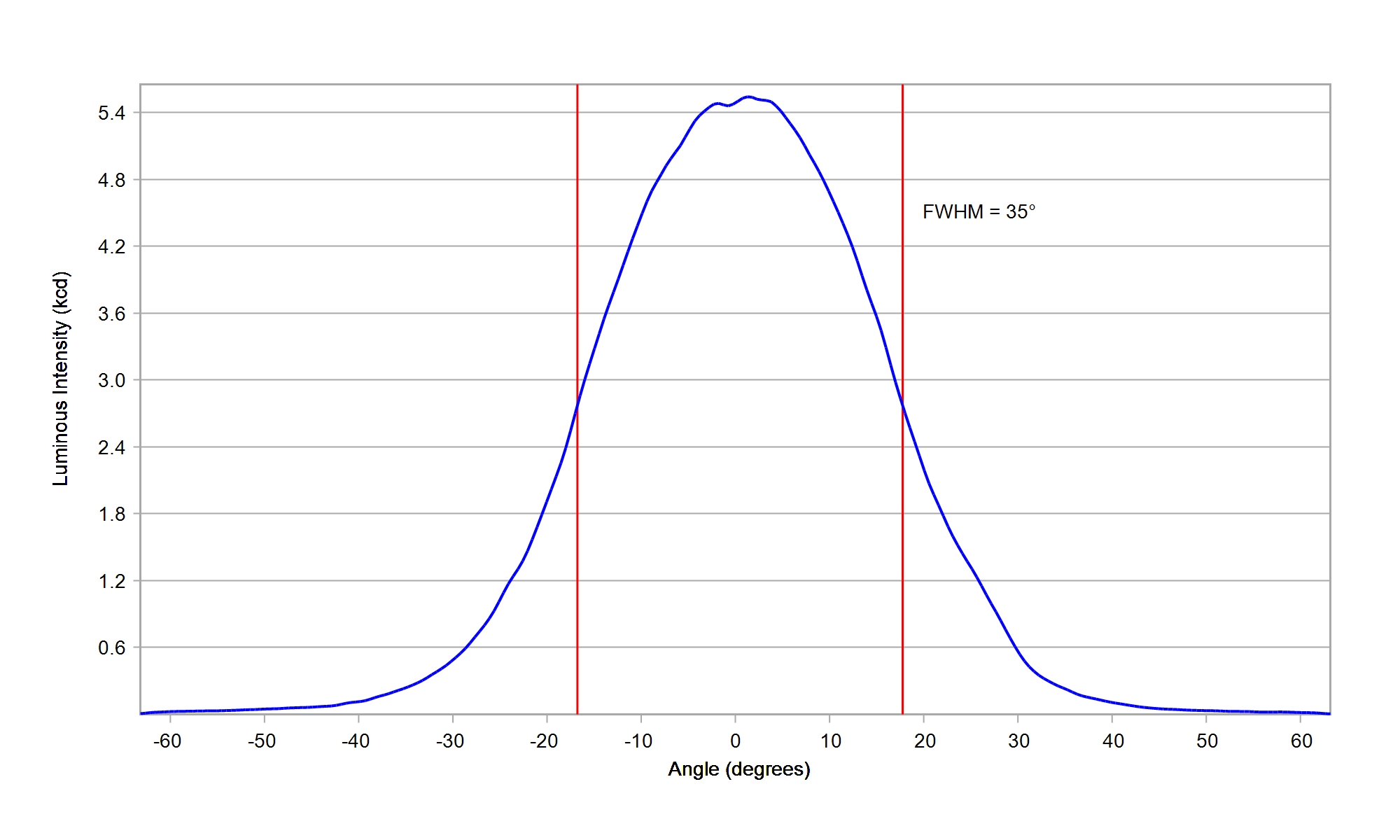

Carclo Optics 60030 Silicone S1 Cross Section Luxeon Cob 1205
Download
Details
LUMILEDS LUXEON 1205
Eff:
87.5%
FWHM:
34.5°
Cd/Im:
2.2
Interconnect: H 2024 G1 Philips Fortimo SLM
Carclo Optics 60030 Silicone S1 Spot Image Luxeon Cob 1205
Carclo Optics 60030 Silicone S1 Cross Section Luxeon Cob 1205
Download
Details
LUMILEDS LUXEON 1208
Eff:
88.0%
FWHM:
37.0°
Cd/Im:
1.9
Interconnect: 1041 Molex 180555

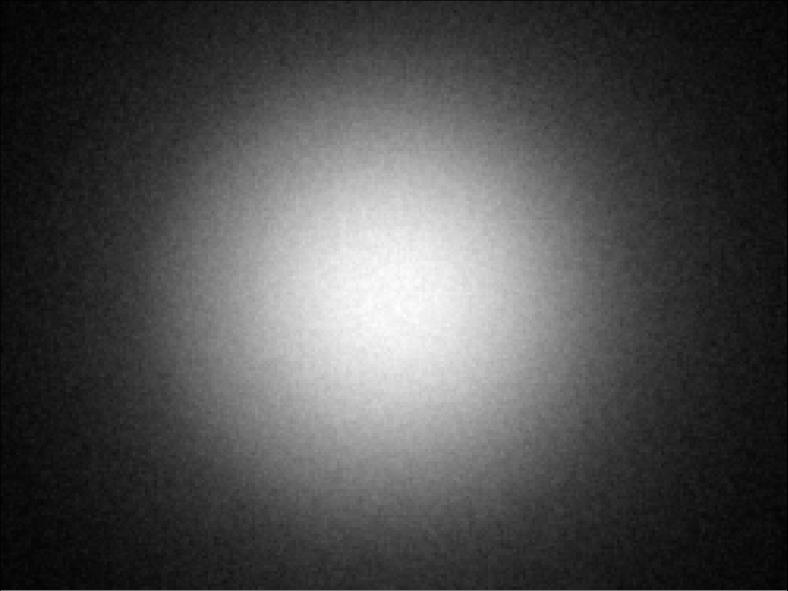

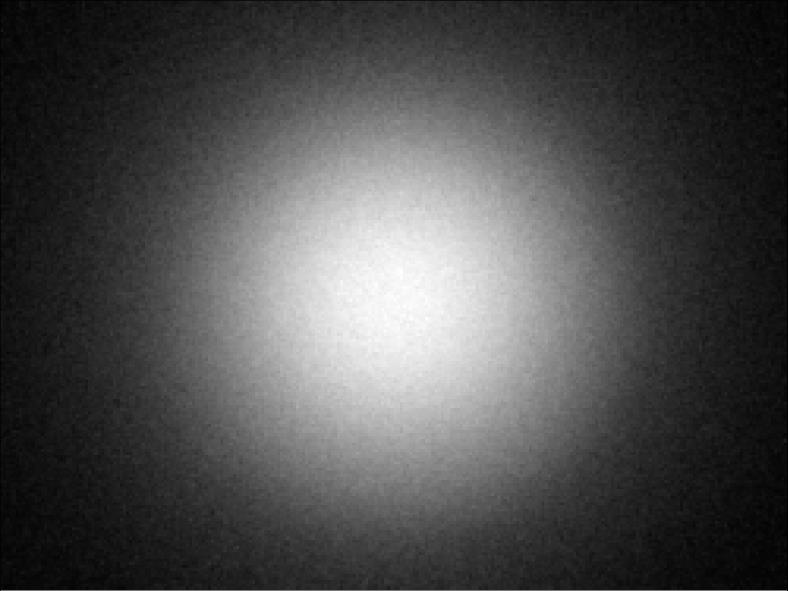

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1208

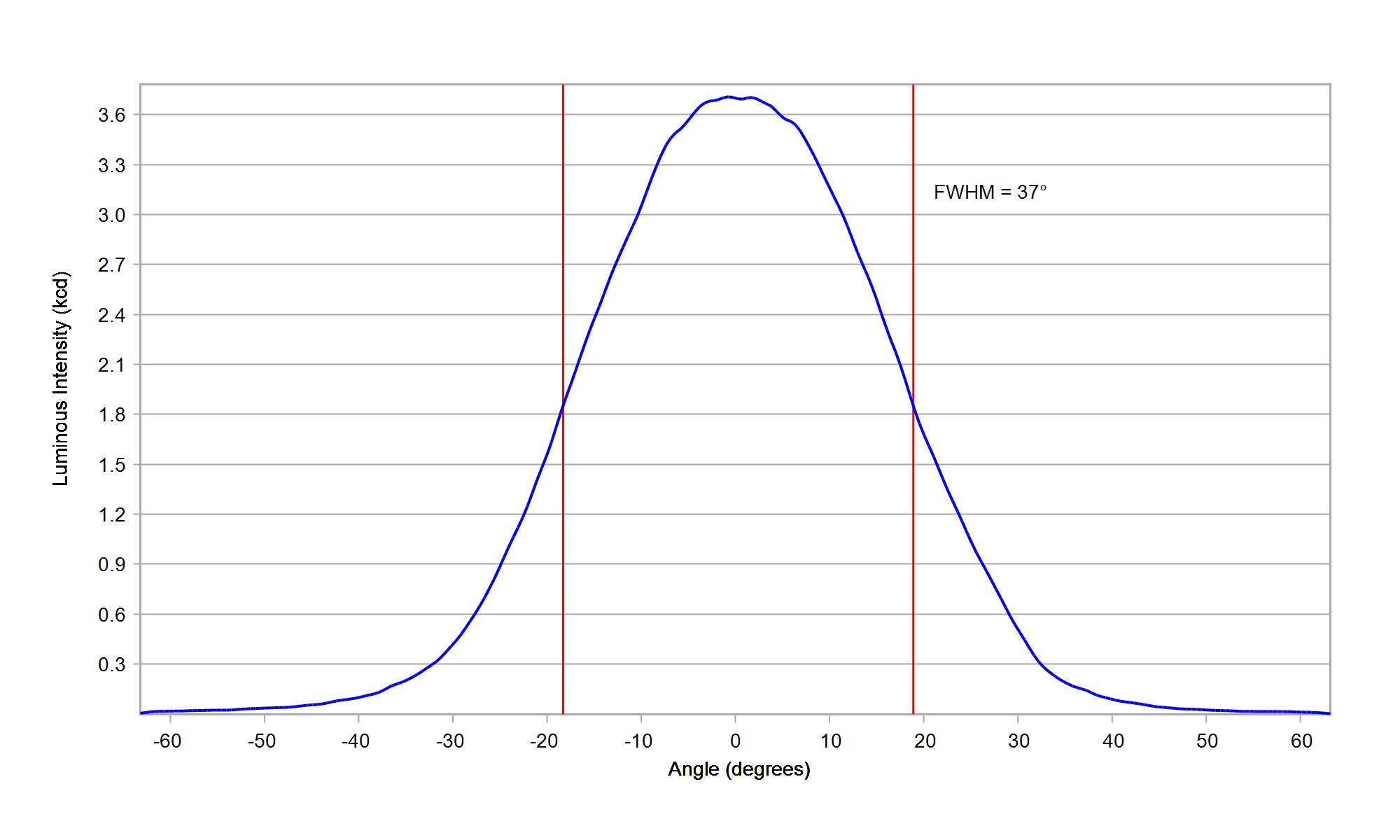

Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1208
Download
Details
LUMILEDS LUXEON 1208
Eff:
88.5%
FWHM:
37.0°
Cd/Im:
1.9
Interconnect: H 2024 G1 Philips Fortimo SLM
Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1208
Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1208
Download
Details
LUMILEDS LUXEON 1211
Eff:
88.0%
FWHM:
41°
Cd/Im:
1.4
Interconnect: H 2828 G1 Philips Fortimo SLM

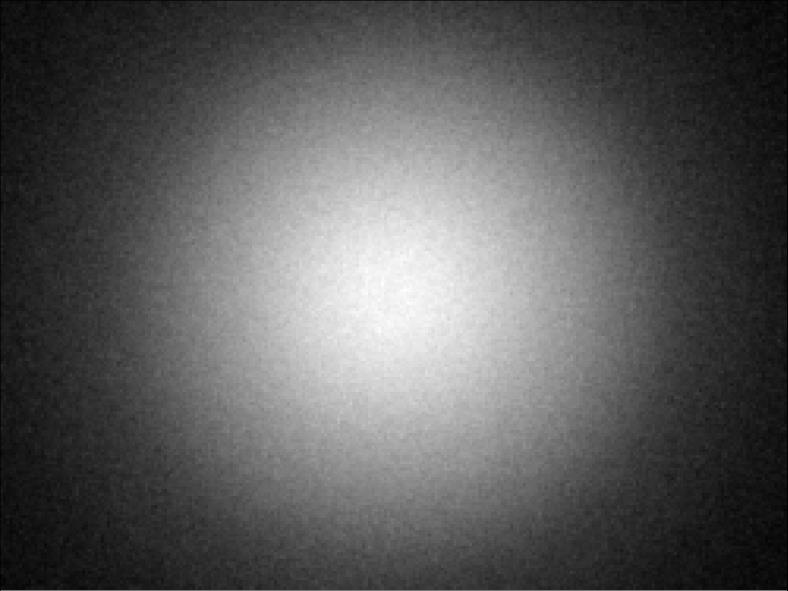

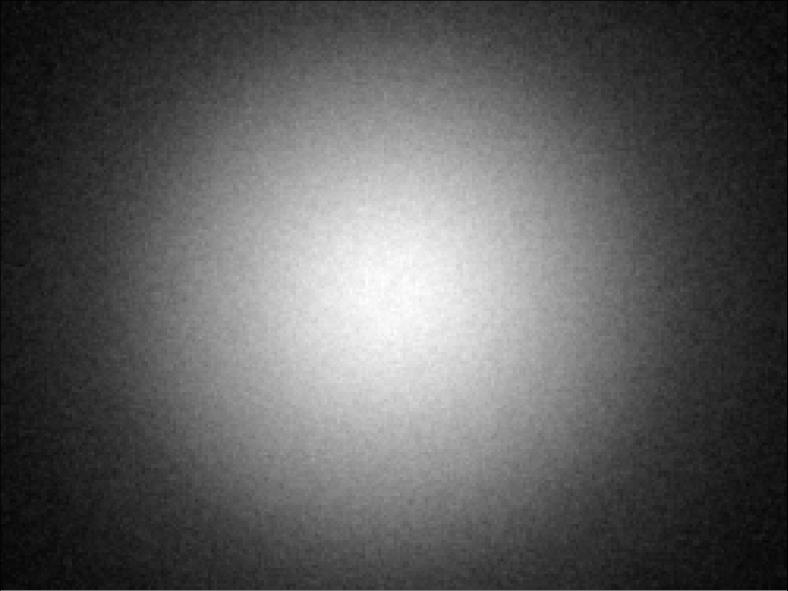

Carclo Optics - 60030 Silicone S1 Spot Image Luxeon CoB 1211

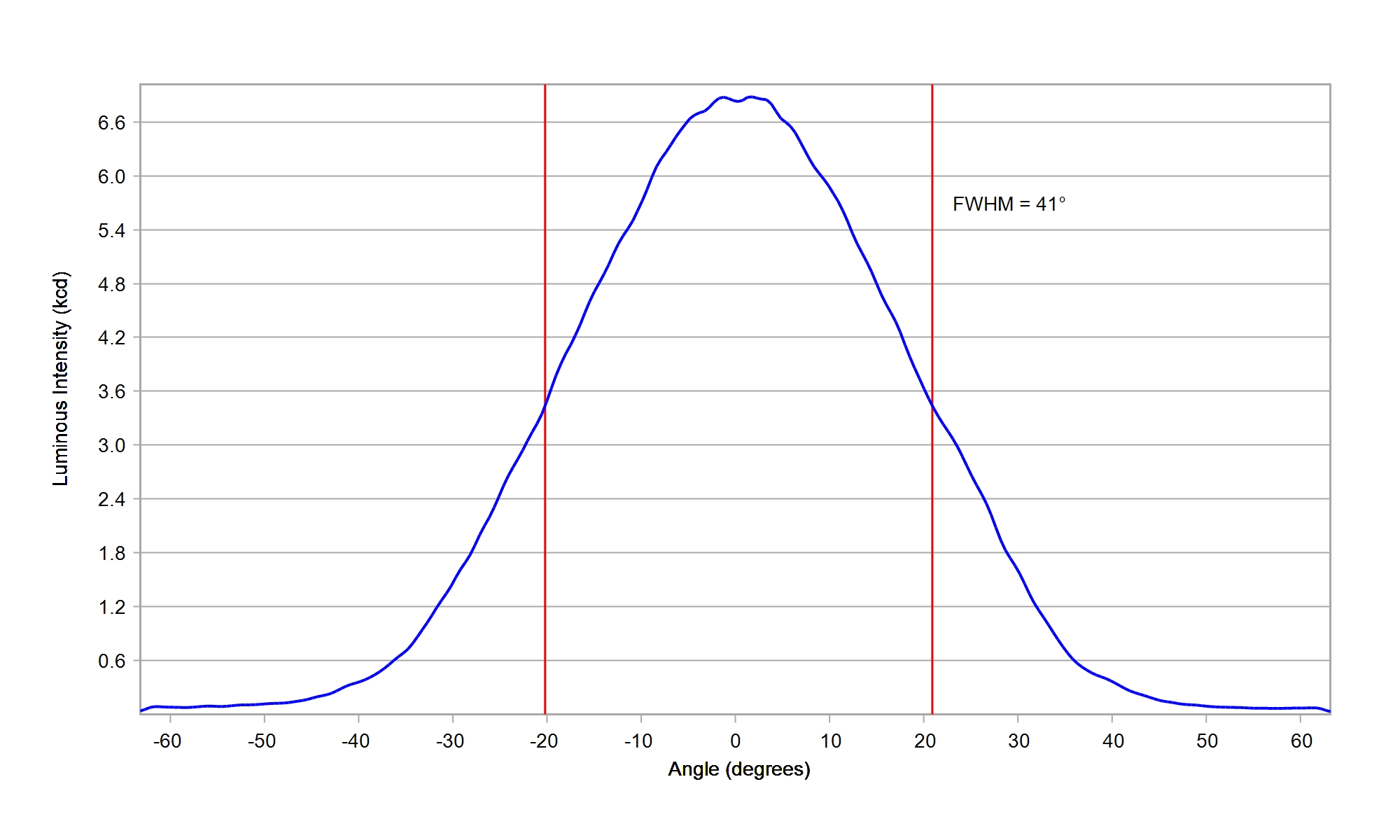

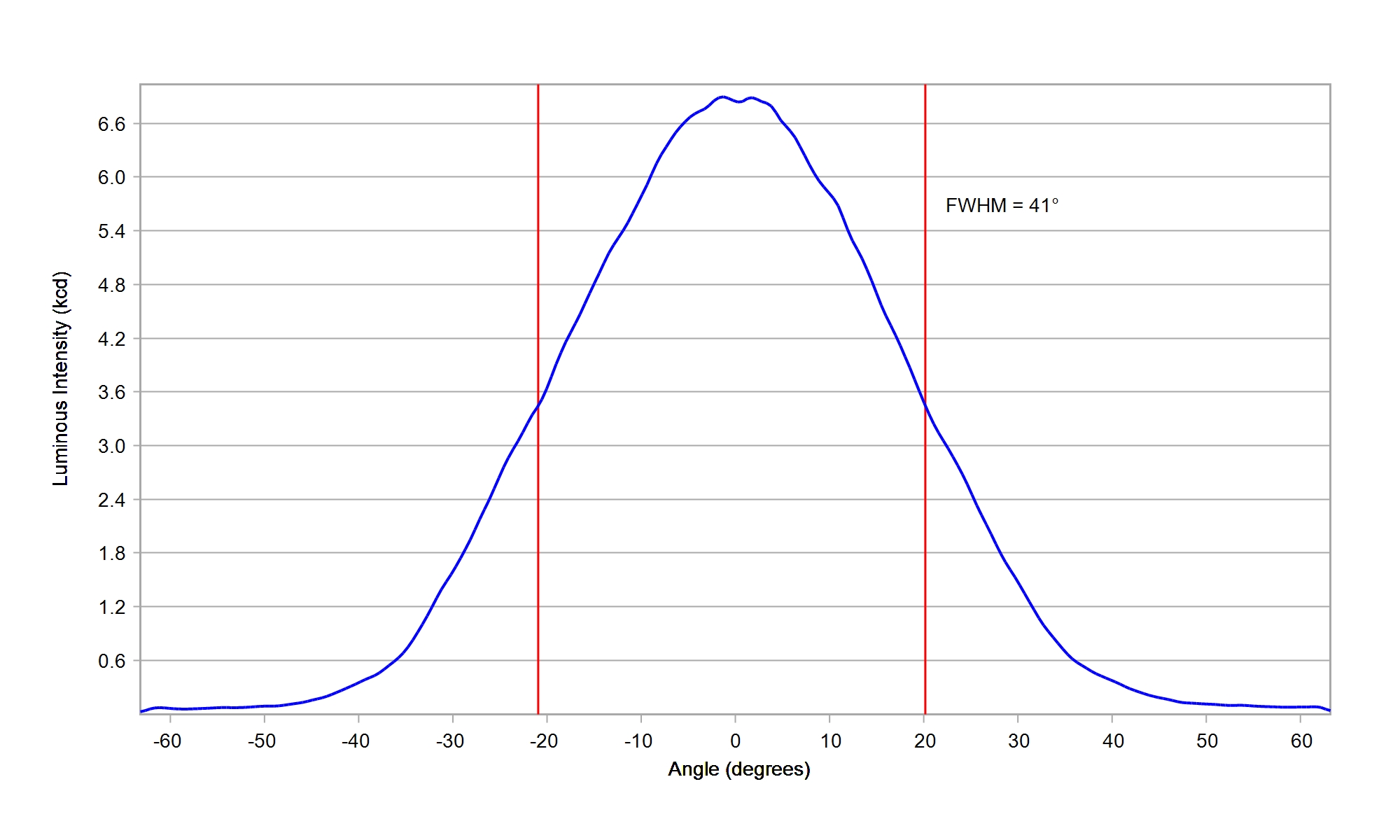

Carclo Optics - 60030 Silicone S1 Cross Section Luxeon CoB 1211
Download
Details
LUMILEDS LUXEON 1211
Eff:
88.0%
FWHM:
41.5°
Cd/Im:
1.4
Interconnect: 1051 Molex 180555
Carclo Optics 60030 Silicone S1 Spot Image Luxeon_CoB_1211
Carclo Optics 60030 Silicone S1 Cross Selection Luxeon_CoB_1211
Download
Details
Nichia L 016 Z
Eff:
87.5%
FWHM:
28.5°
Cd/Im:
2.8
Interconnect: 1031 Molex 180555

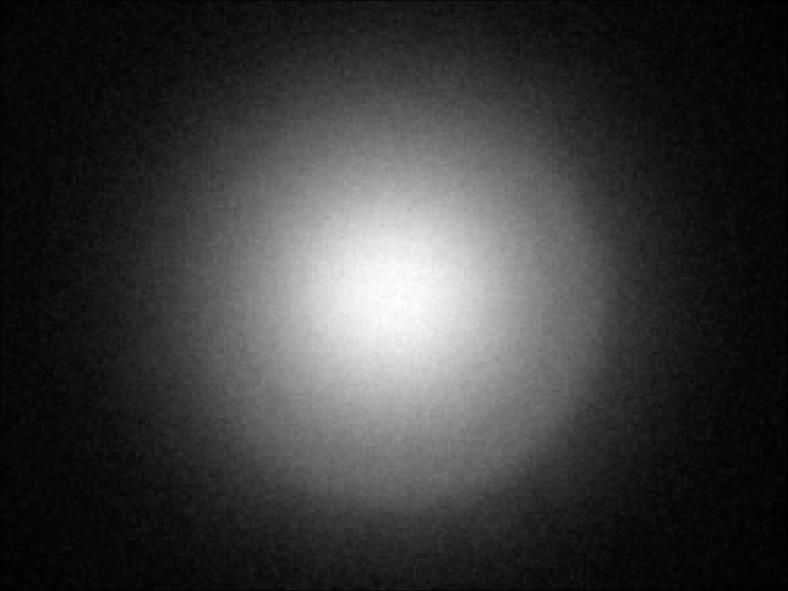

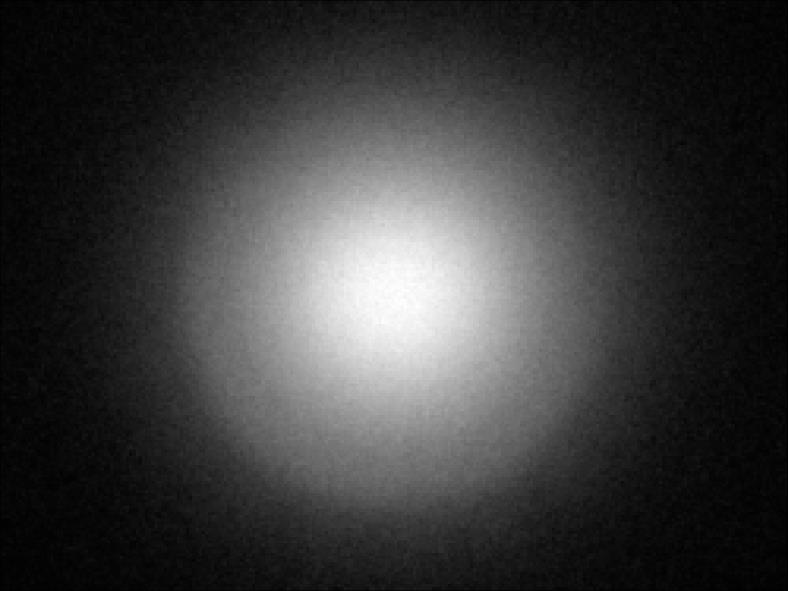

Carclo Optics - 60030 Silicone S1 Spot Image Nichia L016Z

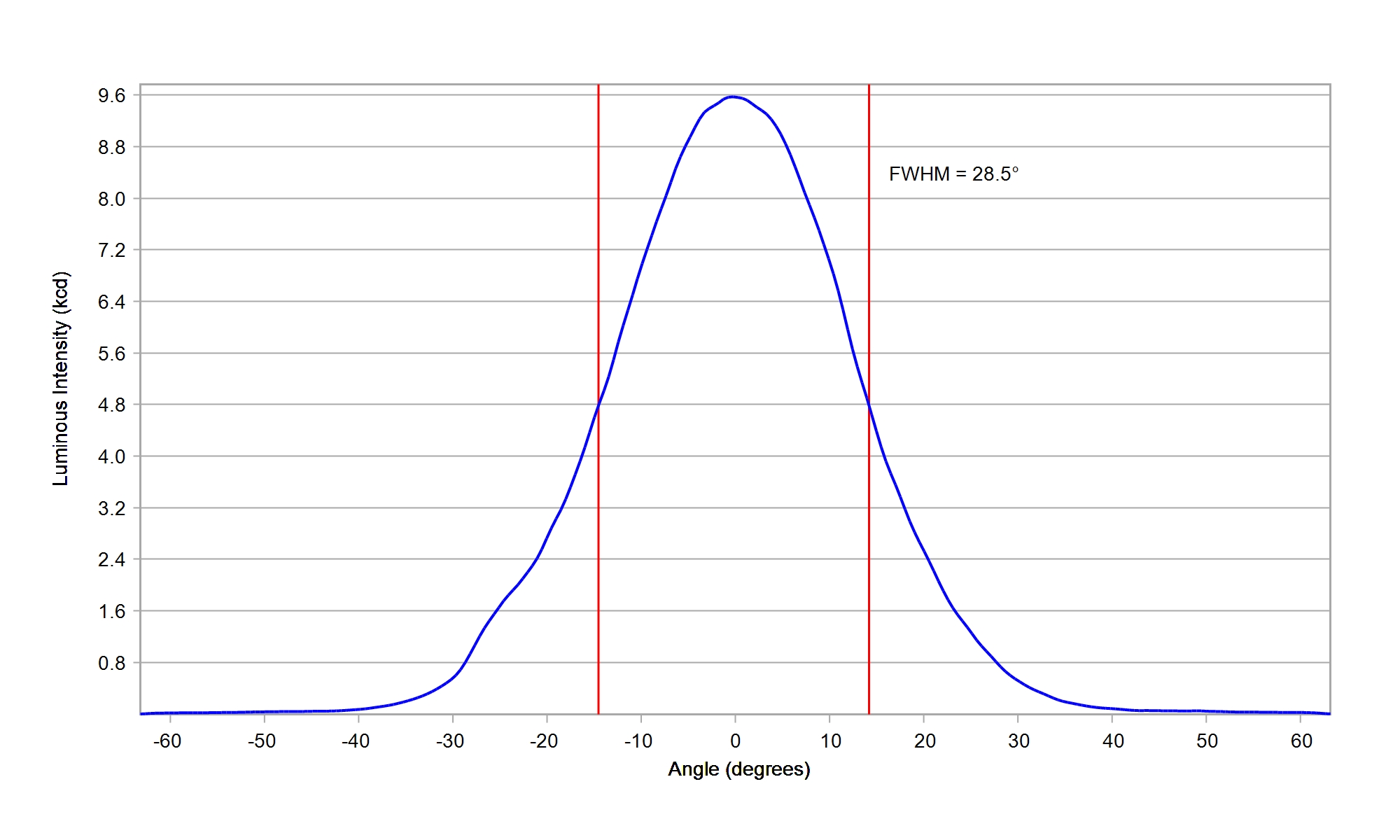

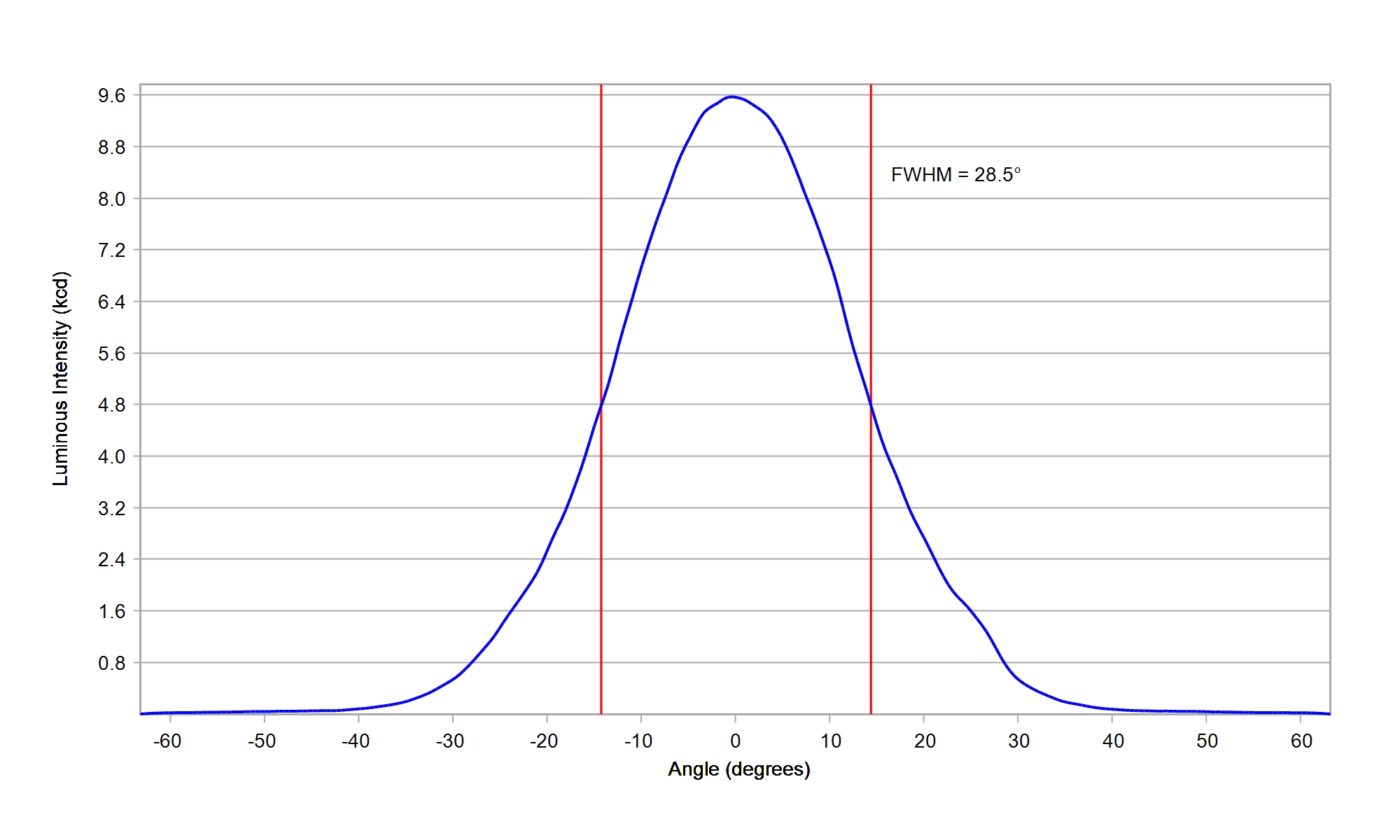

Carclo Optics - 60030 Silicone S1 Cross Section Nichia L016Z
Download
Details
Nichia L 016 Z
Eff:
87.5%
FWHM:
28.5°
Cd/Im:
2.8
Interconnect: H 1619 Philips Fortimo SLM
Carclo Optics - 60030 Silicone S1 Spot Image Nichia L016Z
Carclo Optics - 60030 Silicone S1 Cross Section Nichia L016Z
Download
Details
Nichia NFCWL 036B White
Eff:
88.0%
FWHM:
28.0°
Cd/Im:
2.9
Interconnect: H 1619 Philips Fortimo SLM

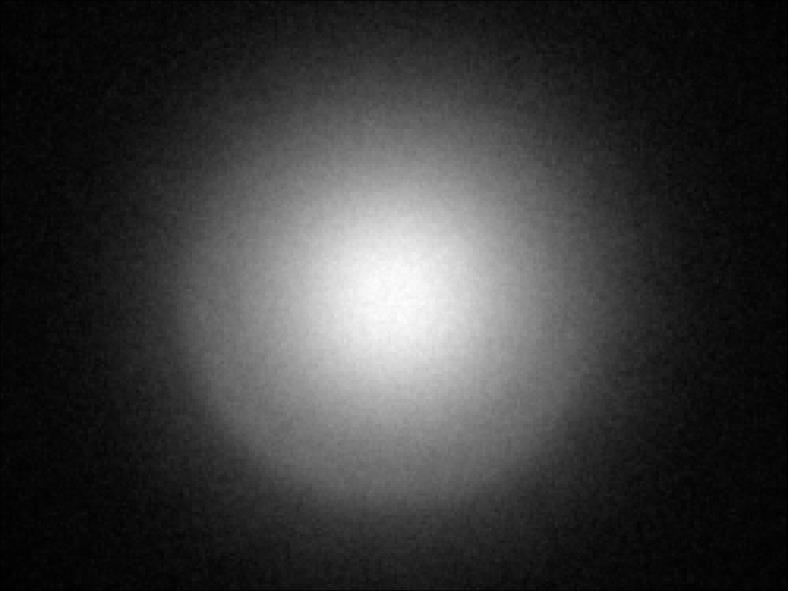

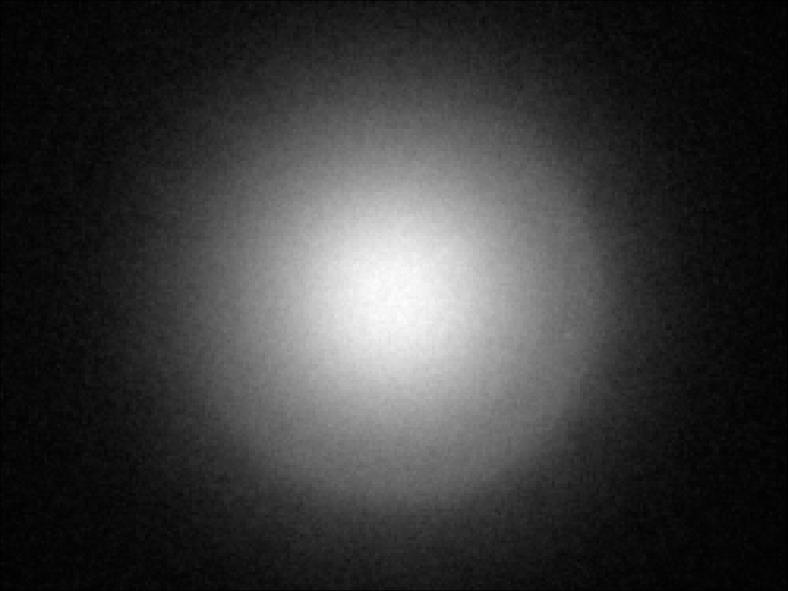

Carclo Optics 60030 Silicone S1 Spot Image Nichia 036B

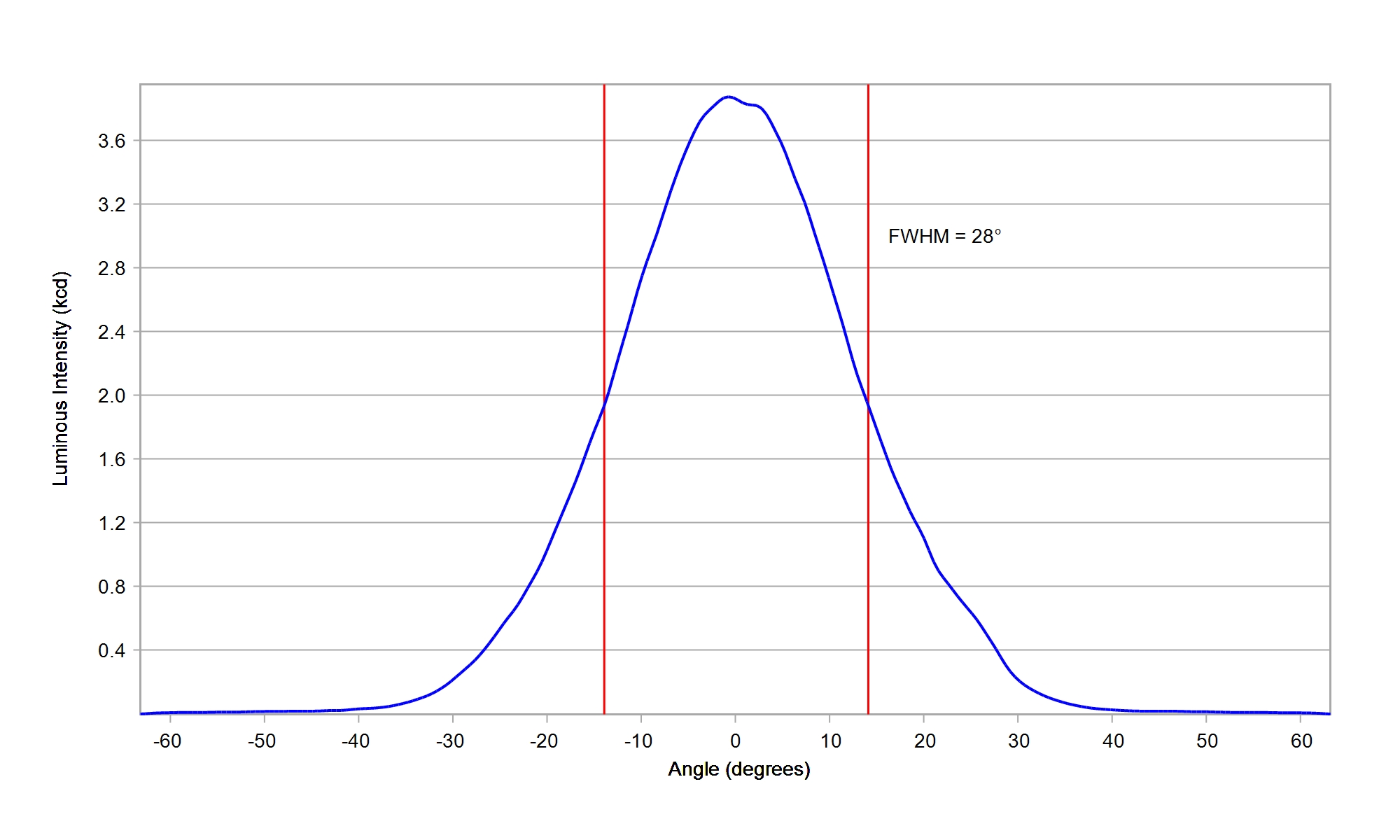

Carclo Optics - 60030 Silicone S1 Cross Section Nichia 036B
Download
Details
Nichia NFCWL 036B White
Eff:
88.0%
FWHM:
28.5°
Cd/Im:
2.9
Interconnect: 1031 Molex 180555
Carclo Optics 60030 Silicone S1 Spot Image Nichia 036B
Carclo Optics 60030 Silicone S1 Cross Section Nichia 036B
Download
Details
