292 x 61mm Wide Spot Plain Freeform

Part number

12969

Dimensions

292 x 61mm

Drawing Number

12969_Rev-2_WB_Tri_SymFlange

Optic type

Freeform

Finish

Plain

Beam type

Wide Spot

Material: PC

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

93.5%

FWHM:

82 x 80°

Cd/Im:

1.0

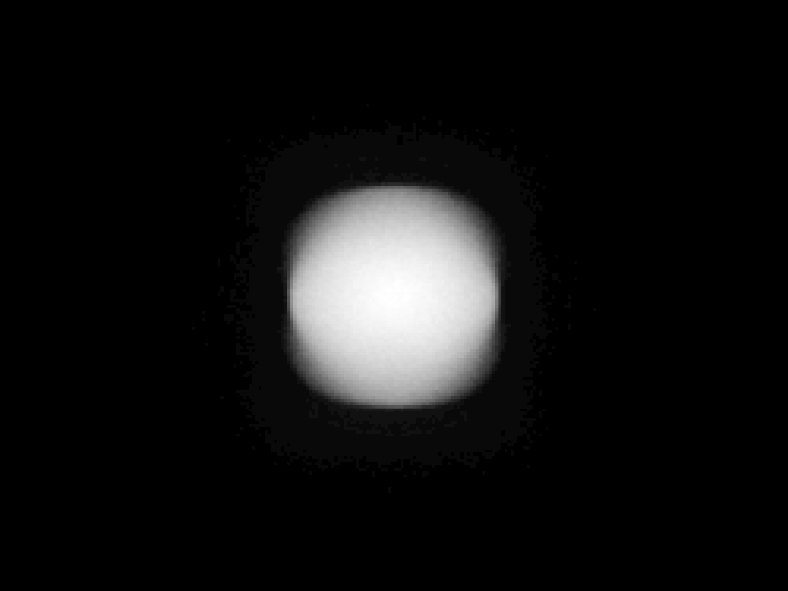

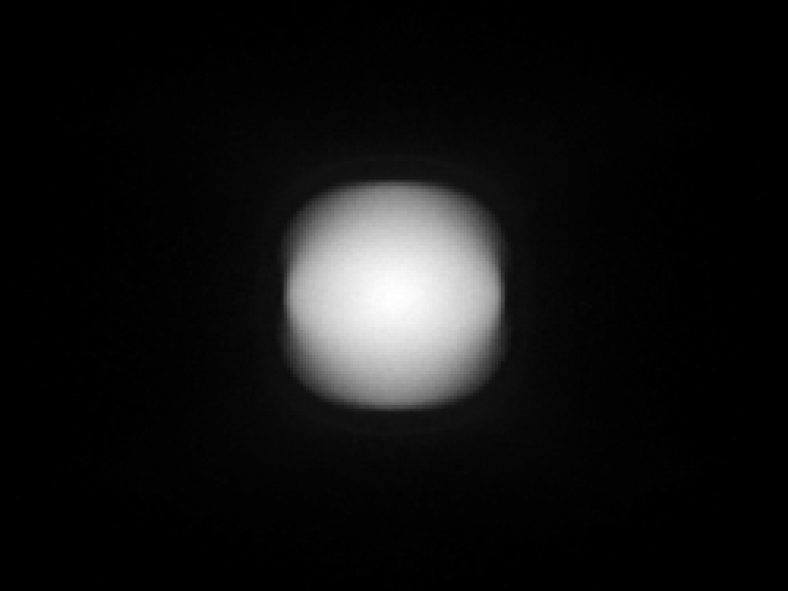

Carclo Optics - 12969 33Up Spot Image Bridgelux 3030 Gen2

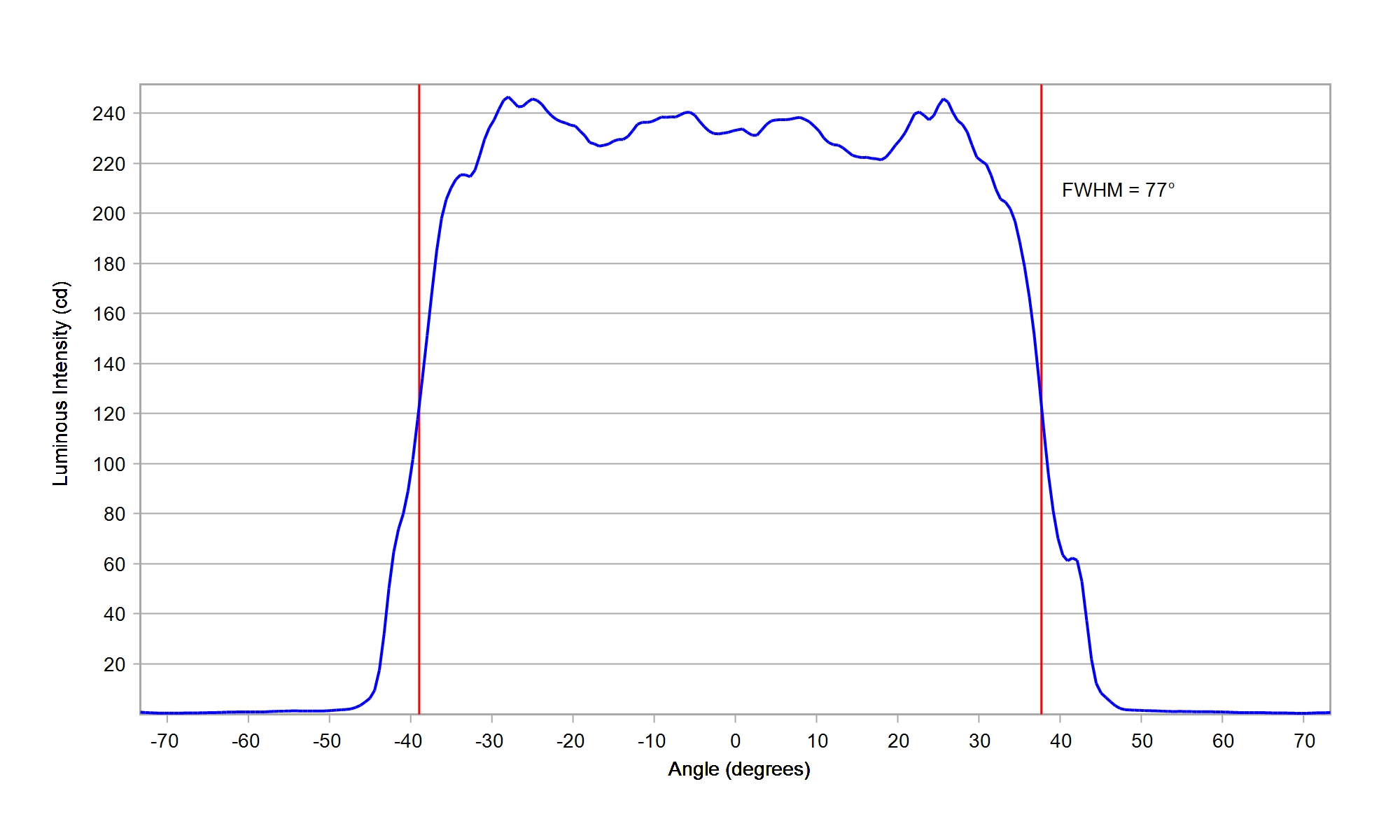

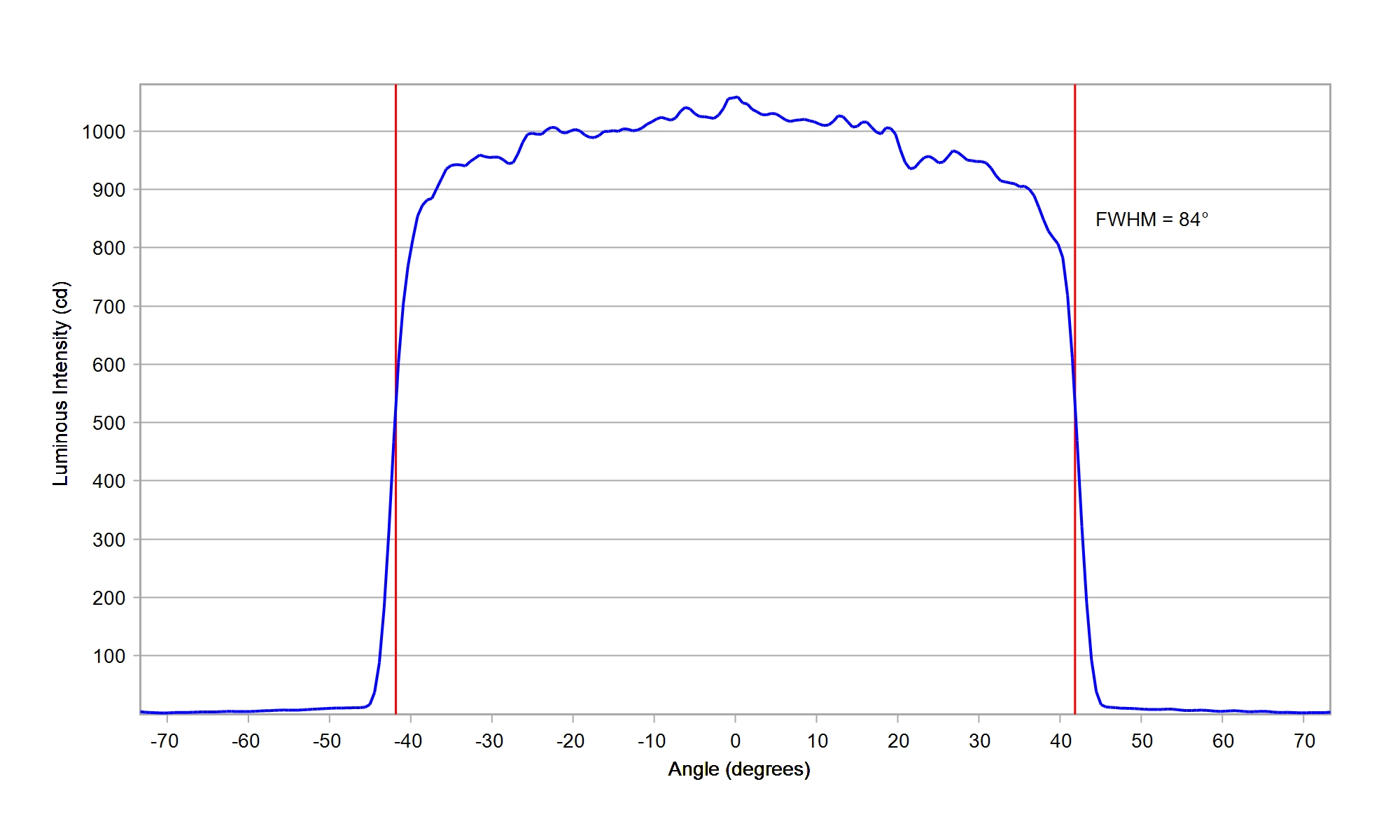

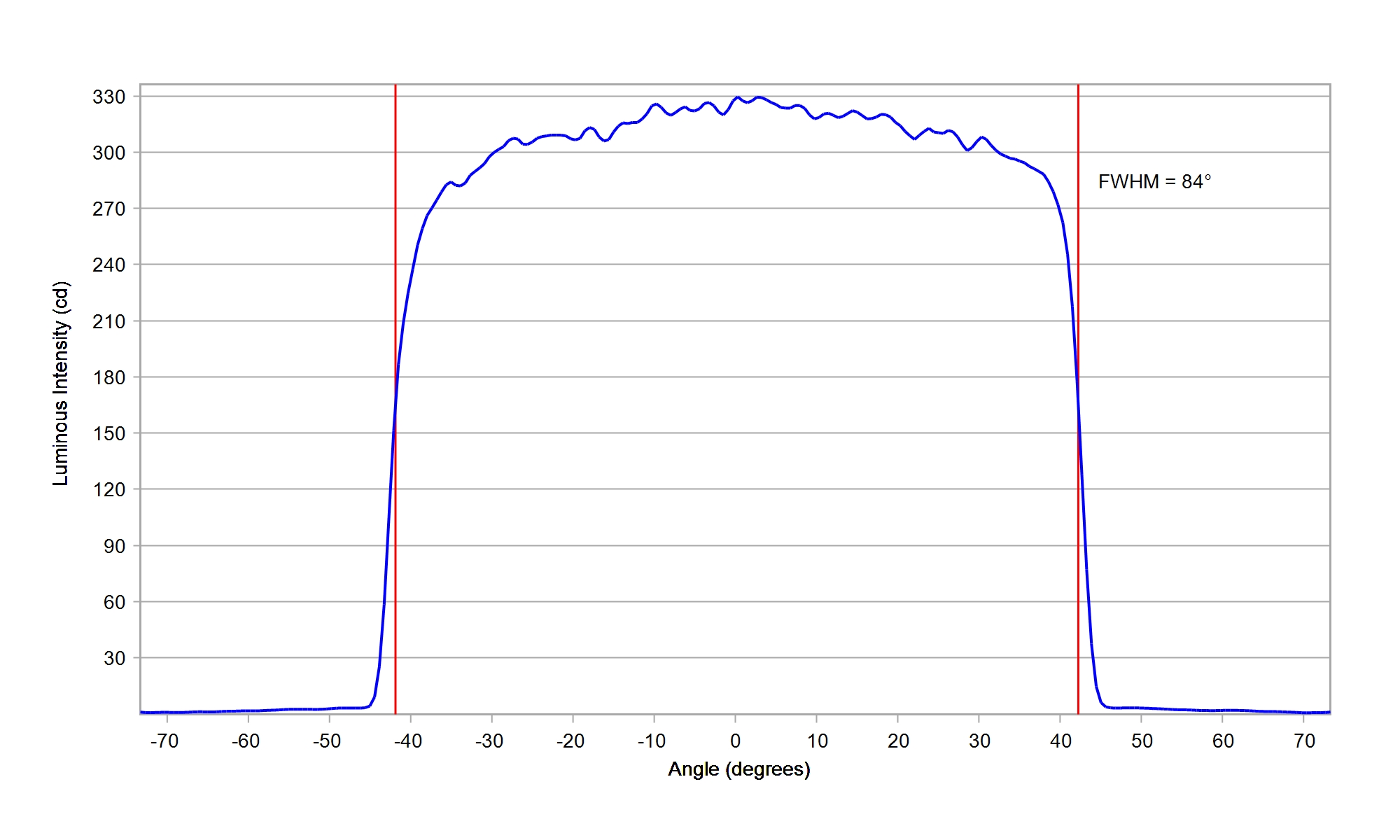

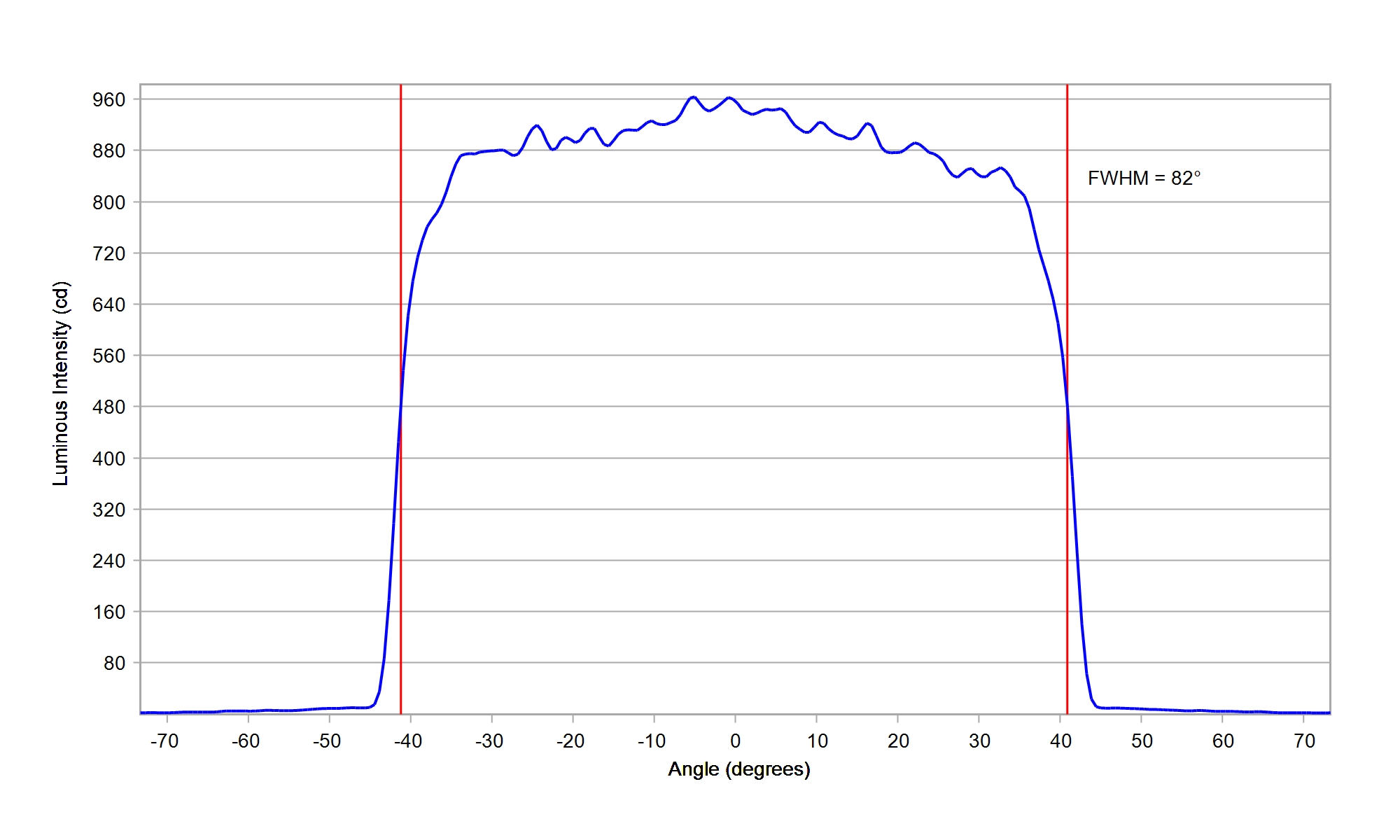

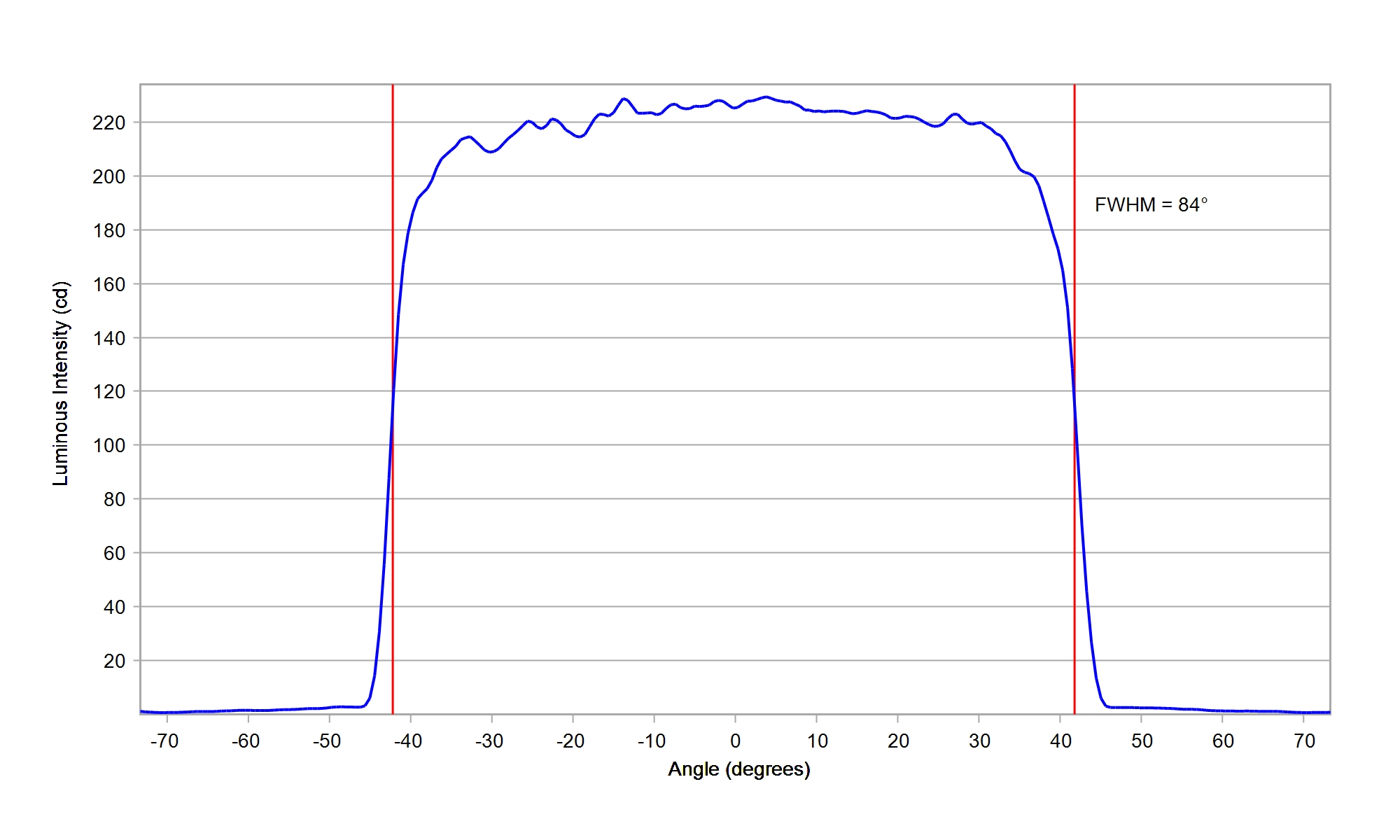

Carclo Optics - 12969 33Up Cross Section Bridgelux 3030 Gen2

Download

ies

Cree JB2835B 3V G-Class White

Eff:

93.5%

FWHM:

83°

Cd/Im:

0.9


Download

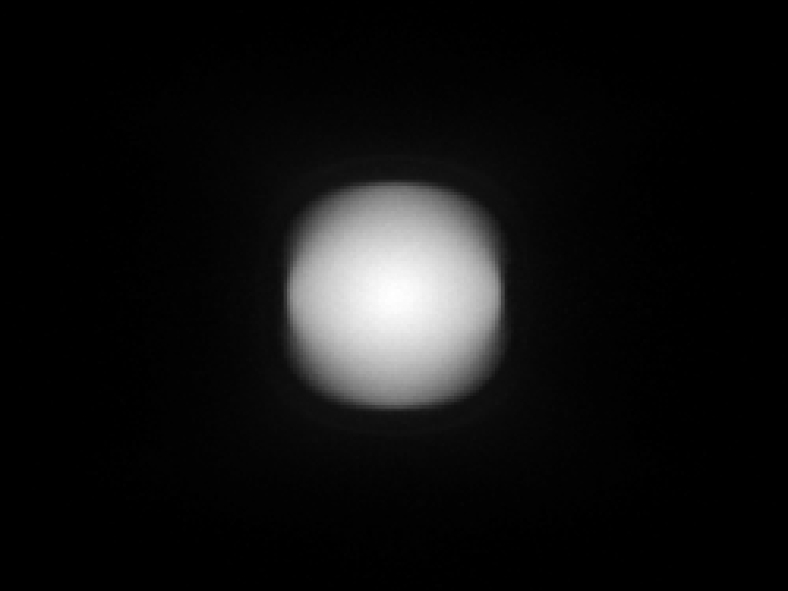

Cree JB2835B 3V J-Class White

Eff:

93.5%

FWHM:

83°

Cd/Im:

0.9


Download

Cree JB3030 3V P-Class White

Eff:

93.0%

FWHM:

81.0°

Cd/Im:

1.0

Carclo Optics - 12969 Spot Image Cree JB3030 3V White

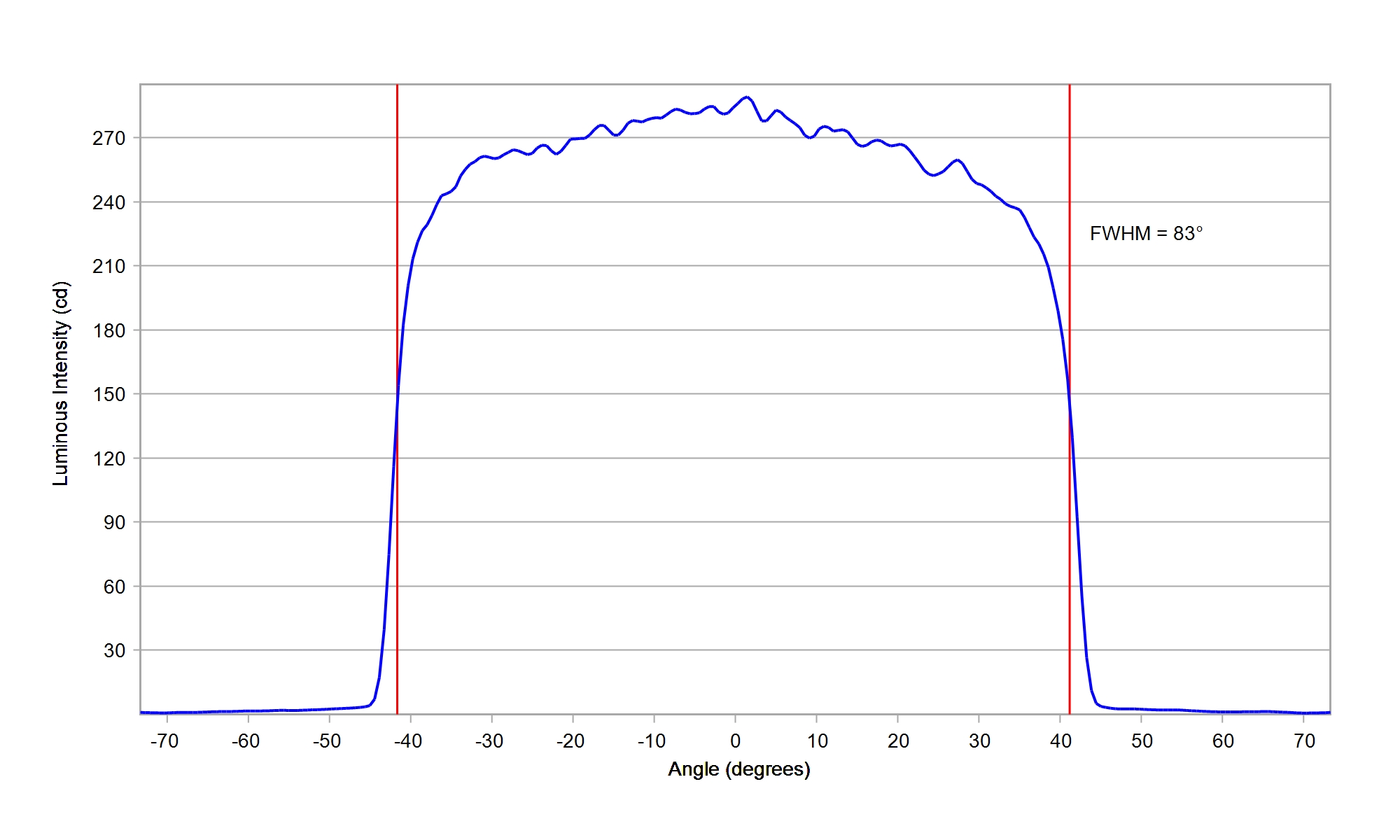

Carclo Optics - 12969 Cross Section Cree JB3030 3V White

Download

ies

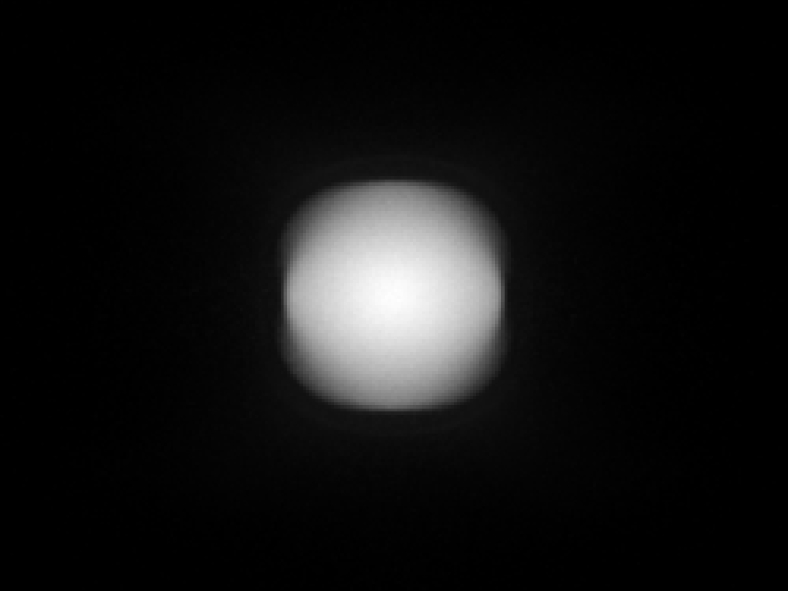

Cree JB3030C 3V E-Class White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9


Download

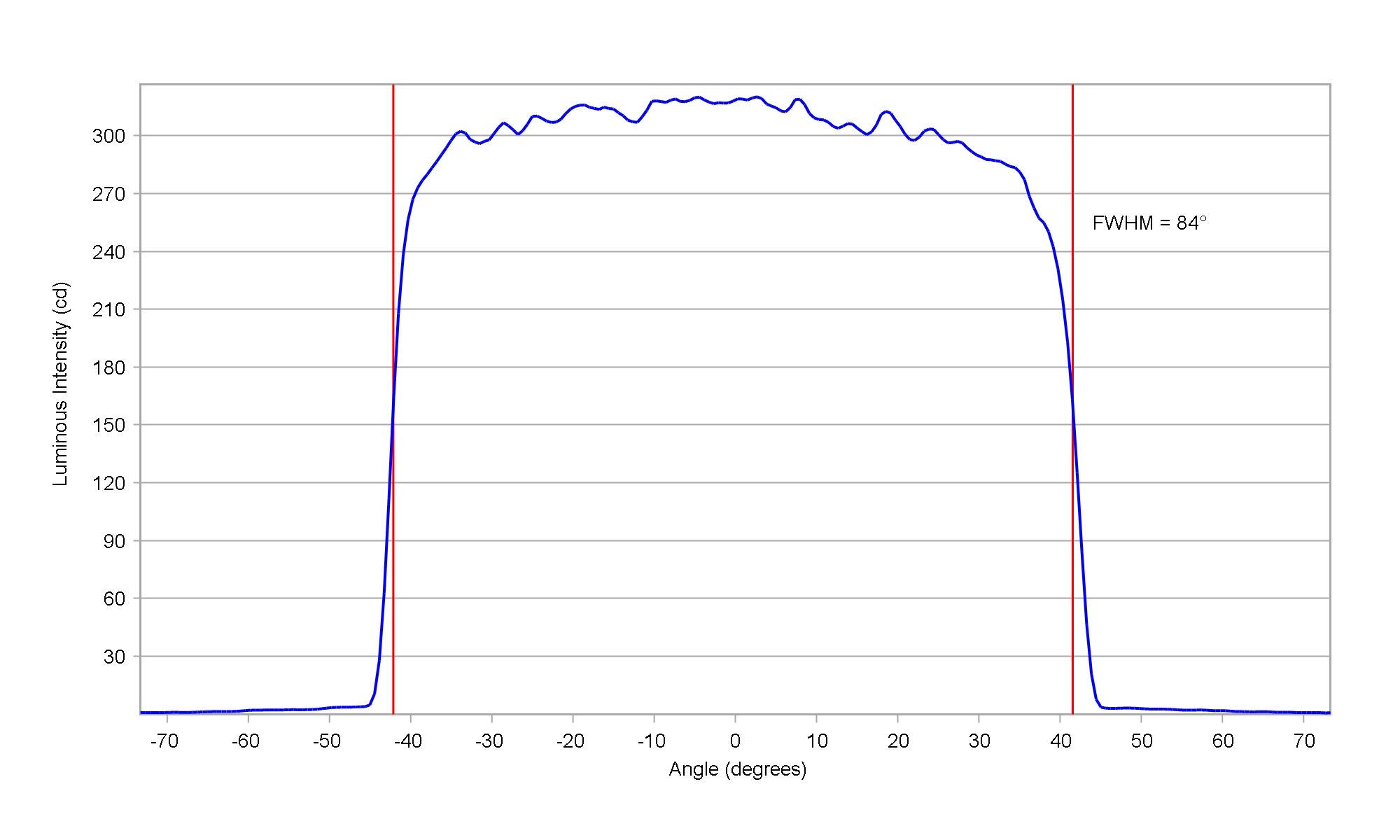

Cree JB3030C 3V F-Class White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9


Download

Cree JE2835 3V White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.8

Download

Cree JK2835 6V White

Eff:

93.0%

FWHM:

82°

Cd/Im:

1.1

Download

ies

Cree JQ5050 9V White

Eff:

93.0%

FWHM:

81.0°

Cd/Im:

1.1

Carclo Optics - 12969 Spot Image Cree JQ5050 9V White

Carclo Optics - 12969 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

93.0%

FWHM:

80.0°

Cd/Im:

1.0

Carclo Optics - 12969 Spot Image Cree JR5050 24V White

Carclo Optics - 12969 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

93.5%

FWHM:

81.0°

Cd/Im:

1.2

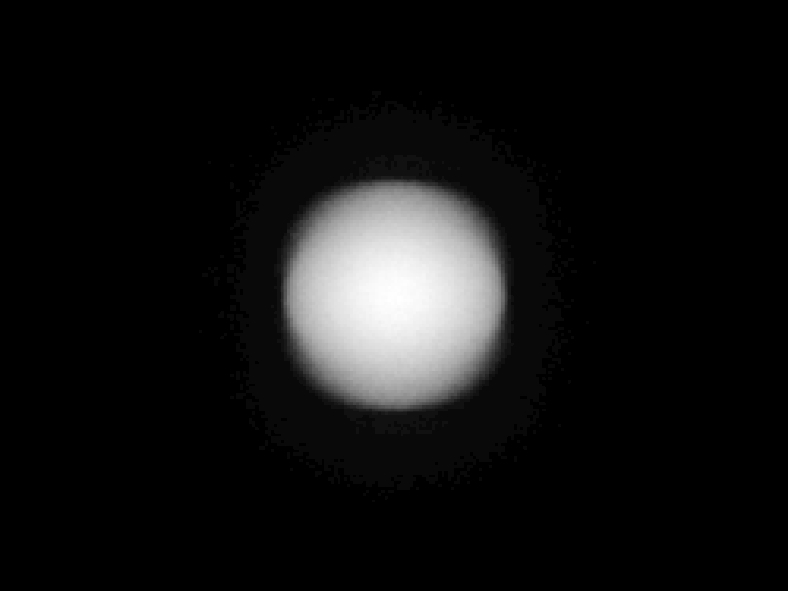

Carclo Optics - 12969 Spot Image Cree JR5050 36V White

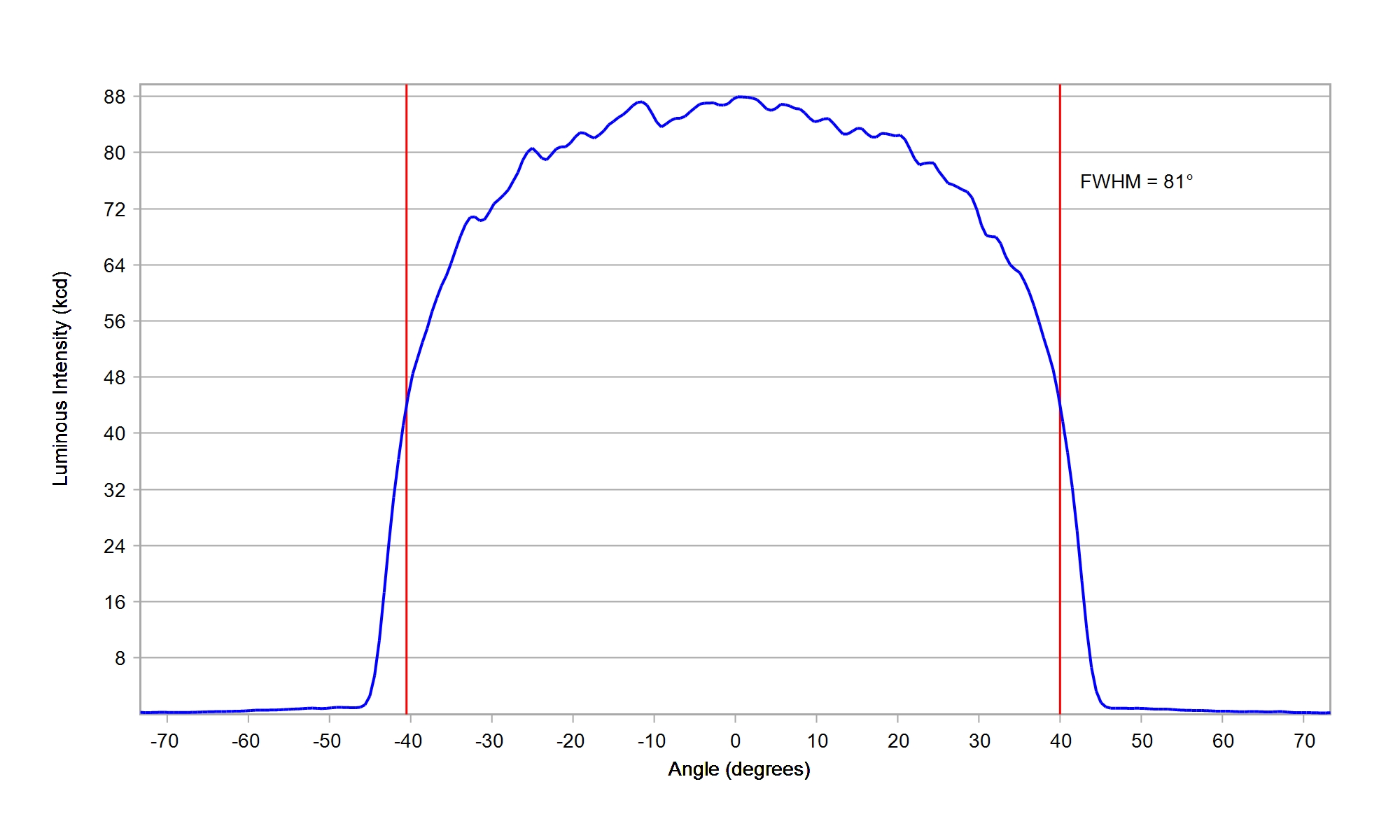

Carclo Optics - 12969 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

93.0%

FWHM:

81.0°

Cd/Im:

1.0

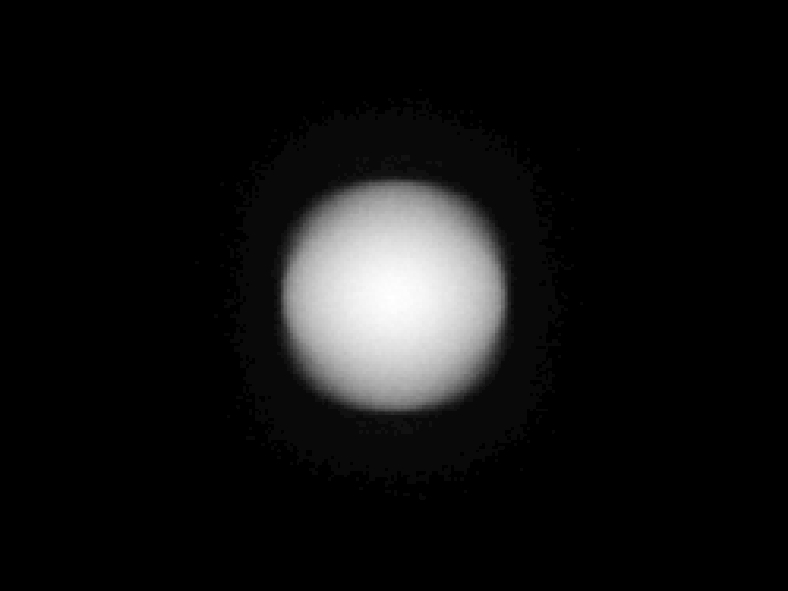

Carclo Optics - 12969 Spot Image Cree JR5050 6V White

Carclo Optics - 12969 Cross Section Cree JR5050 6V White

Download

ies

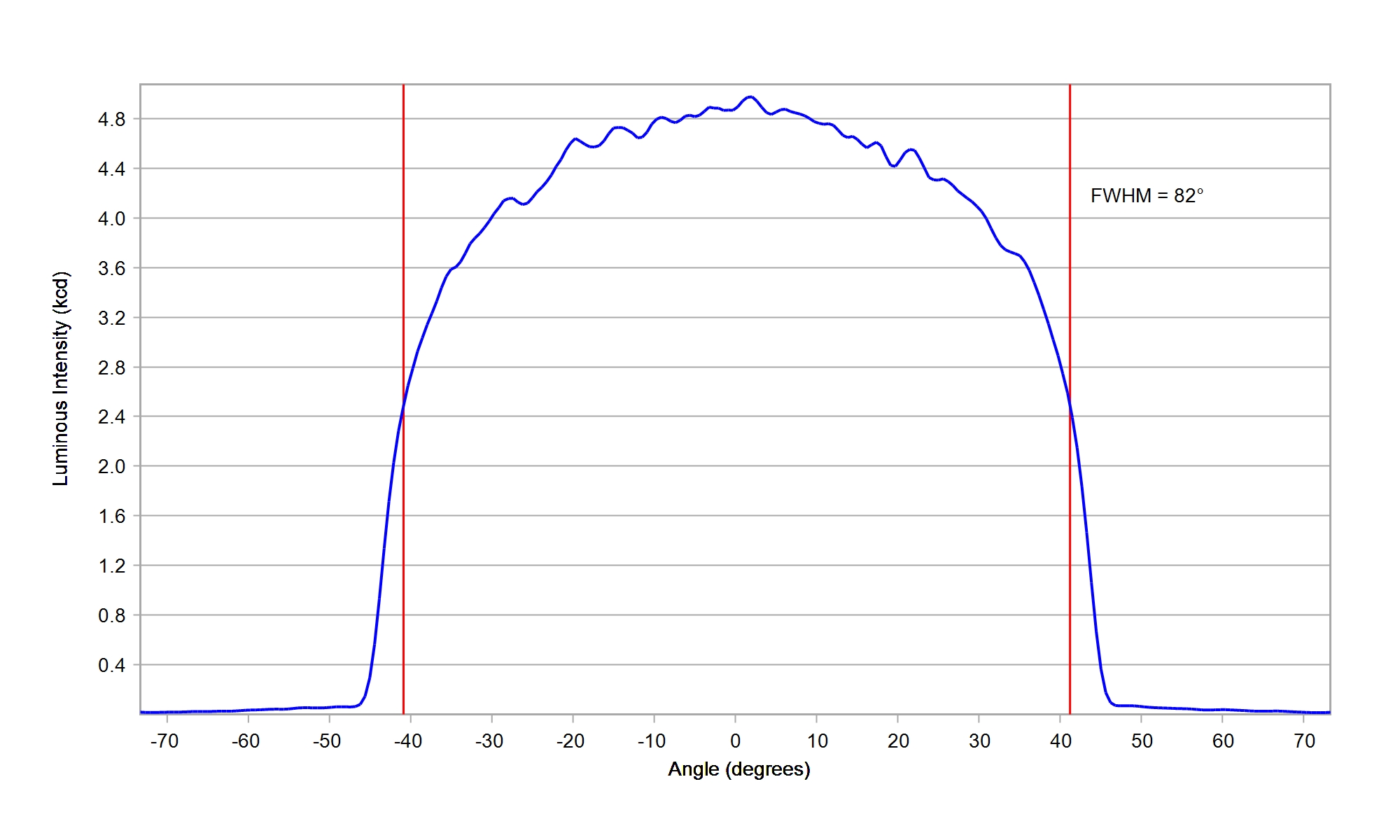

Cree JR5050C 6V E-Class White

Eff:

93.0%

FWHM:

82°

Cd/Im:

0.9


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

92.5%

FWHM:

84°

Cd/Im:

0.9

Download

IES

Cree XLamp XE-G White

Eff:

91.5%

FWHM:

87°

Cd/Im:

0.8

Download

ies

Cree XLamp XH-B White

Eff:

90.0%

FWHM:

91°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

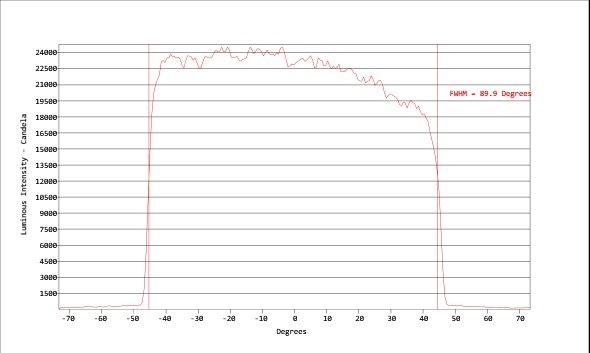

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

91.5%

FWHM:

85°

Cd/Im:

0.9

Carclo Optics – 12969 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12969 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

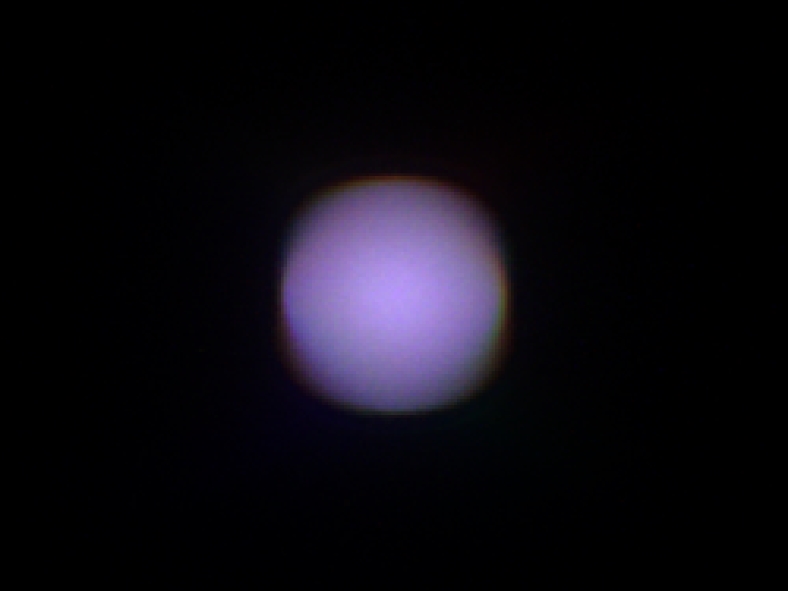

Cree XLamp XM-L Color G2 HI RGBW

Eff:

92.5%

FWHM:

84°

Cd/Im:

1.0

Download

ies

Cree XLamp XP-E2 White

Eff:

93.0%

FWHM:

87°

Cd/Im:

0.9

Download

ies

Cree XLamp XP-G4 HI White

Eff:

92.0%

FWHM:

87°

Cd/Im:

0.8

Download

Cree XLamp XP-P White

Eff:

93.0%

FWHM:

85°

Cd/Im:

1.1

Carclo Optics – 12969 Cree Xlamp XP-P - Spot Image

Download

ies

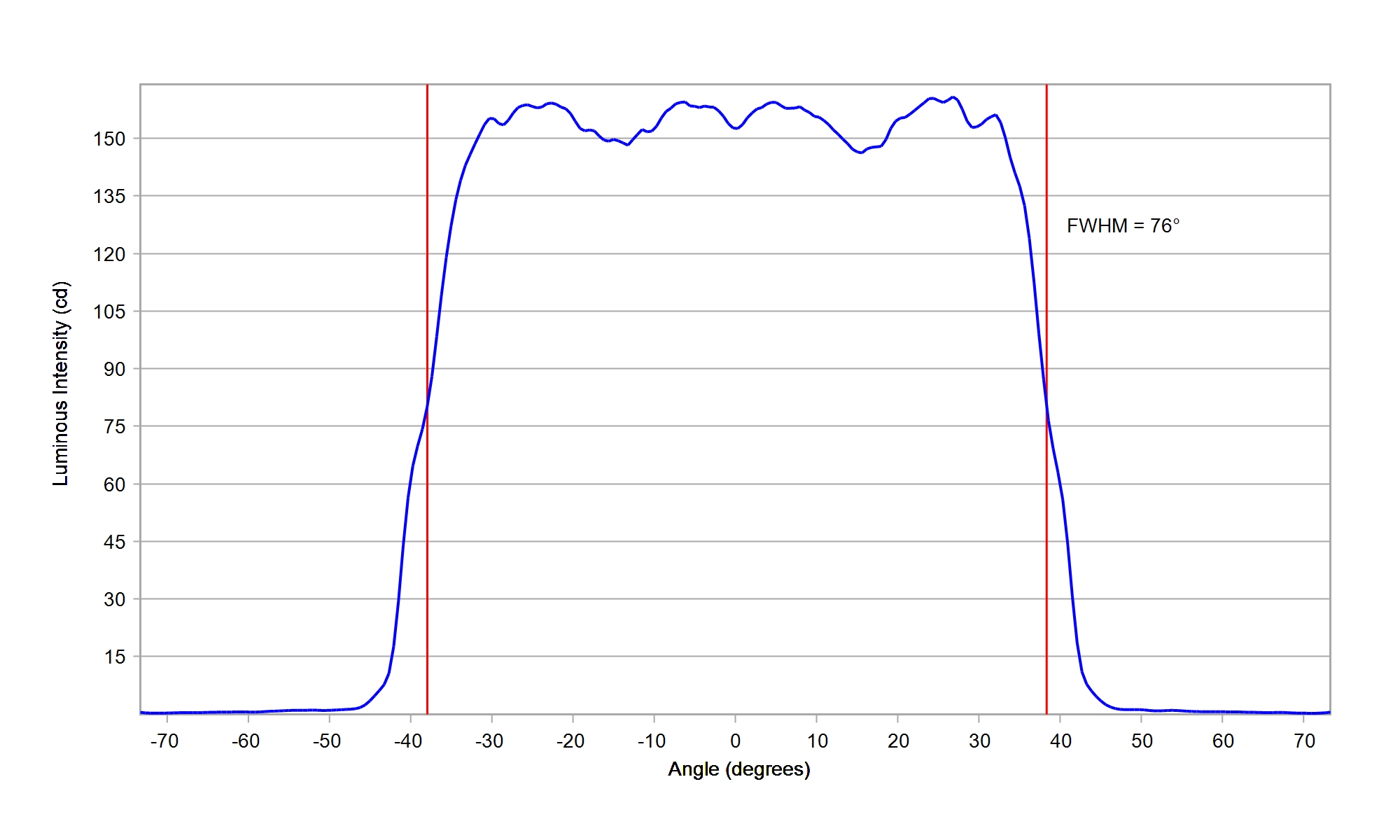

Cree XLamp XQ-A Blue

Eff:

92.5%

FWHM:

76°

Cd/Im:

0.9

Download

Cree XLamp XQ-A Green

Eff:

92.5%

FWHM:

74°

Cd/Im:

0.9

Download

Cree XLamp XQ-A PC Amber

Eff:

91.5%

FWHM:

84°

Cd/Im:

0.9

Download

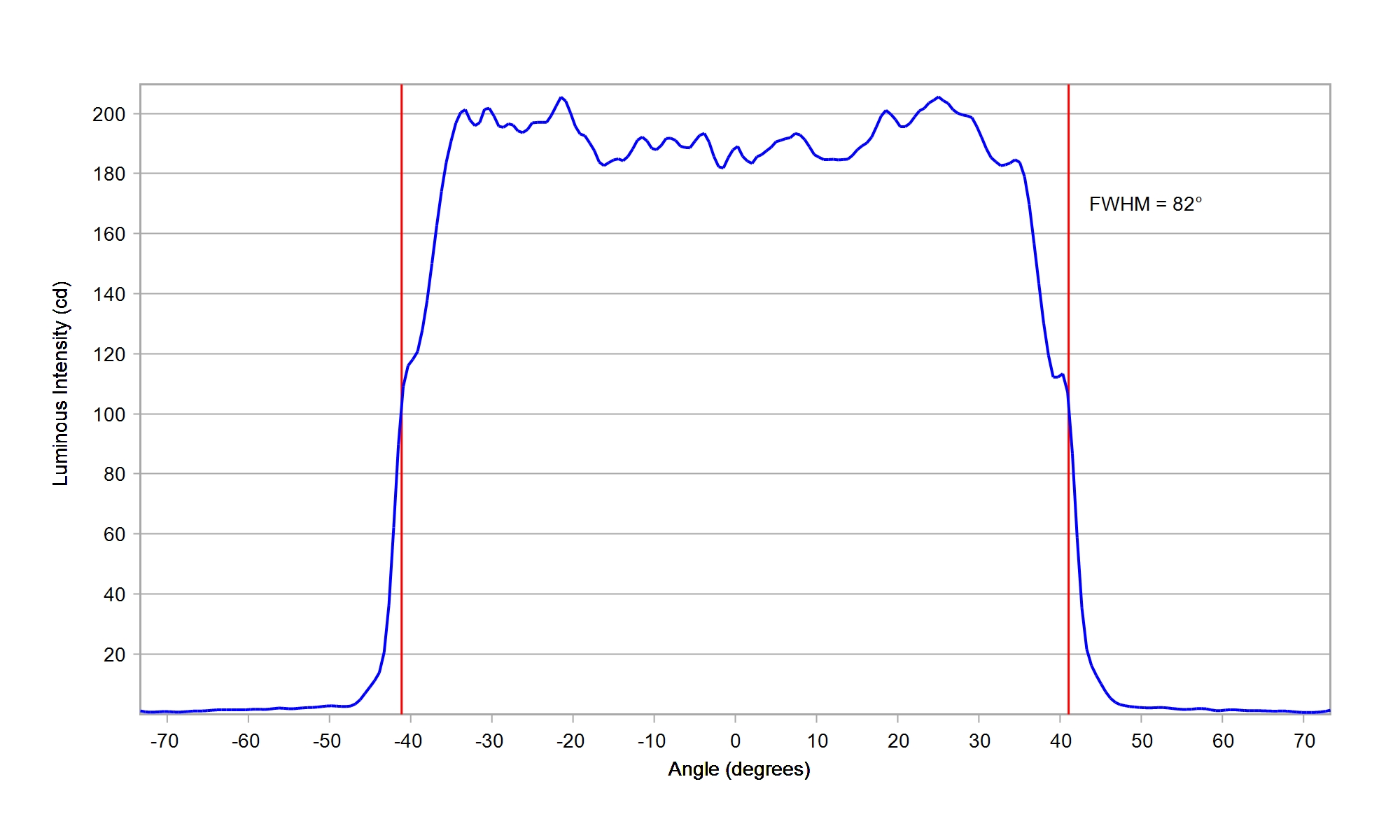

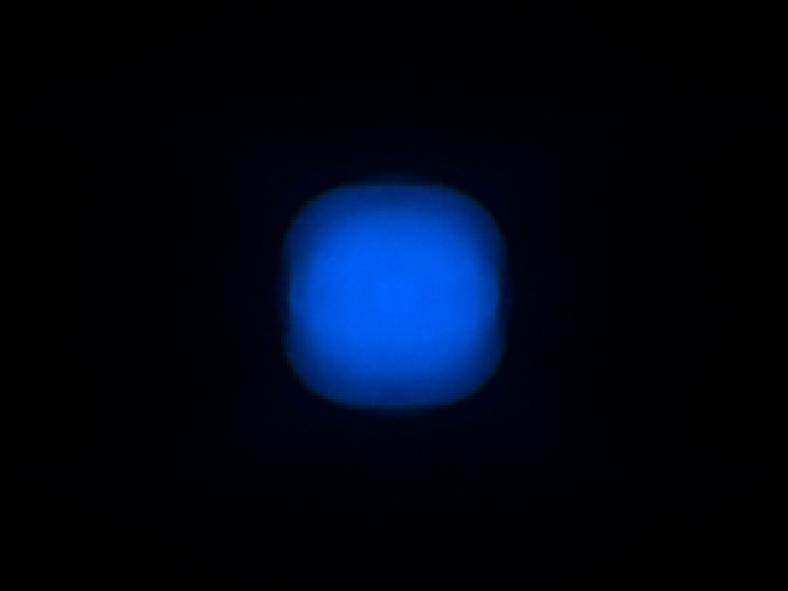

Cree XLamp XQ-A PC Blue

Eff:

91.0%

FWHM:

82°

Cd/Im:

1.0

Download

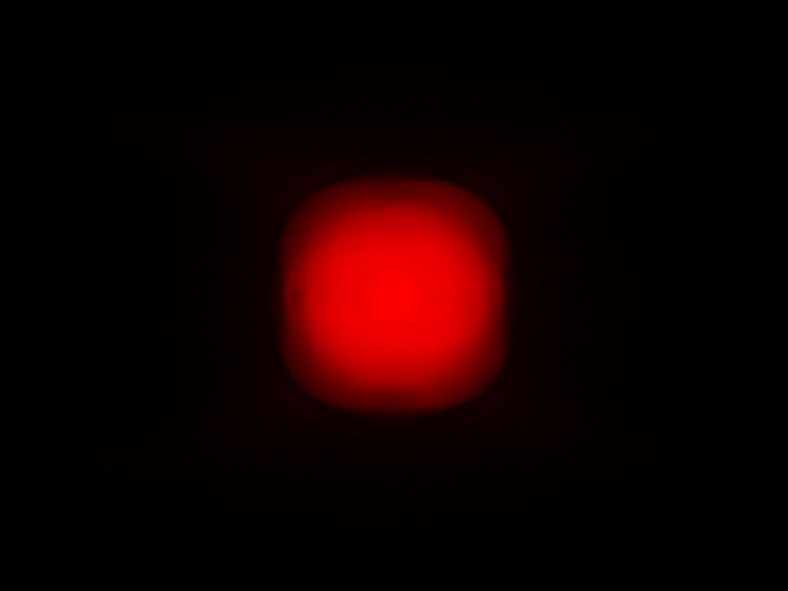

Cree XLamp XQ-A Red

Eff:

93.0%

FWHM:

77°

Cd/Im:

0.8

Download

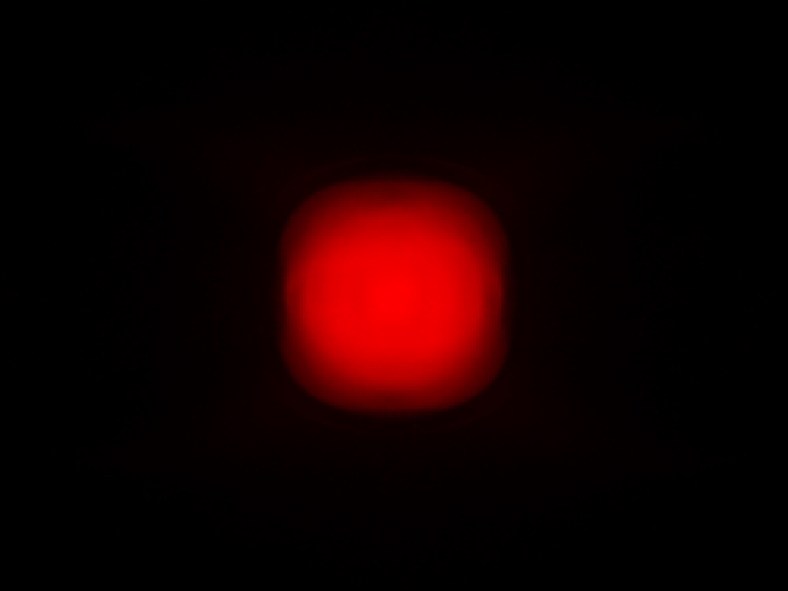

Cree XLamp XQ-A Red-Orange

Eff:

93.0%

FWHM:

77°

Cd/Im:

0.8


Download

Cree XLamp XQ-A White

Eff:

91.5%

FWHM:

77°

Cd/Im:

0.8

Download

Cree XLamp XQ-E HI White

Eff:

91.5%

FWHM:

85.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

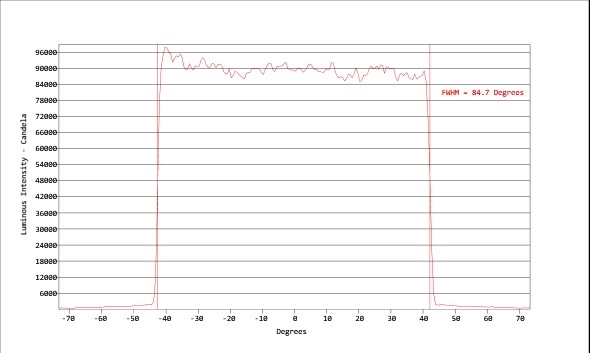

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E Plus HD Blue

Eff:

91.5%

FWHM:

82°

Cd/Im:

0.8


Download

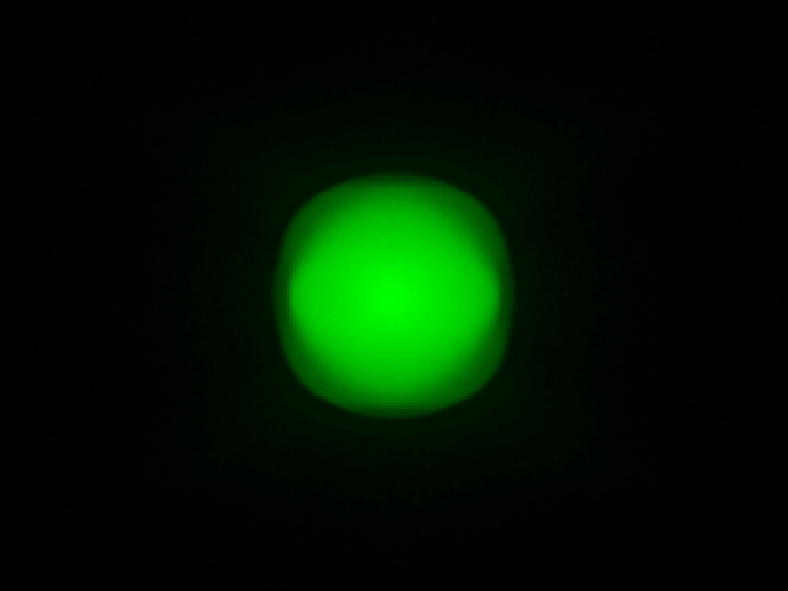

Cree XLamp XQ-E Plus HD Green

Eff:

91.0%

FWHM:

83°

Cd/Im:

0.8


Download

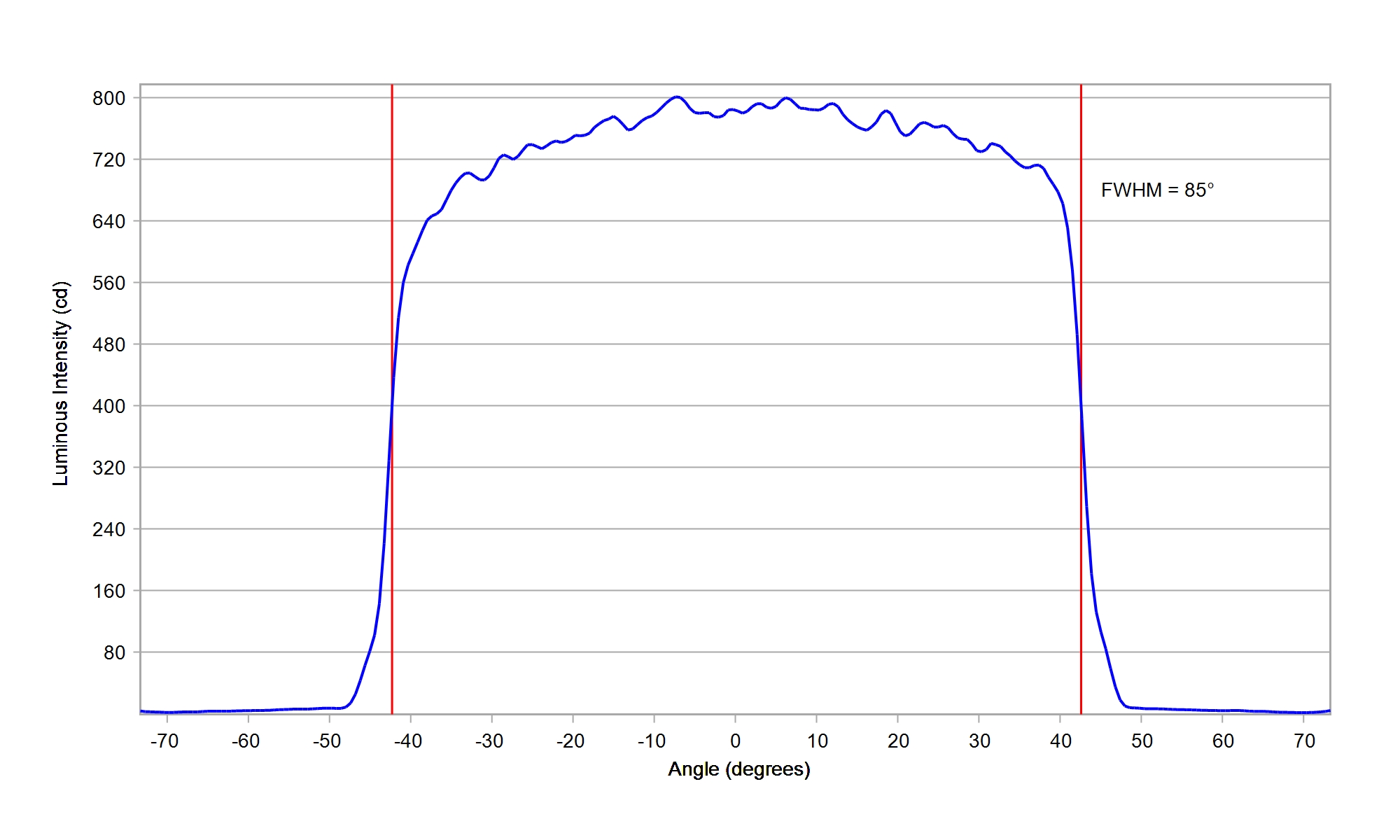

Cree XLamp XQ-E Plus HD PC Amber

Eff:

91.0%

FWHM:

85°

Cd/Im:

0.8


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

90.5%

FWHM:

82°

Ipk/W:

0.8


Download

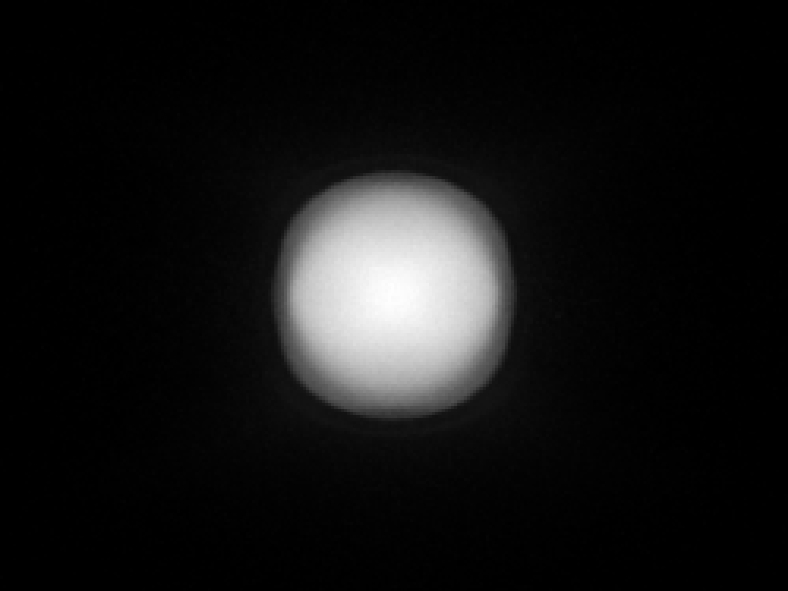

Cree XLamp XQ-E Plus HD White

Eff:

91.0%

FWHM:

83°

Cd/Im:

0.7


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

91.5%

FWHM:

84°

Cd/Im:

0.8


Download

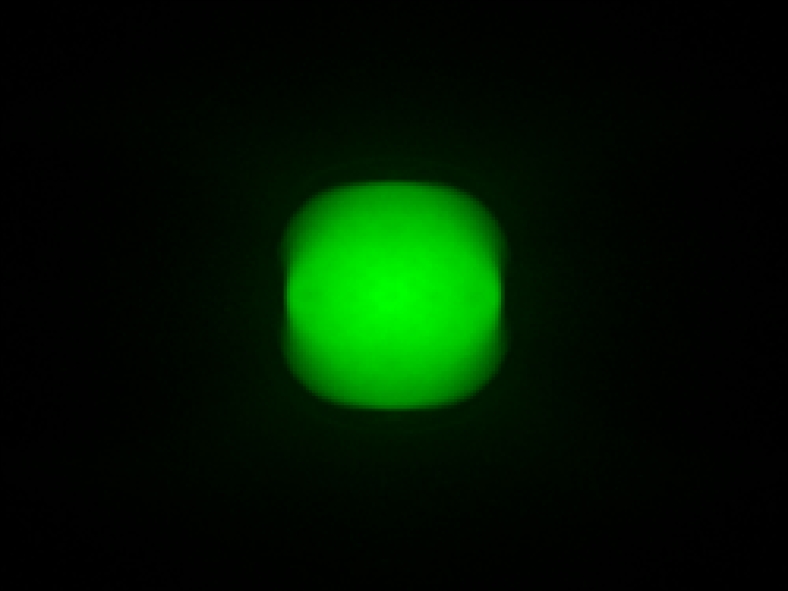

Cree XLamp XQ-E Plus HI Green

Eff:

92.0%

FWHM:

85°

Cd/Im:

0.7


Download

Cree XLamp XQ-E Plus HI PC Amber

Eff:

91.5%

FWHM:

86°

Cd/Im:

0.7


Download

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

91.0%

FWHM:

84°

Ipk/W:

0.7


Download

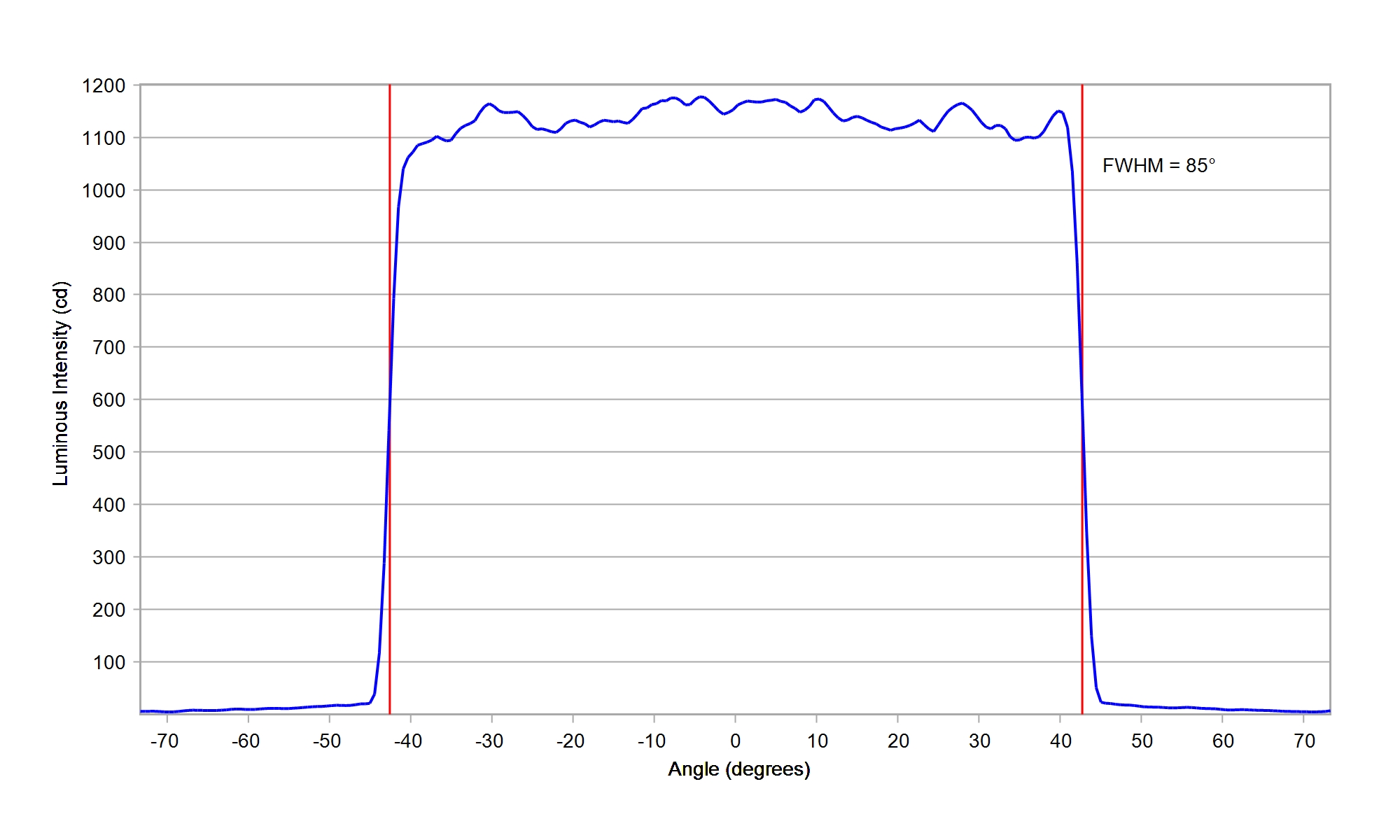

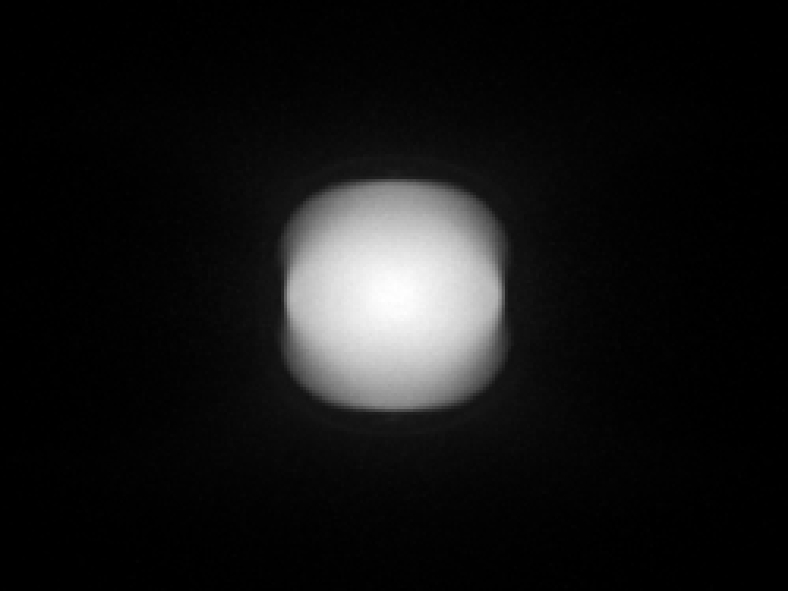

Cree XLamp XQ-E Plus HI White

Eff:

92.0%

FWHM:

85°

Cd/Im:

0.8


Download

Cree XLamp XQ-E HD White

Eff:

92.0%

FWHM:

88°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 3030 LG White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 5630 White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

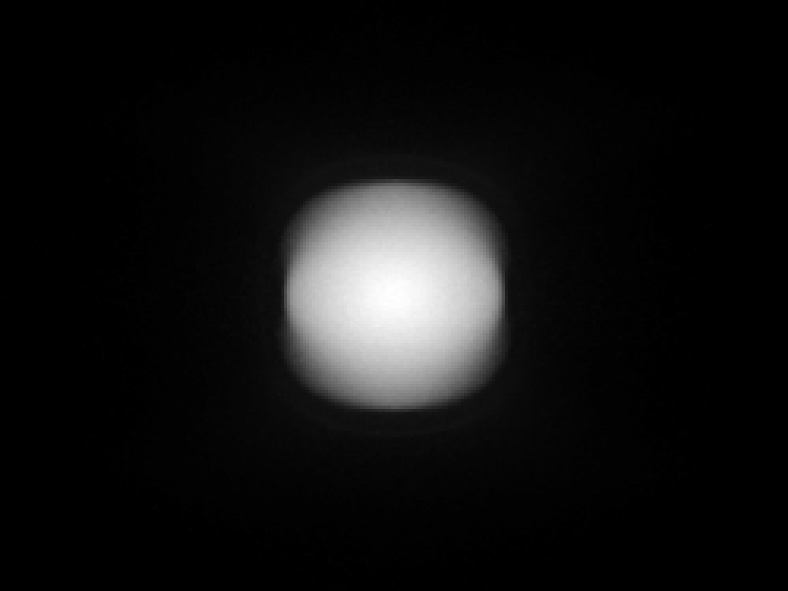

LUMILEDS LUXEON 2835C 6V White

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.9

Download

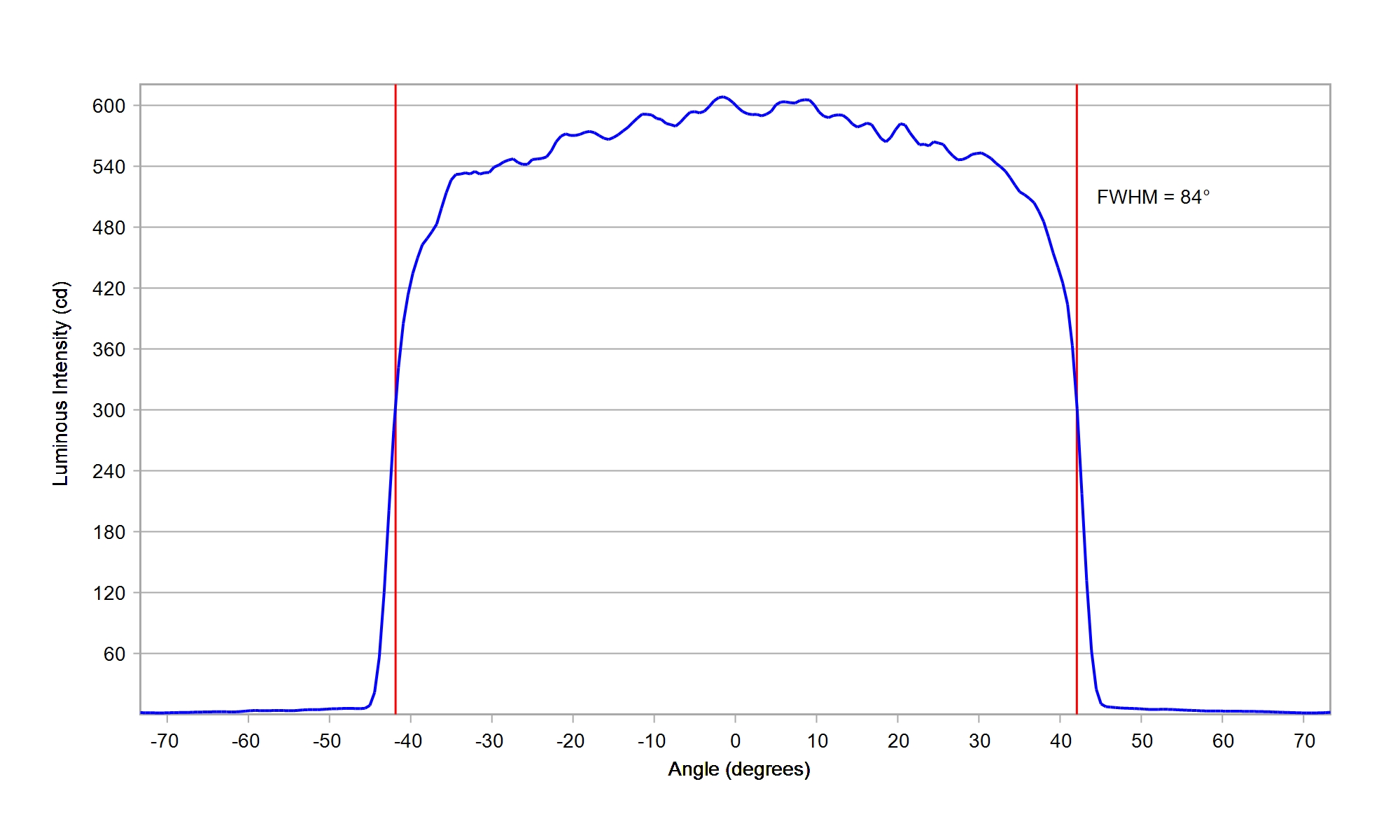

LUMILEDS LUXEON 2835E 9V White

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.9

Download

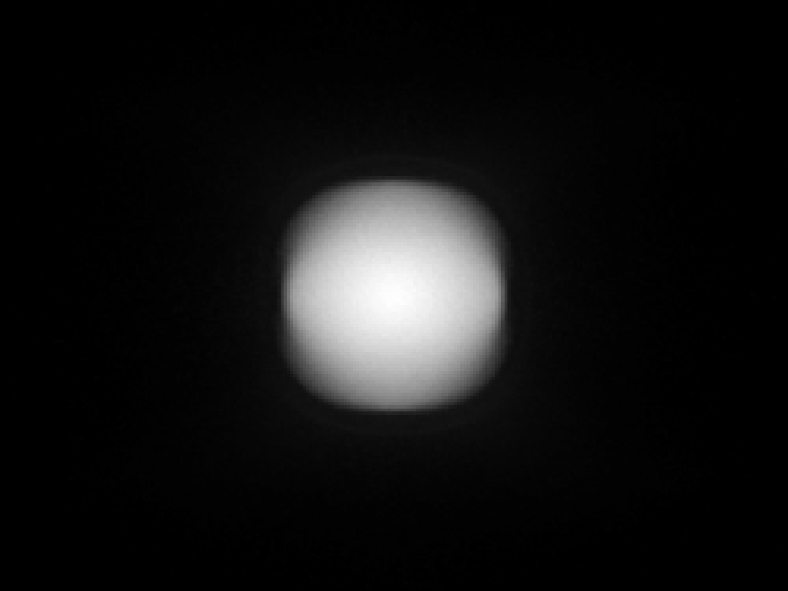

LUMILEDS LUXEON 2835N 3V White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.8

Download

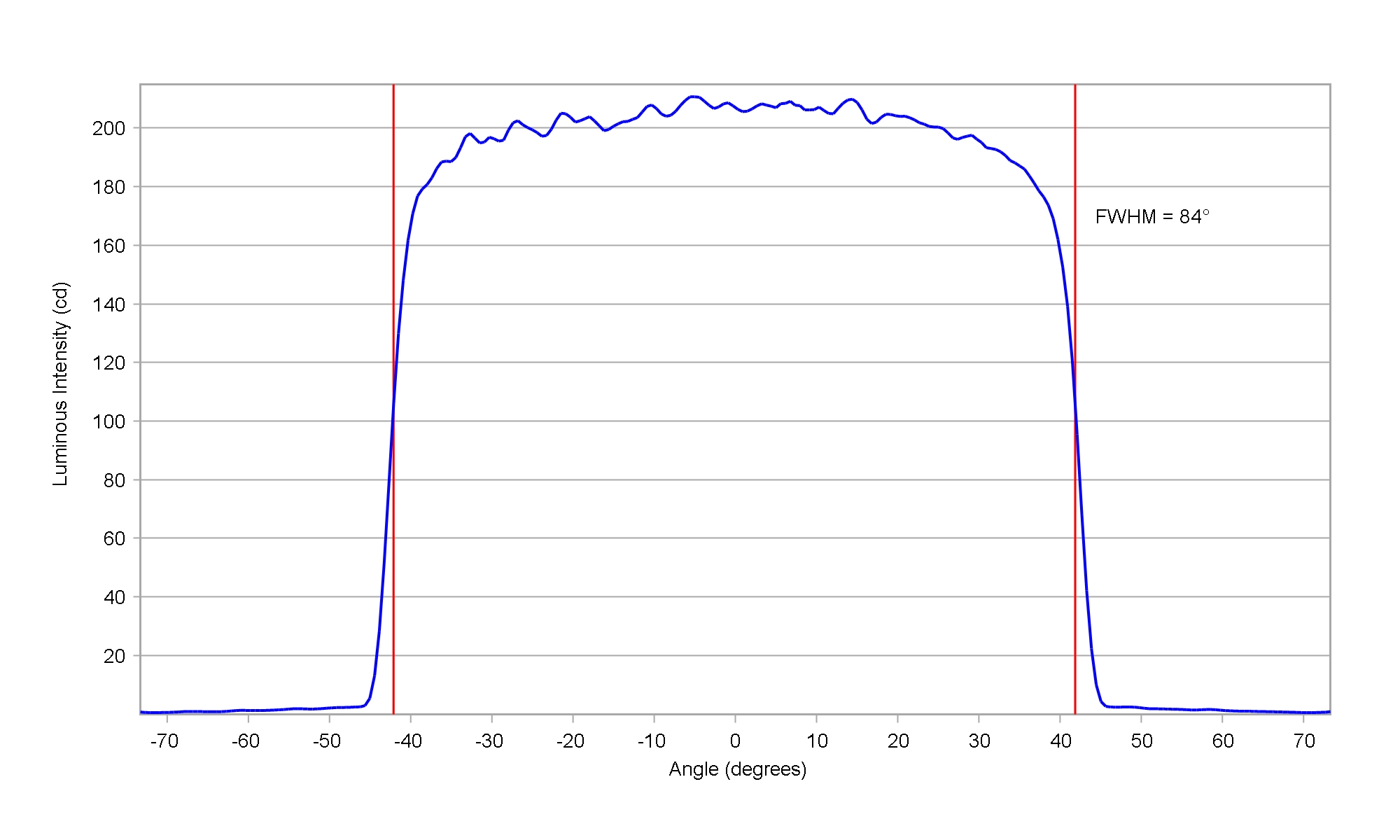

LUMILEDS LUXEON 2835S 3V White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3014 White

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.9

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

92.5%

FWHM:

82.5°

Cd/Im:

0.7

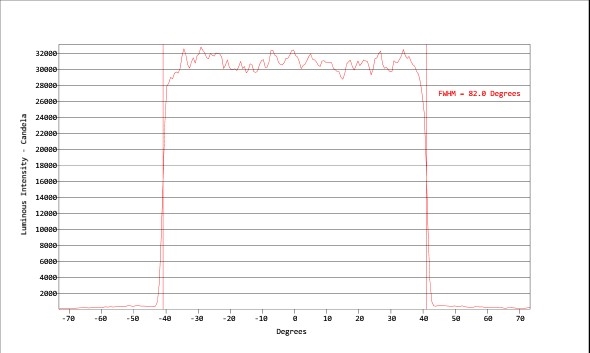

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

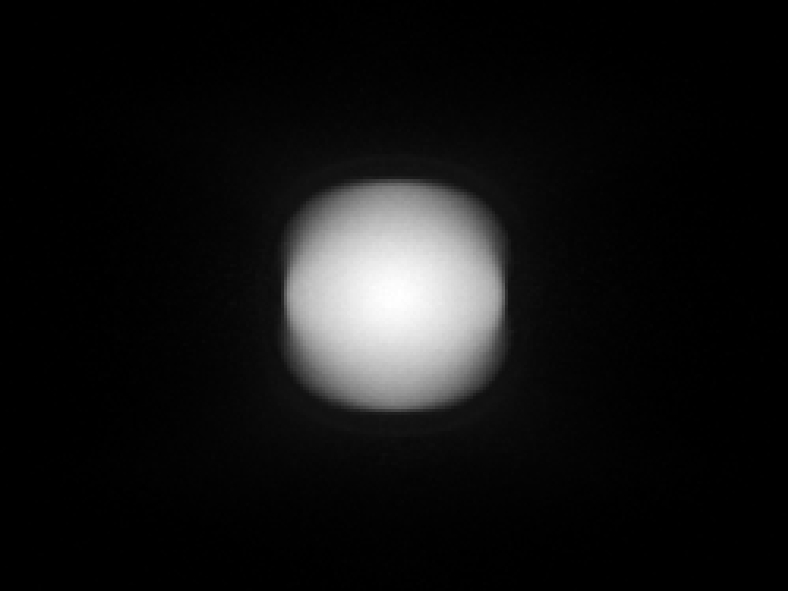

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Square White

Eff:

93.5%

FWHM:

83°

Cd/Im:

0.9


Download

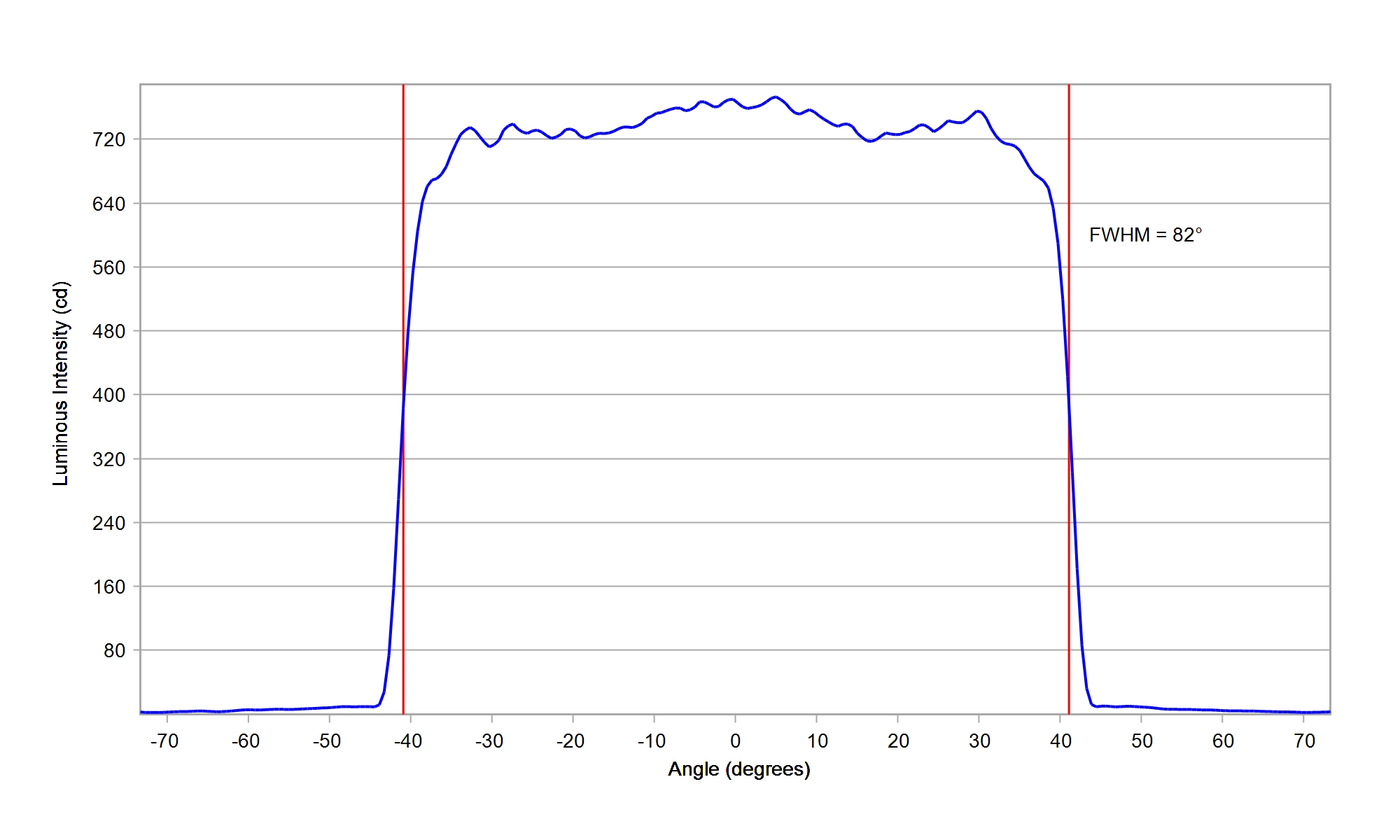

LUMILEDS LUXEON 3030 2D Round White

Eff:

93.0%

FWHM:

82°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

93.0%

FWHM:

83°

Cd/Im:

1.0

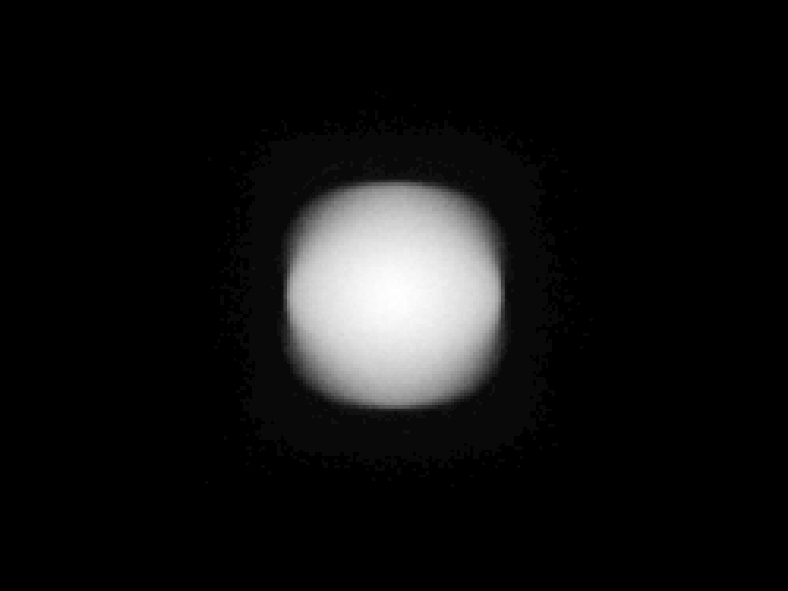

Carclo Optics – 12969 – Luxeon_3030_HE_Plus_spot-image

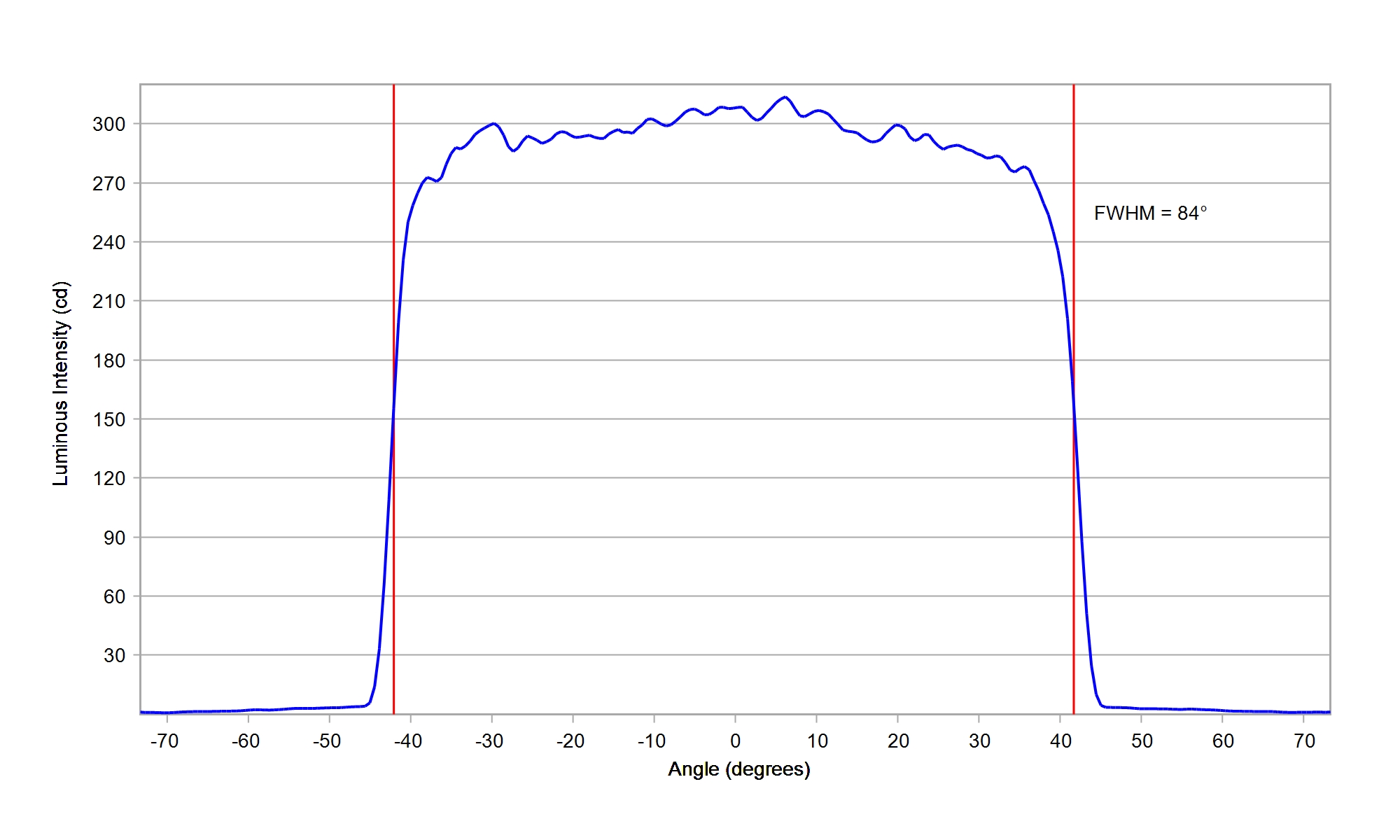

Carclo Optics – 12969 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

LUMILEDS LUXEON 3030 HE White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3535 L White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.7

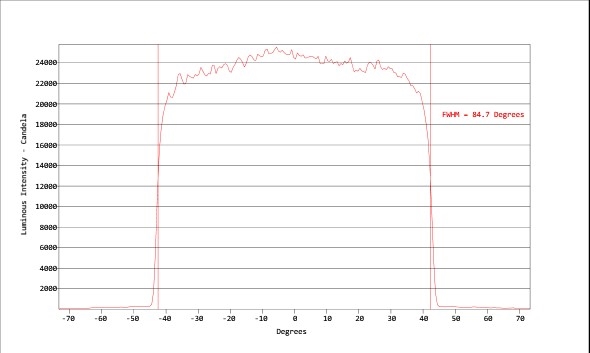

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

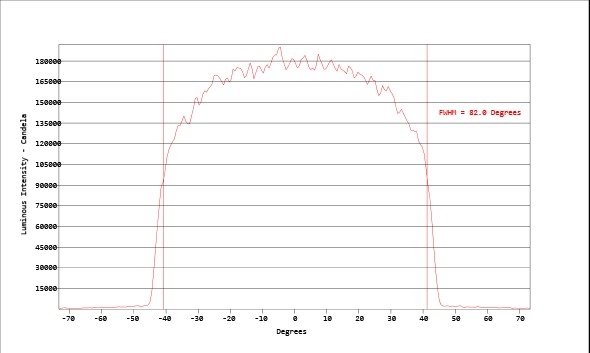

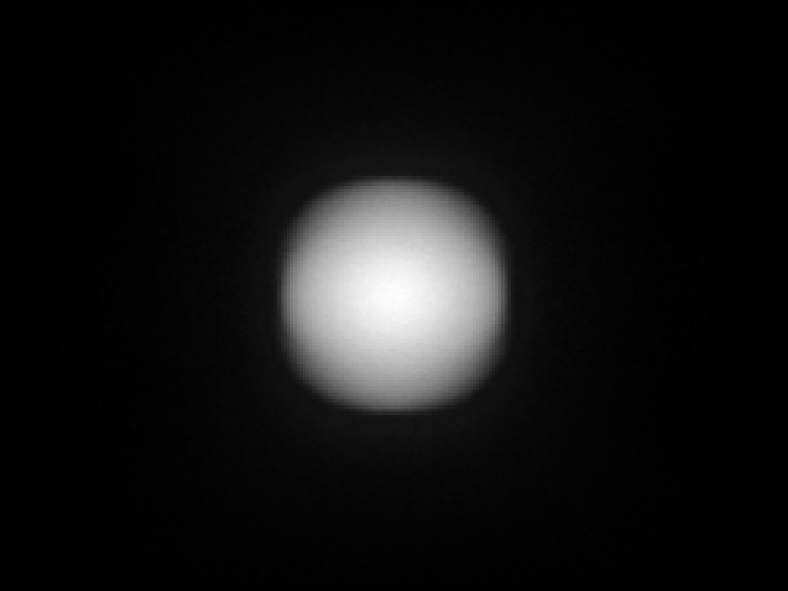

LUMILEDS LUXEON 5050 HE 24V White

Eff:

93.0%

FWHM:

81°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

93.0%

FWHM:

81°

Cd/Im:

0.8

Download

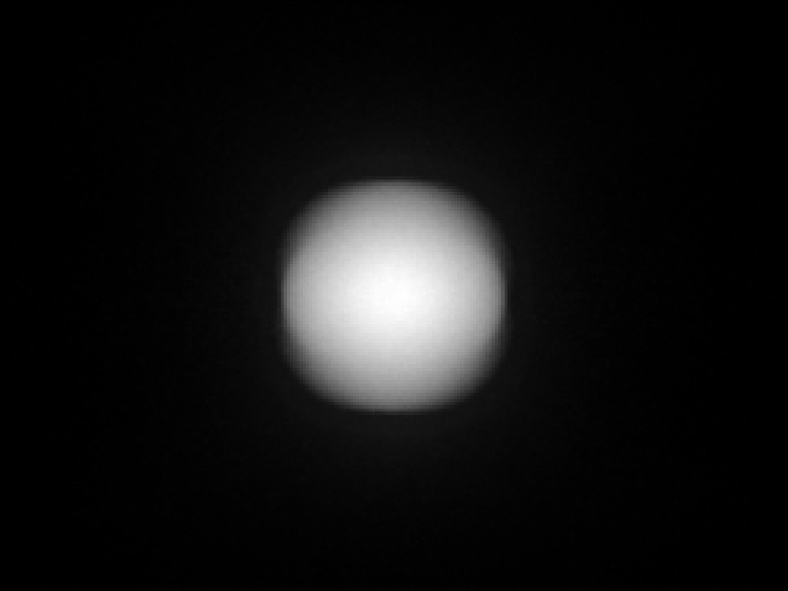

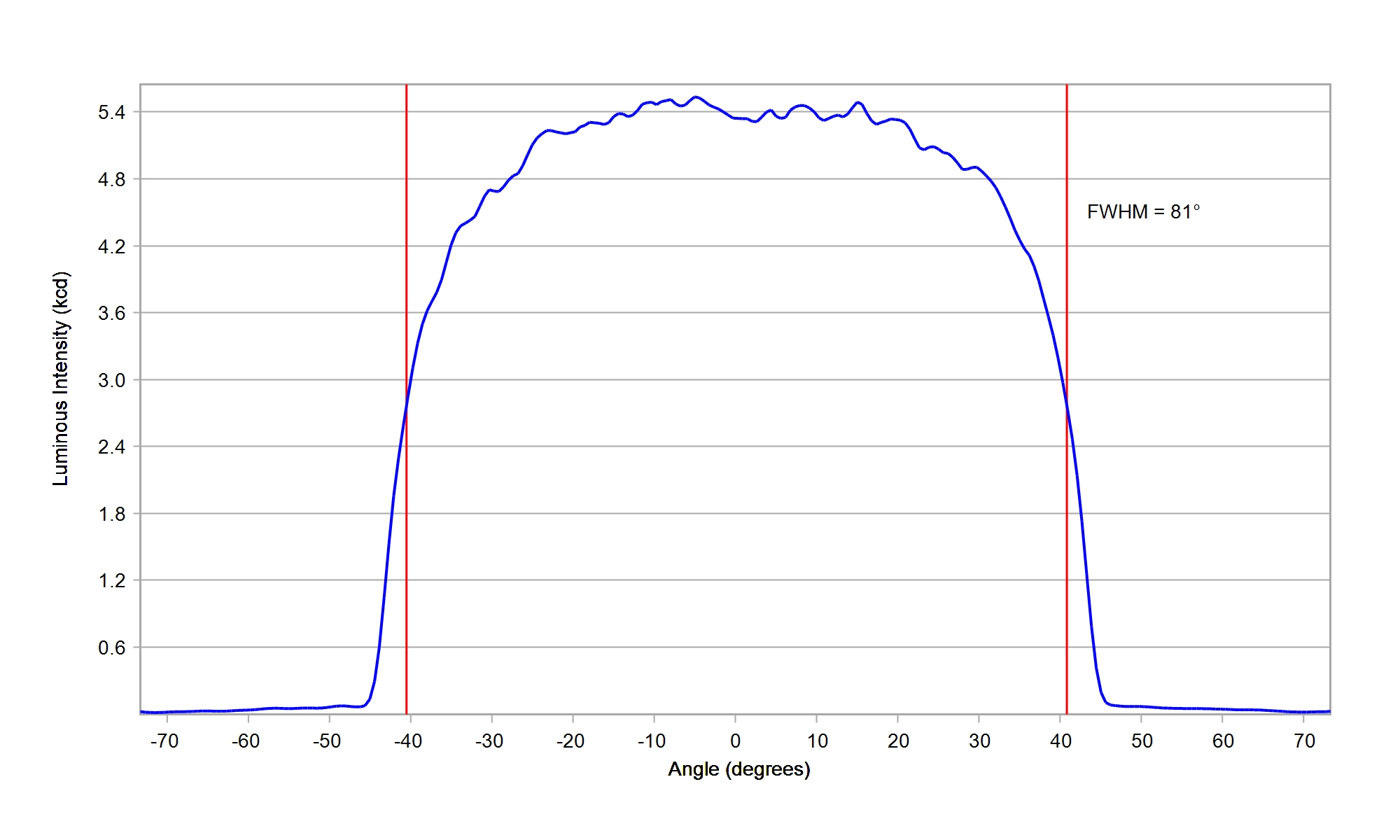

LUMILEDS LUXEON 5050 Round 24V White

Eff:

93.0%

FWHM:

81°

Cd/Im:

0.9


Download

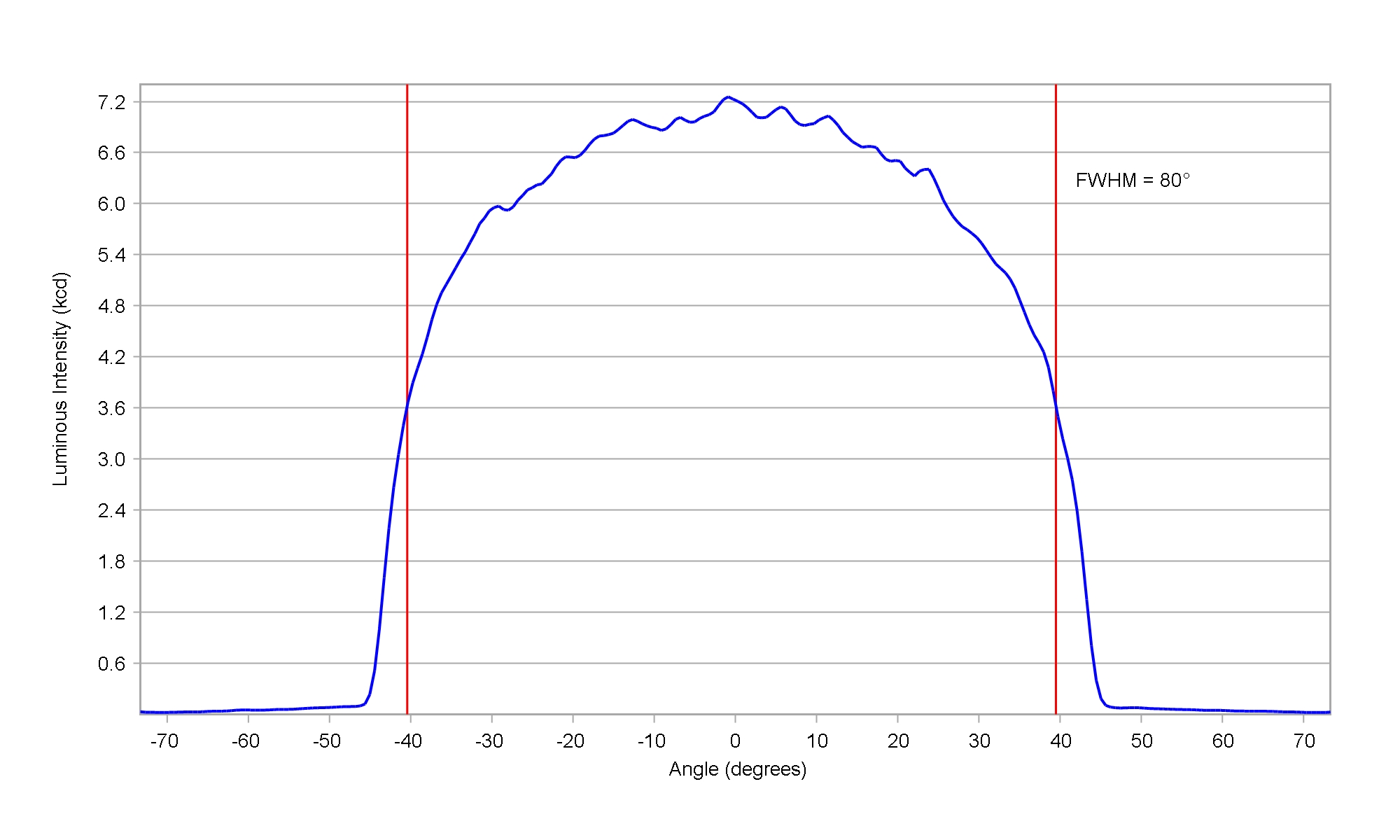

LUMILEDS LUXEON 5050 Square 30V White

Eff:

93.0%

FWHM:

80°

Cd/Im:

1.0


Download

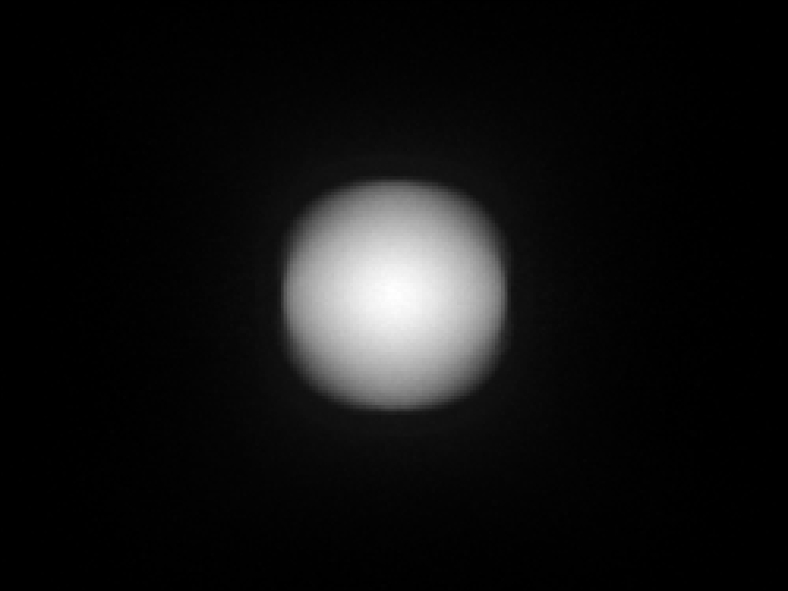

LUMILEDS LUXEON 5050 Square 6V White

Eff:

93.0%

FWHM:

81°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

92.5%

FWHM:

80.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 7070 White

Eff:

92.5%

FWHM:

80°

Cd/Im:

1.0

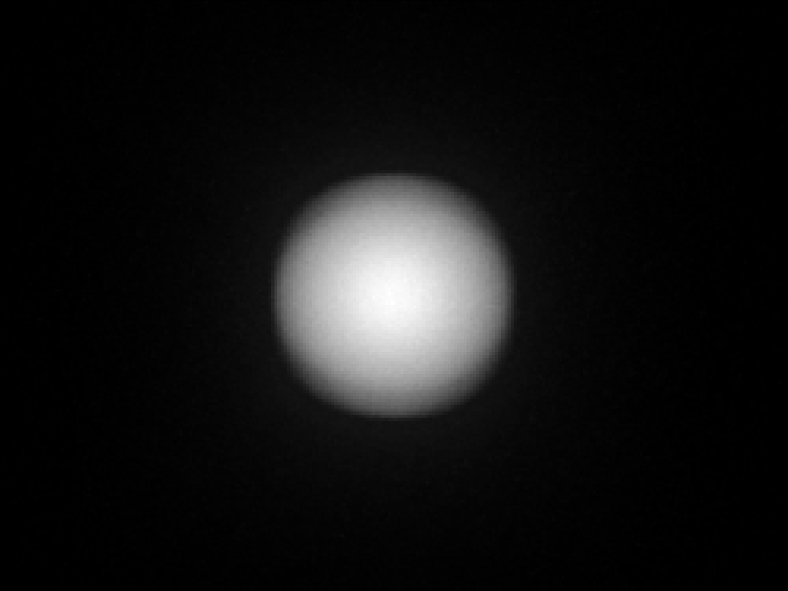

Carclo Optics – 12969 Lumileds Luxeon 7070 - Spot Image

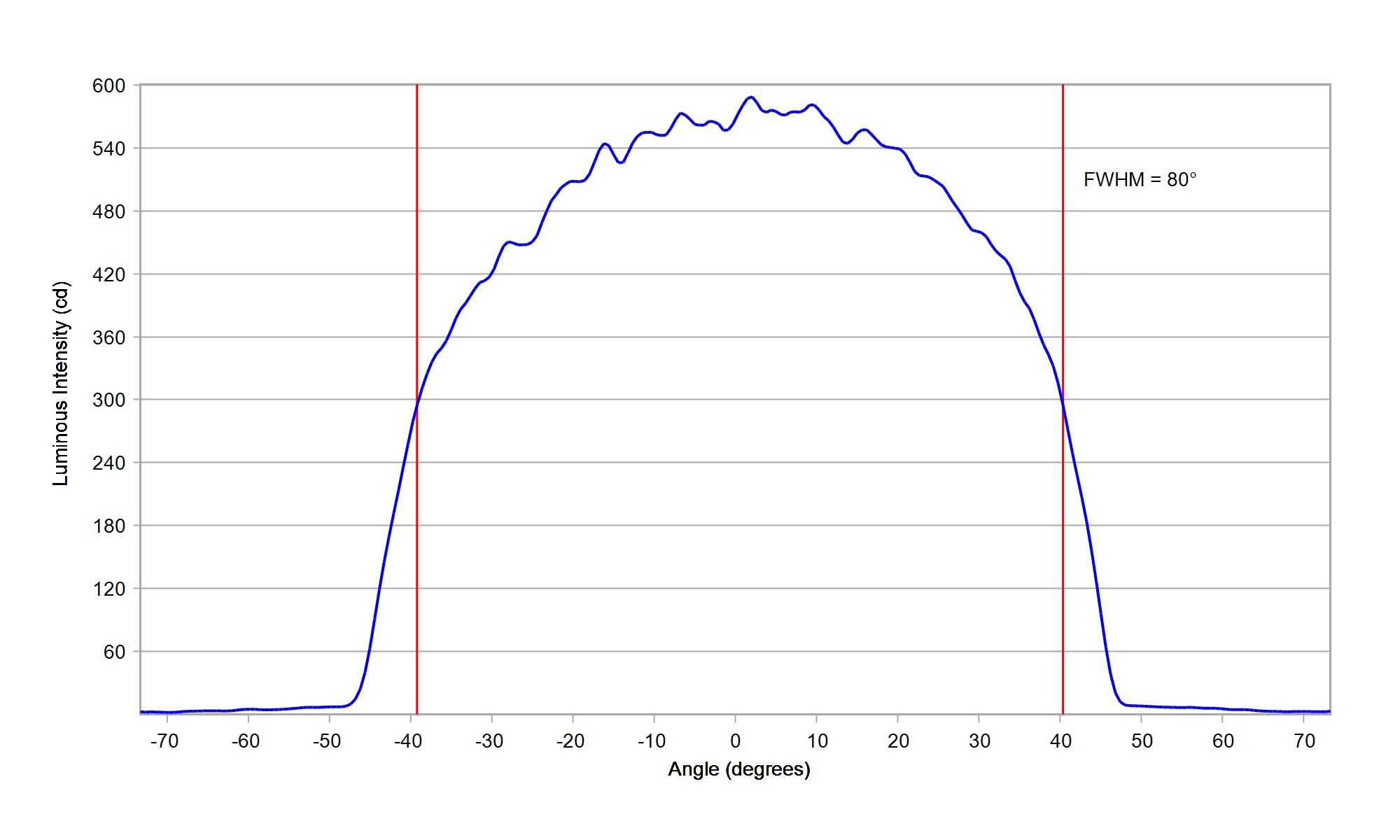

Carclo Optics – 12969 Lumileds Luxeon 7070 - Cross-Section

Download

ies

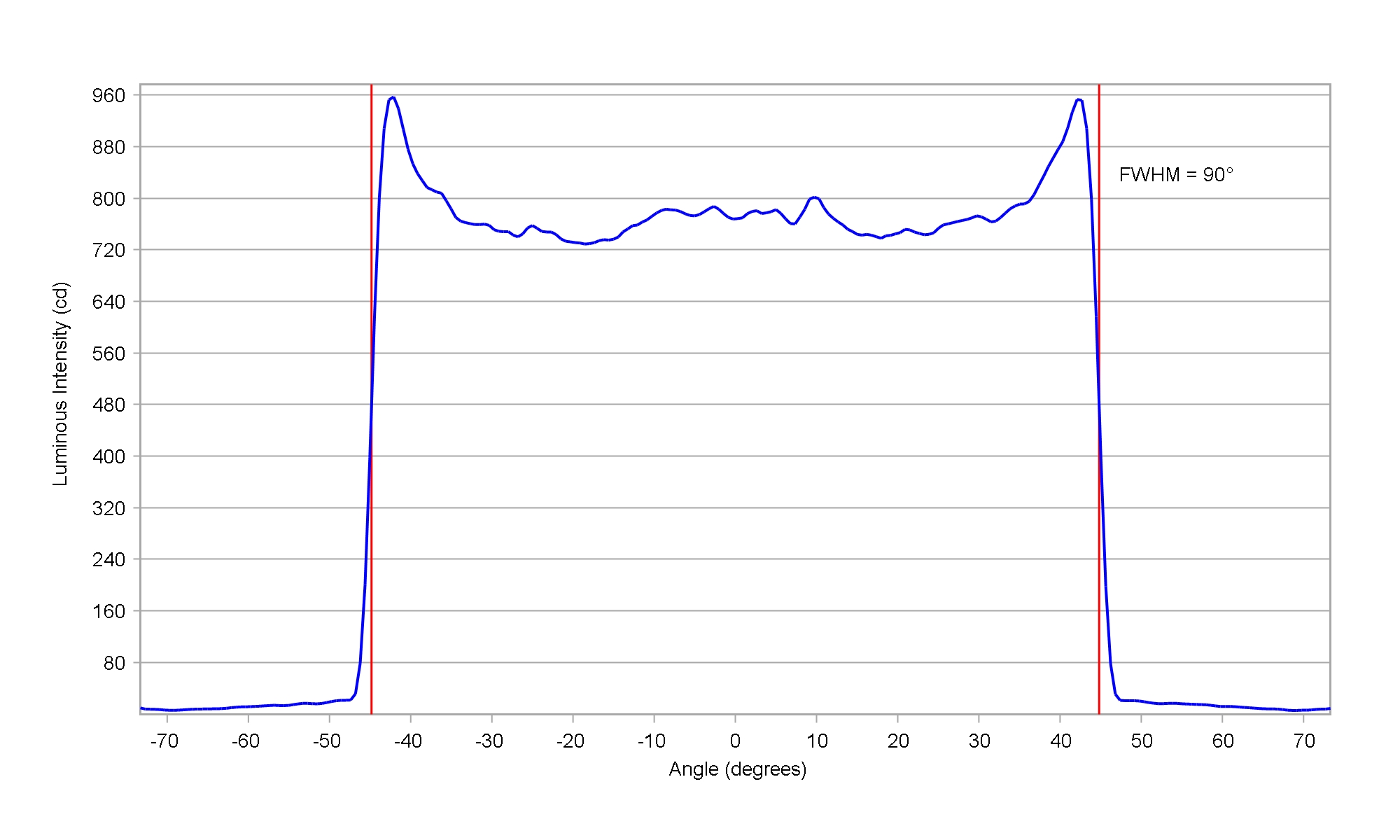

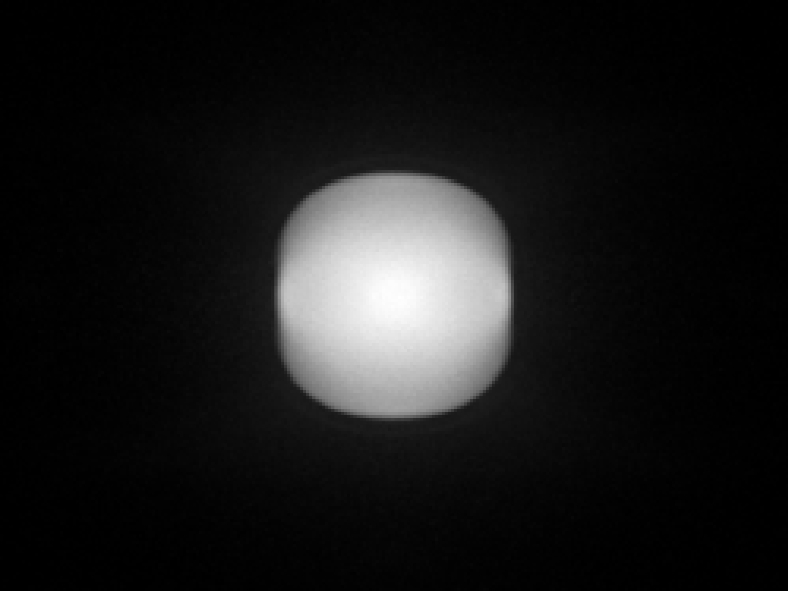

LUMILEDS LUXEON C White

Eff:

88.5%

FWHM:

90°

Cd/Im:

0.7

Download

LUMILEDS LUXEON CZ White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9

Carclo Optics 12969 Spot Image Luxeon CZ 5M CW

Carclo Optics 12969 Cross Section Luxeon CZ 5M CW

Download

ies

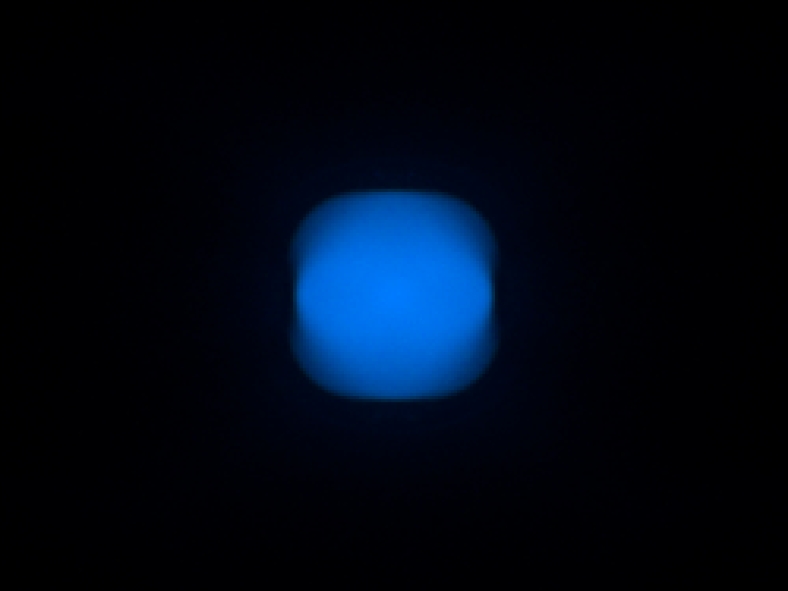

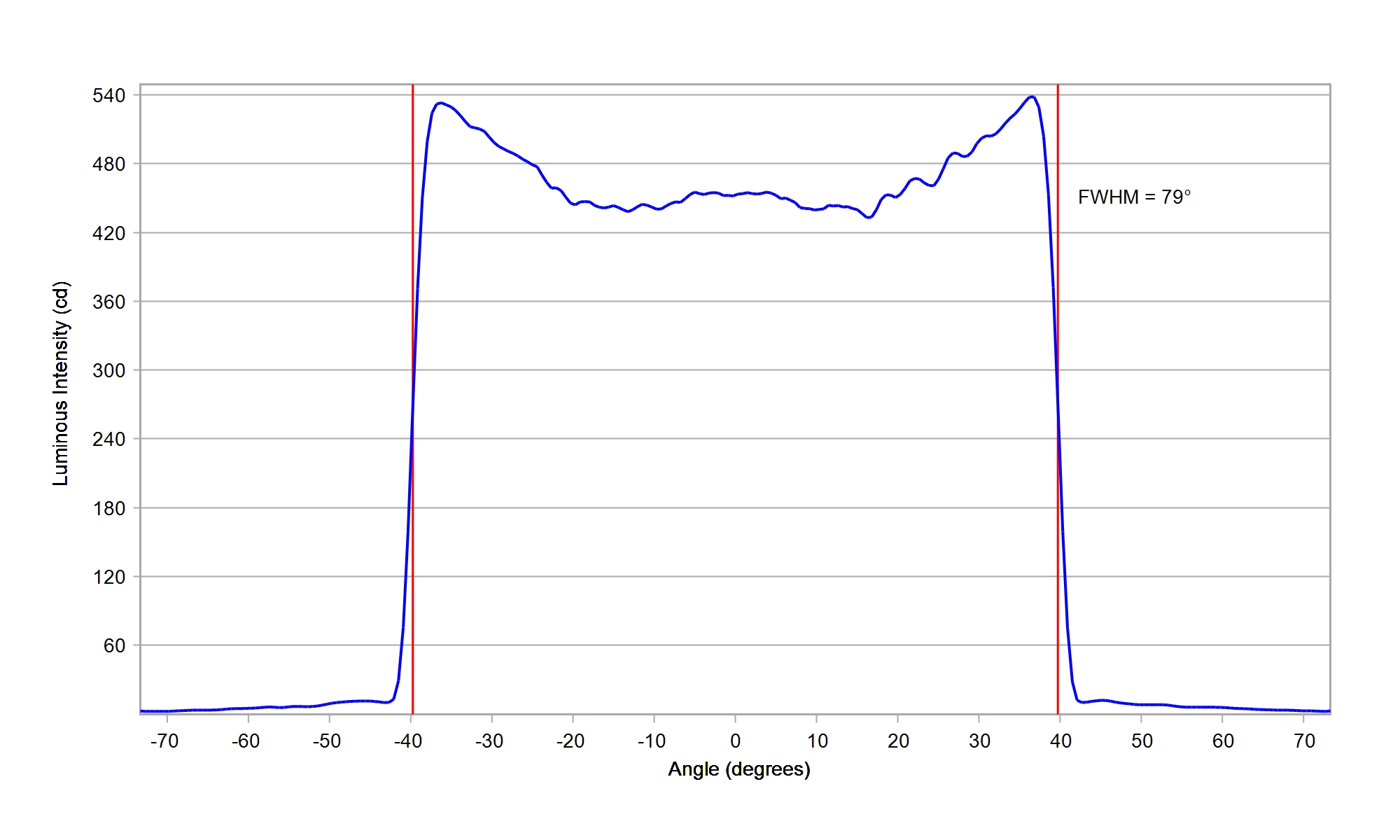

LUMILEDS LUXEON HL1Z Color Blue

Eff:

91.5%

FWHM:

79°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

91.5%

FWHM:

80°

Cd/Im:

0.8

Download

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

92.0%

FWHM:

81°

Cd/Im:

0.7


Download

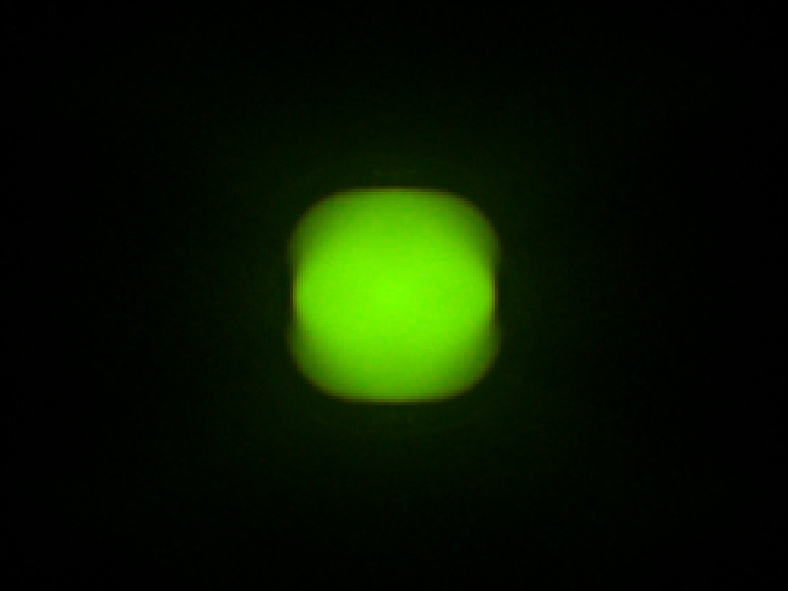

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

90.5%

FWHM:

80°

Cd/Im:

0.8


Download

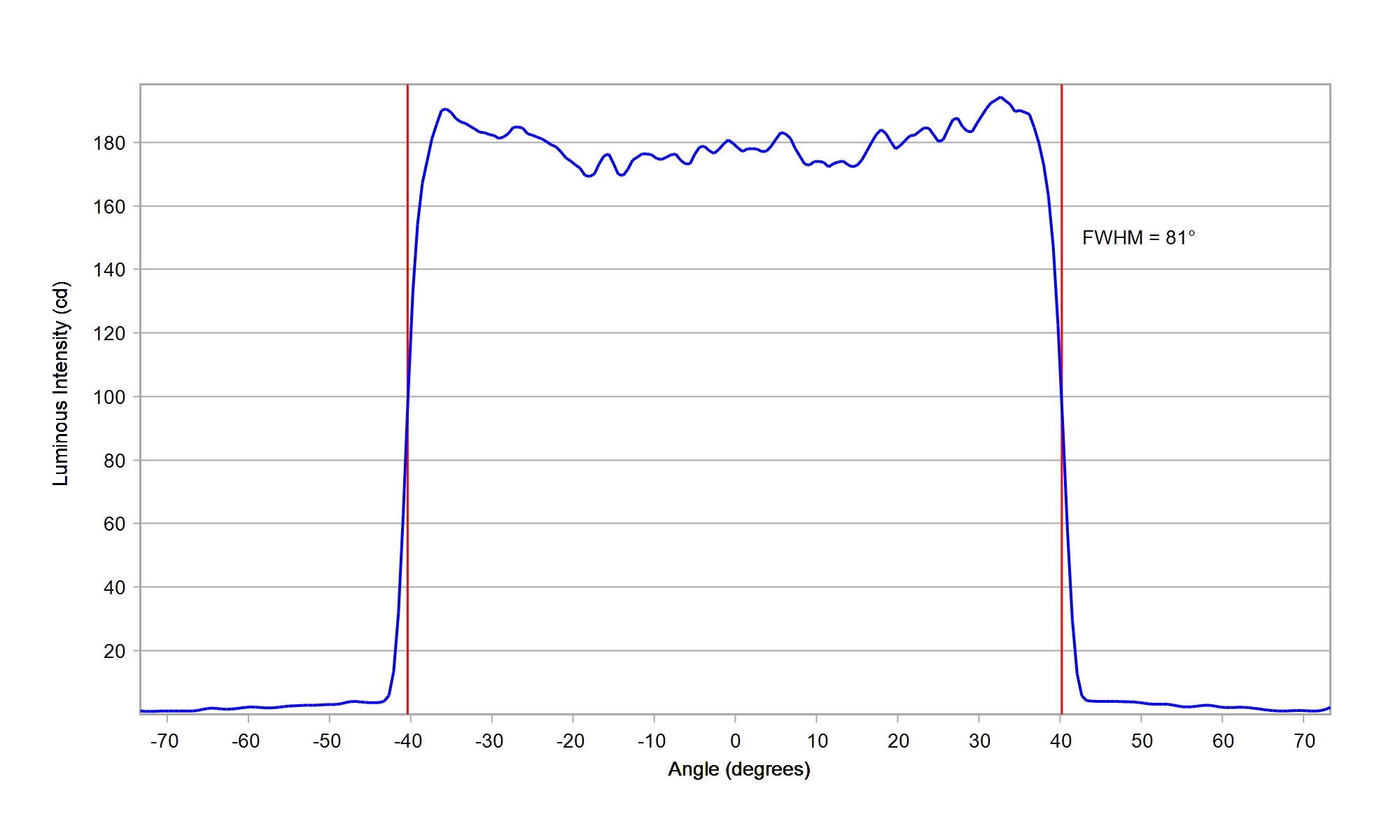

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

92.0%

FWHM:

81°

Cd/Im:

0.9

Download

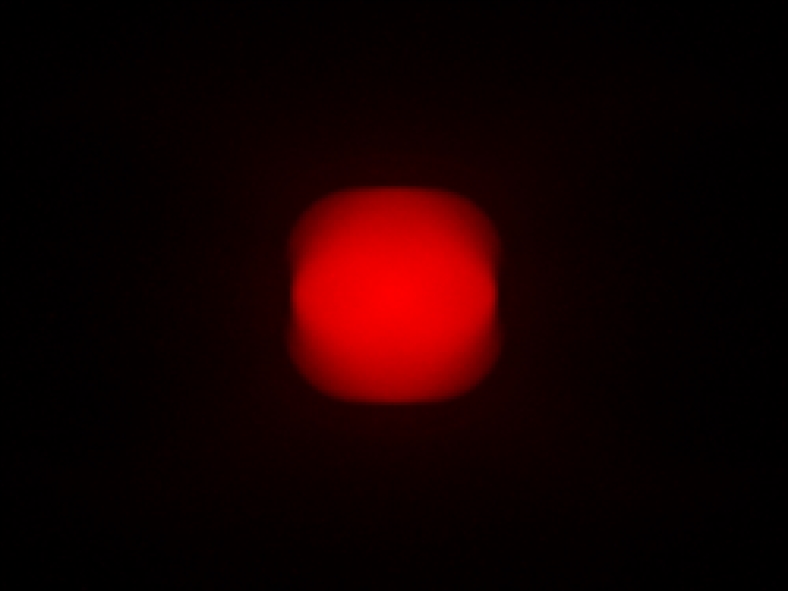

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

92.0%

FWHM:

81°

Cd/Im:

0.8


Download

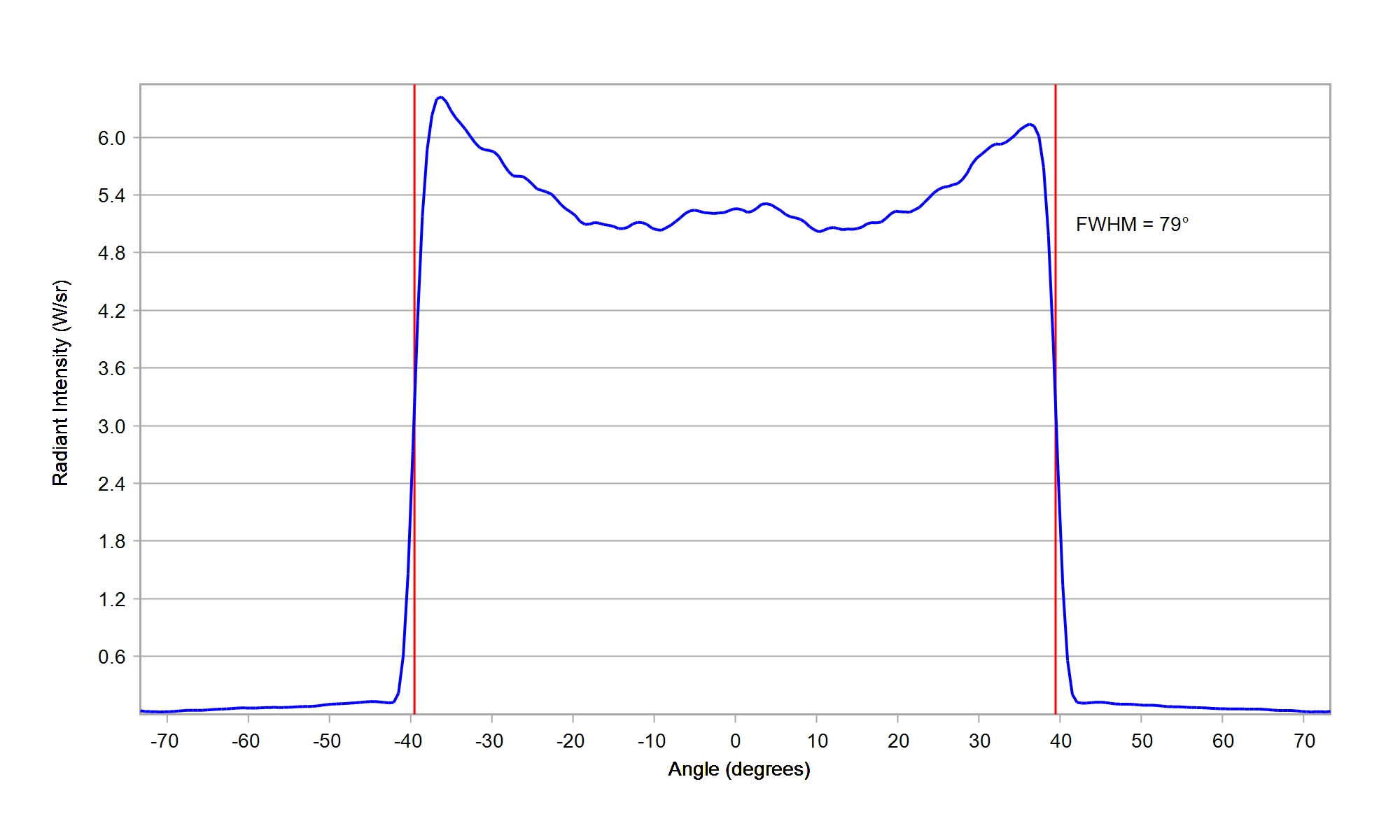

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

91.0%

FWHM:

79°

Ipk/W:

0.8


Download

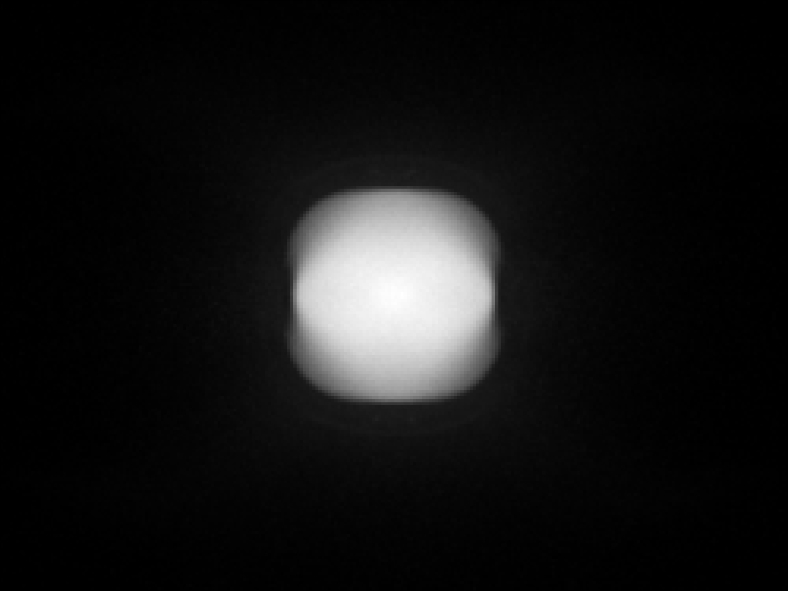

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.0%

FWHM:

80°

Cd/Im:

0.8

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

92.5%

FWHM:

81°

Cd/Im:

0.9

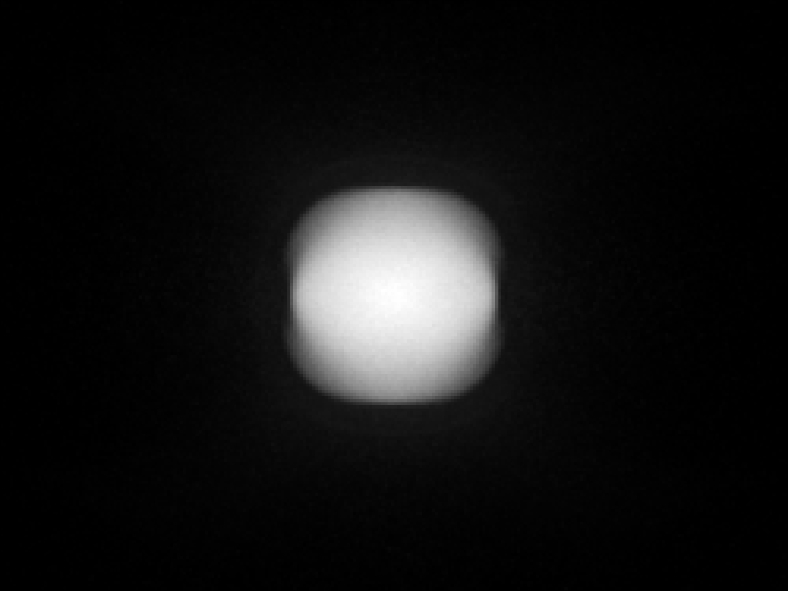

Carclo Optics – 12969 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12969 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON HL4Z White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9

Download

LUMILEDS LUXEON IR 2720

Eff:

95.0%

FWHM:

84/82°

Ipk/W:

0.9

Carclo Optics - 12969 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12969 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9

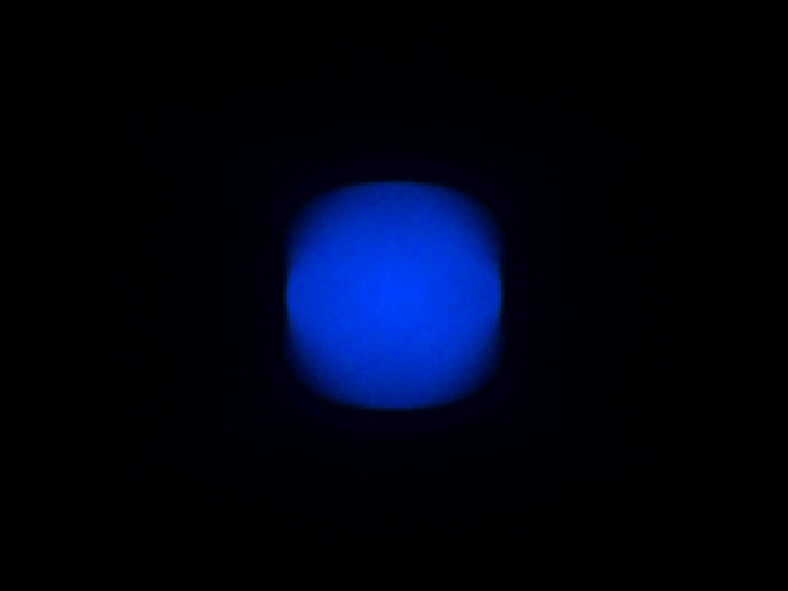

Carclo Optics – 12969 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12969 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

93.0%

FWHM:

86°

Cd/Im:

0.8

Carclo Optics – 12969 Spot Image Lumileds Luxeon Rubix Green

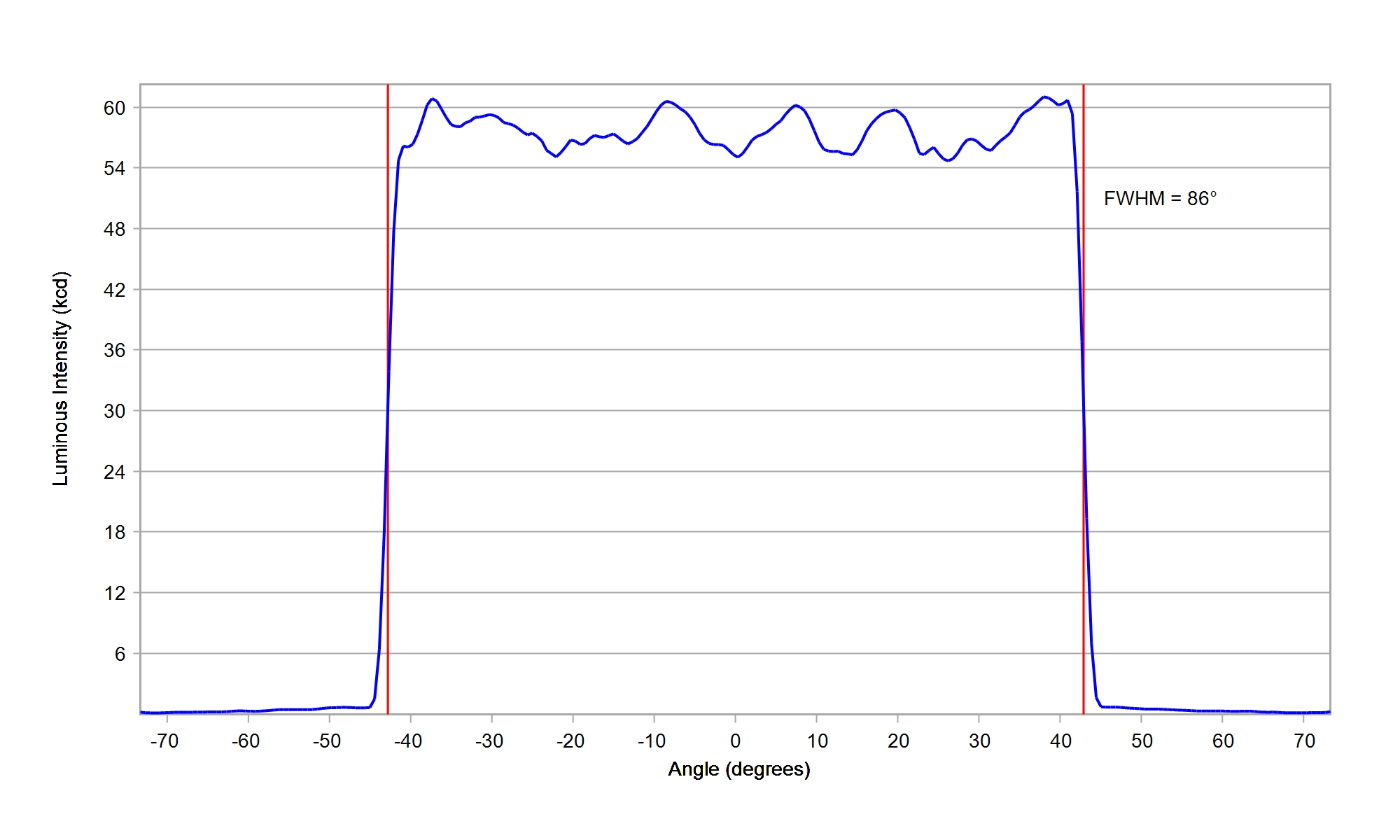

Carclo Optics – 12969 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

94.0%

FWHM:

86°

Cd/Im:

0.8

Carclo Optics – 12969 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12969 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

92.5%

FWHM:

85°

Cd/Im:

1.6

Carclo Optics – 12969 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12969 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

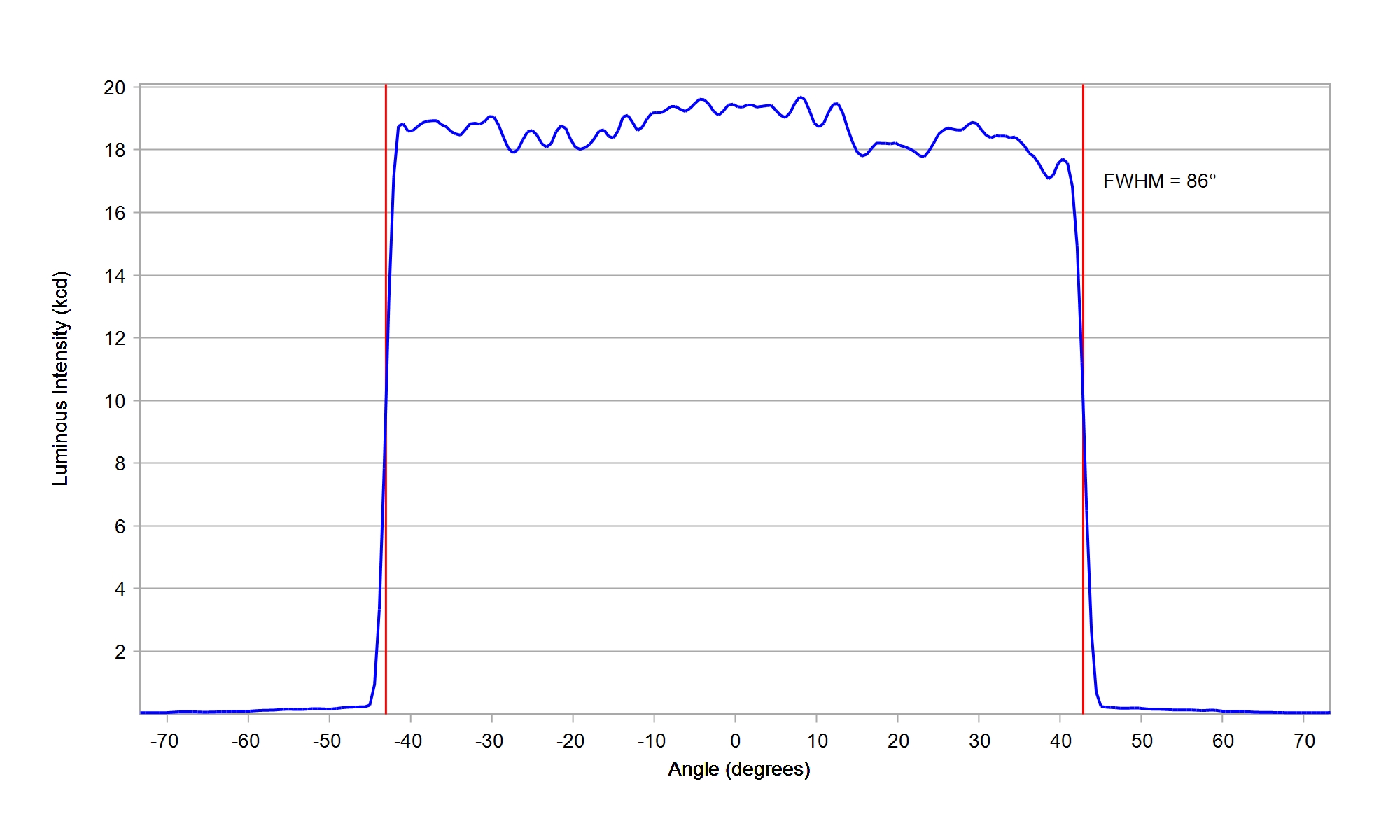

LUMILEDS LUXEON Rubix White

Eff:

93.0%

FWHM:

86.0°

Cd/Im:

1.0

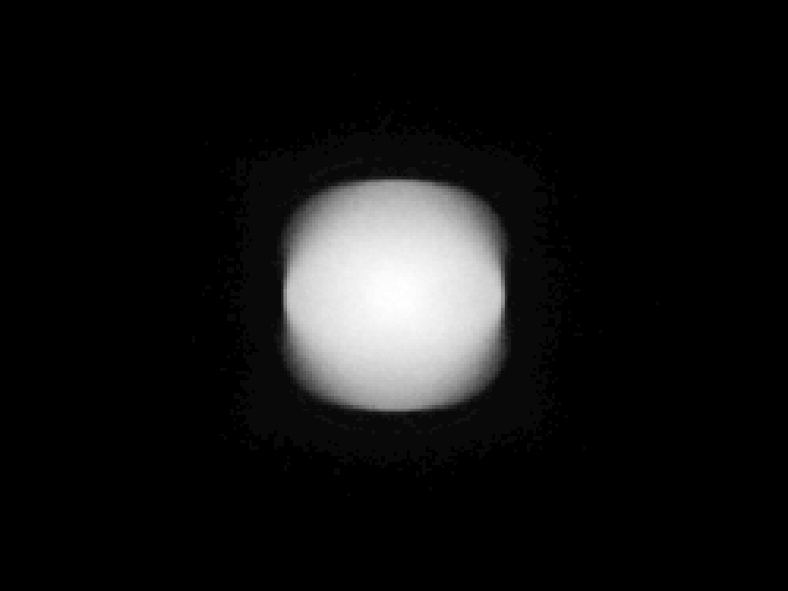

Carclo Optics - 12969 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12969 Cross Section Lumileds Luxeon Rubix White

Download

ies

Luminus Devices MP 7070-T200 White

Eff:

93.0%

FWHM:

77°

Cd/Im:

1.1


Download

IES

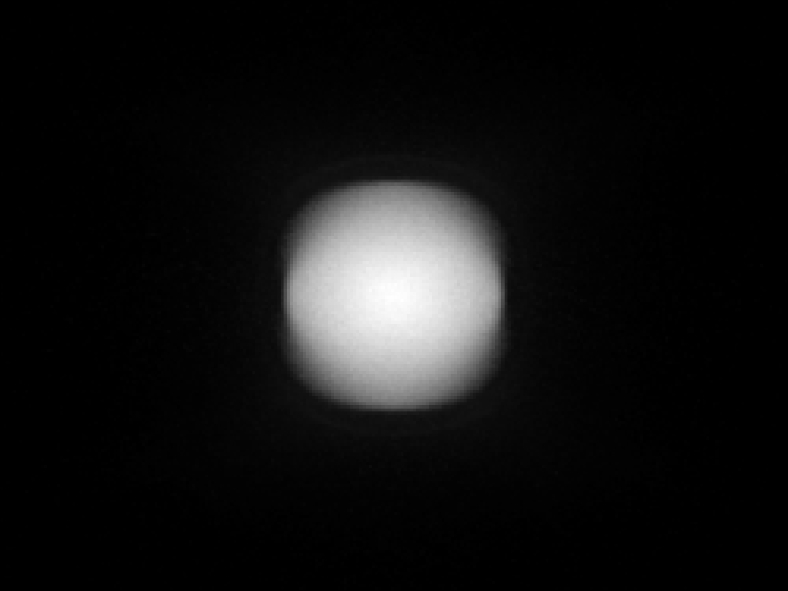

Luminus Devices MP-3030-11F2 White

Eff:

93.5%

FWHM:

84°

Cd/Im:

1.0


Download

Luminus Devices MP-5050-240E White

Eff:

93.0%

FWHM:

80°

Cd/Im:

1.2


Download

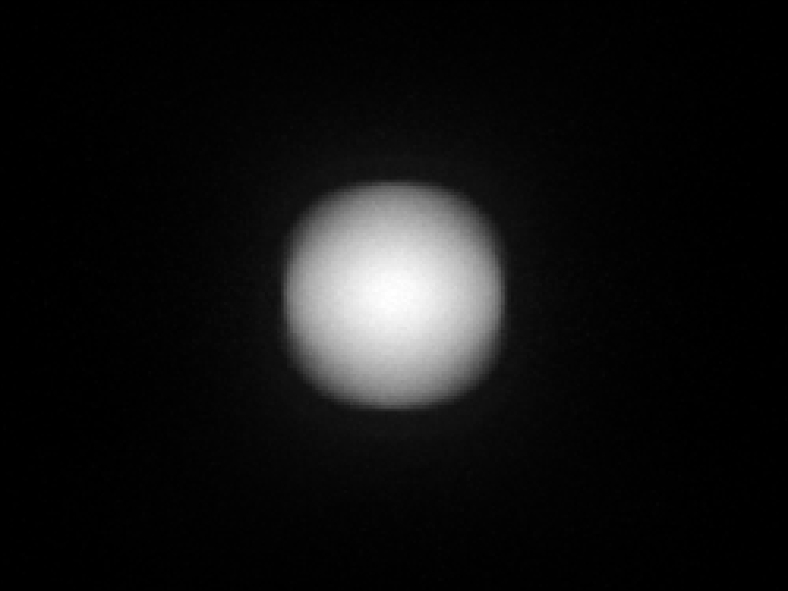

Luminus Devices MP-5050-810E White

Eff:

93.0%

FWHM:

80°

Cd/Im:

1.1


Download

Luminus Devices SFT-12R-WES-A White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.8


Download

Luminus Devices SFT-12R-WES-F White

Eff:

93.0%

FWHM:

87°

Cd/Im:

0.8


Download

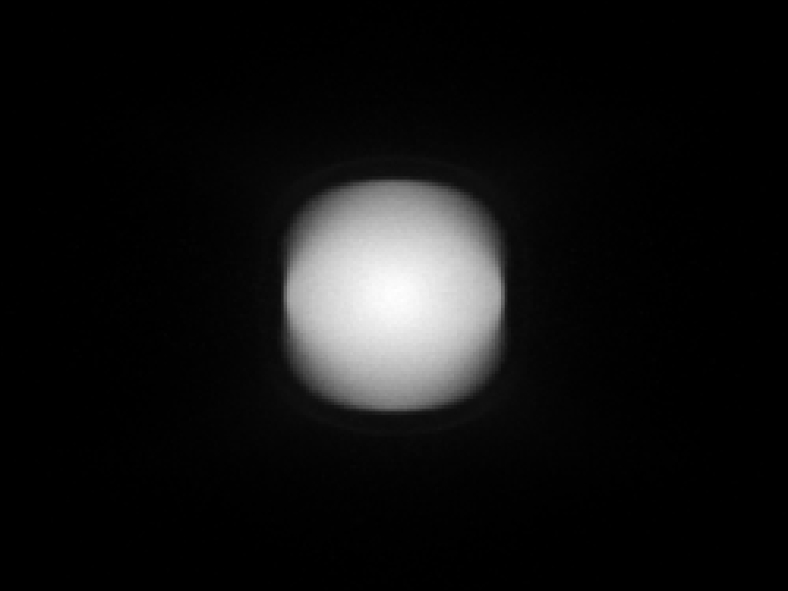

Luminus Devices SFT-25R-WES-A White

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9


Download

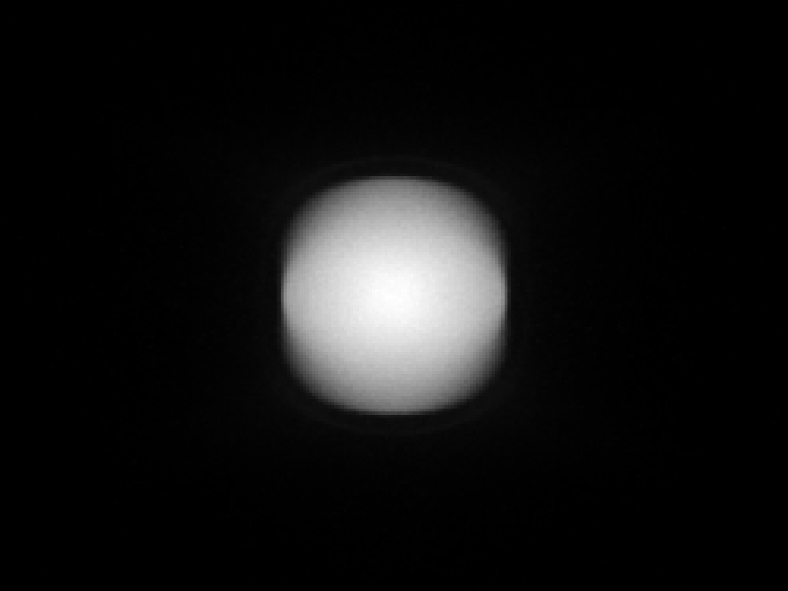

Luminus Devices SFT-25R-WES-F White

Eff:

93.0%

FWHM:

87°

Cd/Im:

1.0


Download

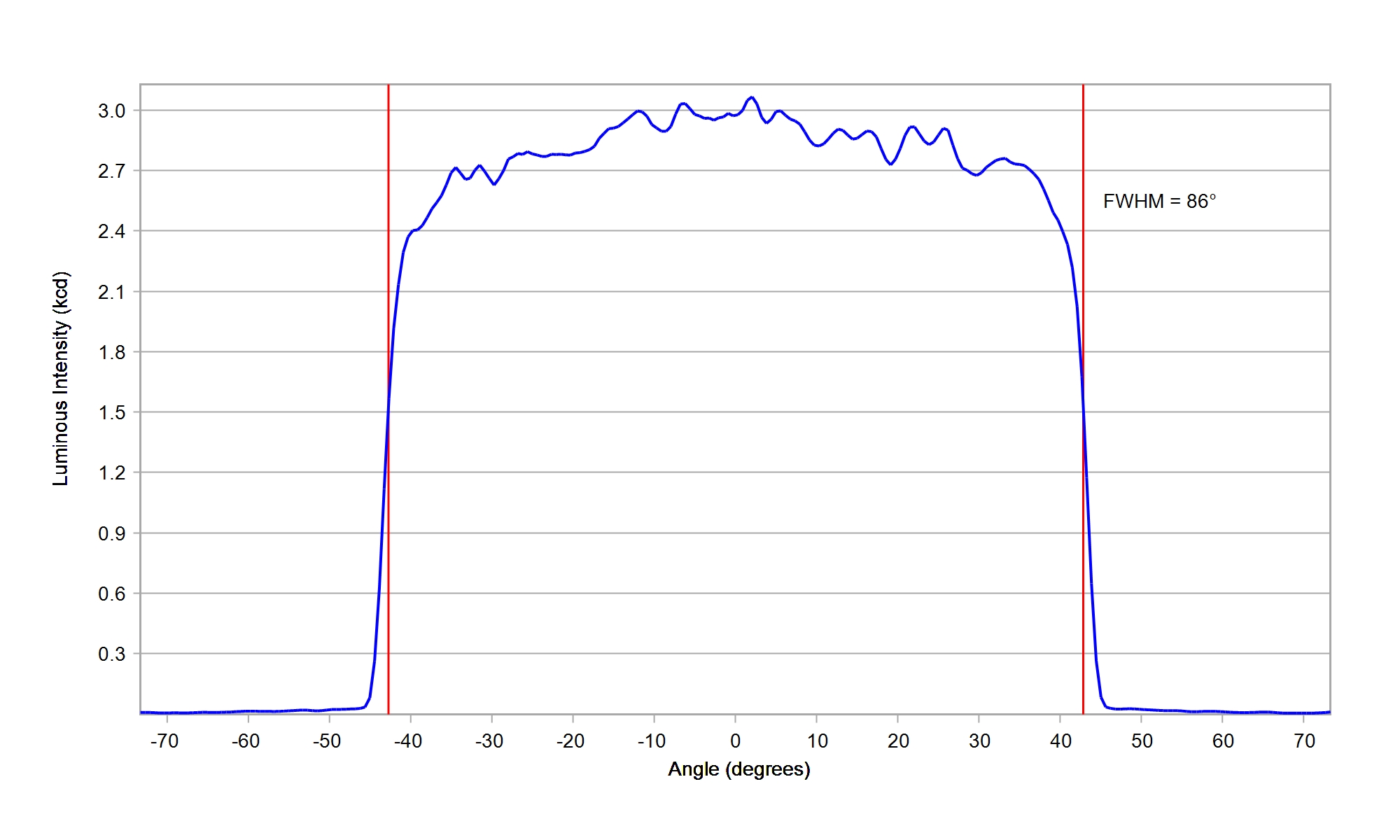

Luminus Devices SFT-40-W Gen2 White

Eff:

93.0%

FWHM:

86°

Cd/Im:

1.0


Download

Luminus Devices SFT-40-WxS White

Eff:

93.0%

FWHM:

85°

Cd/Im:

1.0

Download

ies

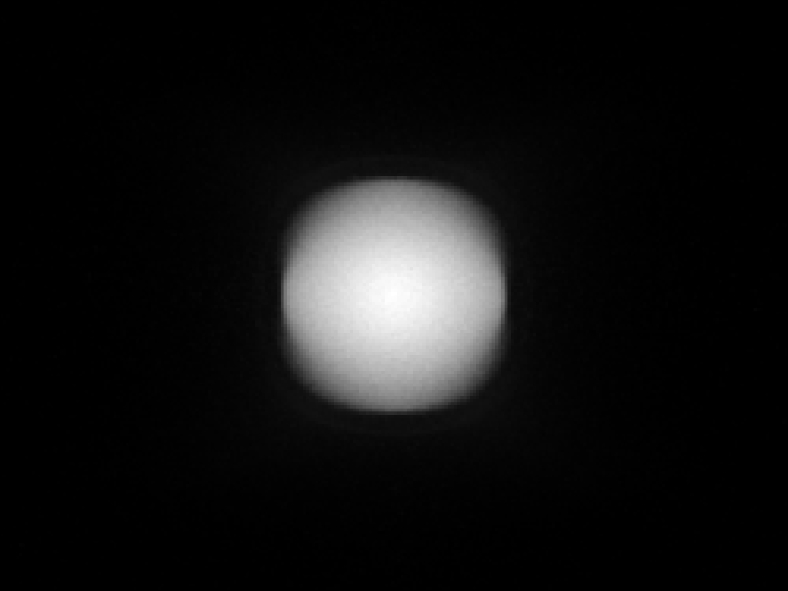

Luminus Devices SFT-70X-WxS White

Eff:

93.0%

FWHM:

85°

Cd/Im:

1.1

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

82°

Cd/Im:

0.9

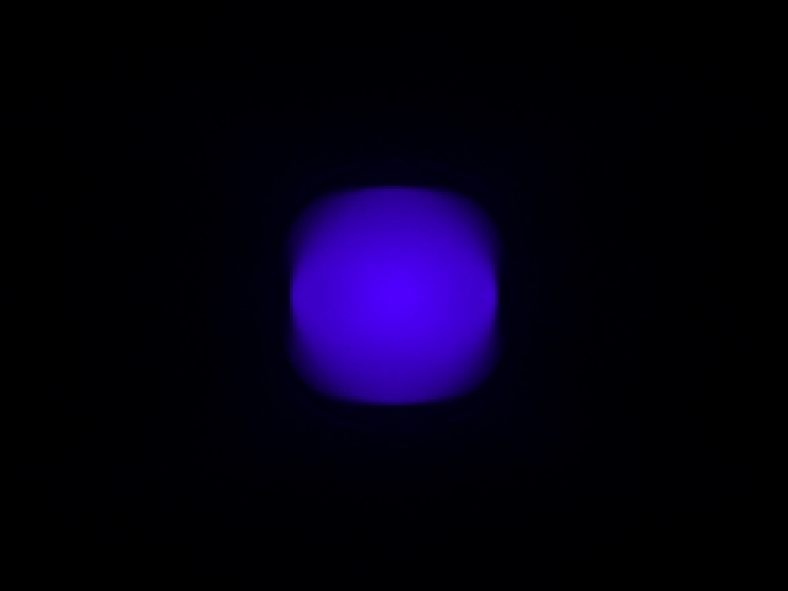

Carclo Optics - 12969 Luminus_SST-10_B_B130 - Spot Image

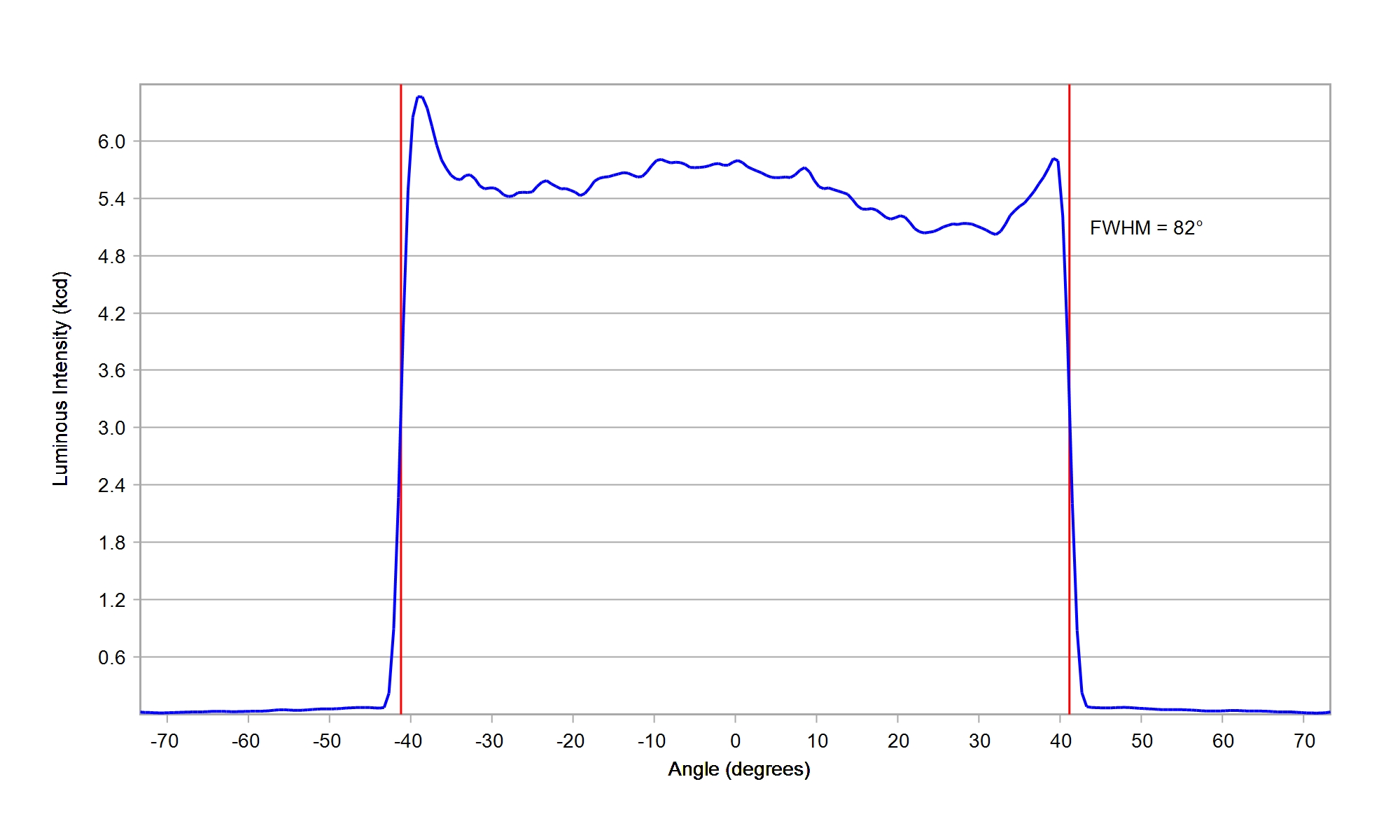

Carclo Optics - 12969 Luminus_SST-10_B_B130 - cross Image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.5%

FWHM:

88°

Cd/Im:

0.7

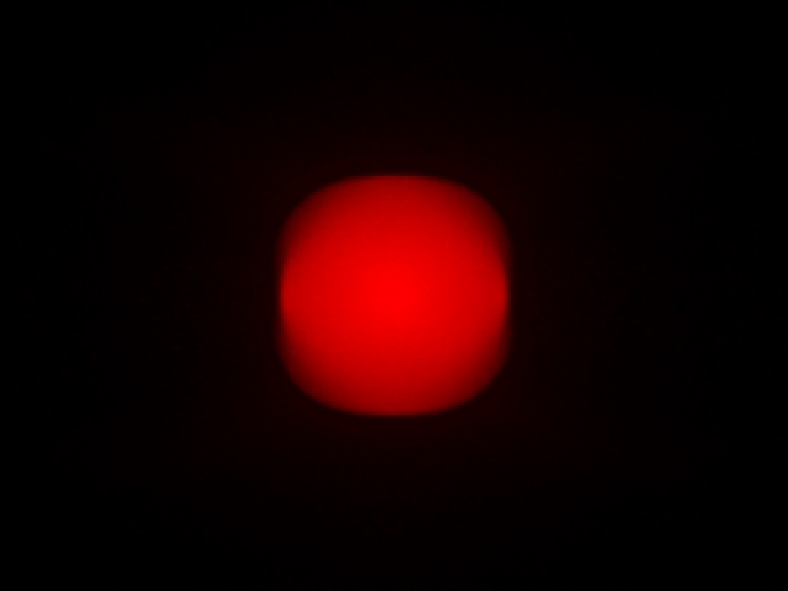

Carclo Optics – 12969 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12969 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.8

Carclo Optics - 12969 Luminus_SST-10_G_B130 - spot - image

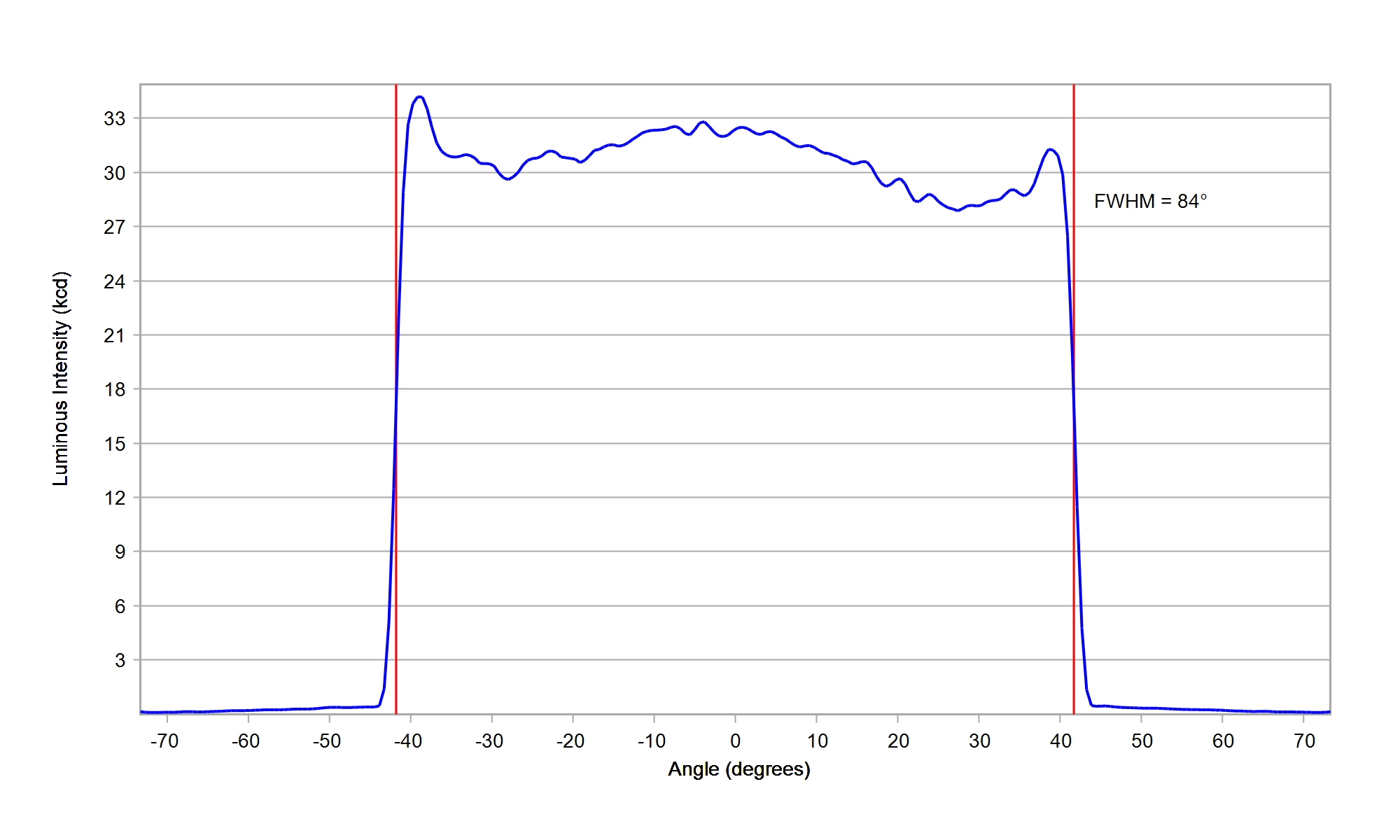

Carclo Optics - 12969 Luminus_SST-10_G_B130 - cross section - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

95.0%

FWHM:

85.0°

Ipk/W:

1.0

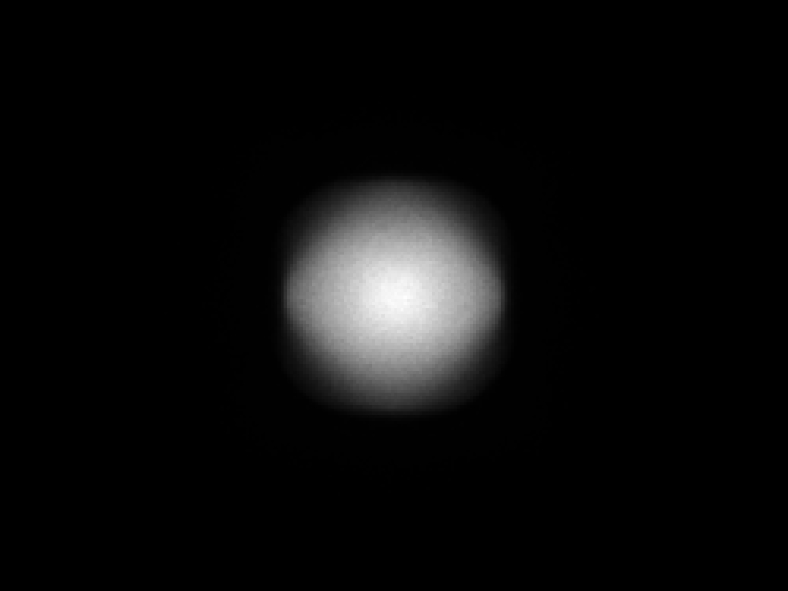

Carclo Optics - 12969 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12969 Cross Section Luminus SST-10-IR-B130

Download

ies

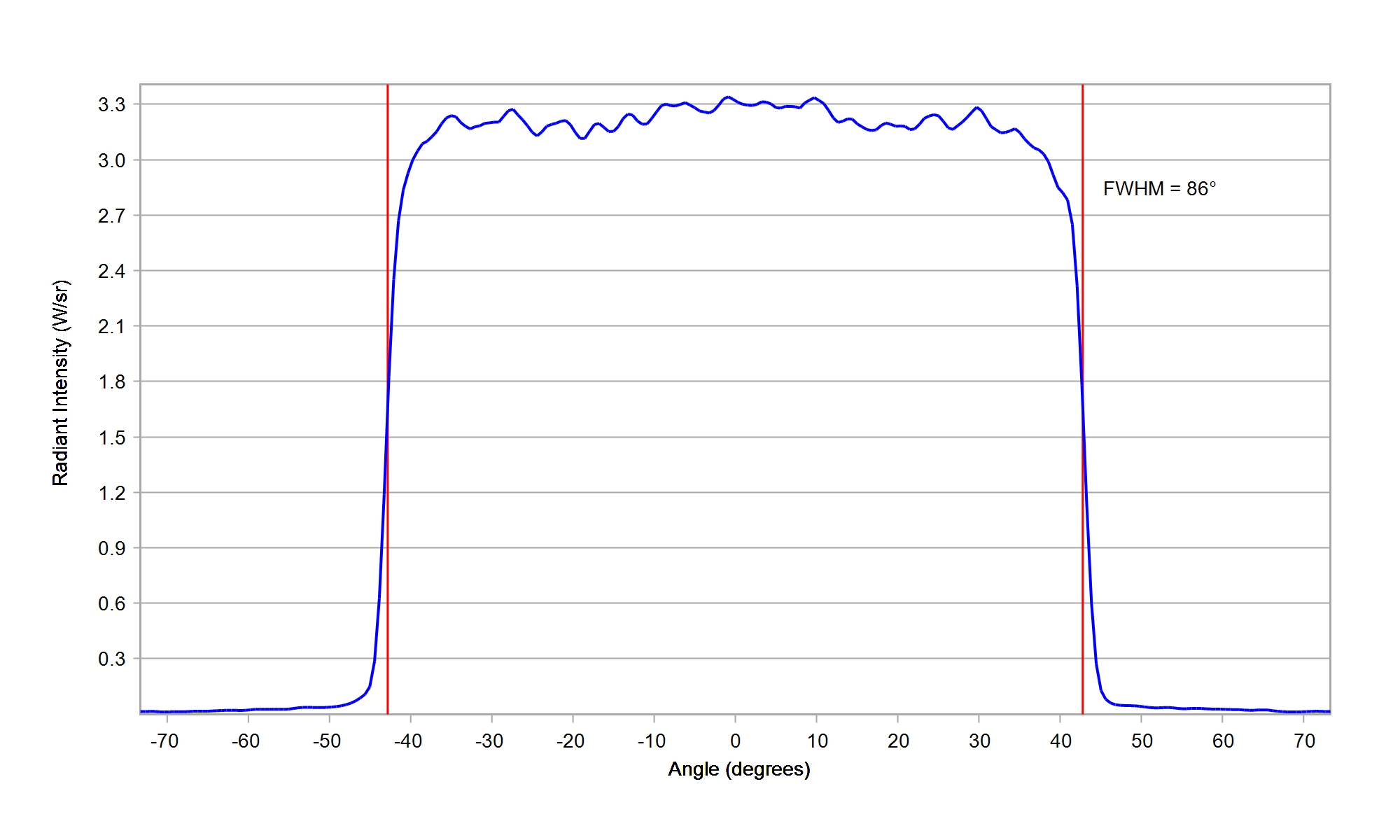

Luminus Devices SST 10-IRD-B130 810nm

Eff:

95.5%

FWHM:

86°

Ipk/W:

0.9


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.5%

FWHM:

83°

Cd/Im:

0.8

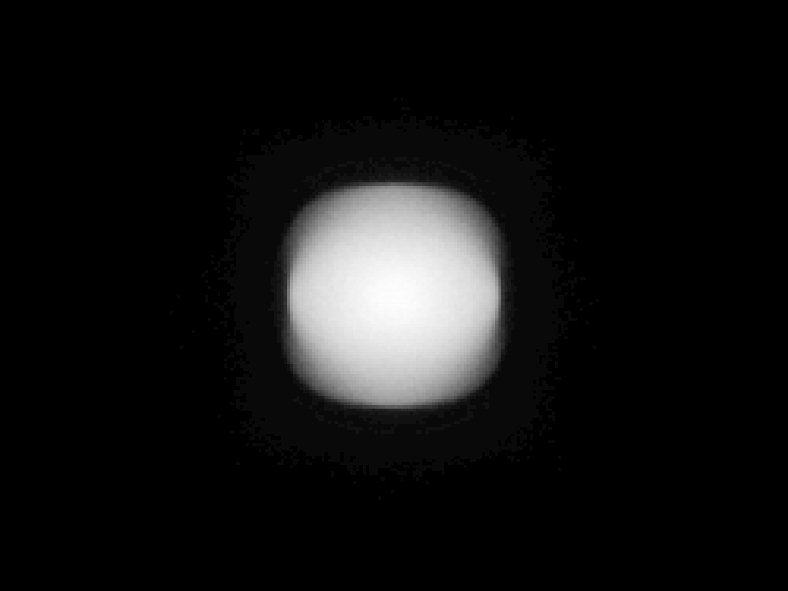

Carclo Optics – 12969 - Luxeon_SST_20_W_spot-image

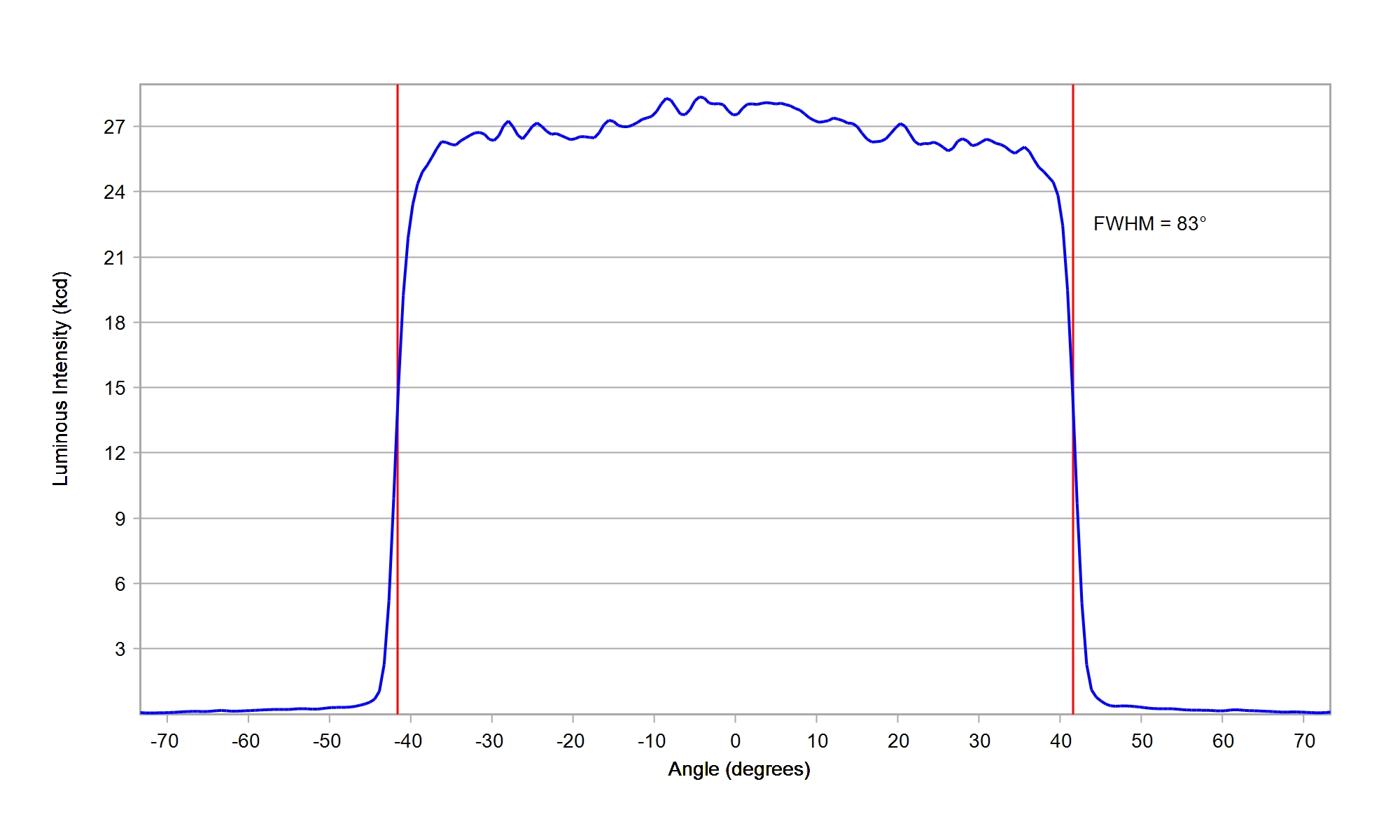

Carclo Optics – 12969 - Luxeon_SST_20_W_cross vertical section

Download

ies

Nichia 757 White

Eff:

92.5%

FWHM:

82°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

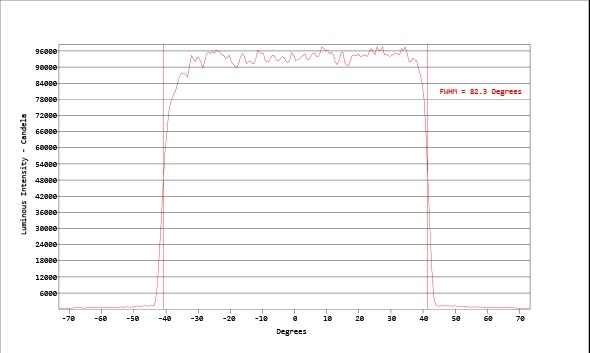

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

91.5%

FWHM:

80°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

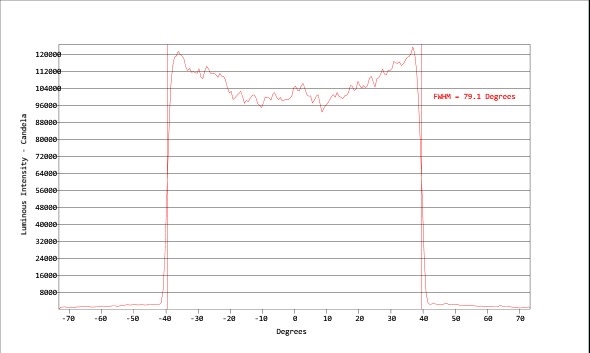

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 757G-MT Tunable

Eff:

93.0%

FWHM:

83°

Cd/Im:

1.1

Carclo Optics 12969 Simulated Sport Image Nichia 757G-MT

Carclo Optics 12969 Simulated cross horizontal Image Nichia 757G-MT

Download

ies

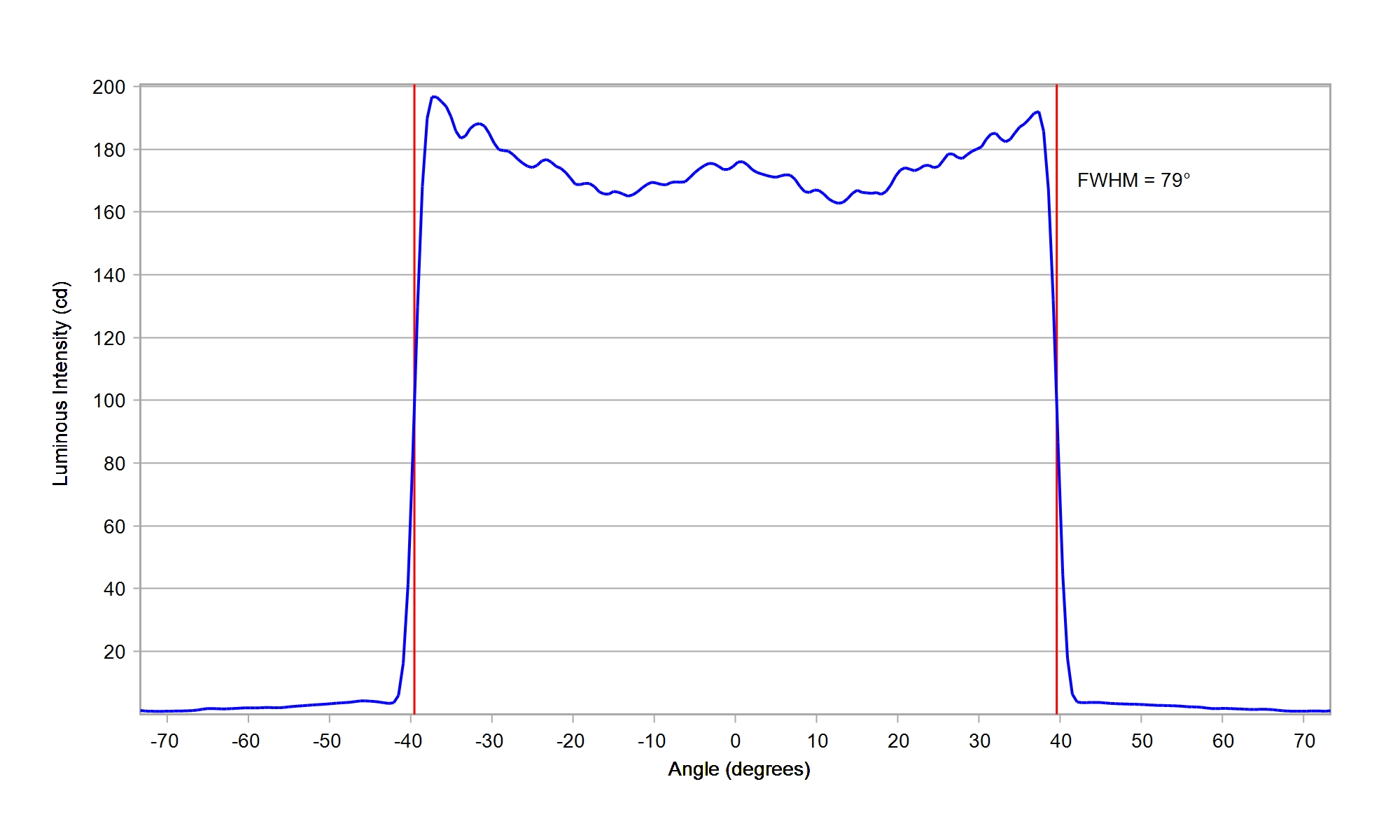

Nichia NFSW CSP E11A White

Eff:

91.0%

FWHM:

79°

Cd/Im:

0.9

Download

ies

Nichia NVSW CSP E21A White

Eff:

91.5%

FWHM:

80°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E 2835 Gen2

Eff:

93.5%

FWHM:

82°

Cd/Im:

0.9

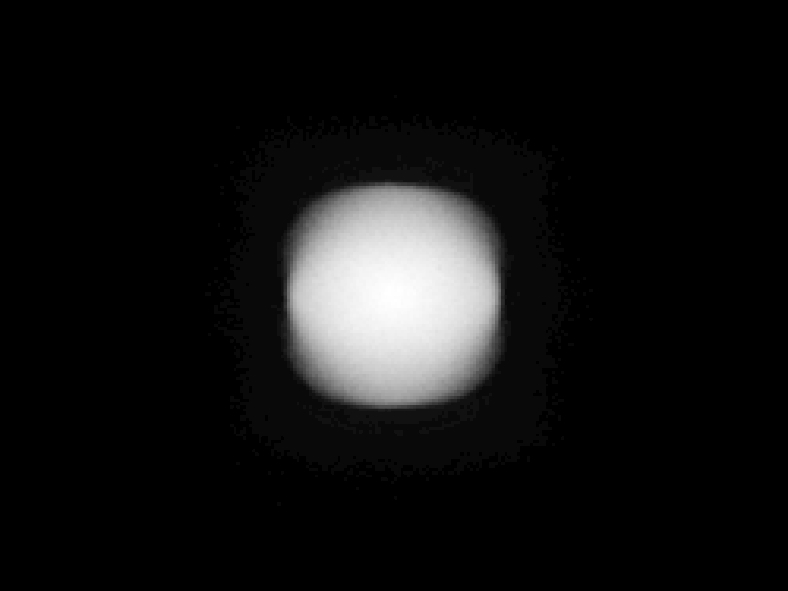

Carclo Optics - 12969 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12969 33Up Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E5 White

Eff:

92.0%

FWHM:

77°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E5 White

Eff:

92.0%

FWHM:

77°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 White

Eff:

92.5%

FWHM:

83°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S8 Gen3 White

Eff:

93.5%

FWHM:

82°

Cd/Im:

0.9

Carclo Optics - 12969 33Up Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12969 33Up Cross Section Oslon DURIS S8 Gen3

Download

ies

Osram OSCONIQ C 2424 White

Eff:

93.0%

FWHM:

82.0°

Cd/Im:

1.0

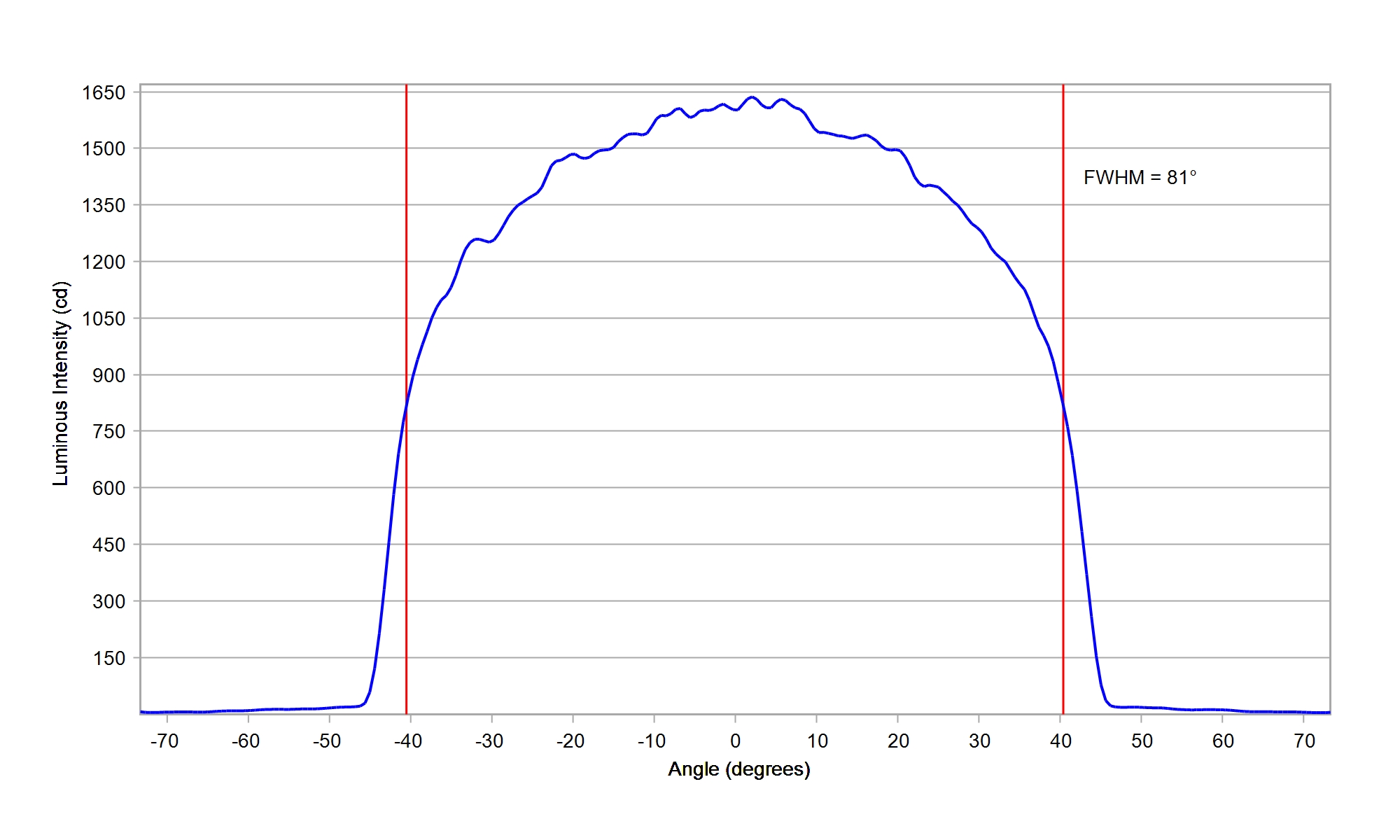

Carclo Optics - 12969 Spot Image OSCONIQ C2424

Carclo Optics - 12969 Cross Section OSCONIQ C2424

Download

ies

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

93.0%

FWHM:

81°

Cd/Im:

0.9



Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

92.0%

FWHM:

83°

Ipk/W:

1.0

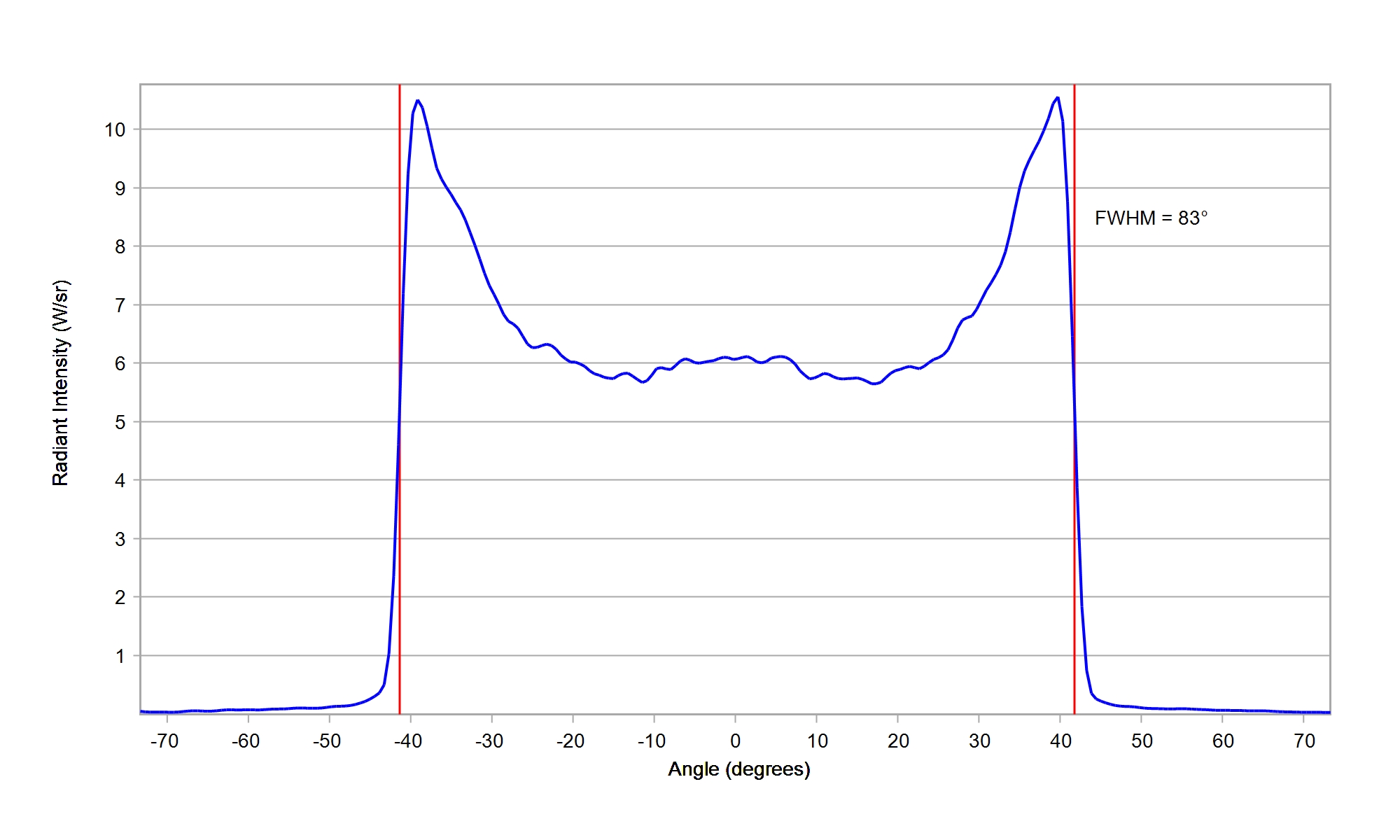

Carclo Optics – 12969 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12969 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9

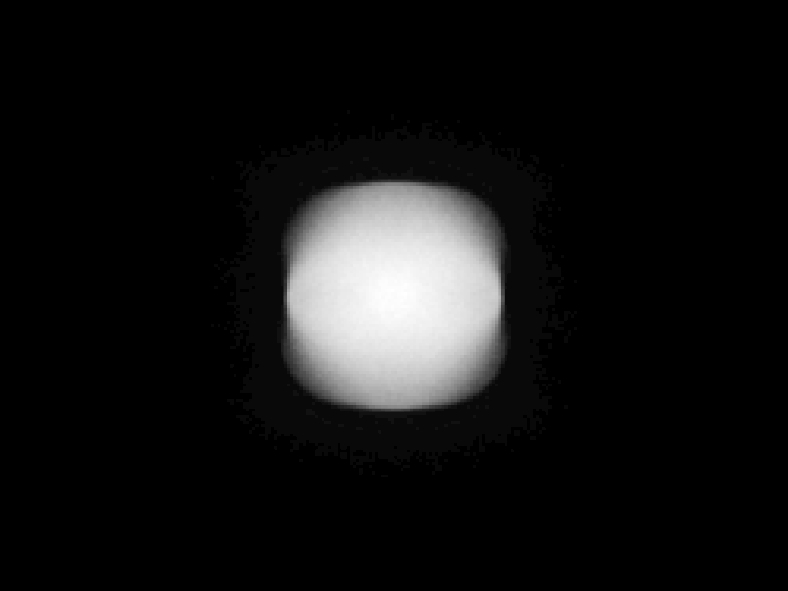

Carclo Optics – 12969 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12969 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

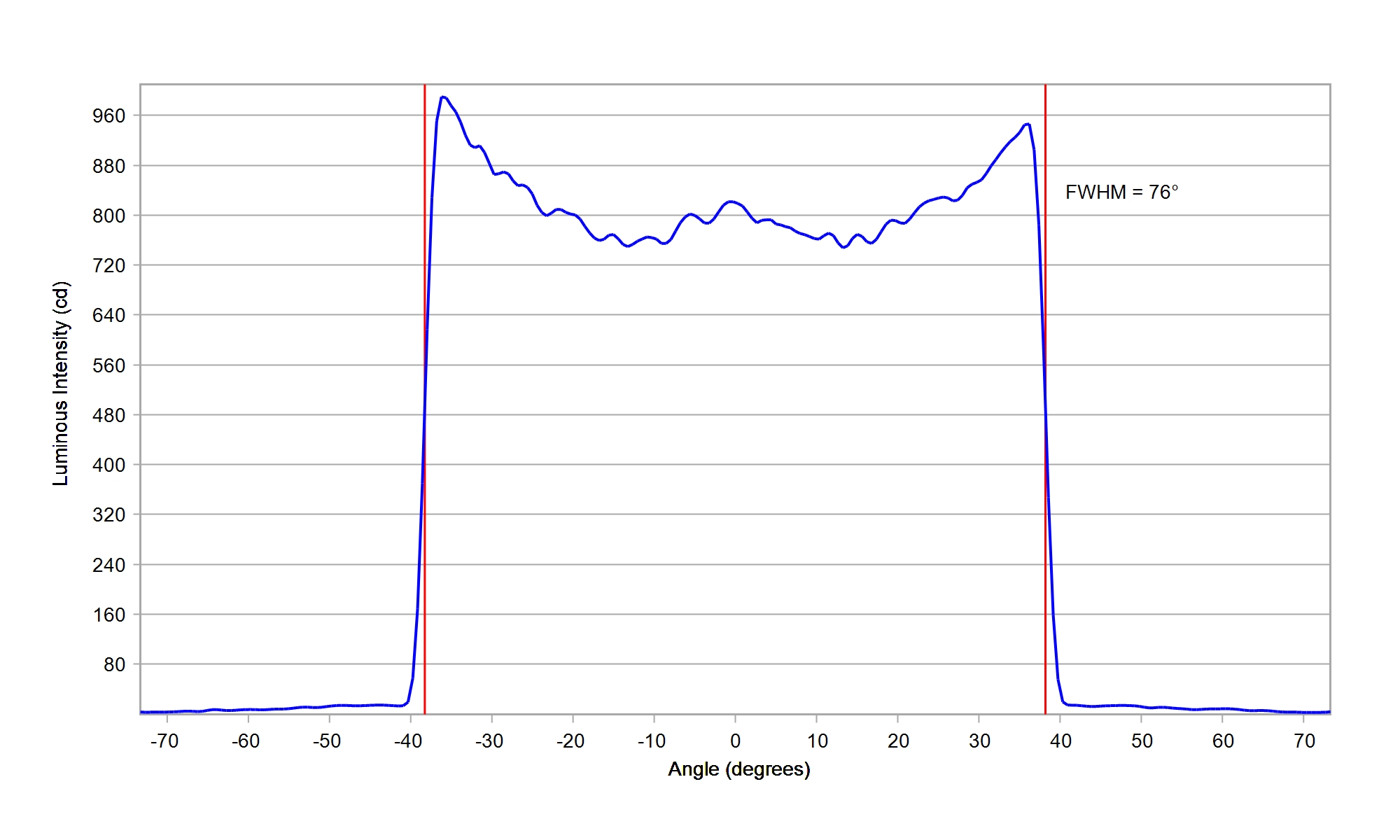

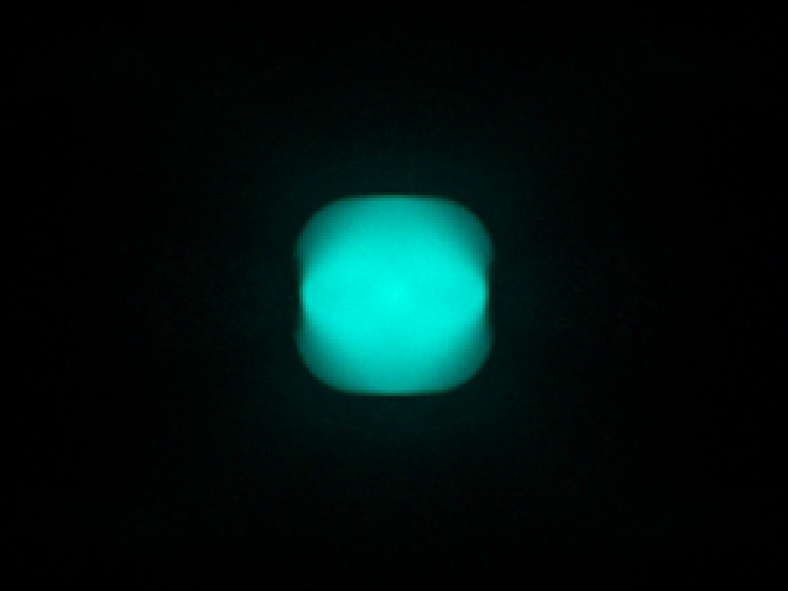

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

93.0%

FWHM:

76°

Cd/Im:

0.9


Download

ies

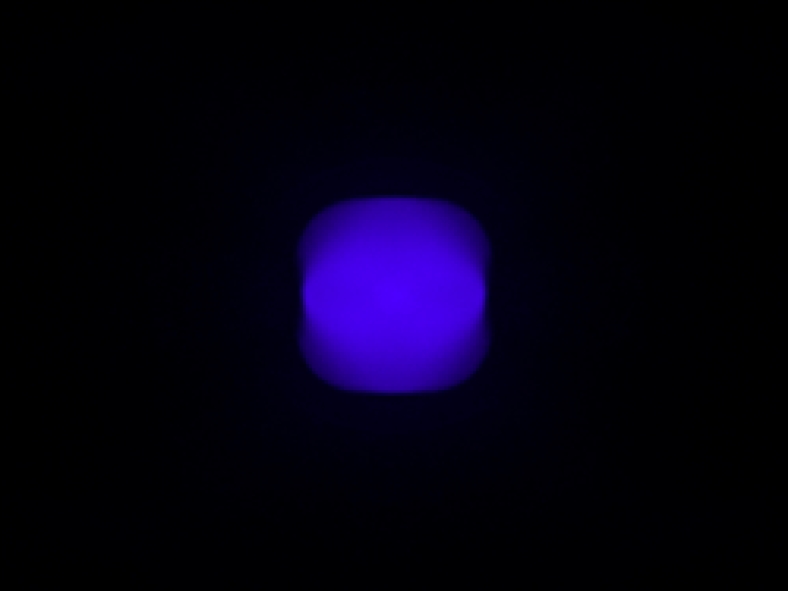

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

91.5%

FWHM:

76°

Ipk/W:

0.9


Download

ies

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

92.0%

FWHM:

78°

Cd/Im:

0.9


Download

ies

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

91.5%

FWHM:

80°

Cd/Im:

0.8


Download

ies

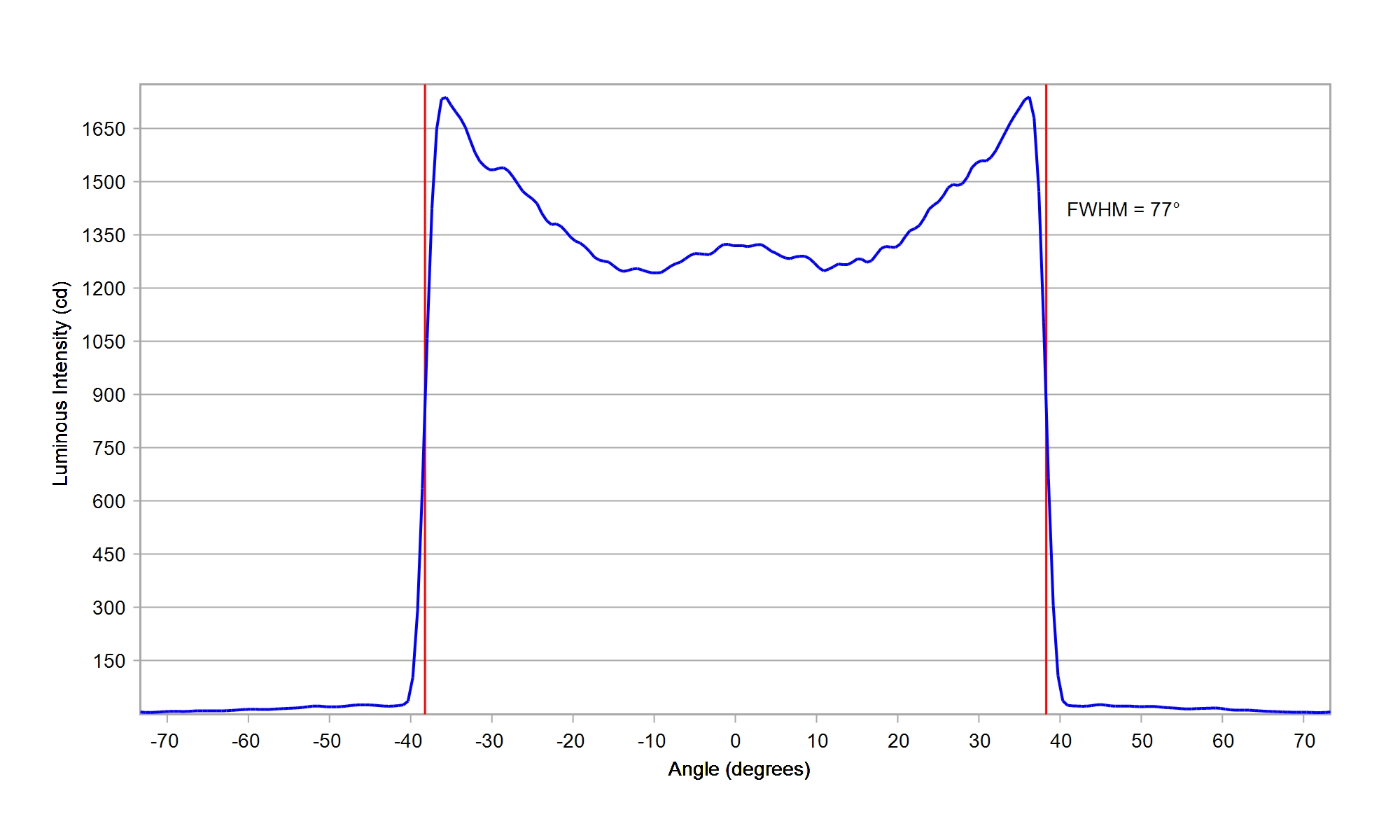

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

92.5%

FWHM:

77°

Cd/Im:

0.9


Download

ies

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

91.5%

FWHM:

78°

Cd/Im:

0.9



Download

ies

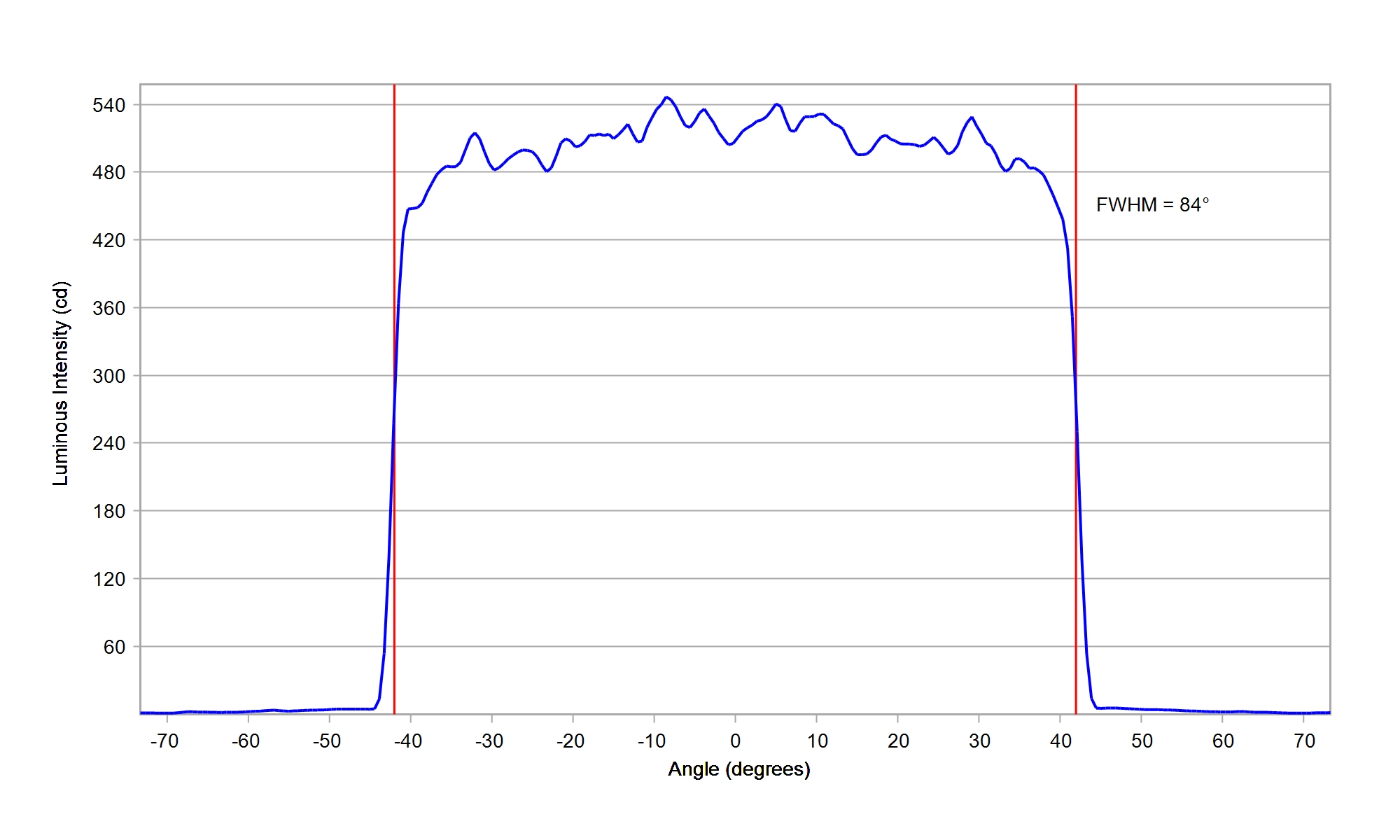

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

93.0%

FWHM:

84°

Cd/Im:

1.3


Download

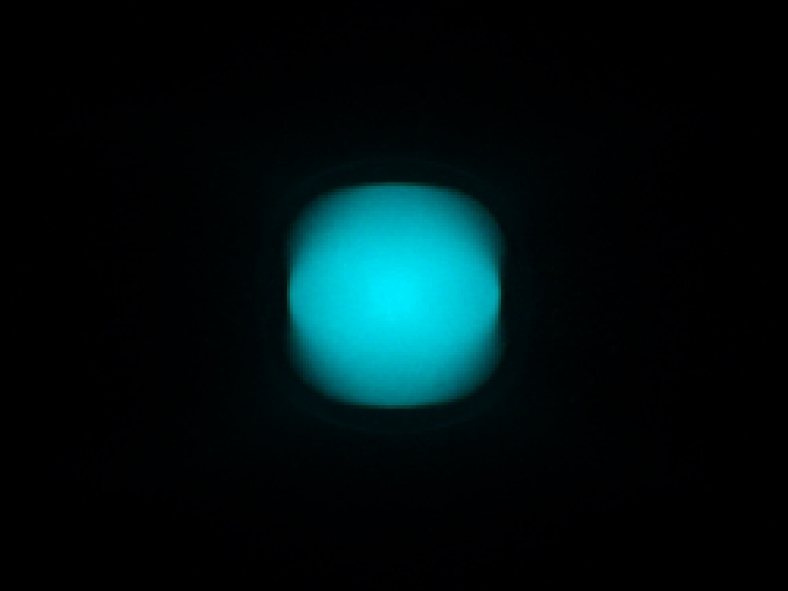

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.9


Download

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

92.5%

FWHM:

83°

Ipk/W:

0.9


Download

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.8


Download

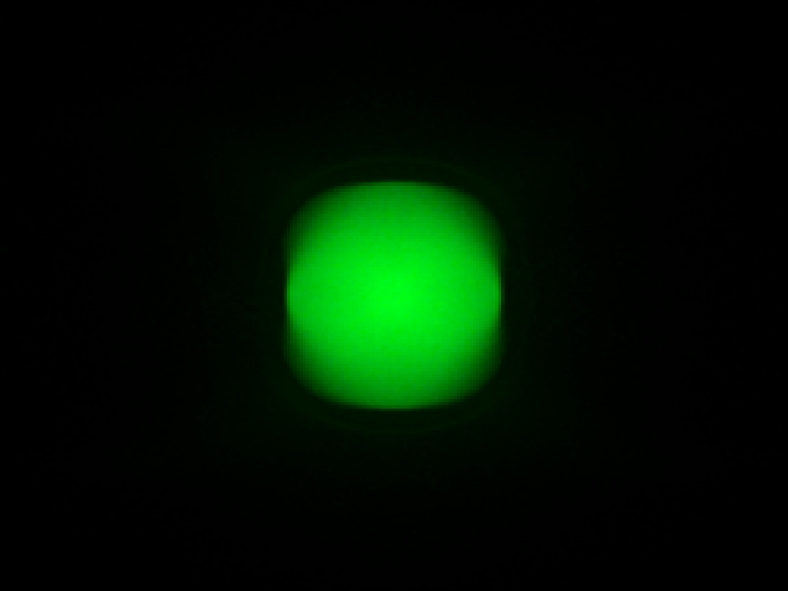

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.8


Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

93.0%

FWHM:

85°

Cd/Im:

1.0


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.9

Download

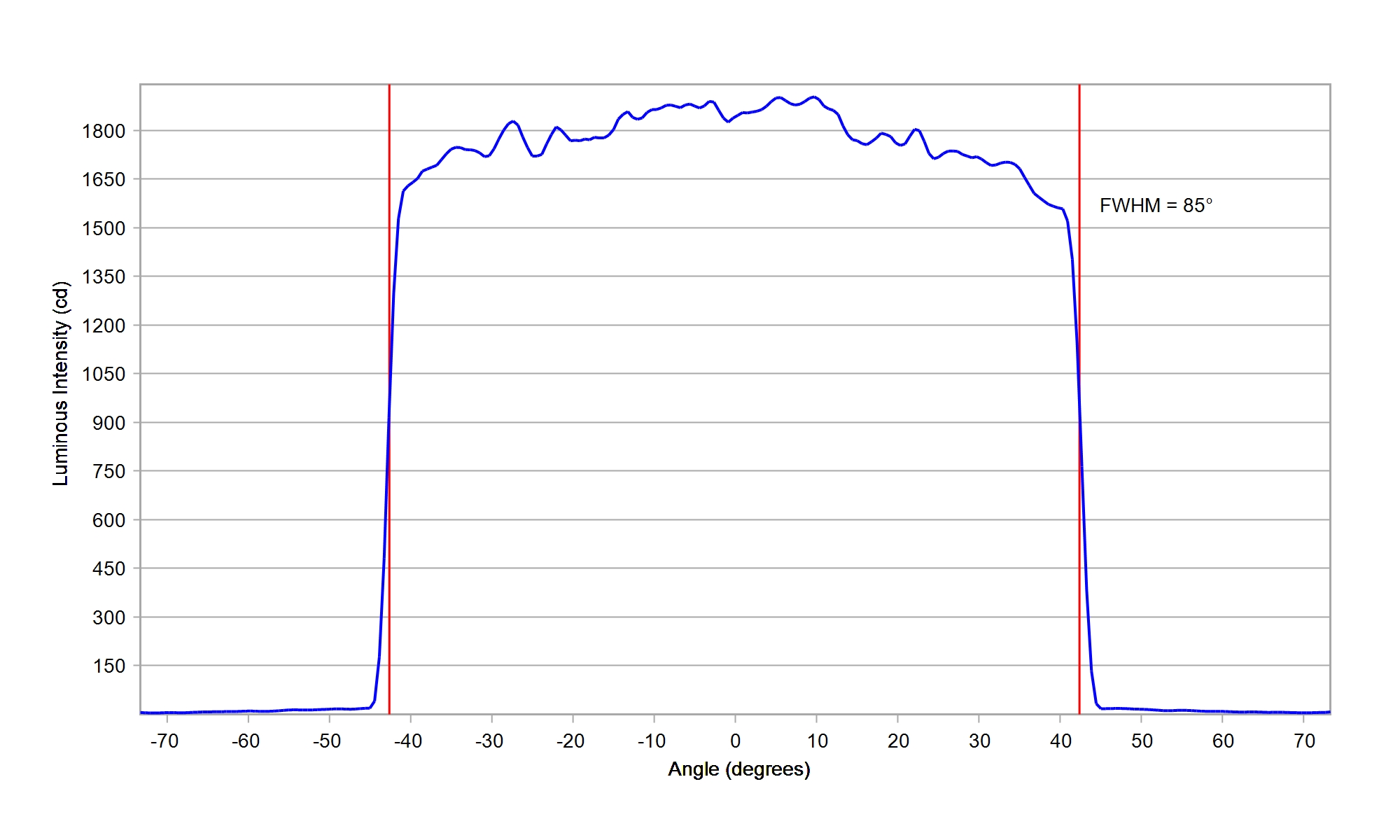

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.9


Download

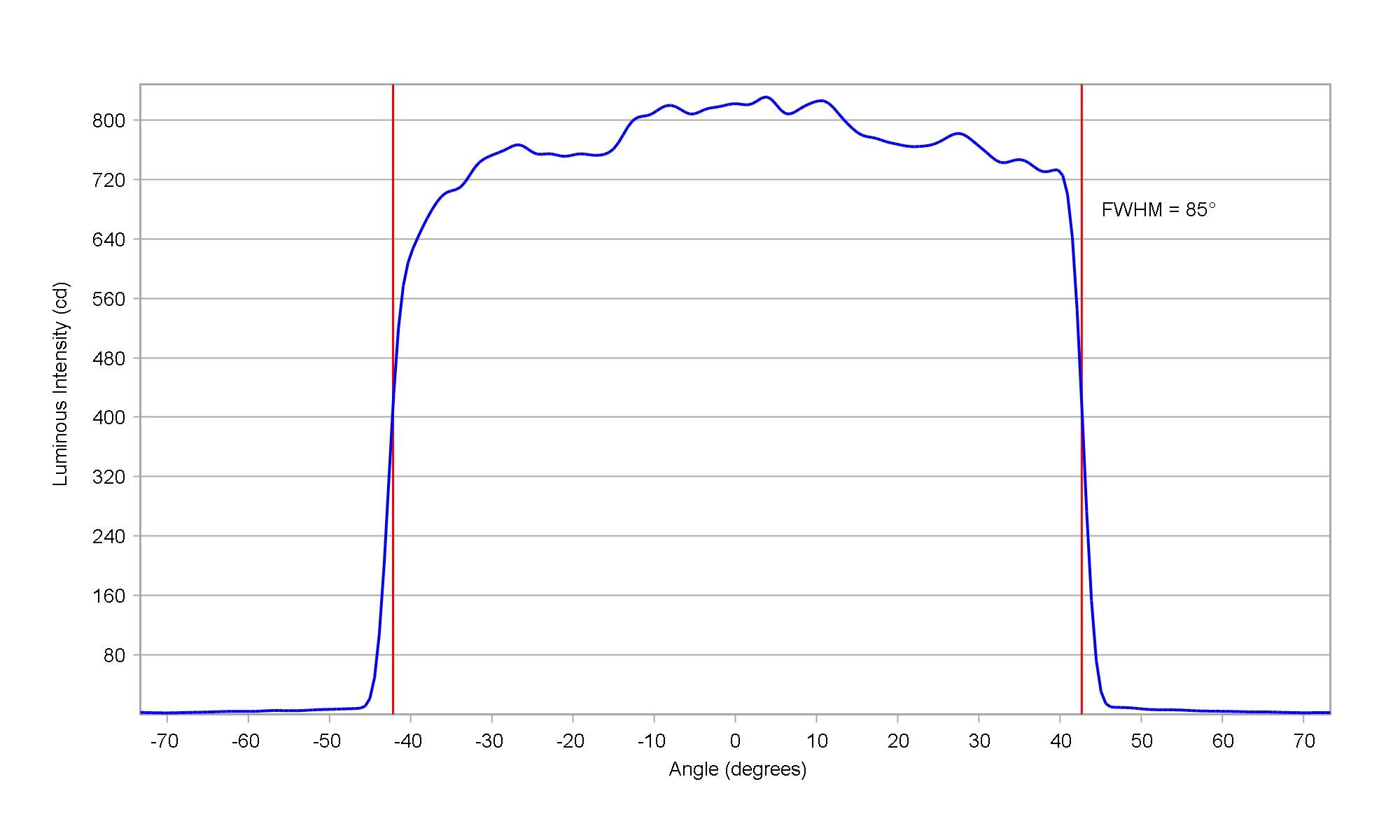

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

93.0%

FWHM:

85°

Cd/Im:

0.8


Download

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

93.0%

FWHM:

85 x 82°

Cd/Im:

0.9

Carclo Optics - 12969 33Up Spot Image Oslon Square Gen 5

Carclo Optics - 12969 33Up Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

93.0%

FWHM:

87°

Cd/Im:

0.7

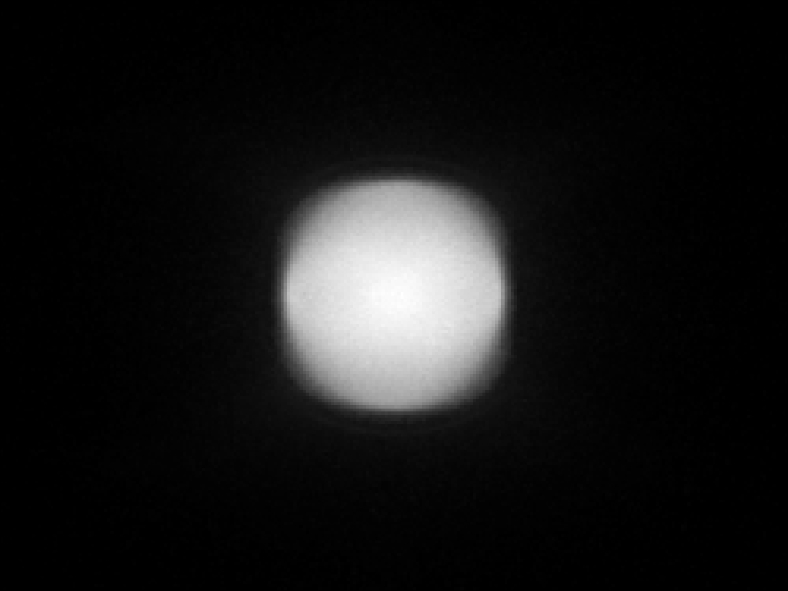

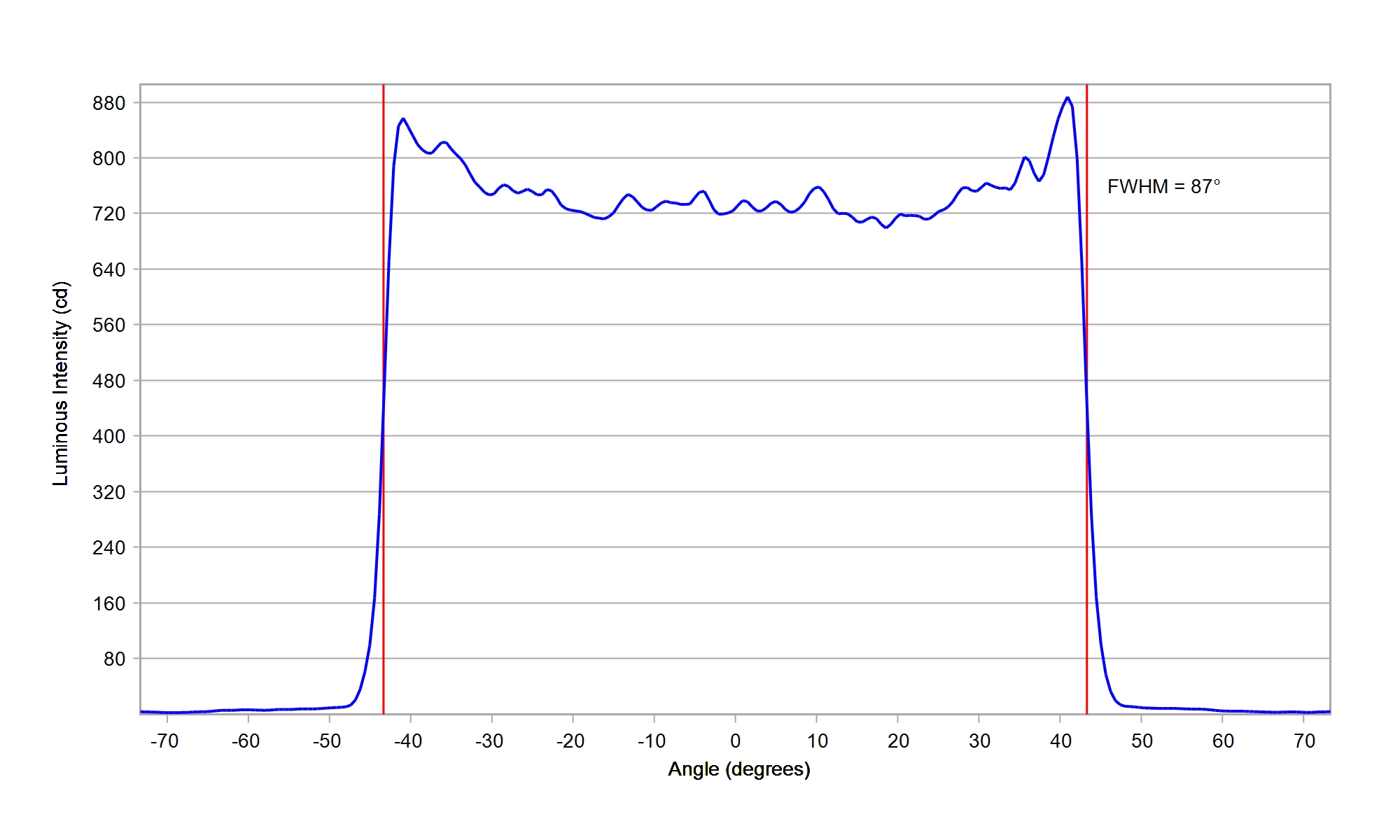

Carclo Optics – 12969 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12969 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Inventronics Prevaled Bar G4

Eff:

93.0%

FWHM:

82°

Cd/Im:

1.0

Carclo Optics – 12969 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12969 – Osram_Prevaled_Bar_G4_cross vertical section

Download

ies

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.9

Download

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

93.5%

FWHM:

81°

Cd/Im:

0.9

Download

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

92.5%

FWHM:

84°

Cd/Im:

0.8

Download

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

93.5%

FWHM:

84°

Cd/Im:

0.9

Download

Signify Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

93.0%

FWHM:

82°

Cd/Im:

0.9

Download

IES

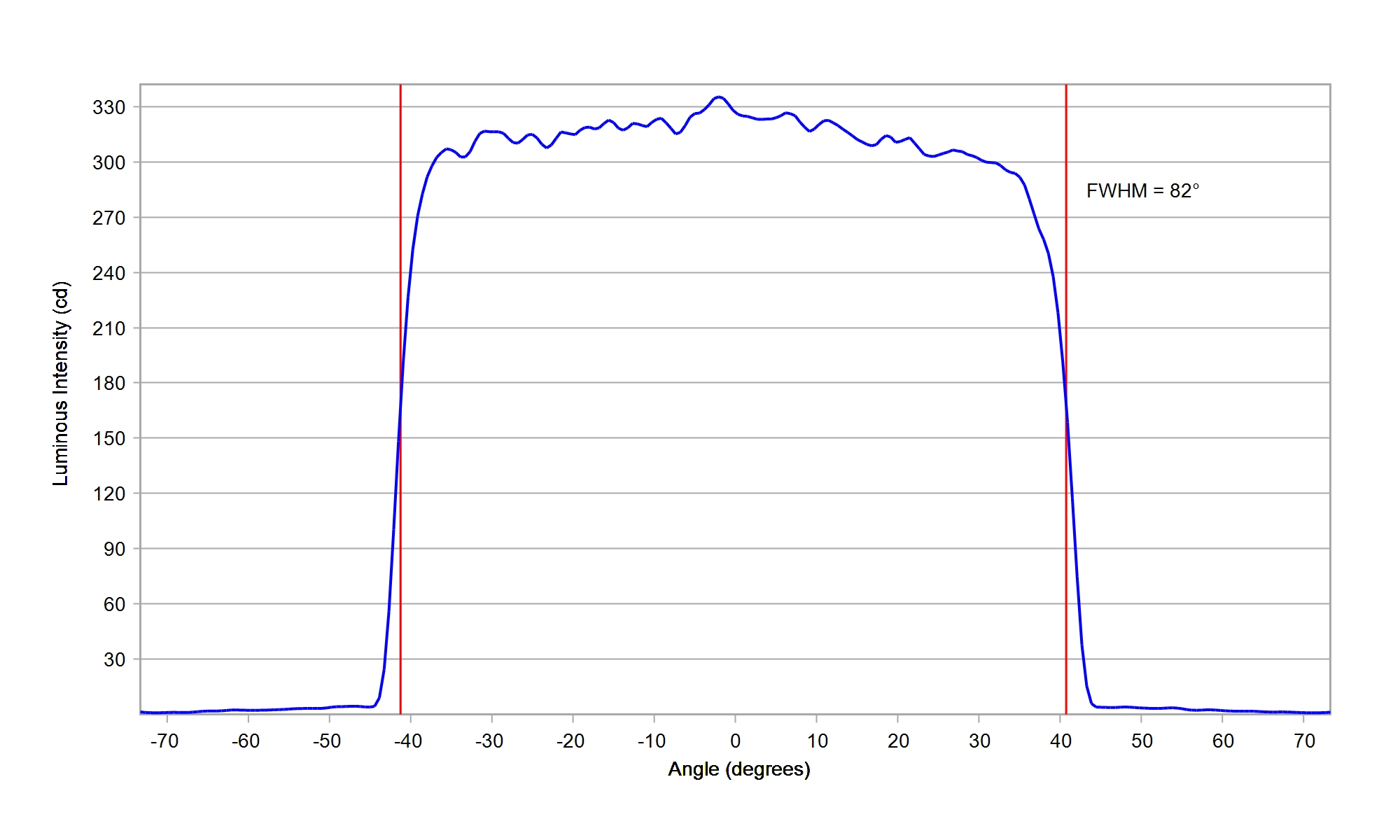

Signify Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

93.0%

FWHM:

82°

Cd/Im:

0.9


Download

IES

Samsung 2835 LM281B+ White

Eff:

93.0%

FWHM:

82°

Cd/Im:

0.9



Download

Samsung 2835 LM282B+ White

Eff:

93.5%

FWHM:

82°

Cd/Im:

0.9



Download

Samsung 3030 LM301B White

Eff:

93.5%

FWHM:

83°

Cd/Im:

1.0

Download

ies

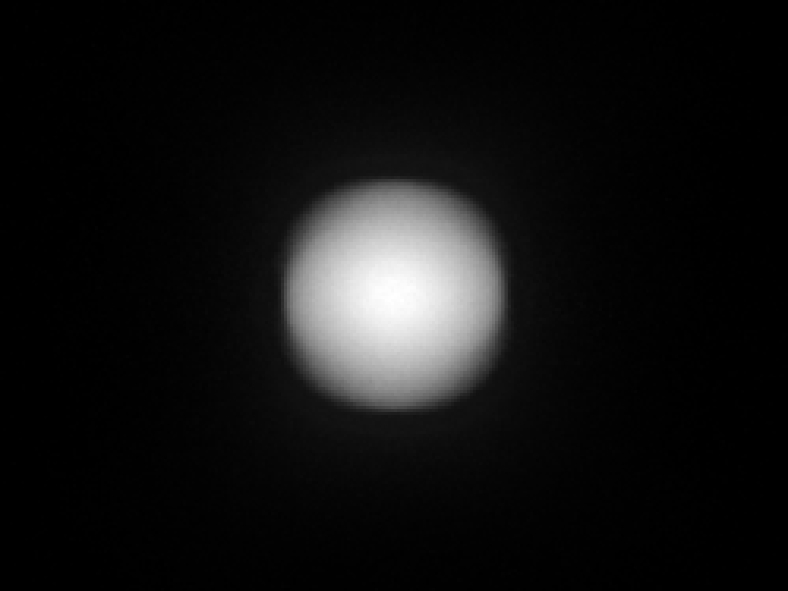

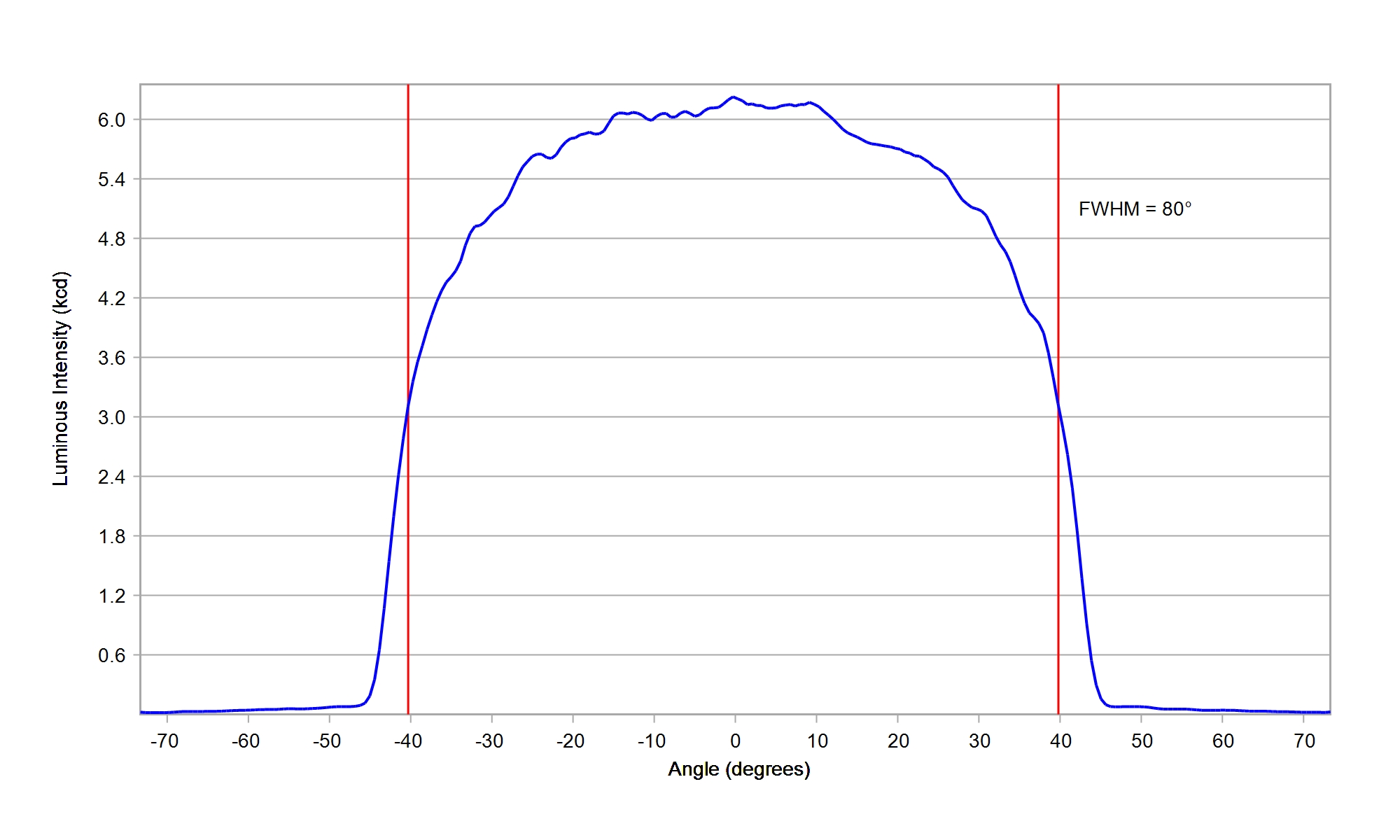

Samsung 5050 LH502C White

Eff:

93.0%

FWHM:

80°

Cd/Im:

1.0


Download

IES

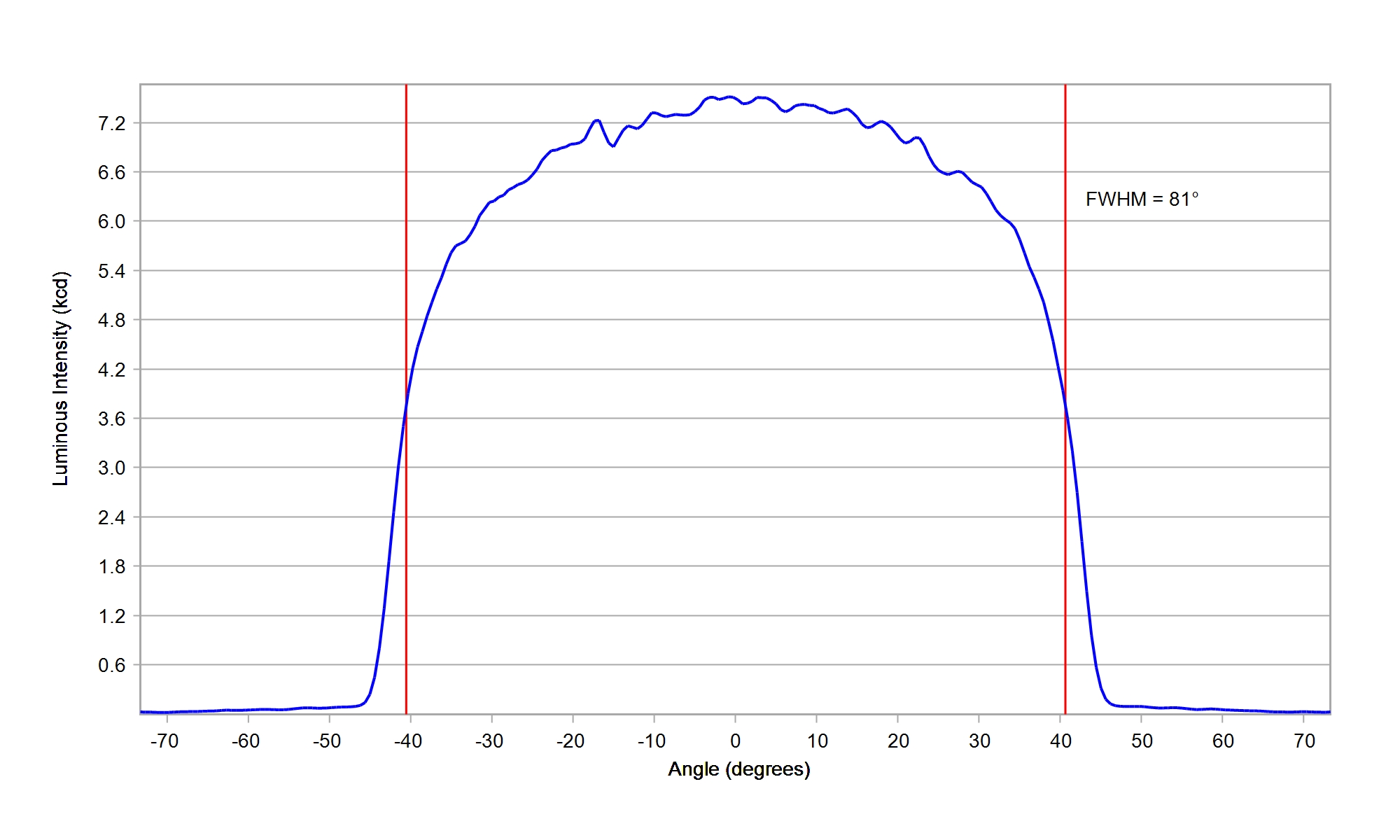

Samsung 5050 LH502D White

Eff:

93.0%

FWHM:

81°

Cd/Im:

1.0


Download

IES

Samsung 5050 LH508C White

Eff:

93.0%

FWHM:

79°

Cd/Im:

1.0


Download

IES

Samsung CSP LH151B White

Eff:

92.5%

FWHM:

79°

Cd/Im:

0.9

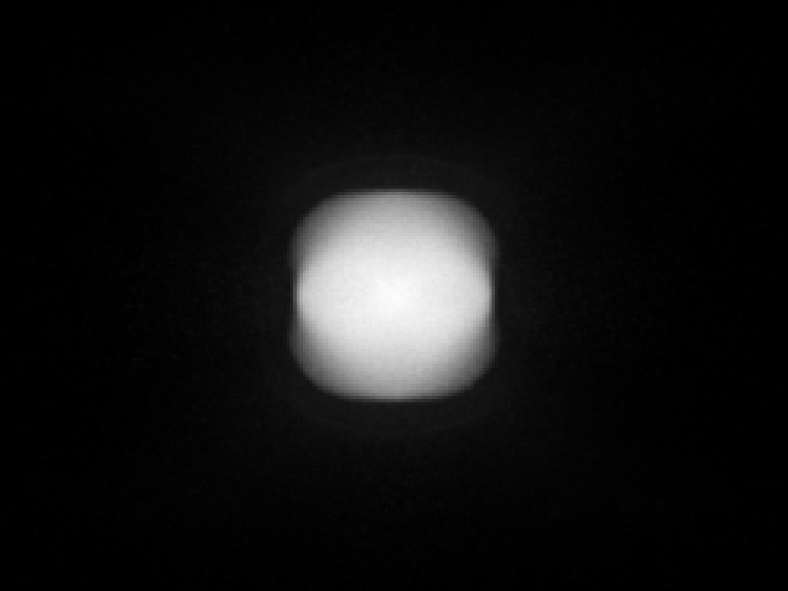

Carclo Optics – 12969 – Samsung_LH151B_spot-image

Carclo Optics – 12969 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

93.0%

FWHM:

79 x 80°

Cd/Im:

1.0

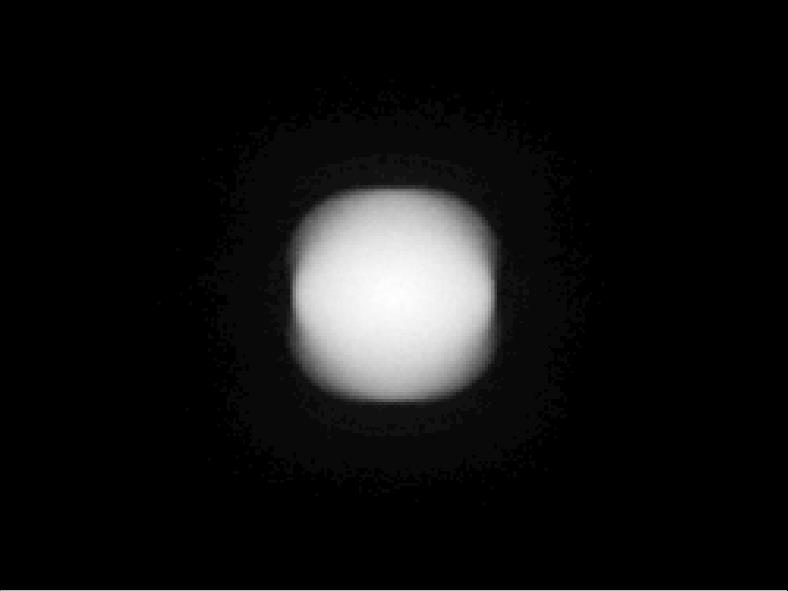

Carclo Optics -12969 Spot Image - Samsung LH181B 4000K

Carclo Optics -12969 Cross Section Image - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

92.5%

FWHM:

80°

Cd/Im:

1.0

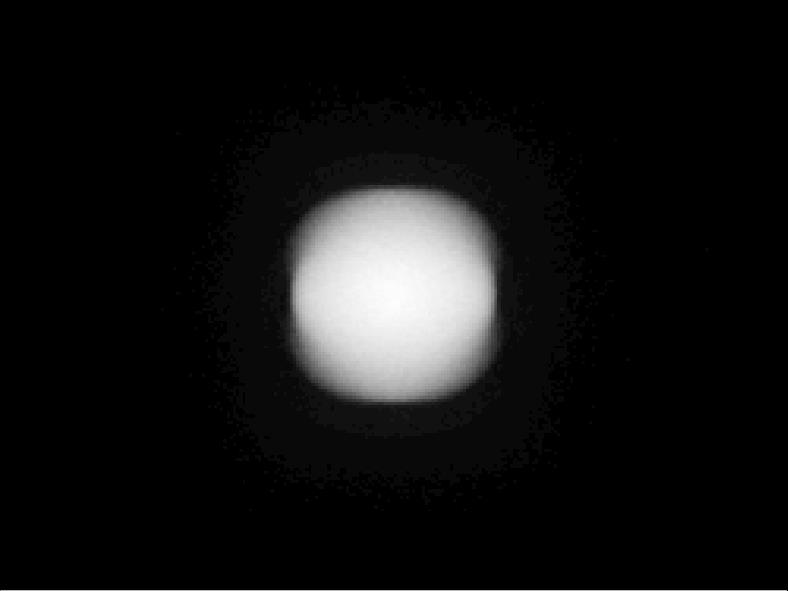

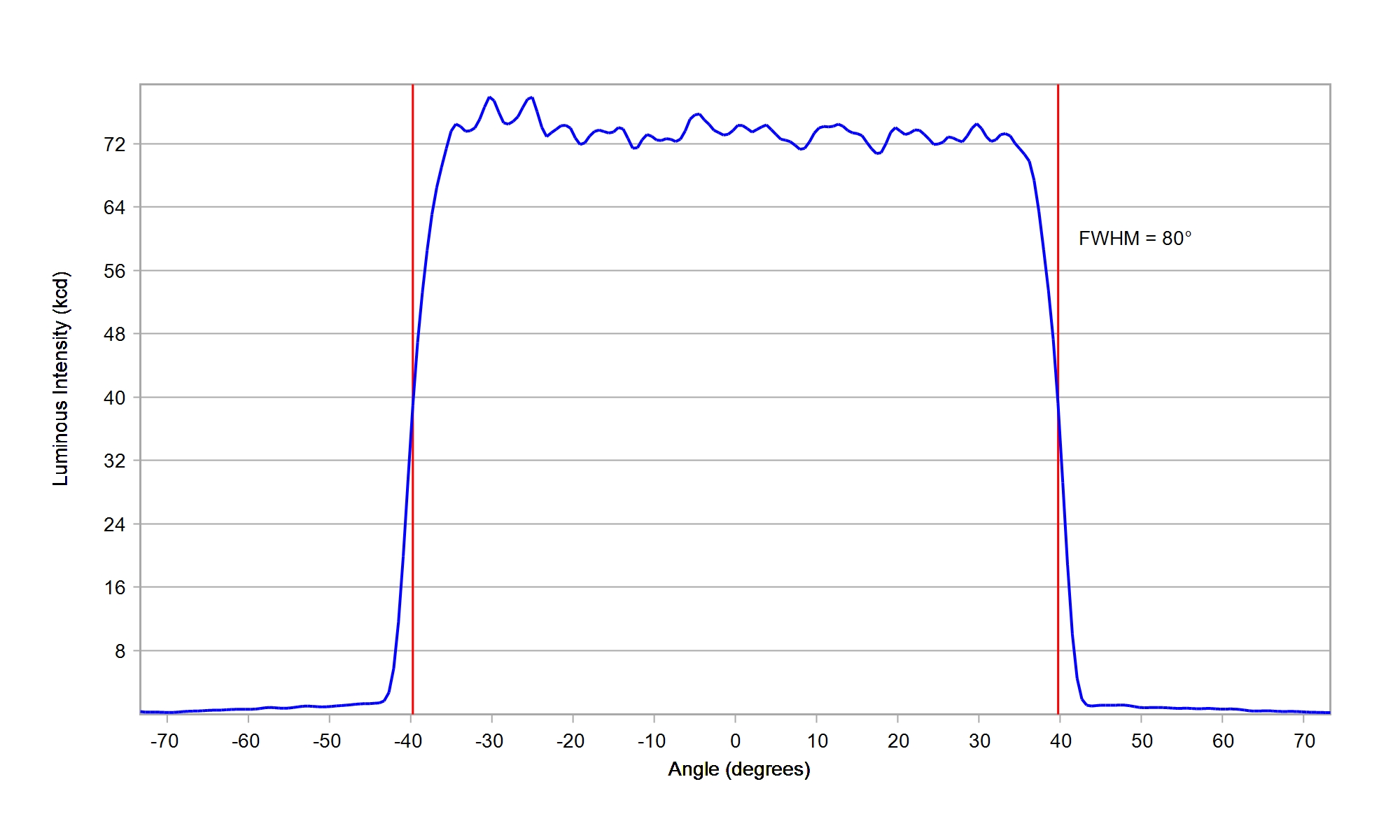

Carclo Optics - 12969 Spot Image Samsung LH231B 5000K

Carclo Optics -12969 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

92.5%

FWHM:

79 x 81°

Cd/Im:

1.0

Carclo Optics 12969 Spot Image Samsung LM101B

Carclo Optics 12969 Cross Section Image Samsung LM101B

Download

ies

Seoul 3030 STW8C12E-E0 White

Eff:

93.0%

FWHM:

84°

Cd/Im:

0.9

Download

Seoul 3528 G STW8A2PD-G700 White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.8

Download

Seoul CSP SZ8Y11 White

Eff:

88.5%

FWHM:

80 x 83°

Cd/Im:

0.8

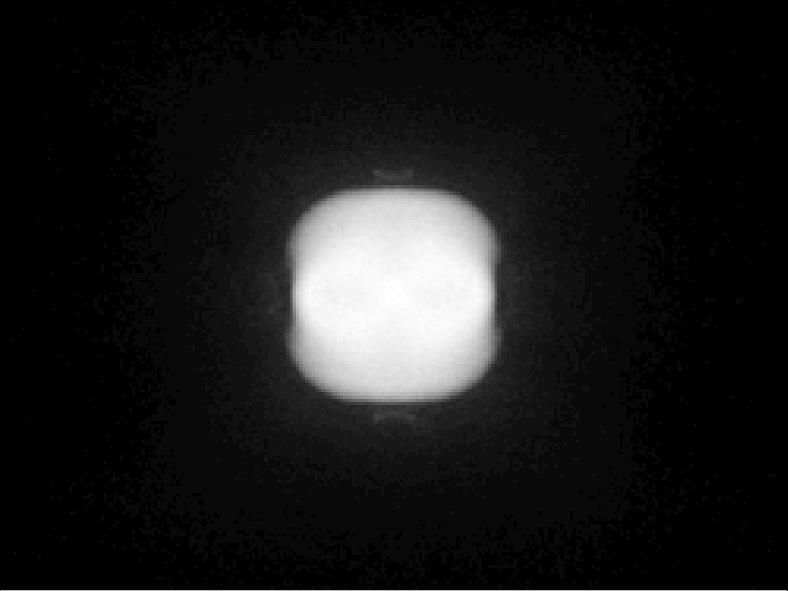

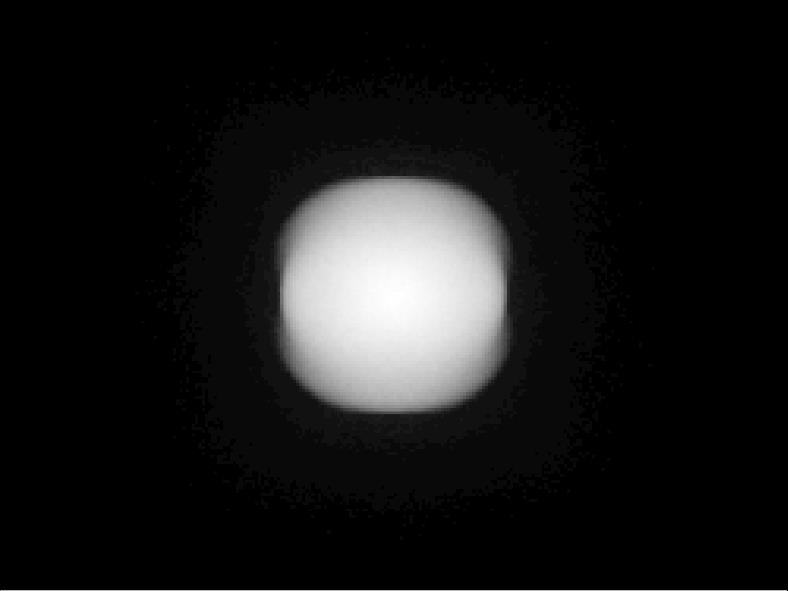

Carclo Optics -12969 Spot Image - Seoul Z8Y11

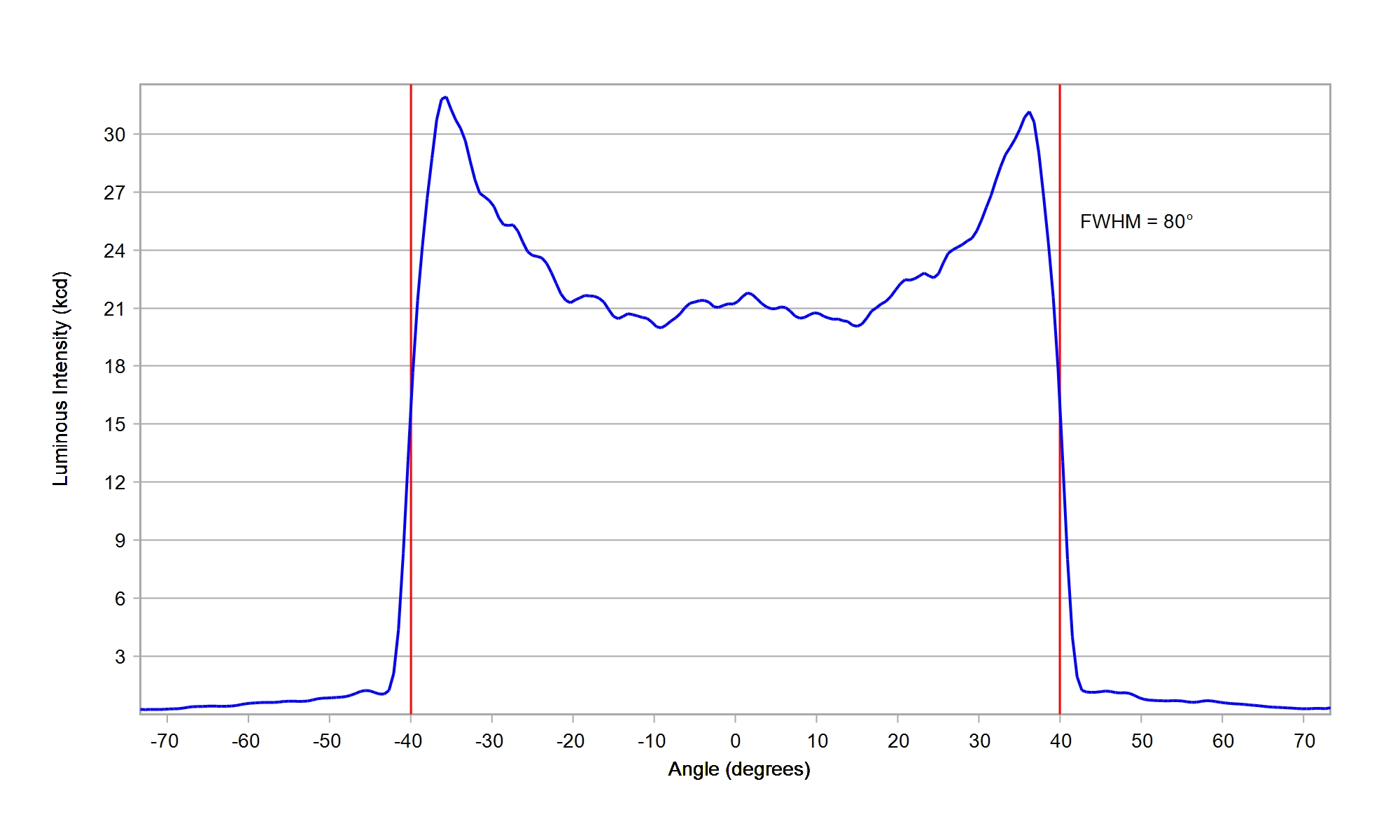

Carclo Optics -12969 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y22 White

Eff:

91.0%

FWHM:

80 x 82°

Cd/Im:

0.7

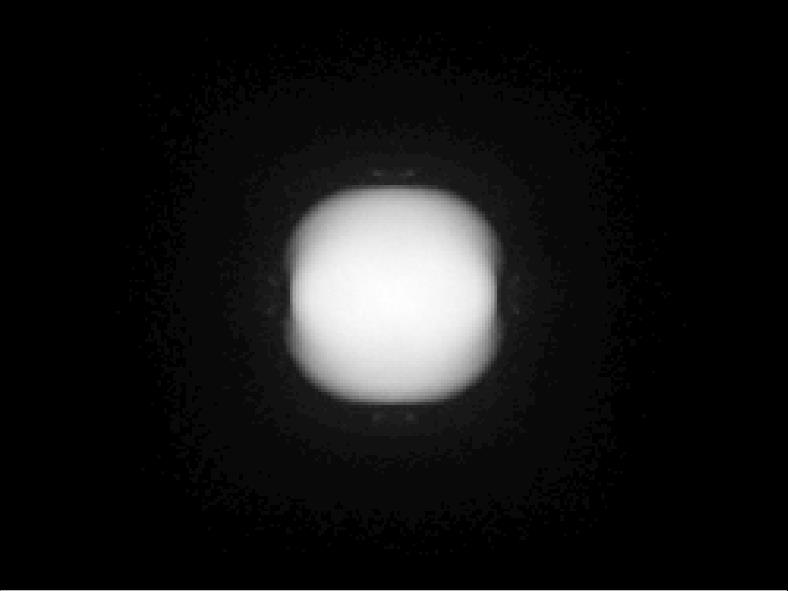

Carclo Optics -12969 Spot Image - Seoul SZ8Y22

Carclo Optics -12969 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

91.5%

FWHM:

86 x 87°

Cd/Im:

0.7

Carclo Optics -12969 Spot Image - Seoul SZ8Y22P

Carclo Optics -12969 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul 5630 STW8Q14C White

Eff:

90.5%

FWHM:

82°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

93.0%

FWHM:

83.0°

Cd/Im:

1.0

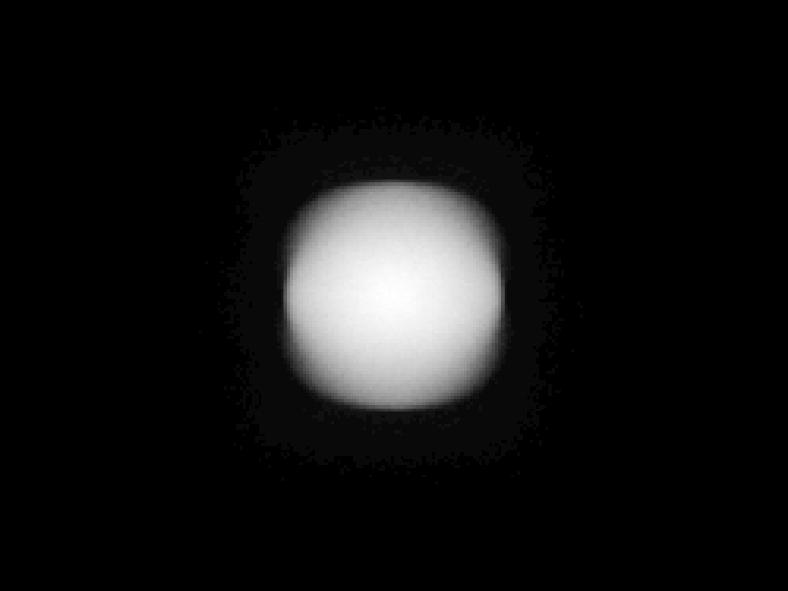

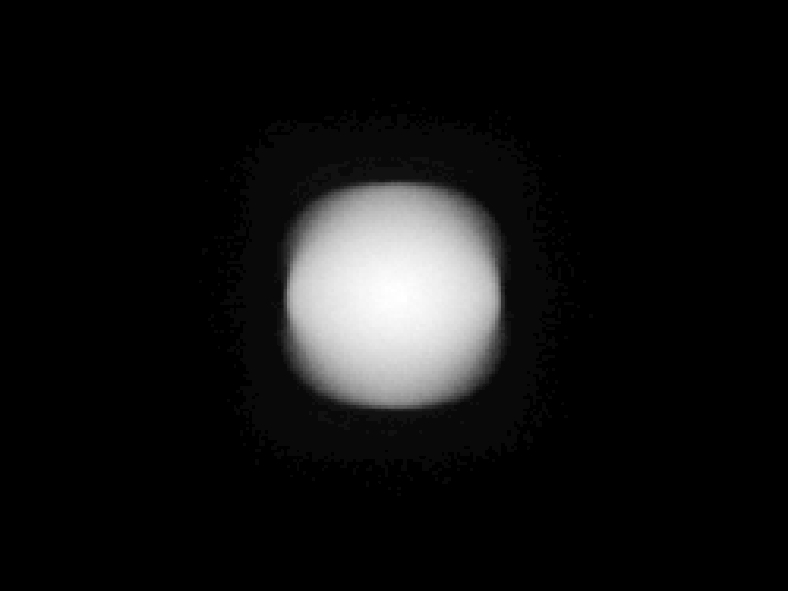

Carclo Optics - 12969 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12969 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

93.5%

FWHM:

83.0°

Cd/Im:

1.0

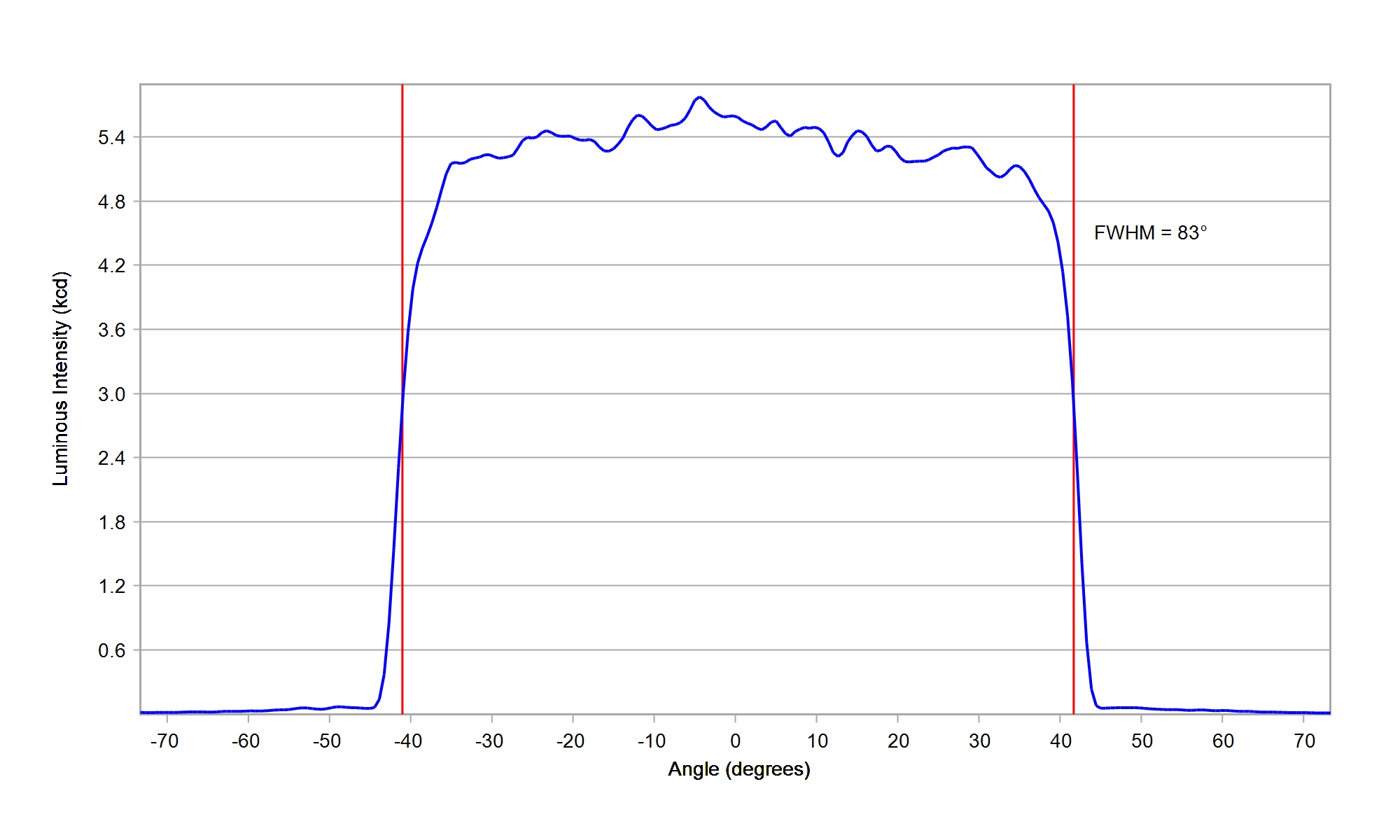

Carclo Optics - 12969 Spot Image STWS C2PB-E0

Carclo Optics - 12969 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

93.0%

FWHM:

84°

Cd/Im:

1.0

Download

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

93.5%

FWHM:

84°

Cd/Im:

1.0

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

93.0%

FWHM:

83°

Cd/Im:

0.9

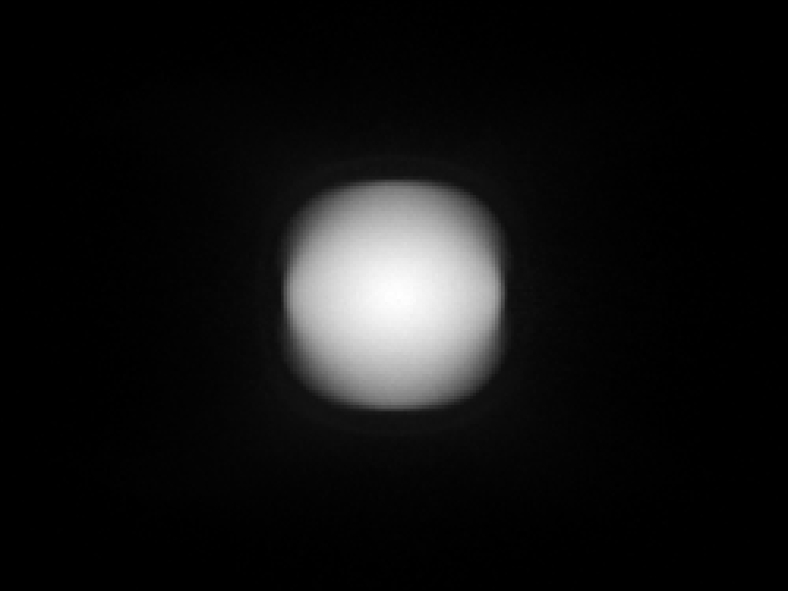

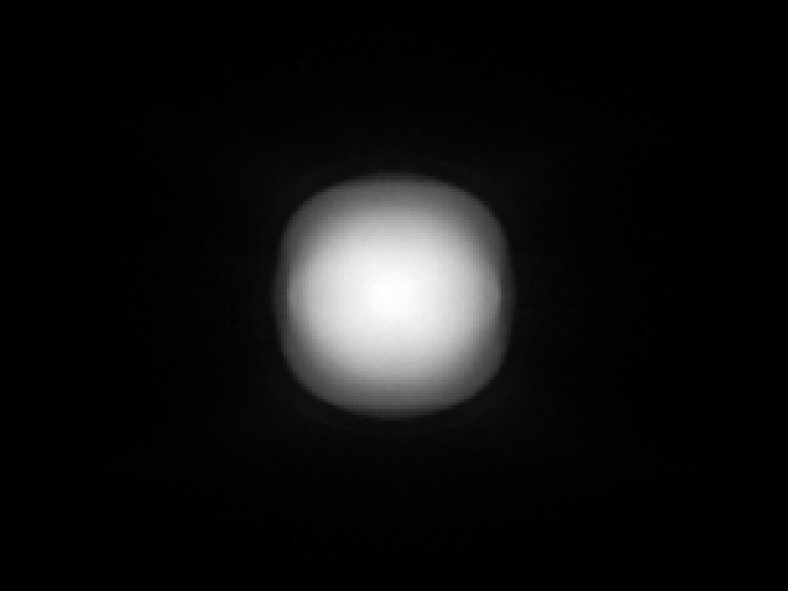

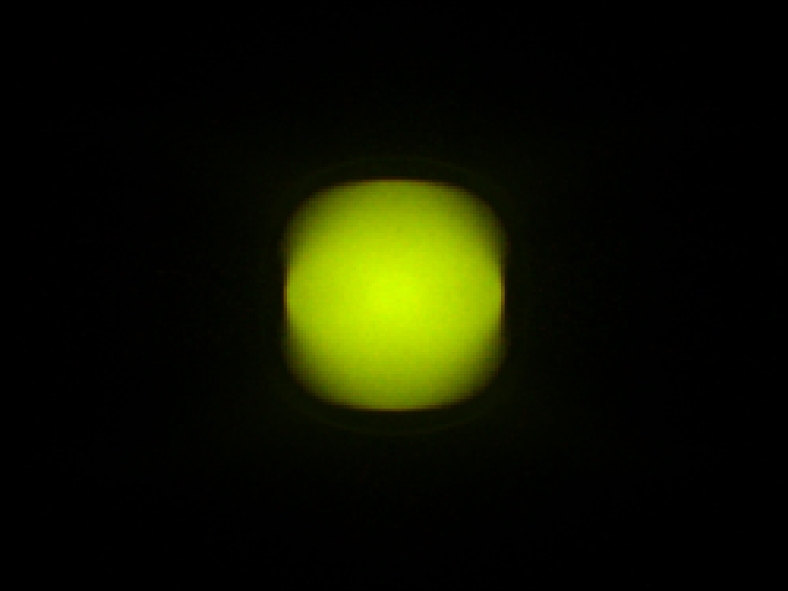

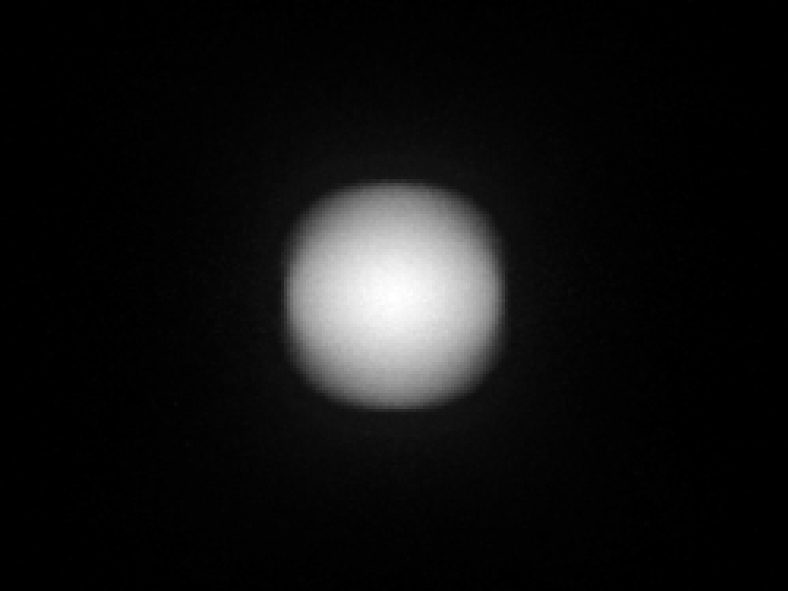

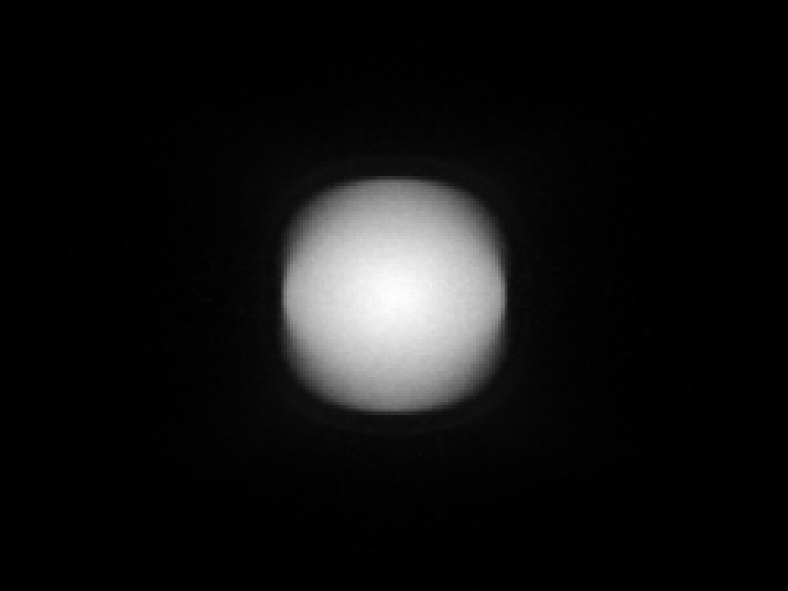

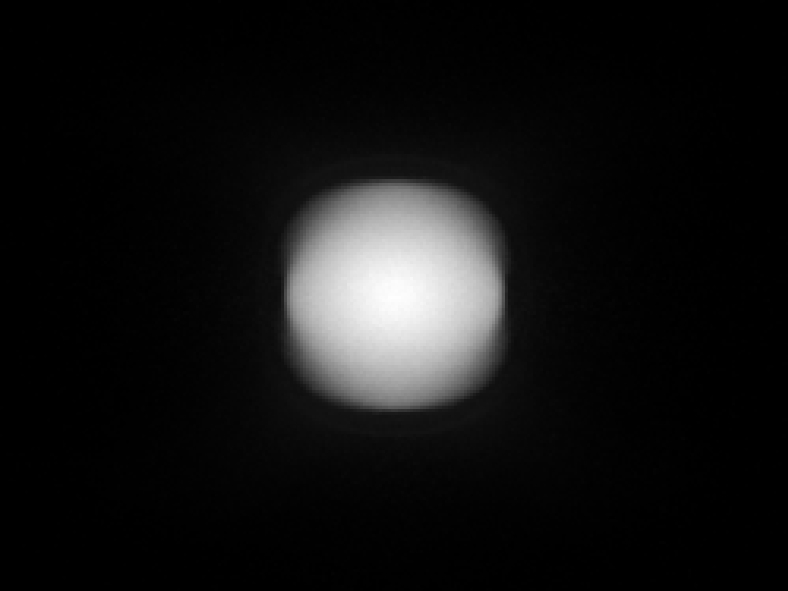

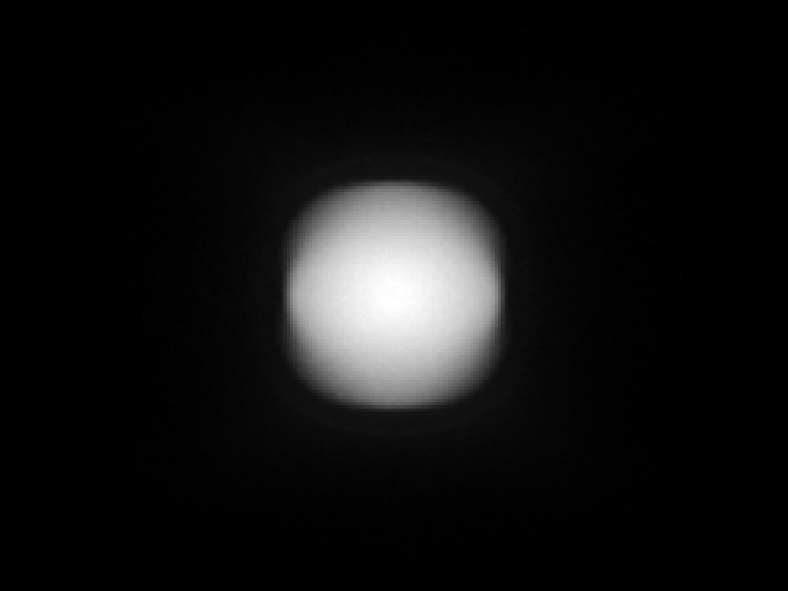

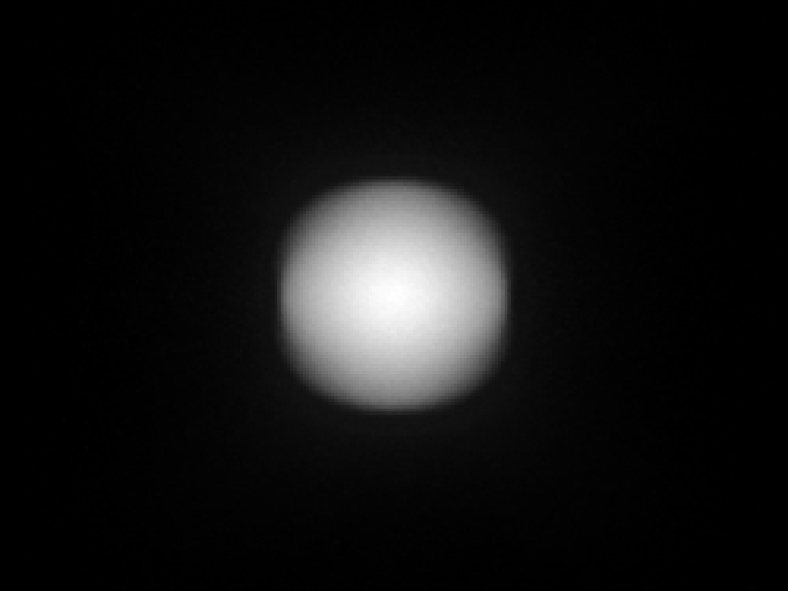

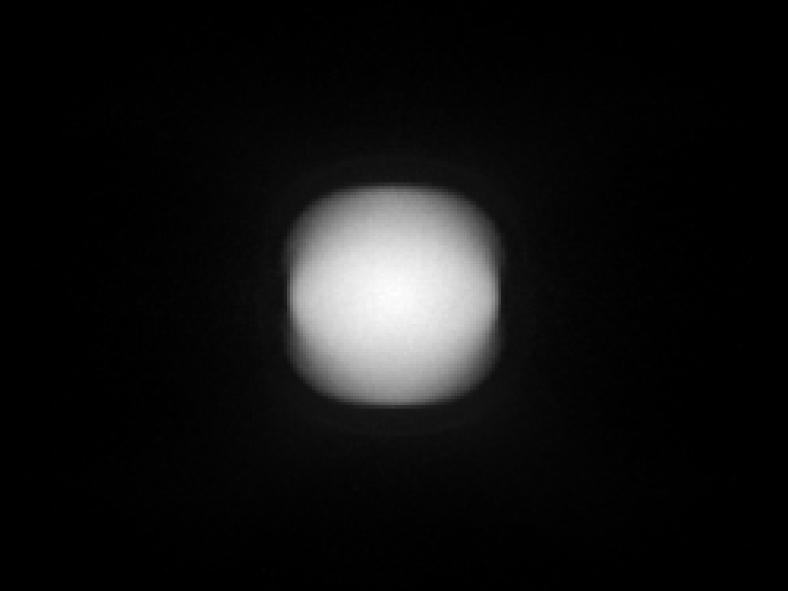

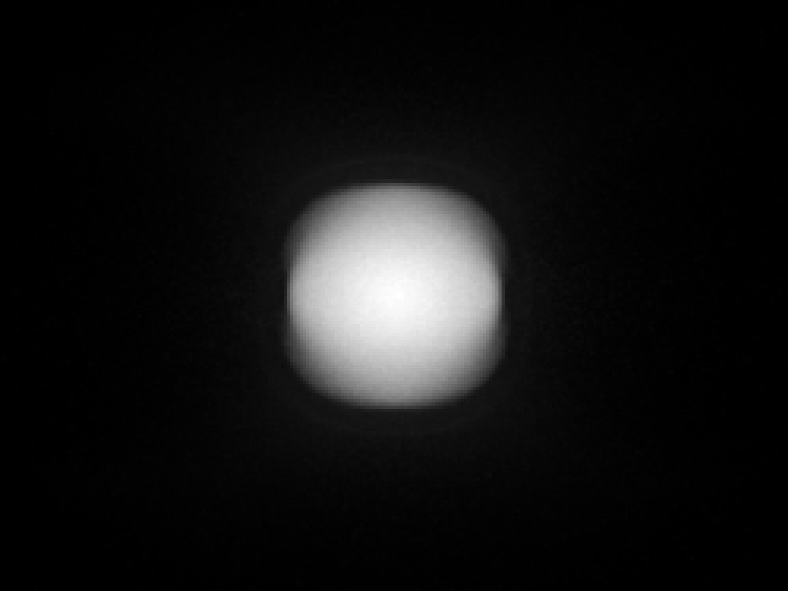

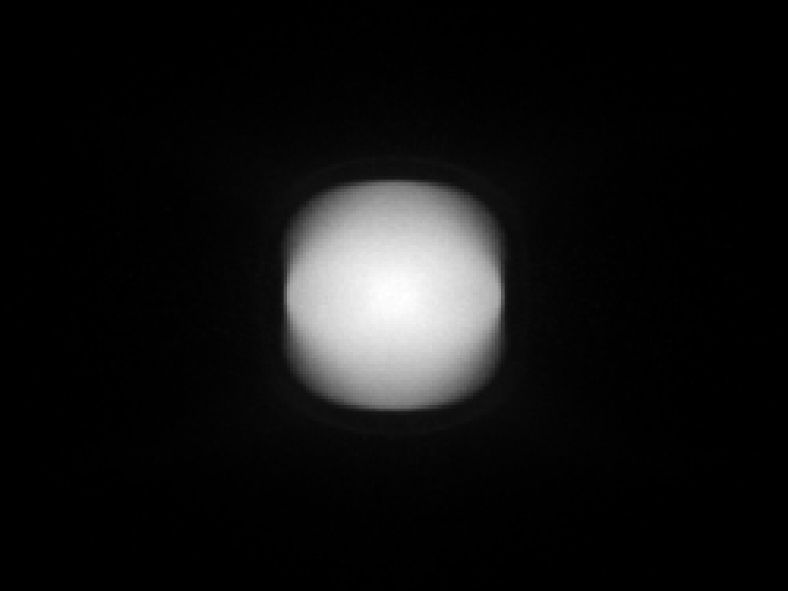

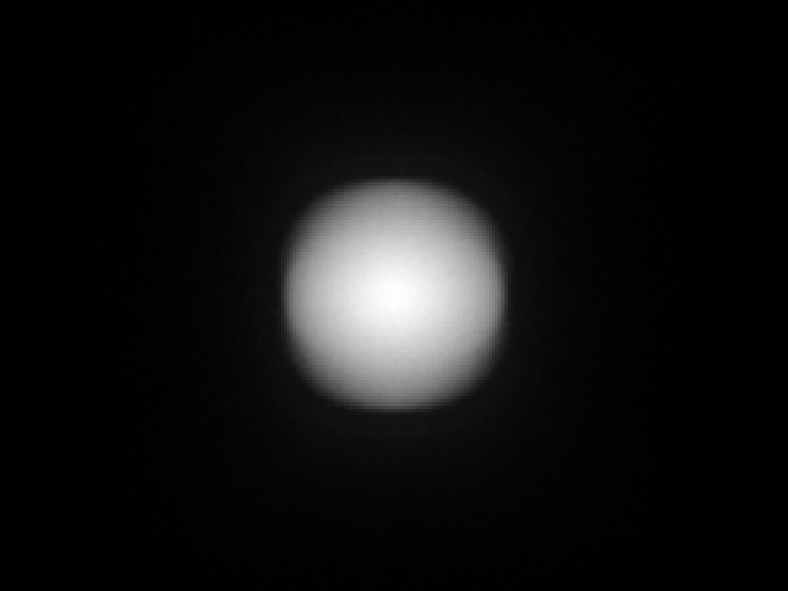

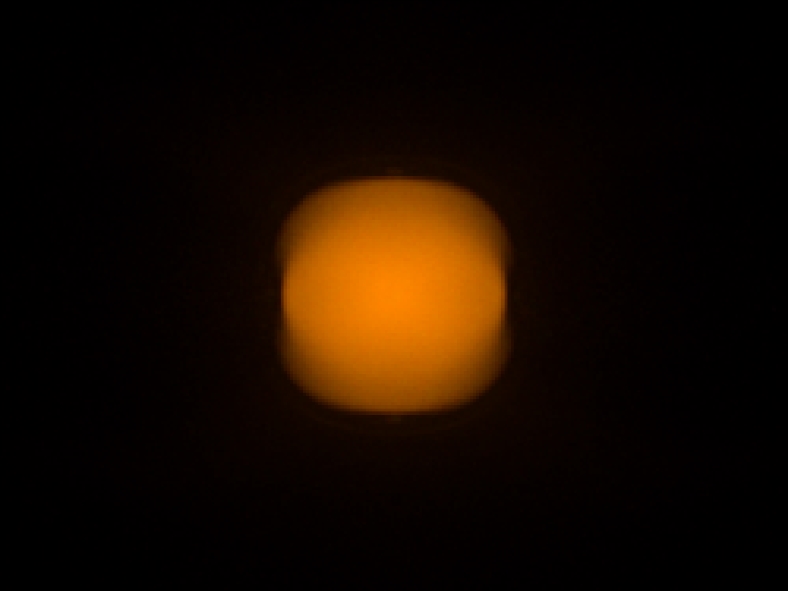

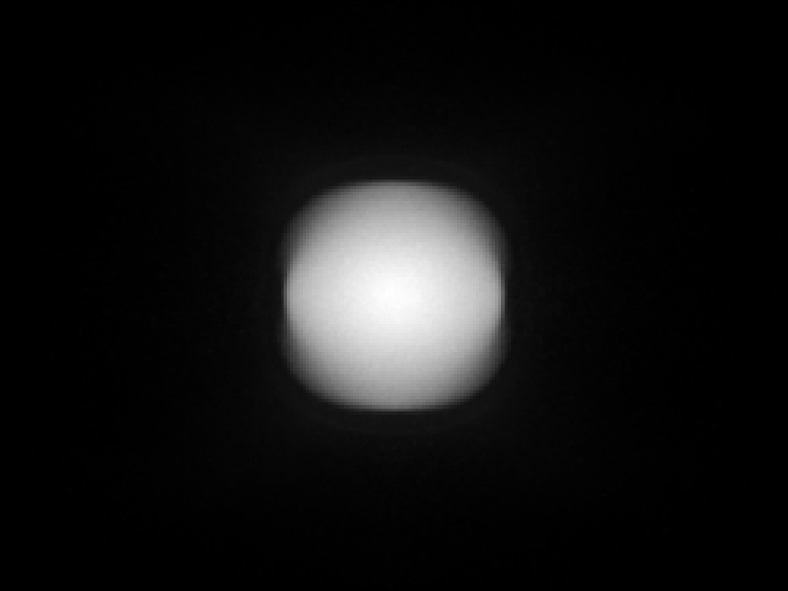

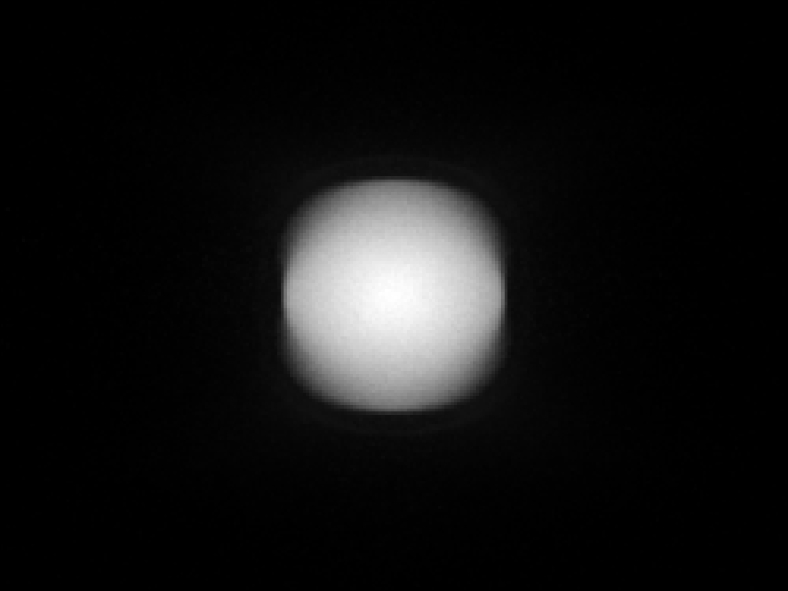

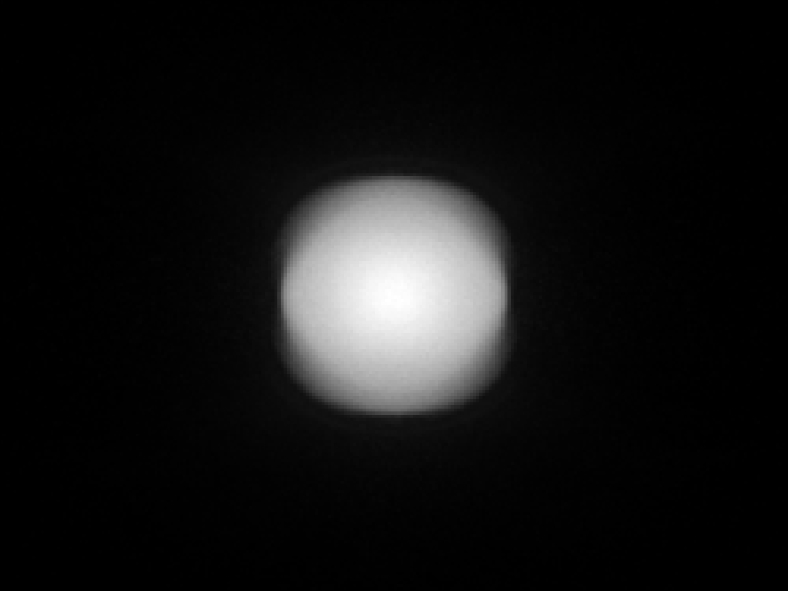

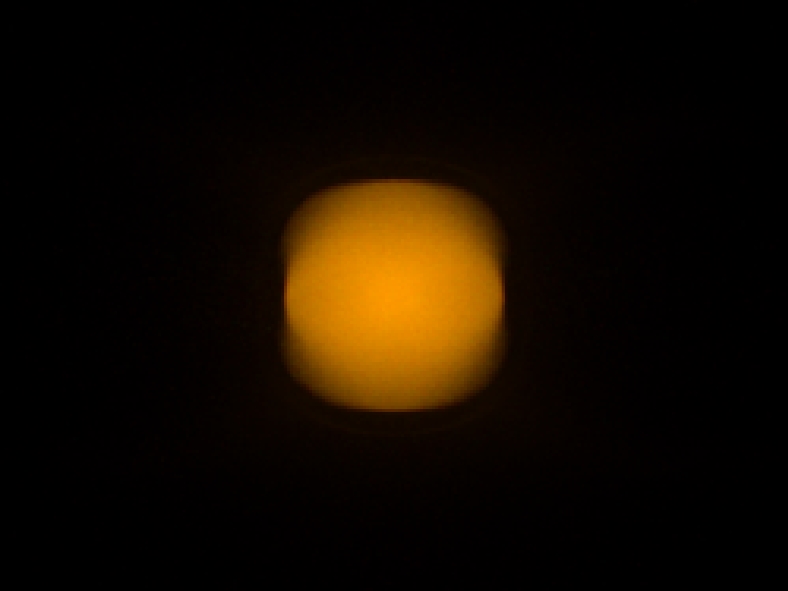

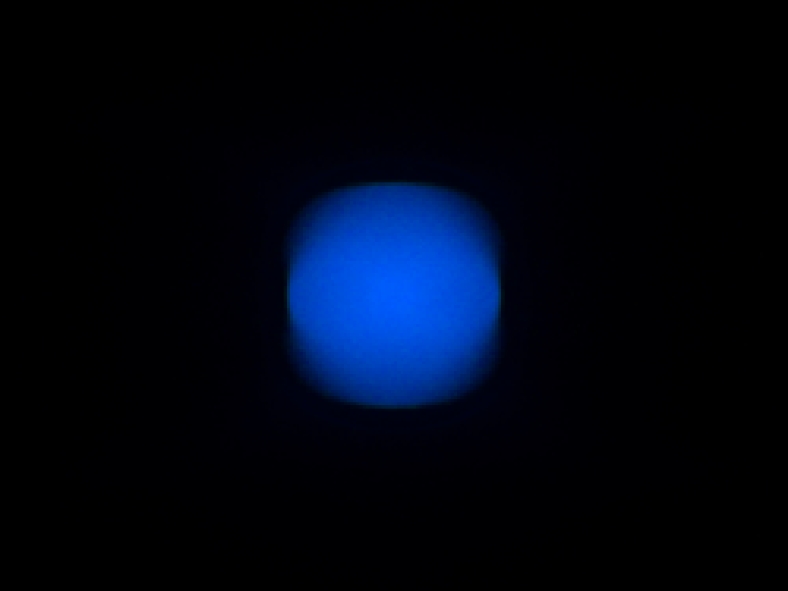

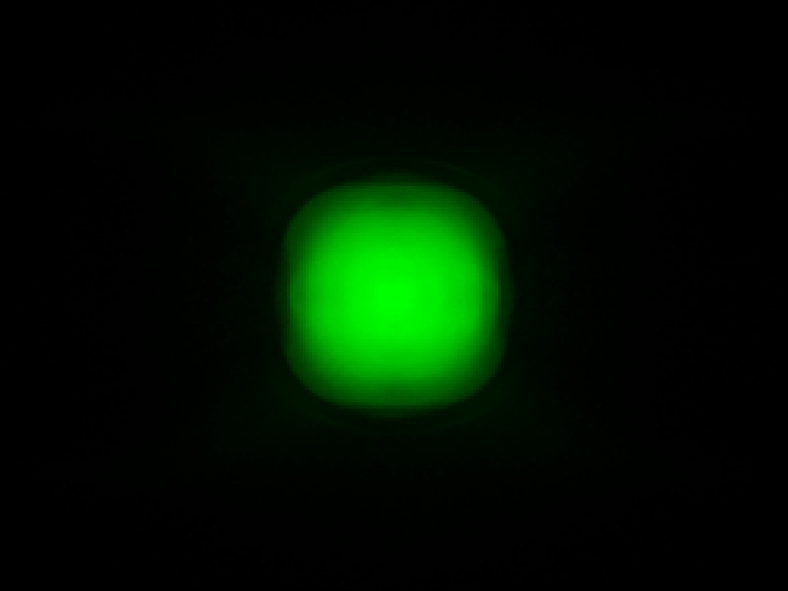

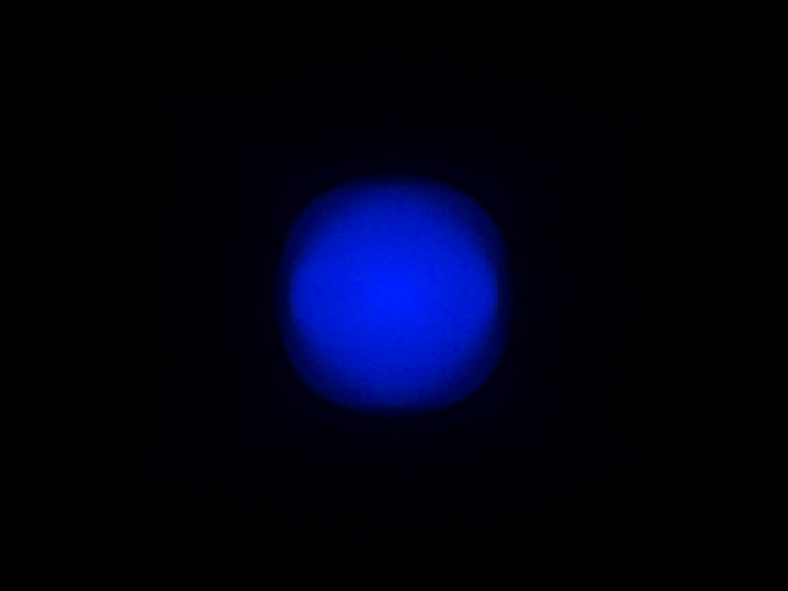

Carclo Optics - 12969 33Up Spot Image Seoul Sunlike 3030

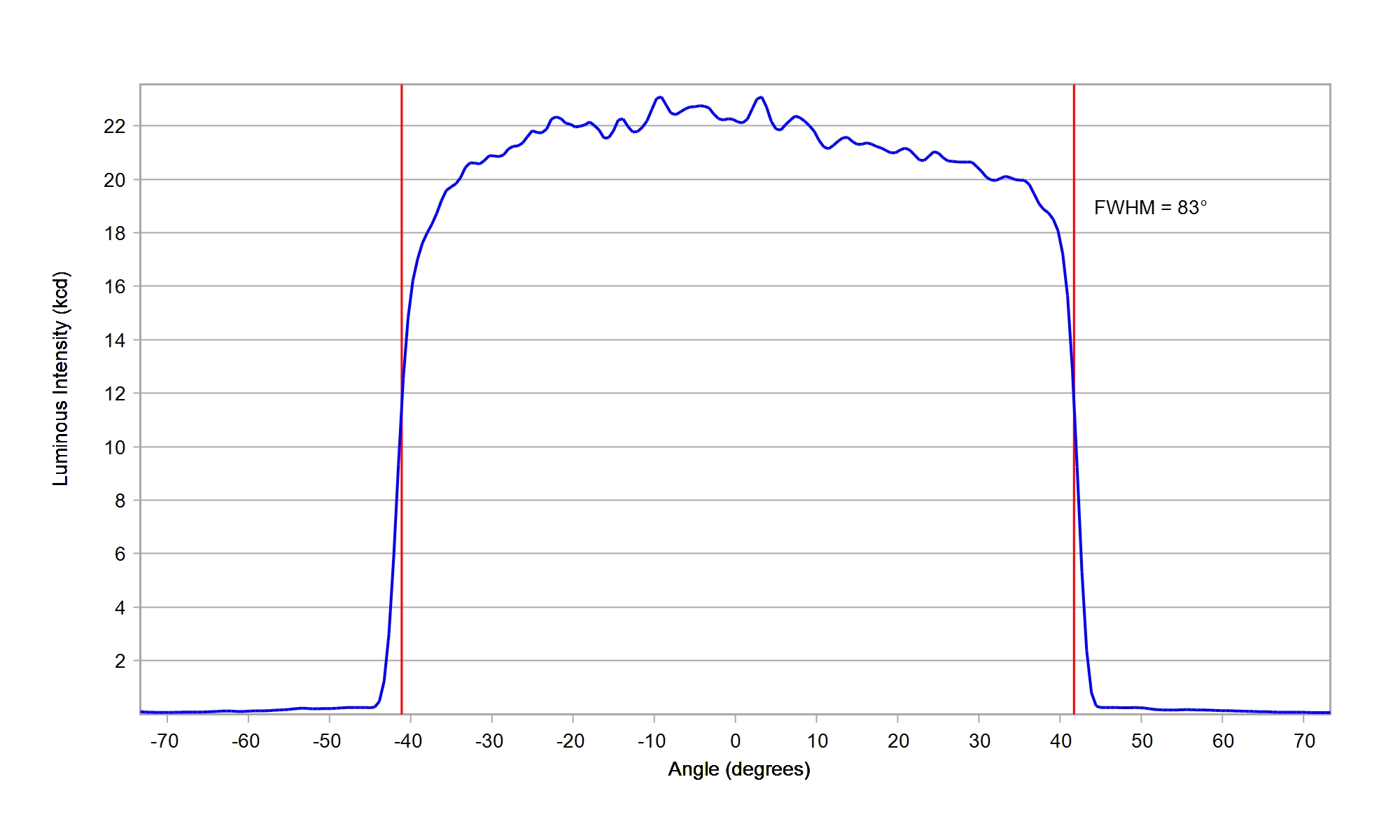

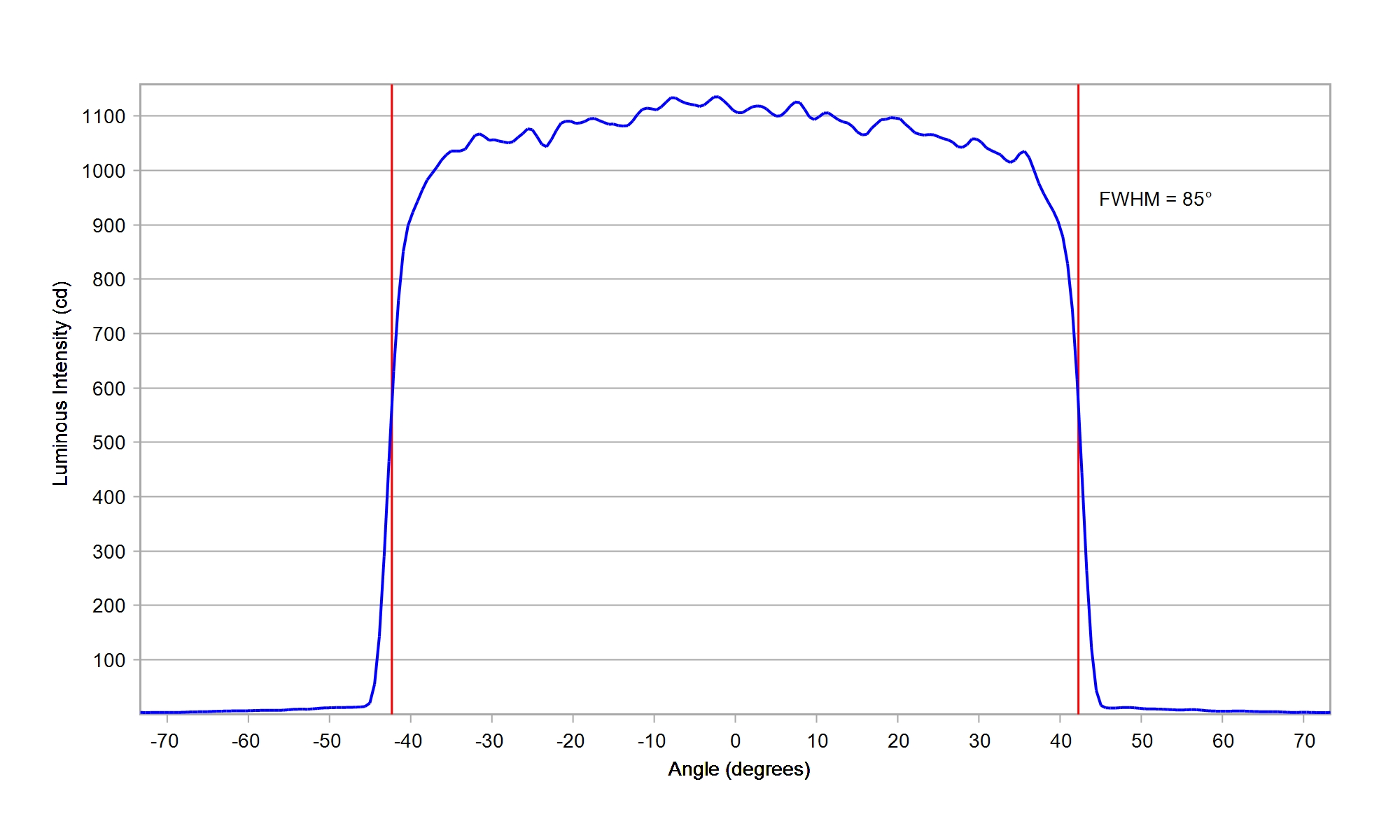

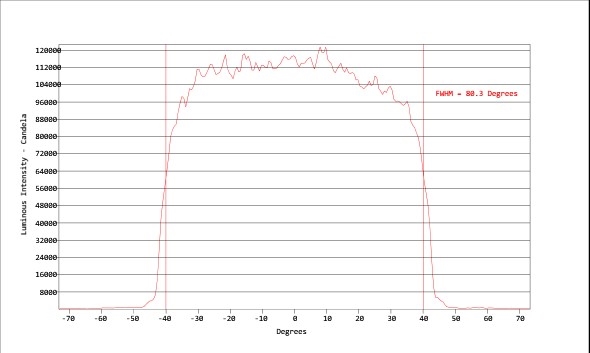

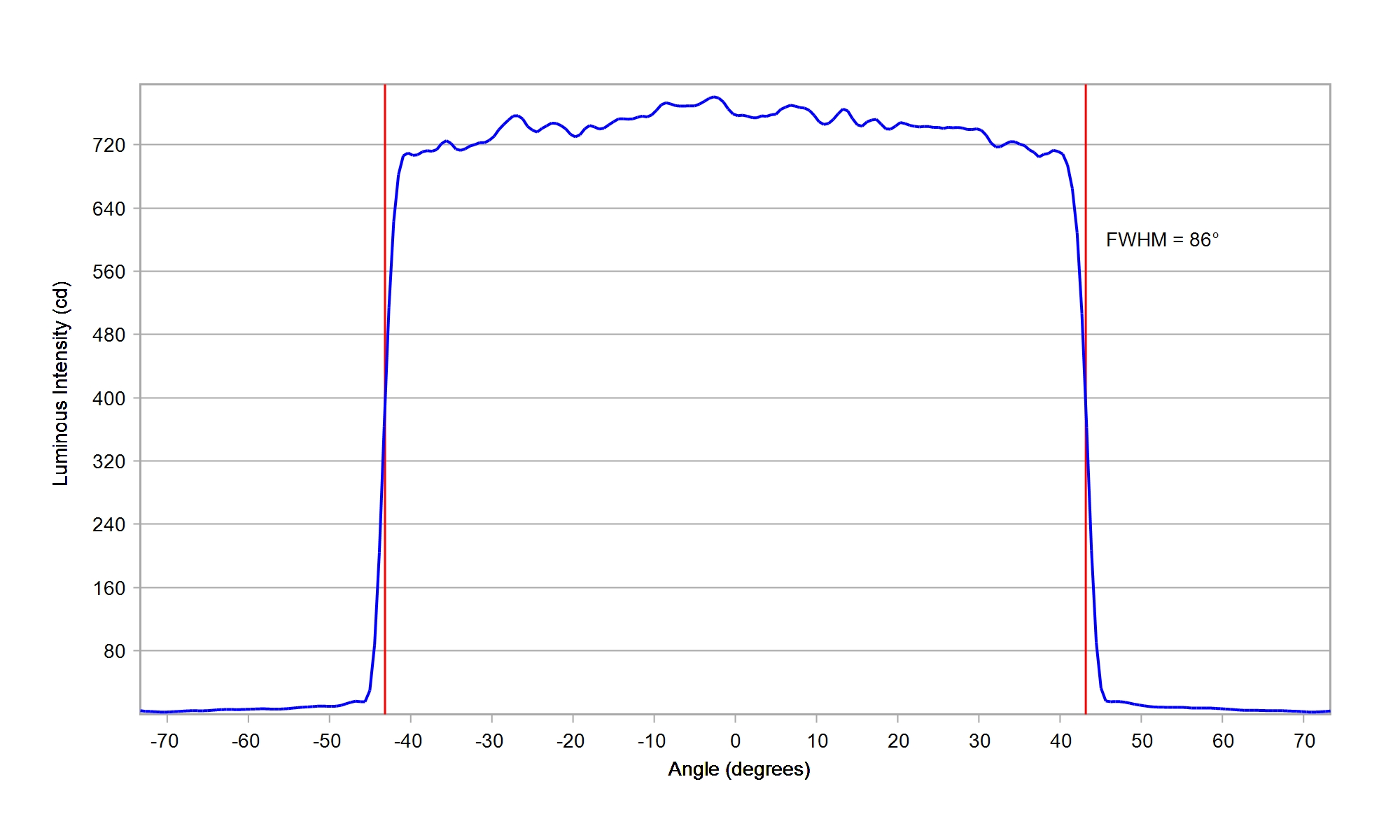

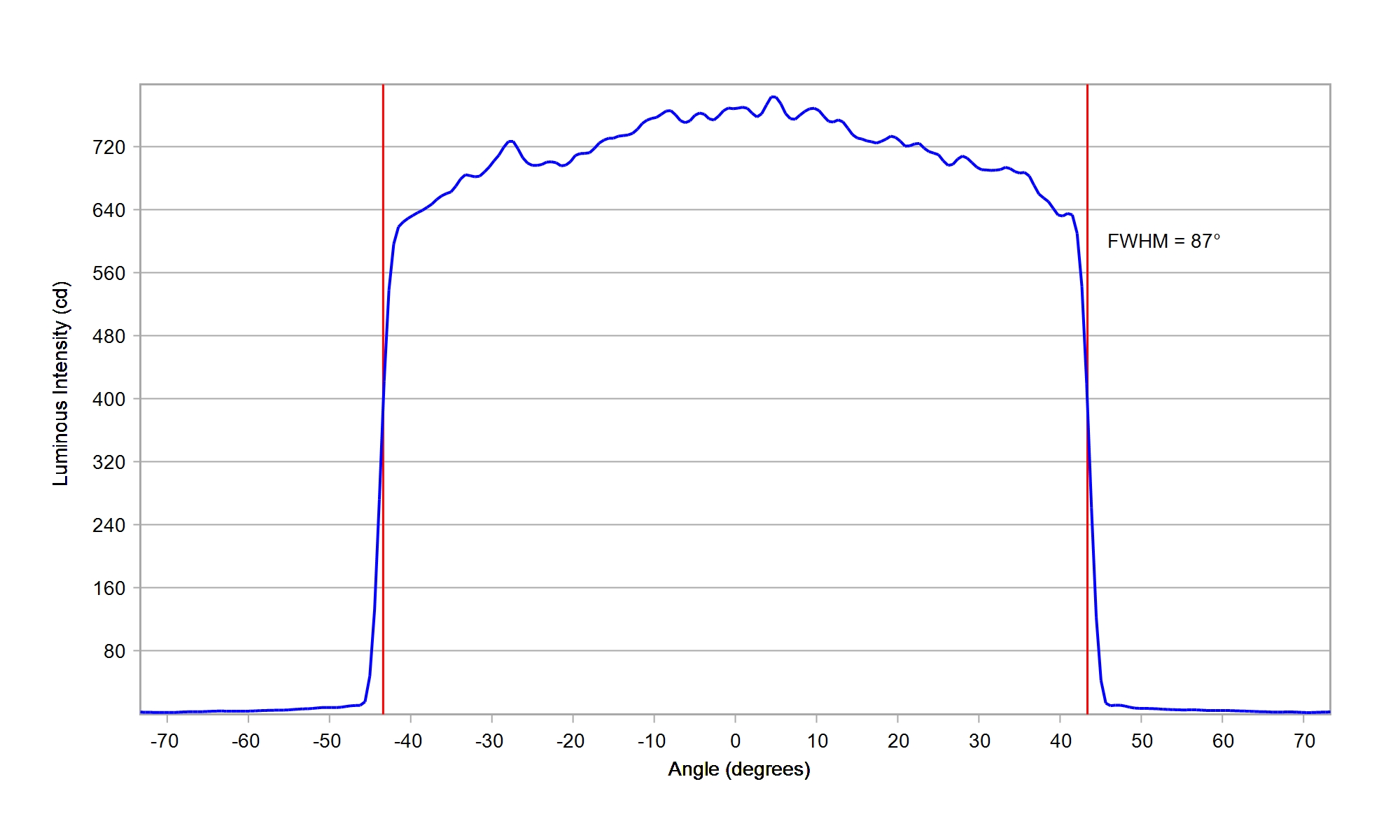

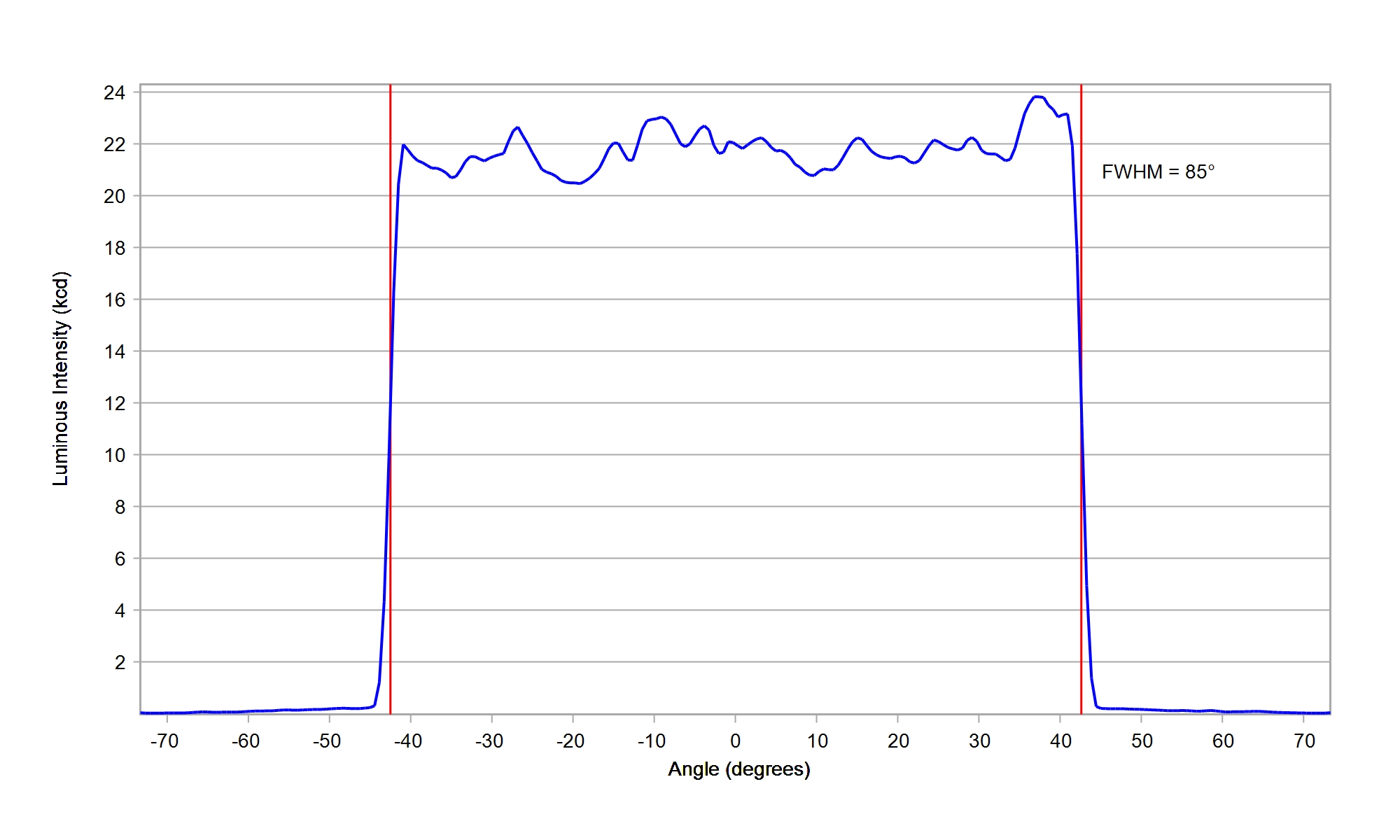

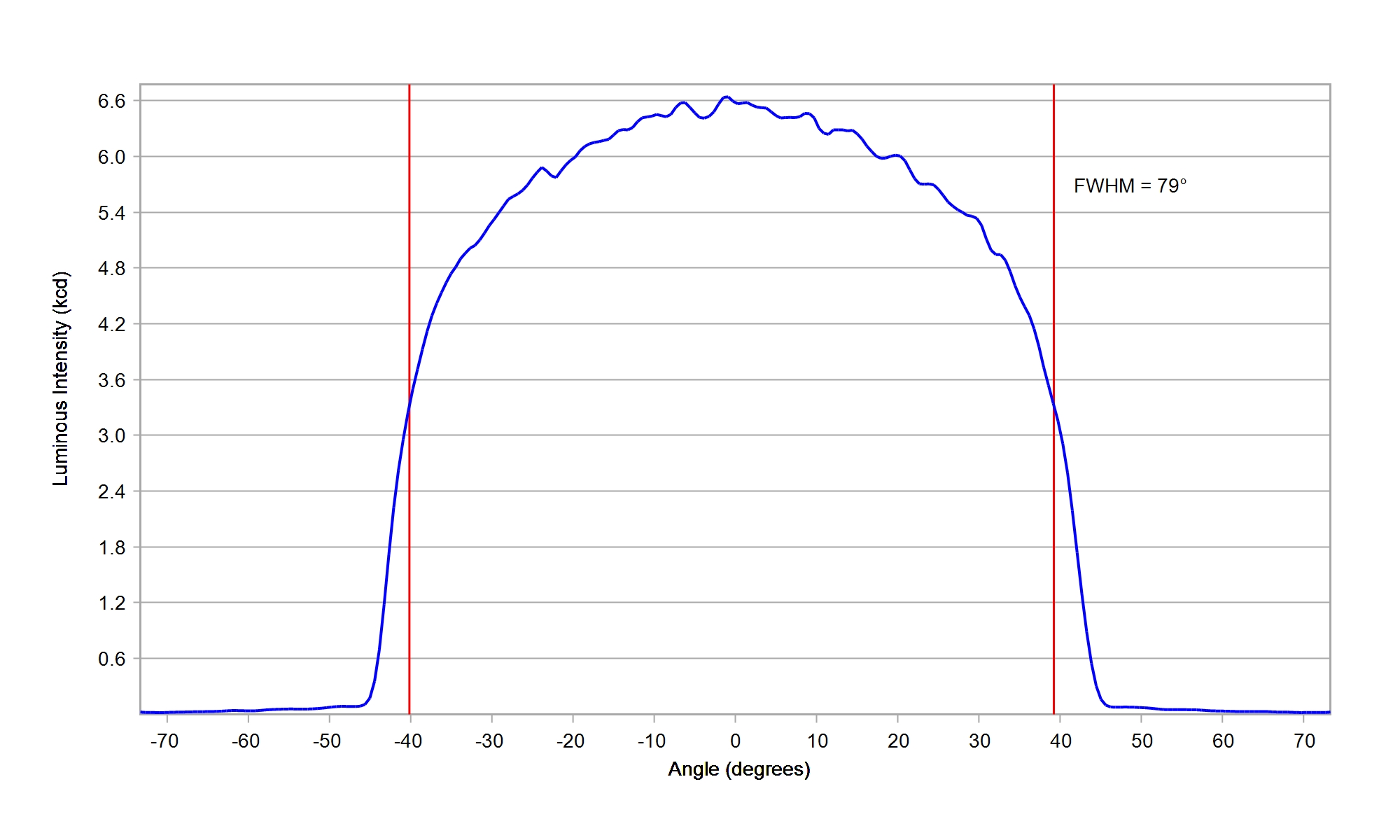

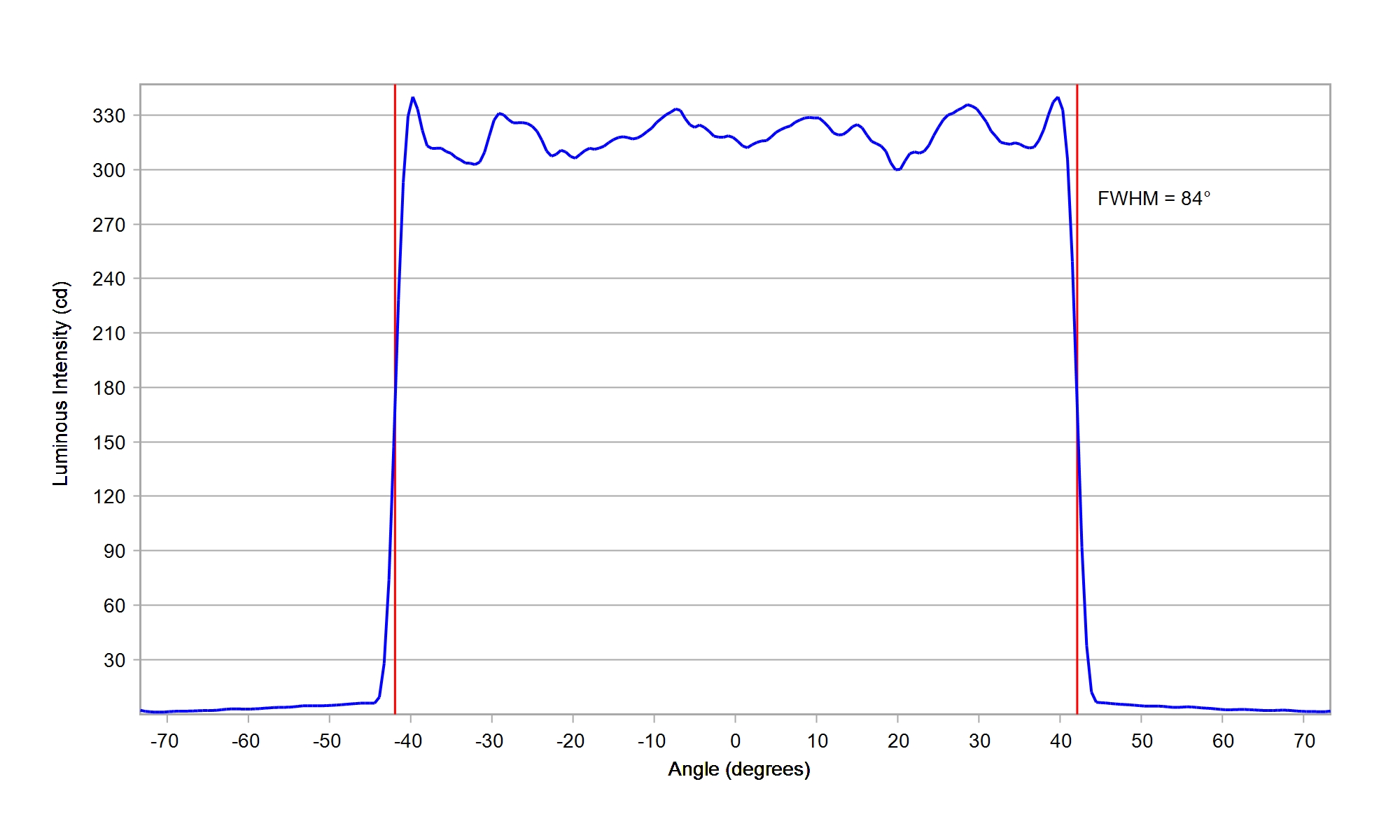

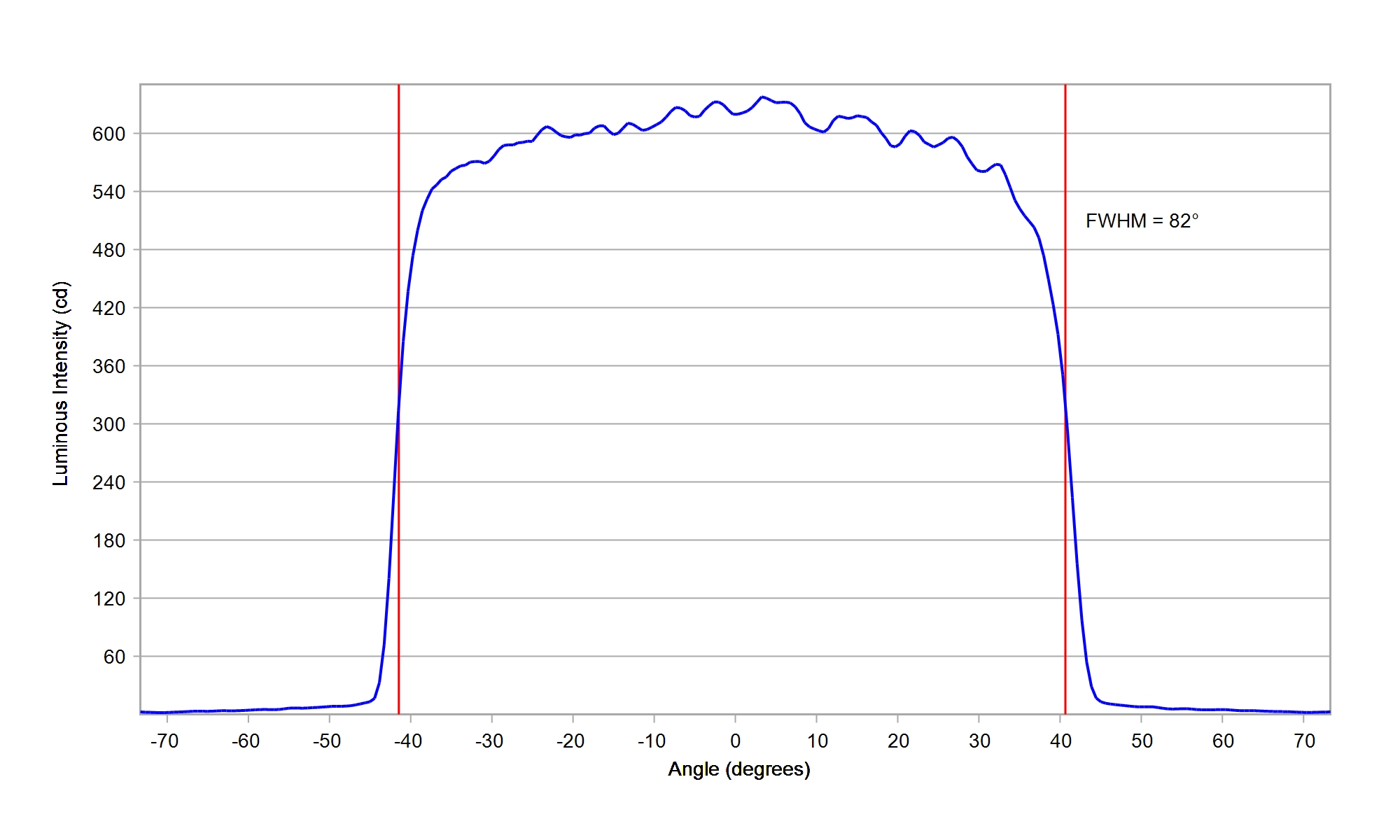

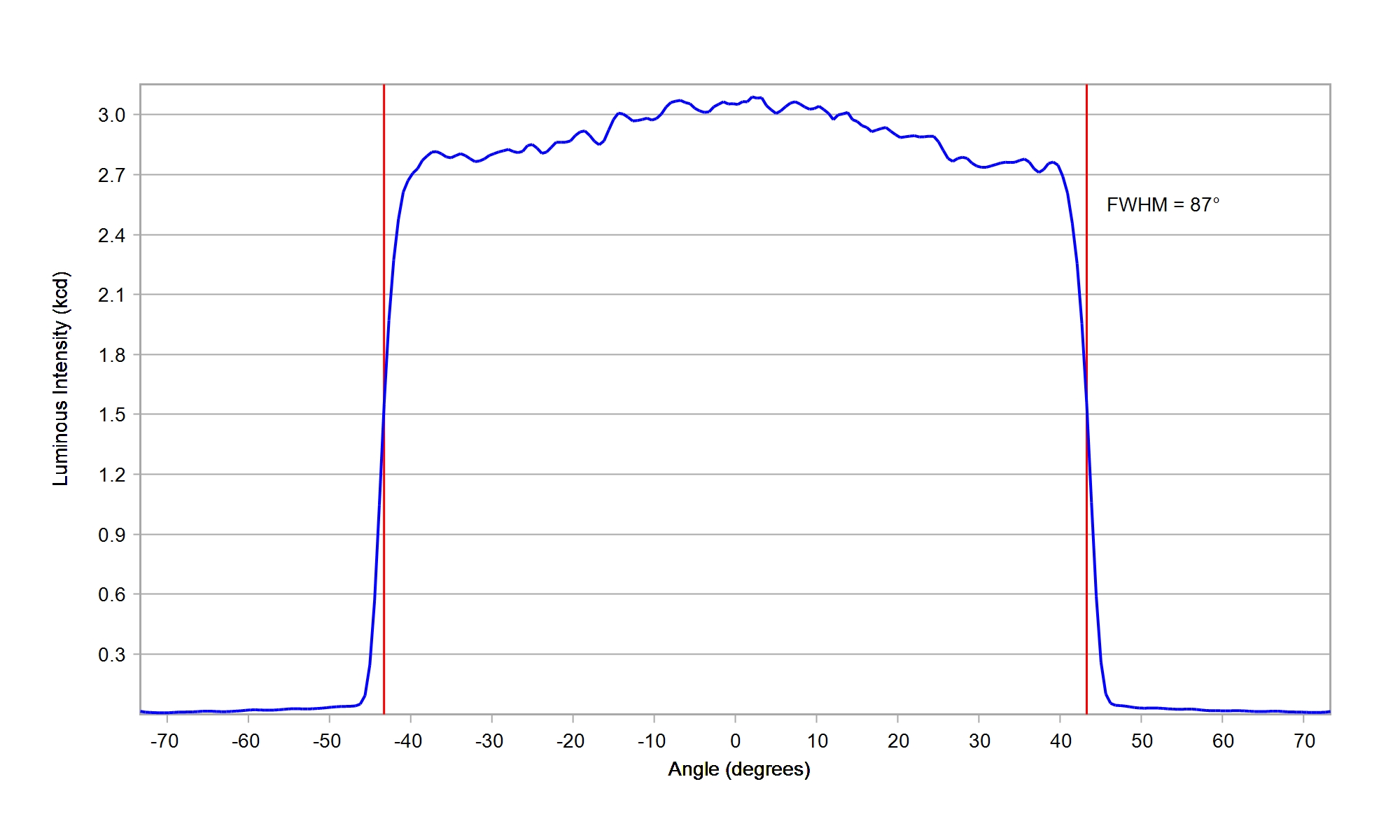

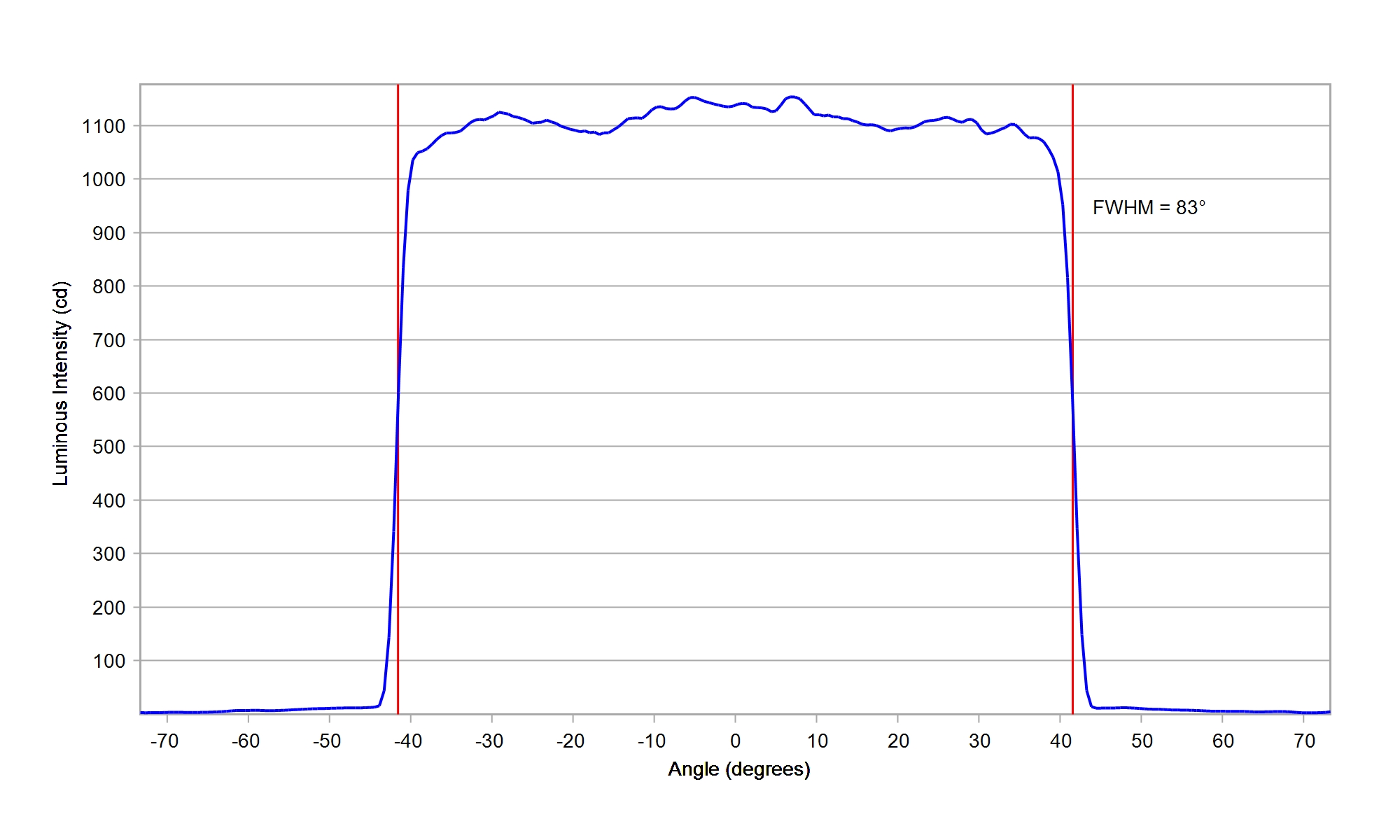

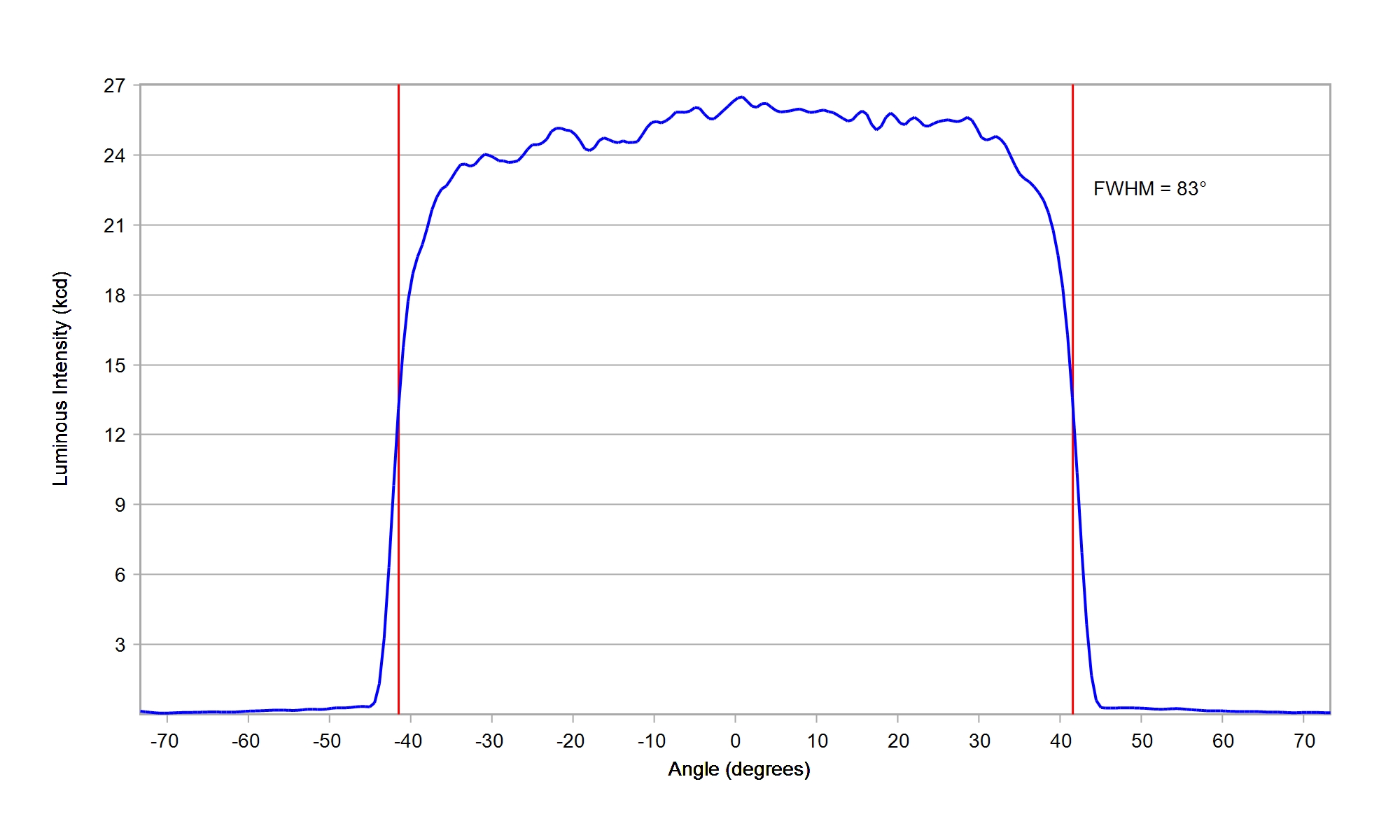

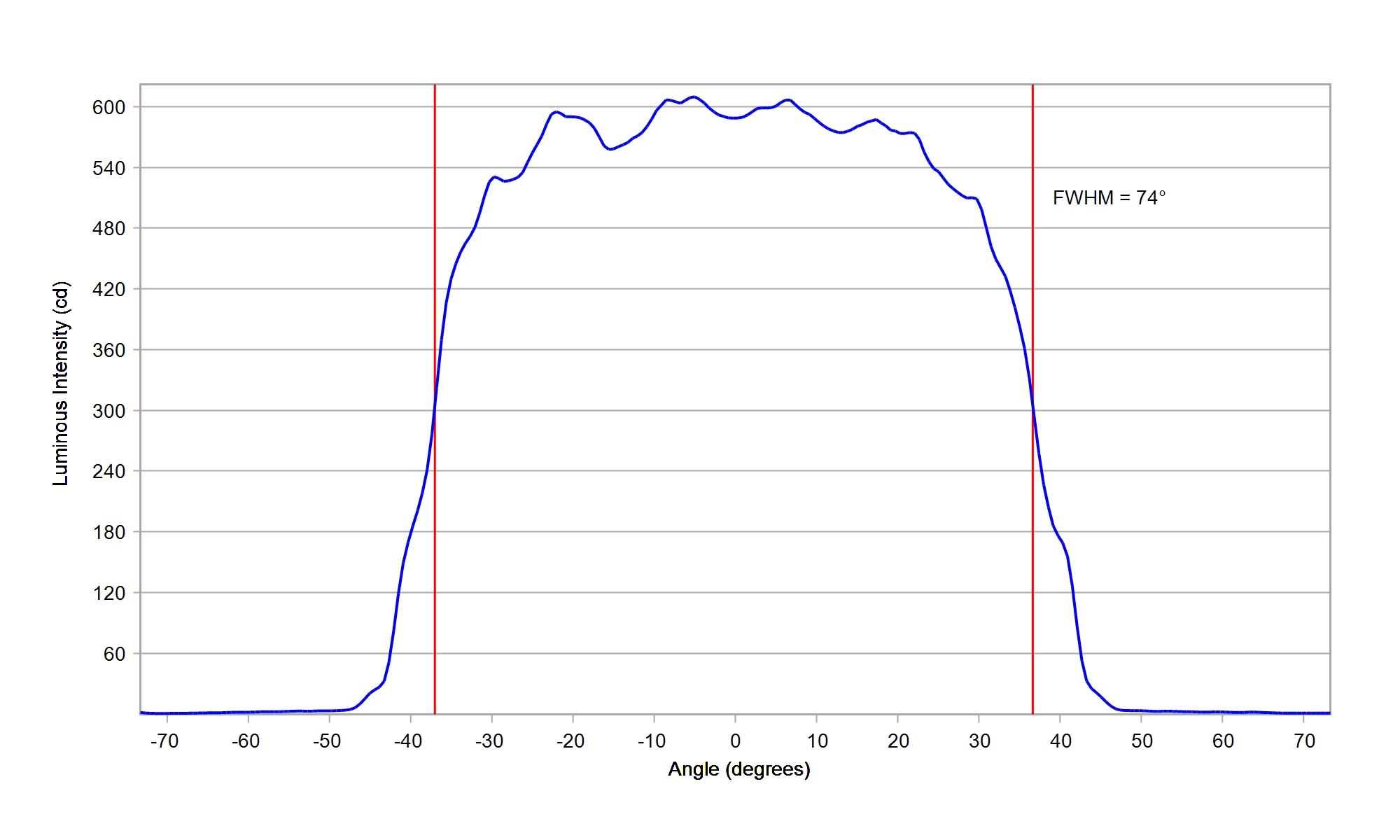

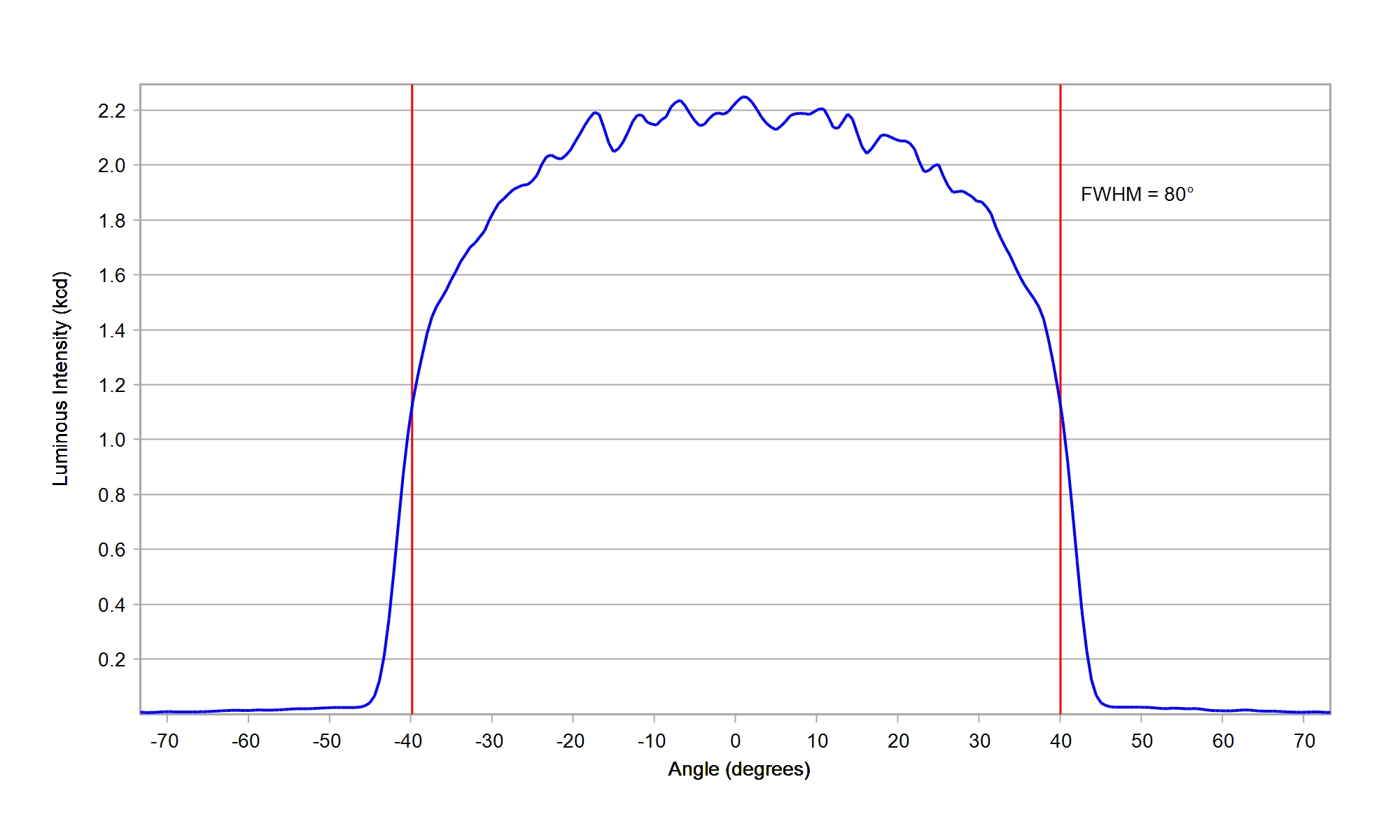

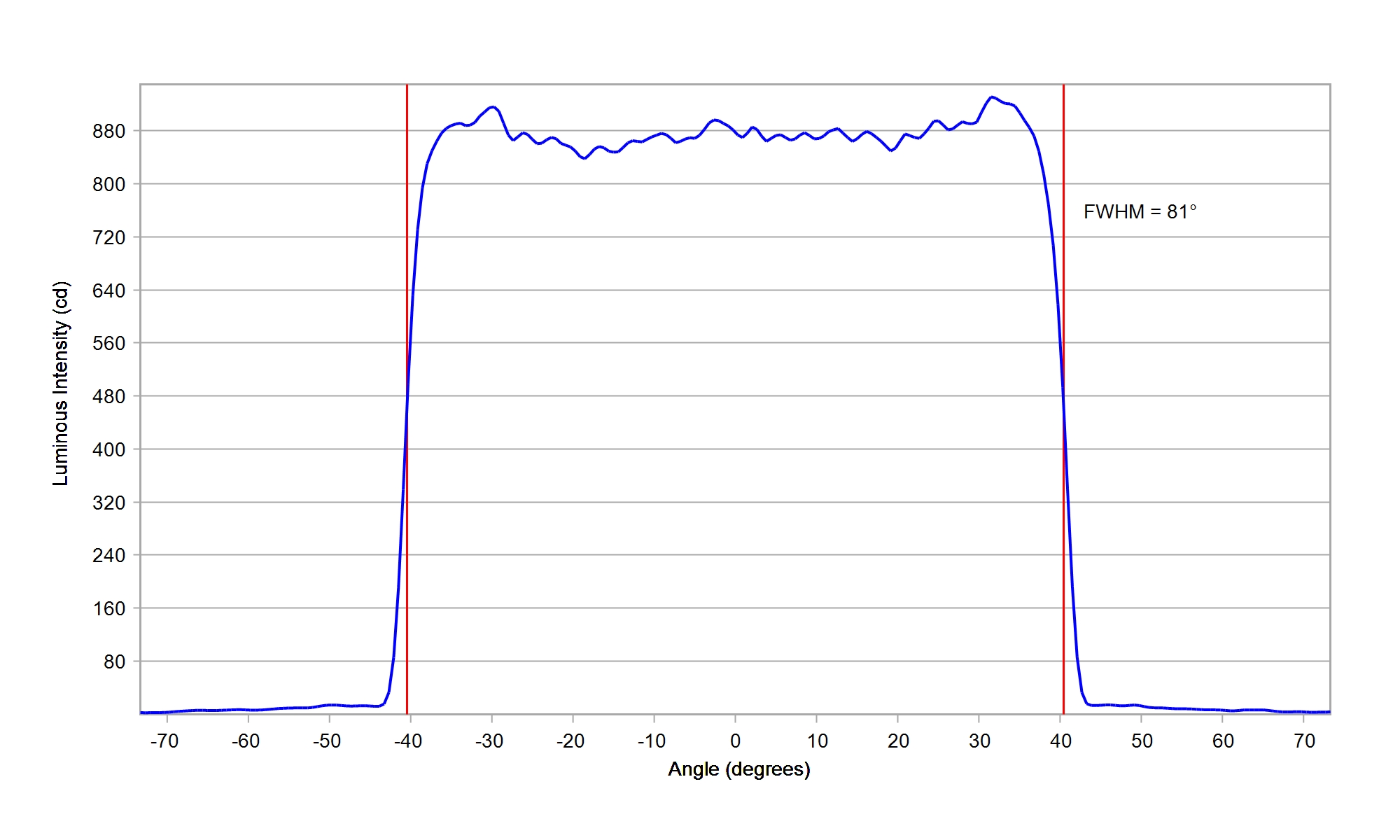

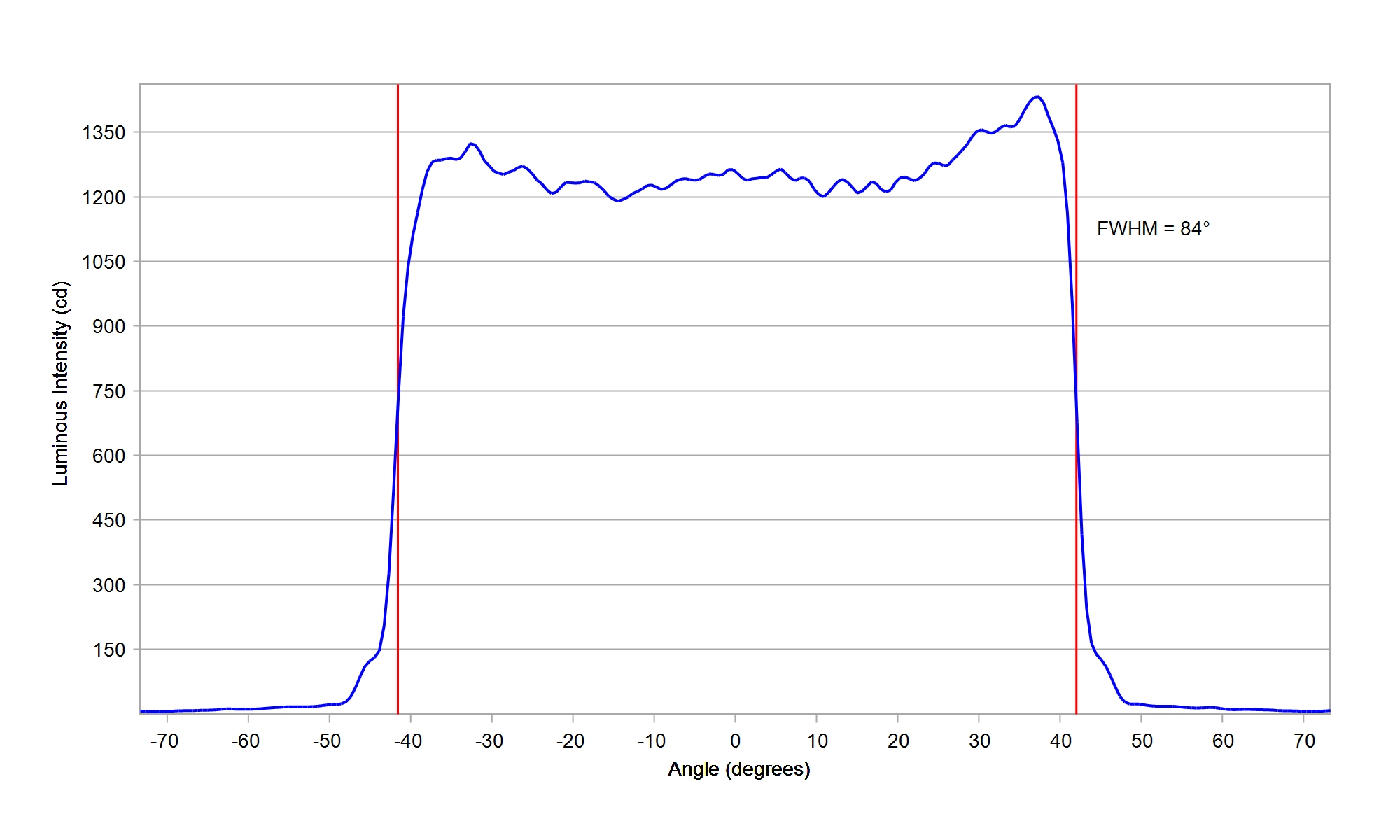

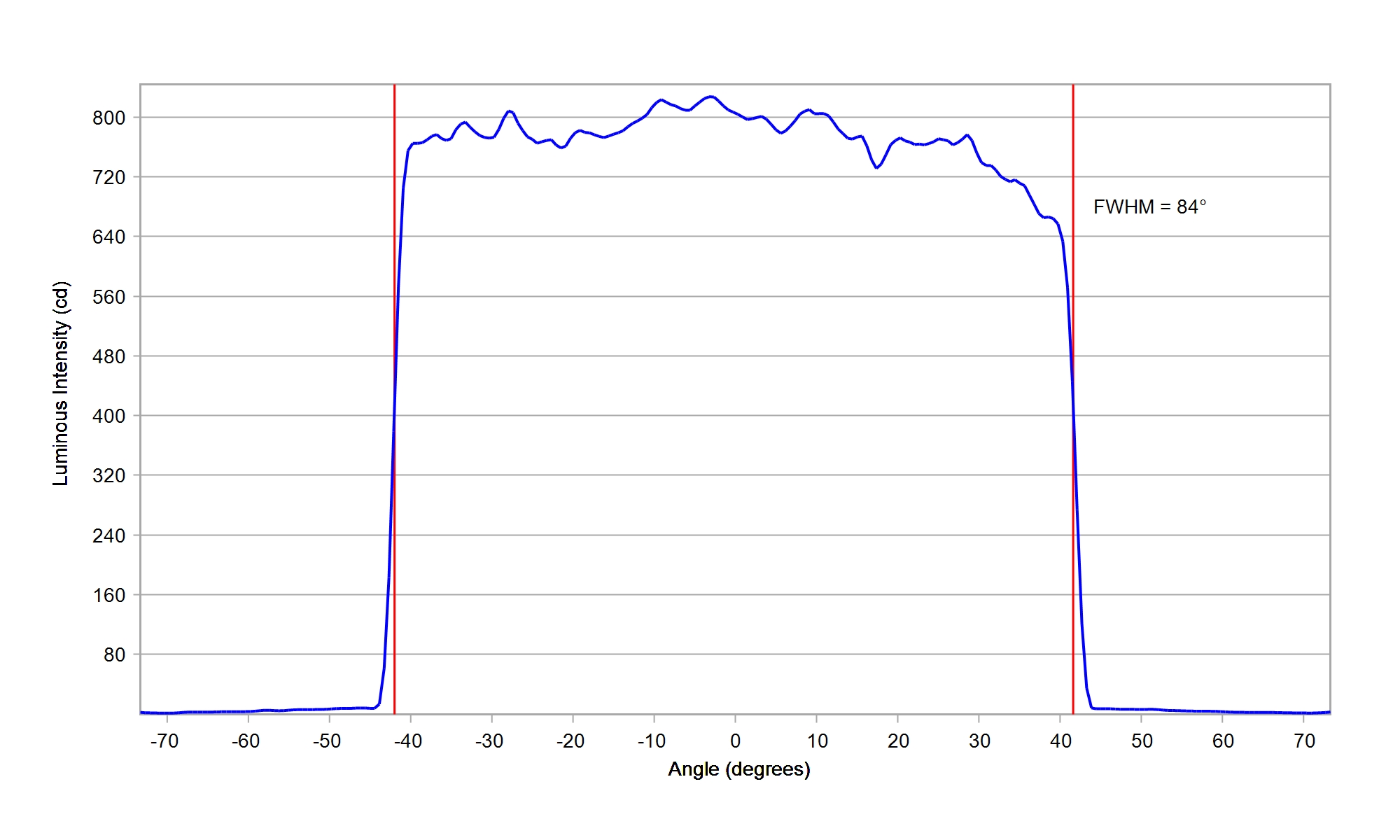

Carclo Optics - 12969 33Up Cross Section Seoul Sunlike 3030

Download

ies
