292 x 61mm Narrow Spot Plain Freeform

Part number

12962

Dimensions

292 x 61mm

Drawing Number

12962_Rev-2_NB_Tri_AS-Flange

Optic type

Freeform

Finish

Plain

Beam type

Narrow Spot

Material: PC

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

89.5%

FWHM:

20.5°

Cd/Im:

5.5

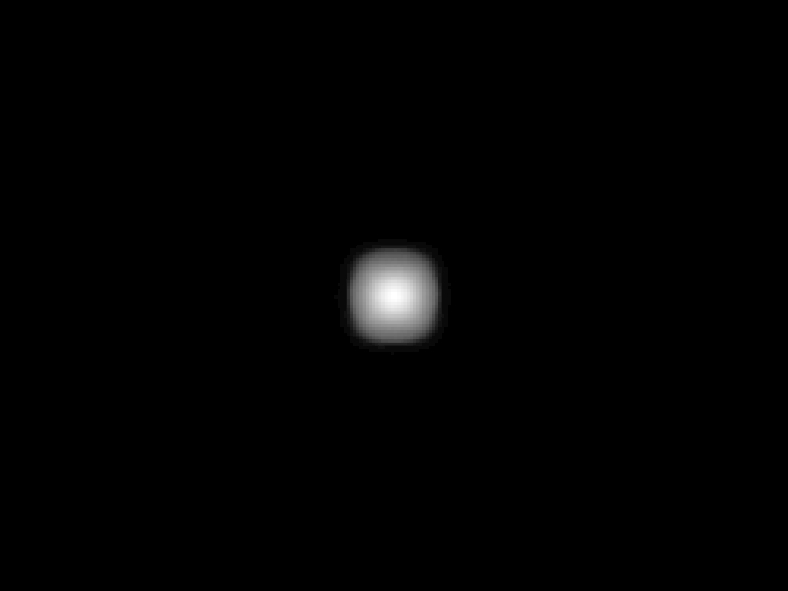

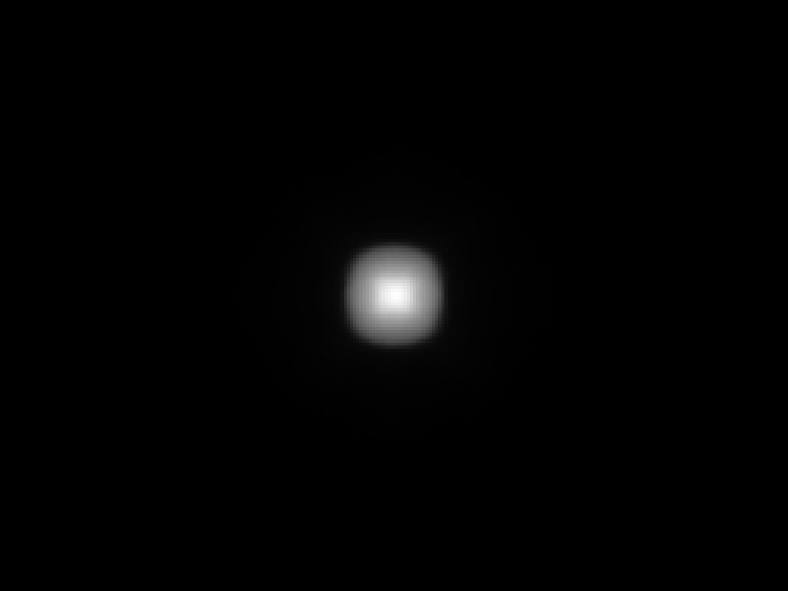

Carclo Optics - 12962 33Up Spot Image Bridgelux 3030 Gen2

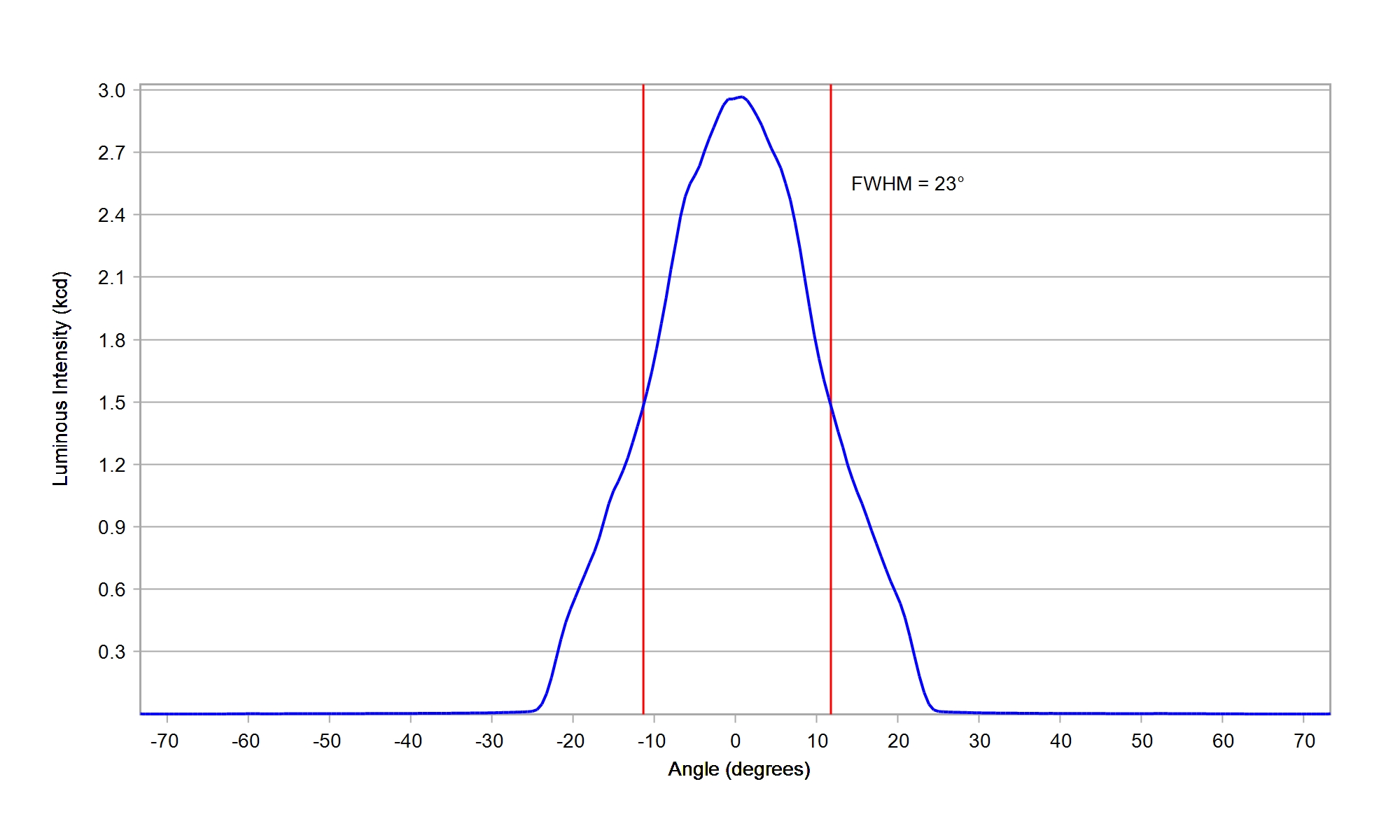

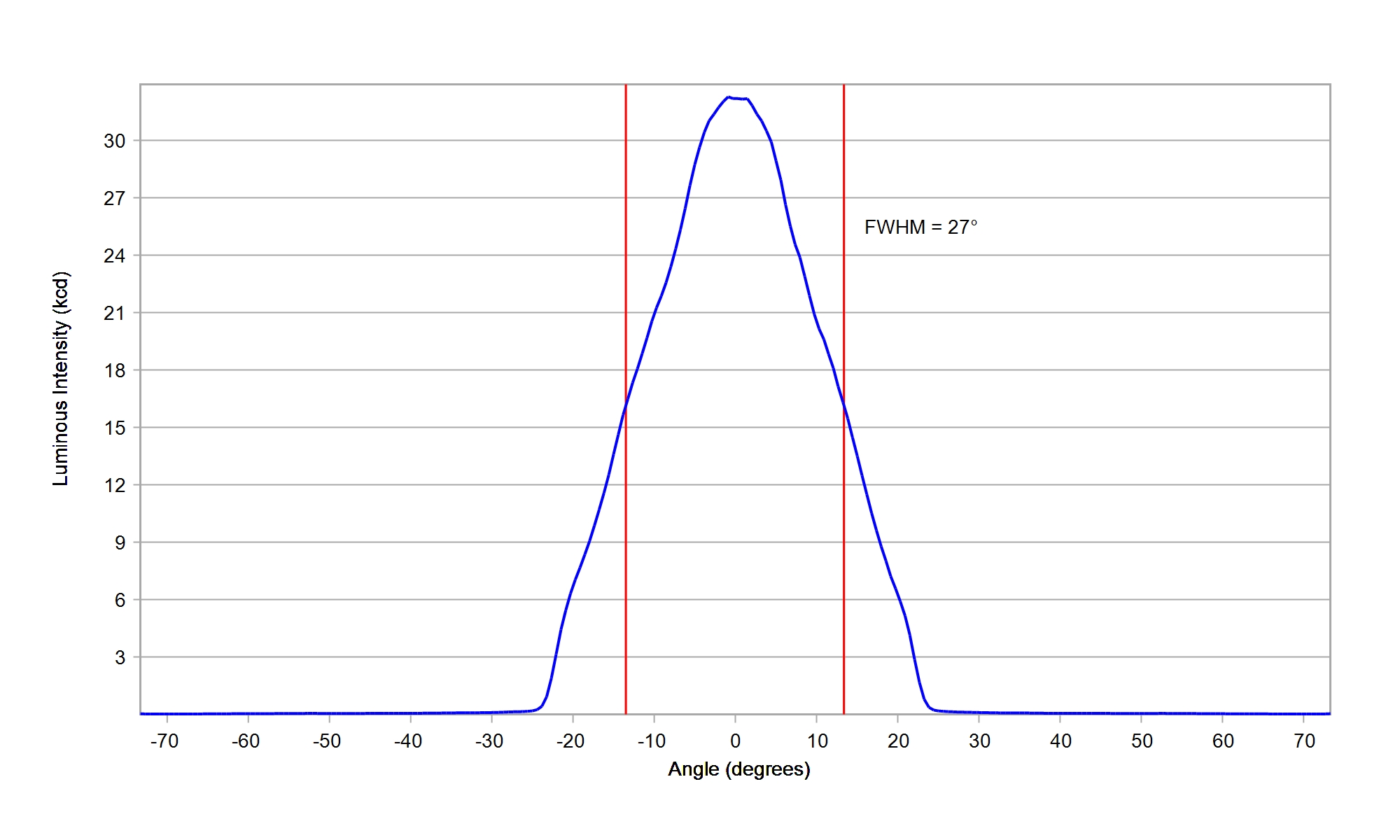

Carclo Optics - 12962 33Up Cross Section Bridgelux 3030 Gen2

Download

ies

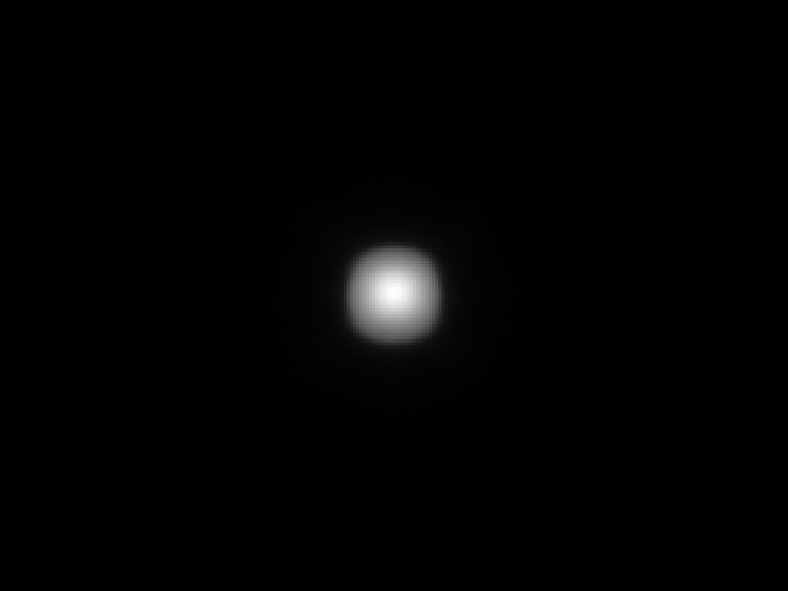

Cree JB2835B 3V G-Class White

Eff:

89.0%

FWHM:

24°

Cd/Im:

4.7


Download

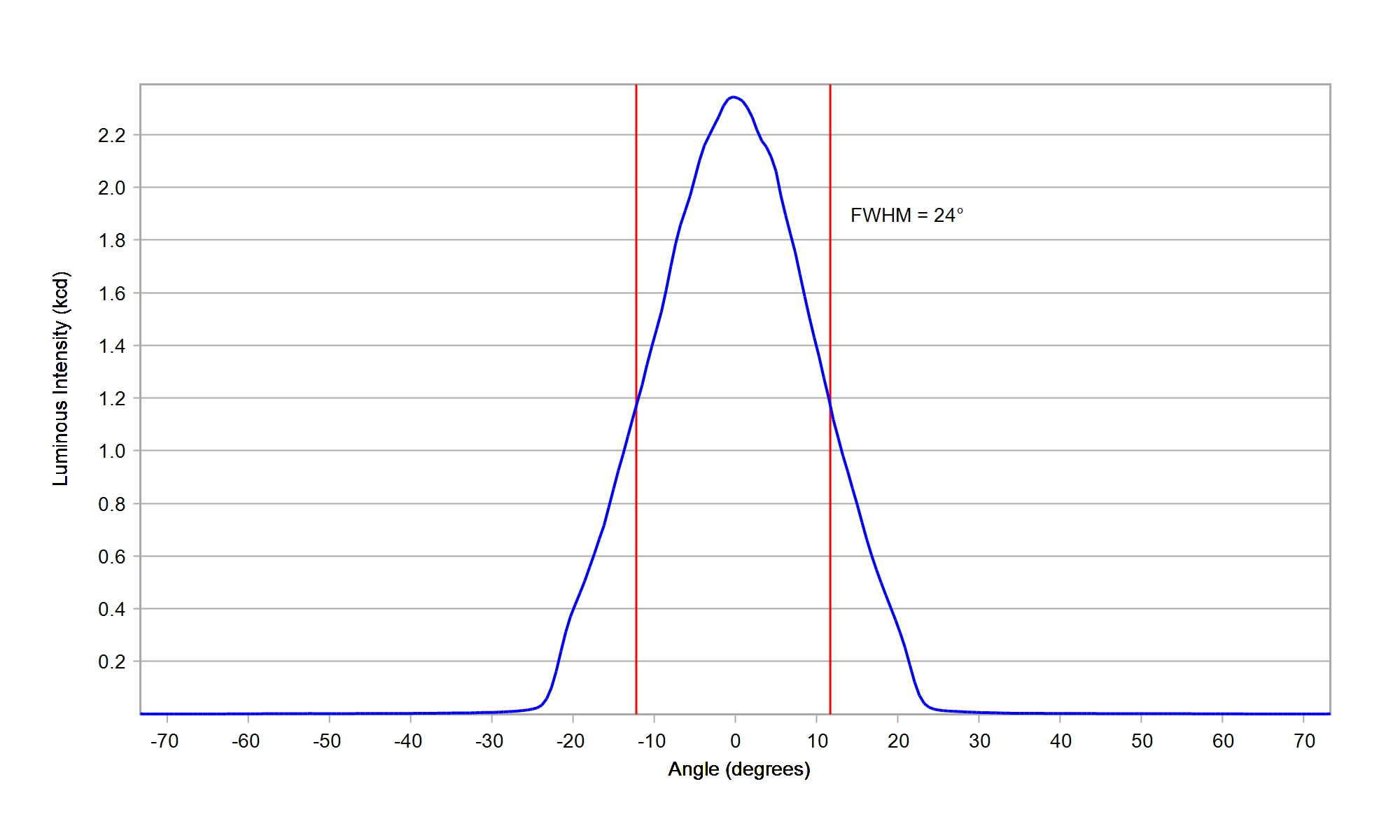

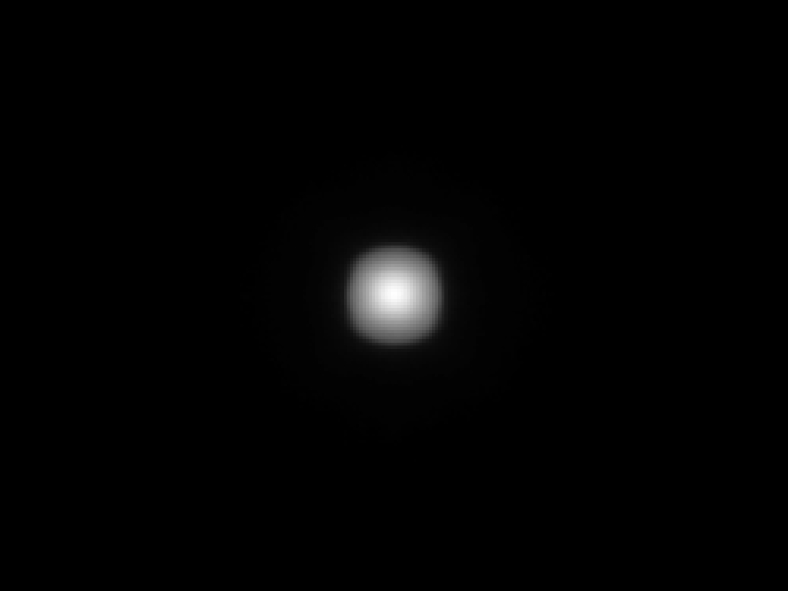

Cree JB2835B 3V J-Class White

Eff:

89.0%

FWHM:

24°

Cd/Im:

4.6


Download

Cree JB3030 3V P-Class White

Eff:

88.5%

FWHM:

22.5°

Cd/Im:

4.7

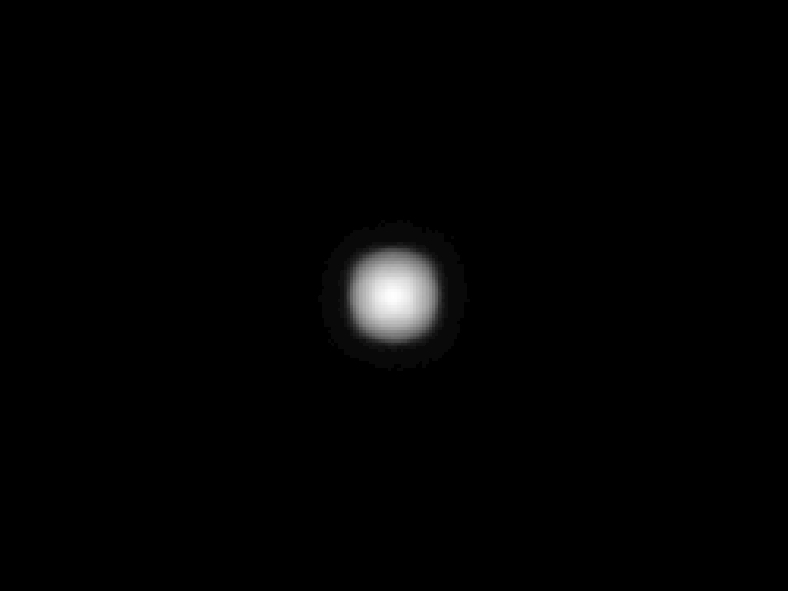

Carclo Optics - 12962 Spot Image Cree JB3030 3V White

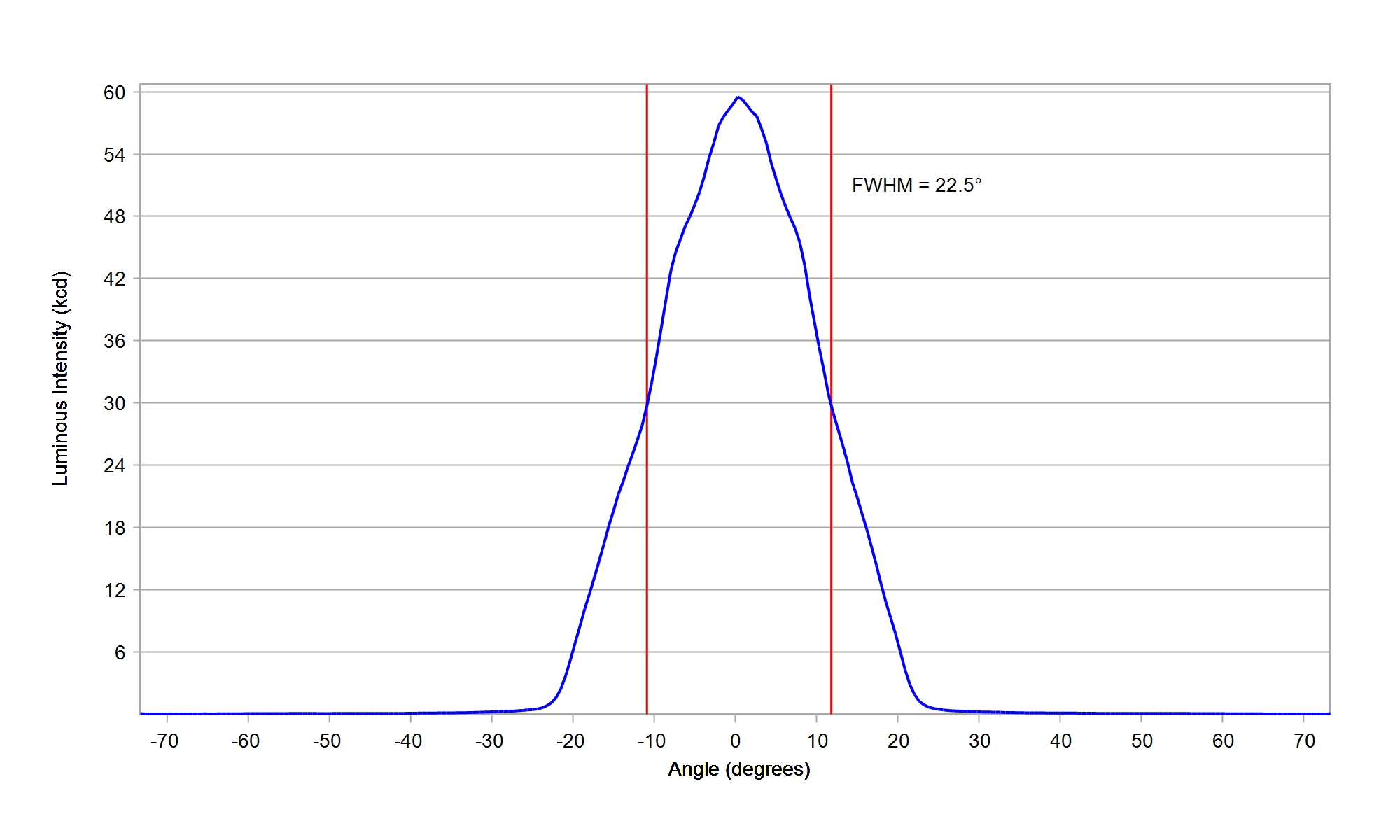

Carclo Optics - 12962 Cross Section Cree JB3030 3V White

Download

ies

Cree JB3030C 3V E-Class White

Eff:

89.0%

FWHM:

26°

Cd/Im:

4.0


Download

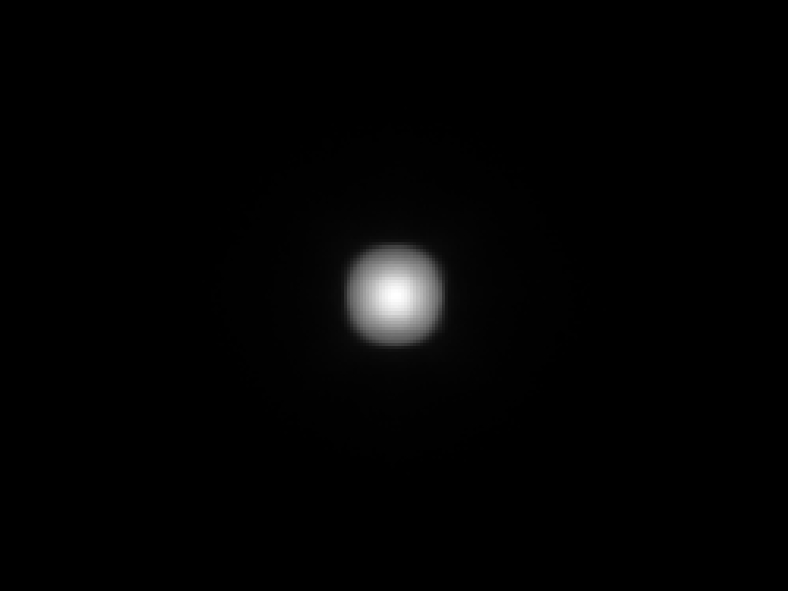

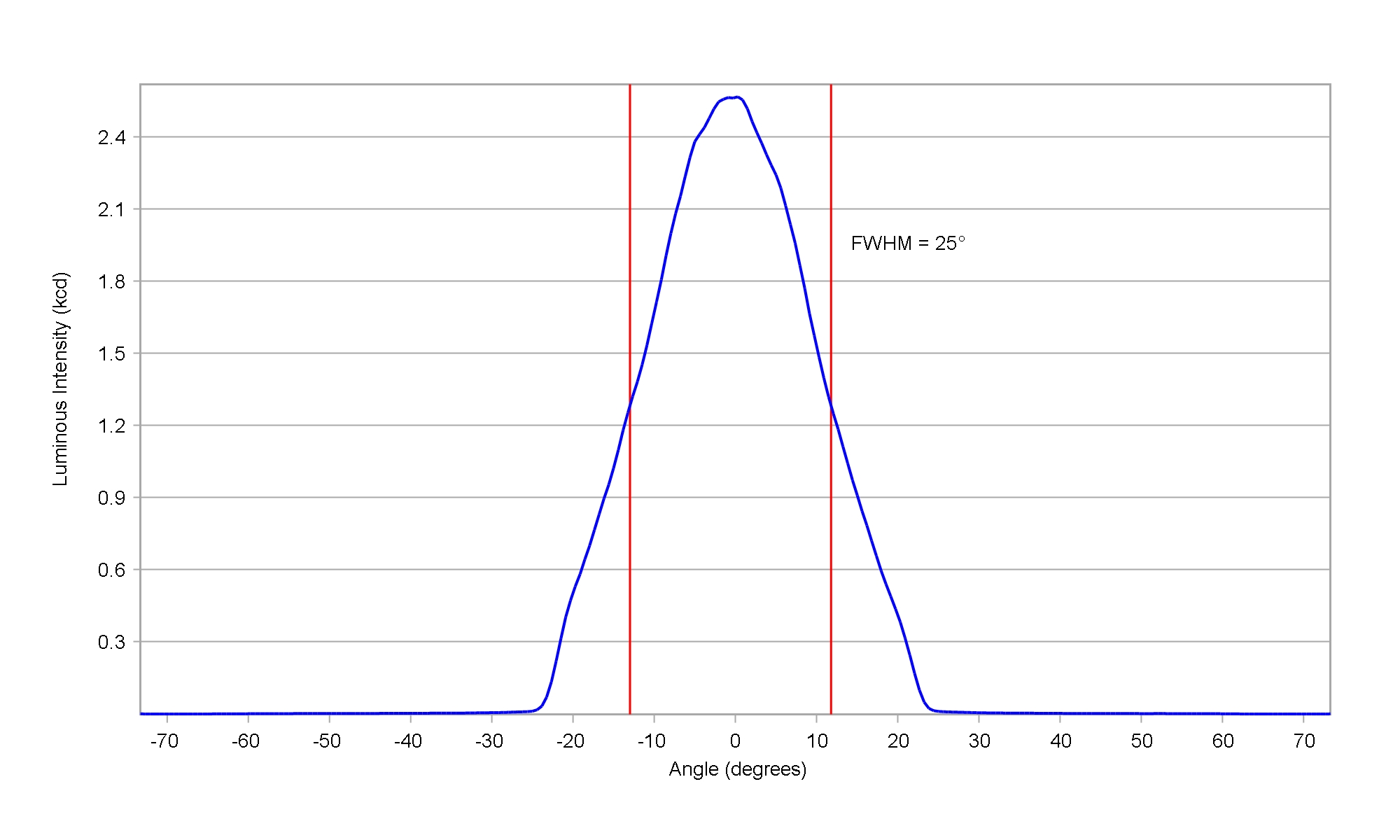

Cree JB3030C 3V F-Class White

Eff:

89.0%

FWHM:

25°

Cd/Im:

4.3


Download

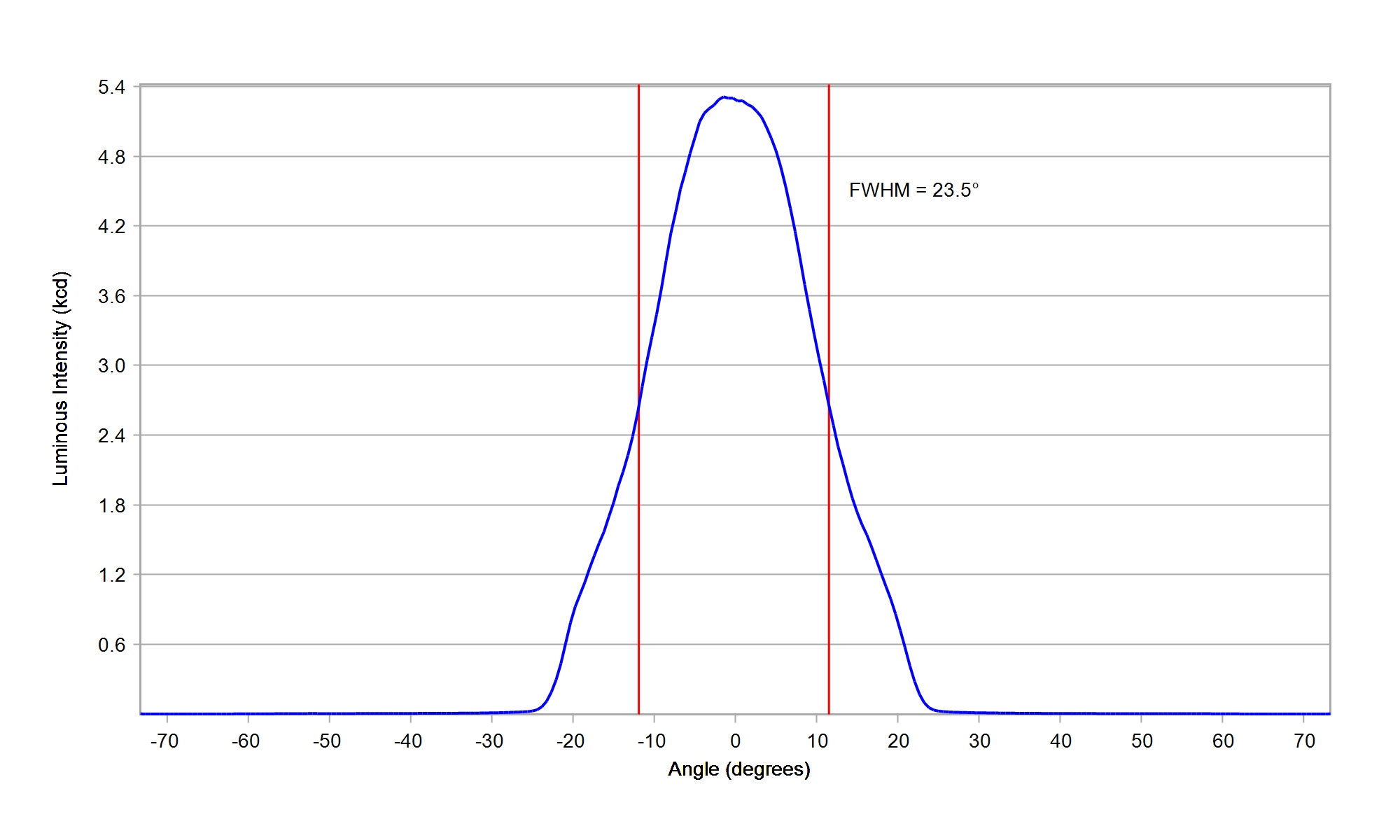

Cree JE2835 3V White

Eff:

89.0%

FWHM:

23.5°

Cd/Im:

4.5

Download

Cree JK2835 6V White

Eff:

89.0%

FWHM:

23°

Cd/Im:

4.8

Download

ies

Cree JQ5050 9V White

Eff:

88.0%

FWHM:

43.0°

Cd/Im:

2.1

Carclo Optics - 12962 Spot Image Cree JQ5050 9V White

Carclo Optics - 12962 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

88.0%

FWHM:

41.0°

Cd/Im:

2.1

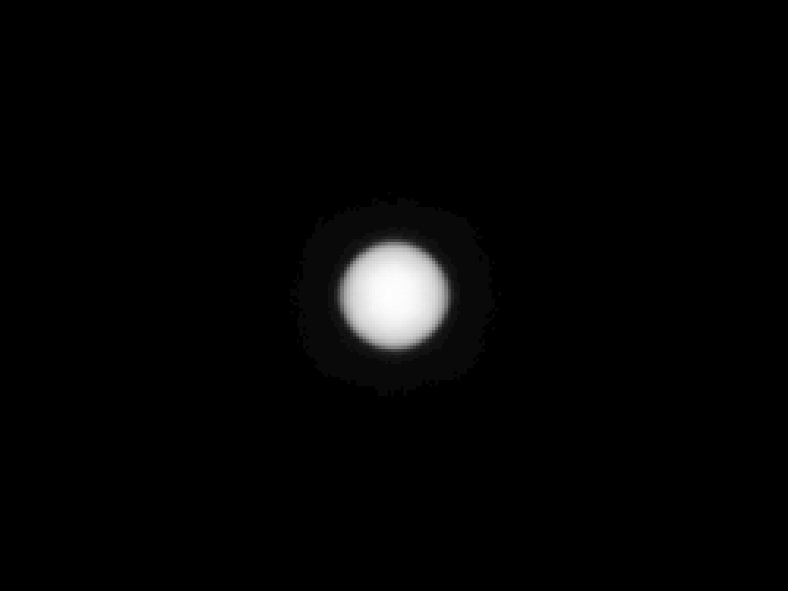

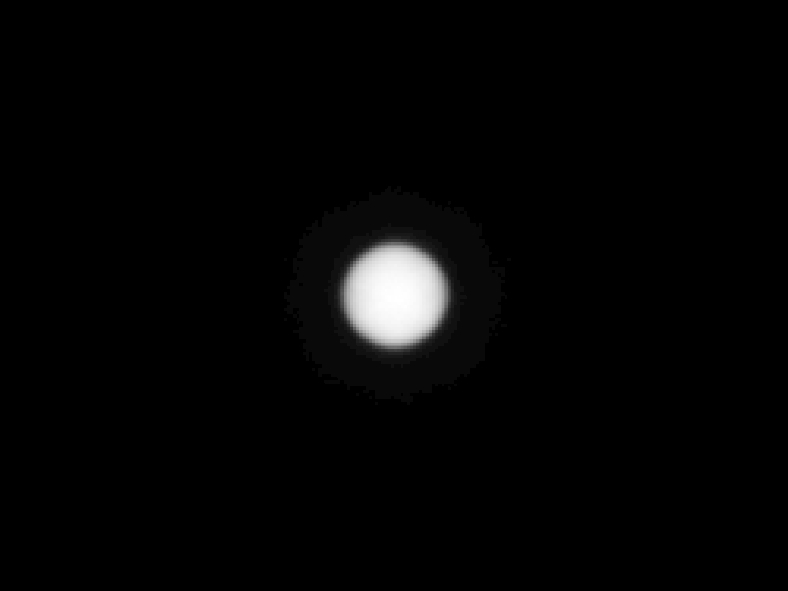

Carclo Optics - 12962 Spot Image Cree JR5050 24V White

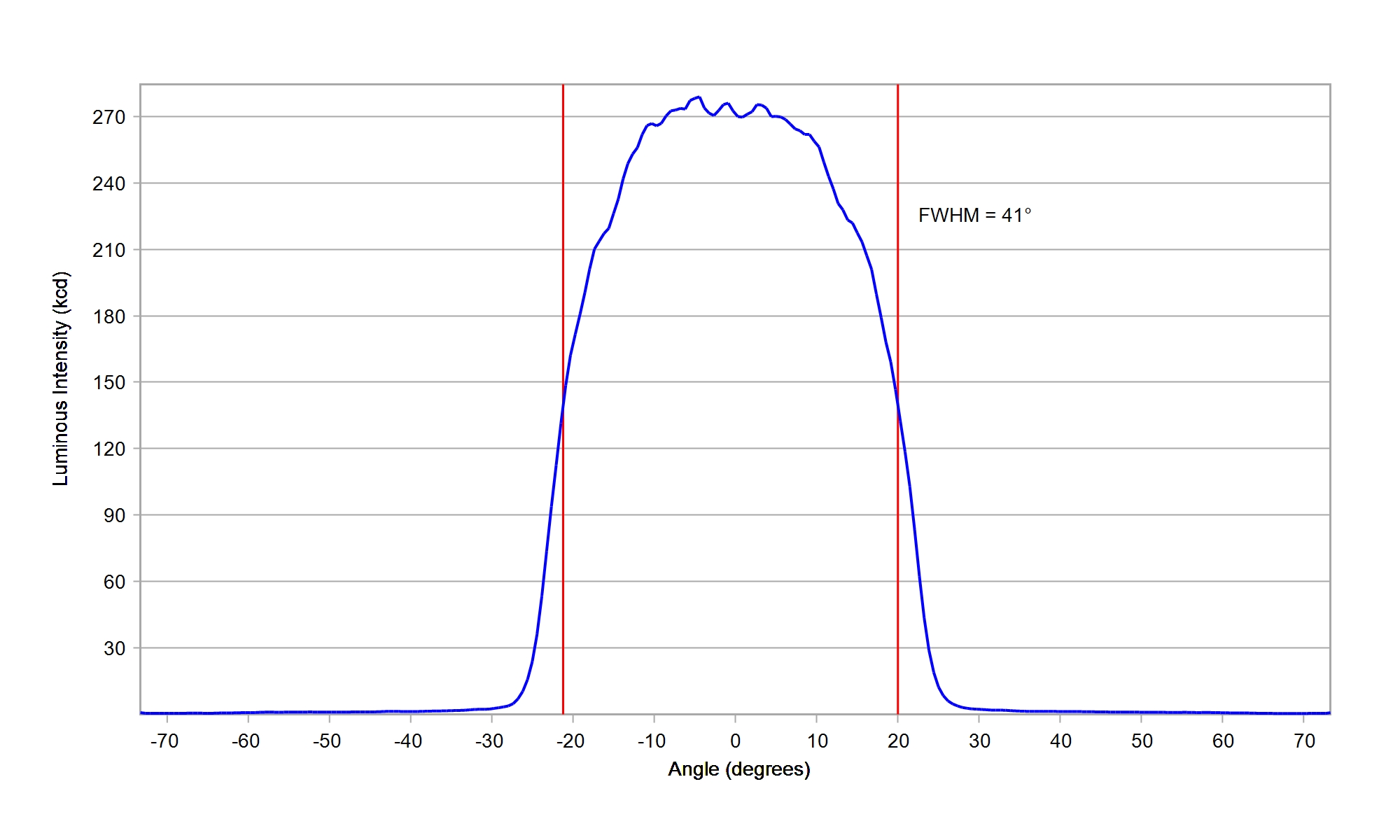

Carclo Optics - 12962 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

88.0%

FWHM:

41.0°

Cd/Im:

2.3

Carclo Optics - 12962 Spot Image Cree JR5050 36V White

Carclo Optics - 12962 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

88.0%

FWHM:

42.0°

Cd/Im:

2.1

Carclo Optics - 12962 Spot Image Cree JR50506V White

Carclo Optics - 12962 Cross Section Cree JR50506V White

Download

ies

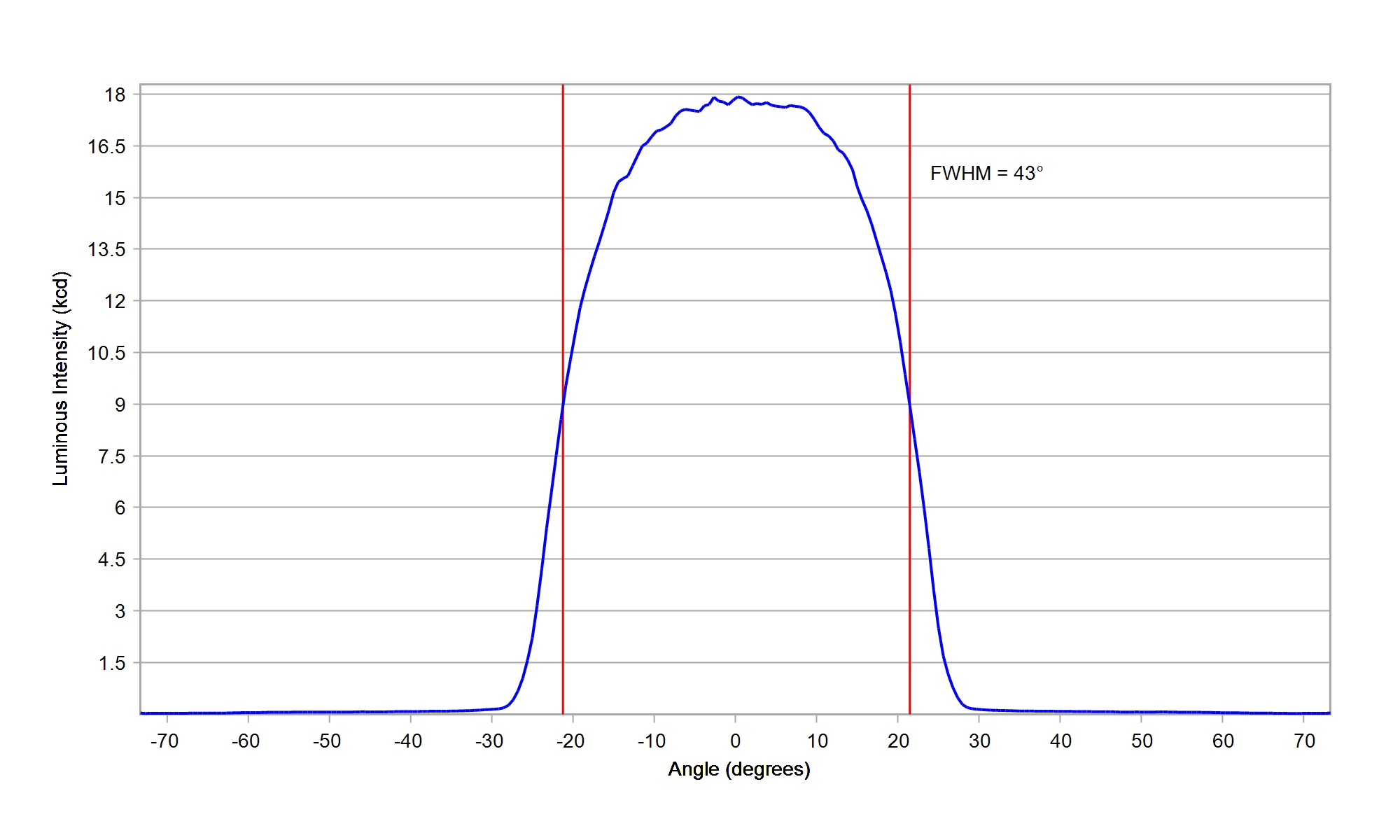

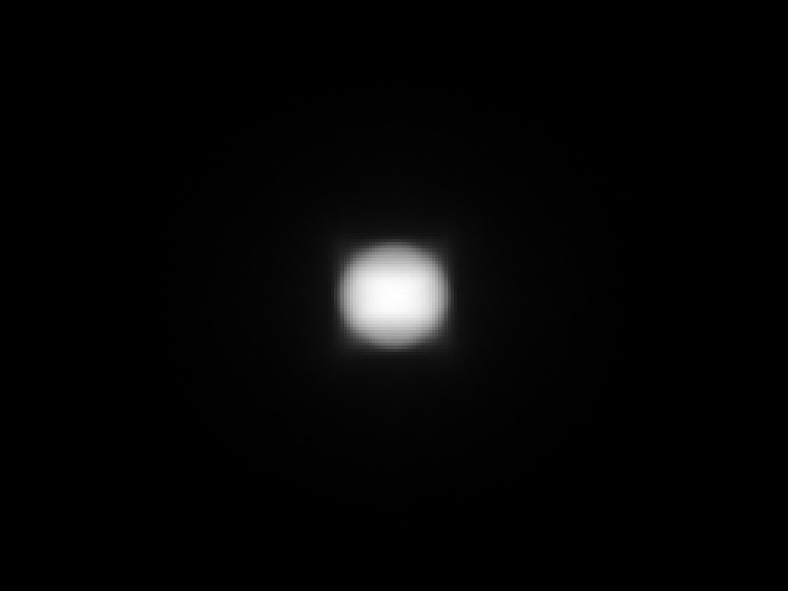

Cree JR5050C 6V E-Class White

Eff:

87.5%

FWHM:

43 x 35°

Cd/Im:

2.1


,


Download

IES

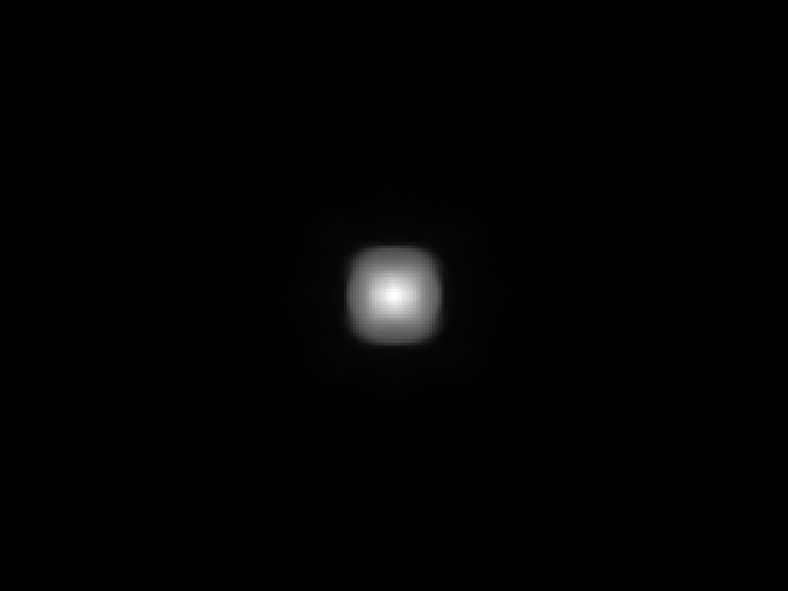

Cree XLamp CSP XD16 Premium White

Eff:

89.0%

FWHM:

21.5°

Cd/Im:

5.5

Download

IES

Cree XLamp XE-G White

Eff:

87.5%

FWHM:

24.5°

Cd/Im:

4.1

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

86.0%

FWHM:

31°

Cd/Im:

2.9

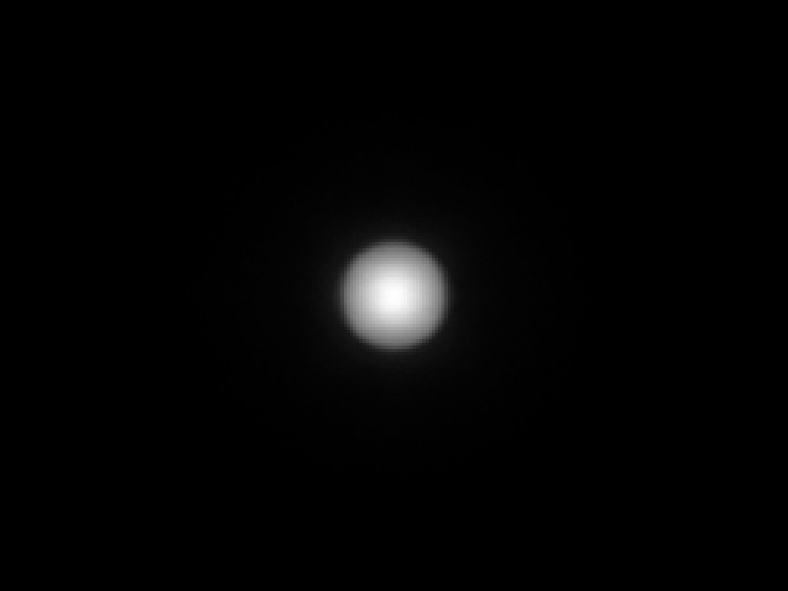

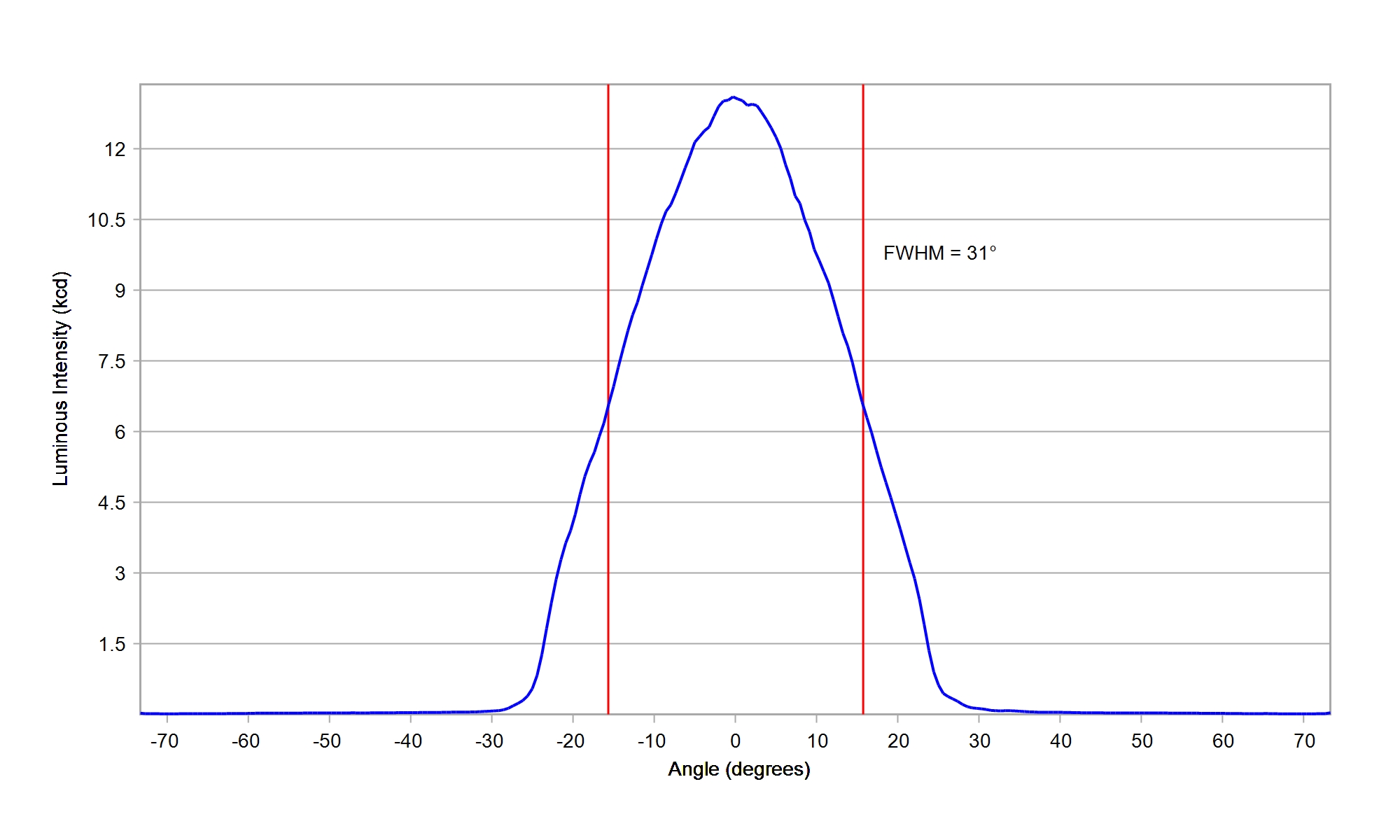

Carclo Optics – 12962 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12962 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

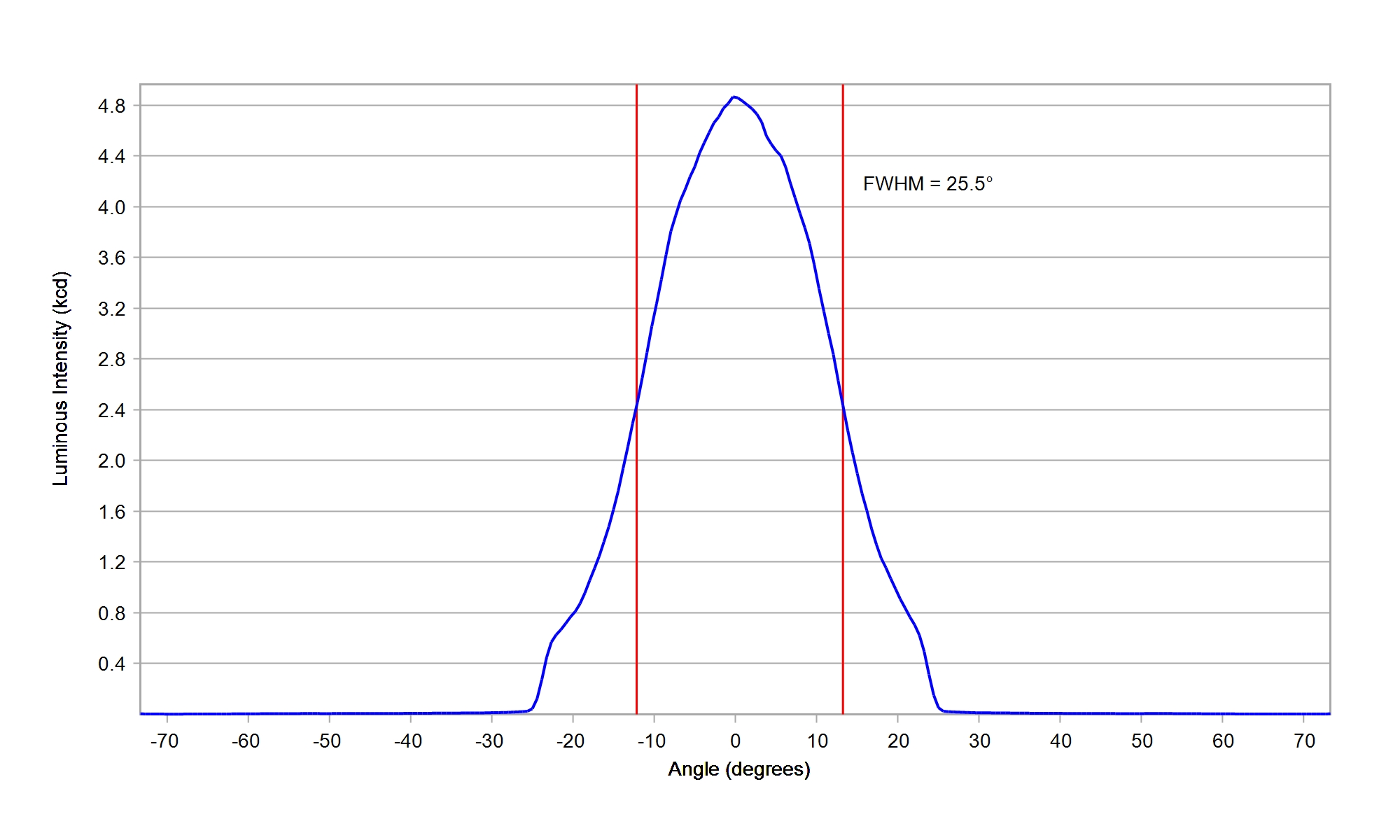

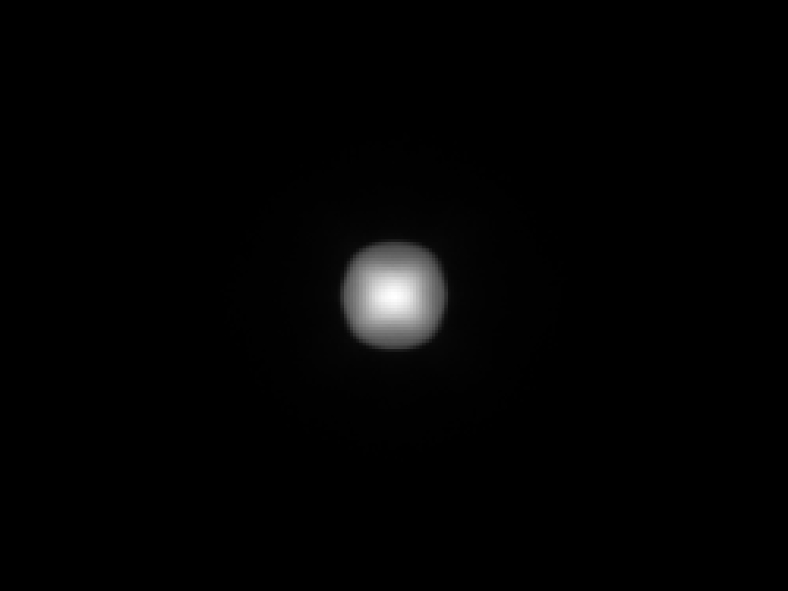

Cree XLamp XP-E2 White

Eff:

89.0%

FWHM:

25.5°

Cd/Im:

4.1

Download

ies

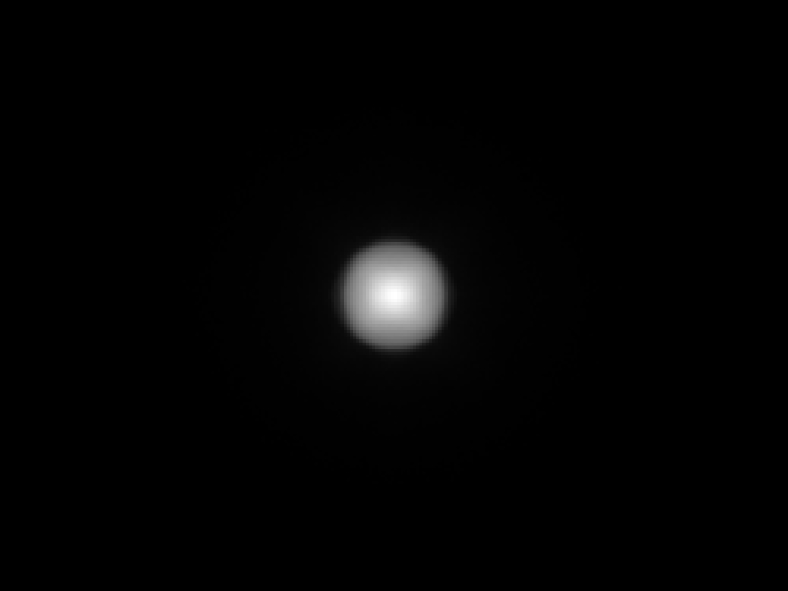

Cree XLamp XP-G4 HI White

Eff:

87.5%

FWHM:

26.5°

Cd/Im:

3.6

Download

Cree XLamp XP-P White

Eff:

89.5%

FWHM:

21.5°

Cd/Im:

5.1

Carclo Optics – 12962 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12962 Cree Xlamp XP-P - Cross-Section

Download

ies

Cree XLamp XQ-A Blue

Eff:

88.5%

FWHM:

16.5°

Cd/Im:

7.5

Download

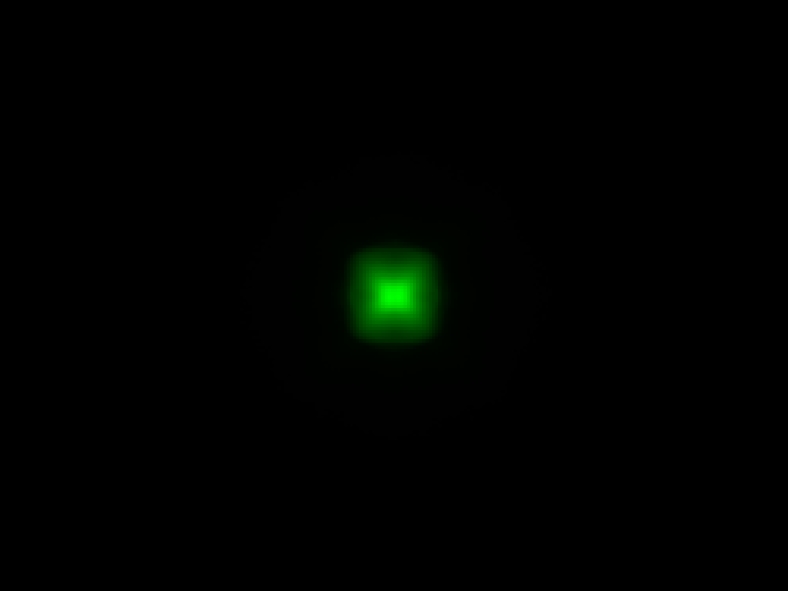

Cree XLamp XQ-A Green

Eff:

89.0%

FWHM:

16°

Cd/Im:

8.3

Download

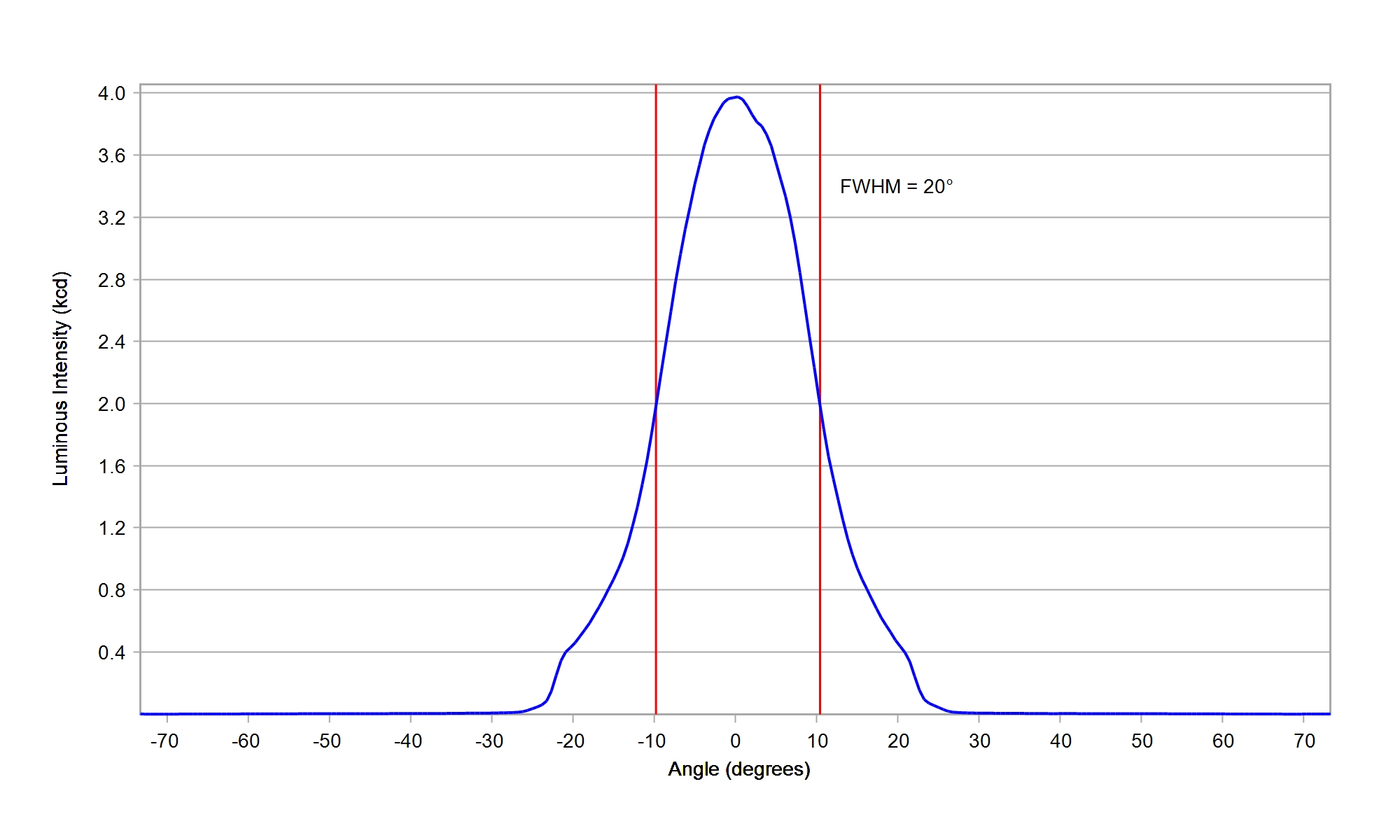

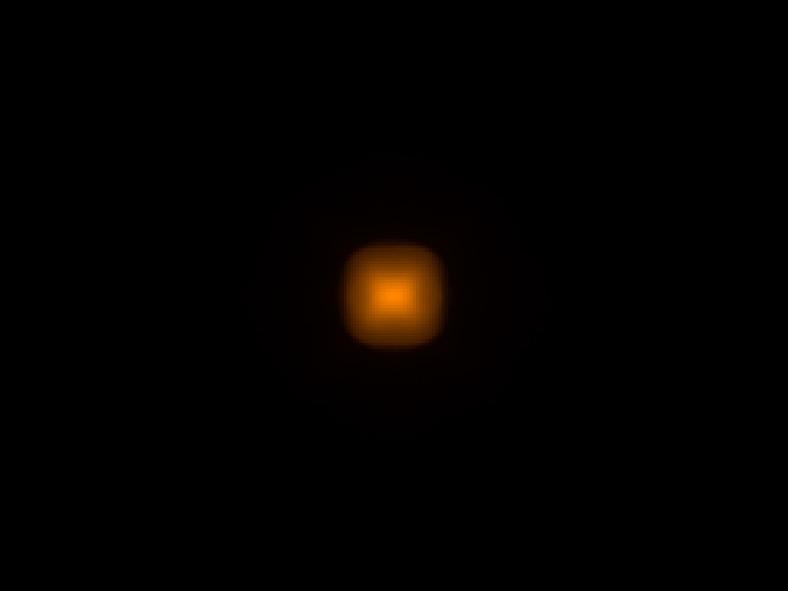

Cree XLamp XQ-A PC Amber

Eff:

88.0%

FWHM:

20°

Cd/Im:

5.5

Download

Cree XLamp XQ-A PC Blue

Eff:

87.5%

FWHM:

18°

Cd/Im:

6.1

Download

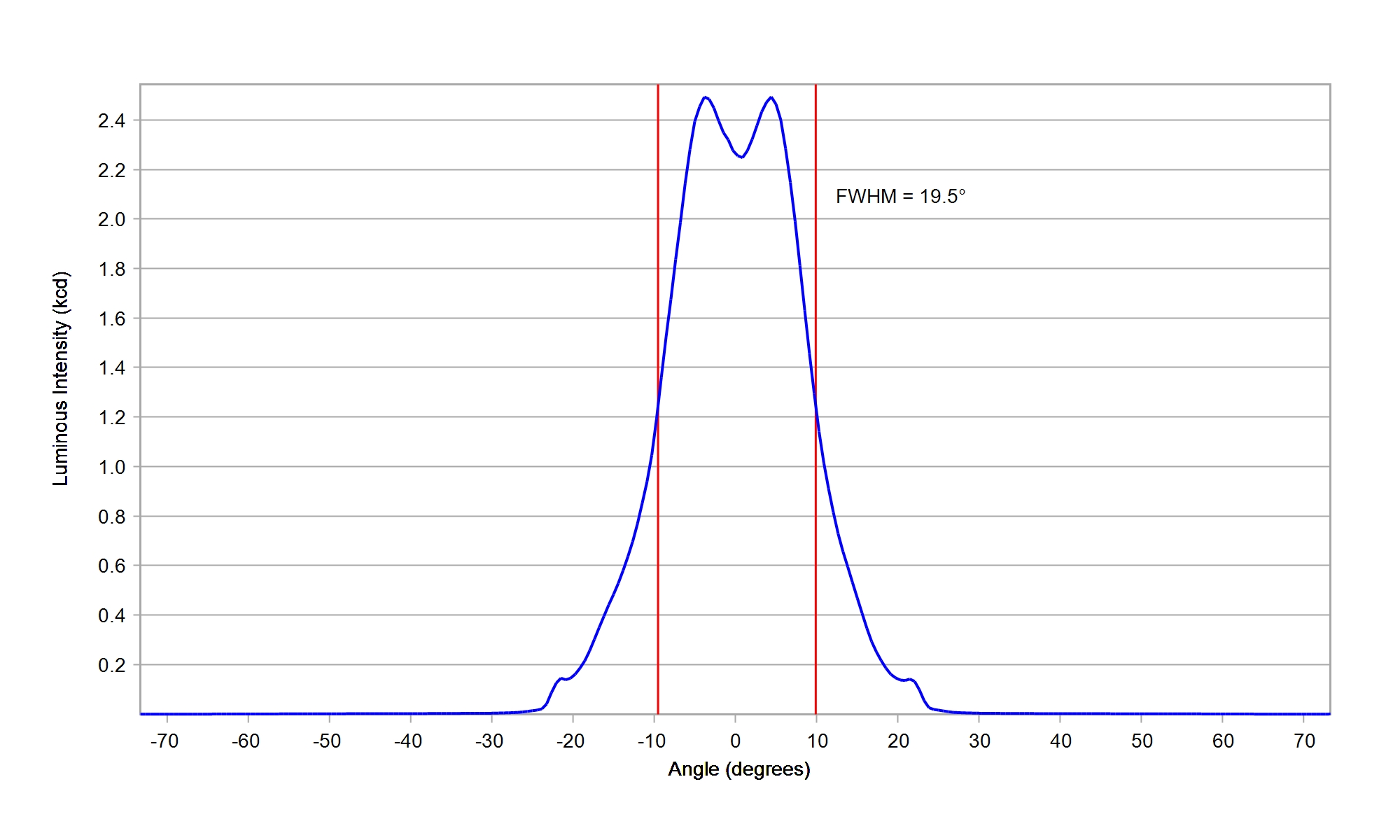

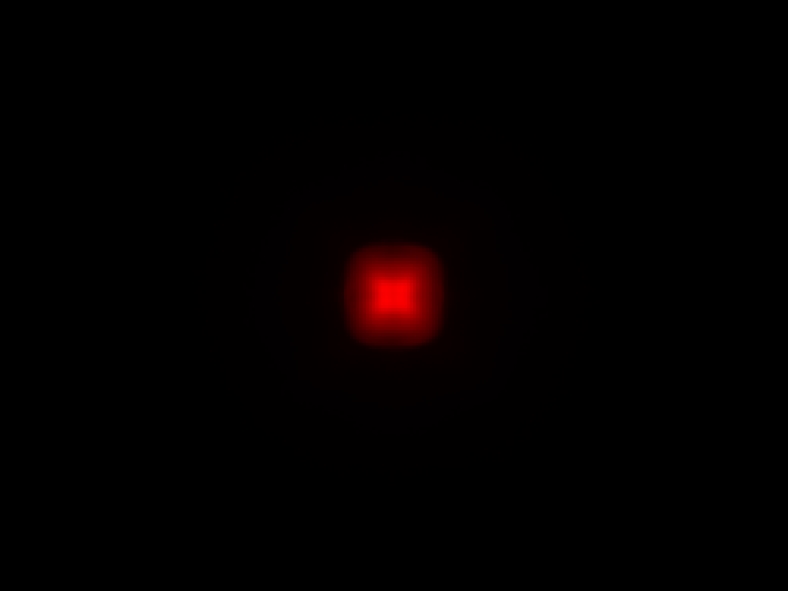

Cree XLamp XQ-A Red

Eff:

90.0%

FWHM:

19.5°

Cd/Im:

5.7

Download

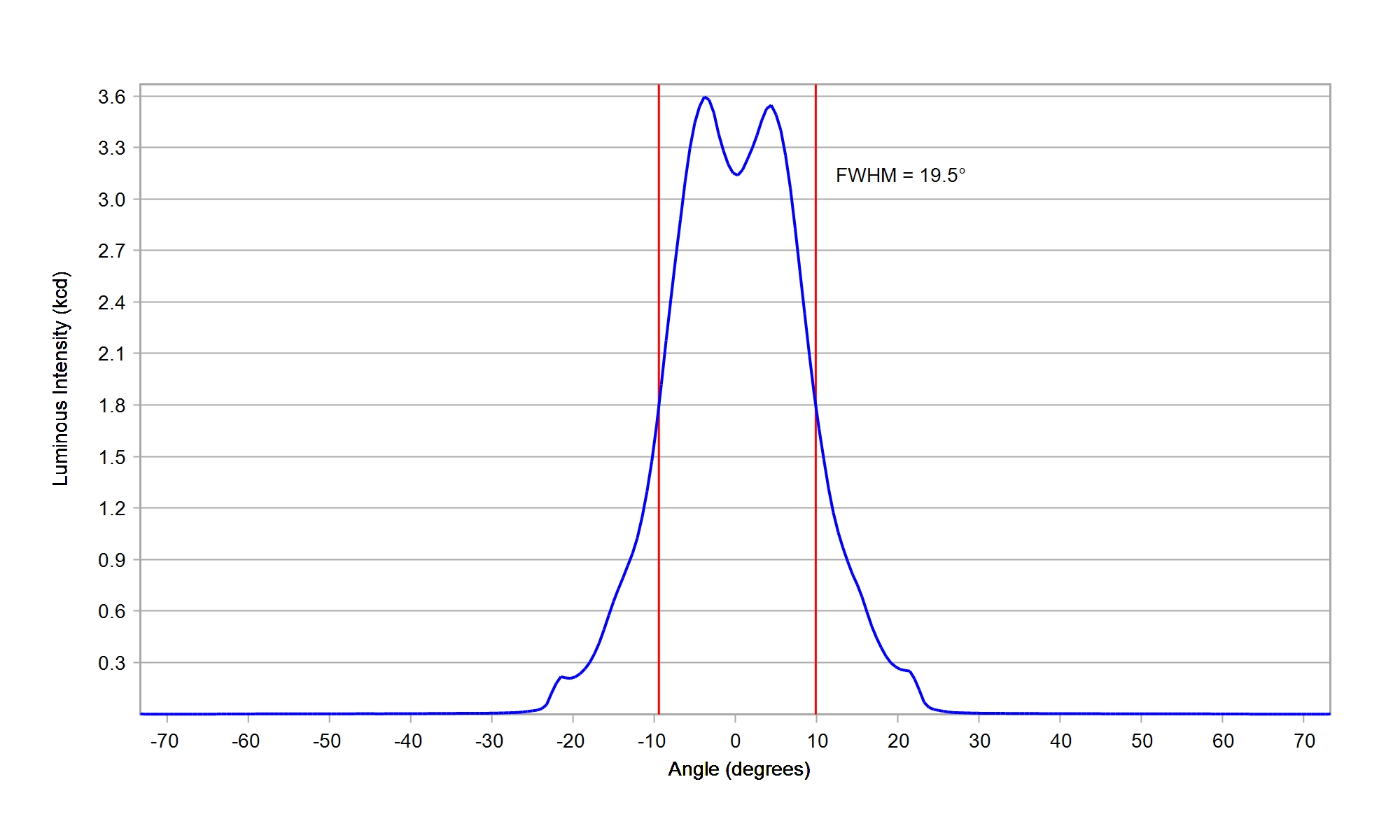

Cree XLamp XQ-A Red-Orange

Eff:

89.5%

FWHM:

19.5°

Cd/Im:

5.7


Download

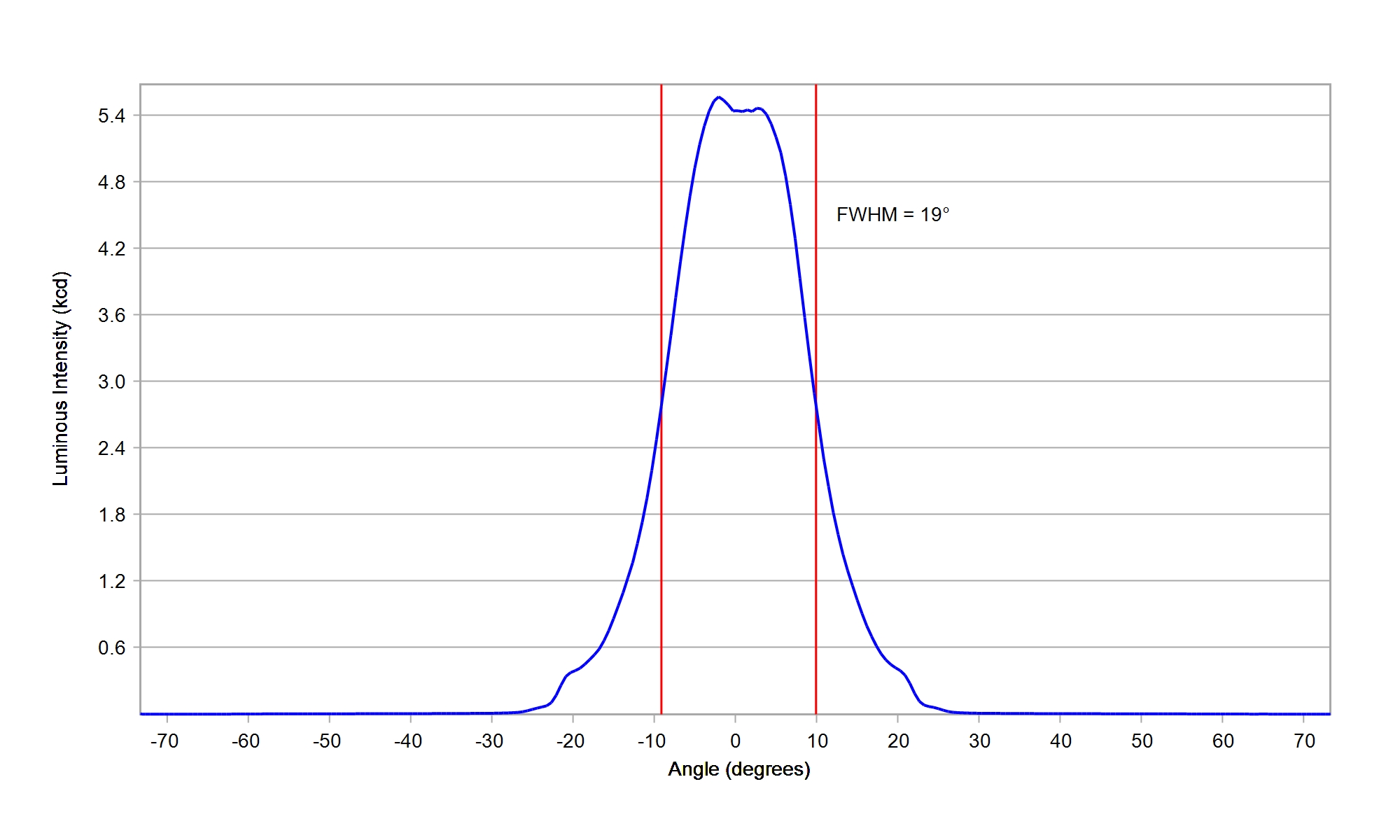

Cree XLamp XQ-A White

Eff:

88.0%

FWHM:

19°

Cd/Im:

6.2

Download

Cree XLamp XQ-E HI White

Eff:

87.5%

FWHM:

19.0°

Cd/Im:

5.0

Carclo Optics - Simulated Spot Image

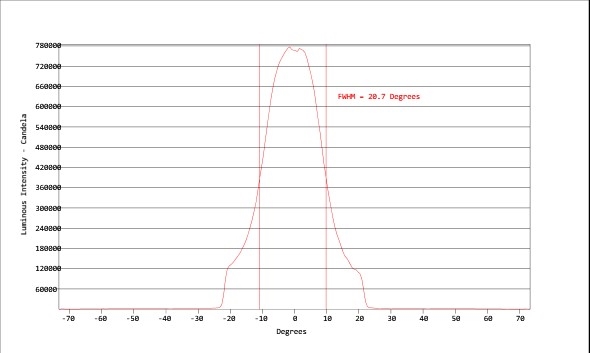

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E Plus HD Blue

Eff:

87.5%

FWHM:

21°

Cd/Im:

5.7


Download

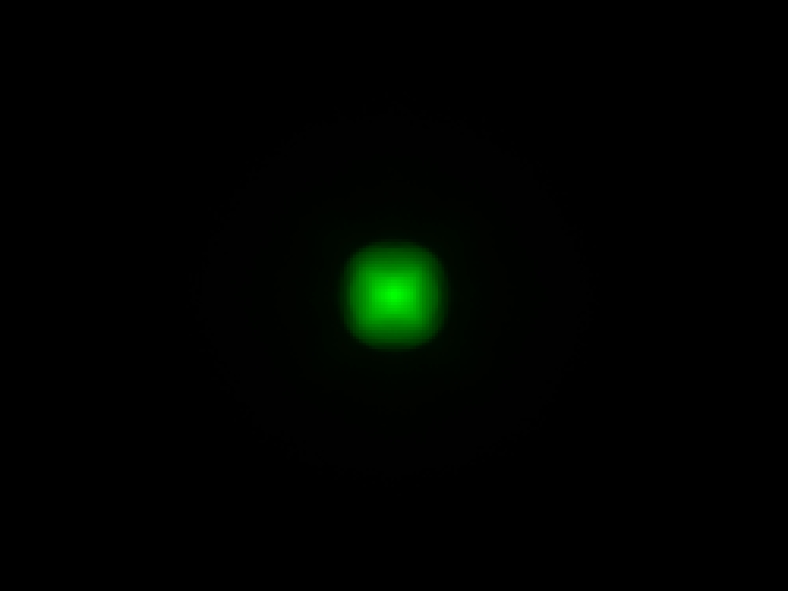

Cree XLamp XQ-E Plus HD Green

Eff:

87.5%

FWHM:

21.5°

Cd/Im:

5.3


Download

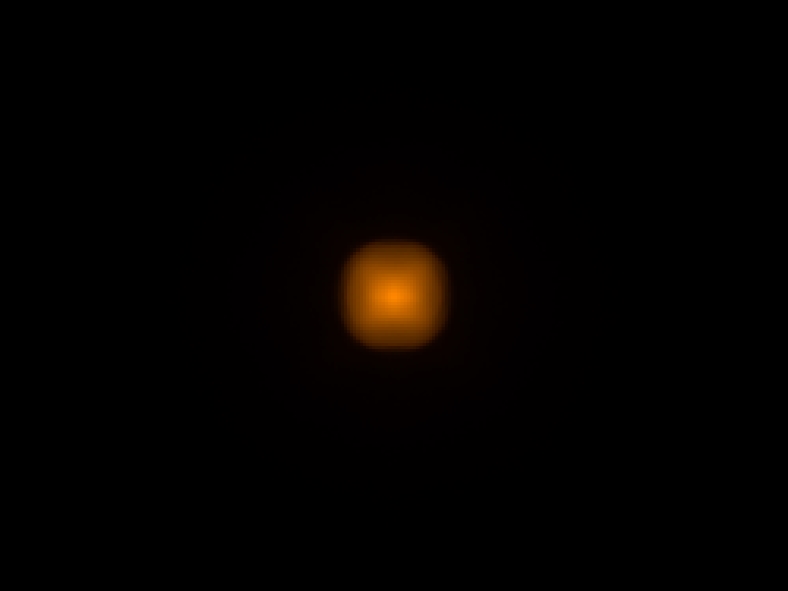

Cree XLamp XQ-E Plus HD PC Amber

Eff:

87.5%

FWHM:

22°

Cd/Im:

4.7


Download

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

86.5%

FWHM:

20.5°

Ipk/W:

5.9


Download

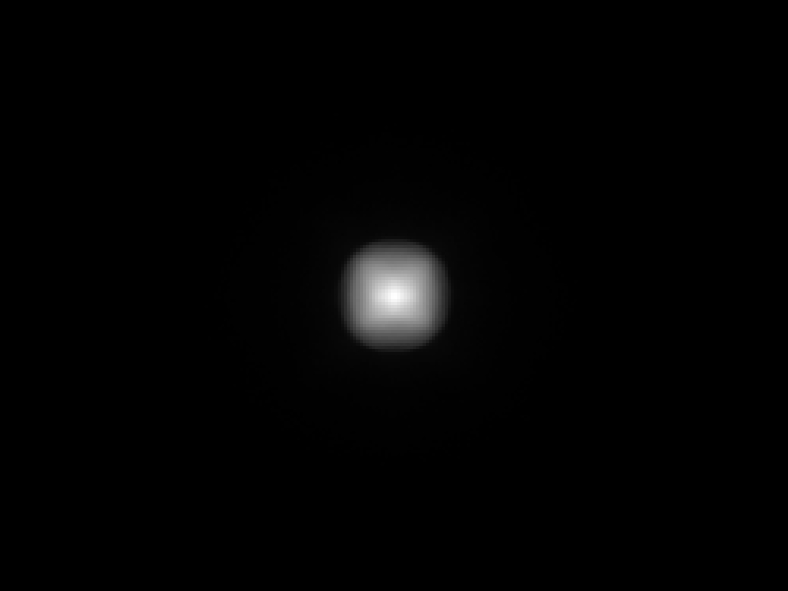

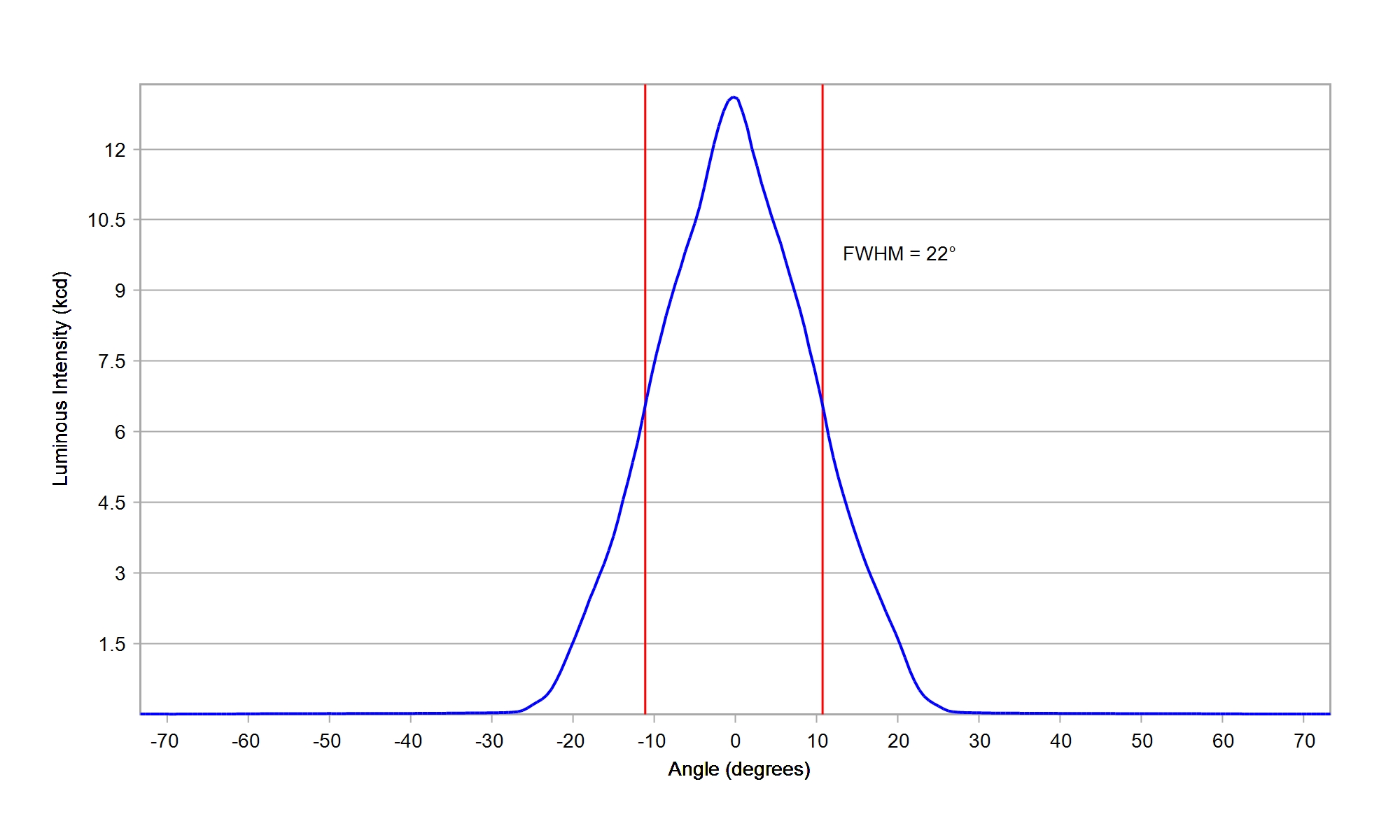

Cree XLamp XQ-E Plus HD White

Eff:

87.0%

FWHM:

22°

Cd/Im:

5.0


Download

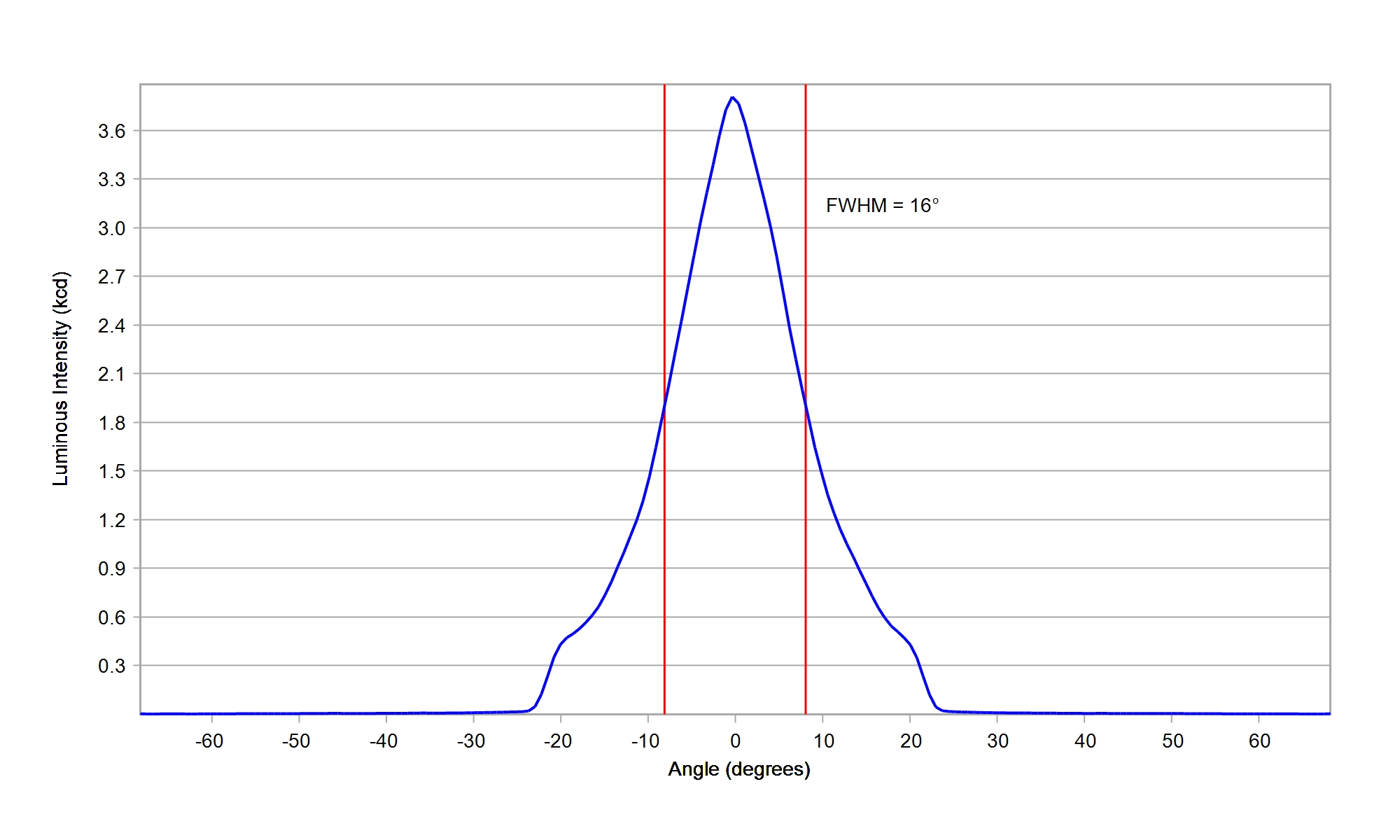

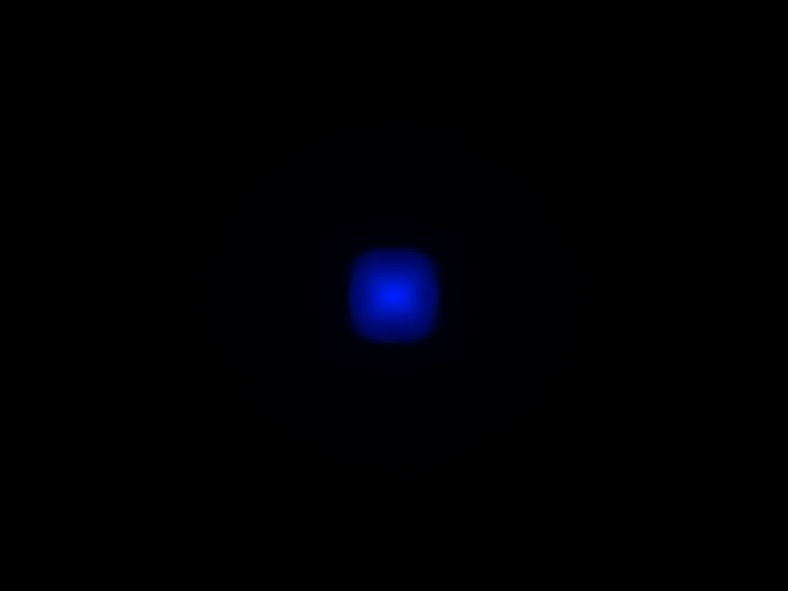

Cree XLamp XQ-E Plus HI Blue

Eff:

87.5%

FWHM:

19.5 x 16°

Cd/Im:

5.5


,


Download

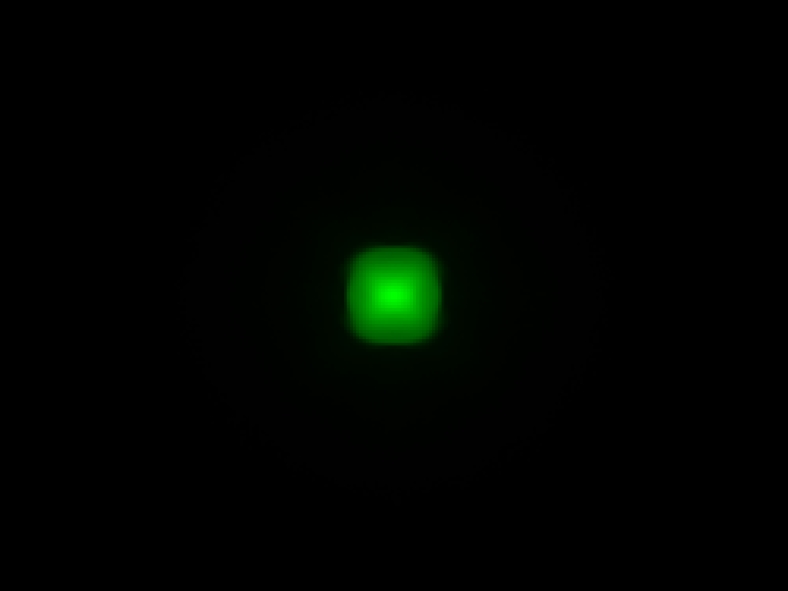

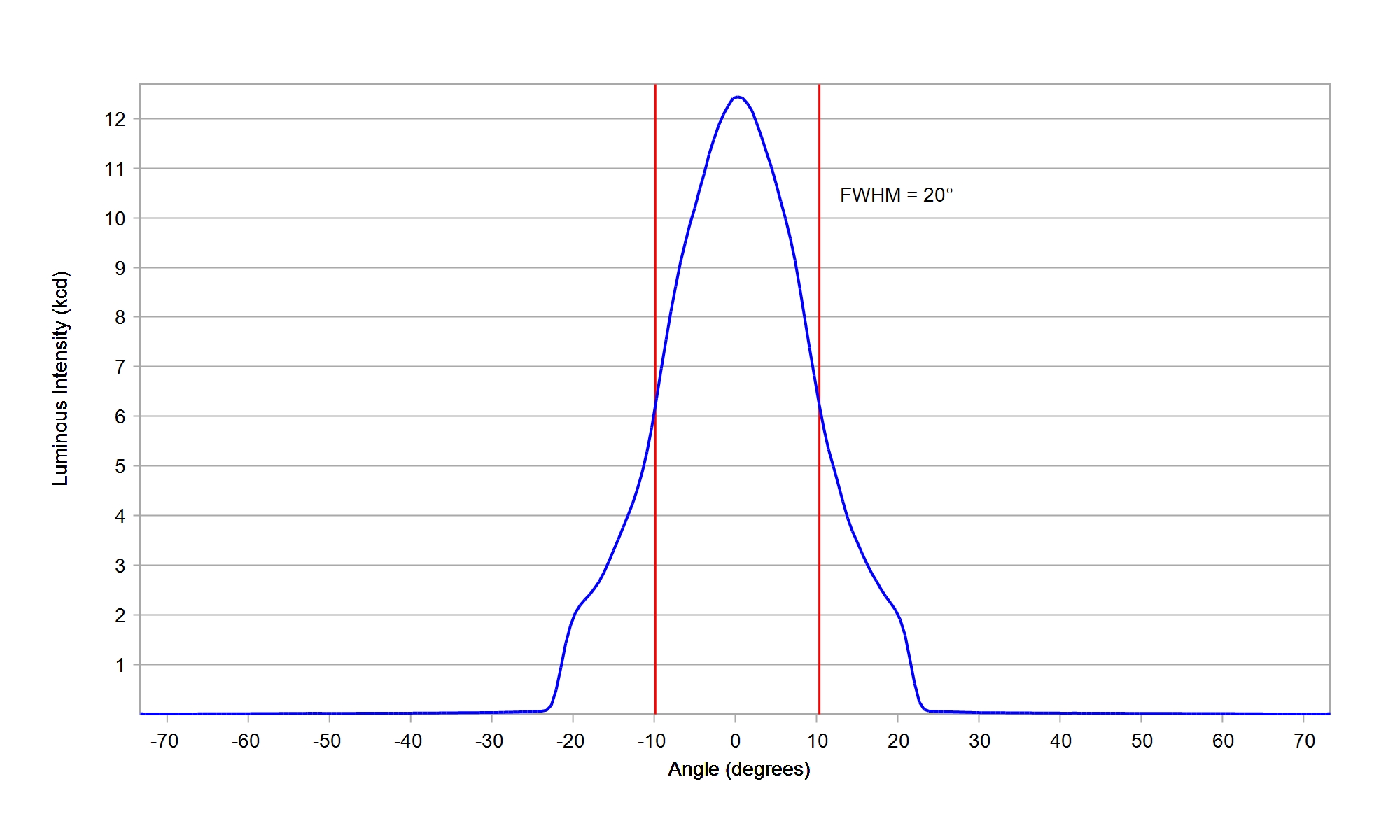

Cree XLamp XQ-E Plus HI Green

Eff:

87.5%

FWHM:

20°

Cd/Im:

5.1


Download

Cree XLamp XQ-E Plus HI PC Amber

Eff:

87.5%

FWHM:

22°

Cd/Im:

4.7


Download

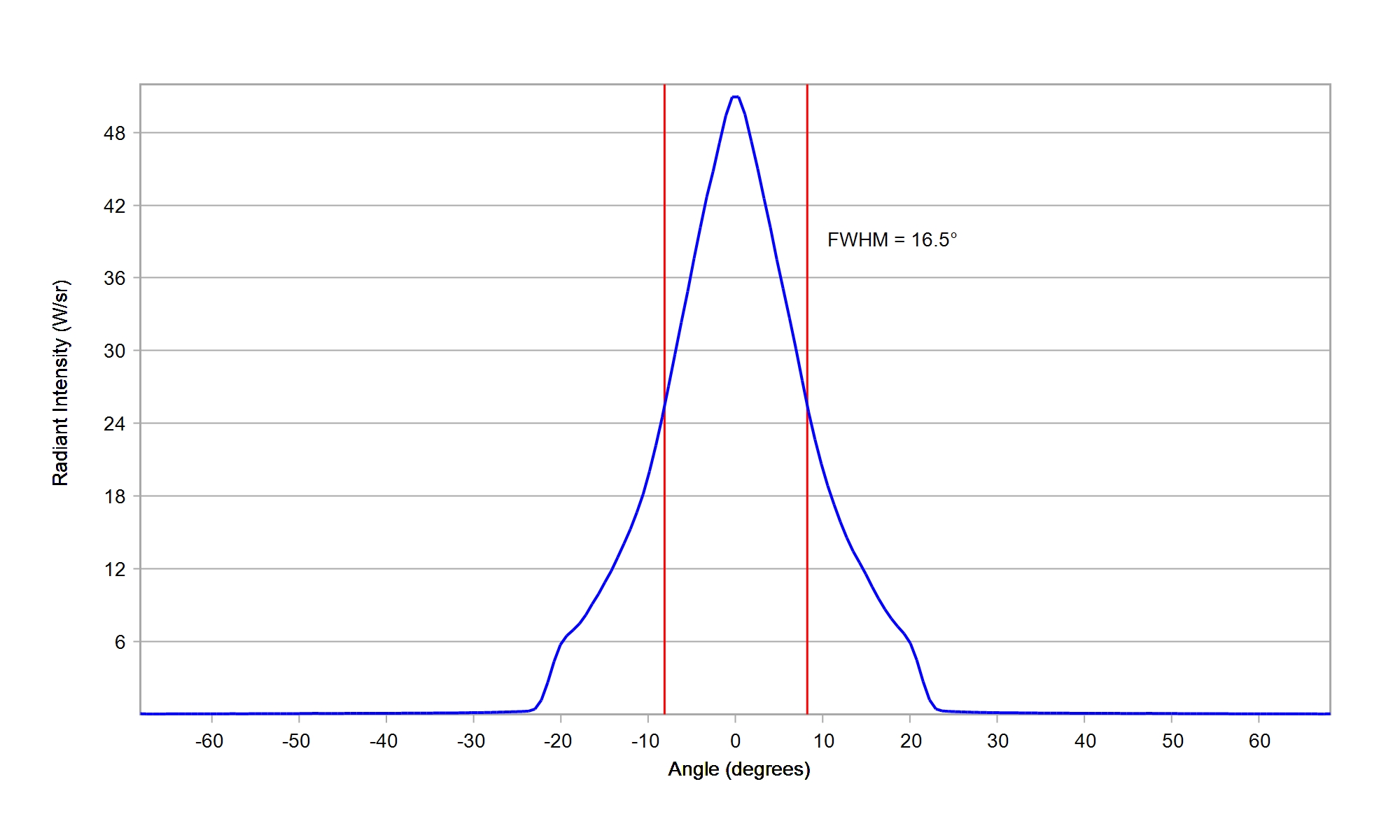

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

86.5%

FWHM:

19.5 x 16.5°

Ipk/W:

5.4


,


Download

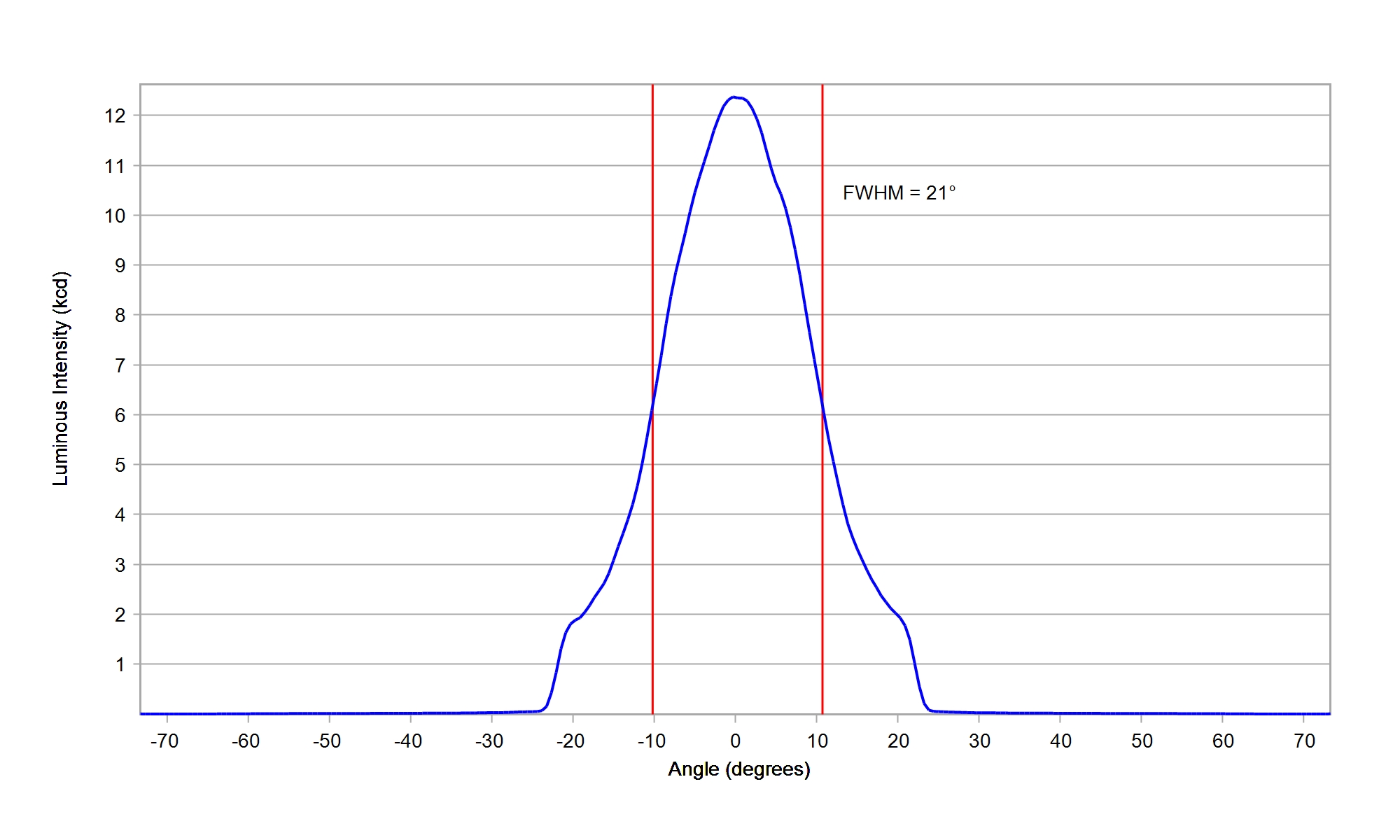

Cree XLamp XQ-E Plus HI White

Eff:

88.0%

FWHM:

21°

Cd/Im:

5.0


Download

LG Innotek MidPower 3030 LG White

Eff:

88.5%

FWHM:

20°

Cd/Im:

5.5

Carclo Optics - Simulated Spot Image

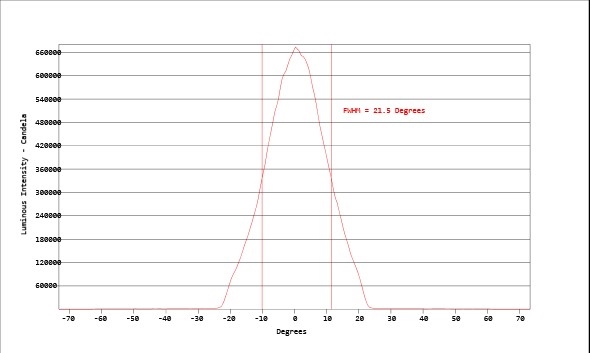

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 5630 White

Eff:

88.0%

FWHM:

25 x 22°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

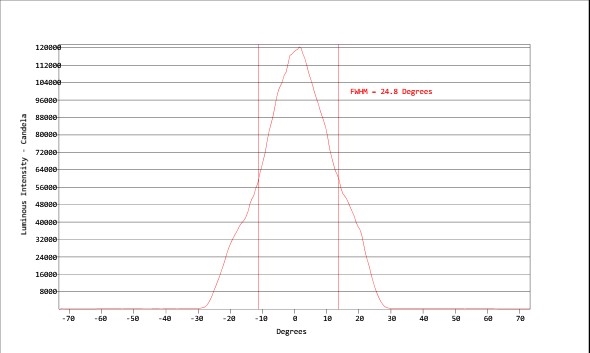

Carclo Optics - Simulated Horizontal Cross Section

,

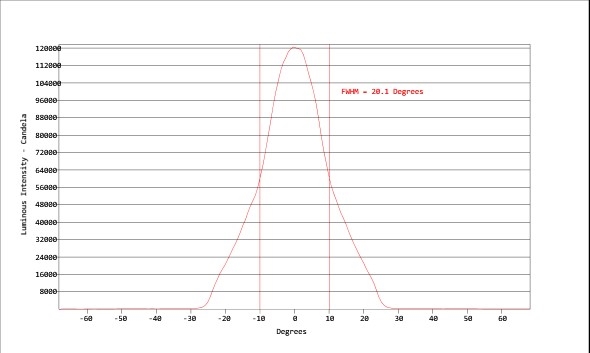

Carclo Optics - Simulated Vertical Cross Section

Download

ies

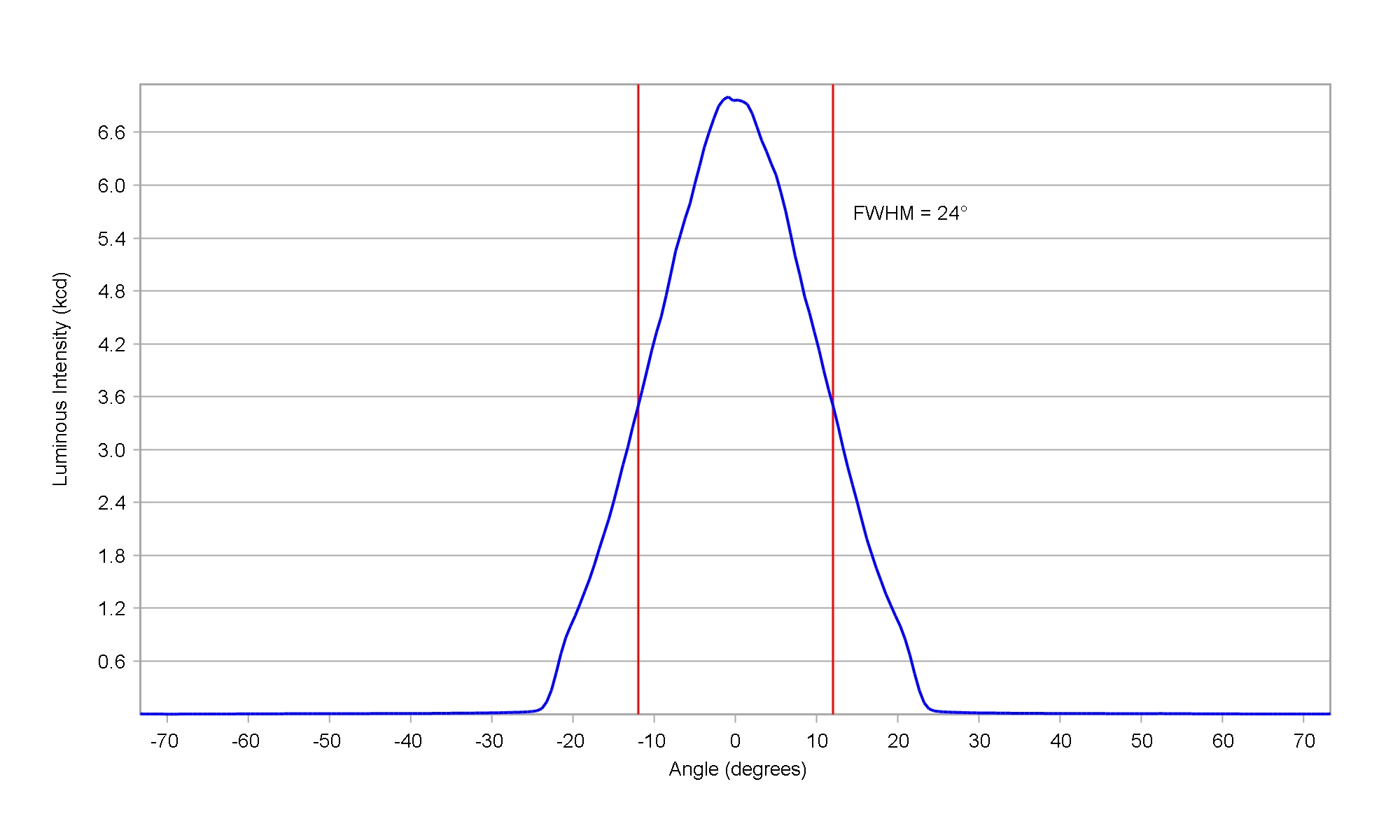

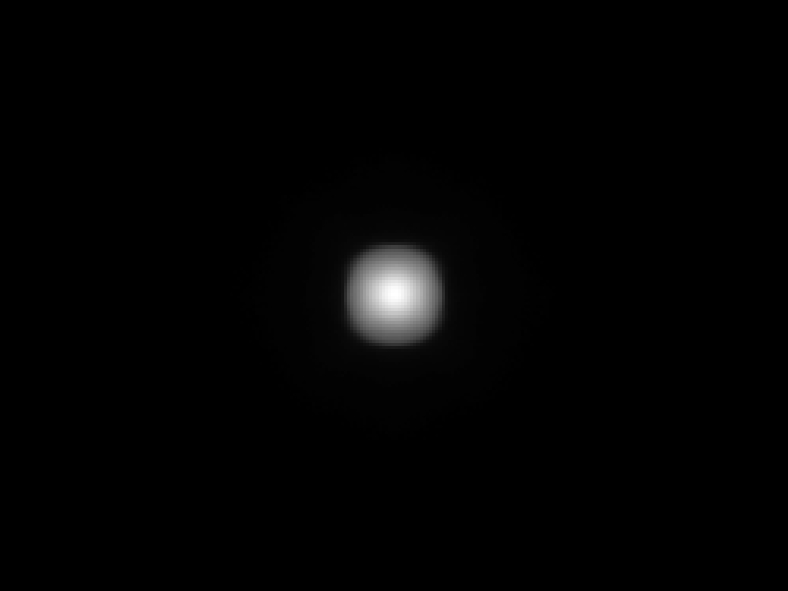

LUMILEDS LUXEON 2835C 6V White

Eff:

89.0%

FWHM:

24°

Cd/Im:

4.7

Download

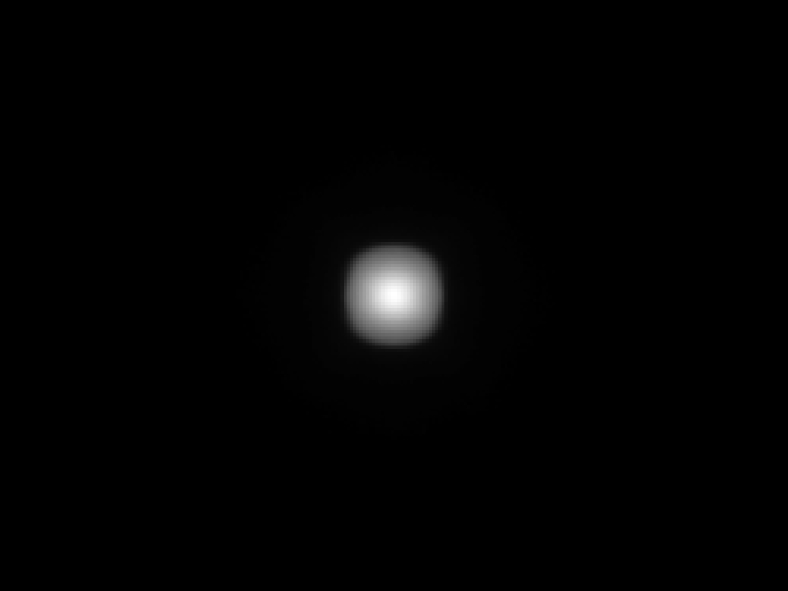

LUMILEDS LUXEON 2835E 9V White

Eff:

89.0%

FWHM:

23.5°

Cd/Im:

4.6

Download

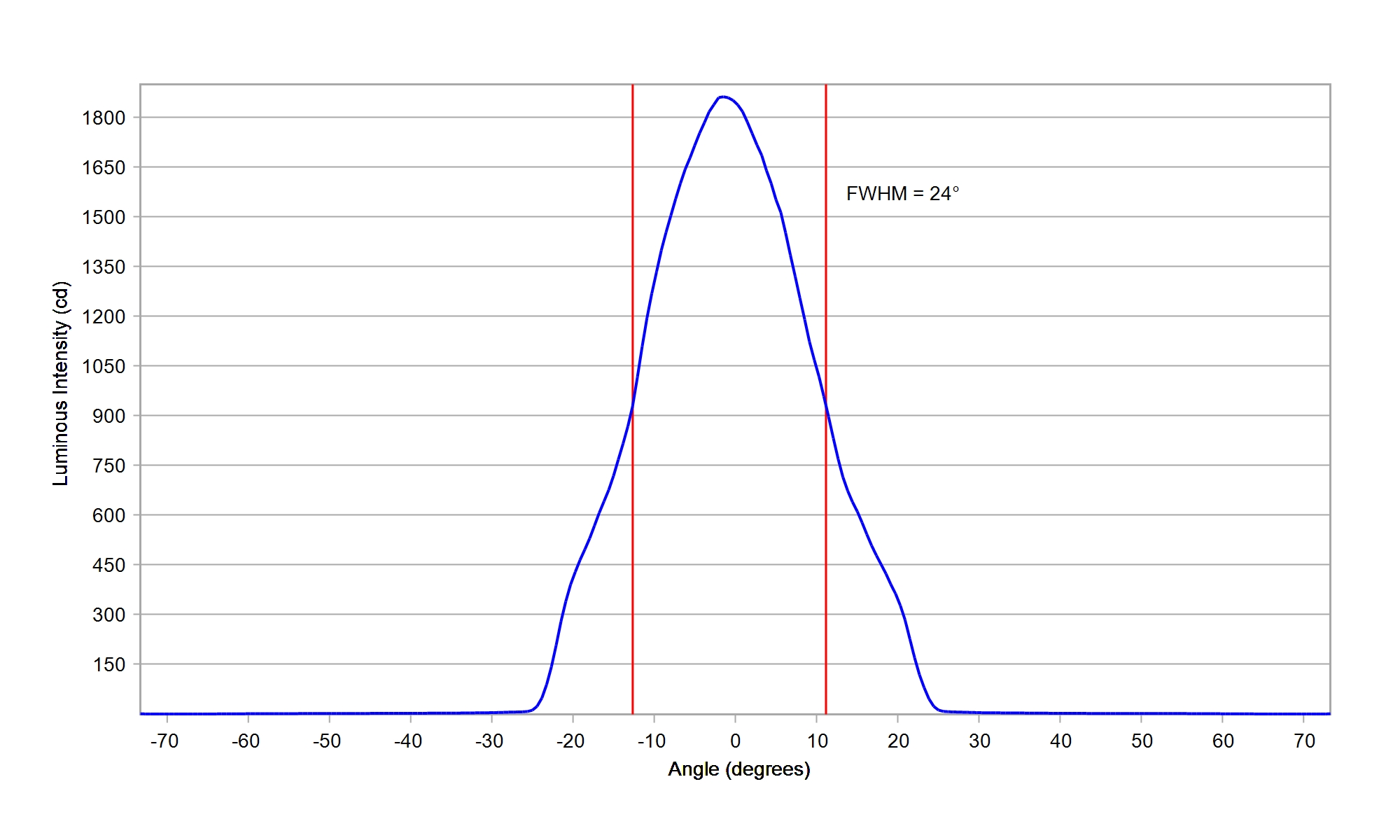

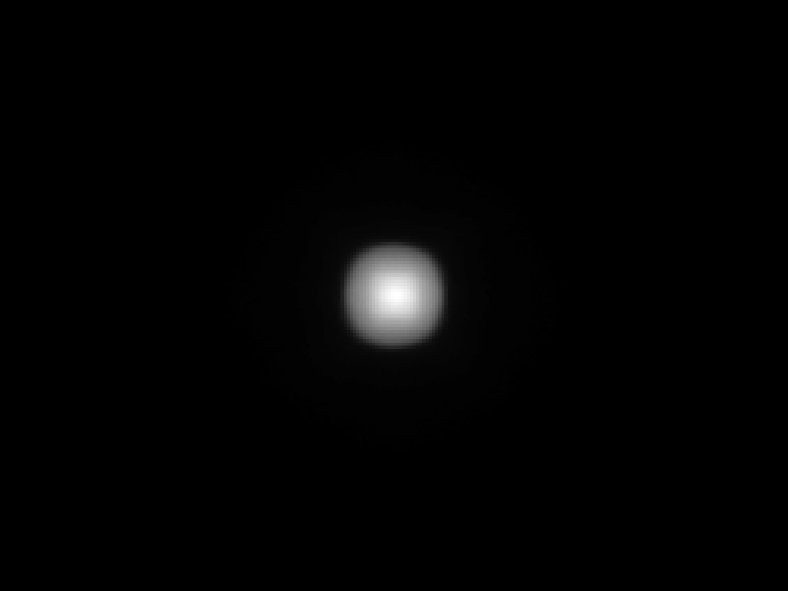

LUMILEDS LUXEON 2835N 3V White

Eff:

89.0%

FWHM:

24°

Cd/Im:

4.3

Download

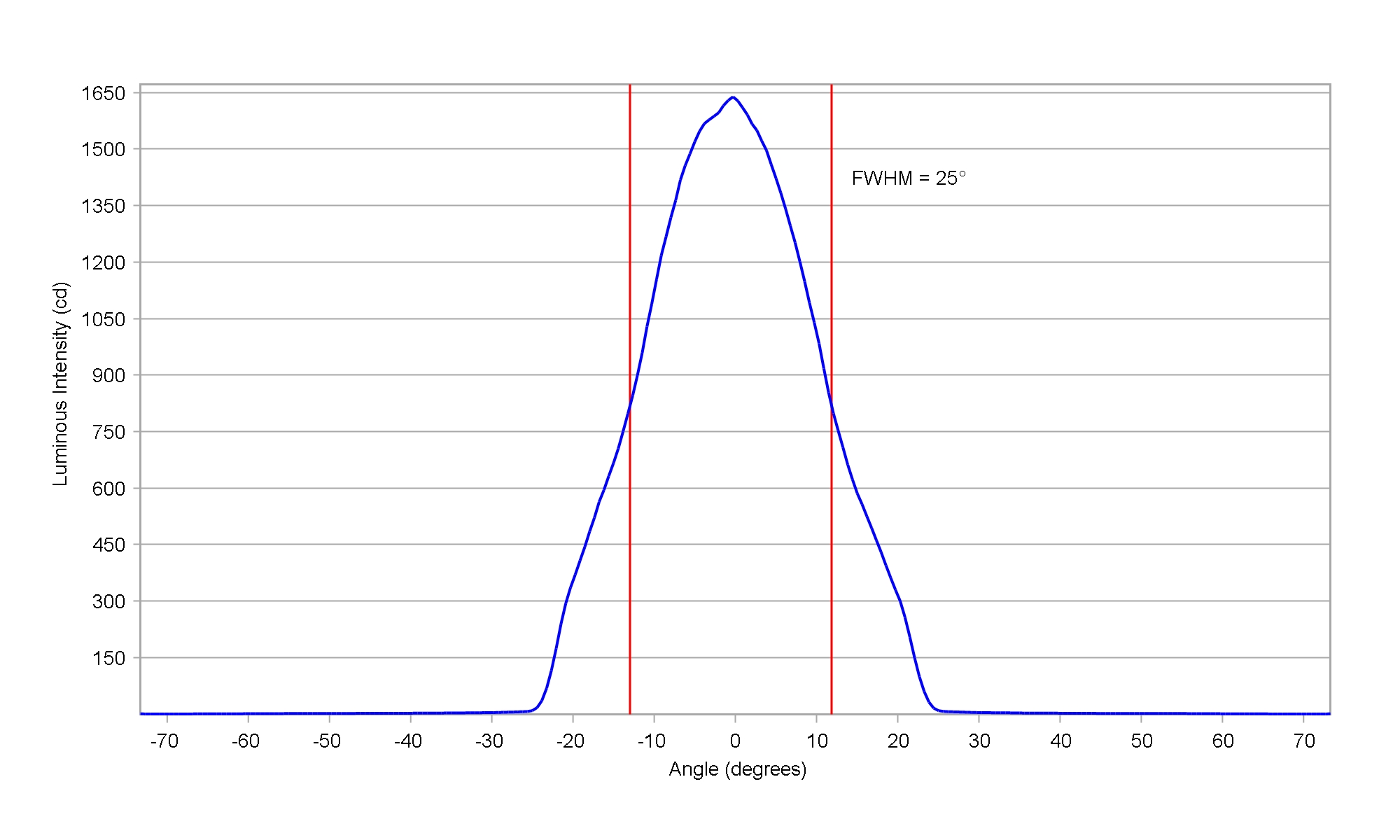

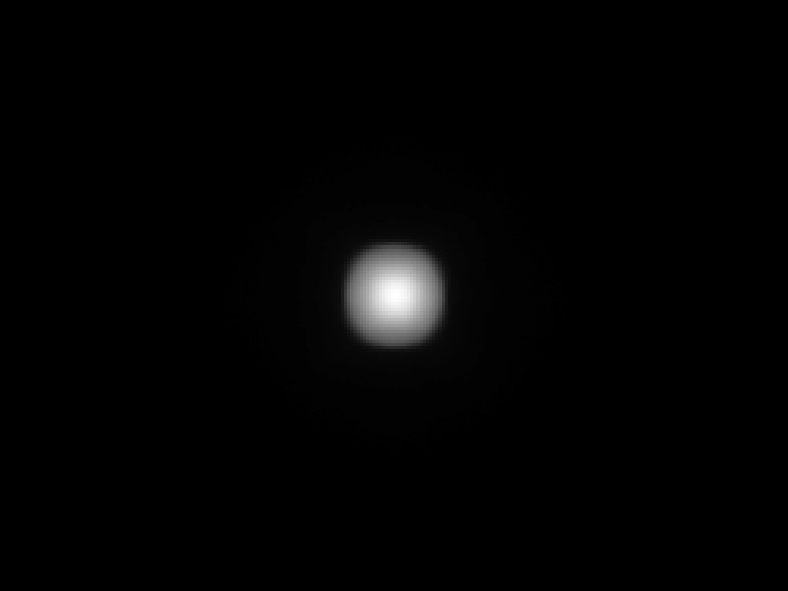

LUMILEDS LUXEON 2835S 3V White

Eff:

89.0%

FWHM:

25°

Cd/Im:

4.1

Download

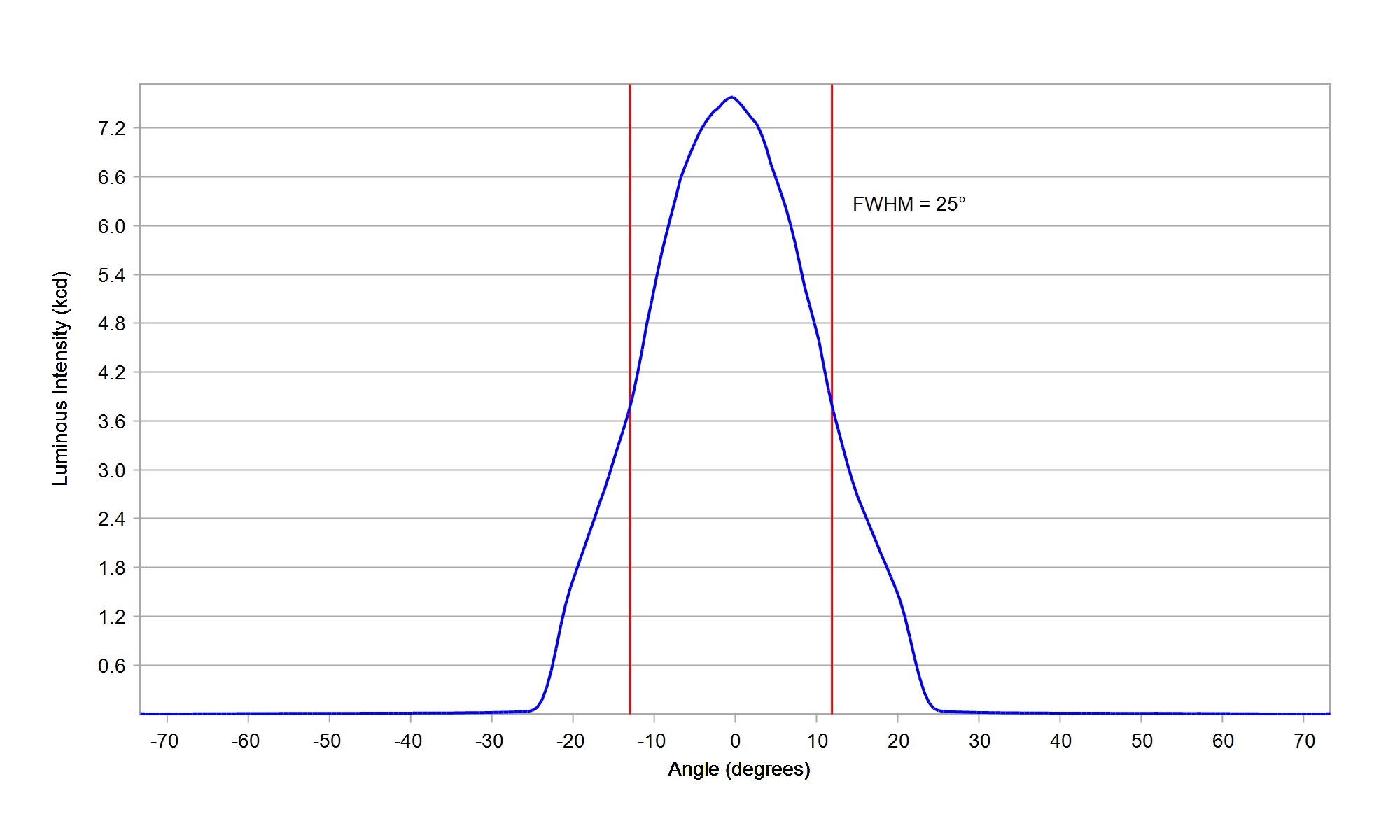

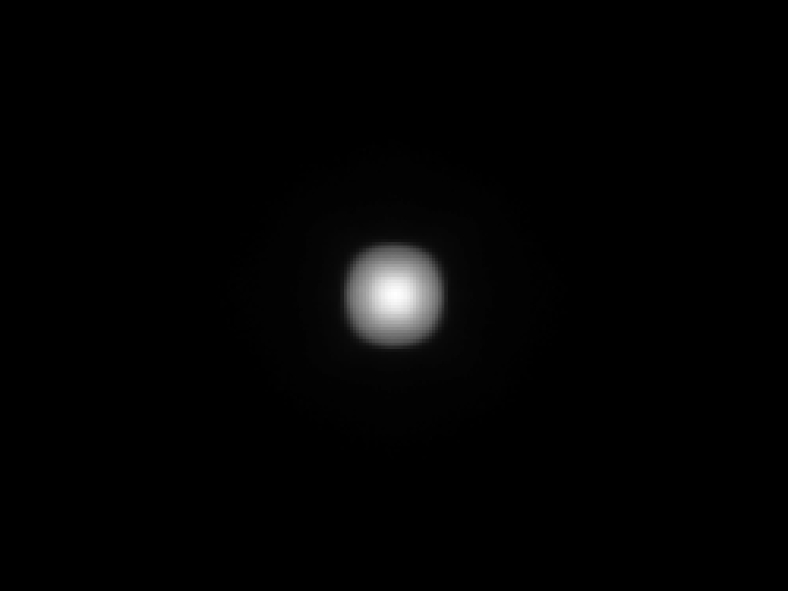

LUMILEDS LUXEON 2835S 6V White

Eff:

89.0%

FWHM:

25°

Cd/Im:

4.1

Download

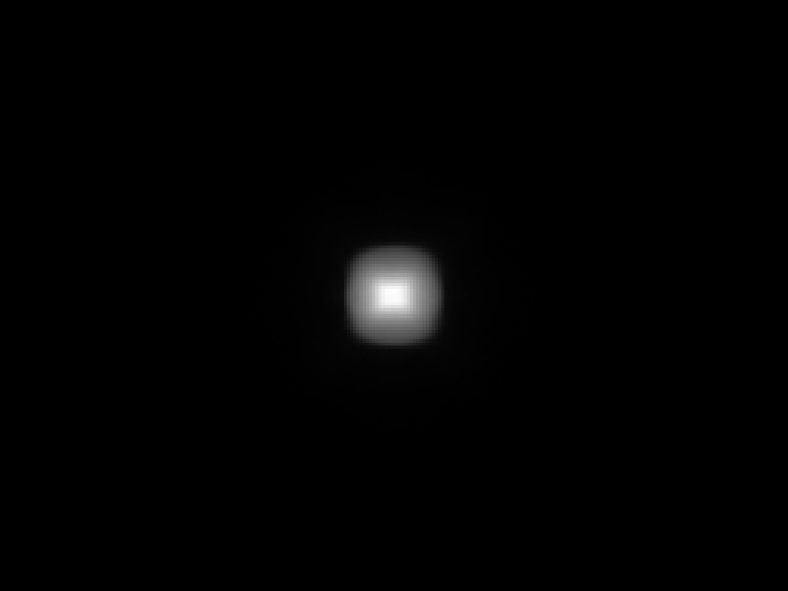

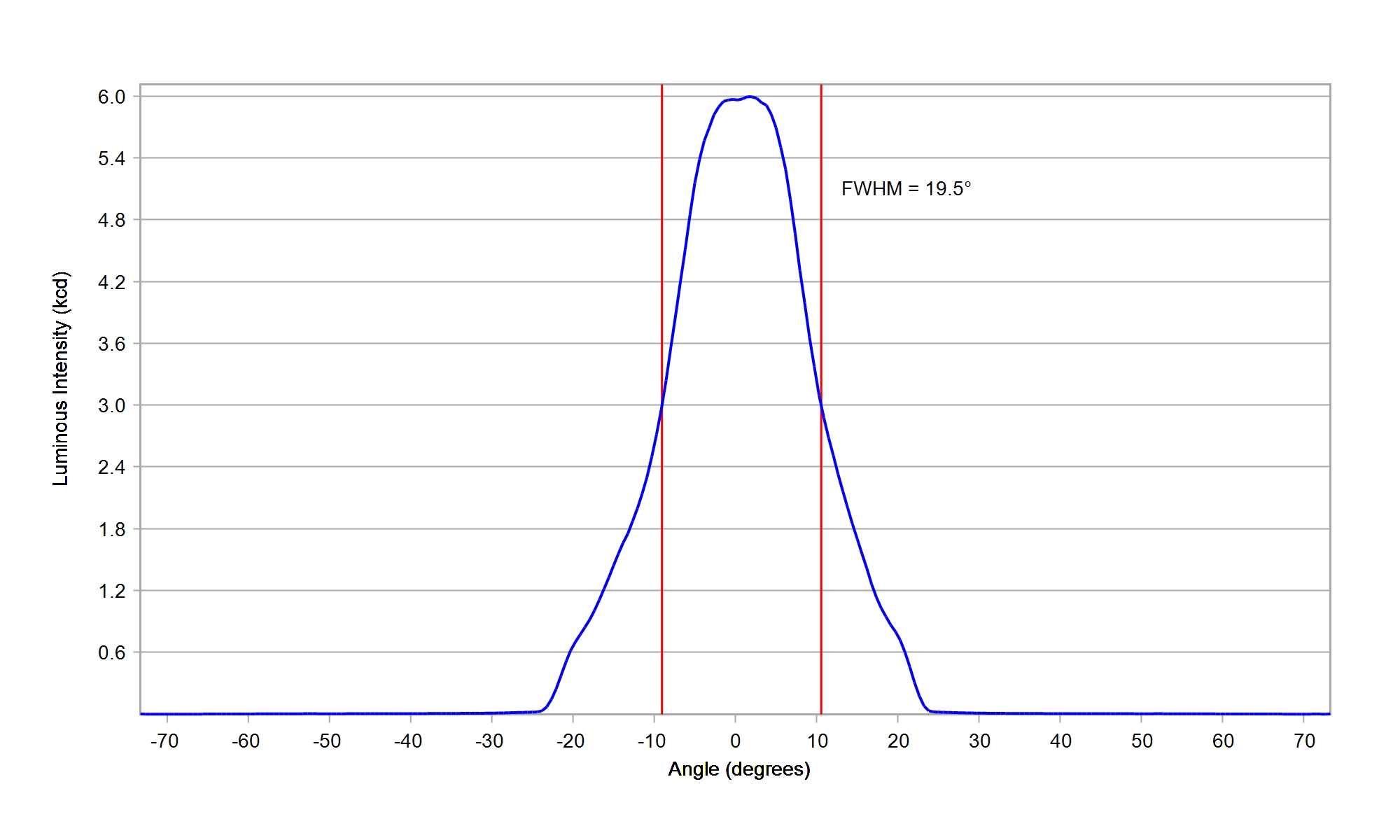

LUMILEDS LUXEON 3014 White

Eff:

89.5%

FWHM:

19.5 x 16.5°

Cd/Im:

5.7

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

88.5%

FWHM:

17°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

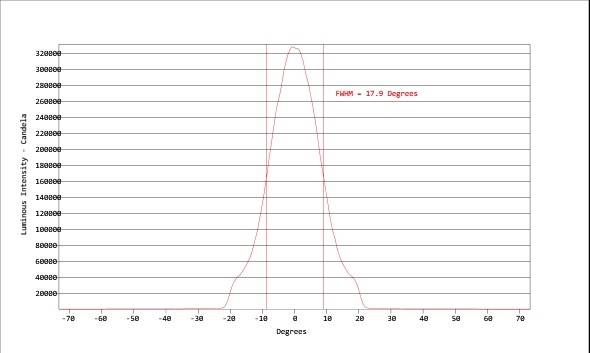

Carclo Optics - Simulated Cross Section

Download

ies

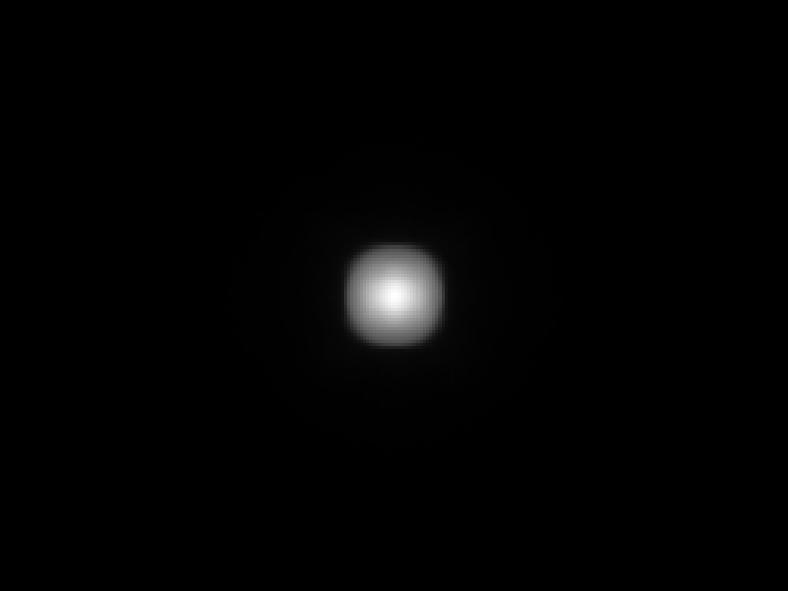

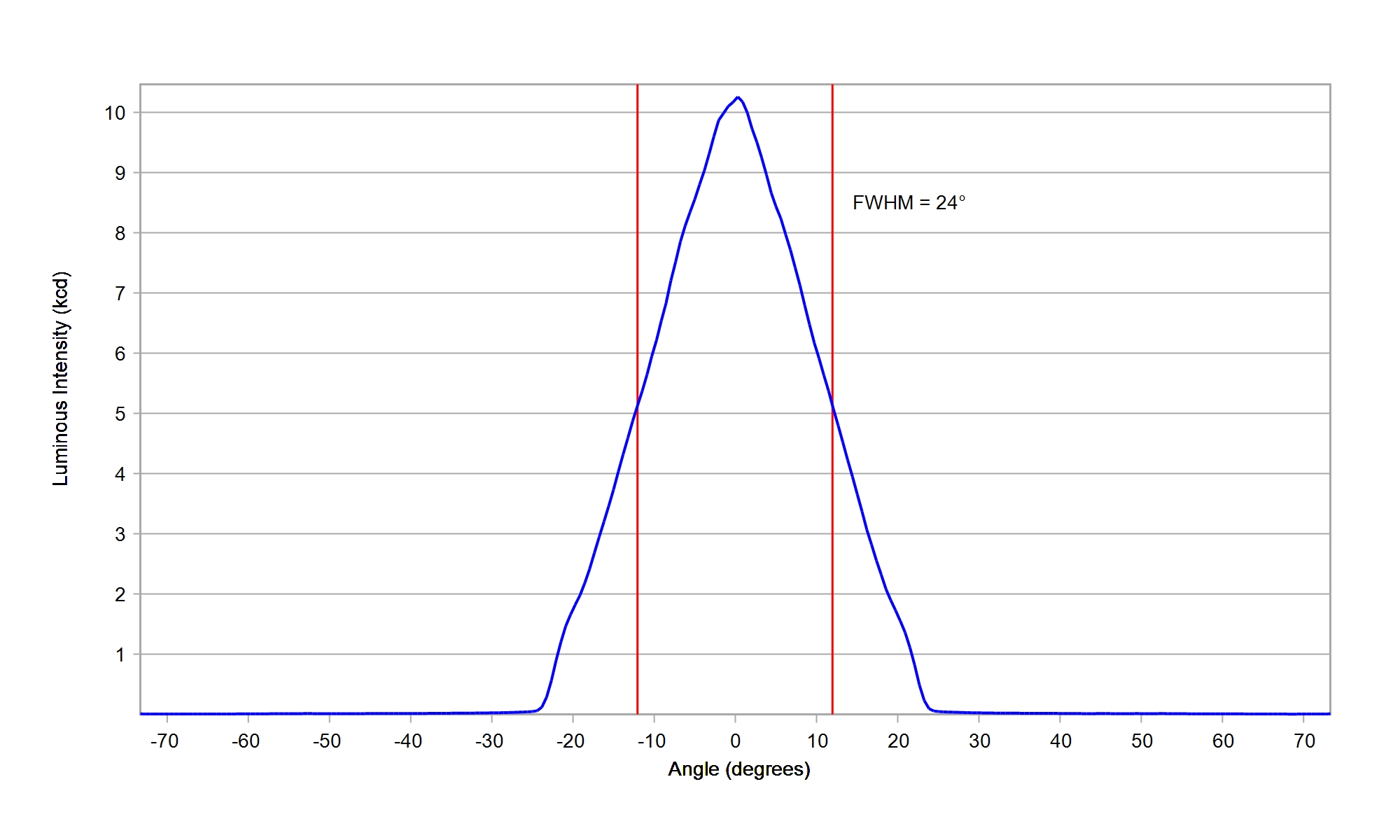

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

89.0%

FWHM:

24°

Cd/Im:

4.7


Download

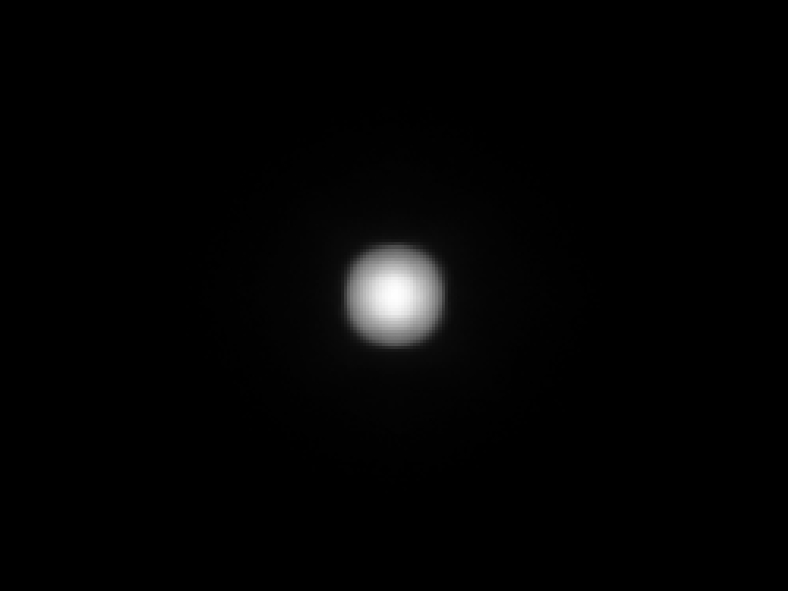

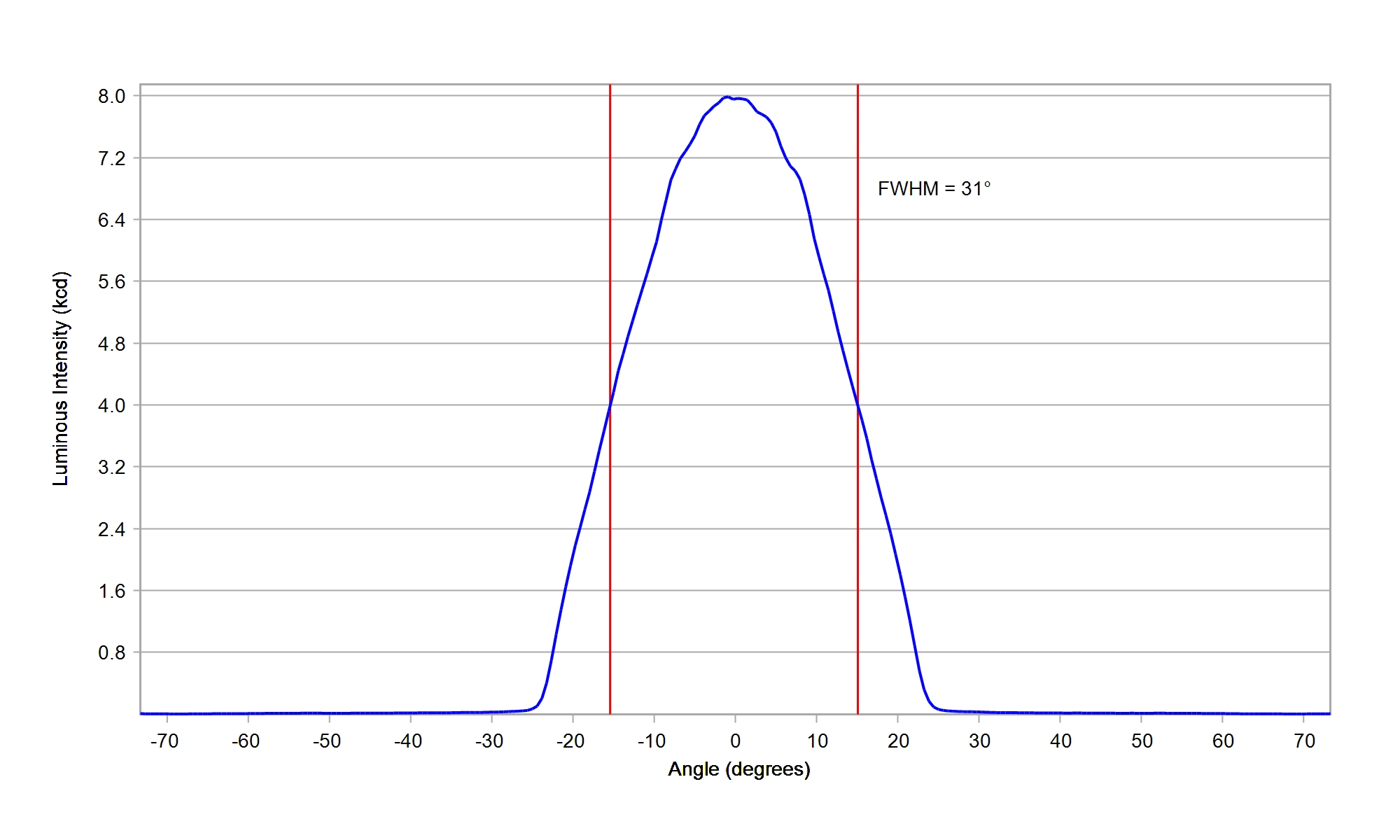

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

89.0%

FWHM:

31°

Cd/Im:

3.4


Download

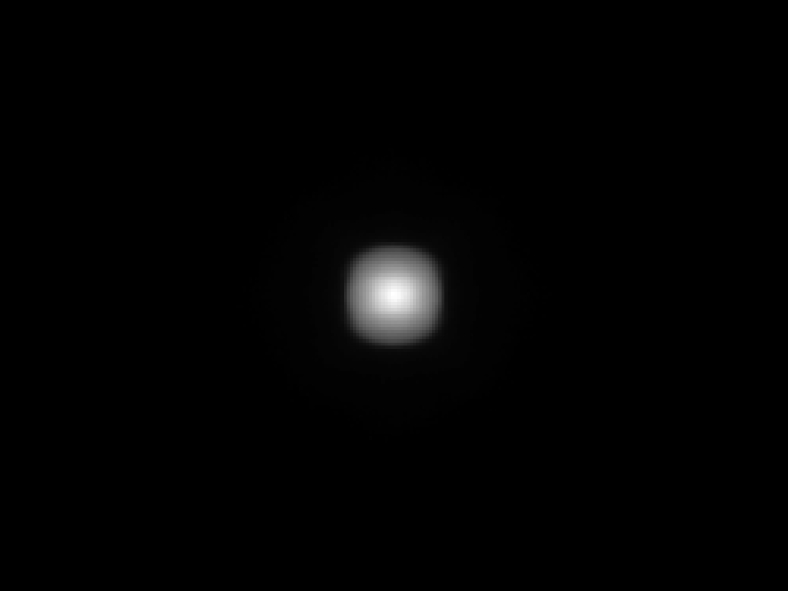

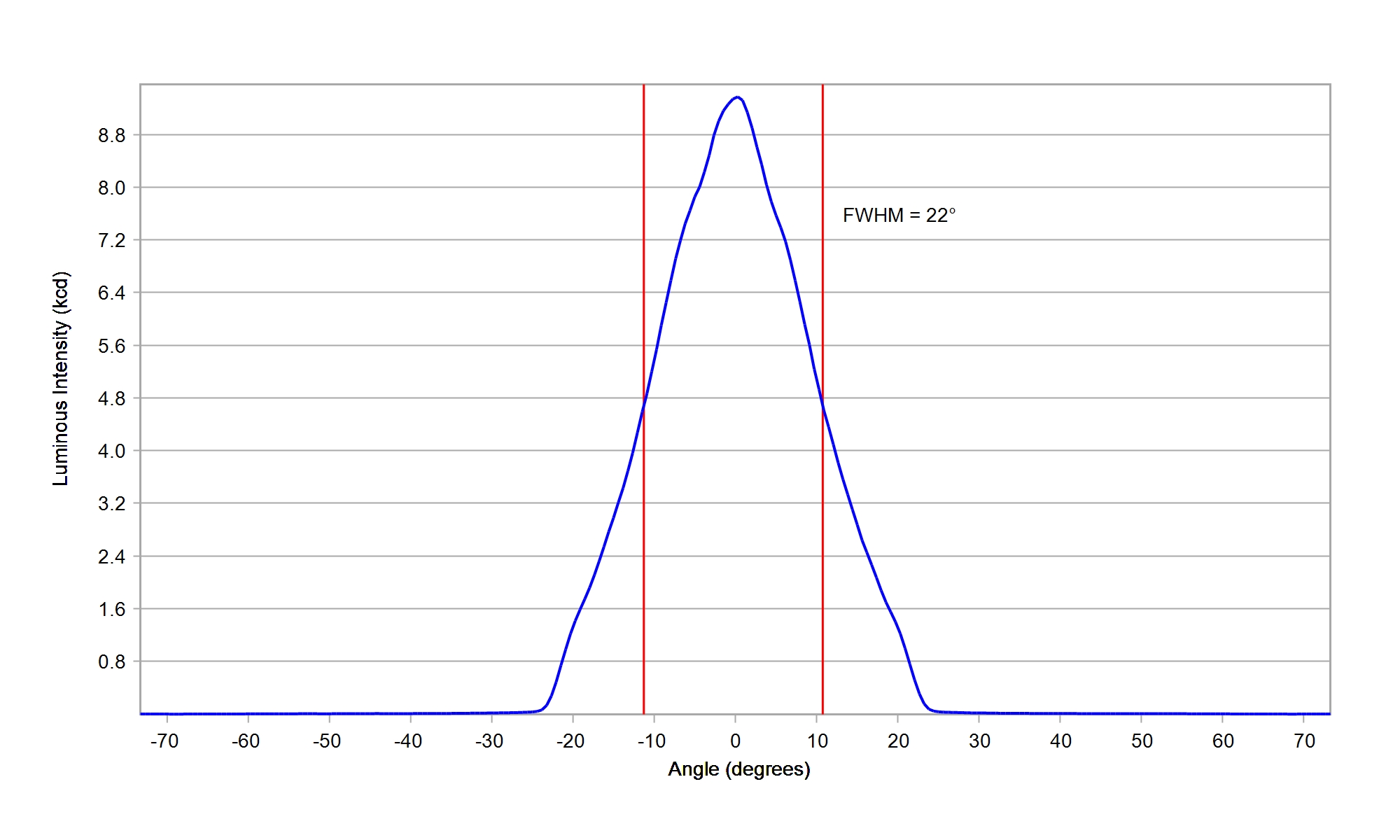

LUMILEDS LUXEON 3030 2D Square White

Eff:

89.0%

FWHM:

22°

Cd/Im:

5.2


Download

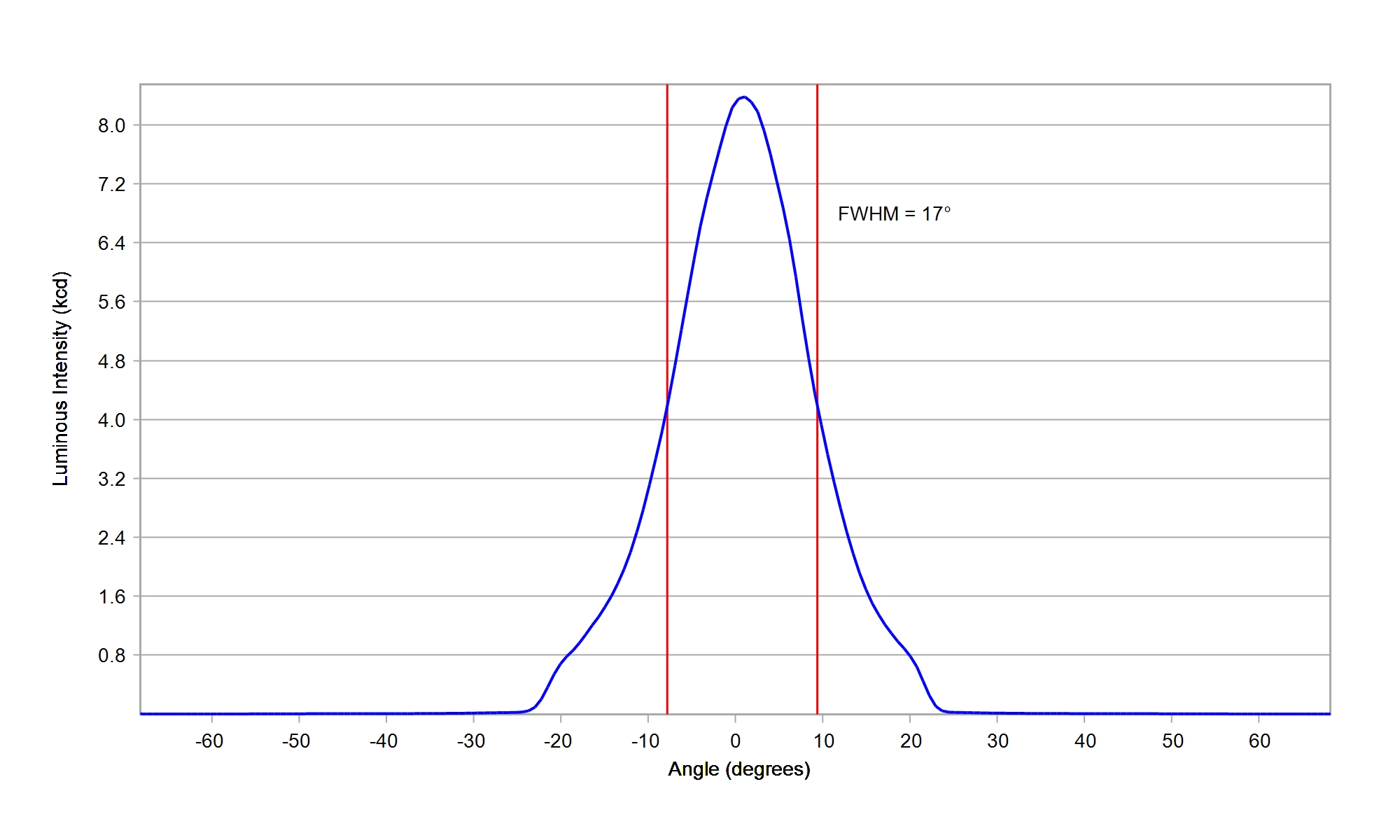

LUMILEDS LUXEON 3030 2D Round White

Eff:

89.0%

FWHM:

21.5 x 17°

Cd/Im:

5.9


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

89.0%

FWHM:

23.5°

Cd/Im:

4.6

Carclo Optics – 12962 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12962 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

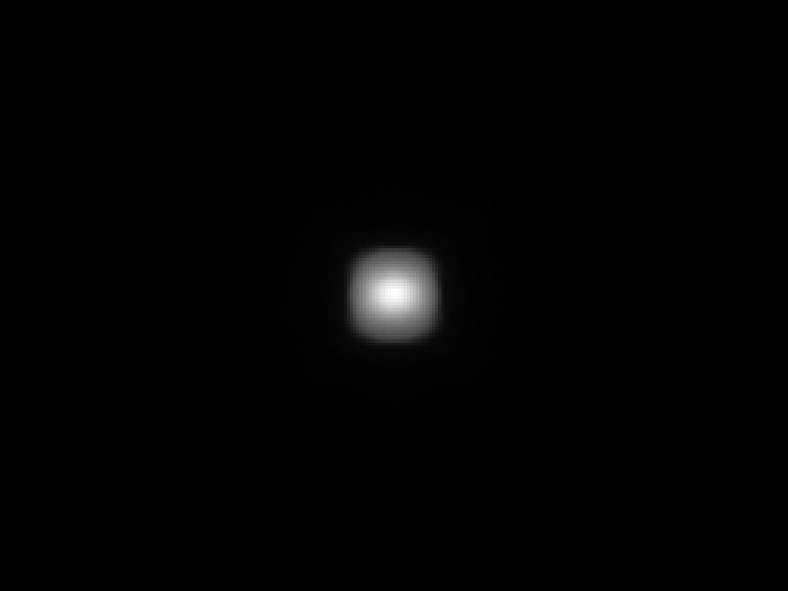

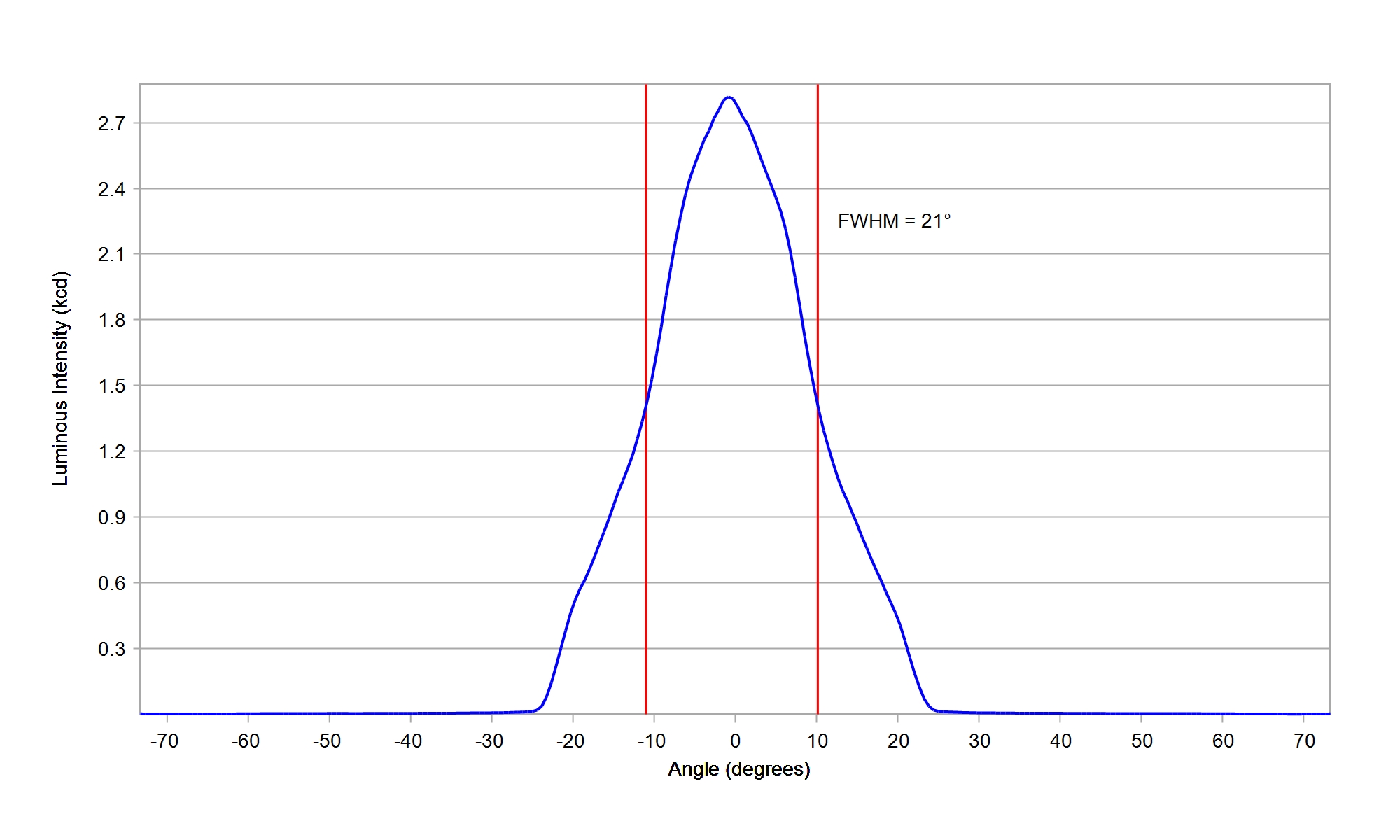

LUMILEDS LUXEON 3030 HE White

Eff:

89.0%

FWHM:

21°

Cd/Im:

4.7

Download

LUMILEDS LUXEON 3535 L White

Eff:

88.5%

FWHM:

23.5°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

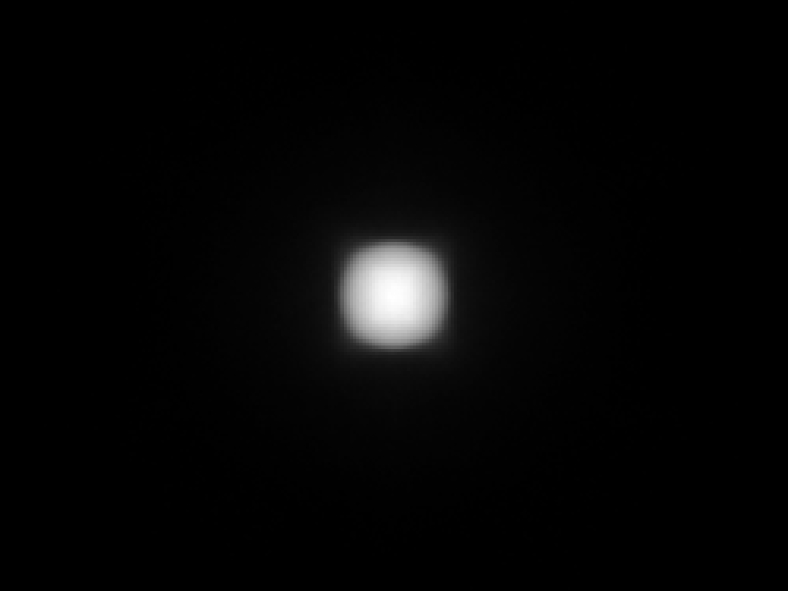

LUMILEDS LUXEON 5050 HE 24V White

Eff:

87.0%

FWHM:

38°

Cd/Im:

2.2

Download

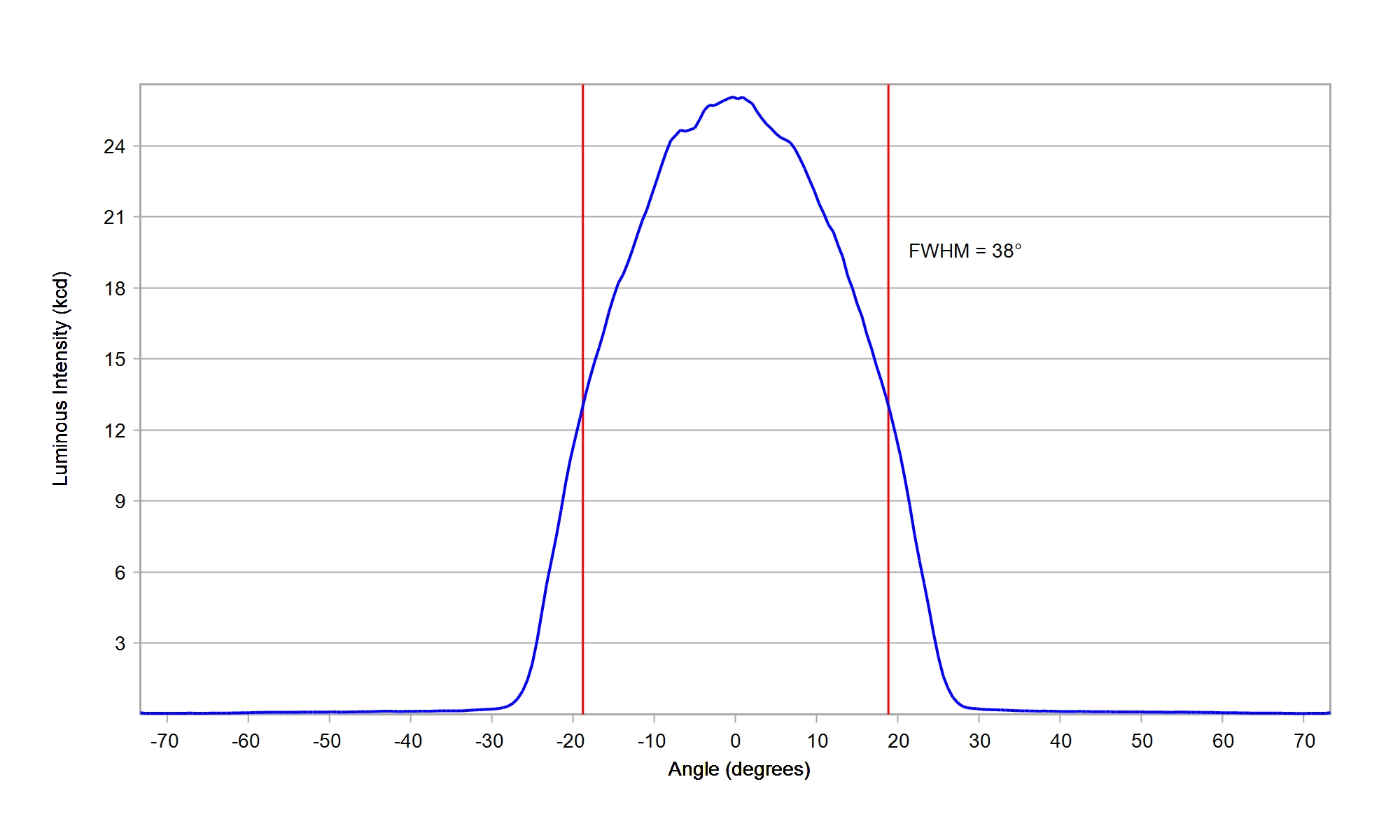

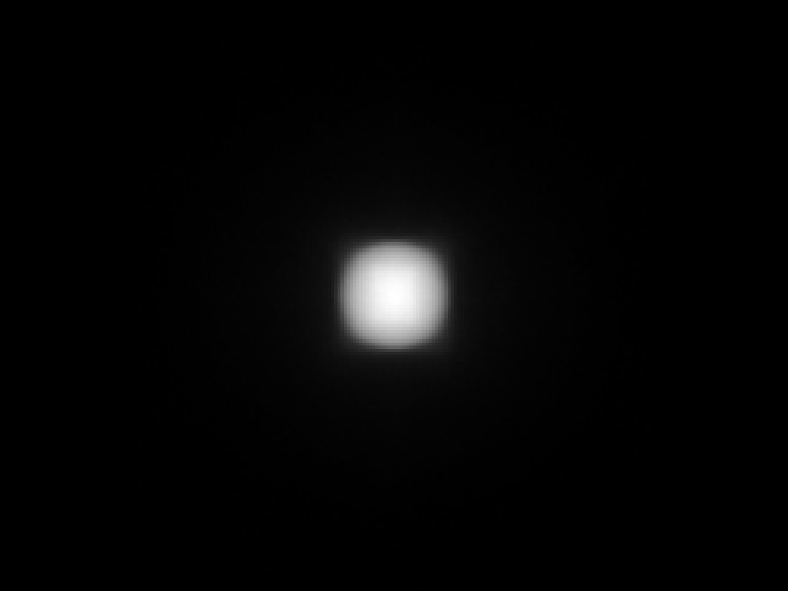

LUMILEDS LUXEON 5050 HE 6V White

Eff:

87.0%

FWHM:

38°

Cd/Im:

2.2

Download

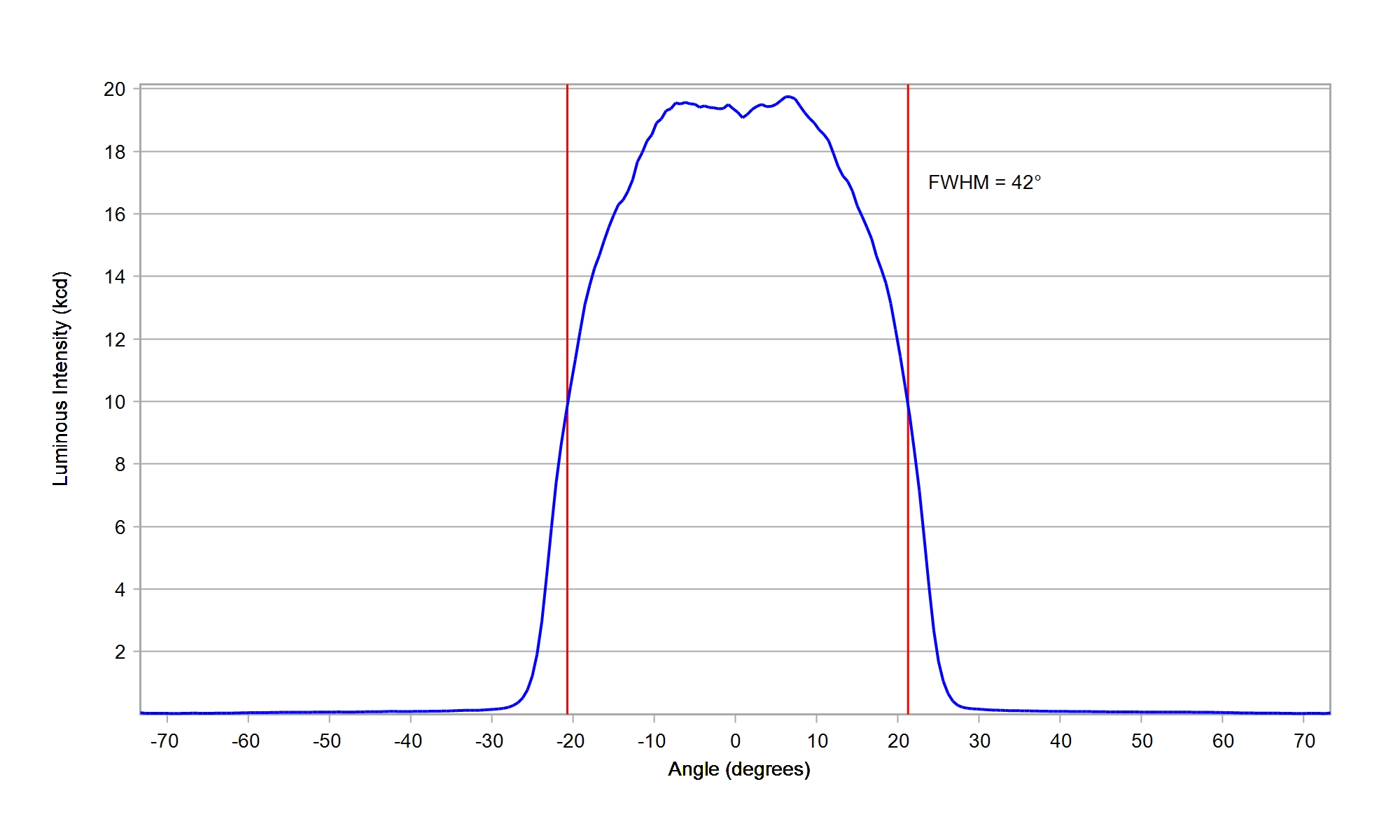

LUMILEDS LUXEON 5050 Round 24V White

Eff:

88.0%

FWHM:

42°

Cd/Im:

2.0


Download

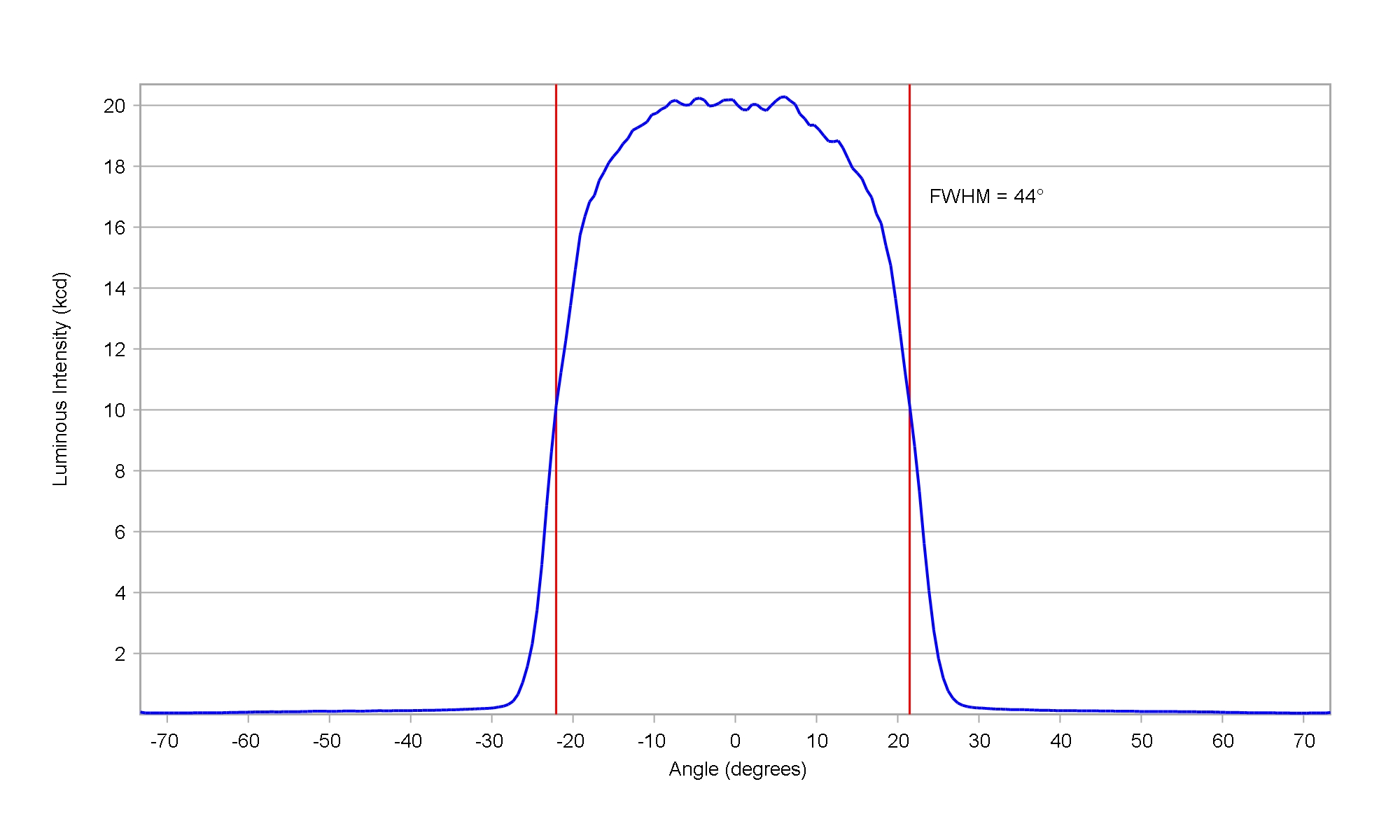

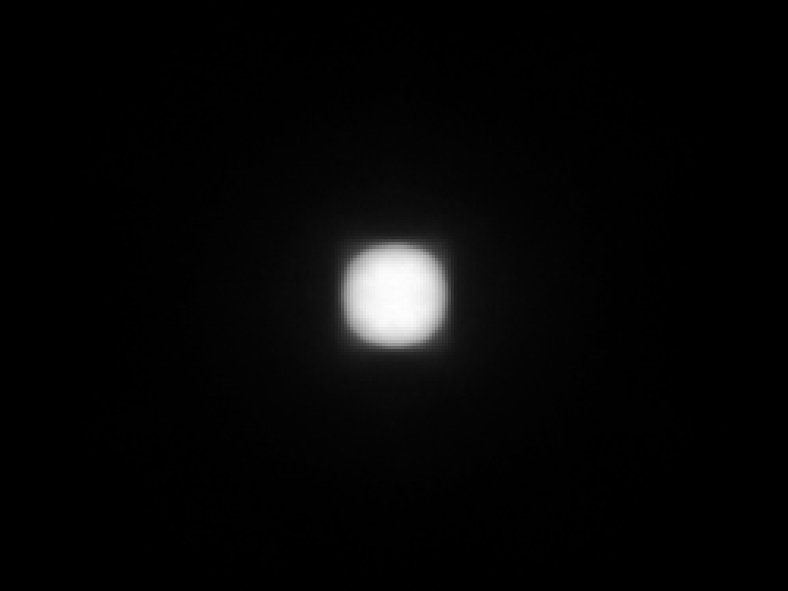

LUMILEDS LUXEON 5050 Square 30V White

Eff:

86.5%

FWHM:

44°

Cd/Im:

1.8


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

87.0%

FWHM:

42°

Cd/Im:

2.1


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

87.5%

FWHM:

42.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

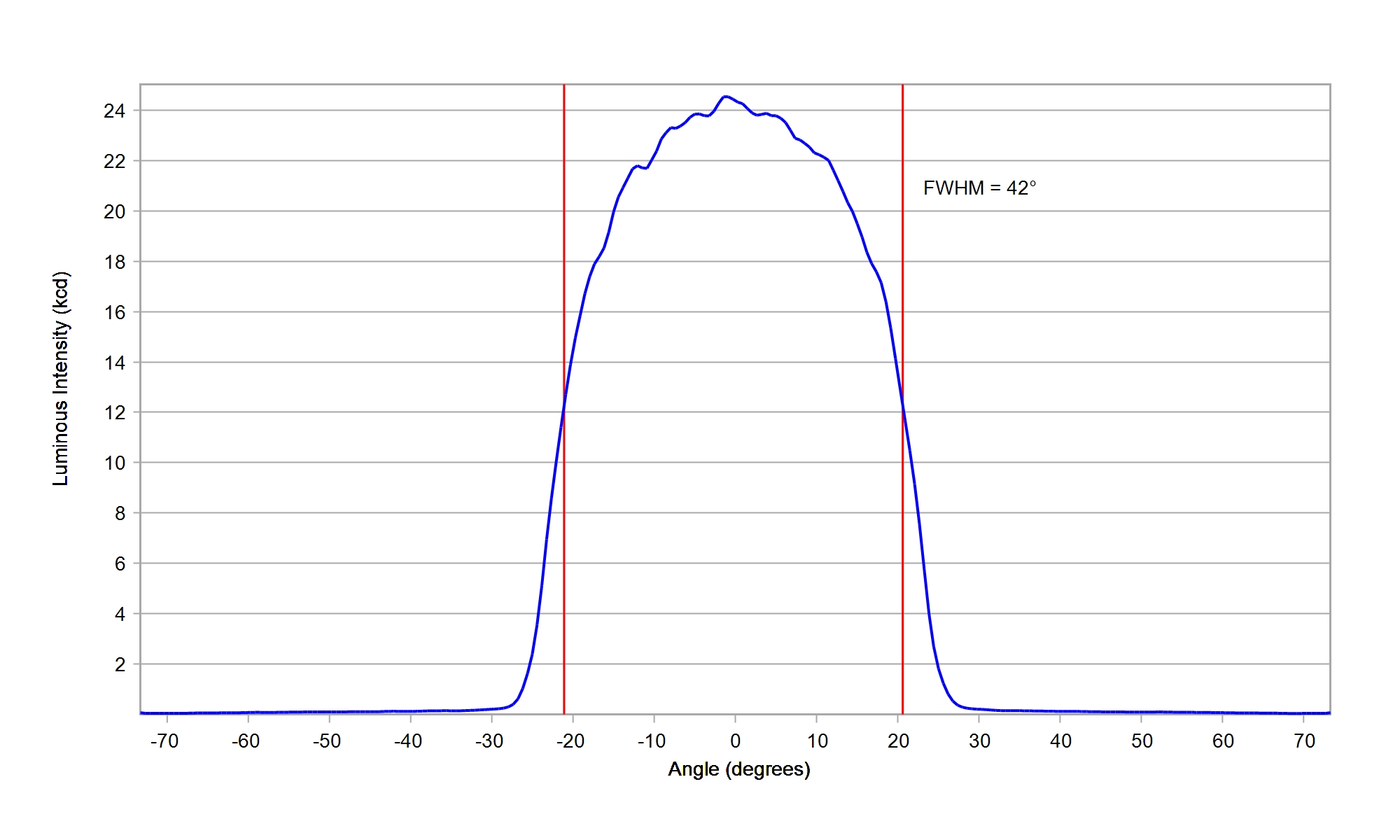

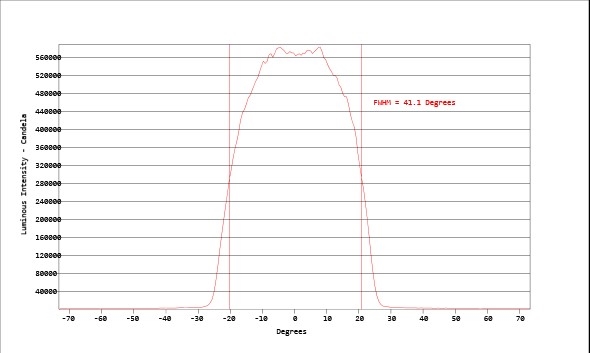

Carclo Optics - Simulated Cross Section

Download

ies

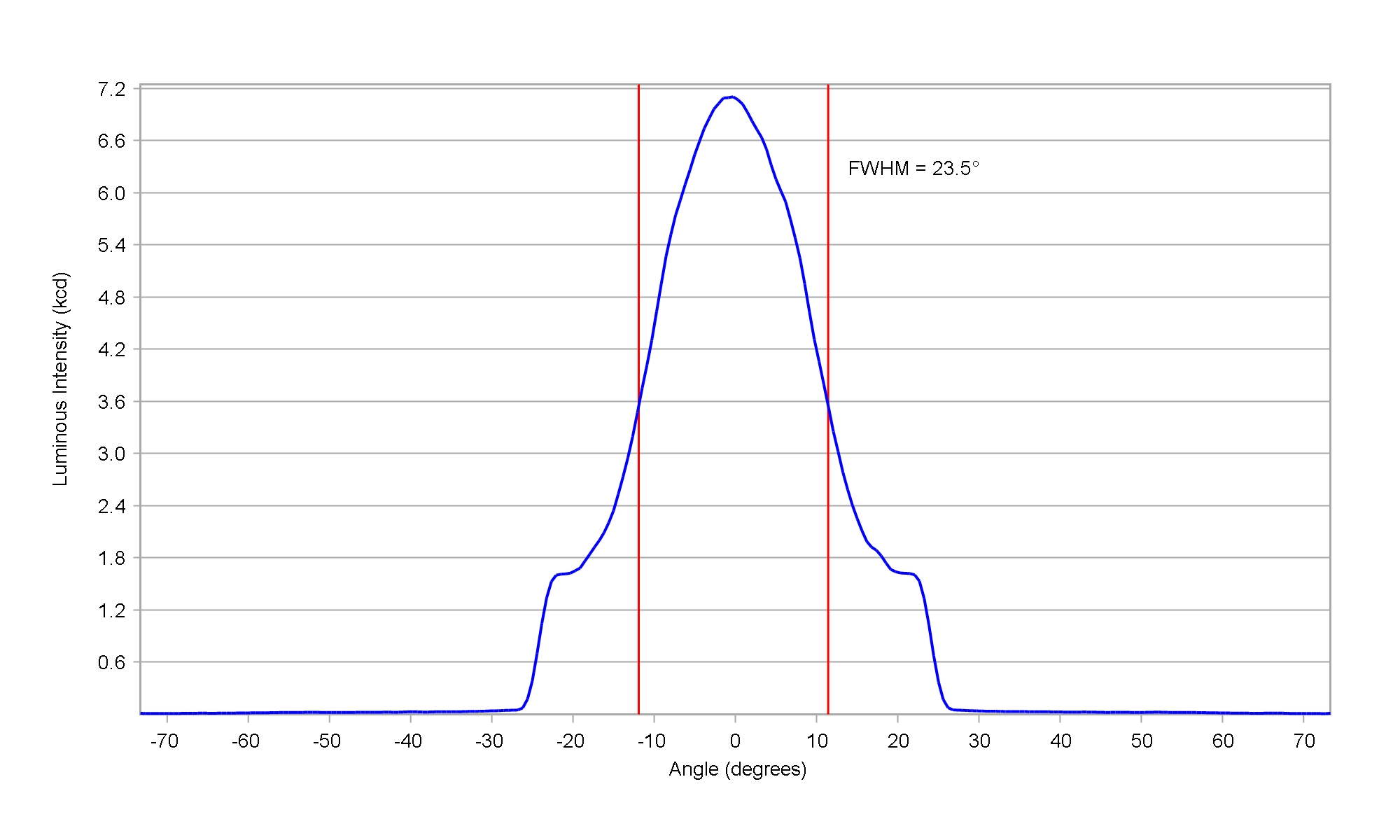

LUMILEDS LUXEON C White

Eff:

84.5%

FWHM:

23.5°

Cd/Im:

3.5

Download

LUMILEDS LUXEON CZ White

Eff:

89.0%

FWHM:

21°

Cd/Im:

5.2

Carclo Optics 12962 Spot Image Luxeon CZ 5M CW

Carclo Optics 12962 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON HL1Z Color Blue

Eff:

88.0%

FWHM:

15°

Cd/Im:

9.2

Download

LUMILEDS LUXEON HL1Z Color Green

Eff:

87.5%

FWHM:

16°

Cd/Im:

8.4

Download

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

88.0%

FWHM:

16.5°

Cd/Im:

7.9


Download

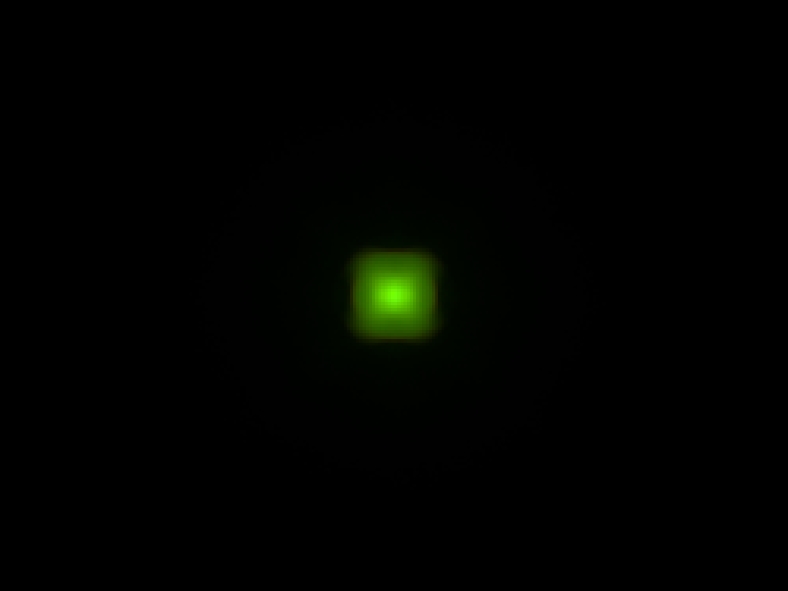

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

86.5%

FWHM:

16.5°

Cd/Im:

7.6


Download

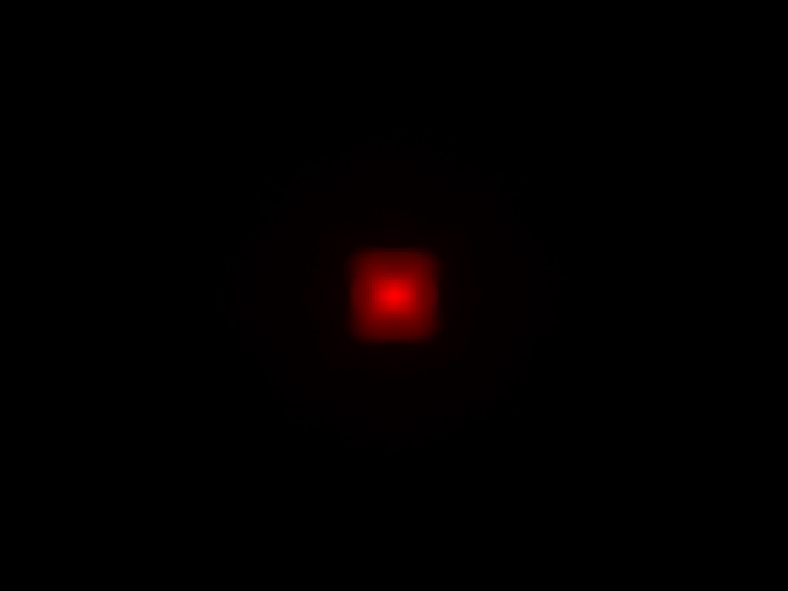

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

88.5%

FWHM:

16.5°

Cd/Im:

8.0

Download

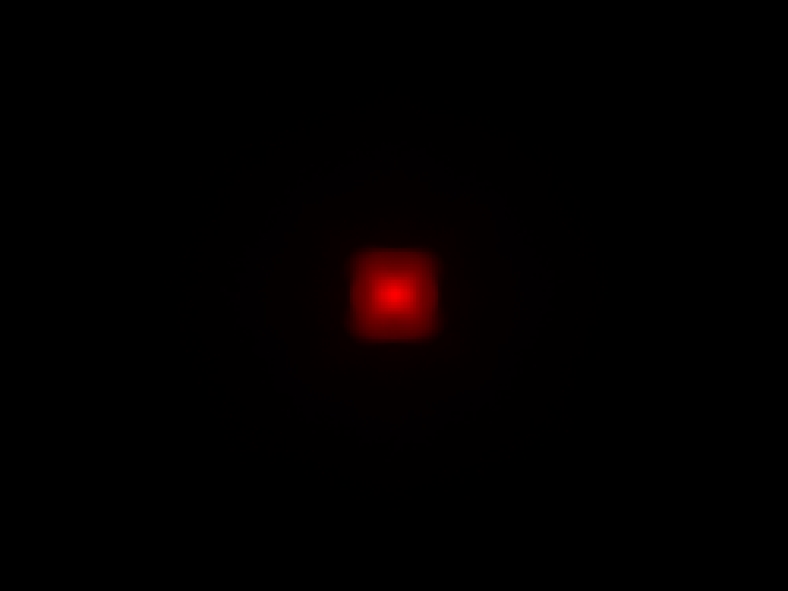

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

88.5%

FWHM:

16.5°

Cd/Im:

8.0


Download

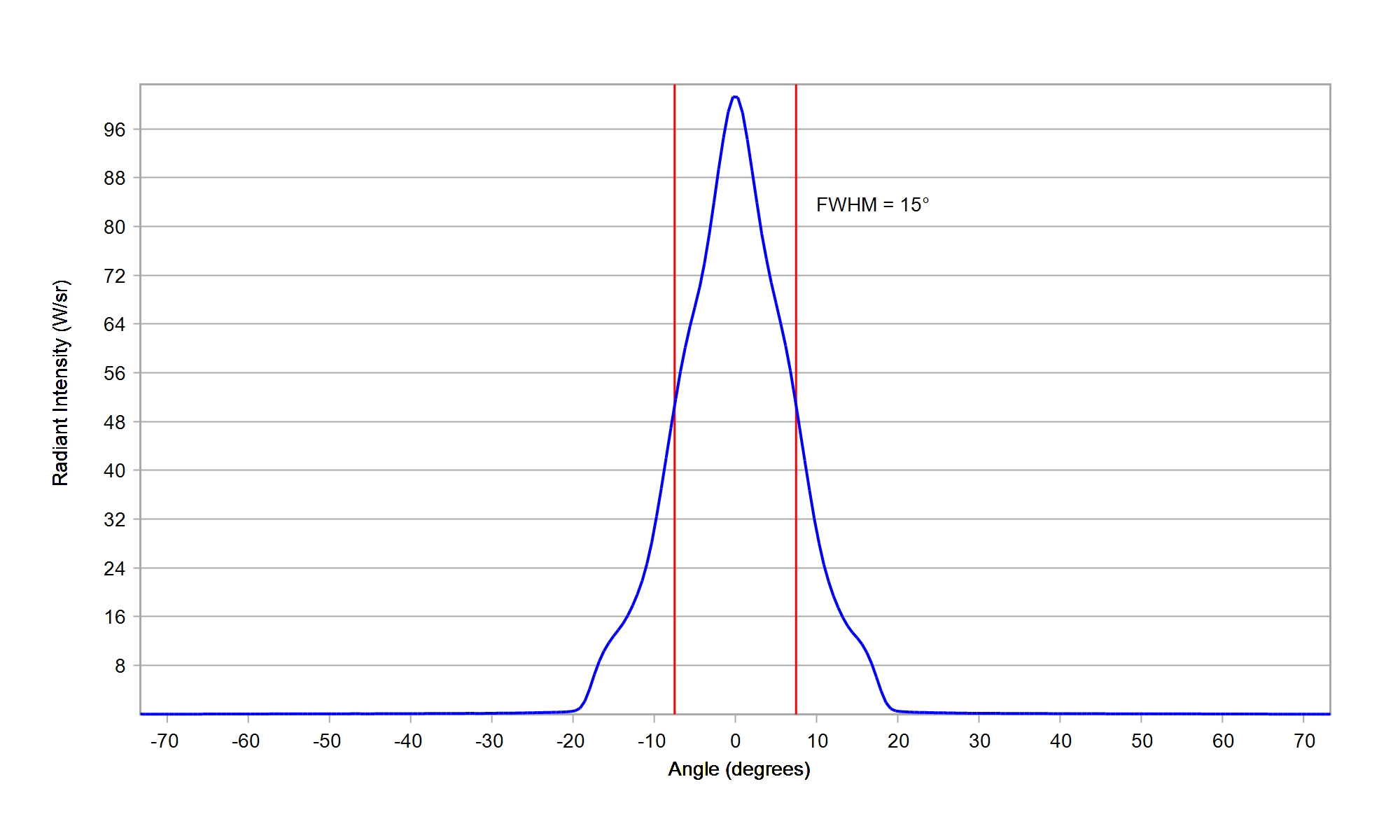

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

87.0%

FWHM:

15°

Ipk/W:

9.4


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

88.5%

FWHM:

16.5°

Cd/Im:

8.4

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

88.5%

FWHM:

21°

Cd/Im:

5.8

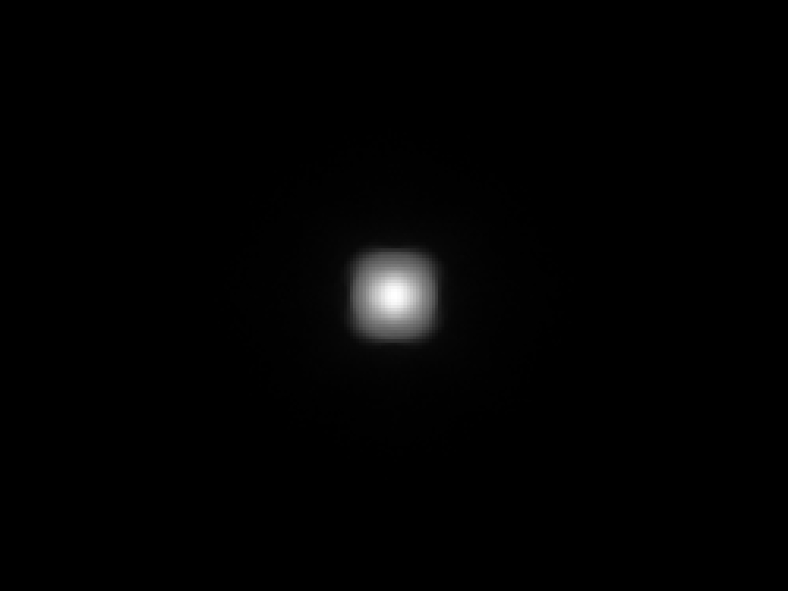

Carclo Optics – 12962 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12962 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

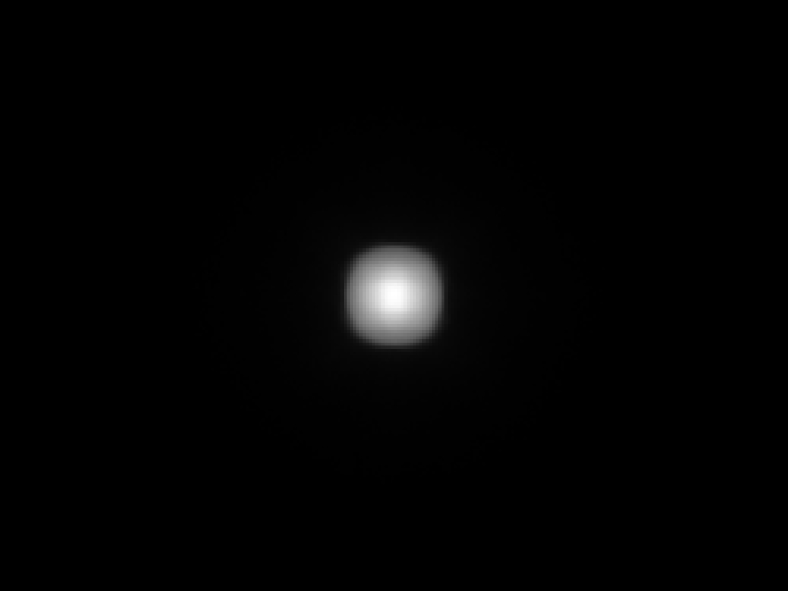

LUMILEDS LUXEON HL4Z White

Eff:

89.0%

FWHM:

27°

Cd/Im:

4.0

Download

LUMILEDS LUXEON IR 2720

Eff:

92.5%

FWHM:

20.0/18.0°

Ipk/W:

5.7

Carclo Optics - 12962 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12962 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

89.0%

FWHM:

21.5°

Cd/Im:

4.9

Carclo Optics – 12962 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12962 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

89.0%

FWHM:

22°

Cd/Im:

4.5

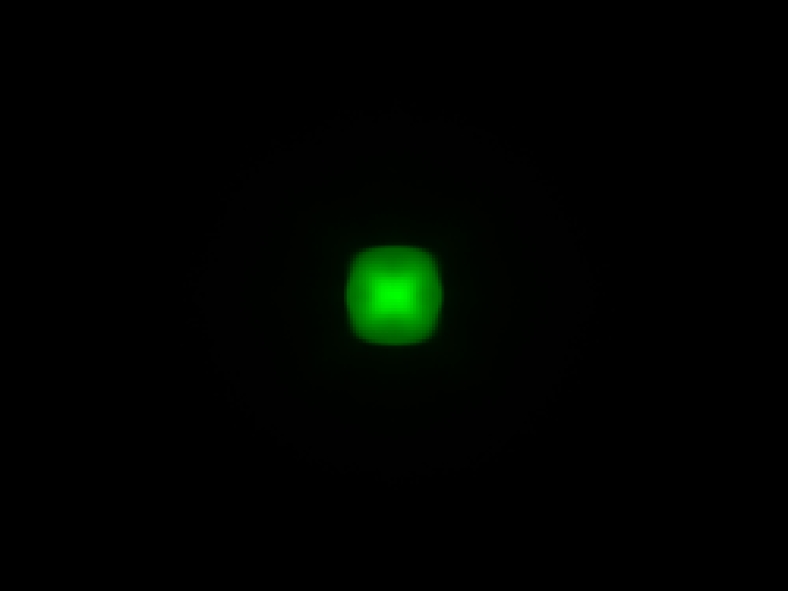

Carclo Optics – 12962 Spot Image Lumileds Luxeon Rubix Green

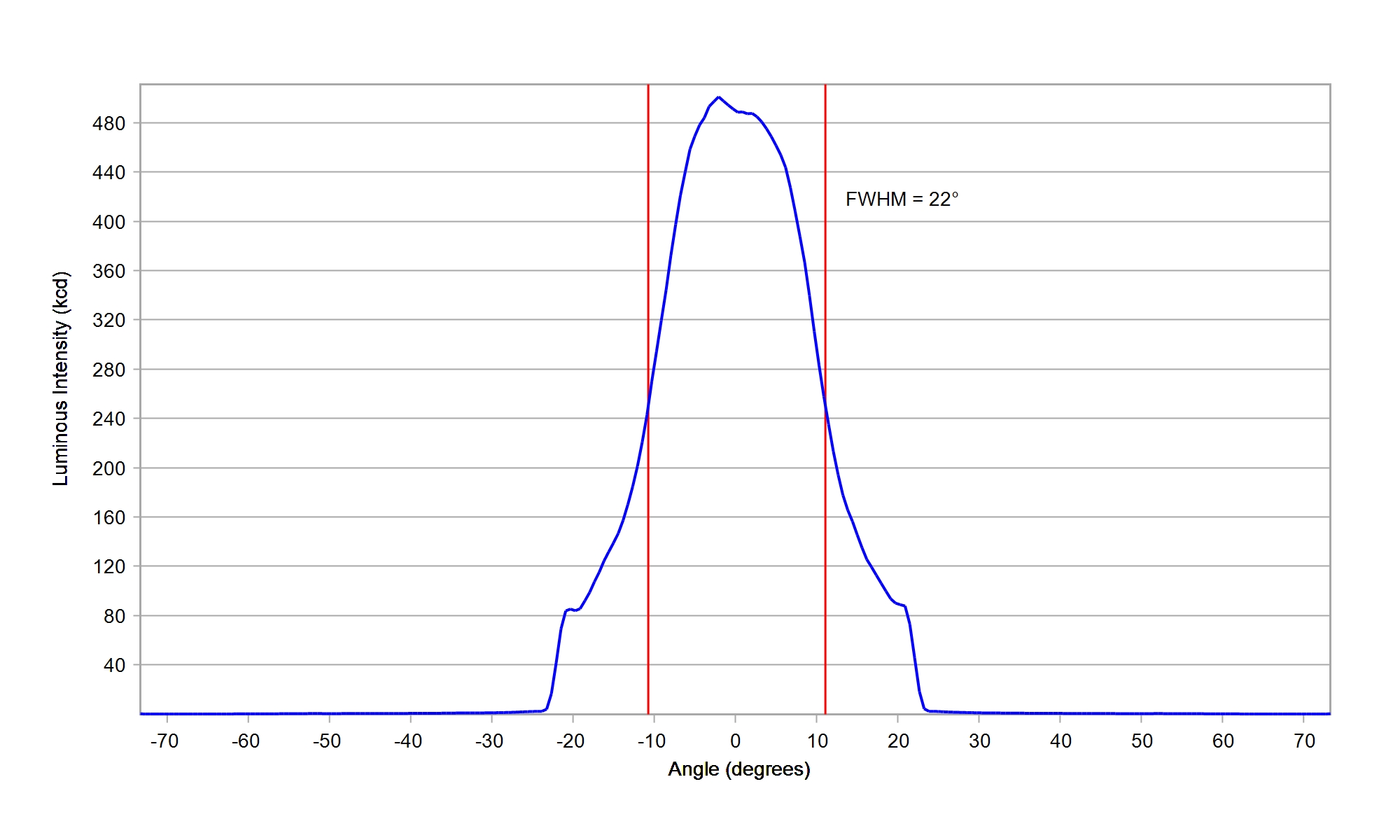

Carclo Optics – 12962 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

21.5°

Cd/Im:

4.7

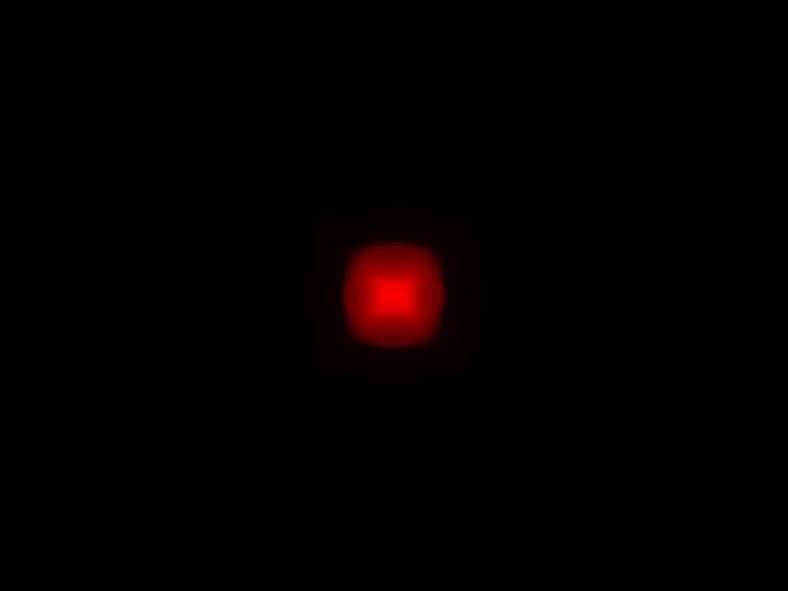

Carclo Optics – 12962 Spot Image Lumileds Luxeon Rubix Red

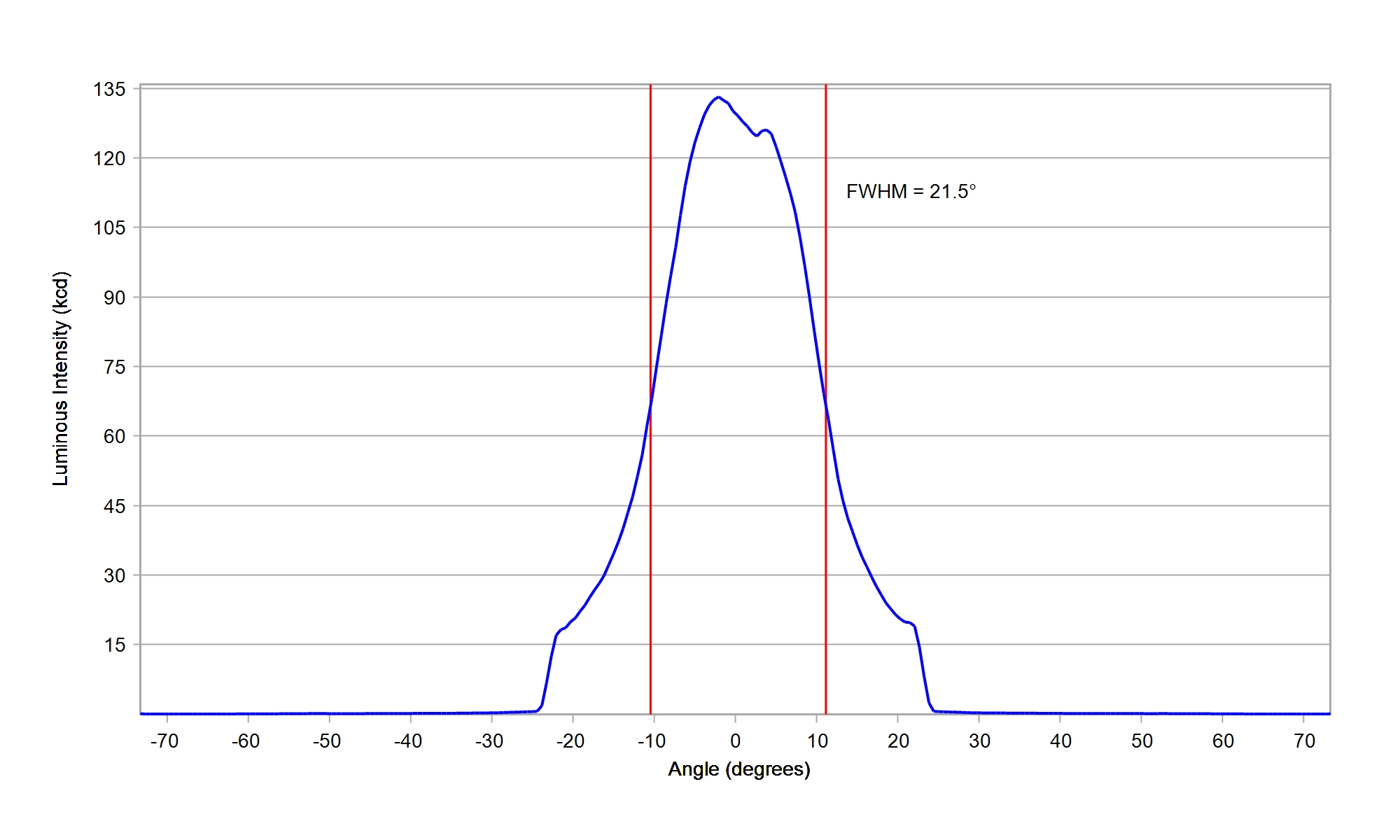

Carclo Optics – 12962 Cross Section Lumileds Luxeon Rubix Red

Download

ies

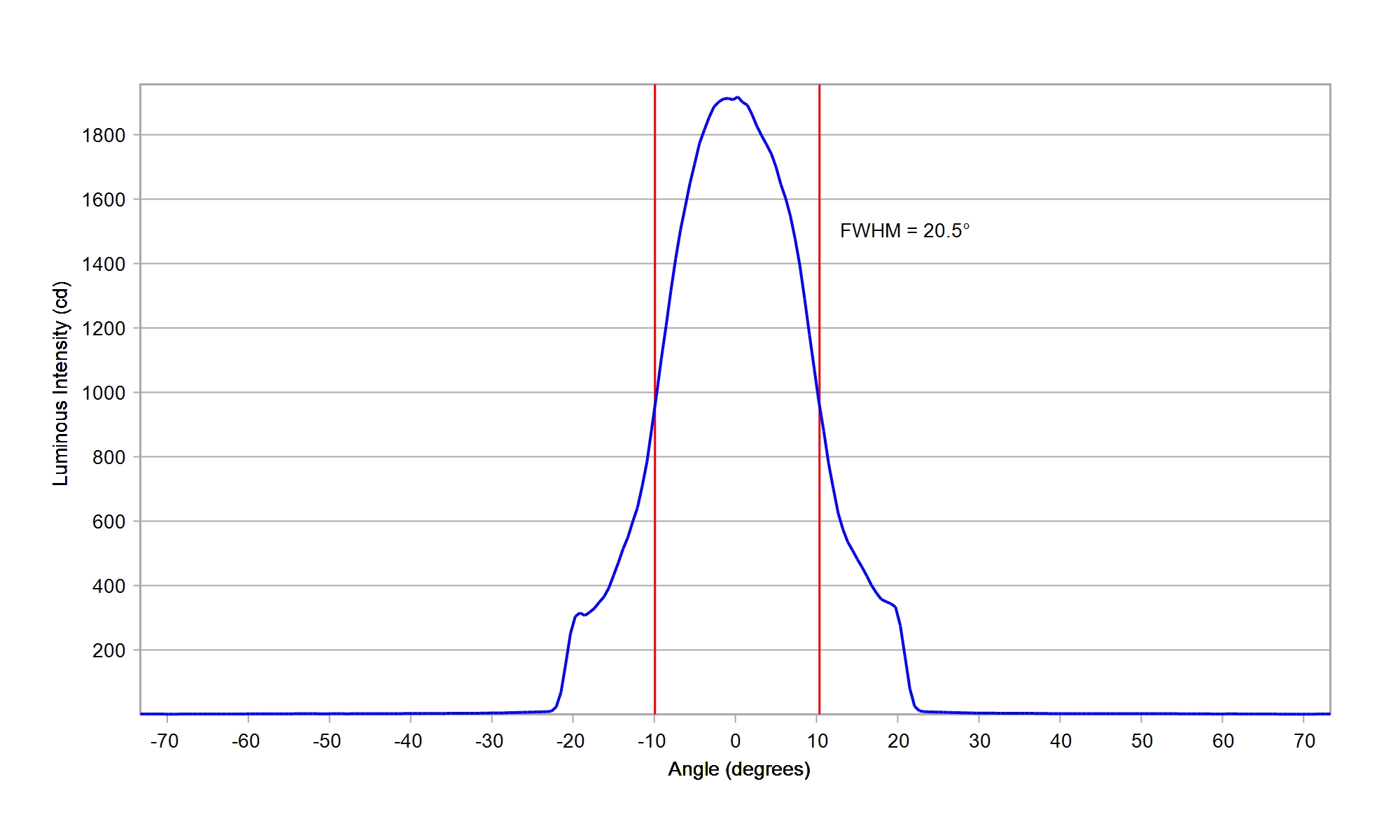

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

20.5°

Cd/Im:

5.3

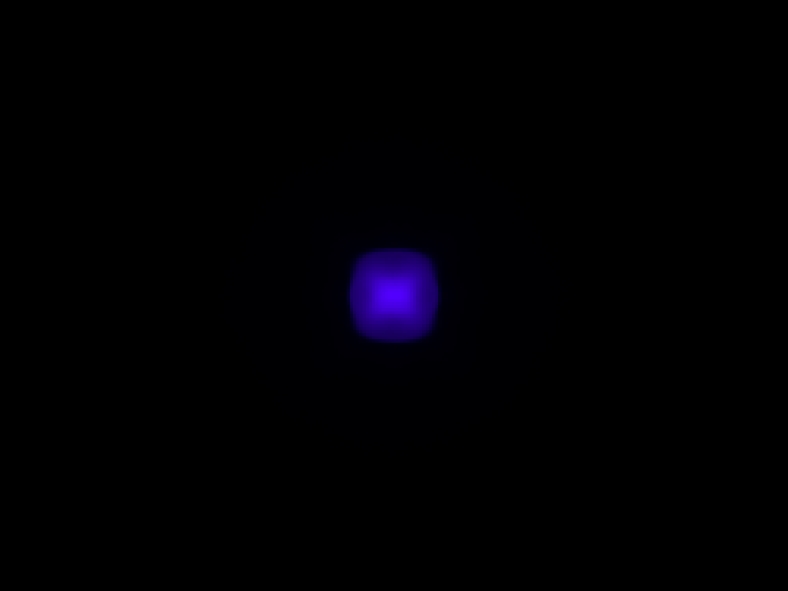

Carclo Optics – 12962 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12962 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

89.0%

FWHM:

21.5°

Cd/Im:

4.7

Carclo Optics - 12962 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12962 Cross Section Lumileds Luxeon Rubix White

Download

ies

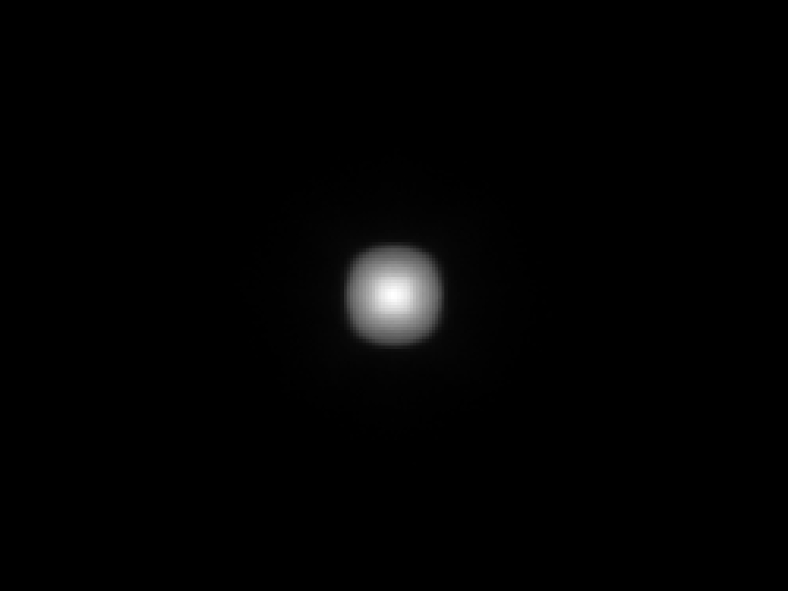

Luminus Devices MP-3030-11F2 White

Eff:

89.5%

FWHM:

21.5°

Cd/Im:

4.9


Download

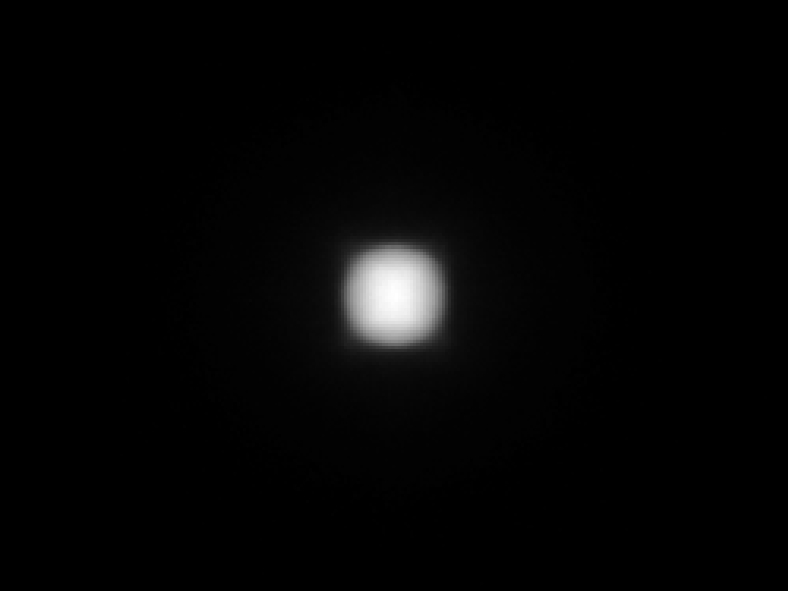

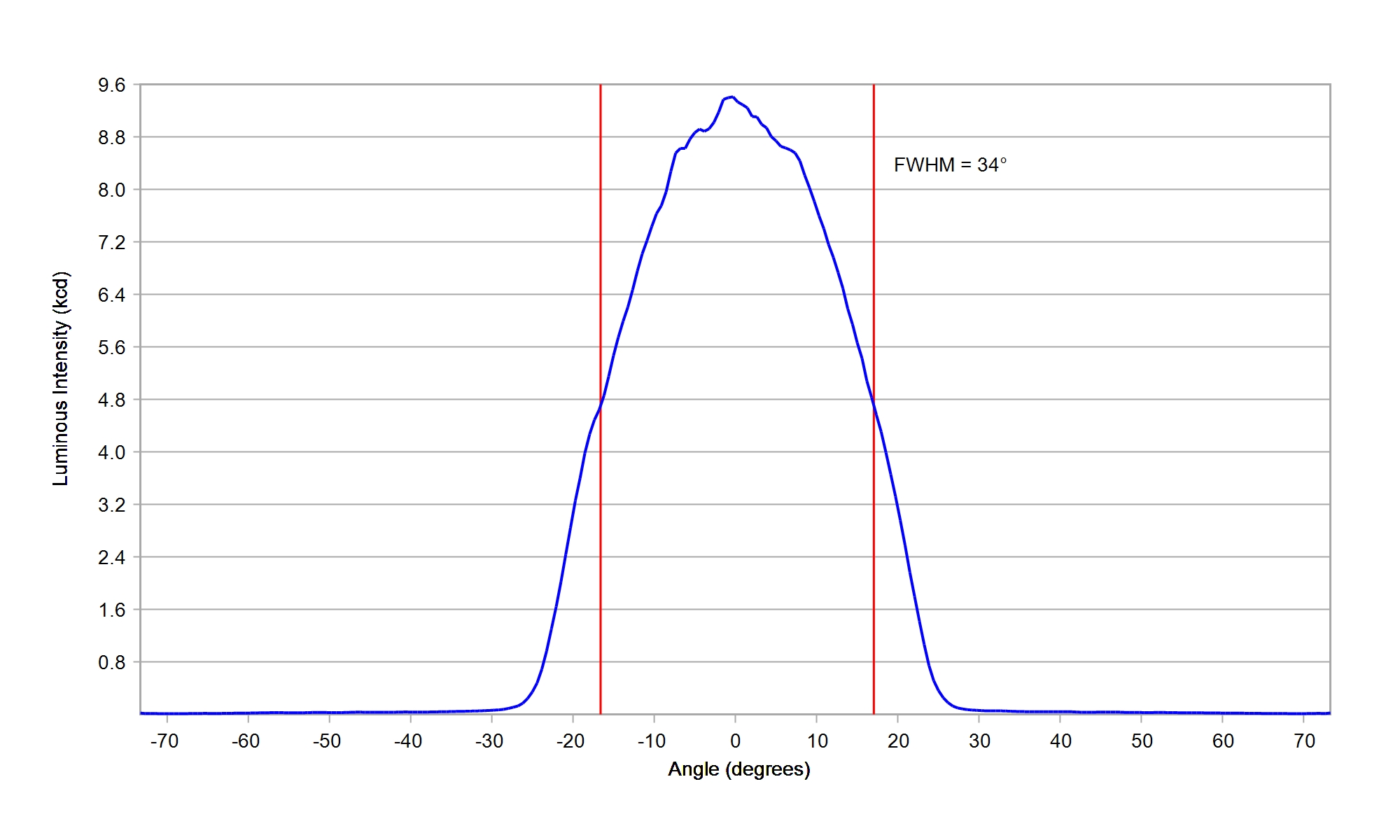

Luminus Devices MP-5050-240E White

Eff:

87.5%

FWHM:

34°

Cd/Im:

2.5


Download

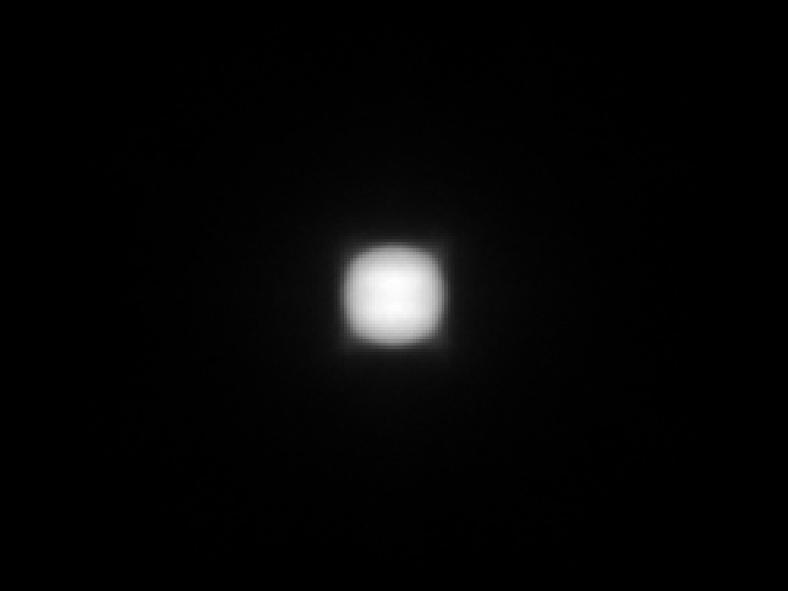

Luminus Devices MP-5050-810E White

Eff:

86.5%

FWHM:

40°

Cd/Im:

2.1


Download

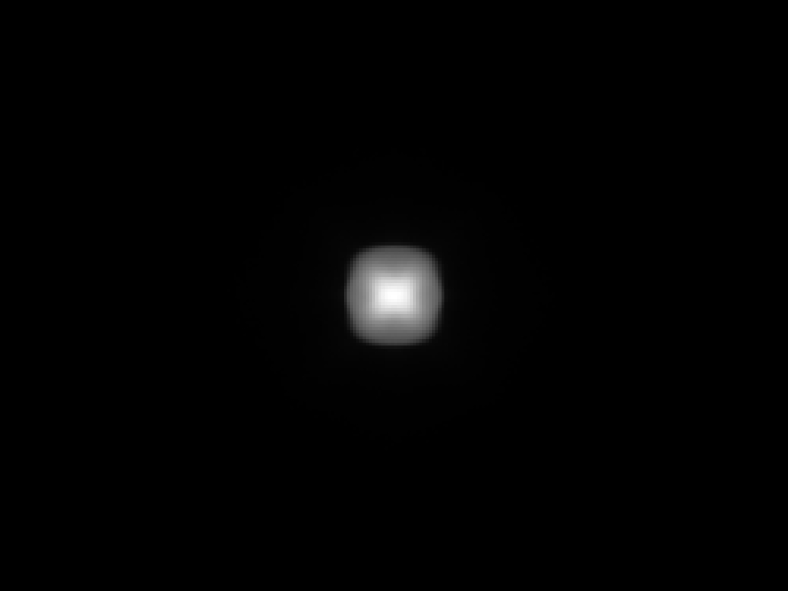

Luminus Devices SFT-12R-WES-A White

Eff:

89.5%

FWHM:

21°

Cd/Im:

5.0


Download

Luminus Devices SFT-25R-WES-A White

Eff:

89.0%

FWHM:

22°

Cd/Im:

5.1


Download

Nichia 757 White

Eff:

88.5%

FWHM:

23.0°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

87.5%

FWHM:

15.0°

Cd/Im:

8.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 757G-MT Tunable

Eff:

88.0%

FWHM:

25 x 20°

Cd/Im:

5.1

Carclo Optics 12962 Simulated Spot Image Nichia 757G-MT

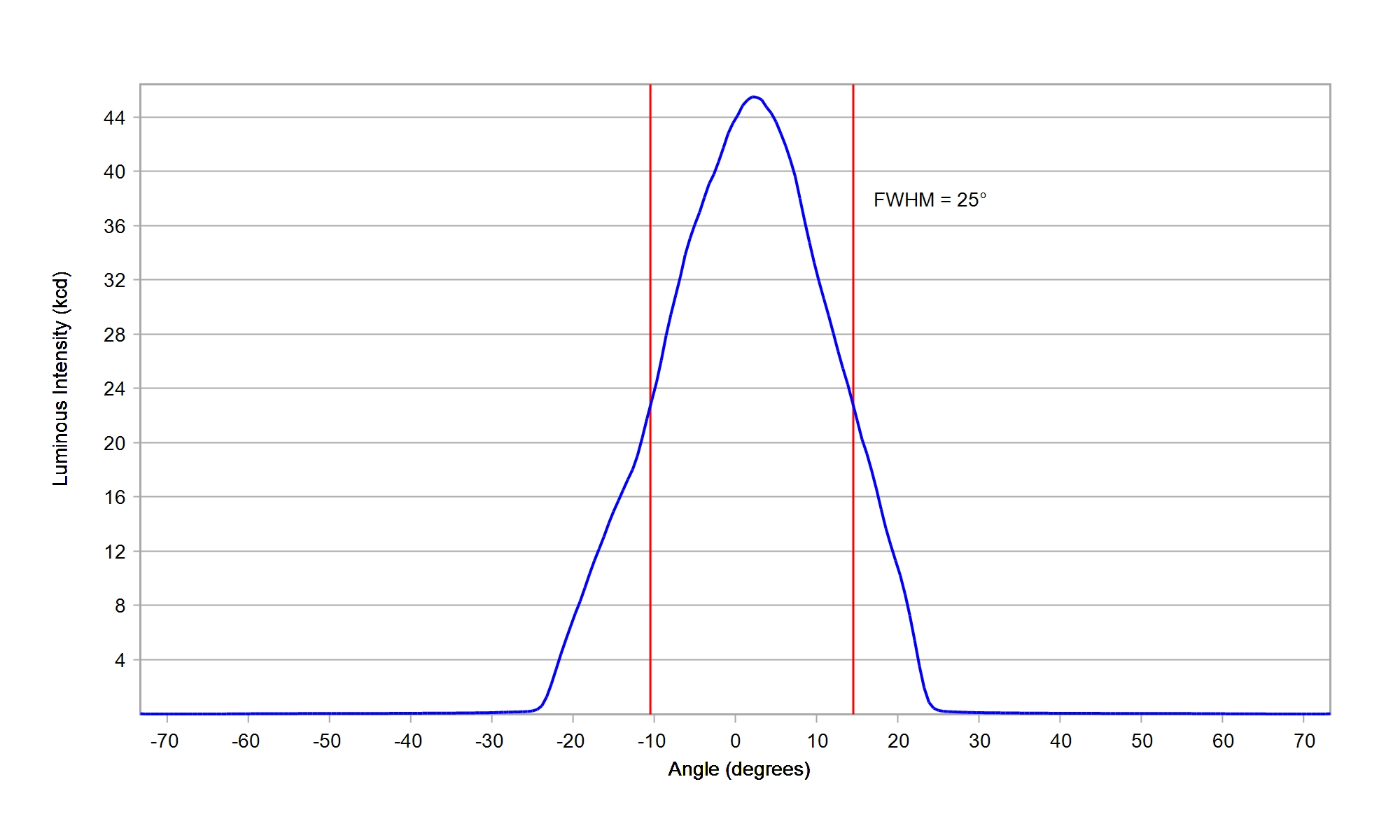

Carclo Optics 12962 Simulated cross horizontal Image Nichia 757G-MT

Download

ies

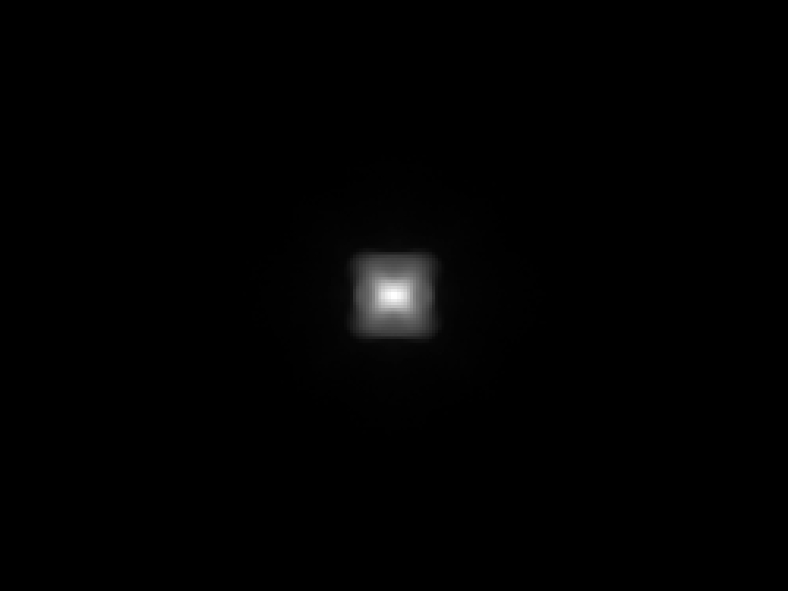

Nichia NFSW CSP E11A White

Eff:

87.5%

FWHM:

14.5 x 11.5°

Cd/Im:

9.7


,


Download

ies

Nichia NVSW CSP E21A White

Eff:

87.5%

FWHM:

20.0°

Cd/Im:

6.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E 2835 Gen2

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

5.3

Carclo Optics - 12962 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12962 33Up Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E5 White

Eff:

87.5%

FWHM:

15 x 12°

Cd/Im:

8.9

Carclo Optics - Simulated Spot Image

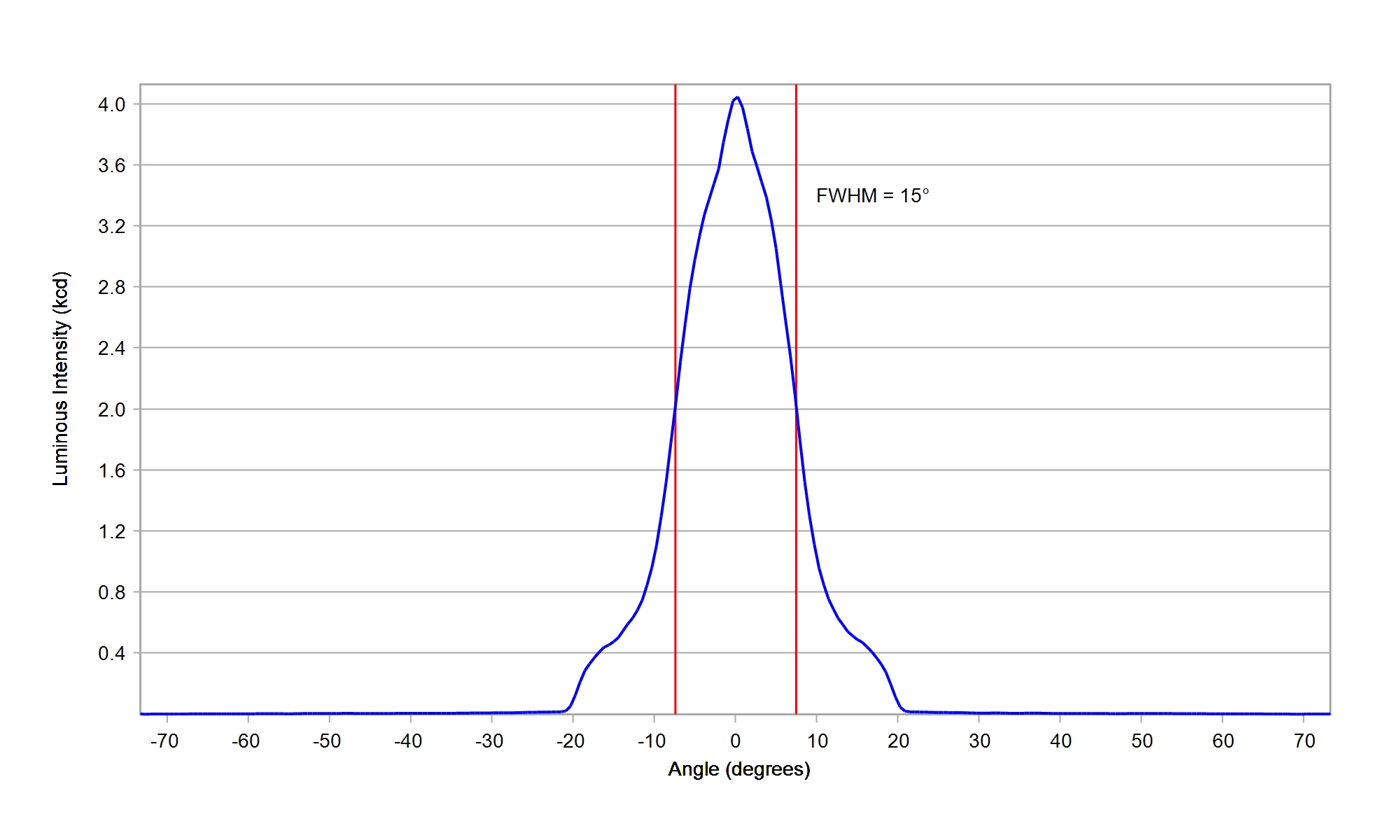

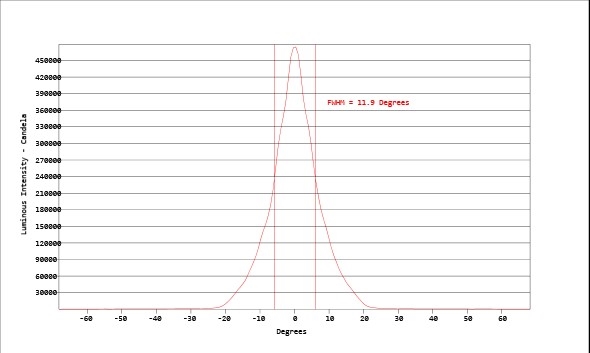

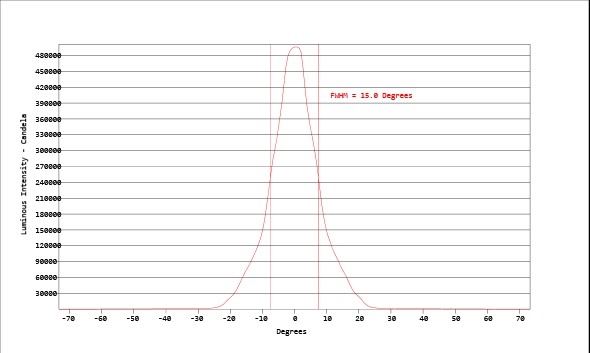

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram DURIS S5 White

Eff:

88.5%

FWHM:

23 x 17.5°

Cd/Im:

5.6

Carclo Optics - Simulated Spot Image

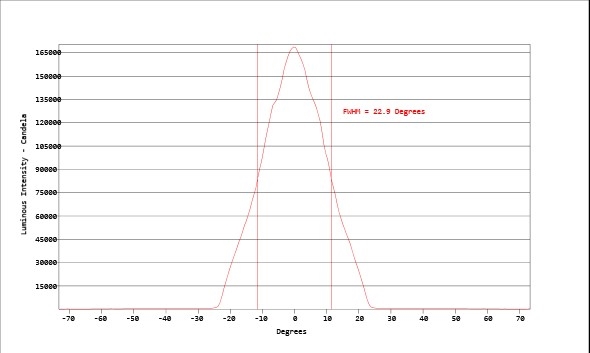

Carclo Optics - Simulated Horizontal Cross Section

,

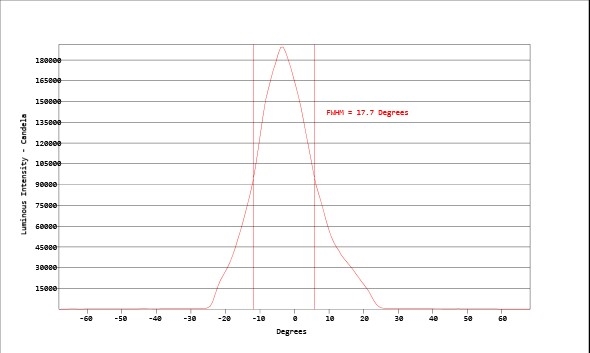

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram DURIS S8 Gen3 White

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

5.3

Carclo Optics - 12962 33Up Spot Image Oslon DURIS S8 Gen3

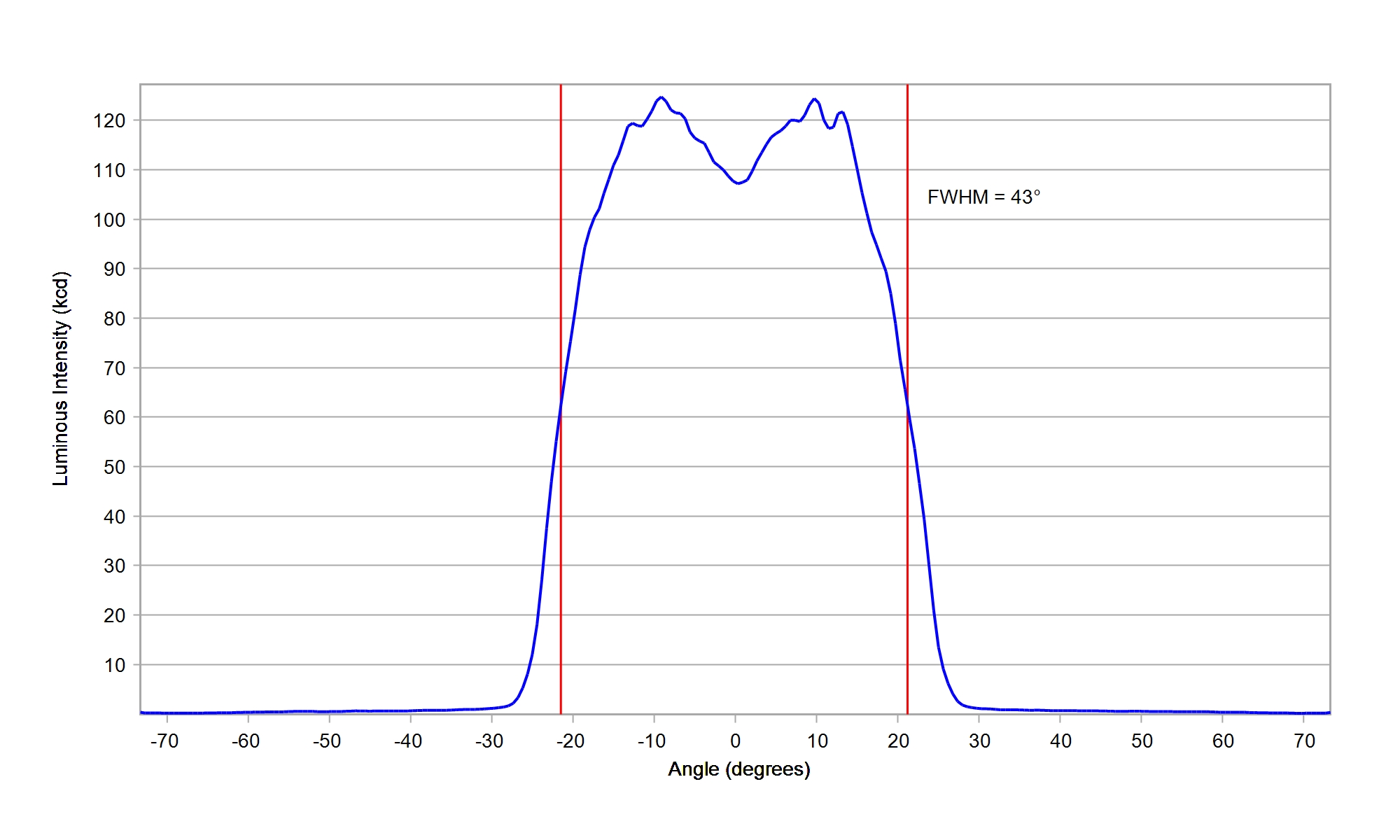

Carclo Optics - 12962 33Up Cross Section Oslon DURIS S8 Gen3

Download

ies

Osram OSCONIQ C 2424 White

Eff:

89.5%

FWHM:

19.0°

Cd/Im:

6.2

Carclo Optics - 12962 Spot Image OSCONIQ C2424

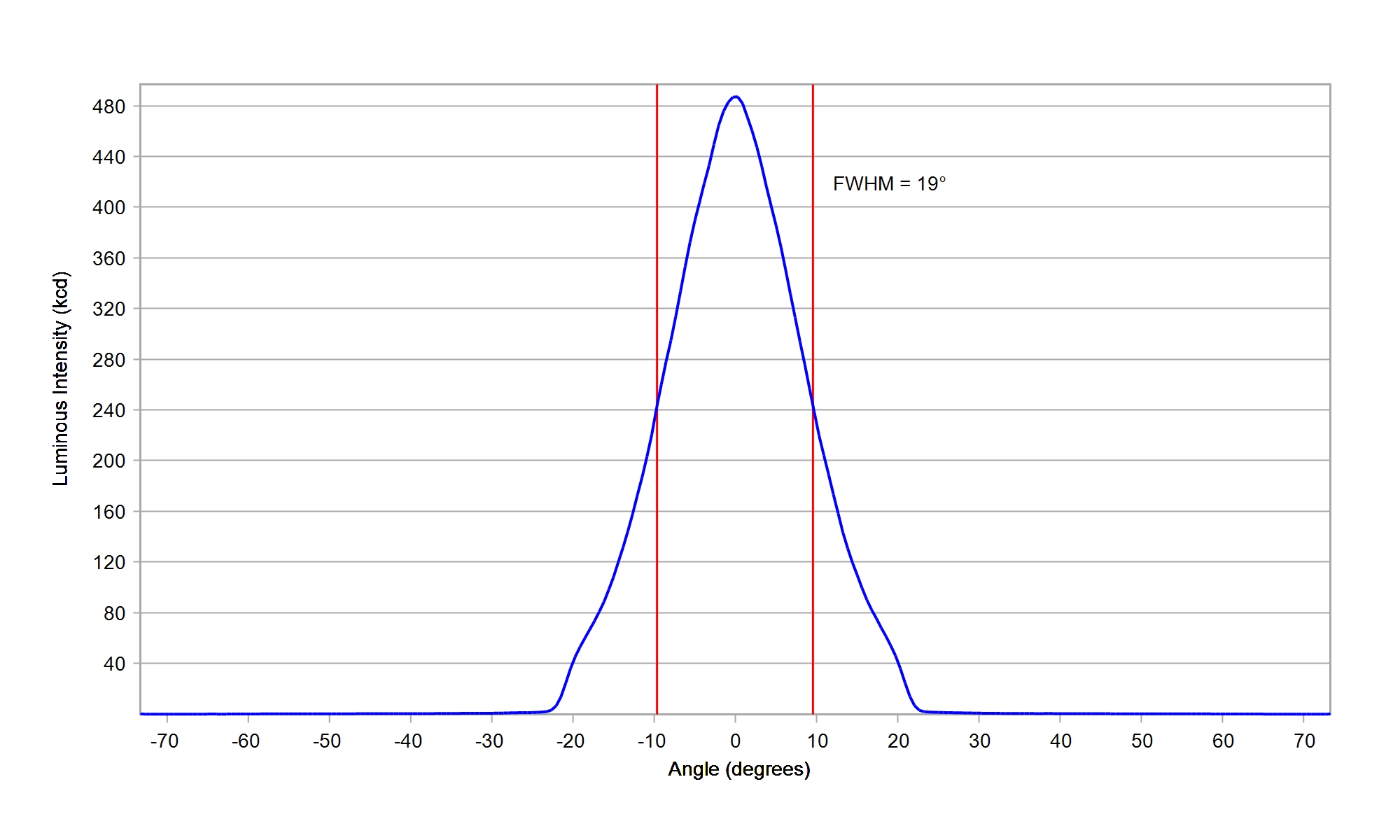

Carclo Optics - 12962 Cross Section OSCONIQ C2424

Download

ies

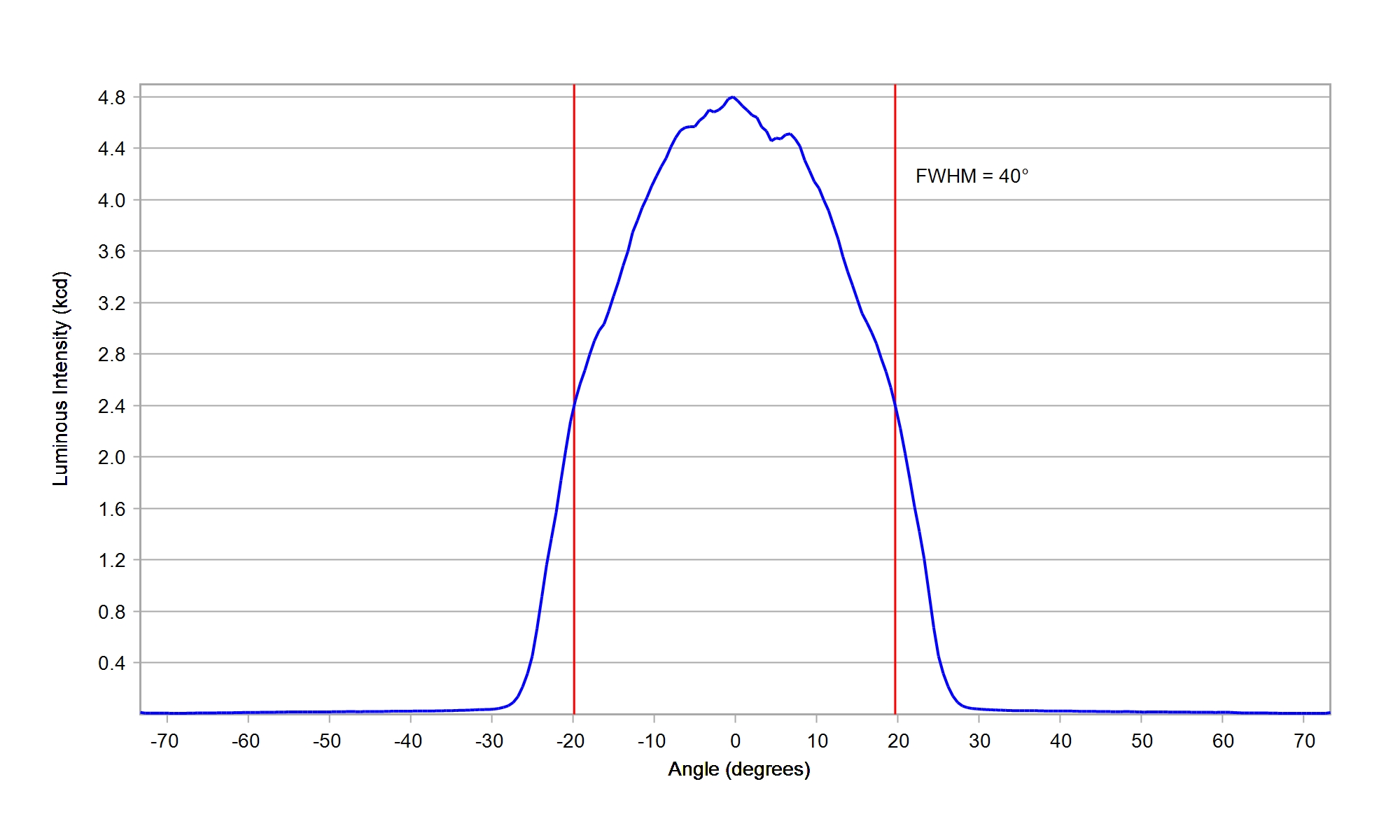

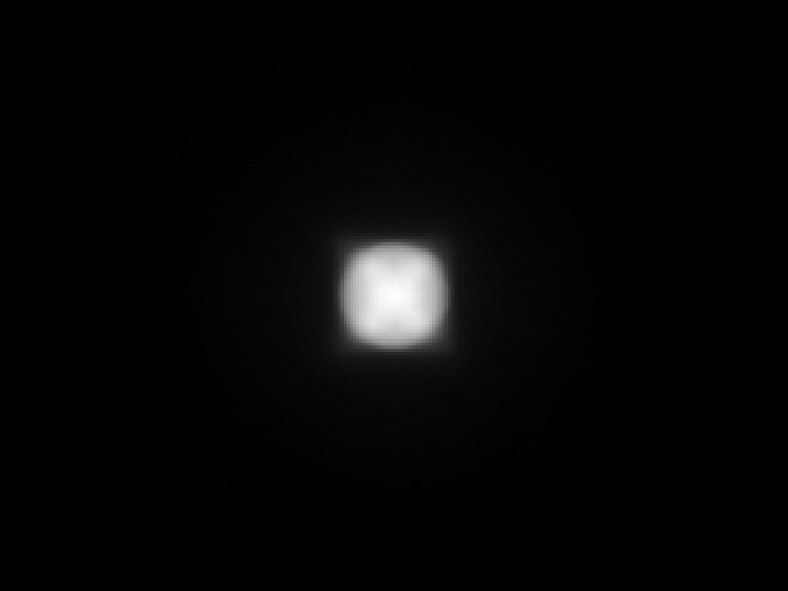

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

86.5%

FWHM:

40°

Cd/Im:

2.0



Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

89.0%

FWHM:

20°

Cd/Im:

5.1

Carclo Optics – 12962 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

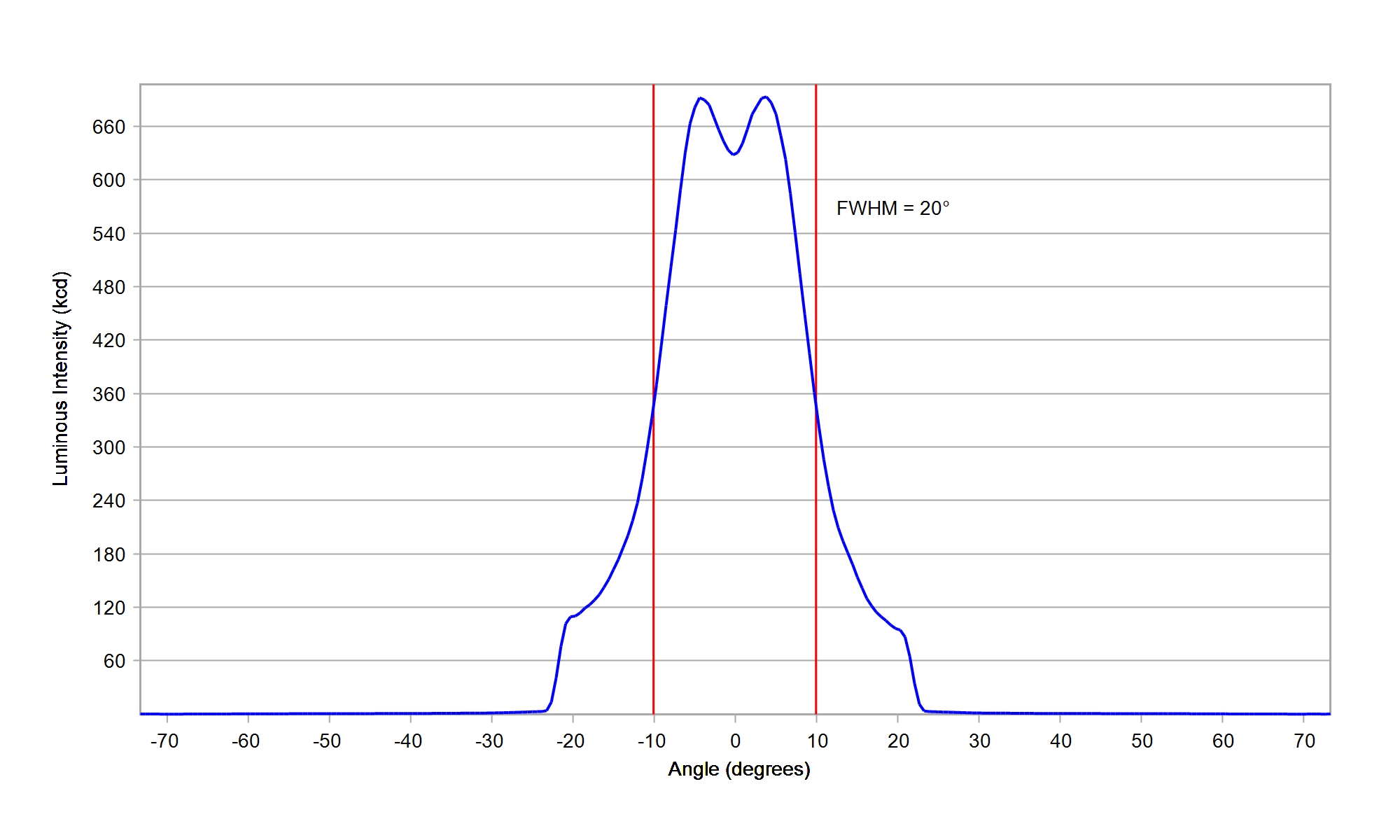

Carclo Optics – 12962 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

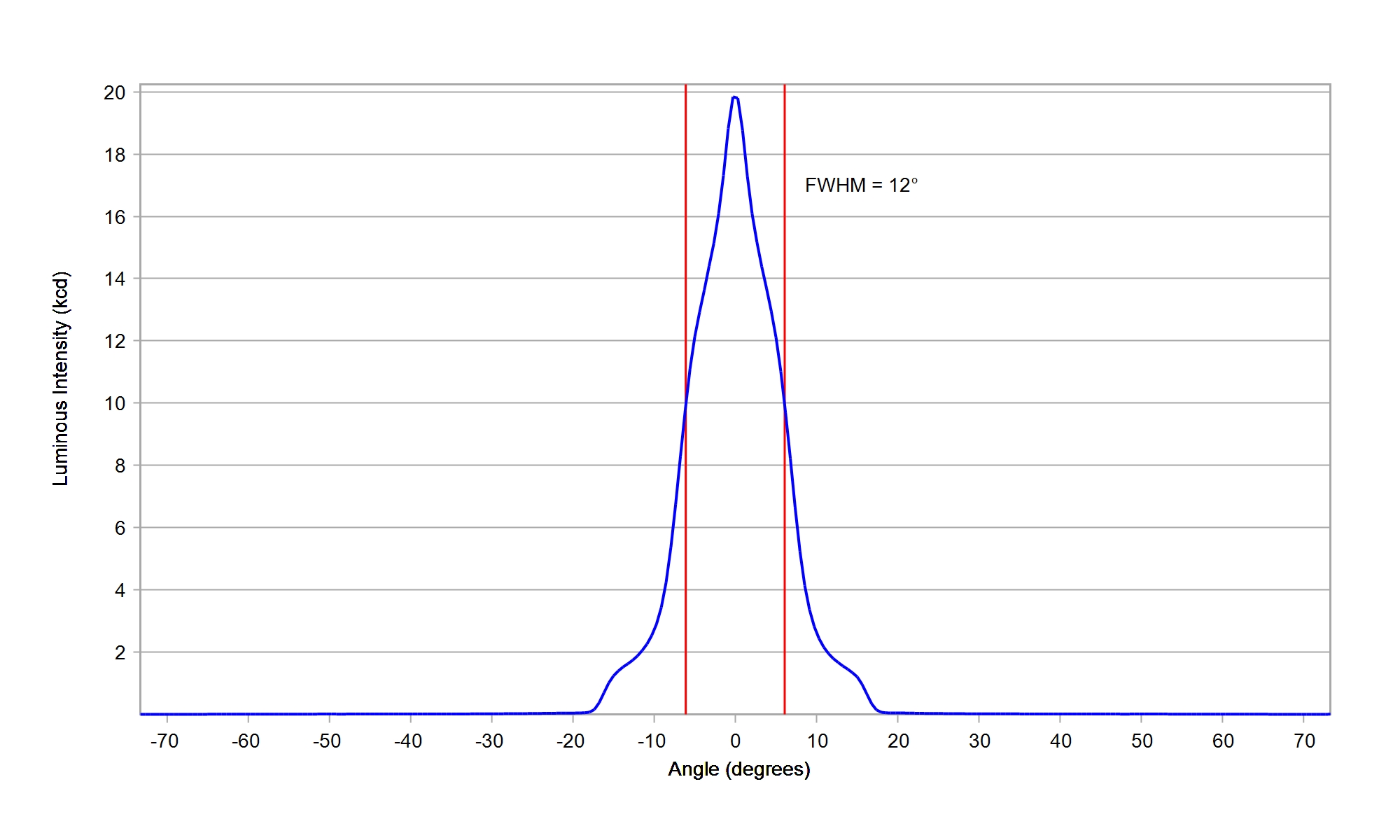

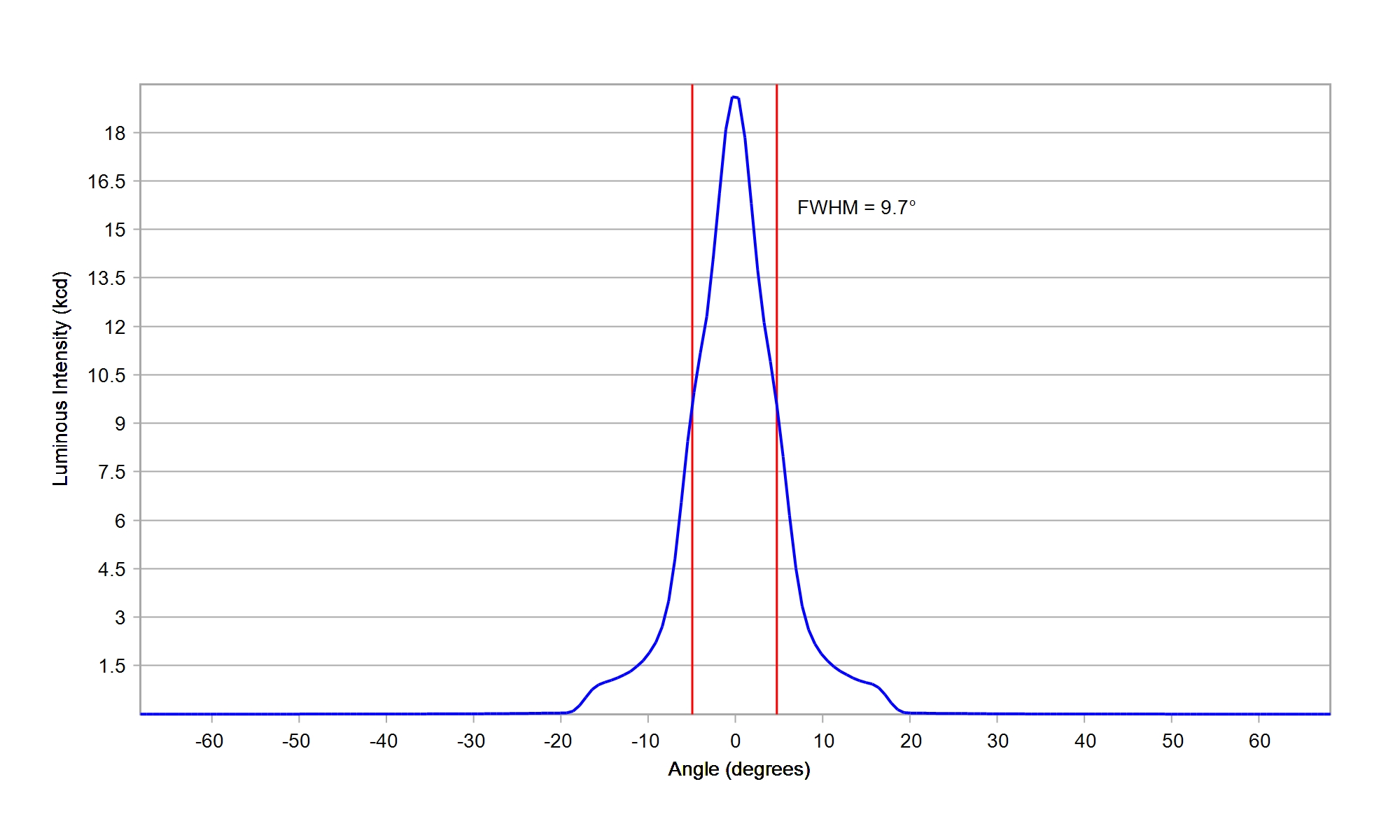

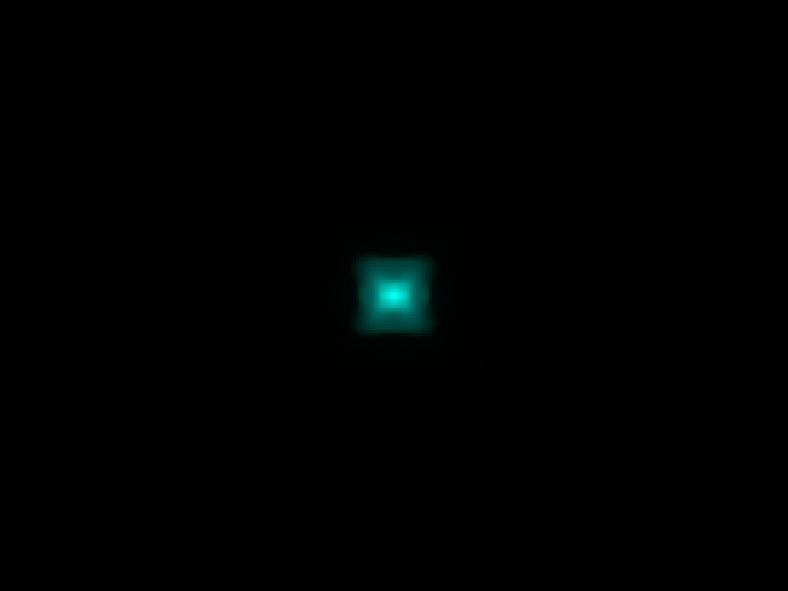

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

89.0%

FWHM:

12 x 9.7°

Cd/Im:

15.9


,


Download

ies

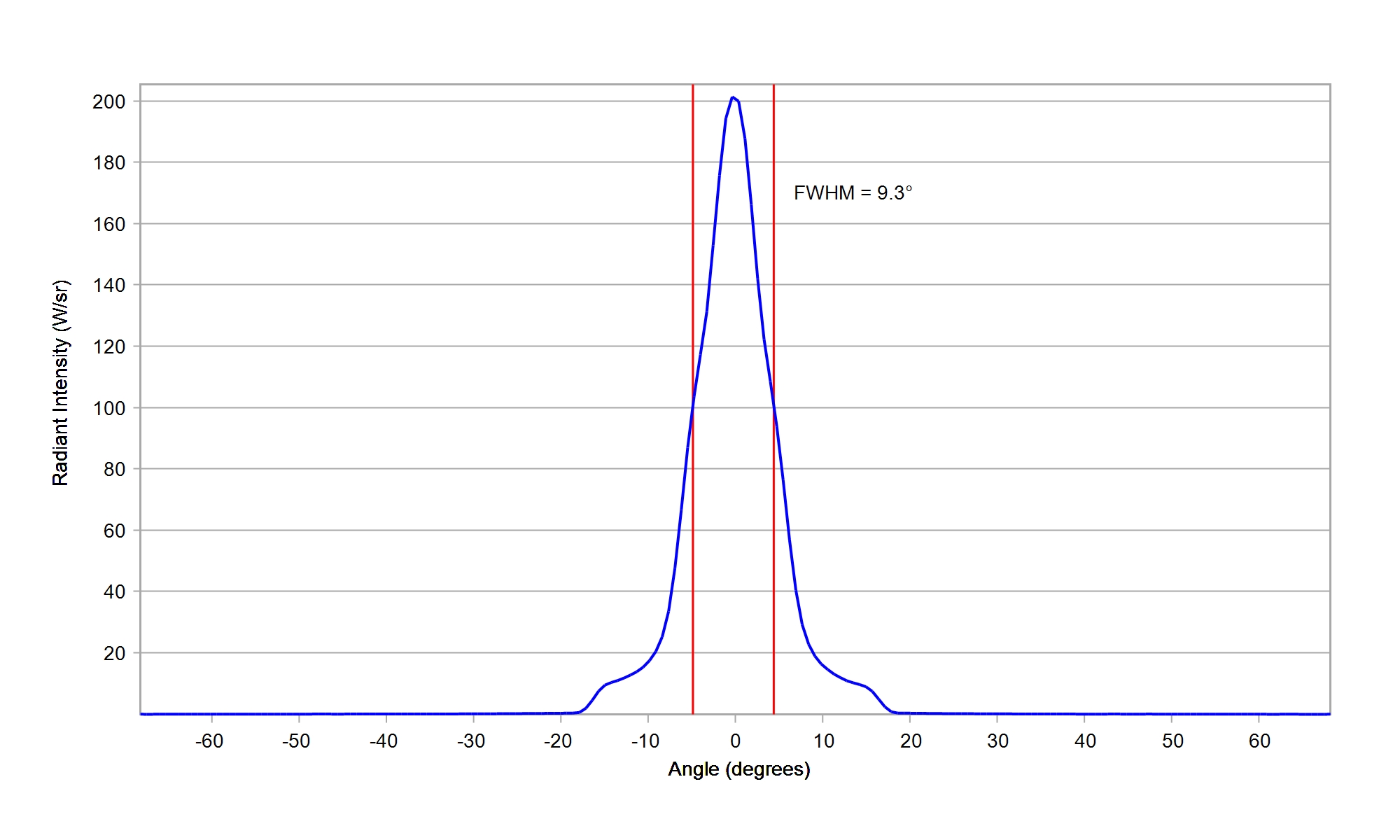

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

87.5%

FWHM:

11.5 x 9.3°

Ipk/W:

17.7


,


Download

ies

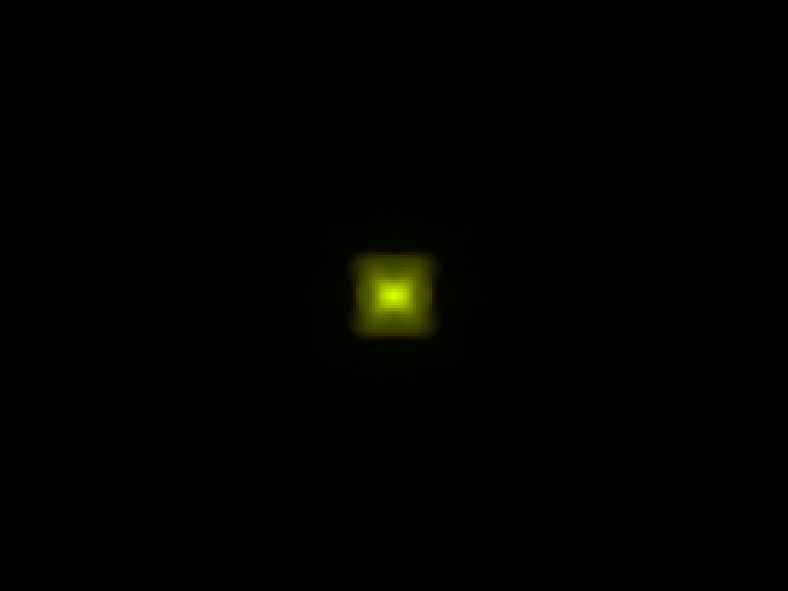

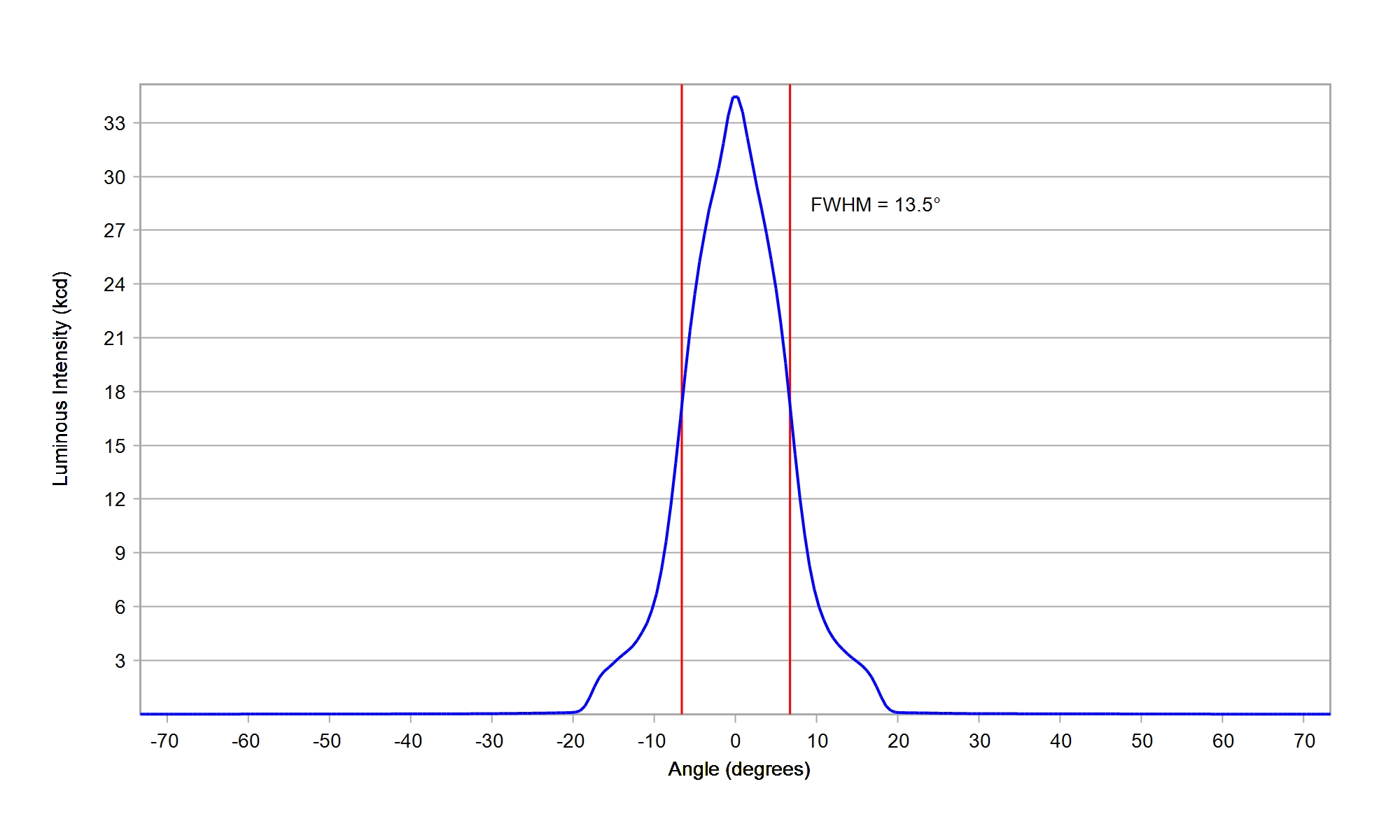

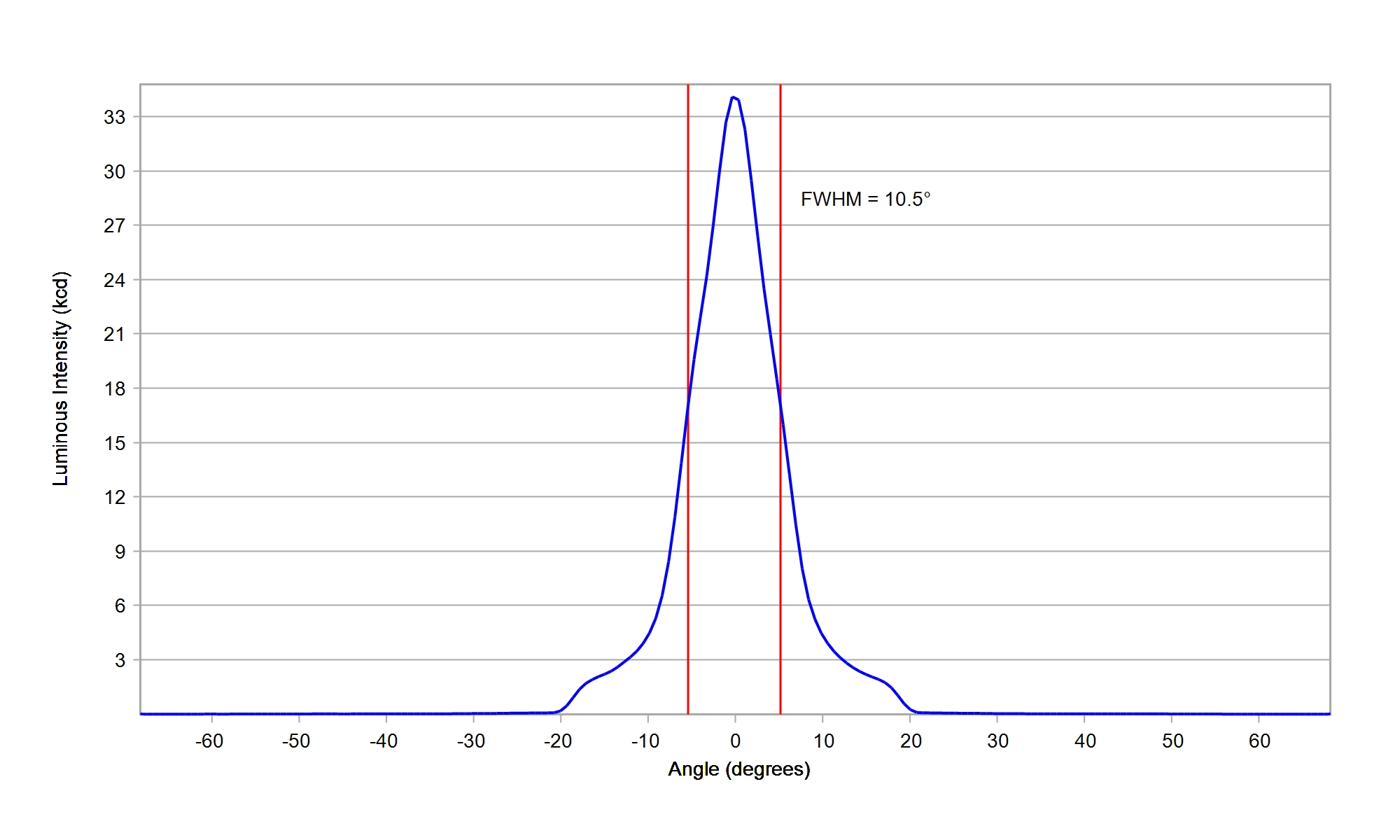

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

88.5%

FWHM:

13.5 x 10.5°

Cd/Im:

12.1


,


Download

ies

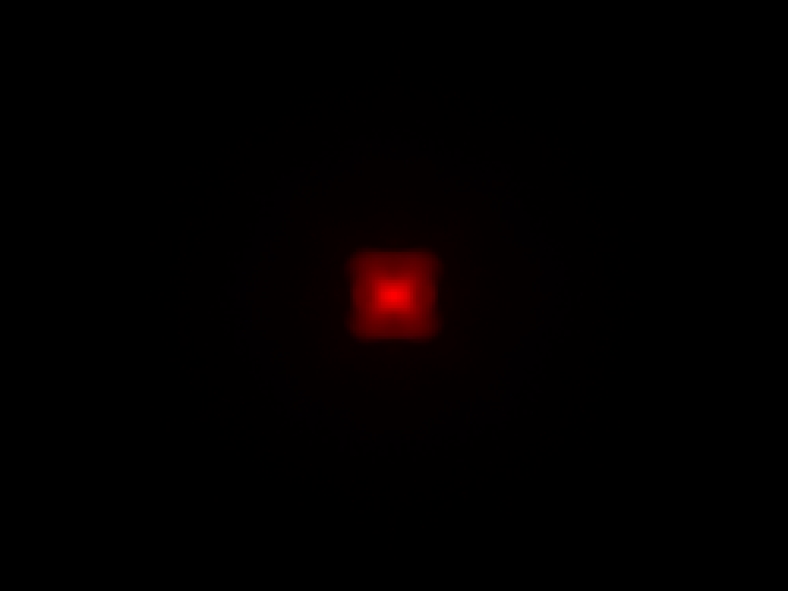

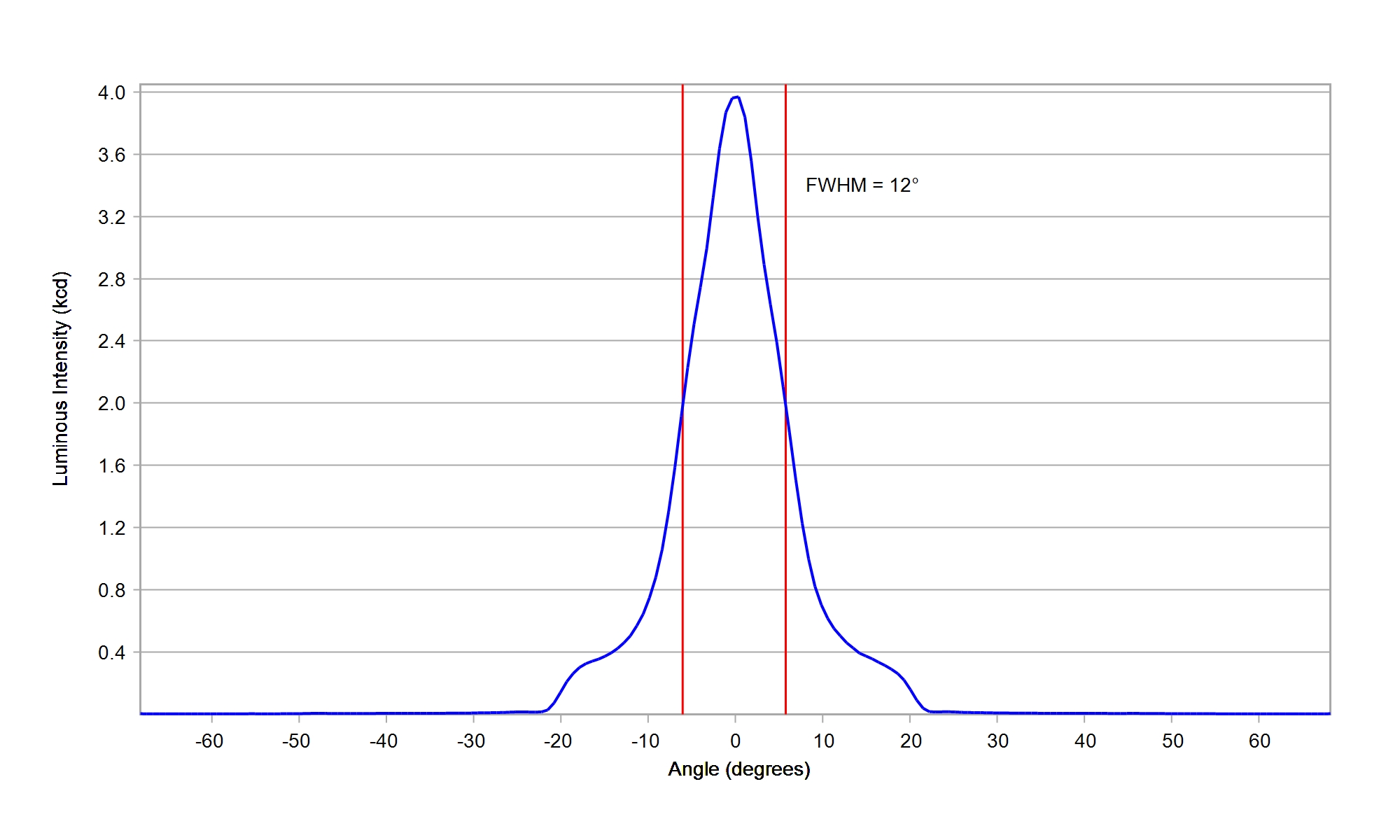

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

88.0%

FWHM:

15 x 12°

Cd/Im:

8.7


,


Download

ies

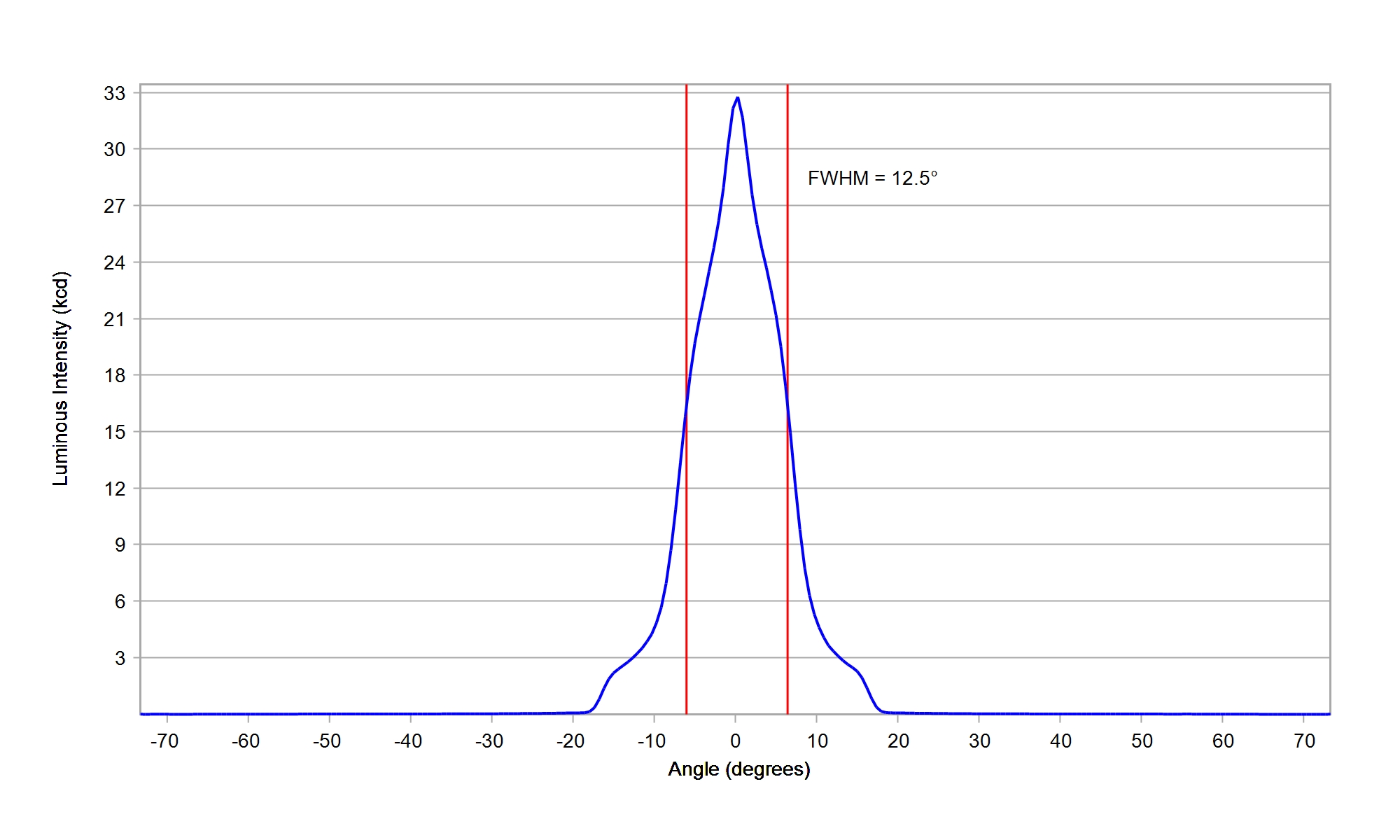

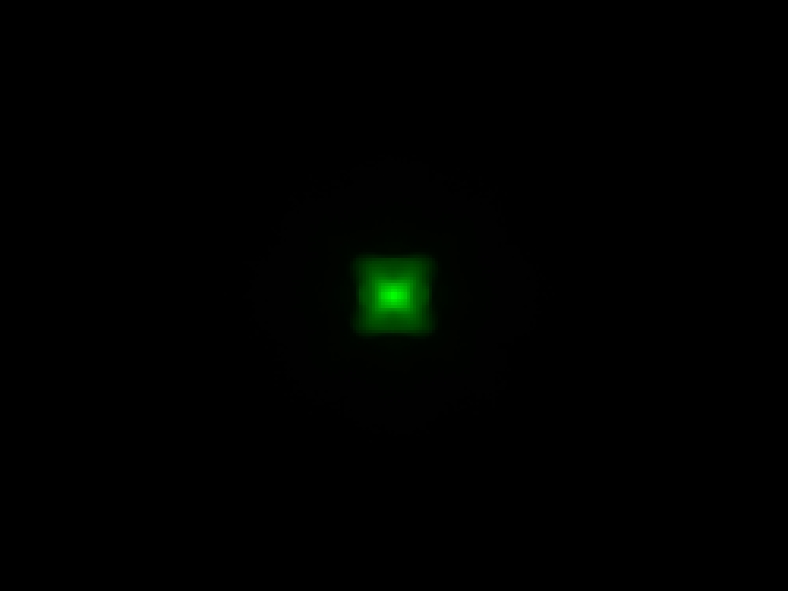

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

88.5%

FWHM:

12.5 x 9.8°

Cd/Im:

14.8


,


Download

ies

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

88.0%

FWHM:

13.5 x 10.5°

Cd/Im:

12.3



,


Download

ies

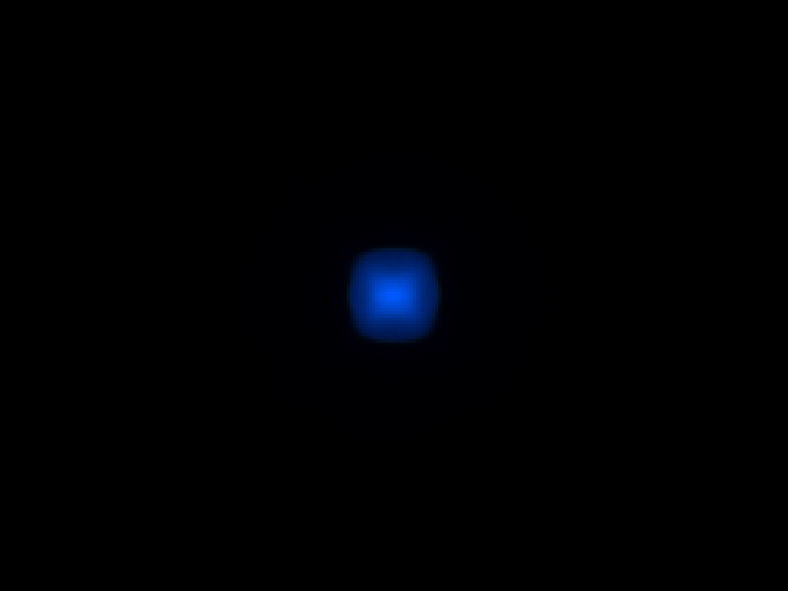

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

89.5%

FWHM:

19.5 x 16.5°

Cd/Im:

6.1


,


Download

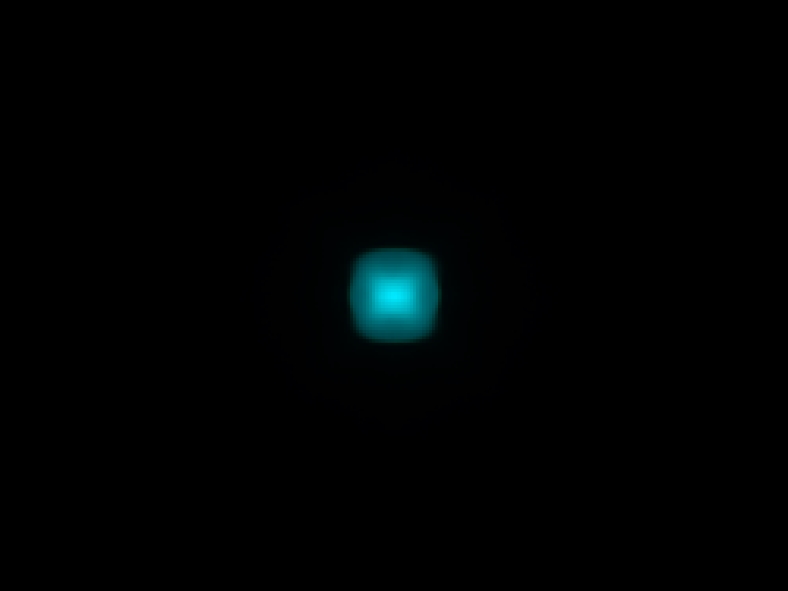

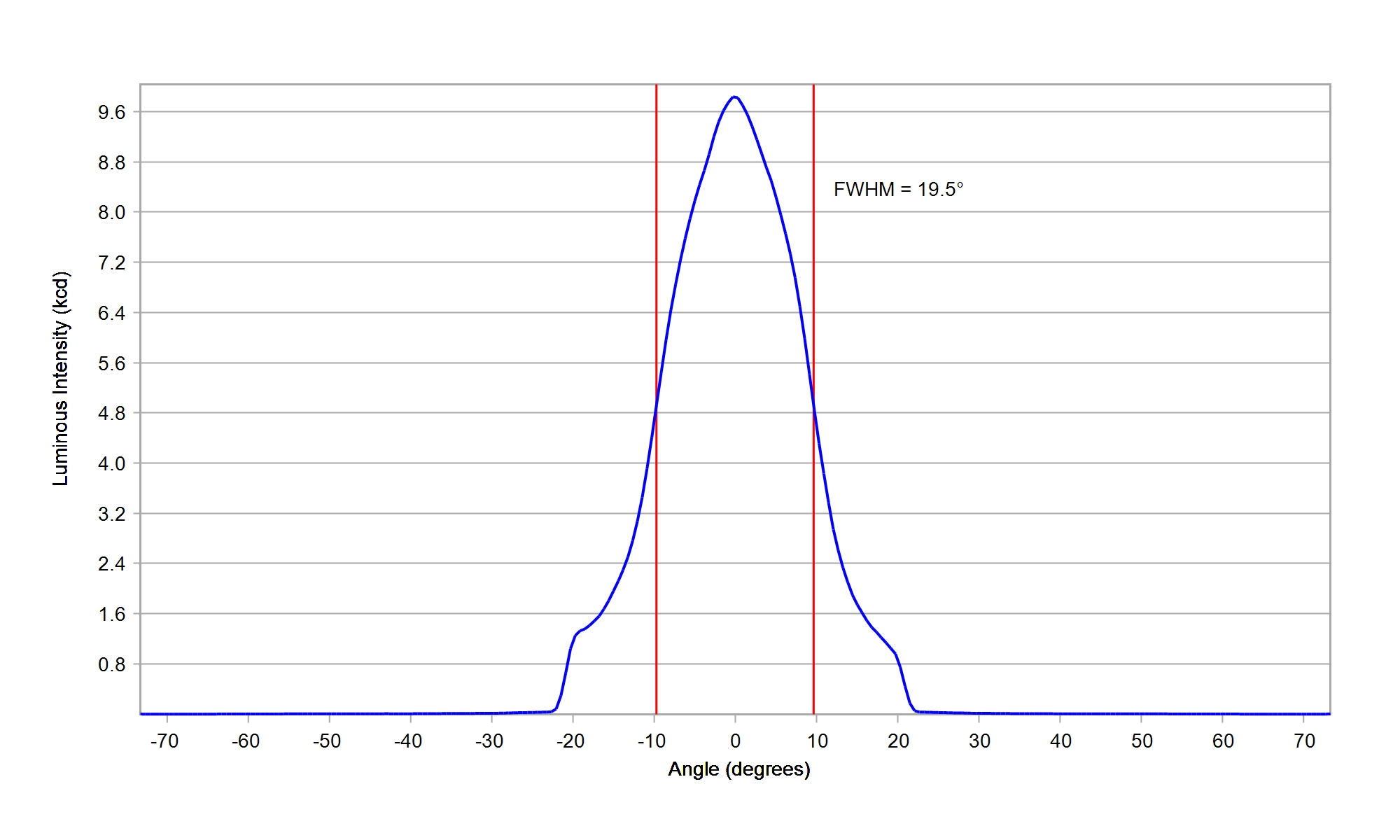

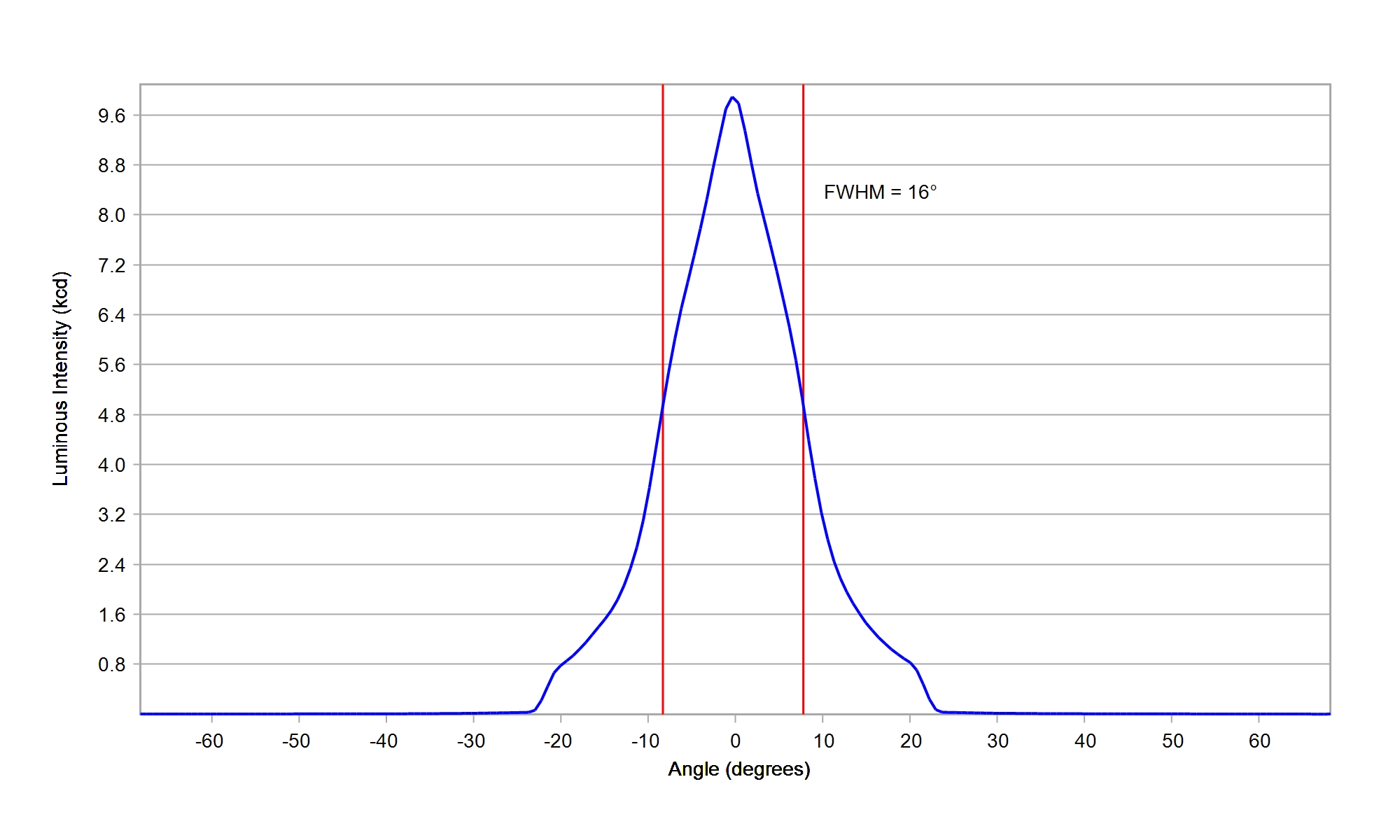

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

89.5%

FWHM:

19.5 x 16°

Cd/Im:

6.5


,


Download

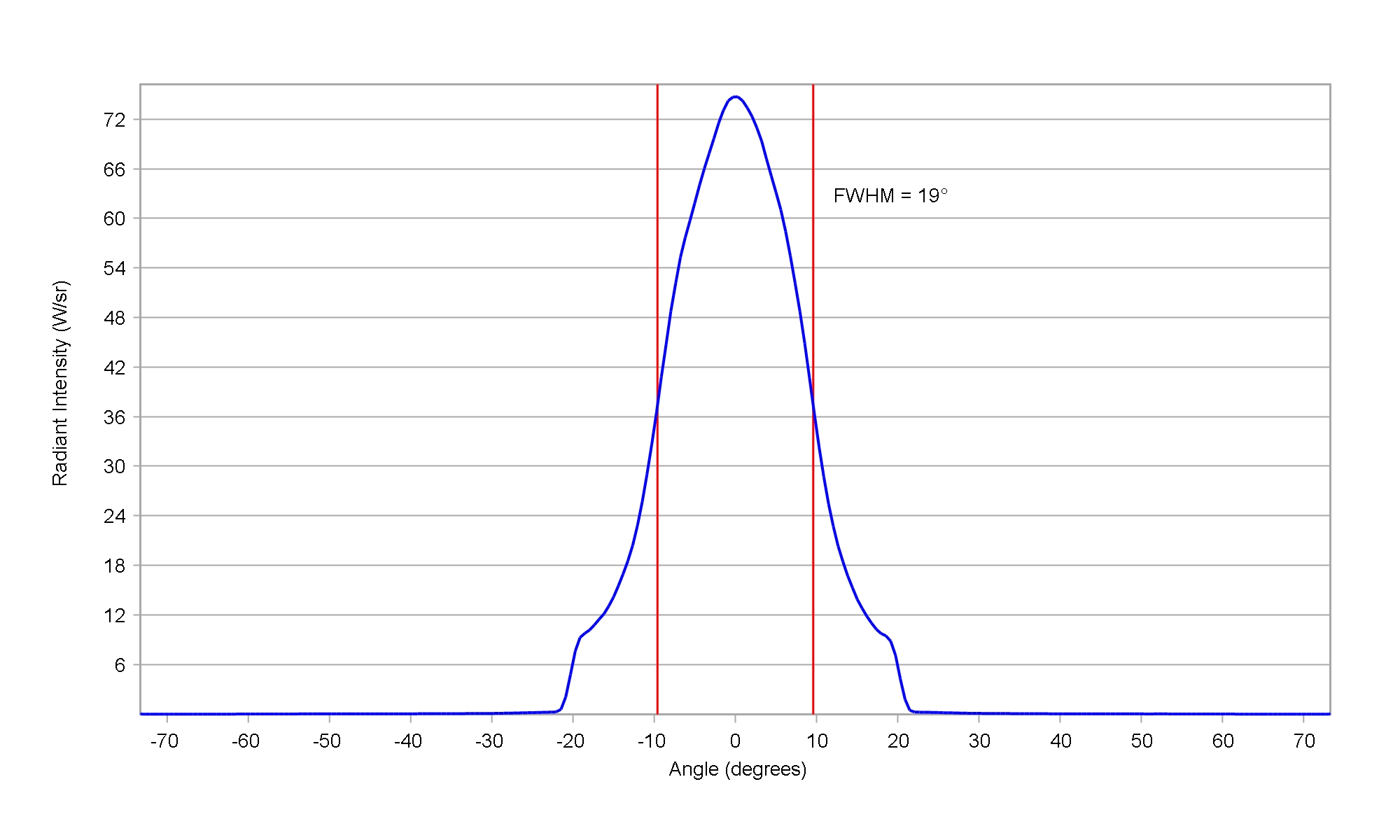

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

88.0%

FWHM:

19°

Ipk/W:

6.6


Download

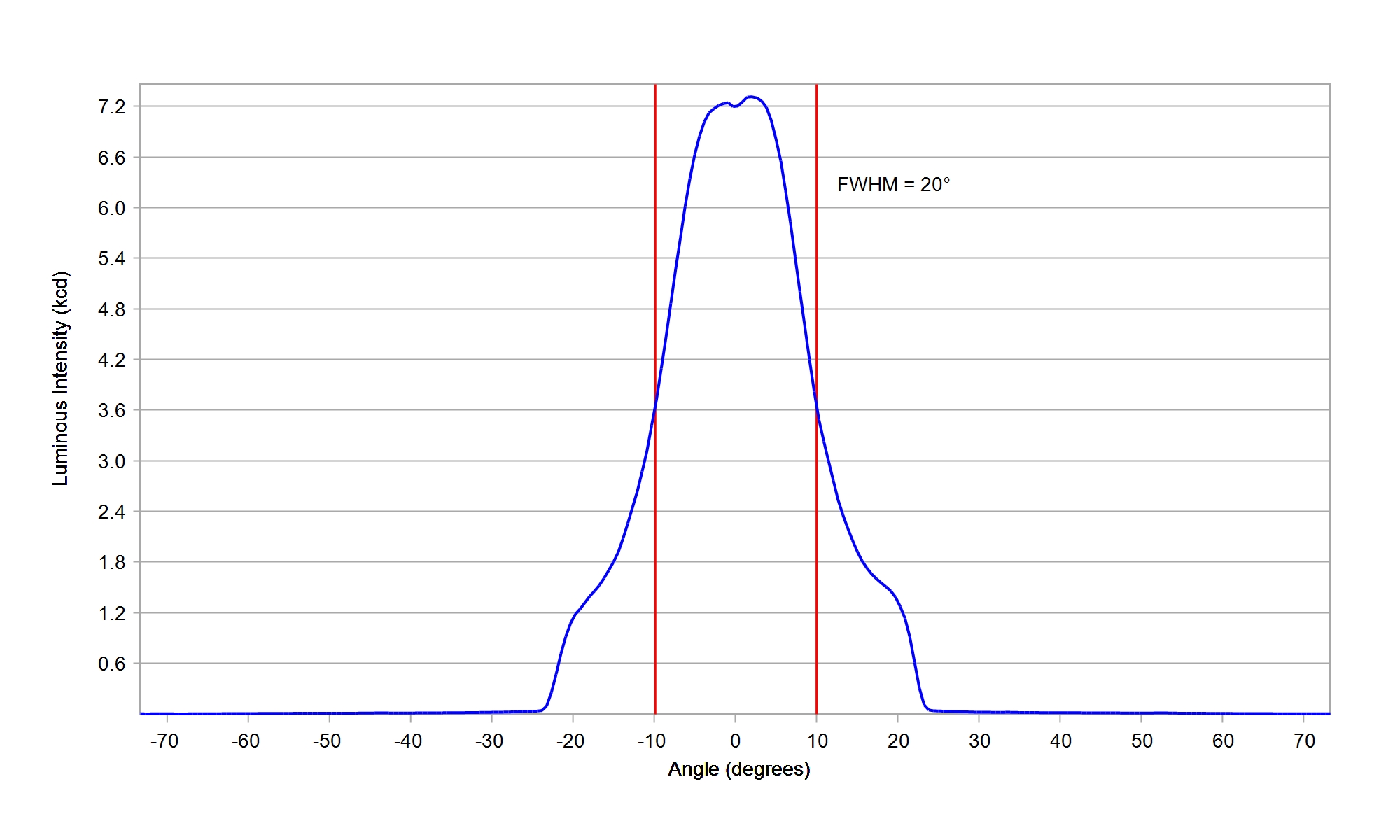

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

90.0%

FWHM:

20 x 16.5°

Cd/Im:

4.9


Download

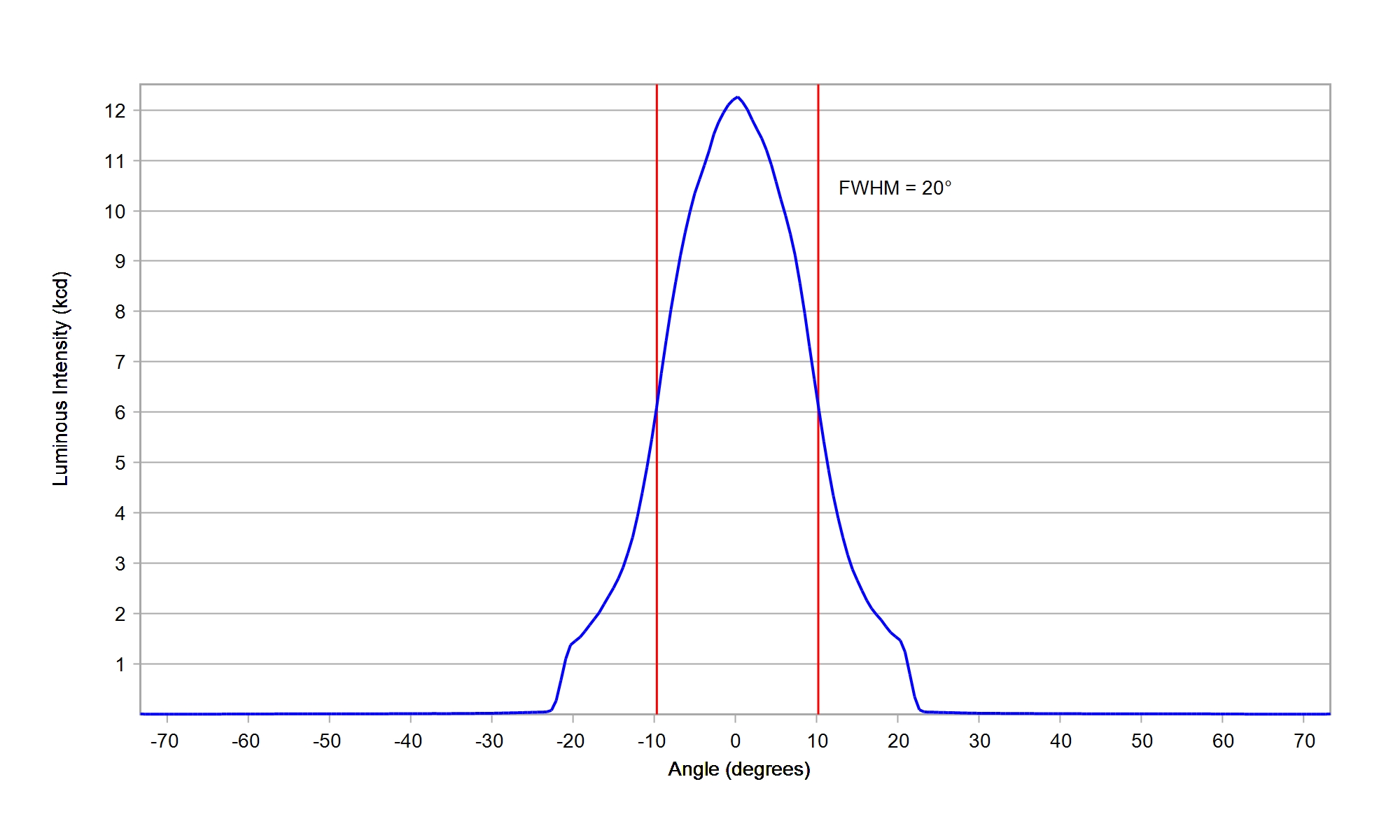

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

89.5%

FWHM:

20°

Cd/Im:

5.9


Download

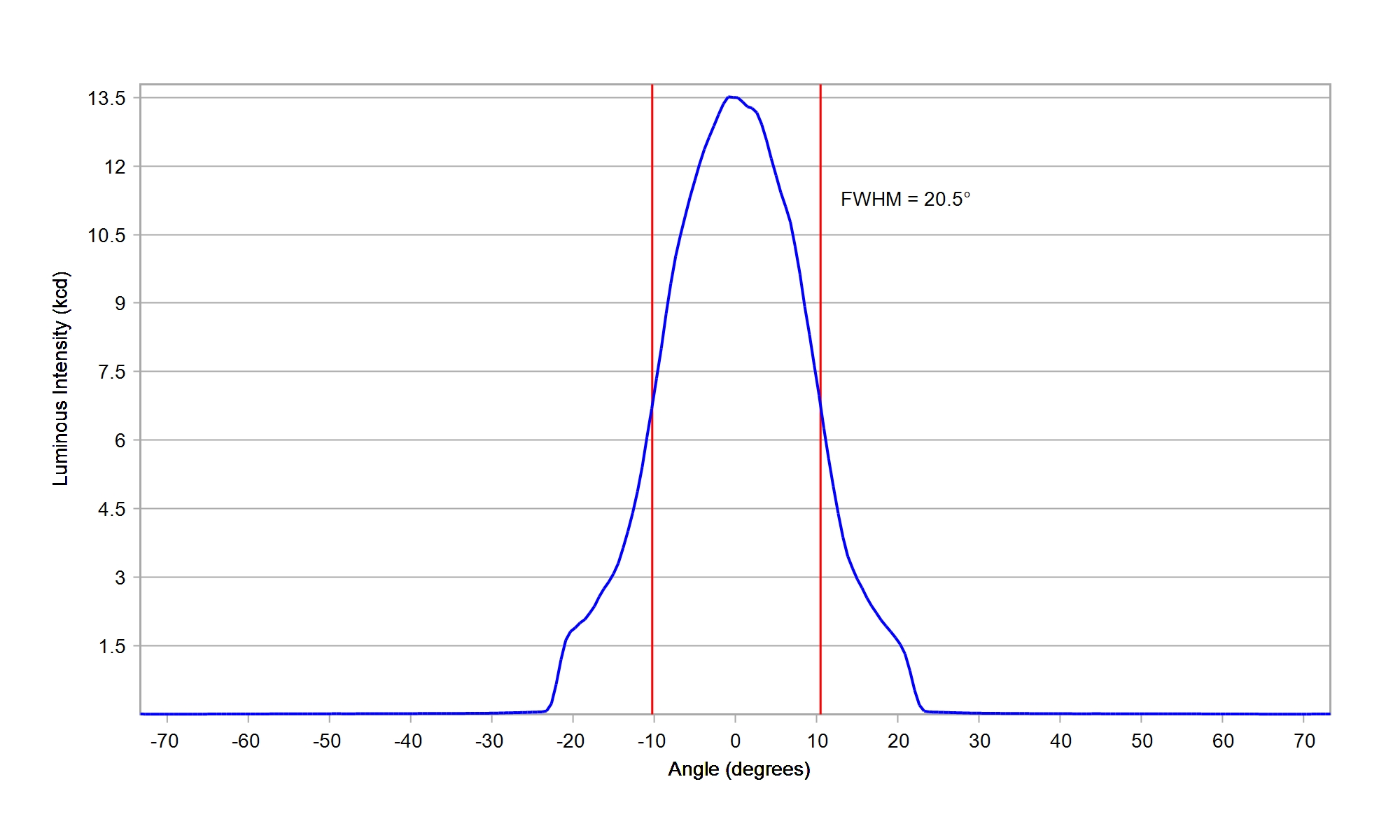

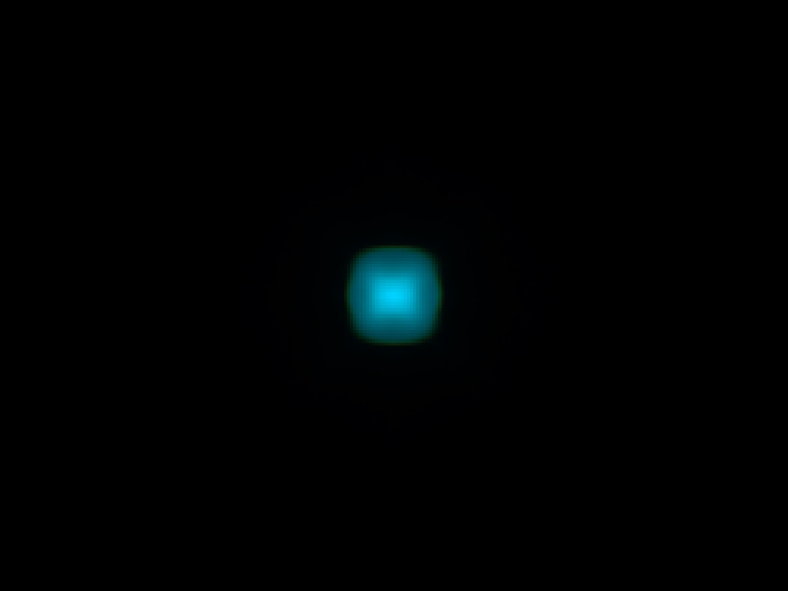

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

89.5%

FWHM:

20.5 x 17.5°

Cd/Im:

5.6


Download

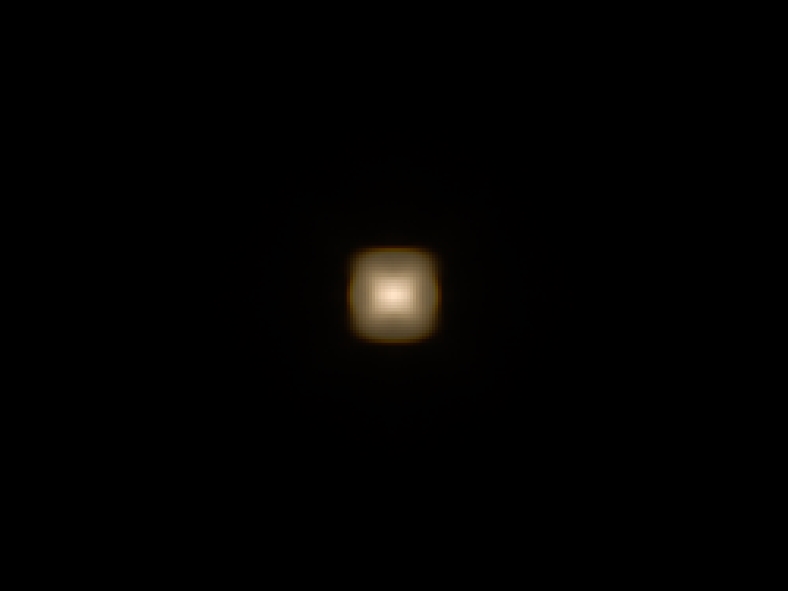

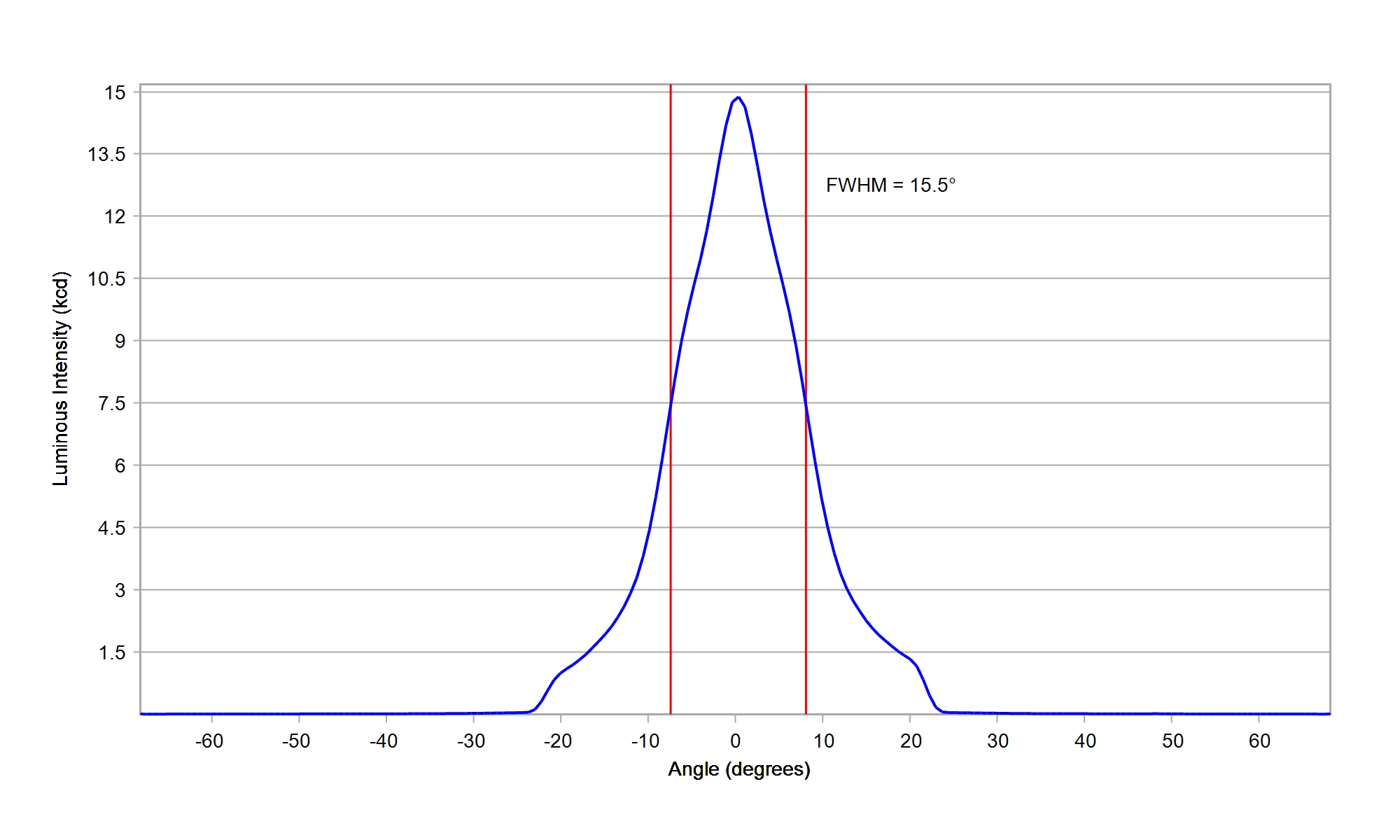

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

89.5%

FWHM:

18.5 x 15.5°

Cd/Im:

6.8


,


Download

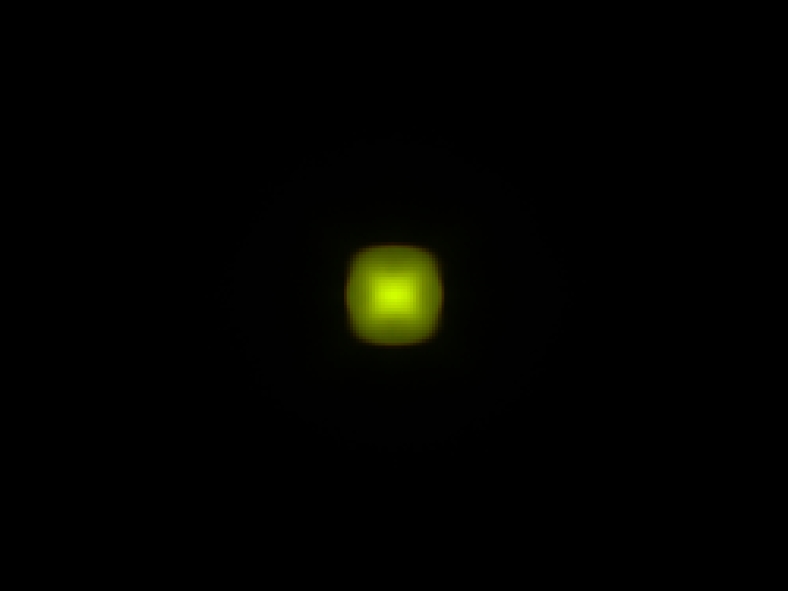

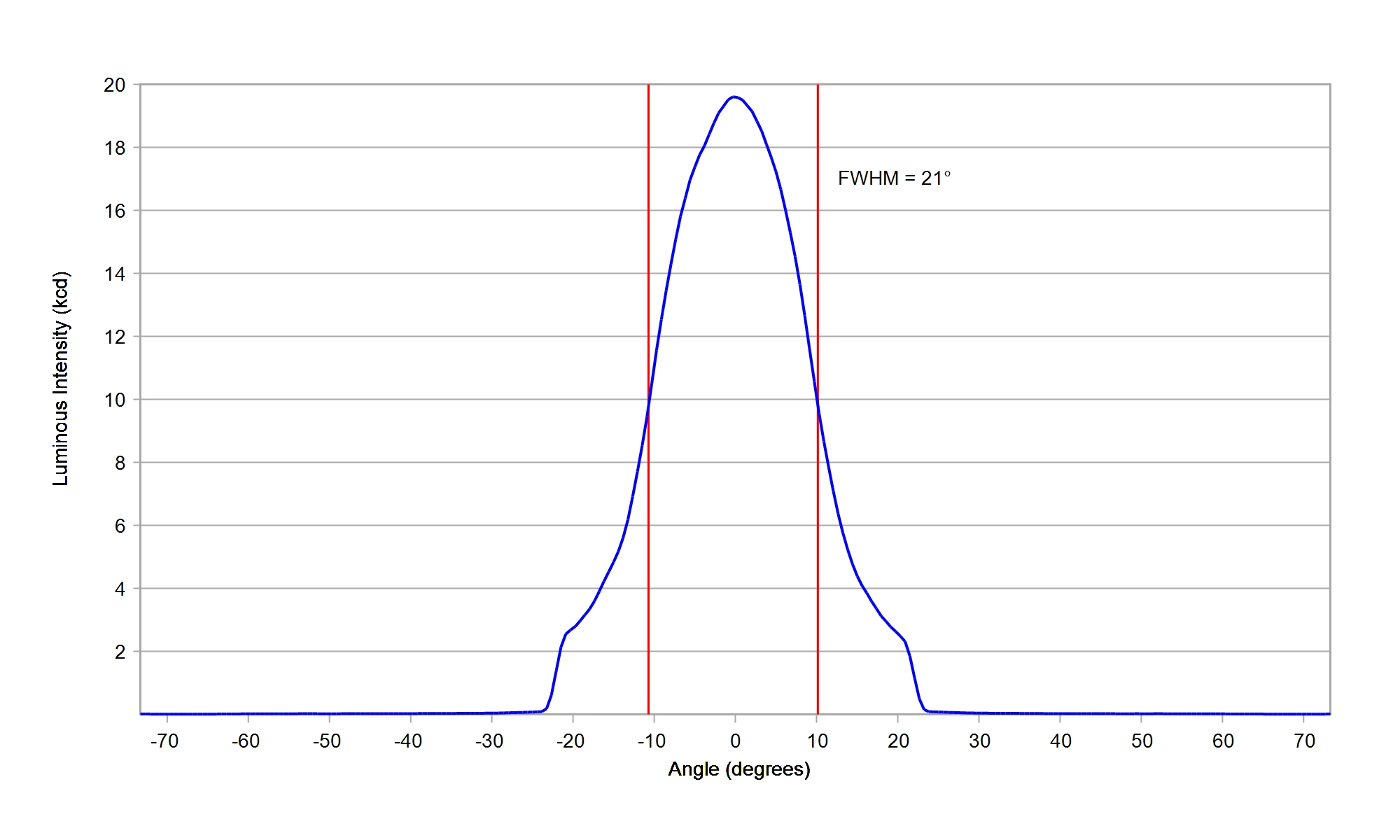

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

89.5%

FWHM:

21°

Cd/Im:

5.4


Download

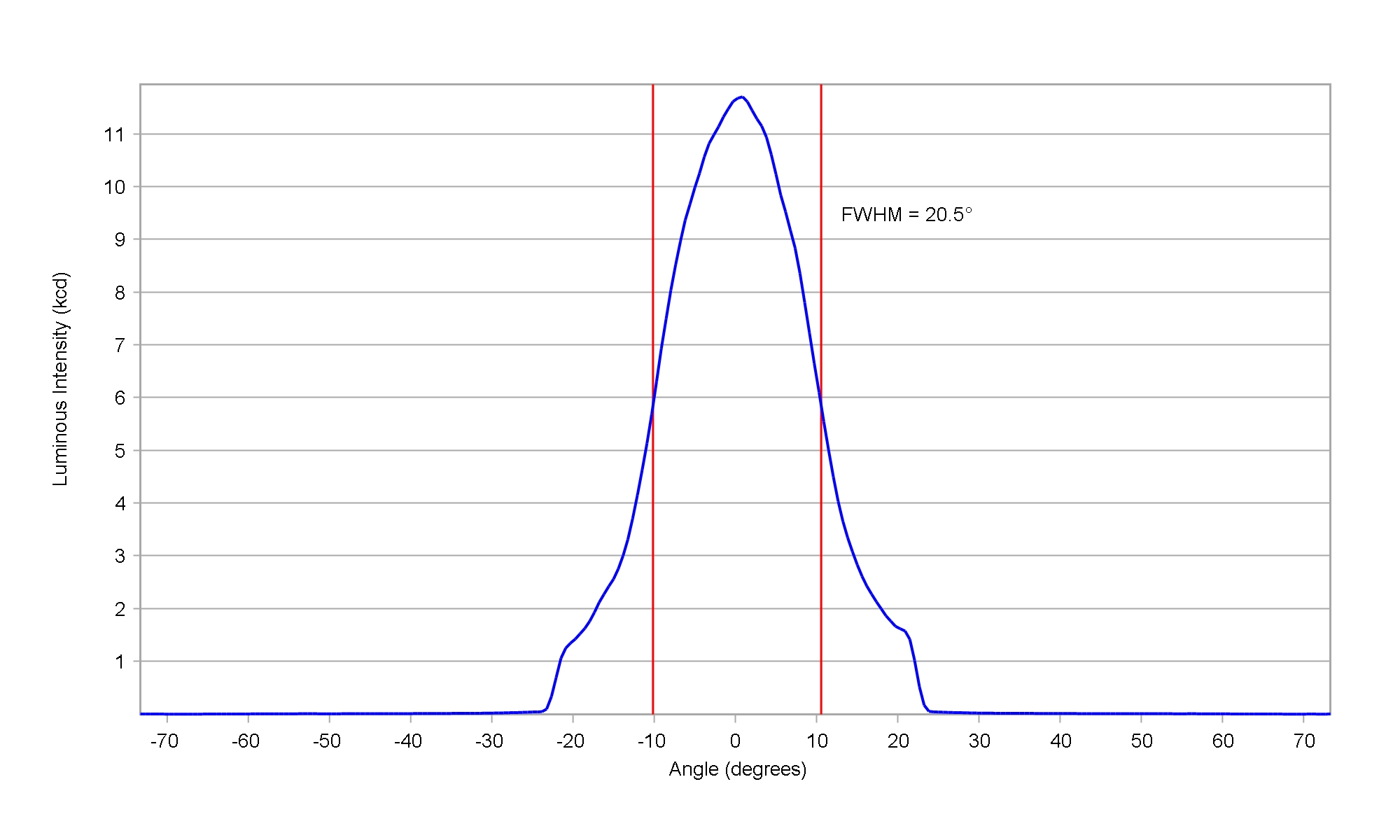

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

89.5%

FWHM:

20.5°

Cd/Im:

5.5


Download

Inventronics Prevaled Bar G4

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

5.3

Carclo Optics – 12962 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12962 – Osram_Prevaled_Bar_G4_cross vertical section

Download

ies

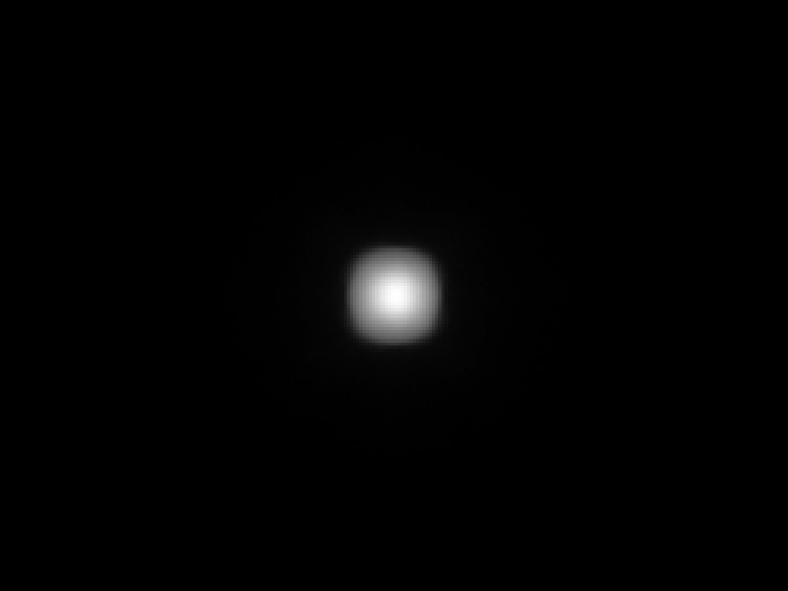

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

89.0%

FWHM:

24.5°

Cd/Im:

4.5

Download

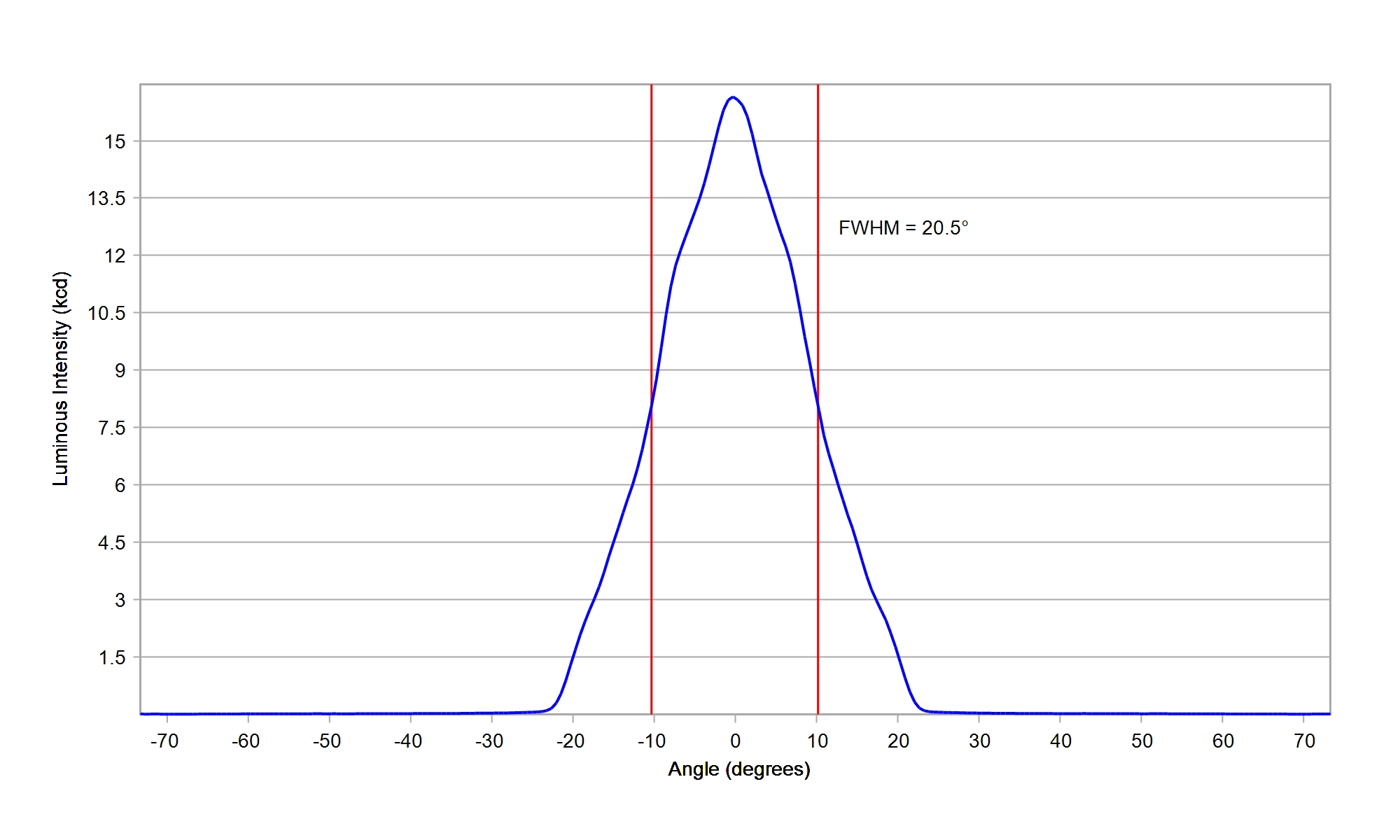

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

5.7

Download

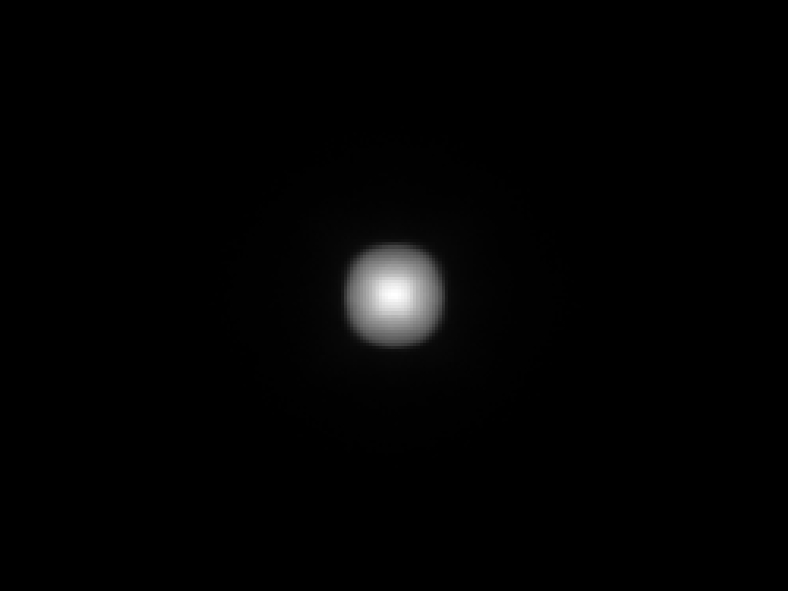

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

89.0%

FWHM:

23°

Cd/Im:

4.4

Download

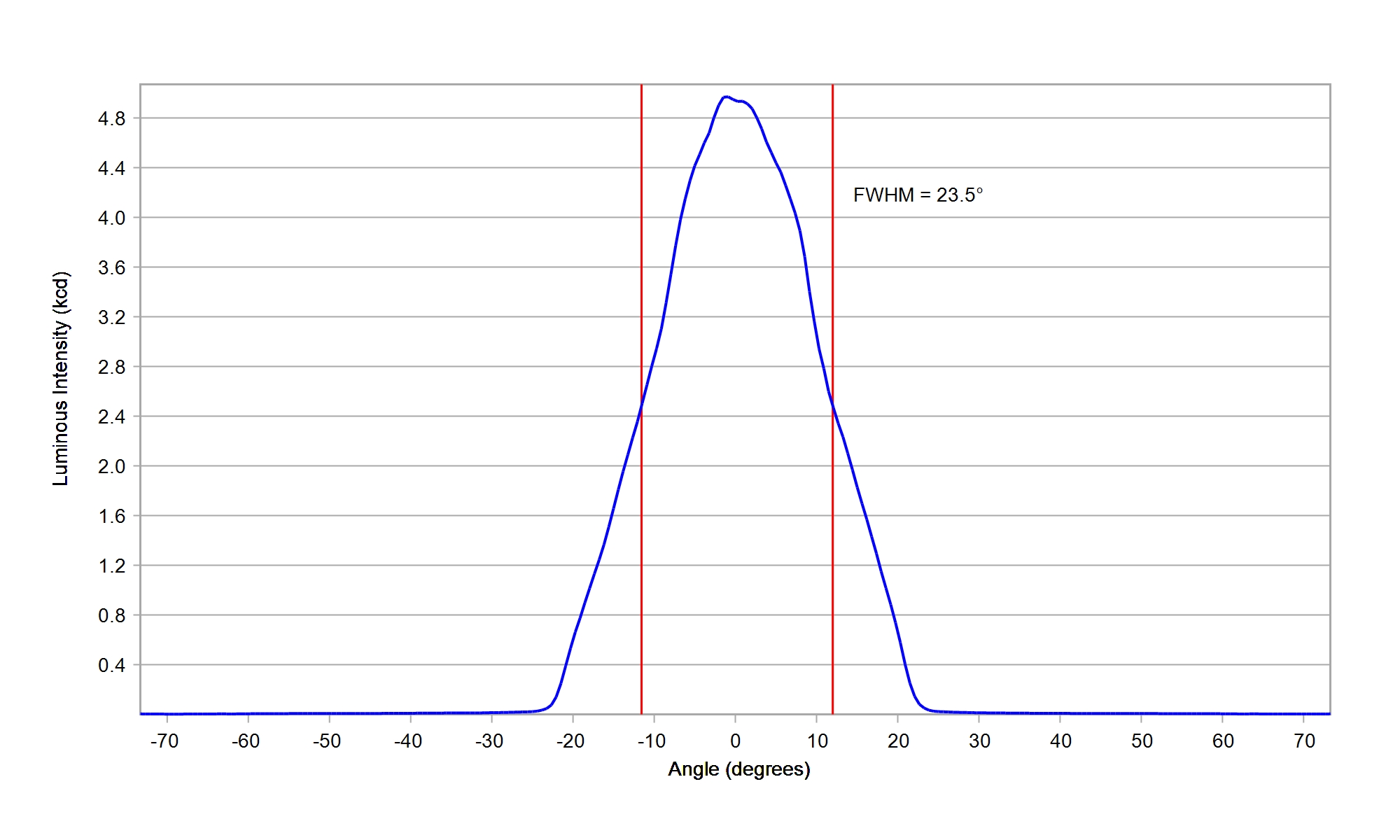

Signify Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

89.0%

FWHM:

23.5°

Cd/Im:

4.6

Download

IES

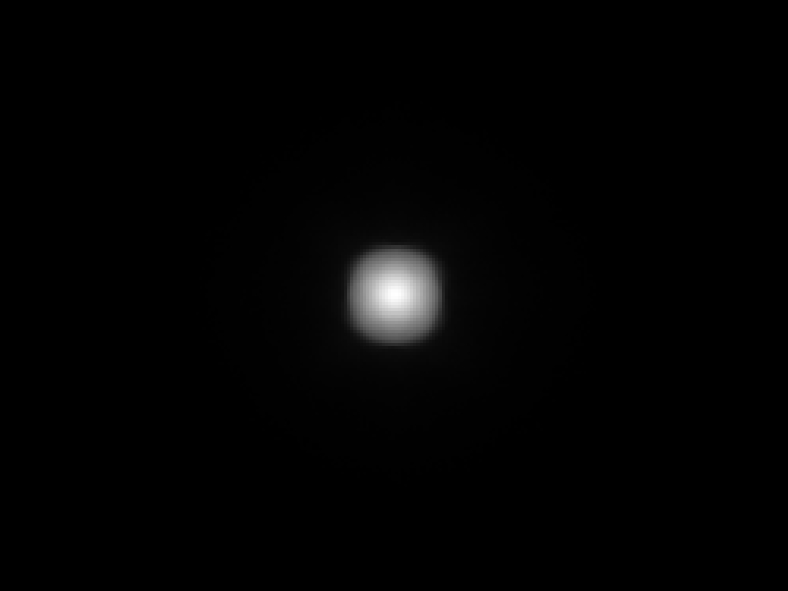

Signify Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

89.0%

FWHM:

22.5°

Cd/Im:

5.0


Download

IES

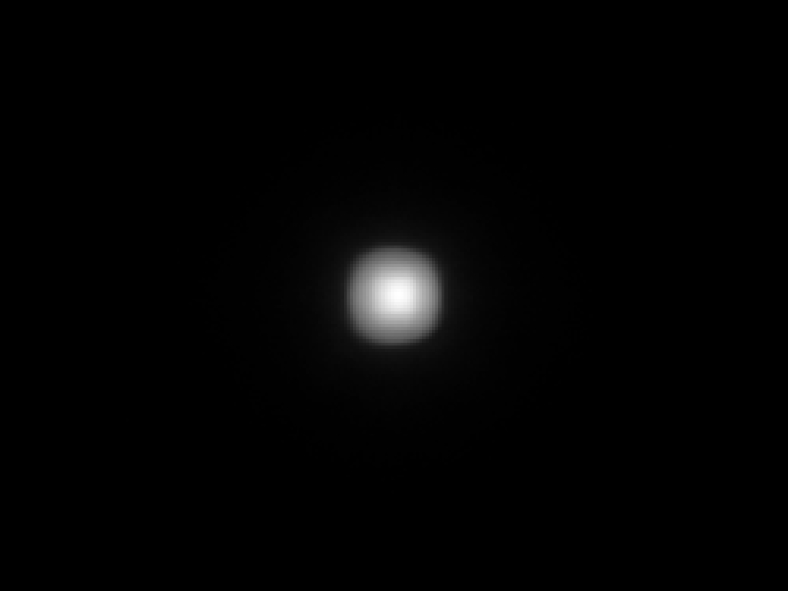

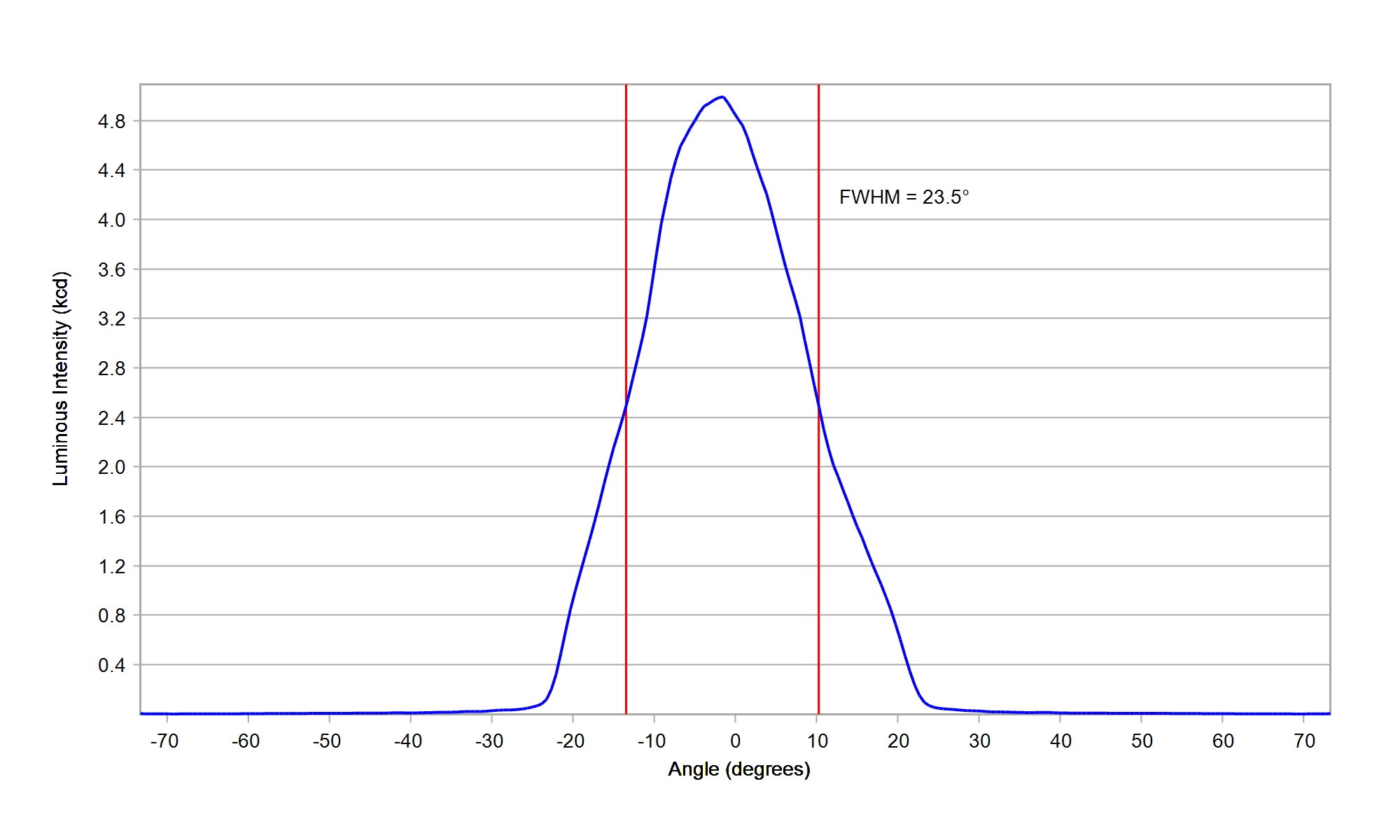

Samsung 2835 LM281B+ White

Eff:

88.0%

FWHM:

23.5°

Cd/Im:

4.4



Download

Samsung 2835 LM282B+ White

Eff:

89.0%

FWHM:

22.5°

Cd/Im:

4.9



Download

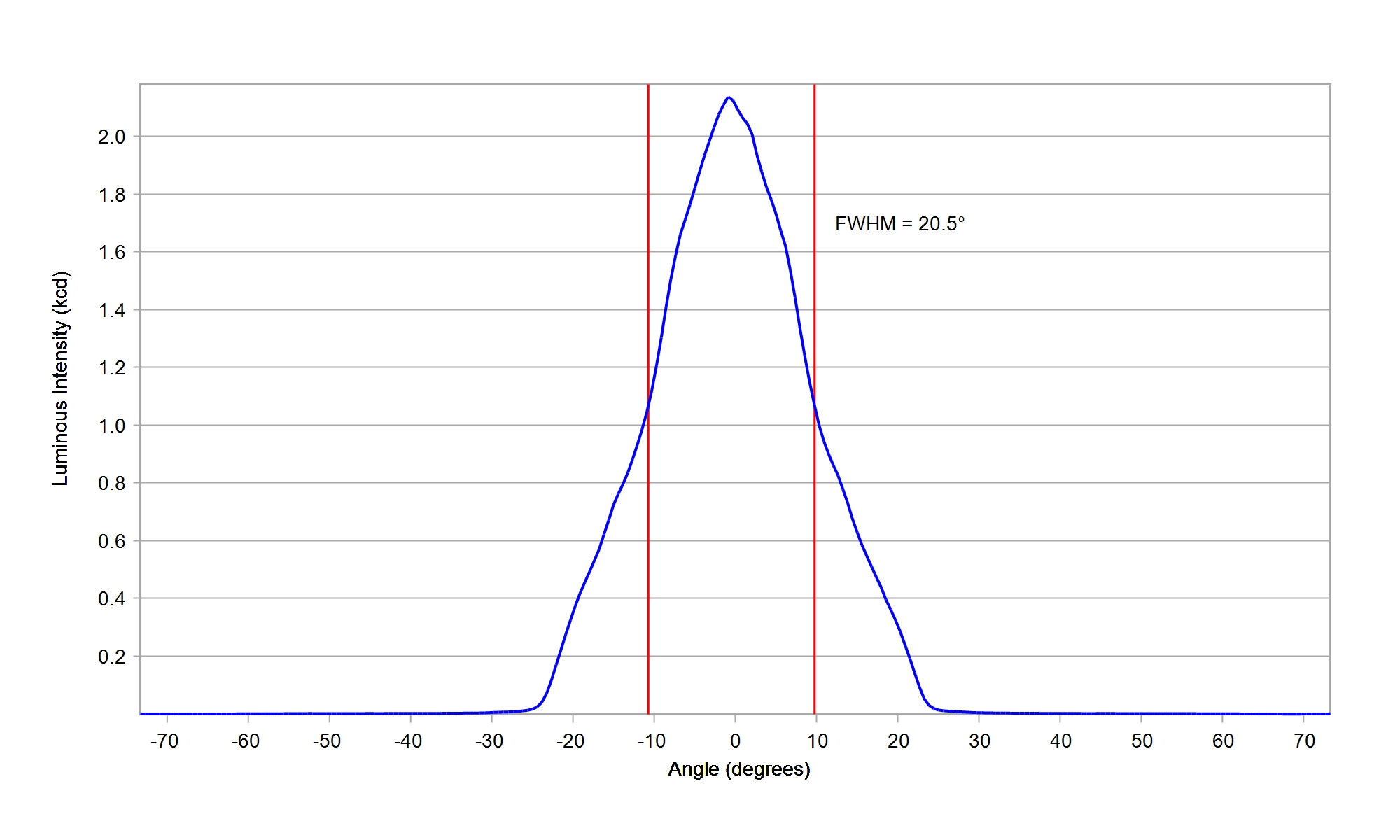

Samsung 3030 LM301B White

Eff:

89.0%

FWHM:

20.5°

Cd/Im:

4.9

Download

ies

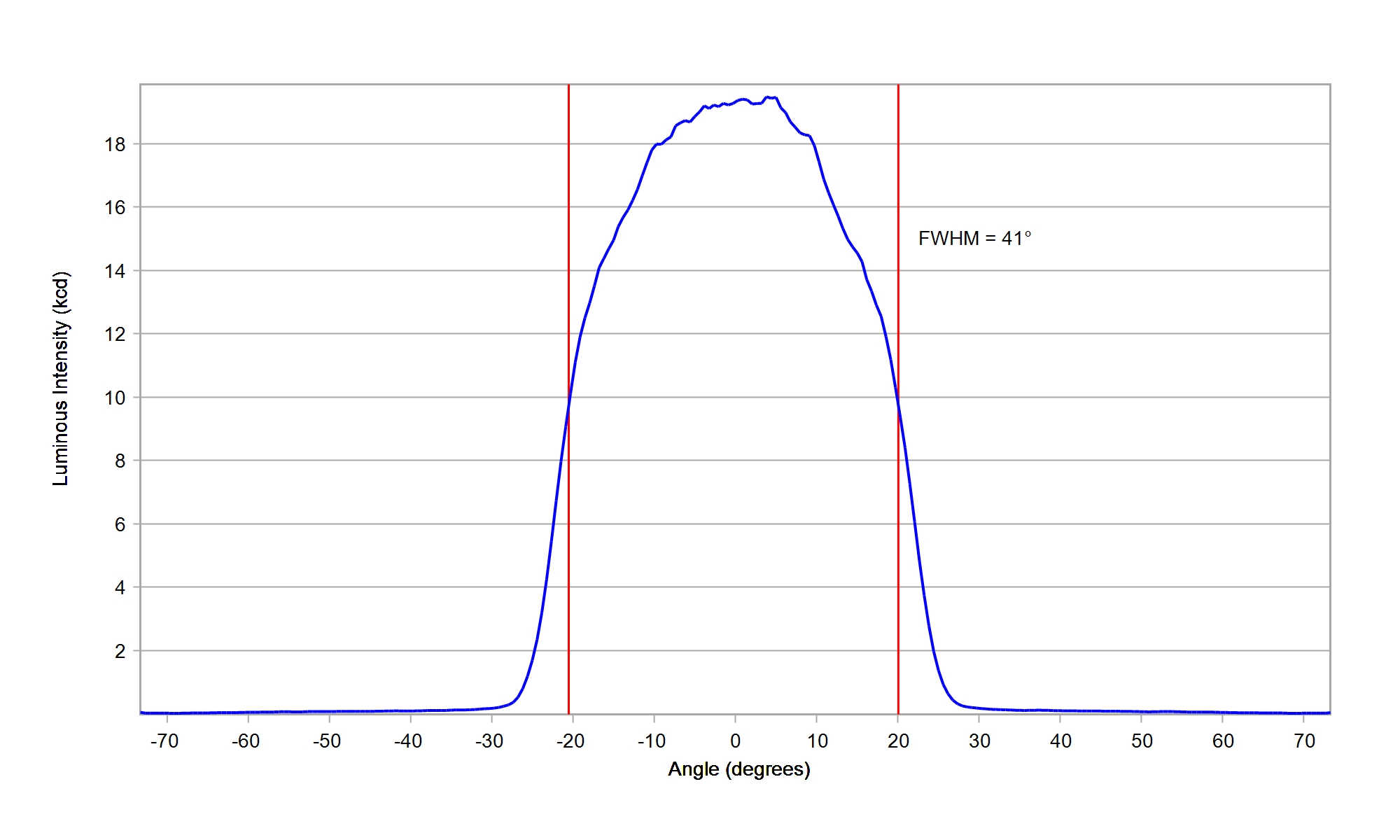

Samsung 5050 LH502C White

Eff:

86.5%

FWHM:

41°

Cd/Im:

2.0


Download

IES

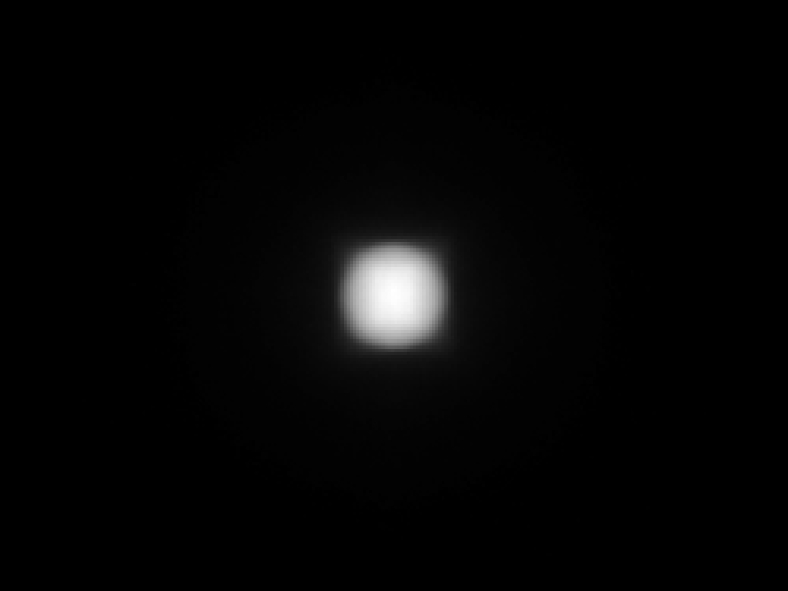

Samsung 5050 LH502D White

Eff:

87.0%

FWHM:

37°

Cd/Im:

2.3


Download

IES

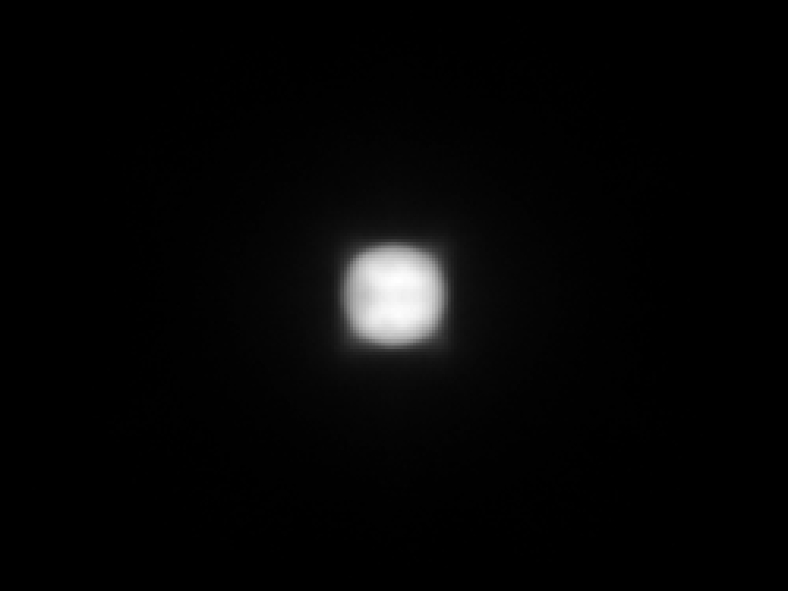

Samsung 5050 LH508C White

Eff:

87.0%

FWHM:

40°

Cd/Im:

2.1


Download

IES

Samsung CSP LH151B White

Eff:

89.0%

FWHM:

16°

Cd/Im:

9.2

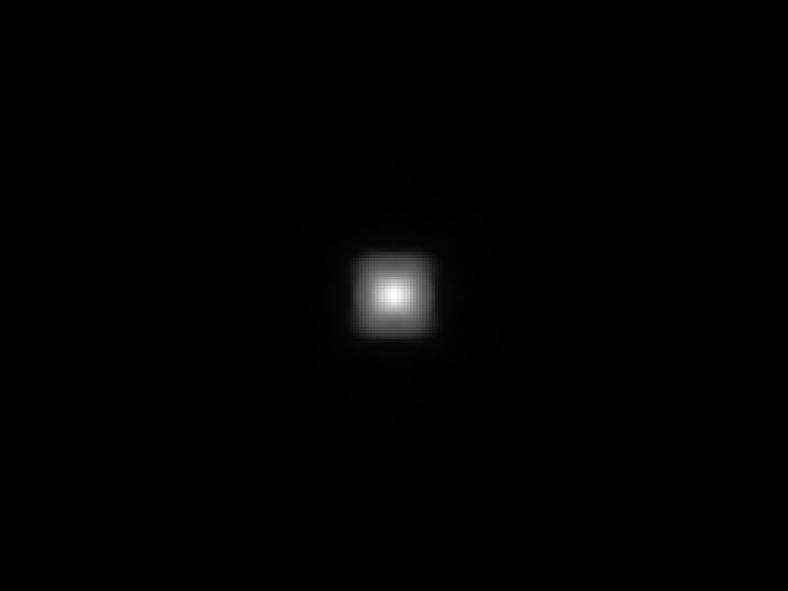

Carclo Optics – 12962 – Samsung_LH151B_spot-image

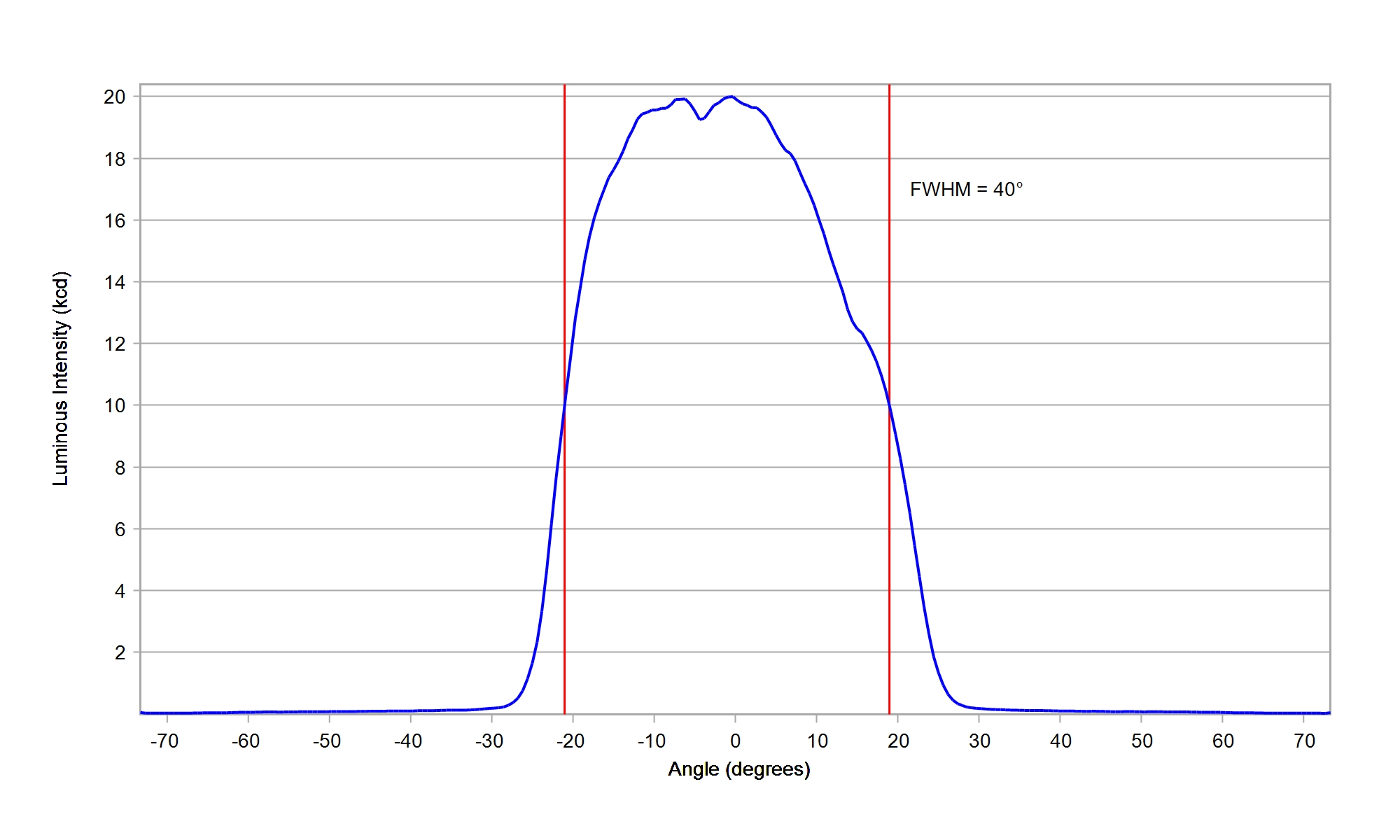

Carclo Optics – 12962 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

88.5%

FWHM:

23 x 21.5°

Cd/Im:

5.4

Carclo Optics -12962 Spot Image - Samsung LH181B 4000K

Carclo Optics -12962 Cross Section - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

88.5%

FWHM:

27 x 25.5°

Cd/Im:

4.2

Carclo Optics - 12962 Spot Image Samsung LH231B 5000K

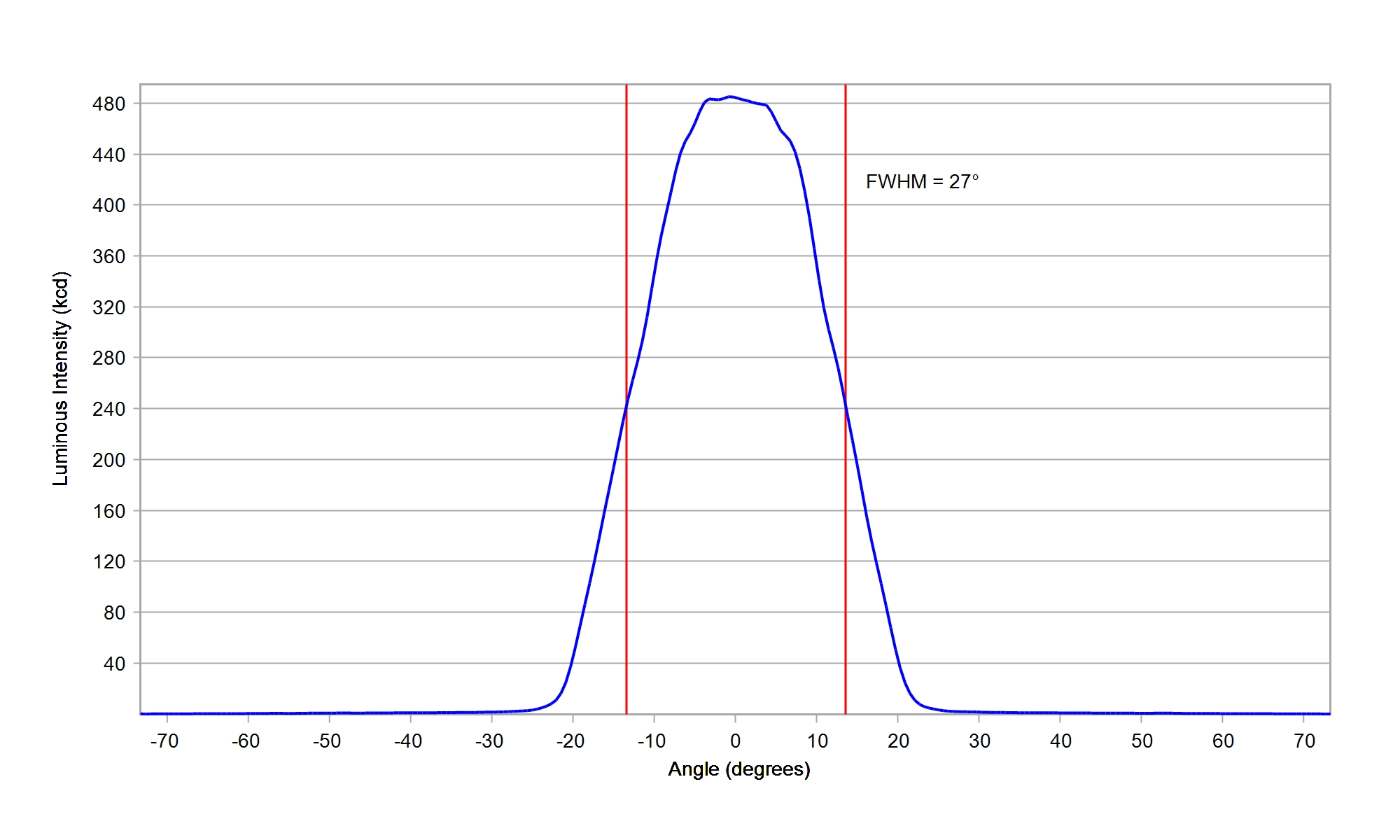

Carclo Optics -12962 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

88.5%

FWHM:

16.5 x 14.5°

Cd/Im:

8.2

Carclo Optics -12962 Spot Image - Samsung LM101B 5000K

Carclo Optics -12962 Cross Section - Samsung LM101B 5000K

Download

ies

Seoul 3030 STW8C12E-E0 White

Eff:

89.0%

FWHM:

22.5°

Cd/Im:

4.6

Download

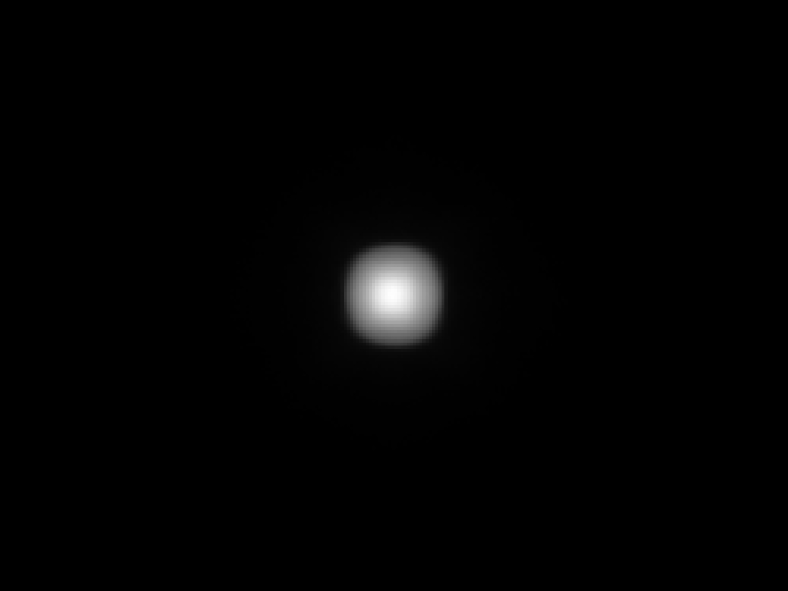

Seoul 3528 G STW8A2PD-G700 White

Eff:

89.0%

FWHM:

24.5°

Cd/Im:

4.2

Download

Seoul CSP SZ8Y22 White

Eff:

87.0%

FWHM:

24.5 x 23.5°

Cd/Im:

4.3

Carclo Optics -12962 Spot Image - Seoul SZ8Y22

Carclo Optics -12962 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

87.5%

FWHM:

28°

Cd/Im:

3.3

Carclo Optics - 12962 Spot Image - Seoul SZ8Y22P

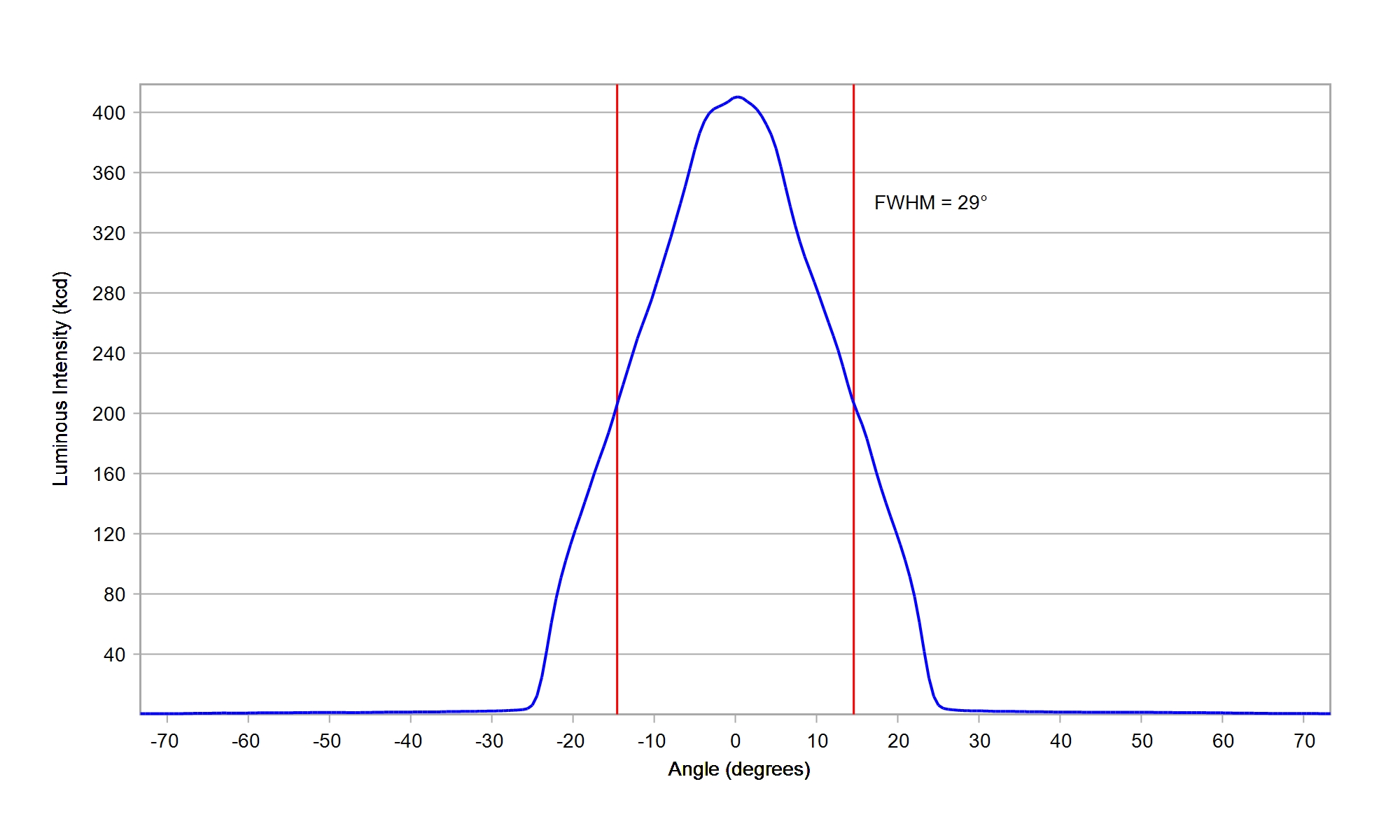

Carclo Optics - 12962 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul 5630 STW8Q14C White

Eff:

83.0%

FWHM:

23°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

89.0%

FWHM:

23.0°

Cd/Im:

4.4

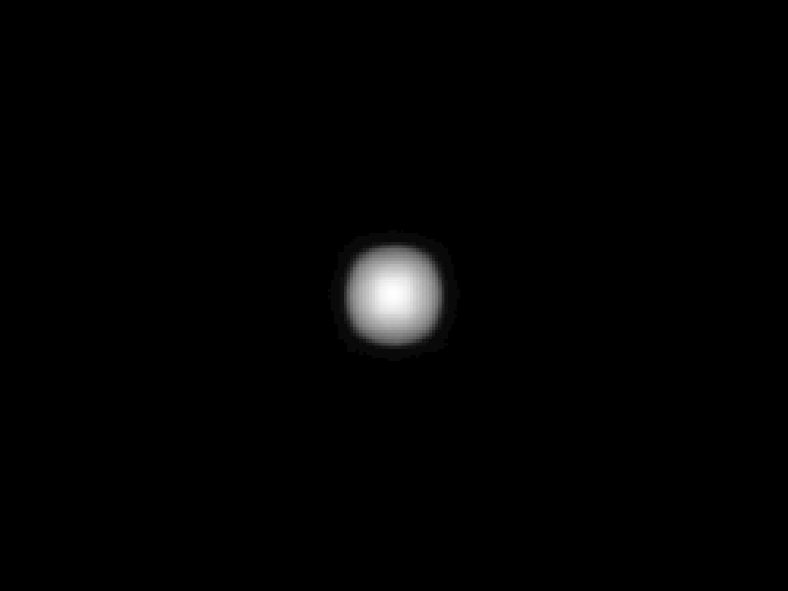

Carclo Optics - 12962 Spot Image Seoul STW8 C2SB-NT

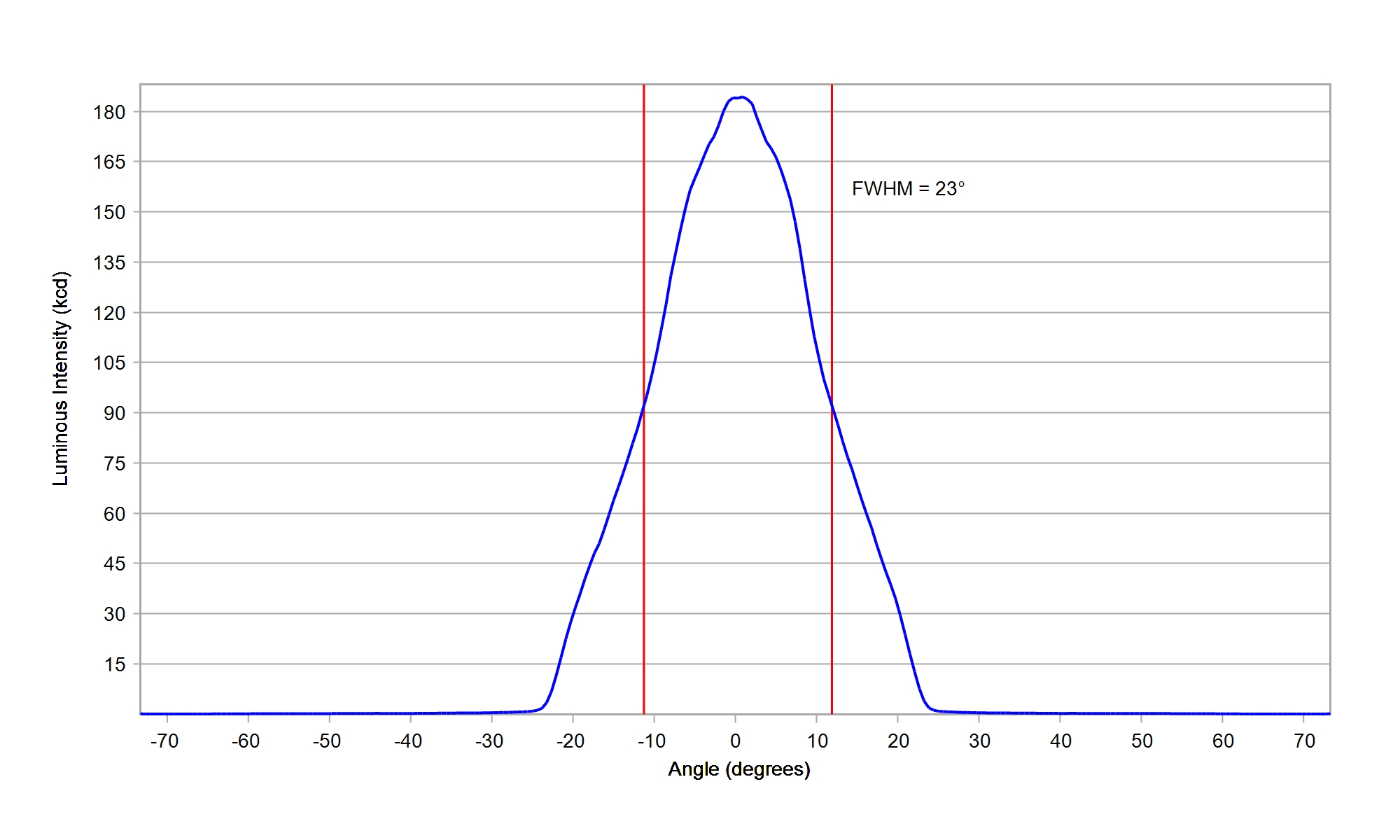

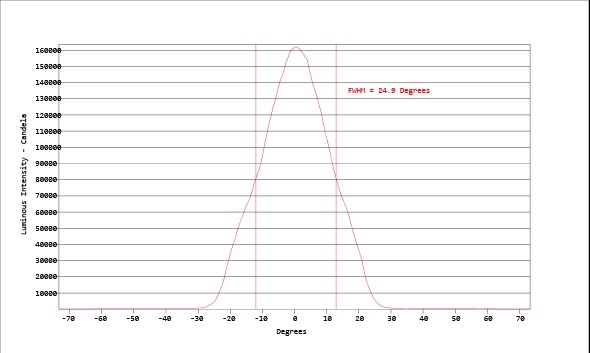

Carclo Optics - 12962 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

89.0%

FWHM:

24.0°

Cd/Im:

4.3

Carclo Optics - 12962 Spot Image STWS C2PB-E0

Carclo Optics - 12962 Cross Section STWS C2PB-E0

Download

ies

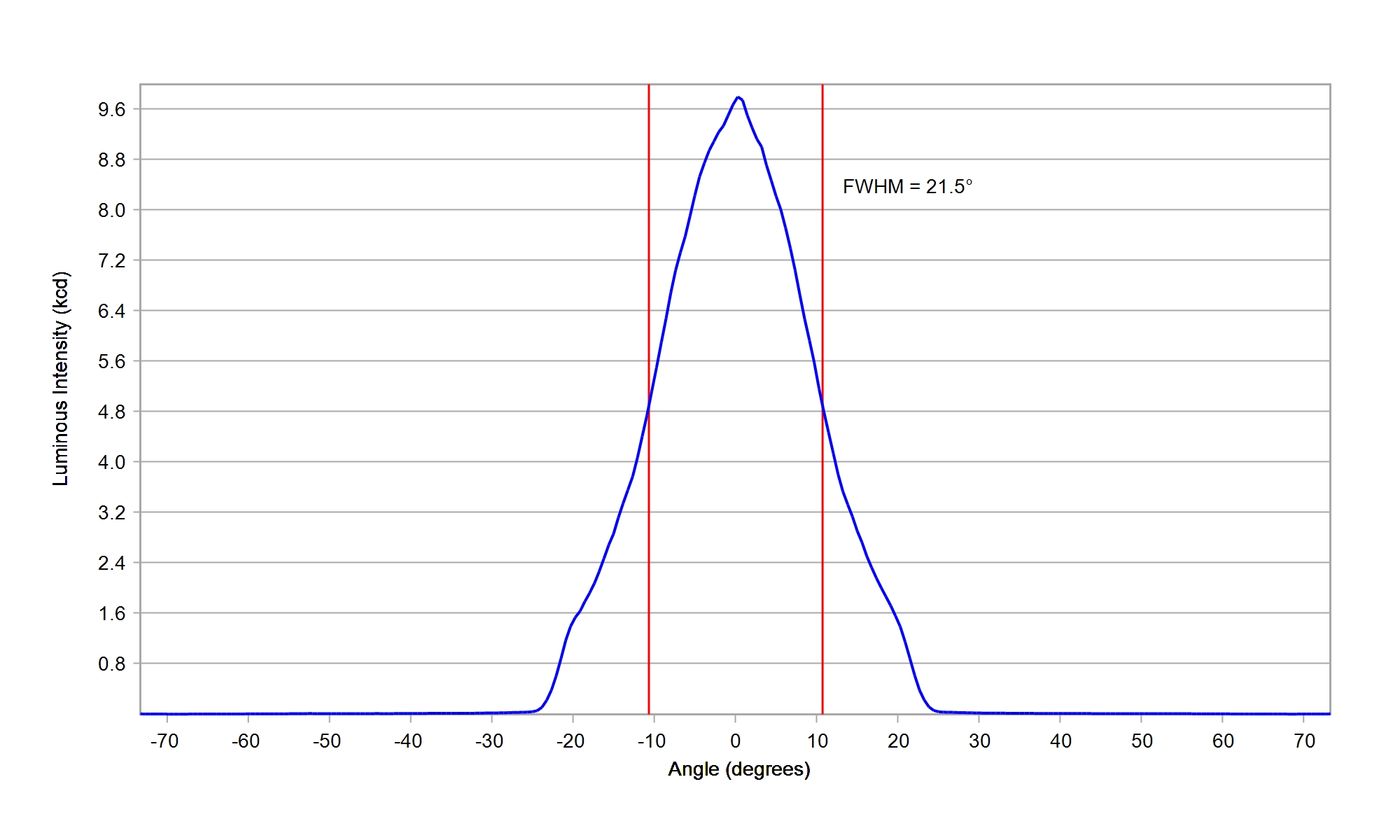

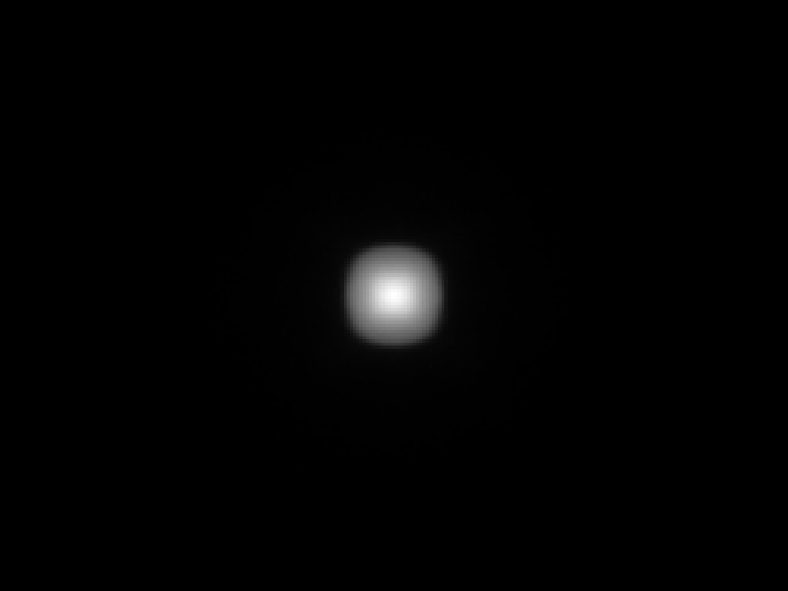

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

89.0%

FWHM:

21.5°

Cd/Im:

5.0

Download

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

89.0%

FWHM:

22°

Cd/Im:

4.8

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

89.0%

FWHM:

22°

Cd/Im:

4.8

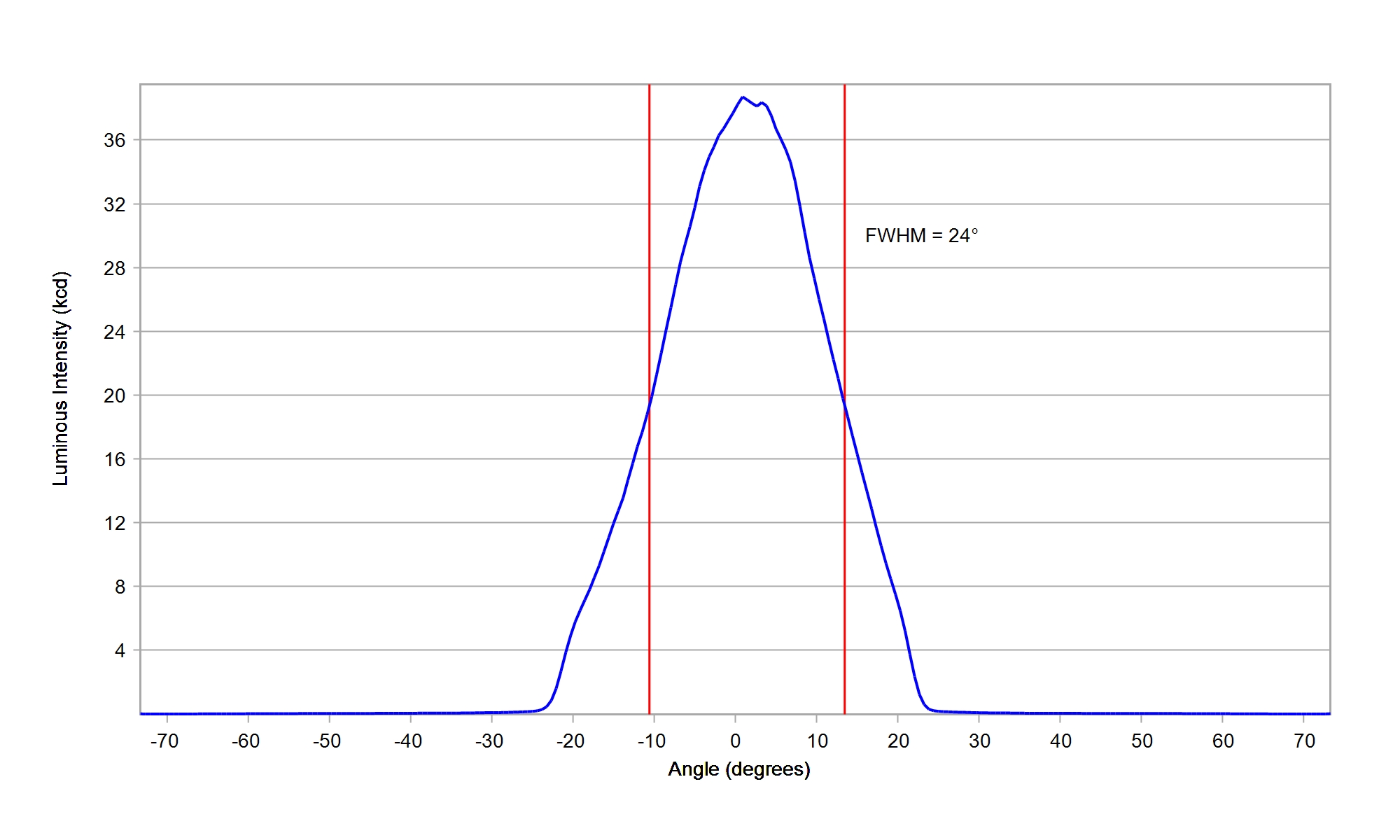

Carclo Optics - 12962 33Up Spot Image Seoul Sunlike 3030

Carclo Optics - 12962 33Up Cross Section Seoul Sunlike 3030

Download

ies
