Carclo Optics - 12960 - 33Up Array
292 x 61mm Narrow Spot Plain Freeform
Part number
12960
Dimensions
292 x 61mm
Drawing Number
12960_Rev-2_NB_Fort_ASymFlange
Optic type
Freeform
Finish
Plain
Beam type
Narrow Spot
Downloads

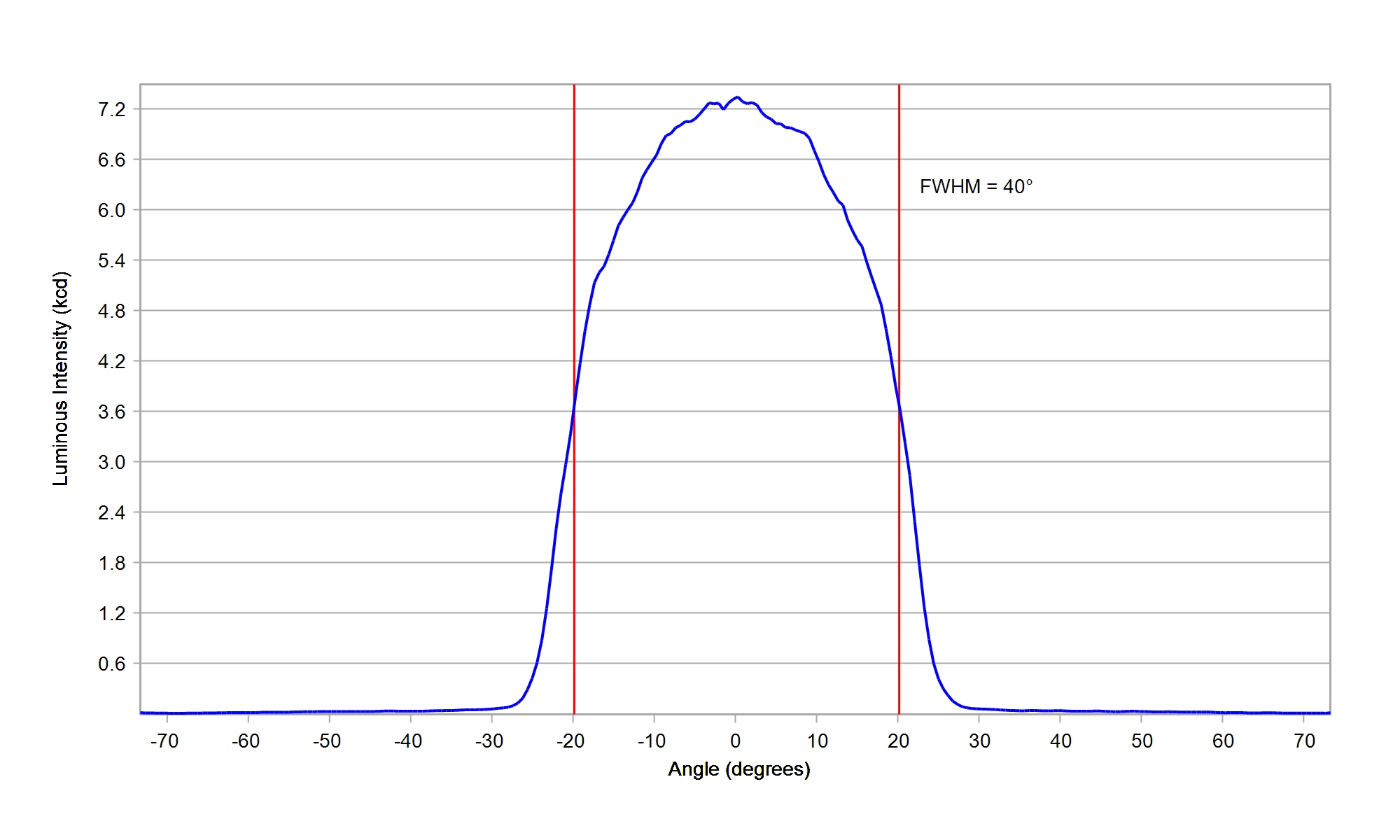

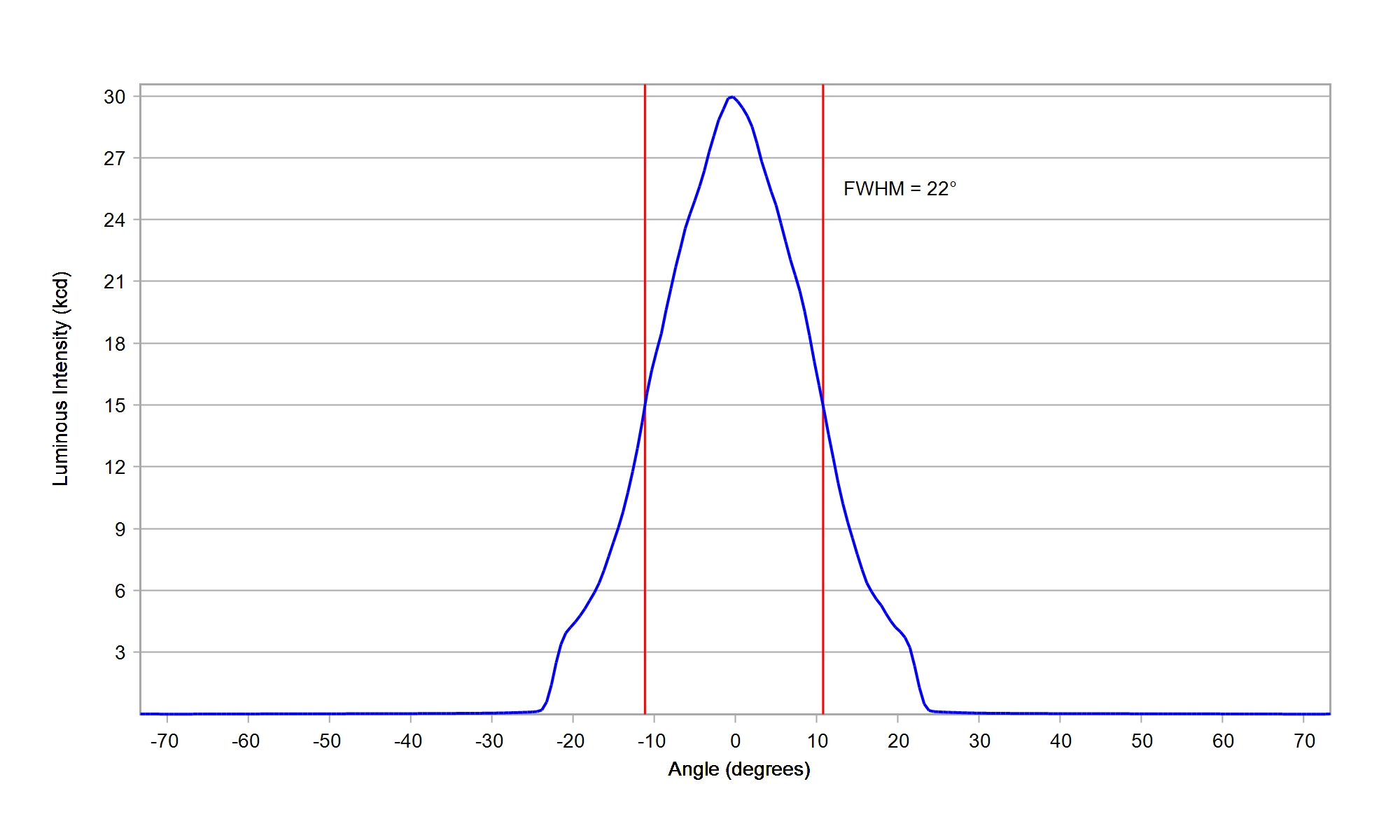

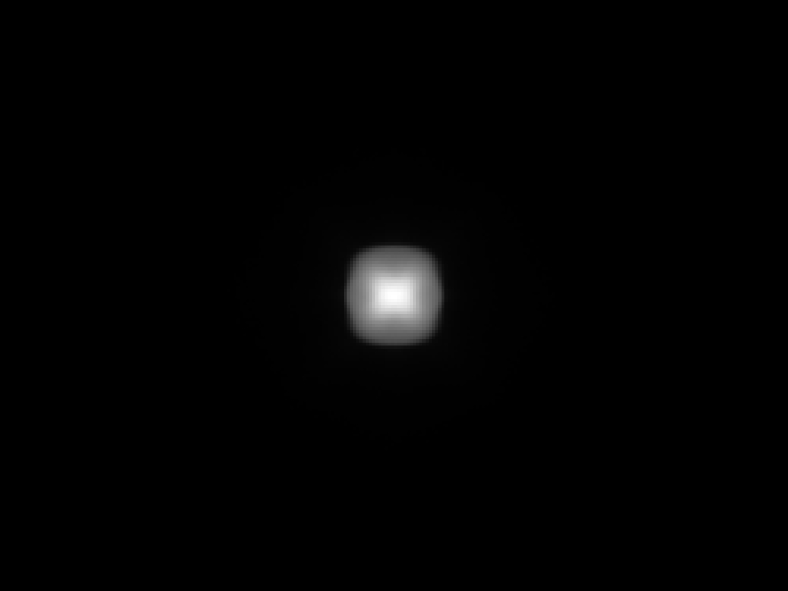

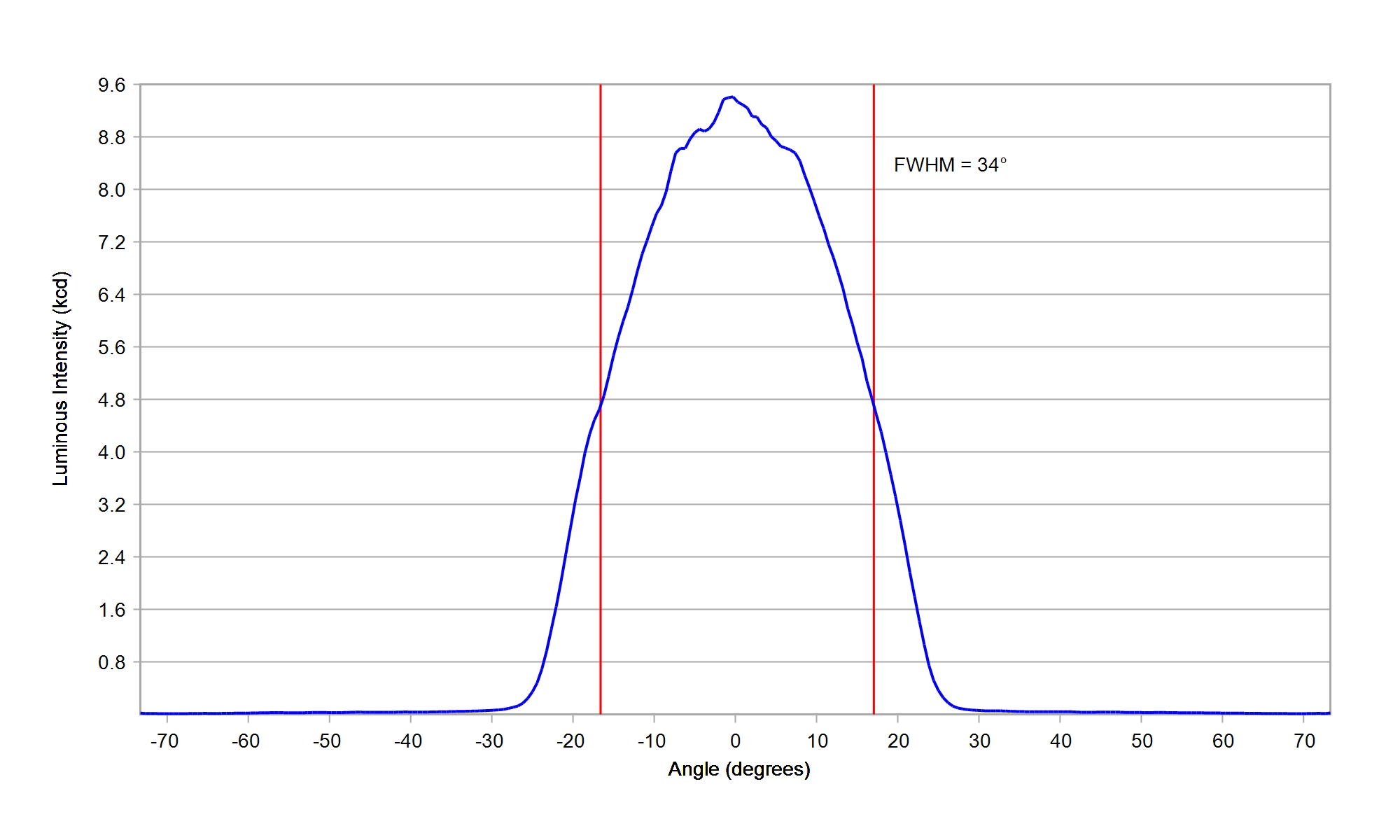

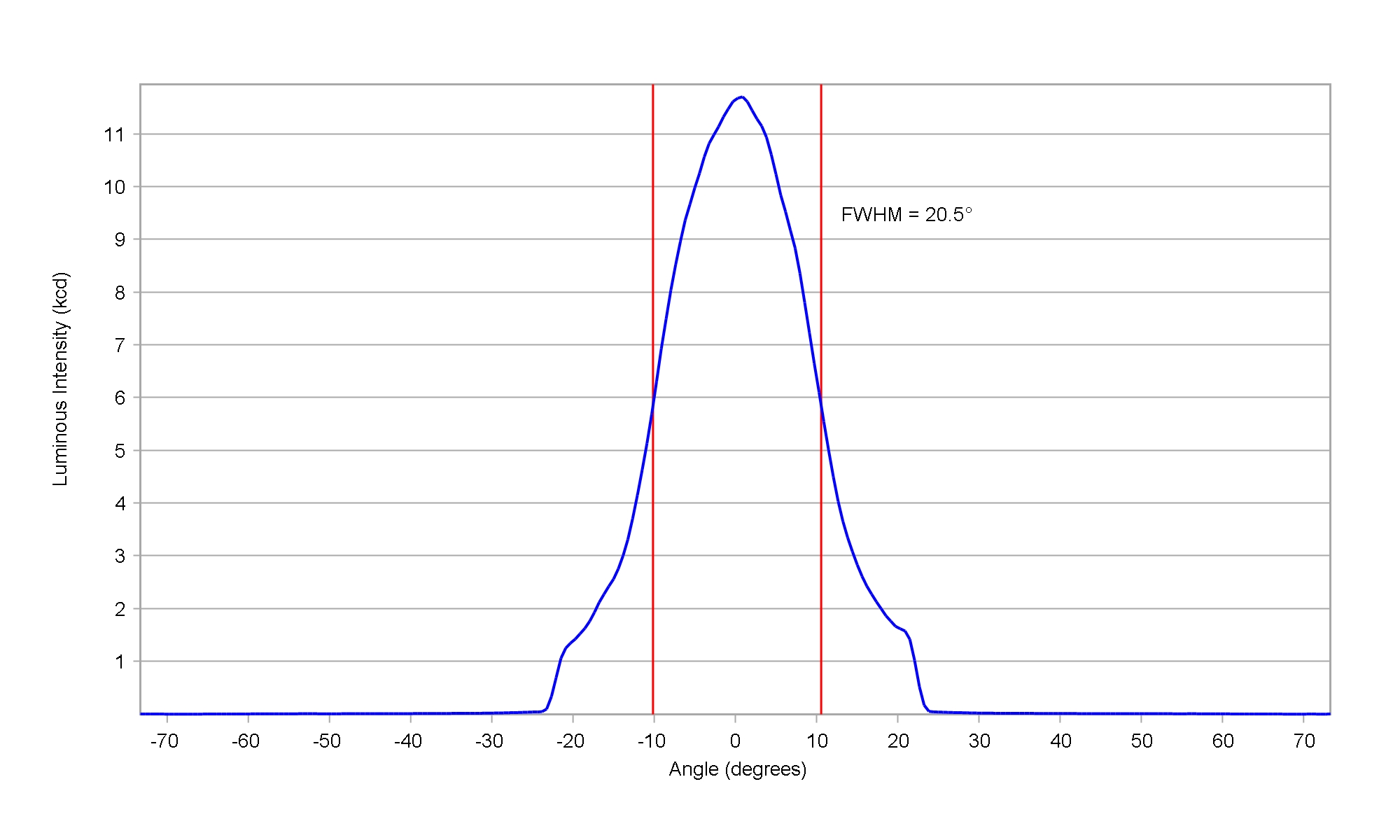

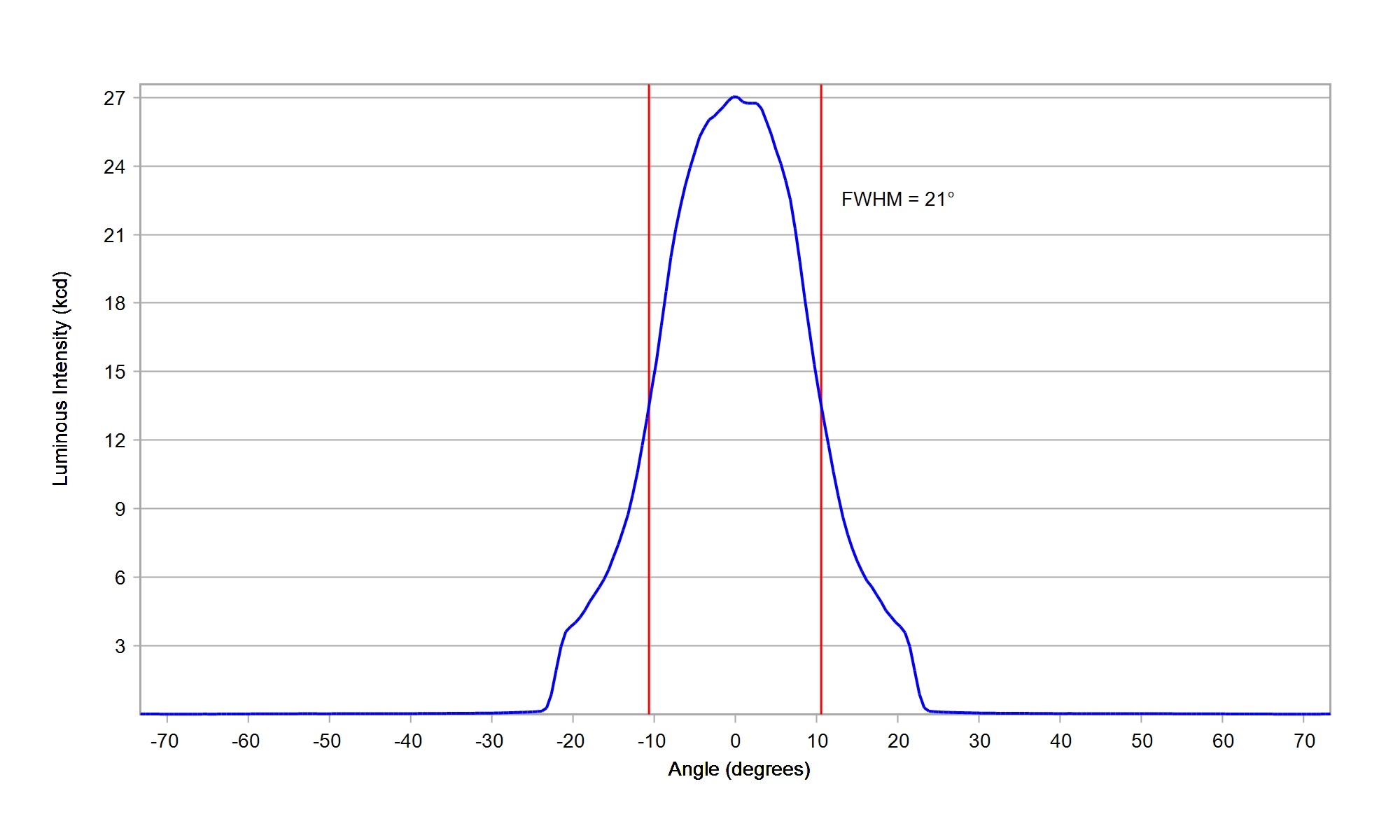

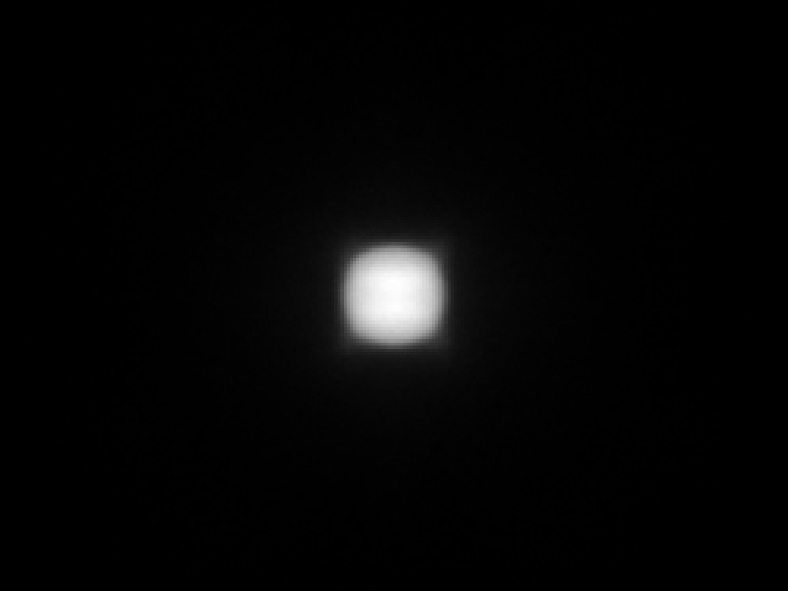

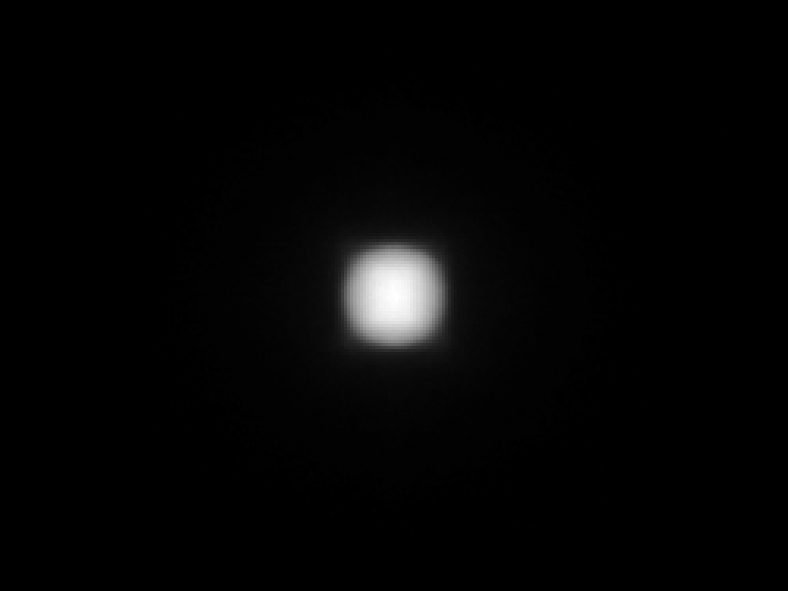

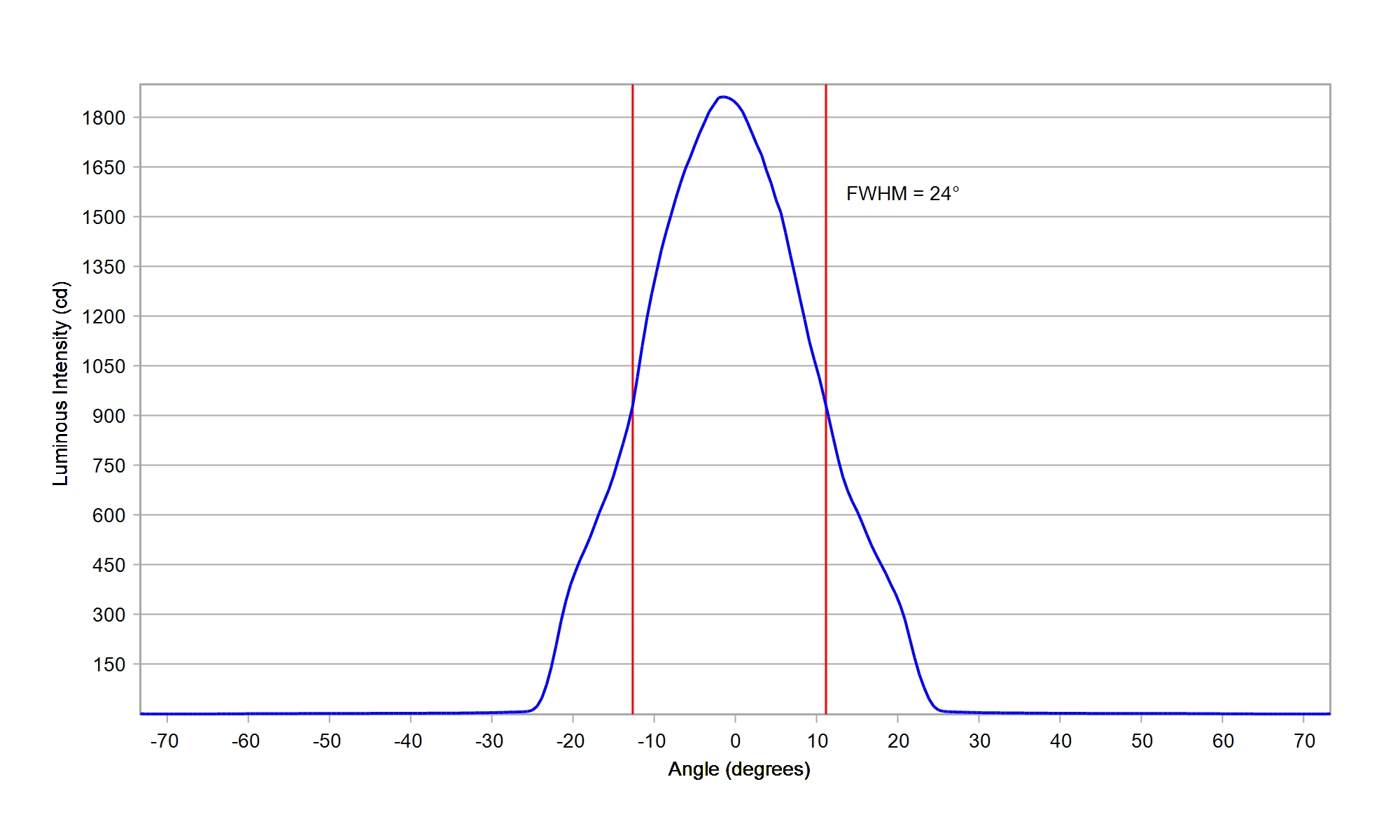

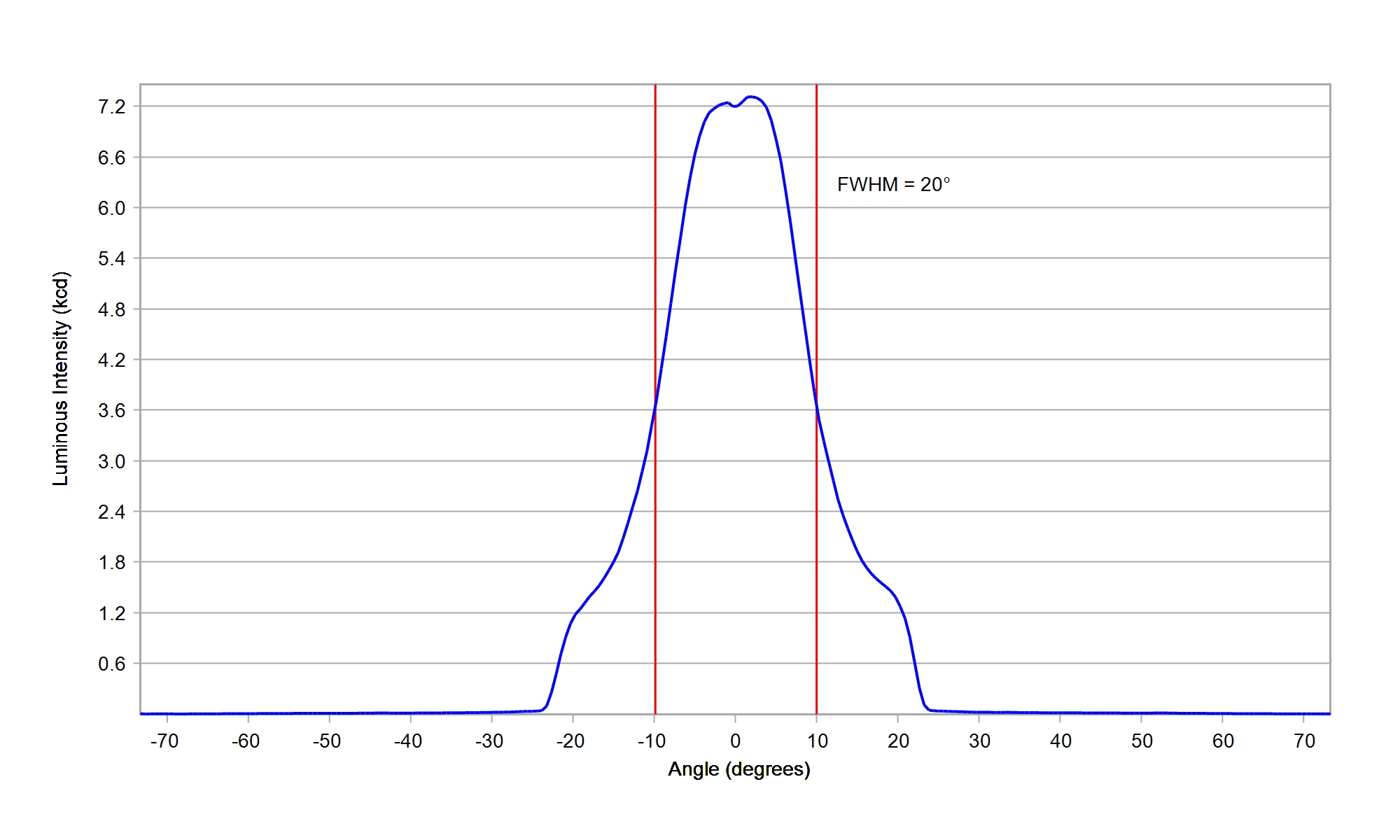

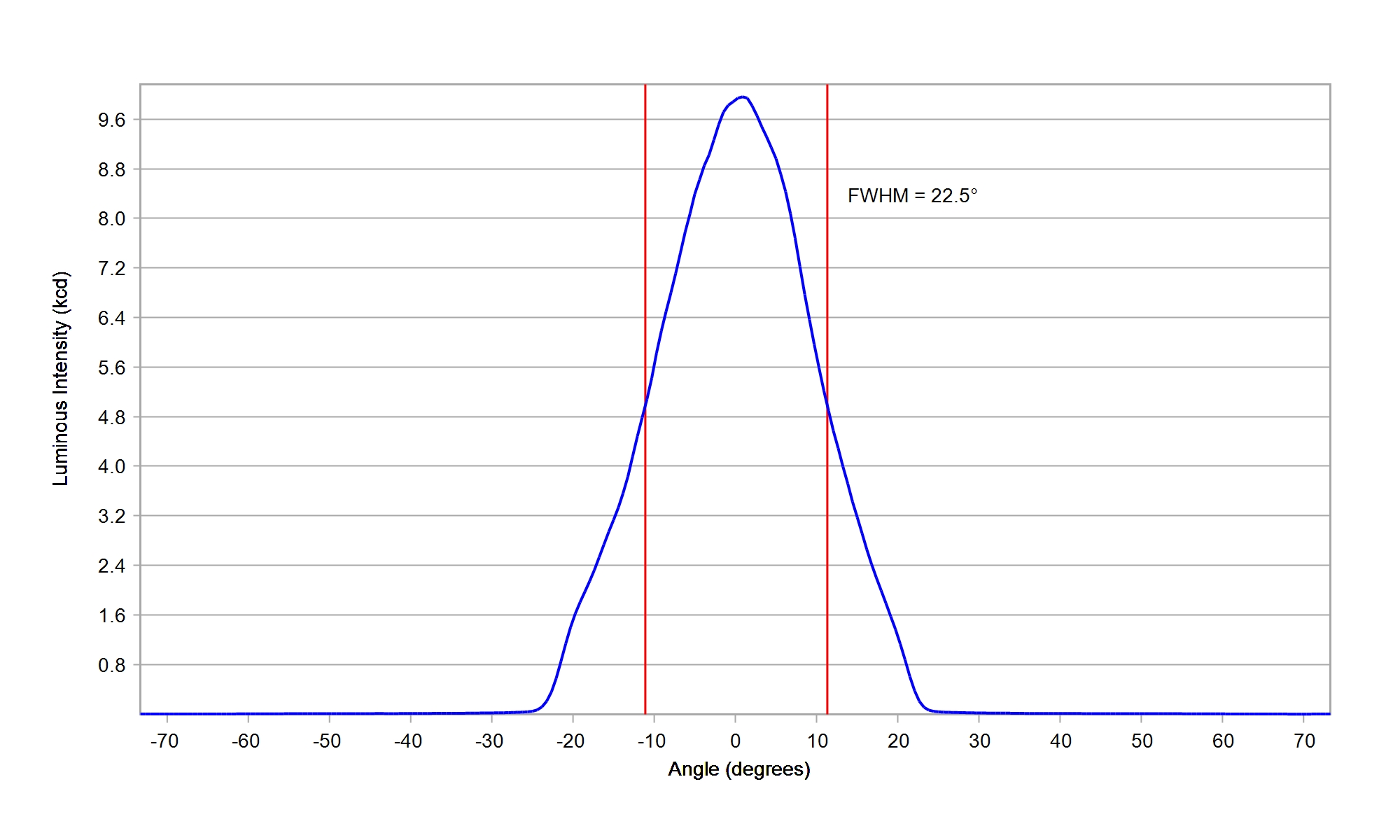

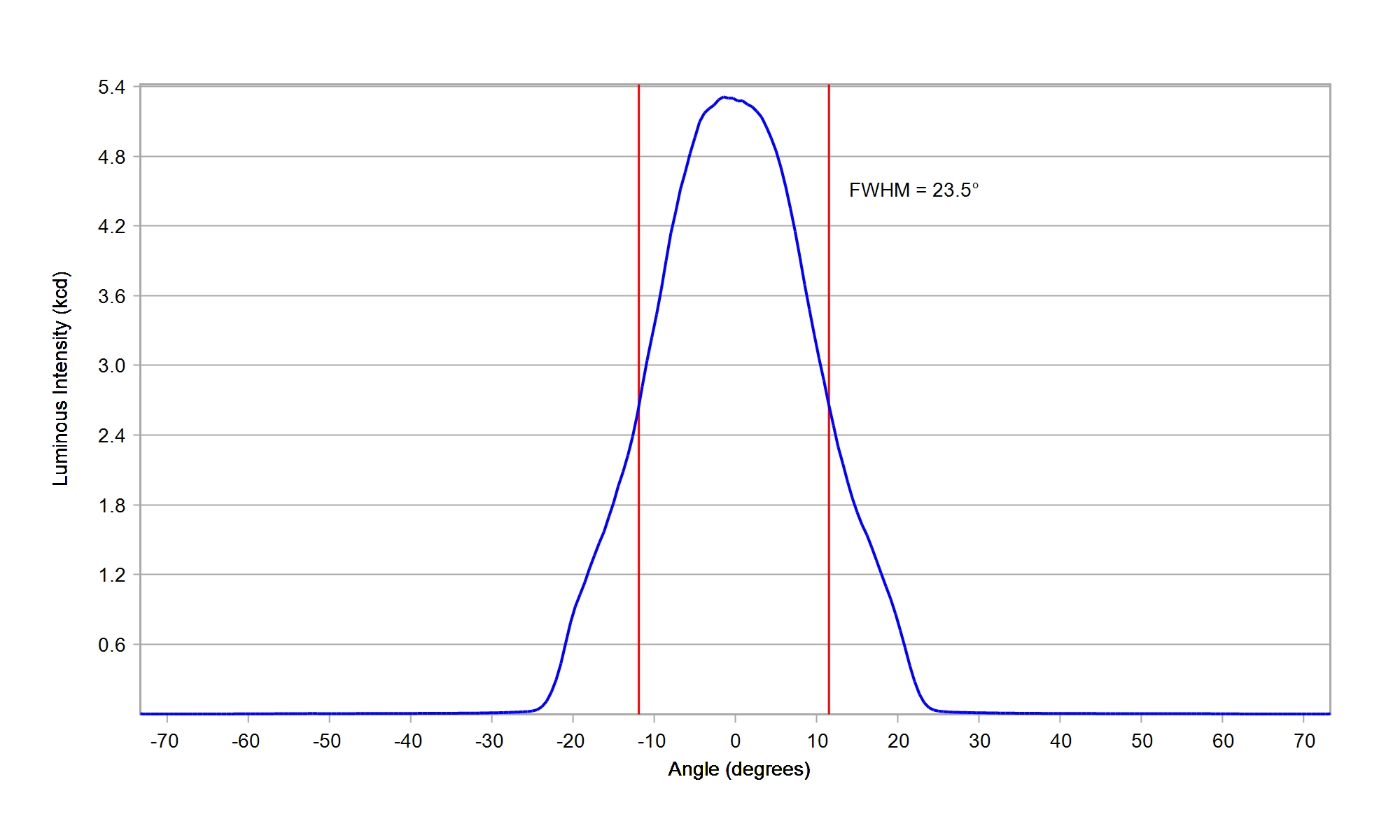

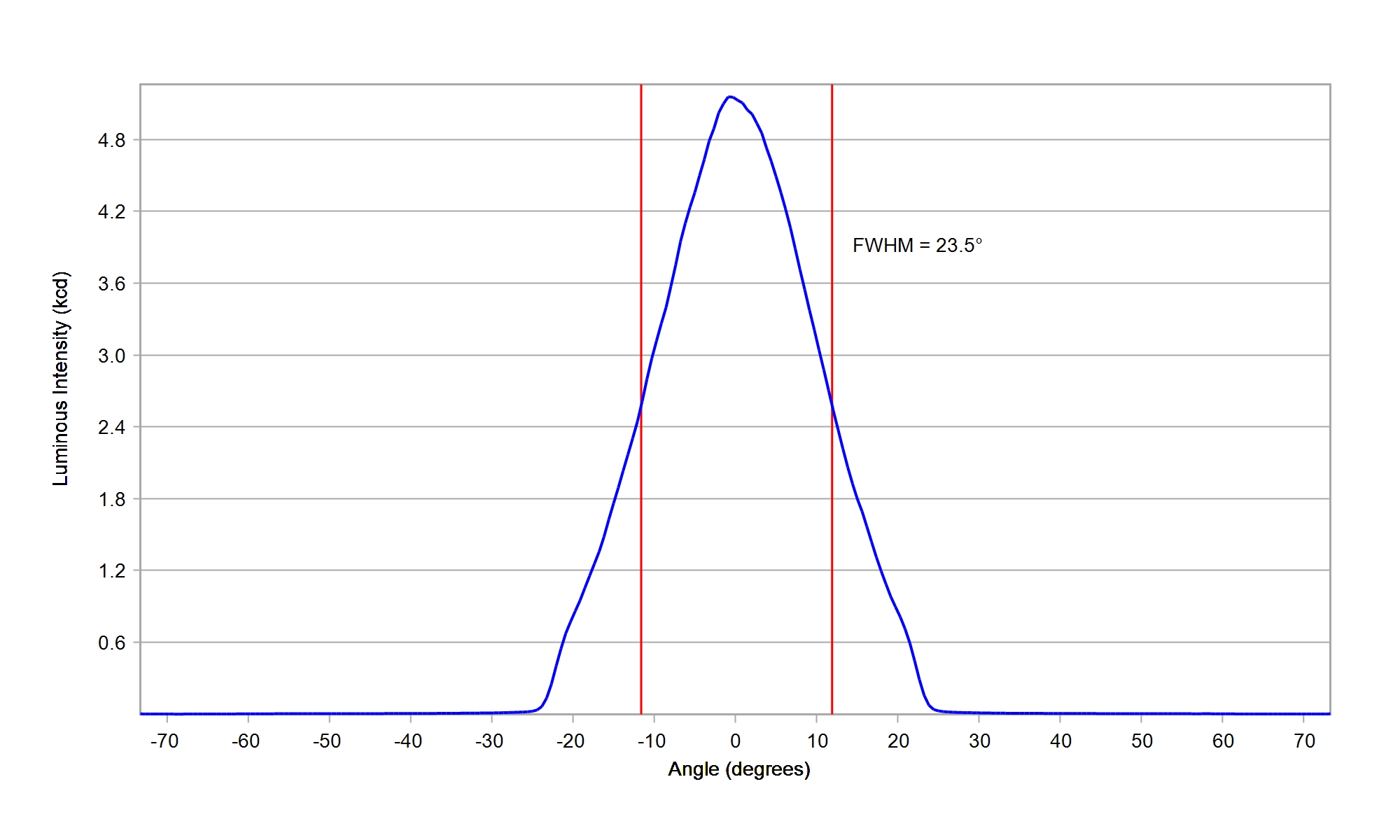

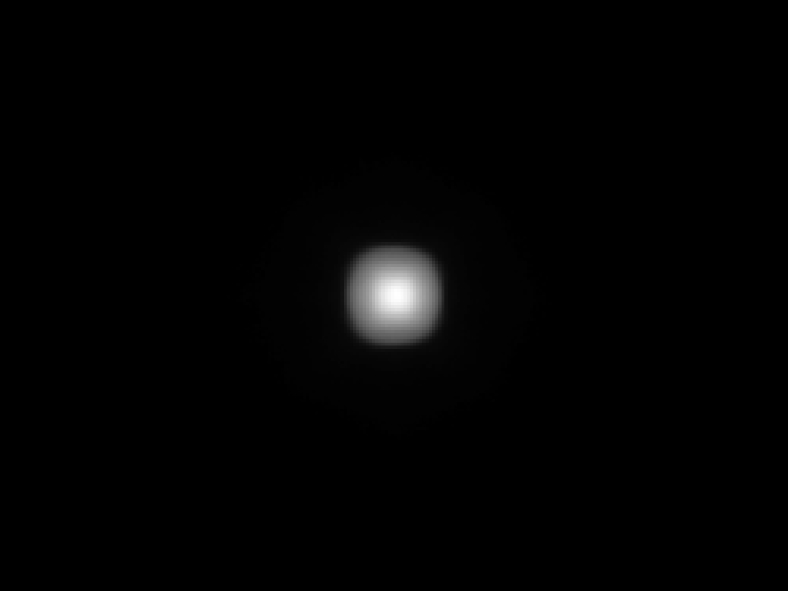

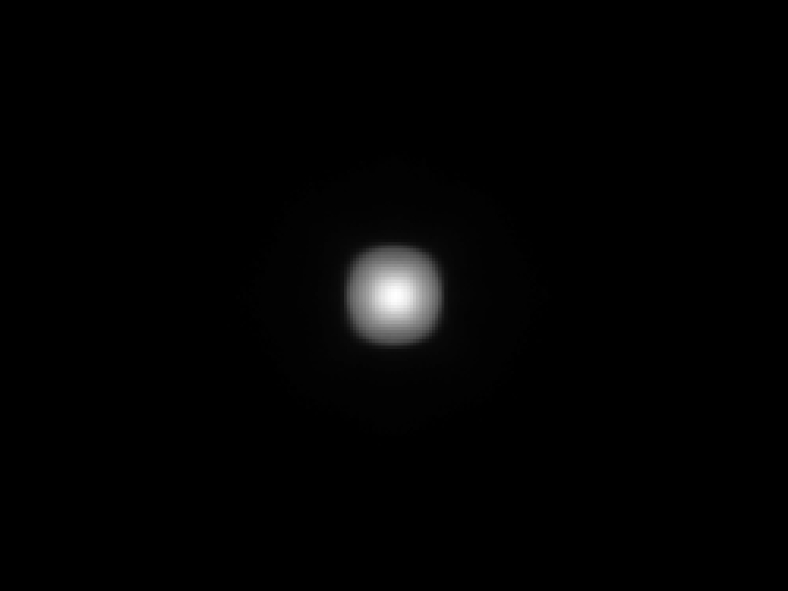

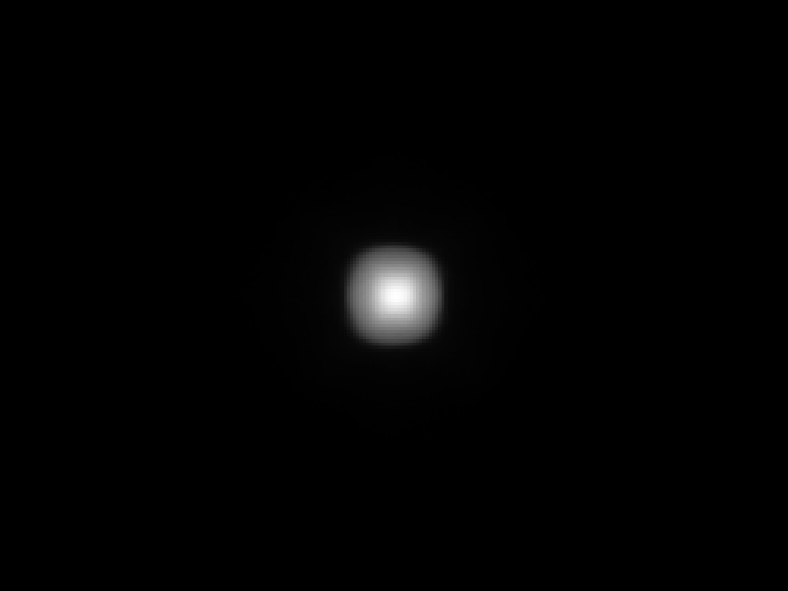

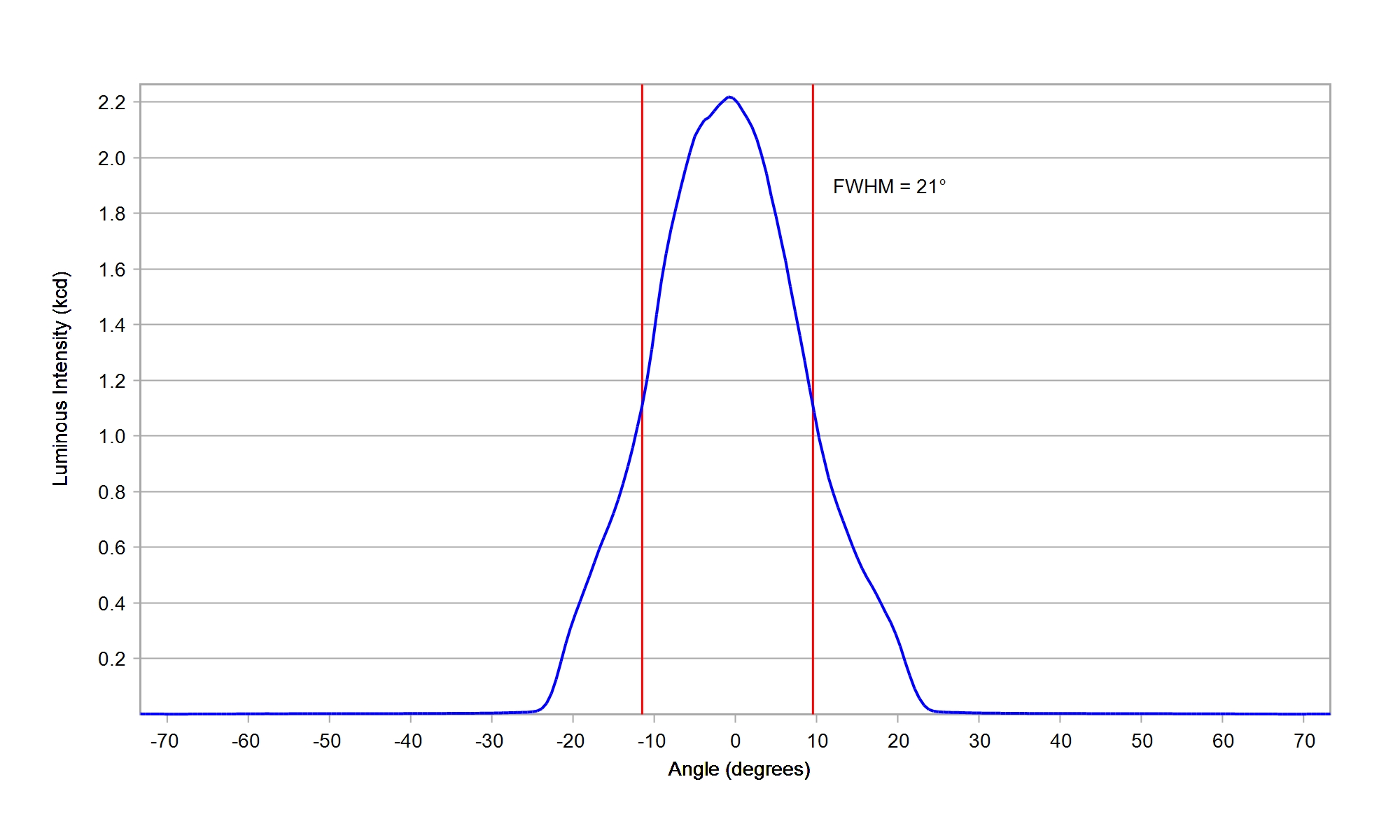

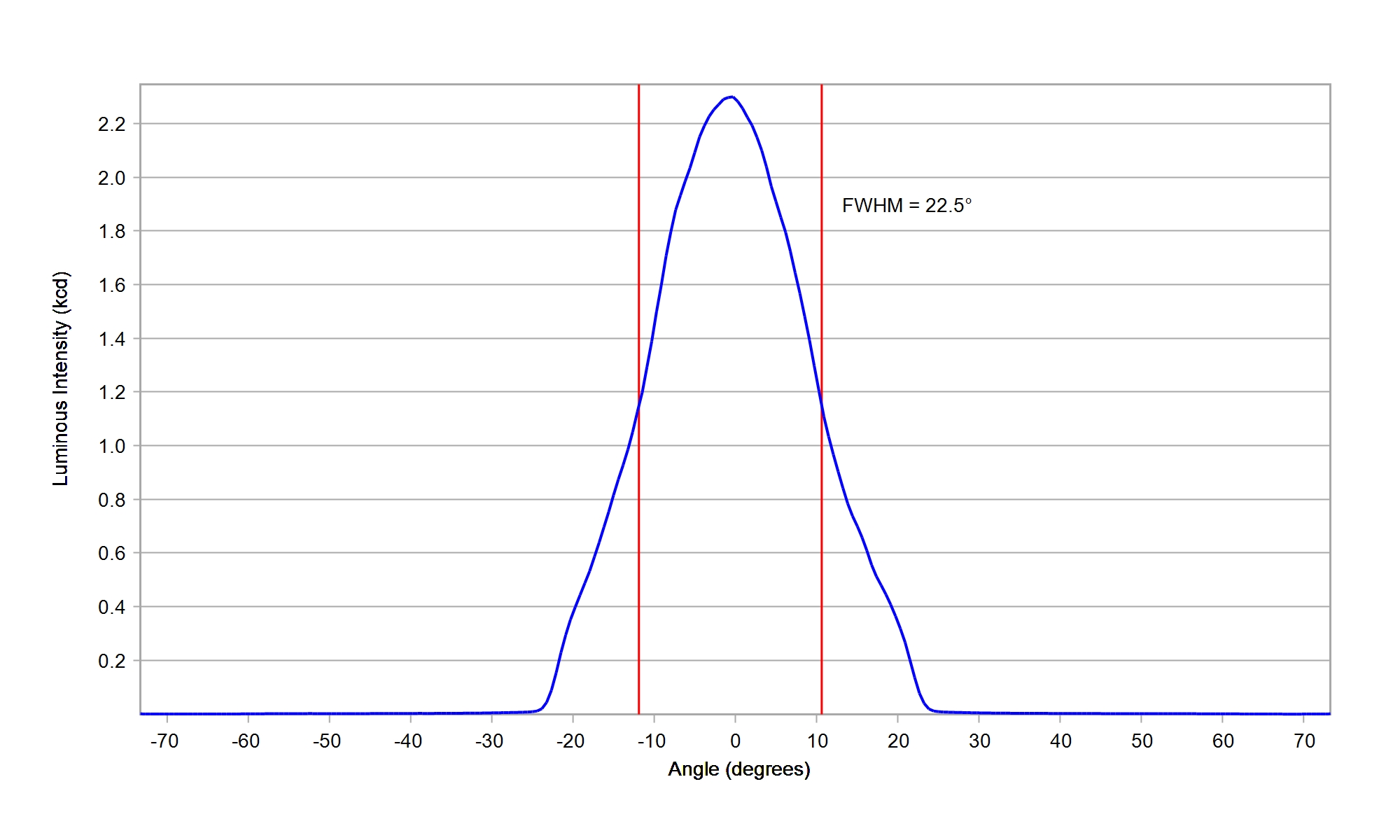

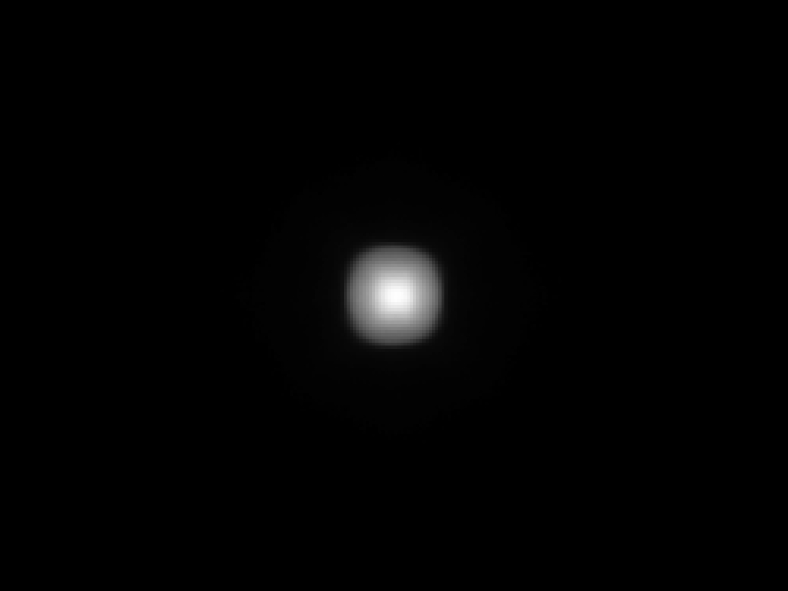

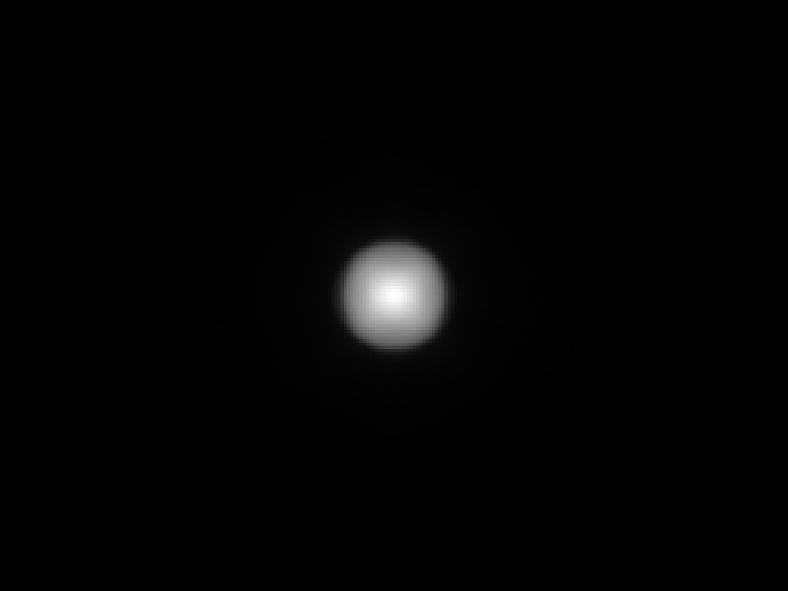

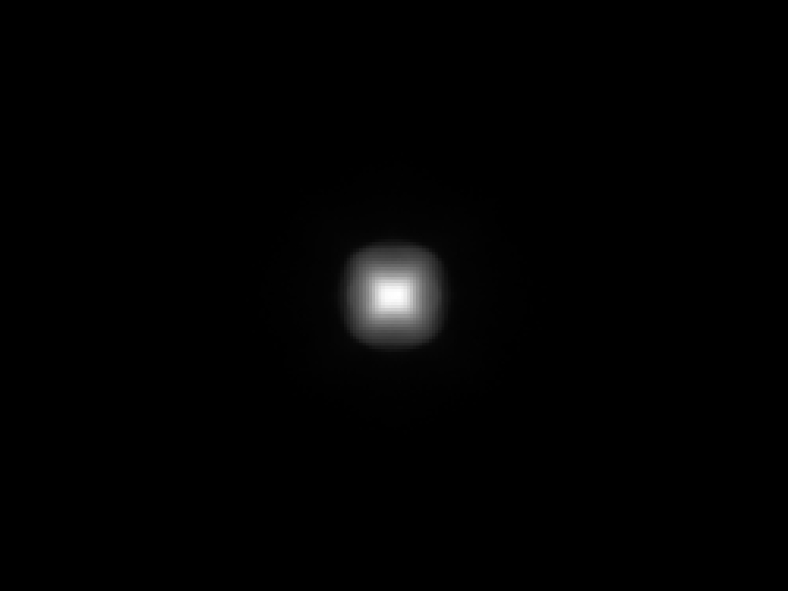

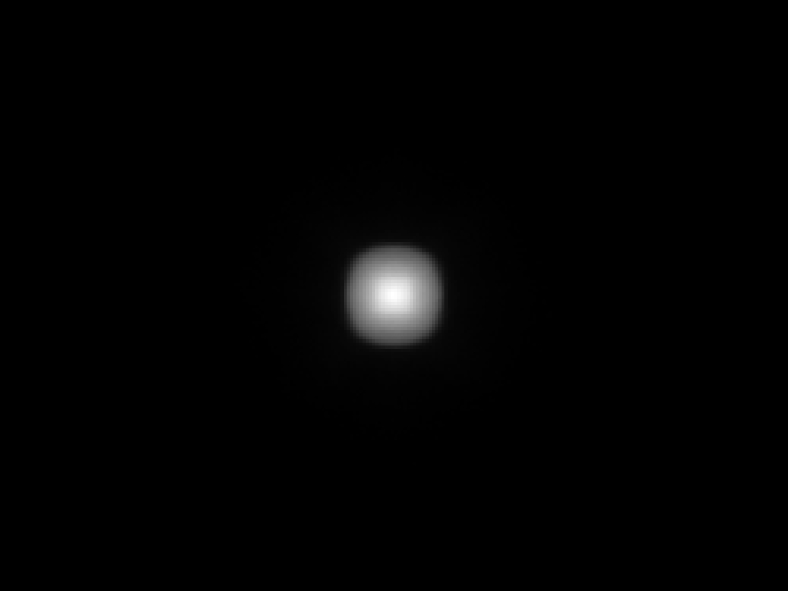

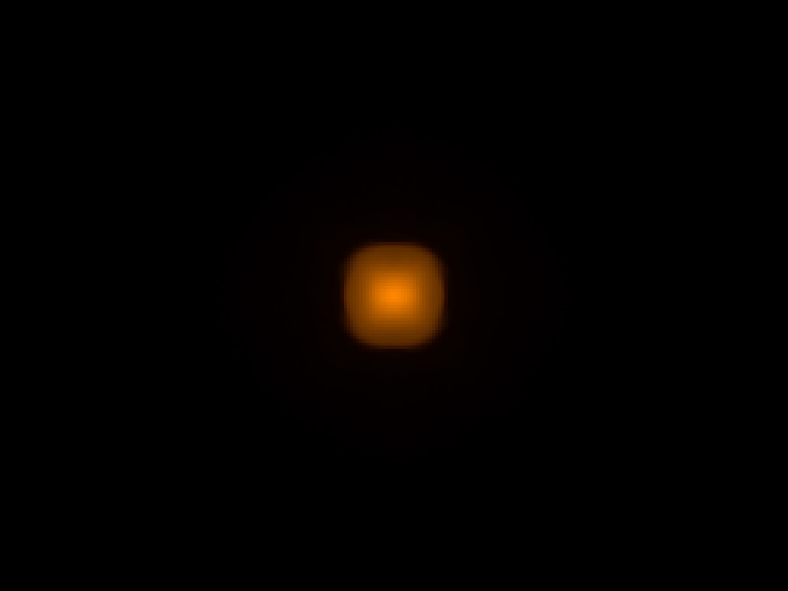

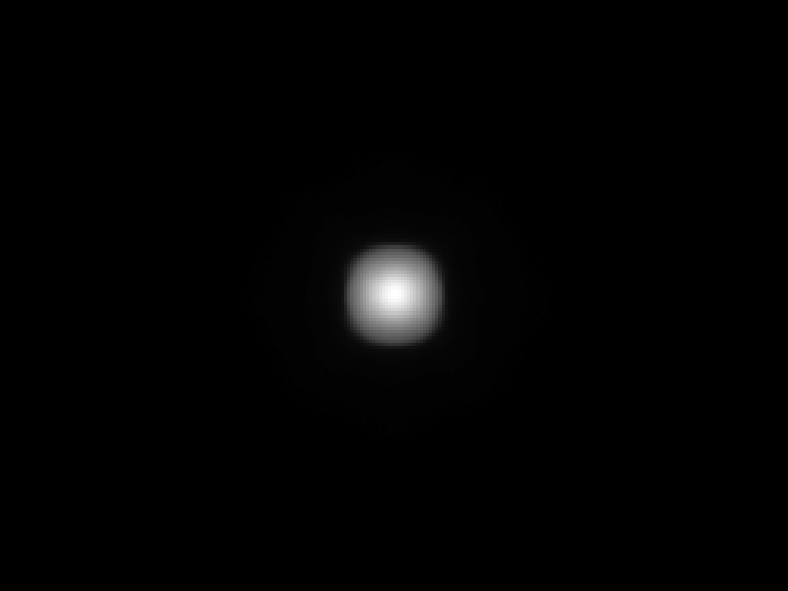

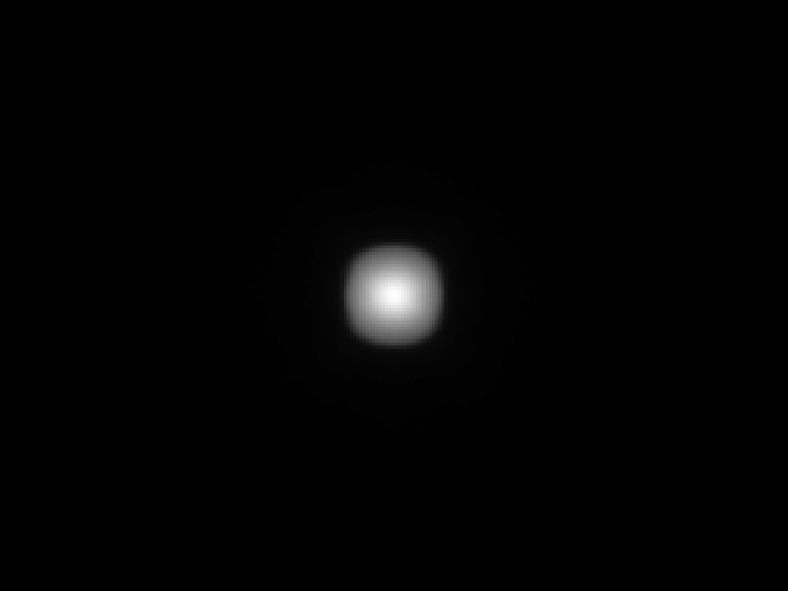

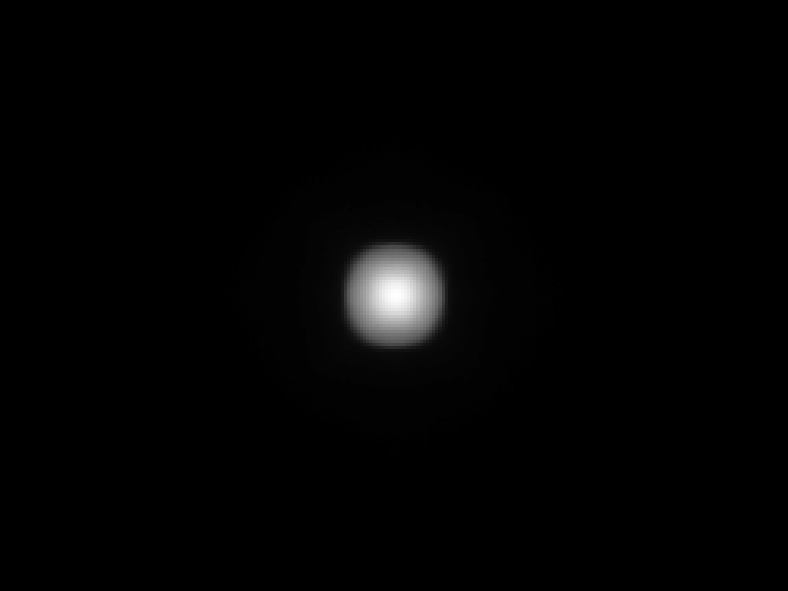

LEDs and Performances

Select and filter based on manufacturer(s)

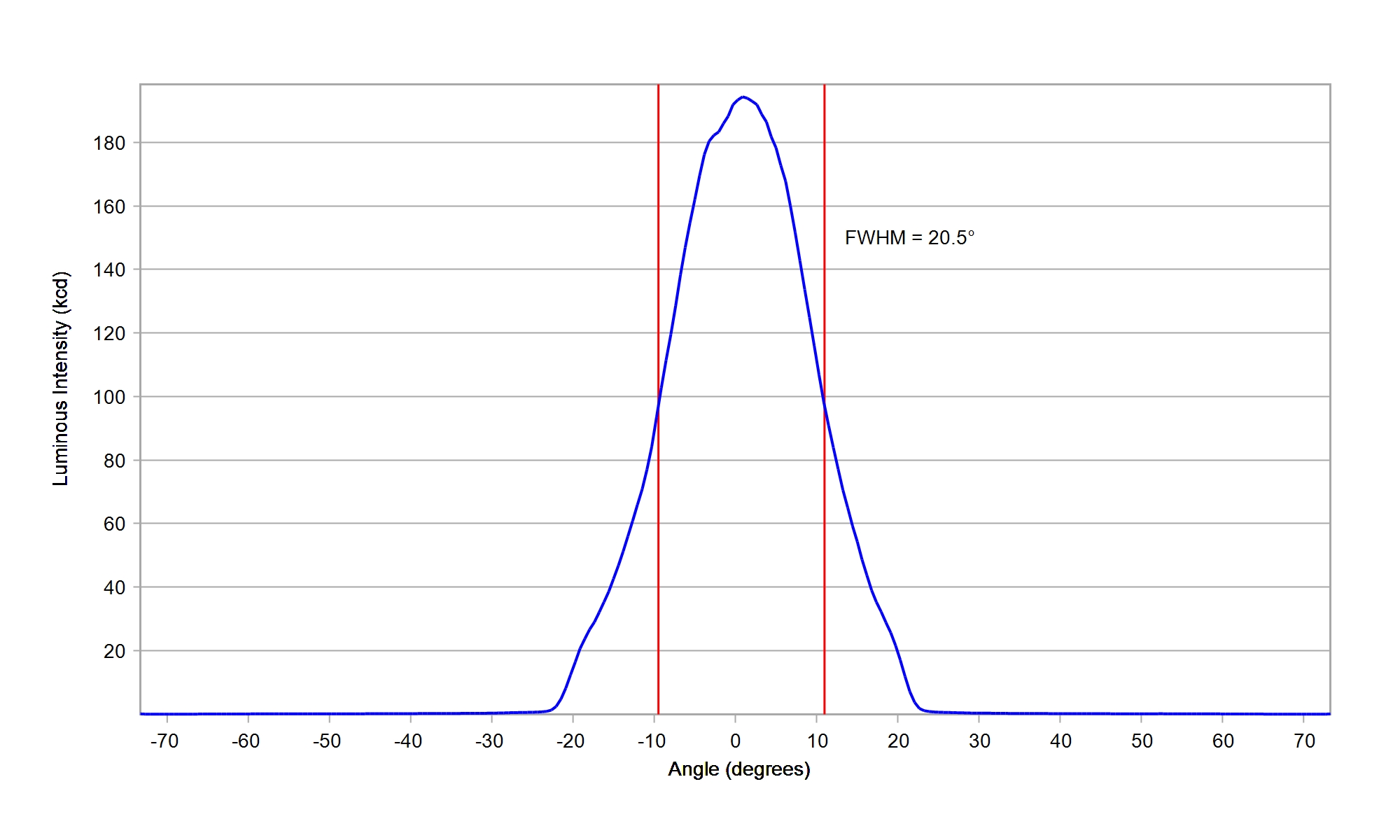

Bridgelux SMD 3030 Gen2 White
Eff:
89.0%
FWHM:
20.5°
Cd/Im:
5.5
Download

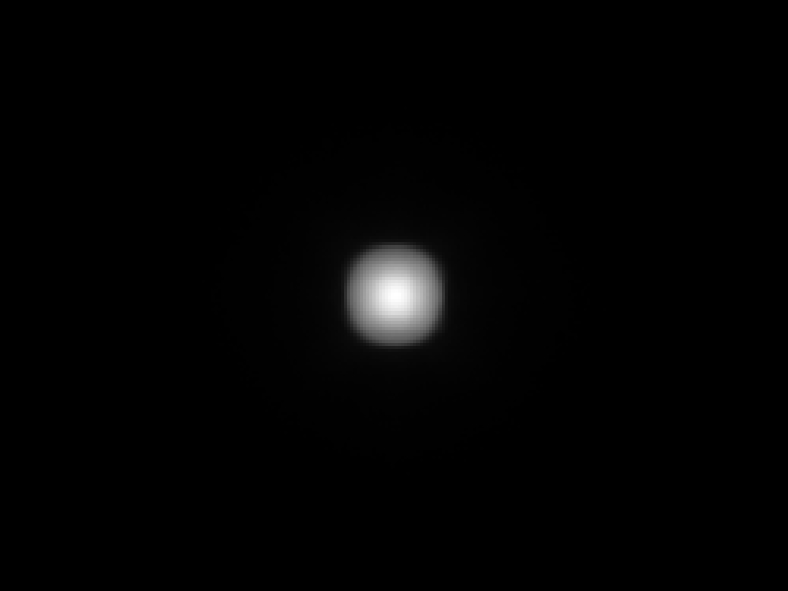

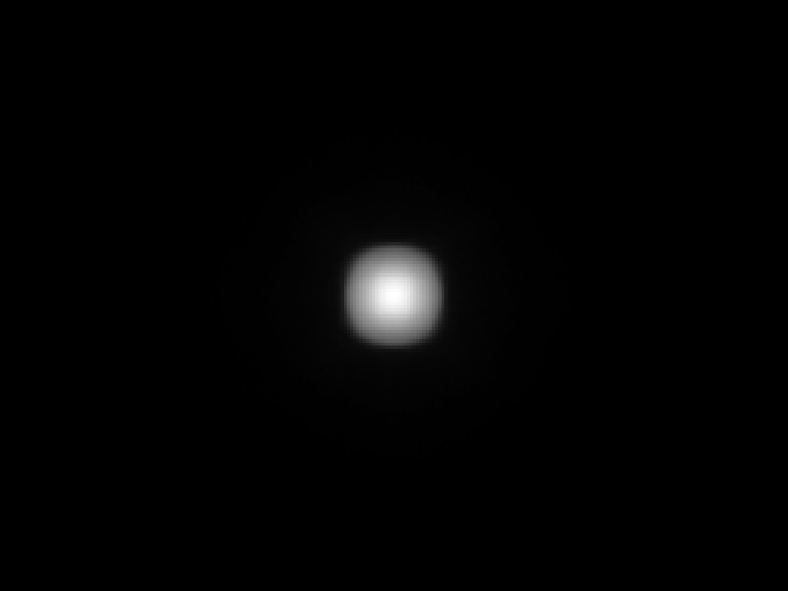

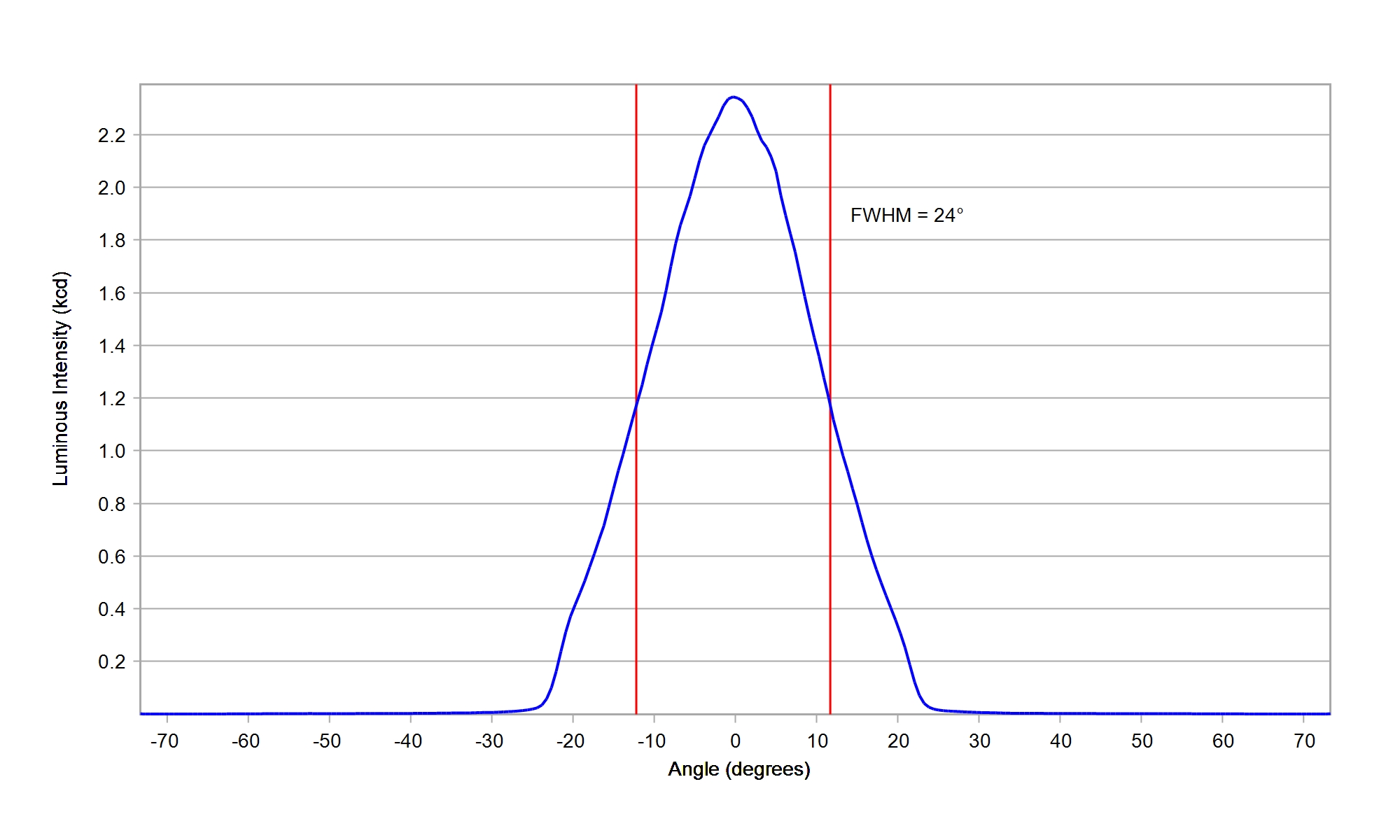

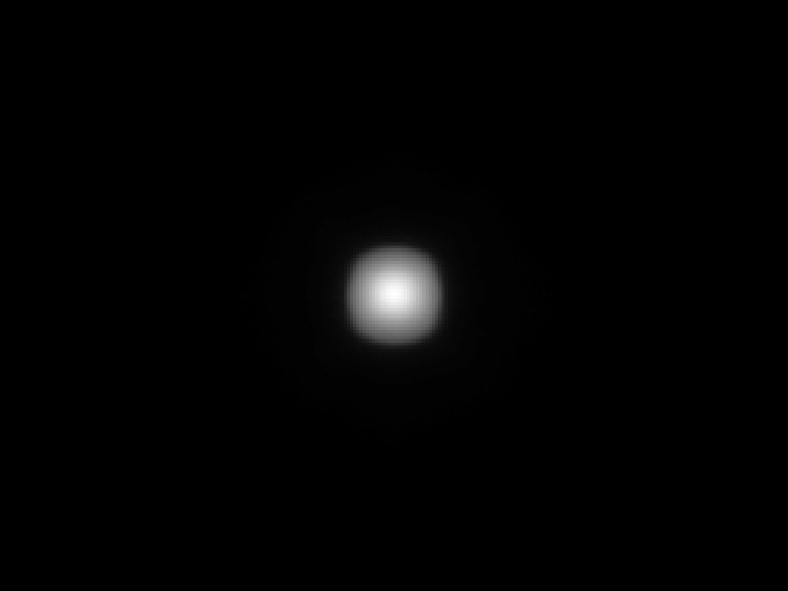

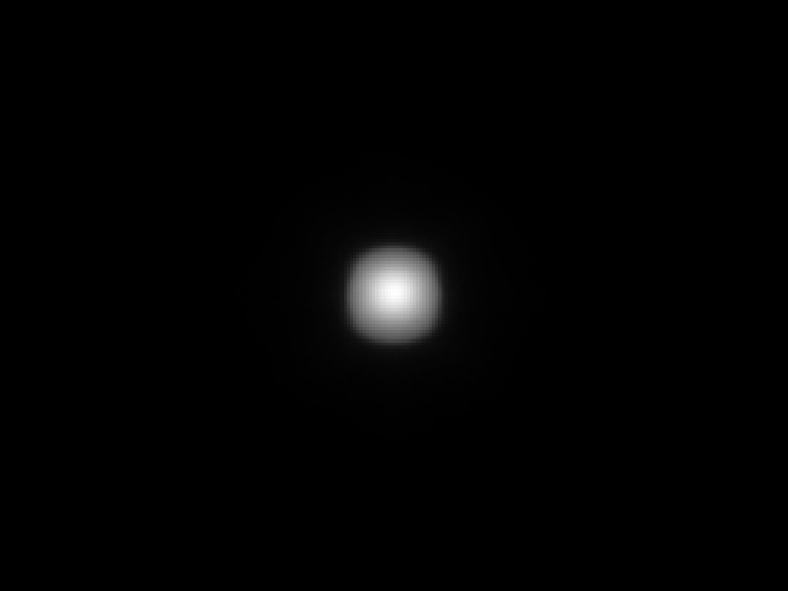

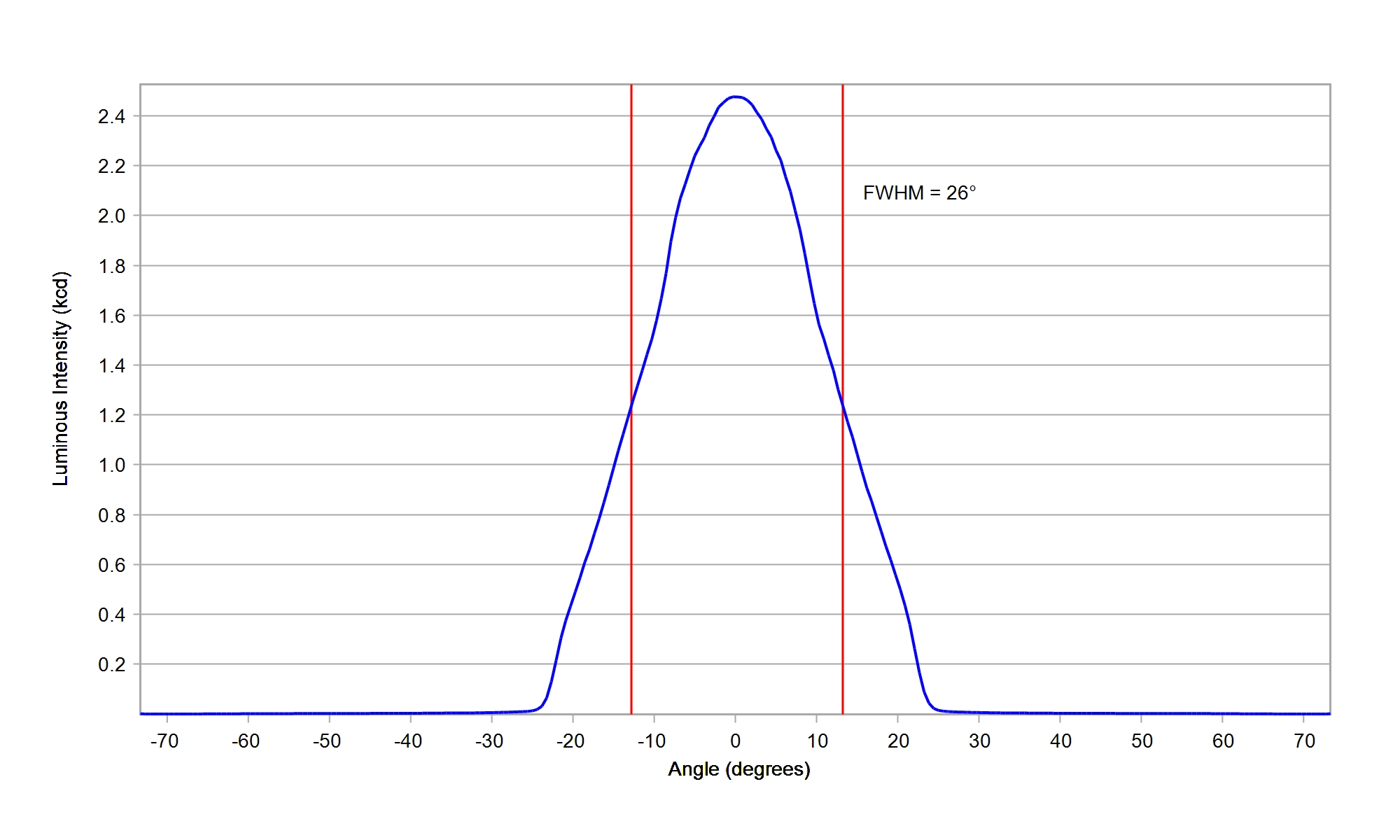

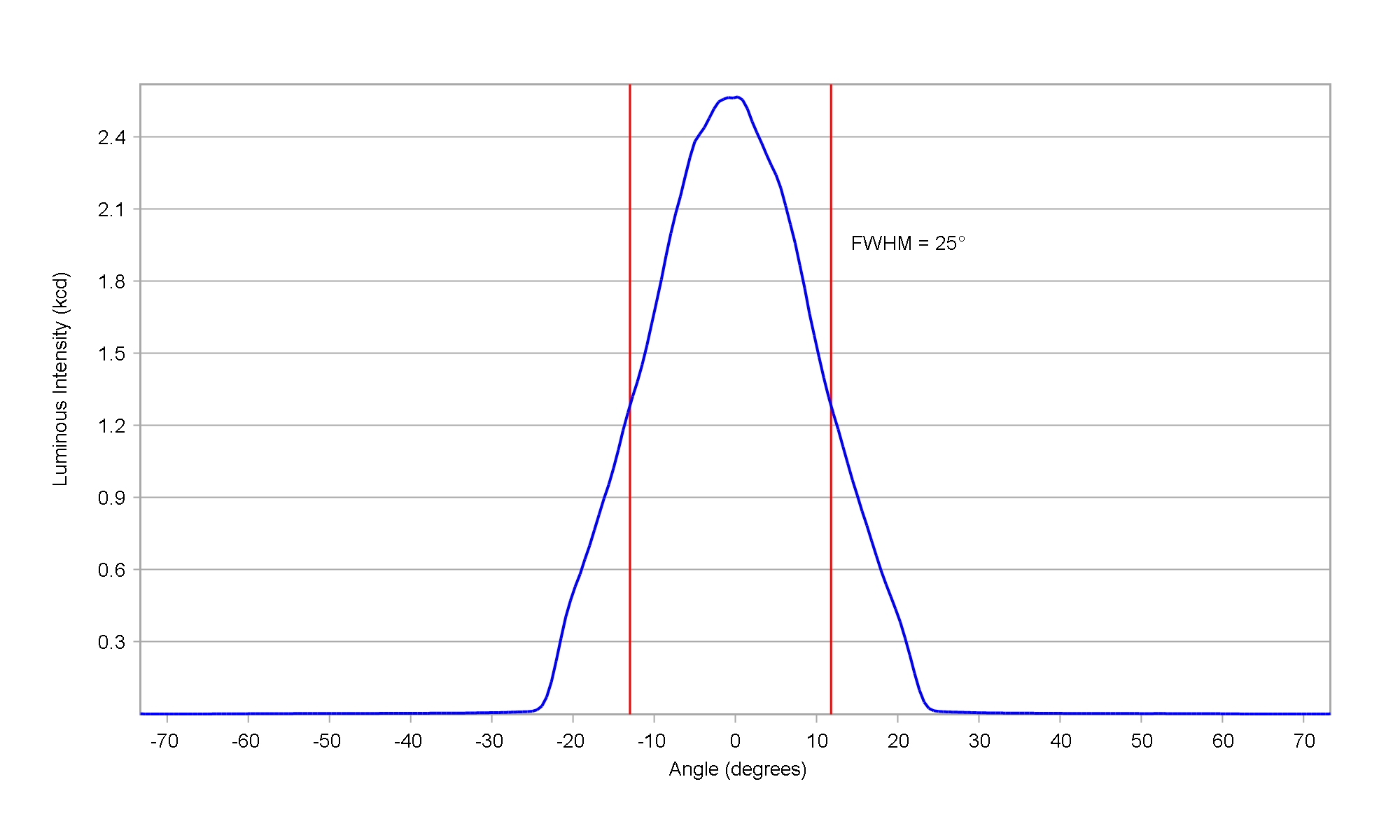

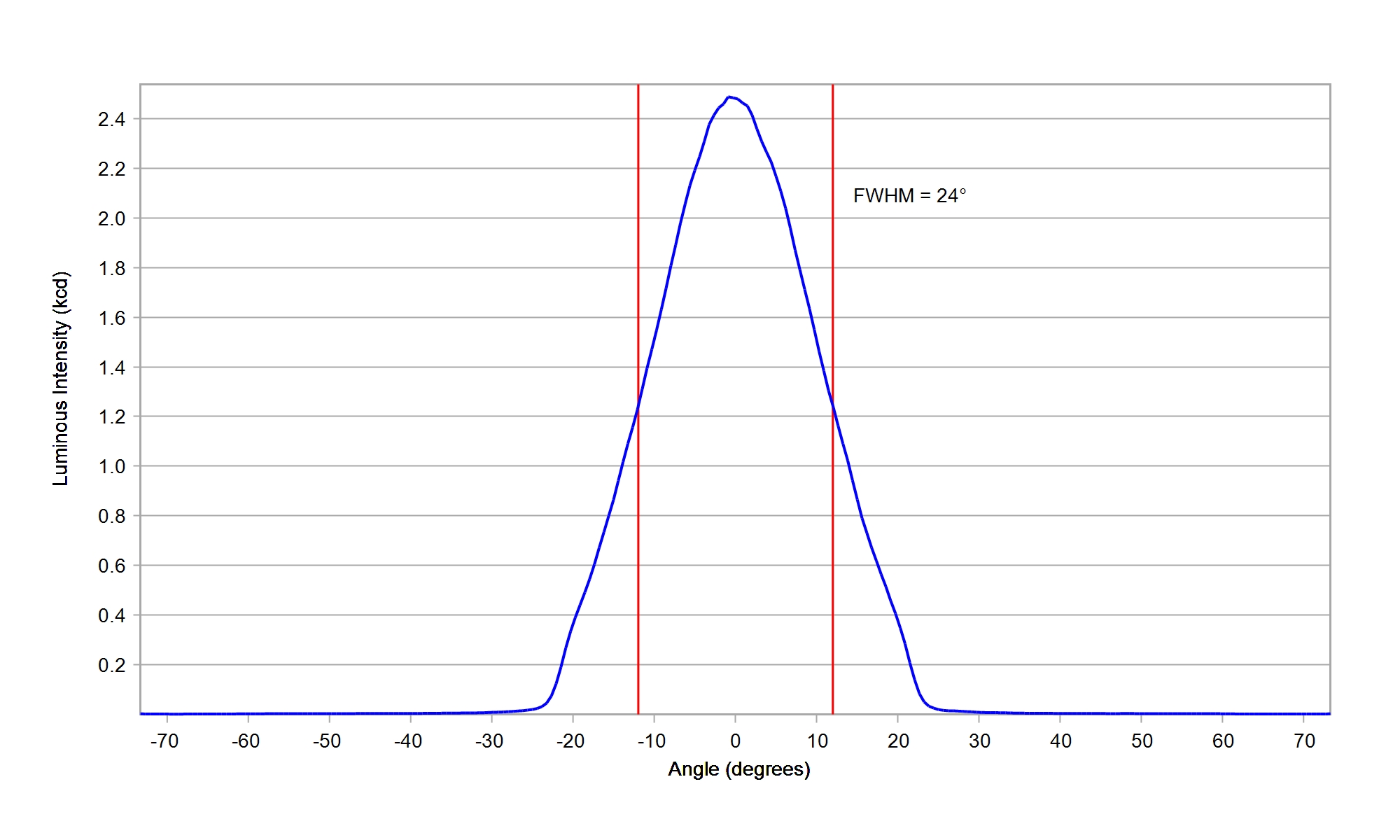

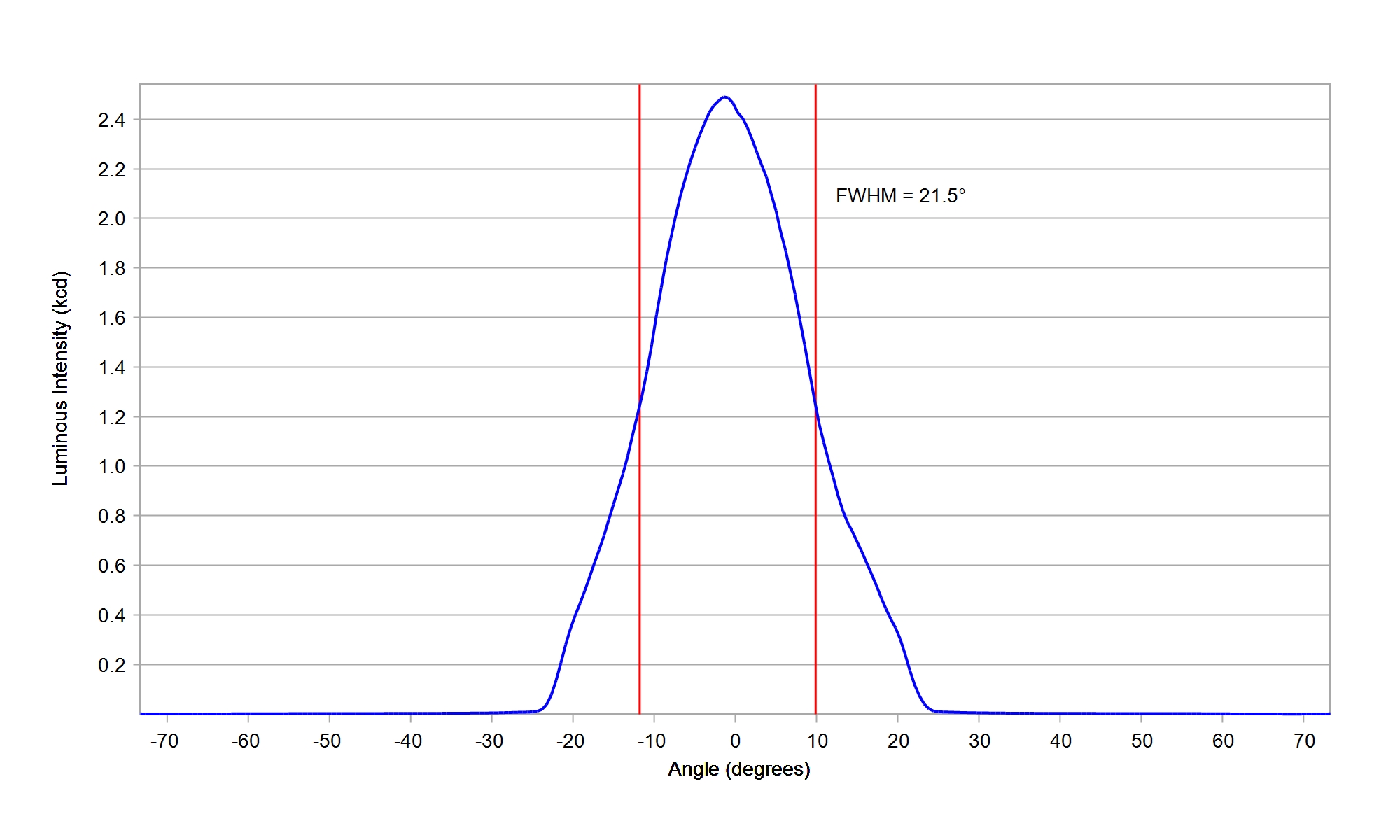

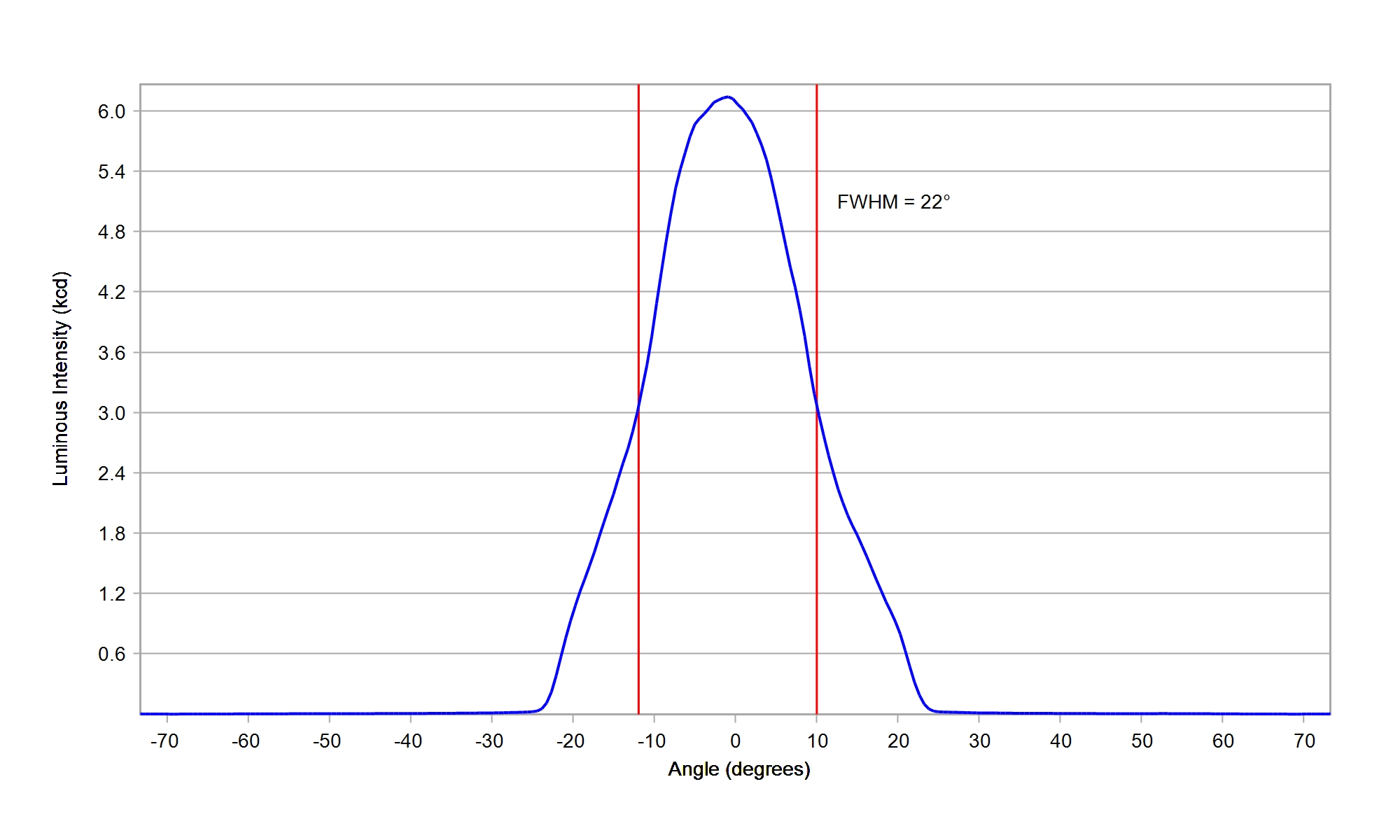

Cree JB3030 3V White
Eff:
88.5%
FWHM:
22.5°
Cd/Im:
4.7
Download

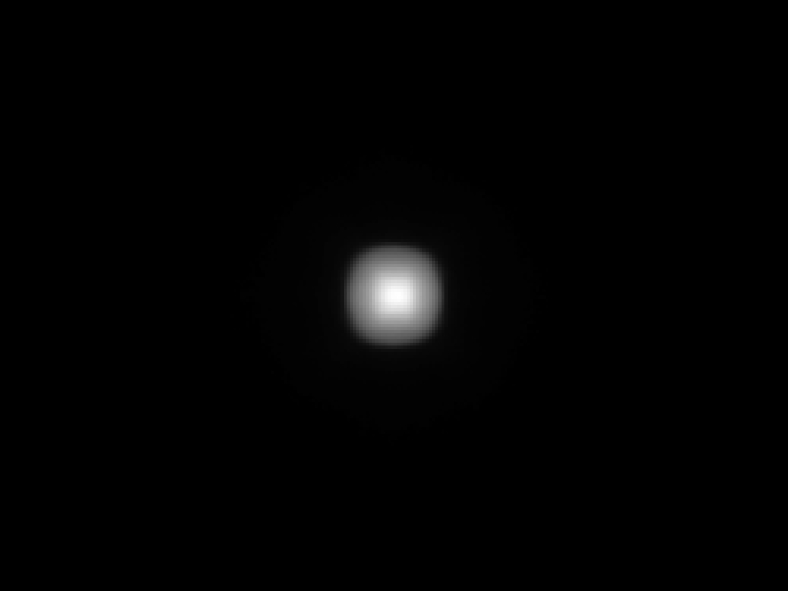

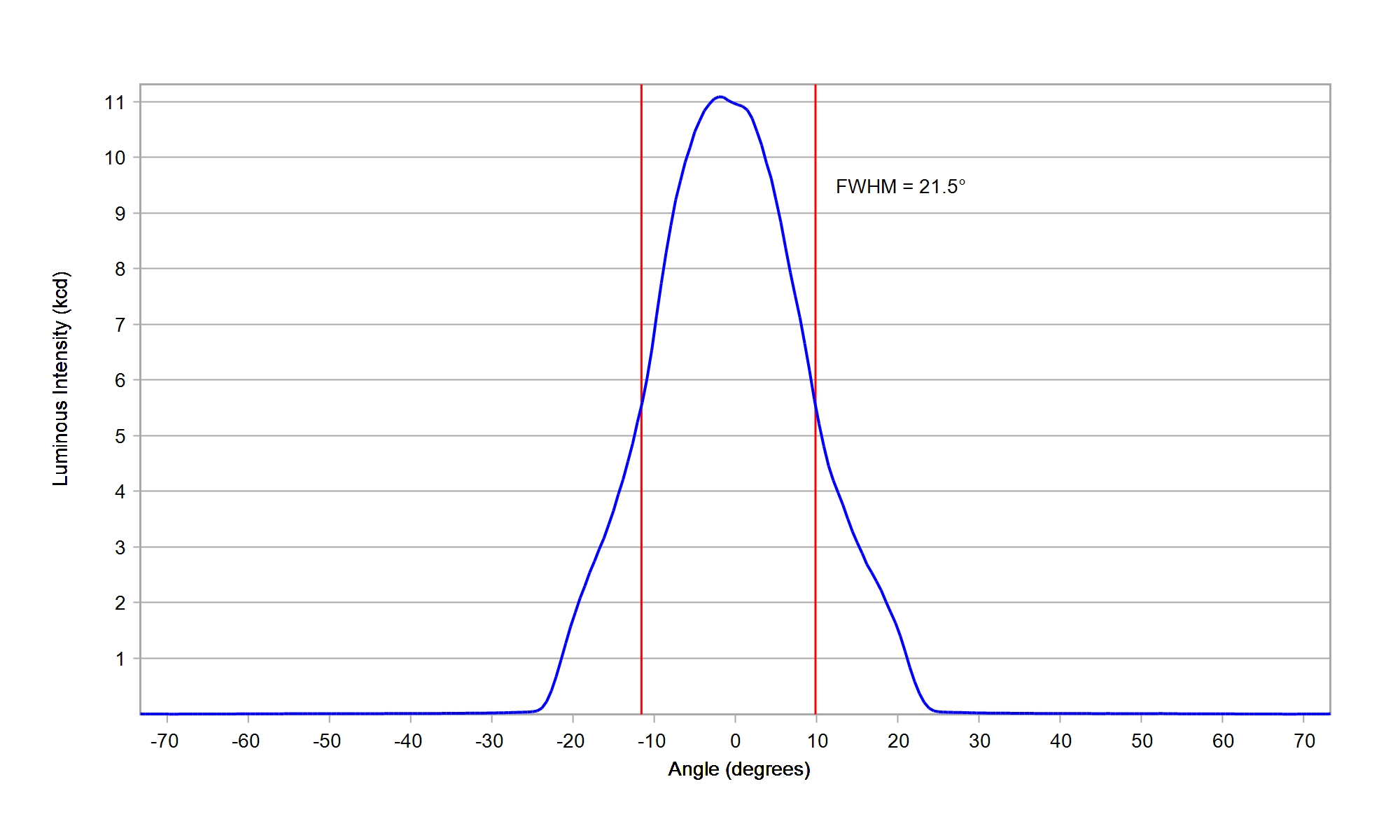

Cree JK2835 6V White
Eff:
89.0%
FWHM:
23°
Cd/Im:
4.8
Download
Cree JQ5050 9V White
Eff:
88.0%
FWHM:
43.0°
Cd/Im:
2.1
Download
Cree JR5050 24V White
Eff:
88.0%
FWHM:
41.0°
Cd/Im:
2.1
Download
Cree JR5050 36V White
Eff:
88.0%
FWHM:
41.0°
Cd/Im:
2.3
Download
Cree JR5050 6V White
Eff:
88.0%
FWHM:
42.0°
Cd/Im:
2.1
Download

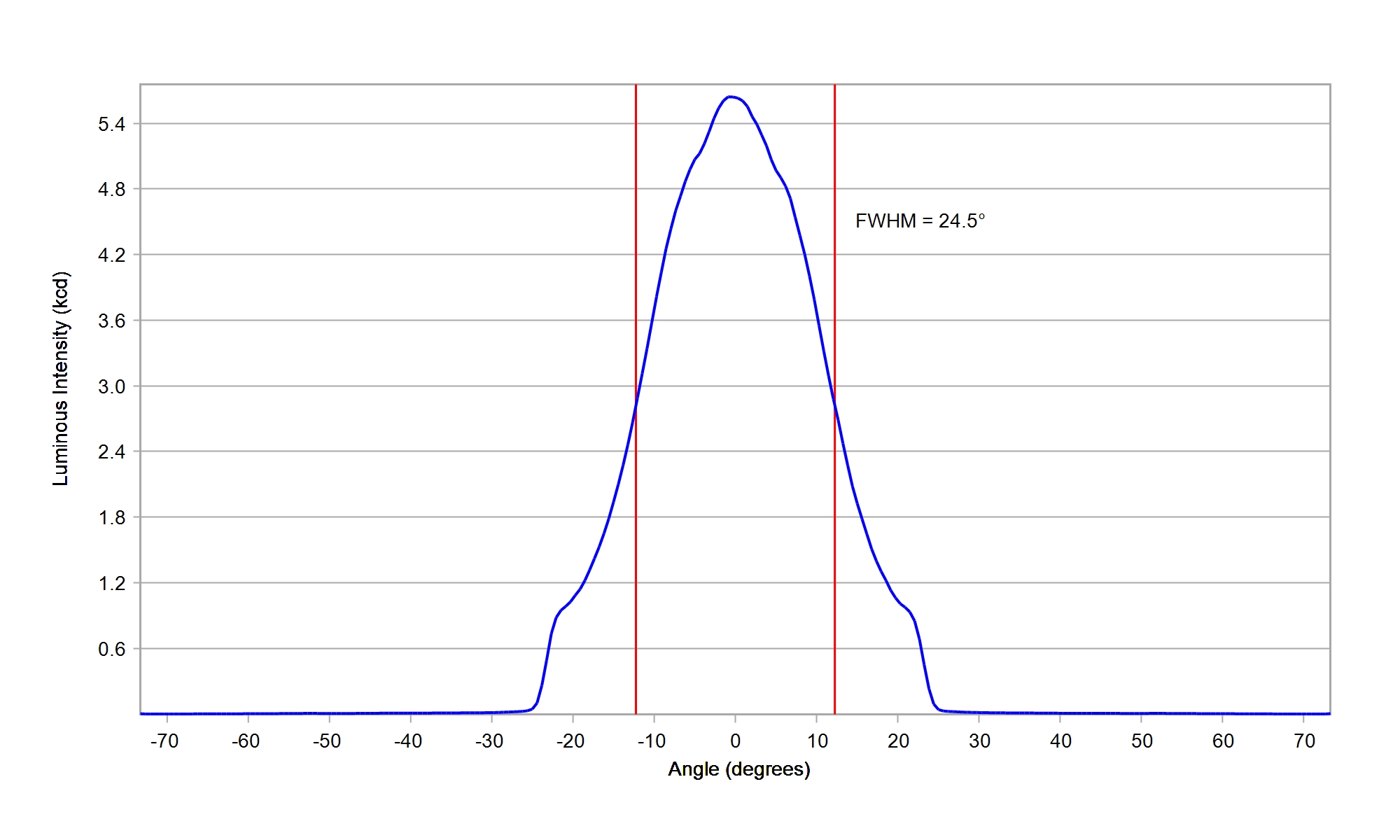

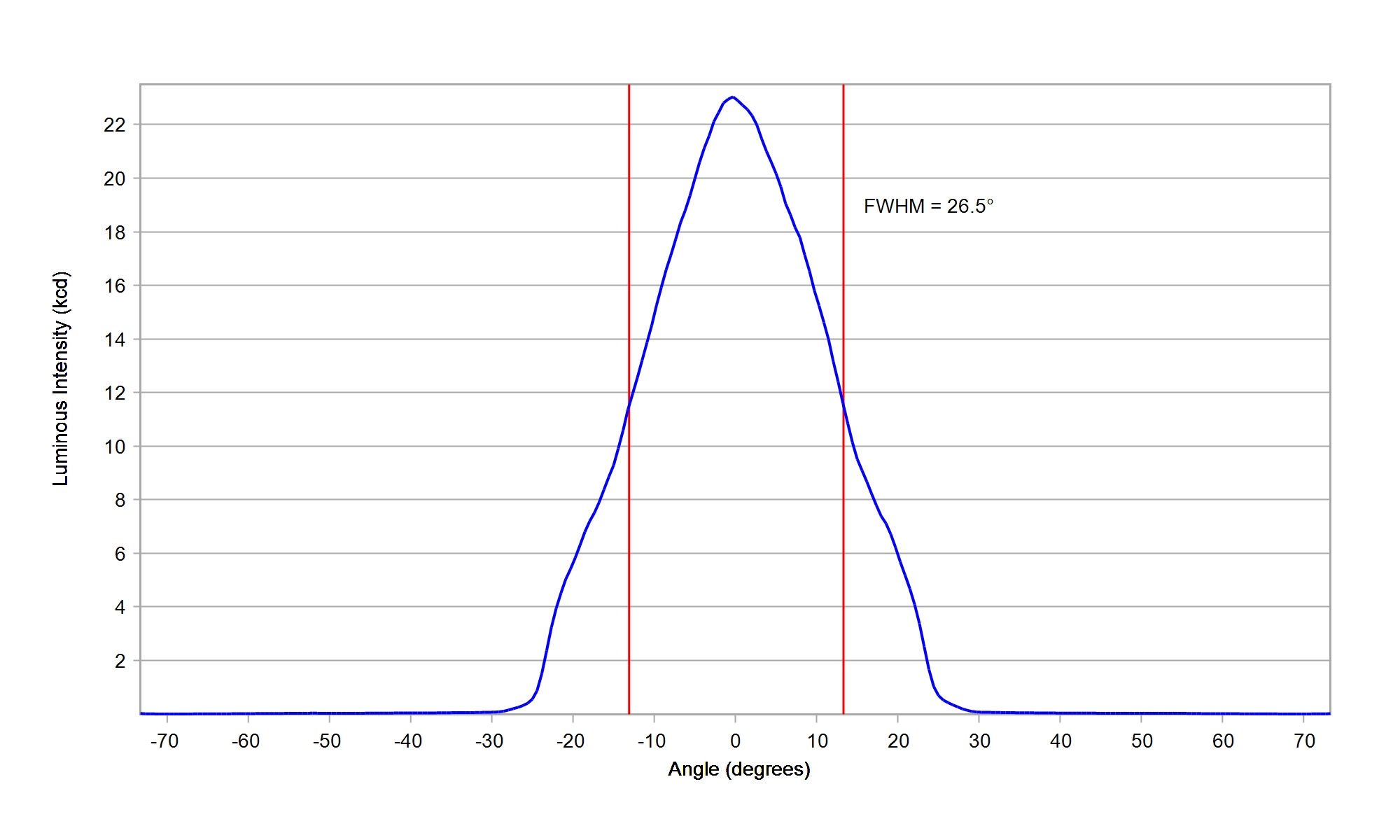

Cree XLamp XE-G White
Eff:
87.5%
FWHM:
24.5°
Cd/Im:
4.1
Download
Cree XLamp XHP35.2 HI White
Eff:
86.0%
FWHM:
31°
Cd/Im:
2.9
Download

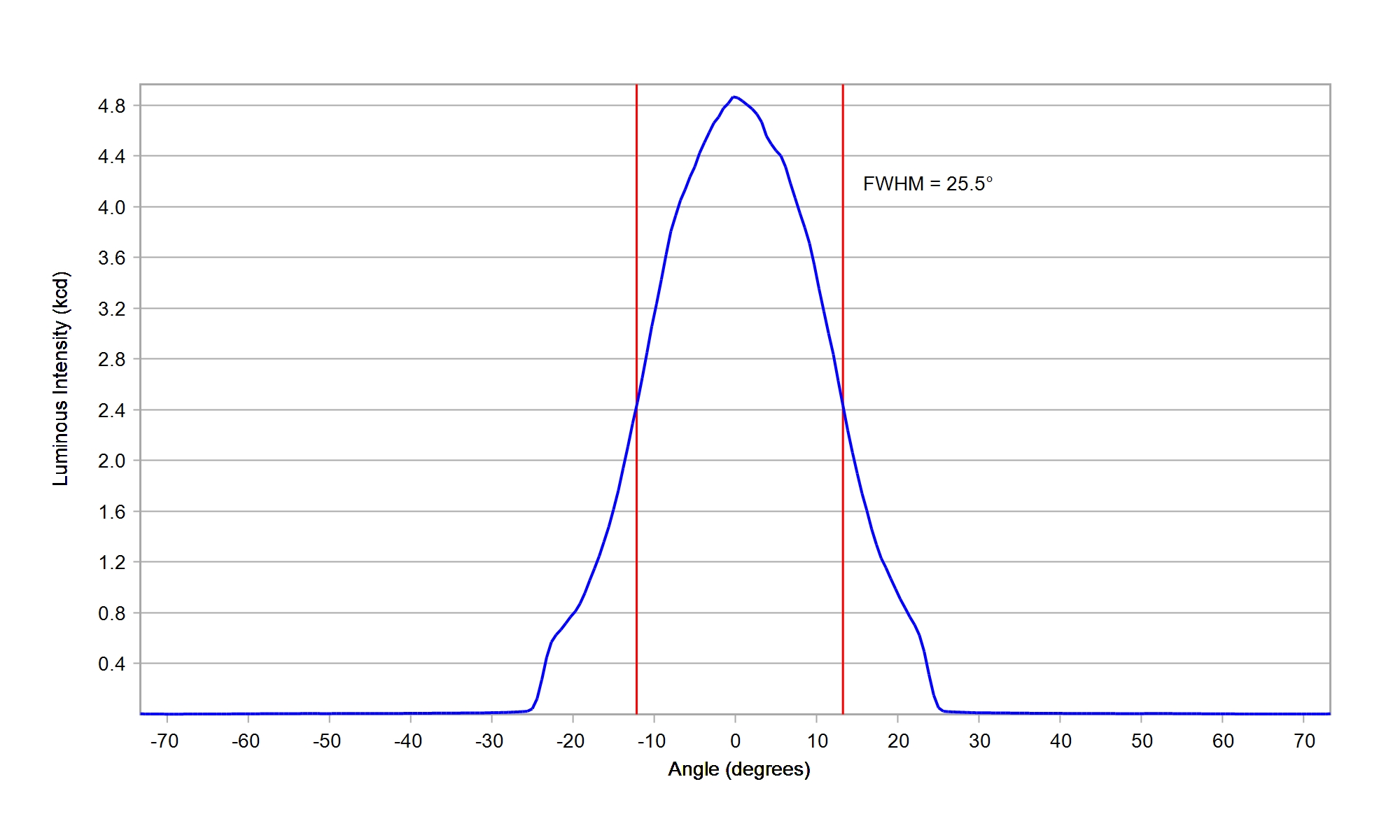

Cree XLamp XP-E2 White
Eff:
89.0%
FWHM:
25.5°
Cd/Im:
4.1
Download
Cree XLamp XP-P White
Eff:
89.5%
FWHM:
21.5°
Cd/Im:
5.1
Download

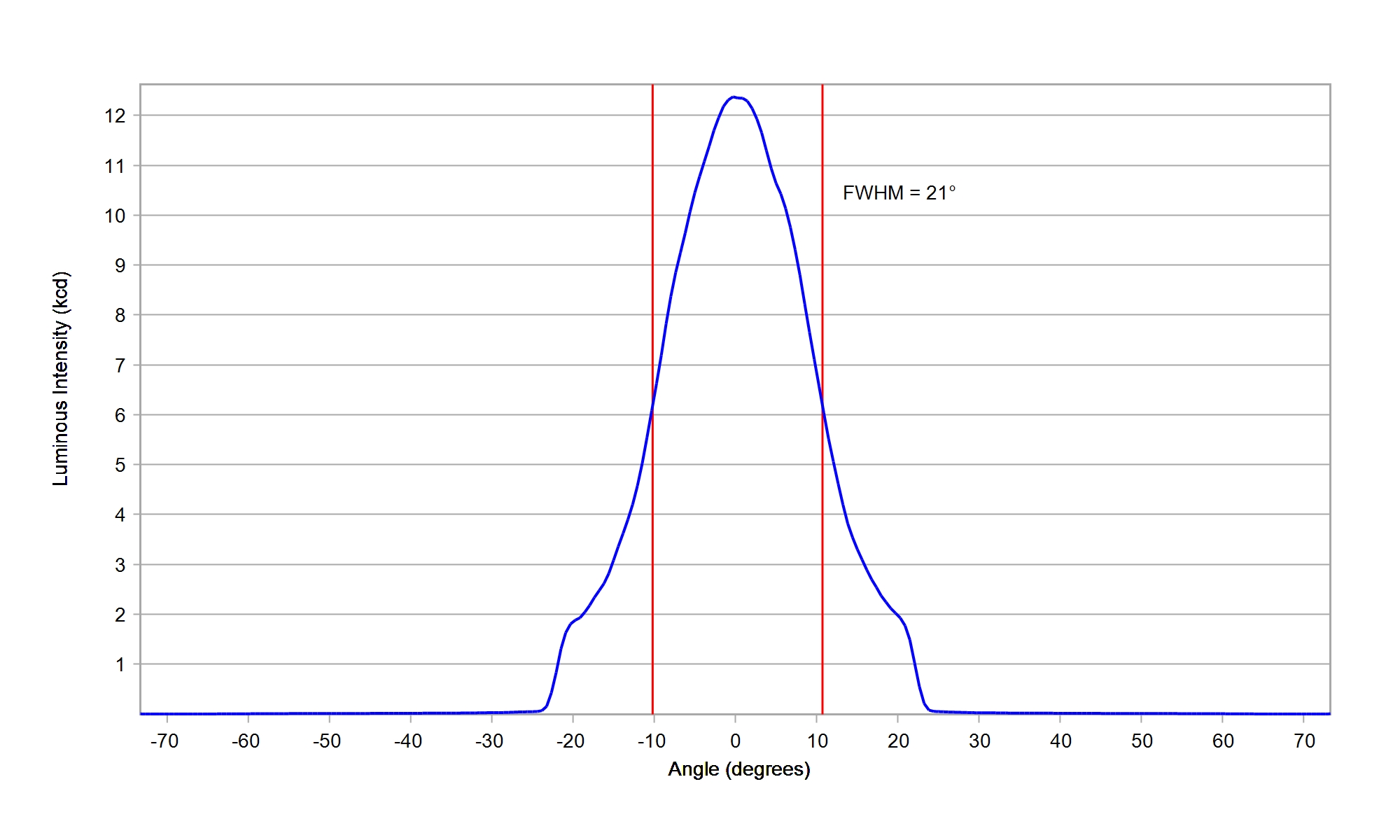

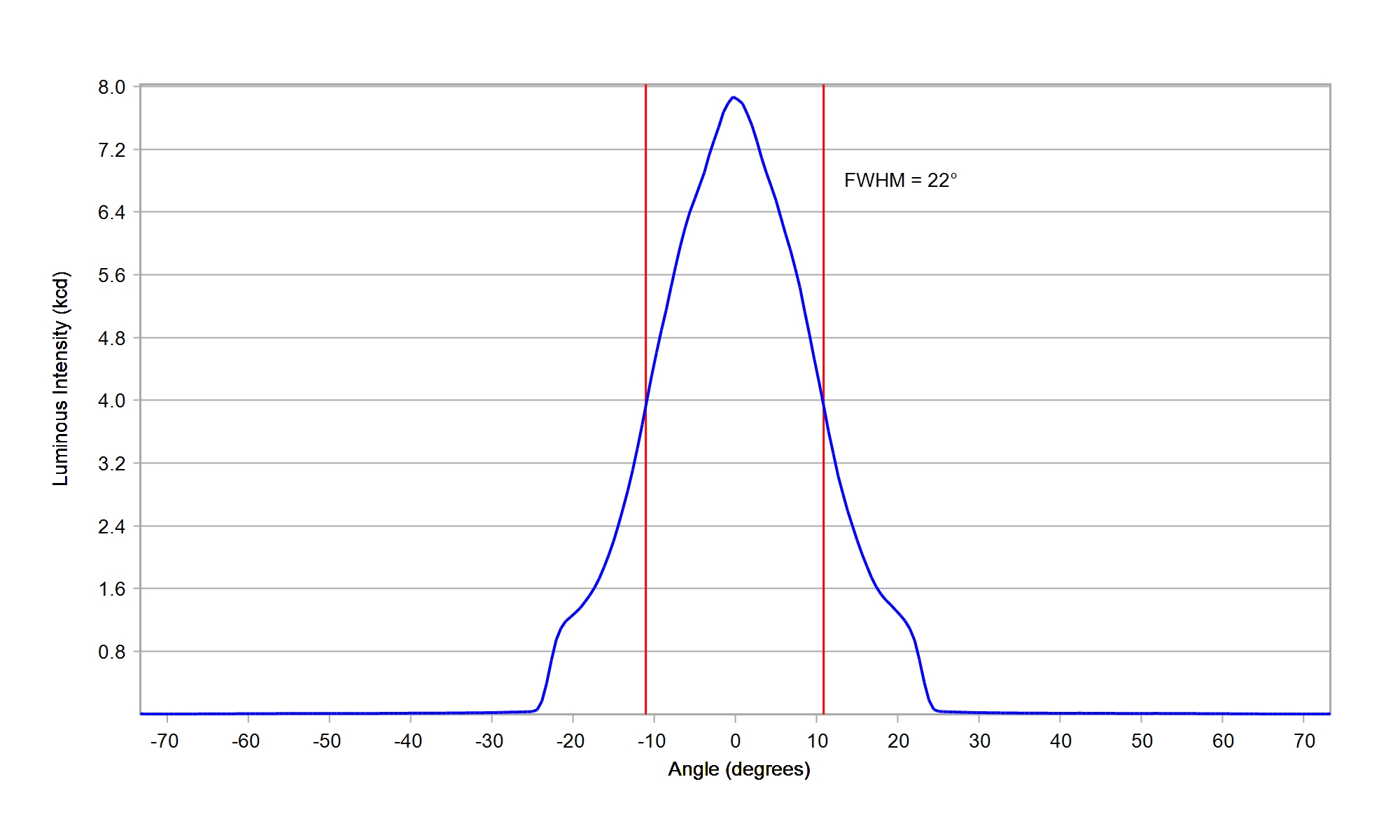

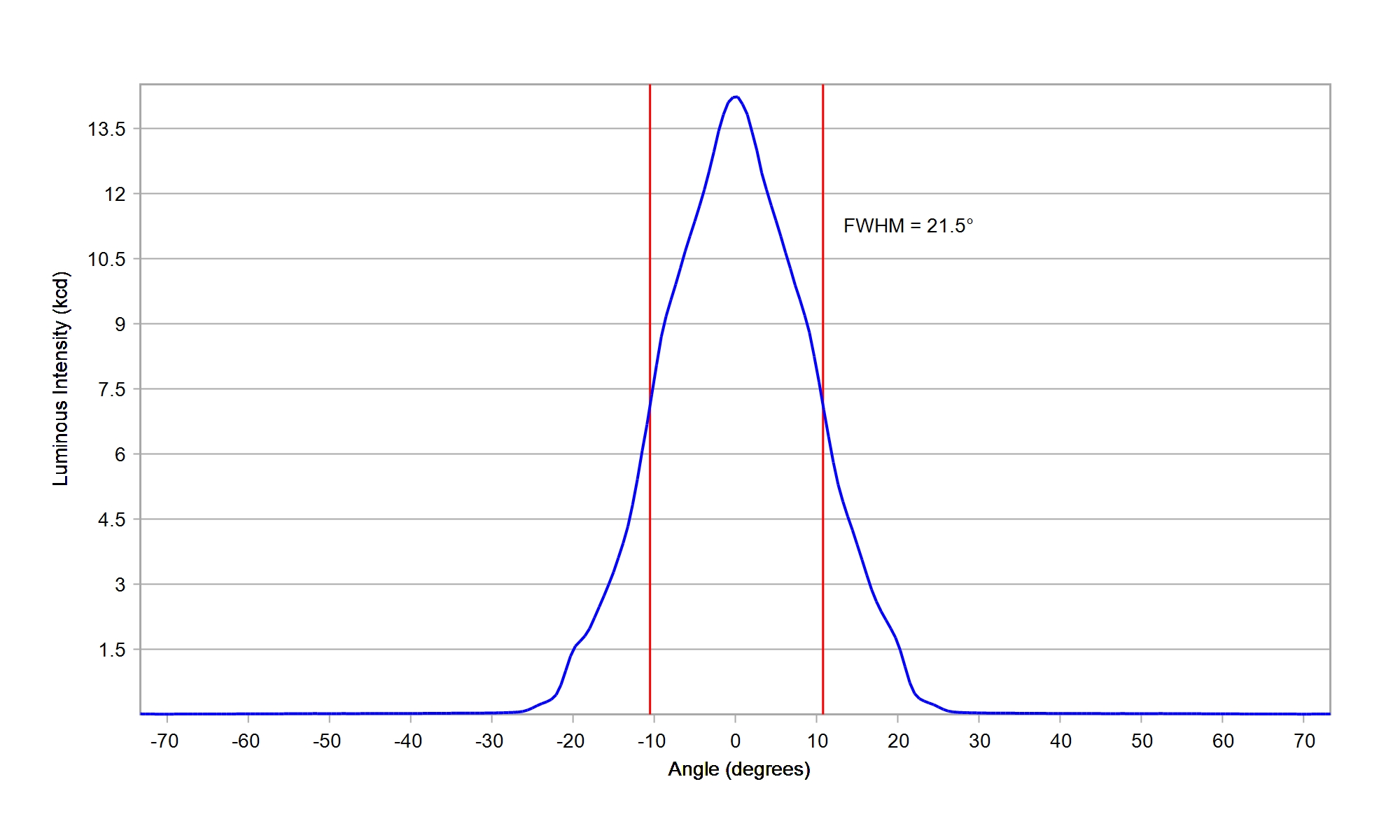

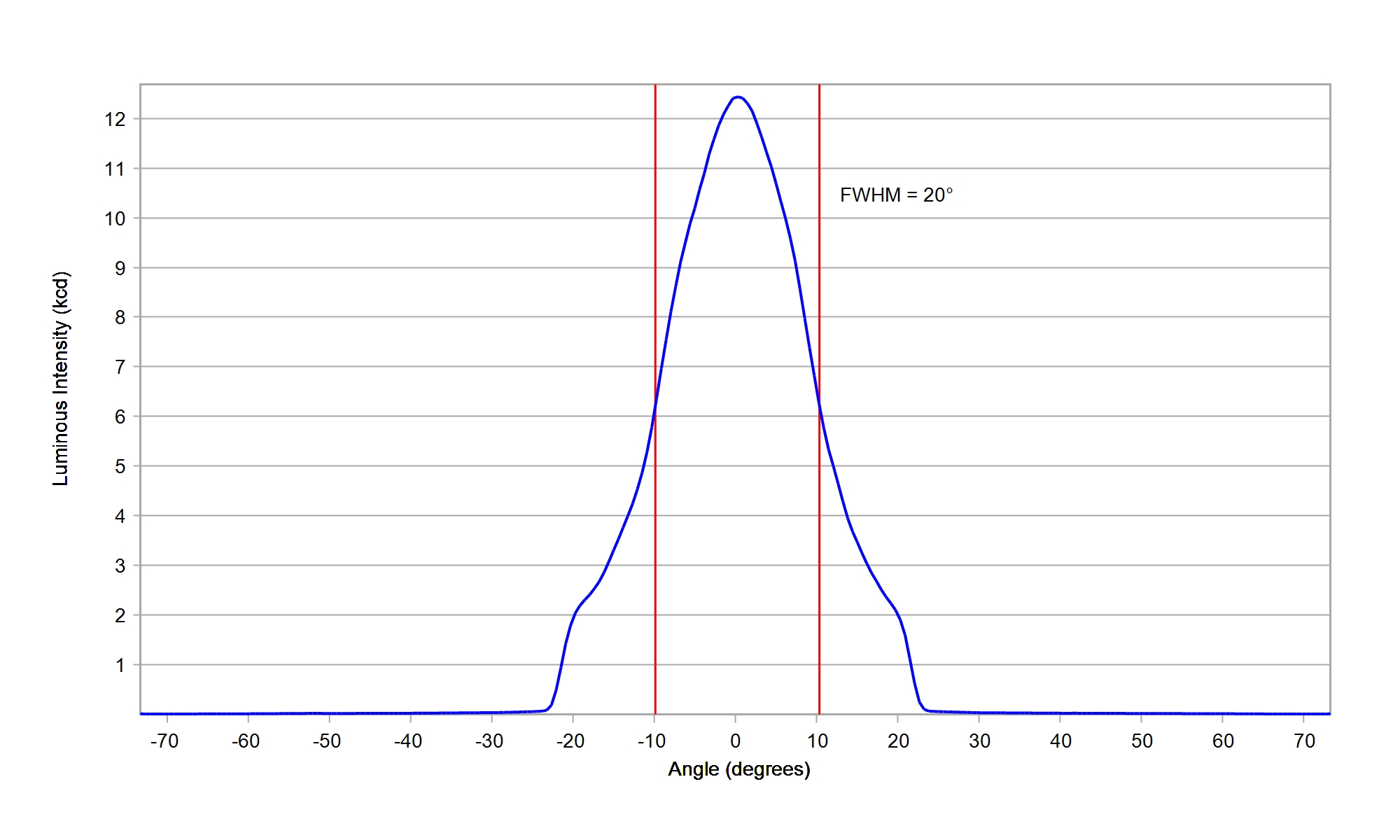

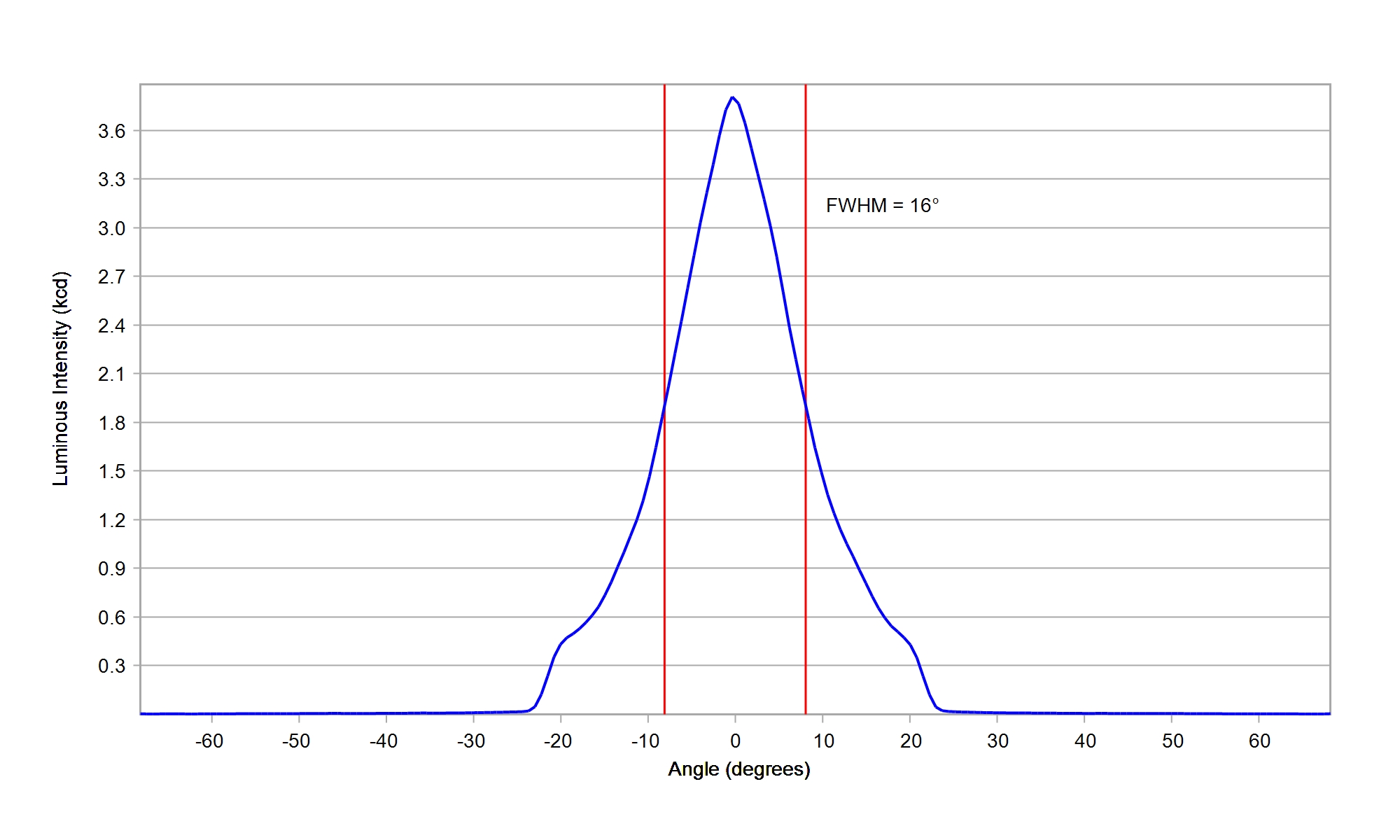

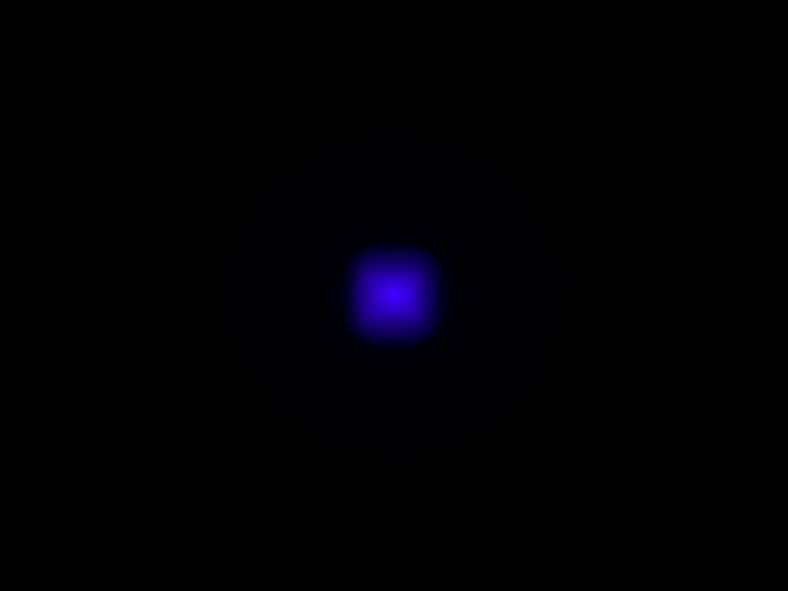

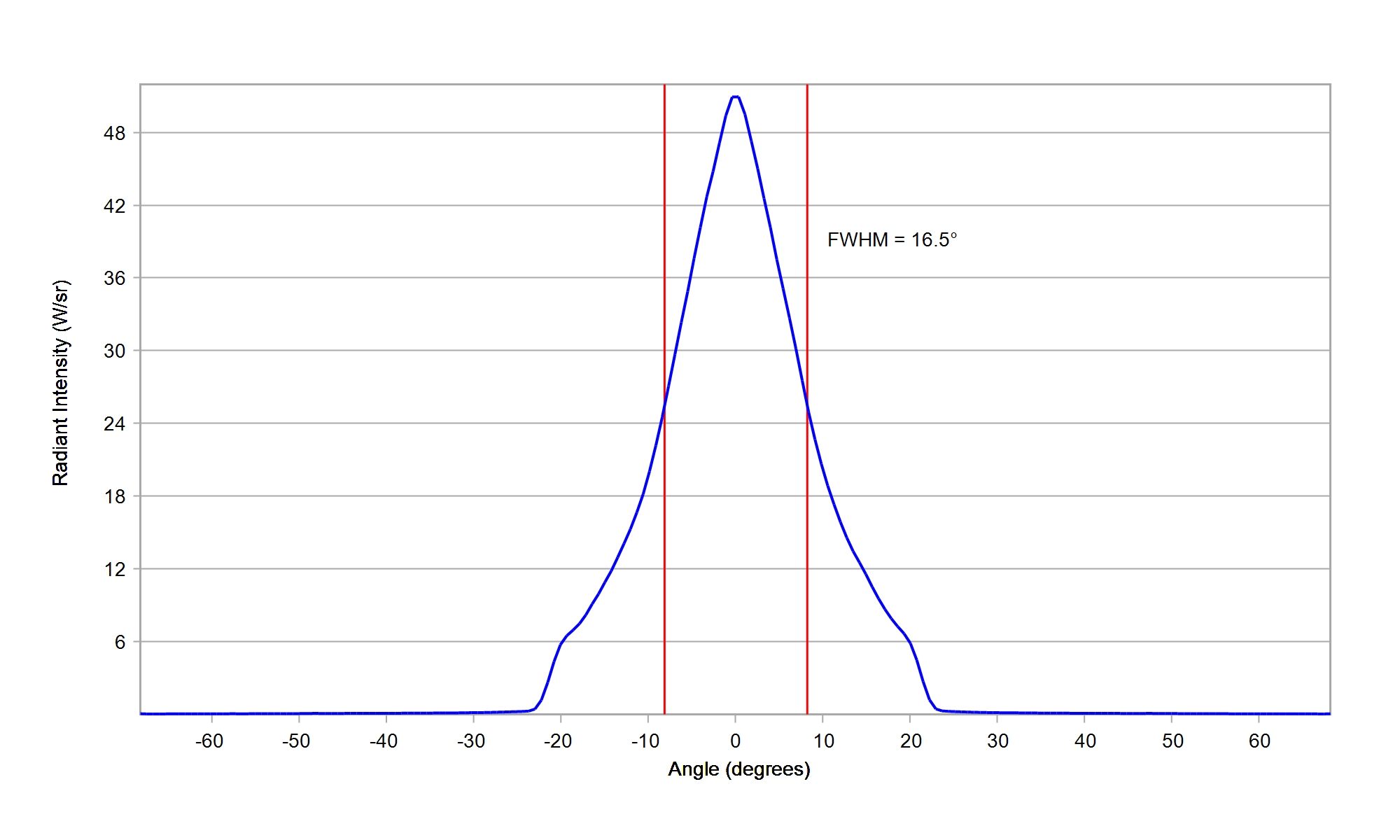

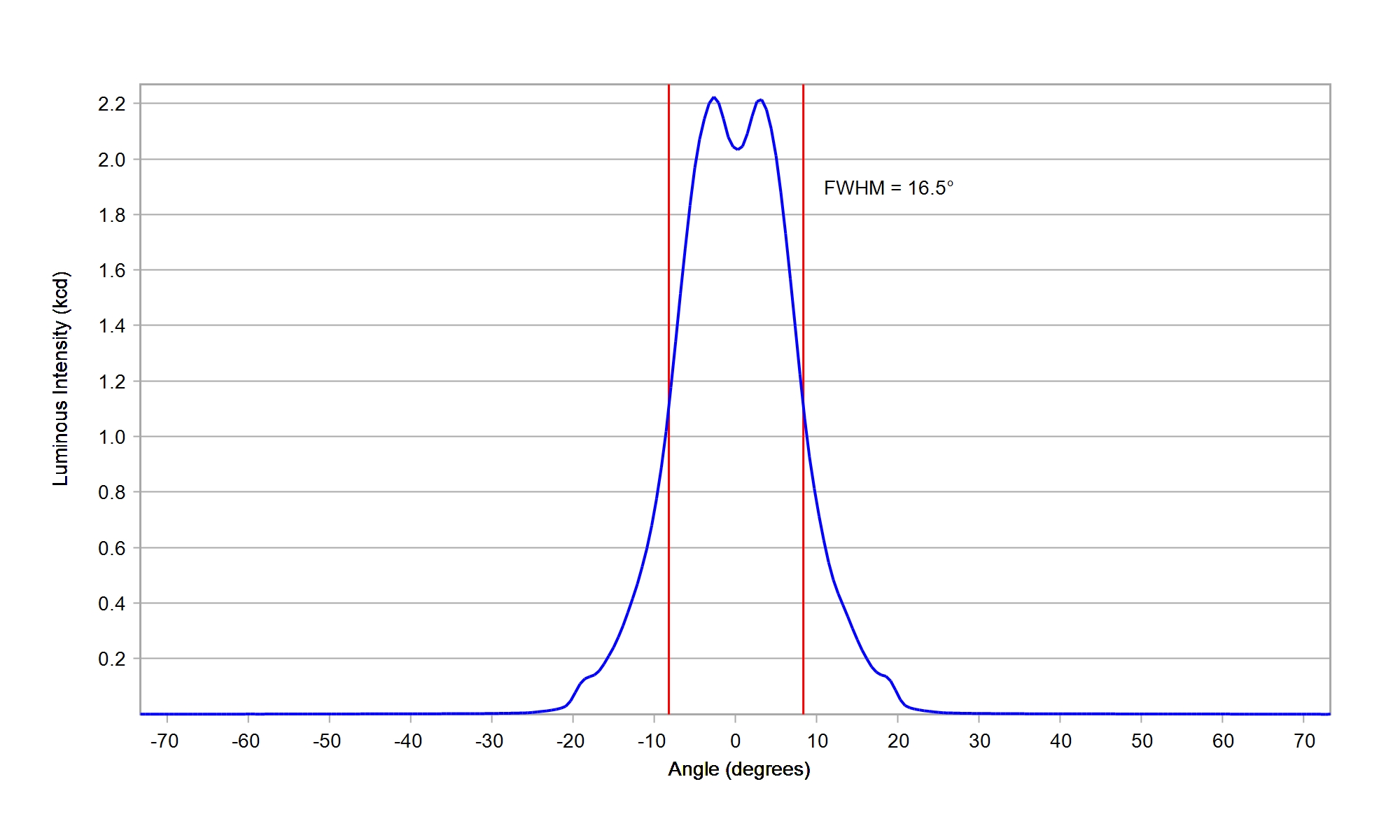

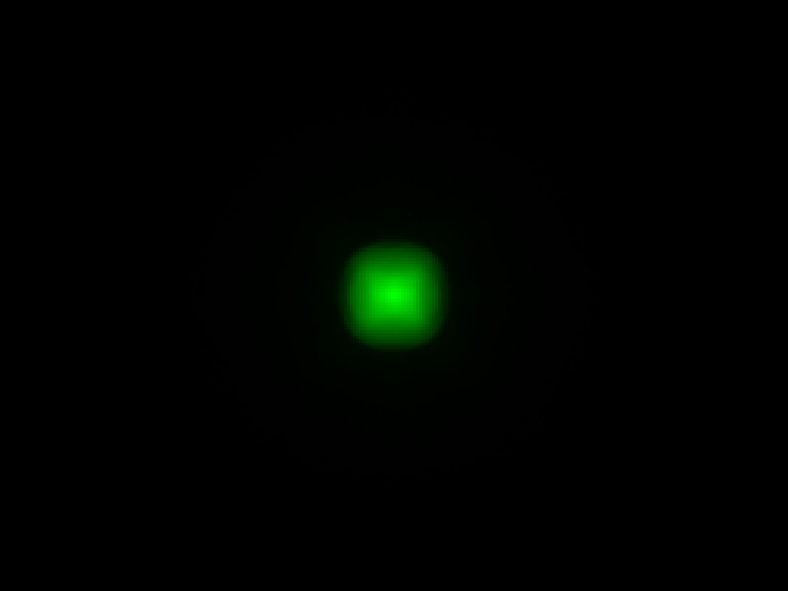

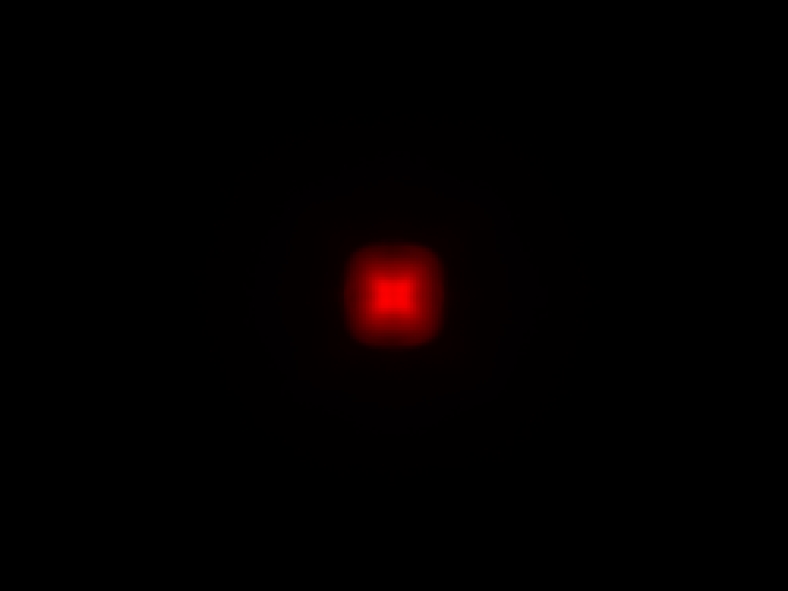

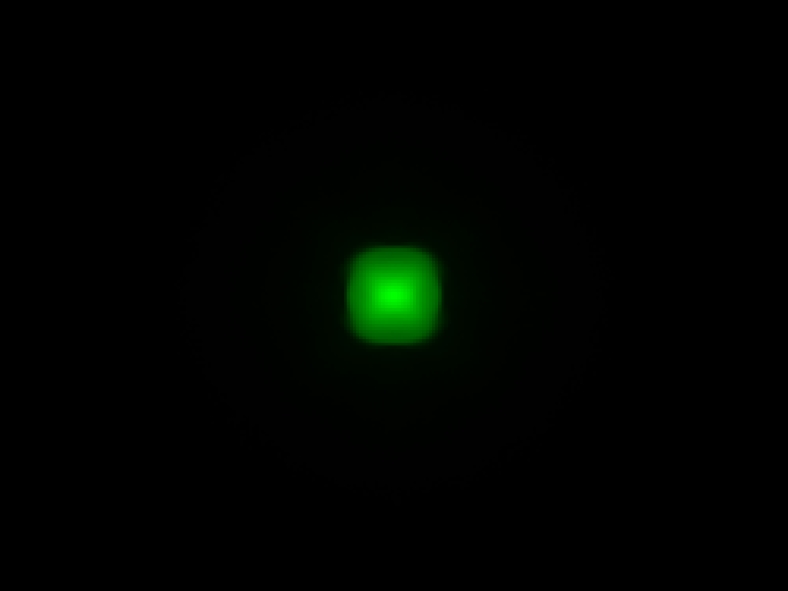

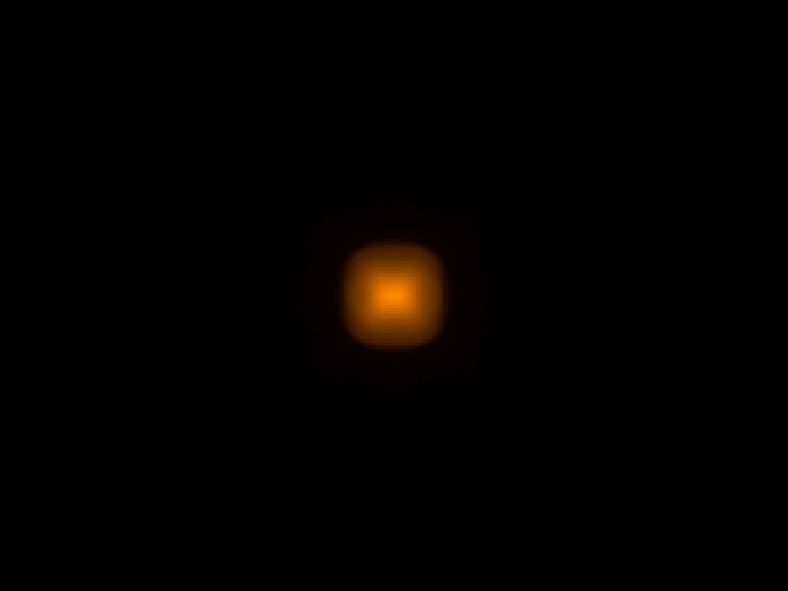

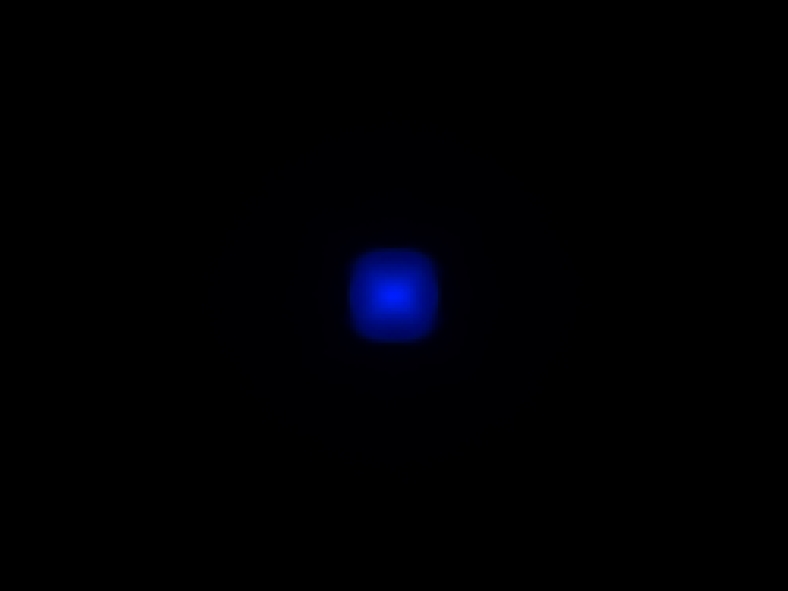

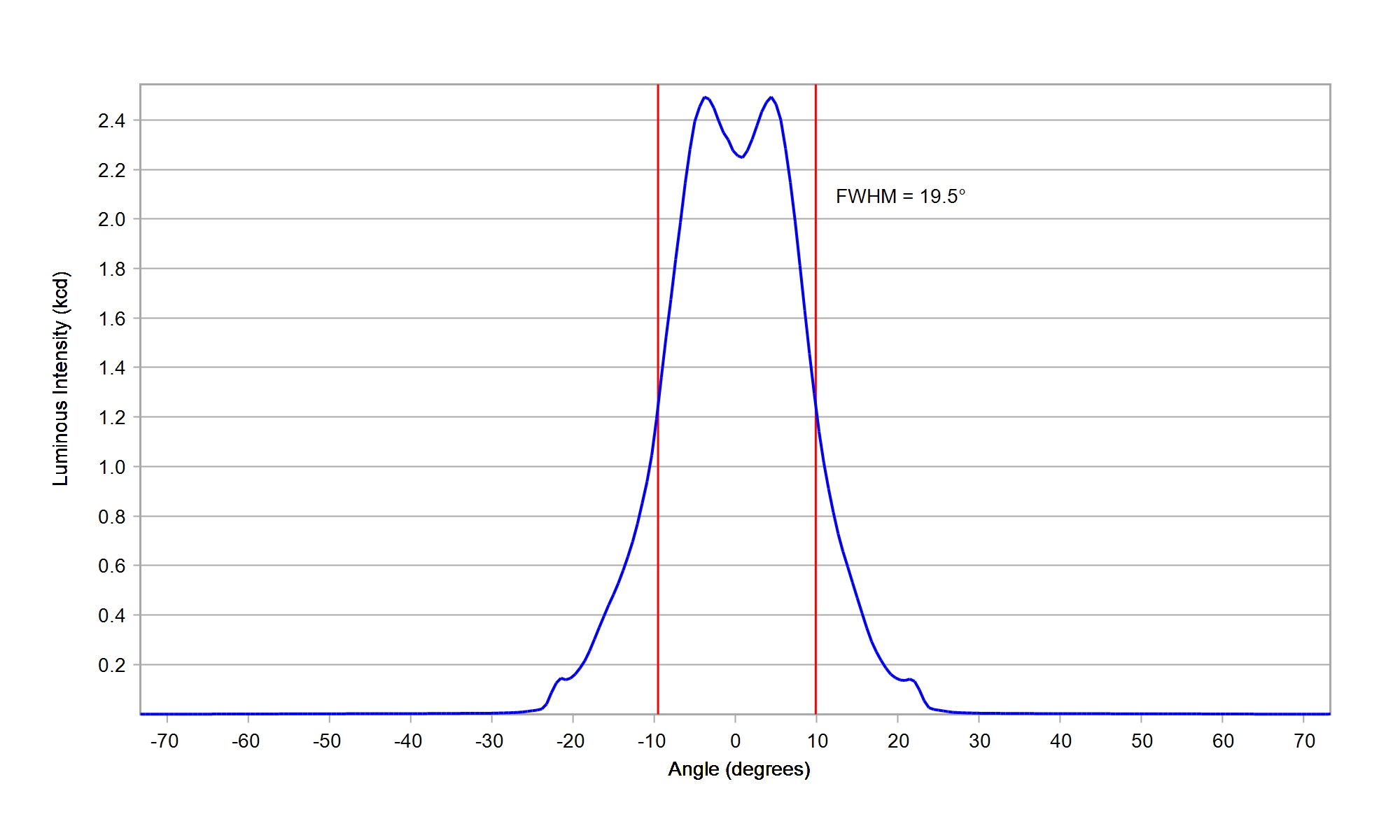

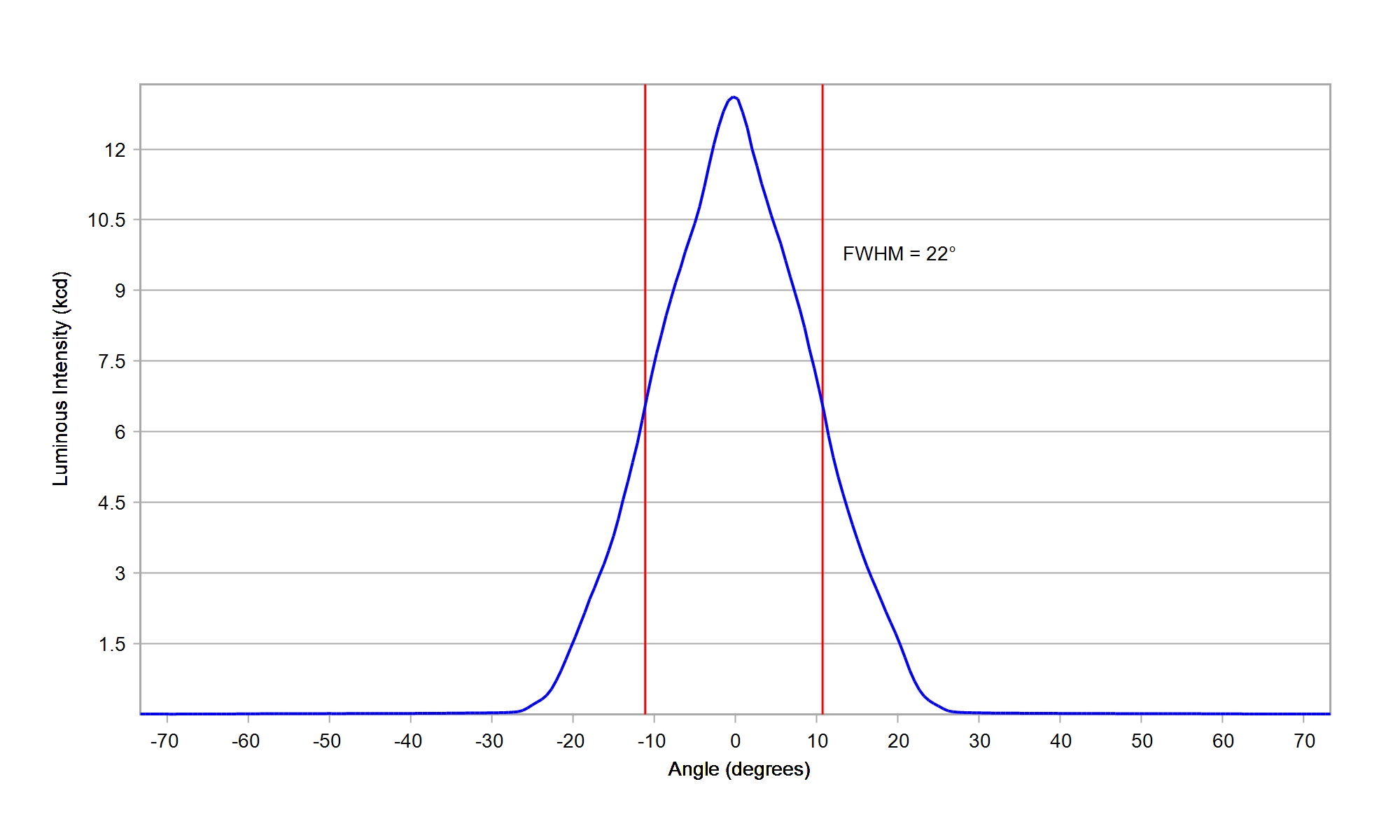

Cree XLamp XQ-E HI White
Eff:
87.5%
FWHM:
19.0°
Cd/Im:
5.0
Download
LG Innotek MidPower 3030 LG White
Eff:
88.5%
FWHM:
20°
Cd/Im:
5.5
Download
LG Innotek MidPower 5630 White
Eff:
88.0%
FWHM:
25 x 22°
Cd/Im:
4.0
Download

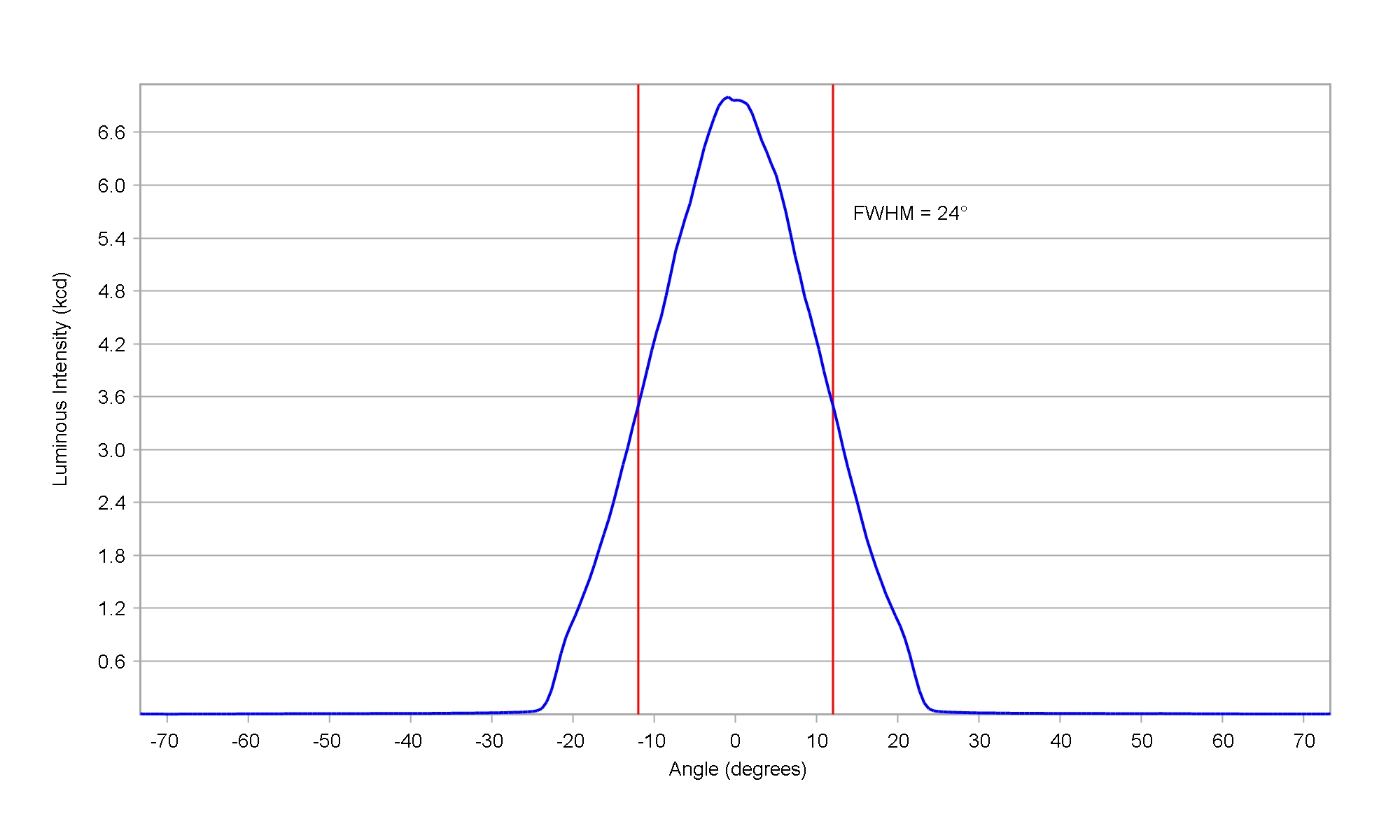

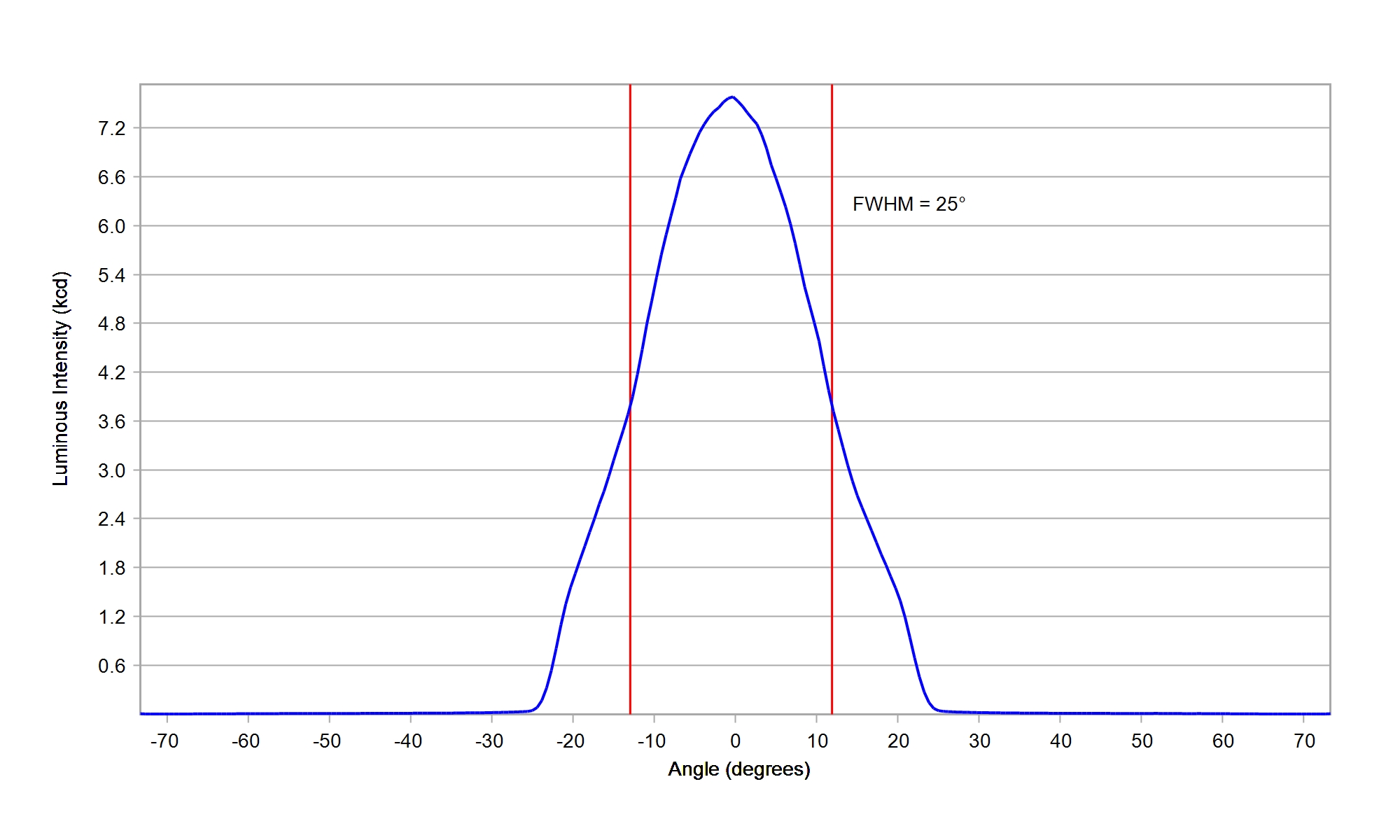

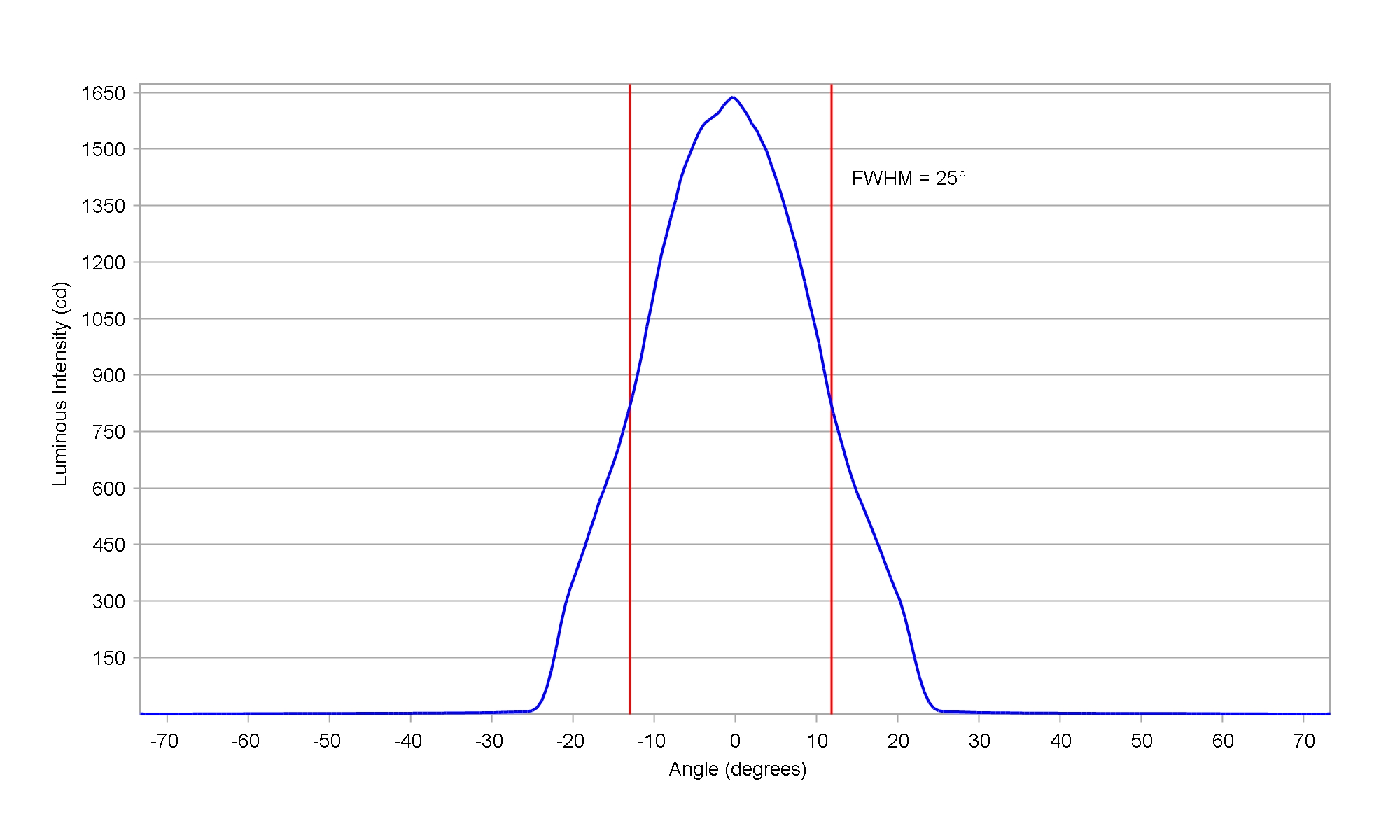

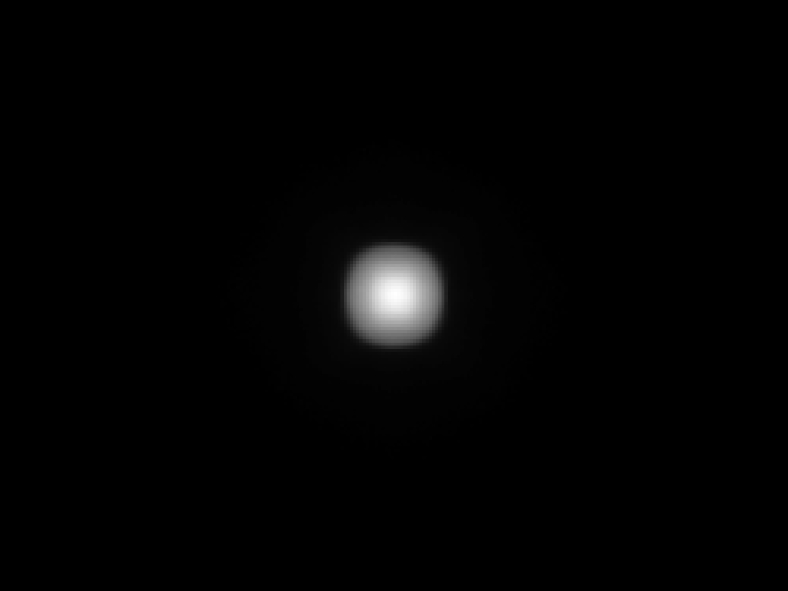

LUMILEDS LUXEON 3020 White
Eff:
88.5%
FWHM:
17°
Cd/Im:
6.8
Download
LUMILEDS LUXEON 3020 White
Eff:
88.5%
FWHM:
17°
Cd/Im:
6.8
Download

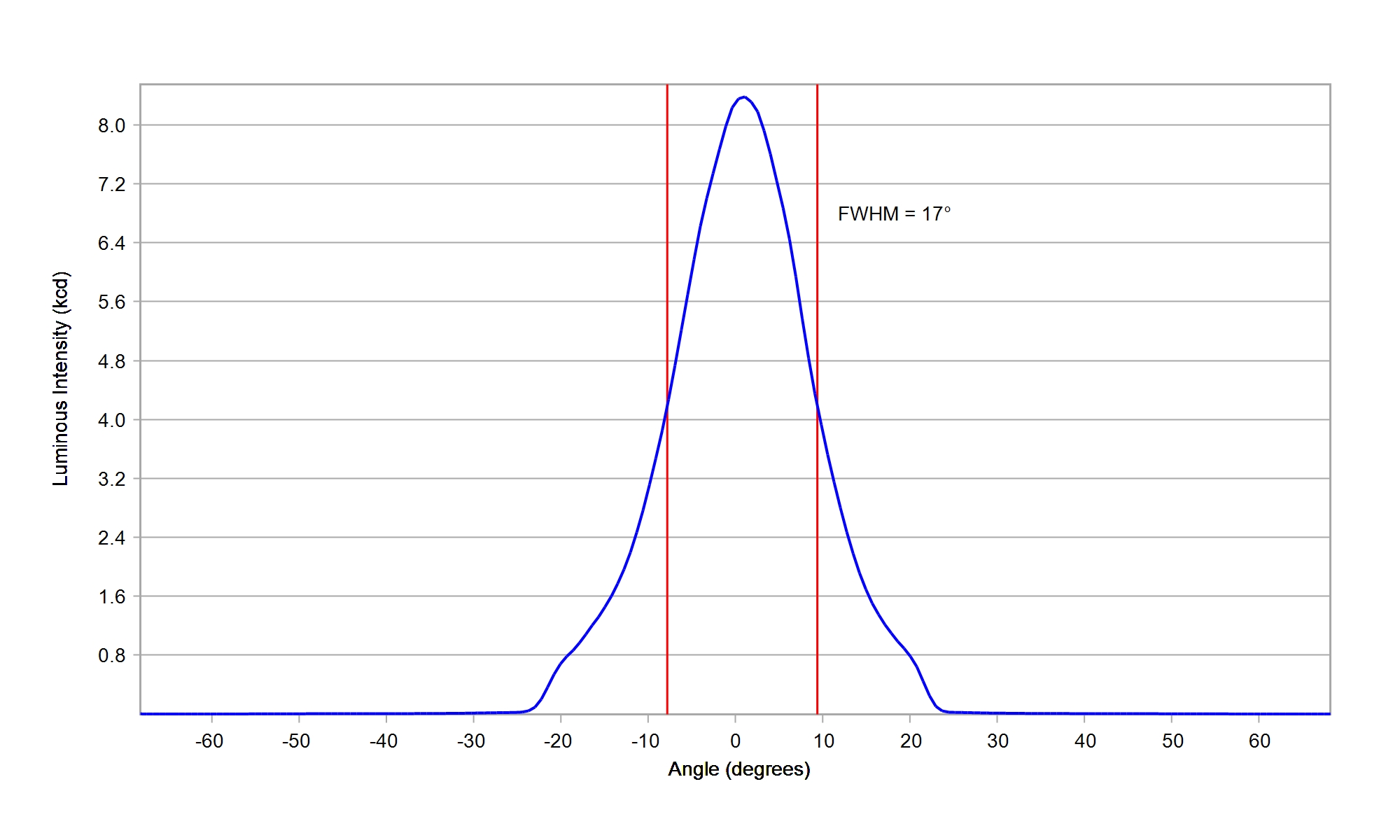

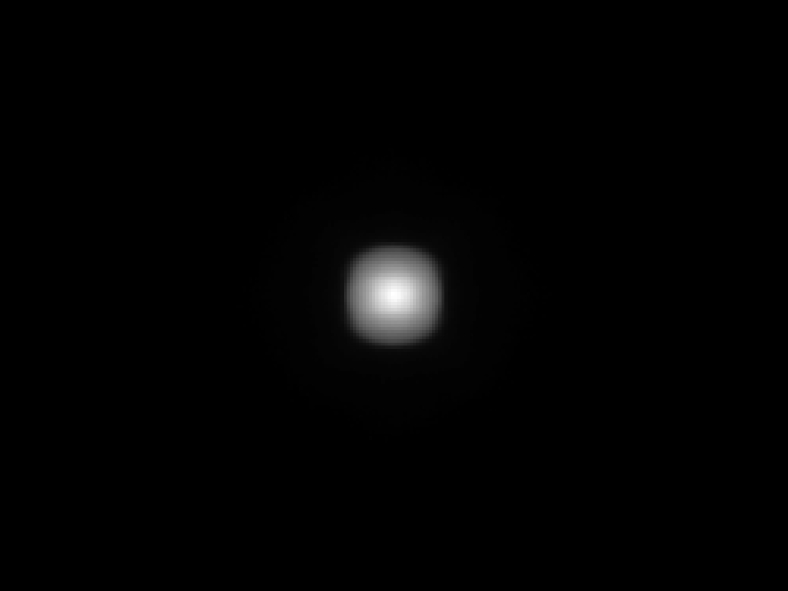

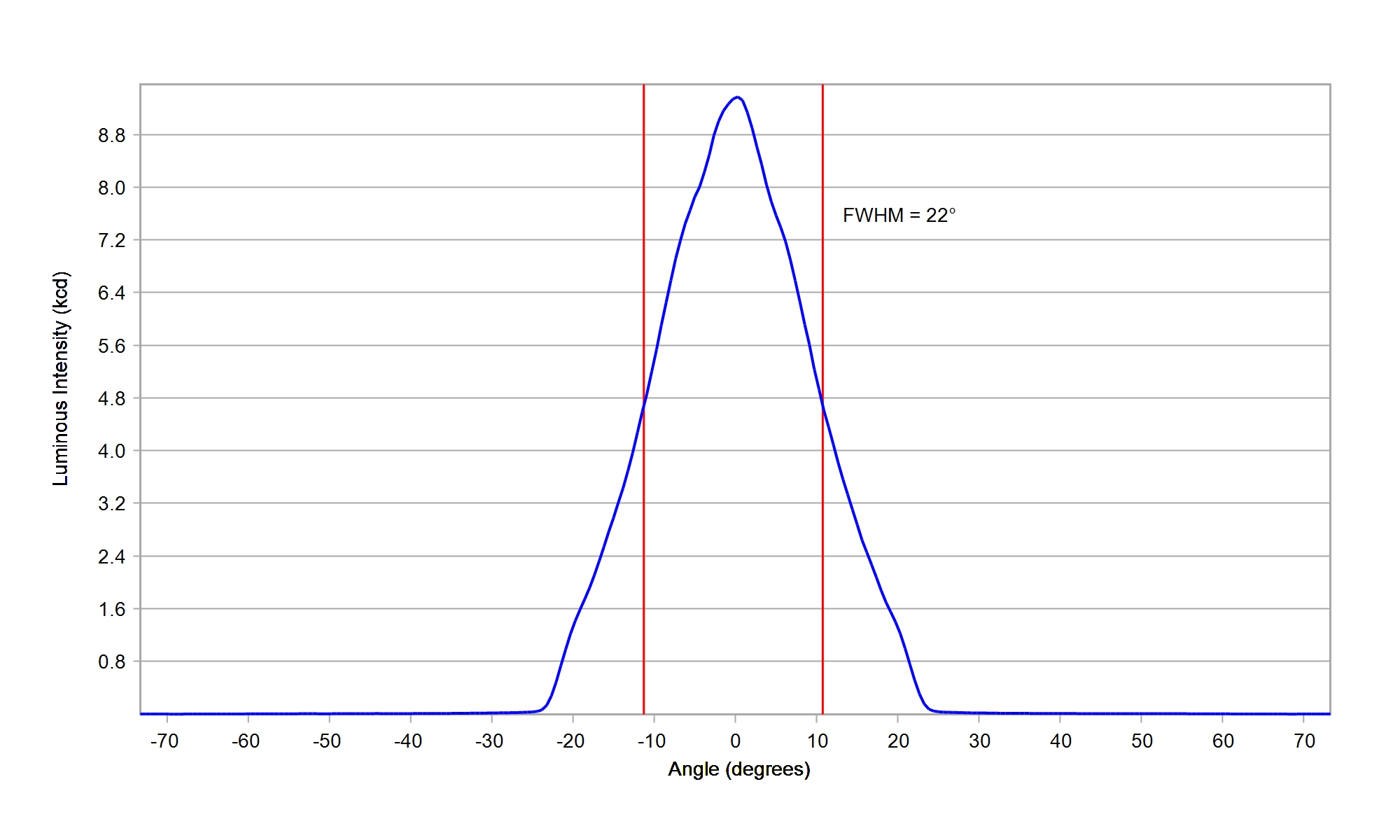

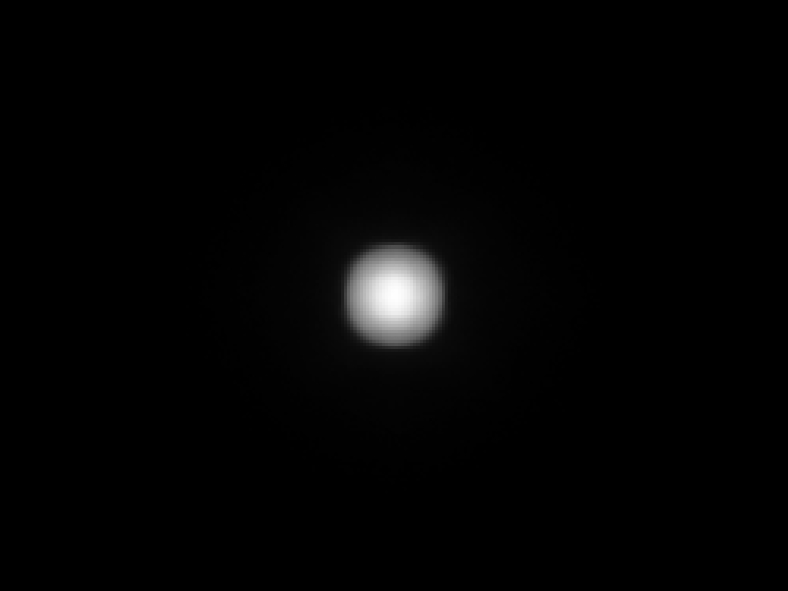

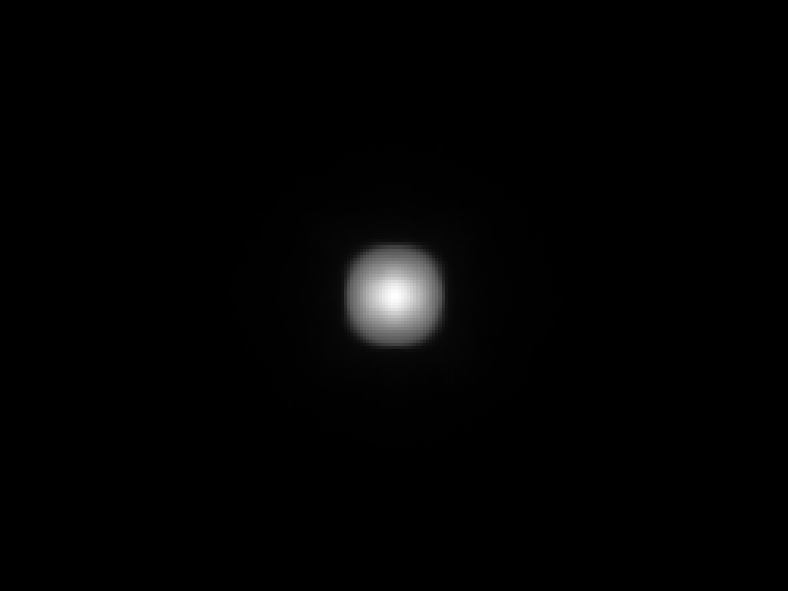

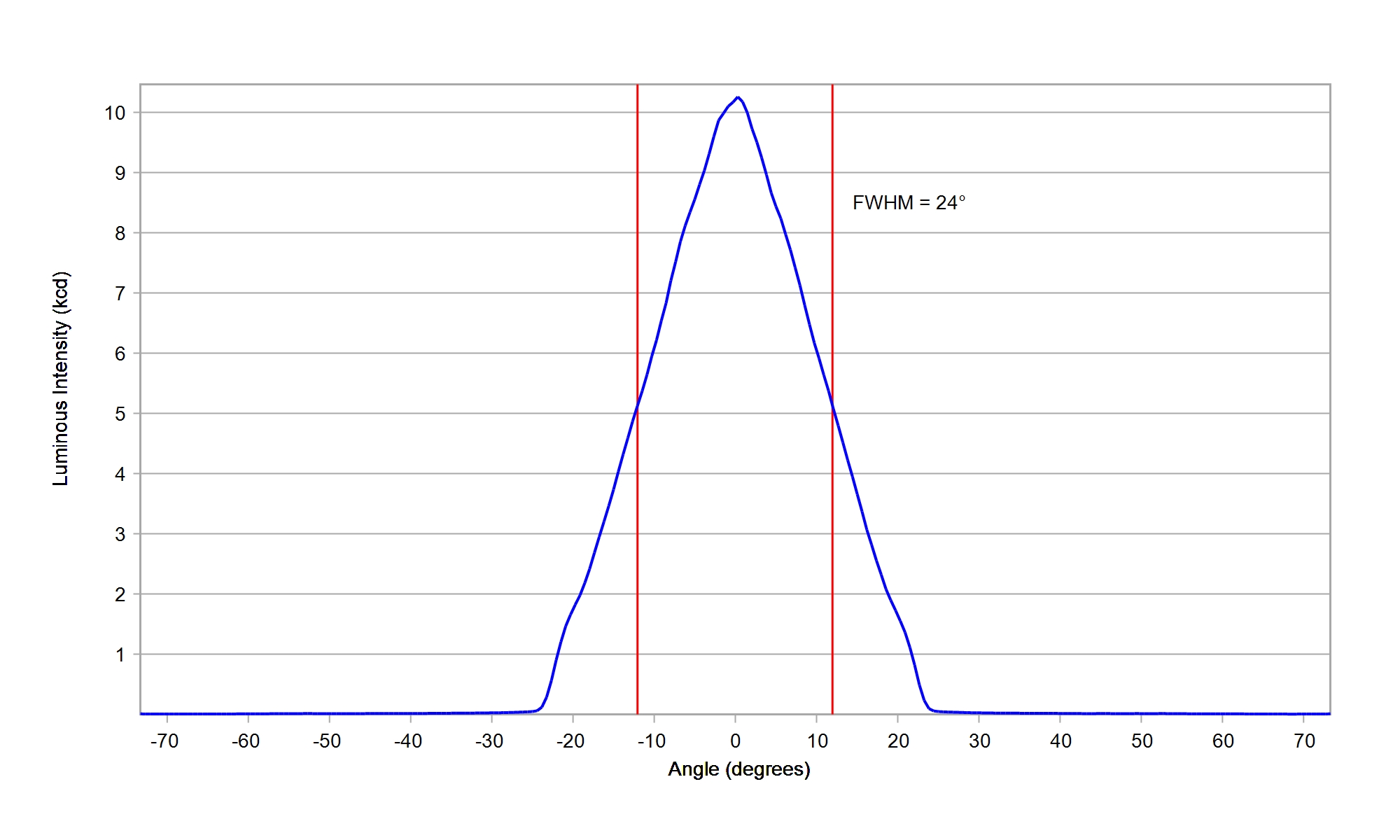

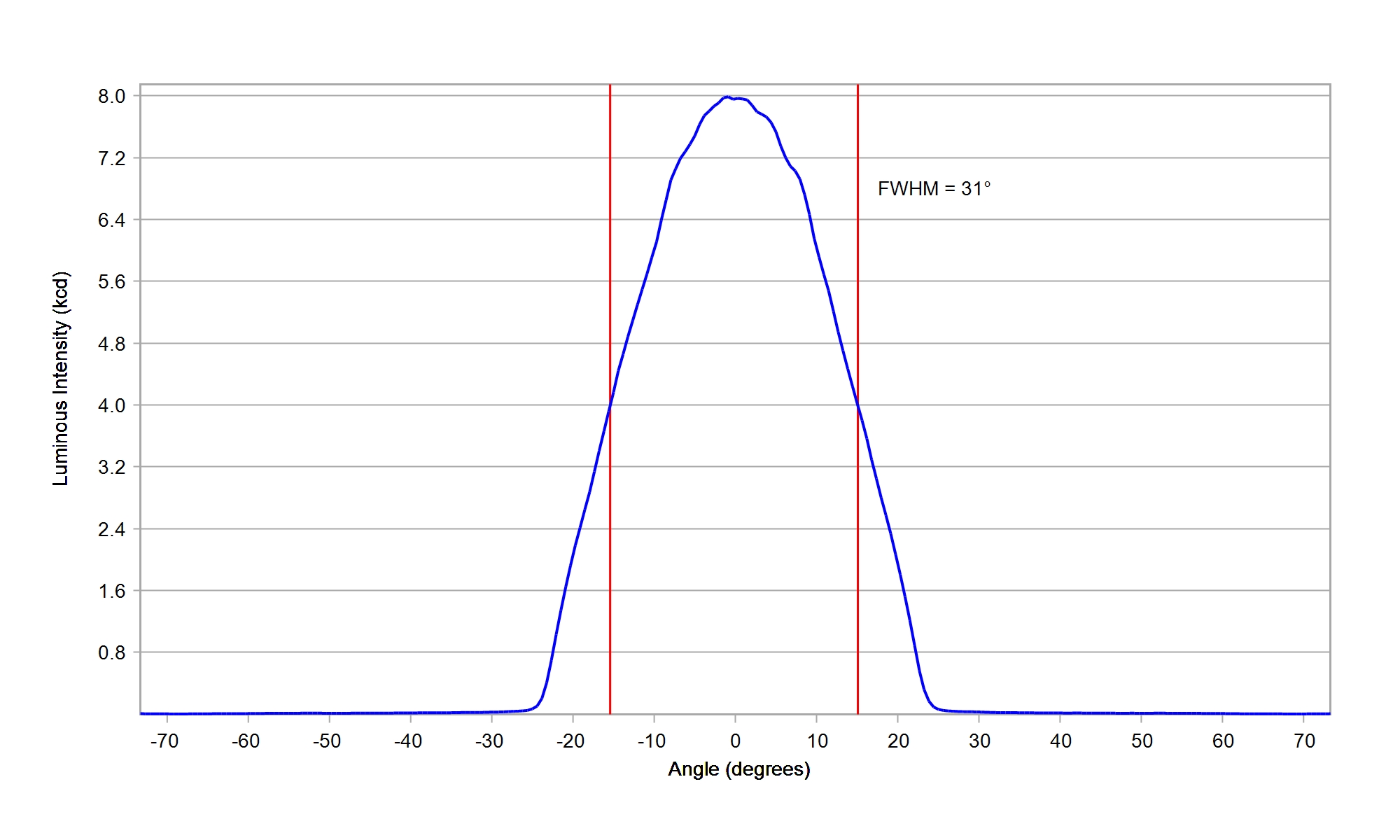

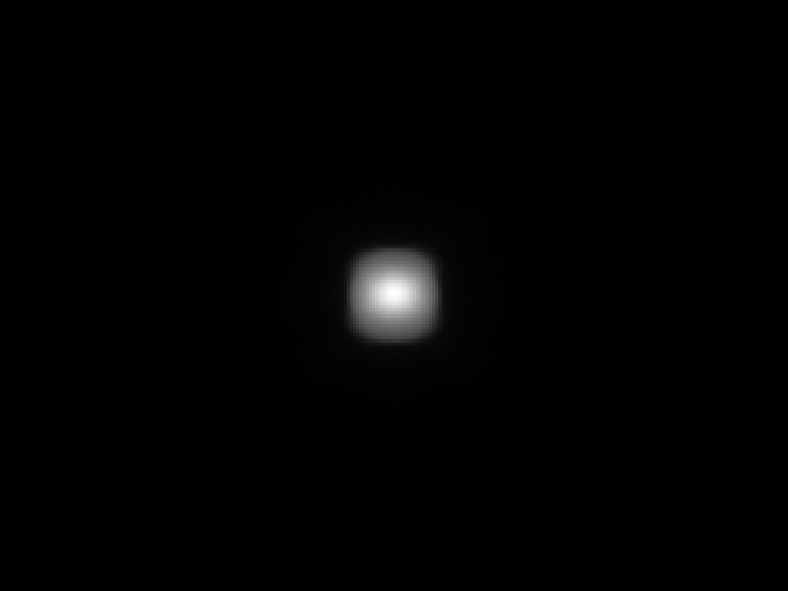

LUMILEDS LUXEON 3030 2D White
Eff:
88.0%
FWHM:
22 x 17°
Cd/Im:
5.9
Download

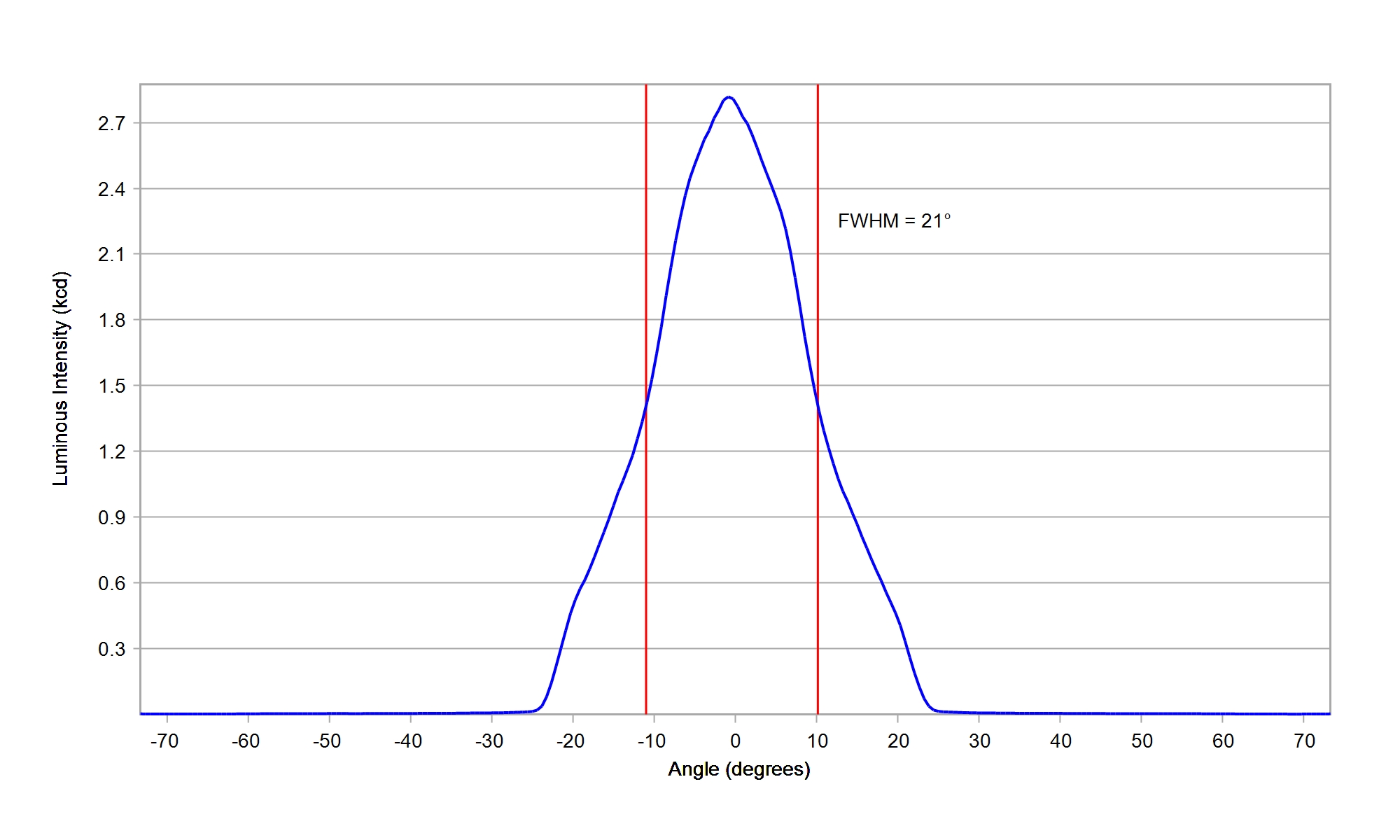

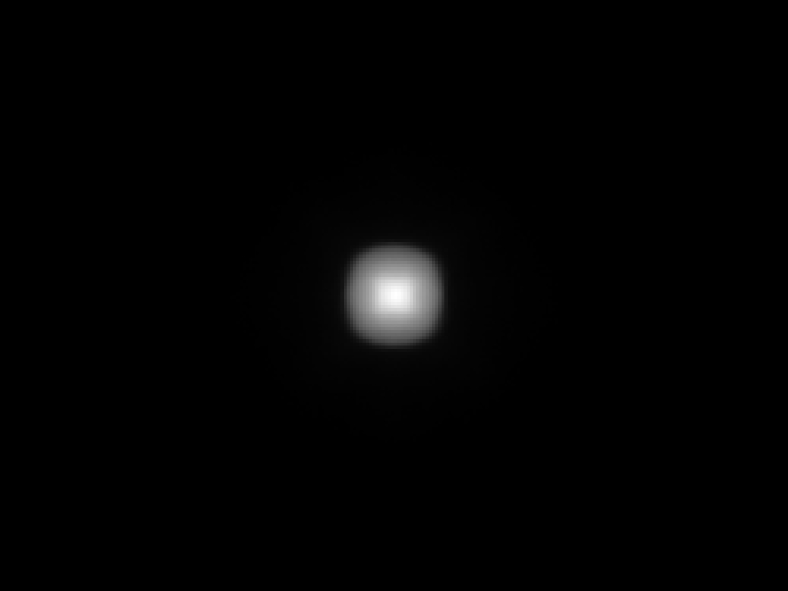

LUMILEDS LUXEON 3030 HE Plus White
Eff:
89.0%
FWHM:
23.5°
Cd/Im:
4.6
Download
LUMILEDS LUXEON 3535 L White
Eff:
88.5%
FWHM:
23.5°
Cd/Im:
4.5
Download

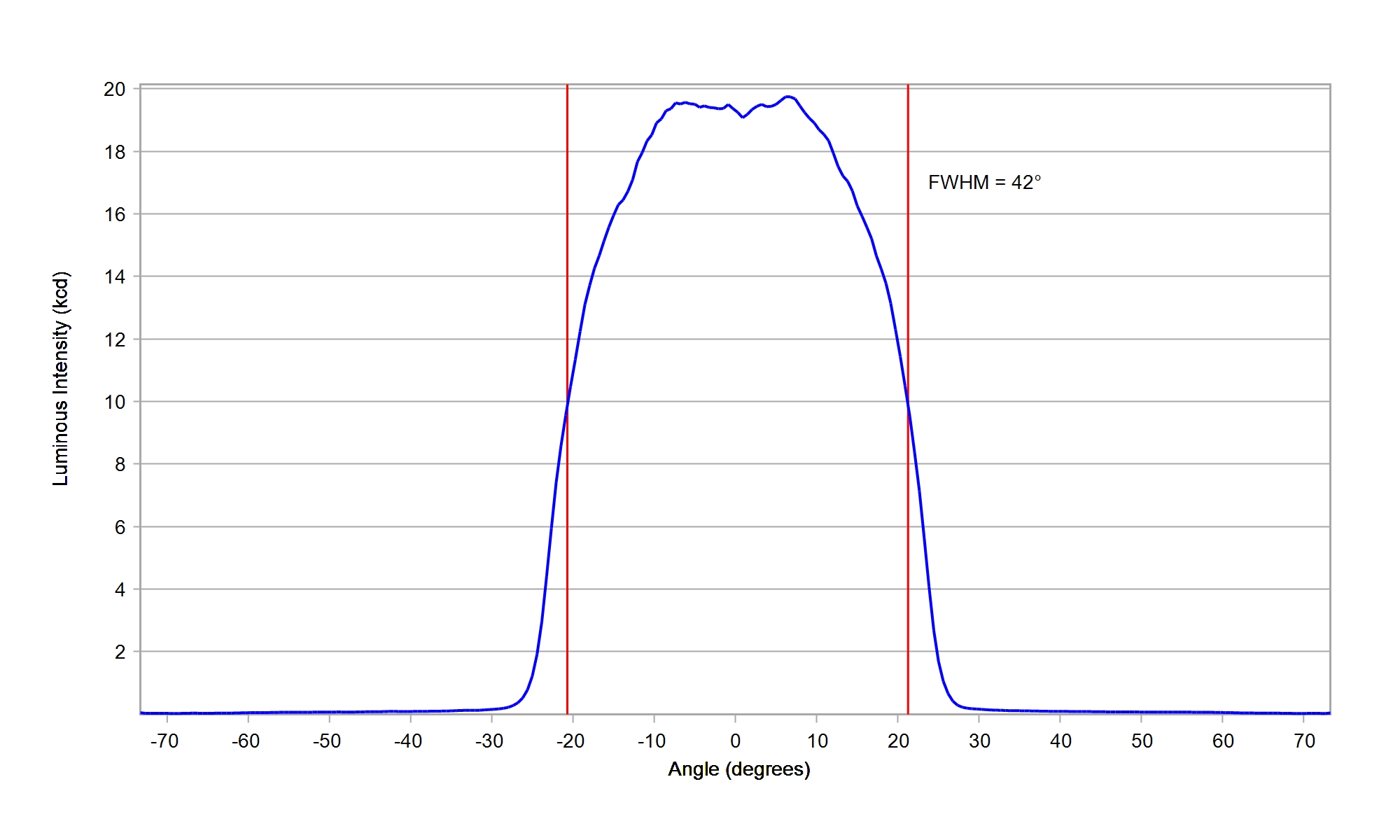

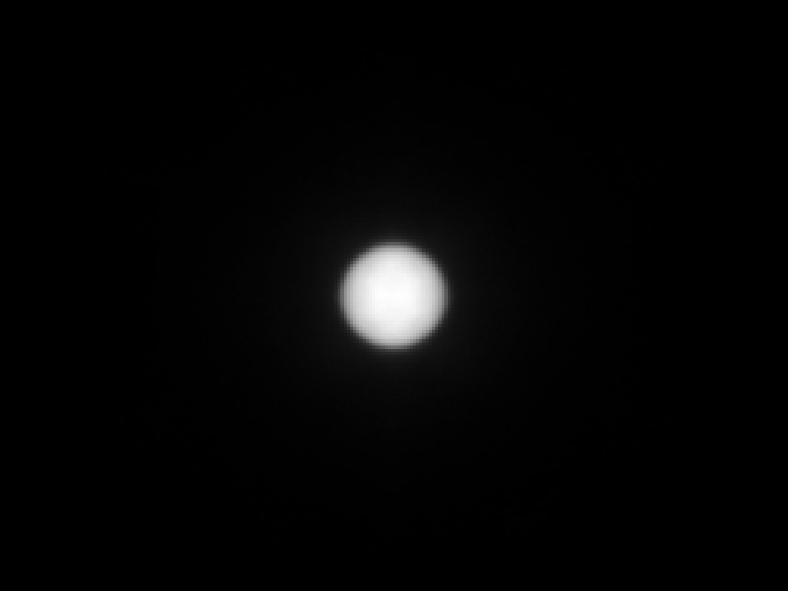

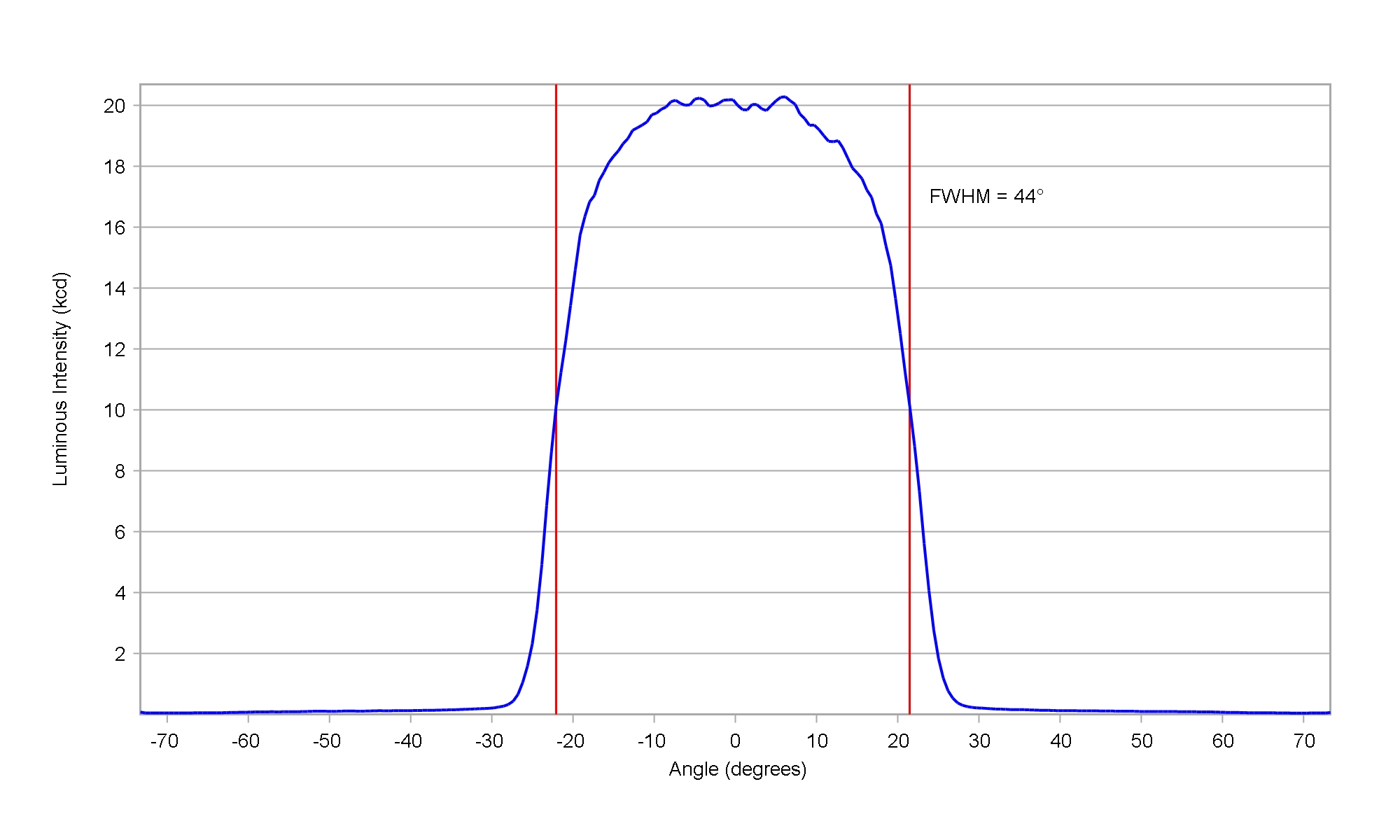

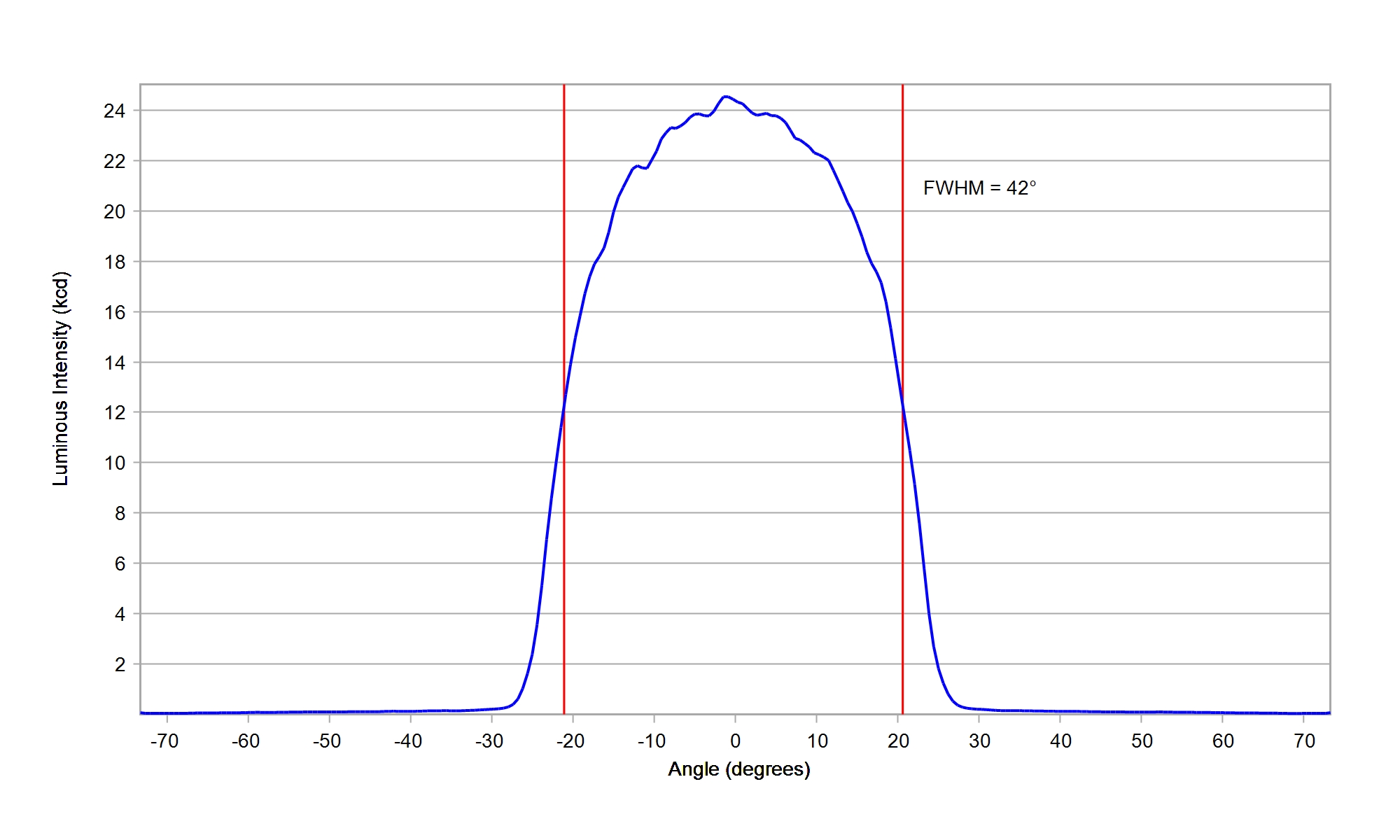

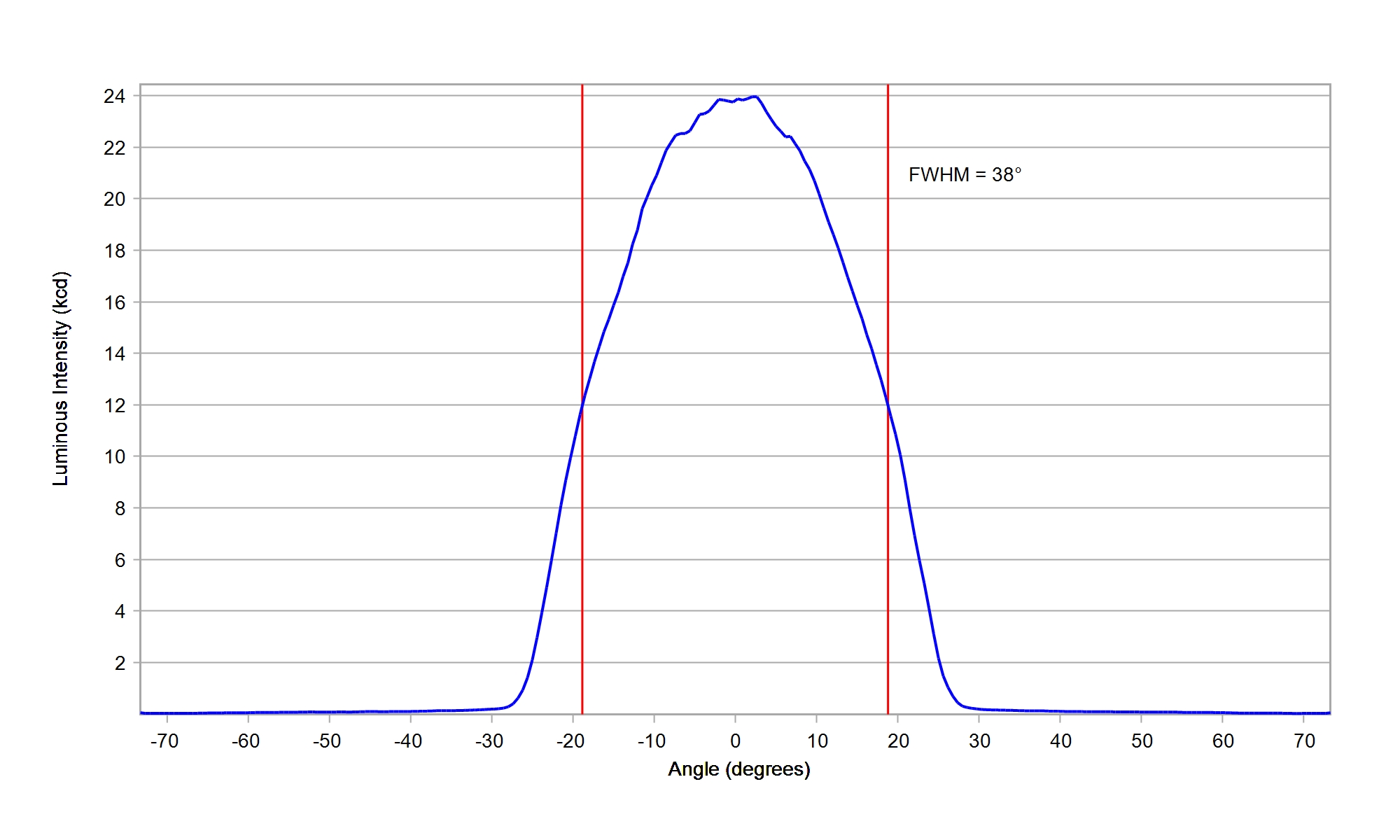

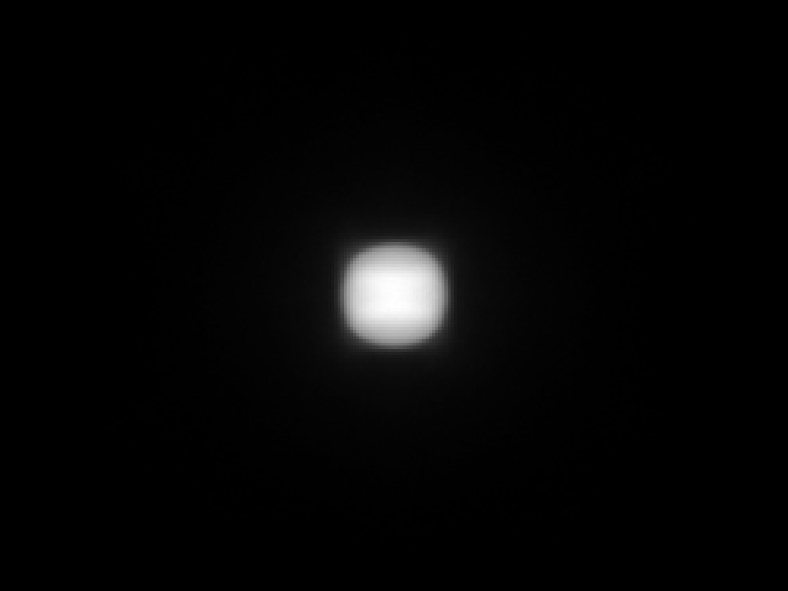

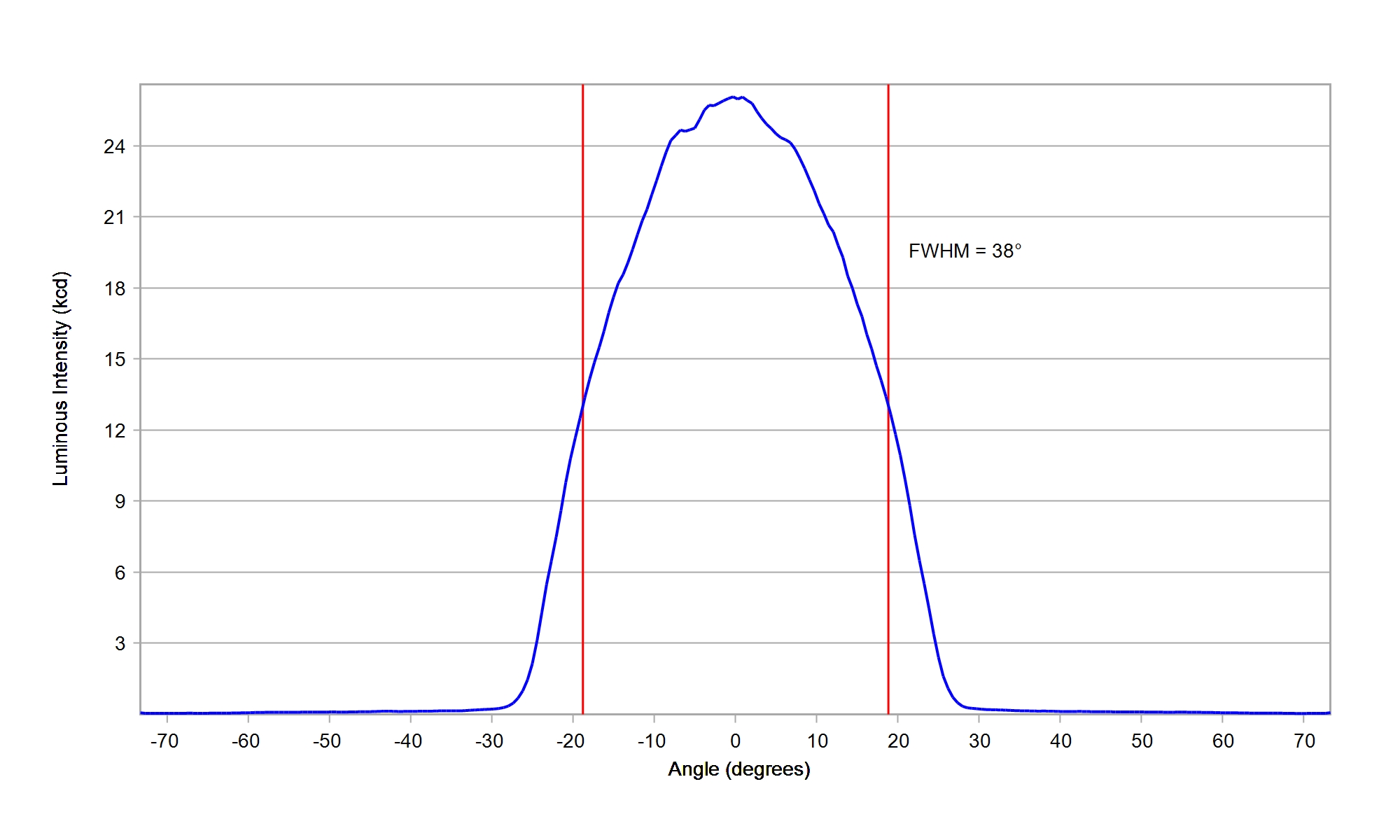

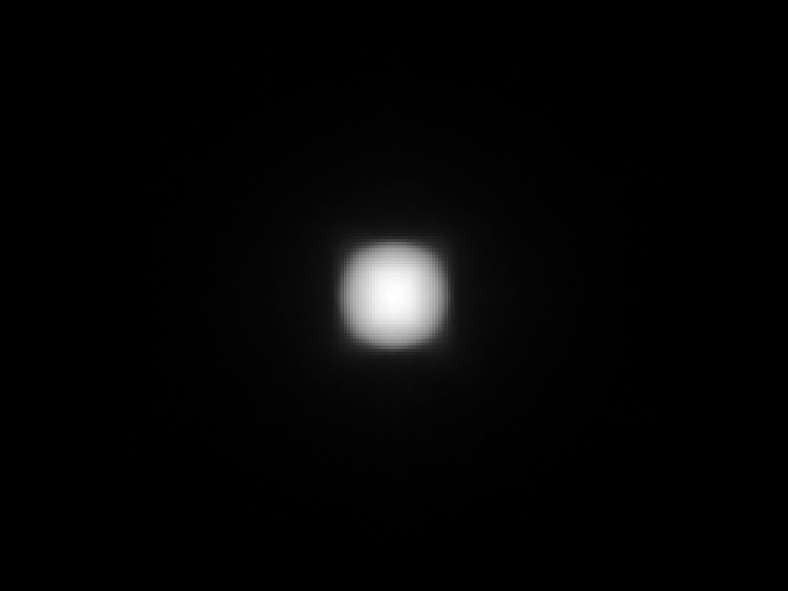

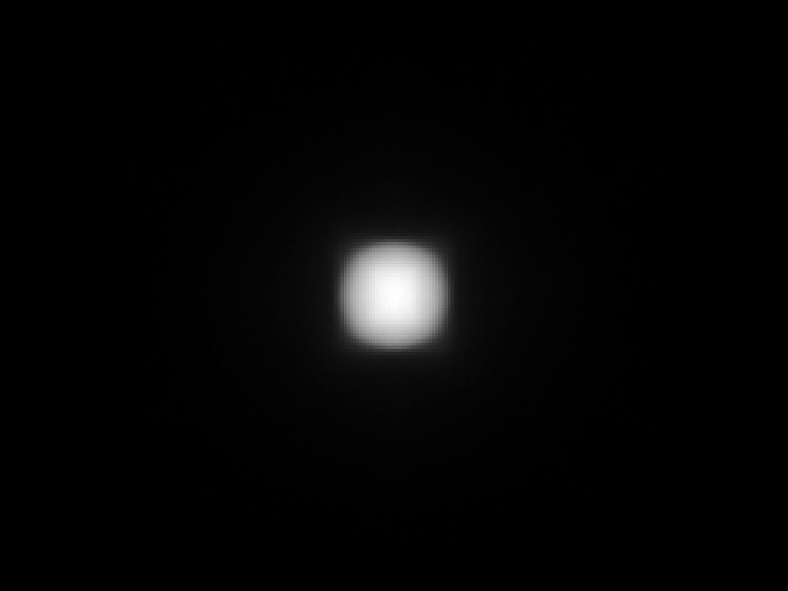

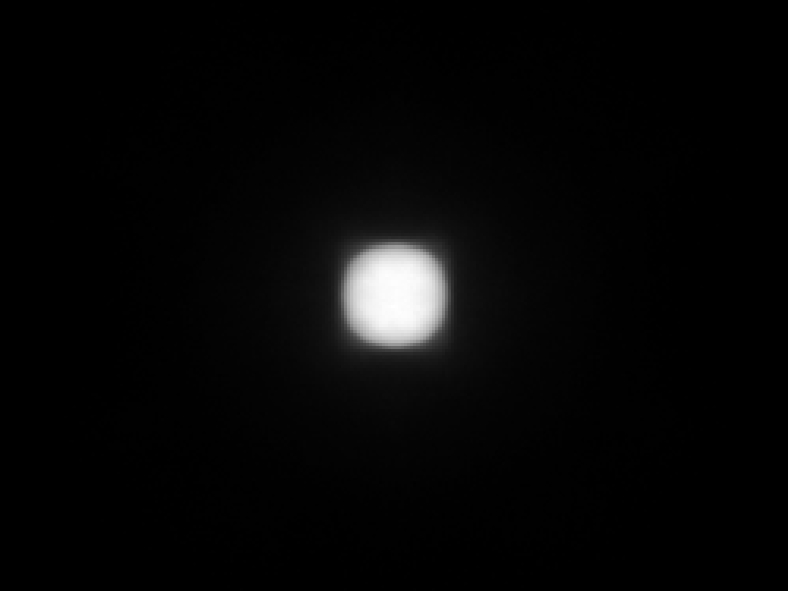

LUMILEDS LUXEON 5050 Round White
Eff:
87.5%
FWHM:
42.0°
Cd/Im:
2.2
Download

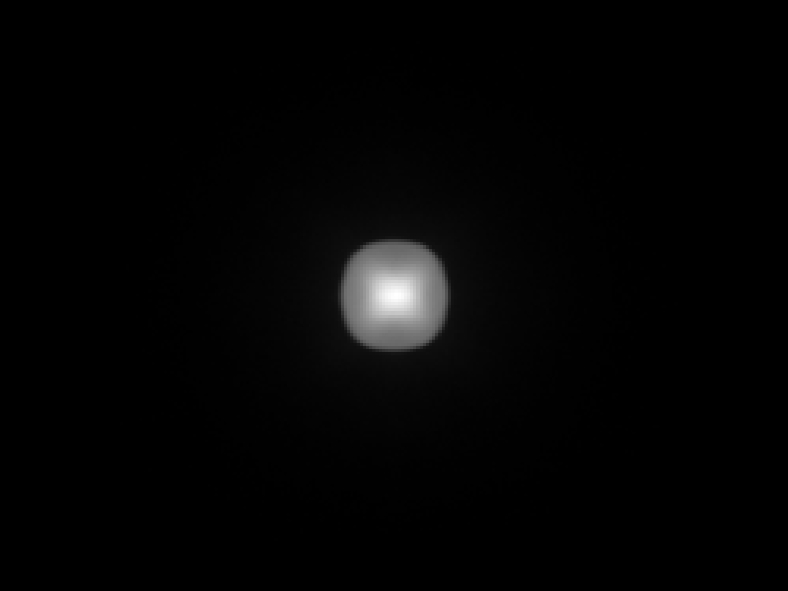

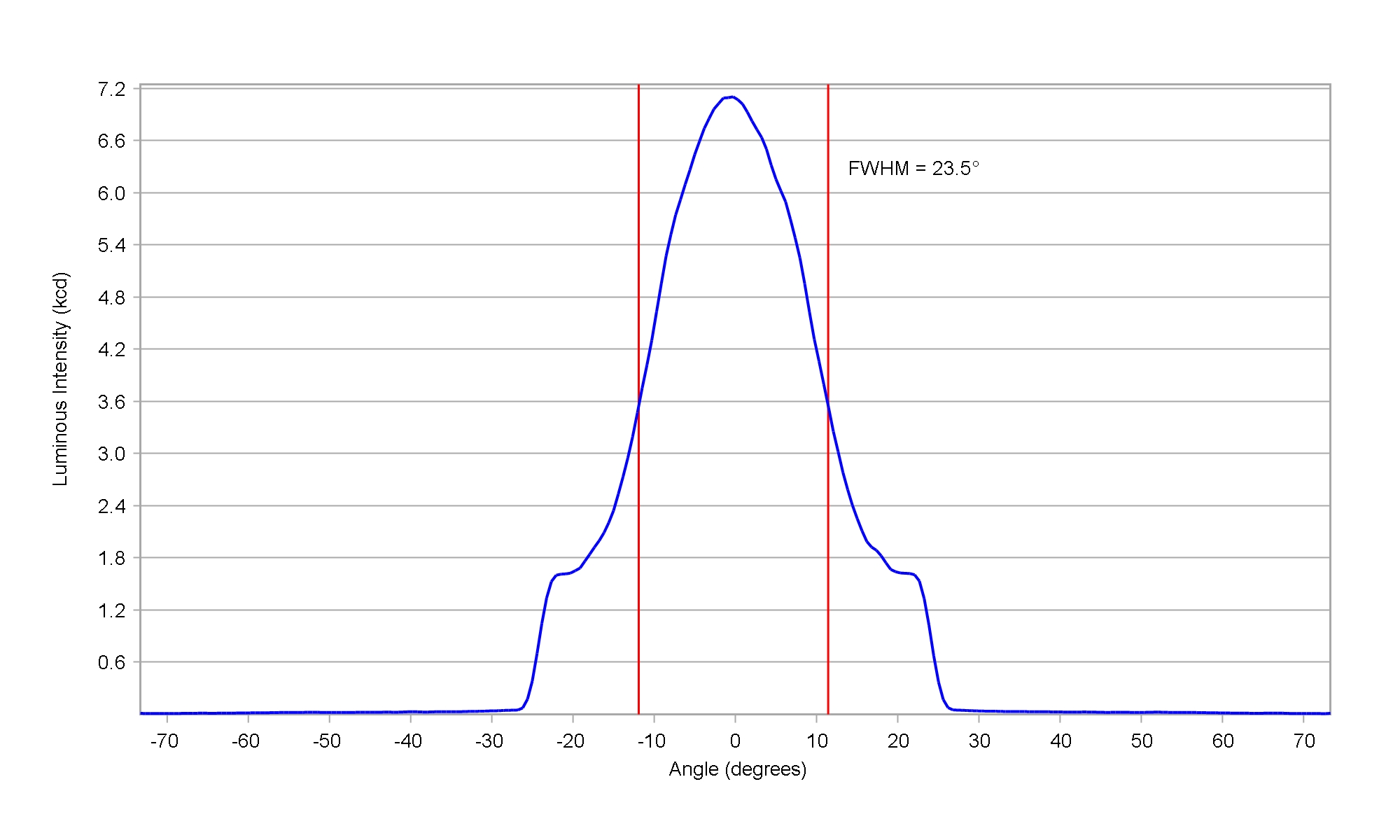

LUMILEDS LUXEON CZ White
Eff:
89.0%
FWHM:
21°
Cd/Im:
5.2
Download

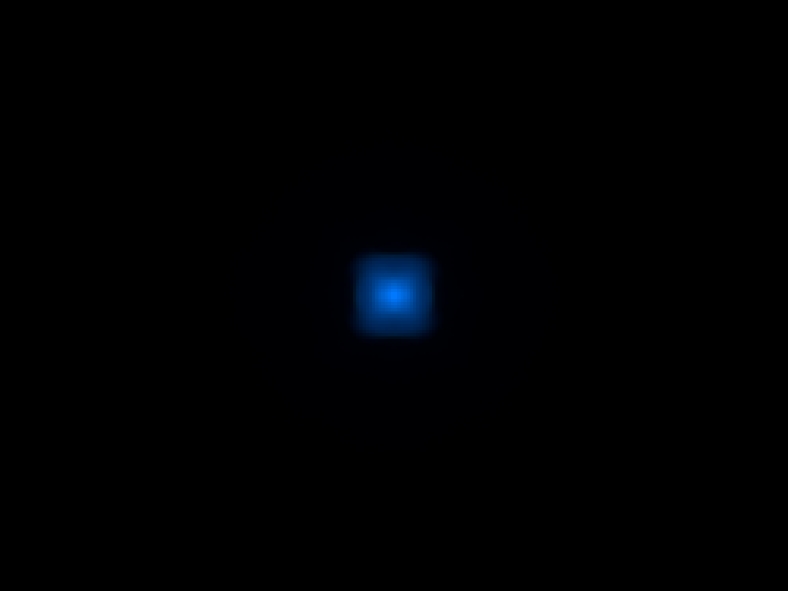

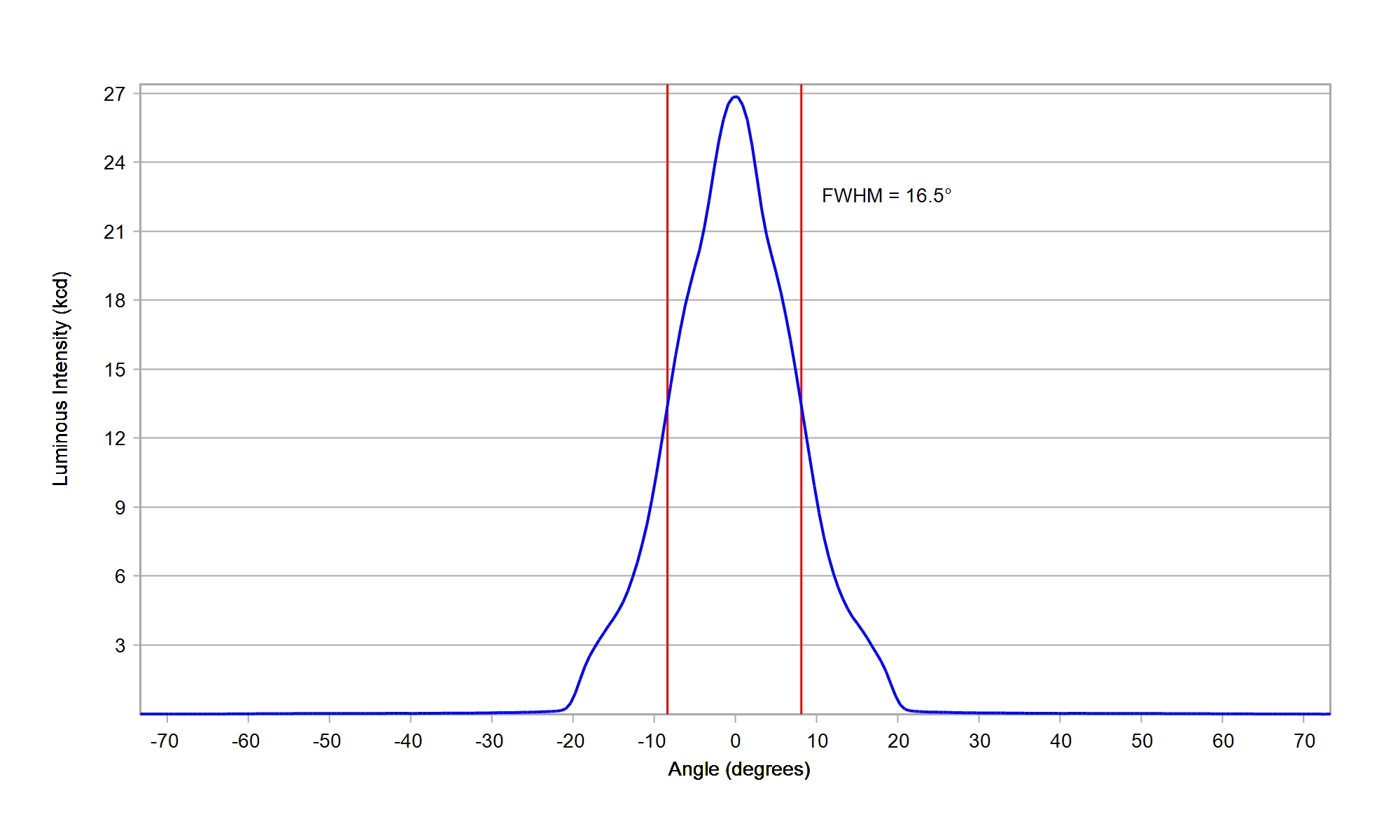

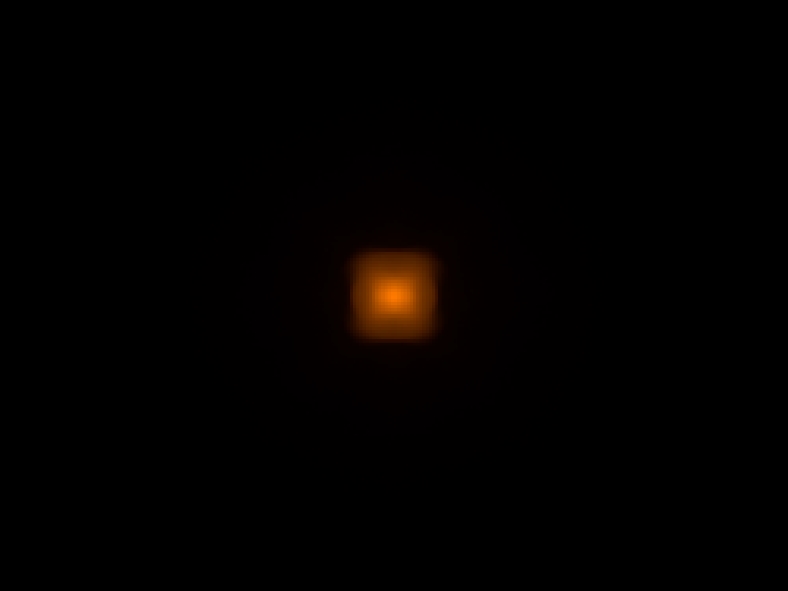

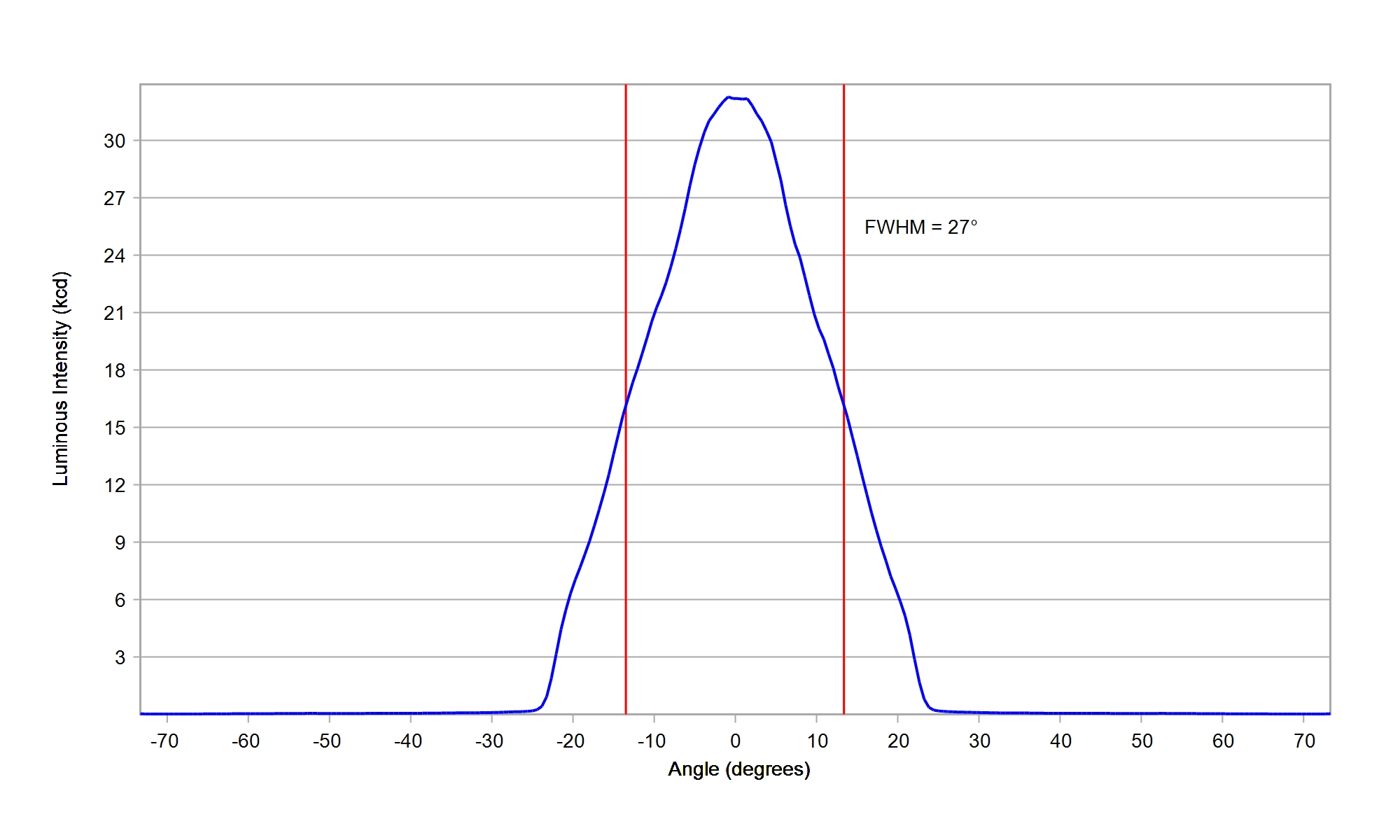

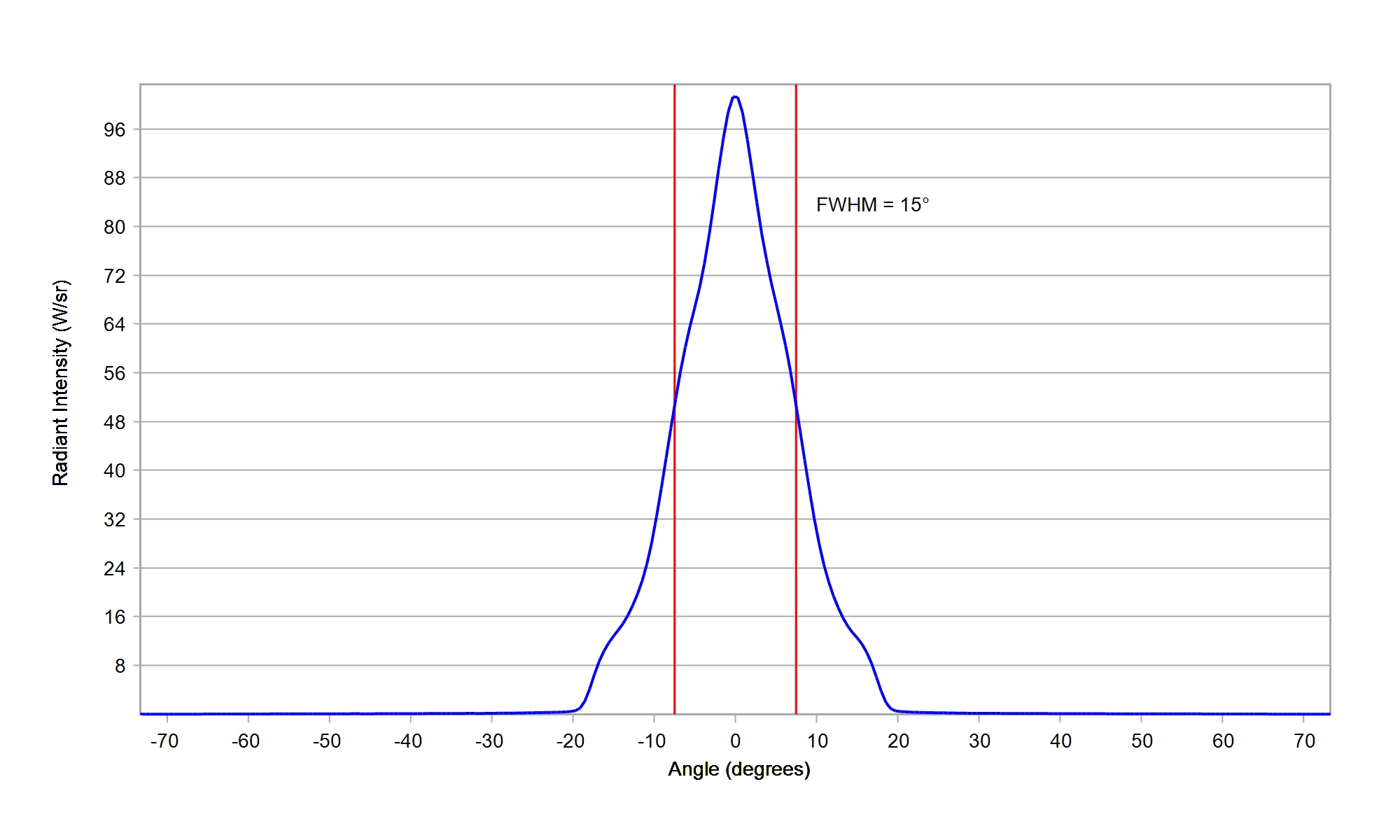

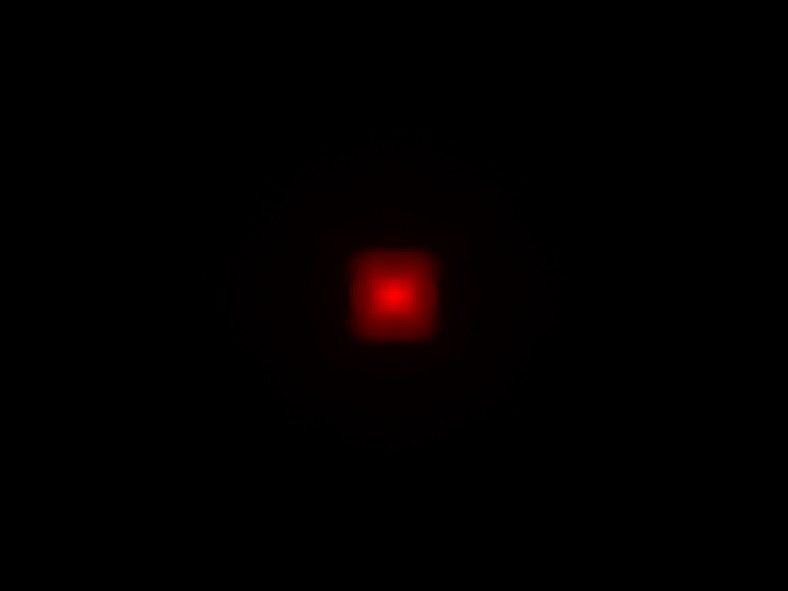

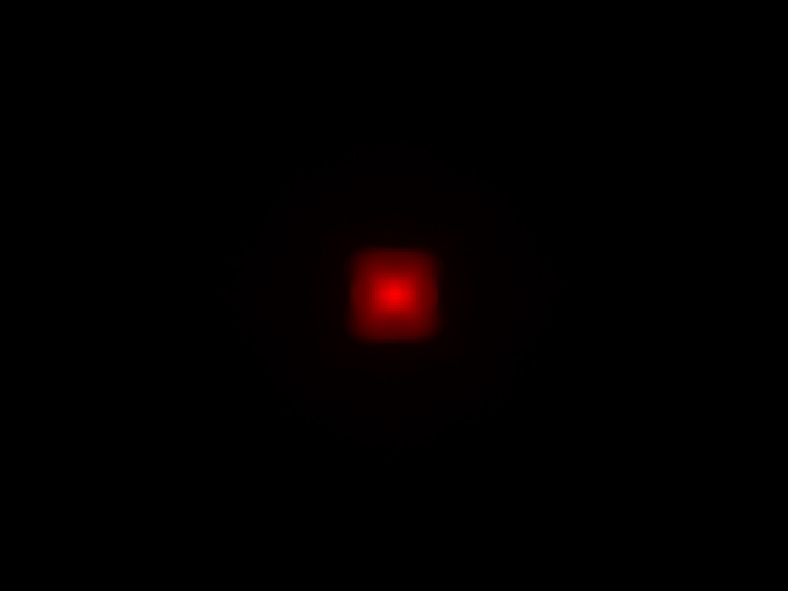

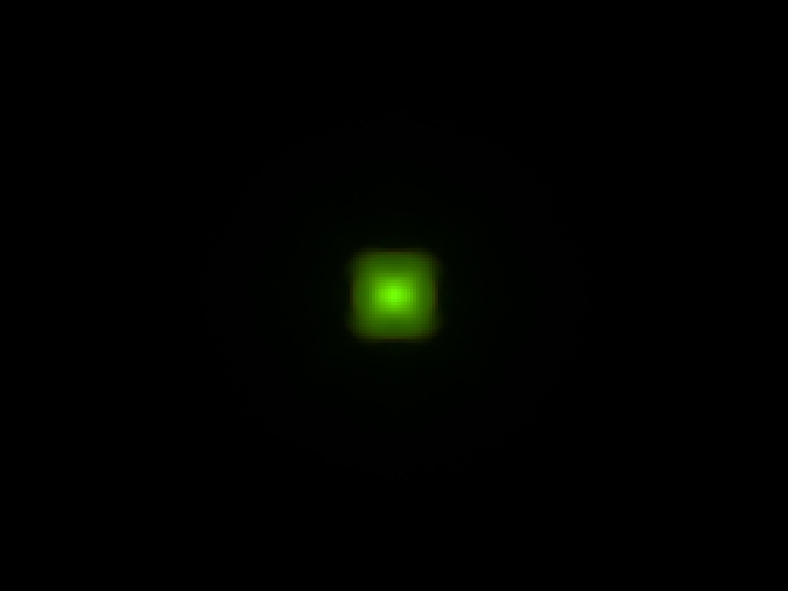

LUMILEDS LUXEON HL1Z CSP White
Eff:
88.5%
FWHM:
16.5°
Cd/Im:
8.4
Download
LUMILEDS LUXEON HL2Z White
Eff:
88.5%
FWHM:
21°
Cd/Im:
5.8
Download
LUMILEDS LUXEON IR 2720
Eff:
92.5%
FWHM:
20.0/18.0°
Ipk/W:
5.7
Download
LUMILEDS LUXEON Rubix Blue
Eff:
89.0%
FWHM:
21.5°
Cd/Im:
4.9
Download
LUMILEDS LUXEON Rubix Green
Eff:
89.0%
FWHM:
22°
Cd/Im:
4.5
Download
LUMILEDS LUXEON Rubix Red
Eff:
90.5%
FWHM:
21.5°
Cd/Im:
4.7
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
88.5%
FWHM:
20.5°
Cd/Im:
5.3
Download
LUMILEDS LUXEON Rubix White
Eff:
89.0%
FWHM:
21.5°
Cd/Im:
4.7
Download
Nichia 757 White
Eff:
88.5%
FWHM:
23.0°
Cd/Im:
4.5
Download
Nichia NCSW CSP E17A White
Eff:
87.5%
FWHM:
15.0°
Cd/Im:
8.2
Download
Nichia NF2W 757G-MT Tunable
Eff:
88.0%
FWHM:
25 x 20°
Cd/Im:
5.1
Download
Nichia NFSW CSP E11A White
Eff:
87.5%
FWHM:
14.5 x 11.5°
Cd/Im:
9.7
Download
Nichia NVSW CSP E21A White
Eff:
87.5%
FWHM:
20.0°
Cd/Im:
6.4
Download

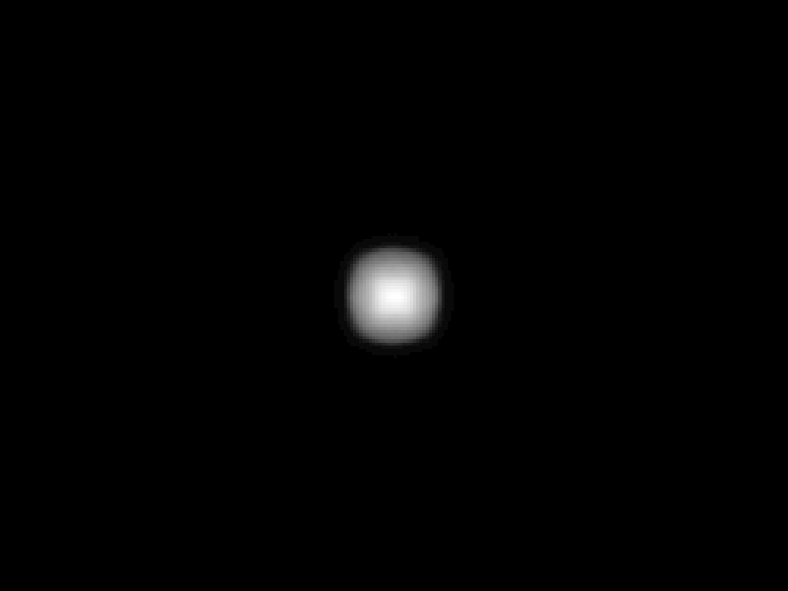

Osram OS DURIS E 2835 Gen2
Eff:
89.0%
FWHM:
20.5°
Cd/Im:
5.3
Download
Osram OS DURIS E5 White
Eff:
87.5%
FWHM:
15 x 12°
Cd/Im:
8.9
Download
Osram OS DURIS S5 White
Eff:
88.5%
FWHM:
23 x 17.5°
Cd/Im:
5.6
Download
Osram OS DURIS S8 Gen3 White
Eff:
89.0%
FWHM:
20.5°
Cd/Im:
5.3
Download

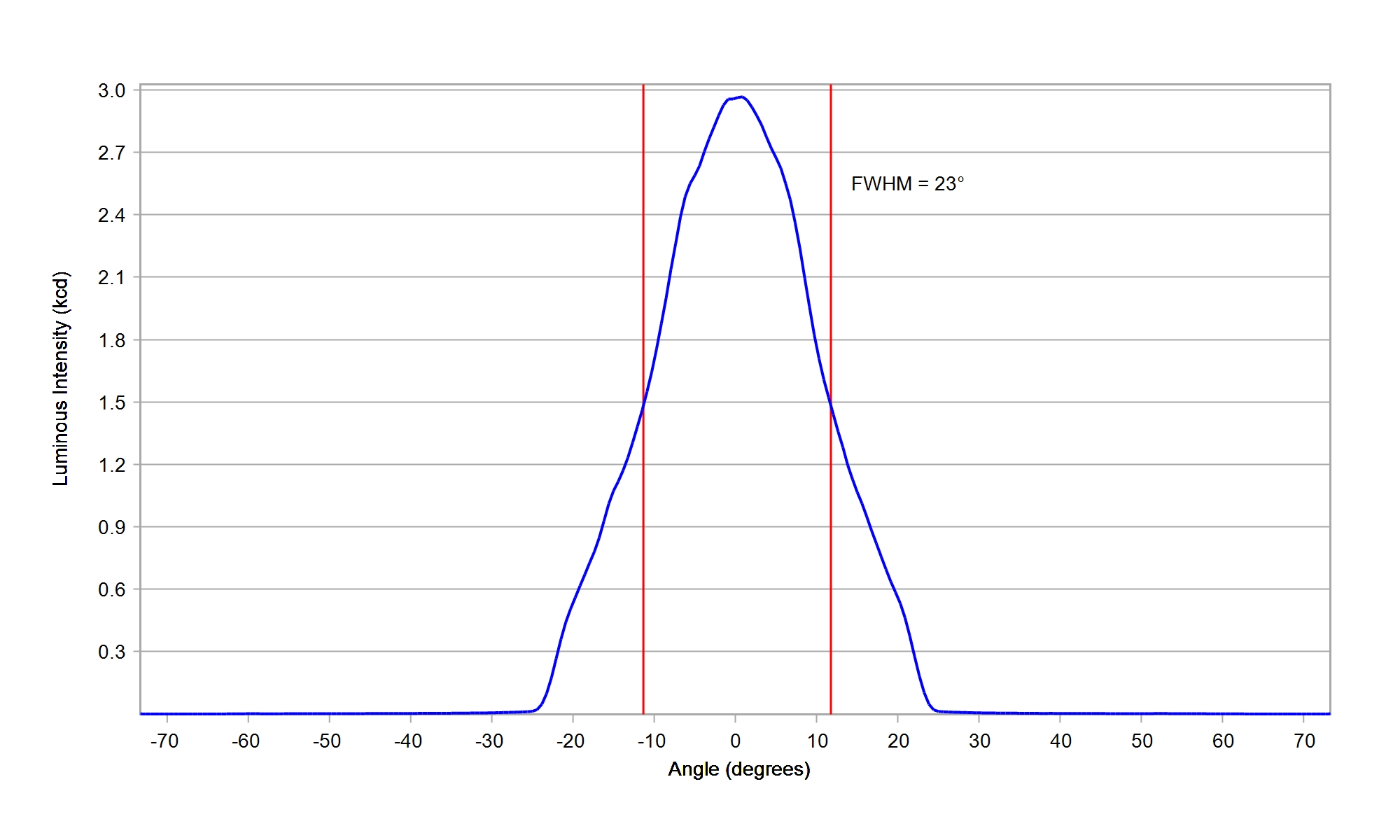

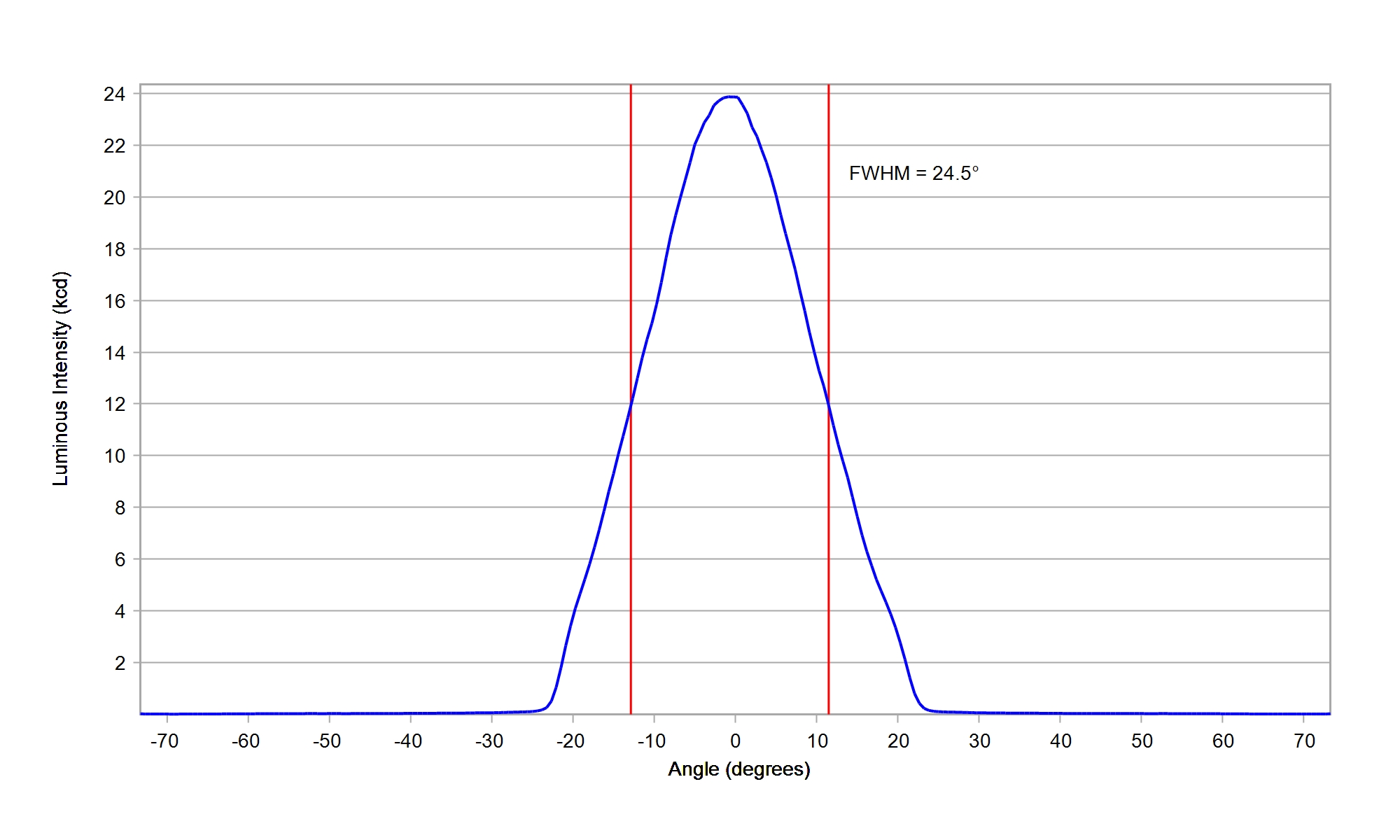

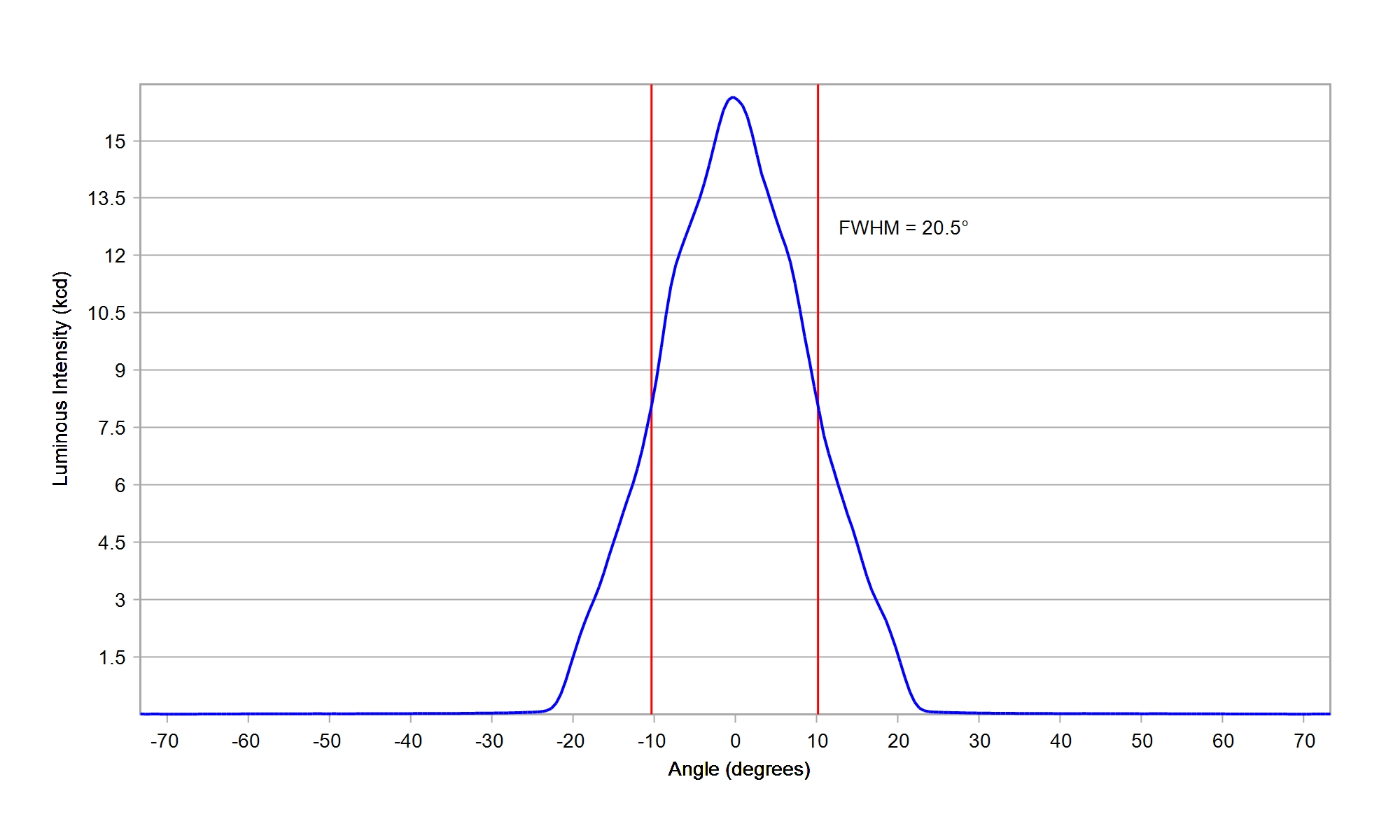

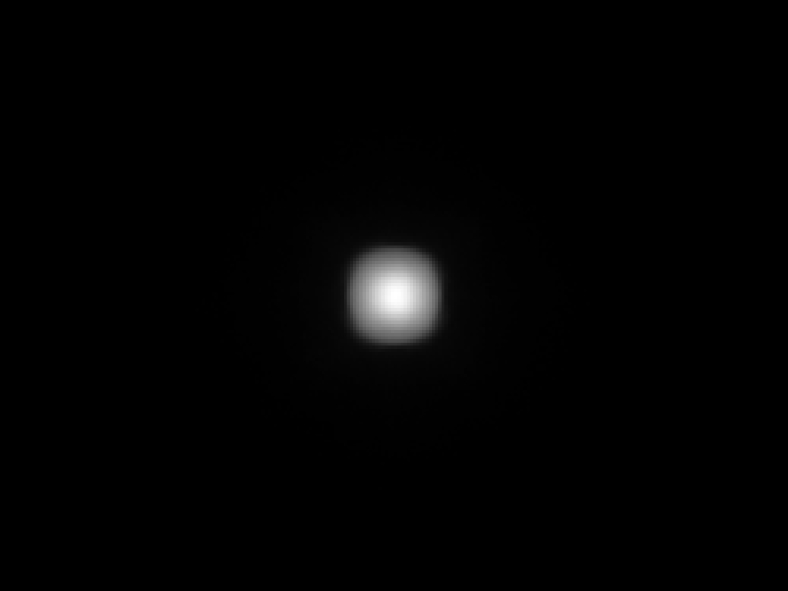

Osram OS OSCONIQ C 2424 White
Eff:
89.5%
FWHM:
19.0°
Cd/Im:
6.2
Download

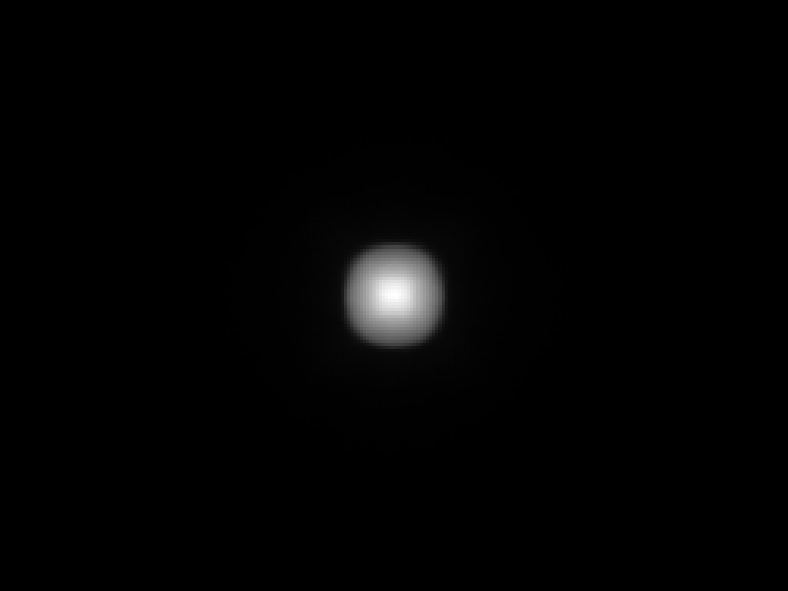

Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
86.5%
FWHM:
40°
Cd/Im:
2.0
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
89.0%
FWHM:
20°
Cd/Im:
5.1
Download

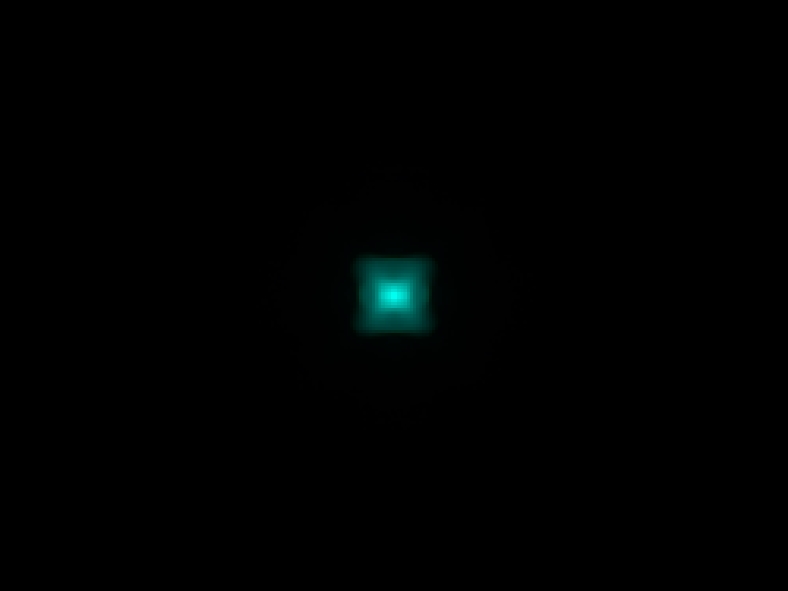

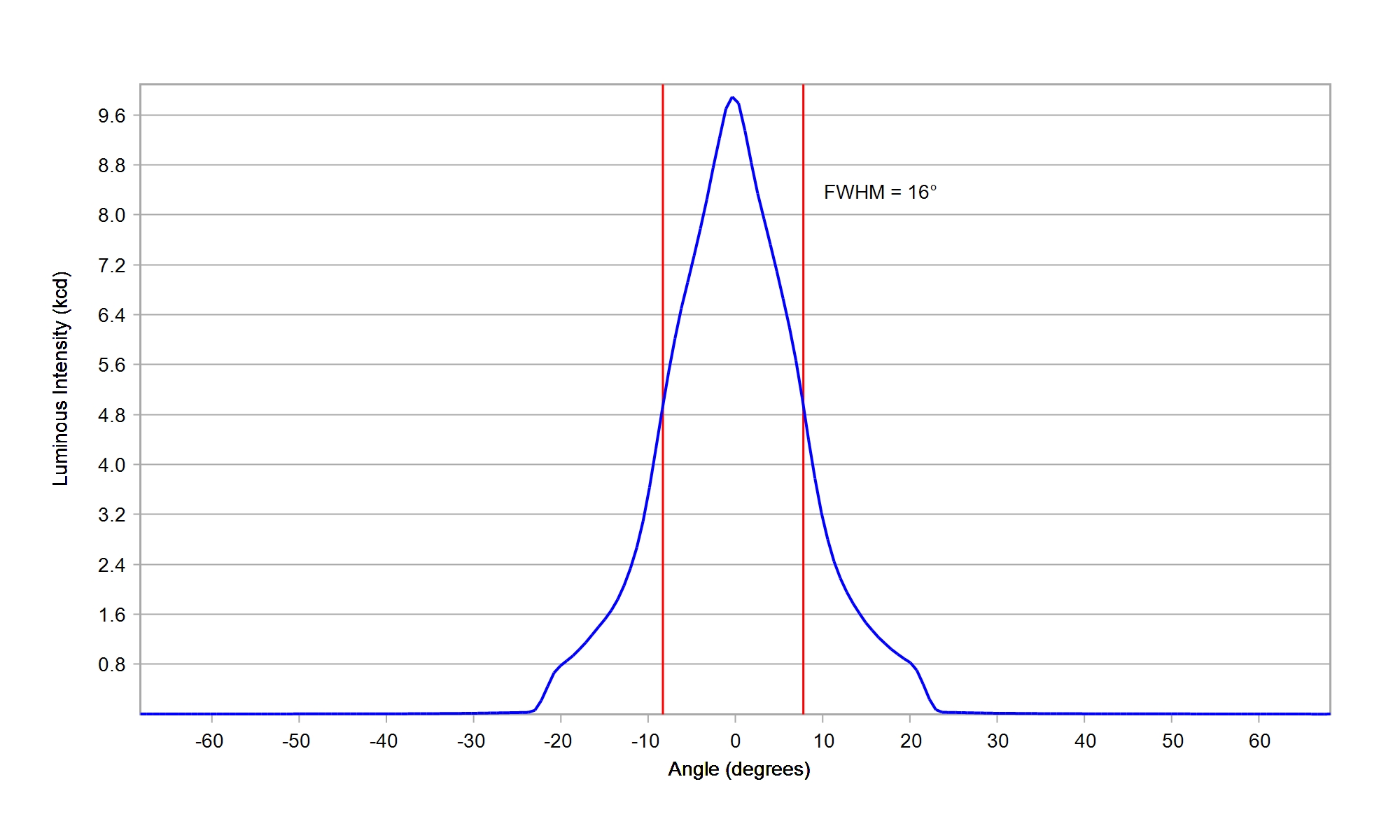

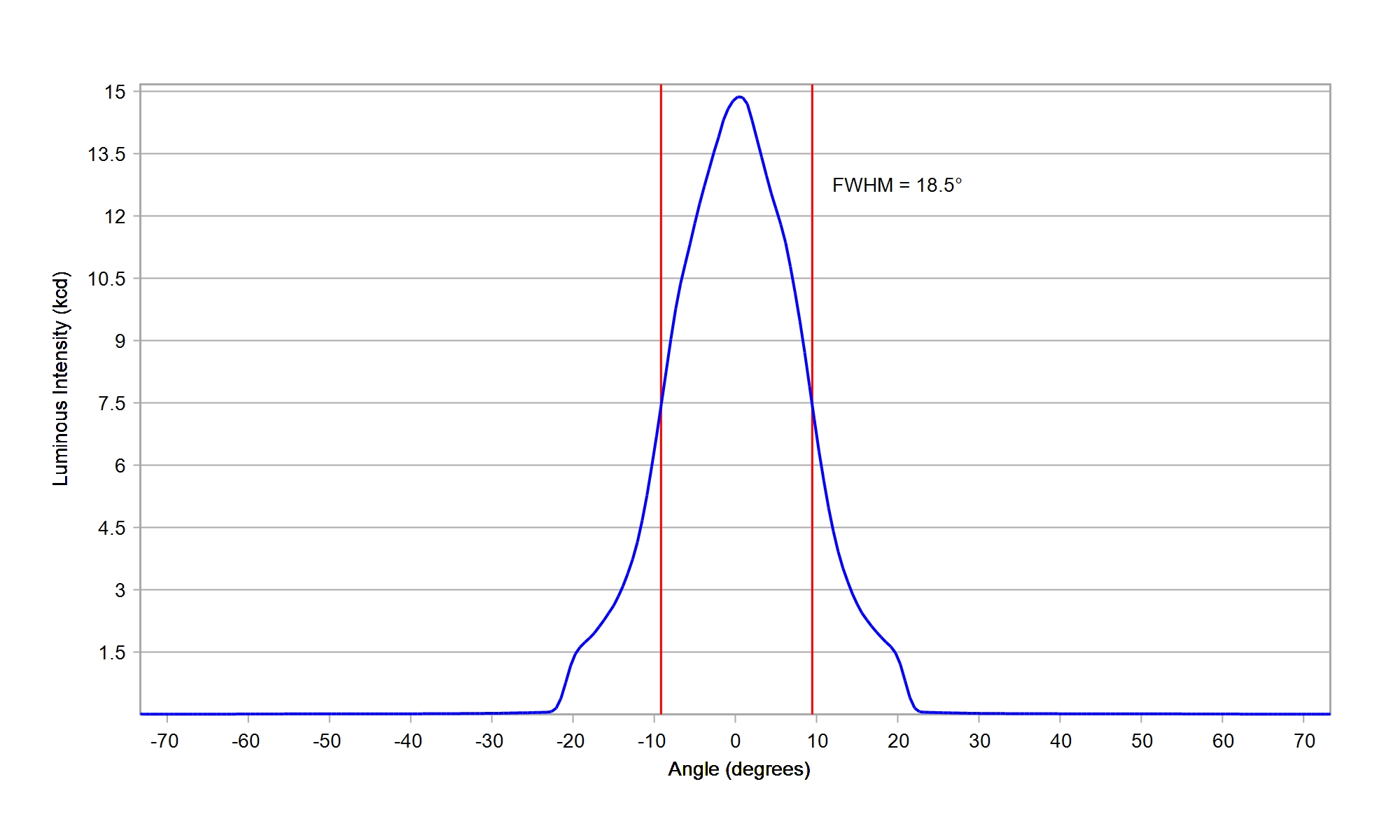

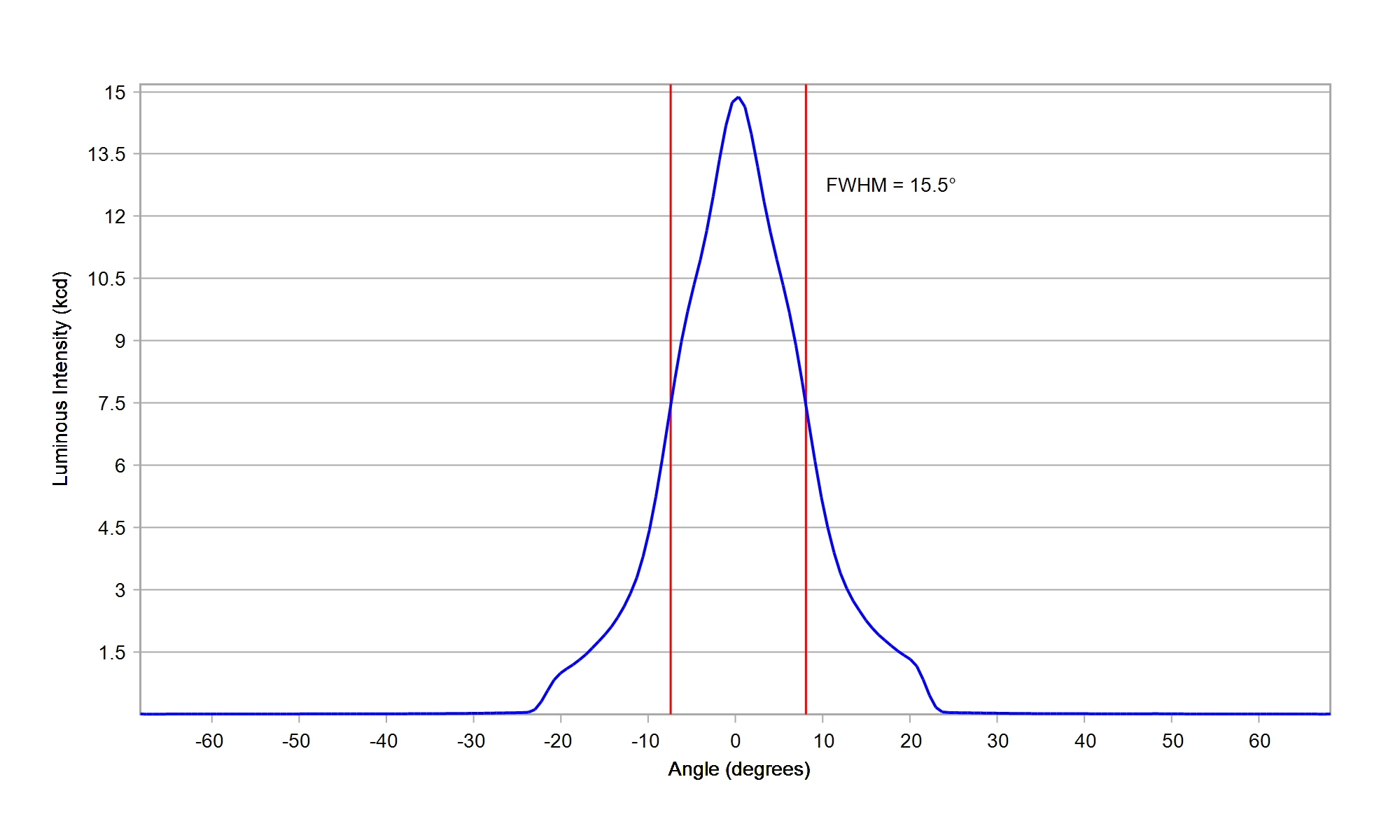

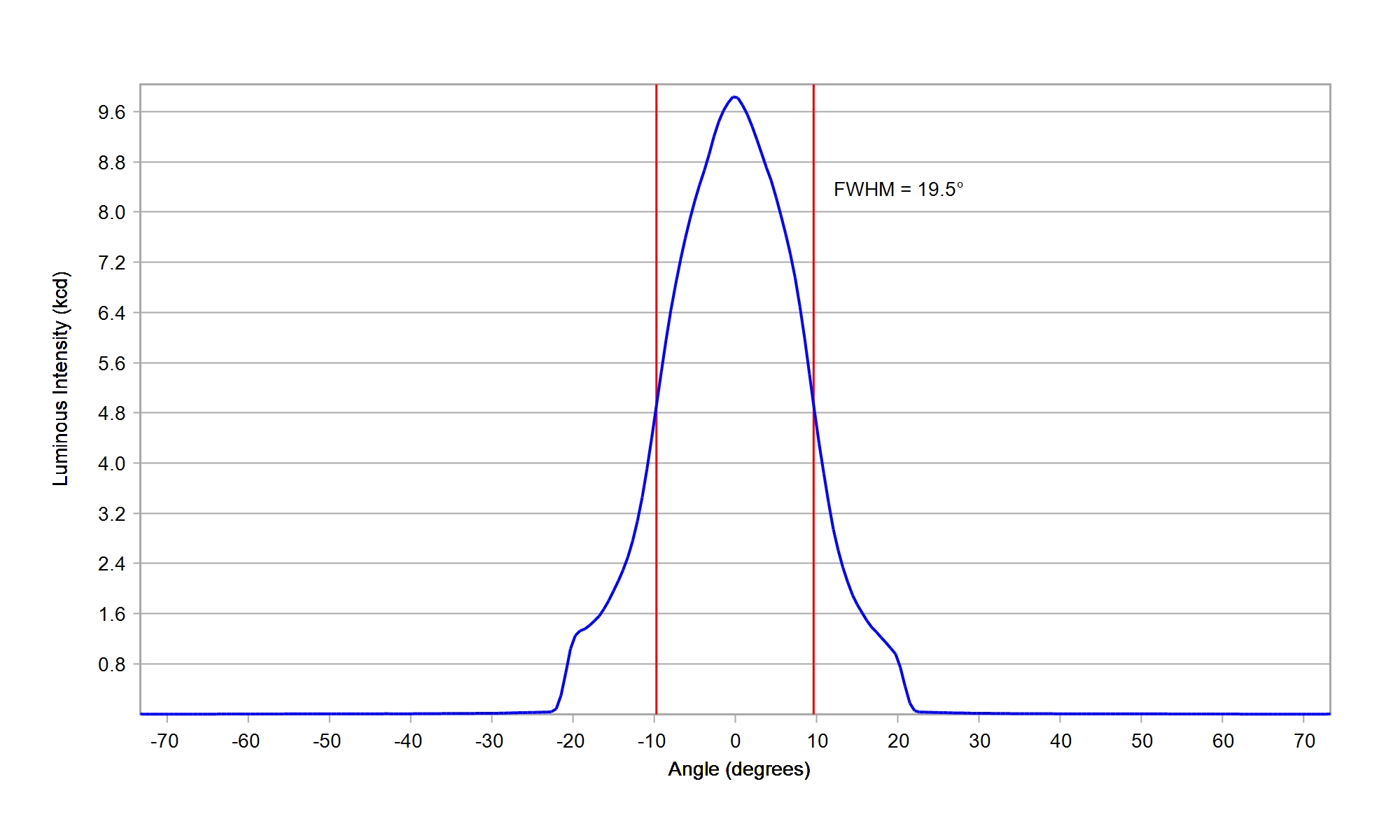

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
89.0%
FWHM:
12 x 9.7°
Cd/Im:
15.9
Download

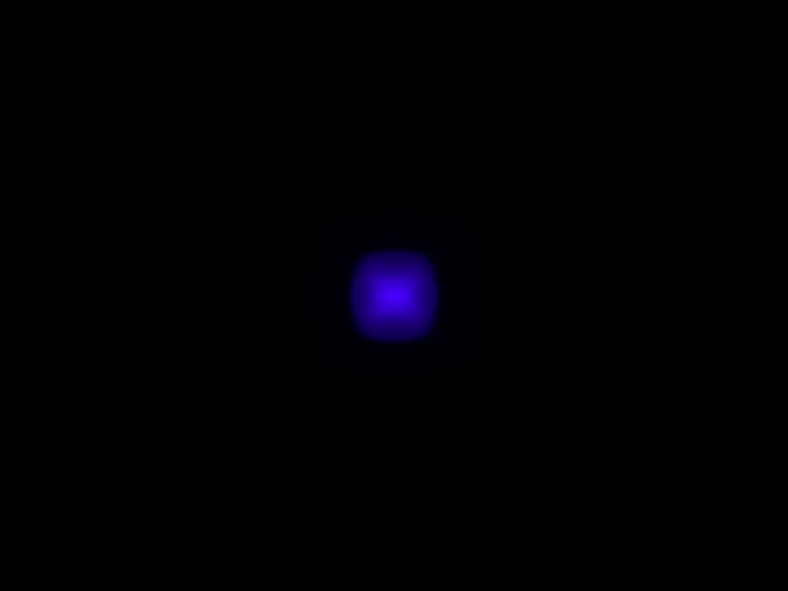

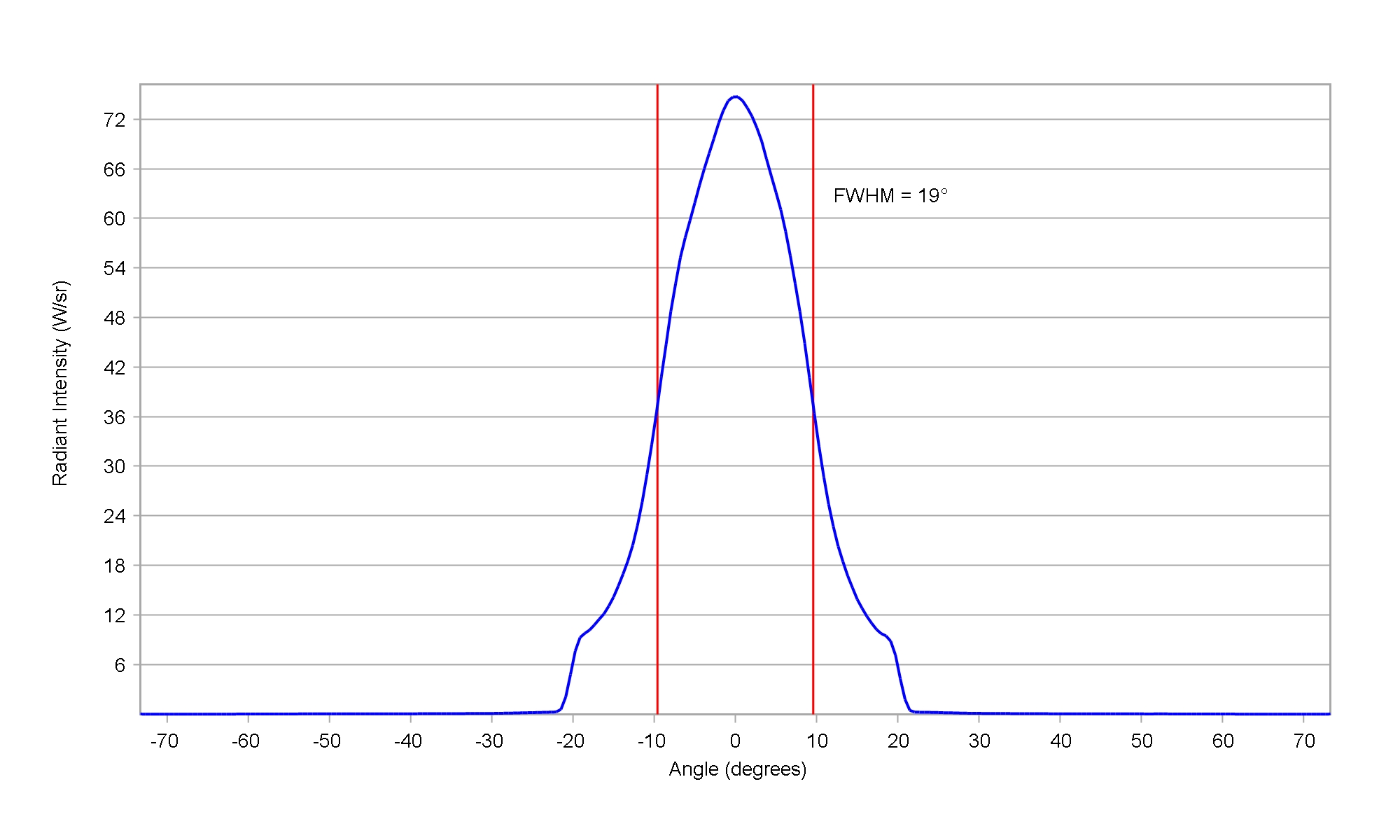

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
87.5%
FWHM:
11.5 x 9.3°
Ipk/W:
17.7
Download

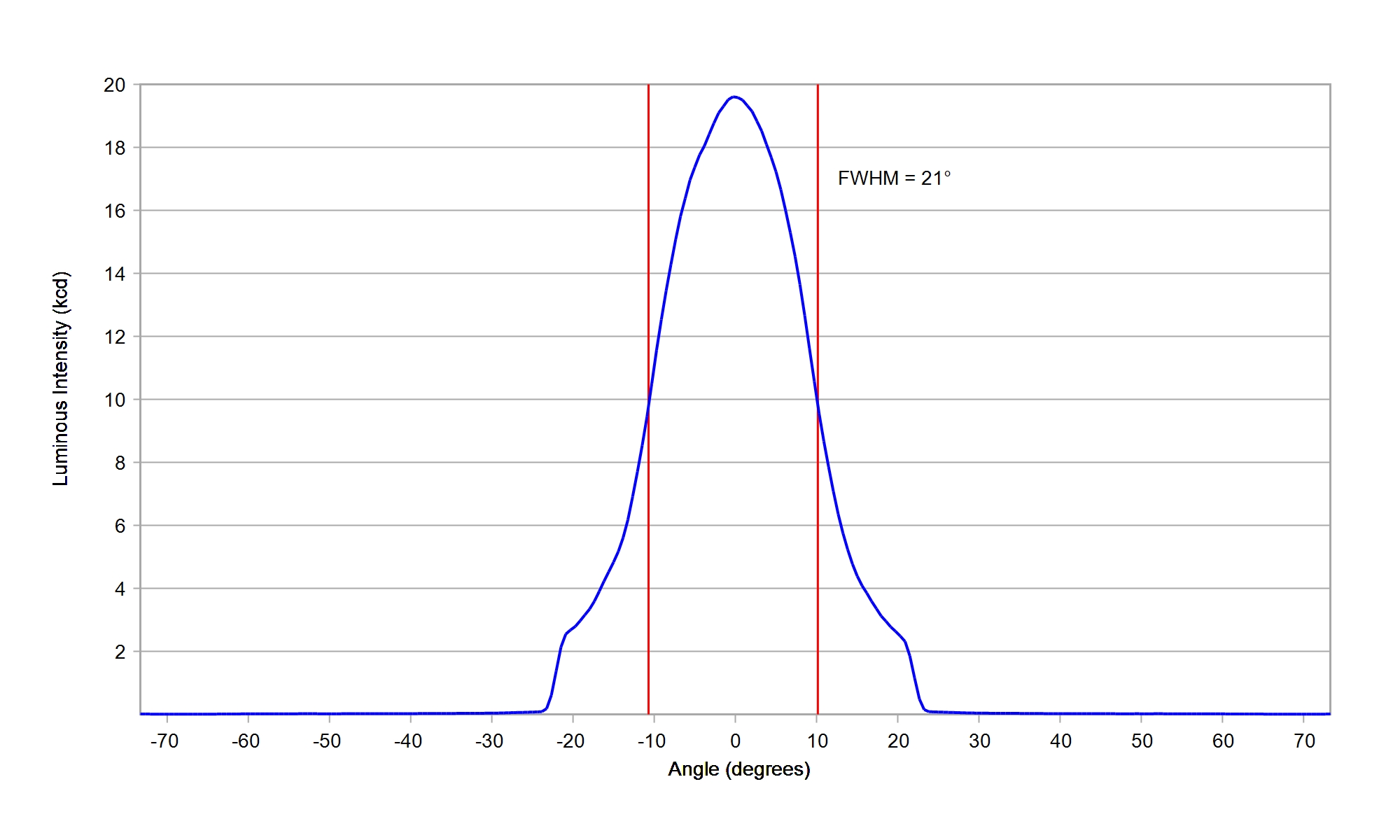

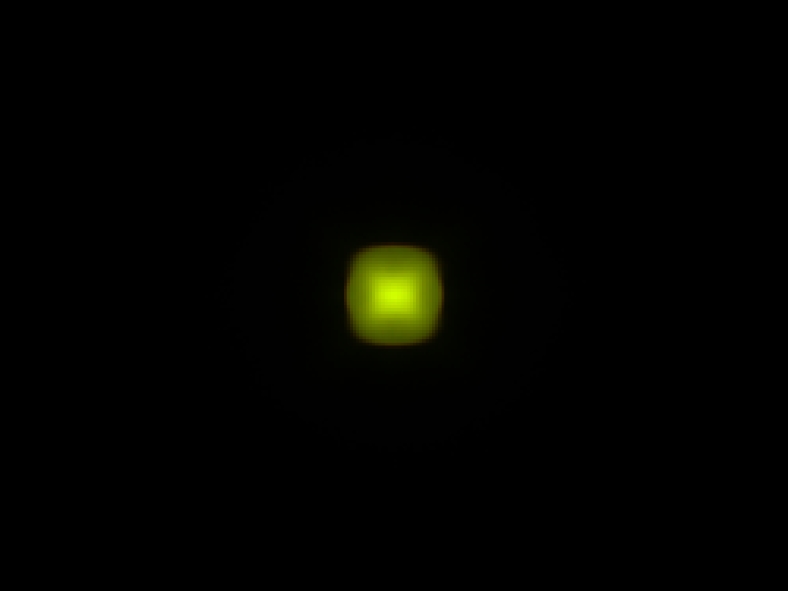

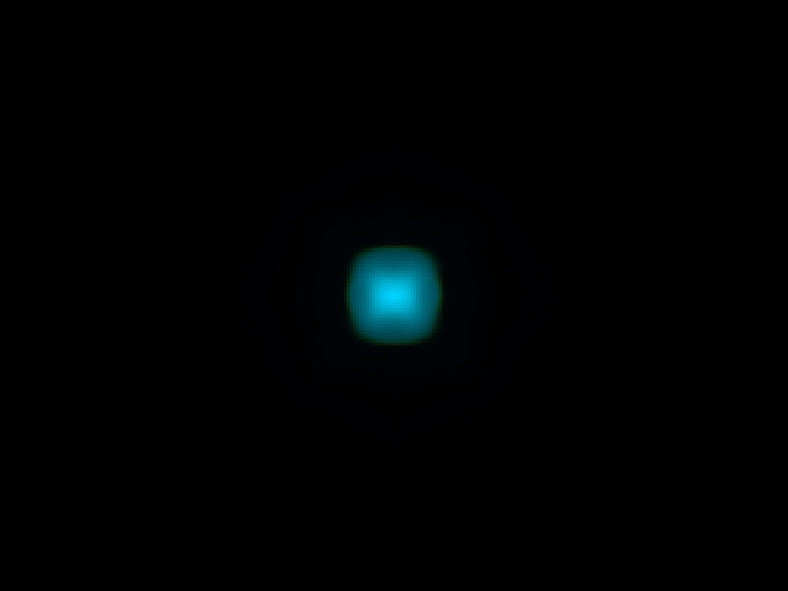

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
88.5%
FWHM:
13.5 x 10.5°
Cd/Im:
12.1
Download

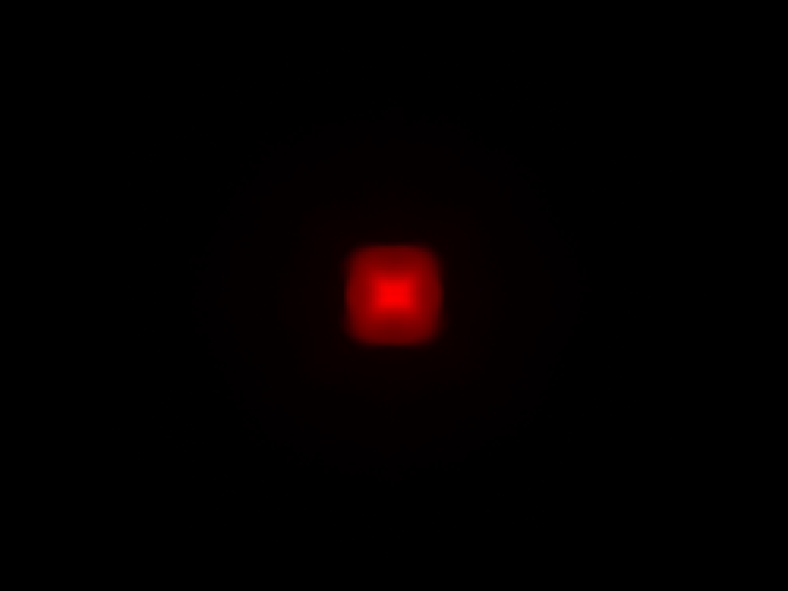

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
88.0%
FWHM:
15 x 12°
Cd/Im:
8.7
Download

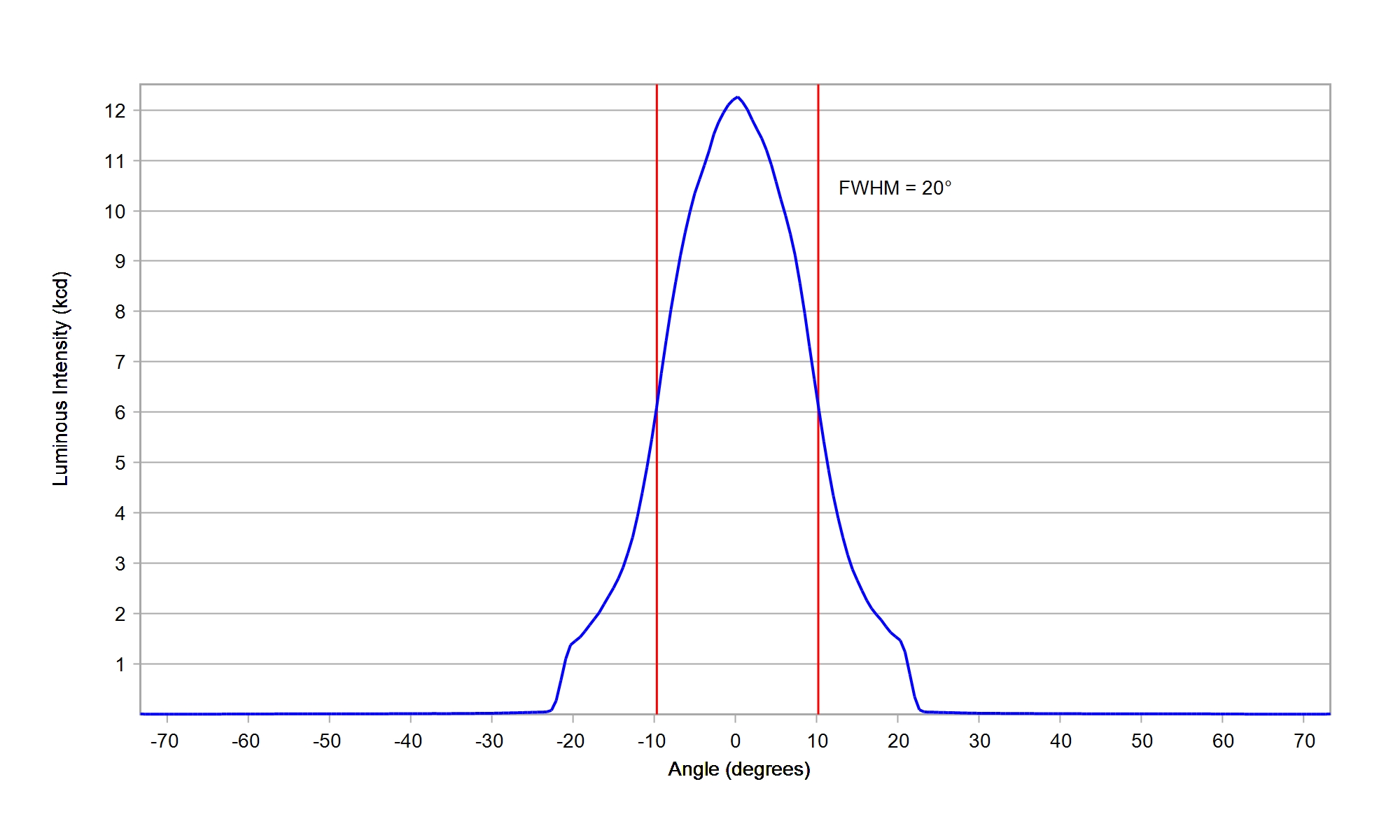

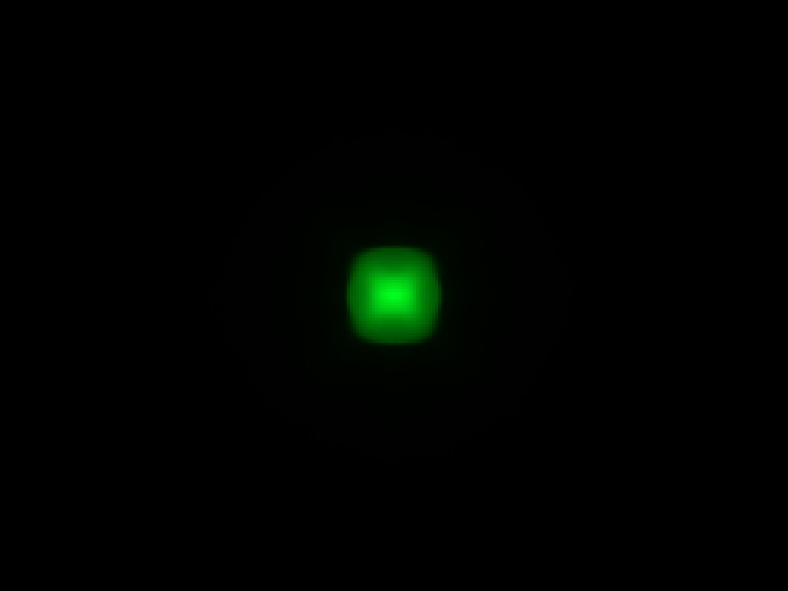

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
88.5%
FWHM:
12.5 x 9.8°
Cd/Im:
14.8
Download

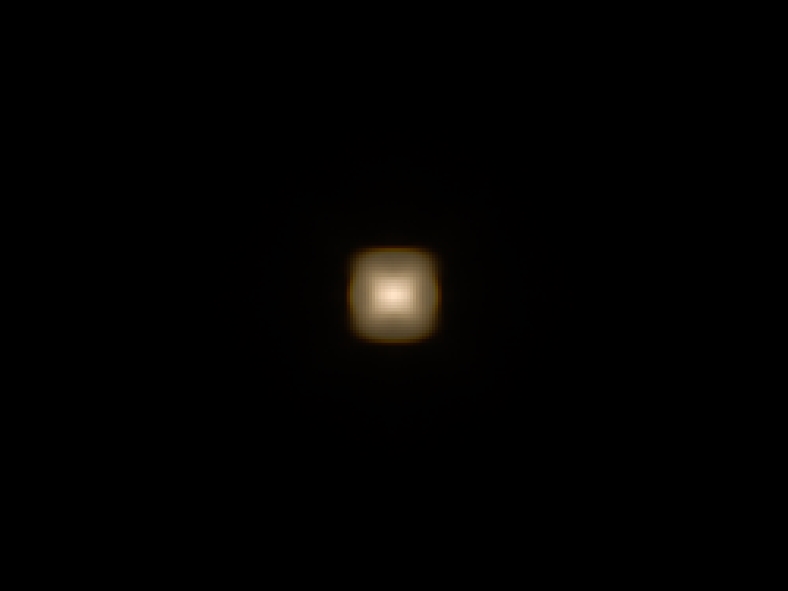

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
88.0%
FWHM:
13.5 x 10.5°
Cd/Im:
12.3
Download
Osram OS Prevaled Bar G4
Eff:
89.0%
FWHM:
20.5°
Cd/Im:
5.3
Download

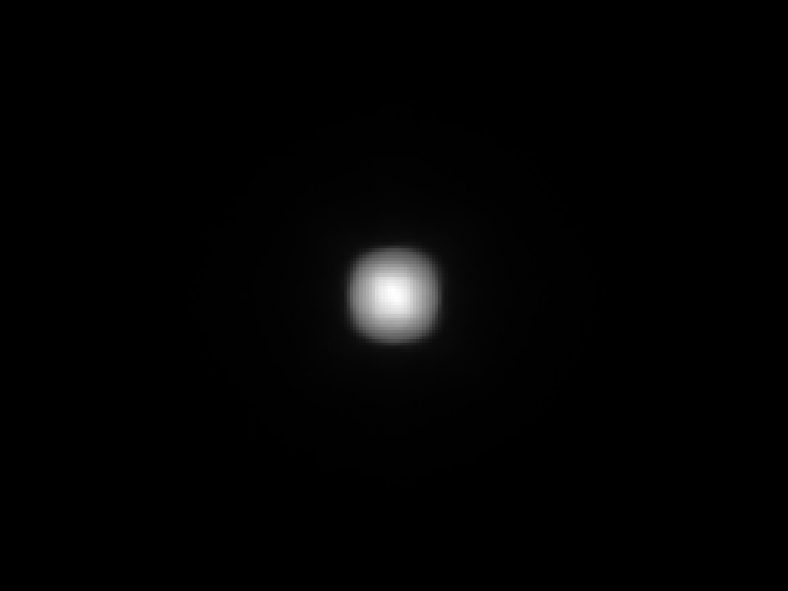

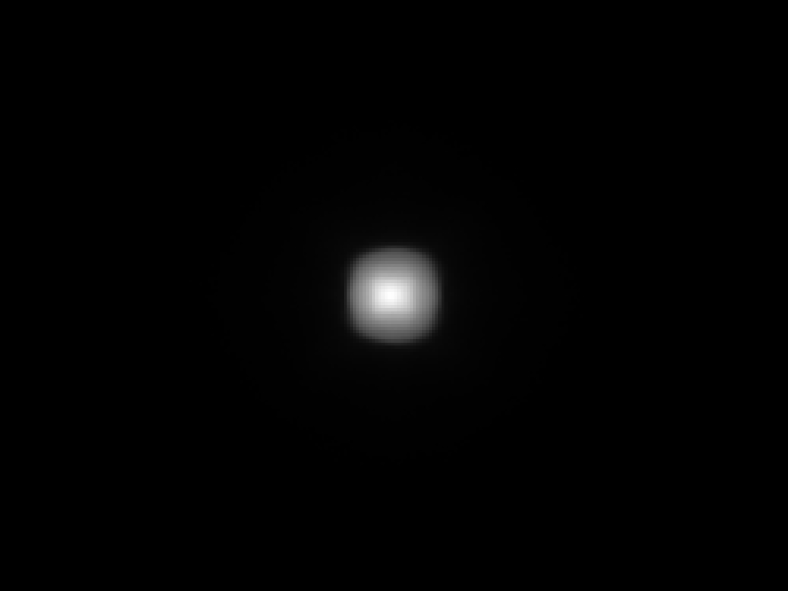

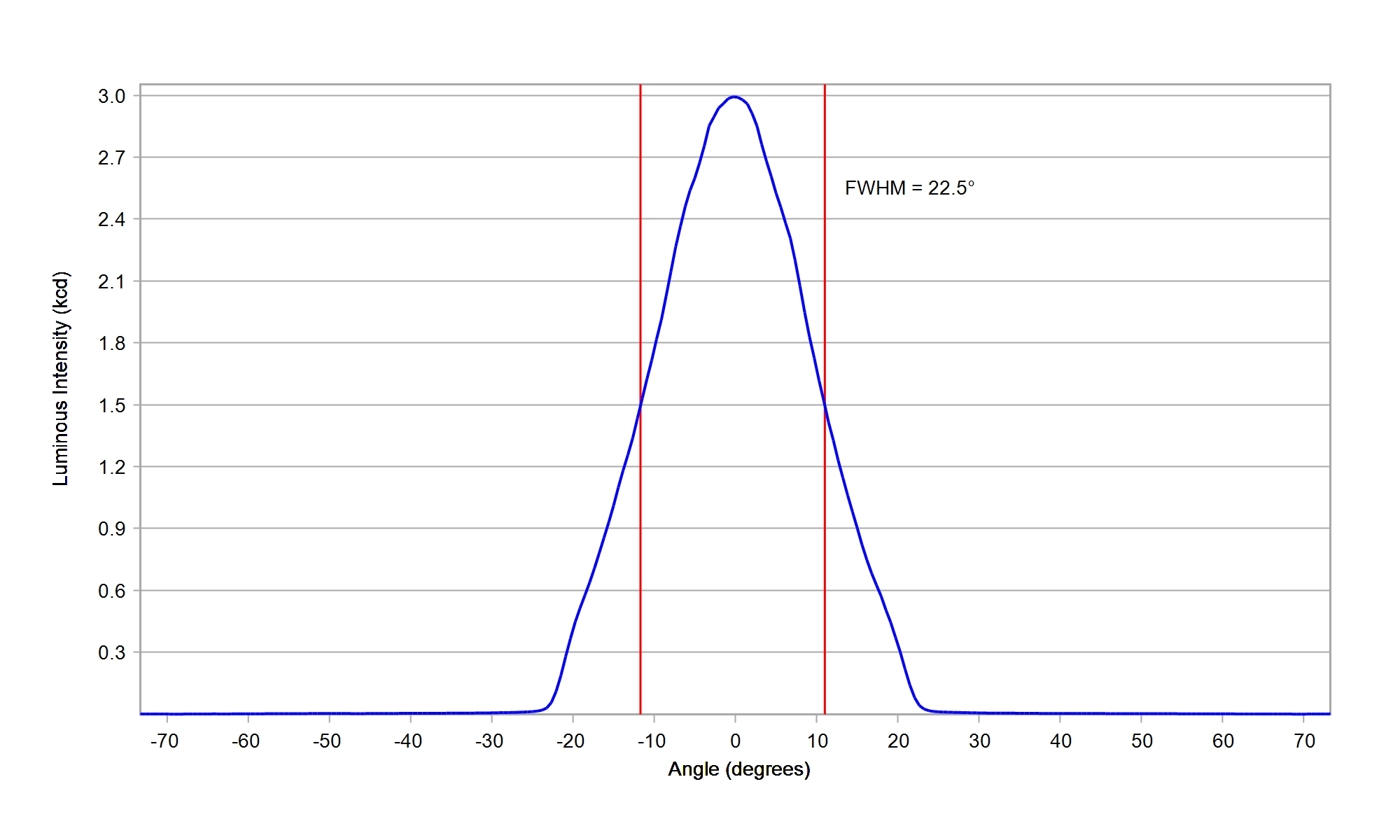

Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm
Eff:
82.5%
FWHM:
24.5°
Cd/Im:
3.9
Download
Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm
Eff:
82.5%
FWHM:
24.5°
Cd/Im:
3.9
Download

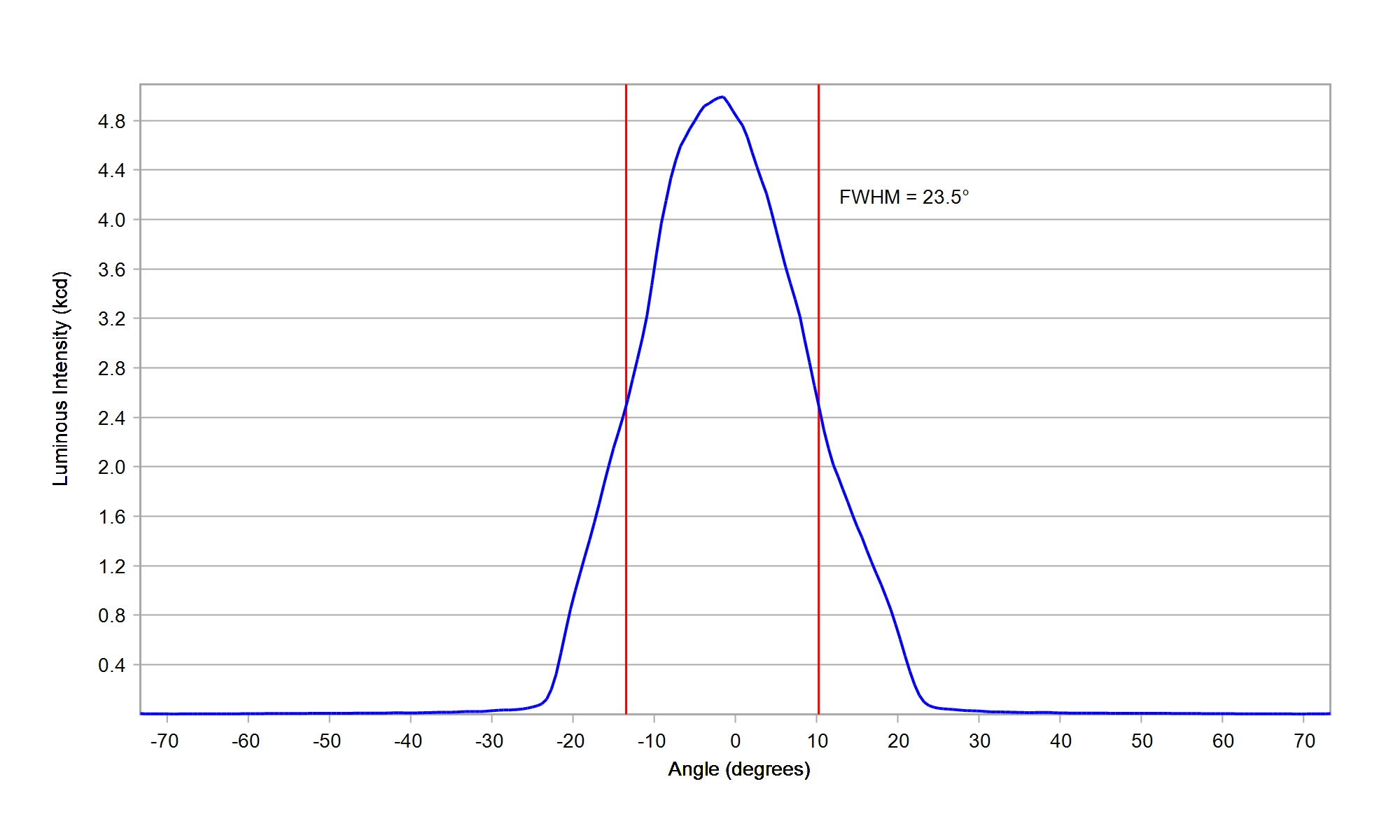

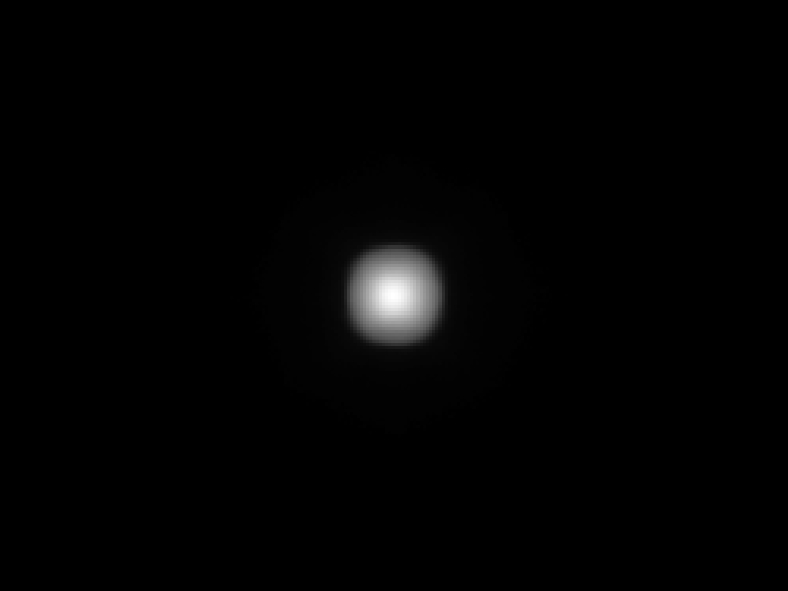

Samsung 3030 LM301B White
Eff:
89.0%
FWHM:
20.5°
Cd/Im:
4.9
Download

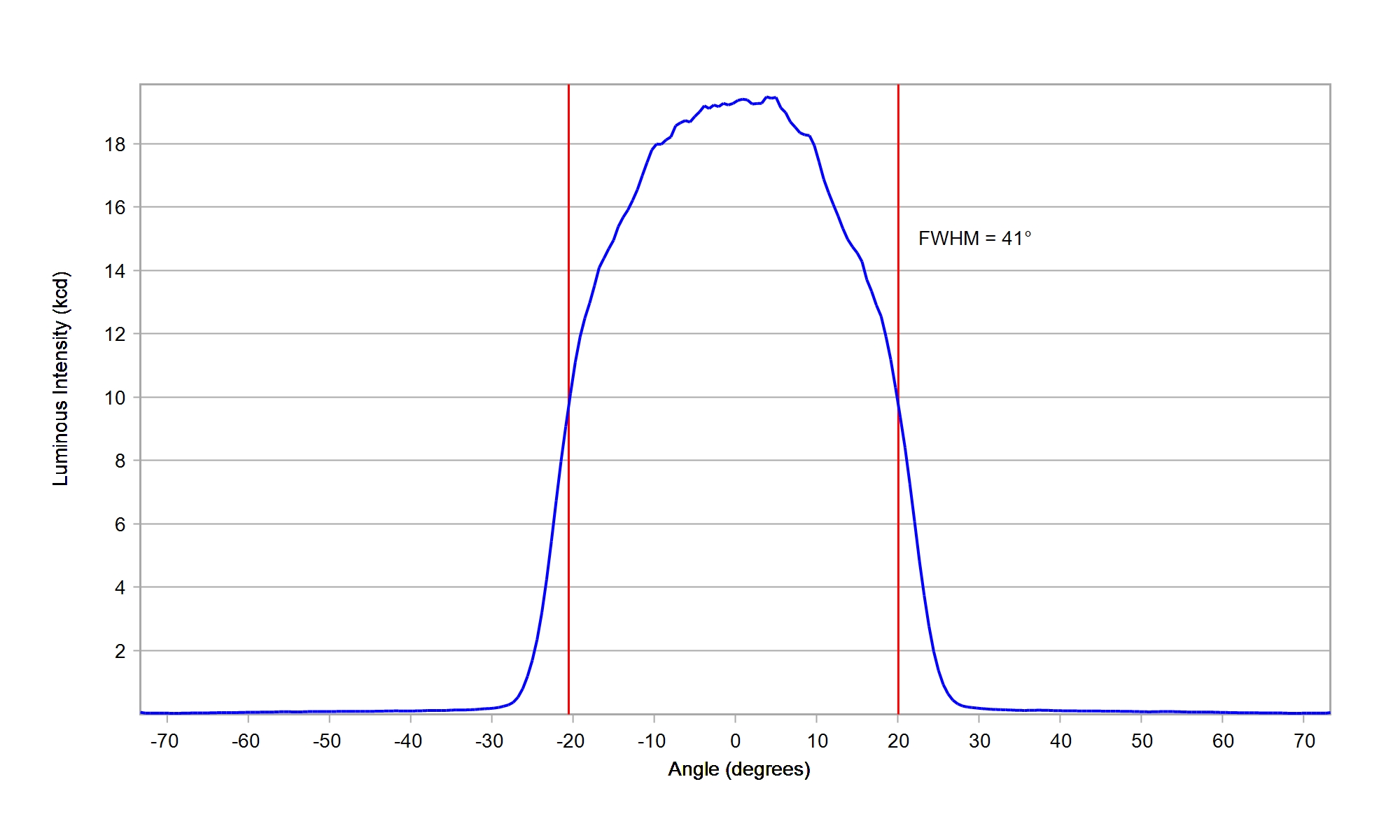

Samsung 5050 LH502D White
Eff:
87.0%
FWHM:
37°
Cd/Im:
2.3
Download
Samsung 5050 LH508C White
Eff:
87.0%
FWHM:
40°
Cd/Im:
2.1
Download
Samsung CSP LH151B White
Eff:
89.0%
FWHM:
16°
Cd/Im:
9.2
Download
Samsung CSP LH181B White
Eff:
88.5%
FWHM:
23 x 21.5°
Cd/Im:
5.4
Download
Samsung CSP LH231B White
Eff:
88.5%
FWHM:
27 x 25.5°
Cd/Im:
4.2
Download
Samsung CSP LM101B White
Eff:
88.5%
FWHM:
16.5 x 14.5°
Cd/Im:
8.2
Download
Seoul CSP SZ8Y11 White
Eff:
85.0%
FWHM:
15.5 x 13 °
Cd/Im:
7.6
Download
Seoul CSP SZ8Y22 White
Eff:
87.0%
FWHM:
24.5 x 23.5°
Cd/Im:
4.3
Download
Seoul CSP SZ8Y22P White
Eff:
87.5%
FWHM:
28°
Cd/Im:
3.3
Download
Seoul MidPower 5630 STW8Q14C White
Eff:
83.0%
FWHM:
23°
Cd/Im:
3.9
Download
Seoul STW8 C2SB-NT White
Eff:
89.0%
FWHM:
23.0°
Cd/Im:
4.4
Download

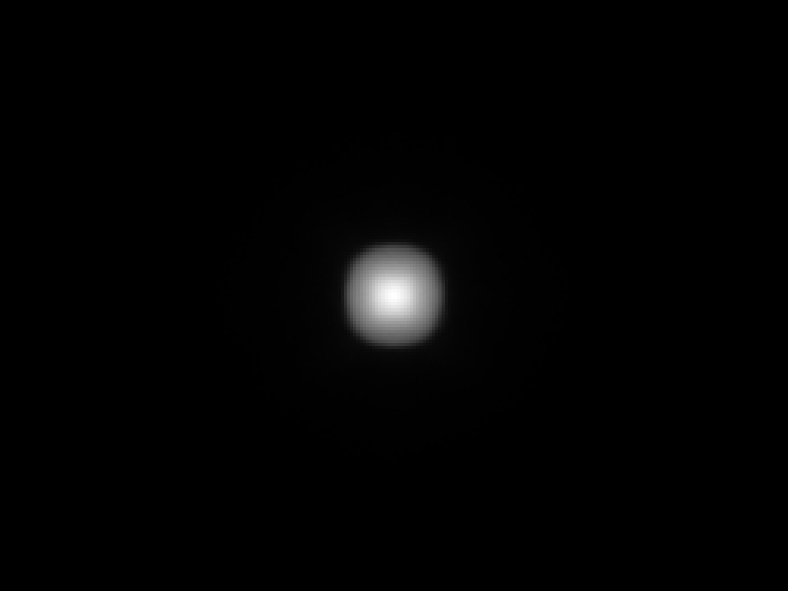

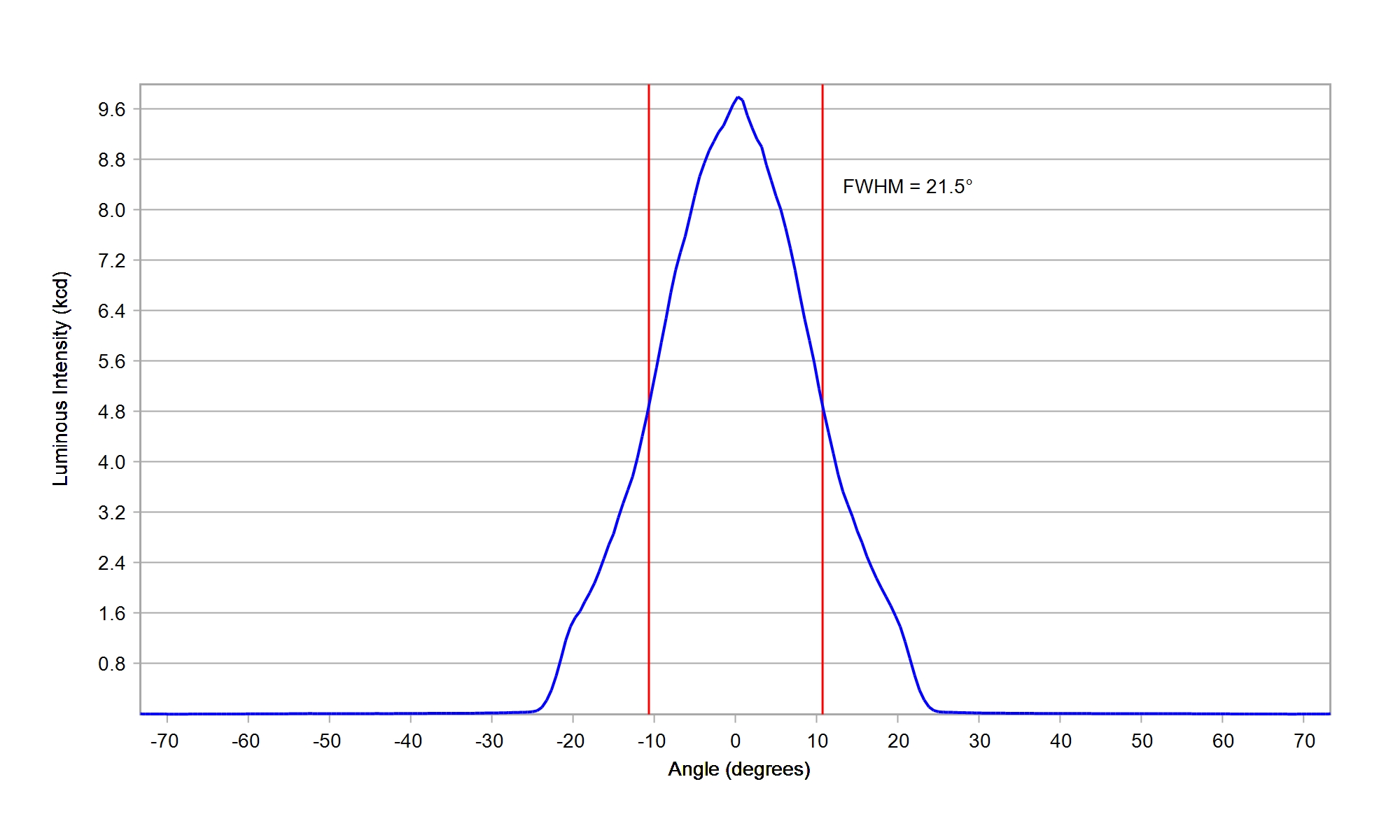

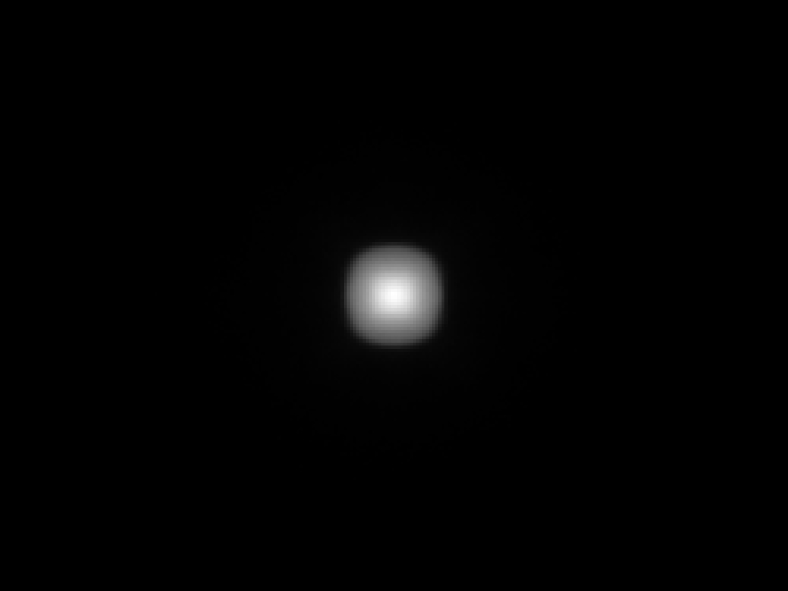

Seoul STWS C2PB-E0 White
Eff:
89.0%
FWHM:
24.0°
Cd/Im:
4.3
Download

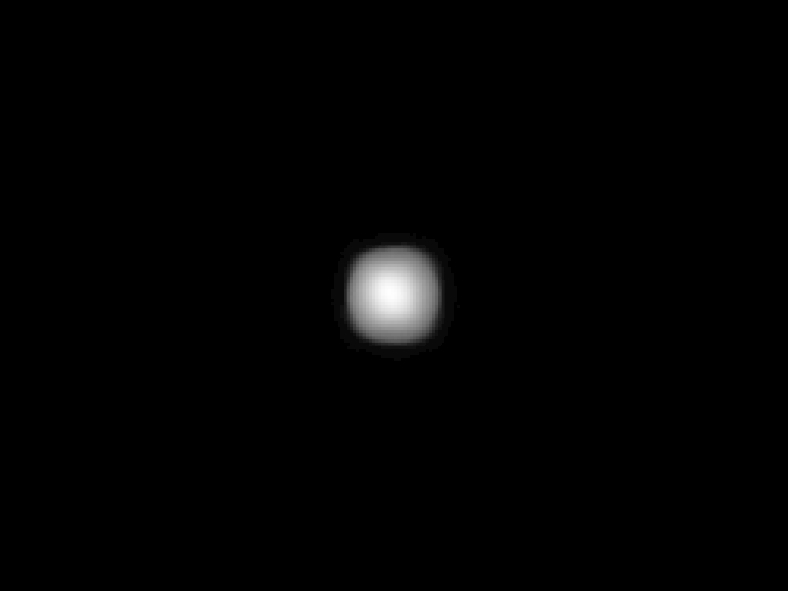

Seoul SunLike STW9 C2SB-S
Eff:
89.0%
FWHM:
22°
Cd/Im:
4.8
Download
