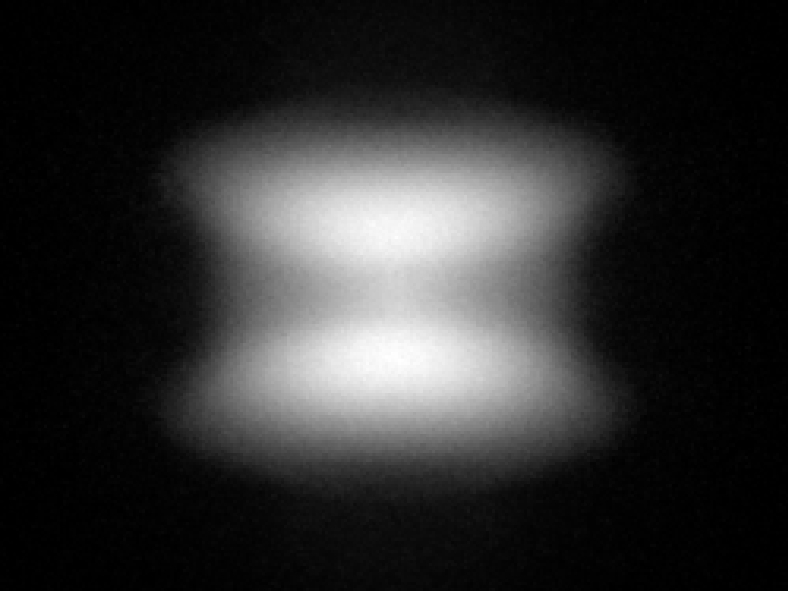

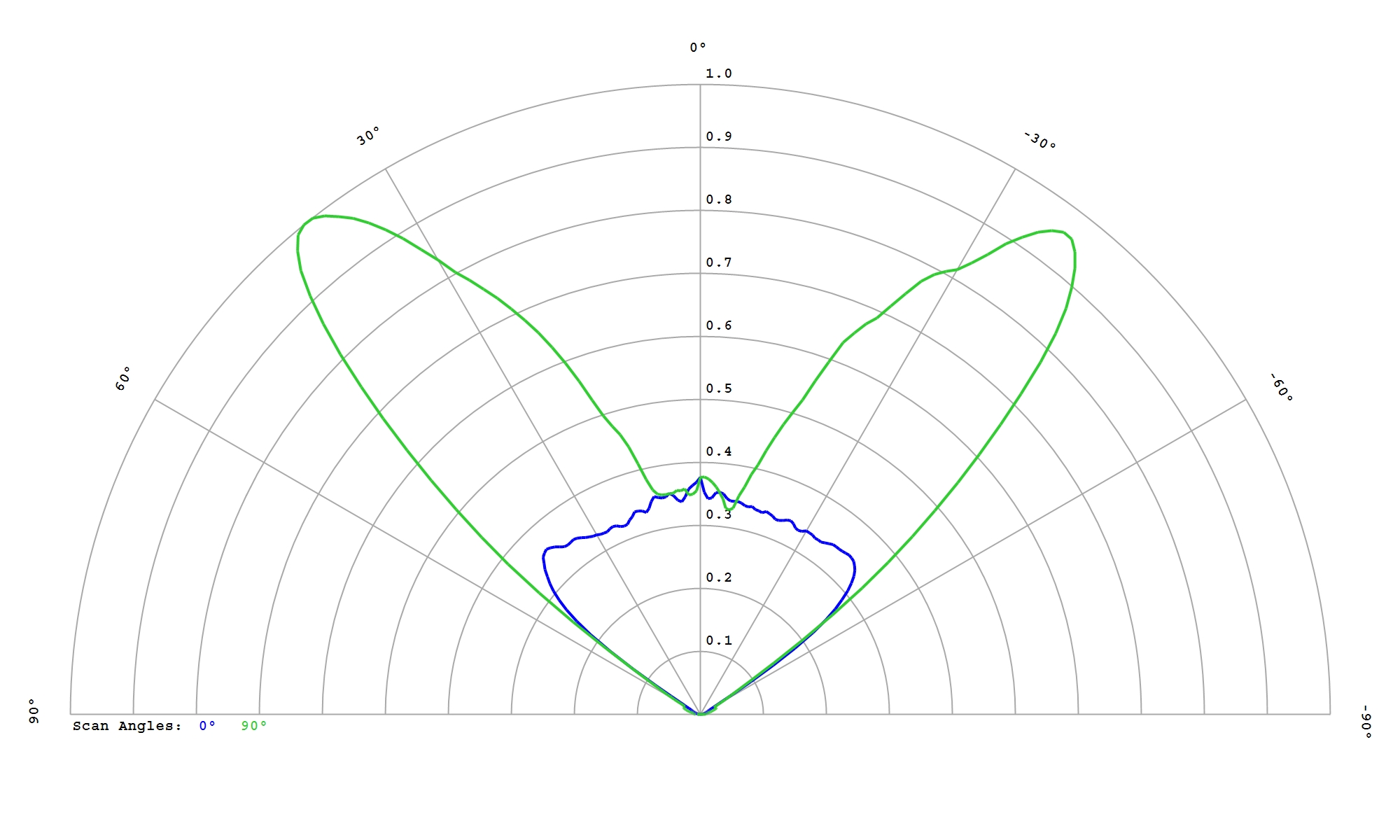

292 x 61mm Double Asymmetric Plain Freeform

Part number

12957

Dimensions

292 x 61mm

Drawing Number

12957_Rev-2_DA_Tri_AS-Flang

Optic type

Freeform

Finish

Plain

Beam type

Double Asymmetric

Material: PMMA

Downloads

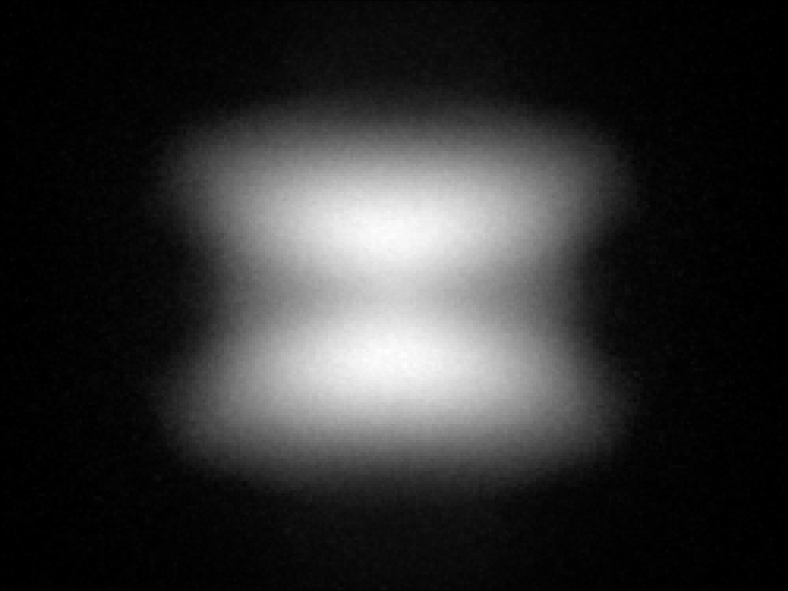

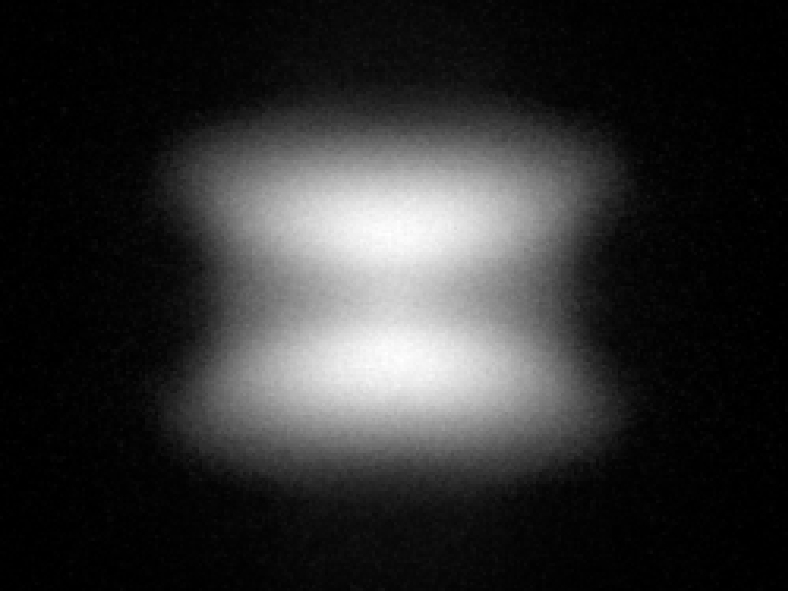

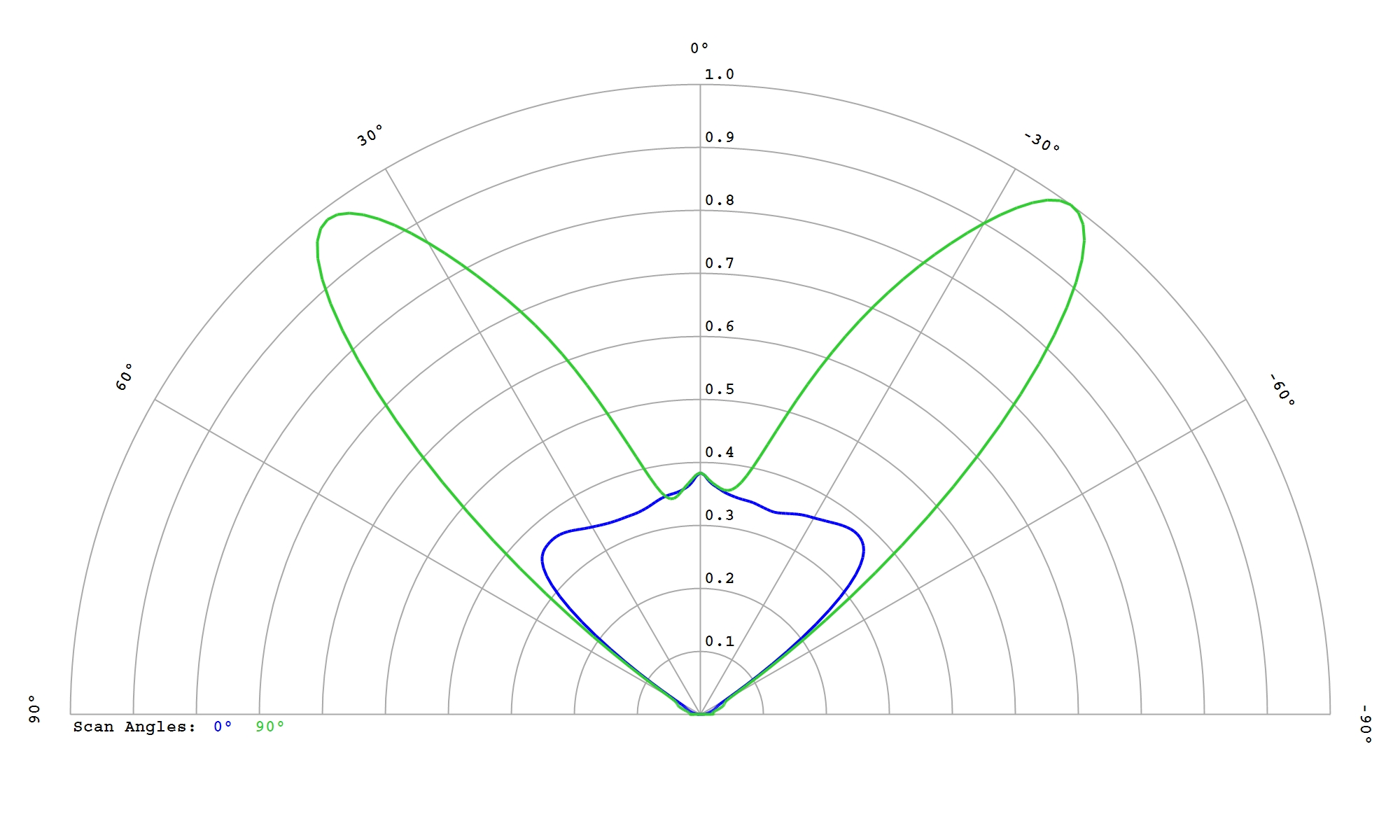

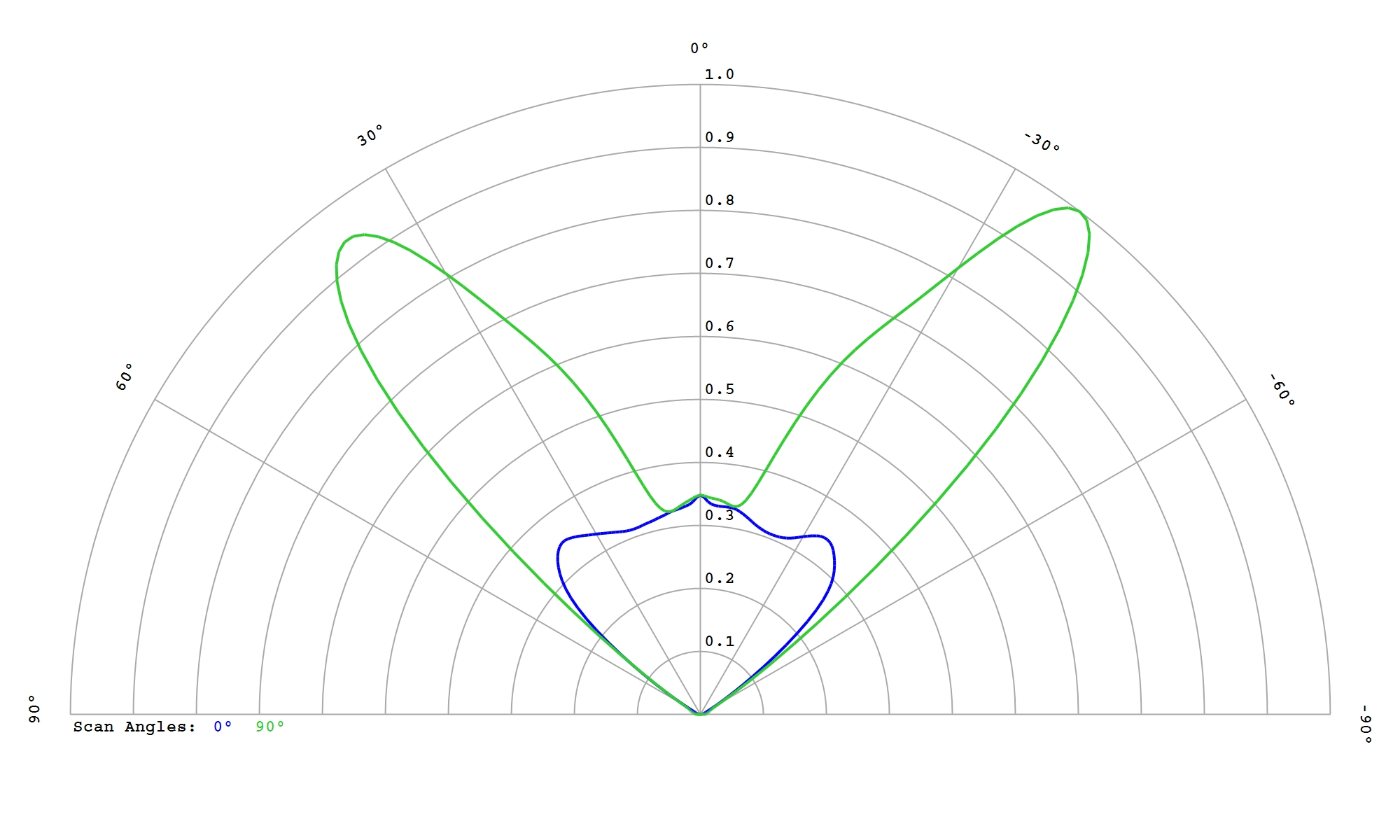

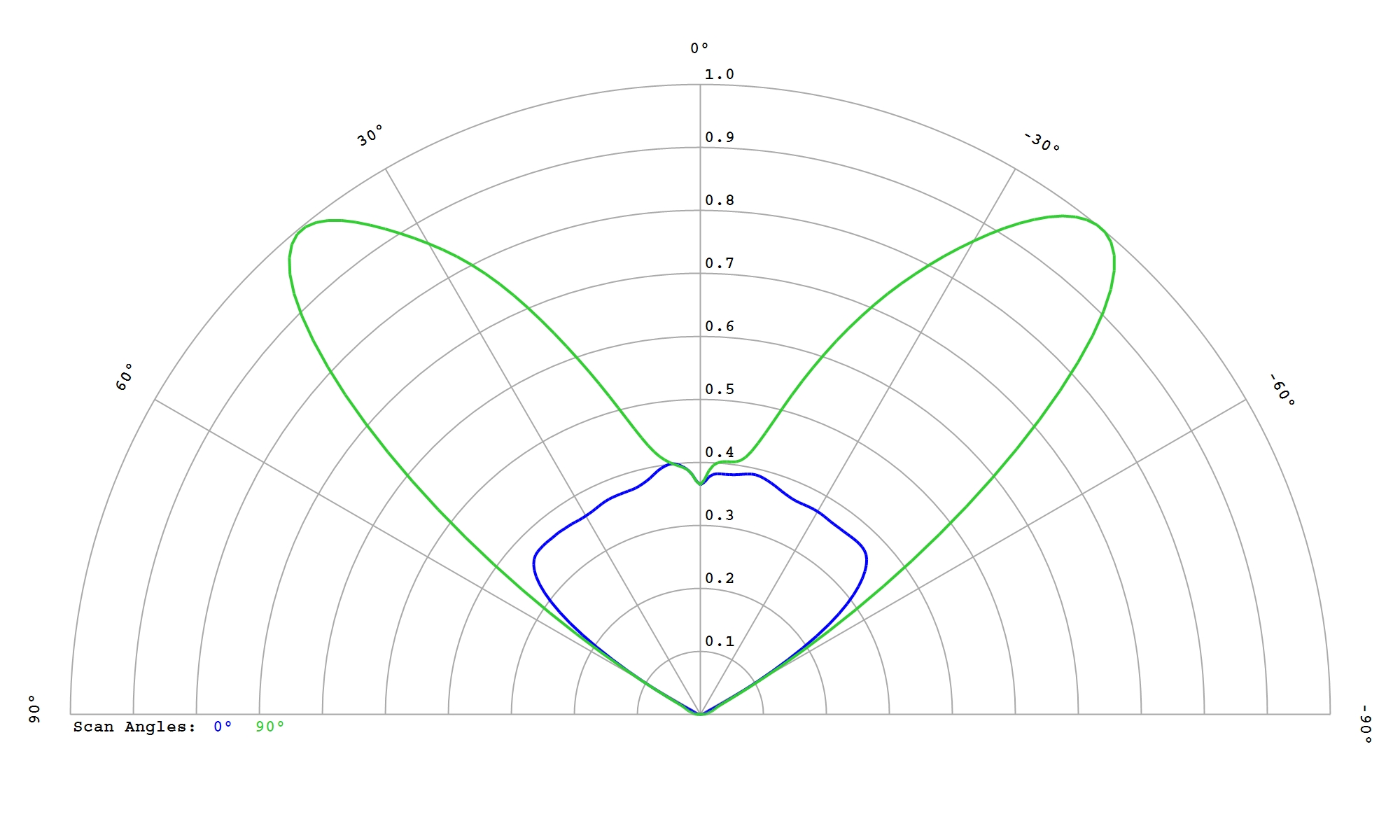

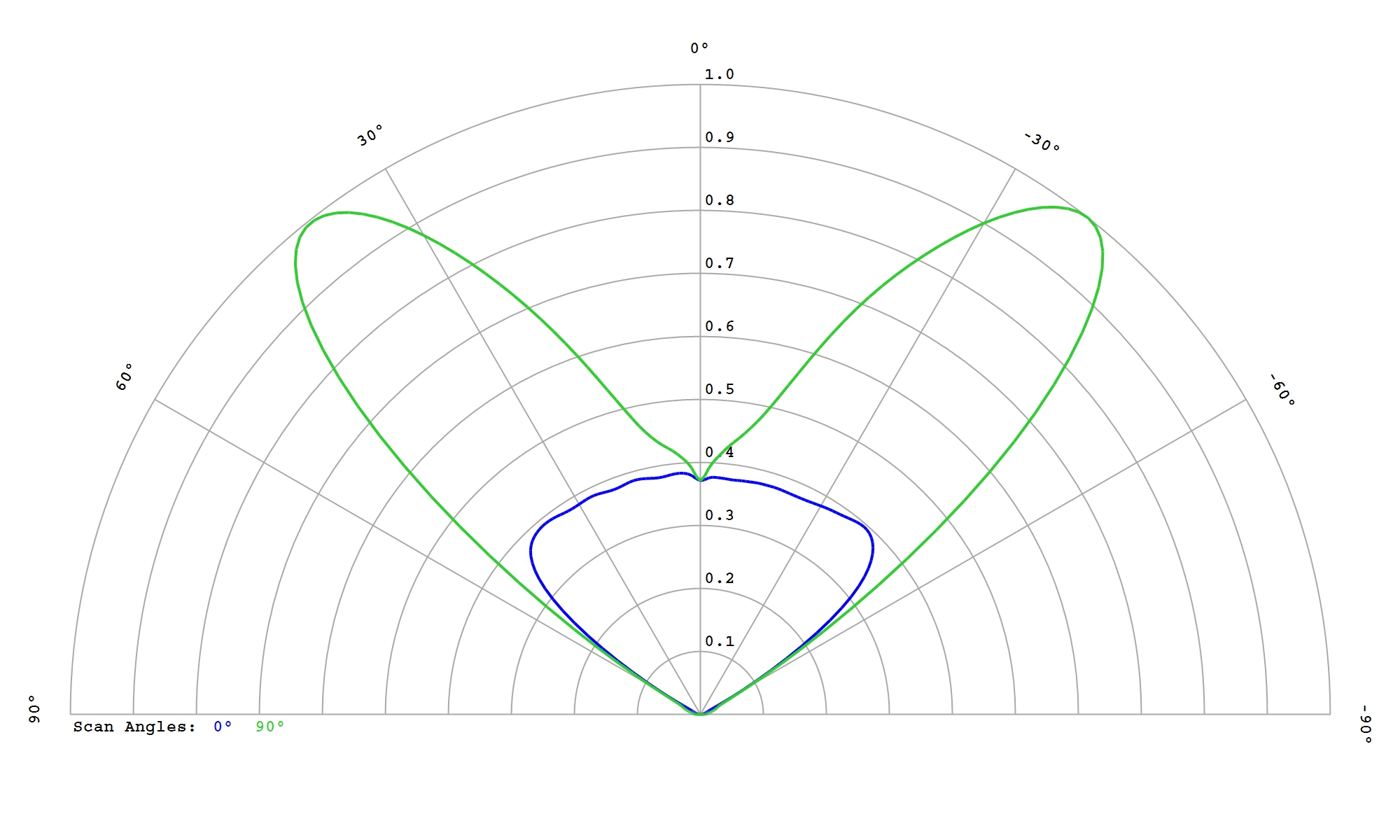

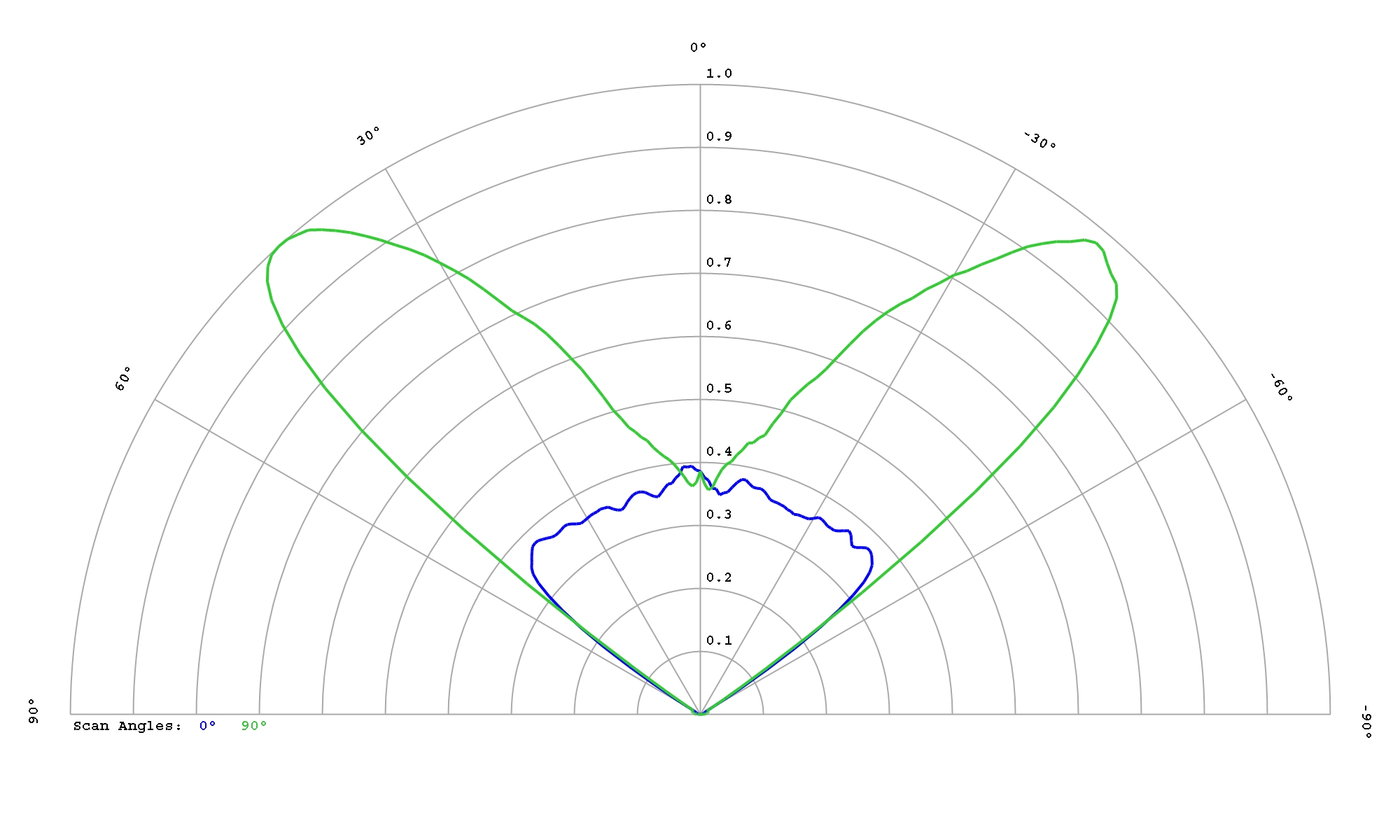

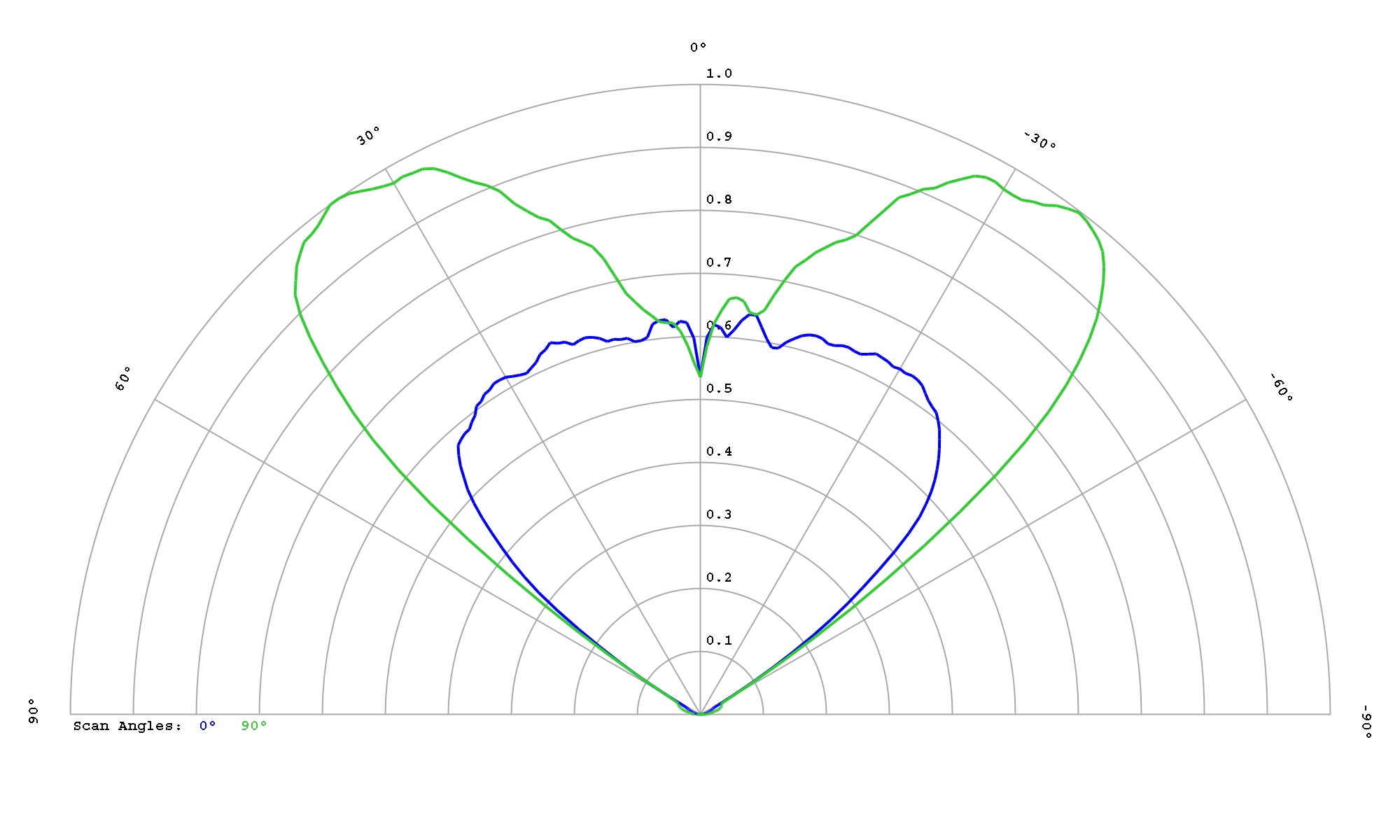

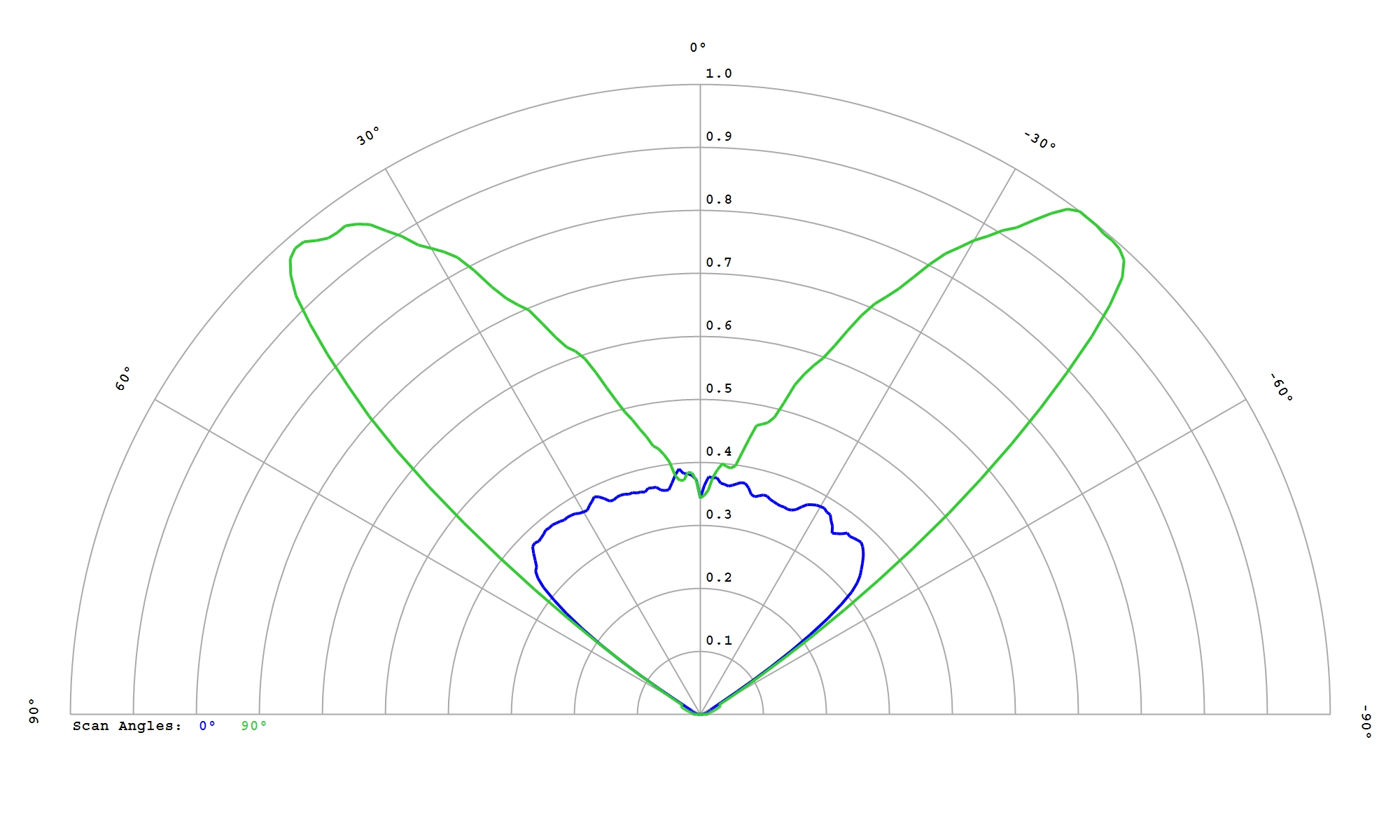

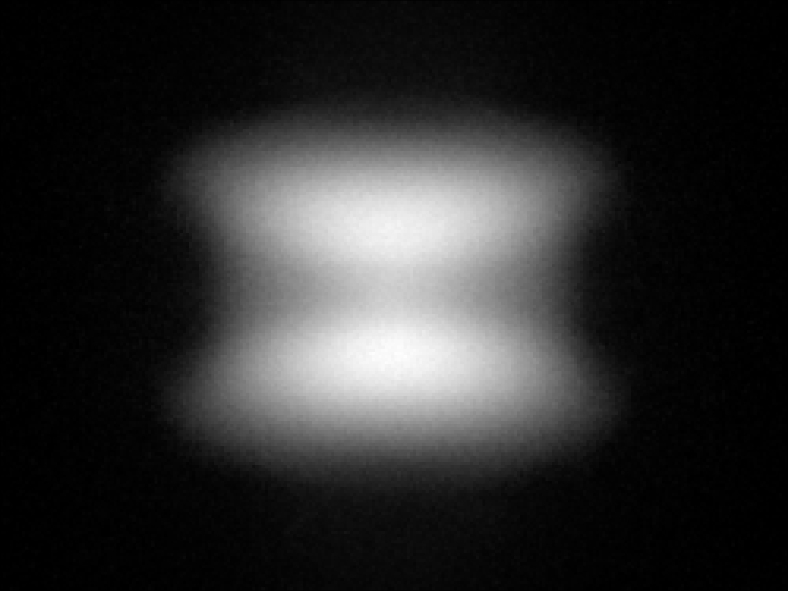

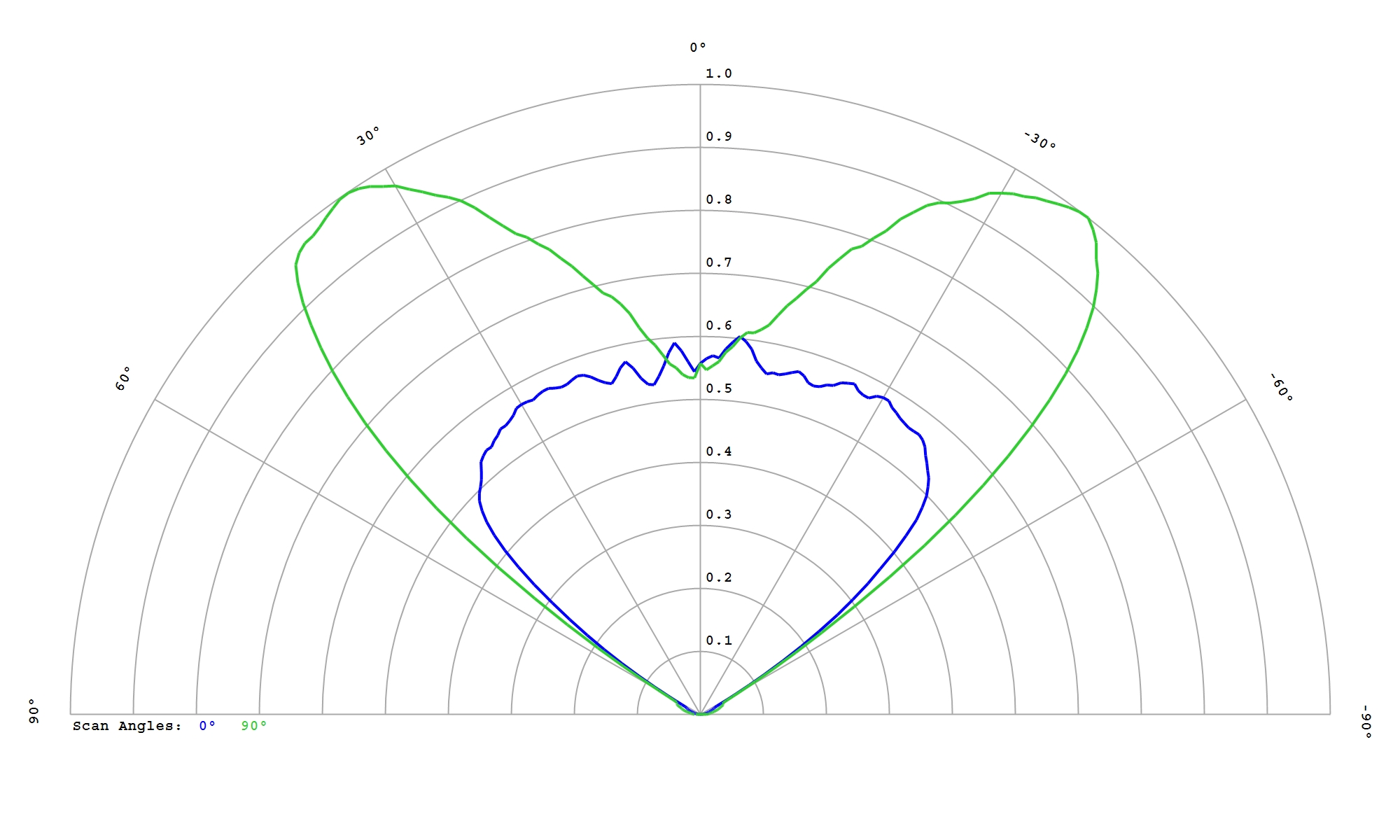

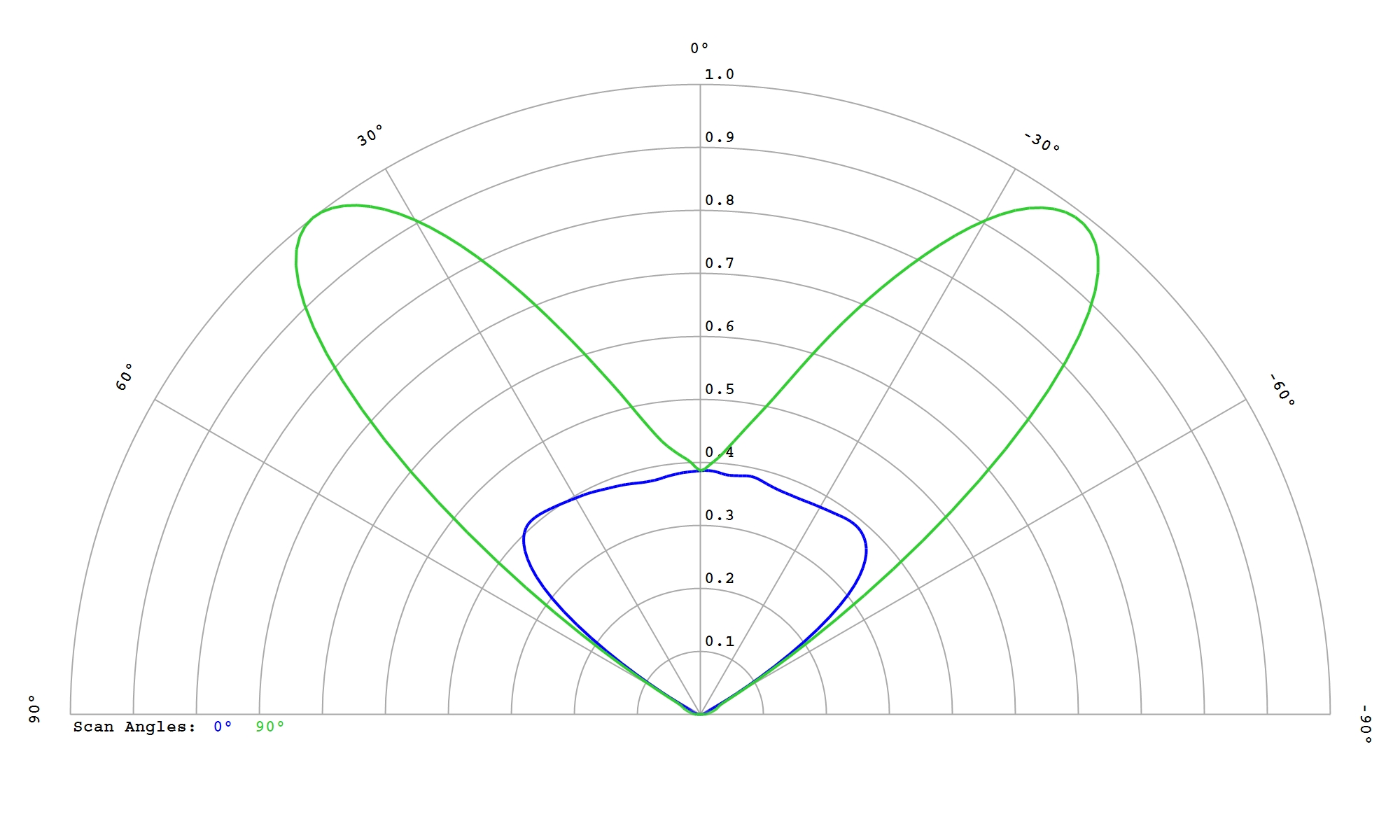

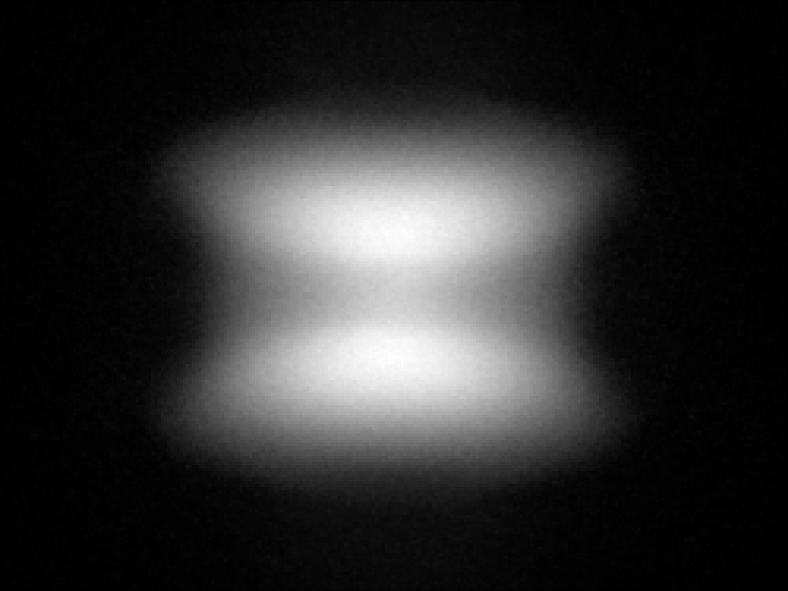

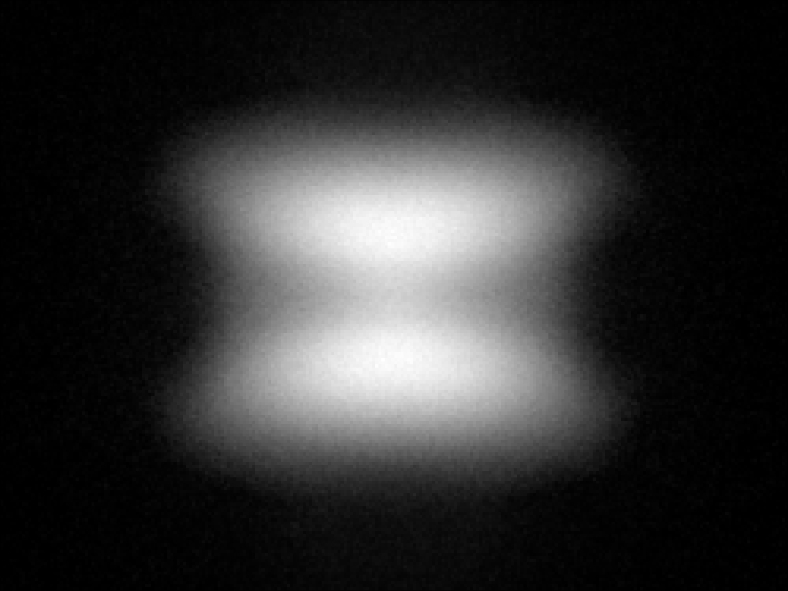

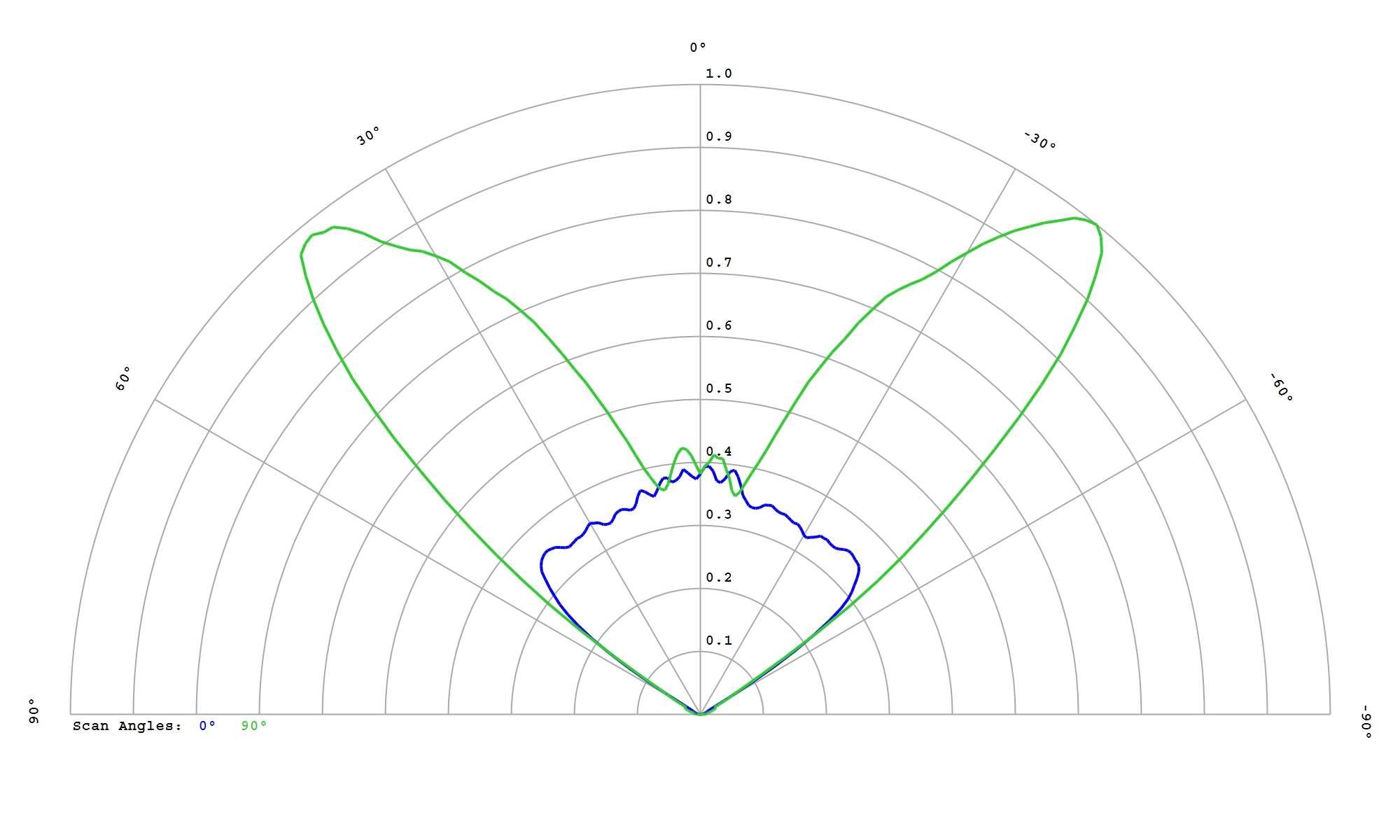

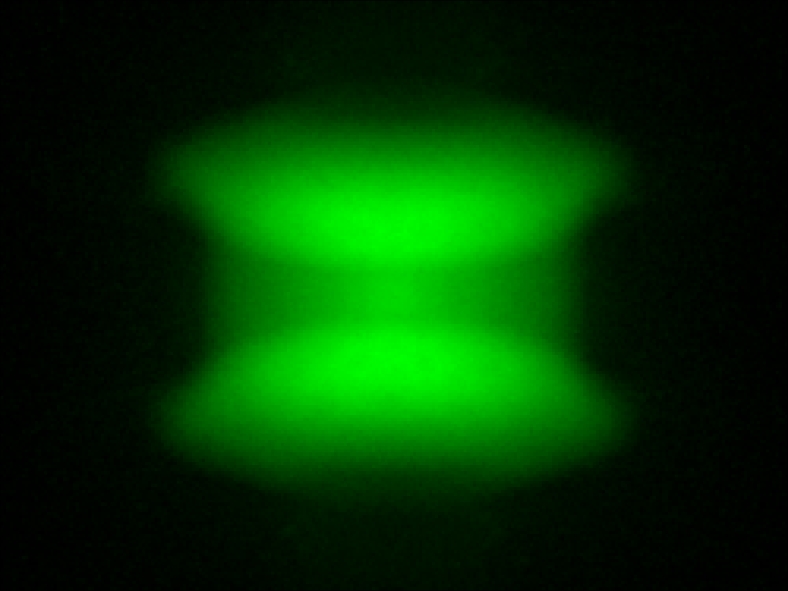

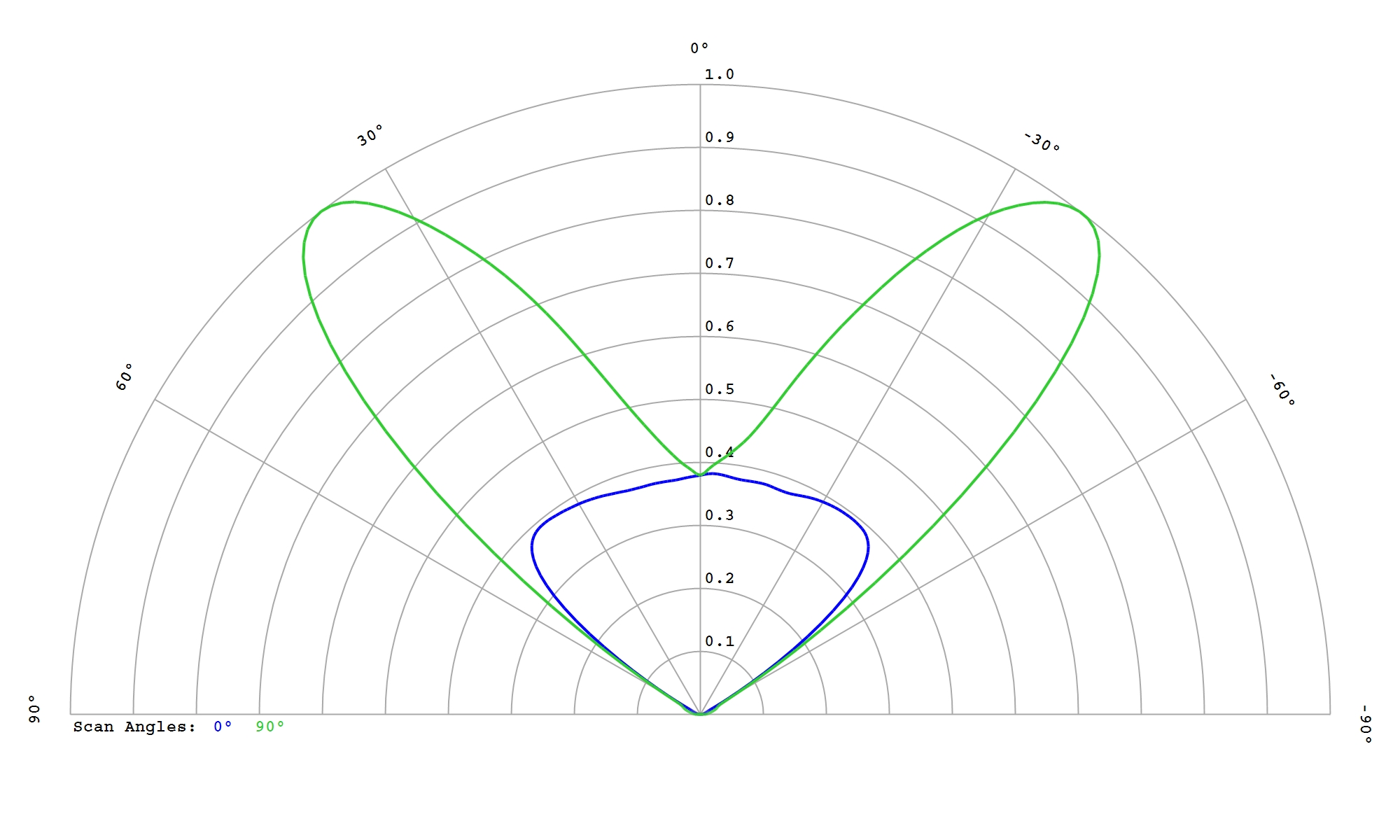

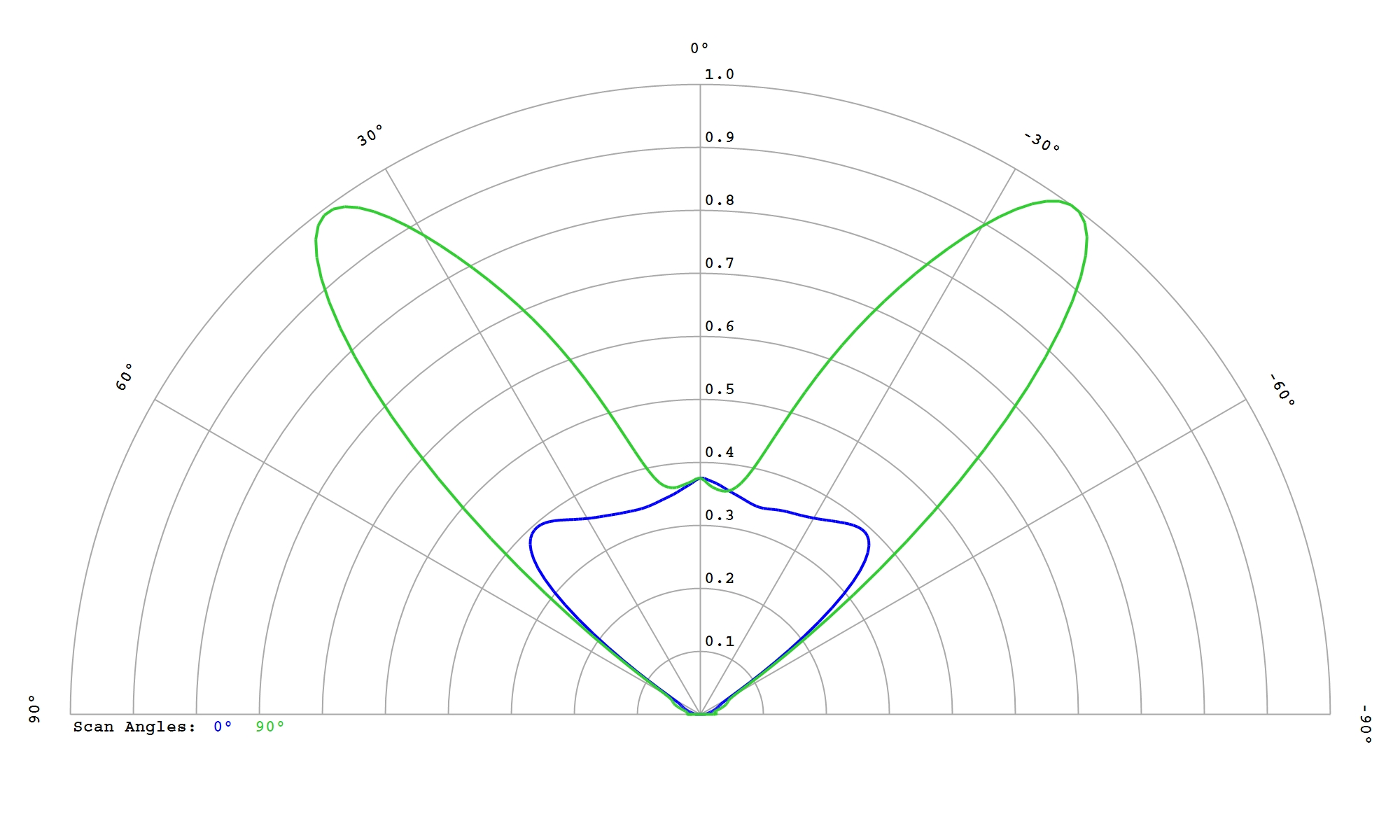

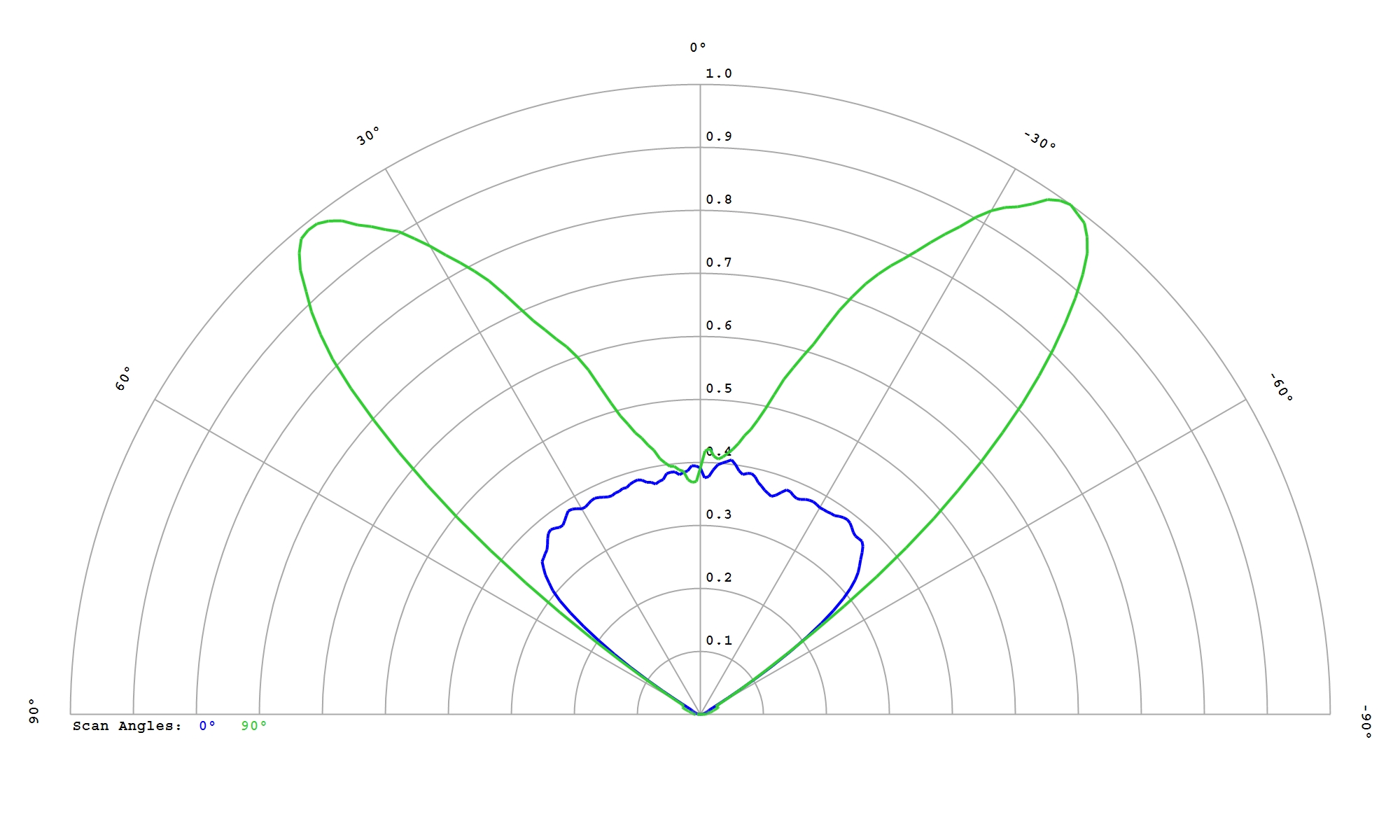

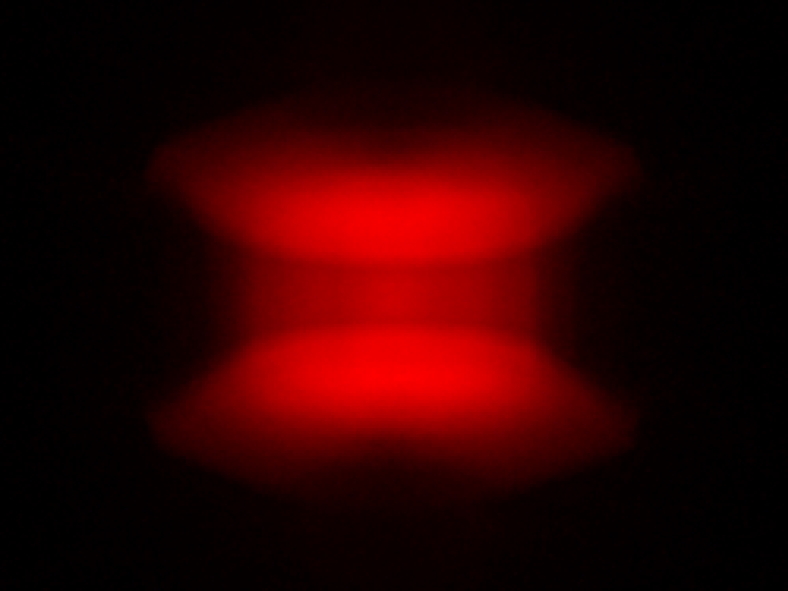

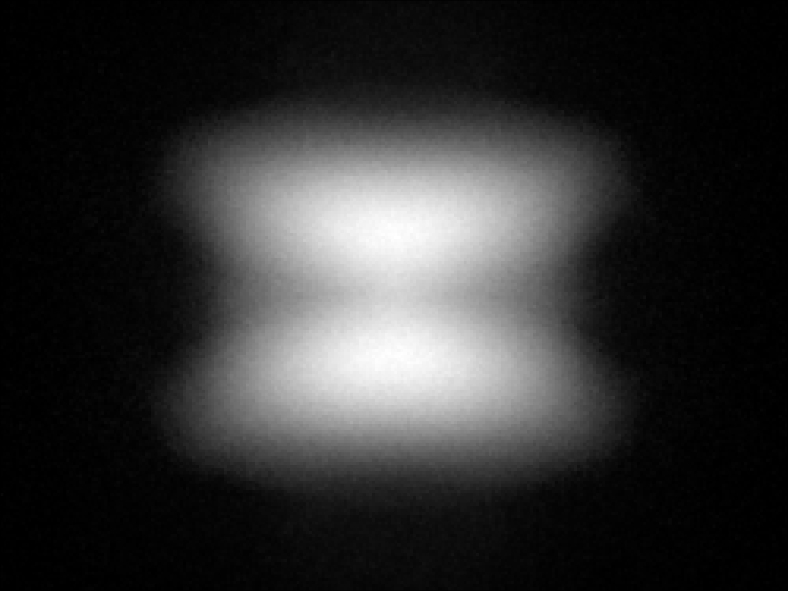

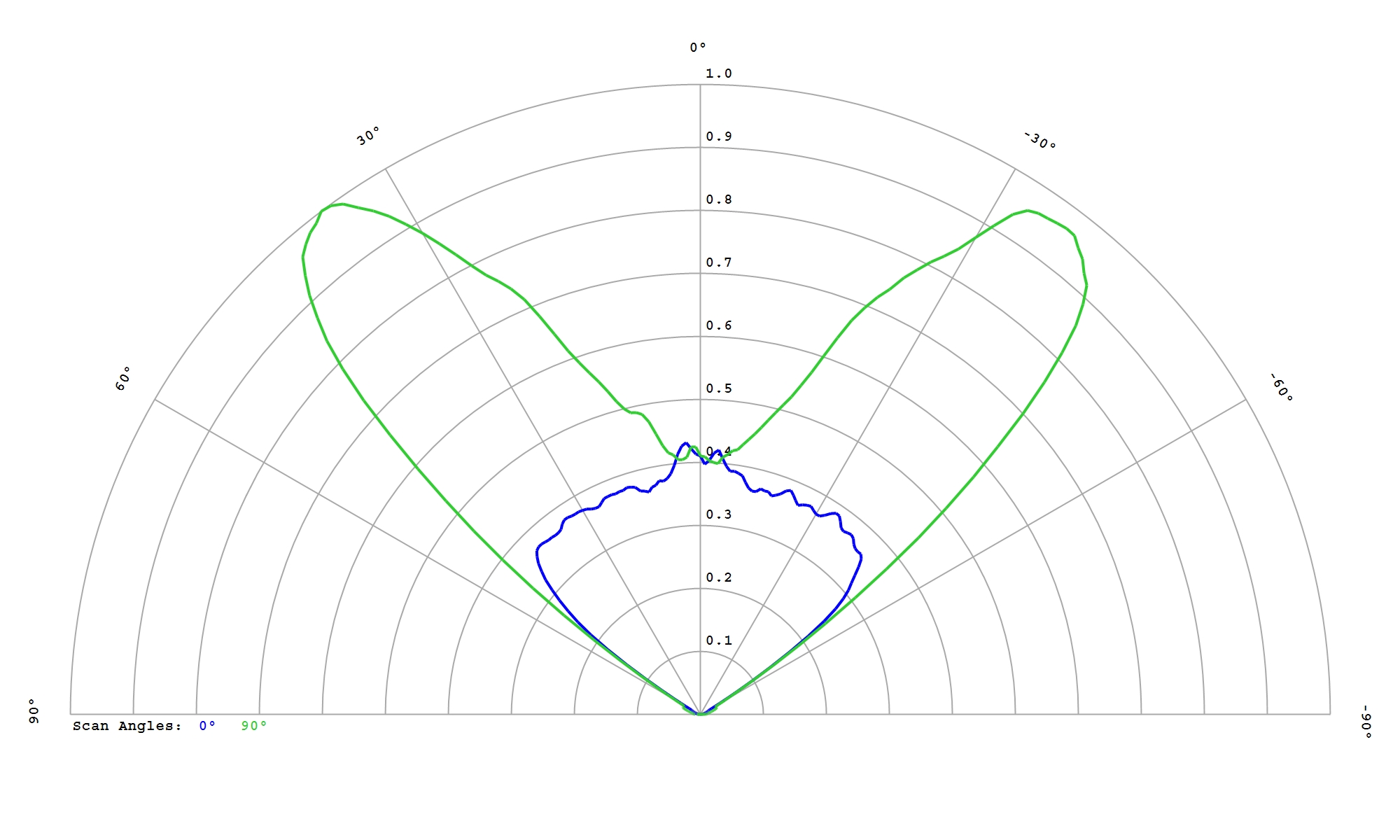

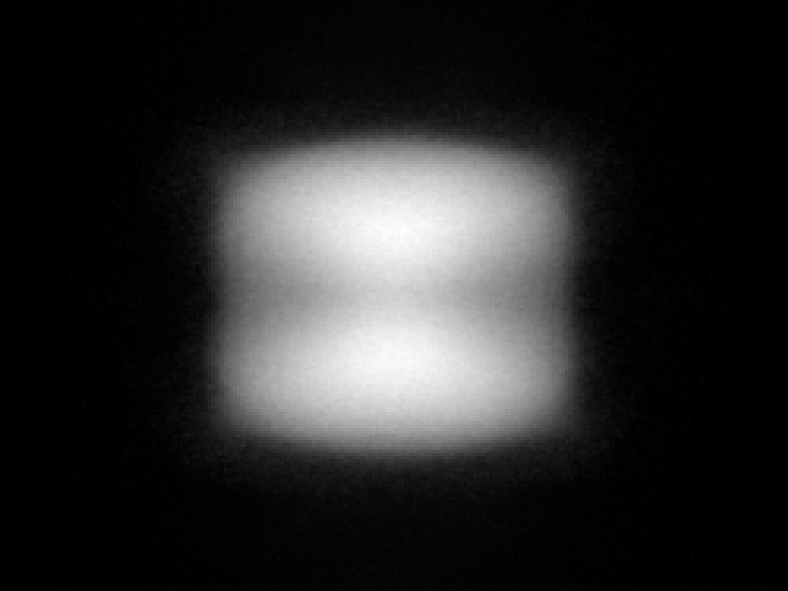

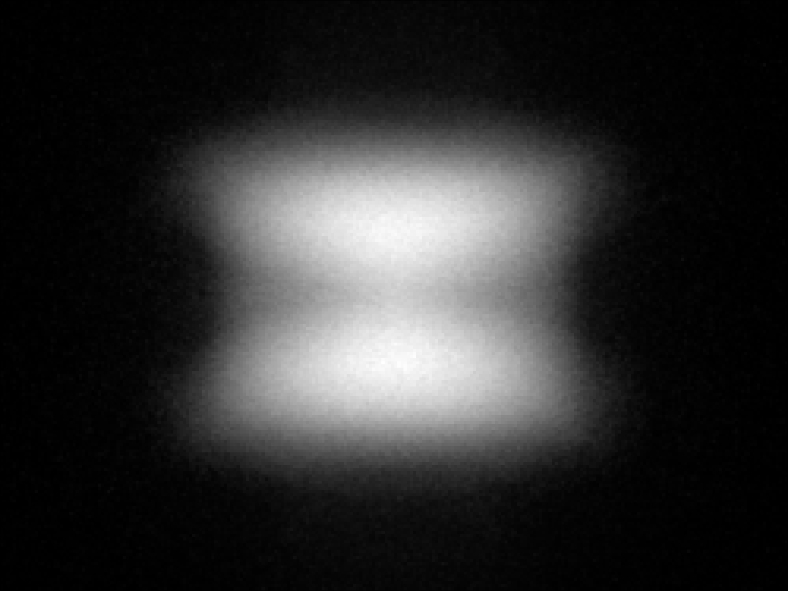

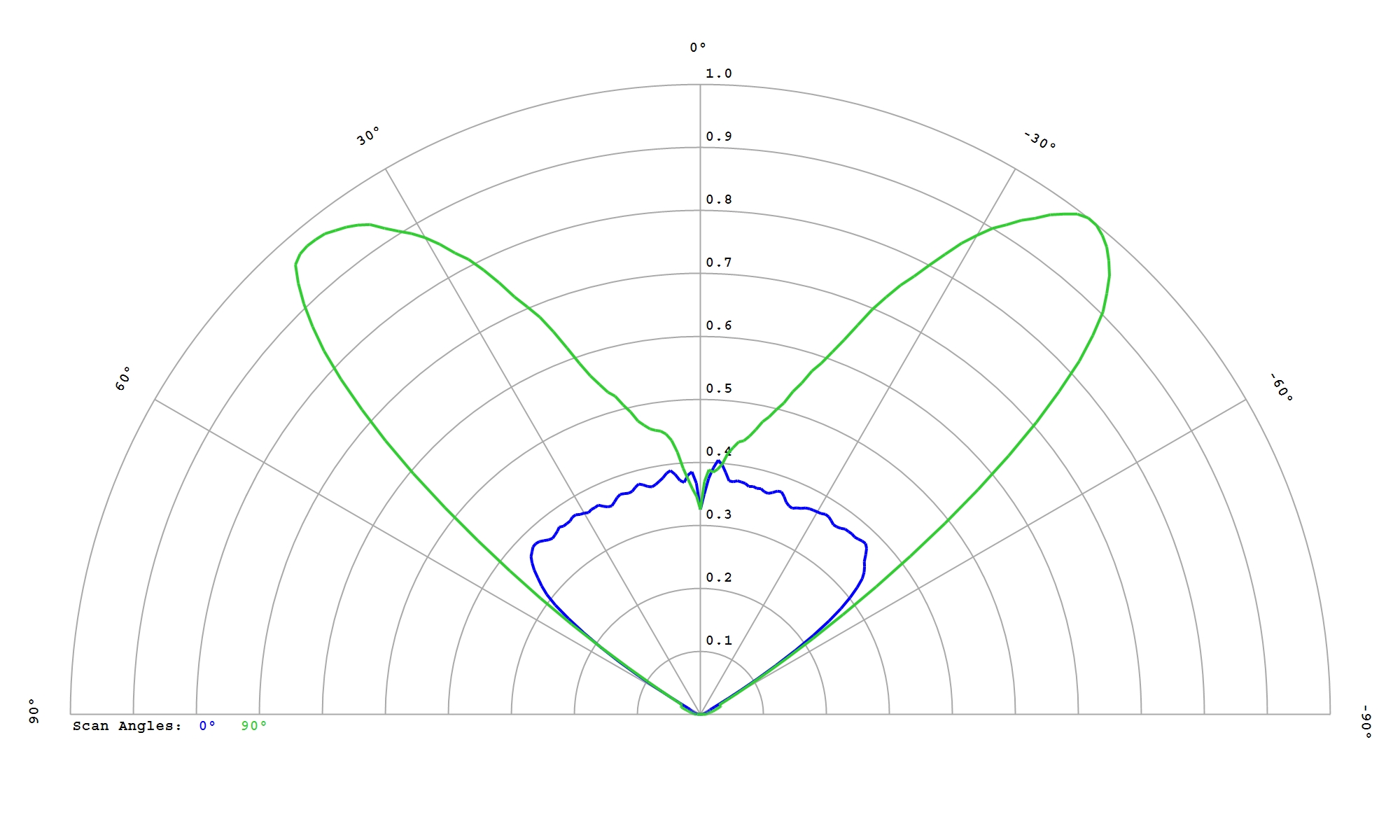

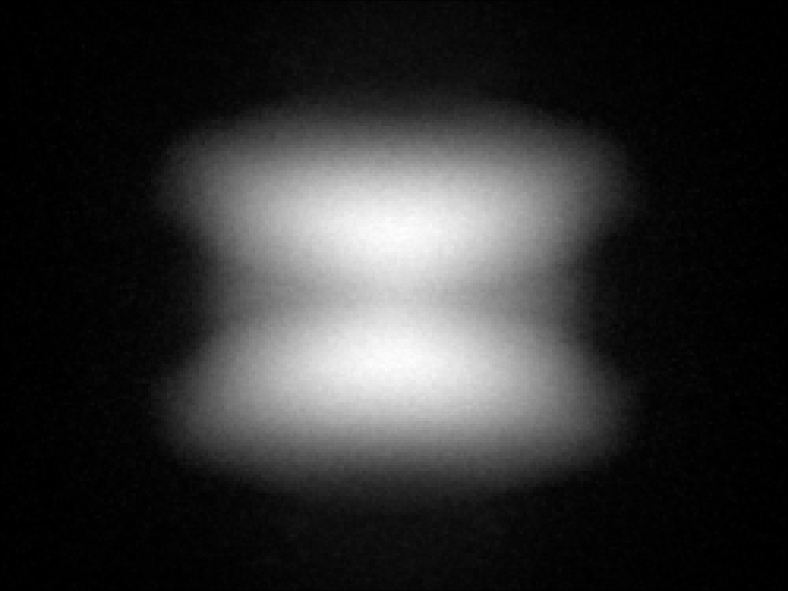

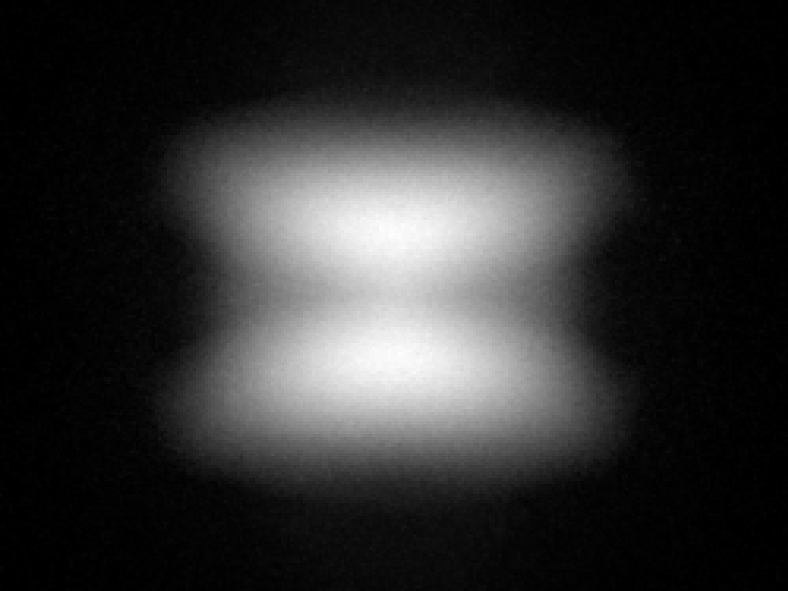

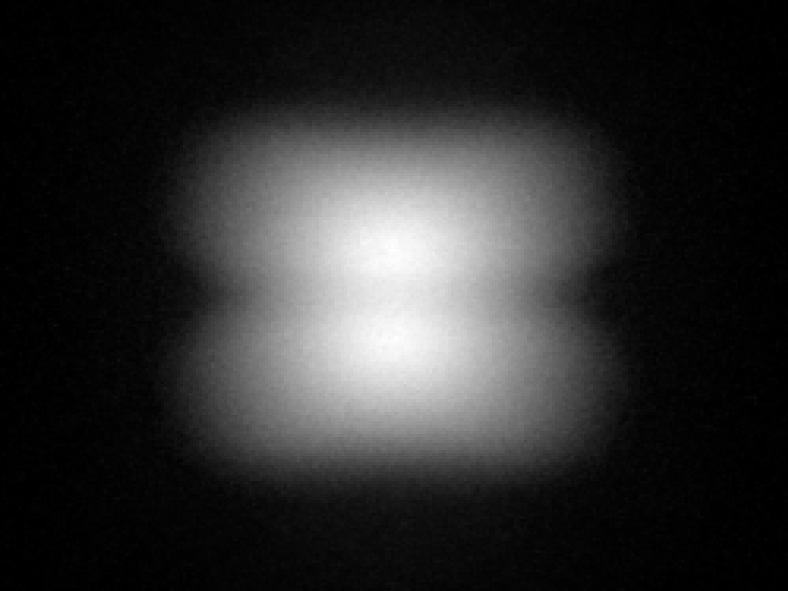

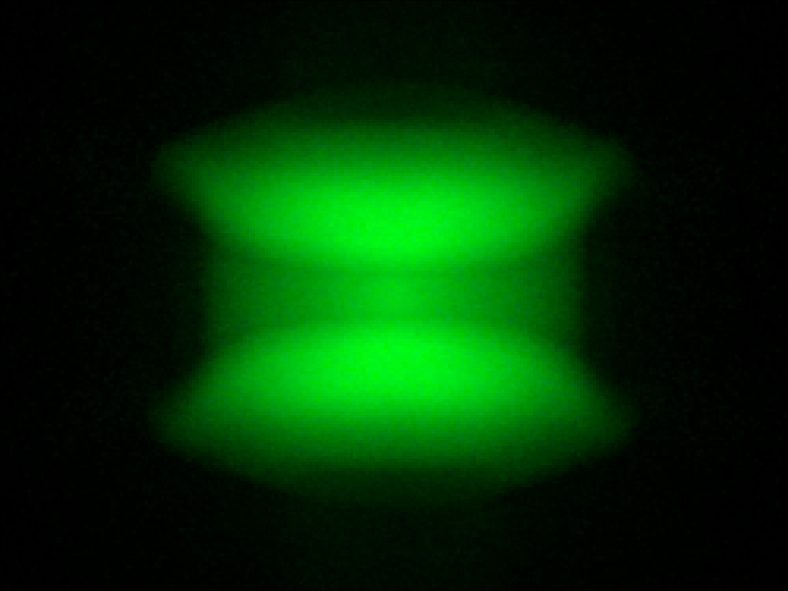

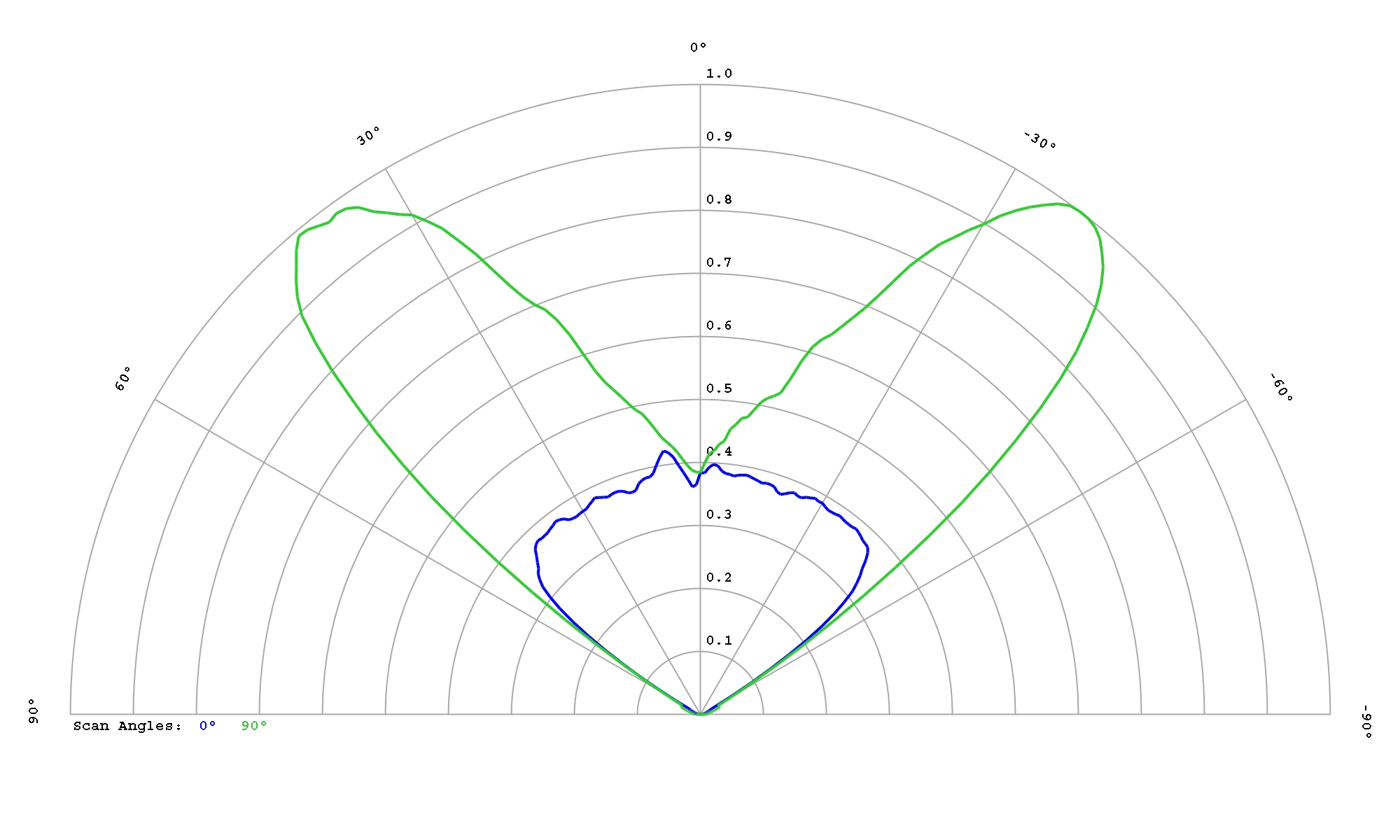

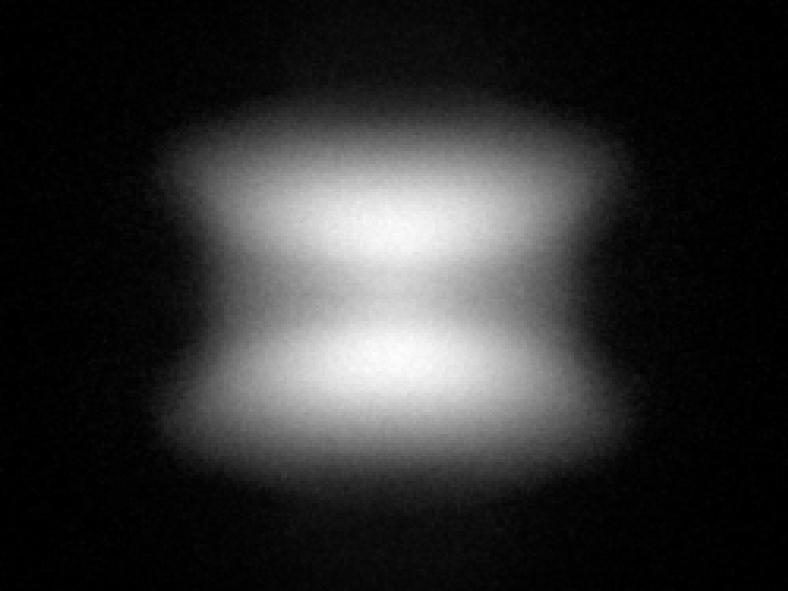

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.5%

FWHM:

107 x 99°

Cd/Im:

0.6

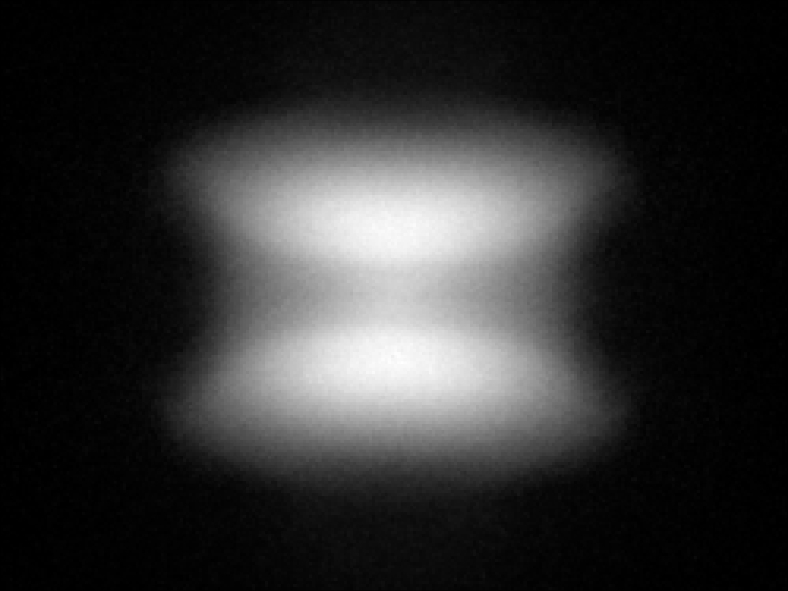

Carclo Optics - 12957 33Up Spot Image Bridgelux 3030 Gen2

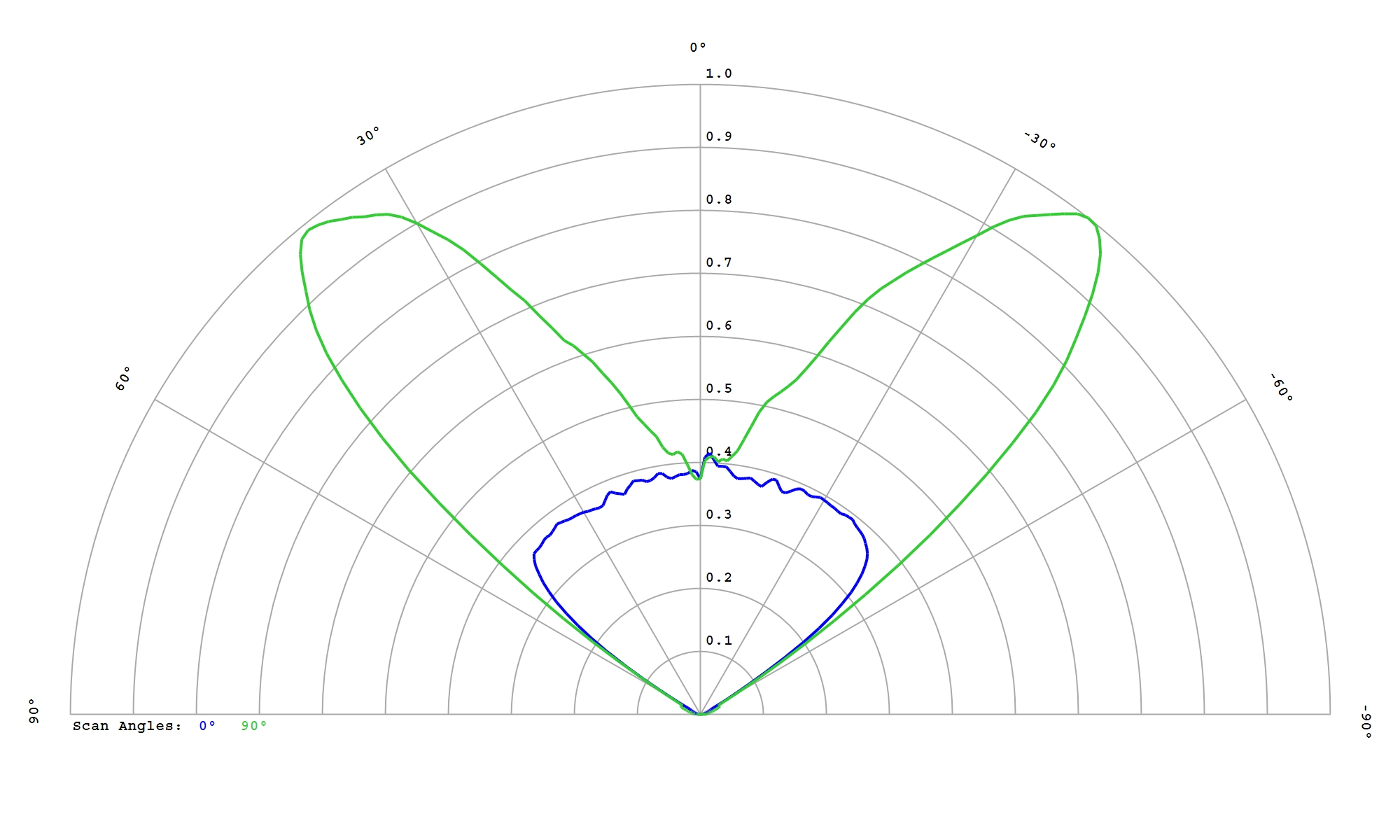

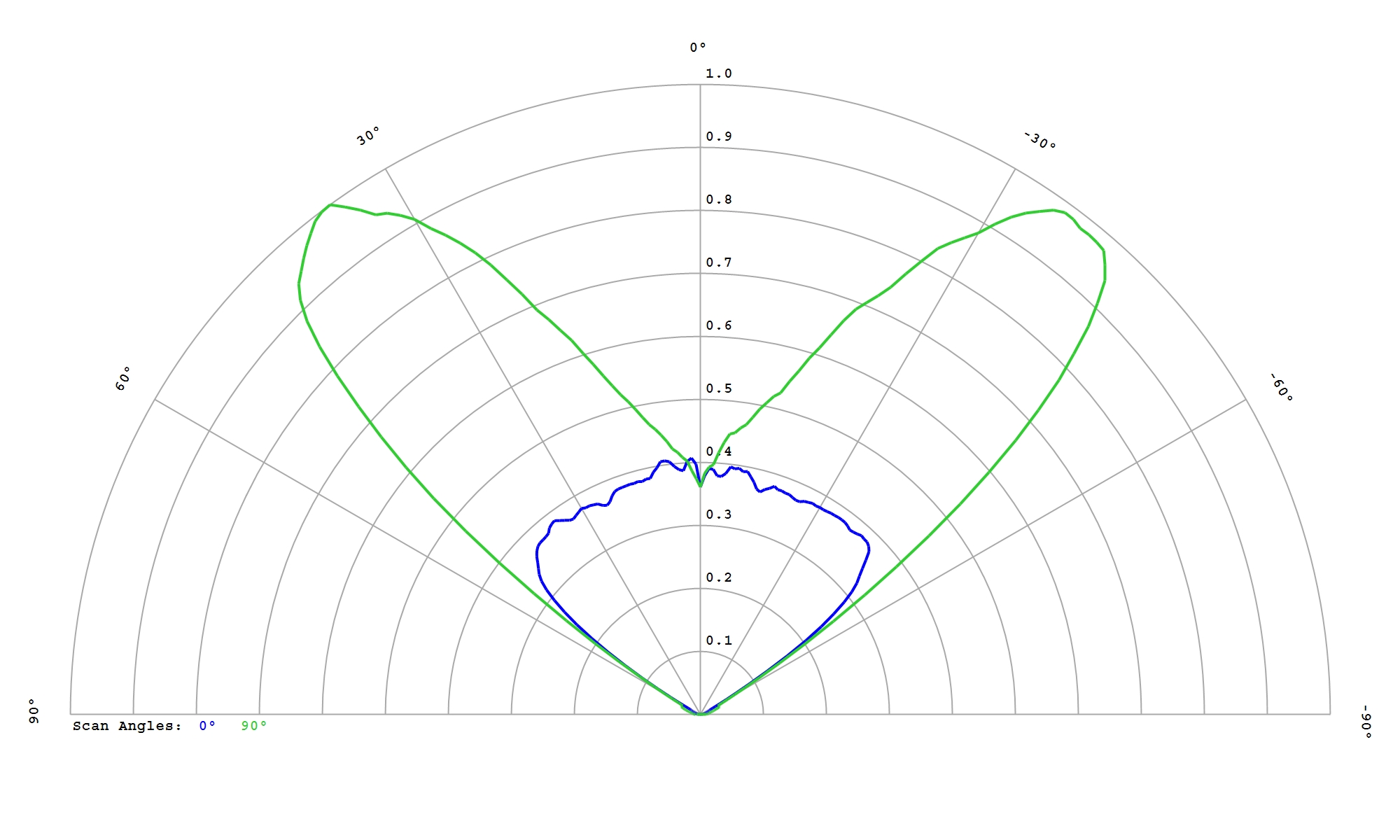

Carclo Optics - 12957 33Up Cross Section Bridgelux 3030 Gen2

Download

ies

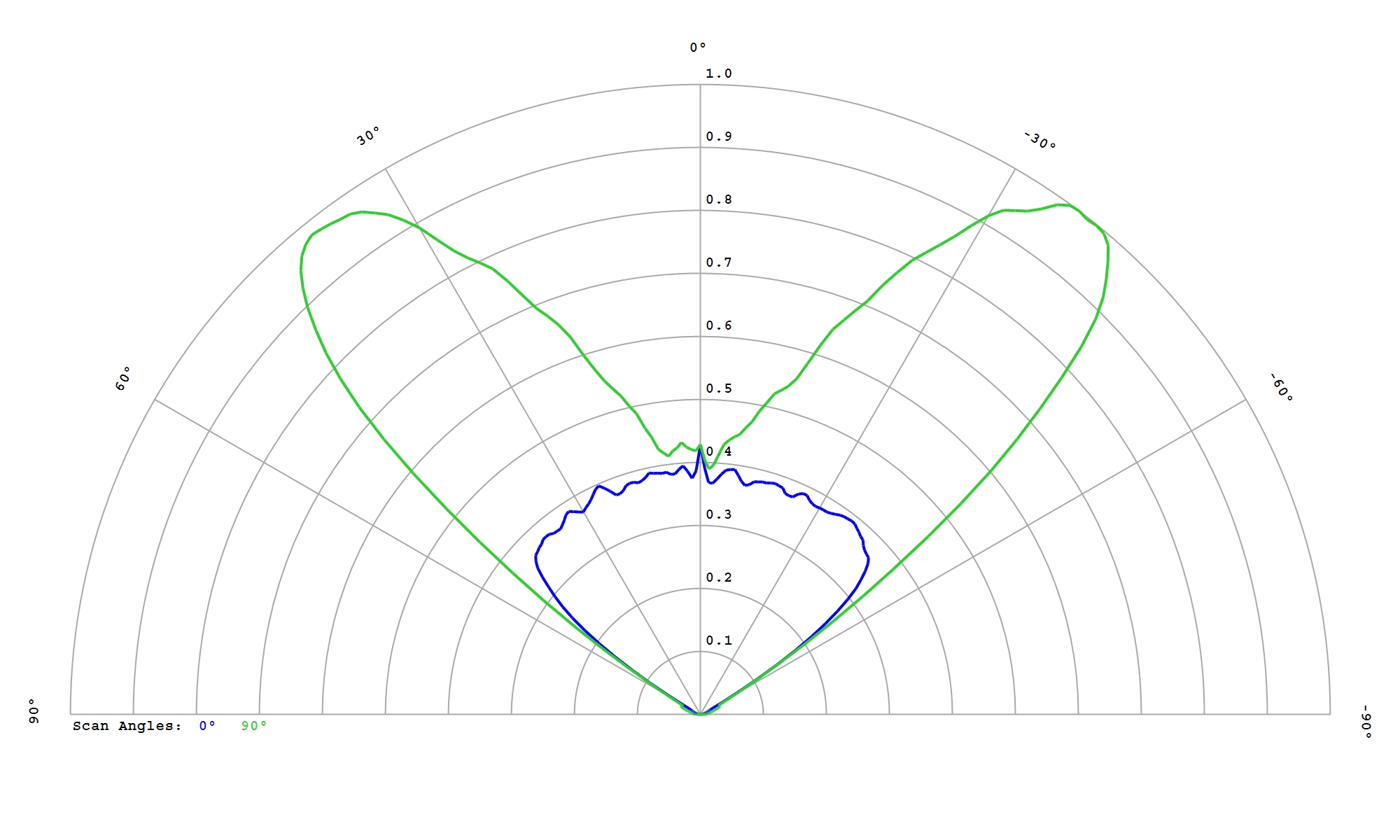

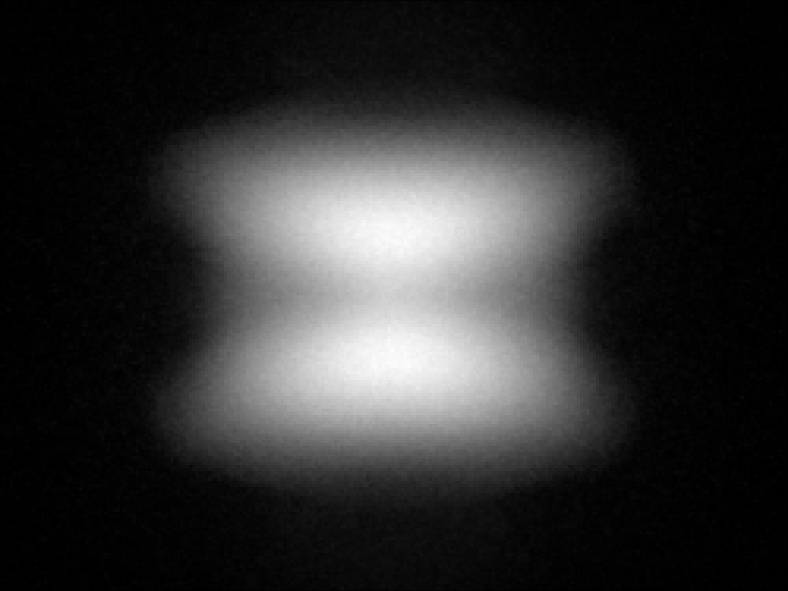

Cree JB3030 3V White

Eff:

96.0%

FWHM:

103 x 99°

Cd/Im:

0.6

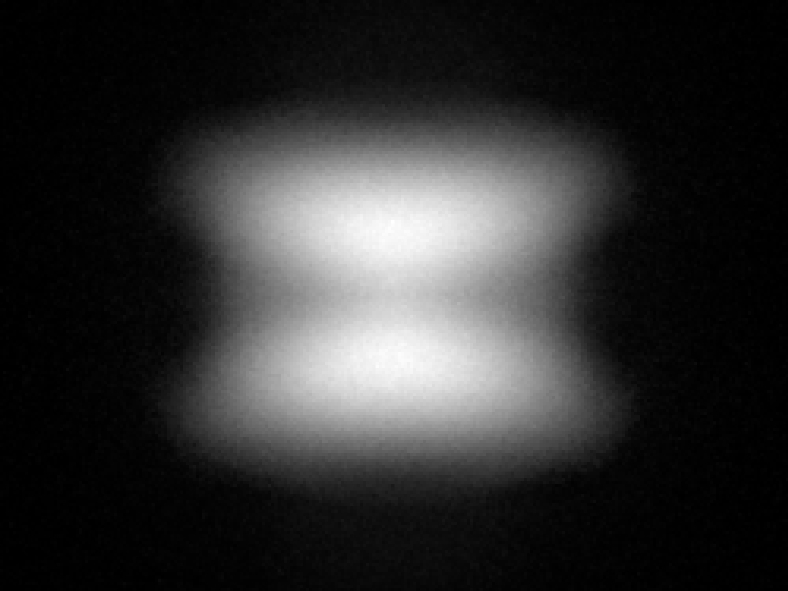

Carclo Optics - 12957 Spot Image Cree JB3030 3V White

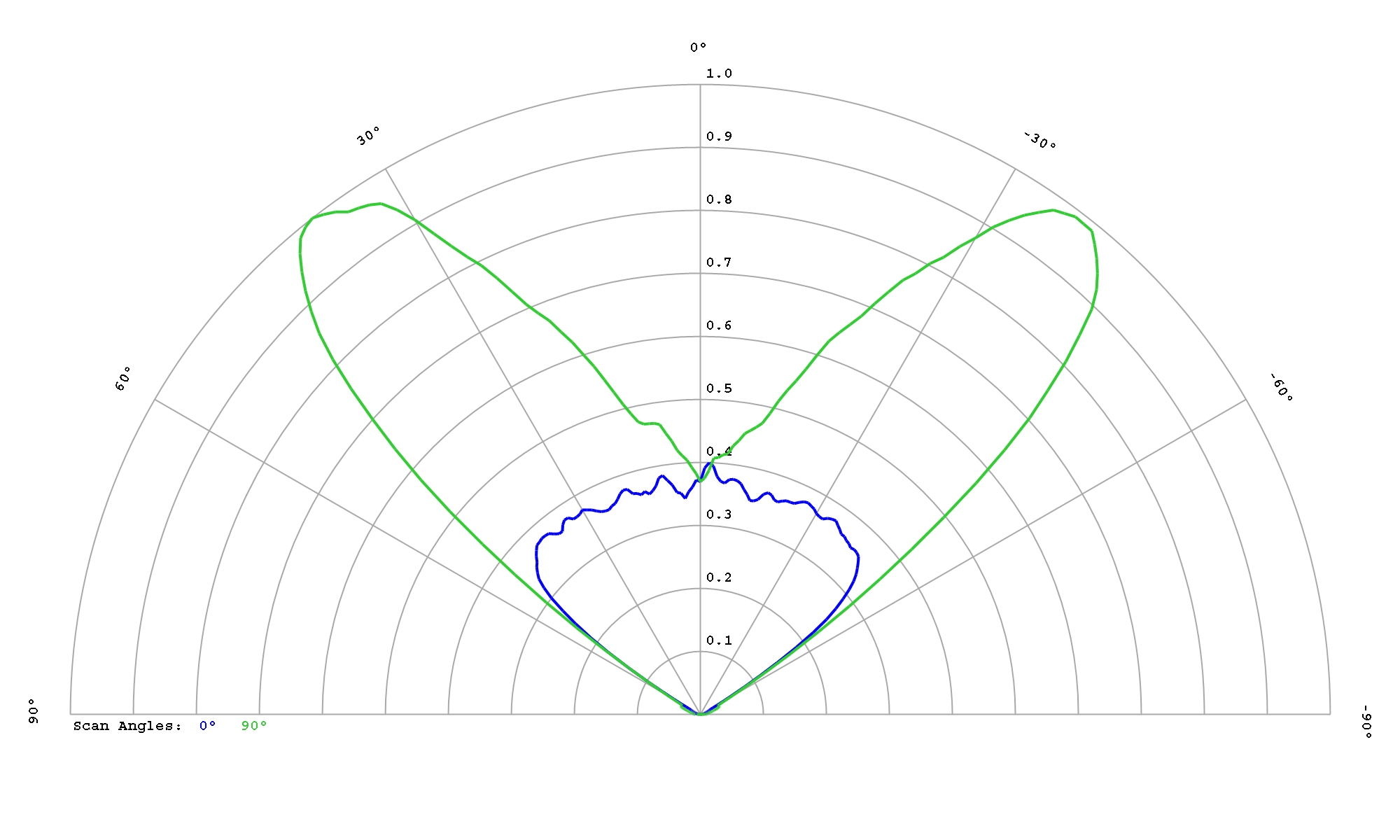

Carclo Optics - 12957 Cross Section Cree JB3030 3V White

Download

ies

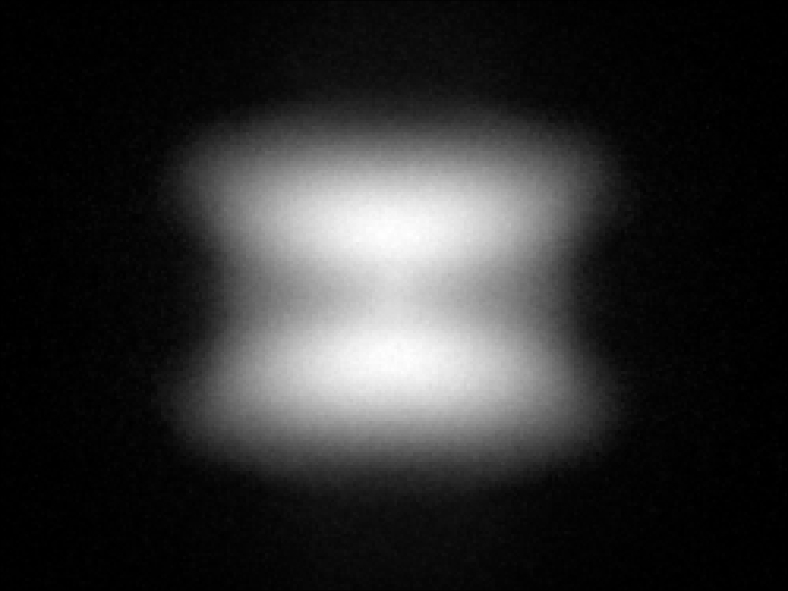

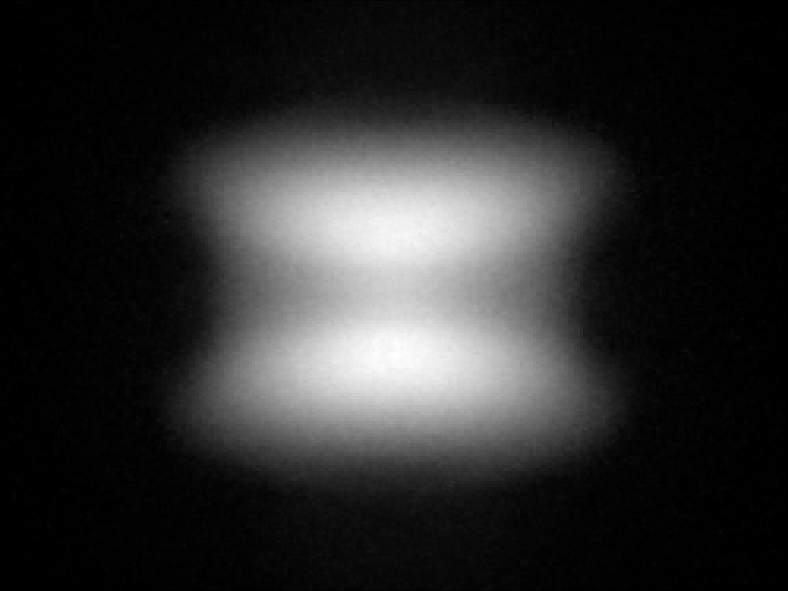

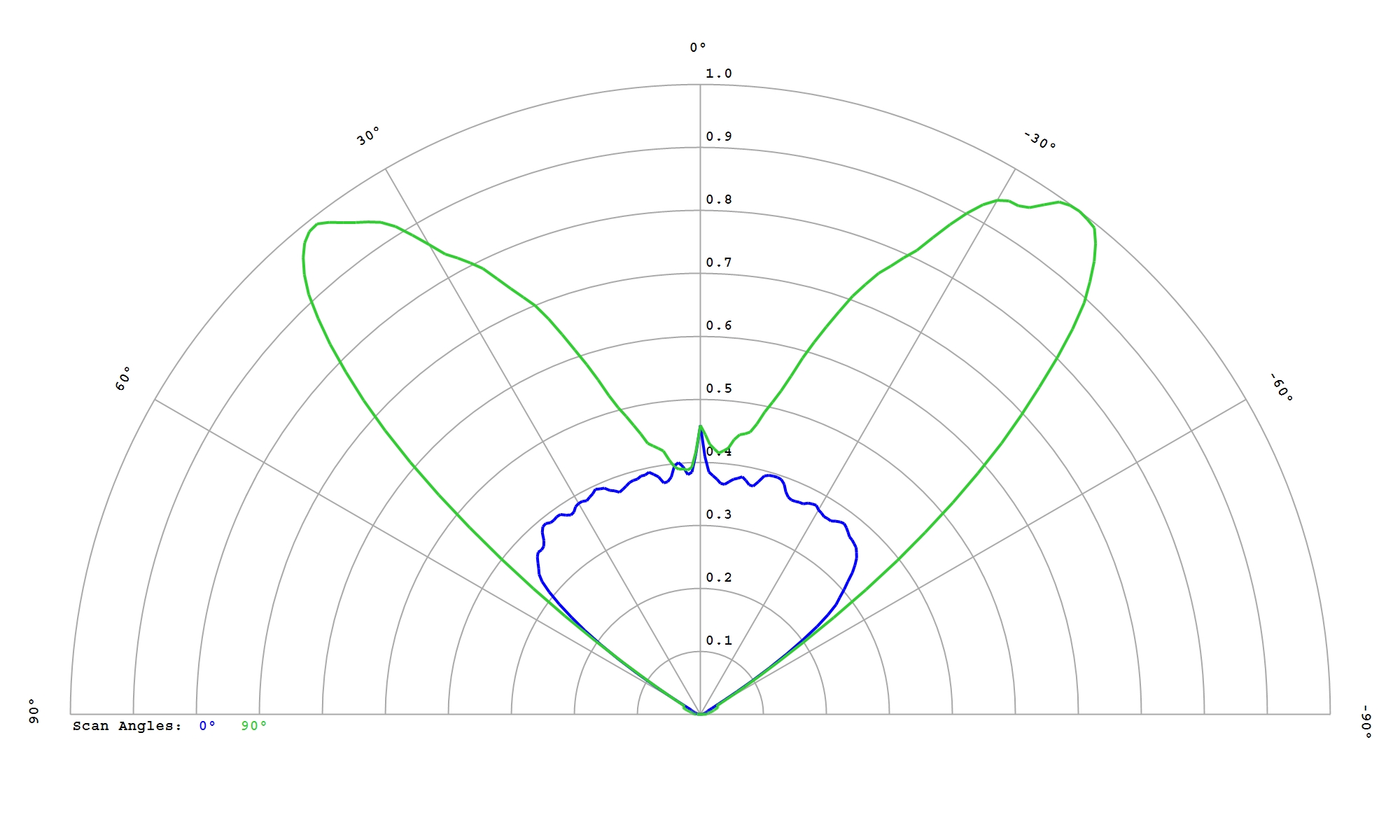

Cree JK2835 6V White

Eff:

96.0%

FWHM:

108 x 100°

Cd/Im:

0.6

Download

ies

Cree JQ5050 9V White

Eff:

96.0%

FWHM:

102 x 103°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image Cree JQ5050 9V White

Carclo Optics - 12957 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

96.0%

FWHM:

104 x 103°

Cd/Im:

0.6

Carclo Optics - 12957 Spot Image Cree JR5050 24V White

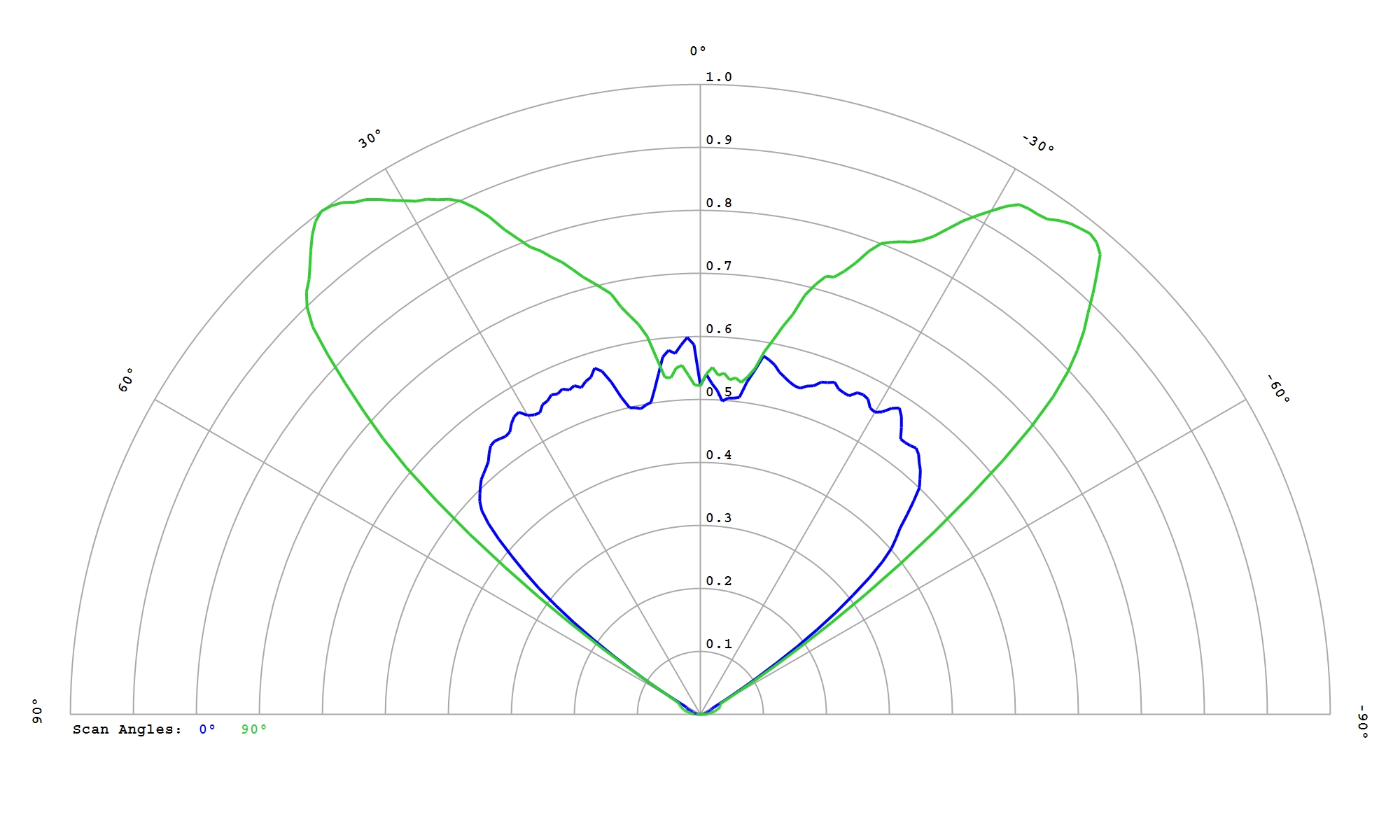

Carclo Optics - 12957 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

96.0%

FWHM:

105 x 103°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image Cree JR5050 36V White

Carclo Optics - 12957 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

96.0%

FWHM:

106 x 105°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image Cree JR5050 6V White

Carclo Optics - 12957 Cross Section Cree JR5050 6V White

Download

ies

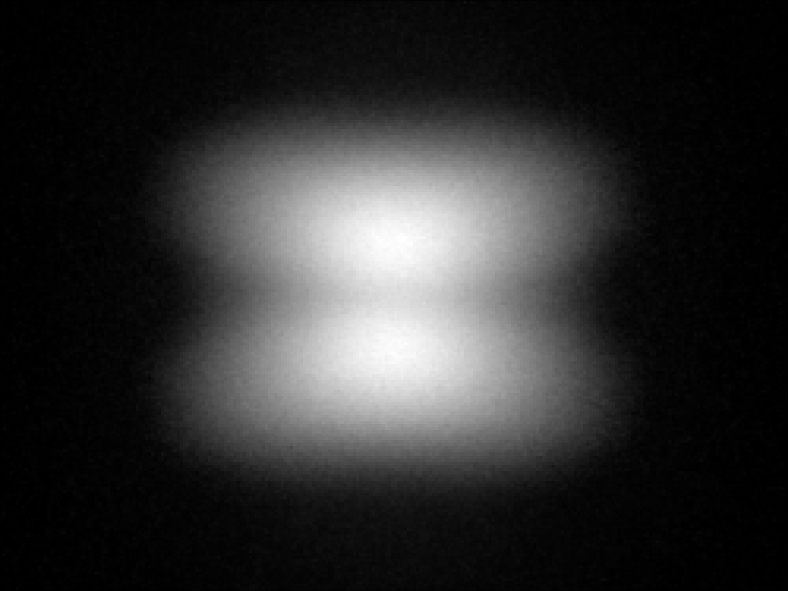

Cree JR5050C 6V E-Class White

Eff:

96.0%

FWHM:

106 x 103°

Cd/Im:

0.5


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

95.5%

FWHM:

110 x 102°

Cd/Im:

0.6

Download

IES

Cree XLamp XB-H White

Eff:

95.5%

FWHM:

105 x 101°

Cd/Im:

0.6

Carclo Optics - 12957 33Up Spot Image Cree XLamp XB-H

Carclo Optics - 12957 33Up Cross Section Cree XLamp XB-H

Download

ies

Cree XLamp XE-G White

Eff:

94.5%

FWHM:

114 x 104°

Cd/Im:

0.5

Download

ies

Cree XLamp XH-B White

Eff:

93.5%

FWHM:

111°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

94.0%

FWHM:

109 x 105°

Cd/Im:

0.5

Carclo Optics – 12957 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12957 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

92.0%

FWHM:

113 x 112°

Cd/Im:

0.4

Carclo Optics - 12957 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 12957 Cross Section Cree XLamp XHP35.2 White

Download

ies

Cree XLamp XM-L3 White

Eff:

94.5%

FWHM:

112 x 110°

Cd/Im:

0.4

Carclo Optics - 12957 Spot Image Cree XM-L3

Carclo Optics - 12957 Cross Section Cree XM-L3

Download

ies

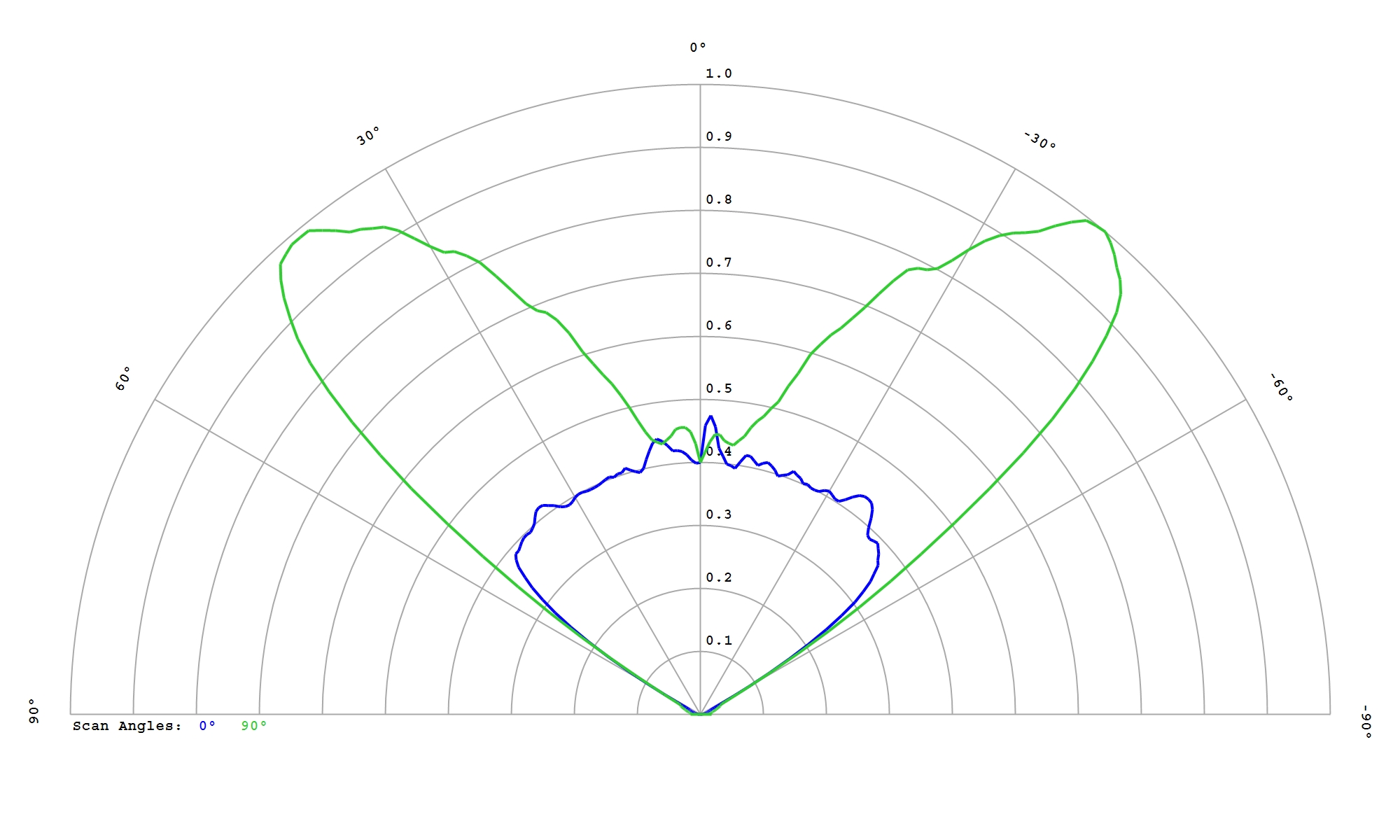

Cree XLamp XP-E2 White

Eff:

96.0%

FWHM:

111 x 103°

Cd/Im:

0.5

Download

ies

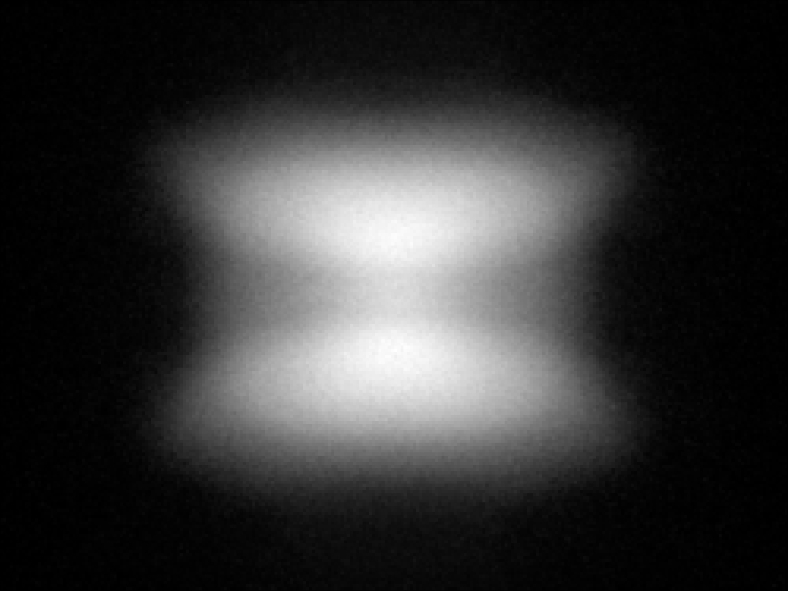

Cree XLamp XP-P White

Eff:

96.0%

FWHM:

111 x 101°

Cd/Im:

0.6

Carclo Optics – 12957 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12957 Cree Xlamp XP-P - Cross-Section

Download

ies

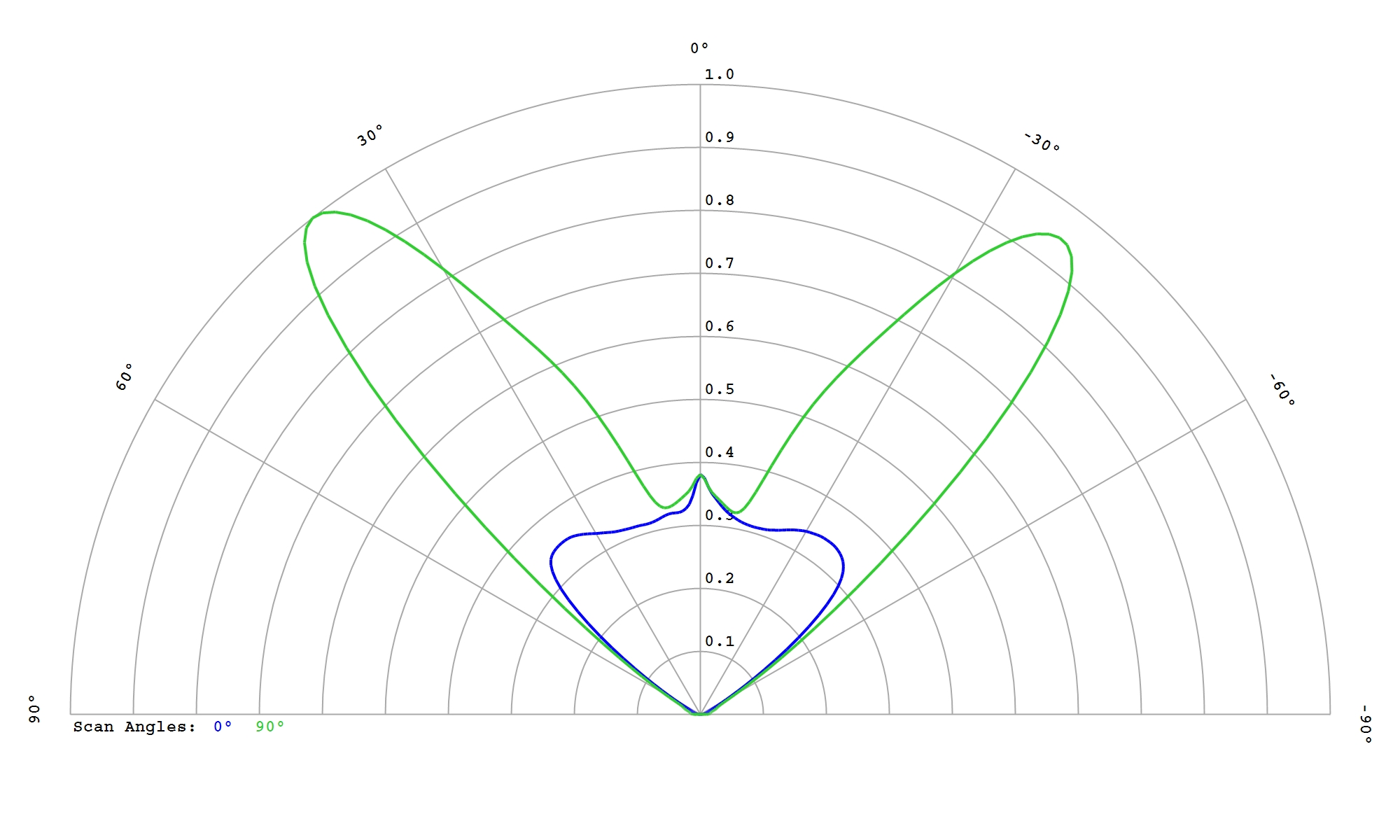

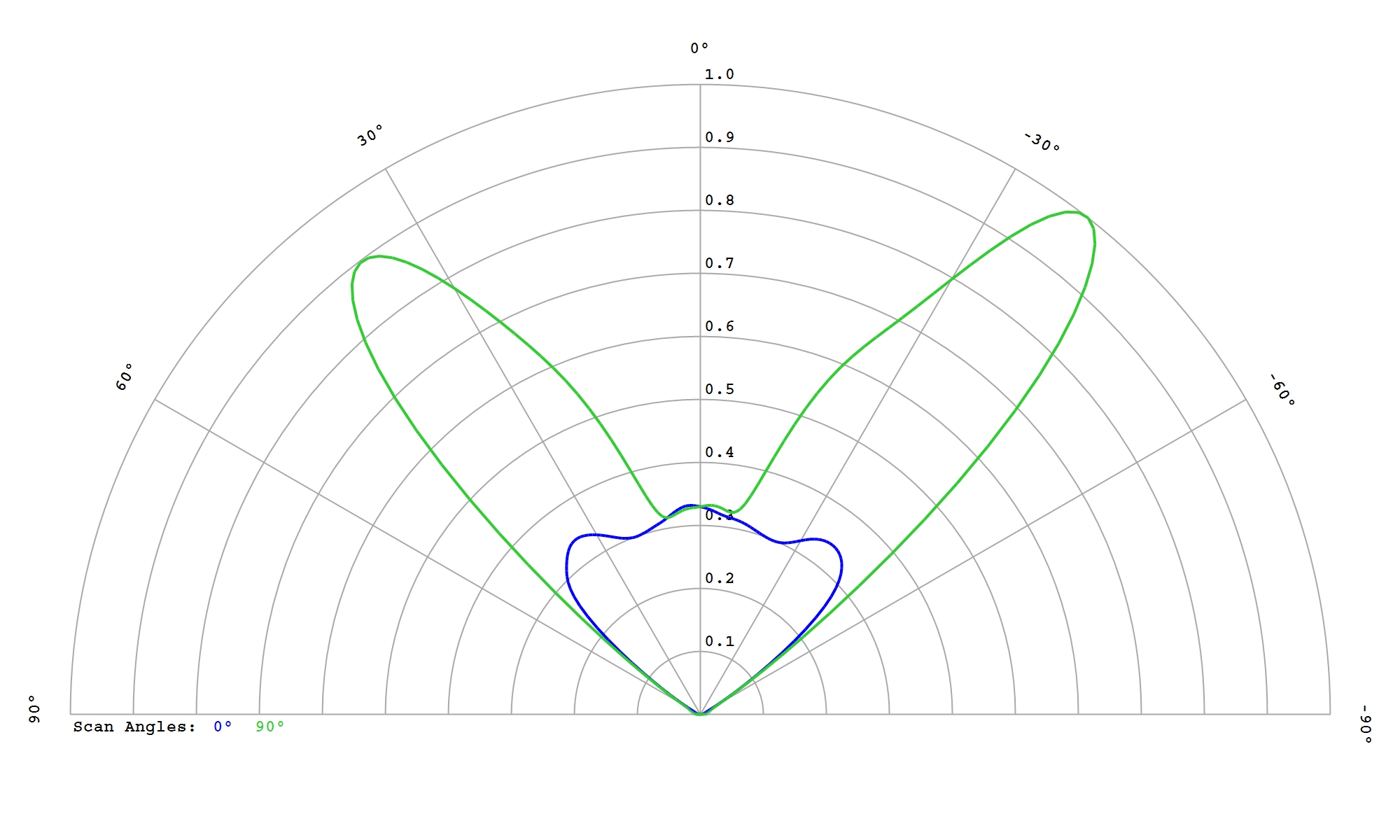

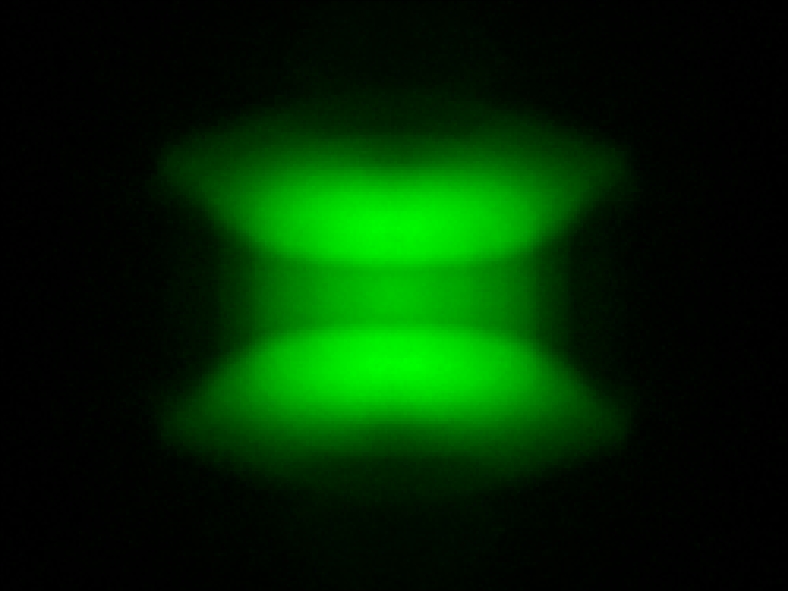

Cree XLamp XQ-A White

Eff:

95.5%

FWHM:

92°

Cd/Im:

0.7

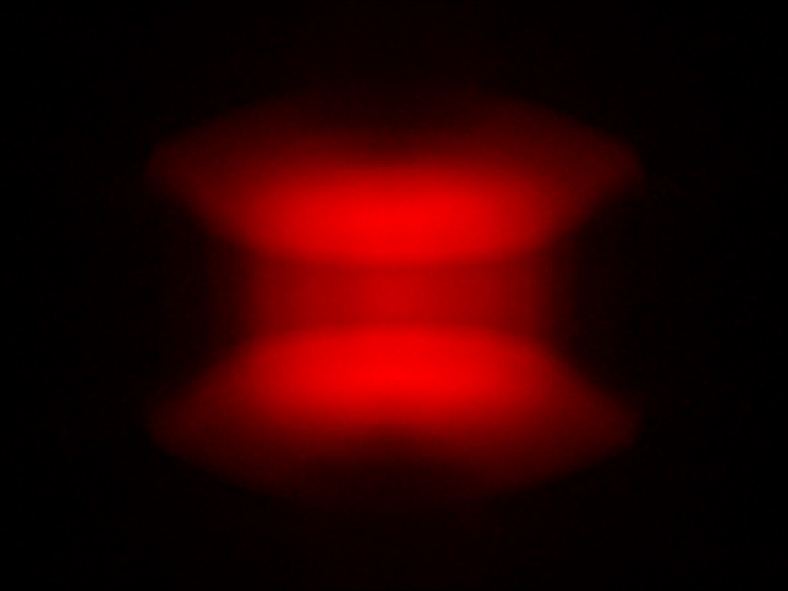

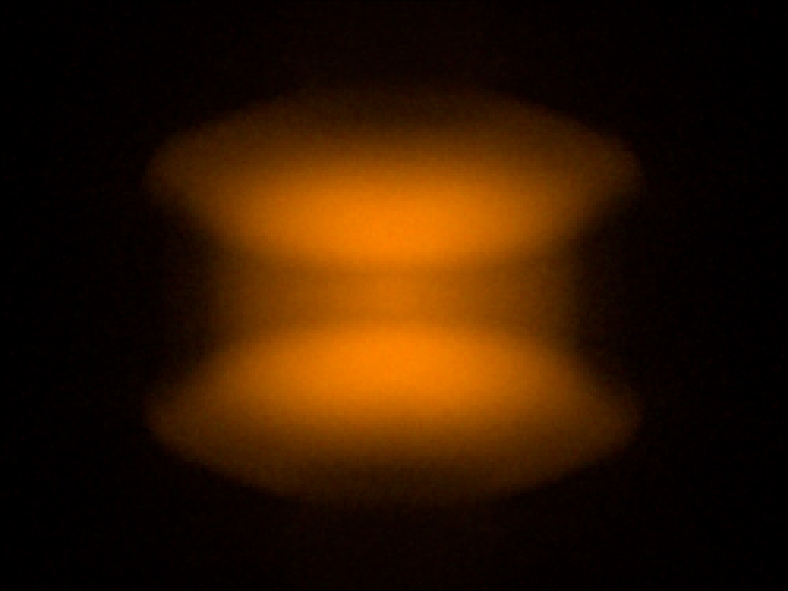

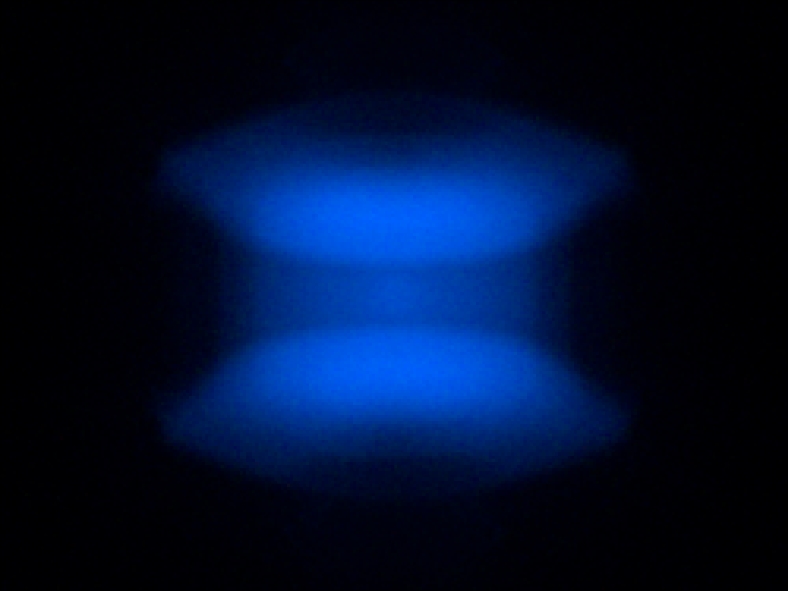

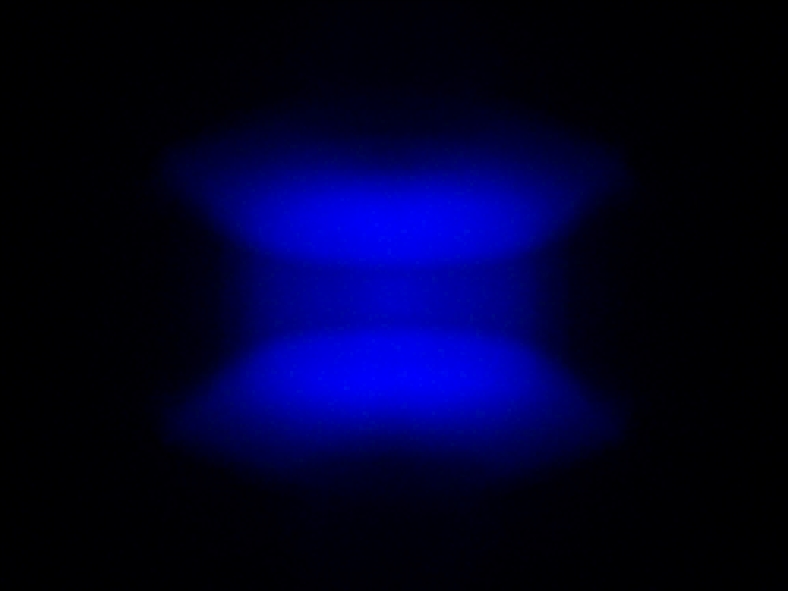

Carclo Optics - Simulated Spot Image

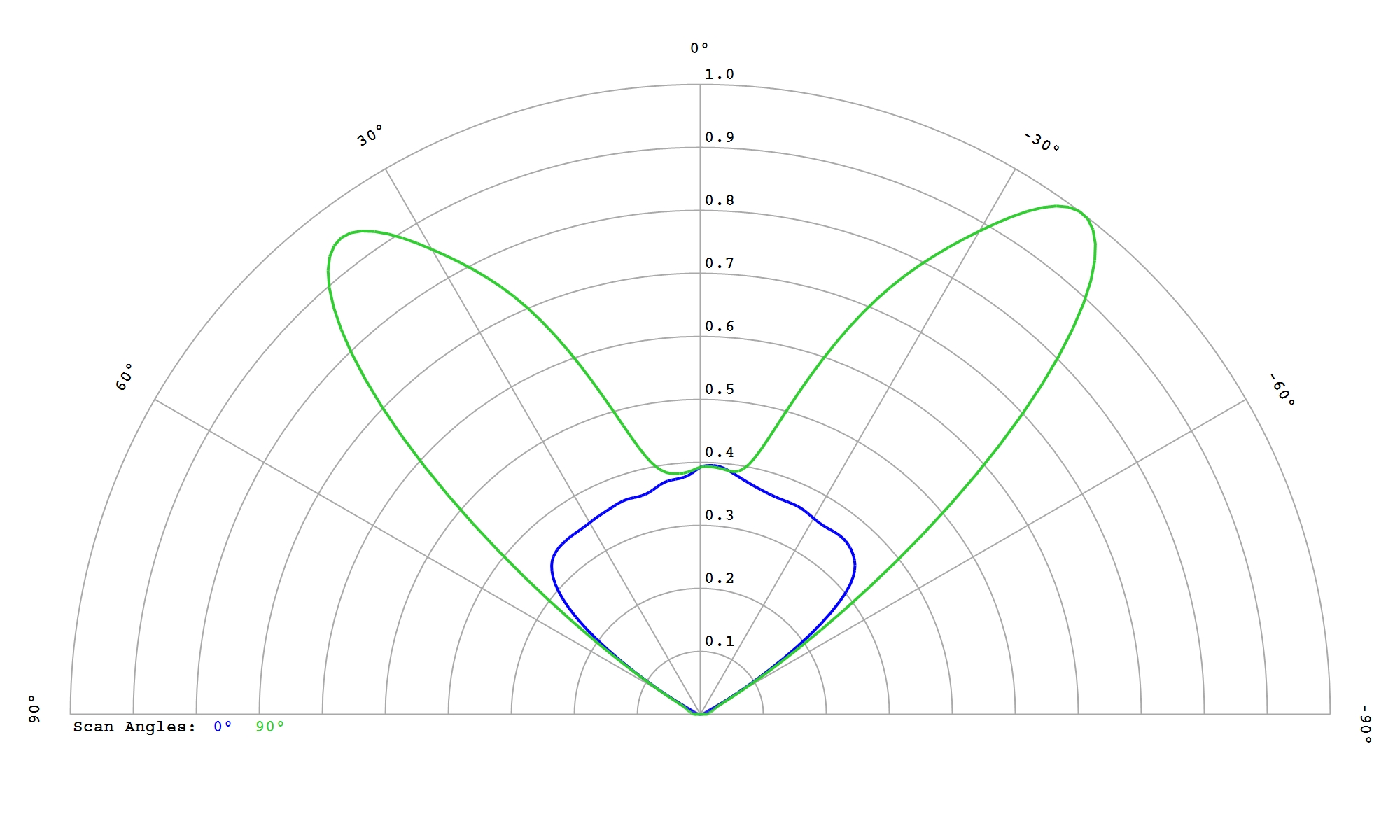

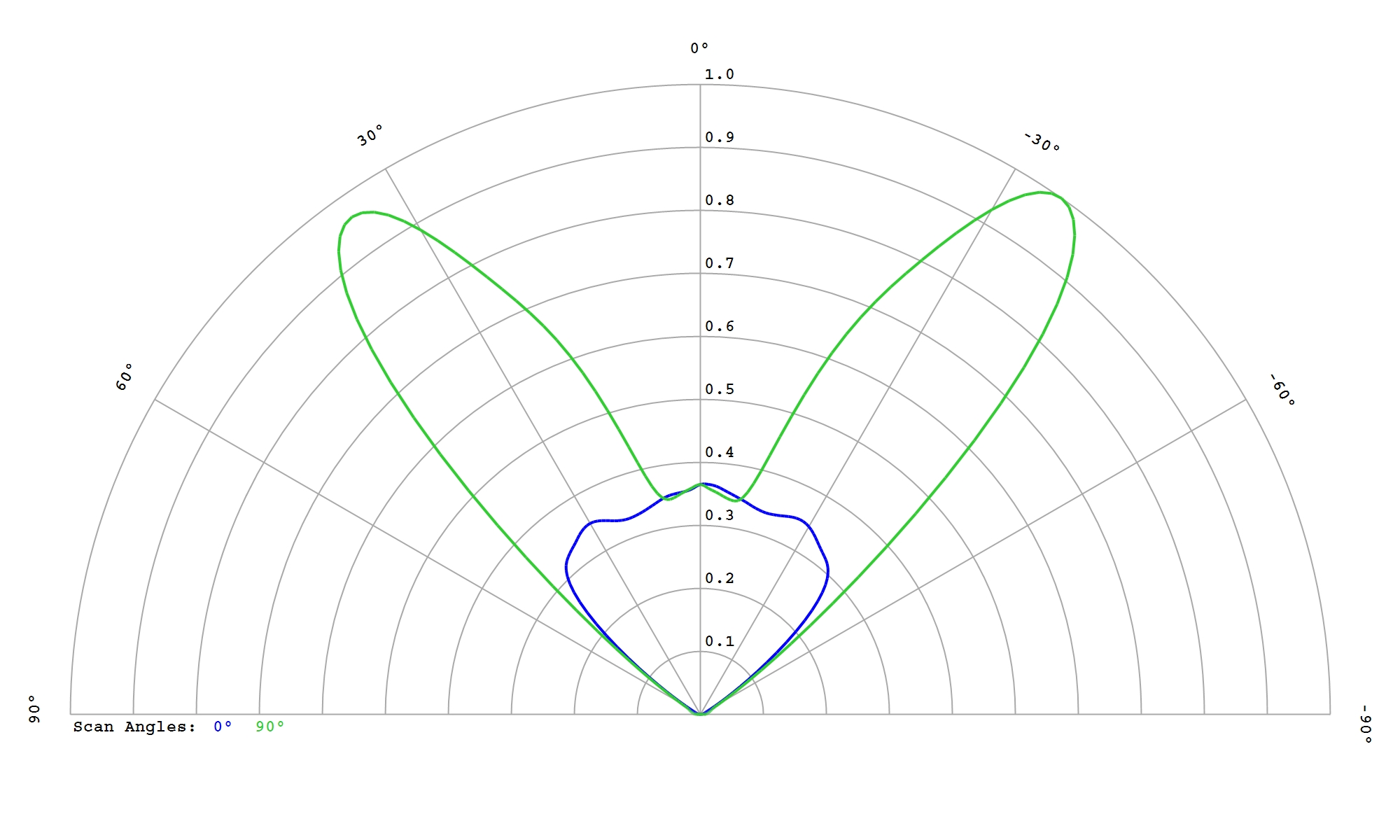

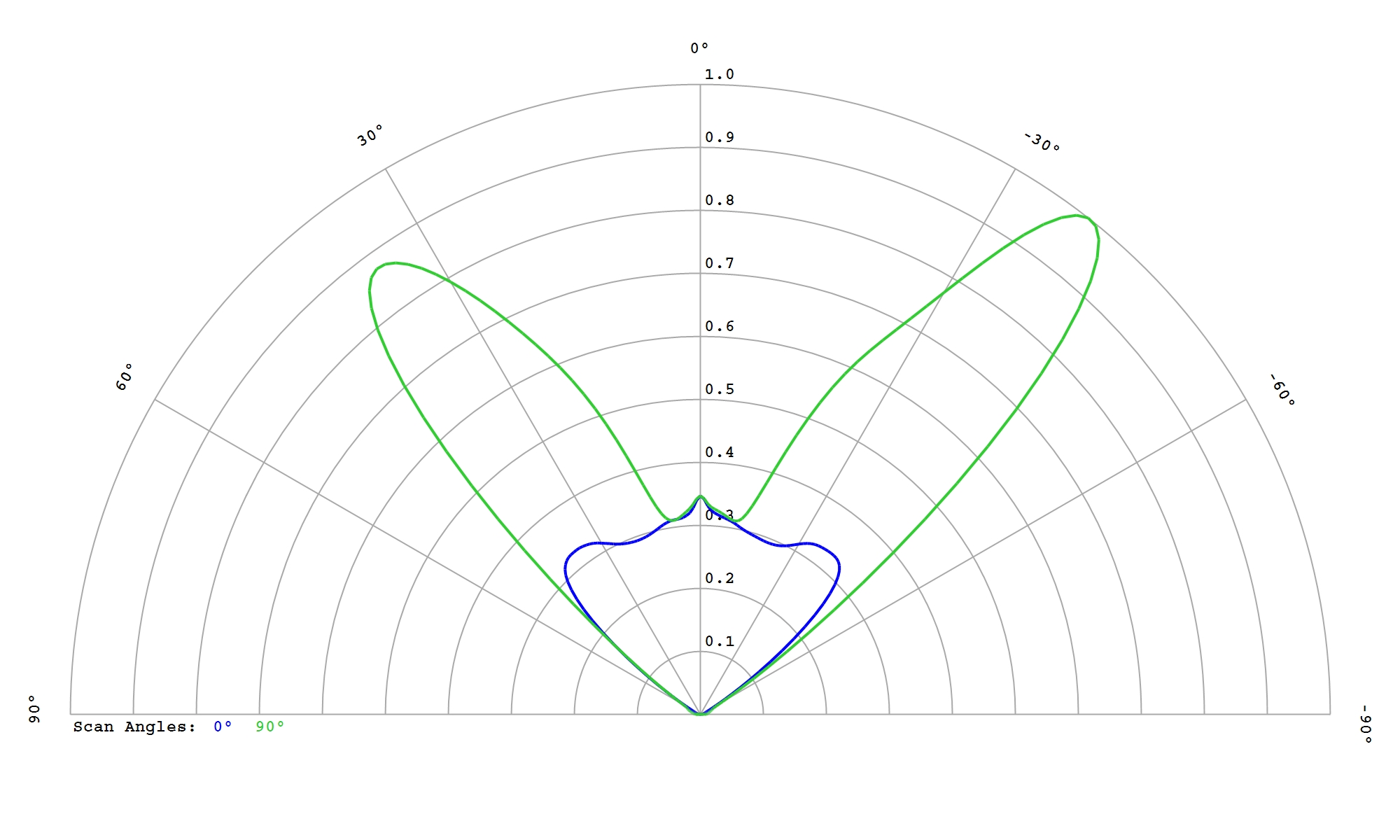

Carclo Optics - Simulated Cross Section

Download

ies

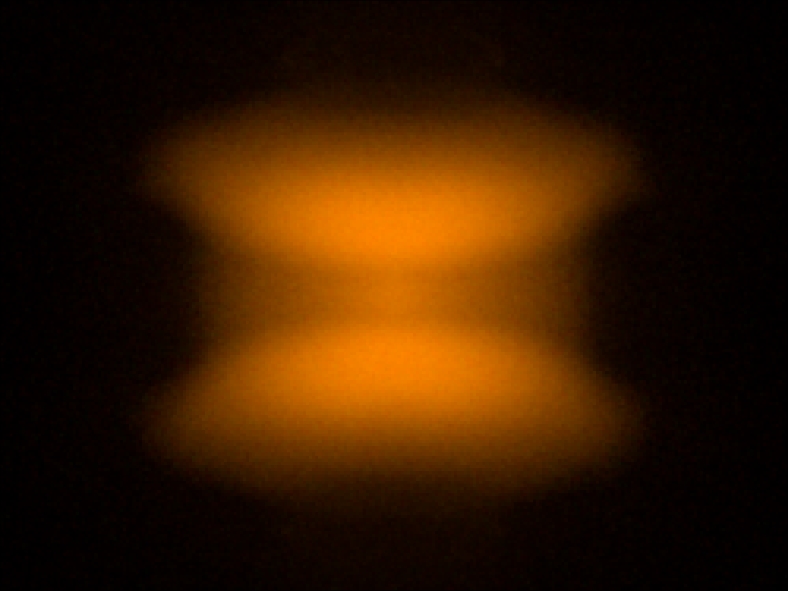

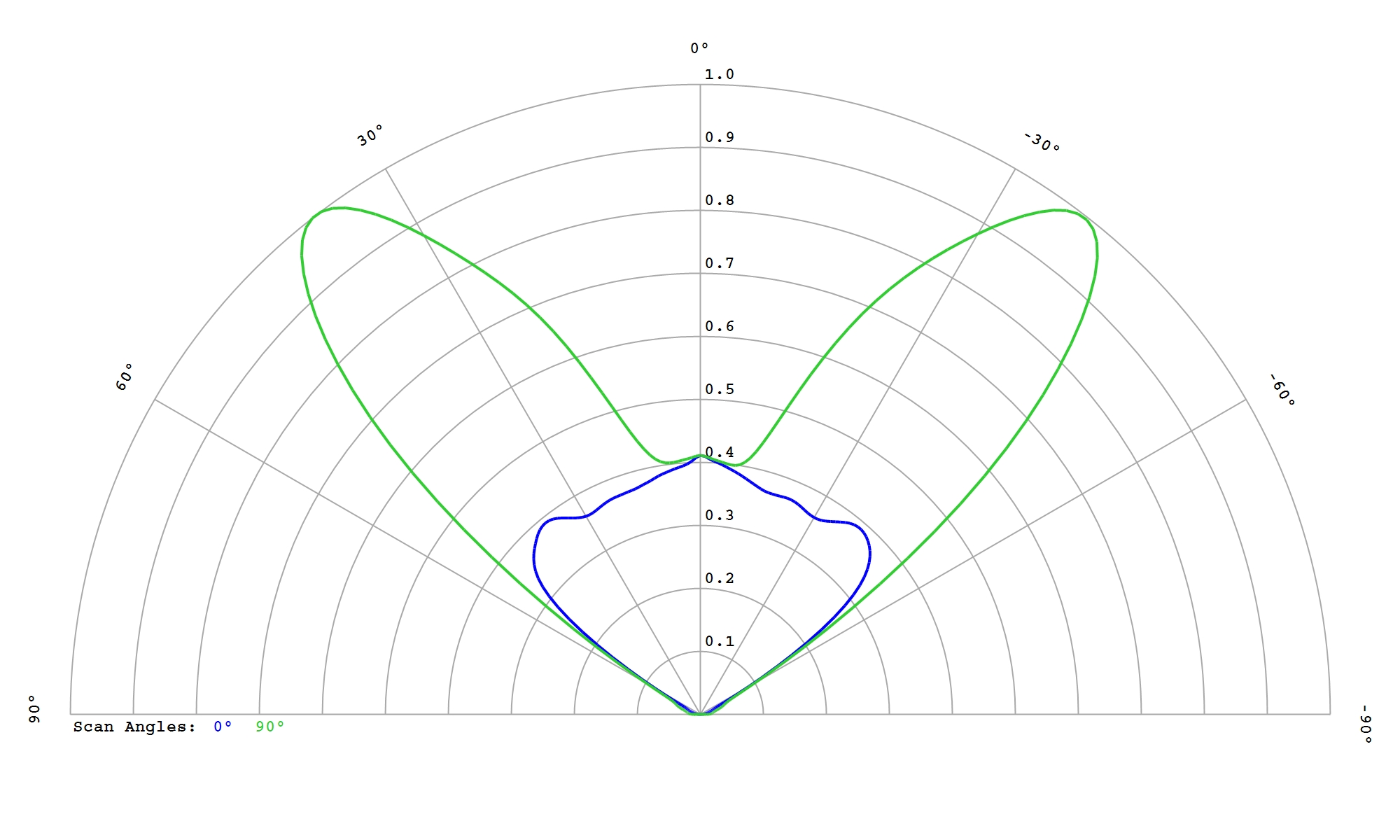

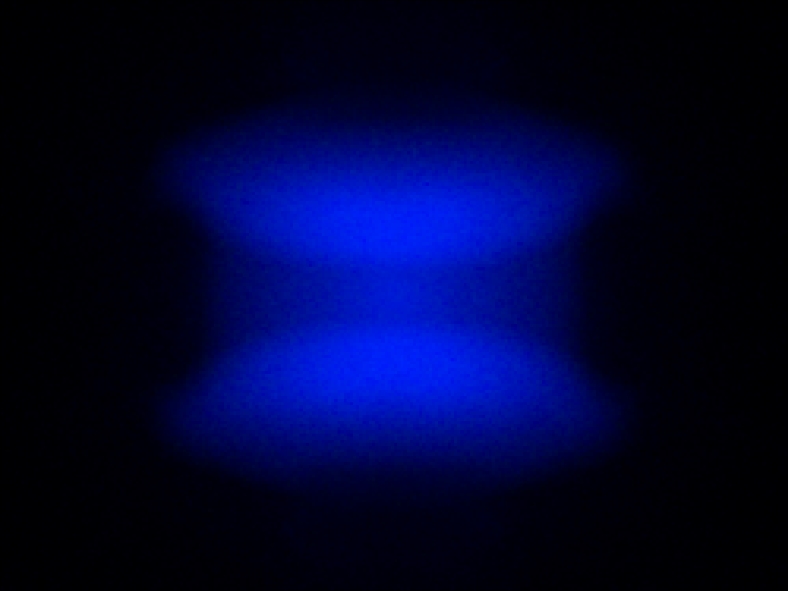

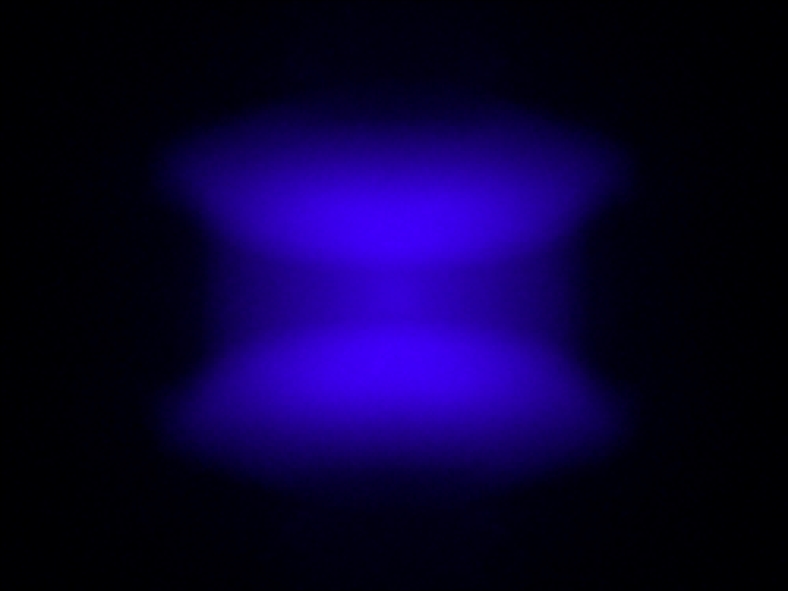

Cree XLamp XQ-E HI White

Eff:

95.0%

FWHM:

111 x 101°

Cd/Im:

0.6

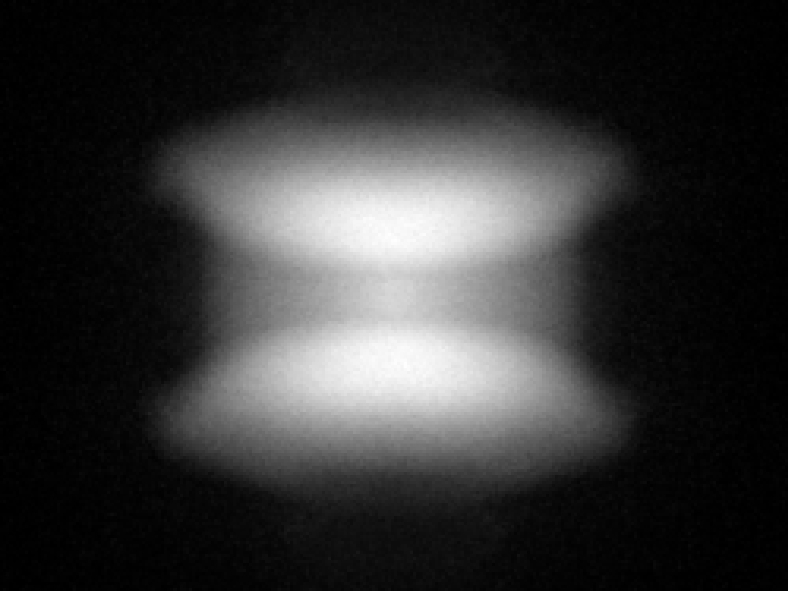

Carclo Optics - Simulated Spot Image

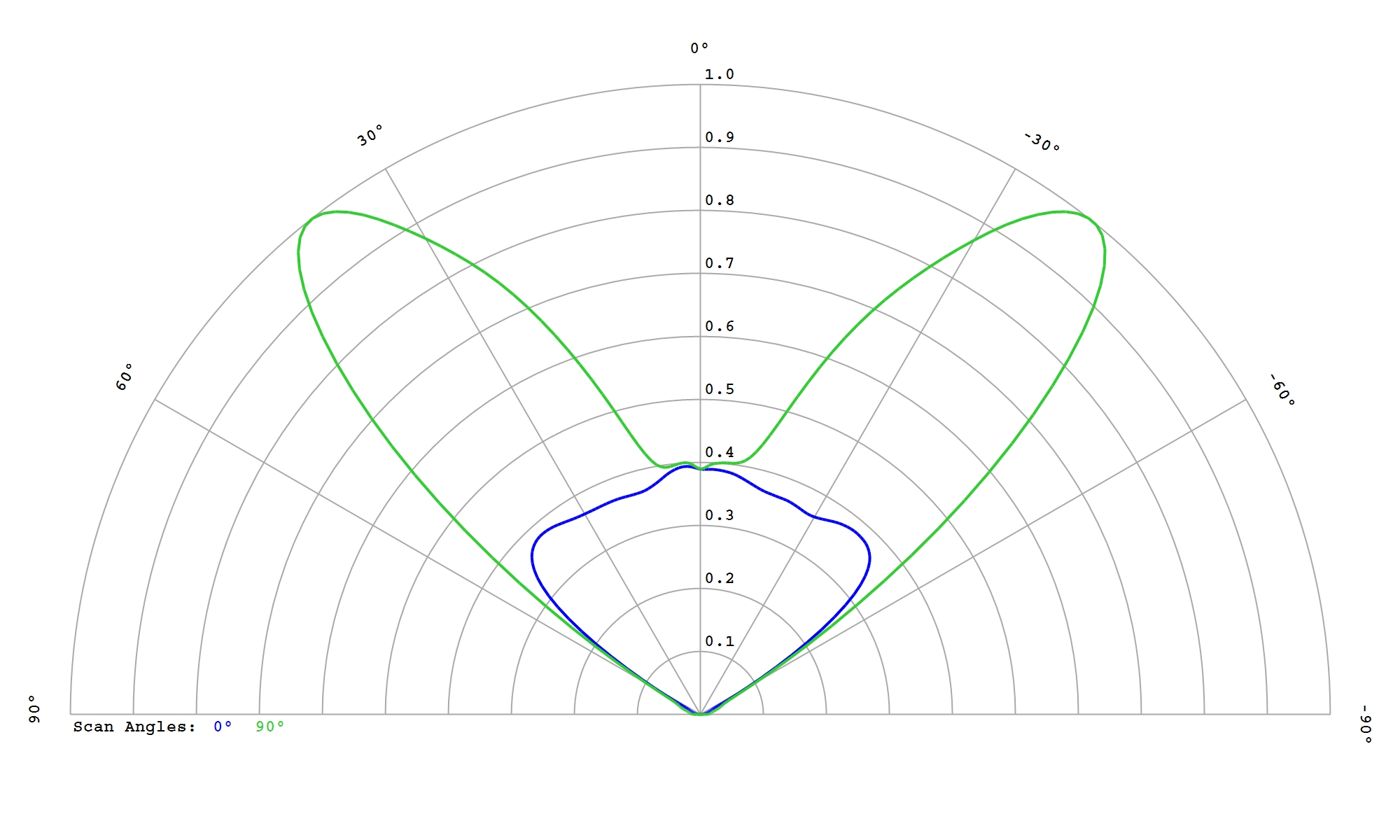

Carclo Optics - Simulated Cross Section

Download

ies

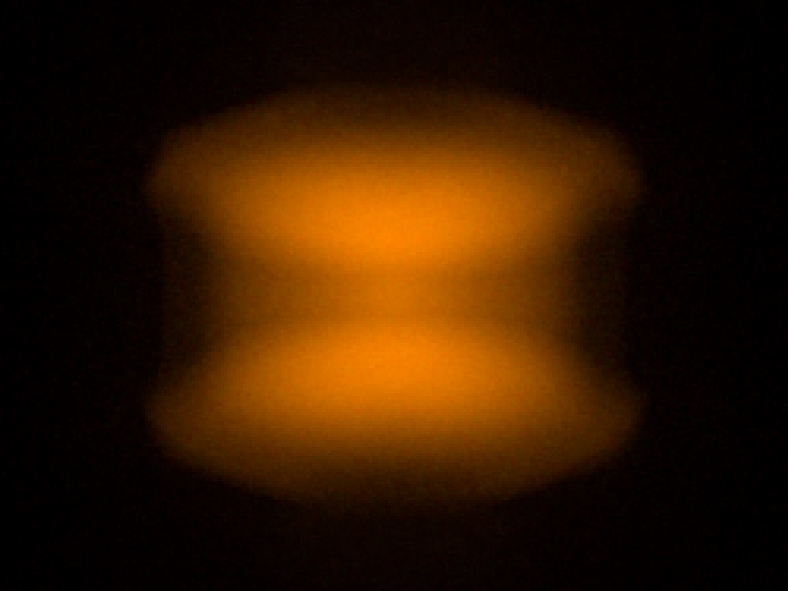

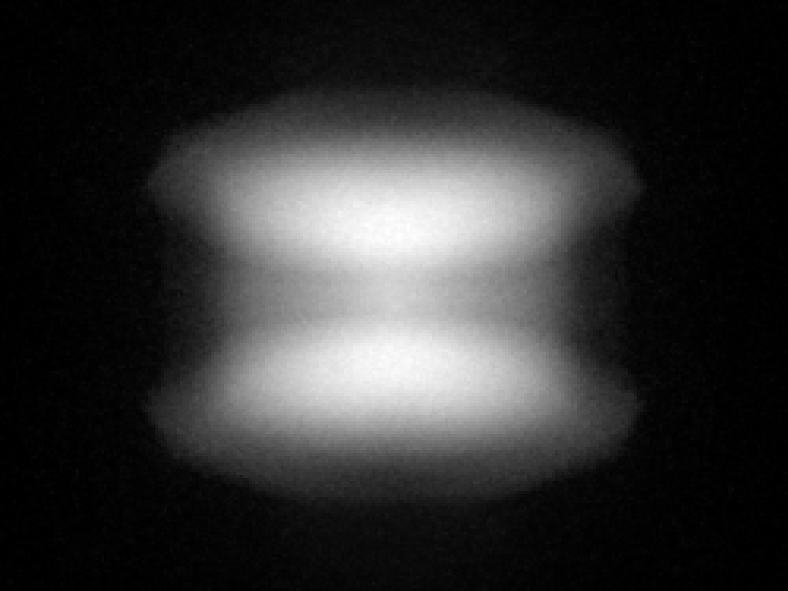

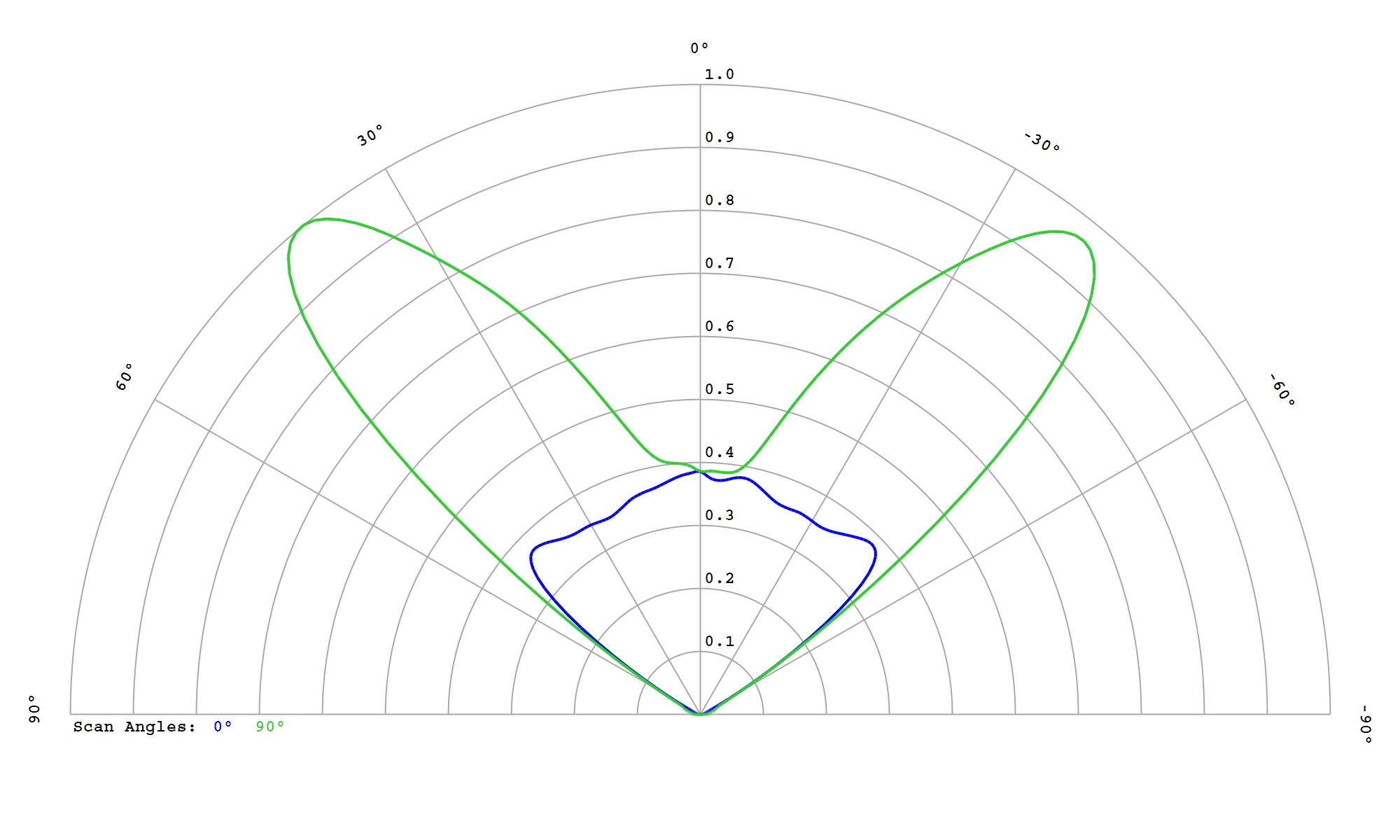

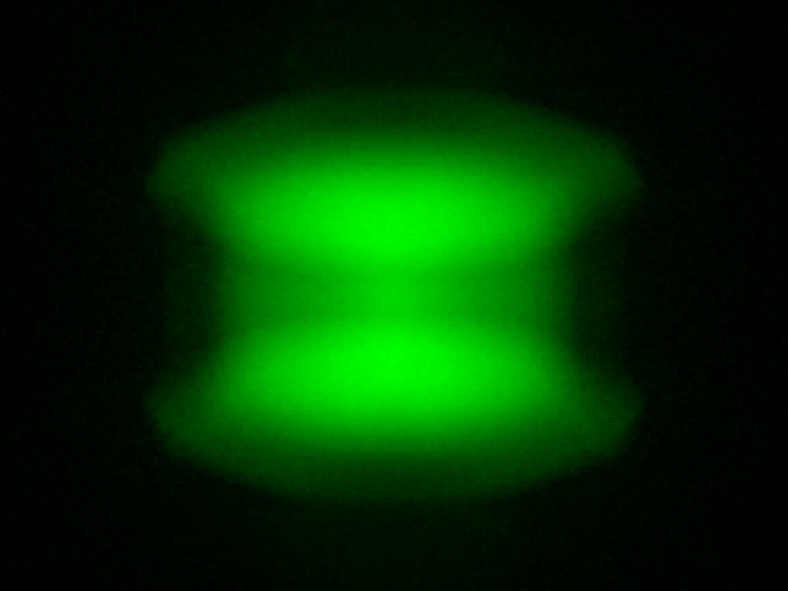

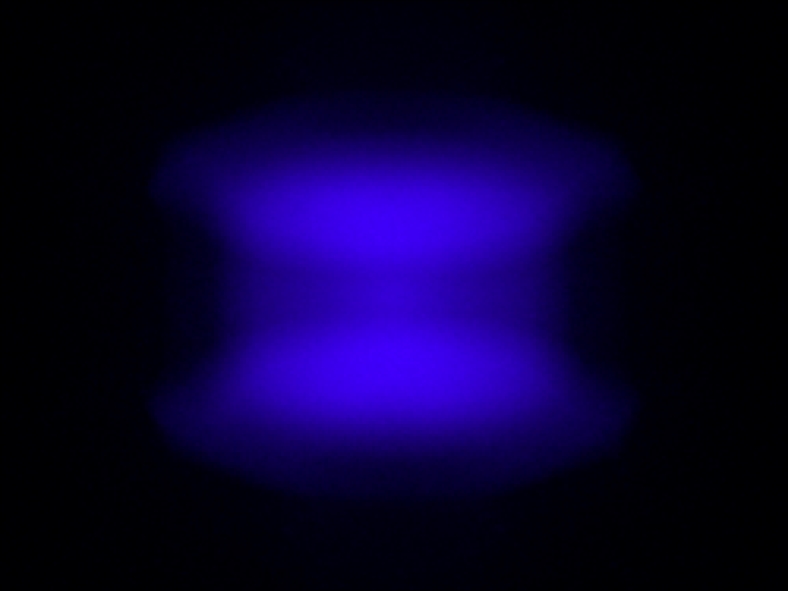

Cree XLamp XQ-E HD White

Eff:

96.0%

FWHM:

100°

Cd/Im:

0.6

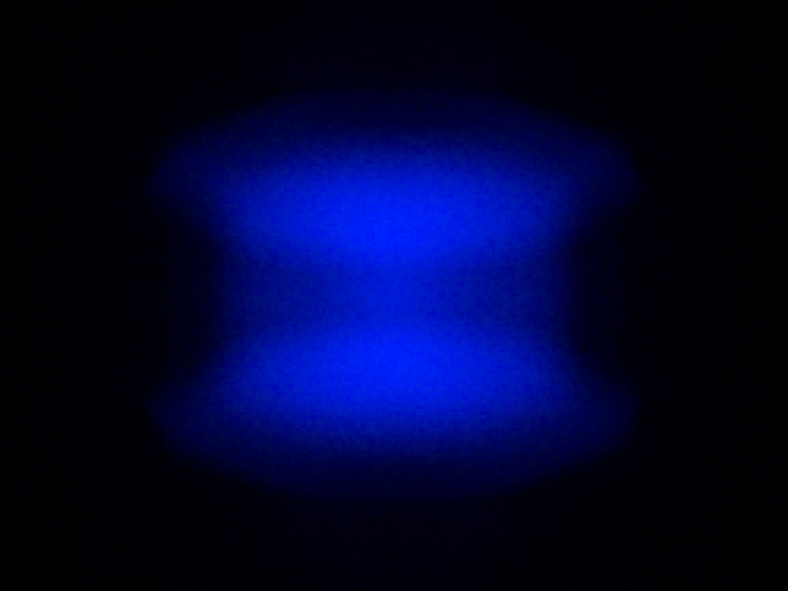

Carclo Optics - Simulated Spot Image

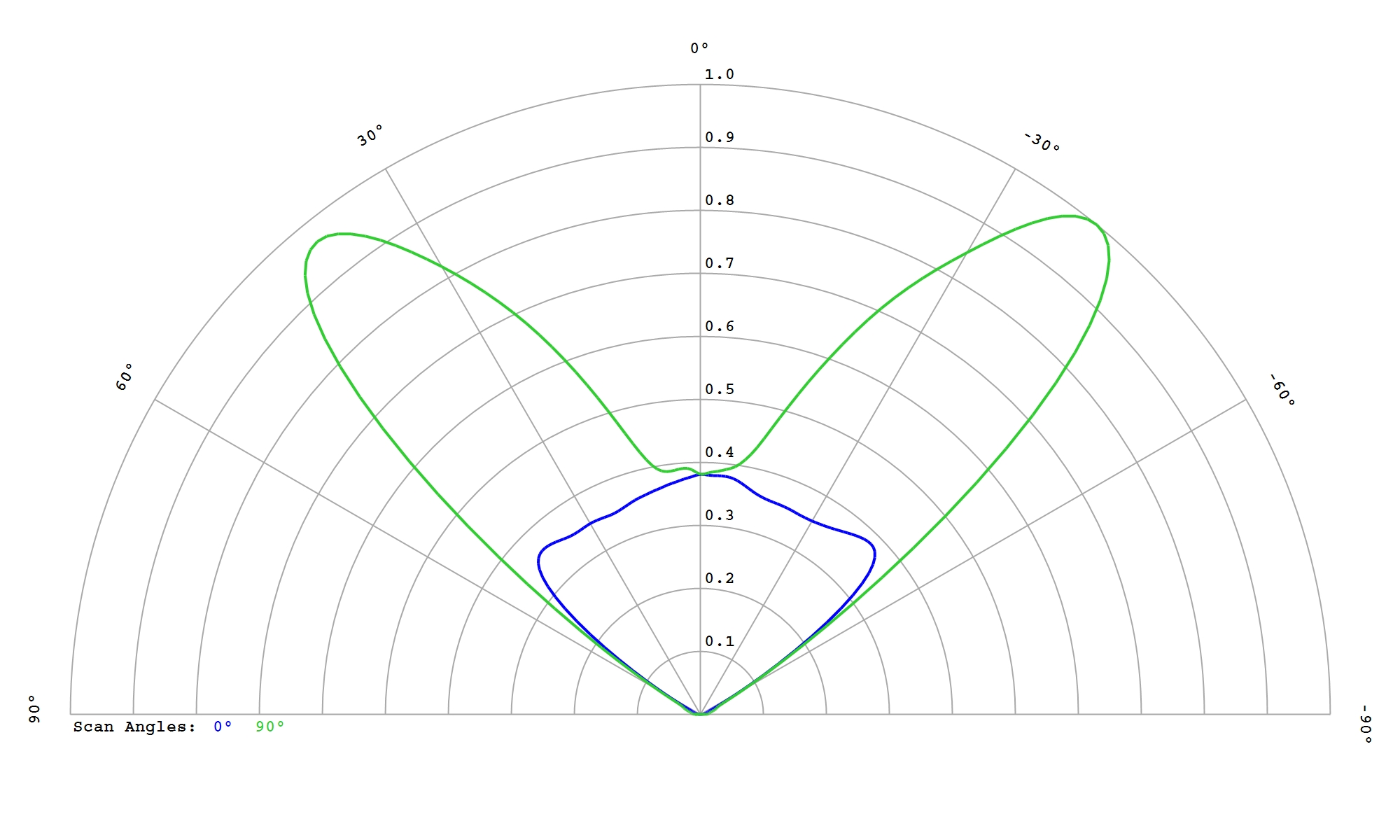

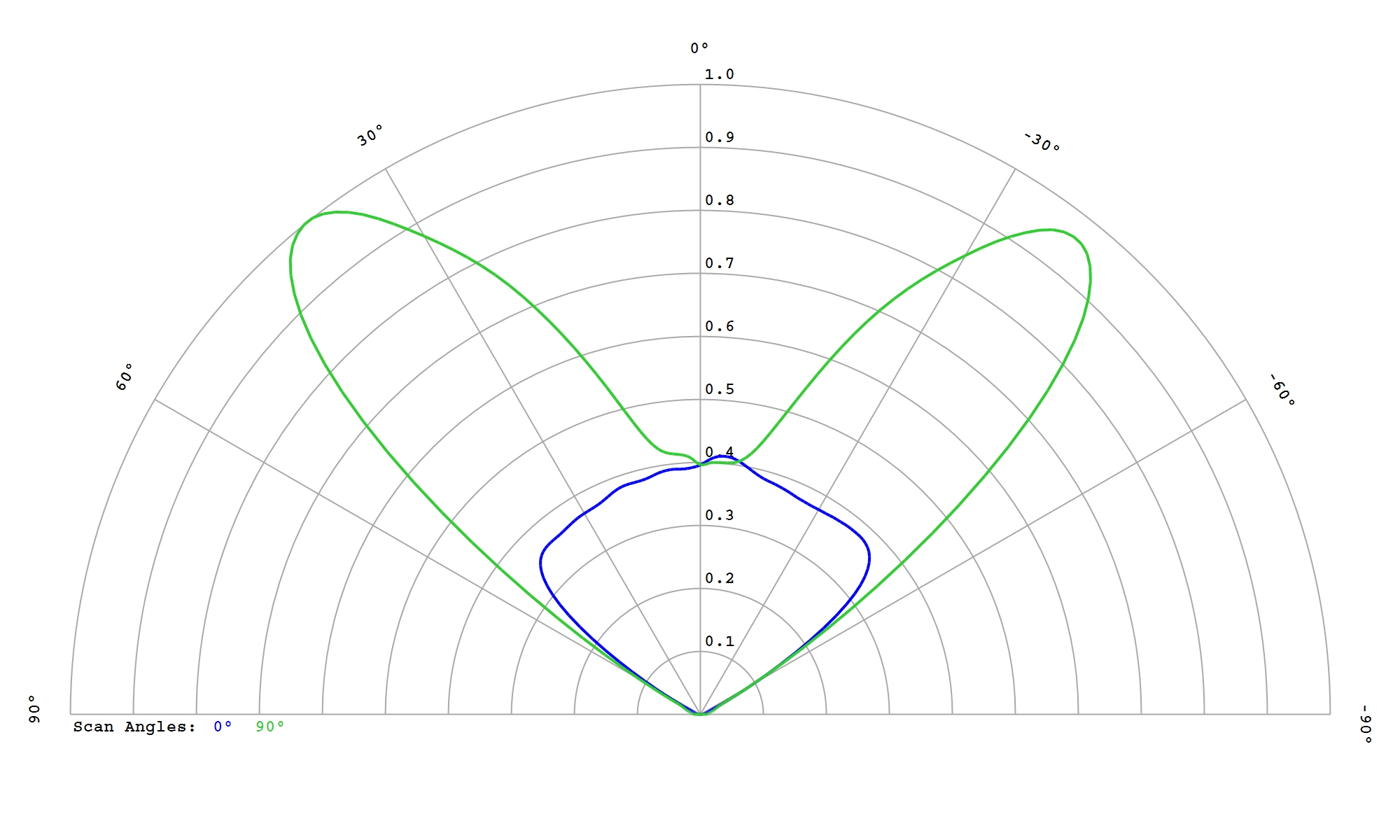

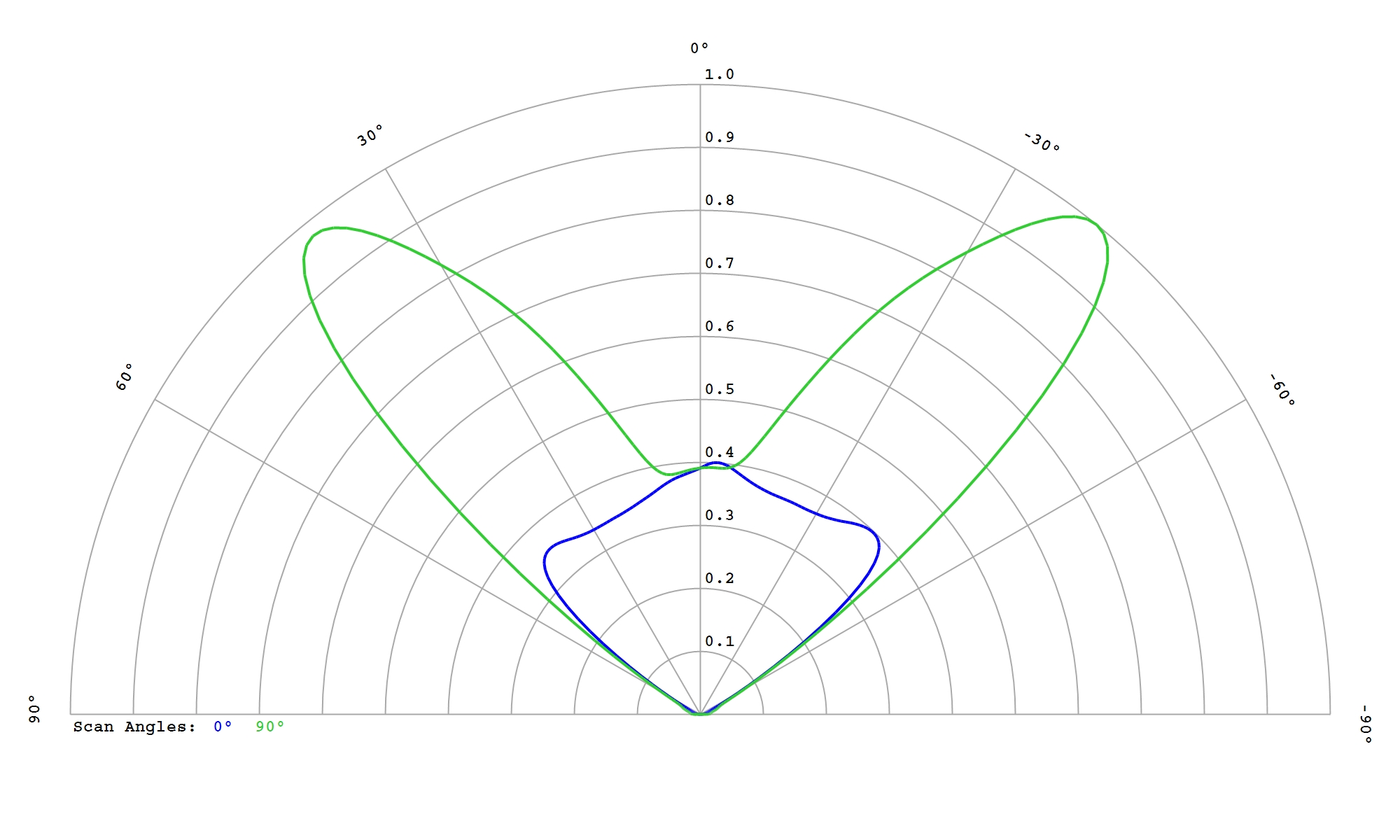

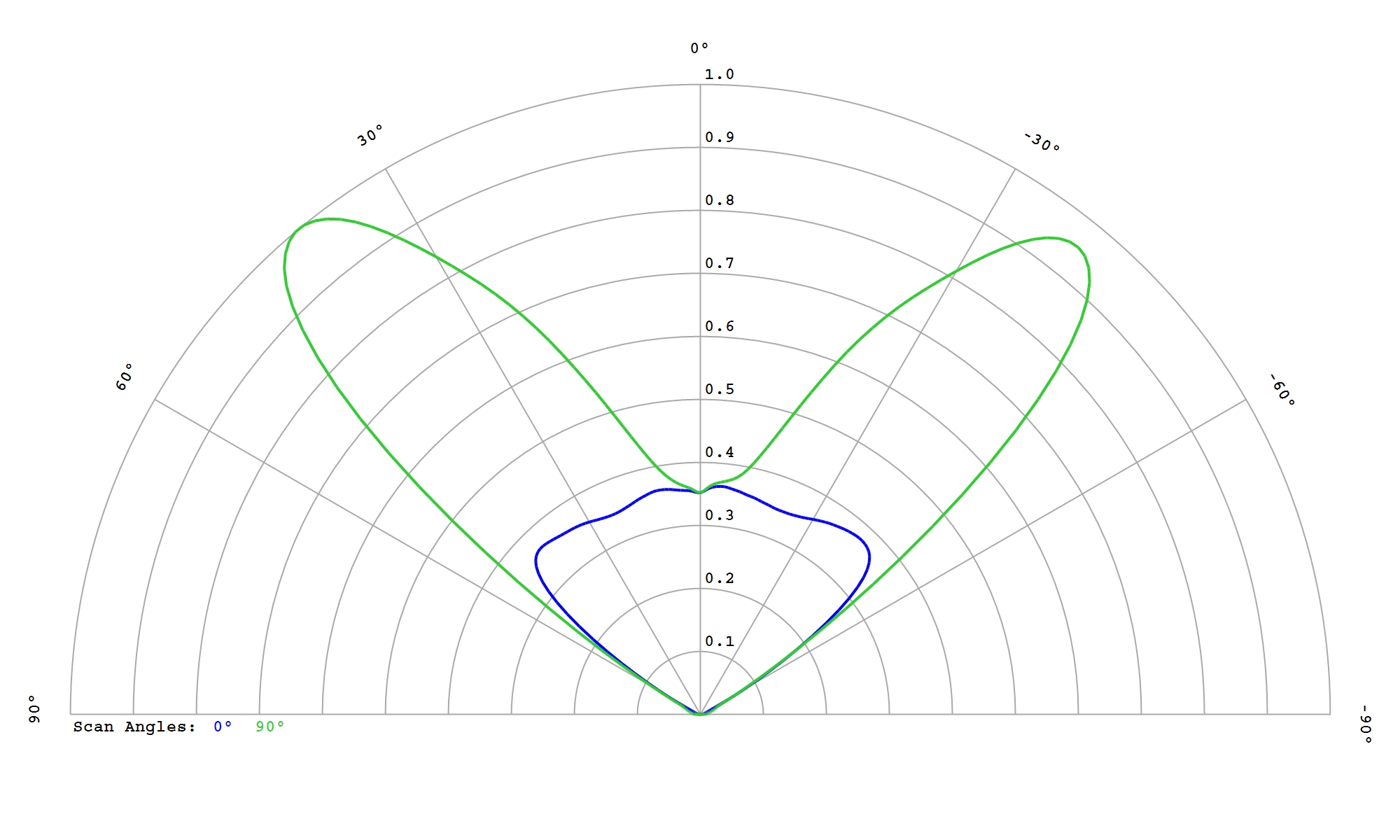

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 3030 LG White

Eff:

96.0%

FWHM:

104°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 5630 White

Eff:

96.5%

FWHM:

102°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

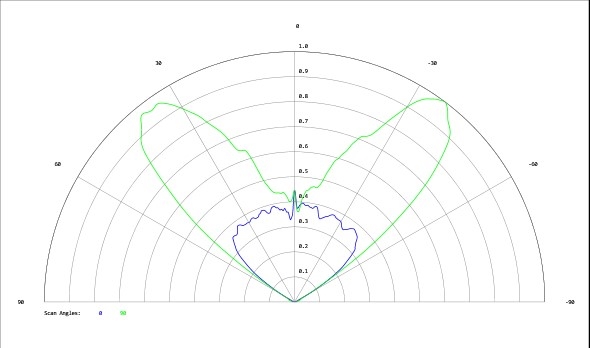

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3014 White

Eff:

96.0%

FWHM:

110 x 99°

Cd/Im:

0.6

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

88.5%

FWHM:

17°

Cd/Im:

6.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

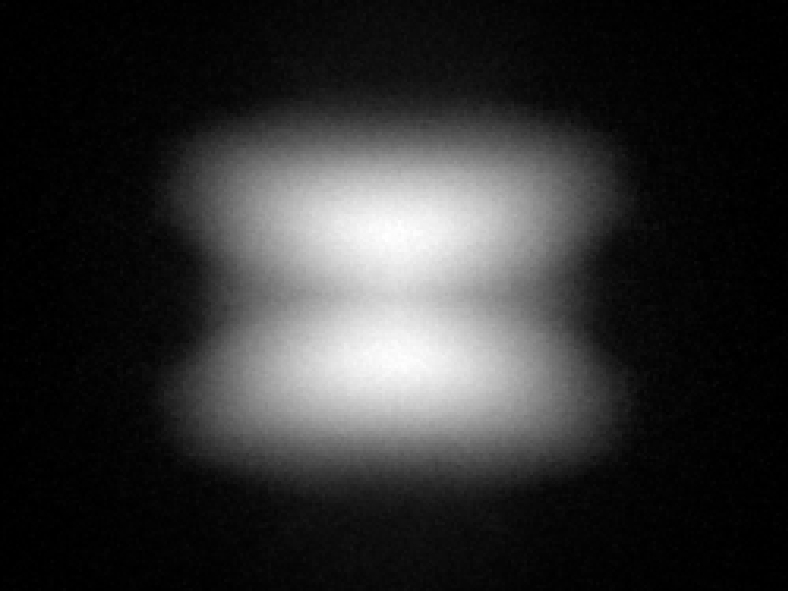

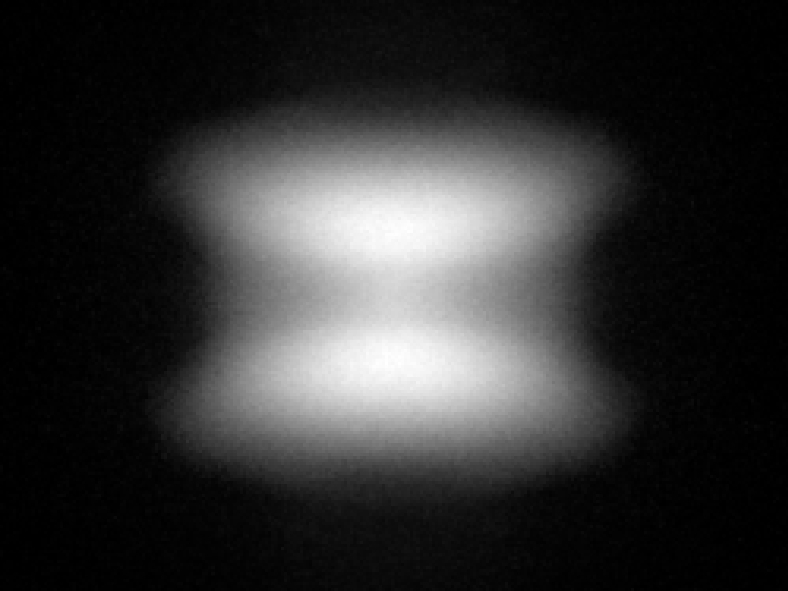

LUMILEDS LUXEON 3030 2D White

Eff:

95.5%

FWHM:

105 x 98°

Cd/Im:

0.6

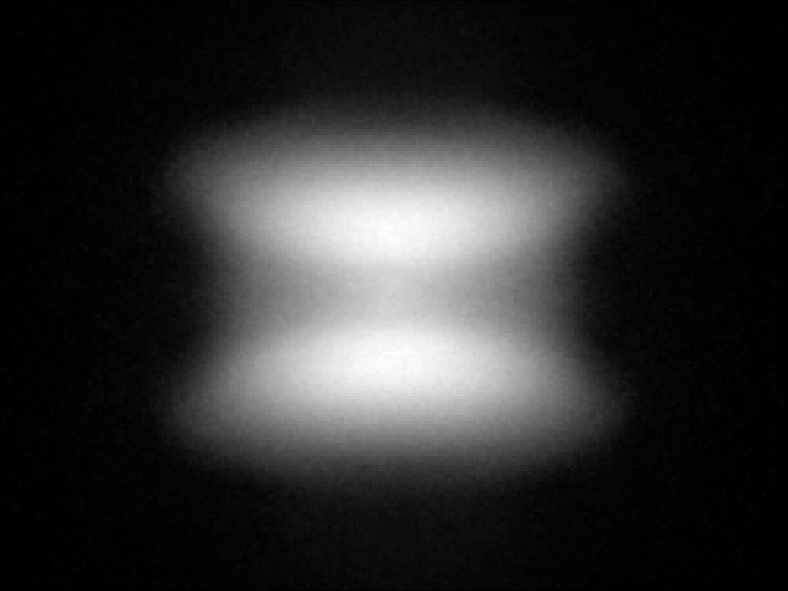

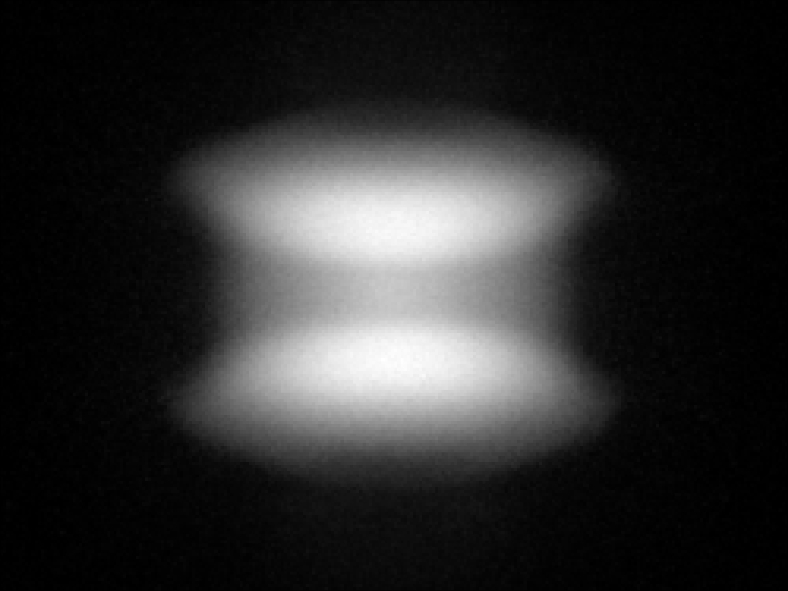

Carclo Optics - Simulated Spot Image

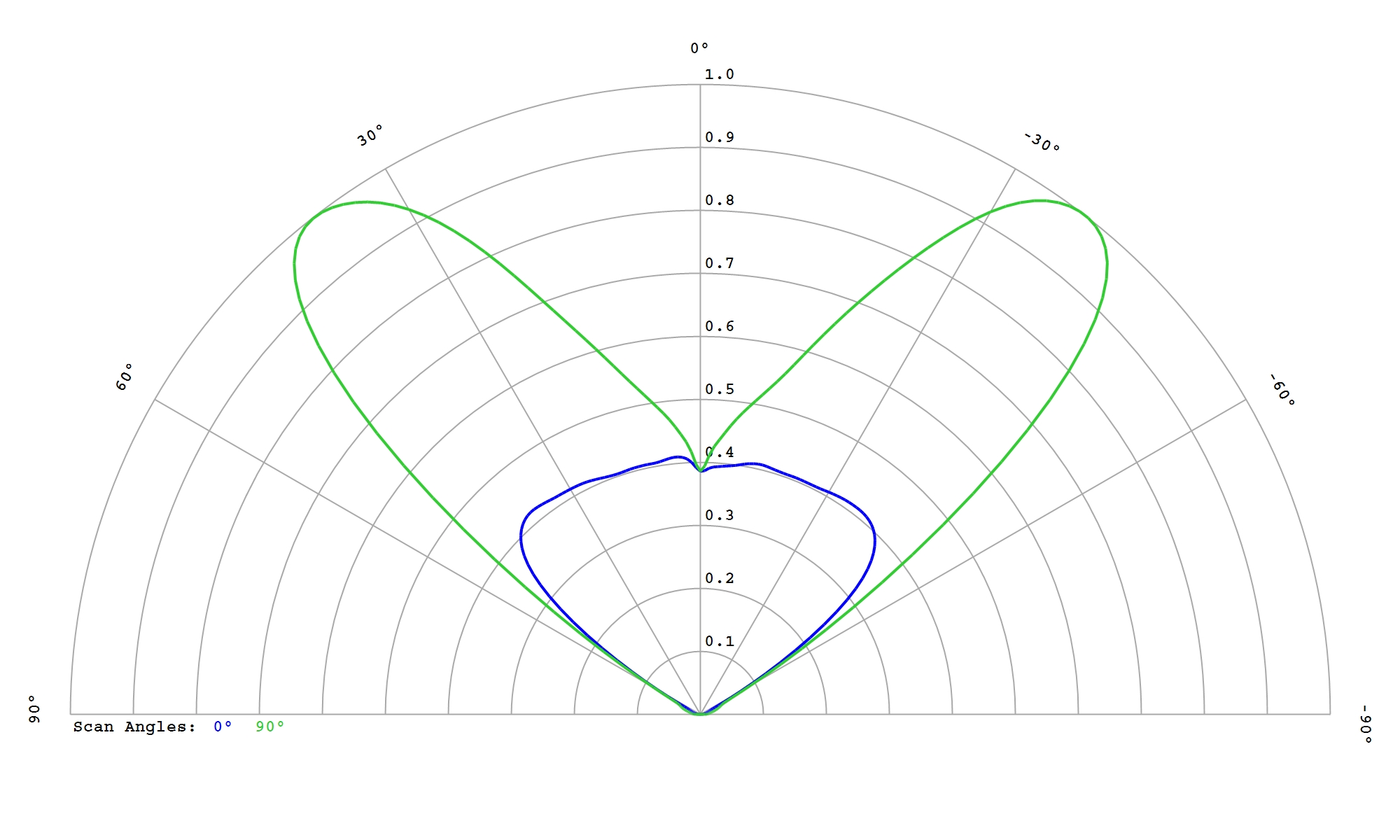

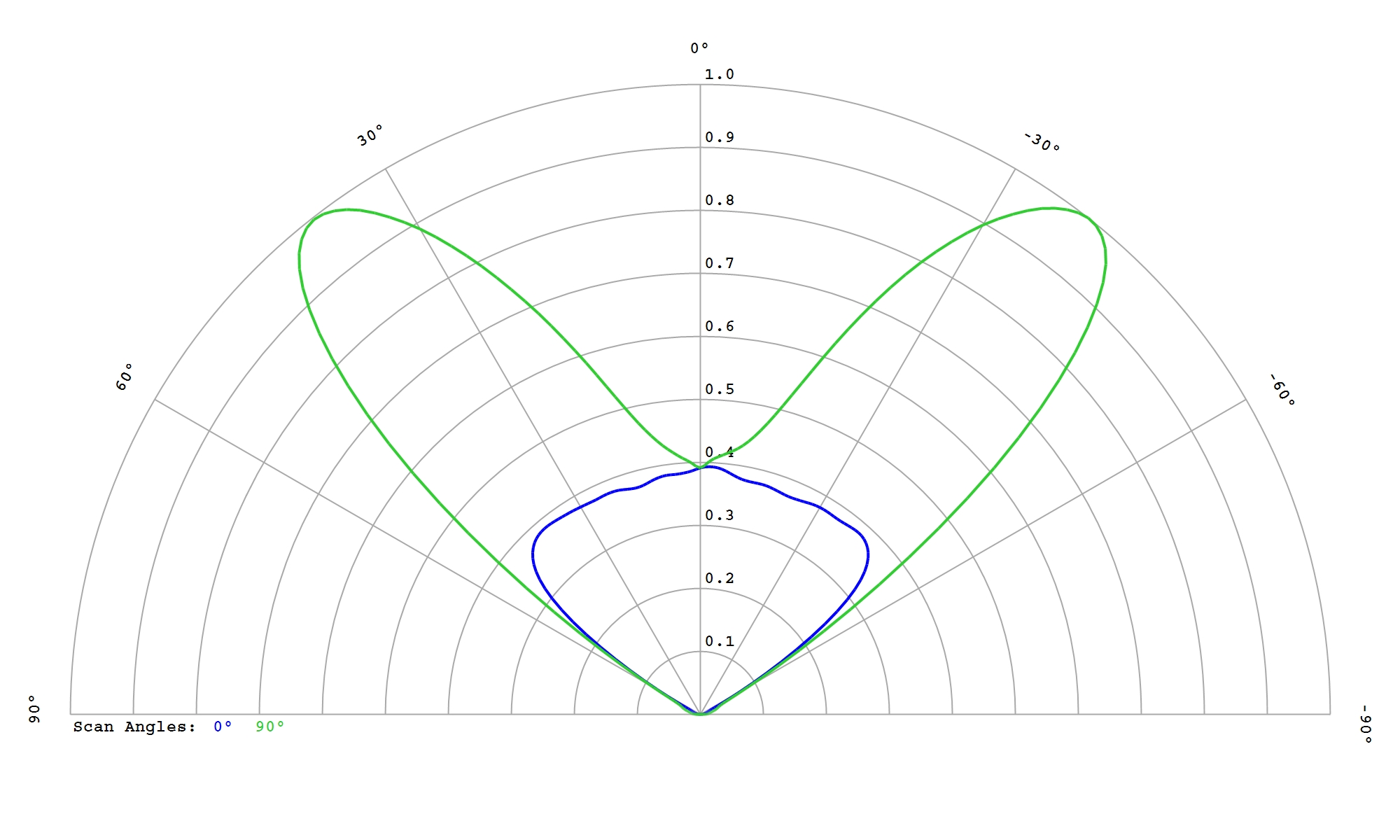

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3030 HE Plus White

Eff:

96.0%

FWHM:

109 x 101°

Cd/Im:

0.5

Carclo Optics – 12957 – Luxeon_3030_HE_Plus_spot-image

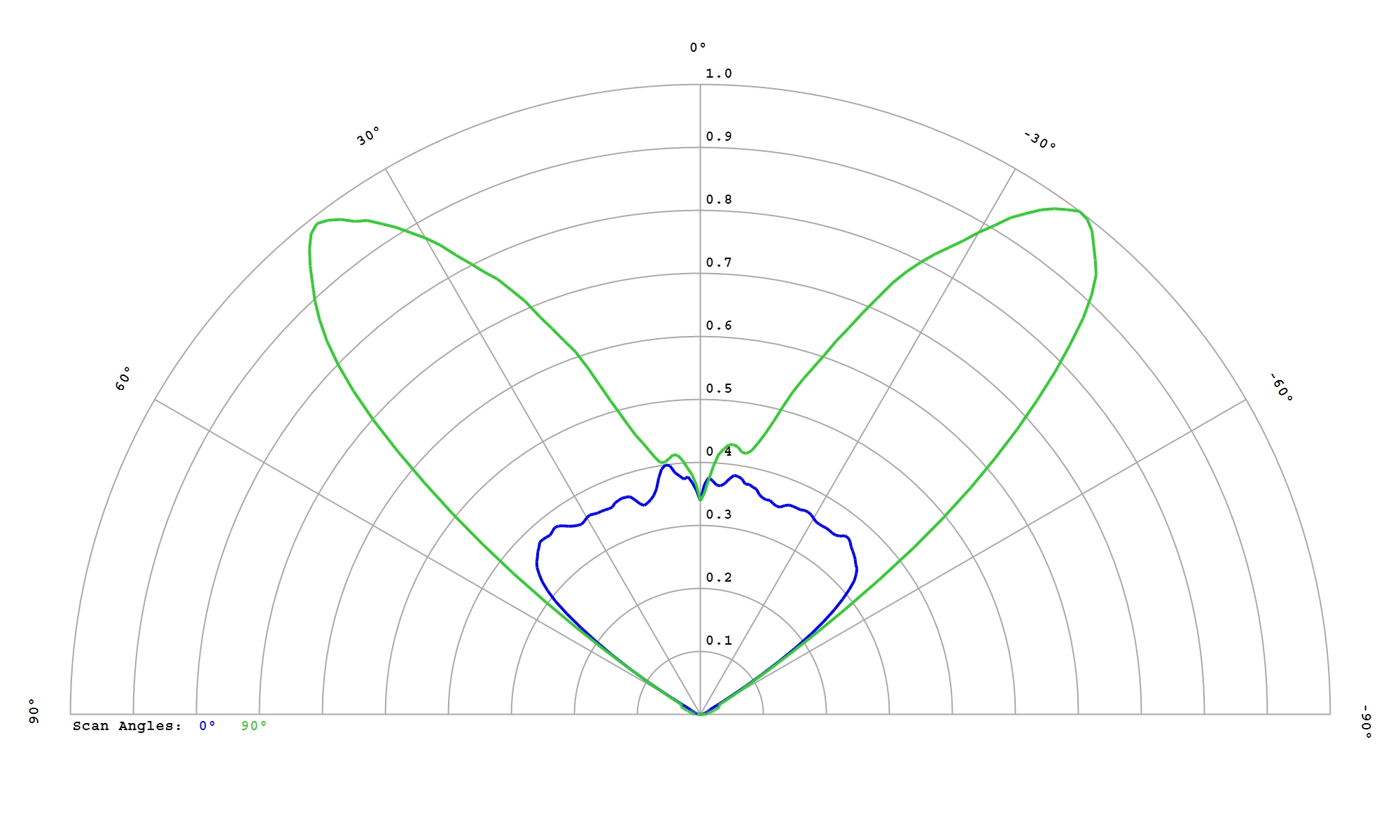

Carclo Optics – 12957 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

96.0%

FWHM:

105°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

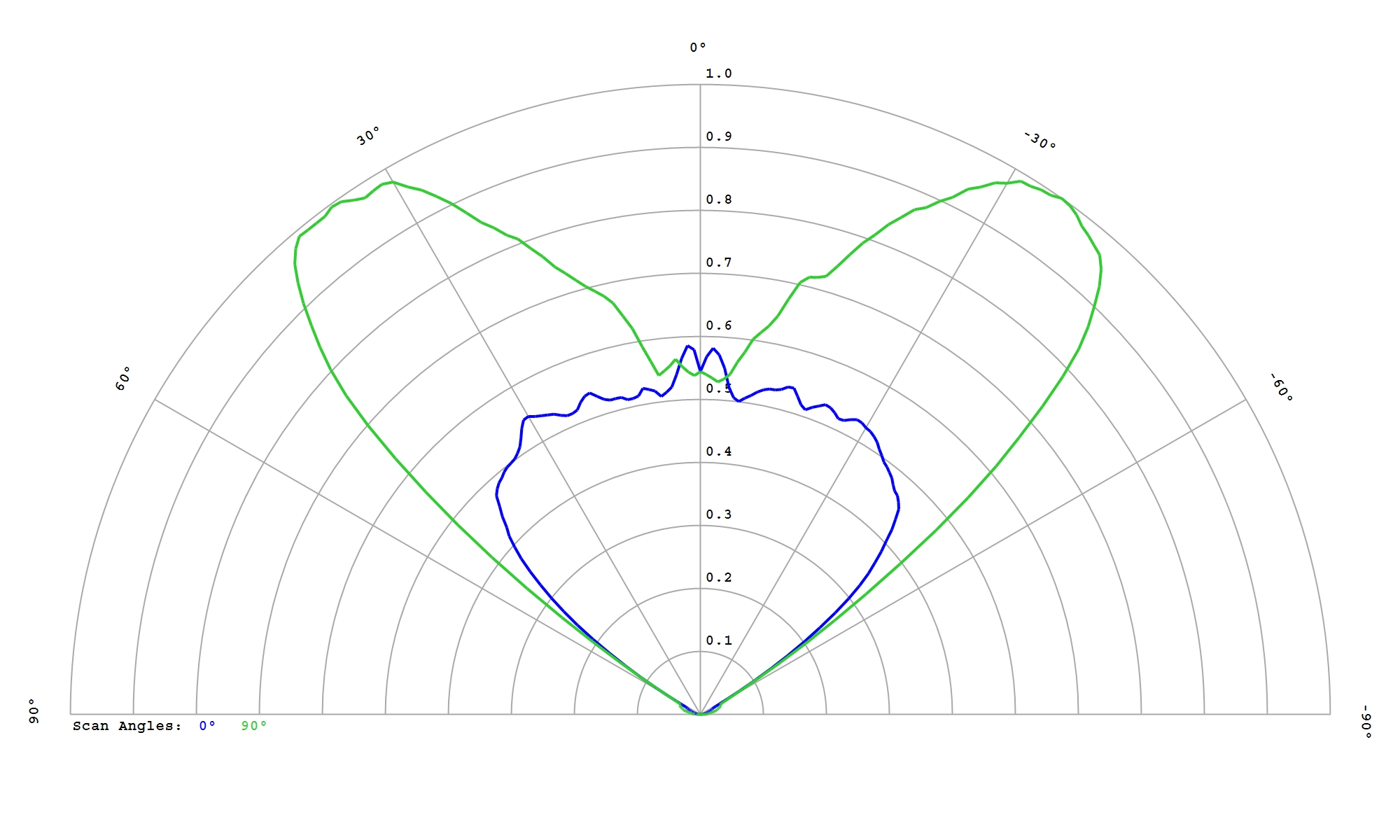

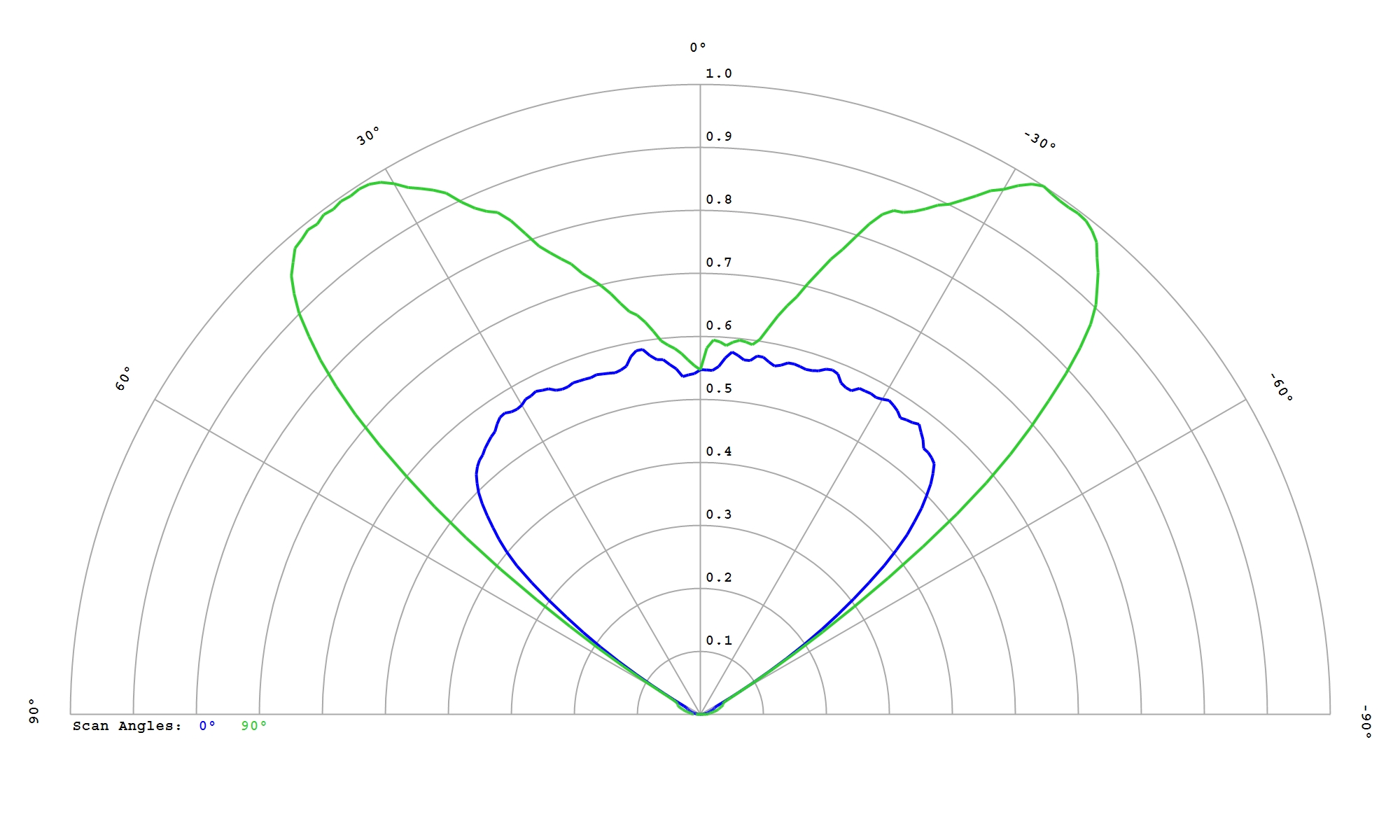

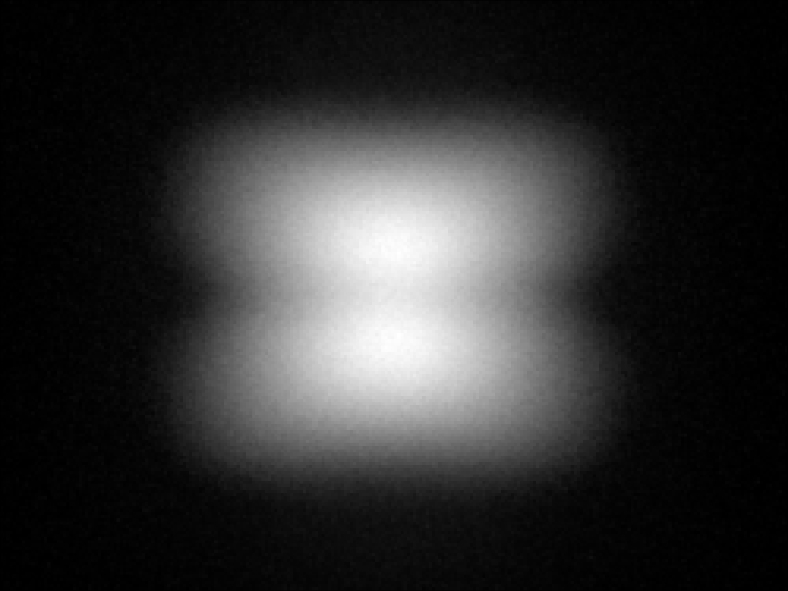

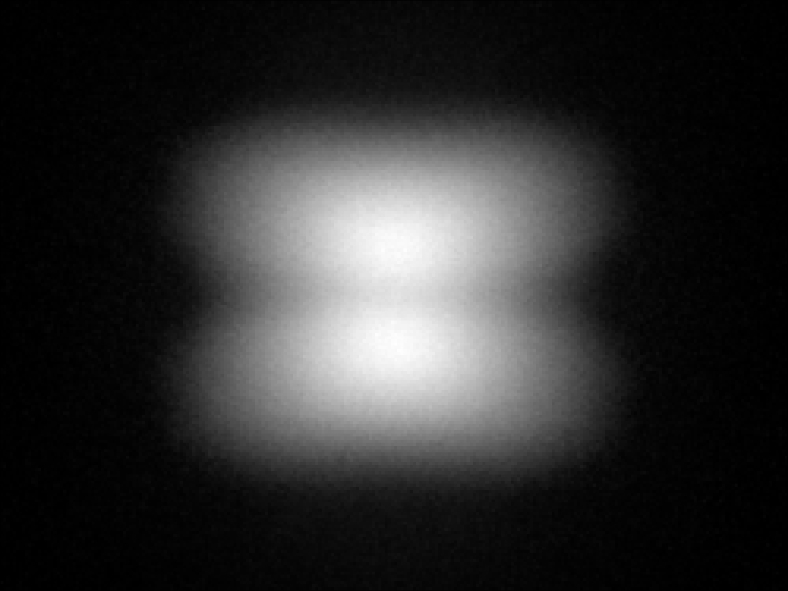

LUMILEDS LUXEON 5050 Round White

Eff:

96.0%

FWHM:

103°

Cd/Im:

0.5

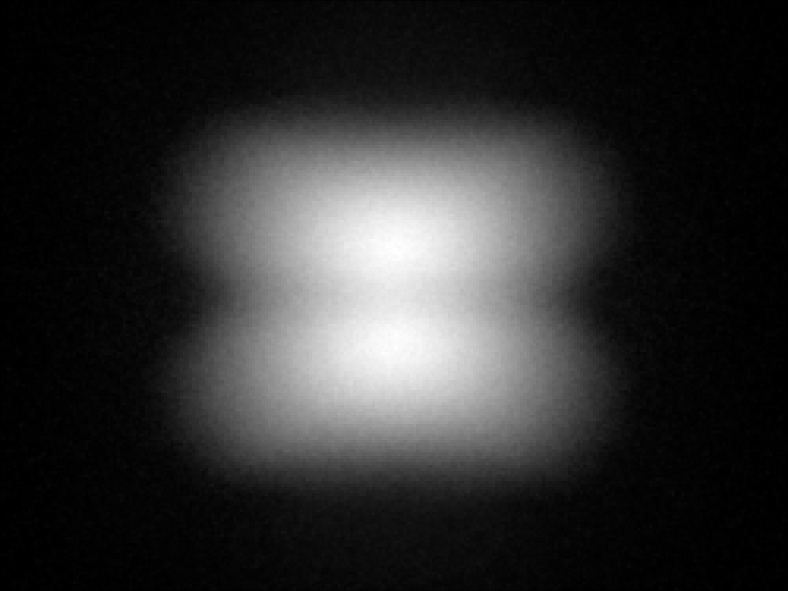

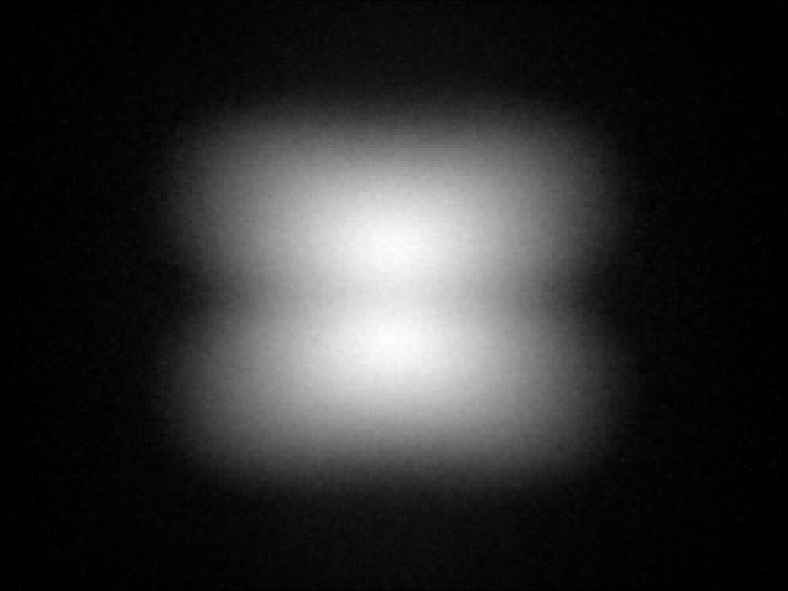

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C White

Eff:

93.0%

FWHM:

114°

Cd/Im:

0.5

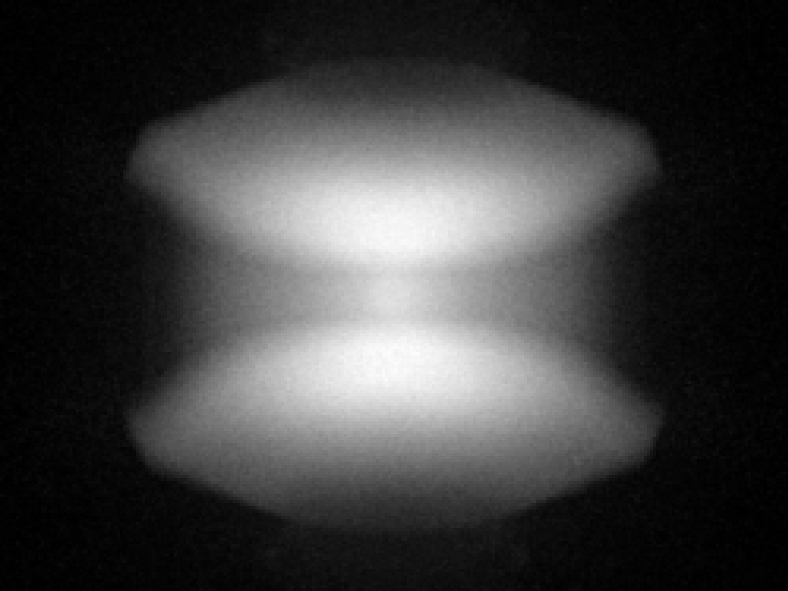

Carclo Optics - Simulated Spot Image

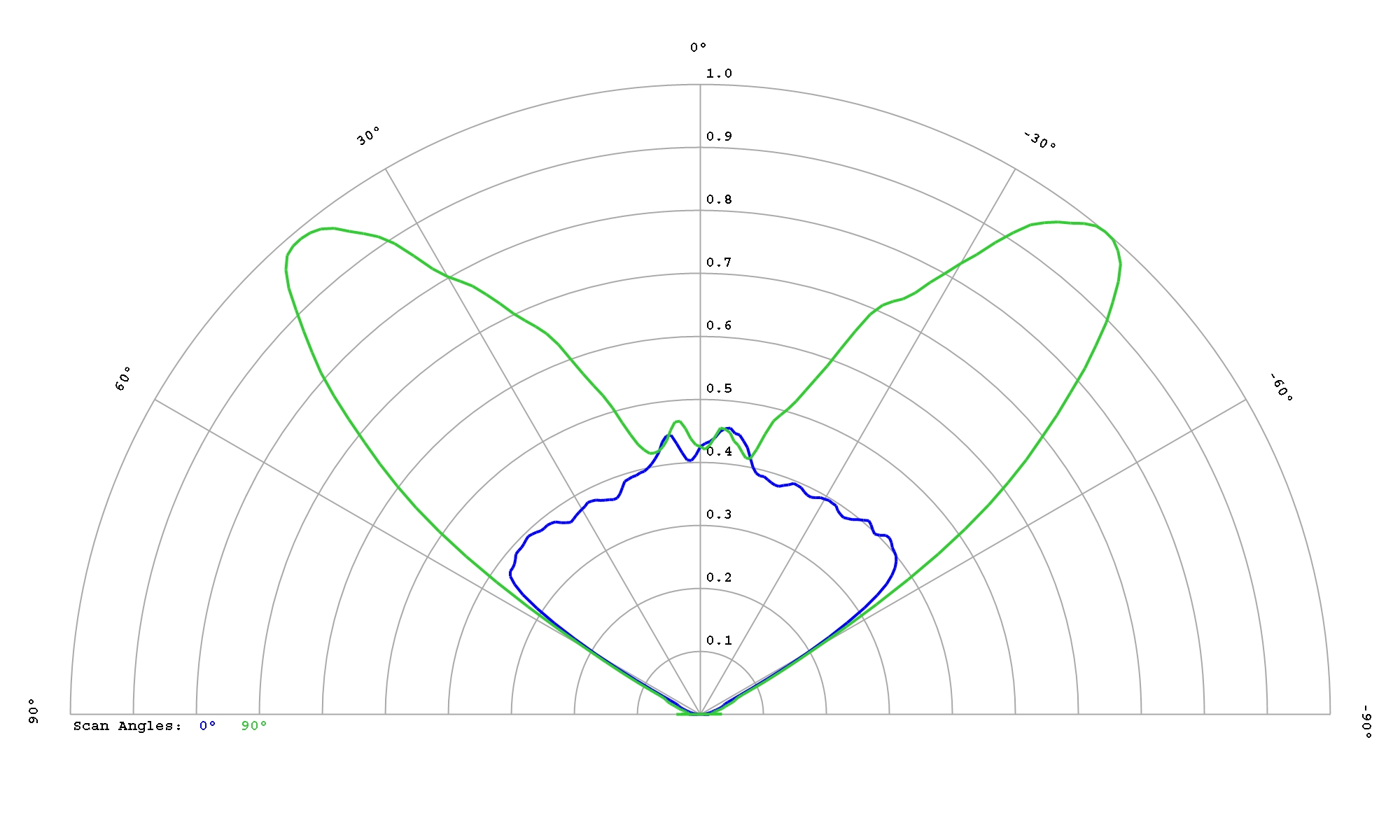

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CZ White

Eff:

96.0%

FWHM:

111 x 102°

Cd/Im:

0.6

Carclo Optics 12957 Spot Image Luxeon CZ 5M CW

Carclo Optics 12957 Cross Section Luxeon CZ 5M CW

Download

ies

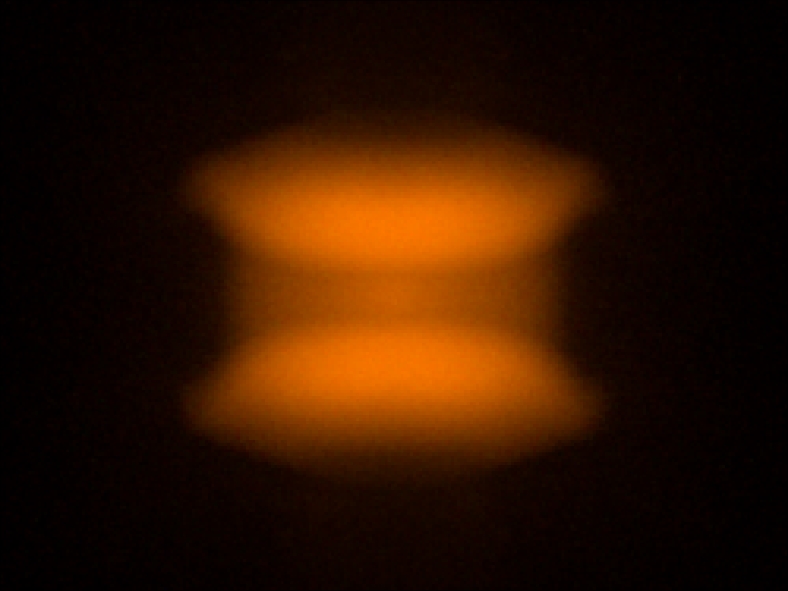

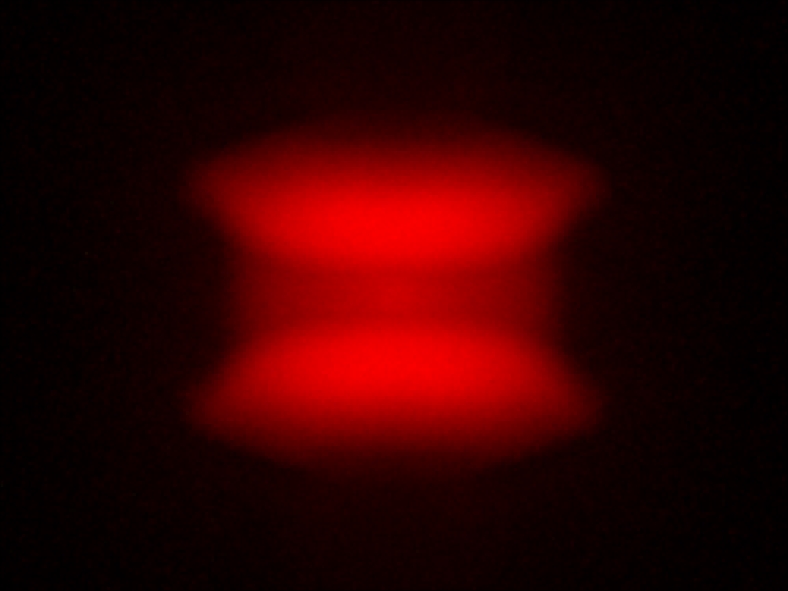

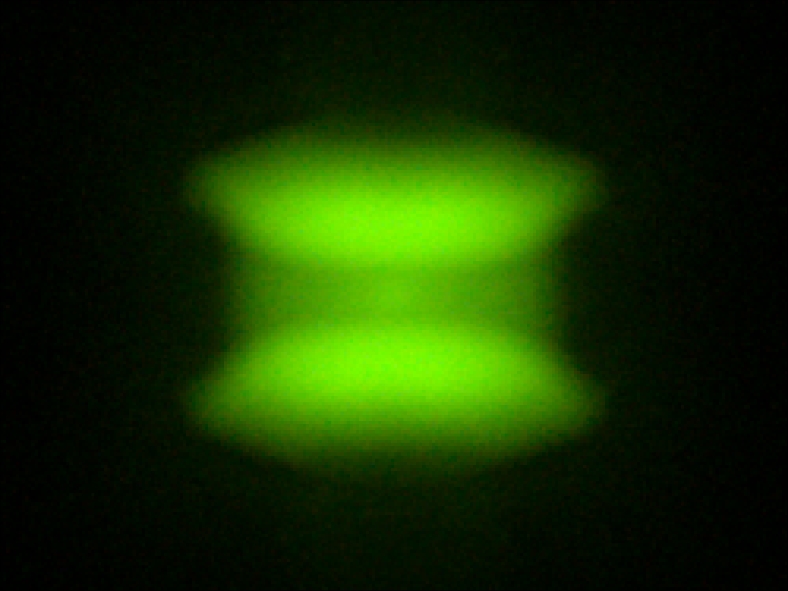

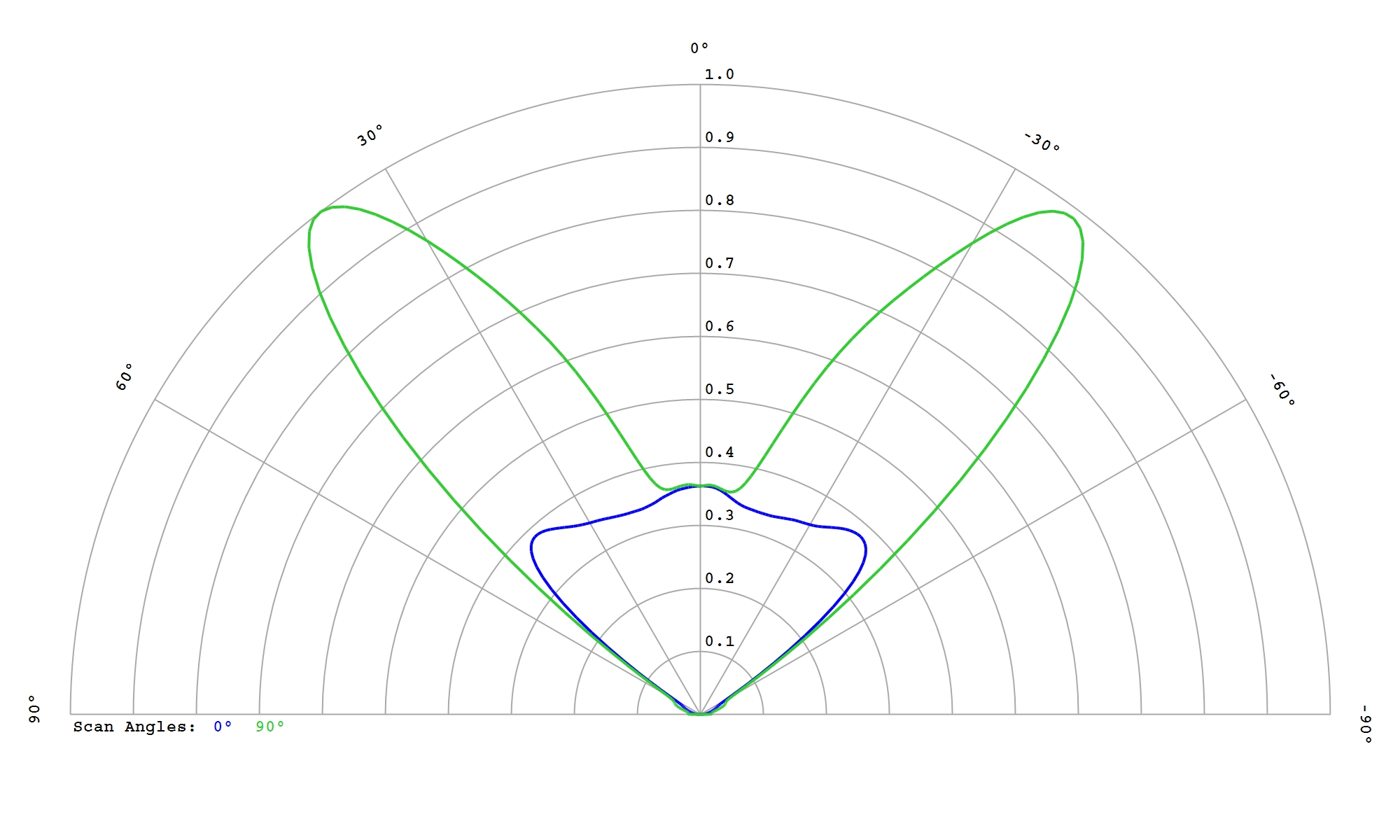

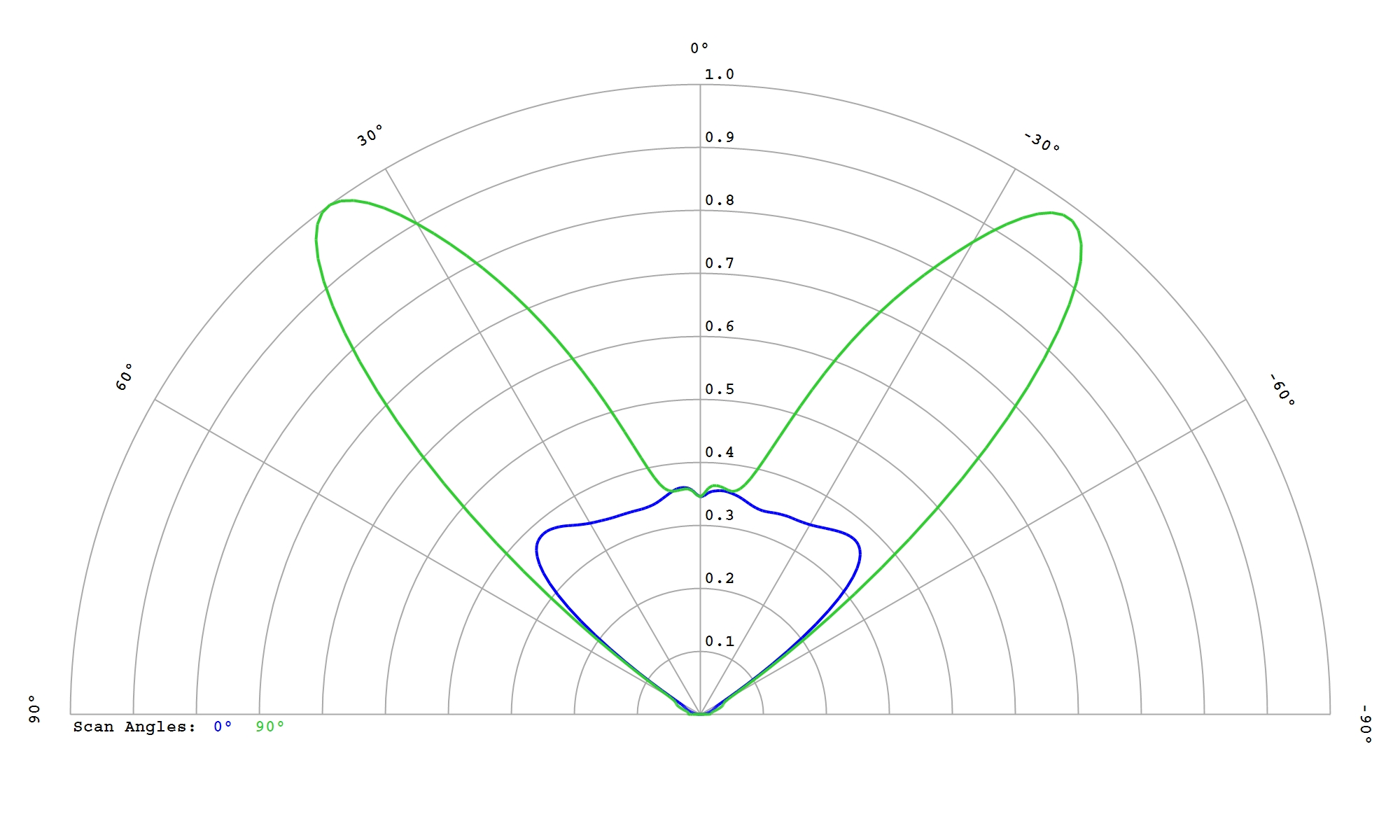

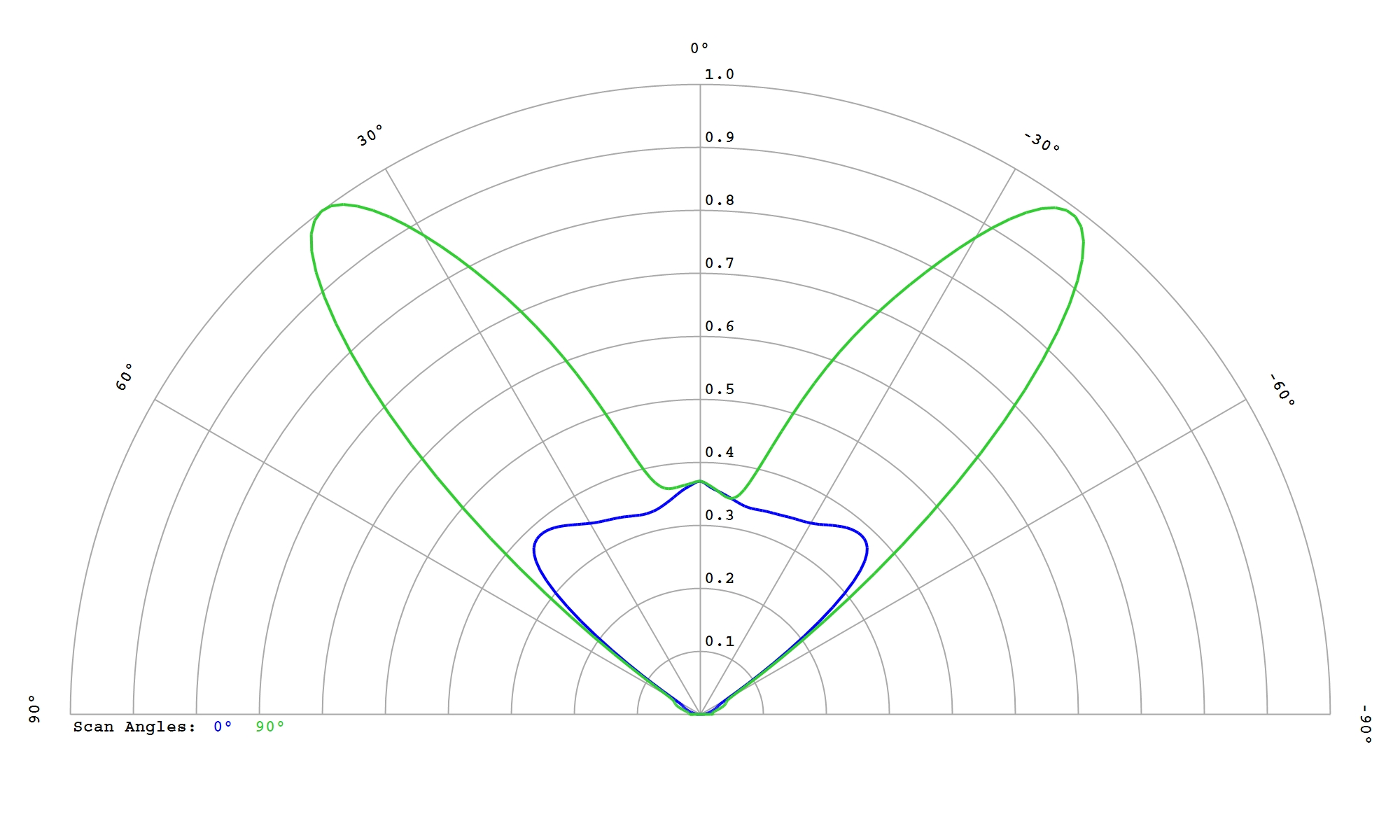

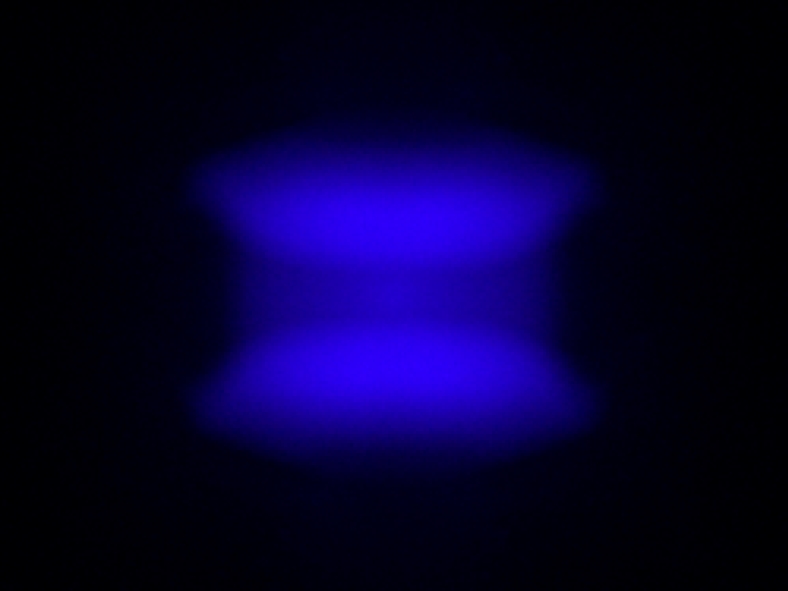

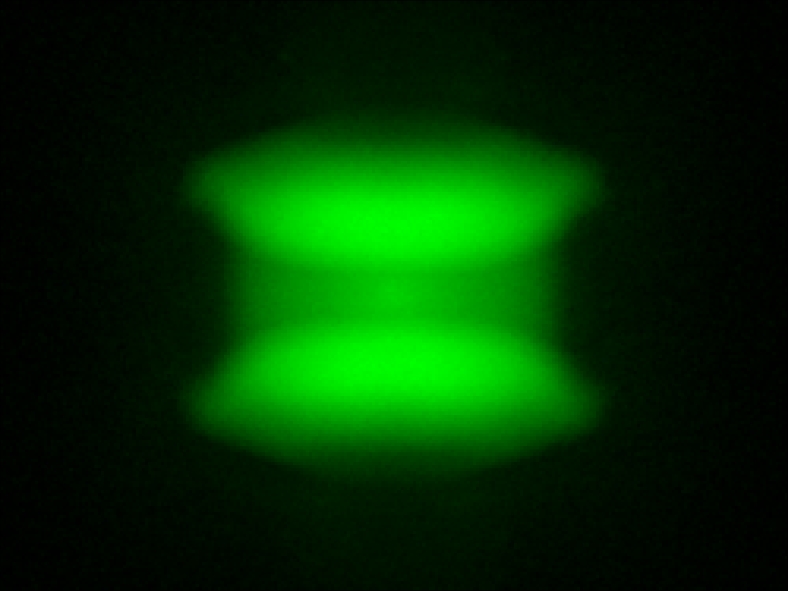

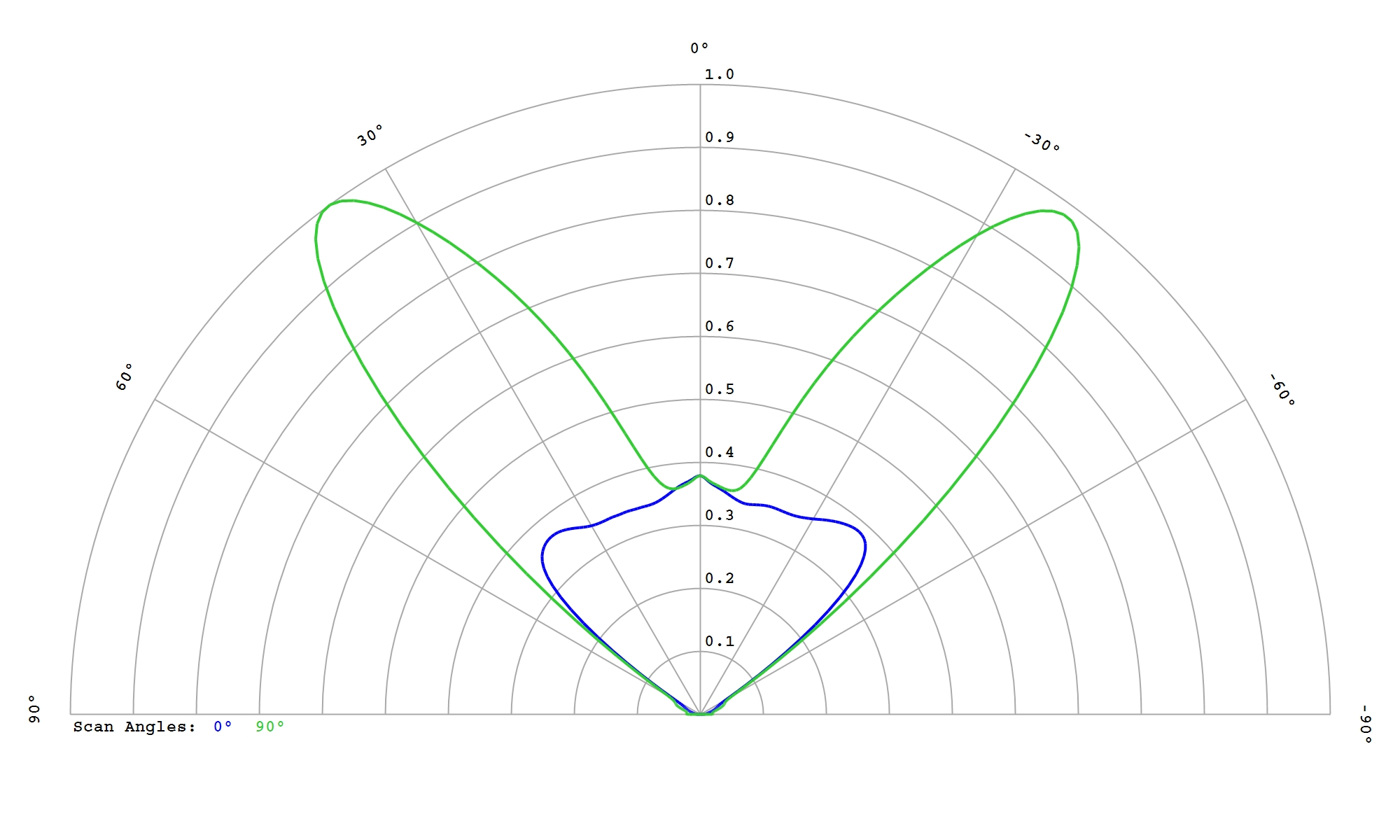

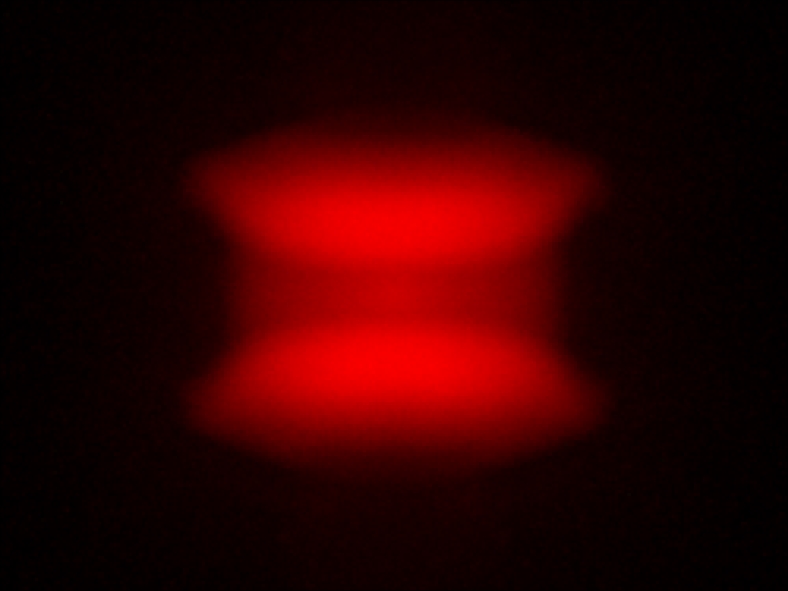

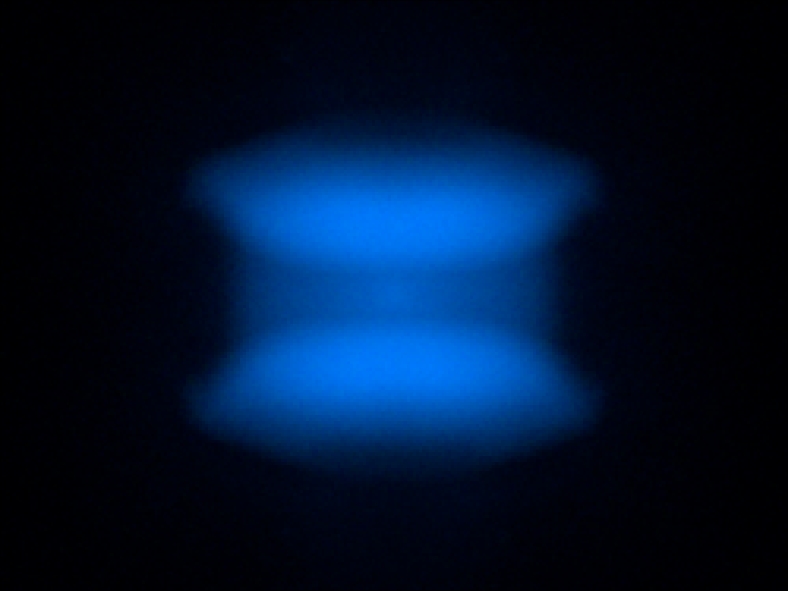

LUMILEDS LUXEON HL1Z CSP White

Eff:

95.0%

FWHM:

106 x 97°

Cd/Im:

0.6

Download

ies

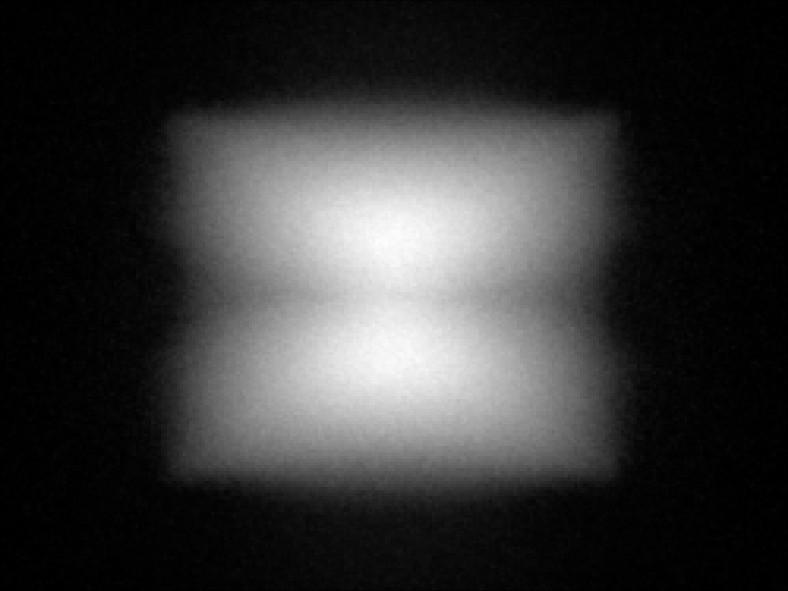

LUMILEDS LUXEON HL2X White

Eff:

96.0%

FWHM:

113 x 108°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image Luxeon HL2X

Carclo Optics - 12957 Cross Section Luxeon HL2X

Download

ies

LUMILEDS LUXEON HL2X-D White

Eff:

96.0%

FWHM:

116 x 113°

Cd/Im:

0.5

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

95.5%

FWHM:

116 x 110°

Cd/Im:

0.5

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

95.5%

FWHM:

107 x 98°

Cd/Im:

0.6

Carclo Optics – 12957 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12957 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

109/99°

Ipk/W:

0.6

Carclo Optics - 12957 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12957 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

96.5%

FWHM:

114 x 103°

Cd/Im:

0.6

Carclo Optics – 12957 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12957 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

96.0%

FWHM:

113 x 104°

Cd/Im:

0.6

Carclo Optics – 12957 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12957 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

96.5%

FWHM:

111 x 102°

Cd/Im:

0.6

Carclo Optics – 12957 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12957 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

97.0%

FWHM:

114 x 102°

Cd/Im:

0.6

Carclo Optics – 12957 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12957 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

96.0%

FWHM:

110 x 104°

Cd/Im:

0.6

Carclo Optics - 12957 Spot Image Lumileds Luxeon Rubix White

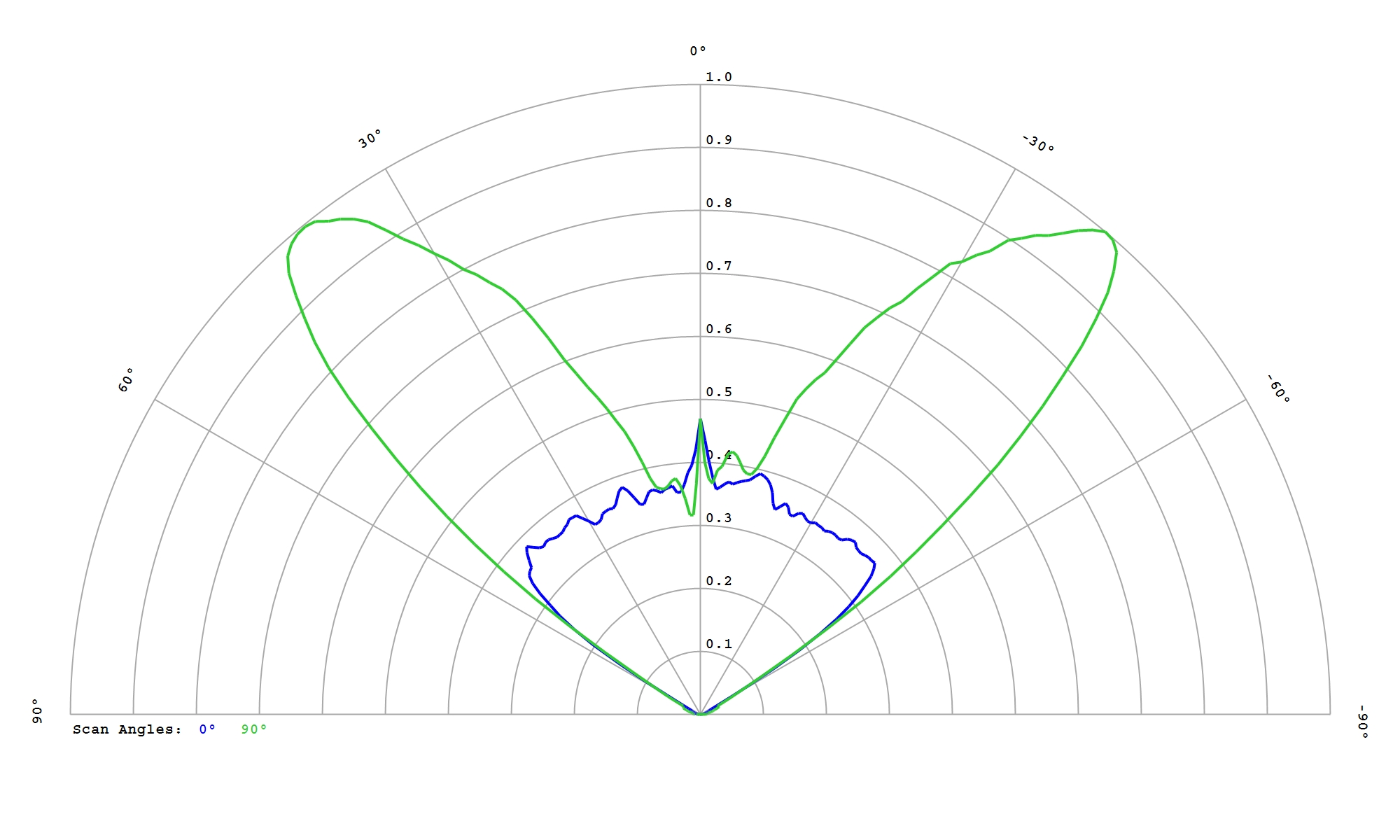

Carclo Optics - 12957 Cross Section Lumileds Luxeon Rubix White

Download

ies

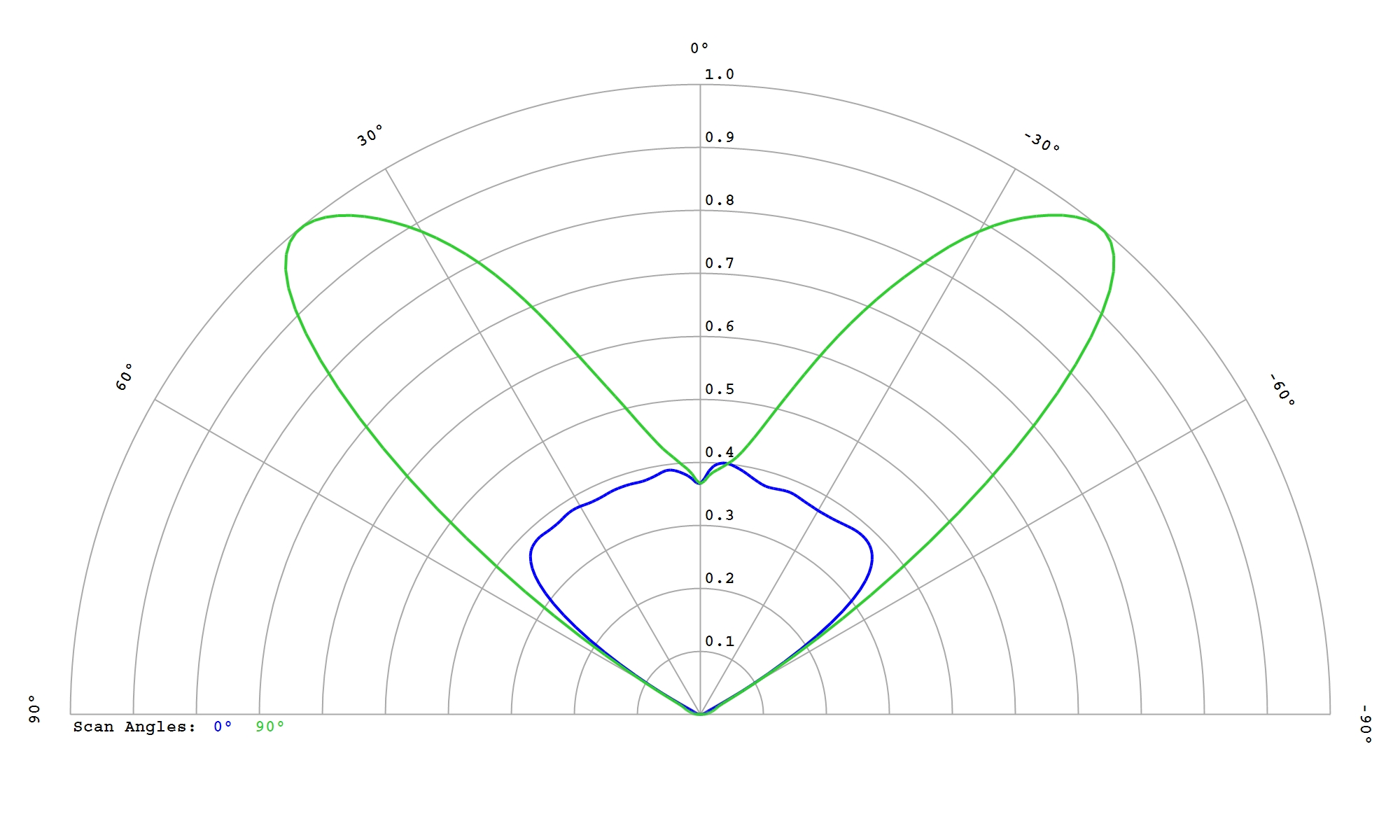

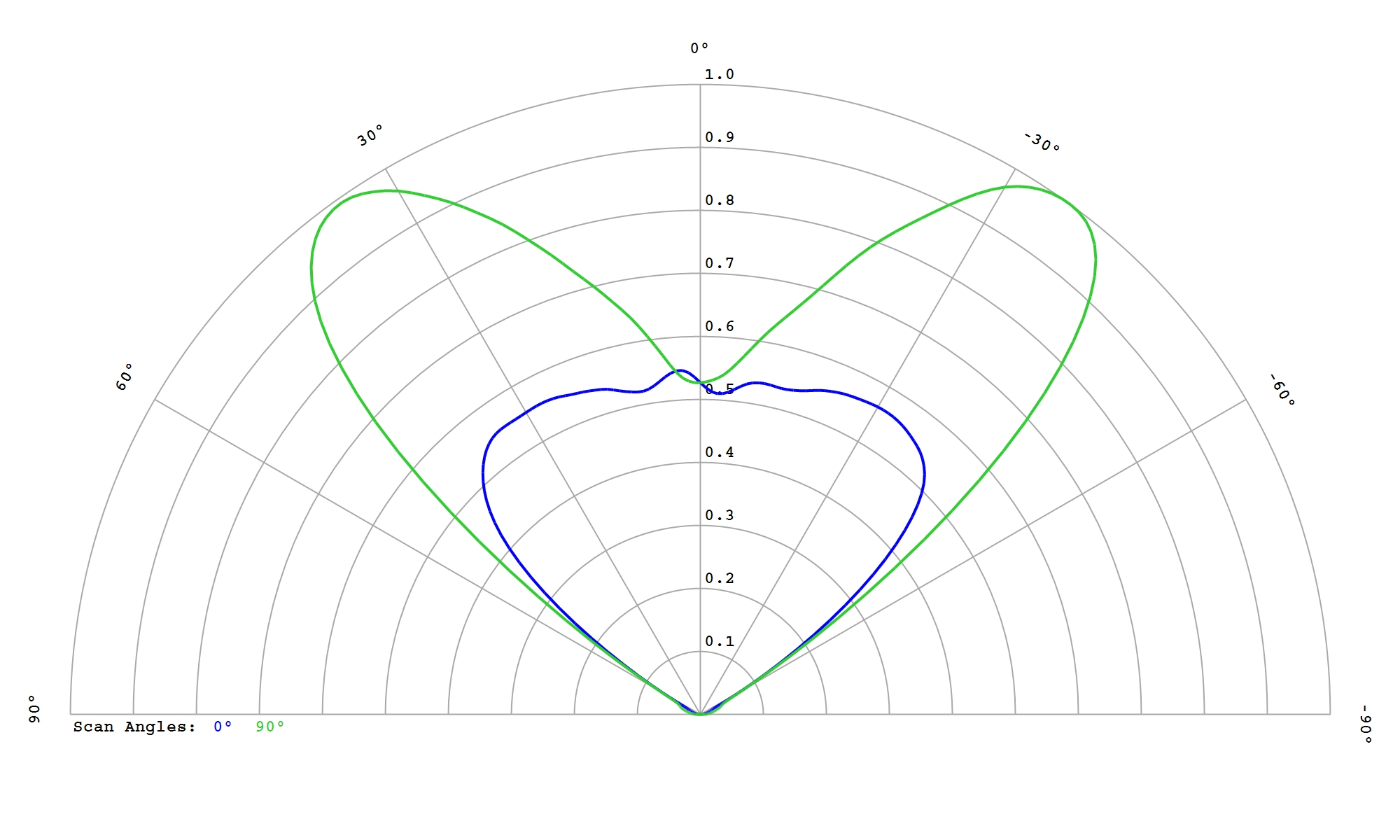

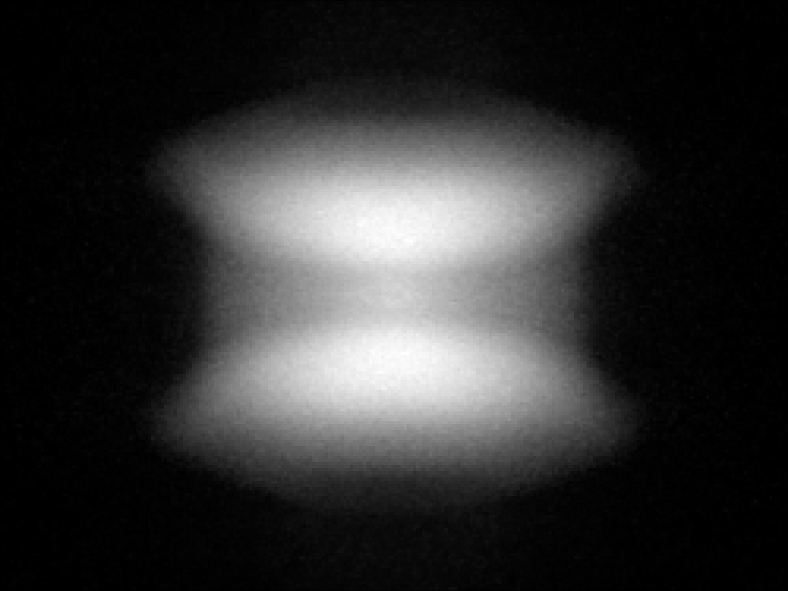

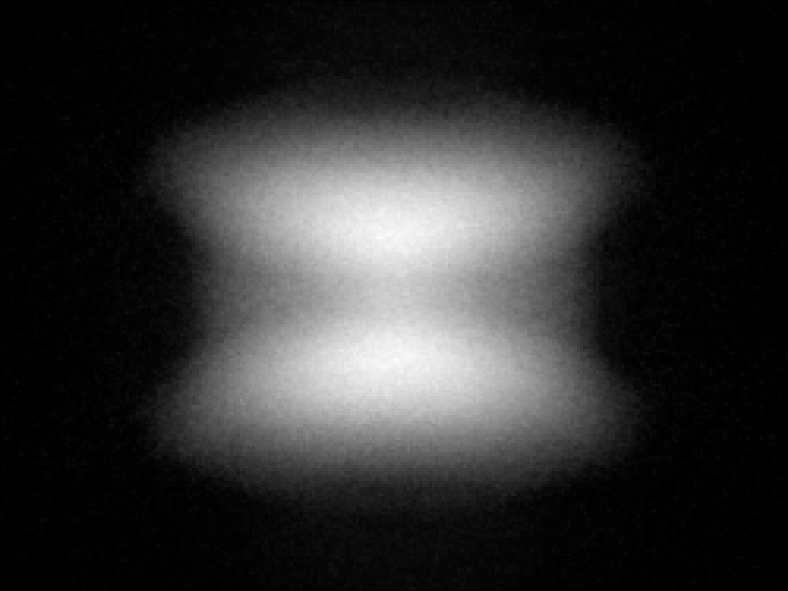

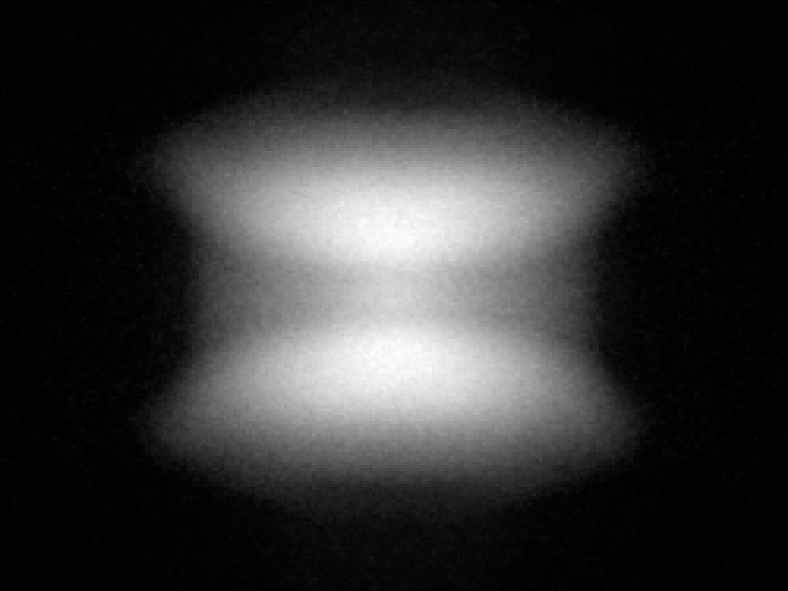

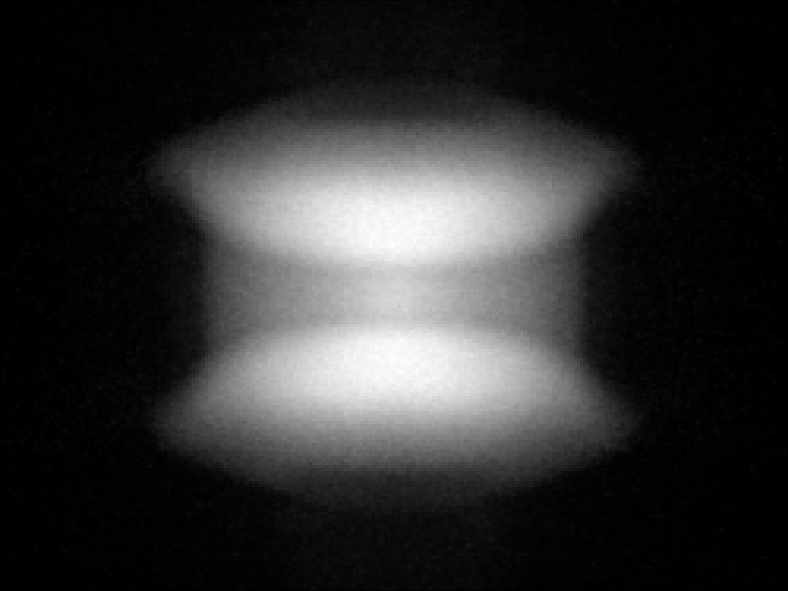

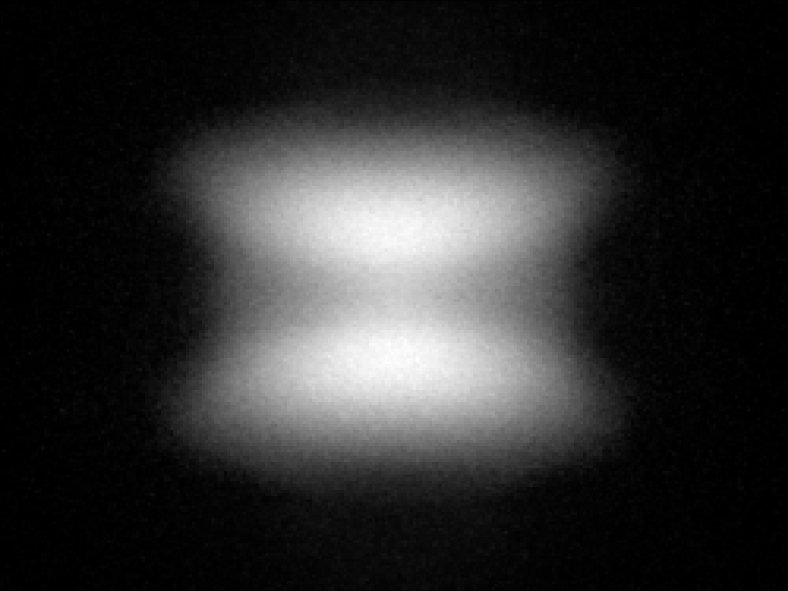

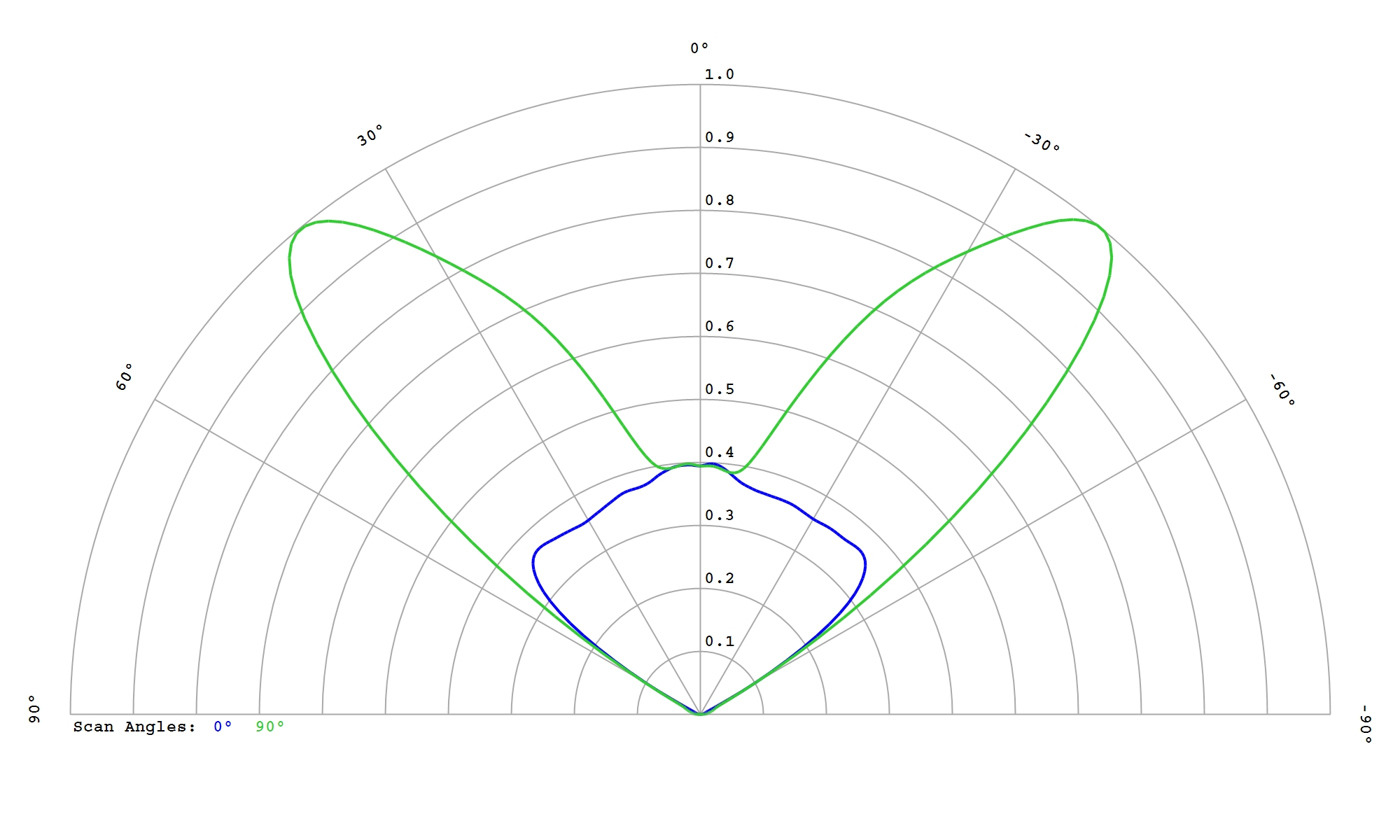

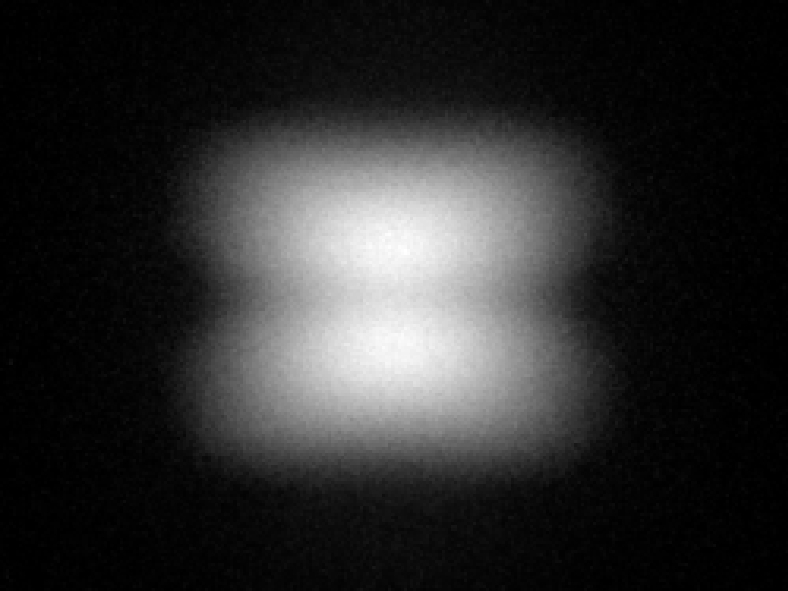

Luminus Devices SFT-40-WxS White

Eff:

96.5%

FWHM:

112 x 103°

Cd/Im:

0.5

Download

ies

Luminus Devices SFT-70X-WxS White

Eff:

96.5%

FWHM:

112 x 104°

Cd/Im:

0.5

Download

ies

Luminus Devices SST 05-IR-B40 850nm

Eff:

96.5%

FWHM:

44 x 64°

Ipk/W:

1.1

Carclo Optics - 12957 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 12957 Cross Section Luminus SST-05-IR-B40

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

96.5%

FWHM:

109 x 101°

Cd/Im:

0.6

Carclo Optics - 12957 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 12957 Luminus_SST-10_B_B130 - cross Image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

96.0%

FWHM:

93 x 90°

Cd/Im:

0.7

Carclo Optics - 12957 Luminus_SST-10_B_B90 - spot image

Carclo Optics - 12957 Luminus_SST-10_B_B90 - cross section image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

96.0%

FWHM:

116 x 108°

Cd/Im:

0.5

Carclo Optics – 12957 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12957 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

95.5%

FWHM:

96 x 91°

Cd/Im:

0.6

Carclo Optics – 12957 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics – 12957 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

95.5%

FWHM:

110 x 101°

Cd/Im:

0.6

Carclo Optics - 12957 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 12957 Luminus_SST-10_G_B130 - cross section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

95.0%

FWHM:

94 x 90°

Cd/Im:

0.6

Carclo Optics - 12957 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12957 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

97.0%

FWHM:

111 x 102°

Ipk/W:

0.5

Carclo Optics - 12957 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12957 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

96.5%

FWHM:

92 x 90°

Ipk/W:

0.7

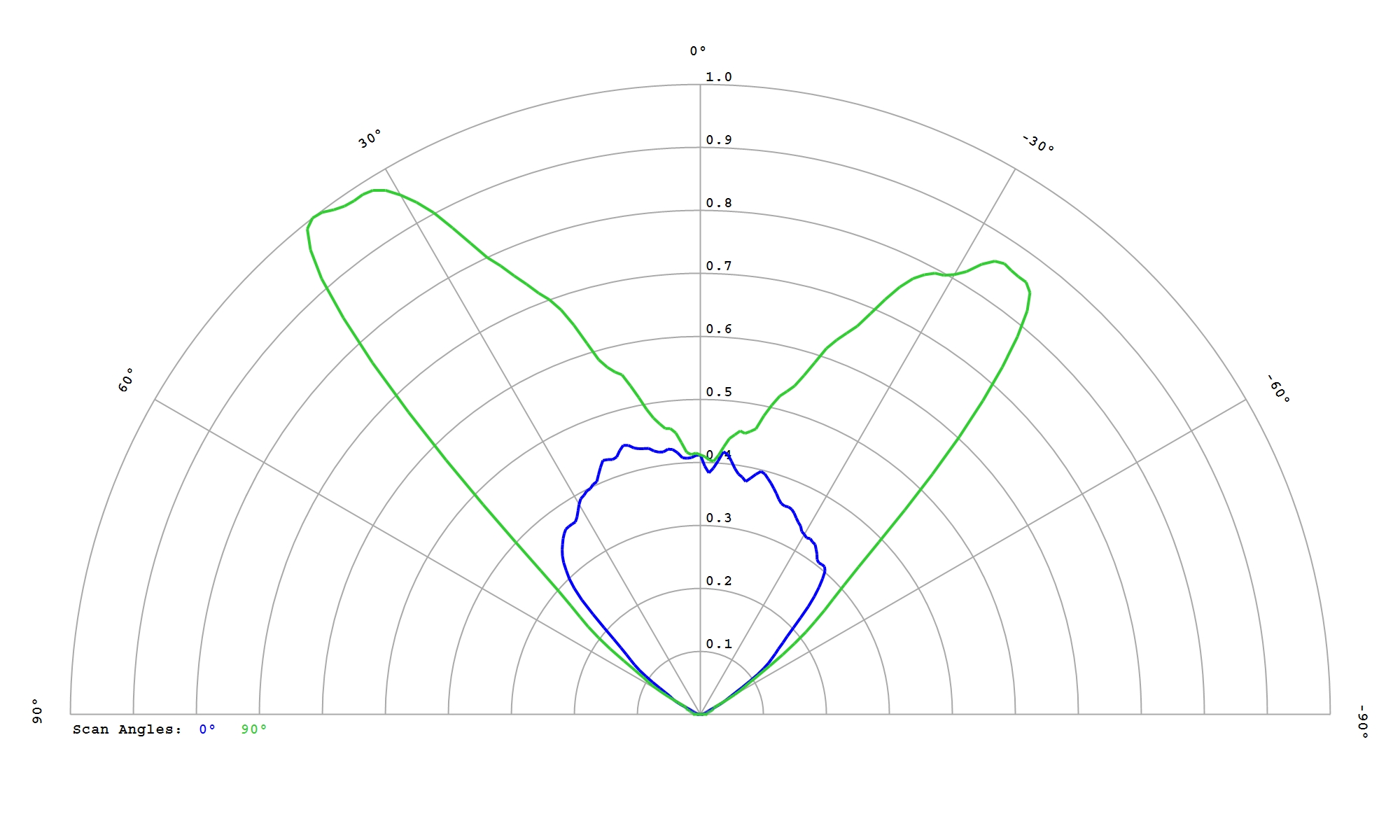

Carclo Optics - 12957 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12957 Cross Section Luminus SST-10-IR-B90

Download

ies

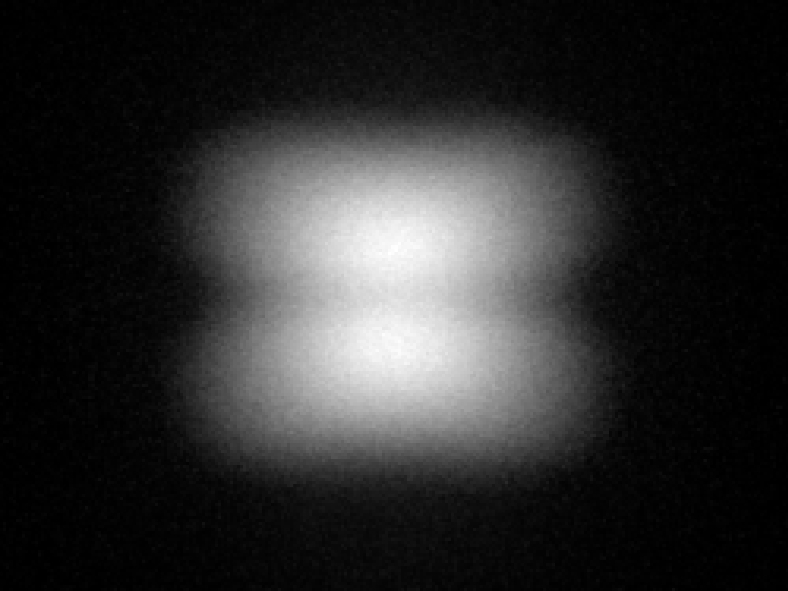

Luminus Devices SST 10-IRD-B130 810nm

Eff:

96.5%

FWHM:

110 x 103°

Ipk/W:

0.6


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

96.5%

FWHM:

94 x 90°

Ipk/W:

0.6


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.5%

FWHM:

109 x 101°

Cd/Im:

0.6

Carclo Optics – 12957 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12957 - Luxeon_SST_20_W_cross vertical section

Download

ies

Luminus Devices SST 40-W White

Eff:

94.5%

FWHM:

121 x 116°

Cd/Im:

0.4

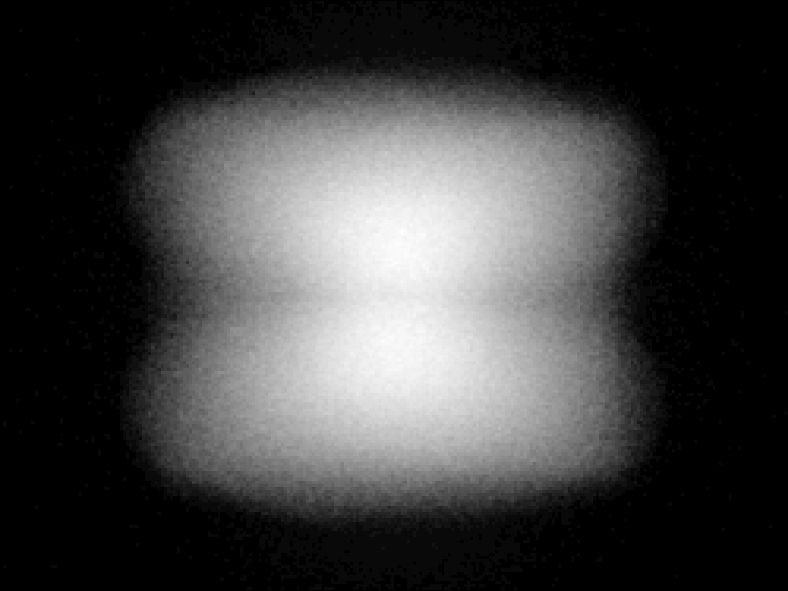

Carclo Optics – 12957 - Luxeon_SST_40_W_spot-image

Carclo Optics – 12957 - Luxeon_SST_40_W_cross vertical section

Download

ies

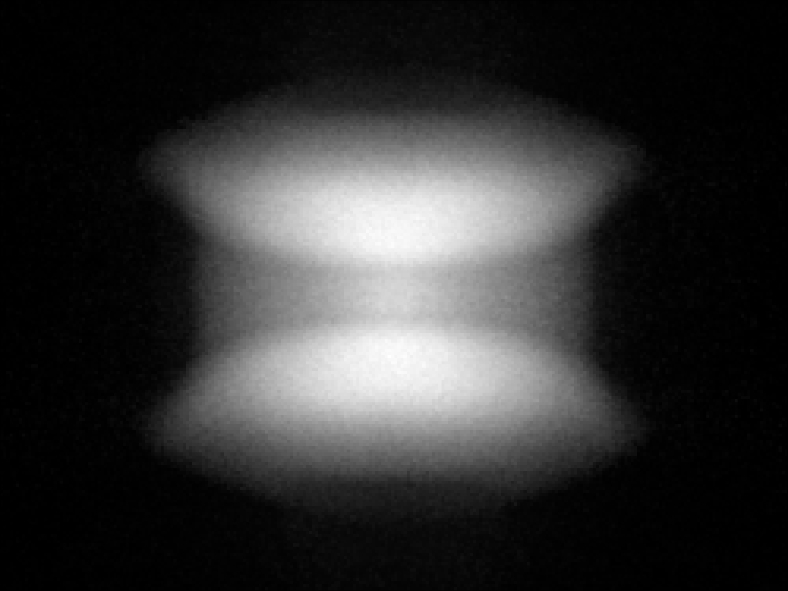

Luminus Devices SST-12-WxS White

Eff:

95.5%

FWHM:

112 x 104°

Cd/Im:

0.6

Download

ies

Luminus Devices SST-70X-W White

Eff:

95.5%

FWHM:

116 x 110°

Cd/Im:

0.4

Download

ies

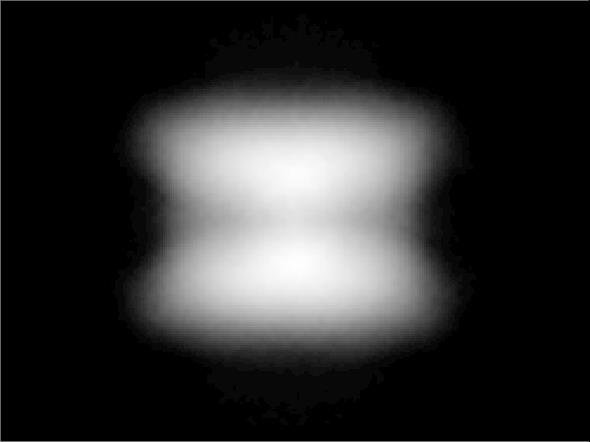

Nichia 757 White

Eff:

94.0%

FWHM:

104°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

94.5%

FWHM:

100°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFSW CSP E11A White

Eff:

94.0%

FWHM:

105 x 95°

Cd/Im:

0.7

Download

ies

Nichia NVSW 219F White

Eff:

95.5%

FWHM:

114 x 108°

Cd/Im:

0.5

Carclo Optics – 12957 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12957 Nichia NVSW 219F White - Cross-Section

Download

ies

Nichia NVSW CSP E21A White

Eff:

95.0%

FWHM:

100°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

96.0%

FWHM:

108 x 100°

Cd/Im:

0.6

Carclo Optics - 12957 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12957 33Up Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram OS DURIS E5 White

Eff:

95.5%

FWHM:

101 x 93°

Cd/Im:

0.7

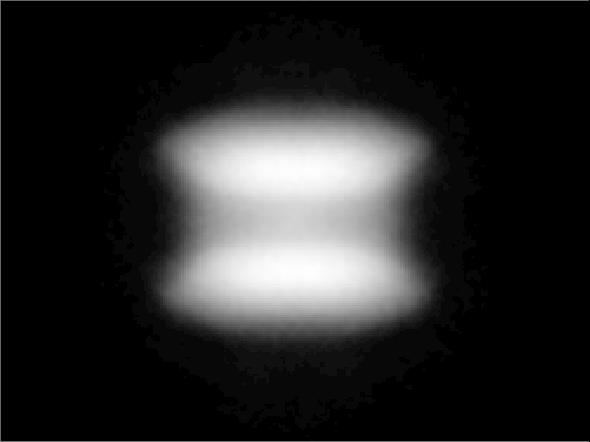

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 White

Eff:

96.0%

FWHM:

104.5°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S8 Gen3 White

Eff:

96.0%

FWHM:

108 x 100°

Cd/Im:

0.6

Carclo Optics - 12957 33Up Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12957 33Up Cross Section Oslon DURIS S8 Gen3

Download

ies

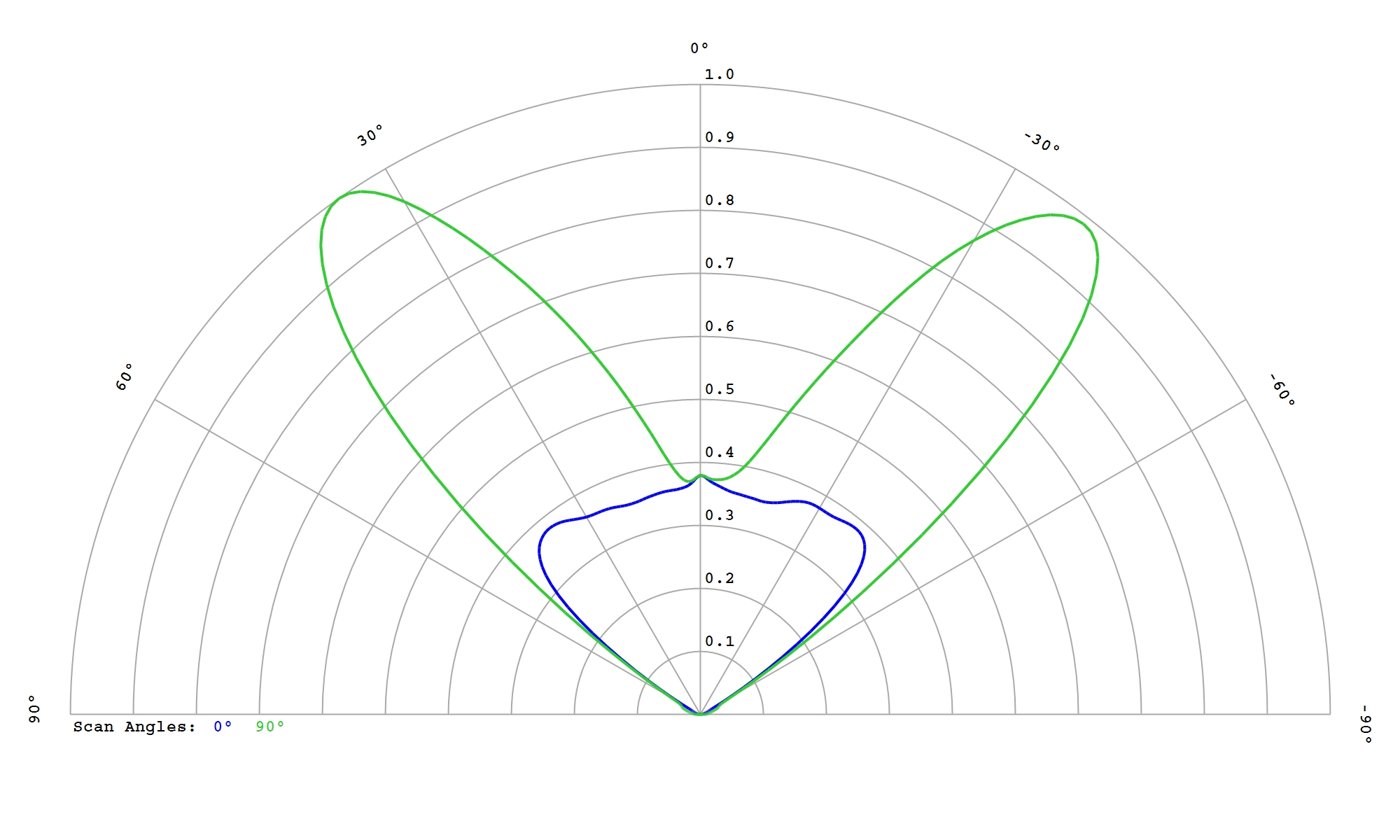

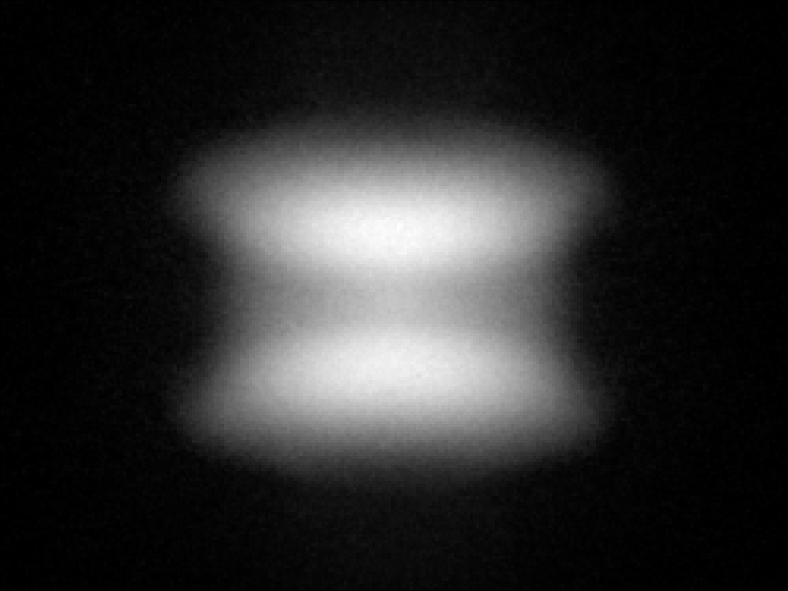

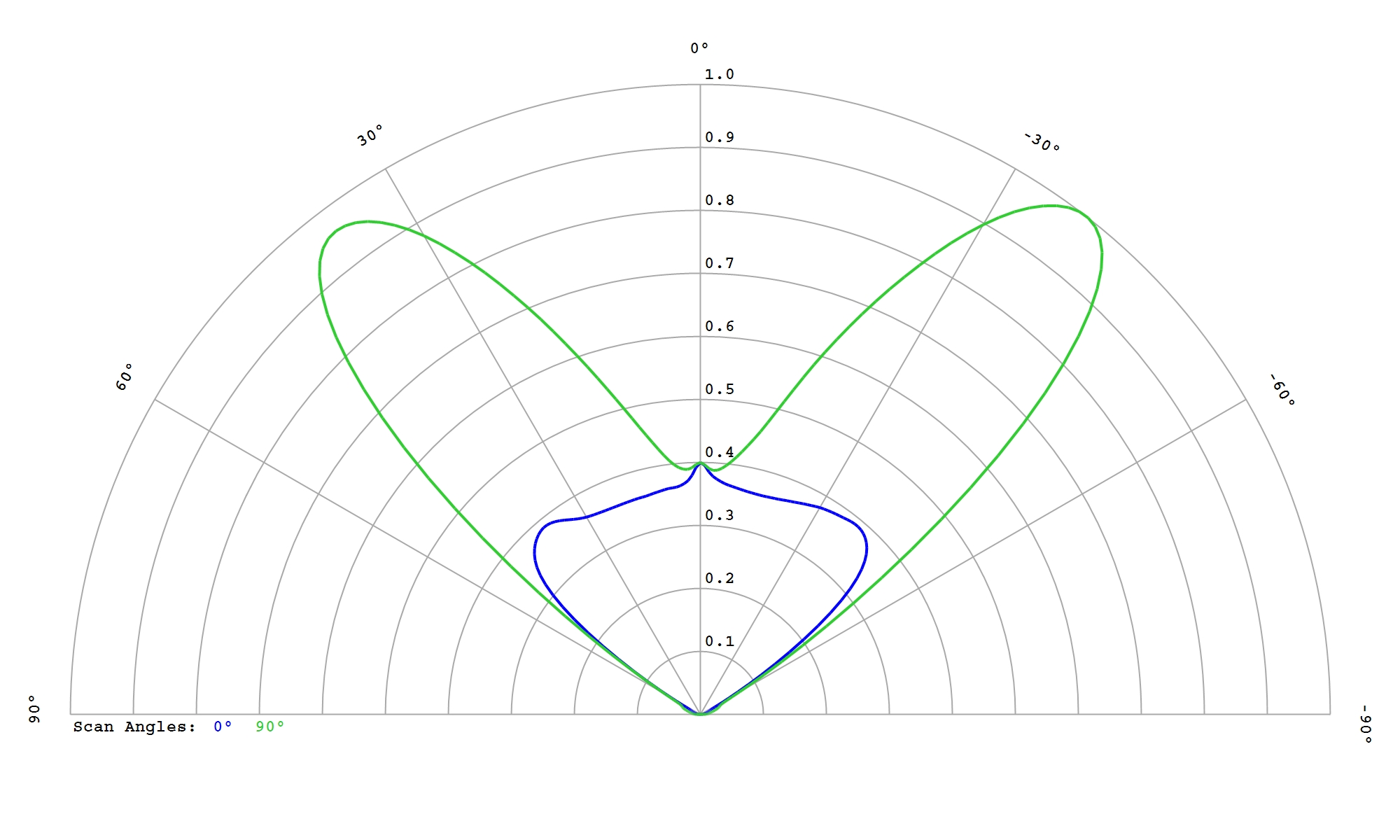

Osram OS OSCONIQ C 2424 White

Eff:

96.0%

FWHM:

107 x 99°

Cd/Im:

0.6

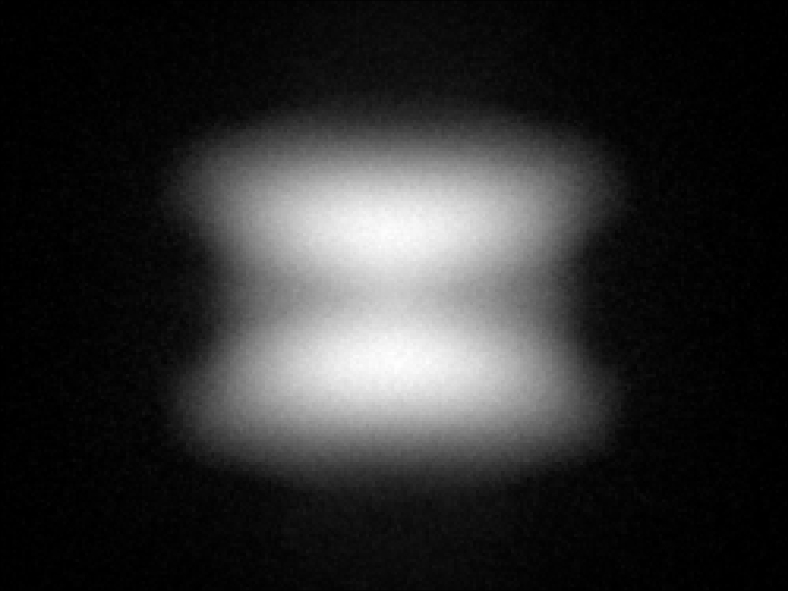

Carclo Optics - 12957 Spot Image OSCONIQ C2424

Carclo Optics - 12957 Cross Section OSCONIQ C2424

Download

ies

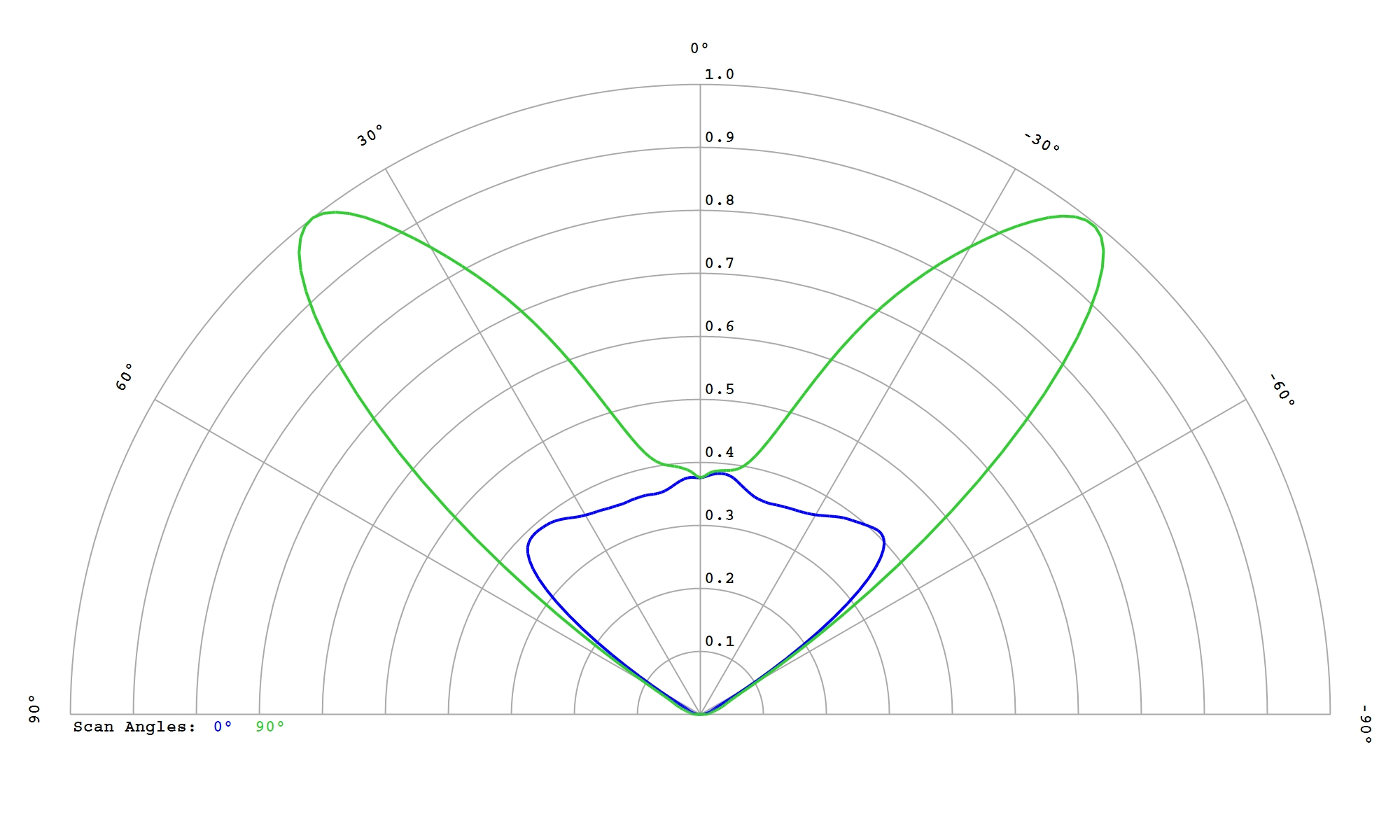

Osram OS OSCONIQ P3737 White

Eff:

93.0%

FWHM:

106°

Cd/Im:

0.5

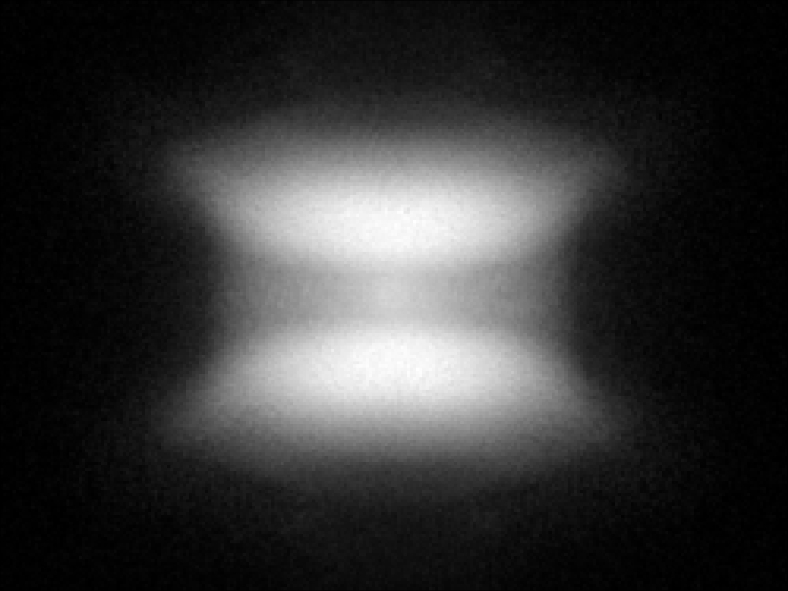

Carclo Optics 12957 Spot Image Osram Osconiq P3737

Carclo Optics 12957 Cross Section Osram Osconiq P3737

Download

ies

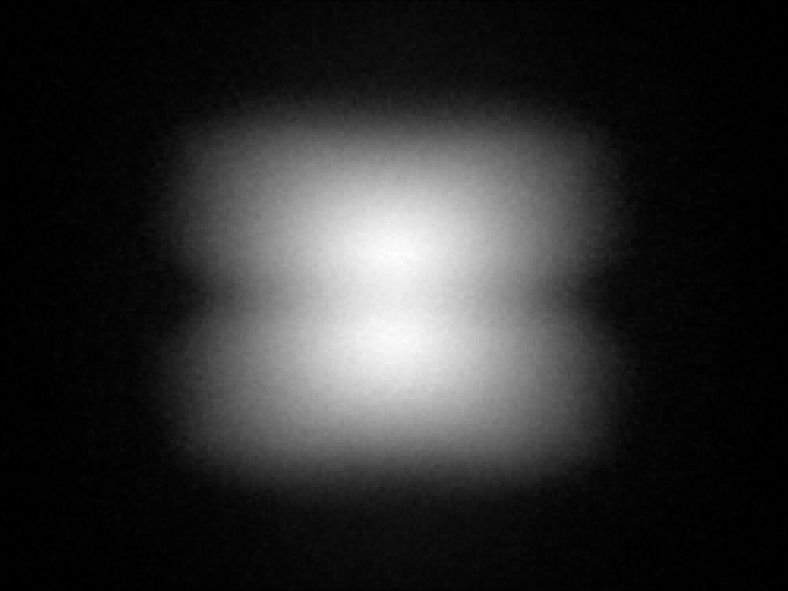

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

96.0%

FWHM:

105 x 105°

Cd/Im:

0.4



Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

95.0%

FWHM:

113 x 106°

Ipk/W:

0.7

Carclo Optics – 12957 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12957 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Black SFH 4725S IR

Eff:

97.5%

FWHM:

93°

Cd/Im:

0.7

Carclo Optics 12957 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 12957 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

96.0%

FWHM:

112 x 101°

Cd/Im:

0.6

Carclo Optics – 12957 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12957 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

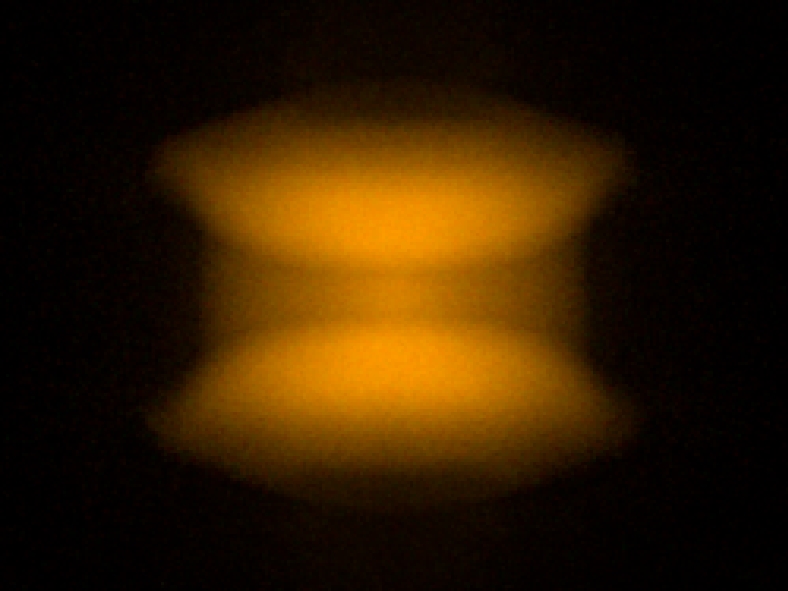

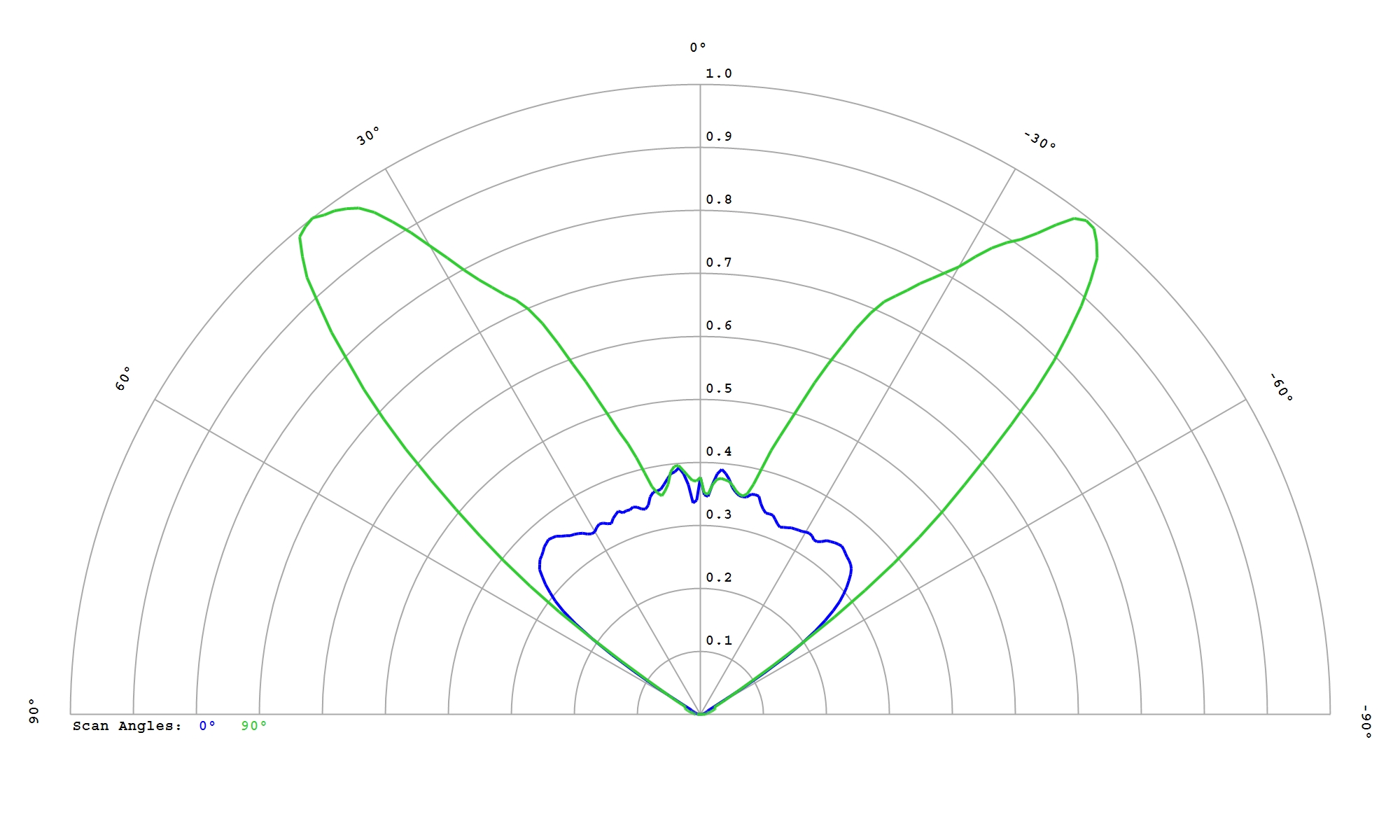

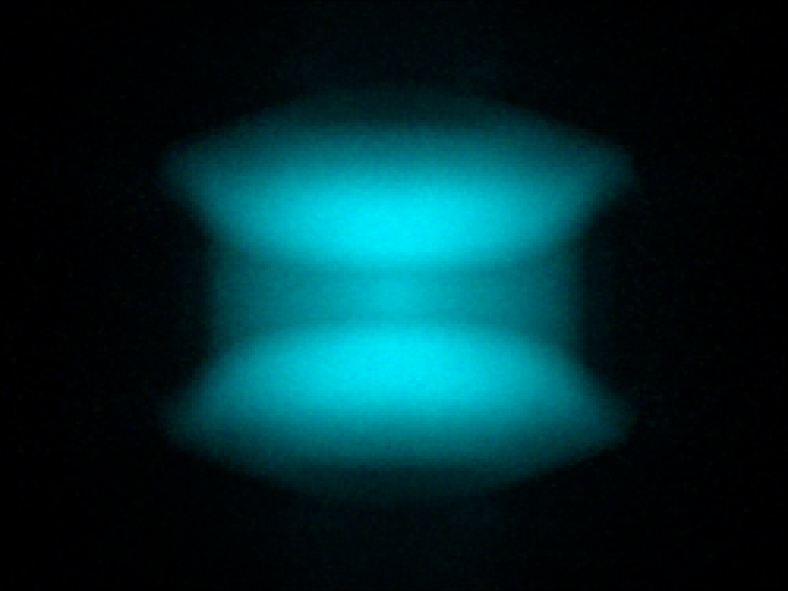

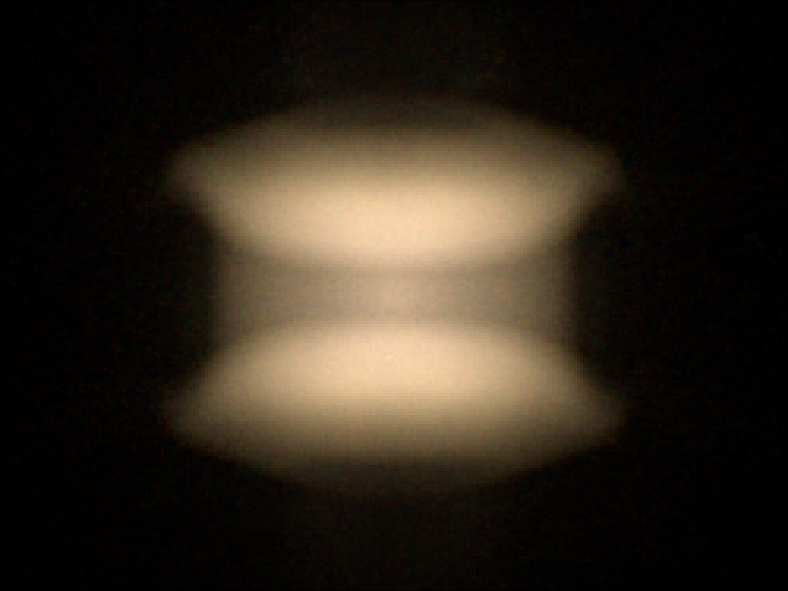

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

95.5%

FWHM:

103 x 92°

Cd/Im:

0.7


Download

ies

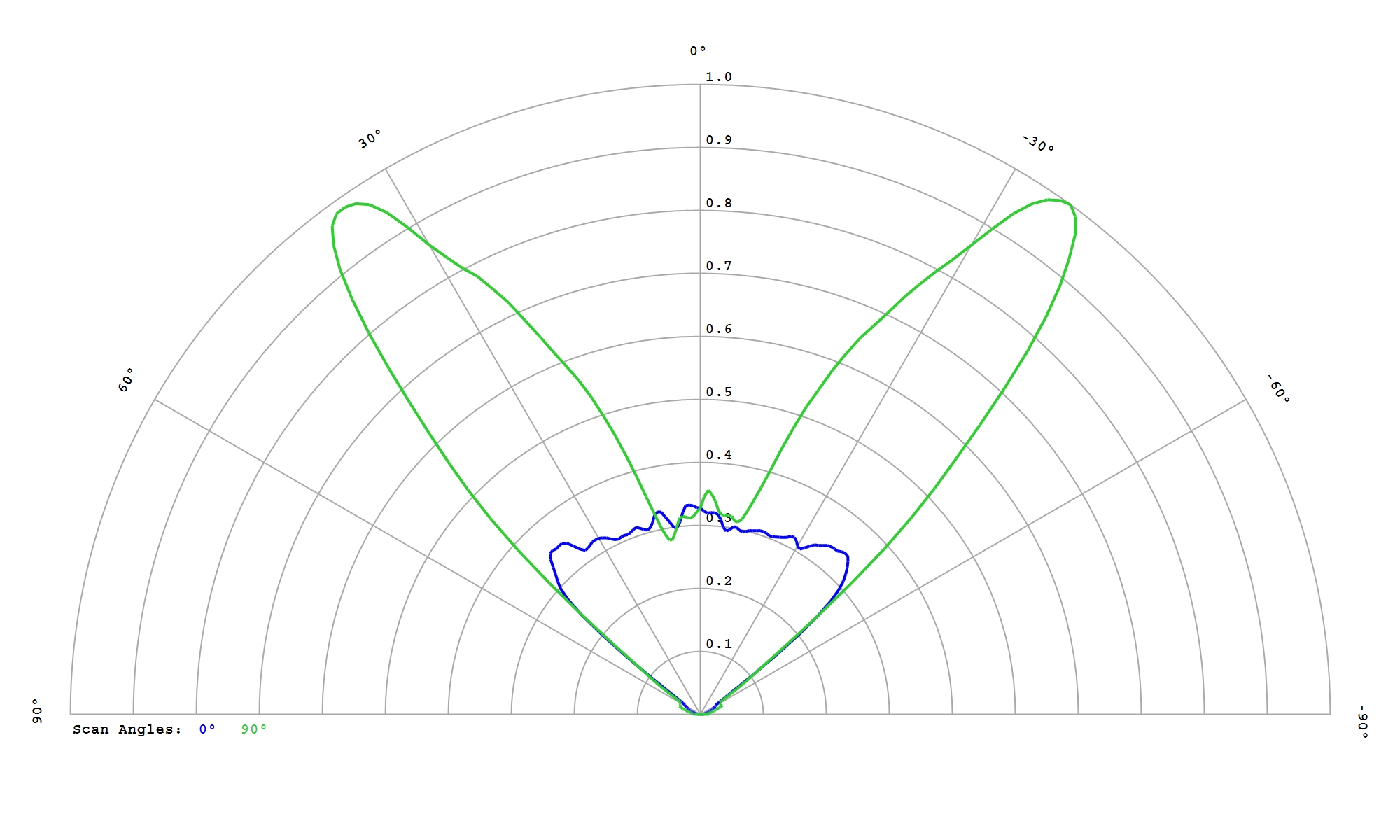

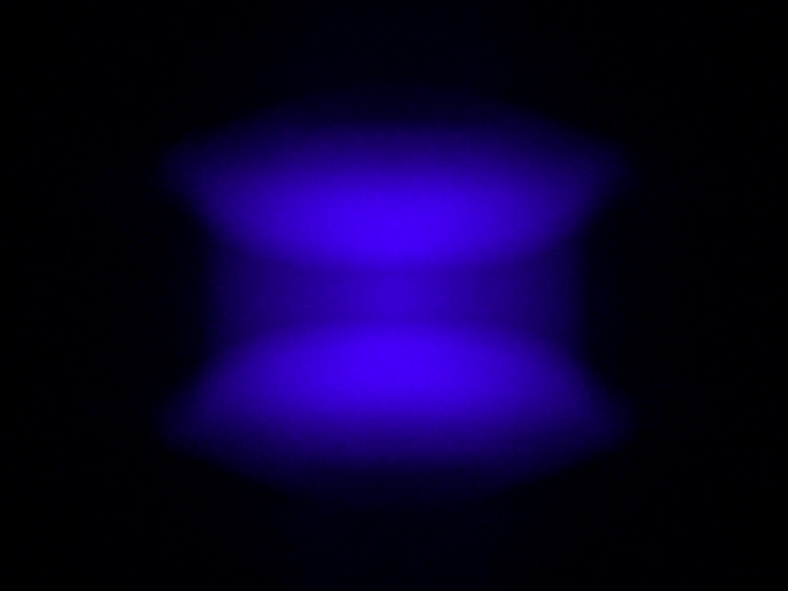

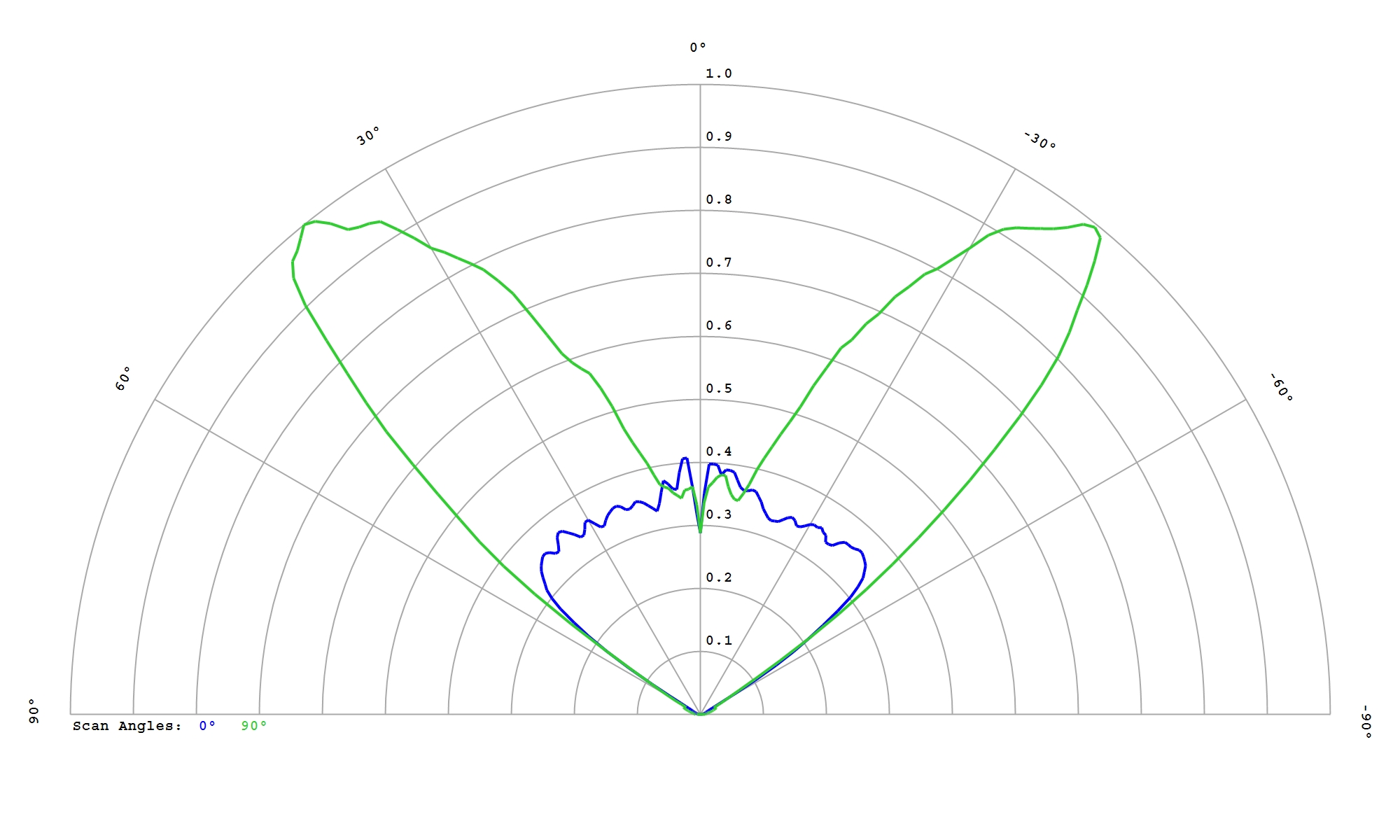

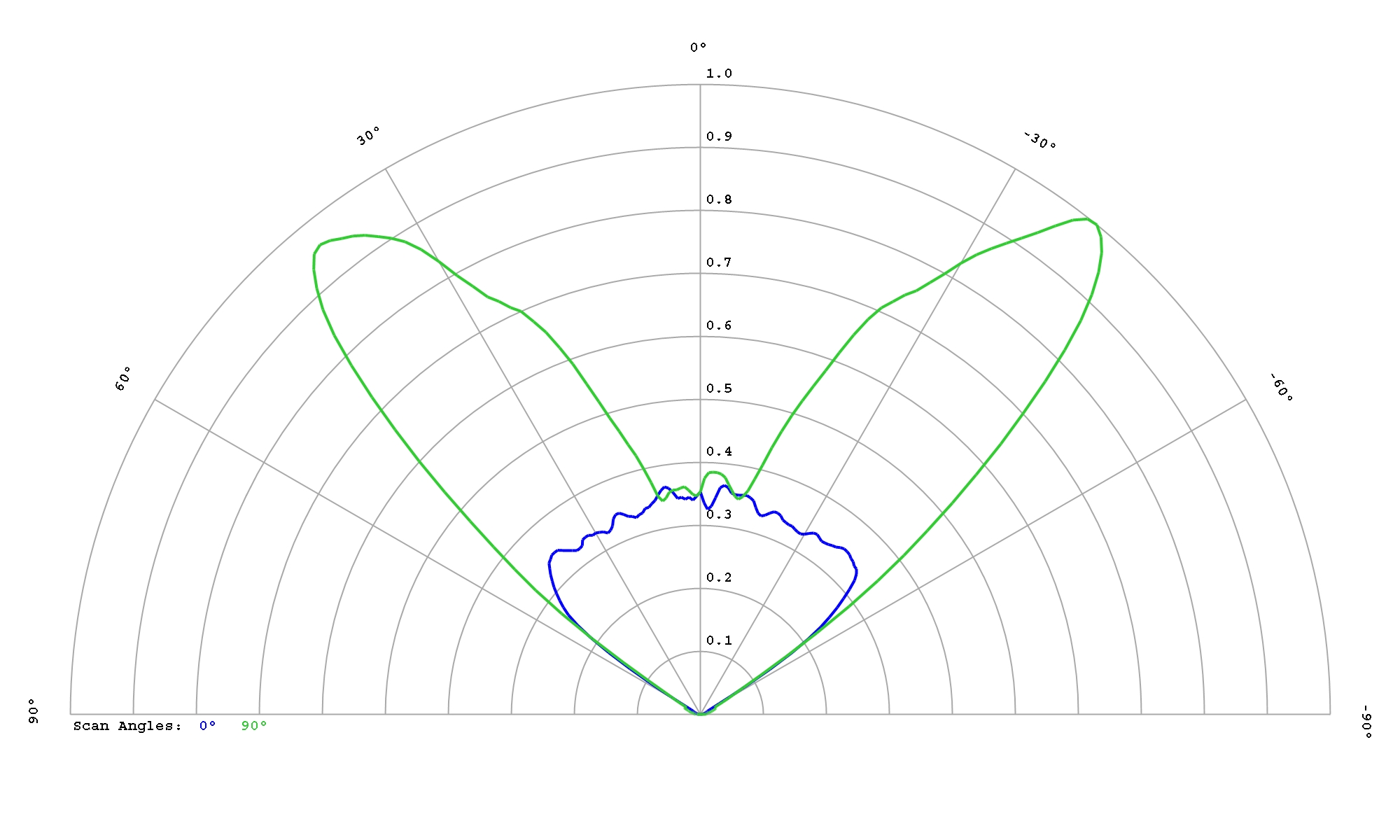

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

96.5%

FWHM:

103 x 92°

Ipk/W:

0.7


Download

ies

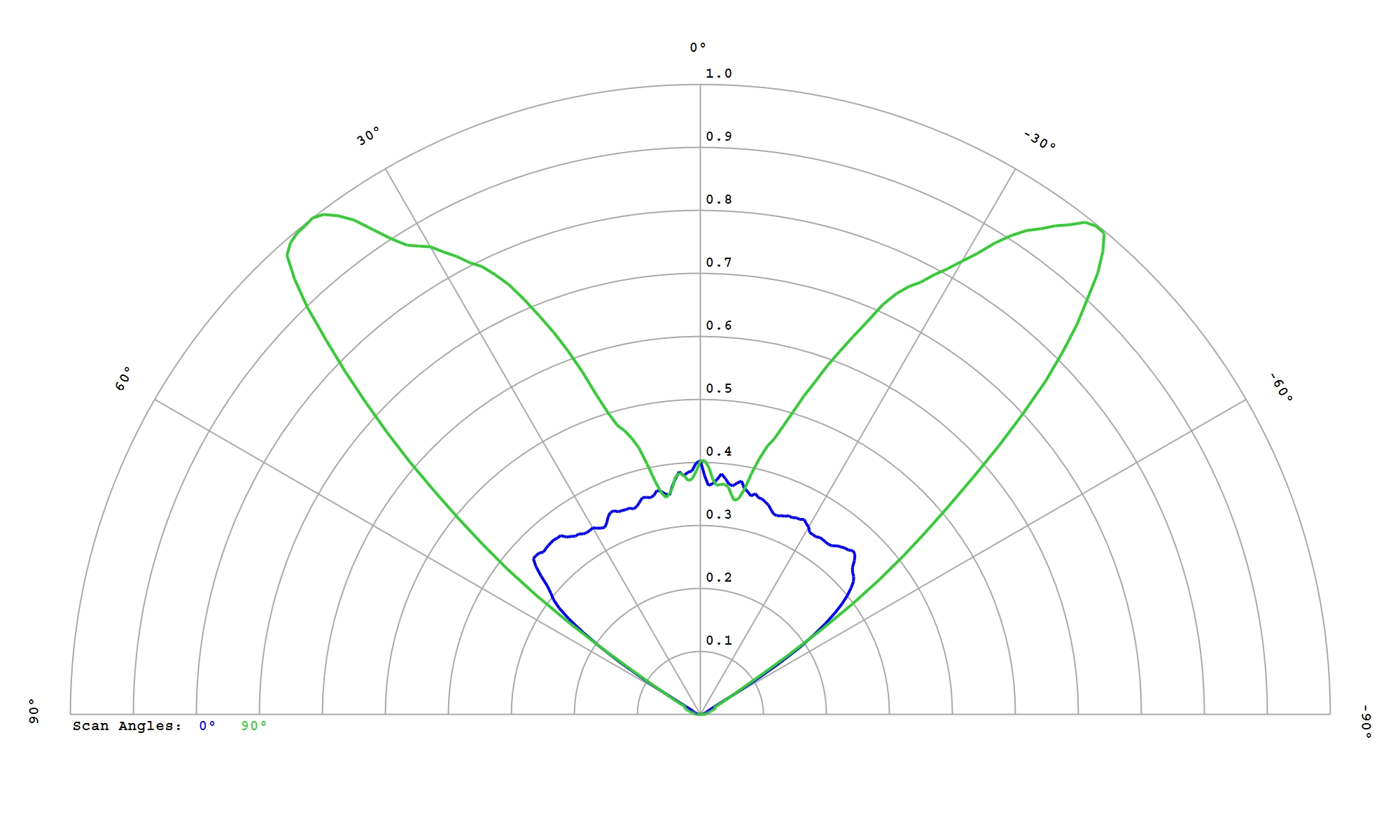

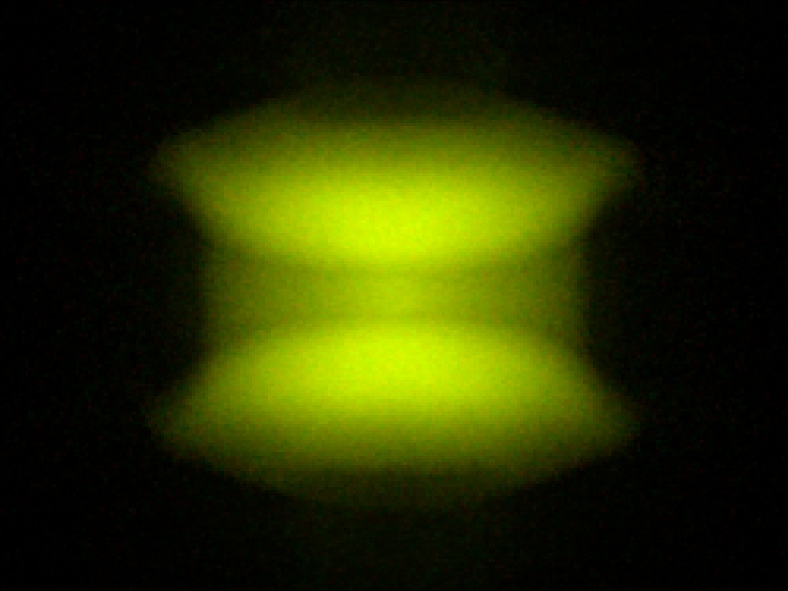

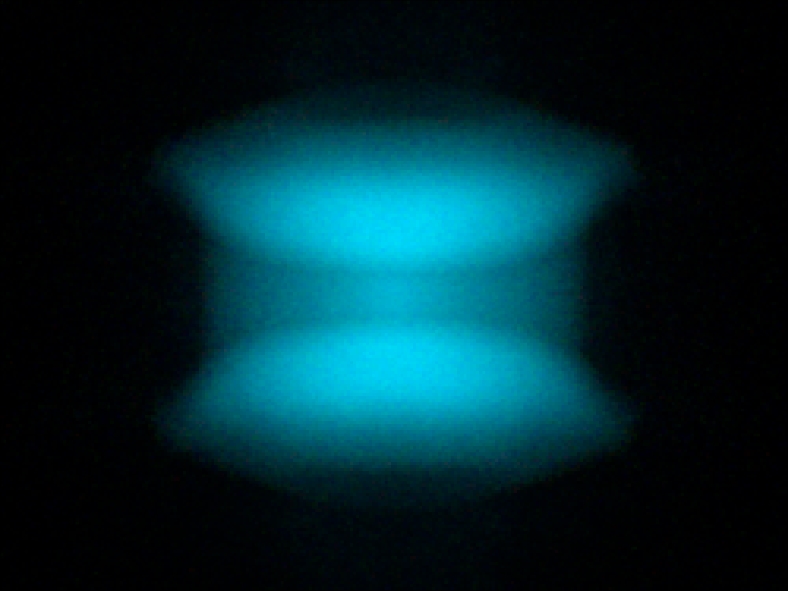

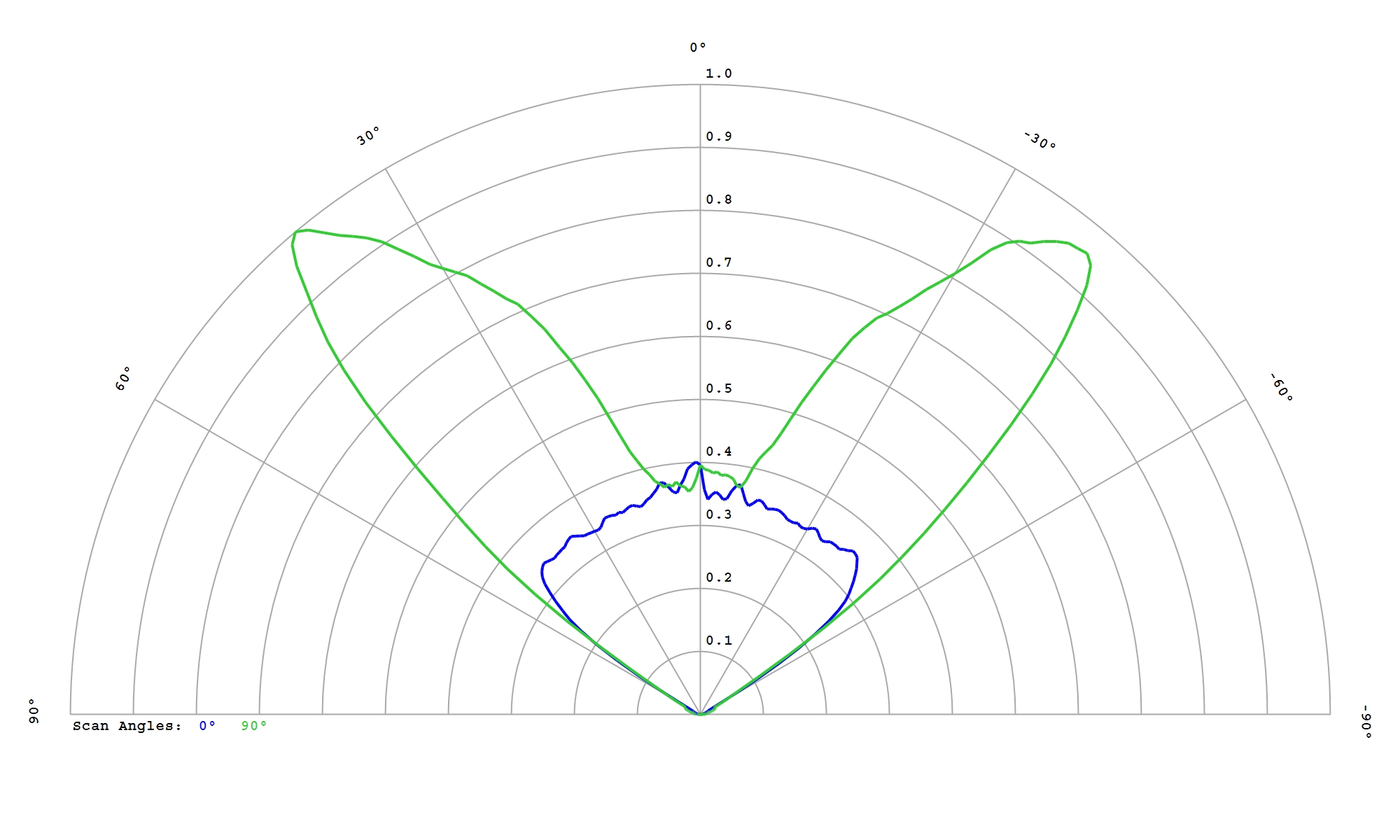

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

95.0%

FWHM:

103 x 94°

Cd/Im:

0.7


Download

ies

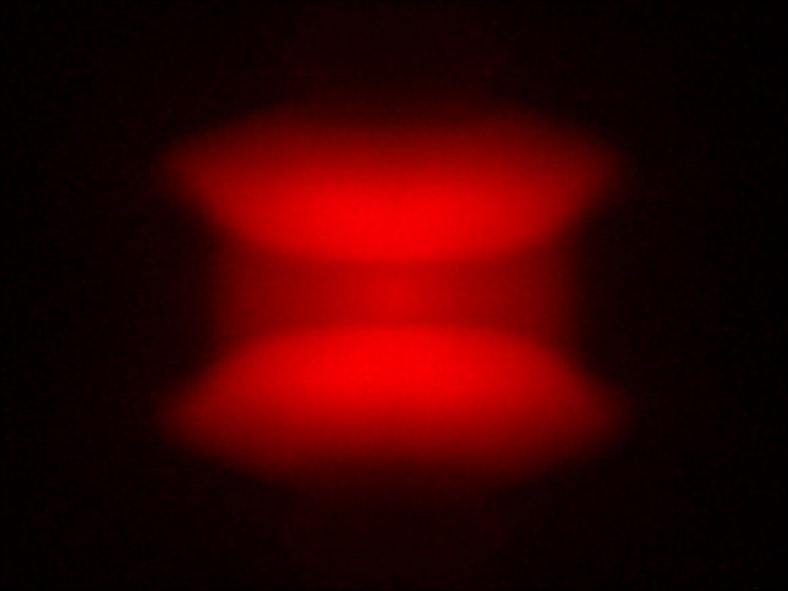

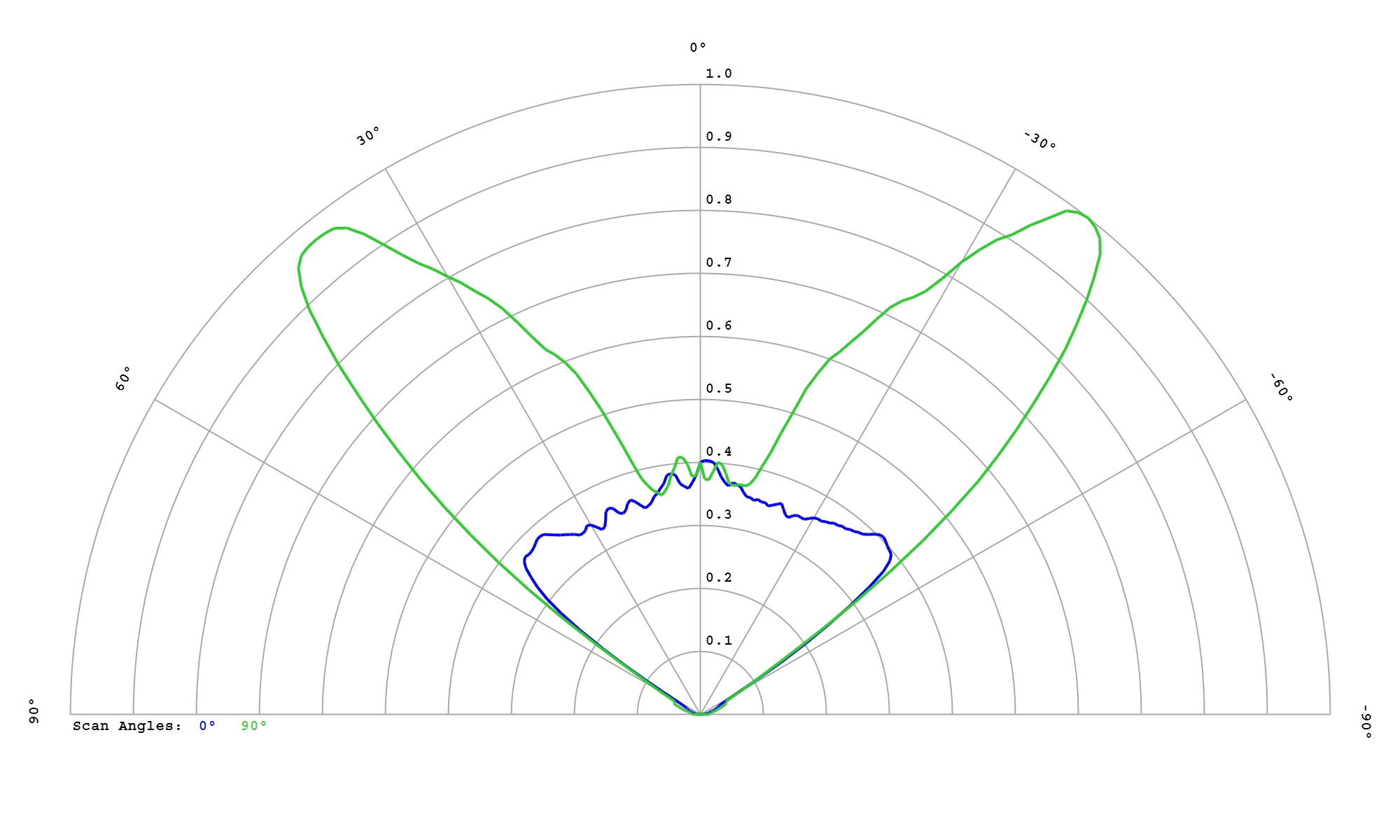

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

94.0%

FWHM:

106 x 96°

Cd/Im:

0.7


Download

ies

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

95.0%

FWHM:

103 x 93°

Cd/Im:

0.7


Download

ies

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

94.5%

FWHM:

103 x 93°

Cd/Im:

0.7



Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

96.0%

FWHM:

111 x 104°

Cd/Im:

0.5

Carclo Optics - 12957 33Up Spot Image Oslon Square Gen 5

Carclo Optics - 12957 33Up Cross Section Oslon Square Gen 5

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

96.0%

FWHM:

116 x 109°

Cd/Im:

0.6

Carclo Optics – 12957 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12957 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OS Prevaled Bar G4

Eff:

96.0%

FWHM:

108 x 100°

Cd/Im:

0.6

Carclo Optics – 12957 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12957 – Osram_Prevaled_Bar_G4_cross vertical section

Download

ies

Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

95.5%

FWHM:

107 x 100°

Cd/Im:

0.6

Download

IES

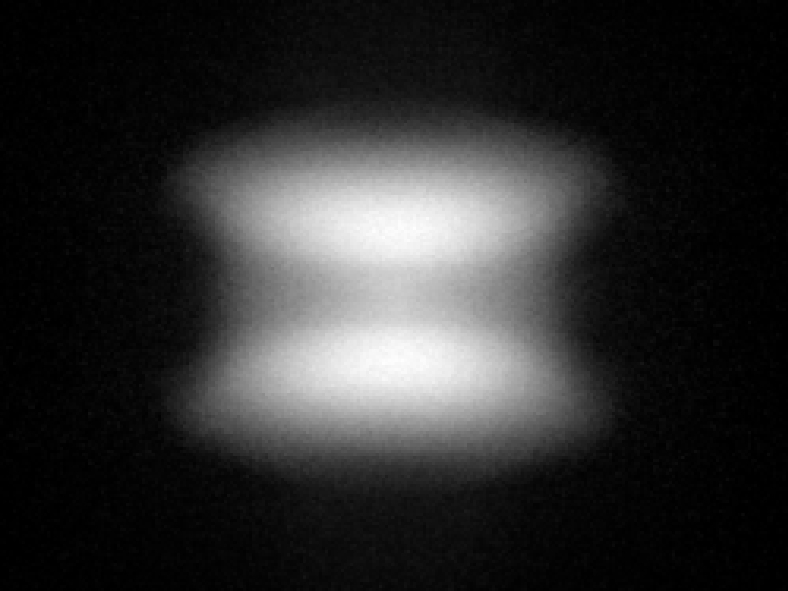

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

96.0%

FWHM:

107 x 99°

Cd/Im:

0.6


Download

IES

Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

95.5%

FWHM:

107 x 100°

Cd/Im:

0.6


Download

IES

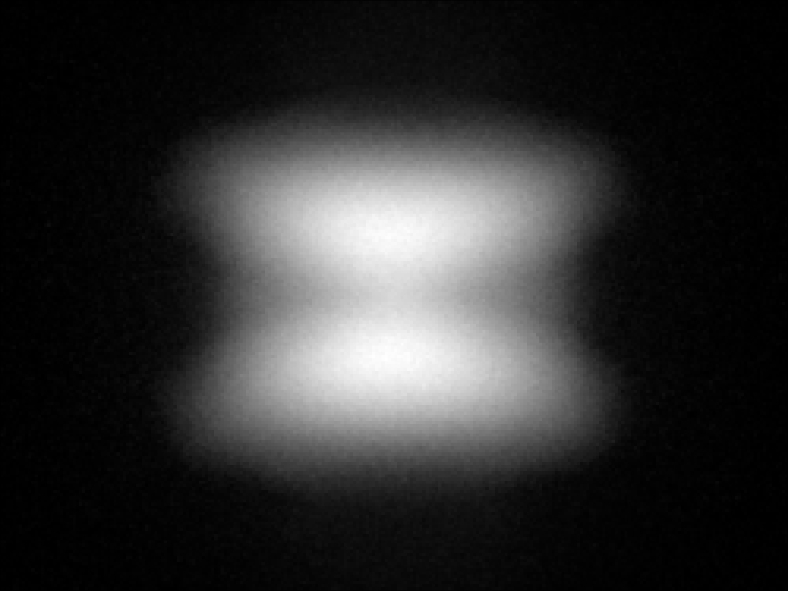

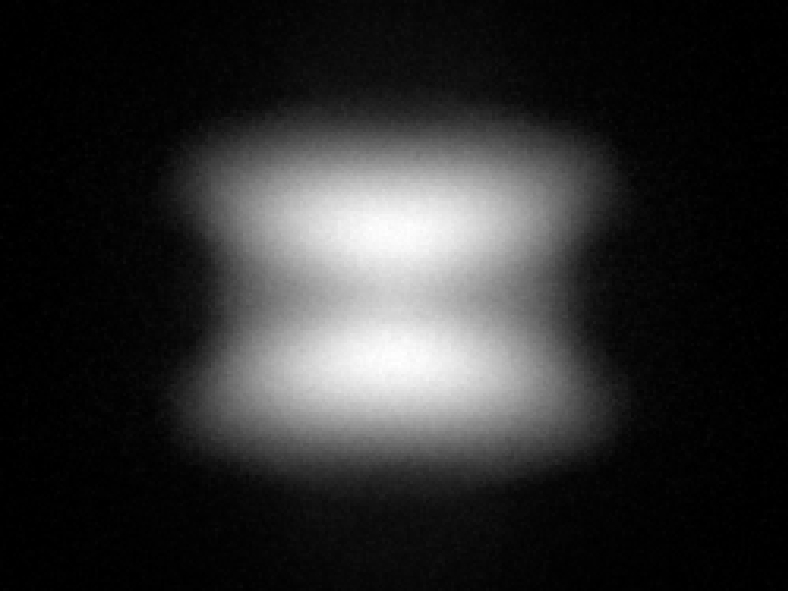

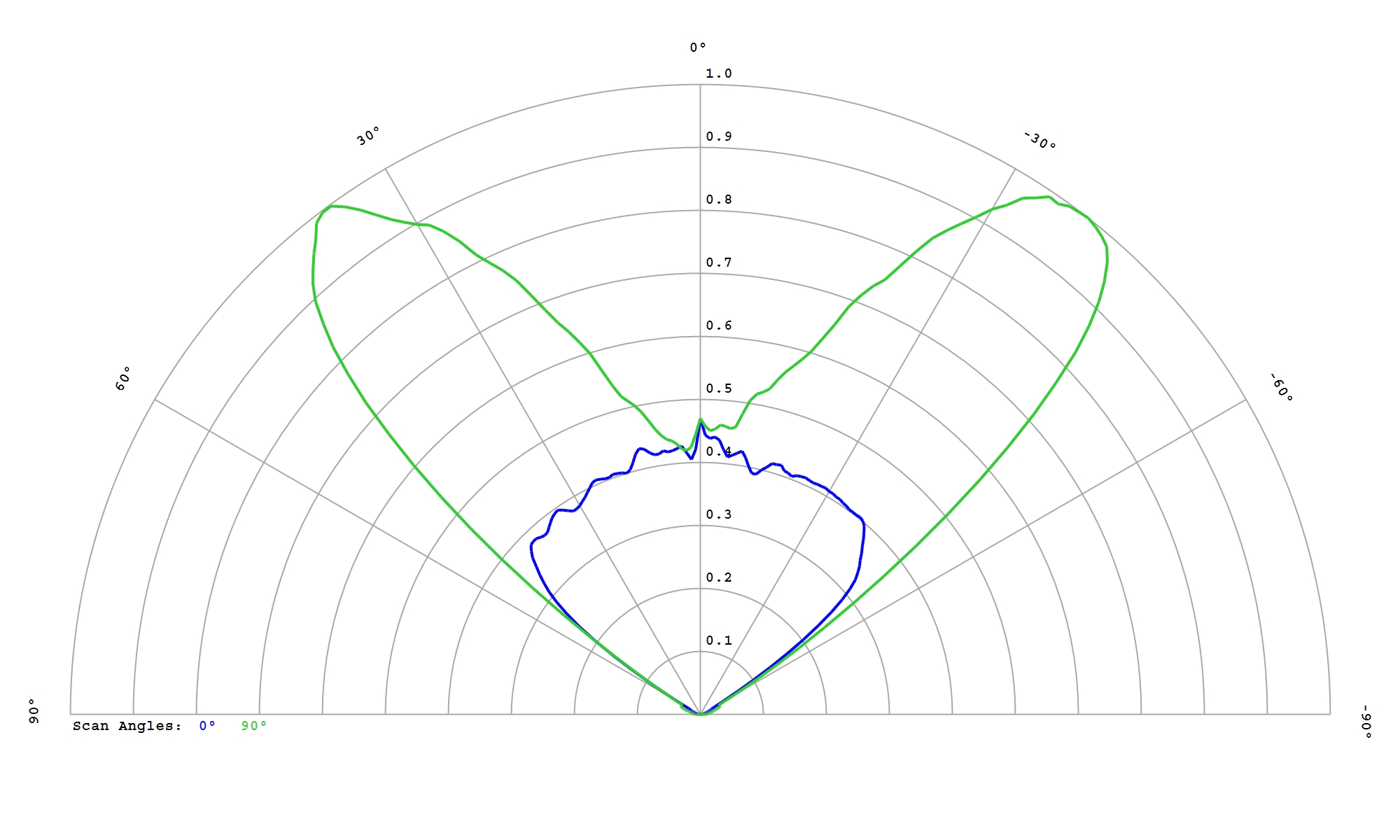

Samsung 3030 LM301B White

Eff:

96.5%

FWHM:

109 x 102°

Cd/Im:

0.5

Download

ies

Samsung 3535 LH351D White

Eff:

95.5%

FWHM:

113°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 5050 LH502C White

Eff:

96.0%

FWHM:

104 x 104°

Cd/Im:

0.4


Download

IES

Samsung 5050 LH502D White

Eff:

96.0%

FWHM:

105 x 104°

Cd/Im:

0.5


Download

IES

Samsung 5050 LH508C White

Eff:

96.0%

FWHM:

105 x 104°

Cd/Im:

0.5


Download

IES

Samsung CSP LH151B White

Eff:

95.5%

FWHM:

103 x 96 °

Cd/Im:

0.7

Carclo Optics – 12957 – Samsung_LH151B_spot-image

Carclo Optics – 12957 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

95.5%

FWHM:

105 x 96°

Cd/Im:

0.6

Carclo Optics -12957 Spot Image - Samsung LH181B 4000K

Carclo Optics -12957 Cross Section - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

95.5%

FWHM:

104 x 98°

Cd/Im:

0.6

Carclo Optics - 12957 Spot Image Samsung LH231B 5000K

Carclo Optics -12957 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

95.0%

FWHM:

105 x 96°

Cd/Im:

0.7

Carclo Optics -12957 Spot Image - Samsung LM101B 5000K

Carclo Optics -12957 Cross Section - Samsung LM101B 5000K

Download

ies

Seoul CSP SZ8Y11 White

Eff:

91.0%

FWHM:

107 x 98°

Cd/Im:

0.7

Carclo Optics -12957 Spot Image - Seoul Z8Y11

Carclo Optics -12957 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y22 White

Eff:

93.5%

FWHM:

106 x 98°

Cd/Im:

0.6

Carclo Optics -12957 Spot Image - Seoul SZ8Y22

Carclo Optics -12957 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

94.5%

FWHM:

110°

Cd/Im:

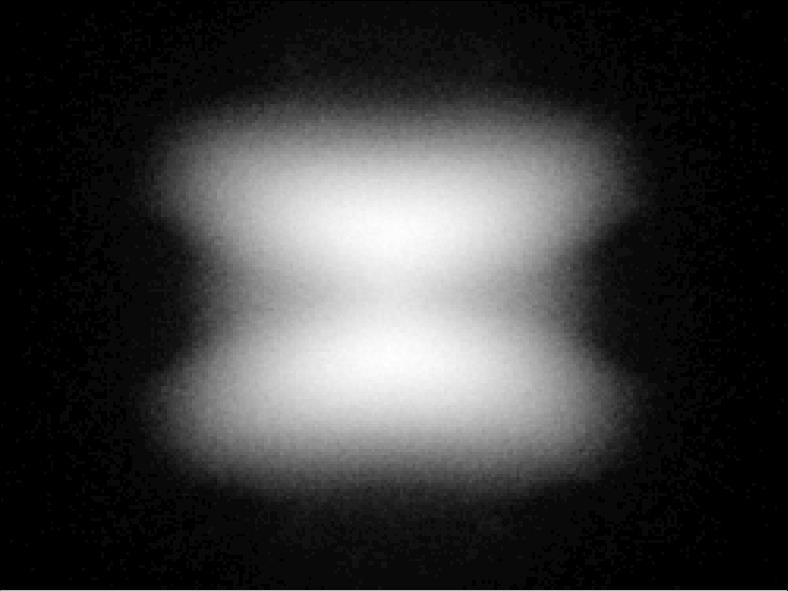

0.5

Carclo Optics - 12957 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12957 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul MidPower 5630 STW8Q14C White

Eff:

94.0%

FWHM:

104°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

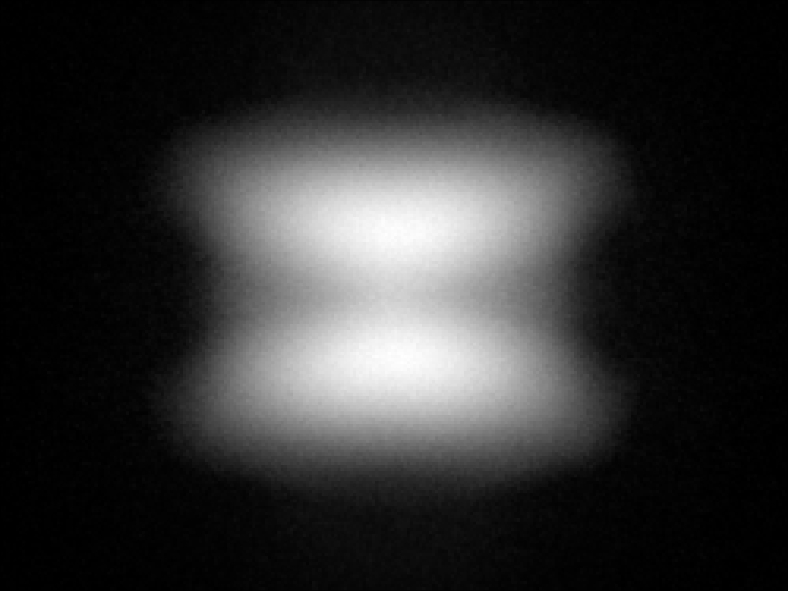

Seoul STW8 C2SB-NT White

Eff:

96.0%

FWHM:

109 x 102°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12957 Cross Section Seoul STW8 C2SB-NT

Download

ies

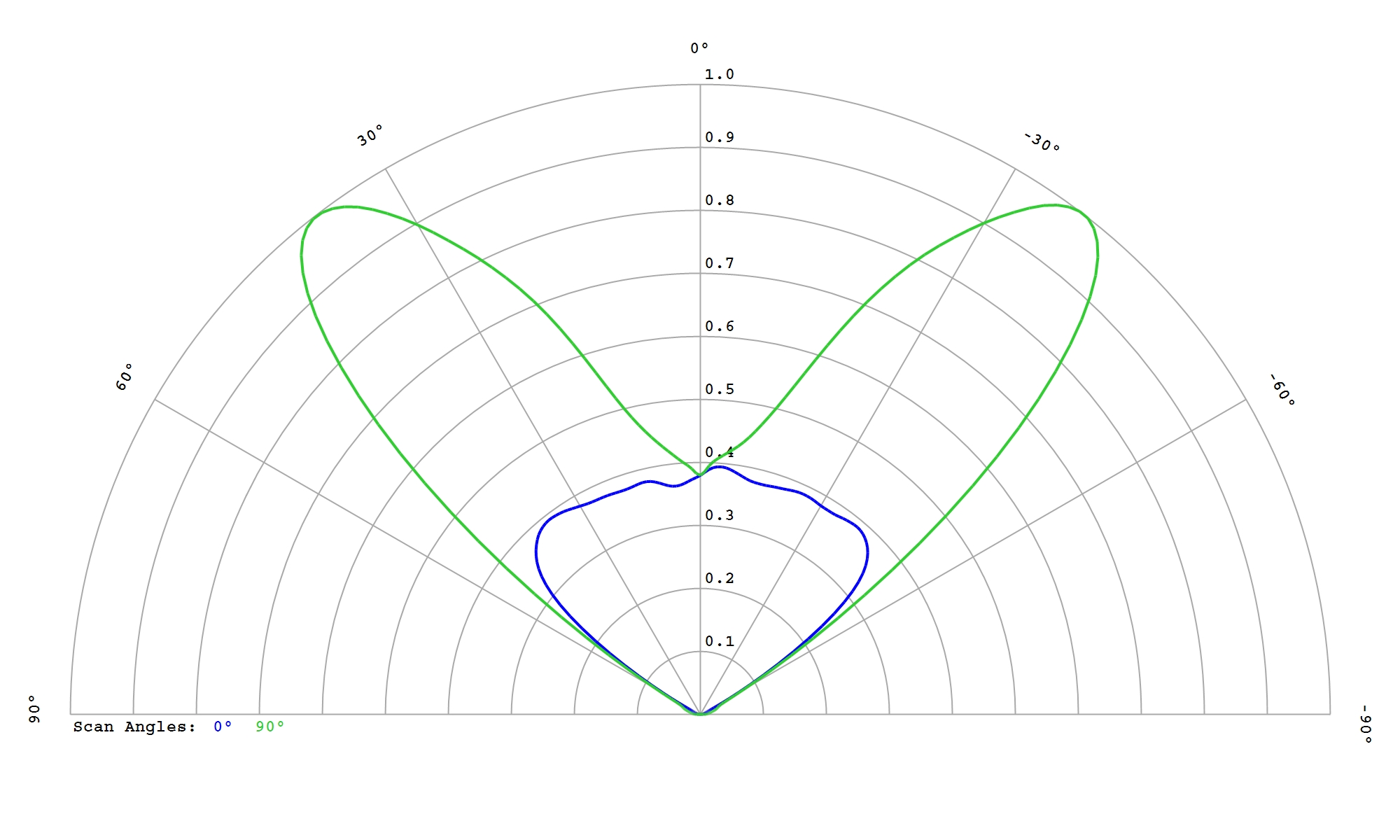

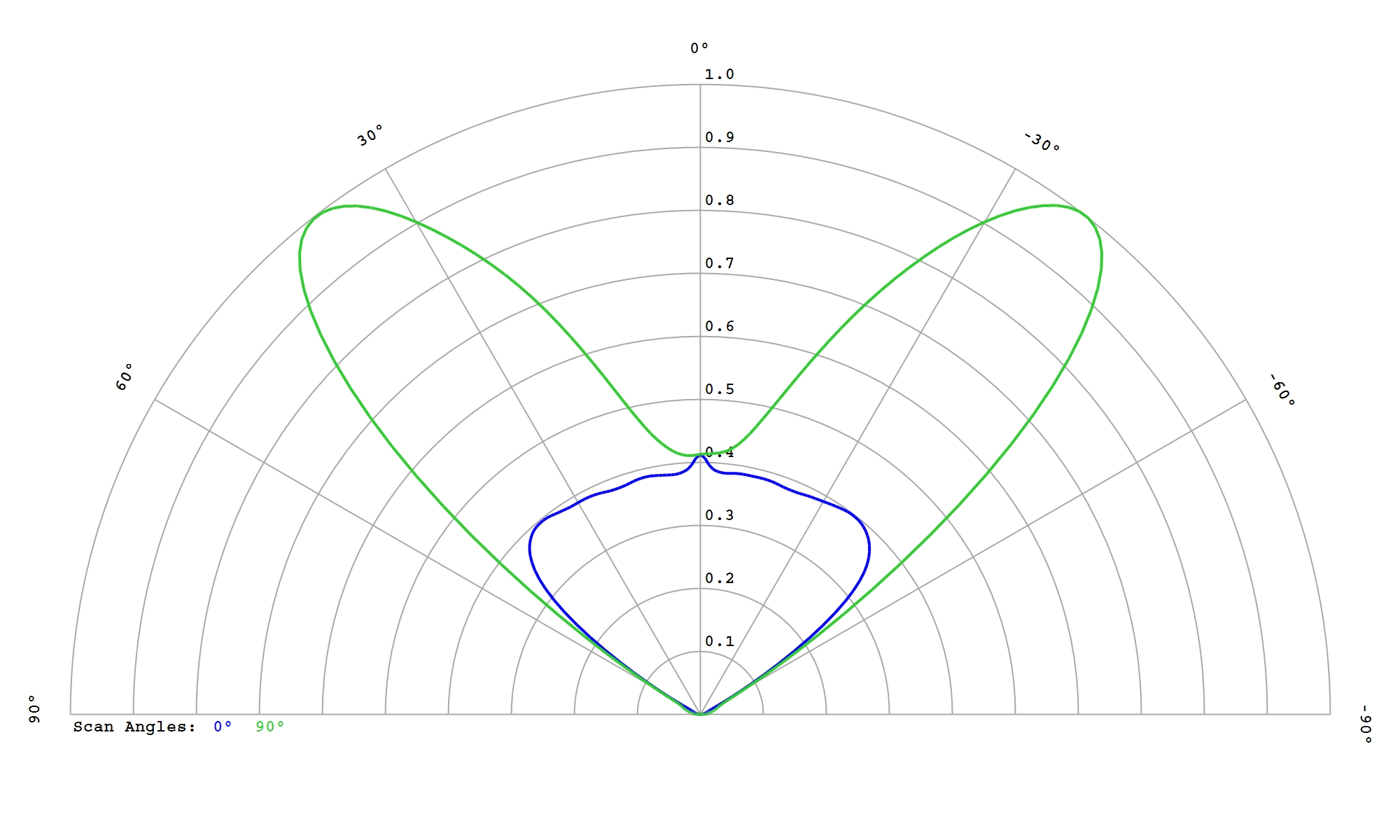

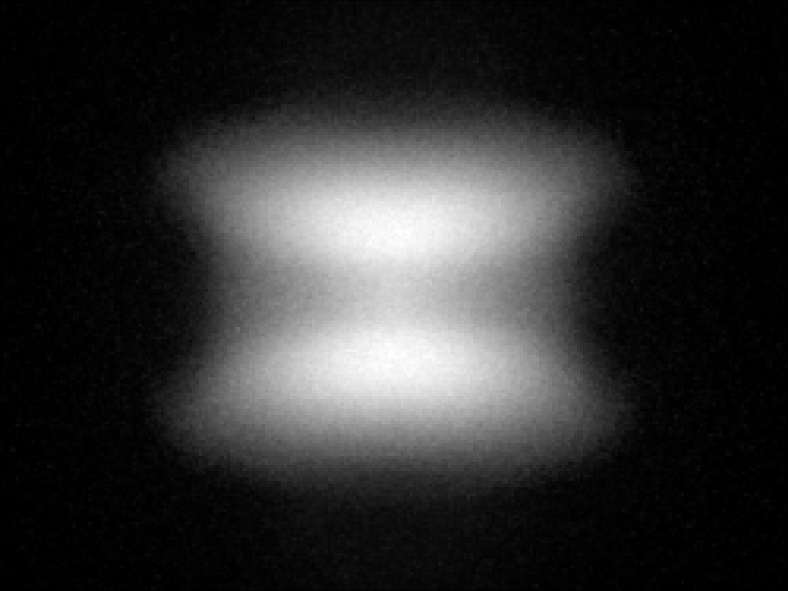

Seoul STWS C2PB-E0 White

Eff:

96.0%

FWHM:

108 x 102°

Cd/Im:

0.5

Carclo Optics - 12957 Spot Image STWS C2PB-E0

Carclo Optics - 12957 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike STW9 C2SB-S

Eff:

96.0%

FWHM:

109 x 101°

Cd/Im:

0.6

Carclo Optics - 12957 33Up Spot Image Seoul Sunlike 3030

Carclo Optics - 12957 33Up Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

96.0%

FWHM:

112 x 106°

Cd/Im:

0.5

Carclo Optics – 12957 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 12957 Seoul Z-Power Z5 - Cross-Section

Download

ies
