292 x 61mm Wide Spot Plain Freeform | Carclo Optics

Carclo Optics - 12952 - 33Up Array

292 x 61mm Wide Spot Plain Freeform

Part number

12952

Dimensions

292 x 61mm

Drawing Number

12952_Rev-2_WB_Tri_AS-Flange

Optic type

Freeform

Finish

Plain

Beam type

Wide Spot

Material: PMMA

Downloads

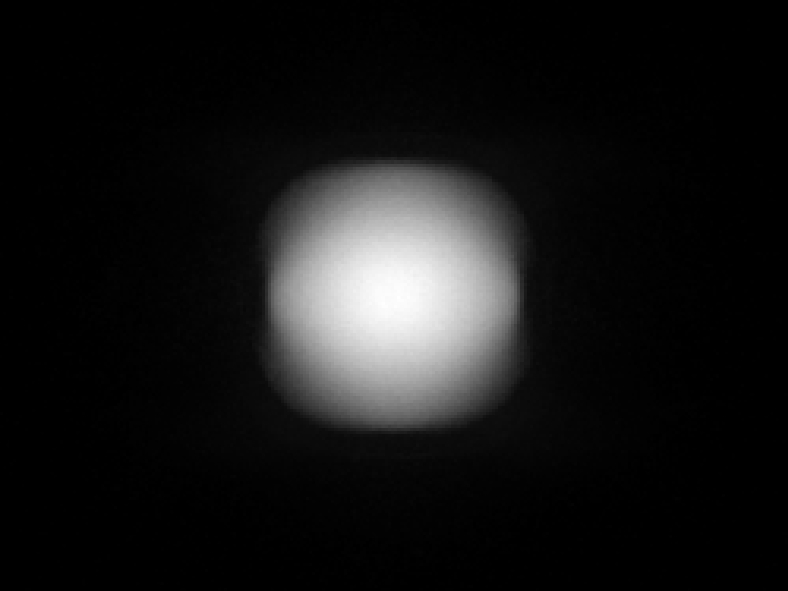

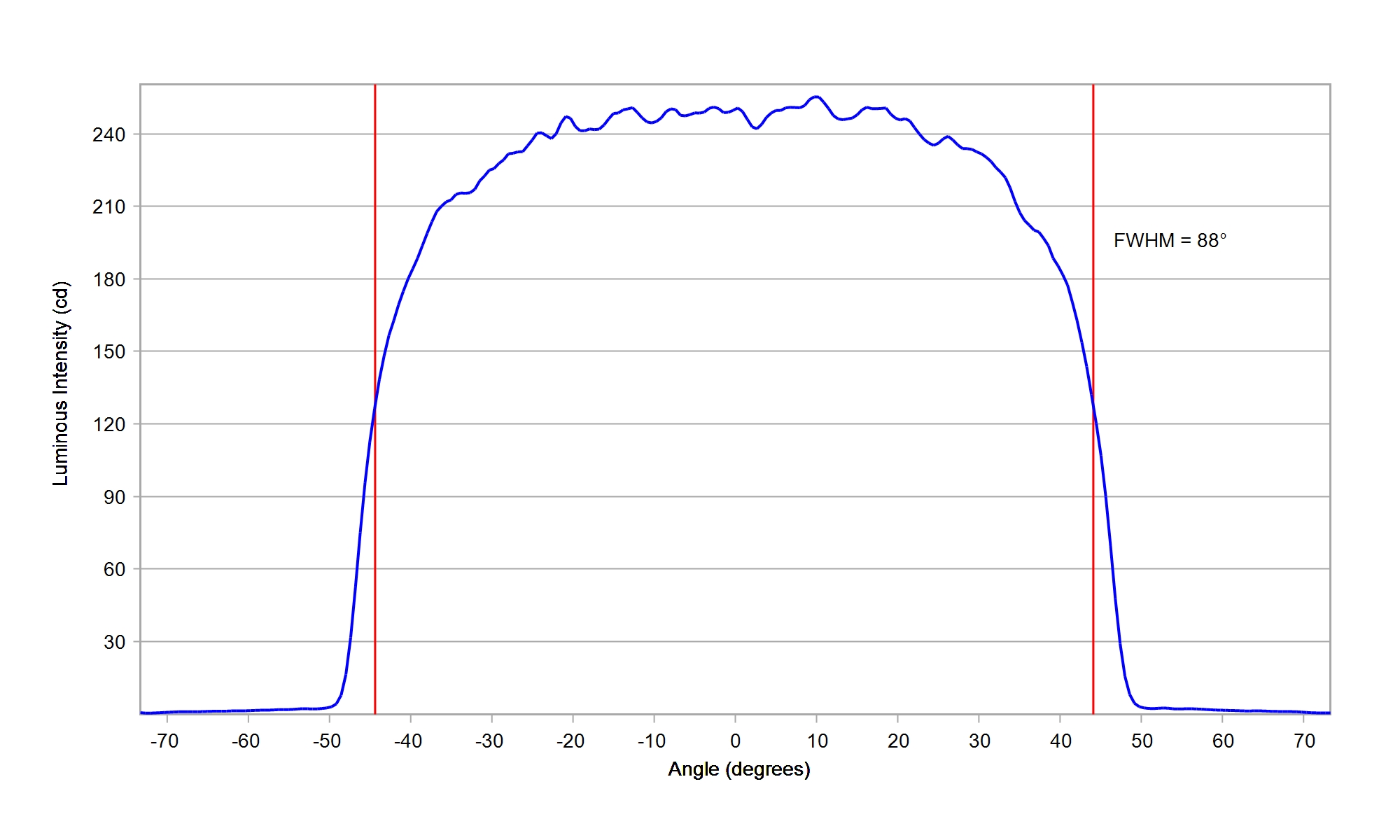

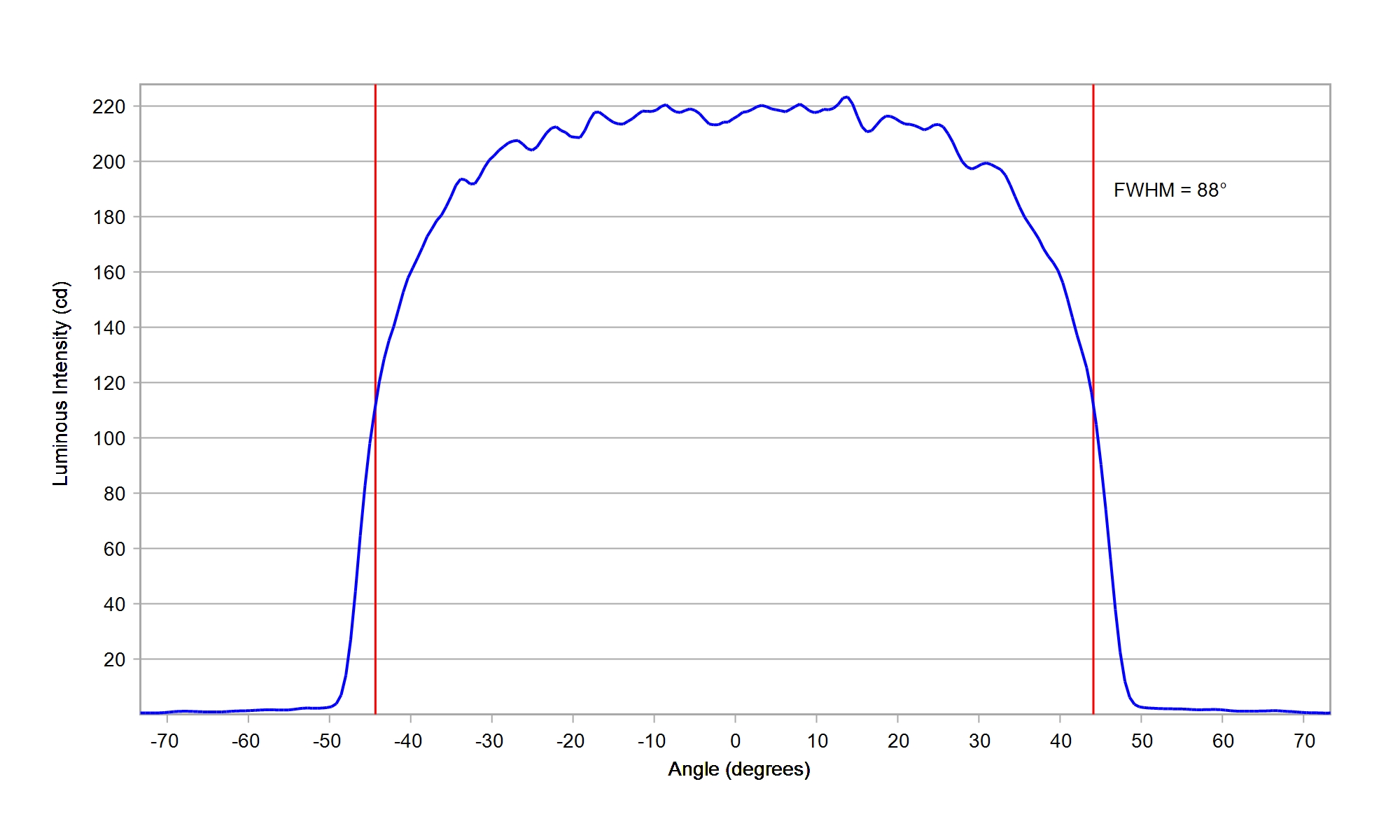

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.0%

FWHM:

87 x 81°

Cd/Im:

0.9

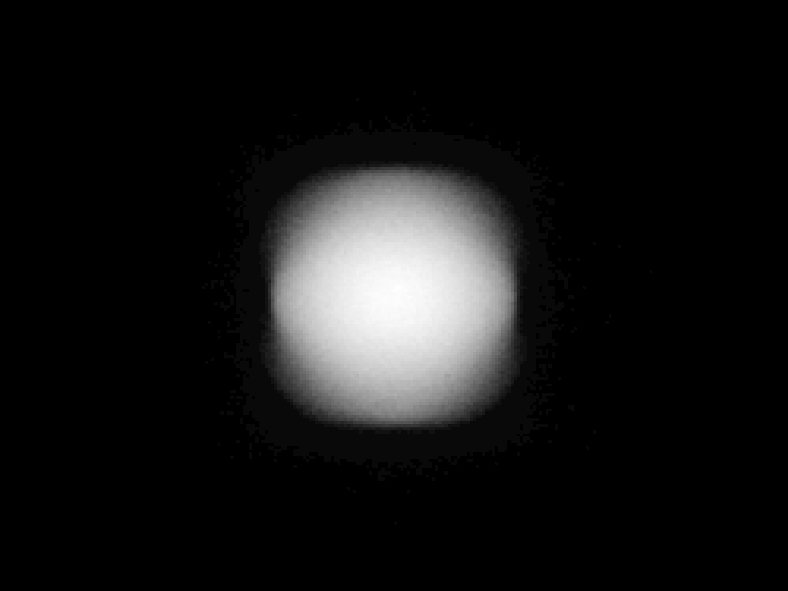

Carclo Optics - 12952 33Up Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12952 33Up Cross Section Bridgelux 3030 Gen2

Download

ies

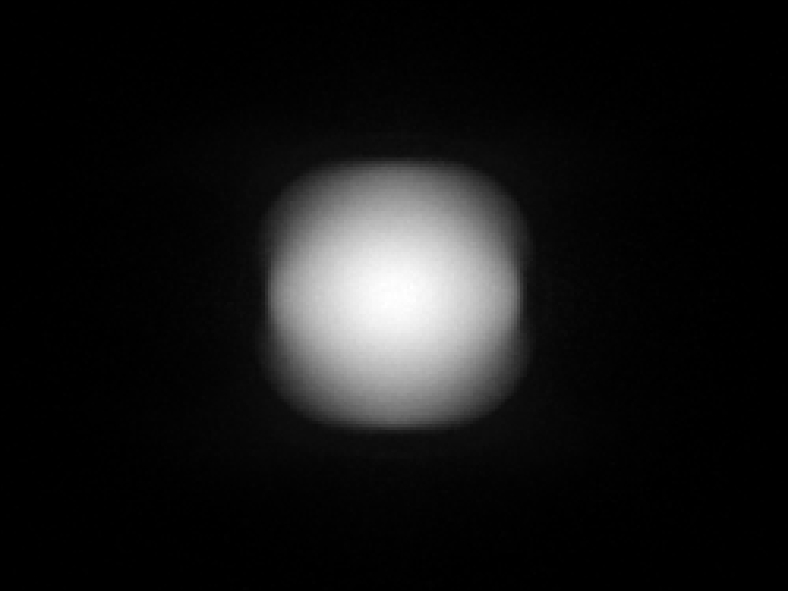

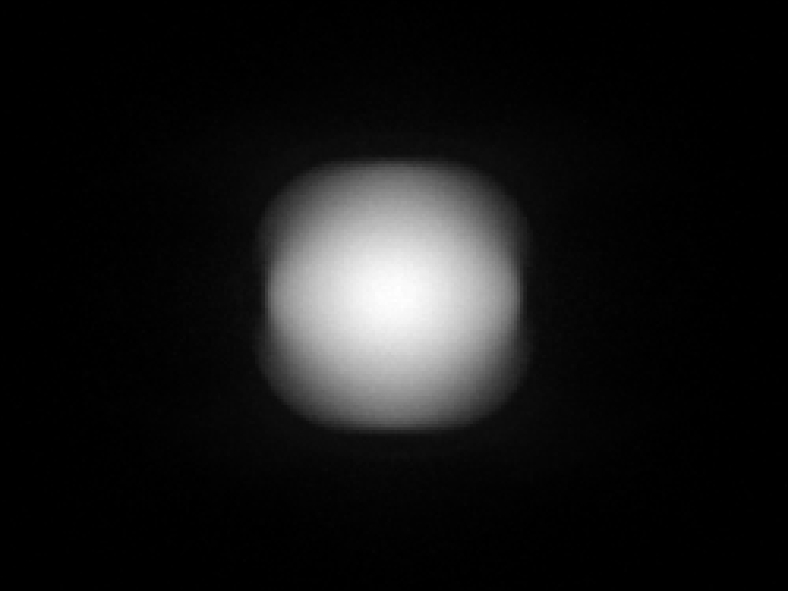

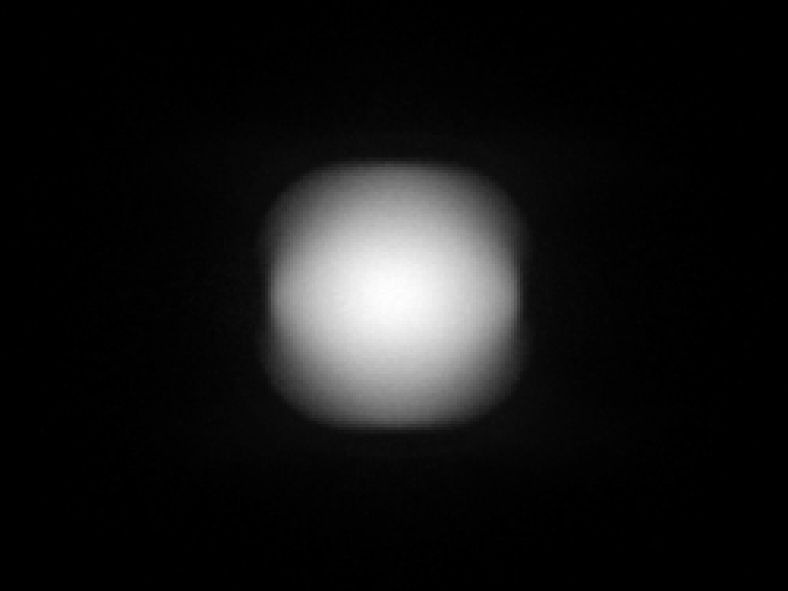

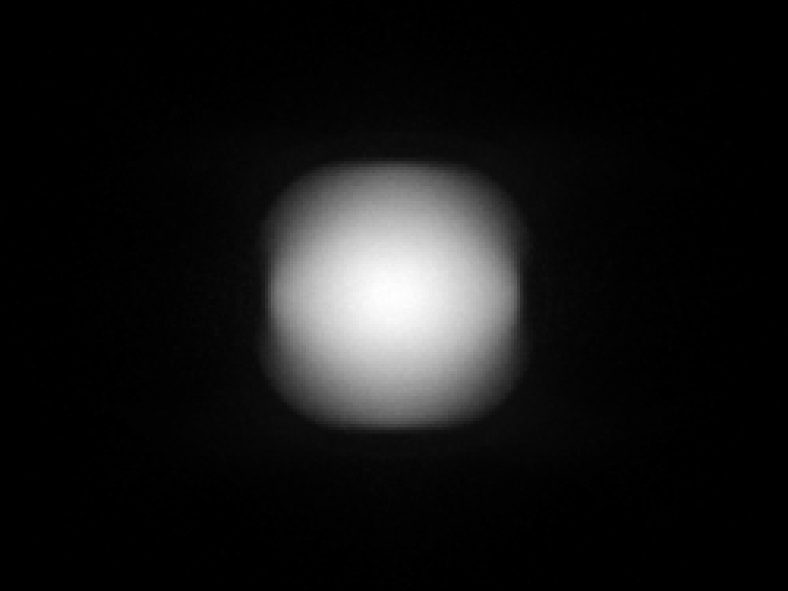

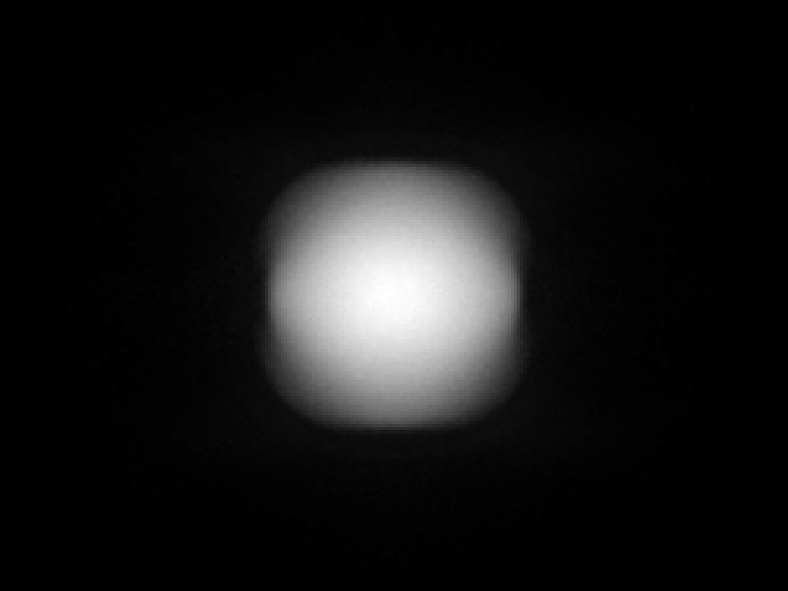

Cree JB3030 3V White

Eff:

96.0%

FWHM:

86.0°

Cd/Im:

0.9

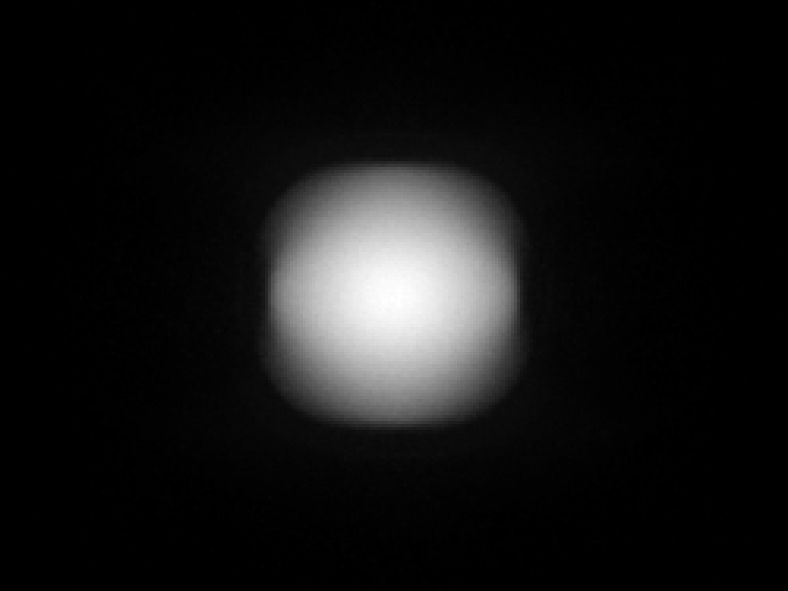

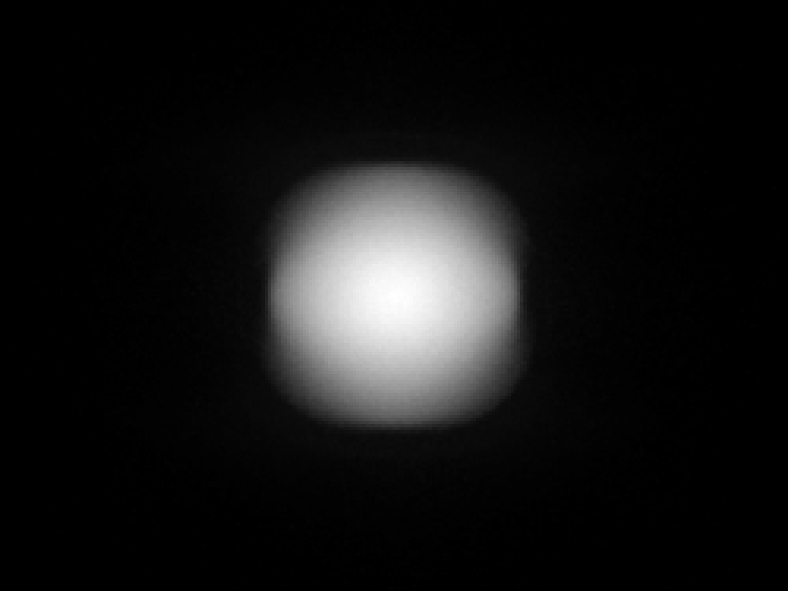

Carclo Optics - 12952 Spot Image Cree JB3030 3V White

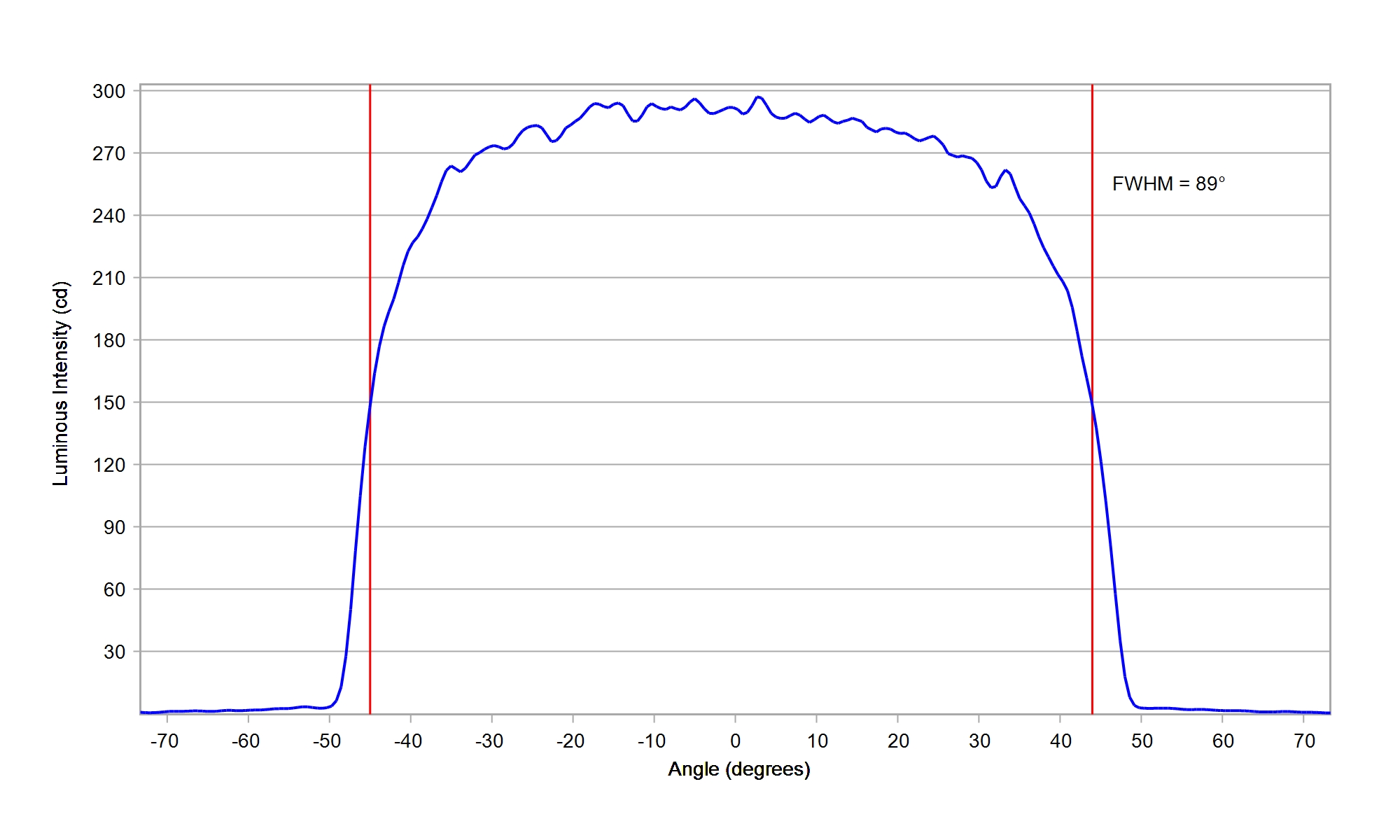

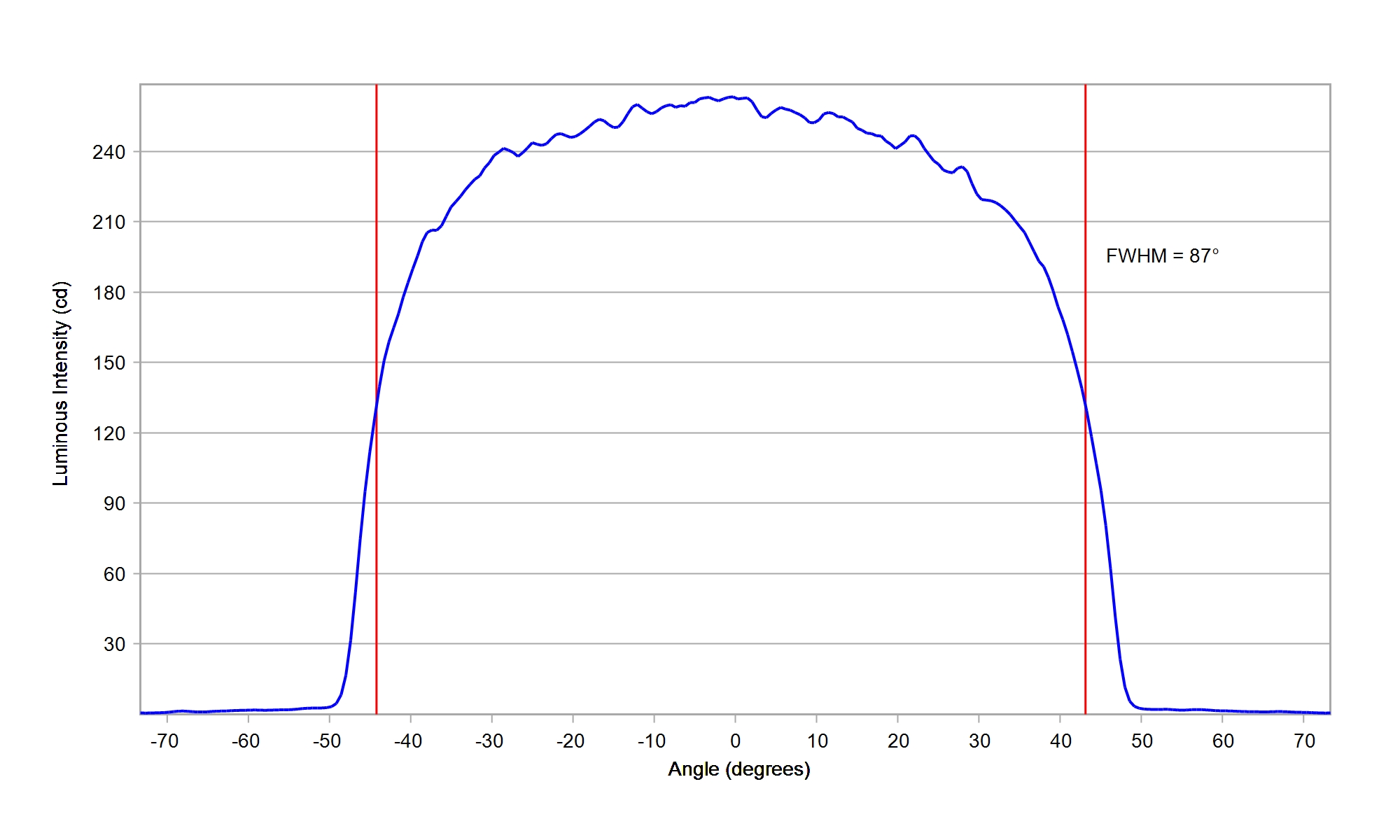

Carclo Optics - 12952 Cross Section Cree JB3030 3V White

Download

ies

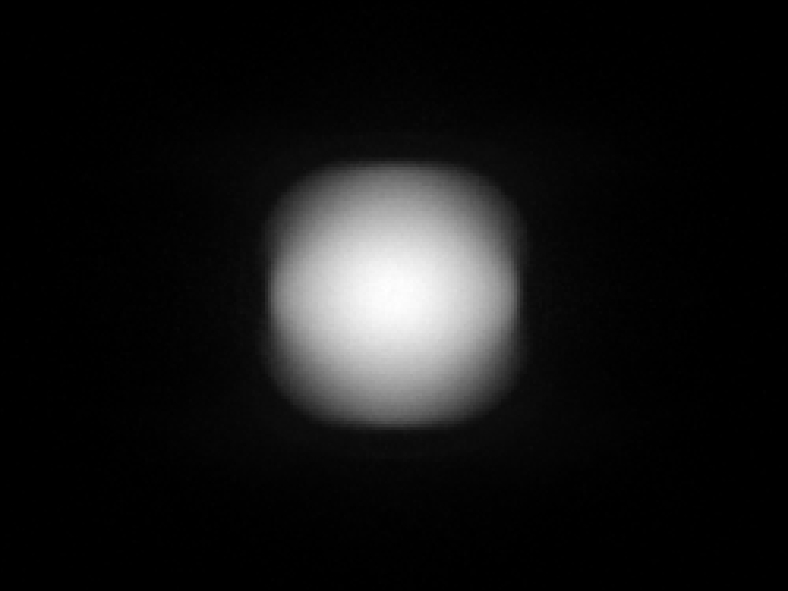

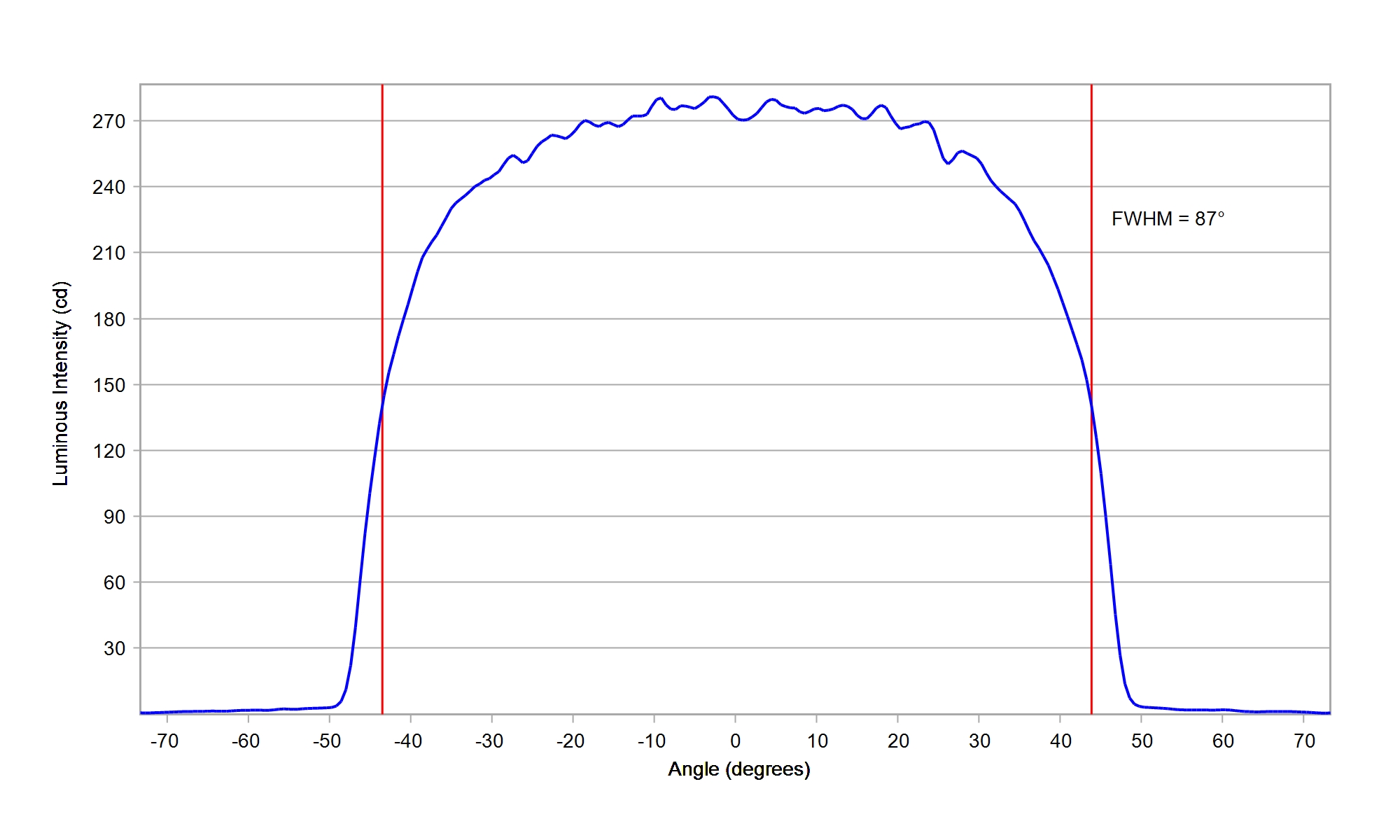

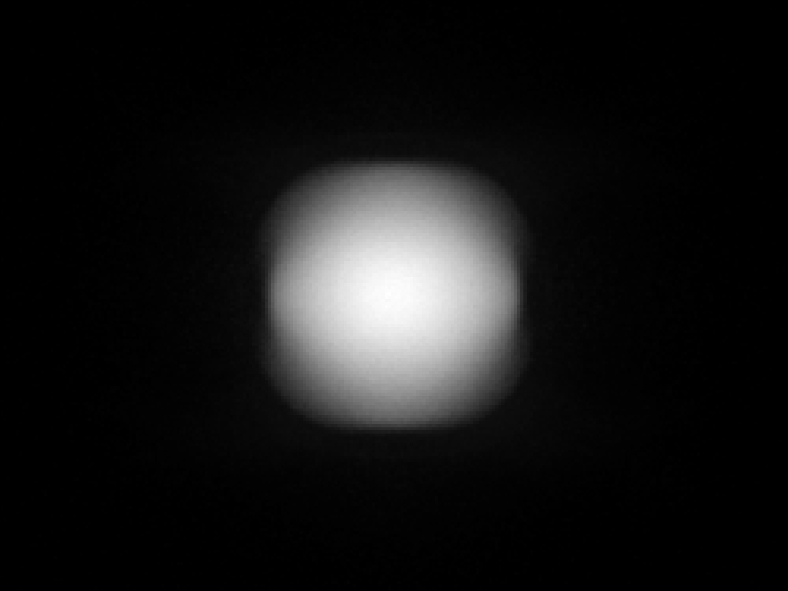

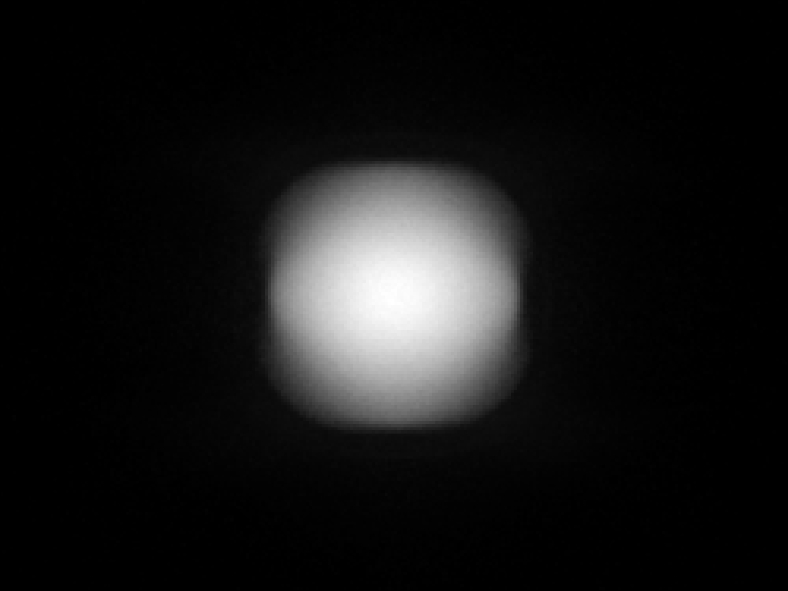

Cree JK2835 6V White

Eff:

96.0%

FWHM:

87°

Cd/Im:

1.0

Download

ies

Cree JQ5050 9V White

Eff:

96.0%

FWHM:

85.0°

Cd/Im:

1.1

Carclo Optics - 12952 Spot Image Cree JQ5050 9V White

Carclo Optics - 12952 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

96.0%

FWHM:

84.0°

Cd/Im:

1.0

Carclo Optics - 12952 Spot Image Cree JR5050 24V White

Carclo Optics - 12952 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

96.0%

FWHM:

84.0°

Cd/Im:

1.1

Carclo Optics - 12952 Spot Image Cree JR5050 36V White

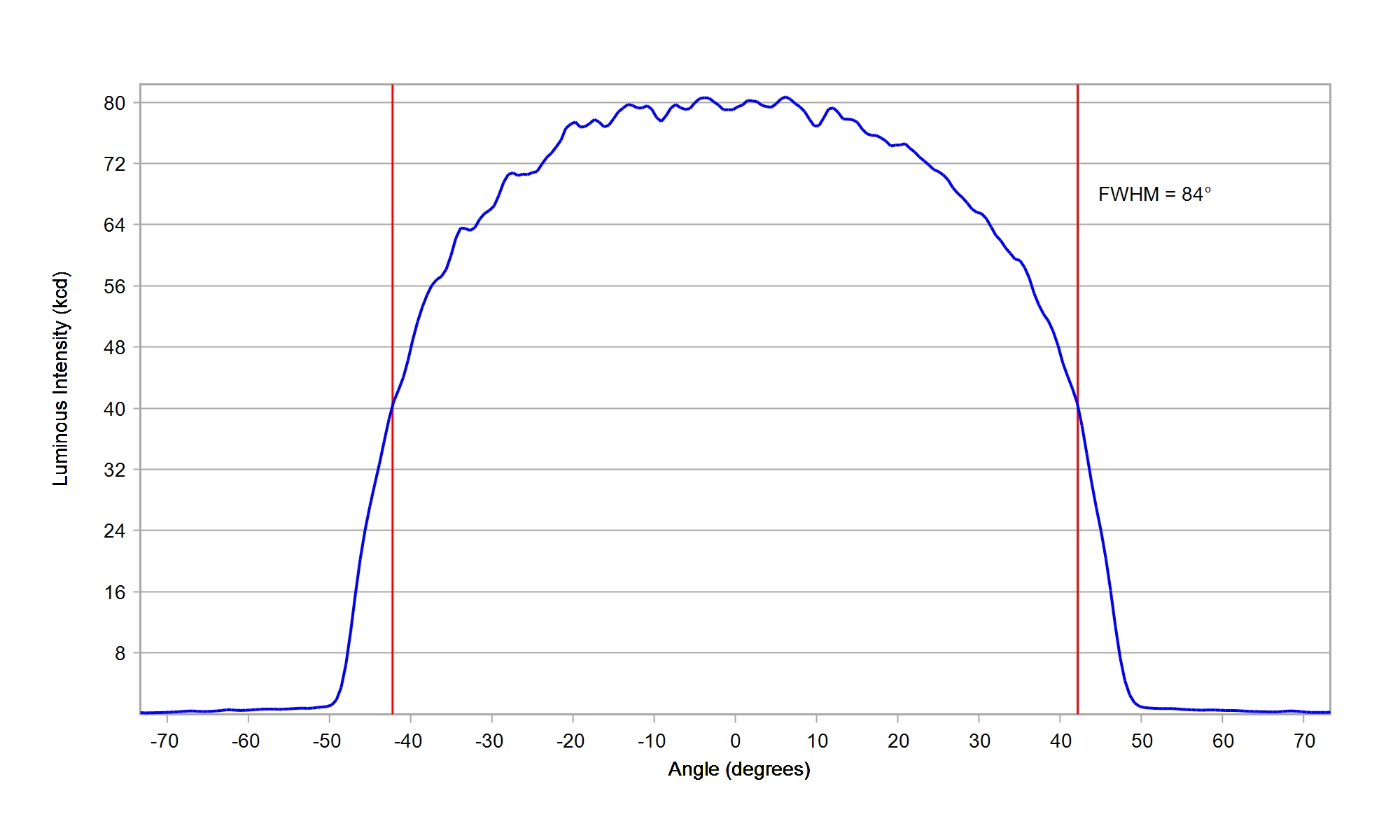

Carclo Optics - 12952 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

96.0%

FWHM:

84.0°

Cd/Im:

1.1

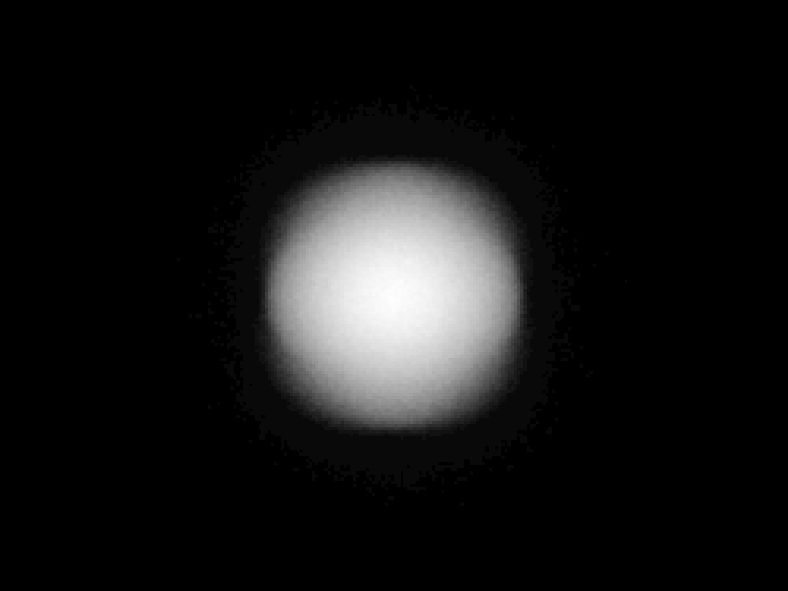

Carclo Optics - 12952 Spot Image Cree JR5050 6V White

Carclo Optics - 12952 Cross Section Cree JR5050 6V White

Download

ies

Cree JR5050C 6V E-Class White

Eff:

96.0%

FWHM:

86°

Cd/Im:

0.9


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

95.5%

FWHM:

91°

Cd/Im:

0.8

Download

IES

Cree XLamp XE-G White

Eff:

95.0%

FWHM:

93°

Cd/Im:

0.7

Download

ies

Cree XLamp XH-B White

Eff:

93.5%

FWHM:

95°

Cd/Im:

0.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

94.5%

FWHM:

88°

Cd/Im:

0.9

Carclo Optics – 12952 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12952 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XM-L Color G2 HI RGBW

Eff:

95.5%

FWHM:

87°

Cd/Im:

0.9

Download

ies

Cree XLamp XP-E2 White

Eff:

96.0%

FWHM:

89°

Cd/Im:

0.8

Download

ies

Cree XLamp XP-P White

Eff:

96.0%

FWHM:

90°

Cd/Im:

0.8

Carclo Optics – 12952 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12952 Cree Xlamp XP-P - Cross-Section

Download

ies

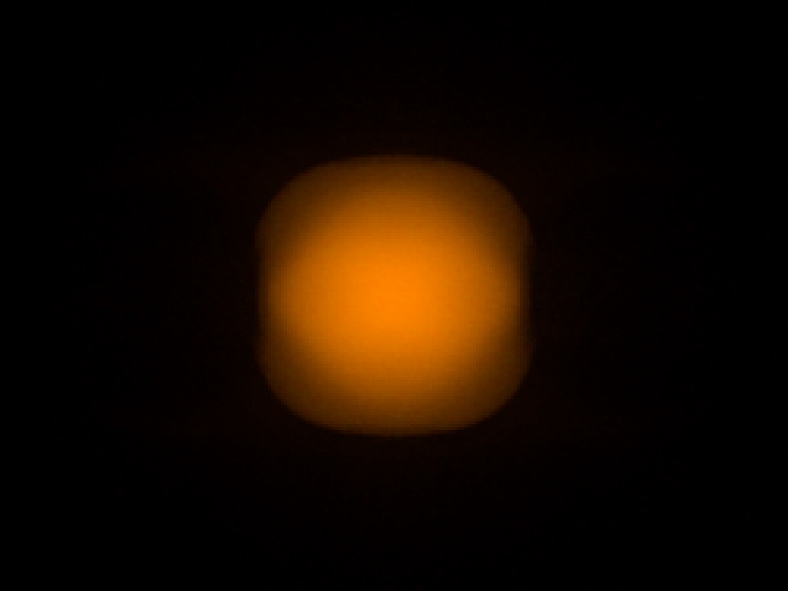

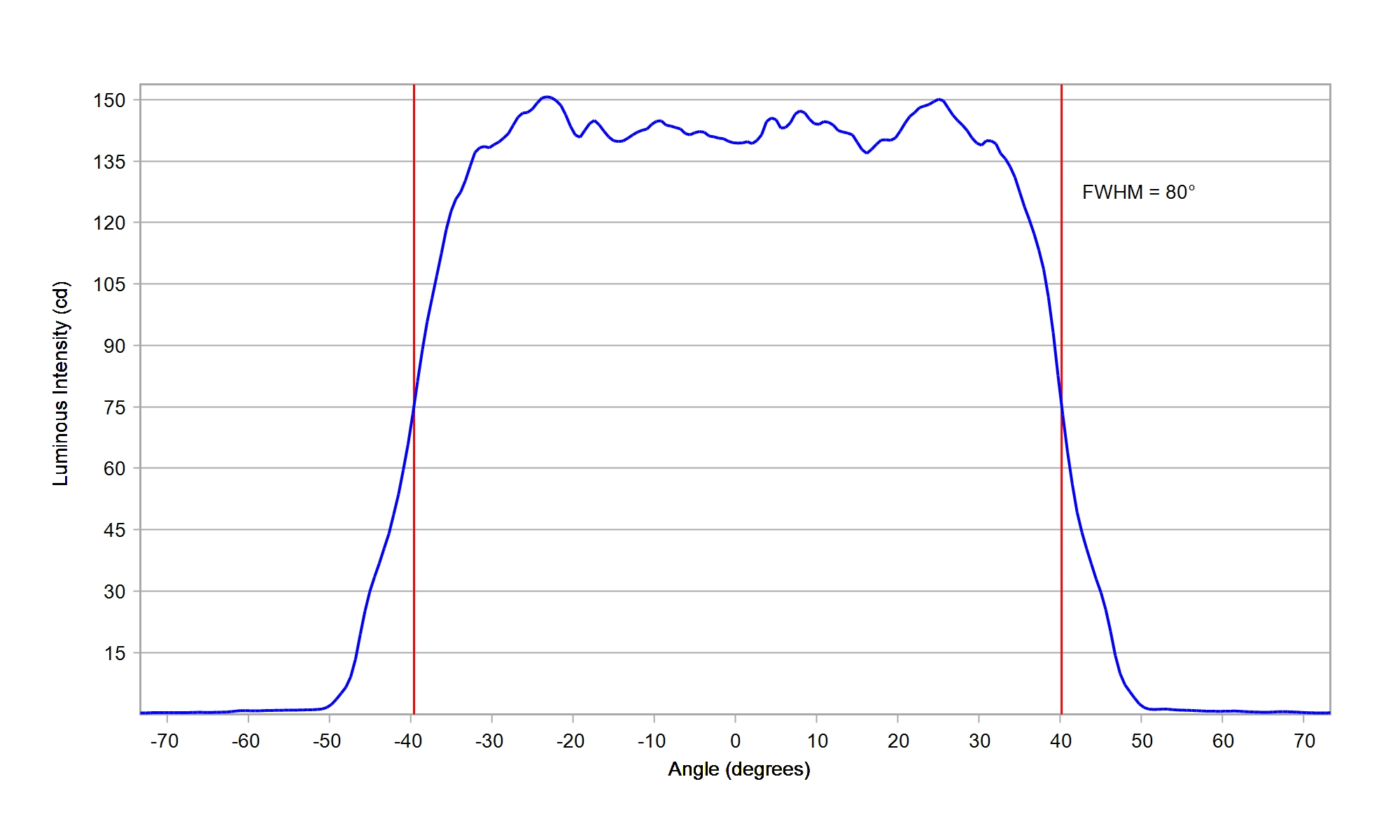

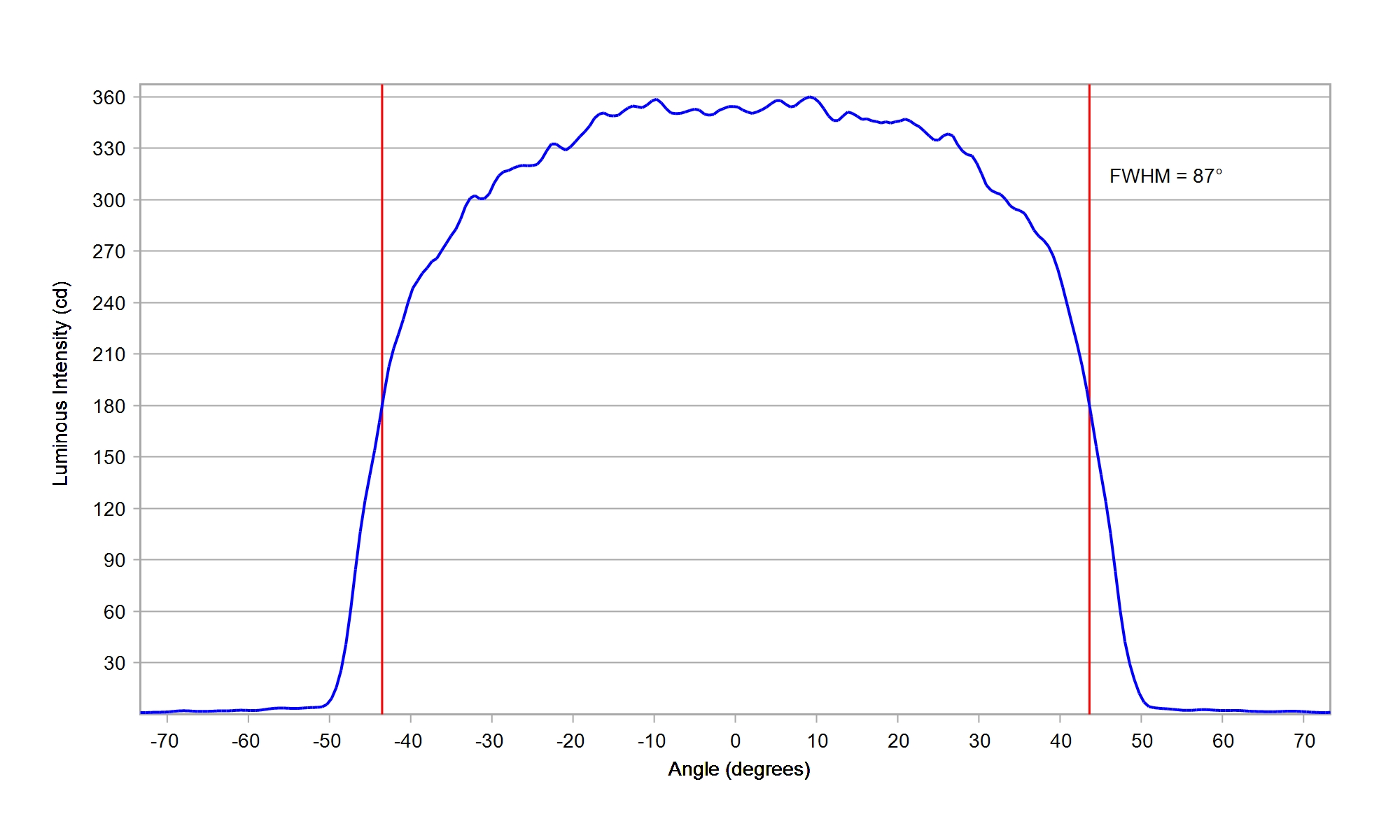

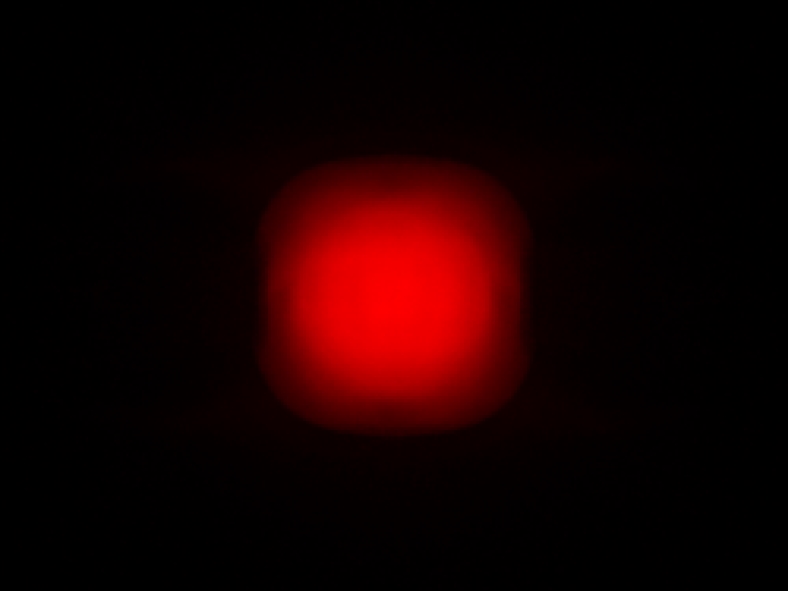

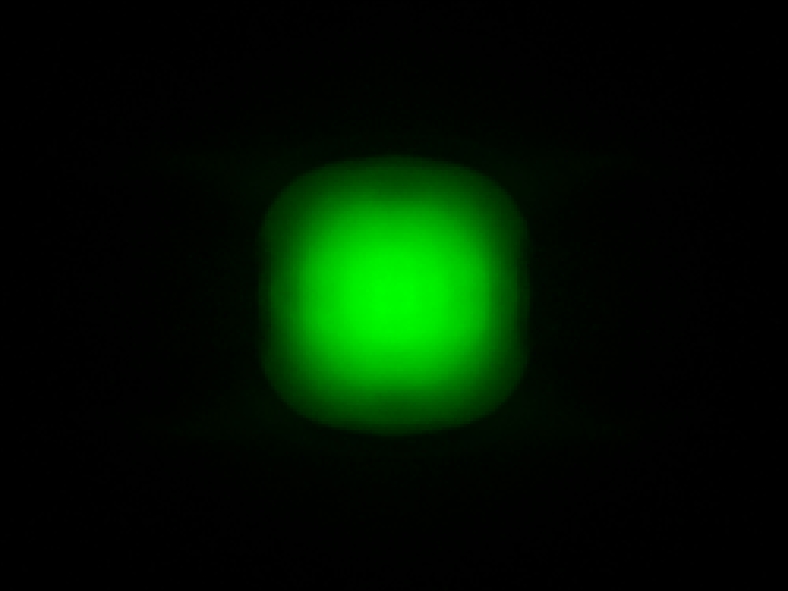

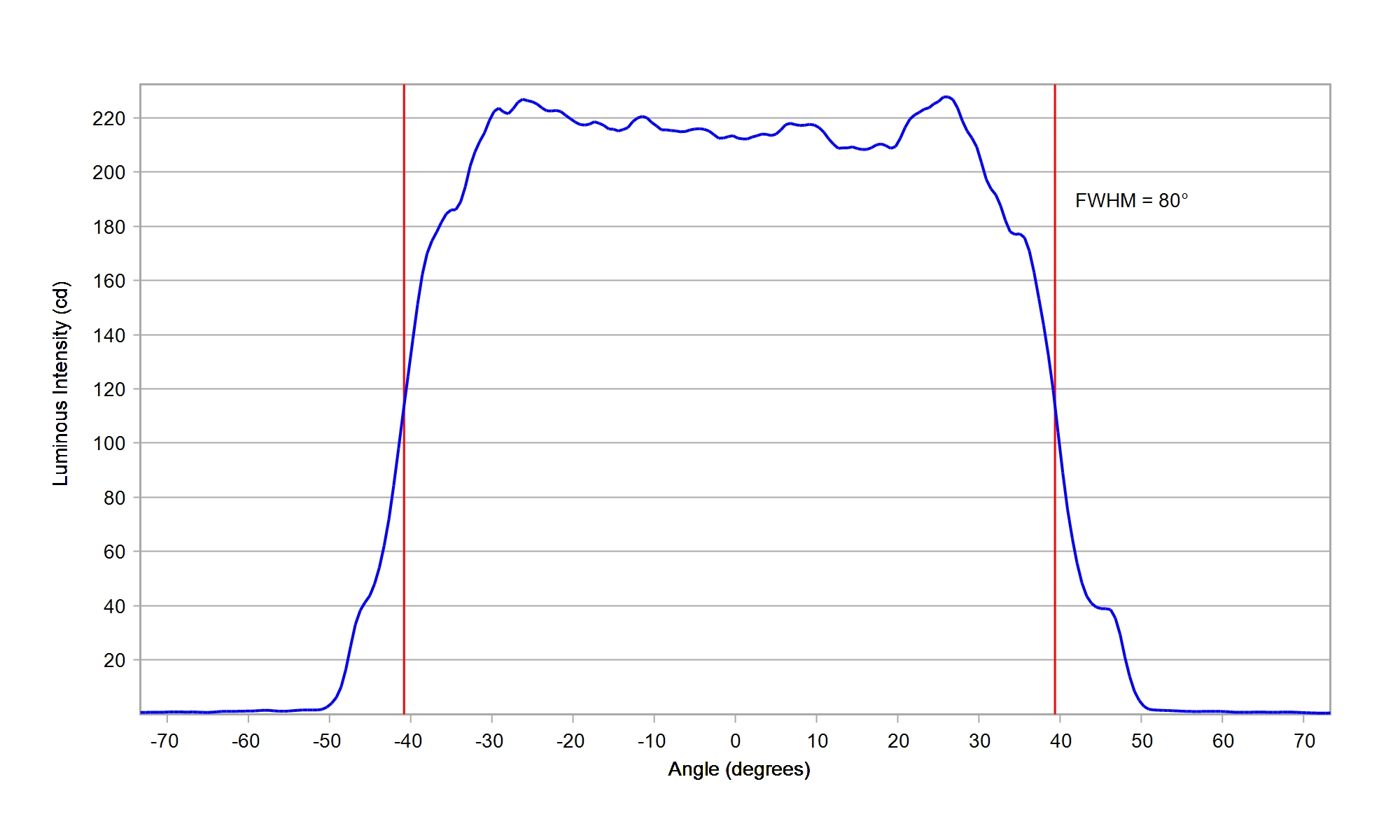

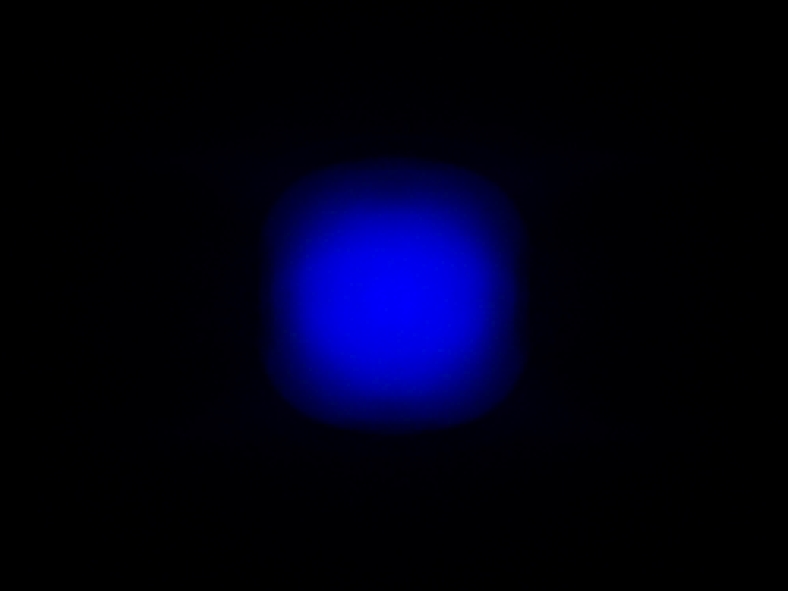

Cree XLamp XQ-A White

Eff:

95.5%

FWHM:

71.5°

Cd/Im:

0.7

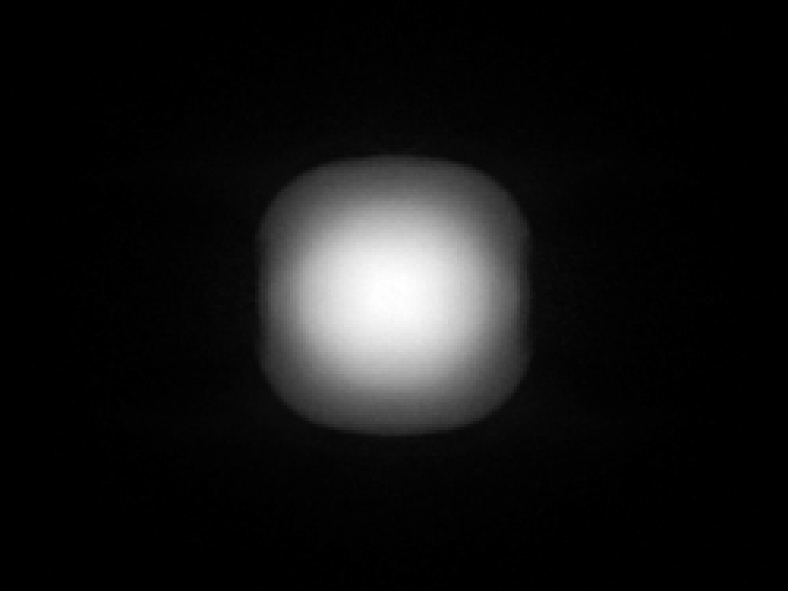

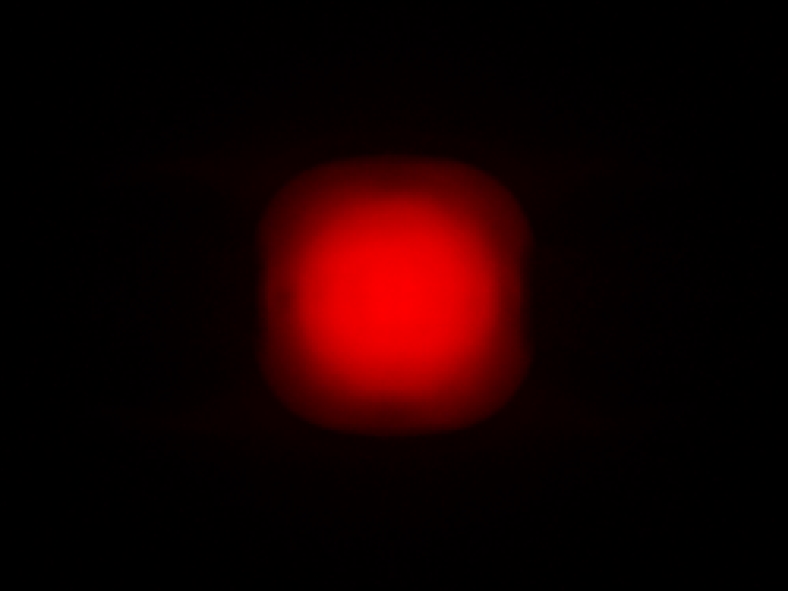

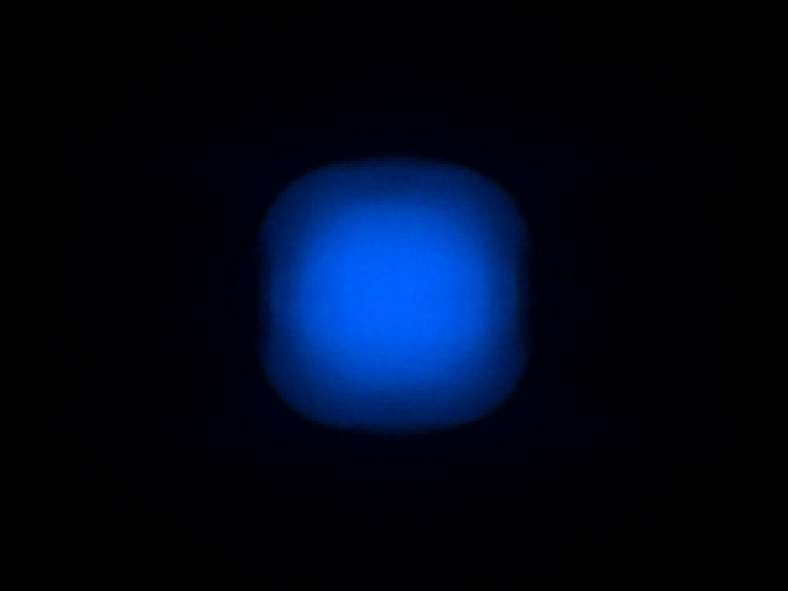

Carclo Optics - Simulated Spot Image

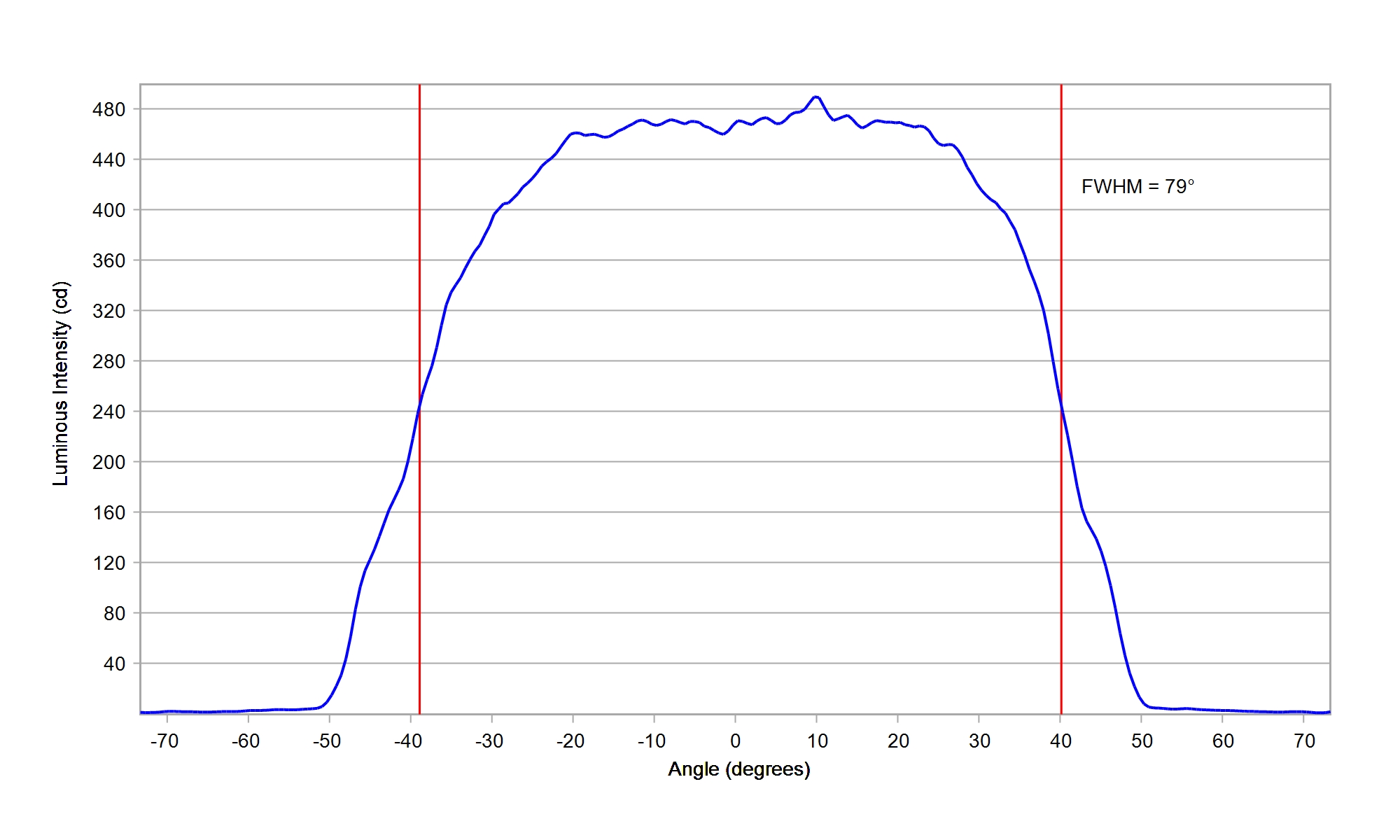

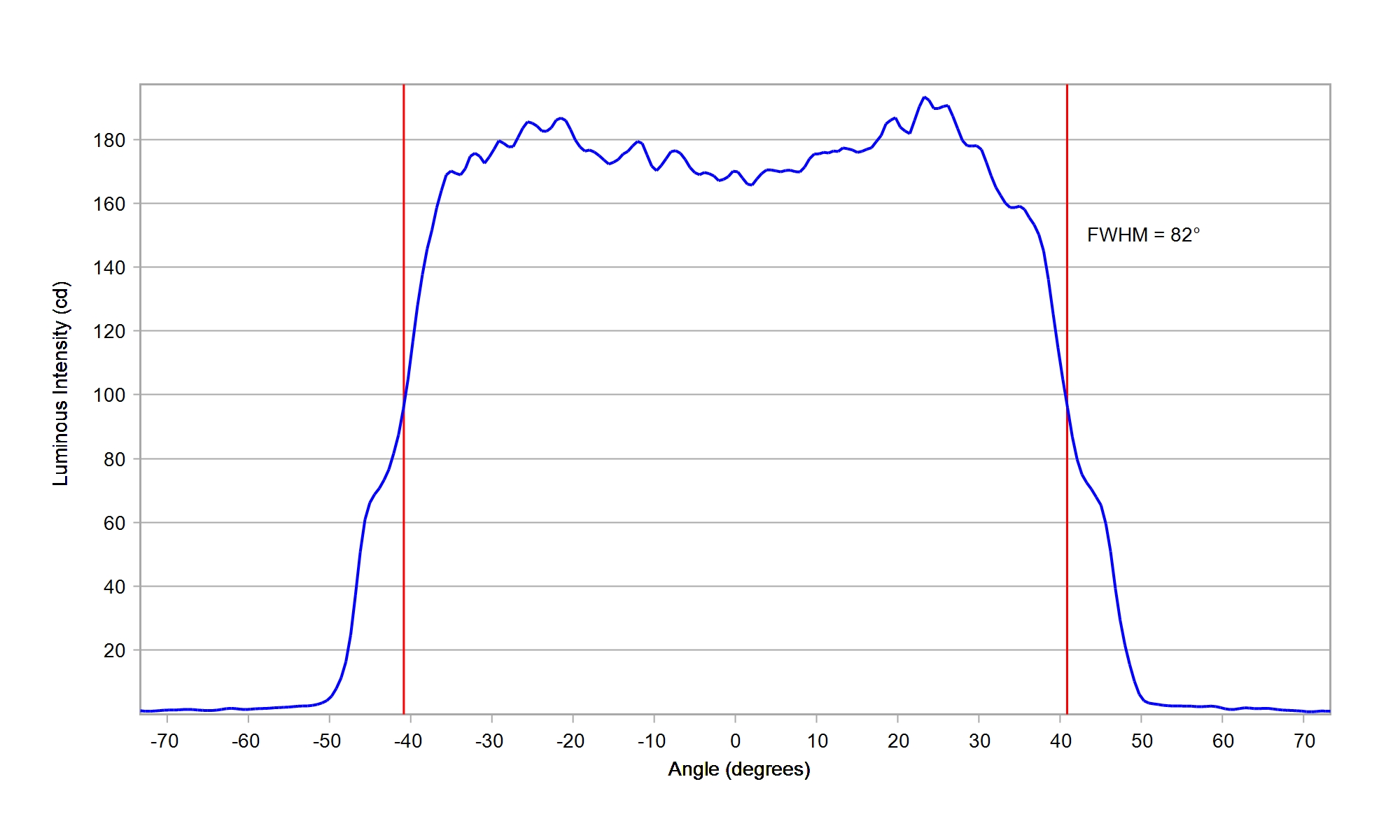

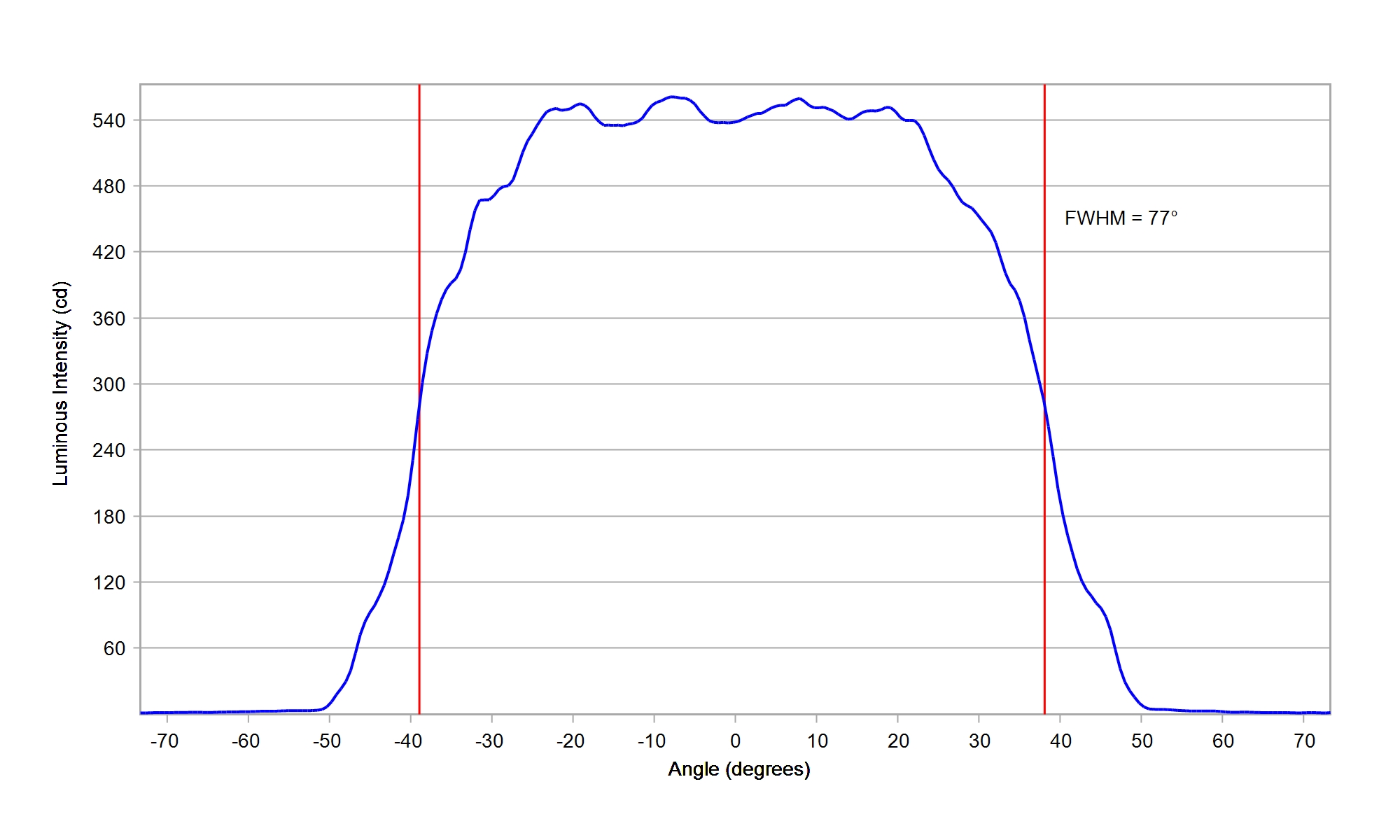

Carclo Optics - Simulated Cross Section

Download

ies

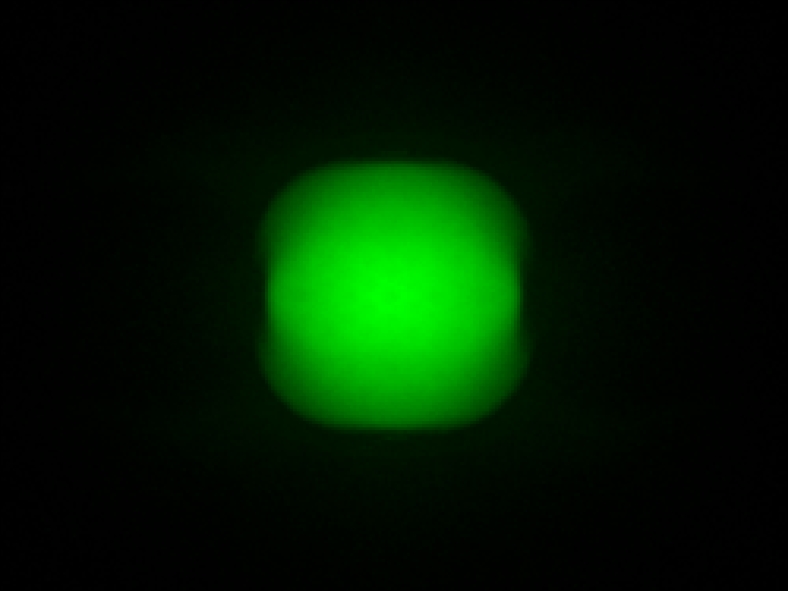

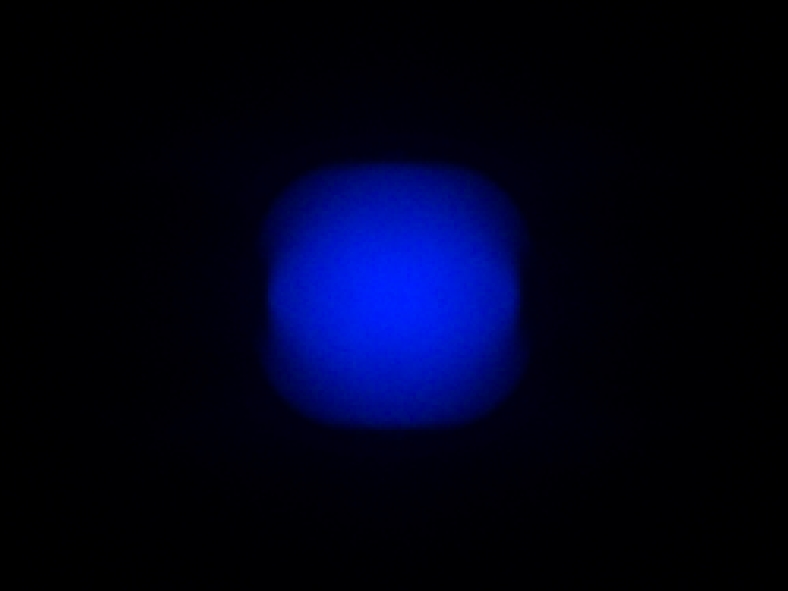

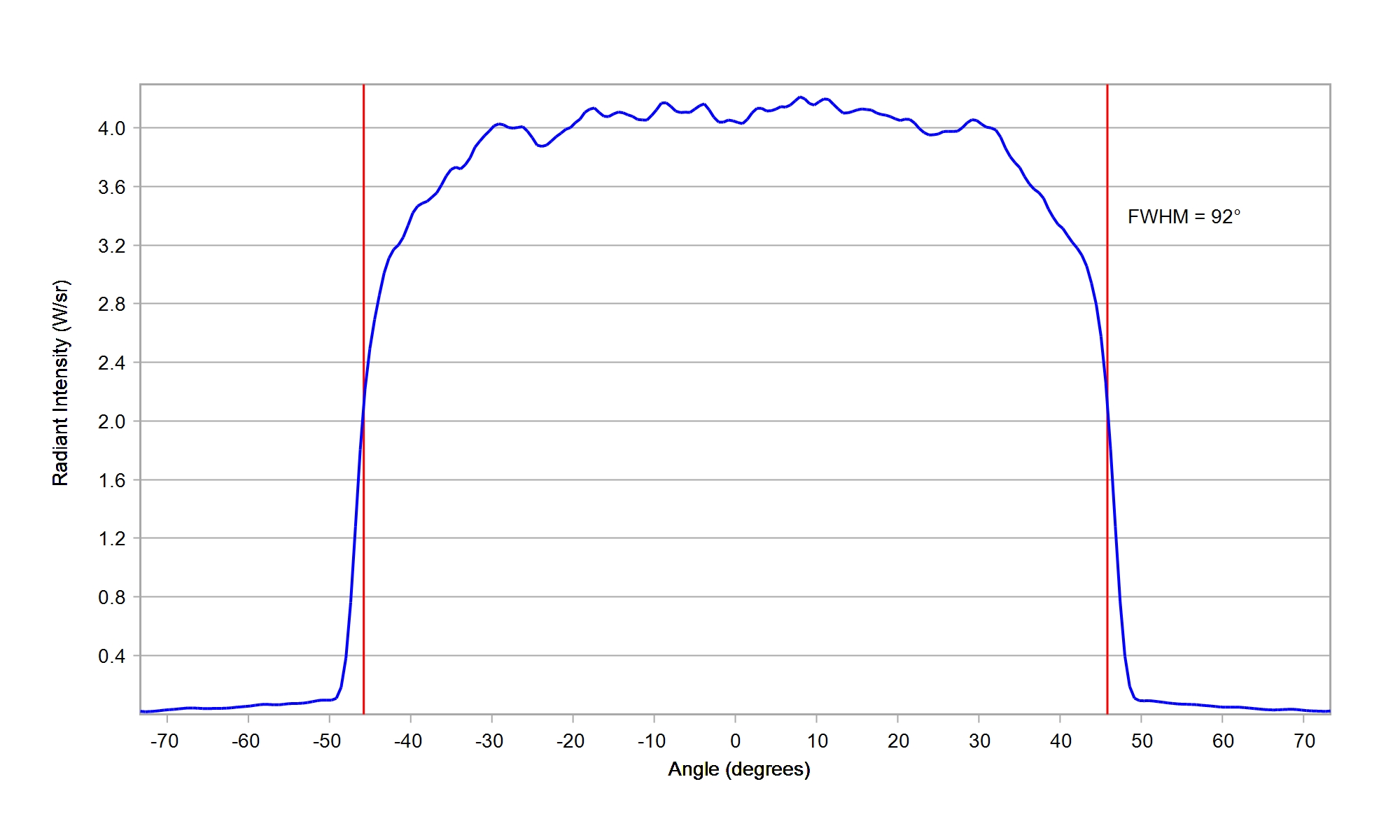

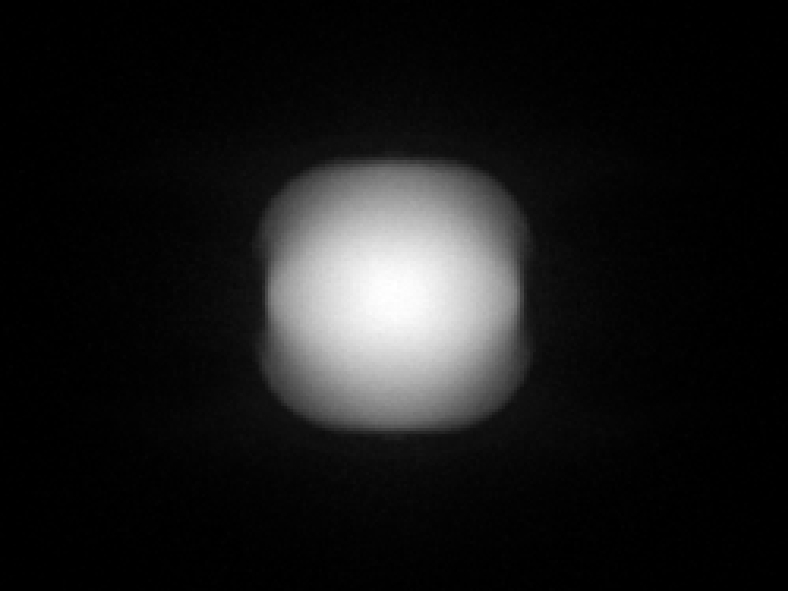

Cree XLamp XQ-E HI White

Eff:

95.0%

FWHM:

90°

Cd/Im:

0.6

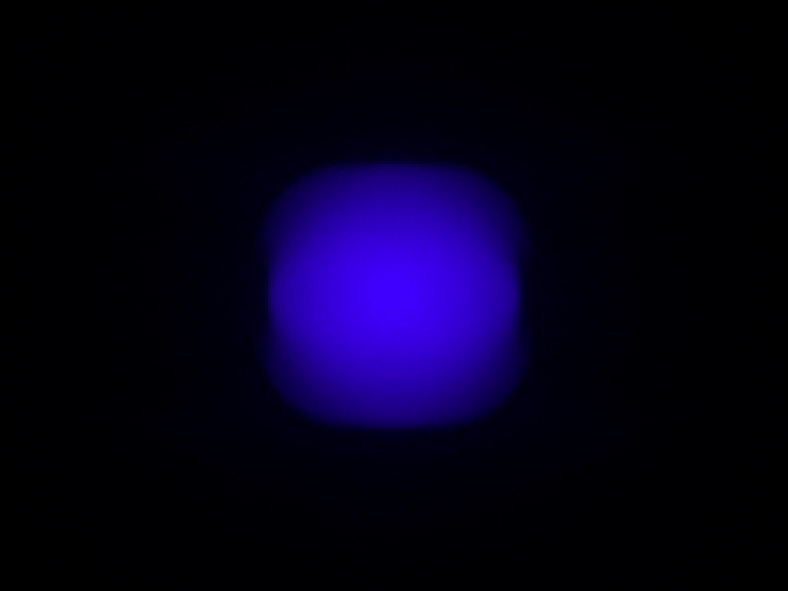

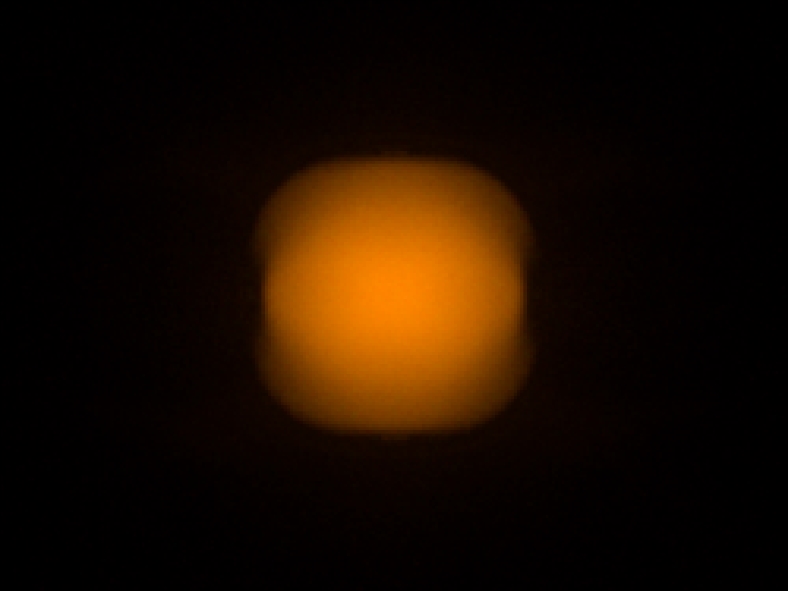

Carclo Optics - Simulated Spot Image

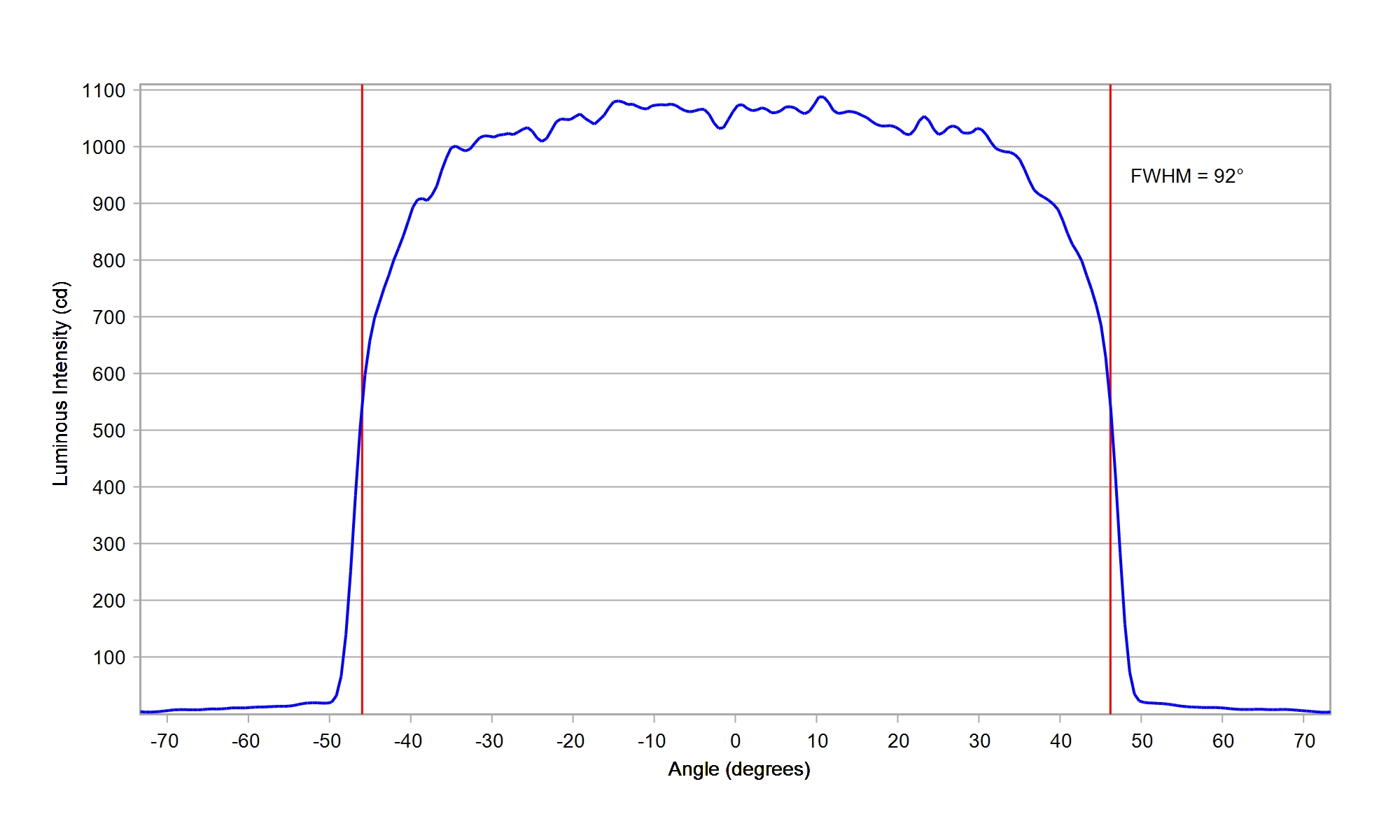

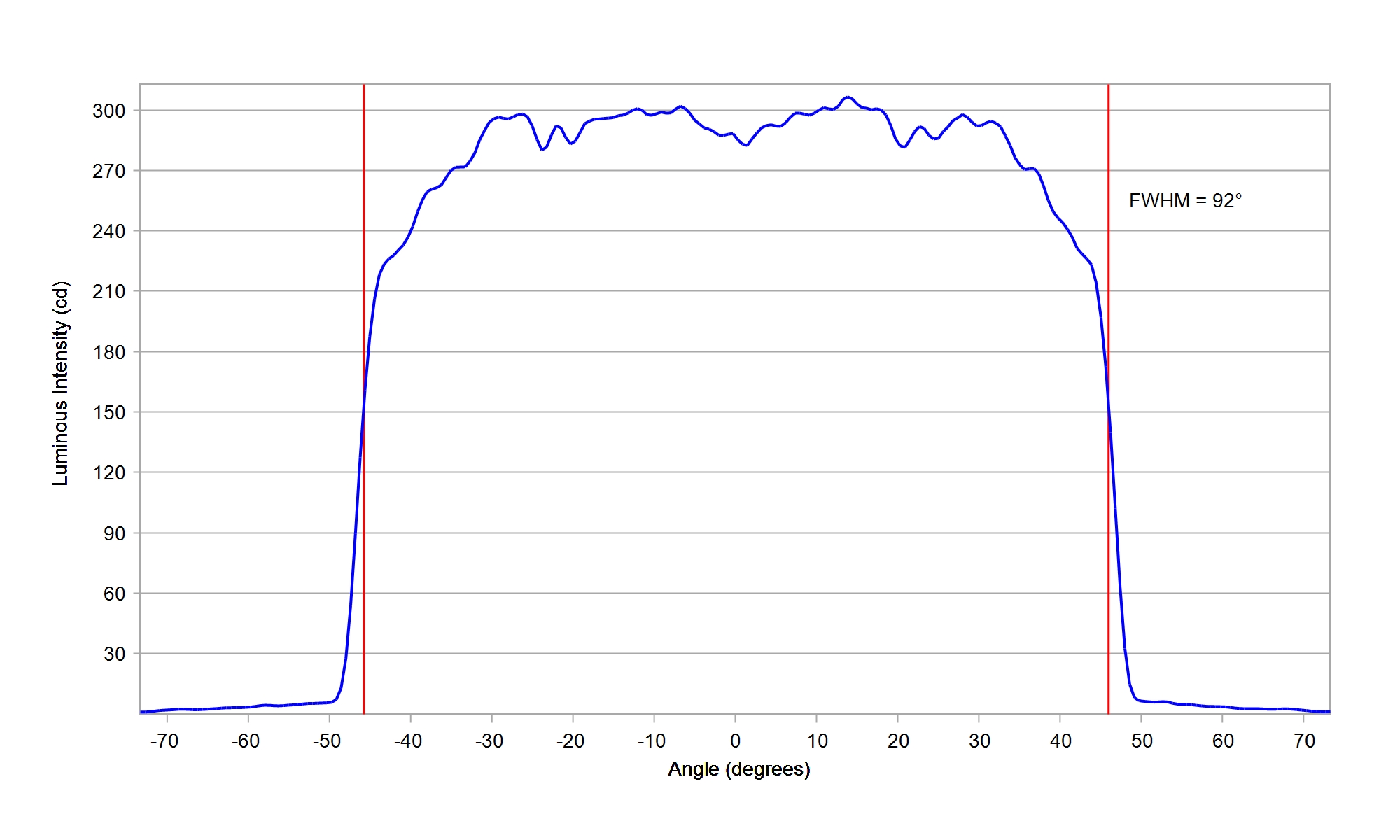

Carclo Optics - Simulated Cross Section

Download

ies

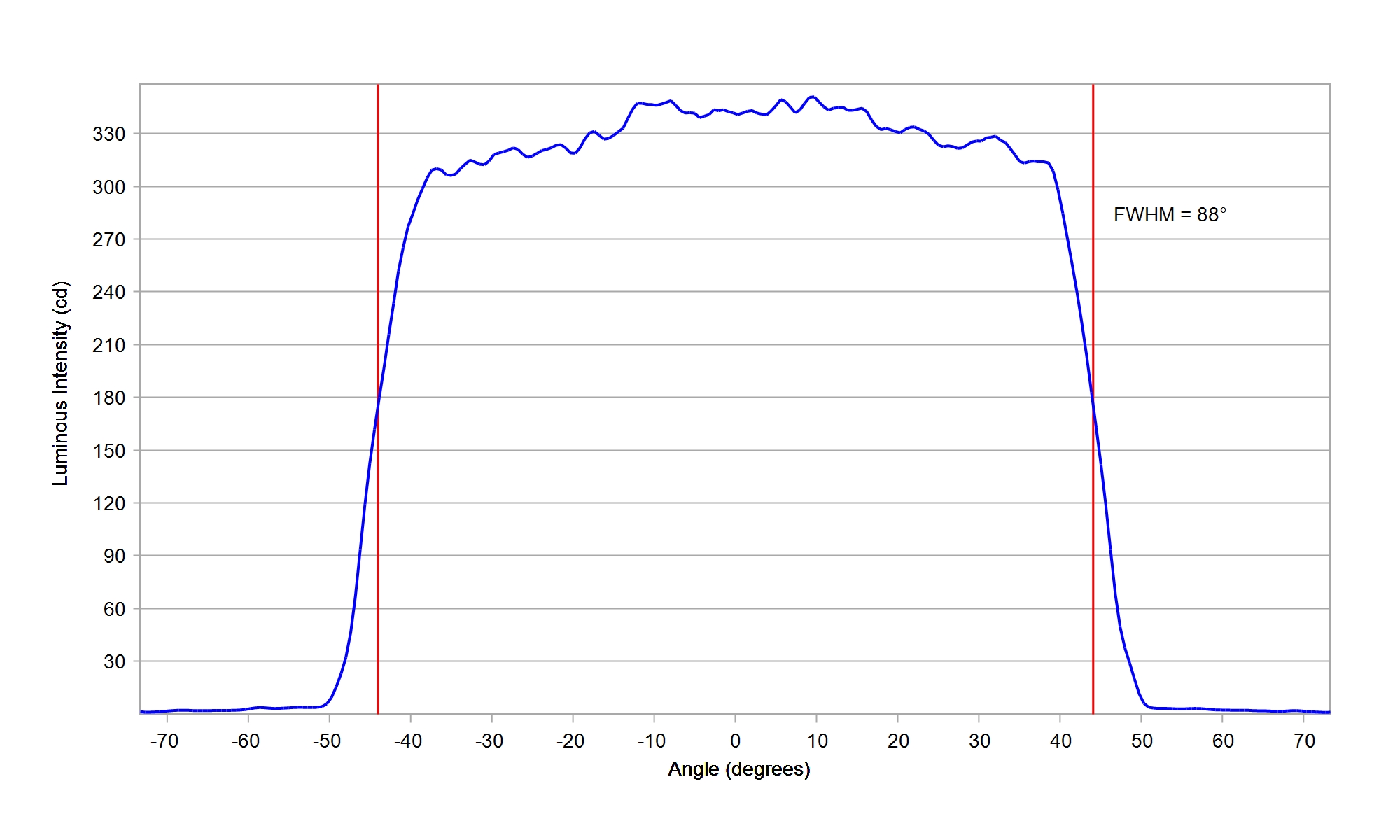

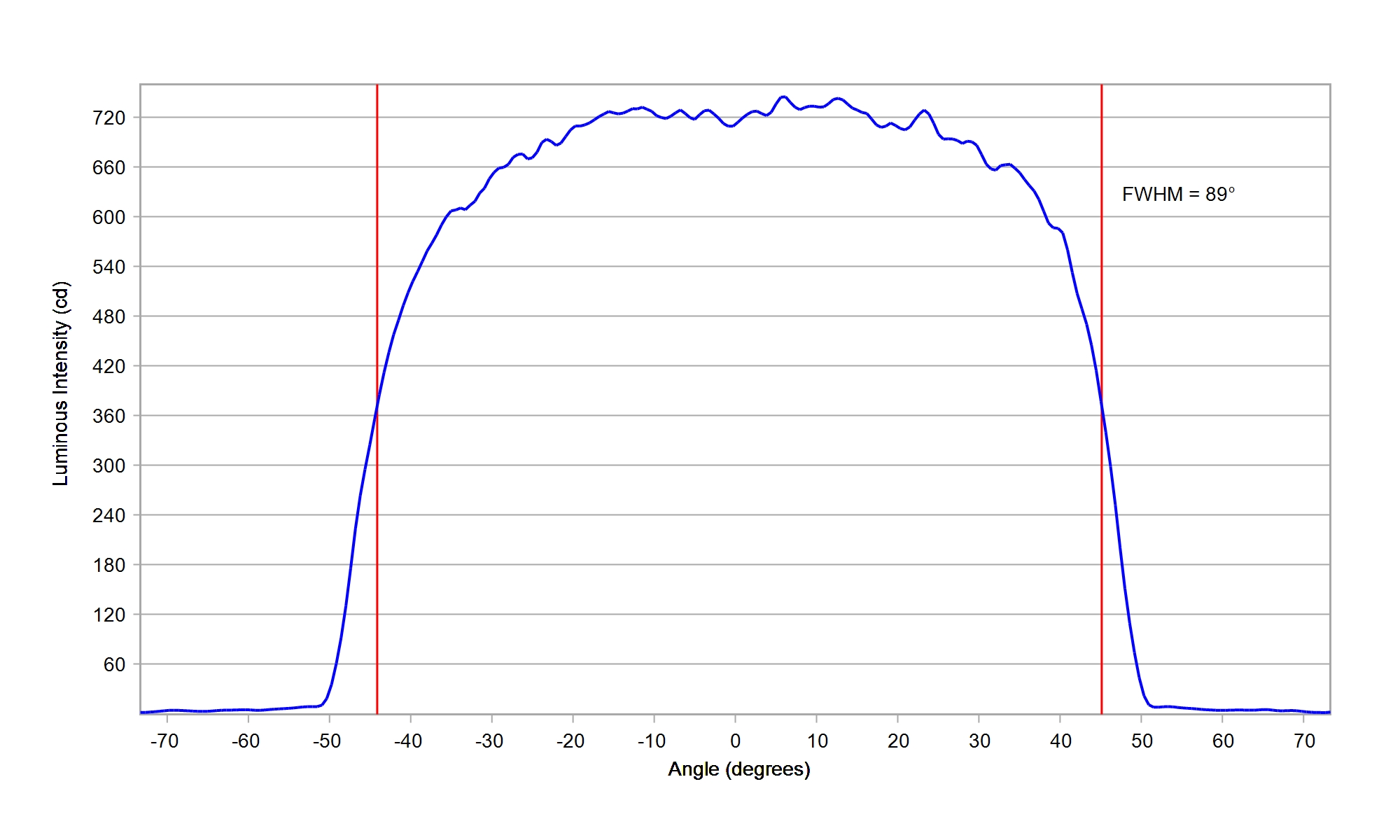

Cree XLamp XQ-E HD White

Eff:

96.0%

FWHM:

81°

Cd/Im:

0.7

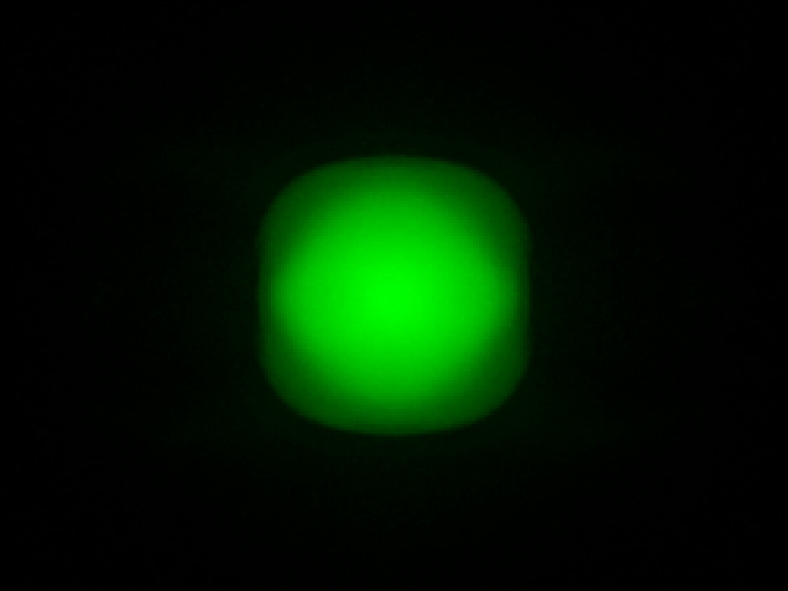

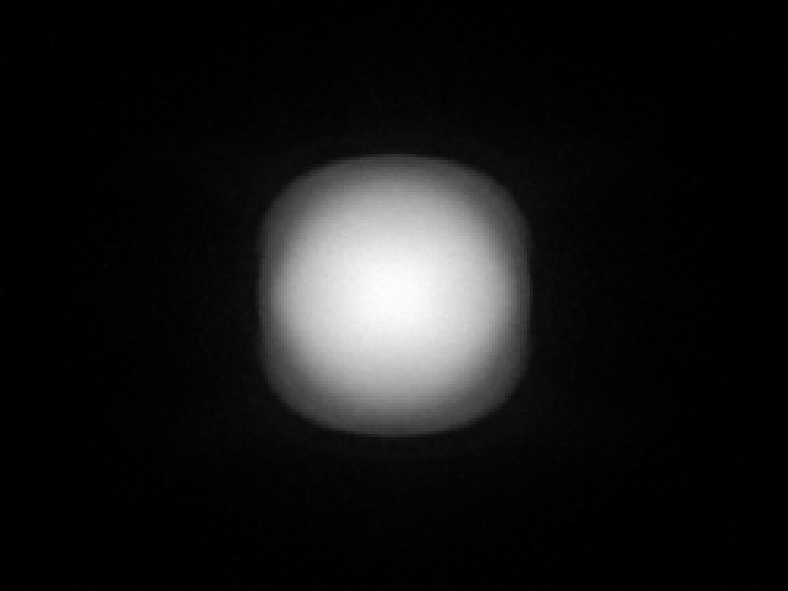

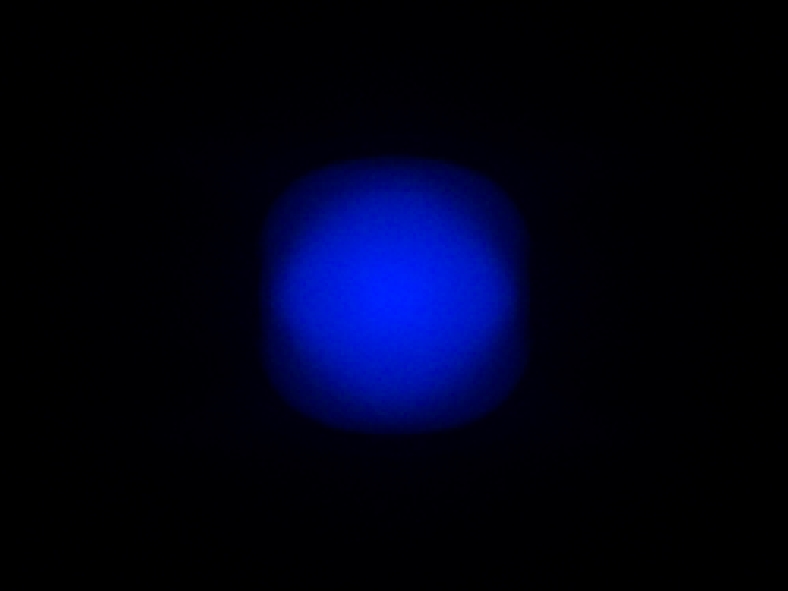

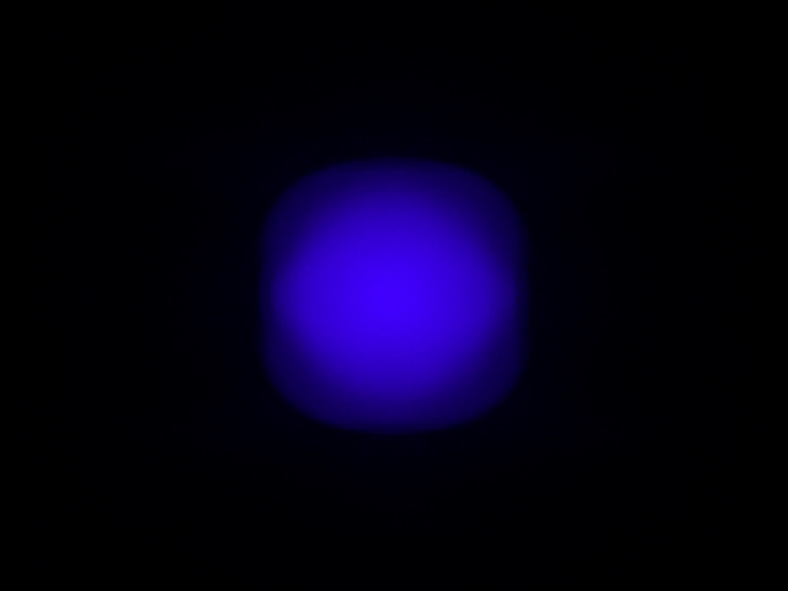

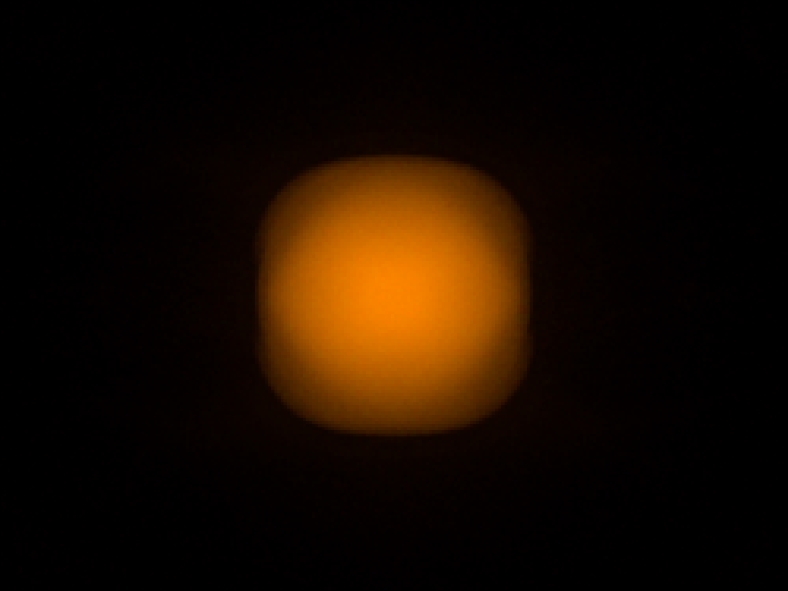

Carclo Optics - Simulated Spot Image

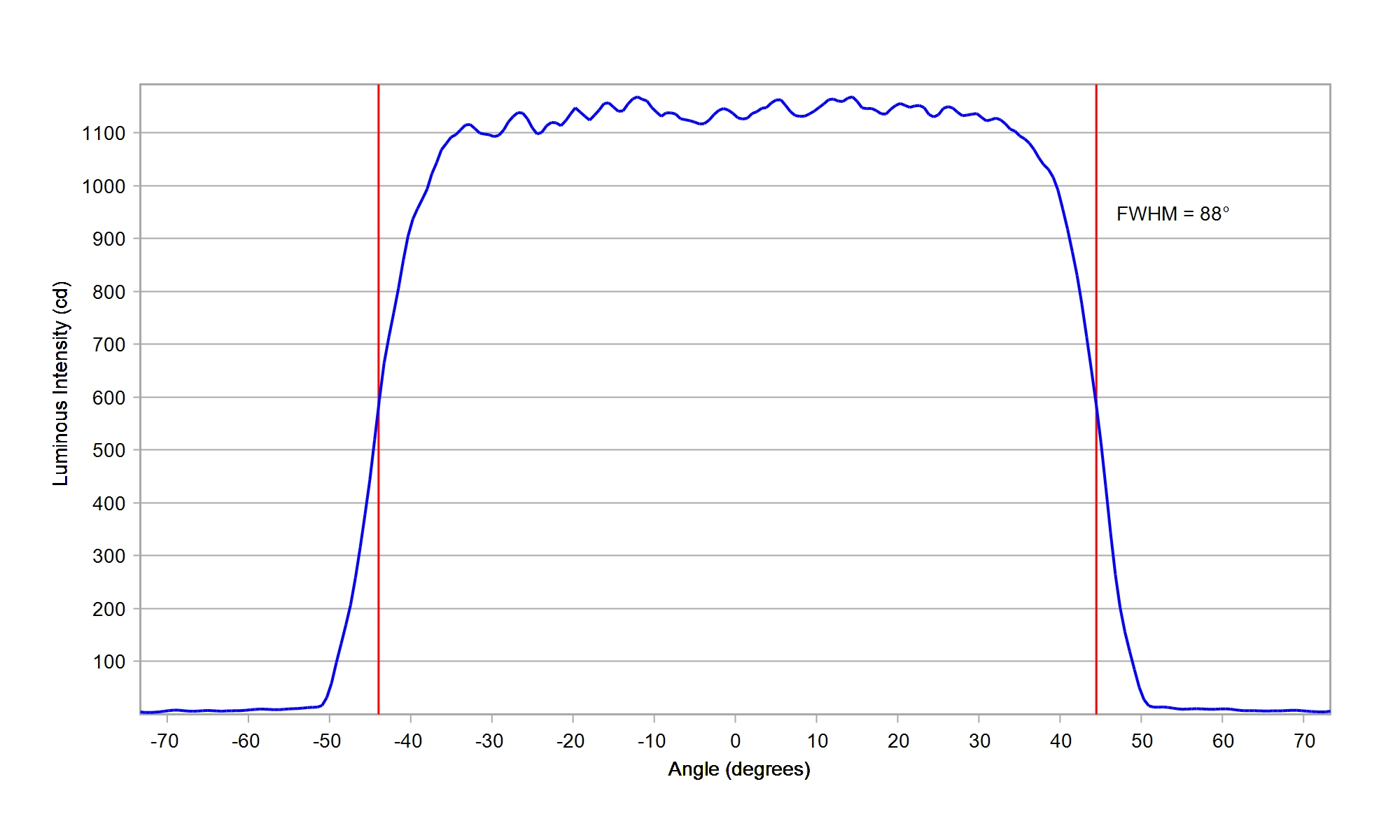

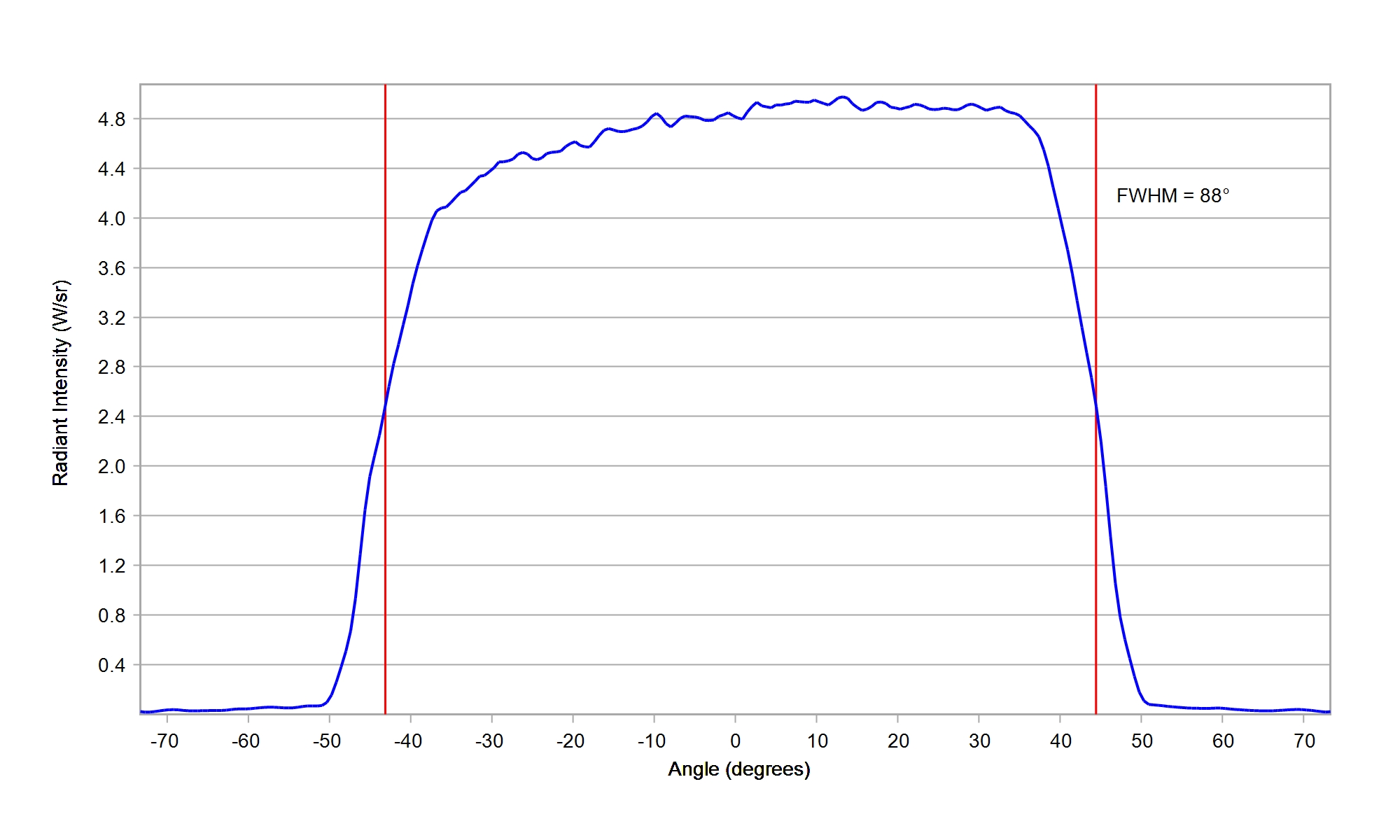

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 3030 LG White

Eff:

96.0%

FWHM:

87.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 5630 White

Eff:

96.0%

FWHM:

86.5°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

96.0%

FWHM:

90°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

96.0%

FWHM:

89°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

96.0%

FWHM:

89°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 3014 White

Eff:

96.0%

FWHM:

89°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

96.0%

FWHM:

87.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

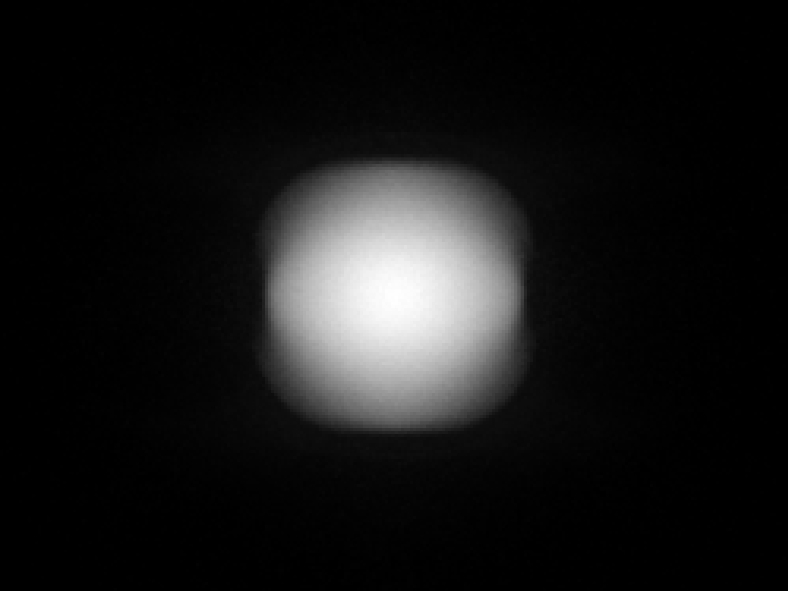

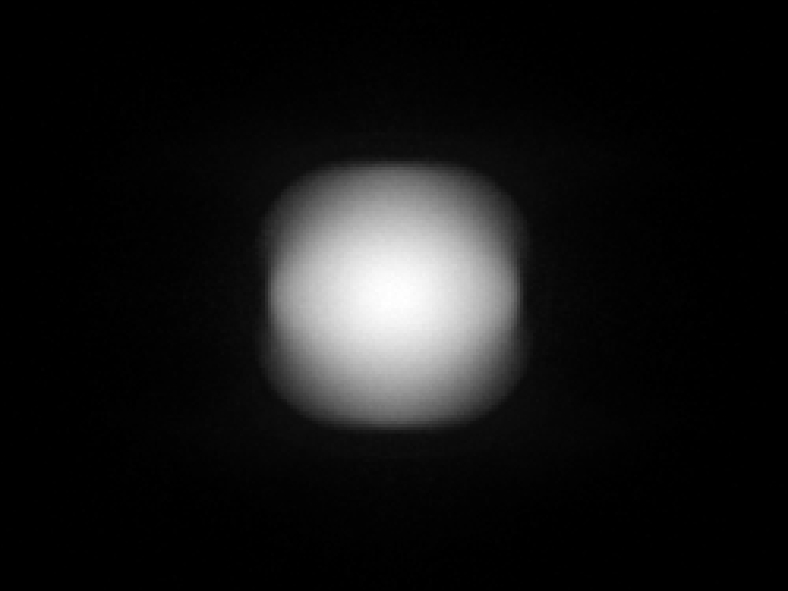

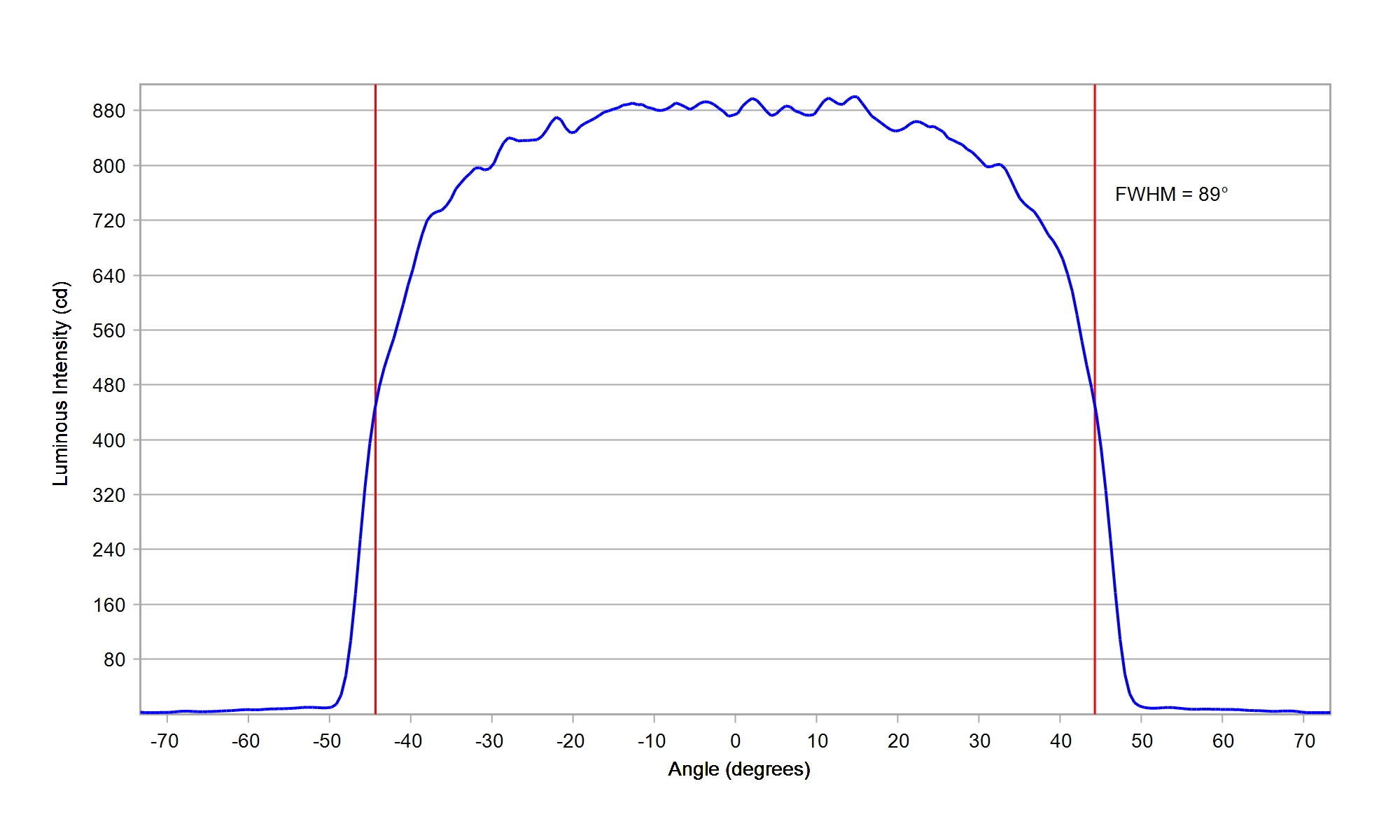

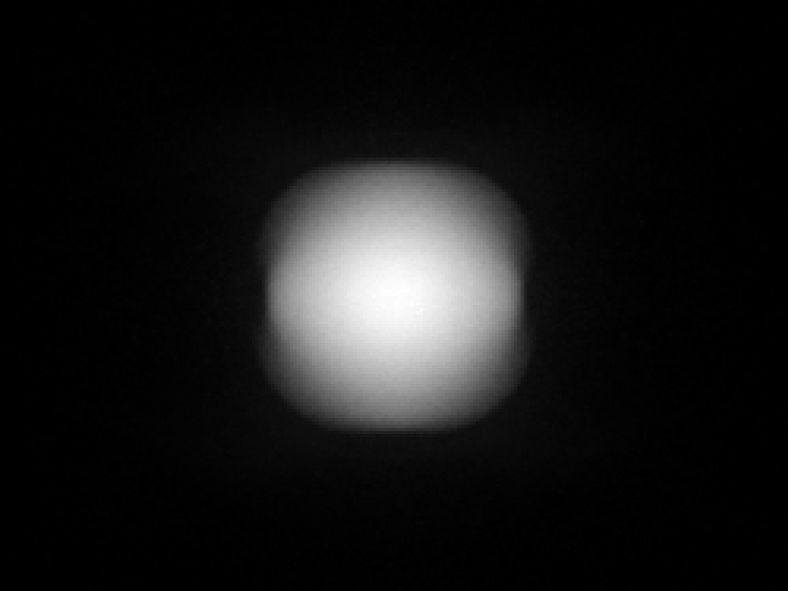

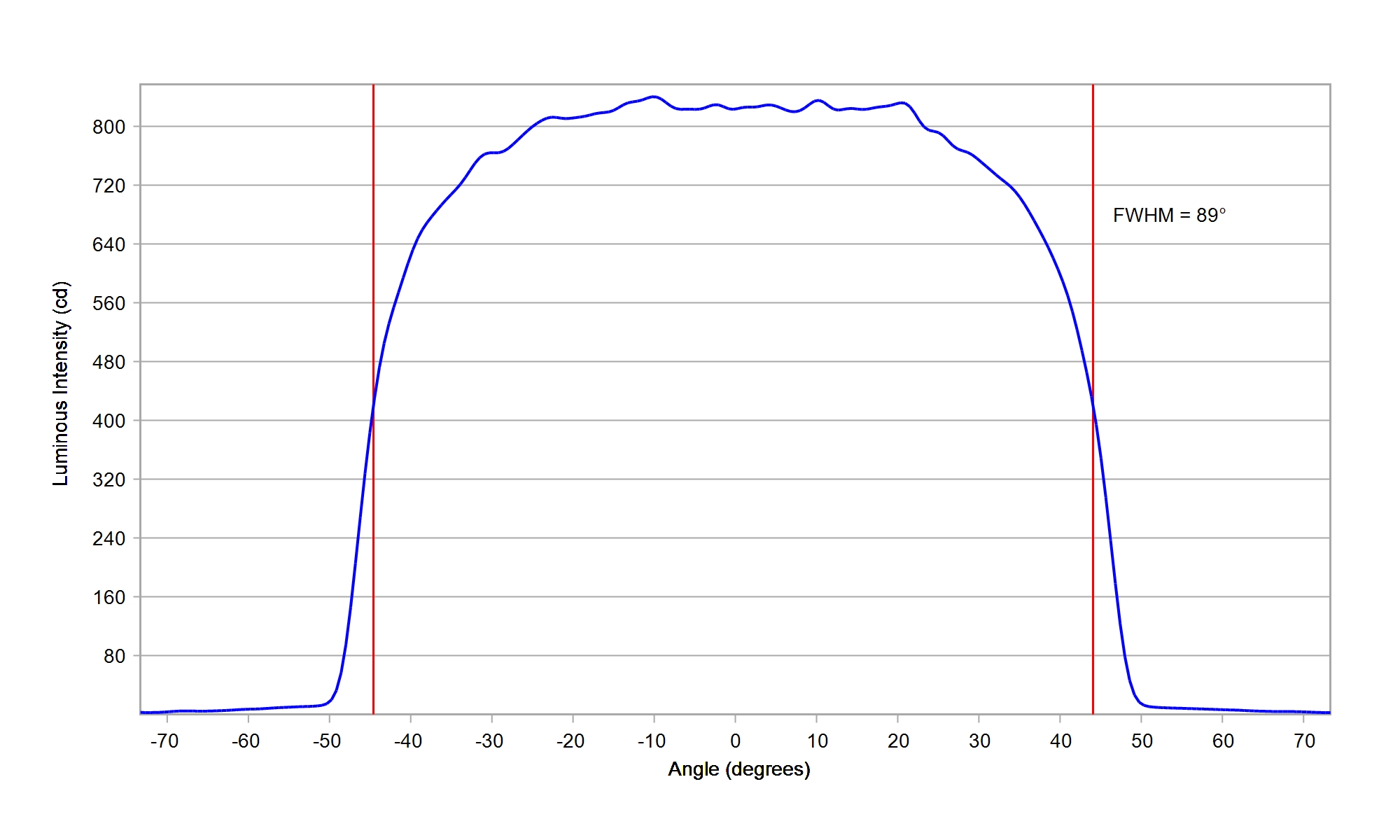

LUMILEDS LUXEON 3030 2D White

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.8

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.8

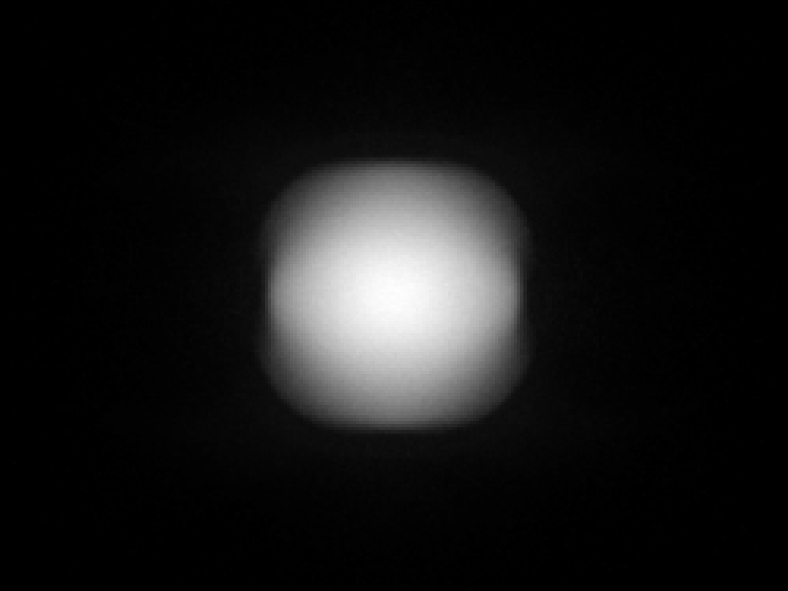

Carclo Optics – 12952 – Luxeon_3030_HE_Plus_spot-image

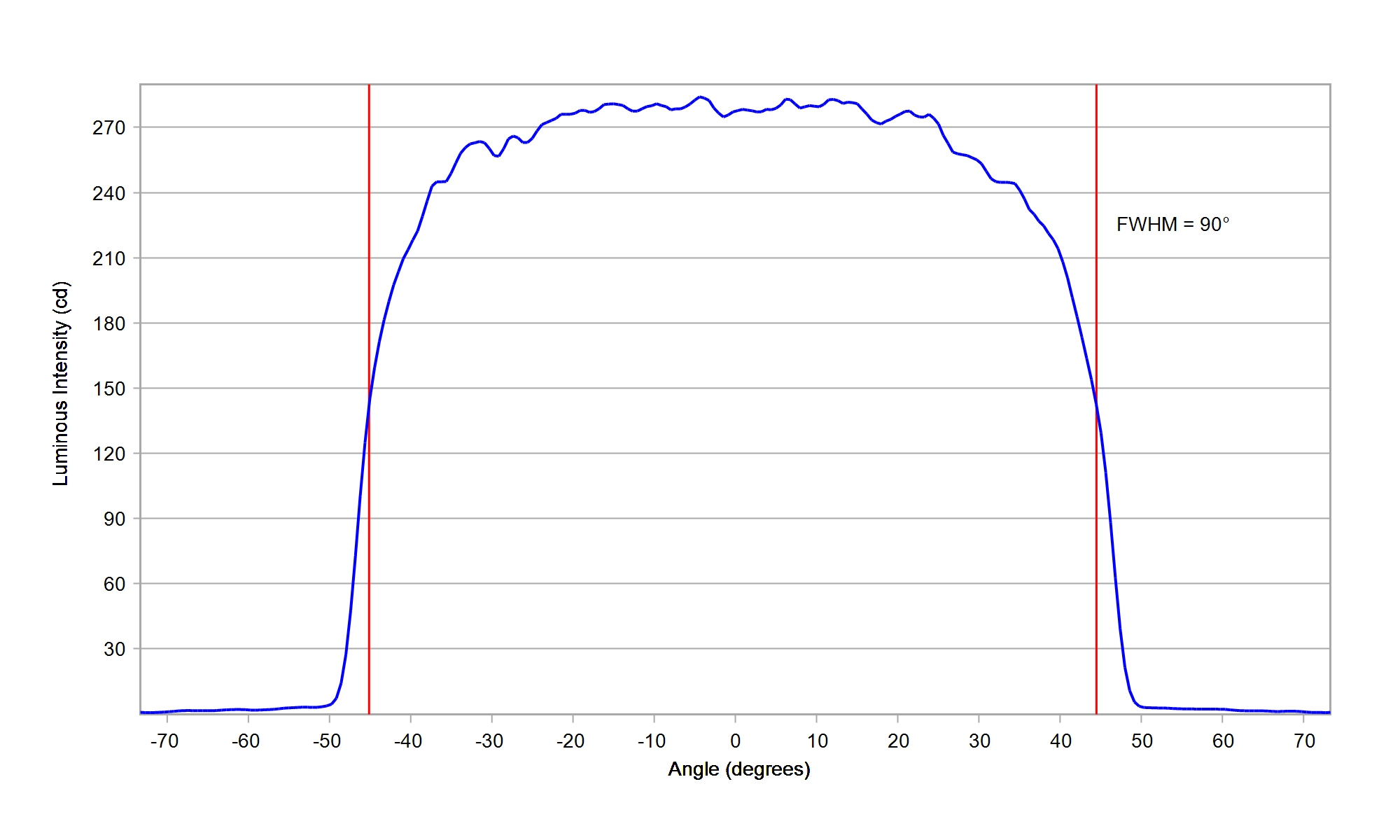

Carclo Optics – 12952 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

96.0%

FWHM:

89°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

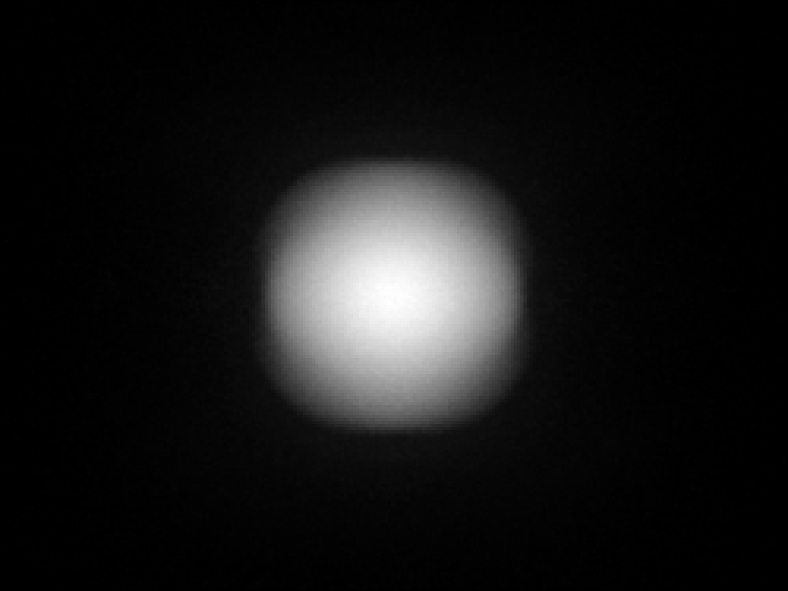

LUMILEDS LUXEON 5050 HE 24V White

Eff:

96.0%

FWHM:

86°

Cd/Im:

1.0

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

96.0%

FWHM:

86°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

96.0%

FWHM:

86°

Cd/Im:

0.9


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

96.0%

FWHM:

83°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

96.0%

FWHM:

84°

Cd/Im:

1.0


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

96.0%

FWHM:

82.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 7070 White

Eff:

95.5%

FWHM:

82°

Cd/Im:

1.0

Carclo Optics – 12952 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 12952 Lumileds Luxeon 7070 - Cross-Section

Download

ies

LUMILEDS LUXEON C White

Eff:

92.0%

FWHM:

98°

Cd/Im:

0.6

Download

LUMILEDS LUXEON CZ White

Eff:

96.0%

FWHM:

91 x 87°

Cd/Im:

0.9

Carclo Optics 12952 Spot Image Luxeon CZ 5M

Carclo Optics 12952 Cross Section Luxeon CZ 5M

Download

ies

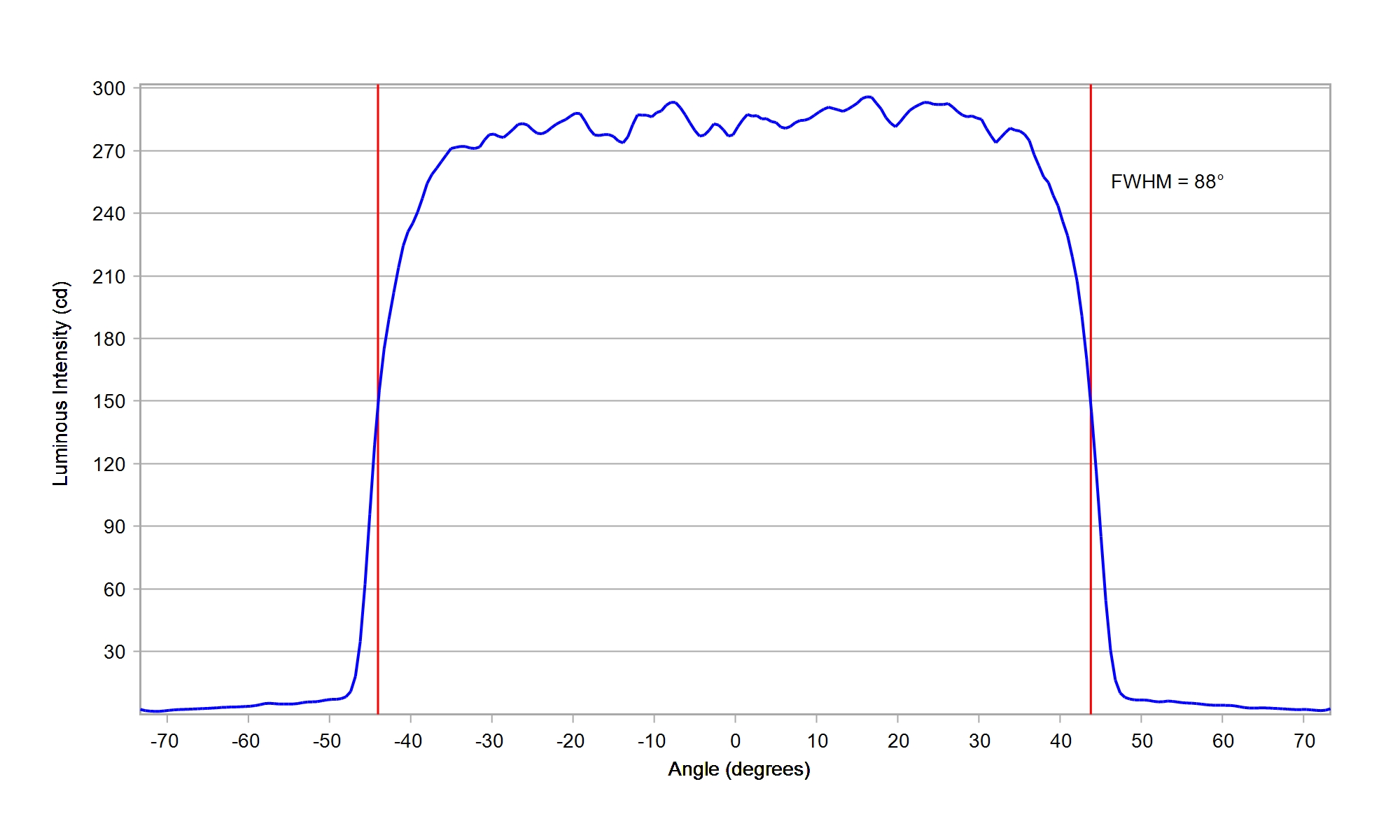

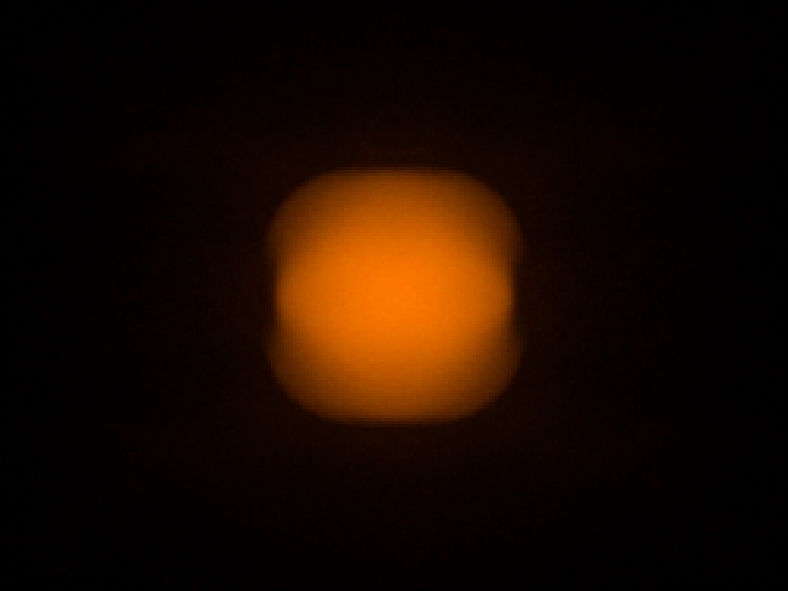

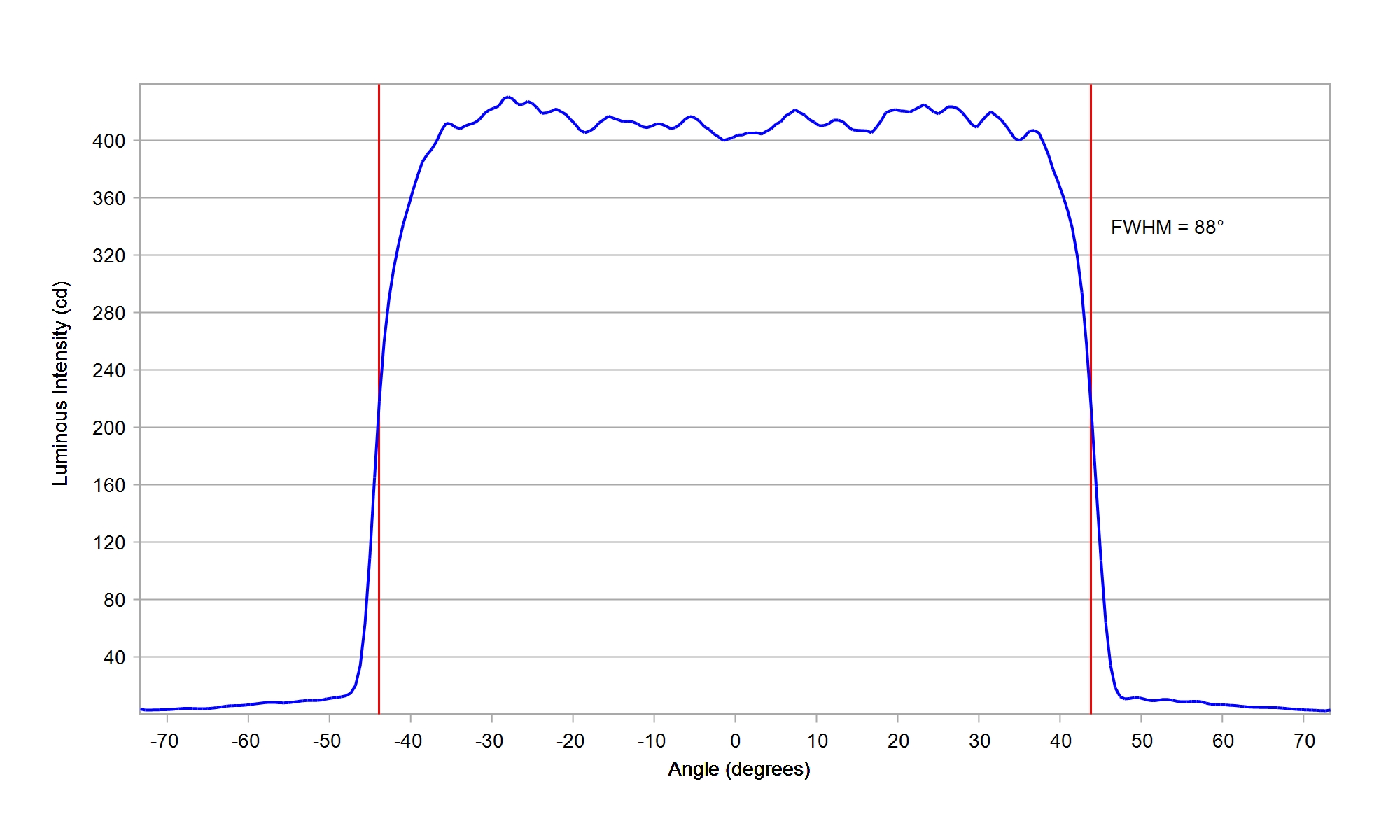

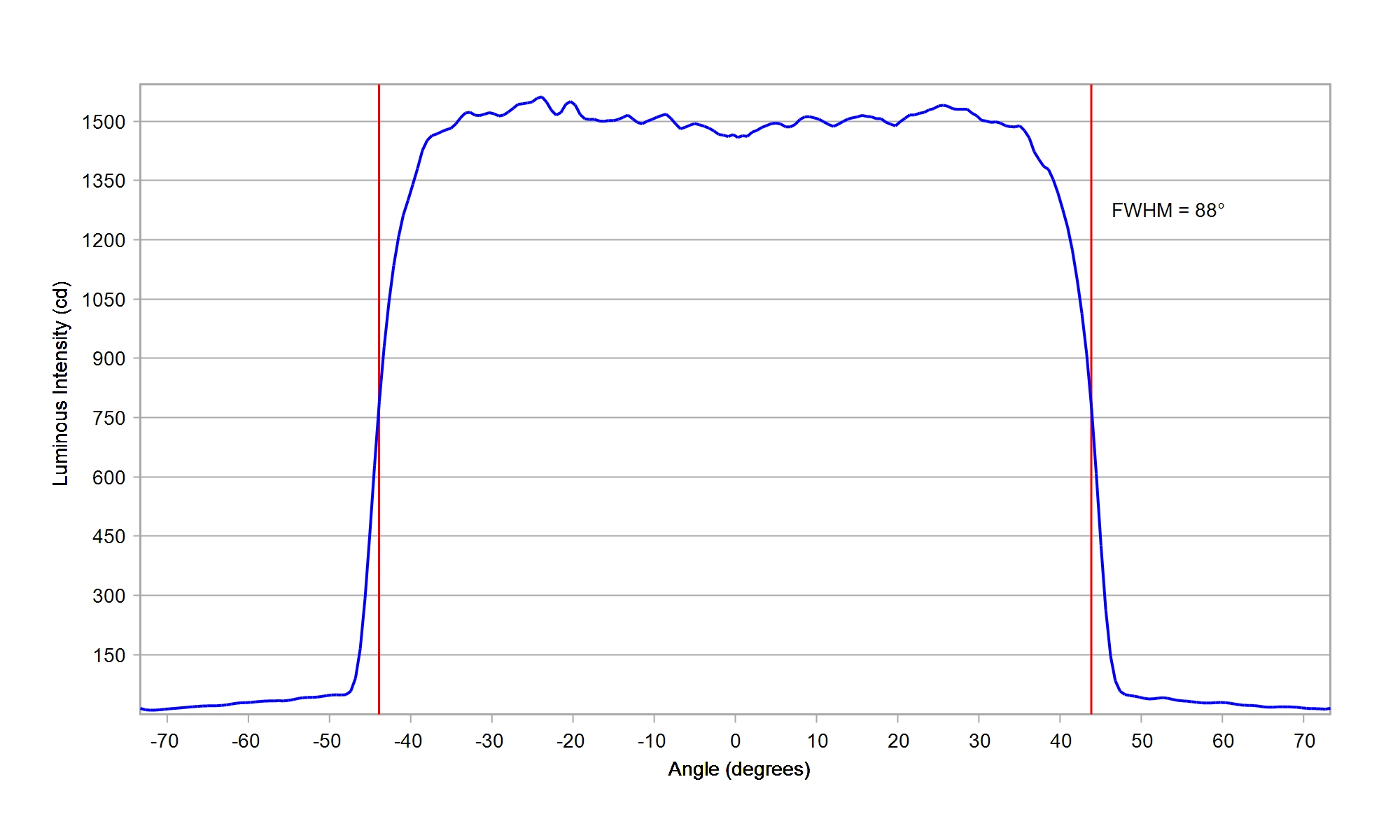

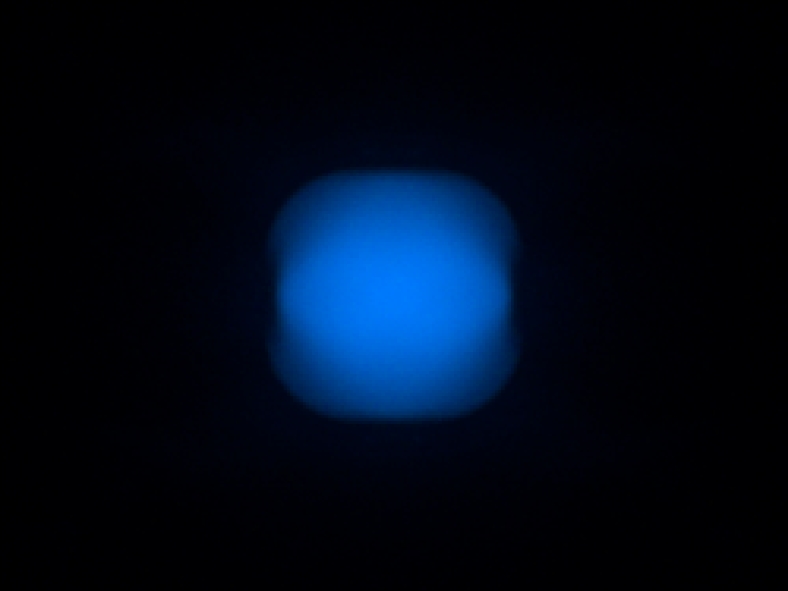

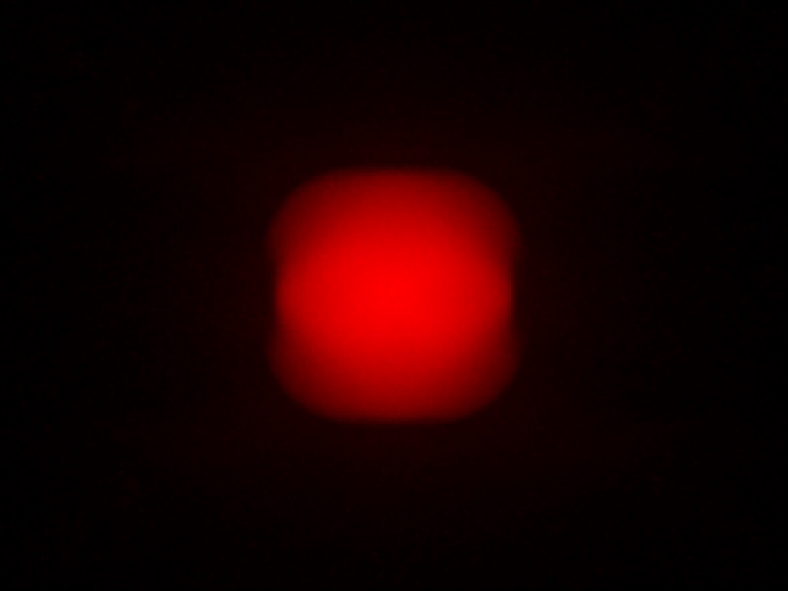

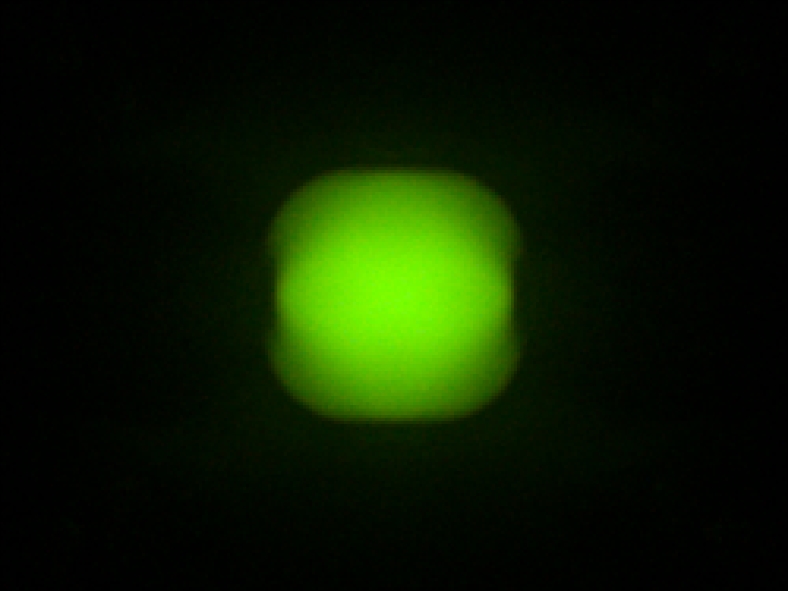

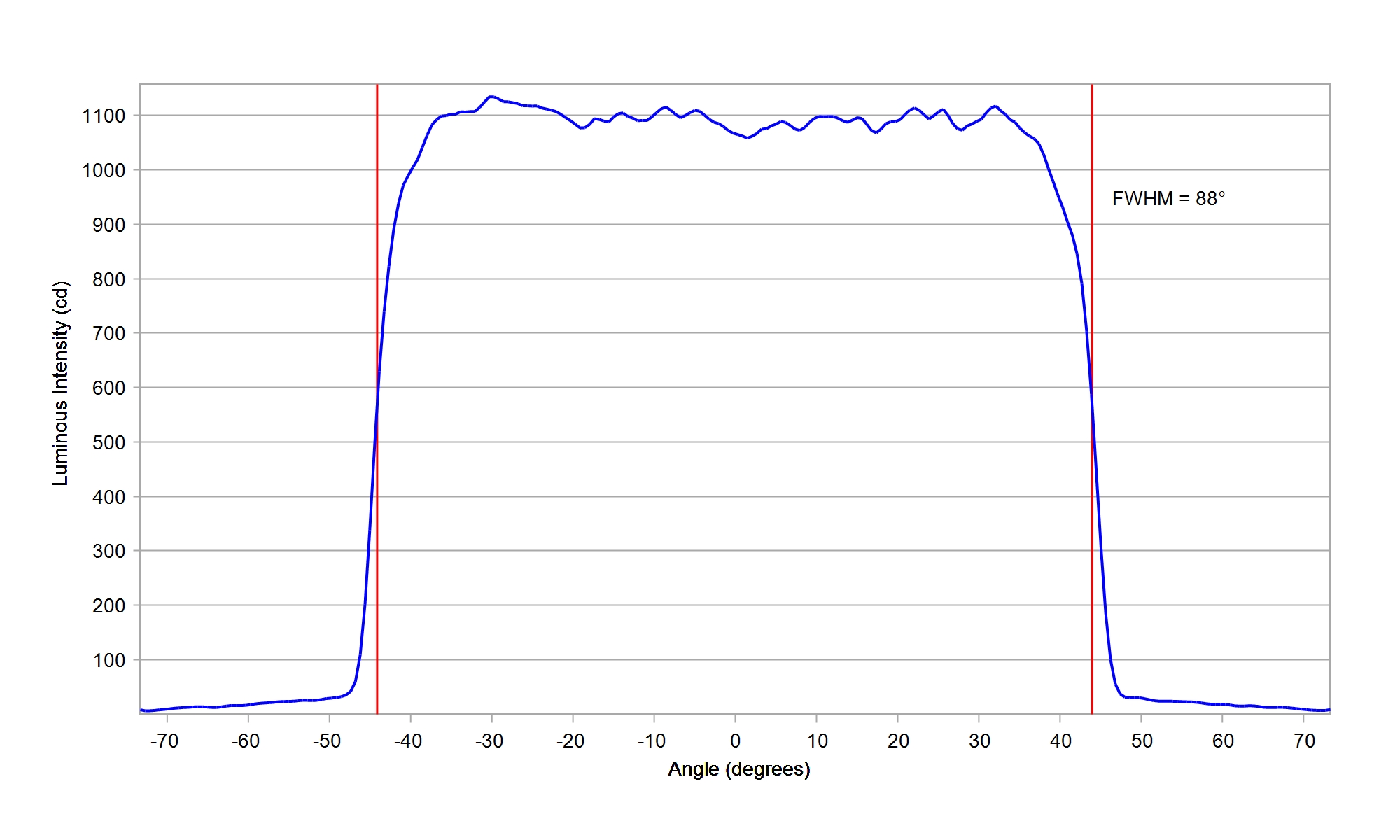

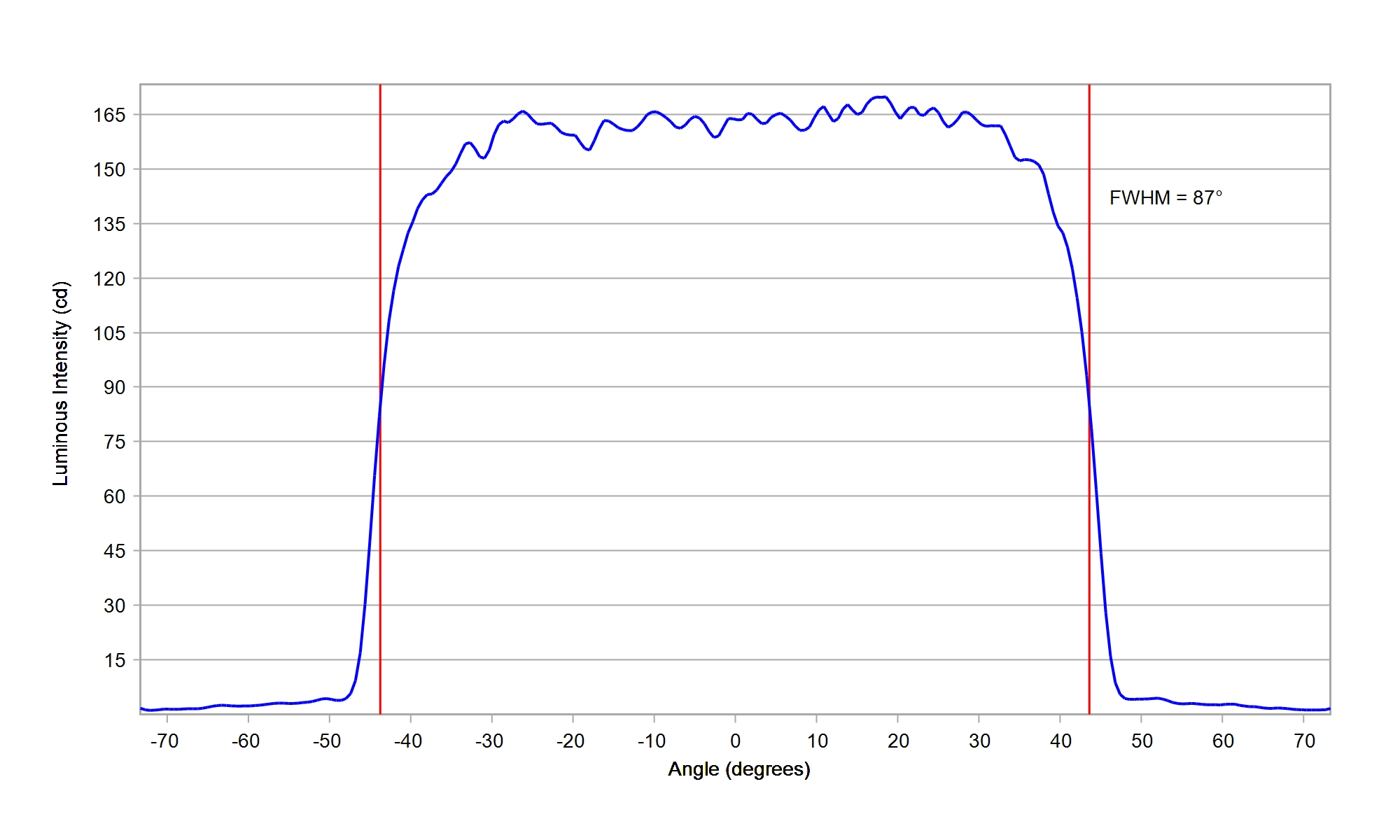

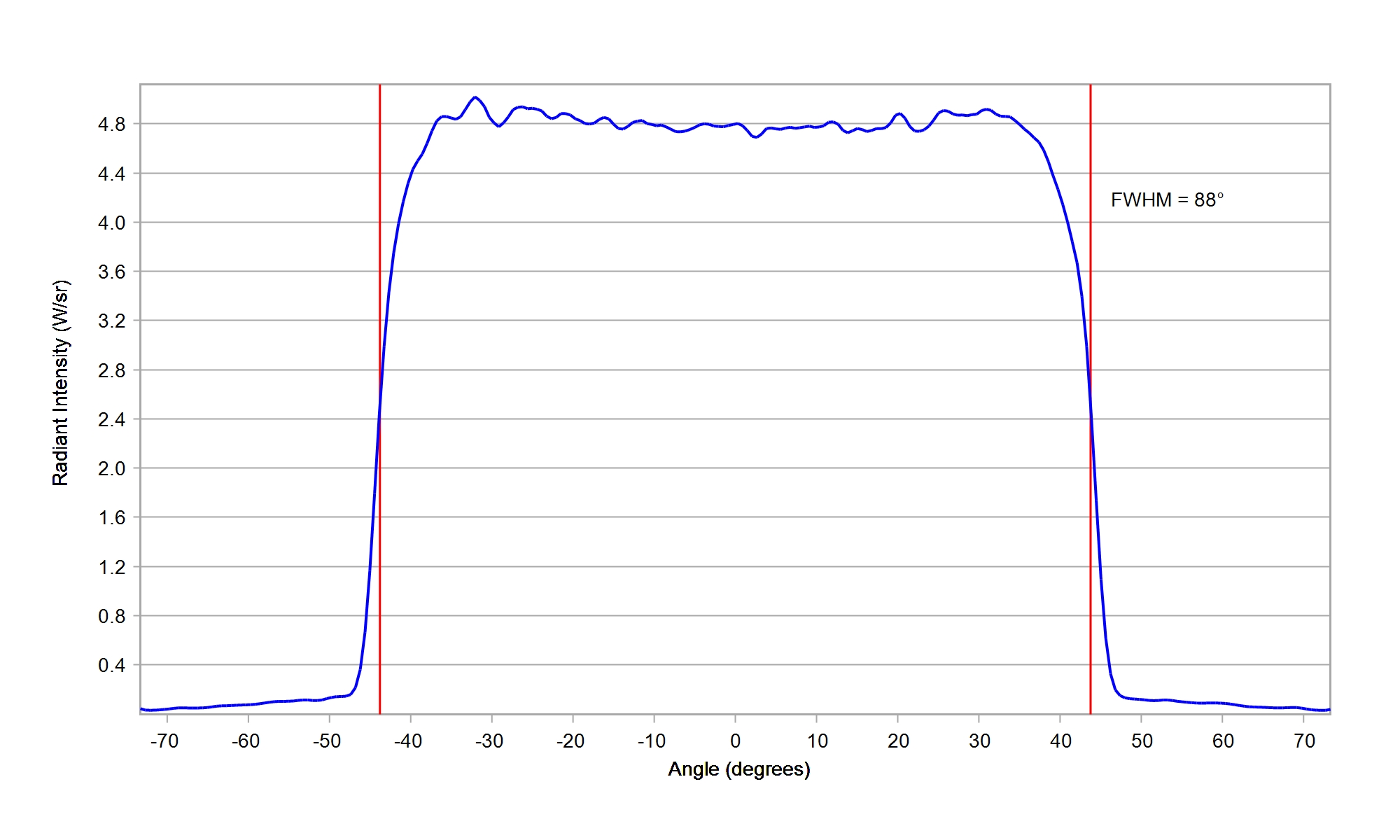

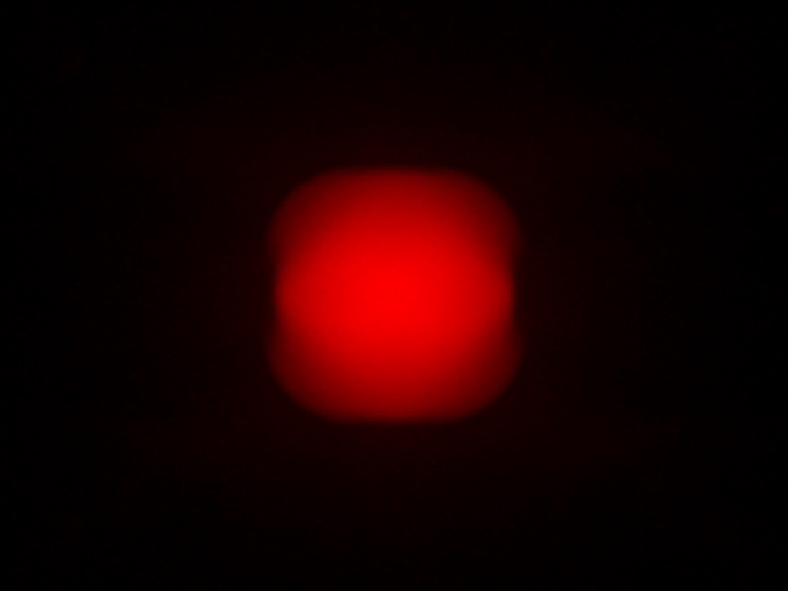

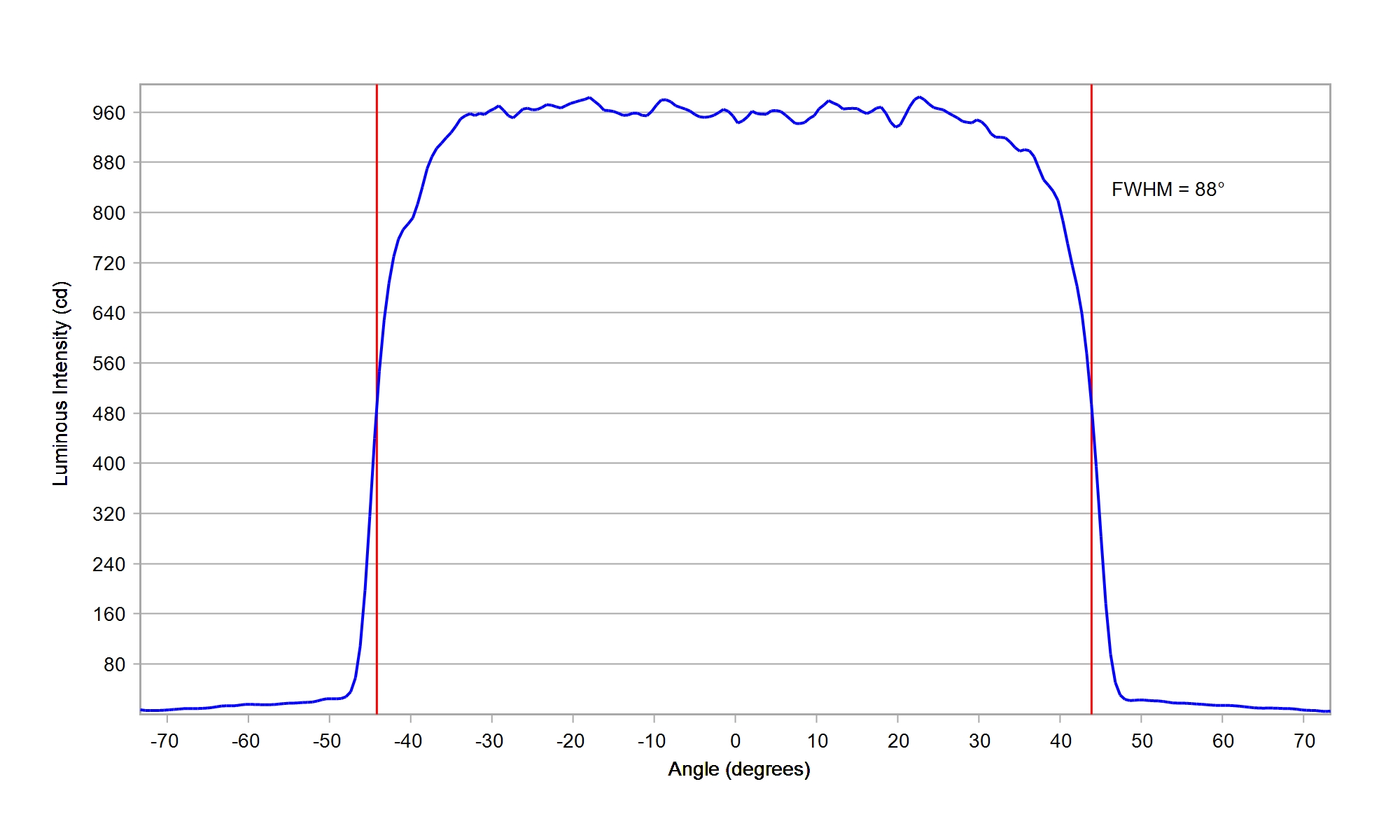

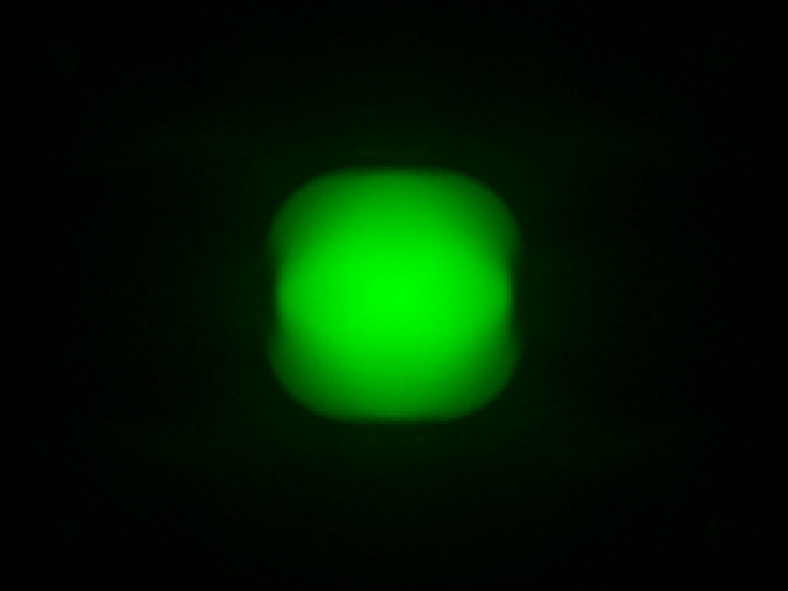

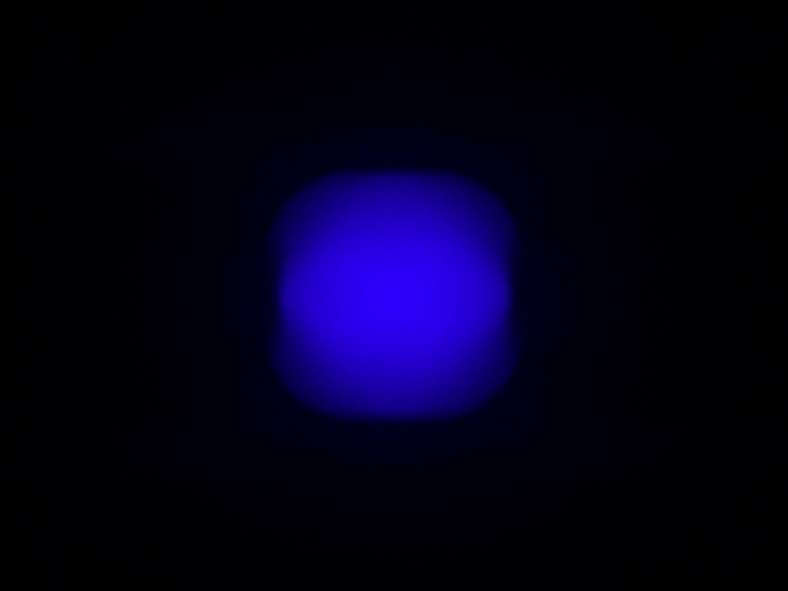

LUMILEDS LUXEON HL1Z CSP White

Eff:

95.5%

FWHM:

88°

Cd/Im:

0.7

Download

ies

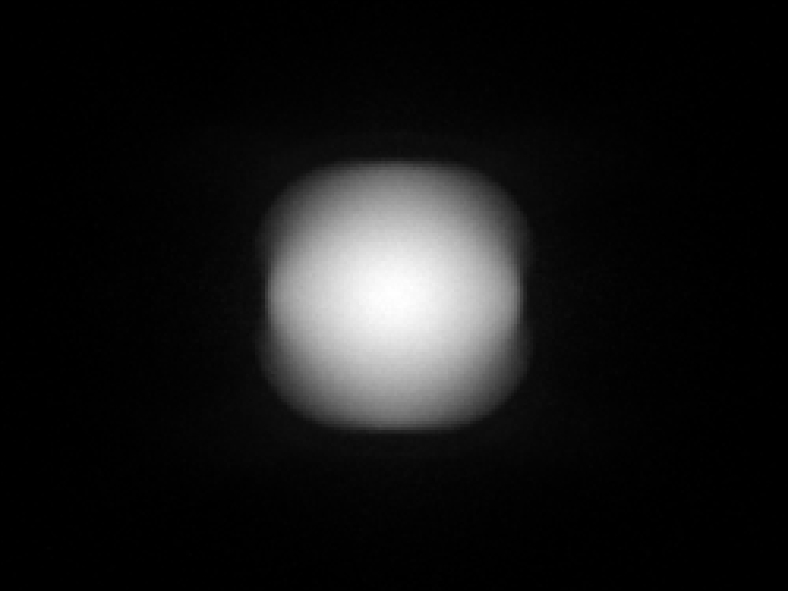

LUMILEDS LUXEON HL2Z White

Eff:

95.5%

FWHM:

87°

Cd/Im:

0.9

Carclo Optics – 12952 Lumileds Luxeon HL2Z - Spot Image

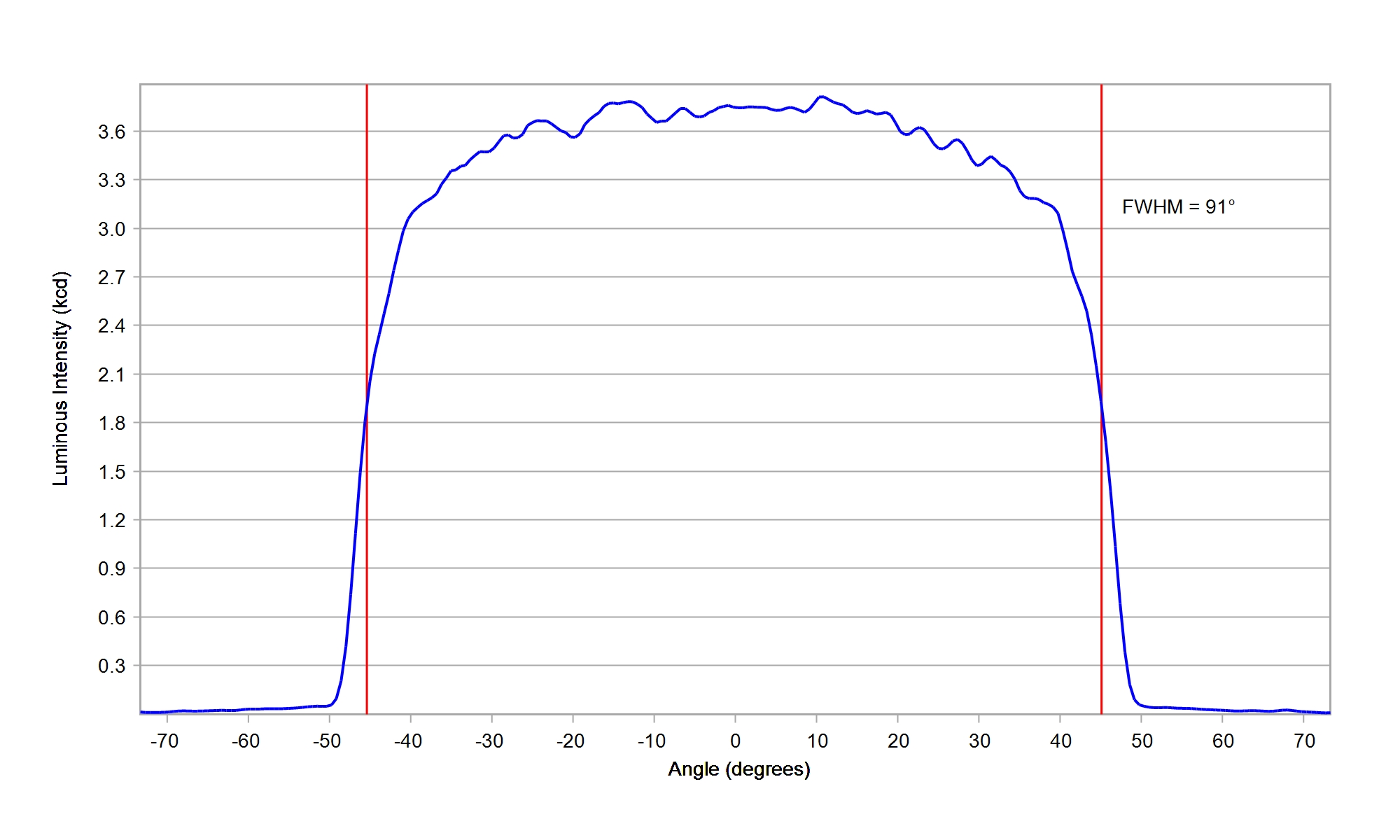

Carclo Optics – 12952 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

97.5%

FWHM:

89/86°

Ipk/W:

0.8

Carclo Optics - 12952 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12952 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

96.5%

FWHM:

93°

Cd/Im:

0.8

Carclo Optics – 12952 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12952 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

96.0%

FWHM:

92°

Cd/Im:

0.7

Carclo Optics – 12952 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12952 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

96.5%

FWHM:

92°

Cd/Im:

0.8

Carclo Optics – 12952 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12952 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

97.0%

FWHM:

92°

Cd/Im:

1.1

Carclo Optics – 12952 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12952 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

96.0%

FWHM:

93.0°

Cd/Im:

0.9

Carclo Optics - 12952 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12952 Cross Section Lumileds Luxeon Rubix White

Download

ies

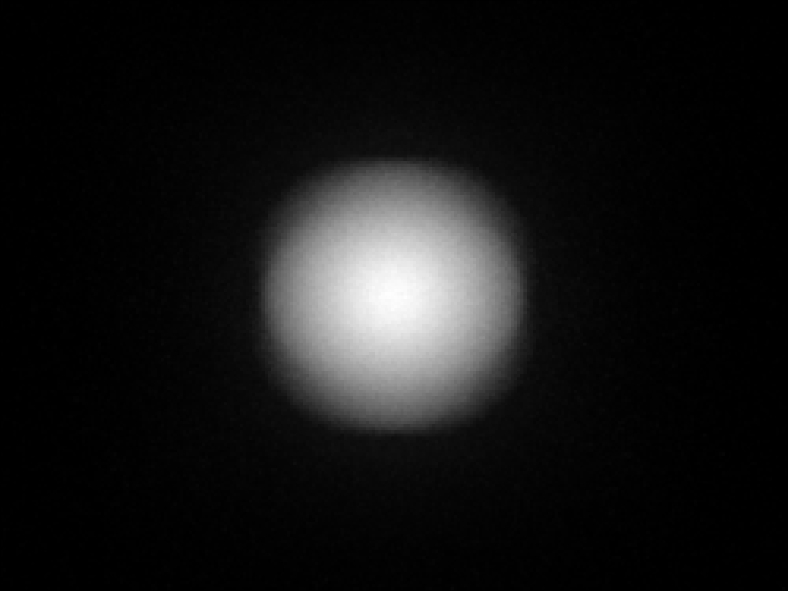

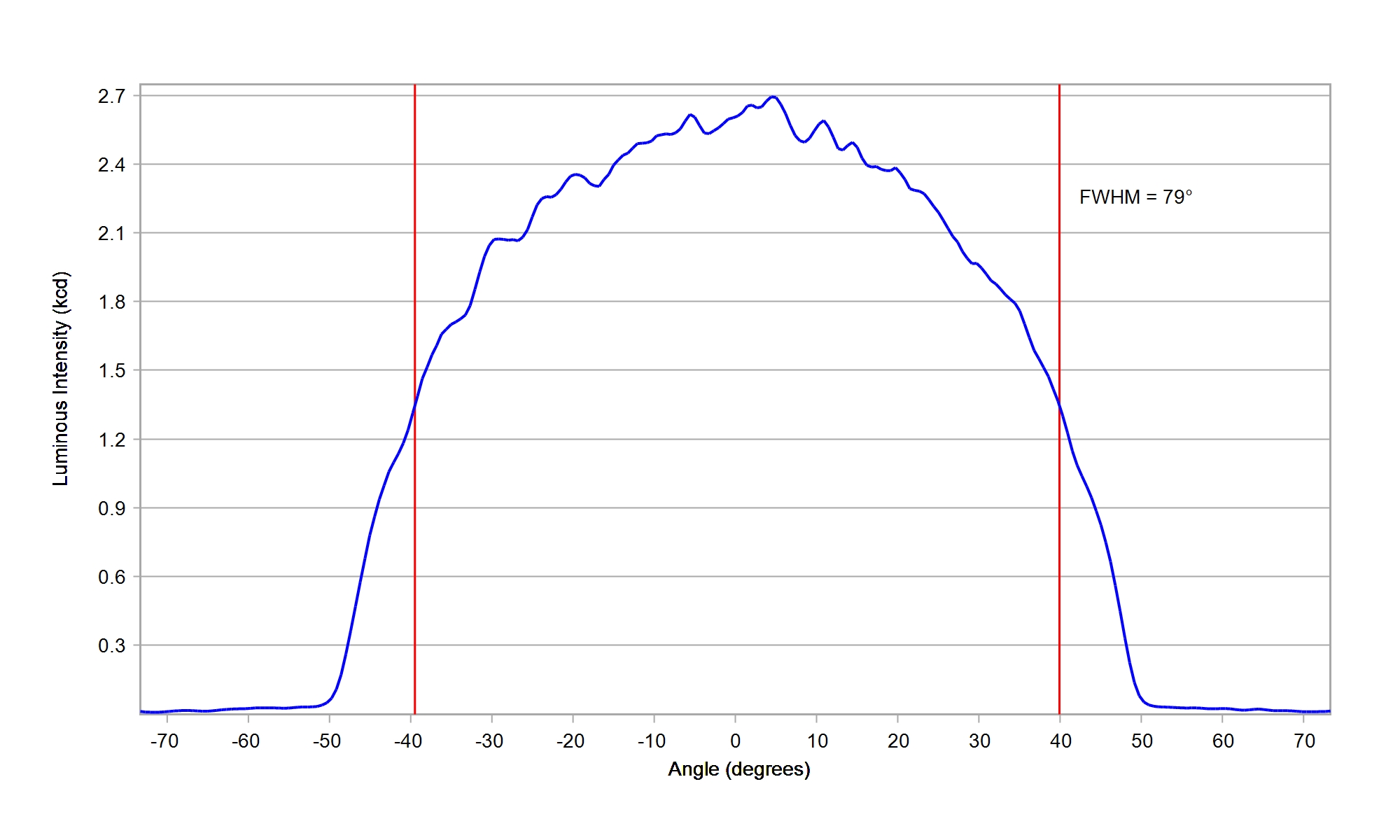

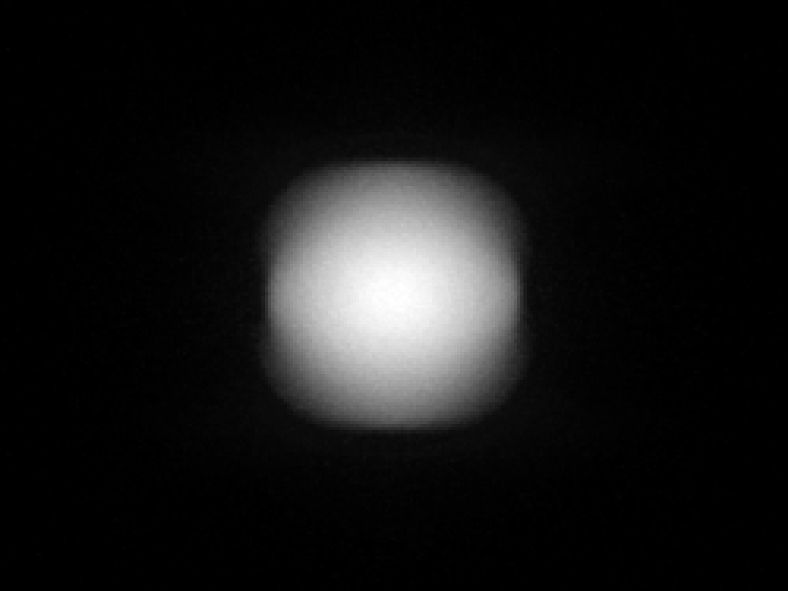

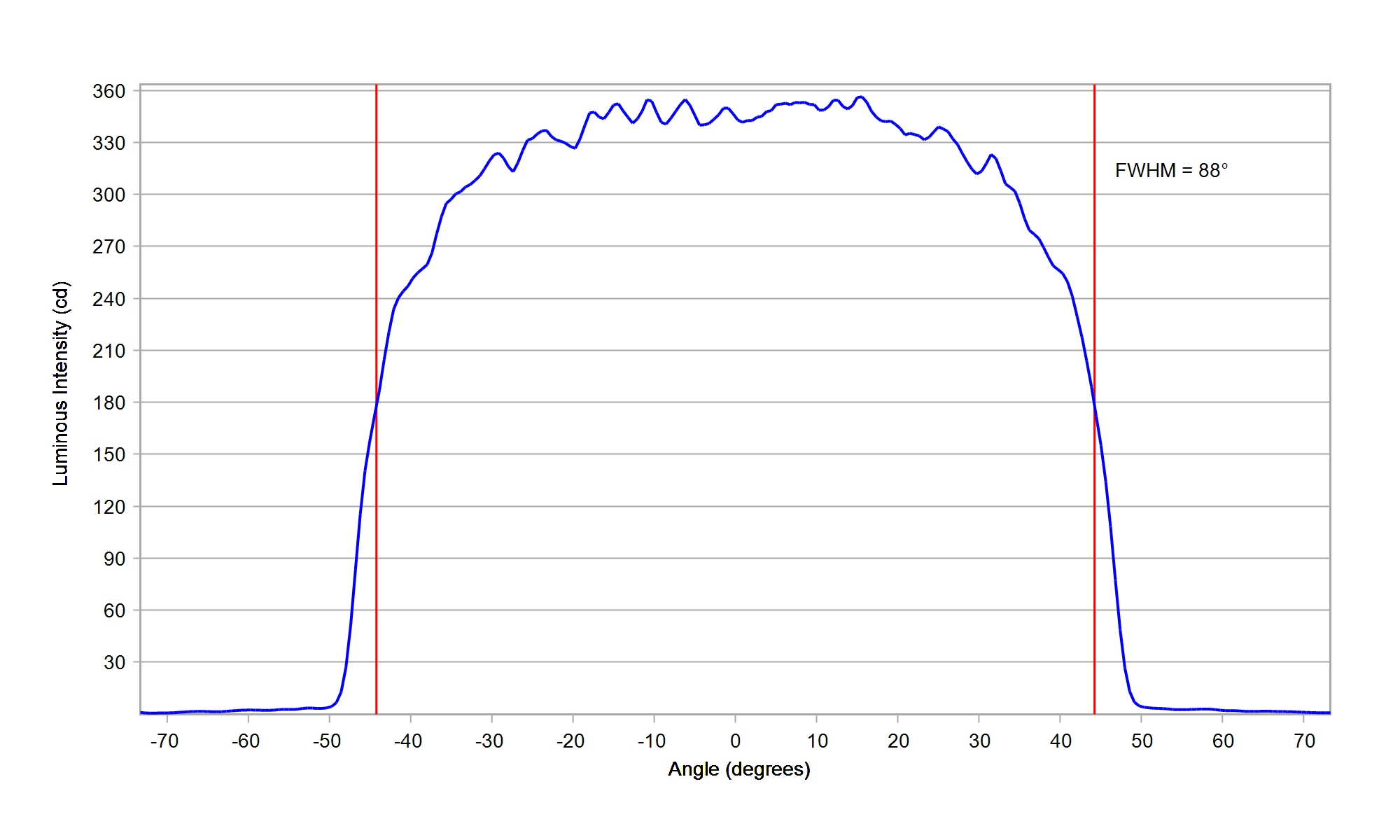

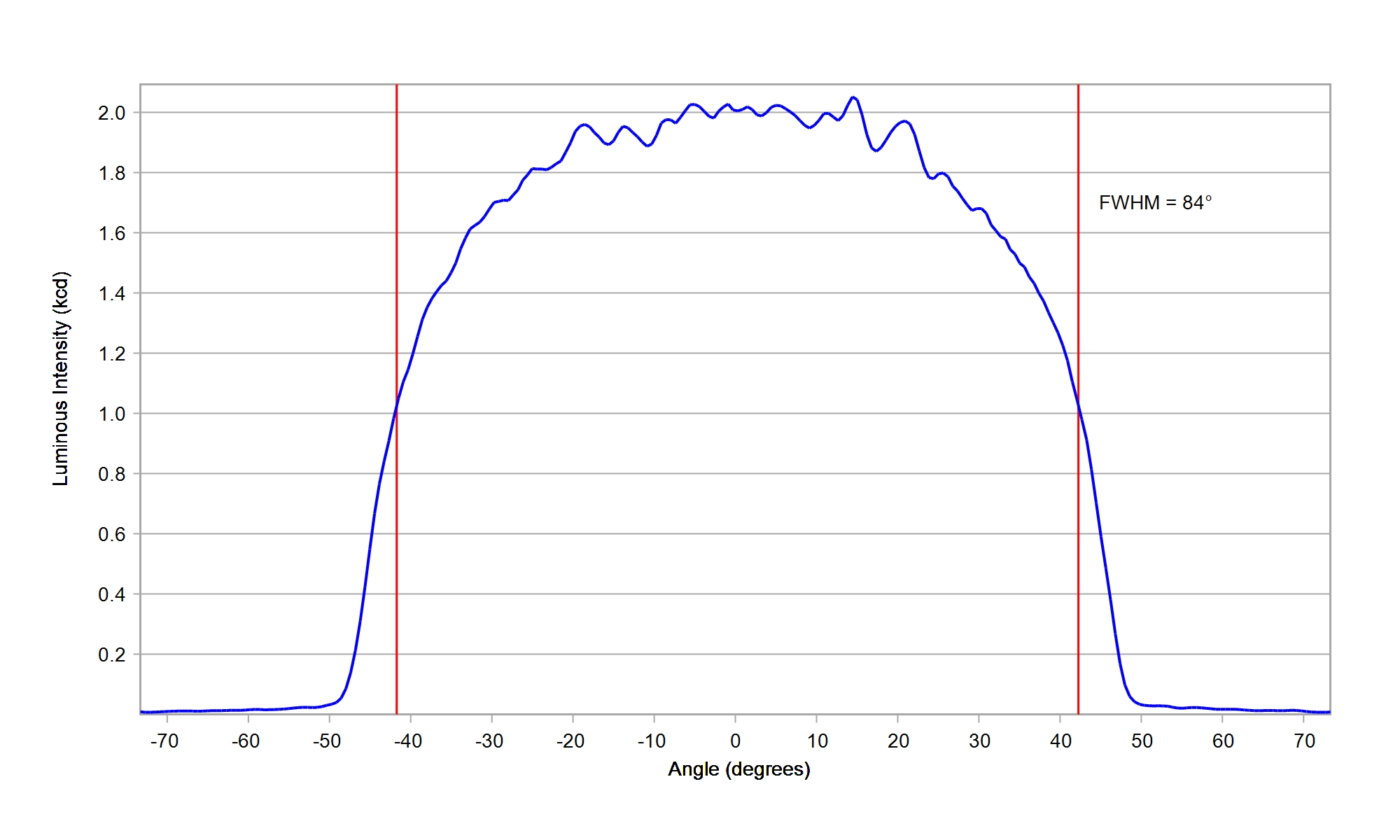

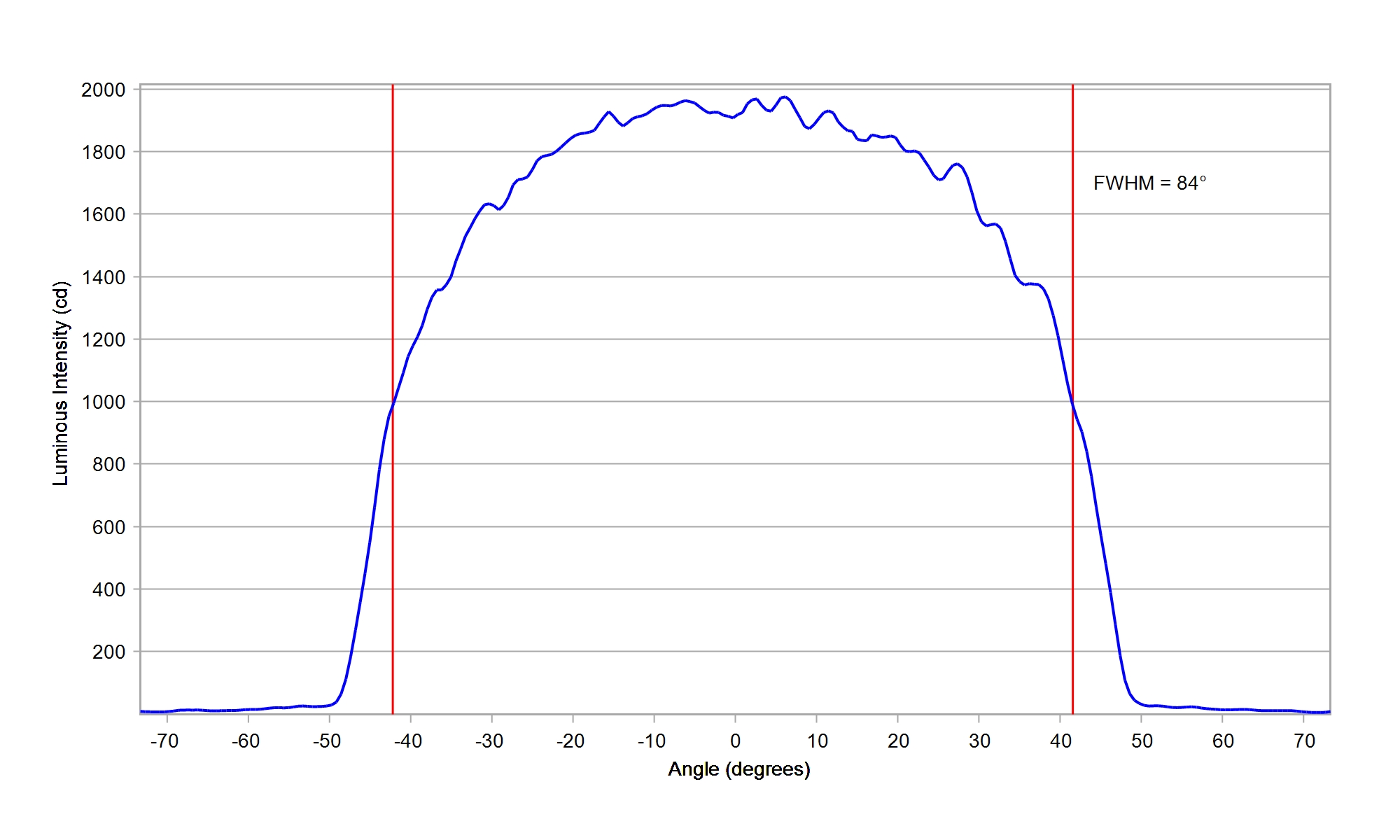

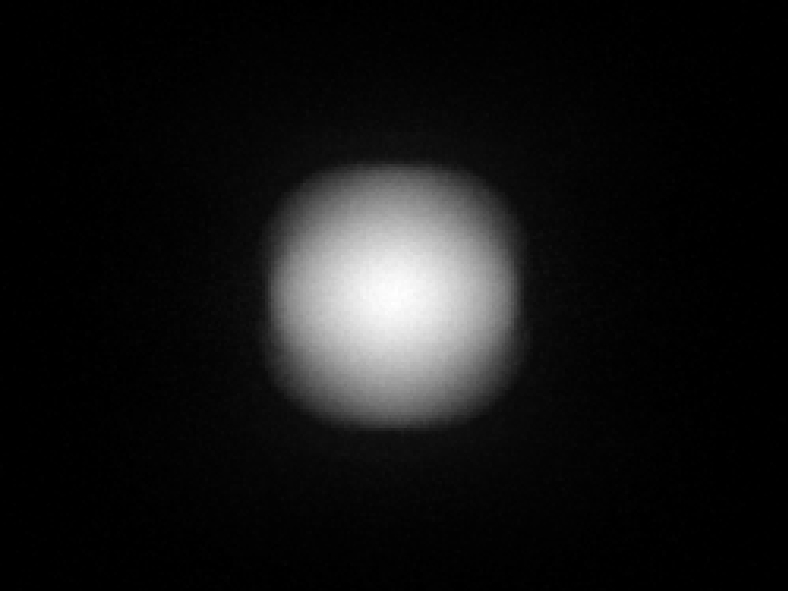

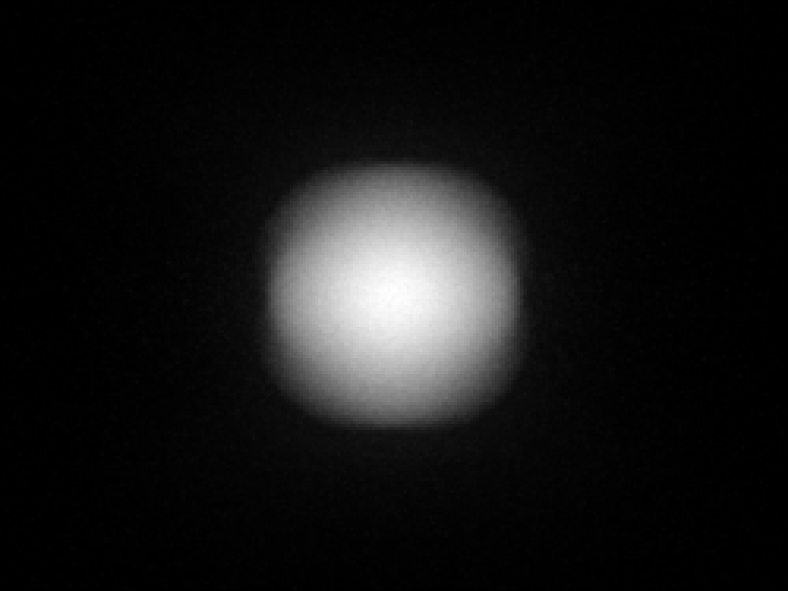

Luminus Devices MP 7070-T200 White

Eff:

96.0%

FWHM:

79°

Cd/Im:

1.0


Download

IES

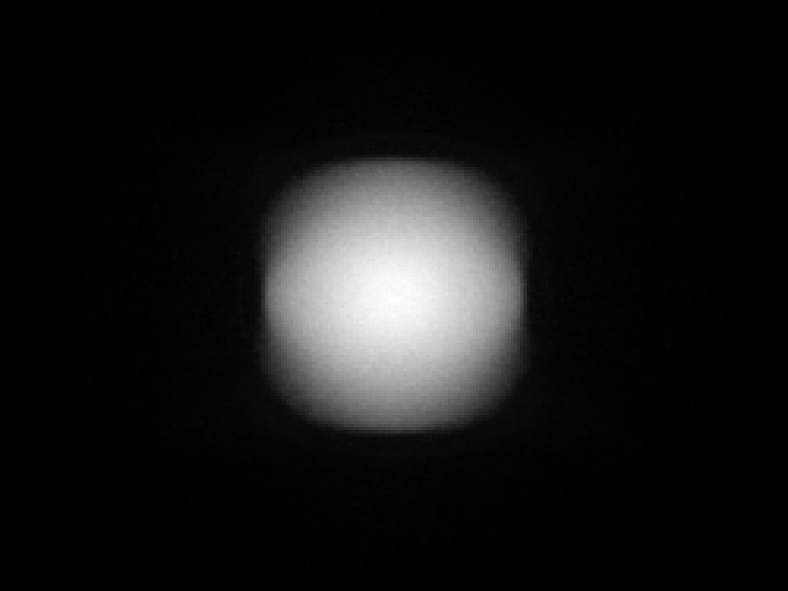

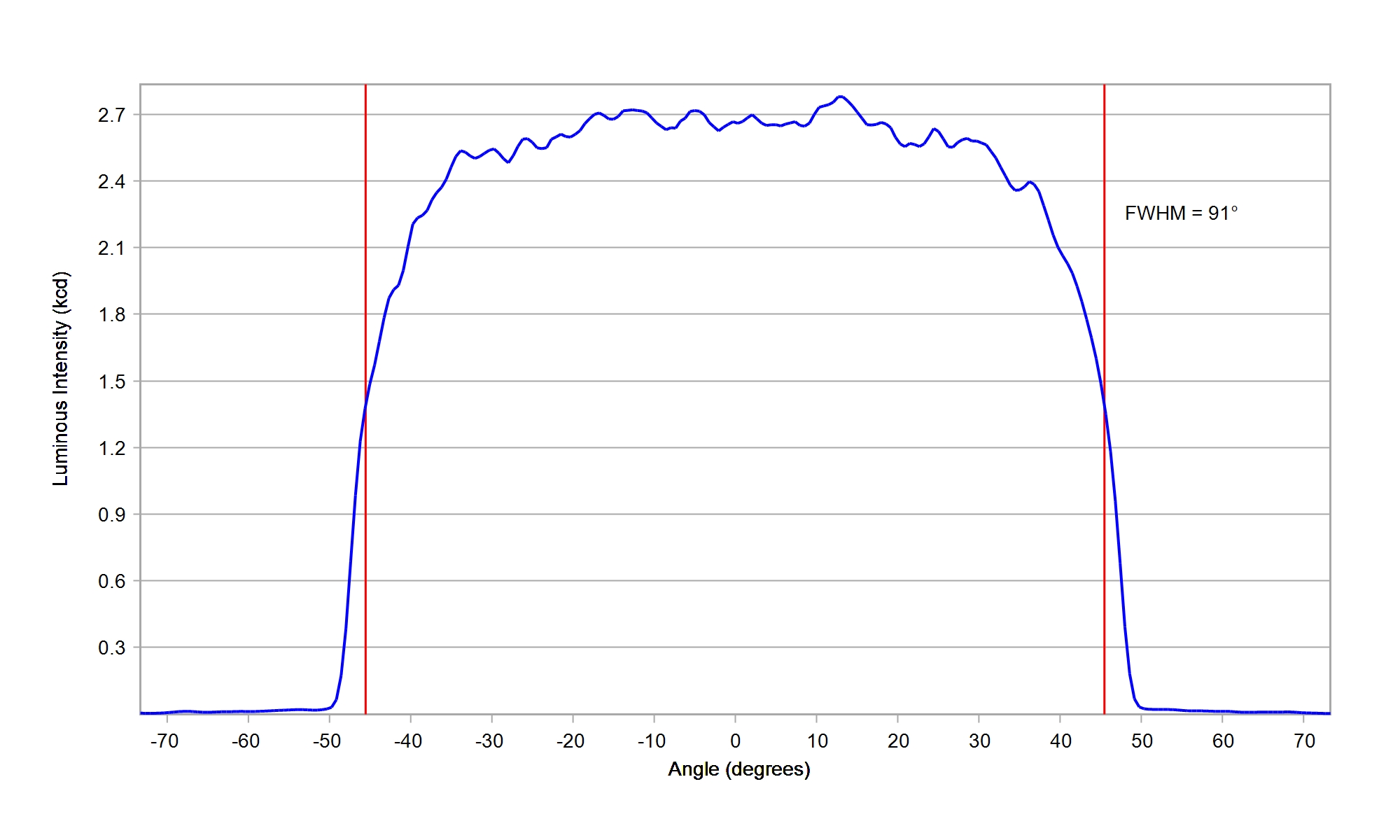

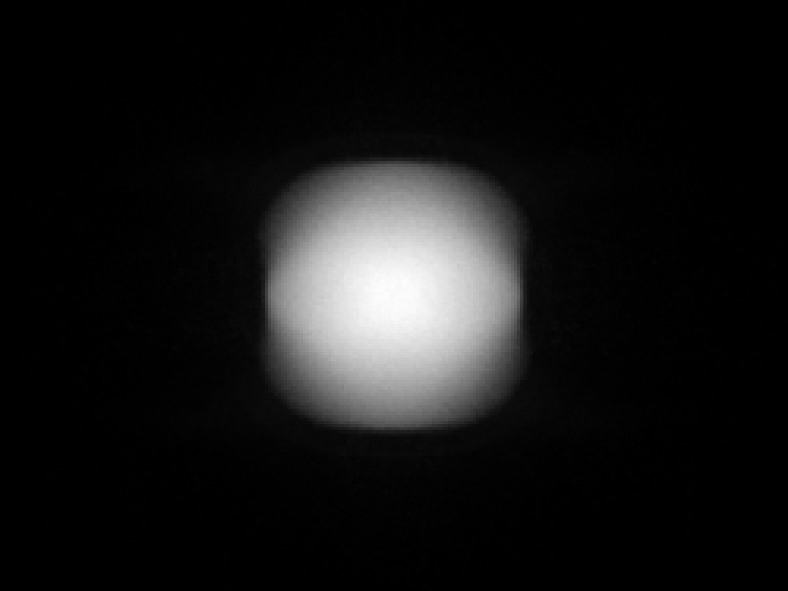

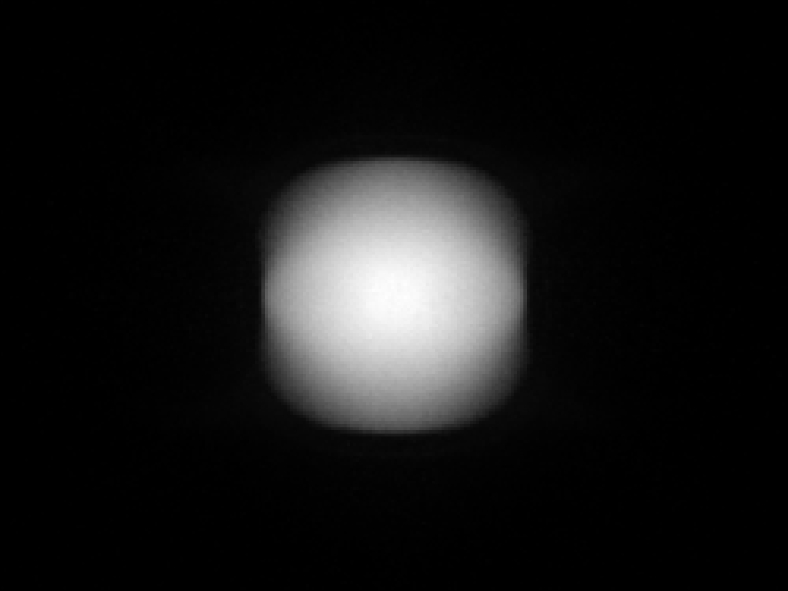

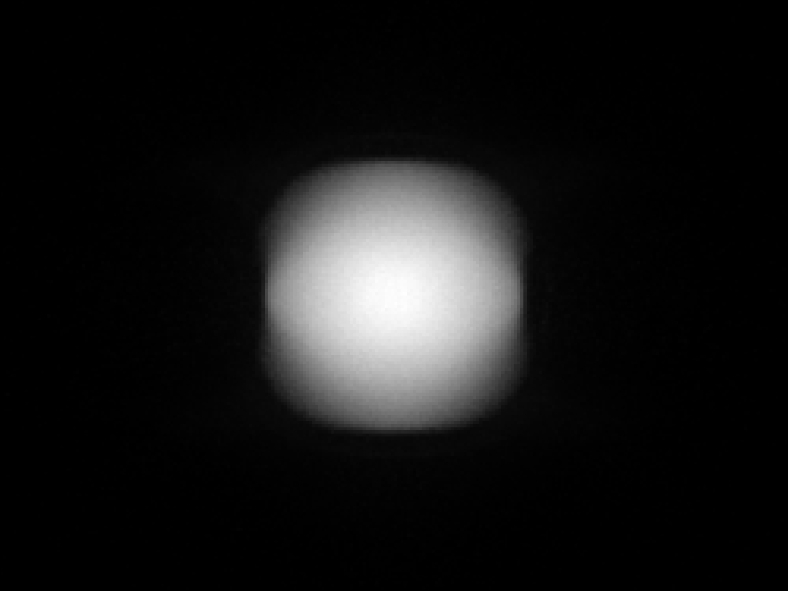

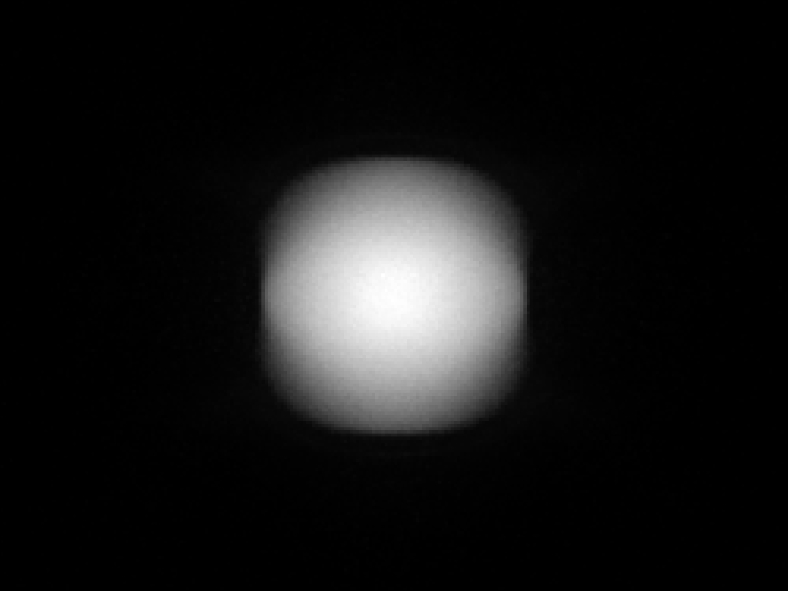

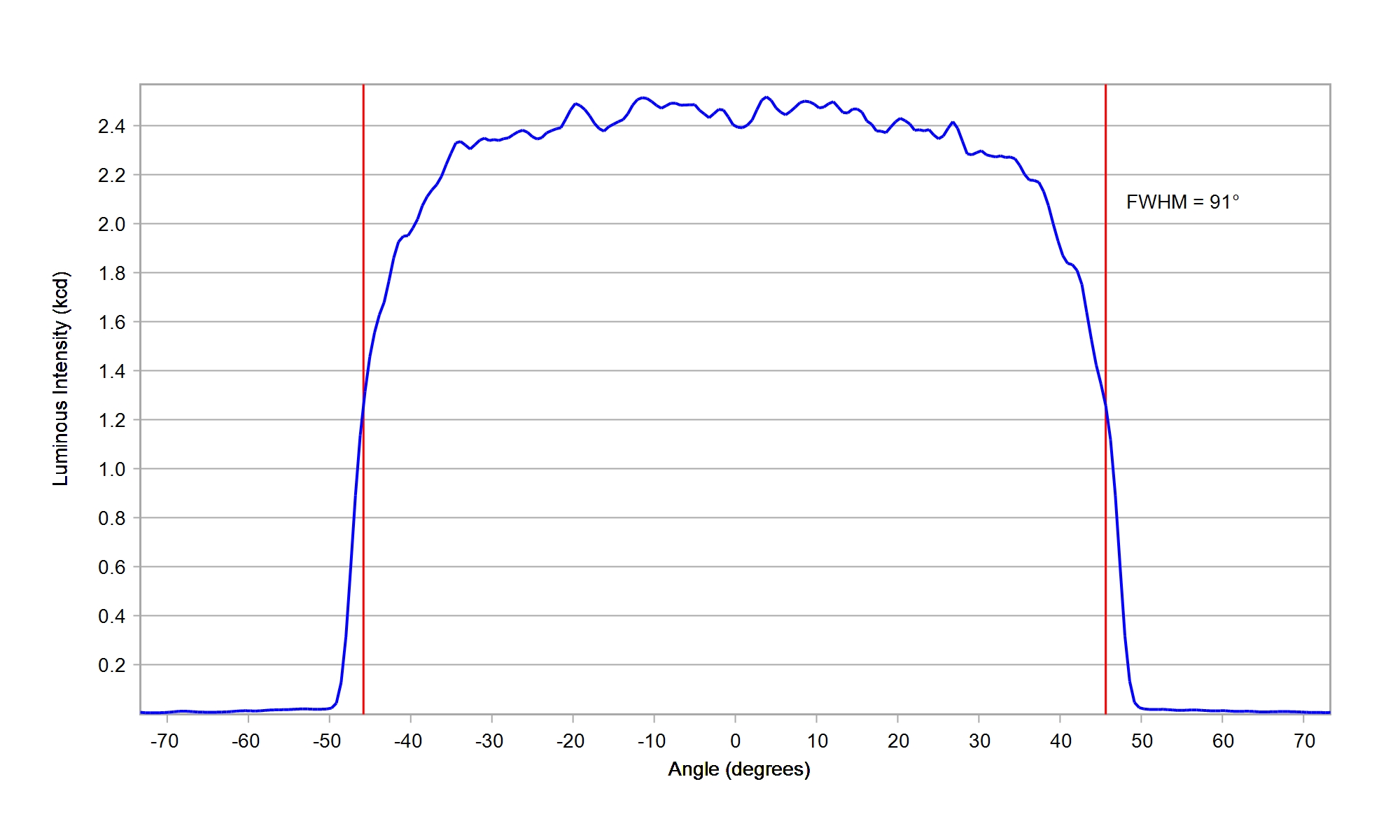

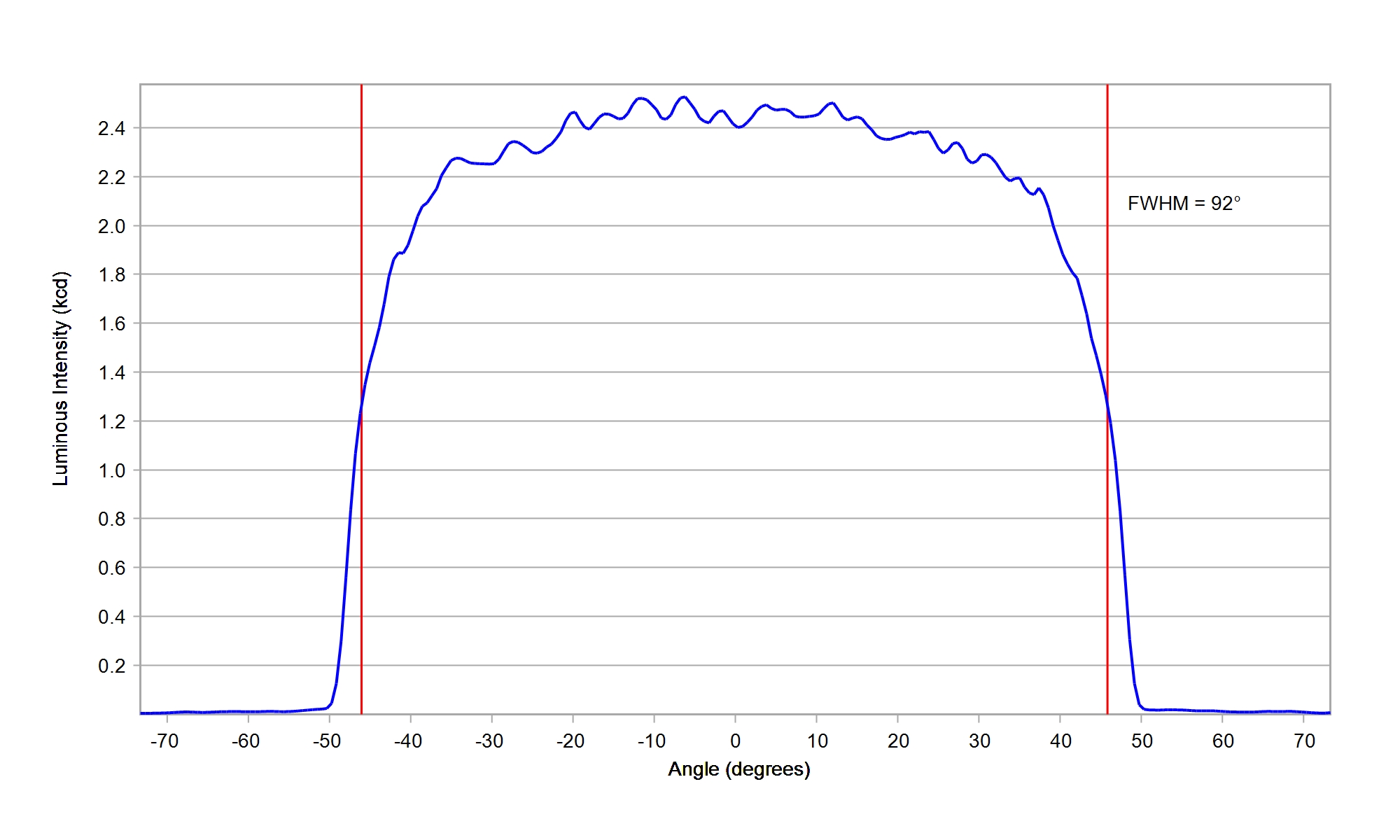

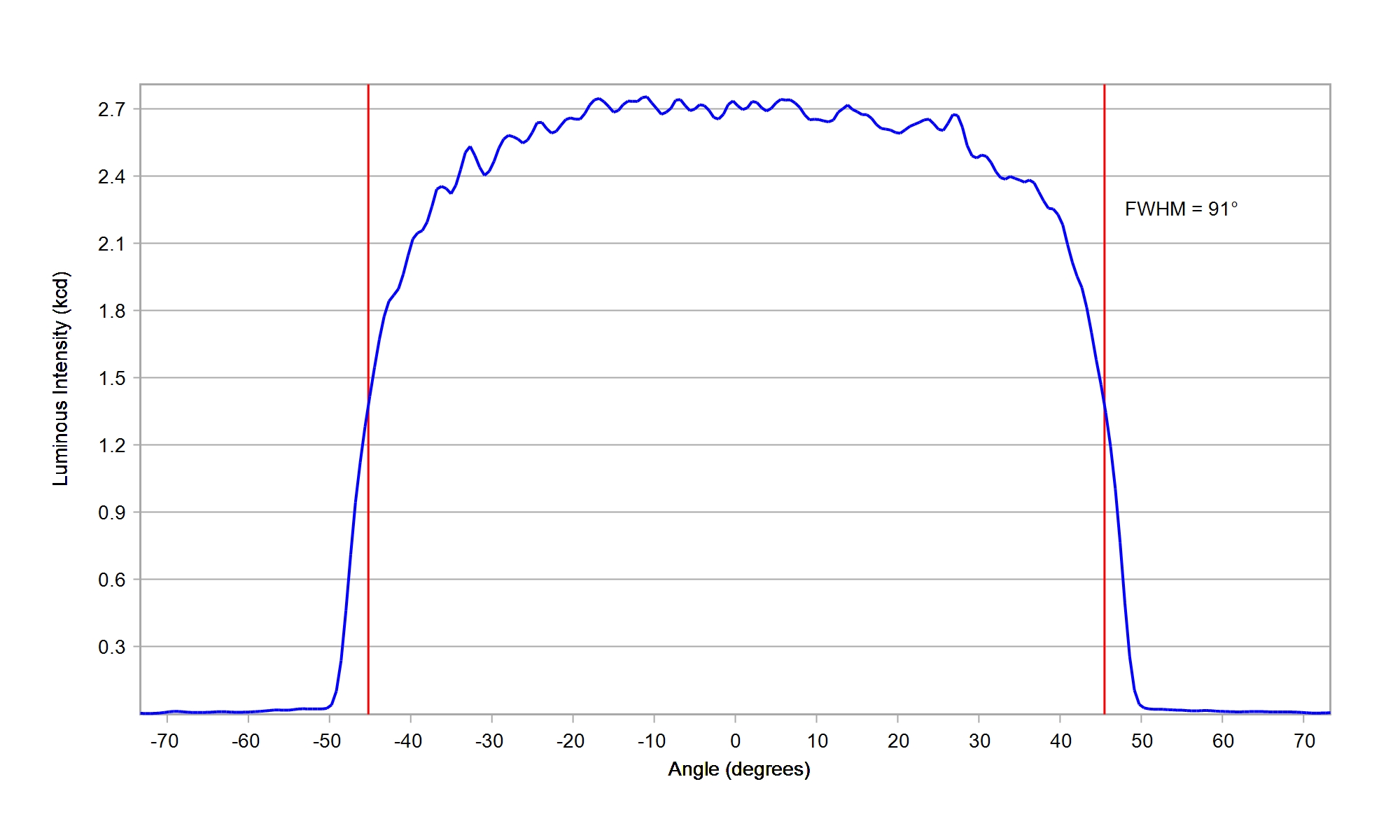

Luminus Devices SFT-40-WxS White

Eff:

96.0%

FWHM:

90°

Cd/Im:

1.1

Download

ies

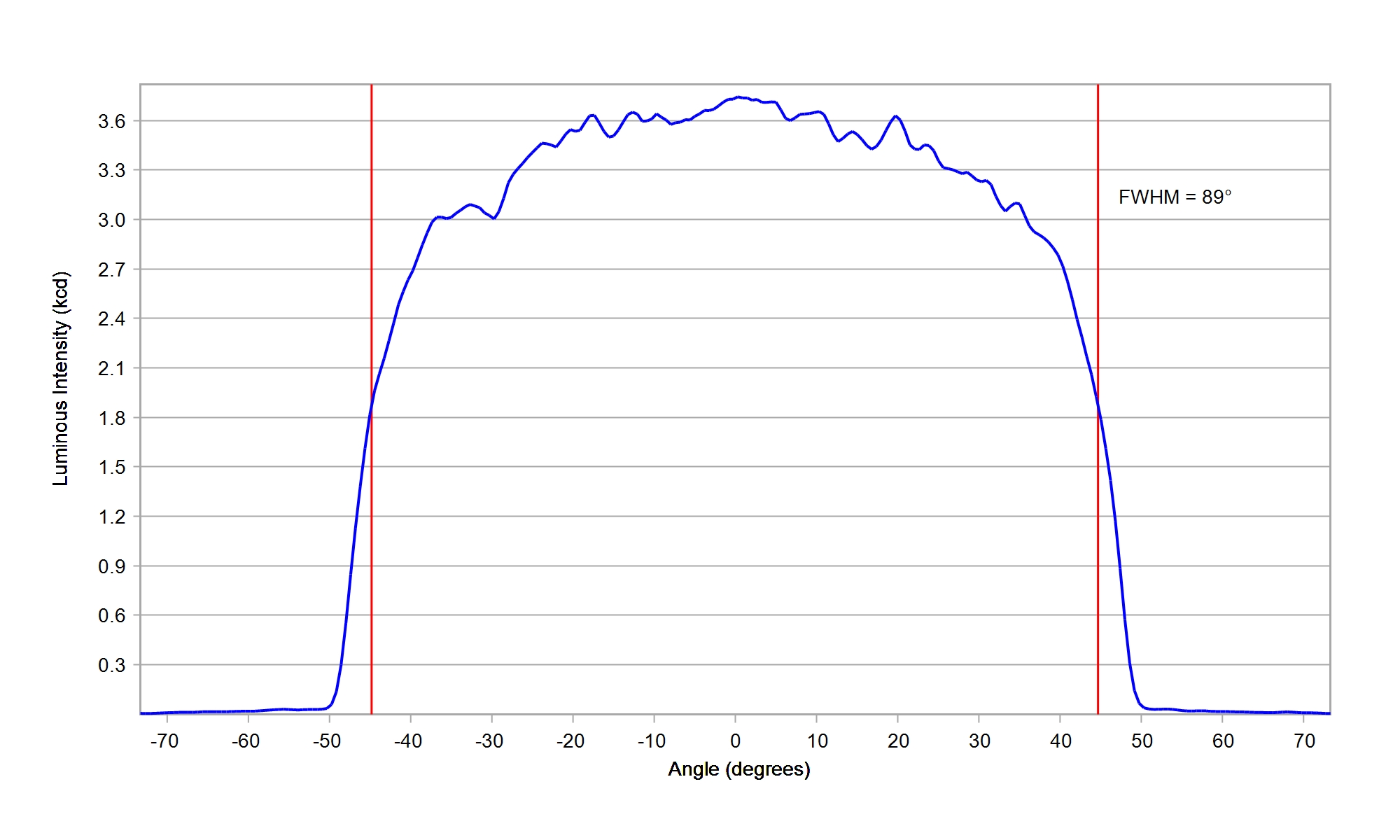

Luminus Devices SFT-70X-WxS White

Eff:

96.0%

FWHM:

89°

Cd/Im:

1.0

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

97.0%

FWHM:

90°

Cd/Im:

0.8

Carclo Optics - 12952 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 12952 Luminus_SST-10_B_B130 - cross Image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

96.0%

FWHM:

95°

Cd/Im:

0.6

Carclo Optics – 12952 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12952 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

97.0%

FWHM:

90.0°

Ipk/W:

0.9

Carclo Optics - 12952 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12952 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

97.0%

FWHM:

91°

Ipk/W:

0.8


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.5%

FWHM:

89°

Cd/Im:

0.8

Carclo Optics – 12952 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12952 - Luxeon_SST_20_W_cross vertical section

Download

ies

Nichia 757 White

Eff:

95.5%

FWHM:

87°

Cd/Im:

0.6

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

95.0%

FWHM:

87°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 757G-MT Tunable

Eff:

95.5%

FWHM:

87°

Cd/Im:

0.8

Carclo Optics 12952 Simulated Spot Image Nichia 757G-MT

Carclo Optics 12952 Simulated cross section Image Nichia 757G-MT

Download

ies

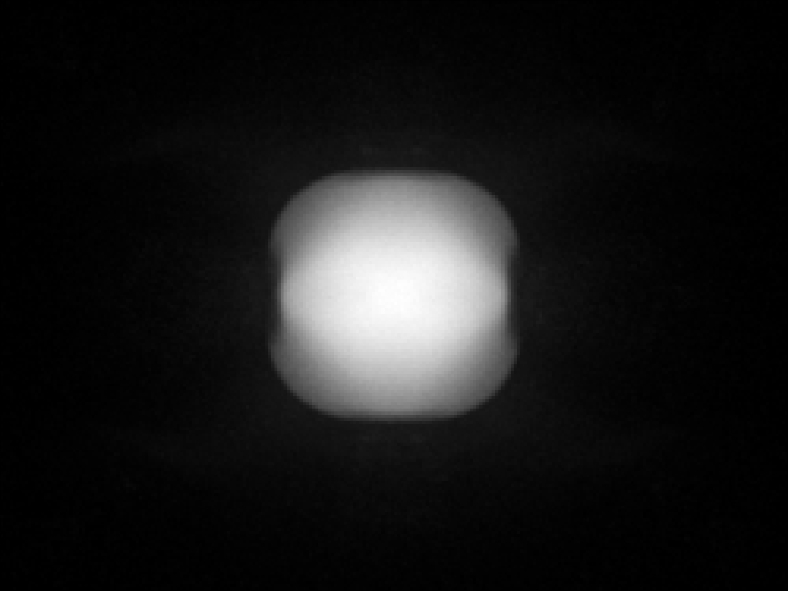

Nichia NFSW CSP E11A White

Eff:

94.0%

FWHM:

87°

Cd/Im:

0.7

Download

ies

Nichia NVSW CSP E21A White

Eff:

95.0%

FWHM:

87°

Cd/Im:

0.7

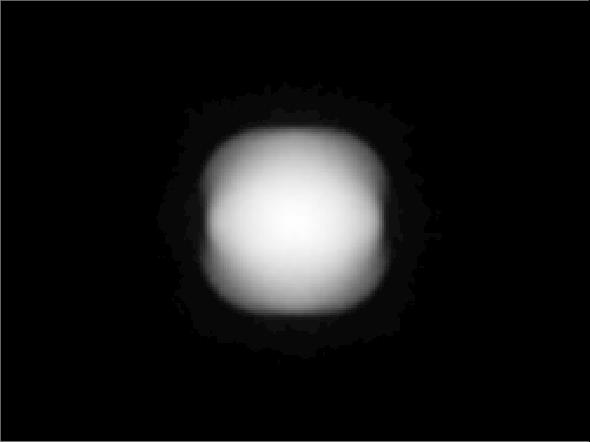

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.9

Carclo Optics - 12952 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12952 33Up Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram OS DURIS E5 White

Eff:

95.5%

FWHM:

83°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 White

Eff:

96.5%

FWHM:

87.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S8 Gen3 White

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.9

Carclo Optics - 12952 33Up Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12952 33Up Cross Section Oslon DURIS S8 Gen3

Download

ies

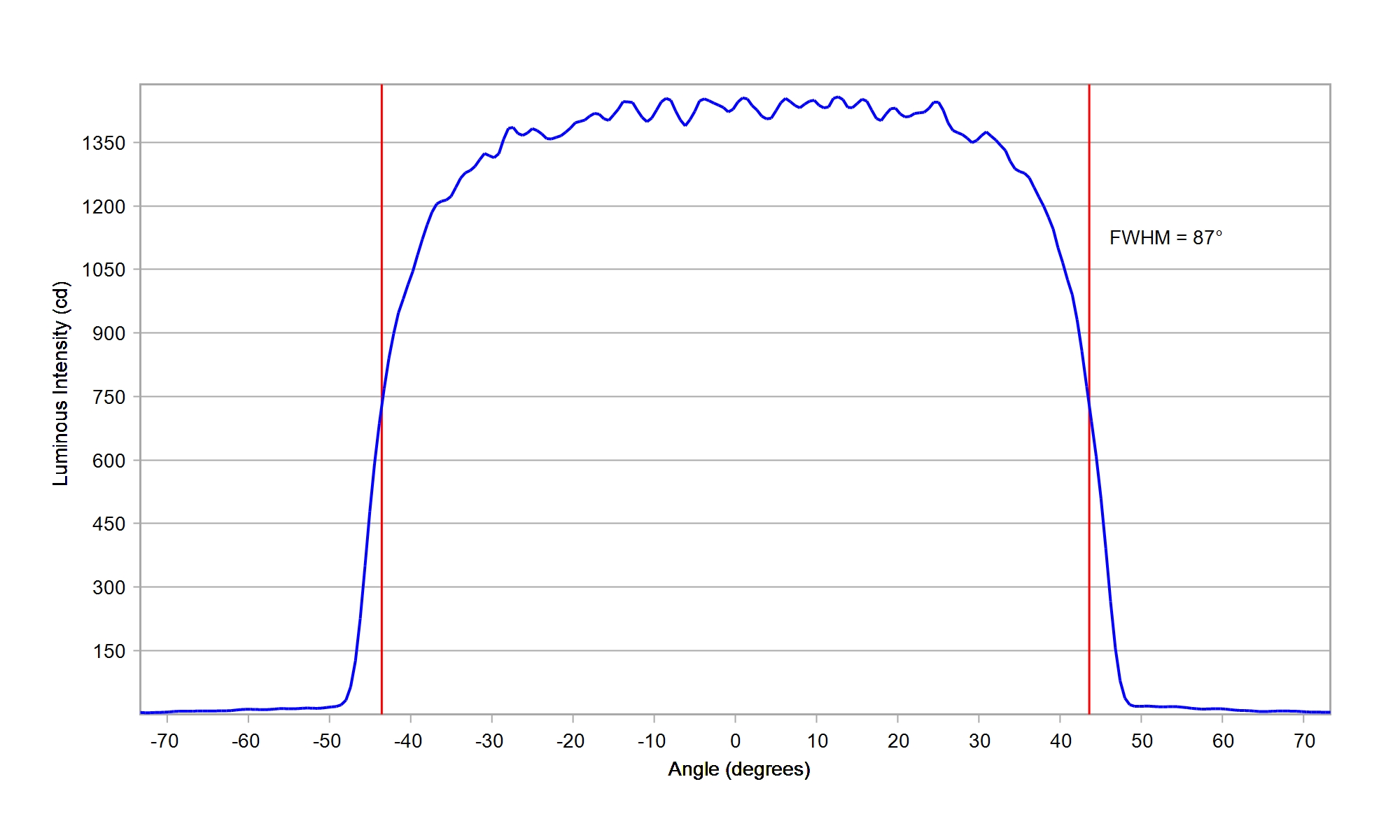

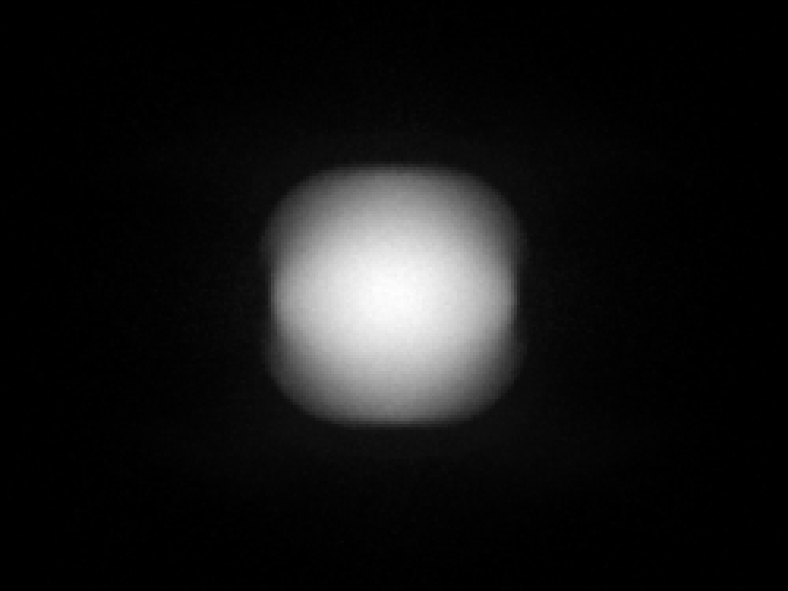

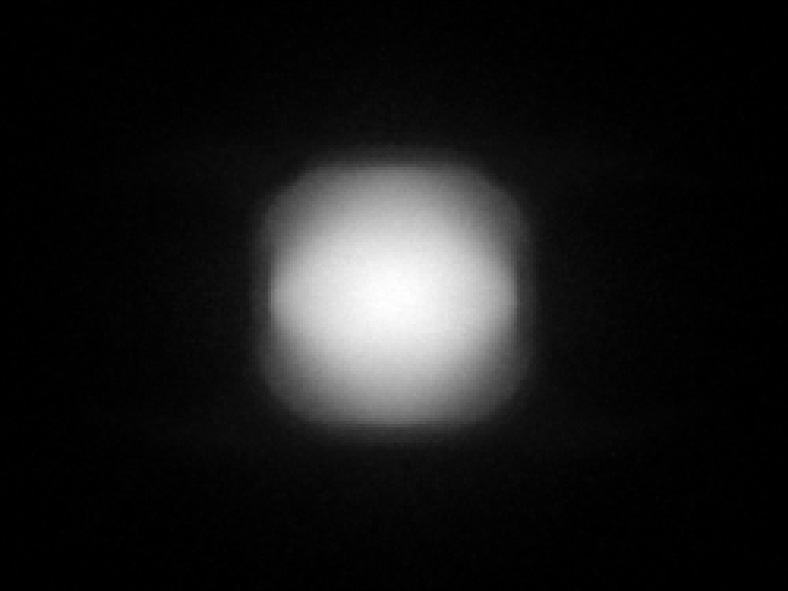

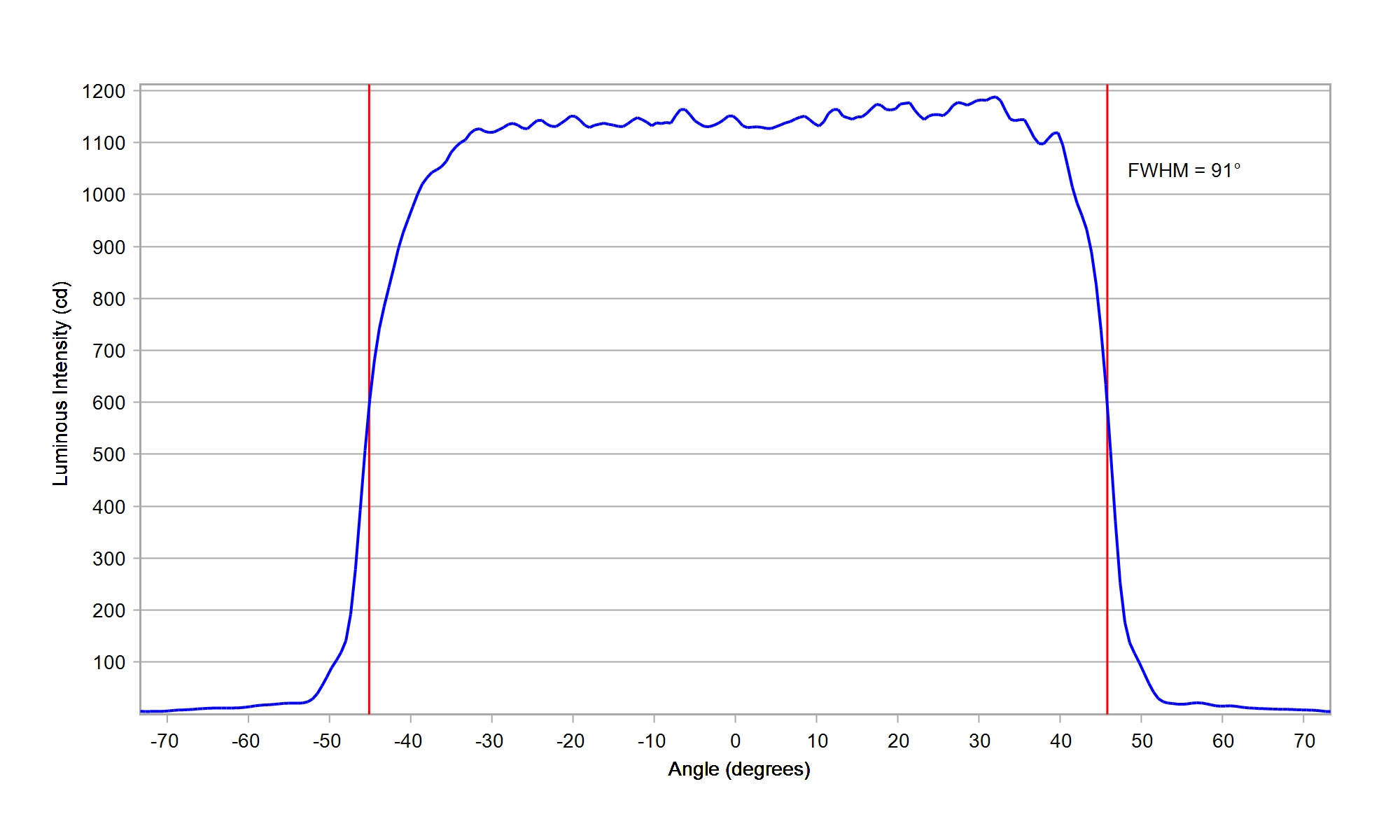

Osram OS OSCONIQ C 2424 White

Eff:

96.0%

FWHM:

88.0°

Cd/Im:

0.9

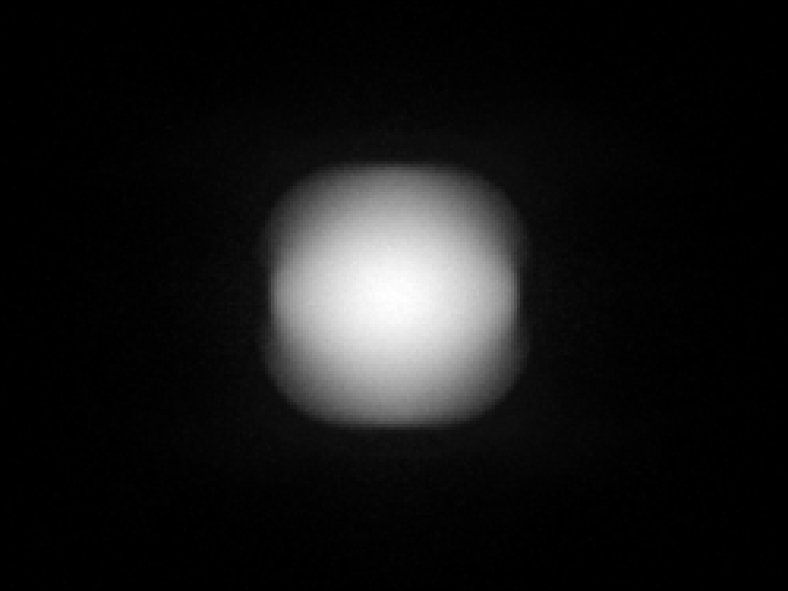

Carclo Optics - 12952 Spot Image OSCONIQ C2424

Carclo Optics - 12952 Cross Section OSCONIQ C2424

Download

ies

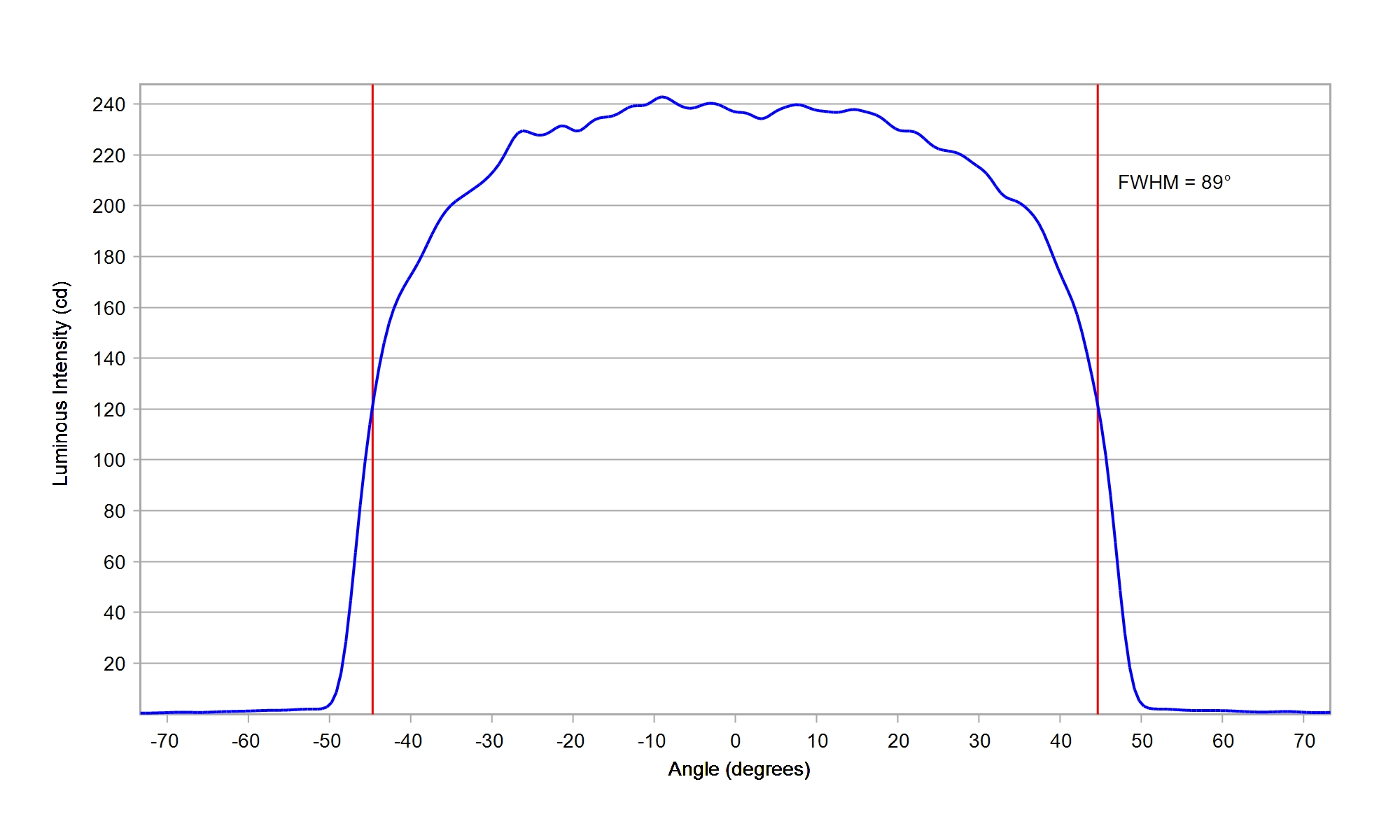

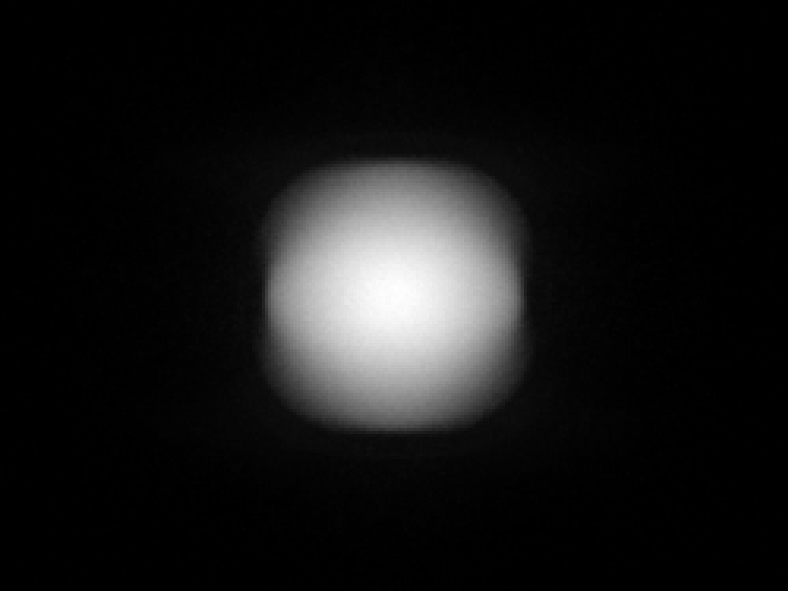

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

96.0%

FWHM:

84°

Cd/Im:

0.9



Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

95.0%

FWHM:

91°

Ipk/W:

0.7

Carclo Optics – 12952 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12952 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

96.0%

FWHM:

91°

Cd/Im:

0.7

Carclo Optics – 12952 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12952 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

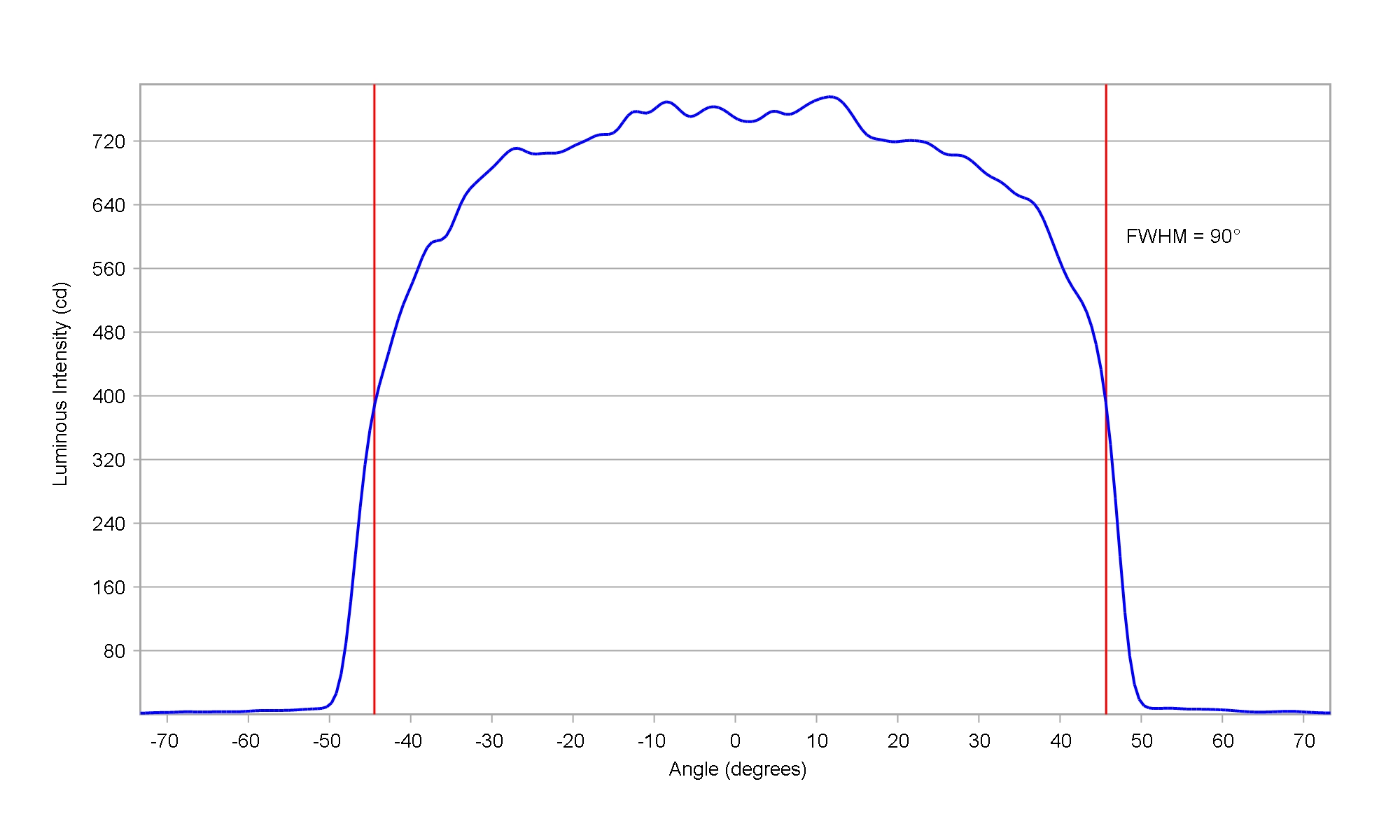

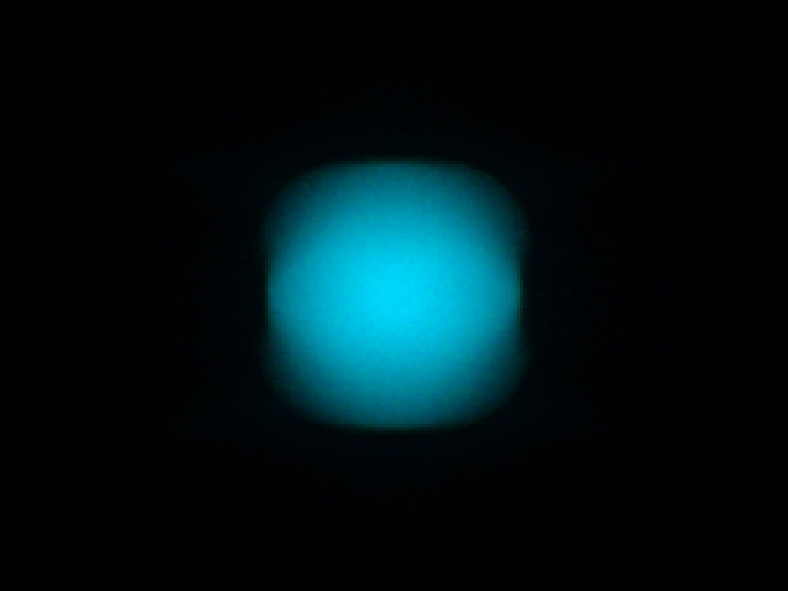

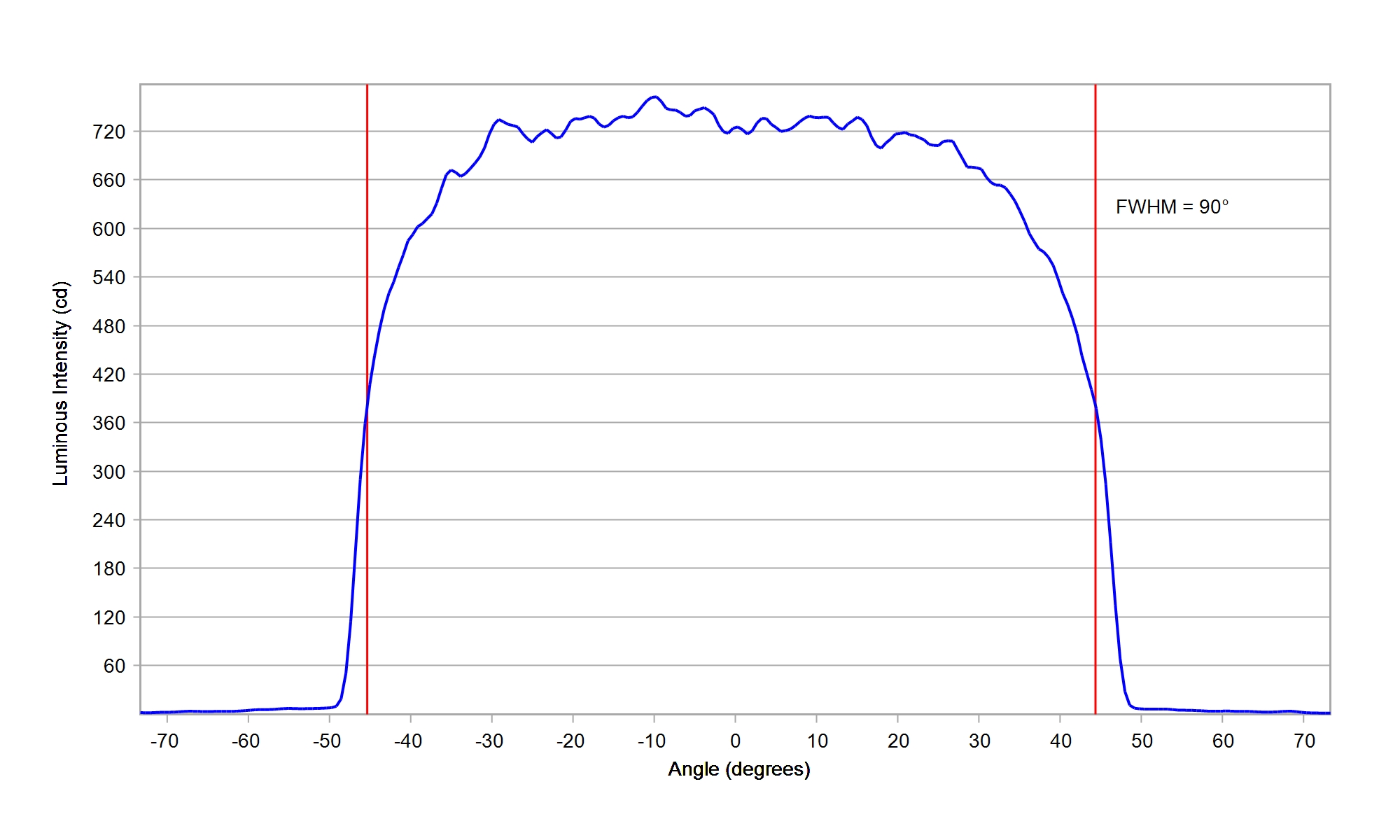

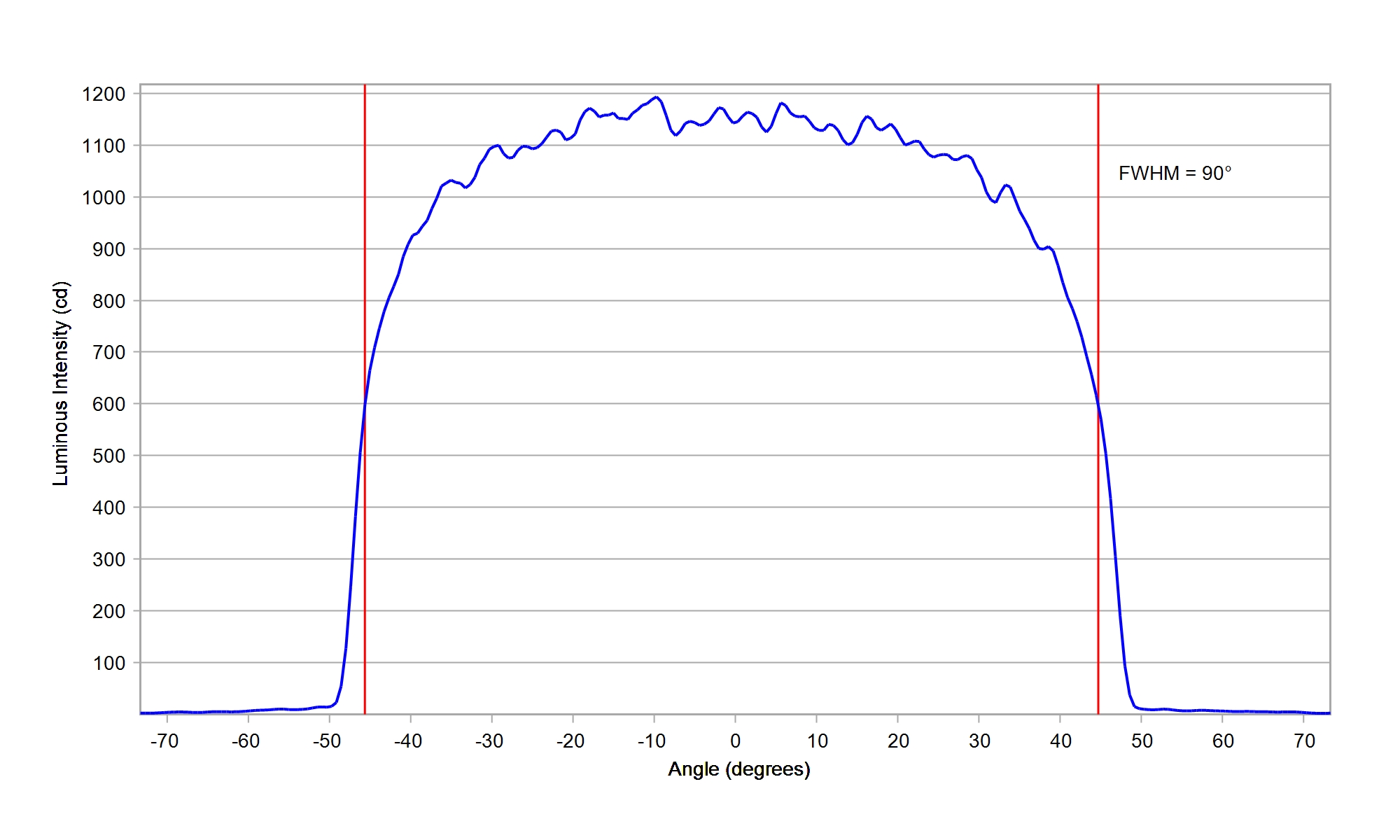

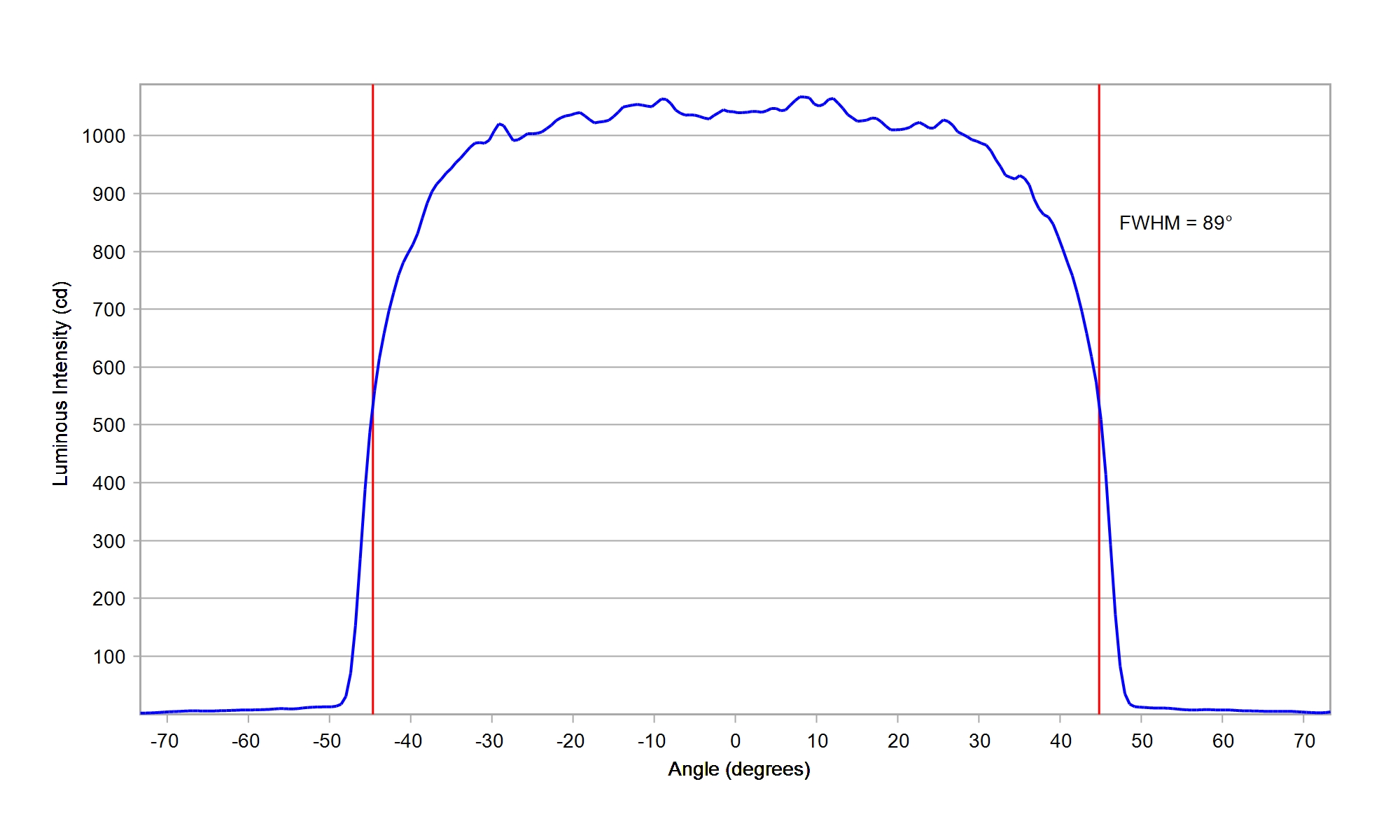

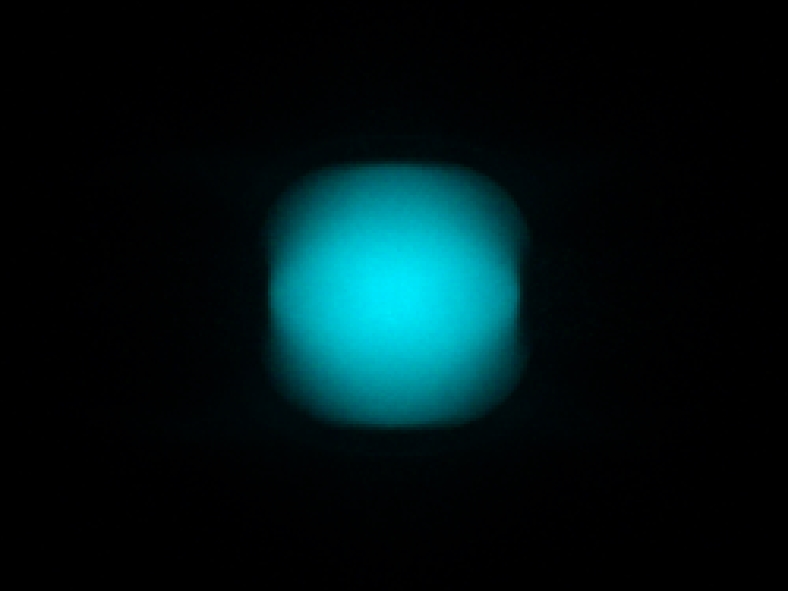

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

95.5%

FWHM:

85°

Cd/Im:

0.9


Download

ies

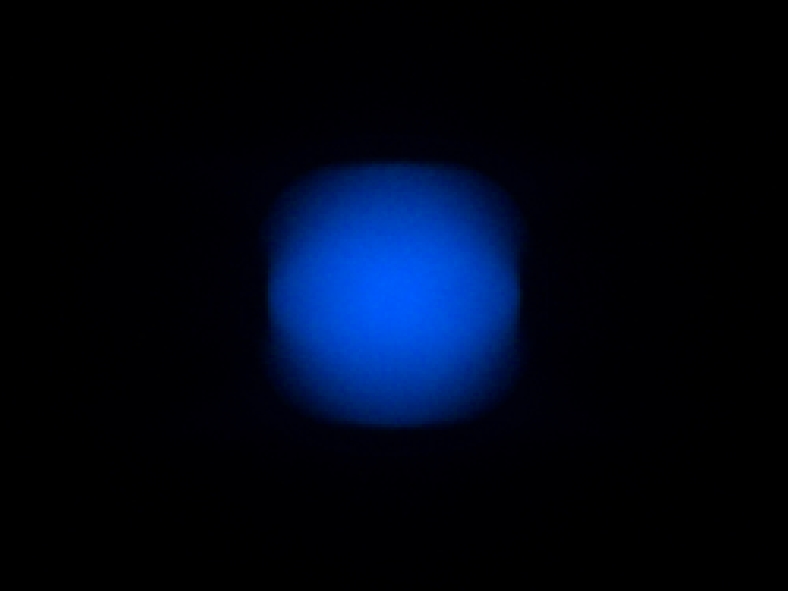

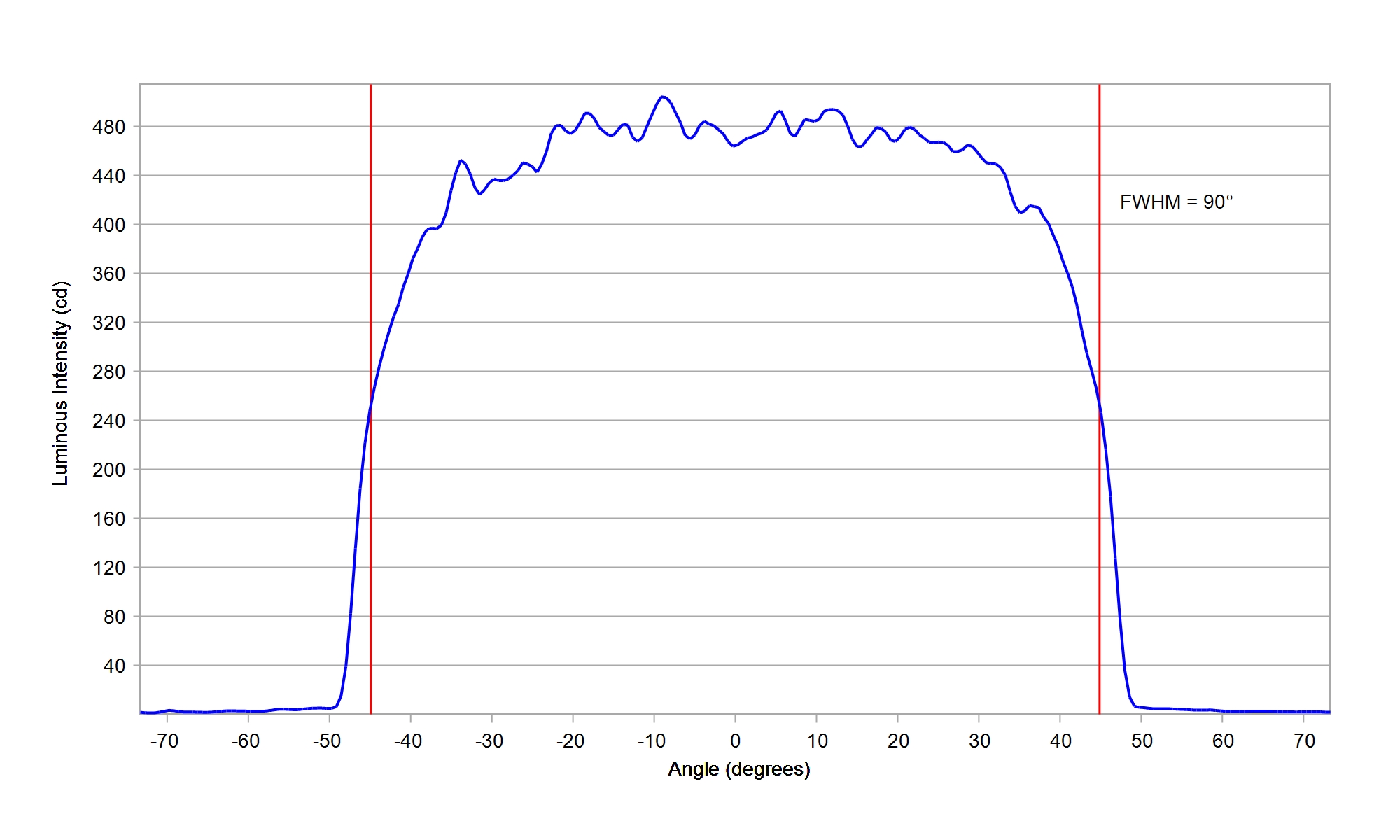

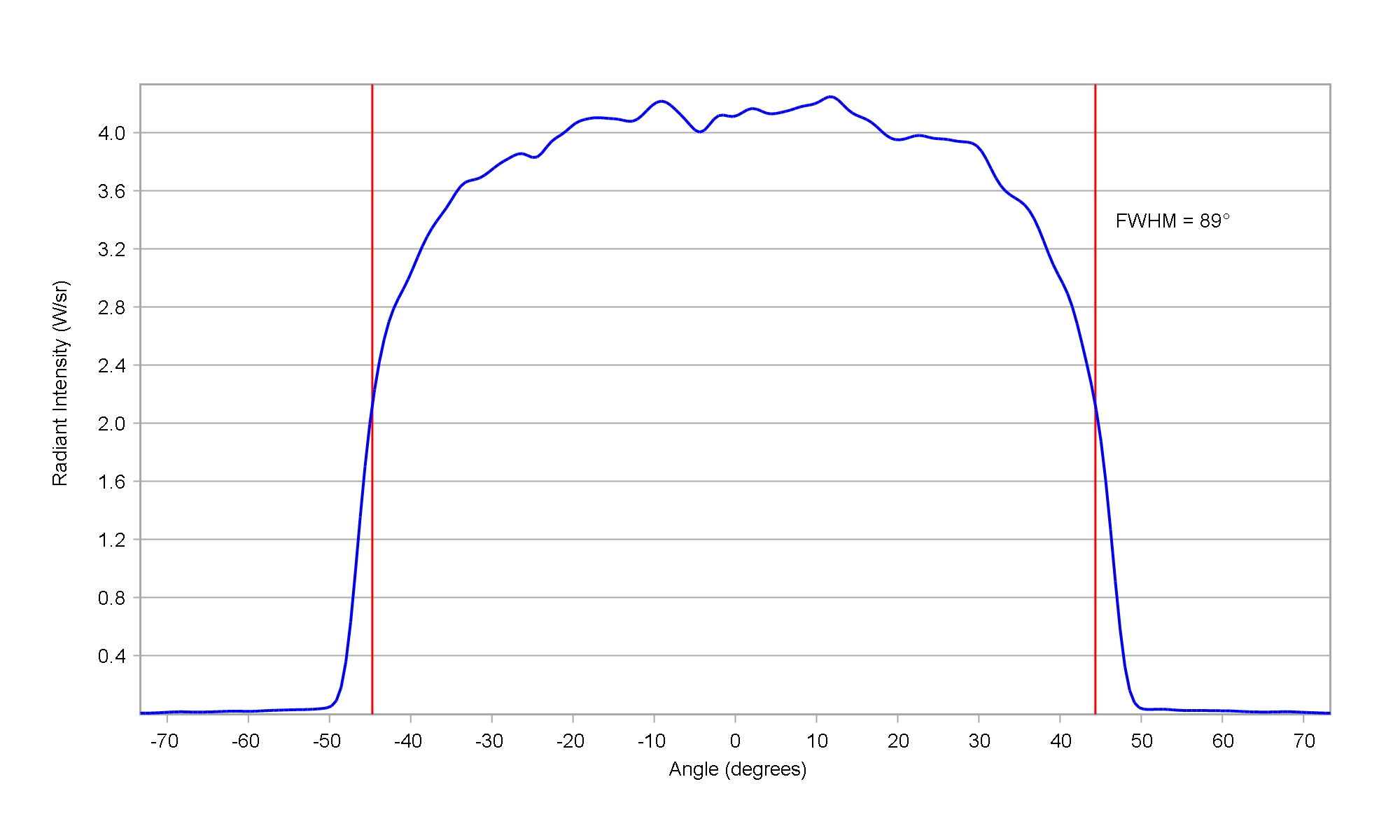

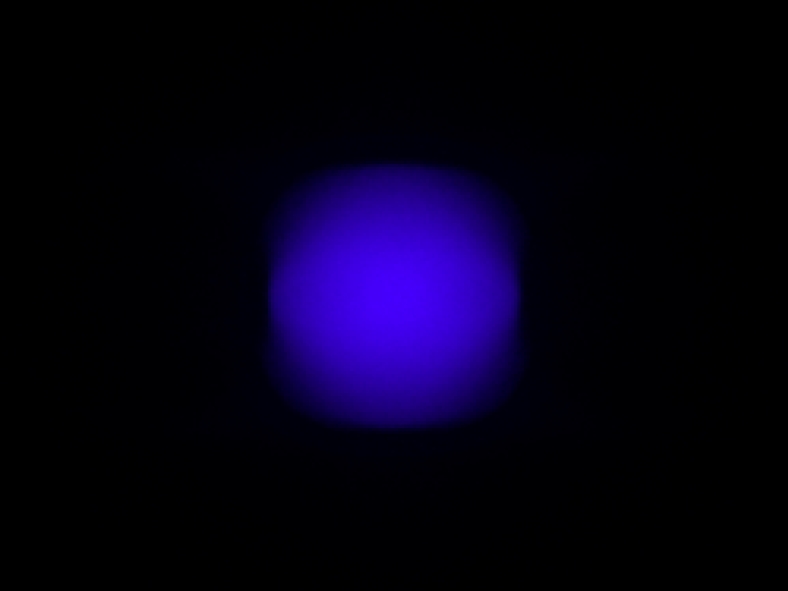

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

97.0%

FWHM:

85°

Ipk/W:

0.9


Download

ies

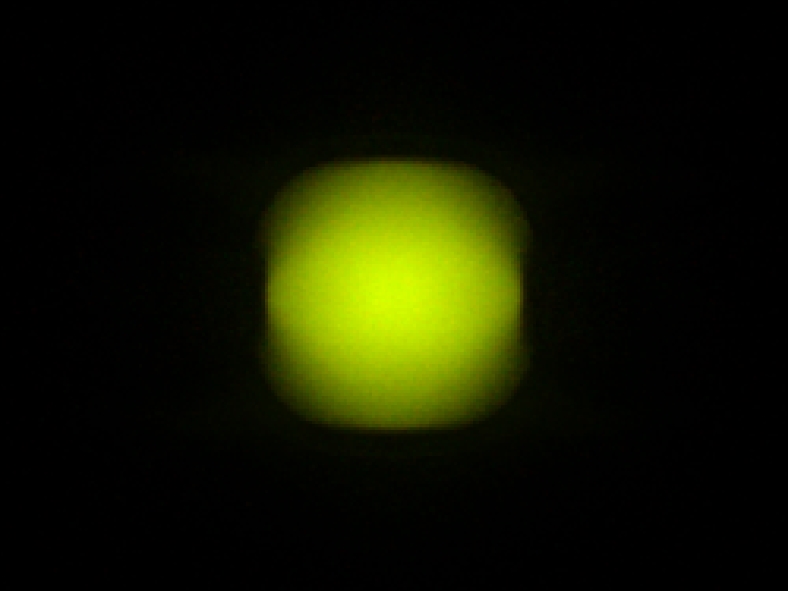

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

95.0%

FWHM:

86°

Cd/Im:

0.8


Download

ies

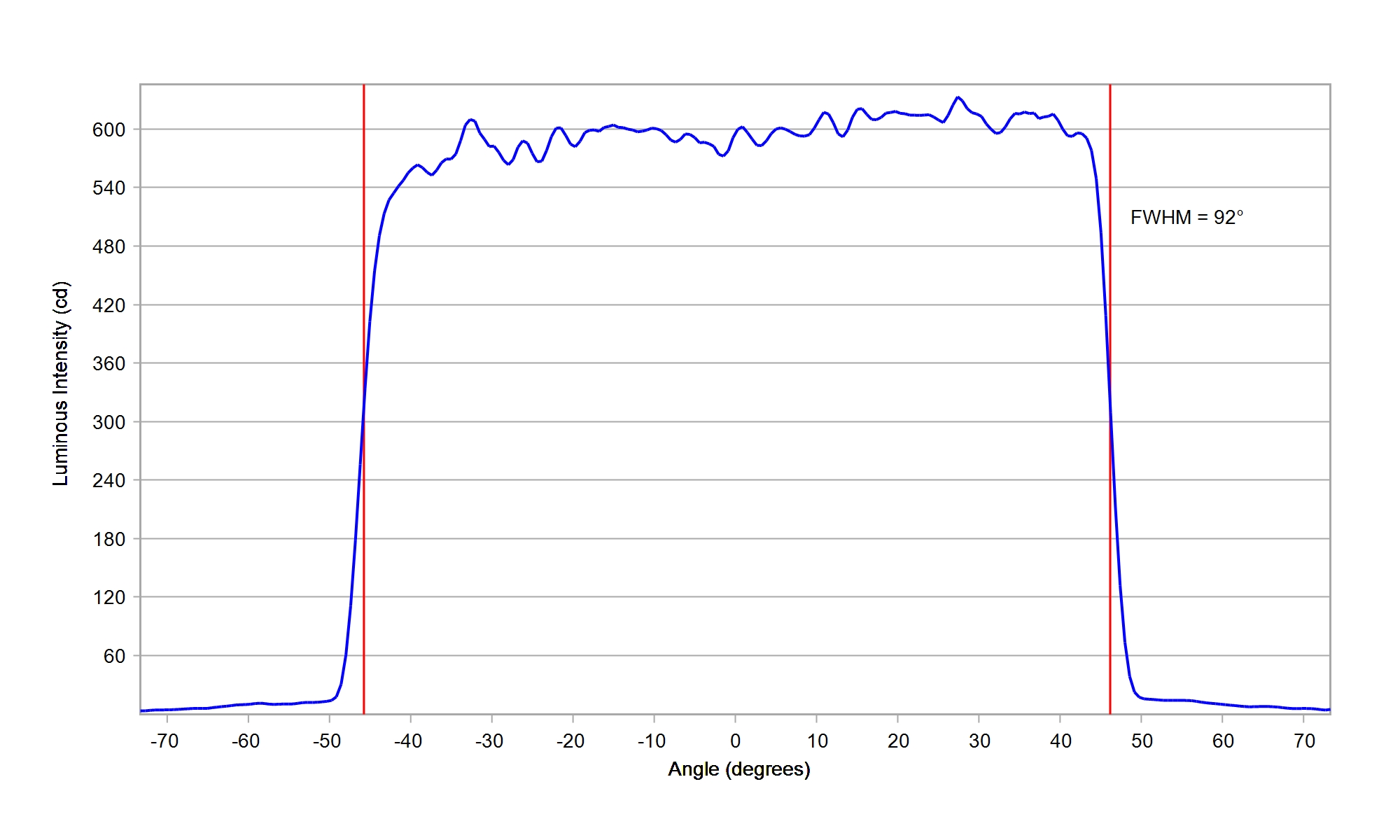

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

94.5%

FWHM:

88°

Cd/Im:

0.8


Download

ies

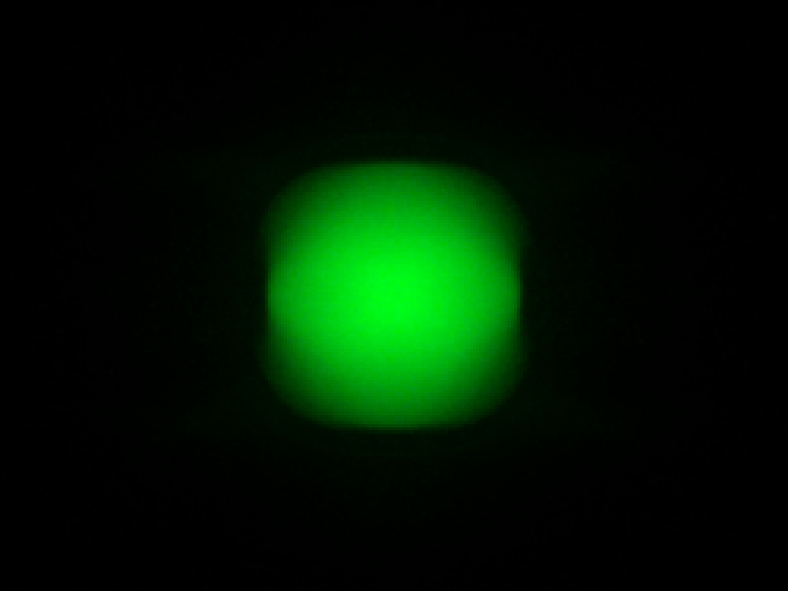

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

95.5%

FWHM:

85°

Cd/Im:

0.7


Download

ies

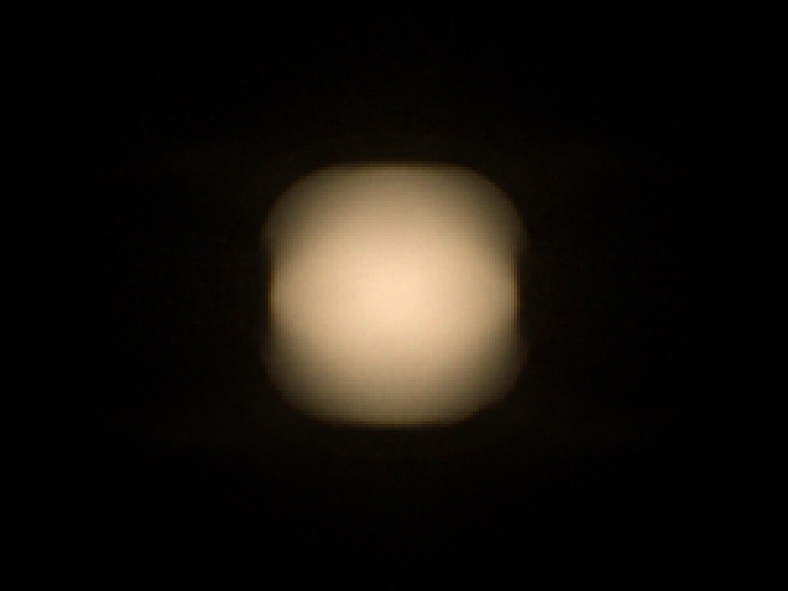

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

94.5%

FWHM:

85°

Cd/Im:

0.8



Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

95.5%

FWHM:

89 x 84°

Cd/Im:

0.9

Carclo Optics - 12952 33Up Spot Image Oslon Square Gen 5

Carclo Optics - 12952 33Up Cross Section Oslon Square Gen 5

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

96.0%

FWHM:

94°

Cd/Im:

0.7

Carclo Optics – 12952 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12952 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OS Prevaled Bar G4

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.8

Carclo Optics – 12952 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12952 – Osram_Prevaled_Bar_G4_cross vertical section

Download

ies

Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

95.5%

FWHM:

87°

Cd/Im:

0.9

Download

IES

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.9


Download

IES

Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

95.5%

FWHM:

88°

Cd/Im:

0.8


Download

IES

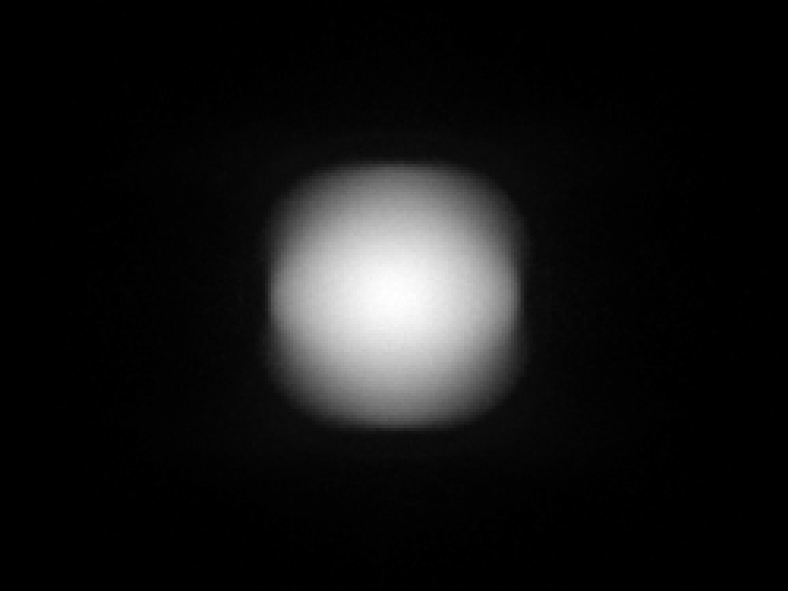

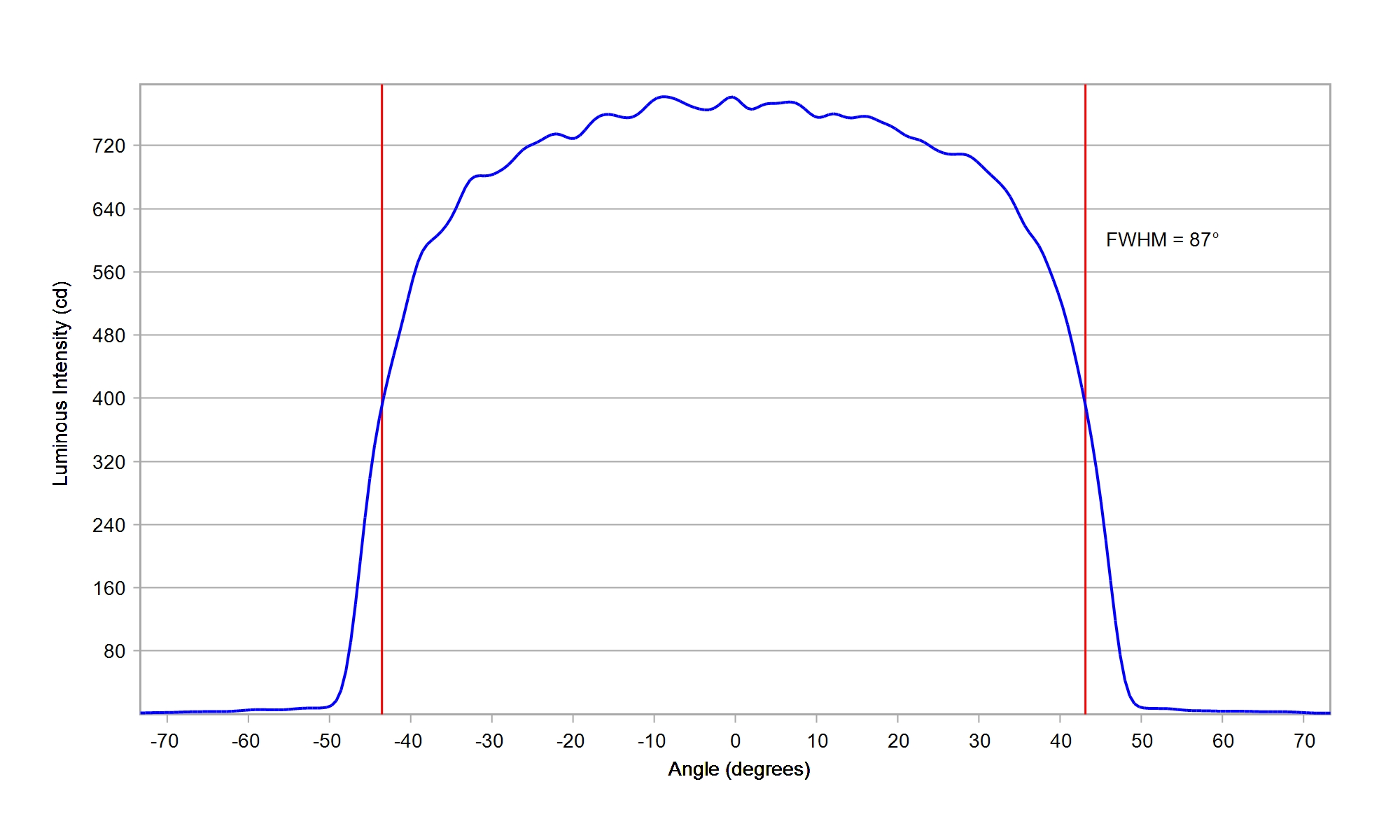

Samsung 2835 LM281B+ White

Eff:

96.0%

FWHM:

87°

Cd/Im:

0.9



Download

Samsung 3030 LM301B White

Eff:

96.0%

FWHM:

87°

Cd/Im:

0.8

Download

ies

Samsung 5050 LH502C White

Eff:

96.0%

FWHM:

84°

Cd/Im:

0.9


Download

IES

Samsung 5050 LH502D White

Eff:

96.0%

FWHM:

85°

Cd/Im:

0.9


Download

IES

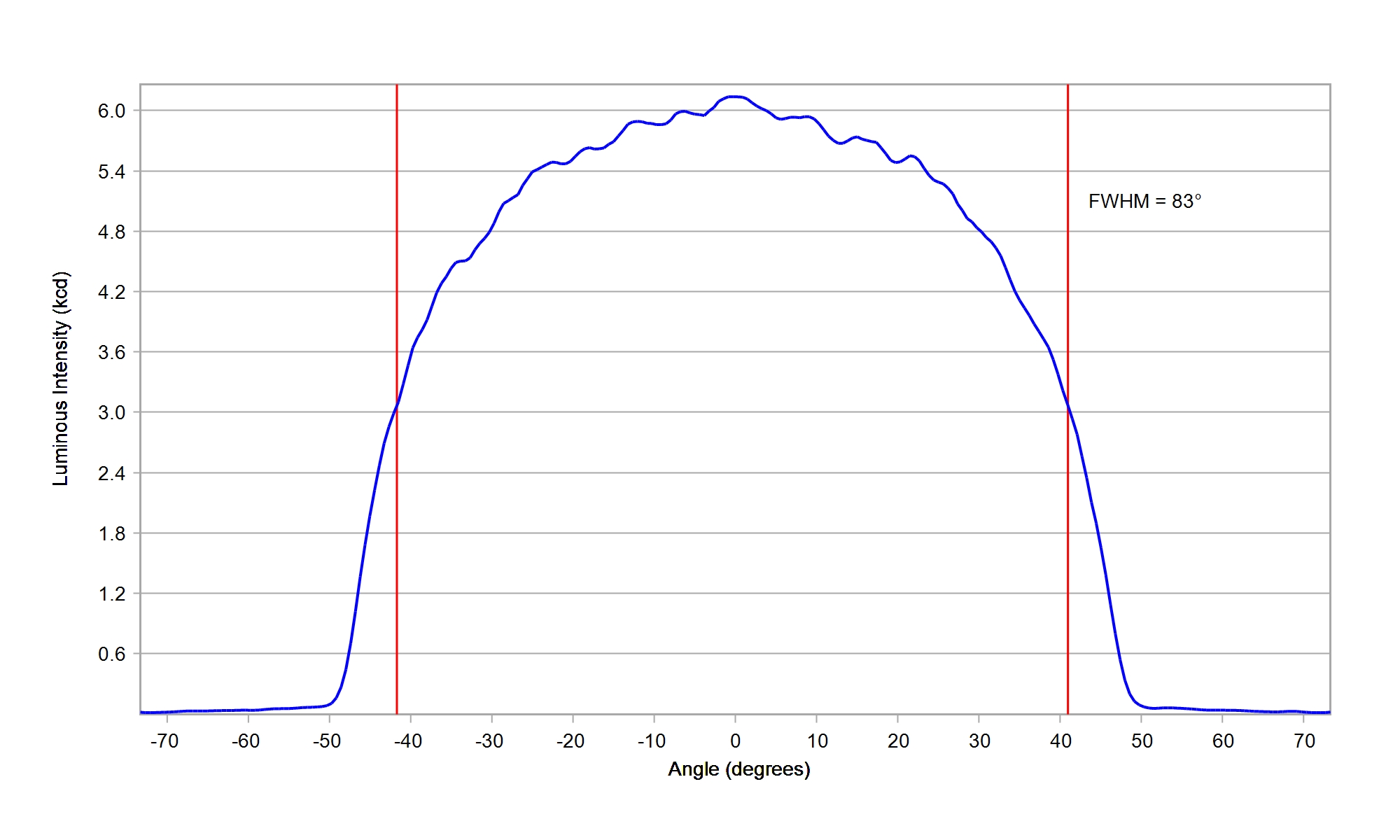

Samsung 5050 LH508C White

Eff:

96.0%

FWHM:

83°

Cd/Im:

1.0


Download

IES

Samsung CSP LH151B White

Eff:

95.5%

FWHM:

86°

Cd/Im:

0.9

Carclo Optics – 12952 – Samsung_LH151B_spot-image

Carclo Optics – 12952 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

96.0%

FWHM:

86 x 84°

Cd/Im:

0.9

Carclo Optics -12952 Sport Image - Samsung LH181B 4000K

Carclo Optics -12952 Cross Section - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

95.5%

FWHM:

85 x 84°

Cd/Im:

0.9

Carclo Optics - 12952 Spot Image Samsung LH231B 5000K

Carclo Optics -12952 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

95.5%

FWHM:

86 x 85°

Cd/Im:

0.8

Carclo Optics -12952 Sport Image - Samsung LM101B 5000K

Carclo Optics -12952 Cross Section Image - Samsung LM101B 5000K

Download

ies

Seoul CSP SZ8Y11 White

Eff:

92.0%

FWHM:

88 x 91°

Cd/Im:

0.7

Carclo Optics -12952 Spot Image - Seoul Z8Y11

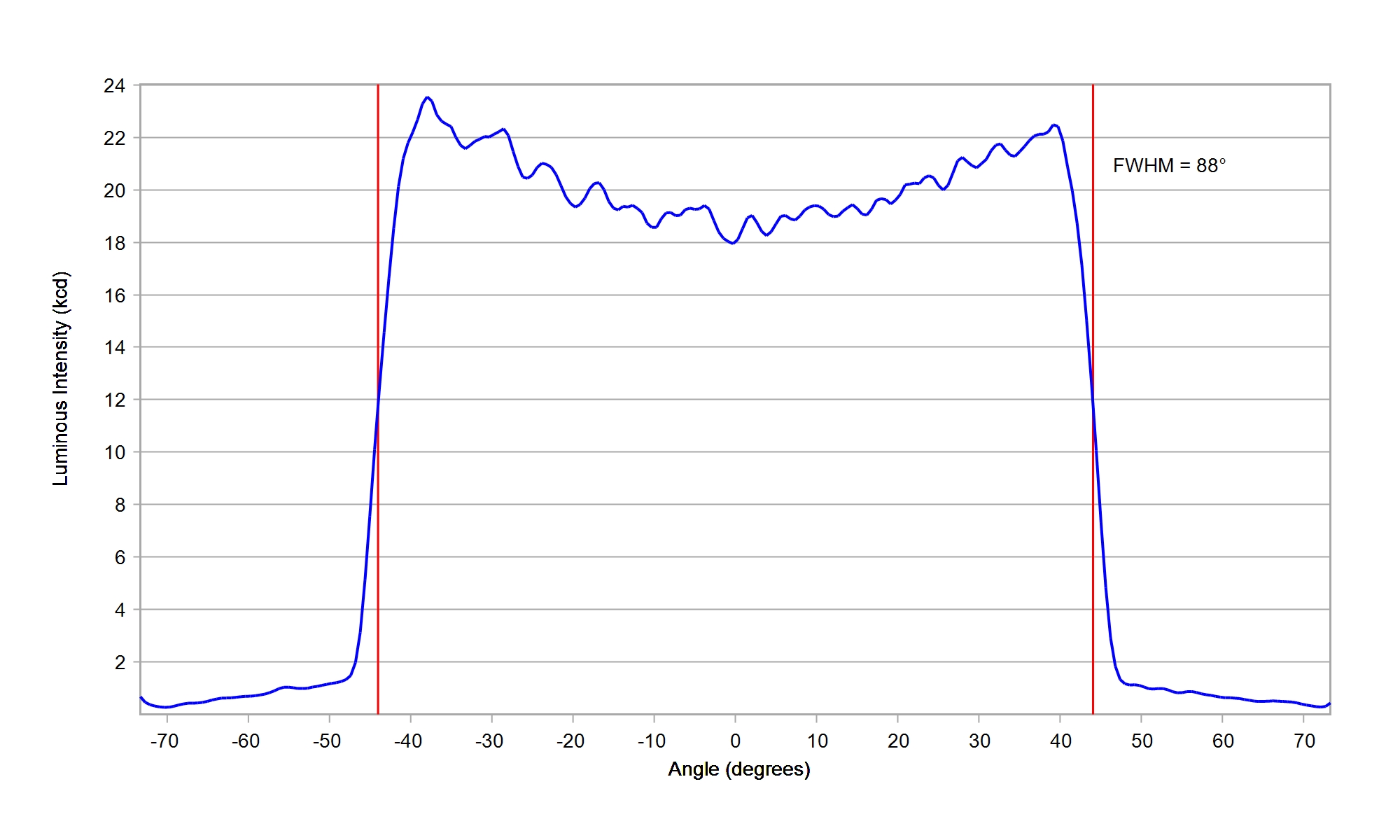

Carclo Optics -12952 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y22 White

Eff:

94.0%

FWHM:

87 x 88°

Cd/Im:

0.7

Carclo Optics -12952 Spot Image - Seoul SZ8Y22

Carclo Optics -12952 Cross Section image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

94.5%

FWHM:

93 x 92°

Cd/Im:

0.7

Carclo Optics -12952 Spot Image - Seoul SZ8Y22P

Carclo Optics -12952 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul MidPower 5630 STW8Q14C White

Eff:

93.5%

FWHM:

88°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

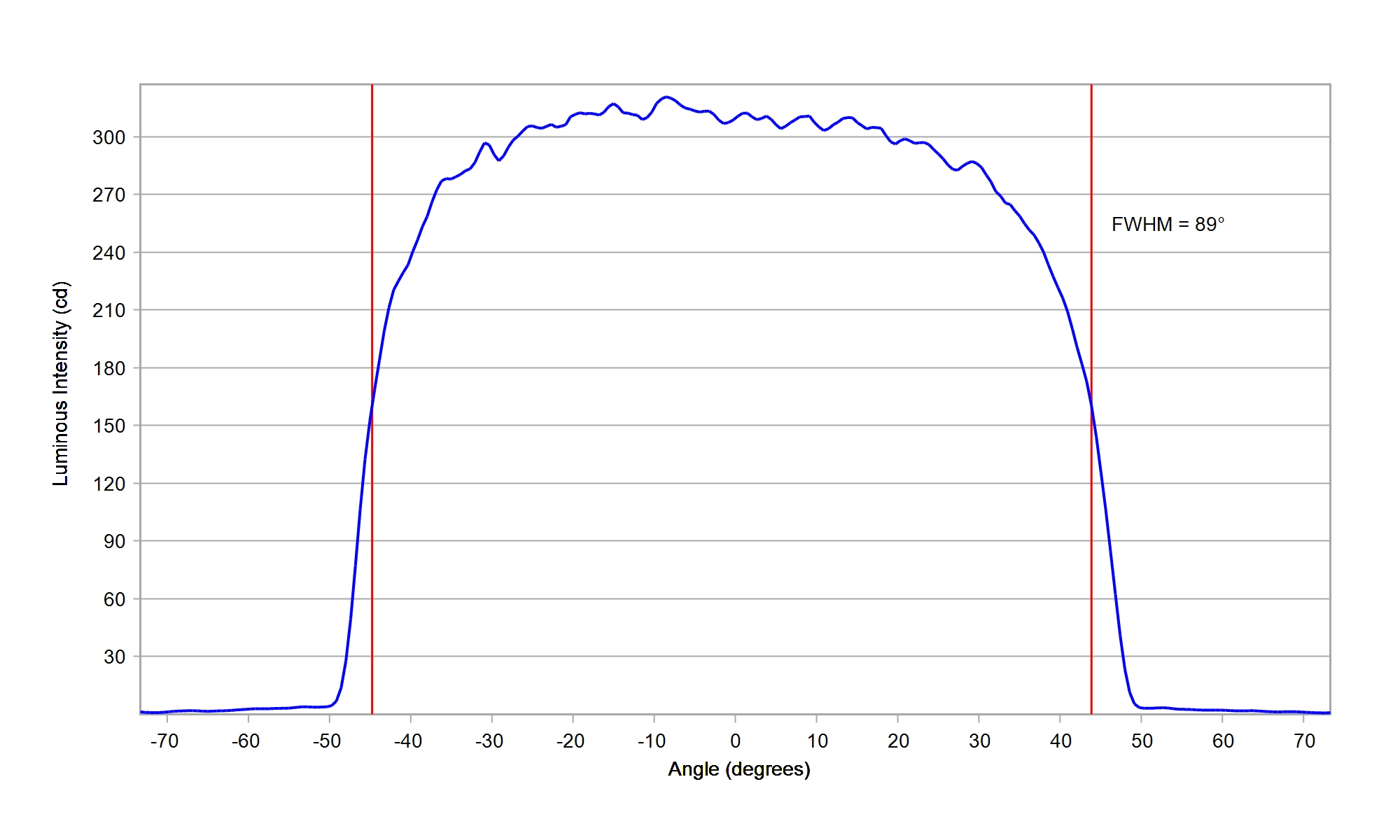

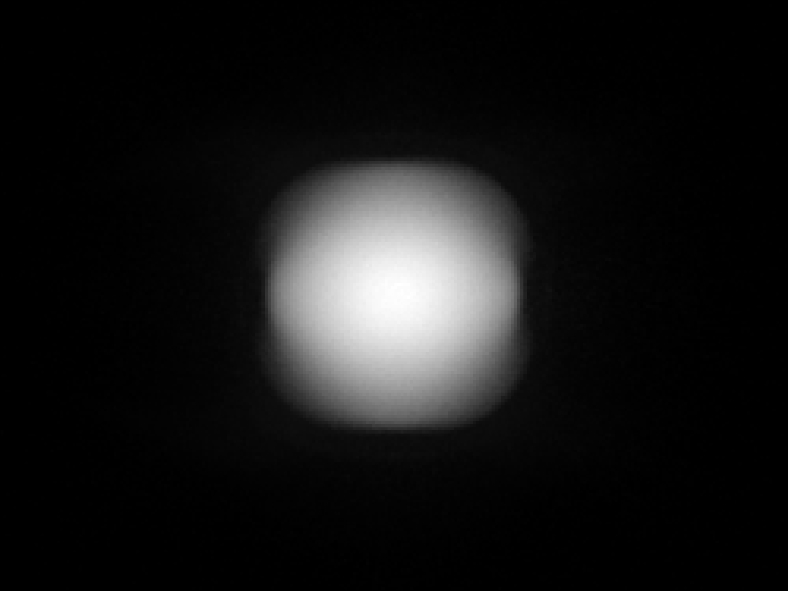

Seoul STW8 C2SB-NT White

Eff:

96.0%

FWHM:

88.0°

Cd/Im:

0.9

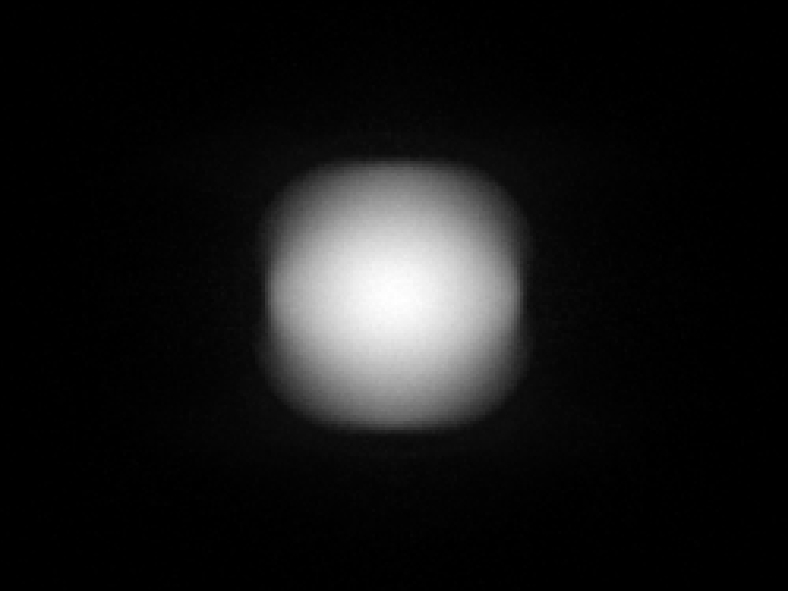

Carclo Optics - 12952 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12952 Cross Section Seoul STW8 C2SB-NT

Download

ies

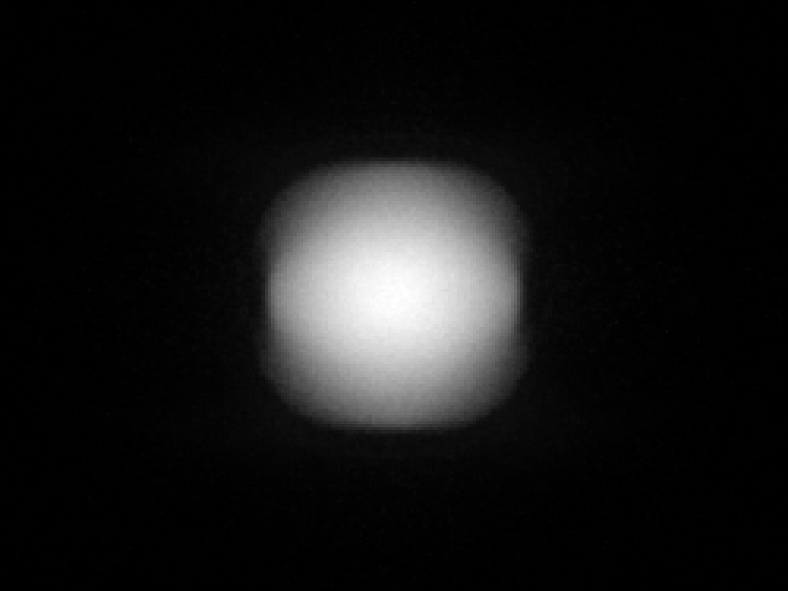

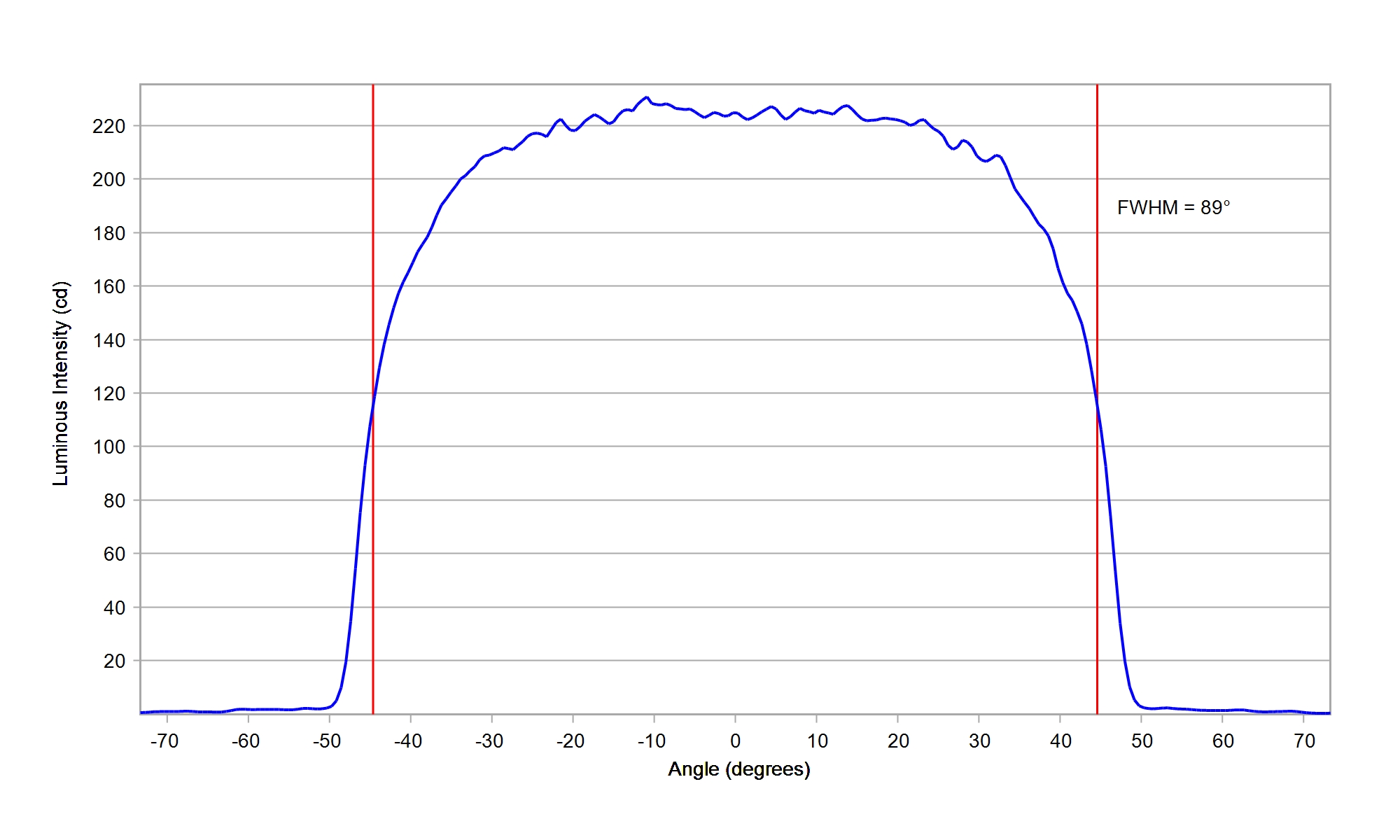

Seoul STWS C2PB-E0 White

Eff:

96.0%

FWHM:

88.0°

Cd/Im:

0.9

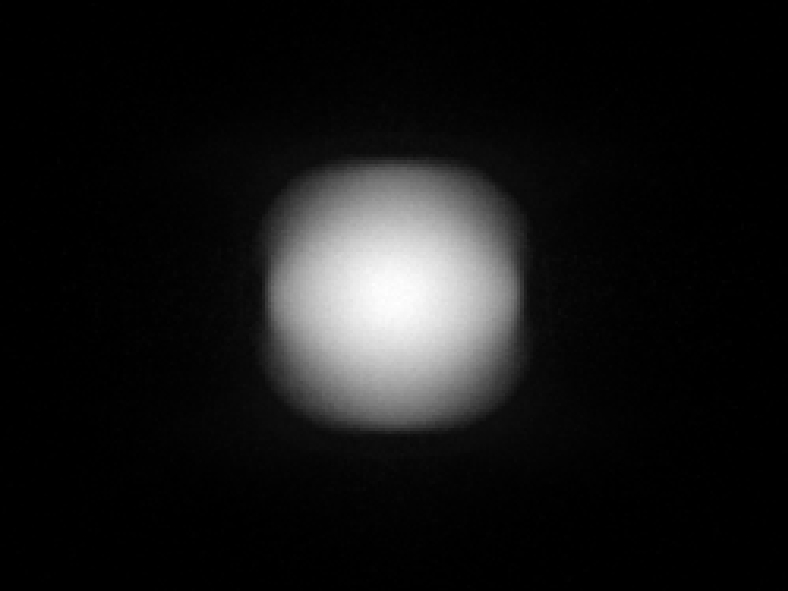

Carclo Optics - 12952 Spot Image STWS C2PB-E0

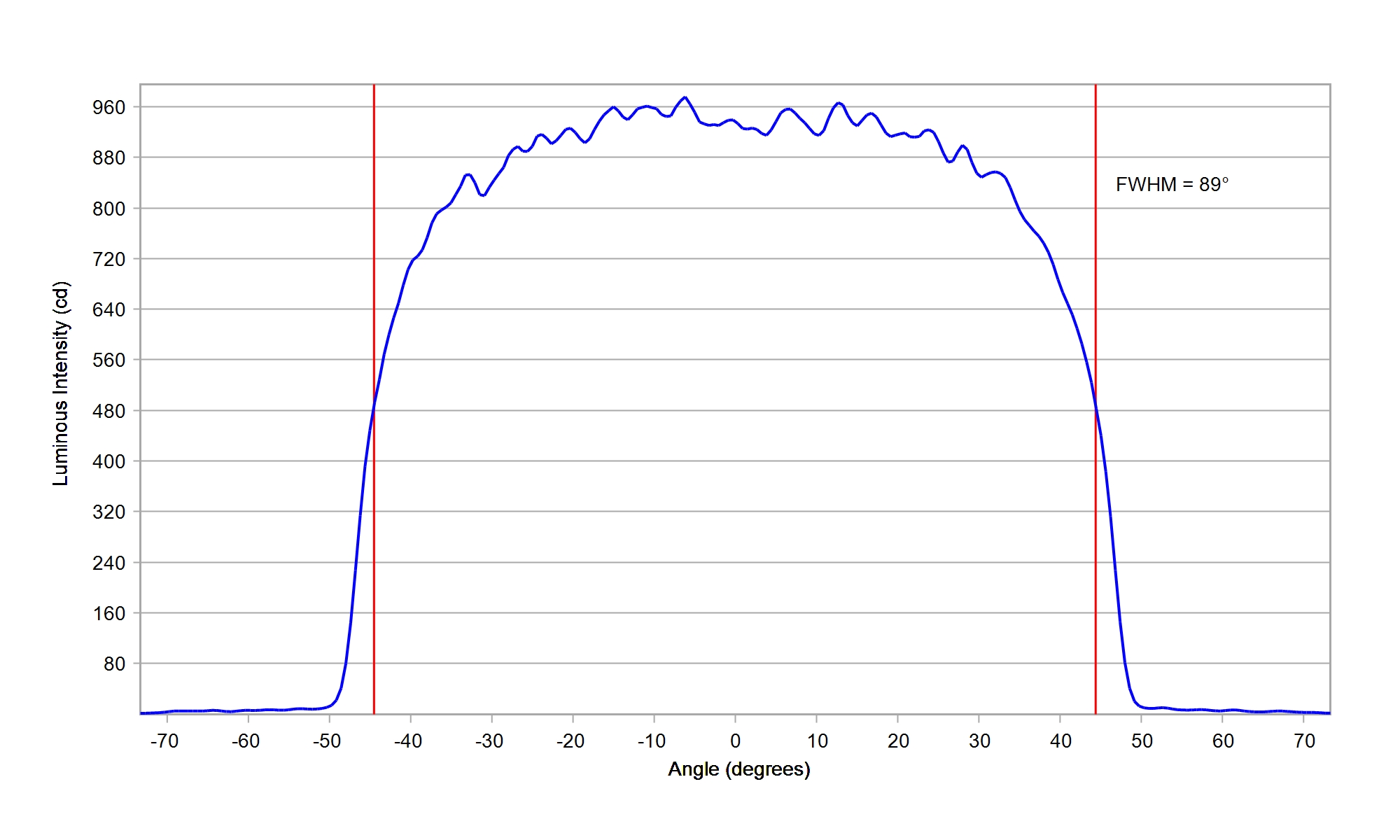

Carclo Optics - 12952 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike STW9 C2SB-S

Eff:

96.0%

FWHM:

88°

Cd/Im:

0.9

Carclo Optics - 12952 33Up Spot Image Seoul Sunlike 3030

Carclo Optics - 12952 33Up Cross Section Seoul Sunlike 3030

Download

ies
