292 x 61mm Medium Spot Plain Freeform | Carclo Optics

Carclo Optics - 12928 - 33Up Array

292 x 61mm Medium Spot Plain Freeform

Part number

12928

Dimensions

292 x 61mm

Drawing Number

12928_Rev_2_MB_Fort_AsymFlange_Customer

Optic type

Freeform

Finish

Plain

Beam type

Medium Spot

Material: PMMA

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

95.5%

FWHM:

53 x 52°

Cd/Im:

1.6

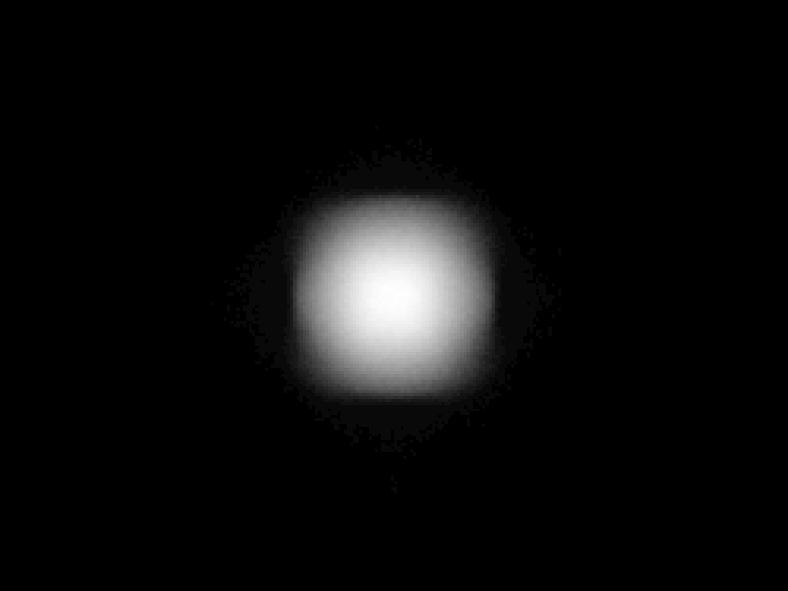

Carclo Optics - 12928 33Up Spot Image Bridgelux 3030 Gen2

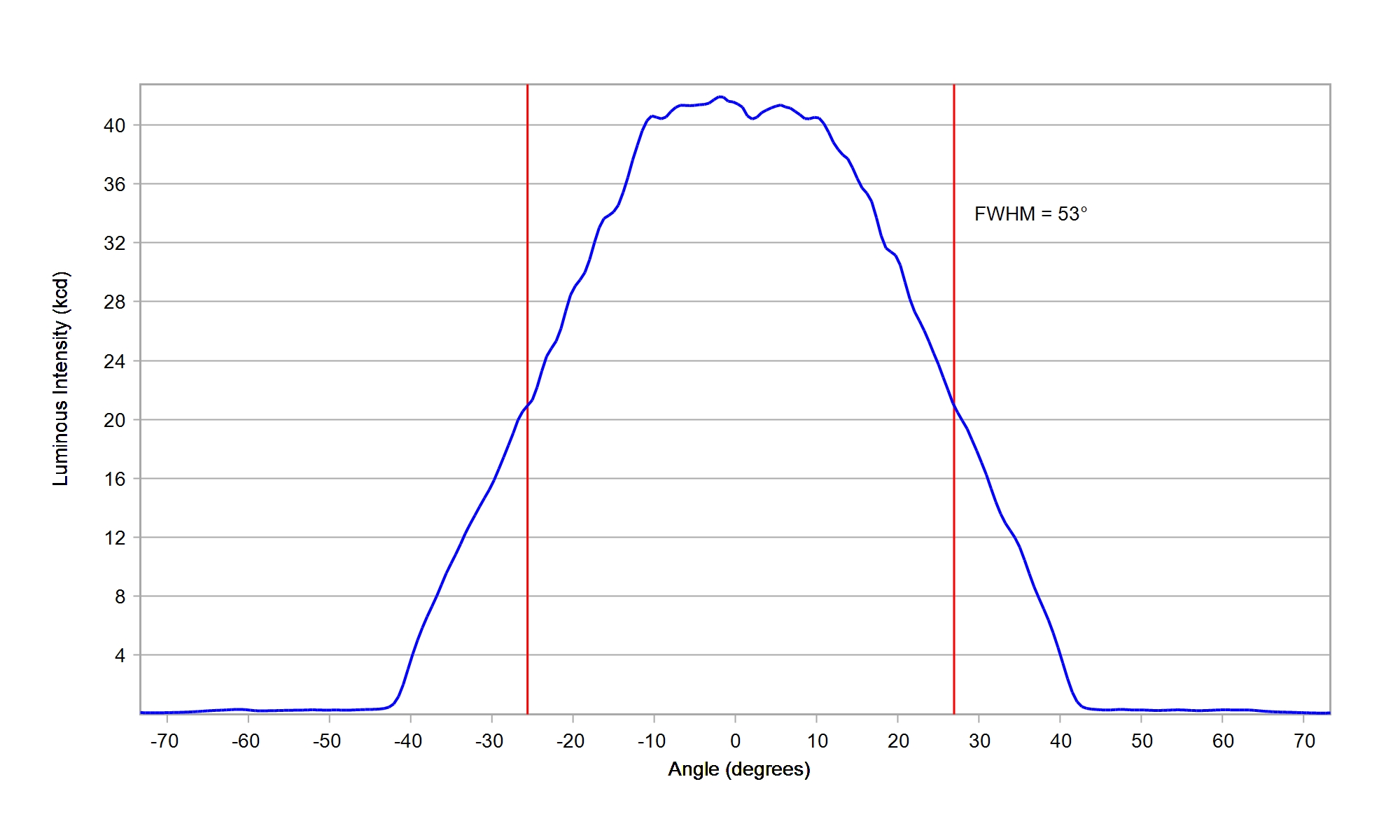

Carclo Optics - 12928 33Up Cross Section Bridgelux 3030 Gen2

Download

ies

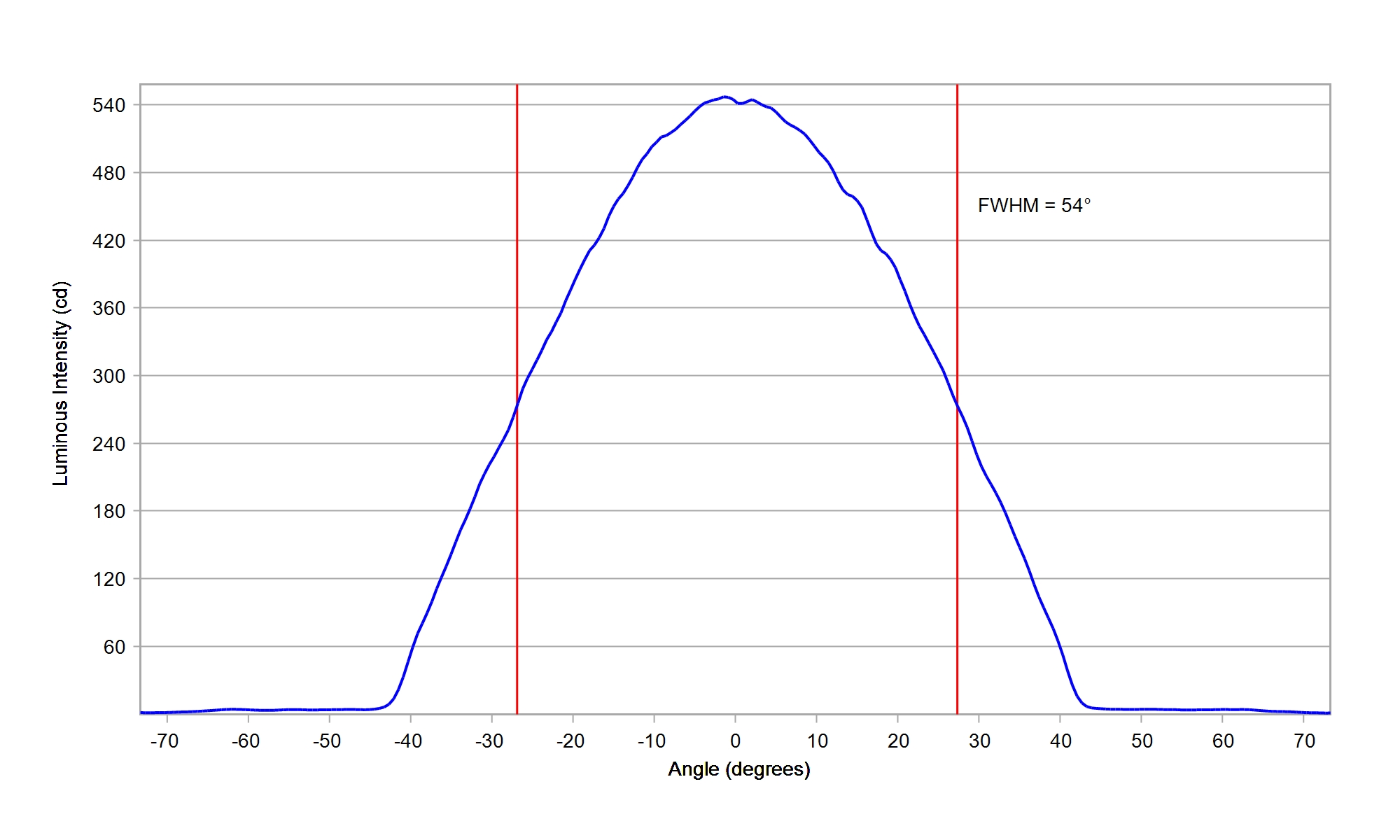

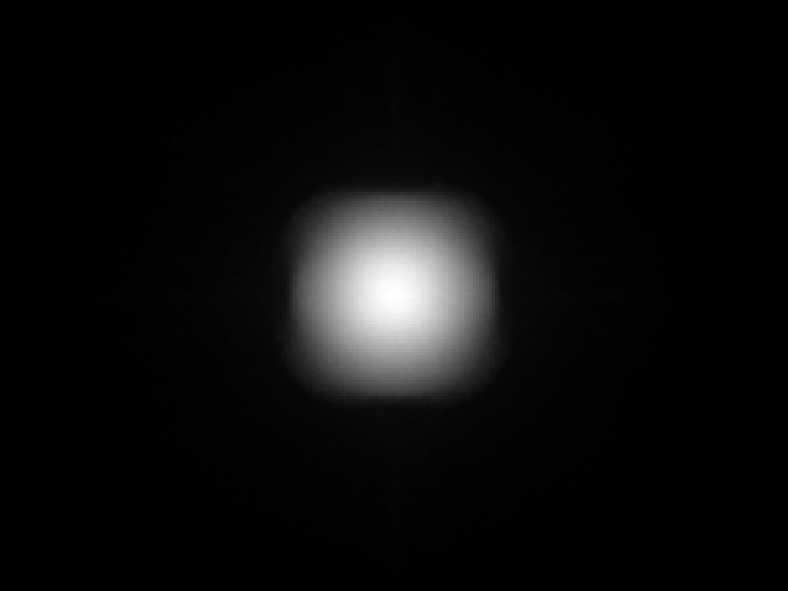

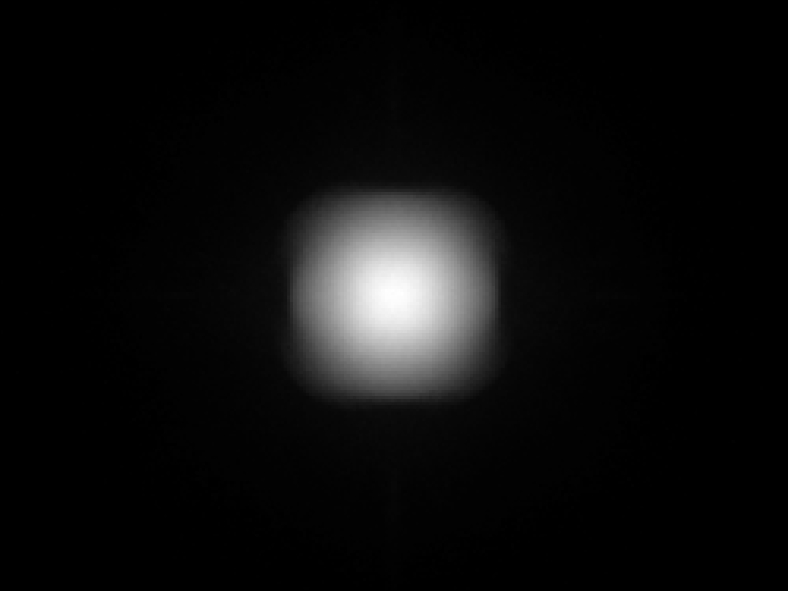

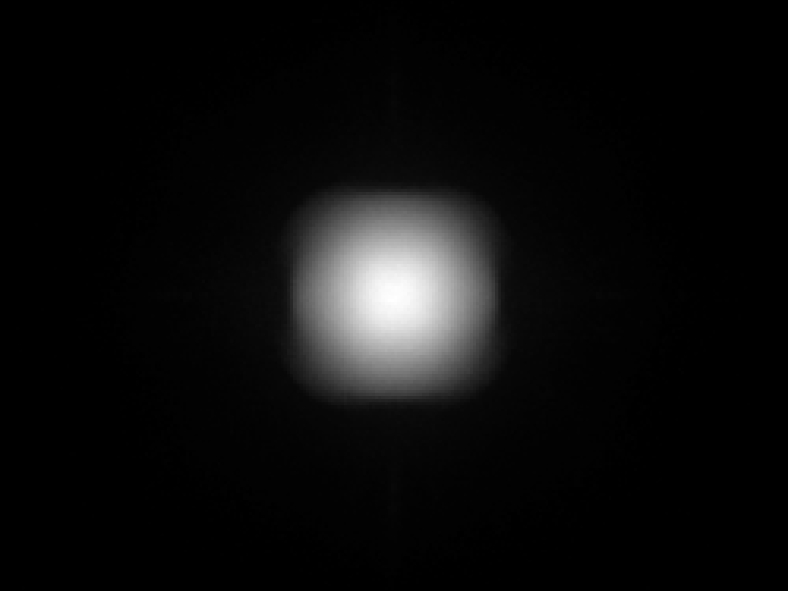

Cree JB2835B 3V G-Class White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.5


Download

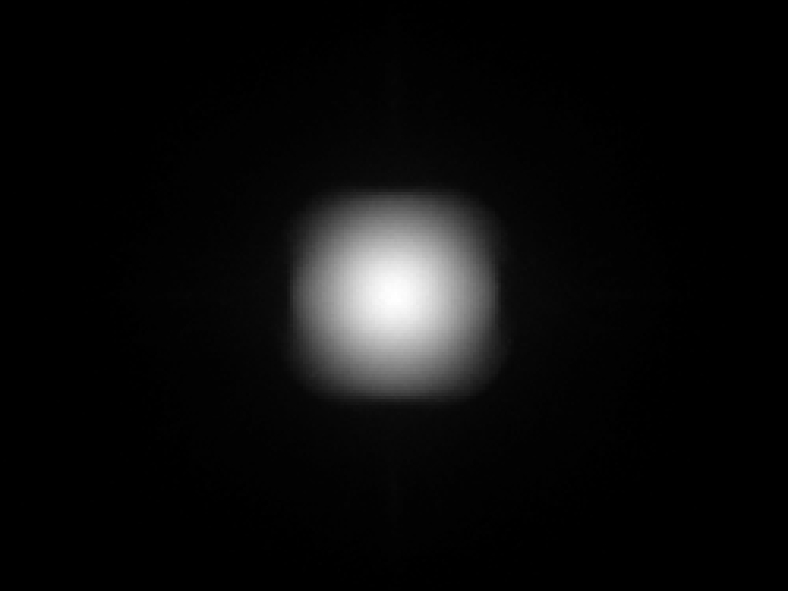

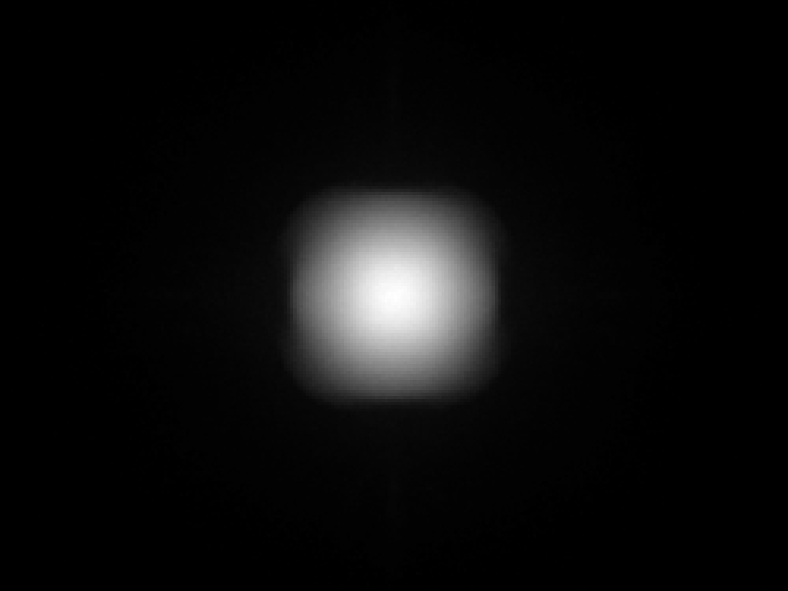

Cree JB2835B 3V J-Class White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.5


Download

Cree JB3030 3V P-Class White

Eff:

95.5%

FWHM:

53.0°

Cd/Im:

1.7

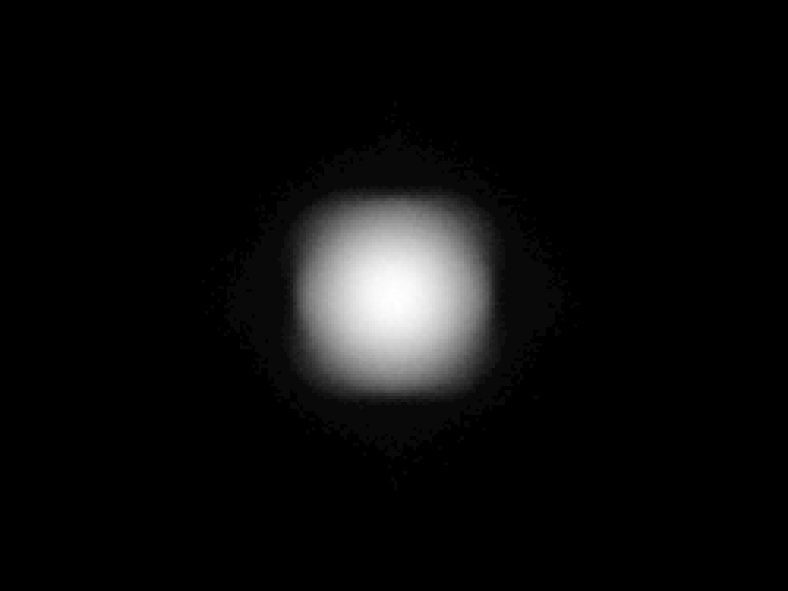

Carclo Optics - 12928 Spot Image Cree JB3030 3V White

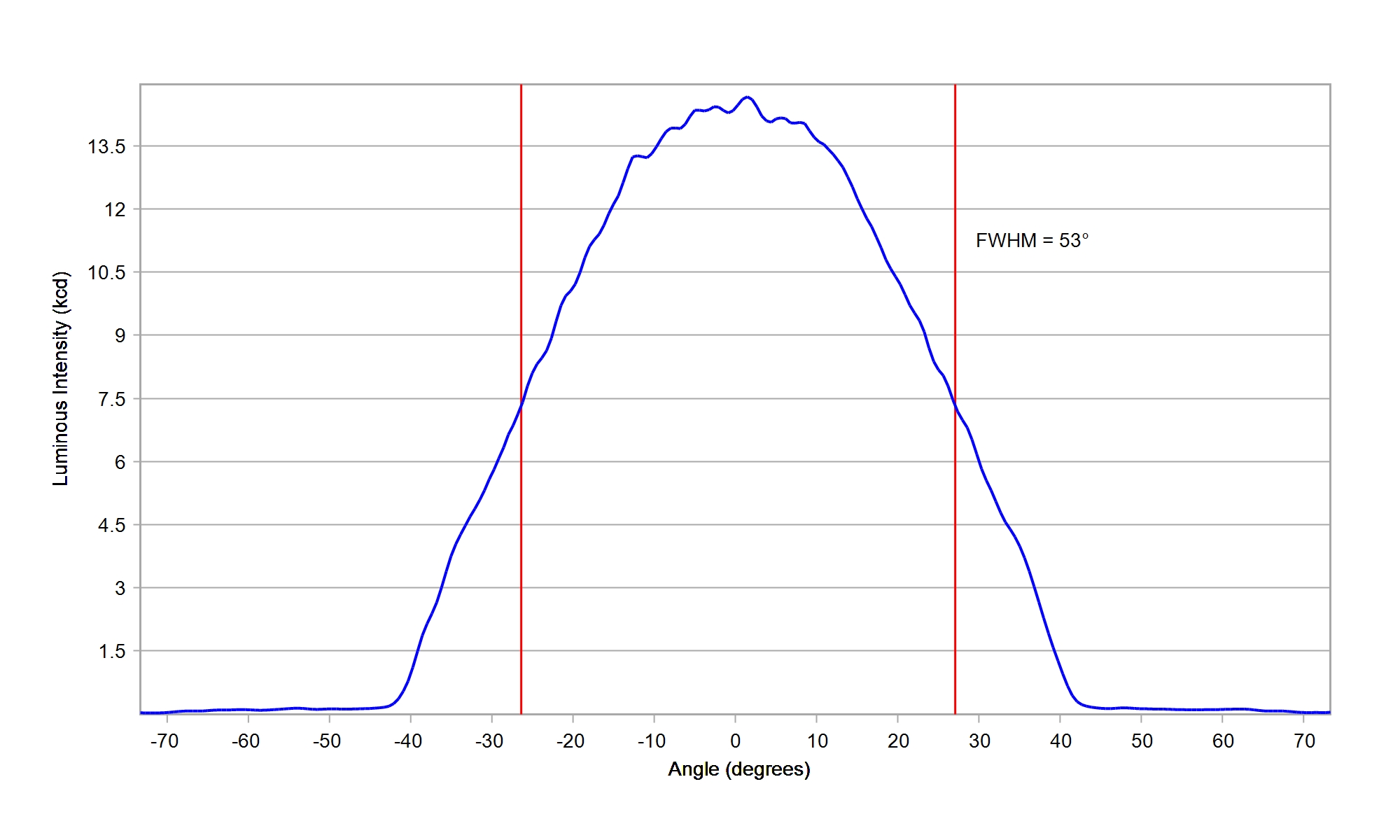

Carclo Optics - 12928 Cross Section Cree JB3030 3V White

Download

ies

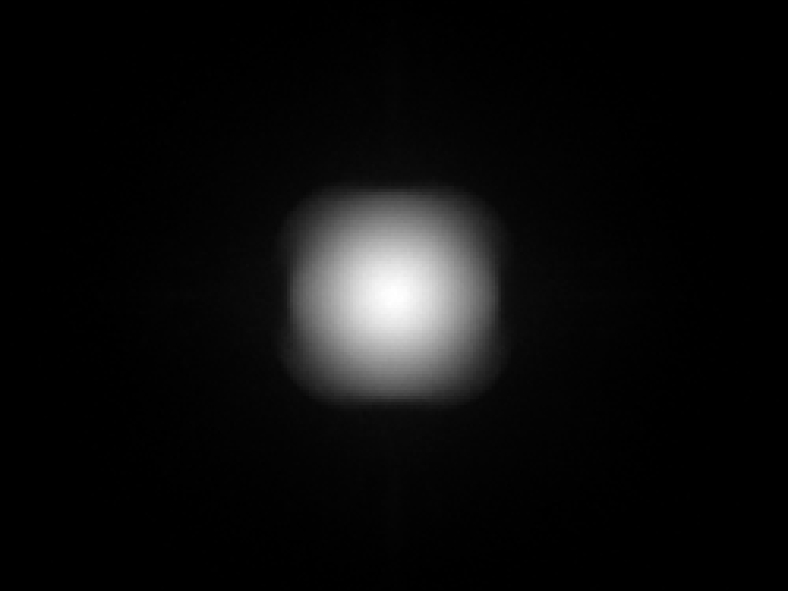

Cree JB3030C 3V E-Class White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.4


Download

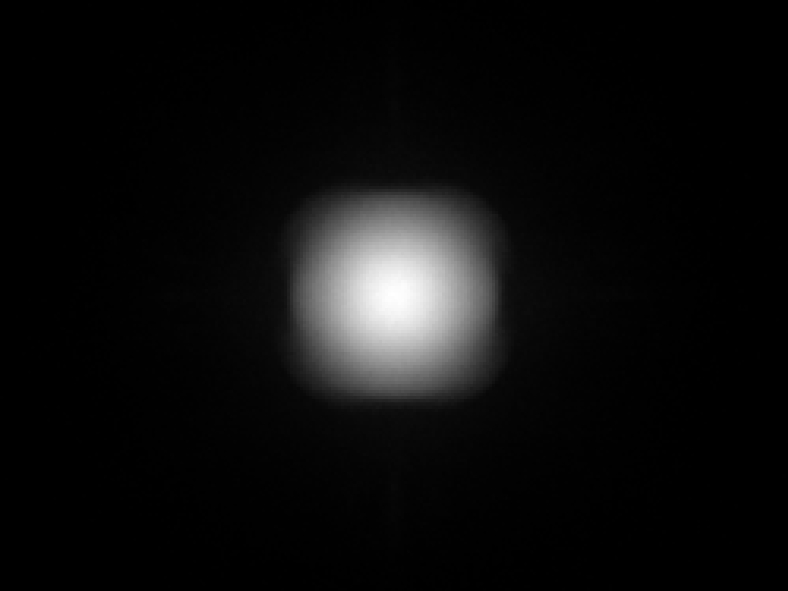

Cree JB3030C 3V F-Class White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.4


Download

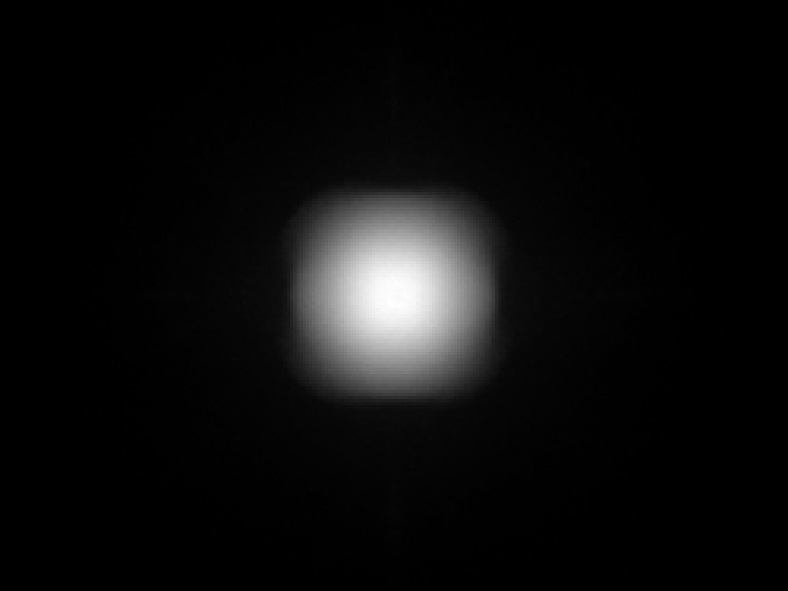

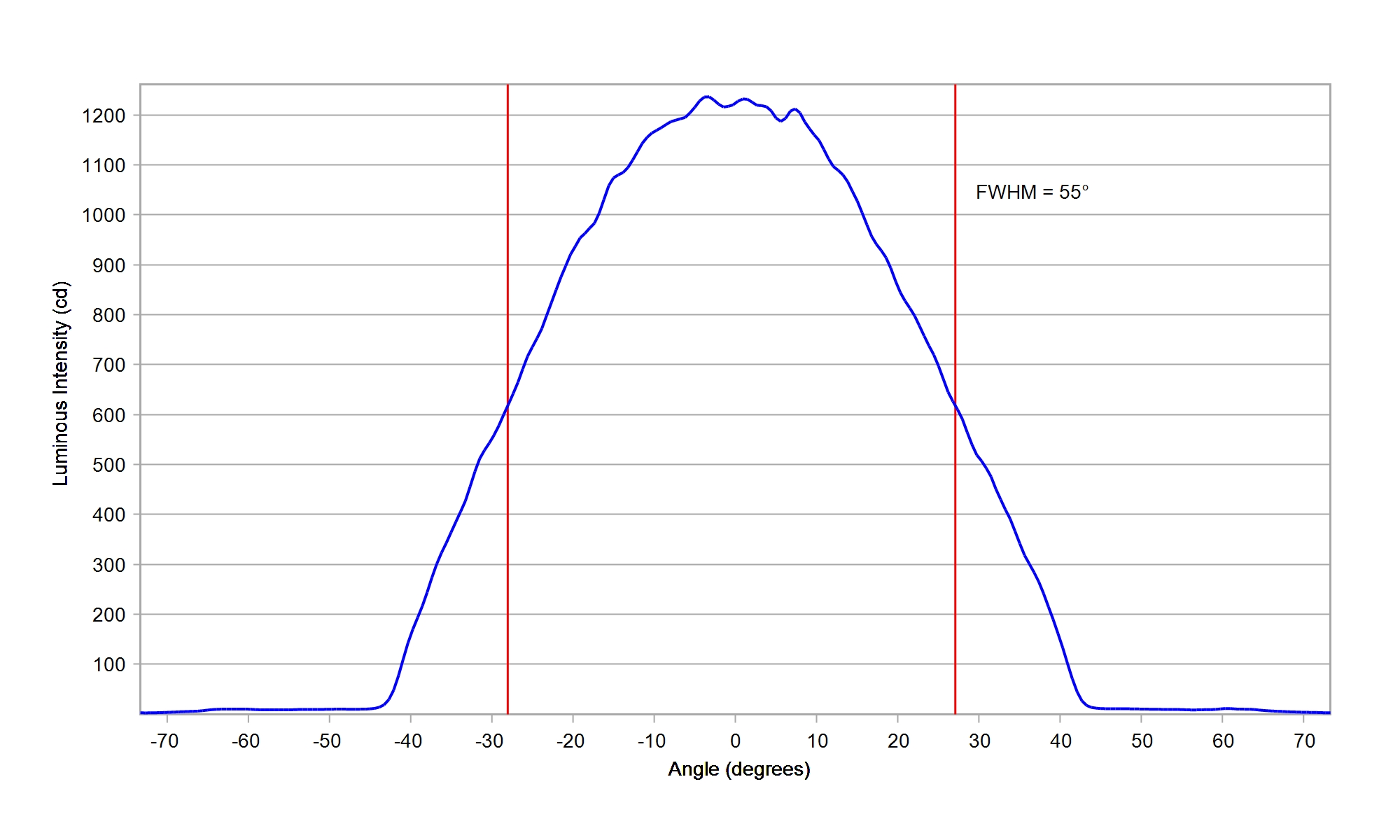

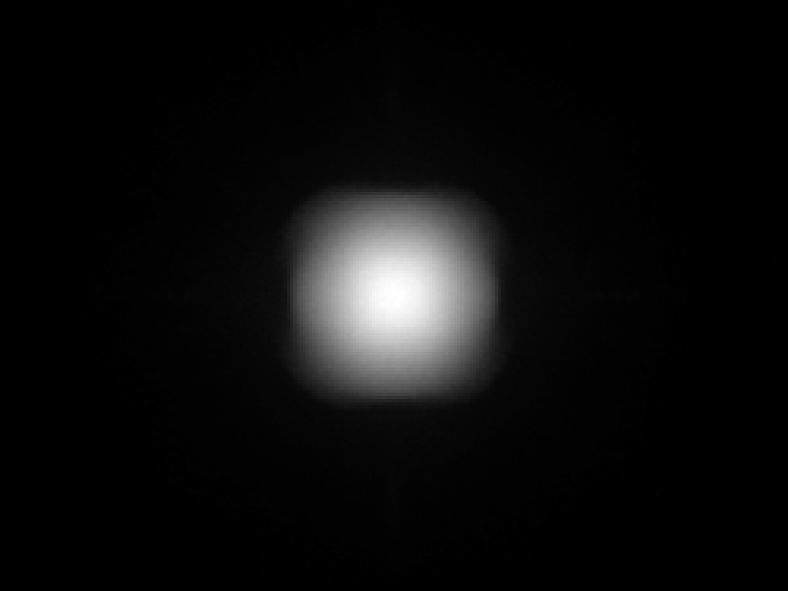

Cree JE2835 3V White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.4

Download

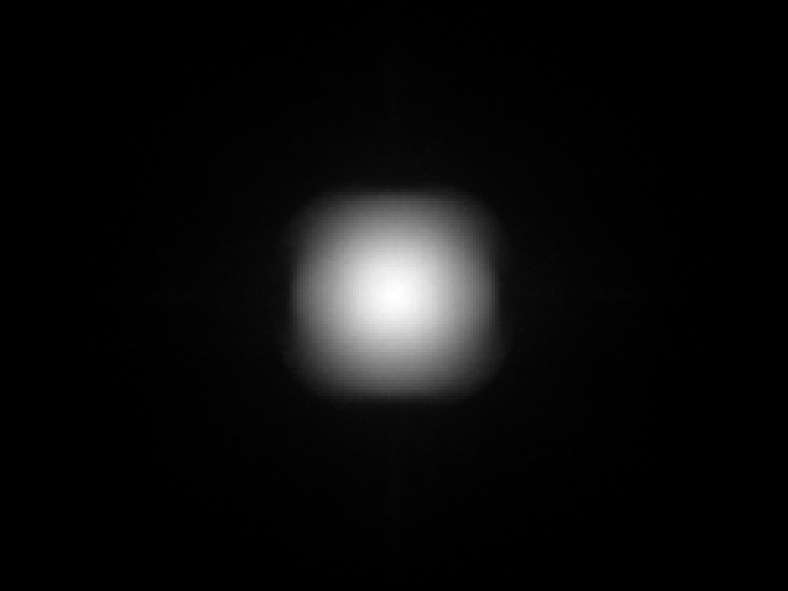

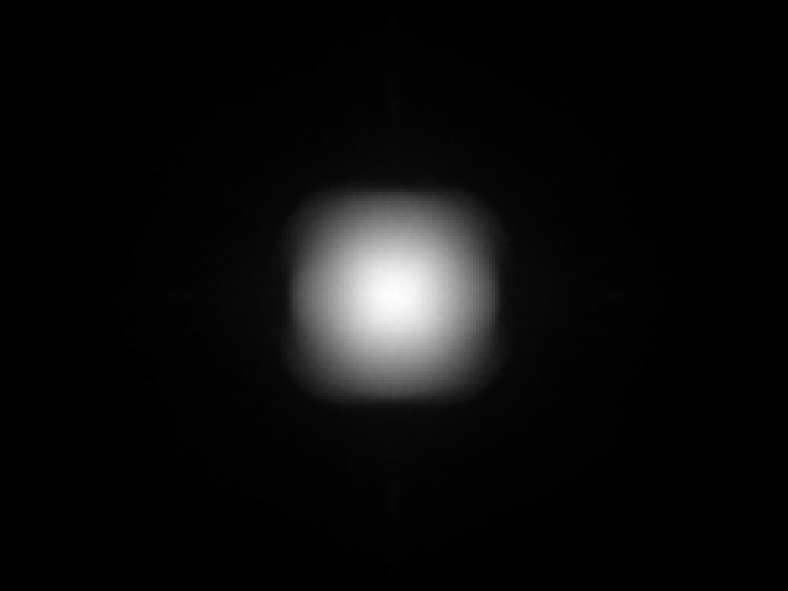

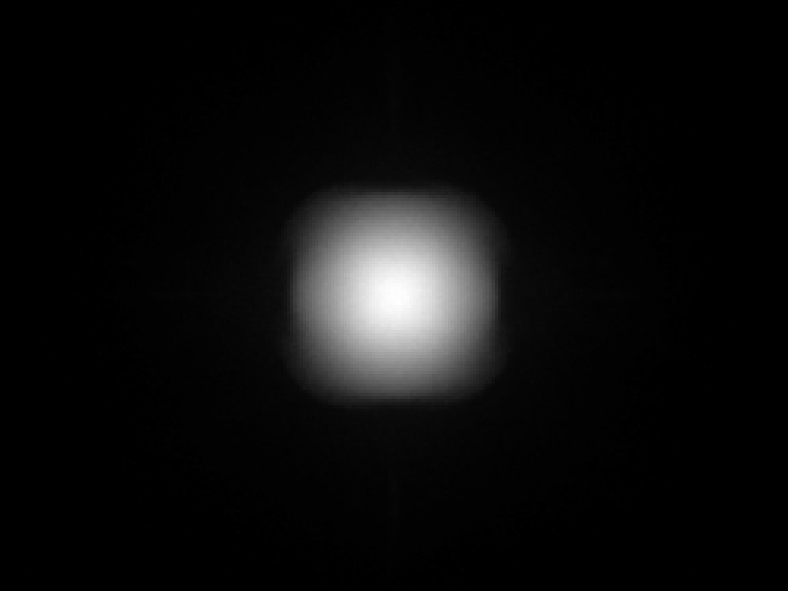

Cree JK2835 6V White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.5

Download

ies

Cree JQ5050 9V White

Eff:

95.5%

FWHM:

58.0°

Cd/Im:

1.6

Carclo Optics - 12928 Spot Image Cree JQ5050 9V White

Carclo Optics - 12928 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

95.5%

FWHM:

57.0°

Cd/Im:

1.6

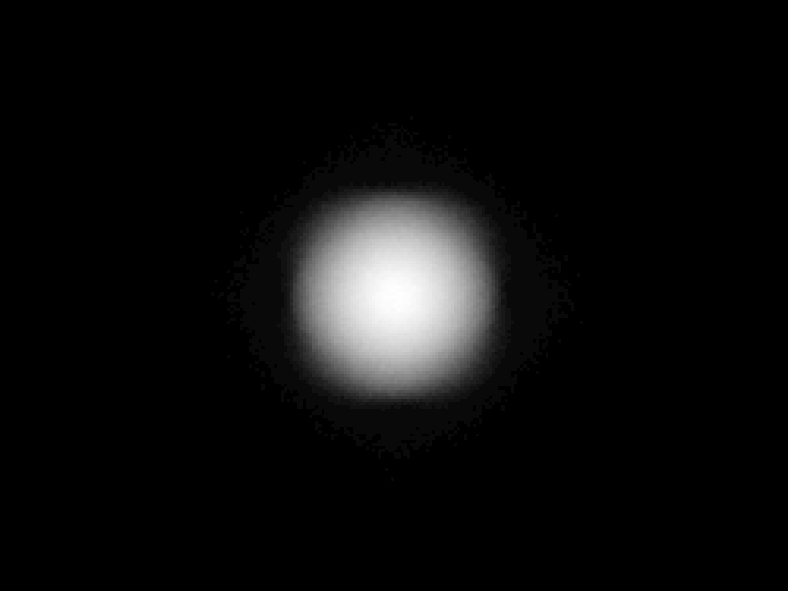

Carclo Optics - 12928 Spot Image Cree JR5050 24V White

Carclo Optics - 12928 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

95.5%

FWHM:

56.0°

Cd/Im:

1.7

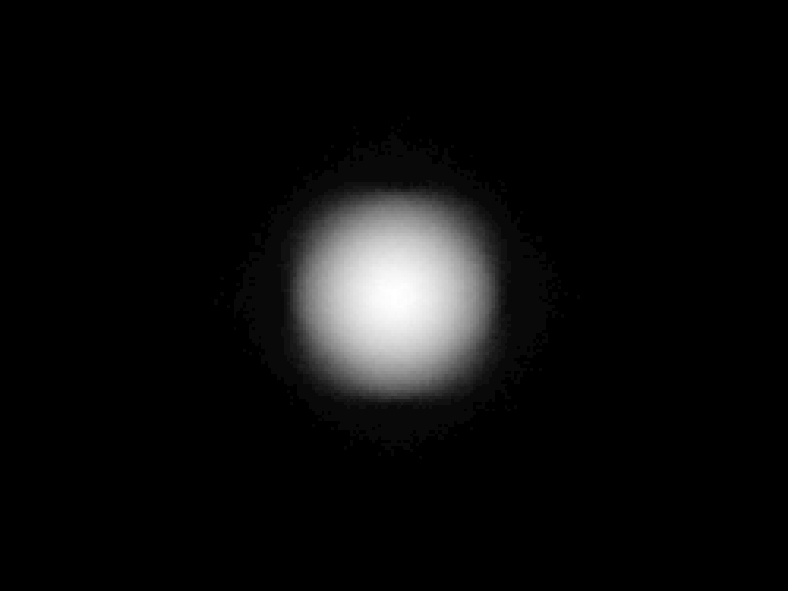

Carclo Optics - 12928 Spot Image Cree JR5050 36V White

Carclo Optics - 12928 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

95.5%

FWHM:

58.0°

Cd/Im:

1.8

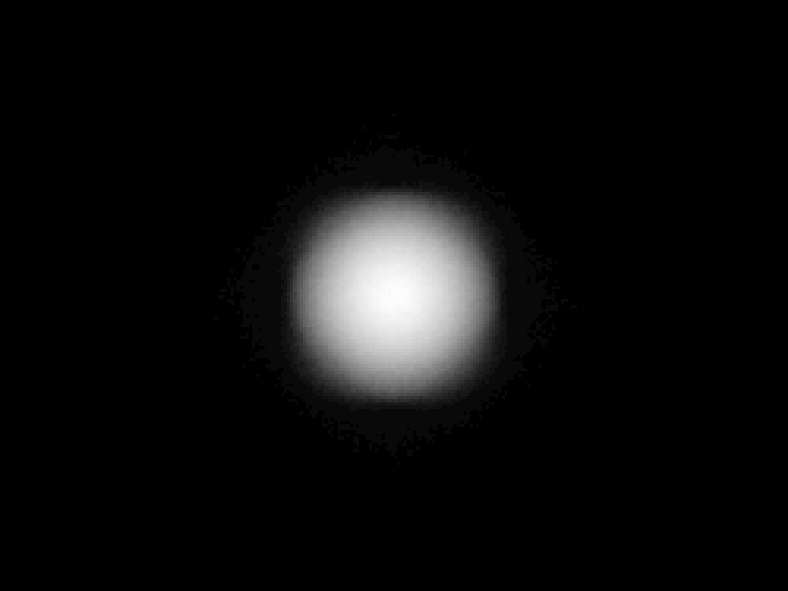

Carclo Optics - 12928 Spot Image Cree JR5050 6V White

Carclo Optics - 12928 Cross Section Cree JR5050 6V White

Download

ies

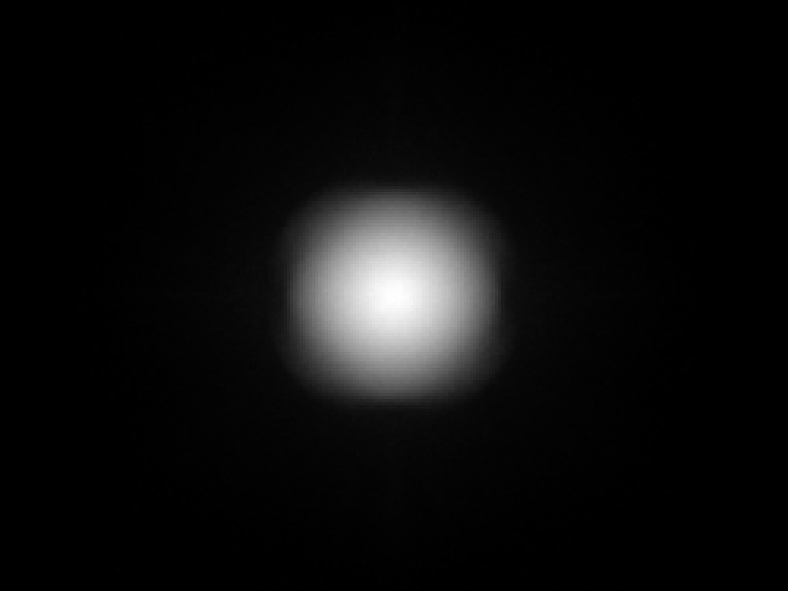

Cree JR5050C 6V E-Class White

Eff:

95.5%

FWHM:

60°

Cd/Im:

1.5


Download

IES

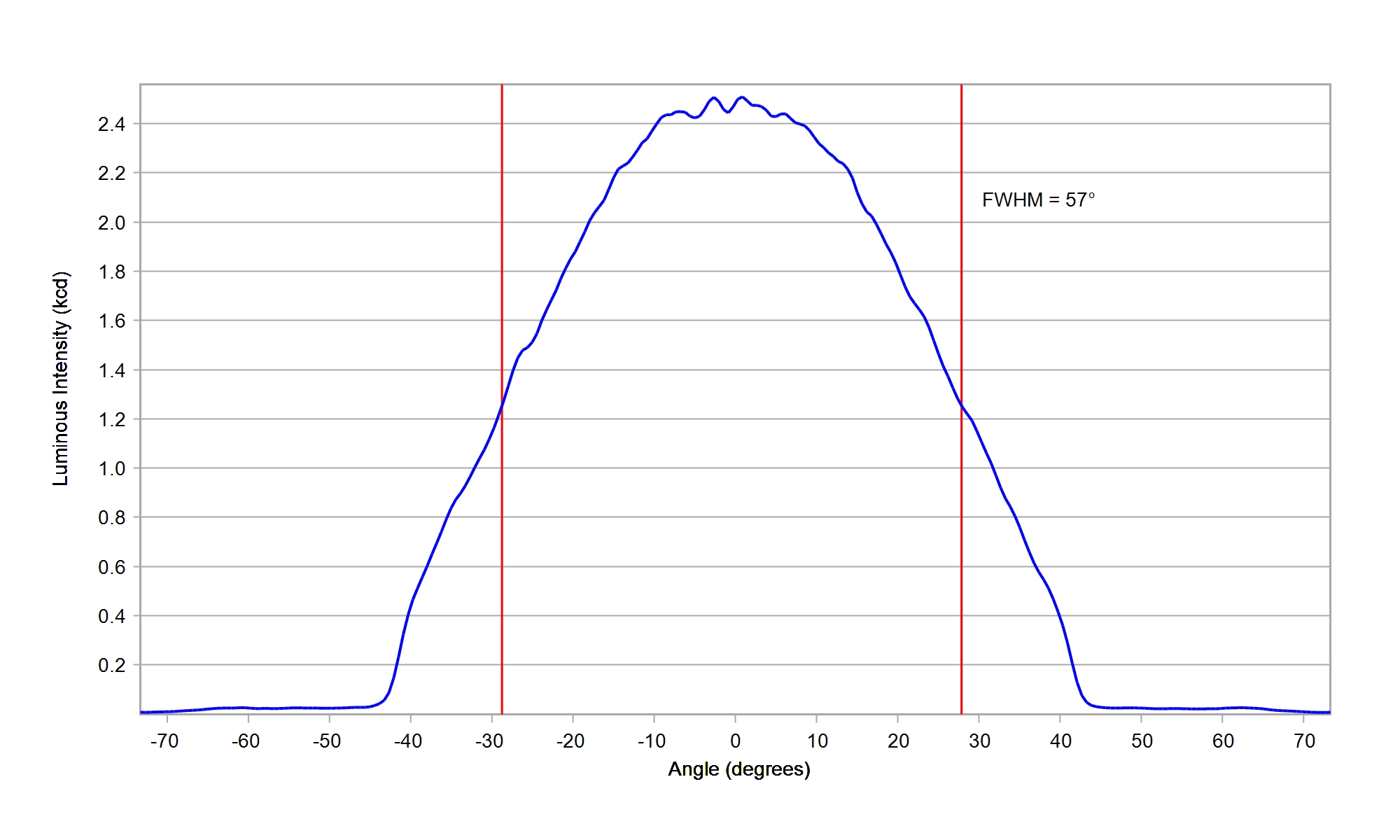

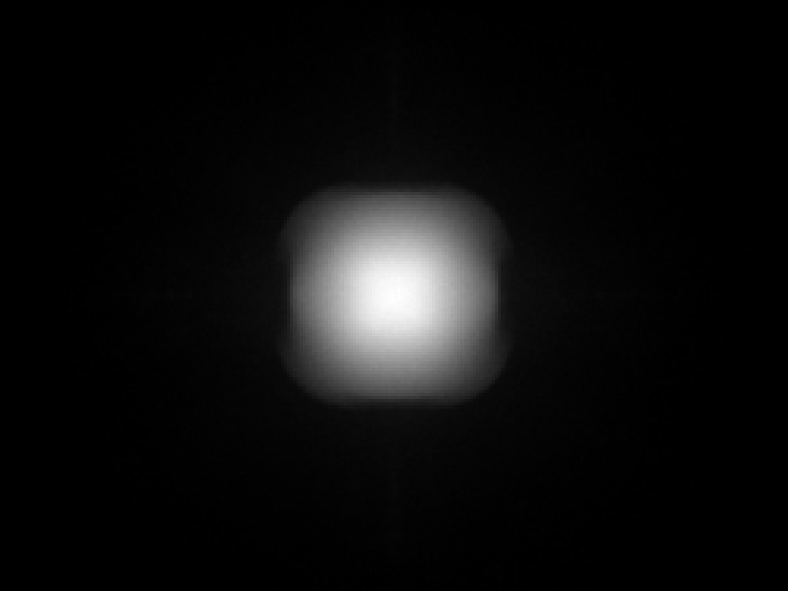

Cree XLamp CSP XD16 Premium White

Eff:

95.0%

FWHM:

57°

Cd/Im:

1.4

Download

IES

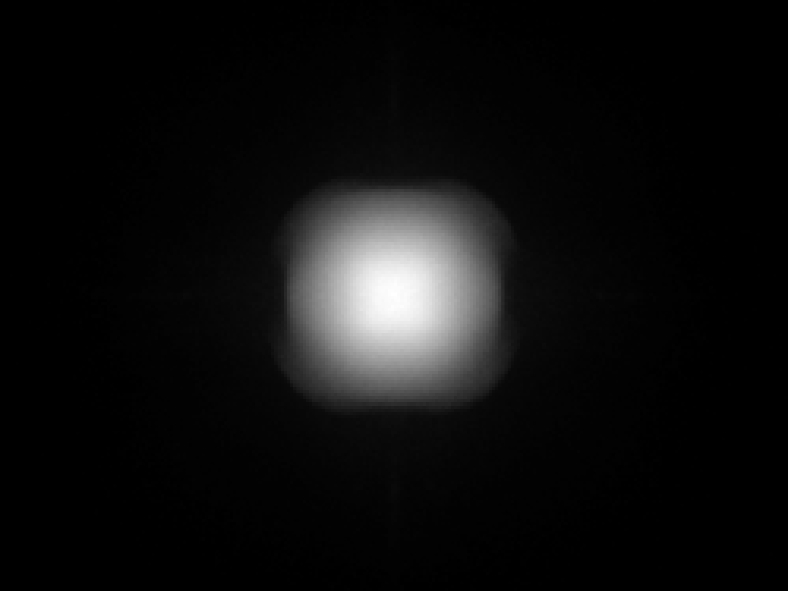

Cree XLamp XE-G White

Eff:

94.0%

FWHM:

59°

Cd/Im:

1.3

Download

ies

Cree XLamp XH-B White

Eff:

93.0%

FWHM:

64°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

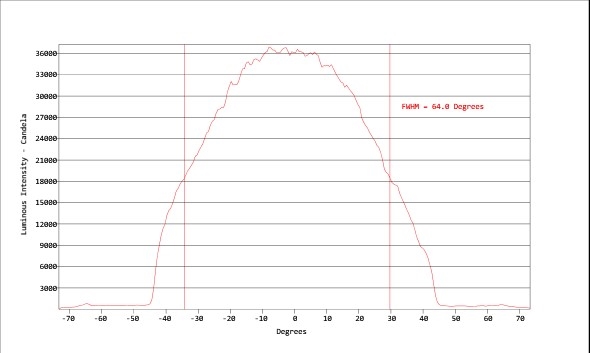

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

94.0%

FWHM:

56°

Cd/Im:

1.5

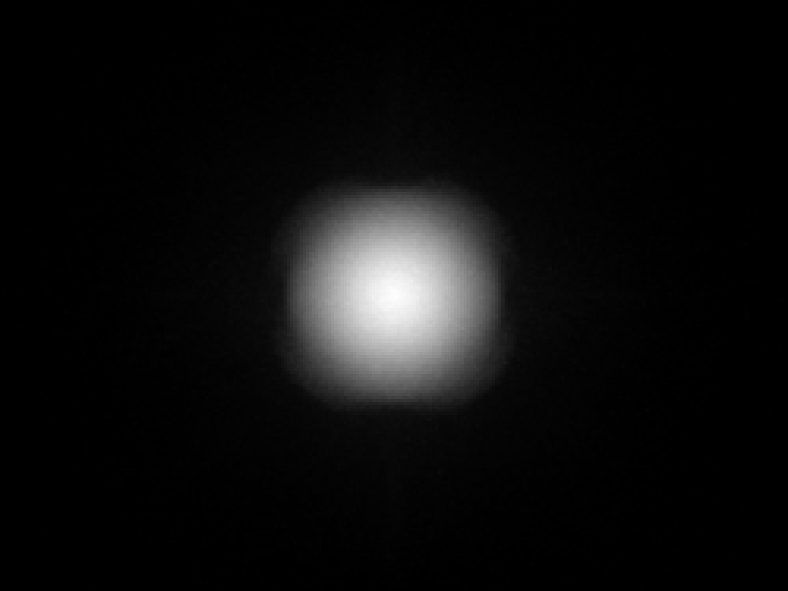

Carclo Optics – 12928 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12928 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

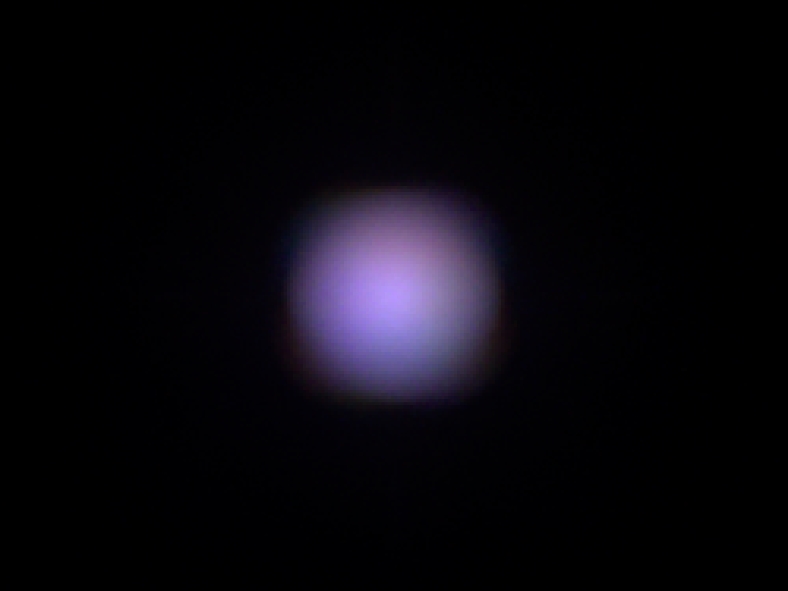

Cree XLamp XM-L Color G2 HI RGBW

Eff:

95.0%

FWHM:

57°

Cd/Im:

1.4

Download

ies

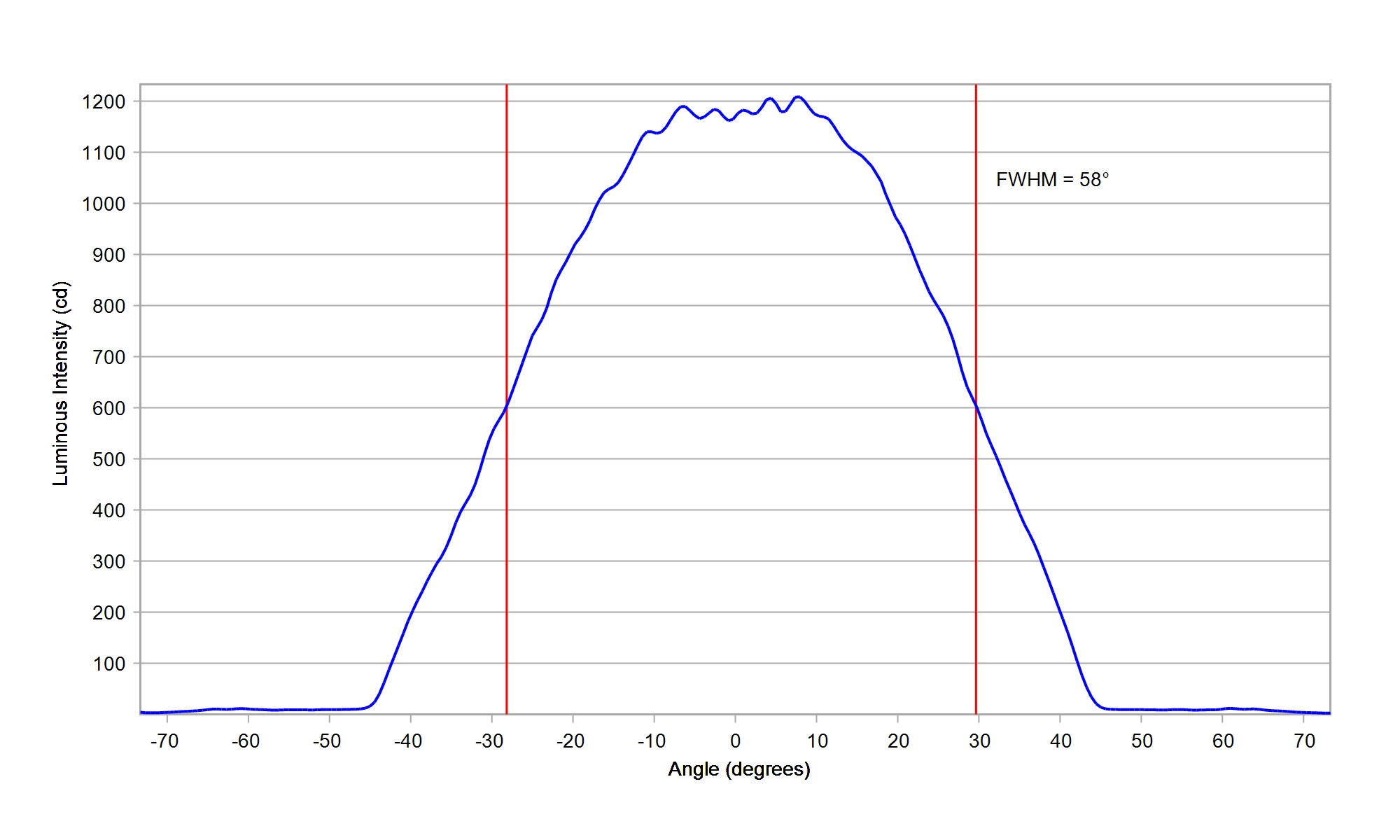

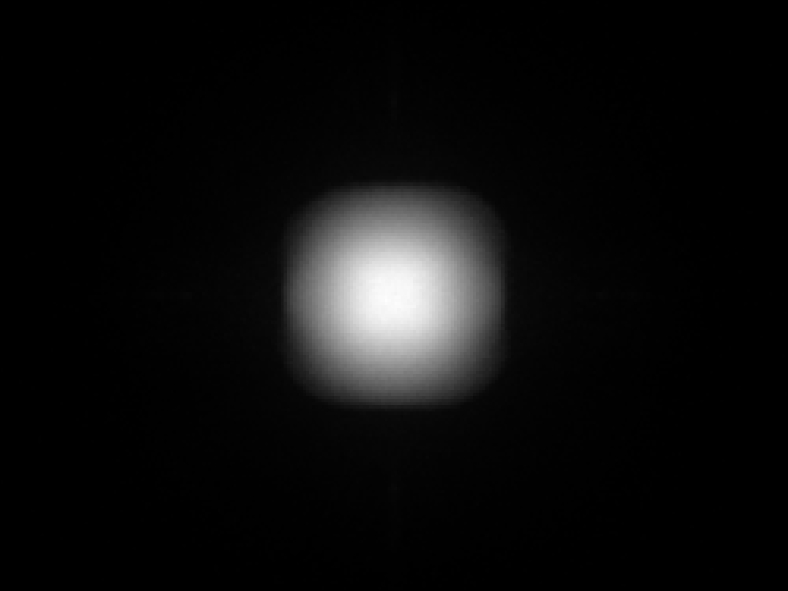

Cree XLamp XP-E2 White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.3

Download

ies

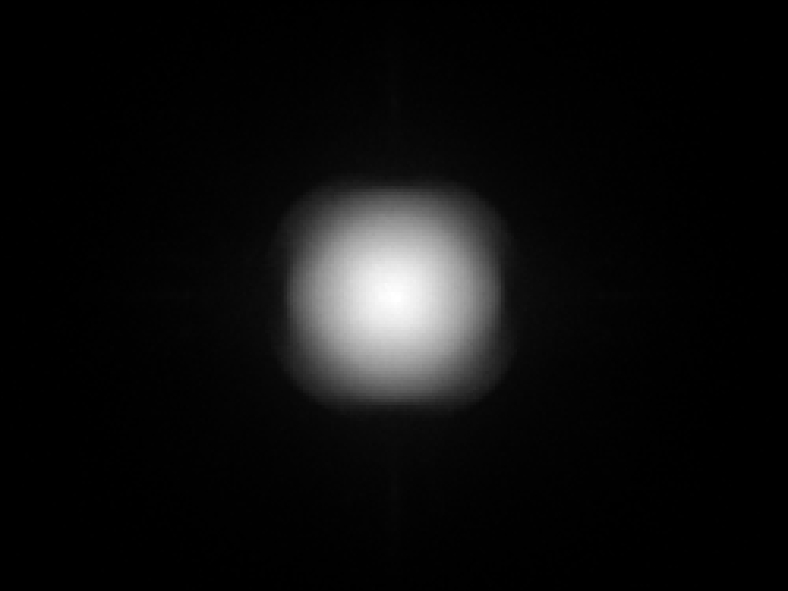

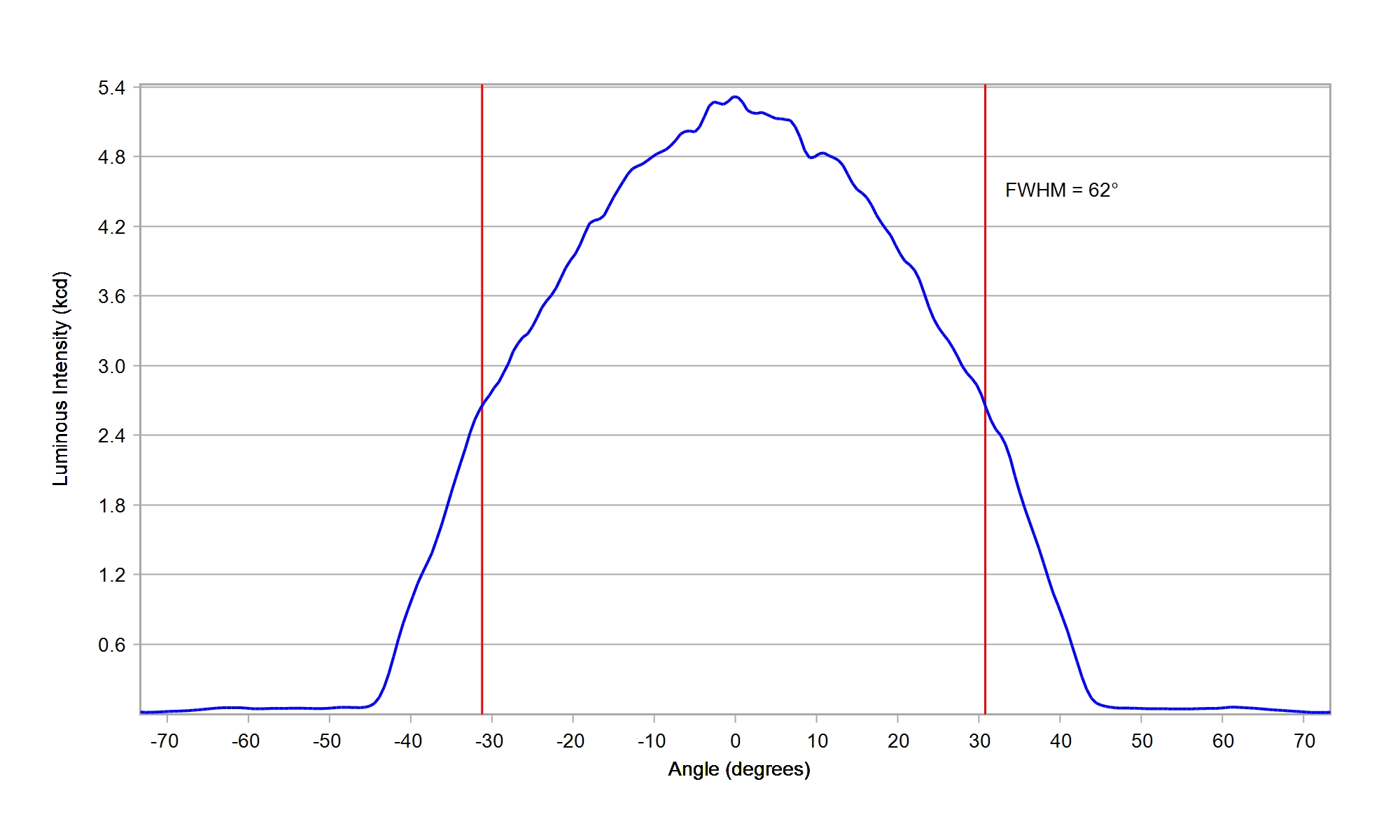

Cree XLamp XP-G4 HI White

Eff:

94.5%

FWHM:

62°

Cd/Im:

1.3

Download

Cree XLamp XP-P White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4

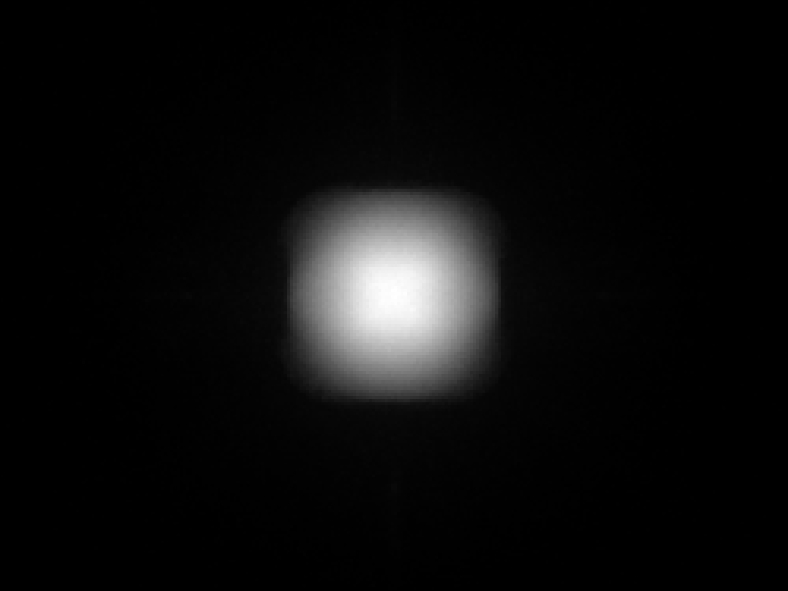

Carclo Optics – 12928 Cree Xlamp XP-P - Spot Image

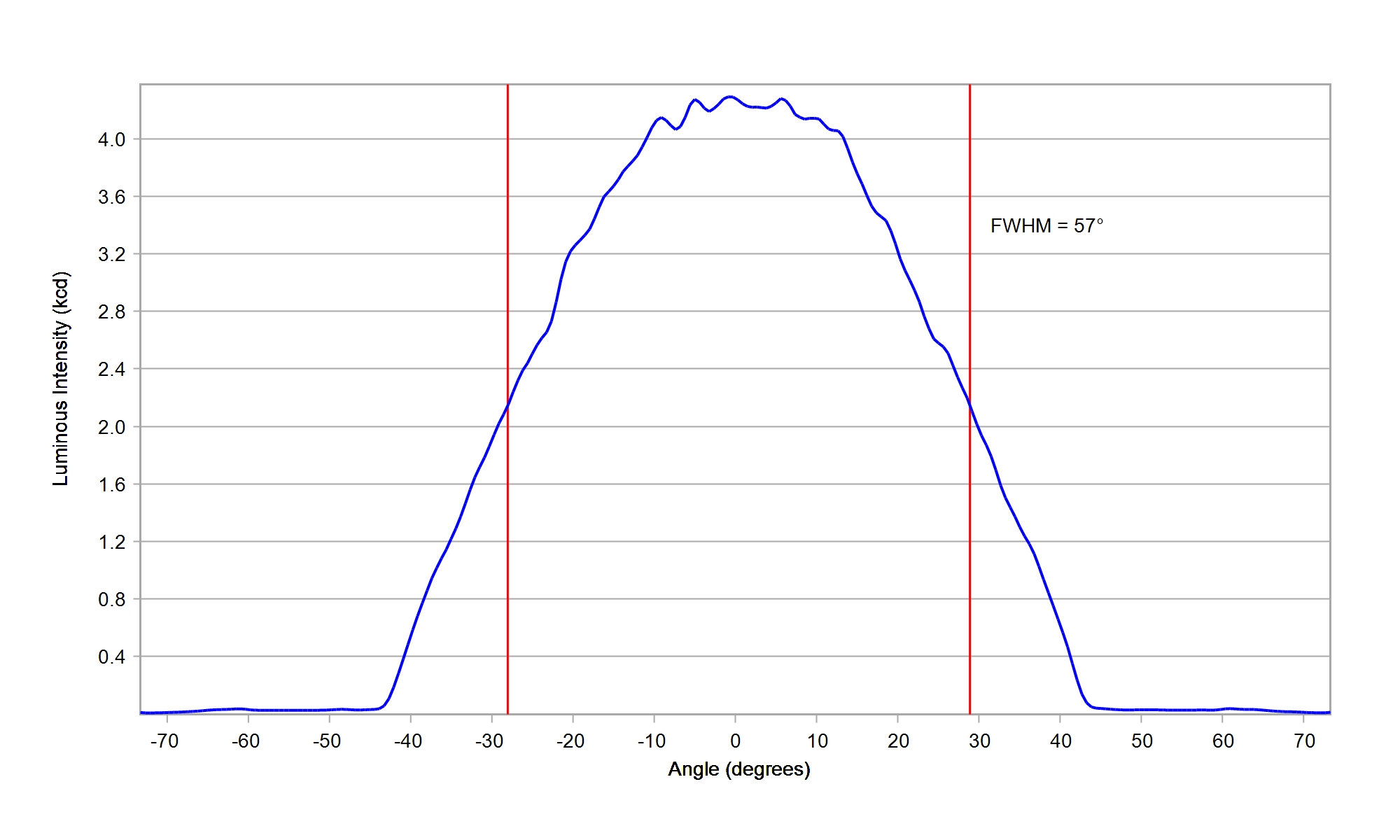

Carclo Optics – 12928 Cree Xlamp XP-P - Cross-Section

Download

ies

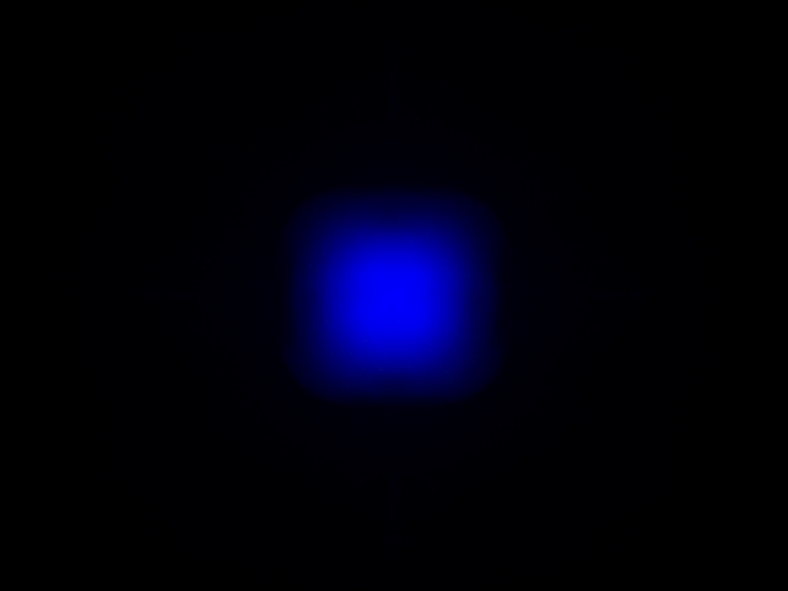

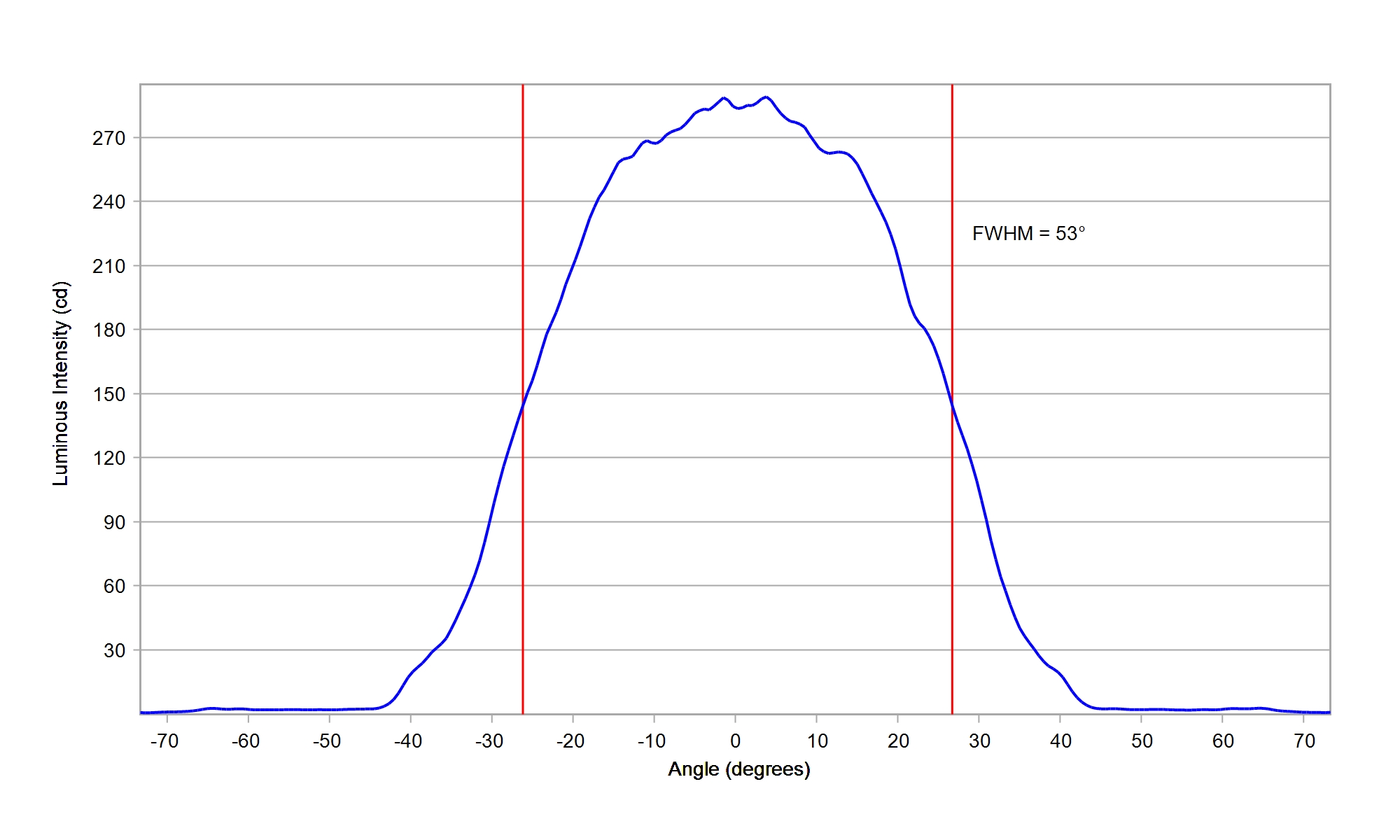

Cree XLamp XQ-A Blue

Eff:

96.0%

FWHM:

53°

Cd/Im:

1.5

Download

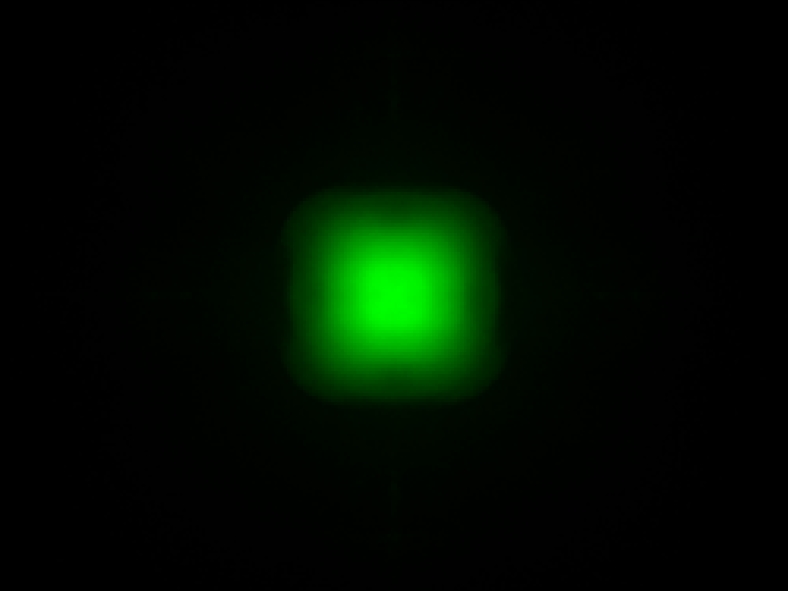

Cree XLamp XQ-A Green

Eff:

95.0%

FWHM:

48°

Cd/Im:

1.5

Download

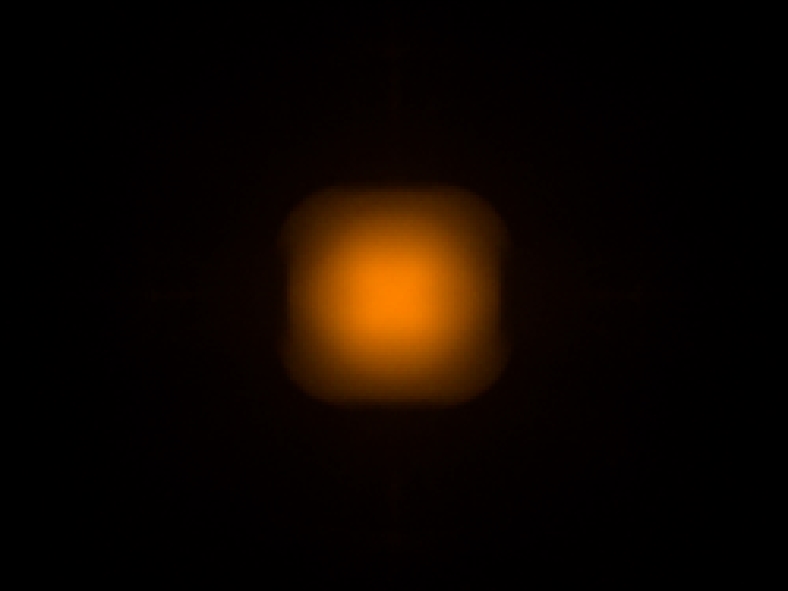

Cree XLamp XQ-A PC Amber

Eff:

94.5%

FWHM:

55°

Cd/Im:

1.3

Download

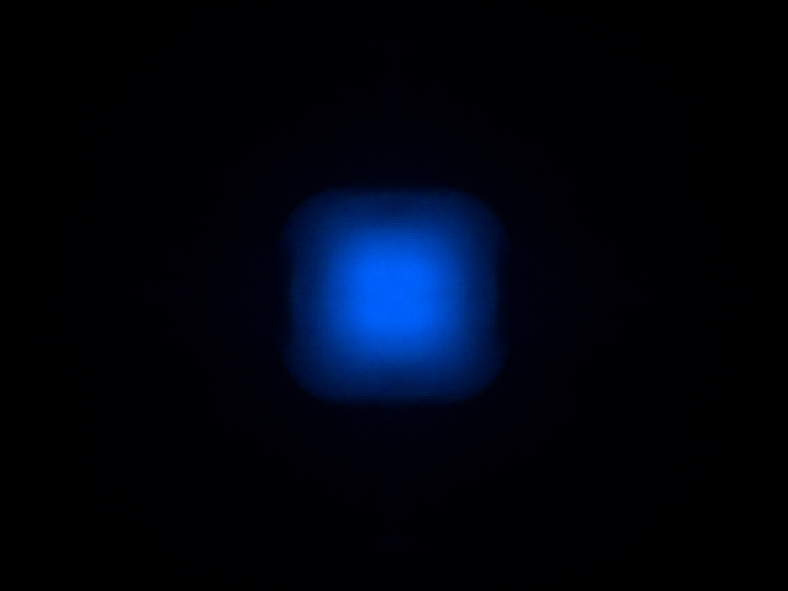

Cree XLamp XQ-A PC Blue

Eff:

94.0%

FWHM:

56°

Cd/Im:

1.5

Download

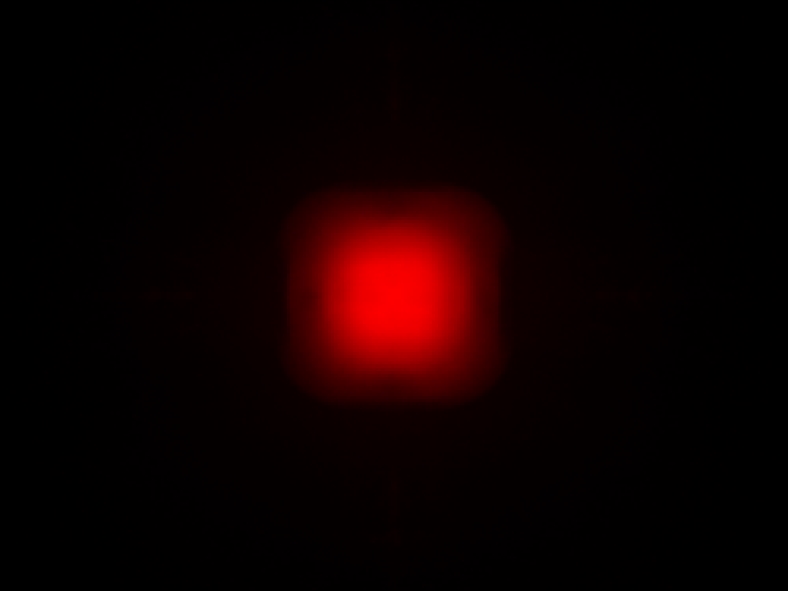

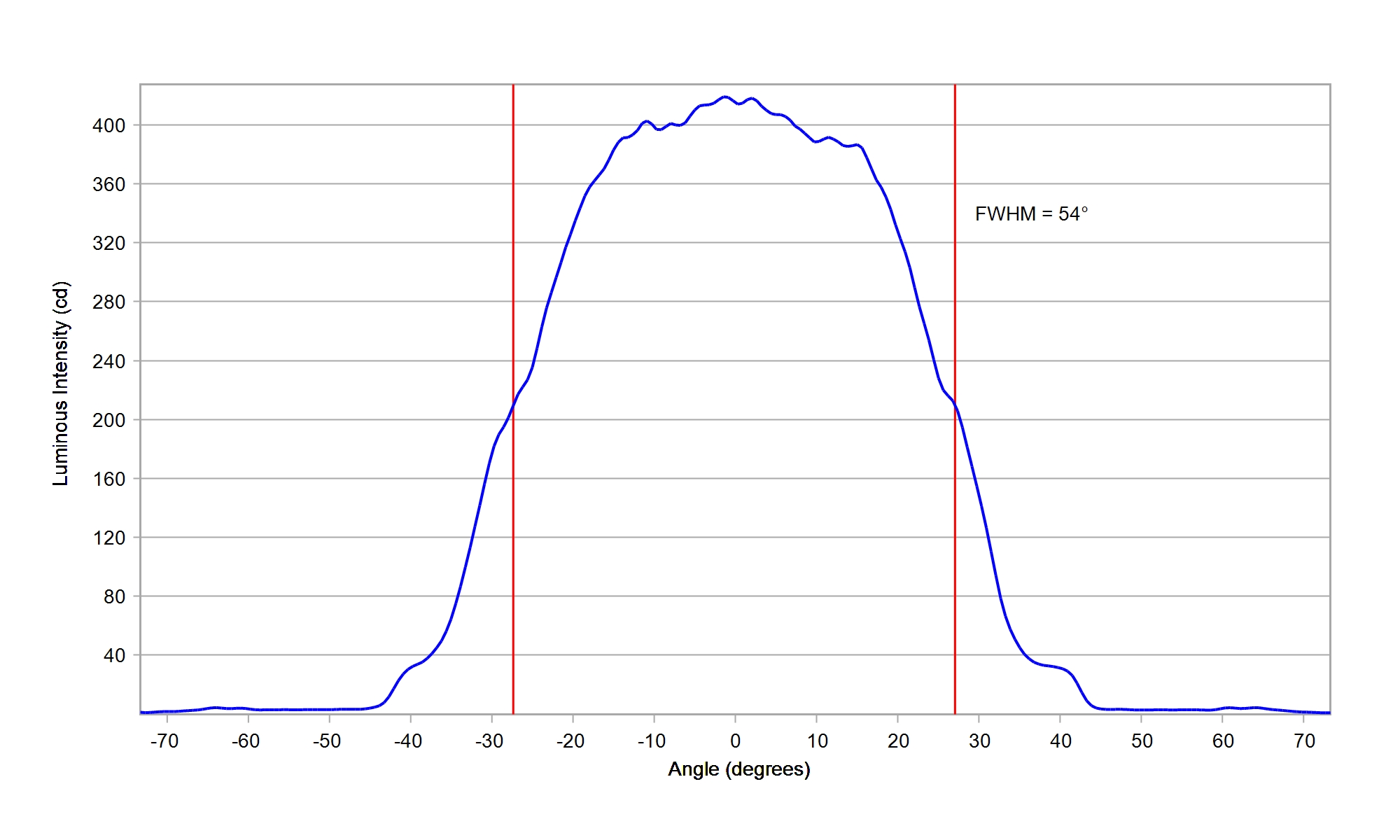

Cree XLamp XQ-A Red

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.4

Download

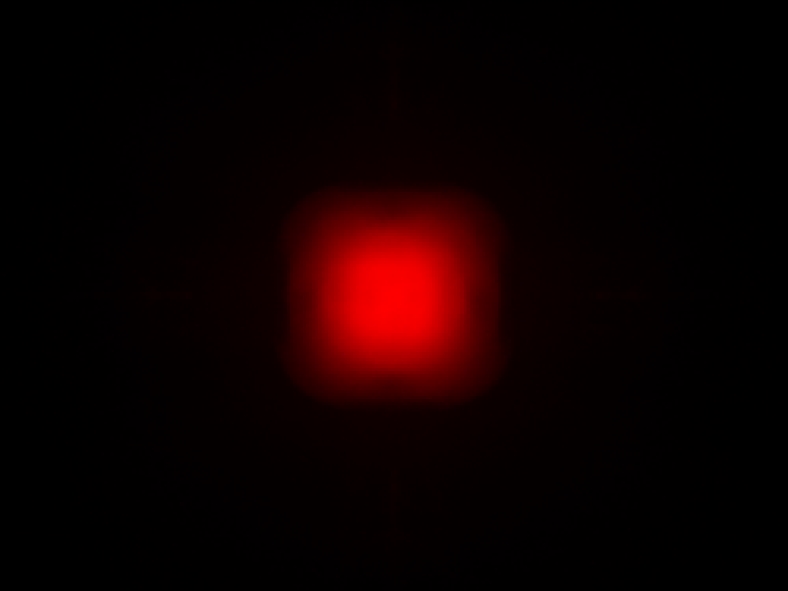

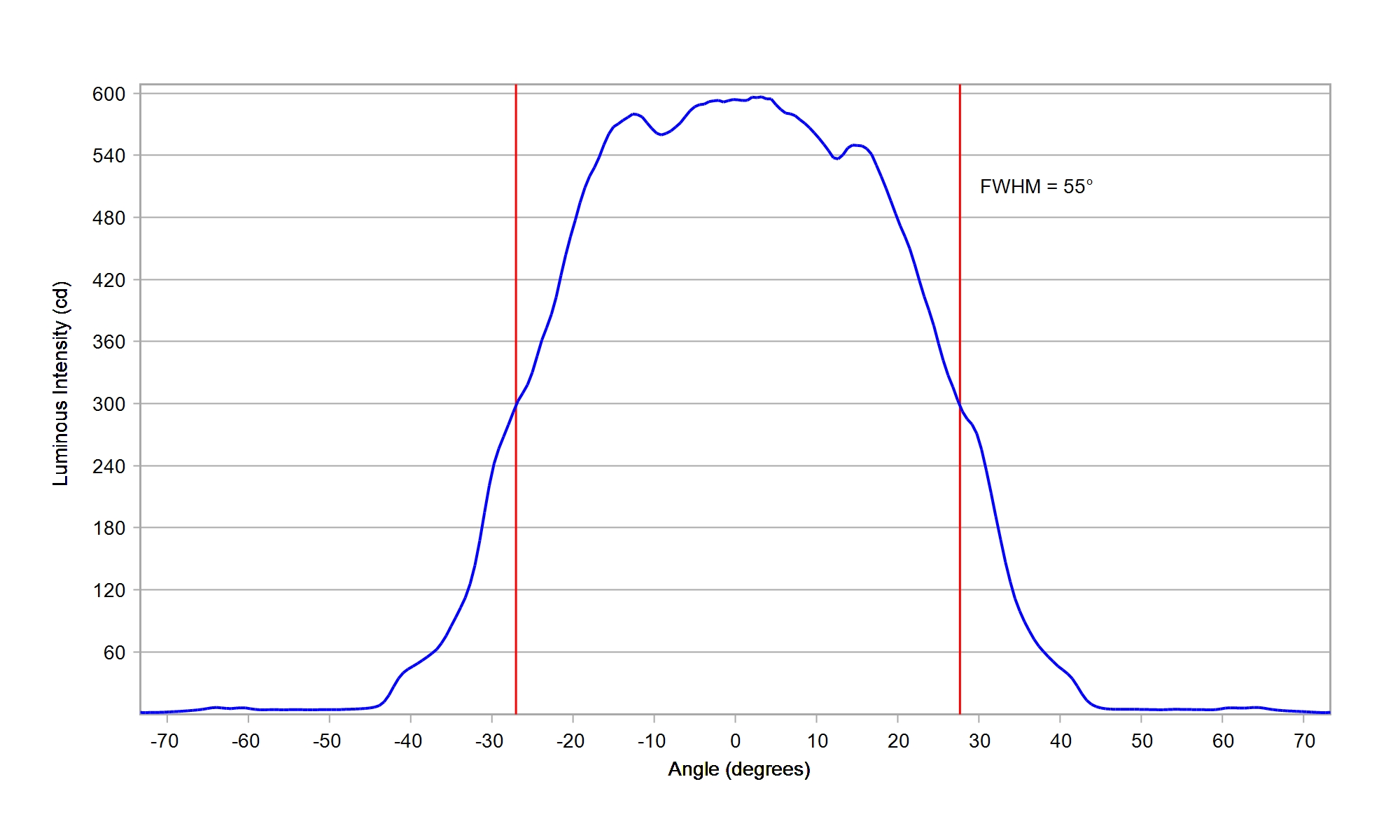

Cree XLamp XQ-A Red-Orange

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.3


Download

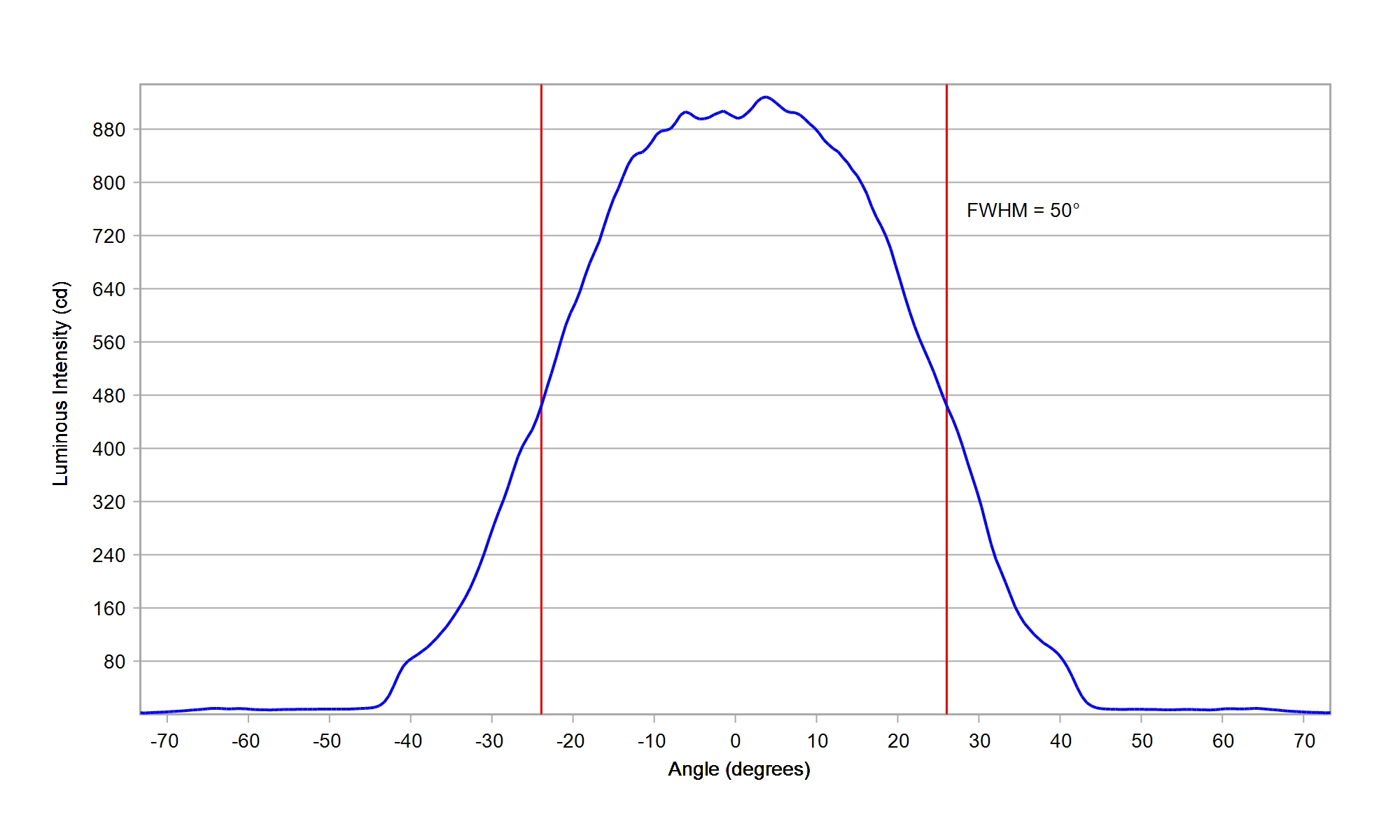

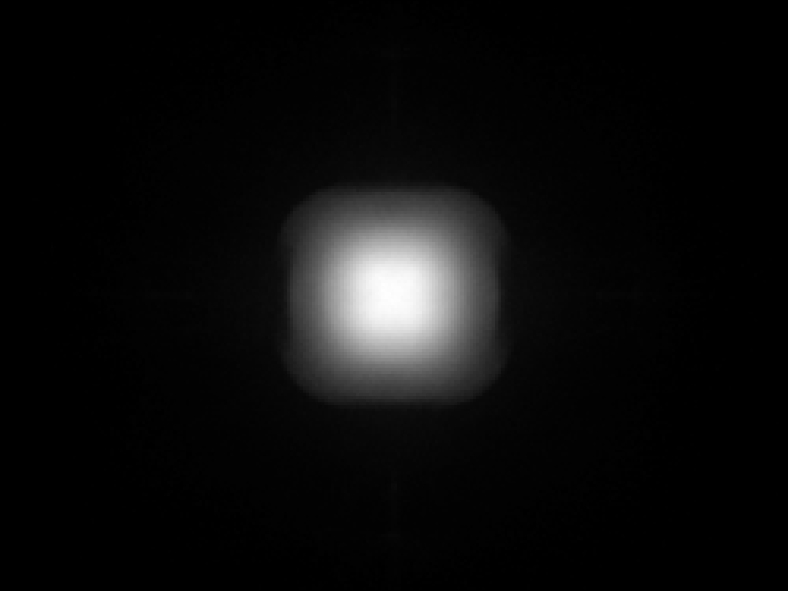

Cree XLamp XQ-A White

Eff:

94.5%

FWHM:

50.0°

Cd/Im:

1.5

Download

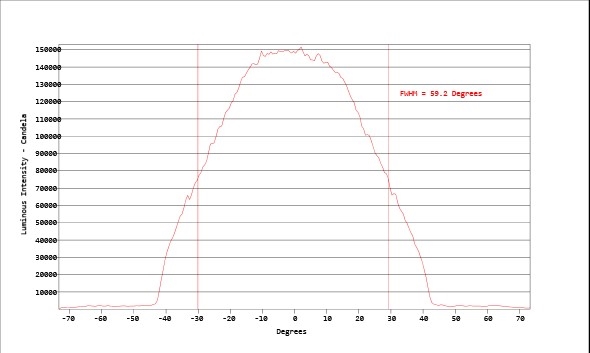

Cree XLamp XQ-E HI White

Eff:

94.5%

FWHM:

59°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

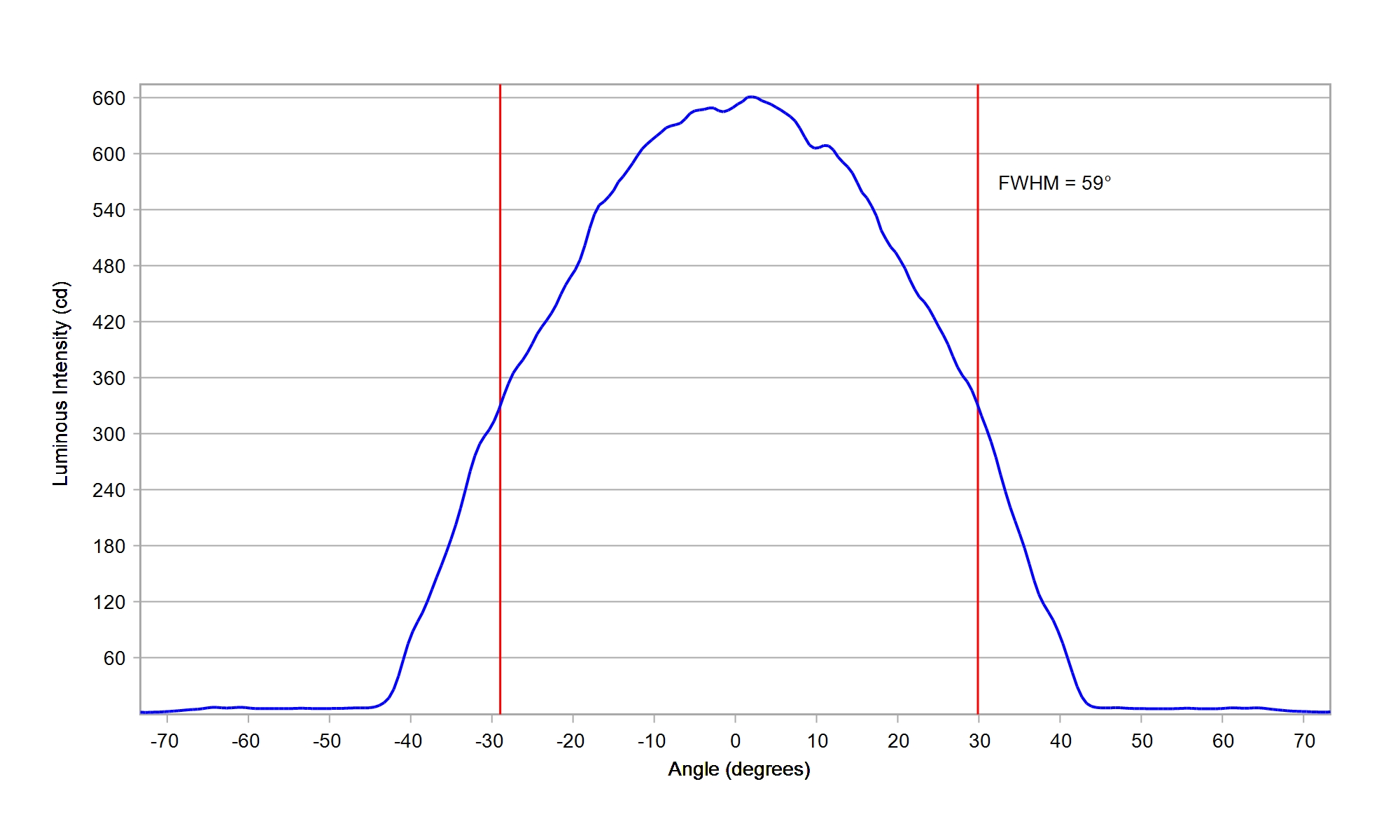

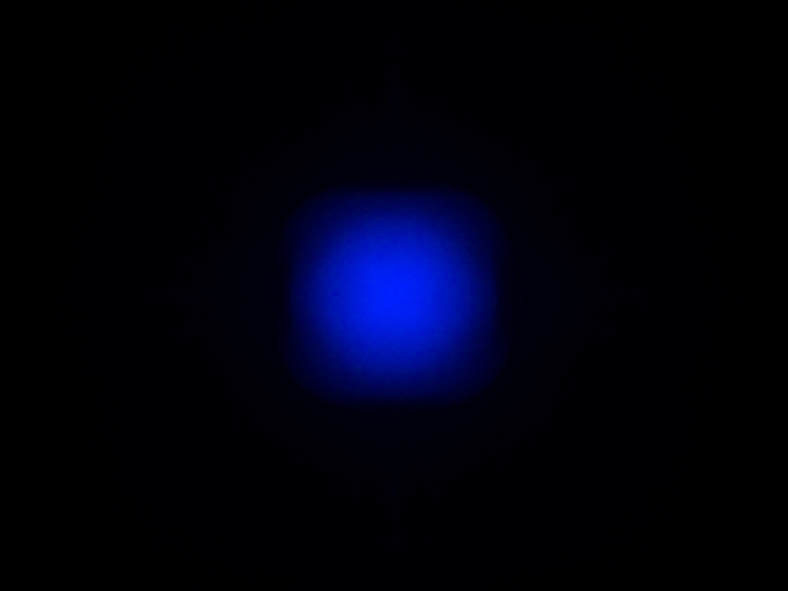

Cree XLamp XQ-E Plus HD Blue

Eff:

95.0%

FWHM:

59°

Cd/Im:

1.5


Download

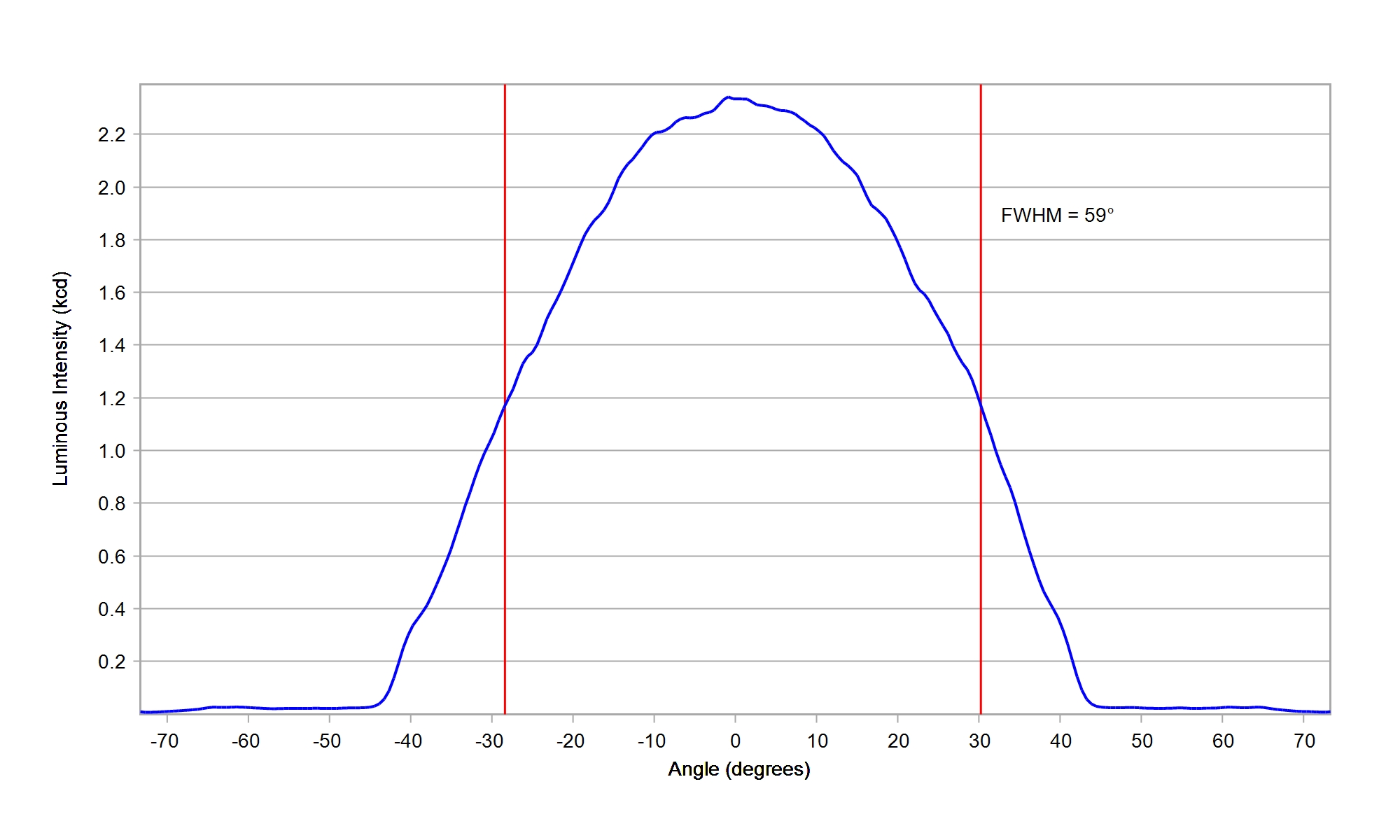

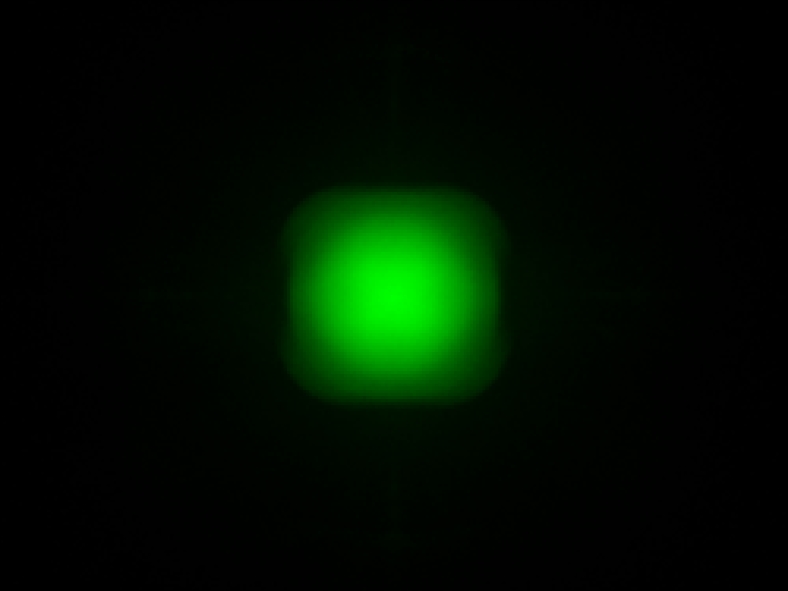

Cree XLamp XQ-E Plus HD Green

Eff:

94.0%

FWHM:

59°

Cd/Im:

1.3


Download

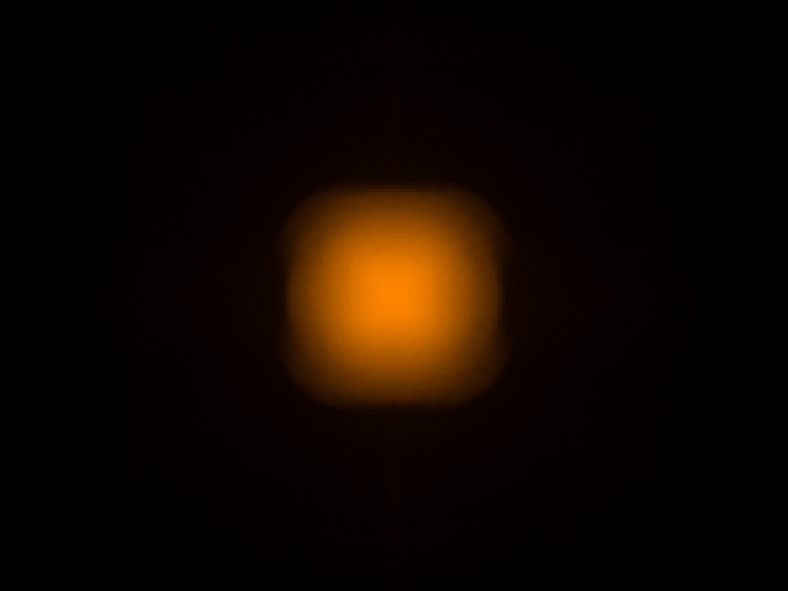

Cree XLamp XQ-E Plus HD PC Amber

Eff:

93.5%

FWHM:

58°

Cd/Im:

1.2


Download

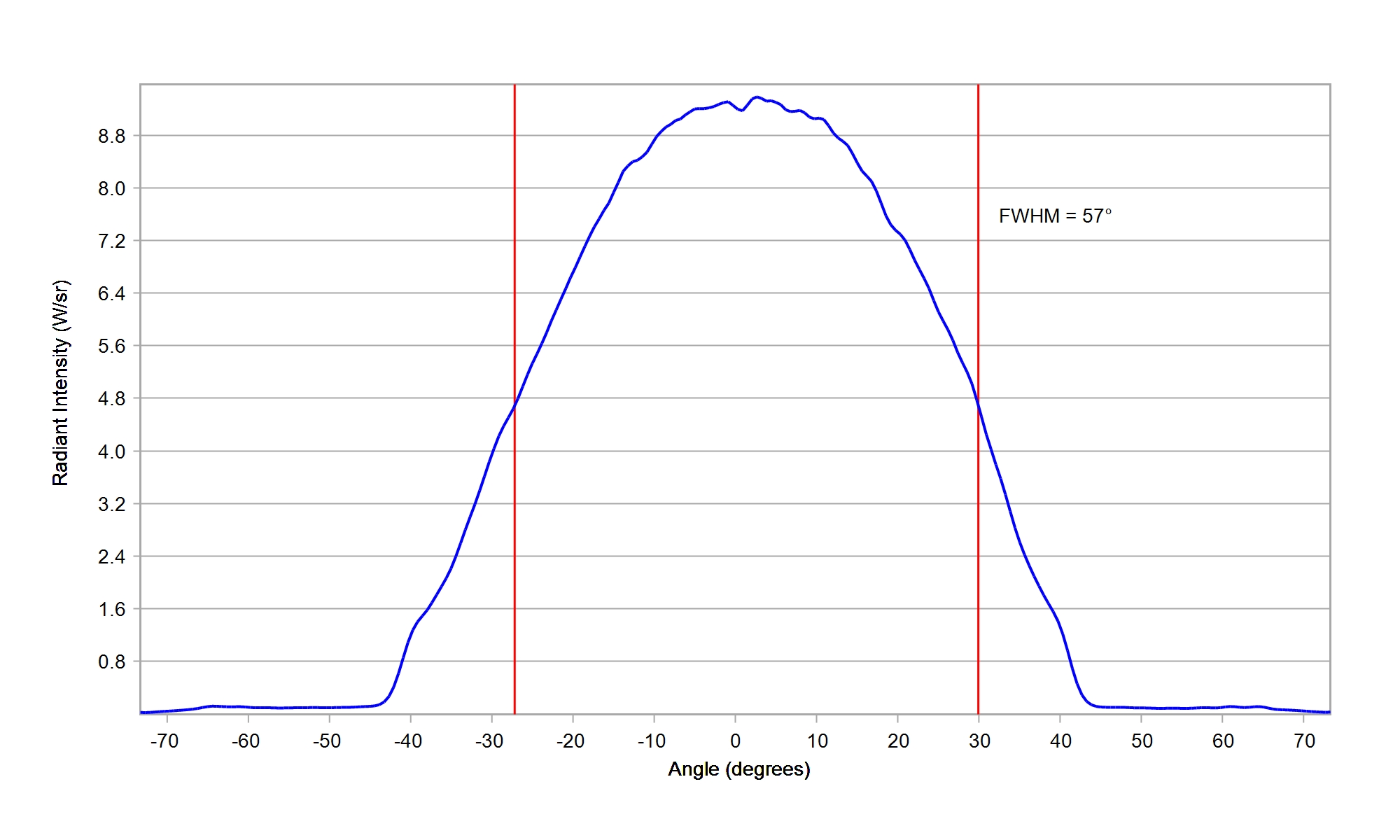

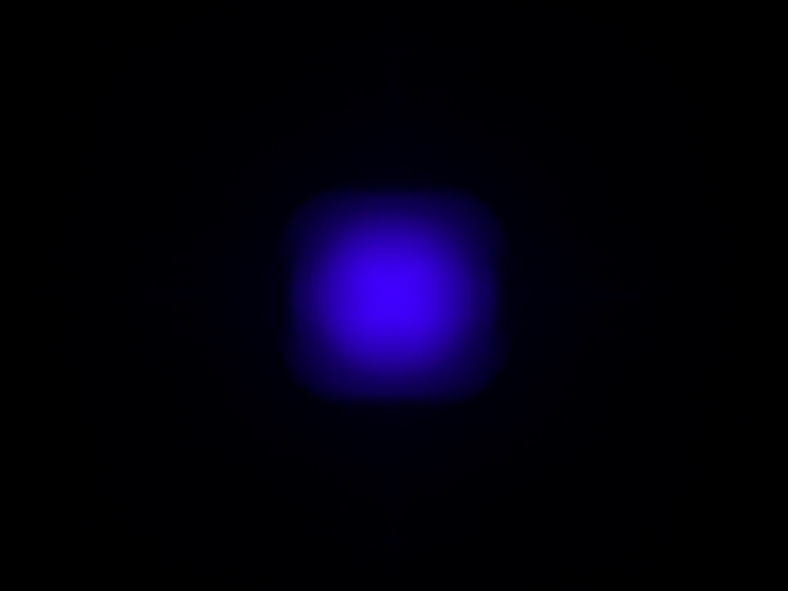

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

95.5%

FWHM:

57°

Ipk/W:

1.2


Download

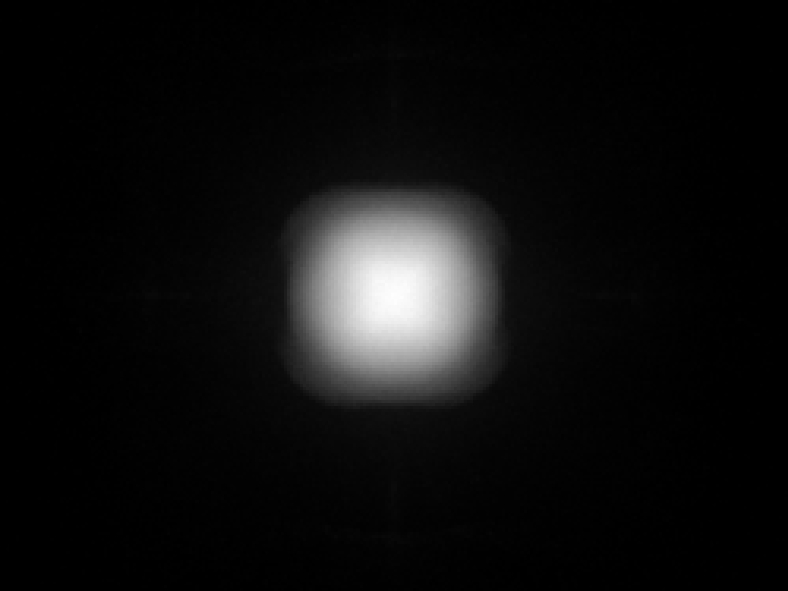

Cree XLamp XQ-E Plus HD White

Eff:

93.5%

FWHM:

60°

Cd/Im:

1.2


Download

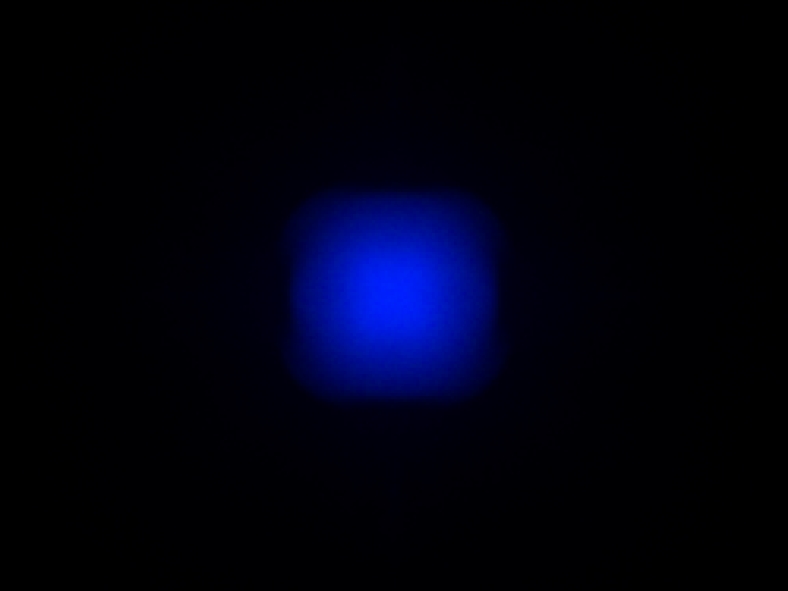

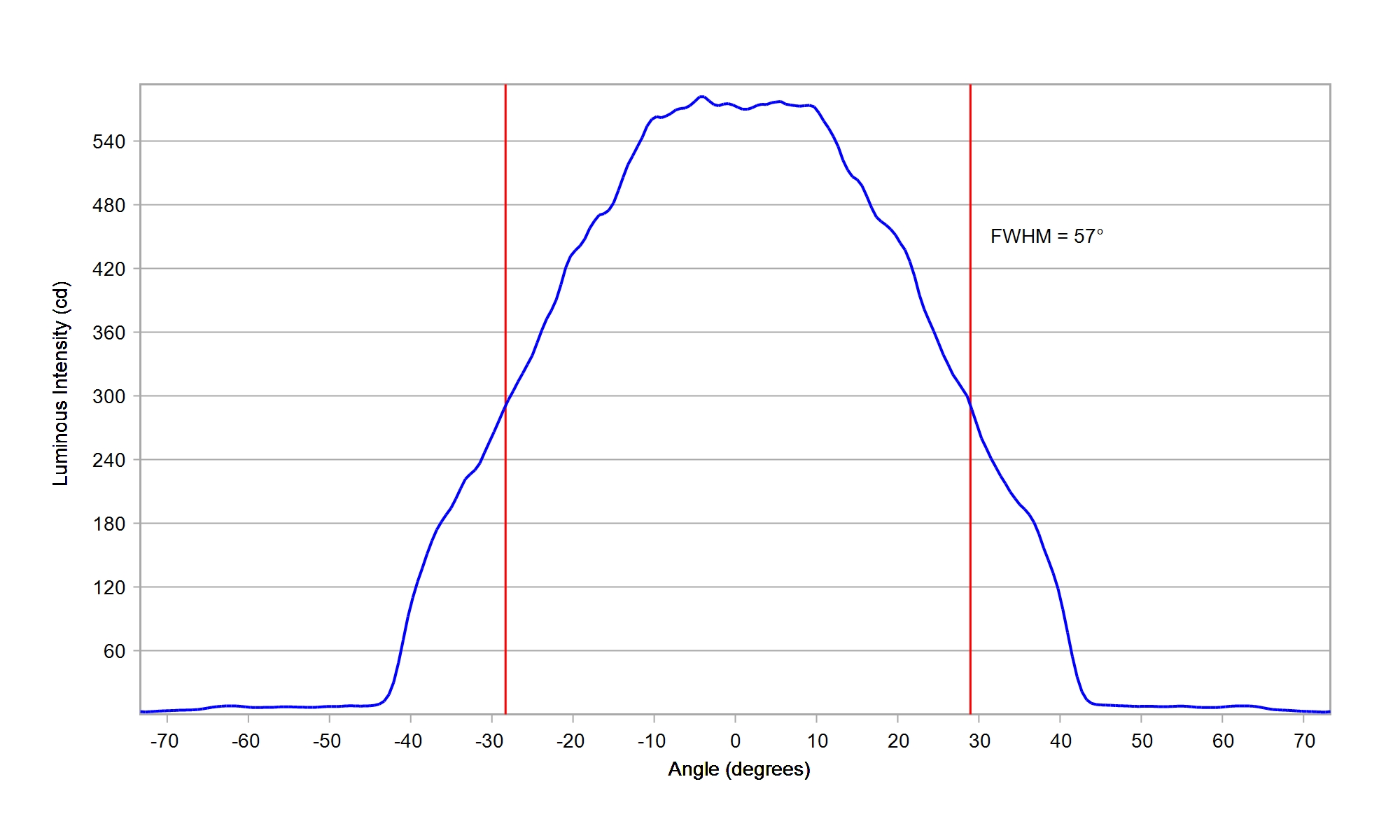

Cree XLamp XQ-E Plus HI Blue

Eff:

95.0%

FWHM:

57°

Cd/Im:

1.3


Download

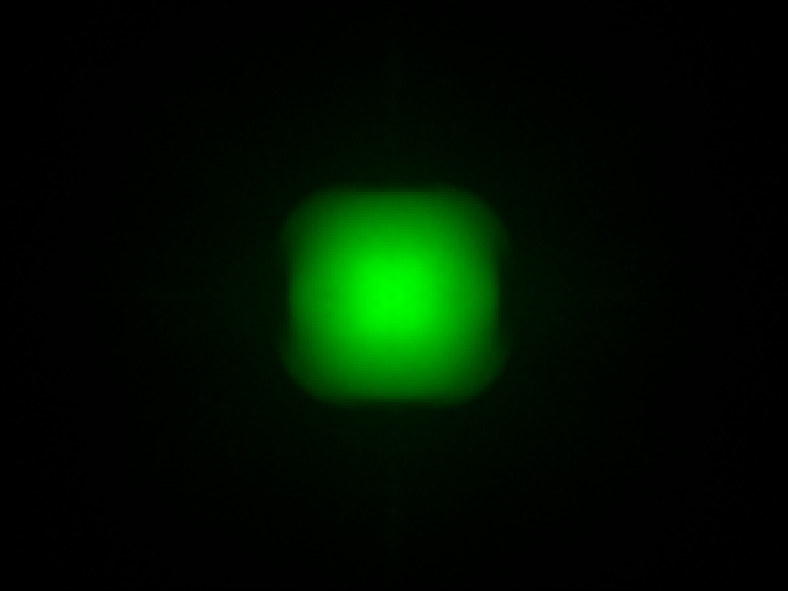

Cree XLamp XQ-E Plus HI Green

Eff:

94.0%

FWHM:

55°

Cd/Im:

1.2


Download

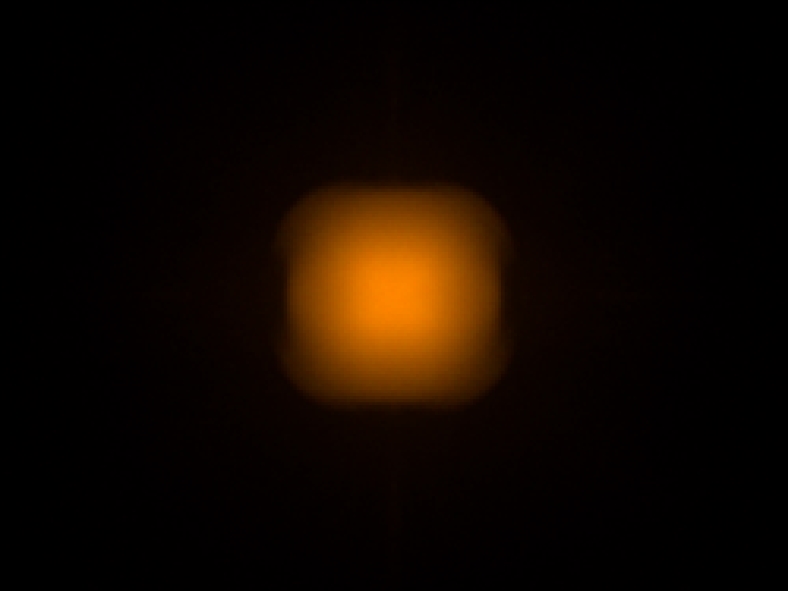

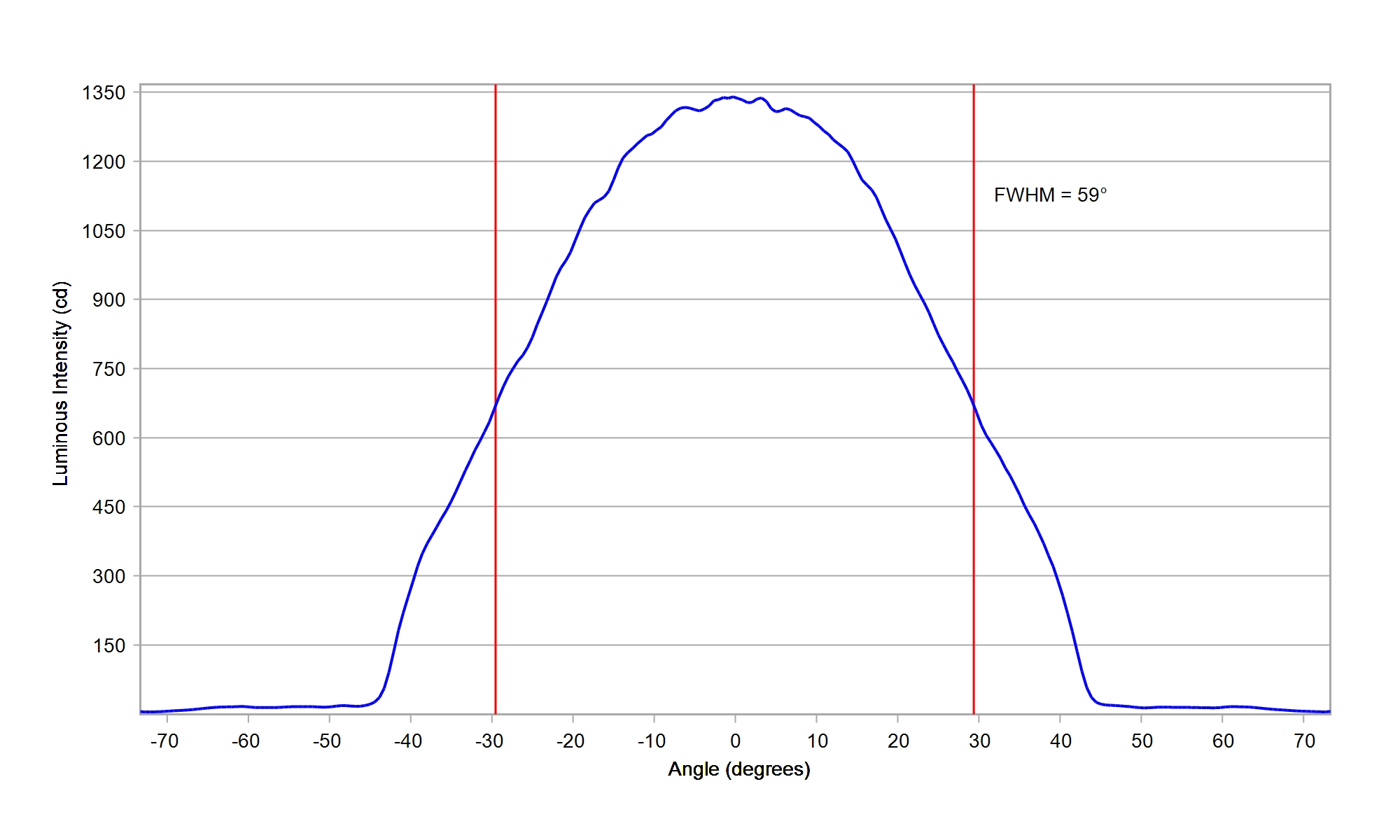

Cree XLamp XQ-E Plus HI PC Amber

Eff:

94.0%

FWHM:

59°

Cd/Im:

1.3


Download

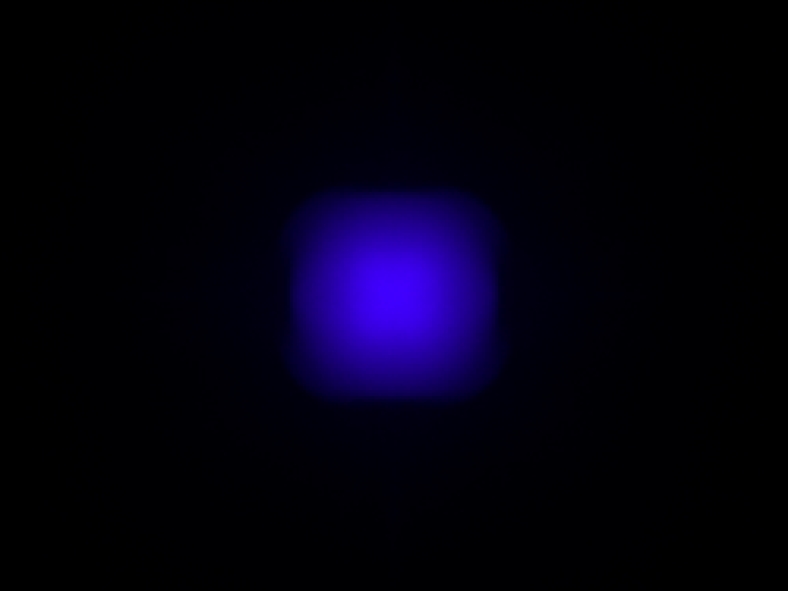

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

96.0%

FWHM:

57°

Ipk/W:

1.2


Download

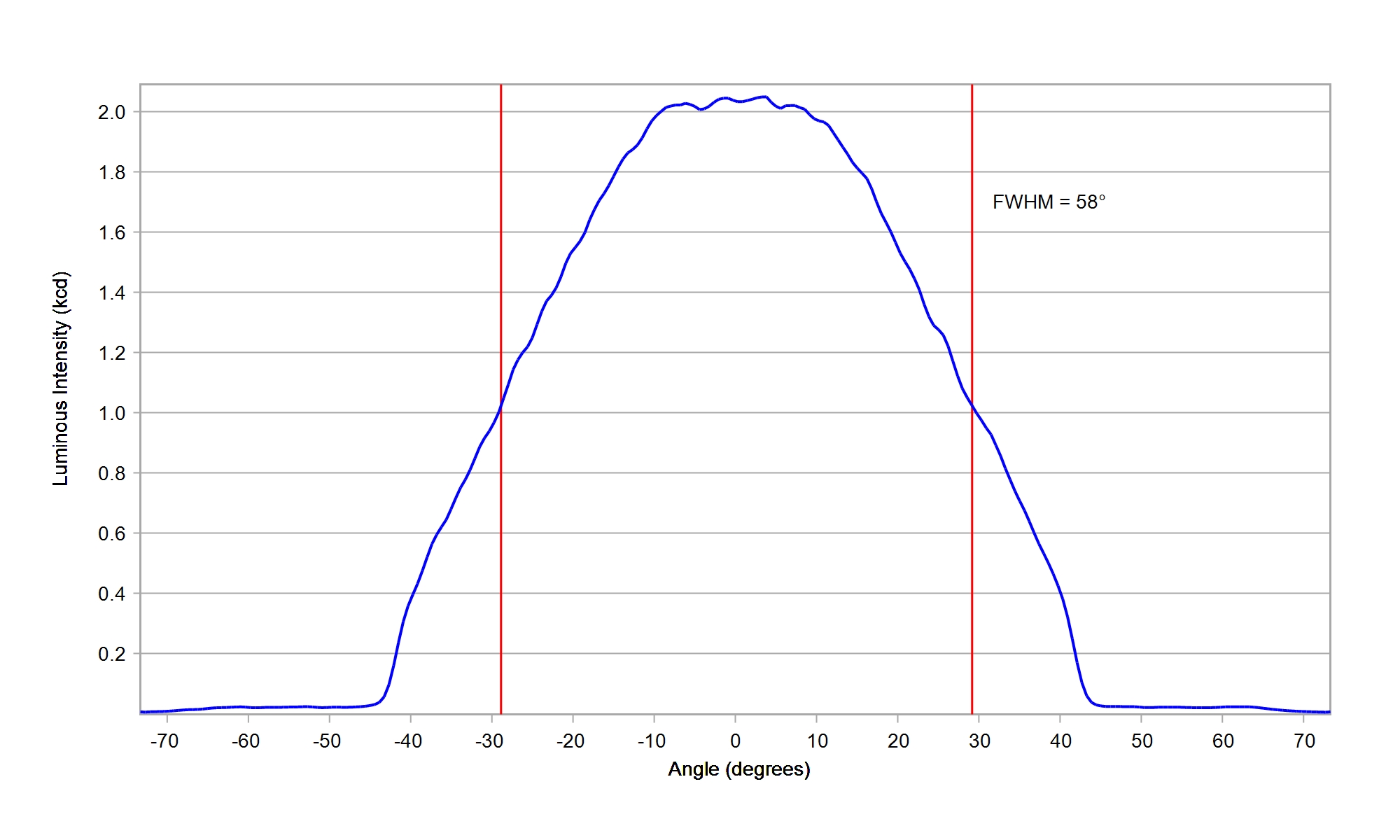

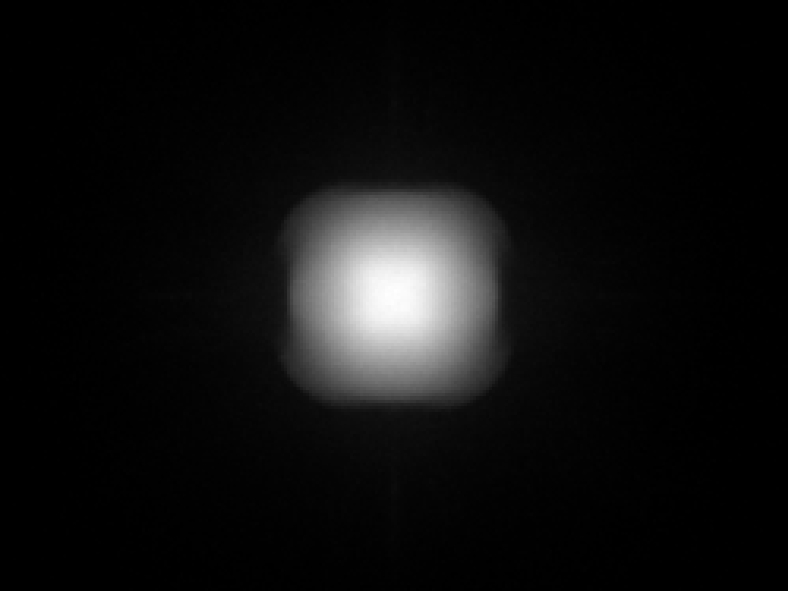

Cree XLamp XQ-E Plus HI White

Eff:

94.5%

FWHM:

58°

Cd/Im:

1.3


Download

Cree XLamp XQ-E HD White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 3030 LG White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

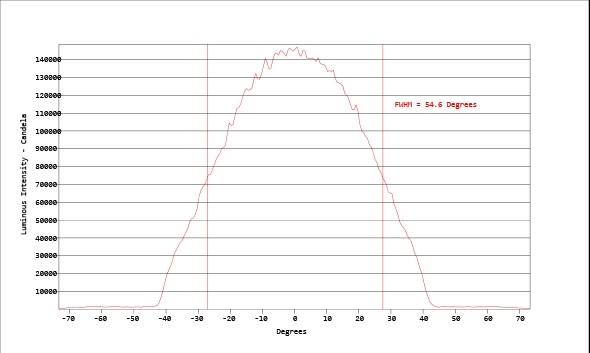

Carclo Optics - Simulated Cross Section

Download

ies

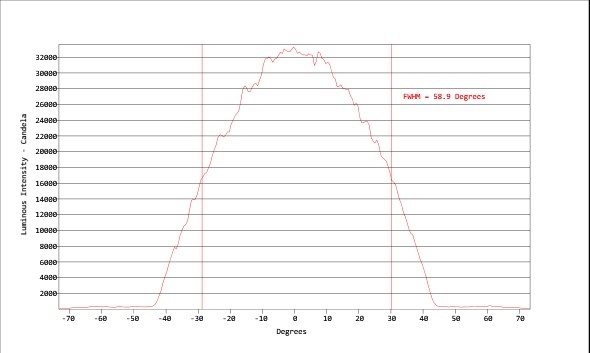

LG Innotek MidPower 5630 White

Eff:

90.0%

FWHM:

60.7°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

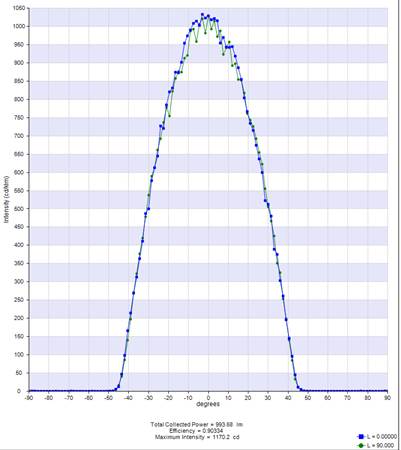

Carclo Optics - Simulated Cross Section Image

,

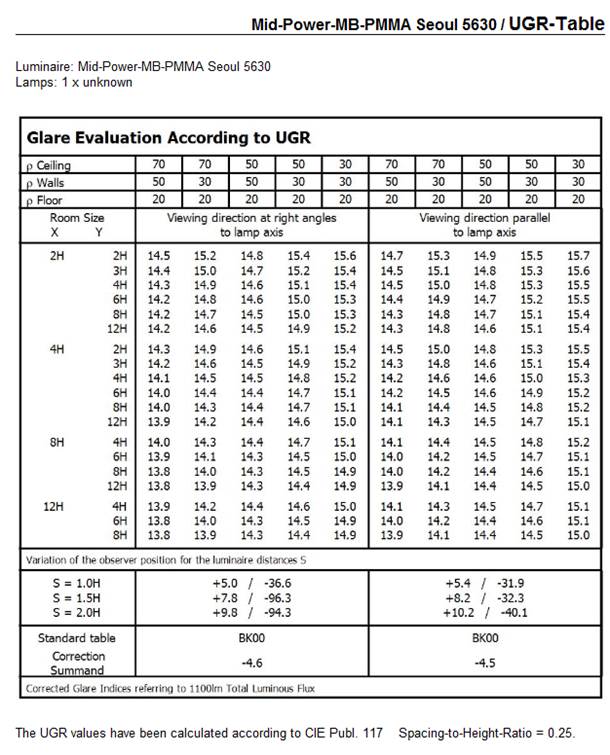

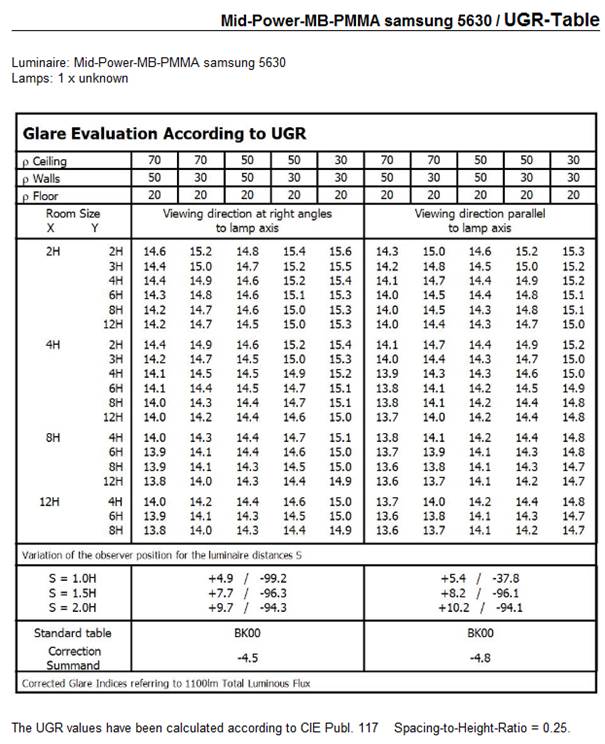

Carclo Optics - UGR Table

Download

ldt

LG Innotek MidPower 5630 White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 6030 White

Eff:

90.0%

FWHM:

63.9°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

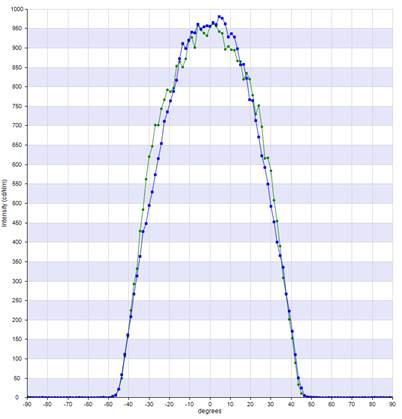

Carclo Optics - Simulated Cross Section Image

,

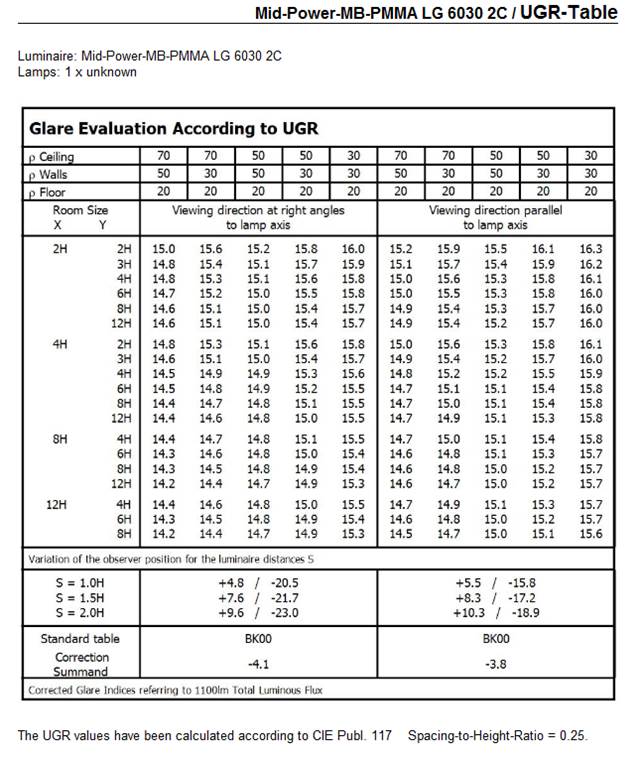

Carclo Optics - UGR Table

Download

ldt

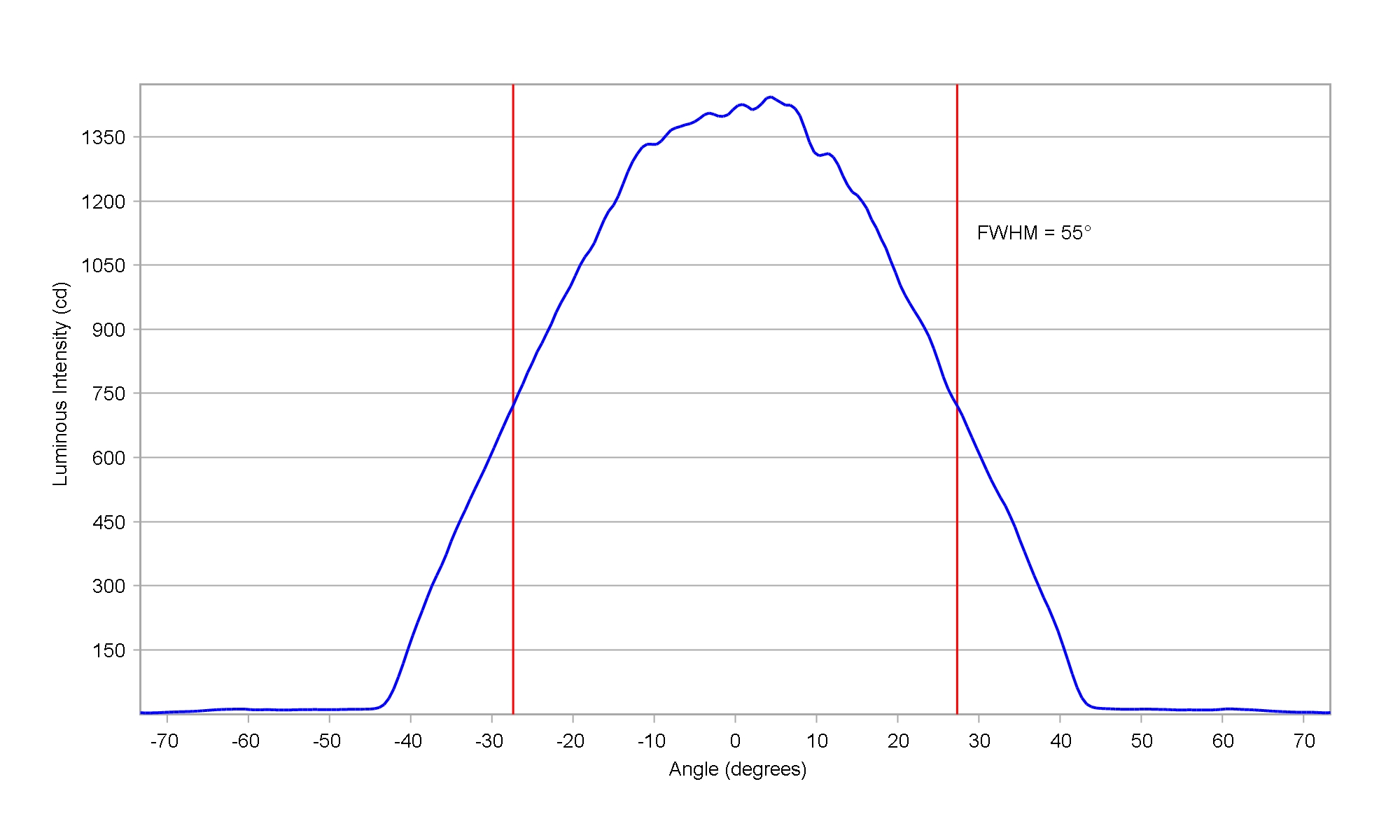

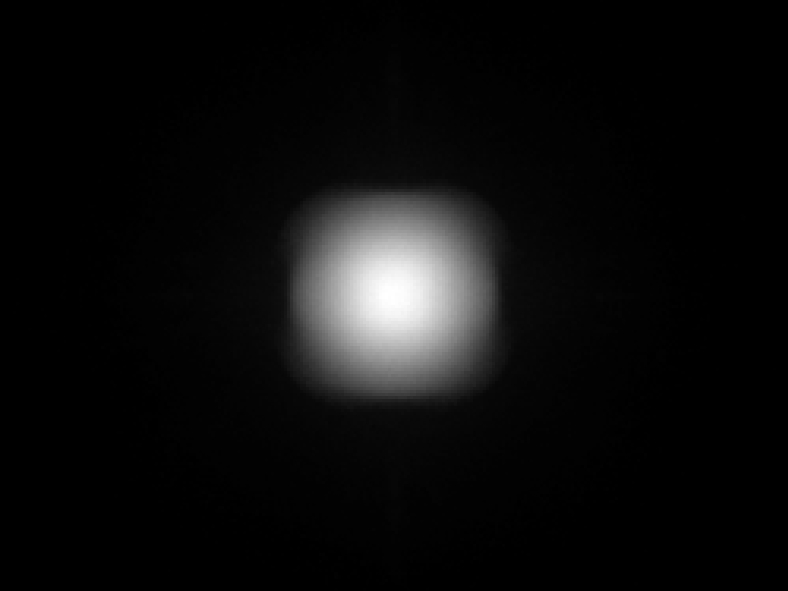

LUMILEDS LUXEON 2835C 6V White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.4

Download

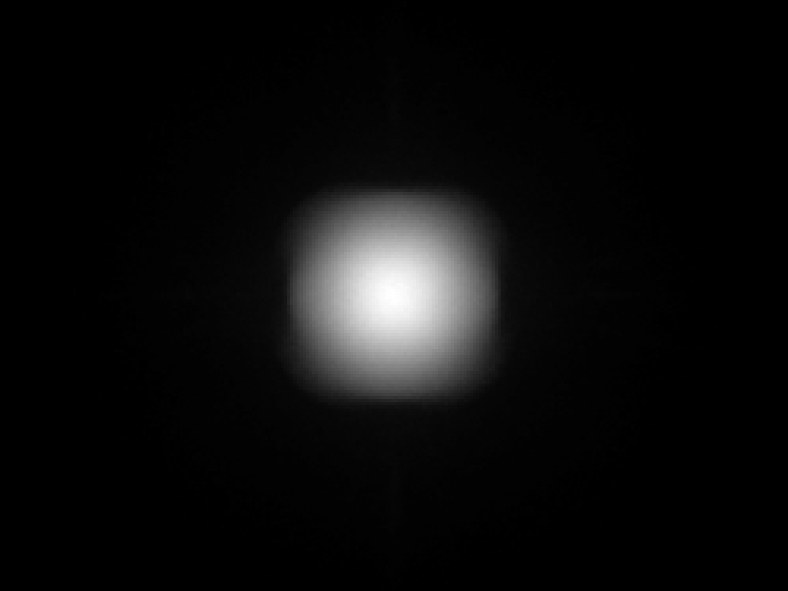

LUMILEDS LUXEON 2835E 9V White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.5

Download

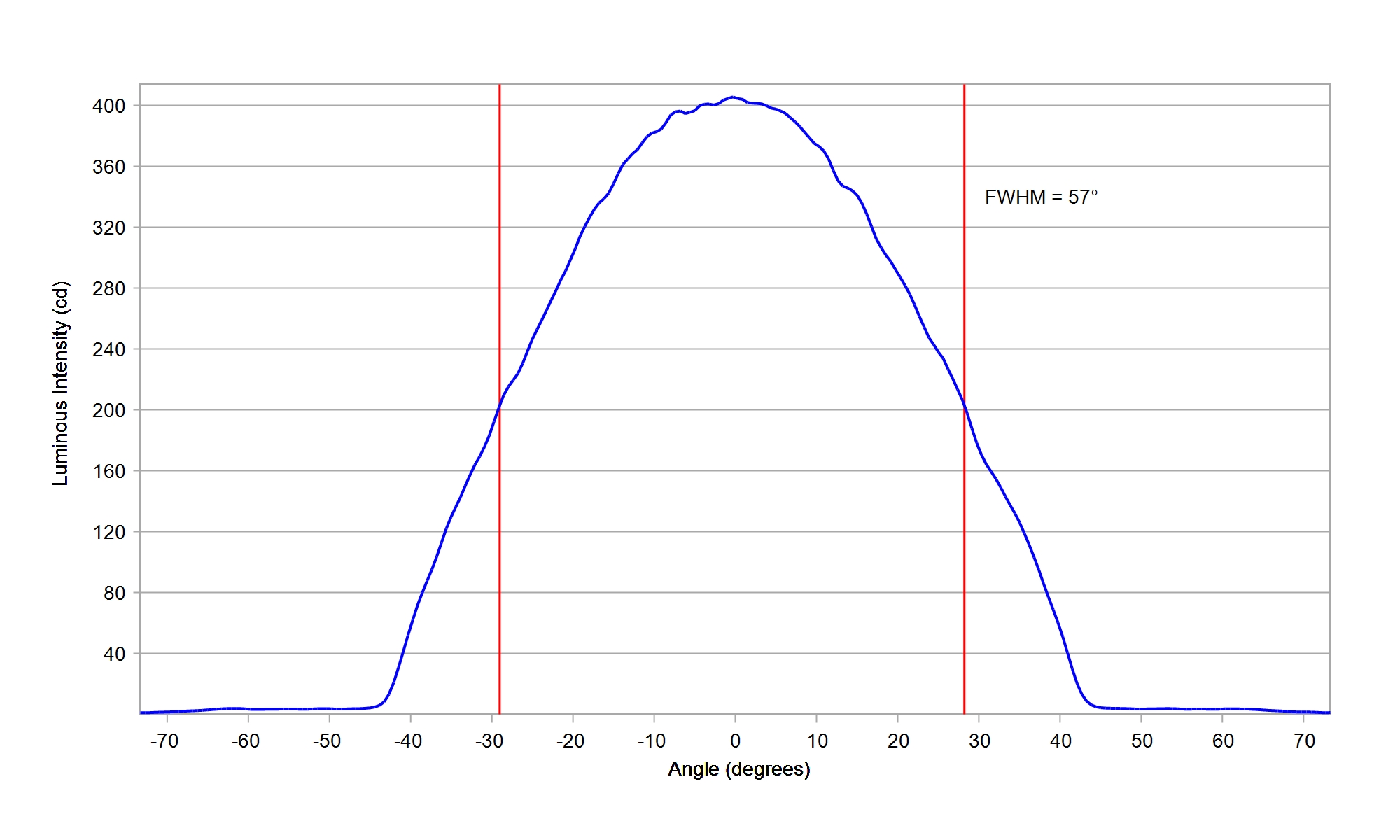

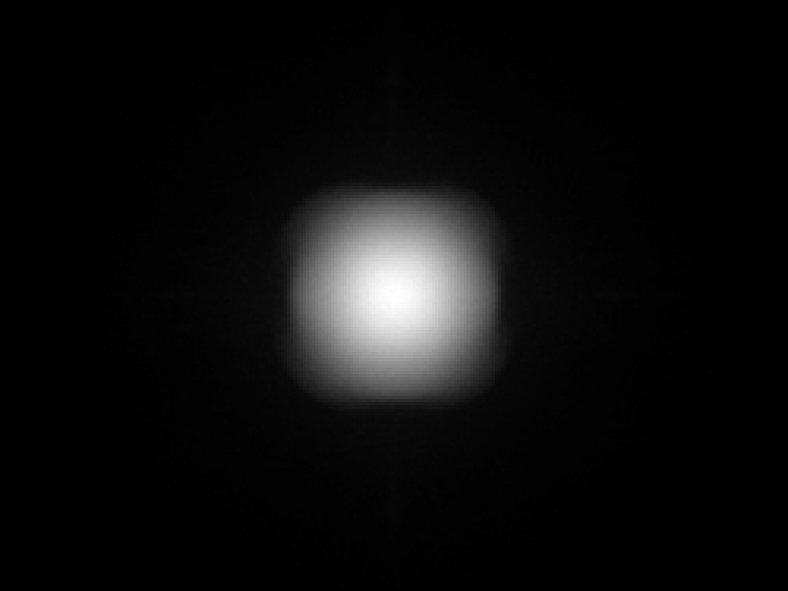

LUMILEDS LUXEON 2835N 3V White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4

Download

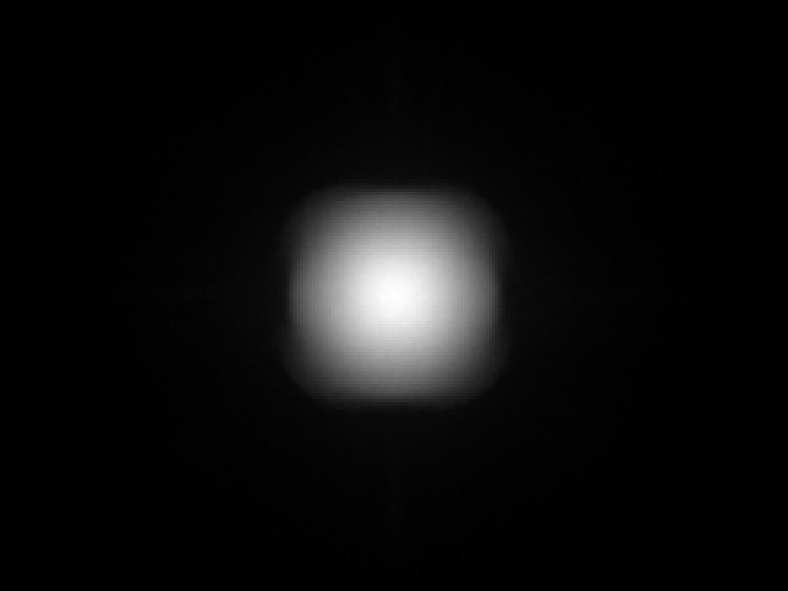

LUMILEDS LUXEON 2835S 3V White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.4

Download

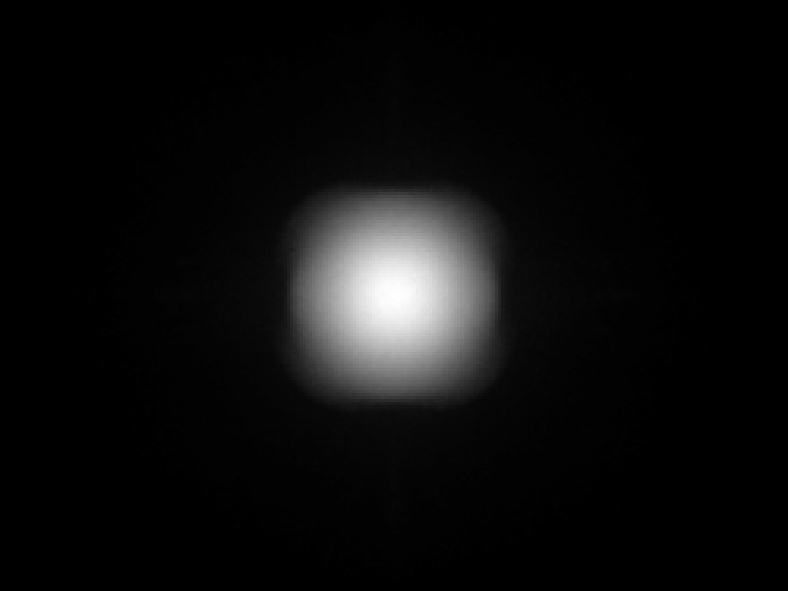

LUMILEDS LUXEON 2835S 6V White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4

Download

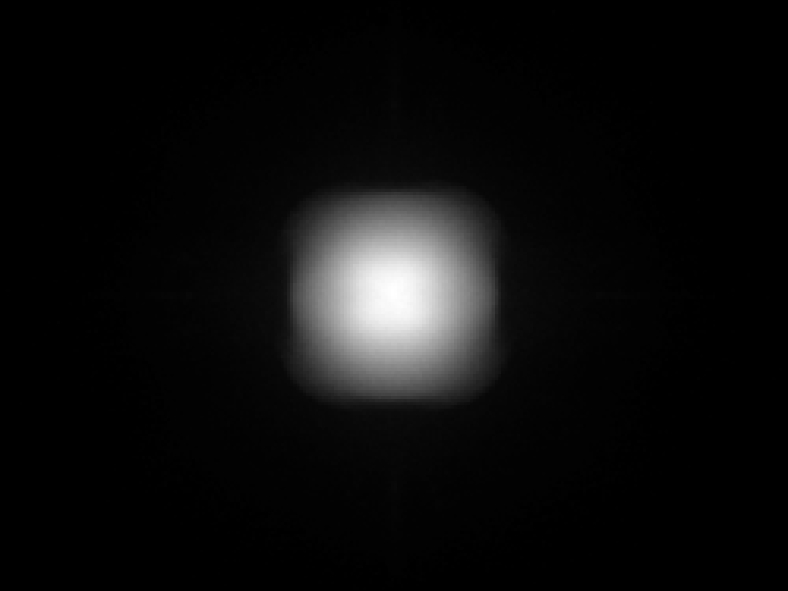

LUMILEDS LUXEON 3014 White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.6

Download

IES

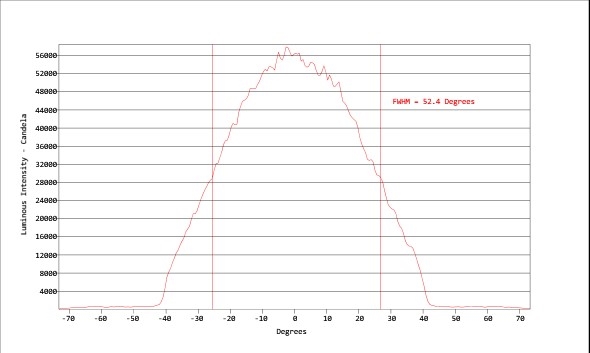

LUMILEDS LUXEON 3020 White

Eff:

95.5%

FWHM:

52°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

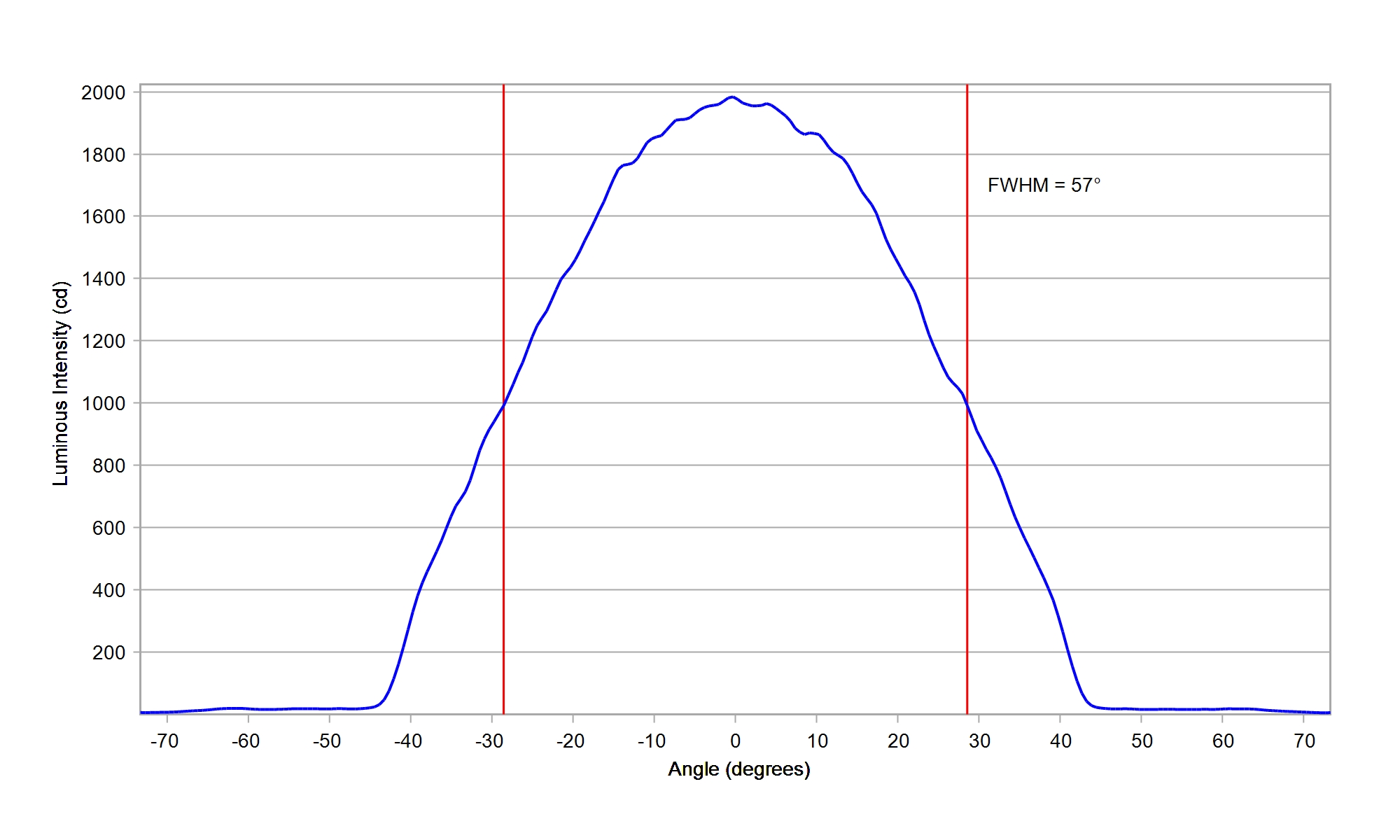

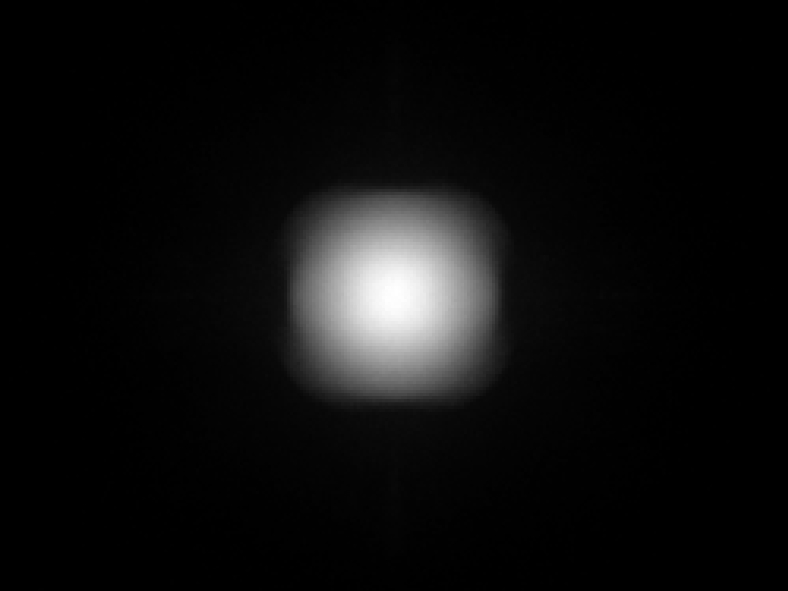

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4


Download

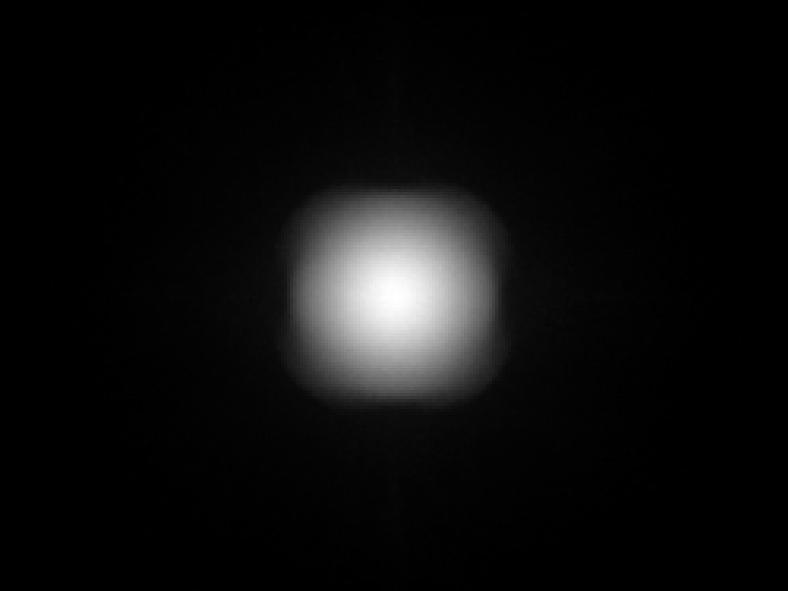

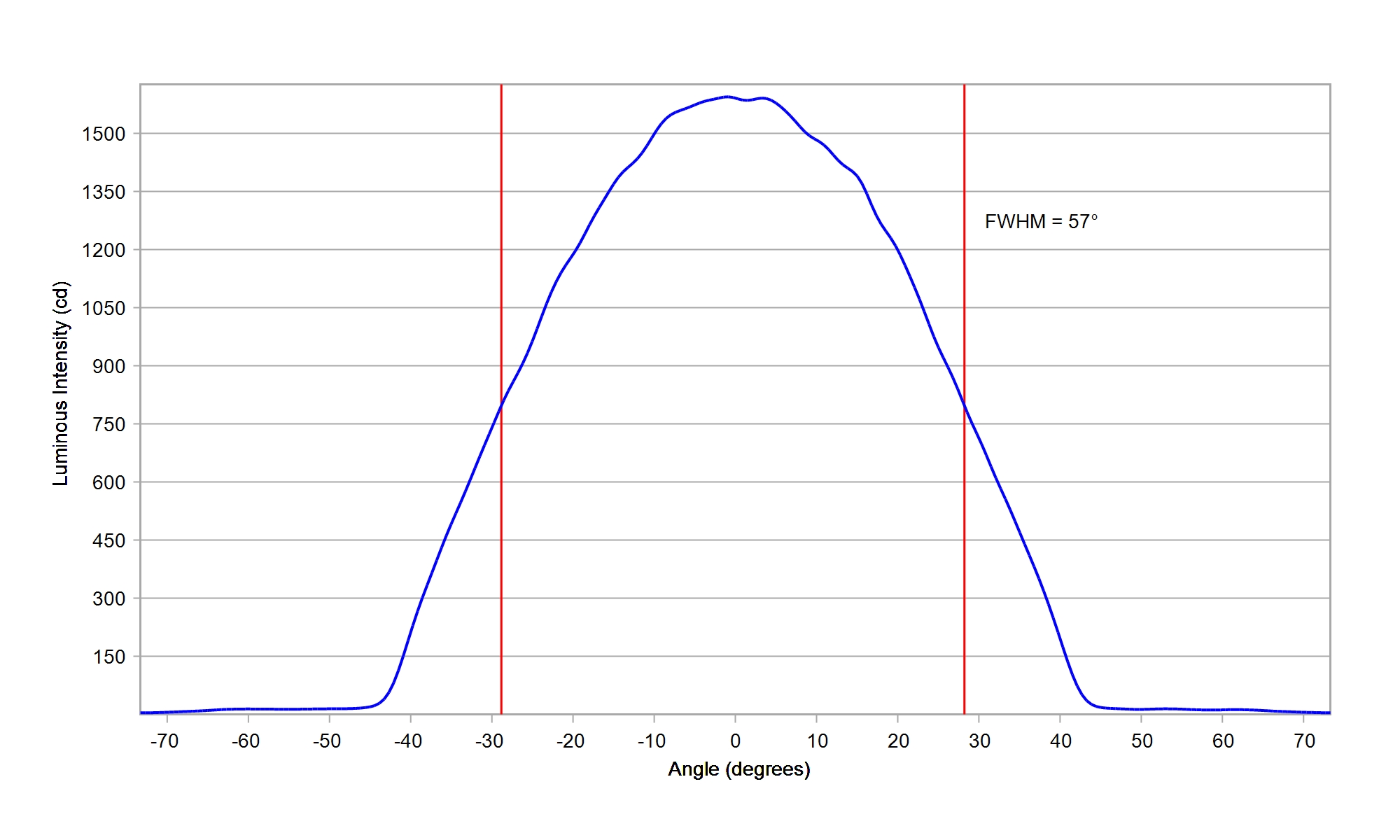

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4


Download

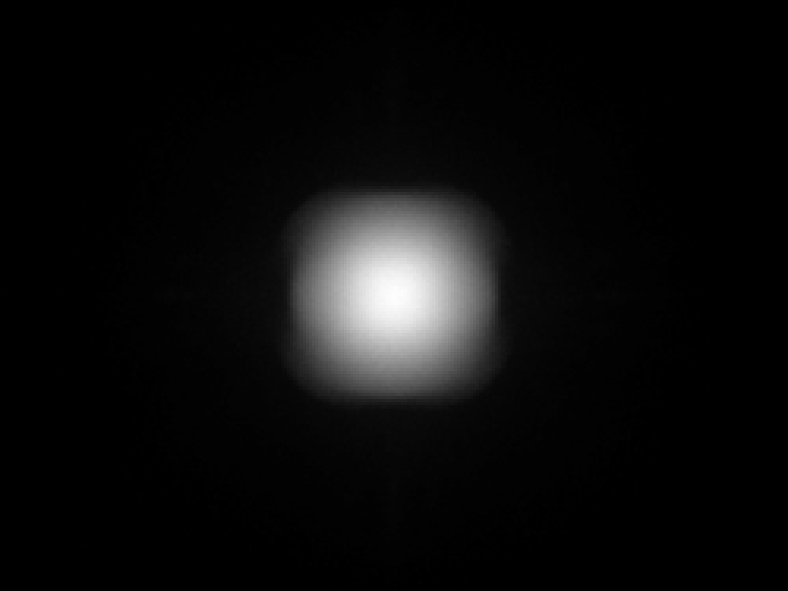

LUMILEDS LUXEON 3030 2D Square White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.5


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

95.5%

FWHM:

52°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.7

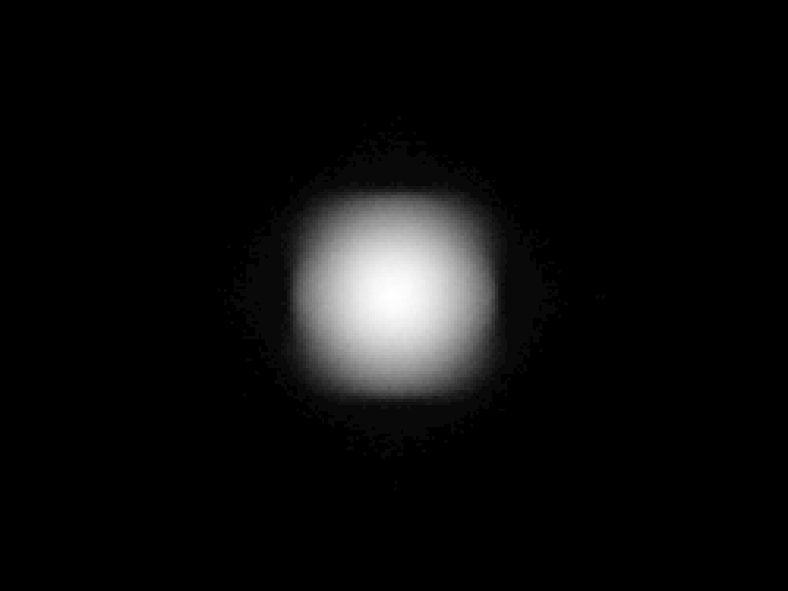

Carclo Optics – 12928 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12928 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

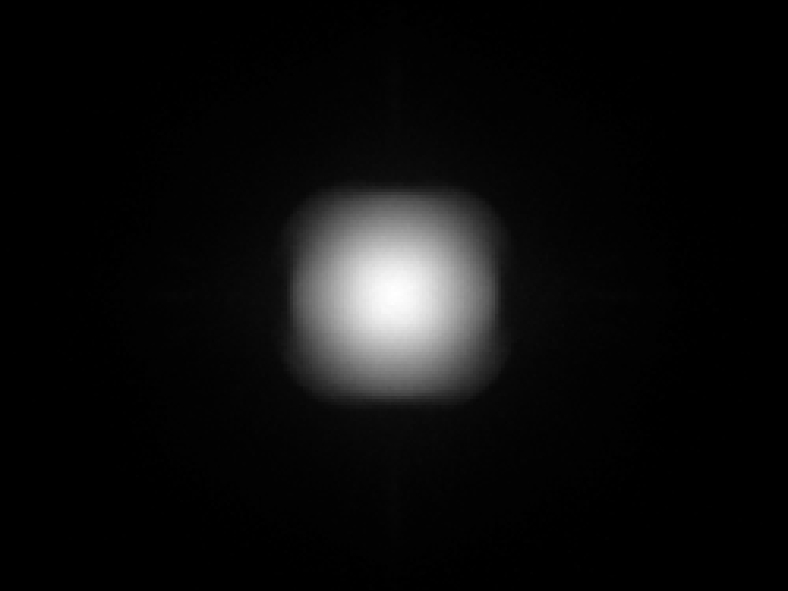

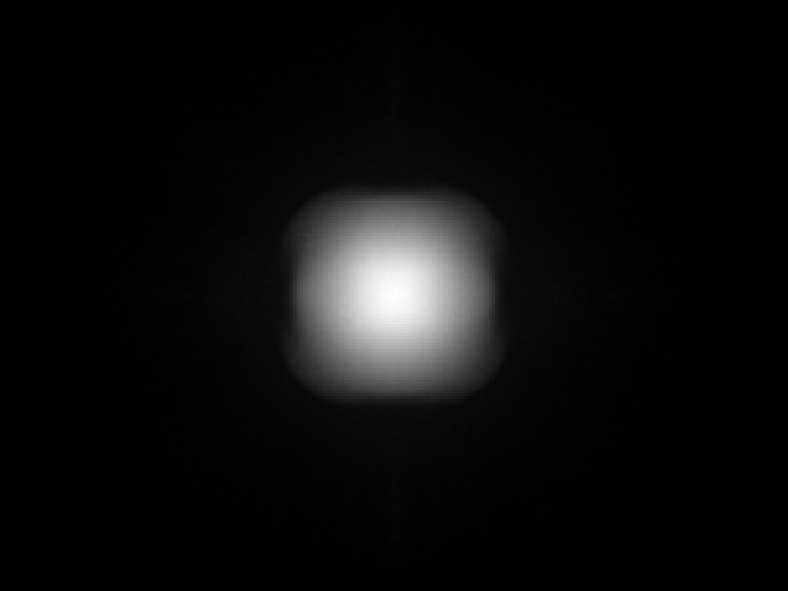

LUMILEDS LUXEON 3030 HE White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 3535 L White

Eff:

95.0%

FWHM:

59°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

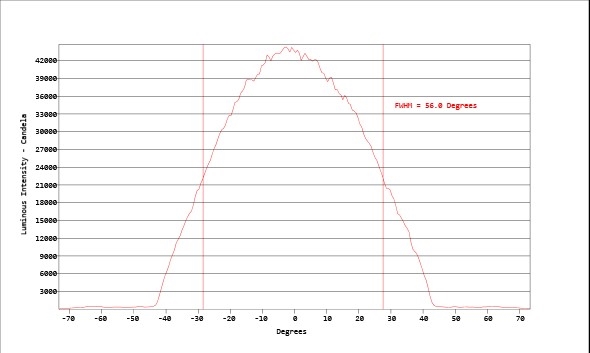

Carclo Optics - Simulated Cross Section

Download

ies

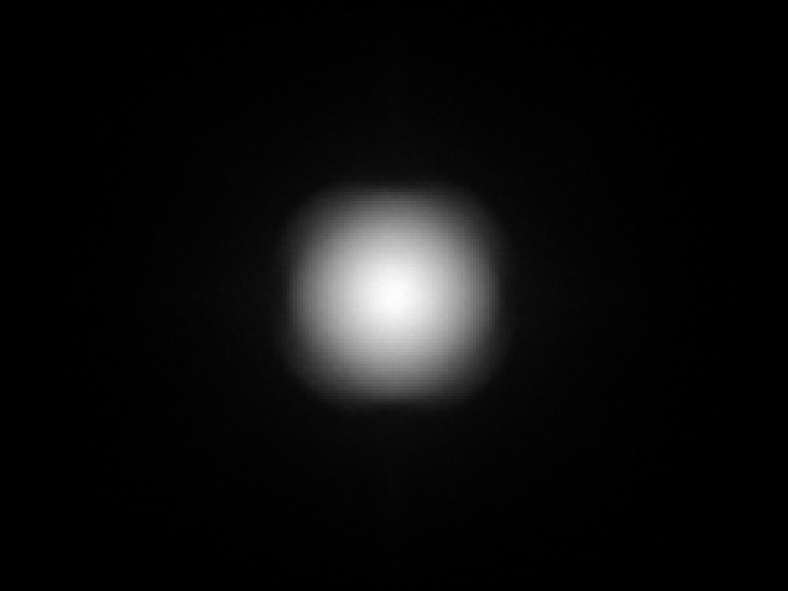

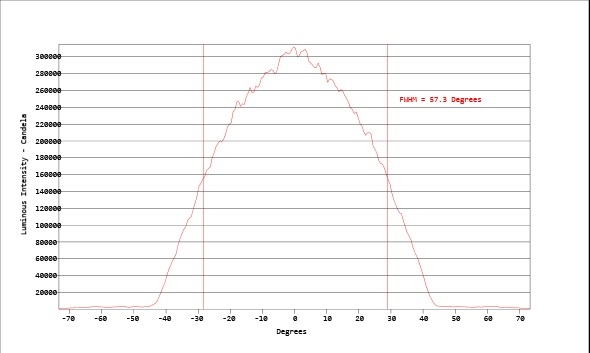

LUMILEDS LUXEON 5050 HE 24V White

Eff:

95.0%

FWHM:

58°

Cd/Im:

1.4

Download

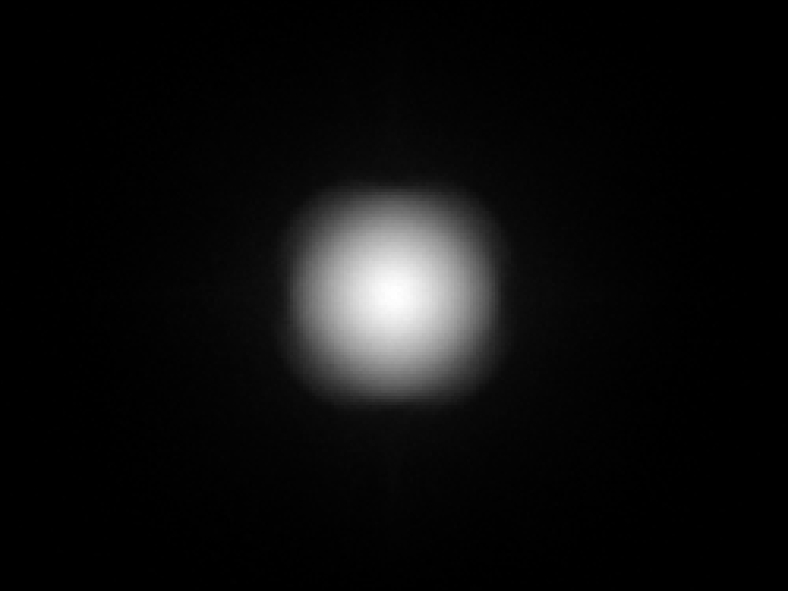

LUMILEDS LUXEON 5050 HE 6V White

Eff:

95.0%

FWHM:

58°

Cd/Im:

1.4

Download

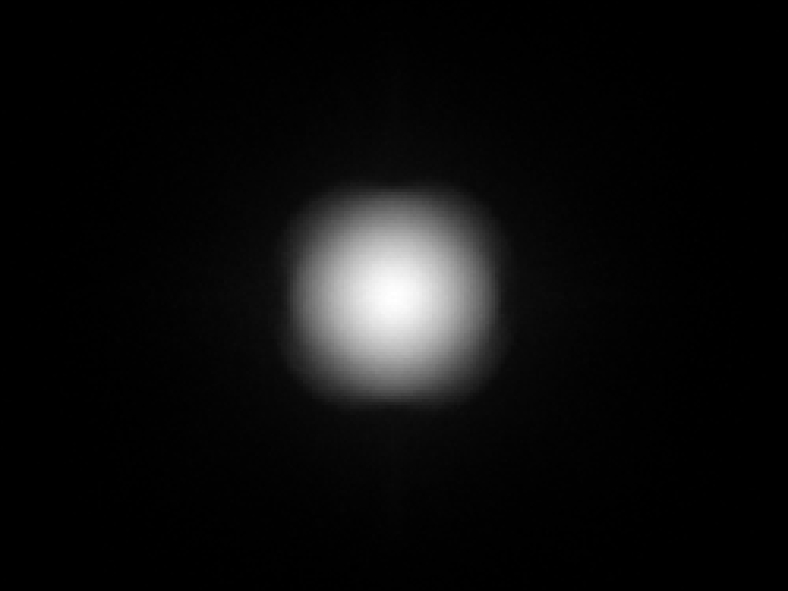

LUMILEDS LUXEON 5050 Round 24V White

Eff:

95.5%

FWHM:

59°

Cd/Im:

1.4


Download

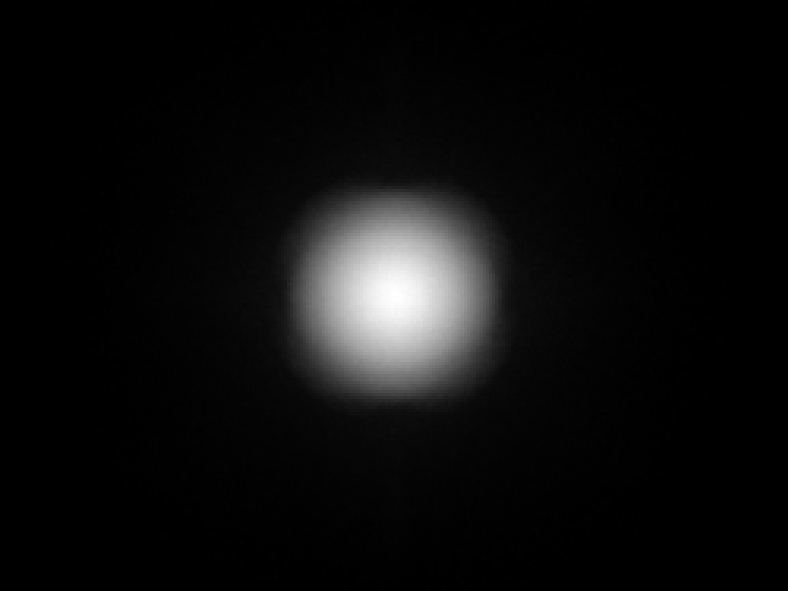

LUMILEDS LUXEON 5050 Square 30V White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.4


Download

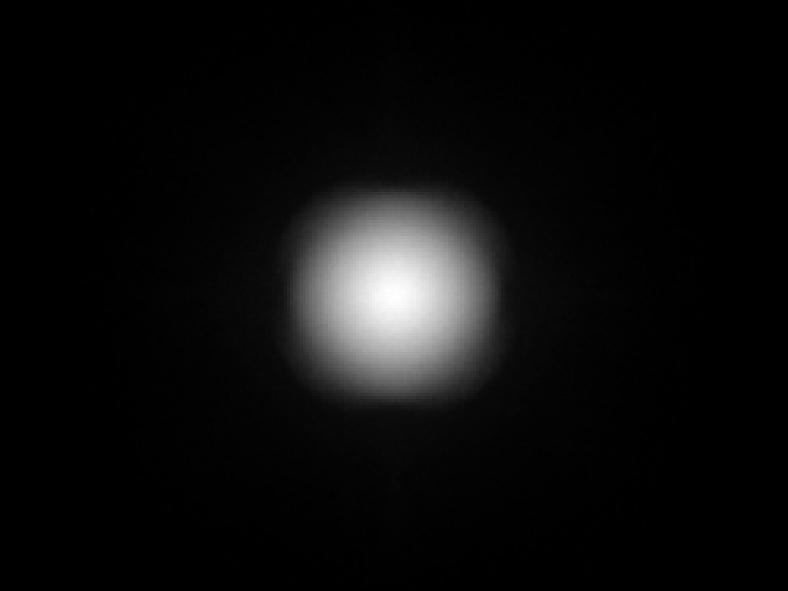

LUMILEDS LUXEON 5050 Square 6V White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.6


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 7070 White

Eff:

94.5%

FWHM:

67°

Cd/Im:

1.2

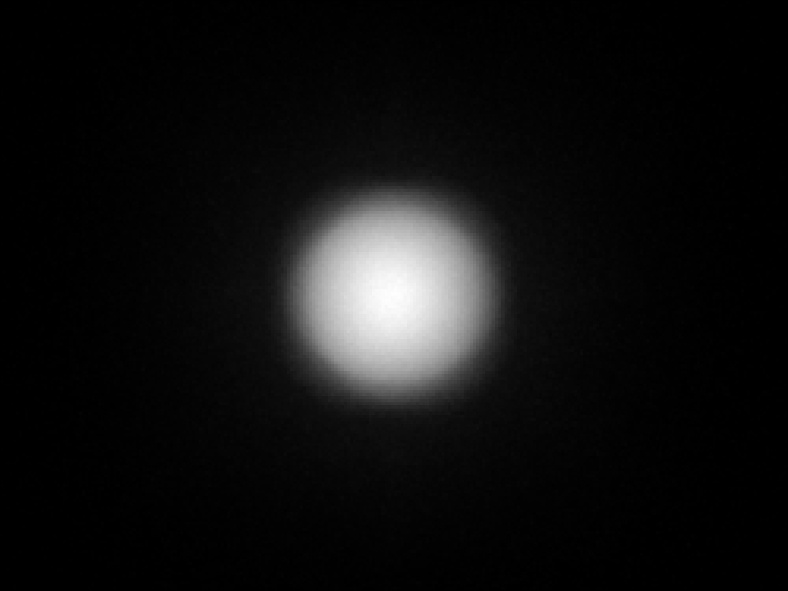

Carclo Optics – 12928 Lumileds Luxeon 7070 - Spot Image

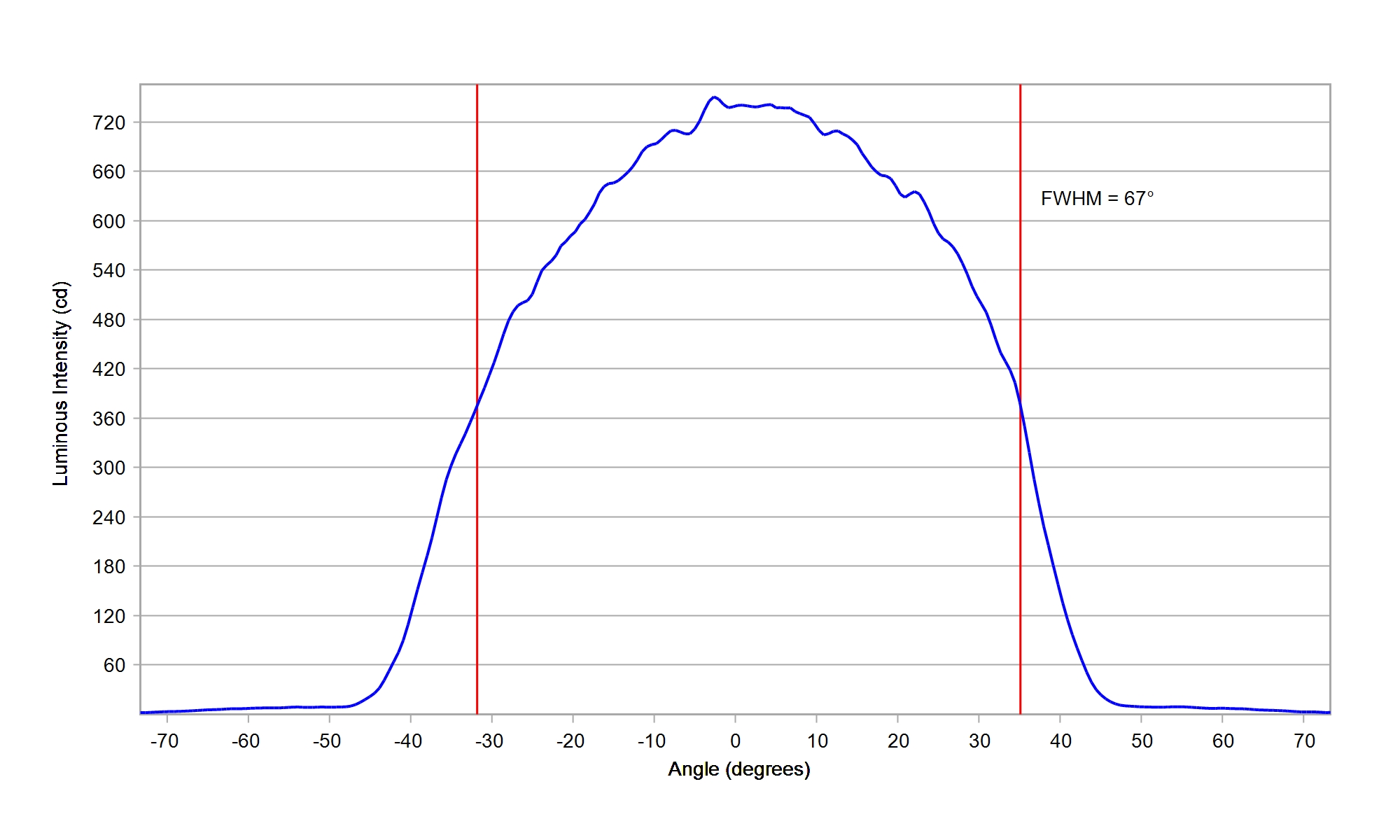

Carclo Optics – 12928 Lumileds Luxeon 7070 - Cross-Section

Download

ies

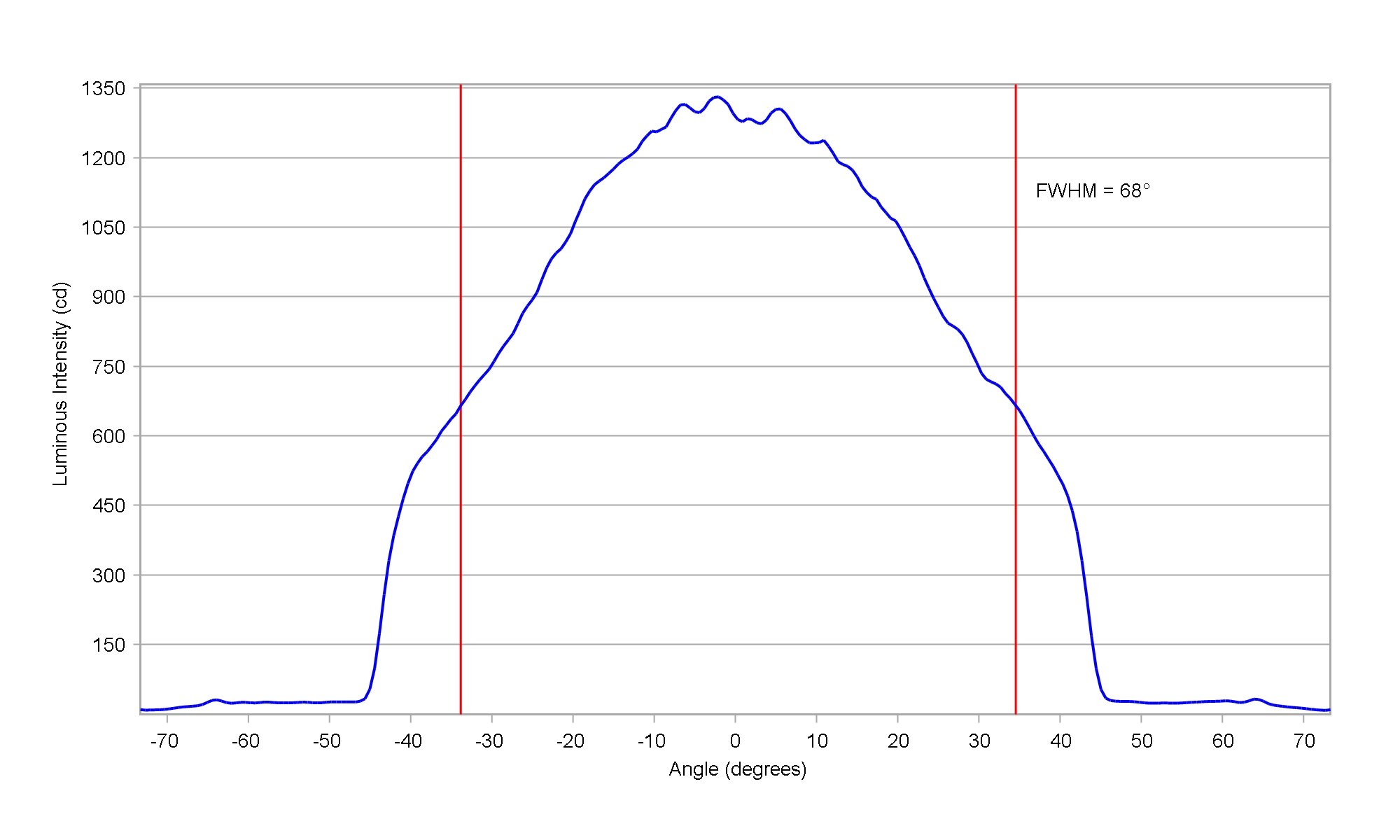

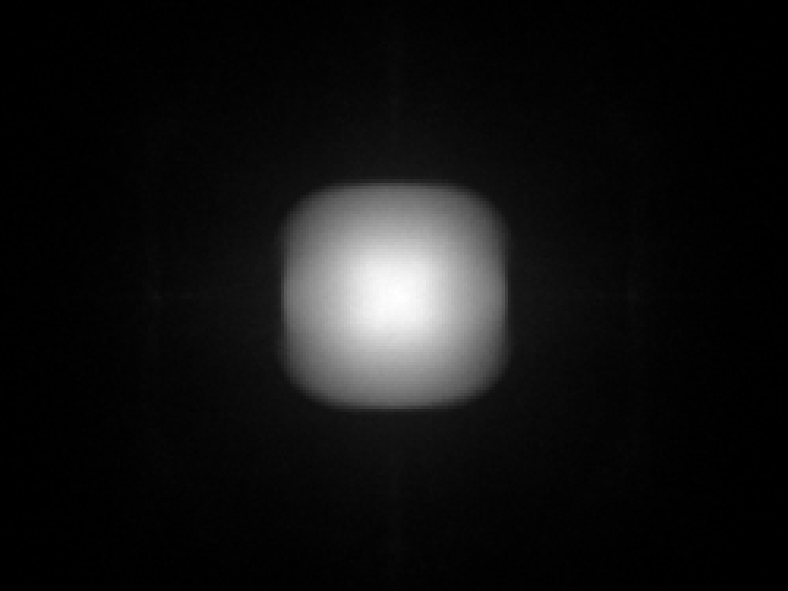

LUMILEDS LUXEON C White

Eff:

91.0%

FWHM:

68°

Cd/Im:

1.0

Download

LUMILEDS LUXEON CZ White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.4

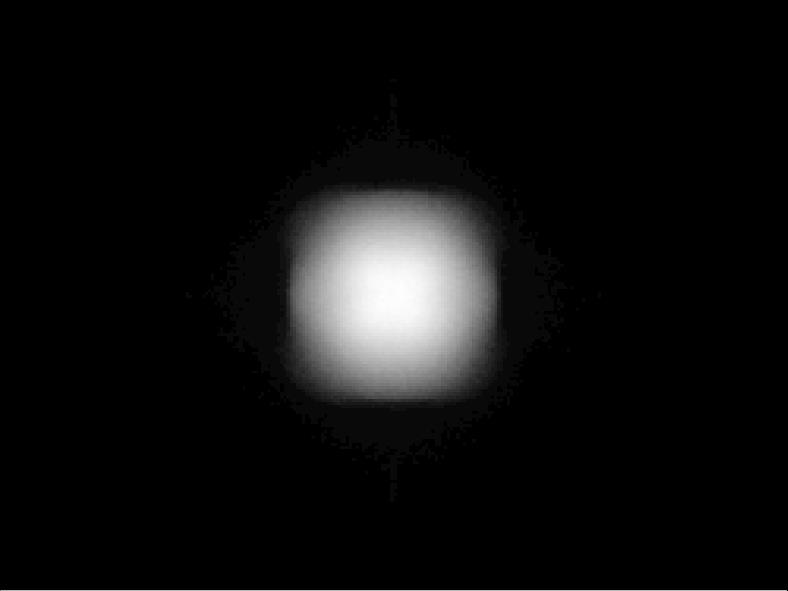

Carclo Optics 12928 Spot Image Luxeon CZ 5M CW

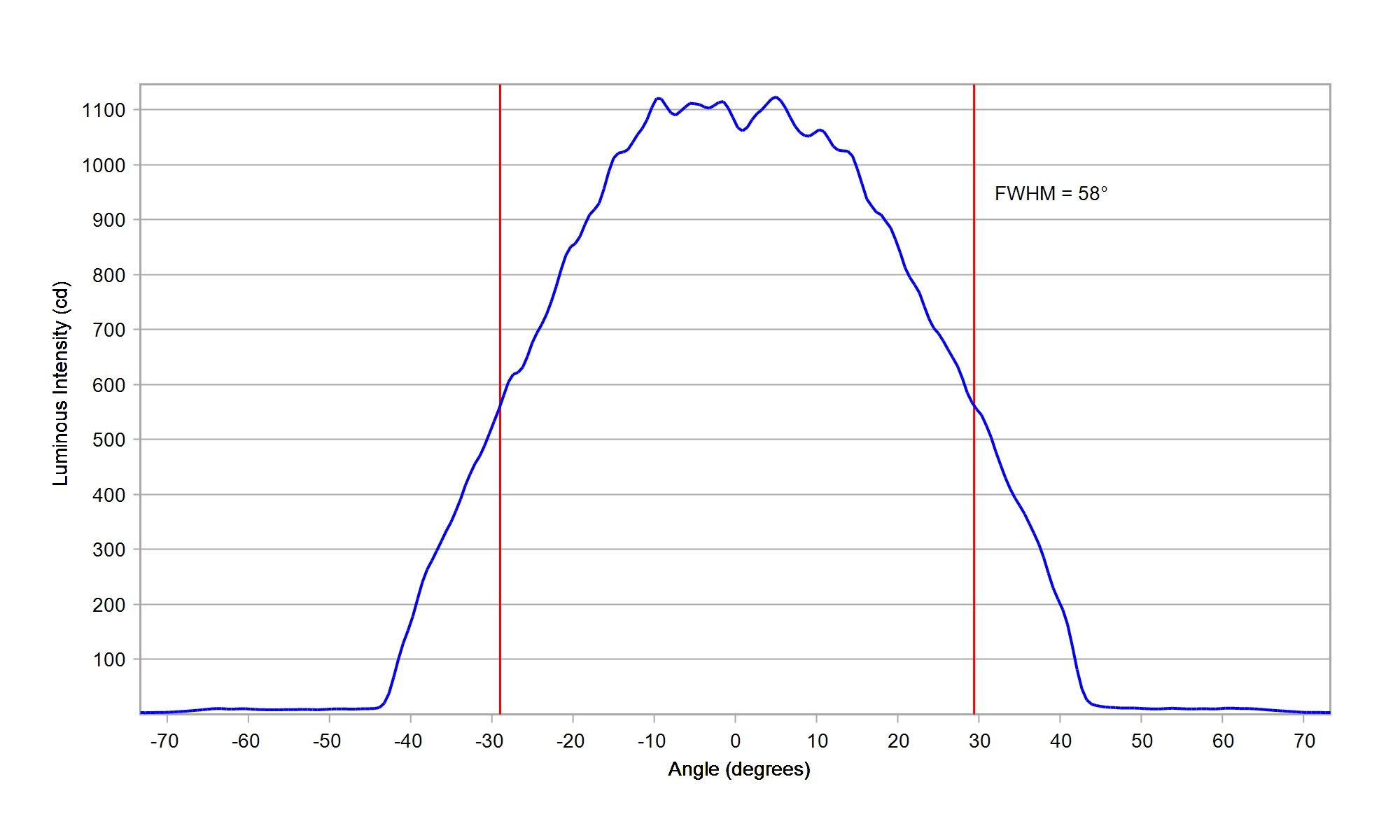

Carclo Optics 12928 Cross Section Luxeon CZ 5M CW

Download

ies

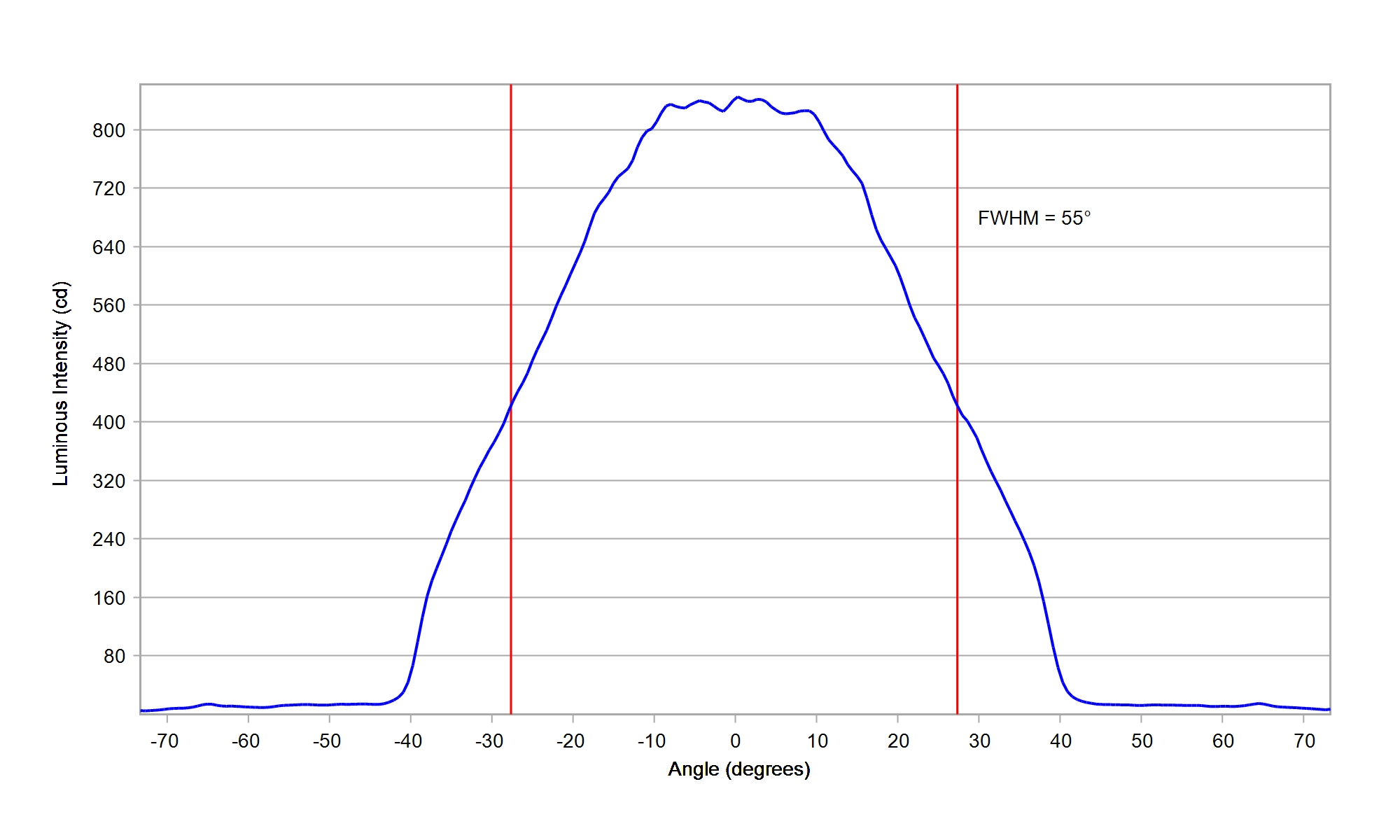

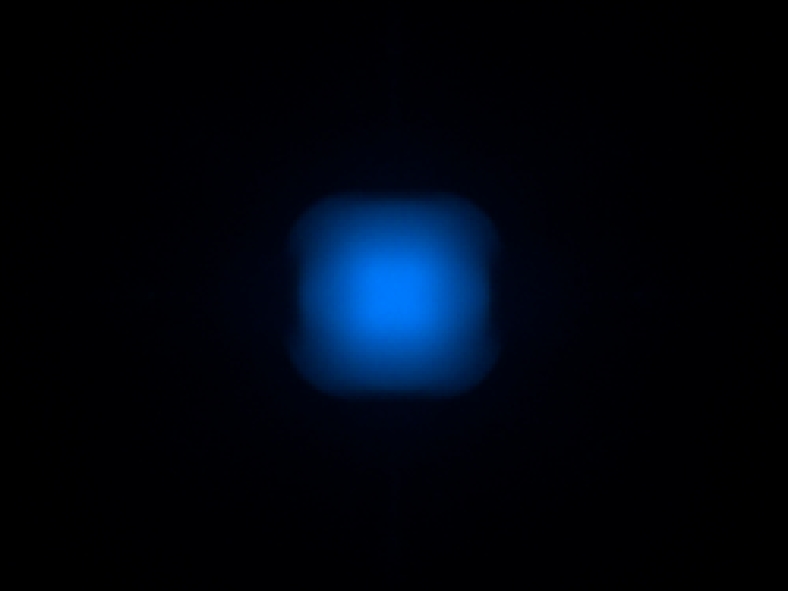

LUMILEDS LUXEON HL1Z Color Blue

Eff:

95.0%

FWHM:

55°

Cd/Im:

1.4

Download

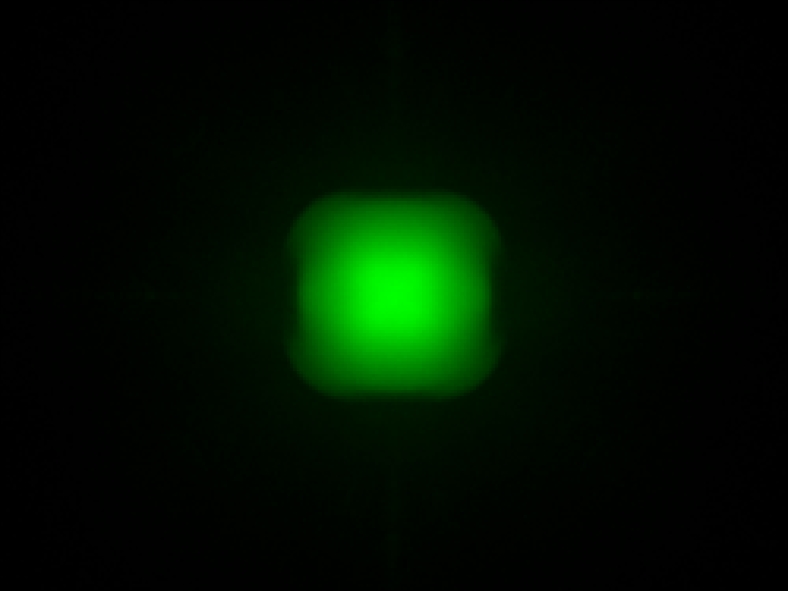

LUMILEDS LUXEON HL1Z Color Green

Eff:

94.0%

FWHM:

56°

Cd/Im:

1.3

Download

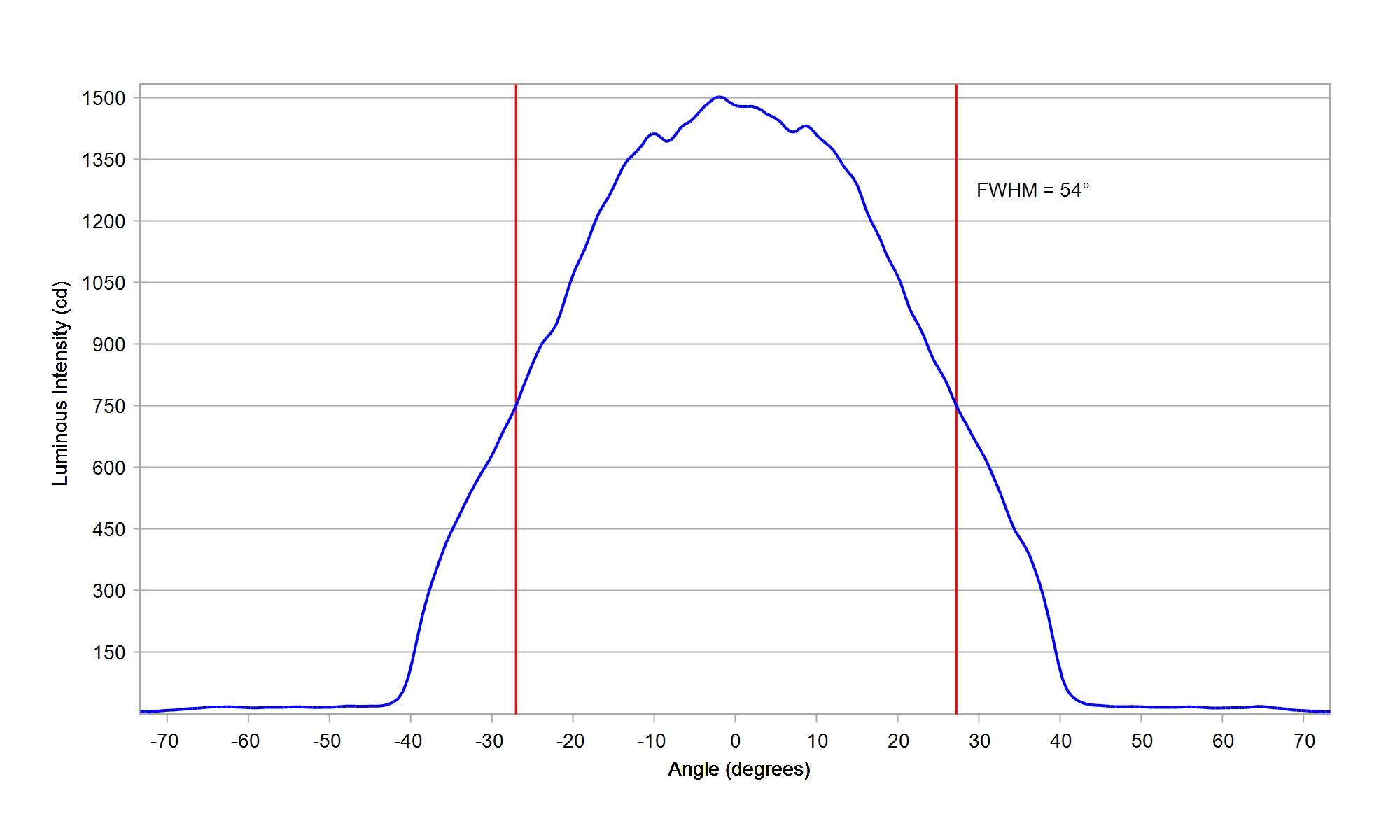

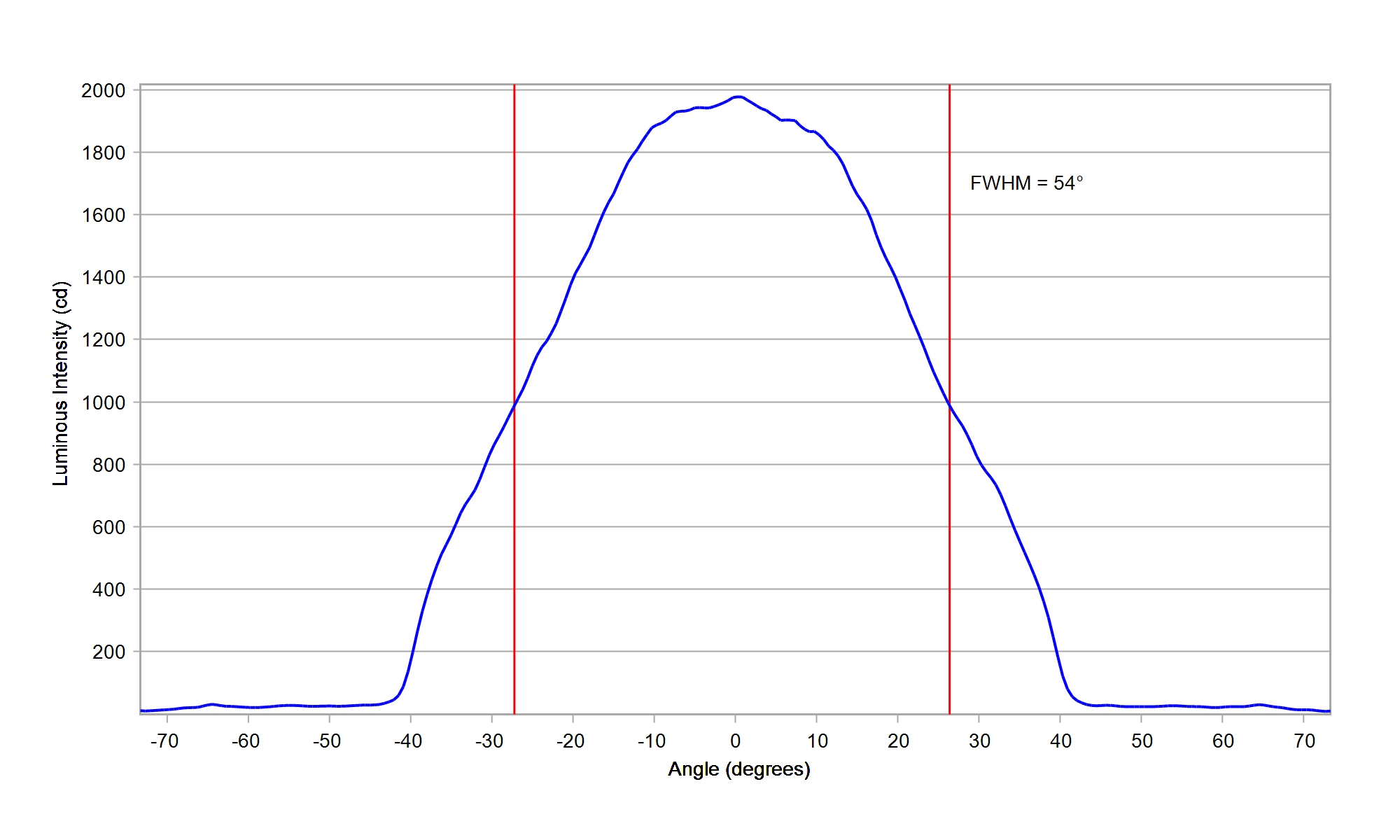

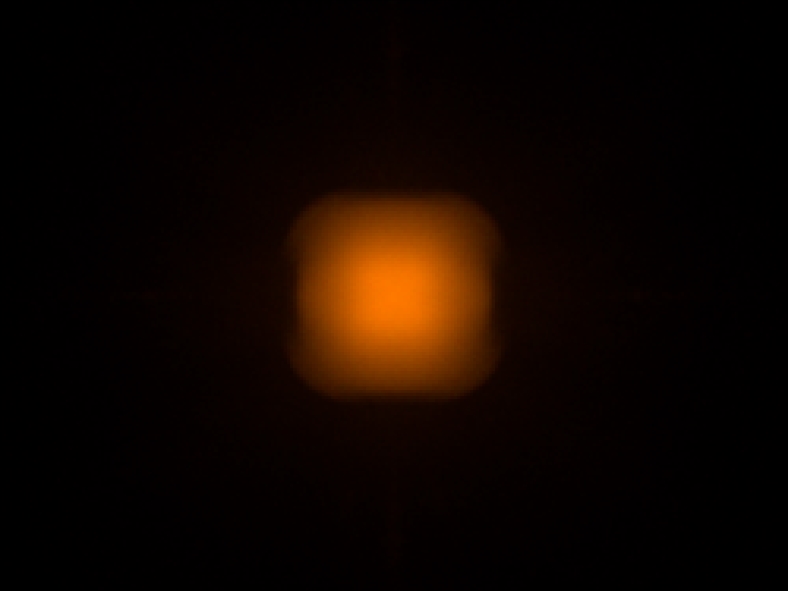

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

94.5%

FWHM:

54°

Cd/Im:

1.4


Download

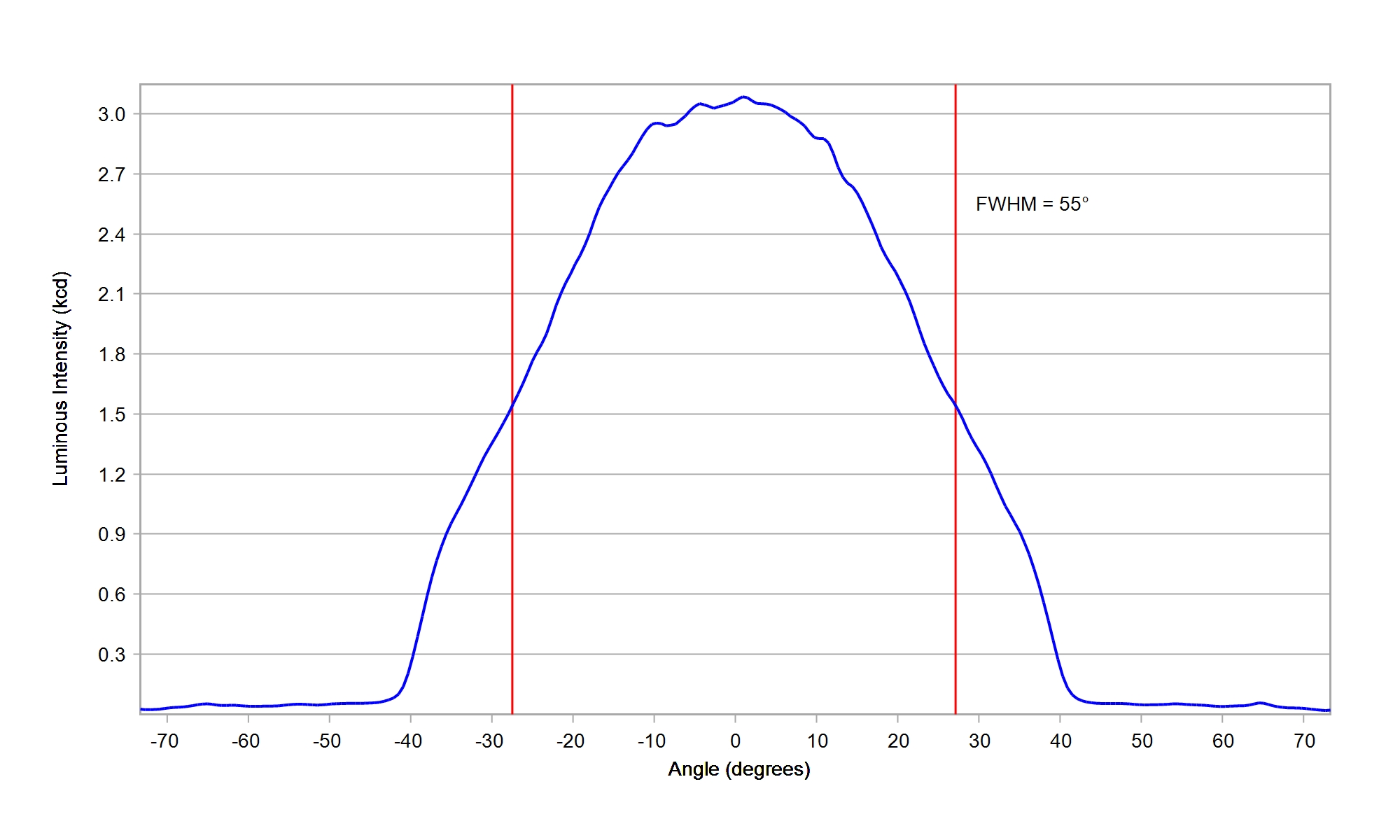

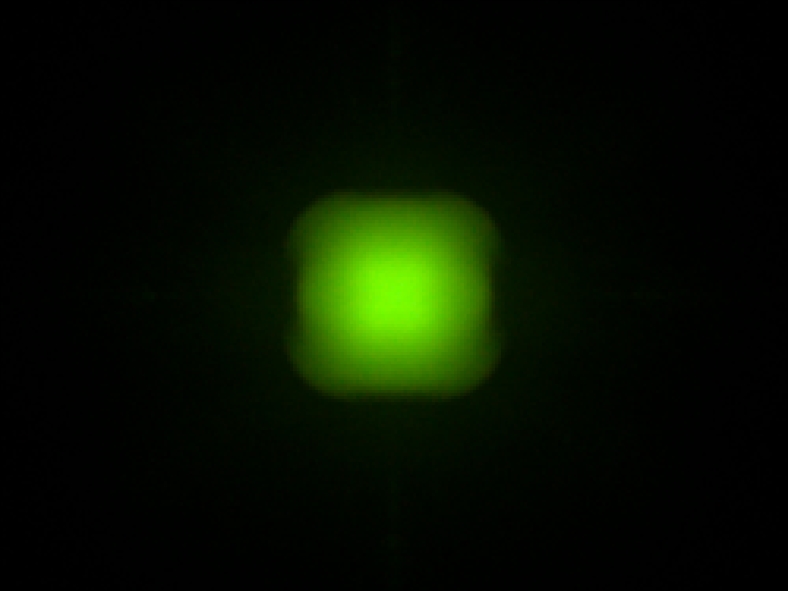

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

93.0%

FWHM:

55°

Cd/Im:

1.3


Download

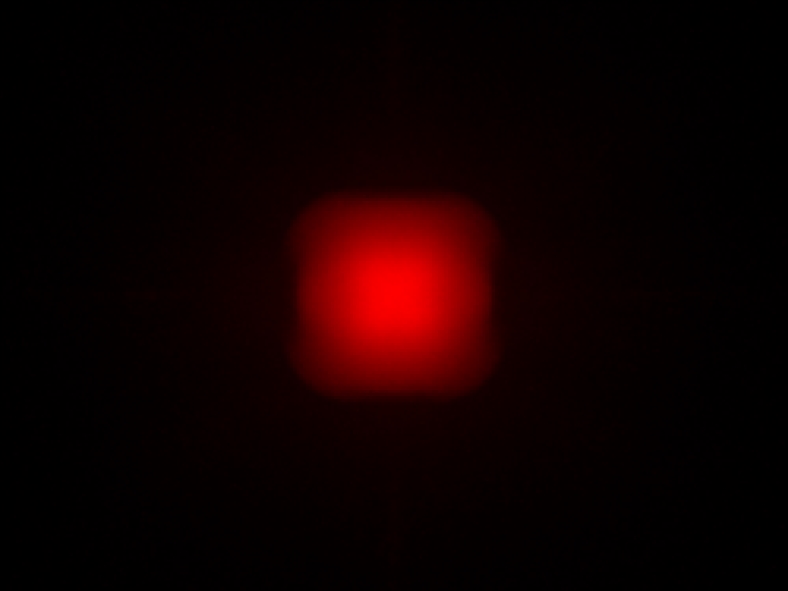

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

94.5%

FWHM:

52°

Cd/Im:

1.5

Download

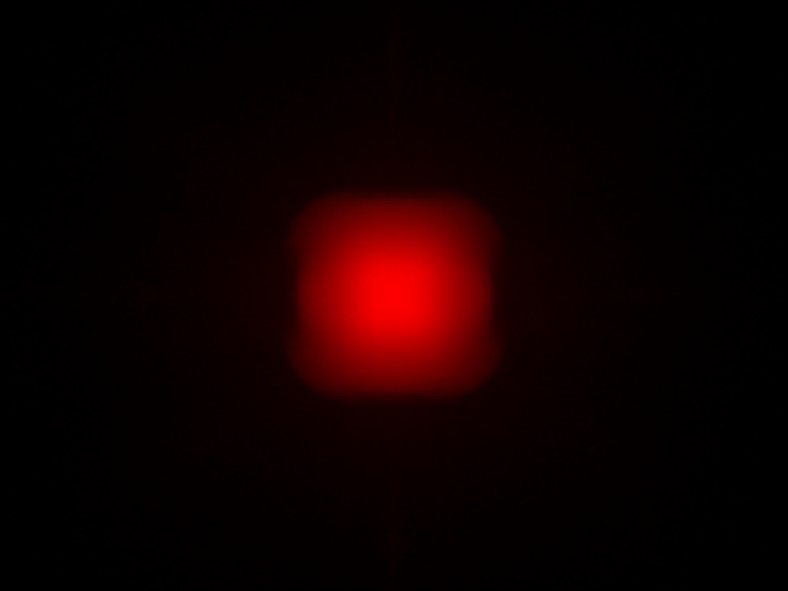

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.5


Download

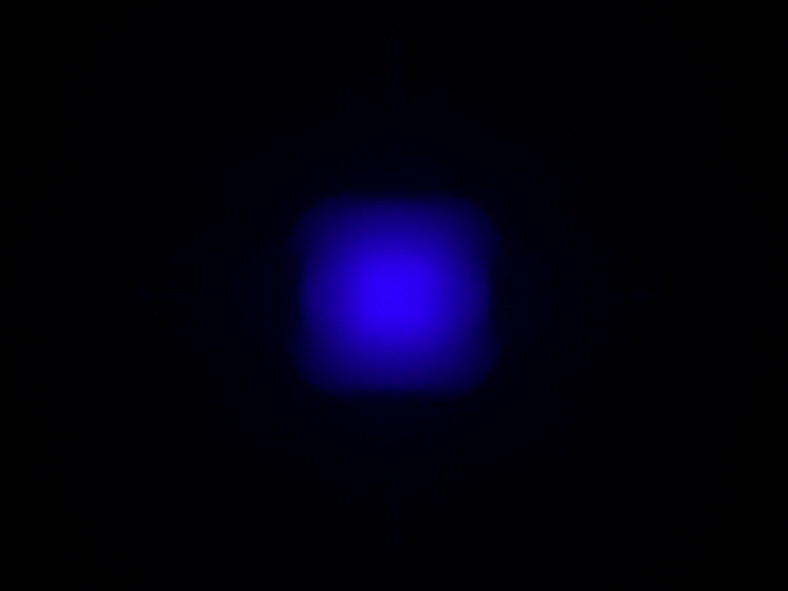

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

95.5%

FWHM:

55°

Ipk/W:

1.4


Download

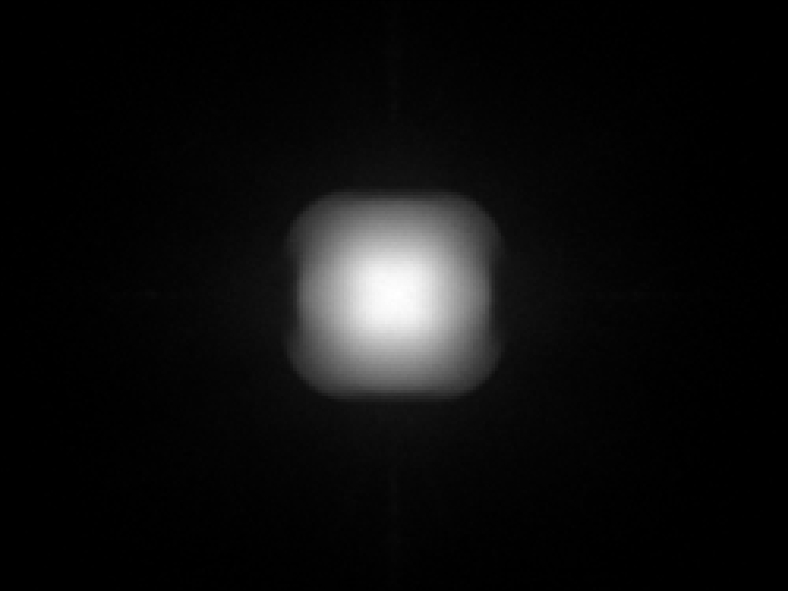

LUMILEDS LUXEON HL1Z CSP White

Eff:

94.5%

FWHM:

54°

Cd/Im:

1.4

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

95.0%

FWHM:

53°

Cd/Im:

1.6

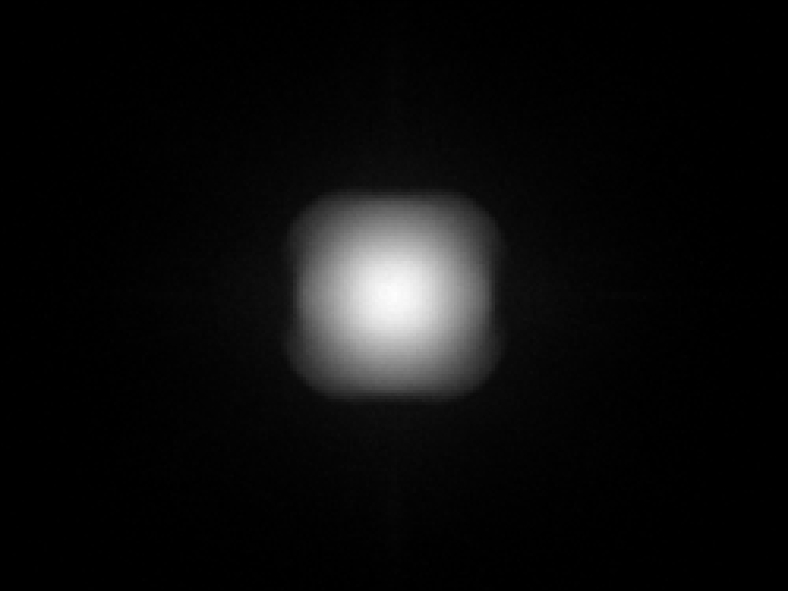

Carclo Optics – 12928 Lumileds Luxeon HL2Z - Spot Image

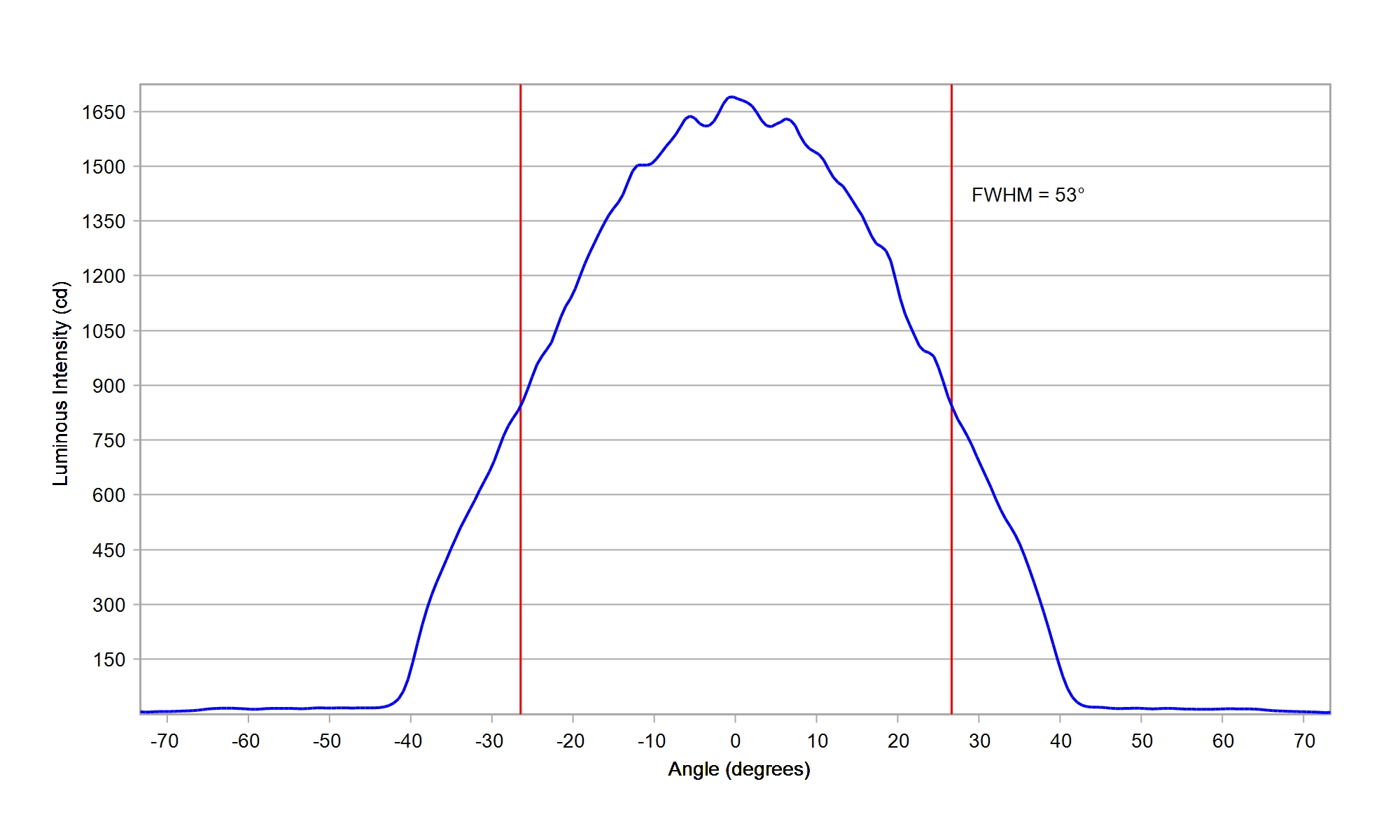

Carclo Optics – 12928 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

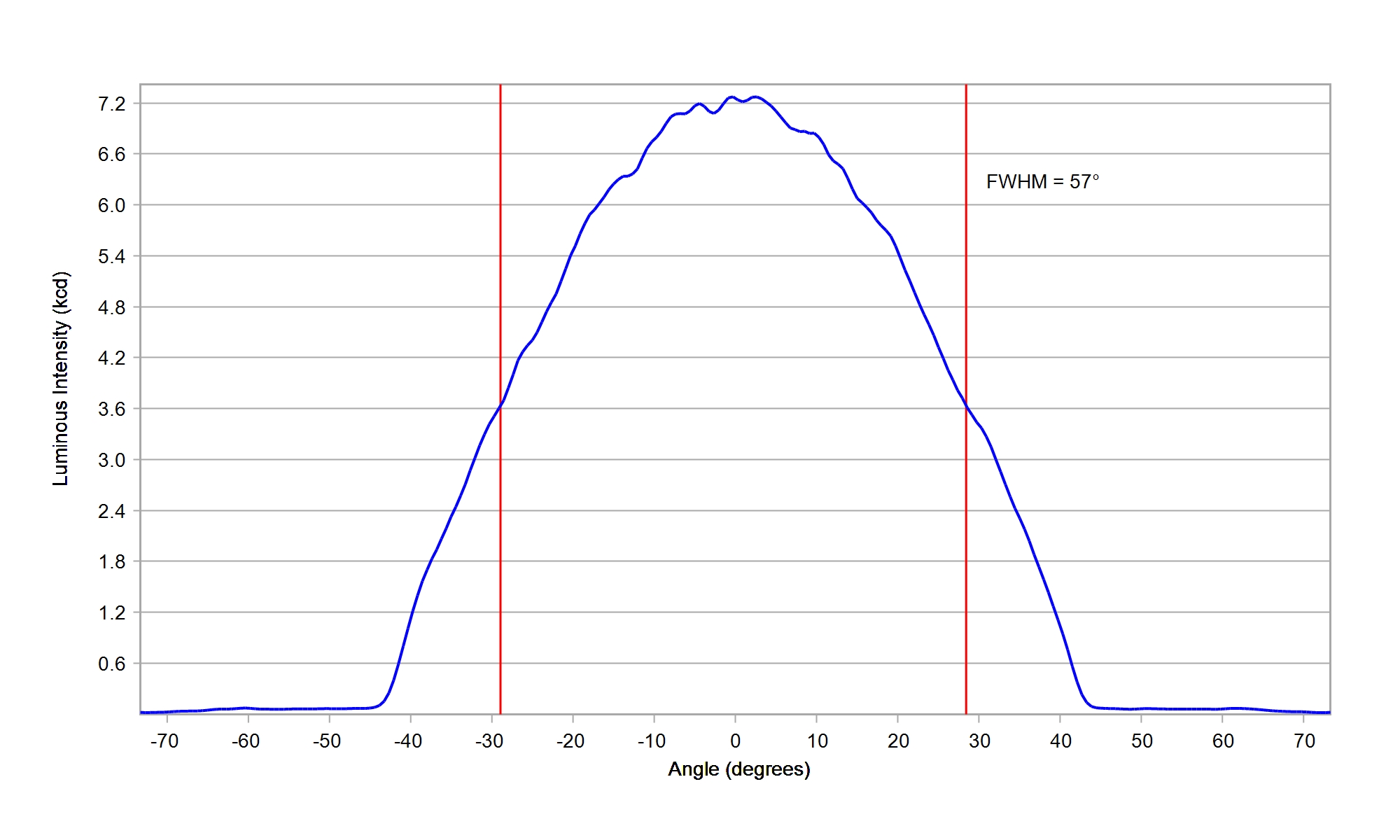

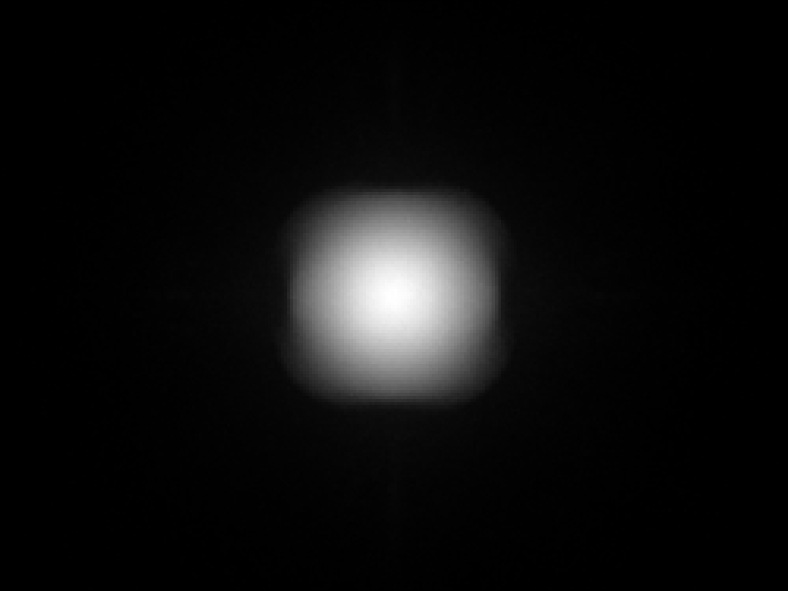

LUMILEDS LUXEON HL4Z White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4

Download

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

55°

Ipk/W:

1.4

Carclo Optics - 12928 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12928 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

55°

Ipk/W:

1.4

Carclo Optics - 12928 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12928 33Up Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

96.0%

FWHM:

60°

Cd/Im:

1.6

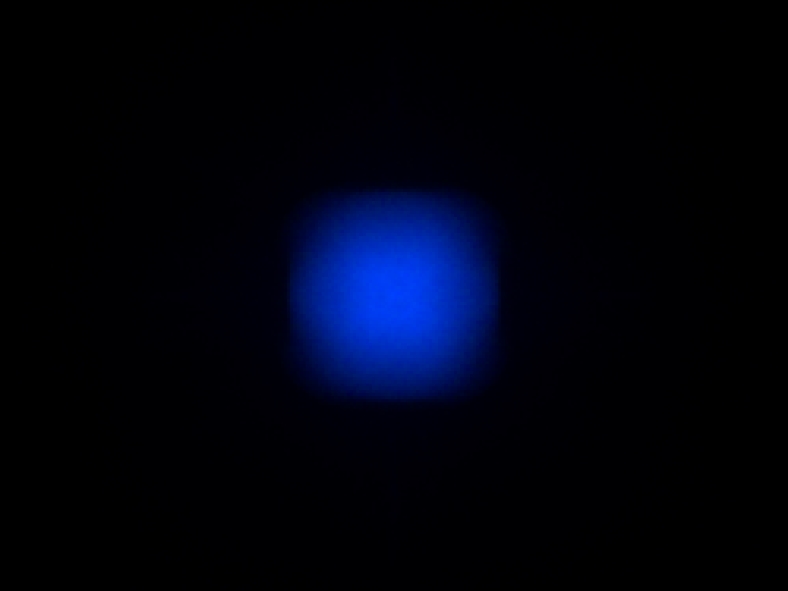

Carclo Optics – 12928 Spot Image Lumileds Luxeon Rubix Blue

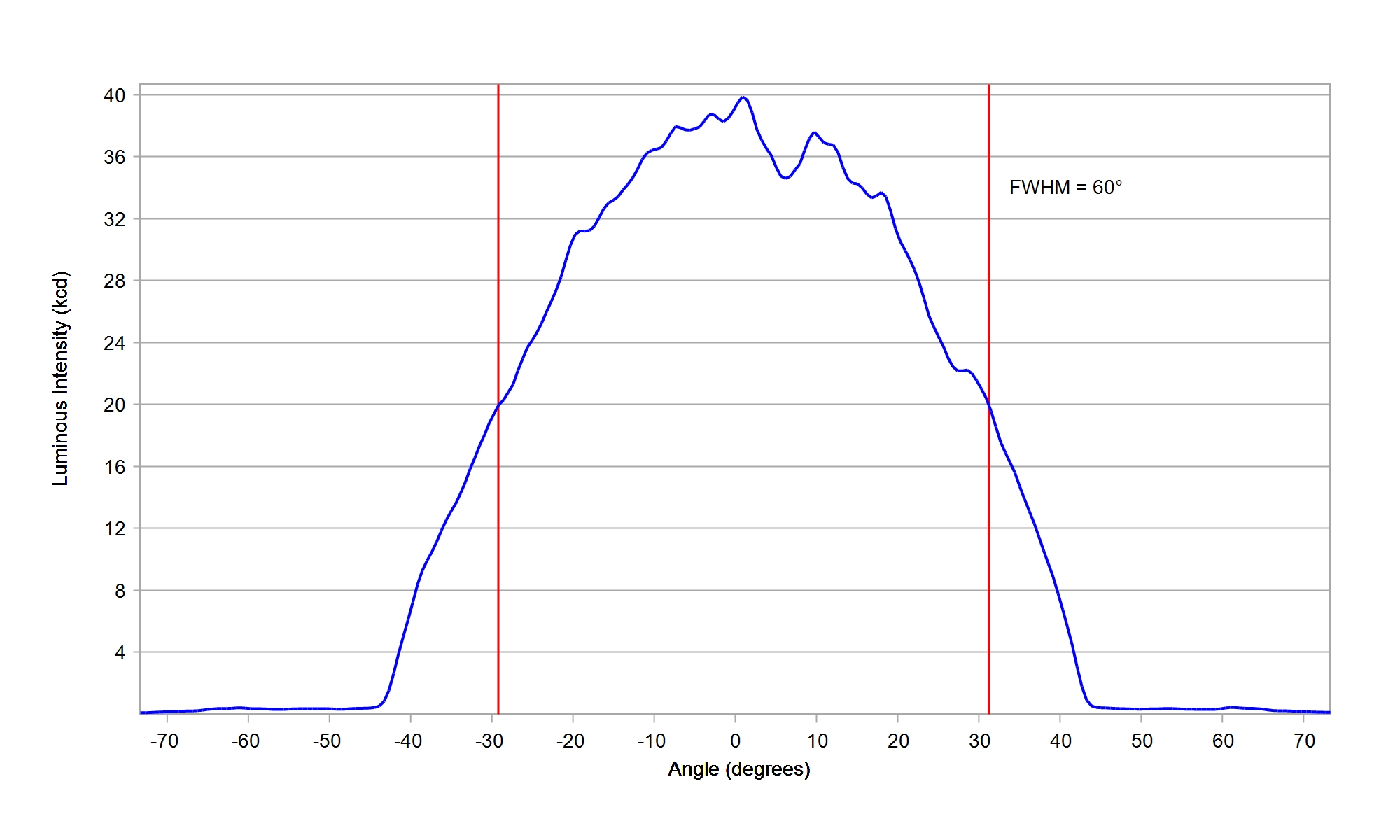

Carclo Optics – 12928 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

95.5%

FWHM:

62°

Cd/Im:

1.3

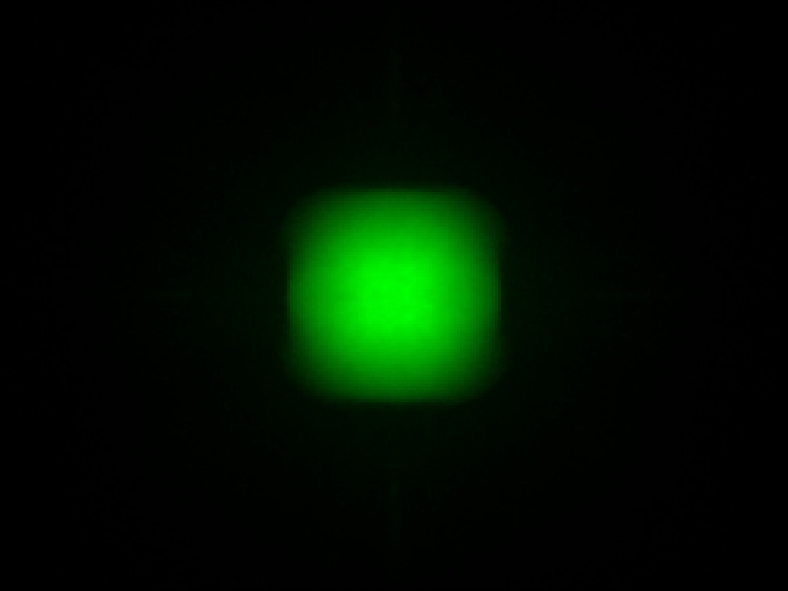

Carclo Optics – 12928 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12928 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

96.5%

FWHM:

59°

Cd/Im:

1.5

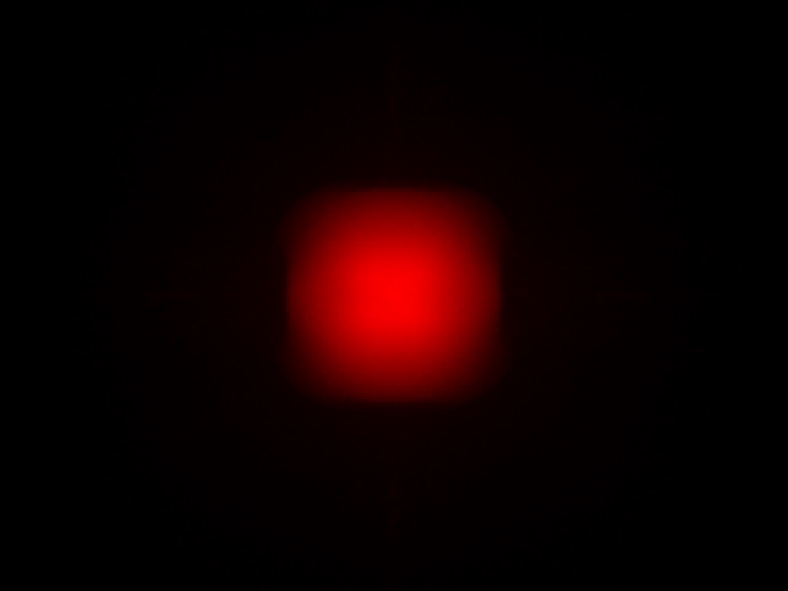

Carclo Optics – 12928 Spot Image Lumileds Luxeon Rubix Red

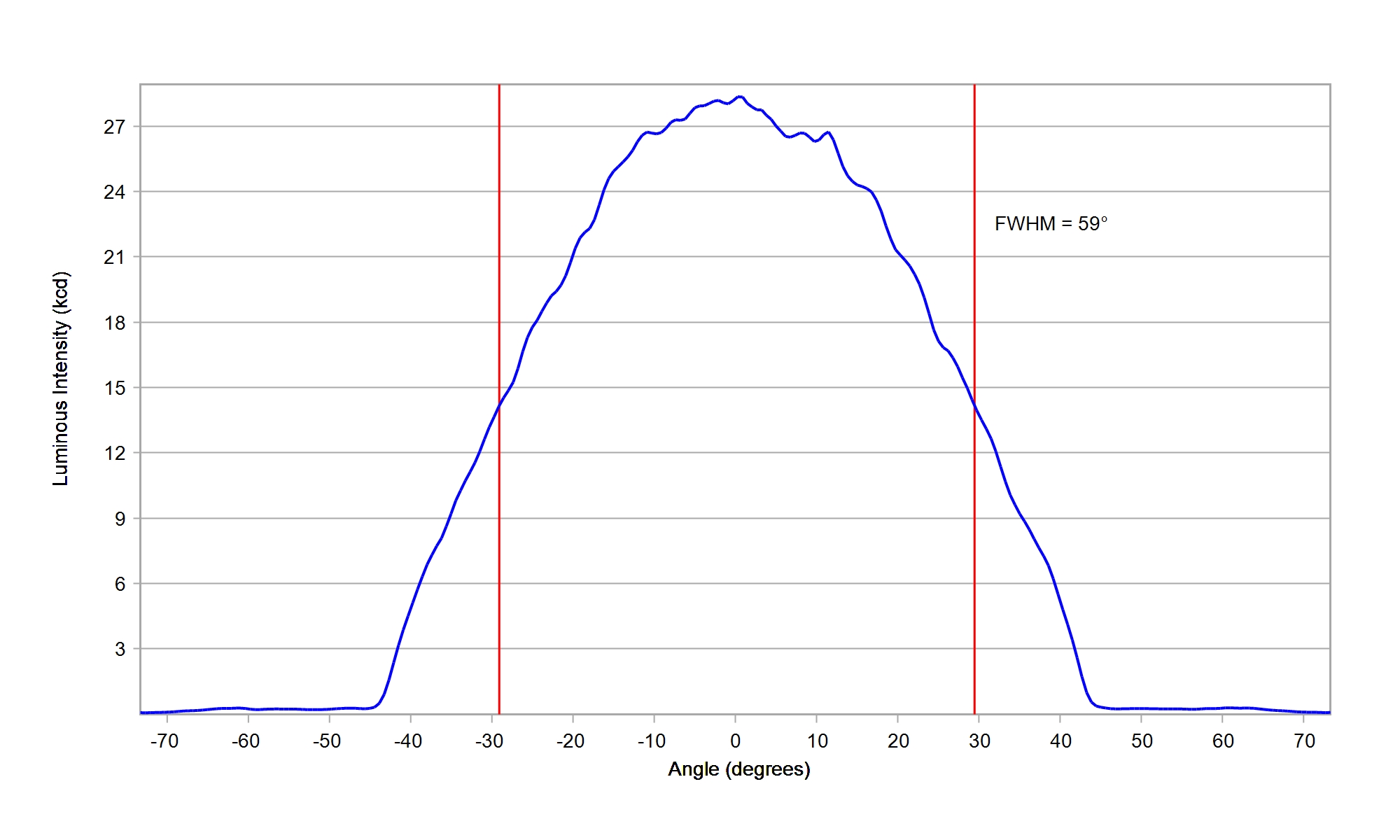

Carclo Optics – 12928 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

96.5%

FWHM:

57°

Cd/Im:

1.7

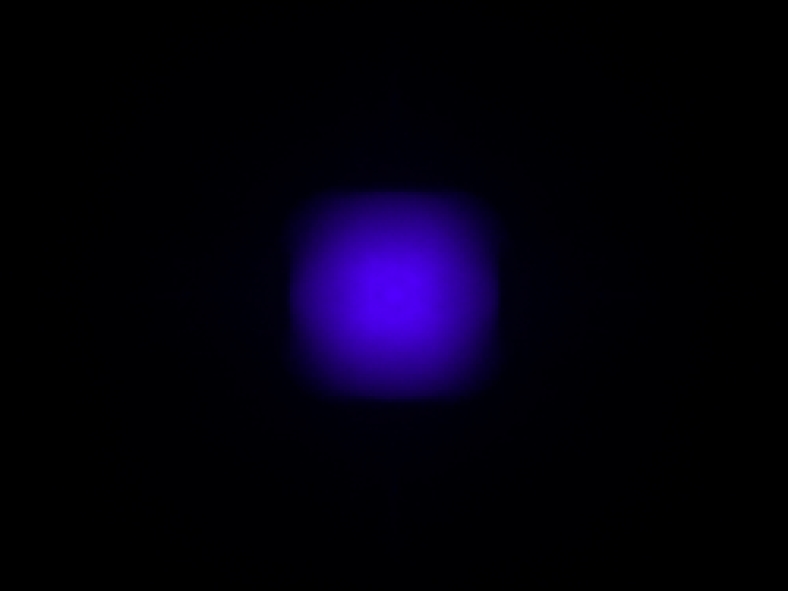

Carclo Optics – 12928 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12928 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

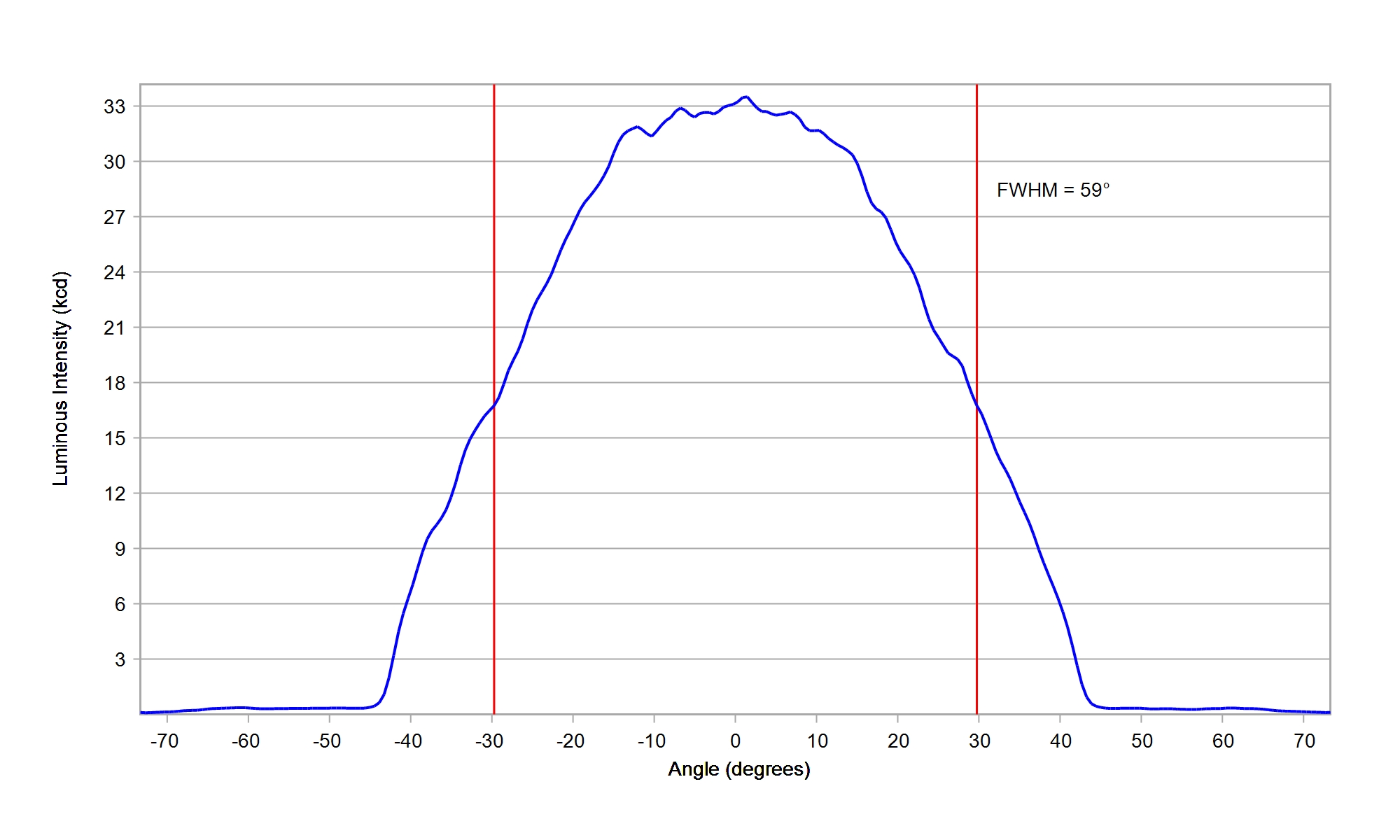

LUMILEDS LUXEON Rubix White

Eff:

95.5%

FWHM:

59.0°

Cd/Im:

1.4

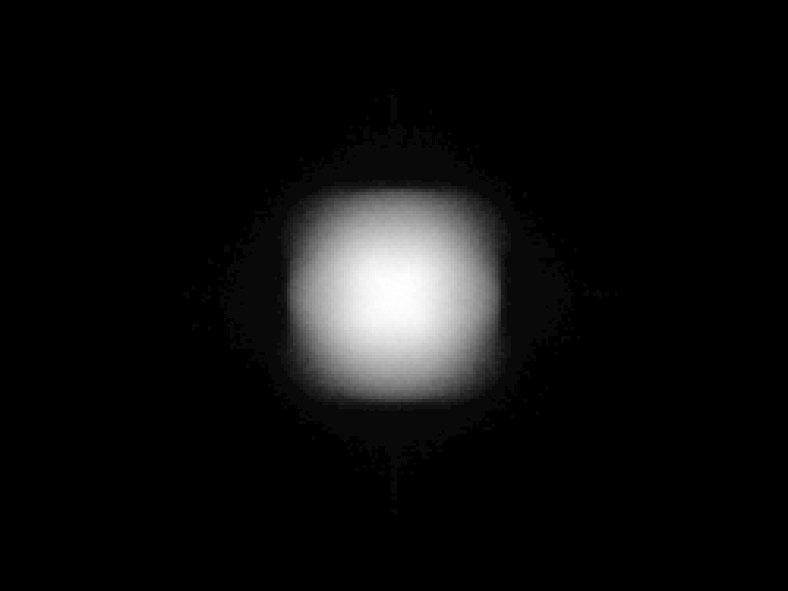

Carclo Optics - 12928 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12928 Cross Section Lumileds Luxeon Rubix White

Download

ies

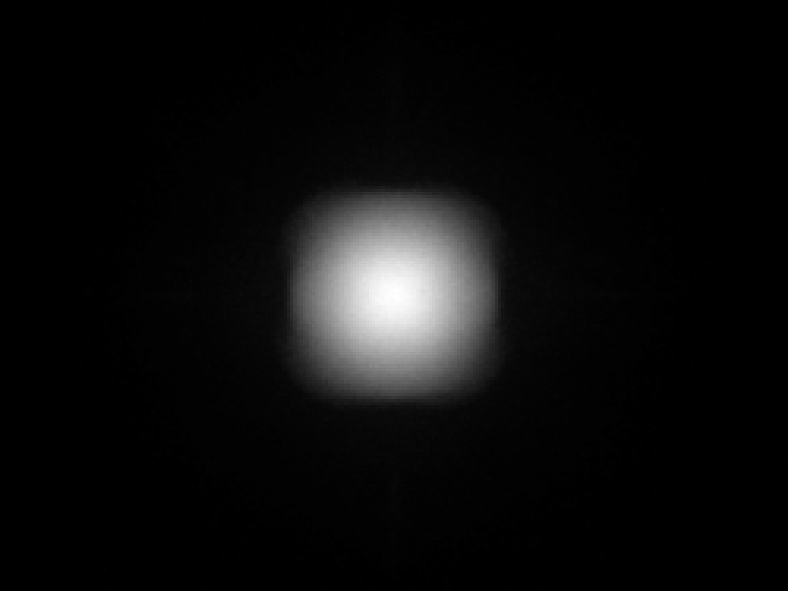

Luminus Devices MP-3030-11F2 White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.7


Download

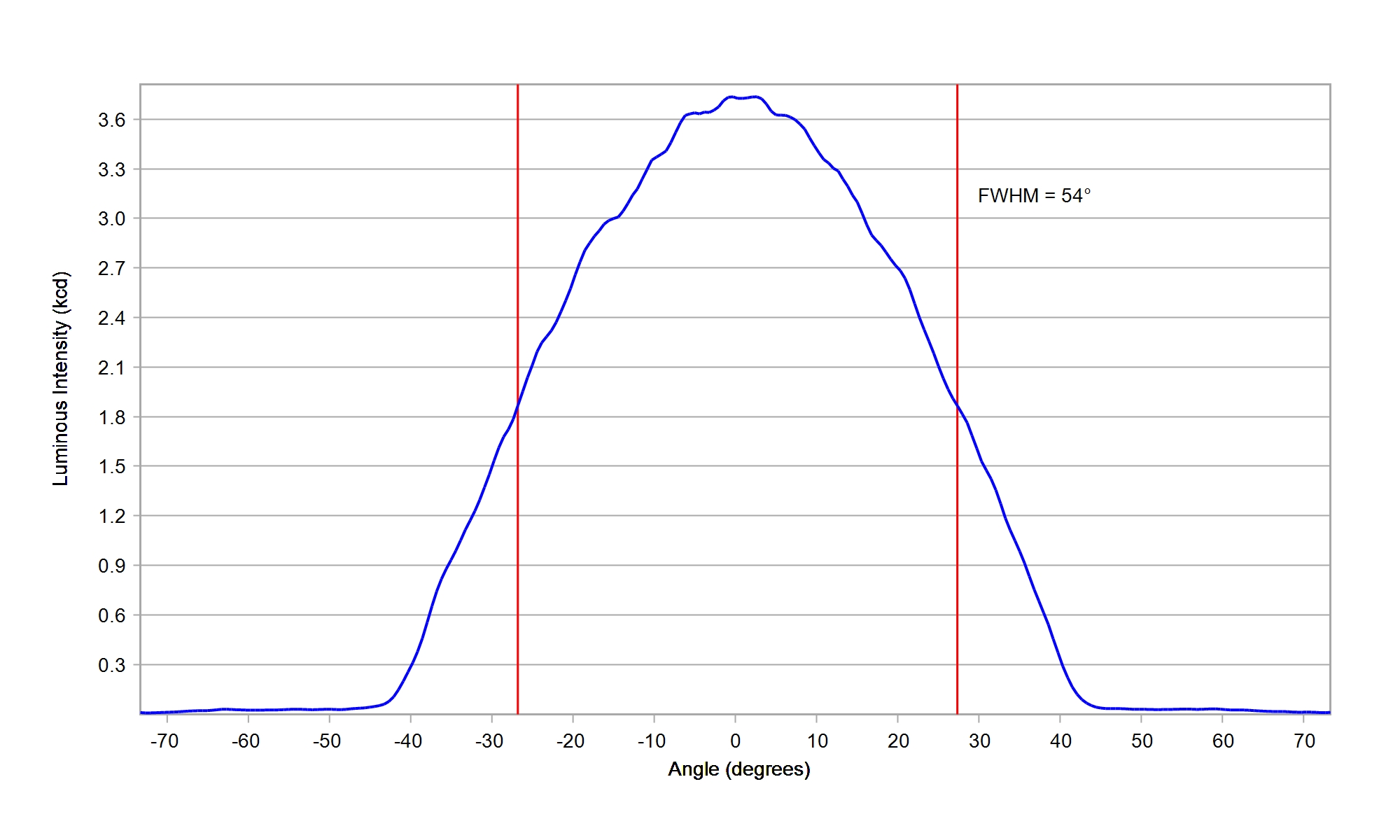

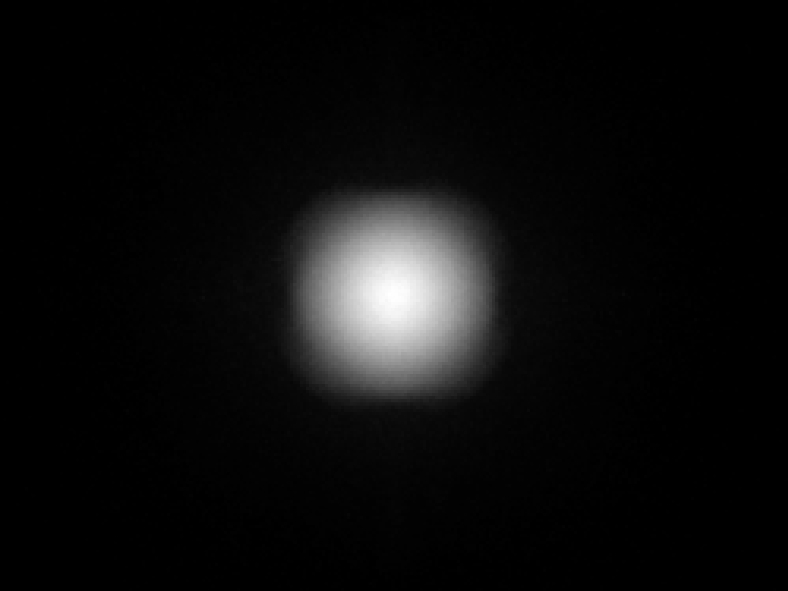

Luminus Devices MP-5050-240E White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.8


Download

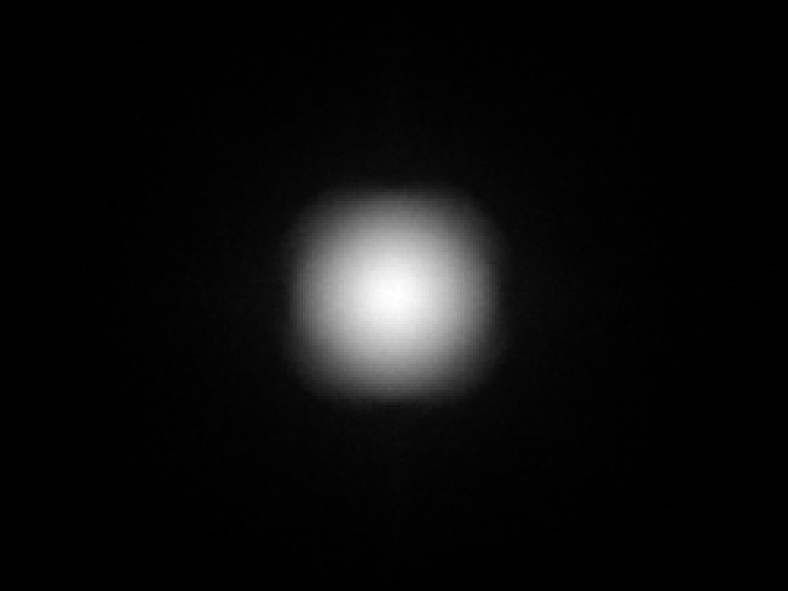

Luminus Devices MP-5050-810E White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.6


Download

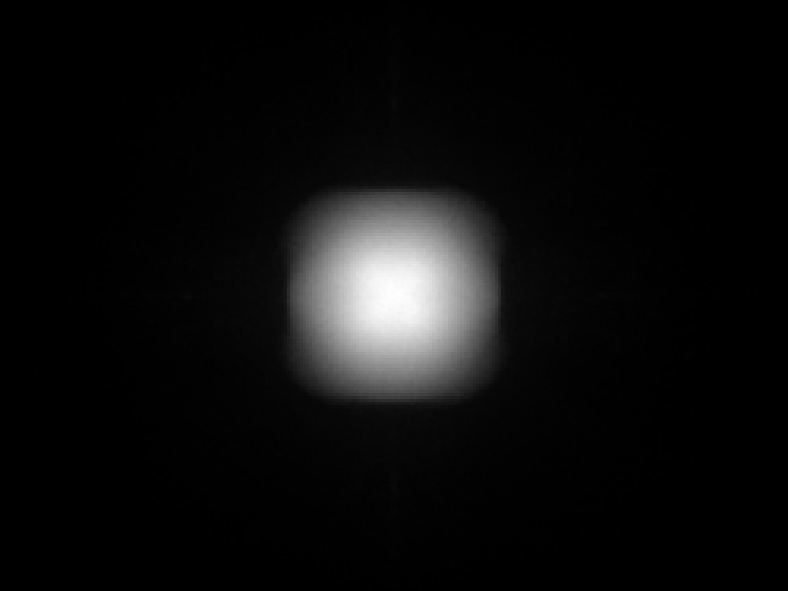

Luminus Devices SFT-12R-WES-A White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.4


Download

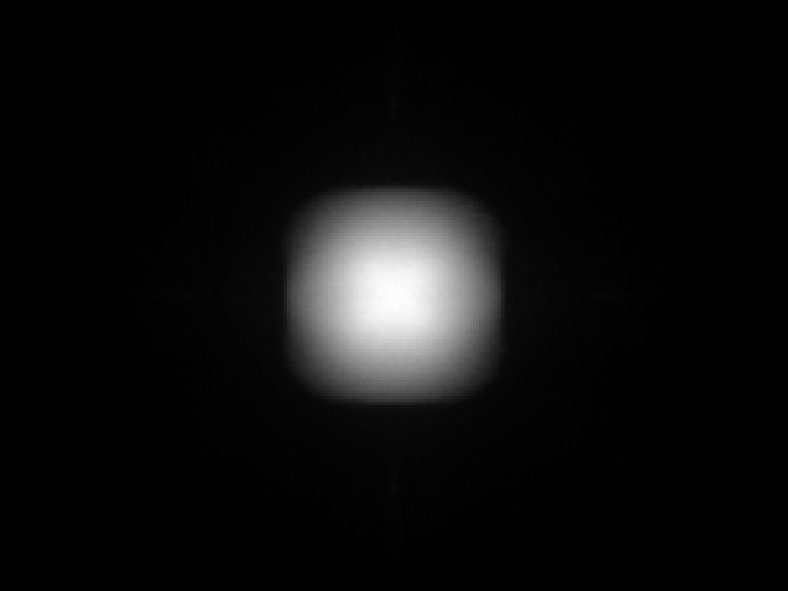

Luminus Devices SFT-12R-WES-F White

Eff:

95.5%

FWHM:

60°

Cd/Im:

1.4


Download

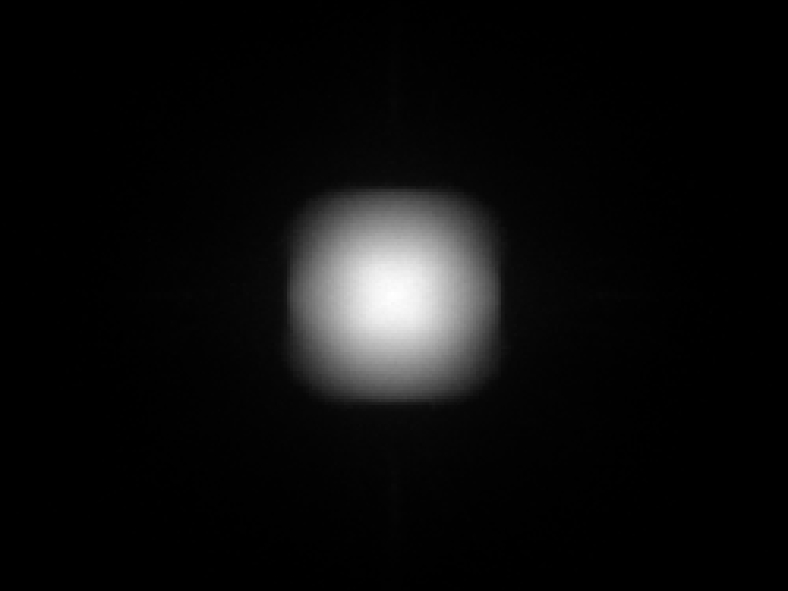

Luminus Devices SFT-25R-WES-A White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.6


Download

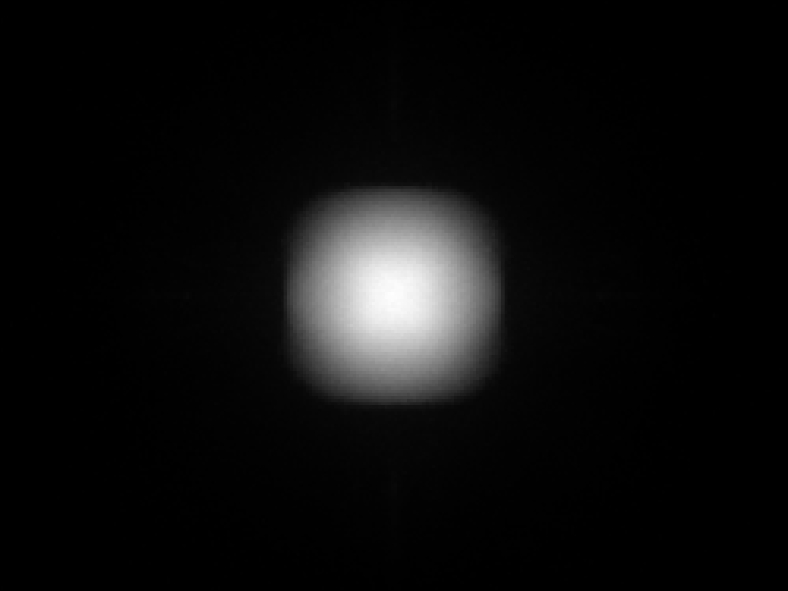

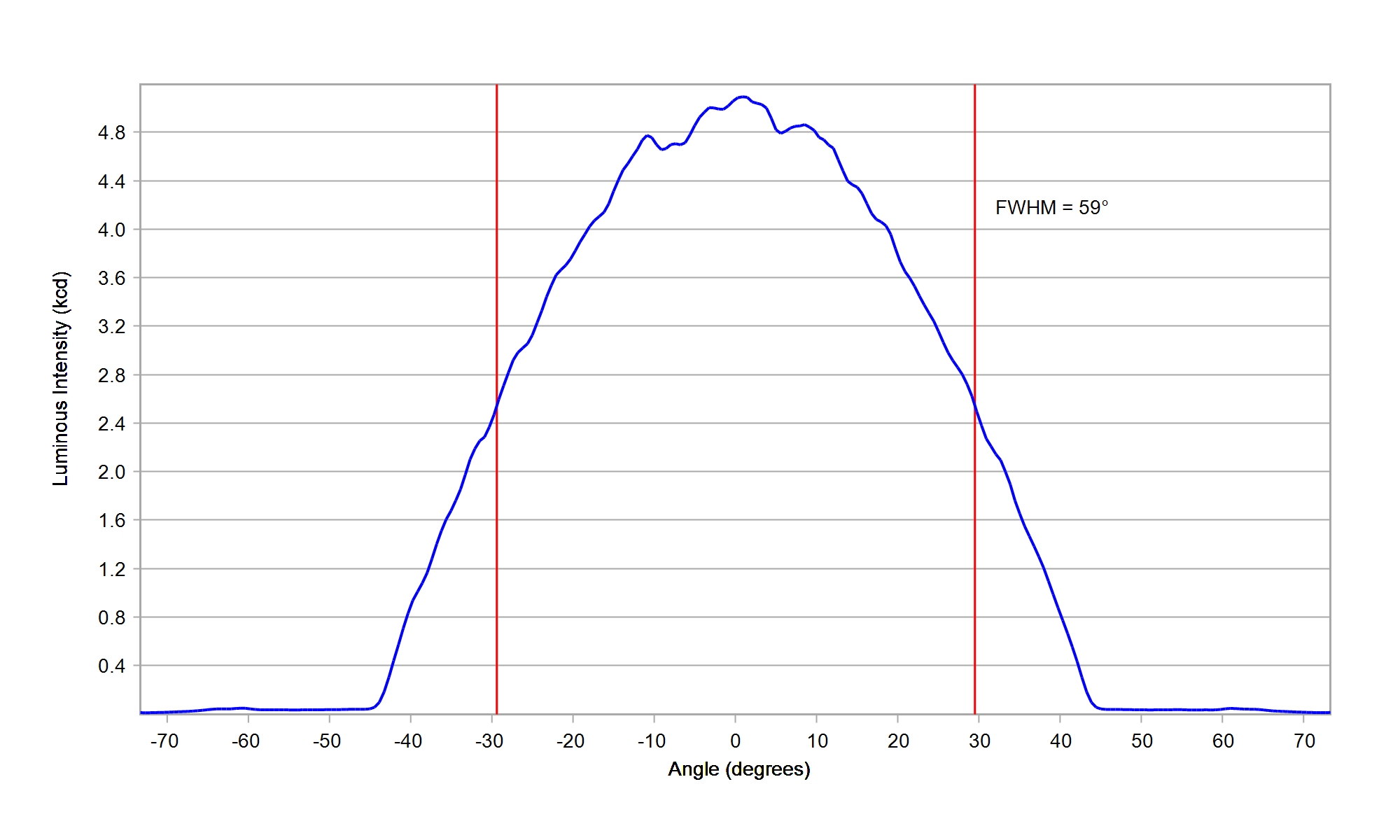

Luminus Devices SFT-25R-WES-F White

Eff:

95.5%

FWHM:

59°

Cd/Im:

1.5


Download

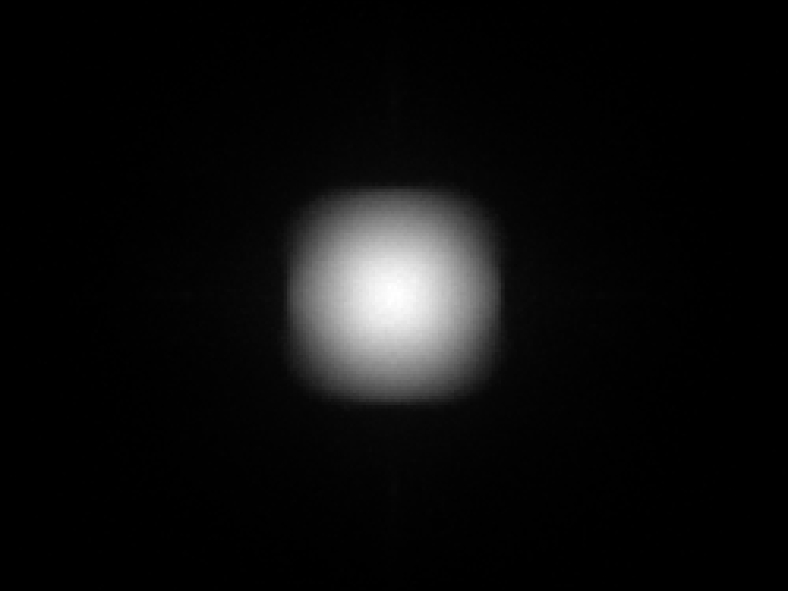

Luminus Devices SFT-40-W Gen2 White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.6


Download

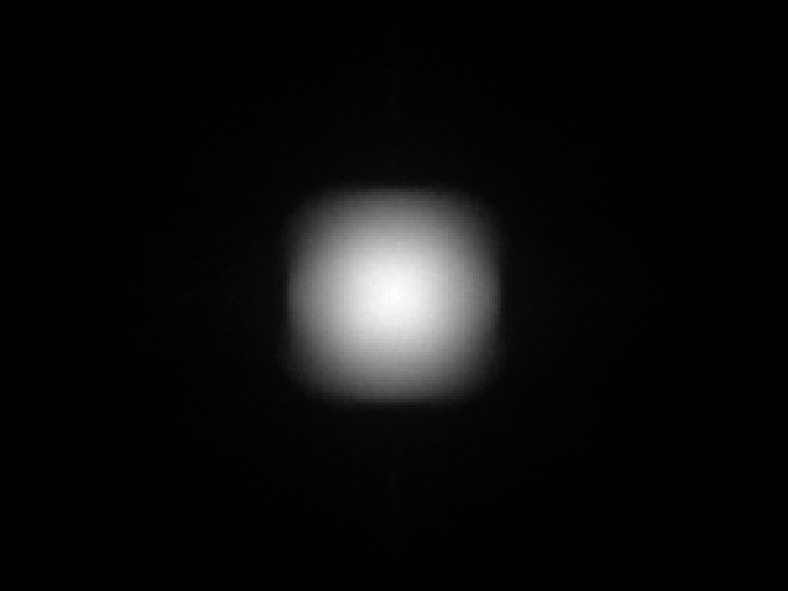

Luminus Devices SFT-40-WxS White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.6

Download

ies

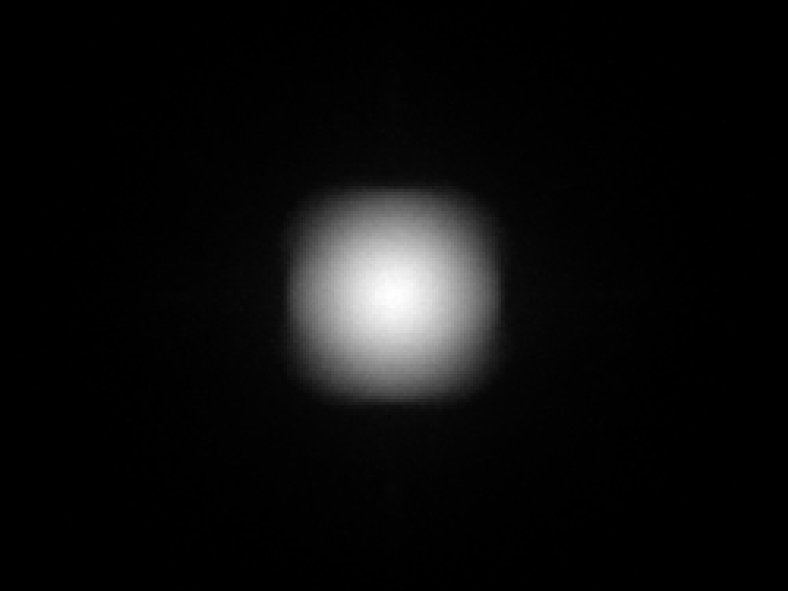

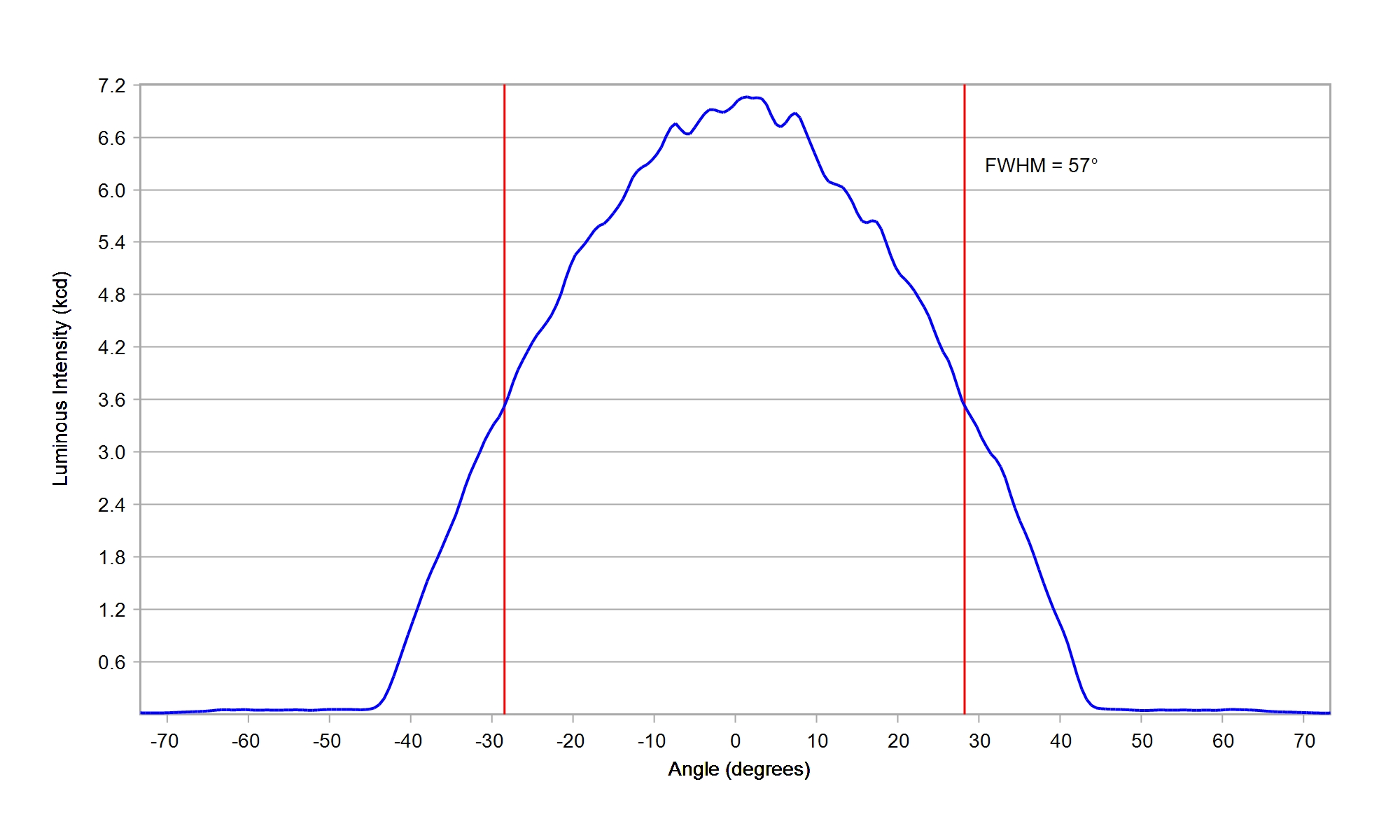

Luminus Devices SFT-70X-WxS White

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.6

Download

ies

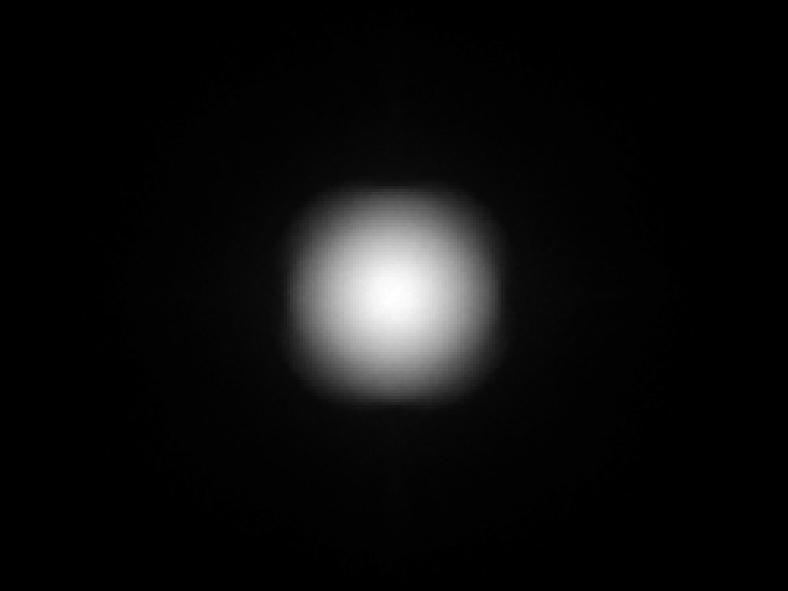

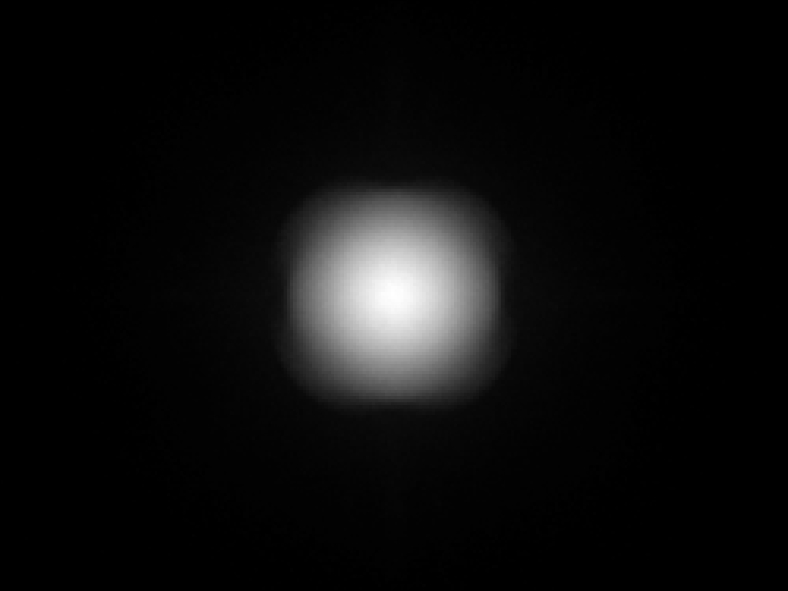

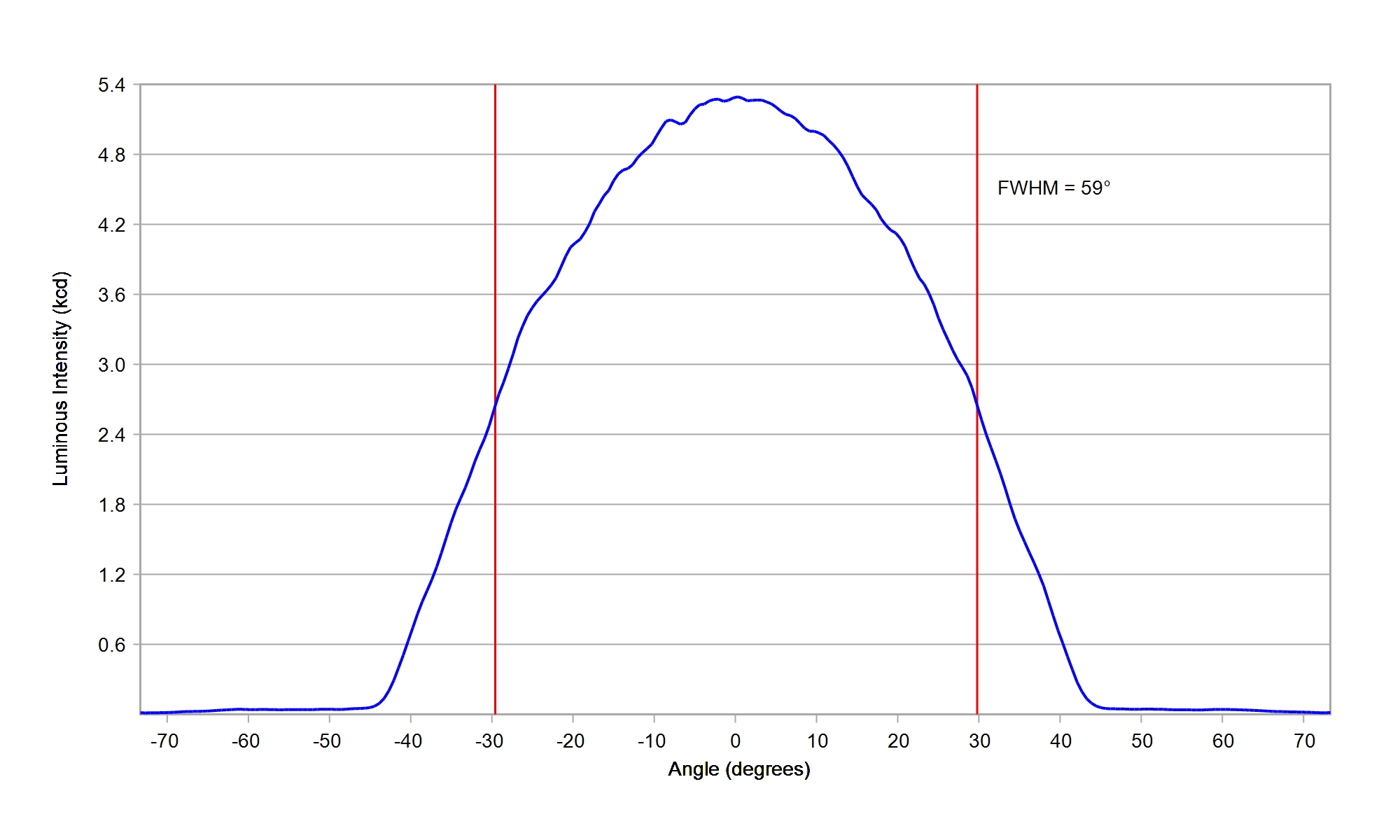

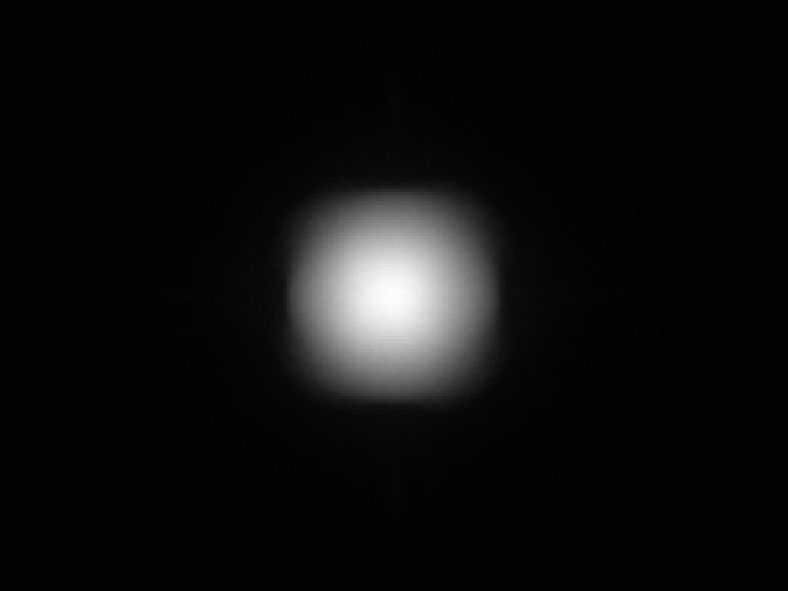

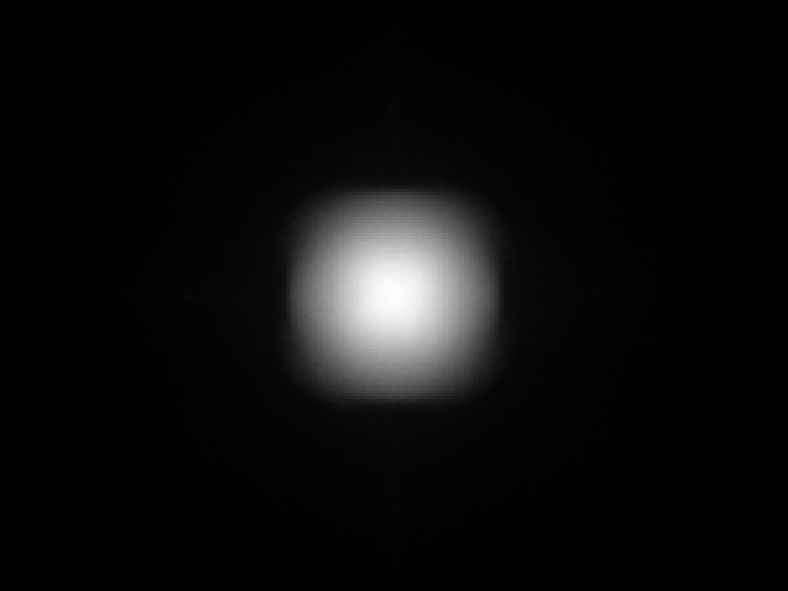

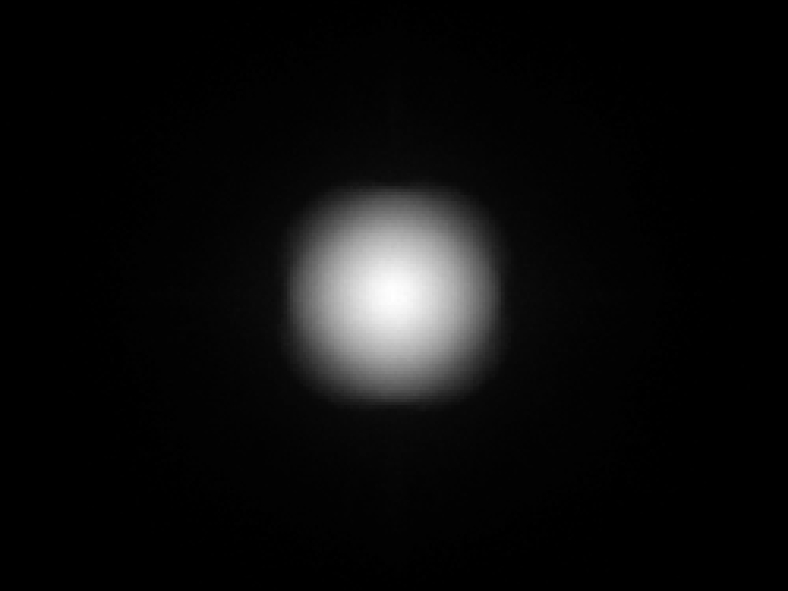

Nichia 757 White

Eff:

95.0%

FWHM:

56°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

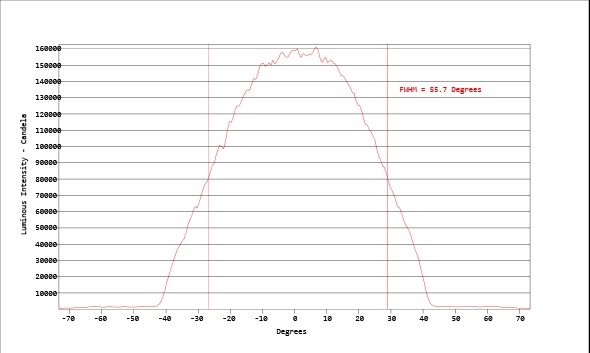

Carclo Optics - Simulated Cross Section

Download

ies

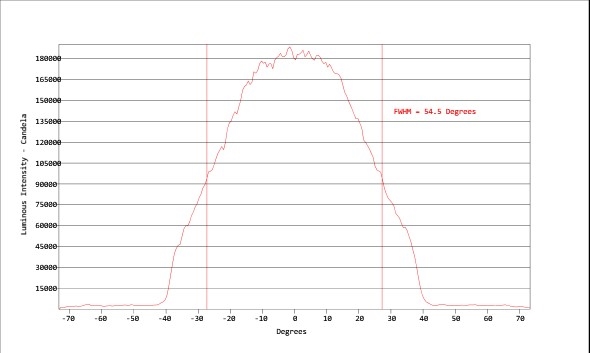

Nichia NCSW CSP E17A White

Eff:

94.5%

FWHM:

53°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

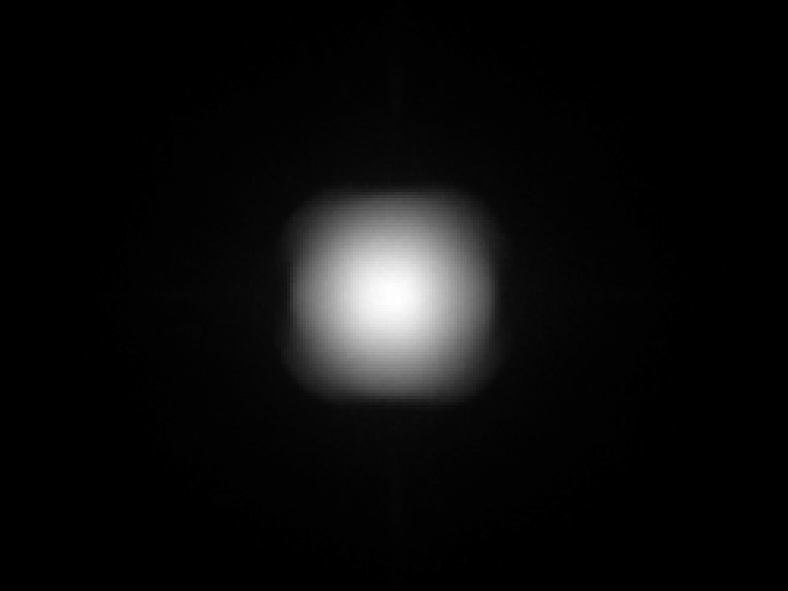

Nichia NF2W 757G-MT Tunable

Eff:

95.0%

FWHM:

55°

Cd/Im:

1.5

Carclo Optics 12928 Simulated Spot Image Nichia 757G-MT

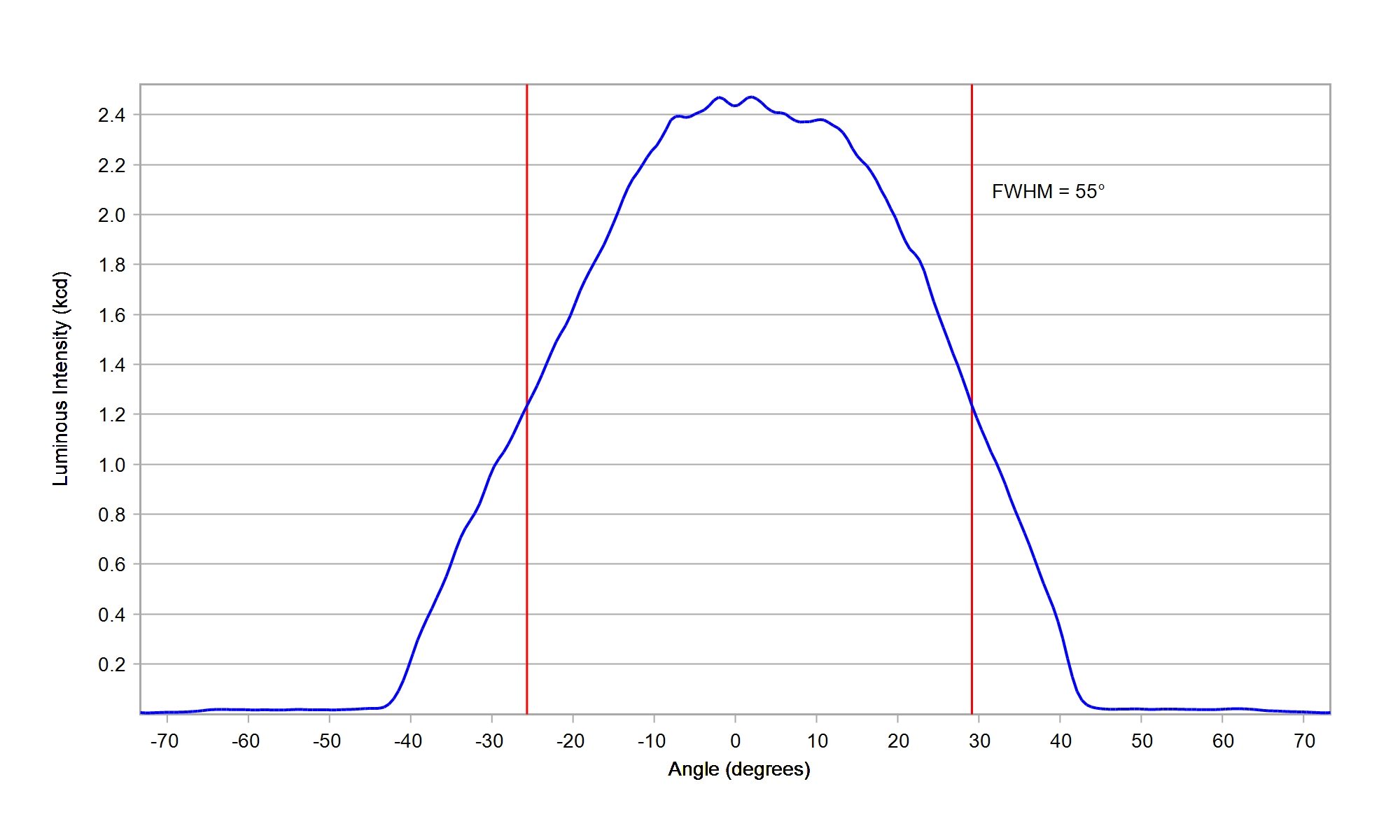

Carclo Optics 12928 Simulated cross section Image Nichia 757G-MT

Download

ies

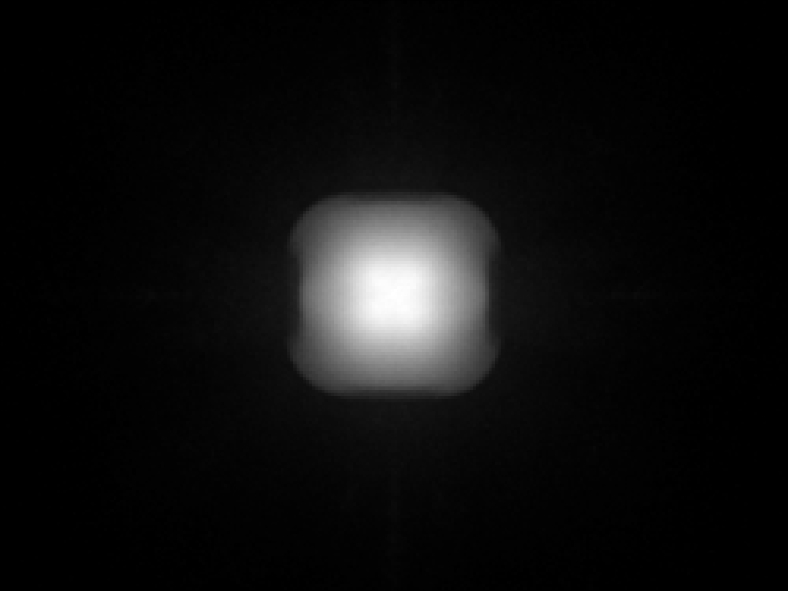

Nichia NFSW CSP E11A White

Eff:

93.5%

FWHM:

52°

Cd/Im:

1.3

Download

ies

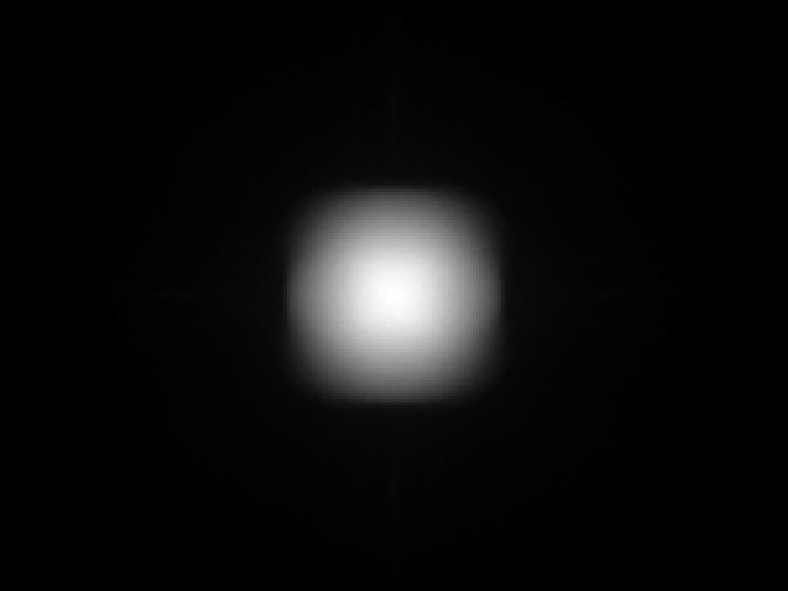

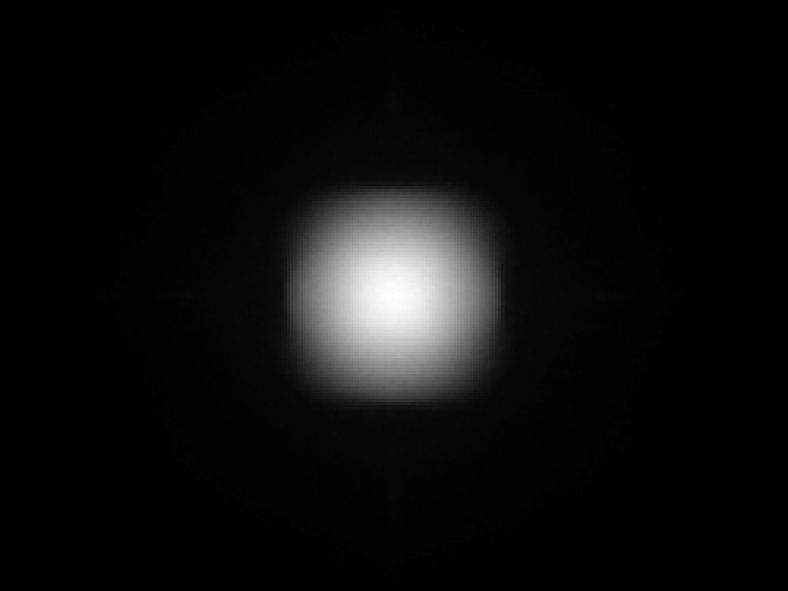

Nichia NVSW CSP E21A White

Eff:

94.5%

FWHM:

52.5°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

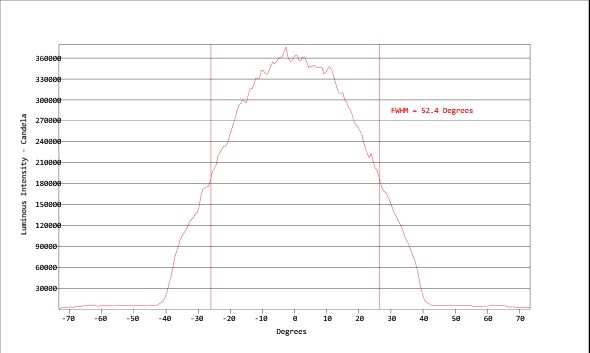

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E 2835 Gen2

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.6

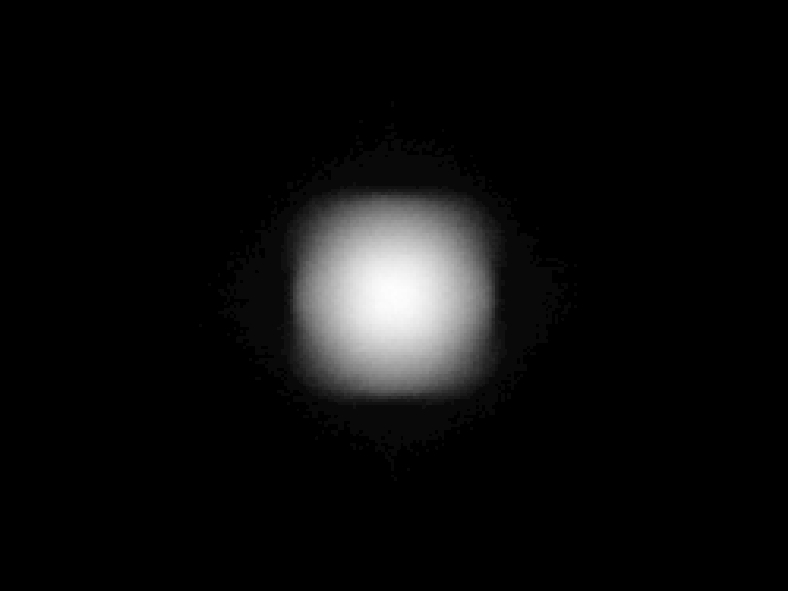

Carclo Optics - 12928 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12928 33Up Cross Section Osram DURIS E 2835 Gen2

Download

ies

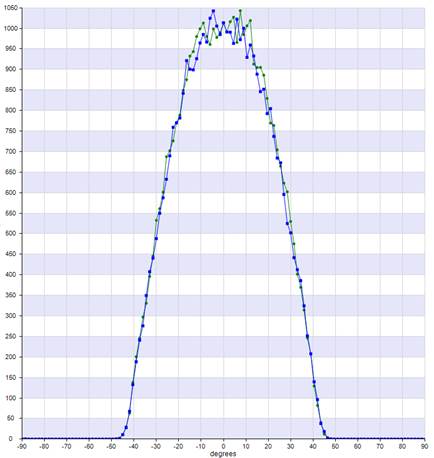

Osram DURIS E5 White

Eff:

95.0%

FWHM:

49.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 White

Eff:

95.5%

FWHM:

54.5°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S8 Gen3 White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.6

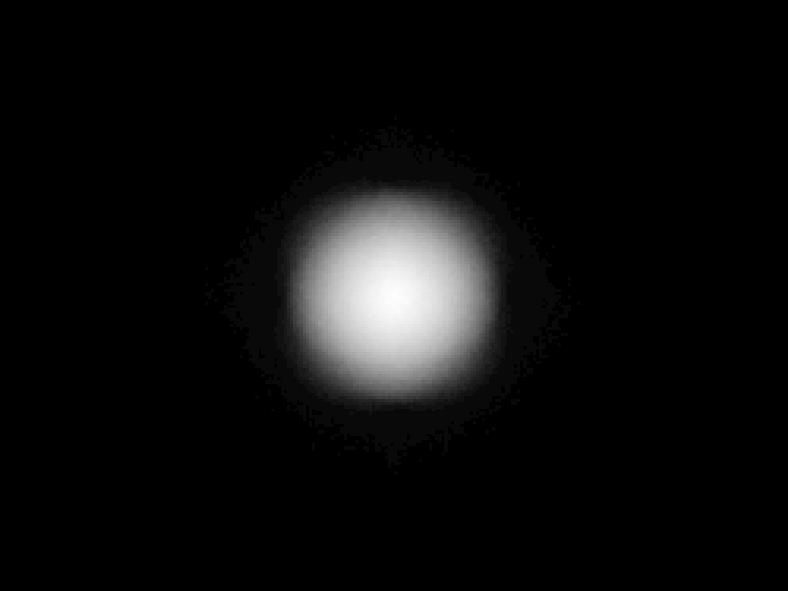

Carclo Optics - 12928 33Up Spot Image Oslon DURIS S8 Gen3

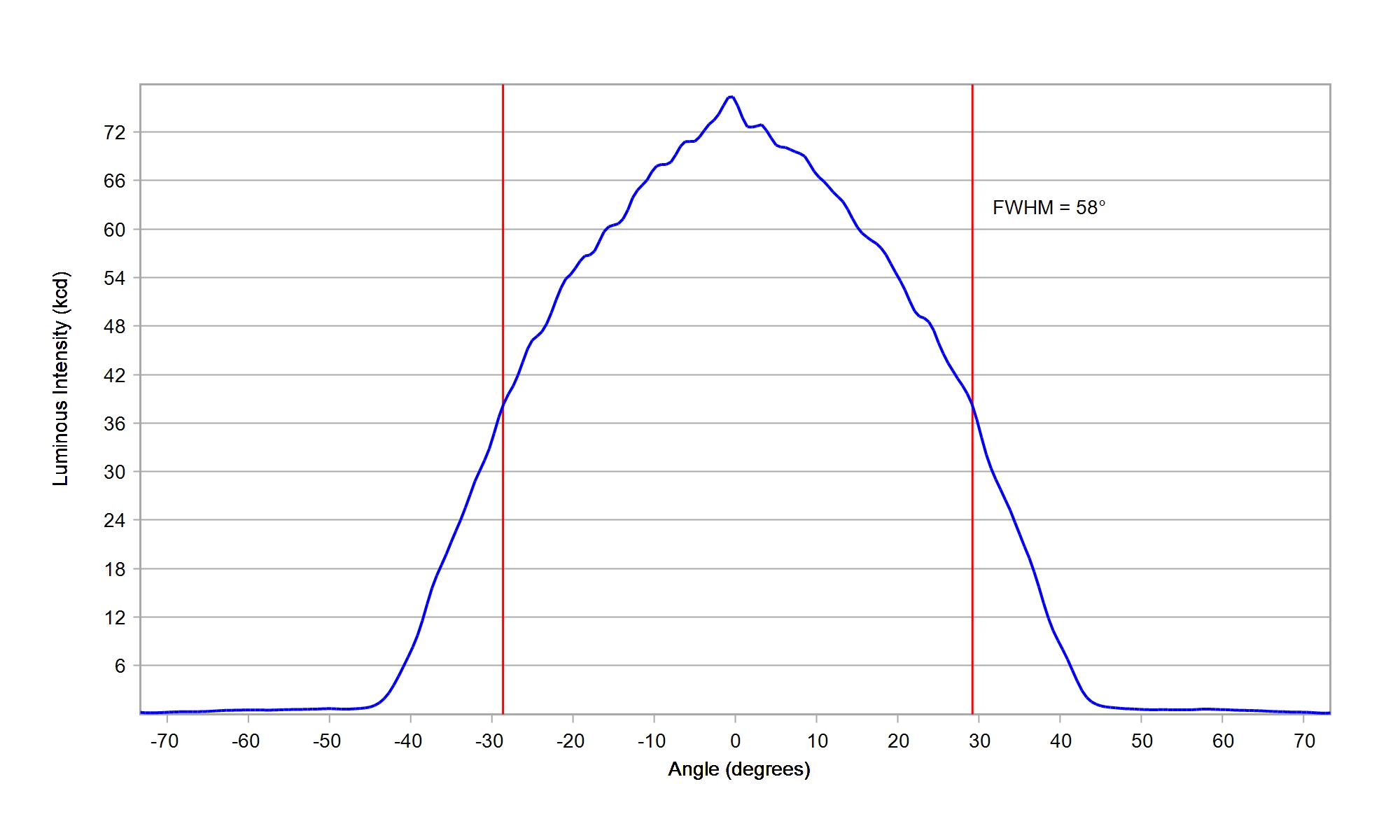

Carclo Optics - 12928 33Up Cross Section Oslon DURIS S8 Gen3

Download

ies

Osram MidPower 5630 E5 White

Eff:

90.0%

FWHM:

59.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

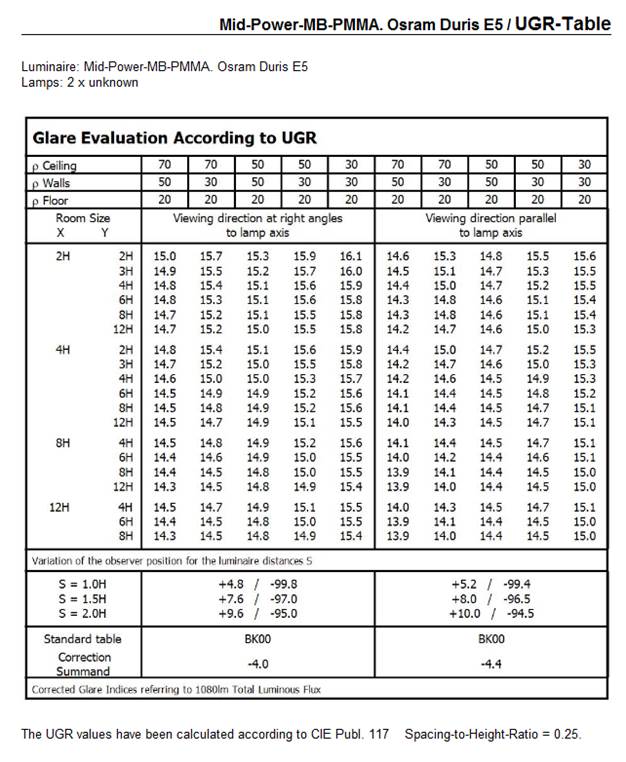

Carclo Optics - UGR Table

Download

1

Osram OSCONIQ C 2424 White

Eff:

95.5%

FWHM:

54.0°

Cd/Im:

1.6

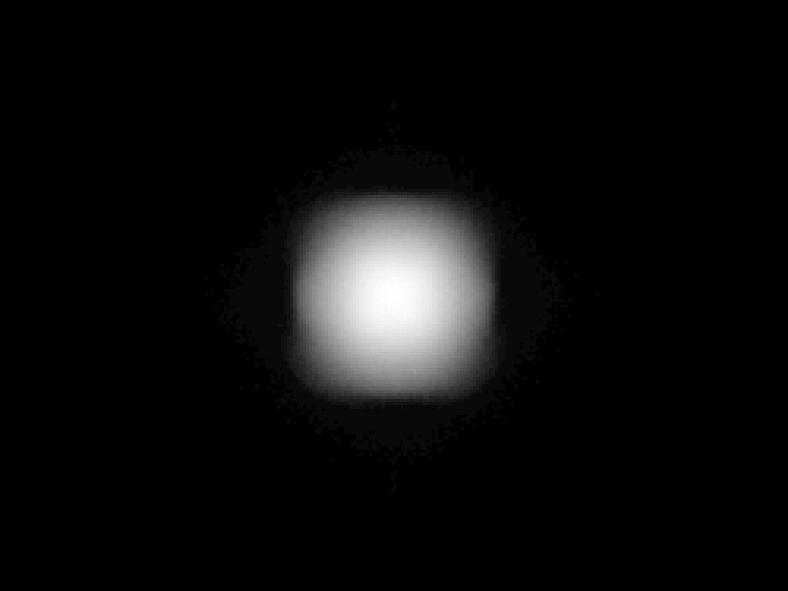

Carclo Optics - 12928 Spot Image OSCONIQ C2424

Carclo Optics - 12928 Cross Section OSCONIQ C2424

Download

ies

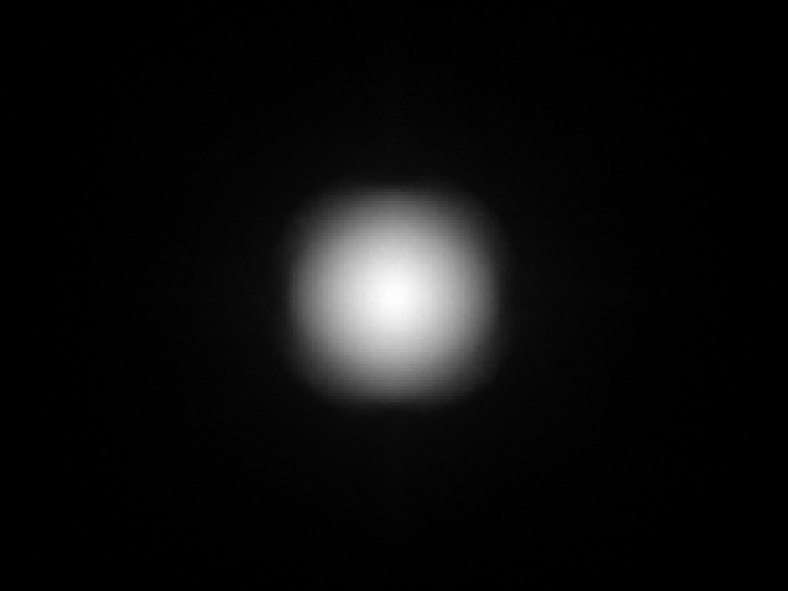

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

95.5%

FWHM:

59°

Cd/Im:

1.4



Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

94.0%

FWHM:

76°

Ipk/W:

1.1

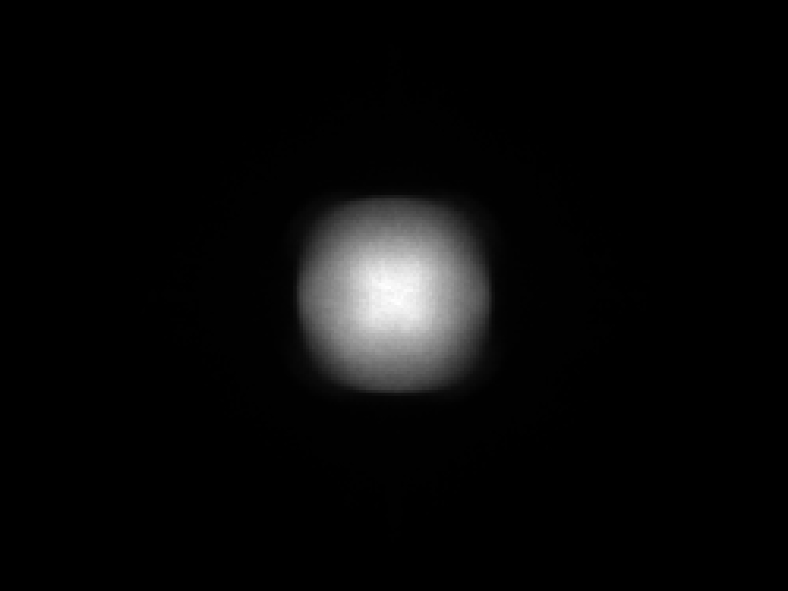

Carclo Optics – 12928 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

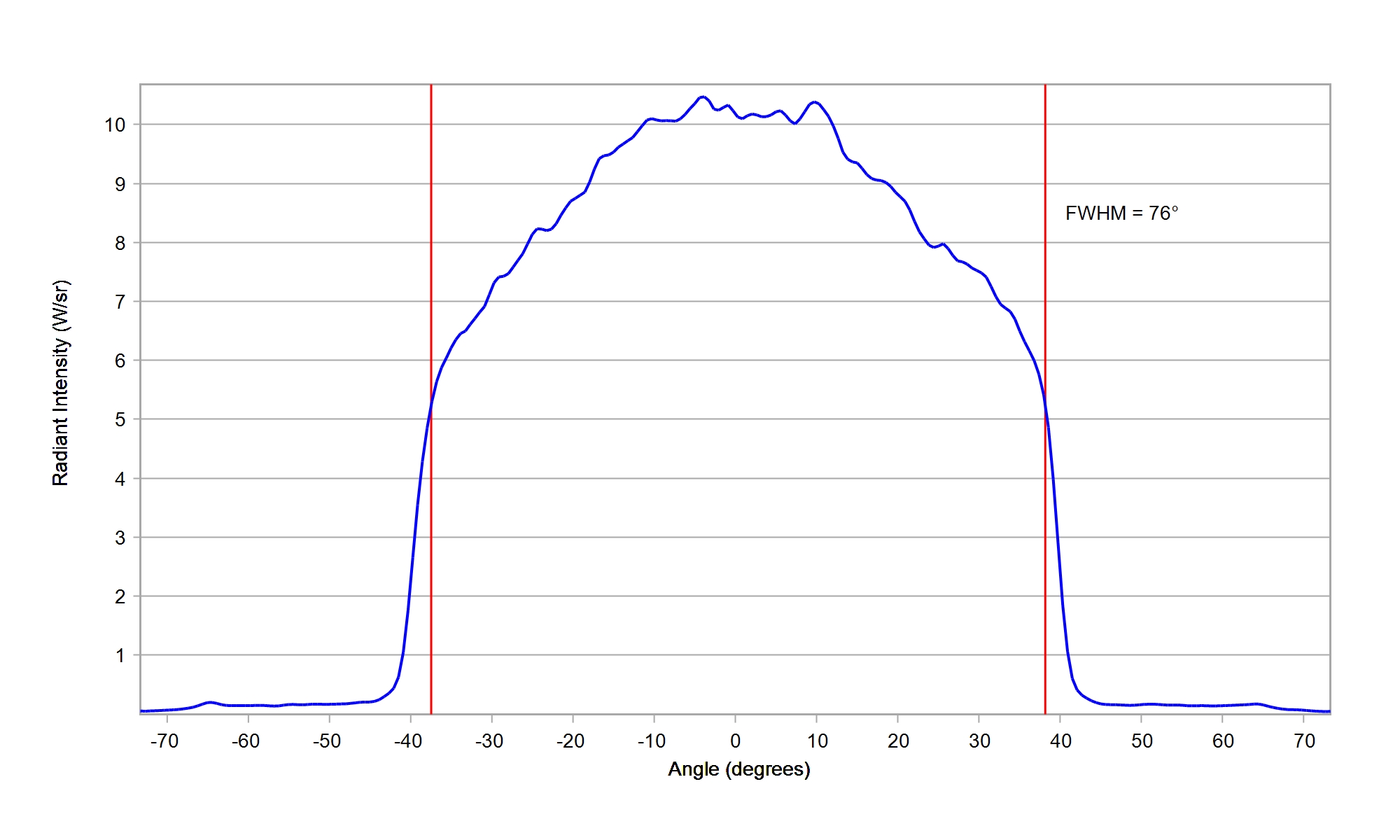

Carclo Optics – 12928 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4

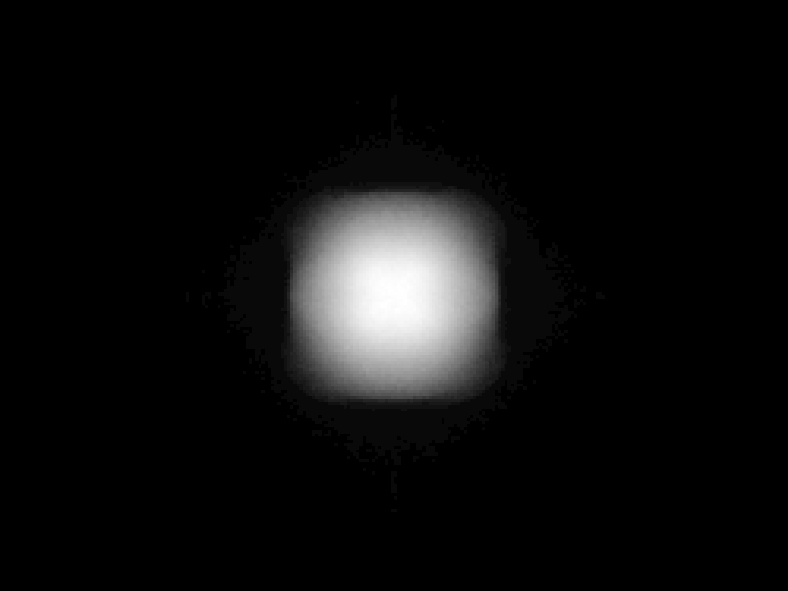

Carclo Optics – 12928 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12928 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

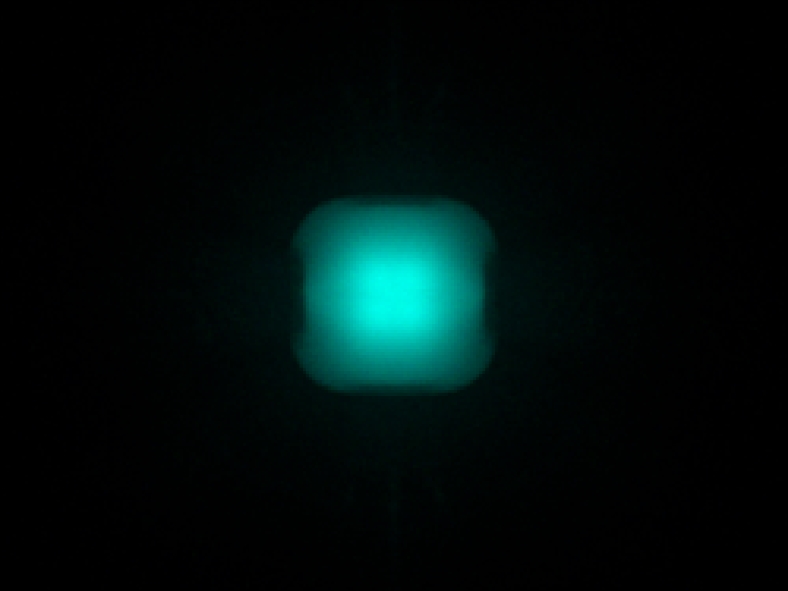

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

95.5%

FWHM:

50°

Cd/Im:

1.6


Download

ies

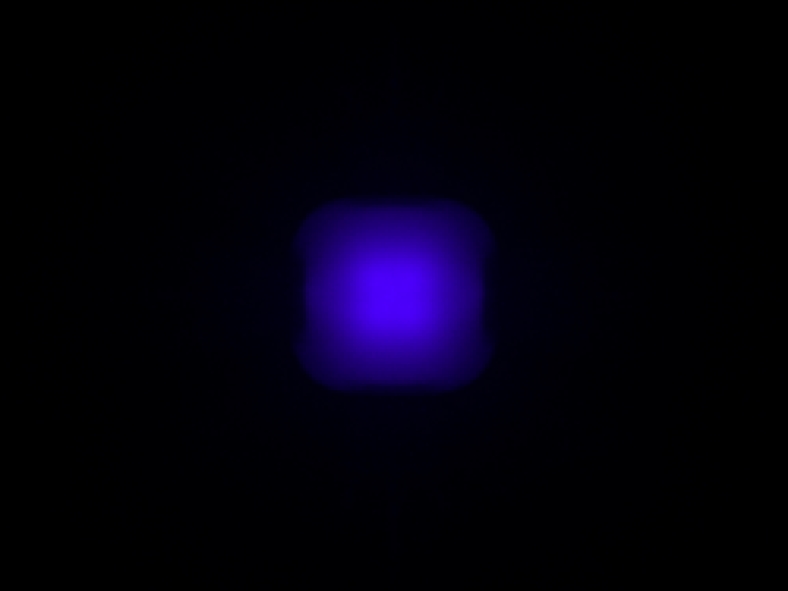

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

96.5%

FWHM:

48°

Ipk/W:

1.7


Download

ies

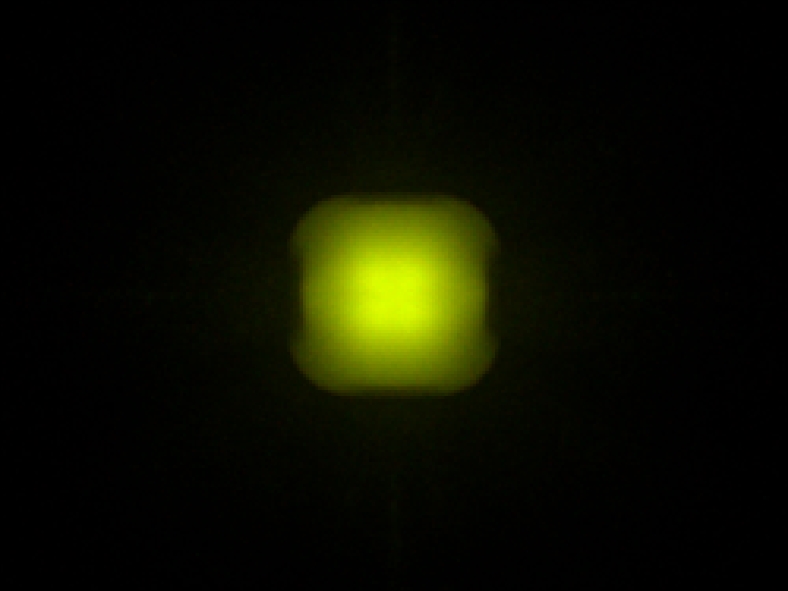

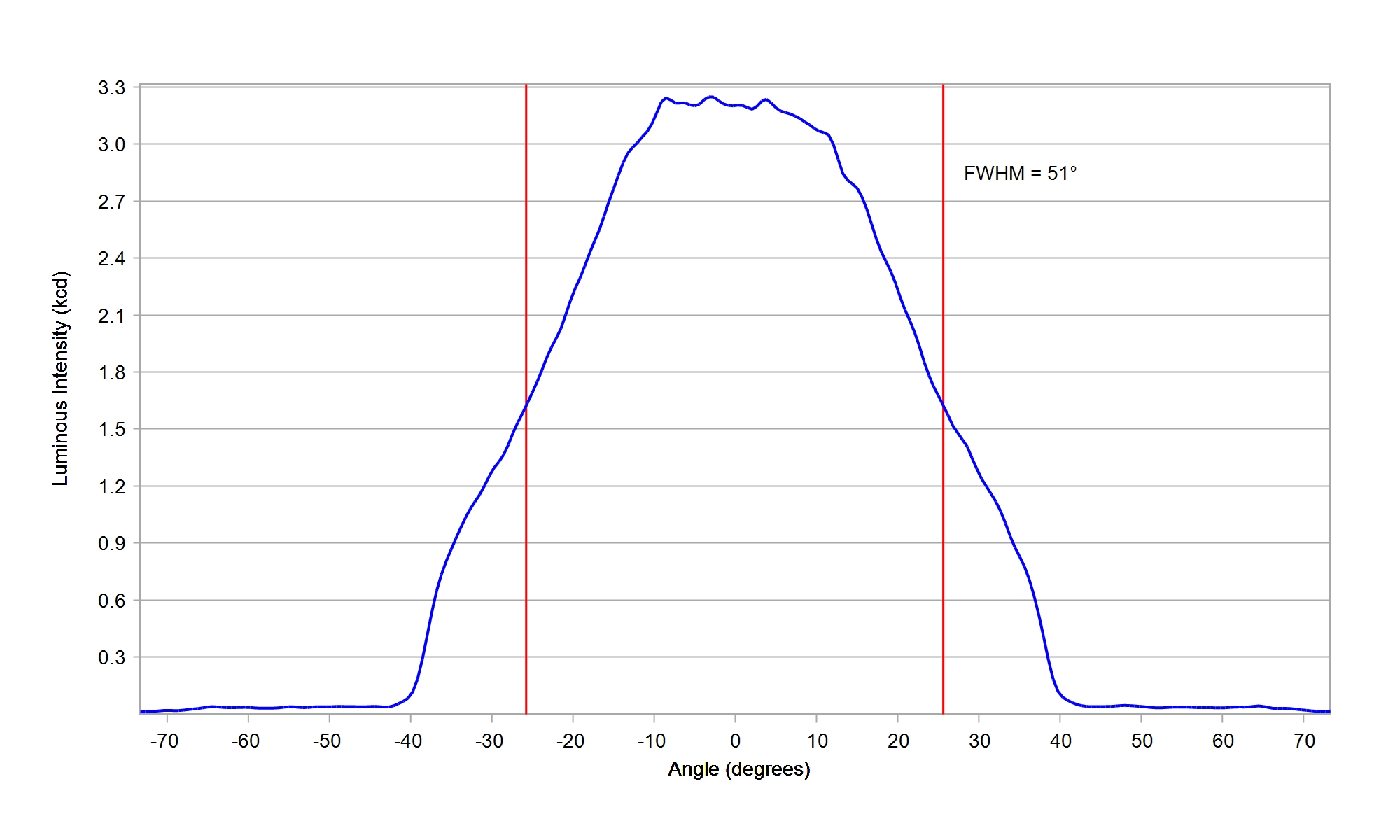

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

94.5%

FWHM:

51°

Cd/Im:

1.5


Download

ies

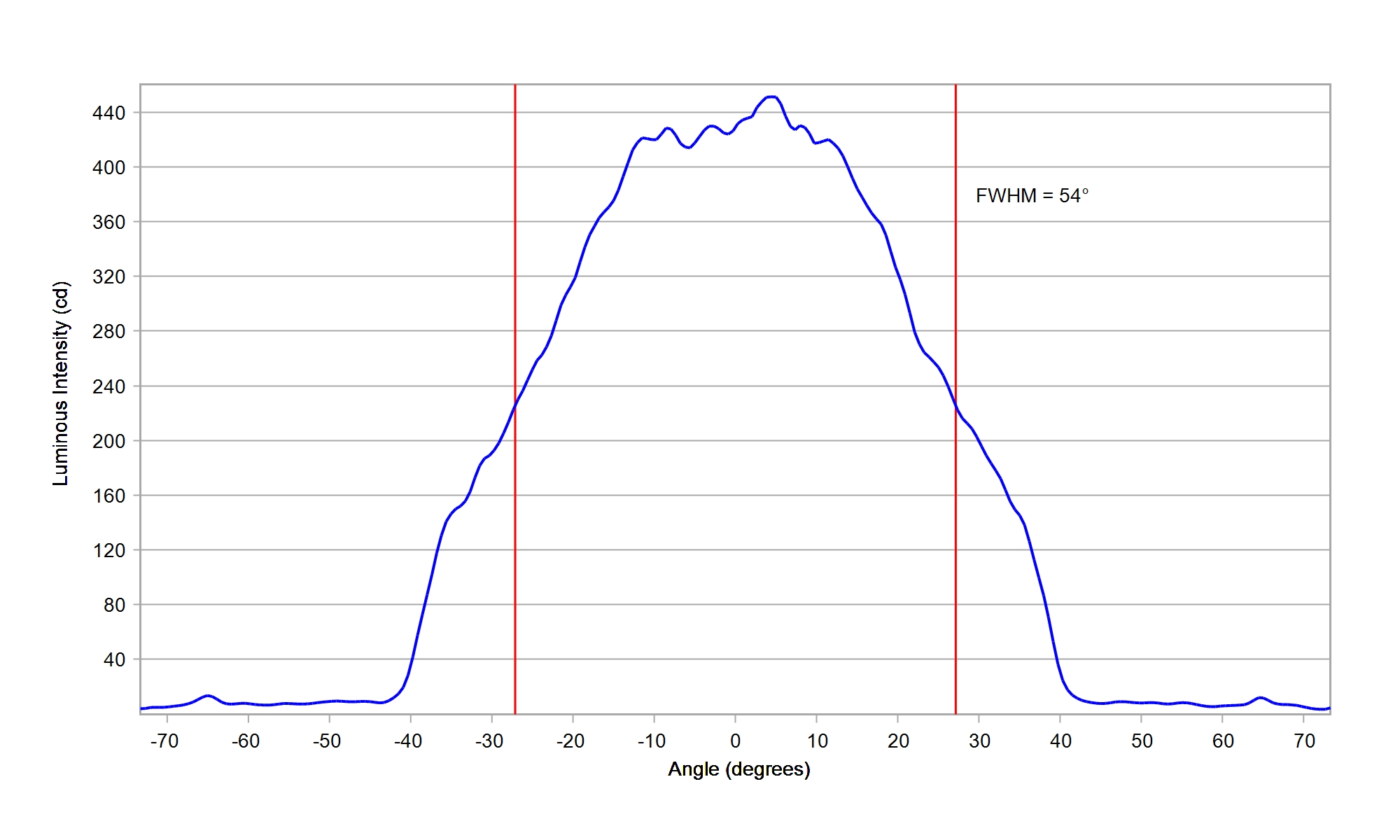

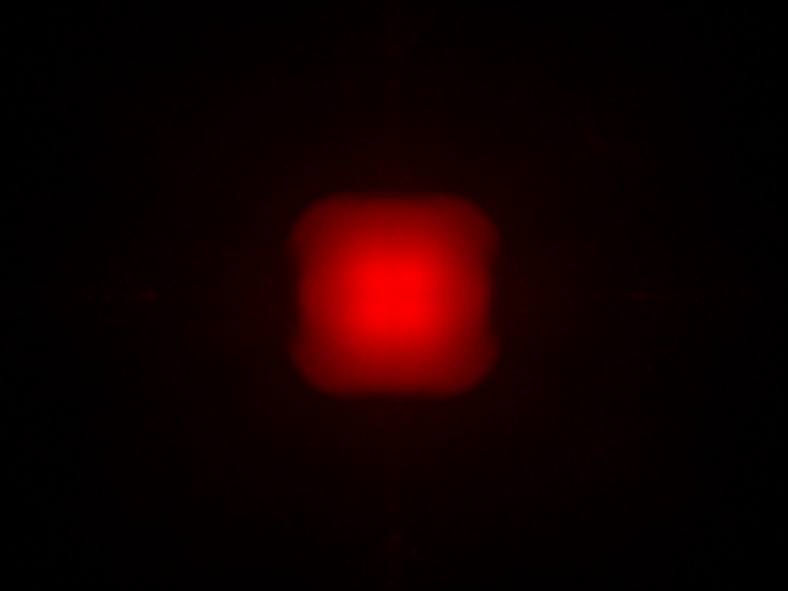

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

94.5%

FWHM:

54°

Cd/Im:

1.7


Download

ies

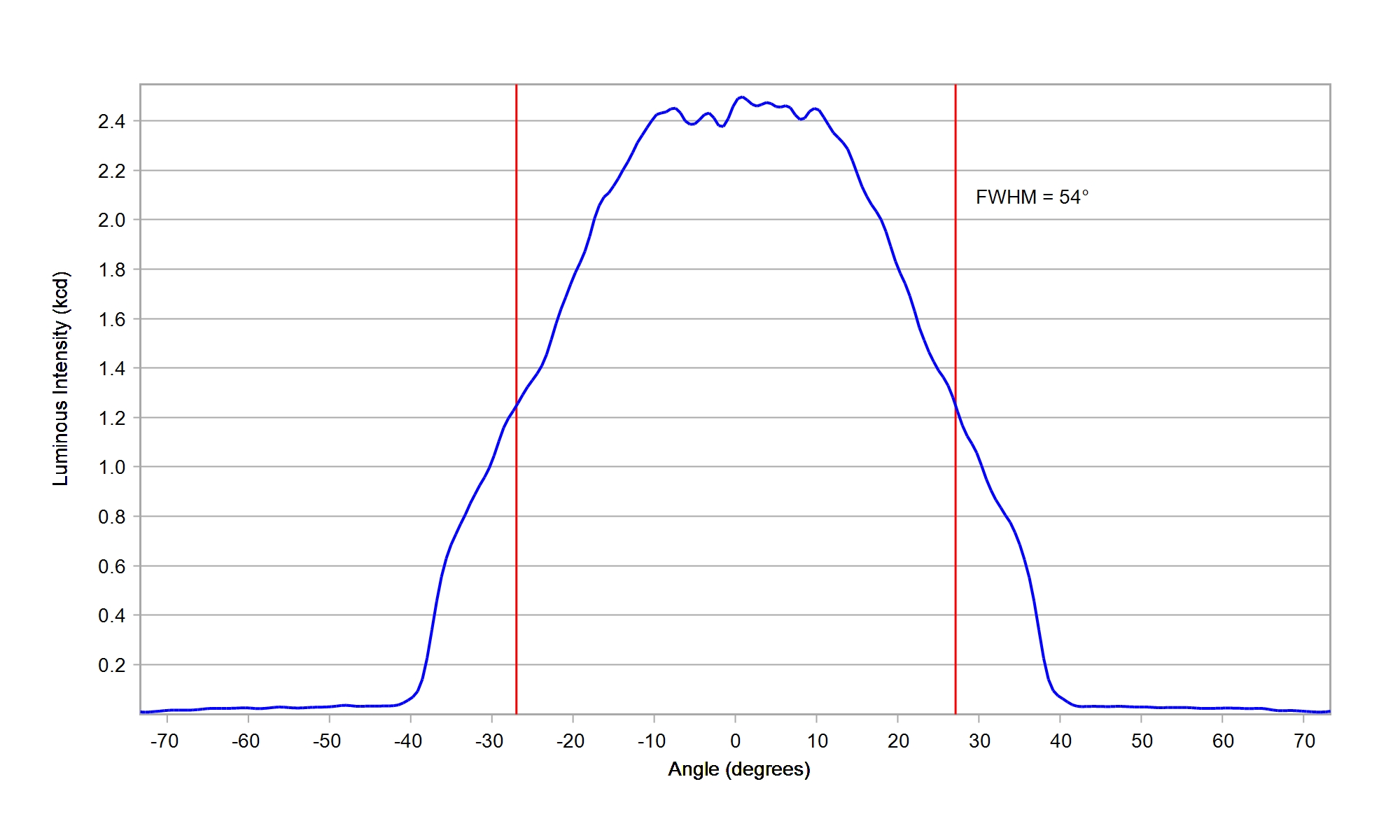

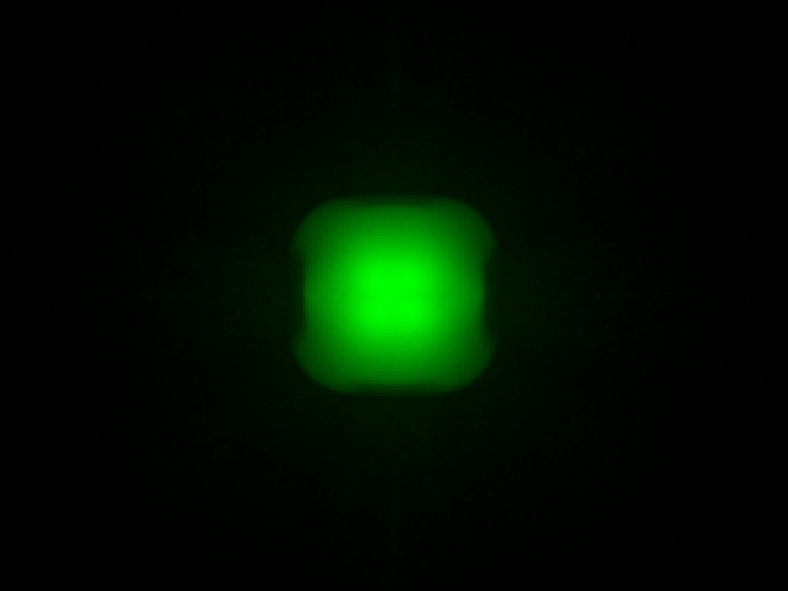

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.4


Download

ies

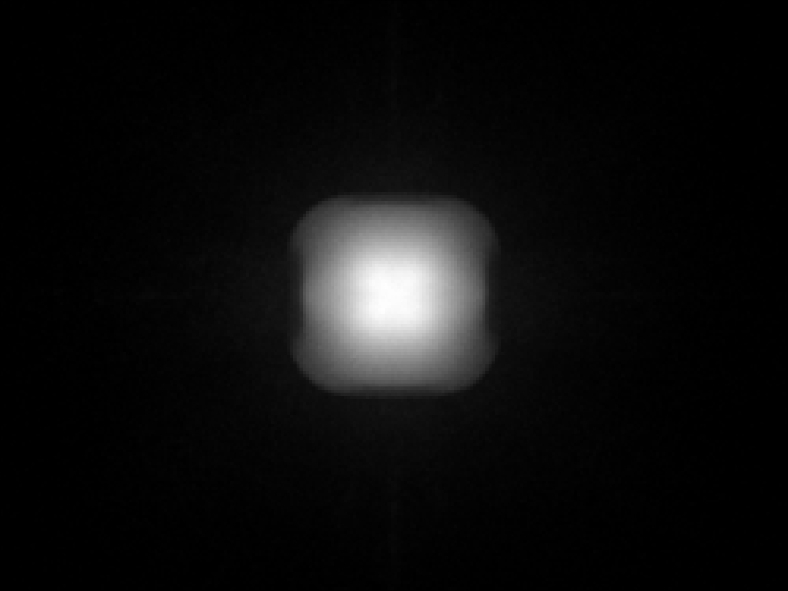

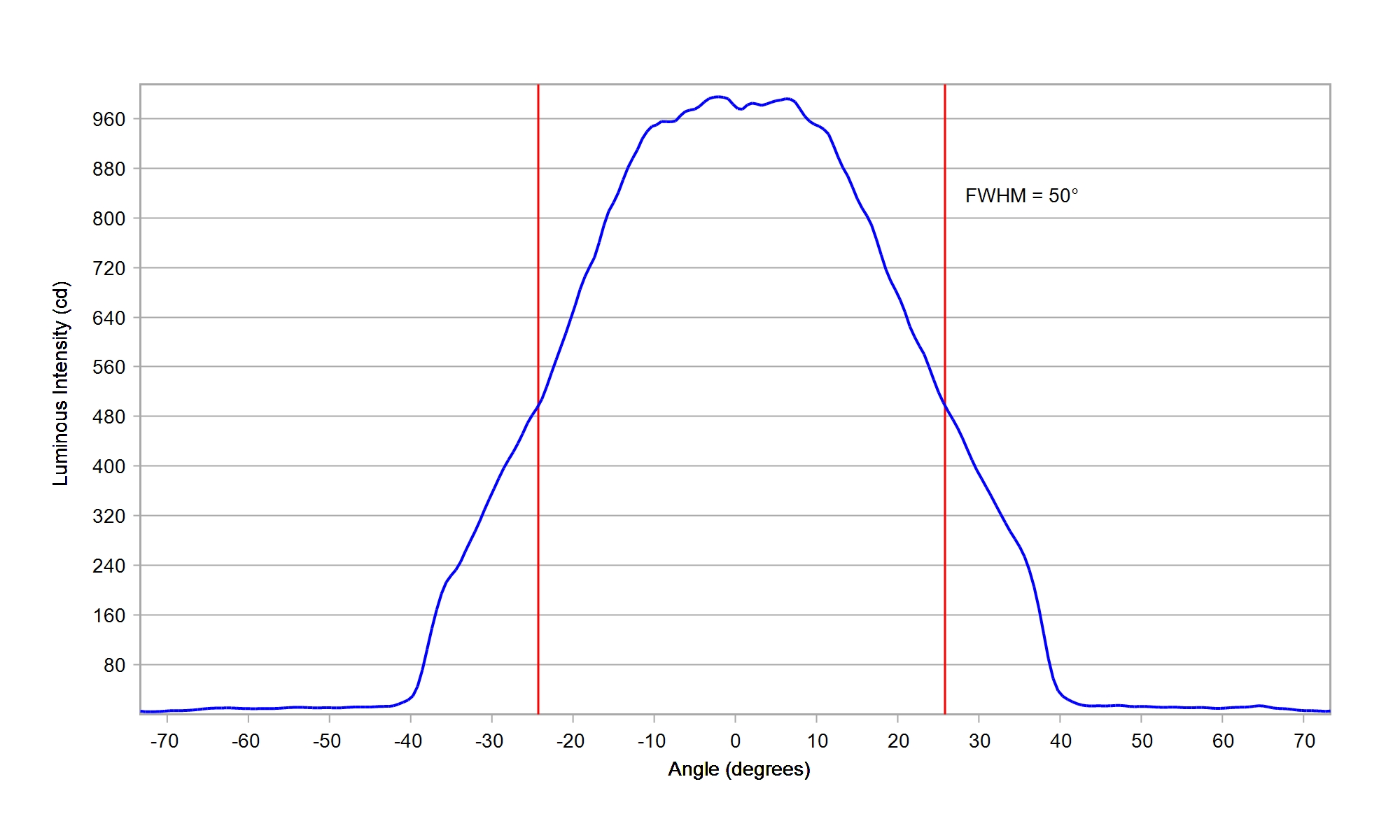

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

94.5%

FWHM:

50°

Cd/Im:

1.5



Download

ies

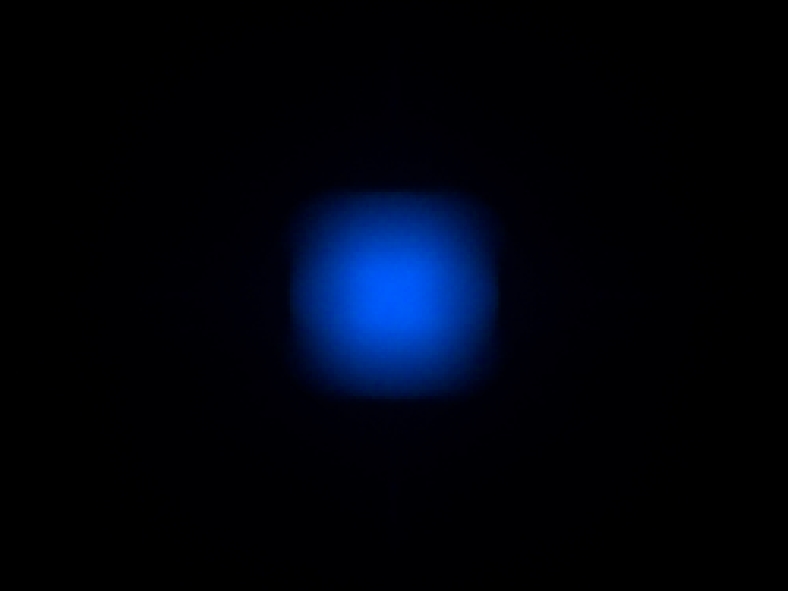

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

96.0%

FWHM:

56°

Cd/Im:

1.7


Download

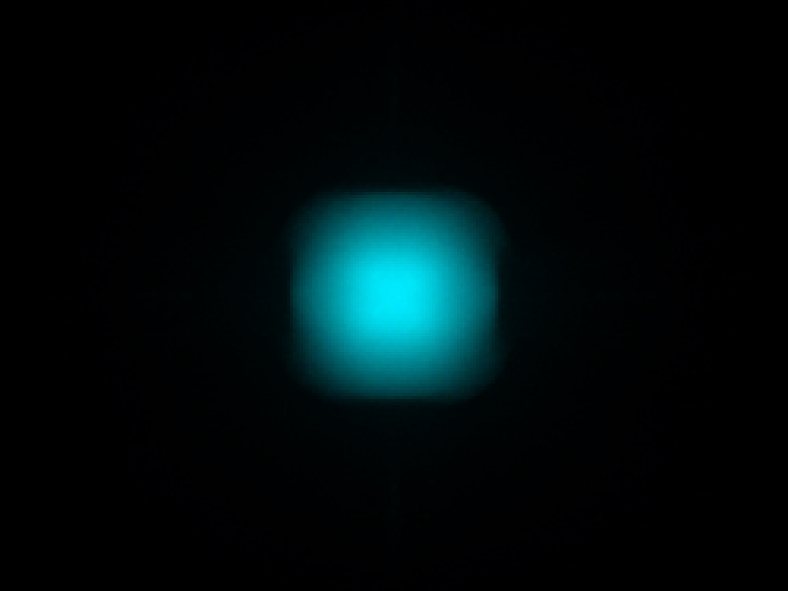

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

96.0%

FWHM:

55°

Cd/Im:

1.5


Download

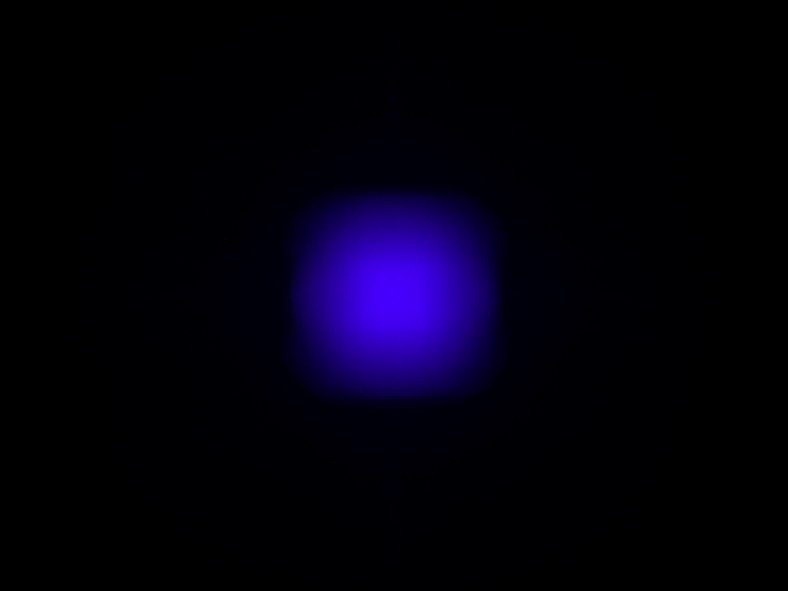

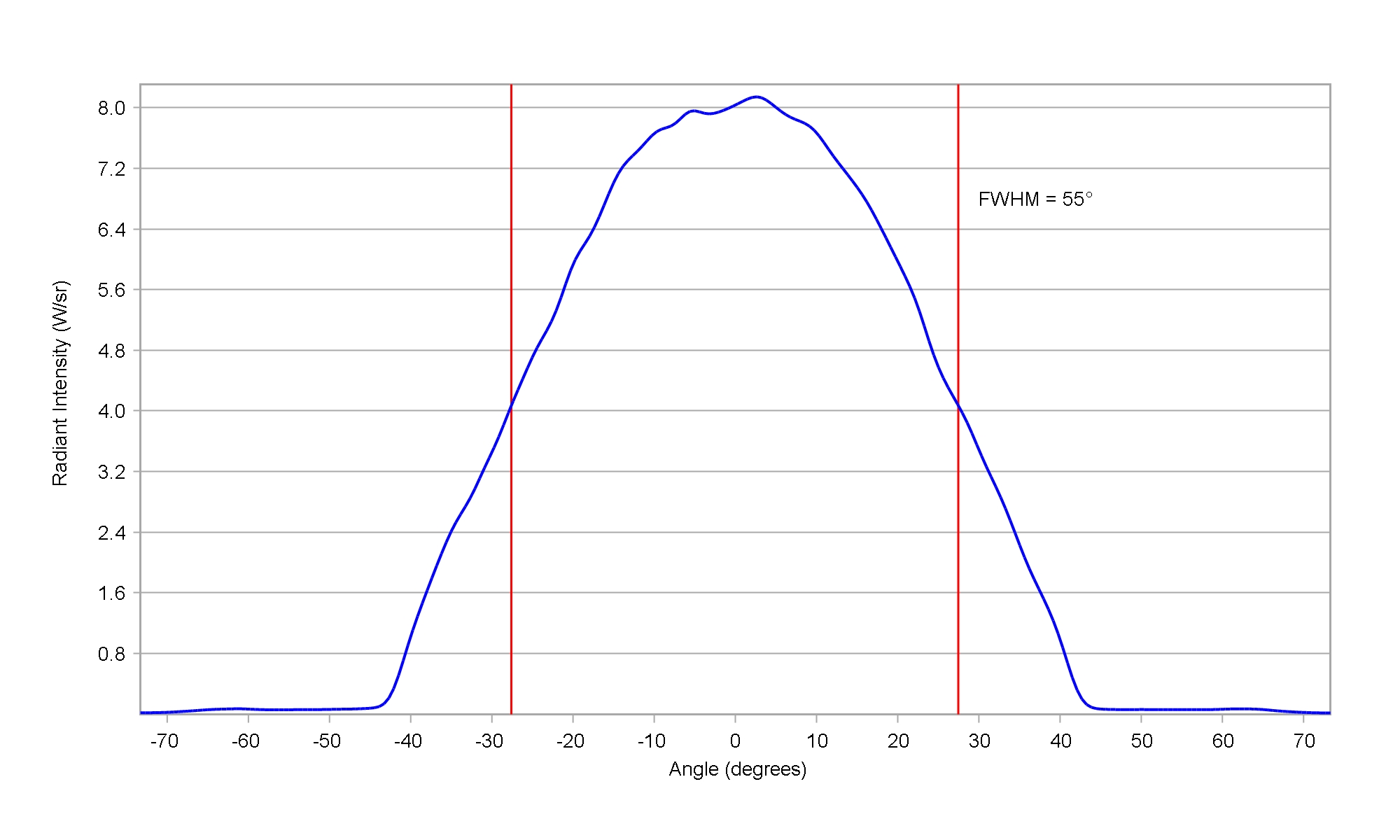

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

97.0%

FWHM:

55°

Ipk/W:

1.4


Download

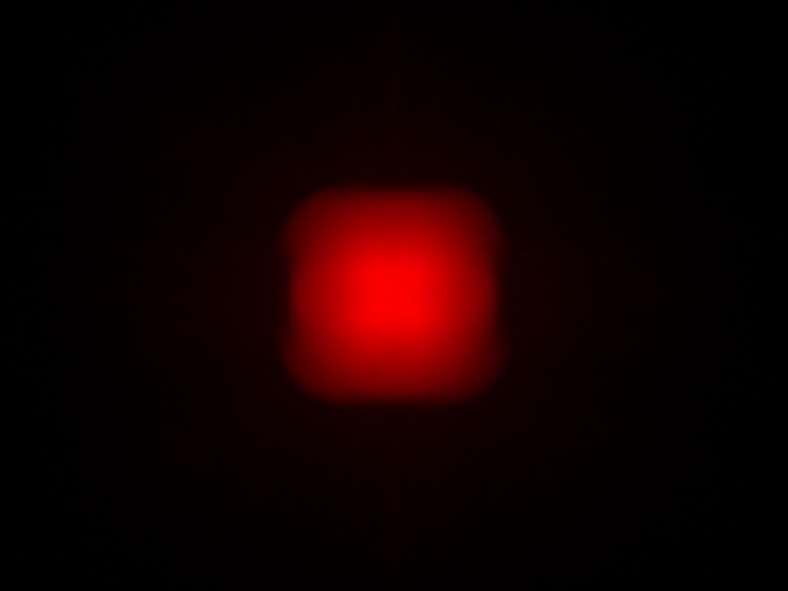

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

95.5%

FWHM:

63°

Cd/Im:

1.2


Download

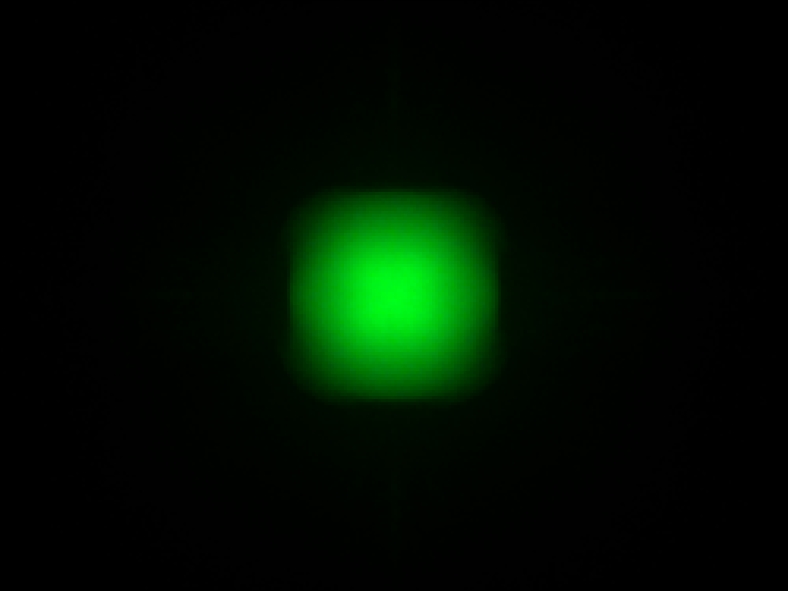

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.3


Download

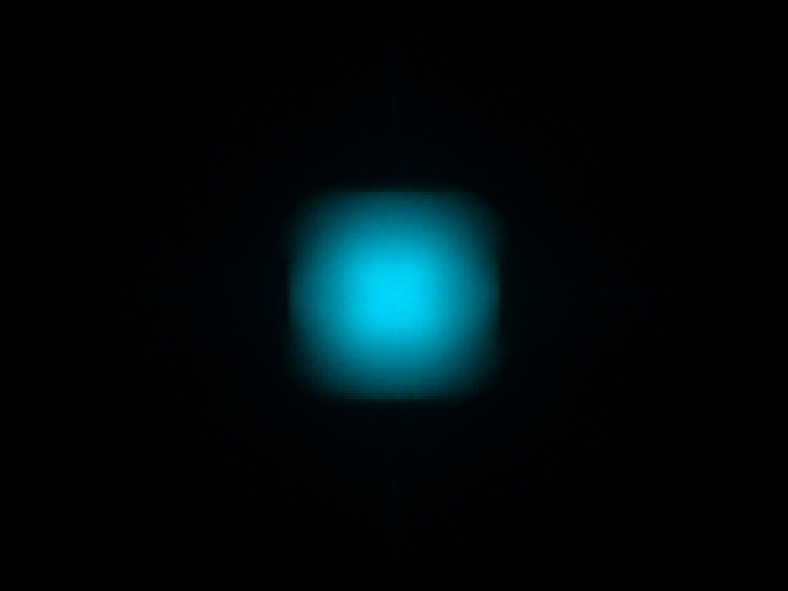

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.5


Download

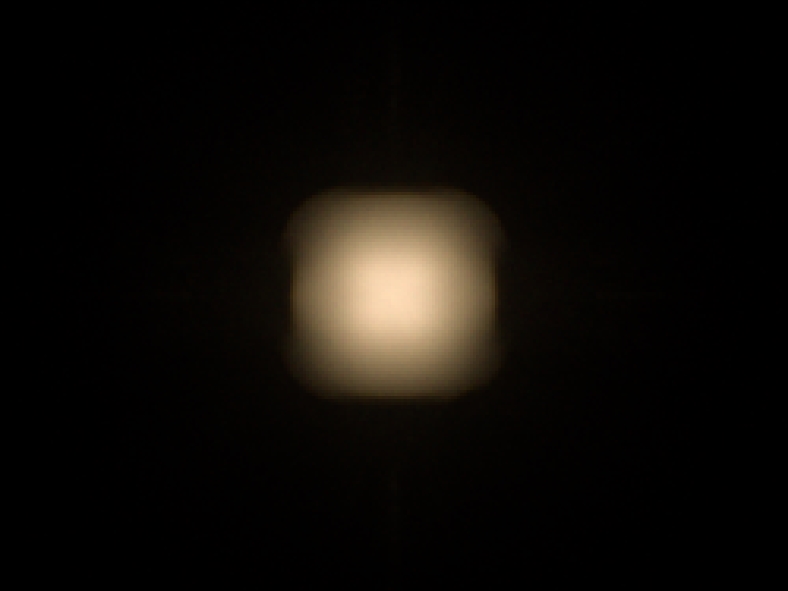

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.4

Download

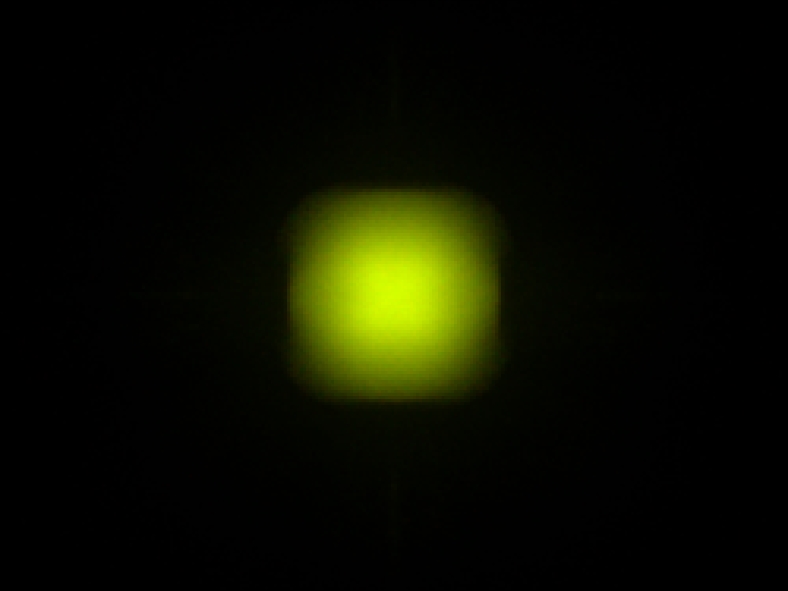

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

95.5%

FWHM:

57°

Cd/Im:

1.4


Download

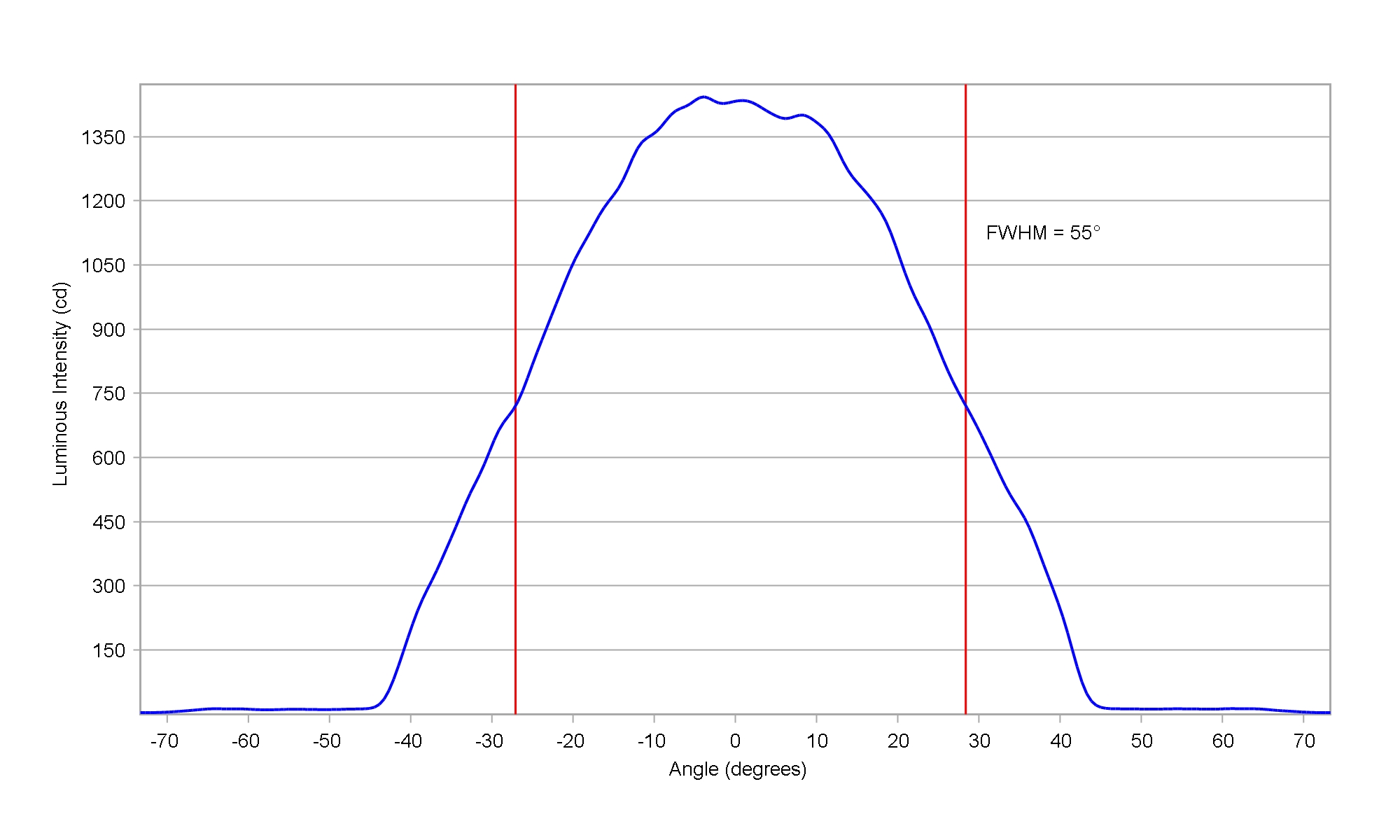

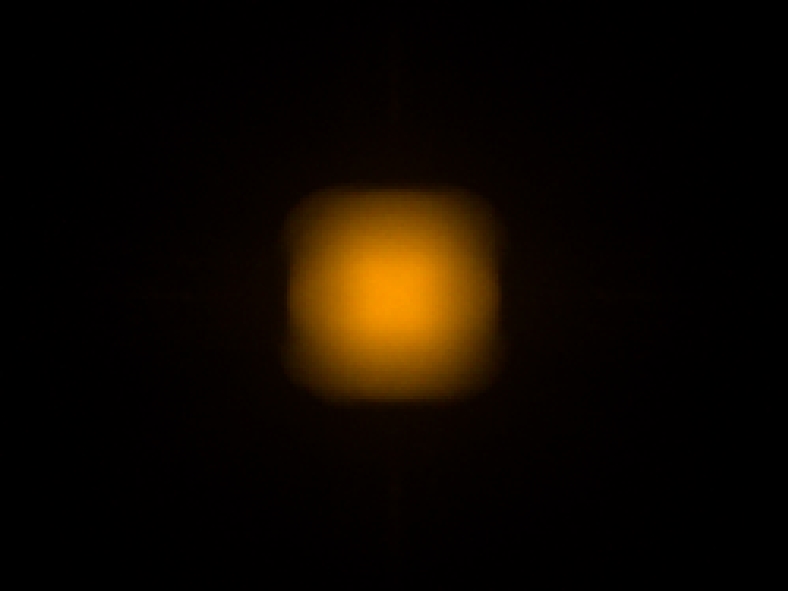

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.4


Download

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

95.5%

FWHM:

69°

Cd/Im:

1.1

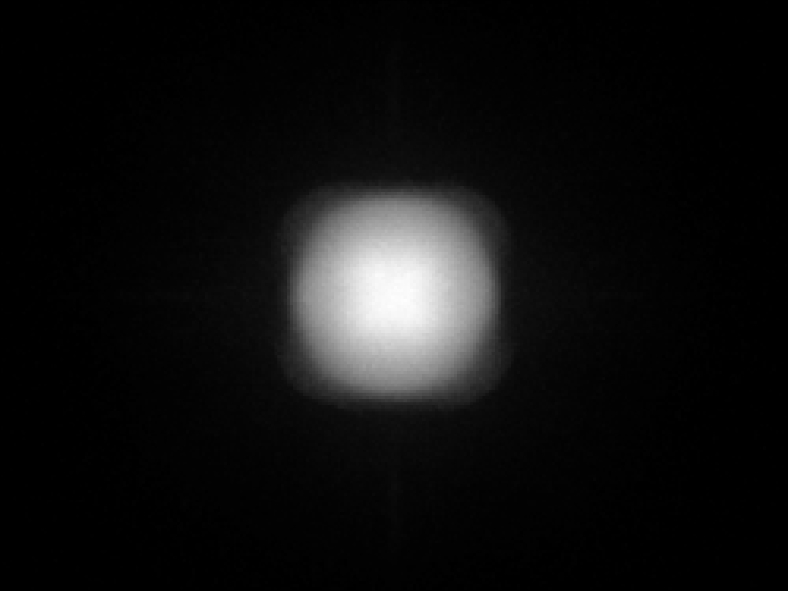

Carclo Optics – 12928 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12928 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

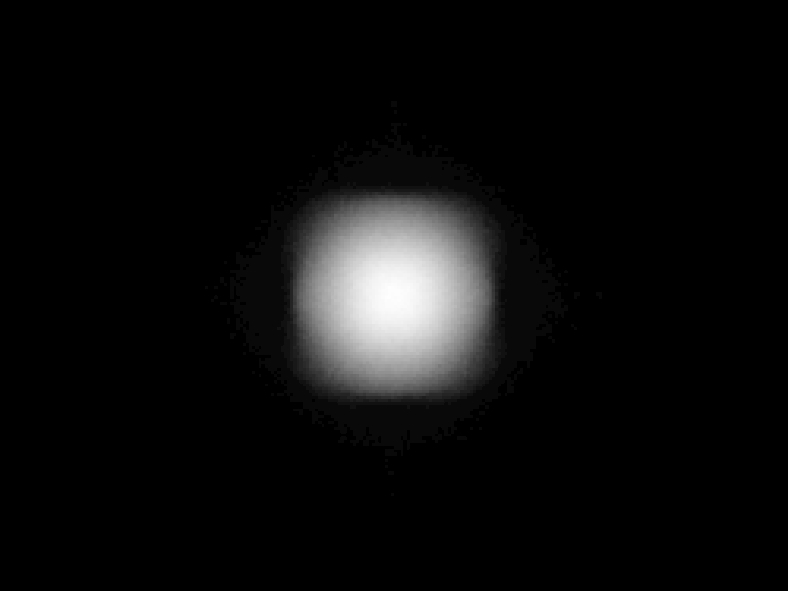

Inventronics Prevaled Bar G4

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.5

Carclo Optics – 12928 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12928 – Osram_Prevaled_Bar_G4_cross vertical section

Download

ies

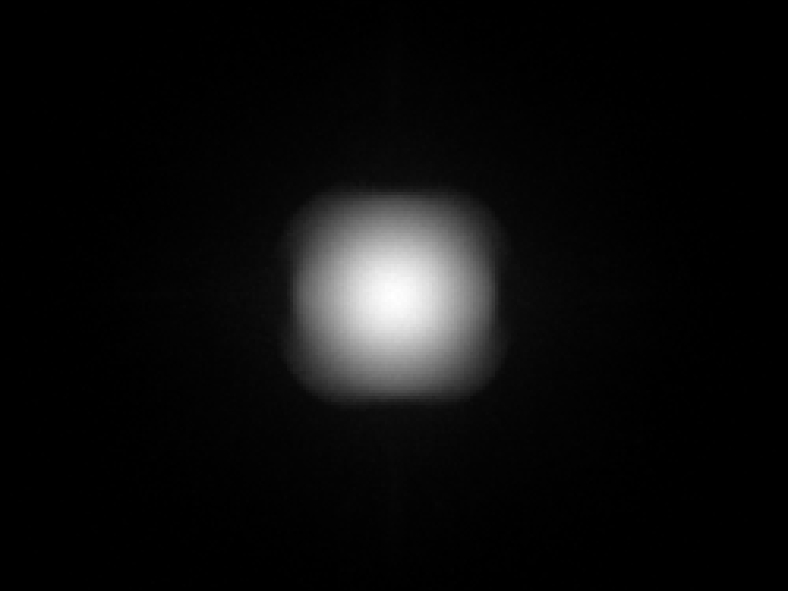

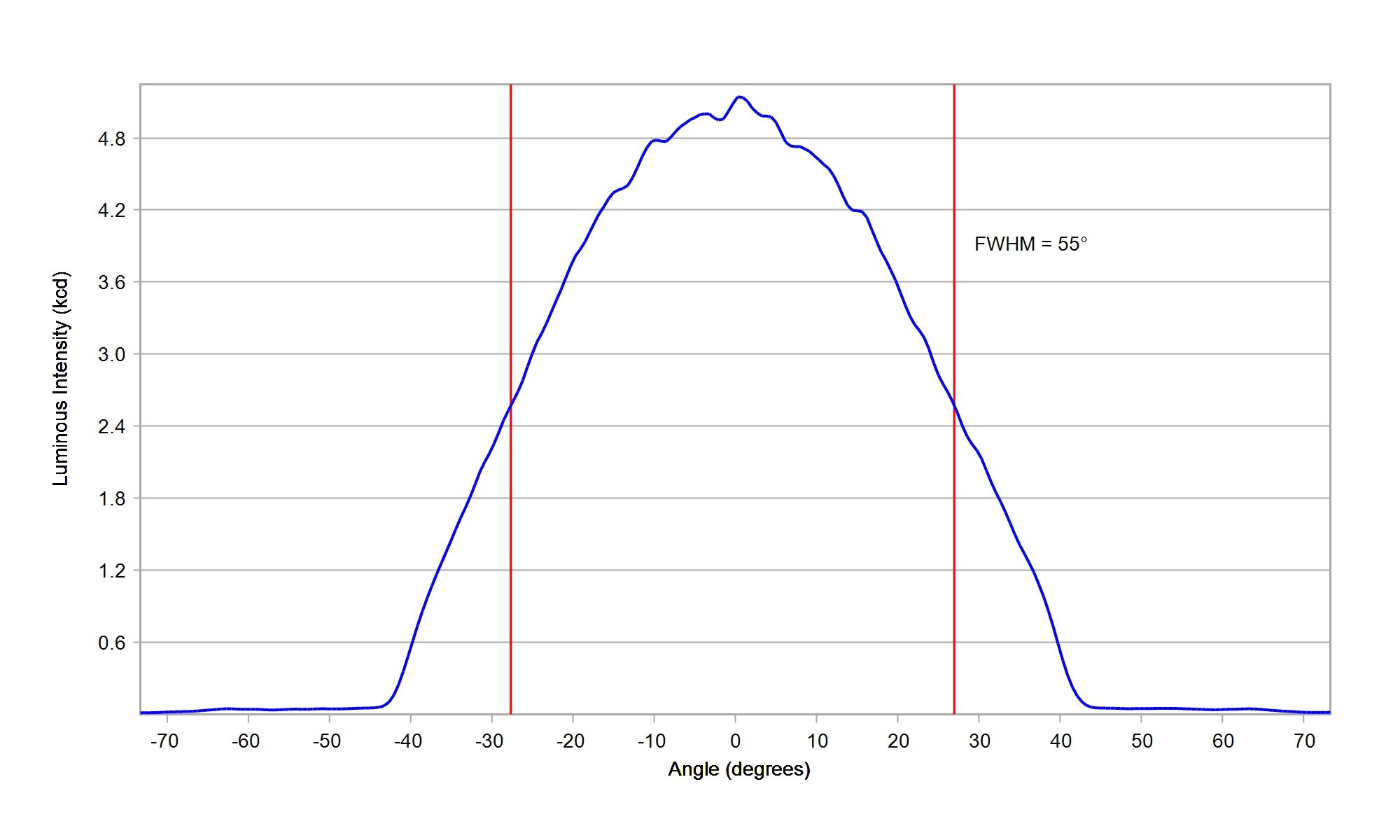

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.6

Download

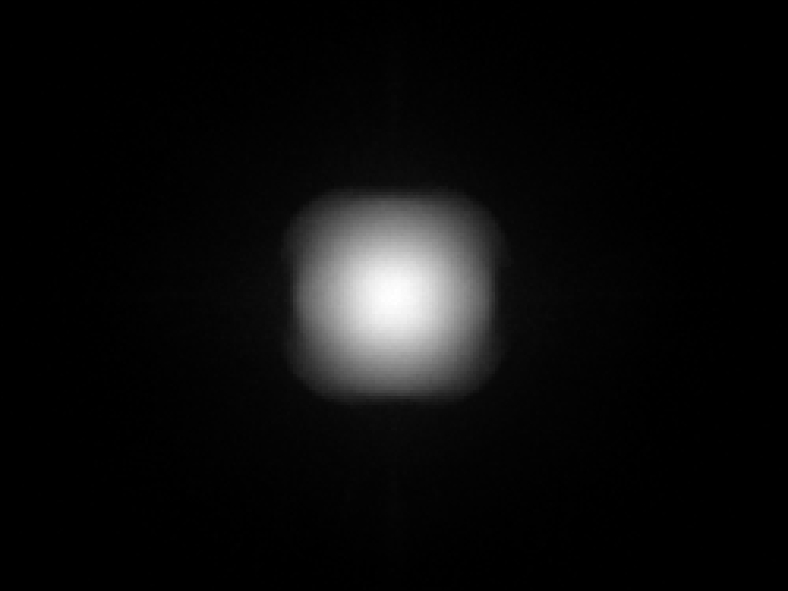

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

95.5%

FWHM:

54°

Cd/Im:

1.5

Download

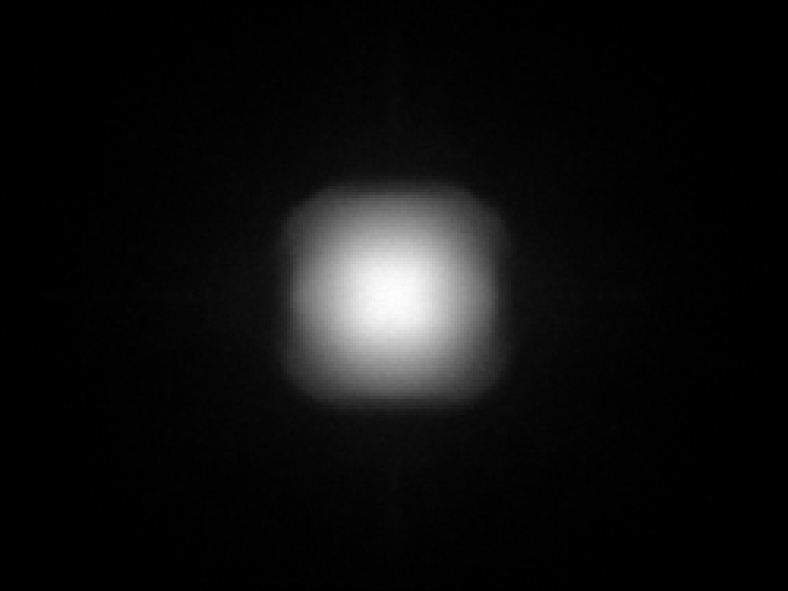

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

95.0%

FWHM:

60°

Cd/Im:

1.3

Download

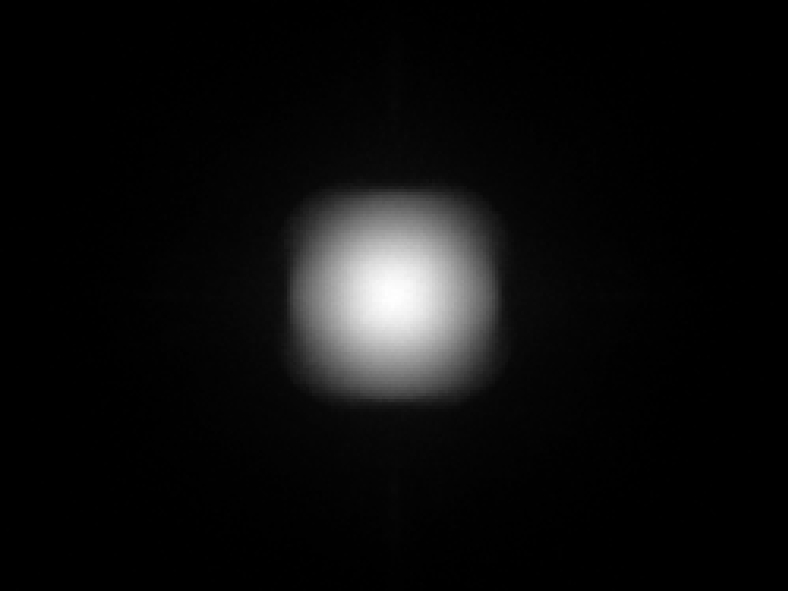

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.5

Download

Signify Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm

Eff:

92.5%

FWHM:

56°

Cd/Im:

1.4

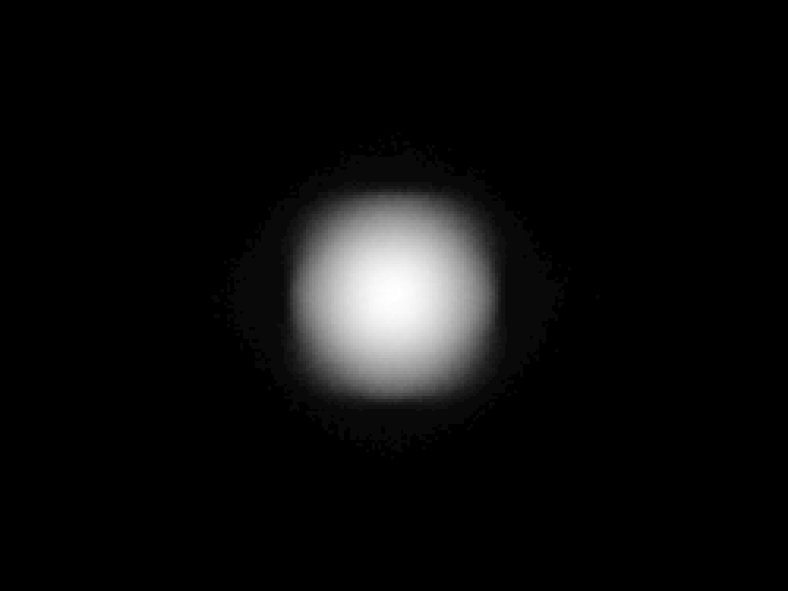

Carclo Optics - 12928 33Up Spot Image Fortimo 3R HV4

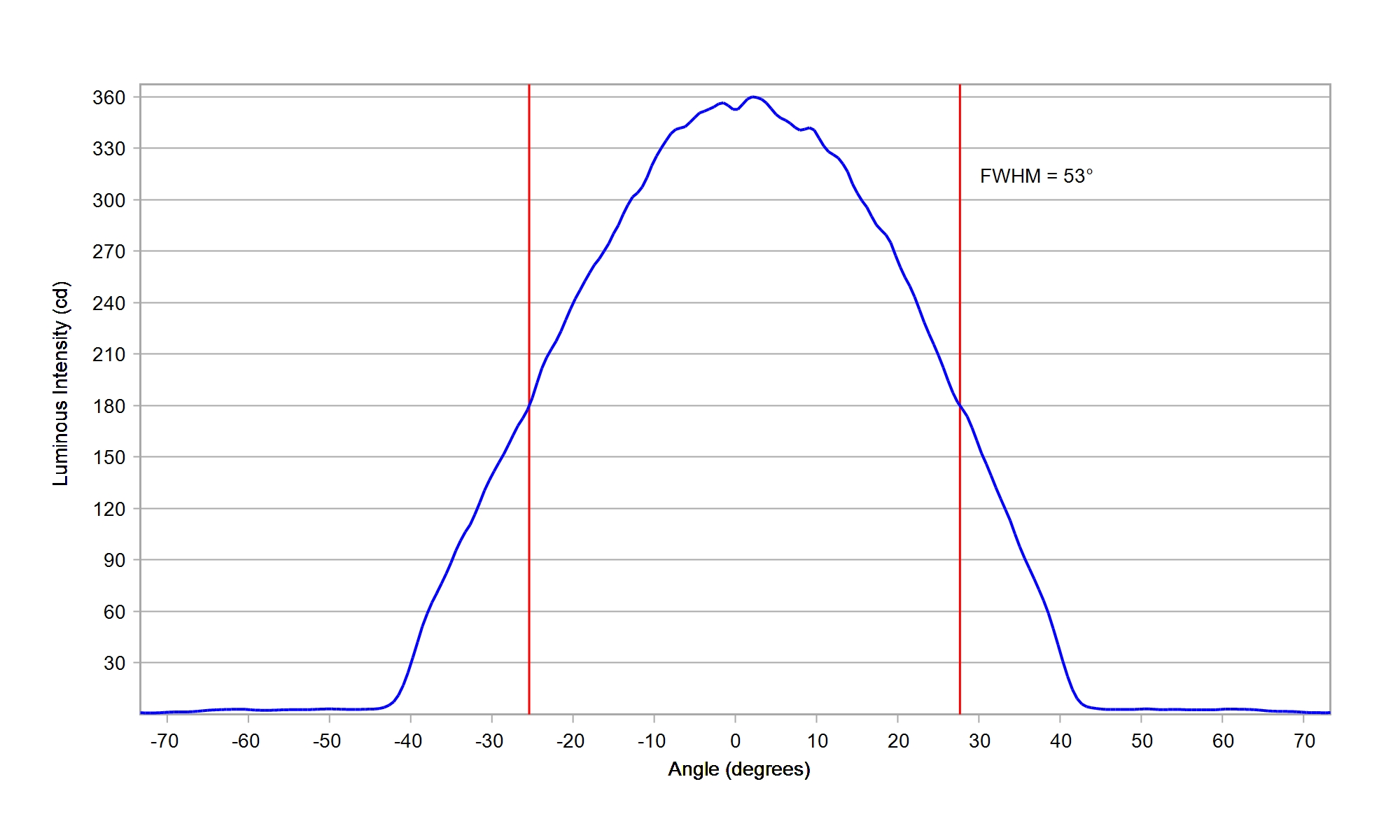

Carclo Optics - 129228 33Up Cross Section Fortimo HR LV4

Download

ies

Signify Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm

Eff:

92.5%

FWHM:

56°

Cd/Im:

1.3

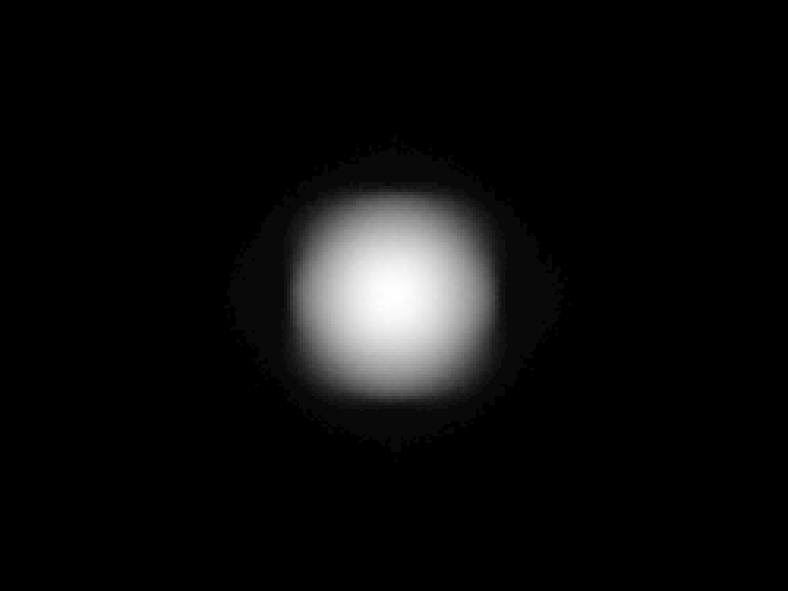

Carclo Optics - 12928 33Up Spot Image Fortimo 3R LV4

Carclo Optics - 12928 33Up Cross Section Fortimo 3R LV4

Download

ies

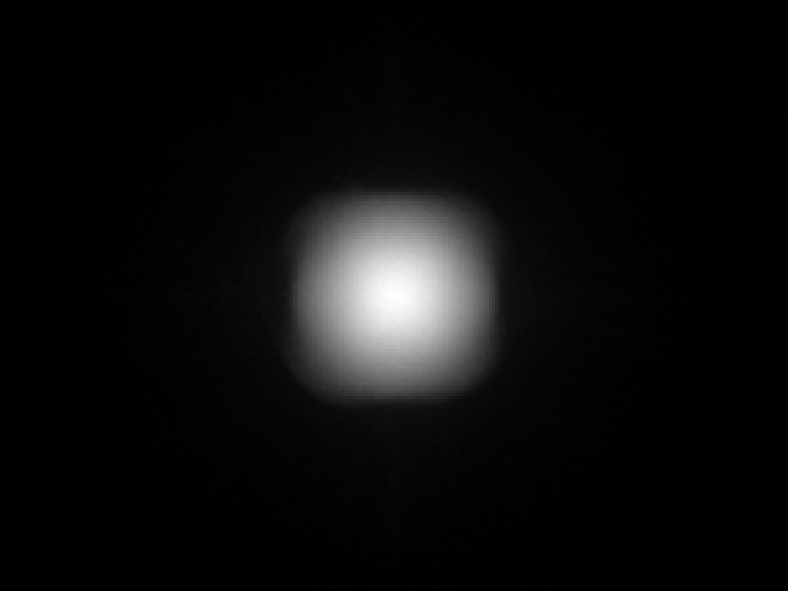

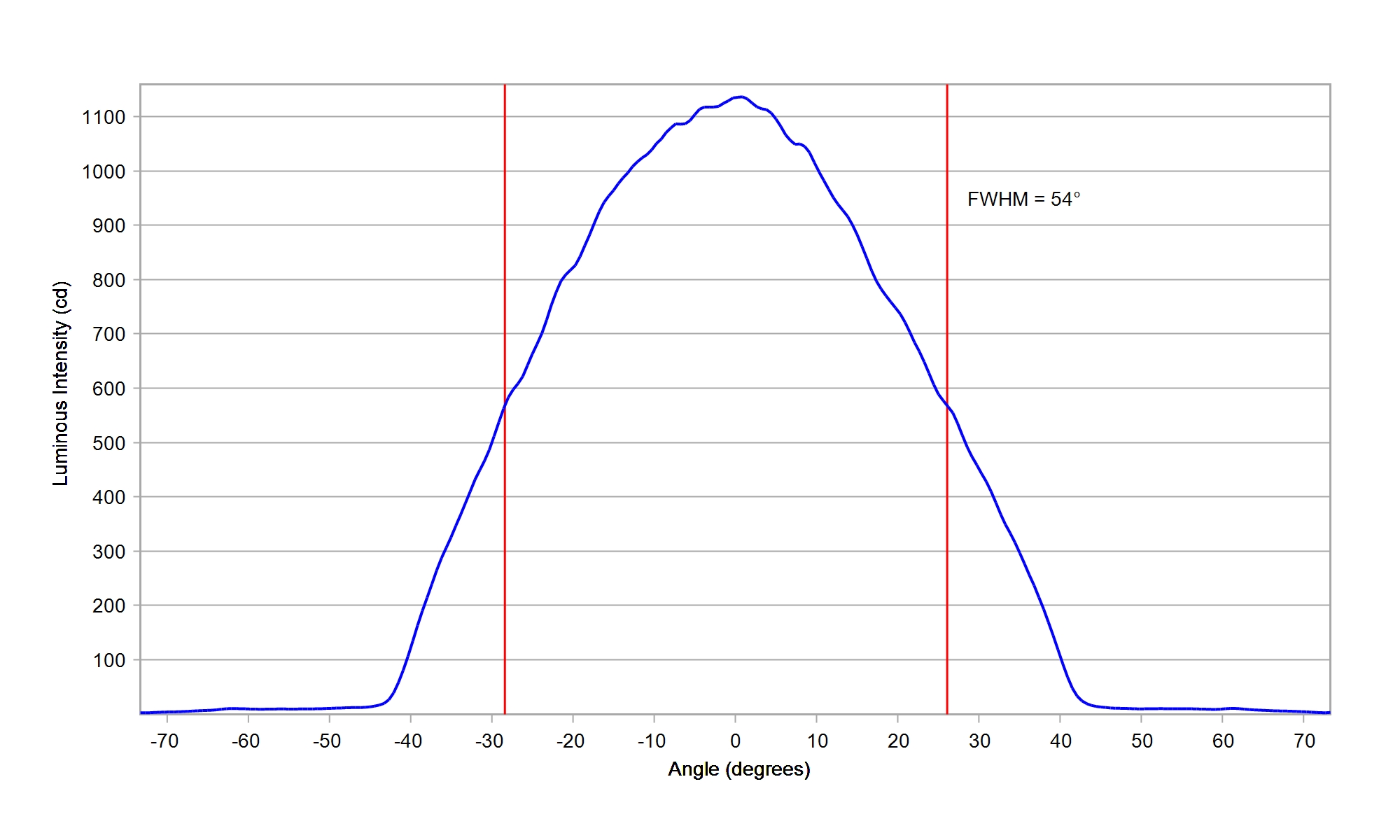

Samsung 2835 LM281B+ White

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.5



Download

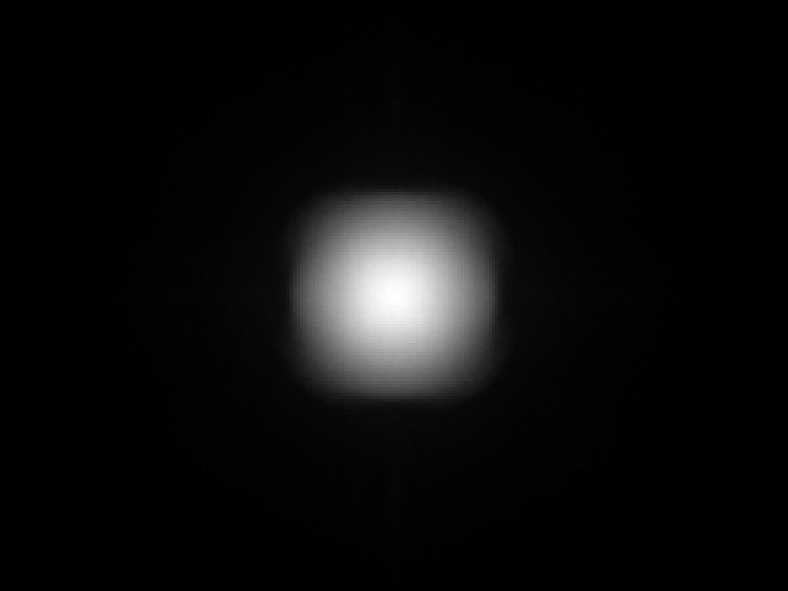

Samsung 2835 LM282B+ White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.6



Download

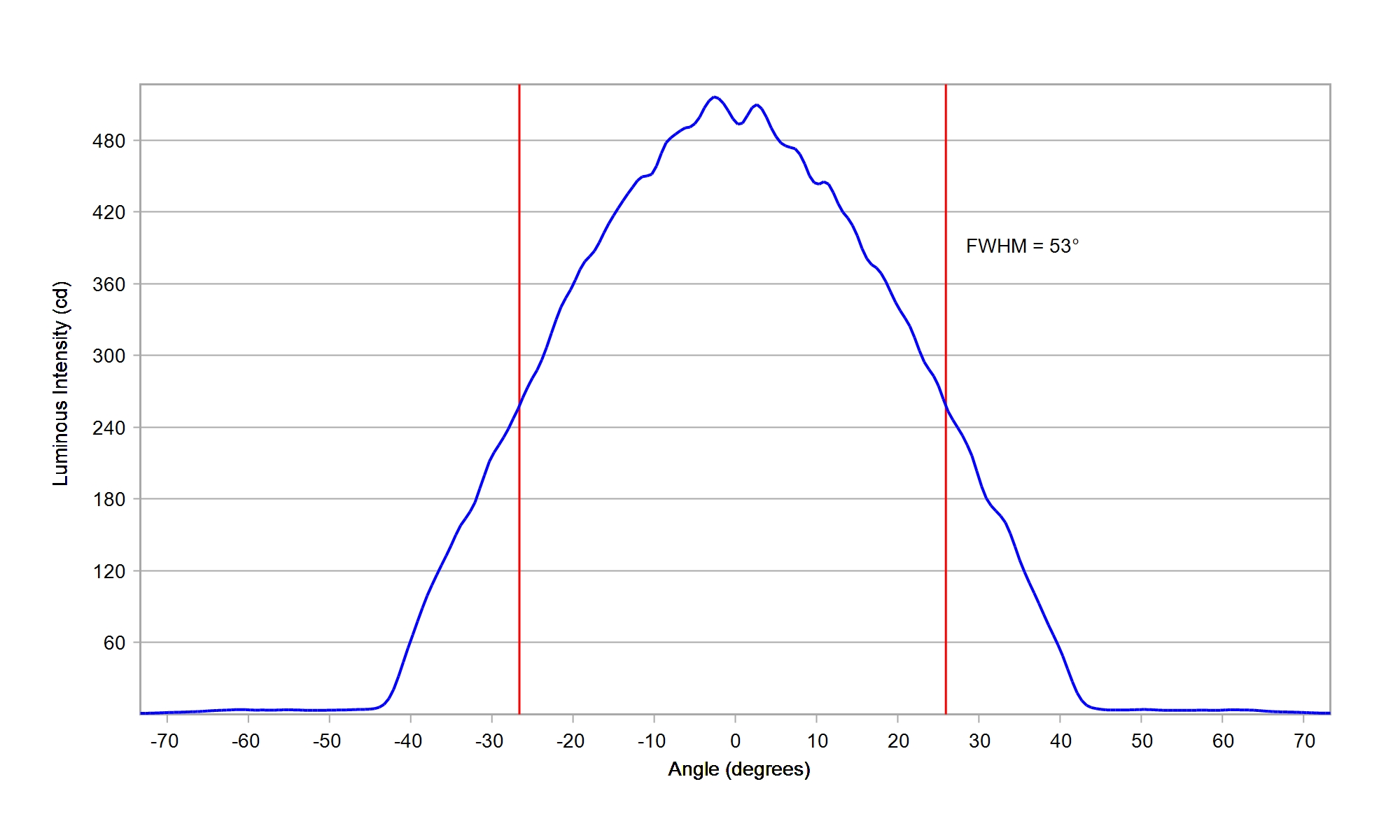

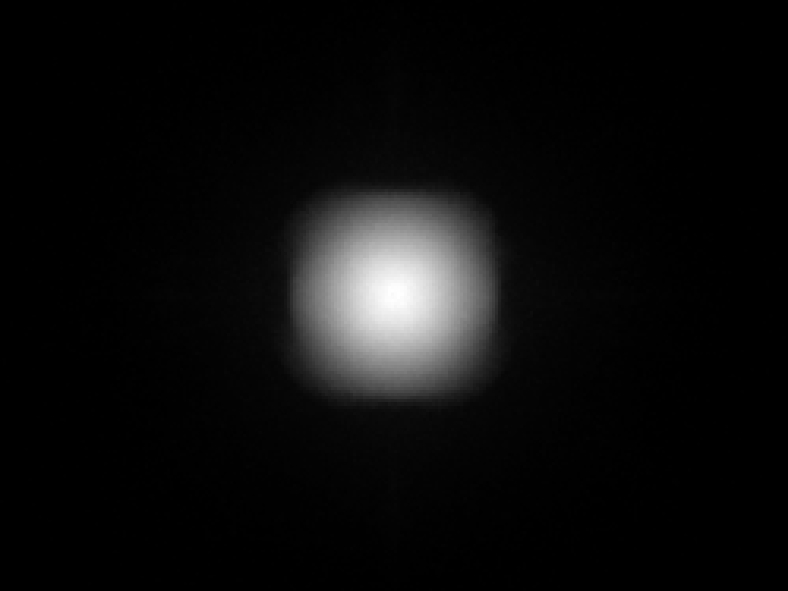

Samsung 3030 LM301B White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.5

Download

ies

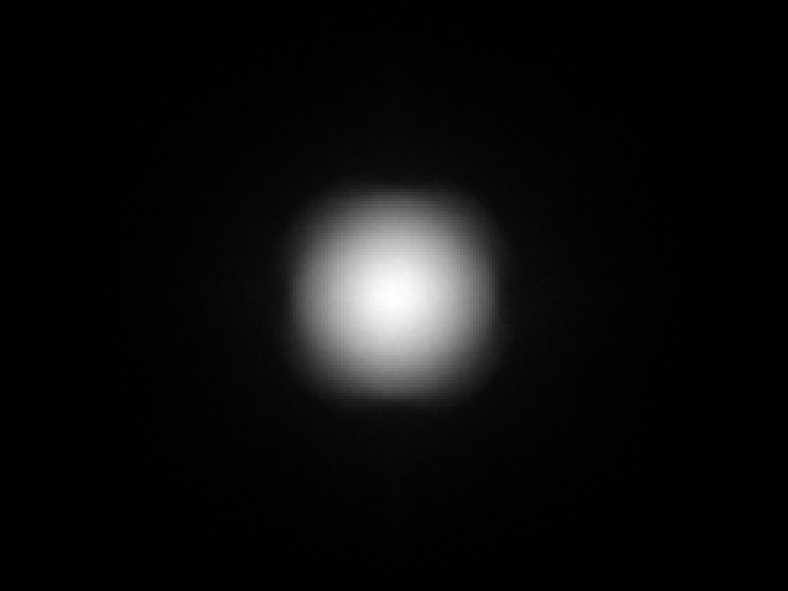

Samsung 5050 LH502C White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.4


Download

IES

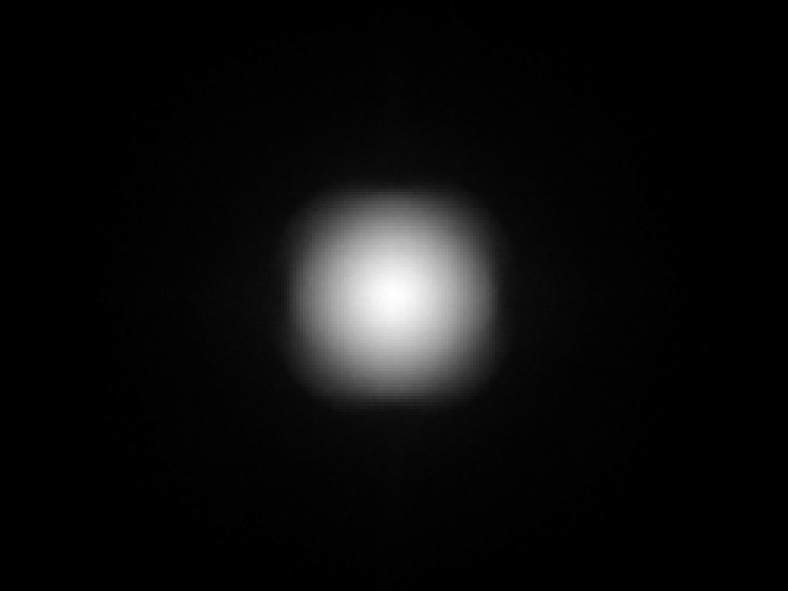

Samsung 5050 LH502D White

Eff:

95.5%

FWHM:

58°

Cd/Im:

1.7


Download

IES

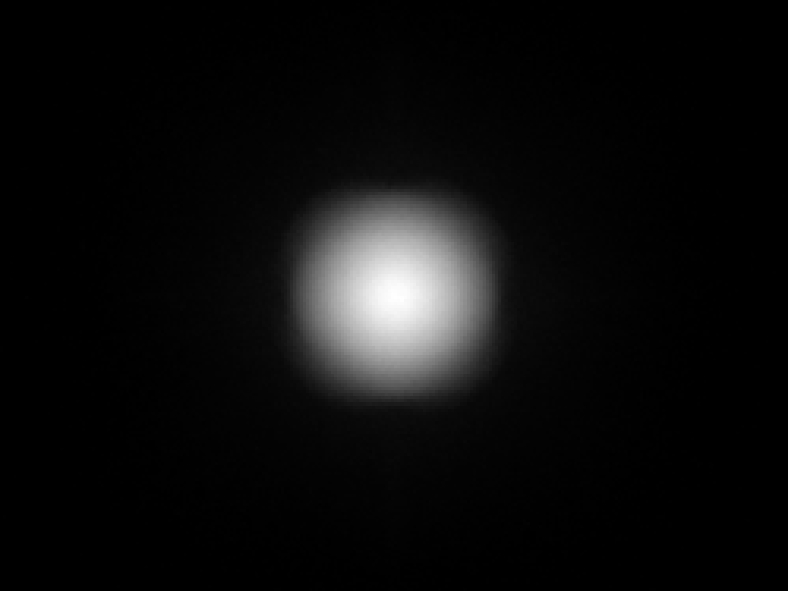

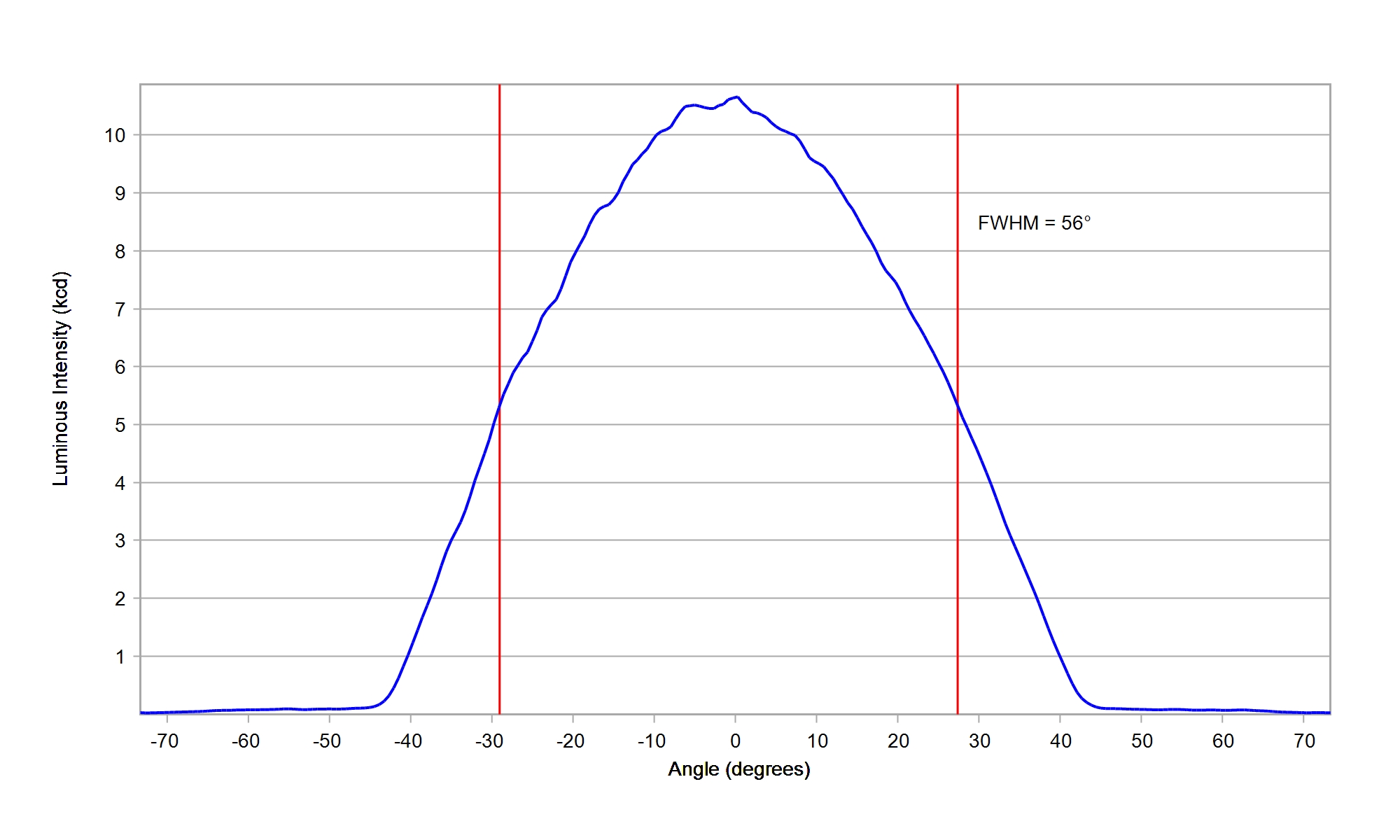

Samsung 5050 LH508C White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.5


Download

IES

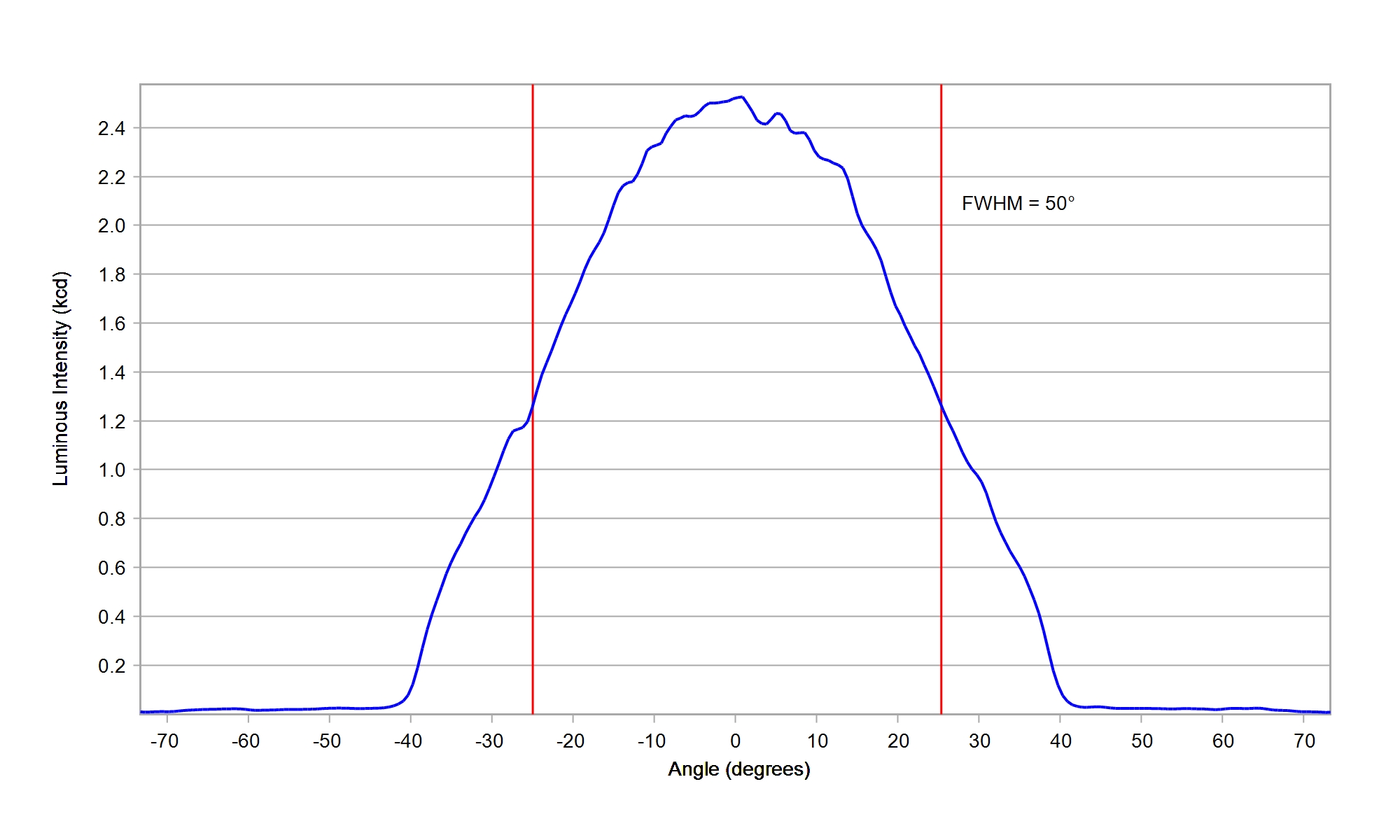

Samsung CSP LH151B White

Eff:

95.0%

FWHM:

50°

Cd/Im:

1.7

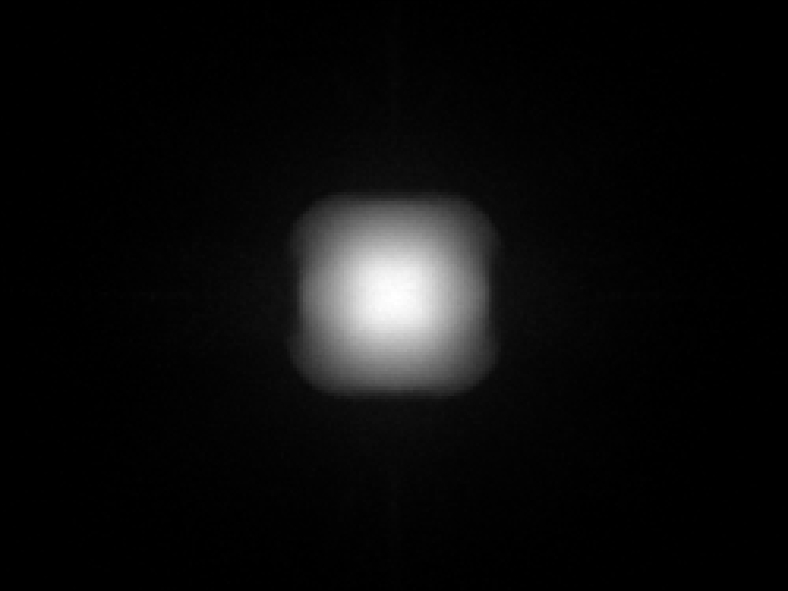

Carclo Optics – 12928 – Samsung_LH151B_spot-image

Carclo Optics– 12928 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

95.0%

FWHM:

51 x 50°

Cd/Im:

1.7

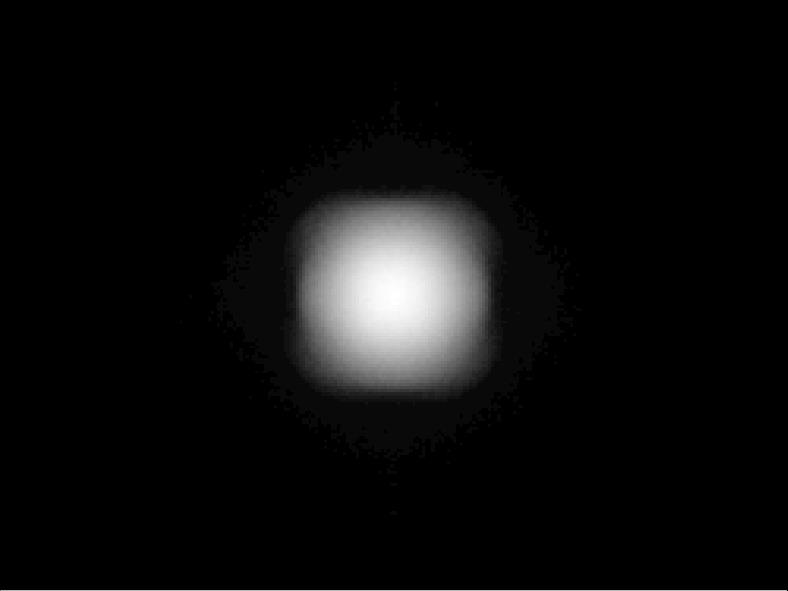

Carclo Optics -12928 Sport Image - Samsung LH181B 4000K

Carclo Optics -12928 Cross Section - Samsung LH181B 4000K

Download

ies

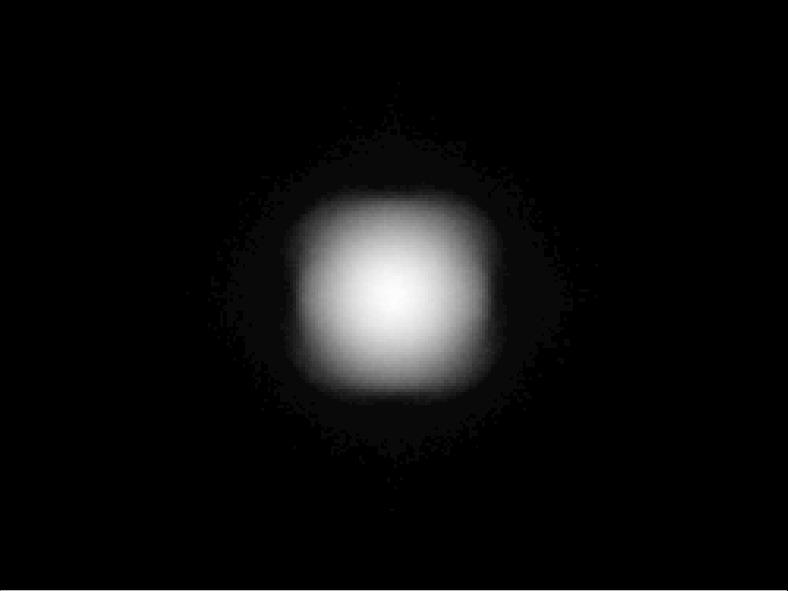

Samsung CSP LH231B White

Eff:

95.0%

FWHM:

53 x 52°

Cd/Im:

1.9

Carclo Optics - 12928 Spot Image Samsung LH231B 5000K

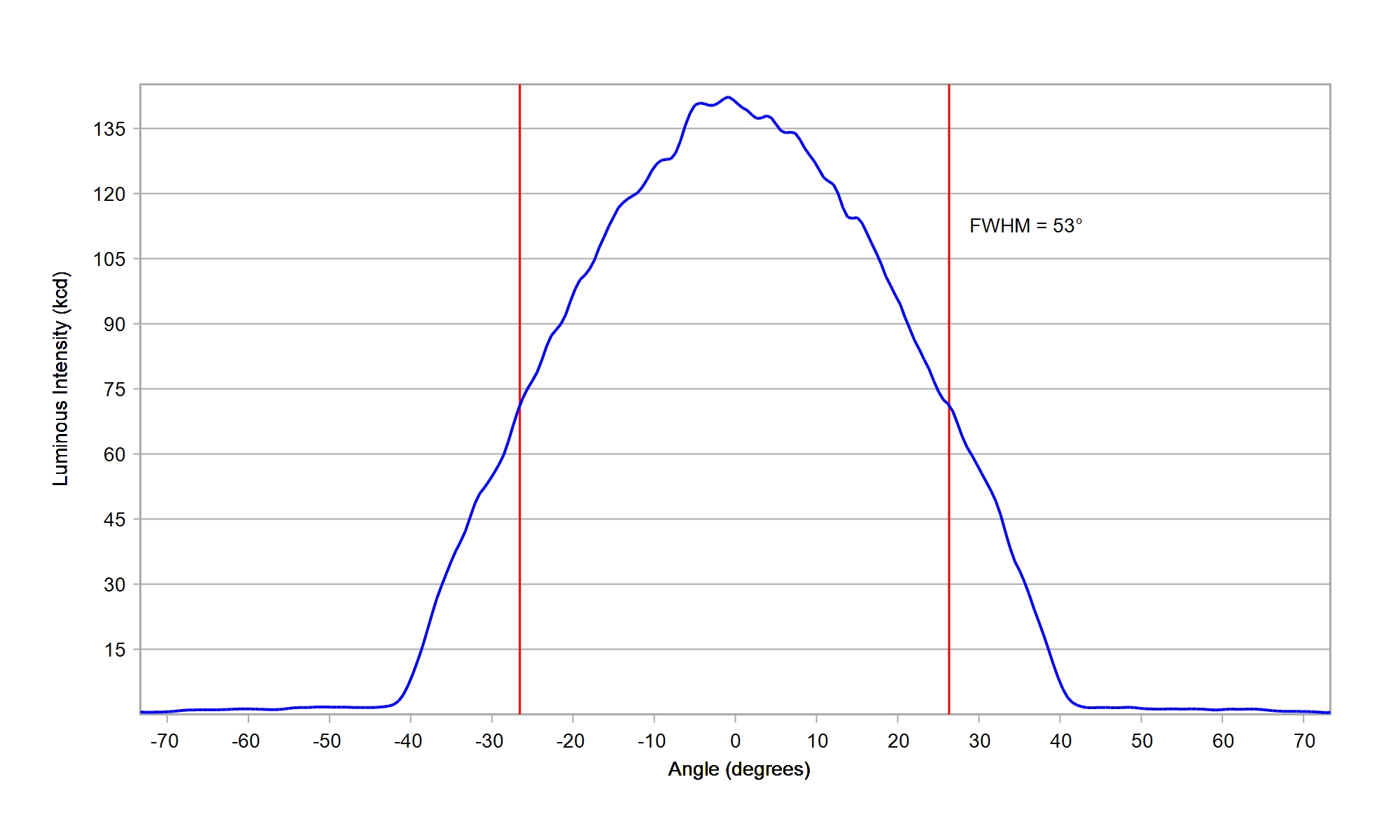

Carclo Optics -12928 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

95.0%

FWHM:

53°

Cd/Im:

1.7

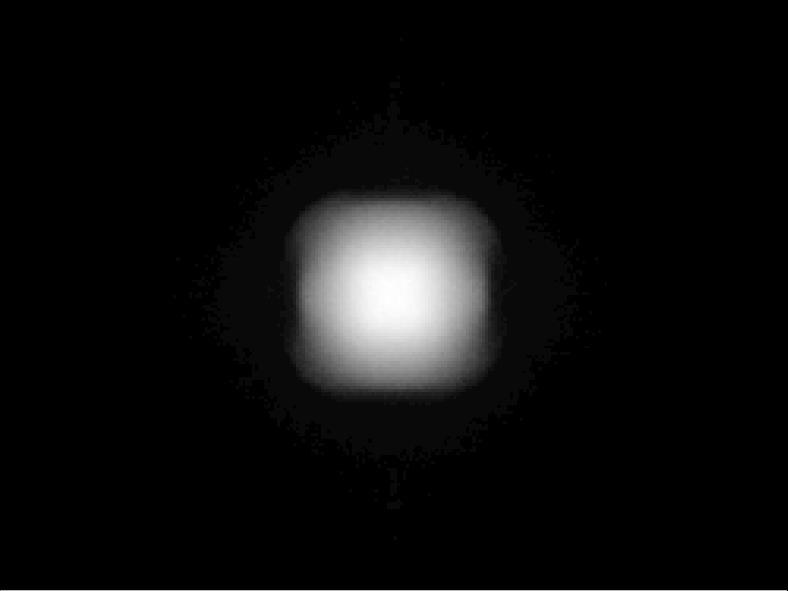

Carclo Optics - 12928 Spot Image Samsung LM101B

Carclo Optics 12928 Cross Section Image Samsung LM101B

Download

ies

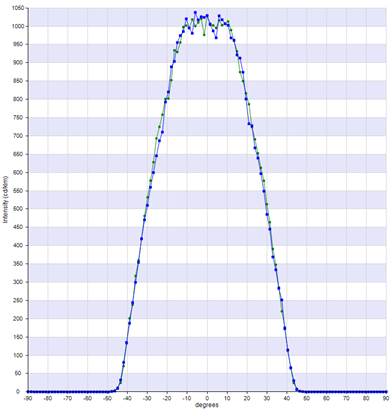

Samsung MidPower 5630 White

Eff:

90.0%

FWHM:

59.9°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

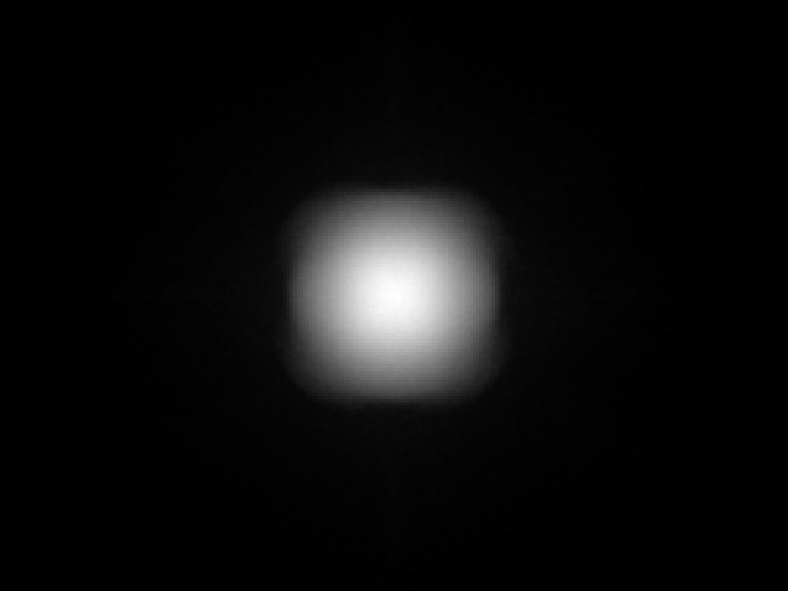

Seoul 3030 STW8C12E-E0 White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.5

Download

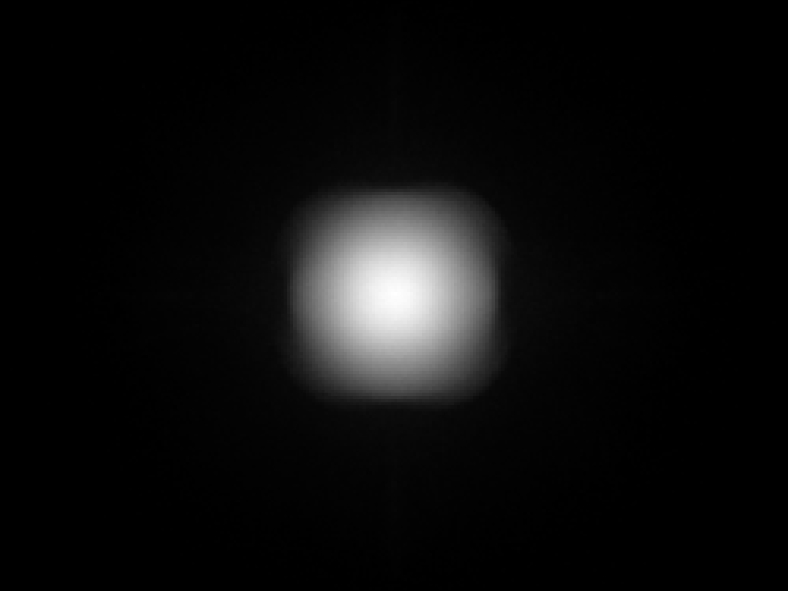

Seoul 3528 G STW8A2PD-G700 White

Eff:

95.5%

FWHM:

55°

Cd/Im:

1.4

Download

Seoul CSP SZ8Y11 White

Eff:

91.5%

FWHM:

64 x 59°

Cd/Im:

1.3

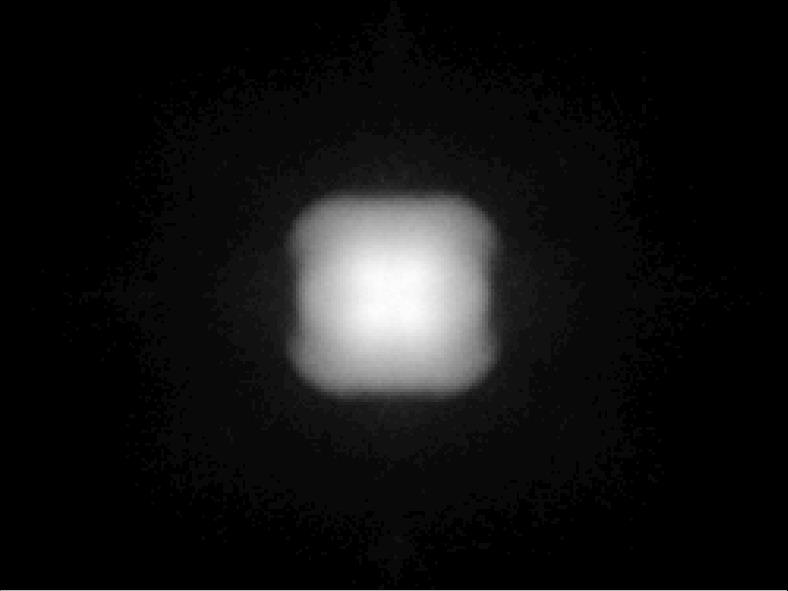

Carclo Optics -12928 Spot Image - Seoul Z8Y11

Carclo Optics -12928 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y22 White

Eff:

93.5%

FWHM:

58 x 56°

Cd/Im:

1.3

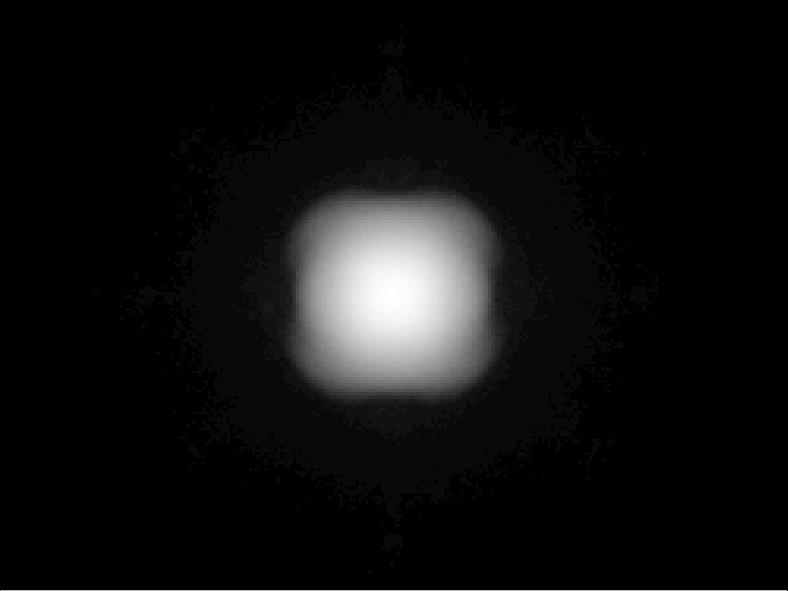

Carclo Optics -12928 Spot Image - Seoul SZ8Y22

Carclo Optics -12928 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

94.0%

FWHM:

61°

Cd/Im:

1.2

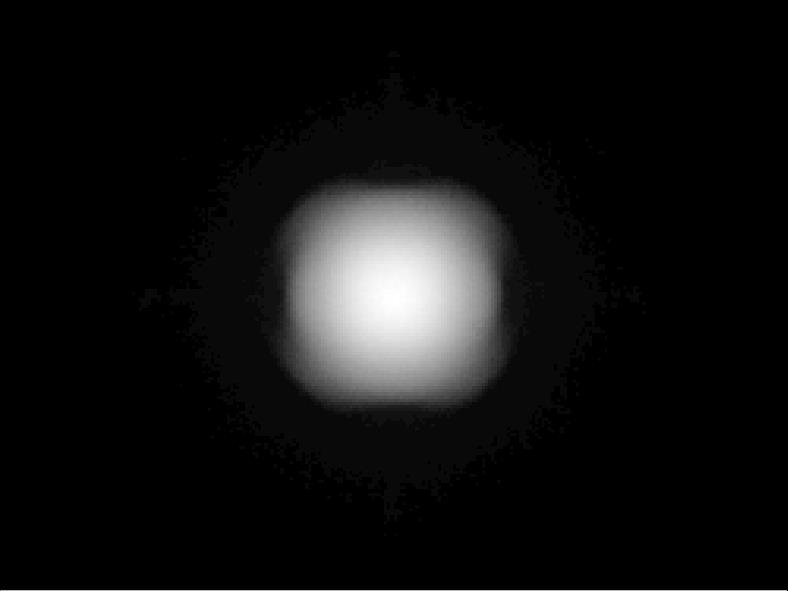

Carclo Optics - 12928 Spot Image - Seoul SZ8Y22P

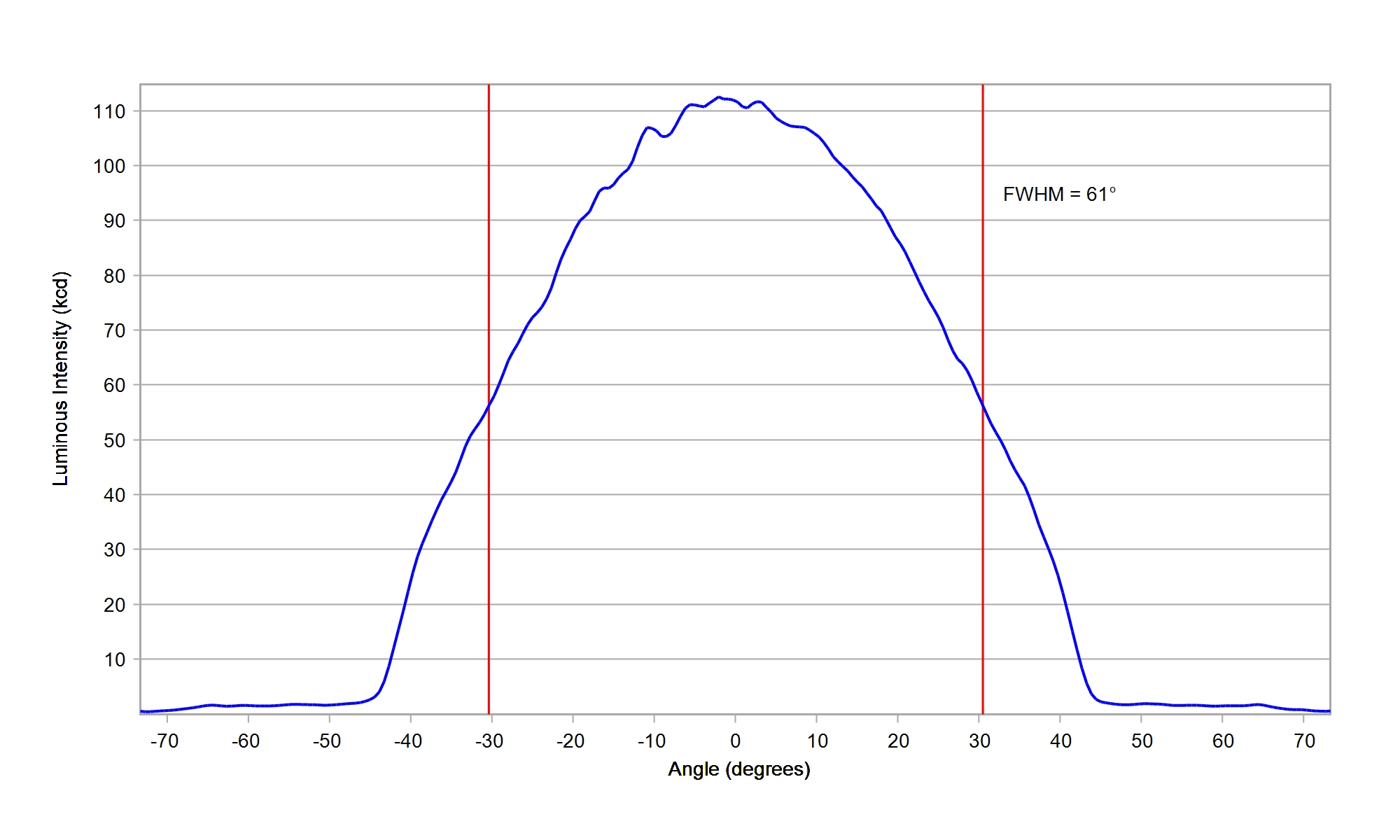

Carclo Optics - 12928 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul 5630 STW8Q14C White

Eff:

90.0%

FWHM:

61.7°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

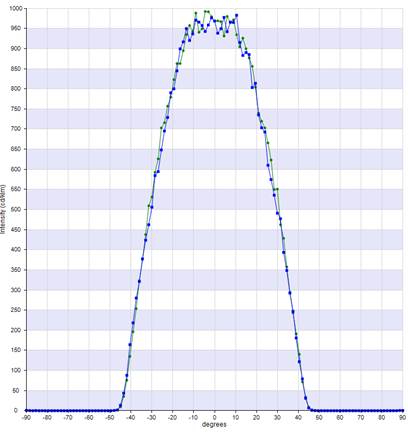

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

Seoul 5630 STW8Q14C White

Eff:

93.0%

FWHM:

57°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

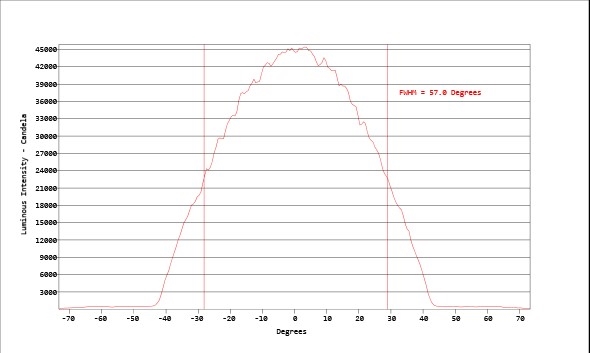

Carclo Optics - Simulated Cross Section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

95.5%

FWHM:

54.0°

Cd/Im:

1.5

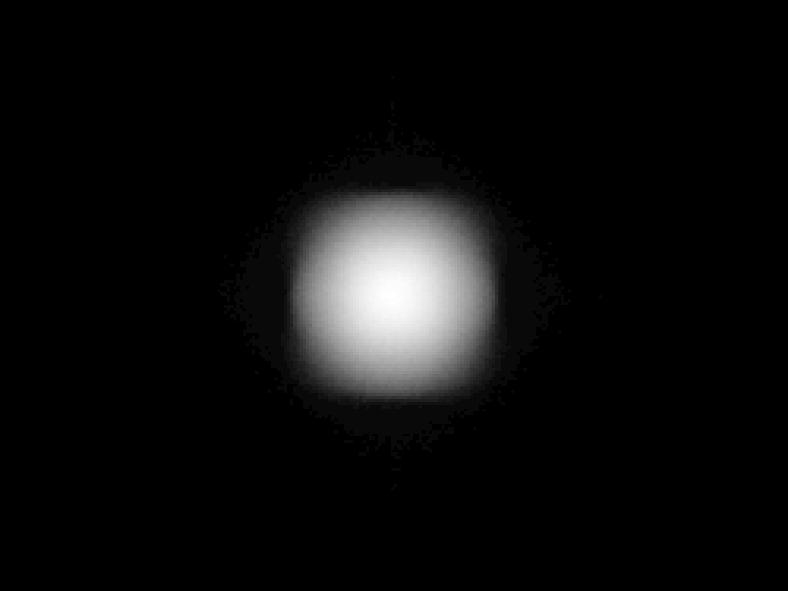

Carclo Optics - 12928 Spot Image Seoul STW8 C2SB-NT

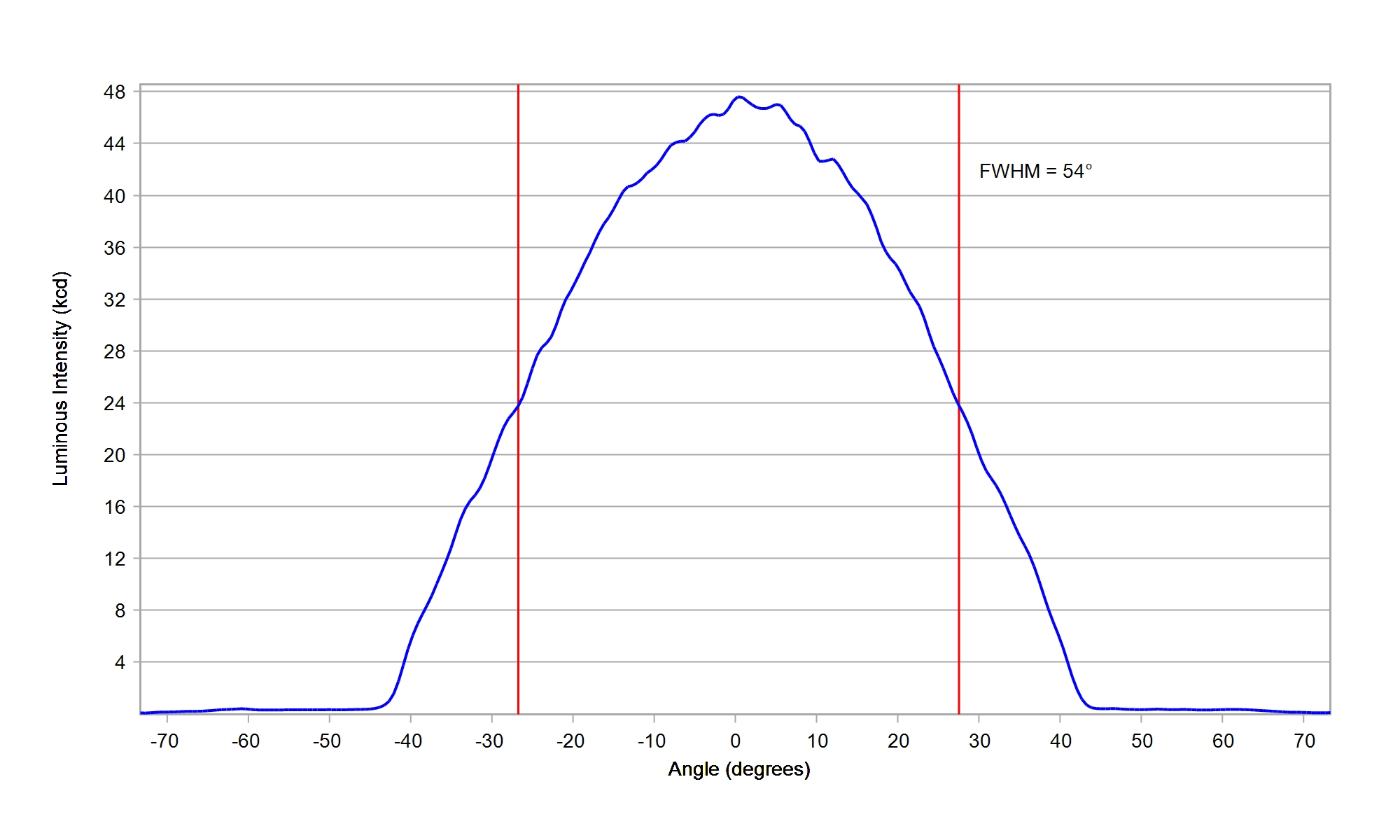

Carclo Optics - 12928 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

95.5%

FWHM:

54.0°

Cd/Im:

1.6

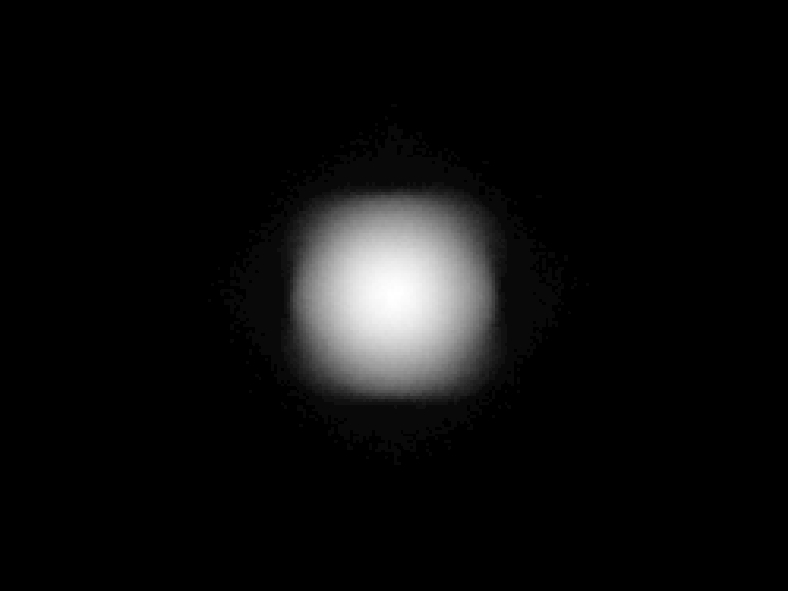

Carclo Optics - 12928 Spot Image STWS C2PB-E0

Carclo Optics - 12928 Cross Section STWS C2PB-E0

Download

ies

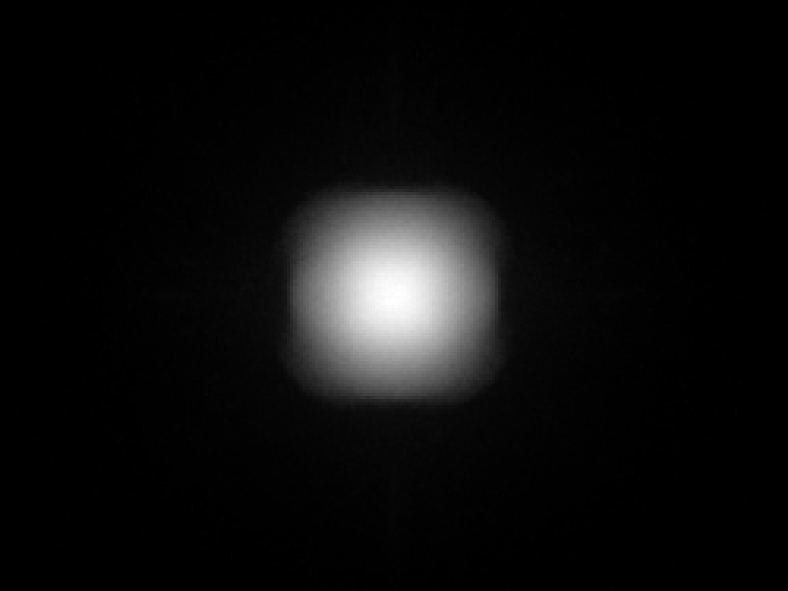

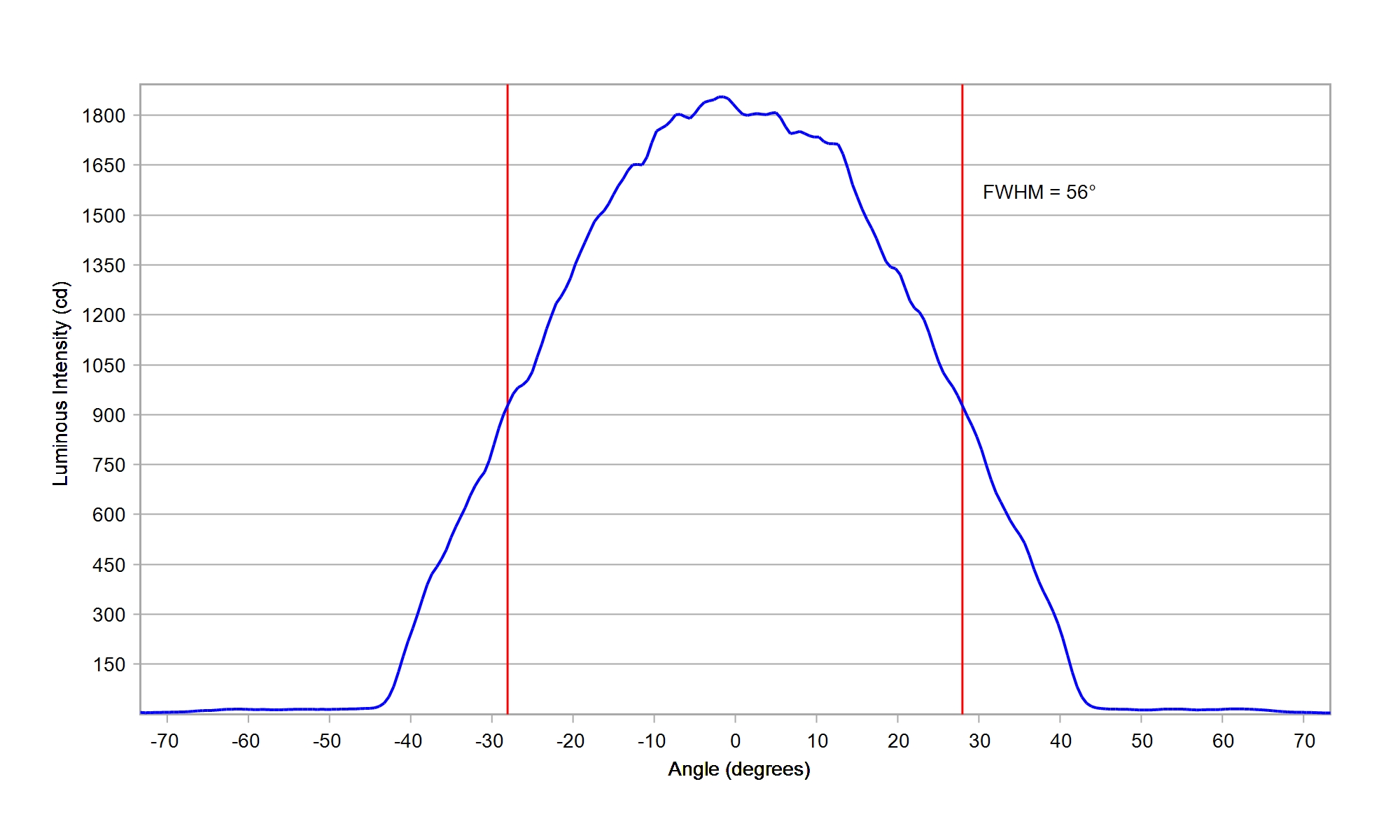

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.7

Download

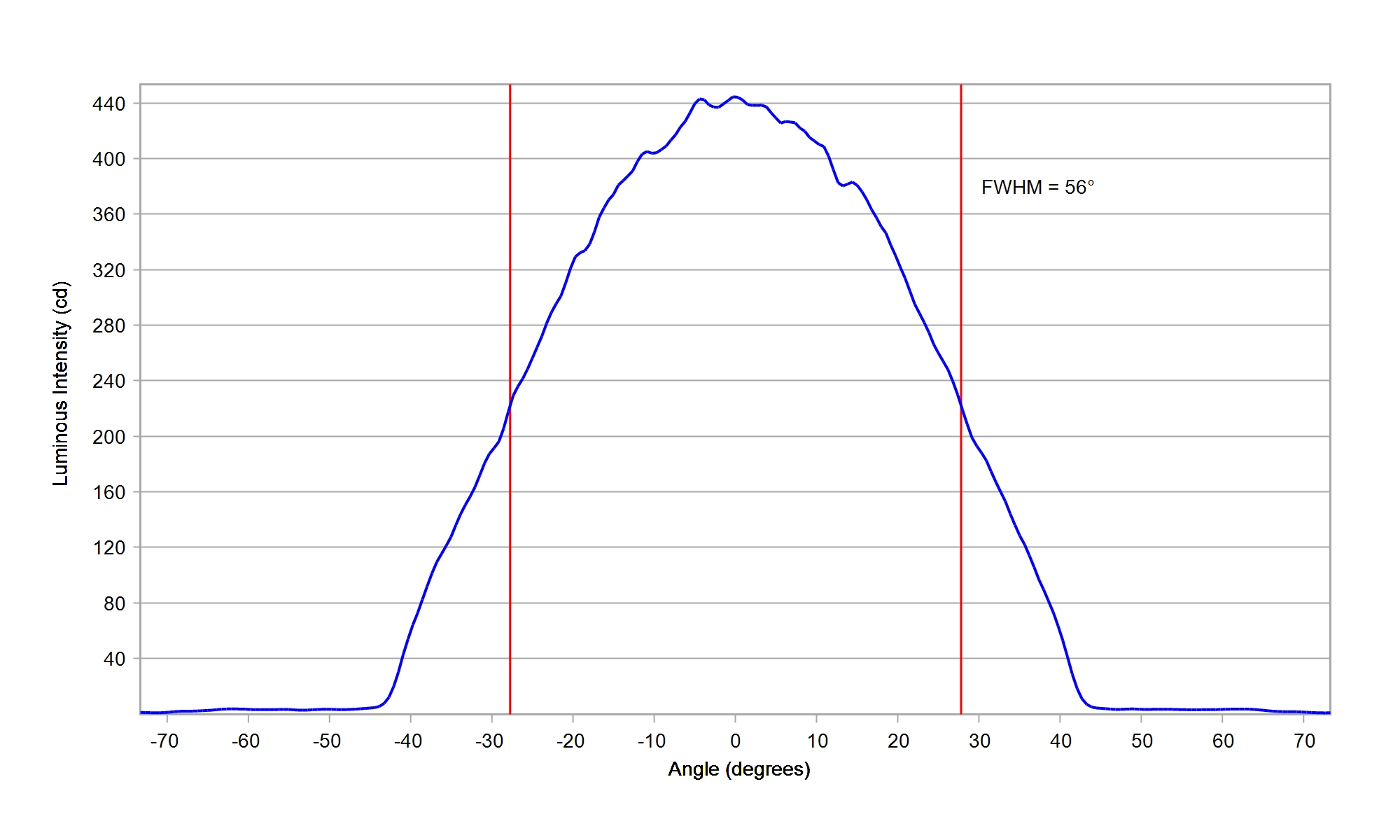

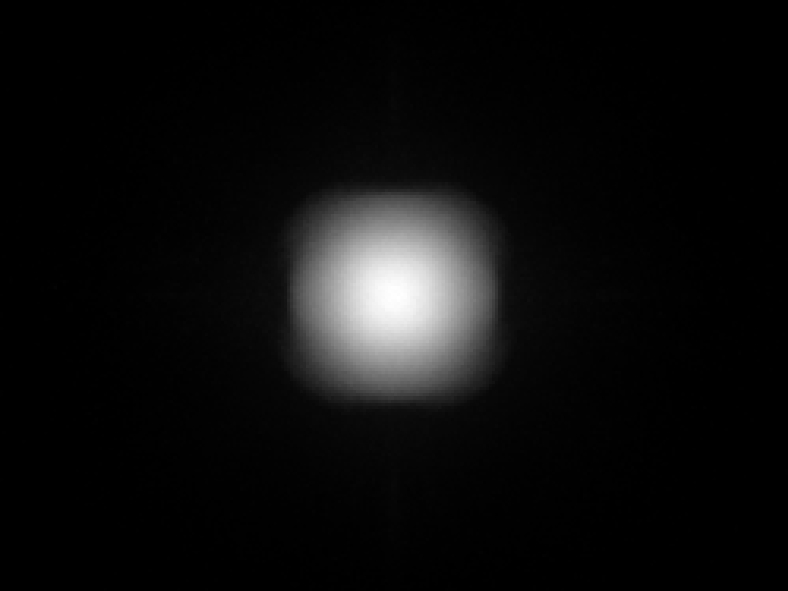

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.6

Download

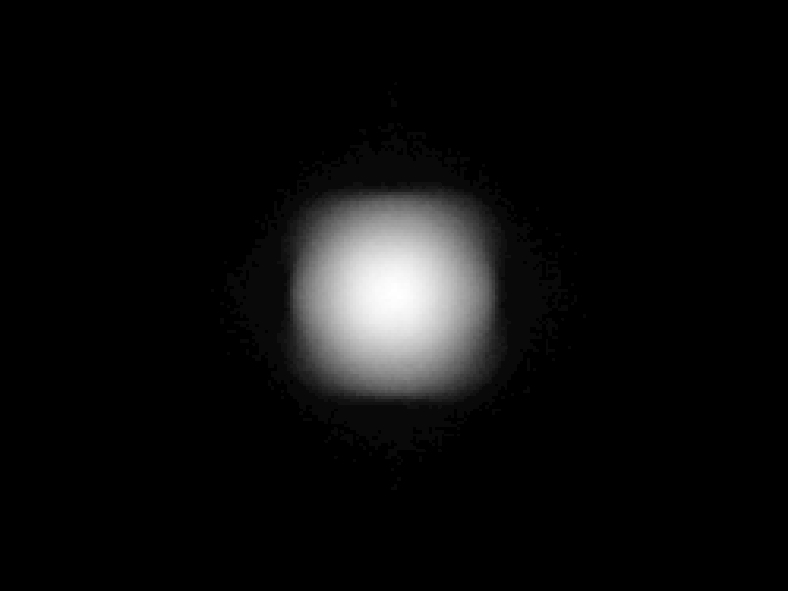

Seoul SunLike 3030 STW9C2SB-S White

Eff:

95.5%

FWHM:

53°

Cd/Im:

1.6

Carclo Optics - 12928 33Up Spot Image Seoul Sunlike 3030

Carclo Optics - 12928 33Up Cross Section Seoul Sunlike 3030

Download

ies

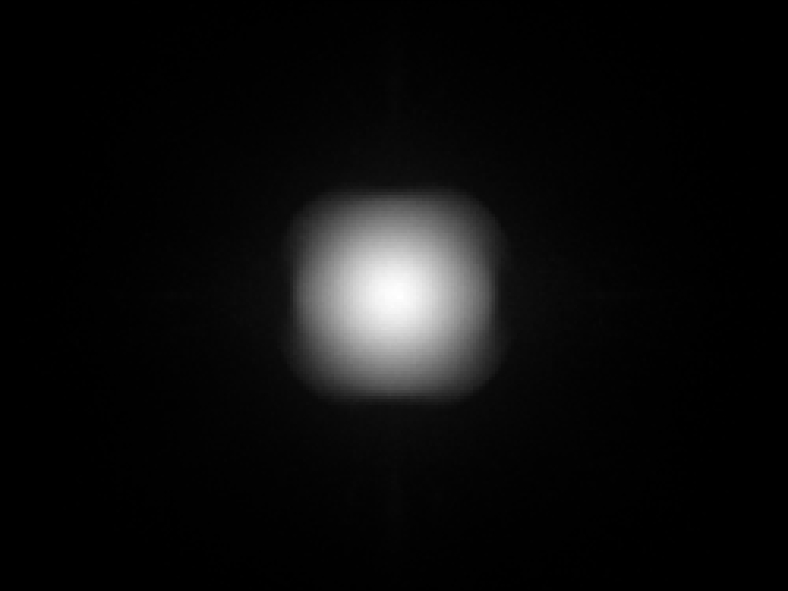

Signify Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.5

Download

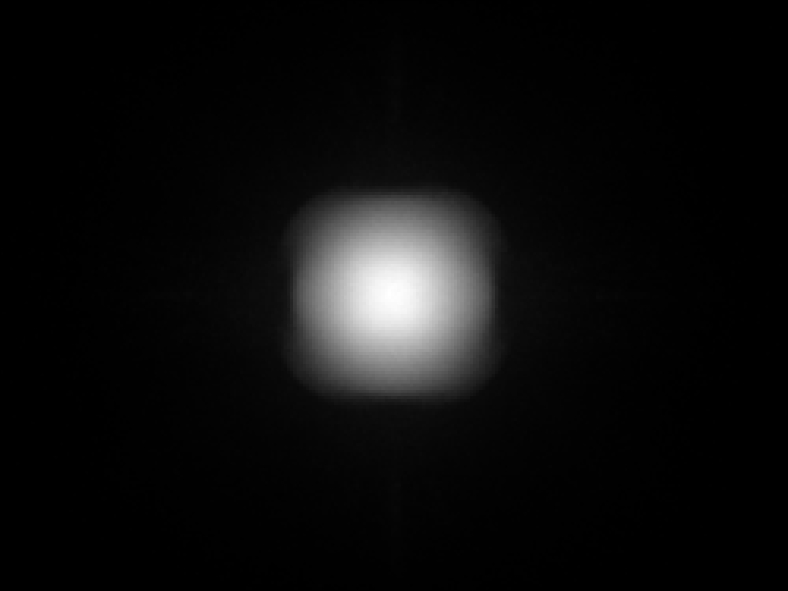

Signify Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

95.0%

FWHM:

53°

Cd/Im:

1.5


Download

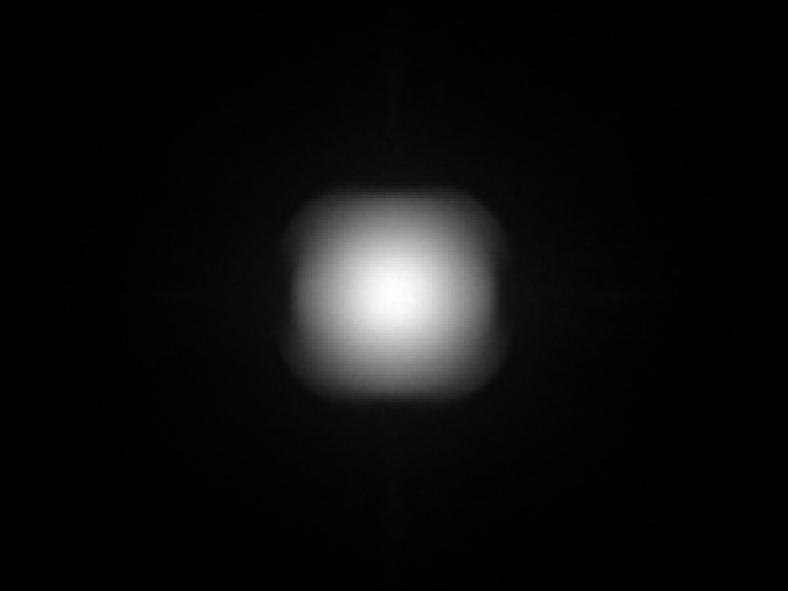

Signify Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

95.0%

FWHM:

54°

Cd/Im:

1.4


Download
