12927-WHT
292 x 61mm Medium Spot Plain Freeform
Part number
12927-WHT
Dimensions
292 x 61mm
Drawing Number
12927-COMBO
Optic type
Freeform
Finish
Plain
Beam type
Medium Spot
Applications
Office
Retail
Humancentric
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

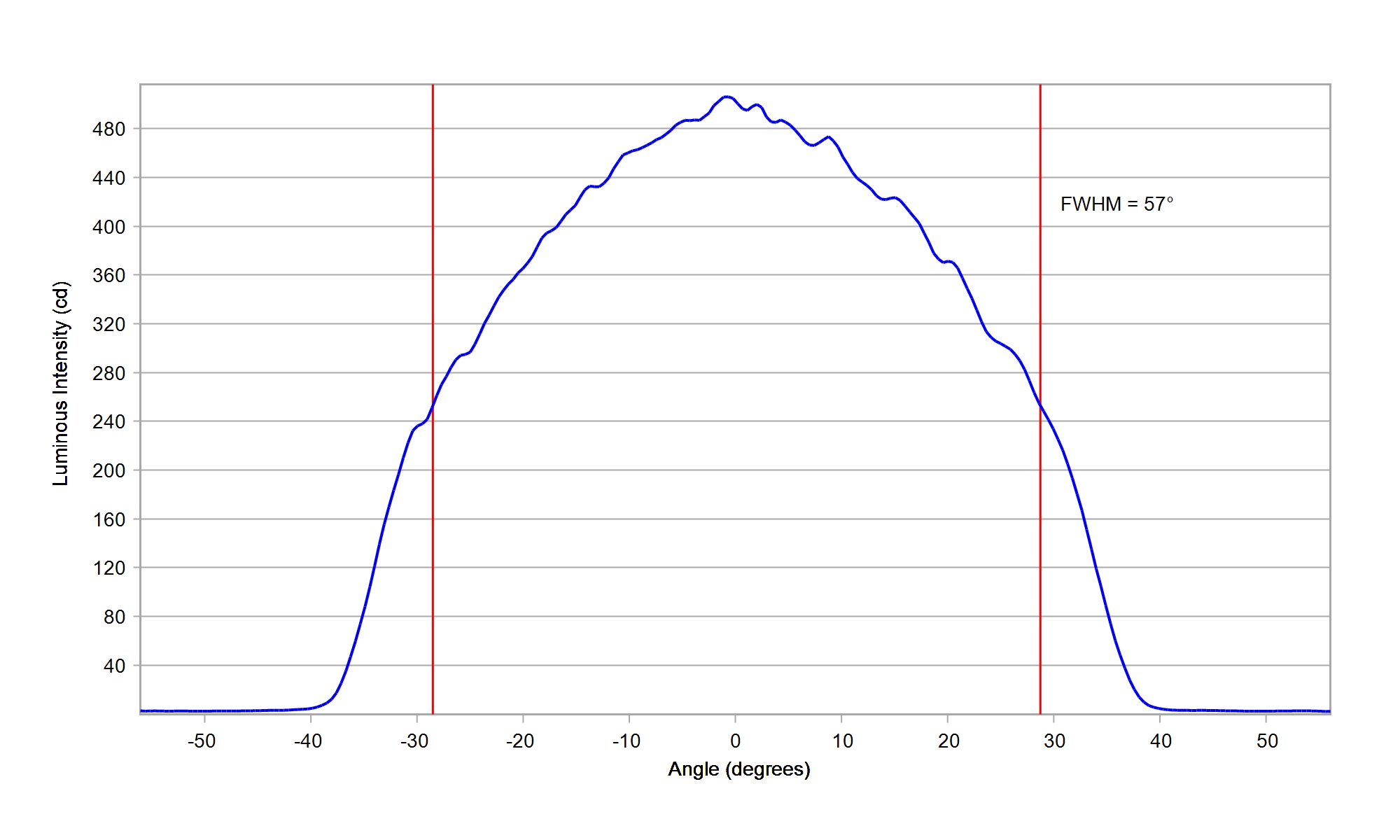

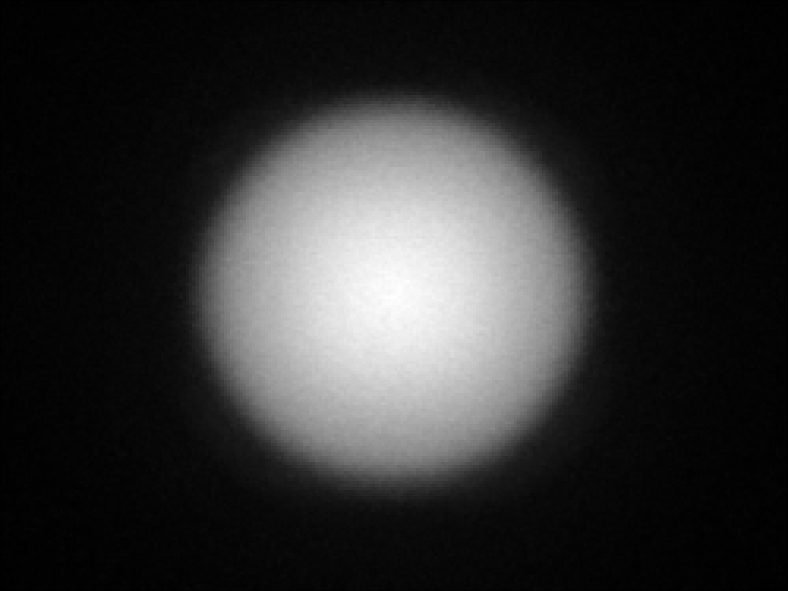

Cree JB2835B 3V G-Class White
Eff:
82.0%
FWHM:
57°
Cd/Im:
1.4
Download

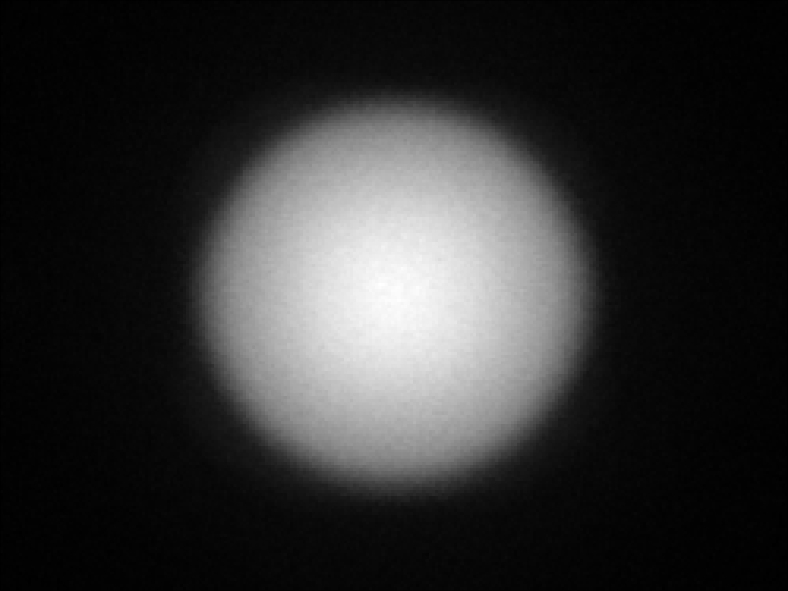

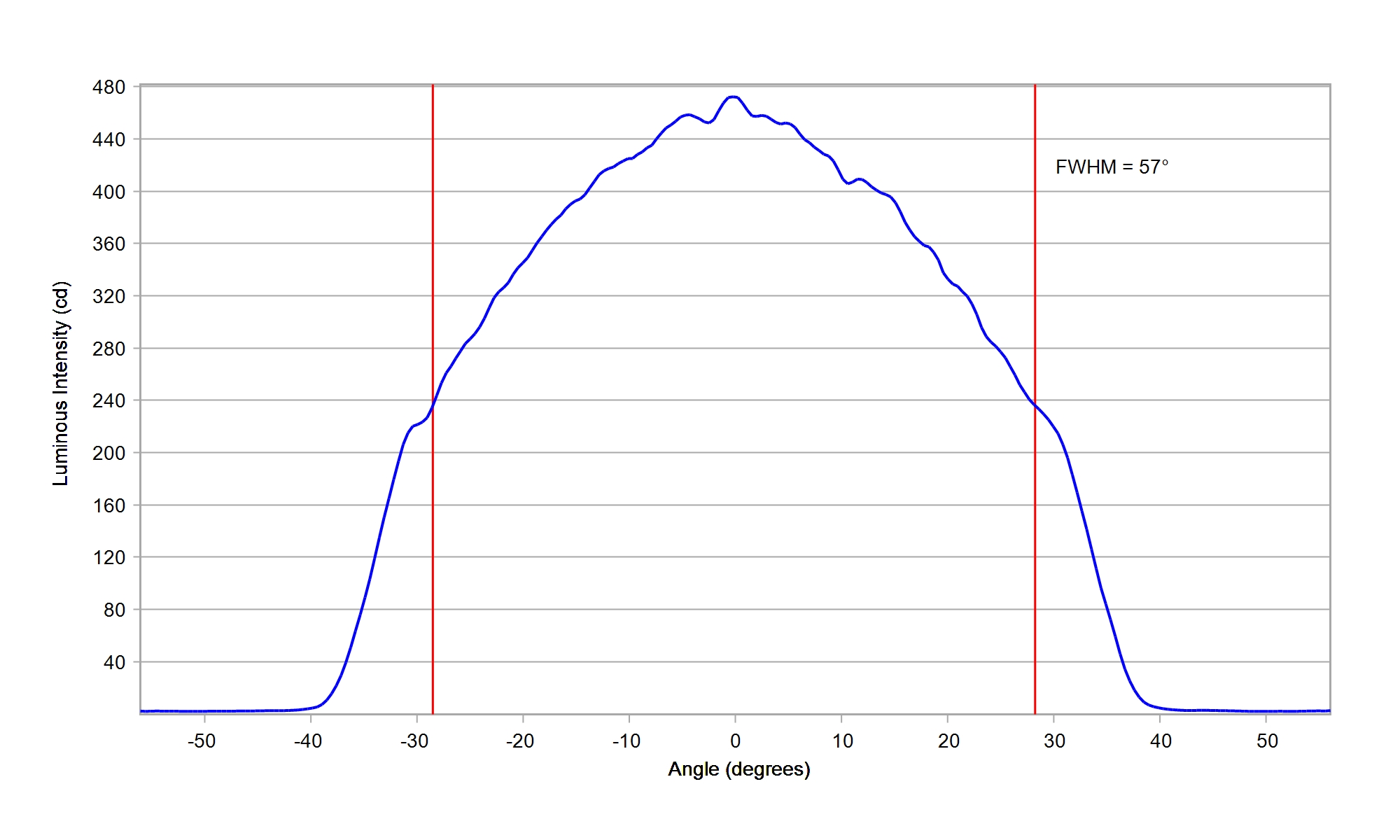

Cree JB2835B 3V J-Class White
Eff:
82.5%
FWHM:
57°
Cd/Im:
1.4
Download
Cree JB3030 3V P-Class White
Eff:
80.5%
FWHM:
57°
Cd/Im:
1.4
Download

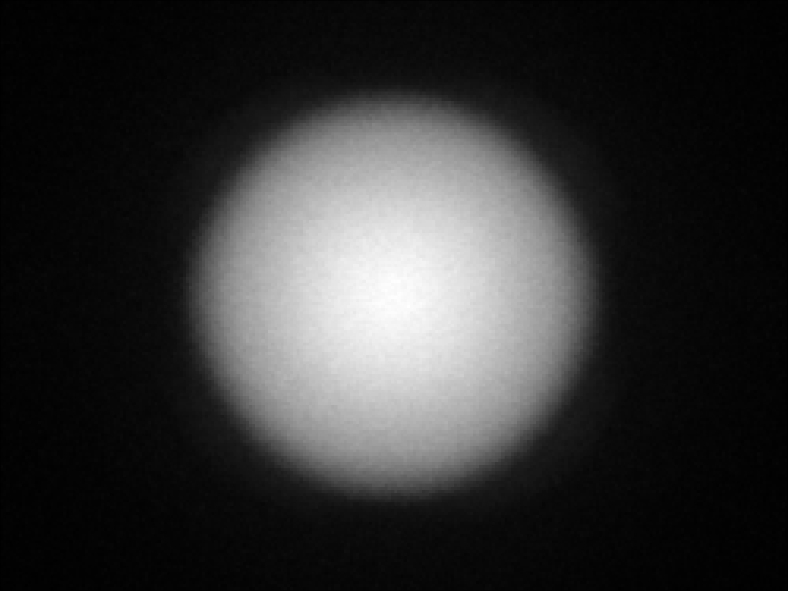

Cree JB3030C 3V E-Class White
Eff:
81.0%
FWHM:
59°
Cd/Im:
1.3
Download

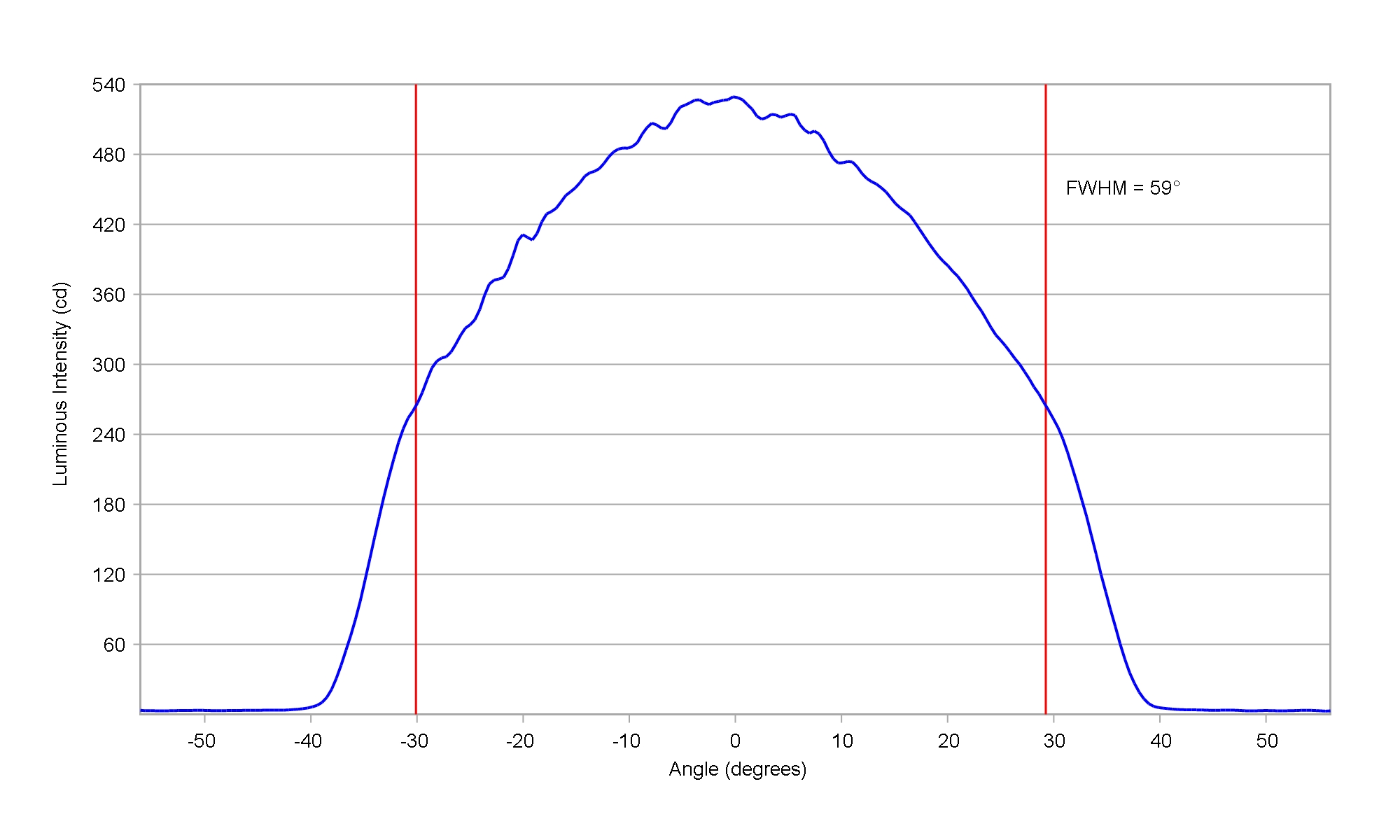

Cree JB3030C 3V F-Class White
Eff:
81.5%
FWHM:
59°
Cd/Im:
1.5
Download

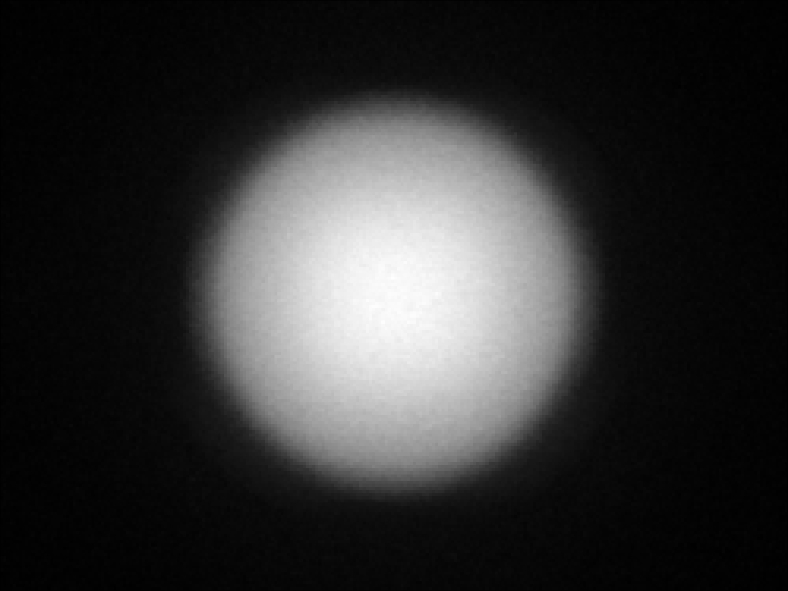

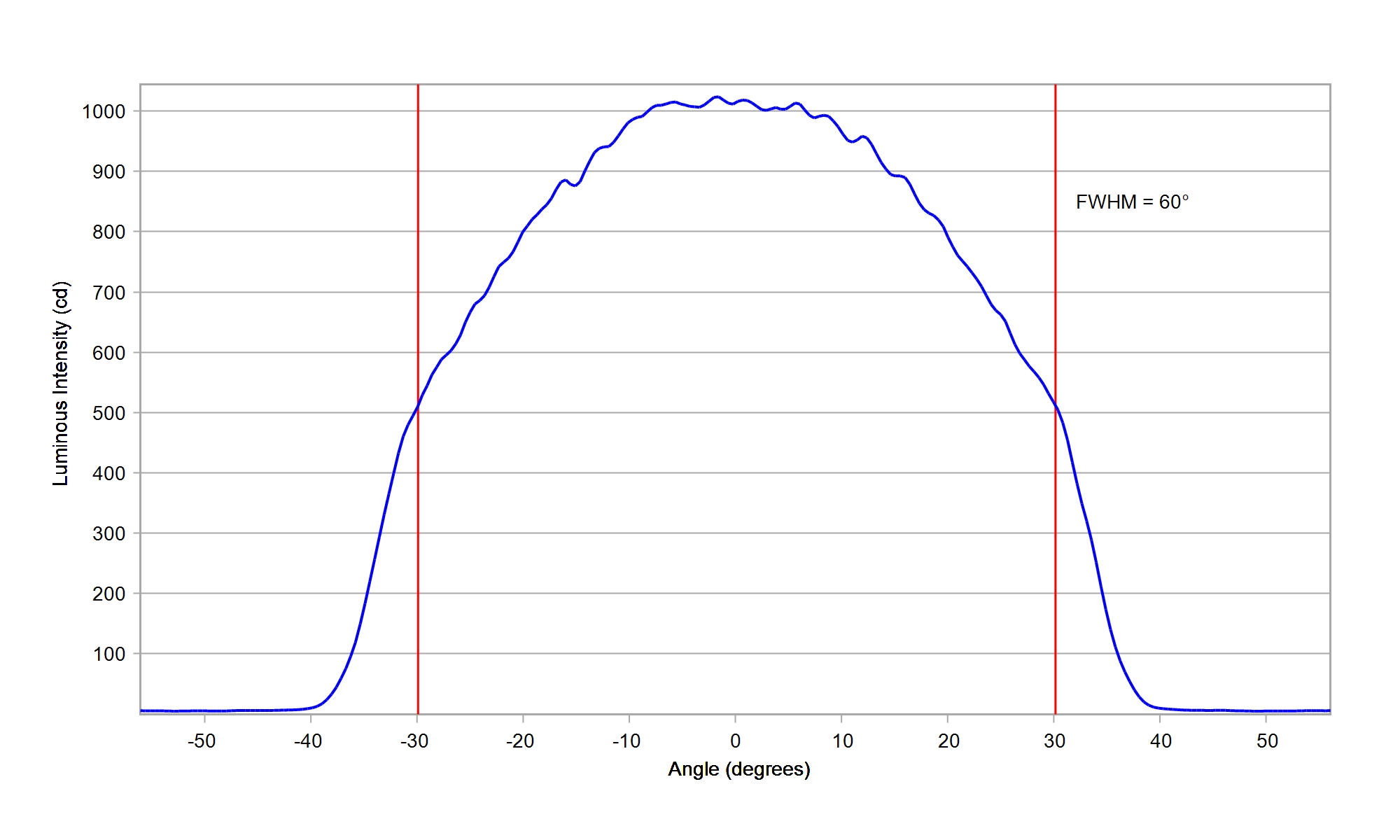

Cree JE2835 3V White
Eff:
82.0%
FWHM:
60°
Cd/Im:
1.4
Download
Cree JK2835 6V White
Eff:
81.5%
FWHM:
57°
Cd/Im:
1.5
Download

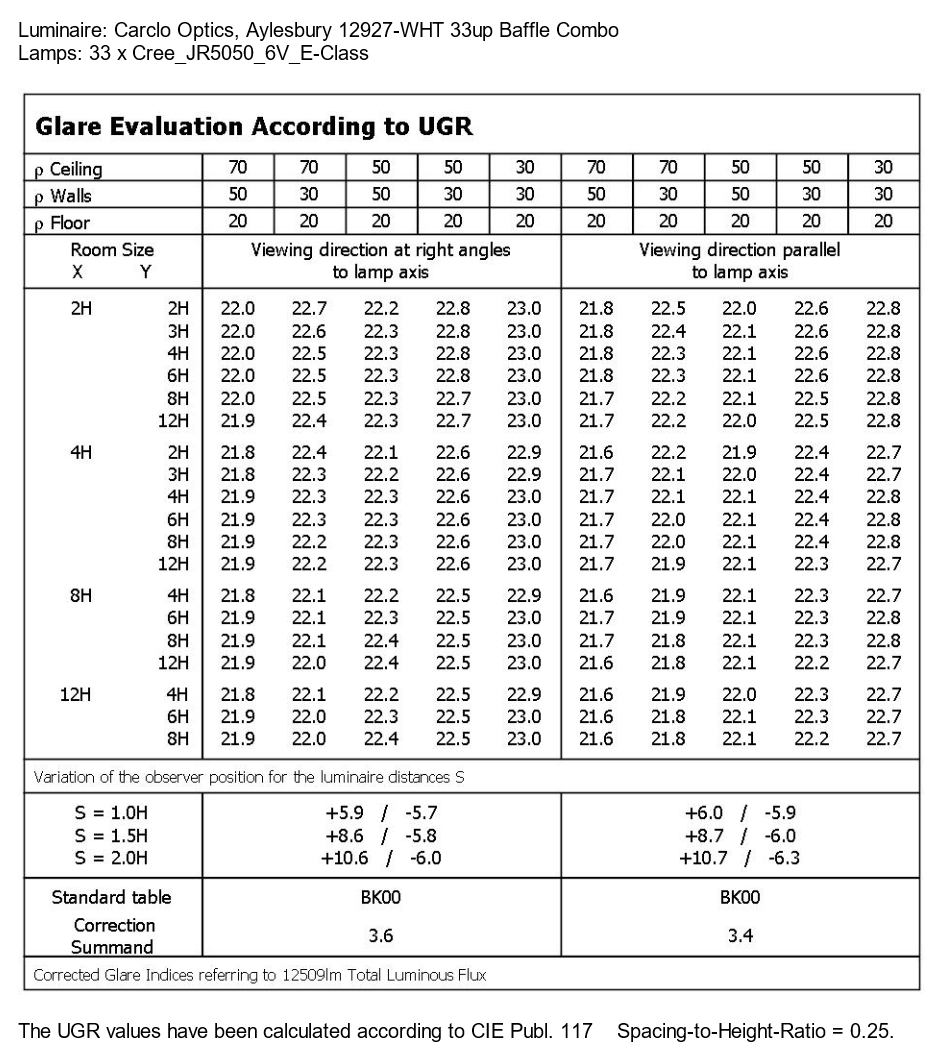

Cree JR5050C 6V E-Class White
Eff:
81.0%
FWHM:
59°
Cd/Im:
1.3
Download
Cree XLamp CSP XD16 Premium White
Eff:
80.0%
FWHM:
60°
Cd/Im:
1.3
Download

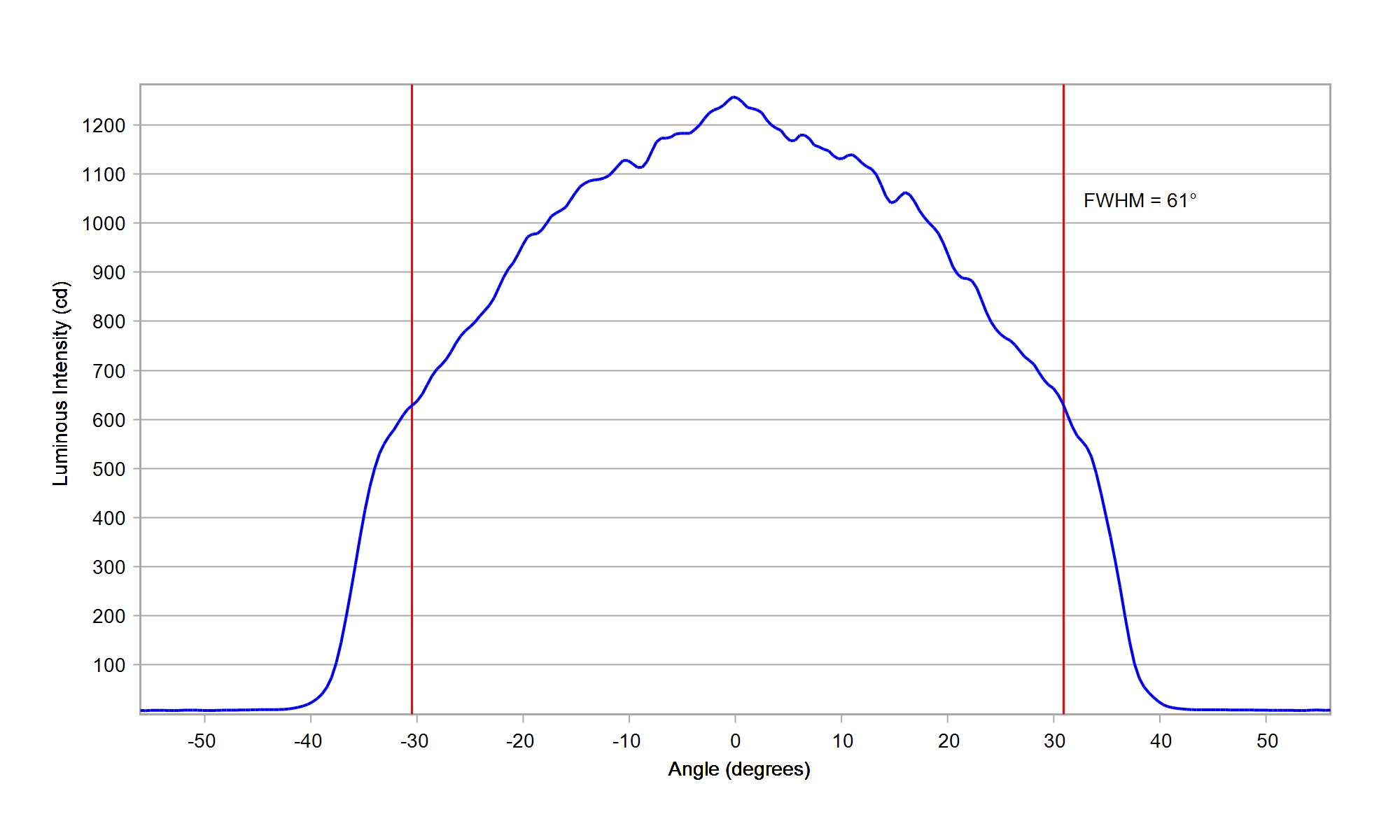

Cree XLamp XE-G White
Eff:
79.5%
FWHM:
61°
Cd/Im:
1.2
Download
Cree XLamp XM-L Color G2 HI RGBW
Eff:
82.0%
FWHM:
59°
Cd/Im:
1.4
Download
Cree XLamp XP-E2 White
Eff:
84.0%
FWHM:
60°
Cd/Im:
1.2
Download

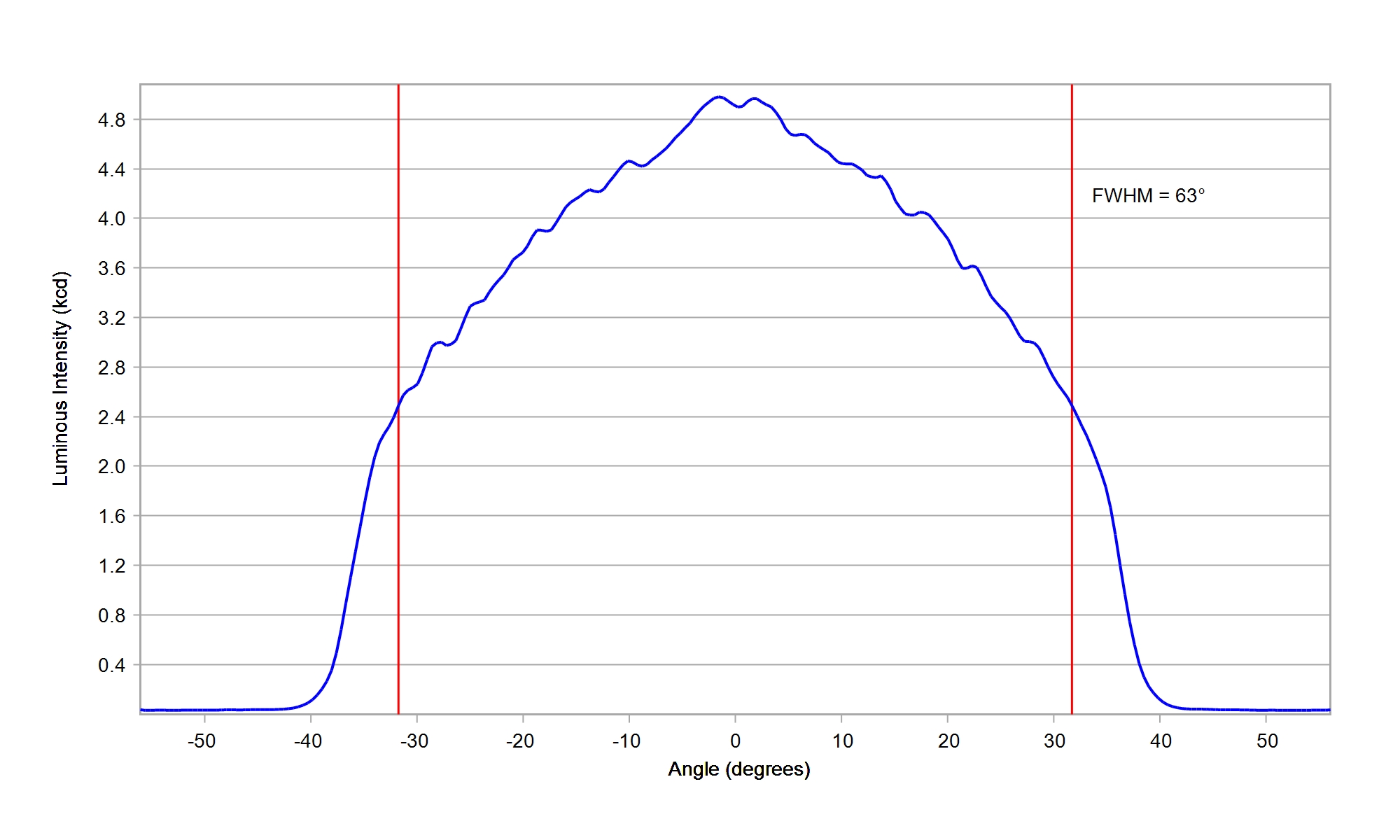

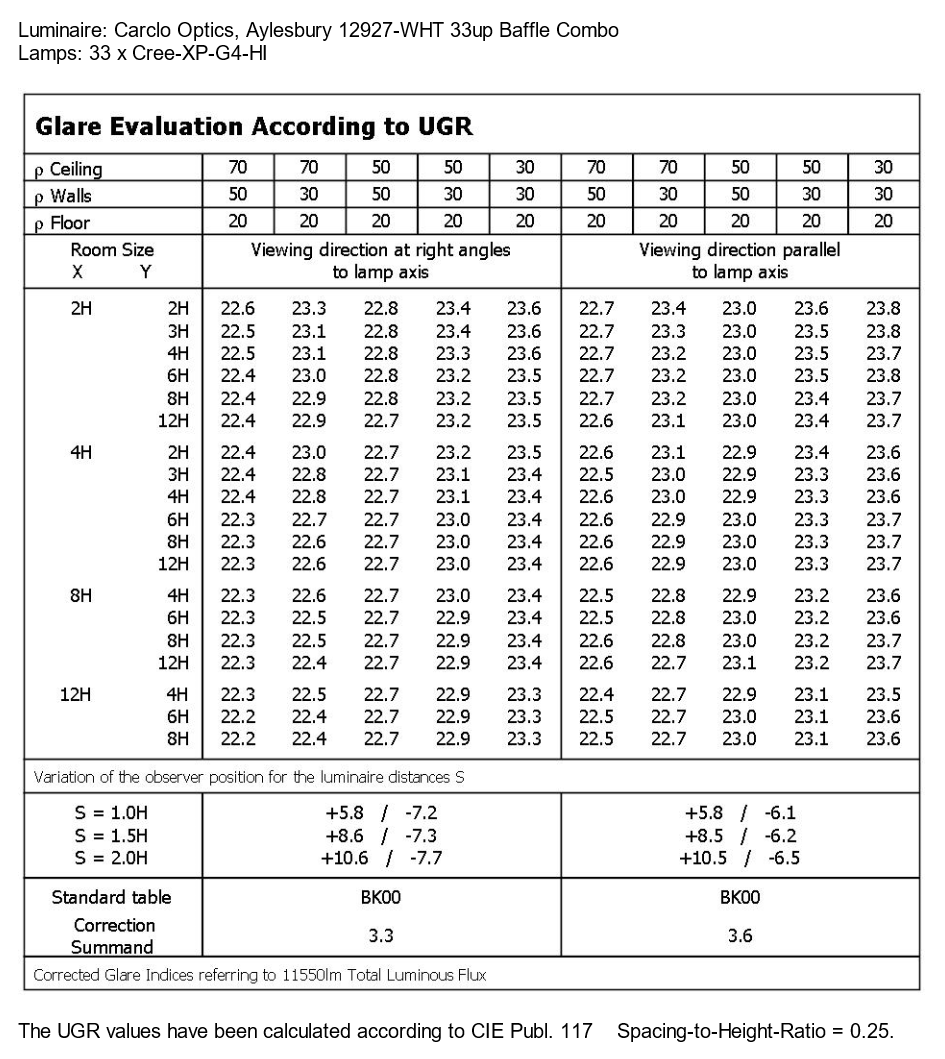

Cree XLamp XP-G4 HI White
Eff:
80.5%
FWHM:
63°
Cd/Im:
1.2
Download

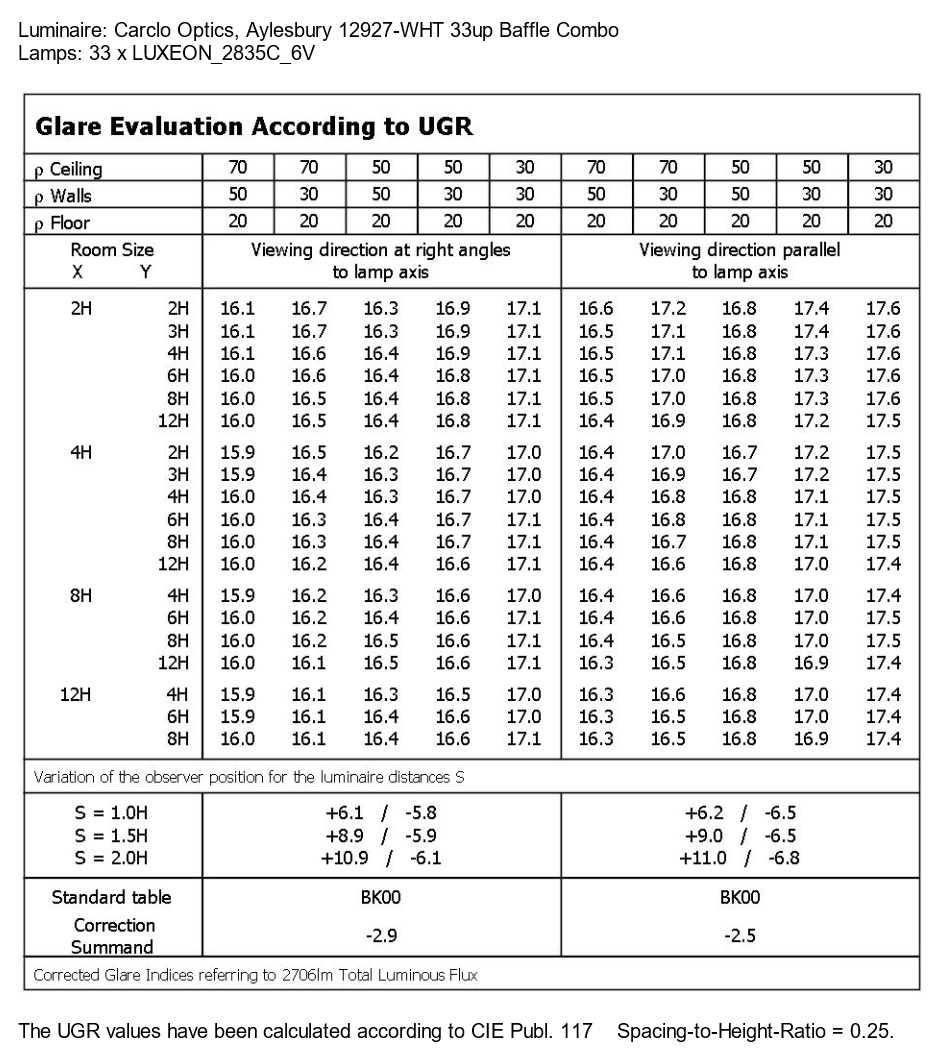

LUMILEDS LUXEON 2835C 6V White
Eff:
82.0%
FWHM:
58°
Cd/Im:
1.3
Download

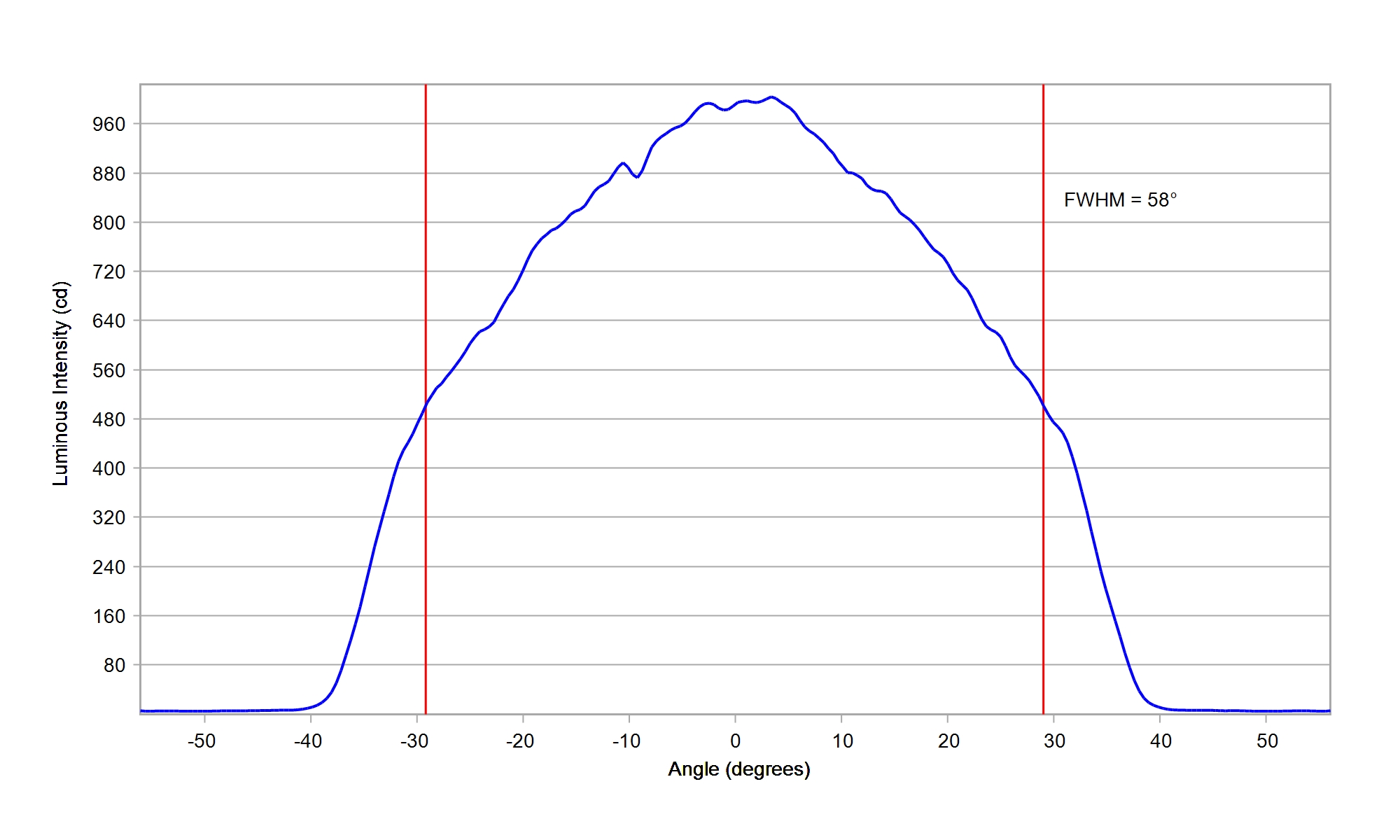

LUMILEDS LUXEON 2835E 9V White
Eff:
82.0%
FWHM:
58°
Cd/Im:
1.3
Download

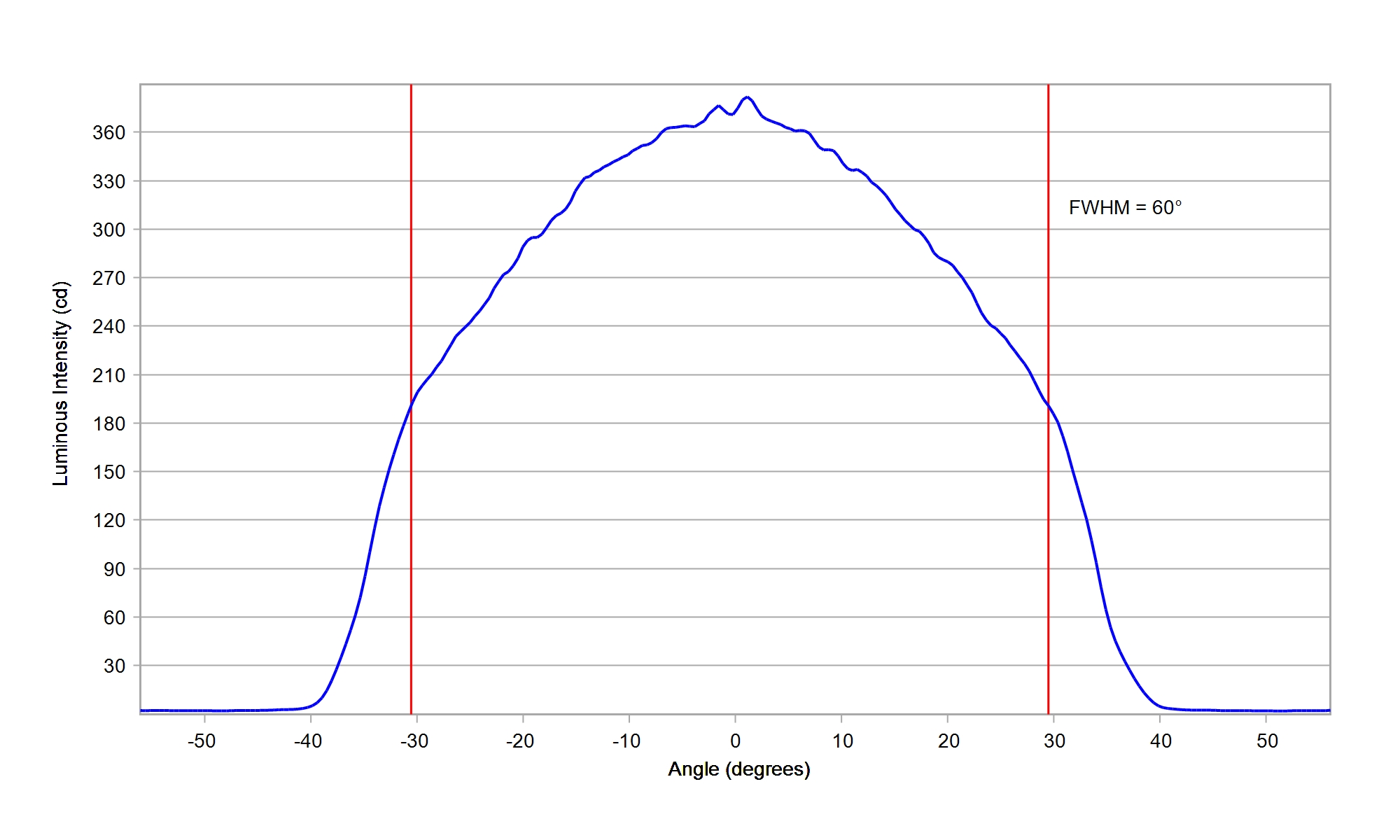

LUMILEDS LUXEON 2835N 3V White
Eff:
81.0%
FWHM:
60°
Cd/Im:
1.4
Download

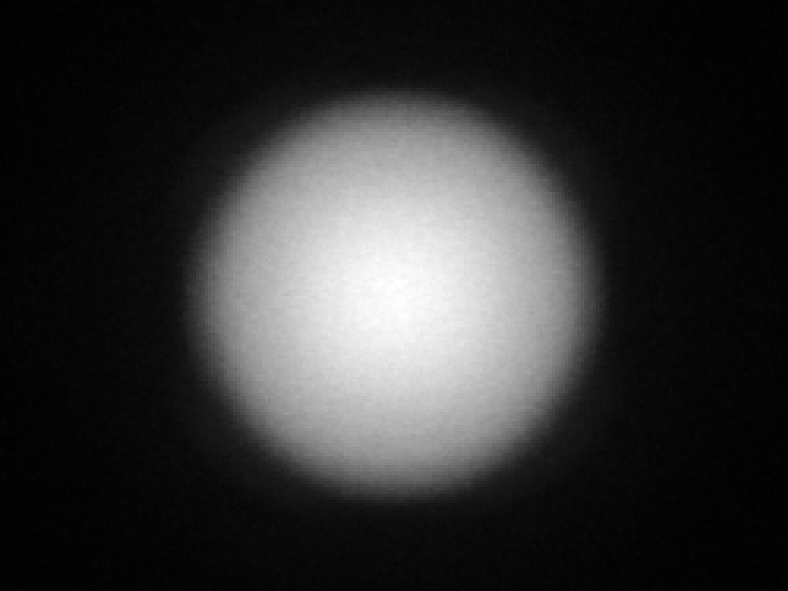

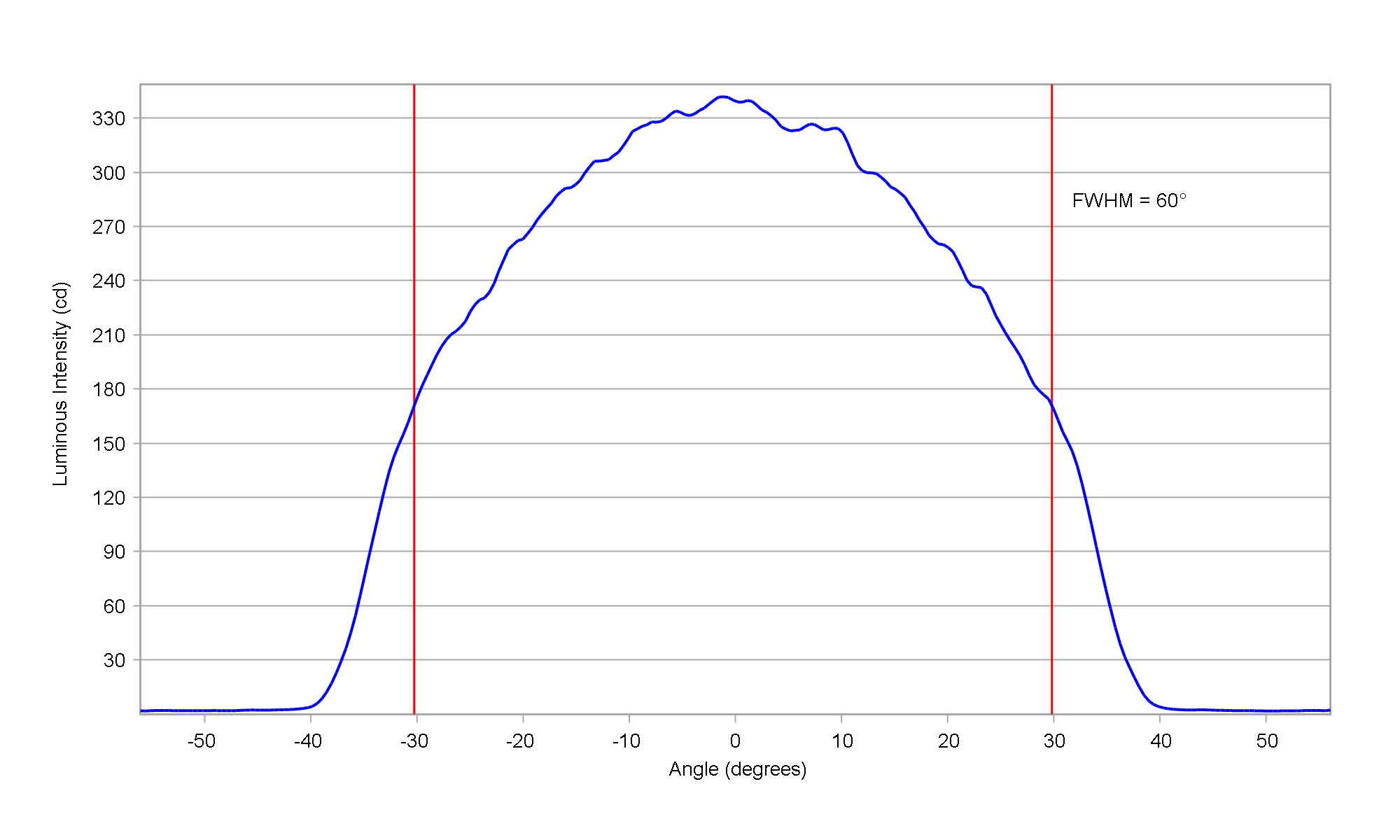

LUMILEDS LUXEON 2835S 3V White
Eff:
81.0%
FWHM:
60°
Cd/Im:
1.3
Download

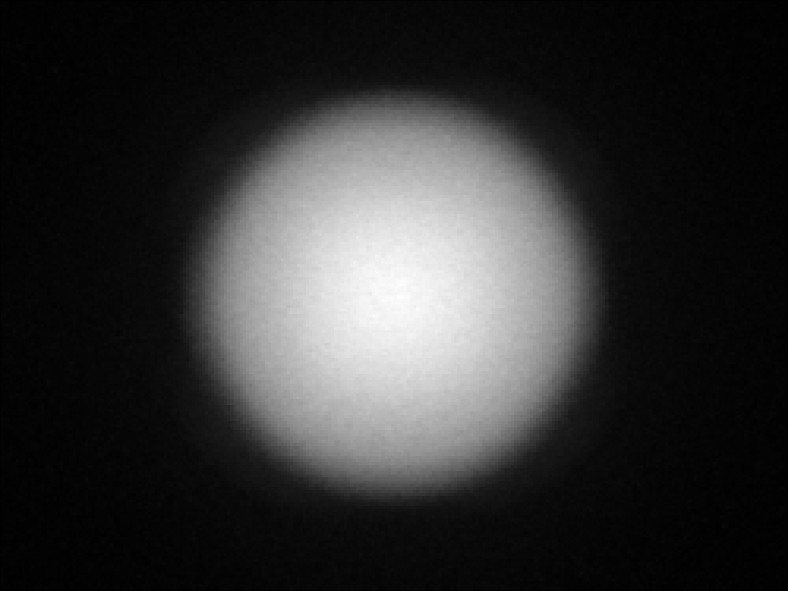

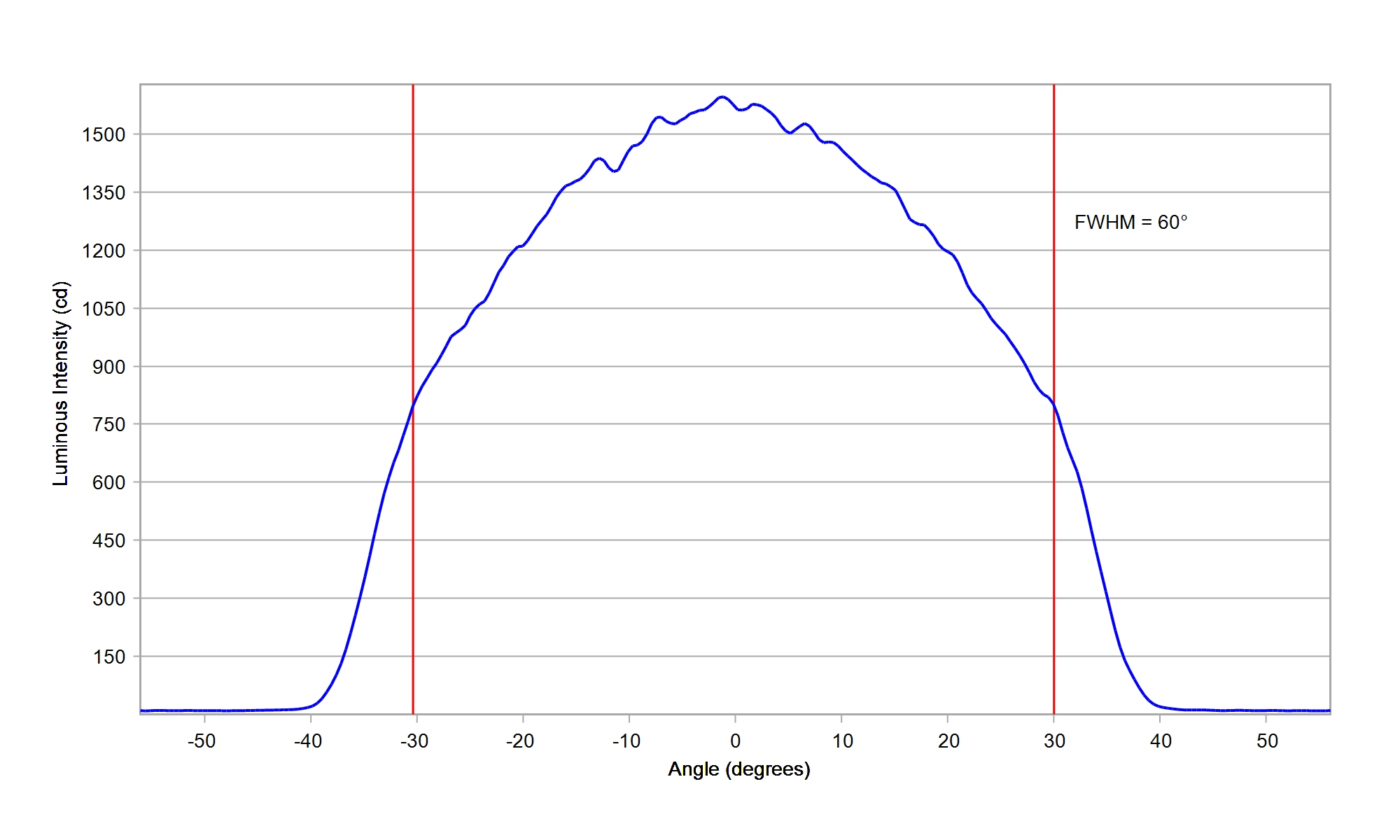

LUMILEDS LUXEON 2835S 6V White
Eff:
81.0%
FWHM:
60°
Cd/Im:
1.3
Download

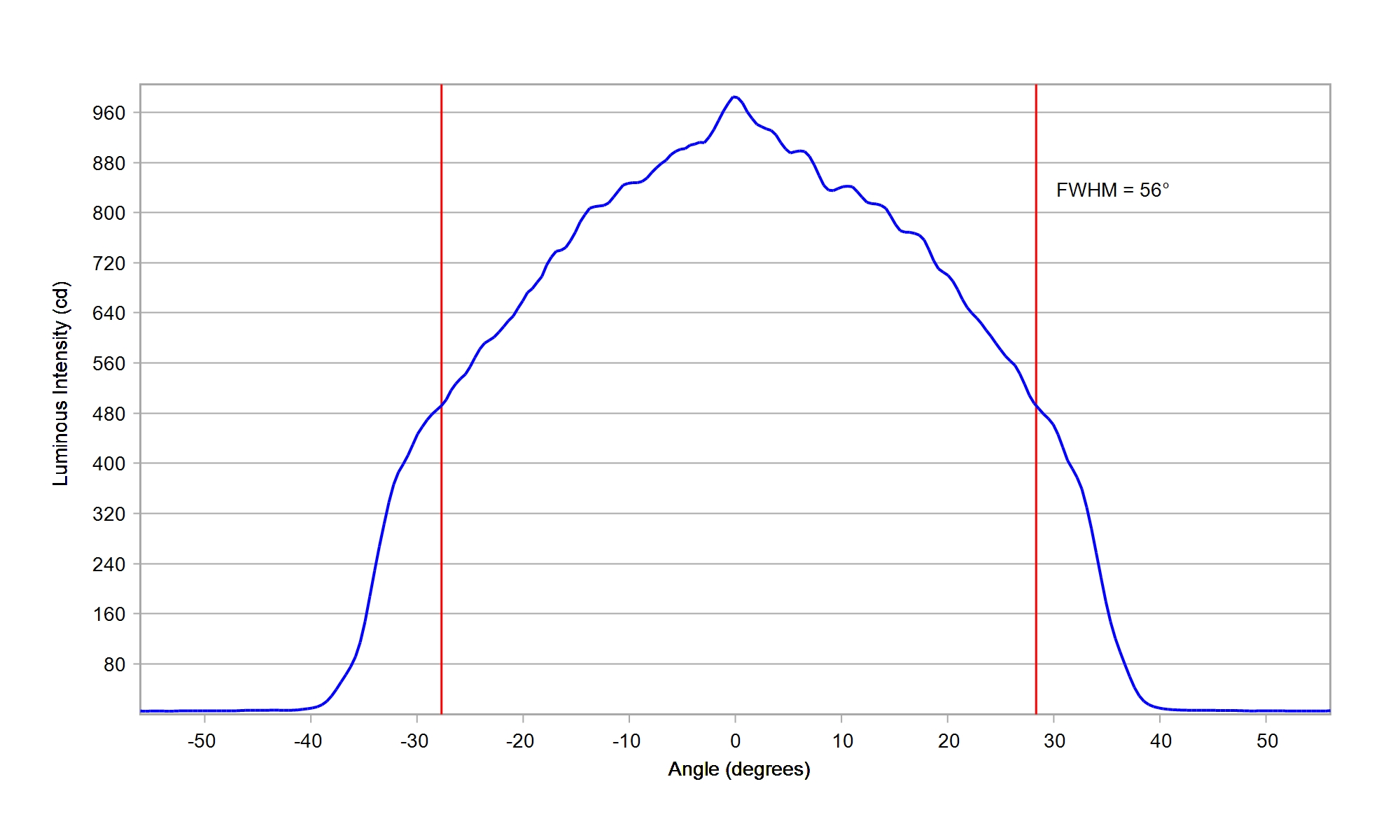

LUMILEDS LUXEON 3014 White
Eff:
82.0%
FWHM:
56°
Cd/Im:
1.4
Download

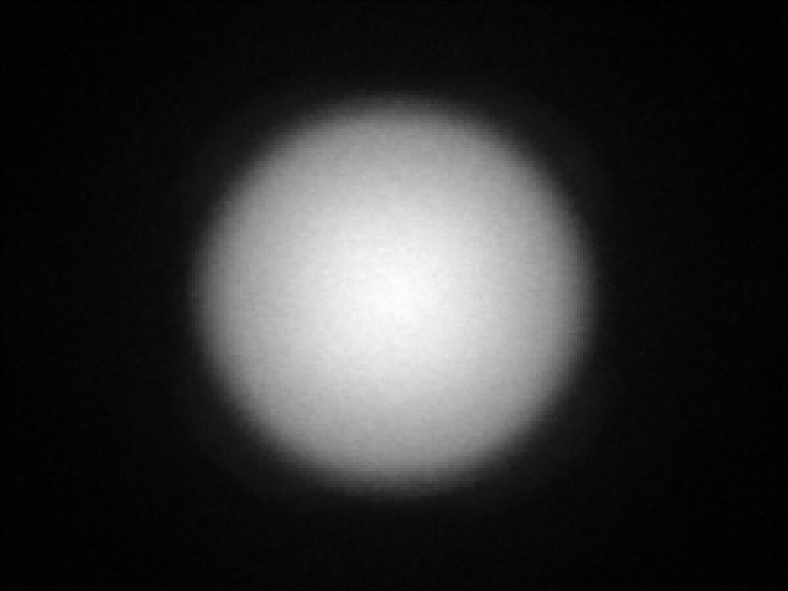

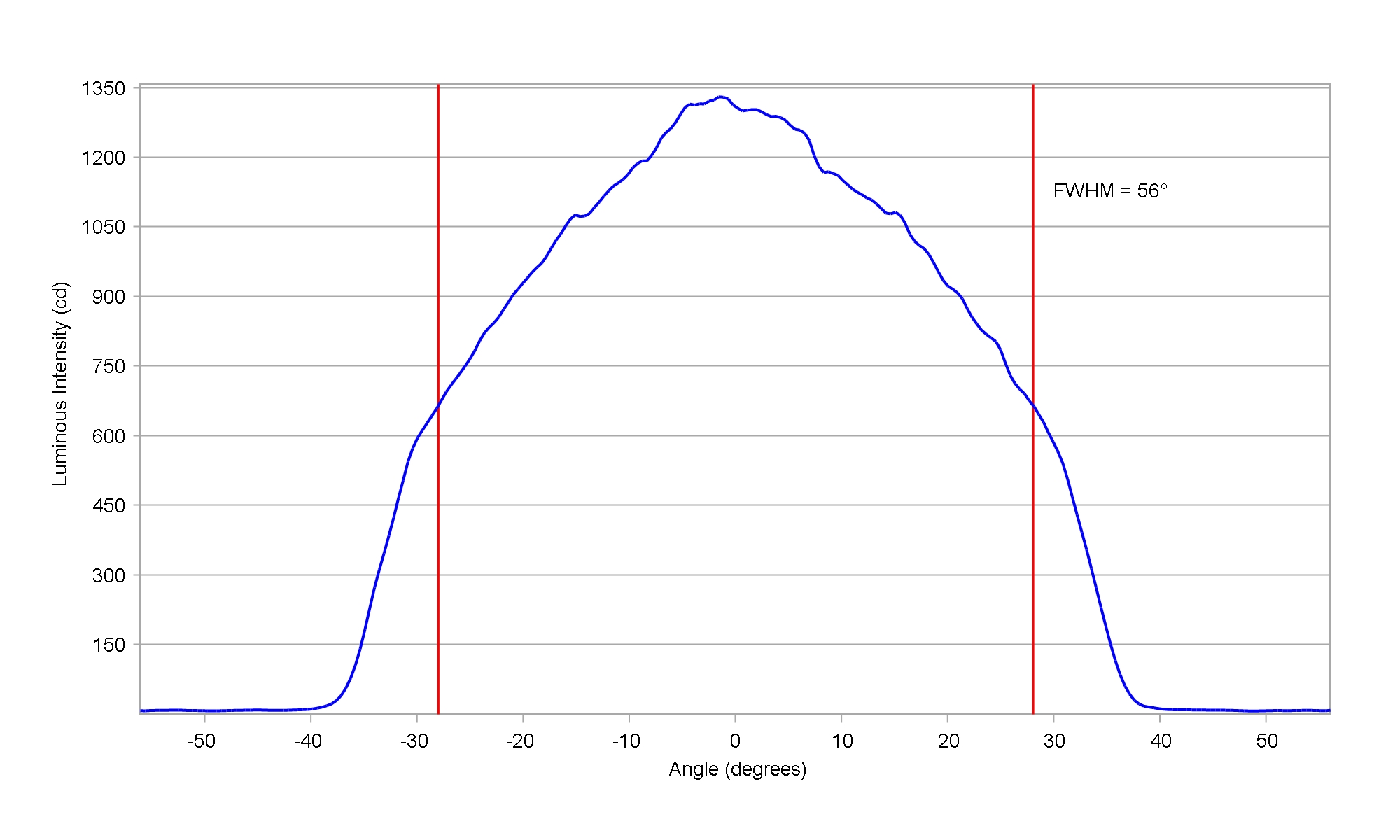

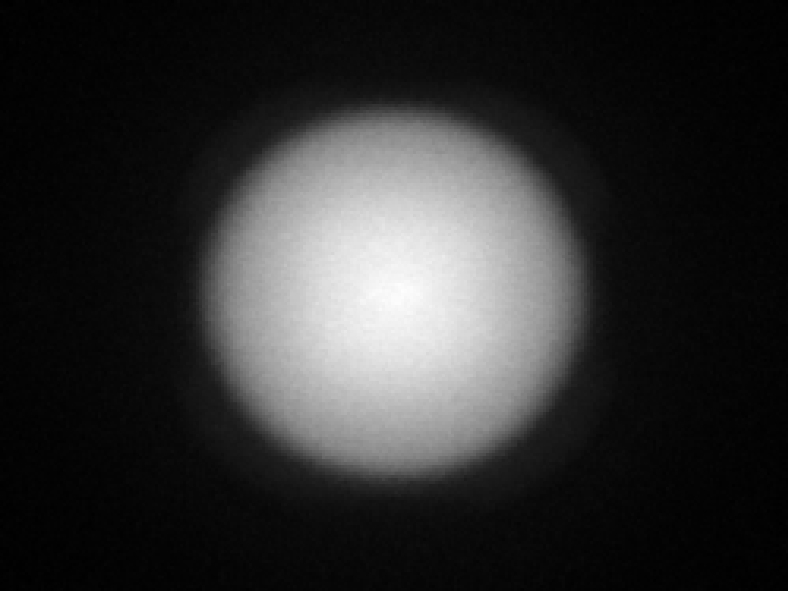

LUMILEDS LUXEON 3030 2D White
Eff:
80.5%
FWHM:
56°
Cd/Im:
1.3
Download

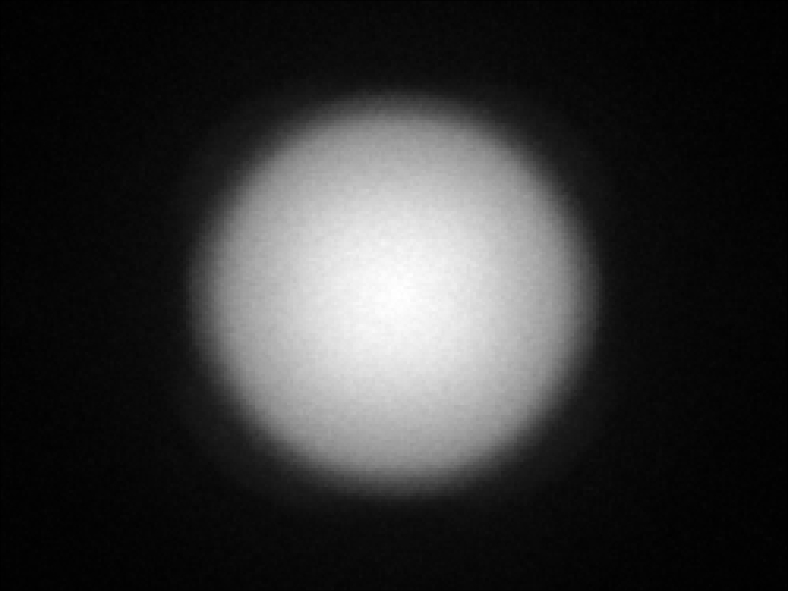

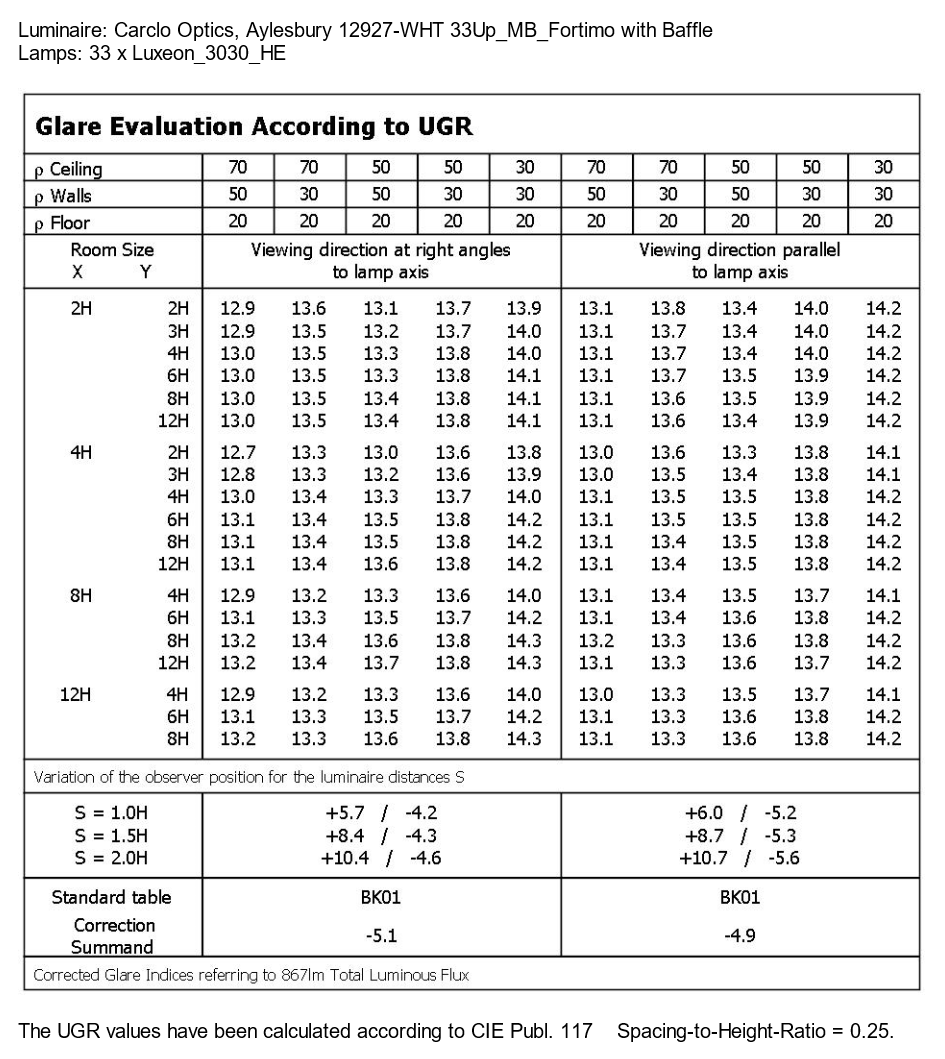

LUMILEDS LUXEON 3030 HE White
Eff:
81.0%
FWHM:
59°
Cd/Im:
1.3
Download
LUMILEDS LUXEON C White
Eff:
70.5%
FWHM:
68°
Cd/Im:
1.0
Download

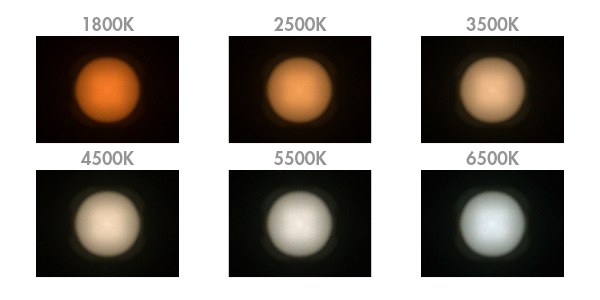

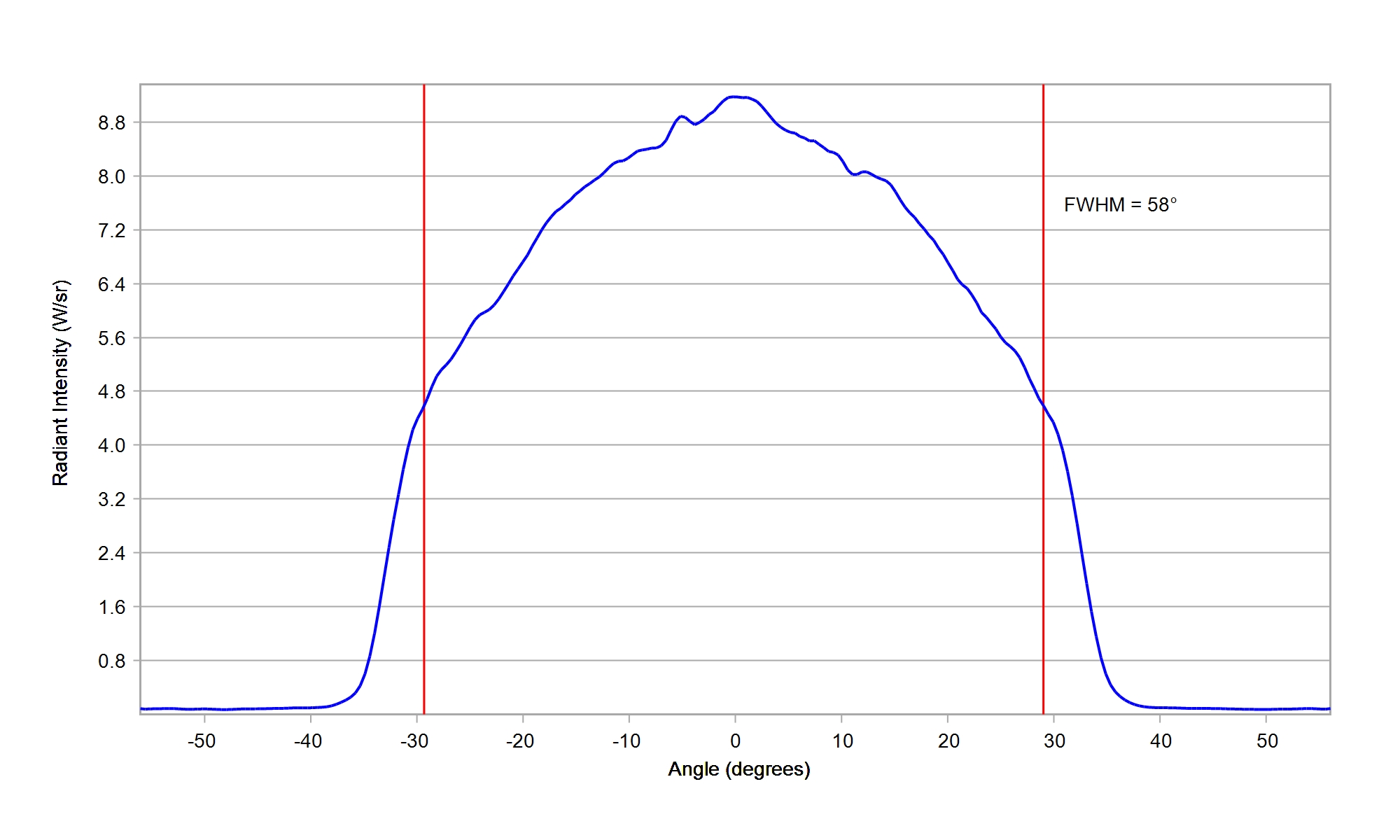

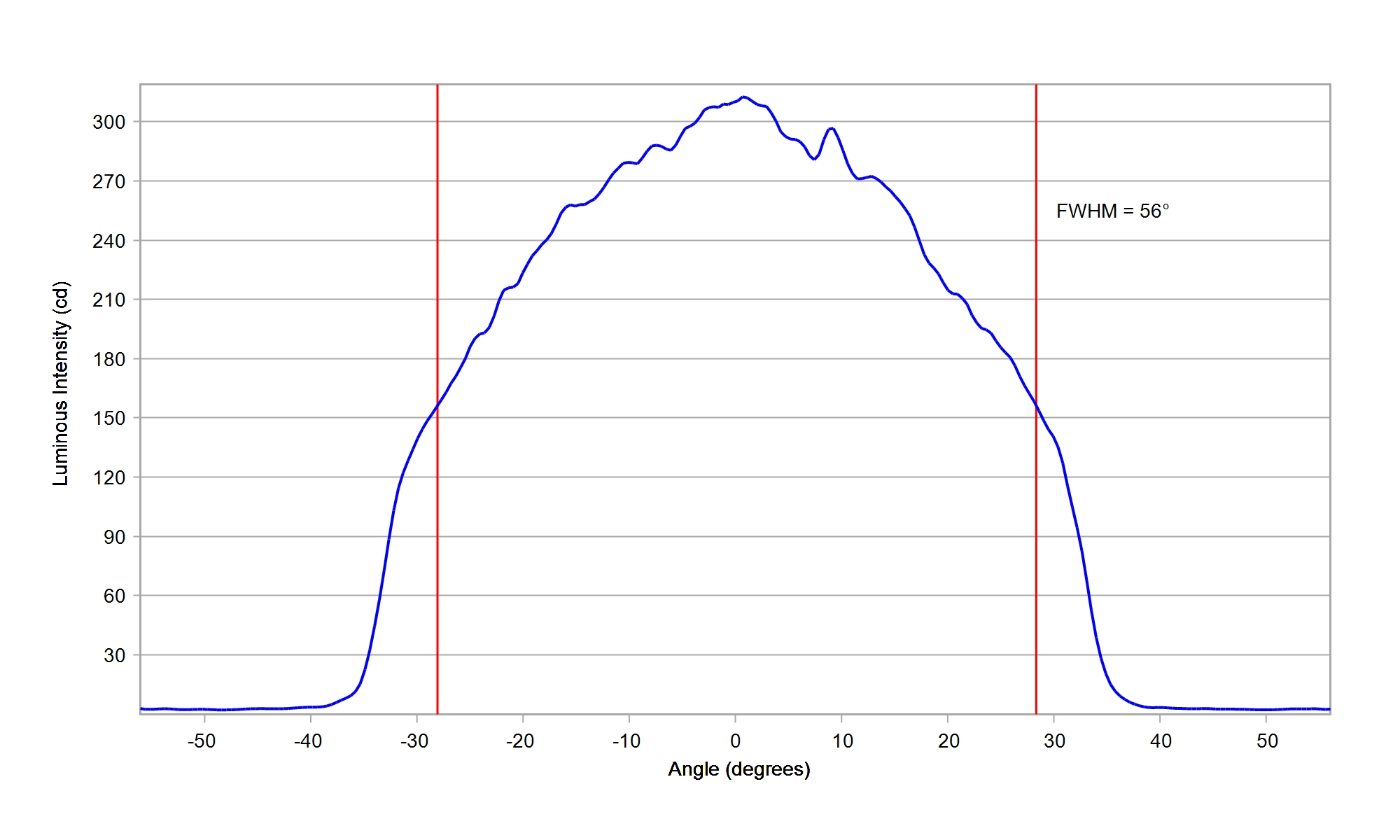

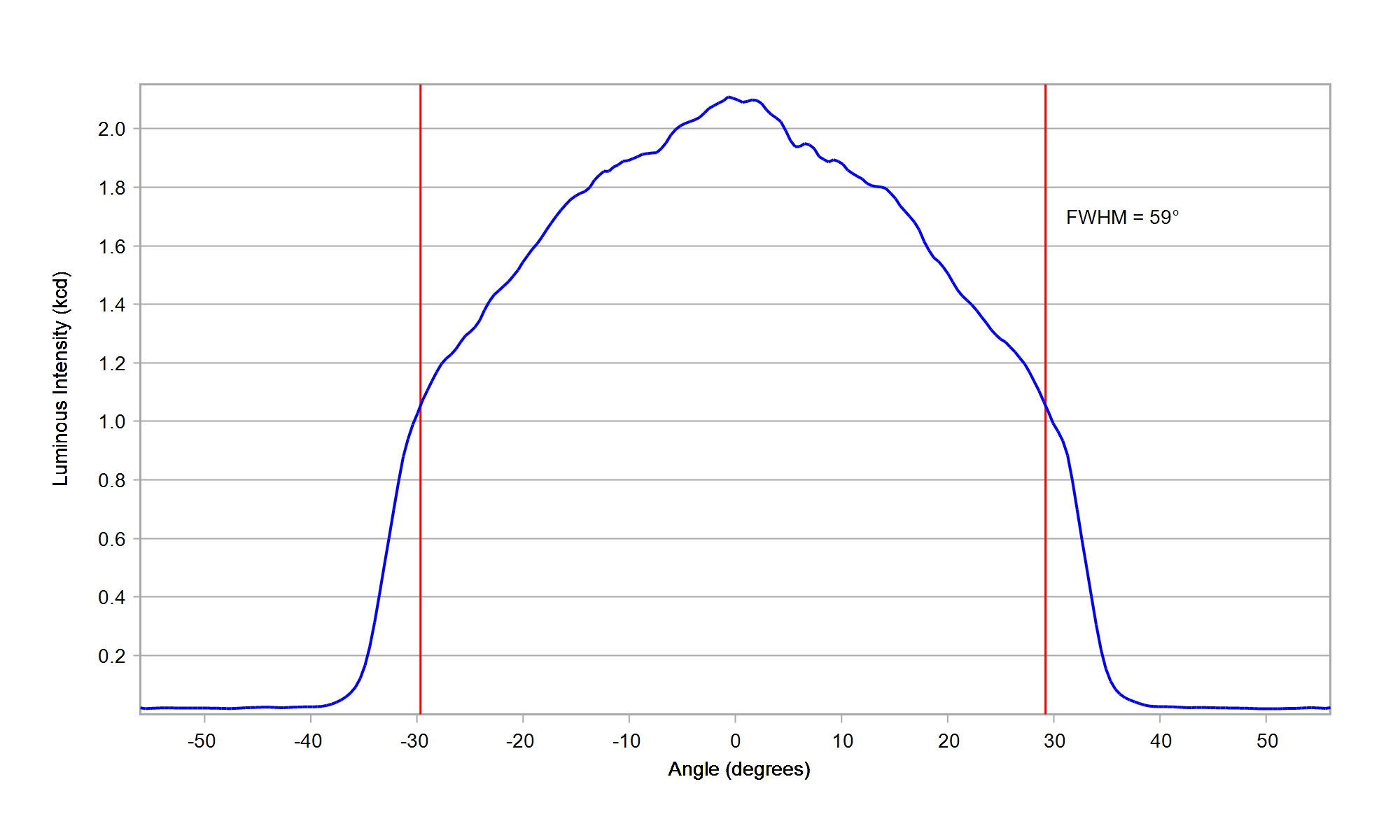

LUMILEDS LUXEON HL1Z CSP White
Eff:
76.5%
FWHM:
58°
Cd/Im:
1.3
Download

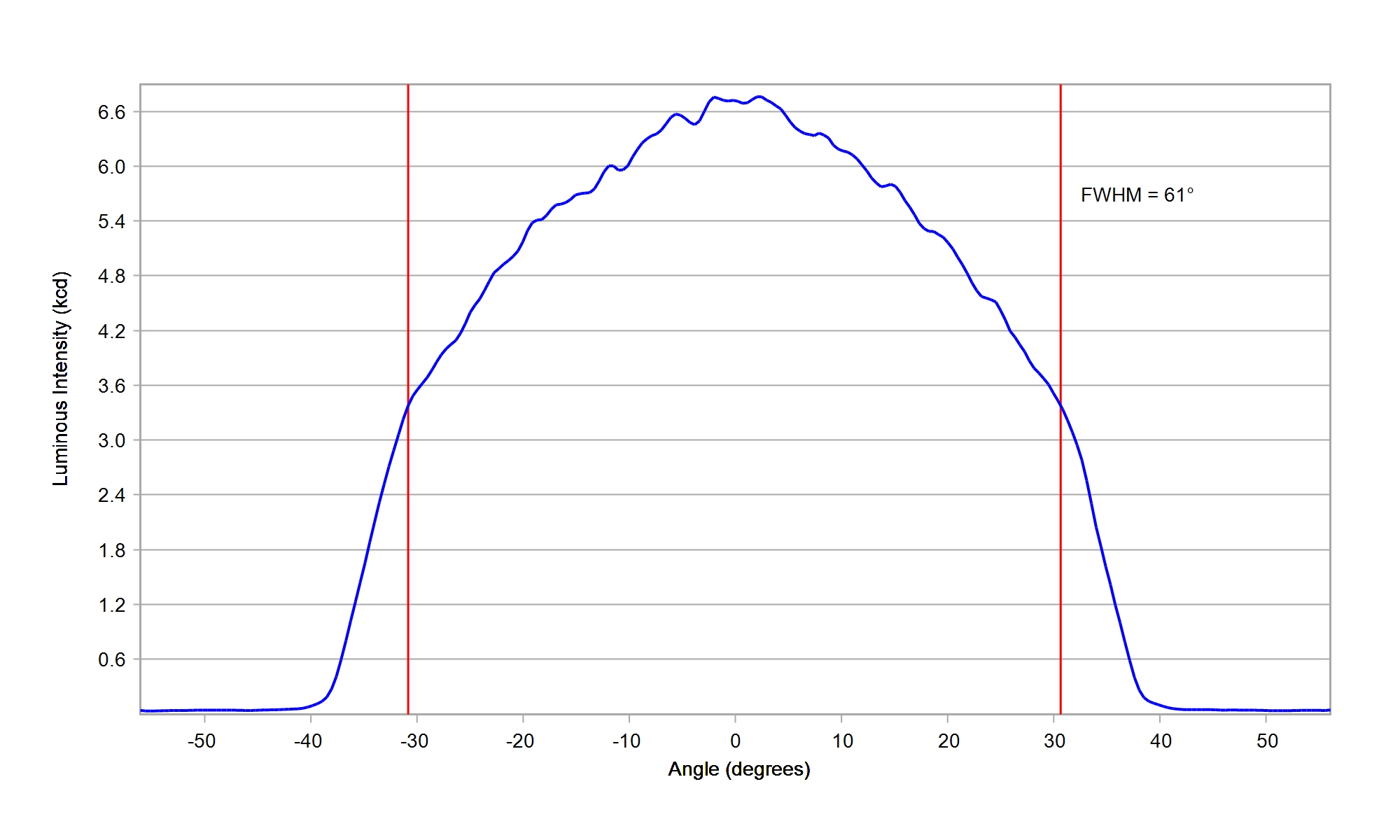

LUMILEDS LUXEON HL4Z White
Eff:
81.0%
FWHM:
61°
Cd/Im:
1.3
Download

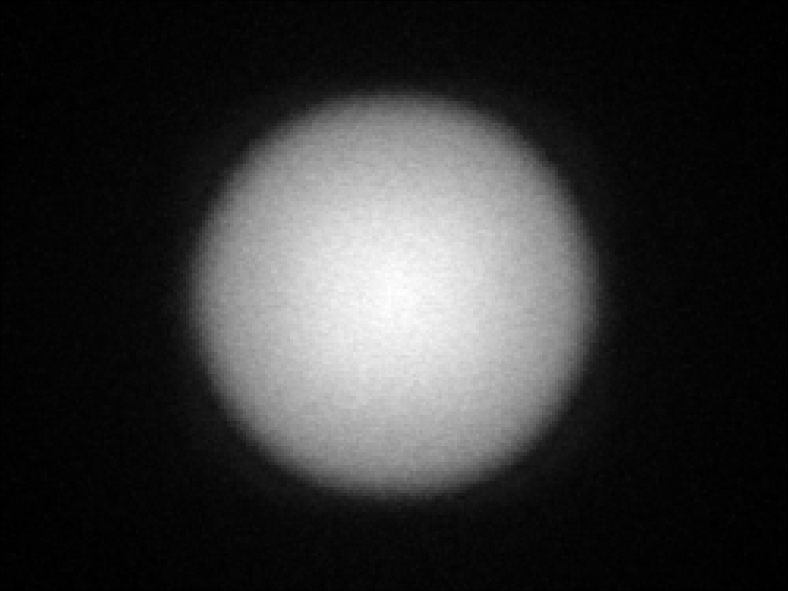

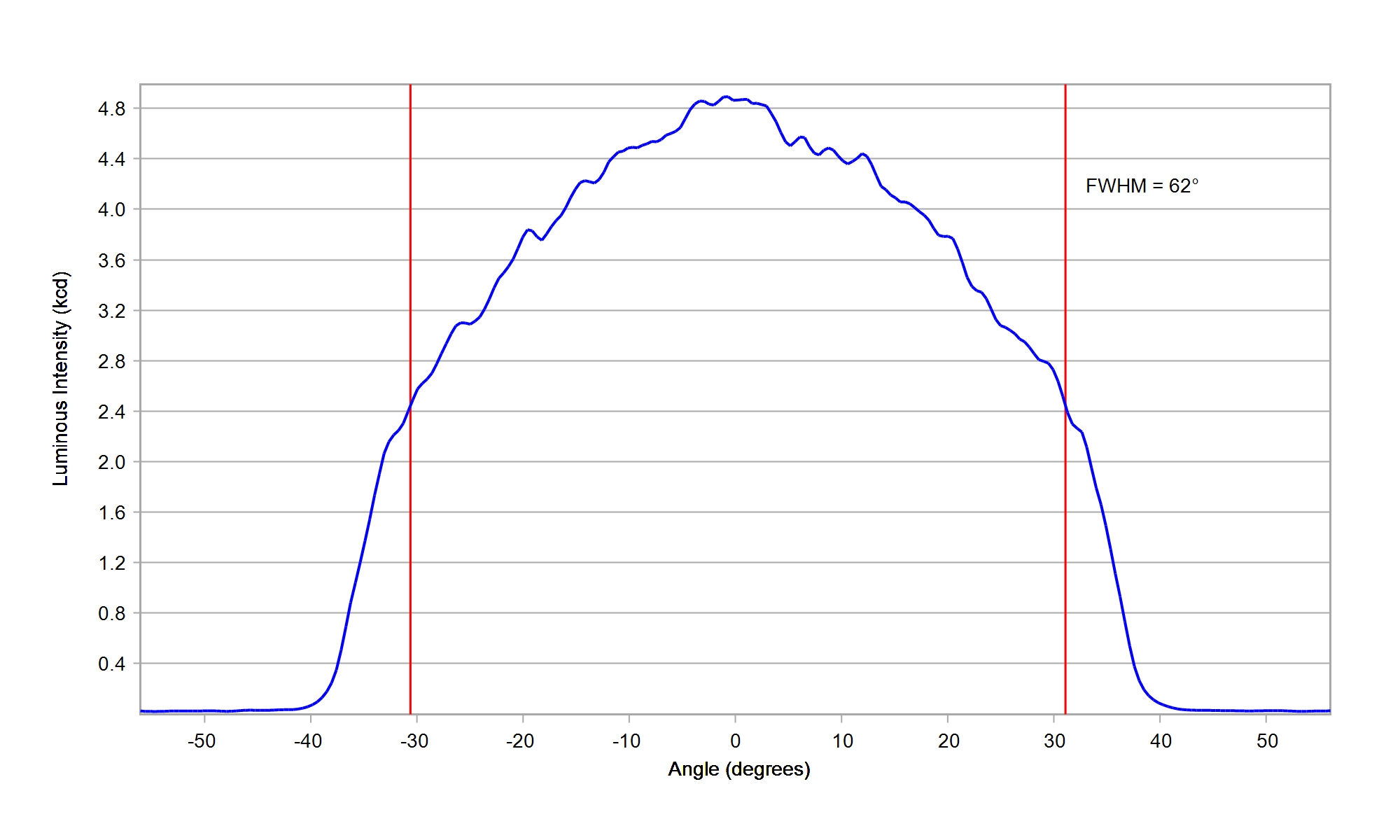

Luminus Devices SFT-40-WxS White
Eff:
82.5%
FWHM:
60°
Cd/Im:
1.5
Download

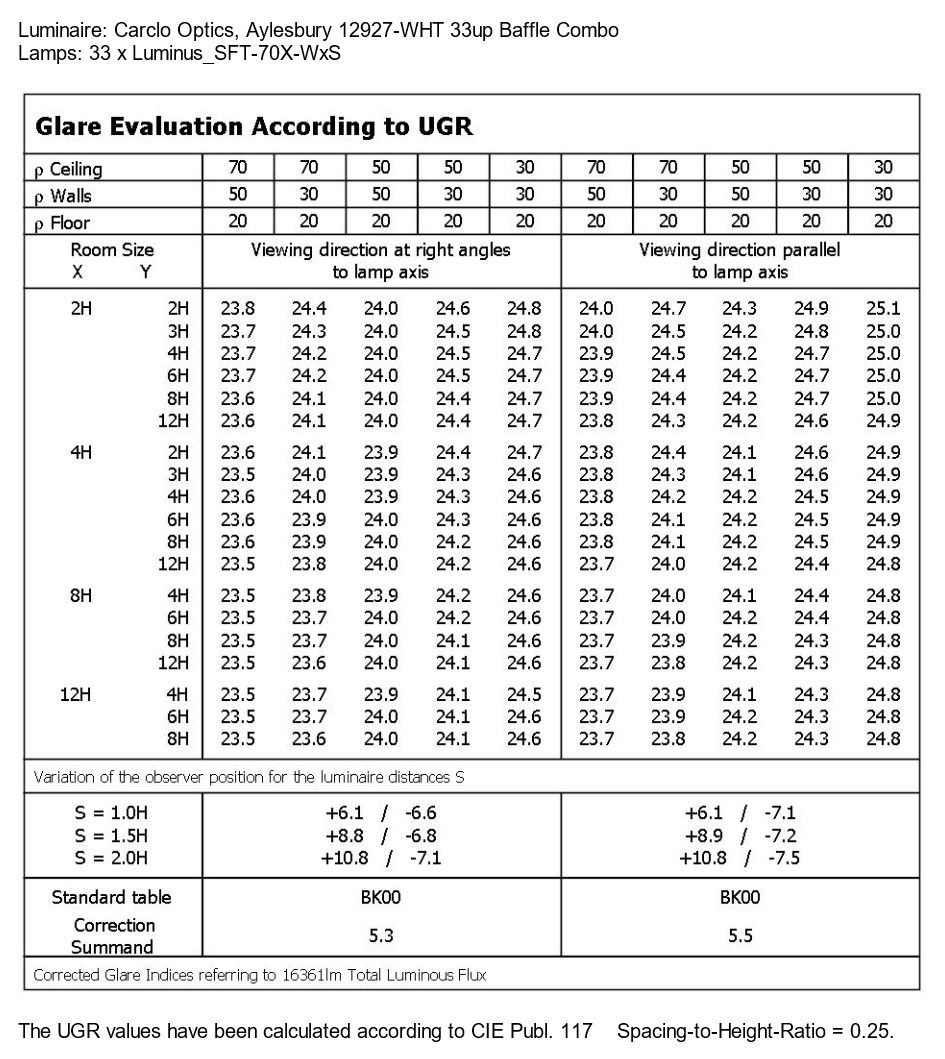

Luminus Devices SFT-70X-WxS White
Eff:
82.5%
FWHM:
60°
Cd/Im:
1.5
Download
Nichia 757G White
Eff:
82.5%
FWHM:
59°
Cd/Im:
1.3
Download
Nichia NF2W 757G-MT Tunable
Eff:
82.5%
FWHM:
59°
Cd/Im:
1.4
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
81.0%
FWHM:
59°
Cd/Im:
1.2
Download

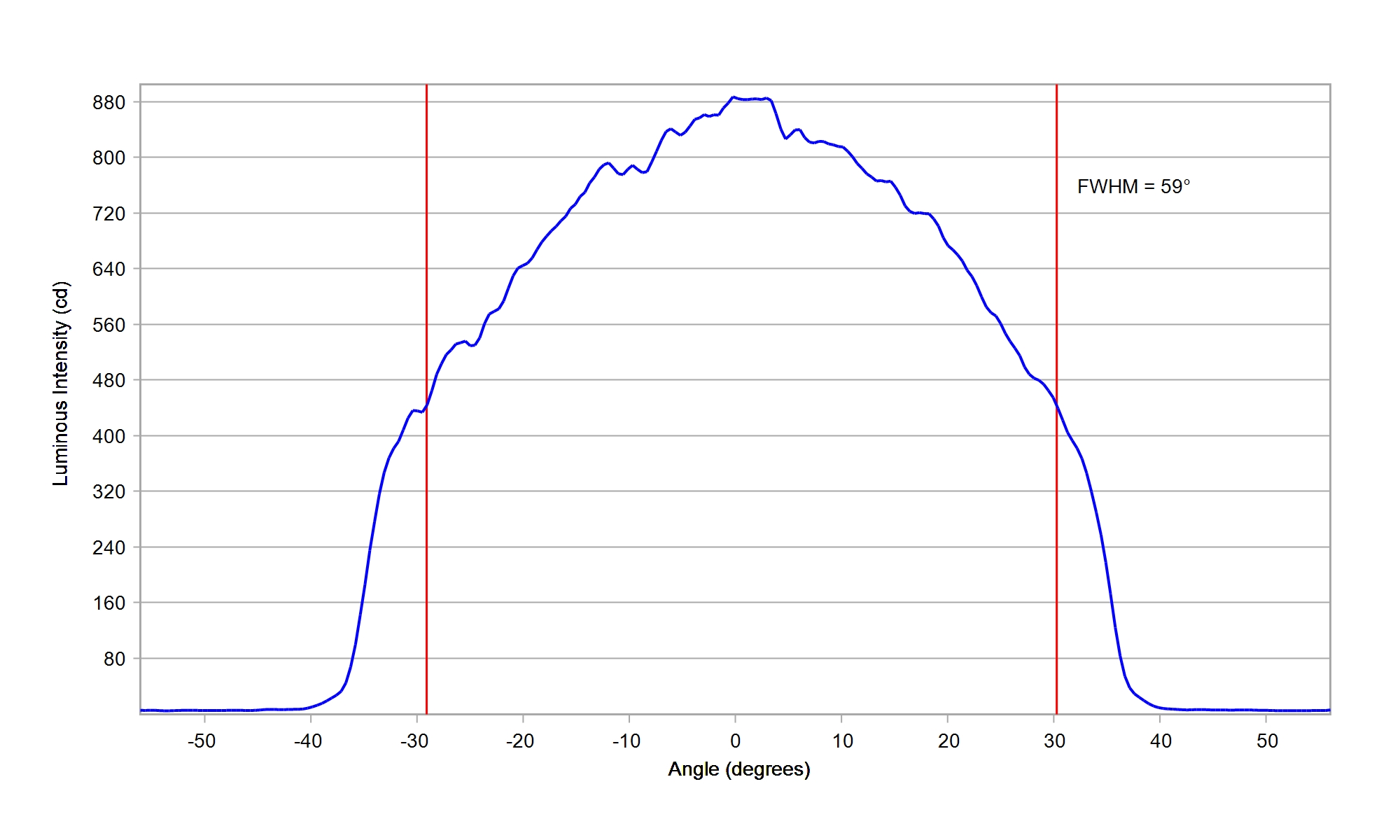

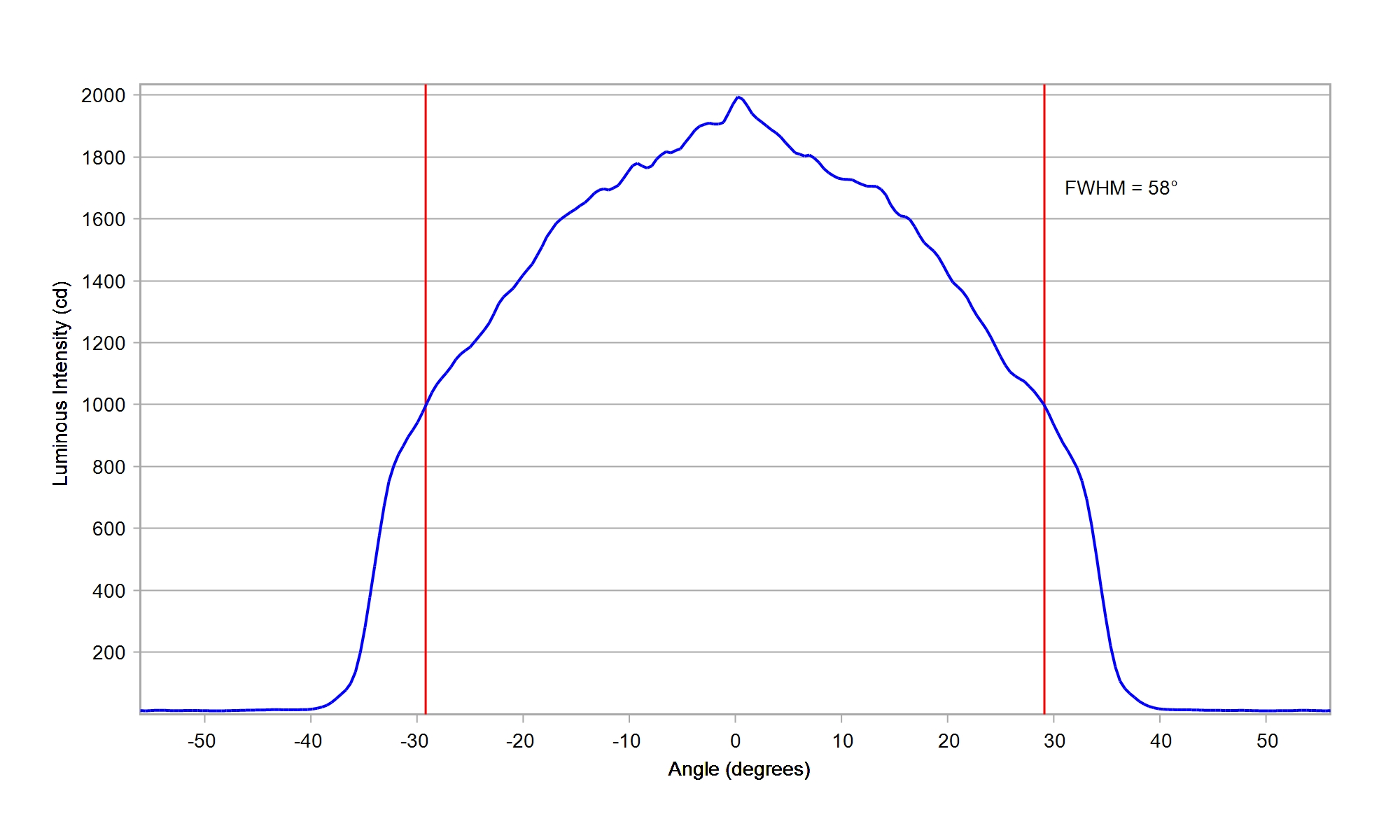

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
83.5%
FWHM:
59°
Cd/Im:
1.6
Download

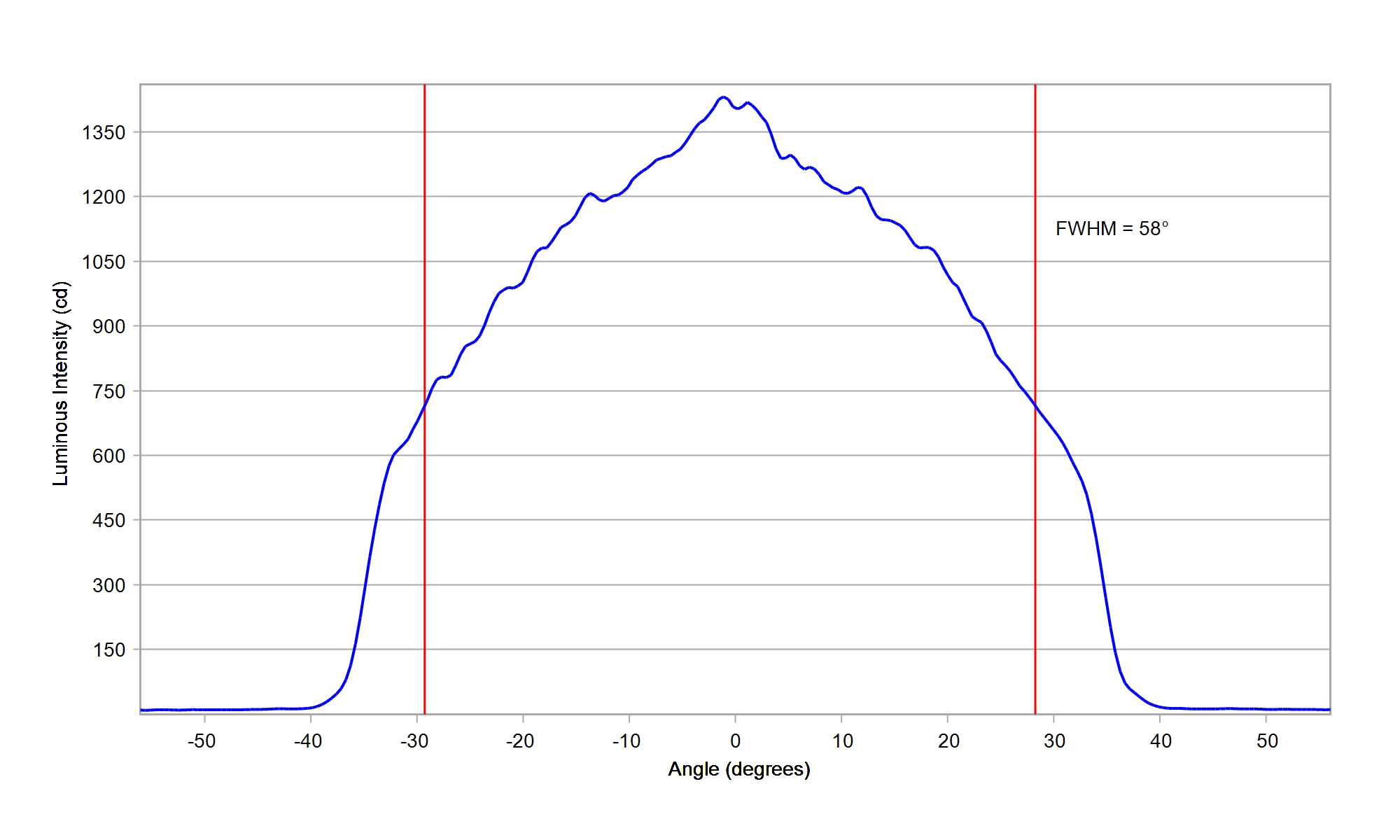

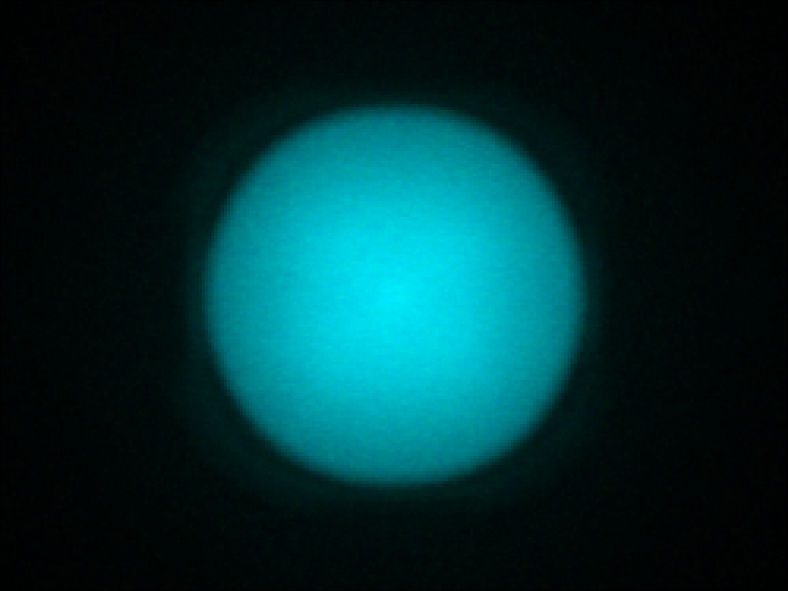

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
85.0%
FWHM:
58°
Cd/Im:
1.5
Download

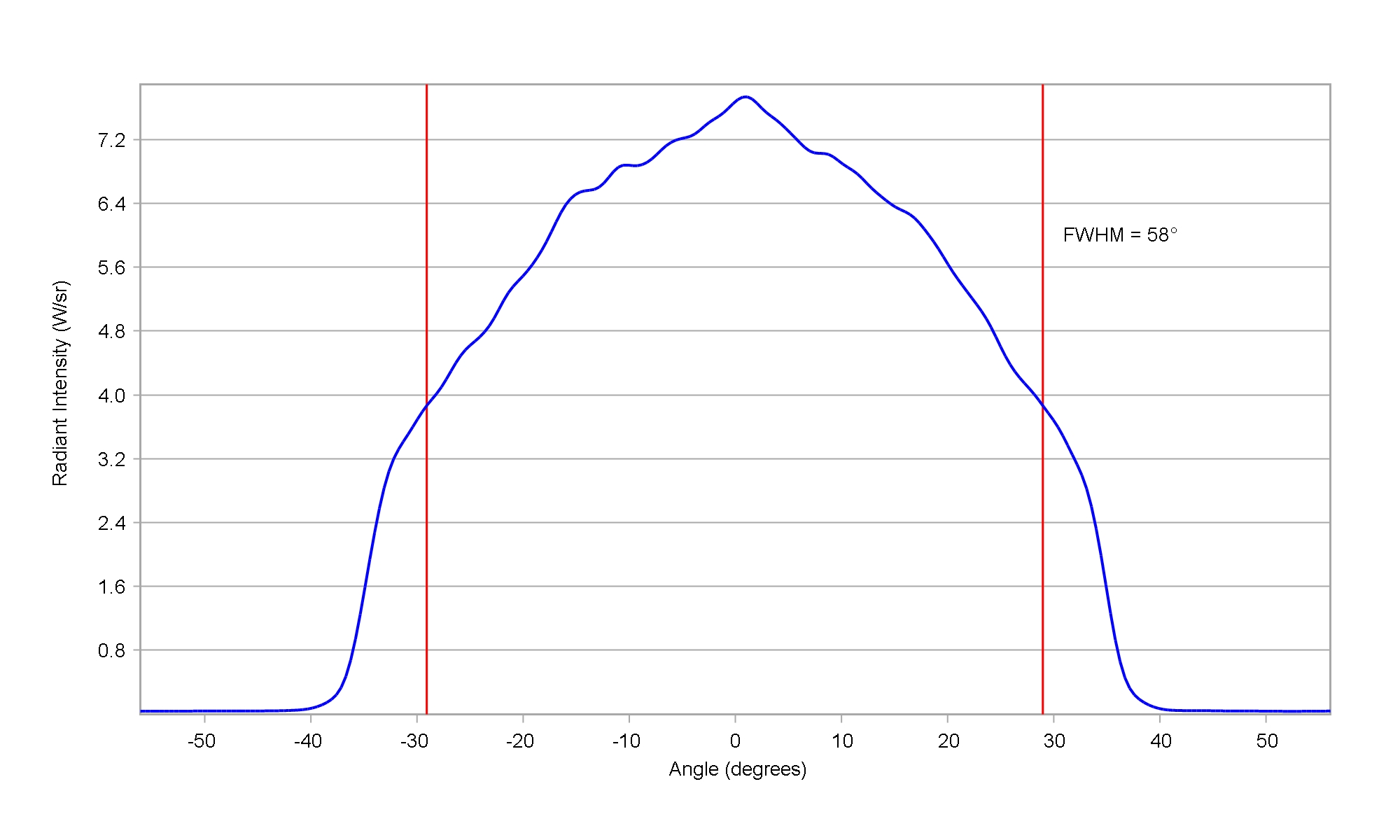

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
83.5%
FWHM:
58°
Ipk/W:
1.3
Download

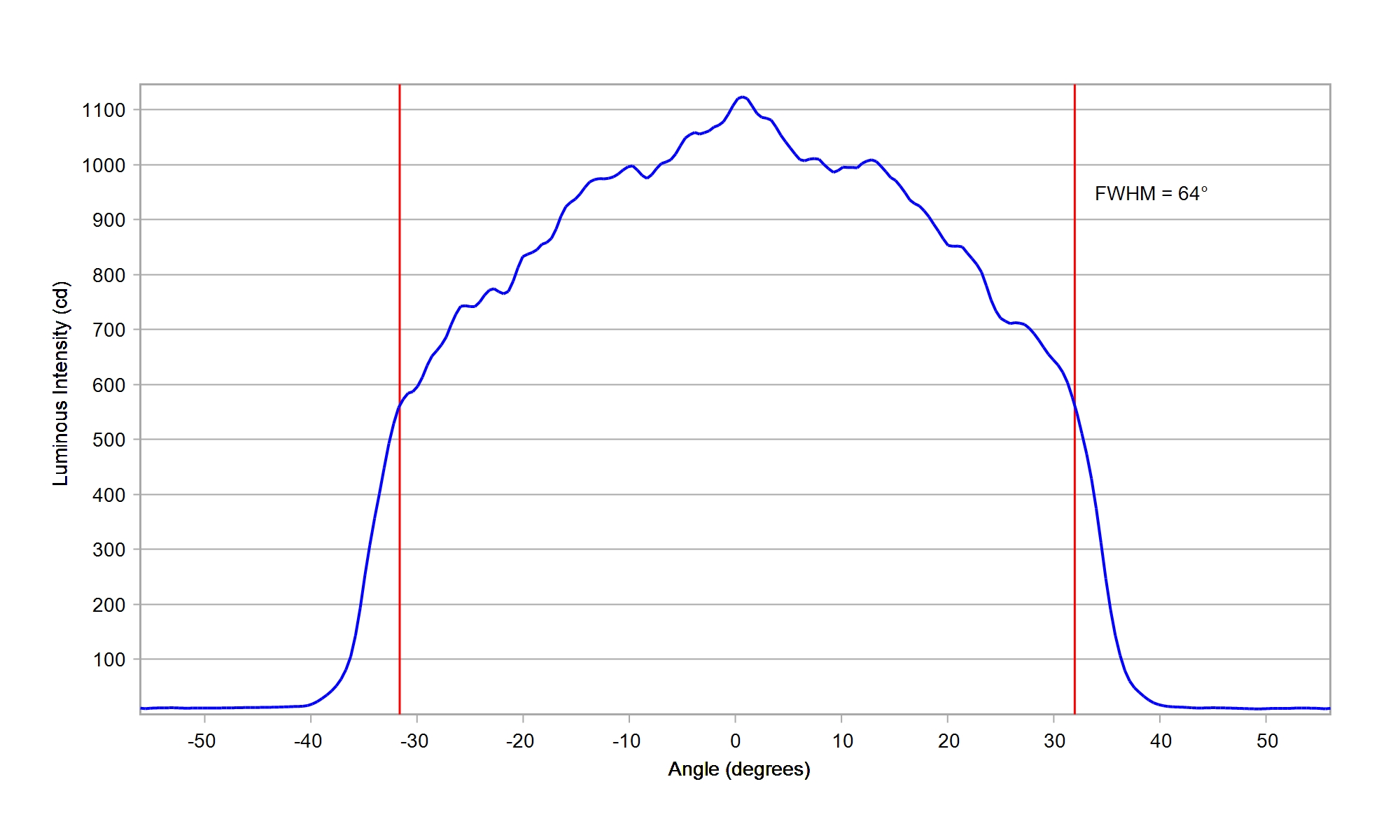

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
75.0%
FWHM:
64°
Cd/Im:
1.1
Download

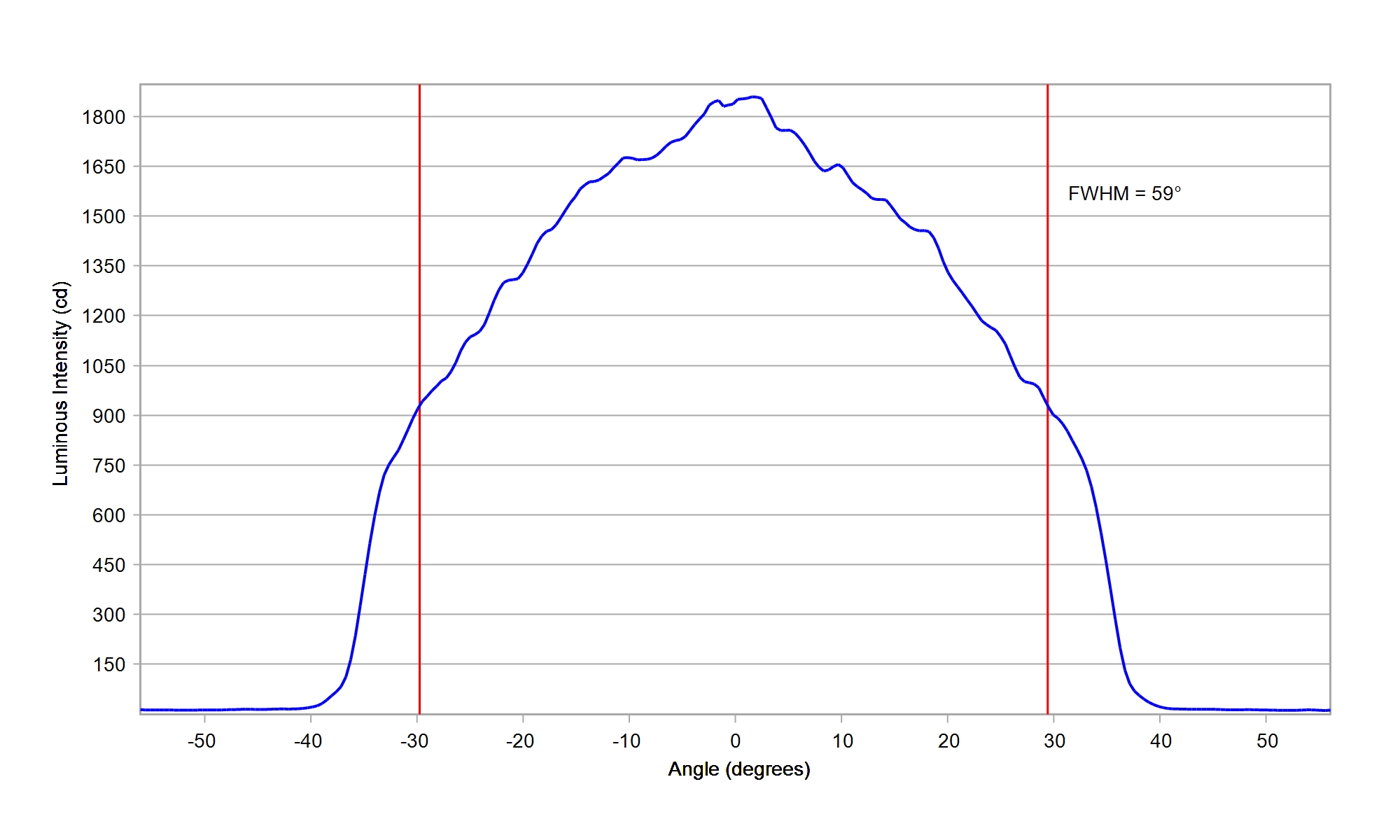

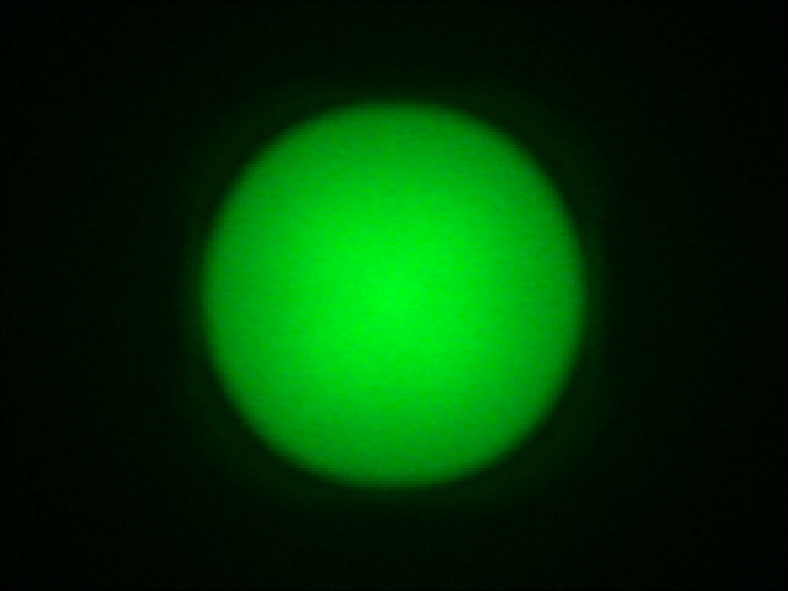

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
84.0%
FWHM:
59°
Cd/Im:
1.3
Download

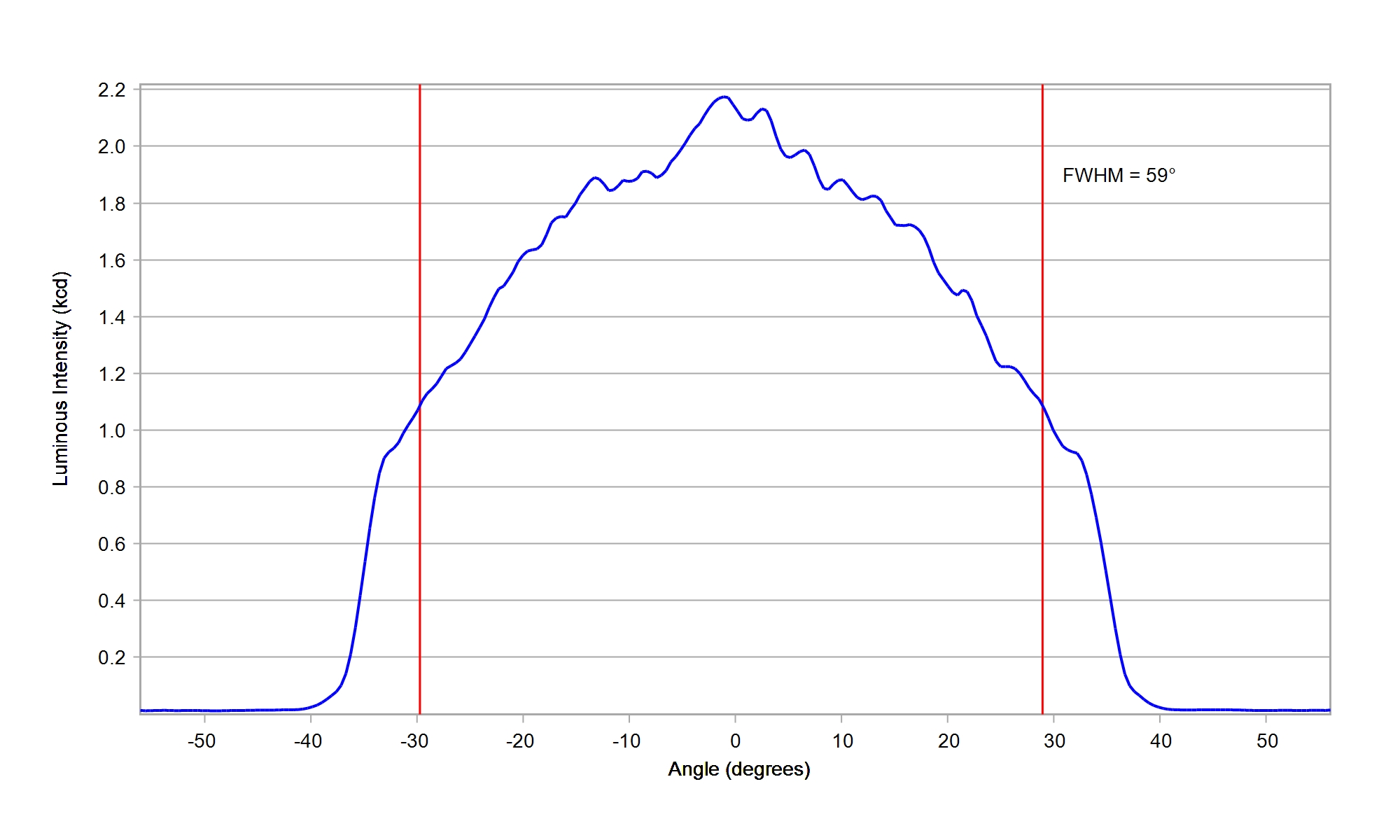

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
83.0%
FWHM:
59°
Cd/Im:
1.5
Download
Osram OS OSLON Pure 1414 GW VJLPL1.CM White
Eff:
81.5%
FWHM:
58°
Cd/Im:
1.3
Download

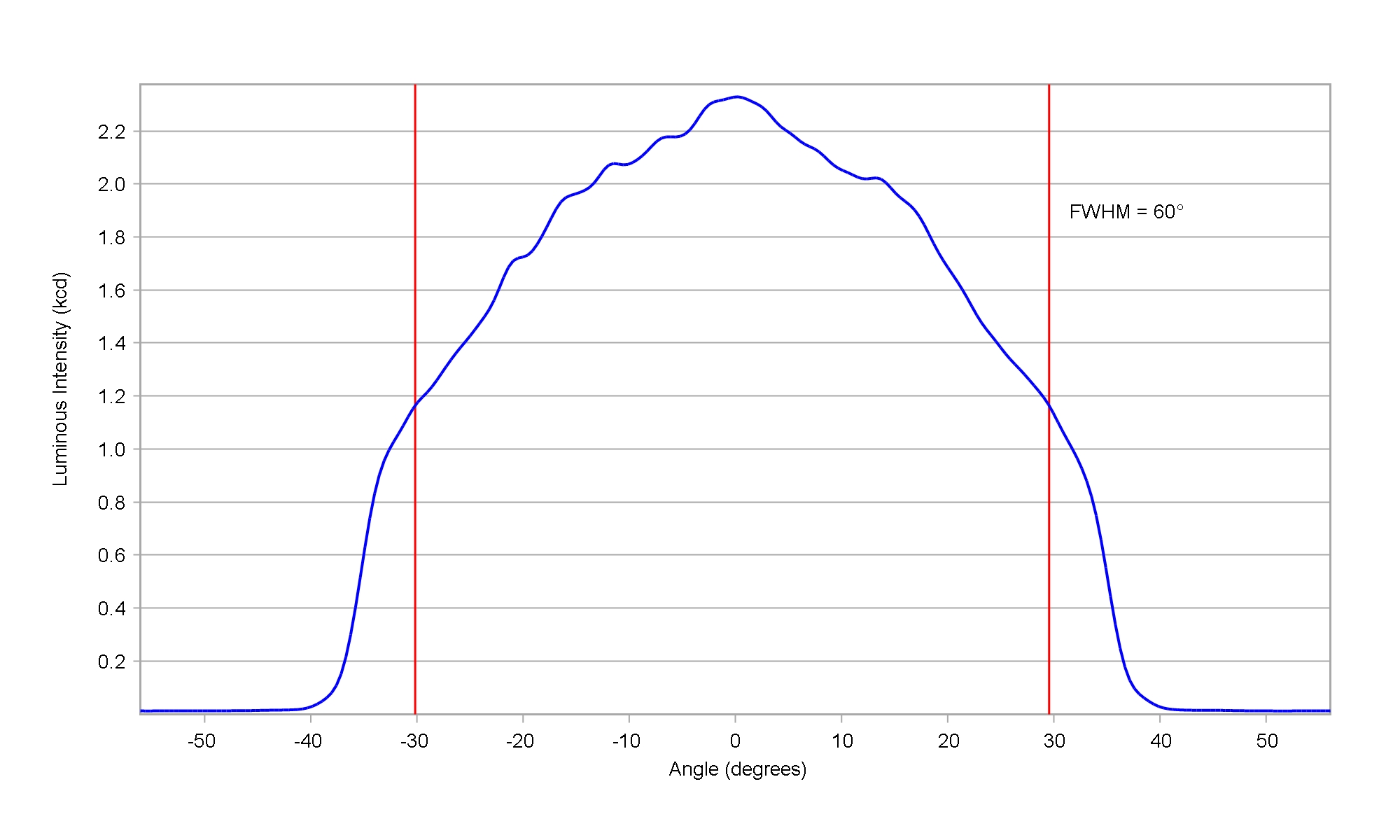

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
82.5%
FWHM:
60°
Cd/Im:
1.4
Download

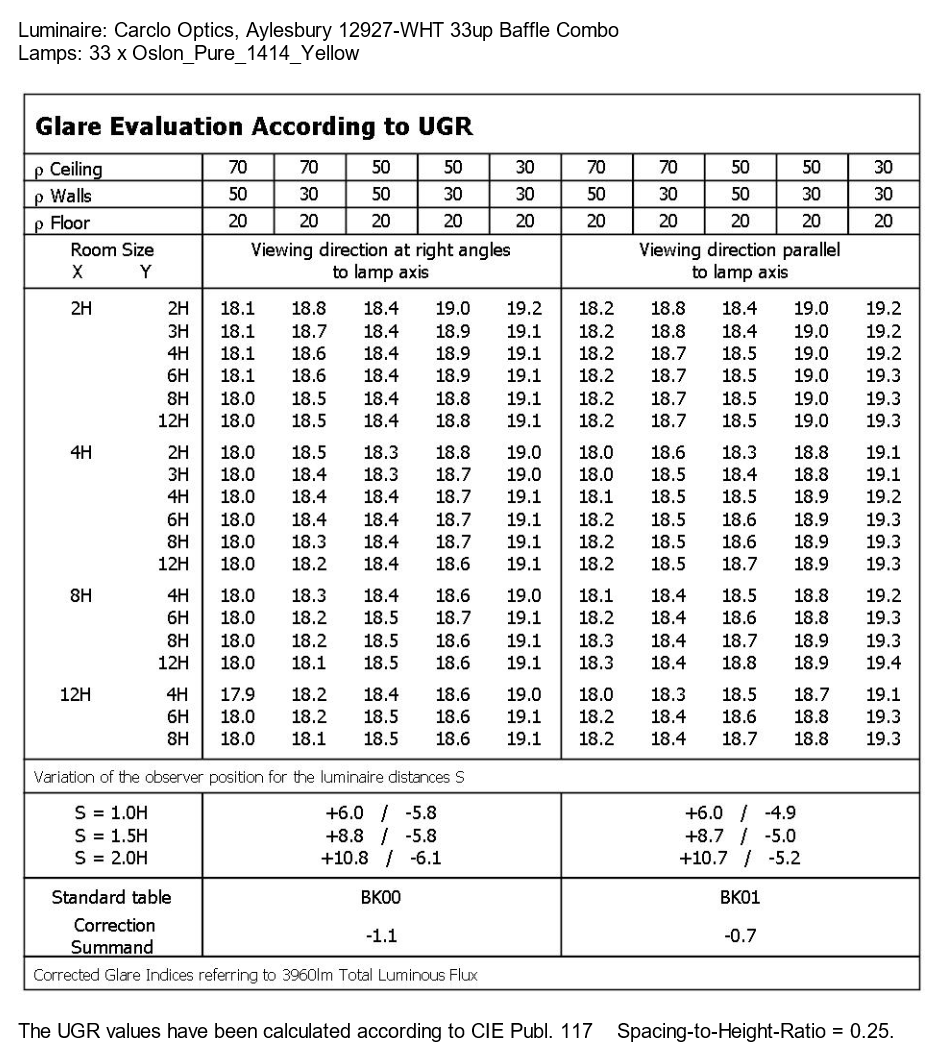

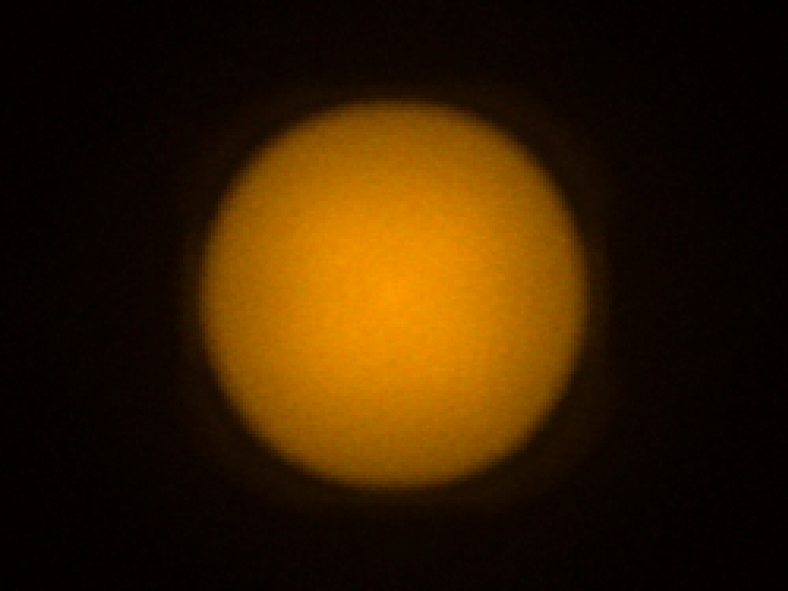

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
81.5%
FWHM:
58°
Cd/Im:
1.4
Download
Osram OS Prevaled Bar G4
Eff:
80.5%
FWHM:
58°
Cd/Im:
1.4
Download

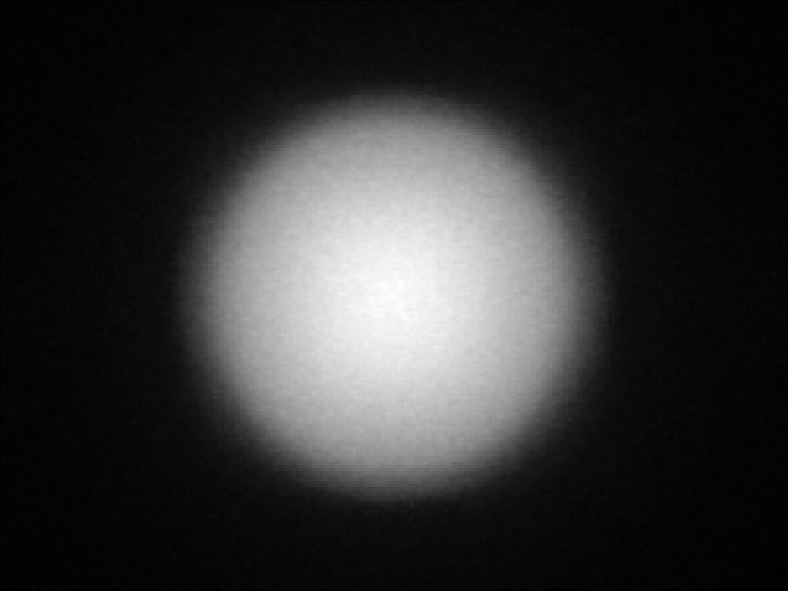

Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm
Eff:
79.0%
FWHM:
59°
Cd/Im:
1.3
Download
Philips Fortimo LED Line 3R HV4 Gen 4 Board 2000lm
Eff:
81.0%
FWHM:
60.5°
Cd/Im:
1.0
Download

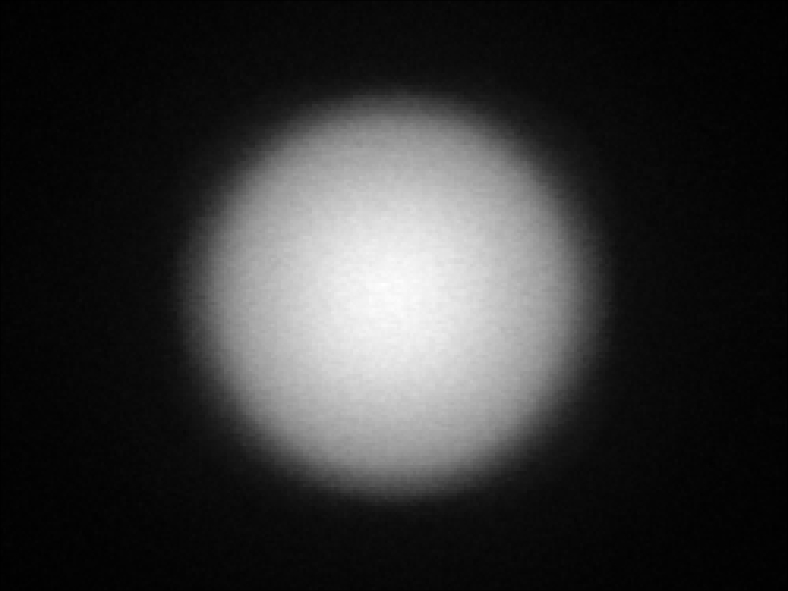

Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm
Eff:
79.0%
FWHM:
59°
Cd/Im:
1.4
Download
Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm
Eff:
80.0%
FWHM:
58°
Cd/Im:
1.5
Download
Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm
Eff:
81.0%
FWHM:
58°
Cd/Im:
1.4
Download
Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm
Eff:
80.0%
FWHM:
58°
Cd/Im:
1.4
Download

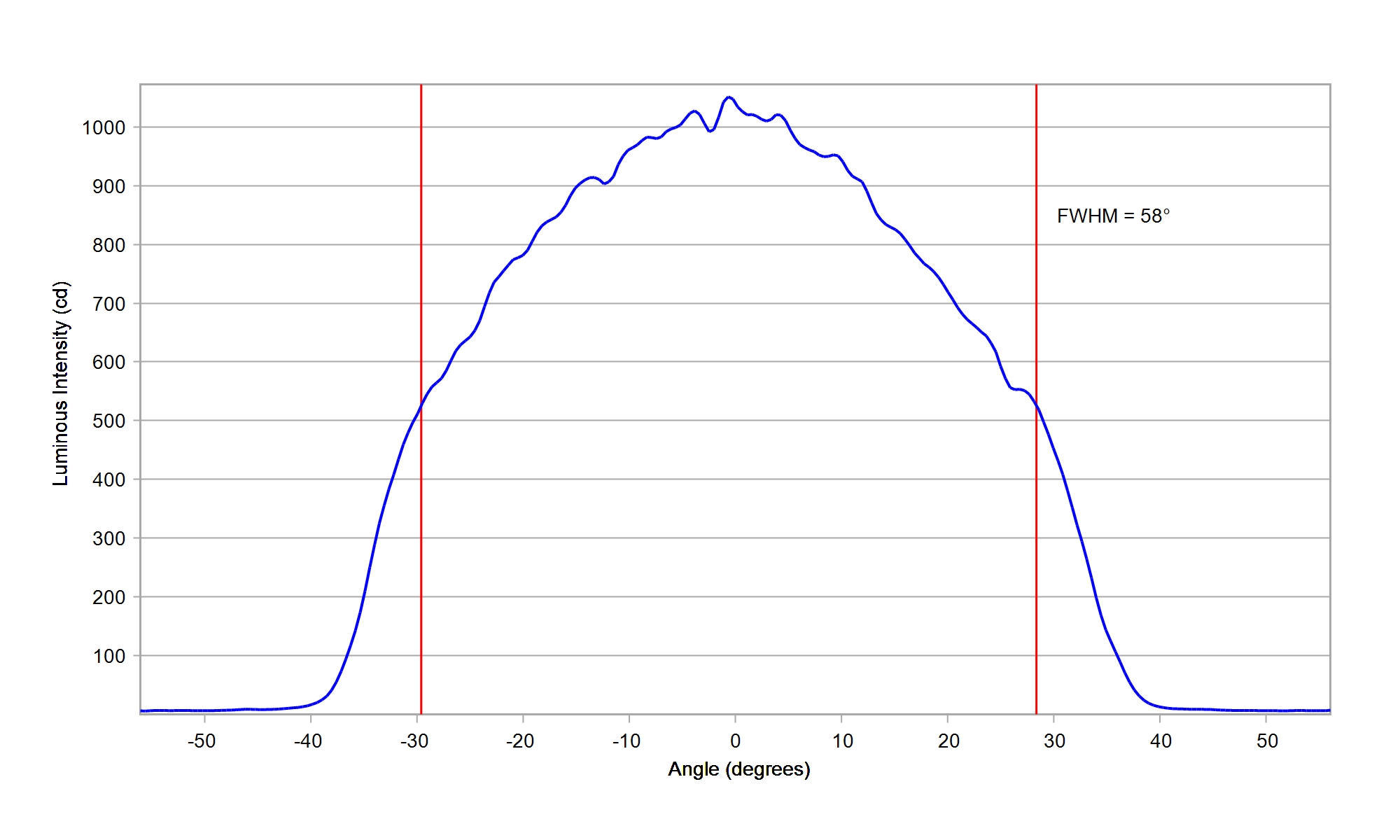

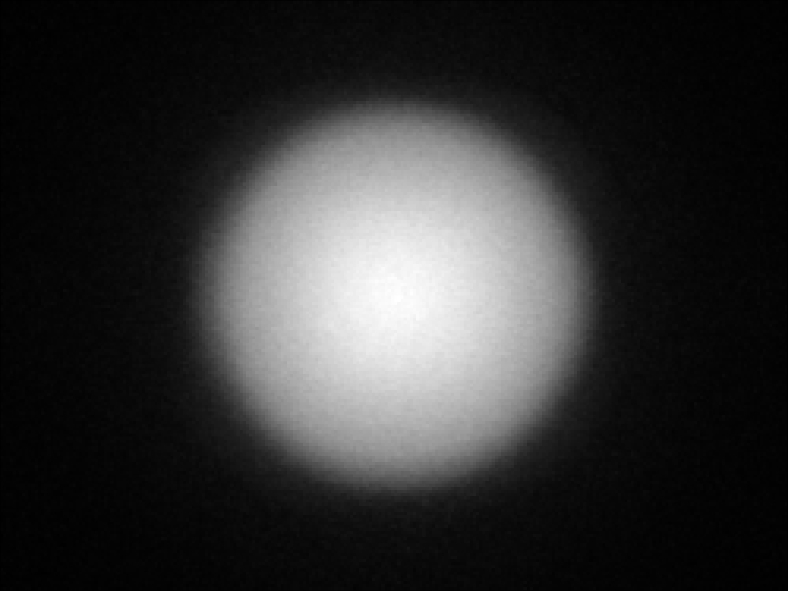

Samsung 2835 LM281B+ White
Eff:
81.0%
FWHM:
58°
Cd/Im:
1.4
Download
Samsung 3030 LM301B White
Eff:
84.0%
FWHM:
51°
Cd/Im:
1.6
Download
Samsung 5050 LH502C White
Eff:
81.0%
FWHM:
59°
Cd/Im:
1.4
Download

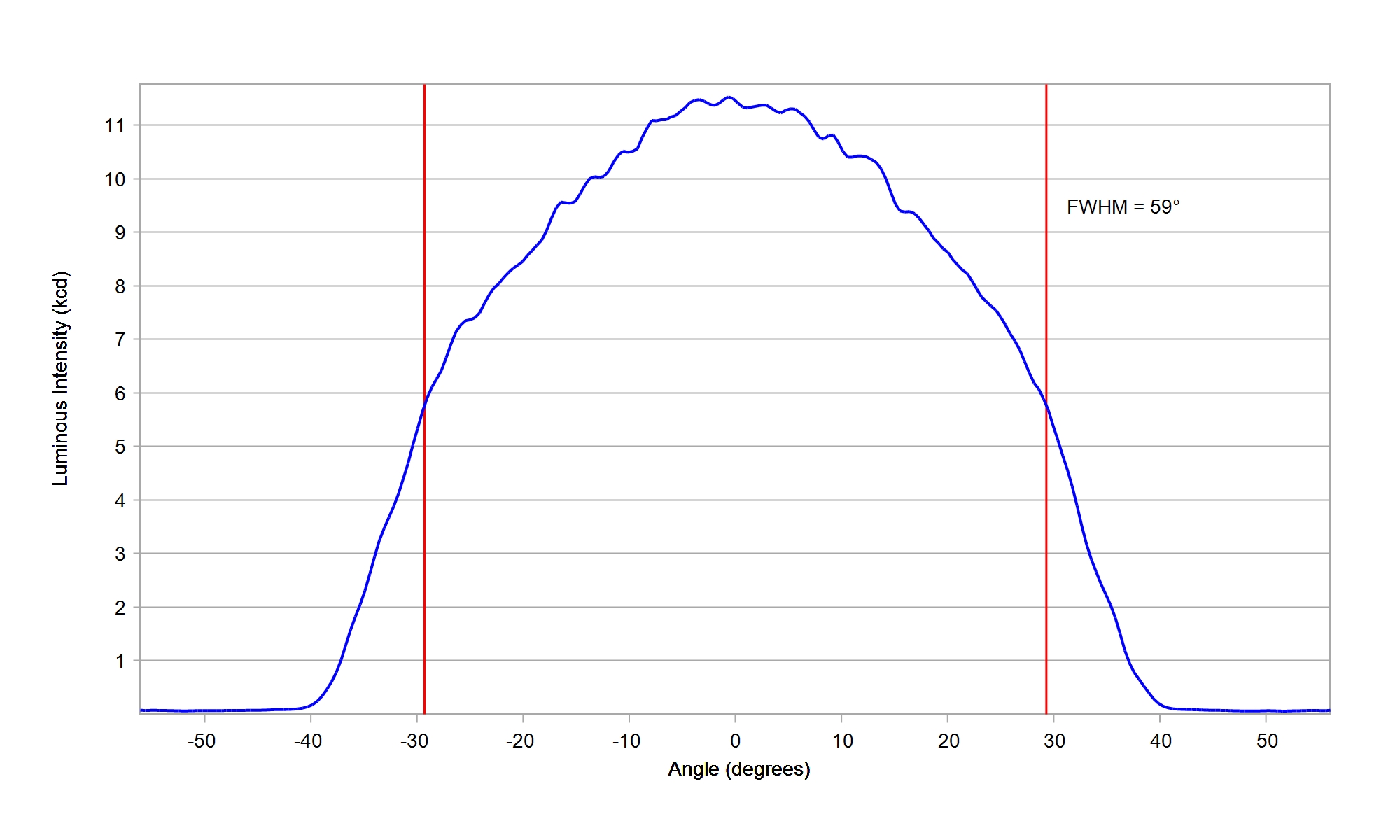

Samsung 5050 LH502D White
Eff:
80.5%
FWHM:
59°
Cd/Im:
1.3
Download
Samsung 5050 LH508C White
Eff:
81.5%
FWHM:
57°
Cd/Im:
1.4
Download
