12927-BLK

292 x 61mm Medium Spot Plain Freeform

Part number

12927-BLK

Dimensions

292 x 61mm

Drawing Number

12927-COMBO

Optic type

Freeform

Finish

Plain

Beam type

Medium Spot

Applications

Office

Retail

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

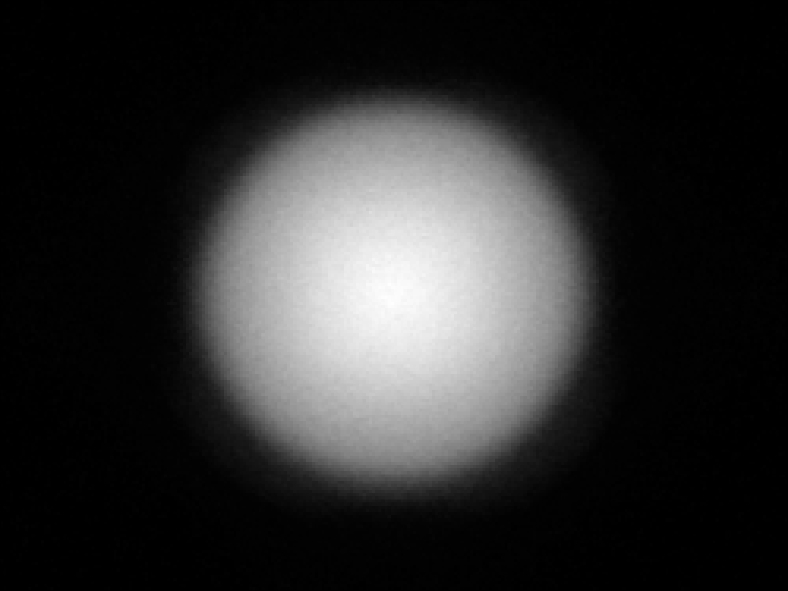

Cree JB2835B 3V G-Class White

Eff:

81.5%

FWHM:

57°

Cd/Im:

1.4


,

UGR-12927-BLK-Cree-JB2835-3V-G-Class

Download

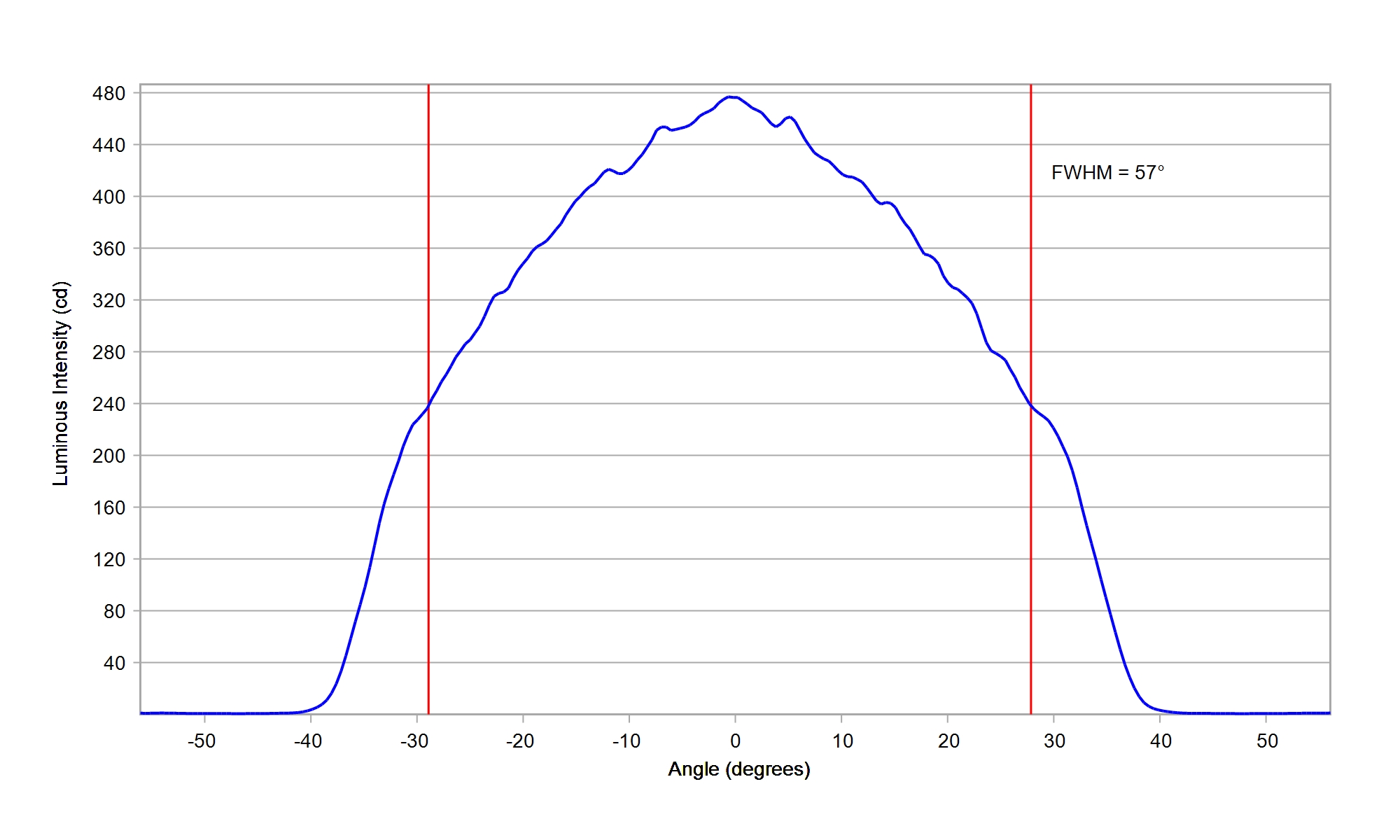

Cree JB2835B 3V J-Class White

Eff:

81.5%

FWHM:

57°

Cd/Im:

1.4


,

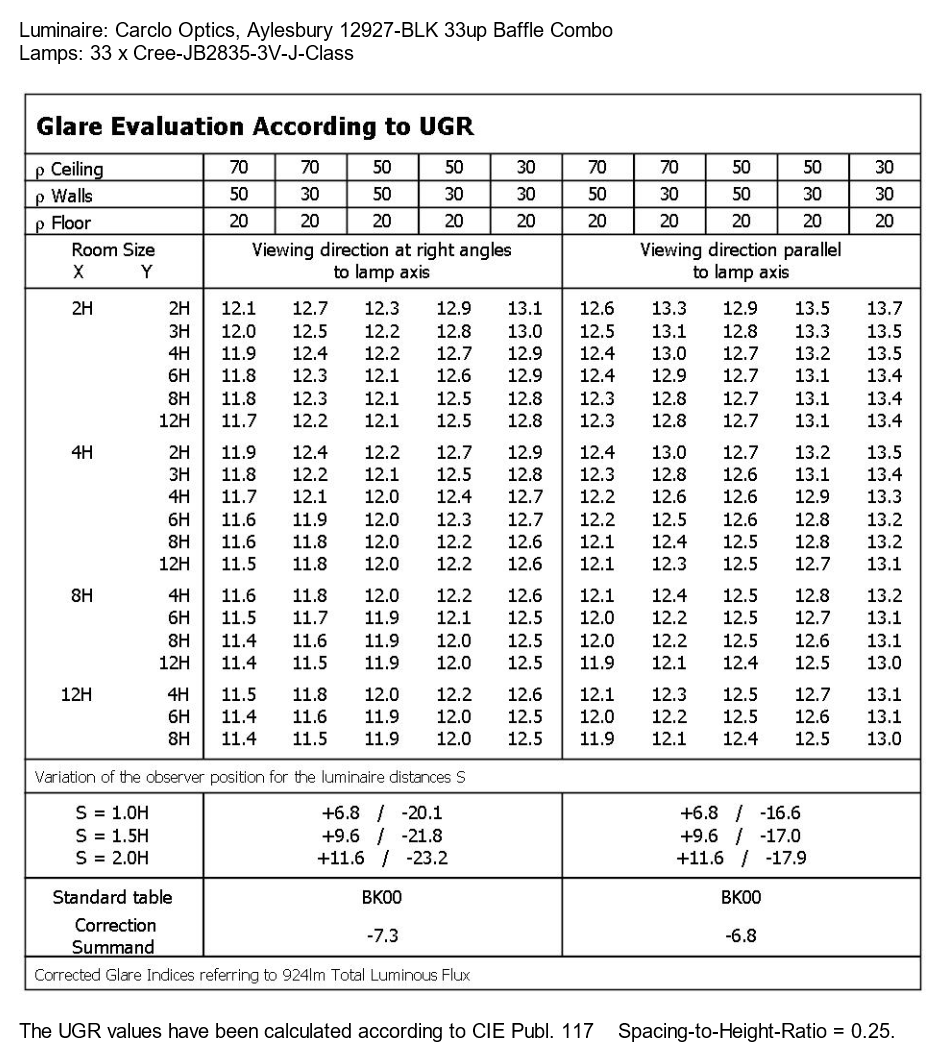

UGR-12927-BLK-Cree-JB2835-3V-J-Class

Download

Cree JB3030 3V P-Class White

Eff:

79.5%

FWHM:

57°

Cd/Im:

1.5

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Cree JB3030

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Cree JB3030

,

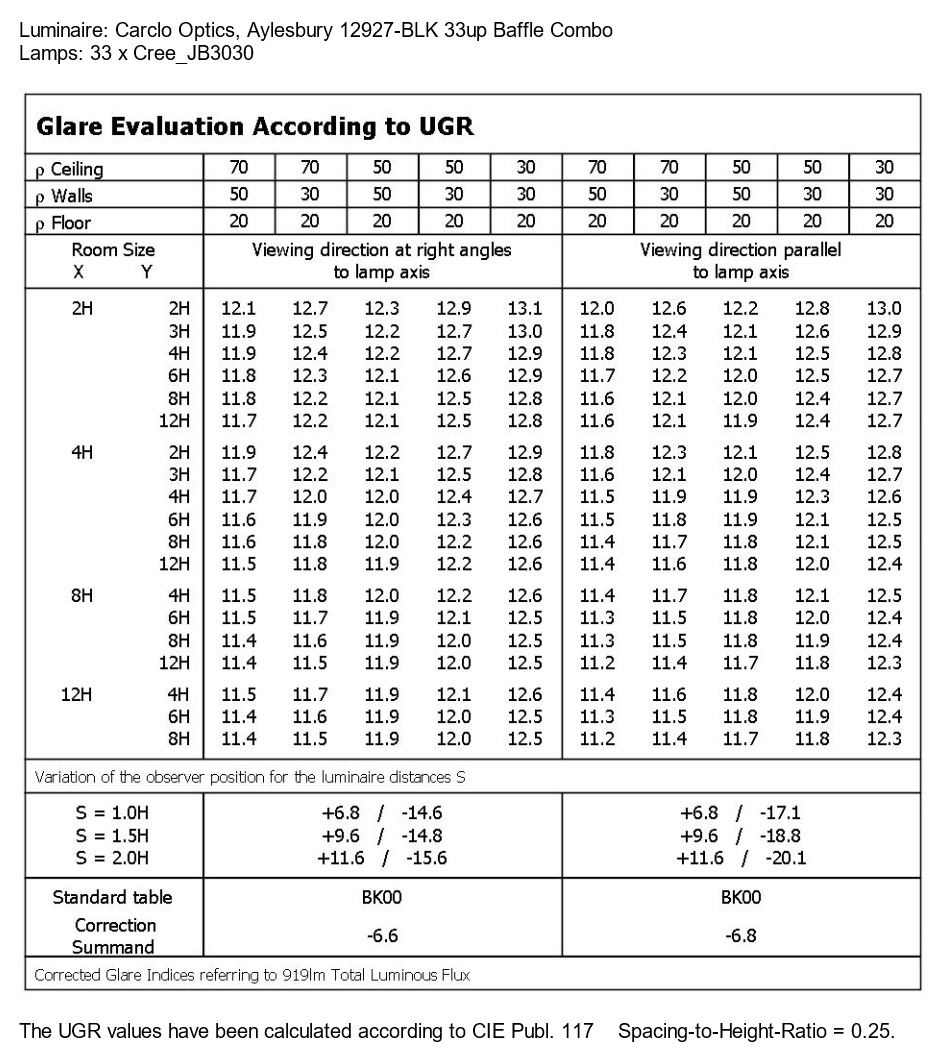

UGR-12927-BLK-Cree_JB3030_3V

Download

zip

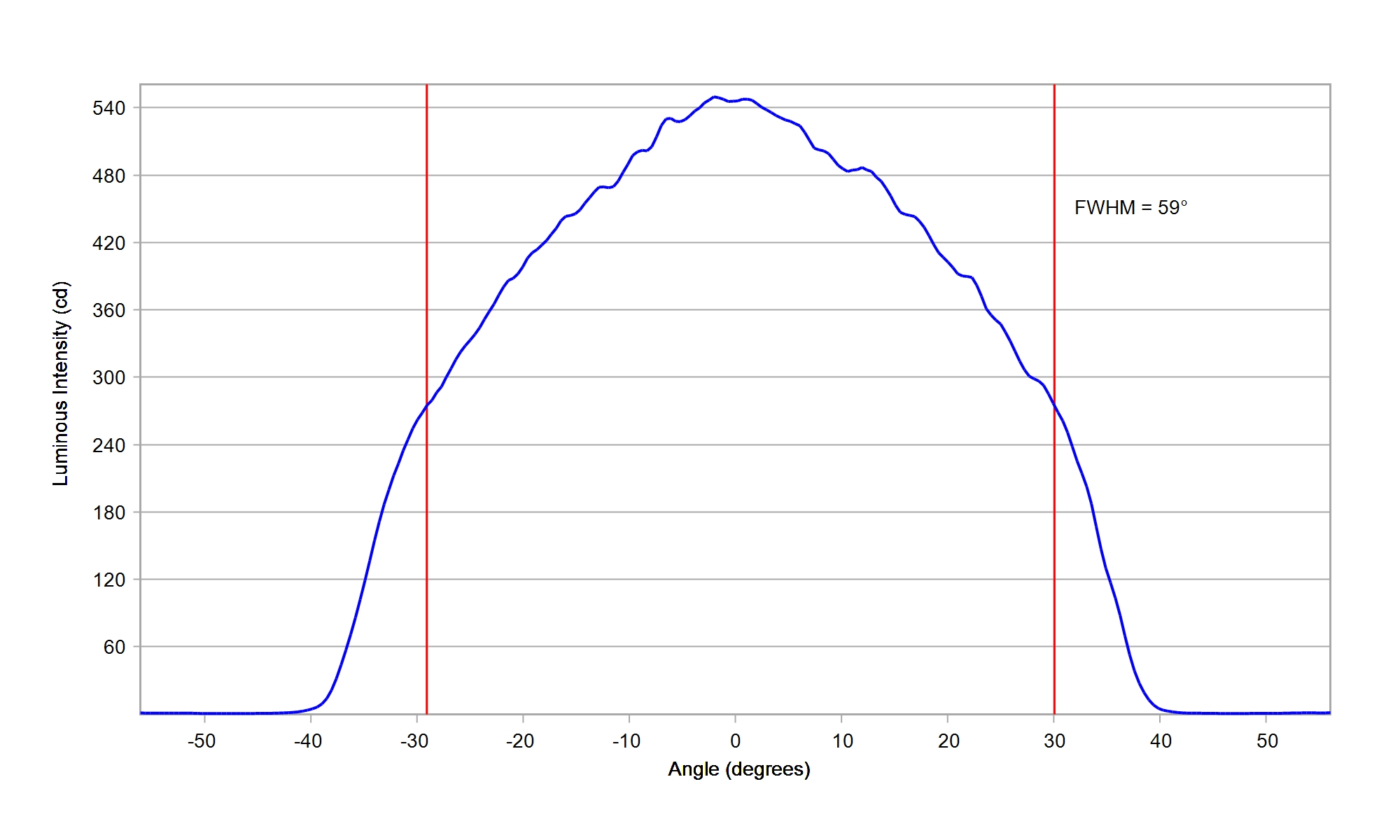

Cree JB3030C 3V E-Class White

Eff:

80.0%

FWHM:

59°

Cd/Im:

1.3


,

UGR-12927-BLK-Cree_JB3030C_E-Class

Download

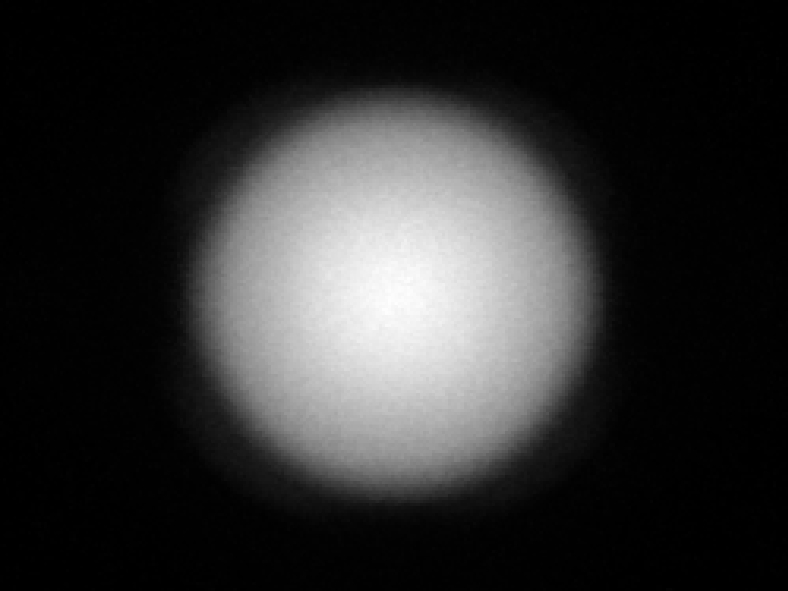

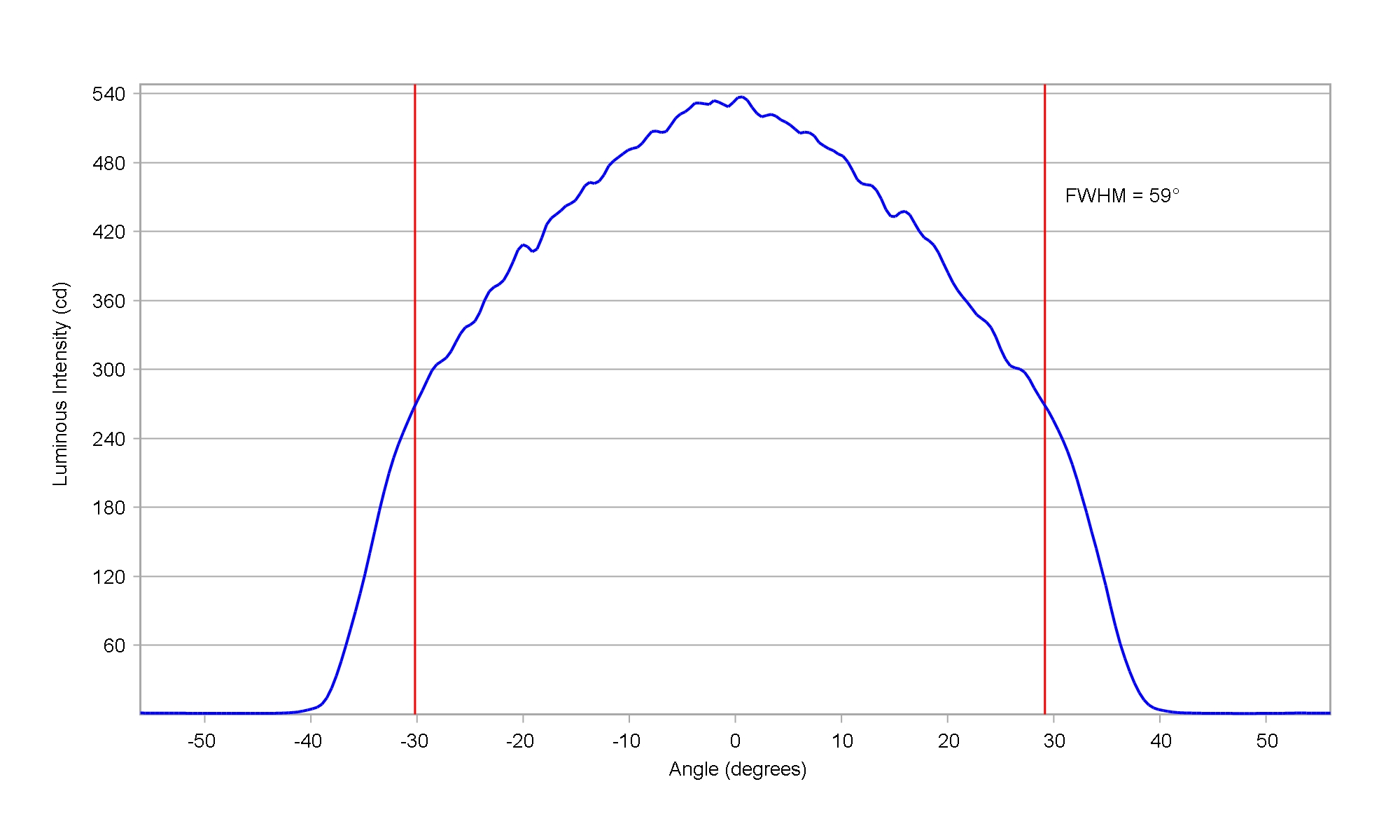

Cree JB3030C 3V F-Class White

Eff:

81.0%

FWHM:

59°

Cd/Im:

1.4


,

UGR-12927-BLK-Cree_JB3030C_F-Class

Download

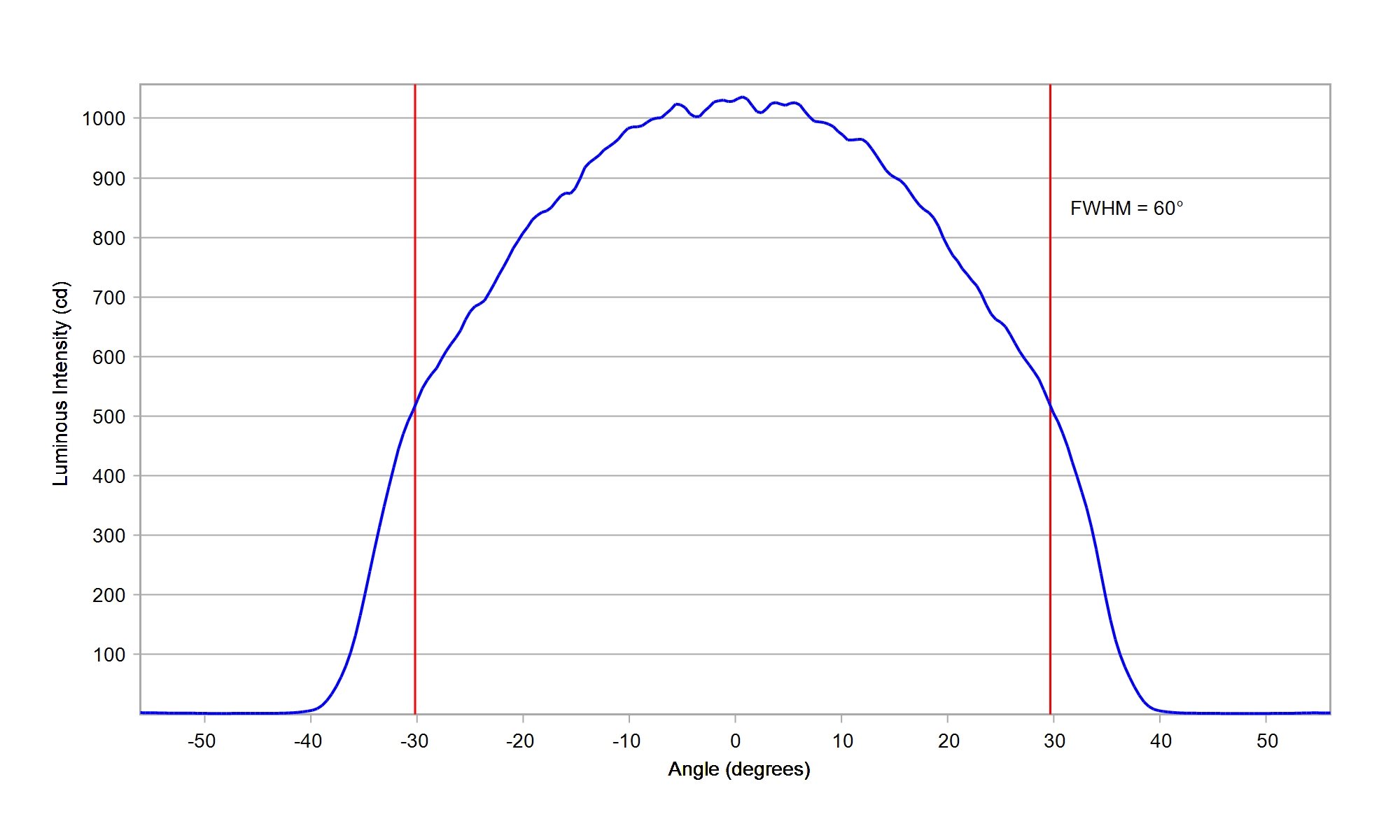

Cree JE2835 3V White

Eff:

81.0%

FWHM:

60°

Cd/Im:

1.3

,

UGR-12927-BLK-Cree_JE2835-3V

Download

Cree JK2835 6V White

Eff:

80.5%

FWHM:

57°

Cd/Im:

1.7

,

UGR-12927-BLK-Cree_JK2835-6V

Download

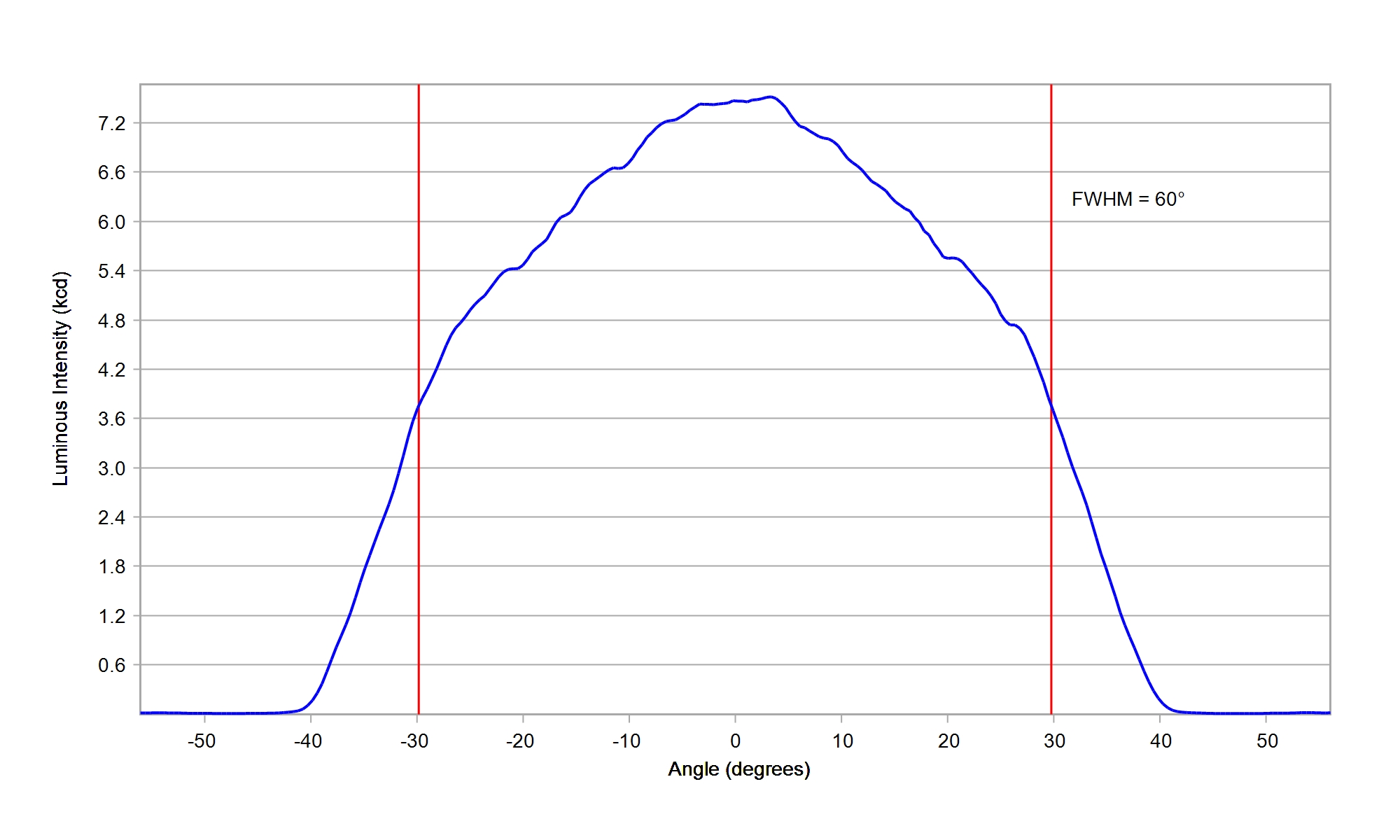

Cree JR5050C 6V E-Class White

Eff:

80.0%

FWHM:

60°

Cd/Im:

1.4


,

UGR-12927-BLK-Cree_JR5050_6V_E-Class

Download

Cree XLamp CSP XD16 Premium White

Eff:

78.5%

FWHM:

60°

Cd/Im:

1.4

,

UGR-12927-BLK-Cree-XD16-PW

Download

Cree XLamp XE-G White

Eff:

78.5%

FWHM:

61°

Cd/Im:

1.2


,

UGR-12927-BLK-Cree-XEG-WarmWhite

Download

Cree XLamp XM-L Color G2 HI RGBW

Eff:

81.0%

FWHM:

59°

Cd/Im:

1.3


,

UGR-12927-BLK-Cree-XML-Color2-HI

Download

Cree XLamp XP-E2 White

Eff:

83.5%

FWHM:

60°

Cd/Im:

1.4

,

UGR-12927-BLK-Cree_XP-E2

Download

Cree XLamp XP-G4 HI White

Eff:

79.5%

FWHM:

63°

Cd/Im:

1.2

,

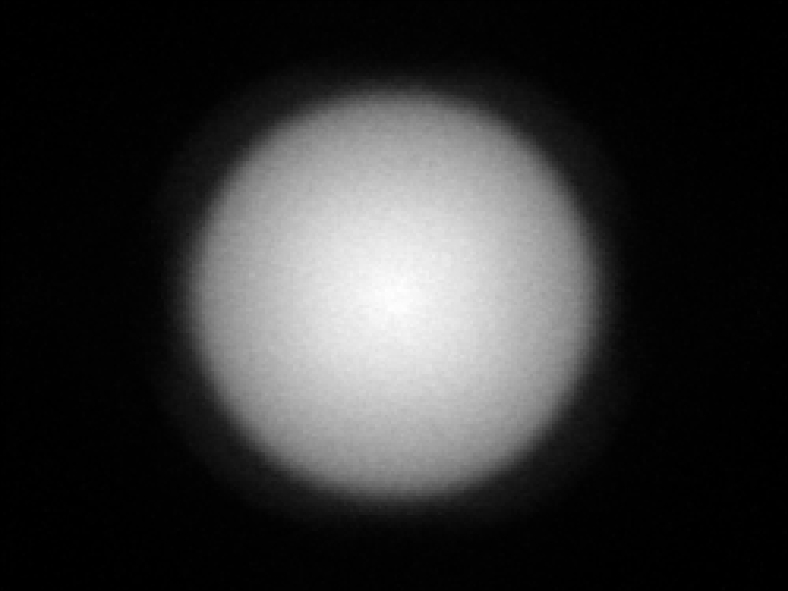

UGR-12927-BLK-Cree-XP-G4-HI

Download

LUMILEDS LUXEON 2835C 6V White

Eff:

81.0%

FWHM:

58°

Cd/Im:

1.3


,

UGR-12927-BLK-LUXEON_2835C_6V

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

81.0%

FWHM:

58°

Cd/Im:

1.3


,

UGR-12927-BLK-LUXEON_2835E_9V

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

80.0%

FWHM:

60°

Cd/Im:

1.3


,

UGR-12927-BLK-LUXEON_2835N_3V

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

80.0%

FWHM:

60°

Cd/Im:

1.3


,

UGR-12927-BLK-LUXEON_2835S_3V

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

80.0%

FWHM:

60°

Cd/Im:

1.3


,

UGR-12927-BLK-LUXEON_2835S_6V

Download

LUMILEDS LUXEON 3014 White

Eff:

81.0%

FWHM:

56°

Cd/Im:

1.4

,

UGR-12927-BLK-LUXEON_3014

Download

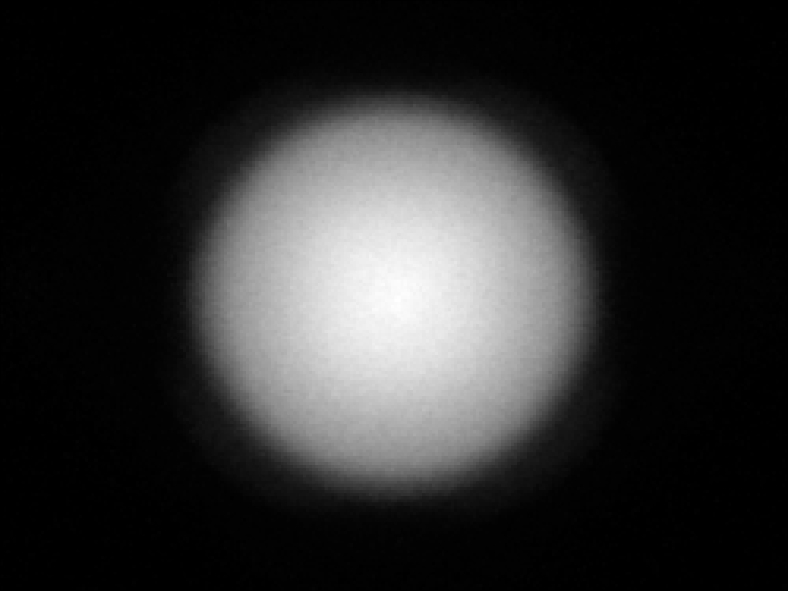

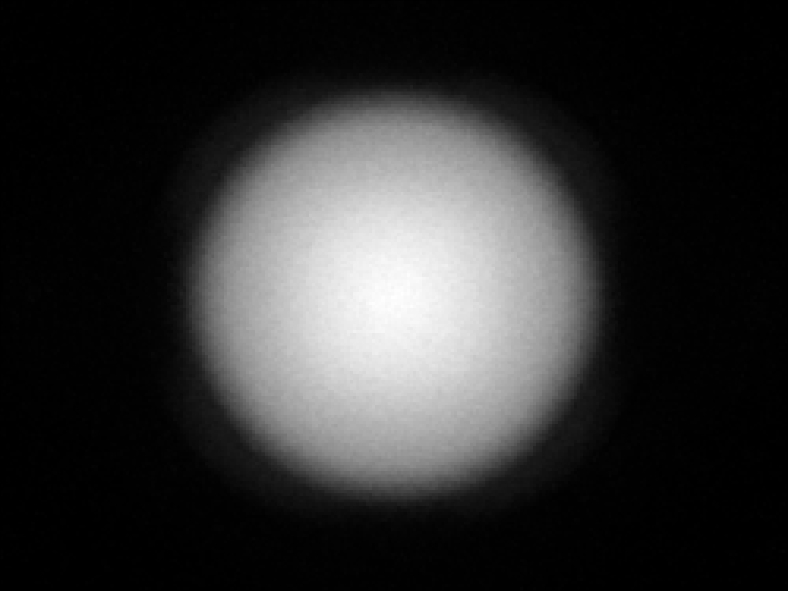

LUMILEDS LUXEON 3030 2D White

Eff:

79.5%

FWHM:

57°

Cd/Im:

1.5

,

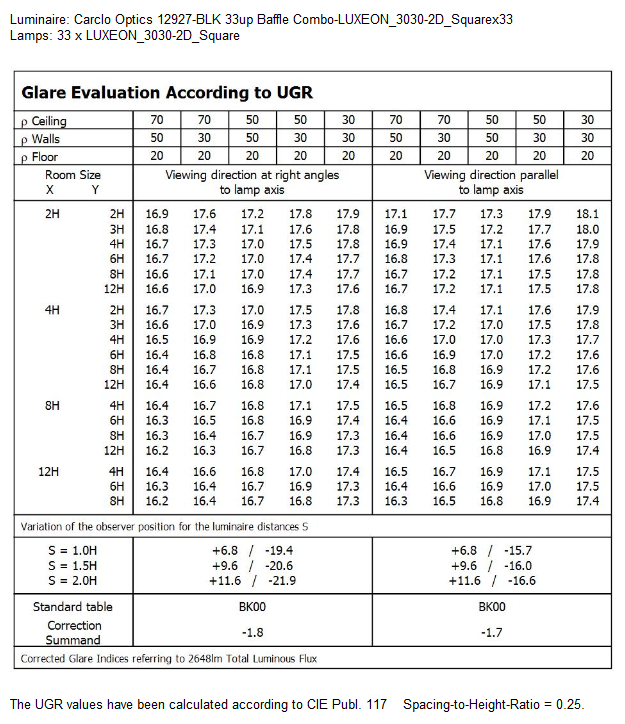

UGR-12927-BLK-Luxeon_3030

Download

LUMILEDS LUXEON 3030 HE White

Eff:

80.0%

FWHM:

58°

Cd/Im:

1.3

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Lumileds Luxeon 3030HE

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Lumileds Luxeon 3030HE

,

UGR-12927-BLK-Luxeon_3030_HE

Download

zip

LUMILEDS LUXEON C White

Eff:

69.0%

FWHM:

68°

Cd/Im:

1.0

,

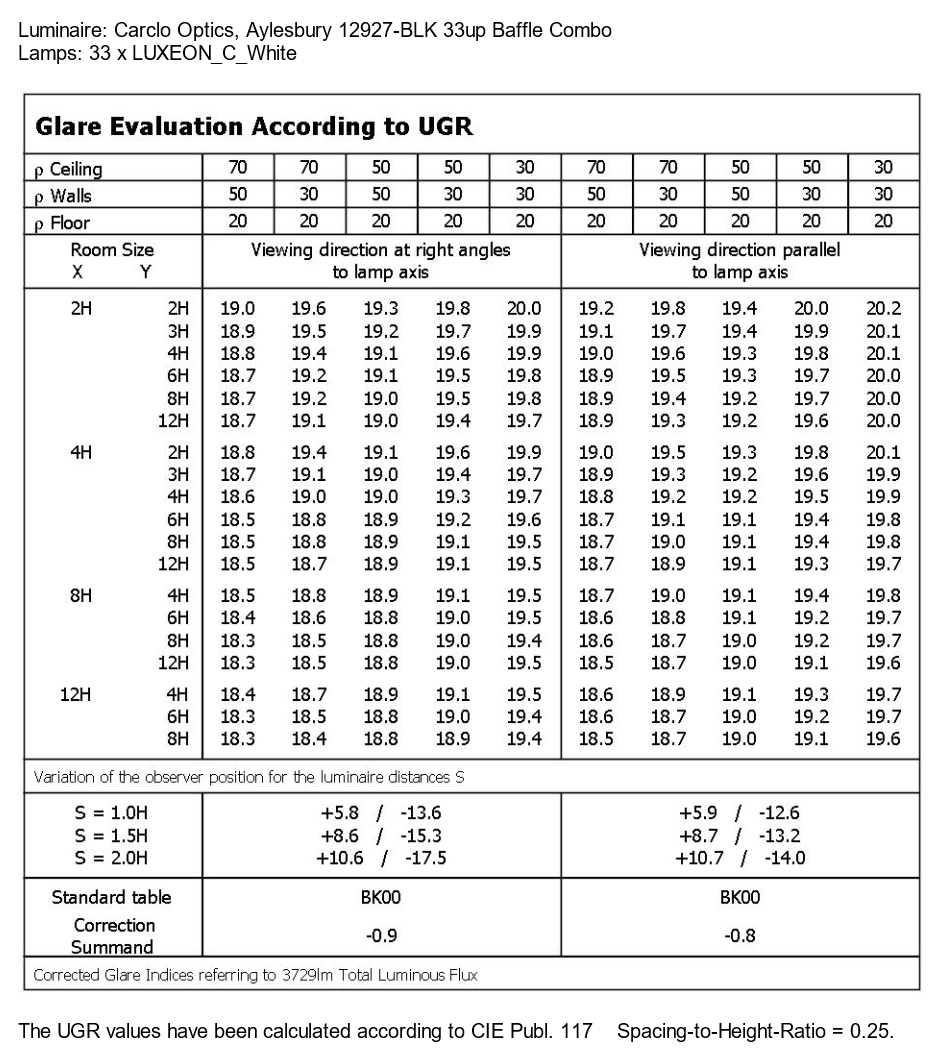

UGR-12927-BLK-LUXEON_C_White

Download

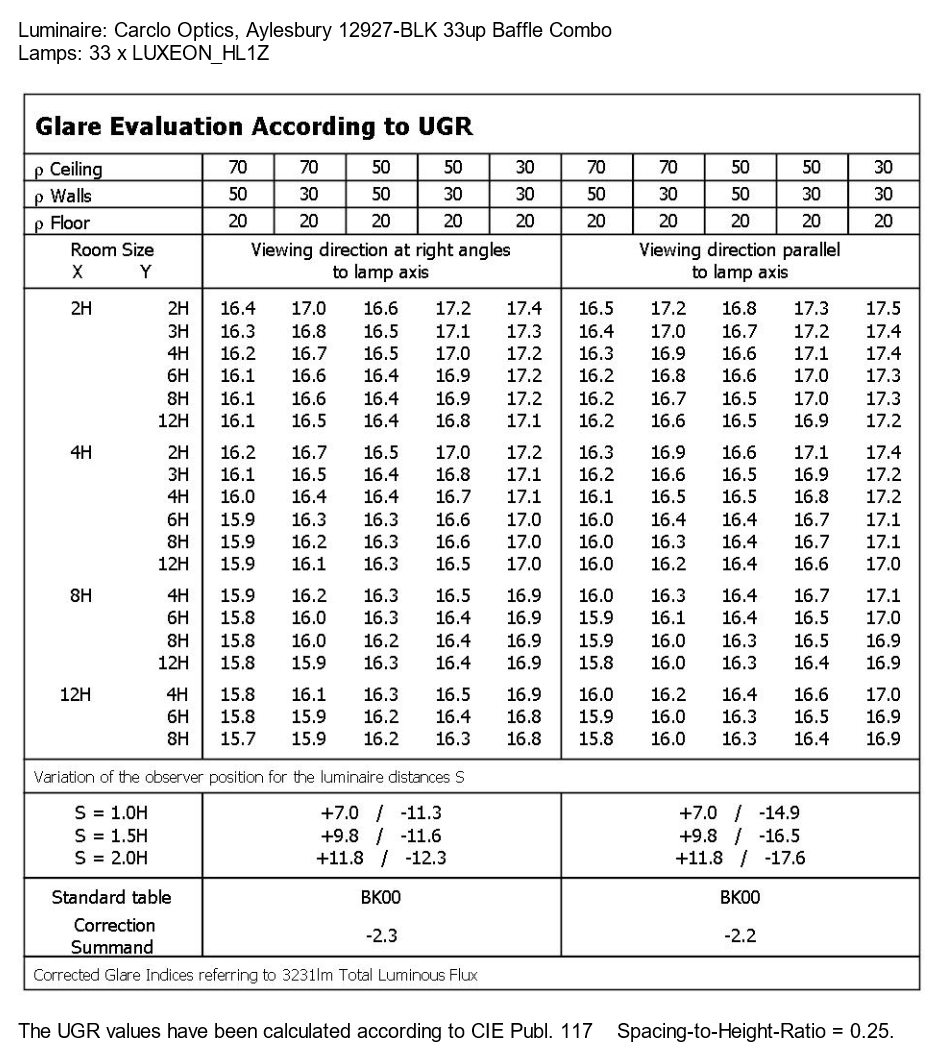

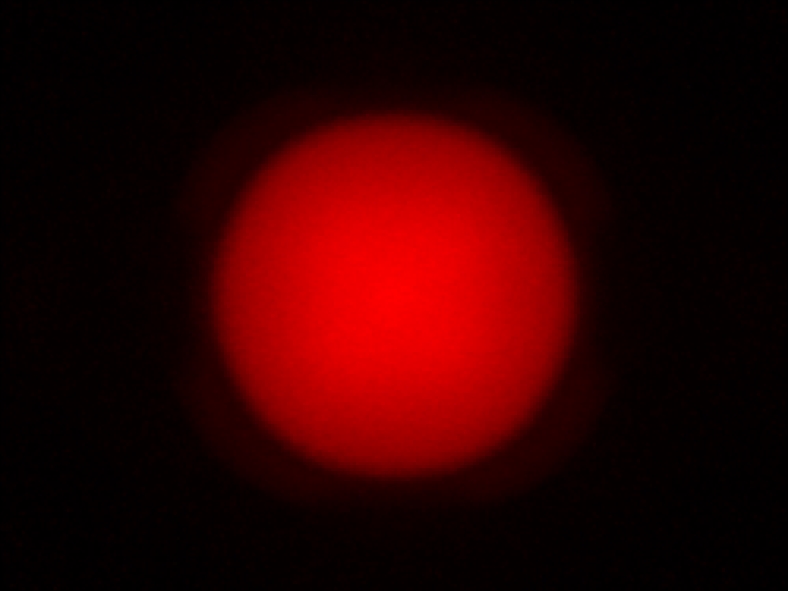

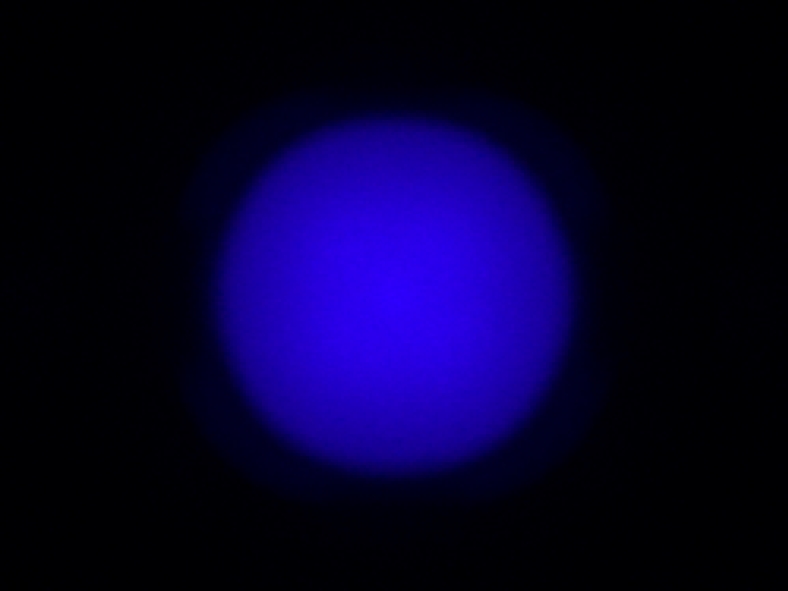

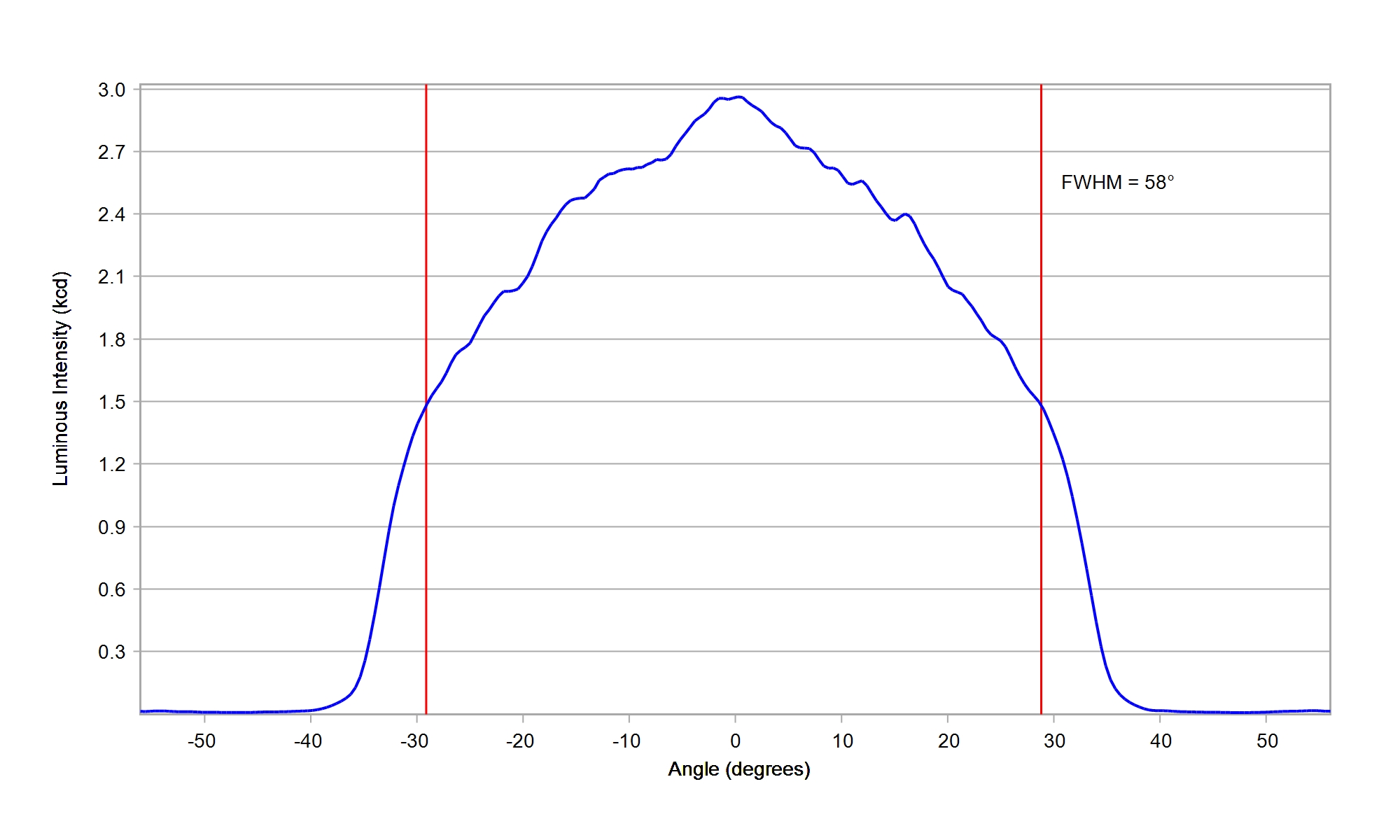

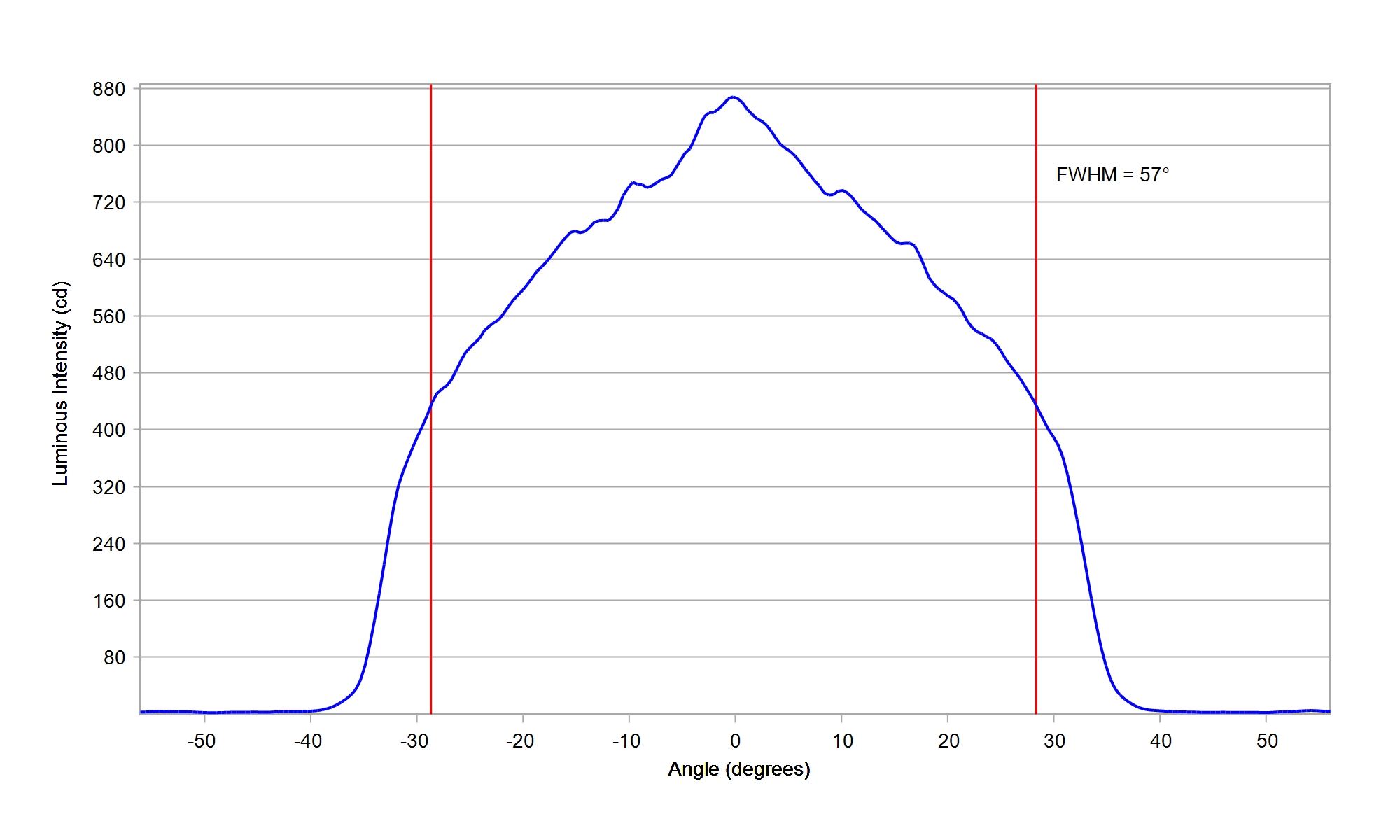

LUMILEDS LUXEON HL1Z CSP White

Eff:

75.5%

FWHM:

57°

Cd/Im:

1.3

,

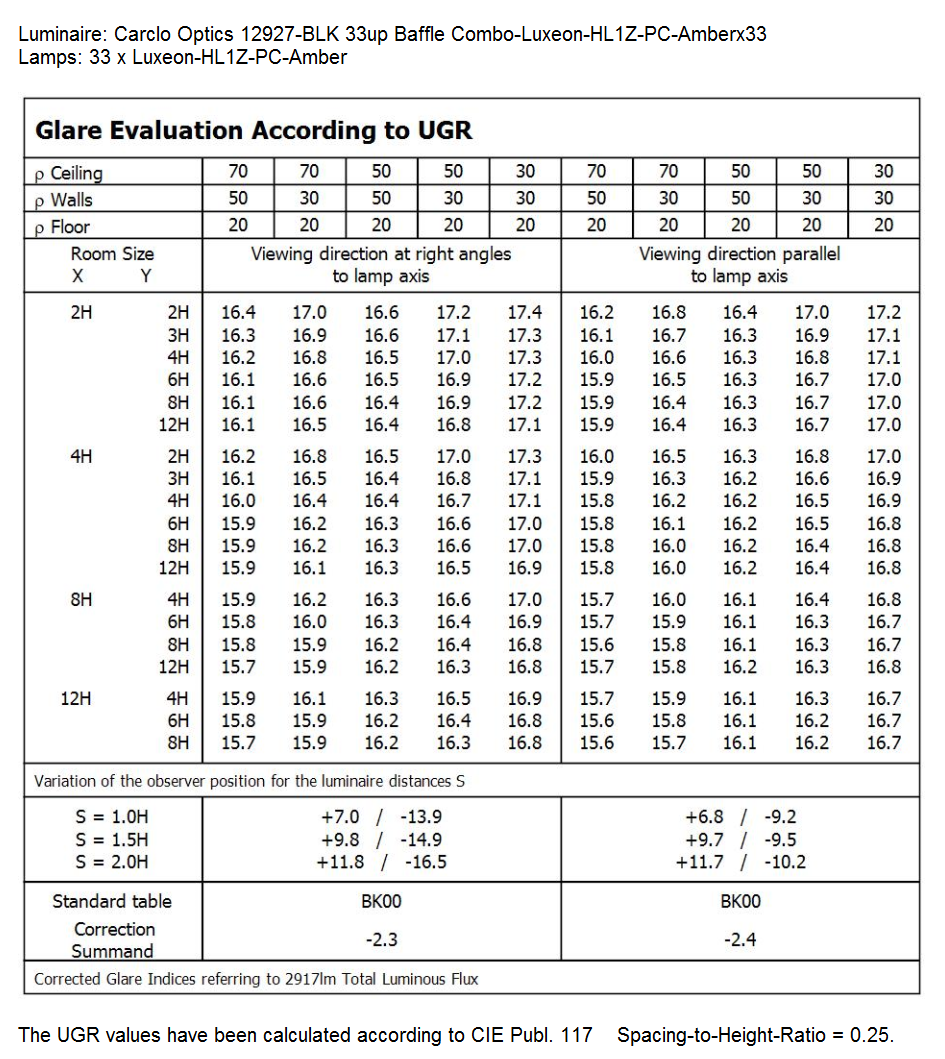

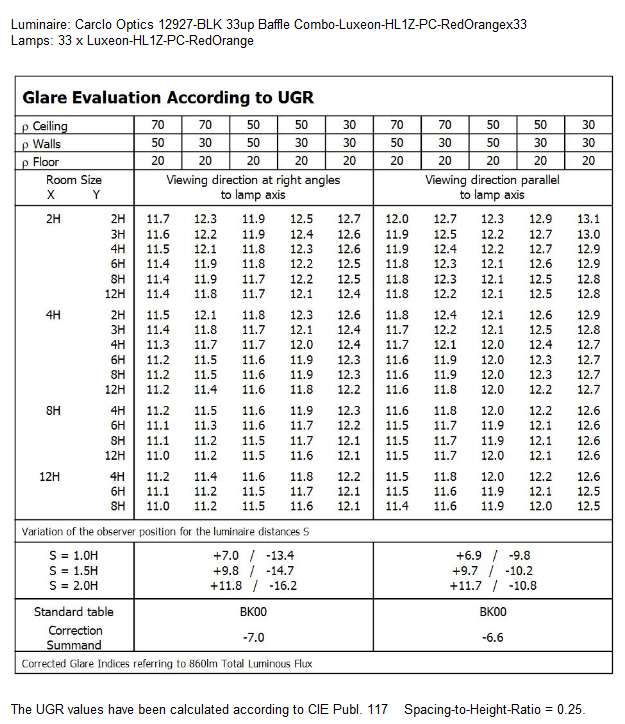

UGR-12927-BLK-LUXEON_HL1Z

Download

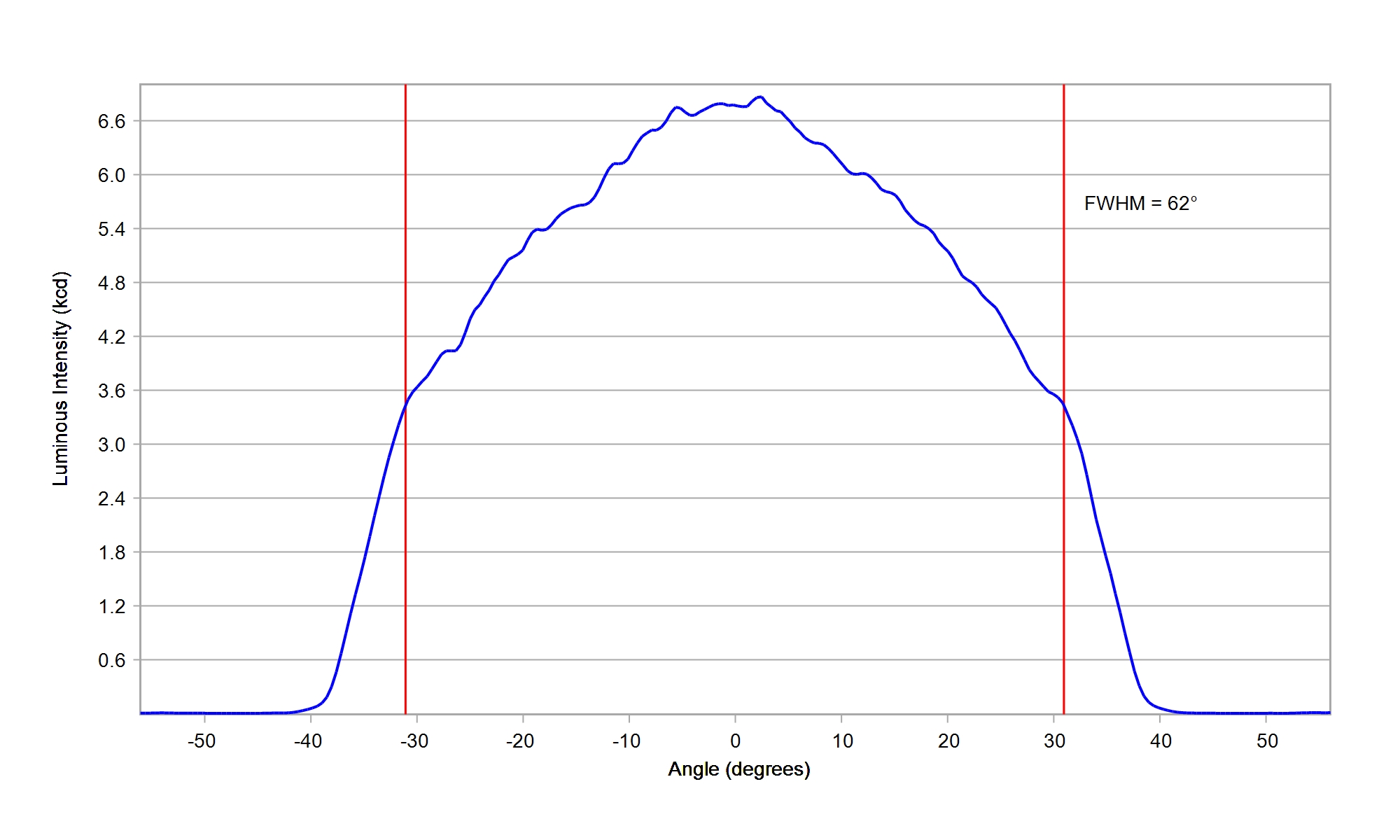

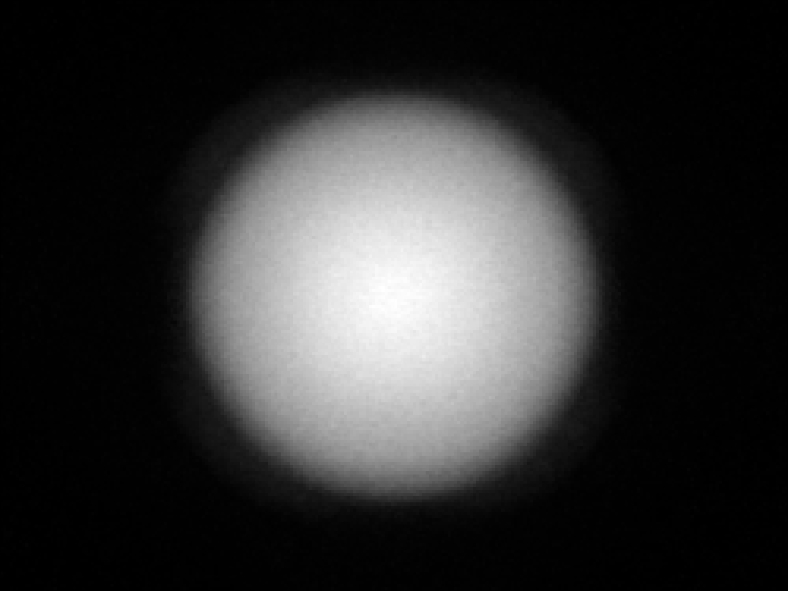

LUMILEDS LUXEON HL4Z White

Eff:

80.0%

FWHM:

62°

Cd/Im:

1.3

,

UGR-12927-BLK-LUXEON_HL4Z

Download

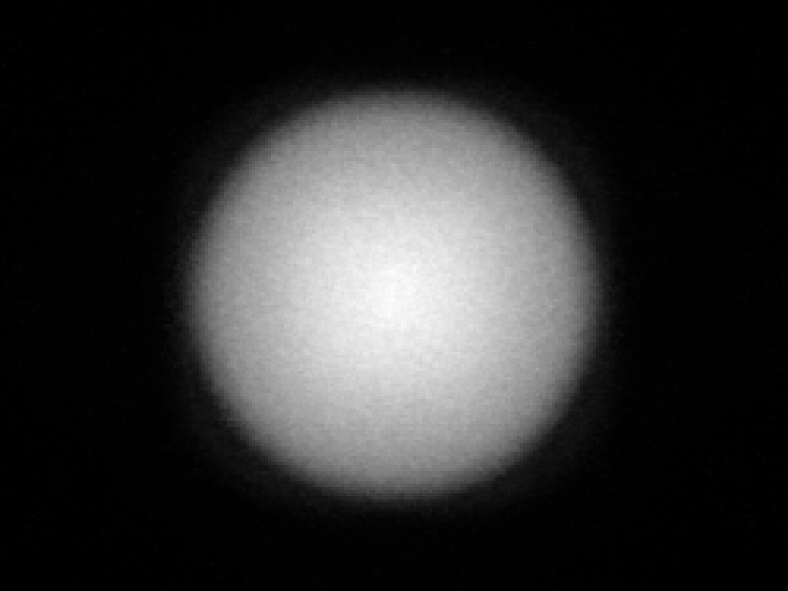

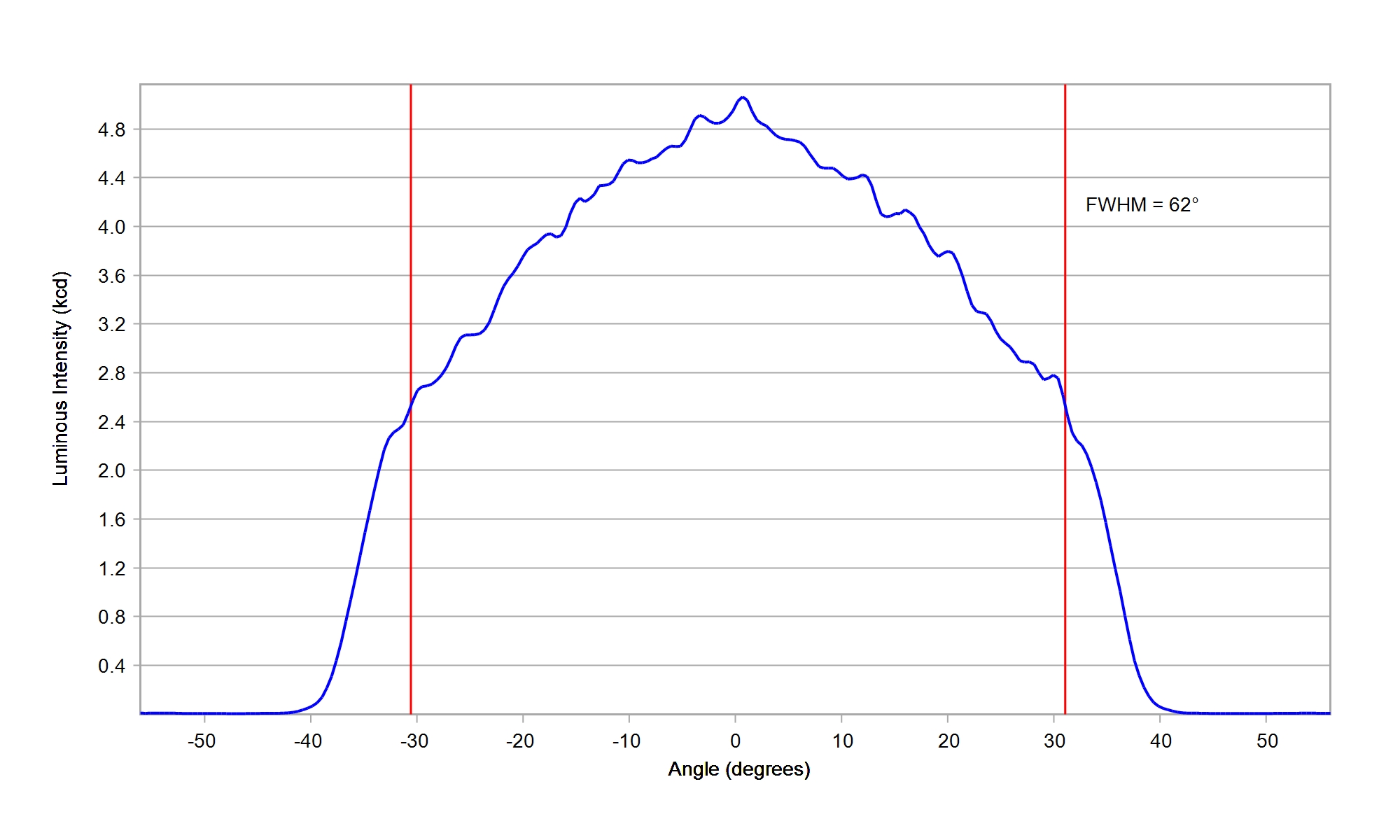

Luminus Devices SFT-40-WxS White

Eff:

81.5%

FWHM:

60°

Cd/Im:

1.6


,

UGR-12927-BLK-Luminus_SFT-40-WxS

Download

Luminus Devices SFT-70X-WxS White

Eff:

81.5%

FWHM:

60°

Cd/Im:

1.5


,

UGR-12927-BLK-Luminus_SFT-70X-W

Download

Nichia 757G White

Eff:

81.5%

FWHM:

58°

Cd/Im:

1.3

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Nichia 757G-MT

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Nichia 757G-MT

,

UGR-12927-BLK-Nichia-757G-MT

Download

zip

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

80.0%

FWHM:

59°

Cd/Im:

1.3



,

UGR-12927-BLK-Osram_OSCONIQ_S_5050_GW_QP9LR32_PM

Download

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

82.5%

FWHM:

58°

Cd/Im:

1.5


,

UGR-12927-BLK-Oslon_Pure_1414_Blue

Download

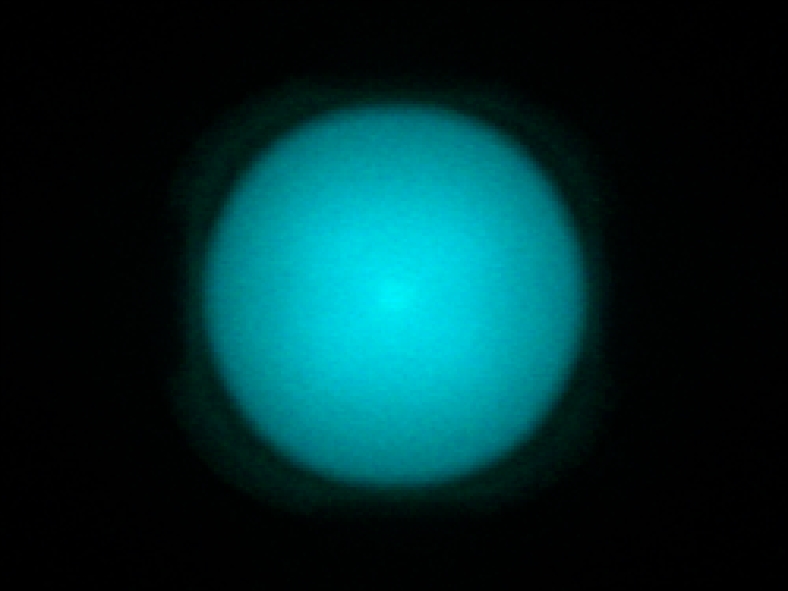

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

85.0%

FWHM:

56°

Cd/Im:

1.5


,

UGR-12927-BLK-Oslon_Pure_1414_Cyan

Download

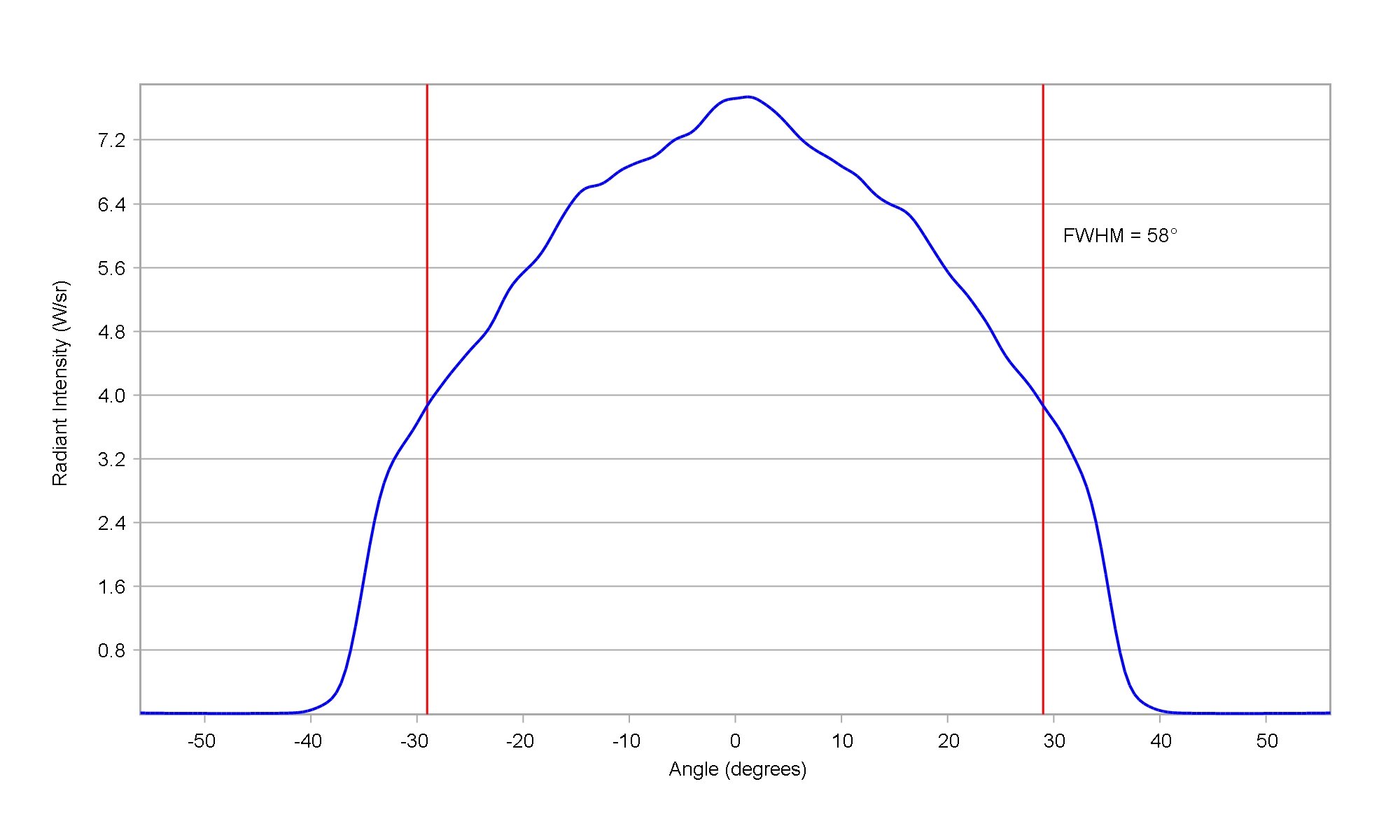

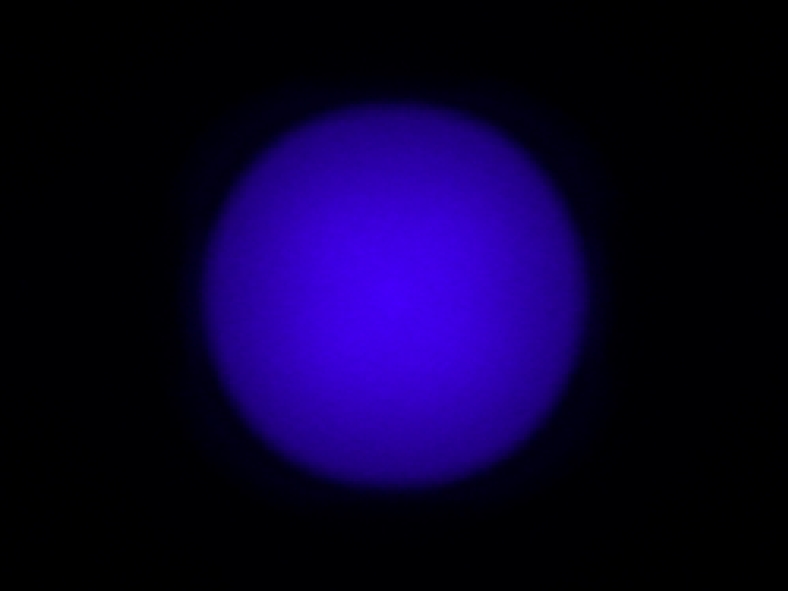

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

82.5%

FWHM:

58°

Ipk/W:

1.3



,

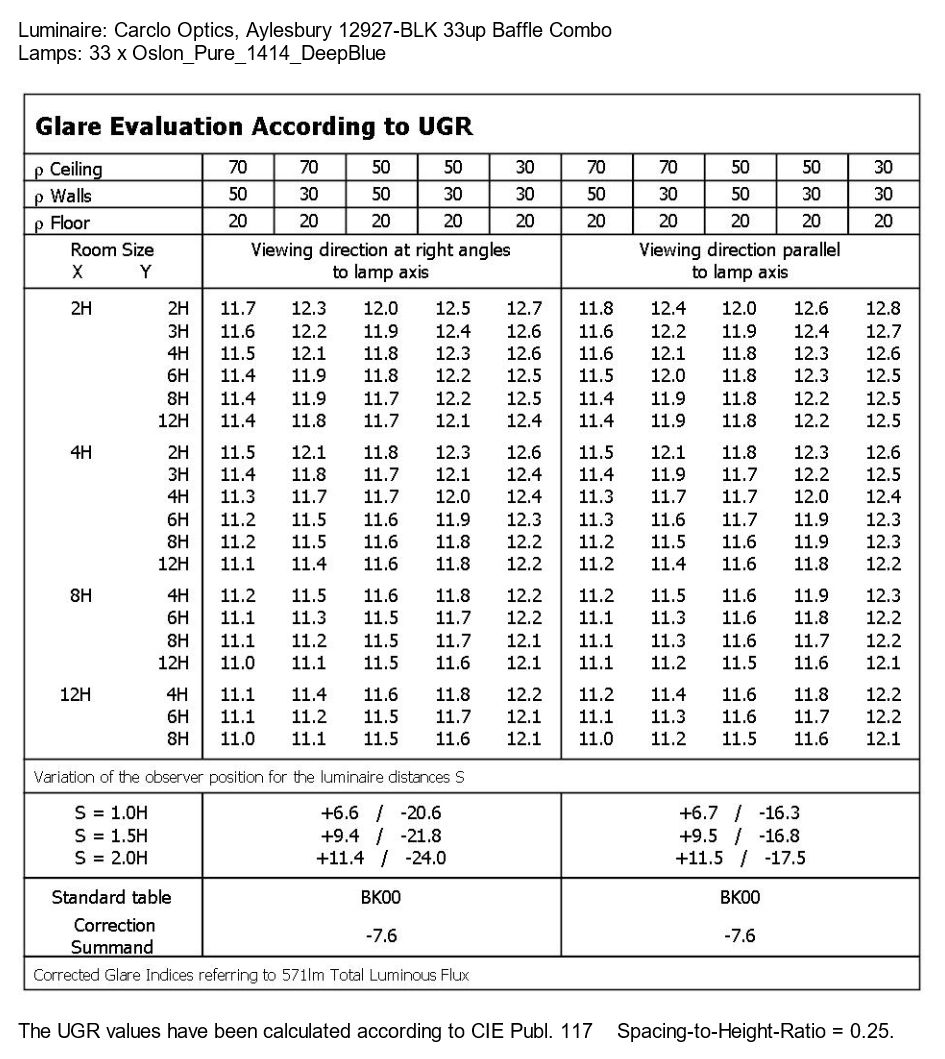

UGR-12927-BLK-Oslon_Pure_1414_DeepBlue_lm

Download

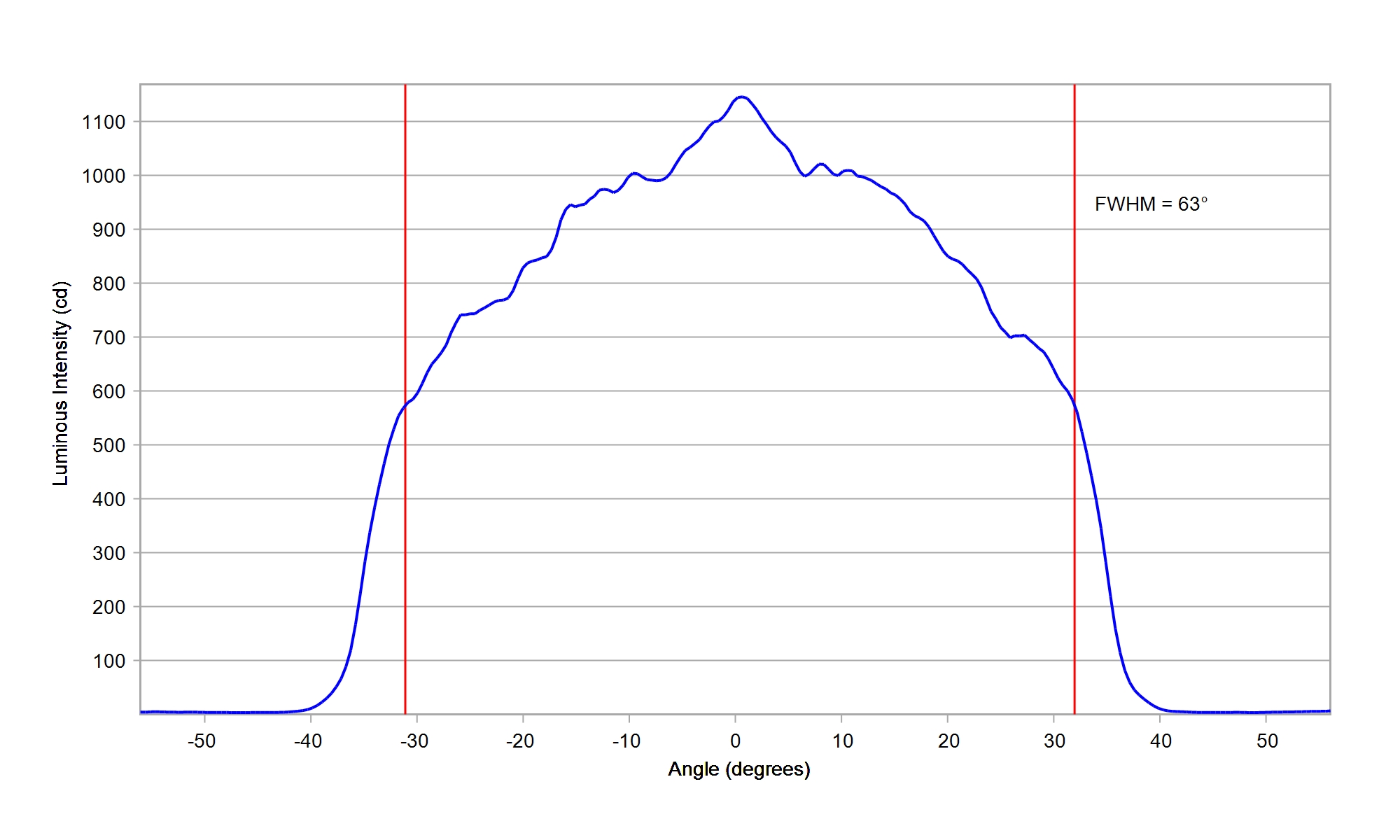

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

73.0%

FWHM:

63°

Cd/Im:

1.1


,

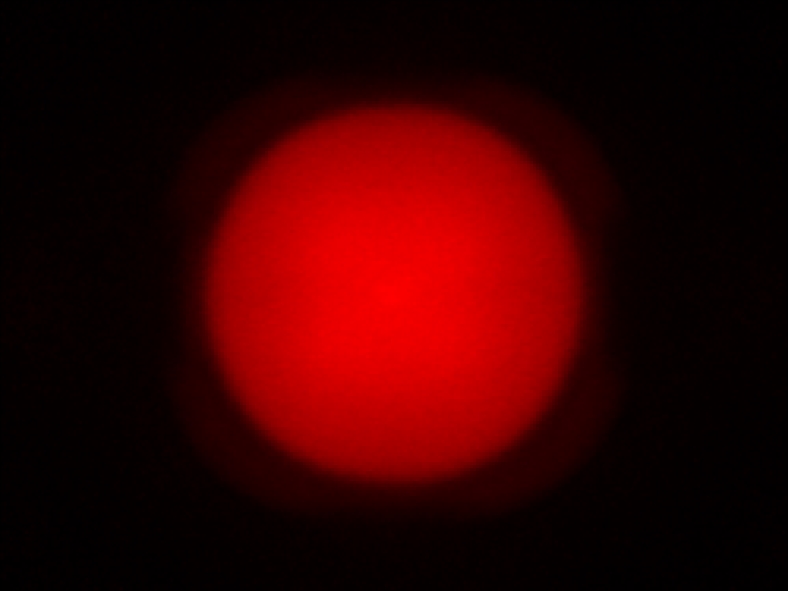

UGR-12927-BLK-Oslon_Pure_1414_Red

Download

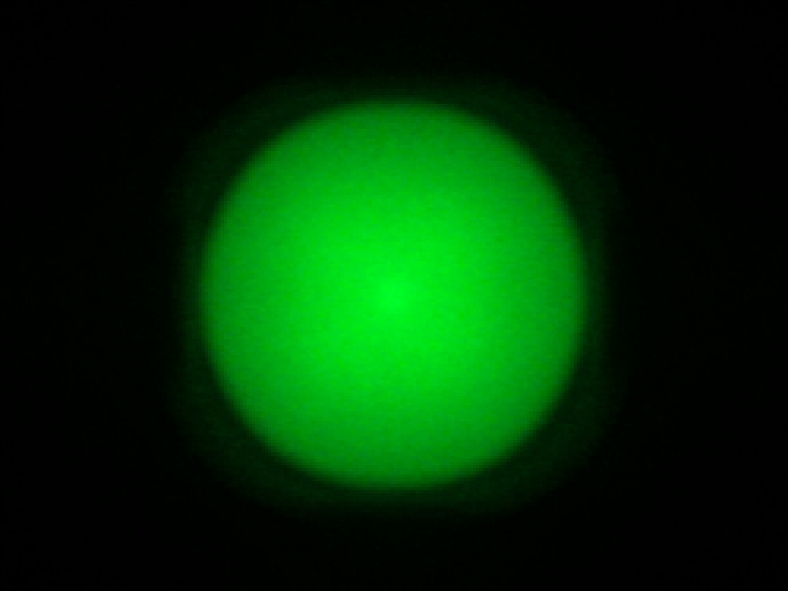

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

84.0%

FWHM:

57°

Cd/Im:

1.4



,

UGR-12927-BLK-Oslon_Pure_1414_TrueGreen

Download

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

82.5%

FWHM:

58°

Cd/Im:

1.6


,

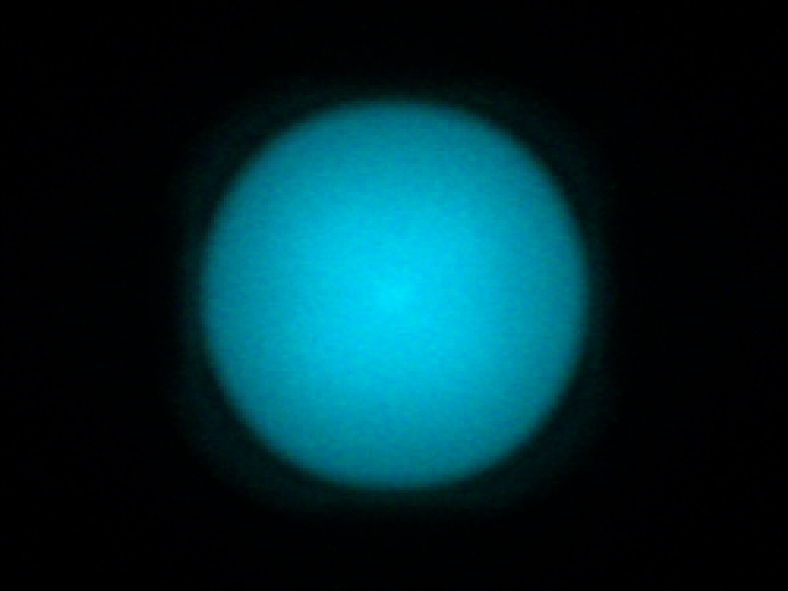

UGR-12927-BLK-Oslon_Pure_1414_Verde

Download

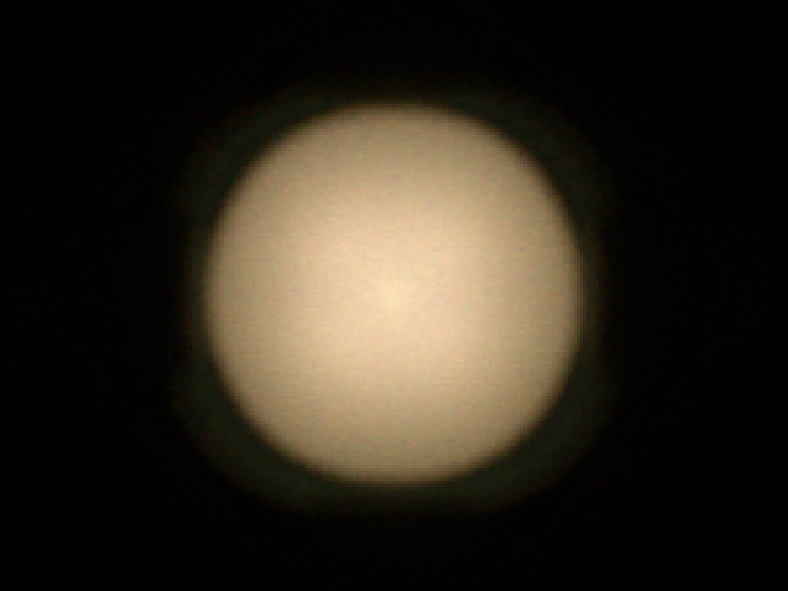

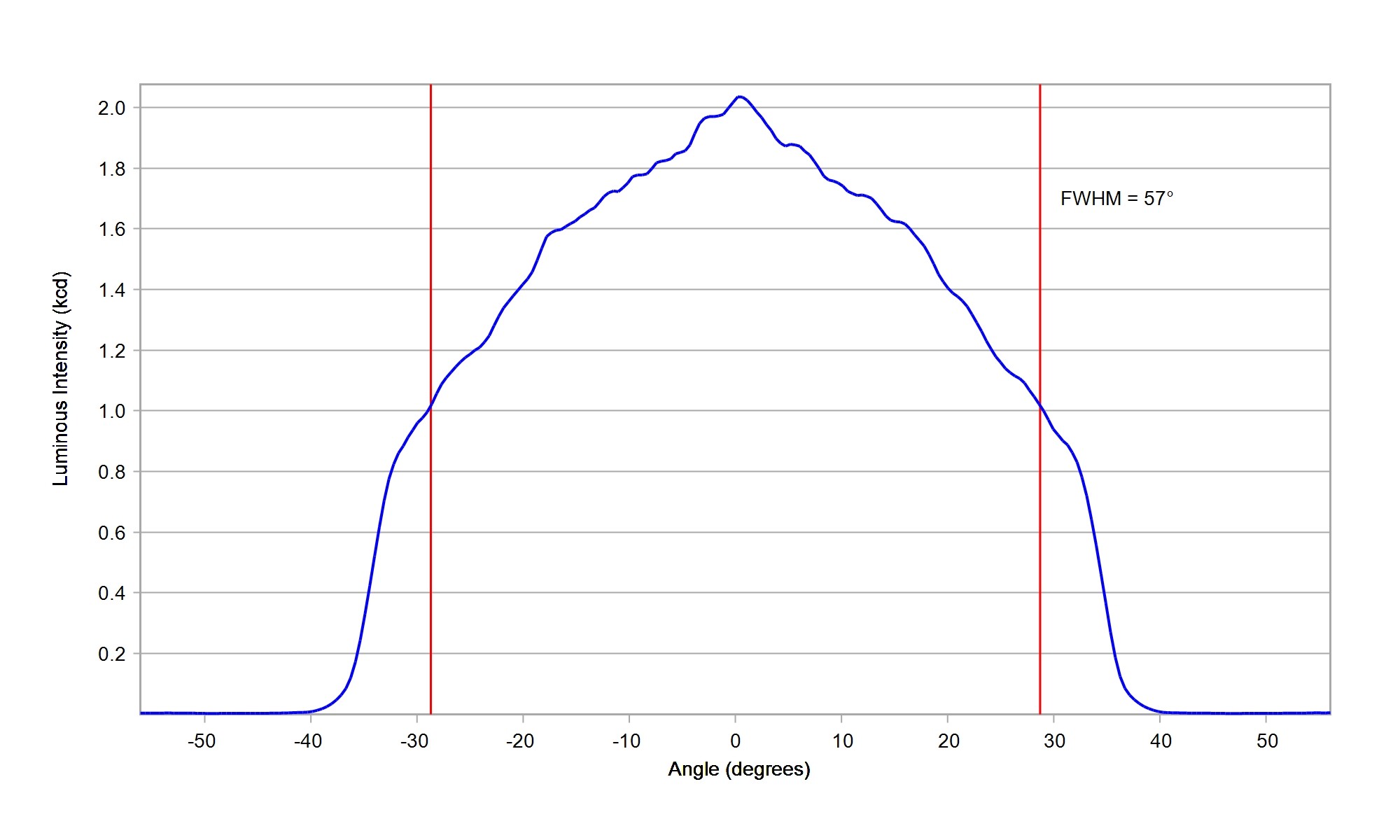

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

80.5%

FWHM:

57°

Cd/Im:

1.4


,

UGR-12927-BLK-Oslon_Pure_1414-white

Download

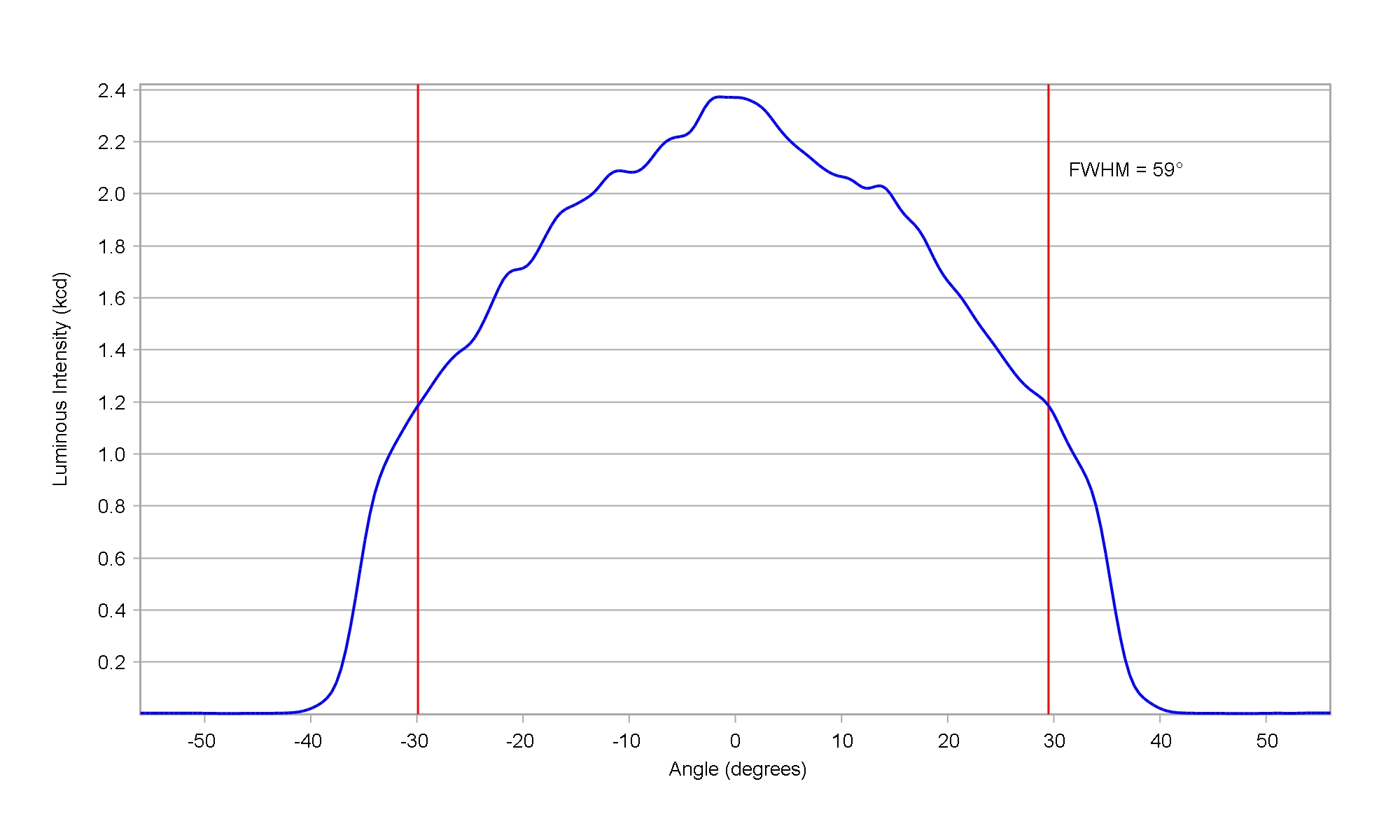

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

81.5%

FWHM:

59°

Cd/Im:

1.3


,

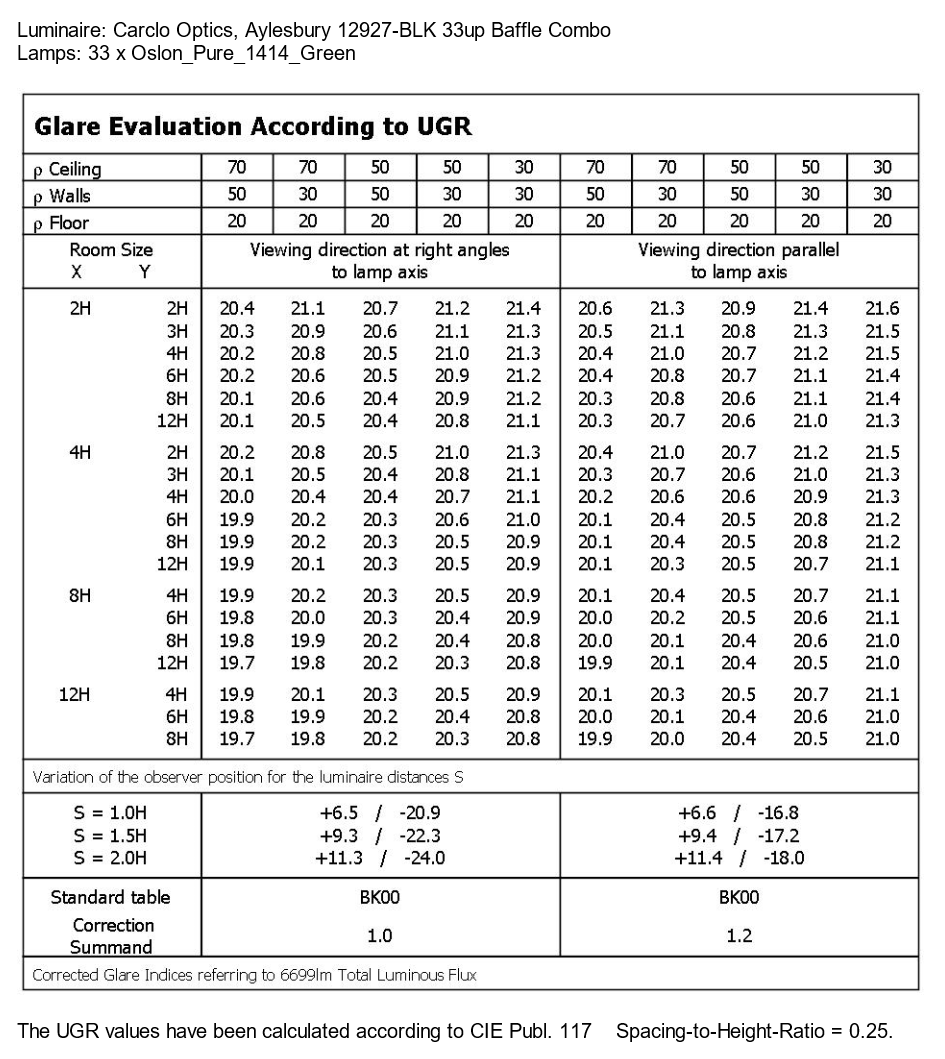

UGR-12927-BLK-Oslon_Pure_1414_Green

Download

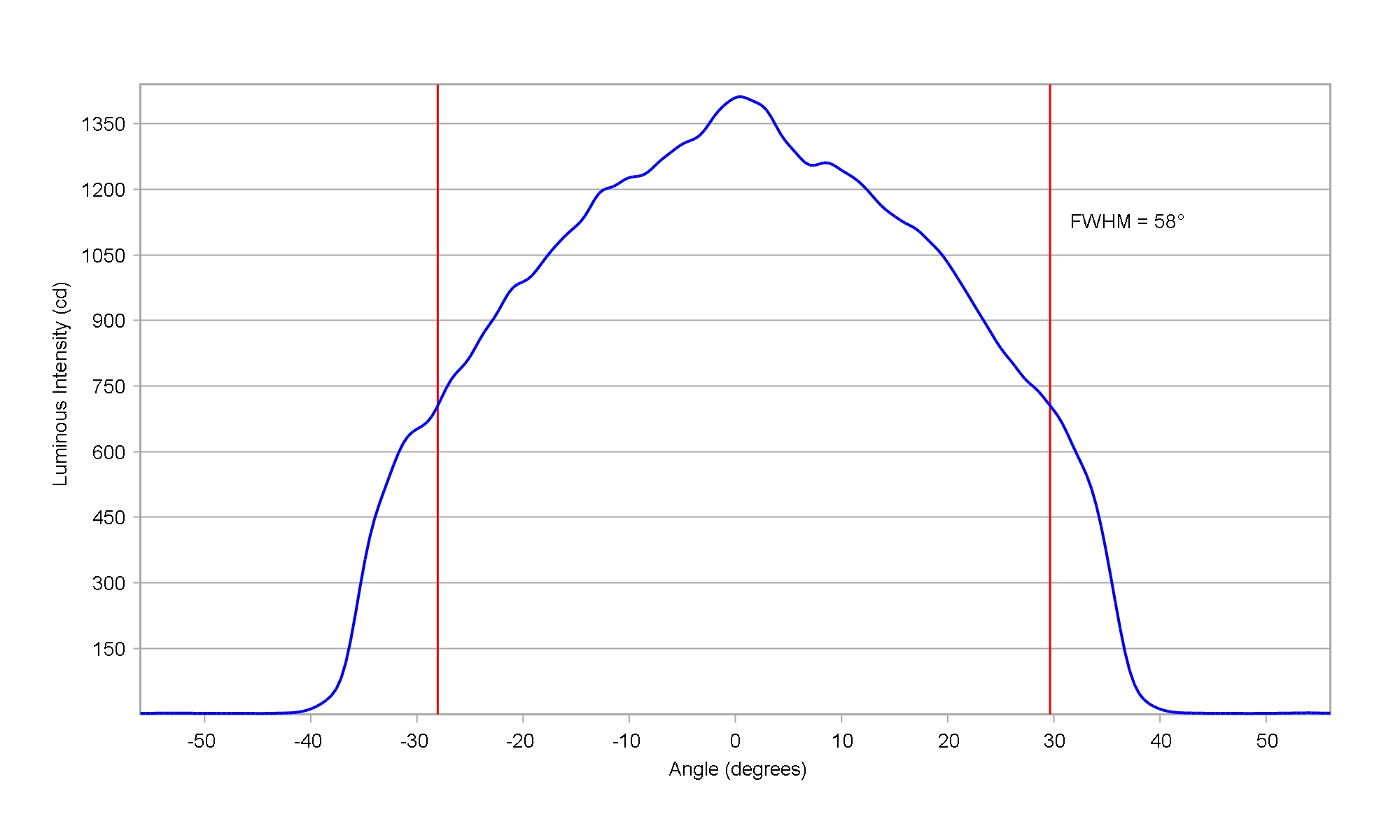

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

80.5%

FWHM:

58°

Cd/Im:

1.4


,

UGR-12927-BLK-Oslon_Pure_1414_Yellow

Download

Osram Prevaled Bar G4

Eff:

79.5%

FWHM:

58°

Cd/Im:

1.4

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Osram PrevaLED Bar G4

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Osram PrevaLED Bar G4

,

UGR-12927-BLK-Osram_PrevaLED_Bar_G4

Download

zip

Signify Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm

Eff:

78.0%

FWHM:

59°

Cd/Im:

1.3

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Fortimo HV4 Gen 4 1100lm

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Fortimo HV4 Gen 4 1100lm

,

UGR-12927-BLK-Fortimo_3R_HV4

Download

zip

Signify Philips Fortimo LED Line 3R HV4 Gen 4 Board 2000lm

Eff:

80.0%

FWHM:

60.7°

Cd/Im:

1.0

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Fortimo 3R HV4

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Fortimo 3R HV4

,

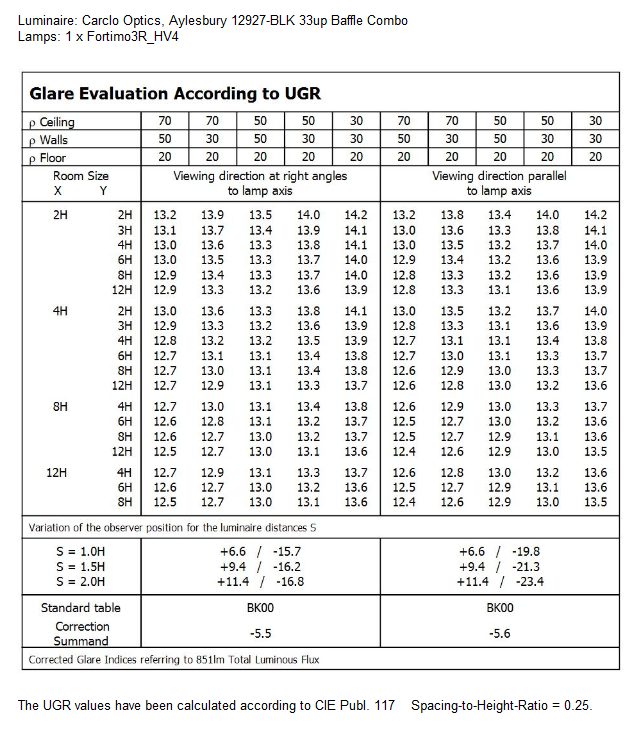

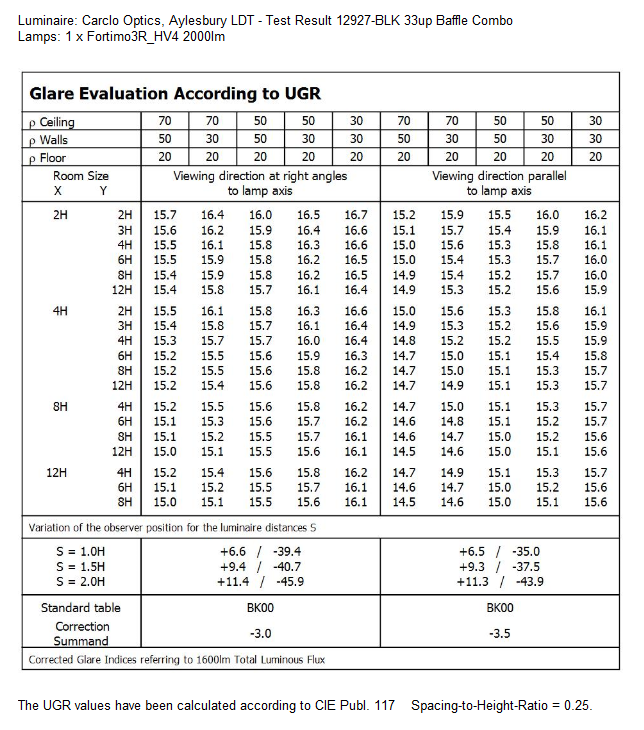

UGR-12927-BLK with Fortimo3R_HV4 at 2000lumens

Download

zip

Signify Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm

Eff:

78.0%

FWHM:

59°

Cd/Im:

1.2

Carclo Optics – 12927-BLK 33Up COMBO Spot Image Fortimo 3R LV4

Carclo Optics - 12927-BLK 33Up COMBO Cross Section Fortimo 3R LV4

,

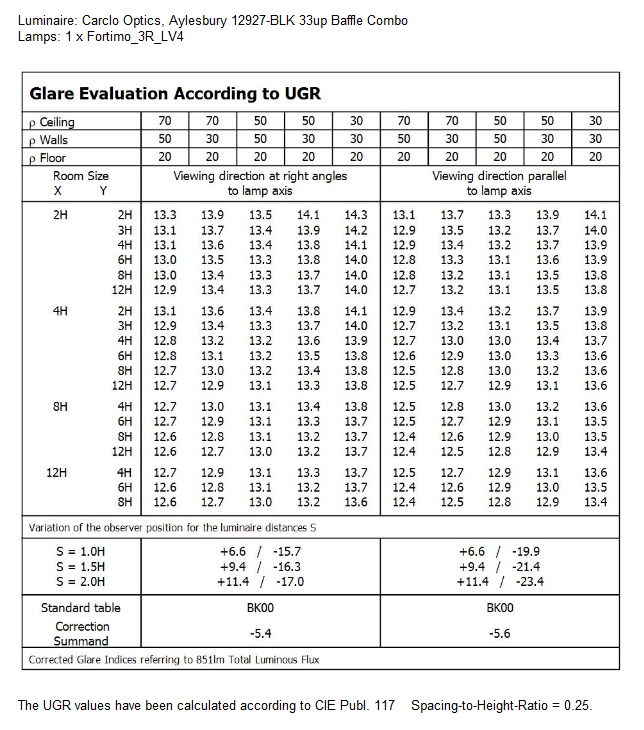

UGR-12927-BLK-Fortimo_3R_LV4

Download

zip

Signify Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

79.0%

FWHM:

58°

Cd/Im:

1.5


,

UGR-12927-BLK-LEDLine_HF_3R_HV5

Download

Signify Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

79.5%

FWHM:

56°

Cd/Im:

1.4


,

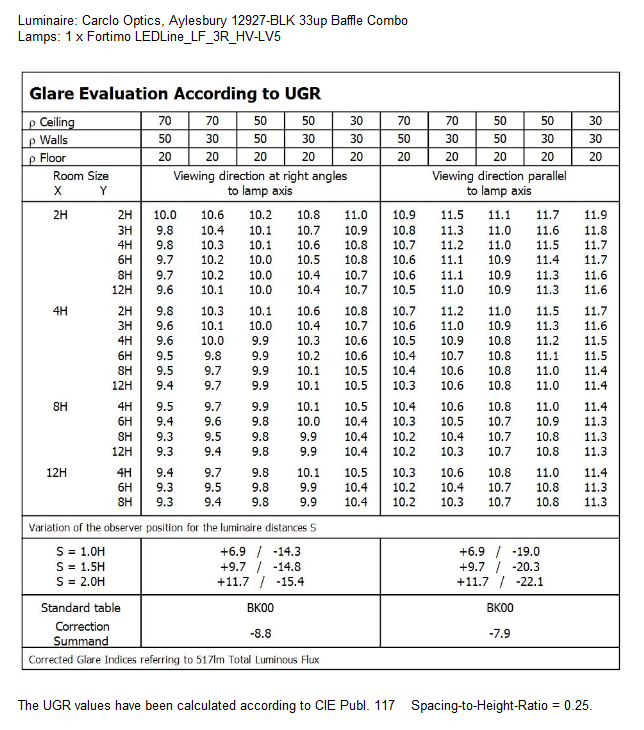

UGR-12927-BLK-LEDLine_LF_3R_HV-LV5

Download

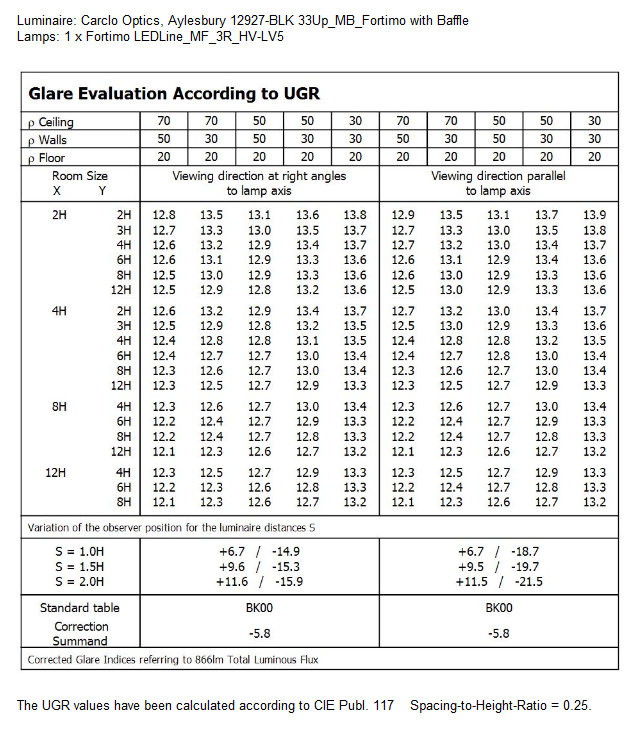

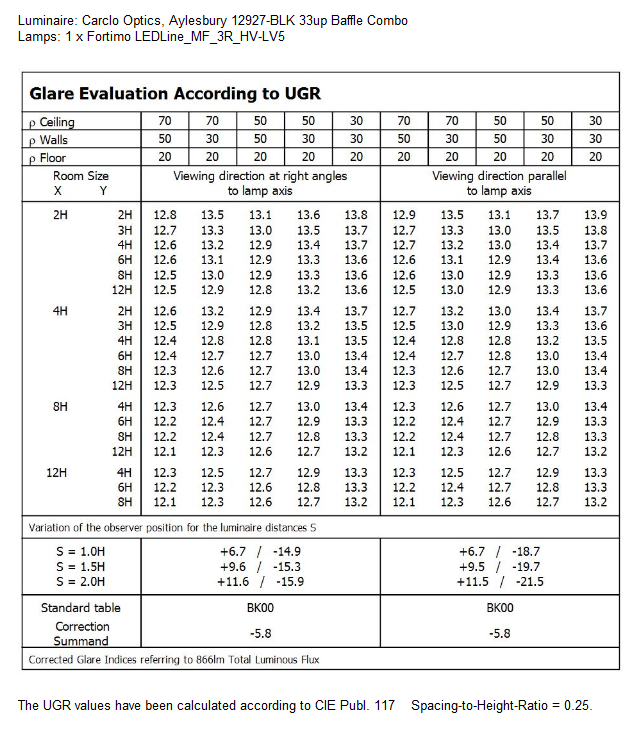

Signify Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

79.0%

FWHM:

58°

Cd/Im:

1.3


,

Download

Samsung 2835 LM281B+ White

Eff:

80.0%

FWHM:

57°

Cd/Im:

1.5



,

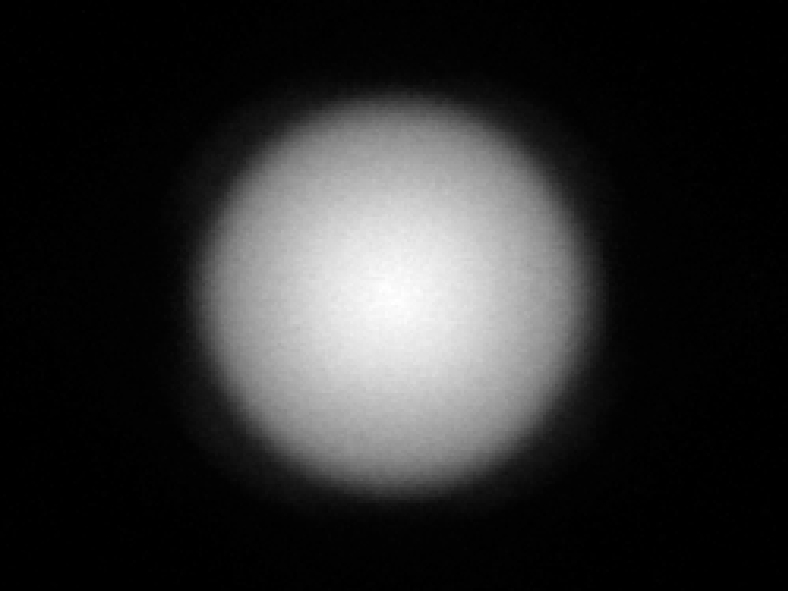

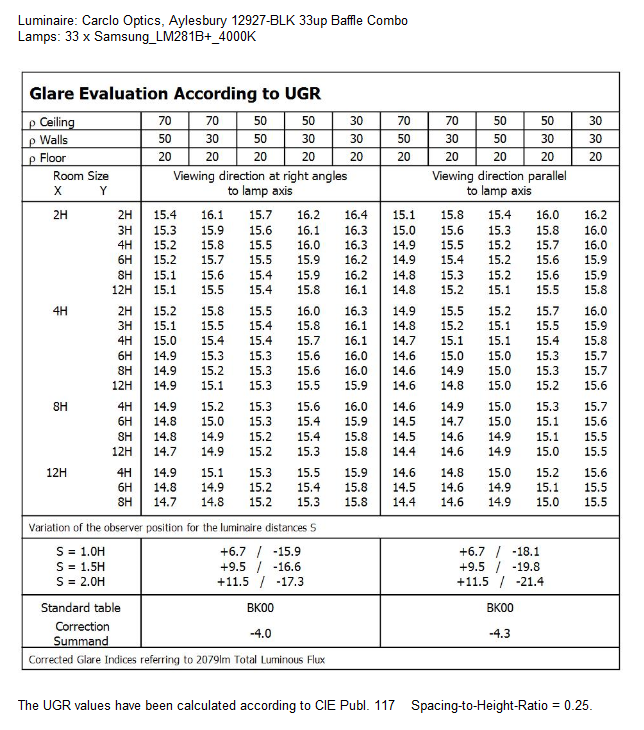

UGR-12927-BLK-Samsung_LM281B+_4000K

Download

Samsung 3030 LM301B White

Eff:

83.0%

FWHM:

52°

Cd/Im:

1.6

,

UGR-12927-BLK-Samsung_LM301B

Download

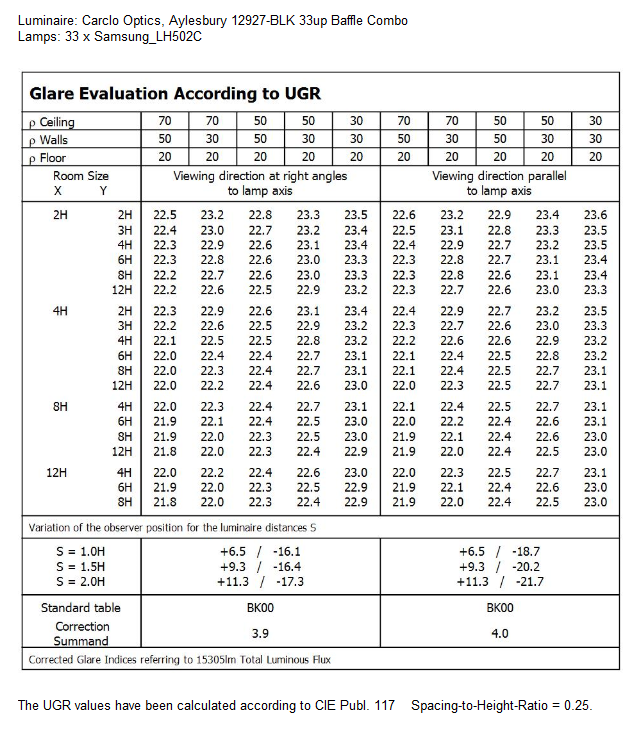

Samsung 5050 LH502C White

Eff:

80.0%

FWHM:

59°

Cd/Im:

1.3


,

UGR-12927-BLK-Samsung_LH502C

Download

Samsung 5050 LH502D White

Eff:

79.5%

FWHM:

59°

Cd/Im:

1.4


,

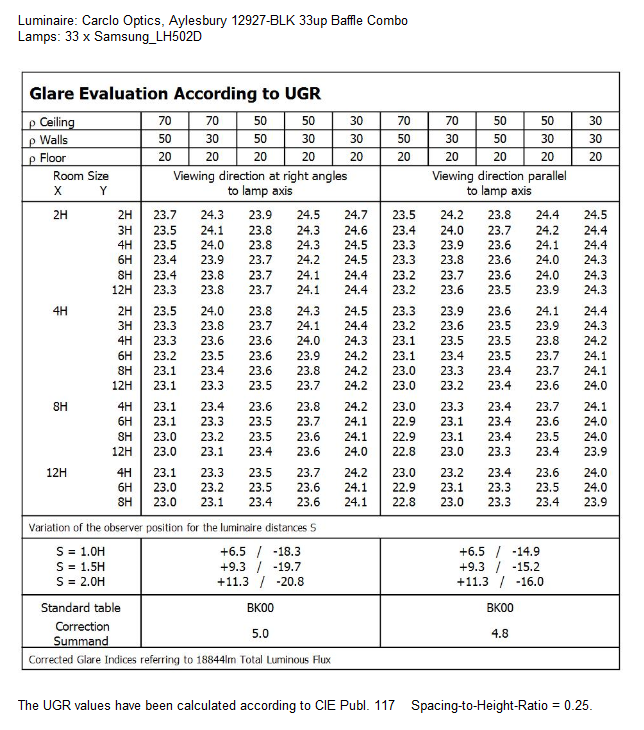

UGR-12927-BLK-Samsung_LH502D

Download

Samsung 5050 LH508C White

Eff:

80.5%

FWHM:

58°

Cd/Im:

1.4


,

UGR-12927-BLK-Samsung_LH508C

Download
