Carclo Optics - 12927 - 33Up Array
292 x 61mm Medium Spot Plain Freeform
Part number
12927
Dimensions
292 x 61mm
Drawing Number
12927_v2
Optic type
Freeform
Finish
Plain
Beam type
Medium Spot
Applications
Industrial
Office
Horticultural
Retail
Warehouse
Material: PMMA
Downloads

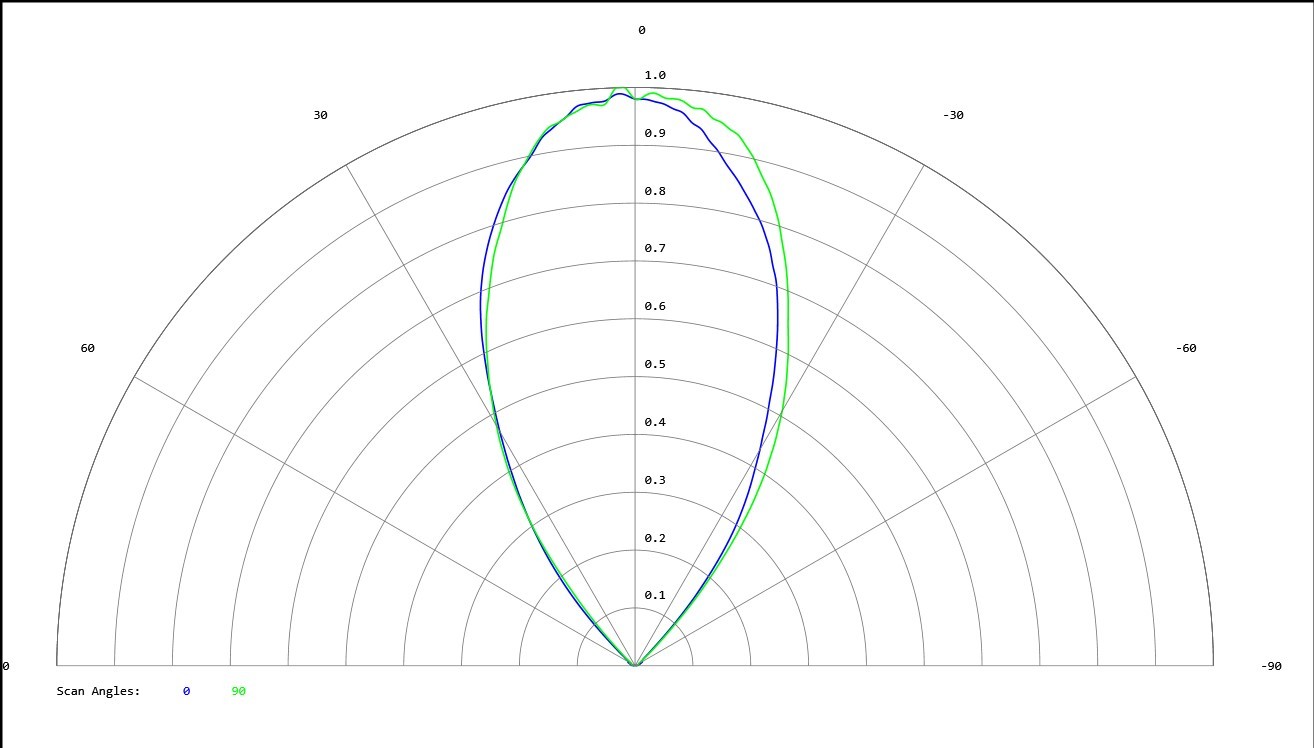

LEDs and Performances

Select and filter based on manufacturer(s)

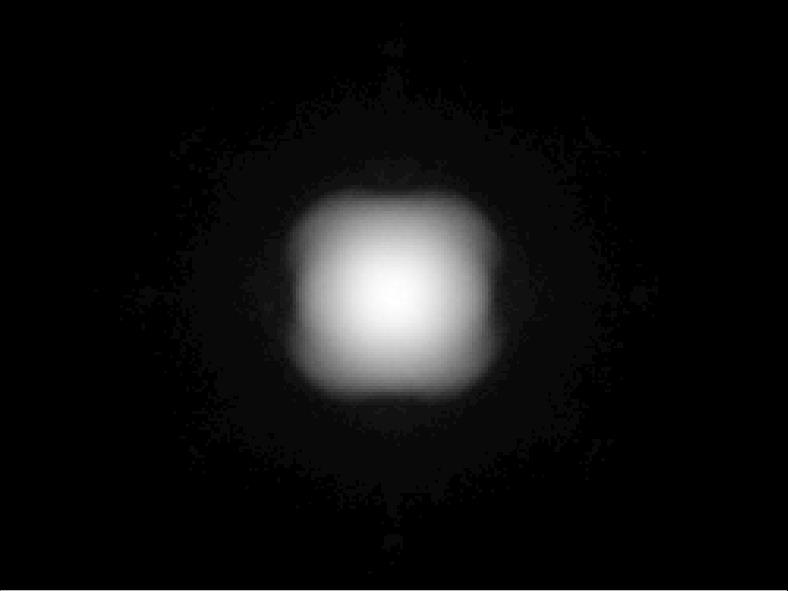

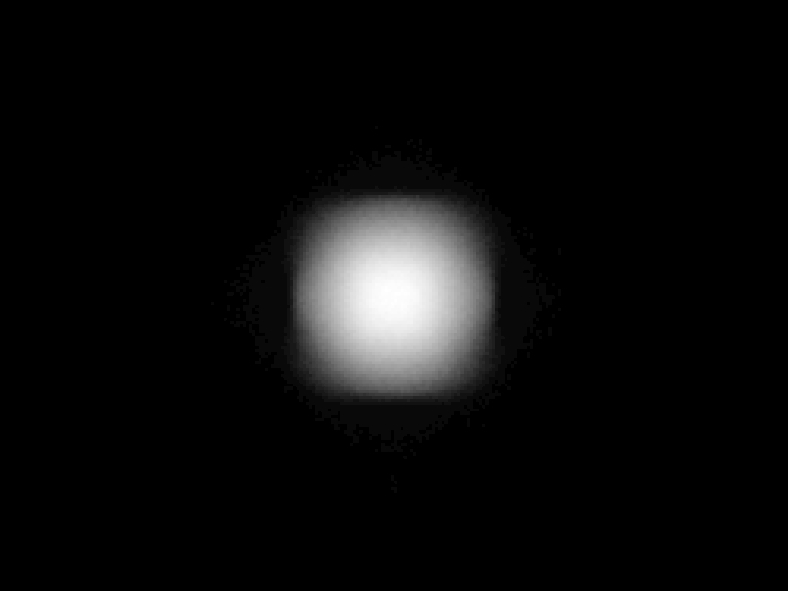

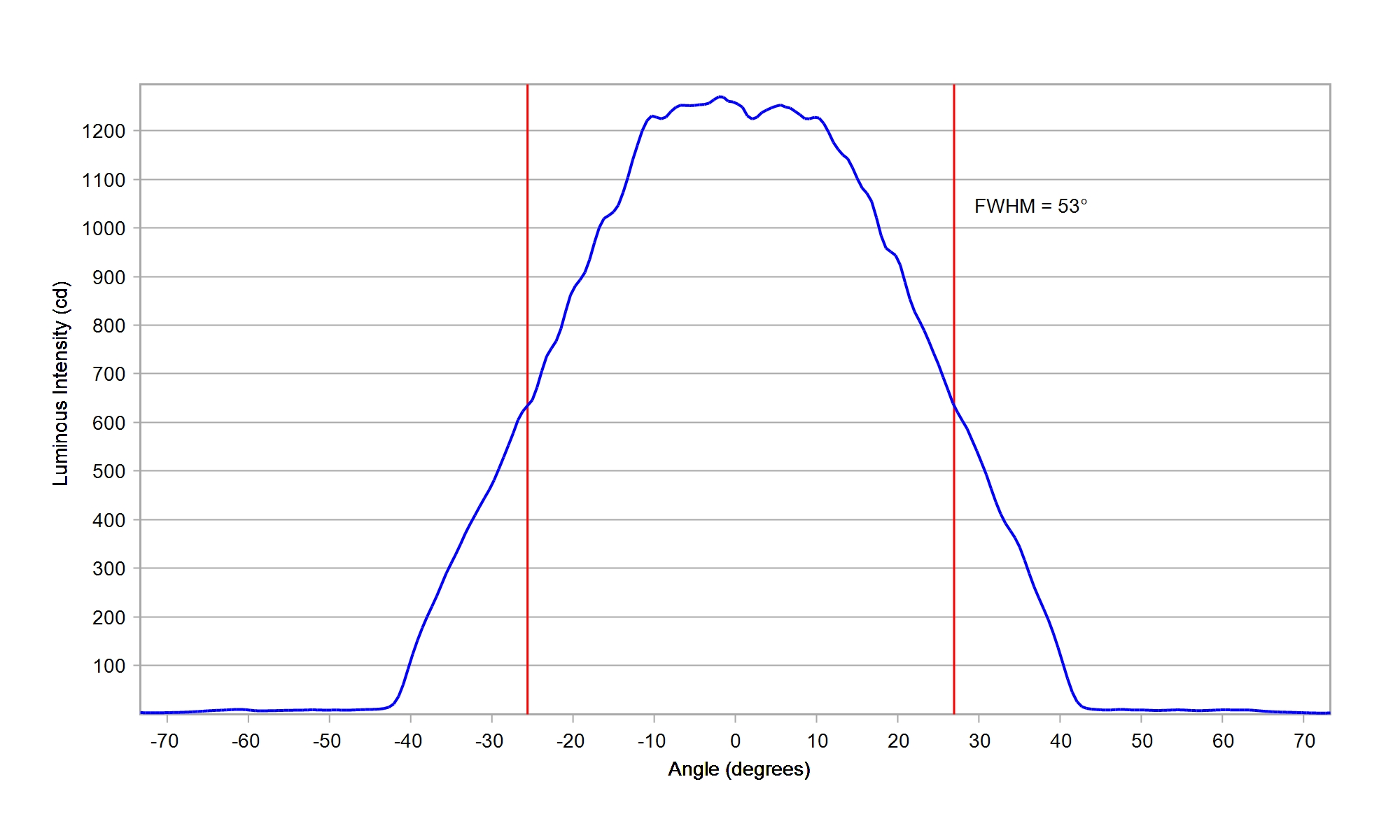

Bridgelux SMD 3030 Gen2 White
Eff:
95.5%
FWHM:
53 x 52°
Cd/Im:
1.6
Download

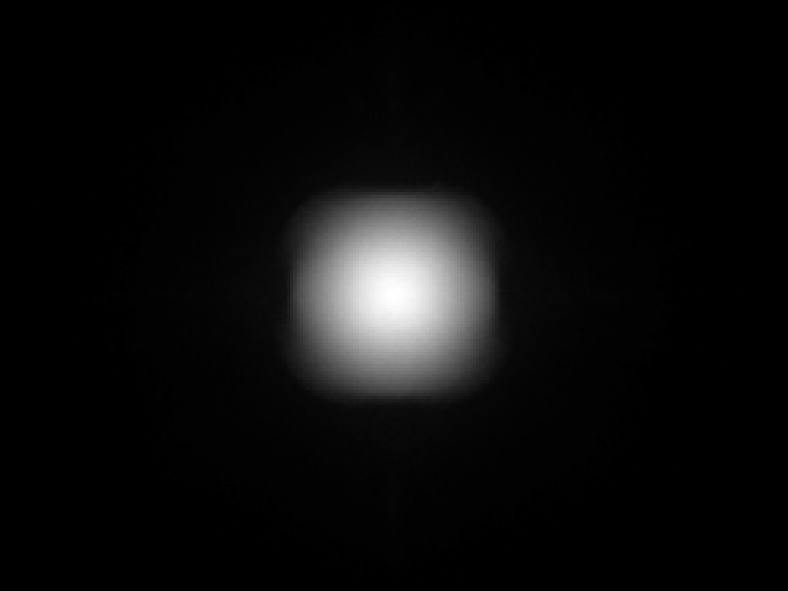

Cree JB2835B 3V G-Class White
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.5
Download
Cree JB2835B 3V J-Class White
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.5
Download

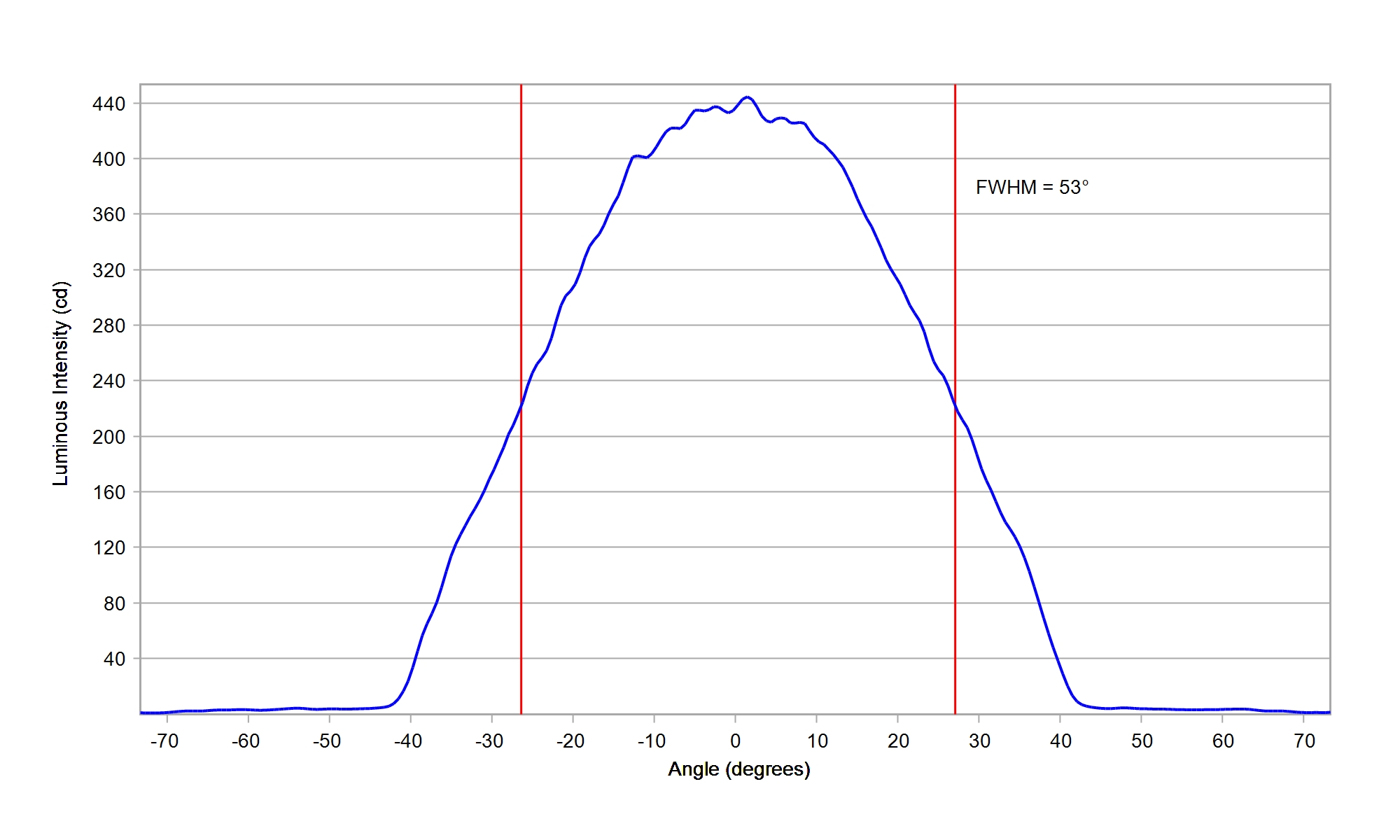

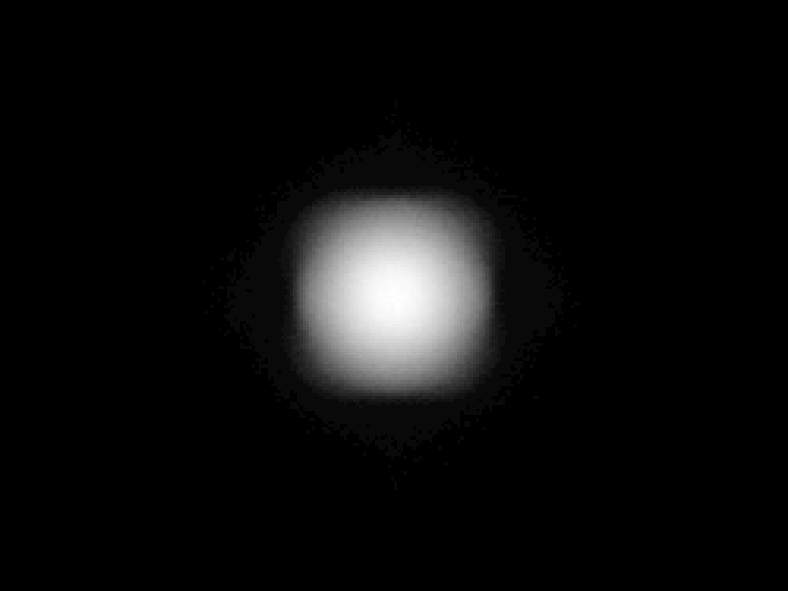

Cree JB3030 3V P-Class White
Eff:
95.5%
FWHM:
53.0°
Cd/Im:
1.7
Download
Cree JB3030C 3V E-Class White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.4
Download
Cree JB3030C 3V F-Class White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.4
Download

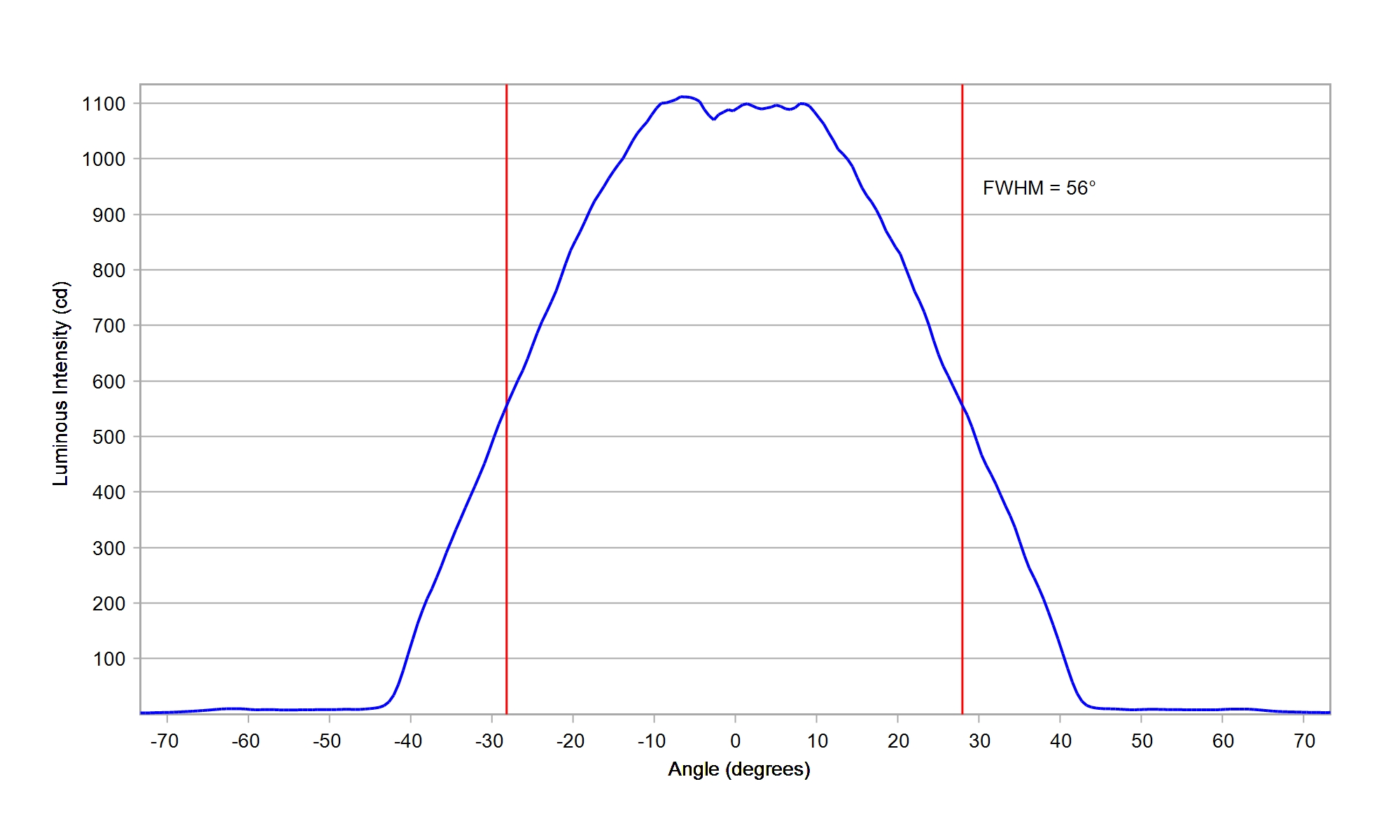

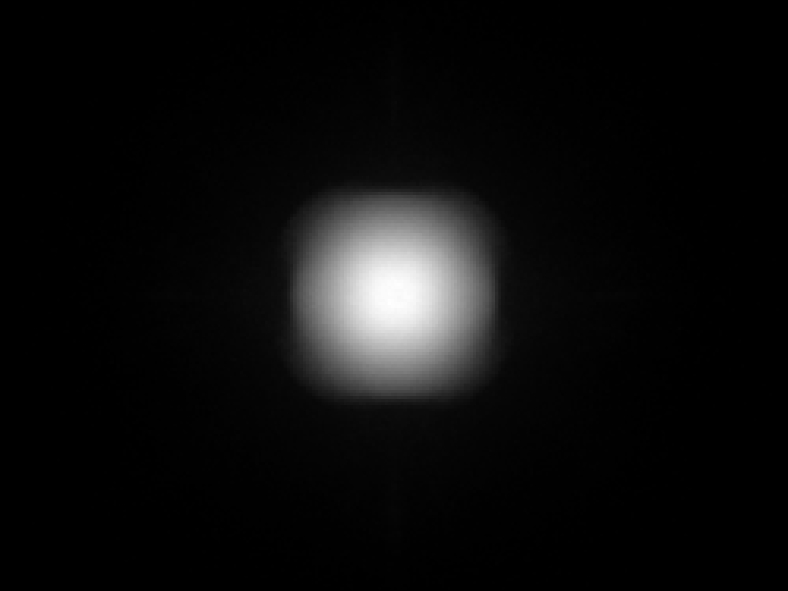

Cree JE2835 3V White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.4
Download

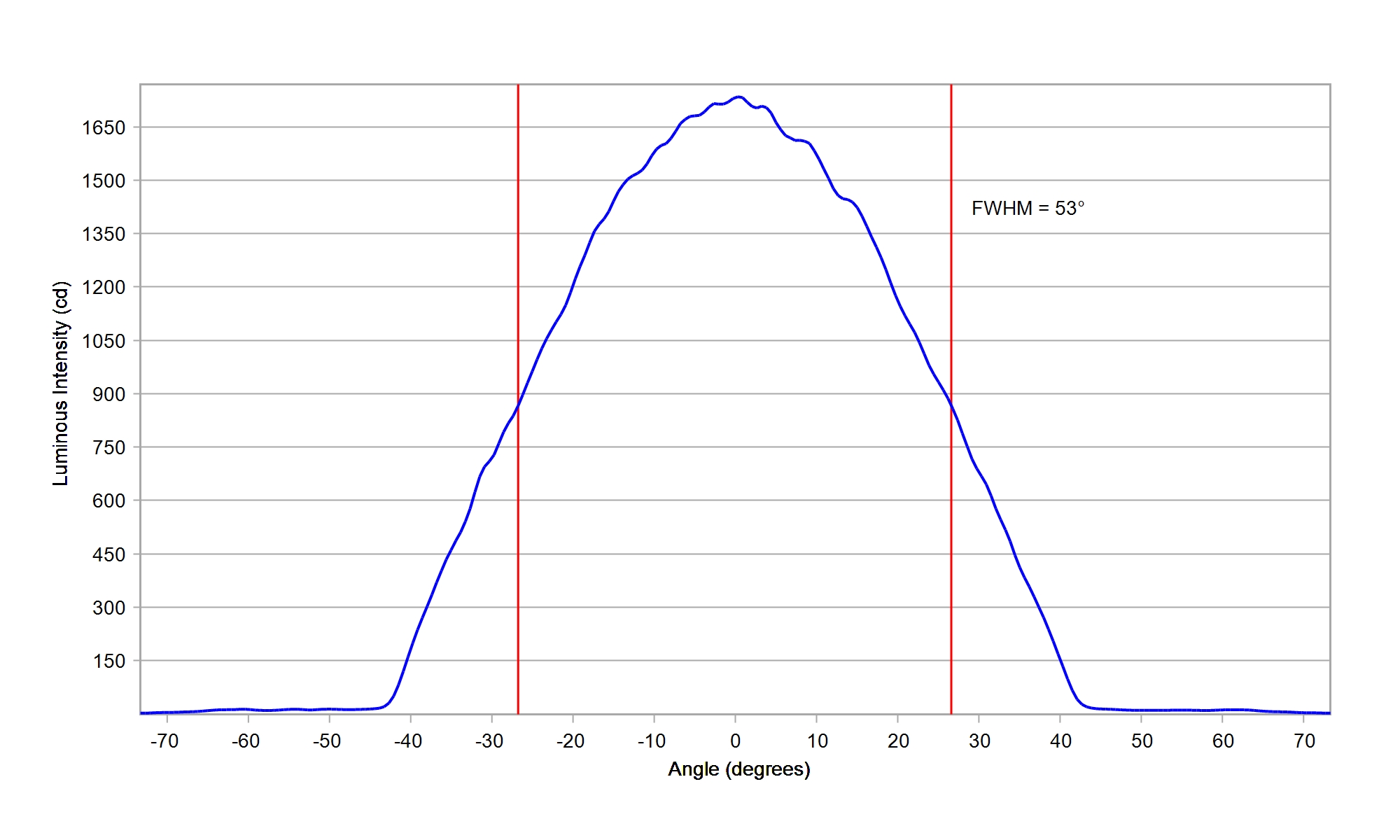

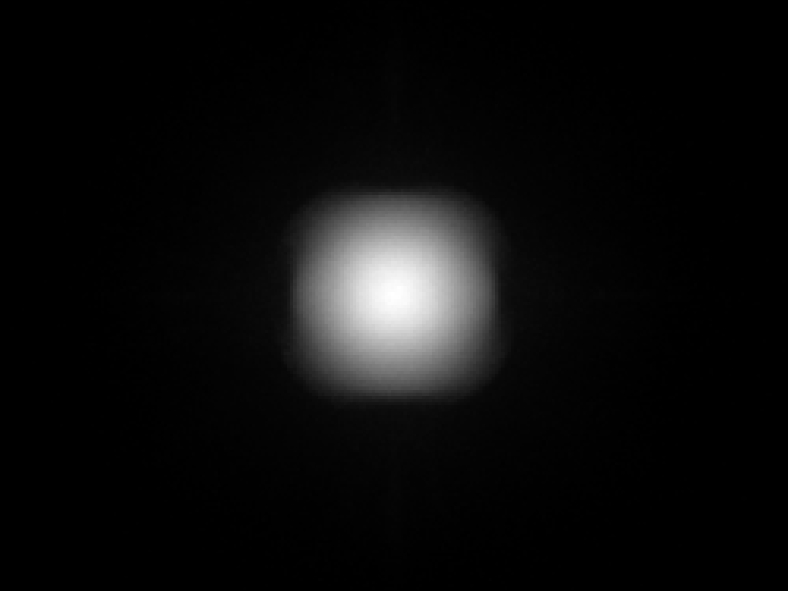

Cree JK2835 6V White
Eff:
95.5%
FWHM:
53°
Cd/Im:
1.5
Download
Cree JQ5050 9V White
Eff:
95.5%
FWHM:
58.0°
Cd/Im:
1.6
Download
Cree JR5050 24V White
Eff:
95.5%
FWHM:
57.0°
Cd/Im:
1.6
Download

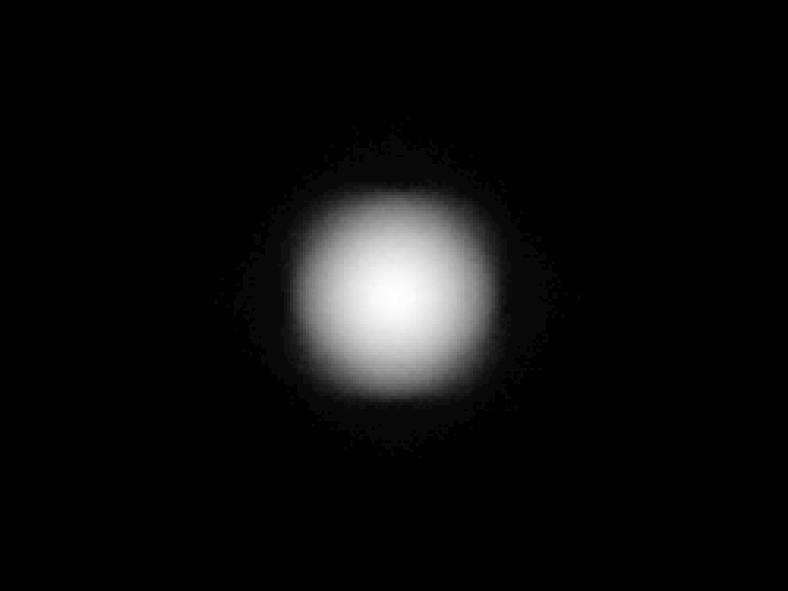

Cree JR5050 36V White
Eff:
95.5%
FWHM:
56.0°
Cd/Im:
1.7
Download

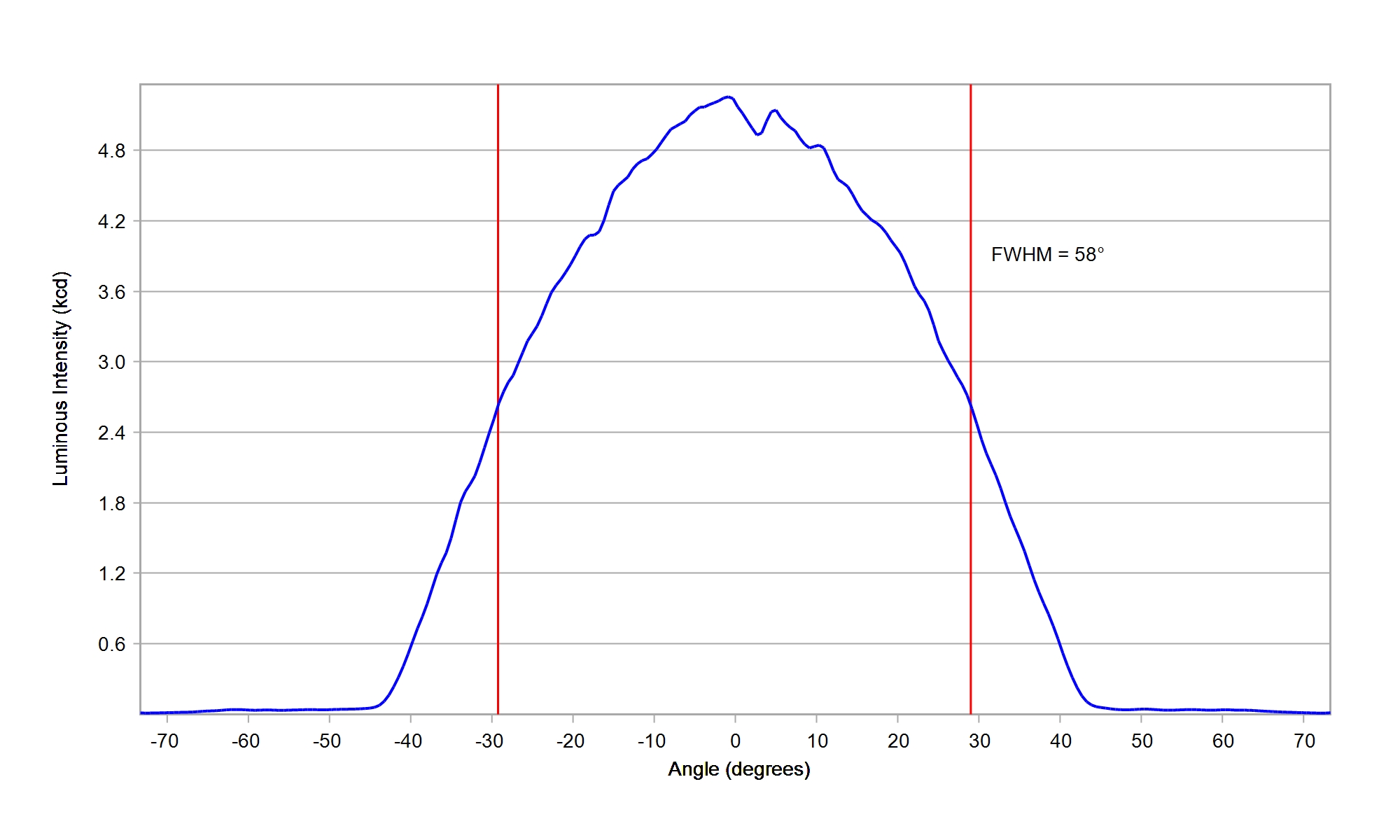

Cree JR5050 6V White
Eff:
95.5%
FWHM:
58.0°
Cd/Im:
1.8
Download

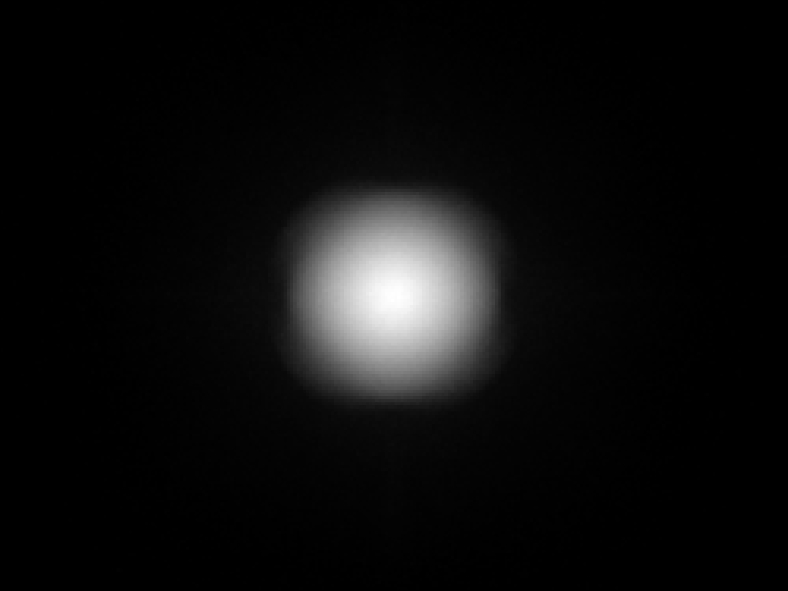

Cree JR5050C 6V E-Class White
Eff:
95.5%
FWHM:
60°
Cd/Im:
1.5
Download

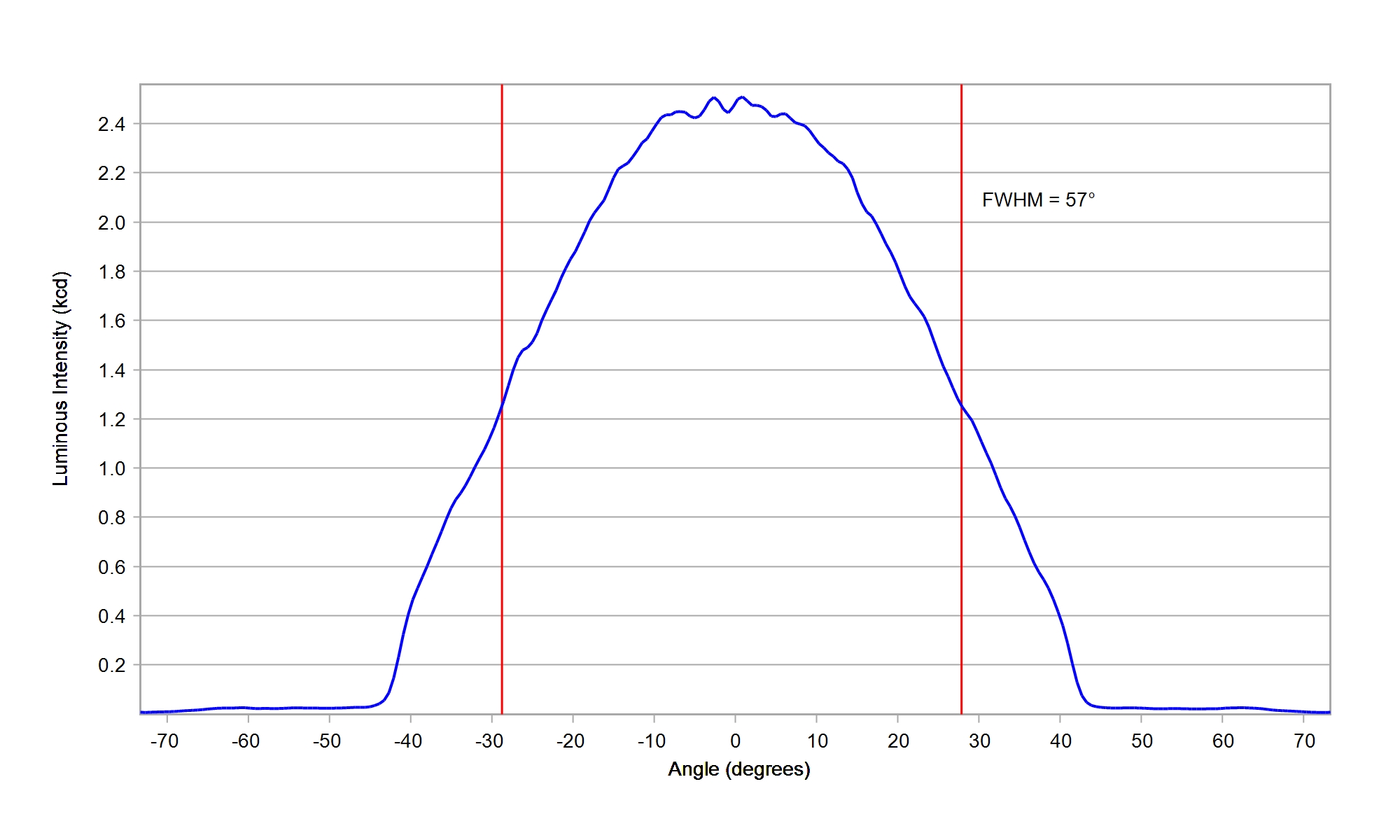

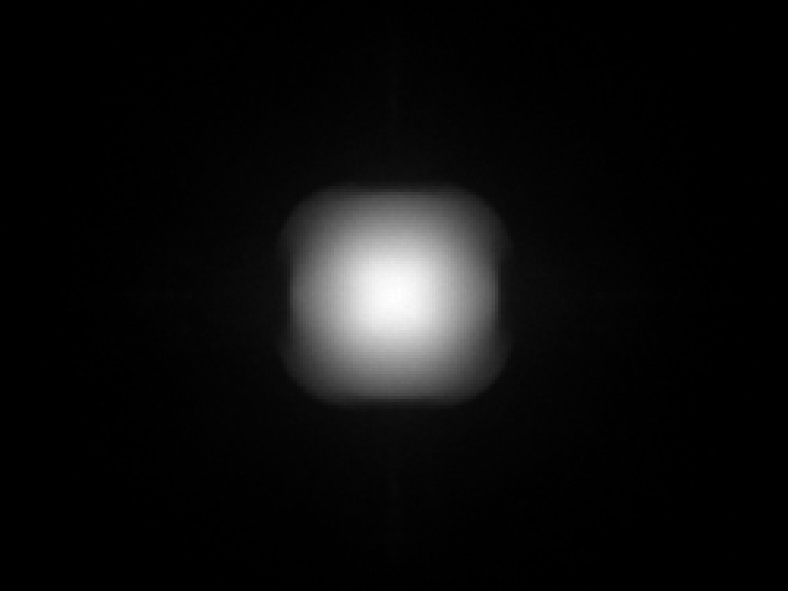

Cree XLamp CSP XD16 Premium White
Eff:
95.0%
FWHM:
57°
Cd/Im:
1.4
Download

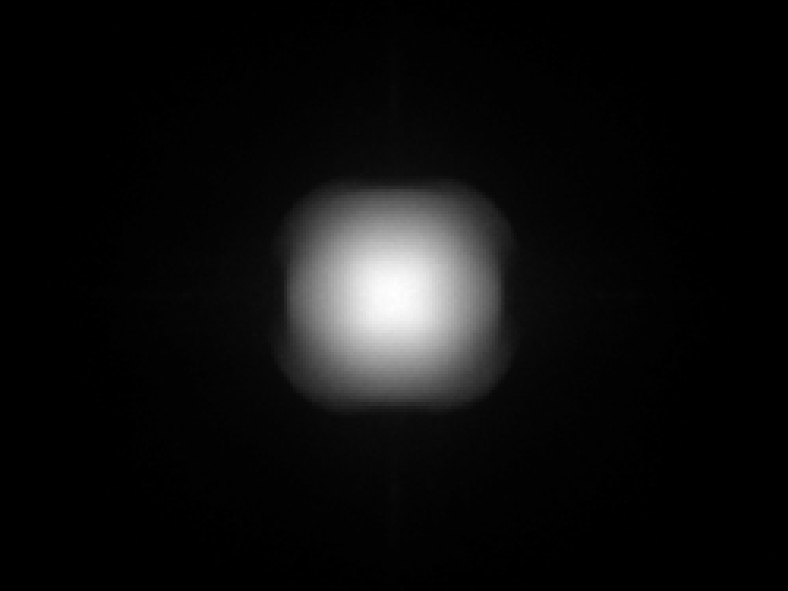

Cree XLamp XE-G White
Eff:
94.0%
FWHM:
59°
Cd/Im:
1.3
Download
Cree XLamp XH-B White
Eff:
93.0%
FWHM:
64°
Cd/Im:
0.9
Download

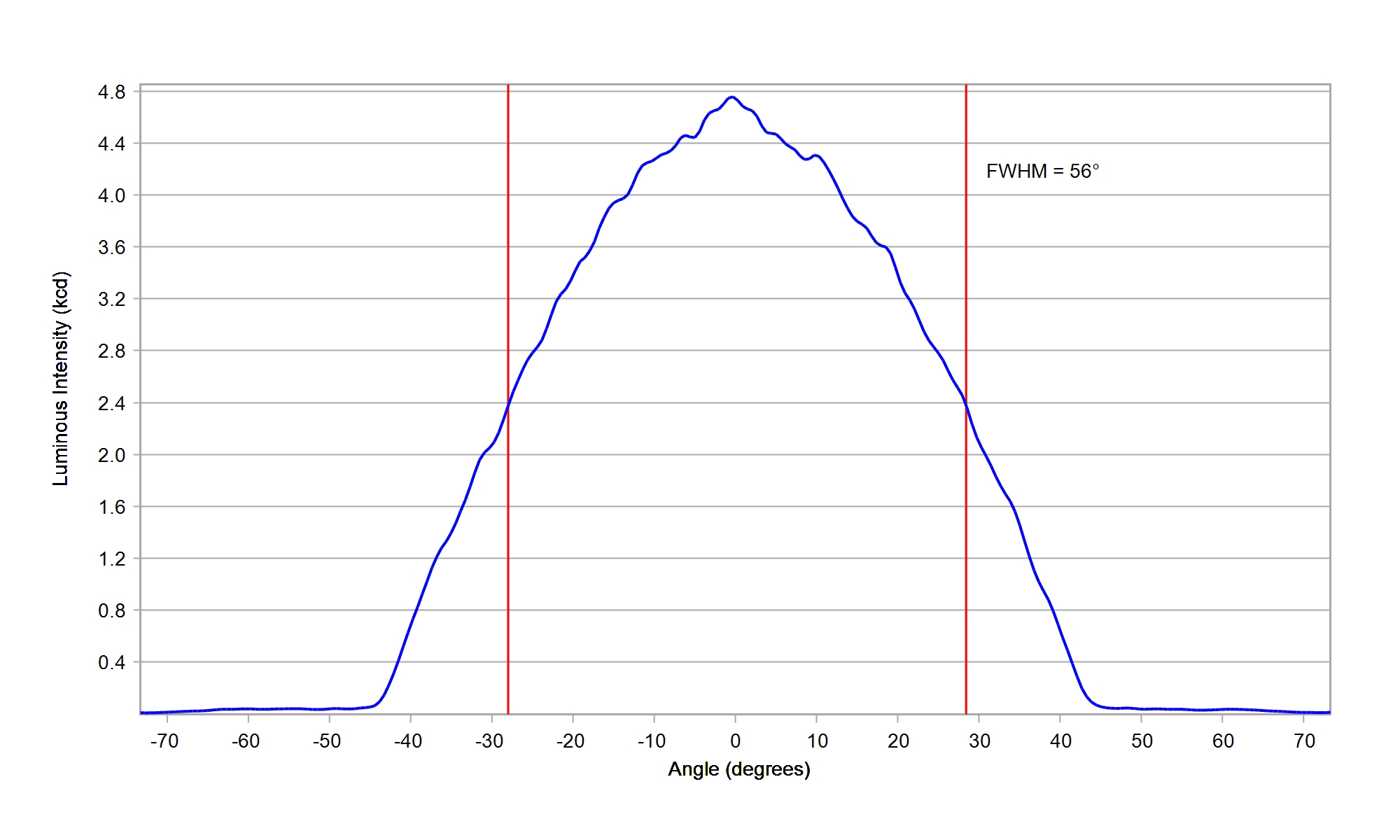

Cree XLamp XHP35.2 HI White
Eff:
94.0%
FWHM:
56°
Cd/Im:
1.5
Download
Cree XLamp XM-L Color G2 HI RGBW
Eff:
95.0%
FWHM:
57°
Cd/Im:
1.4
Download

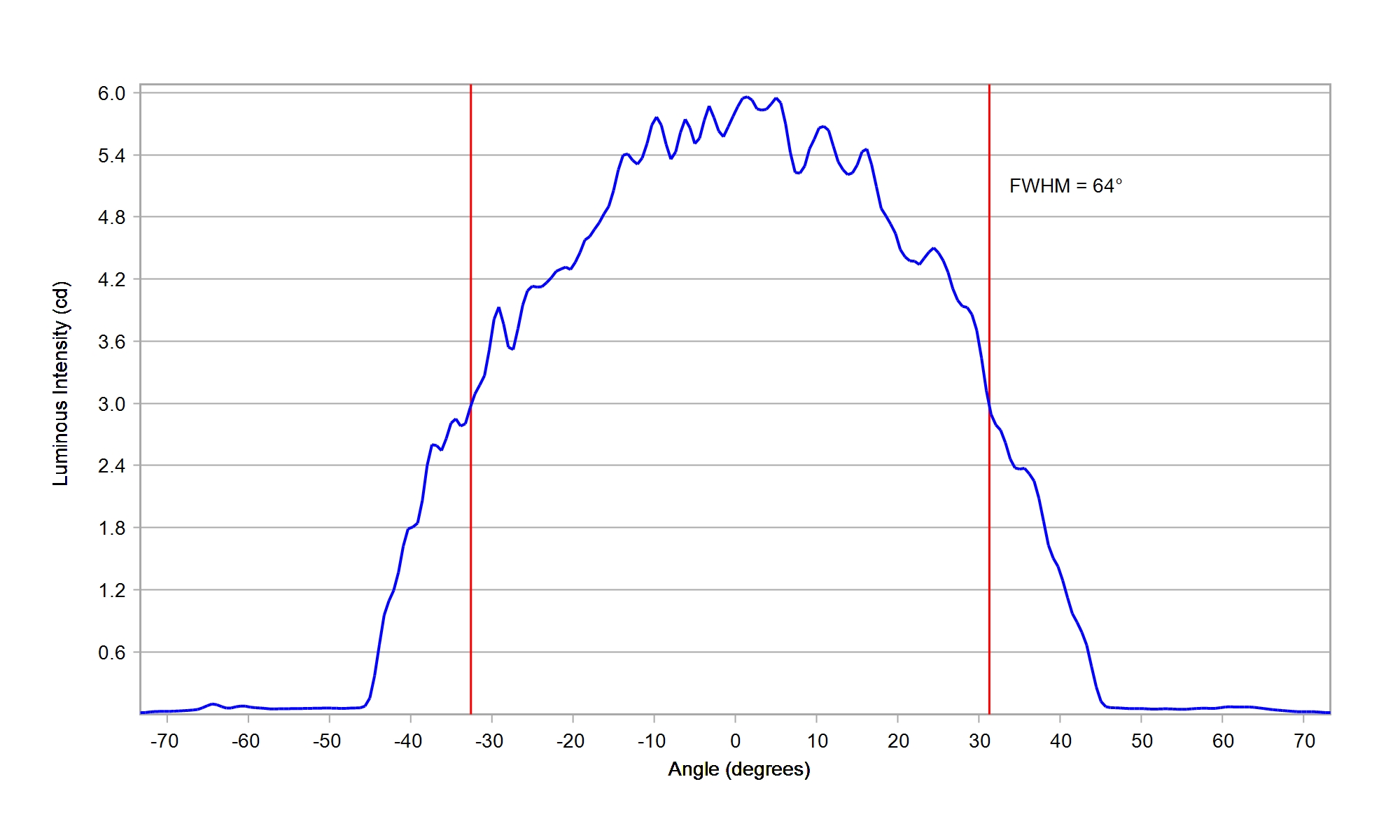

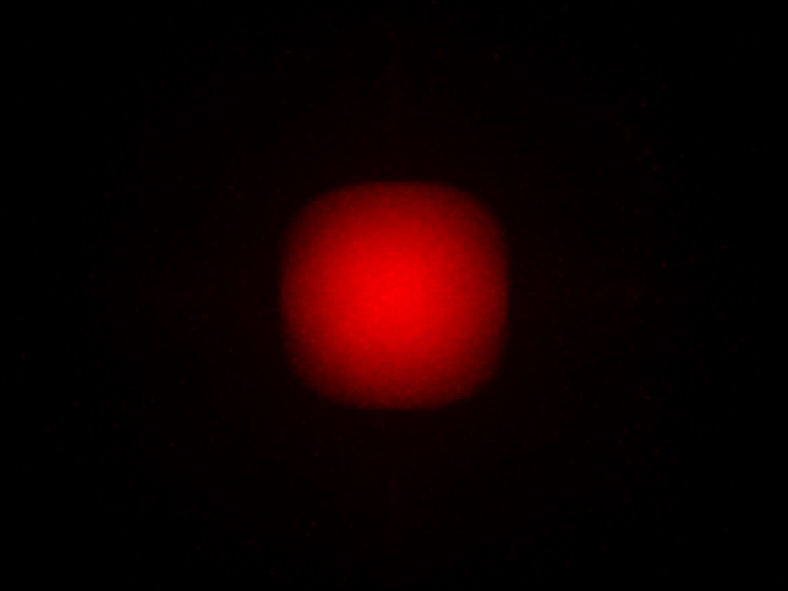

Cree XLamp XP-E2 Far Red
Eff:
96.0%
FWHM:
64°
Cd/Im:
2.8
Download

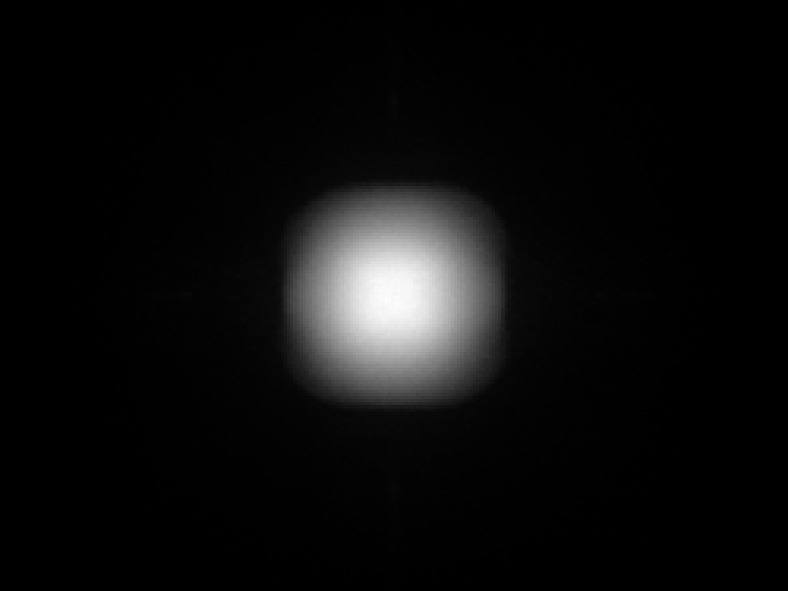

Cree XLamp XP-E2 White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.3
Download

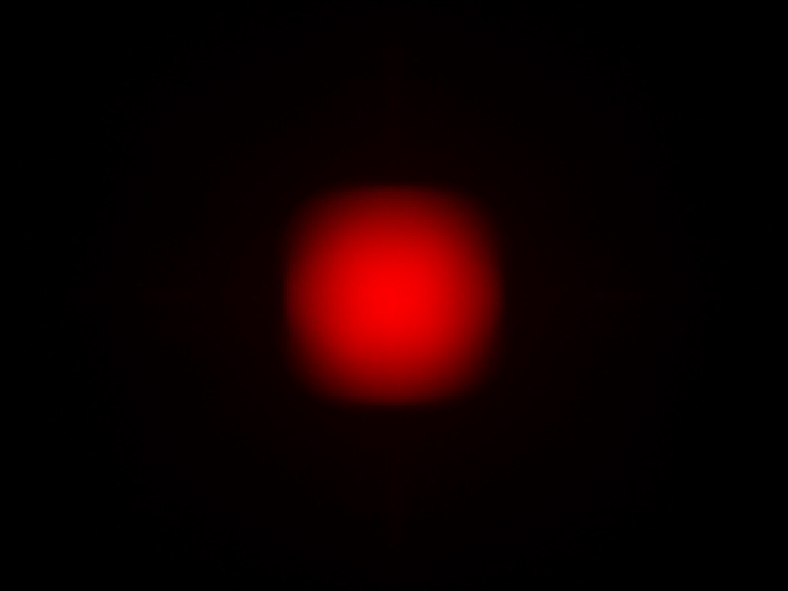

Cree XLamp XP-G3 Photo Red
Eff:
96.0%
FWHM:
66°
Cd/Im:
1.2
Download

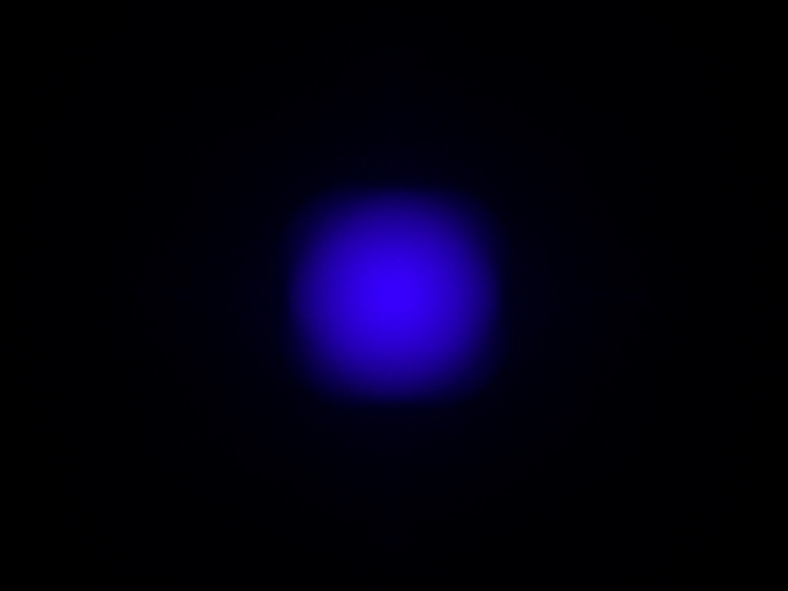

Cree XLamp XP-G3 Royal Blue
Eff:
93.5%
FWHM:
64°
Cd/Im:
1.2
Download
Cree XLamp XP-G4 HI White
Eff:
94.5%
FWHM:
62°
Cd/Im:
1.3
Download
Cree XLamp XP-P White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download

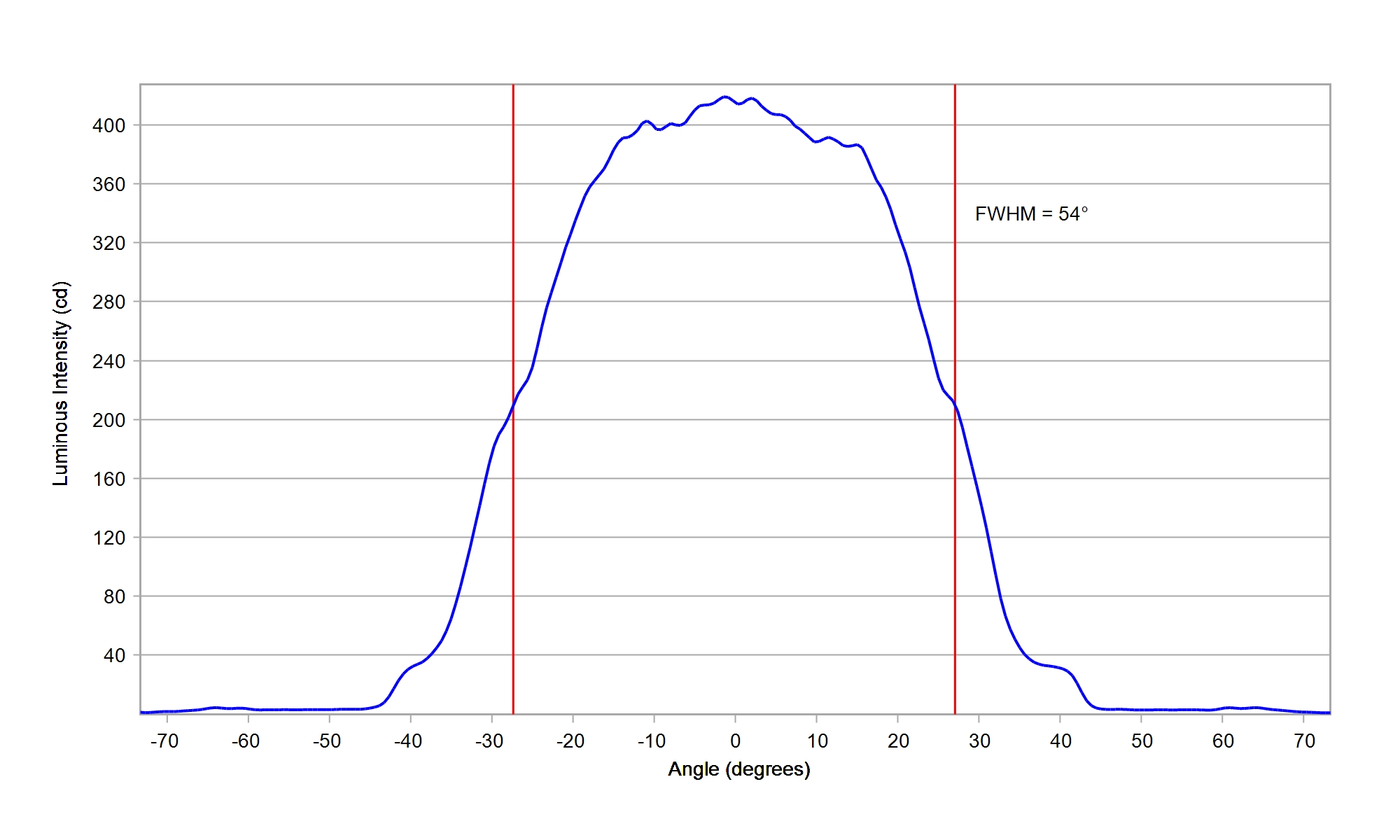

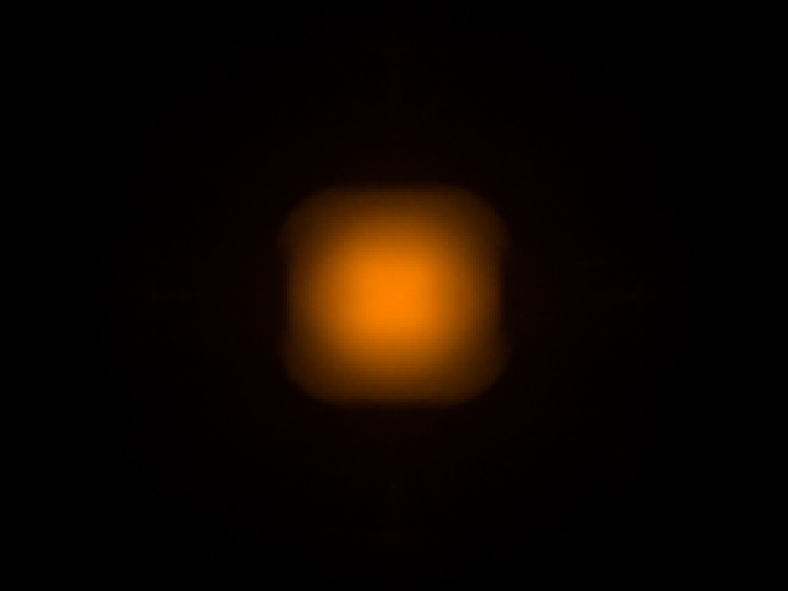

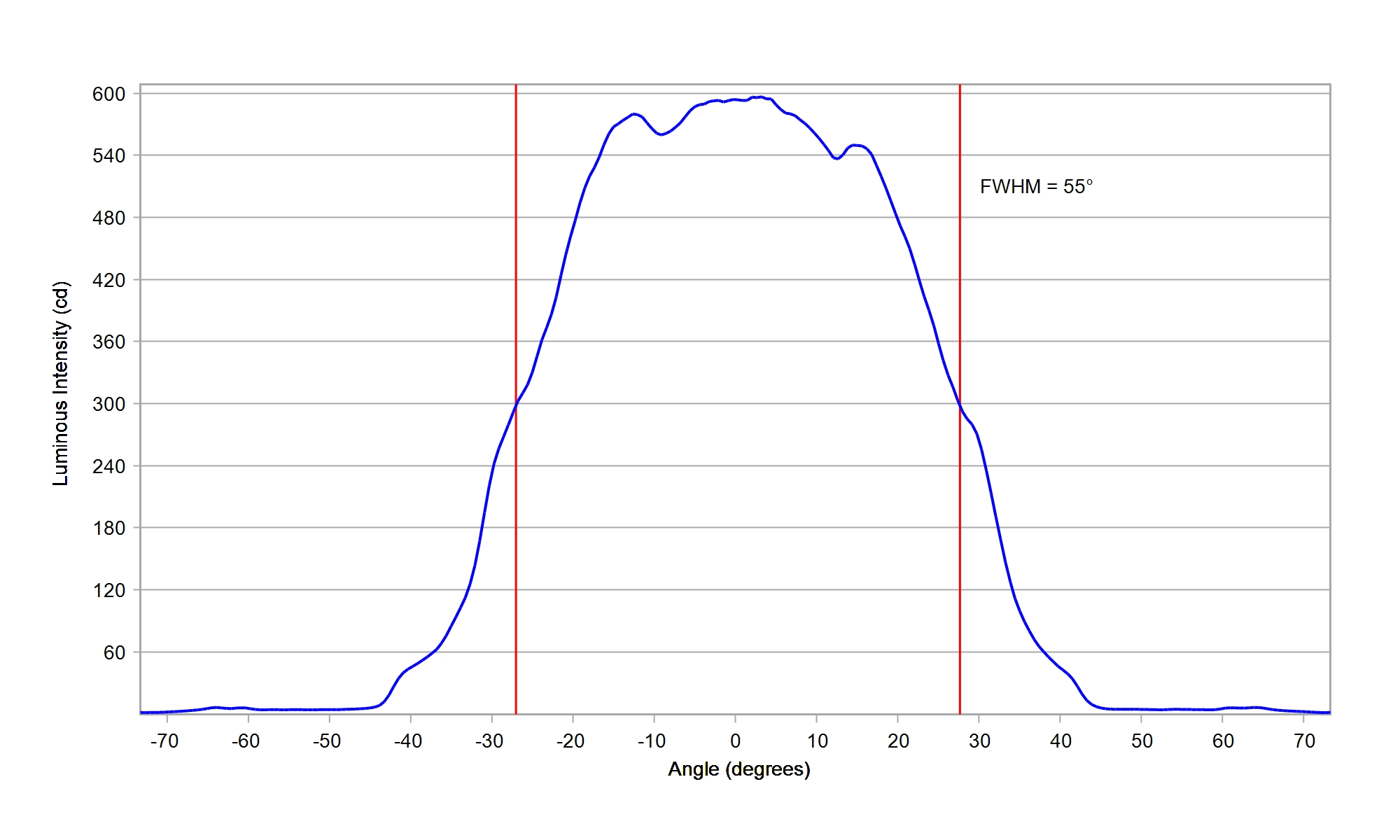

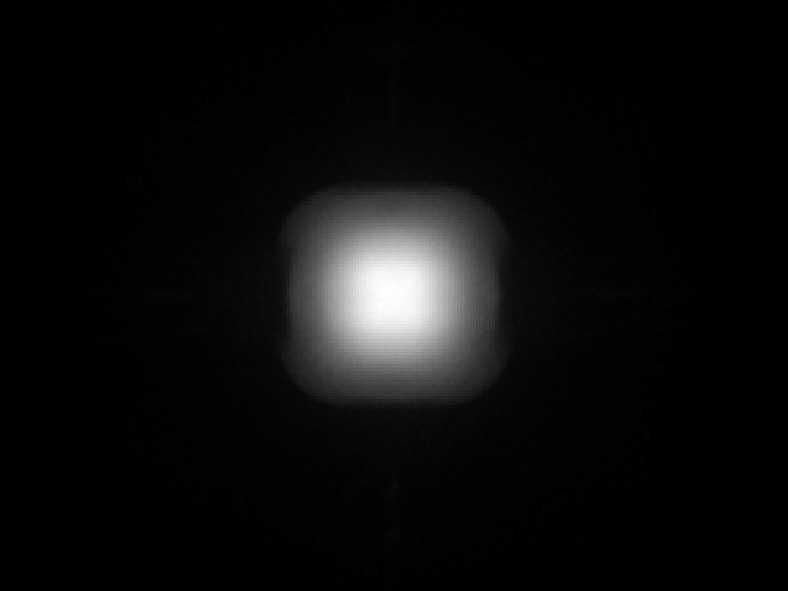

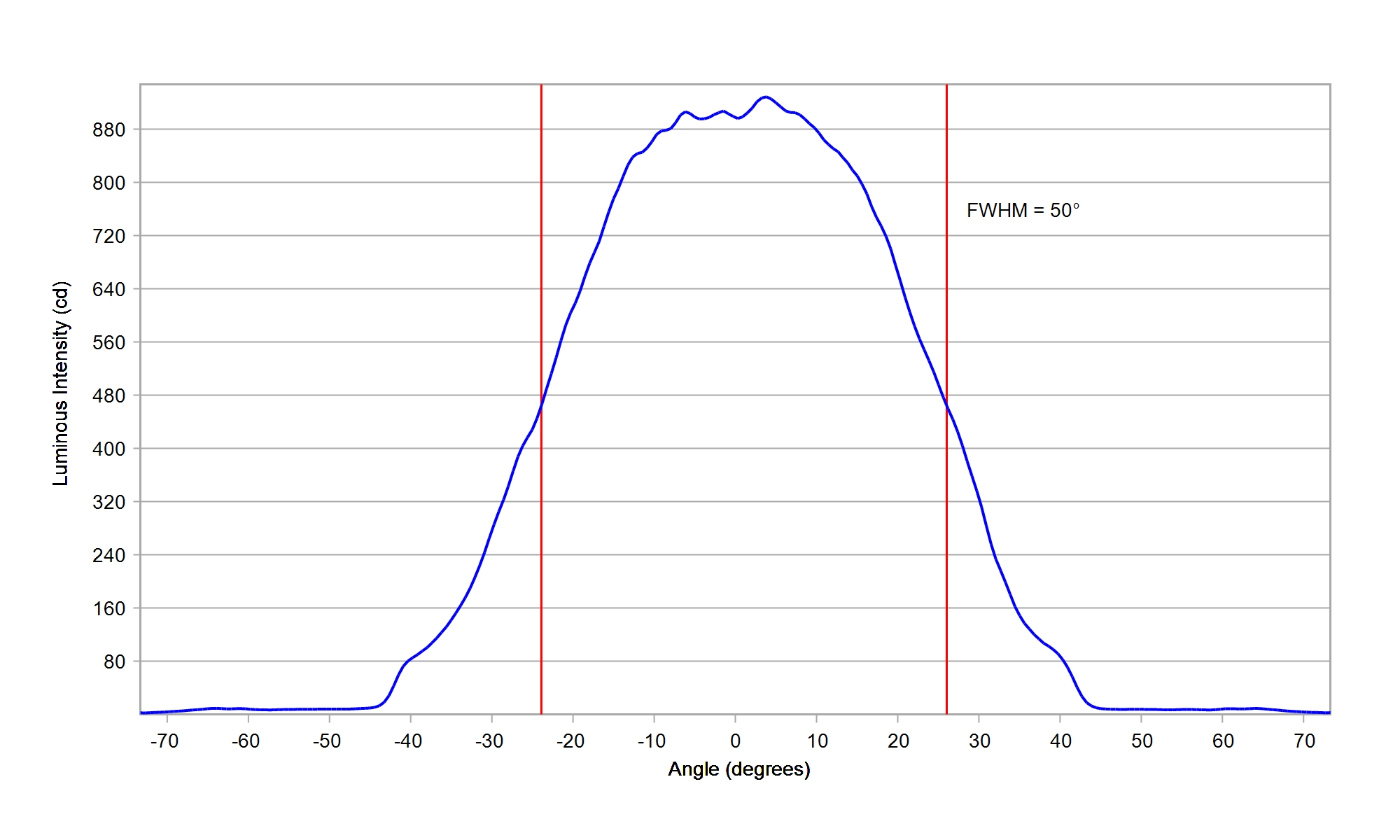

Cree XLamp XQ-A White
Eff:
95.5%
FWHM:
50.0°
Cd/Im:
1.4
Download

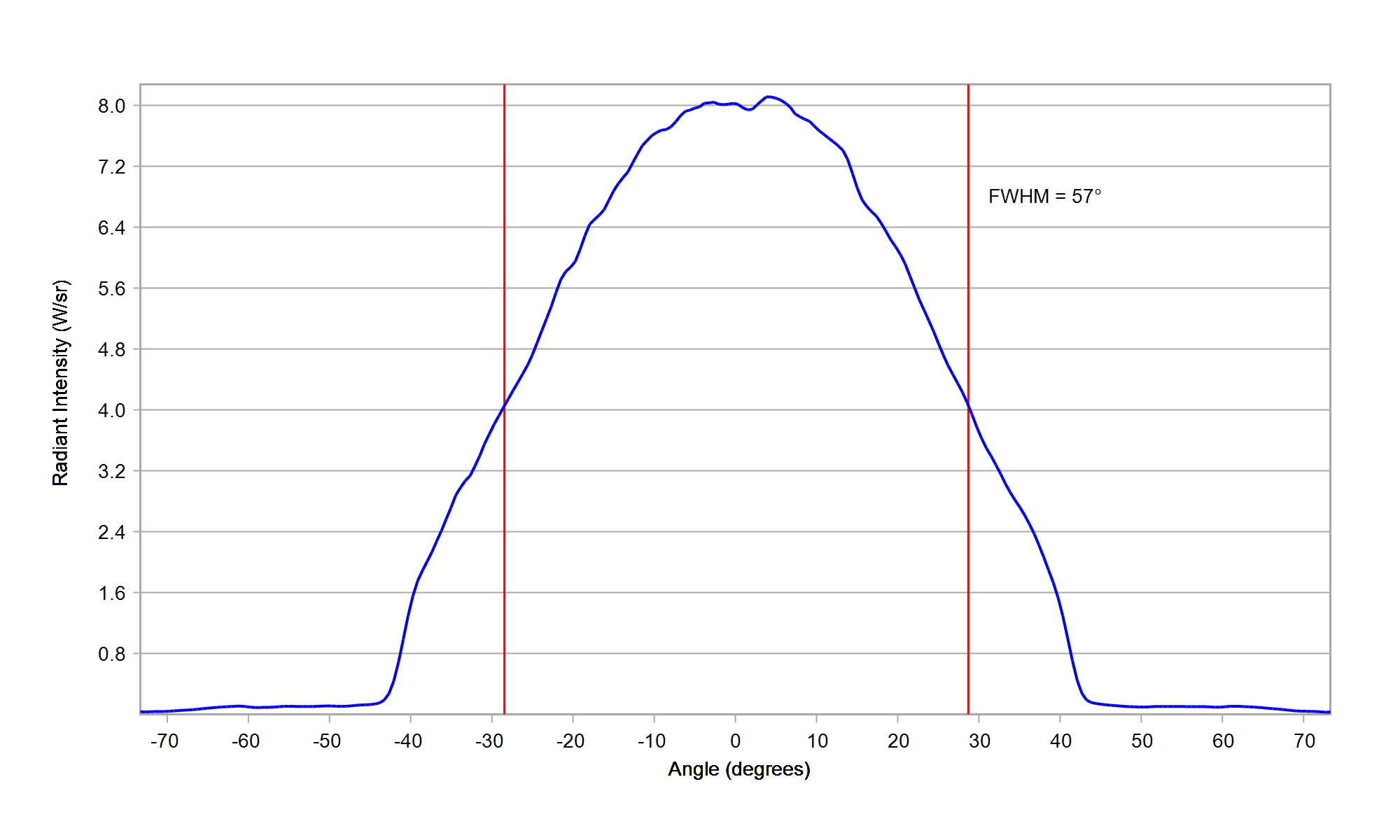

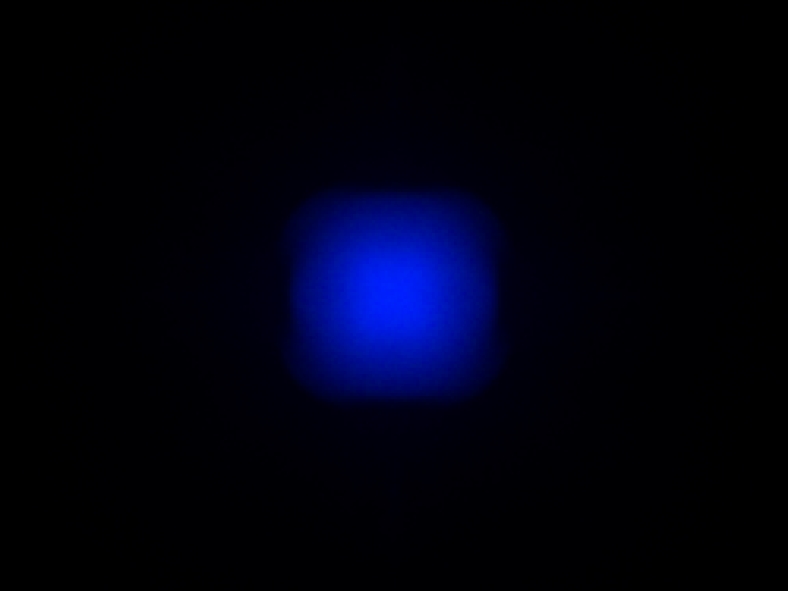

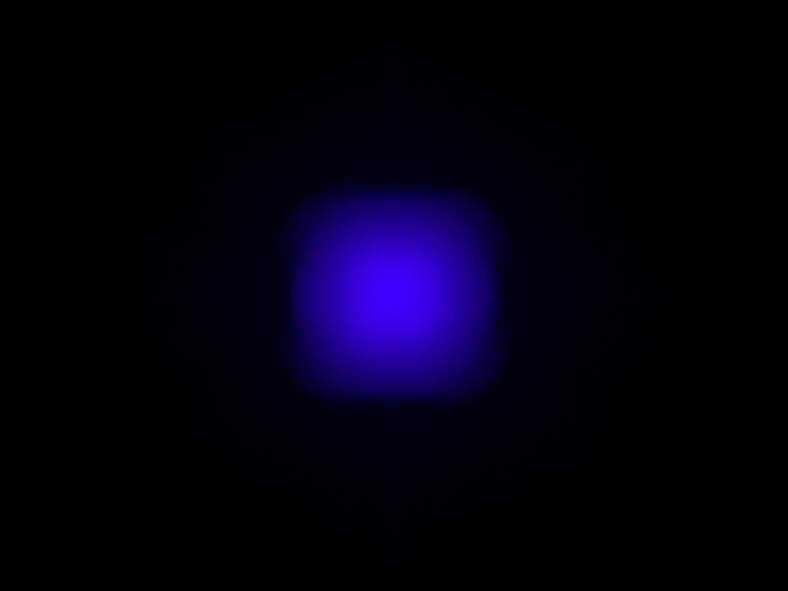

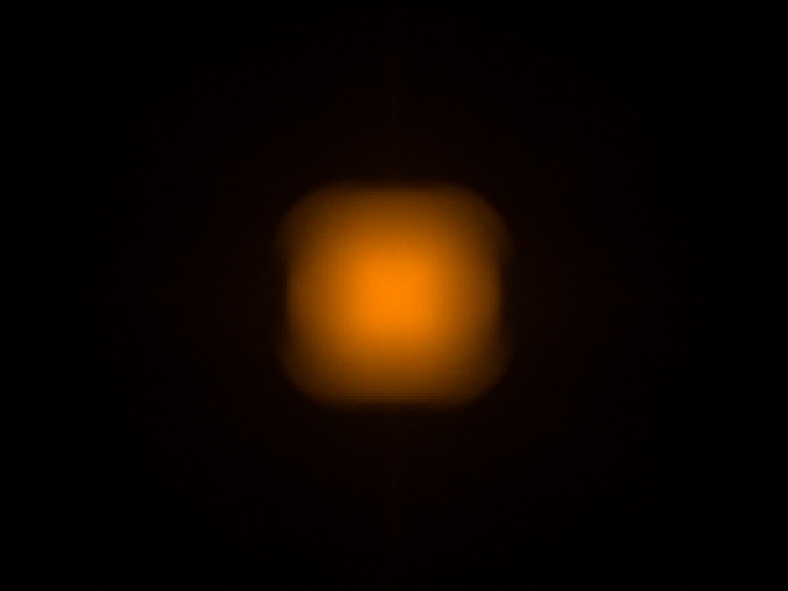

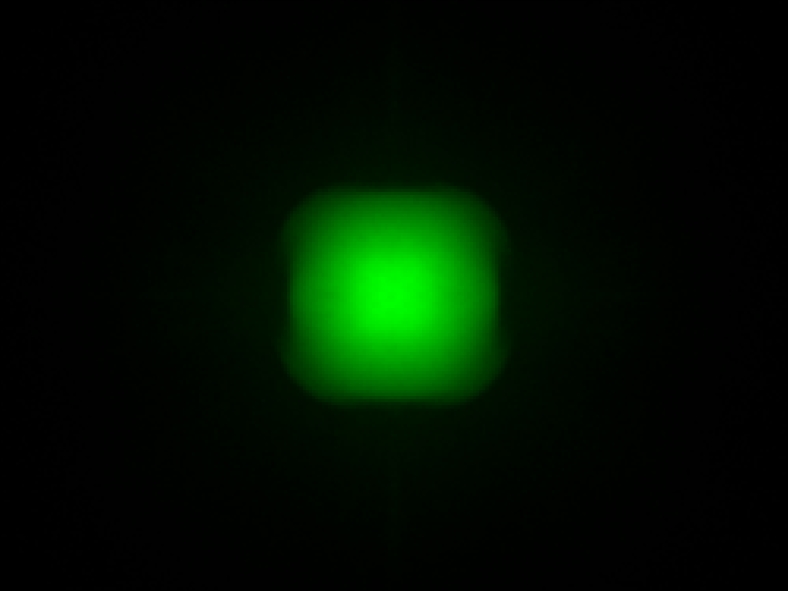

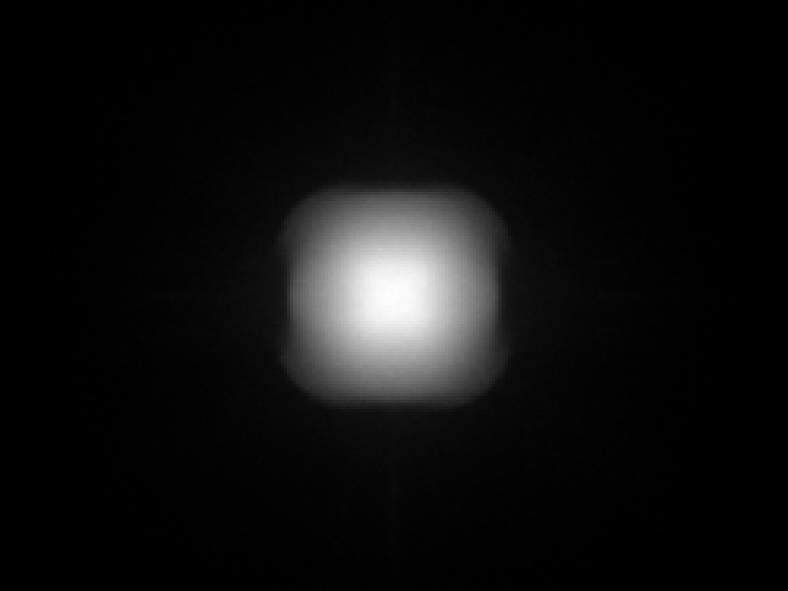

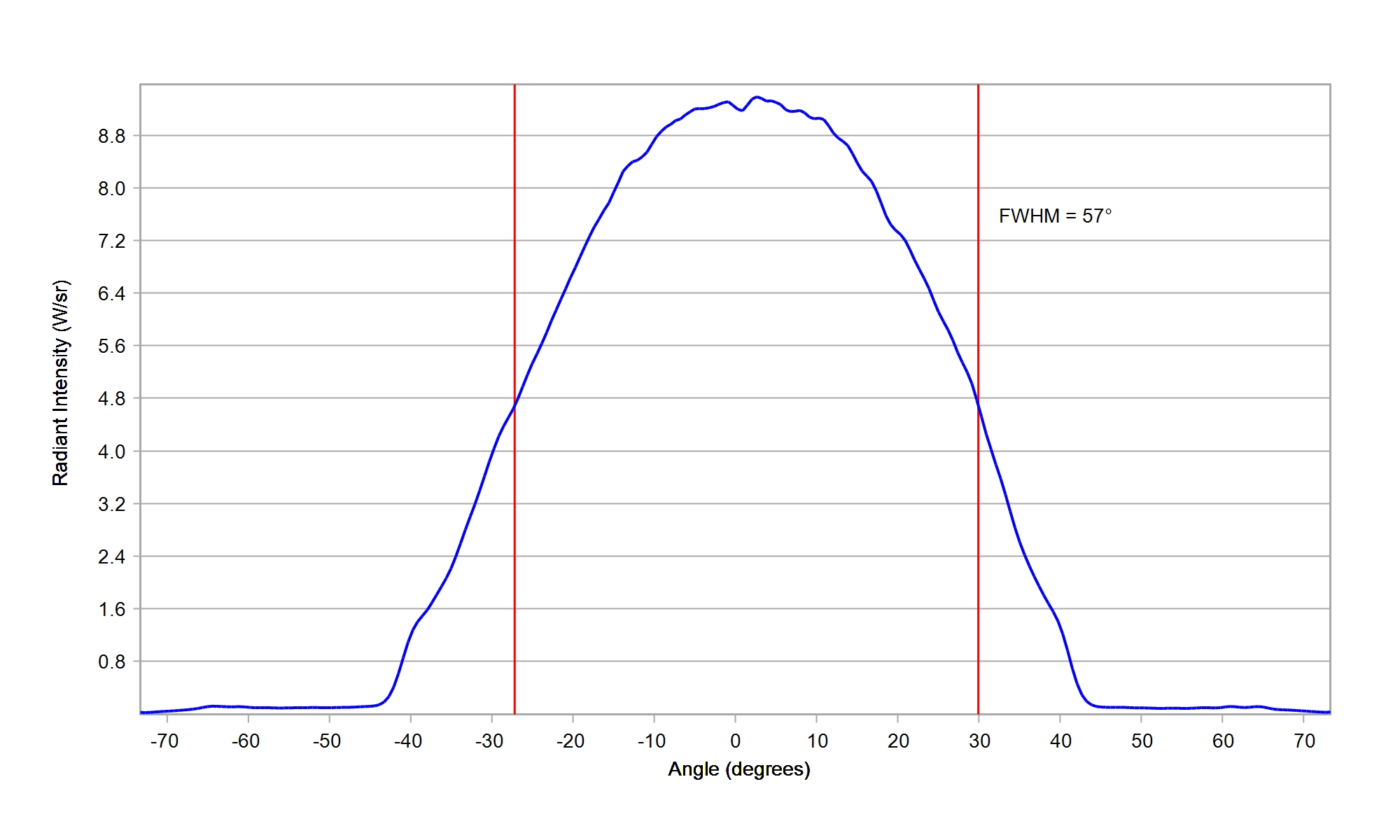

Cree XLamp XQ-E HI White
Eff:
94.5%
FWHM:
59°
Cd/Im:
1.0
Download

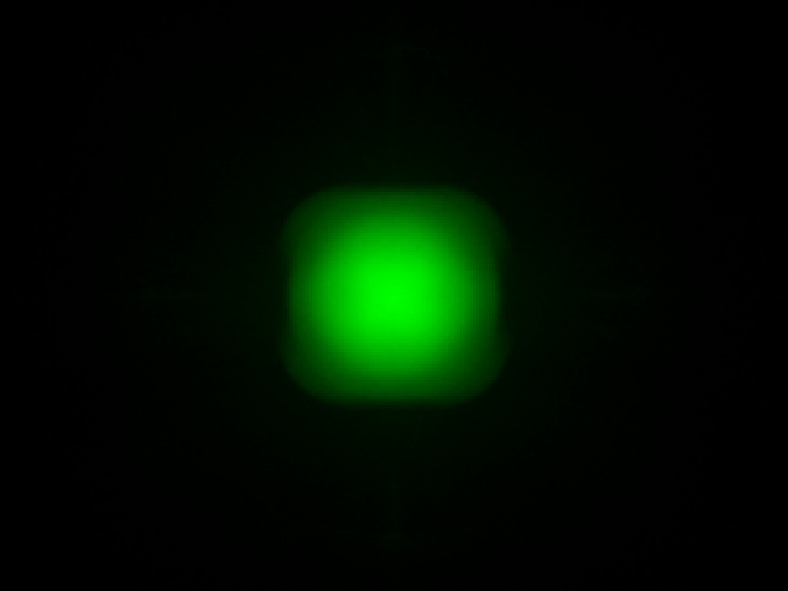

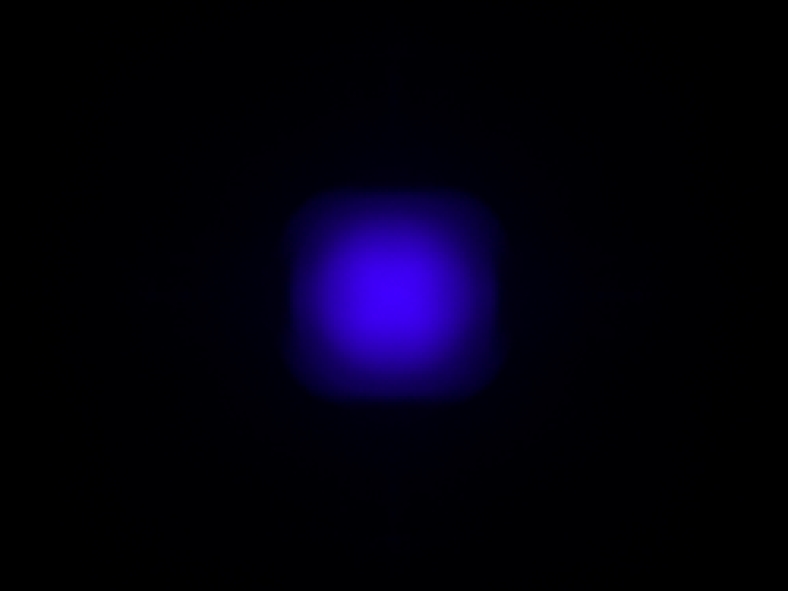

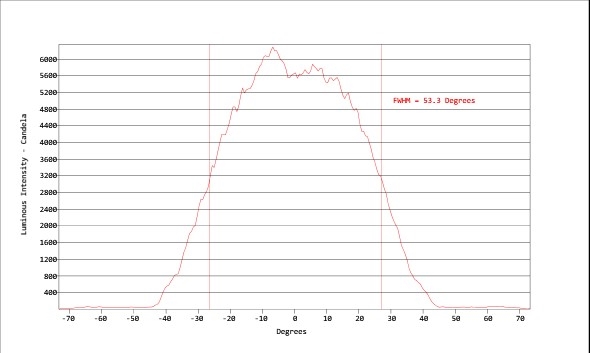

Cree XLamp XQ-E HD White
Eff:
95.5%
FWHM:
53°
Cd/Im:
1.3
Download

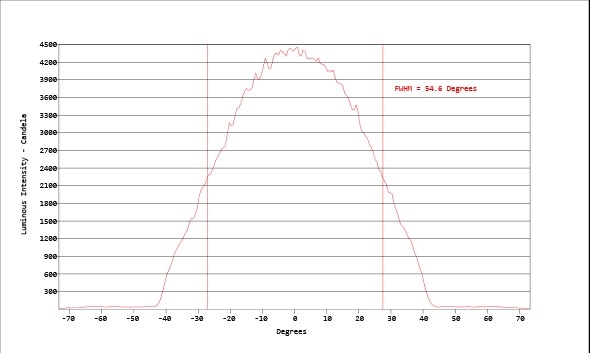

LG Innotek MidPower 3030 LG White
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.2
Download

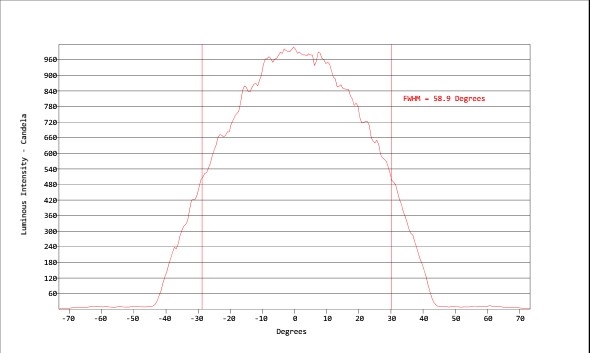

LG Innotek MidPower 5630 White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.1
Download

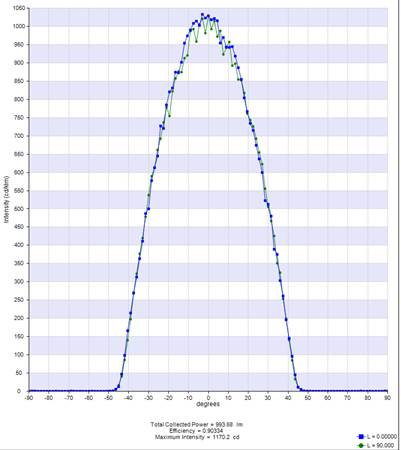

LG Innotek MidPower 5630 White
Eff:
90.0%
FWHM:
60.7°
Cd/Im:
1.0
Download
LG Innotek MidPower 6030 White
Eff:
90.0%
FWHM:
63.9°
Cd/Im:
1.0
Download

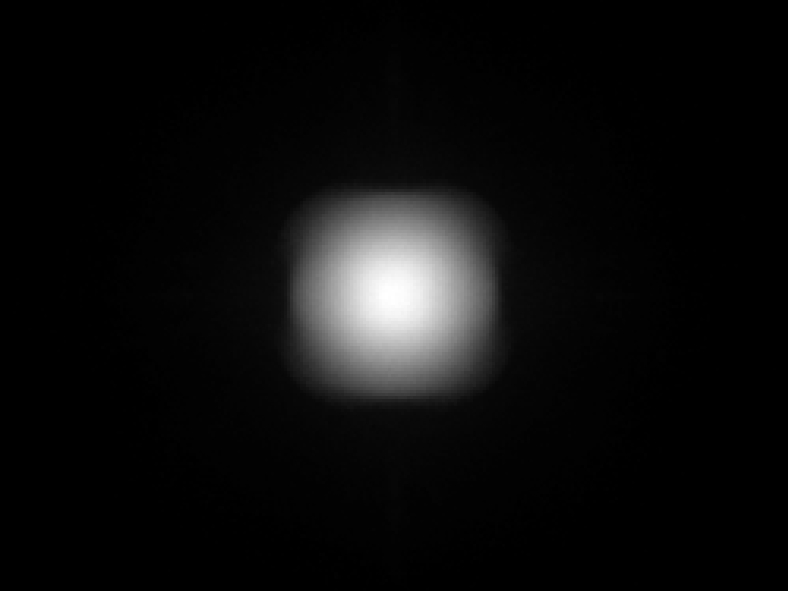

LUMILEDS LUXEON 2835C 6V White
Eff:
95.5%
FWHM:
55°
Cd/Im:
1.4
Download

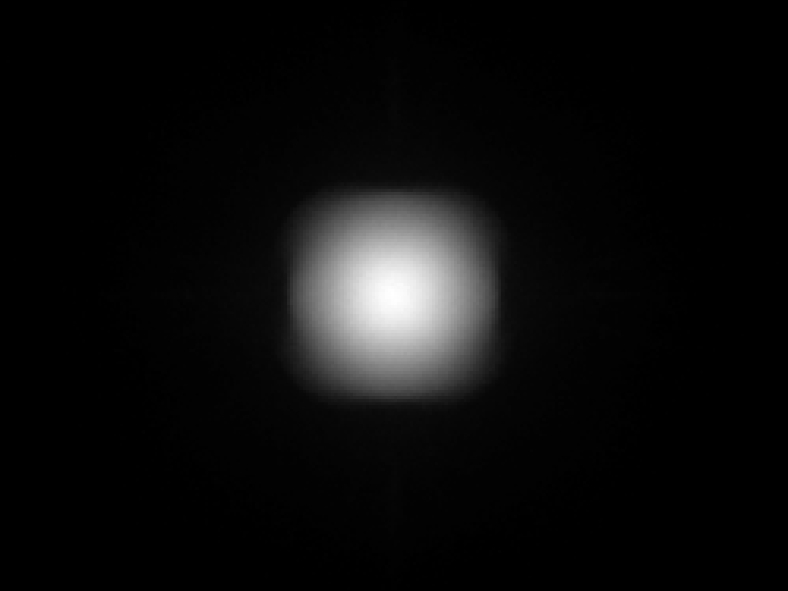

LUMILEDS LUXEON 2835E 9V White
Eff:
95.5%
FWHM:
55°
Cd/Im:
1.5
Download

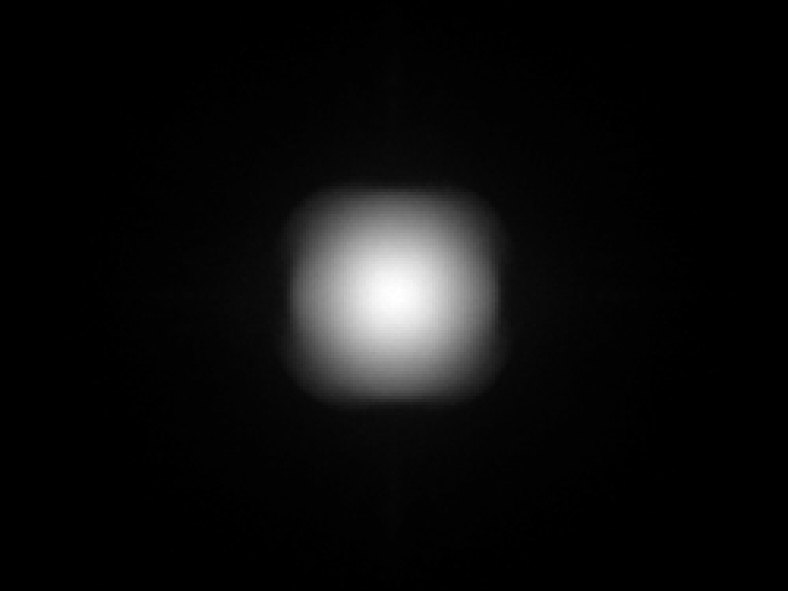

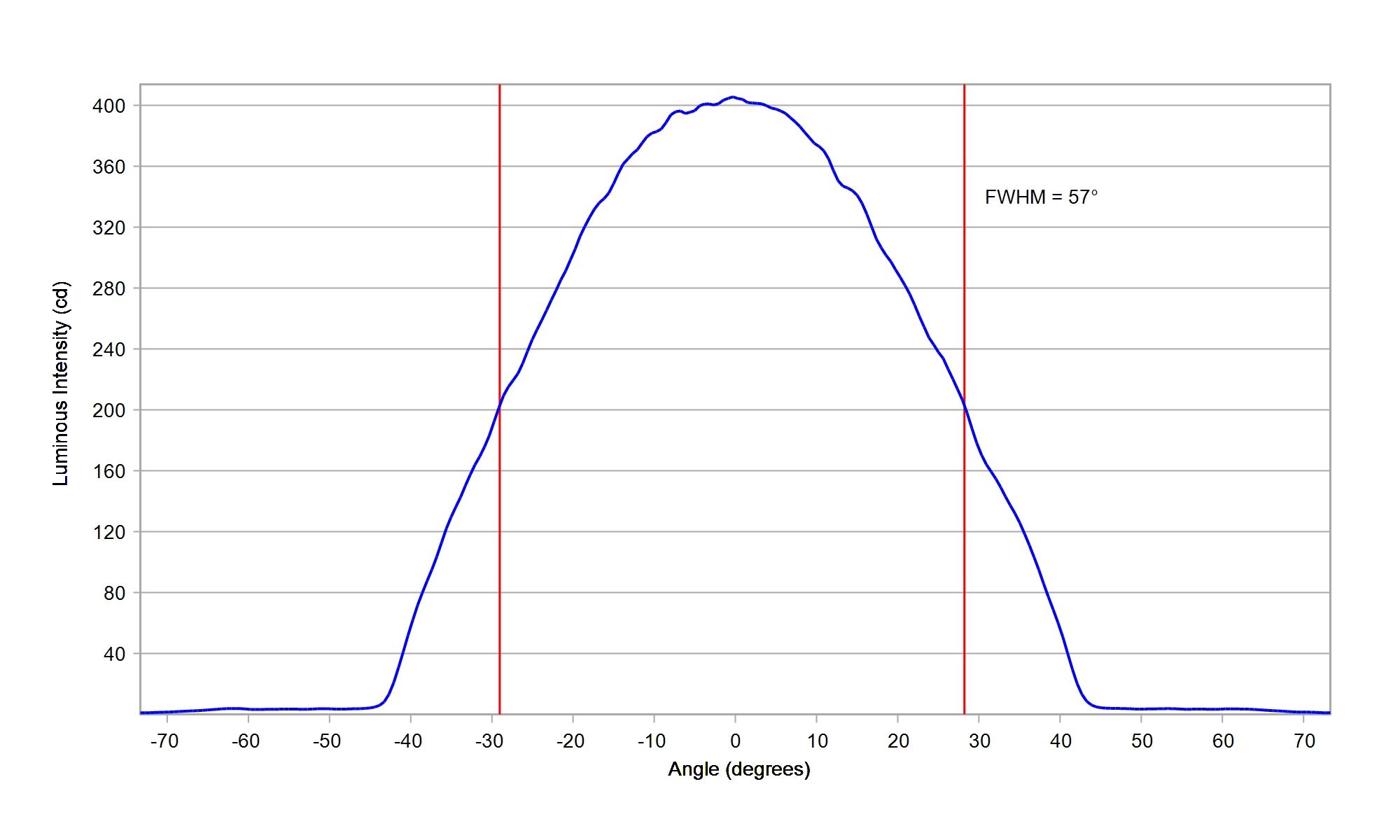

LUMILEDS LUXEON 2835N 3V White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download

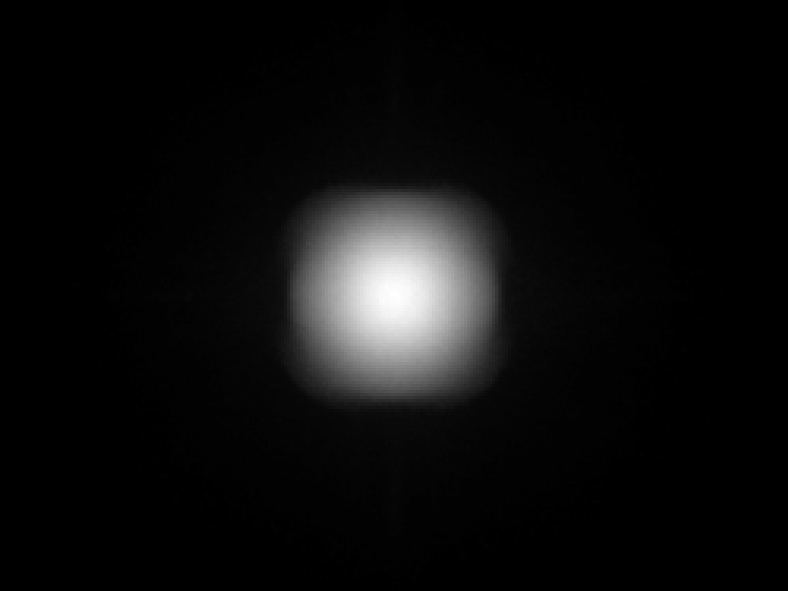

LUMILEDS LUXEON 2835S 3V White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.4
Download

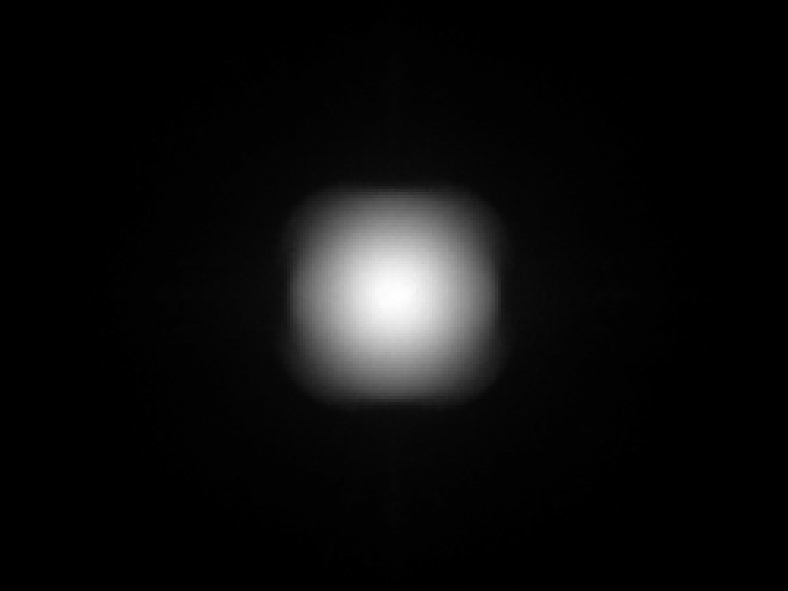

LUMILEDS LUXEON 2835S 6V White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download

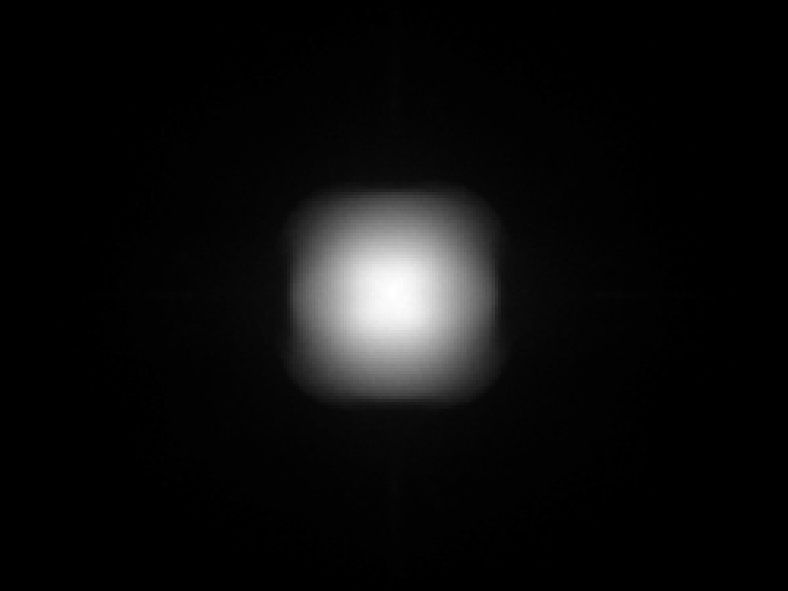

LUMILEDS LUXEON 3014 White
Eff:
95.5%
FWHM:
53°
Cd/Im:
1.6
Download

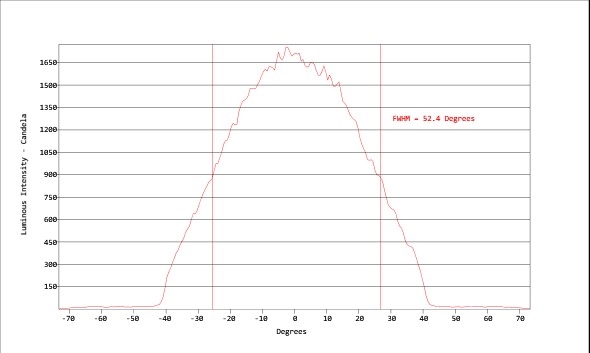

LUMILEDS LUXEON 3020 White
Eff:
95.5%
FWHM:
52°
Cd/Im:
1.2
Download

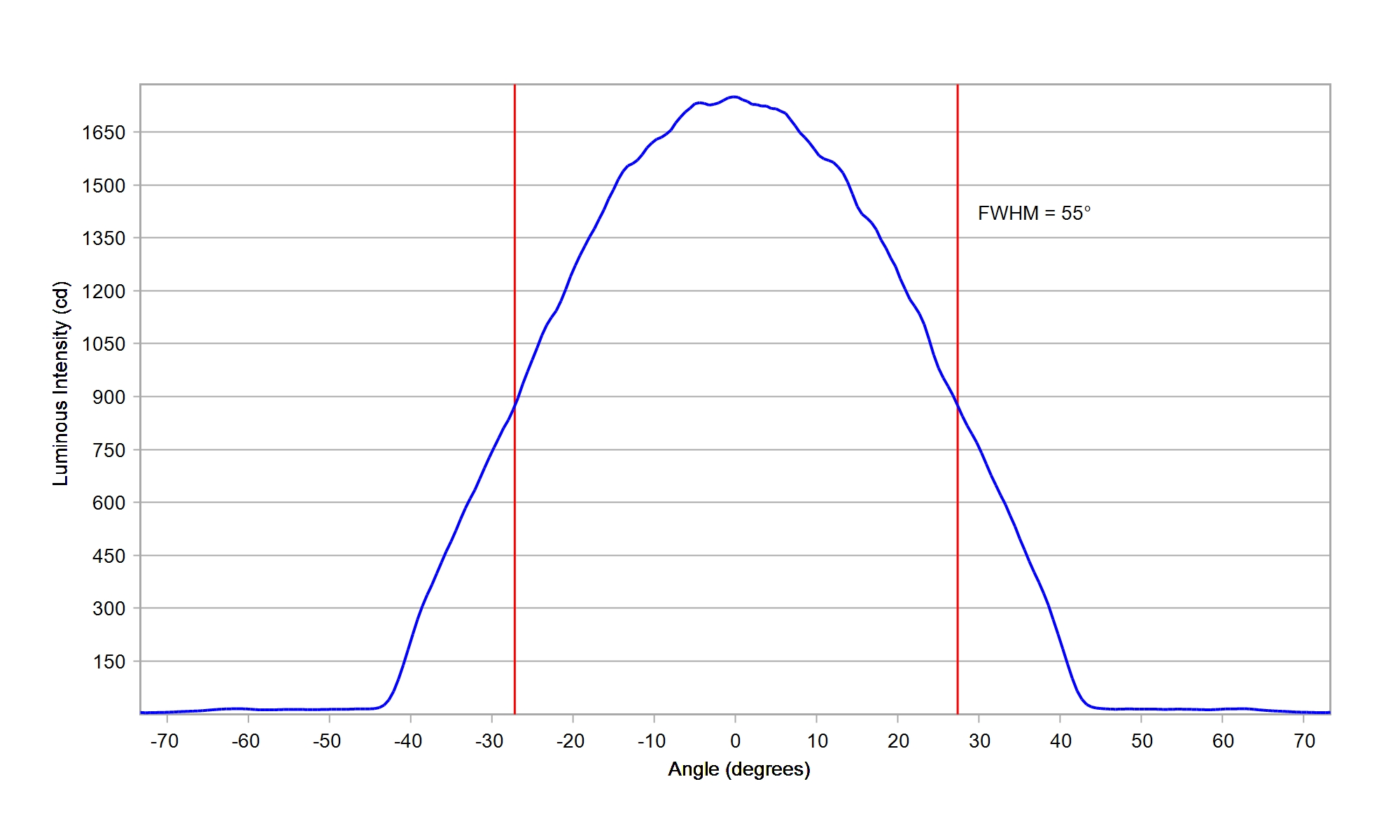

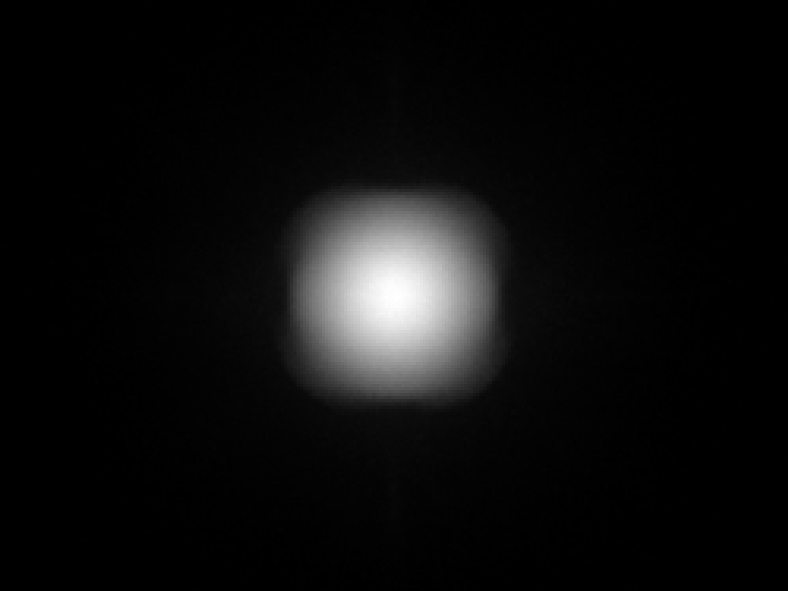

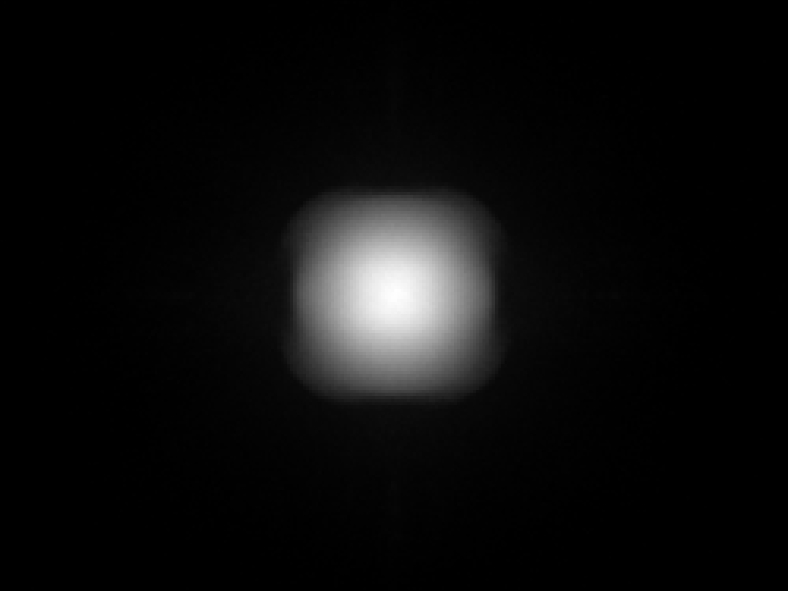

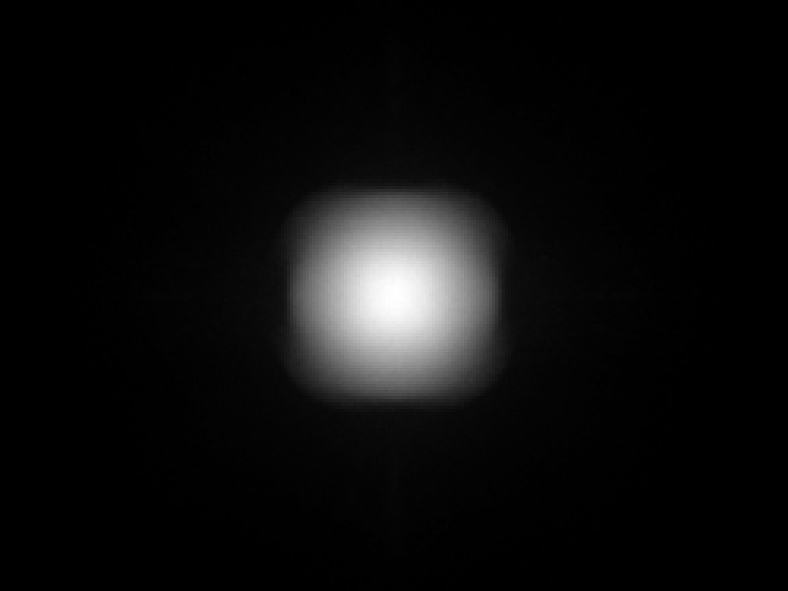

LUMILEDS LUXEON 3030 2D White
Eff:
95.5%
FWHM:
52°
Cd/Im:
1.5
Download

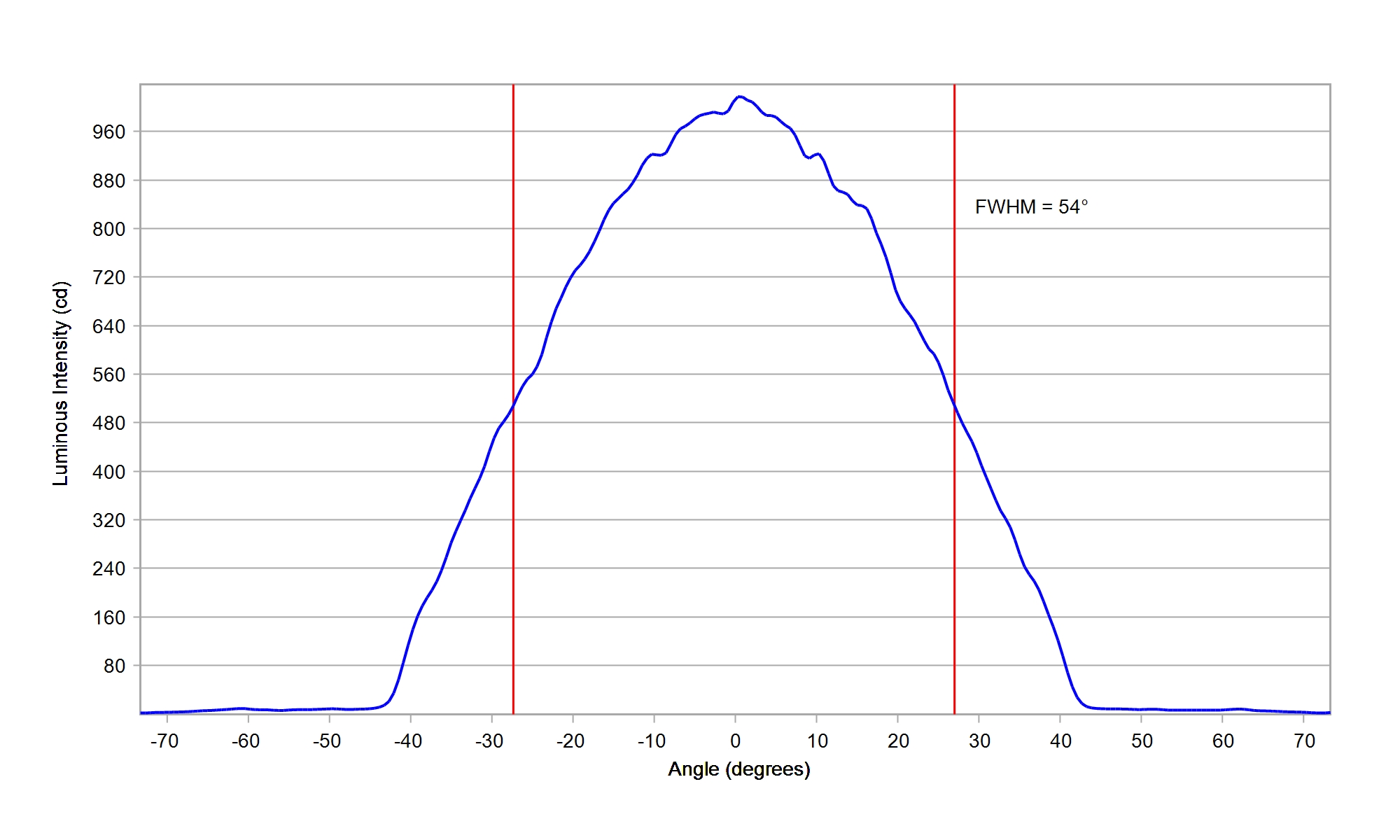

LUMILEDS LUXEON 3030 HE Plus White
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.7
Download

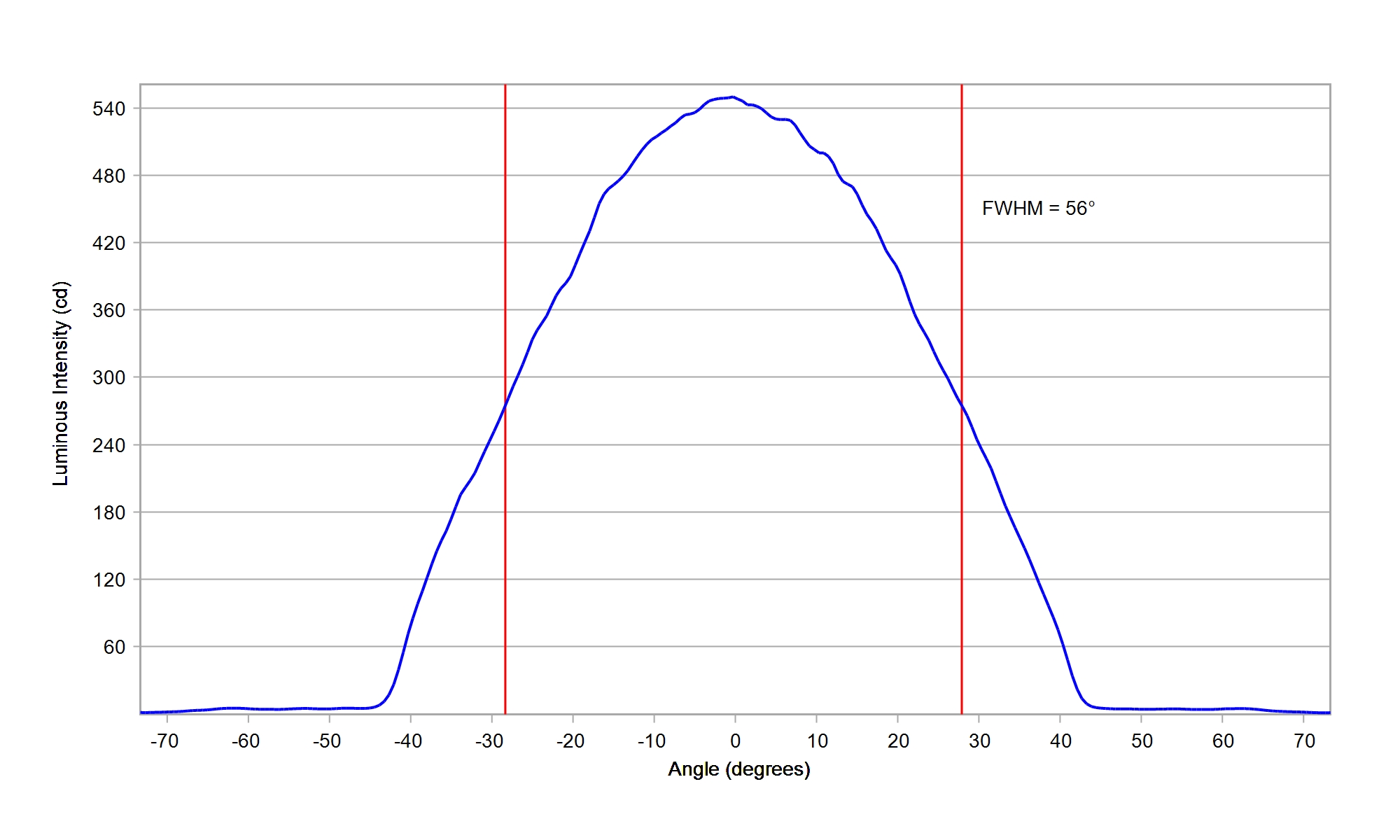

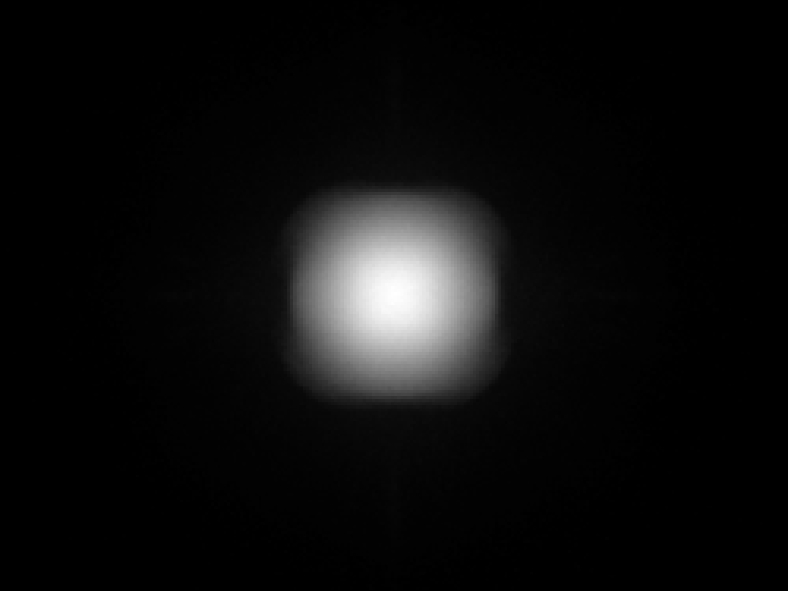

LUMILEDS LUXEON 3030 HE White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.5
Download
LUMILEDS LUXEON 3535 L White
Eff:
95.0%
FWHM:
59°
Cd/Im:
1.1
Download
LUMILEDS LUXEON 5050 HE 24V White
Eff:
95.0%
FWHM:
58°
Cd/Im:
1.4
Download
LUMILEDS LUXEON 5050 HE 6V White
Eff:
95.0%
FWHM:
58°
Cd/Im:
1.4
Download

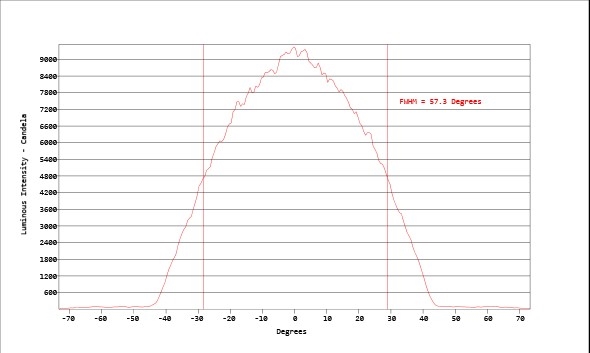

LUMILEDS LUXEON 5050 Round 24V White
Eff:
95.5%
FWHM:
59°
Cd/Im:
1.4
Download

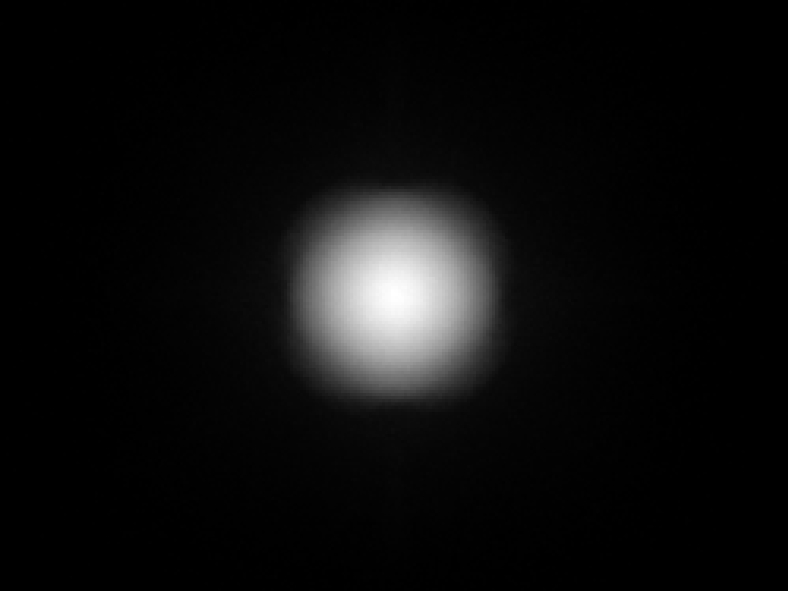

LUMILEDS LUXEON 5050 Square 30V White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.4
Download
LUMILEDS LUXEON 5050 Square 6V White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.6
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.2
Download
LUMILEDS LUXEON 7070 White
Eff:
94.5%
FWHM:
67°
Cd/Im:
1.2
Download

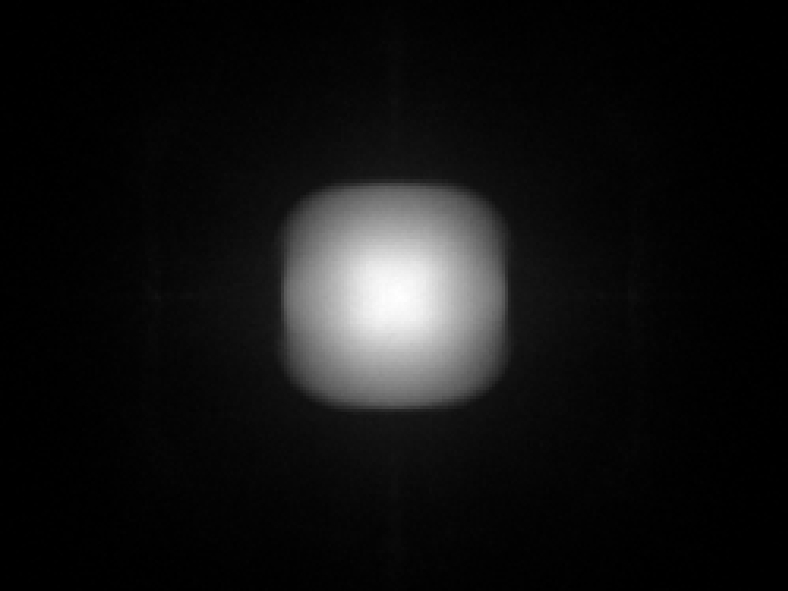

LUMILEDS LUXEON C White
Eff:
91.0%
FWHM:
68°
Cd/Im:
1.0
Download

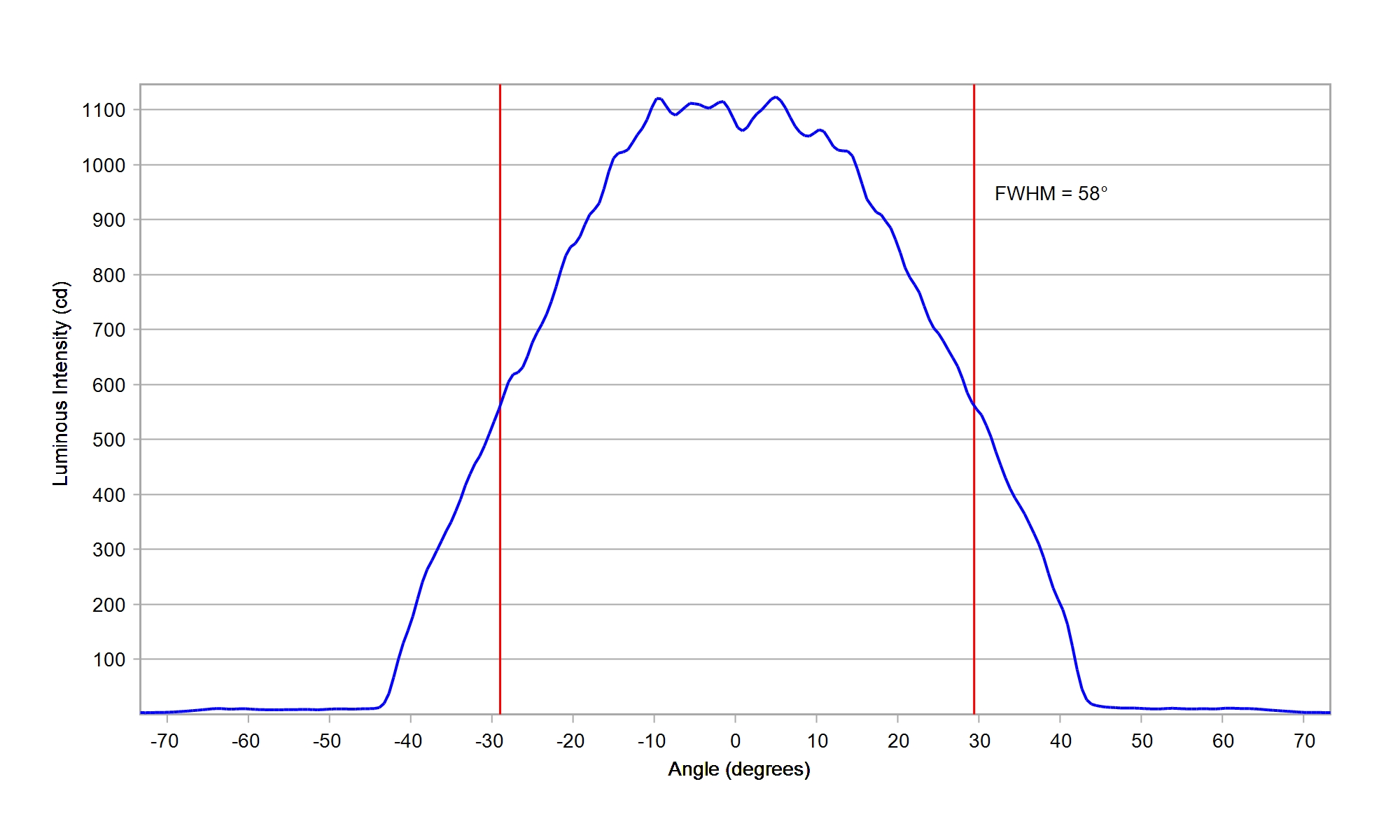

LUMILEDS LUXEON CZ White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.4
Download

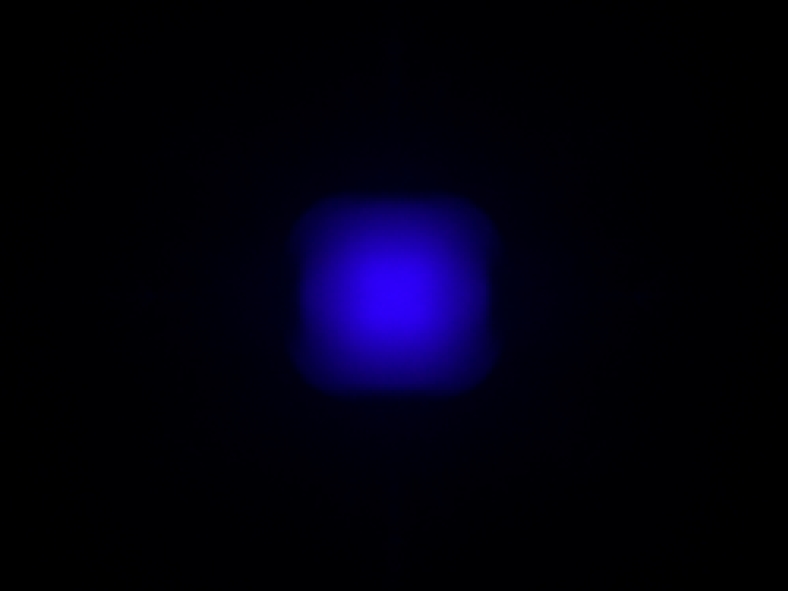

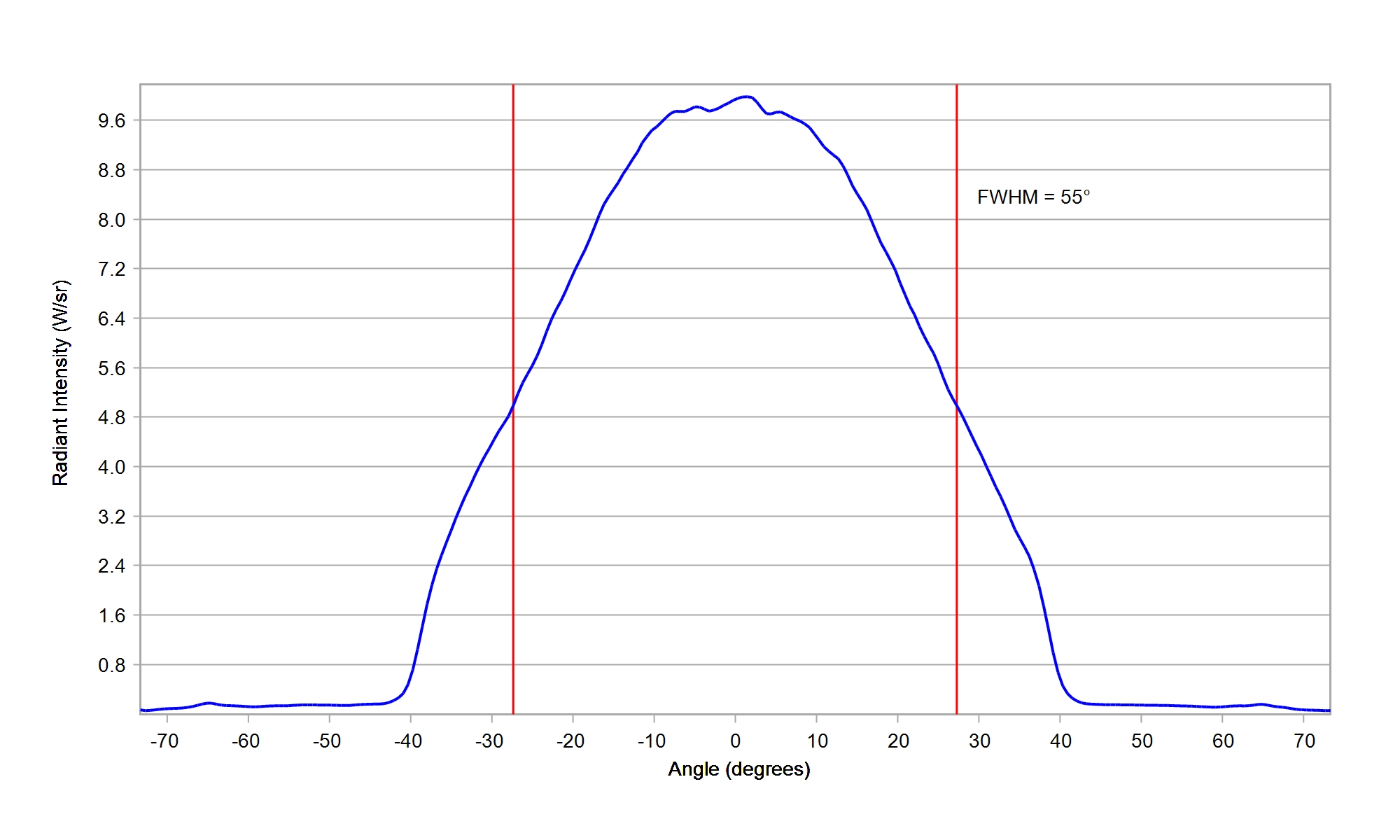

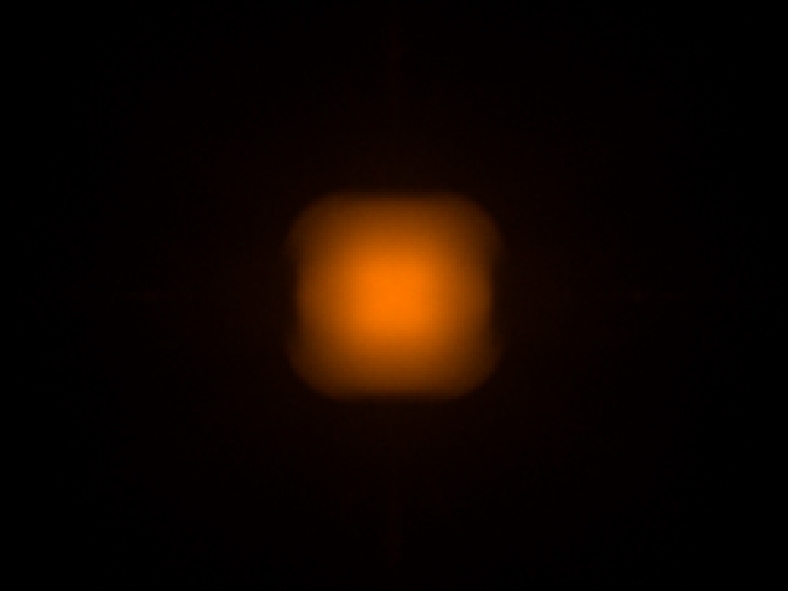

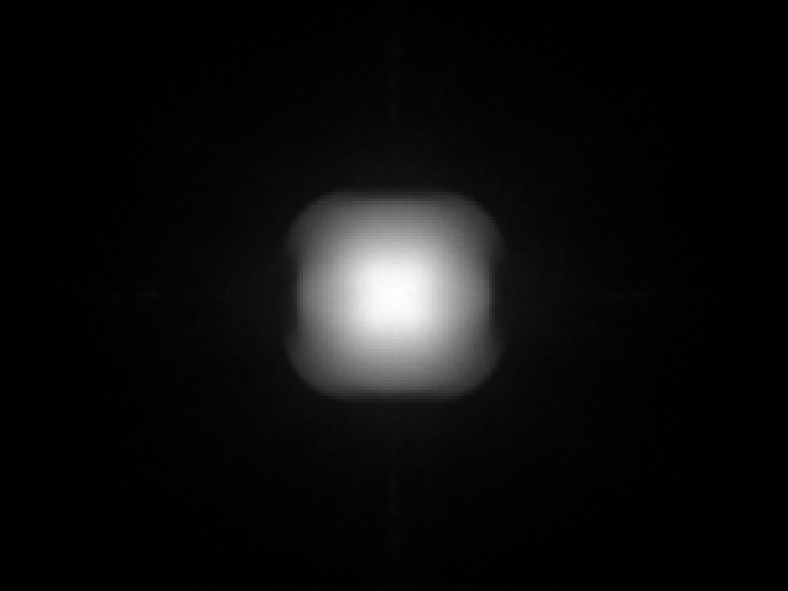

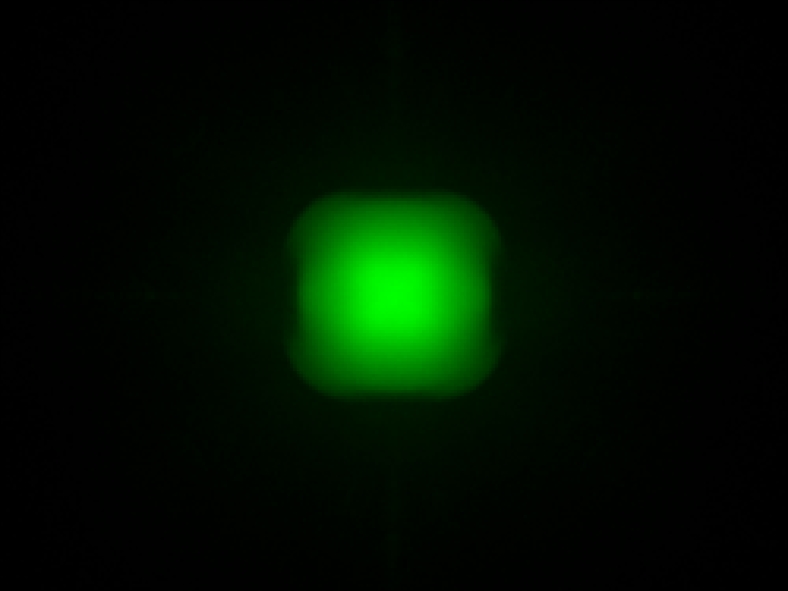

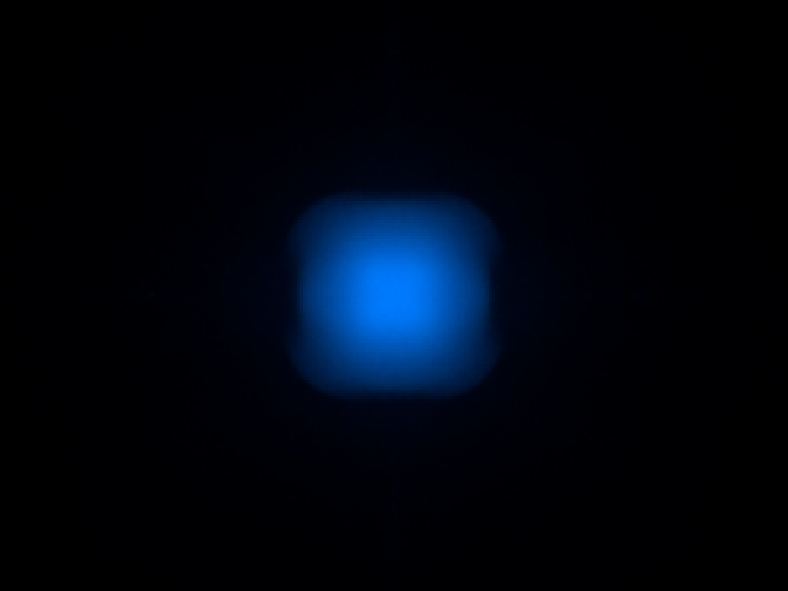

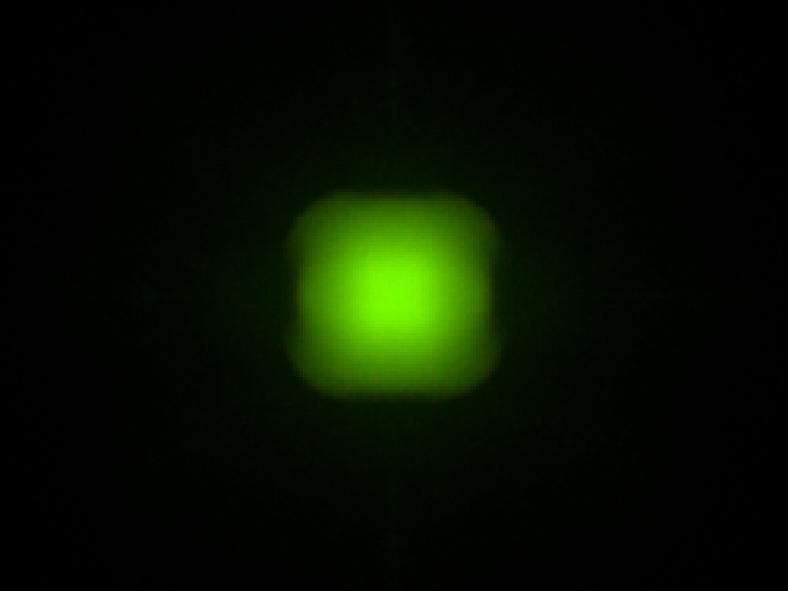

LUMILEDS LUXEON HL1Z CSP White
Eff:
94.5%
FWHM:
54°
Cd/Im:
1.4
Download

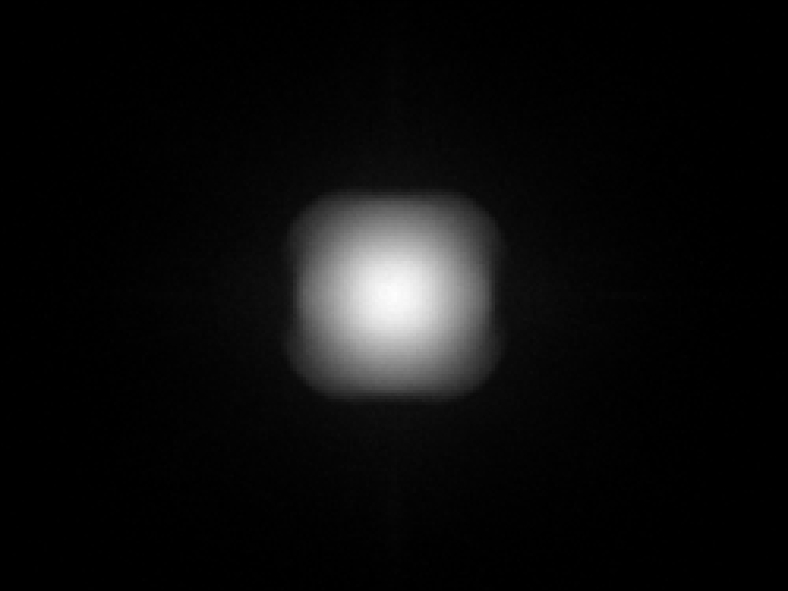

LUMILEDS LUXEON HL2Z White
Eff:
95.0%
FWHM:
53°
Cd/Im:
1.6
Download
LUMILEDS LUXEON HL4Z White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download
LUMILEDS LUXEON IR 2720
Eff:
97.0%
FWHM:
55°
Ipk/W:
1.4
Download

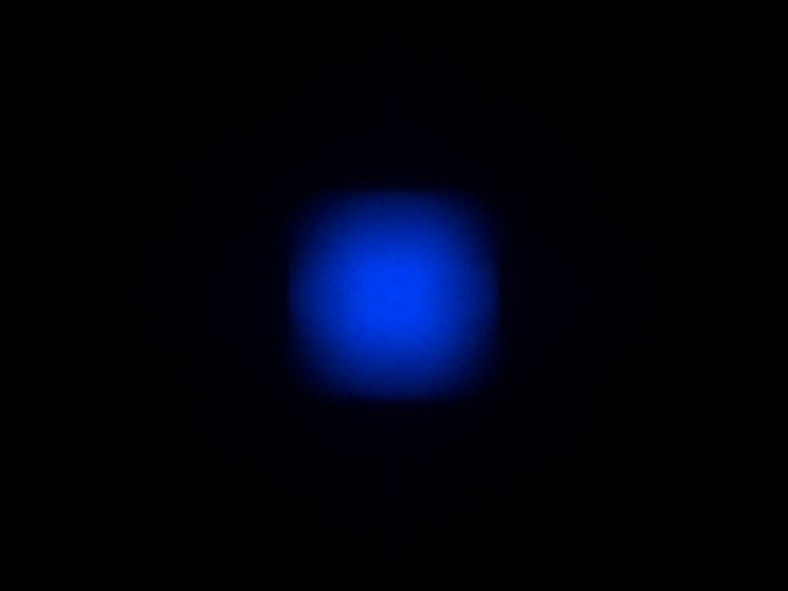

LUMILEDS LUXEON Rubix Blue
Eff:
96.0%
FWHM:
60°
Cd/Im:
1.6
Download

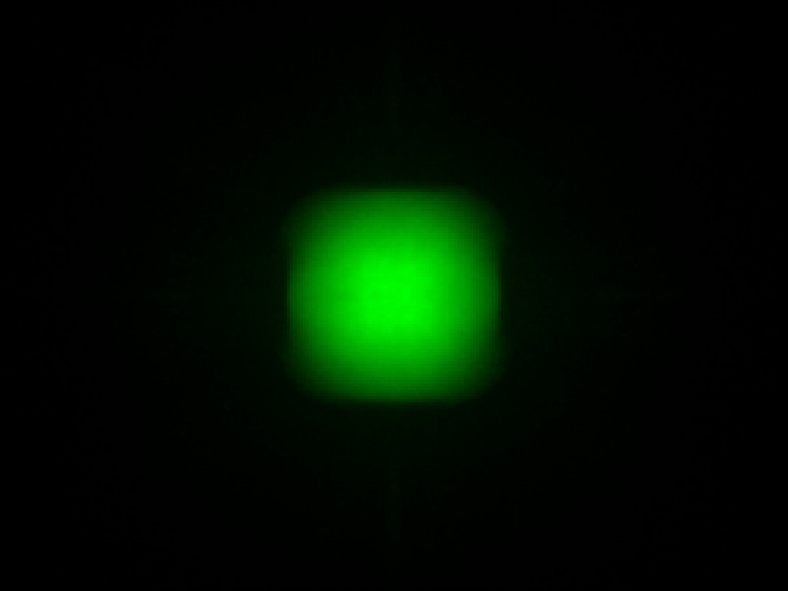

LUMILEDS LUXEON Rubix Green
Eff:
95.5%
FWHM:
62°
Cd/Im:
1.3
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.5%
FWHM:
59°
Cd/Im:
1.5
Download

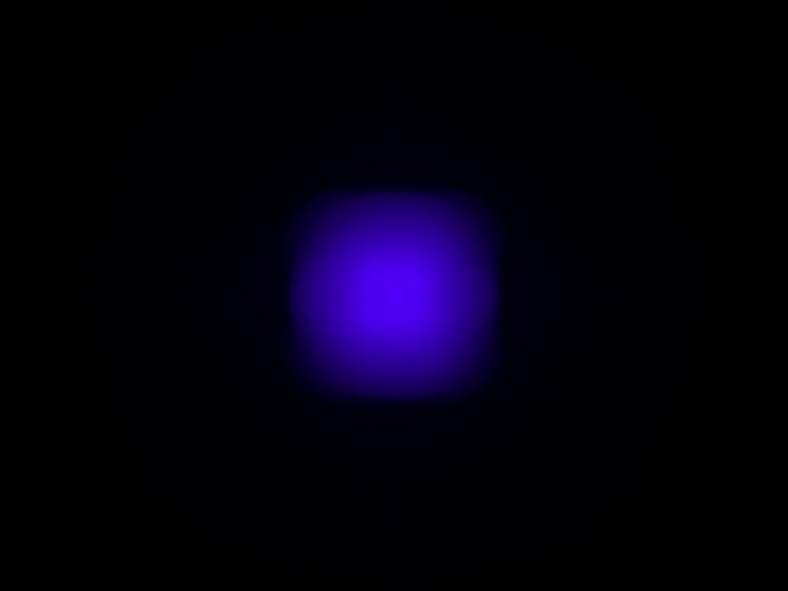

LUMILEDS LUXEON Rubix Royal Blue
Eff:
96.5%
FWHM:
57°
Cd/Im:
1.7
Download
LUMILEDS LUXEON Rubix White
Eff:
95.5%
FWHM:
59.0°
Cd/Im:
1.4
Download
LUMILEDS LUXEON SunPlus 20 Line Cool White
Eff:
93.0%
FWHM:
68°
Cd/Im:
1.3
Download

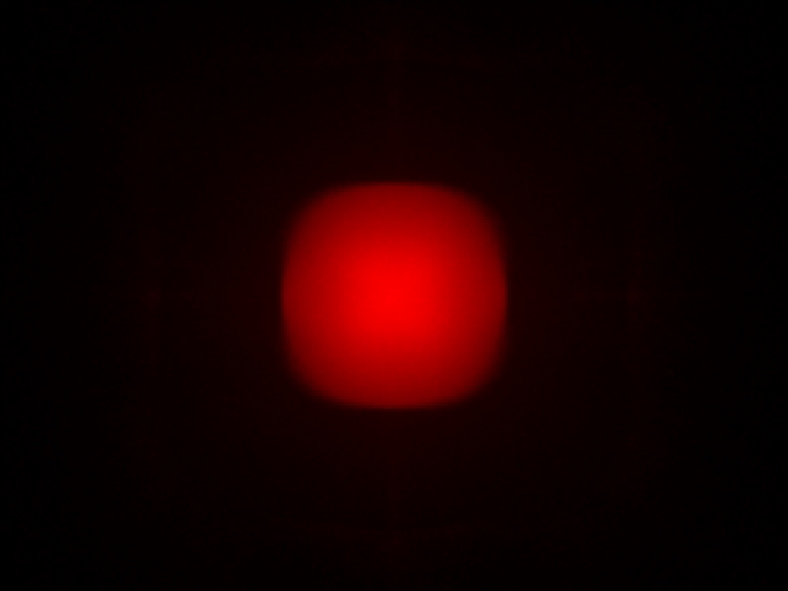

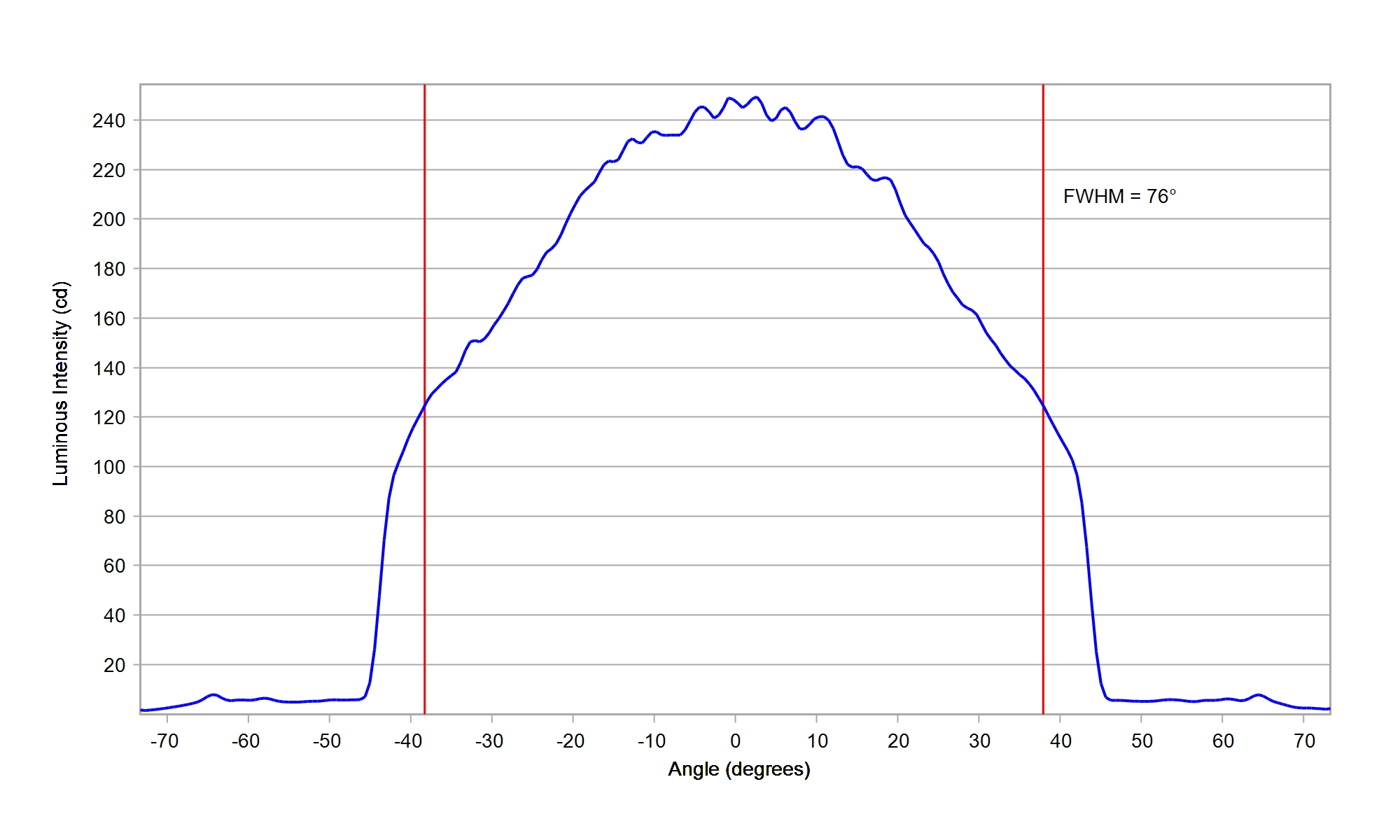

LUMILEDS LUXEON SunPlus 20 Line Deep Red
Eff:
90.0%
FWHM:
76°
Cd/Im:
1.0
Download
LUMILEDS LUXEON SunPlus 20 Line Far Red
Eff:
90.5%
FWHM:
76°
Cd/Im:
2.1
Download
LUMILEDS LUXEON SunPlus 20 Line Lime
Eff:
91.0%
FWHM:
65°
Cd/Im:
1.0
Download

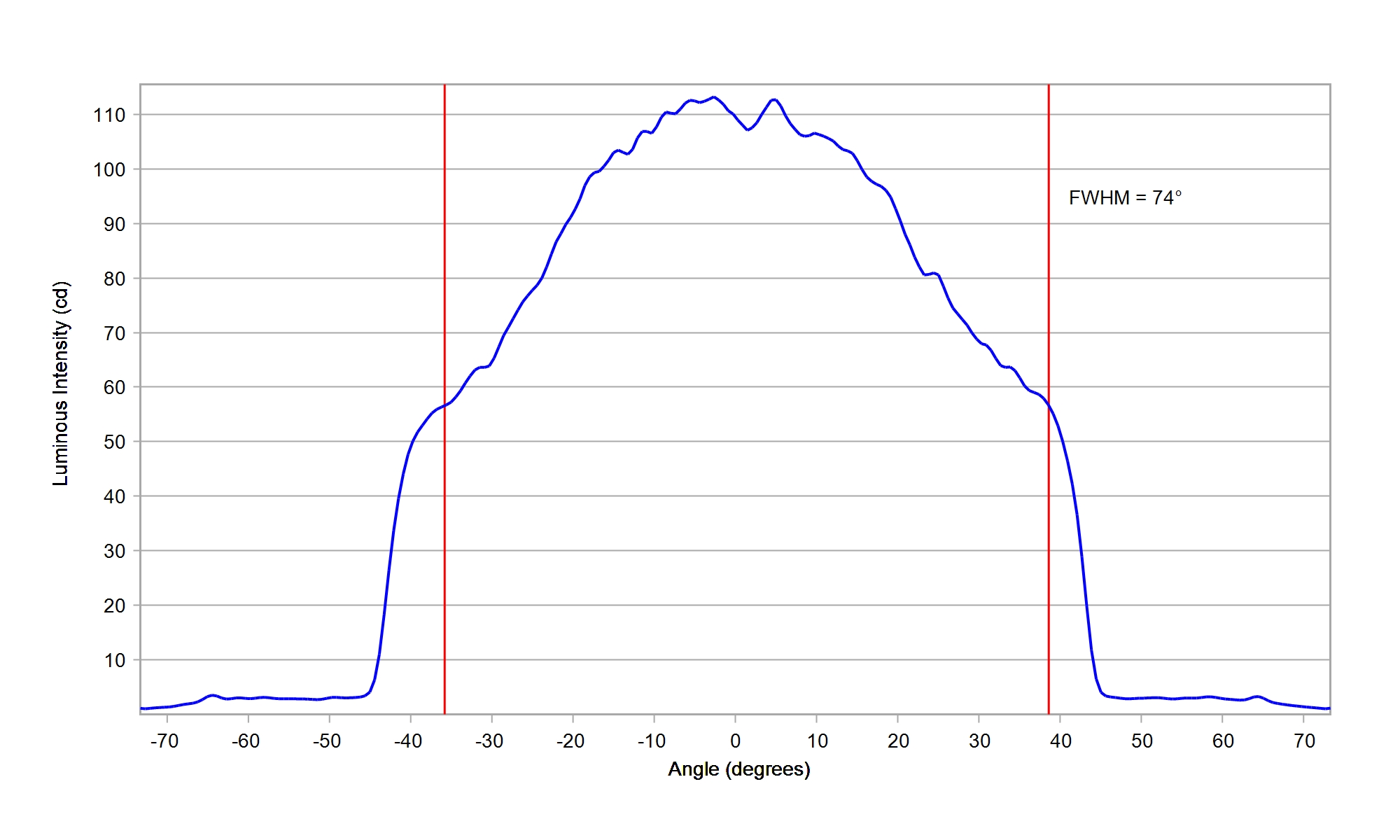

LUMILEDS LUXEON SunPlus 20 Line Royal Blue
Eff:
91.5%
FWHM:
74 x 24.5°
Cd/Im:
1.0
Download

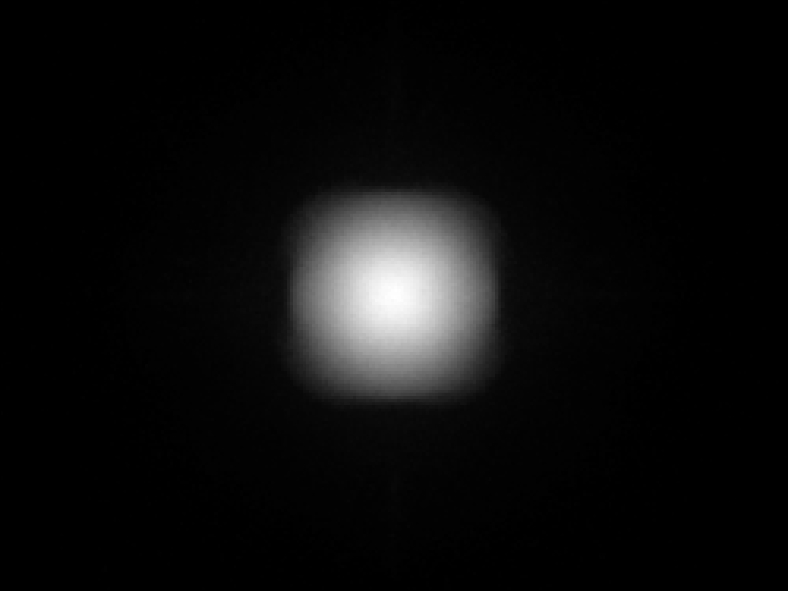

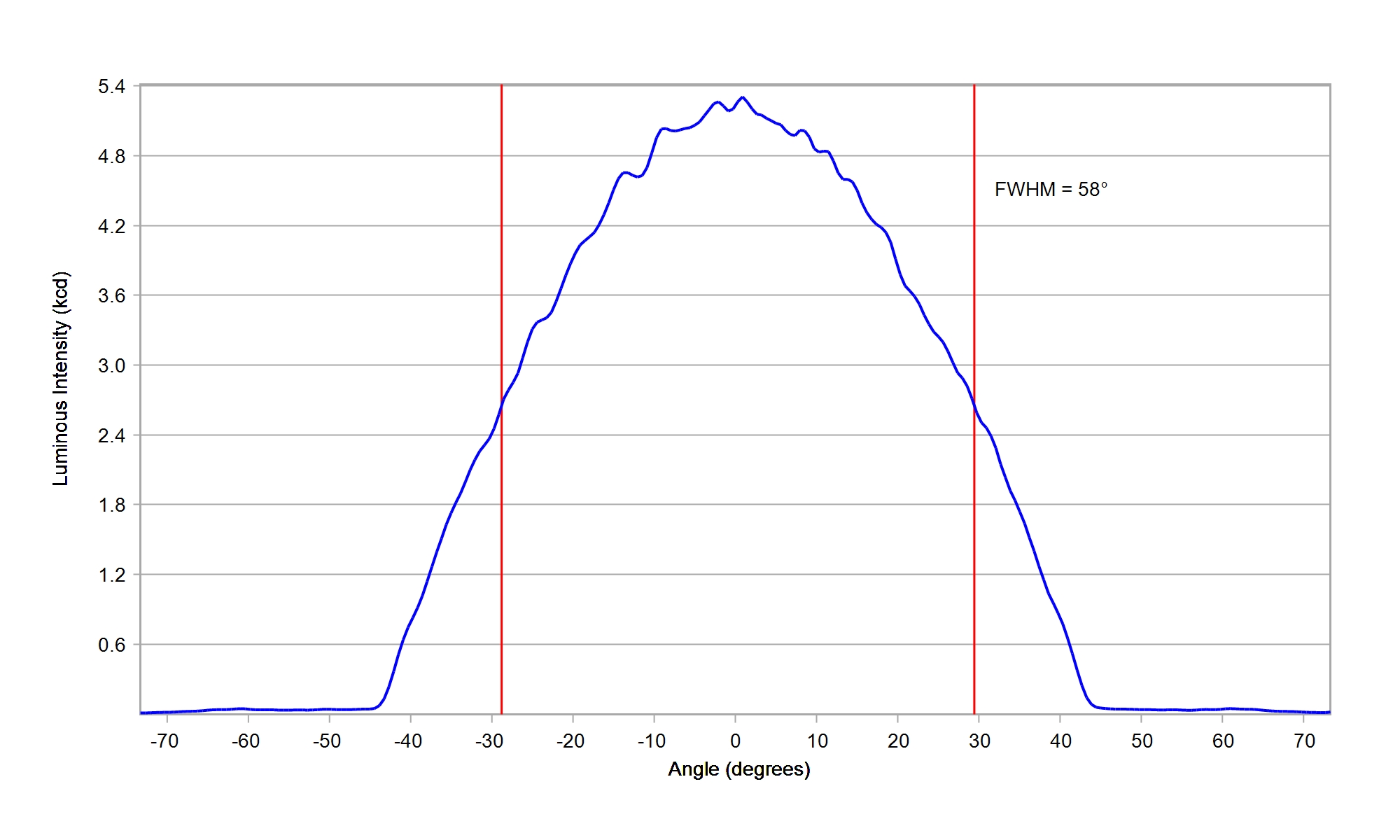

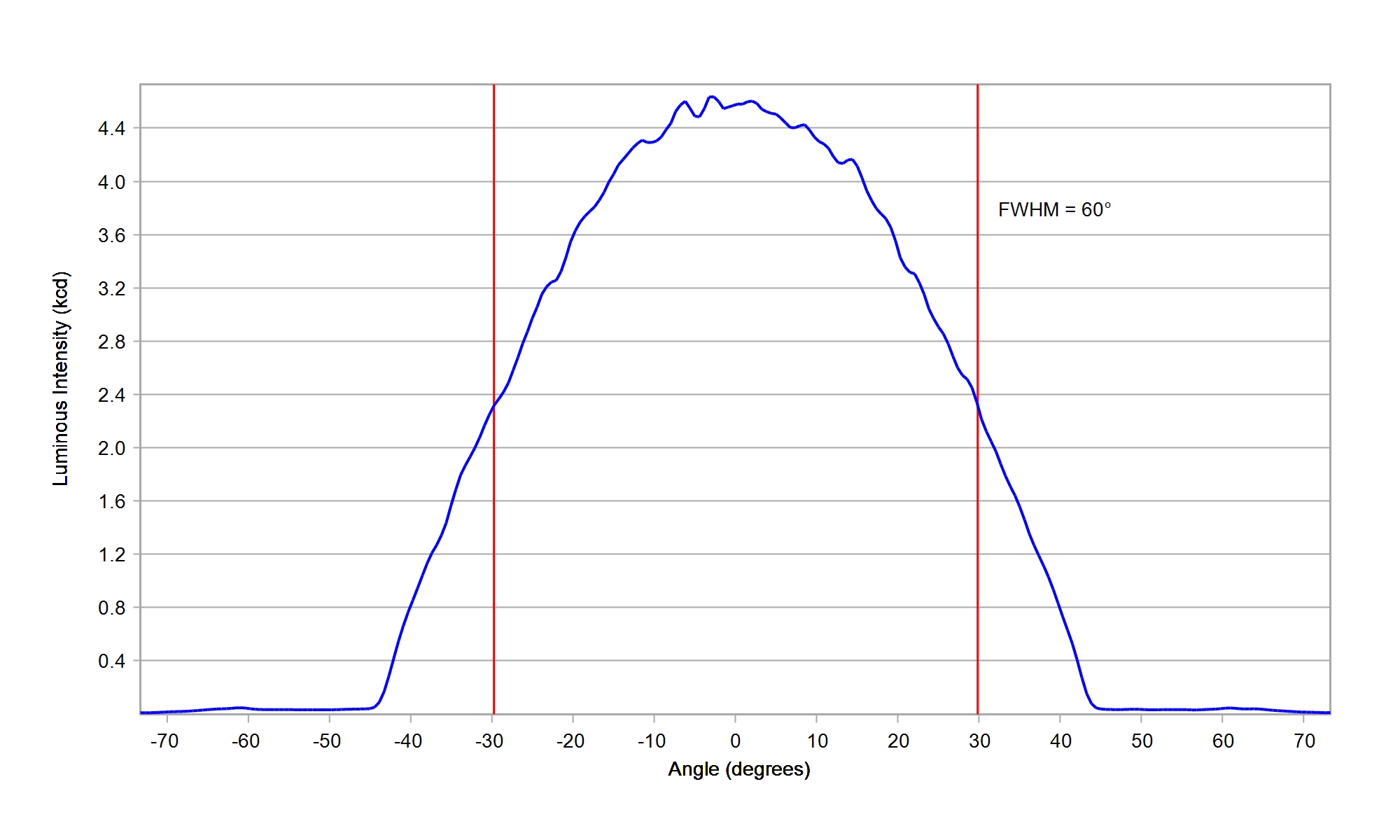

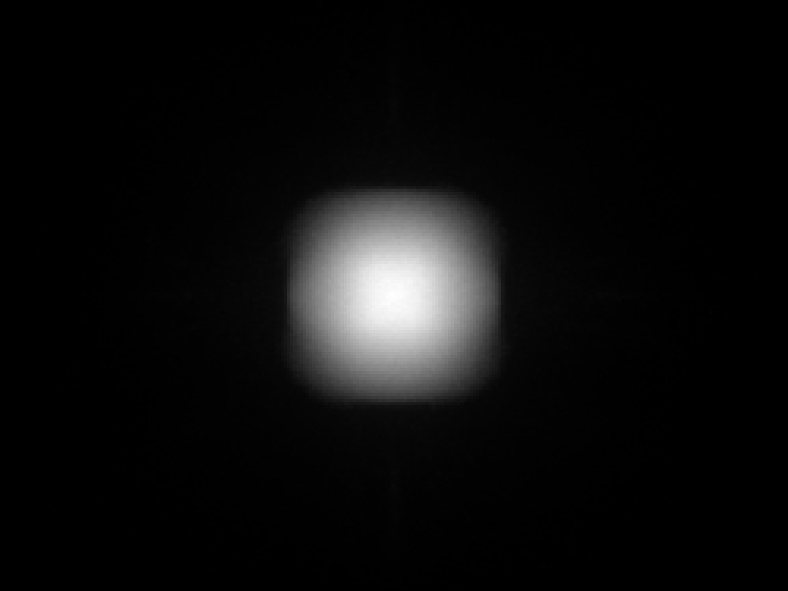

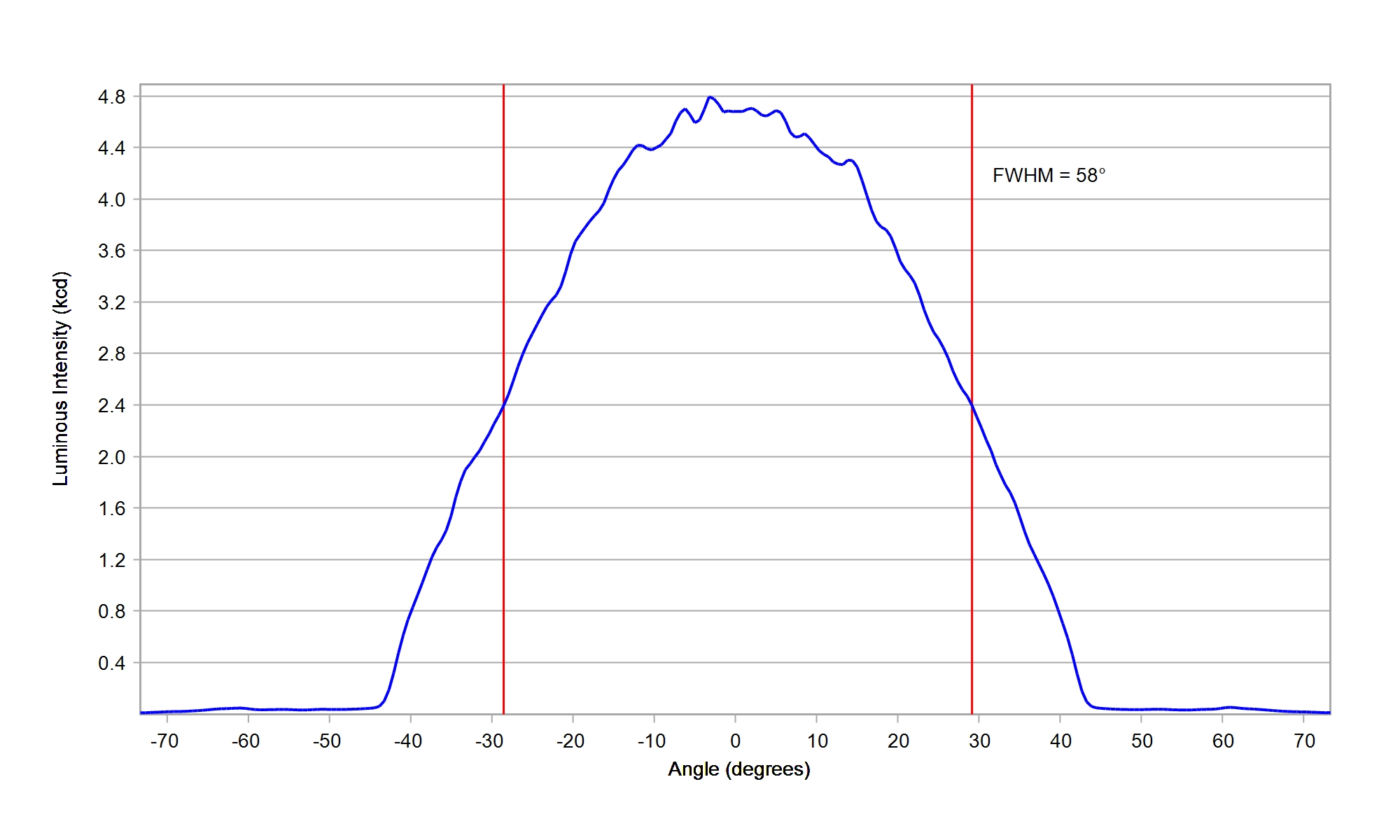

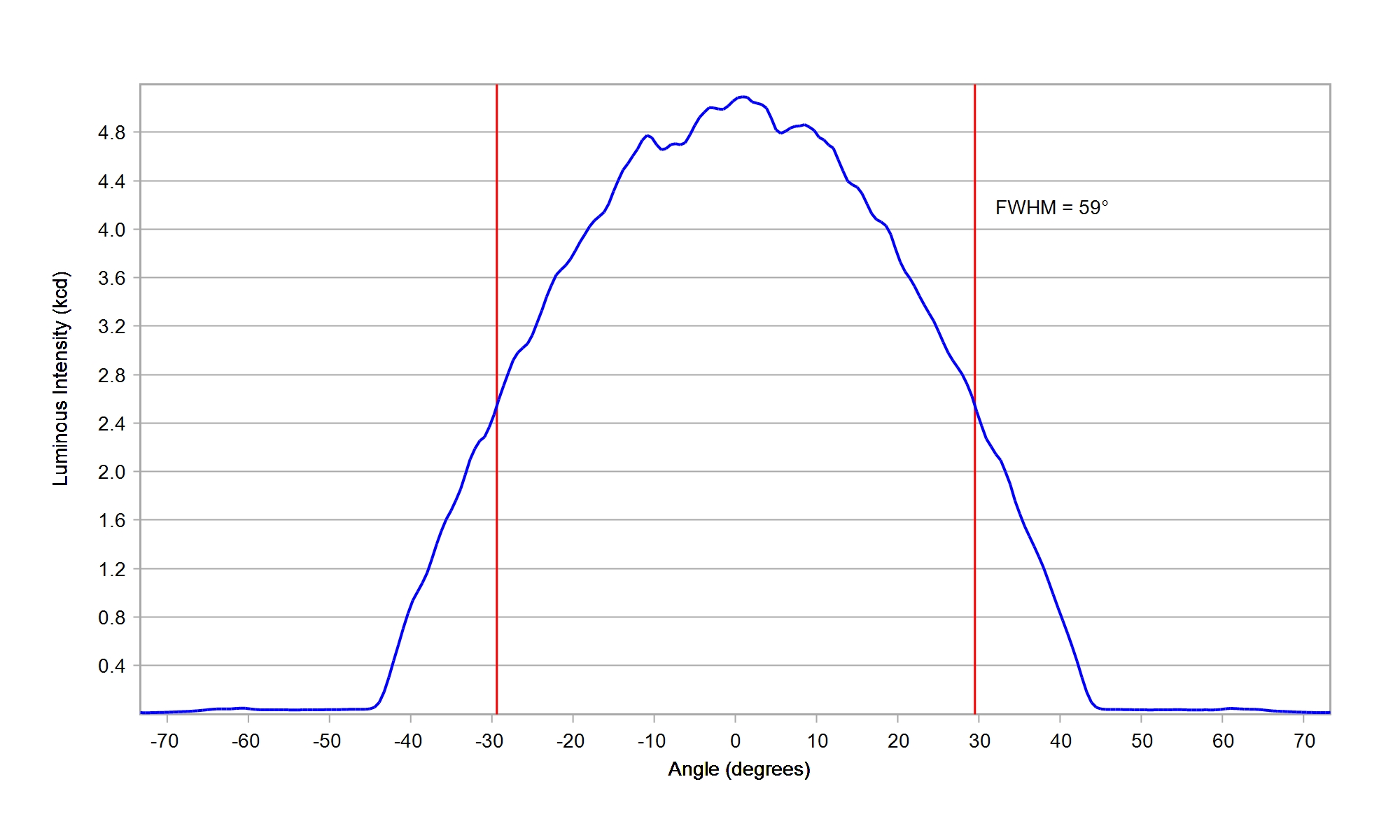

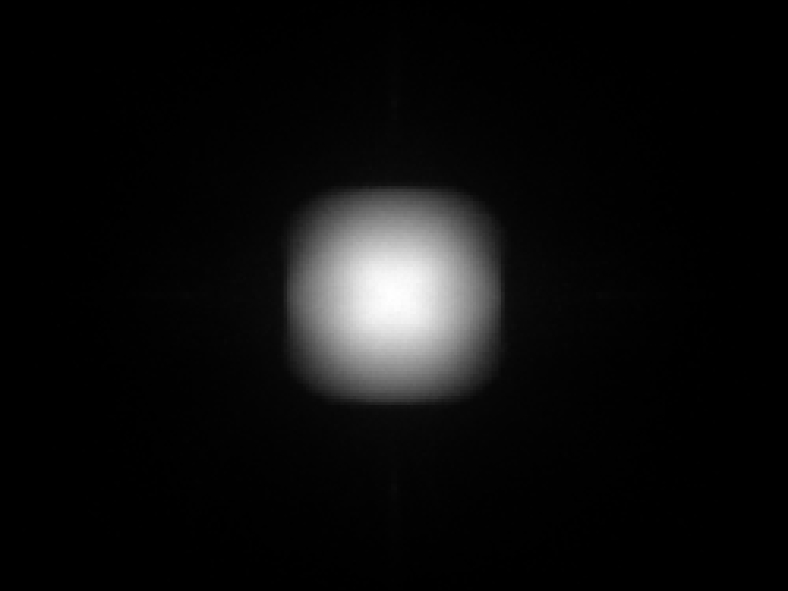

Luminus Devices SFT-40-WxS White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.6
Download

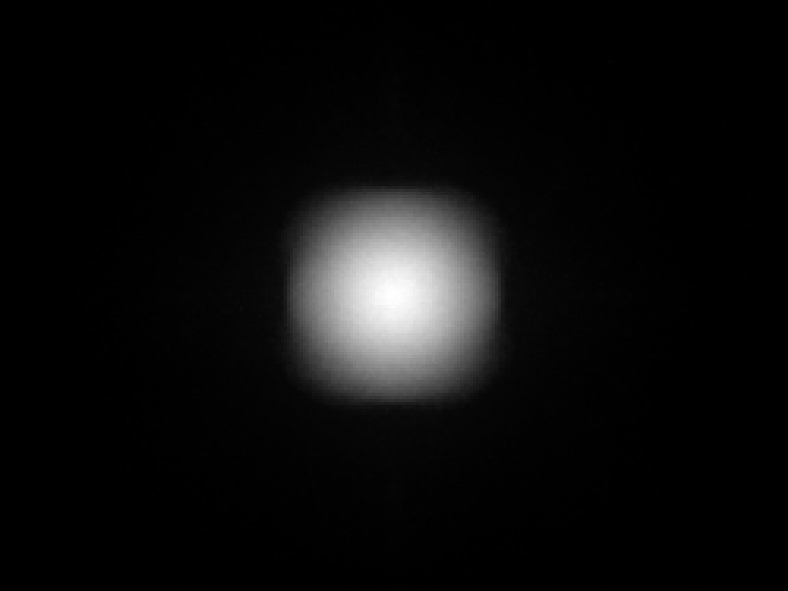

Luminus Devices SFT-70X-WxS White
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.6
Download
Nichia 757 White
Eff:
95.0%
FWHM:
56°
Cd/Im:
1.2
Download
Nichia NCSW CSP E17A White
Eff:
94.5%
FWHM:
53°
Cd/Im:
1.2
Download
Nichia NF2W 757G-MT Tunable
Eff:
95.0%
FWHM:
55°
Cd/Im:
1.5
Download

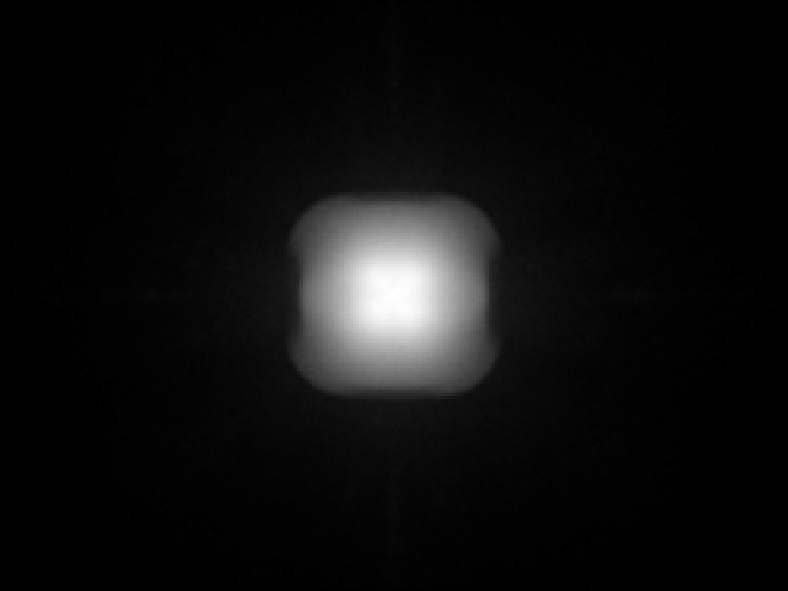

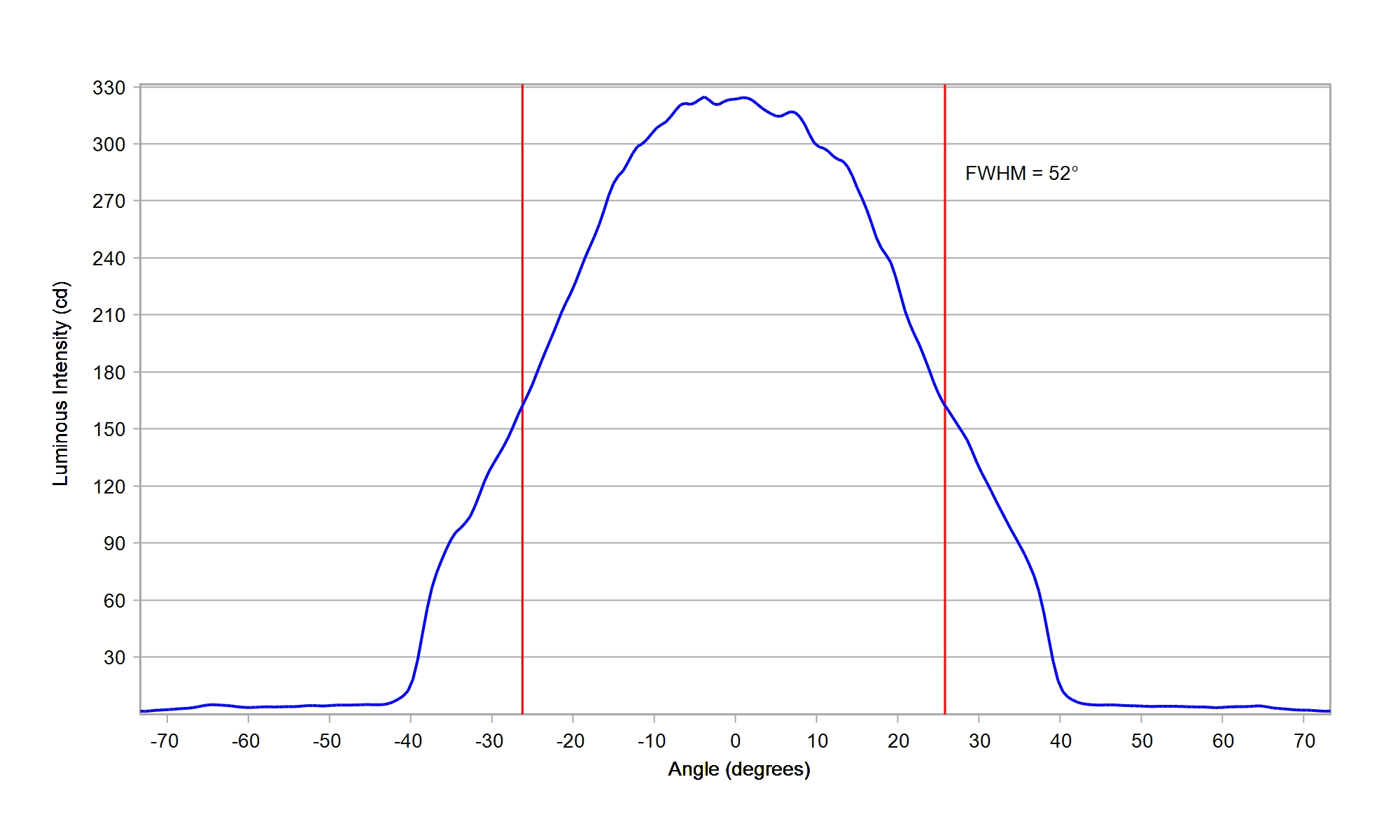

Nichia NFSW CSP E11A White
Eff:
93.5%
FWHM:
52°
Cd/Im:
1.3
Download
Nichia NVSW CSP E21A White
Eff:
94.5%
FWHM:
52.5°
Cd/Im:
1.2
Download
Osram OS DURIS E 2835 Gen2
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.6
Download

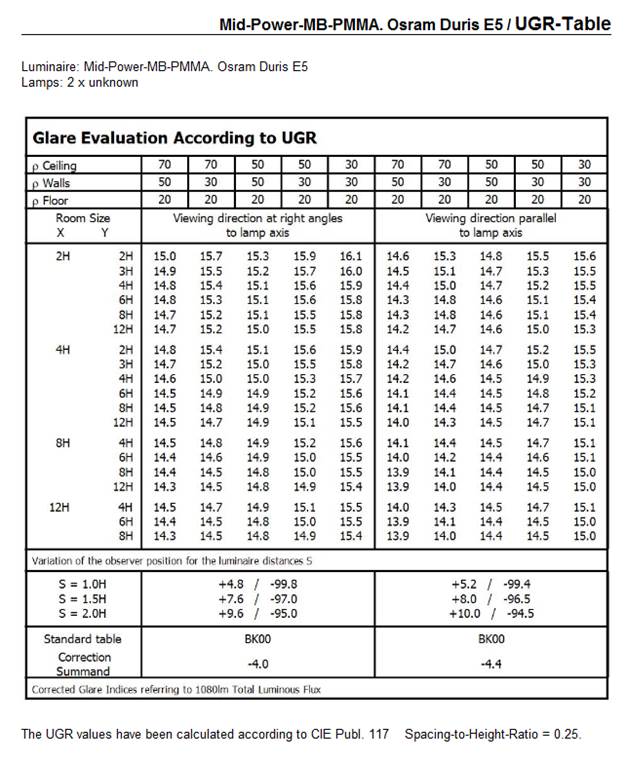

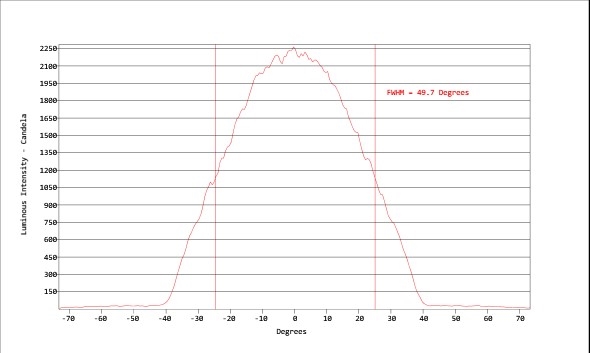

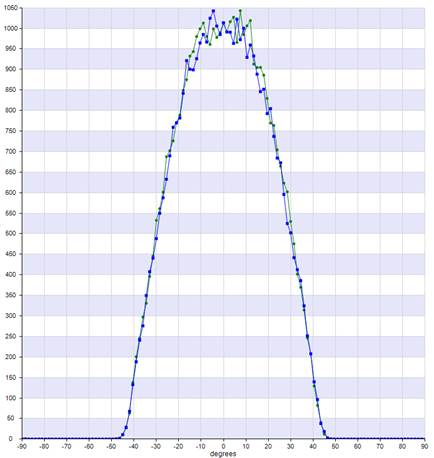

Osram OS DURIS E5 White
Eff:
95.0%
FWHM:
49.5°
Cd/Im:
1.3
Download

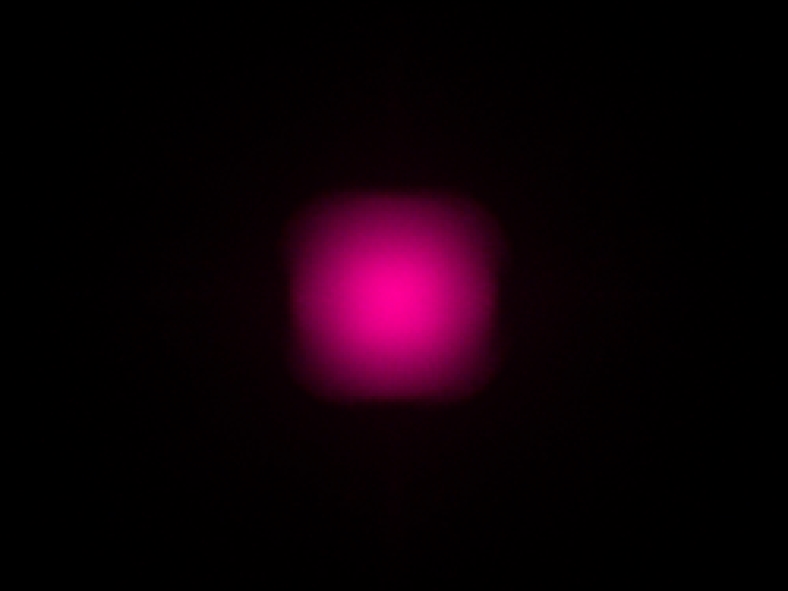

Osram OS DURIS S5 GP PSLM31.14 Purple
Eff:
96.0%
FWHM:
55 x 20.5°
Cd/Im:
1.8
Download

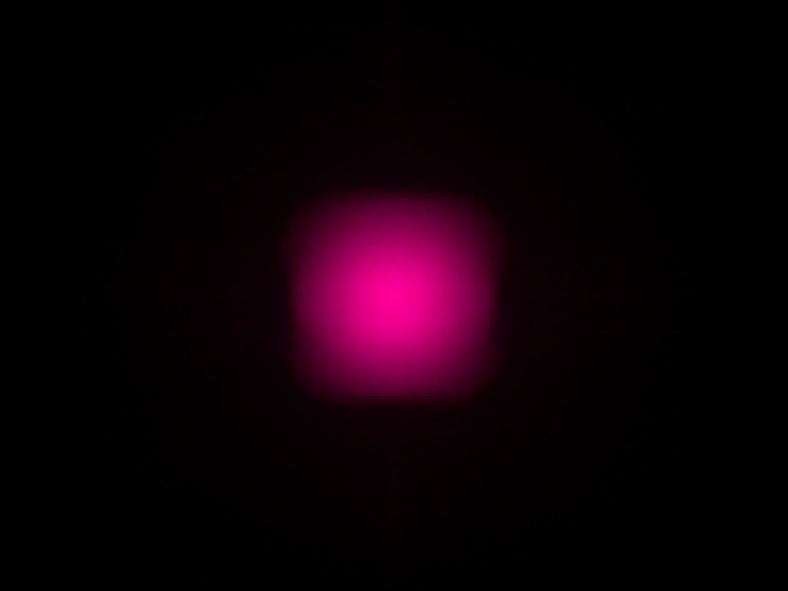

Osram OS DURIS S5 GP PSLR31.14 Purple
Eff:
96.0%
FWHM:
54°
Cd/Im:
1.8
Download
Osram OS DURIS S5 White
Eff:
95.5%
FWHM:
54.5°
Cd/Im:
1.2
Download

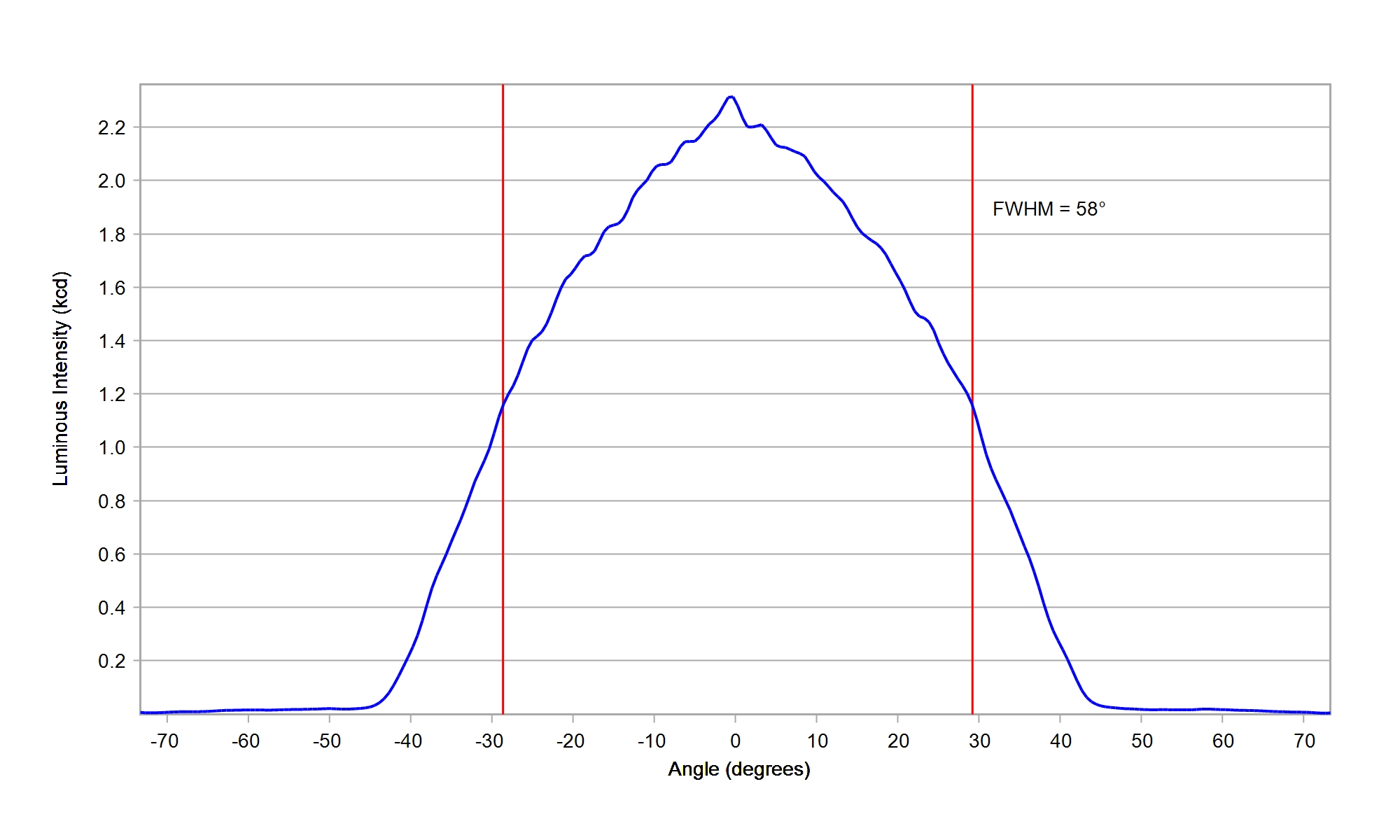

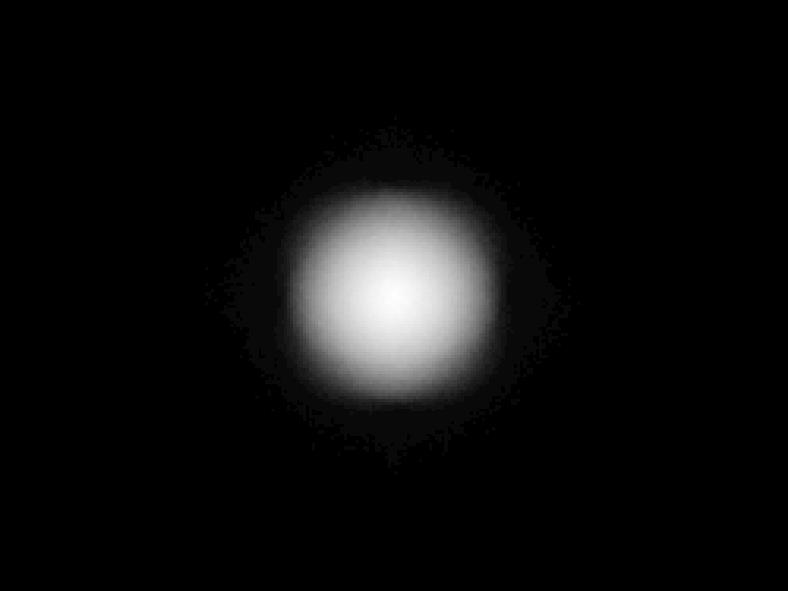

Osram OS DURIS S8 Gen3 White
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.6
Download
Osram OS MidPower 5630 E5 White
Eff:
90.0%
FWHM:
59.5°
Cd/Im:
1.0

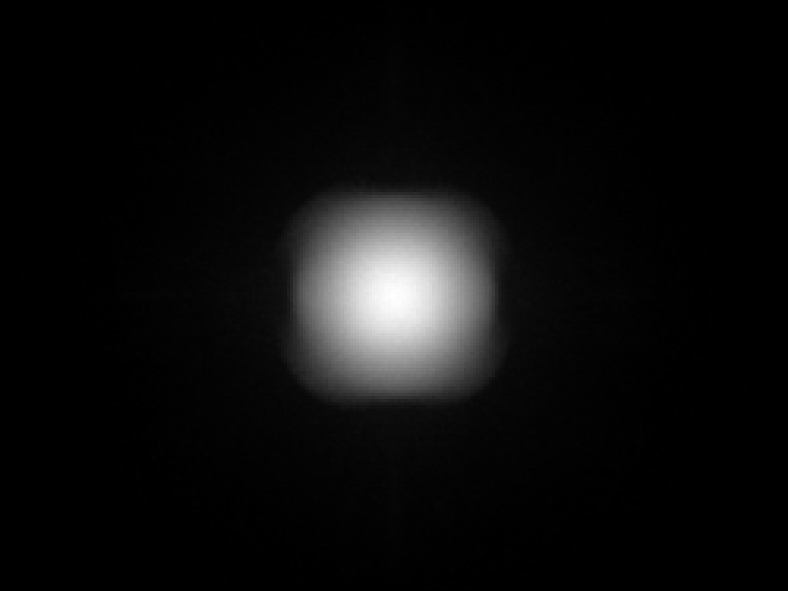

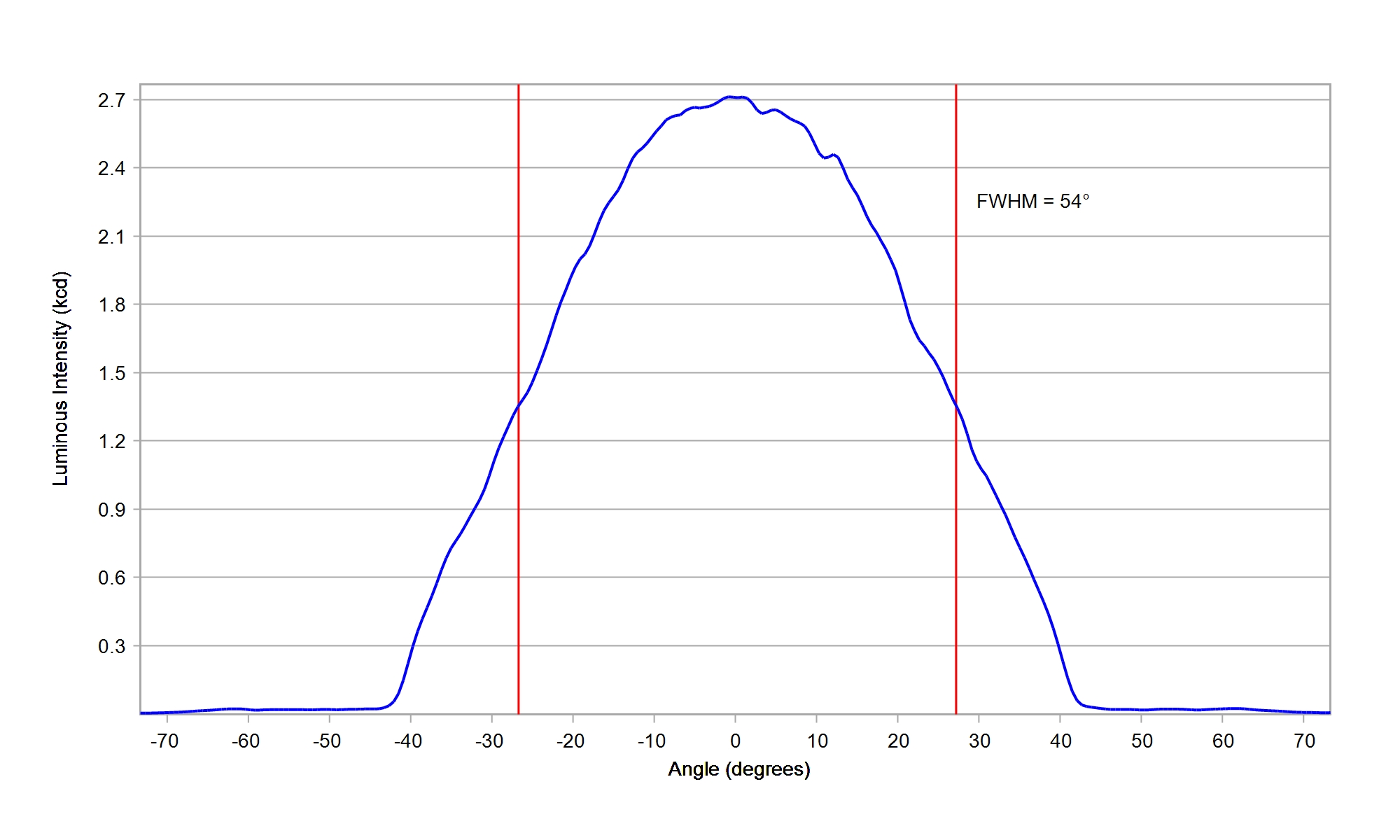

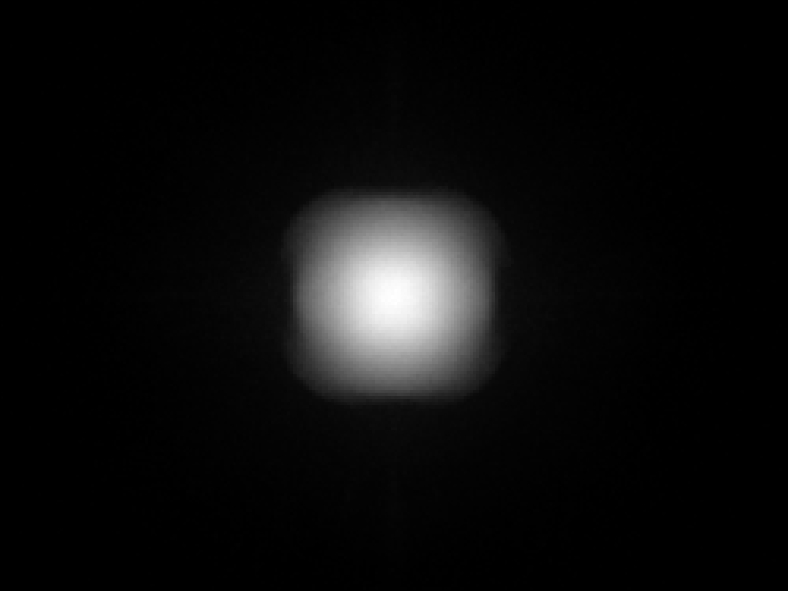

Osram OS OSCONIQ C 2424 White
Eff:
95.5%
FWHM:
54.0°
Cd/Im:
1.6
Download

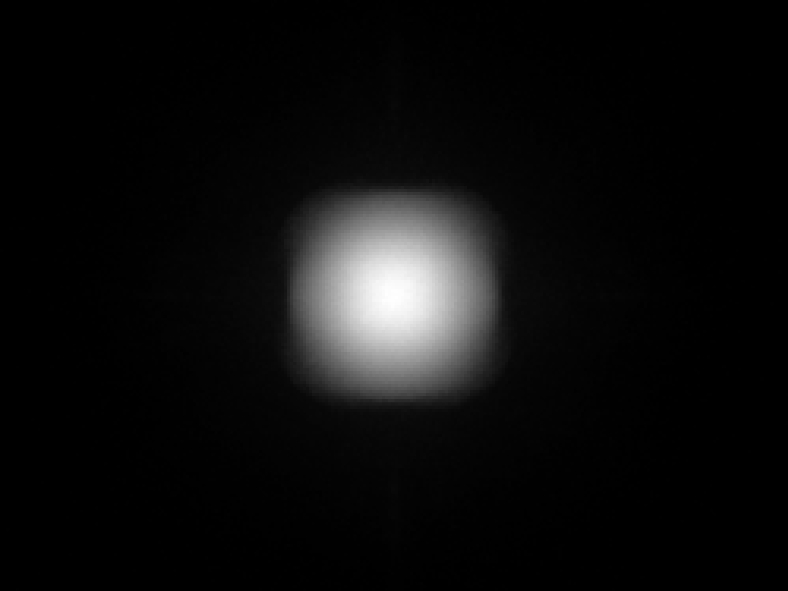

Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
95.5%
FWHM:
59°
Cd/Im:
1.4
Download

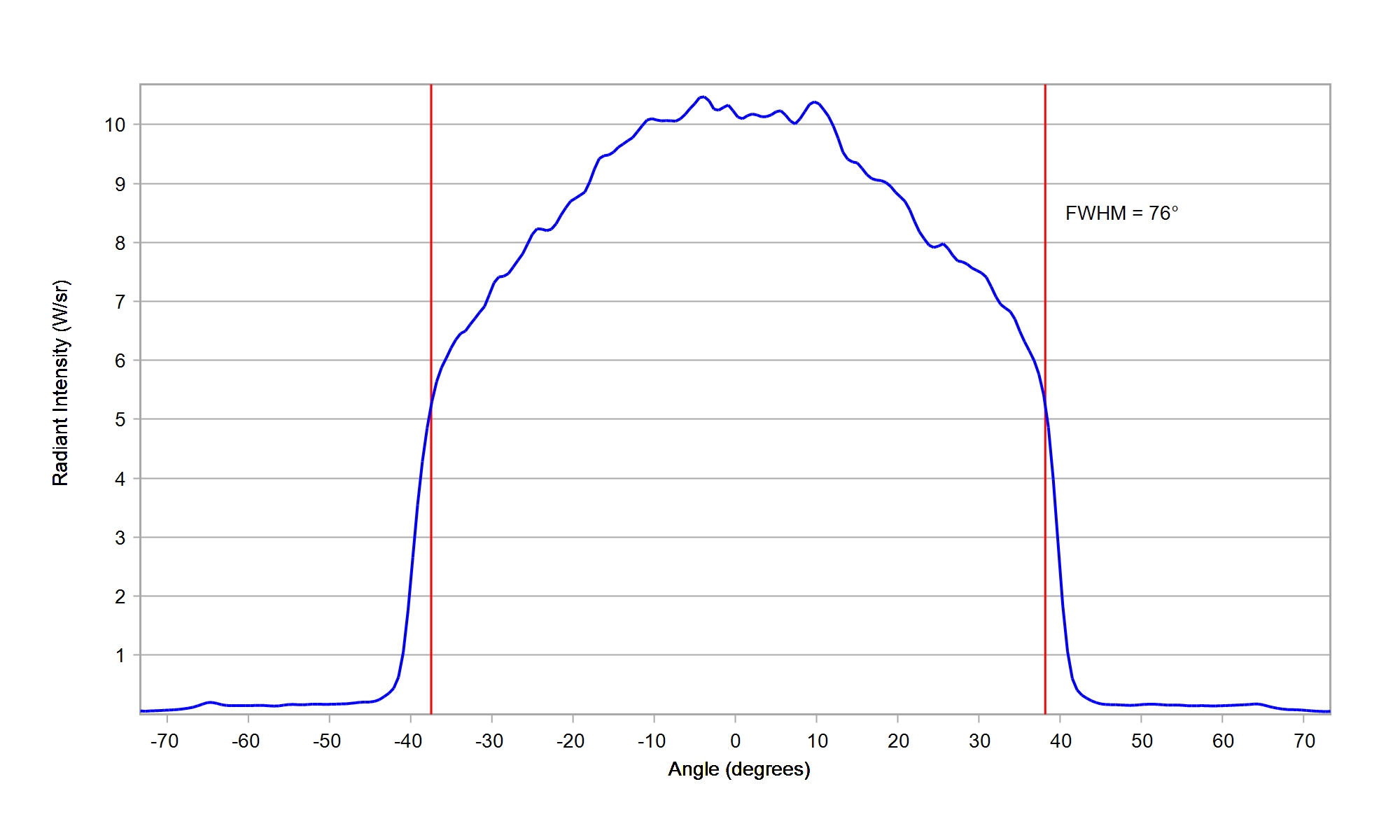

Osram OS OSLON Black SFH 4716AS IR
Eff:
94.0%
FWHM:
76°
Ipk/W:
1.1
Download

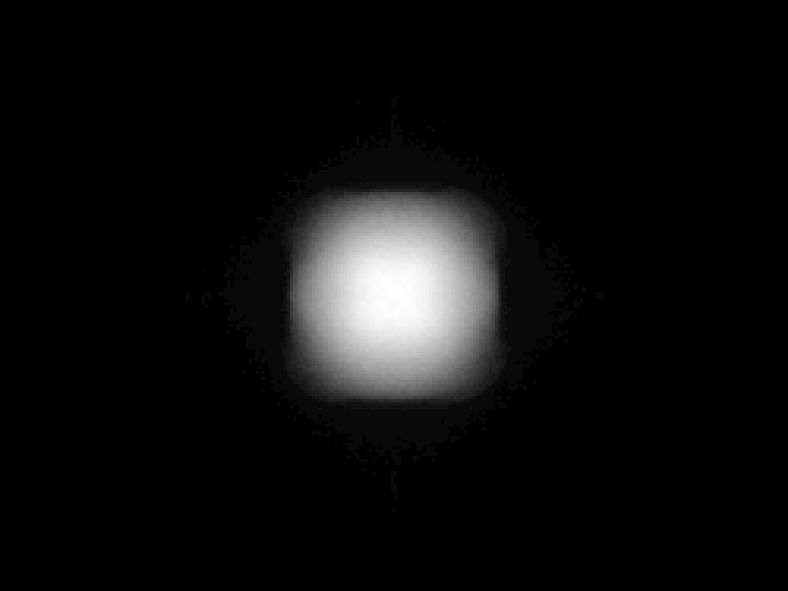

Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download

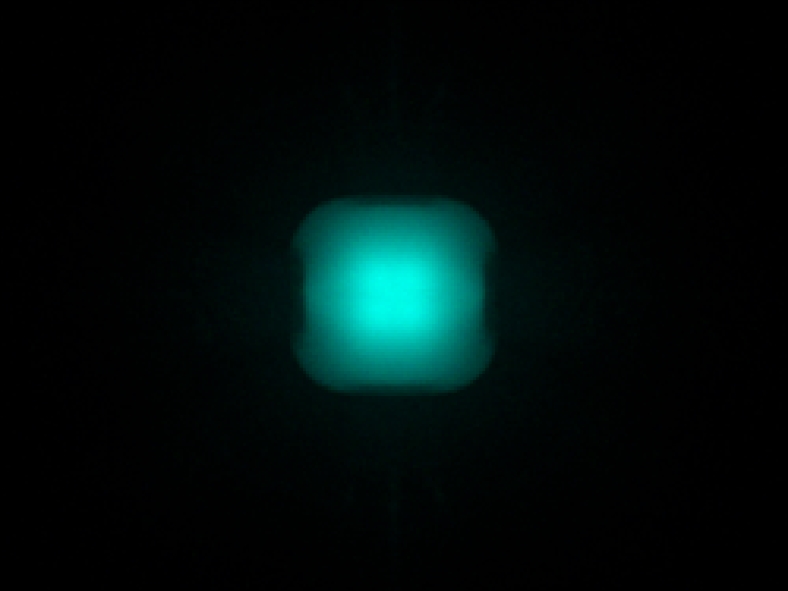

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
95.5%
FWHM:
50°
Cd/Im:
1.6
Download

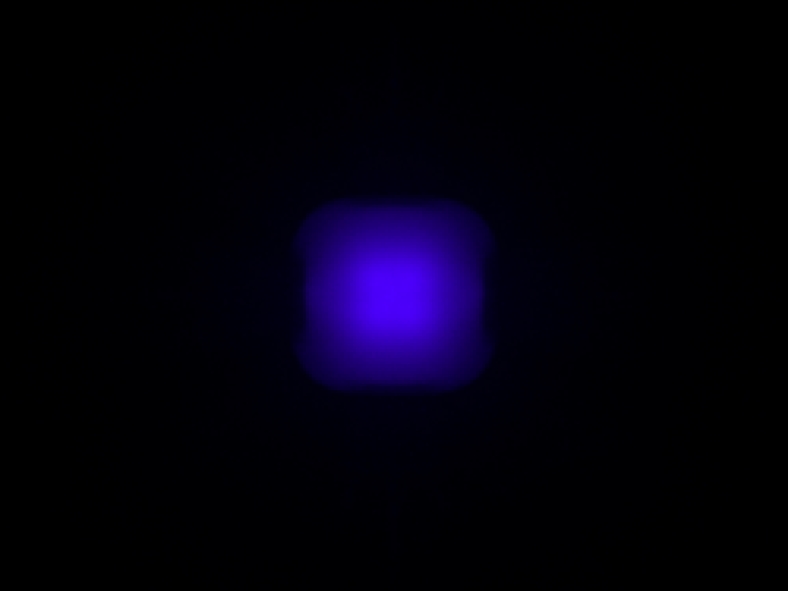

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
96.5%
FWHM:
48°
Ipk/W:
1.7
Download

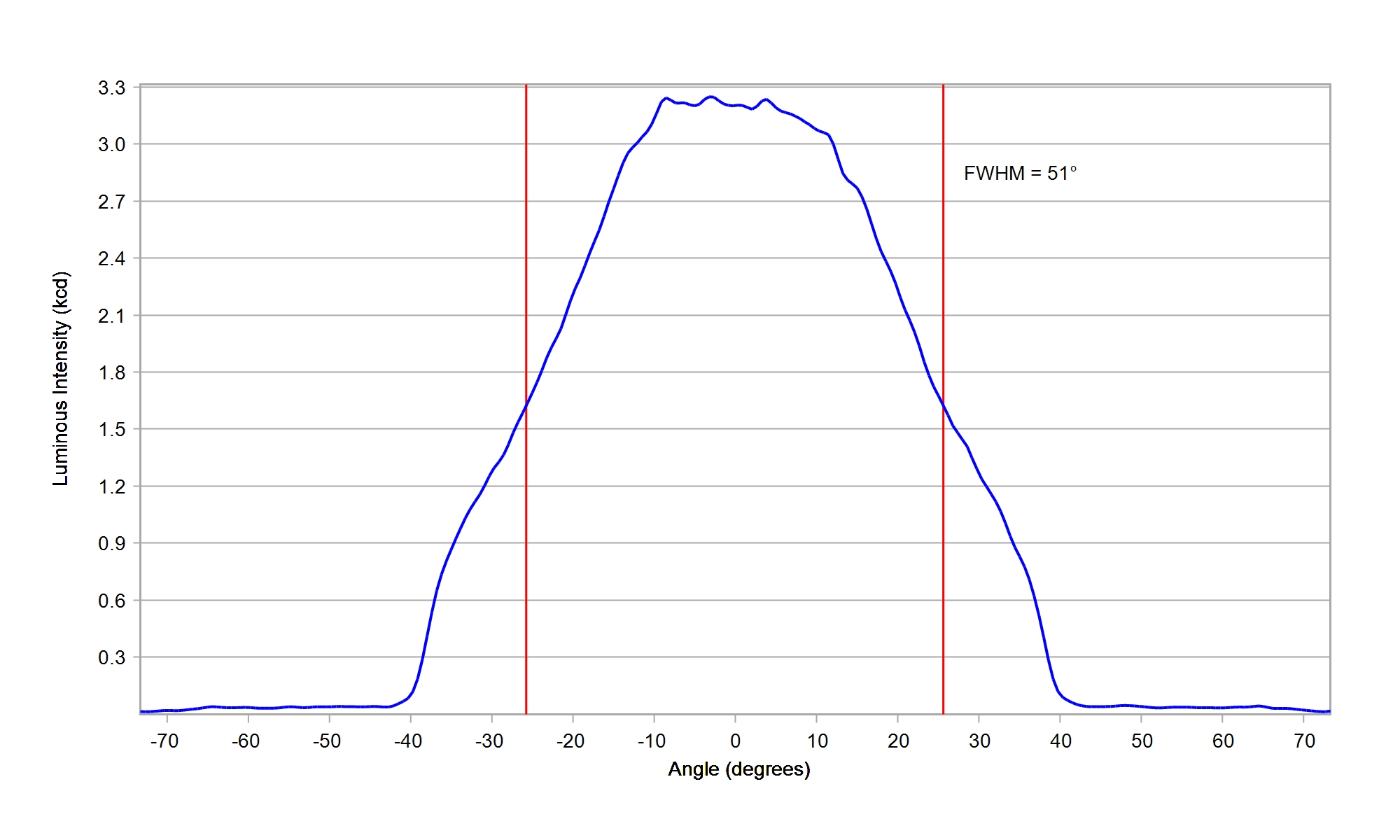

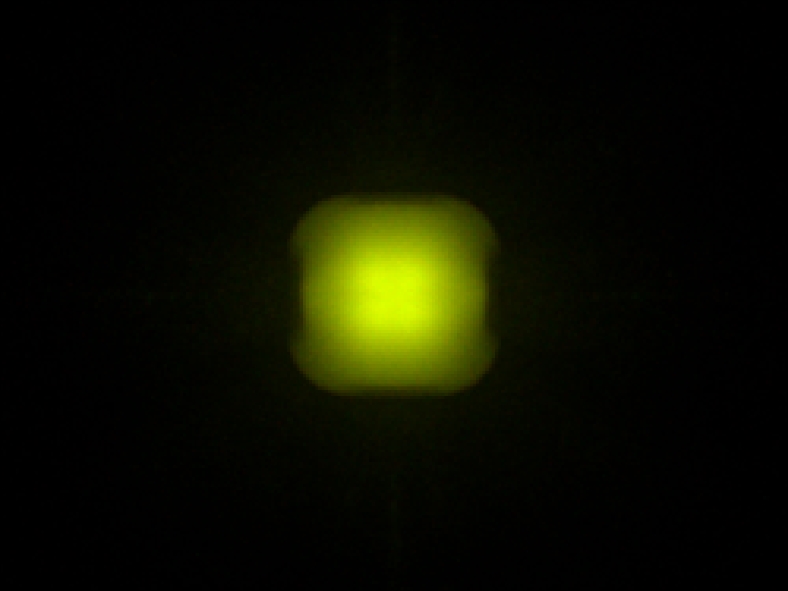

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
94.5%
FWHM:
51°
Cd/Im:
1.5
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
94.5%
FWHM:
54°
Cd/Im:
1.7
Download

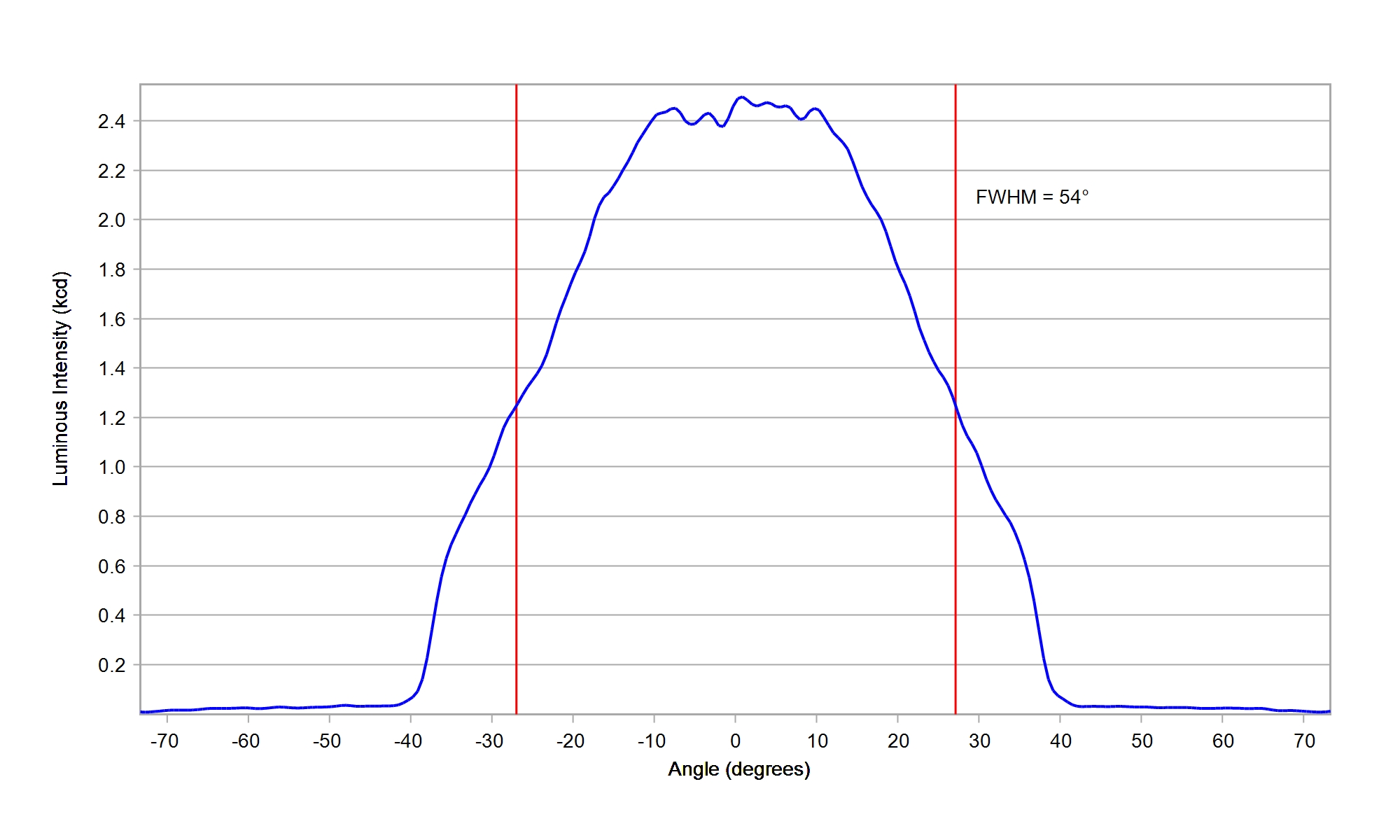

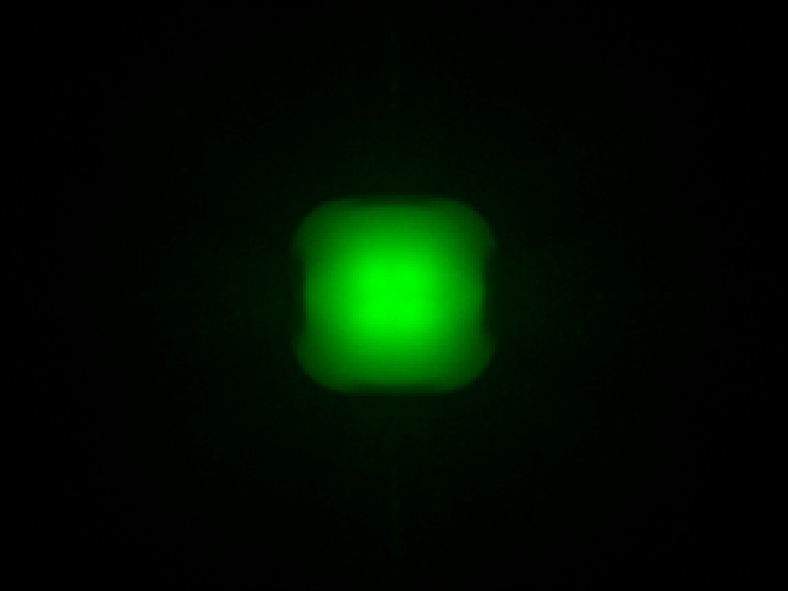

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
95.0%
FWHM:
54°
Cd/Im:
1.4
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
94.5%
FWHM:
50°
Cd/Im:
1.5
Download

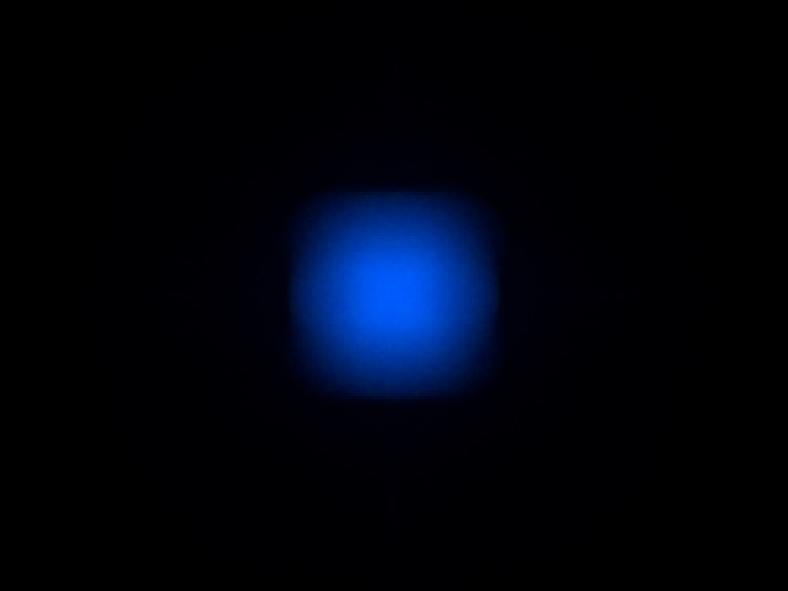

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
96.0%
FWHM:
56°
Cd/Im:
1.7
Download

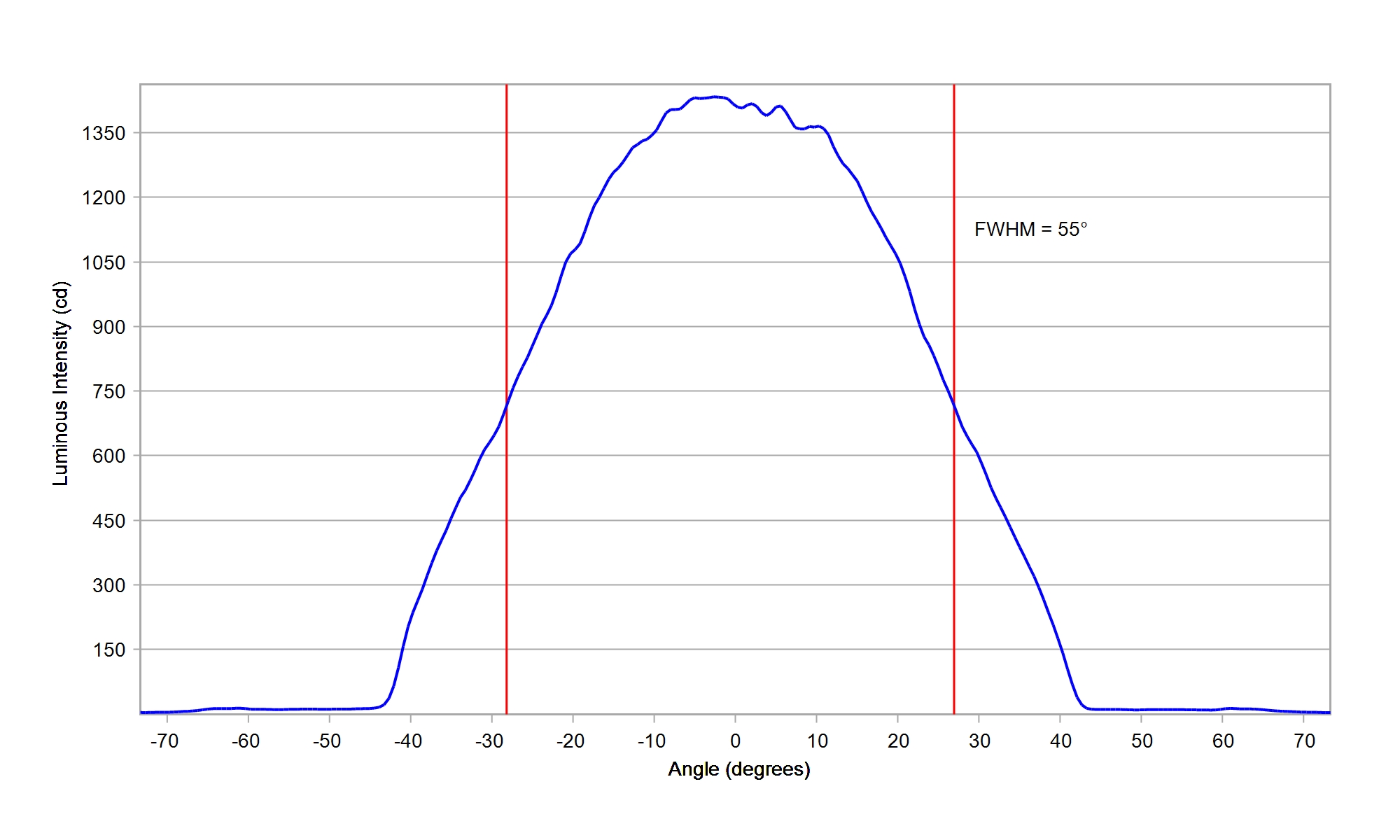

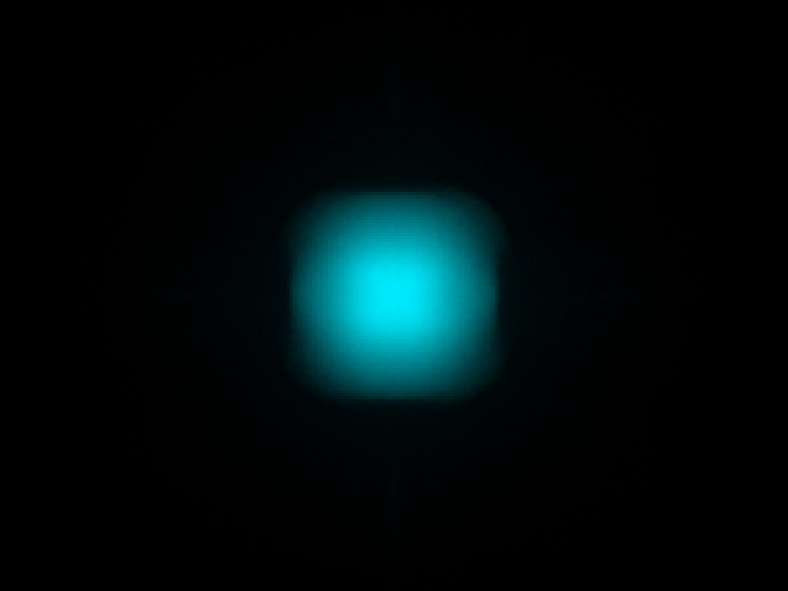

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
96.0%
FWHM:
55°
Cd/Im:
1.5
Download

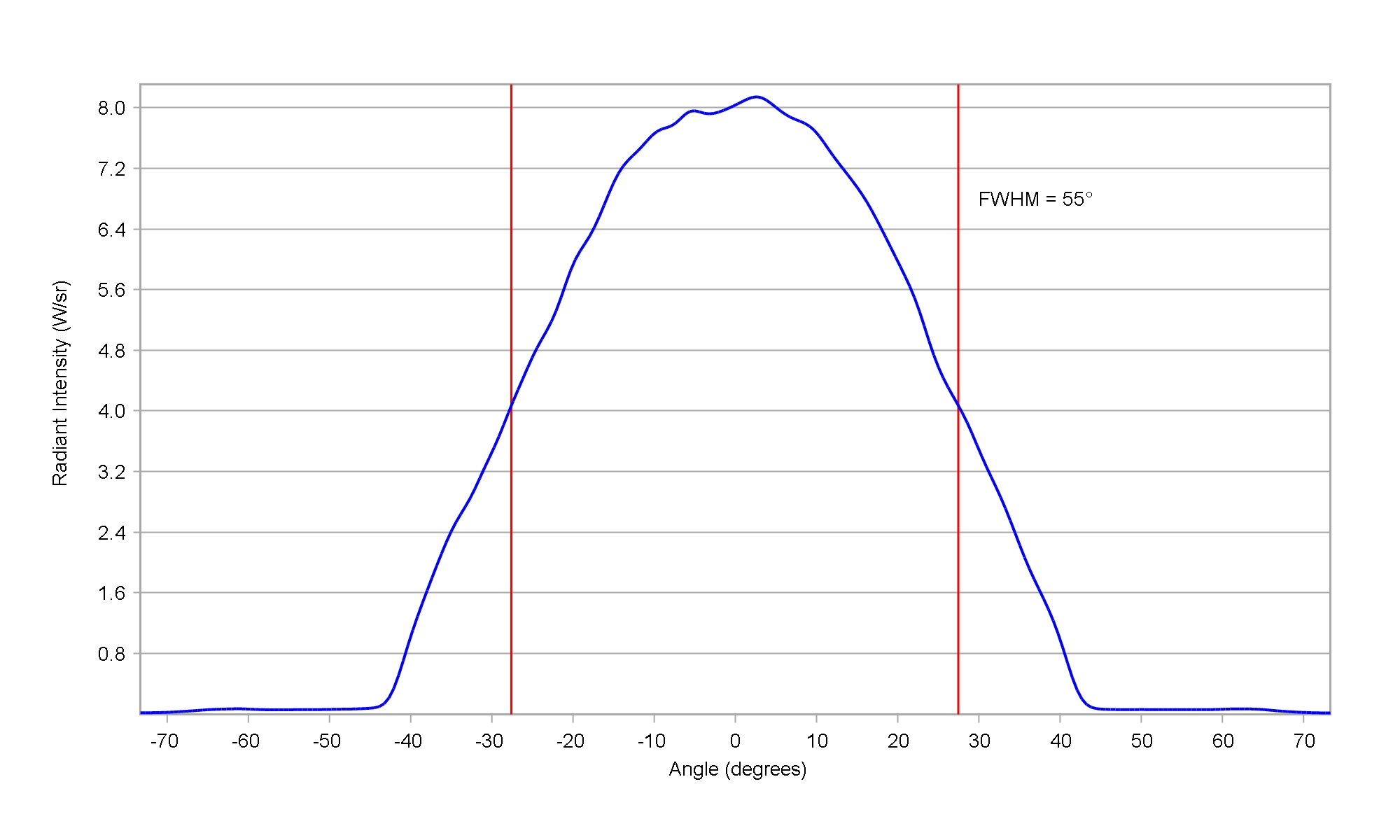

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
97.0%
FWHM:
55°
Ipk/W:
1.4
Download

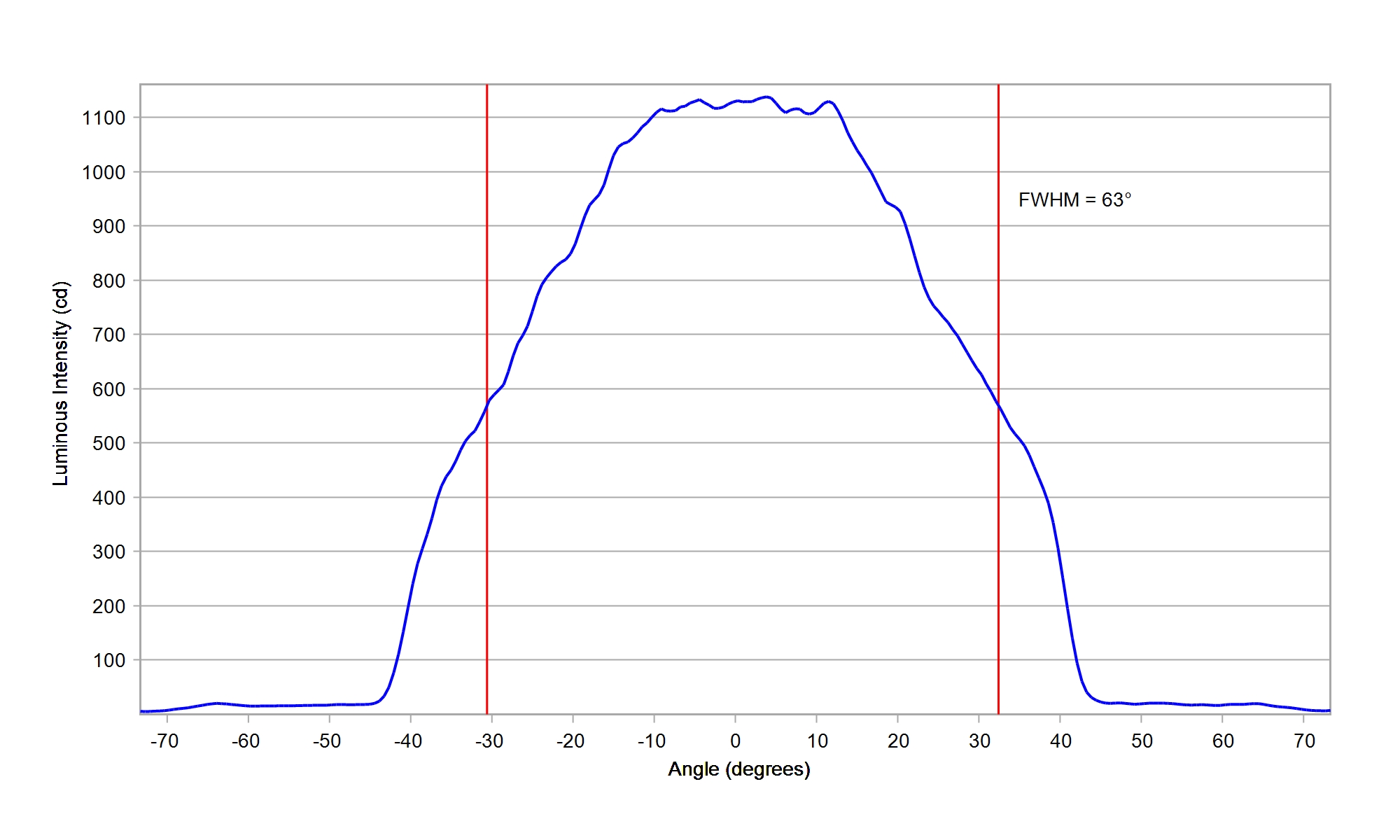

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
95.5%
FWHM:
63°
Cd/Im:
1.2
Download

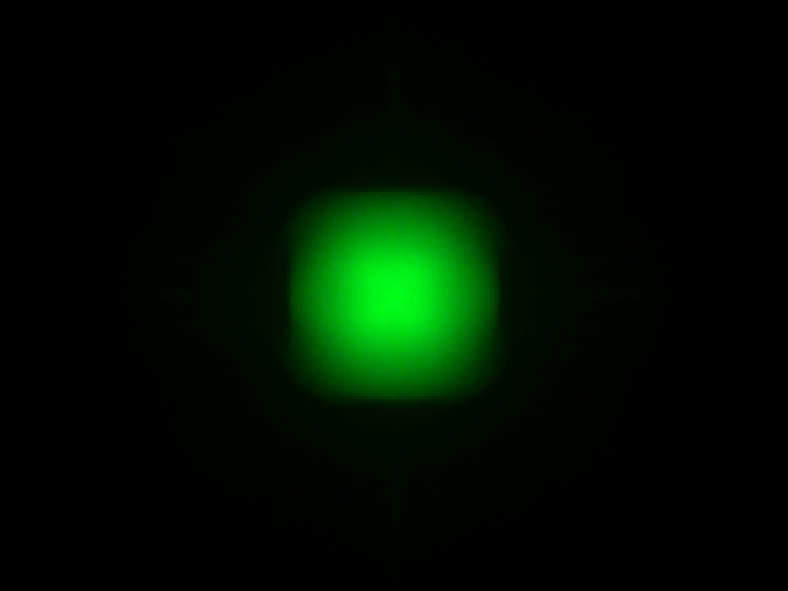

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.3
Download

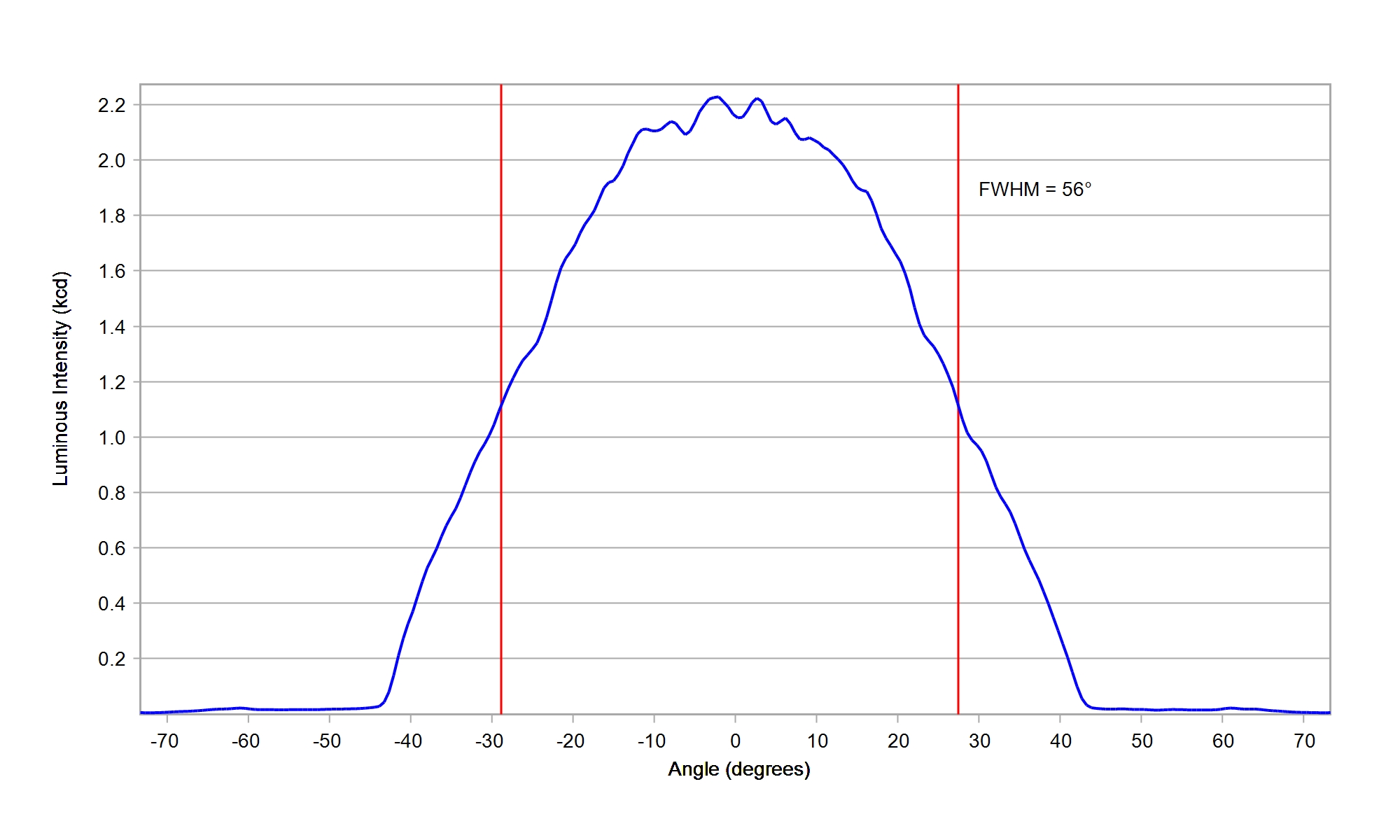

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.5
Download
Osram OS OSLON Pure 1414 GW VJLPL1.CM White
Eff:
95.5%
FWHM:
55°
Cd/Im:
1.4
Download
Osram OS OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
95.5%
FWHM:
57°
Cd/Im:
1.4
Download

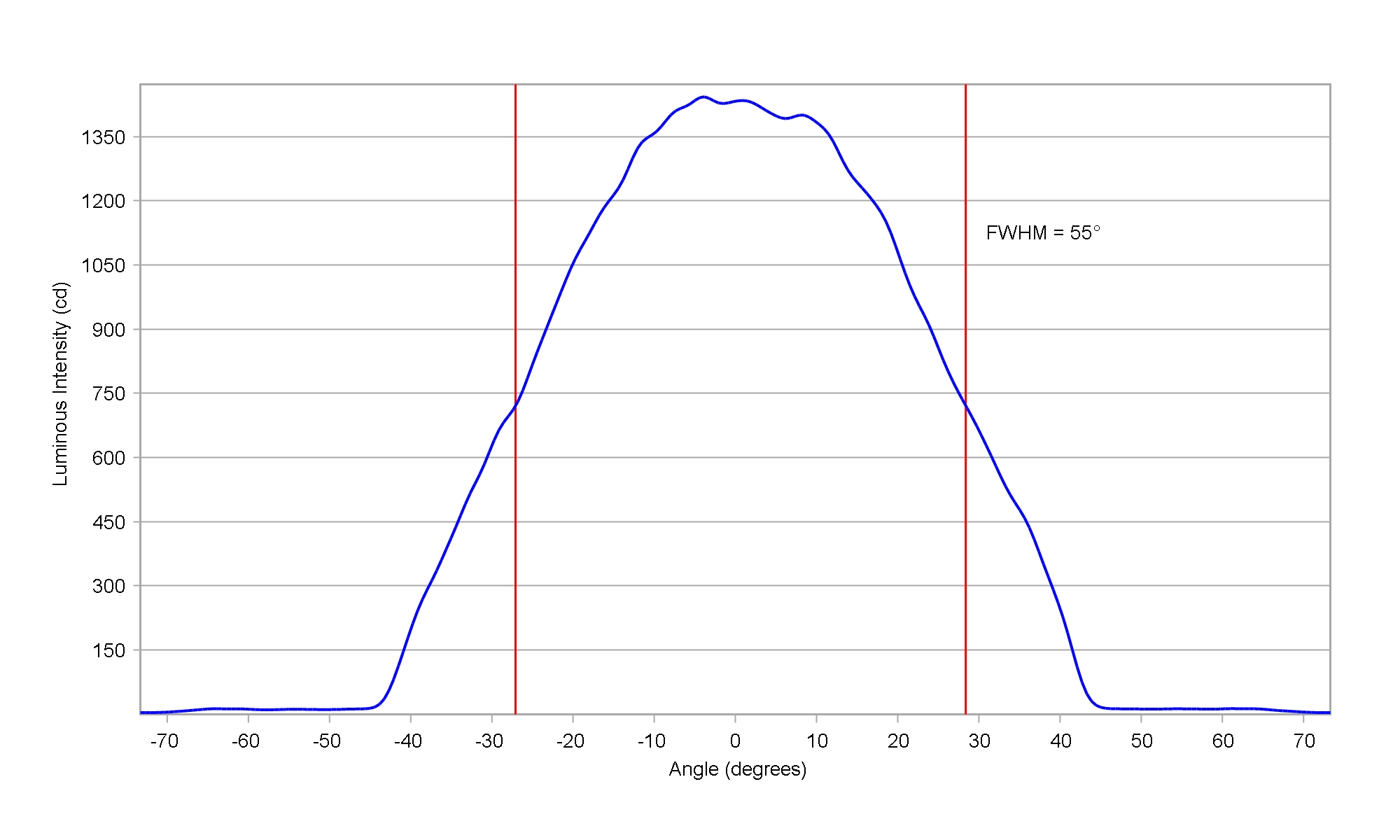

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
95.5%
FWHM:
55°
Cd/Im:
1.4
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
95.5%
FWHM:
69°
Cd/Im:
1.1
Download

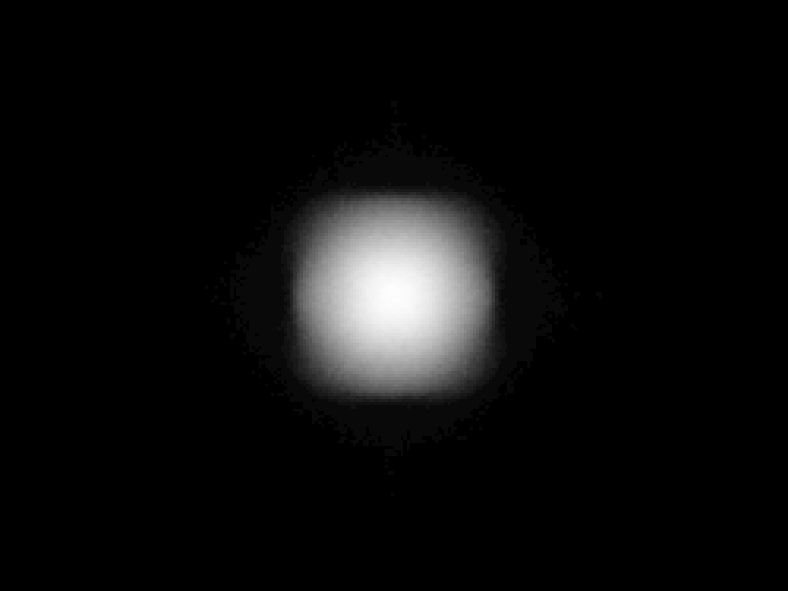

Osram OS Prevaled Bar G4
Eff:
95.5%
FWHM:
54°
Cd/Im:
1.5
Download
Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm
Eff:
95.0%
FWHM:
53°
Cd/Im:
1.6
Download

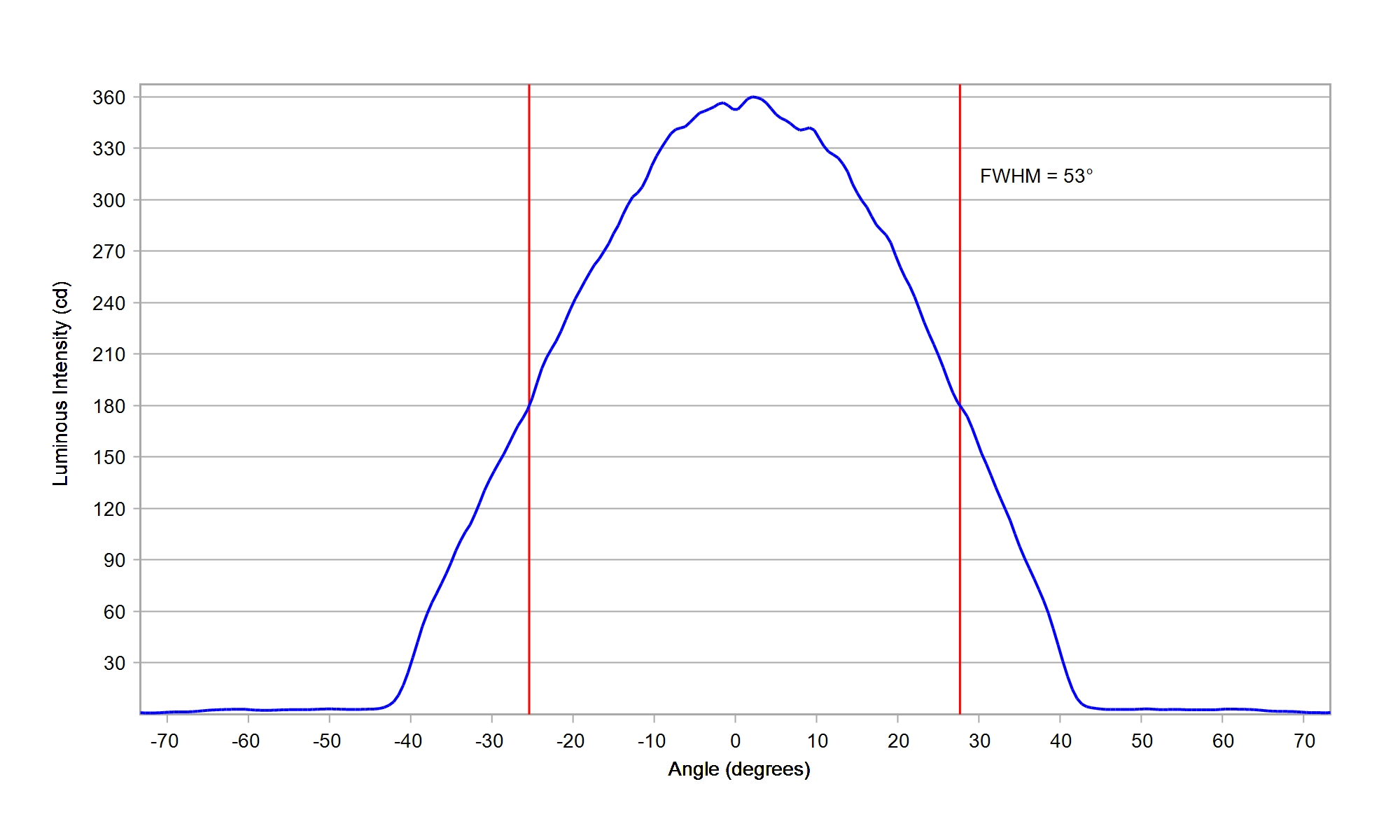

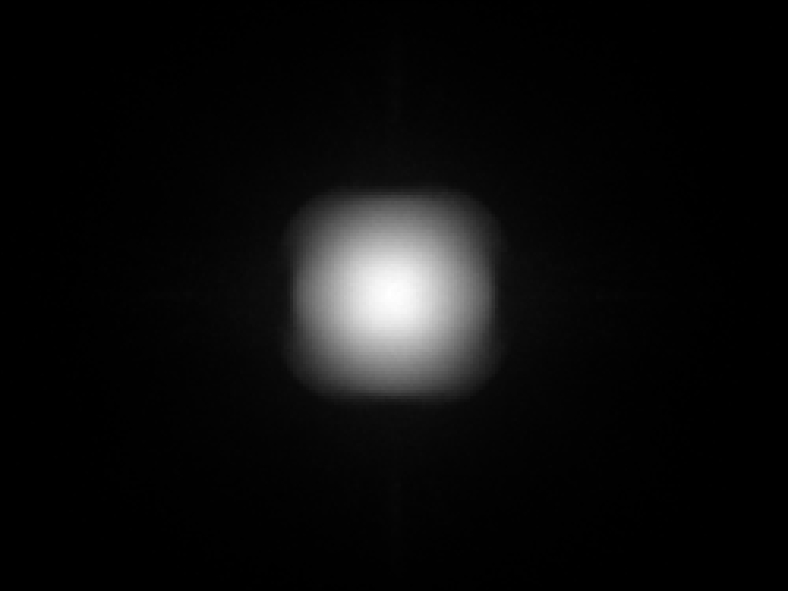

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm
Eff:
95.0%
FWHM:
52°
Cd/Im:
1.5
Download
Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm
Eff:
95.0%
FWHM:
54°
Cd/Im:
1.6
Download

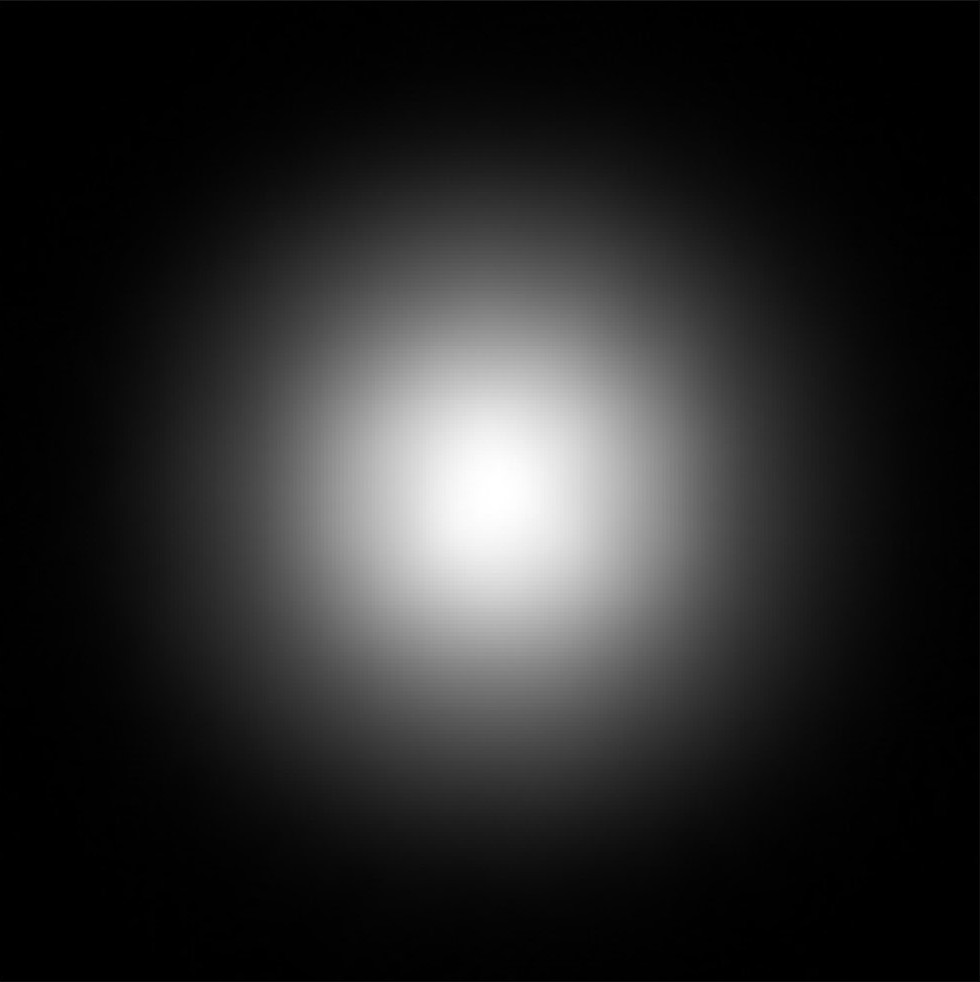

Philips Fortimo LED Line 3R HV4 Gen 1 Board
Eff:
90.5%
FWHM:
57 x 60°
Cd/Im:
1.0
Download
Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm
Eff:
92.5%
FWHM:
56°
Cd/Im:
1.4
Download

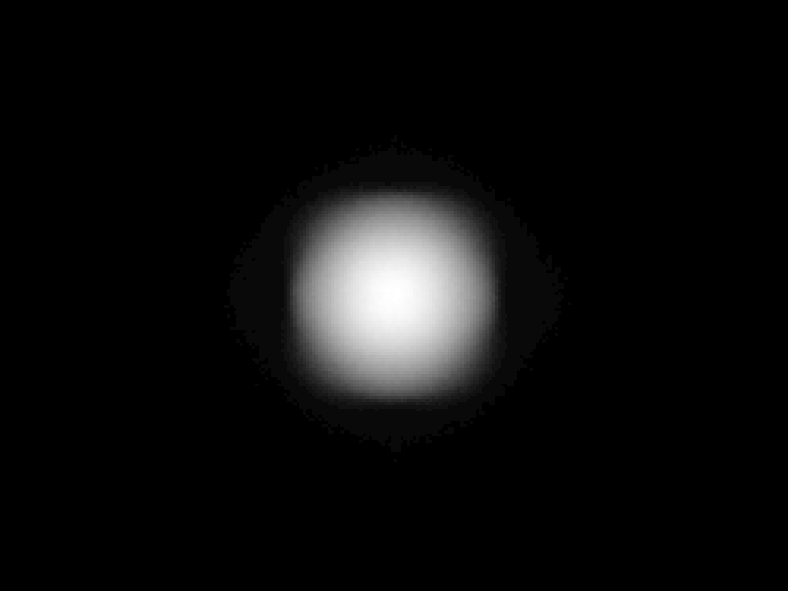

Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm
Eff:
92.5%
FWHM:
56°
Cd/Im:
1.3
Download

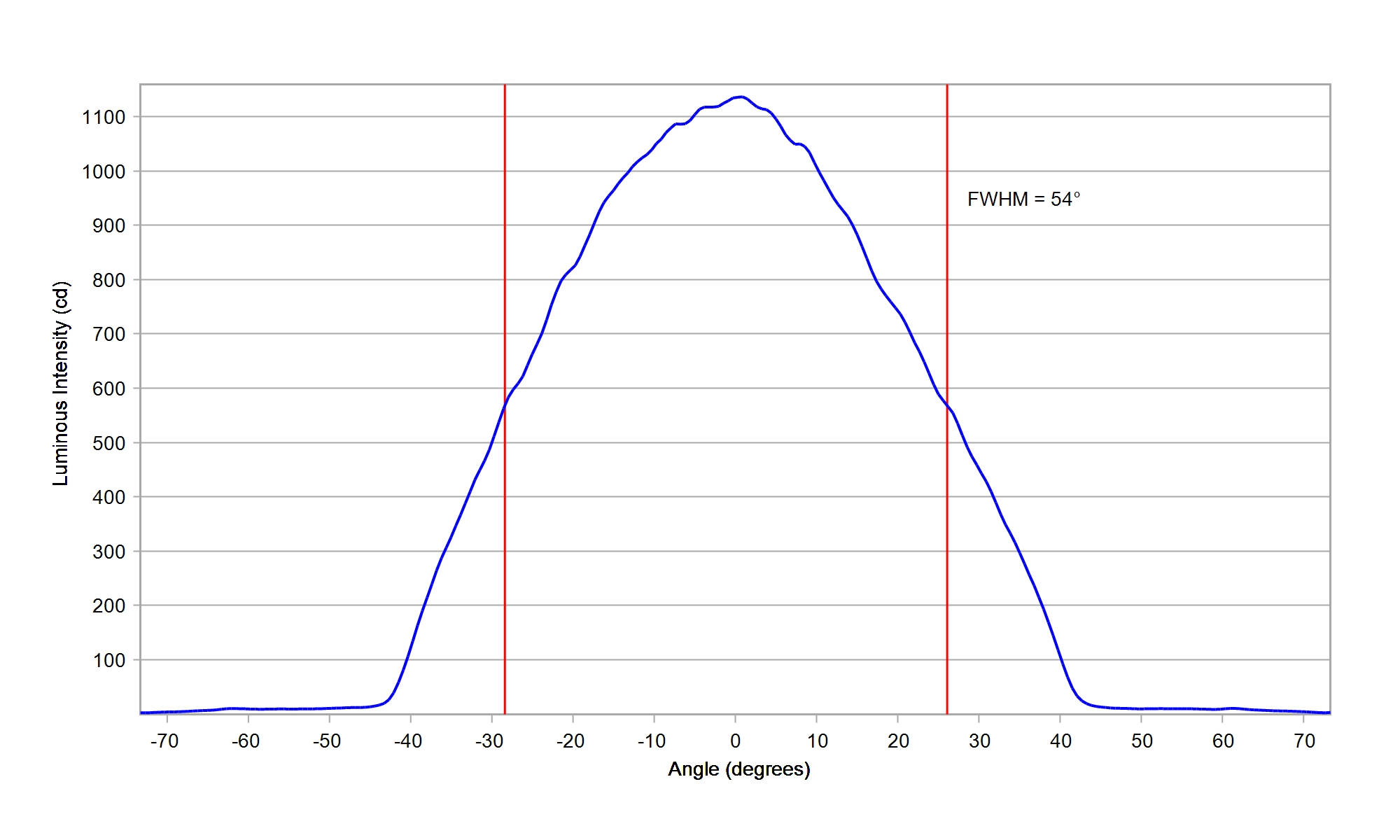

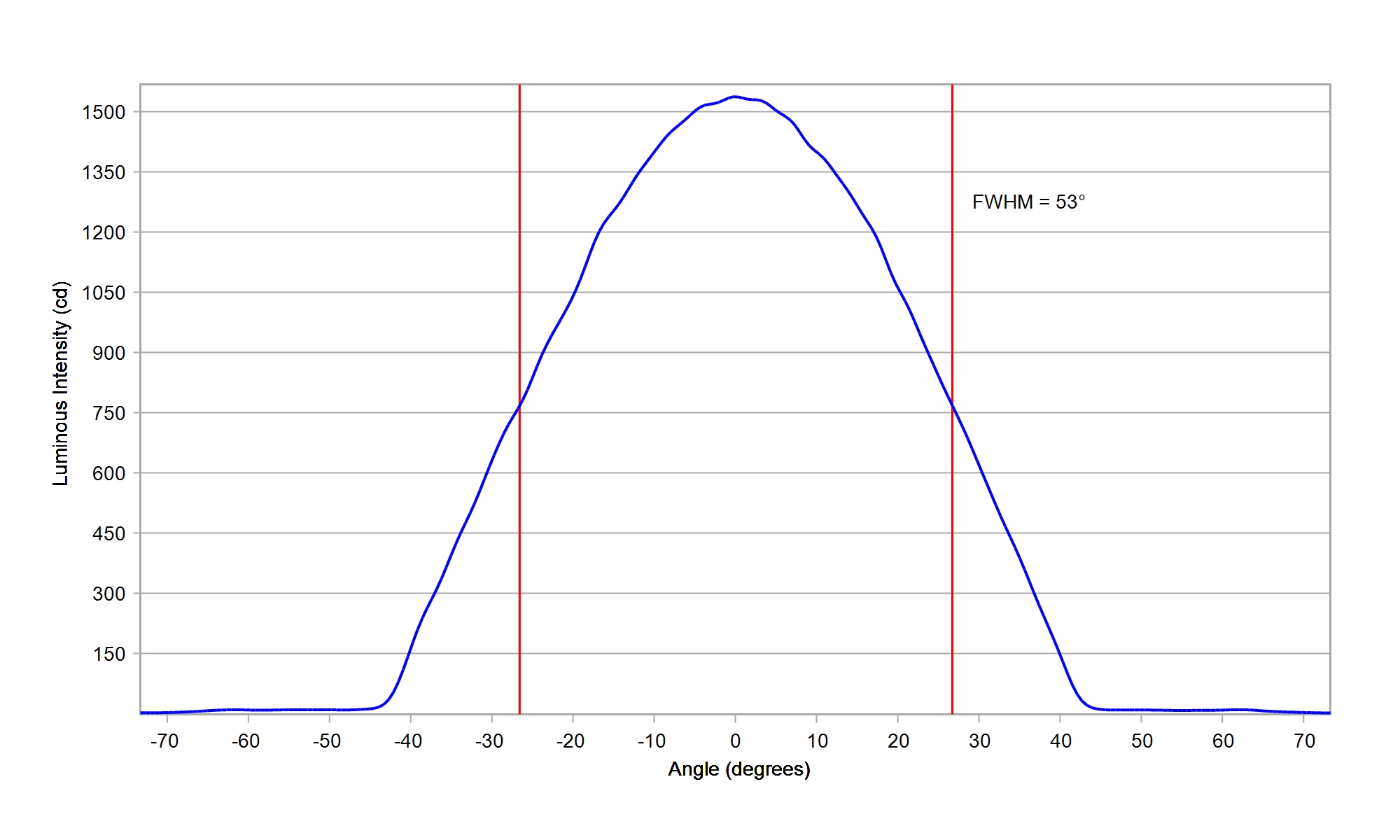

Samsung 2835 LM281B+ White
Eff:
95.0%
FWHM:
54°
Cd/Im:
1.5
Download

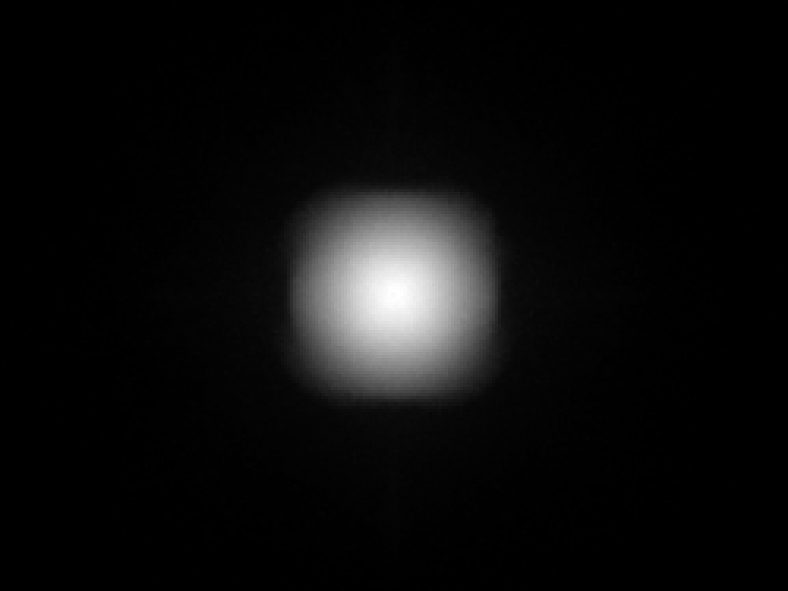

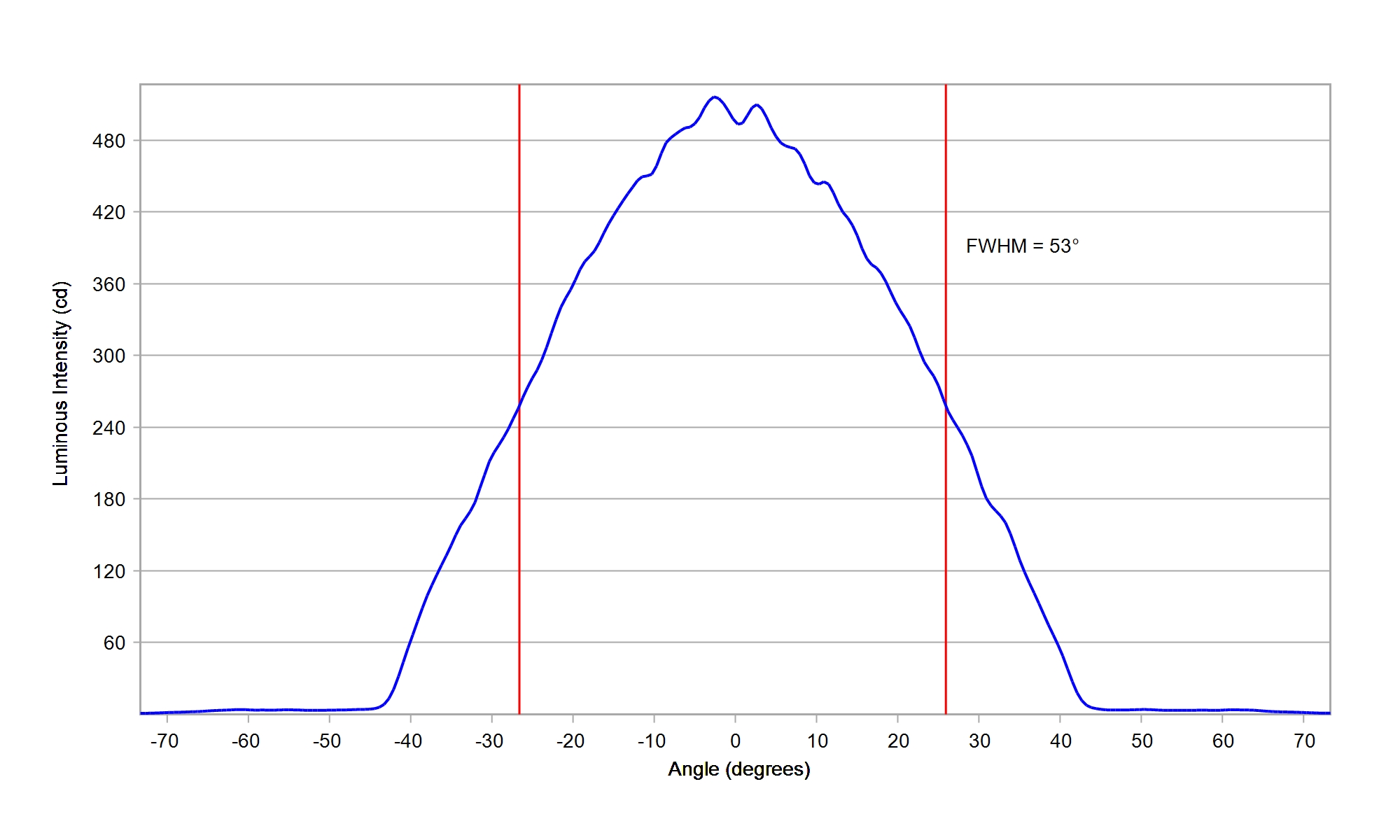

Samsung 3030 LM301B White
Eff:
95.5%
FWHM:
53°
Cd/Im:
1.5
Download
Samsung 5050 LH502C White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.4
Download

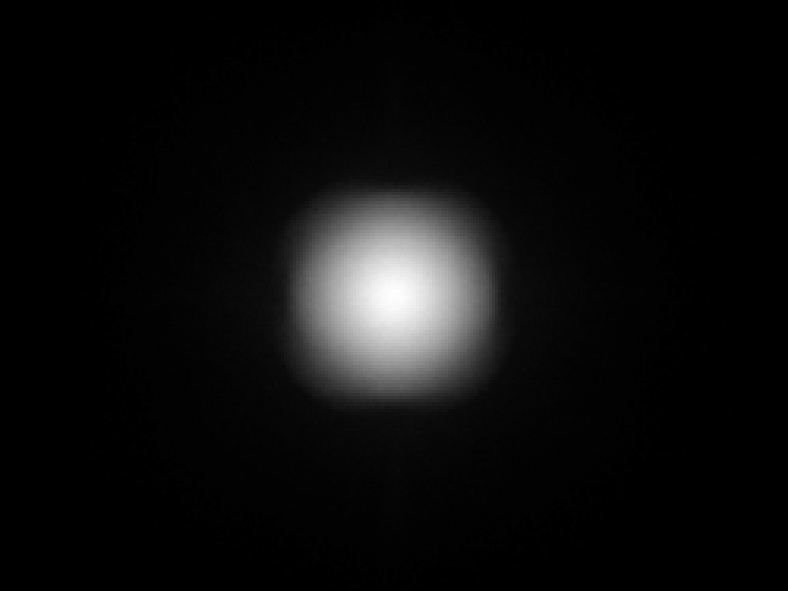

Samsung 5050 LH502D White
Eff:
95.5%
FWHM:
58°
Cd/Im:
1.7
Download

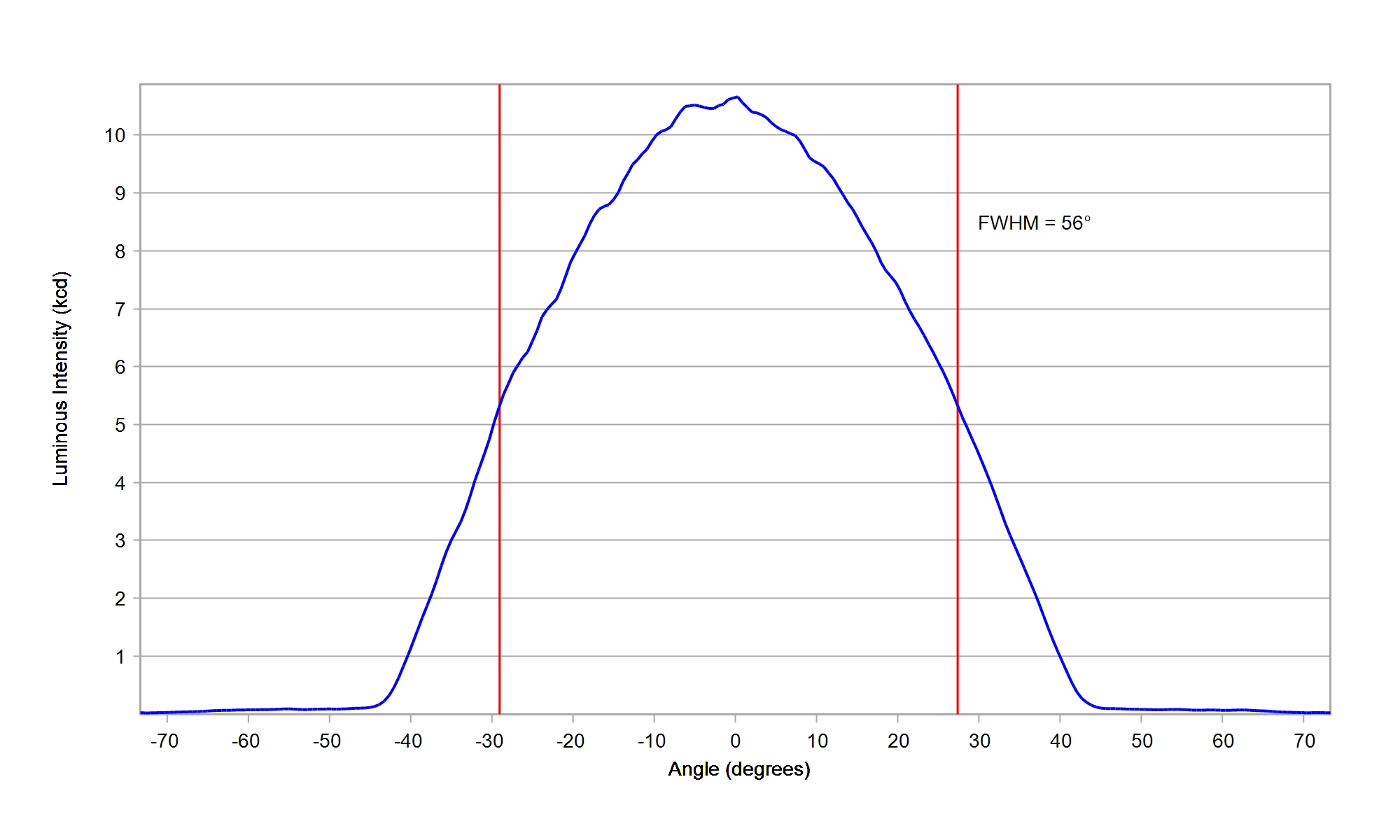

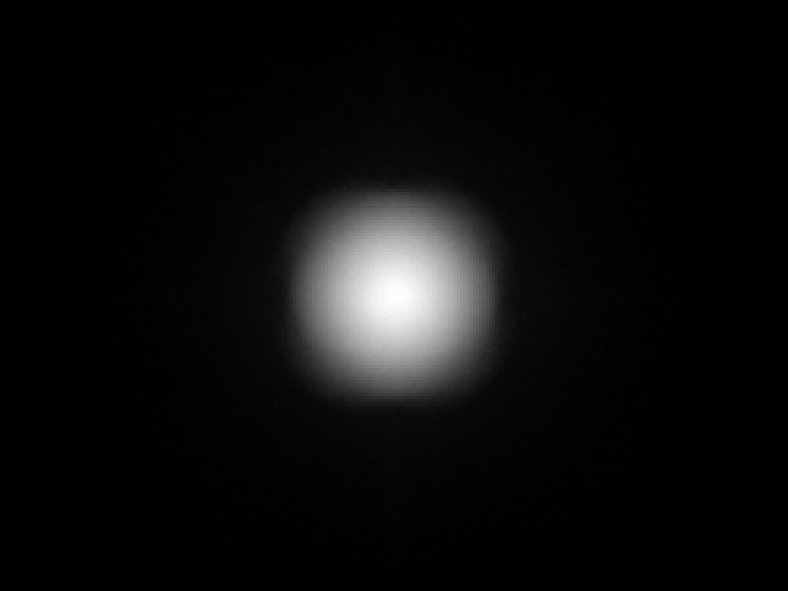

Samsung 5050 LH508C White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.5
Download
Samsung CSP LH151B White
Eff:
95.0%
FWHM:
50°
Cd/Im:
1.7
Download
Samsung CSP LH181B White
Eff:
95.0%
FWHM:
51 x 50°
Cd/Im:
1.7
Download

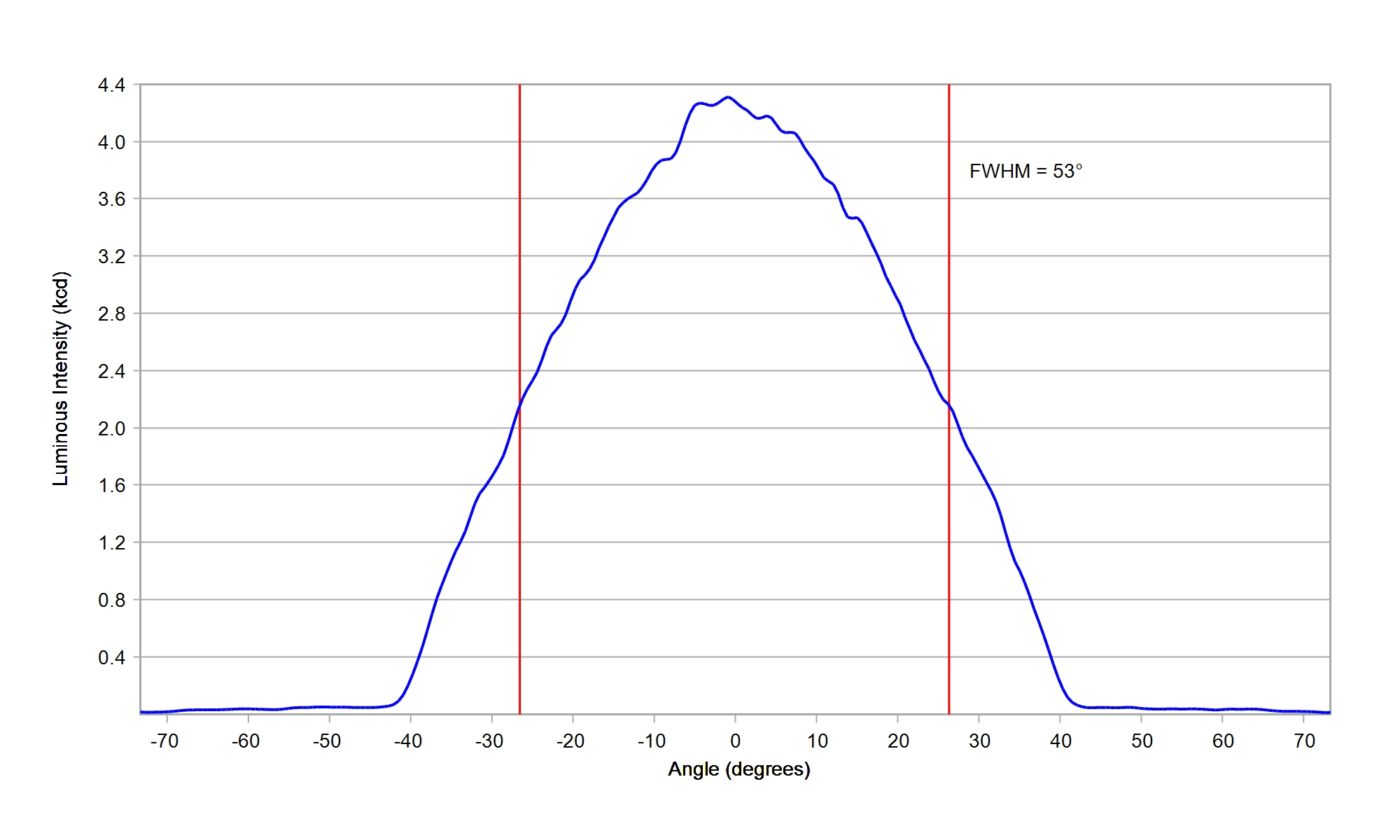

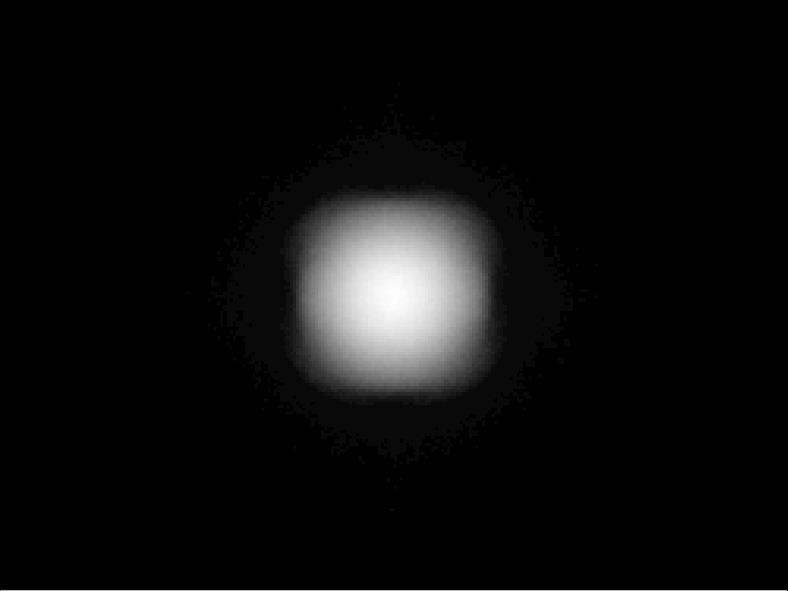

Samsung CSP LH231B White
Eff:
95.0%
FWHM:
53 x 52°
Cd/Im:
1.9
Download

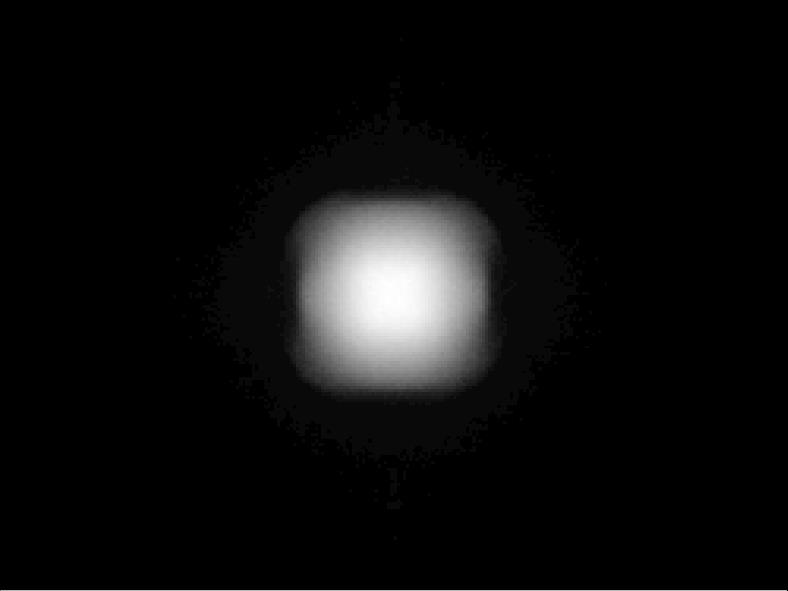

Samsung CSP LM101B White
Eff:
95.0%
FWHM:
53°
Cd/Im:
1.7
Download

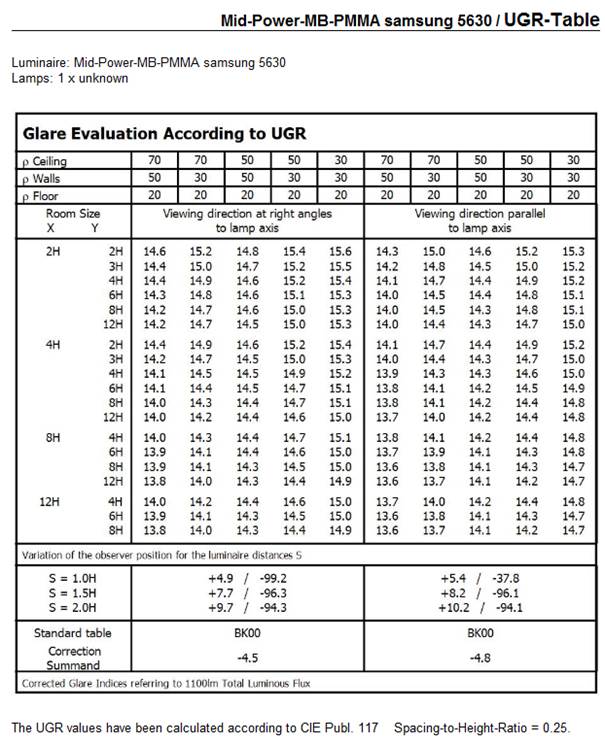

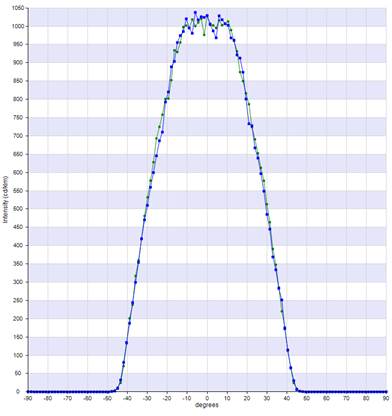

Samsung MidPower 5630 White
Eff:
90.0%
FWHM:
59.9°
Cd/Im:
1.1
Download

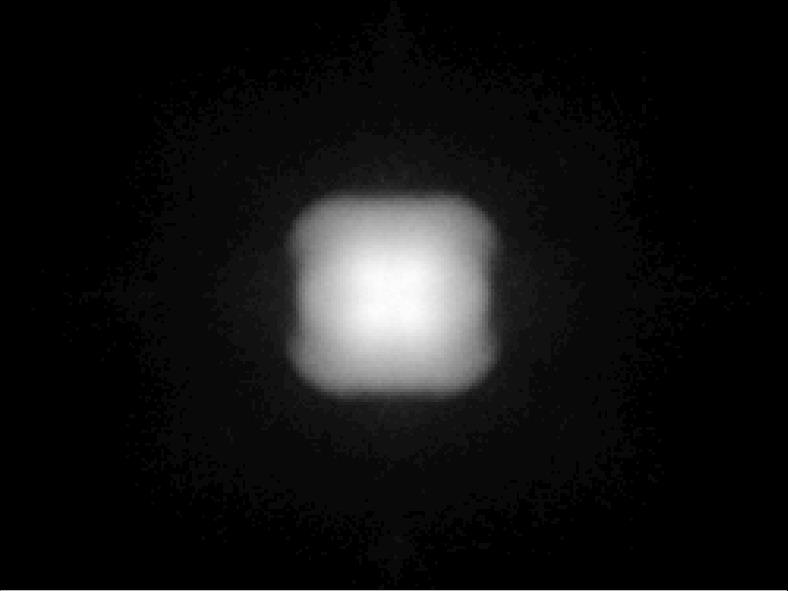

Seoul CSP SZ8Y11 White
Eff:
91.5%
FWHM:
64 x 59°
Cd/Im:
1.3
Download
Seoul CSP SZ8Y22 White
Eff:
93.5%
FWHM:
58 x 56°
Cd/Im:
1.3
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
60.5°
Cd/Im:
1.2
Download

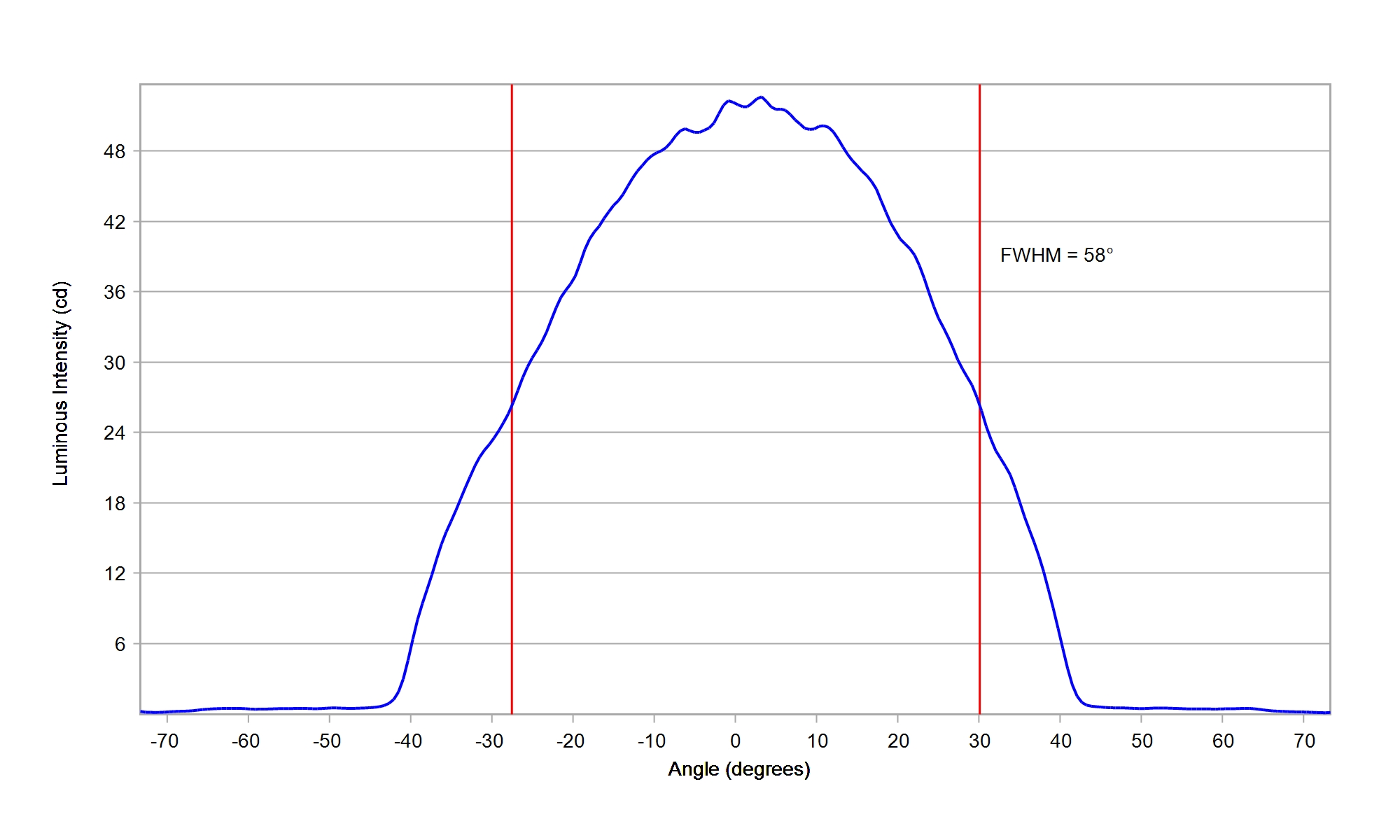

Seoul MidPower 3030 STB0C2PB Blue
Eff:
96.5%
FWHM:
58°
Cd/Im:
1.5
Download
Seoul MidPower 3030 STDRC12B Deep Red
Eff:
96.0%
FWHM:
55°
Cd/Im:
1.4
Download

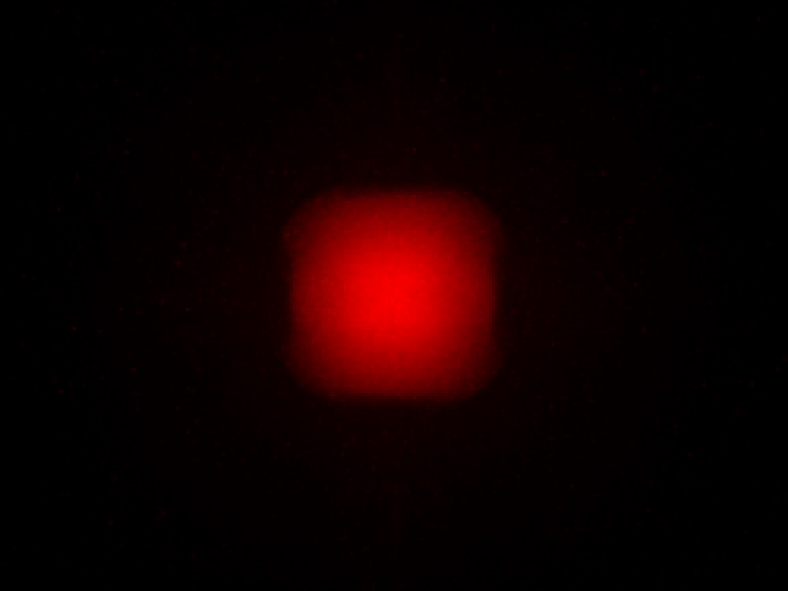

Seoul MidPower 3030 STFRC12B Far Red
Eff:
96.5%
FWHM:
57°
Cd/Im:
2.2
Download

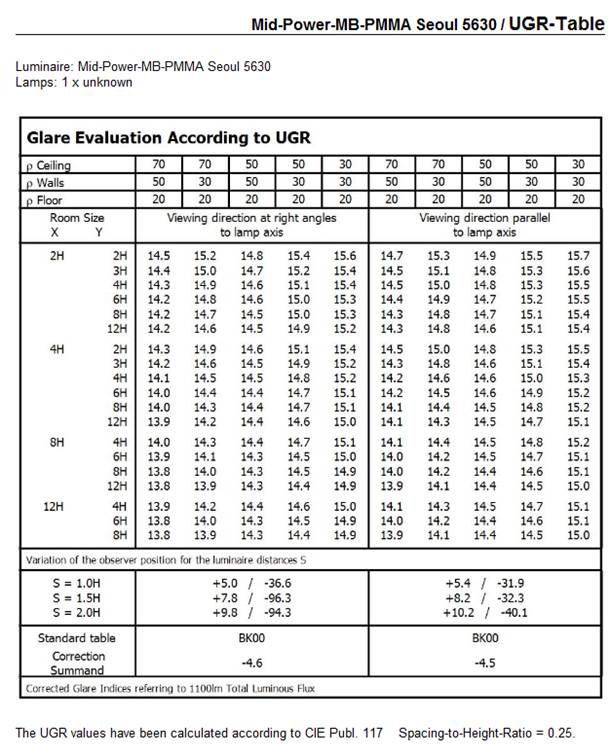

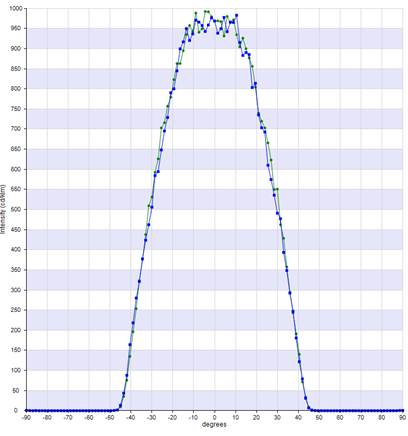

Seoul MidPower 5630 STW8Q14C White
Eff:
90.0%
FWHM:
61.7°
Cd/Im:
1.0
Download
Seoul MidPower 5630 STW8Q14C White
Eff:
93.0%
FWHM:
57°
Cd/Im:
1.1
Download

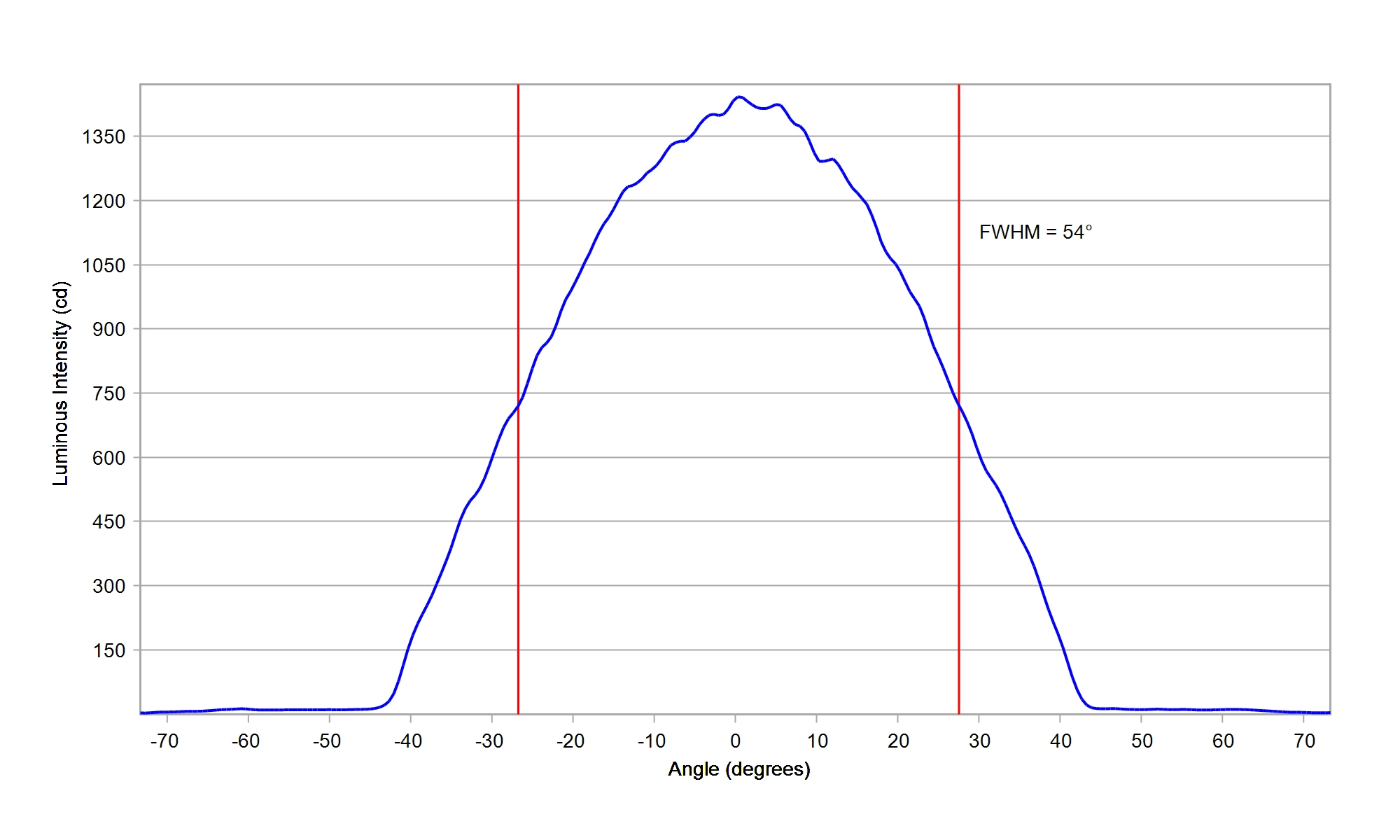

Seoul STW8 C2SB-NT White
Eff:
95.5%
FWHM:
54.0°
Cd/Im:
1.5
Download

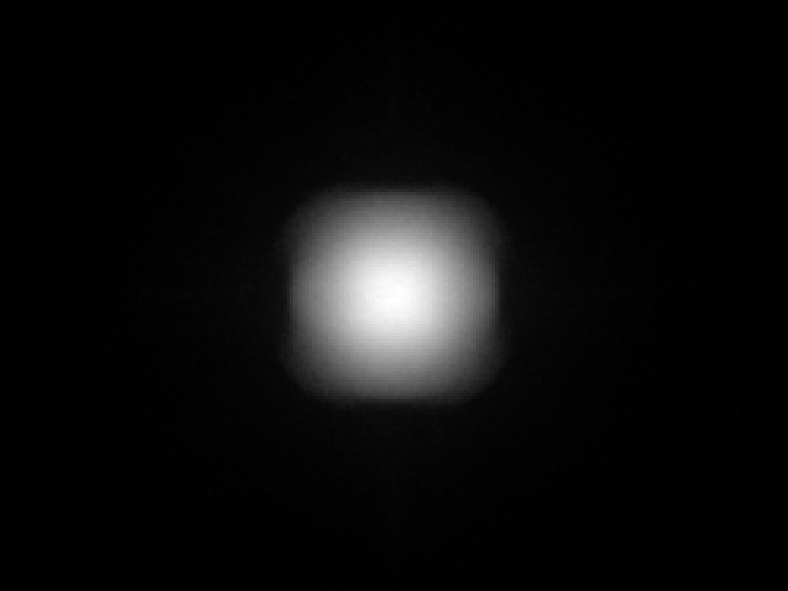

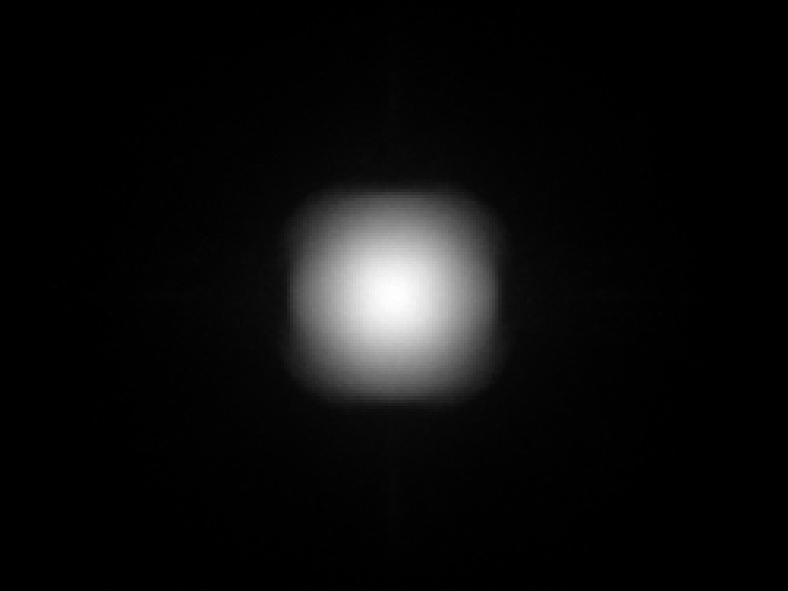

Seoul STWS C2PB-E0 White
Eff:
95.5%
FWHM:
54.0°
Cd/Im:
1.6
Download

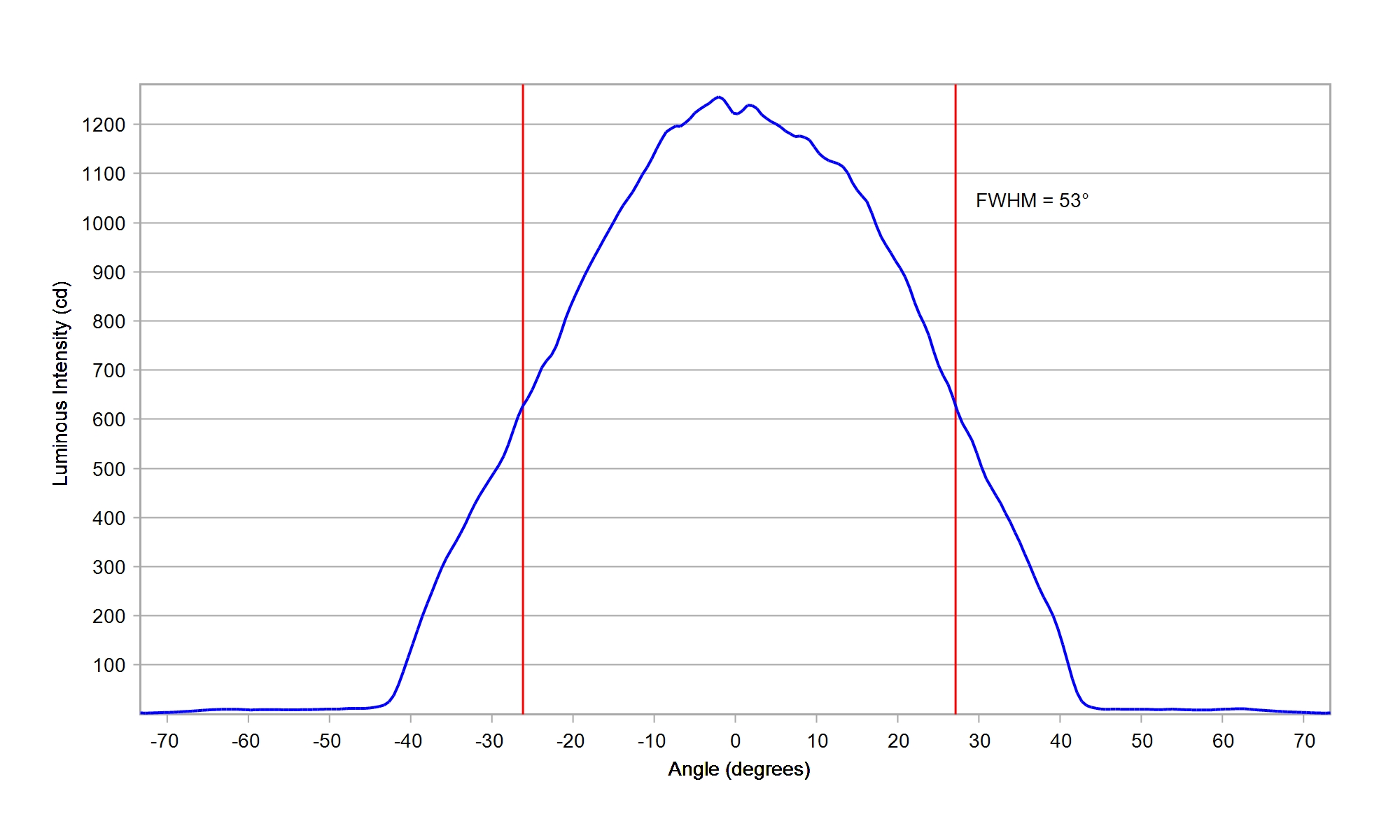

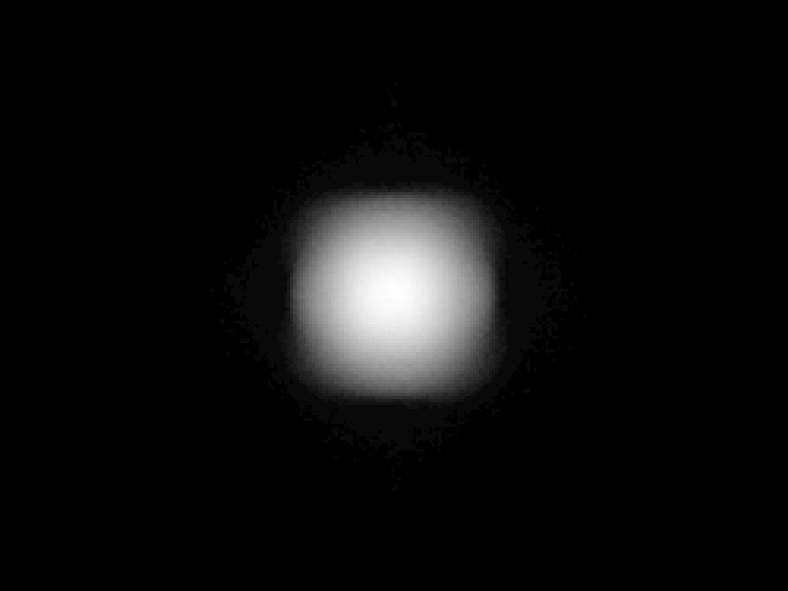

Seoul SunLike STW9 C2SB-S
Eff:
95.5%
FWHM:
53°
Cd/Im:
1.6
Download
