292 x 61mm Narrow Spot Plain Freeform | Carclo Optics

Carclo Optics - 12924 - 33Up Array

292 x 61mm Narrow Spot Plain Freeform

Part number

12924

Dimensions

292 x 61mm

Drawing Number

12924_Rev-2_NB_SBoard_Customer

Optic type

Freeform

Finish

Plain

Beam type

Narrow Spot

Applications

Industrial

Office

Horticultural

Retail

Warehouse

Material: PMMA

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

94.0%

FWHM:

26 x 24°

Cd/Im:

3.6

Carclo Optics - 12924 33Up Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12924 33Up Cross Section Bridgelux 3030 Gen2

Download

IES

Cree JB3030 3V White

Eff:

94.0%

FWHM:

28.5°

Cd/Im:

3.2

Carclo Optics - 12924 Spot Image Cree JB3030 3V White

Carclo Optics - 12924 Cross Section Cree JB3030 3V White

Download

IES

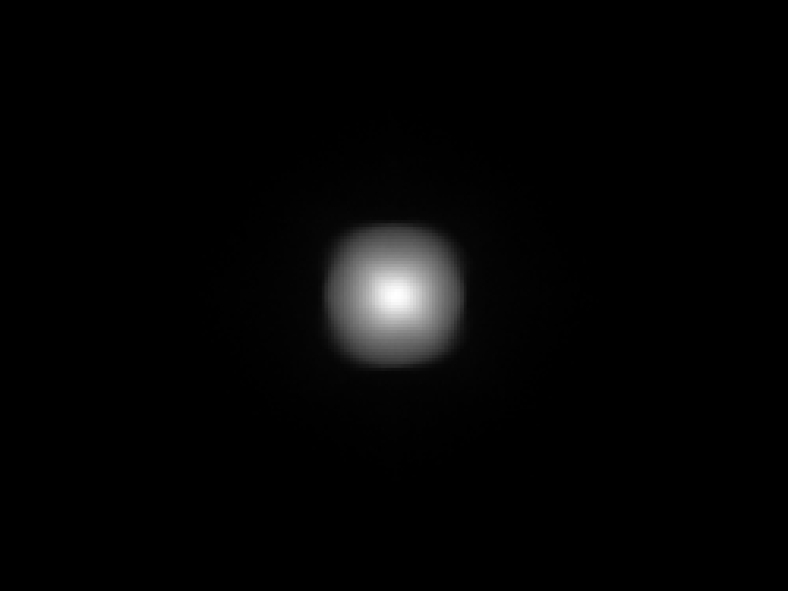

Cree JK2835 6V White

Eff:

94.0%

FWHM:

27.5°

Cd/Im:

3.3

Download

IES

Cree JQ5050 9V White

Eff:

93.5%

FWHM:

44.0°

Cd/Im:

1.9

Carclo Optics - 12924 Spot Image Cree JQ5050 9V White

Carclo Optics - 12924 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

93.5%

FWHM:

42.0°

Cd/Im:

1.9

Carclo Optics - 12924 Spot Image Cree JR5050 24V White

Carclo Optics - 12924 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

93.5%

FWHM:

40.0°

Cd/Im:

2.0

Carclo Optics - 12924 Spot Image Cree JR5050 36V White

Carclo Optics - 12924 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

93.5%

FWHM:

42.0°

Cd/Im:

2.0

Carclo Optics - 12924 Spot Image Cree JR50506V White

Carclo Optics - 12924 Cross Section Cree JR50506V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

93.5%

FWHM:

43°

Cd/Im:

2.0


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

93.5%

FWHM:

27°

Cd/Im:

3.1

Download

IES

Cree XLamp XE-G White

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.5

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

91.5%

FWHM:

34°

Cd/Im:

2.4

Carclo Optics – 12924 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12924 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XP-E2 Far Red

Eff:

94.5%

FWHM:

34°

Cd/Im:

2.2

Carclo Optics – 12924 Cree Xlamp XP-E2 Far Red - Spot Image

Carclo Optics – 12924 Cree Xlamp XP-E2 Far Red - Cross-Section

Download

IES

Cree XLamp XP-E2 White

Eff:

94.0%

FWHM:

31°

Cd/Im:

2.6

Download

IES

Cree XLamp XP-G3 Photo Red

Eff:

94.5%

FWHM:

37°

Cd/Im:

2.2

Carclo Optics – 12924 Cree Xlamp XP-G3 Photo Red - Spot Image

Carclo Optics – 12924 Cree Xlamp XP-G3 Photo Red - Cross-Section

Download

IES

Cree XLamp XP-G3 Royal Blue

Eff:

91.5%

FWHM:

35°

Cd/Im:

2.1

Carclo Optics – 12924 Cree Xlamp XP-G3 Royal Blue - Spot Image

Carclo Optics – 12924 Cree Xlamp XP-G3 Royal Blue - Cross-Section

Download

IES

Cree XLamp XP-P White

Eff:

94.0%

FWHM:

28.5°

Cd/Im:

2.9

Carclo Optics – 12924 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12924 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

93.0%

FWHM:

26.0°

Cd/Im:

2.8

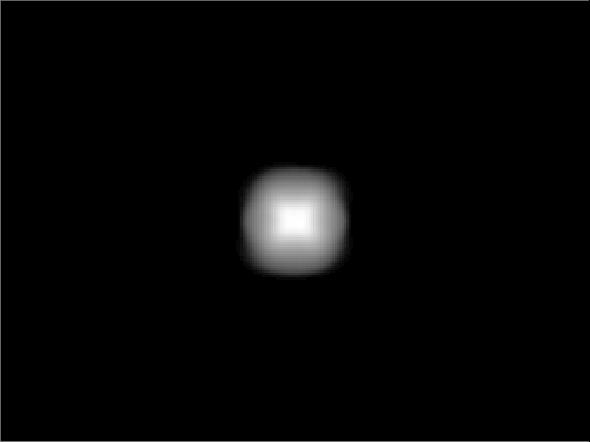

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LG Innotek MidPower 3030 LG White

Eff:

94.0%

FWHM:

24.5°

Cd/Im:

3.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LG Innotek MidPower 5630 White

Eff:

88.0%

FWHM:

30.7°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

LG Innotek MidPower 5630 White

Eff:

94.0%

FWHM:

34 x 27°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LG Innotek MidPower 6030 White

Eff:

87.0%

FWHM:

42°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

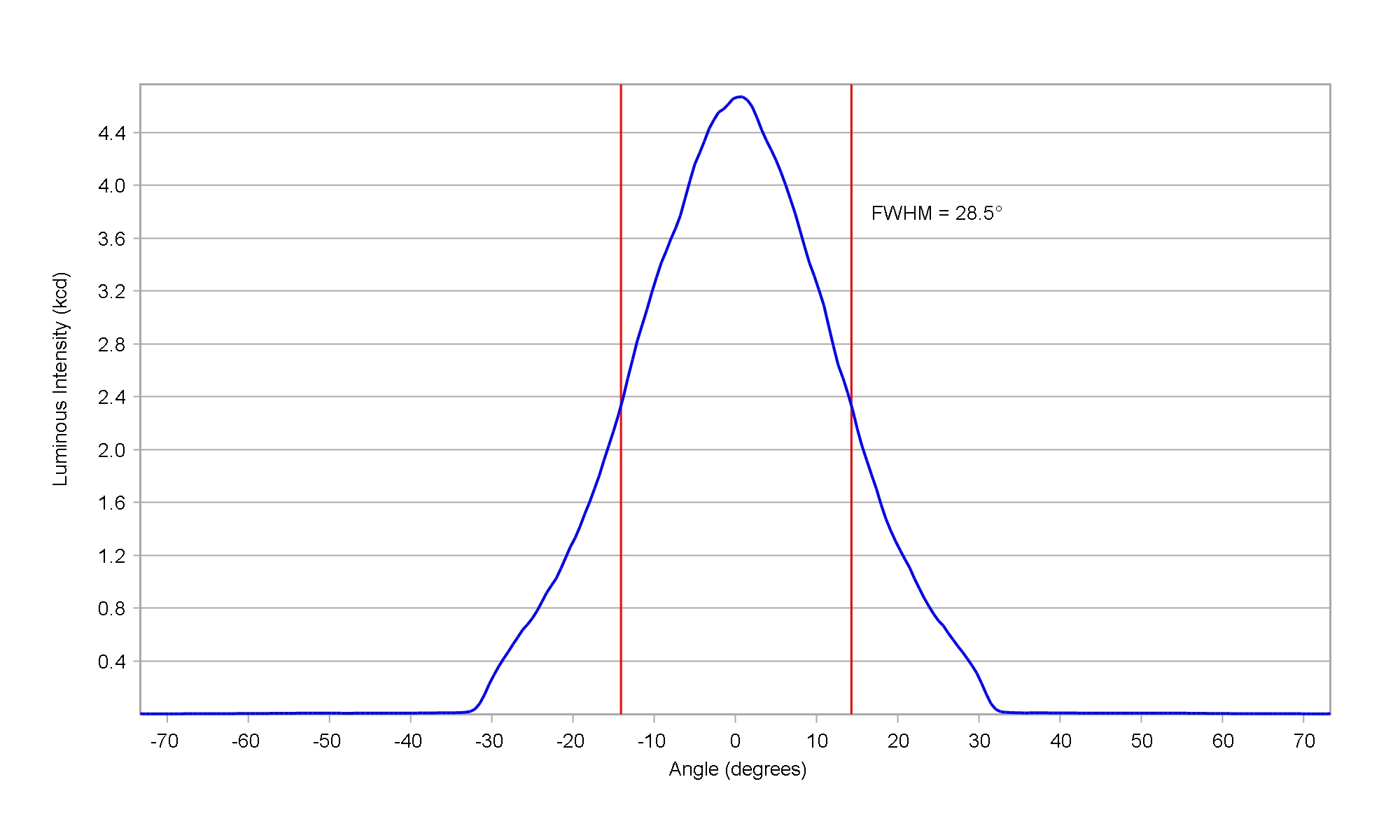

LUMILEDS LUXEON 2835C 6V White

Eff:

94.0%

FWHM:

28.5°

Cd/Im:

3.1

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

94.0%

FWHM:

28°

Cd/Im:

3.1

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

94.0%

FWHM:

28.5°

Cd/Im:

2.9

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

94.0%

FWHM:

29.5°

Cd/Im:

2.9

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

94.0%

FWHM:

29°

Cd/Im:

2.9

Download

LUMILEDS LUXEON 3014 White

Eff:

94.0%

FWHM:

25.5°

Cd/Im:

3.3

Download

IES

LUMILEDS LUXEON 3020 White

Eff:

94.0%

FWHM:

22.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

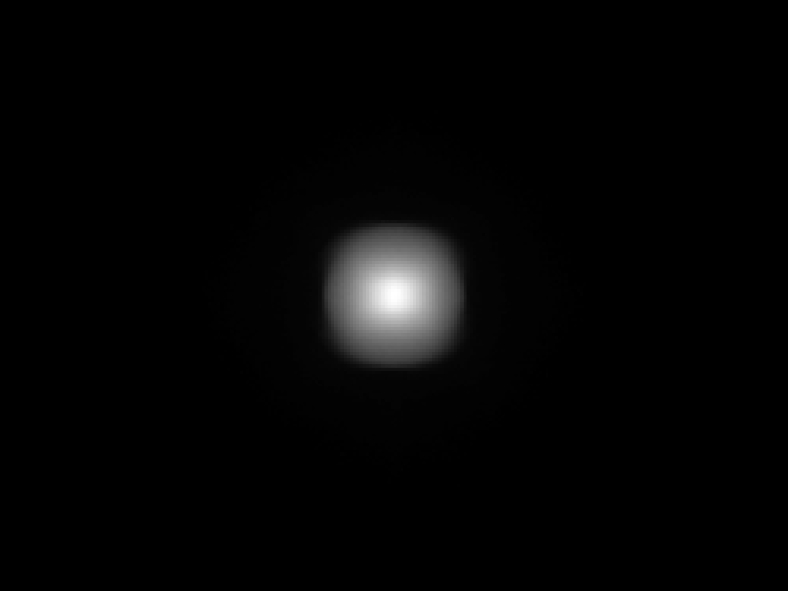

LUMILEDS LUXEON 3030 2D White

Eff:

94.0%

FWHM:

25°

Cd/Im:

3.7

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

94.0%

FWHM:

28°

Cd/Im:

3.1

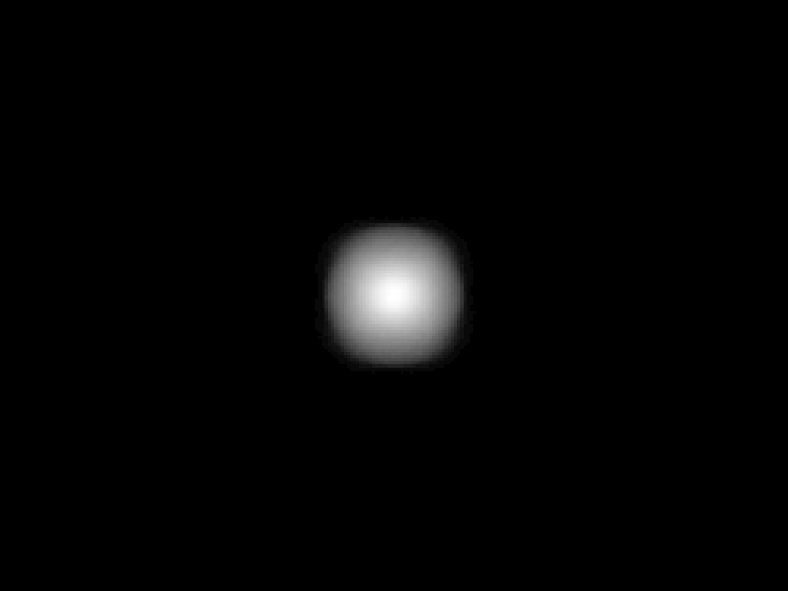

Carclo Optics – 12924 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12924 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

93.5%

FWHM:

29.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

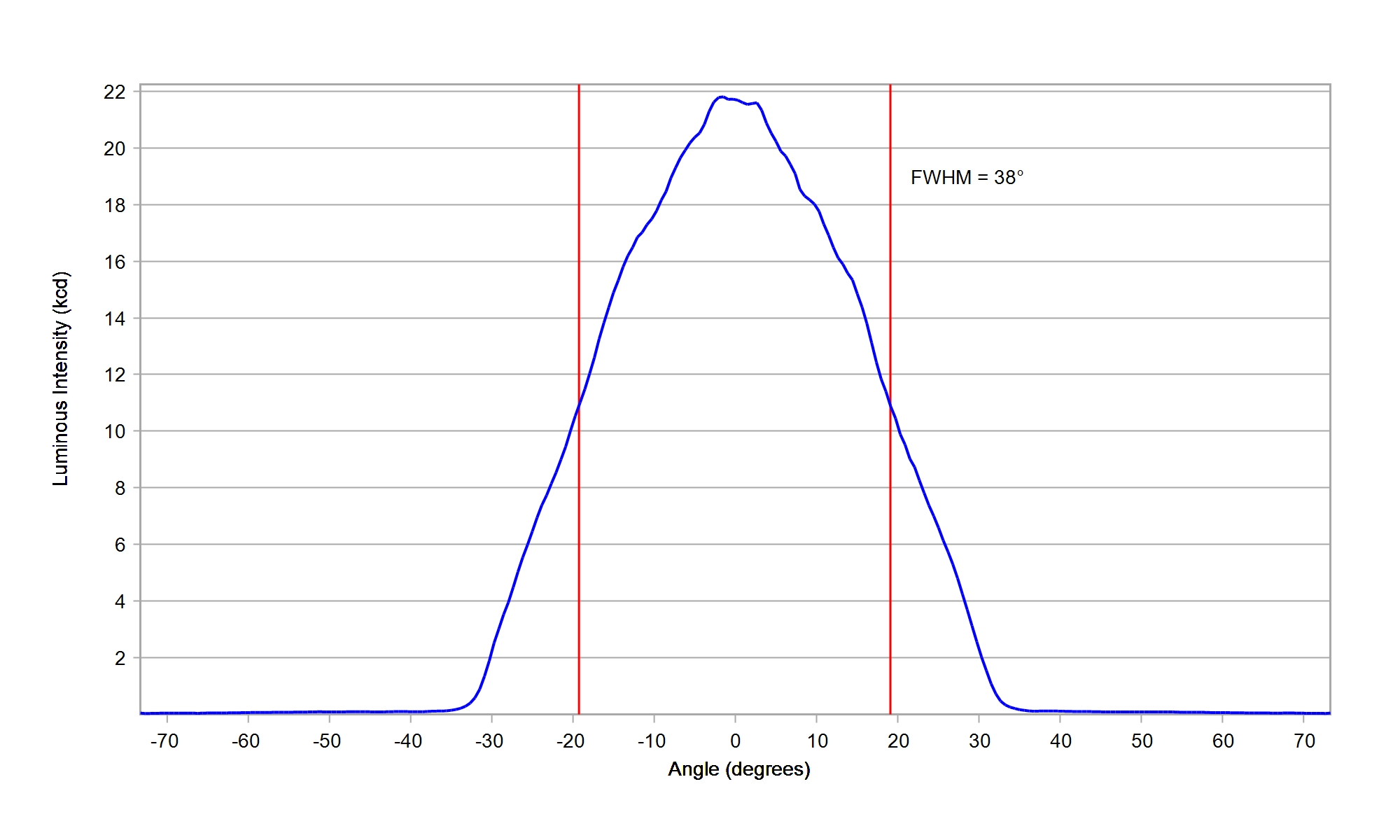

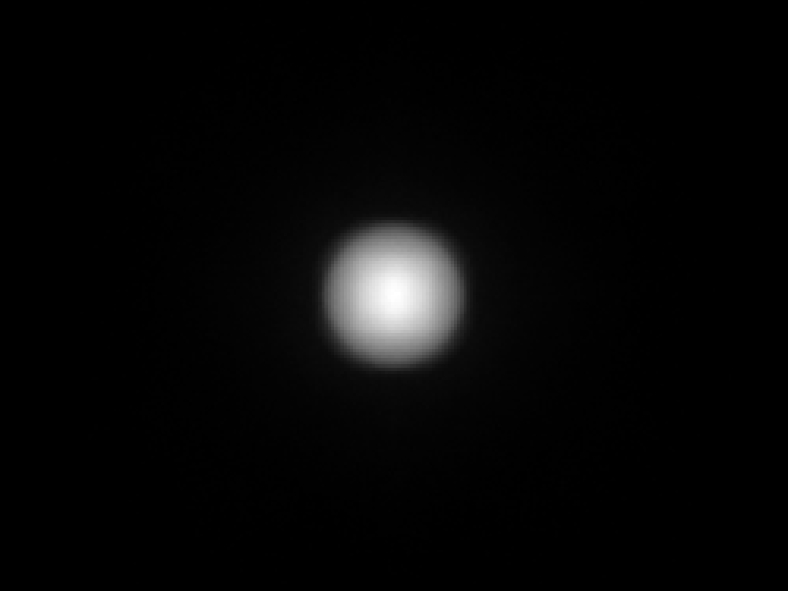

LUMILEDS LUXEON 5050 HE 24V White

Eff:

93.0%

FWHM:

38°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

93.0%

FWHM:

38°

Cd/Im:

2.0

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

93.5%

FWHM:

43°

Cd/Im:

1.9


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

93.5%

FWHM:

45°

Cd/Im:

1.7


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

93.5%

FWHM:

42°

Cd/Im:

2.0


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

94.0%

FWHM:

41.5°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

89.5%

FWHM:

30°

Cd/Im:

2.0

Download

LUMILEDS LUXEON CZ White

Eff:

94.0%

FWHM:

27.5 x 25°

Cd/Im:

2.9

Carclo Optics 12924 Spot Image Luxeon CZ 5M CW

Carclo Optics 12924 Cross Section Luxeon CZ 5M CW

Download

IES

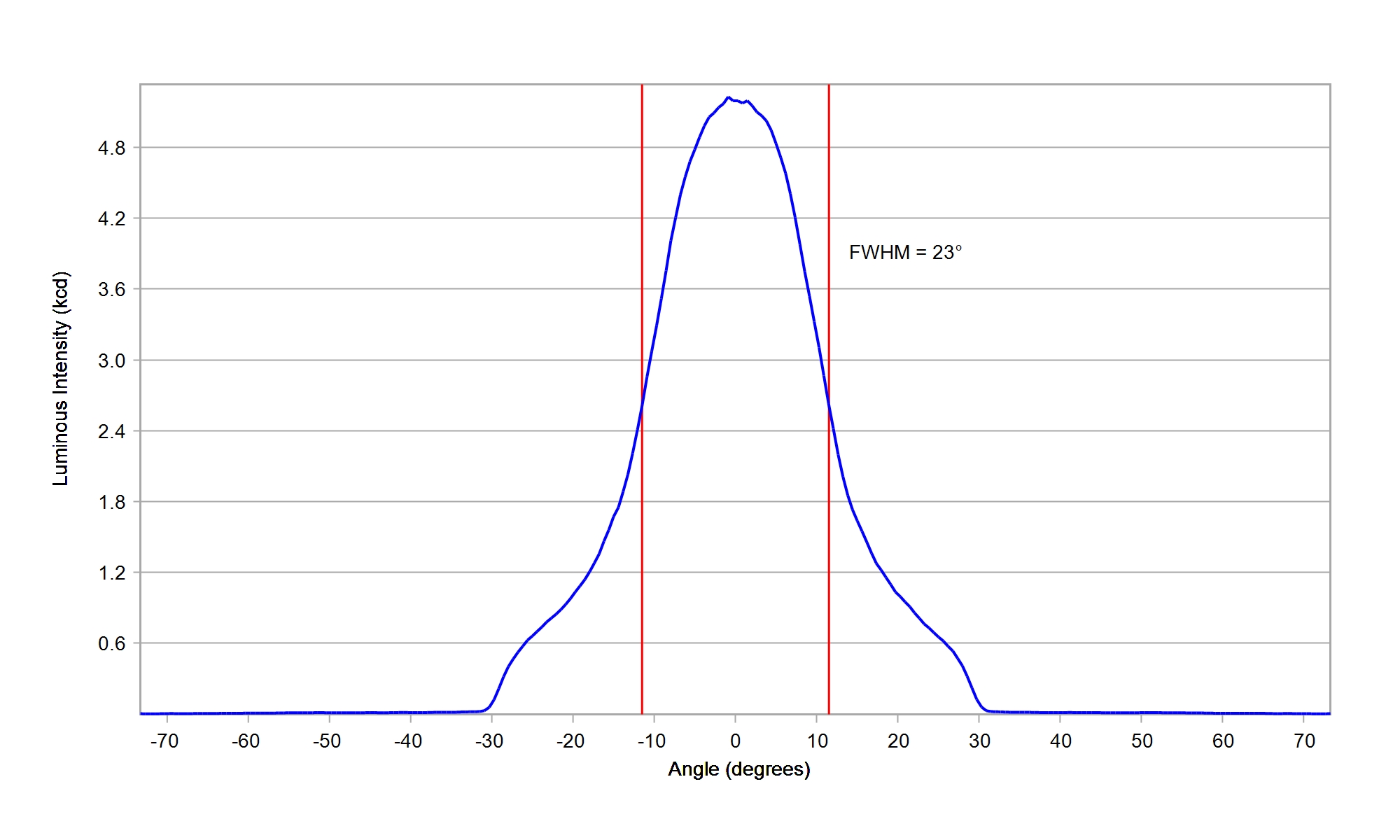

LUMILEDS LUXEON HL1Z CSP White

Eff:

93.5%

FWHM:

23°

Cd/Im:

3.7

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

93.5%

FWHM:

24.5°

Cd/Im:

3.8

Carclo Optics – 12924 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12924 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

96.0%

FWHM:

26.5/23.5°

Ipk/W:

3.2

Carclo Optics - 12924 33Up Spot Image Luxeon IR 2720

Carclo Optics - 12924 33Up Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

95.0%

FWHM:

28°

Cd/Im:

2.7

Carclo Optics – 12924 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12924 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

94.0%

FWHM:

28.5°

Cd/Im:

2.6

Carclo Optics – 12924 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12924 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

95.0%

FWHM:

28°

Cd/Im:

2.7

Carclo Optics – 12924 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12924 Spot Image Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

95.5%

FWHM:

27.5°

Cd/Im:

2.9

Carclo Optics – 12924 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12924 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

94.0%

FWHM:

29.0°

Cd/Im:

2.6

Carclo Optics - 12924 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12924 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

91.0%

FWHM:

30°

Cd/Im:

2.1

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

88.5%

FWHM:

33°

Cd/Im:

1.7

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

89.5%

FWHM:

31°

Cd/Im:

1.8

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

89.5%

FWHM:

30°

Cd/Im:

2.1

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line - Lime - Spot Image

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line - Lime - Cross-Section

Download

IES

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

90.0%

FWHM:

30°

Cd/Im:

1.9

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image

Carclo Optics – 12924 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section

Download

IES

Nichia 757 White

Eff:

93.5%

FWHM:

28.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

93.0%

FWHM:

21.0°

Cd/Im:

4.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 757G-MT Tunable

Eff:

92.5%

FWHM:

29.5°

Cd/Im:

3.1

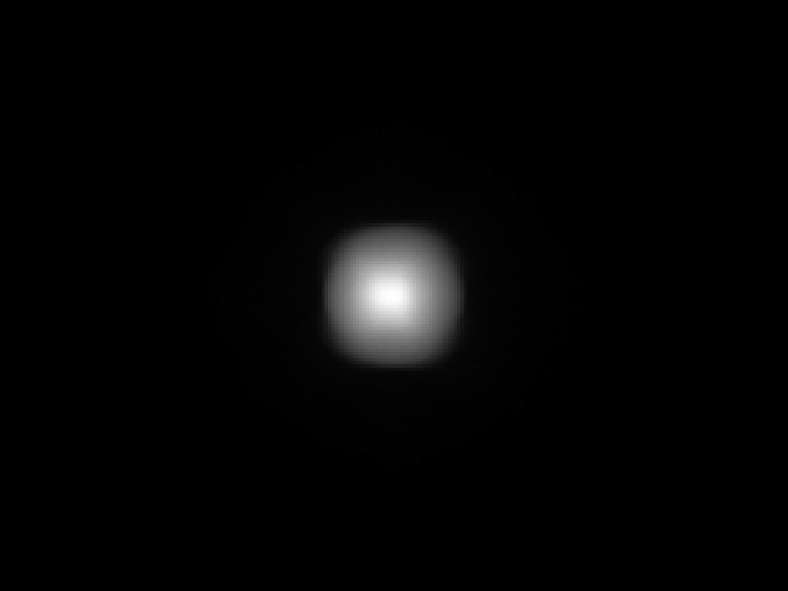

Carclo Optics 12924 Simulated Spot Image Nichia 757G-MT

Carclo Optics 12924 Simulated cross section Image Nichia 757G-MT

Download

IES

Nichia NFSW CSP E11A White

Eff:

92.0%

FWHM:

21.5°

Cd/Im:

3.8

Download

IES

Nichia NVSW CSP E21A White

Eff:

93.0%

FWHM:

22.0°

Cd/Im:

4.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

94.0%

FWHM:

26.5°

Cd/Im:

3.3

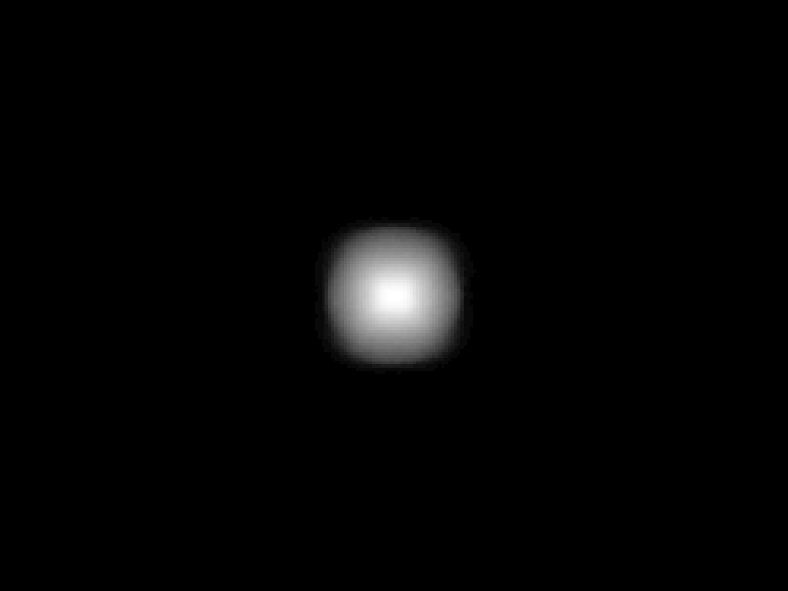

Carclo Optics - 12924 33Up Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12924 33Up Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E5 White

Eff:

93.5%

FWHM:

18 x 21.5°

Cd/Im:

4.5

Carclo Optics - Simulated Spot Image

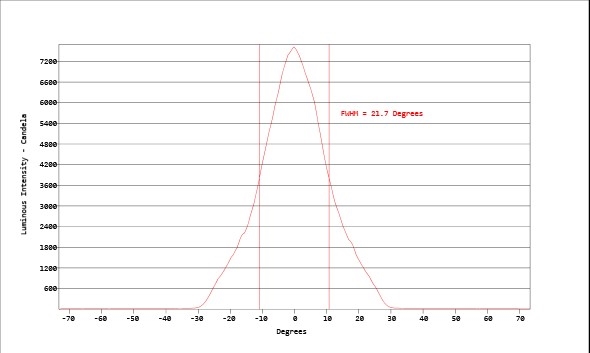

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 GP PSLM31.14 Purple

Eff:

94.5%

FWHM:

27°

Cd/Im:

3.3

Carclo Optics – 12924 Osram Duris S5 GP PSLM31.14 Purple - Spot Image

Carclo Optics – 12924 Osram Duris S5 GP PSLM31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 GP PSLR31.14 Purple

Eff:

94.5%

FWHM:

27°

Cd/Im:

3.5

Carclo Optics – 12924 Osram Duris S5 GP PSLR31.14 Purple - Spot Image

Carclo Optics – 12924 Osram Duris S5 GP PSLR31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 White

Eff:

94.0%

FWHM:

25.5°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

94.0%

FWHM:

26.5°

Cd/Im:

3.3

Carclo Optics - 12924 33Up Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12924 33Up Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS MidPower 5630 E5 White

Eff:

89.0%

FWHM:

29.5°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

Osram OS OSCONIQ C 2424 White

Eff:

94.0%

FWHM:

25.0°

Cd/Im:

3.7

Carclo Optics - 12924 Spot Image OSCONIQ C2424

Carclo Optics - 12924 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

93.5%

FWHM:

40°

Cd/Im:

1.8



Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

94.0%

FWHM:

26.5°

Cd/Im:

2.9

Carclo Optics – 12924 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12924 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

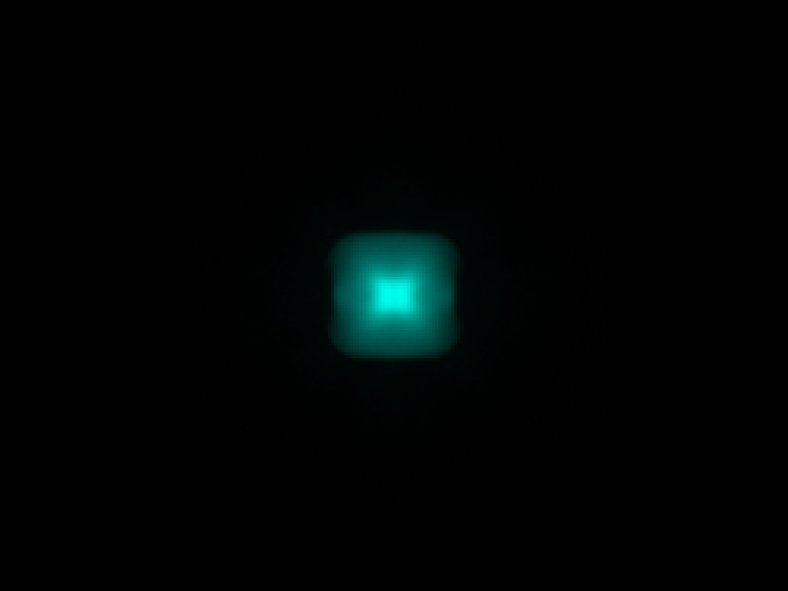

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

94.0%

FWHM:

20°

Cd/Im:

4.7


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

95.5%

FWHM:

19°

Ipk/W:

5.0


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

93.0%

FWHM:

20.5°

Cd/Im:

4.2


Download

IES

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

93.0%

FWHM:

21.5°

Cd/Im:

3.5


Download

IES

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

93.5%

FWHM:

20°

Cd/Im:

4.4


Download

IES

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

92.5%

FWHM:

20.5°

Cd/Im:

4.4



Download

IES

Osram OS Prevaled Bar G4

Eff:

94.0%

FWHM:

26.5°

Cd/Im:

3.2

Carclo Optics – 12924 – Osram_Prevaled_Bar_G4_spot-image

Carclo Optics – 12924 – Osram_Prevaled_Bar_G4_cross vertical section

Download

IES

Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm

Eff:

93.5%

FWHM:

28°

Cd/Im:

3.3

Download

IES

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm

Eff:

93.5%

FWHM:

26°

Cd/Im:

3.4


Download

IES

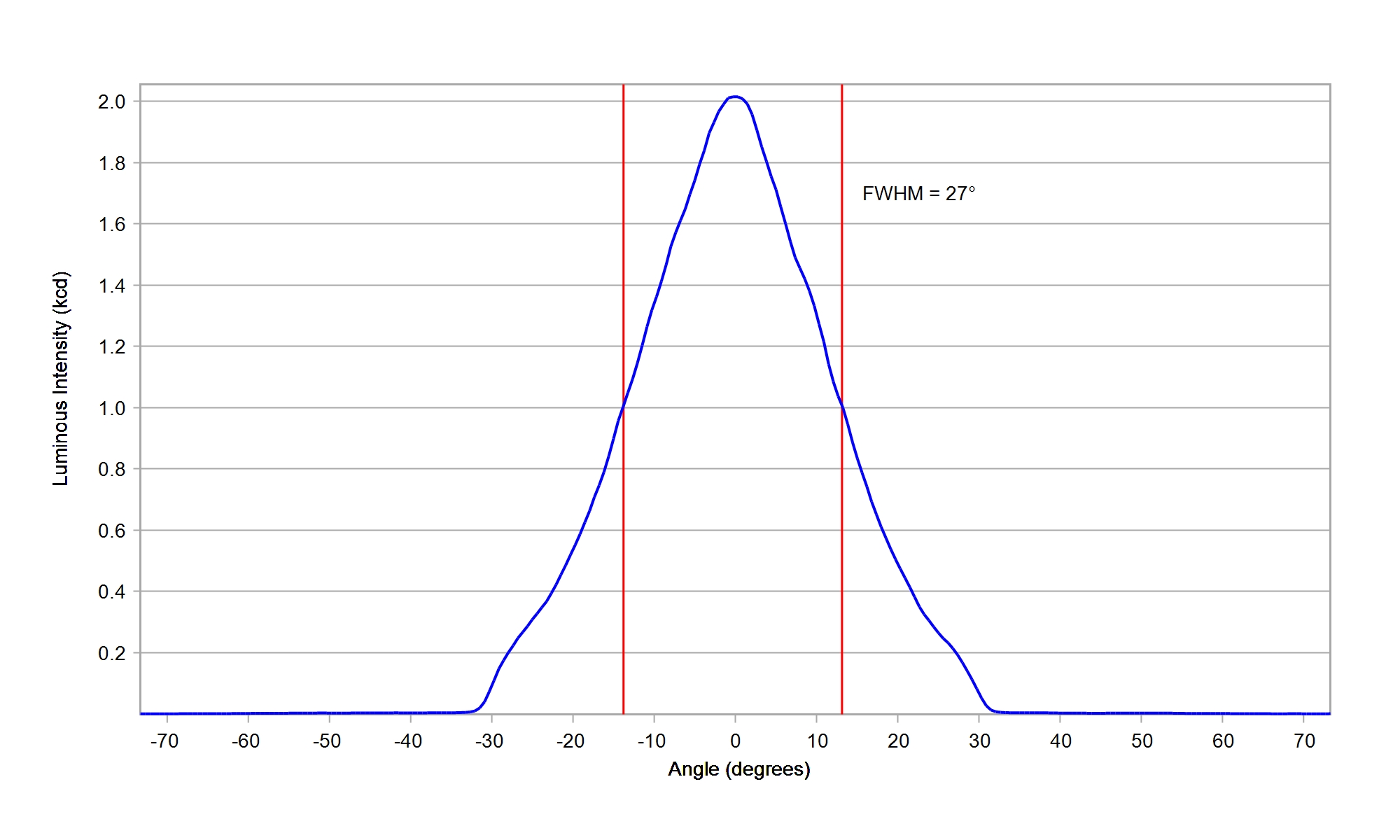

Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm

Eff:

93.5%

FWHM:

26.5°

Cd/Im:

3.3


Download

IES

Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm

FWHM:

28 x 42°

Carclo Optics 12924 Spot Image Fortimo 3R HV4 Gen4 Board

Carclo Optics 12924 Cross Section Fortimo 3R HV4 Gen4 Board

Download

ldt

Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm

Eff:

87.0%

FWHM:

33 x 27.5°

Cd/Im:

2.6

Carclo Optics - 12924 33Up Spot Image Fortimo 3R HV4

Carclo Optics - 12924 33Up Cross Section Fortimo HR LV4

Download

IES

Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm

FWHM:

26 x 31°

Download

ldt

Philips Fortimo LED Line 3R LV4 Gen 4 Board 1100lm

Eff:

87.0%

FWHM:

33°

Cd/Im:

2.6

Carclo Optics - 12924 33Up Spot Image Fortimo 3R LV4

Carclo Optics - 12924 33Up Cross Section Fortimo 3R LV4

Download

IES

Samsung 2835 LM281B+ White

Eff:

93.5%

FWHM:

28°

Cd/Im:

3.1



Download

Samsung 3030 LM301B White

Eff:

94.0%

FWHM:

27°

Cd/Im:

3.2

Download

IES

Samsung 5050 LH502C White

Eff:

93.5%

FWHM:

41°

Cd/Im:

1.8


Download

IES

Samsung 5050 LH502D White

Eff:

93.5%

FWHM:

38°

Cd/Im:

2.0


Download

IES

Samsung 5050 LH508C White

Eff:

93.5%

FWHM:

41°

Cd/Im:

1.9


Download

IES

Samsung CSP LH151B White

Eff:

93.5%

FWHM:

21.5°

Cd/Im:

4.4

Carclo Optics – 12924 – Samsung_LH151B_spot-image

Carclo Optics – 12924 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

93.5%

FWHM:

25 x 22.5°

Cd/Im:

4.0

Carclo Optics -12924 Sport Image - Samsung LH181B 4000K

Carclo Optics -12924 Cross Section - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

93.5%

FWHM:

28.5 x 27°

Cd/Im:

3.4

Carclo Optics - 12924 Spot Image Samsung LH231B 5000K

Carclo Optics -12924 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

93.5%

FWHM:

23 x 20°

Cd/Im:

4.1

Carclo Optics -12924 Spot Image - Samsung LM101B 5000K

Carclo Optics -12924 Cross Section Image - Samsung LM101B 5000K

Download

IES

Samsung MidPower 5630 White

Eff:

89.0%

FWHM:

29.3°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

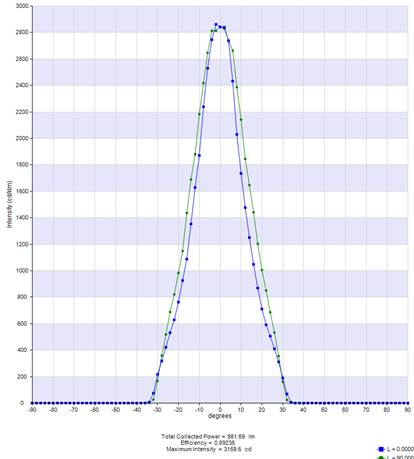

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

Seoul CSP SZ8Y11 White

Eff:

90.5%

FWHM:

22 x 19°

Cd/Im:

3.1

Carclo Optics -12924 Spot Image - Seoul Z8Y11

Carclo Optics -12924 Cross Section Image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y22 White

Eff:

92.0%

FWHM:

25.5 x 24°

Cd/Im:

3.4

Carclo Optics -12924 Spot Image - Seoul SZ8Y22

Carclo Optics -12924 Cross Section image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.5

Carclo Optics - 12924 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12924 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul MidPower 3030 STB0C2PB Blue

Eff:

95.0%

FWHM:

28°

Cd/Im:

3.0

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Spot – image

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_STB0C2PB Blue - Cross section – image

Download

IES

Seoul MidPower 3030 STDRC12B Deep Red

Eff:

94.5%

FWHM:

22°

Cd/Im:

3.7

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Spot – image

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_ STDRC12B Deep Red - Cross section – image

Download

IES

Seoul MidPower 3030 STFRC12B Far Red

Eff:

95.0%

FWHM:

31°

Cd/Im:

2.9

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Spot – image

Carclo Optics – 12924 SSC (Seoul)_MidPower_3030_STFRC12B Far Red - Cross section – image

Download

IES

Seoul MidPower 5630 STW8Q14C White

Eff:

88.6%

FWHM:

31.7°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

,

Carclo Optics - UGR Table

Download

ldt

Seoul MidPower 5630 STW8Q14C White

Eff:

89.5%

FWHM:

34 x 28°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Seoul STW8 C2SB-NT White

Eff:

94.0%

FWHM:

29.0°

Cd/Im:

3.1

Carclo Optics - 12924 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12924 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul STWS C2PB-E0 White

Eff:

94.0%

FWHM:

28.0°

Cd/Im:

3.2

Carclo Optics - 12924 Spot Image STWS C2PB-E0

Carclo Optics - 12924 Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

94.0%

FWHM:

26.5°

Cd/Im:

3.3

Carclo Optics - 12924 33Up Spot Image Seoul Sunlike 3030

Carclo Optics - 12924 33Up Cross Section Seoul Sunlike 3030

Download

IES
