Carclo Optics - 12913 - 33Up Array
292 x 61mm Wide Spot Plain Freeform
Part number
12913
Dimensions
292 x 61mm
Optic type
Freeform
Finish
Plain
Beam type
Wide Spot
Material: PMMA
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
96.0%
FWHM:
87 x 81°
Cd/Im:
0.9
Download

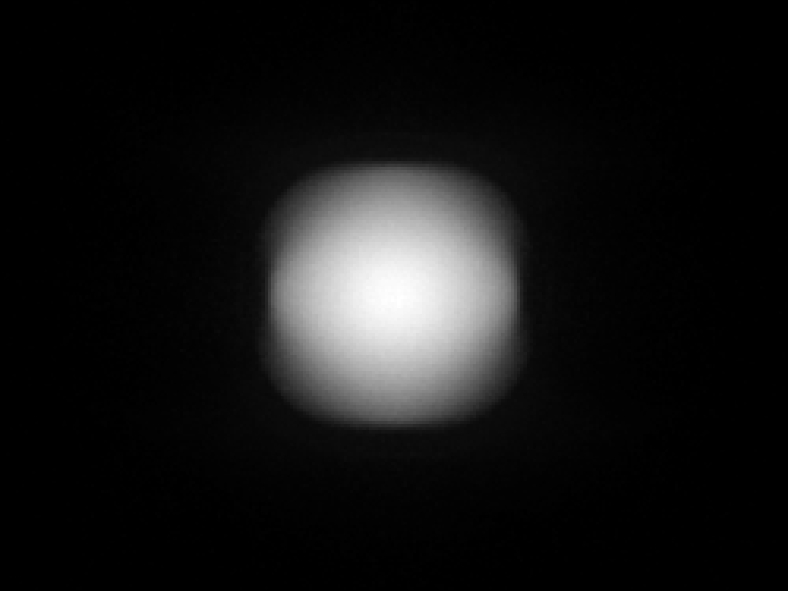

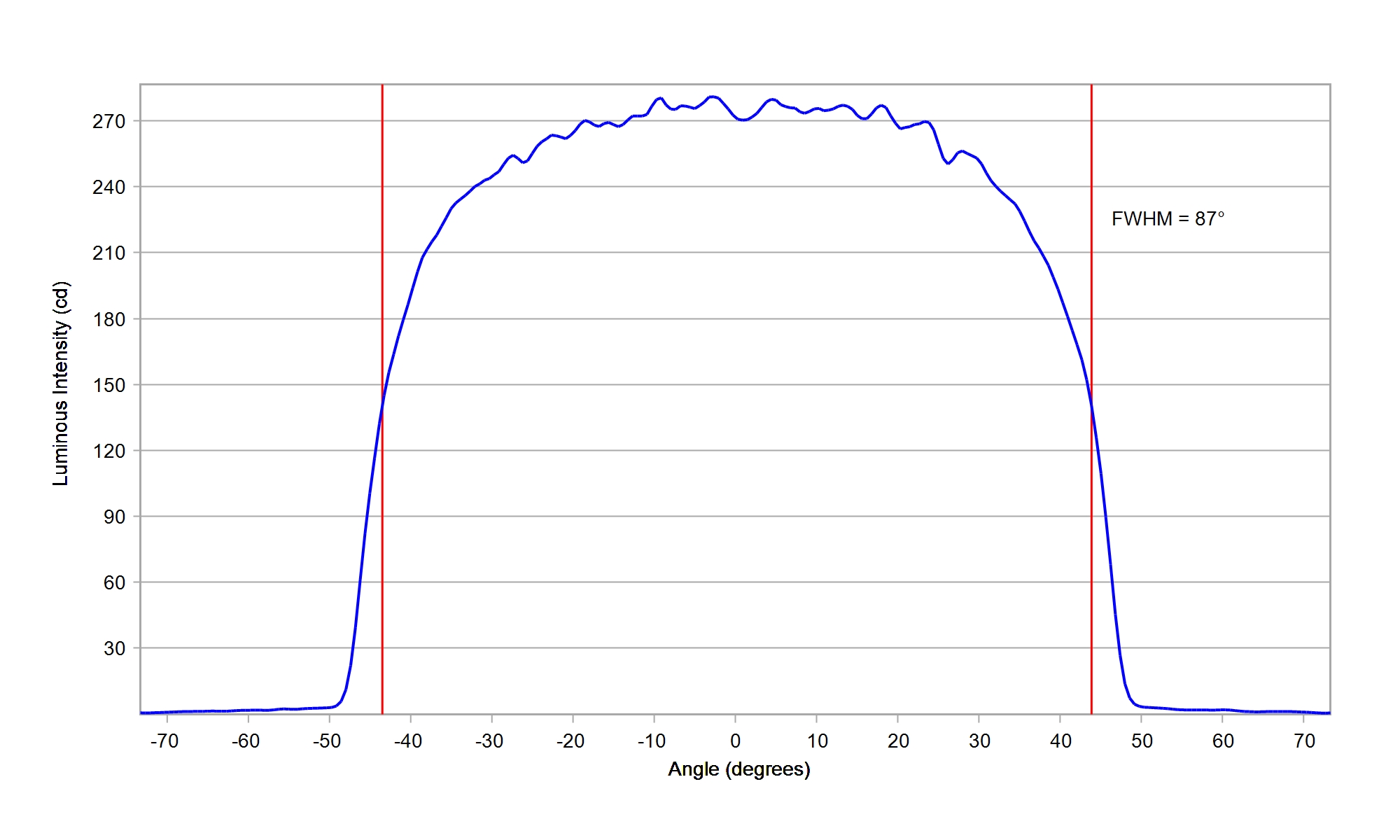

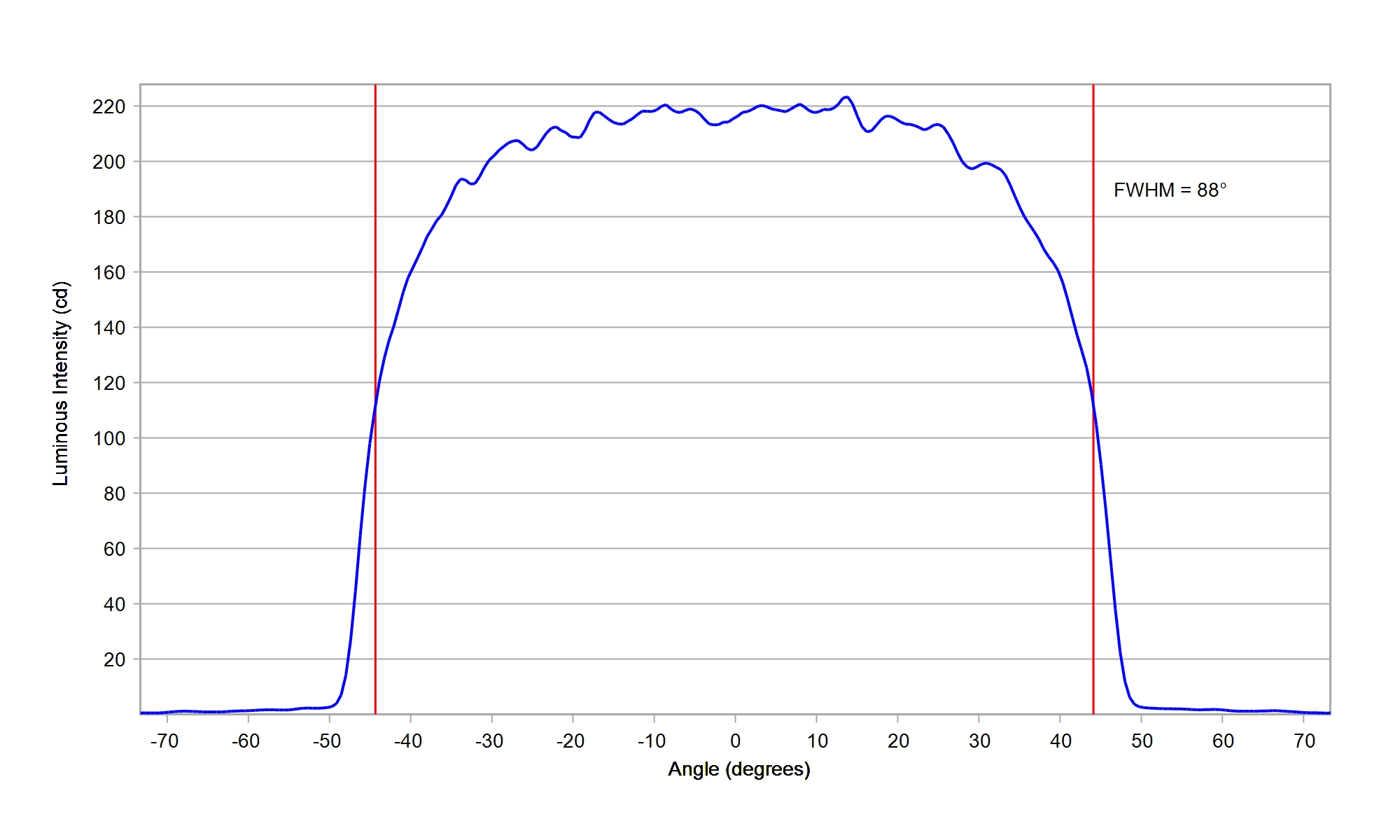

Cree JB2835B 3V G-Class White
Eff:
96.0%
FWHM:
87°
Cd/Im:
0.8
Download

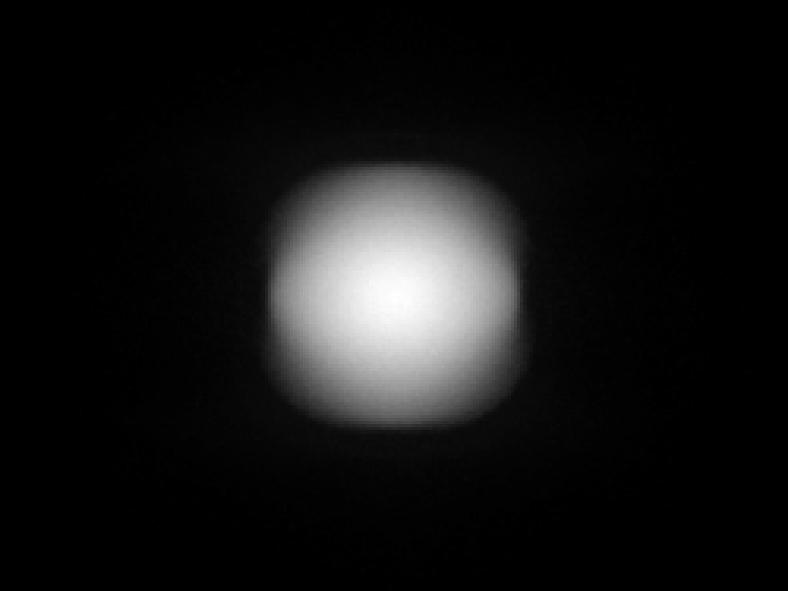

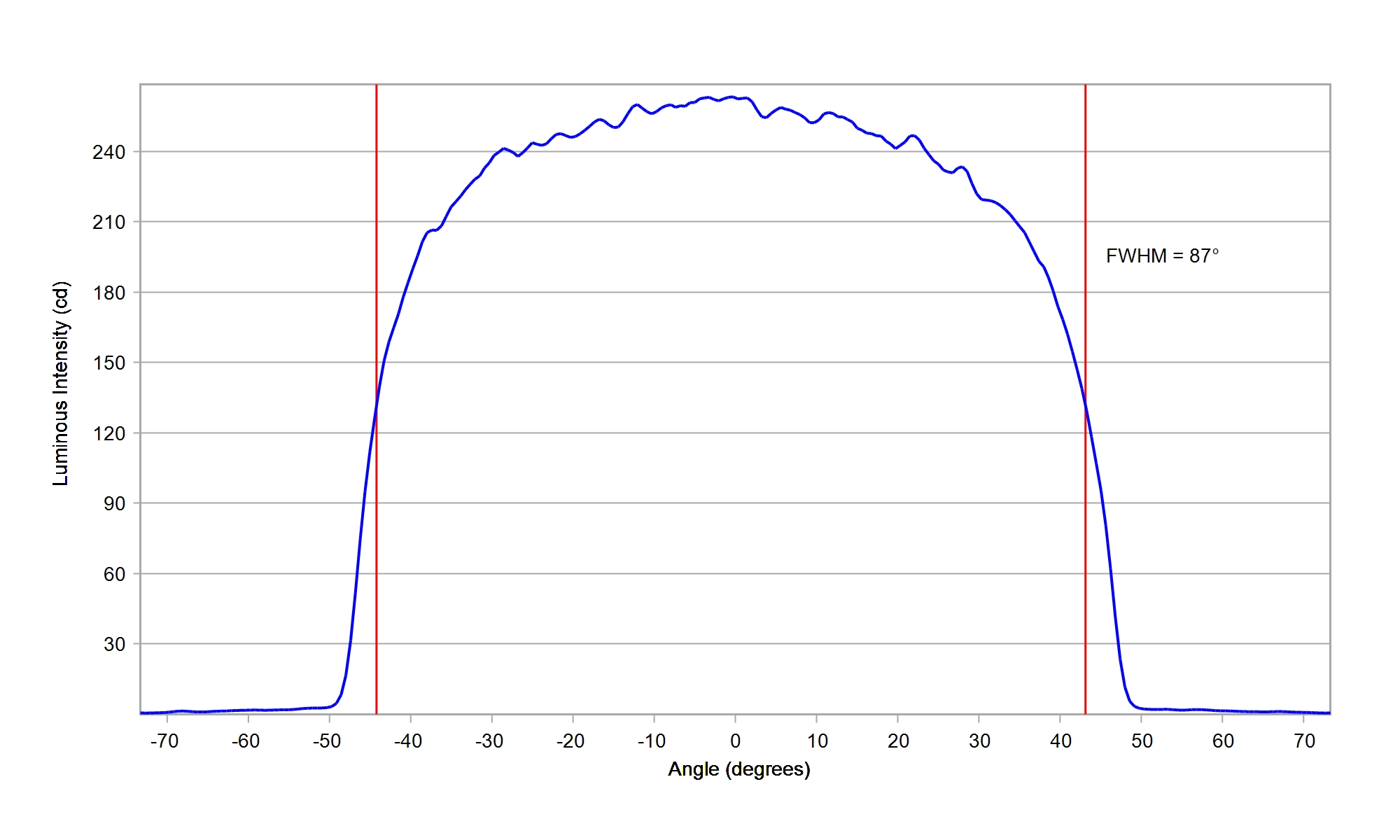

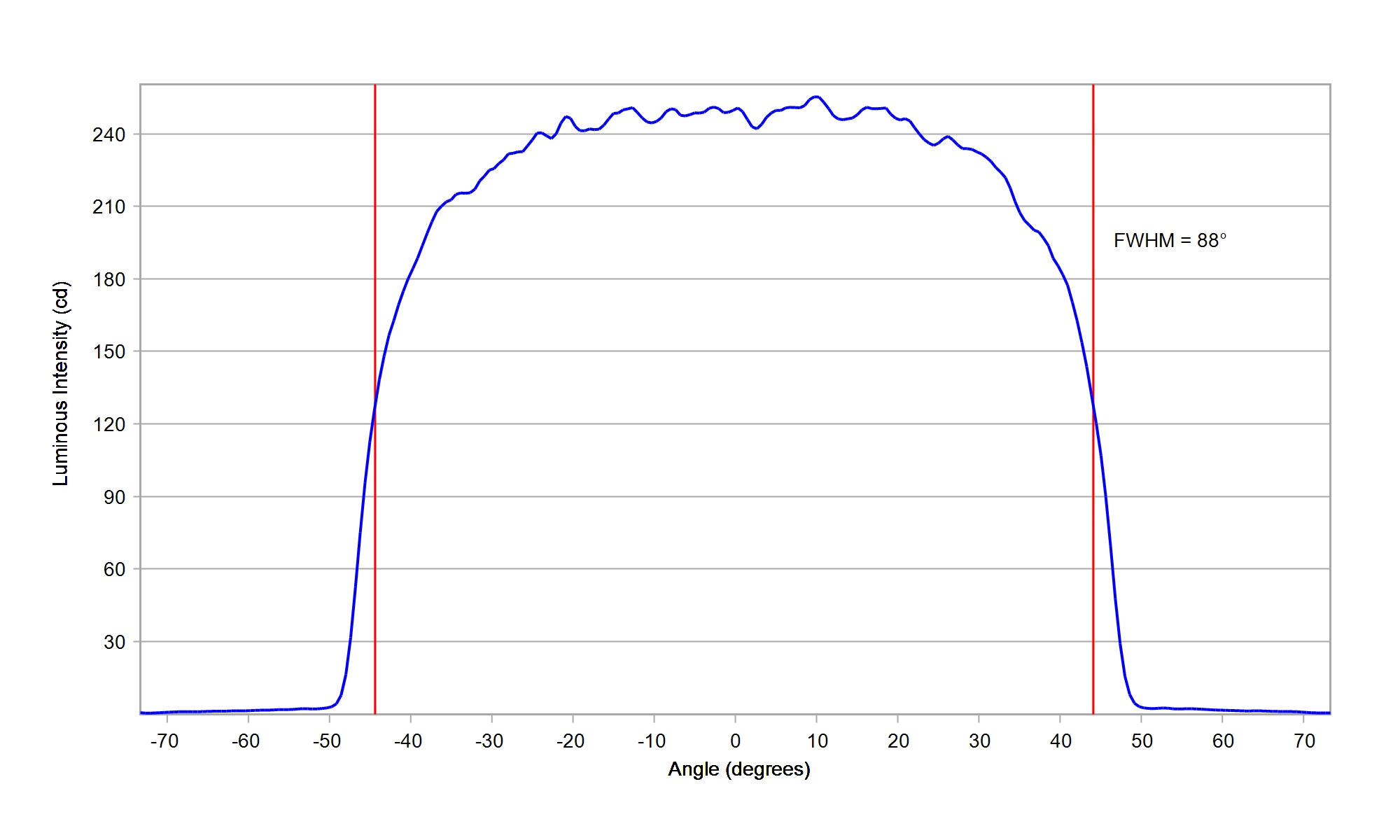

Cree JB2835B 3V J-Class White
Eff:
96.0%
FWHM:
87°
Cd/Im:
0.9
Download
Cree JB3030 3V P-Class White
Eff:
96.0%
FWHM:
86.0°
Cd/Im:
0.9
Download
Cree JB3030C 3V E-Class White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.8
Download

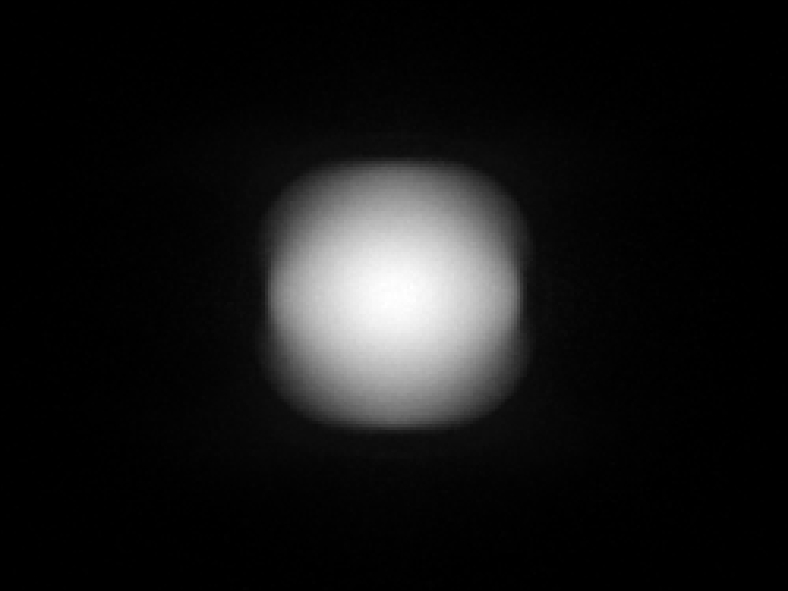

Cree JB3030C 3V F-Class White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.9
Download
Cree JE2835 3V White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.9
Download
Cree JK2835 6V White
Eff:
96.0%
FWHM:
87°
Cd/Im:
1.0
Download
Cree JQ5050 9V White
Eff:
96.0%
FWHM:
85.0°
Cd/Im:
1.1
Download
Cree JR5050 24V White
Eff:
96.0%
FWHM:
84.0°
Cd/Im:
1.0
Download
Cree JR5050 36V White
Eff:
96.0%
FWHM:
84.0°
Cd/Im:
1.1
Download
Cree JR5050 6V White
Eff:
96.0%
FWHM:
84.0°
Cd/Im:
1.1
Download
Cree JR5050C 6V E-Class White
Eff:
96.0%
FWHM:
86°
Cd/Im:
0.9
Download
Cree XLamp CSP XD16 Premium White
Eff:
95.5%
FWHM:
91°
Cd/Im:
0.8
Download
Cree XLamp XE-G White
Eff:
95.0%
FWHM:
93°
Cd/Im:
0.7
Download
Cree XLamp XH-B White
Eff:
93.5%
FWHM:
95°
Cd/Im:
0.5
Download
Cree XLamp XHP35.2 HI White
Eff:
94.5%
FWHM:
88°
Cd/Im:
0.9
Download
Cree XLamp XM-L Color G2 HI RGBW
Eff:
95.5%
FWHM:
87°
Cd/Im:
0.9
Download
Cree XLamp XP-E2 White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.8
Download

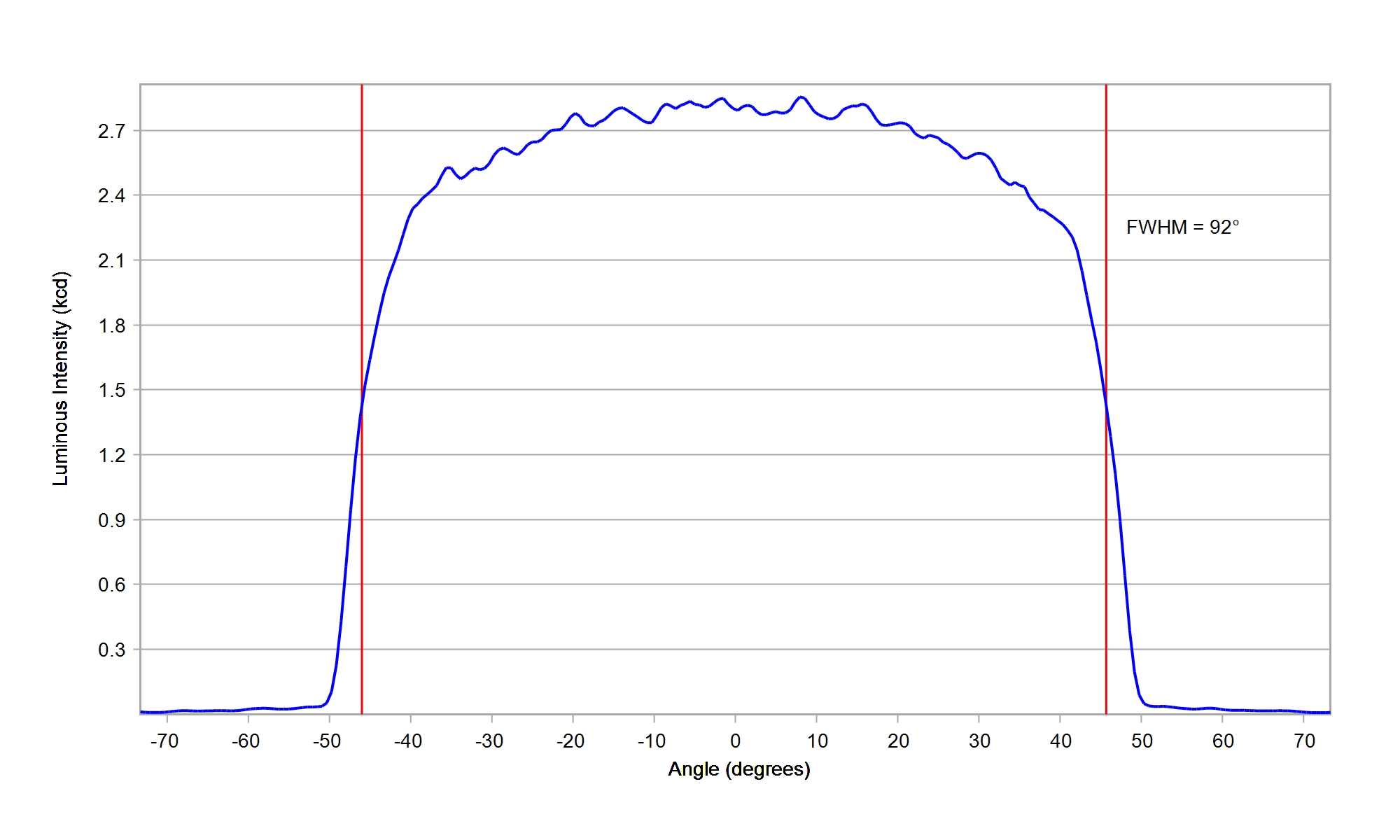

Cree XLamp XP-G4 HI White
Eff:
95.0%
FWHM:
92°
Cd/Im:
0.8
Download
Cree XLamp XP-P White
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download

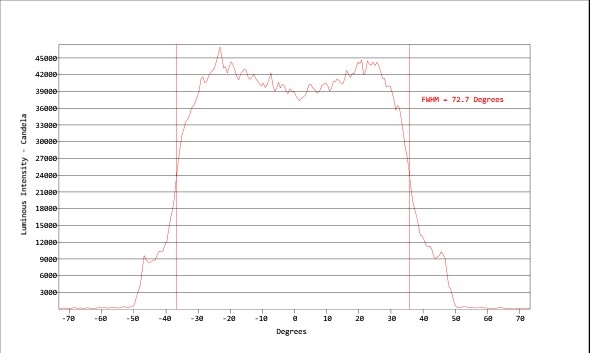

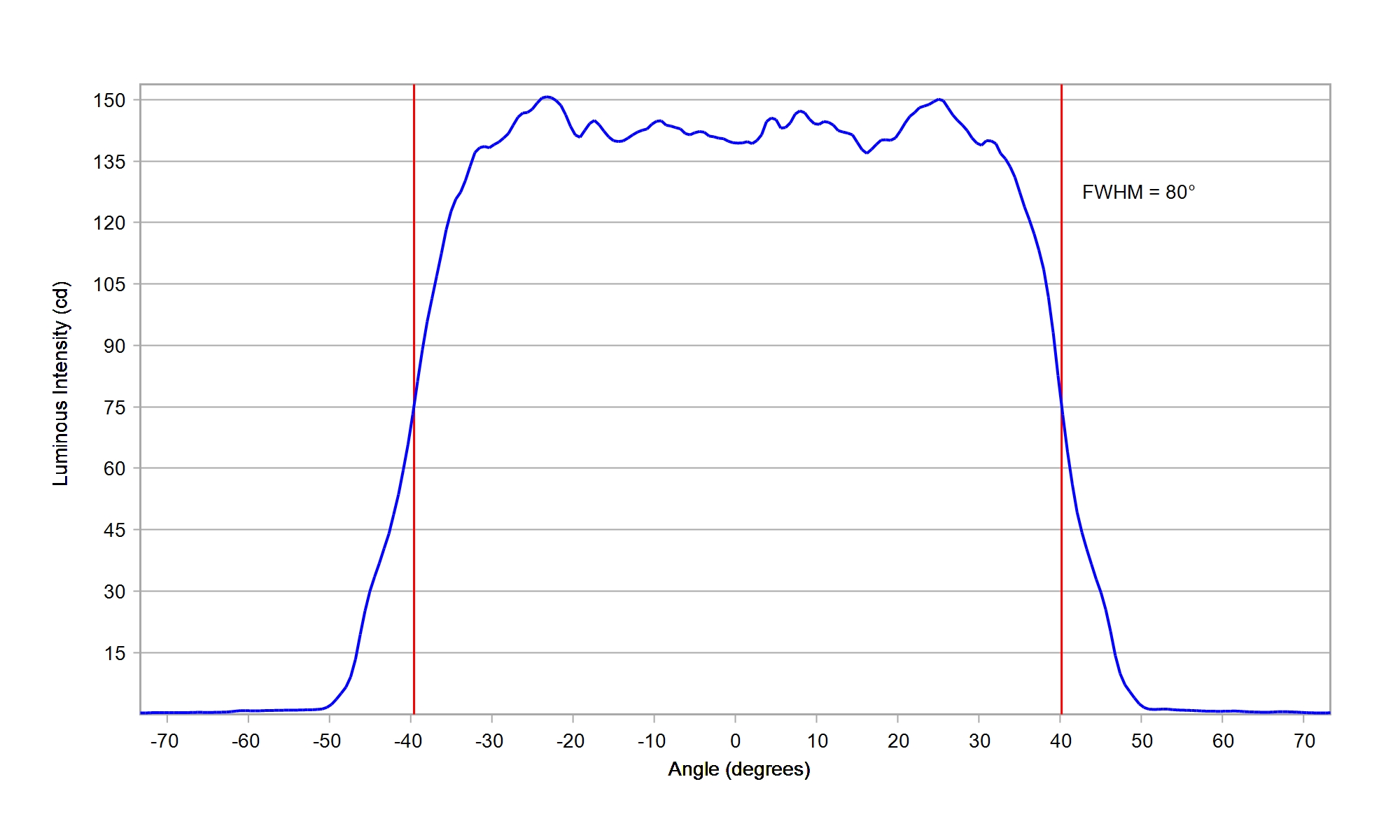

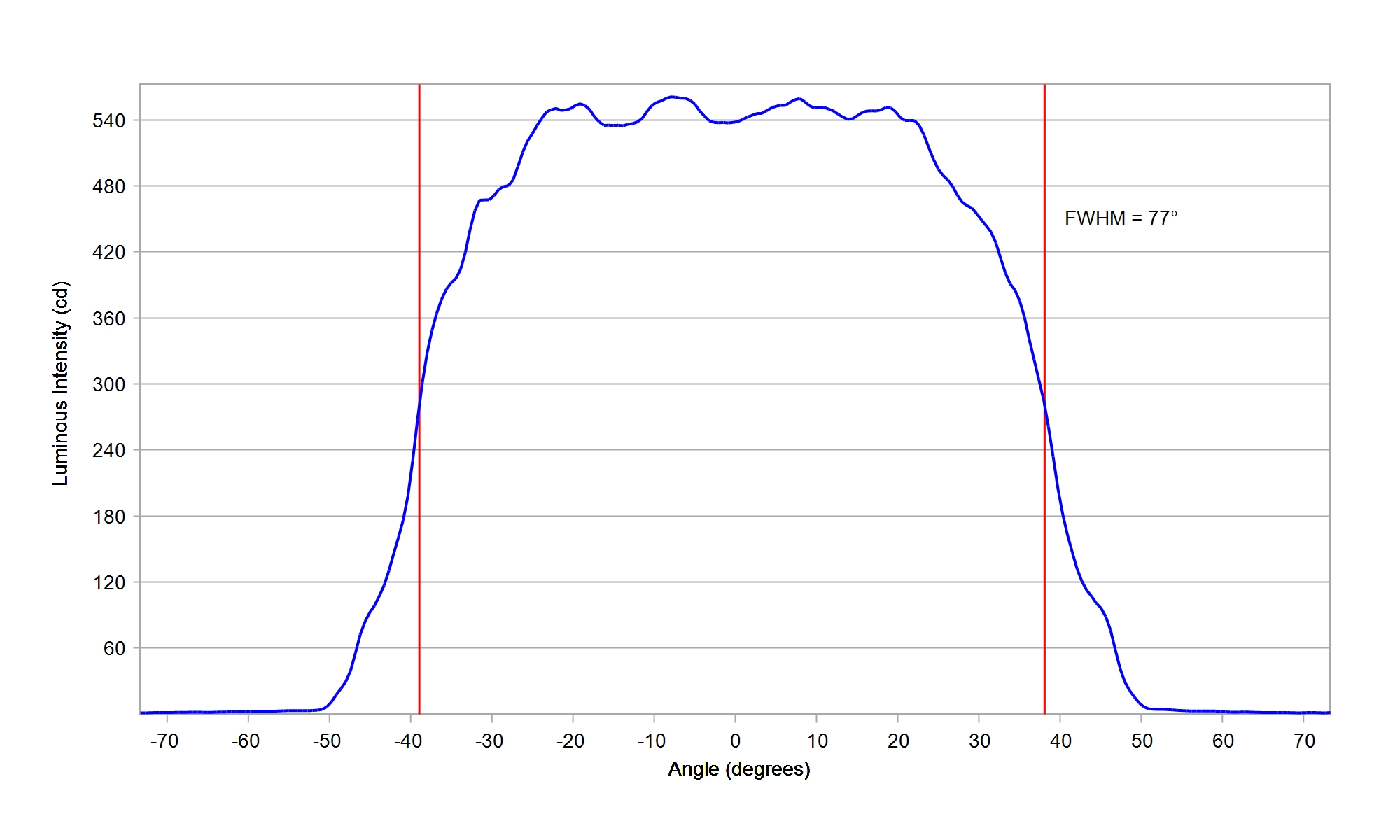

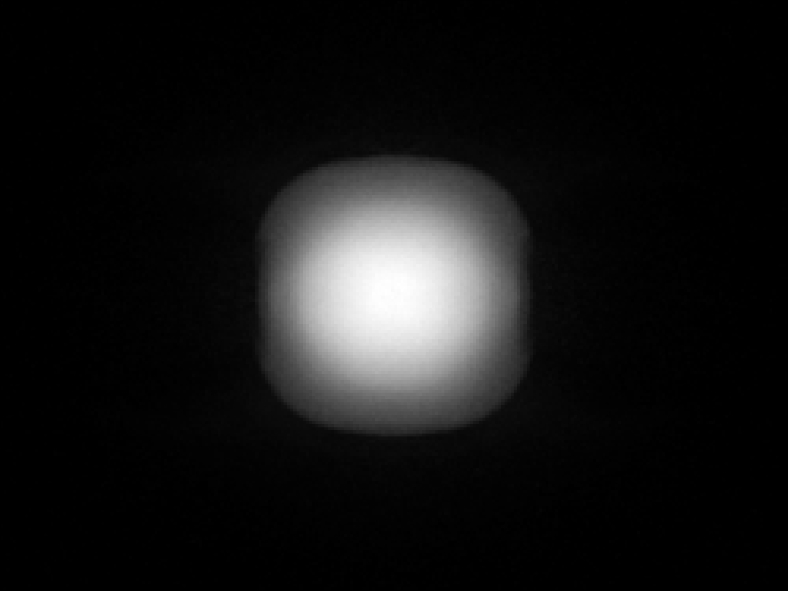

Cree XLamp XQ-A White
Eff:
95.5%
FWHM:
71.5°
Cd/Im:
0.7
Download

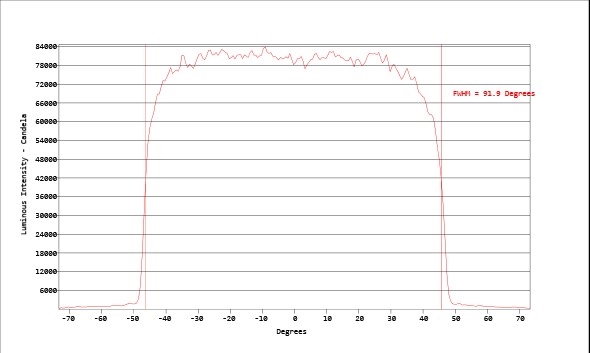

Cree XLamp XQ-E HI White
Eff:
95.0%
FWHM:
90°
Cd/Im:
0.6
Download
Cree XLamp XQ-E HD White
Eff:
96.0%
FWHM:
81°
Cd/Im:
0.7
Download
LG Innotek MidPower 3030 LG White
Eff:
96.0%
FWHM:
87.5°
Cd/Im:
0.7
Download

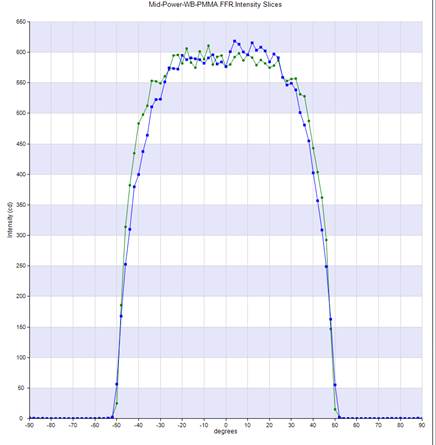

LG Innotek MidPower 5630 White
Eff:
91.0%
FWHM:
90.5°
Cd/Im:
0.5
Download
LG Innotek MidPower 5630 White
Eff:
96.0%
FWHM:
86.5°
Cd/Im:
0.6
Download
LG Innotek MidPower 6030 White
Eff:
91.0%
FWHM:
90°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835E 9V White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835N 3V White
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835S 3V White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 2835S 6V White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3014 White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3020 White
Eff:
96.0%
FWHM:
87.5°
Cd/Im:
0.7
Download

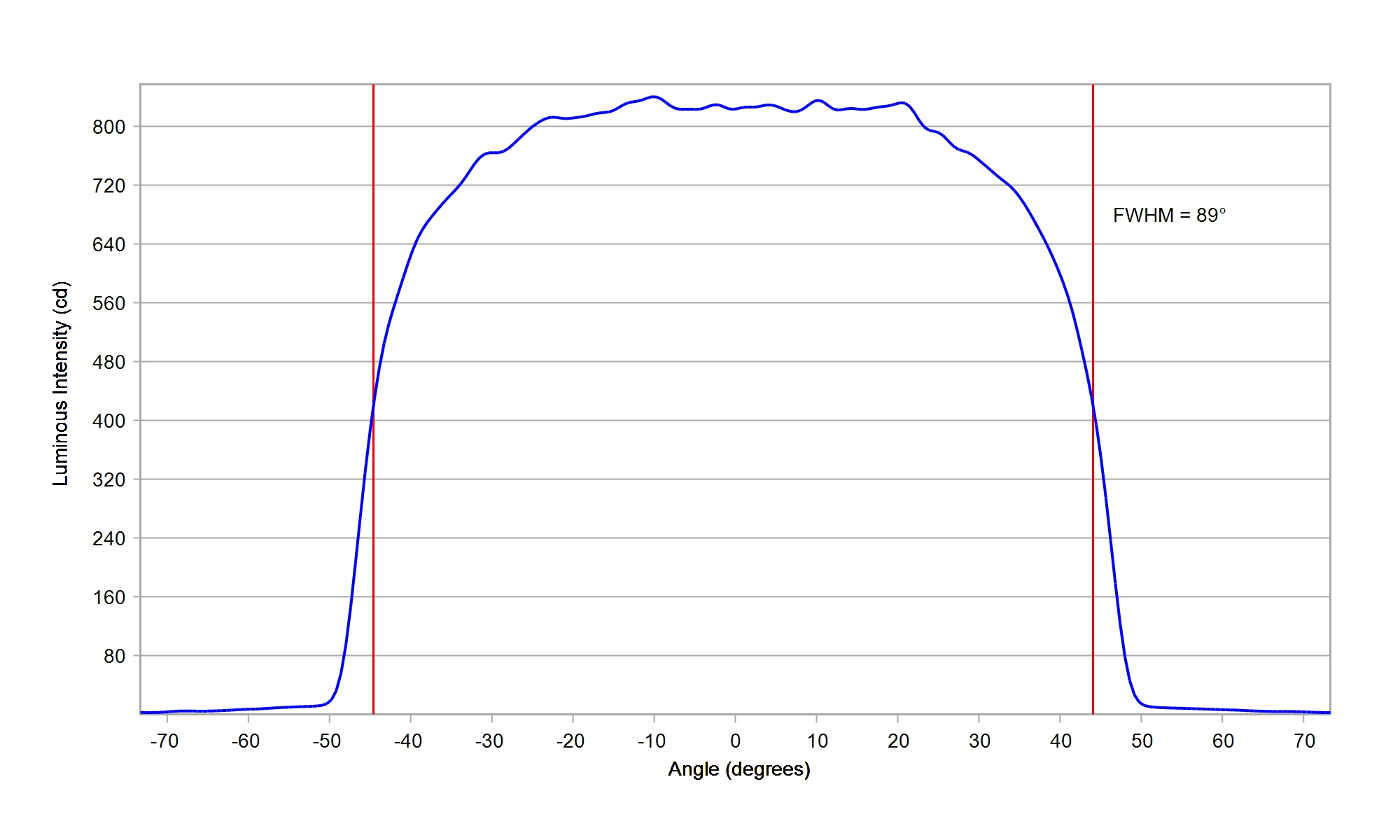

LUMILEDS LUXEON 3030 2D White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.8
Download

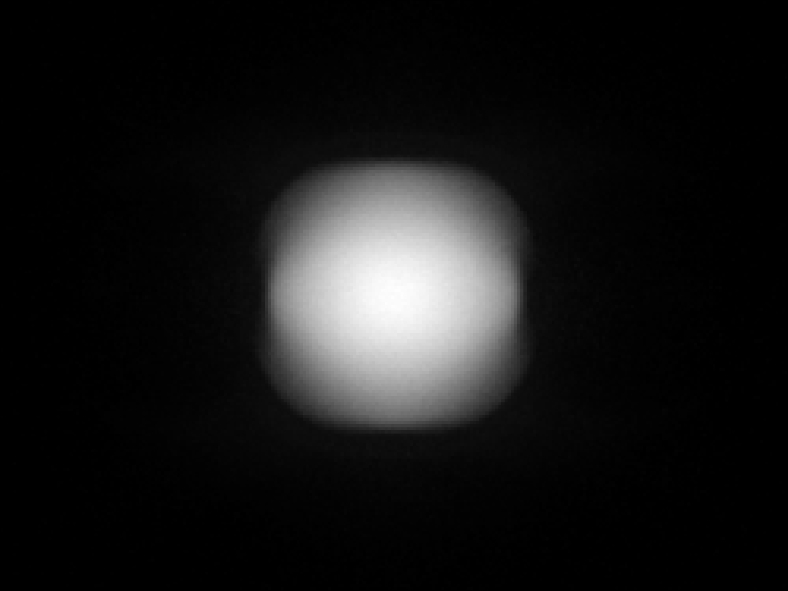

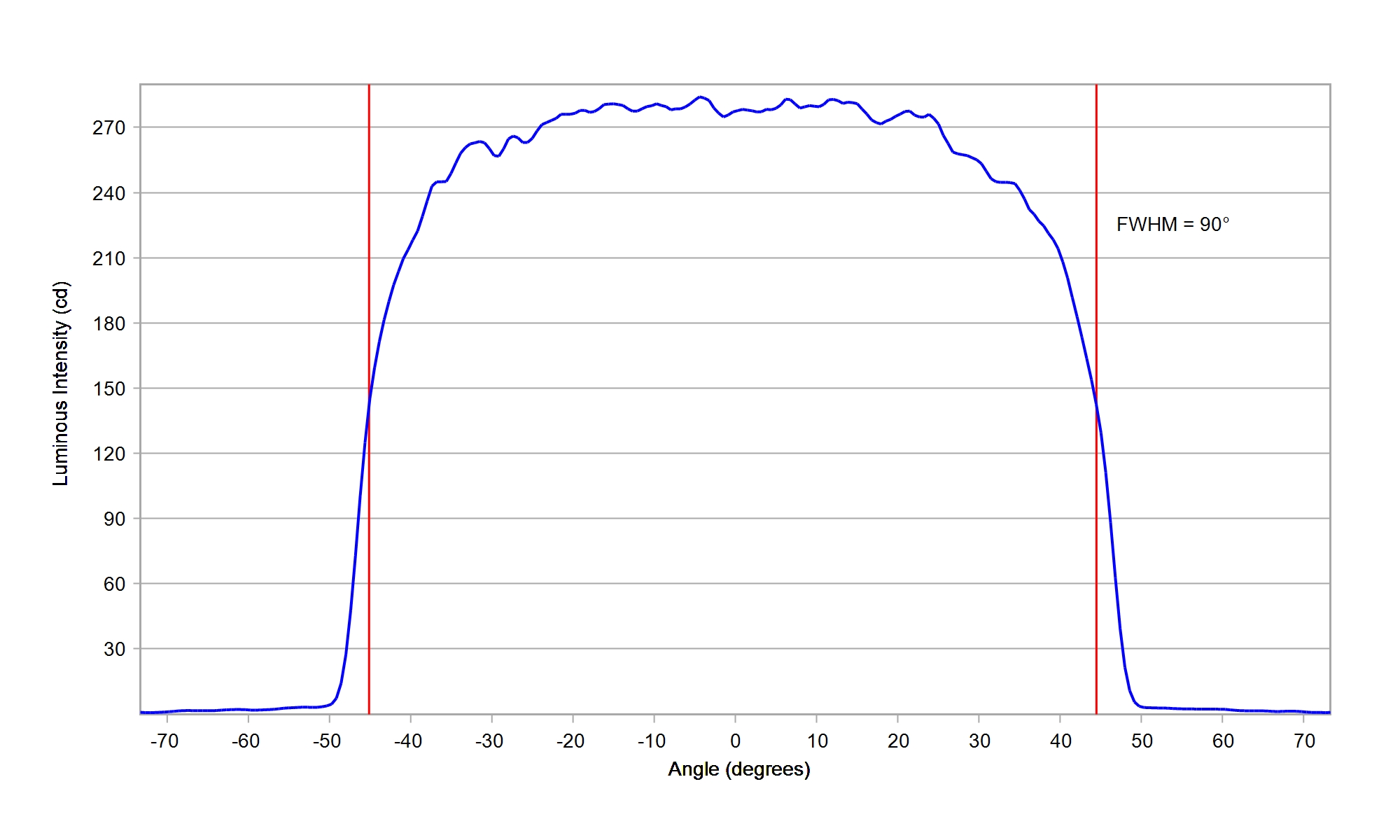

LUMILEDS LUXEON 3030 HE White
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3535 L White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.6
Download

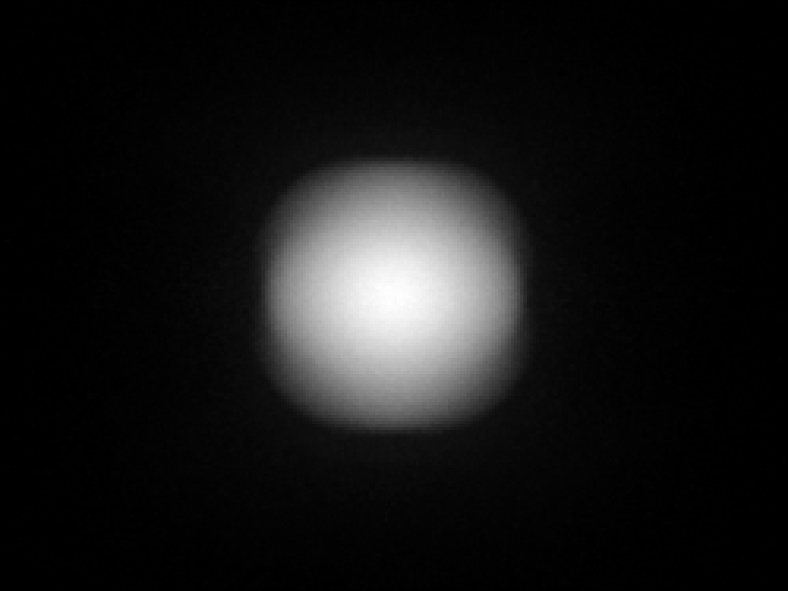

LUMILEDS LUXEON 5050 HE 24V White
Eff:
96.0%
FWHM:
86°
Cd/Im:
1.0
Download
LUMILEDS LUXEON 5050 HE 6V White
Eff:
96.0%
FWHM:
86°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 5050 Round 24V White
Eff:
96.0%
FWHM:
86°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 5050 Square 30V White
Eff:
96.0%
FWHM:
83°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 5050 Square 6V White
Eff:
96.0%
FWHM:
84°
Cd/Im:
1.0
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
96.0%
FWHM:
82.5°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 7070 White
Eff:
95.5%
FWHM:
82°
Cd/Im:
1.0
Download
LUMILEDS LUXEON C White
Eff:
92.0%
FWHM:
98°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CZ White
Eff:
96.0%
FWHM:
91 x 87°
Cd/Im:
0.9
Download

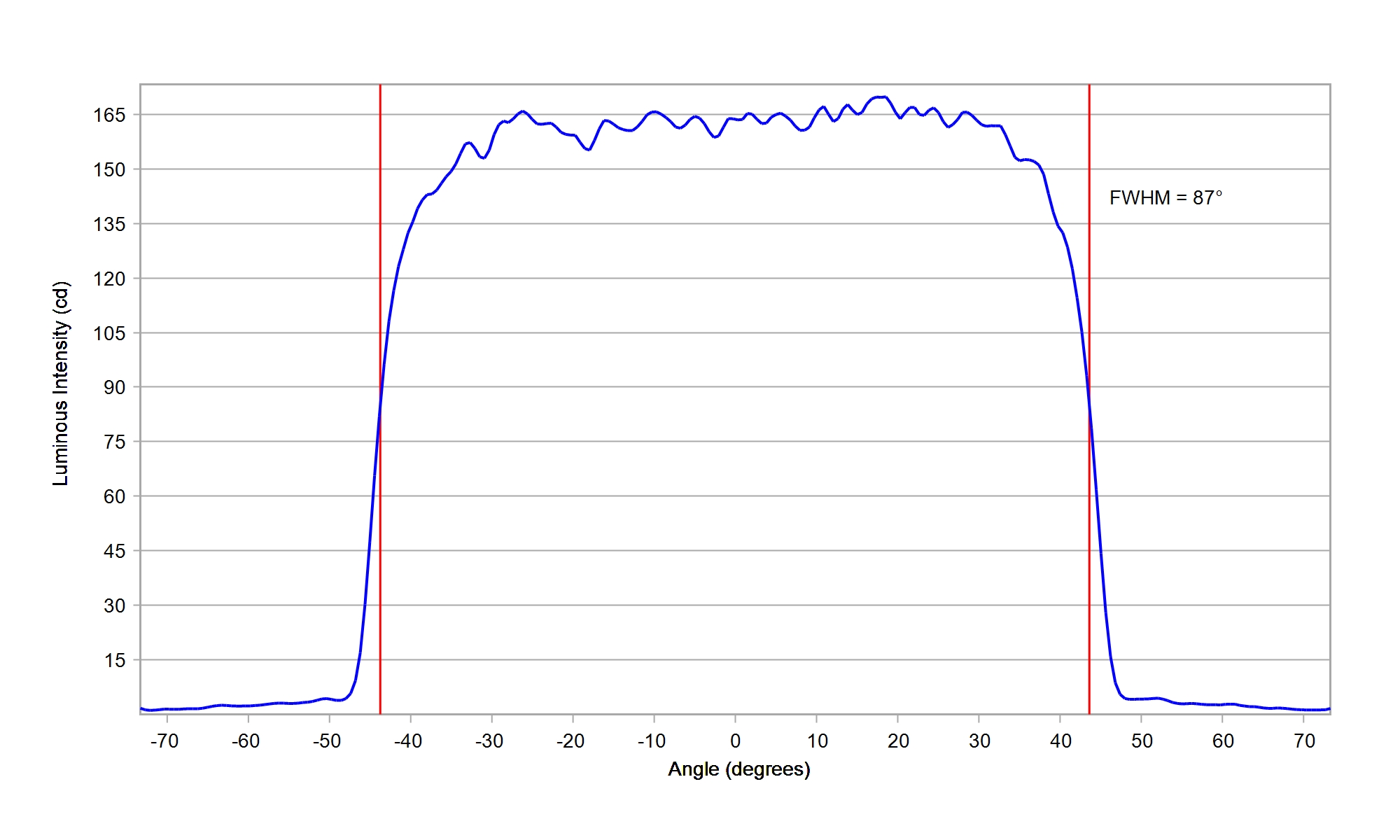

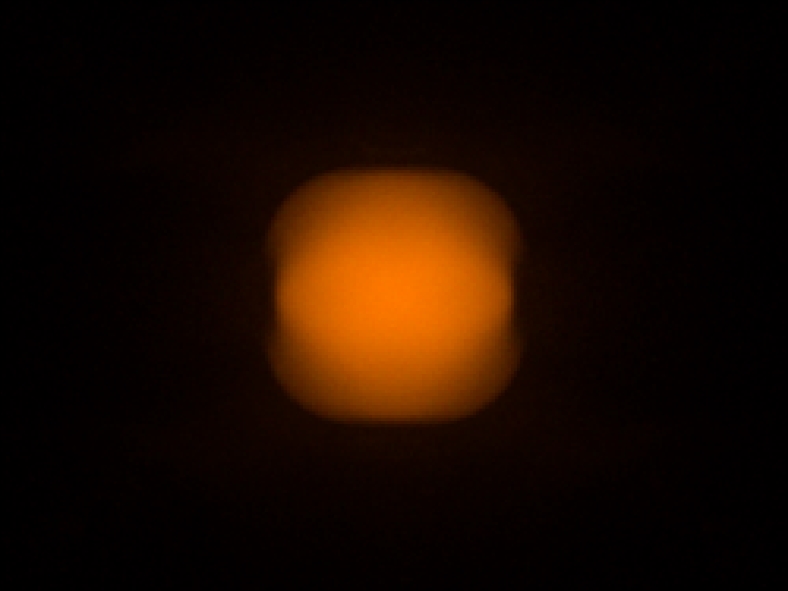

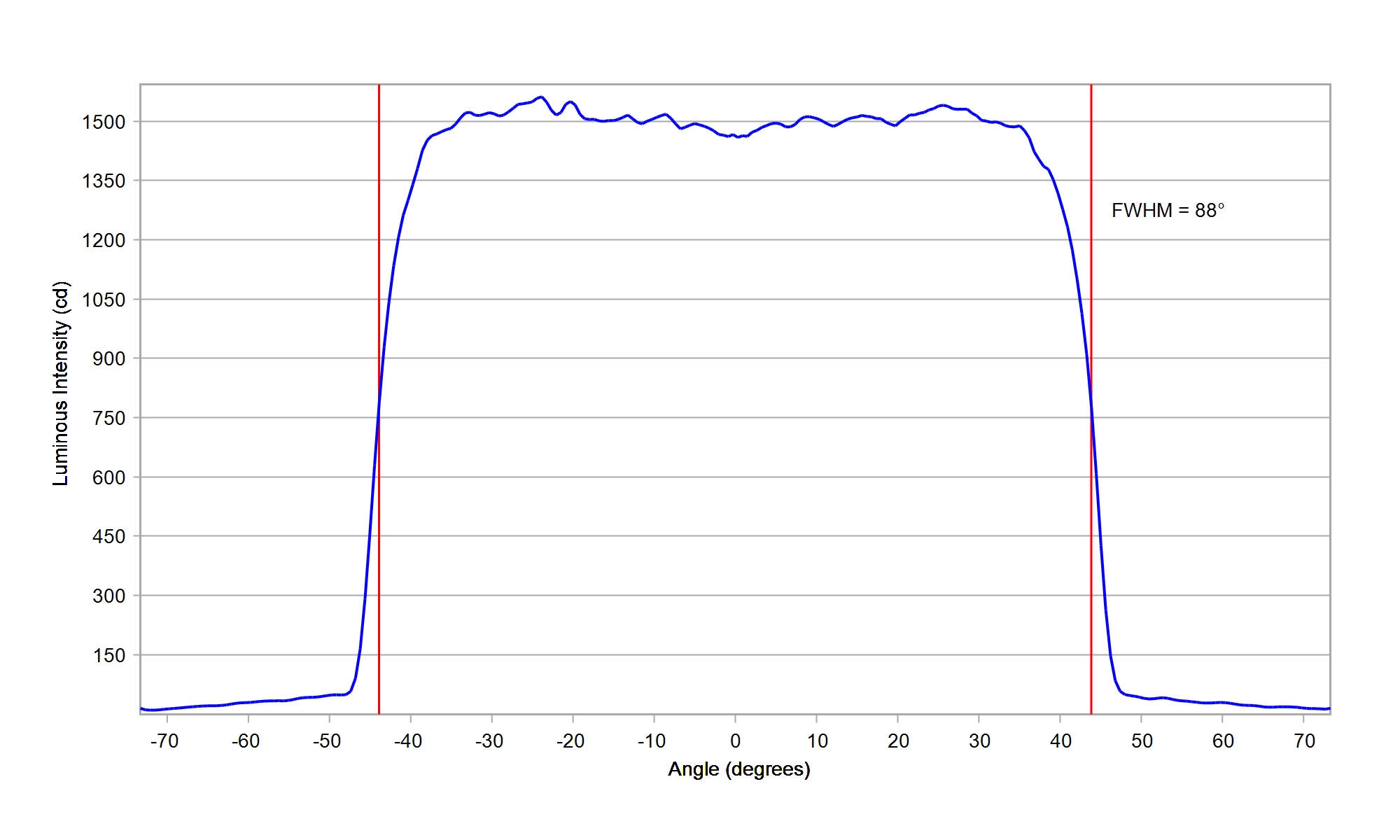

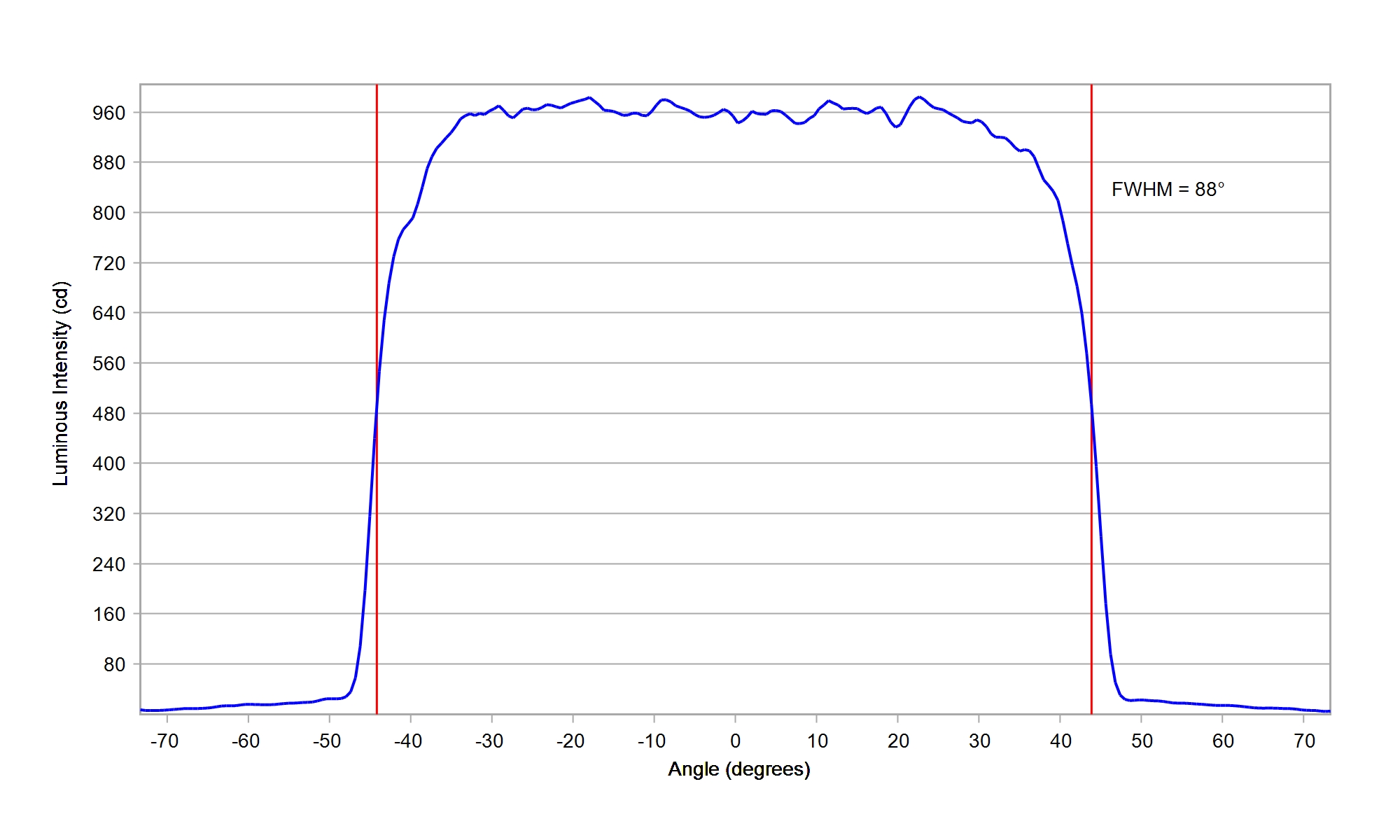

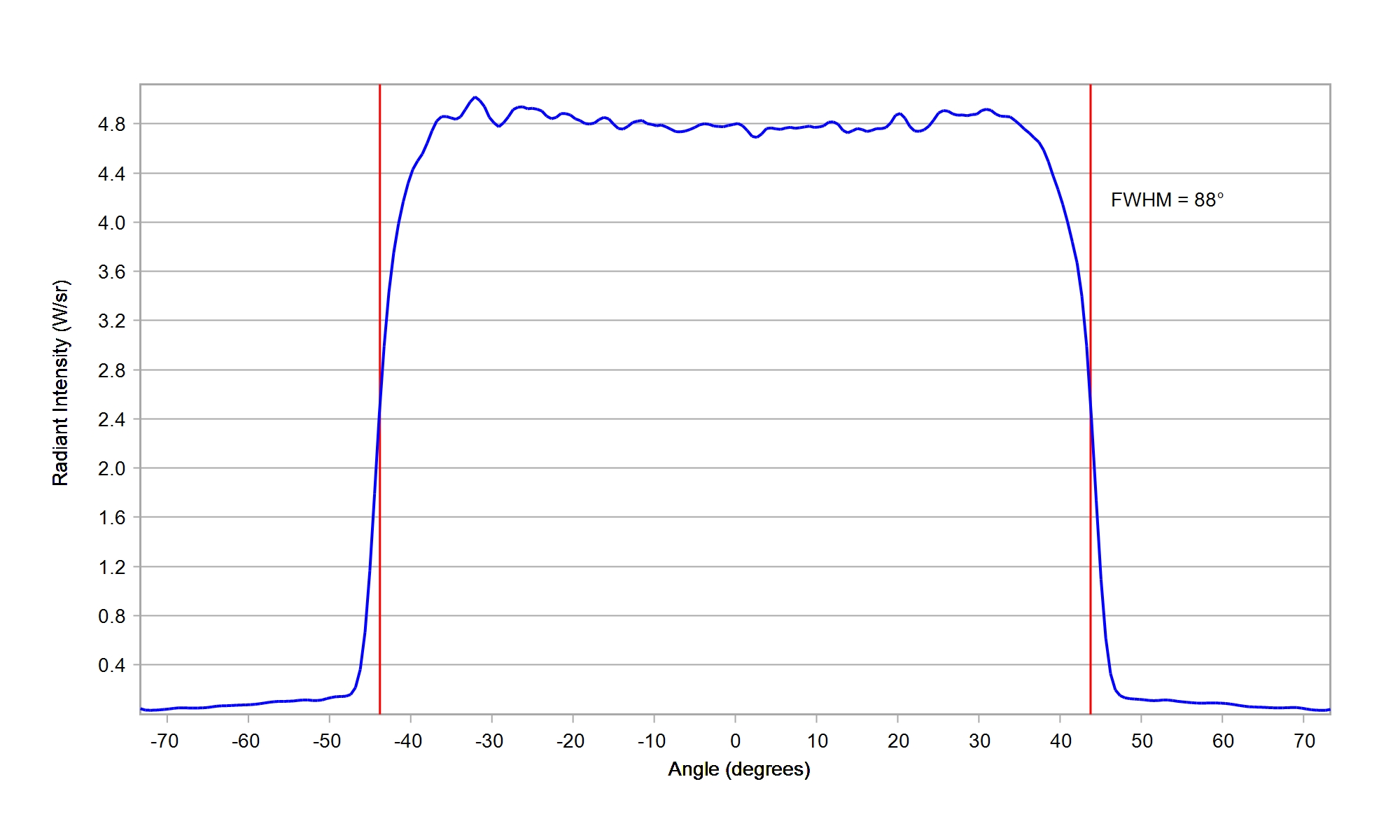

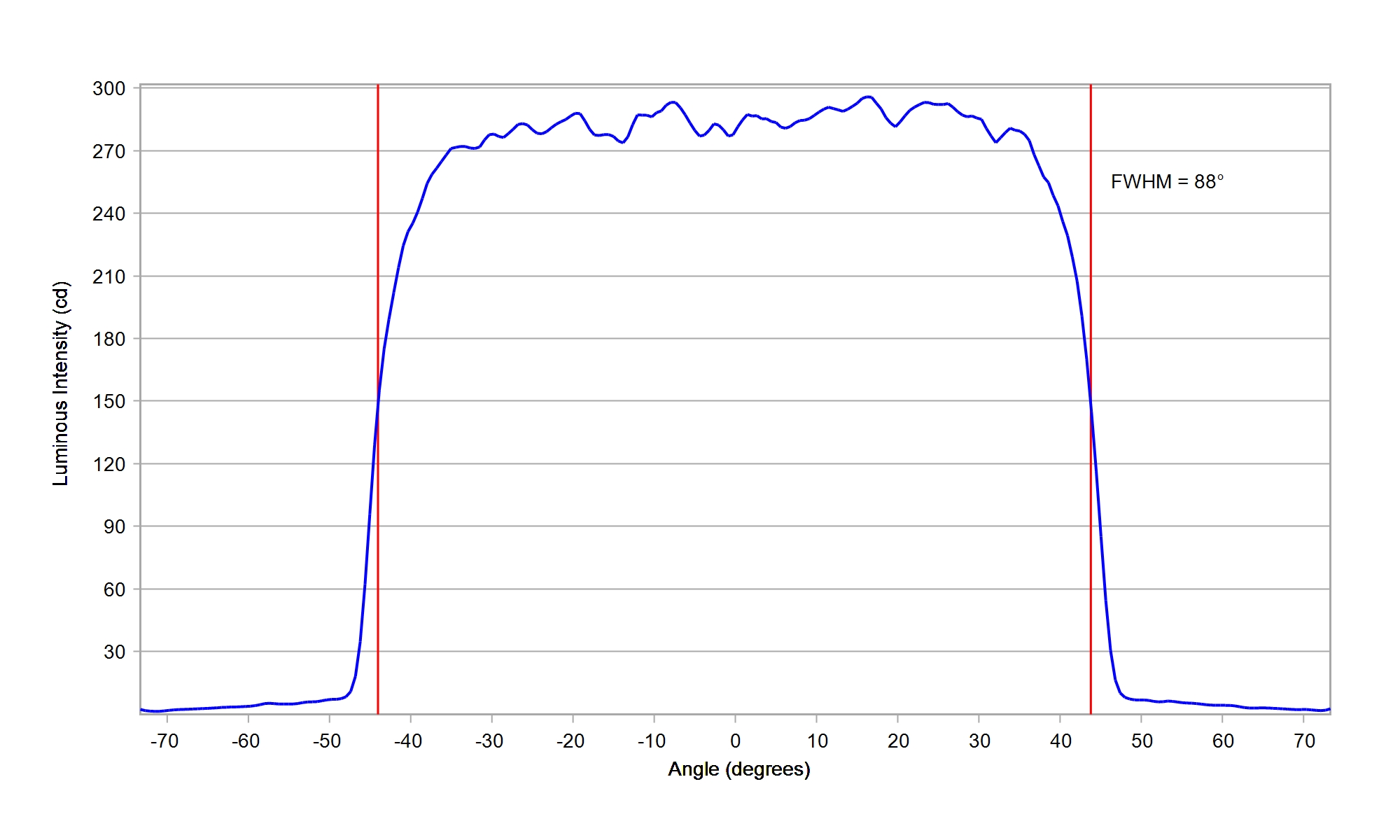

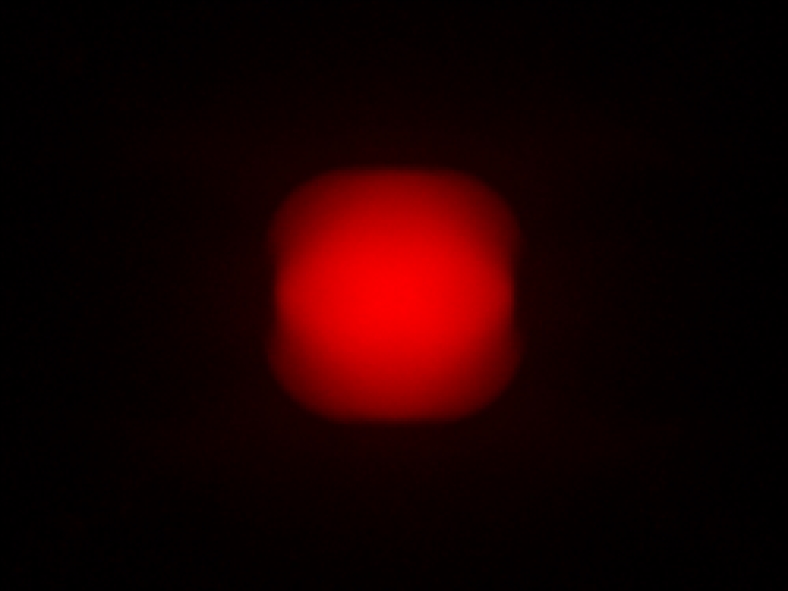

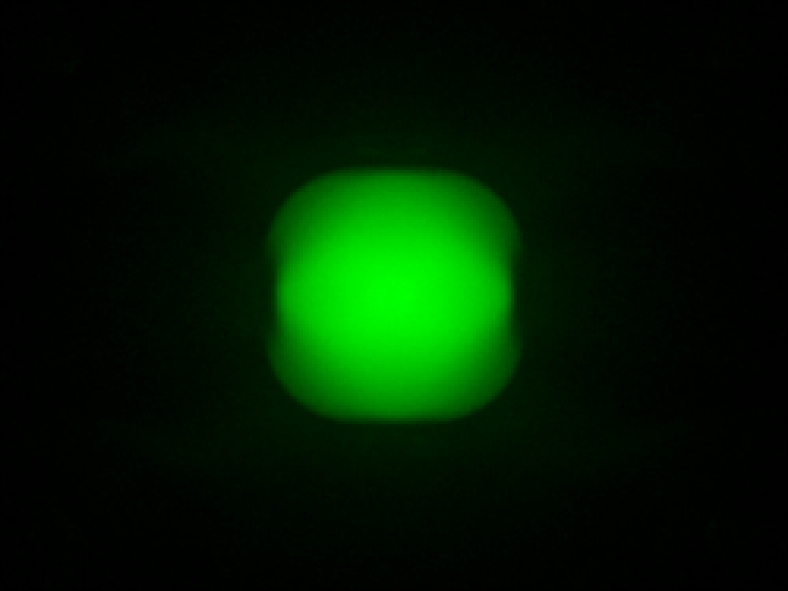

LUMILEDS LUXEON HL1Z CSP White
Eff:
95.5%
FWHM:
88°
Cd/Im:
0.7
Download
LUMILEDS LUXEON HL2Z White
Eff:
95.5%
FWHM:
87°
Cd/Im:
0.9
Download

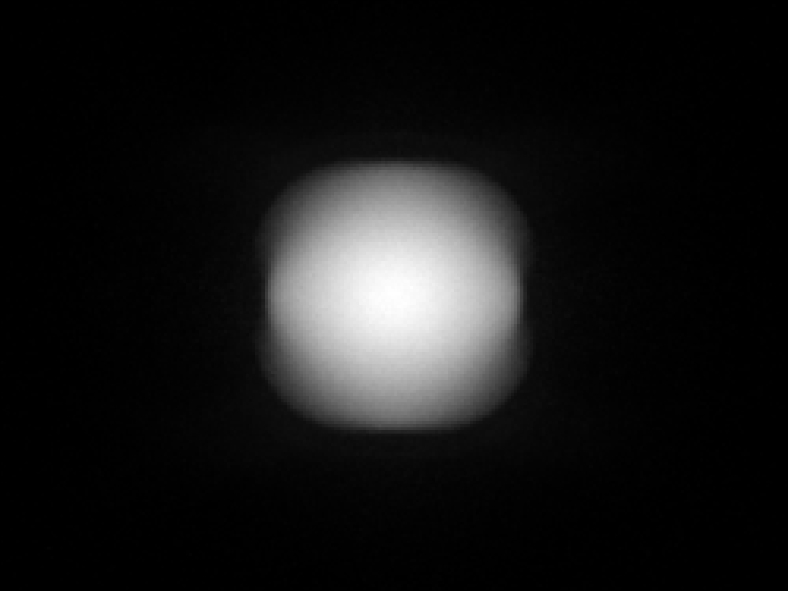

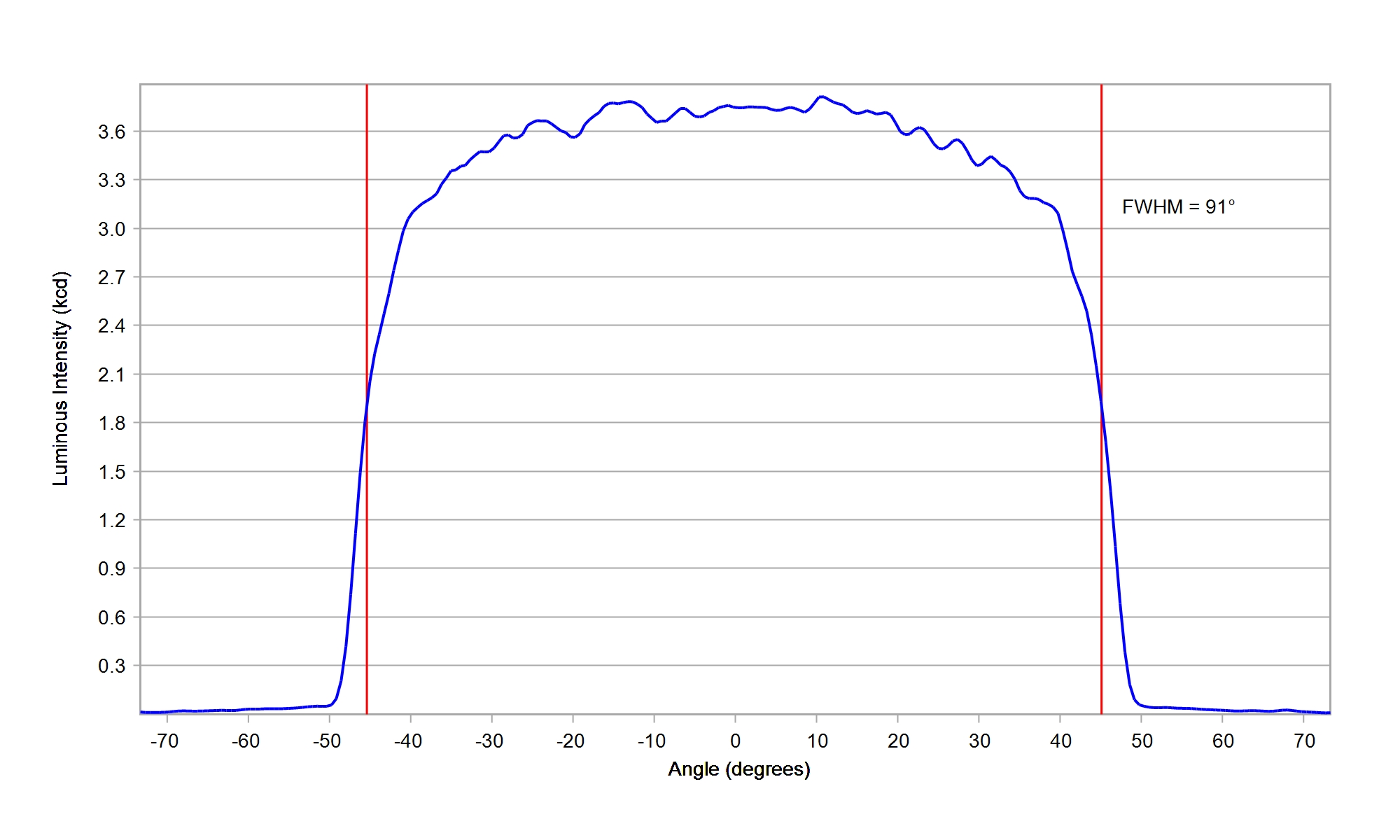

LUMILEDS LUXEON HL4Z White
Eff:
96.0%
FWHM:
91°
Cd/Im:
0.8
Download
LUMILEDS LUXEON IR 2720
Eff:
97.5%
FWHM:
89/86°
Ipk/W:
0.8
Download
LUMILEDS LUXEON Rubix Blue
Eff:
96.5%
FWHM:
93°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Green
Eff:
96.0%
FWHM:
92°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.5%
FWHM:
92°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
97.0%
FWHM:
92°
Cd/Im:
1.1
Download
LUMILEDS LUXEON Rubix White
Eff:
96.0%
FWHM:
93.0°
Cd/Im:
0.9
Download
Luminus Devices MP 7070-T200 White
Eff:
96.0%
FWHM:
79°
Cd/Im:
1.0
Download

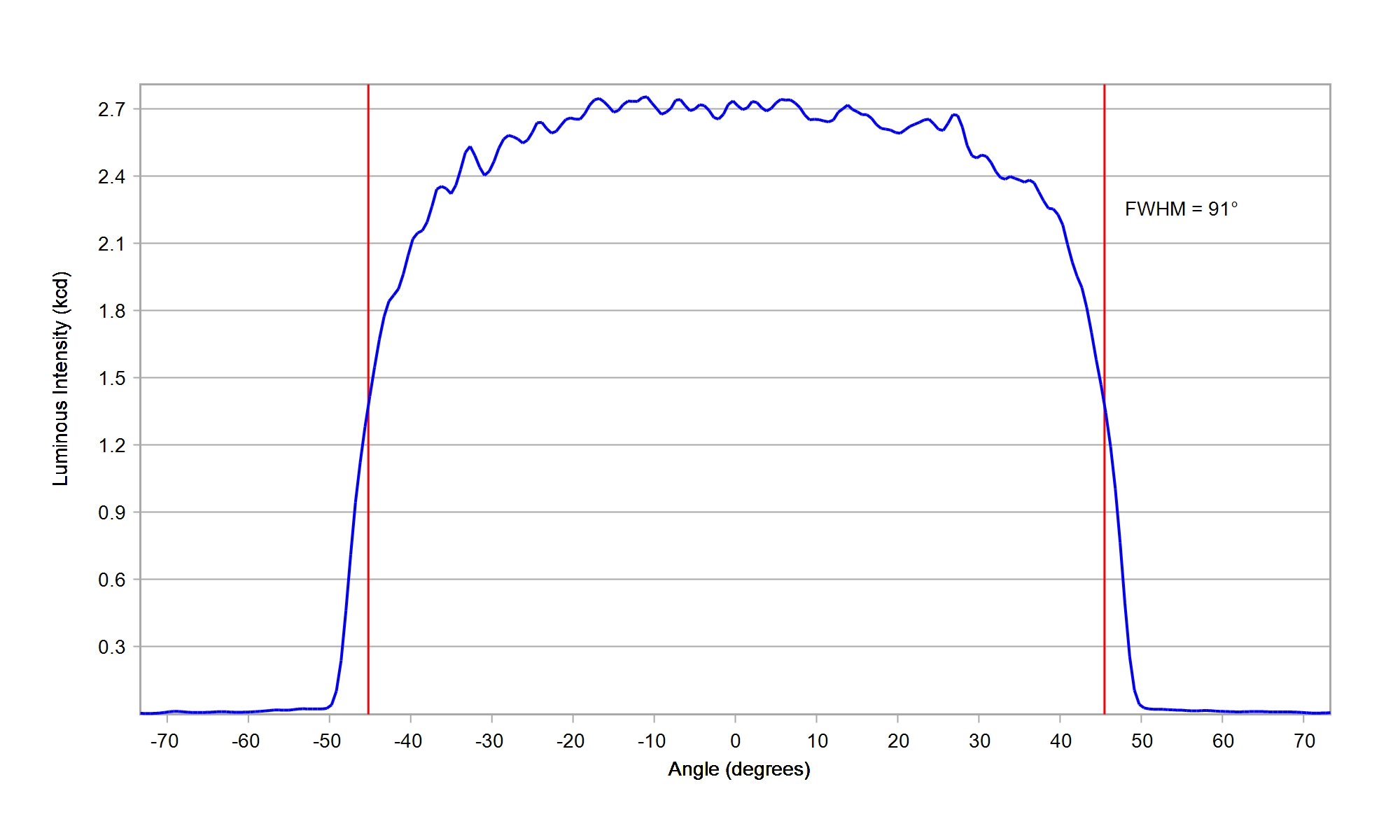

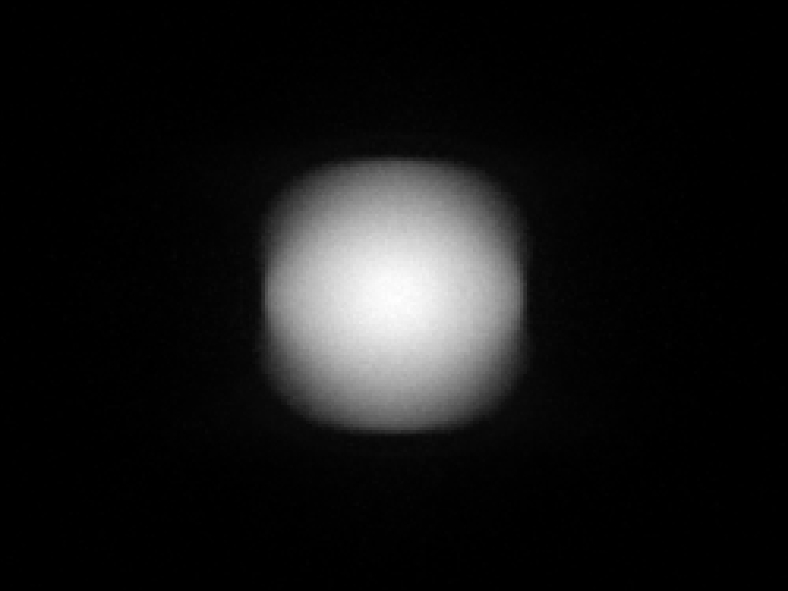

Luminus Devices SFT-40-WxS White
Eff:
96.0%
FWHM:
90°
Cd/Im:
1.1
Download
Luminus Devices SFT-70X-WxS White
Eff:
96.0%
FWHM:
89°
Cd/Im:
1.0
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
97.0%
FWHM:
90°
Cd/Im:
0.8
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
96.0%
FWHM:
95°
Cd/Im:
0.6
Download
Luminus Devices SST 10-G-B130 Green
Eff:
95.5%
FWHM:
91°
Cd/Im:
0.8
Download

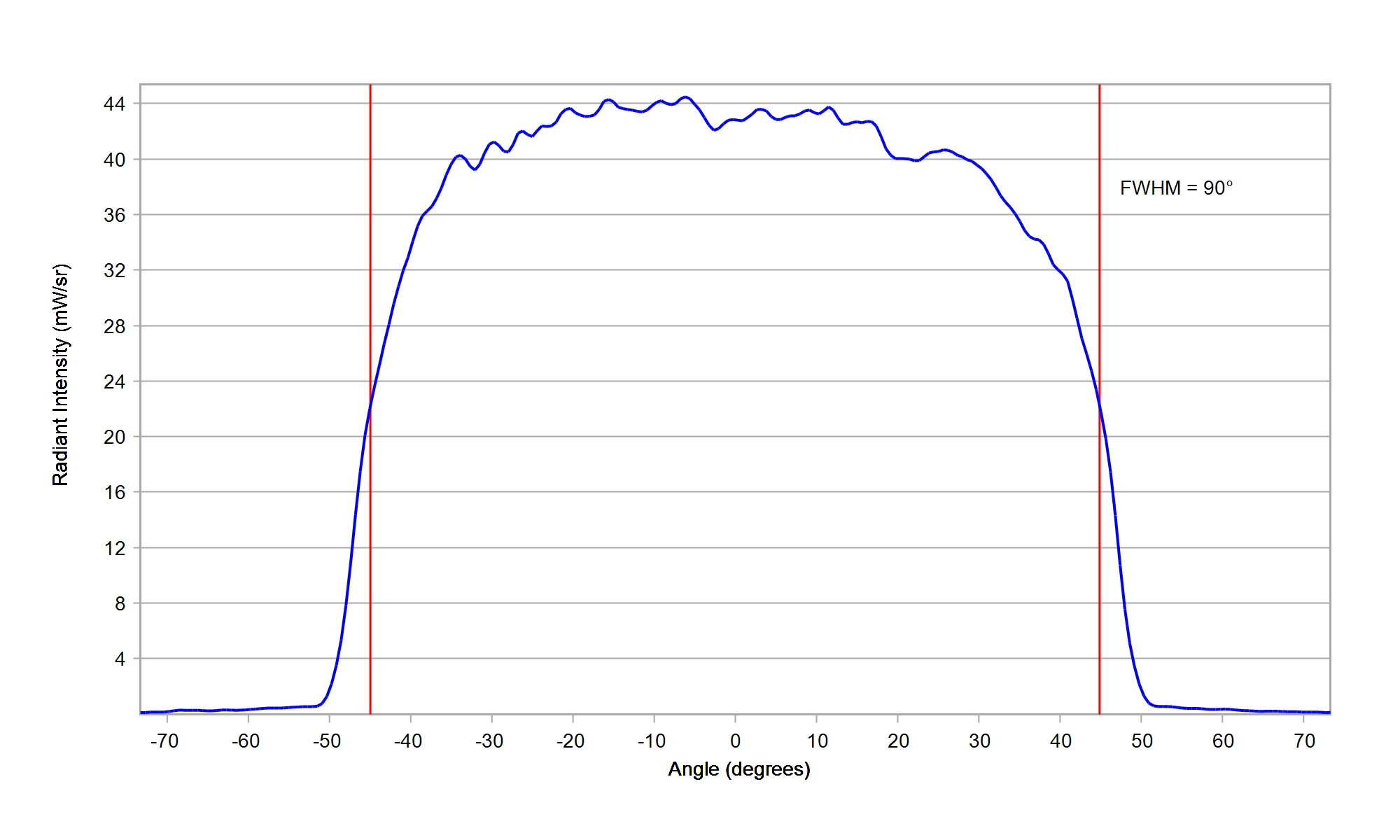

Luminus Devices SST 10-IR-B130 940nm
Eff:
97.0%
FWHM:
90.0°
Ipk/W:
0.9
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
97.0%
FWHM:
91°
Ipk/W:
0.8
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
95.5%
FWHM:
89°
Cd/Im:
0.8
Download

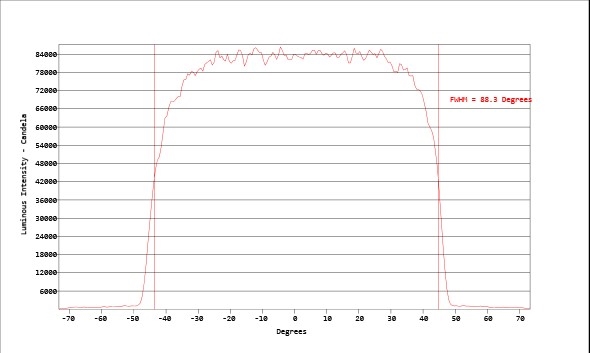

Nichia 757 White
Eff:
95.5%
FWHM:
87°
Cd/Im:
0.6
Download
Nichia NCSW CSP E17A White
Eff:
95.0%
FWHM:
87°
Cd/Im:
0.7
Download
Nichia NF2W 757G-MT Tunable
Eff:
95.5%
FWHM:
87°
Cd/Im:
0.8
Download
Nichia NFSW CSP E11A White
Eff:
94.0%
FWHM:
87°
Cd/Im:
0.7
Download
Nichia NVSW CSP E21A White
Eff:
95.0%
FWHM:
87°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 Gen2
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.9
Download
Osram OS DURIS E5 White
Eff:
95.5%
FWHM:
83°
Cd/Im:
0.7
Download
Osram OS DURIS S5 White
Eff:
96.5%
FWHM:
87.5°
Cd/Im:
0.7
Download
Osram OS DURIS S8 Gen3 White
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.9
Download

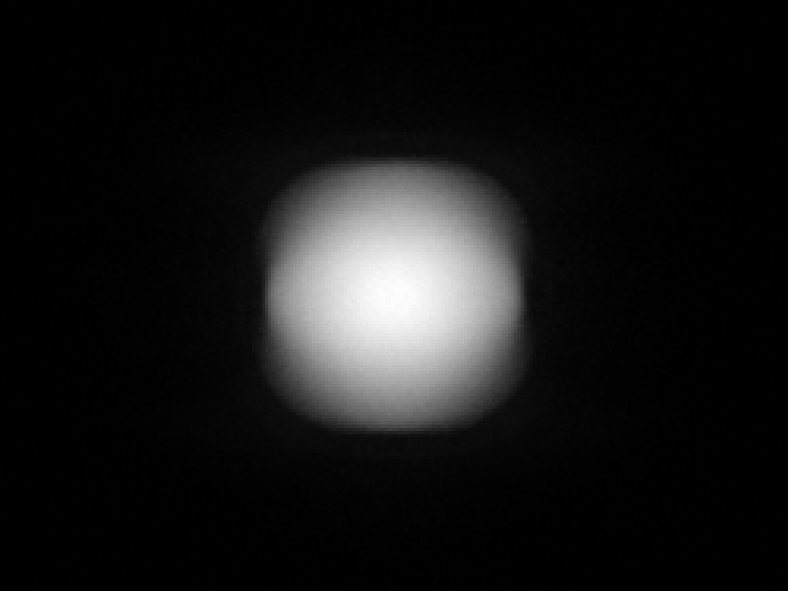

Osram OS OSCONIQ C 2424 White
Eff:
96.0%
FWHM:
88.0°
Cd/Im:
0.9
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
96.0%
FWHM:
84°
Cd/Im:
0.9
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
95.0%
FWHM:
91°
Ipk/W:
0.7
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
96.0%
FWHM:
91°
Cd/Im:
0.7
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
95.5%
FWHM:
85°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
97.0%
FWHM:
85°
Ipk/W:
0.9
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
95.0%
FWHM:
86°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
94.5%
FWHM:
88°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
95.5%
FWHM:
85°
Cd/Im:
0.7
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
94.5%
FWHM:
85°
Cd/Im:
0.8
Download

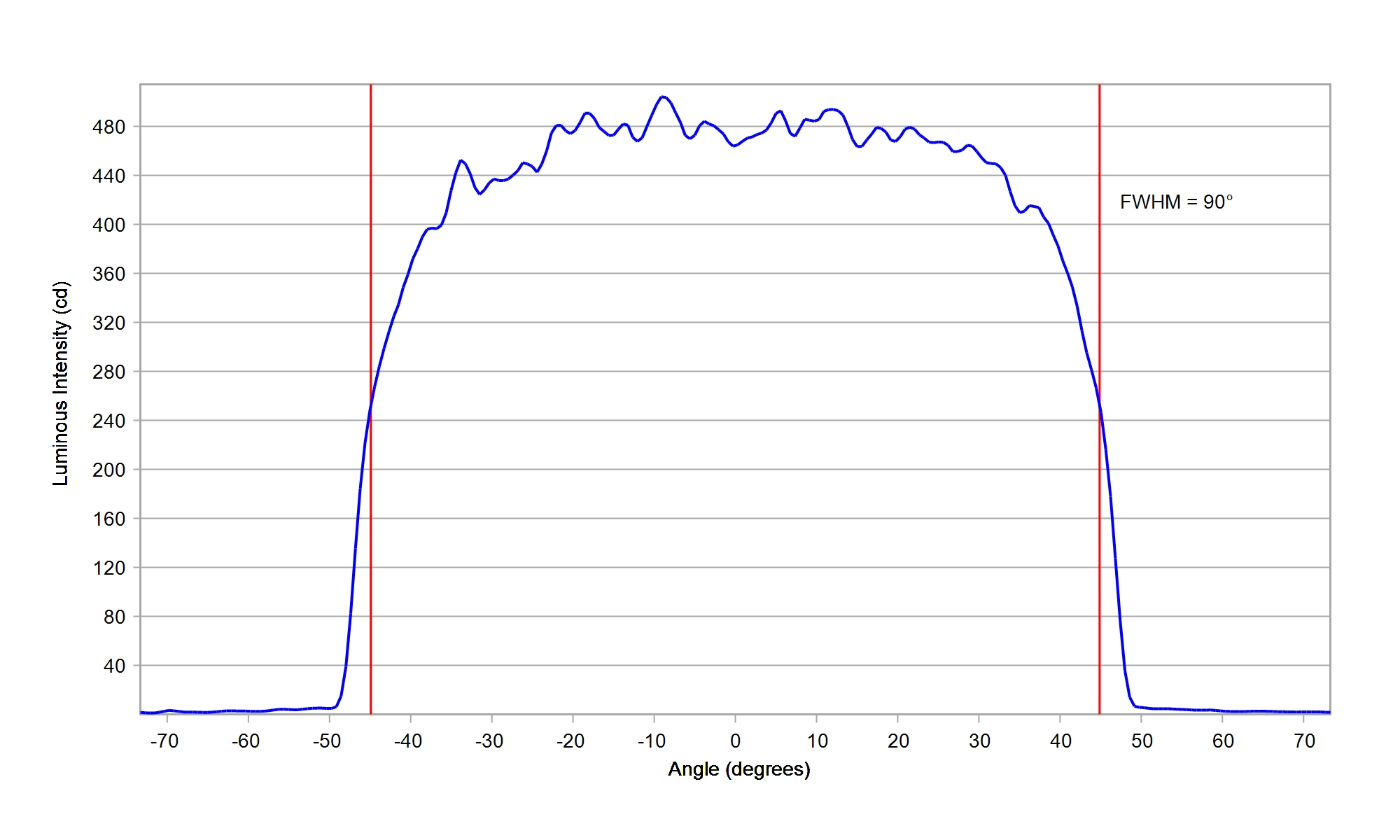

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
96.5%
FWHM:
90°
Cd/Im:
1.1
Download

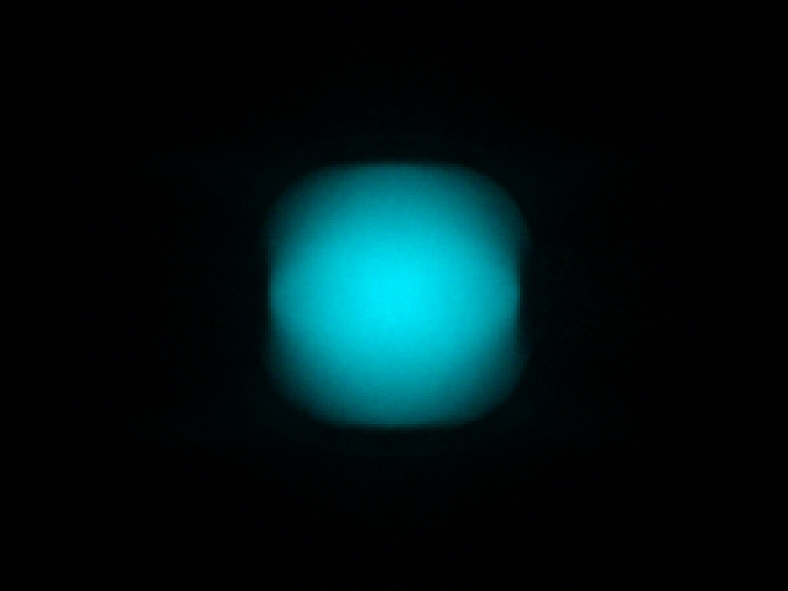

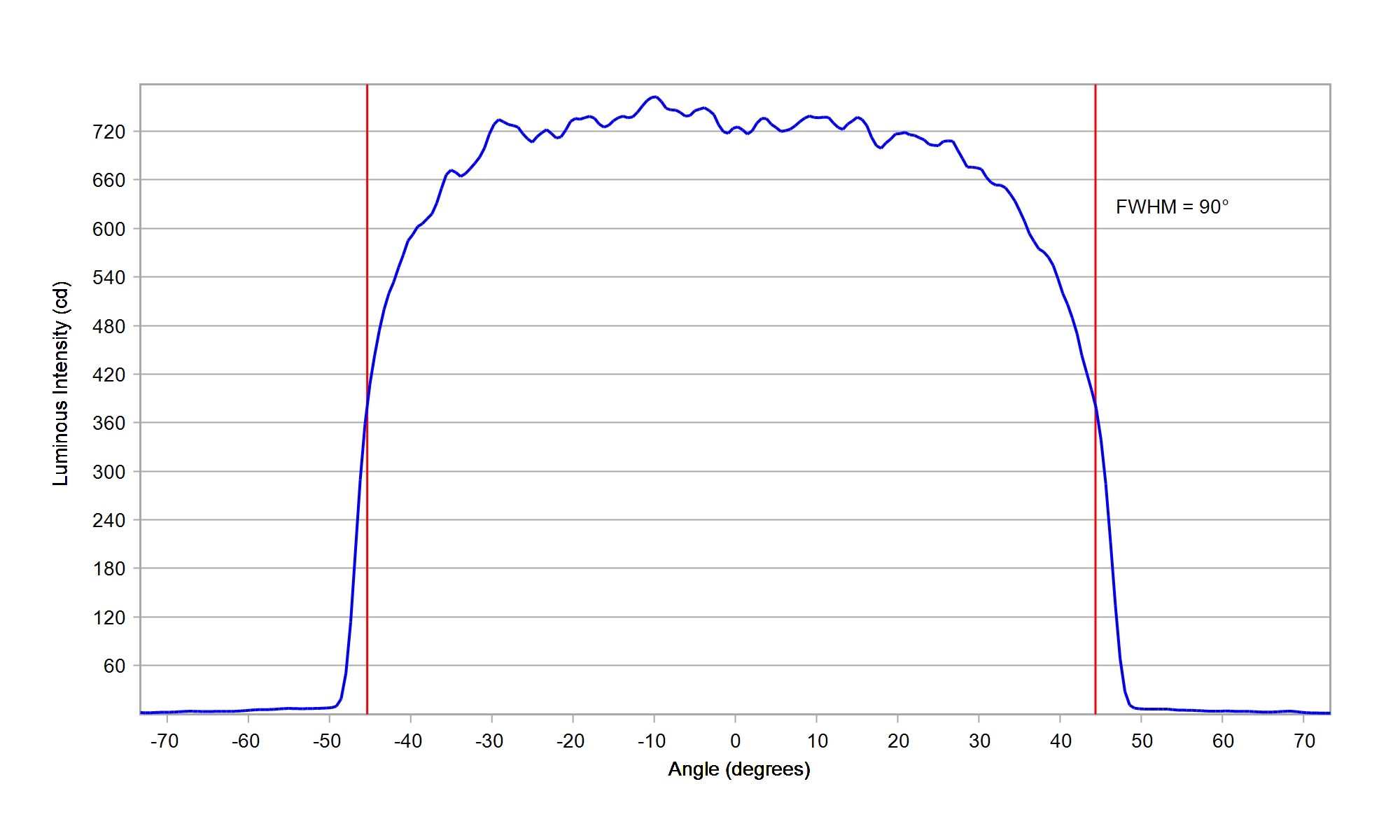

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
96.5%
FWHM:
90°
Cd/Im:
0.8
Download

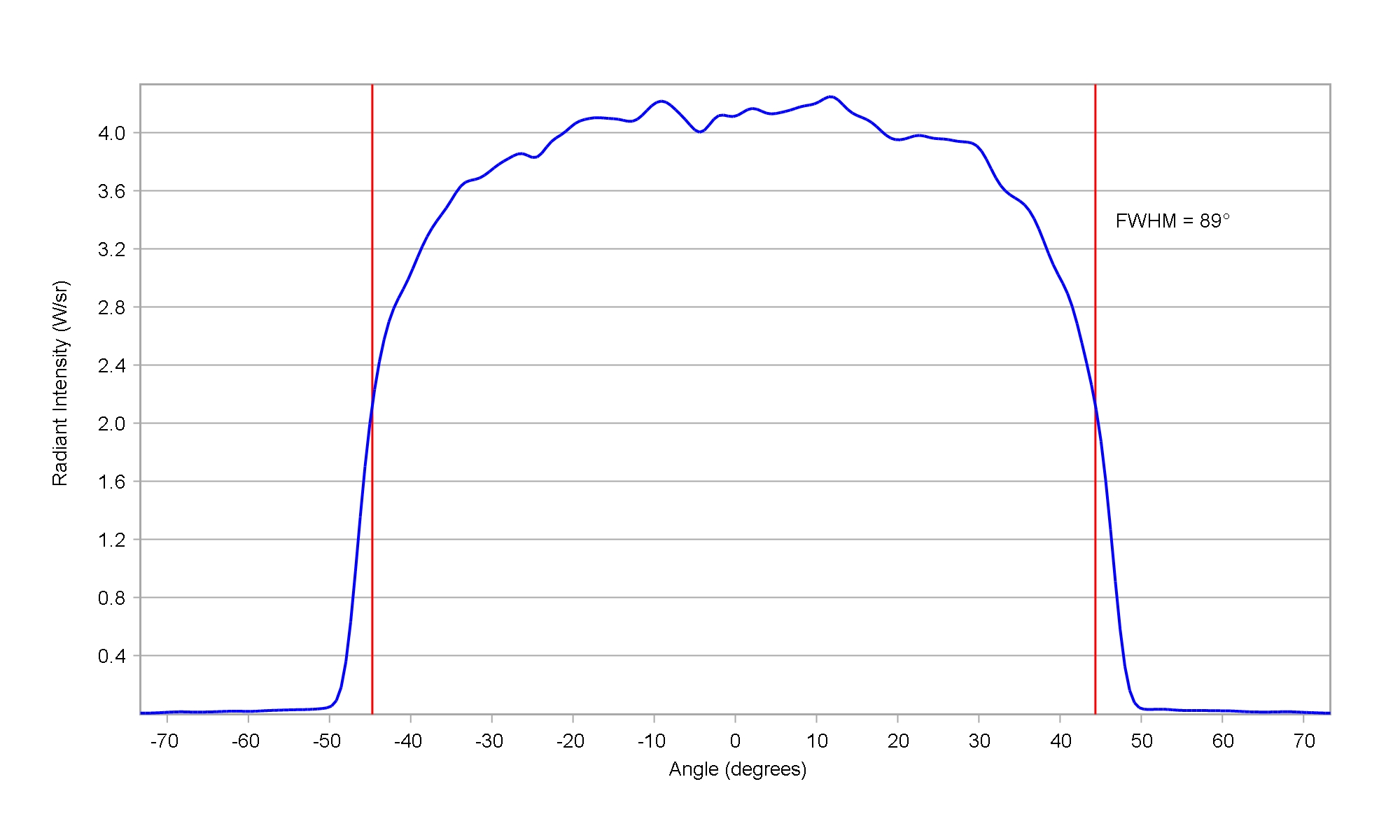

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
97.0%
FWHM:
89°
Ipk/W:
0.8
Download

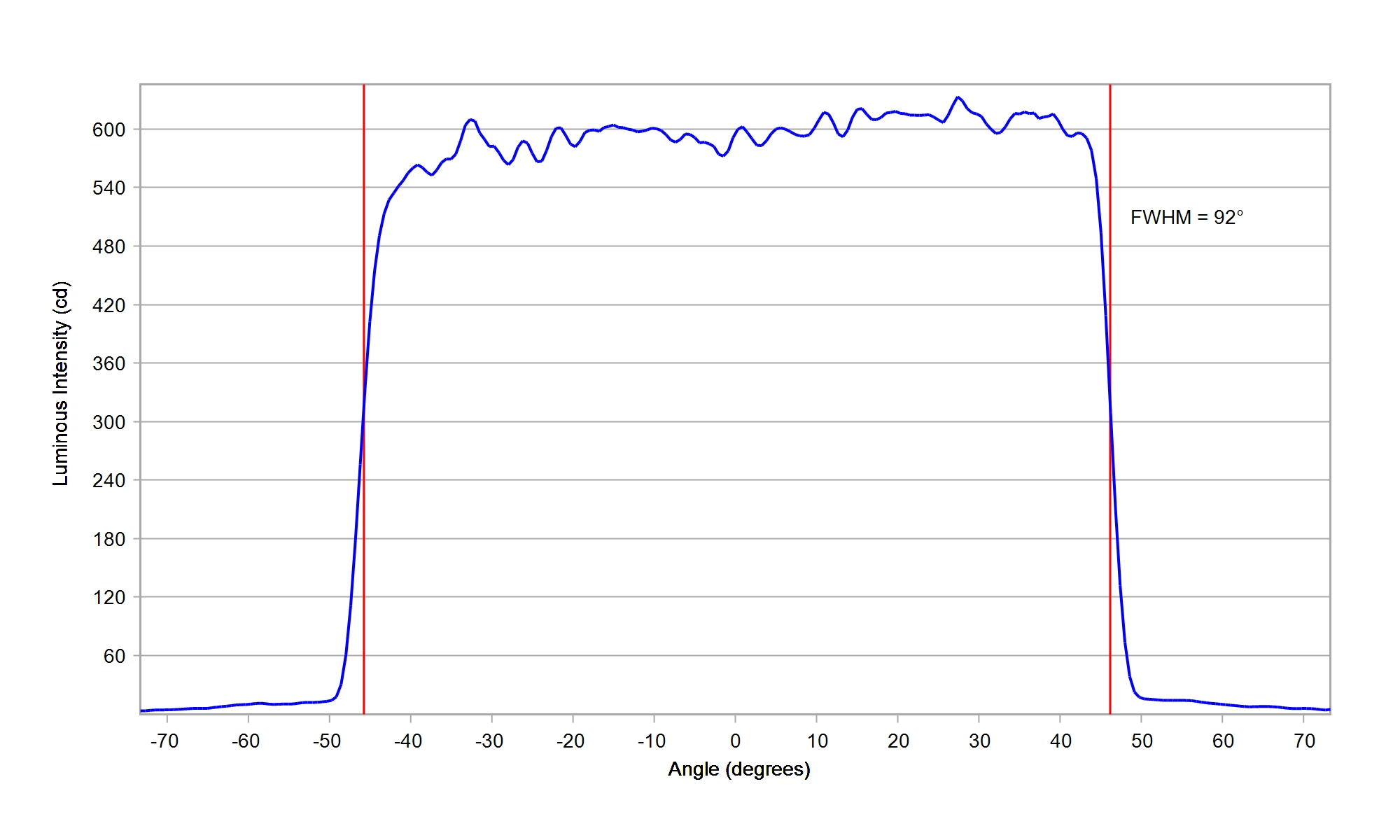

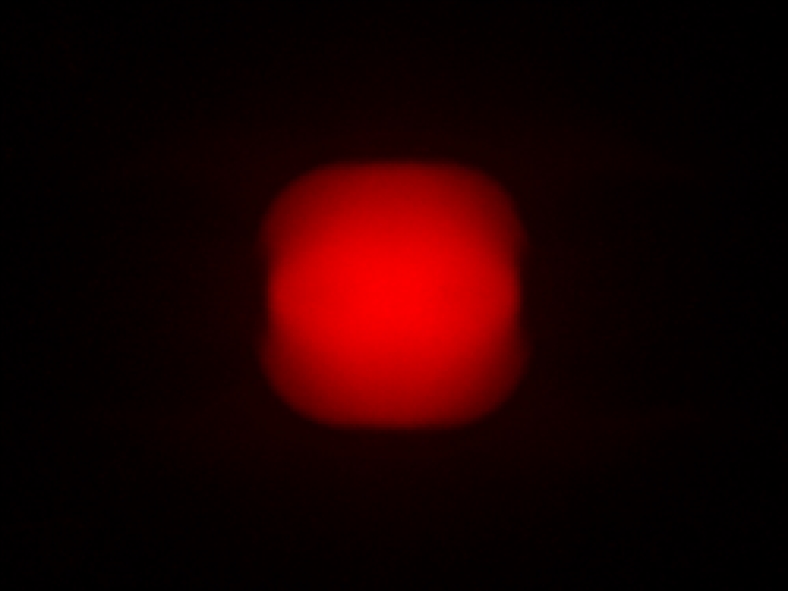

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
96.0%
FWHM:
92°
Cd/Im:
0.7
Download

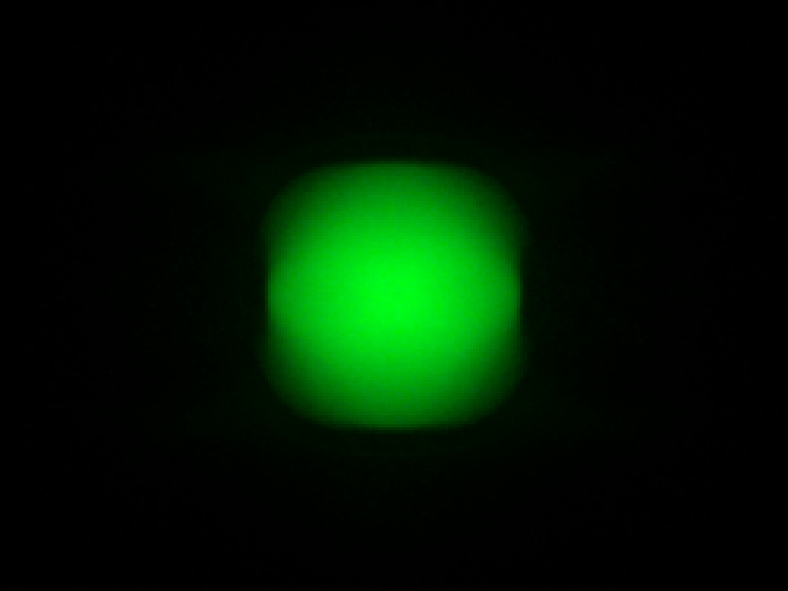

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download

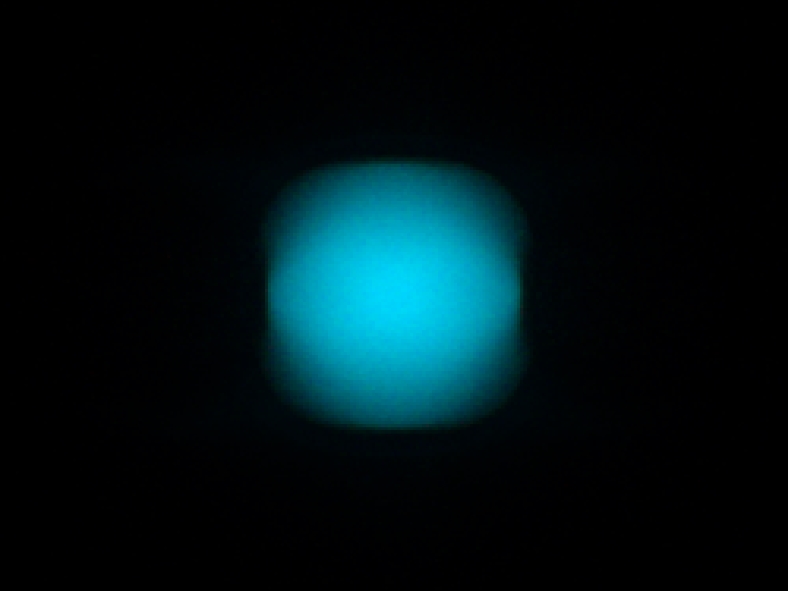

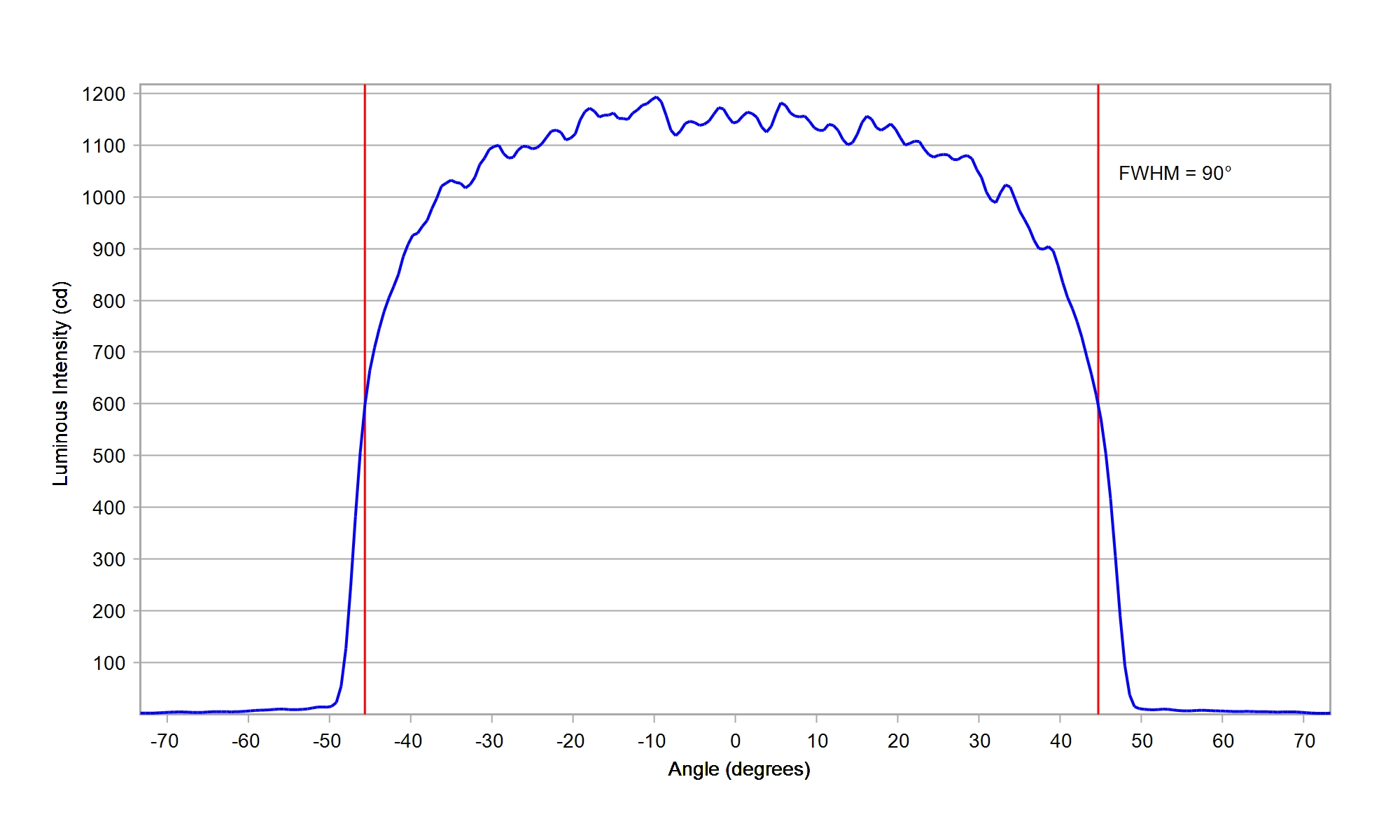

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download

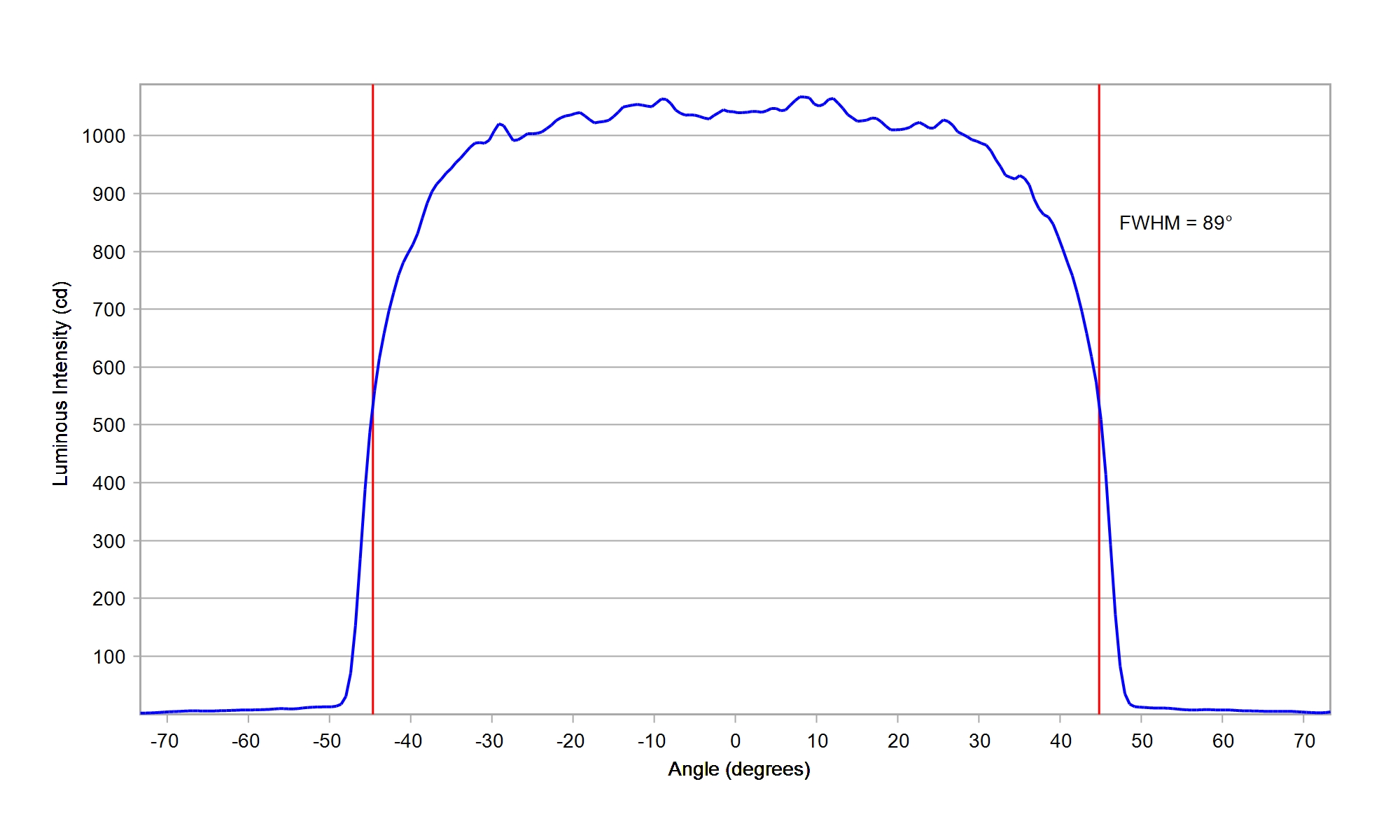

Osram OS OSLON Pure 1414 GW VJLPL1.CM White
Eff:
96.0%
FWHM:
89°
Cd/Im:
0.7
Download

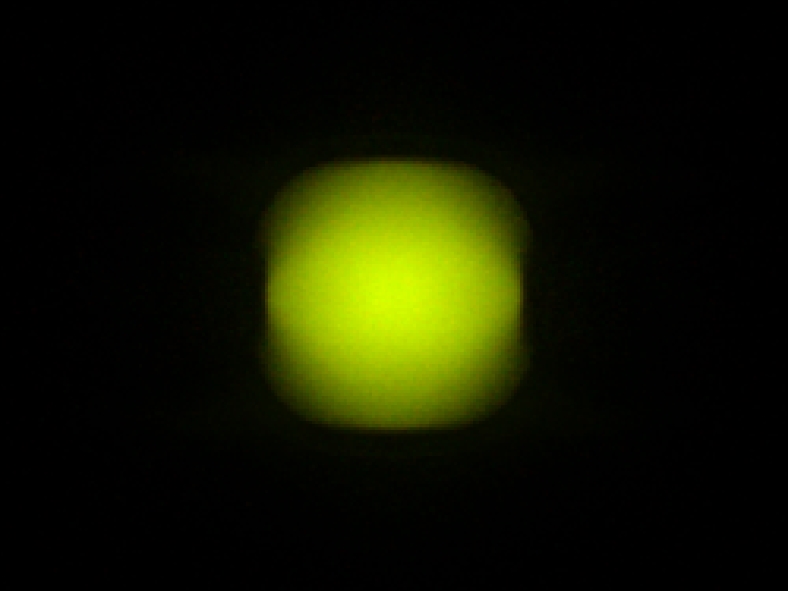

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
96.0%
FWHM:
91°
Cd/Im:
0.8
Download

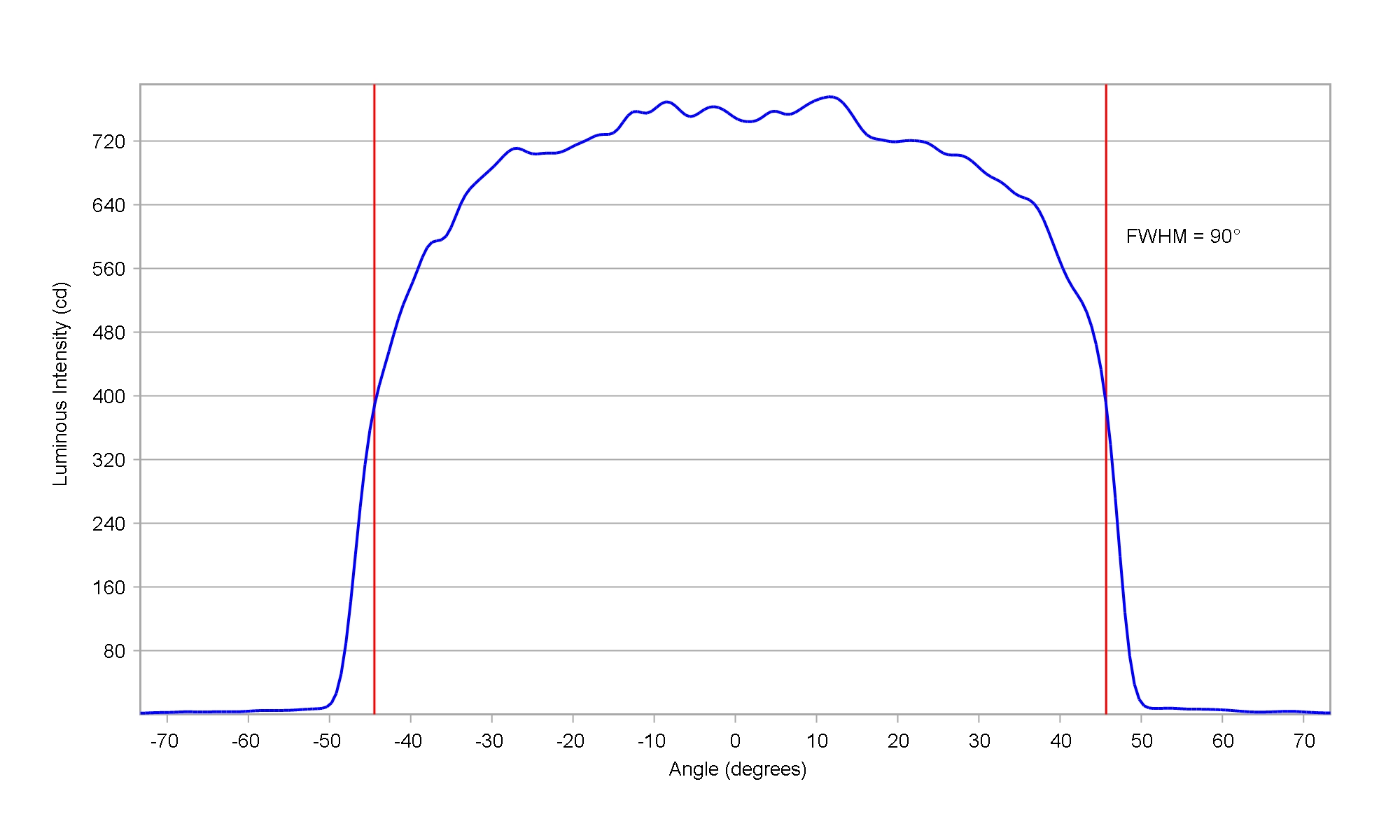

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
96.0%
FWHM:
90°
Cd/Im:
0.8
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
95.5%
FWHM:
89 x 84°
Cd/Im:
0.9
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
96.0%
FWHM:
94°
Cd/Im:
0.7
Download
Osram OS Prevaled Bar G4
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.8
Download

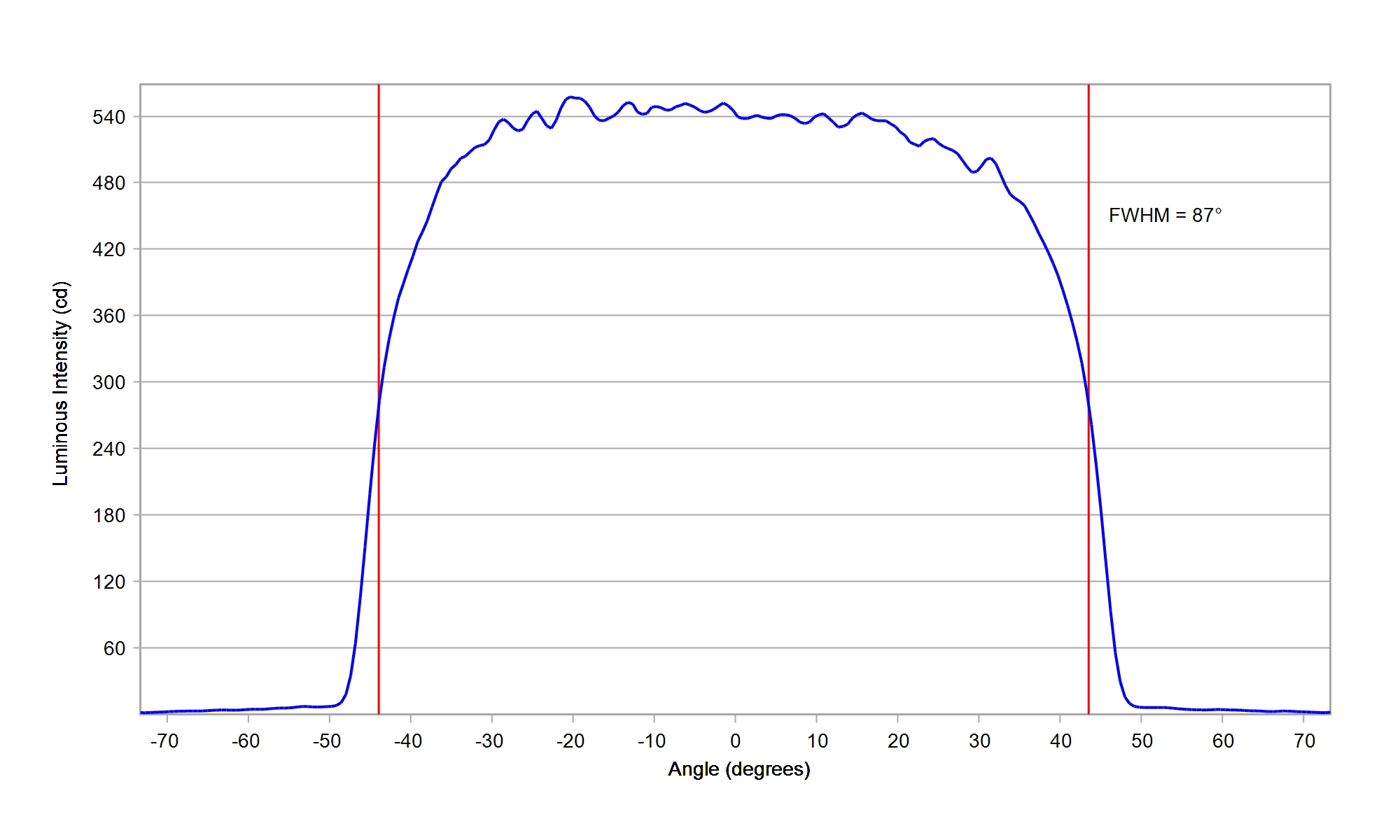

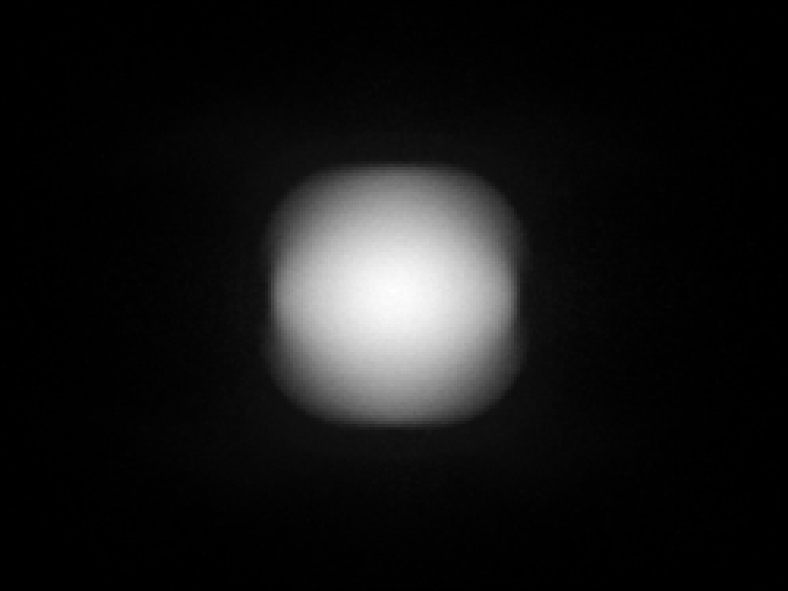

Philips Fortimo LED Line HF 3R HV5 Gen5 2000lm
Eff:
95.5%
FWHM:
87°
Cd/Im:
0.9
Download

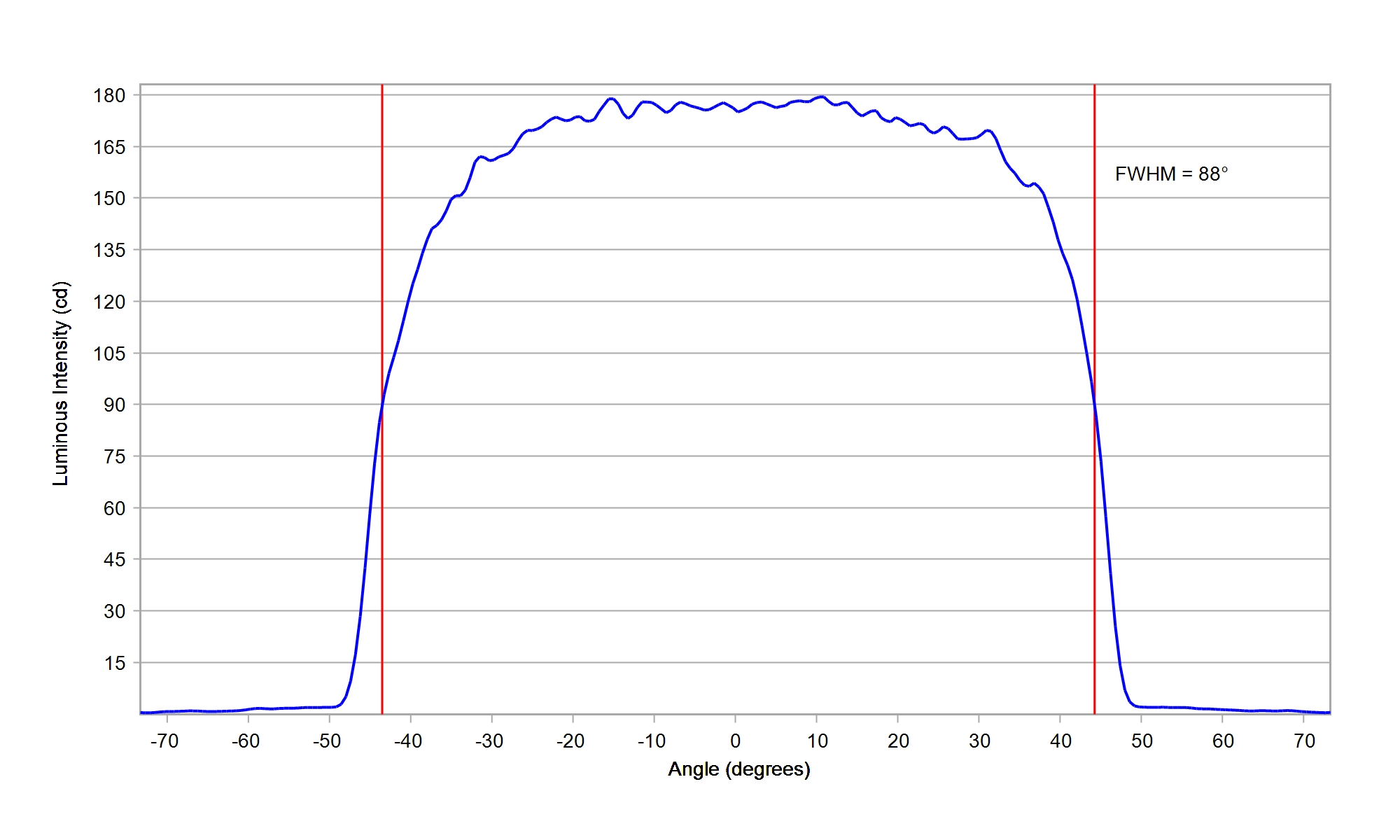

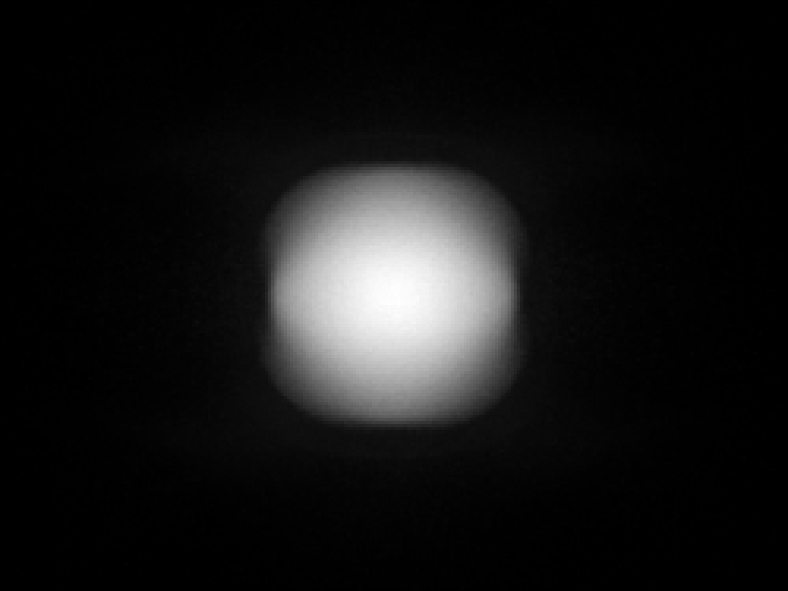

Philips Fortimo LED Line LF 3R HV/LV5 Gen5 650lm
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.9
Download
Philips Fortimo LED Line MF 3R HV/LV5 Gen5 1100lm
Eff:
95.5%
FWHM:
88°
Cd/Im:
0.8
Download
Philips Fortimo LED Line 3R HV4 Gen 4 Board 1100lm
Eff:
93.5%
FWHM:
86°
Cd/Im:
0.9
Download
Samsung 2835 LM281B+ White
Eff:
96.0%
FWHM:
87°
Cd/Im:
0.9
Download
Samsung 3030 LM301B White
Eff:
96.0%
FWHM:
87°
Cd/Im:
0.8
Download
Samsung 5050 LH502C White
Eff:
96.0%
FWHM:
84°
Cd/Im:
0.9
Download
Samsung 5050 LH502D White
Eff:
96.0%
FWHM:
85°
Cd/Im:
0.9
Download
Samsung 5050 LH508C White
Eff:
96.0%
FWHM:
83°
Cd/Im:
1.0
Download
Samsung CSP LH151B White
Eff:
95.5%
FWHM:
86°
Cd/Im:
0.9
Download
Samsung CSP LH181B White
Eff:
96.0%
FWHM:
85°
Cd/Im:
0.9
Download
Samsung CSP LH231B White
Eff:
95.5%
FWHM:
85°
Cd/Im:
0.9
Download
Samsung CSP LM101B White
Eff:
95.5%
FWHM:
86°
Cd/Im:
0.8
Download
Samsung MidPower 5630 White
Eff:
91.0%
FWHM:
89.8°
Cd/Im:
0.6
Download

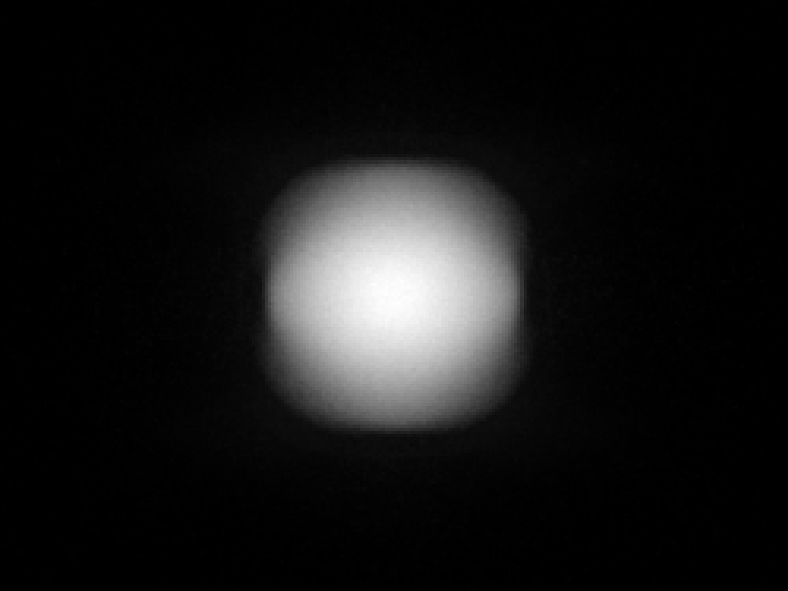

Seoul CSP SZ8Y11 White
Eff:
92.0%
FWHM:
88 x 91°
Cd/Im:
0.7
Download

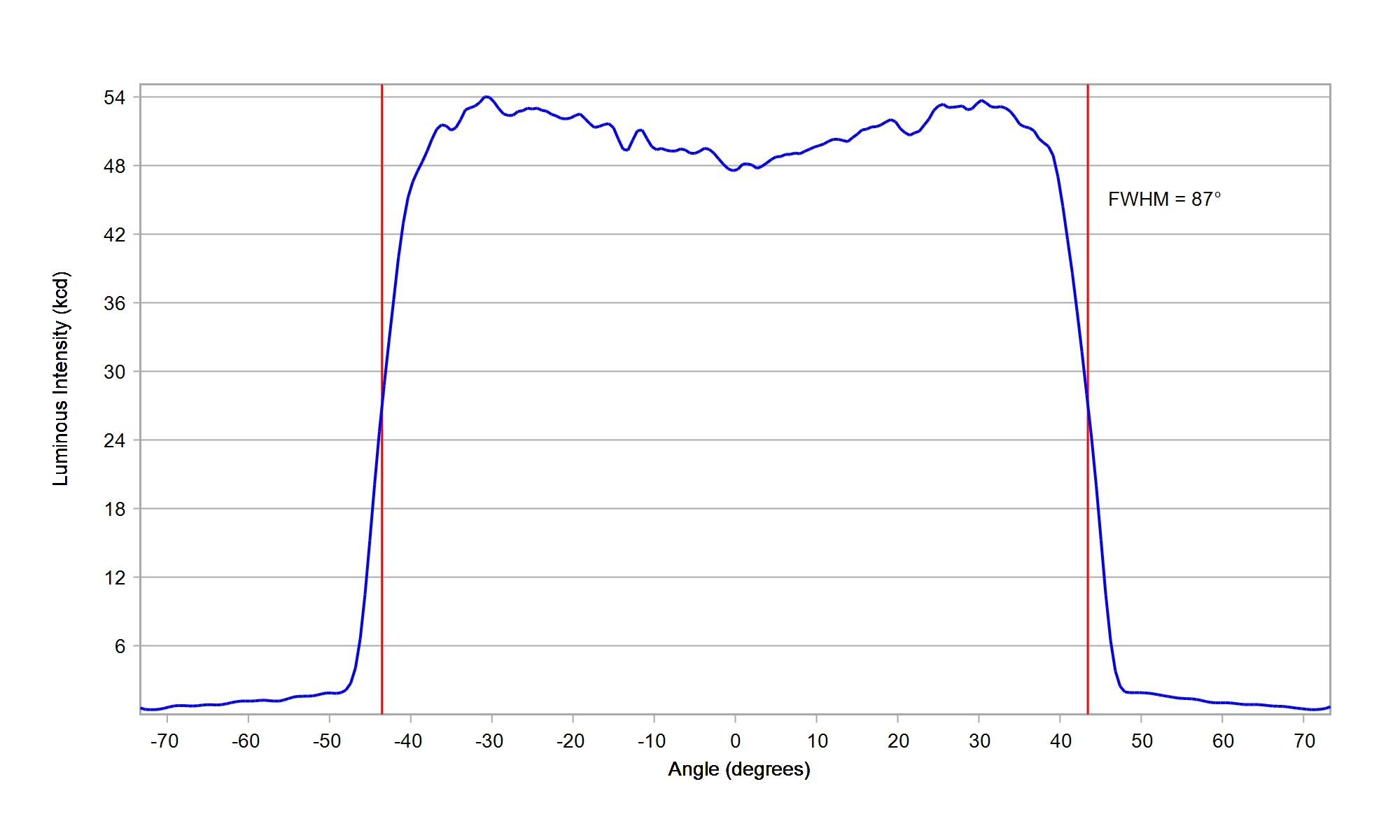

Seoul CSP SZ8Y22 White
Eff:
94.0%
FWHM:
87 x 88°
Cd/Im:
0.7
Download

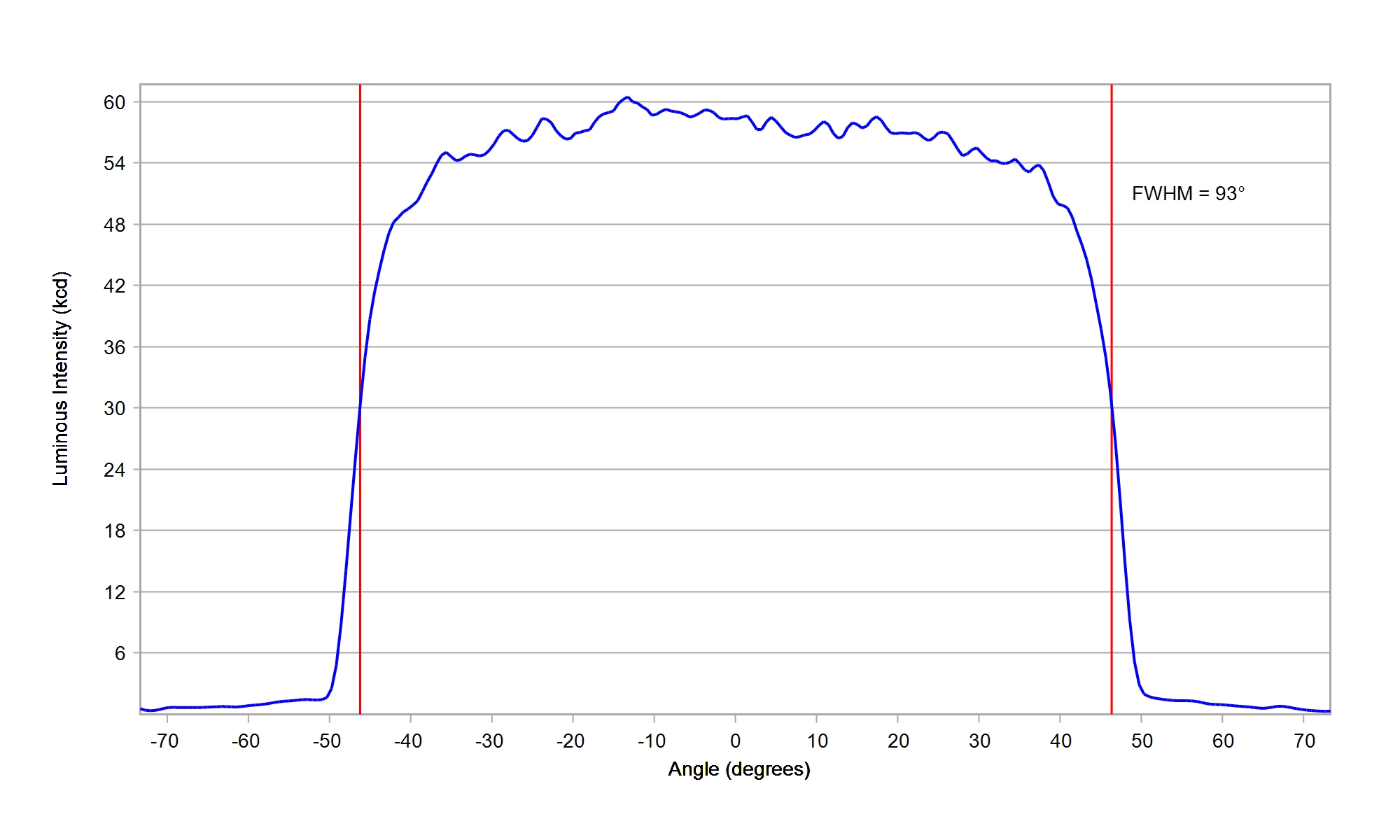

Seoul CSP SZ8Y22P White
Eff:
94.5%
FWHM:
93 x 92°
Cd/Im:
0.7
Download
Seoul MidPower 5630 STW8Q14C White
Eff:
91.0%
FWHM:
90.5°
Cd/Im:
0.5
Download
Seoul MidPower 5630 STW8Q14C White
Eff:
93.5%
FWHM:
88°
Cd/Im:
0.6
Download
Seoul STW8 C2SB-NT White
Eff:
96.0%
FWHM:
88.0°
Cd/Im:
0.9
Download
Seoul STWS C2PB-E0 White
Eff:
96.0%
FWHM:
88.0°
Cd/Im:
0.9
Download
Seoul SunLike STW9 C2SB-S
Eff:
96.0%
FWHM:
88°
Cd/Im:
0.9
Download
