50.0 x 50.0mm Medium Spot Bubble

Part number

12814

Dimensions

50.0 x 50.0mm

Drawing Number

70299

Optic type

Bubble

Beam type

Medium Spot

Applications

Industrial

Horticultural

Warehouse

Emergency / Hazard

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.5

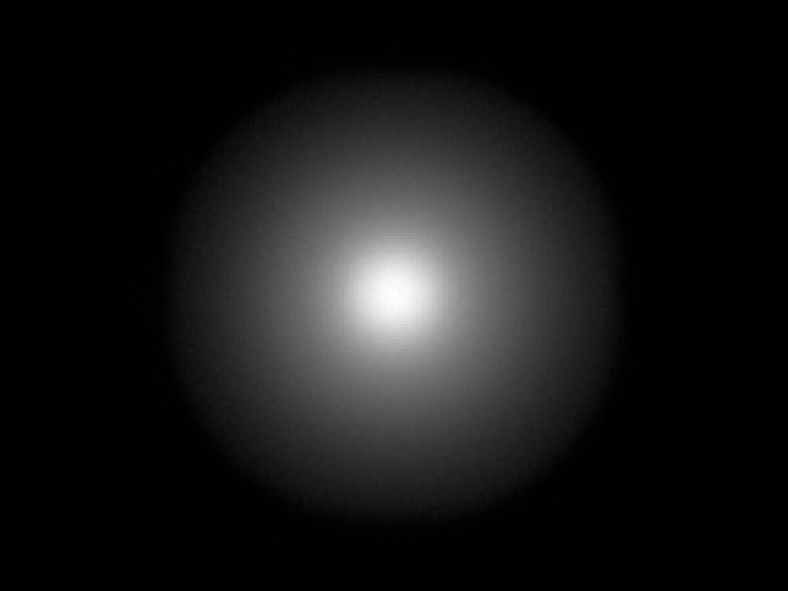

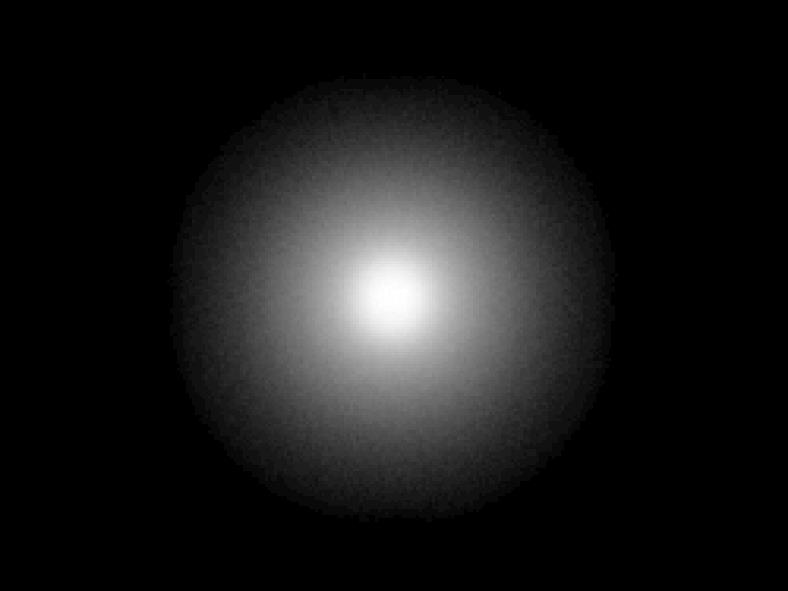

Carclo Optics - 12814 Bubble Spot Image Bridgelux 3030 Gen2

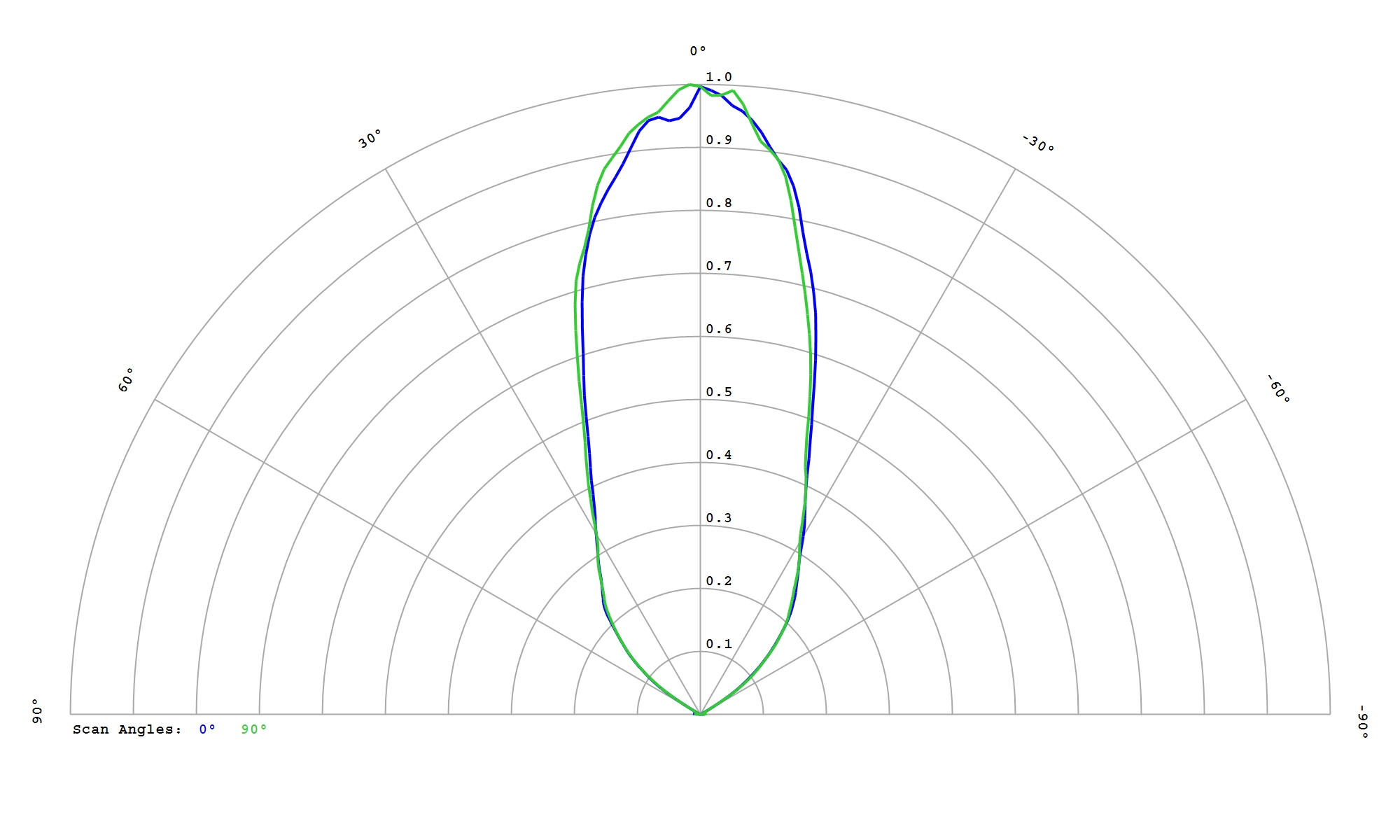

Carclo Optics - 12814 Bubble Cross Section Bridgelux 3030 Gen2

Download

ies

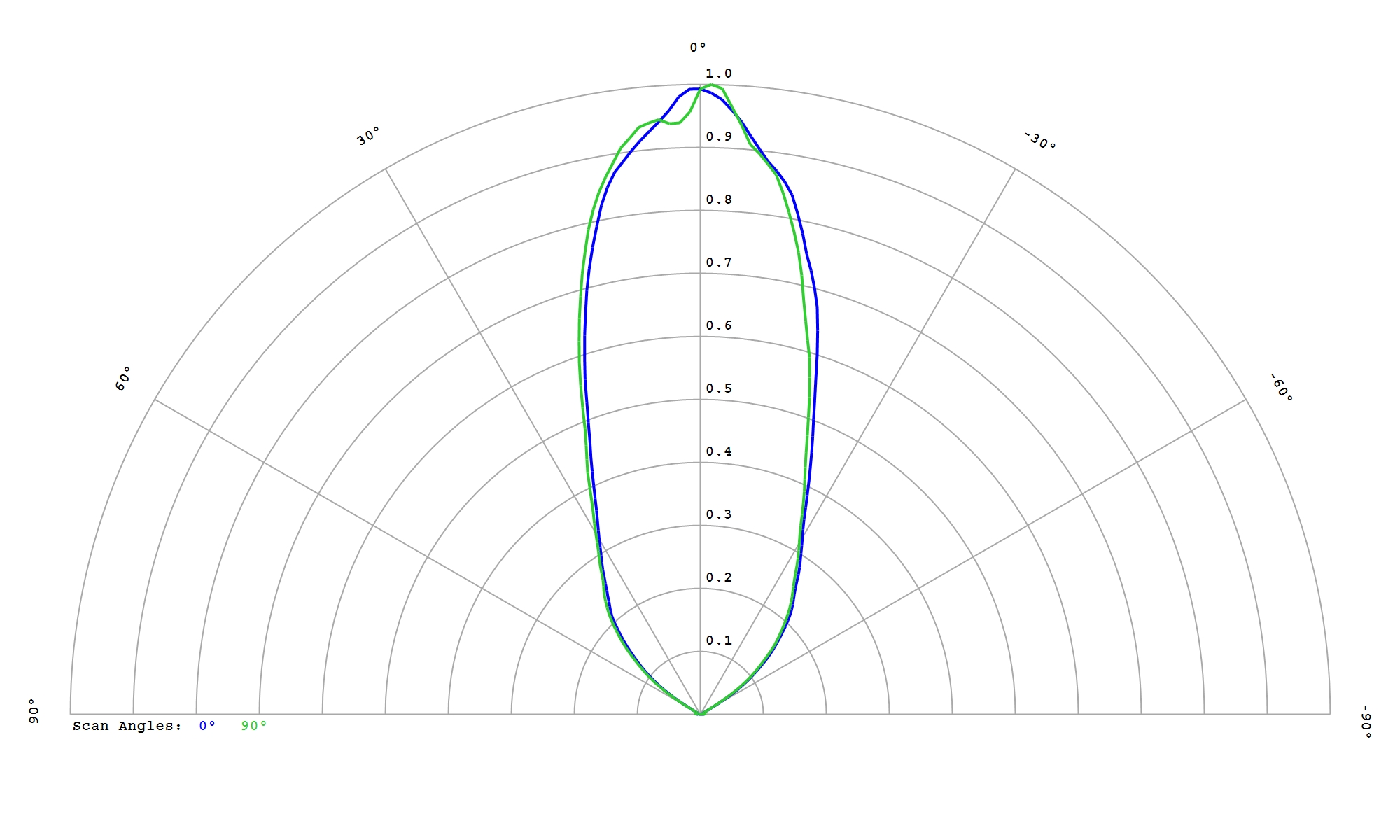

Cree JB2835B 3V G-Class White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.4


Download

Cree JB2835B 3V J-Class White

Eff:

96.5%

FWHM:

43°

Cd/Im:

1.4


Download

Cree JB3030 3V P-Class White

Eff:

96.0%

FWHM:

41.0°

Cd/Im:

1.5

Carclo Optics - 10814 Spot Image Cree JB3030 3V White

Carclo Optics - 10814 Cross Section Cree JB3030 3V White

Download

ies

Cree JB3030C 3V E-Class White

Eff:

96.5%

FWHM:

43°

Cd/Im:

1.3


Download

Cree JB3030C 3V F-Class White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3


Download

Cree JE2835 3V White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.3

Download

Cree JK2835 6V White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.6

Download

ies

Cree JQ5050 9V White

Eff:

96.5%

FWHM:

51.0°

Cd/Im:

1.3

Carclo Optics - 12814 Spot Image Cree JQ5050 9V White

Carclo Optics - 12814 Cross Section Cree JQ5050 9V White

Download

ies

Cree JR5050 24V White

Eff:

96.5%

FWHM:

51.0°

Cd/Im:

1.3

Carclo Optics - 10814 Spot Image Cree JR5050 24V White

Carclo Optics - 10814 Cross Section Cree JR5050 24V White

Download

ies

Cree JR5050 36V White

Eff:

96.5%

FWHM:

51.0°

Cd/Im:

1.3

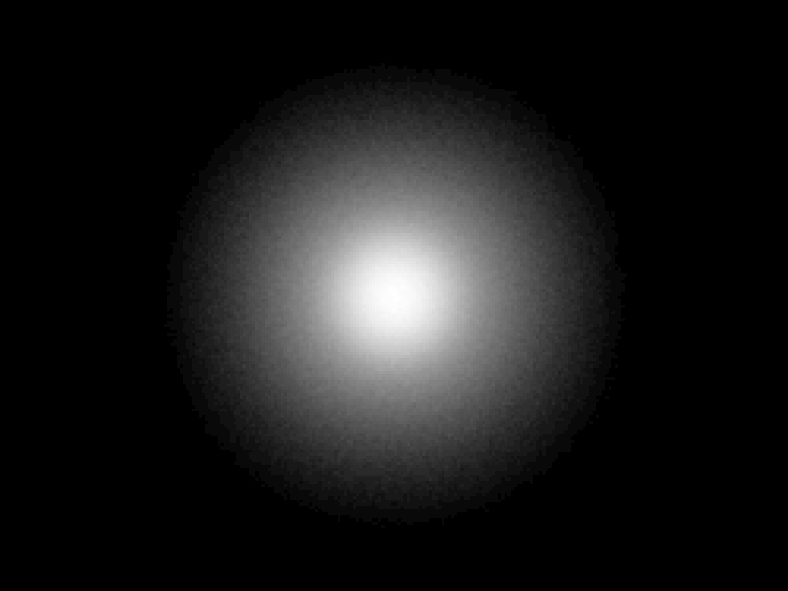

Carclo Optics - 12814 Spot Image Cree JR5050 36V White

Carclo Optics - 12814 Cross Section Cree JR5050 36V White

Download

ies

Cree JR5050 6V White

Eff:

96.5%

FWHM:

49.0°

Cd/Im:

1.3

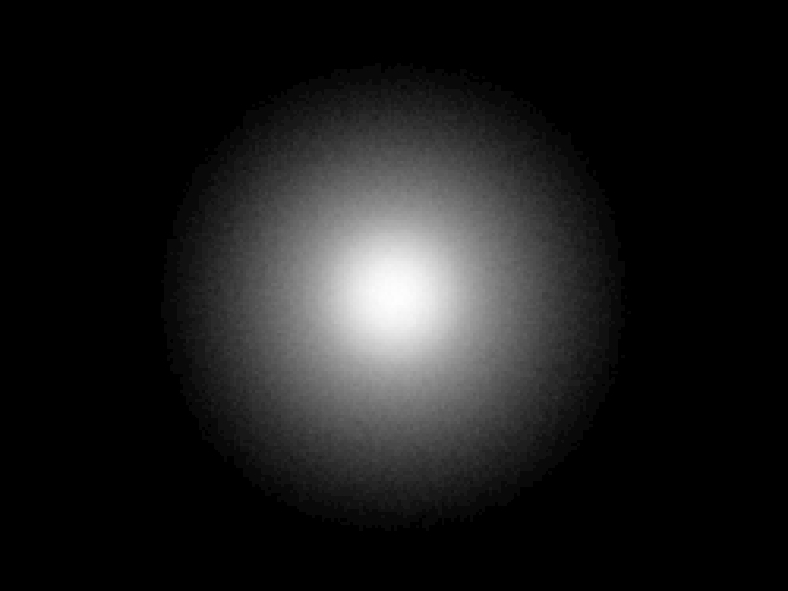

Carclo Optics - 12814 Spot Image Cree JR5050 6V White

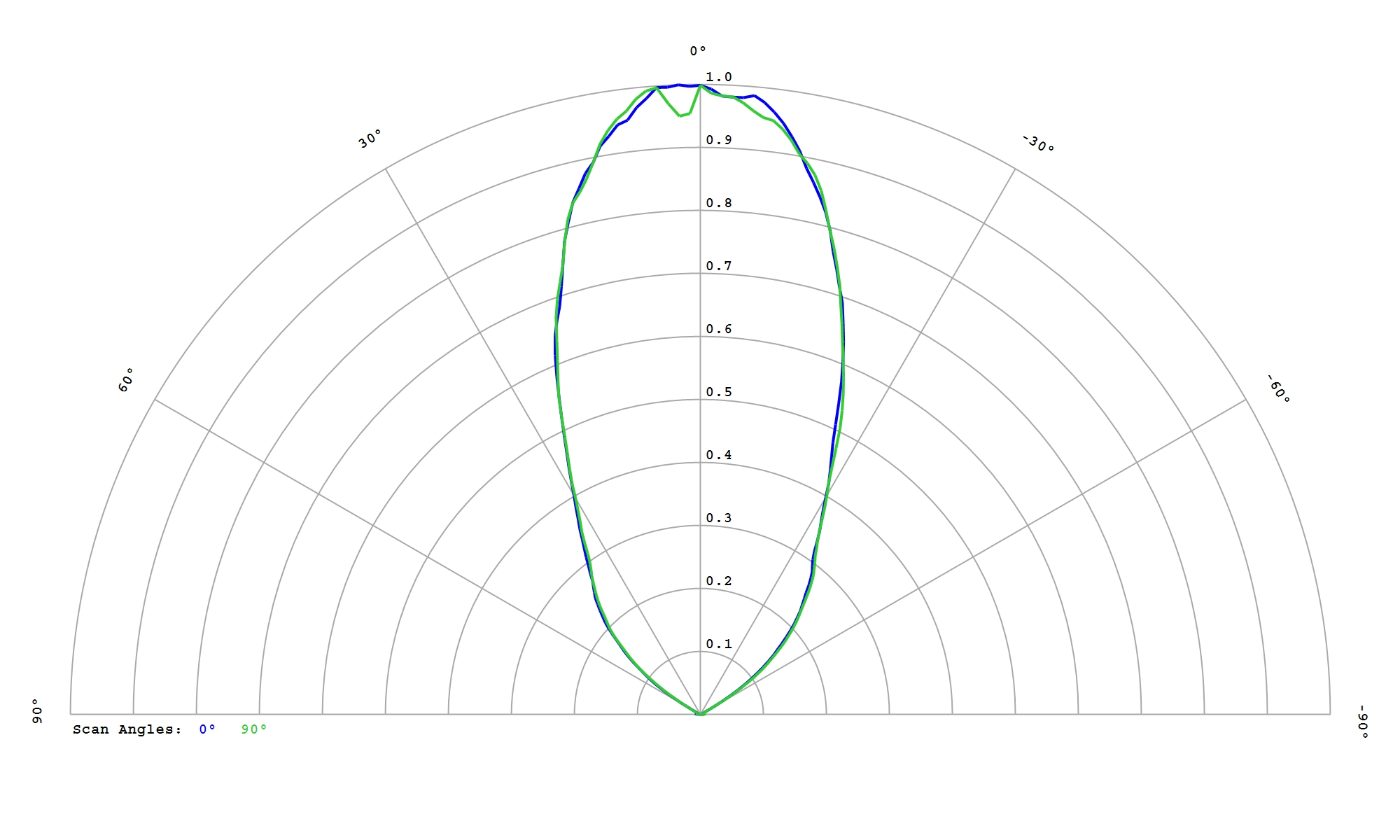

Carclo Optics - 12814 Cross Section Cree JR5050 6V White

Download

ies

Cree JR5050C 6V E-Class White

Eff:

96.5%

FWHM:

51°

Cd/Im:

1.2


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

94.0%

FWHM:

45.5°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

96.0%

FWHM:

43°

Cd/Im:

1.2

Download

IES

Cree XLamp XB-H White

Eff:

96.0%

FWHM:

42.5°

Cd/Im:

1.6

Carclo Optics - 12814 Bubble Spot Image Cree XLamp XB-H

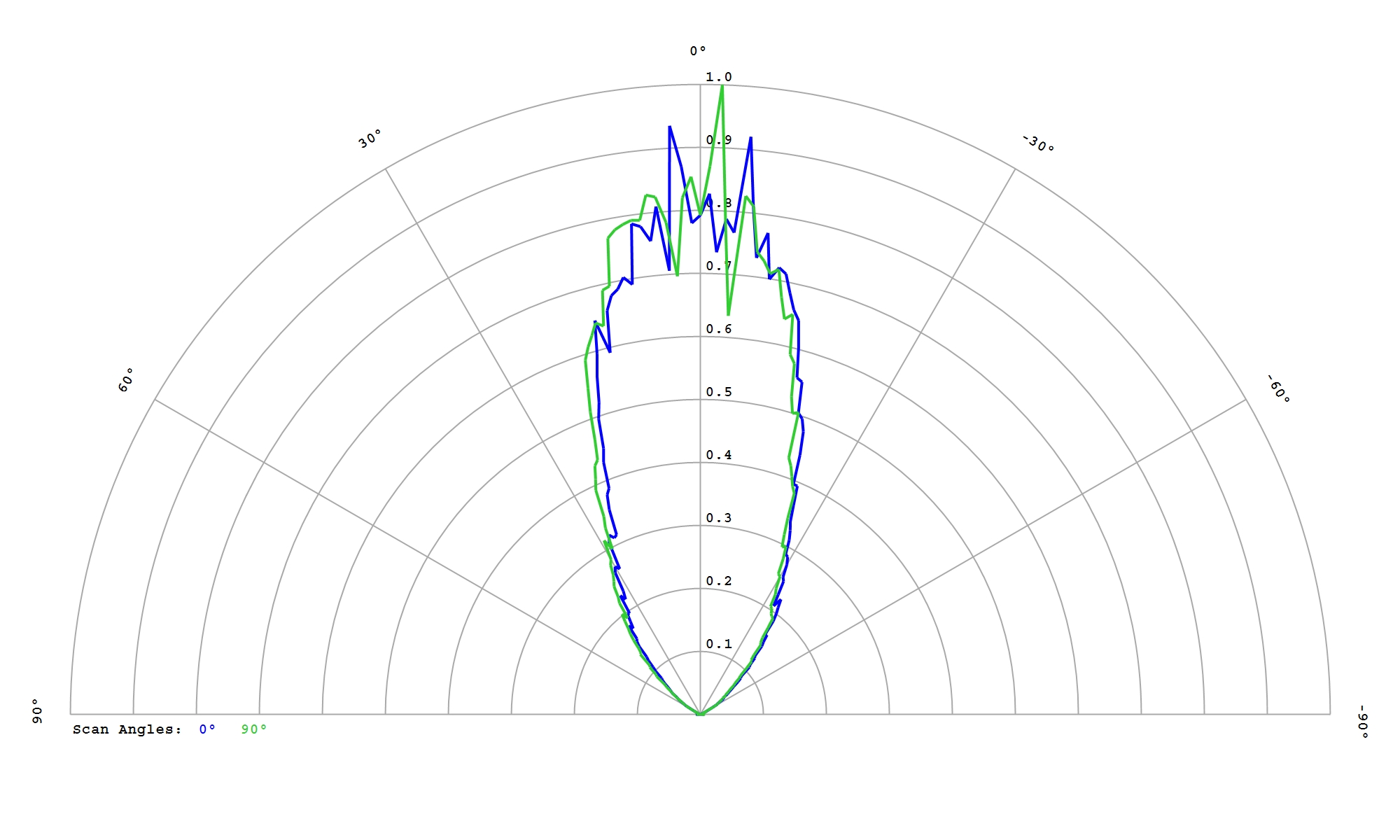

Carclo Optics - 12184 Bubble Cross Section Cree XLamp XB-H

Download

ies

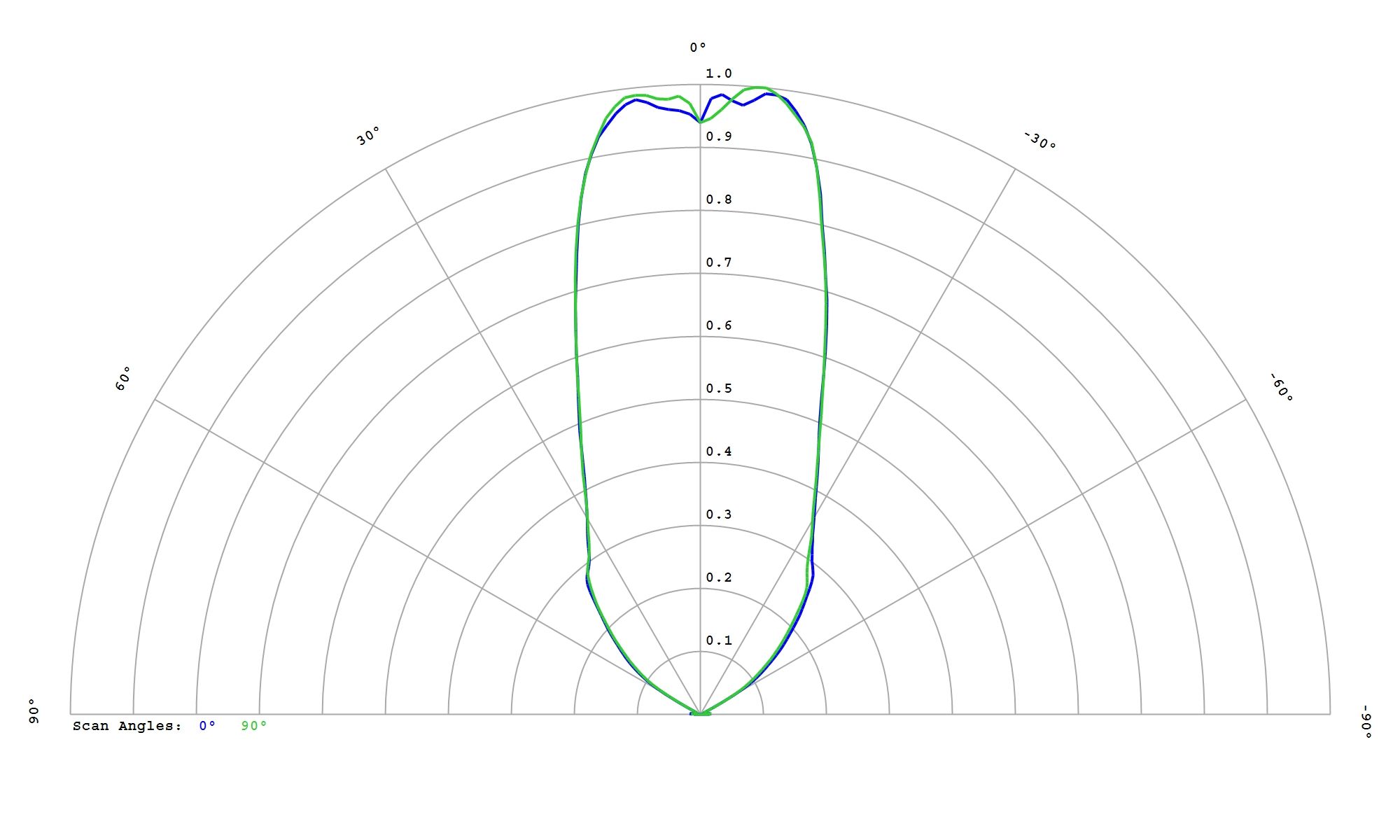

Cree XLamp XE-G White

Eff:

95.0%

FWHM:

44°

Cd/Im:

1.2

Download

ies

Cree XLamp XHP35 HI White

Eff:

92.7%

FWHM:

47°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

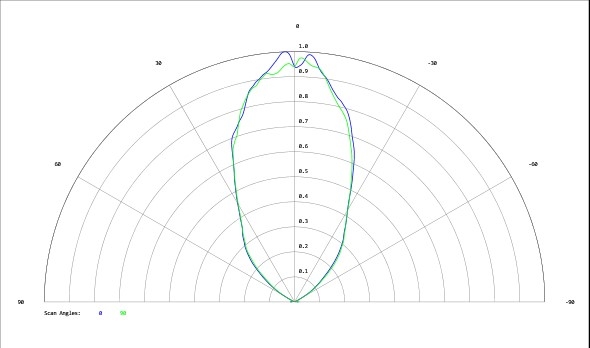

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35 HD White

Eff:

90.2%

FWHM:

54.3°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

95.0%

FWHM:

46°

Cd/Im:

1.3

Carclo Optics – 12814 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12814 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

93.0%

FWHM:

57.0°

Cd/Im:

1.0

Carclo Optics - 12814 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 12814 Cross Section Cree XLamp XHP35.2 White

Download

ies

Cree XLamp XHP50.3 HI White

Eff:

95.0%

FWHM:

50°

Cd/Im:

1.1

optic-12814-Cree_XHP50.3 HI-spot-image.jpg

optic-12814-Cree_XHP50.3 HI-cross-section-image.jpg

Download

ies

Cree XLamp XM-L Color G2 HI RGBW

Eff:

95.5%

FWHM:

45°

Cd/Im:

1.3

Download

ies

Cree XLamp XM-L3 White

Eff:

94.5%

FWHM:

49.0°

Cd/Im:

1.2

Carclo Optics - 12814 Spot Image Cree XM-L3

Carclo Optics - 12814 Cross Section Cree XM-L3

Download

ies

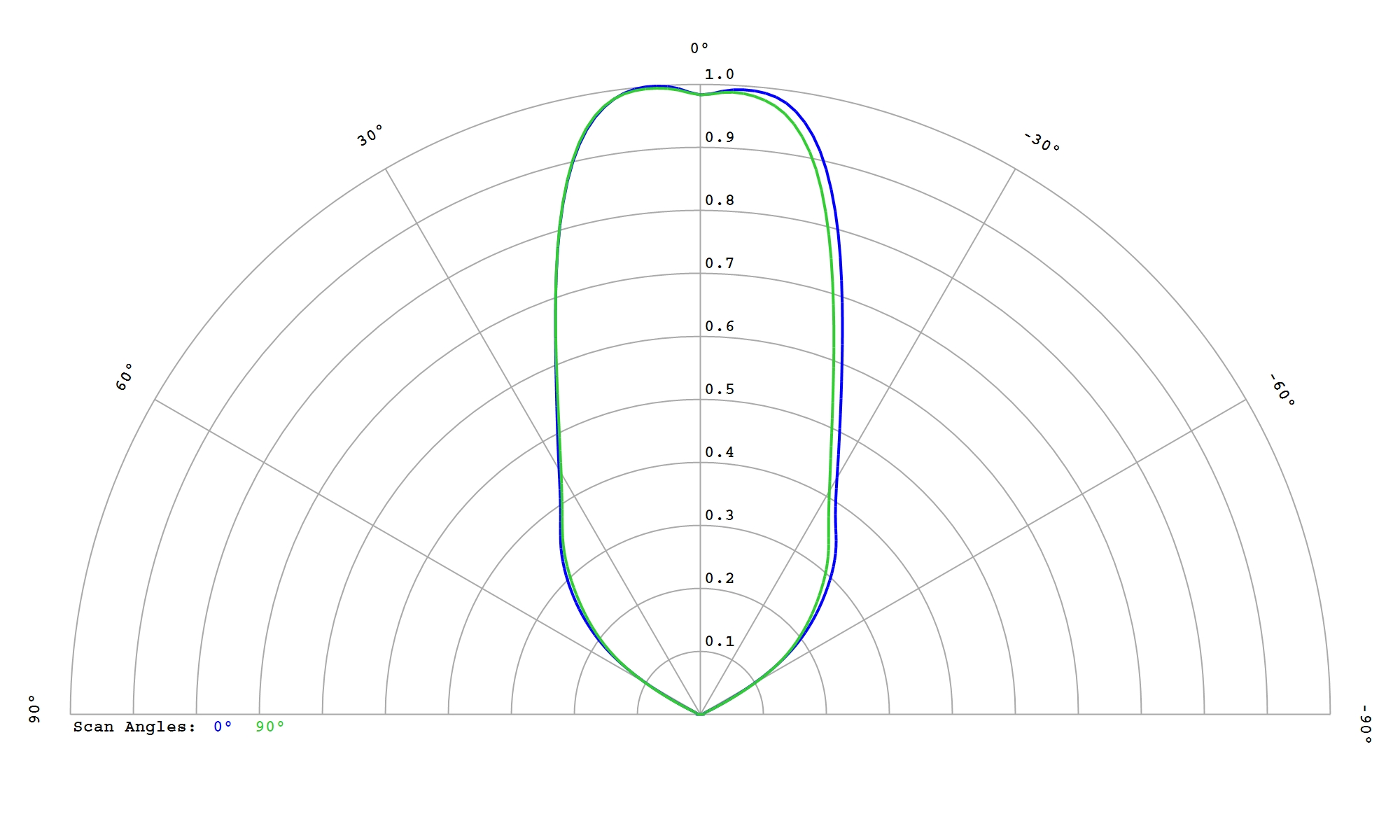

Cree XLamp XP-E2 Far Red

Eff:

93.5%

FWHM:

115°

Cd/Im:

1.6

Carclo Optics – 12814 Cree Xlamp XP-E2 Far Red - Spot Image

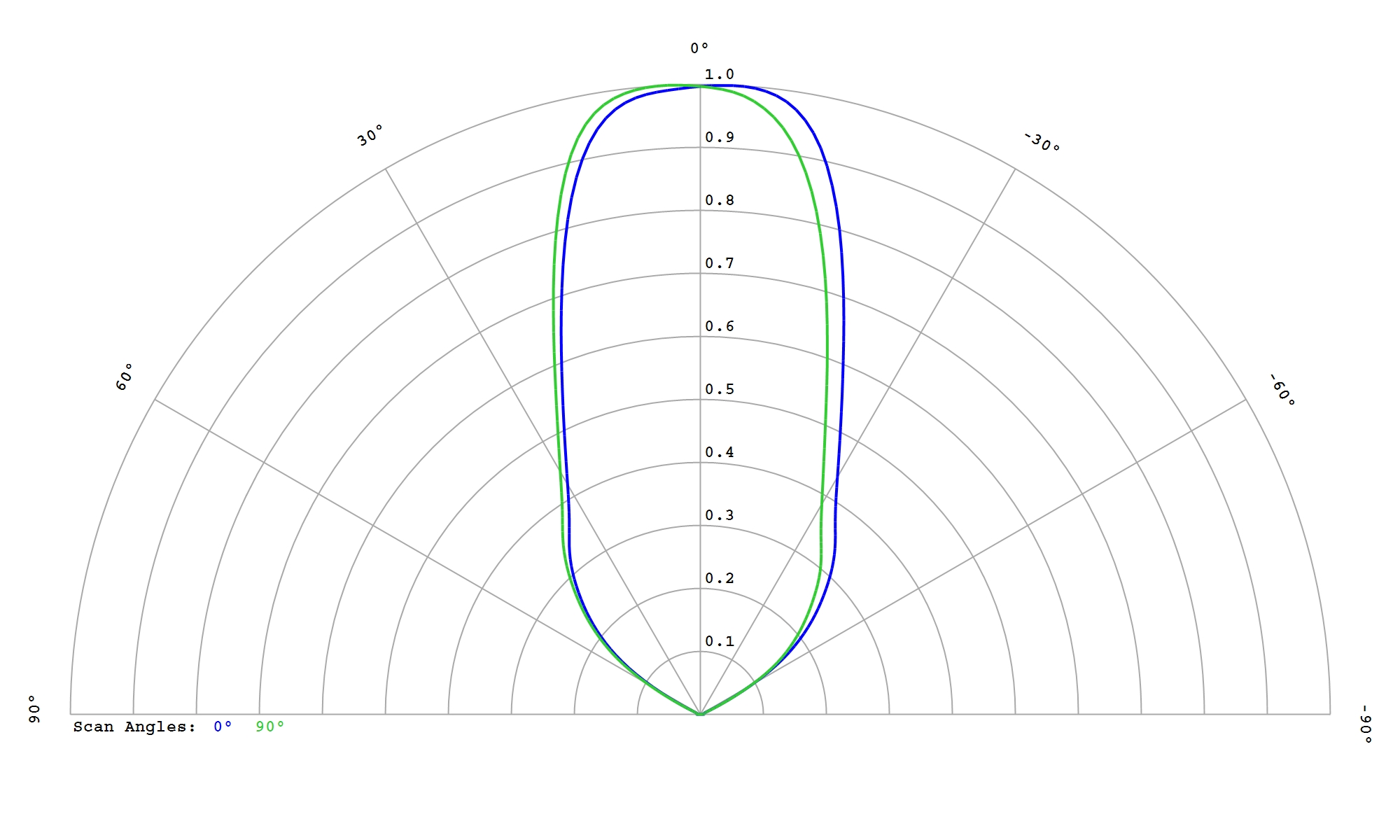

Carclo Optics – 12814 Cree Xlamp XP-E2 Far Red - Cross-Section

Download

ies

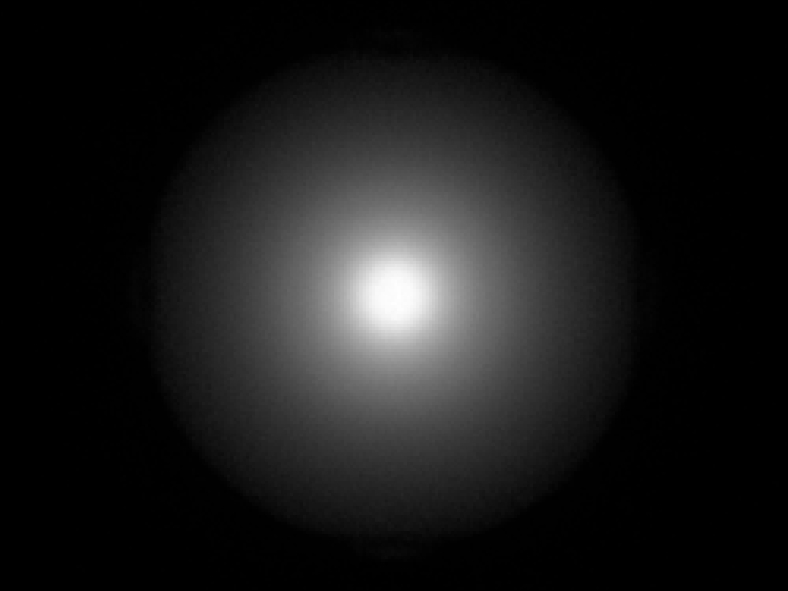

Cree XLamp XP-E2 White

Eff:

96.5%

FWHM:

45°

Cd/Im:

1.4

Download

ies

Cree XLamp XP-G2 White

Eff:

92.0%

FWHM:

50°

Cd/Im:

1.0

Simulation Data

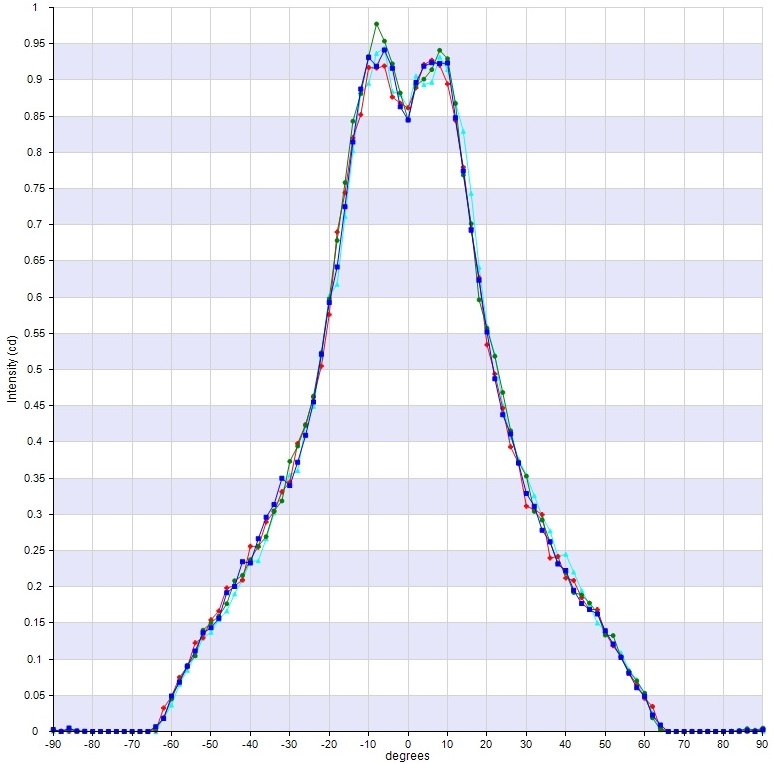

Simulation Data

Download

1

Cree XLamp XP-G3 Photo Red

Eff:

94.5%

FWHM:

116°

Cd/Im:

0.5

Carclo Optics – 12814 Cree Xlamp XP-G3 Photo Red - Spot Image

Carclo Optics – 12814 Cree Xlamp XP-G3 Photo Red - Cross-Section

Download

ies

Cree XLamp XP-G3 Royal Blue

Eff:

91.0%

FWHM:

112°

Cd/Im:

0.4

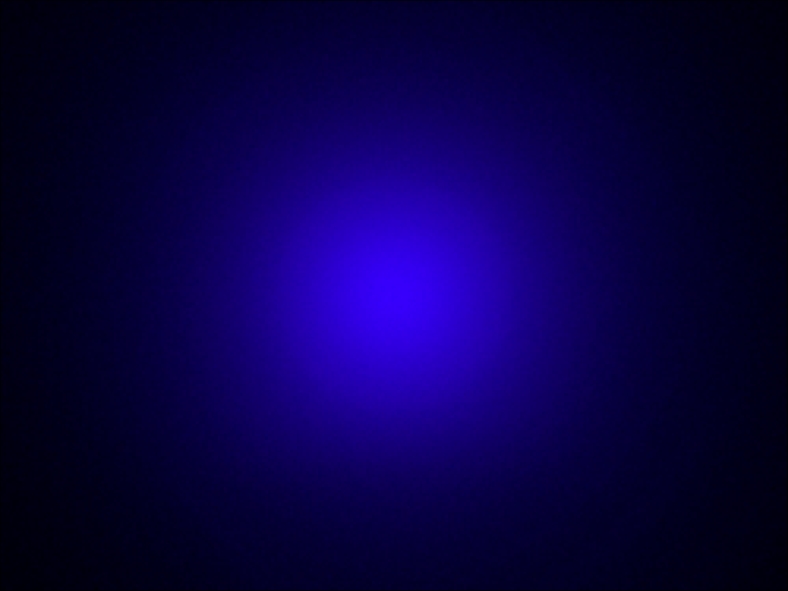

Carclo Optics – 12814 Cree Xlamp XP-G3 Royal Blue - Spot Image

Carclo Optics – 12814 Cree Xlamp XP-G3 Royal Blue - Cross-Section

Download

ies

Cree XLamp XP-G3 White

Eff:

90.0%

FWHM:

47.5°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G4 HI White

Eff:

95.5%

FWHM:

46°

Cd/Im:

1.3

Download

Cree XLamp XP-G4 White

Eff:

96.5%

FWHM:

48°

Cd/Im:

1.3

Download

IES

Cree XLamp XP-L HI White

Eff:

92.3%

FWHM:

43.4°

Cd/Im:

0.9

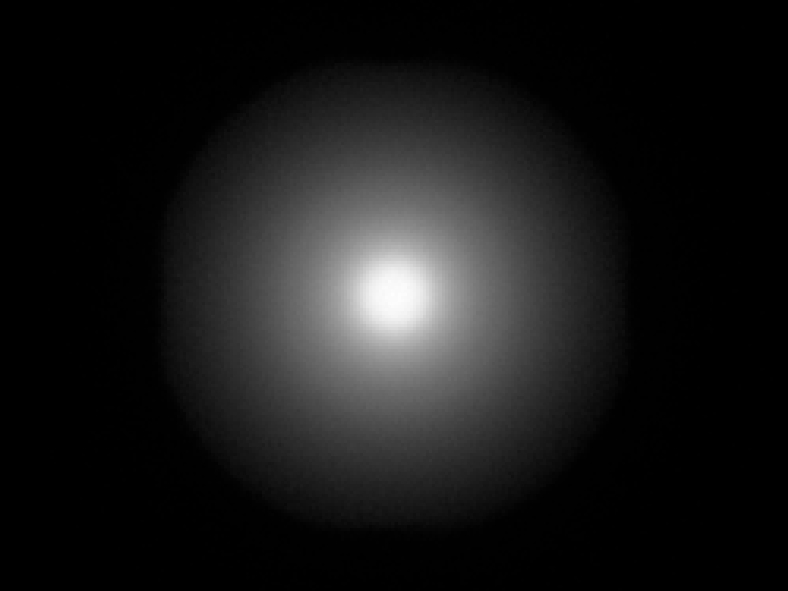

Carclo Optics - Simulated Spot Image

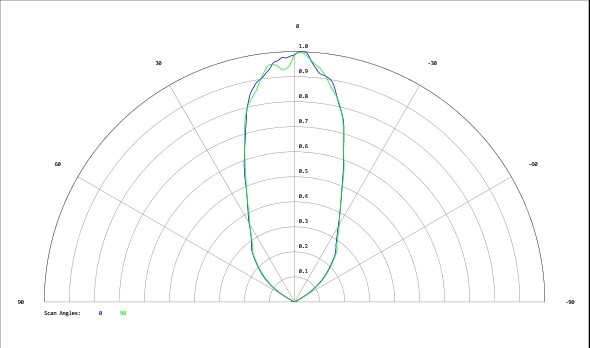

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-L2 White

Eff:

94.5%

FWHM:

51°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-P White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3

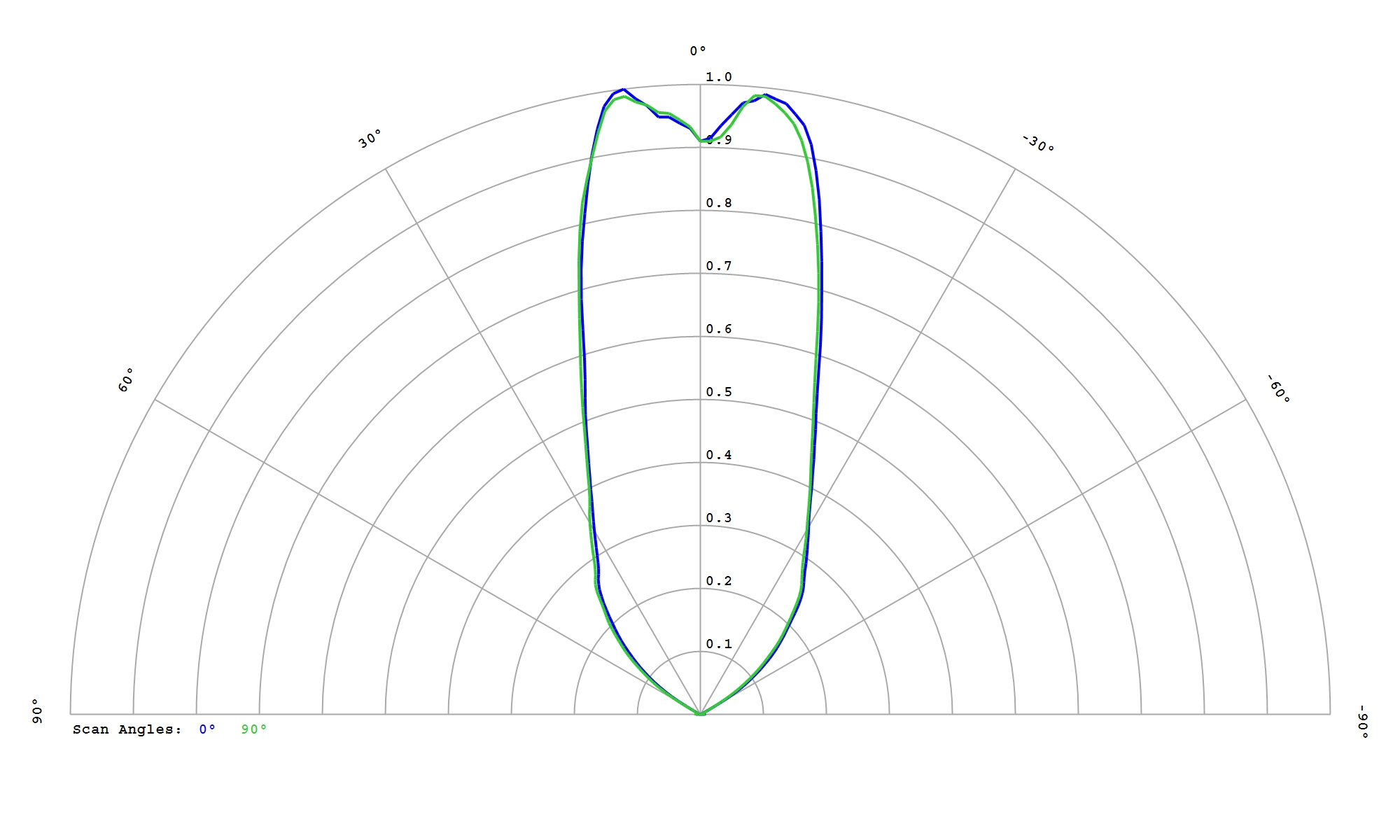

Carclo Optics – 12814 Cree XP-P - Spot Image

Carclo Optics – 12814 Cree XP-P - Cross Section

Download

ies

Cree XLamp XQ-A Blue

Eff:

96.5%

FWHM:

41.0°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Green

Eff:

96.0%

FWHM:

42°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Red

Eff:

96.5%

FWHM:

44.0°

Cd/Im:

1.1

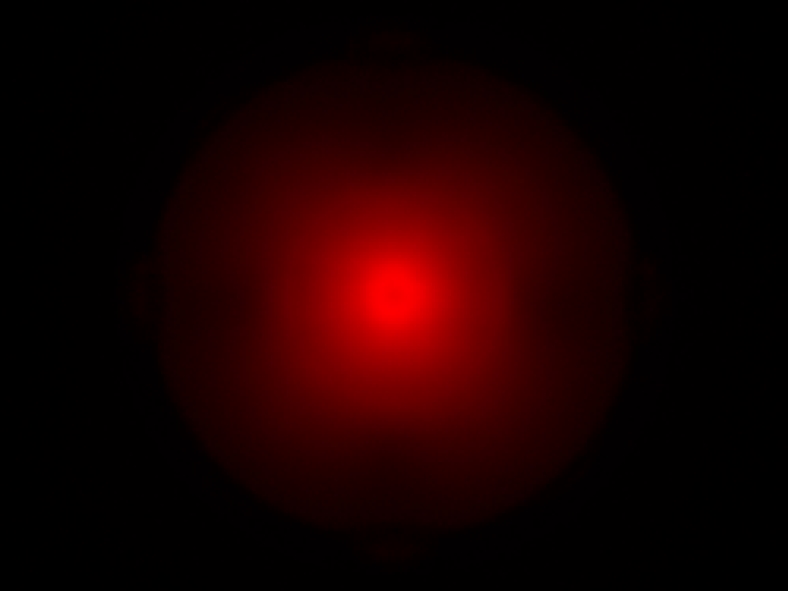

Carclo Optics - Simulated Spot Image

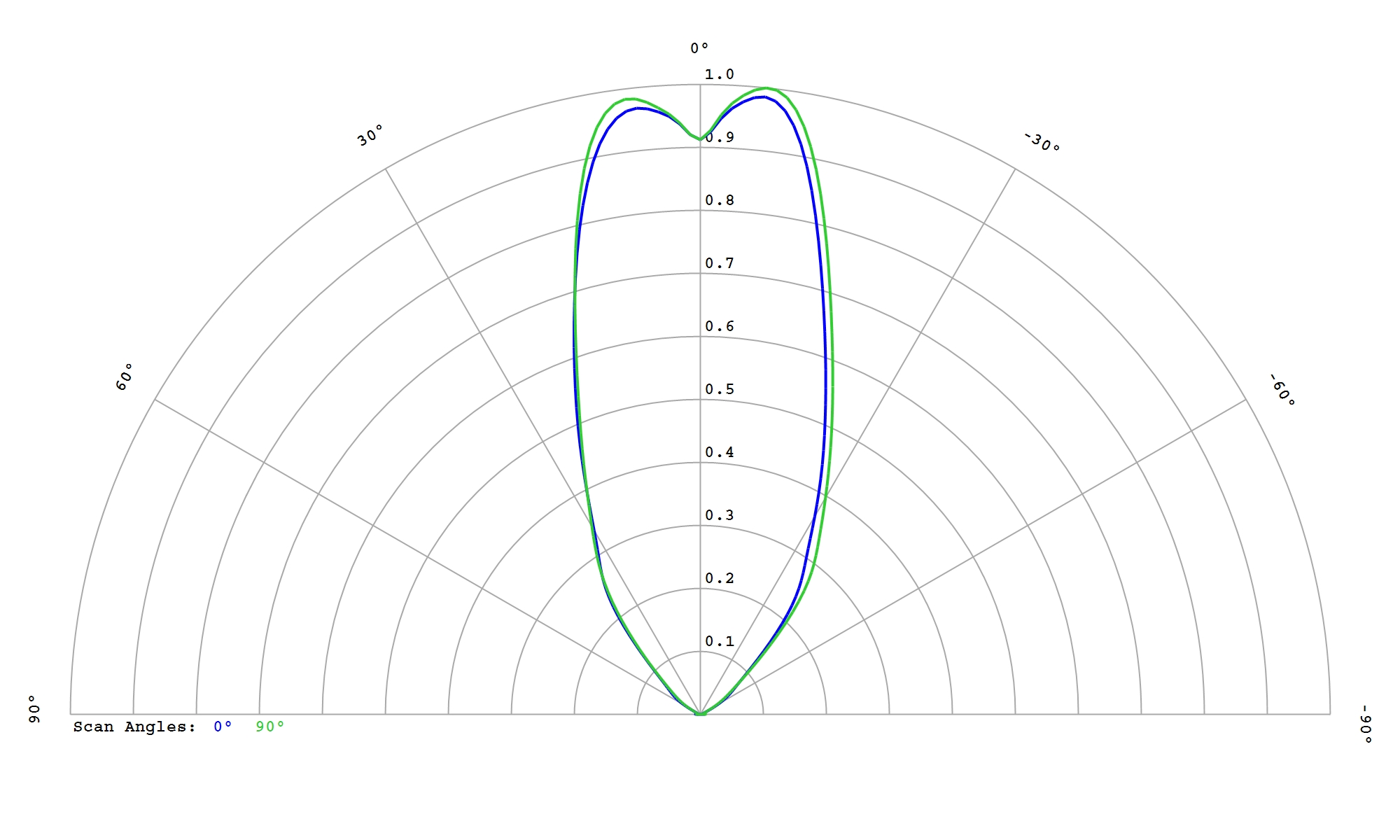

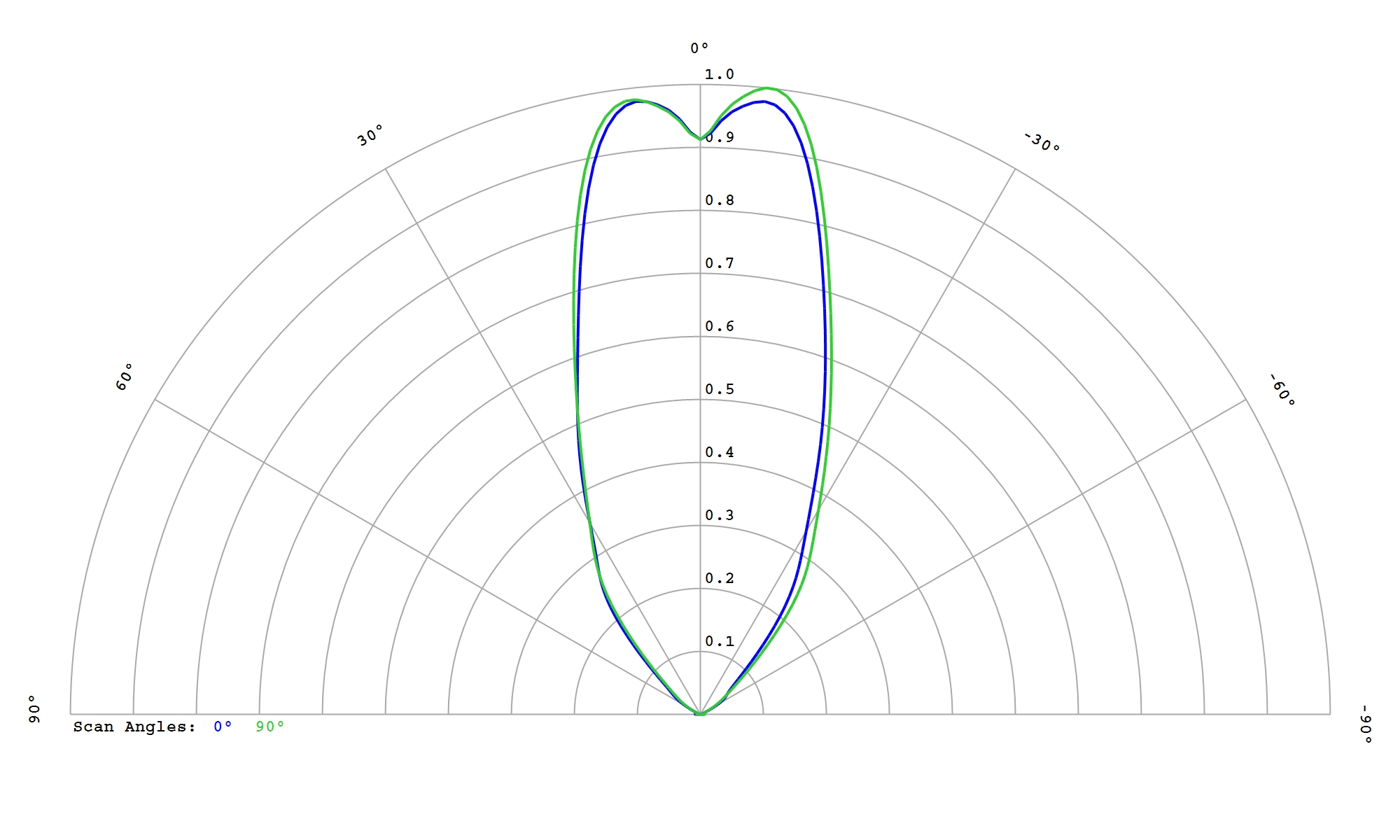

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A White

Eff:

92.0%

FWHM:

42.0°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

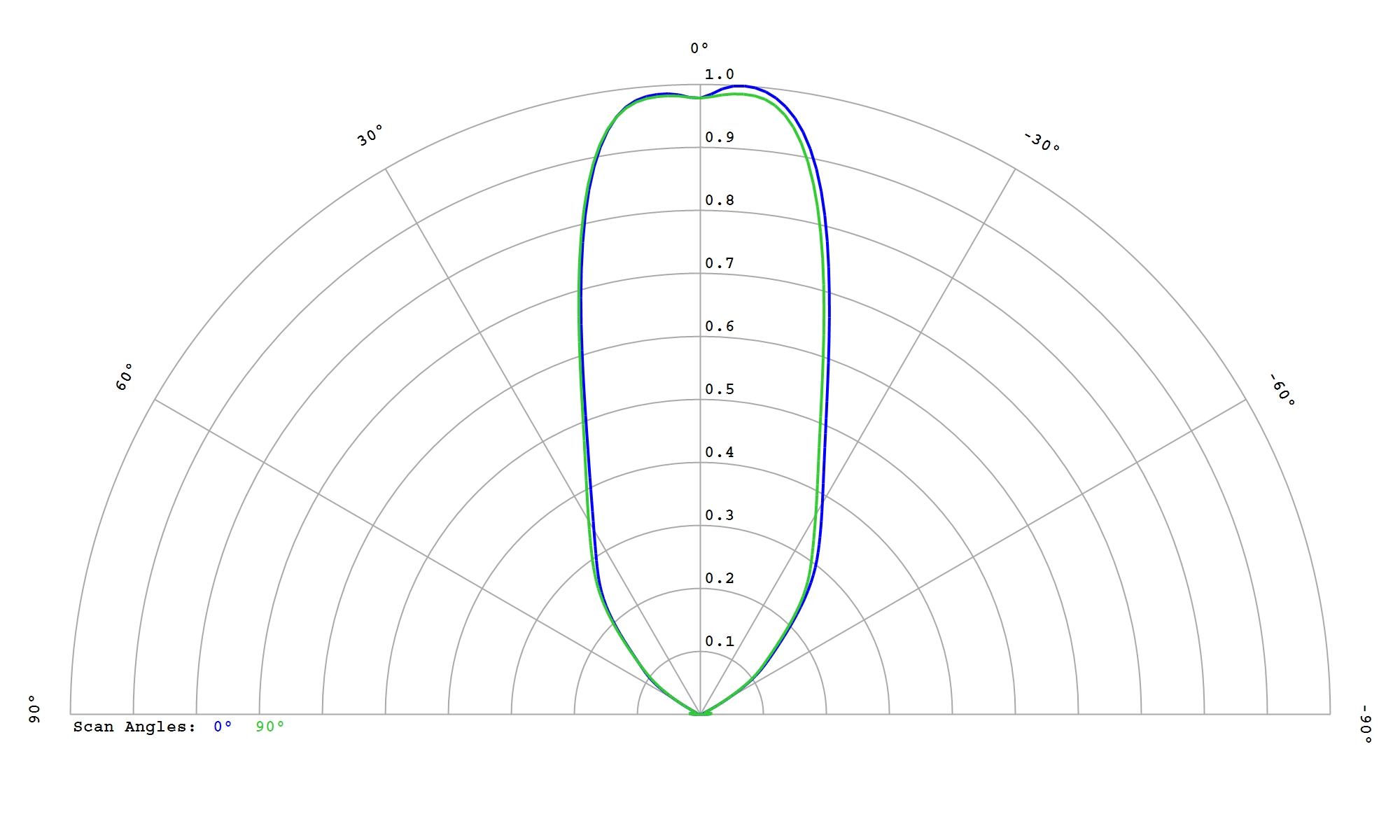

Cree XLamp XQ-E HI Blue

Eff:

95.5%

FWHM:

43.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

94.5%

FWHM:

43.0°

Cd/Im:

0.9

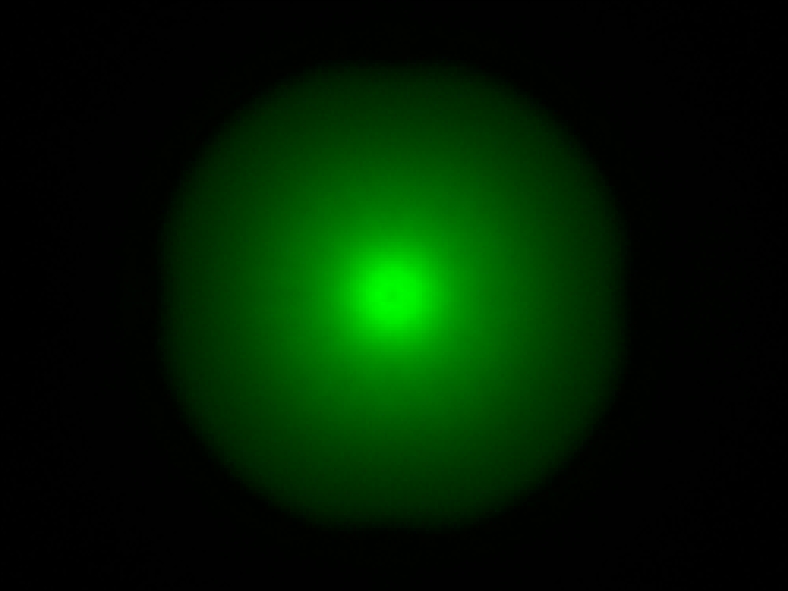

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

95.2%

FWHM:

42.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

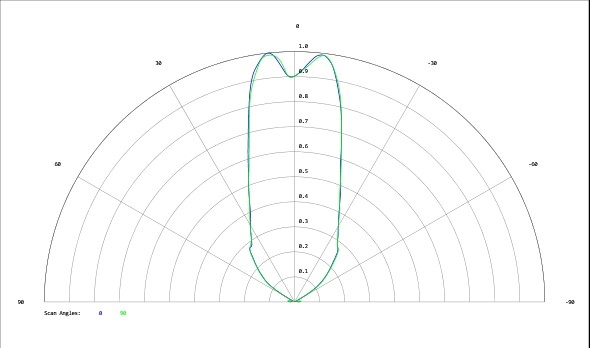

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI White

Eff:

91.0%

FWHM:

42.5°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XT-E HE White

Eff:

95.5%

FWHM:

37.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

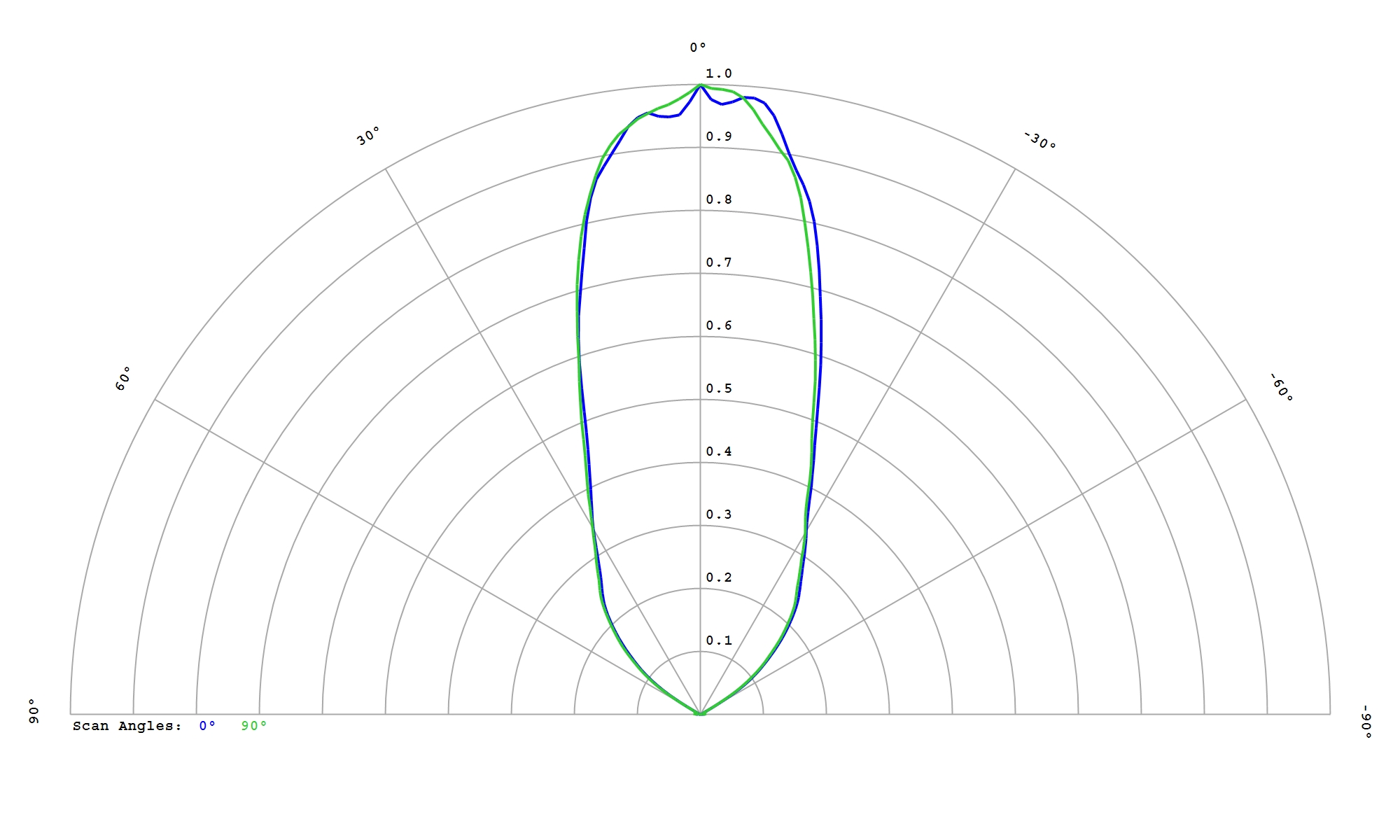

LUMILEDS LUXEON 2835C 6V White

Eff:

96.5%

FWHM:

43°

Cd/Im:

1.3

Download

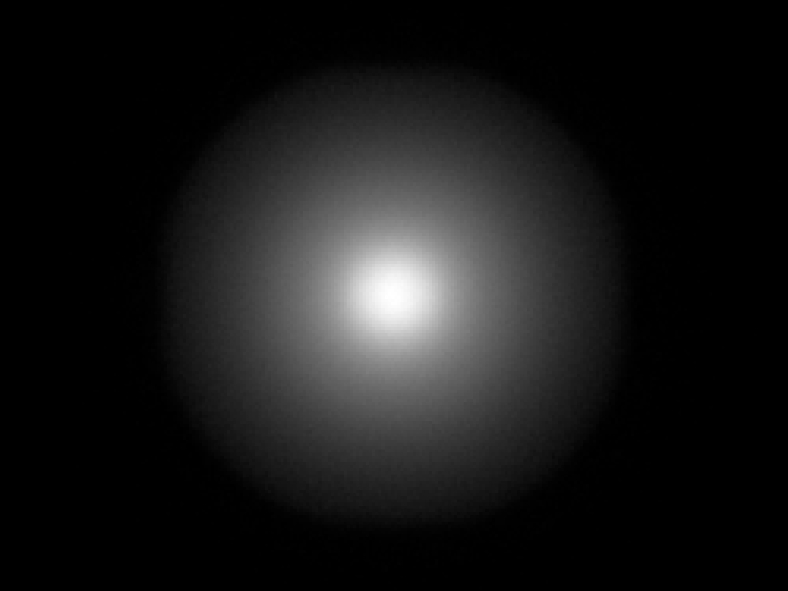

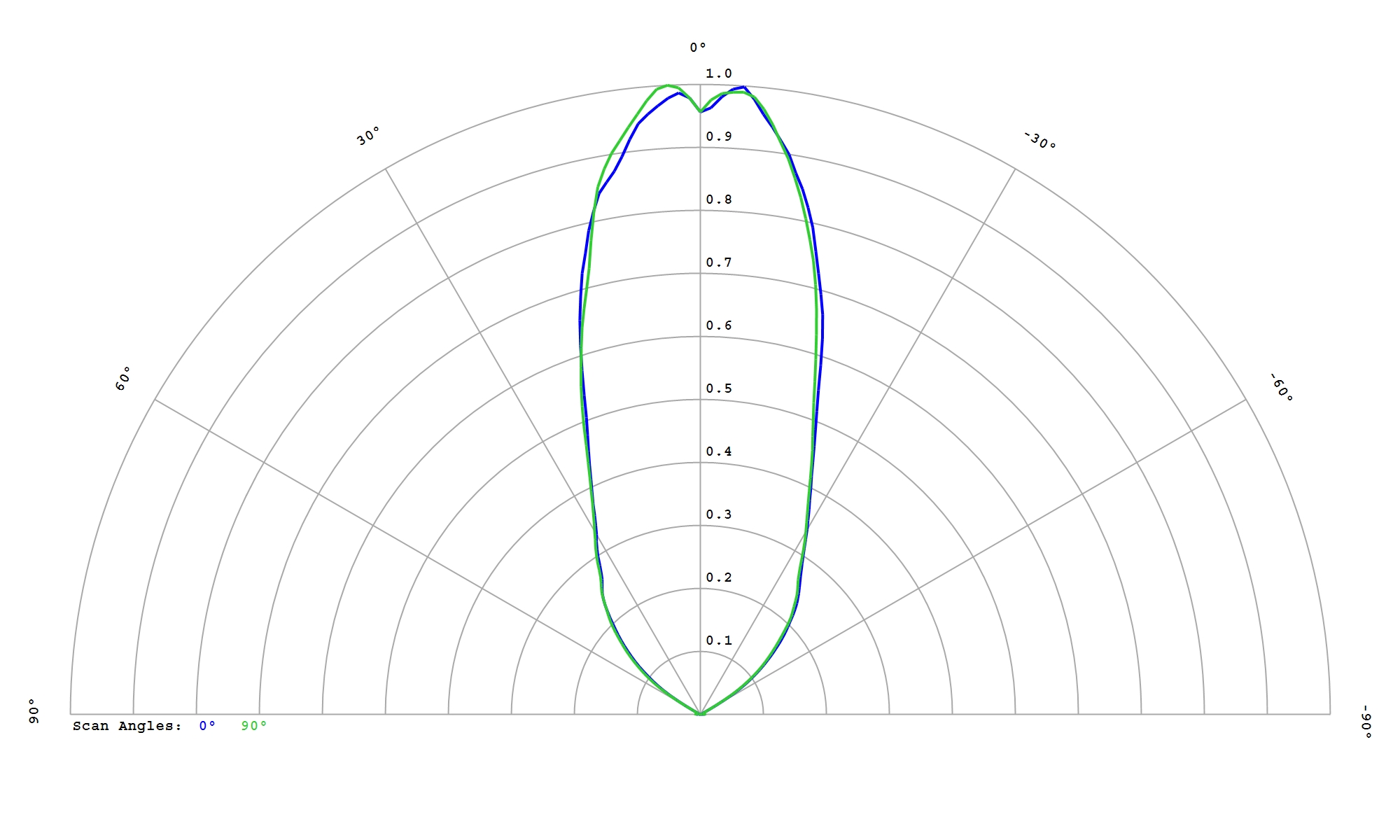

LUMILEDS LUXEON 2835E 9V White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.3

Download

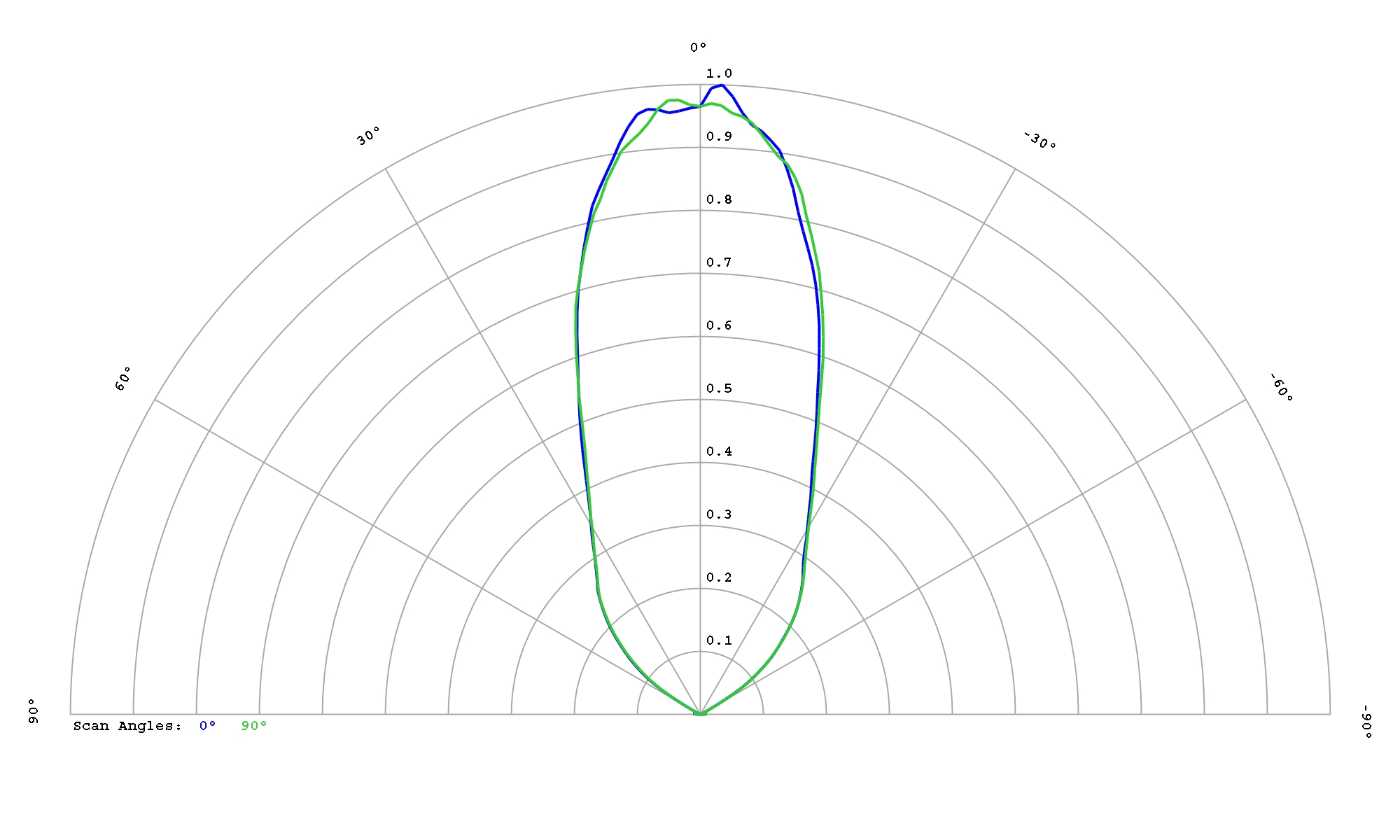

LUMILEDS LUXEON 2835S 3V White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.4

Download

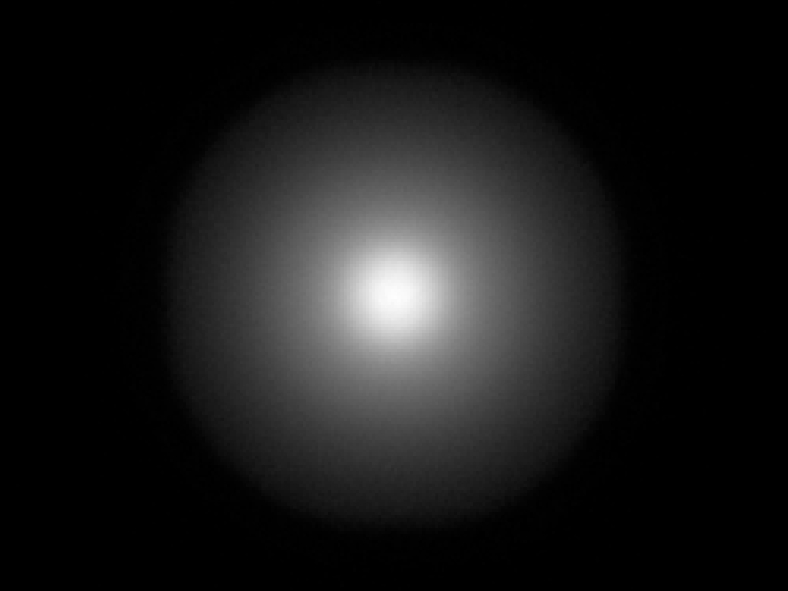

LUMILEDS LUXEON 2835S 6V White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.4

Download

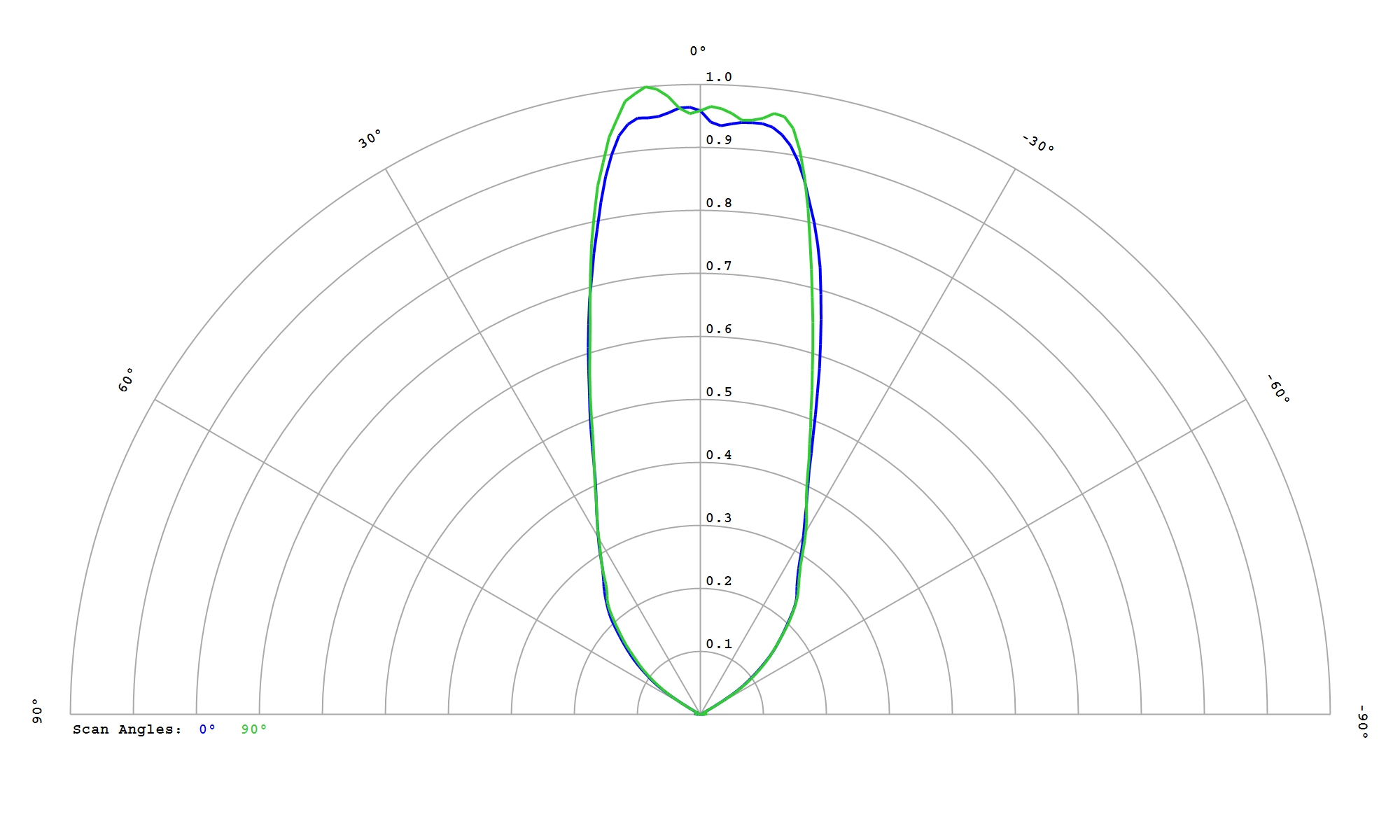

LUMILEDS LUXEON 3014 White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3

Download

IES

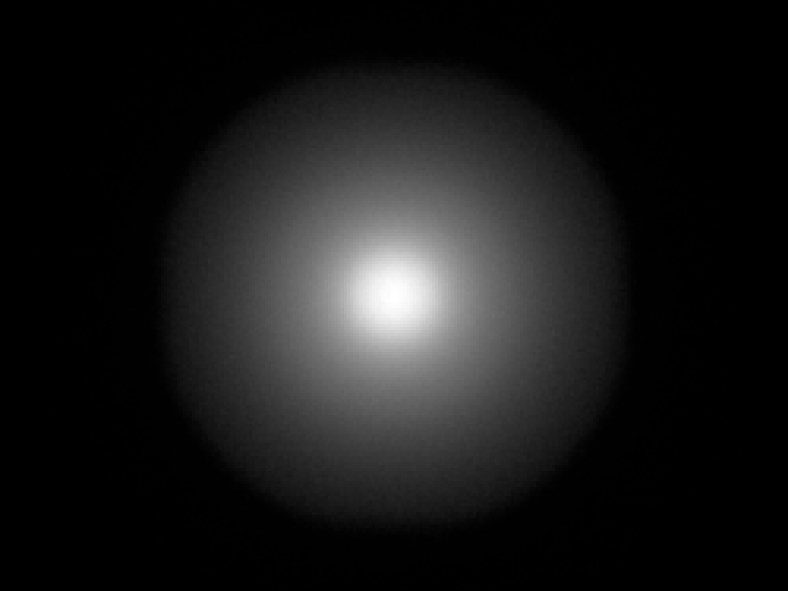

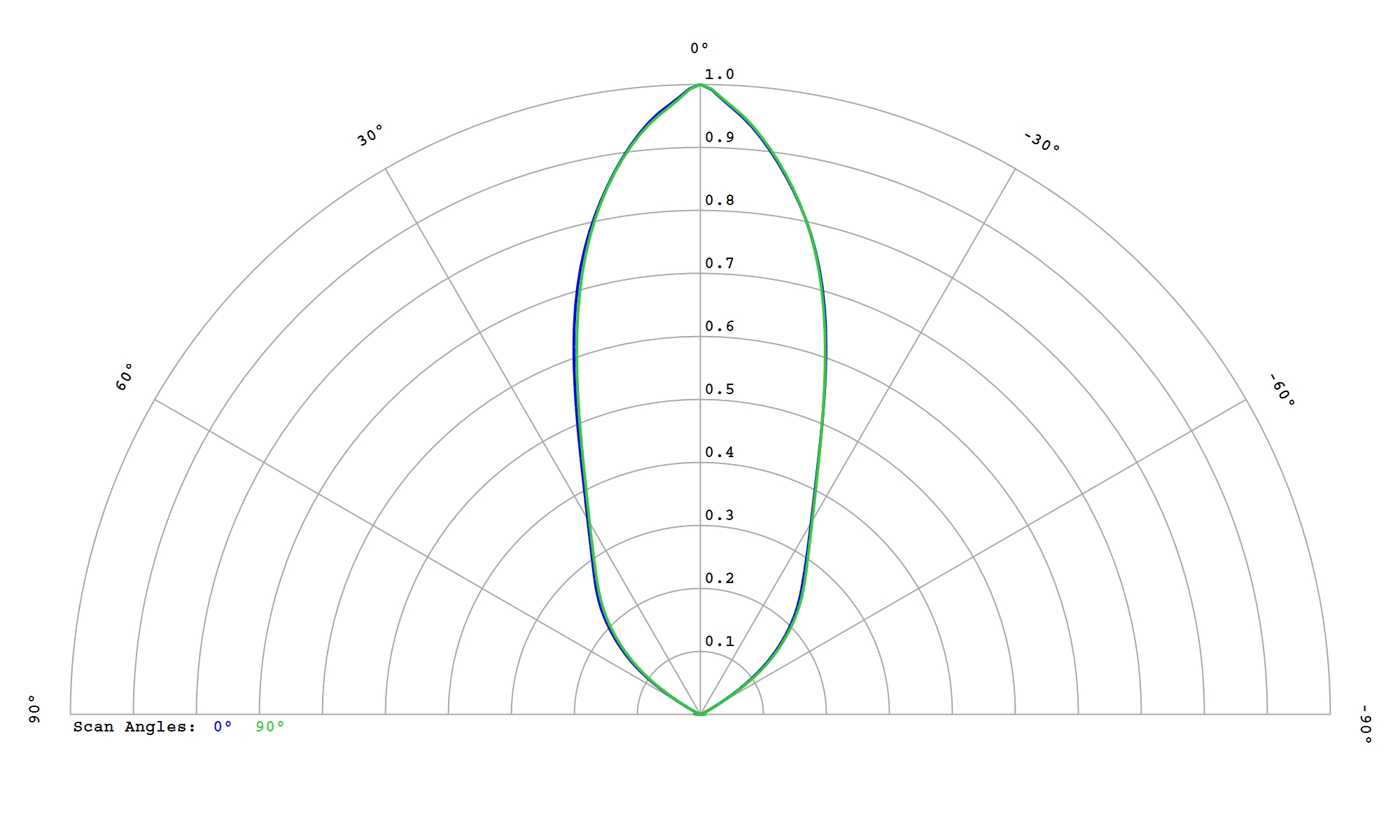

LUMILEDS LUXEON 3030 2D White

Eff:

96.5%

FWHM:

40°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.4

Carclo Optics – 12814 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12814 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

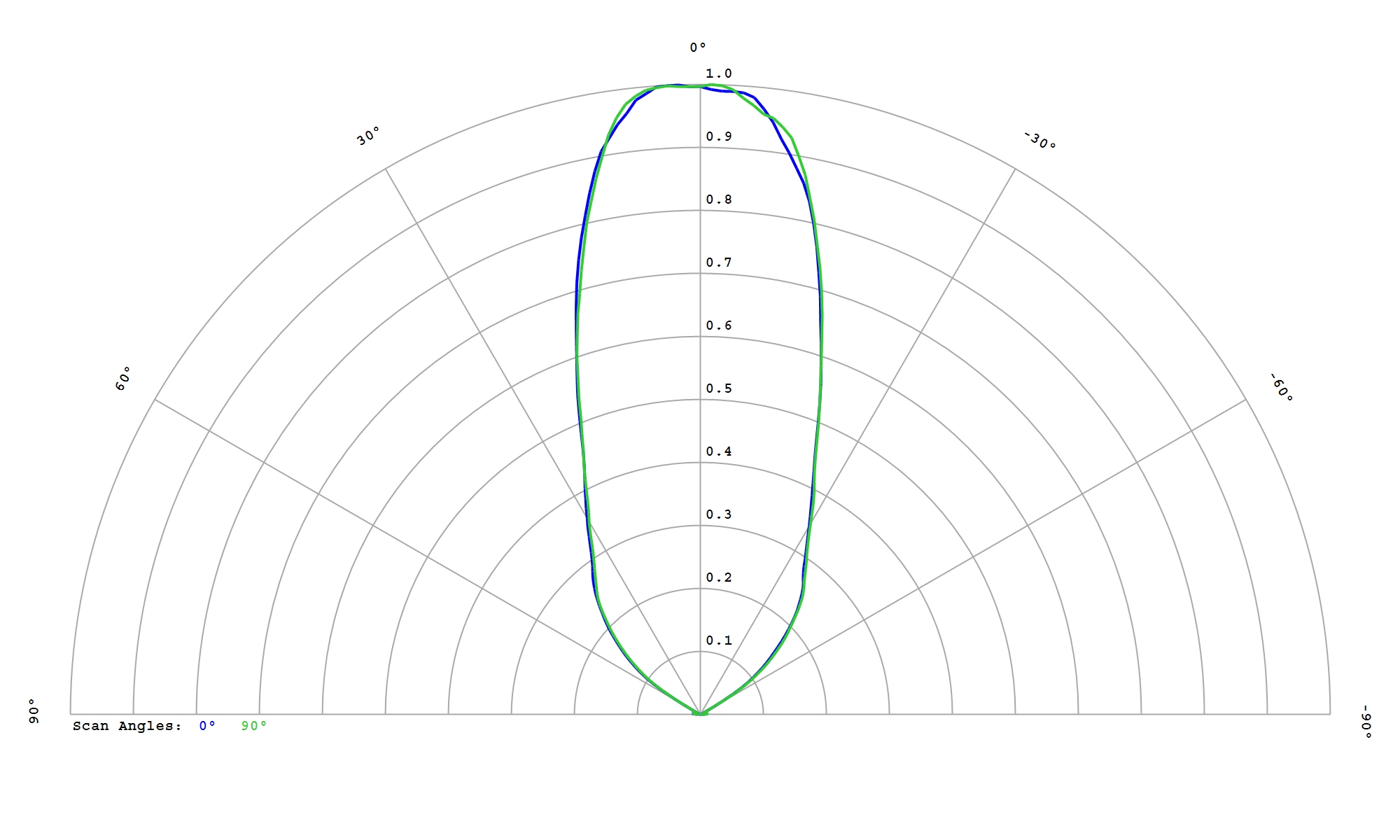

LUMILEDS LUXEON 3030 HE White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.3

Download

LUMILEDS LUXEON 3535L Blue

Eff:

91.0%

FWHM:

50°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L Green

Eff:

96.5%

FWHM:

51.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L Red

Eff:

97.0%

FWHM:

48.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 5050 Round 6V White

Eff:

96.5%

FWHM:

46.5 X 51.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

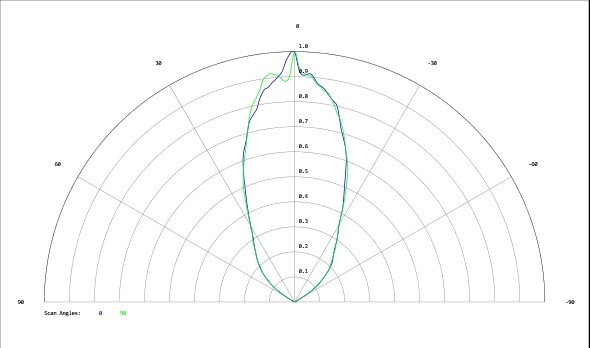

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

91.0%

FWHM:

49.0°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

92.5%

FWHM:

44.0°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

90.5%

FWHM:

50.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C White

Eff:

91.5%

FWHM:

47°

Cd/Im:

0.9

Download

LUMILEDS LUXEON CZ White

Eff:

96.5%

FWHM:

42.5°

Cd/Im:

1.3

Carclo Optics 12814 Spot Image Luxeon CZ 5M CW

Carclo Optics 12814 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON HL1Z CSP White

Eff:

95.0%

FWHM:

40°

Cd/Im:

1.2

Download

ies

LUMILEDS LUXEON HL2X White

Eff:

96.0%

FWHM:

49.0°

Cd/Im:

1.2

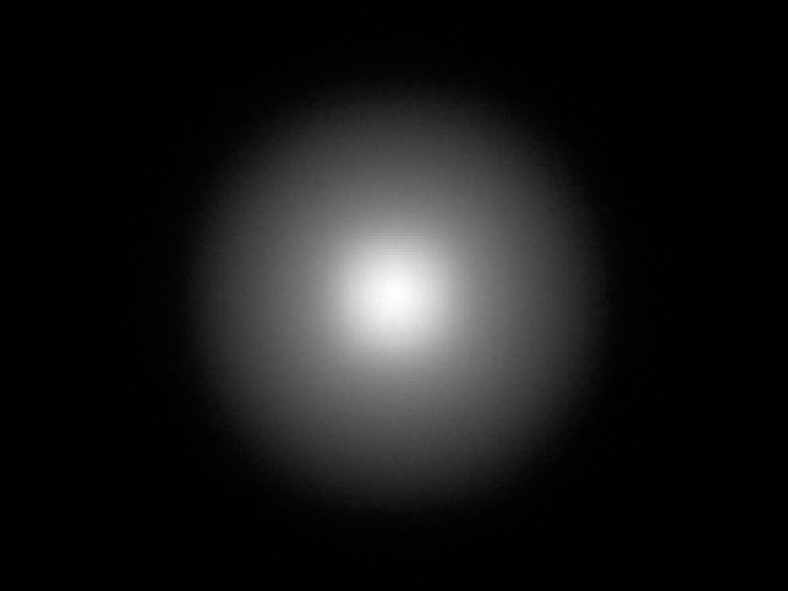

Carclo Optics - 12814 Spot Image Luxeon HL2X

Carclo Optics - 12814 Cross Section Luxeon HL2X

Download

ies

LUMILEDS LUXEON HL2X-D White

Eff:

96.5%

FWHM:

55°

Cd/Im:

1.2

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

96.0%

FWHM:

50°

Cd/Im:

1.1

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

94.0%

FWHM:

111°

Cd/Im:

0.5

Carclo Optics – 12814 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12814 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

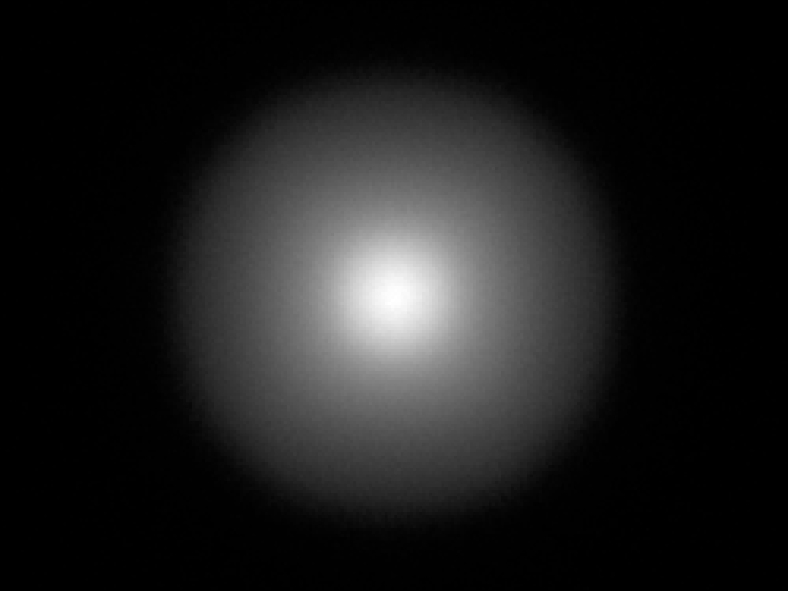

LUMILEDS LUXEON HL4X White

Eff:

95.5%

FWHM:

51°

Cd/Im:

1.0

Download

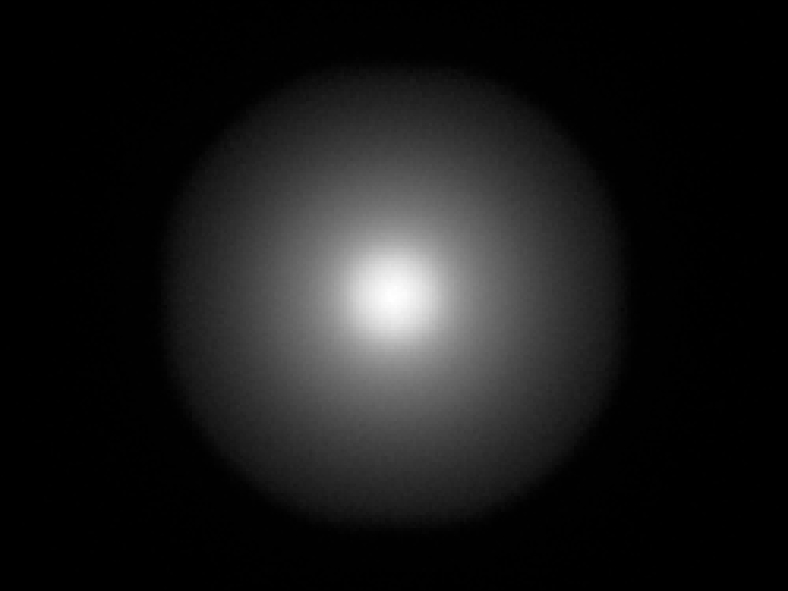

LUMILEDS LUXEON HL4Z White

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.2

Download

LUMILEDS LUXEON IR 2720

Eff:

97.0%

FWHM:

41.5 / 43.5°

Ipk/W:

1.3

Carclo Optics - 12814 Medium Spot Image Luxeon IR 2720

Carclo Optics - 12814 Cross Section Spot Image Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

90.0%

FWHM:

47°

Cd/Im:

0.9

Simulation Data

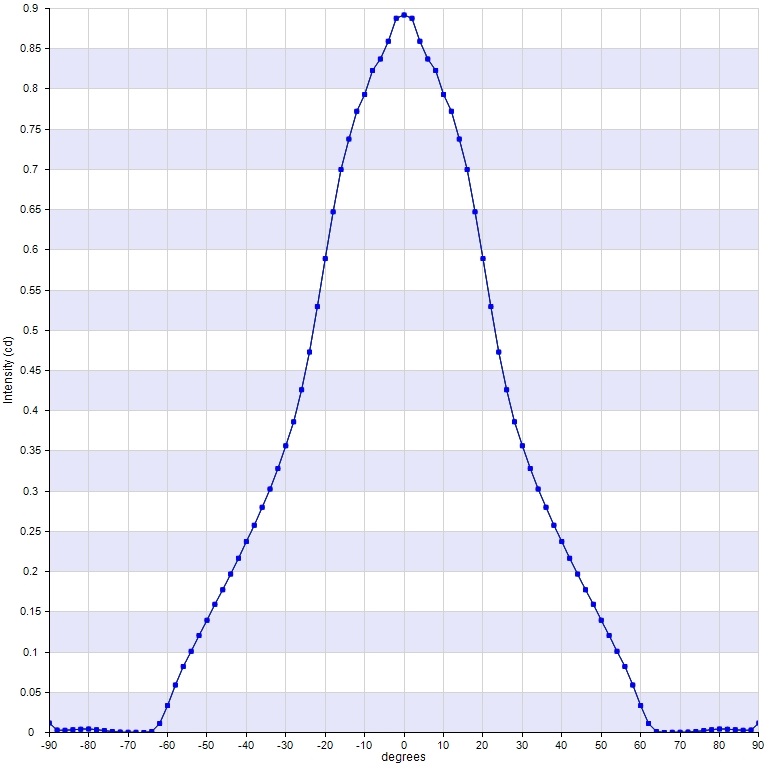

Simulation Data

Download

1

LUMILEDS LUXEON Rubix Blue

Eff:

97.0%

FWHM:

44°

Cd/Im:

1.2

Carclo Optics – 12814 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12814 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

96.5%

FWHM:

43°

Cd/Im:

1.1

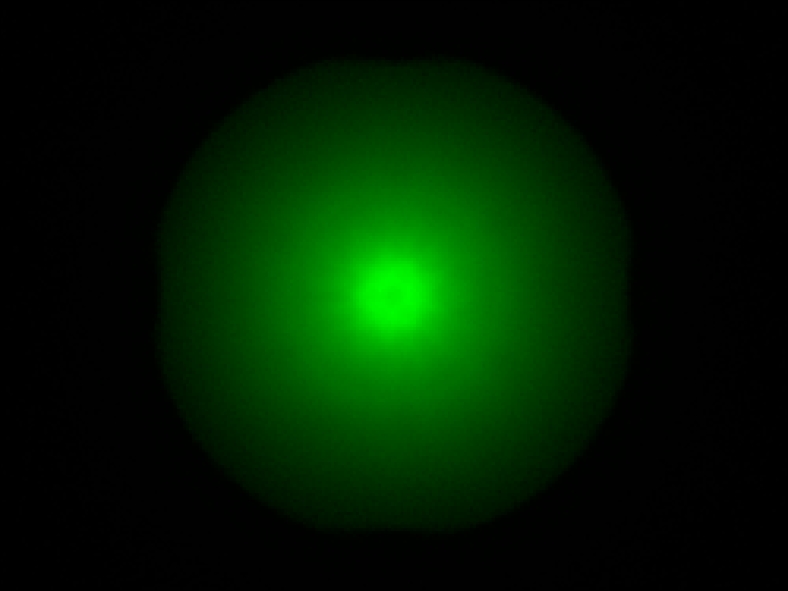

Carclo Optics – 12814 Spot Image Lumileds Luxeon Rubix Green

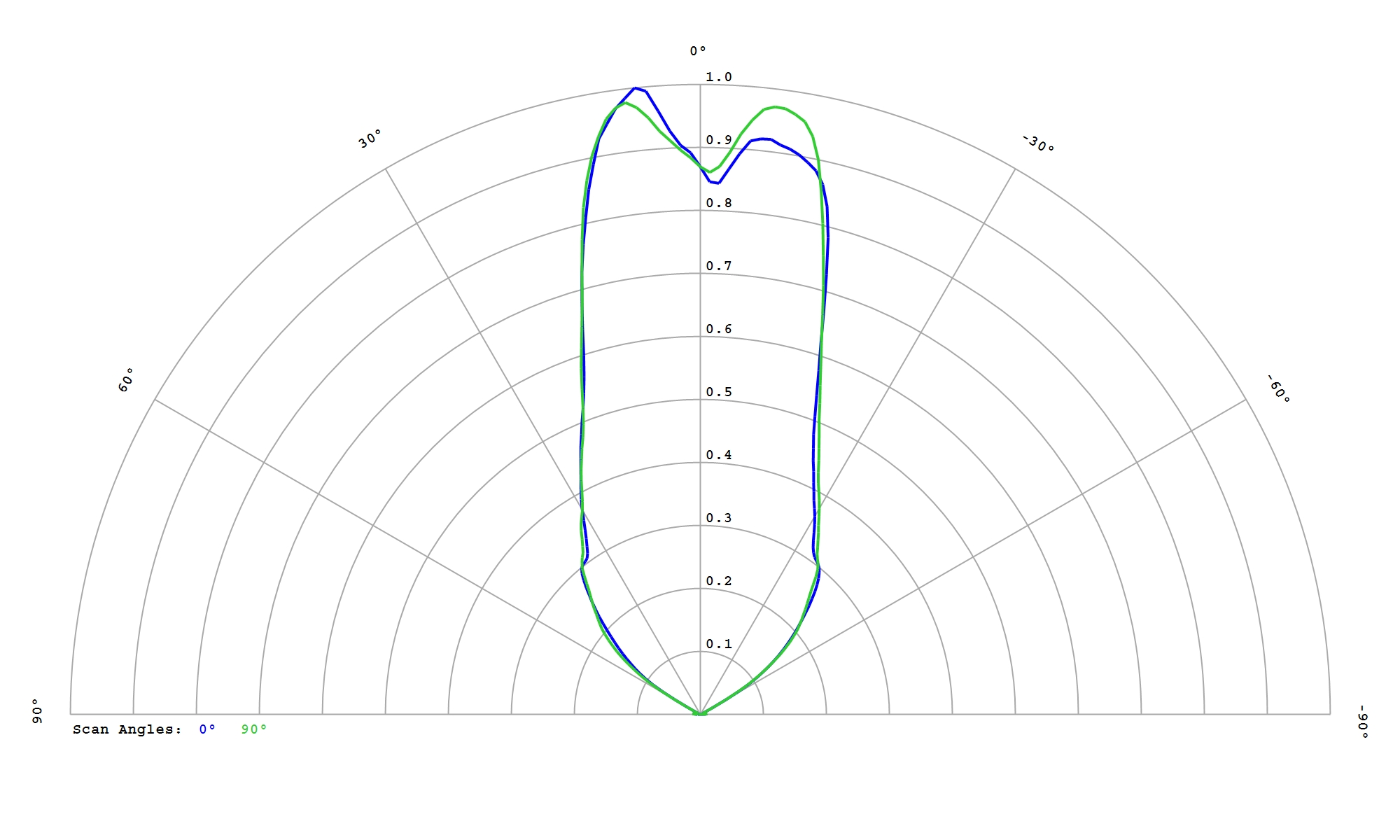

Carclo Optics – 12814 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

97.0%

FWHM:

43°

Cd/Im:

1.2

Carclo Optics – 12814 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12814 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

97.0%

FWHM:

42°

Cd/Im:

1.6

Carclo Optics – 12814 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12814 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

96.5%

FWHM:

44.0°

Cd/Im:

1.3

Carclo Optics - 12814 Spot Image Lumileds Luxeon Rubix White

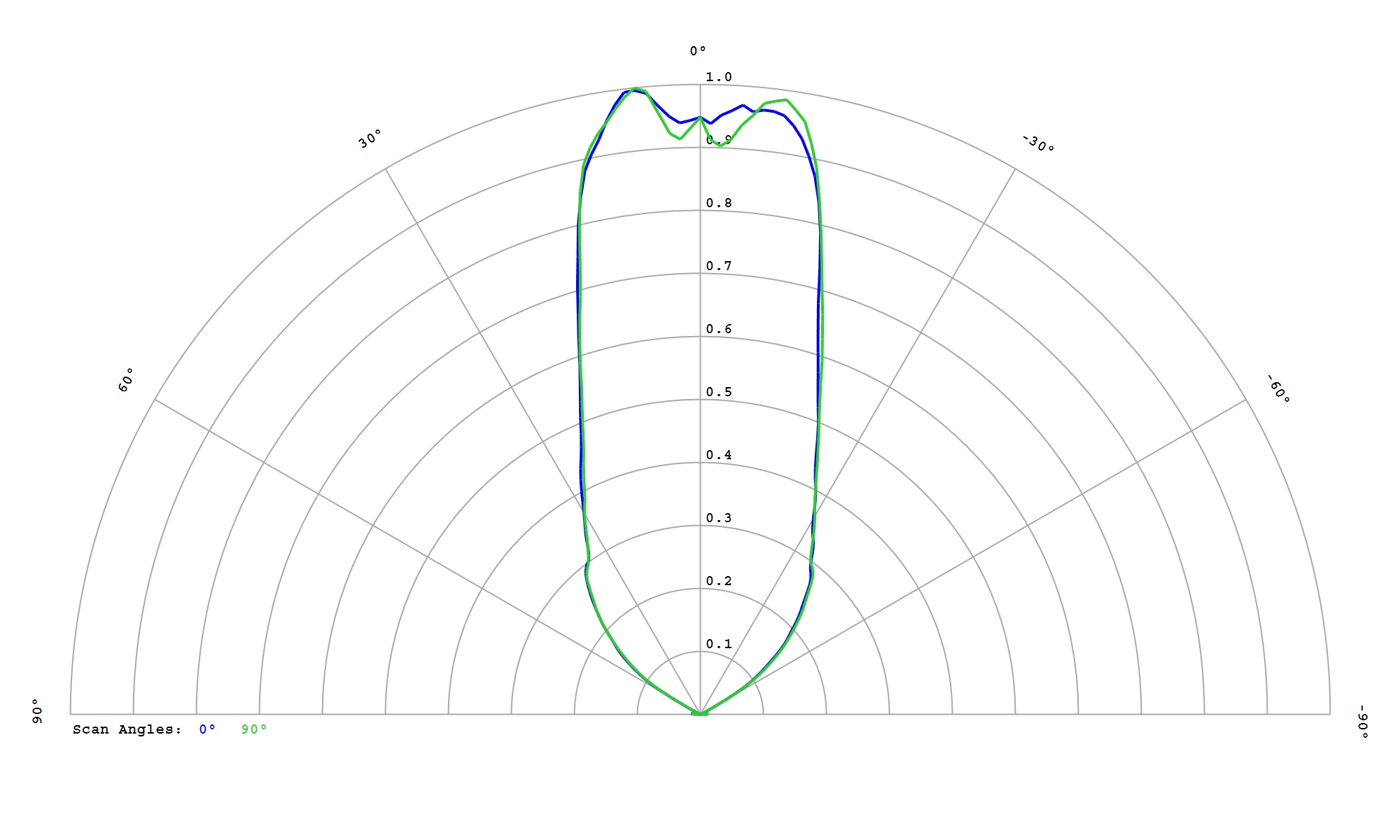

Carclo Optics - 12814 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Cool White

Eff:

94.0%

FWHM:

44°

Cd/Im:

1.1

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Cool White - Spot Image

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Cool White - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Deep Red

Eff:

85.0%

FWHM:

128°

Cd/Im:

0.4

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Deep Red - Spot Image

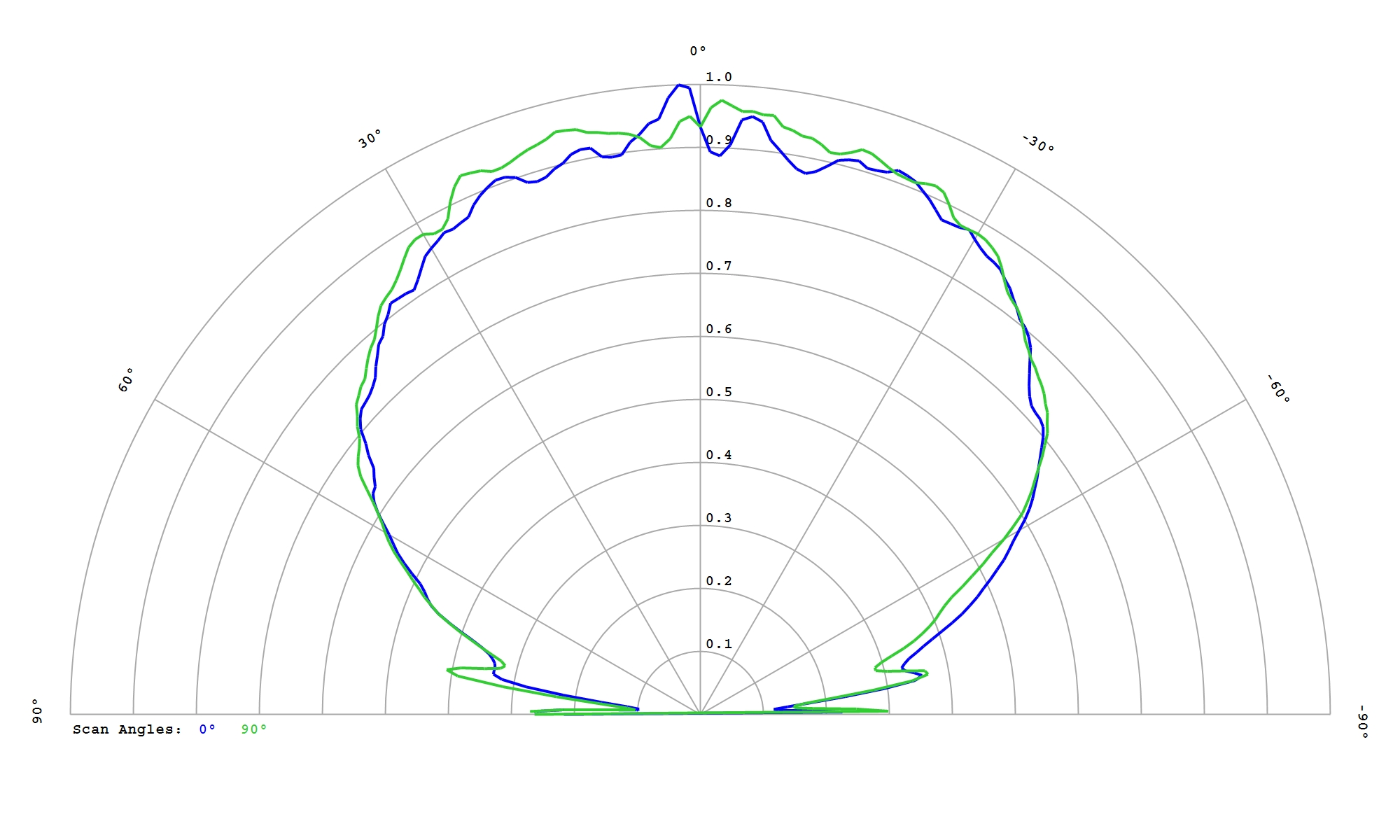

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Deep Red - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Far Red

Eff:

85.5%

FWHM:

125°

Cd/Im:

0.7

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Far Red - Spot Image

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Far Red - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Lime

Eff:

88.0%

FWHM:

121°

Cd/Im:

0.4

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line - Lime - Spot Image

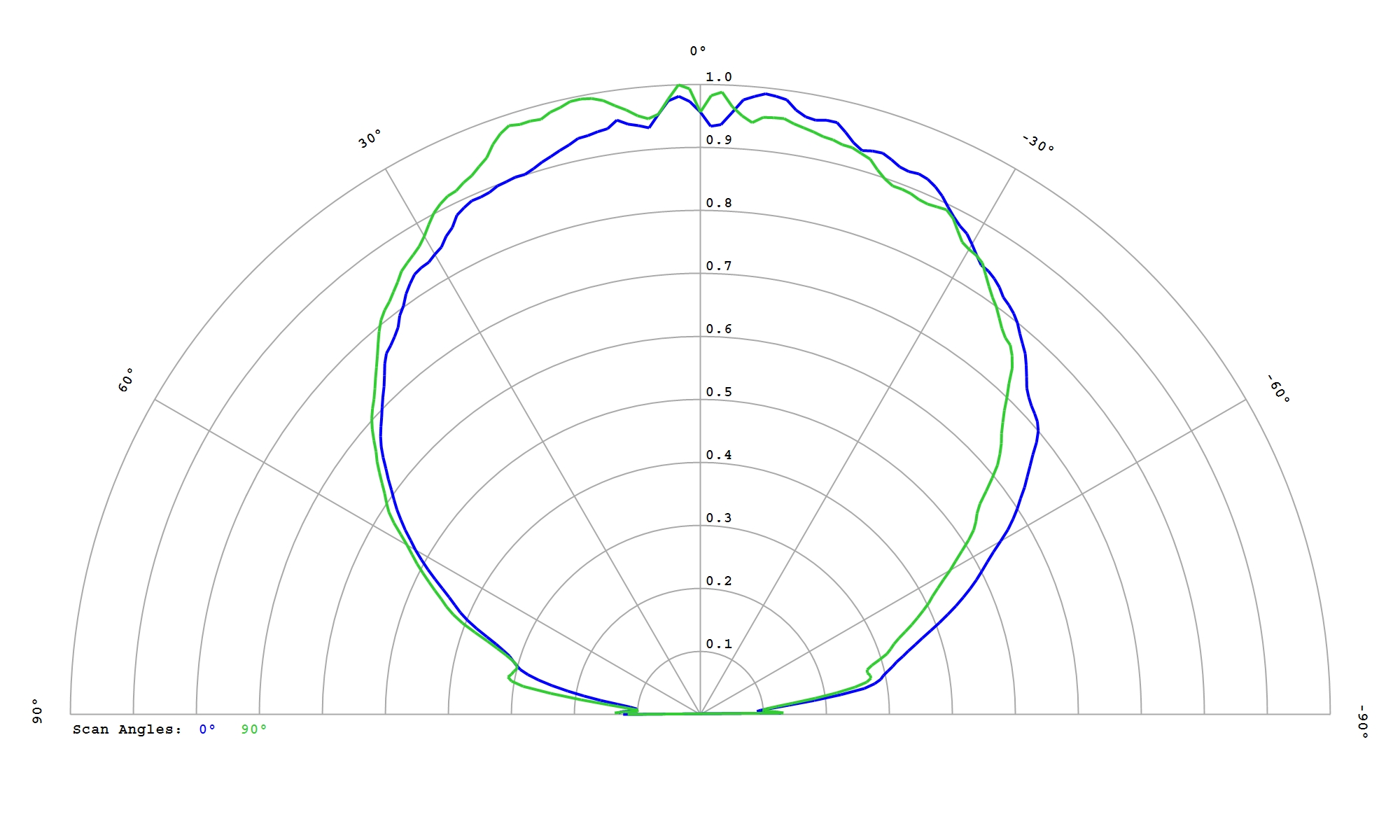

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line - Lime - Cross-Section

Download

ies

LUMILEDS LUXEON SunPlus 20 Line Royal Blue

Eff:

85.5%

FWHM:

131°

Cd/Im:

0.4

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Spot Image

Carclo Optics – 12814 Lumileds Luxeon SunPlus 20 Line – Royal Blue - Cross-Section

Download

ies

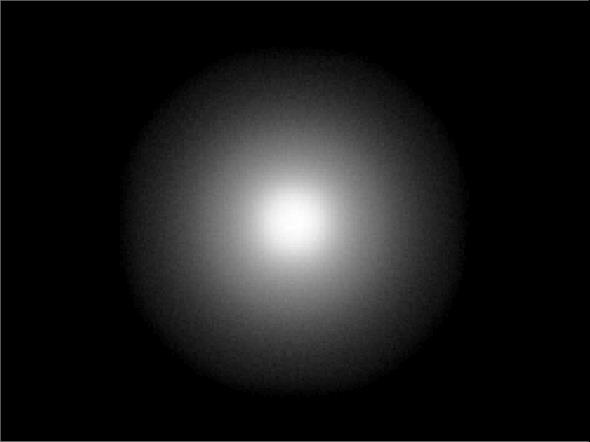

LUMILEDS LUXEON TX White

Eff:

91.4%

FWHM:

46.5°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON V White

Eff:

93.5%

FWHM:

46°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

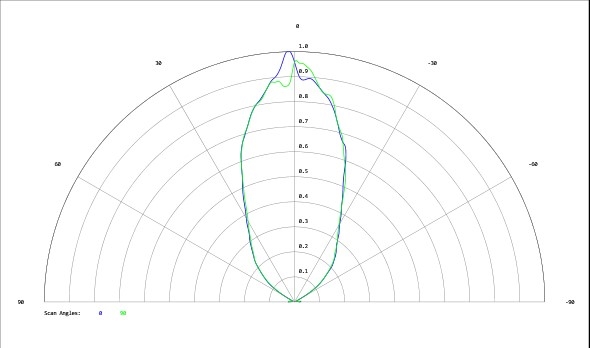

Carclo Optics - Simulated Cross Section

Download

ies

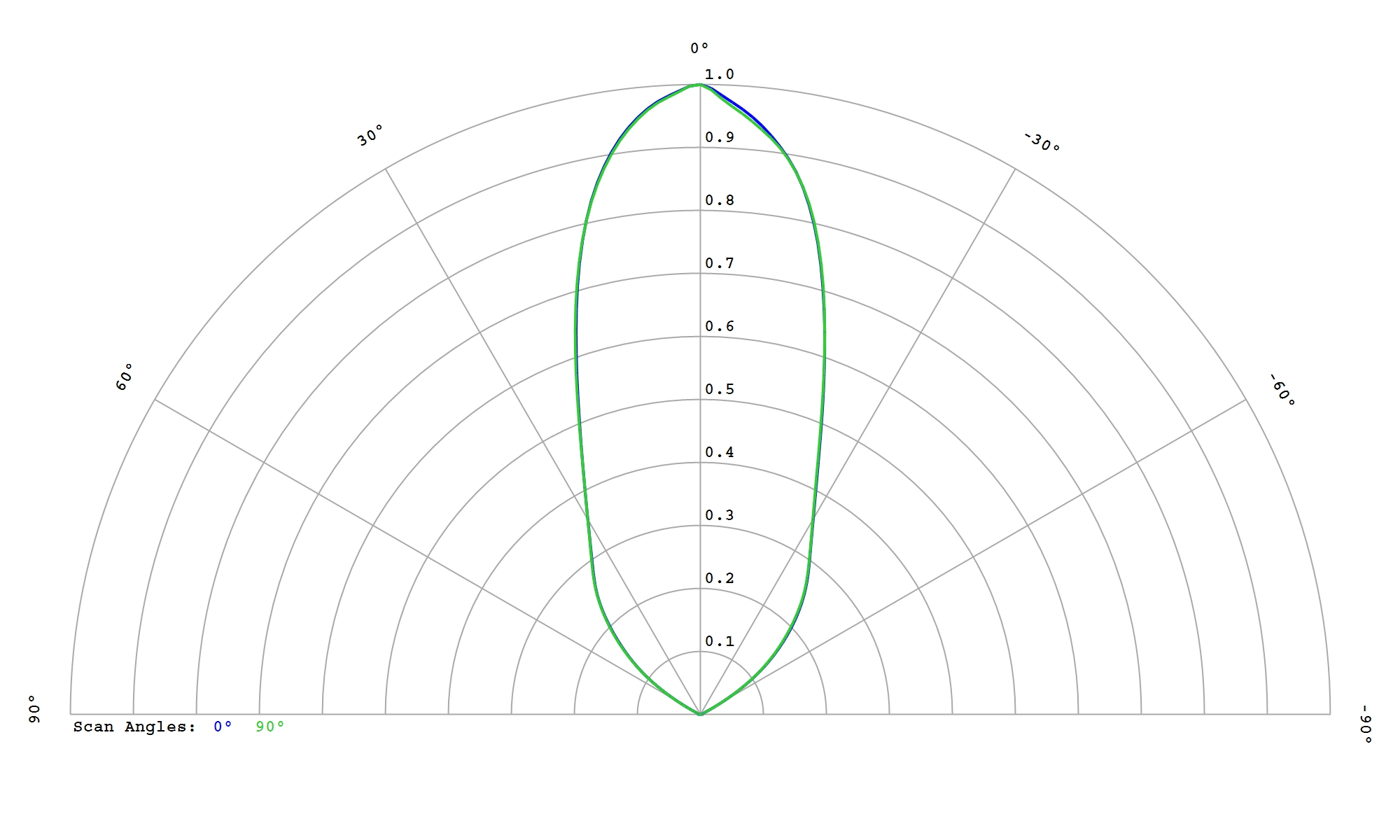

Luminus Devices SFT-40-WxS White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3

Download

ies

Luminus Devices SFT-70X-WxS White

Eff:

97.0%

FWHM:

44°

Cd/Im:

1.5

Download

ies

Luminus Devices SST 05-IR-B40 850nm

Eff:

96.5%

FWHM:

22.0°

Ipk/W:

4.2

Carclo Optics - 12814 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 12814 Cross Section Luminus SST-05-IR-B40

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.4

Carclo Optics - 12814 Luminus_SST-10_B_B130 - Spot Image

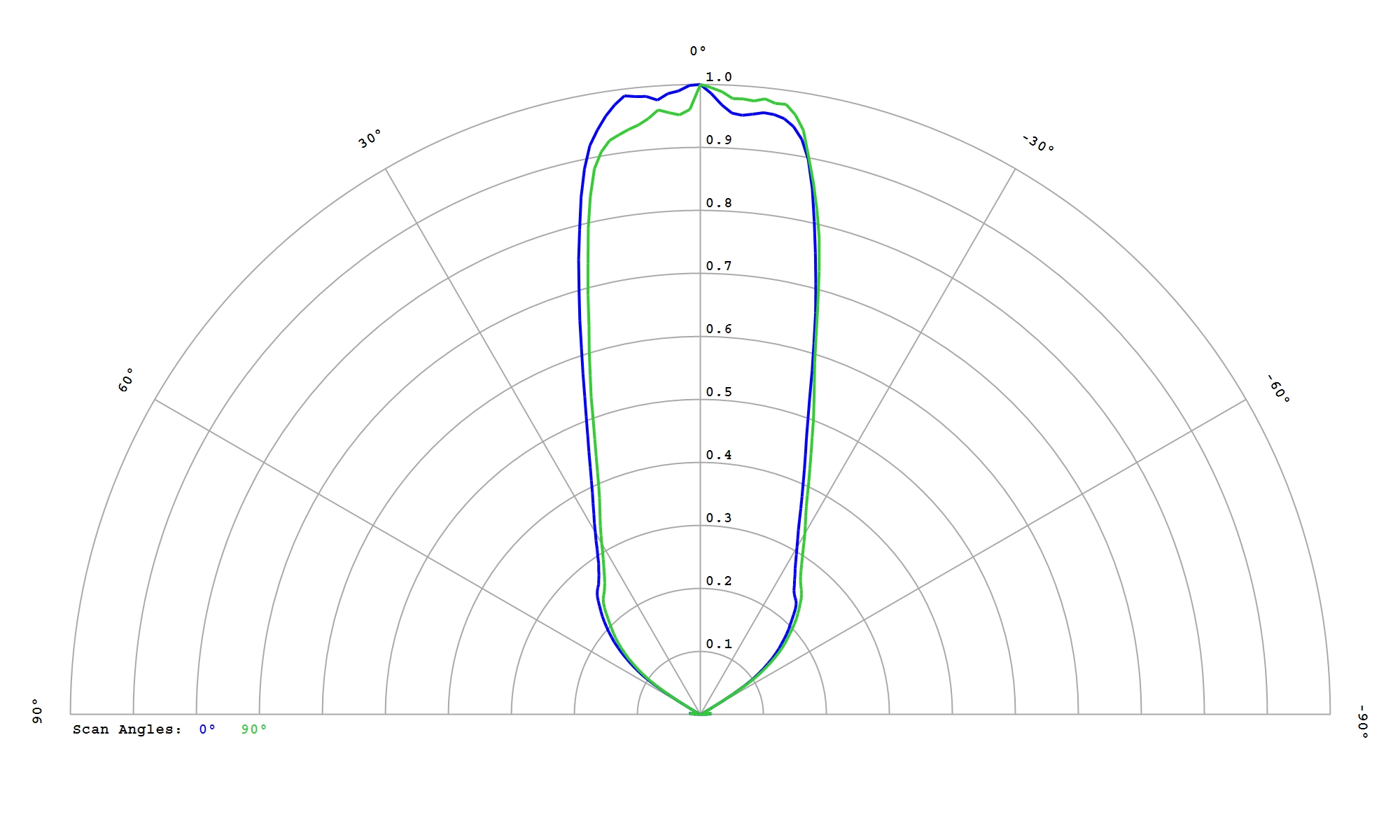

Carclo Optics - 12814 Luminus_SST-10_B_B130 - Cross section image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

96.0%

FWHM:

37°

Cd/Im:

1.7

Carclo Optics - 12814 Luminus_SST-10_B_B90 - spot image

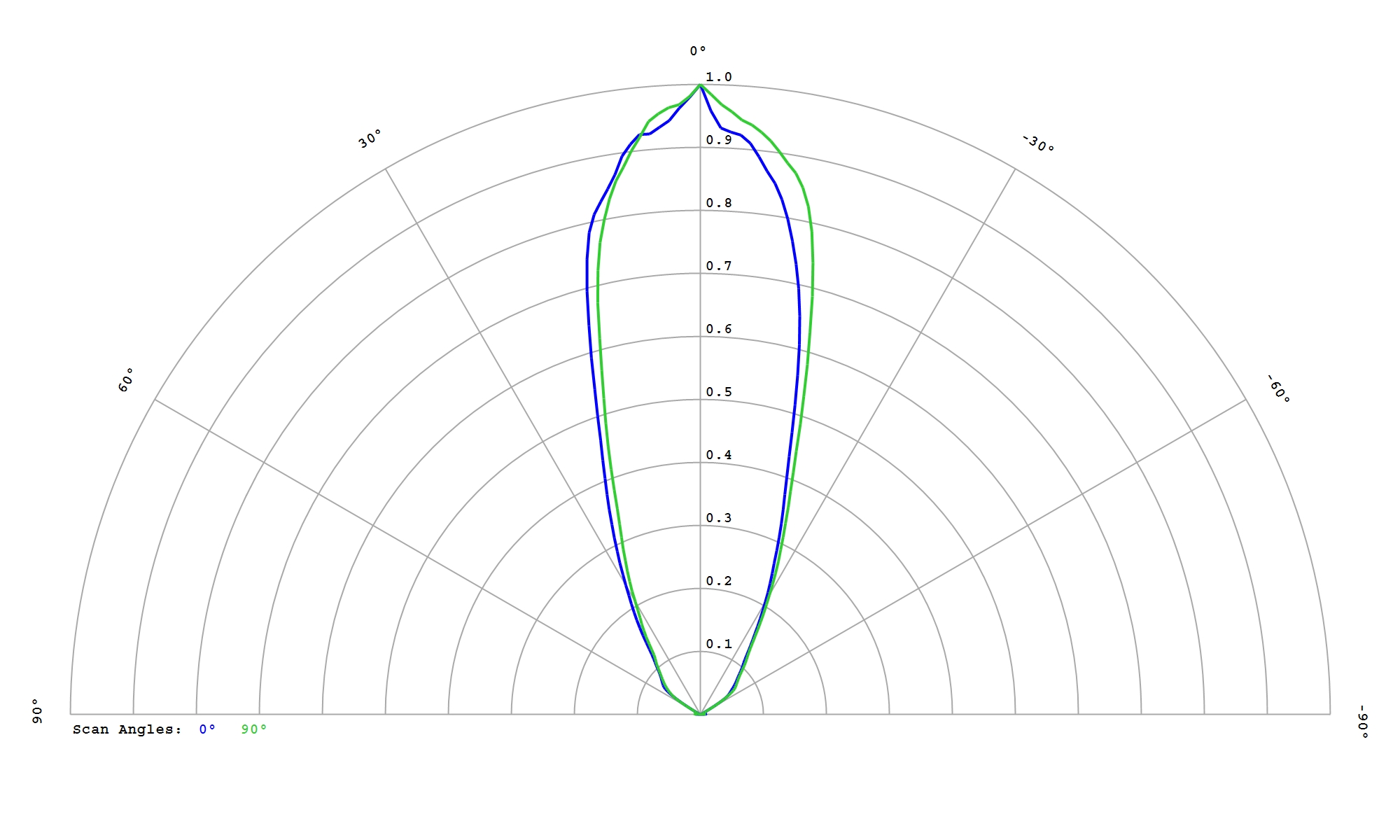

Carclo Optics - 12814 Luminus_SST-10_B_B90 - cross section image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

96.5%

FWHM:

50°

Cd/Im:

1.1

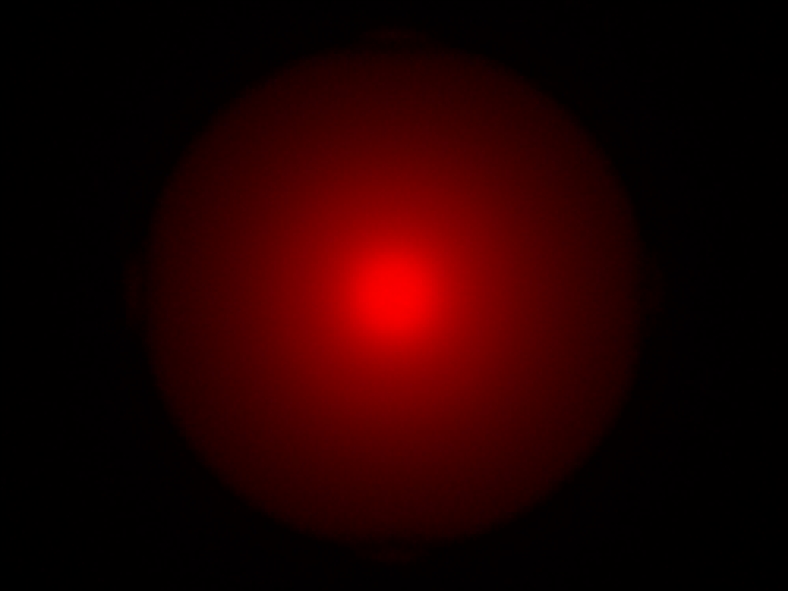

Carclo Optics – 12814 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12814 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

95.5%

FWHM:

39°

Cd/Im:

1.7

Carclo Optics - 12814 Luminus_SST-10_DR_B90 - Spot Image

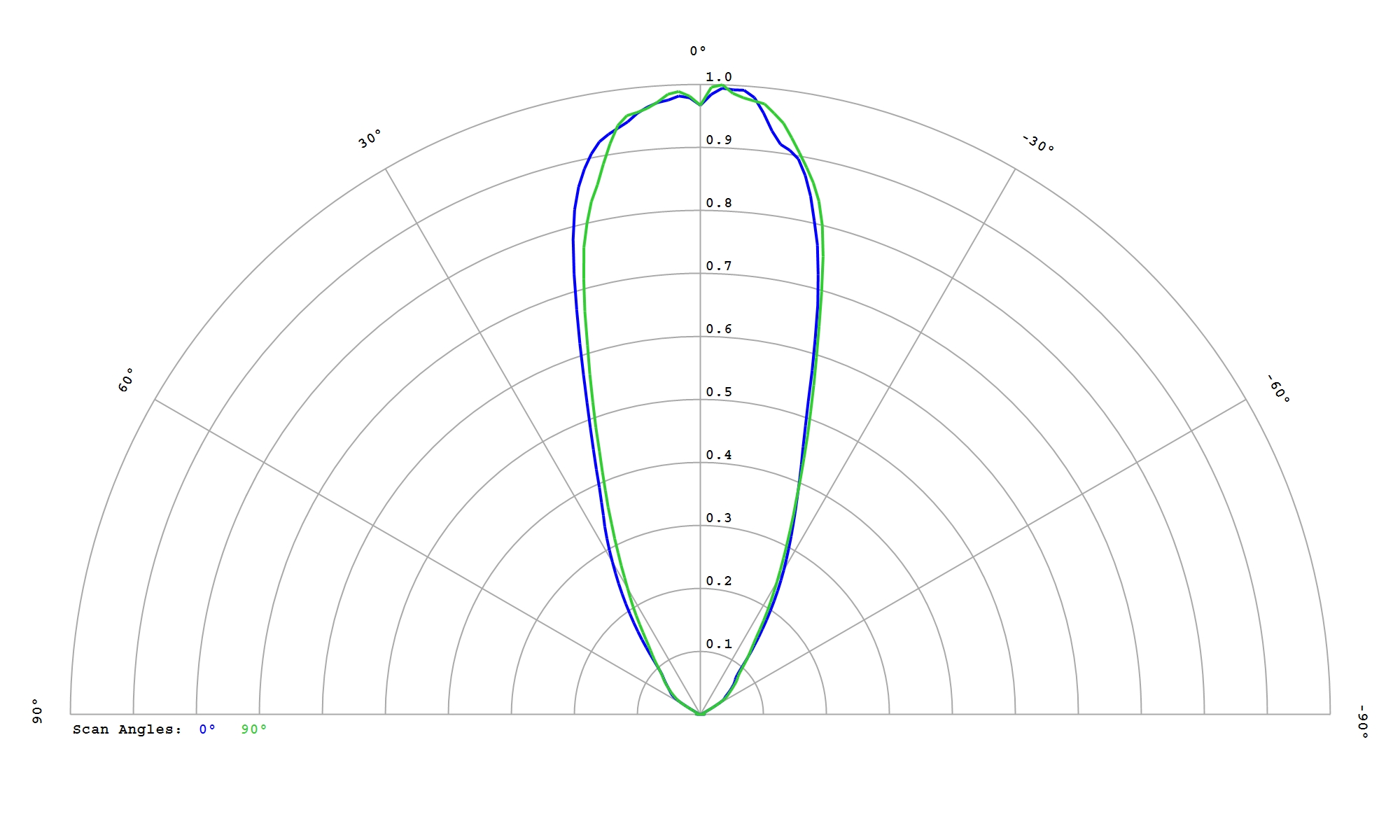

Carclo Optics - 12814 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-FR-B130 Far Red

Eff:

96.0%

FWHM:

43°

Cd/Im:

2.8

Carclo Optics – 12814 Luminus_SST-10_FR_B130- Spot – image

Carclo Optics – 12814 Luminus_SST-10_FR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-FR-B90 Far Red

Eff:

96.0%

FWHM:

39°

Cd/Im:

2.8

Carclo Optics – 12814 Luminus_SST-10_FR_B90- Spot – image

Carclo Optics – 12814 Luminus_SST-10_FR_B90- Cross section – image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

96.0%

FWHM:

41°

Cd/Im:

1.3

Carclo Optics - 12814 Luminus_SST-10_G_B130 - spot - image

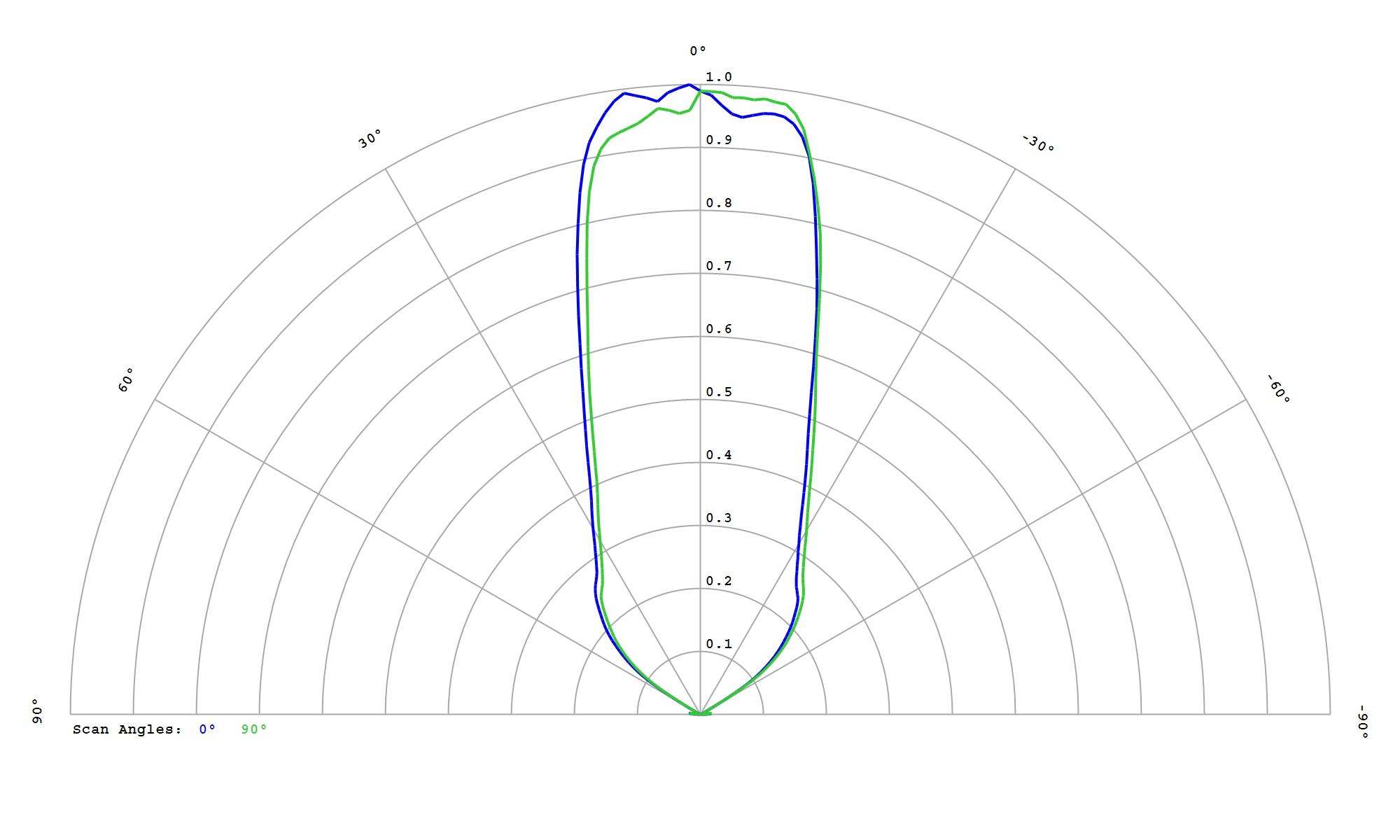

Carclo Optics - 12814 Luminus_SST-10_G_B130 - cross section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

95.0%

FWHM:

36°

Cd/Im:

1.7

Carclo Optics - 12814 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12814 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

96.5%

FWHM:

44.0°

Ipk/W:

1.3

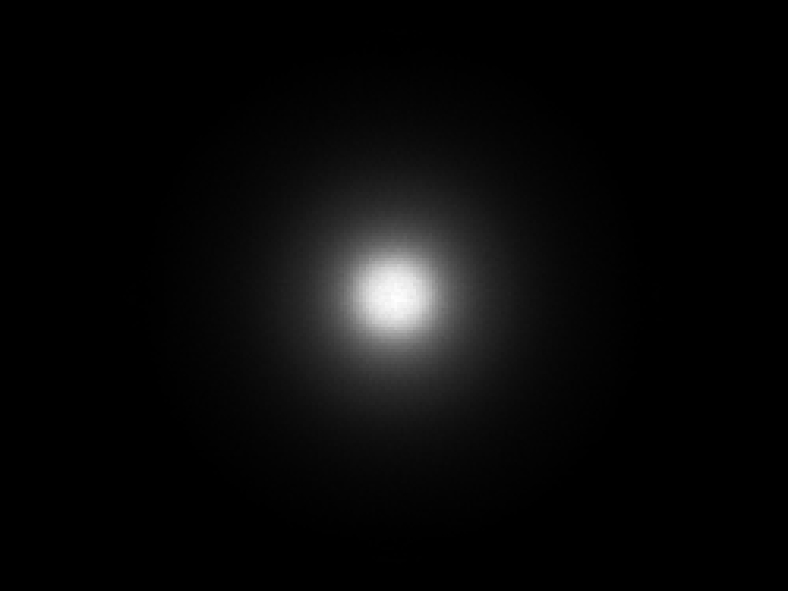

Carclo Optic - 12814 Spot Image Luminus SST-10-IR-B130

Carclo Optic - 12814 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

96.0%

FWHM:

40.0°

Ipk/W:

1.7

Carclo Optics - 12814 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12814 Cross Section Luminus SST-10-IR-B90

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

96.5%

FWHM:

45°

Ipk/W:

1.2


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

96.0%

FWHM:

38°

Ipk/W:

1.8


Download

ies

Luminus Devices SST 10-R-B130 Red

Eff:

96.0%

FWHM:

50°

Cd/Im:

1.2

Carclo Optics – 12814 Luminus_SST-10_R_B130- Spot – image

Carclo Optics – 12814 Luminus_SST-10_R_B130- Cross section – image

Download

ies

Luminus Devices SST 10-R-B90 Red

Eff:

95.5%

FWHM:

39°

Cd/Im:

1.7

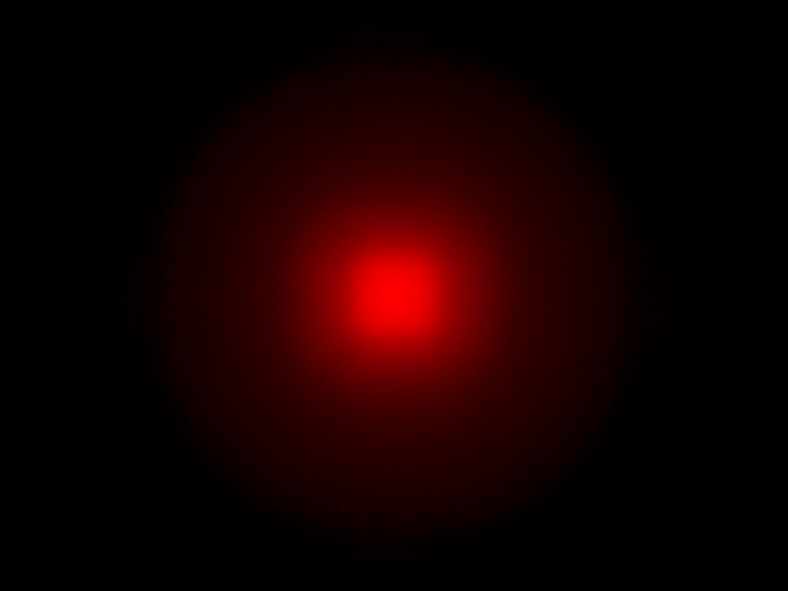

Carclo Optics – 12814 Luminus_SST-10_R_B90- Spot – image

Carclo Optics – 12814 Luminus_SST-10_R_B90- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B130 Sky Blue

Eff:

96.5%

FWHM:

40°

Cd/Im:

1.5

Carclo Optics – 12814 Luminus_SST-10_SB_B130- Spot – image

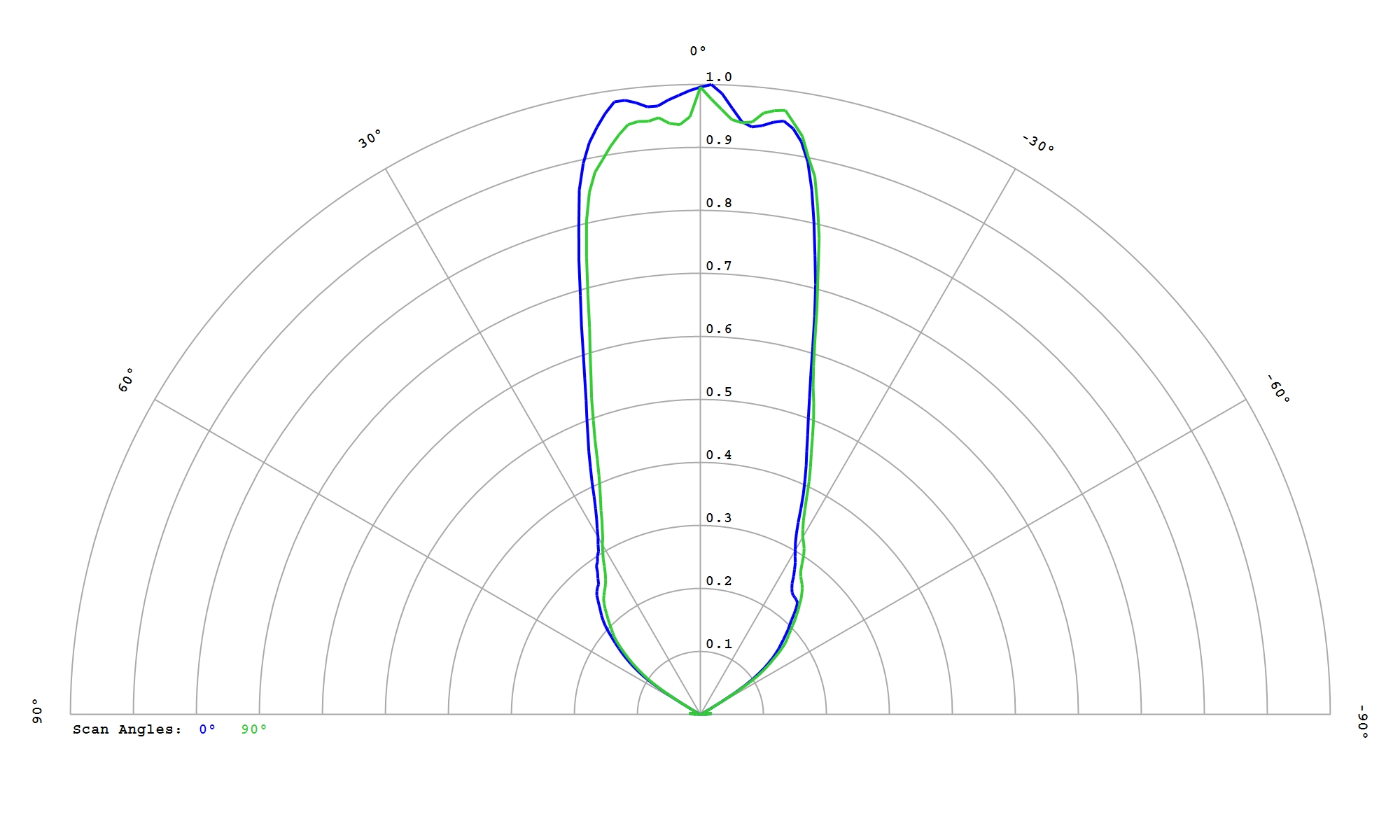

Carclo Optics – 12814 Luminus_SST-10_SB_B130- Cross section – image

Download

ies

Luminus Devices SST 10-SB-B90 Sky Blue

Eff:

95.5%

FWHM:

36°

Cd/Im:

1.9

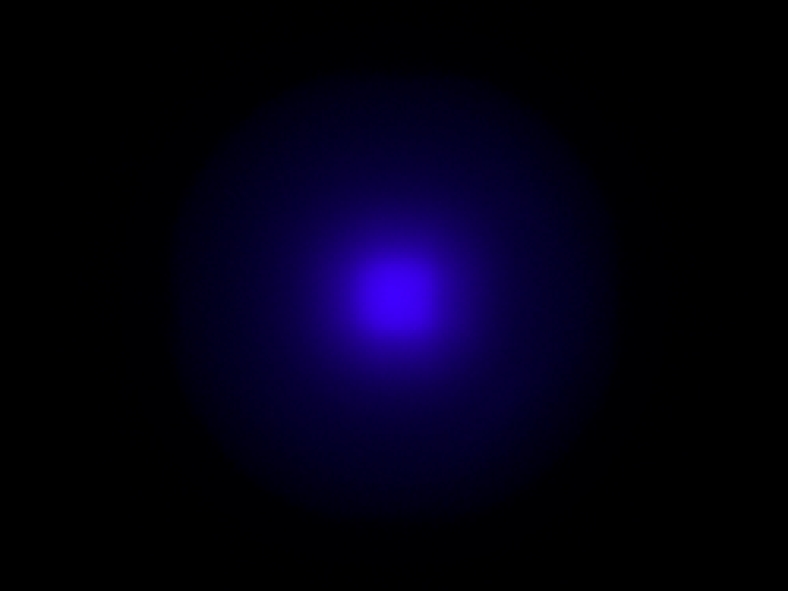

Carclo Optics – 12814 Luminus_SST-10_SB_B90- Spot – image

Carclo Optics – 12814 Luminus_SST-10_SB_B90- Cross section – image

Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

95.5%

FWHM:

42°

Cd/Im:

1.4

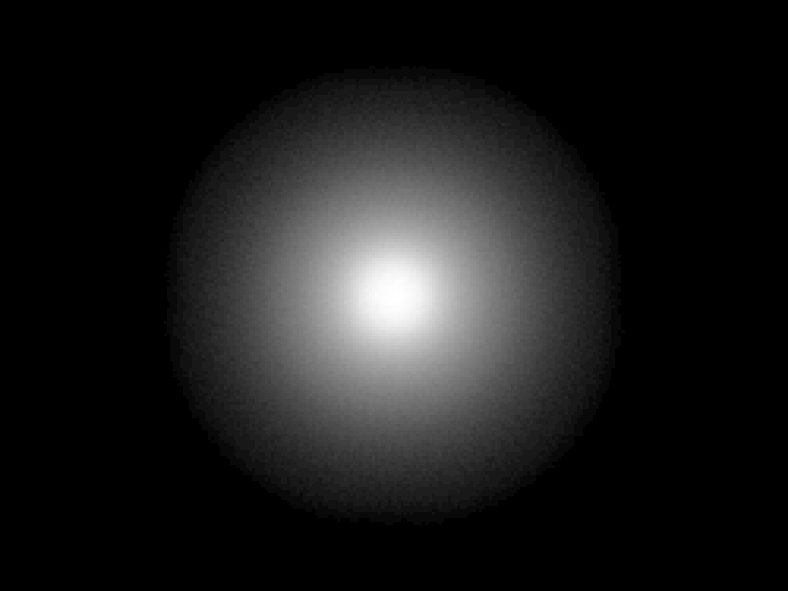

Carclo Optics – 12814 - Luxeon_SST_20_W_spot-image

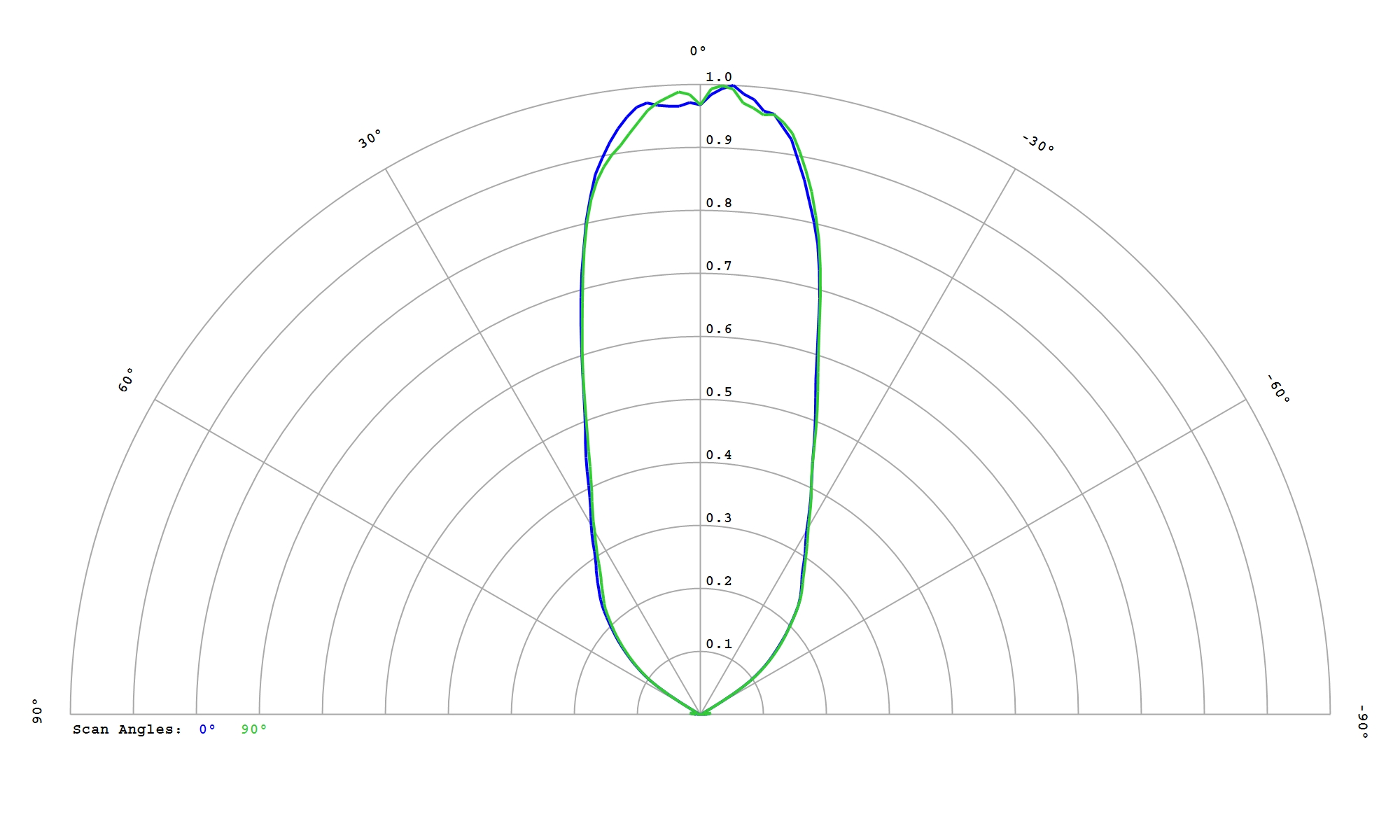

Carclo Optics – 12814 - Luxeon_SST_20_W_cross vertical section

Download

ies

Luminus Devices SST 40-W White

Eff:

95.5%

FWHM:

56°

Cd/Im:

1.1

Carclo Optics – 12814 - Luxeon_SST_40_W_spot-image

Carclo Optics – 12814 - Luxeon_SST_40_W_cross vertical section

Download

ies

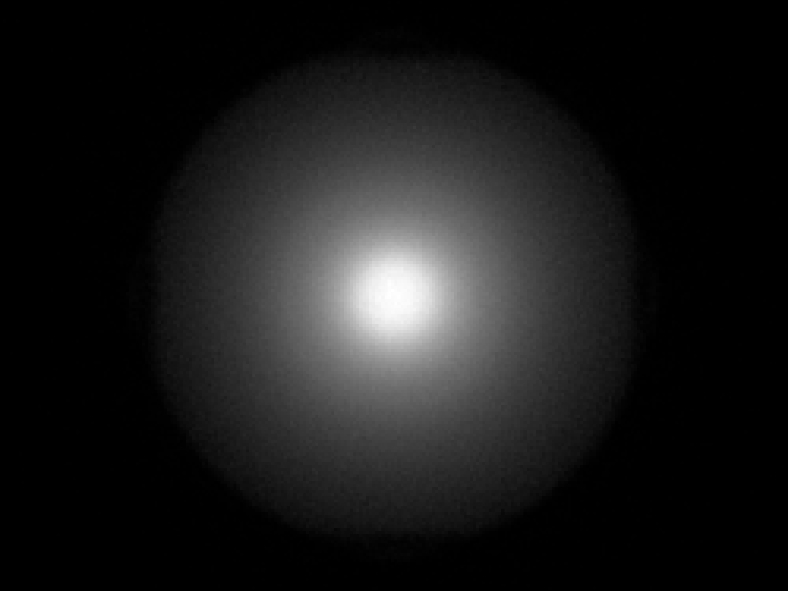

Luminus Devices SST-12-WxS White

Eff:

96.0%

FWHM:

44°

Cd/Im:

1.4

Download

ies

Luminus Devices SST-25-WES White

Eff:

95.5%

FWHM:

44°

Cd/Im:

1.4

Download

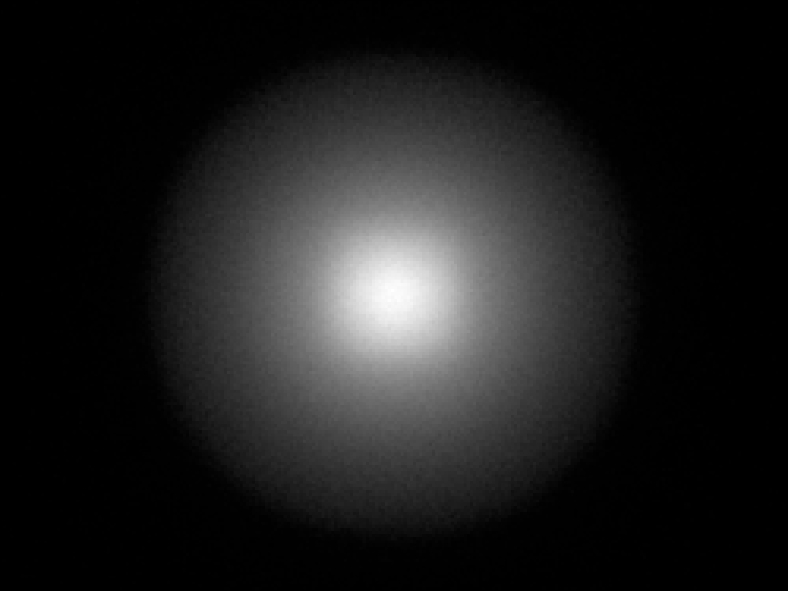

Luminus Devices SST-70X-W White

Eff:

96.0%

FWHM:

54°

Cd/Im:

1.2

Download

ies

Nichia 229A White

Eff:

94.5%

FWHM:

50°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

96.5%

FWHM:

40.0°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.4

Carclo Optics 12814 Simulated Spot Image Nichia 757G-MT

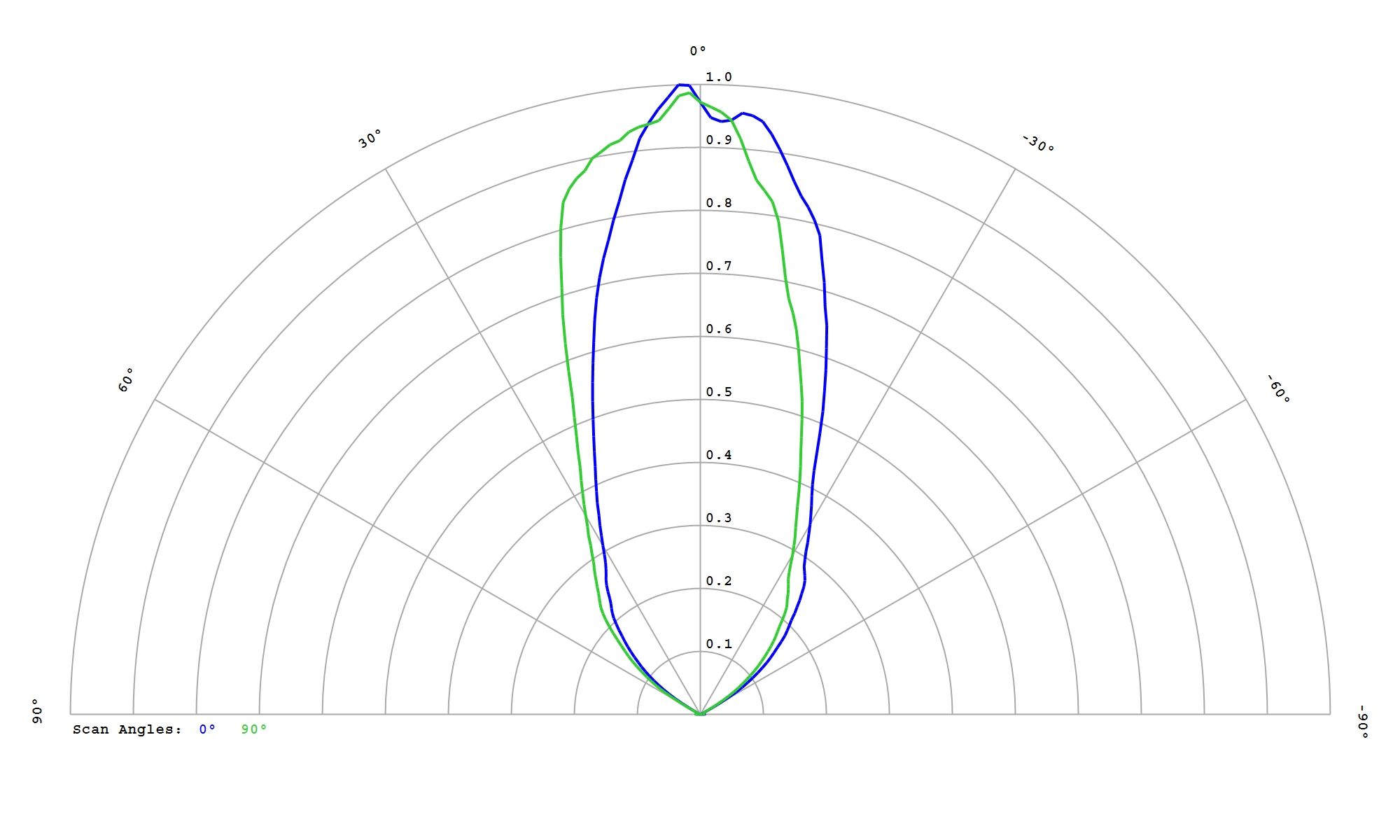

Carclo Optics 12814 Cross section Image Nichia 757G-MT

Download

ies

Nichia NCSW CSP E17A White

Eff:

94.5%

FWHM:

36.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 385AR-V2 White

Eff:

96.0%

FWHM:

44.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

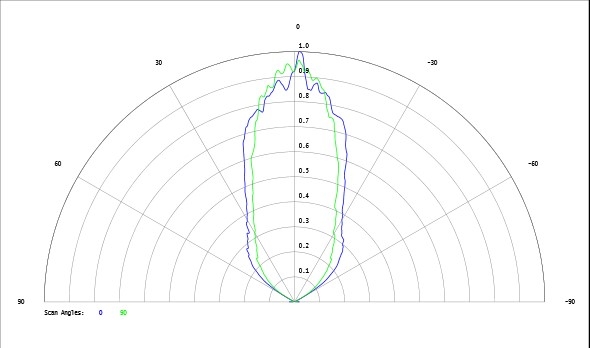

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFMW 481AR White

Eff:

87.0%

FWHM:

51°

Cd/Im:

0.8

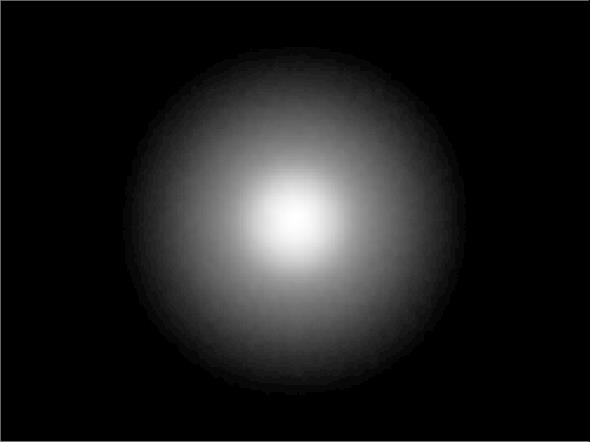

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFMW 484AR White

Eff:

96.5%

FWHM:

53°

Cd/Im:

0.9

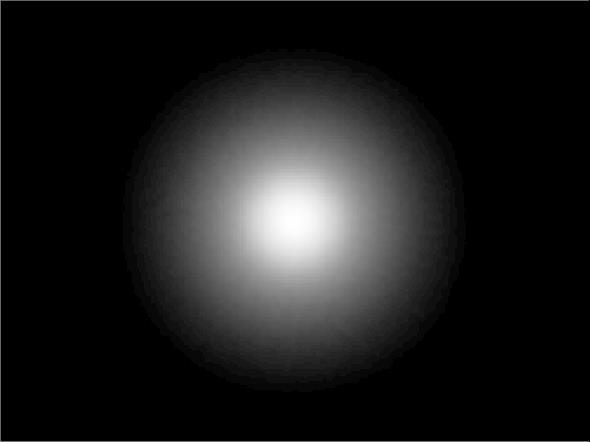

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFMW 486AR White

Eff:

96.5%

FWHM:

50°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFMW 488AR White

Eff:

96.5%

FWHM:

52°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFSW CSP E11A White

Eff:

94.0%

FWHM:

38°

Cd/Im:

1.2

Download

ies

Nichia NVSL 219B White

Eff:

94.5%

FWHM:

44.0°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

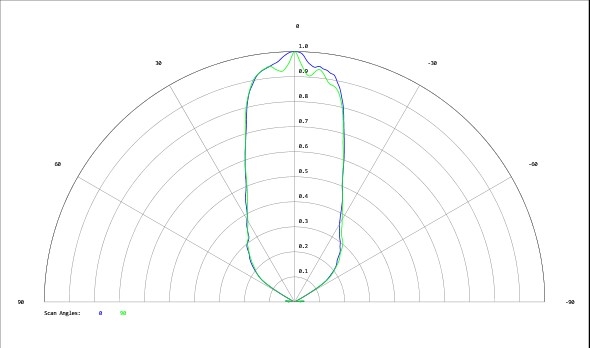

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219C White

Eff:

95.5%

FWHM:

45.0°

Cd/Im:

0.9

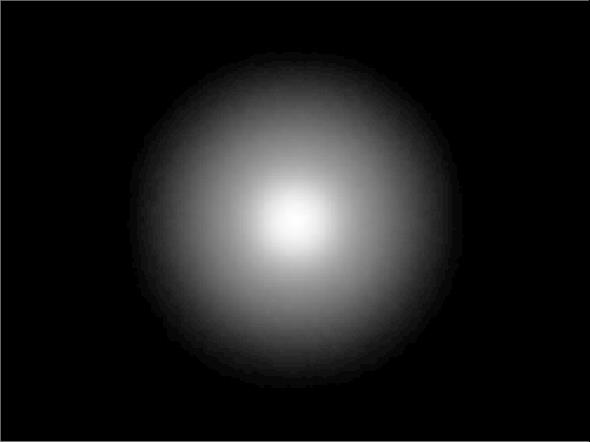

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219F White

Eff:

96.0%

FWHM:

50°

Cd/Im:

1.1

Carclo Optics – 12814 Nichia NVSW 219F White - Spot Image

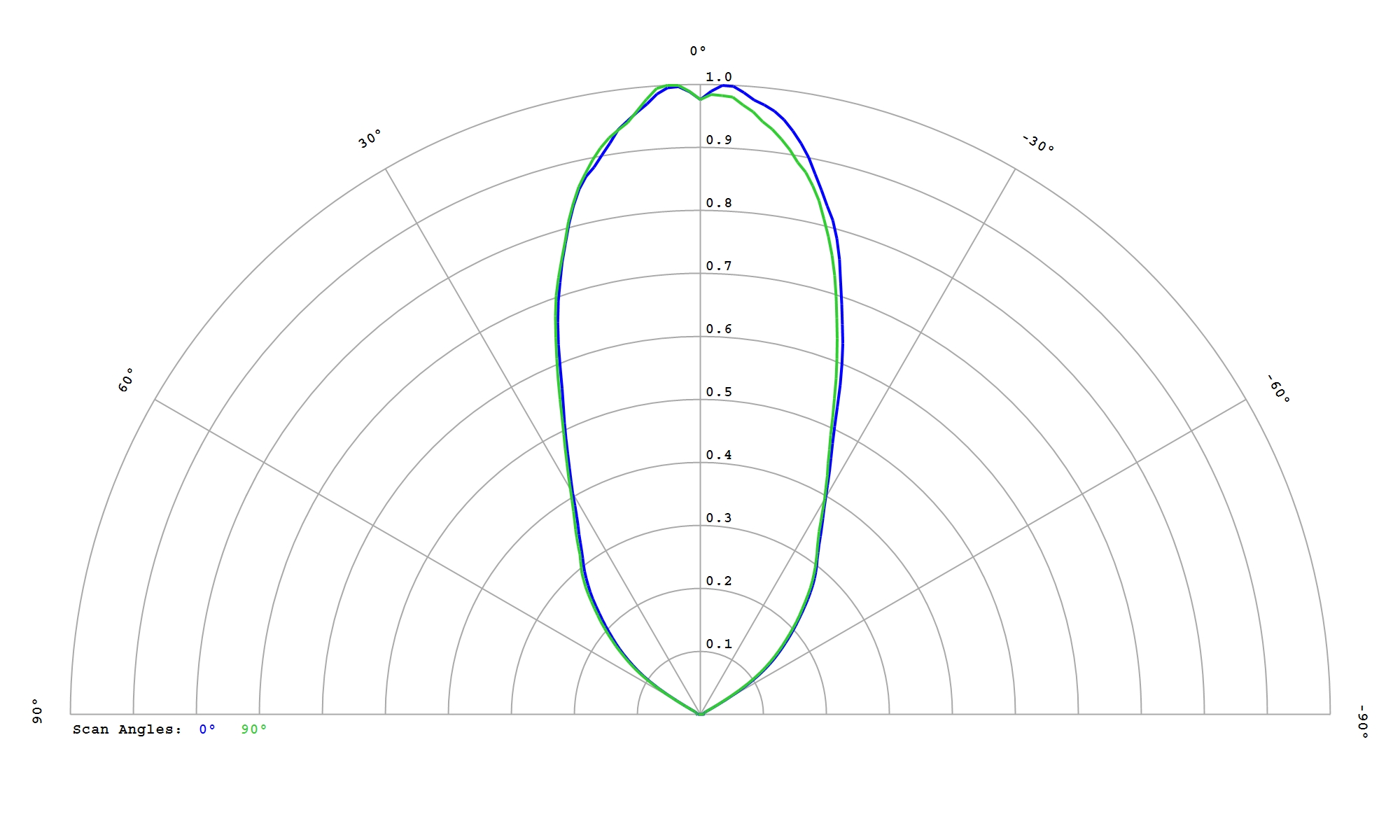

Carclo Optics – 12814 Nichia NVSW 219F White - Cross-Section

Download

ies

Nichia NVSW 319A White

Eff:

94.5%

FWHM:

52°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW CSP E21A White

Eff:

89.0%

FWHM:

35.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

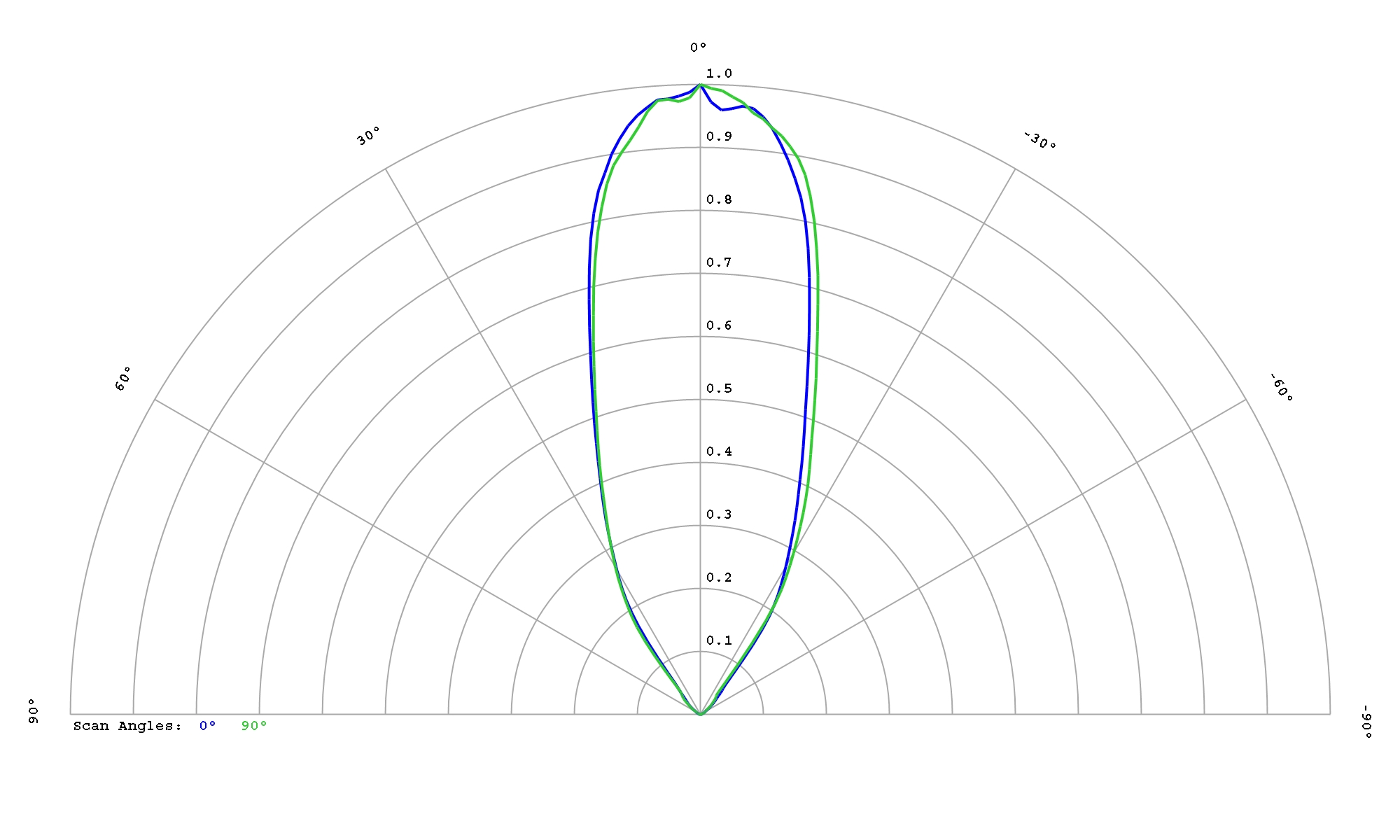

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

97.5%

FWHM:

39°

Ipk/W:

2.1

Download

IES

Osram Led Engin LuxiGen LZ4 01MWCA RGBW

Eff:

25.5%

FWHM:

80°

Cd/Im:

0.5

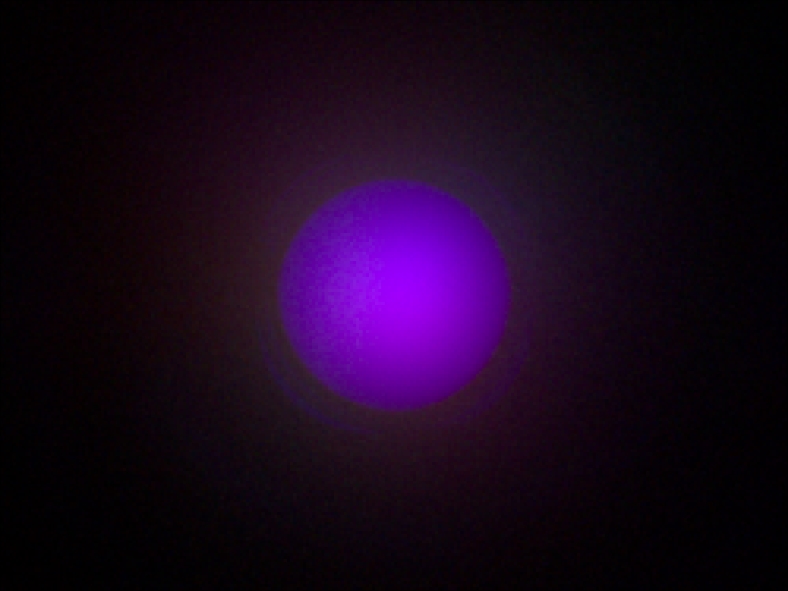

Carclo Optics – 12814 Spot Image OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Carclo Optics – 12814 Cross Section OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.4

Carclo Optics - 12814 Bubble Spot Image Osram DURIS E 2835 Gen2

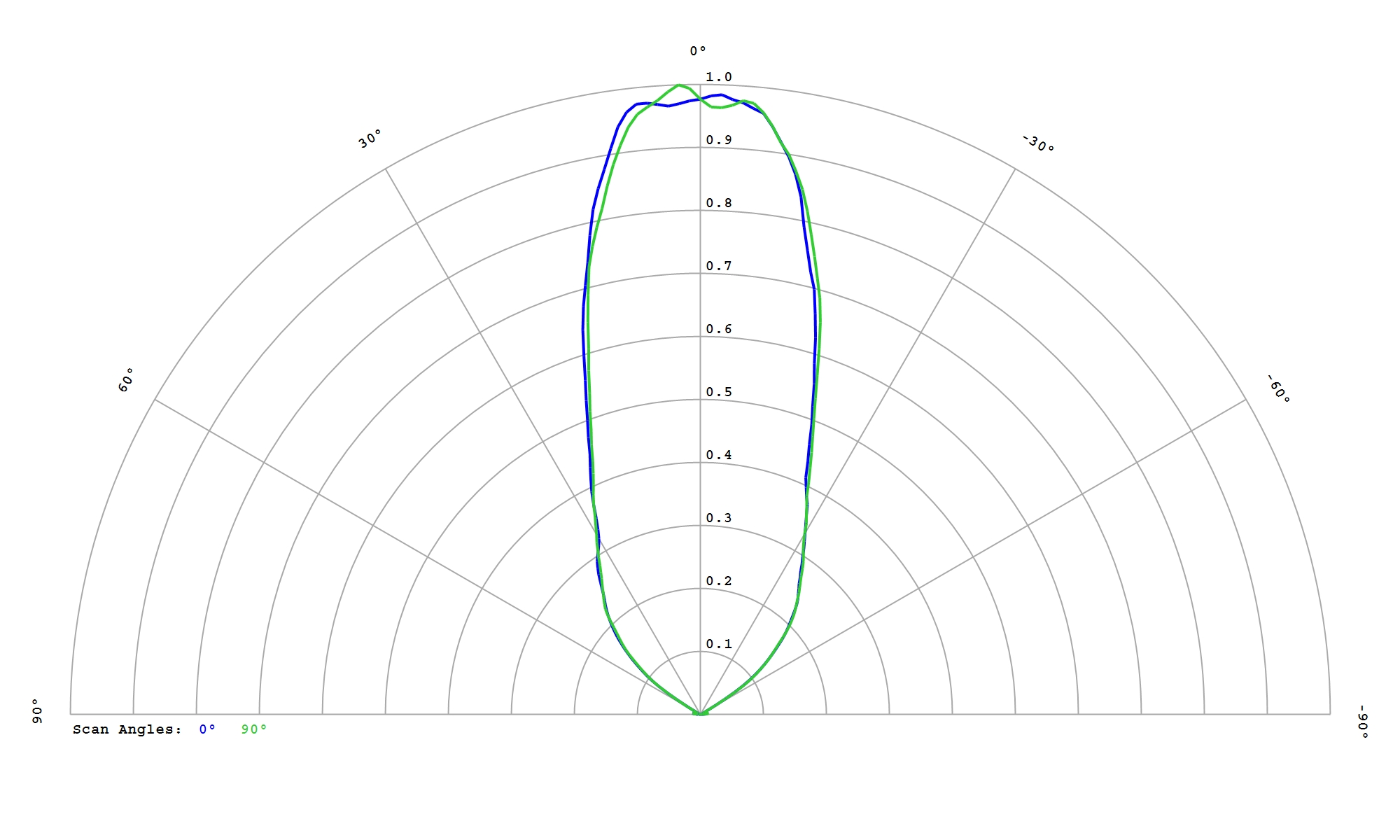

Carclo Optics - 12814 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram OS DURIS E 2835 White

Eff:

96.5%

FWHM:

43°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E2 White

Eff:

92.0%

FWHM:

40.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

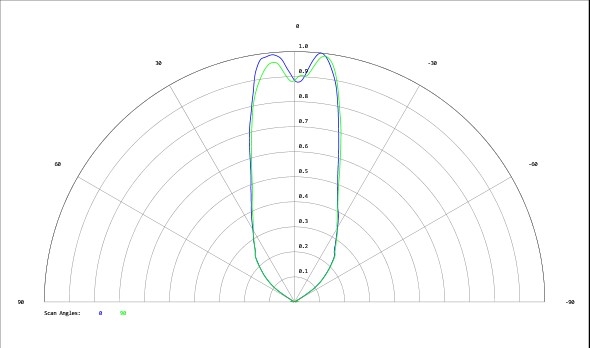

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E3 White

Eff:

97.3%

FWHM:

46.9°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

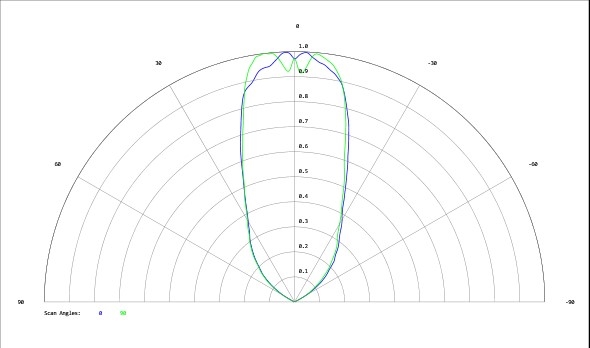

Carclo Optics - Simulated Cross Section Image

Download

ies

Osram OS DURIS P8 White

Eff:

92.3%

FWHM:

42.9°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S2 White

Eff:

93.9%

FWHM:

46.8°

Cd/Im:

0.8

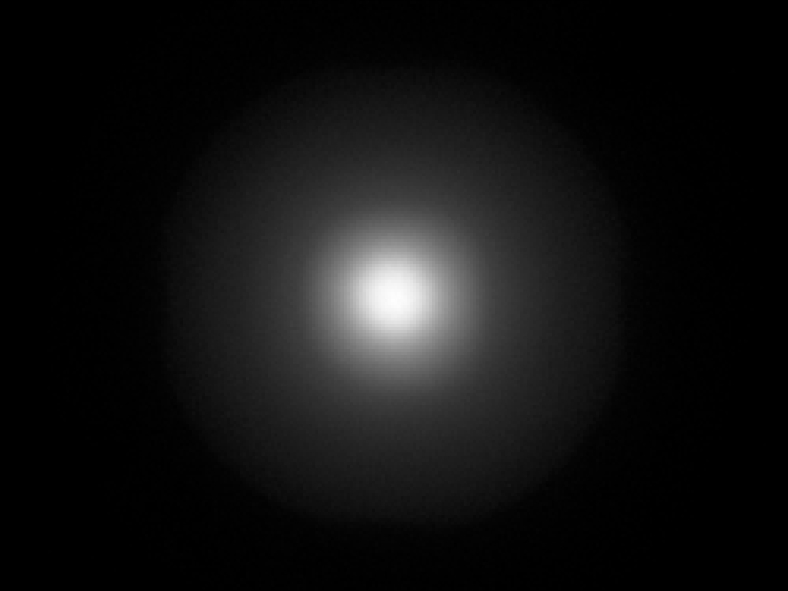

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 Deep Blue

Eff:

97.0%

FWHM:

44.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

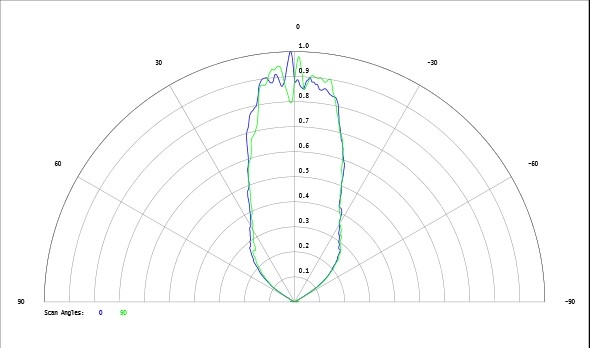

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 GP PSLM31.14 Purple

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.8

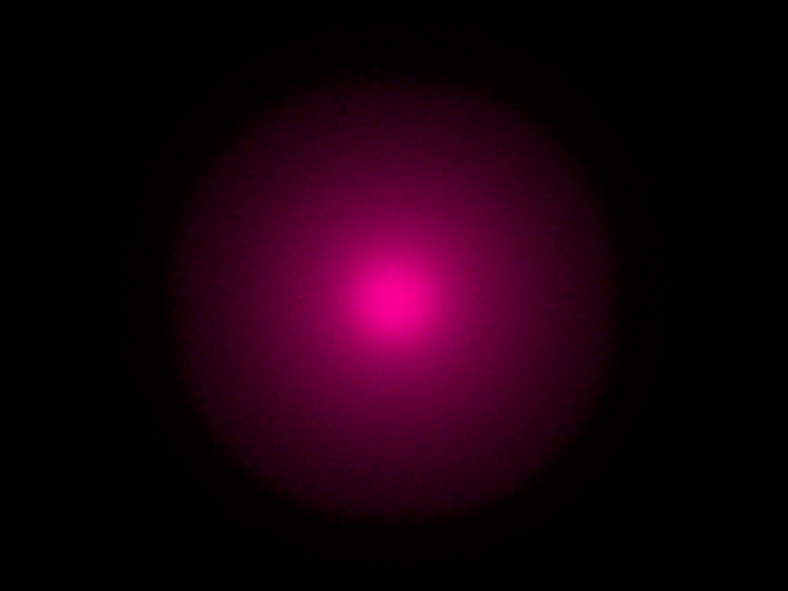

Carclo Optics – 12814 Osram Duris S5 GP PSLM31.14 Purple - Spot Image

Carclo Optics – 12814 Osram Duris S5 GP PSLM31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 GP PSLR31.14 Purple

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.5

Carclo Optics – 12814 Osram Duris S5 GP PSLR31.14 Purple - Spot Image

Carclo Optics – 12814 Osram Duris S5 GP PSLR31.14 Purple - Cross-Section

Download

14

Osram OS DURIS S5 Green

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 Red

Eff:

97.0%

FWHM:

39°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

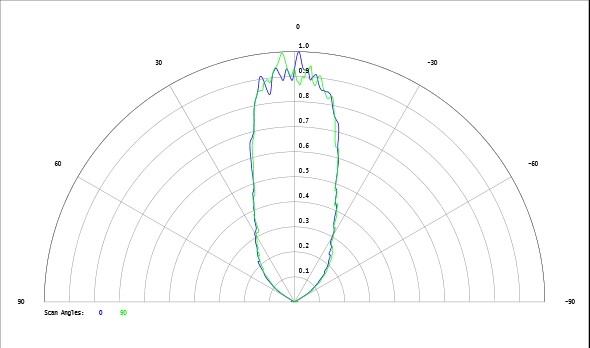

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 White

Eff:

92.0%

FWHM:

39.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S8 Gen2 White

Eff:

96.0%

FWHM:

44.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S8 Gen3 White

Eff:

96.5%

FWHM:

53 x 51°

Cd/Im:

1.2

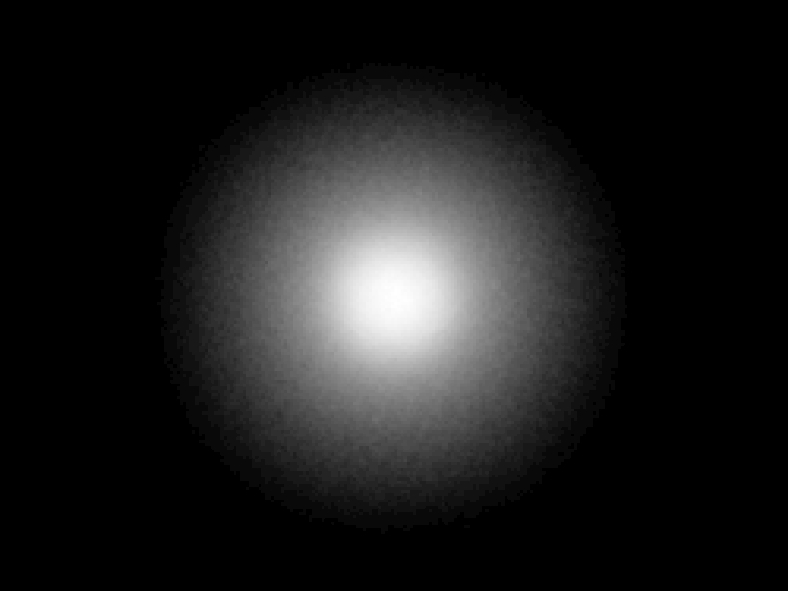

Carclo Optics - 12814 Bubble Spot Image Oslon DURIS S8 Gen3

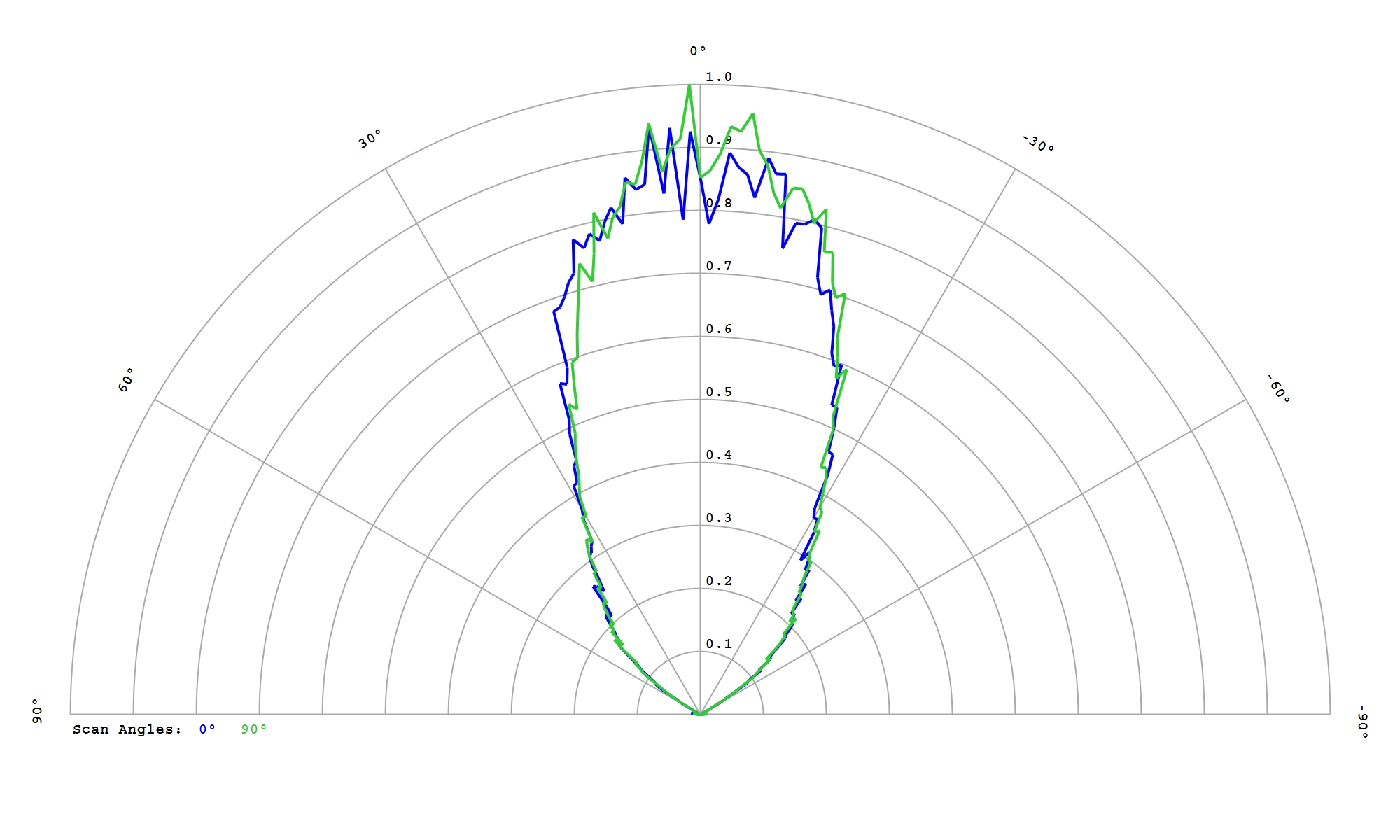

Carclo Optics - 12814 Bubble Cross Section Oslon DURIS S8 Gen3

Download

ies

Osram OS DURIS S8 White

Eff:

97.1%

FWHM:

49.5°

Cd/Im:

1.0

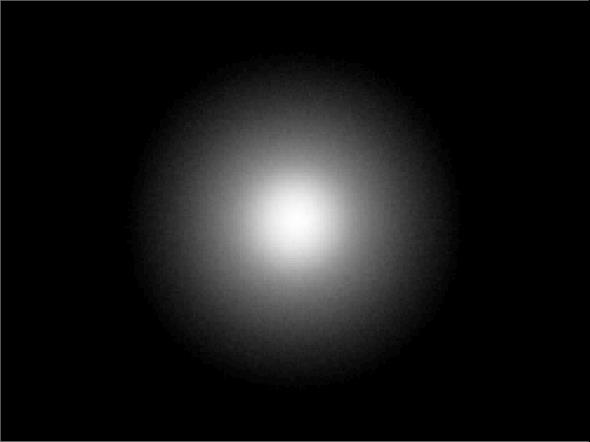

Carclo Optics - Simulated Spot Image

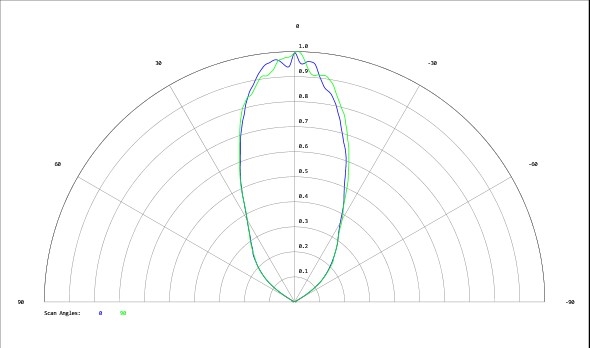

Carclo Optics - Simulated Cross Section Image

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.5

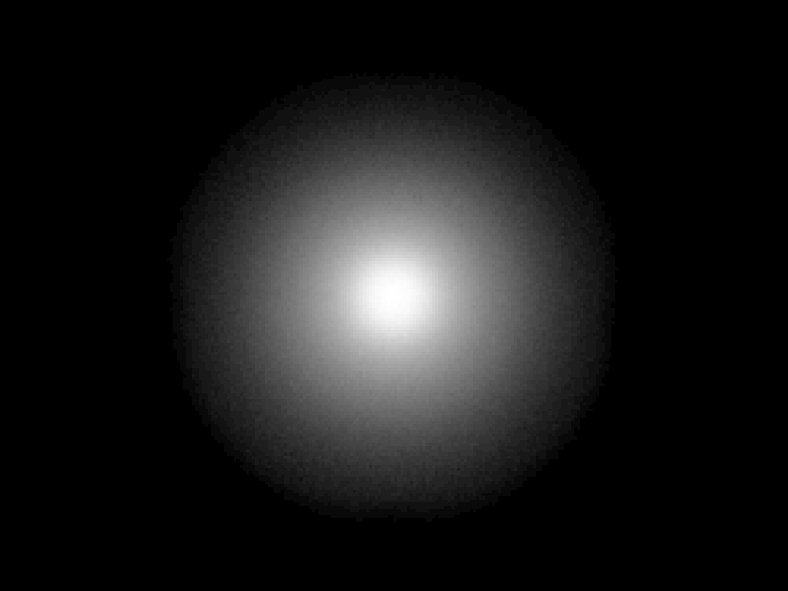

Carclo Optics 12814 Spot Image Osram Osconiq C2424

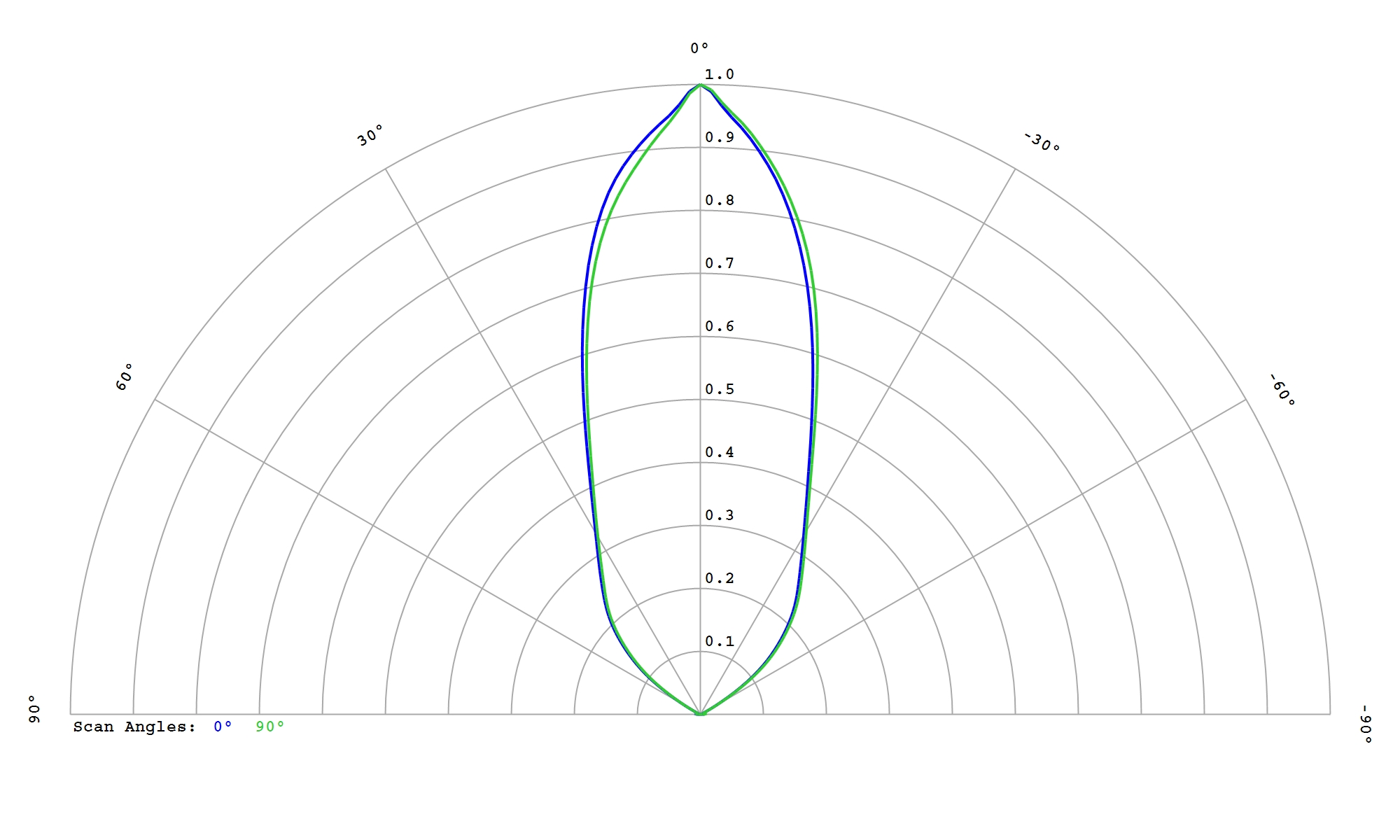

Carclo Optics 12814 Cross Section Osram Osconiq C2424

Download

ies

Osram OS OSCONIQ P3737 White

Eff:

93.5%

FWHM:

45°

Cd/Im:

1.3

Carclo Optics 12814 Spot Image Osram Osconiq P3737

Carclo Optics 12814 Cross Section Image Osram Osconiq P3737

Download

ies

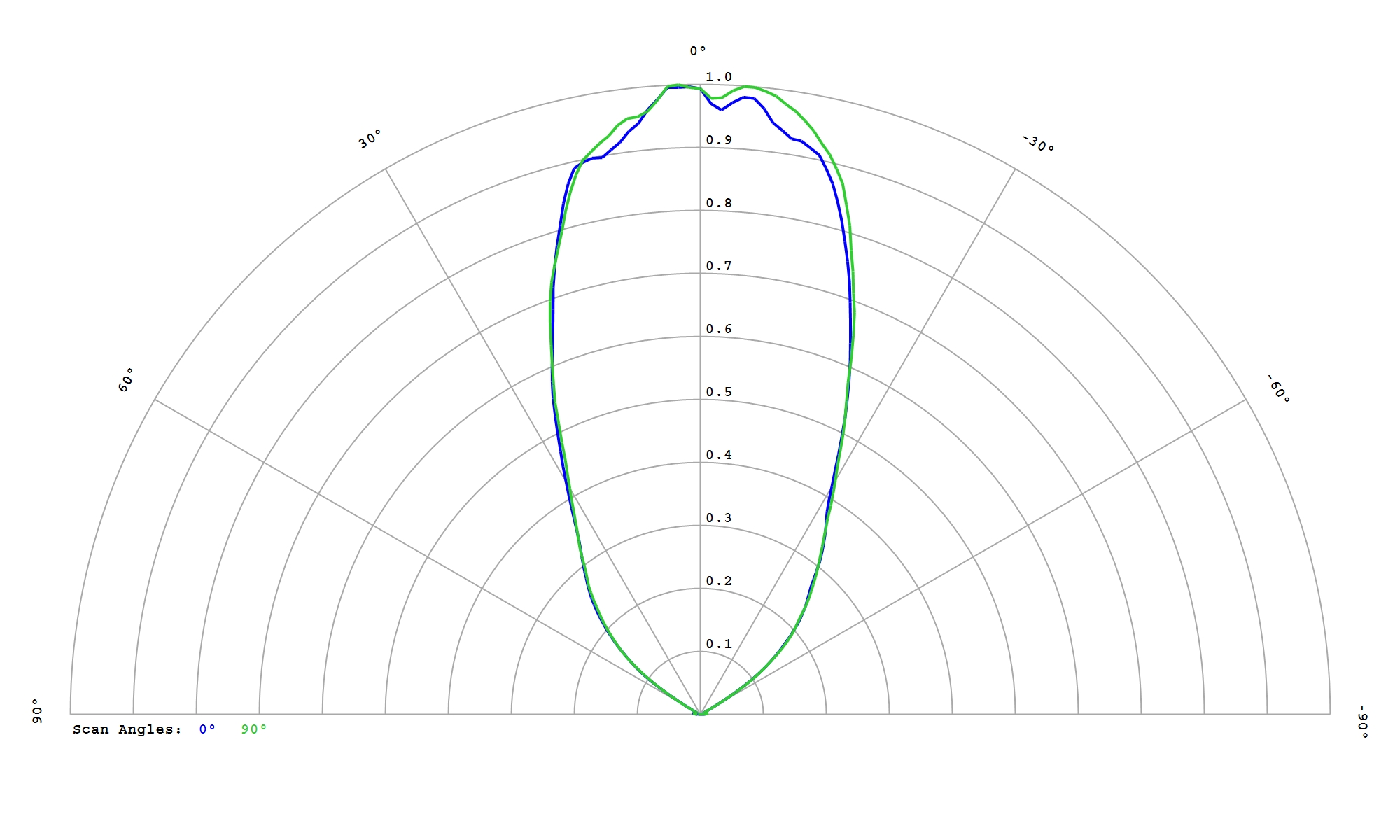

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

96.5%

FWHM:

52°

Cd/Im:

1.2



Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

96.5%

FWHM:

49°

Ipk/W:

0.9

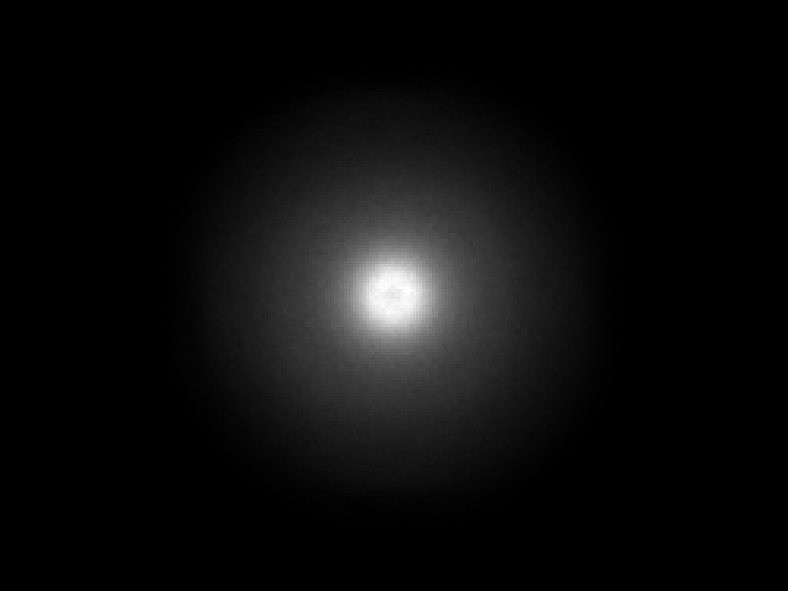

Carclo Optics – 12814 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

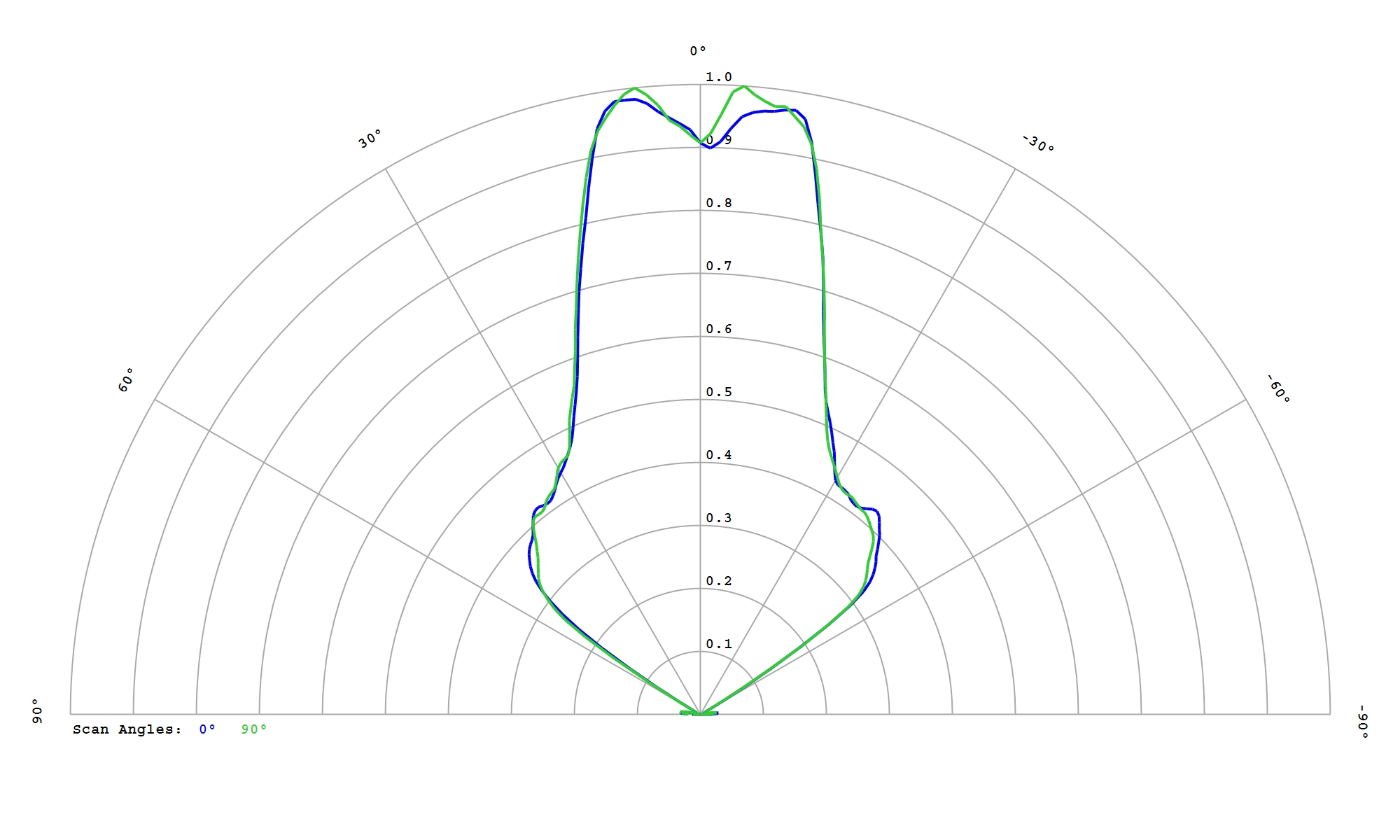

Carclo Optics – 12814 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Black SFH 4725S IR

Eff:

97.0%

FWHM:

35.5°

Ipk/W:

2.0

Carclo Optics 12814 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 12814 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.2

Carclo Optics – 12814 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

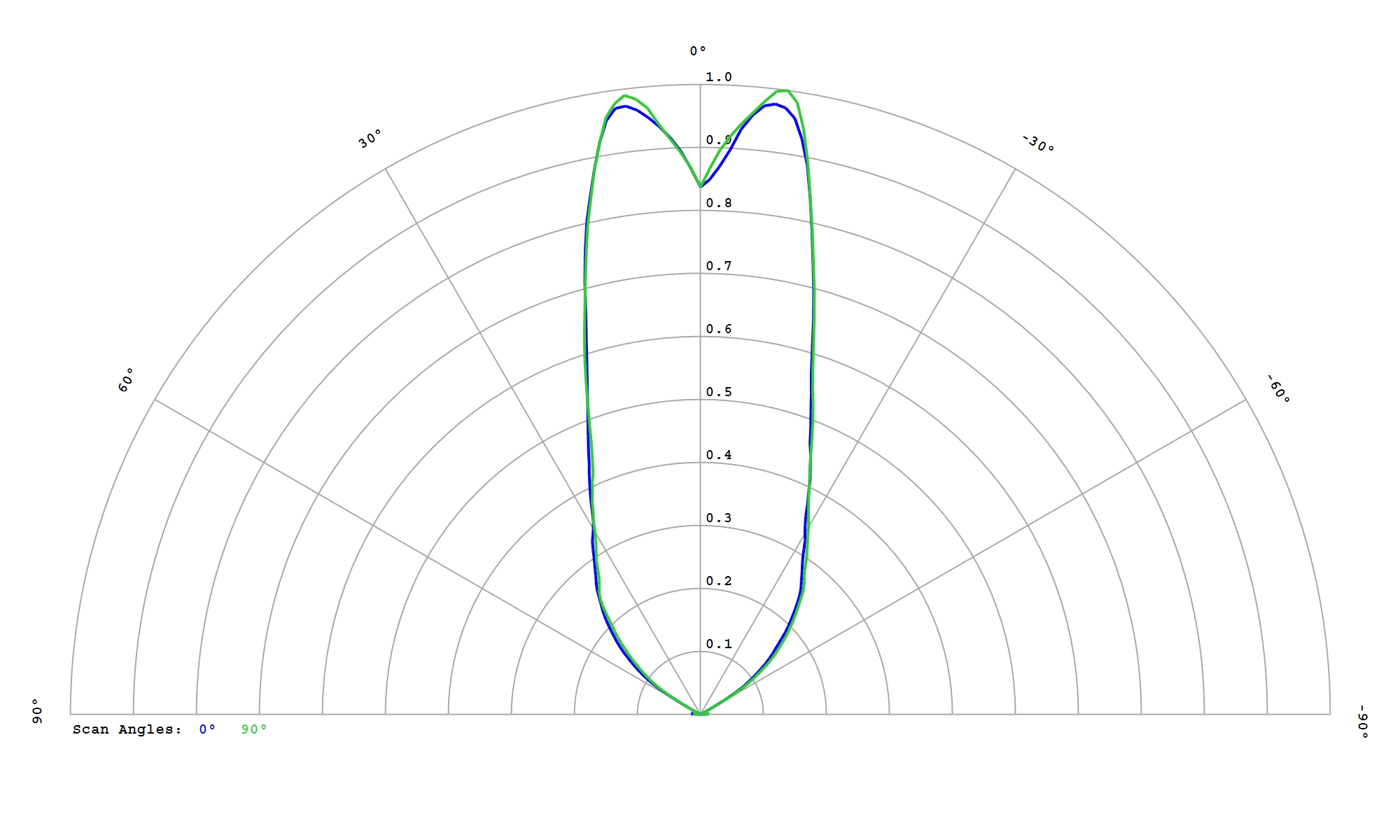

Carclo Optics – 12814 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

94.0%

FWHM:

108°

Cd/Im:

0.5


Download

ies

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

94.0%

FWHM:

101°

Ipk/W:

0.5


Download

ies

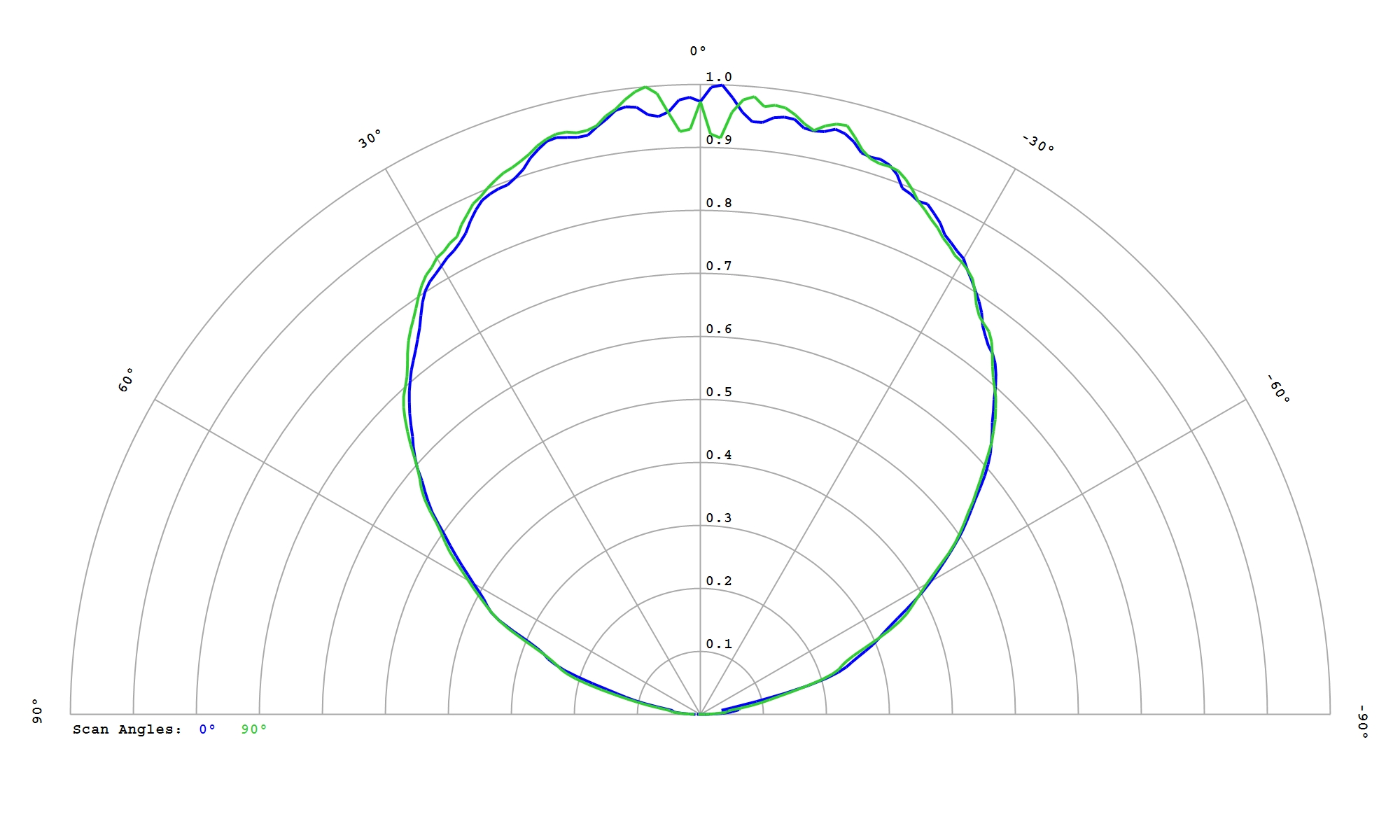

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

93.5%

FWHM:

110°

Cd/Im:

0.6


Download

ies

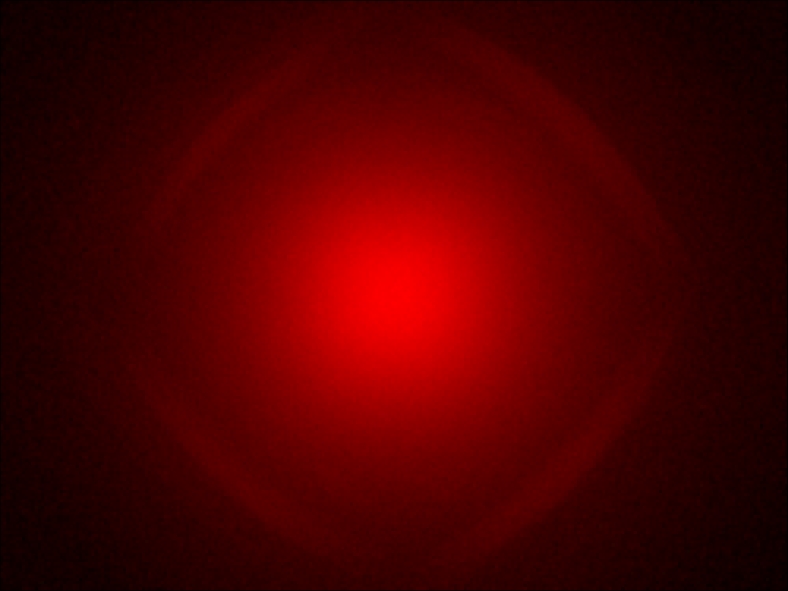

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

91.5%

FWHM:

114°

Cd/Im:

0.4


Download

ies

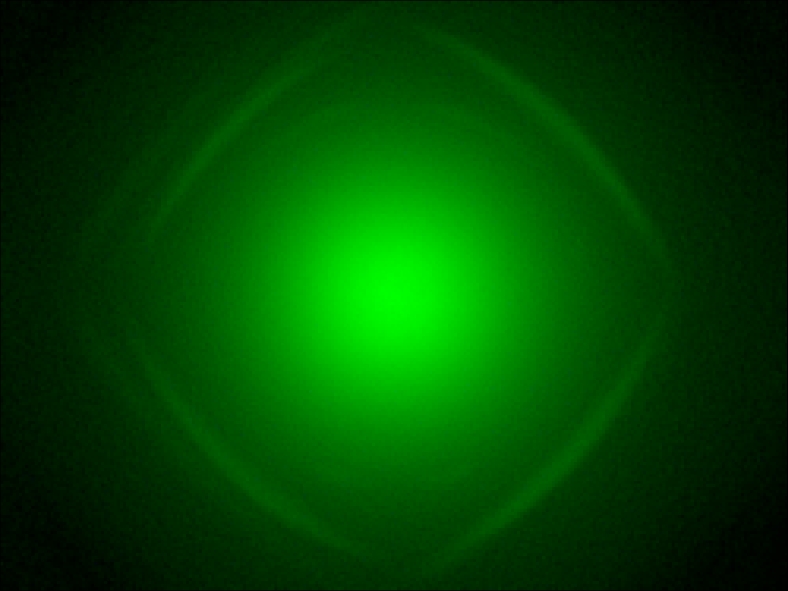

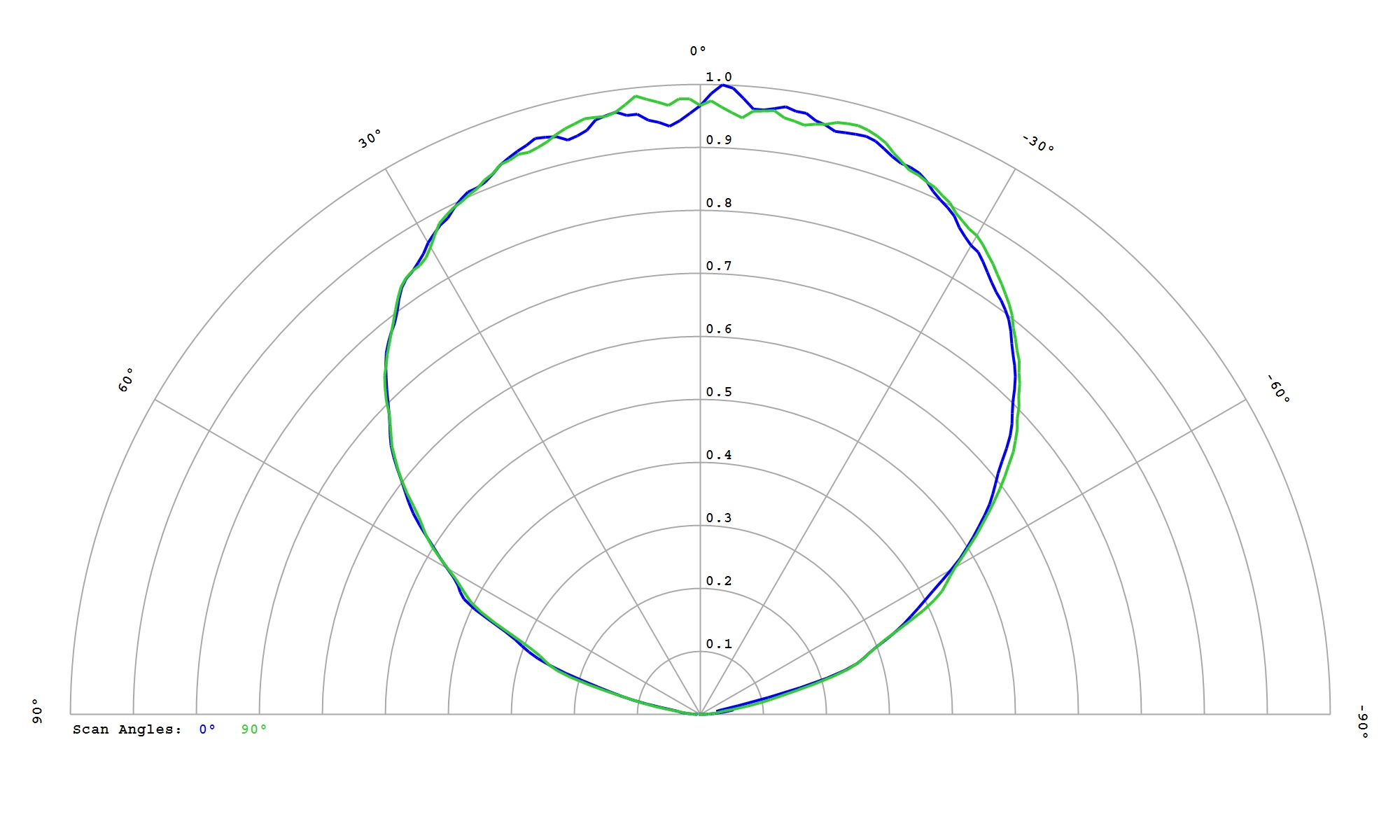

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5


Download

ies

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

93.0%

FWHM:

103°

Cd/Im:

0.6



Download

ies

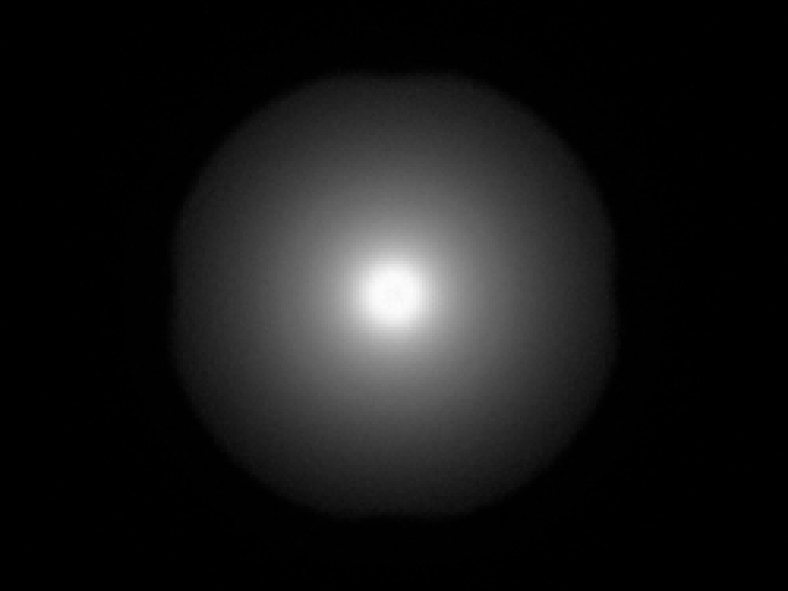

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

97.0%

FWHM:

41°

Cd/Im:

1.4


Download

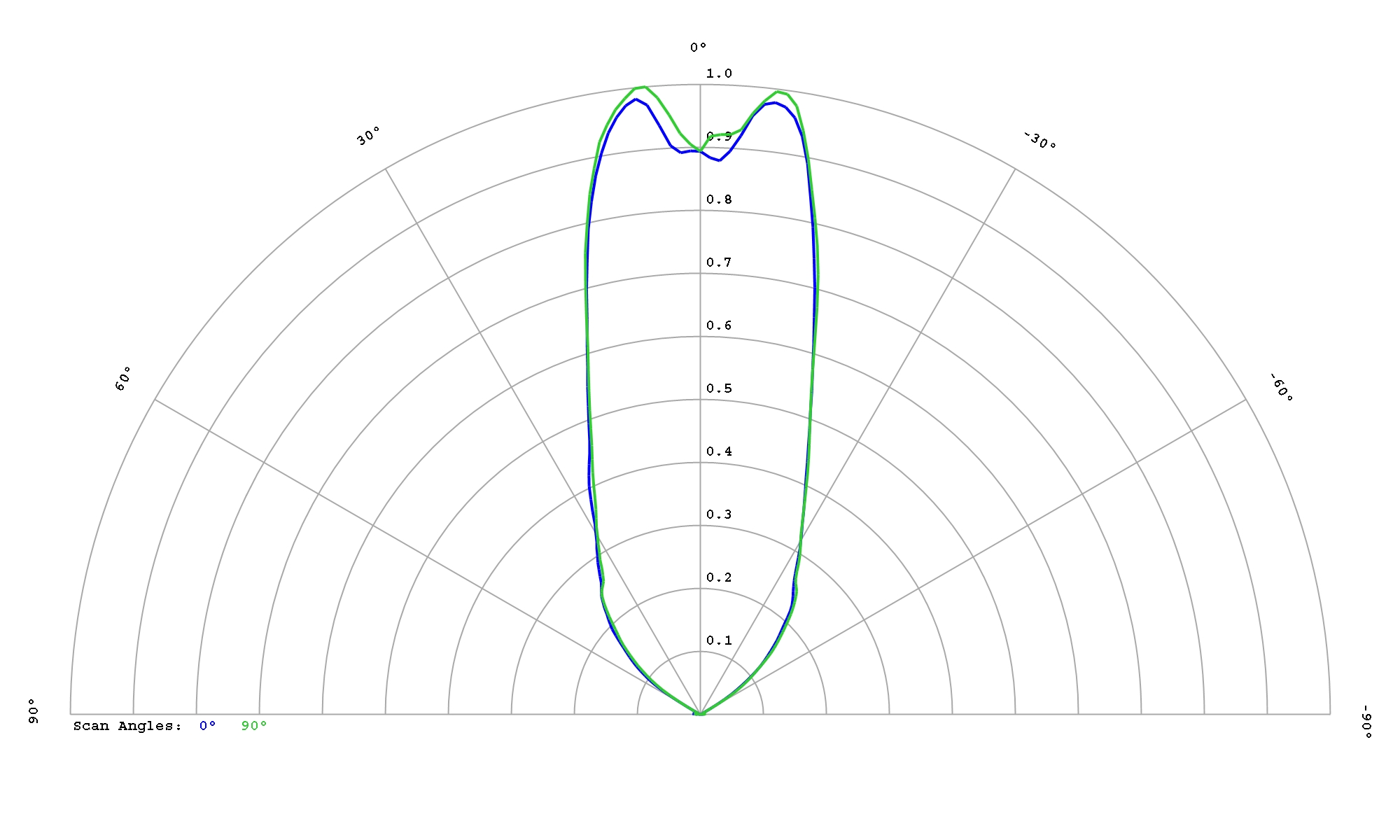

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

97.0%

FWHM:

41°

Cd/Im:

1.3


Download

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

97.5%

FWHM:

41°

Ipk/W:

1.3


Download

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

95.5%

FWHM:

44°

Cd/Im:

1.0


Download

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.3


Download

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.4


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.3

Download

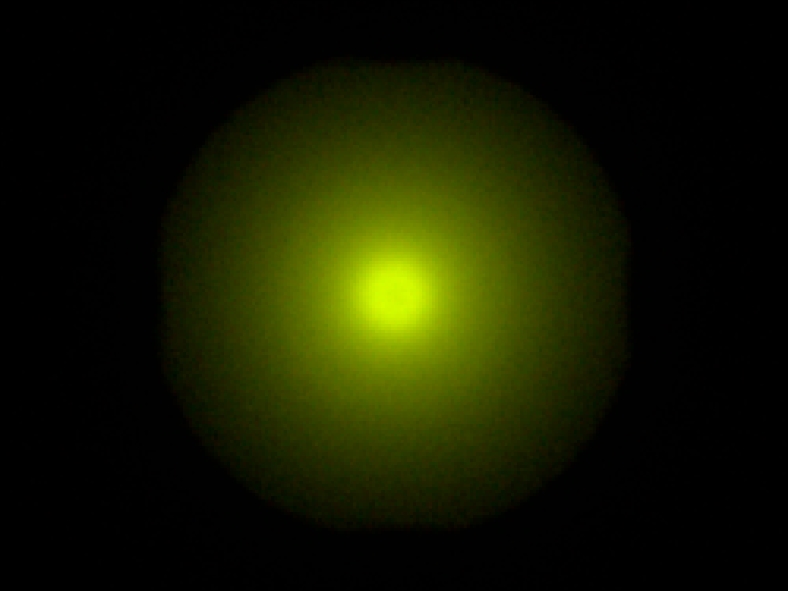

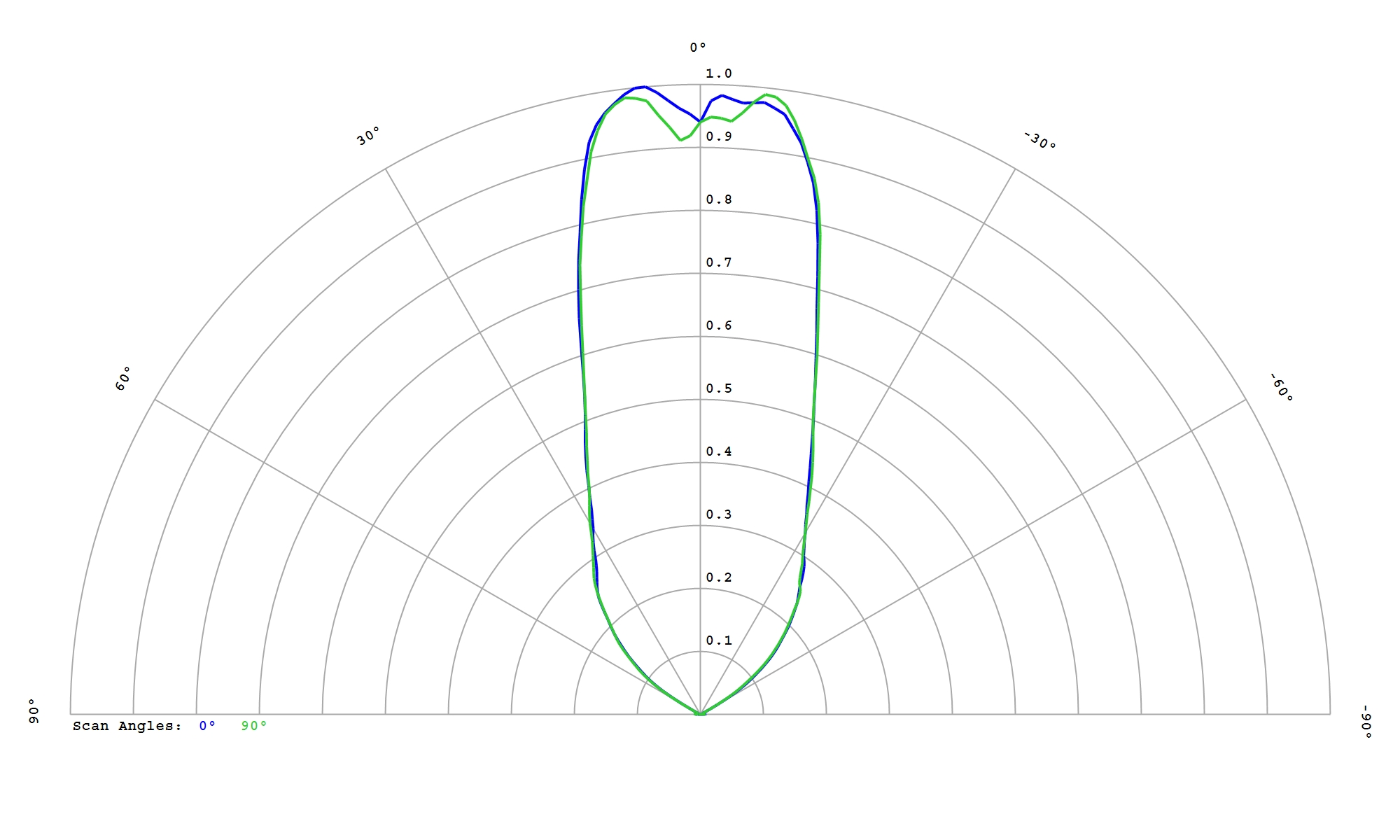

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3


Download

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

96.5%

FWHM:

42°

Cd/Im:

1.3


Download

Osram OS OSLON Square Flat White

Eff:

96.0%

FWHM:

41.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

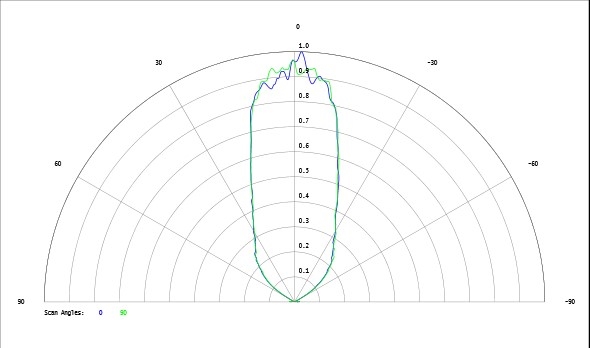

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square Gen 3 White

Eff:

92.1%

FWHM:

43.6°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

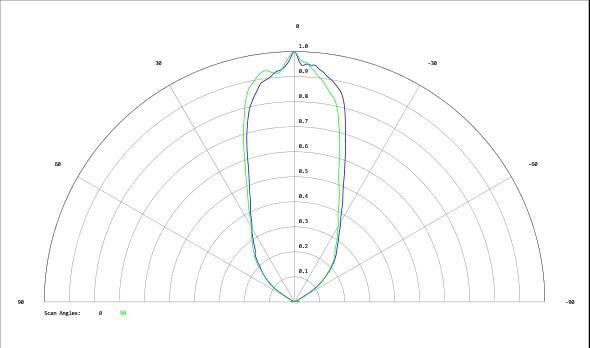

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

69.0%

FWHM:

44.5 x 45°

Cd/Im:

1.3

Carclo Optics - 12814 Bubble Spot Image Oslon Square Gen 5

Carclo Optics - 12814 Bubble Cross Section Oslon Square Gen 5

Download

ies

Osram OS OSLON Square White

Eff:

92.0%

FWHM:

45.8°

Cd/Im:

1.0

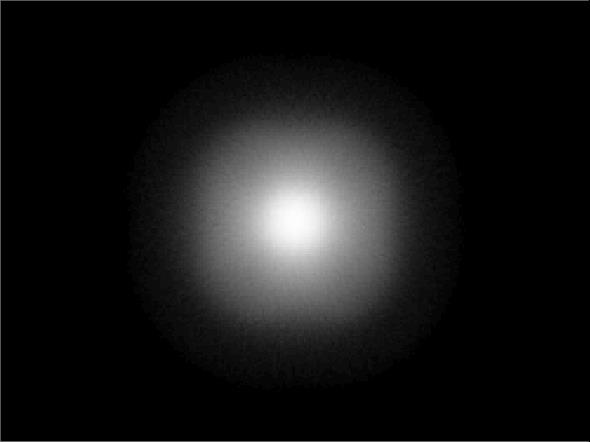

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue

Eff:

96.5%

FWHM:

44°

Cd/Im:

1.5

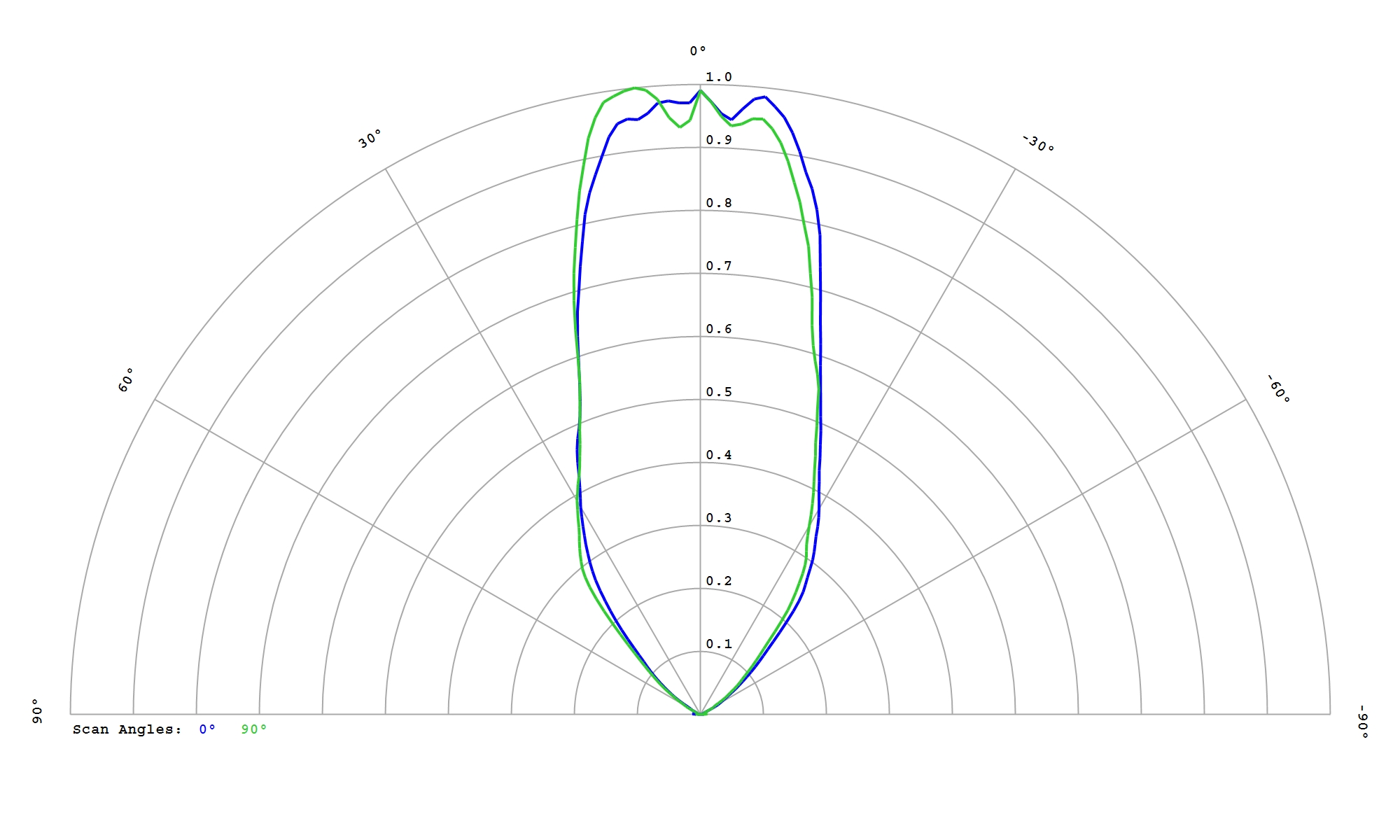

Carclo Optics – 12814 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Spot Image

Carclo Optics – 12814 Osram Oslon SSL-120 GD CSSPM1.14 Deep Blue - Cross-Section

Download

ies

Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red

Eff:

97.0%

FWHM:

46°

Cd/Im:

4.8

Carclo Optics – 12814 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Spot Image

Carclo Optics – 12814 Osram Oslon SSL-120 GF CSSPM1.24 Far Red - Cross-Section

Download

ies

Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red

Eff:

97.0%

FWHM:

54°

Cd/Im:

1.3

Carclo Optics – 12814 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Spot Image

Carclo Optics – 12814 Osram Oslon SSL-120 GH CSSPM1.24 Hyper Red - Cross-Section

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

96.0%

FWHM:

48°

Cd/Im:

1.0

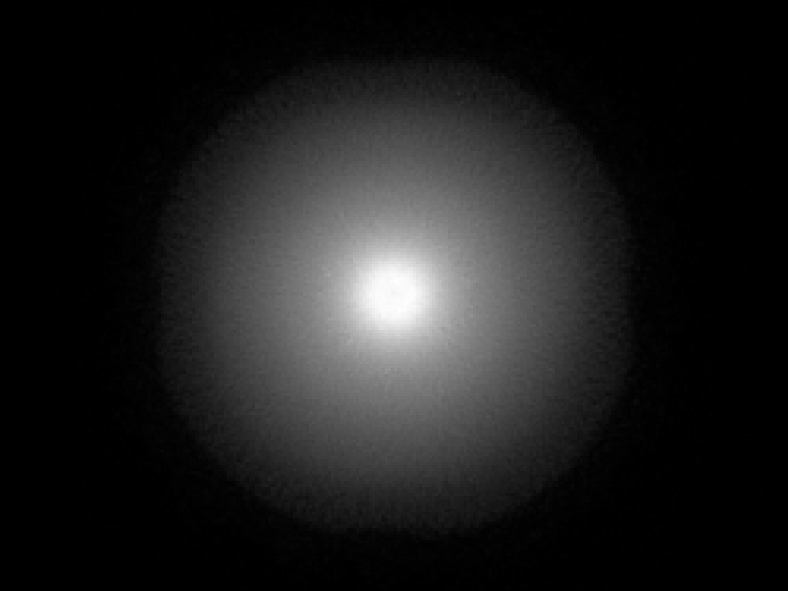

Carclo Optics – 12814 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12814 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

96.5%

FWHM:

41°

Ipk/W:

1.6


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

96.5%

FWHM:

38°

Cd/Im:

2.1



Download

IES

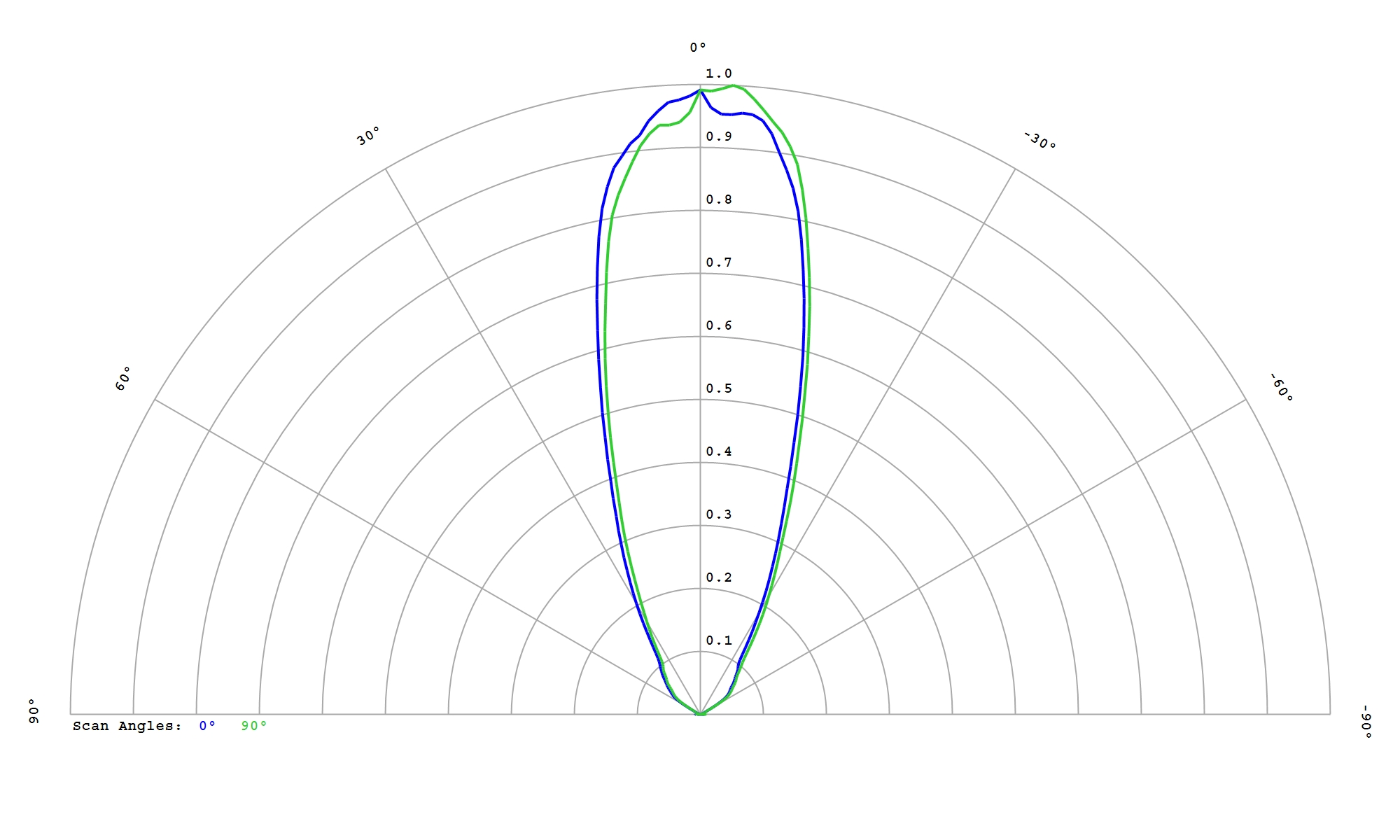

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

96.0%

FWHM:

36°

Cd/Im:

2.0


Download

IES

Osram OS OSTAR Stage LE-UW-S2WN

Eff:

96.5%

FWHM:

48°

Cd/Im:

1.3

Carclo Optics – 12814 Osram Ostar Stage LE-UW-S2WN - Spot Image

Carclo Optics – 12814 Osram Ostar Stage LE-UW-S2WN - Cross-Section

Download

ies

Philips Fortimo FastFlex 2x2 730 DA G4

Eff:

96.0%

FWHM:

44.5°

Cd/Im:

1.1

Carclo Optics 12814 Spot Image FastFlex_LED_2x2_730_DA_G4

Carclo Optics 12814 Cross Section FastFlex_LED_2x2_730_DA_G4

Download

IES

Philips Fortimo FastFlex 2x4 730 DA G4

Eff:

95.5%

FWHM:

45°

Cd/Im:

1.1

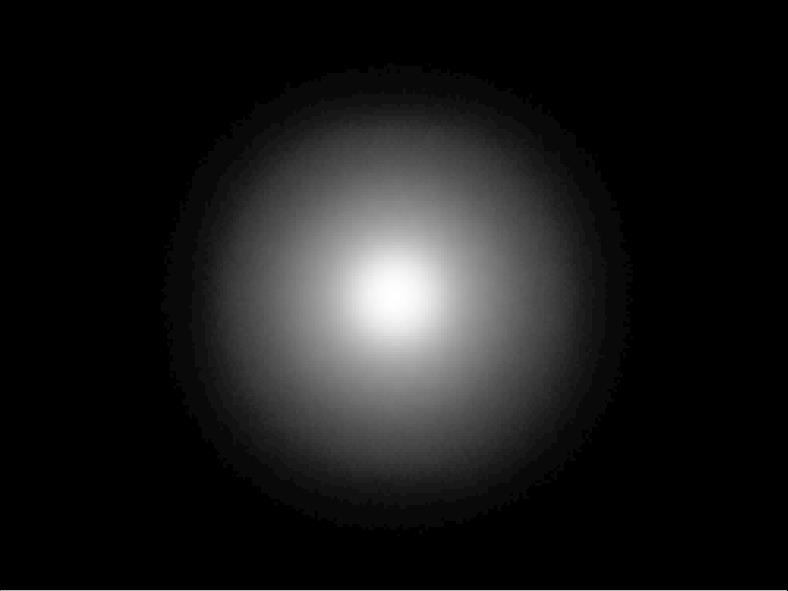

Carclo Optics 12814 Spot Image FastFlex_LED_2x4_730_DA_G4

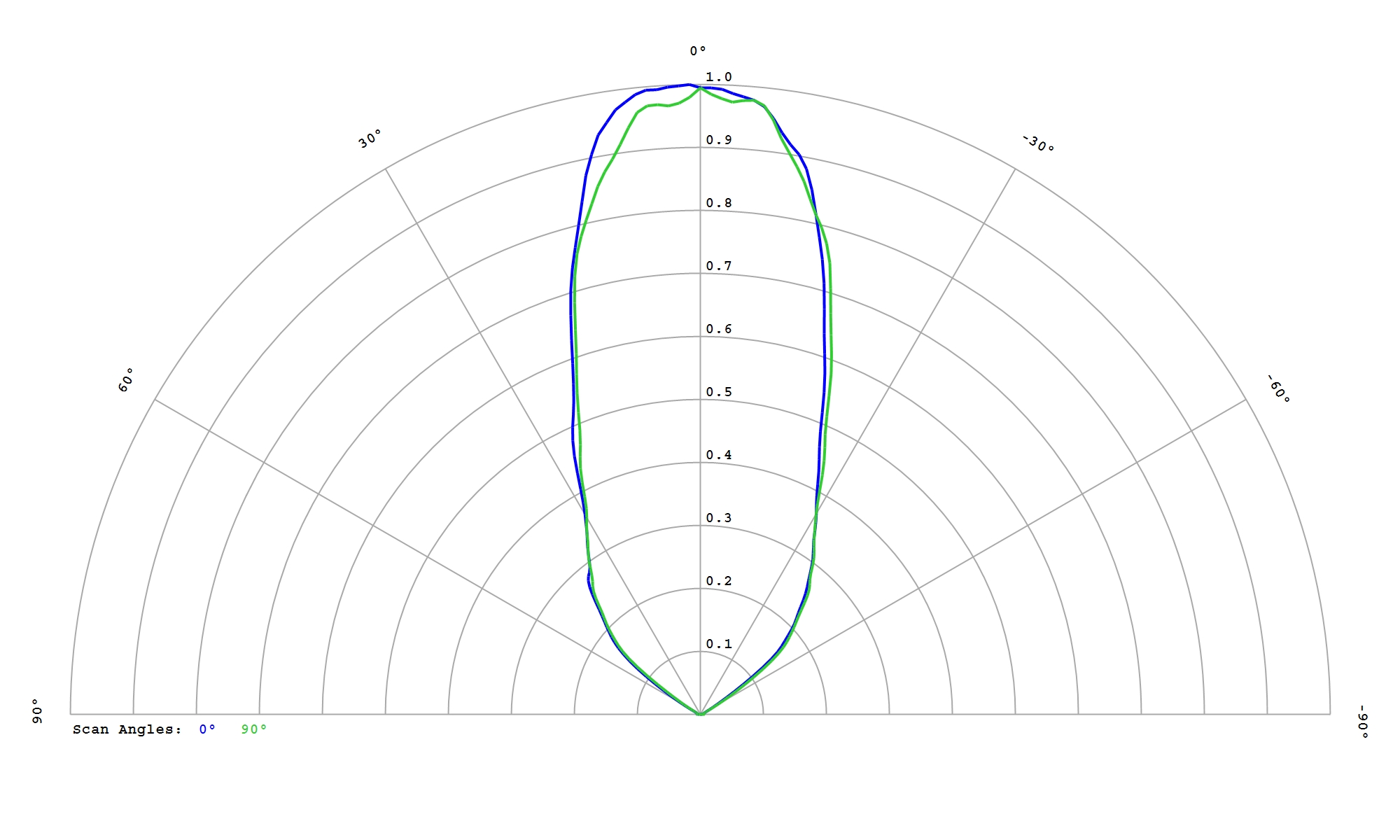

Carclo Optics 12814 Cross Section FastFlex_LED_2x4_730_DA_G4

Download

IES

Philips Fortimo FastFlex 2x6 730 DA G4

Eff:

96.0%

FWHM:

47.5 x 46°

Cd/Im:

1.1

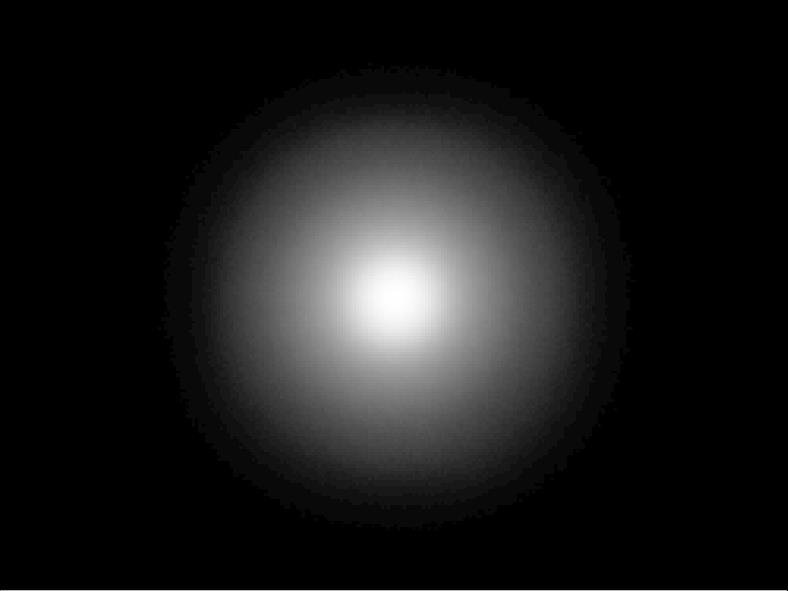

Carclo Optics 12814 Spot Image FastFlex_LED_2x6_730_DA

Carclo Optics 12814 Cross Section FastFlex_LED_2x6_730_DA

Download

IES

Philips Fortimo FastFlex 2x8 730 DA G3

Eff:

95.0%

FWHM:

45.0 x 45.5°

Cd/Im:

1.1

Carclo Optics 12814 Spot Image FastFlex_LED_2x8_730_DA_G3

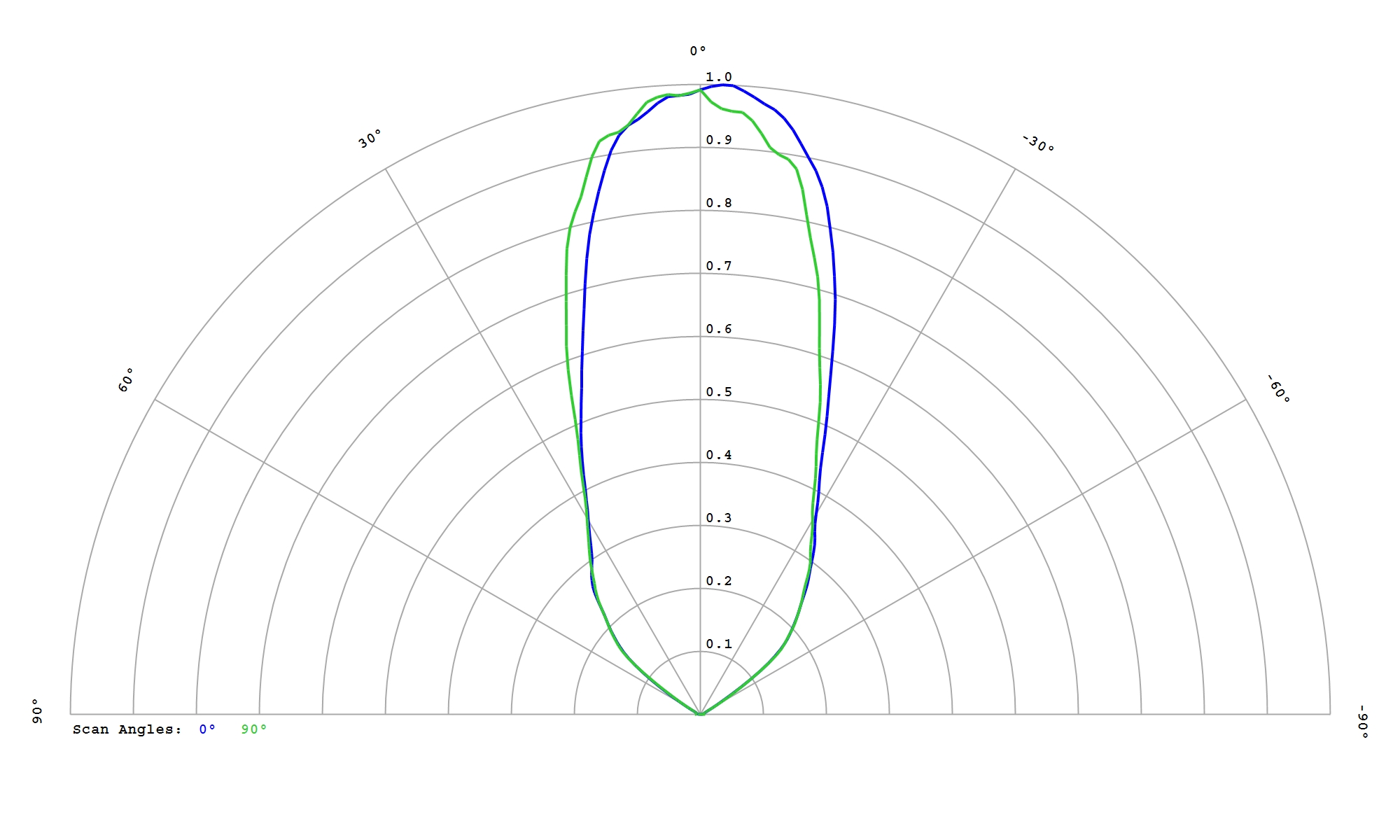

Carclo Optics 12814 Cross Section FastFlex_LED_2x8_730_DA_G3

Download

IES

Philips Fortimo FastFlex 2x8 730 DA G4

Eff:

95.5%

FWHM:

47.0 x 45.5°

Cd/Im:

1.0

Carclo Optics 12814 Spot Image FastFlex_LED_2x8_730_DA_G4

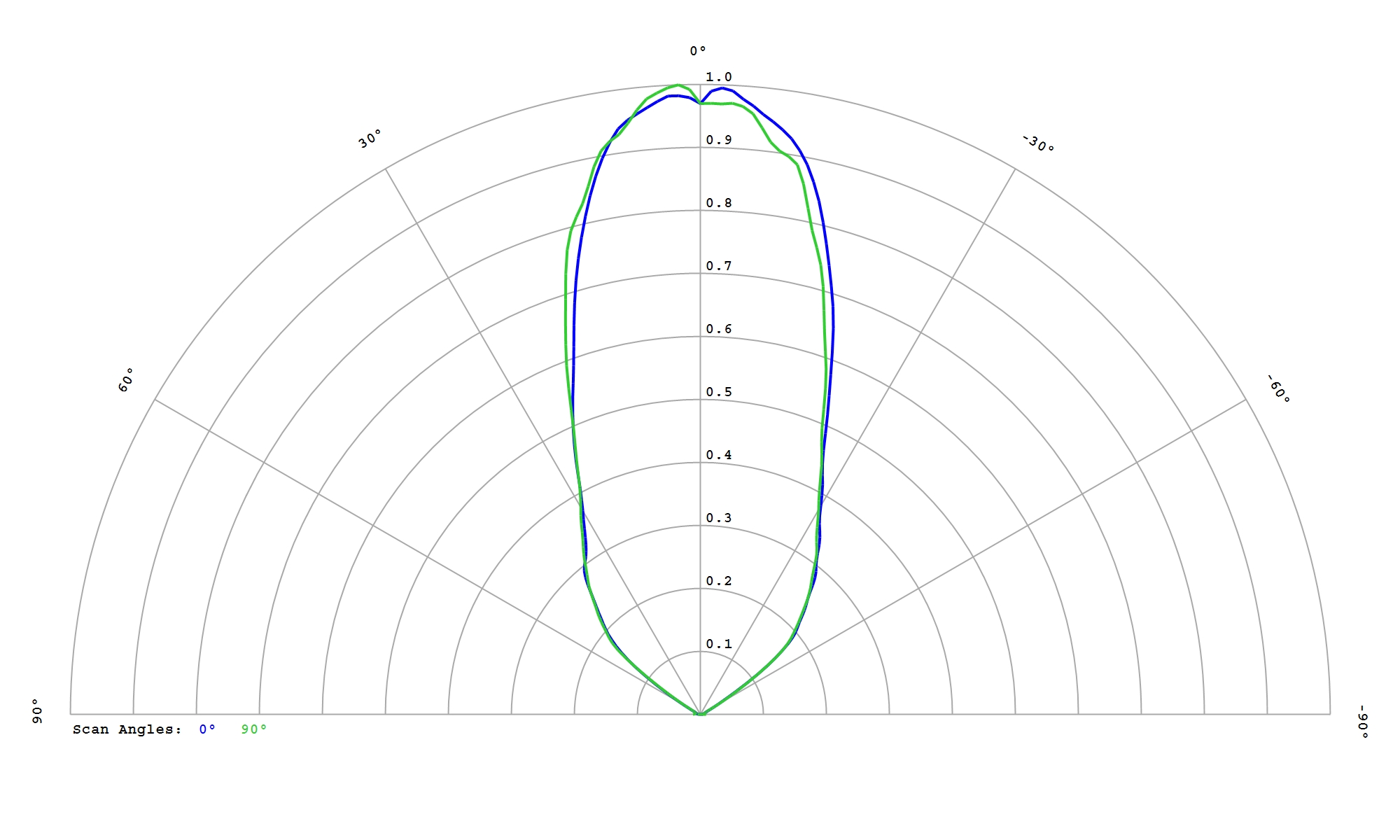

Carclo Optics 12814 Cross Image FastFlex_LED_2x8_730_DA_G4

Download

IES

Philips Fortimo FastFlex 2x8 730 DAX G4

Eff:

96.0%

FWHM:

47.5 x 47°

Cd/Im:

1.0

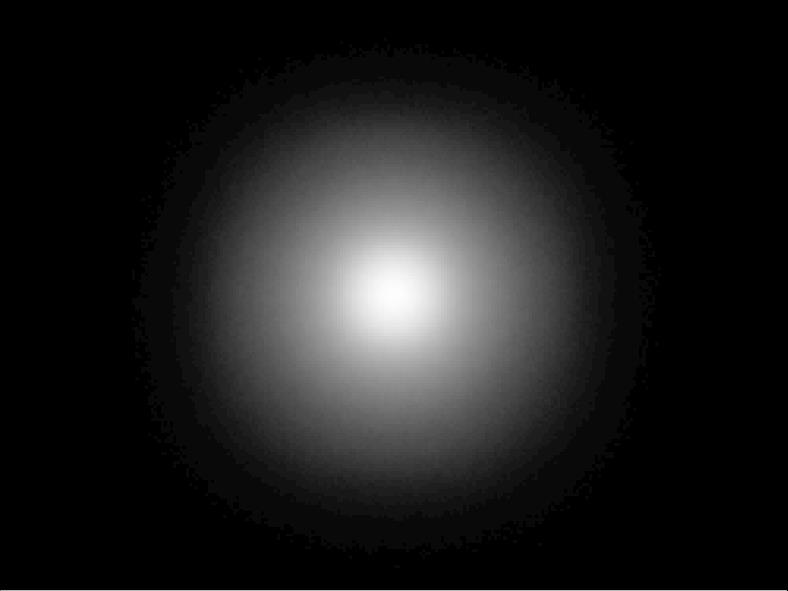

Carclo Optics 12814 Spot Image FastFlex_LED_2x4_730_DAX_G4

Carclo Optics 12814 Cross Image FastFlex_LED_2x4_730_DAX_G4

Download

IES

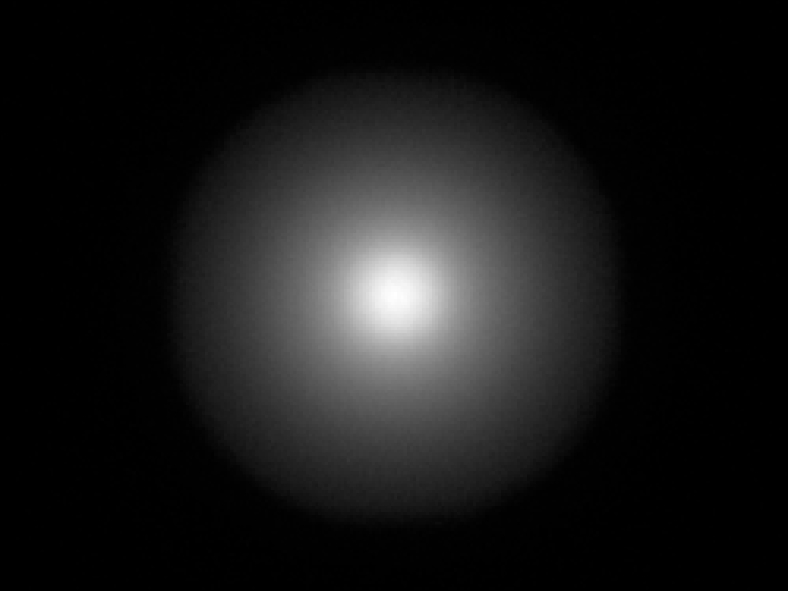

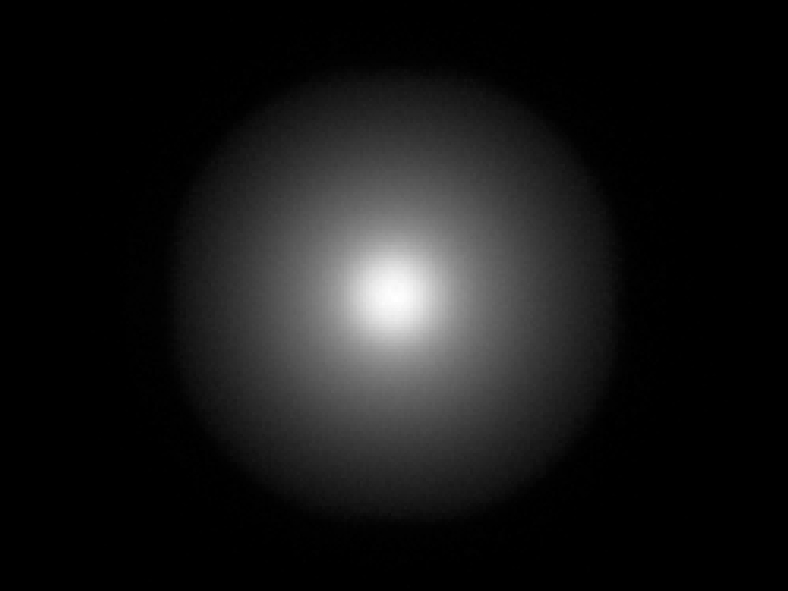

Samsung 2835 LM281B+ White

Eff:

96.0%

FWHM:

42°

Cd/Im:

1.3



Download

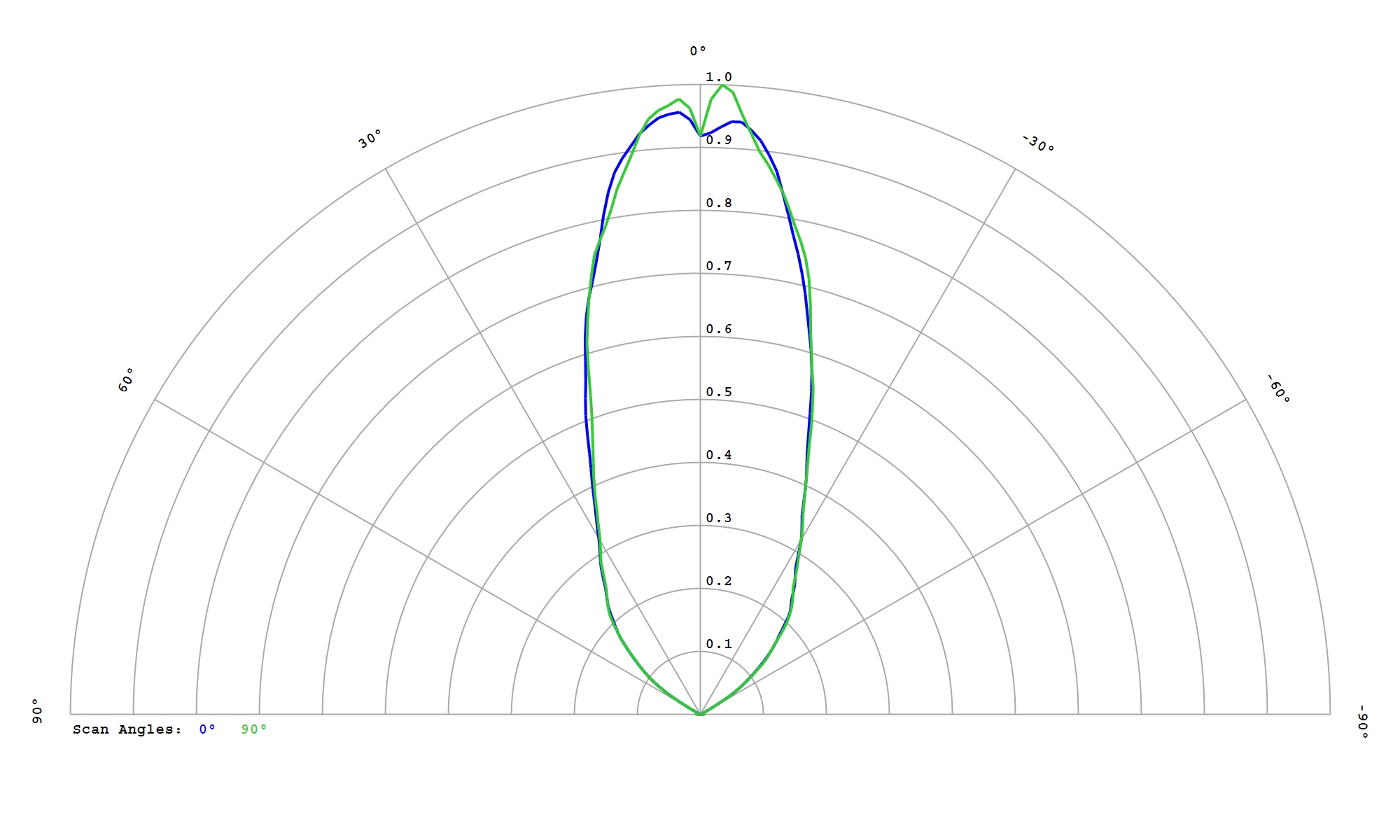

Samsung 3030 LM301B White

Eff:

96.5%

FWHM:

41°

Cd/Im:

1.4

Download

ies

Samsung 3535 LH351H Blue

Eff:

93.5%

FWHM:

122°

Cd/Im:

0.4

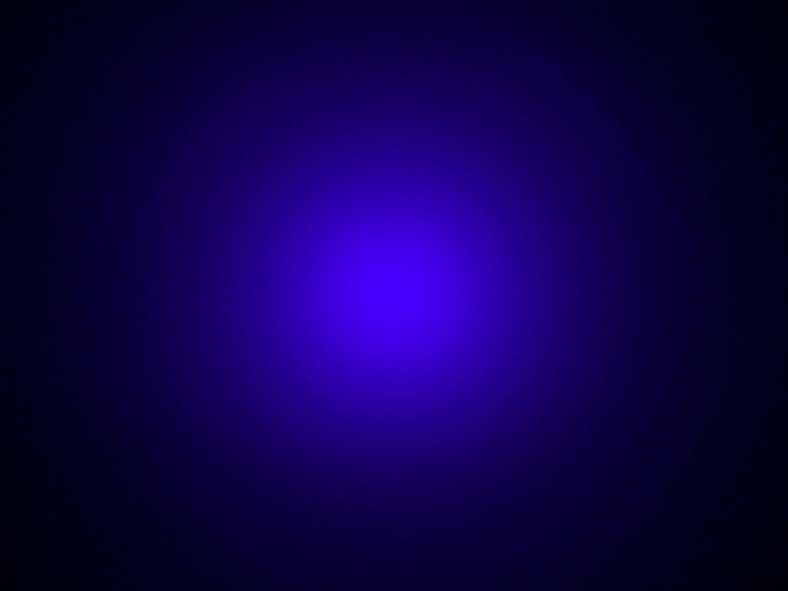

Carclo Optics – 12814 Samsung_3535_LH351H_B - Spot – image

Carclo Optics – 12814 Samsung_3535_LH351H_B - Cross section – image

Download

ies

Samsung 3535 LH351H Deep Red

Eff:

96.5%

FWHM:

48°

Cd/Im:

1.1

Carclo Optics – 12814 Samsung_3535_LH351H_DR - Spot – image

Carclo Optics – 12814 Samsung_3535_LH351H_DR - Cross section – image

Download

ies

Samsung 3535 LH351H Red

Eff:

97.0%

FWHM:

46°

Cd/Im:

1.3

Carclo Optics – 12814 Samsung_3535_LH351H_R - Spot – image

Carclo Optics – 12814 Samsung_3535_LH351H_R - Cross section – image

Download

ies

Samsung 3535 LH351H-B White

Eff:

96.0%

FWHM:

50°

Cd/Im:

1.2
