Carclo Optics 12813
25.0mm Medium Spot Bubble
Part number
12813
Dimensions
25.0mm
Drawing Number
70298
Optic type
Bubble
Beam type
Medium Spot
Applications
Architectural
Industrial
Landscape & Garden
Office
Horticultural
Retail
Wide Area
Security
Humancentric
Emergency
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.5
Download

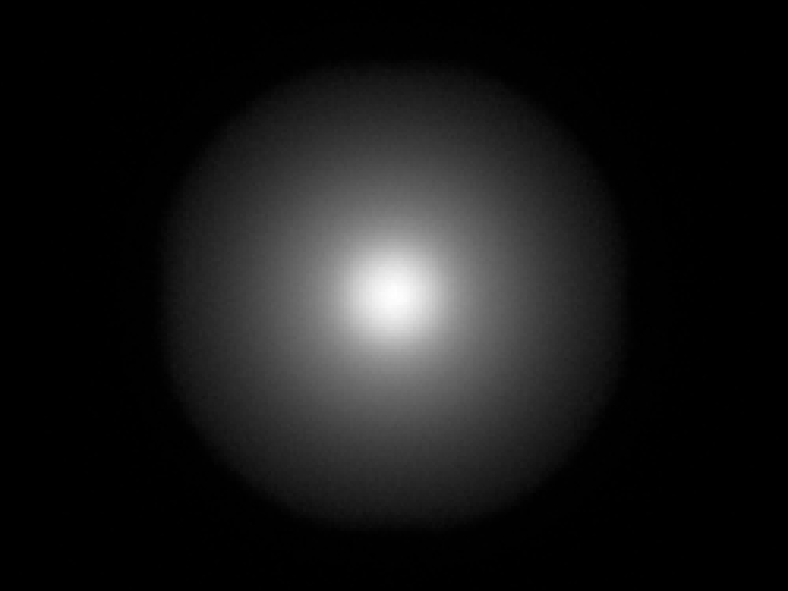

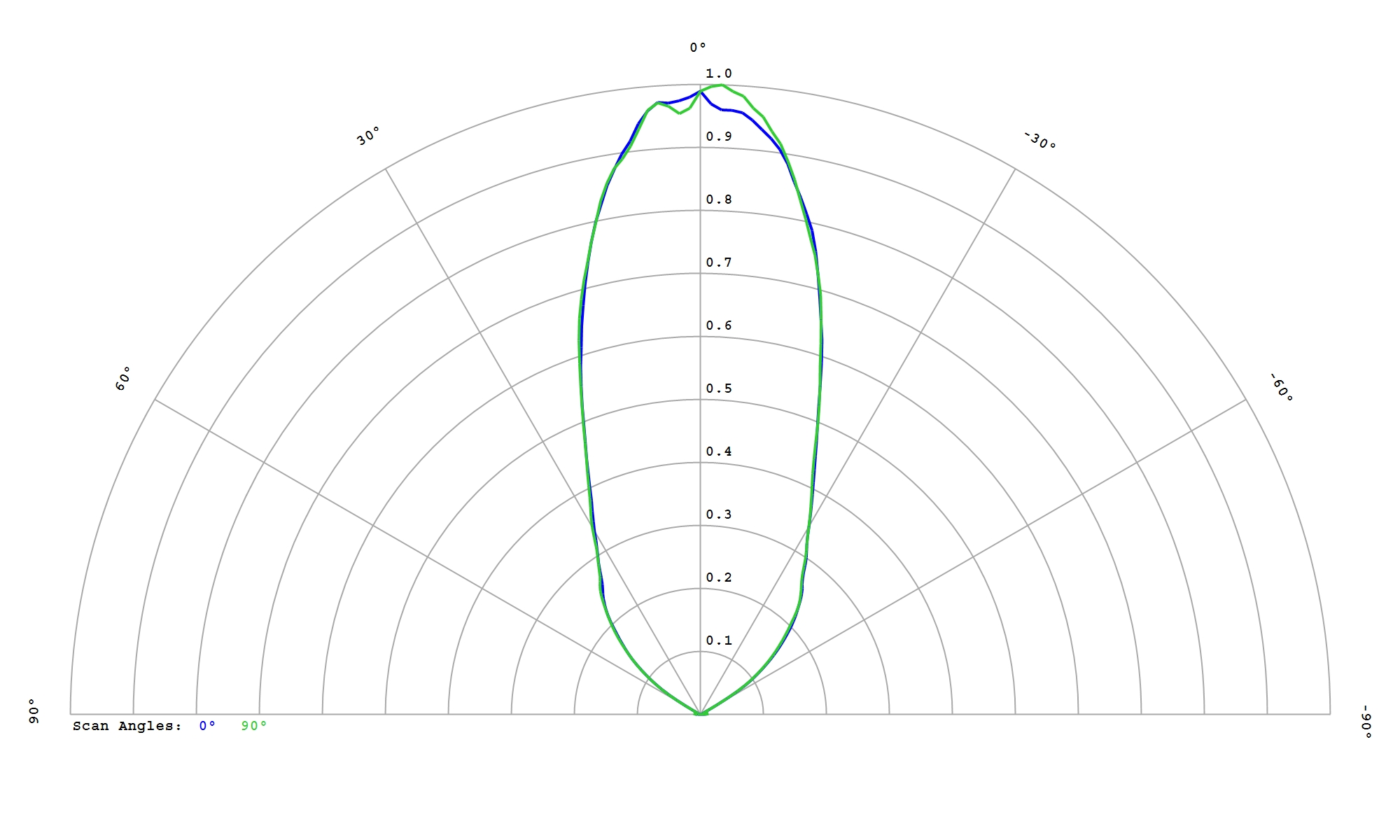

Cree JB3030 3V White
Eff:
96.0%
FWHM:
41.0°
Cd/Im:
1.5
Download
Cree JQ5050 9V White
Eff:
96.5%
FWHM:
51.0°
Cd/Im:
1.3
Download
Cree JR5050 24V White
Eff:
96.5%
FWHM:
51.0°
Cd/Im:
1.3
Download
Cree JR5050 36V White
Eff:
96.5%
FWHM:
51.0°
Cd/Im:
1.3
Download
Cree JR5050 6V White
Eff:
96.5%
FWHM:
49.0°
Cd/Im:
1.3
Download
Cree XLamp CSP XD16 Cool White
Eff:
94.0%
FWHM:
45.5°
Cd/Im:
0.9
Download
Cree XLamp XB-H White
Eff:
96.0%
FWHM:
42.5°
Cd/Im:
1.6
Download
Cree XLamp XHP35 HI White
Eff:
92.7%
FWHM:
47°
Cd/Im:
0.9
Download
Cree XLamp XHP35 White
Eff:
90.2%
FWHM:
54.3°
Cd/Im:
0.8
Download
Cree XLamp XHP35.2 HI White
Eff:
95.0%
FWHM:
46°
Cd/Im:
1.3
Download
Cree XLamp XHP35.2 White
Eff:
93.0%
FWHM:
57.0°
Cd/Im:
1.0
Download
Cree XLamp XHP50.3 HI White
Eff:
95.0%
FWHM:
50°
Cd/Im:
1.1
Download
Cree XLamp XM-L3 White
Eff:
94.5%
FWHM:
49.0°
Cd/Im:
1.2
Download
Cree XLamp XP-E2 Far Red
Eff:
93.5%
FWHM:
115°
Cd/Im:
1.6
Download

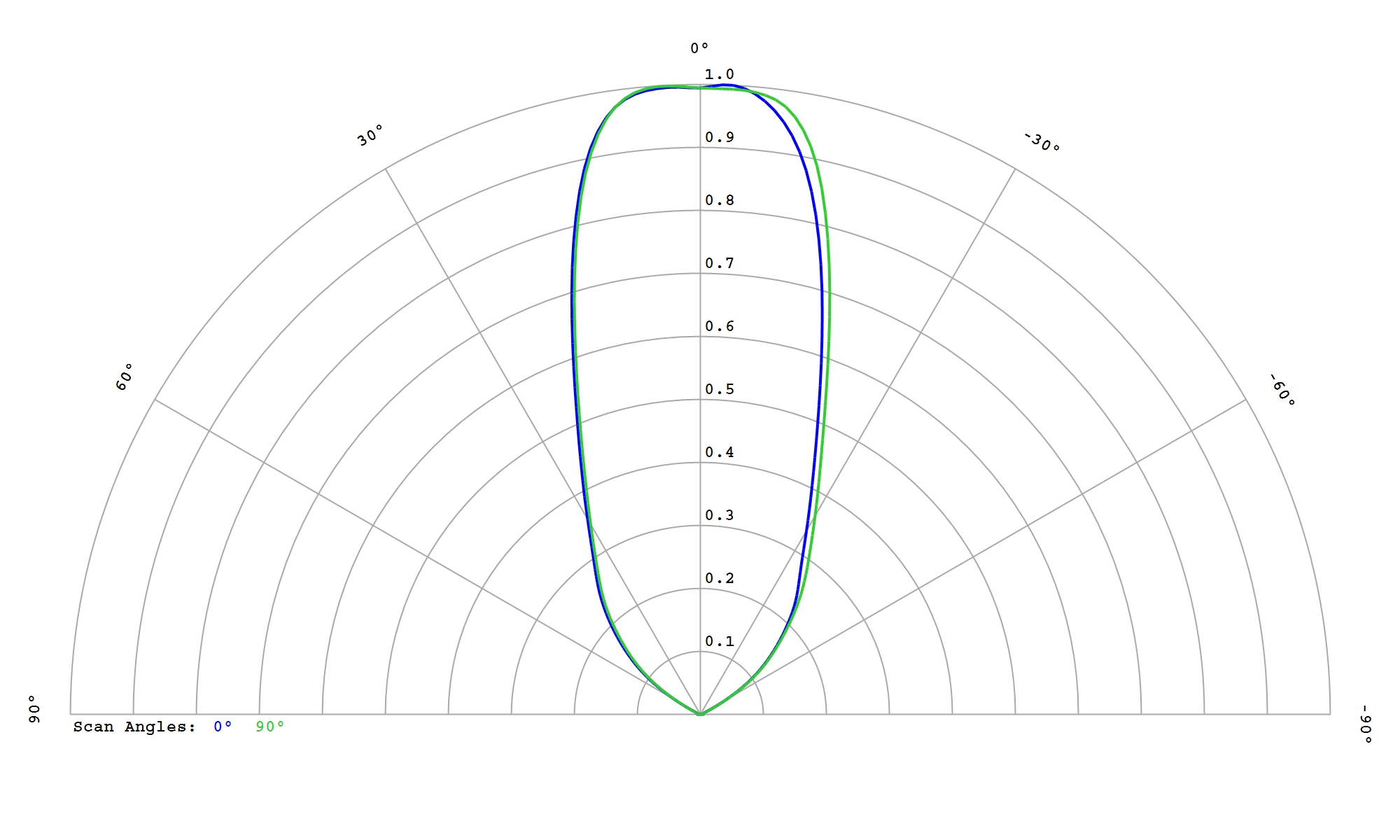

Cree XLamp XP-E2 White
Eff:
96.5%
FWHM:
45°
Cd/Im:
1.4
Download
Cree XLamp XP-G2 White
Eff:
92.0%
FWHM:
55°
Cd/Im:
1.0
Download
Cree XLamp XP-G3 Photo Red
Eff:
94.5%
FWHM:
116°
Cd/Im:
0.5
Download

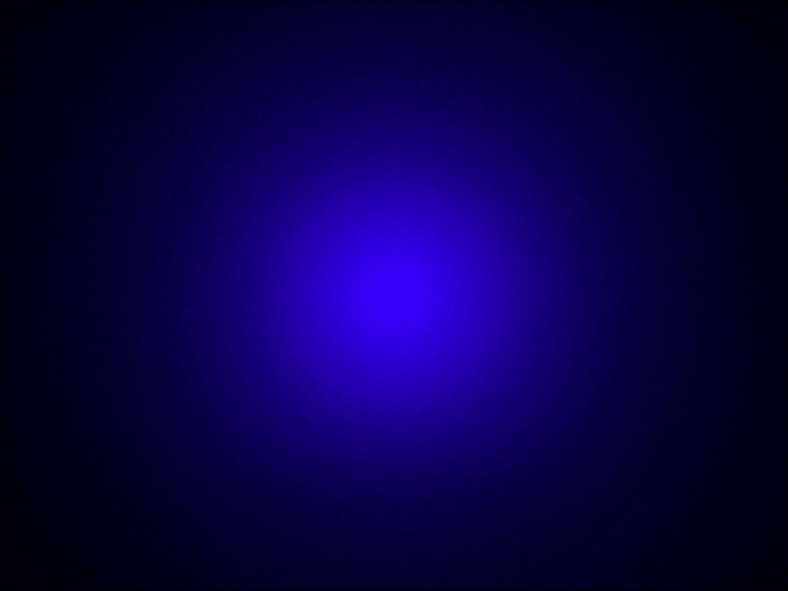

Cree XLamp XP-G3 Royal Blue
Eff:
91.0%
FWHM:
112°
Cd/Im:
0.4
Download
Cree XLamp XP-G3 White
Eff:
90.0%
FWHM:
47.5°
Cd/Im:
0.8
Download
Cree XLamp XP-L HI White
Eff:
92.3%
FWHM:
43.4°
Cd/Im:
0.9
Download
Cree XLamp XP-L2 White
Eff:
94.5%
FWHM:
51°
Cd/Im:
0.8
Download
Cree XLamp XP-P White
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.3
Download

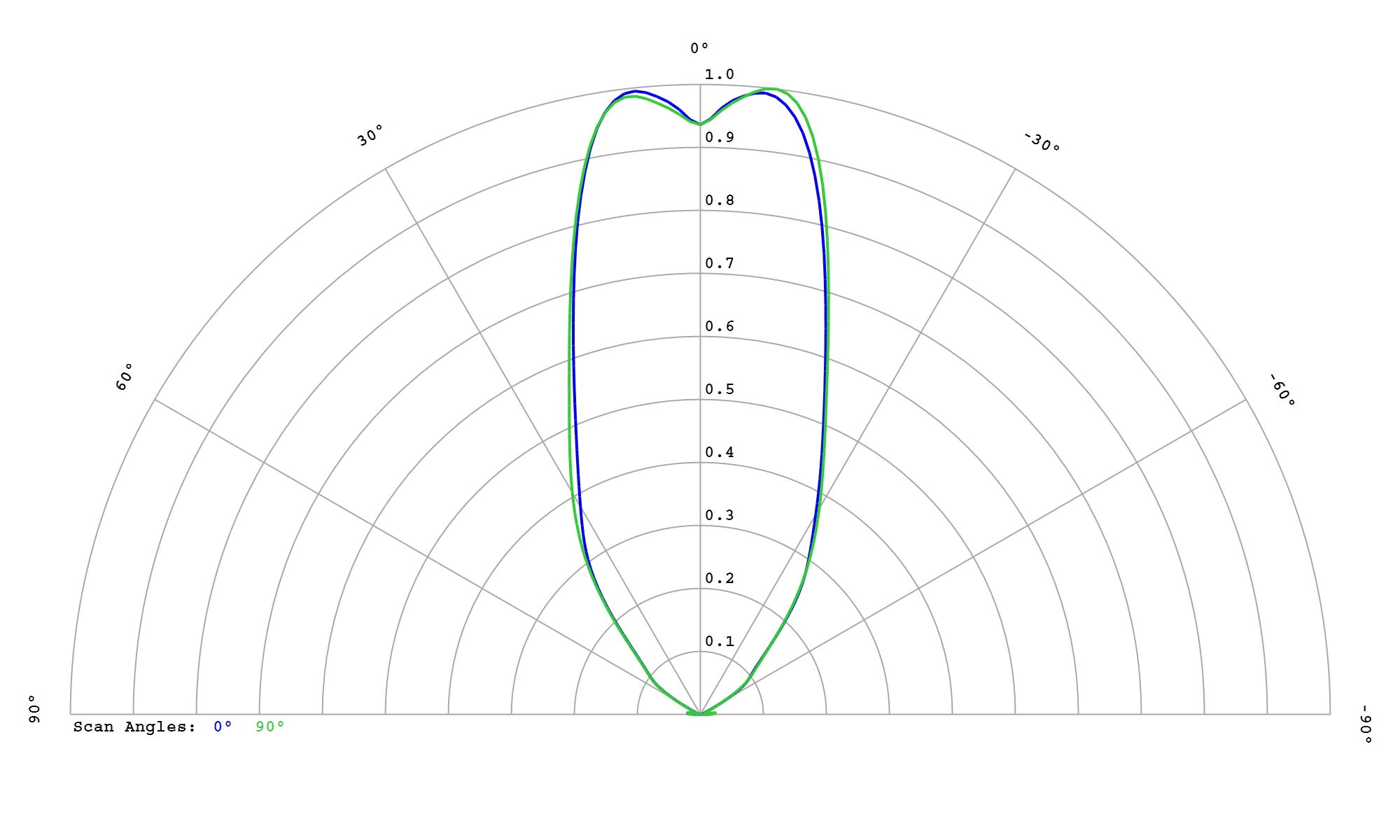

Cree XLamp XQ-A Blue
Eff:
96.5%
FWHM:
41.0°
Cd/Im:
1.3
Download

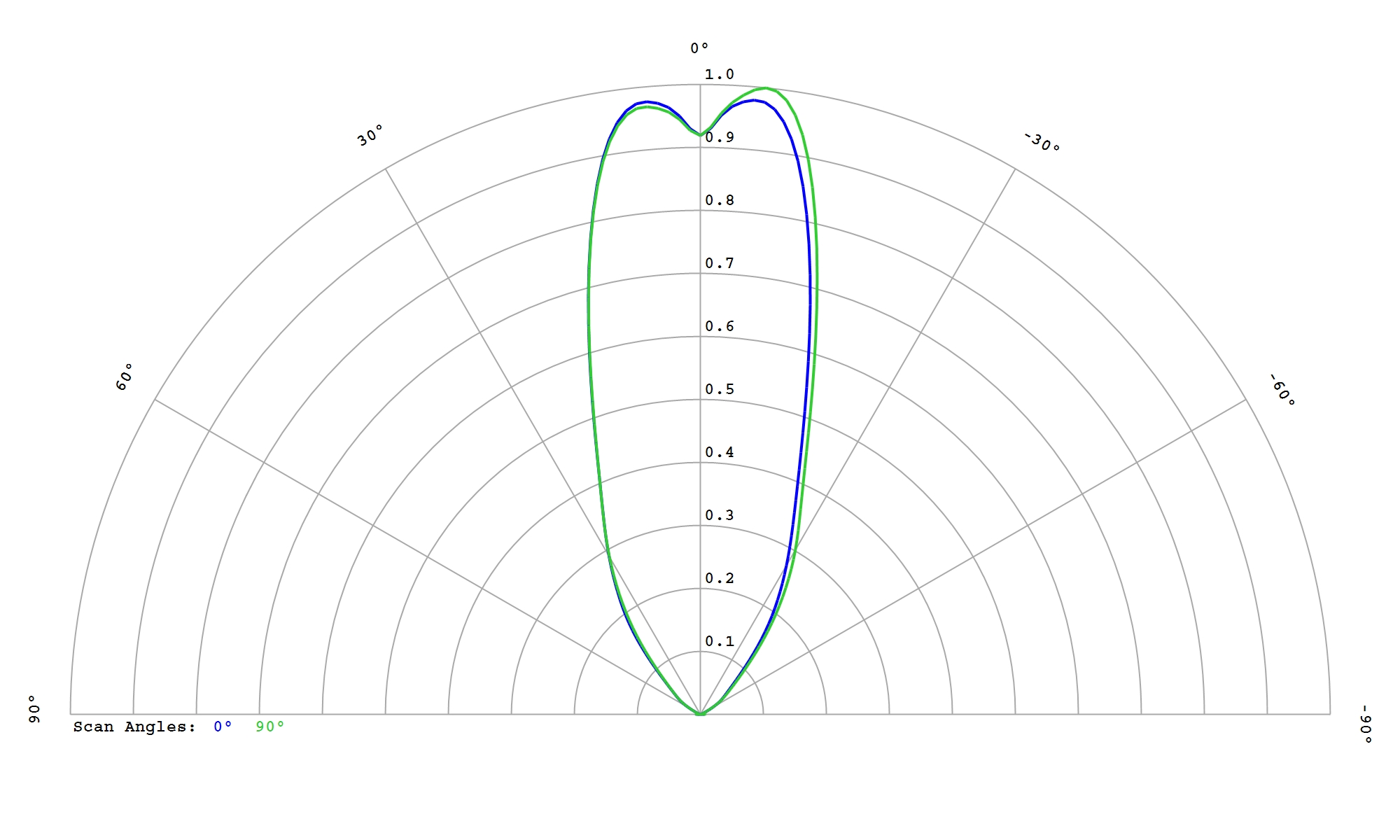

Cree XLamp XQ-A Green
Eff:
96.0%
FWHM:
42°
Cd/Im:
1.3
Download

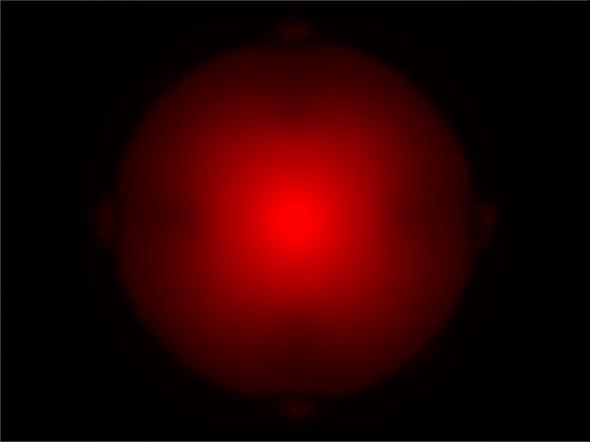

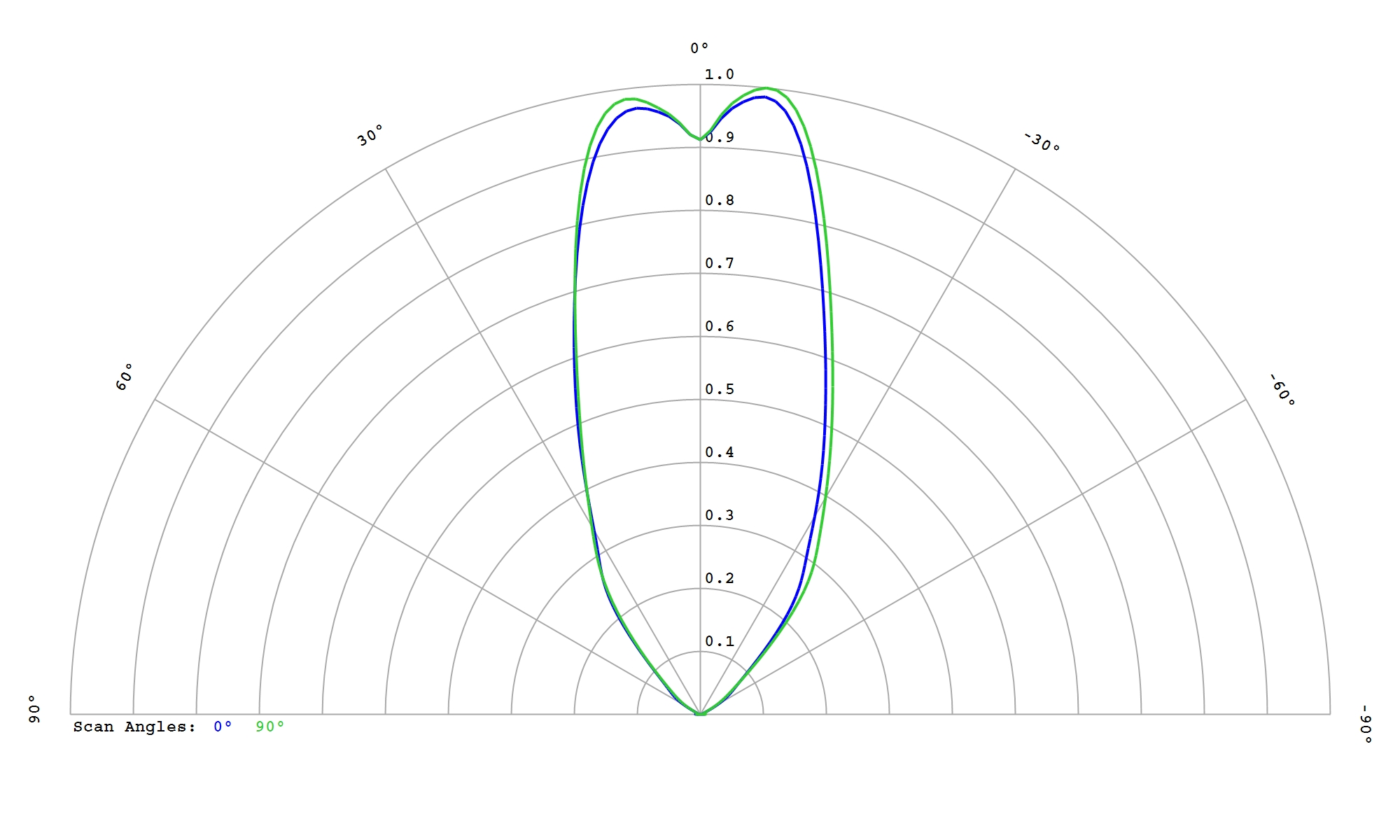

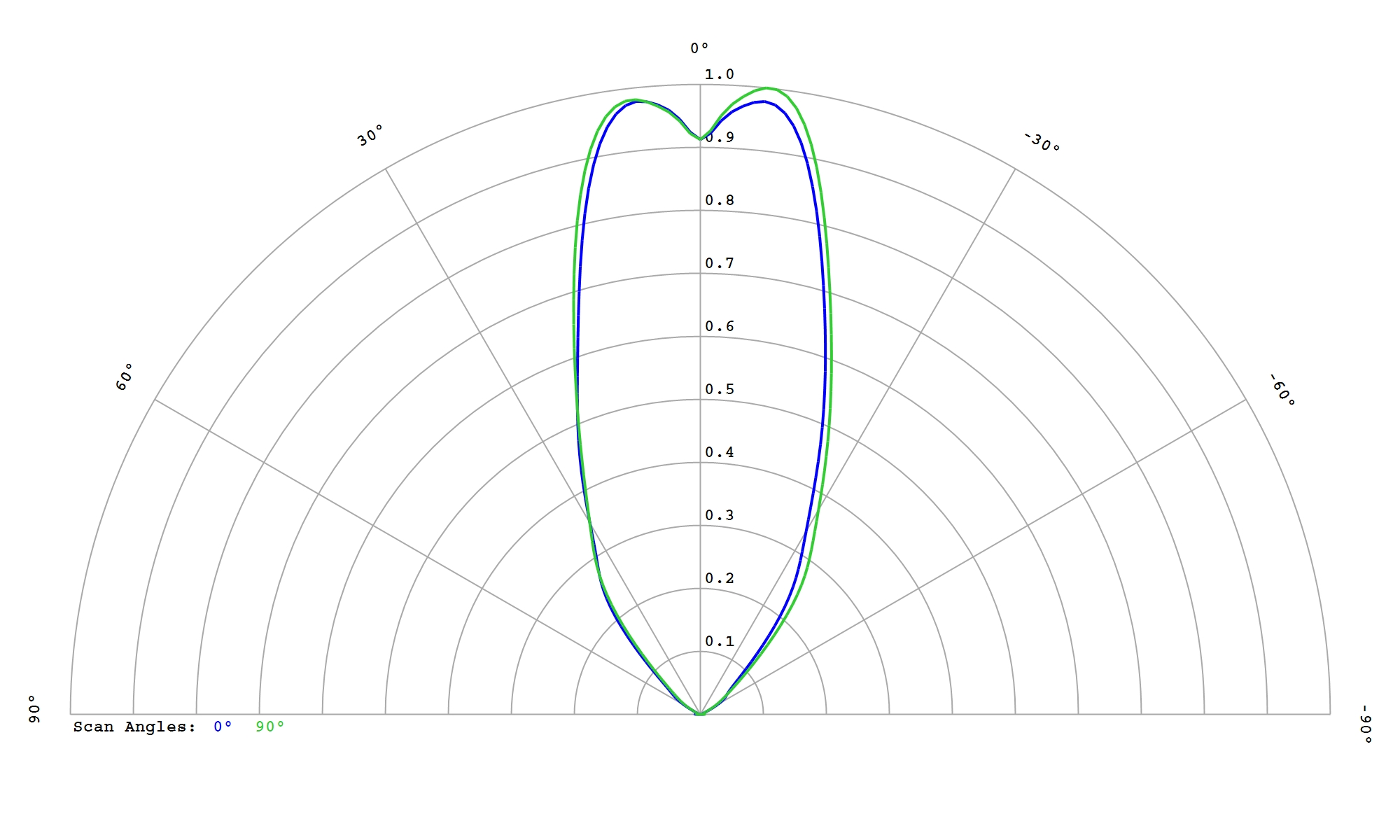

Cree XLamp XQ-A Red
Eff:
96.5%
FWHM:
44.0°
Cd/Im:
1.1
Download

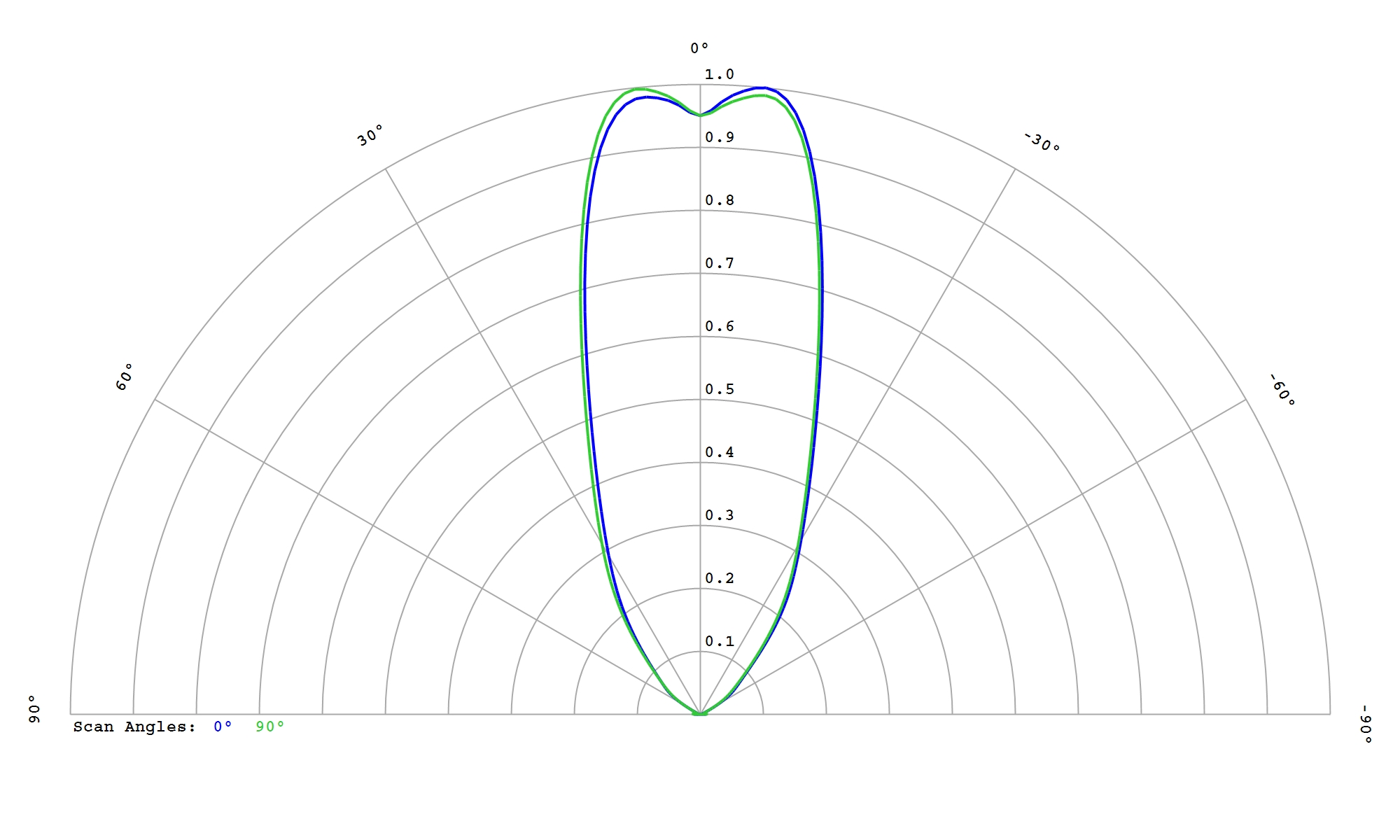

Cree XLamp XQ-A White
Eff:
92.0%
FWHM:
42.0°
Cd/Im:
1.3
Download

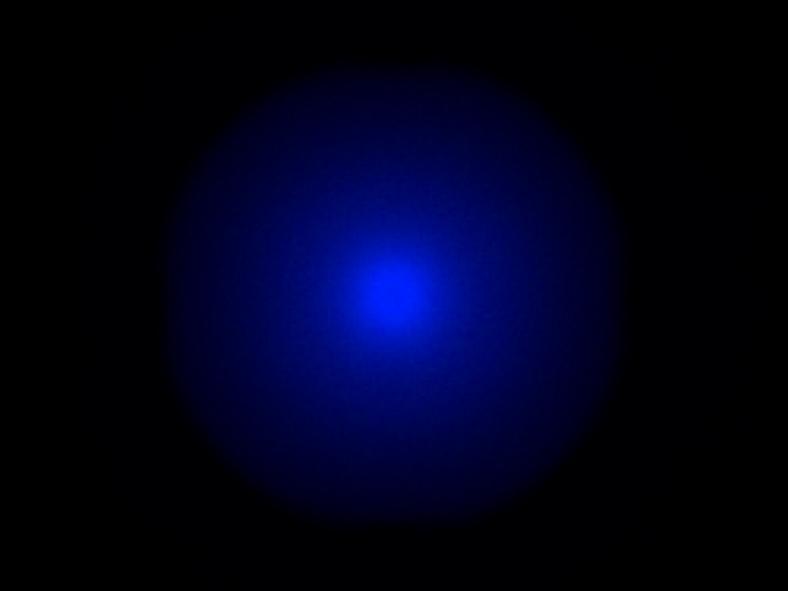

Cree XLamp XQ-E HI Blue
Eff:
95.5%
FWHM:
43.0°
Cd/Im:
1.0
Download

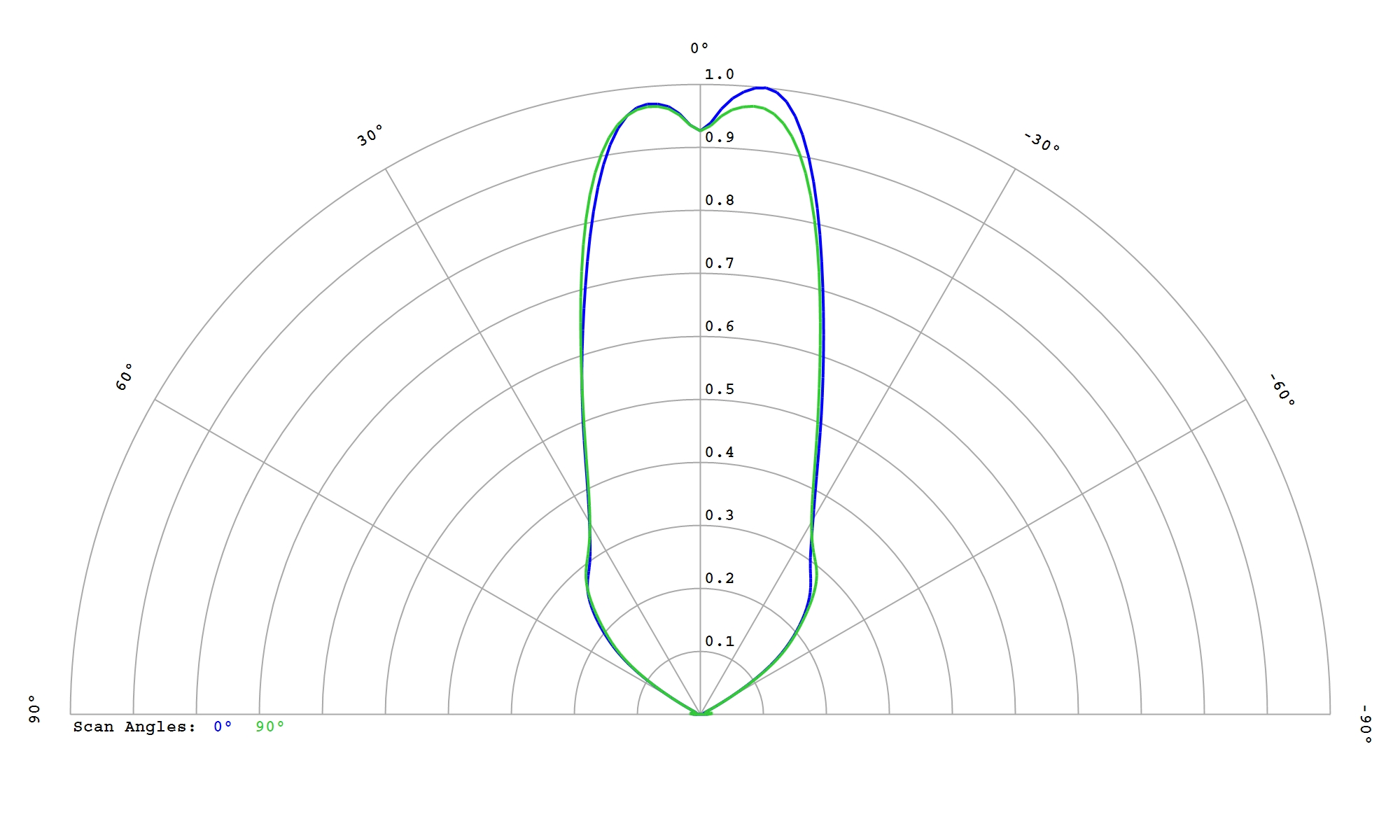

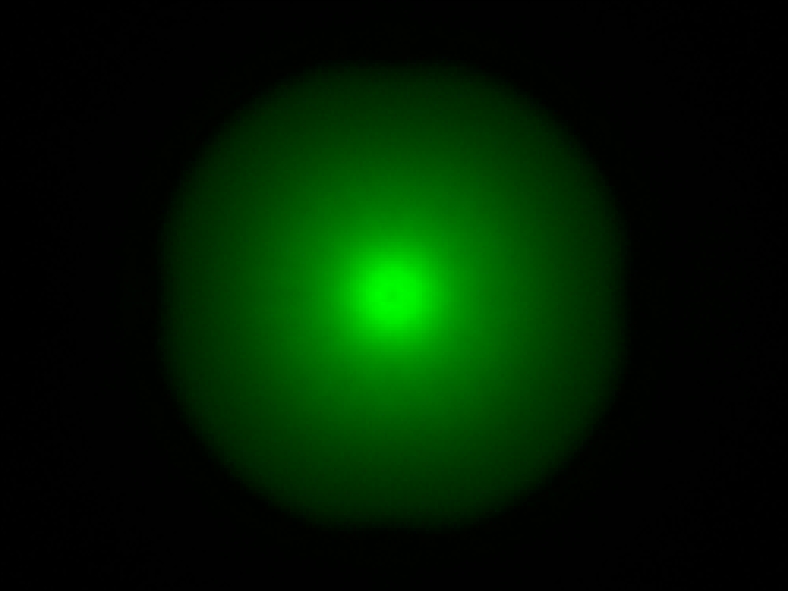

Cree XLamp XQ-E HI Green
Eff:
94.5%
FWHM:
43.0°
Cd/Im:
0.9
Download
Cree XLamp XQ-E HI Red
Eff:
95.2%
FWHM:
42.0°
Cd/Im:
1.0
Download
Cree XLamp XQ-E HI White
Eff:
91.0%
FWHM:
42.5°
Cd/Im:
0.9
Download

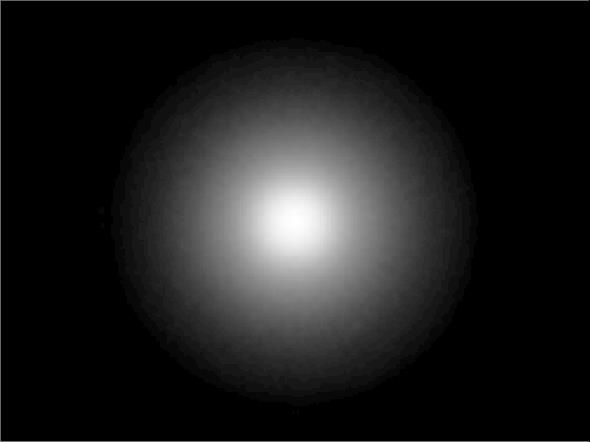

Cree XLamp XT-E HE White
Eff:
95.5%
FWHM:
37.5°
Cd/Im:
1.0
Download

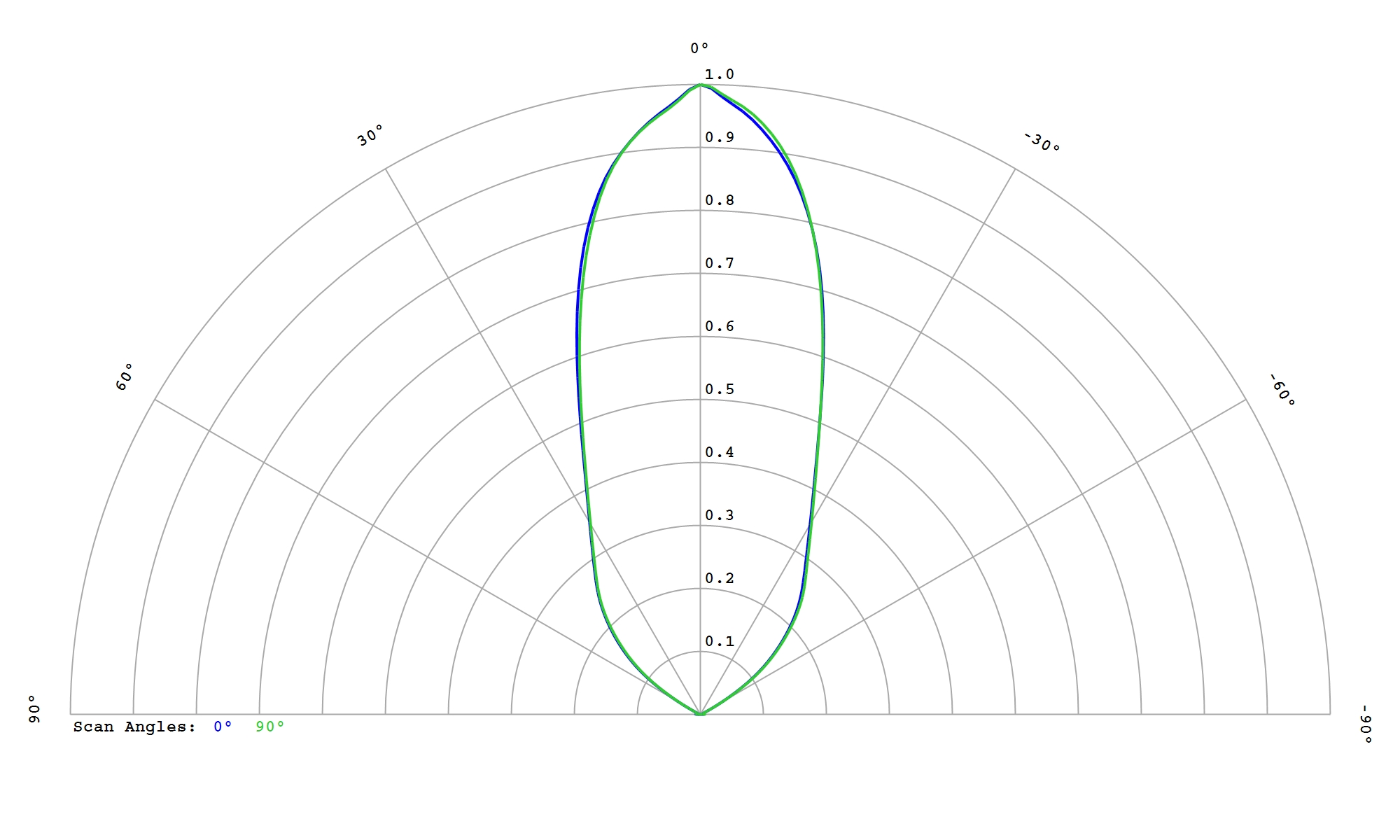

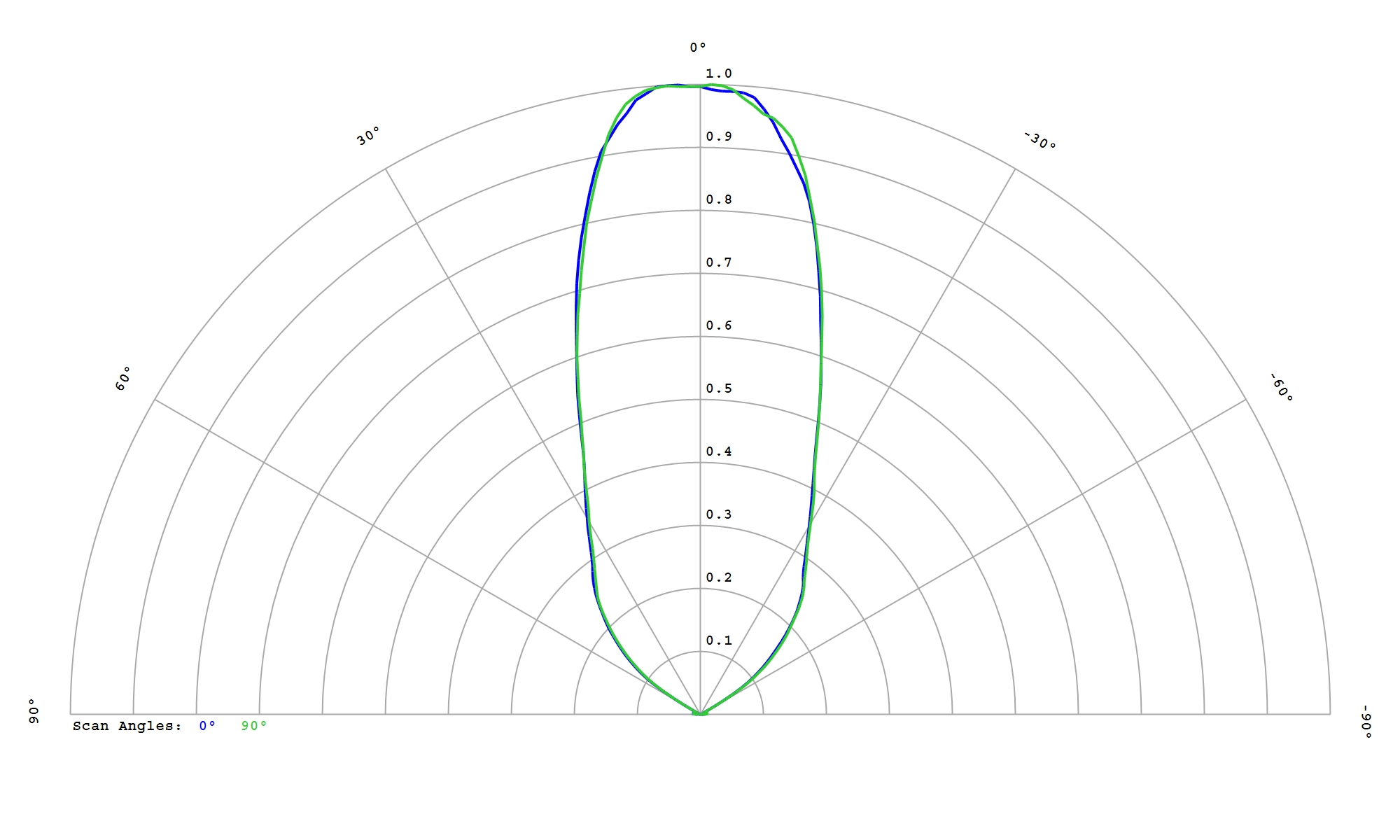

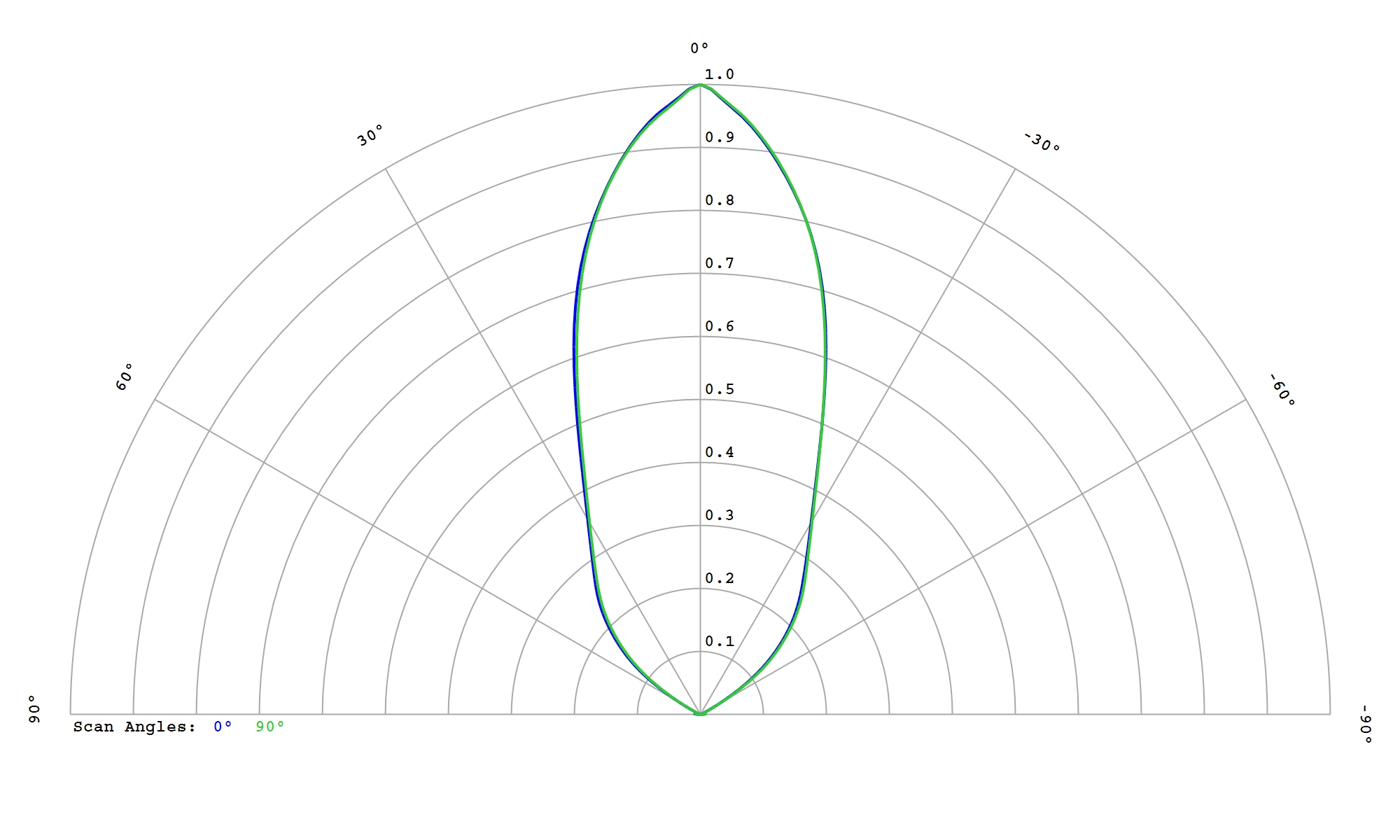

LUMILEDS LUXEON 3030 HE Plus White
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.4
Download
LUMILEDS LUXEON 3030 LUXEON White
Eff:
90.0%
FWHM:
35.0°
Cd/Im:
1.1
Download
LUMILEDS LUXEON 3535L Blue
Eff:
91.0%
FWHM:
50°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 3535L Green
Eff:
96.5%
FWHM:
51.0°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 3535L Red
Eff:
97.0%
FWHM:
48.0°
Cd/Im:
0.9
Download
LUMILEDS LUXEON 5050 Round White
Eff:
96.5%
FWHM:
46.5 X 51.0°
Cd/Im:
1.0
Download
LUMILEDS LUXEON C Blue
Eff:
91.0%
FWHM:
49.0°
Cd/Im:
0.6
Download
LUMILEDS LUXEON C Lime
Eff:
92.5%
FWHM:
44.0°
Cd/Im:
0.8
Download
LUMILEDS LUXEON C Red
Eff:
90.5%
FWHM:
50.0°
Cd/Im:
0.7
Download
LUMILEDS LUXEON CZ White
Eff:
96.5%
FWHM:
42.5°
Cd/Im:
1.3
Download

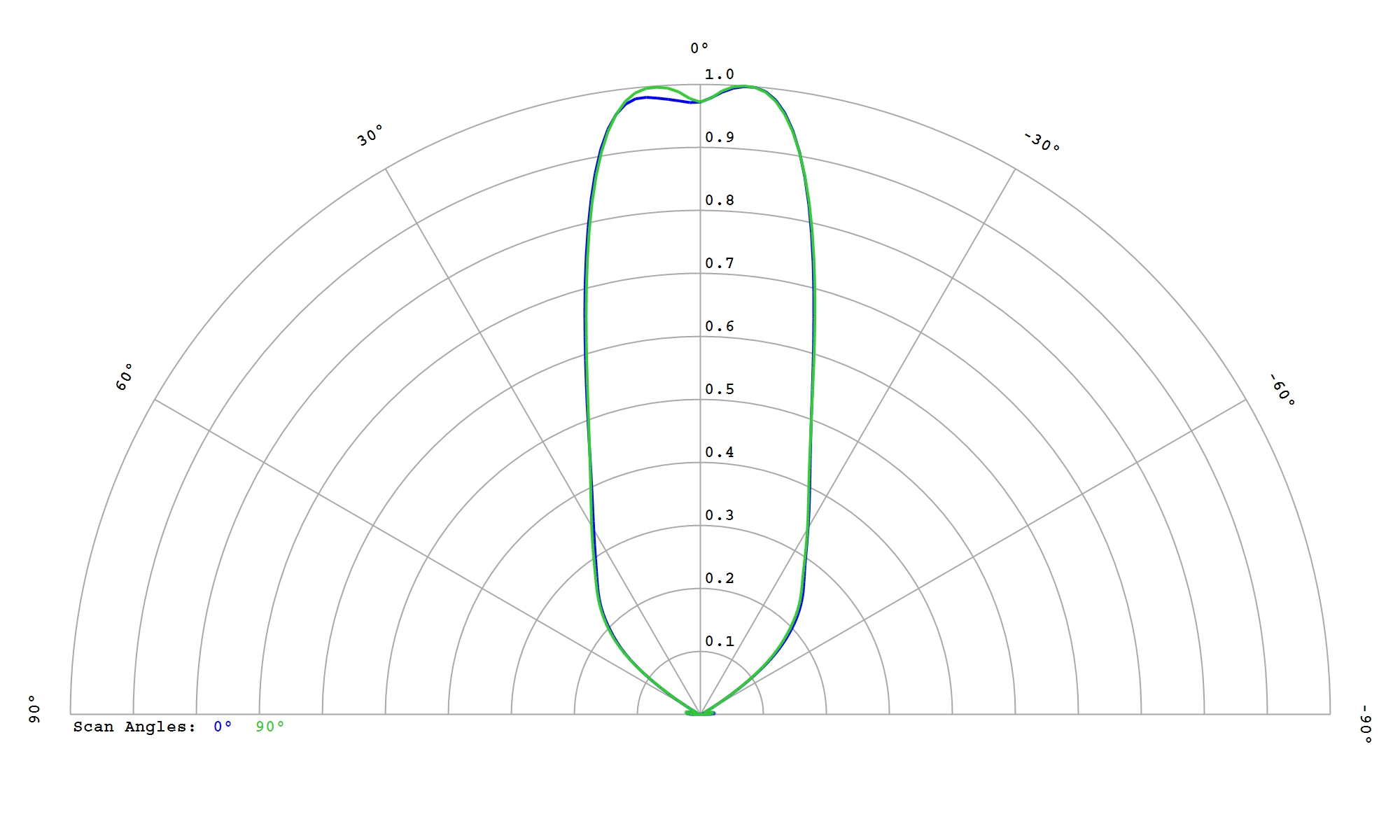

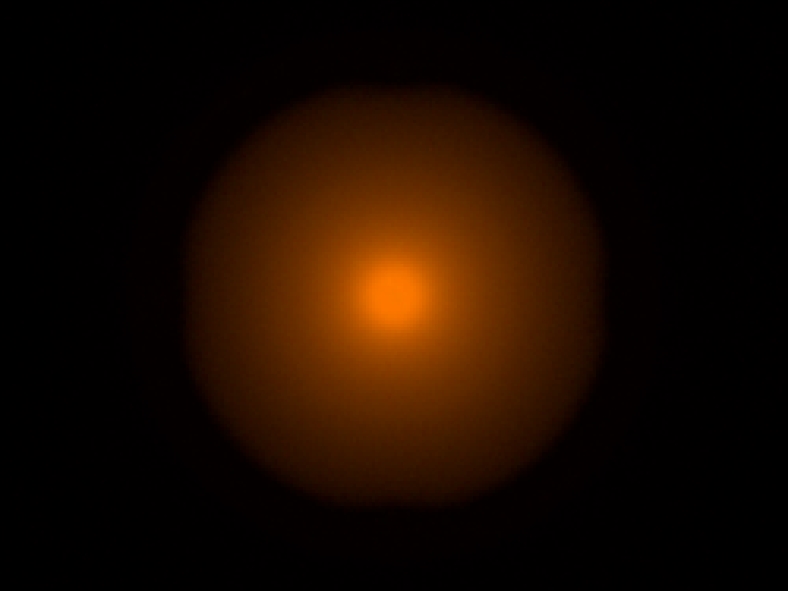

LUMILEDS LUXEON HL1Z CSP White
Eff:
95.0%
FWHM:
40°
Cd/Im:
1.2
Download

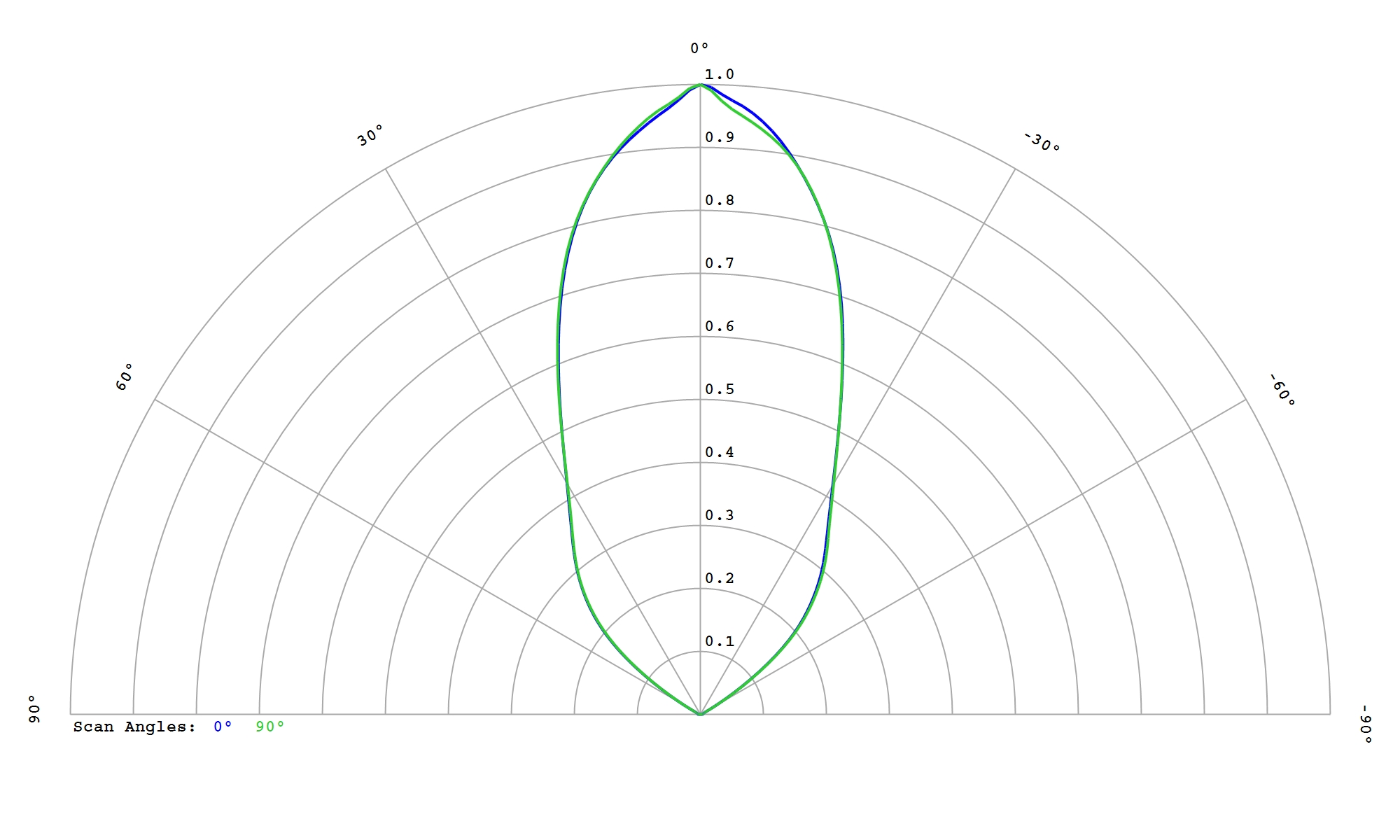

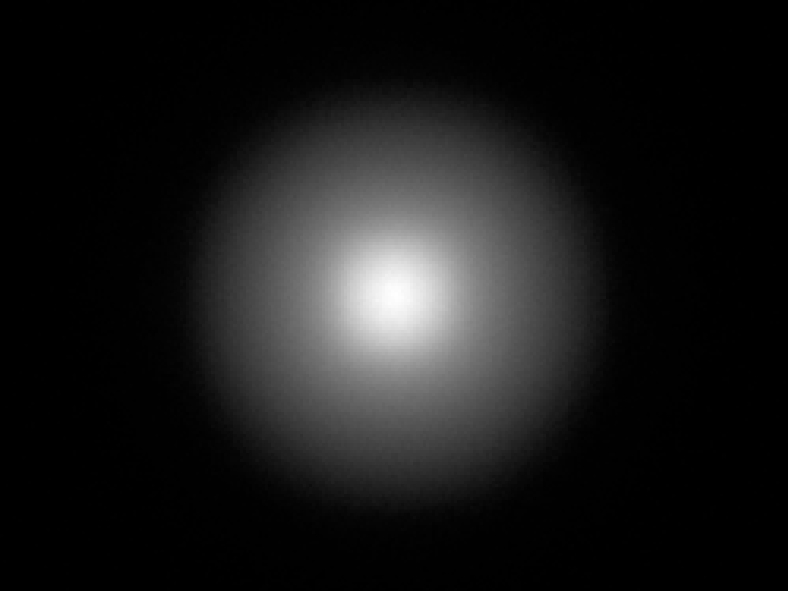

LUMILEDS LUXEON HL2X White
Eff:
96.0%
FWHM:
49.0°
Cd/Im:
1.2
Download
LUMILEDS LUXEON HL2X-P White
Eff:
96.0%
FWHM:
50°
Cd/Im:
1.1
Download
LUMILEDS LUXEON HL2Z White
Eff:
94.0%
FWHM:
111°
Cd/Im:
0.5
Download
LUMILEDS LUXEON IR 2720
Eff:
97.0%
FWHM:
42.5°
Cd/Im:
1.3
Download
LUMILEDS LUXEON Rebel ES White
Eff:
90.0%
FWHM:
47°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix Blue
Eff:
97.0%
FWHM:
44°
Cd/Im:
1.2
Download
LUMILEDS LUXEON Rubix Green
Eff:
96.5%
FWHM:
43°
Cd/Im:
1.1
Download
LUMILEDS LUXEON Rubix Red
Eff:
97.0%
FWHM:
43°
Cd/Im:
1.2
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
97.0%
FWHM:
42°
Cd/Im:
1.6
Download
LUMILEDS LUXEON Rubix White
Eff:
96.5%
FWHM:
44.0°
Cd/Im:
1.3
Download
LUMILEDS LUXEON SunPlus 20 Line Cool White
Eff:
94.0%
FWHM:
44°
Cd/Im:
1.1
Download
LUMILEDS LUXEON SunPlus 20 Line Deep Red
Eff:
85.0%
FWHM:
128°
Cd/Im:
0.4
Download

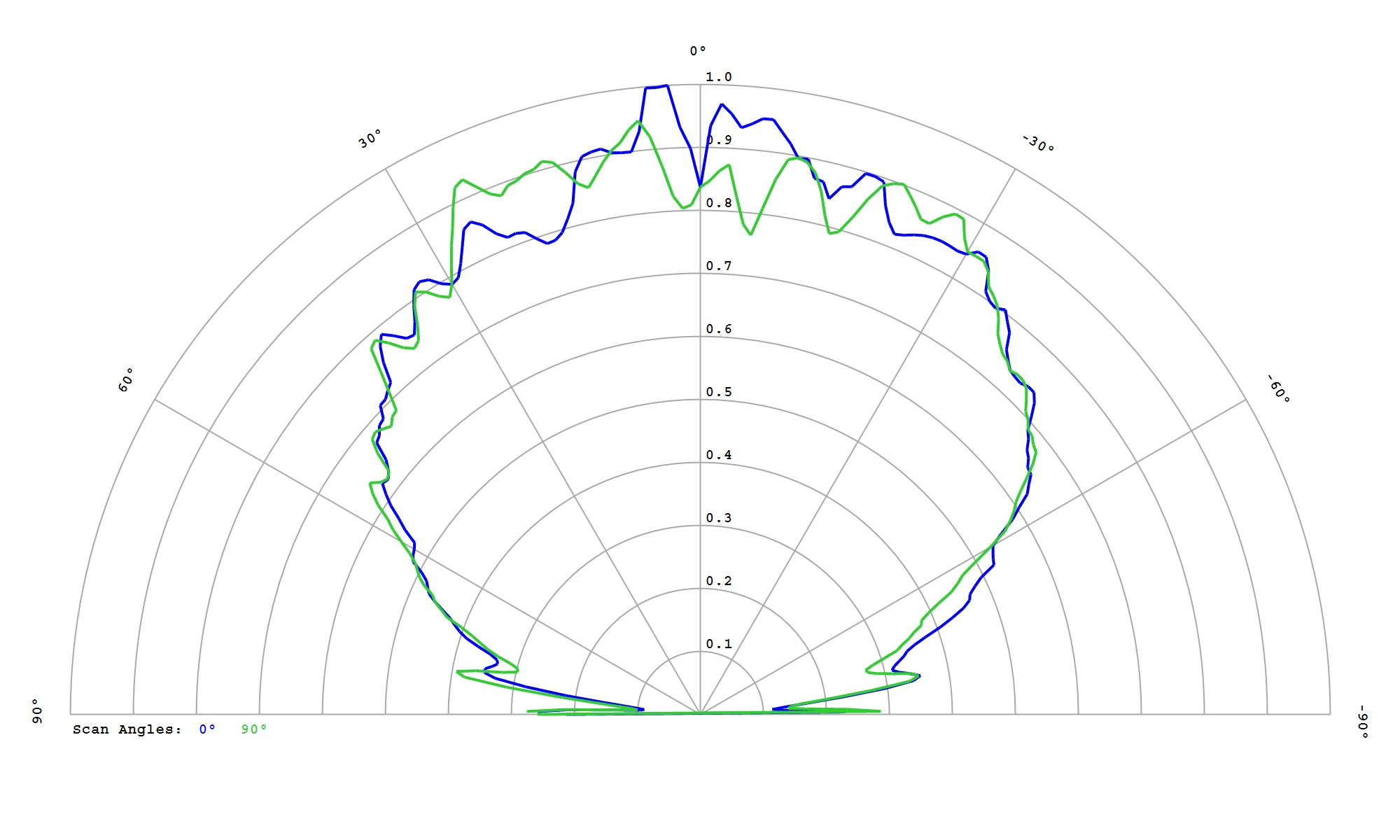

LUMILEDS LUXEON SunPlus 20 Line Far Red
Eff:
85.5%
FWHM:
125°
Cd/Im:
0.7
Download
LUMILEDS LUXEON SunPlus 20 Line Lime
Eff:
88.0%
FWHM:
121°
Cd/Im:
0.4
Download
LUMILEDS LUXEON SunPlus 20 Line Royal Blue
Eff:
85.5%
FWHM:
131°
Cd/Im:
0.4
Download
LUMILEDS LUXEON TX White
Eff:
91.4%
FWHM:
46.5°
Cd/Im:
0.8
Download
LUMILEDS LUXEON V White
Eff:
93.5%
FWHM:
46°
Cd/Im:
0.9
Download
LUMILEDS LUXEON V2 White
Eff:
95.5%
FWHM:
46°
Cd/Im:
1.2
Download
Luminus Devices SFT-40-WxS White
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.3
Download
Luminus Devices SFT-70X-WxS White
Eff:
97.0%
FWHM:
44°
Cd/Im:
1.5
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.4
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
96.0%
FWHM:
37°
Cd/Im:
1.7
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
96.5%
FWHM:
50°
Cd/Im:
1.1
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
95.5%
FWHM:
39°
Cd/Im:
1.7
Download
Luminus Devices SST 10-FR-B130 Far Red
Eff:
96.0%
FWHM:
43°
Cd/Im:
2.8
Download
Luminus Devices SST 10-FR-B90 Far Red
Eff:
96.0%
FWHM:
39°
Cd/Im:
2.8
Download
Luminus Devices SST 10-G-B130 Green
Eff:
96.0%
FWHM:
41°
Cd/Im:
1.3
Download
Luminus Devices SST 10-G-B90 Green
Eff:
95.0%
FWHM:
36°
Cd/Im:
1.7
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
96.5%
FWHM:
45°
Ipk/W:
1.2
Download

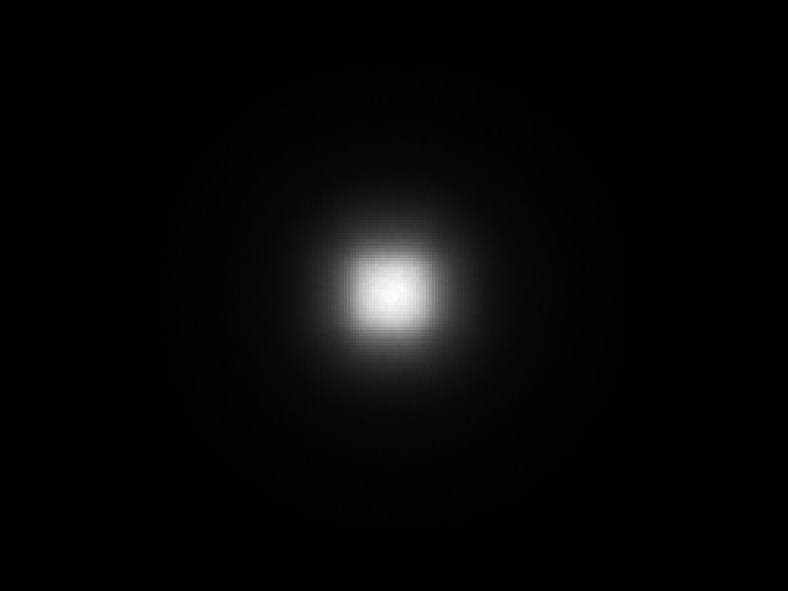

Luminus Devices SST 10-IRD-B90 810nm
Eff:
96.0%
FWHM:
38°
Ipk/W:
1.8
Download
Luminus Devices SST 10-R-B130 Red
Eff:
96.0%
FWHM:
50°
Cd/Im:
1.2
Download

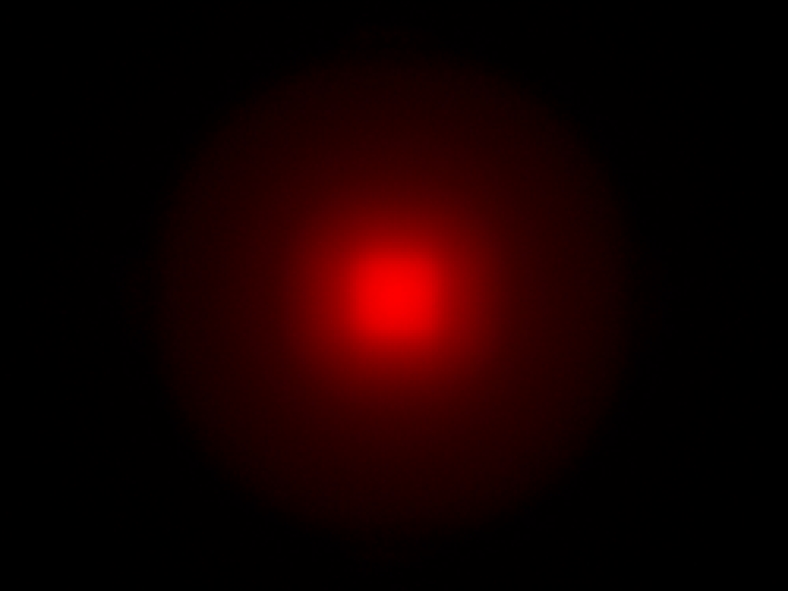

Luminus Devices SST 10-R-B90 Red
Eff:
94.5%
FWHM:
39°
Cd/Im:
1.7
Download

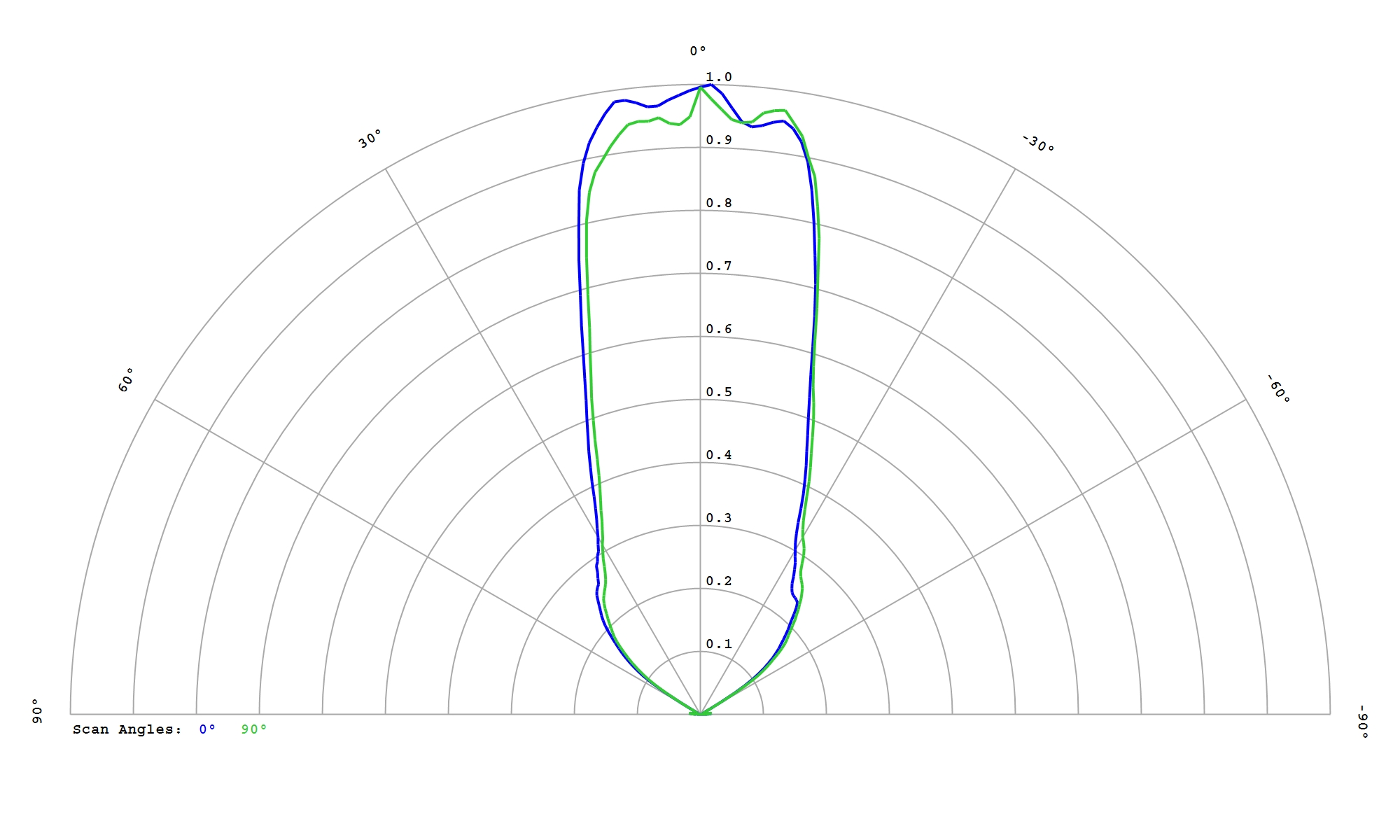

Luminus Devices SST 10-SB-B130 Sky Blue
Eff:
96.5%
FWHM:
40°
Cd/Im:
1.5
Download
Luminus Devices SST 10-SB-B90 Sky Blue
Eff:
95.5%
FWHM:
36°
Cd/Im:
1.9
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
95.5%
FWHM:
42°
Cd/Im:
1.4
Download
Luminus Devices SST 40-W White
Eff:
95.5%
FWHM:
56°
Cd/Im:
1.1
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
96.5%
FWHM:
22.0°
Cd/Im:
4.2
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
96.5%
FWHM:
44.0°
Cd/Im:
1.3
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
96.0%
FWHM:
40.0°
Cd/Im:
1.7
Download

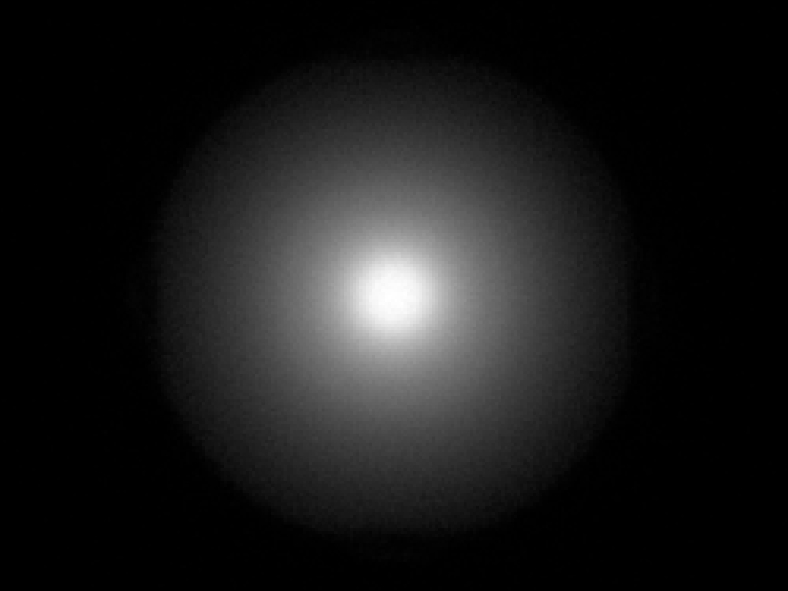

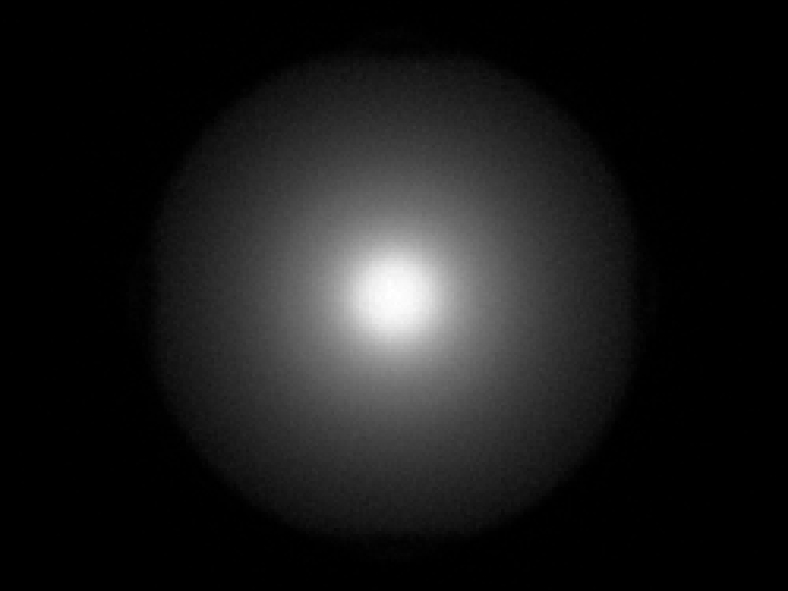

Luminus Devices SST-12-WxS White
Eff:
96.0%
FWHM:
44°
Cd/Im:
1.4
Download
Luminus Devices SST-70X-W White
Eff:
96.0%
FWHM:
54°
Cd/Im:
1.2
Download
Nichia 229A White
Eff:
94.5%
FWHM:
50°
Cd/Im:
0.8
Download
Nichia 757G White
Eff:
96.5%
FWHM:
40.0°
Cd/Im:
1.1
Download
Nichia 757G White
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.4
Download
Nichia NCSW CSP E17A White
Eff:
94.5%
FWHM:
36.5°
Cd/Im:
1.1
Download
Nichia NF2W 385AR-V2 White
Eff:
96.0%
FWHM:
44.5°
Cd/Im:
1.0
Download
Nichia NFMW 481AR White
Eff:
87.0%
FWHM:
51°
Cd/Im:
0.8
Download
Nichia NFMW 484AR White
Eff:
96.5%
FWHM:
53°
Cd/Im:
0.9
Download
Nichia NFMW 486AR White
Eff:
96.5%
FWHM:
50°
Cd/Im:
0.9
Download
Nichia NFMW 488AR White
Eff:
96.5%
FWHM:
52°
Cd/Im:
0.9
Download
Nichia NFSW CSP E11A White
Eff:
94.0%
FWHM:
38°
Cd/Im:
1.2
Download
Nichia NVSL 219B White
Eff:
94.5%
FWHM:
44.0°
Cd/Im:
0.9
Download
Nichia NVSW 219C White
Eff:
95.5%
FWHM:
45.0°
Cd/Im:
0.9
Download
Nichia NVSW 219F White
Eff:
96.0%
FWHM:
50°
Cd/Im:
1.1
Download
Nichia NVSW 319A White
Eff:
94.5%
FWHM:
52°
Cd/Im:
0.9
Download
Nichia NVSW CSP E21A White
Eff:
89.0%
FWHM:
35.5°
Cd/Im:
1.1
Download
Osram Led Engin LuxiGen LZ4 01MWCA RGBW
Eff:
25.5%
FWHM:
80°
Cd/Im:
0.5
Download
Osram OS DURIS E 2835 Gen2
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.4
Download

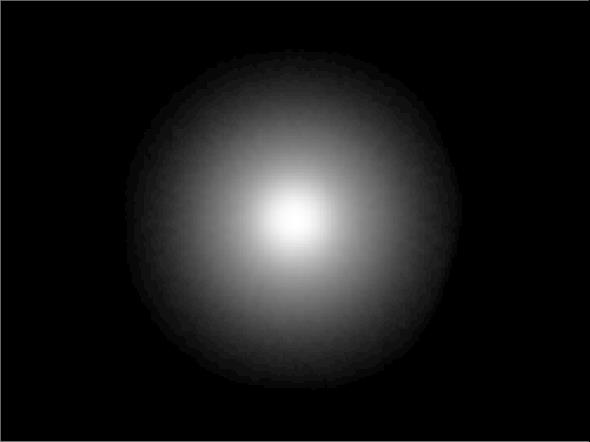

Osram OS DURIS E 2835 White
Eff:
96.5%
FWHM:
43°
Cd/Im:
1.1
Download
Osram OS DURIS E2 White
Eff:
92.0%
FWHM:
40.0°
Cd/Im:
1.0
Download
Osram OS DURIS E3 White
Eff:
97.3%
FWHM:
46.9°
Cd/Im:
1.0
Download
Osram OS DURIS P8 White
Eff:
92.3%
FWHM:
42.9°
Cd/Im:
1.0
Download
Osram OS DURIS S2 White
Eff:
93.9%
FWHM:
46.8°
Cd/Im:
0.8
Download
Osram OS DURIS S5 Deep Blue
Eff:
97.0%
FWHM:
44.5°
Cd/Im:
1.0
Download
Osram OS DURIS S5 GP PSLM31.14 Purple
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.8
Download
Osram OS DURIS S5 GP PSLR31.14 Purple
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.5
Download
Osram OS DURIS S5 Green
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.1
Download
Osram OS DURIS S5 Red
Eff:
97.0%
FWHM:
39°
Cd/Im:
1.1
Download
Osram OS DURIS S5 White
Eff:
92.0%
FWHM:
39.0°
Cd/Im:
1.0
Download
Osram OS DURIS S8 Gen2 White
Eff:
96.0%
FWHM:
44.5°
Cd/Im:
1.0
Download
Osram OS DURIS S8 Gen3 White
Eff:
96.5%
FWHM:
53 x 51°
Cd/Im:
1.2
Download
Osram OS DURIS S8 White
Eff:
97.1%
FWHM:
49.5°
Cd/Im:
1.0
Download
Osram OS OSCONIQ C 2424 White
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.5
Download
Osram OS OSCONIQ P3737 White
Eff:
93.5%
FWHM:
45°
Cd/Im:
1.3
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
96.5%
FWHM:
52°
Cd/Im:
1.2
Download

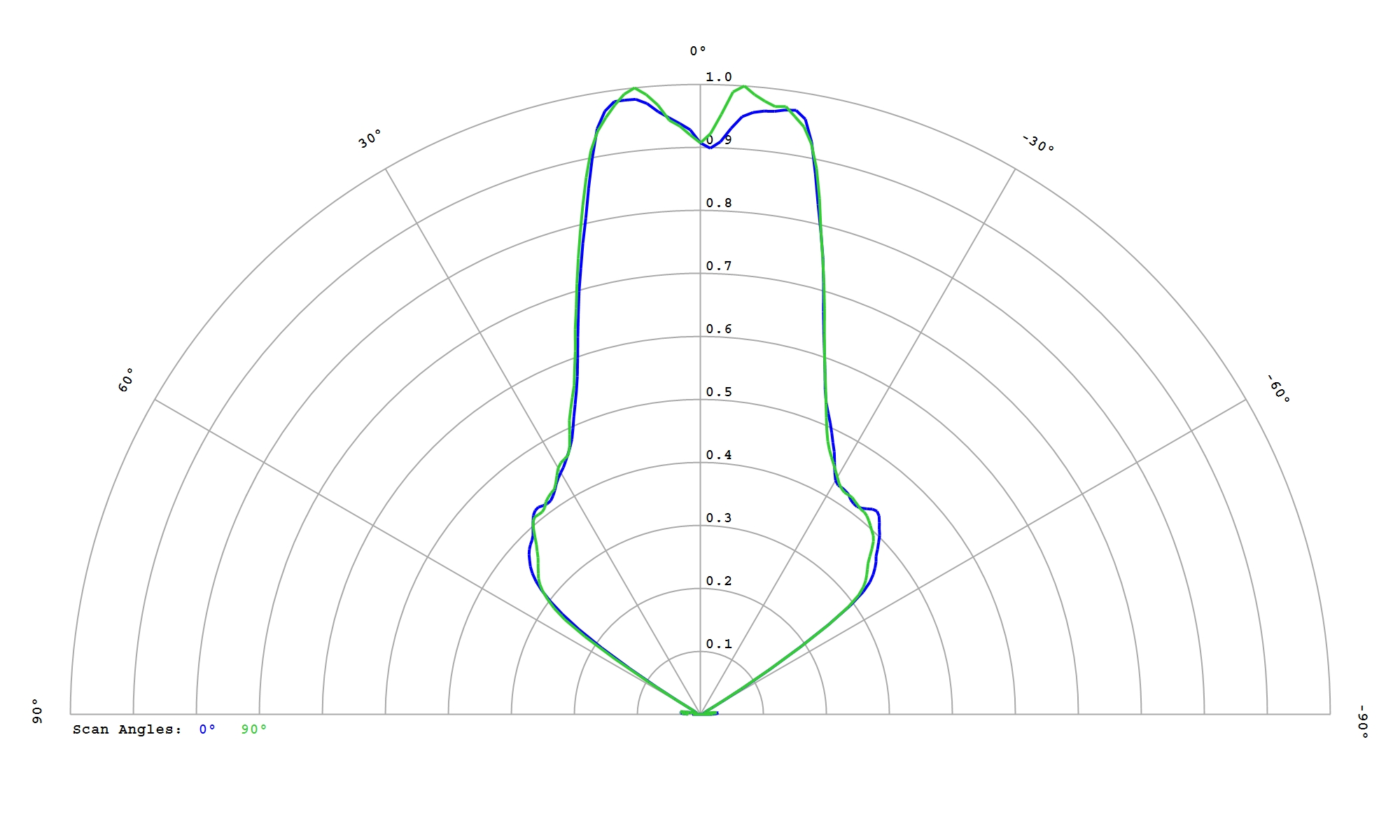

Osram OS OSLON Black SFH 4716AS IR
Eff:
96.5%
FWHM:
49°
Cd/Im:
0.9
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
97.0%
FWHM:
35.5°
Cd/Im:
2.0
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.2
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
94.0%
FWHM:
108°
Cd/Im:
0.5
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
94.0%
FWHM:
101°
Ipk/W:
0.5
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
93.5%
FWHM:
110°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
91.5%
FWHM:
114°
Cd/Im:
0.4
Download

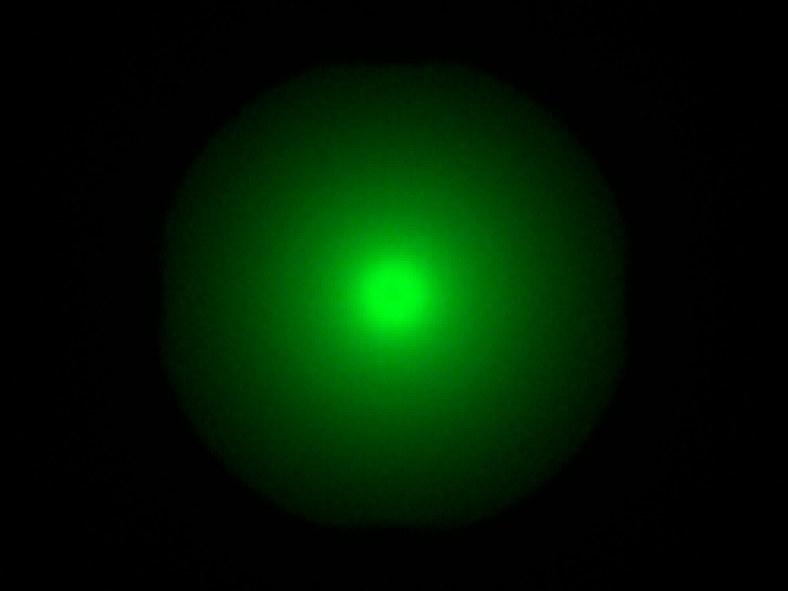

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
93.5%
FWHM:
115°
Cd/Im:
0.5
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
93.0%
FWHM:
103°
Cd/Im:
0.6
Download
Osram OS OSLON Square Gen 3 White
Eff:
92.1%
FWHM:
43.6°
Cd/Im:
0.9
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
69.0%
FWHM:
44.5 x 45°
Cd/Im:
1.3
Download
Osram OS OSLON Square White
Eff:
92.0%
FWHM:
45.8°
Cd/Im:
1.0
Download
Osram OS OSLON SSL 120 GD CSSPM1.14 Deep Blue
Eff:
96.5%
FWHM:
44°
Cd/Im:
1.5
Download
Osram OS OSLON SSL 120 GF CSSPM1.24 Far Red
Eff:
97.0%
FWHM:
46°
Cd/Im:
4.8
Download
Osram OS OSLON SSL 120 GH CSSPM1.24 Hyper Red
Eff:
97.0%
FWHM:
54°
Cd/Im:
1.3
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
96.0%
FWHM:
48°
Cd/Im:
1.0
Download
Osram OS OSTAR Stage LE-UW-S2WN
Eff:
96.5%
FWHM:
48°
Cd/Im:
1.3
Download
Samsung 3030 LM301B White
Eff:
96.5%
FWHM:
41°
Cd/Im:
1.4
Download
Samsung 3535 LH351D White
Eff:
87.5%
FWHM:
18.5°
Cd/Im:
2.4
Download
Samsung 3535 LH351H Blue
Eff:
93.5%
FWHM:
122°
Cd/Im:
0.4
Download
Samsung 3535 LH351H Deep Red
Eff:
96.5%
FWHM:
48°
Cd/Im:
1.1
Download
Samsung 3535 LH351H Red
Eff:
97.0%
FWHM:
46°
Cd/Im:
1.3
Download
Samsung 3535 LH351H-B White
Eff:
96.0%
FWHM:
50°
Cd/Im:
1.2
Download
Samsung 3535 LH351H-C White
Eff:
96.5%
FWHM:
49°
Cd/Im:
1.2
Download
Samsung CSP LH151B White
Eff:
94.0%
FWHM:
109°
Cd/Im:
0.6
Download
Samsung CSP LH181B White
Eff:
95.5%
FWHM:
38 x 37.5°
Cd/Im:
1.5
Download
Samsung CSP LH231B White
Eff:
95.5%
FWHM:
38.5 x 39°
Cd/Im:
1.5
Download
Samsung CSP LM101B White
Eff:
95.5%
FWHM:
38.5 x 41°
Cd/Im:
1.4
Download

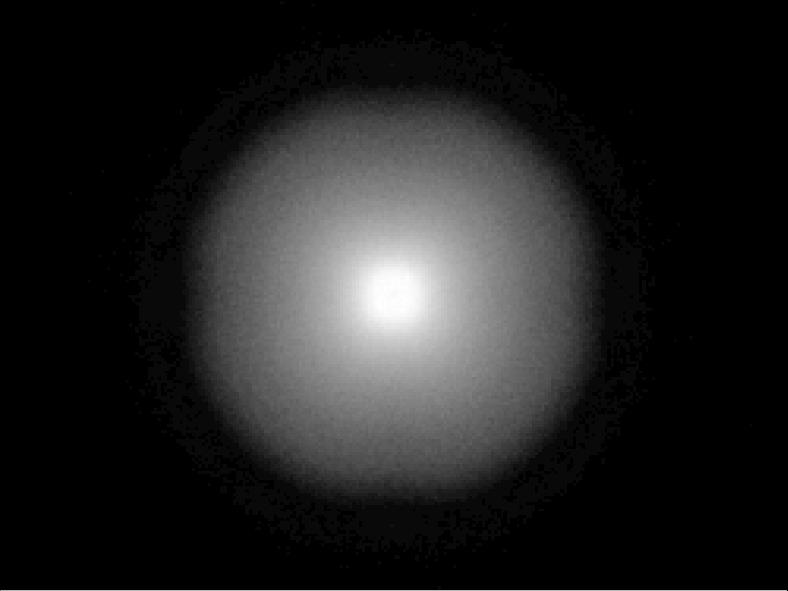

Seoul CSP SZ8Y11 White
Eff:
90.0%
FWHM:
42 x 41.5°
Cd/Im:
1.0
Download
Seoul CSP SZ8Y15 White
Eff:
91.5%
FWHM:
39.5°
Cd/Im:
0.9
Download

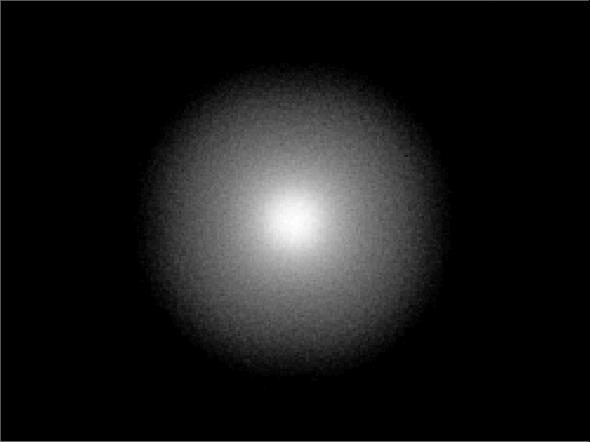

Seoul CSP SZ8Y19 White
Eff:
86.0%
FWHM:
38.0°
Cd/Im:
0.8
Download
Seoul CSP SZ8Y22 White
Eff:
93.0%
FWHM:
40.5 x 42°
Cd/Im:
1.1
Download
Seoul CSP SZ8Y22P White
Eff:
94.5%
FWHM:
46°
Cd/Im:
1.1
Download
Seoul CSP SZ8Y22P White
Eff:
94.5%
FWHM:
46°
Cd/Im:
1.1
Download
Seoul CSP SZ8Y50 White
Eff:
94.5%
FWHM:
60°
Cd/Im:
1.0
Download
Seoul MidPower 3030 STB0C2PB Blue
Eff:
94.0%
FWHM:
114°
Cd/Im:
0.5
Download
Seoul MidPower 3030 STDRC12B Deep Red
Eff:
95.5%
FWHM:
41°
Cd/Im:
1.2
Download
Seoul MidPower 3030 STFRC12B Far Red
Eff:
96.5%
FWHM:
42°
Cd/Im:
1.9
Download
Seoul MJT 5050 White
Eff:
91.0%
FWHM:
47.0 x 1.5°
Cd/Im:
0.9
Download
Seoul STW8 C2SB-NT White
Eff:
96.5%
FWHM:
42.0°
Cd/Im:
1.5
Download
Seoul STWS C2PB-E0 White
Eff:
96.5%
FWHM:
42.0°
Cd/Im:
1.6
Download
Seoul SunLike STW9 C2SB-S
Eff:
96.5%
FWHM:
39°
Cd/Im:
1.5
Download
Seoul Z - Power Z5 M4 White
Eff:
96.5%
FWHM:
49°
Cd/Im:
1.3
Download
Stanley 6J White
Eff:
92.0%
FWHM:
54°
Cd/Im:
0.8
Download
Toshiba TL 1L2 White
Eff:
90.0%
FWHM:
43°
Cd/Im:
0.8
Download
Toshiba TL 1L4 White
Eff:
92.0%
FWHM:
47.0 x 1.5°
Cd/Im:
1.0
Download
