12782 Mini Hubble Optic
75.0 x 50.0mm Square V Medium Freeform
Part number
12782
Dimensions
75.0 x 50.0mm
Drawing Number
70288
Optic type
Freeform
Beam type
Square V Medium
Applications
Architectural
Industrial
Landscape & Garden
Street
Office
Horticultural
Retail
Warehouse
Wide Area
Security
Humancentric
Emergency
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
96.0%
FWHM:
131 x 133°
Cd/Im:
0.7
Download

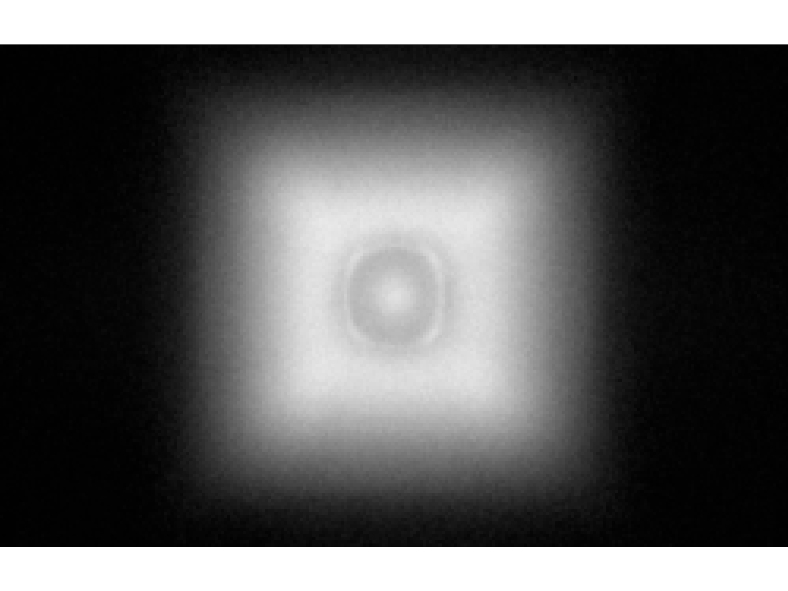

Cree JB3030 3V White
Eff:
94.5%
FWHM:
133°
Cd/Im:
0.6
Download
Cree XLamp CSP XD16 Cool White
Eff:
92.5%
FWHM:
134°
Cd/Im:
0.7
Download
Cree XLamp XB-D White
Eff:
90.5%
FWHM:
134x134x0°
Cd/Im:
0.7
Download
Cree XLamp XB-H White
Eff:
94.0%
FWHM:
140 x 139°
Cd/Im:
0.5
Download
Cree XLamp XHP35 White
Eff:
88.8%
FWHM:
144°
Cd/Im:
0.3
Download
Cree XLamp XHP35.2 HI White
Eff:
88.5%
FWHM:
142°
Cd/Im:
0.4
Download

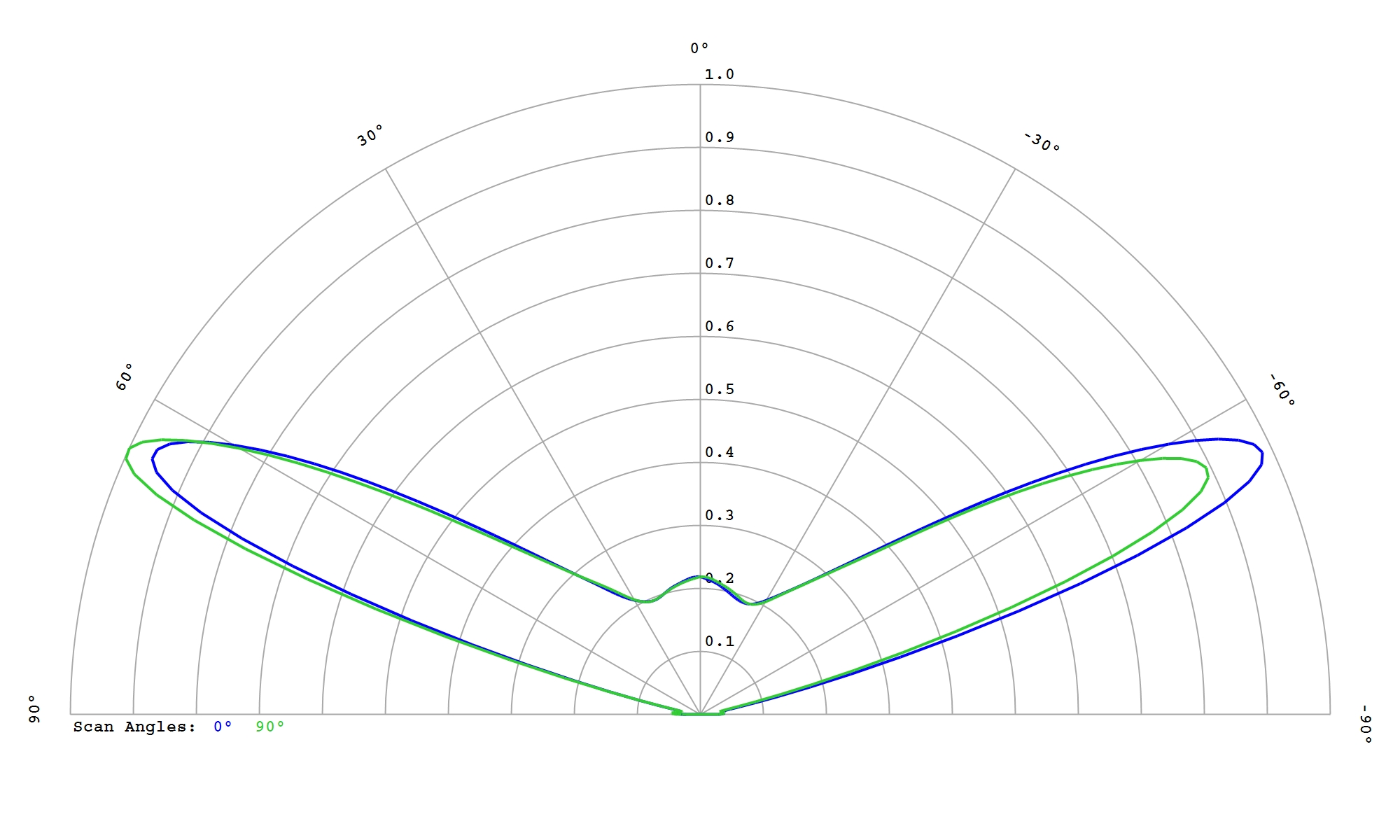

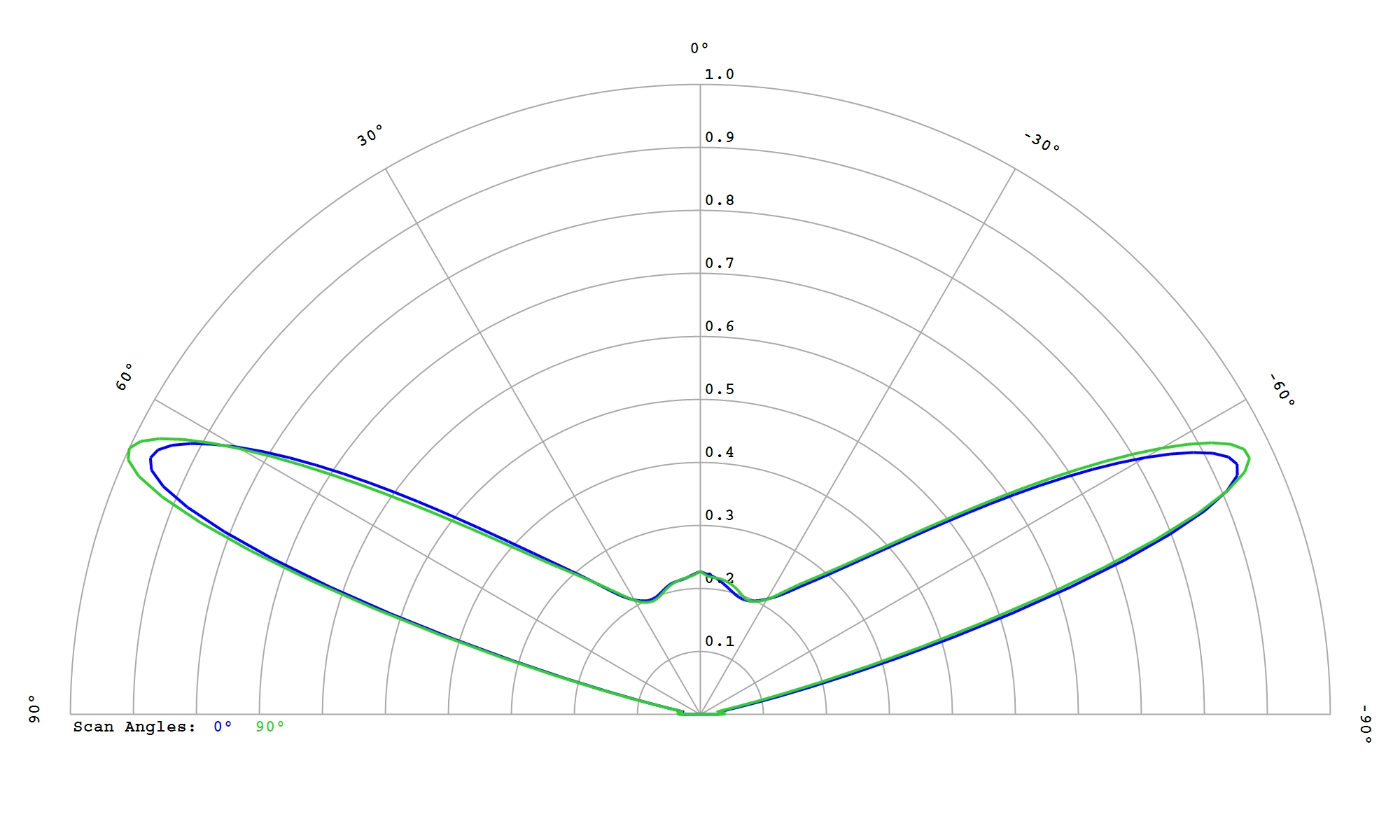

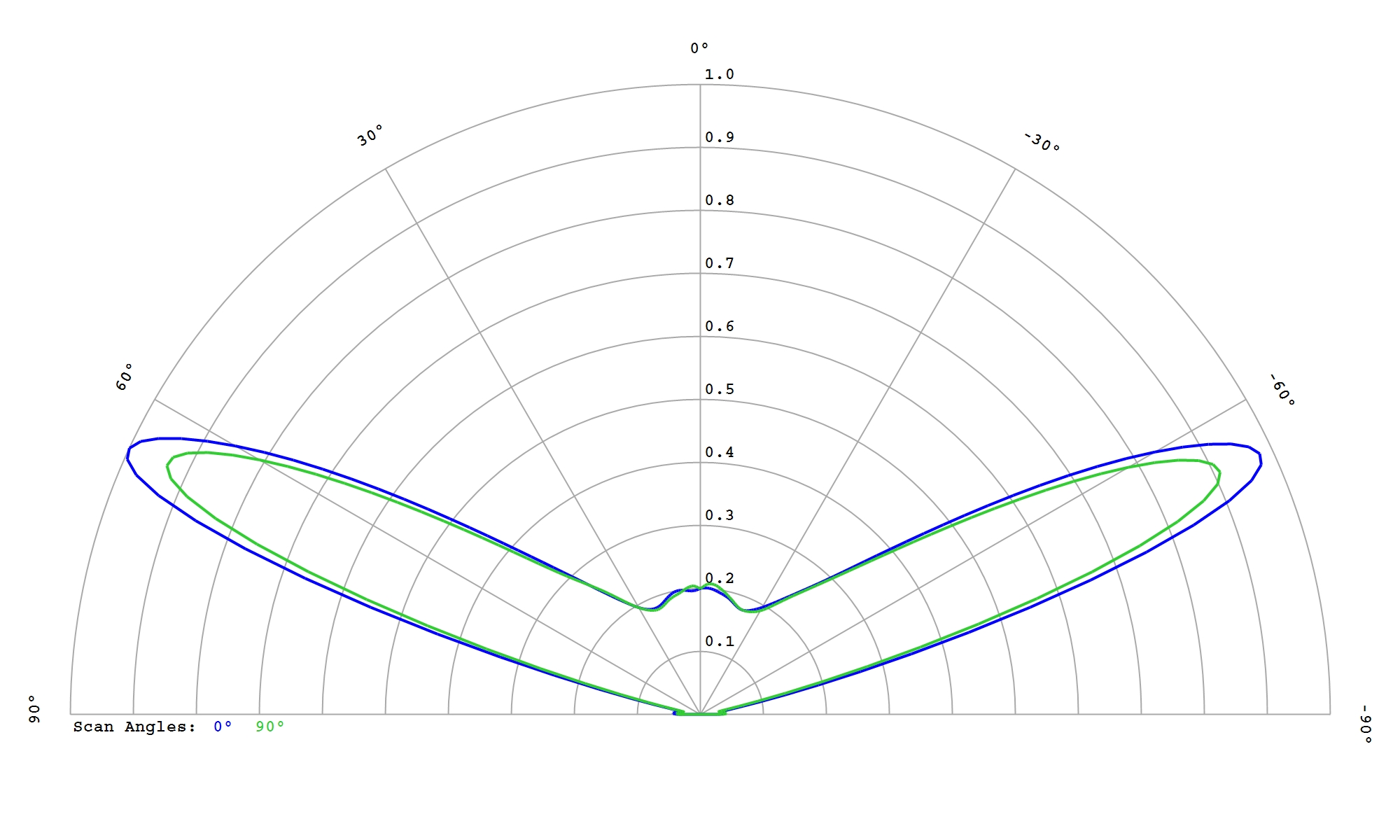

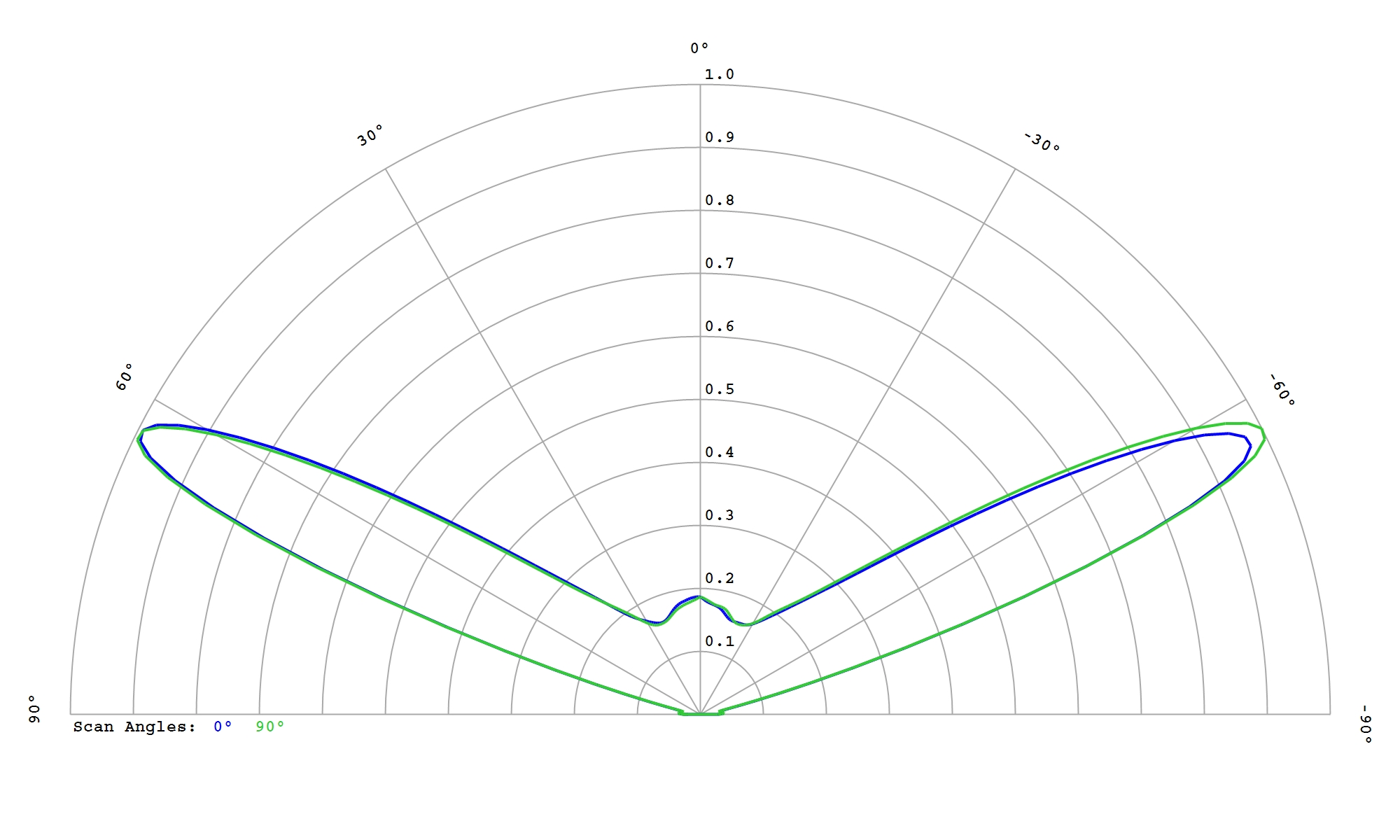

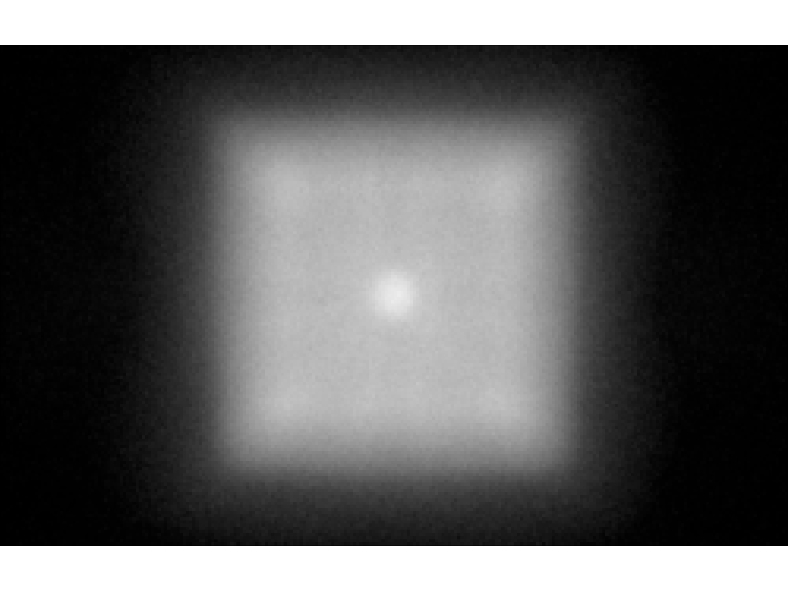

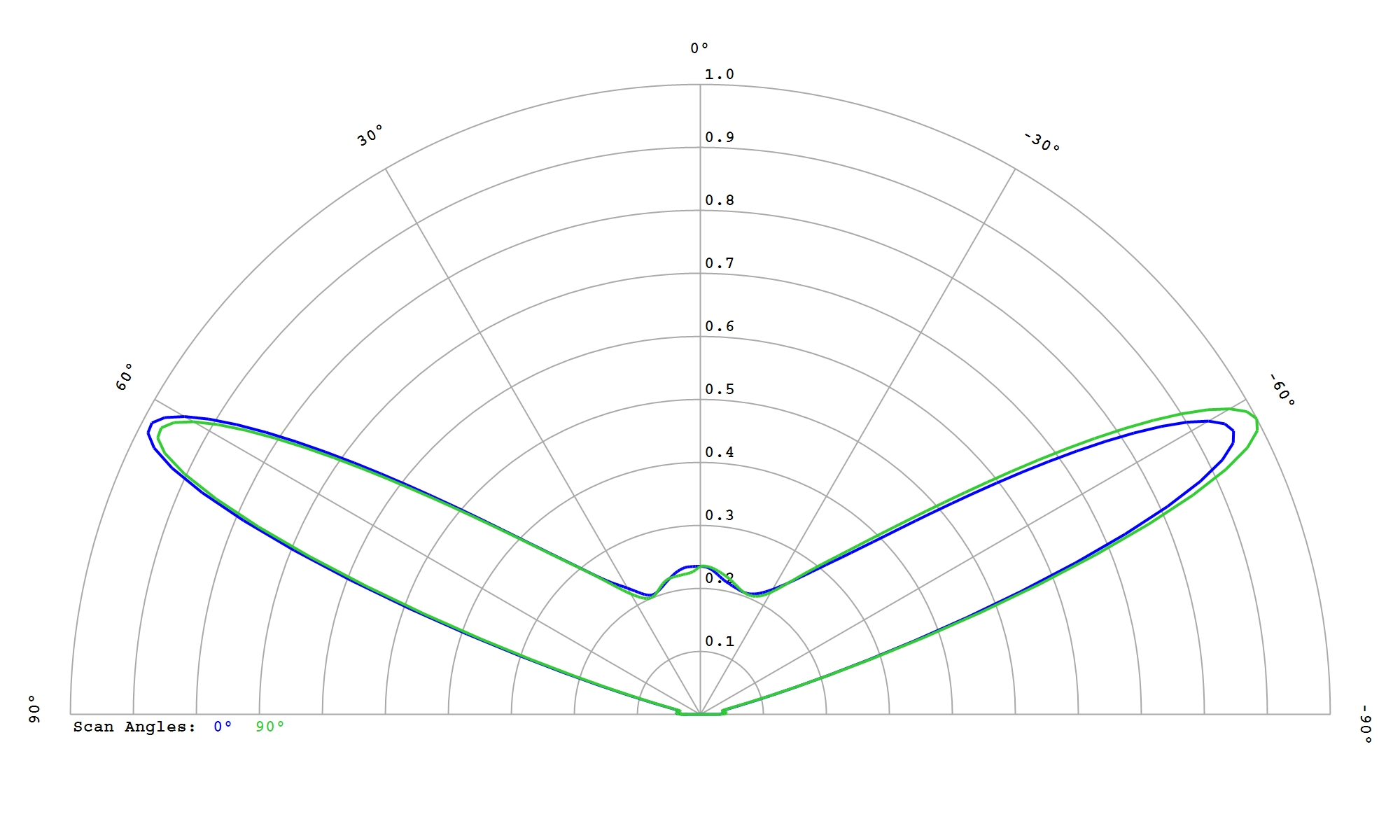

Cree XLamp XP-E2 White
Eff:
95.0%
FWHM:
140°
Cd/Im:
0.7
Download
Cree XLamp XP-G2 White
Eff:
91.0%
FWHM:
144*144*0°
Cd/Im:
0.6
Download
Cree XLamp XP-L HI White
Eff:
92.3%
FWHM:
140.2°
Cd/Im:
0.6
Download
Cree XLamp XP-P White
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download

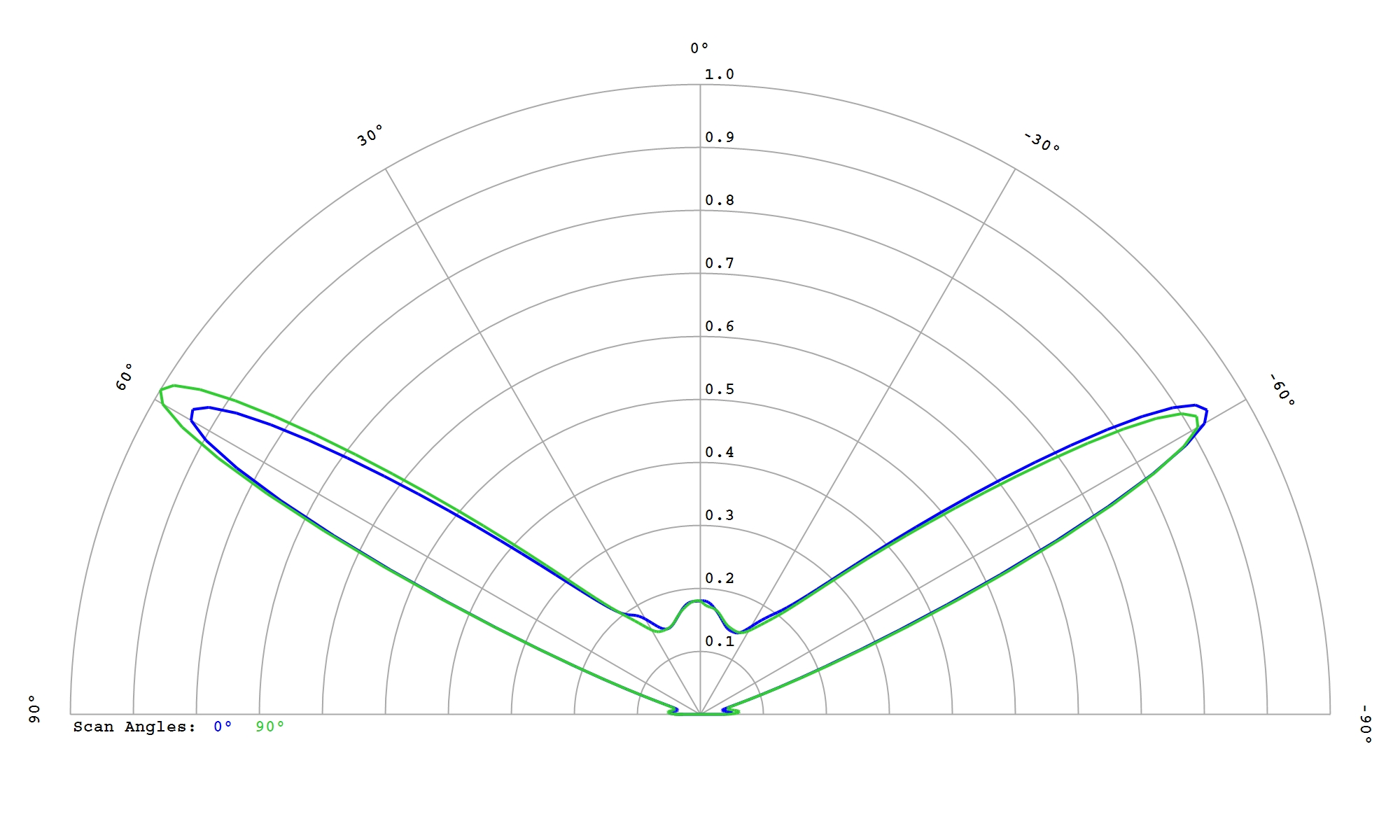

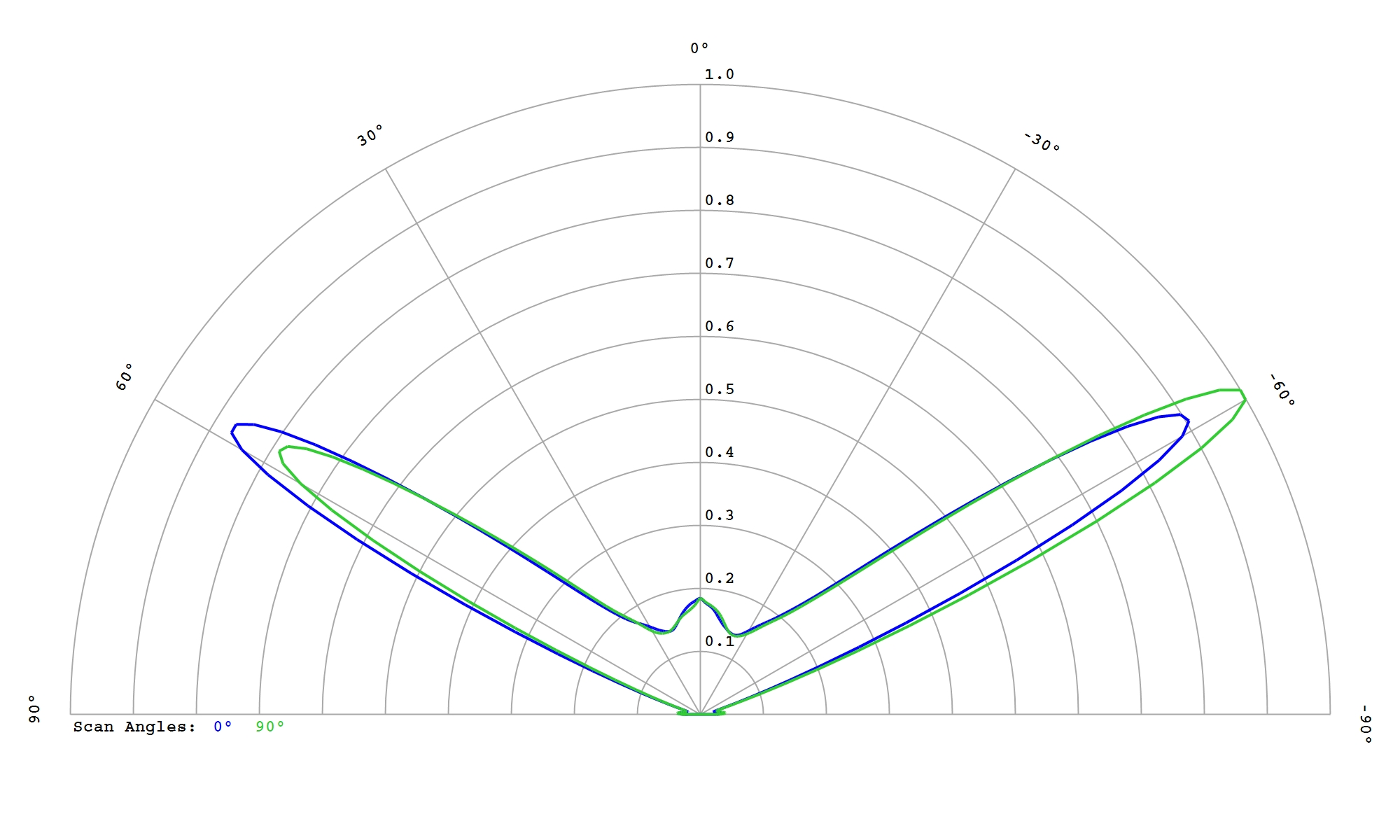

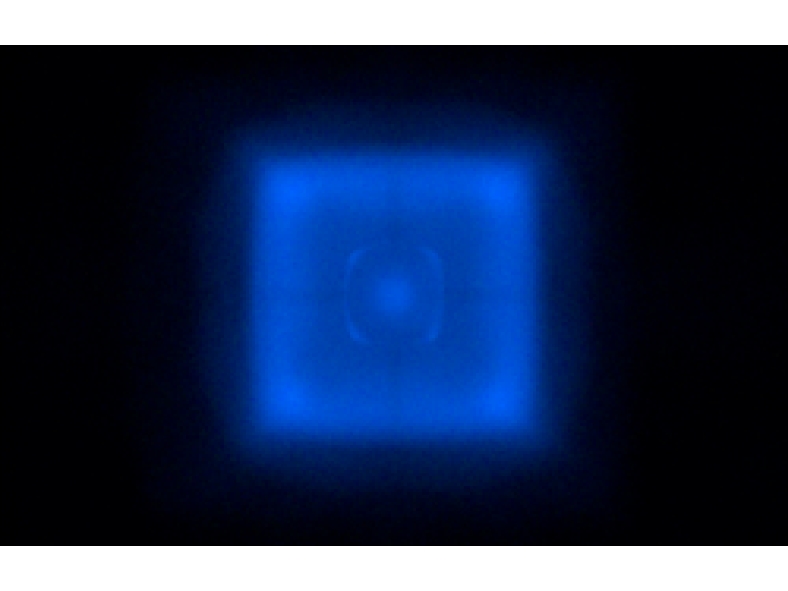

Cree XLamp XQ-A Blue
Eff:
95.5%
FWHM:
124°
Cd/Im:
1.5
Download

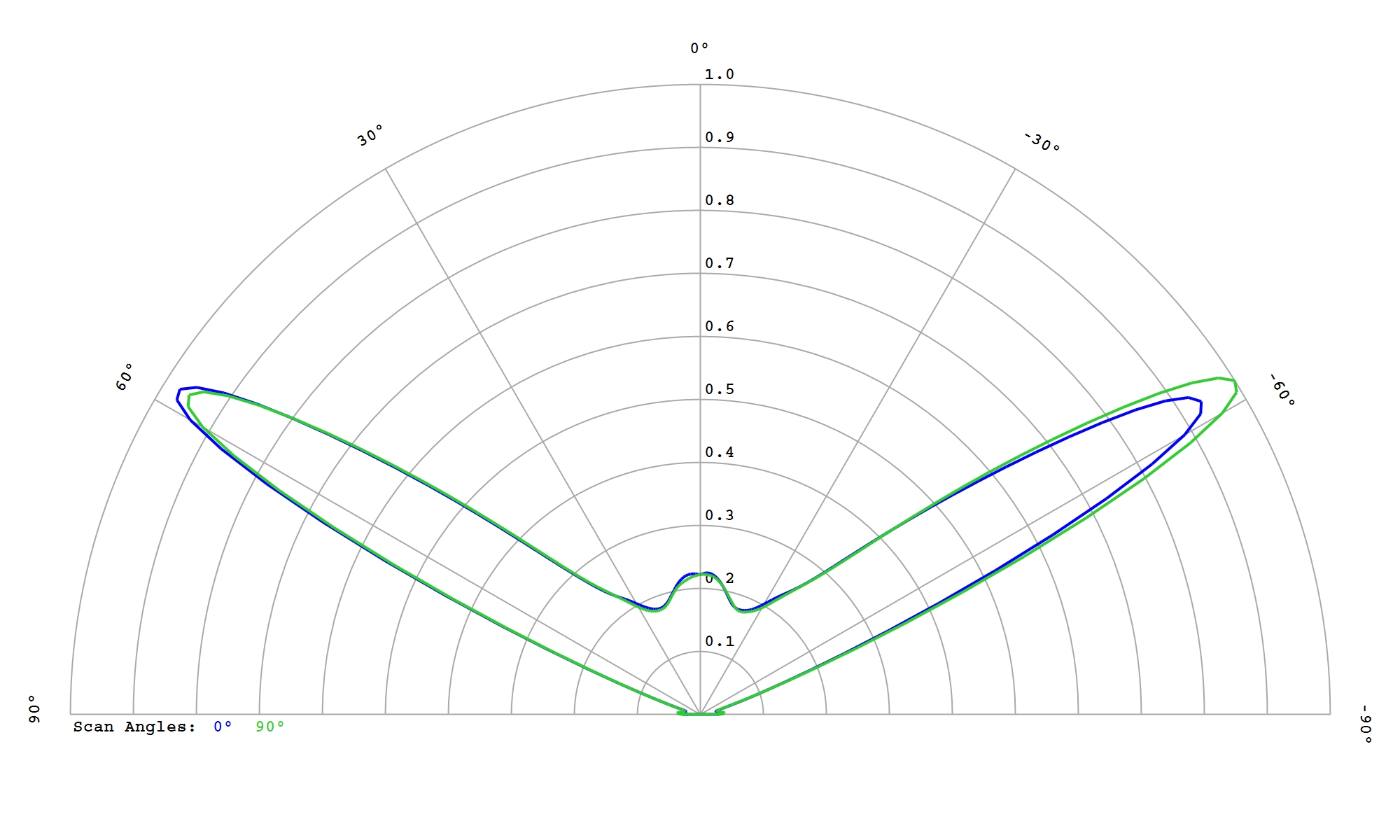

Cree XLamp XQ-A Green
Eff:
95.0%
FWHM:
125°
Cd/Im:
1.5
Download

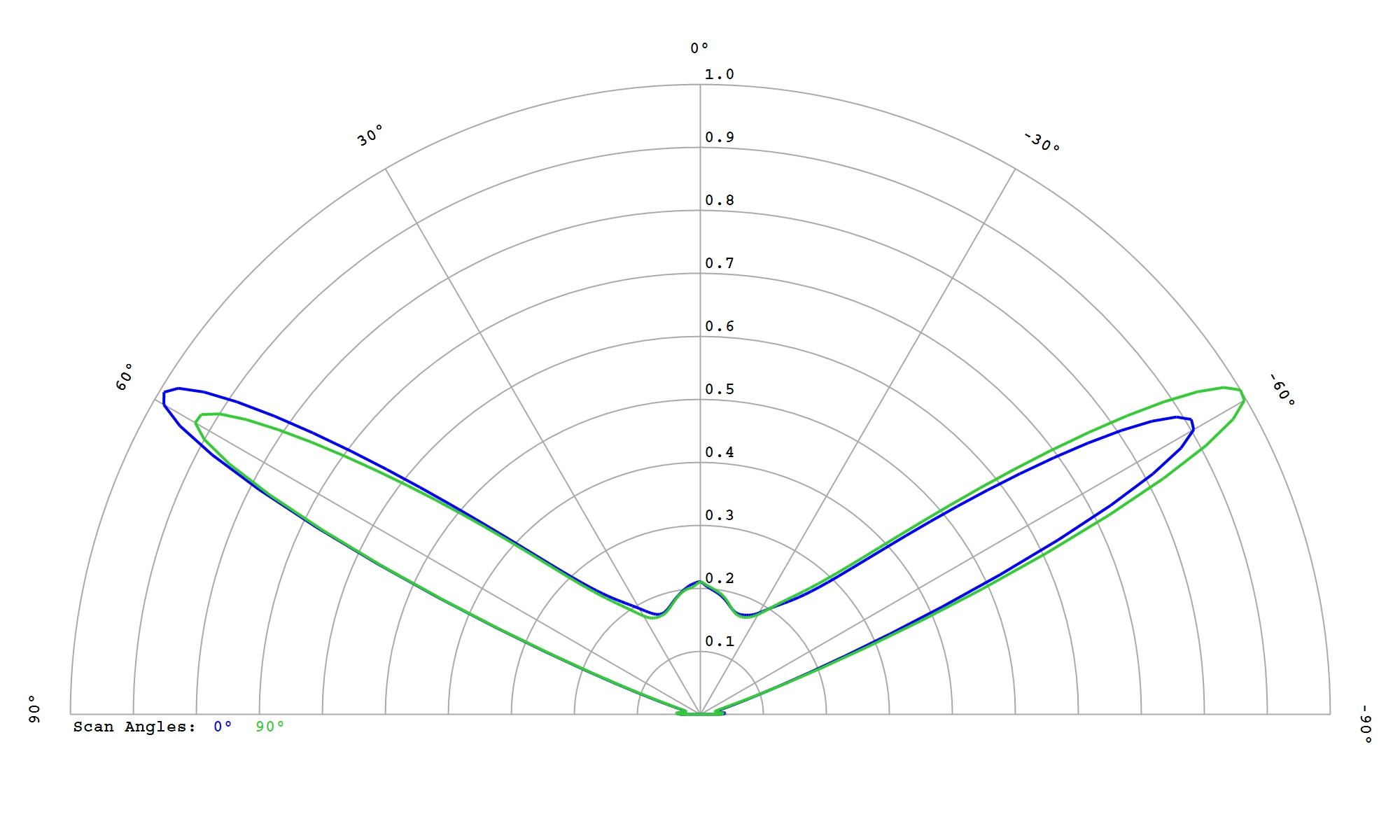

Cree XLamp XQ-A Red
Eff:
95.0%
FWHM:
128°
Cd/Im:
1.1
Download

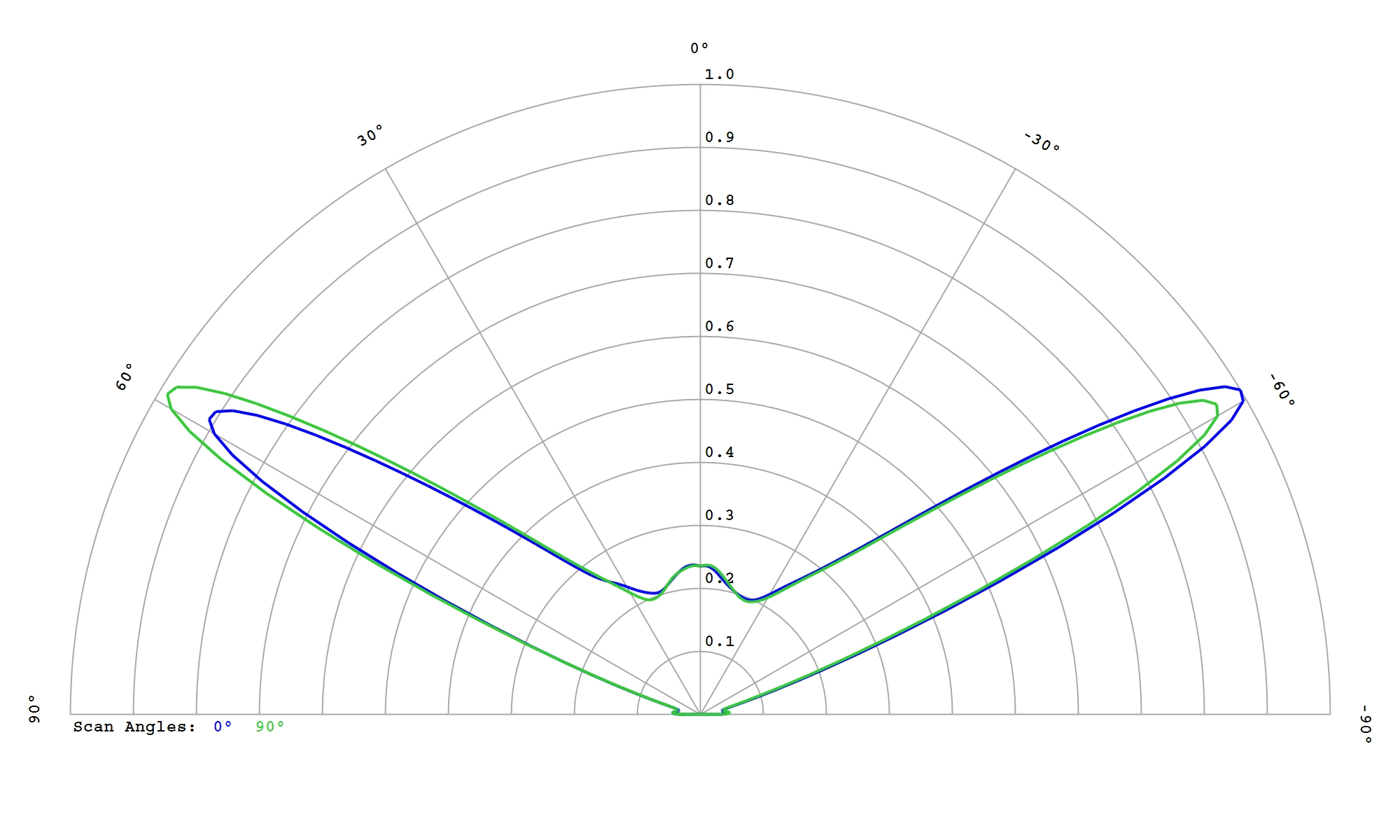

Cree XLamp XQ-A White
Eff:
92.0%
FWHM:
124°
Cd/Im:
1.3
Download

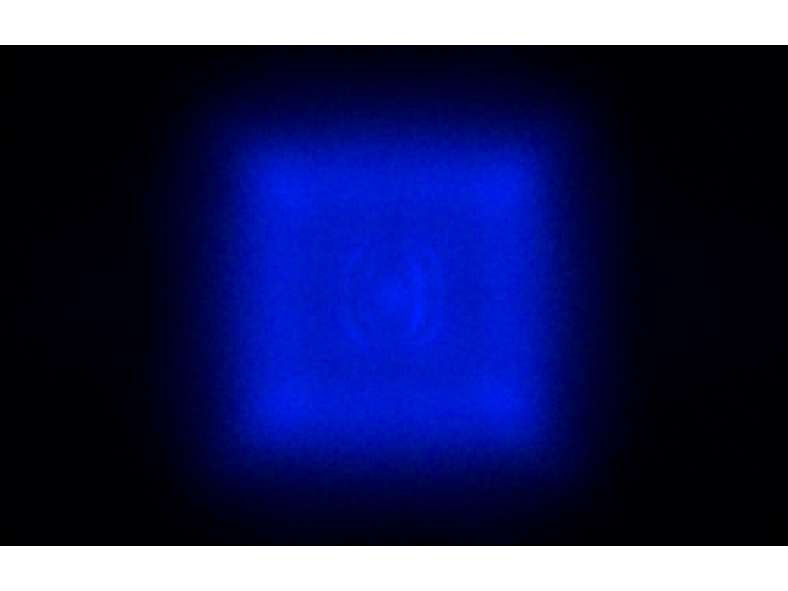

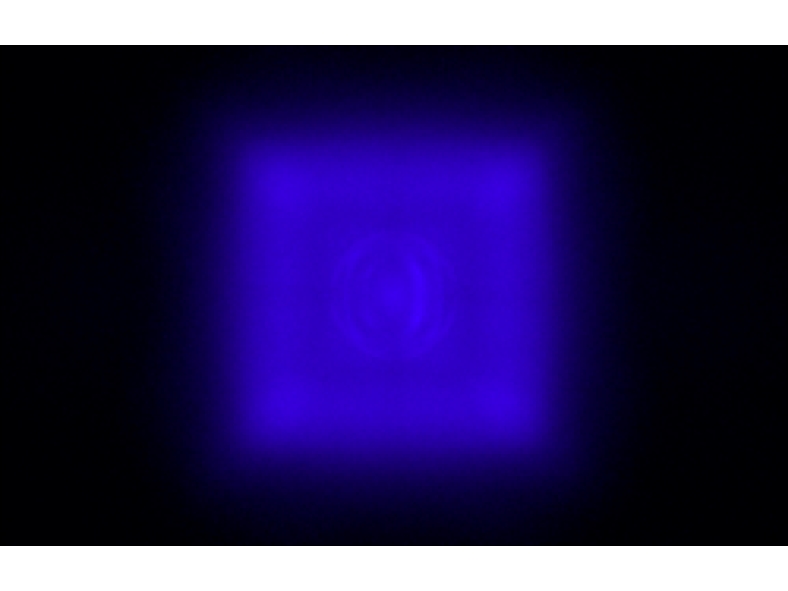

Cree XLamp XQ-E HI Blue
Eff:
95.0%
FWHM:
134°
Cd/Im:
0.9
Download

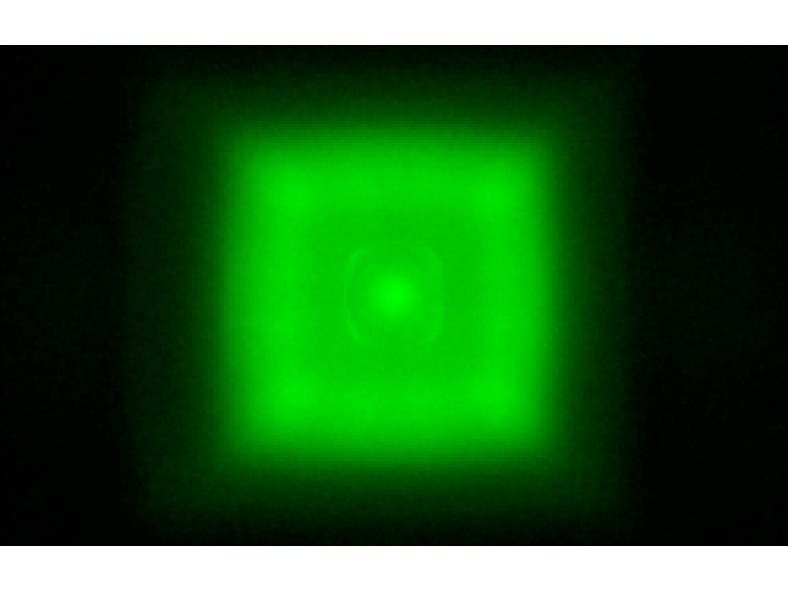

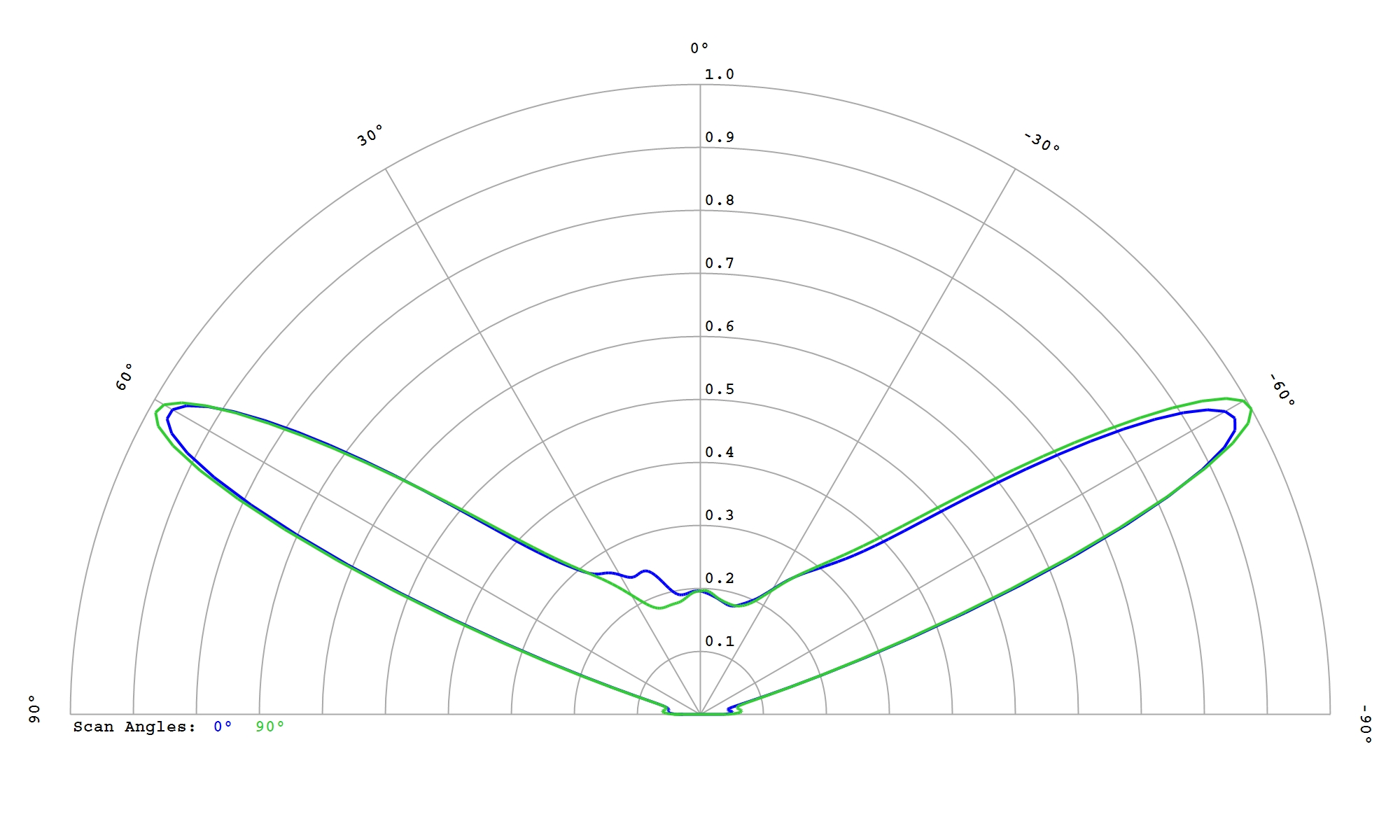

Cree XLamp XQ-E HI Green
Eff:
93.5%
FWHM:
134°
Cd/Im:
0.9
Download
Cree XLamp XQ-E HI Red
Eff:
94.5%
FWHM:
132°
Cd/Im:
0.9
Download
Cree XLamp XQ-E HI White
Eff:
91.0%
FWHM:
132°
Cd/Im:
0.9
Download
Cree XLamp XQ-E White
Eff:
90.0%
FWHM:
130x130x0°
Cd/Im:
0.9
Download
Cree XLamp XT-E White
Eff:
89.4%
FWHM:
134x134x0 °
Cd/Im:
0.6
Download

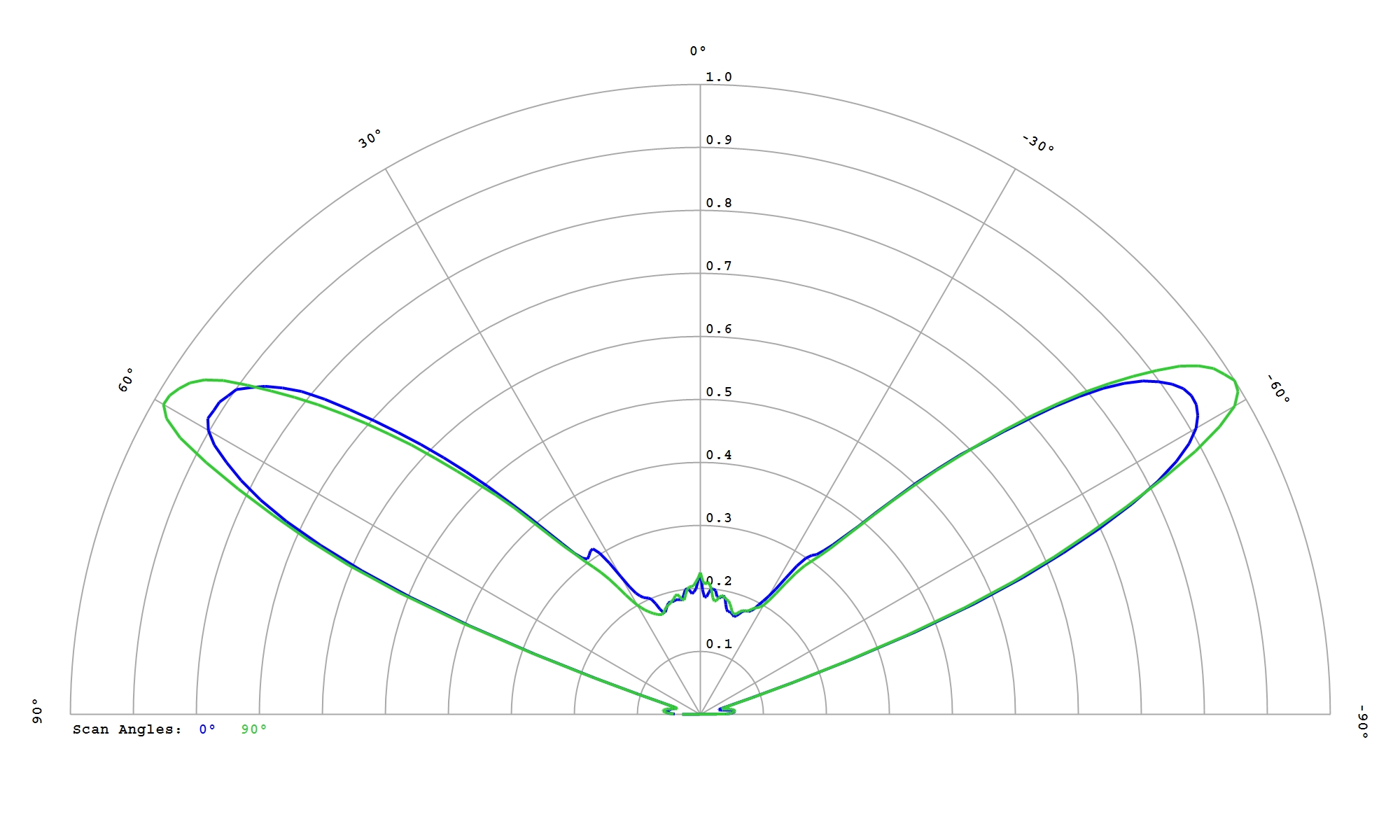

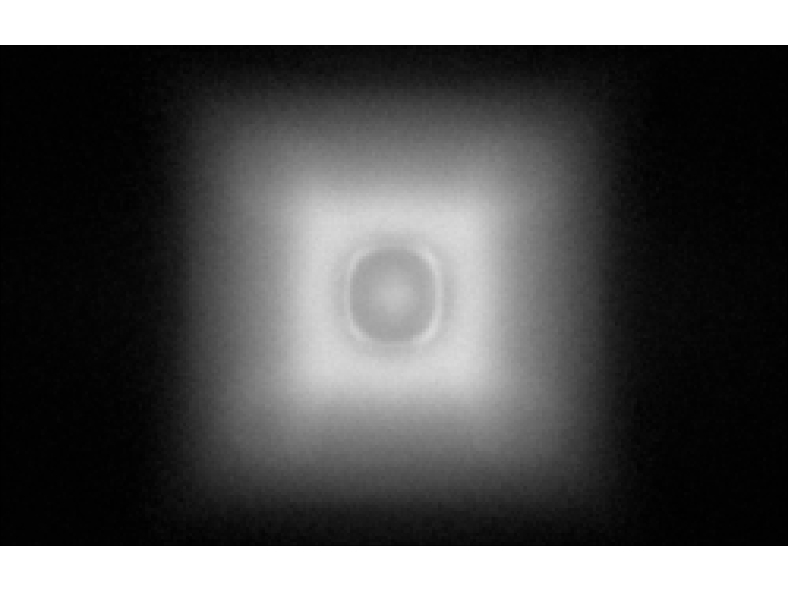

LUMILEDS LUXEON 3030 HE Plus White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.6
Download

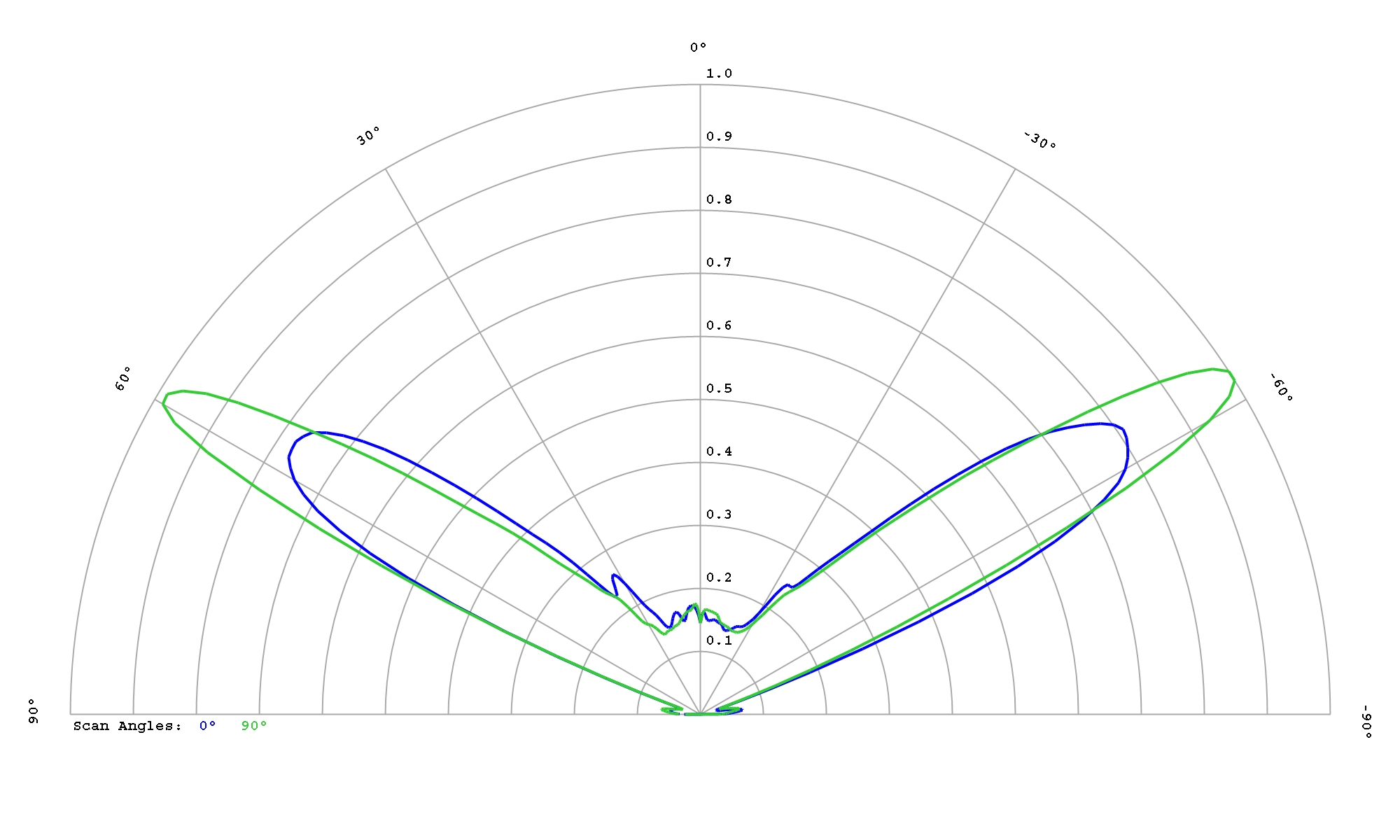

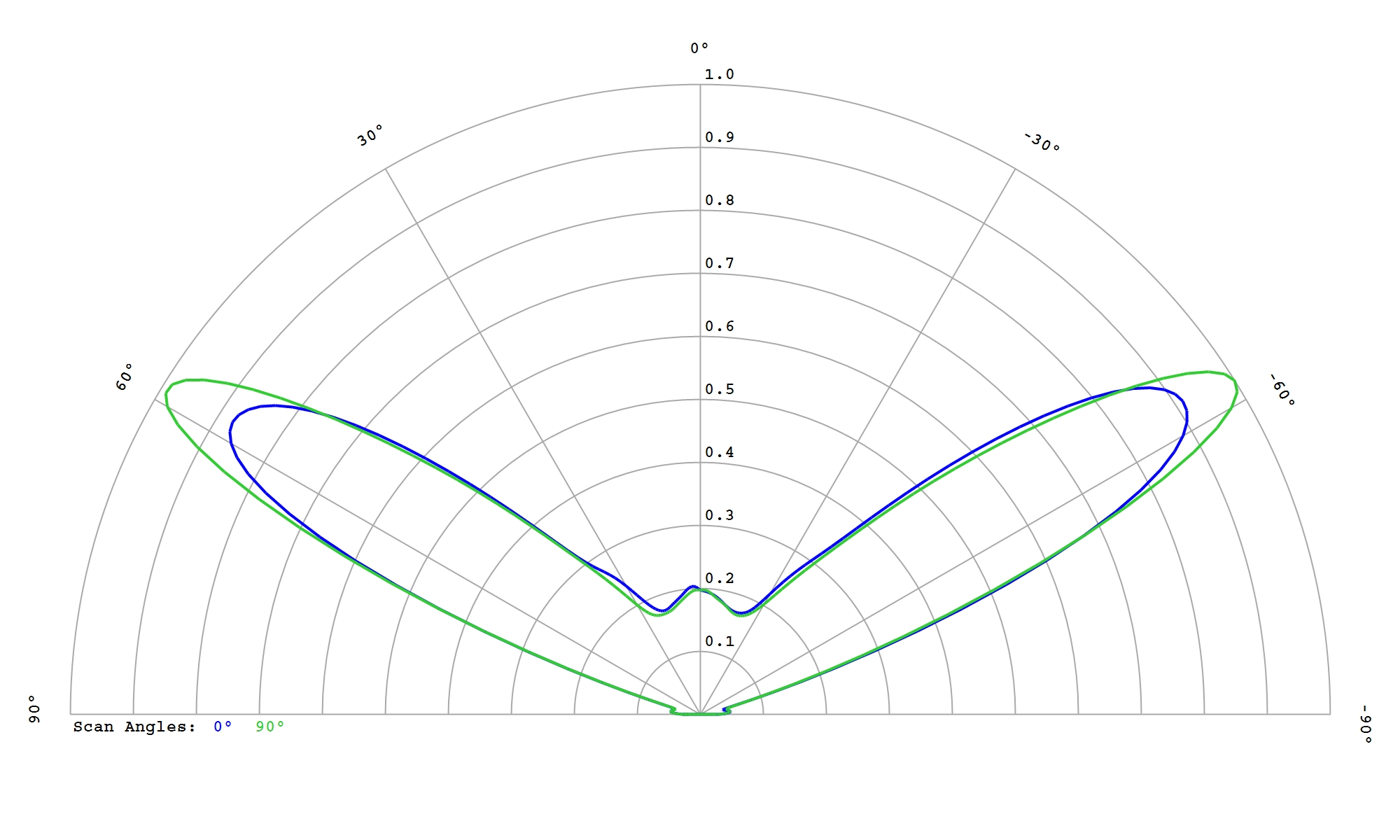

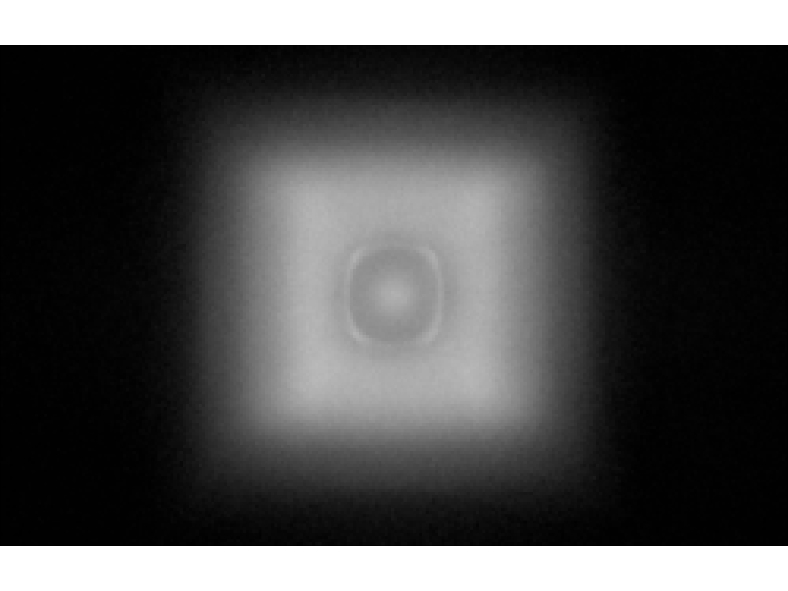

LUMILEDS LUXEON 3030 LUXEON White
Eff:
90.0%
FWHM:
129°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Blue
Eff:
89.5%
FWHM:
144°
Cd/Im:
0.7
Download

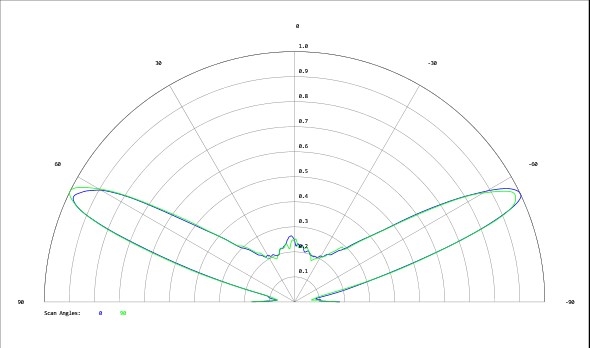

LUMILEDS LUXEON C Lime
Eff:
90.5%
FWHM:
143.5°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Red
Eff:
88.5%
FWHM:
146°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CSP 05 White
Eff:
84.0%
FWHM:
125°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CZ White
Eff:
96.0%
FWHM:
134°
Cd/Im:
1.0
Download

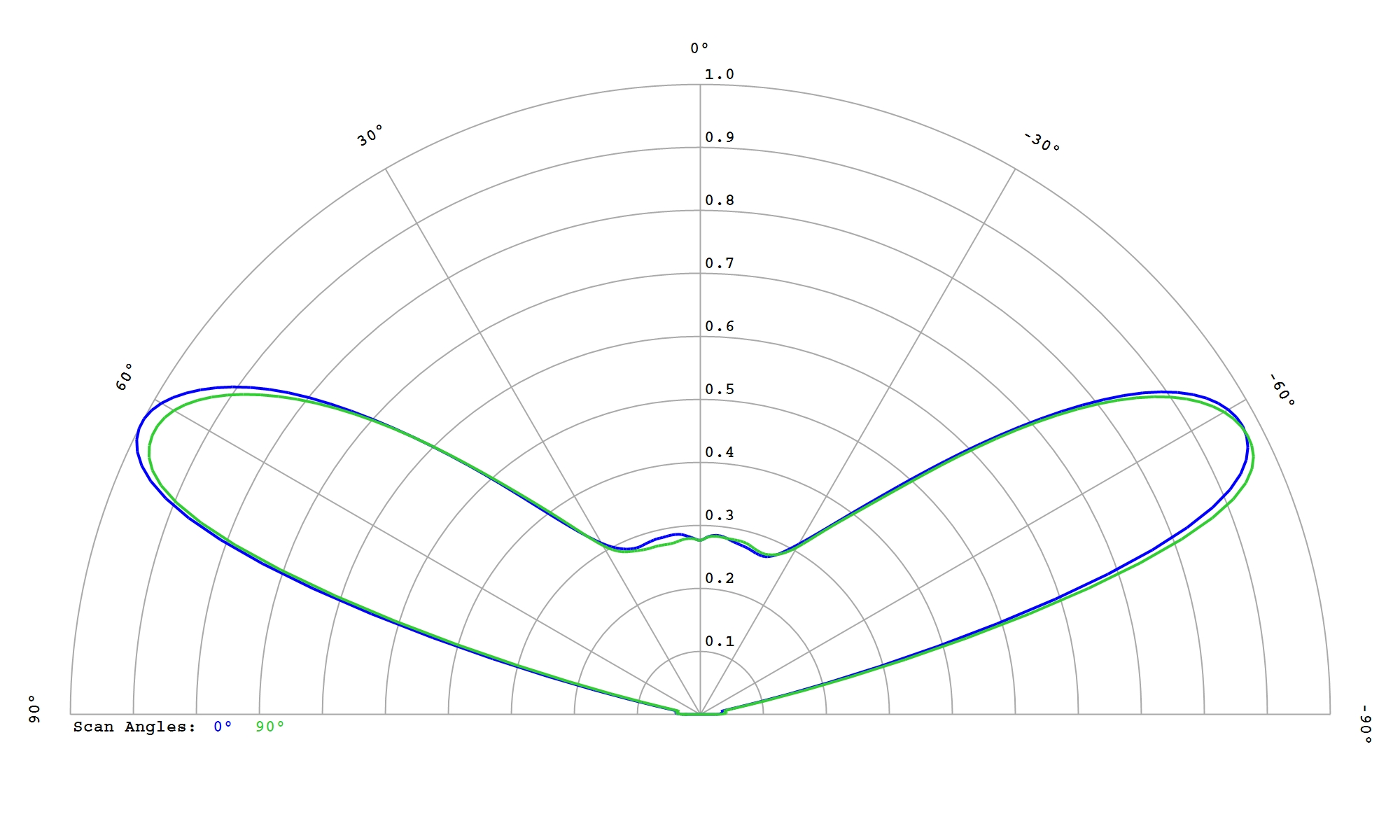

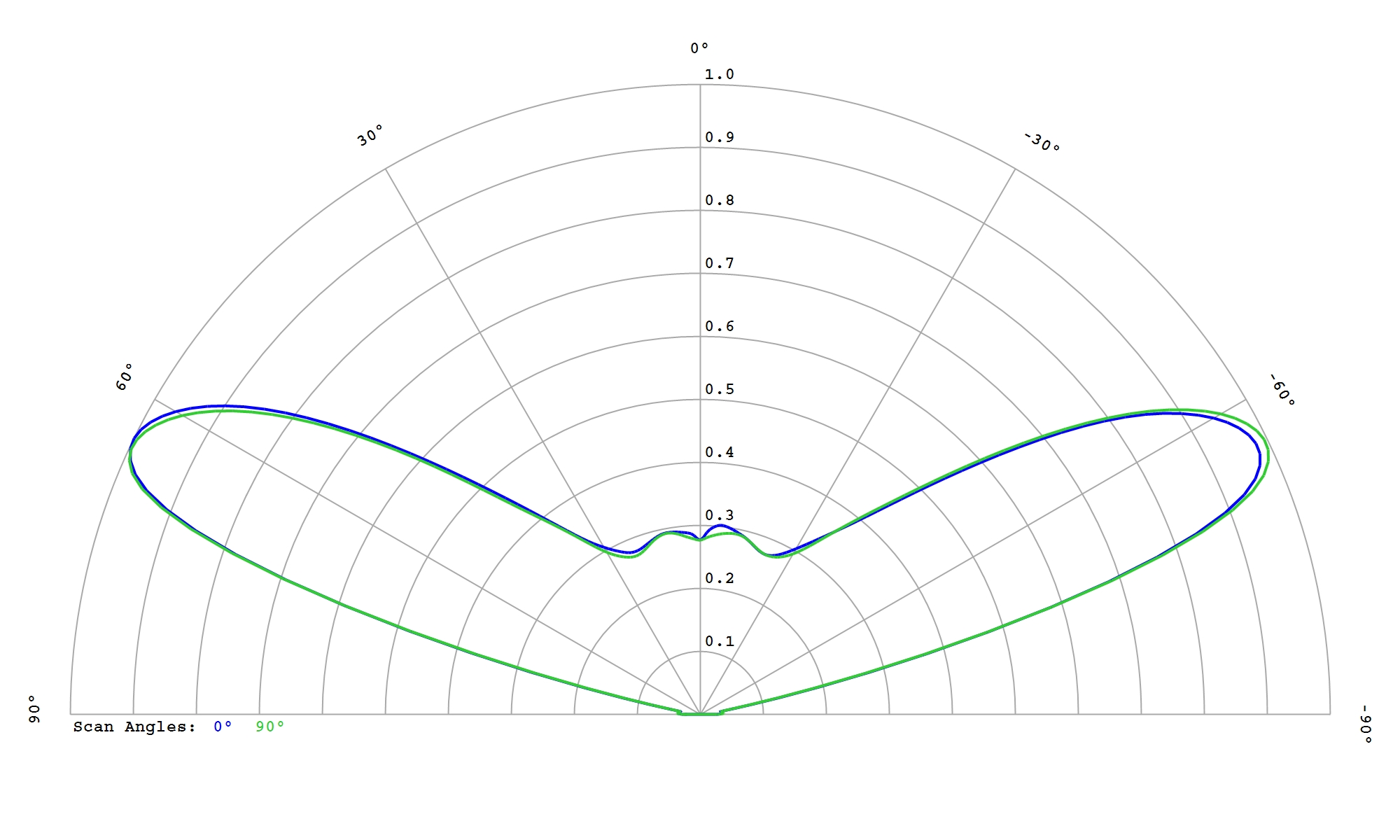

LUMILEDS LUXEON HL2X White
Eff:
94.5%
FWHM:
146°
Cd/Im:
0.5
Download
LUMILEDS LUXEON HL2X-P White
Eff:
92.5%
FWHM:
148°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2Z White
Eff:
94.5%
FWHM:
130°
Cd/Im:
0.6
Download
LUMILEDS LUXEON IR 2720
Eff:
96.5%
FWHM:
132°
Cd/Im:
0.8
Download
LUMILEDS LUXEON IR 2720
Eff:
96.5%
FWHM:
132°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Q White
Eff:
91.0%
FWHM:
140x140x0°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Rebel ES White
Eff:
91.0%
FWHM:
140x140x0°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Rubix Blue
Eff:
96.0%
FWHM:
136°
Cd/Im:
1.1
Download
LUMILEDS LUXEON Rubix Green
Eff:
95.5%
FWHM:
136°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
96.5%
FWHM:
136°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix White
Eff:
95.5%
FWHM:
136°
Cd/Im:
1.0
Download
LUMILEDS LUXEON T White
Eff:
91.0%
FWHM:
140x140x0°
Cd/Im:
0.6
Download
LUMILEDS LUXEON TX White
Eff:
91.4%
FWHM:
139 x 139°
Cd/Im:
0.6
Download
LUMILEDS LUXEON V2 White
Eff:
94.5%
FWHM:
140°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Z ES White
Eff:
92.5%
FWHM:
130x130x0°
Cd/Im:
0.4
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.9
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
95.0%
FWHM:
128°
Cd/Im:
0.7
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
95.5%
FWHM:
61 x 23.5°
Cd/Im:
1.7
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
94.5%
FWHM:
141°
Cd/Im:
0.7
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
94.5%
FWHM:
128°
Cd/Im:
0.6
Download
Luminus Devices SST 10-G-B130 Green
Eff:
95.5%
FWHM:
134°
Cd/Im:
0.9
Download
Luminus Devices SST 10-G-B90 Green
Eff:
93.5%
FWHM:
127°
Cd/Im:
0.7
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
95.0%
FWHM:
135°
Cd/Im:
0.7
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
96.0%
FWHM:
123°
Cd/Im:
0.5
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
95.5%
FWHM:
136°
Cd/Im:
0.7
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
95.0%
FWHM:
127°
Cd/Im:
0.7
Download
Nichia 219 White
Eff:
91.0%
FWHM:
140*140*0°
Cd/Im:
0.5
Download
Nichia 229A White
Eff:
91.5%
FWHM:
149°
Cd/Im:
0.4
Download
Nichia 757G White
Eff:
95.5%
FWHM:
133.5°
Cd/Im:
0.6
Download
Nichia NCSW CSP E17A White
Eff:
93.5%
FWHM:
125°
Cd/Im:
0.8
Download
Nichia NF2W 757G-MT Tunable
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.7
Download
Nichia NFSW CSP E11A White
Eff:
93.0%
FWHM:
123°
Cd/Im:
1.1
Download
Nichia NVSL 219B White
Eff:
93.5%
FWHM:
136°
Cd/Im:
0.7
Download

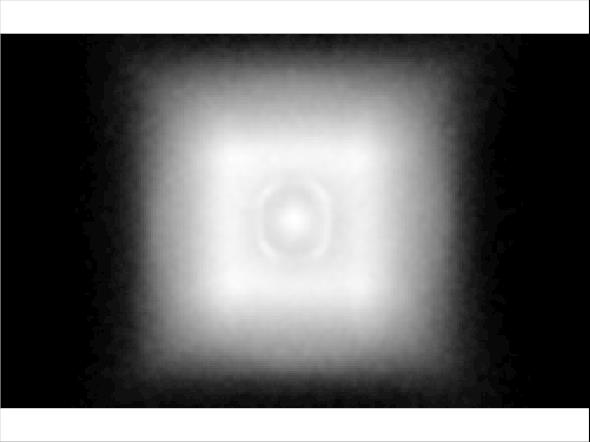

Nichia NVSW 219C White
Eff:
94.0%
FWHM:
142°
Cd/Im:
0.5
Download
Nichia NVSW 219F White
Eff:
95.0%
FWHM:
145°
Cd/Im:
0.5
Download
Nichia NVSW 319A White
Eff:
93.0%
FWHM:
144°
Cd/Im:
0.4
Download
Nichia NVSW CSP E21A White
Eff:
88.0%
FWHM:
125°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 Gen2
Eff:
95.5%
FWHM:
132°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 White
Eff:
96.0%
FWHM:
138°
Cd/Im:
0.6
Download
Osram OS DURIS E2 White
Eff:
93.0%
FWHM:
128°
Cd/Im:
1.0
Download
Osram OS DURIS S2 White
Eff:
94.2%
FWHM:
135 x 135°
Cd/Im:
0.6
Download
Osram OS DURIS S5 Deep Blue
Eff:
96.5%
FWHM:
135°
Cd/Im:
0.8
Download
Osram OS DURIS S5 Green
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.7
Download
Osram OS DURIS S5 Red
Eff:
96.5%
FWHM:
134°
Cd/Im:
0.8
Download
Osram OS DURIS S5 White
Eff:
92.0%
FWHM:
130 X 128°
Cd/Im:
0.6
Download
Osram OS OSCONIQ C 2424 White
Eff:
96.0%
FWHM:
132°
Cd/Im:
0.8
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
96.5%
FWHM:
123°
Cd/Im:
0.8
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
95.5%
FWHM:
133°
Cd/Im:
1.2
Download

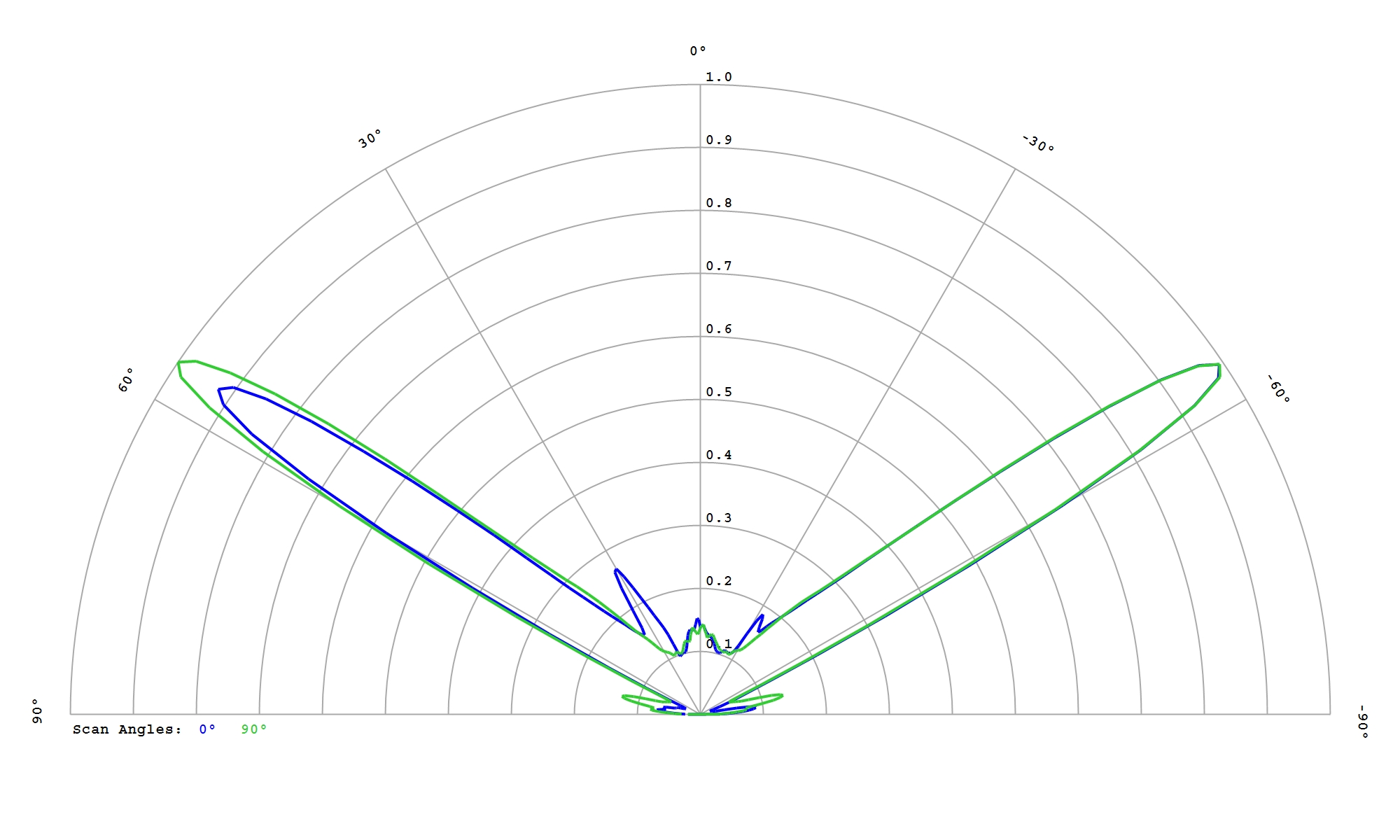

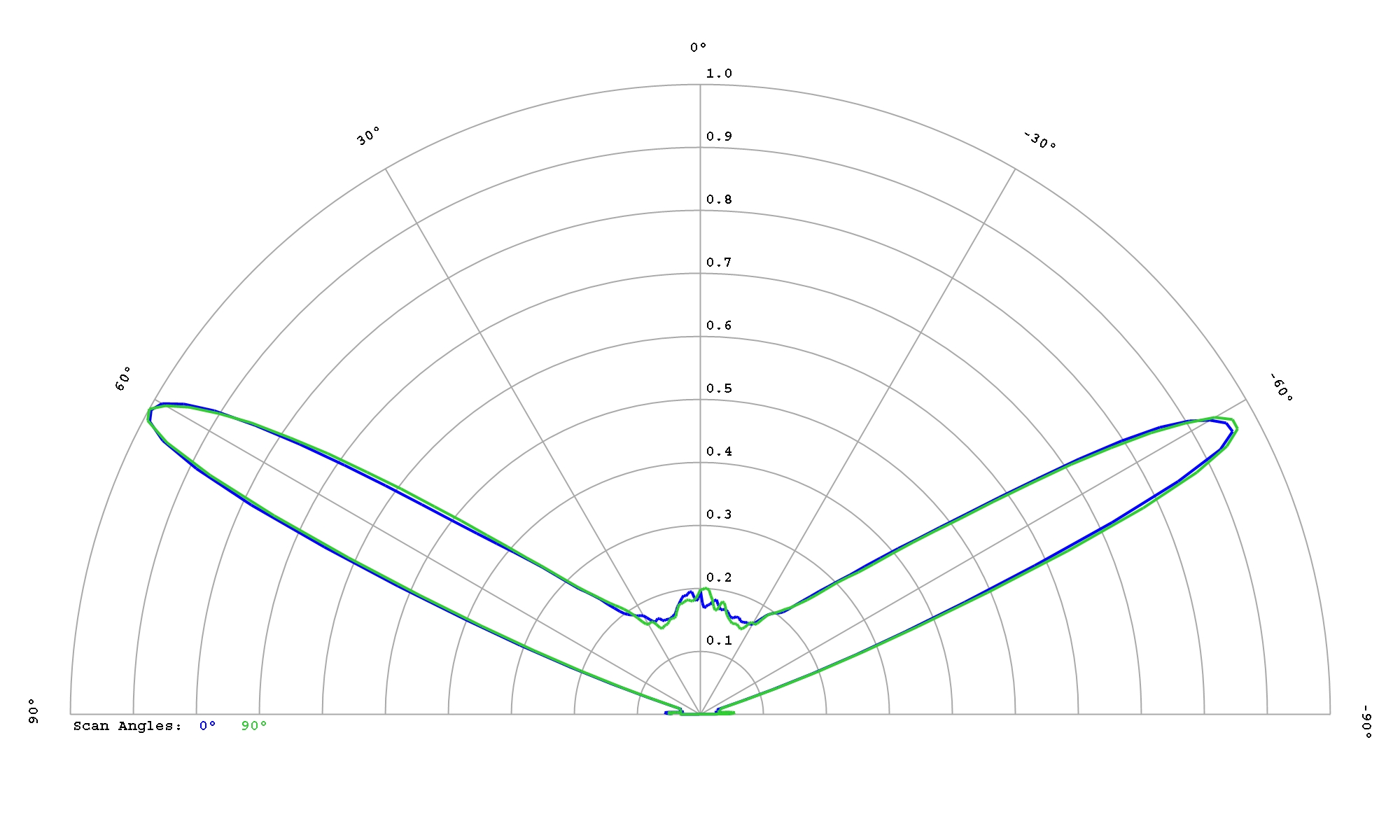

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
94.0%
FWHM:
120°
Cd/Im:
1.3
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
94.5%
FWHM:
120°
Ipk/W:
1.3
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
94.0%
FWHM:
121°
Cd/Im:
1.2
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
92.5%
FWHM:
124°
Cd/Im:
1.0
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
94.0%
FWHM:
120°
Cd/Im:
1.3
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
93.5%
FWHM:
121°
Cd/Im:
1.2
Download
Osram OS OSLON Square Flat White
Eff:
95.0%
FWHM:
135°
Cd/Im:
0.8
Download
Osram OS OSLON Square Gen 3 White
Eff:
92.3%
FWHM:
136.2°
Cd/Im:
0.6
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
95.5%
FWHM:
141 x 140°
Cd/Im:
0.6
Download
Osram OS OSLON Square White
Eff:
92.0%
FWHM:
135°
Cd/Im:
0.6
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
95.5%
FWHM:
142°
Cd/Im:
0.8
Download
Samsung 3030 LM301B White
Eff:
95.5%
FWHM:
137°
Cd/Im:
0.6
Download
Samsung 3535 LH351B White
Eff:
90.0%
FWHM:
140x140x0°
Cd/Im:
0.5
Download

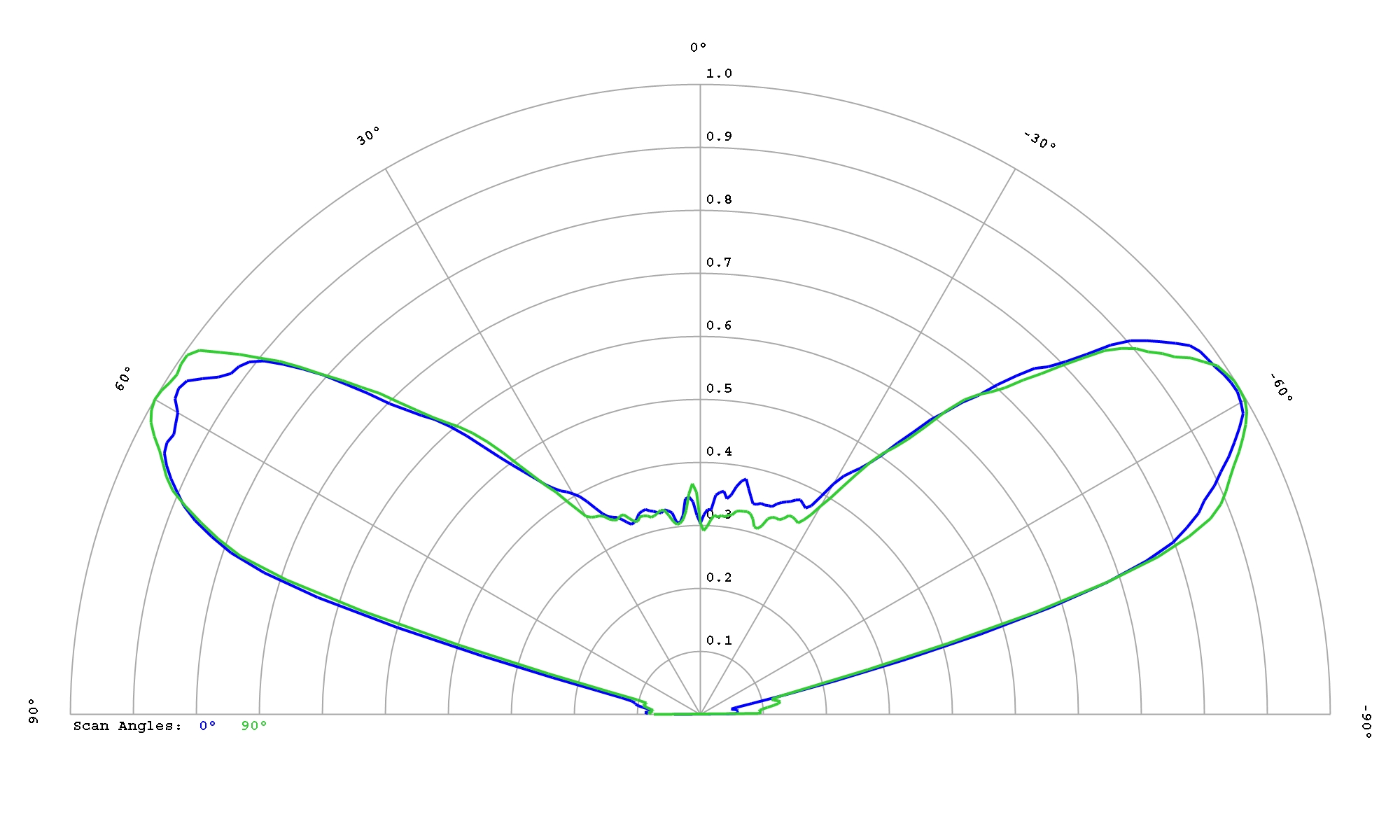

Samsung 3535 LH351D White
Eff:
86.5%
FWHM:
16.5°
Cd/Im:
1.5
Download
Samsung 3535 LH351Z White
Eff:
91.0%
FWHM:
140x140x0°
Cd/Im:
0.6
Download

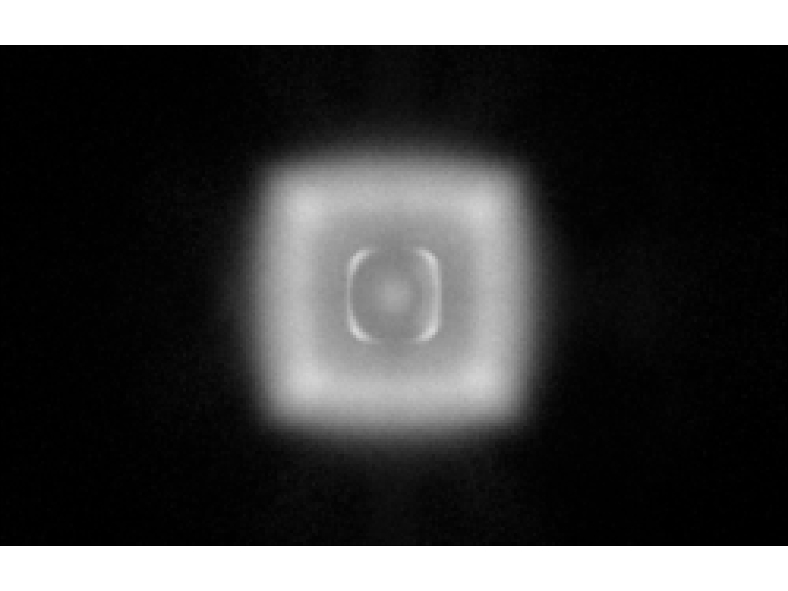

Samsung CSP LH151B White
Eff:
94.5%
FWHM:
125°
Cd/Im:
0.9
Download
Samsung CSP LH181B White
Eff:
94.5%
FWHM:
129°
Cd/Im:
0.6
Download
Samsung CSP LH231B White
Eff:
94.0%
FWHM:
131°
Cd/Im:
0.5
Download
Samsung CSP LM101B White
Eff:
94.5%
FWHM:
126 x 125°
Cd/Im:
0.9
Download
Samsung LM 101A White
Eff:
90.0%
FWHM:
125°
Cd/Im:
0.6
Download
Seoul CSP SZ8Y11 White
Eff:
89.5%
FWHM:
127 x 126°
Cd/Im:
0.7
Download
Seoul CSP SZ8Y15 White
Eff:
90.5%
FWHM:
125°
Cd/Im:
0.9
Download
Seoul CSP SZ8Y19 White
Eff:
84.0%
FWHM:
128°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22 White
Eff:
91.5%
FWHM:
132°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
141°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
141°
Cd/Im:
0.5
Download
Seoul MidPower MJT4040 White
Eff:
90.5%
FWHM:
130x130x0°
Cd/Im:
0.5
Download
Seoul STW8 C2SB-NT White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download
Seoul STWS C2PB-E0 White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.6
Download
Seoul SunLike STW9 C2SB-S
Eff:
96.0%
FWHM:
135°
Cd/Im:
0.6
Download
Seoul Z - Power Z5 M0 White
Eff:
91.0%
FWHM:
146*146*0°
Cd/Im:
0.6
Download
Seoul Z - Power Z5 M4 White
Eff:
94.5%
FWHM:
143°
Cd/Im:
0.5
Download
Toshiba TL 1L2 White
Eff:
88.0%
FWHM:
142°
Cd/Im:
0.5
Download
