Carclo Optics 12779
25.0mm Square V Medium Freeform
Part number
12779
Dimensions
25.0mm
Drawing Number
70252
Optic type
Freeform
Beam type
Square V Medium
Applications
Street
Emergency / Hazard
Amber LEDs
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
96.0%
FWHM:
132°
Cd/Im:
0.7
Download

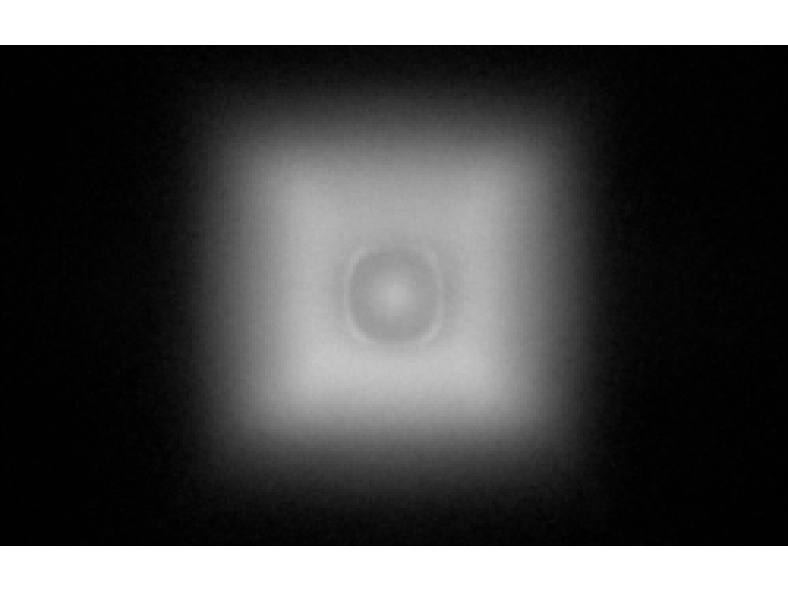

Cree JB2835B 3V G-Class White
Eff:
95.5%
FWHM:
135°
Cd/Im:
0.6
Download

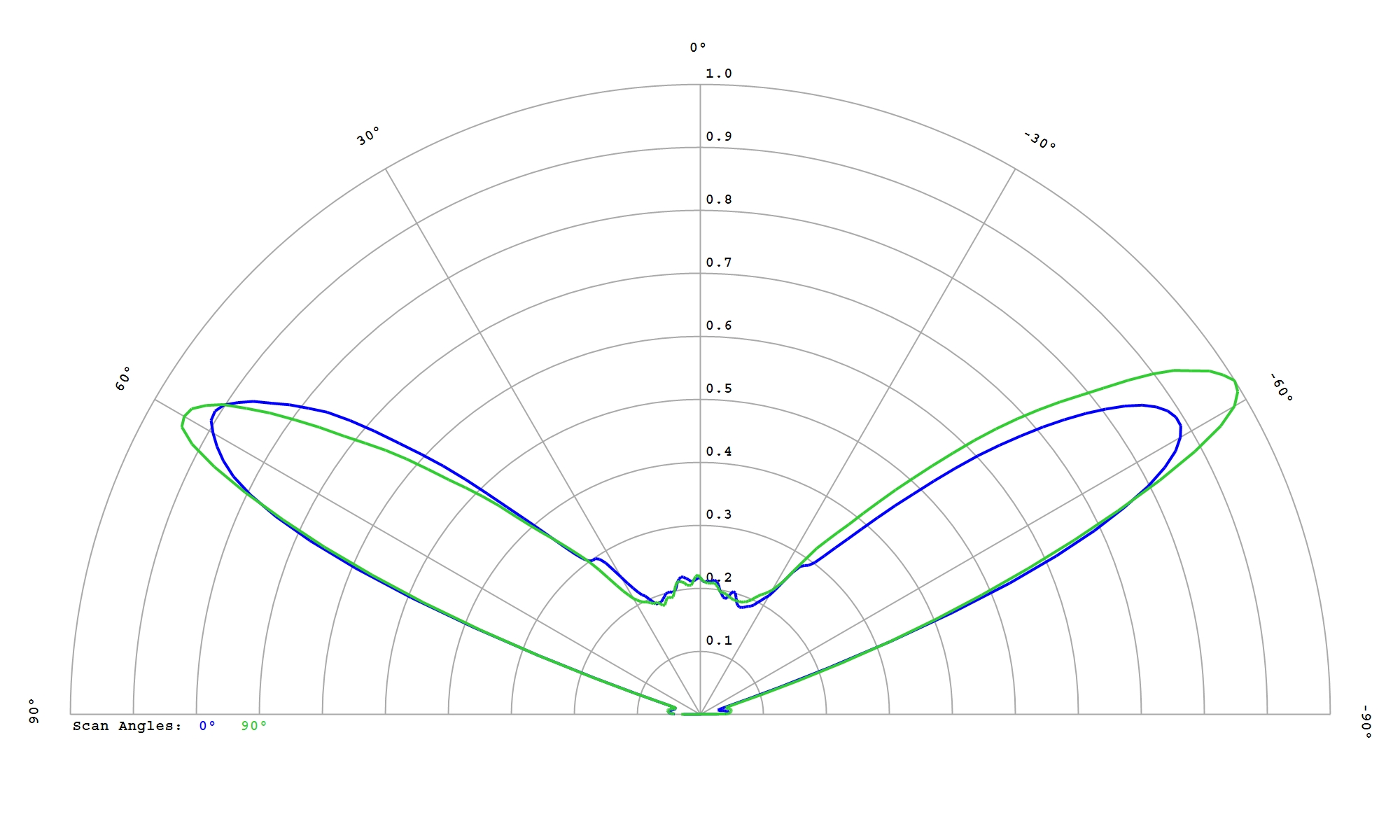

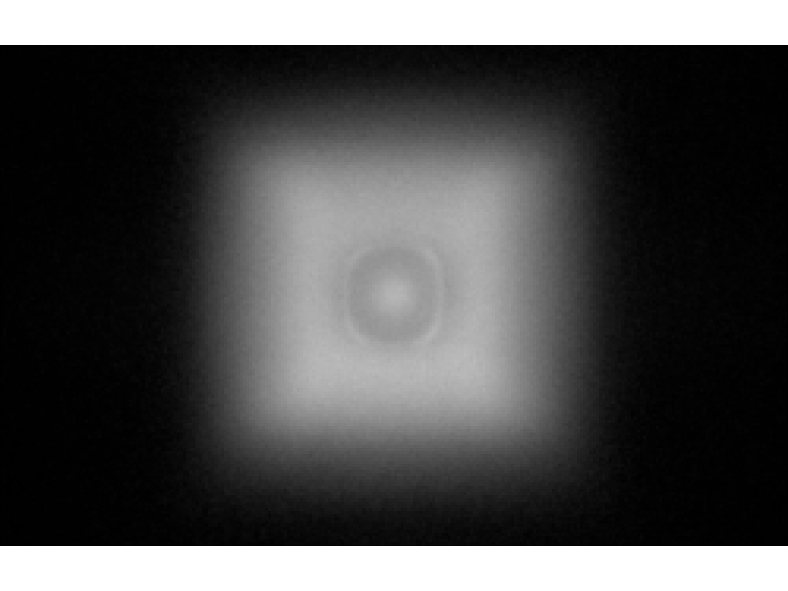

Cree JB2835B 3V J-Class White
Eff:
95.5%
FWHM:
135°
Cd/Im:
0.6
Download
Cree JB3030 3V P-Class White
Eff:
94.5%
FWHM:
133°
Cd/Im:
0.6
Download

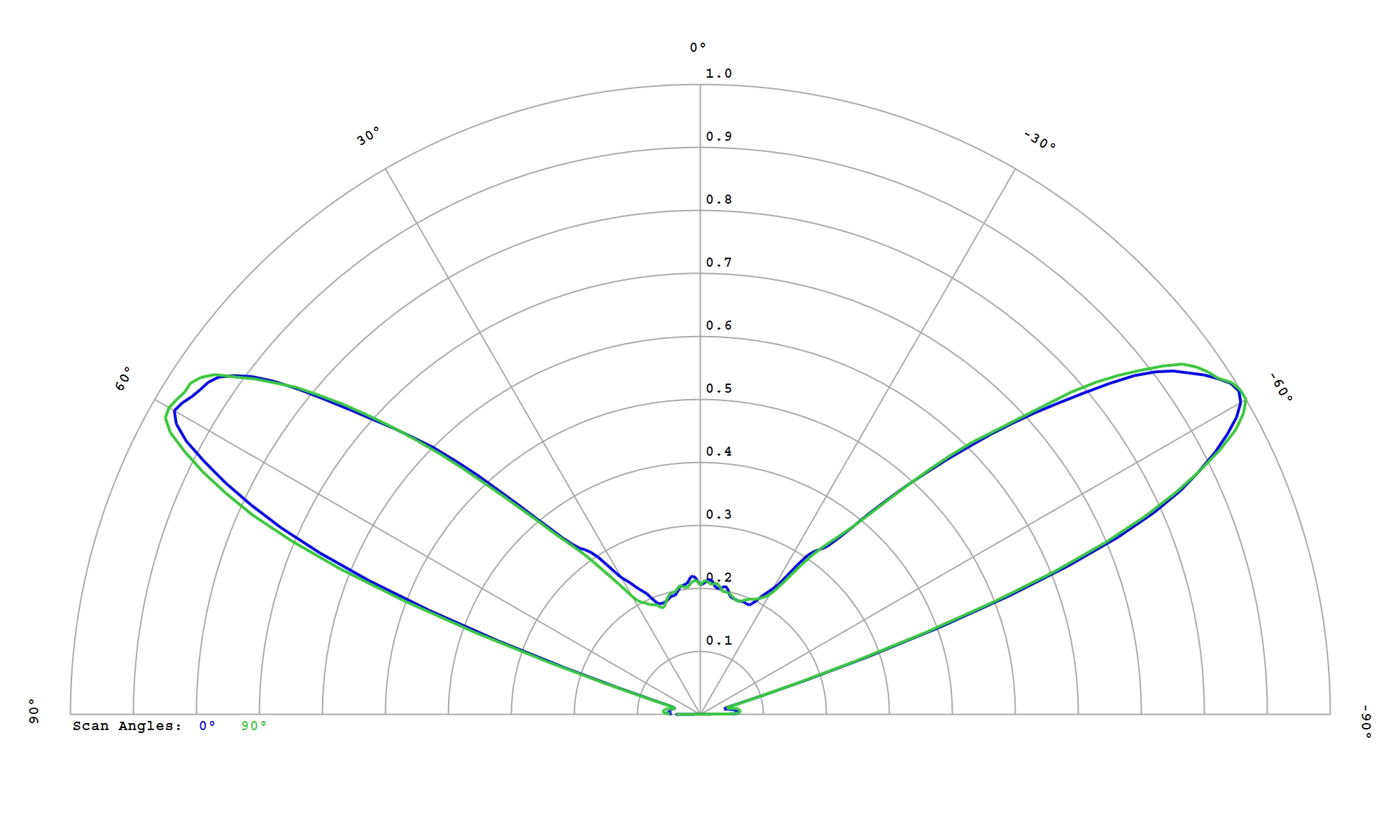

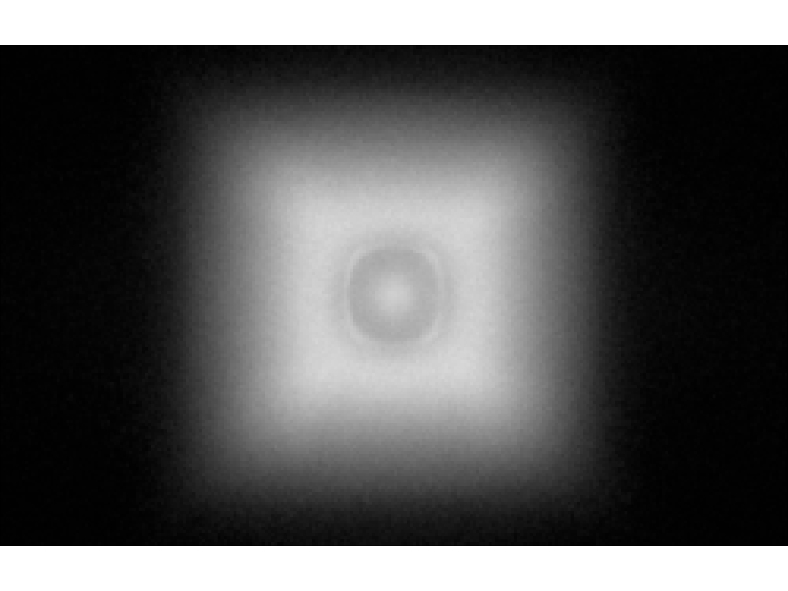

Cree JB3030C 3V E-Class White
Eff:
96.0%
FWHM:
138°
Cd/Im:
0.6
Download

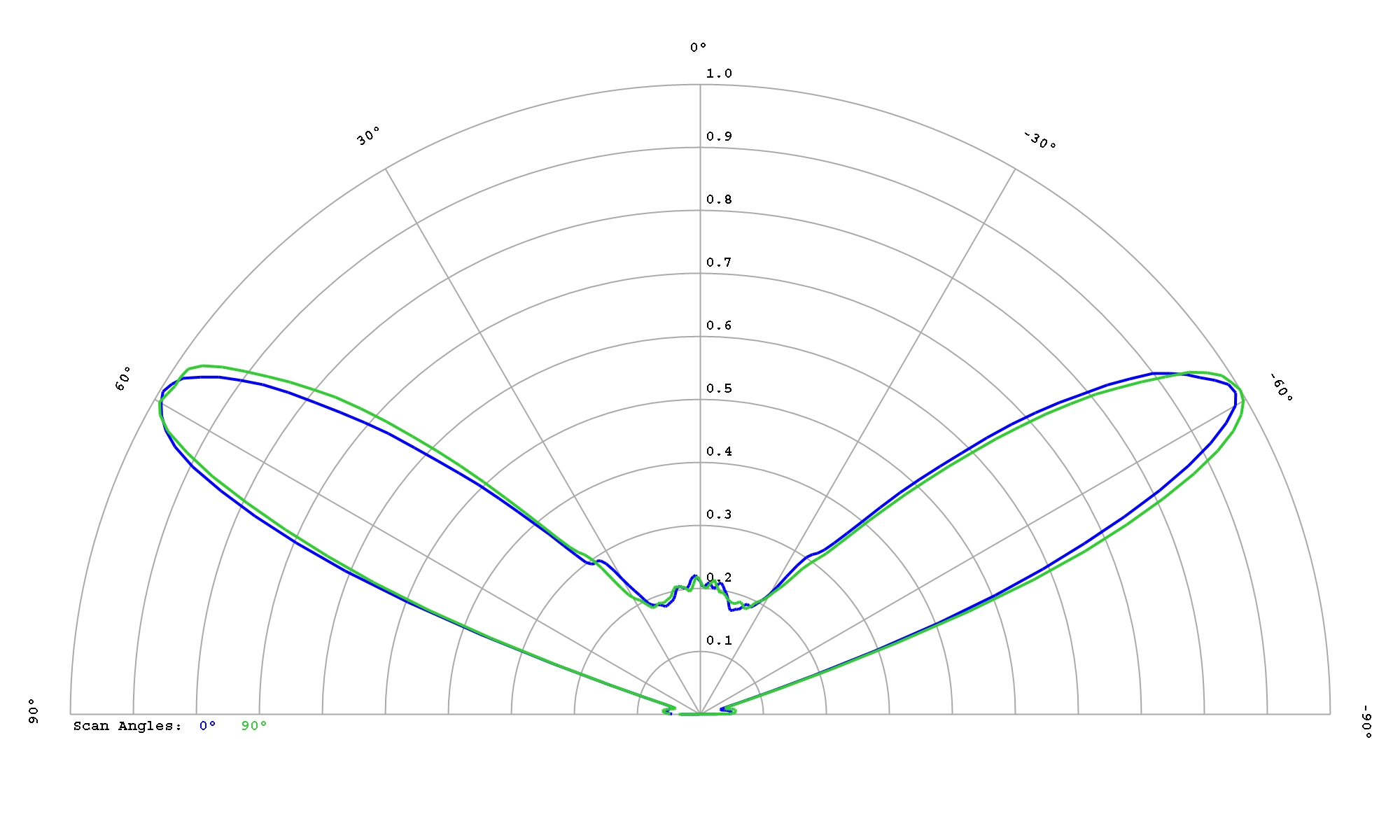

Cree JB3030C 3V F-Class White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download

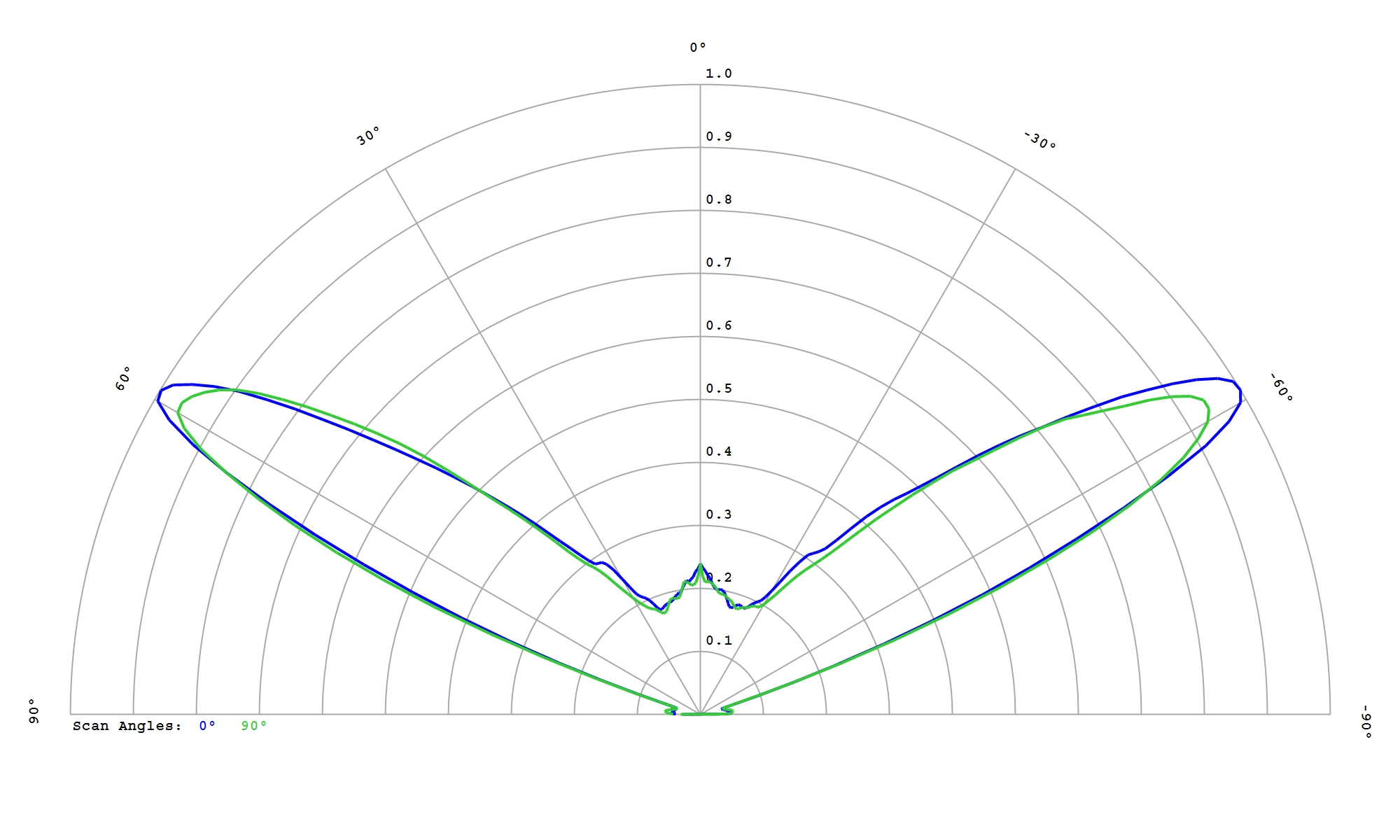

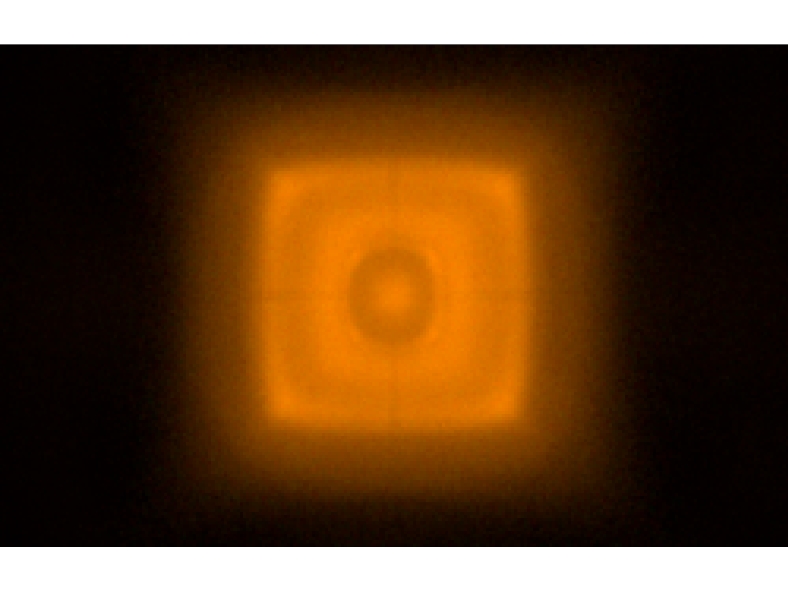

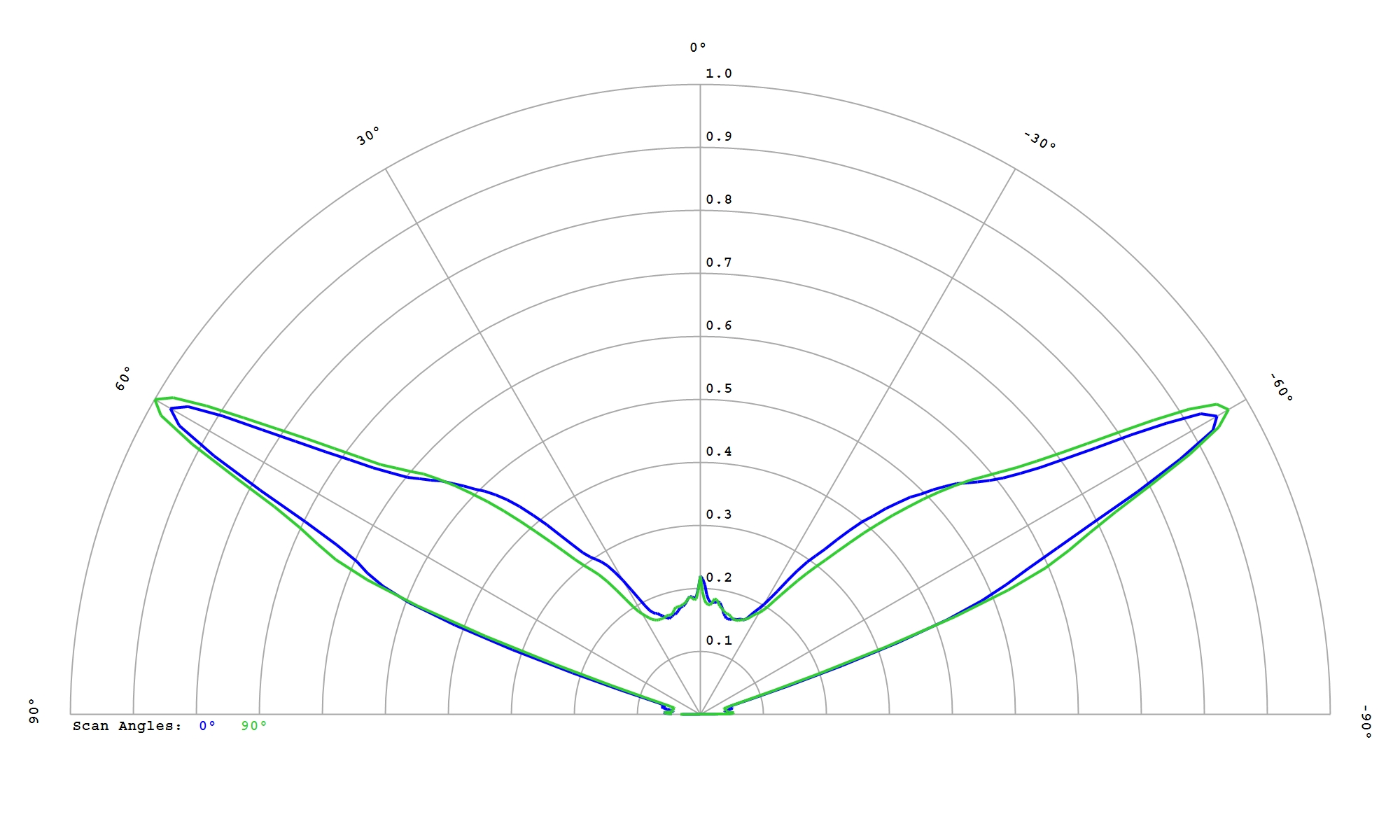

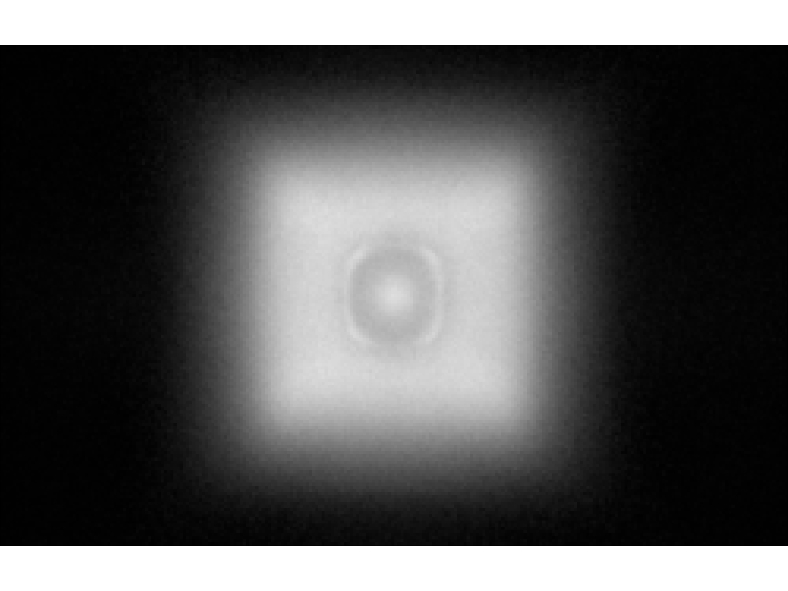

Cree JE2835 3V PC Amber
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.9
Download
Cree JE2835 3V White
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.7
Download
Cree JK2835 6V White
Eff:
95.5%
FWHM:
134°
Cd/Im:
0.6
Download

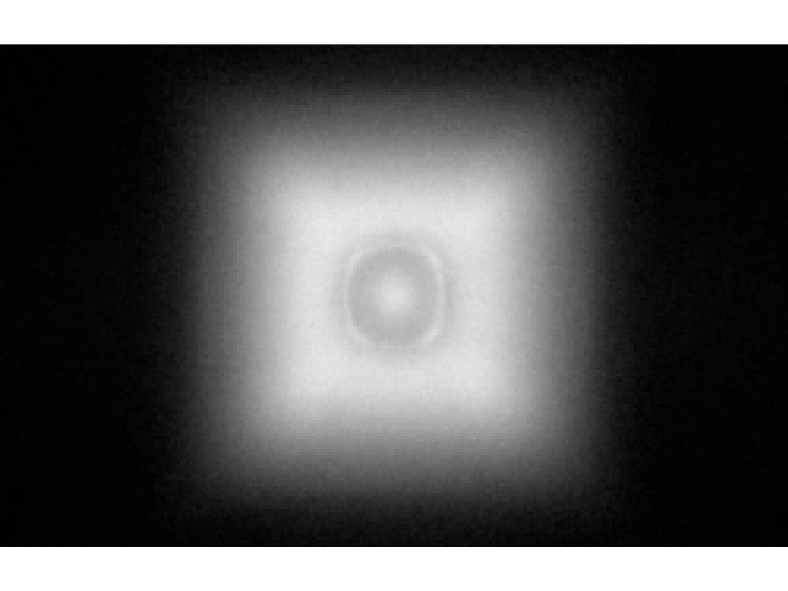

Cree XLamp CSP XD16 Cool White
Eff:
92.5%
FWHM:
134°
Cd/Im:
0.7
Download
Cree XLamp CSP XD16 Premium White
Eff:
94.5%
FWHM:
135°
Cd/Im:
0.8
Download

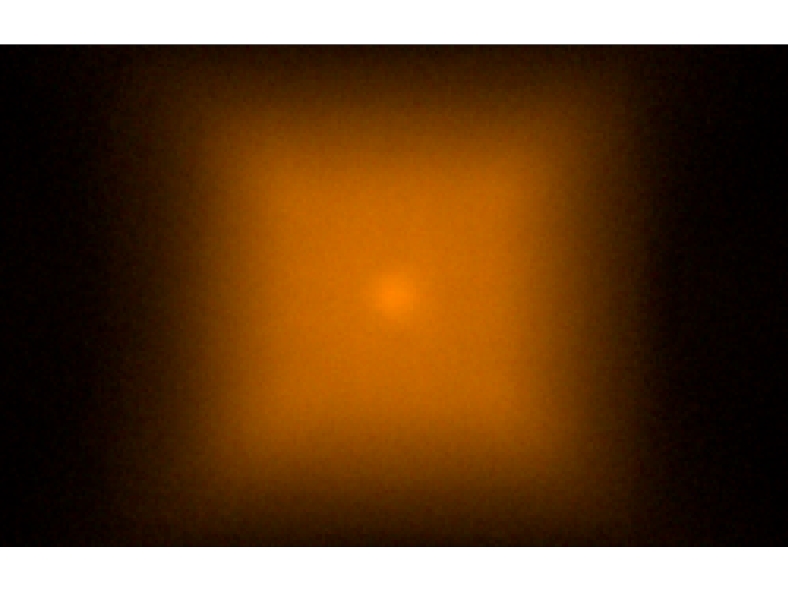

Cree XLamp XB-D PC Amber
Eff:
92.0%
FWHM:
143°
Cd/Im:
0.5
Download
Cree XLamp XB-D White
Eff:
90.5%
FWHM:
134°
Cd/Im:
0.7
Download
Cree XLamp XB-H White
Eff:
94.0%
FWHM:
140°
Cd/Im:
0.5
Download

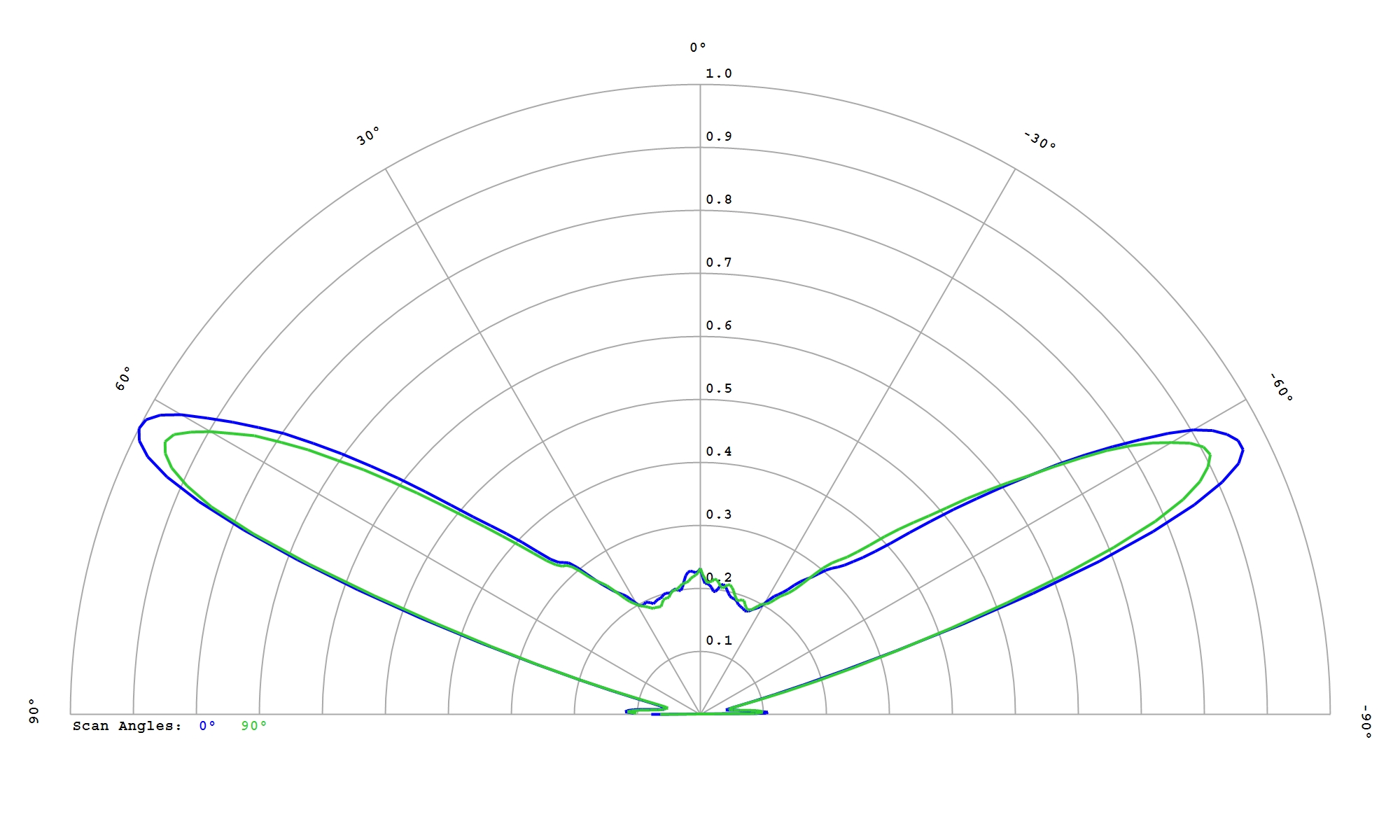

Cree XLamp XE-G PC Amber
Eff:
92.5%
FWHM:
141°
Cd/Im:
0.7
Download
Cree XLamp XE-G White
Eff:
92.5%
FWHM:
139°
Cd/Im:
0.8
Download
Cree XLamp XHP35 HD White
Eff:
88.8%
FWHM:
144°
Cd/Im:
0.3
Download
Cree XLamp XHP35.2 HI White
Eff:
88.5%
FWHM:
142°
Cd/Im:
0.4
Download

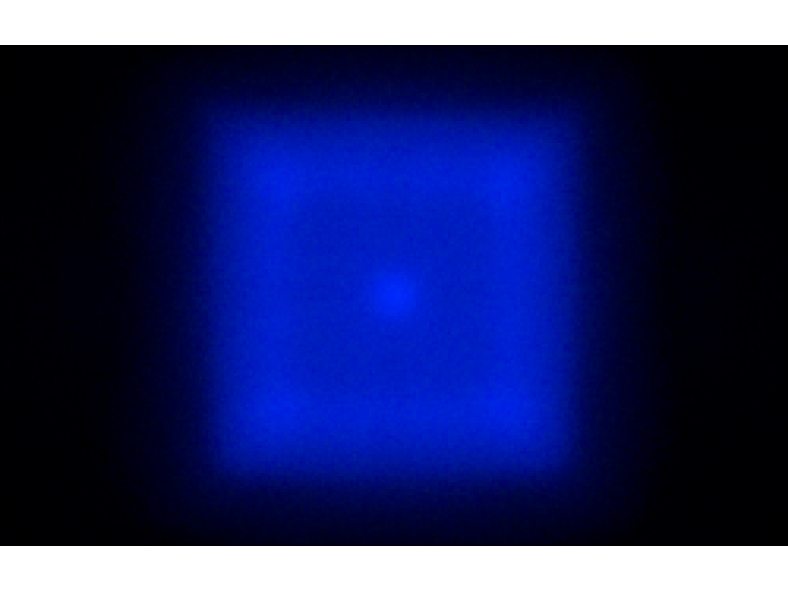

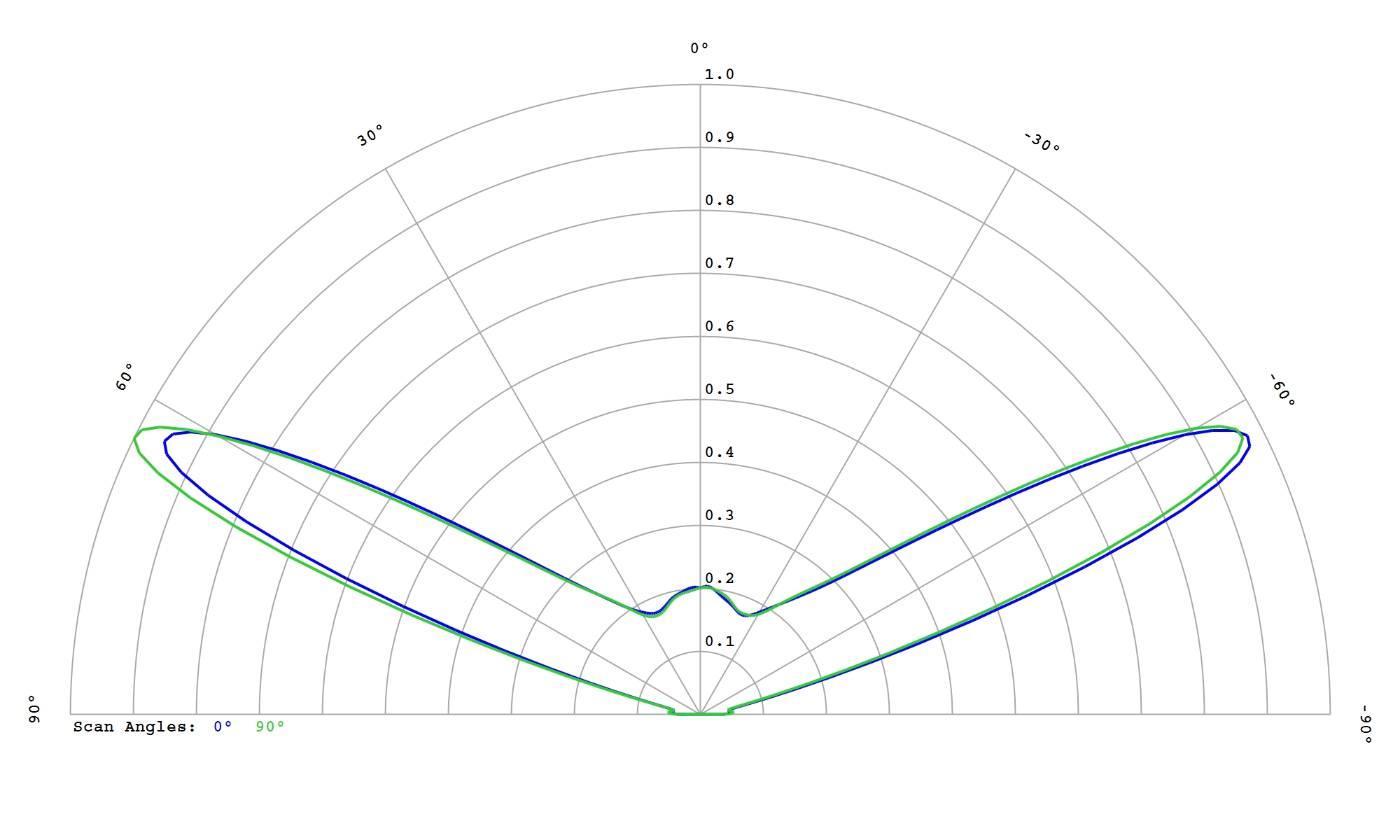

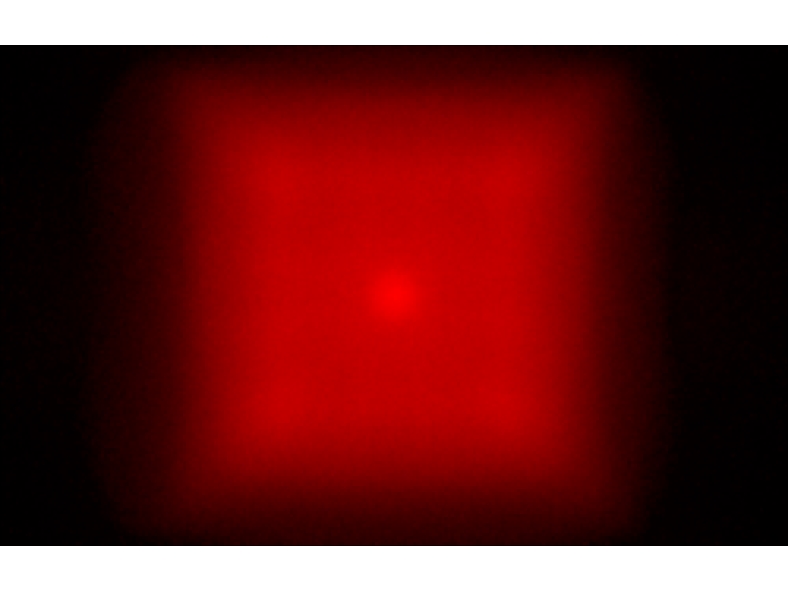

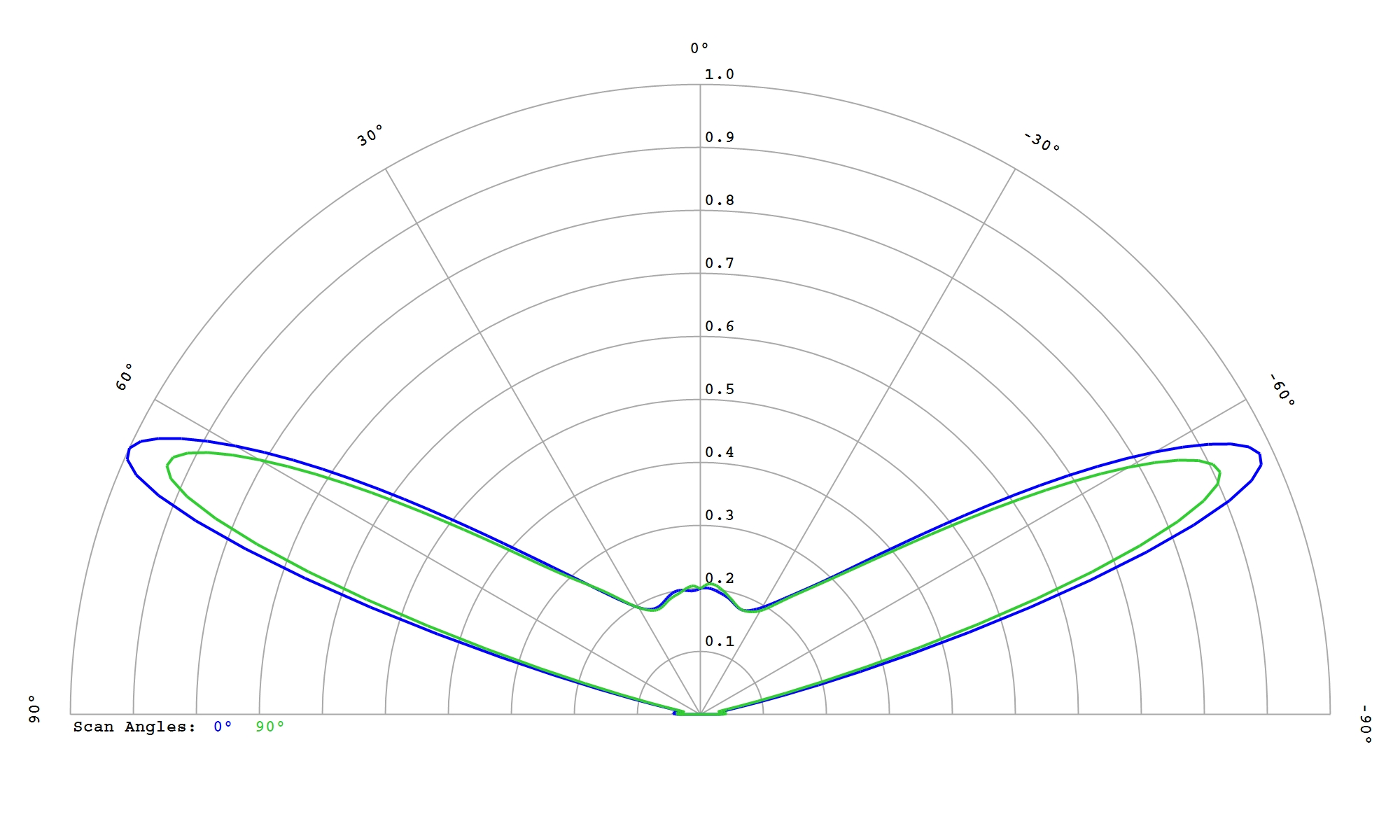

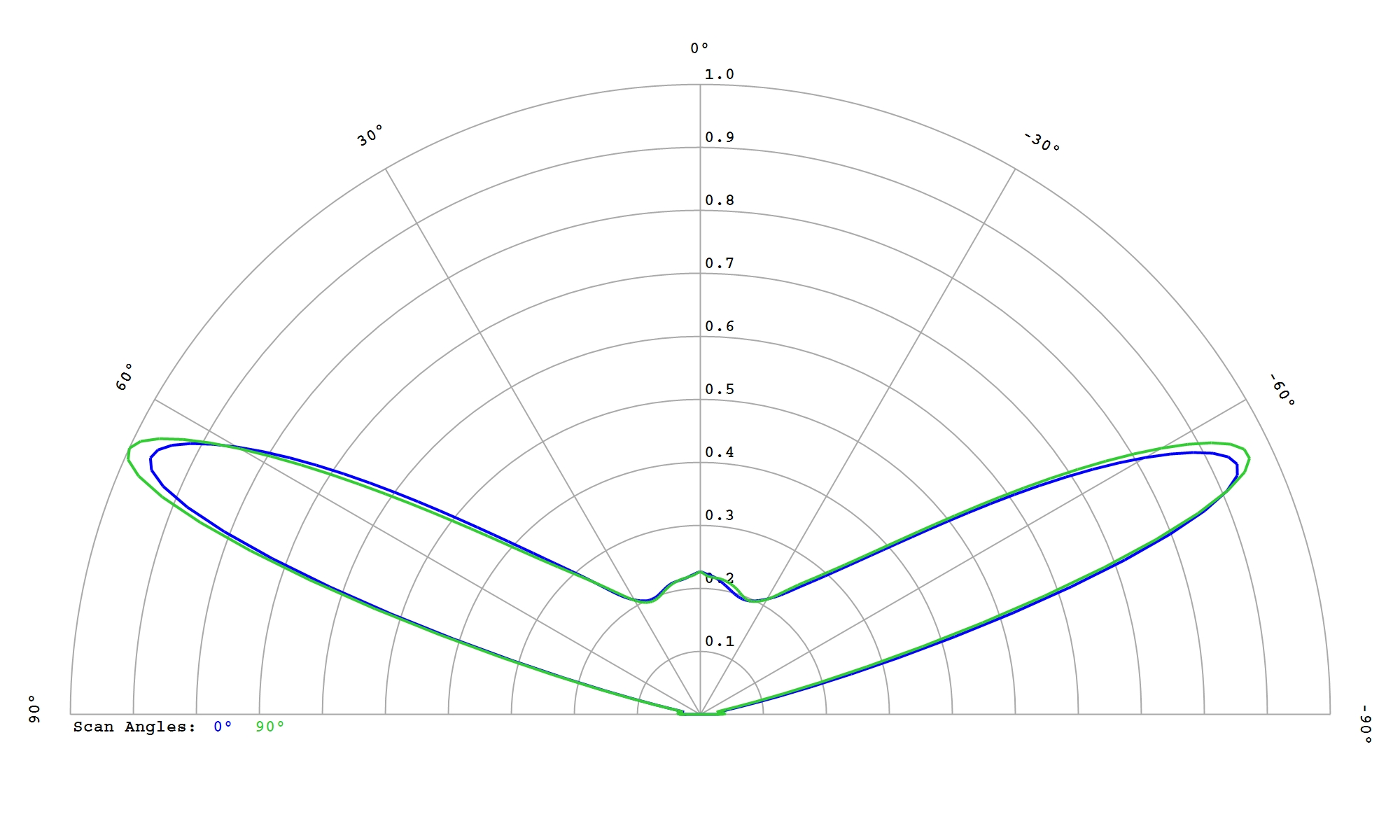

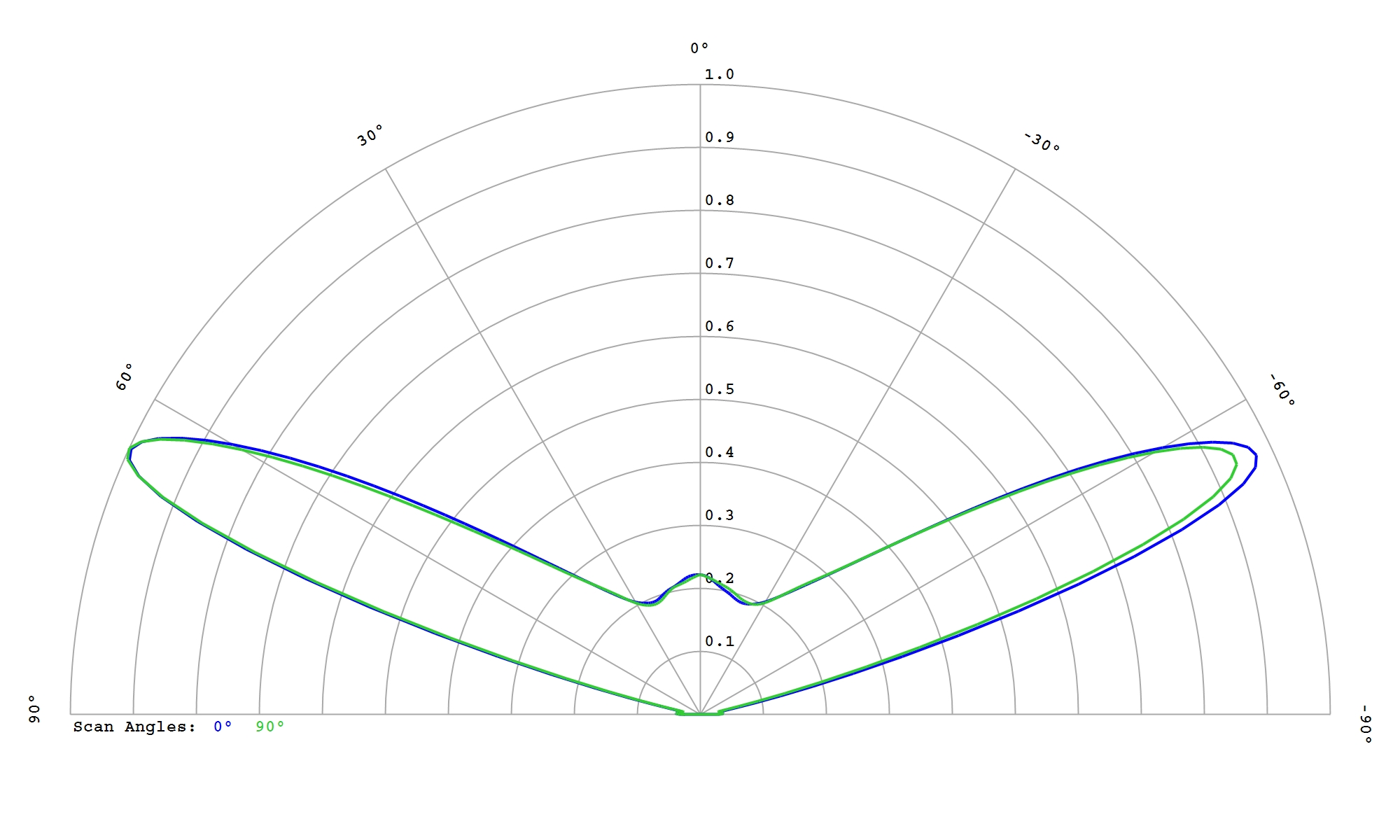

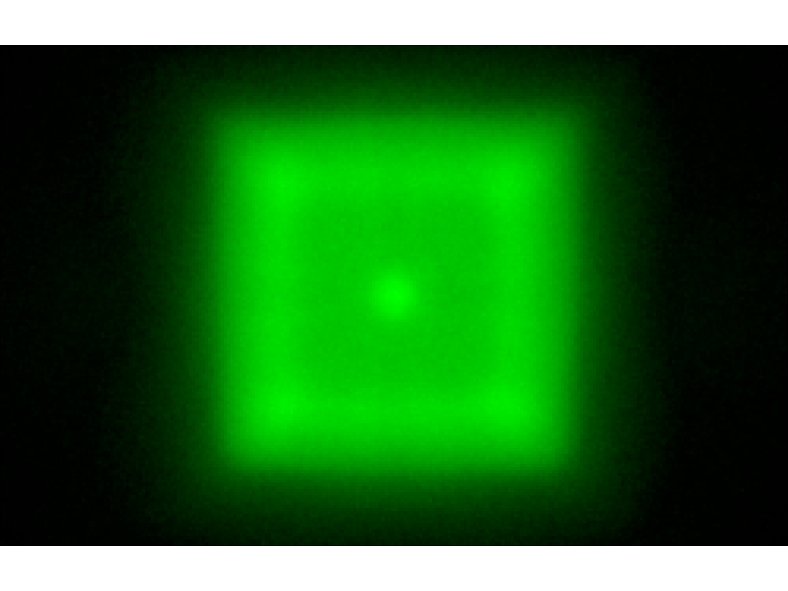

Cree XLamp XP-E2 Far Red
Eff:
94.0%
FWHM:
145°
Cd/Im:
0.9
Download

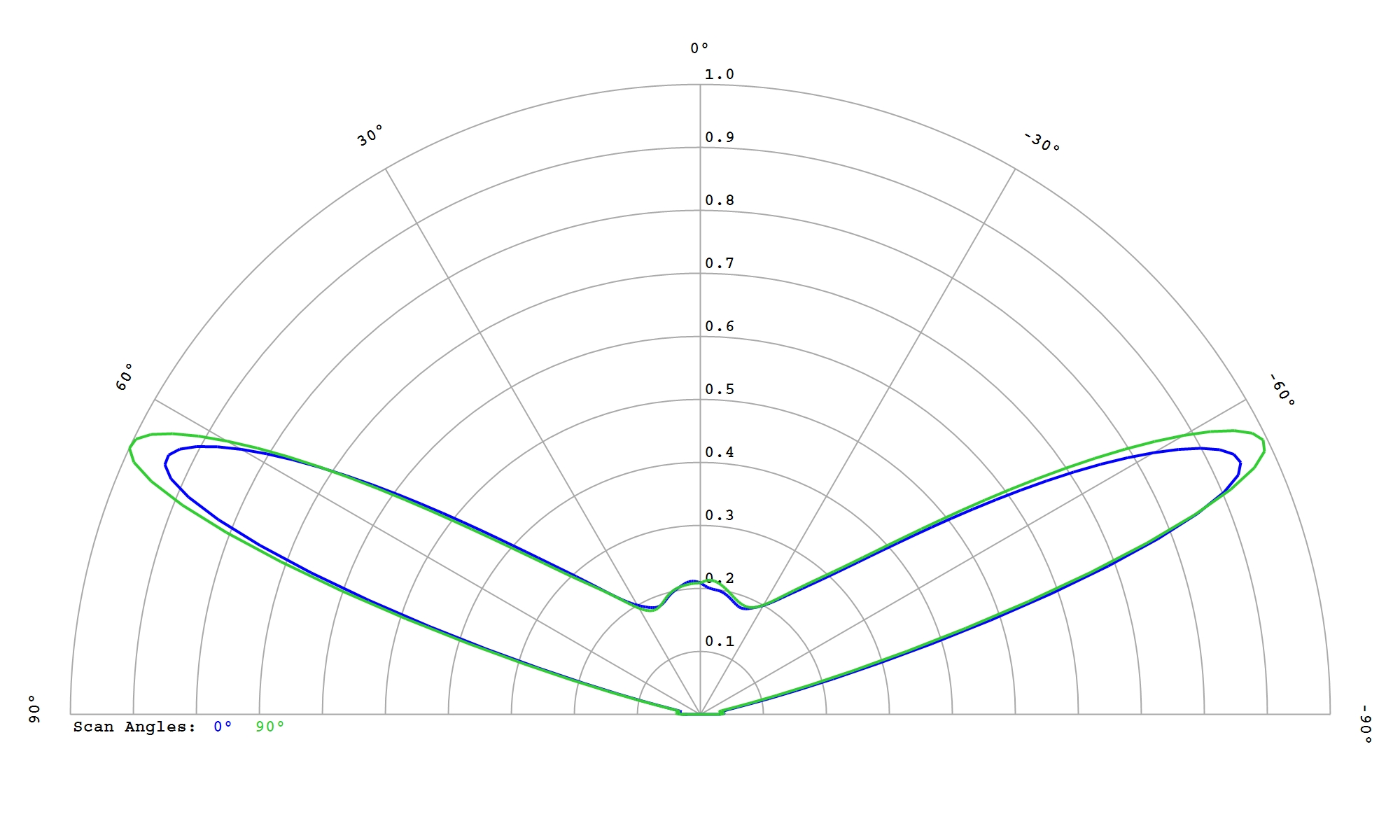

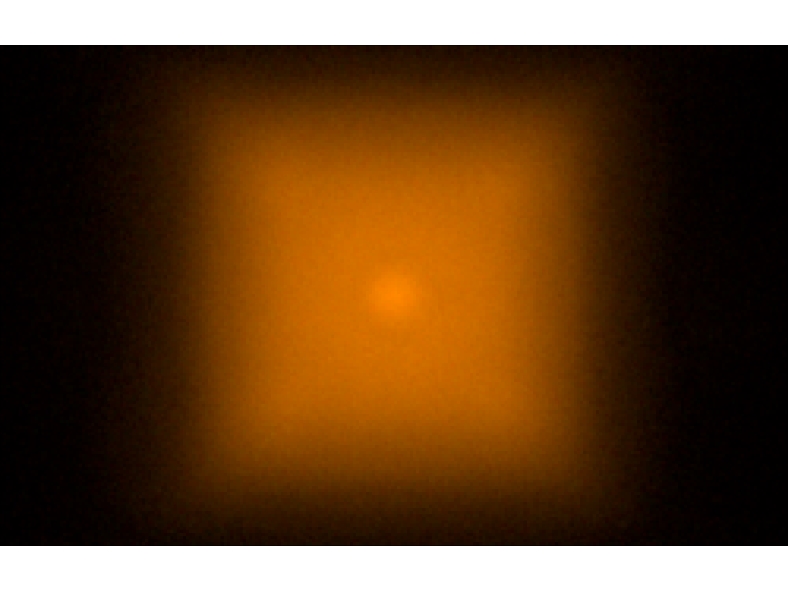

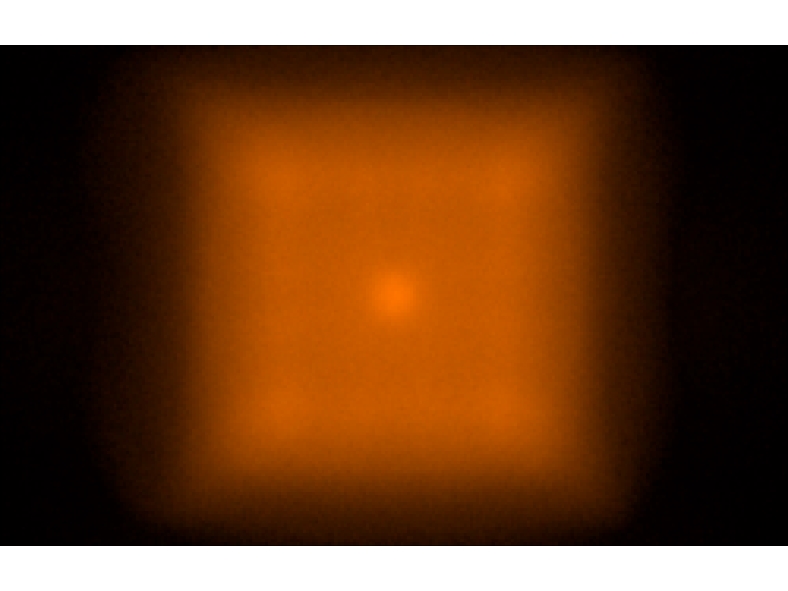

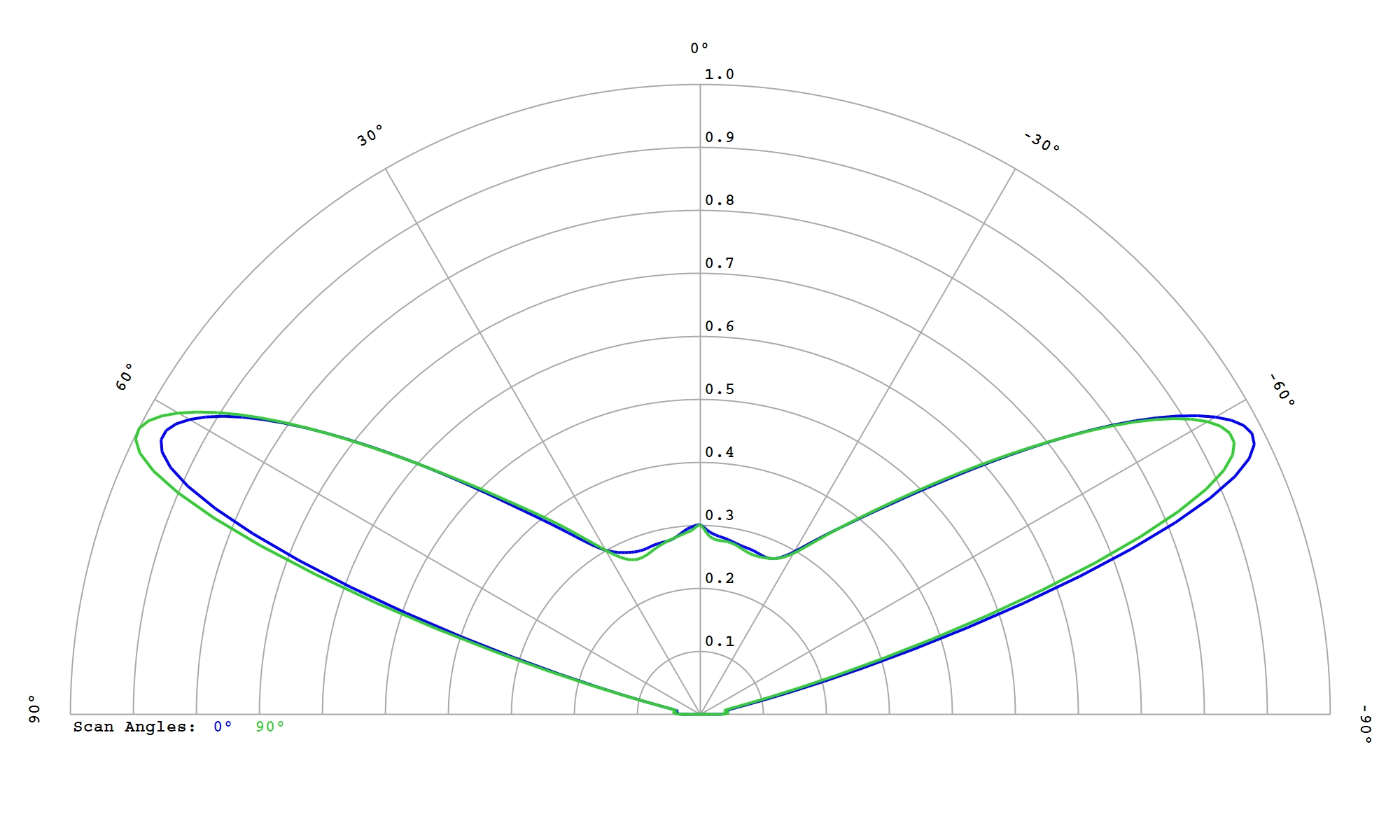

Cree XLamp XP-E2 PC Amber
Eff:
93.0%
FWHM:
141°
Cd/Im:
0.5
Download

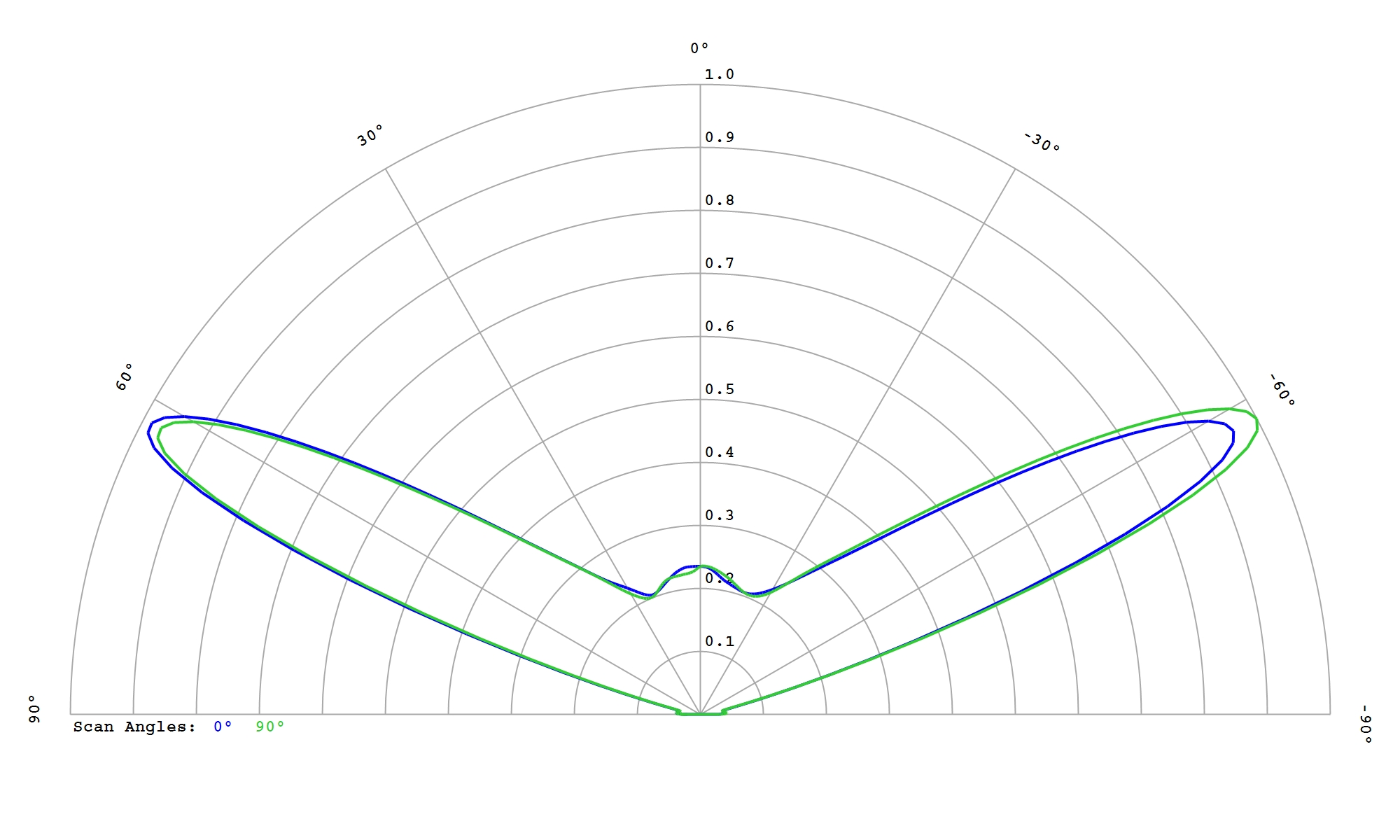

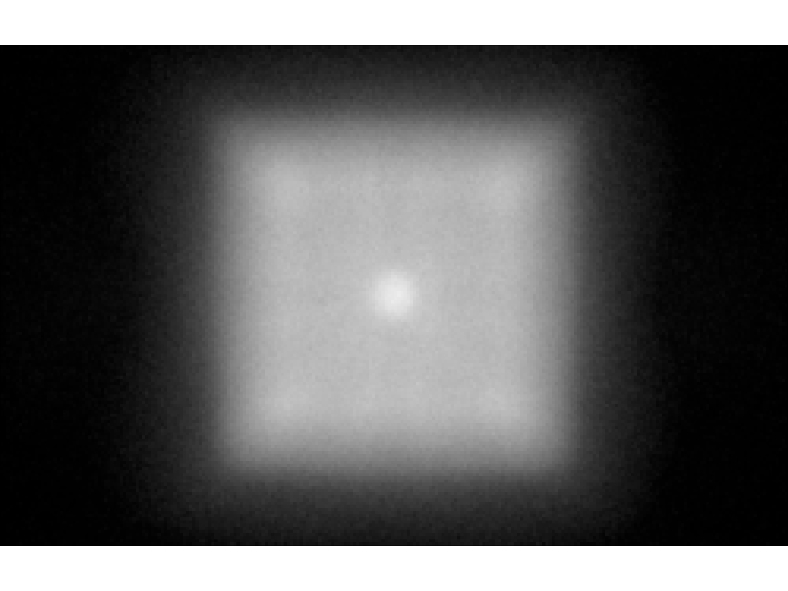

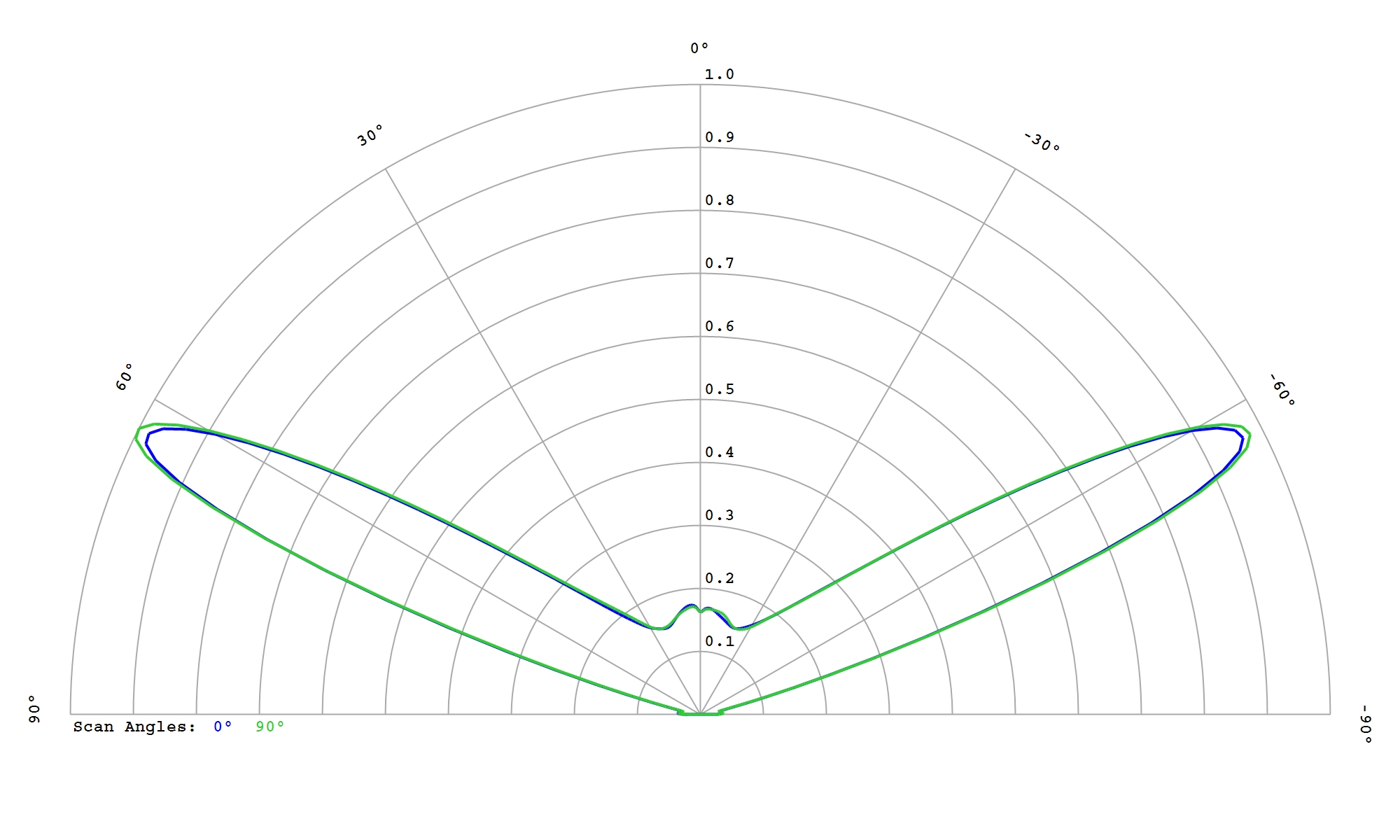

Cree XLamp XP-E2 White
Eff:
95.0%
FWHM:
140°
Cd/Im:
0.7
Download
Cree XLamp XP-G2 White
Eff:
91.0%
FWHM:
144°
Cd/Im:
0.6
Download
Cree XLamp XP-G3 Photo Red
Eff:
95.0%
FWHM:
143°
Cd/Im:
0.6
Download
Cree XLamp XP-G3 Royal Blue
Eff:
88.5%
FWHM:
142°
Cd/Im:
0.5
Download
Cree XLamp XP-G3 White 1800K
Eff:
92.0%
FWHM:
144°
Cd/Im:
0.5
Download
Cree XLamp XP-P White
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download

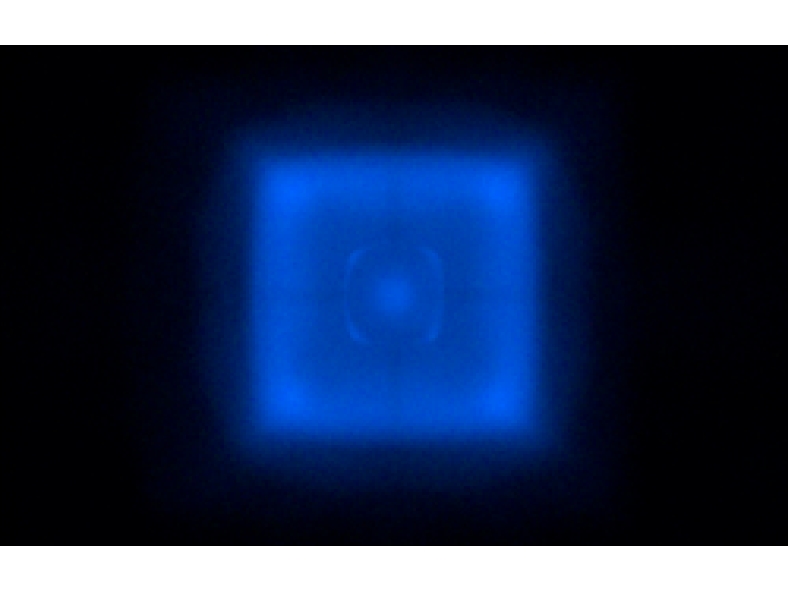

Cree XLamp XQ-A Blue
Eff:
95.5%
FWHM:
124°
Cd/Im:
1.5
Download

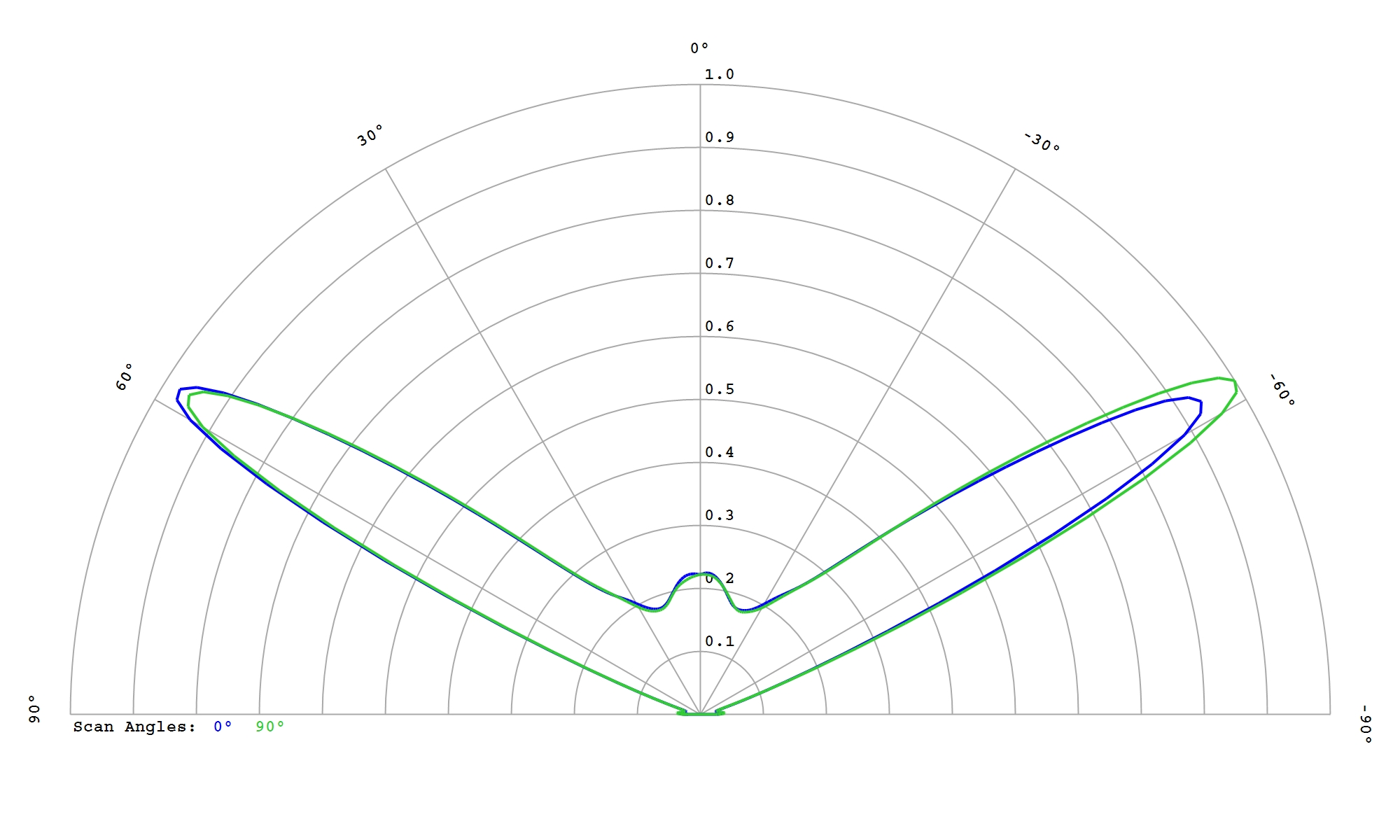

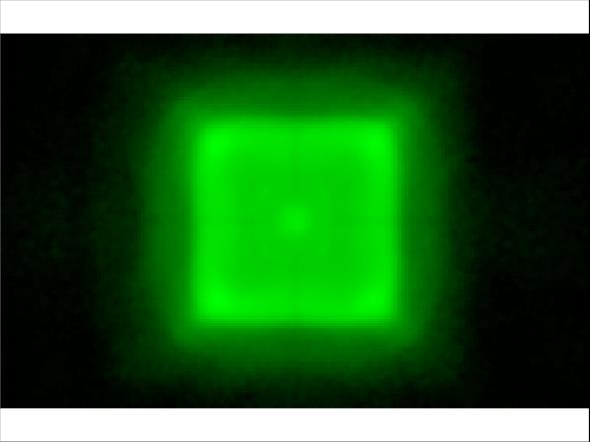

Cree XLamp XQ-A Green
Eff:
95.0%
FWHM:
125°
Cd/Im:
1.5
Download

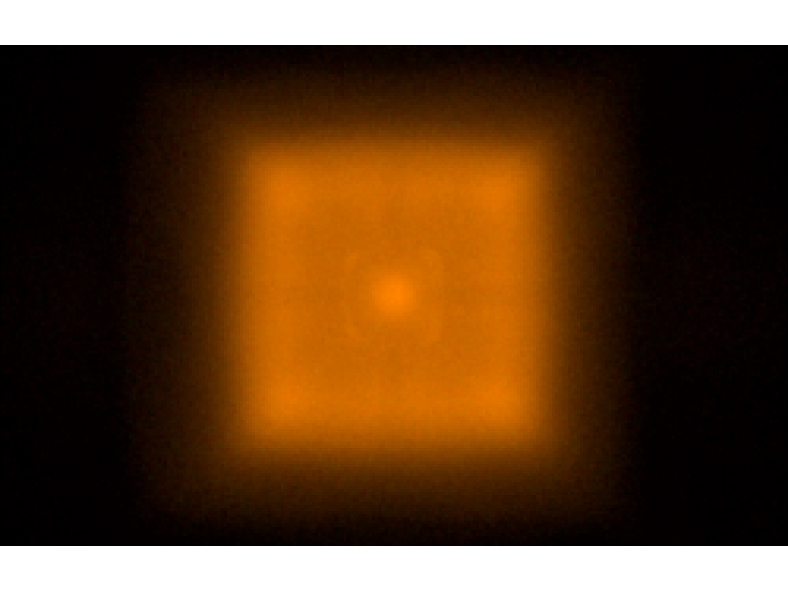

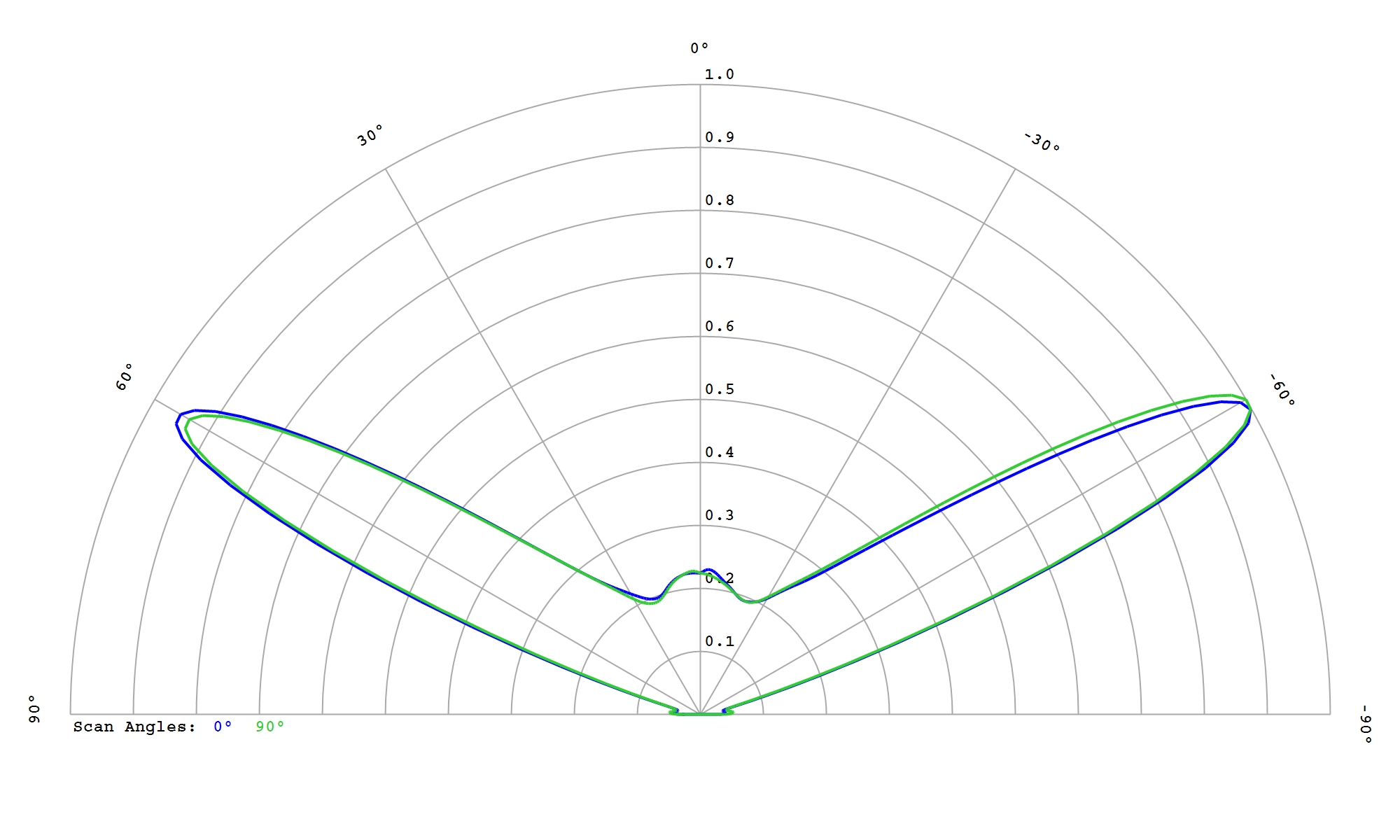

Cree XLamp XQ-A PC Amber
Eff:
94.0%
FWHM:
130°
Cd/Im:
1.0
Download

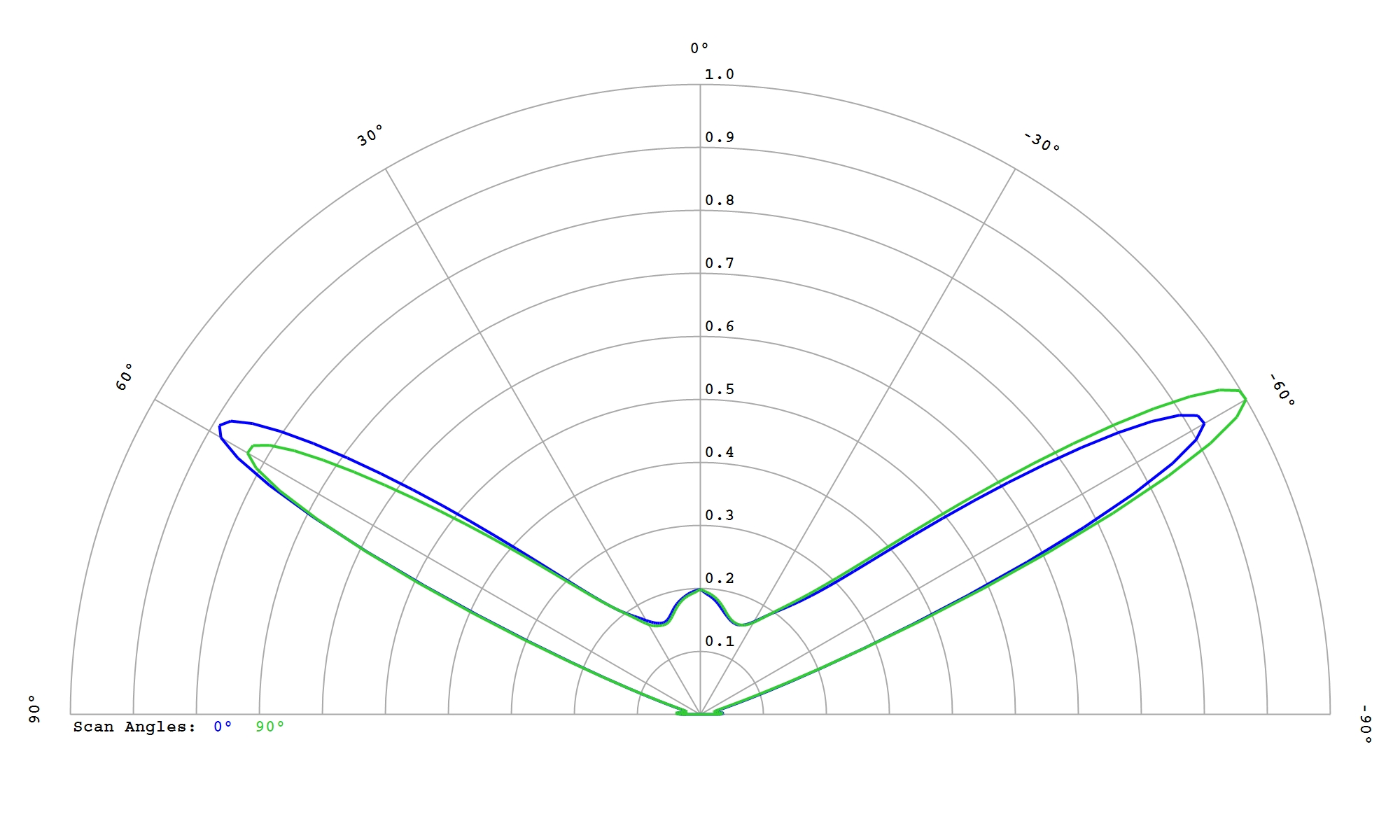

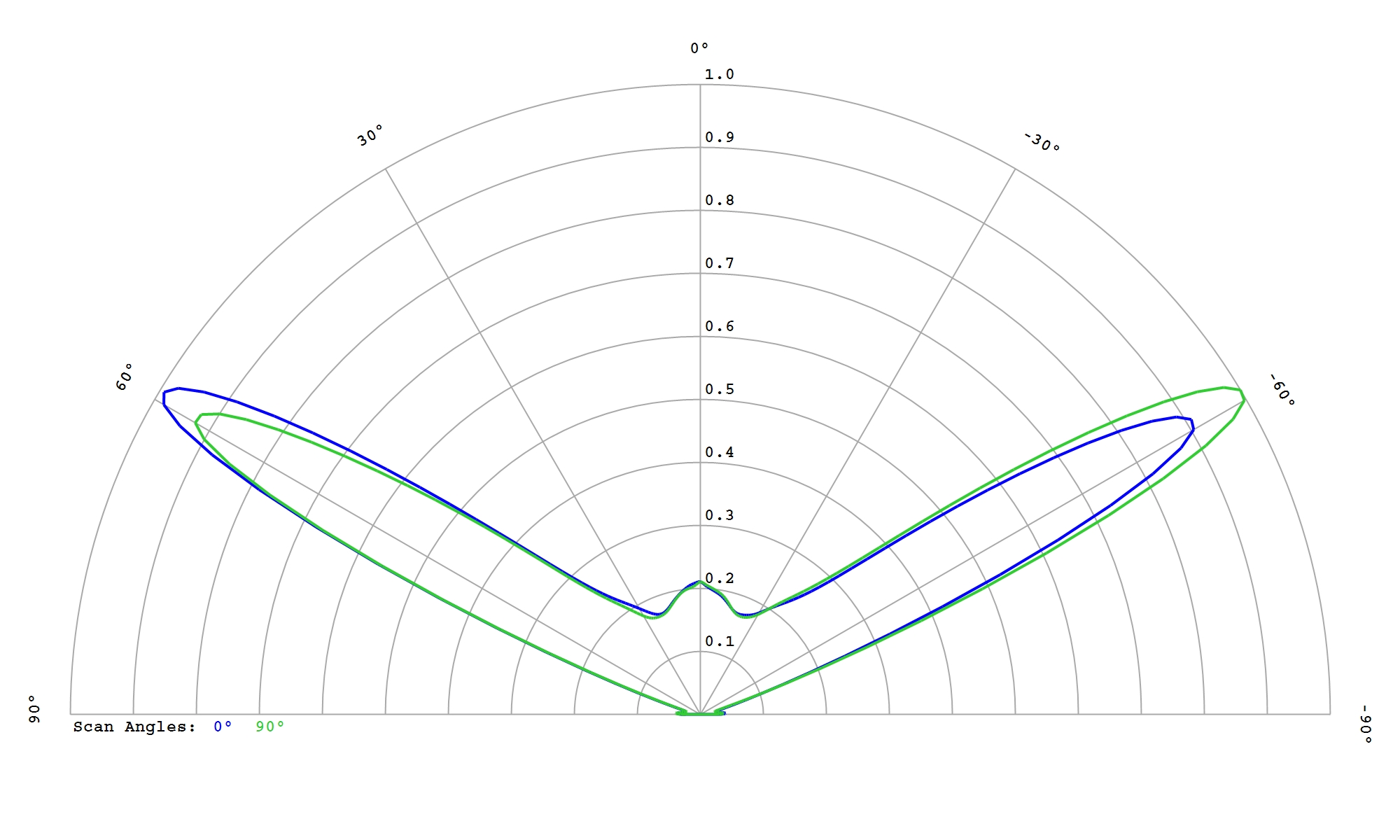

Cree XLamp XQ-A Red
Eff:
95.0%
FWHM:
128°
Cd/Im:
1.1
Download

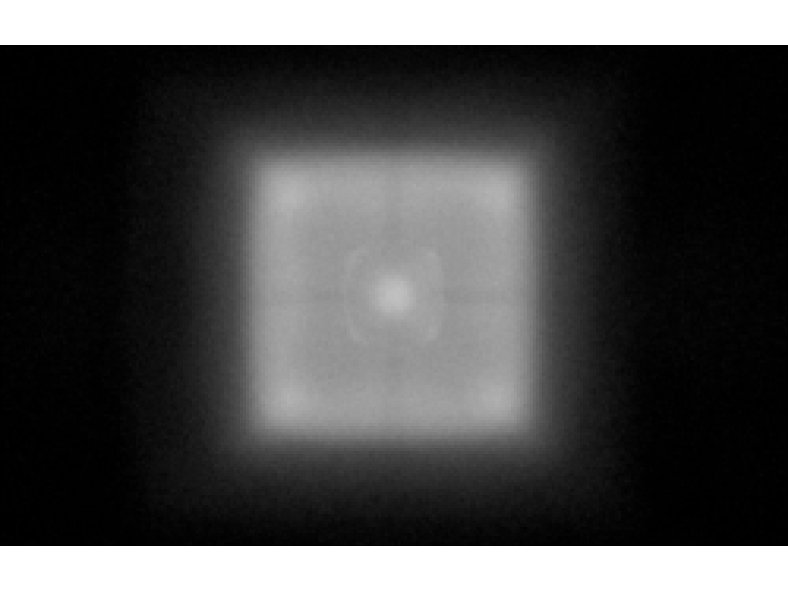

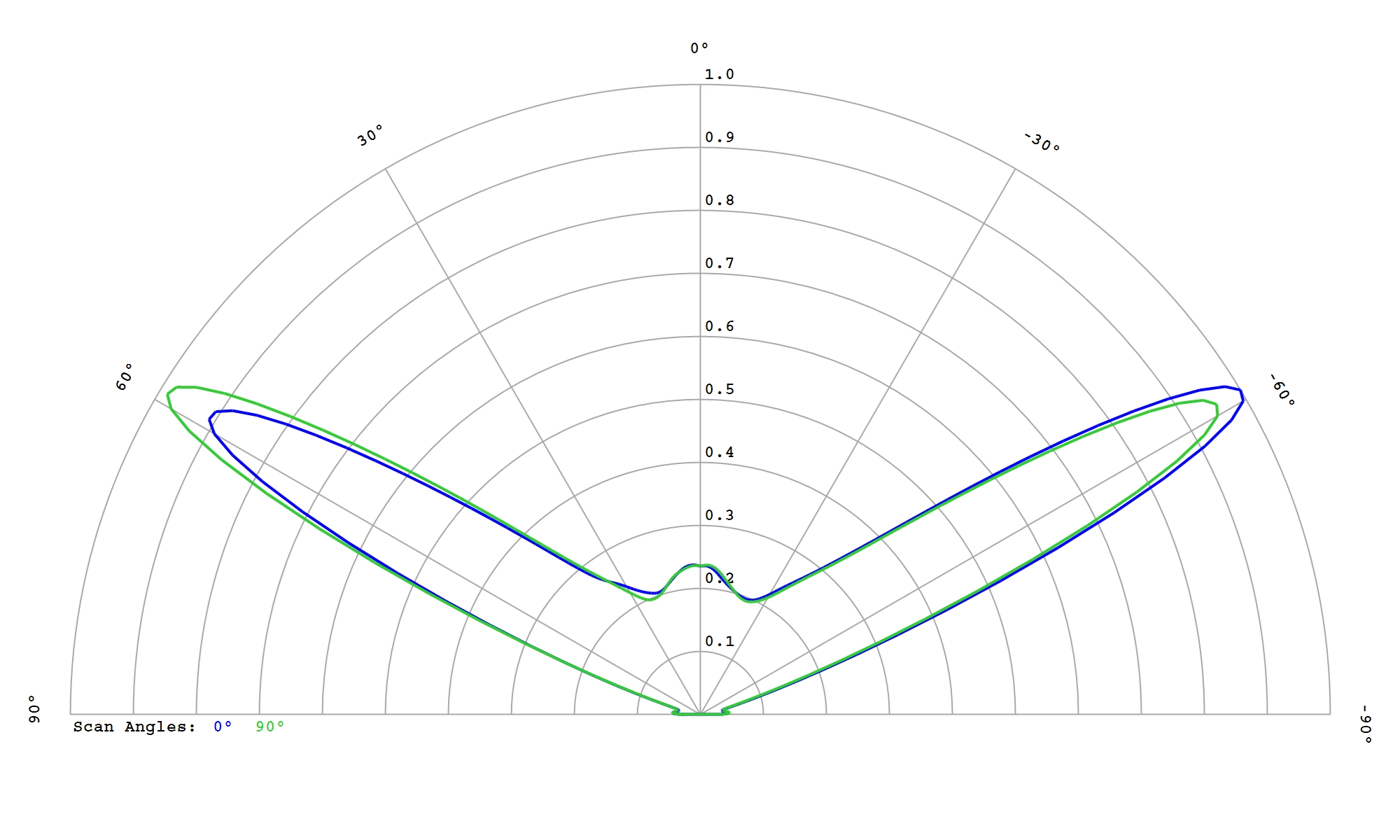

Cree XLamp XQ-A White
Eff:
92.0%
FWHM:
124°
Cd/Im:
1.3
Download

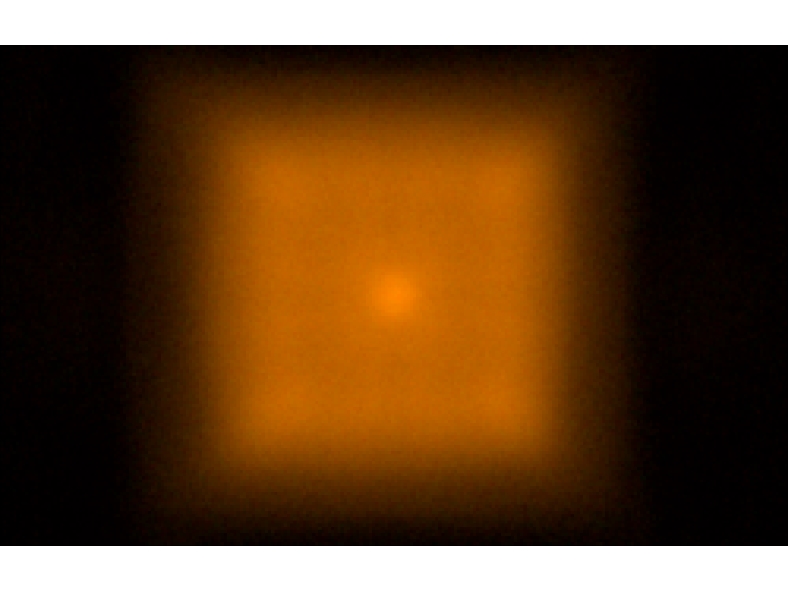

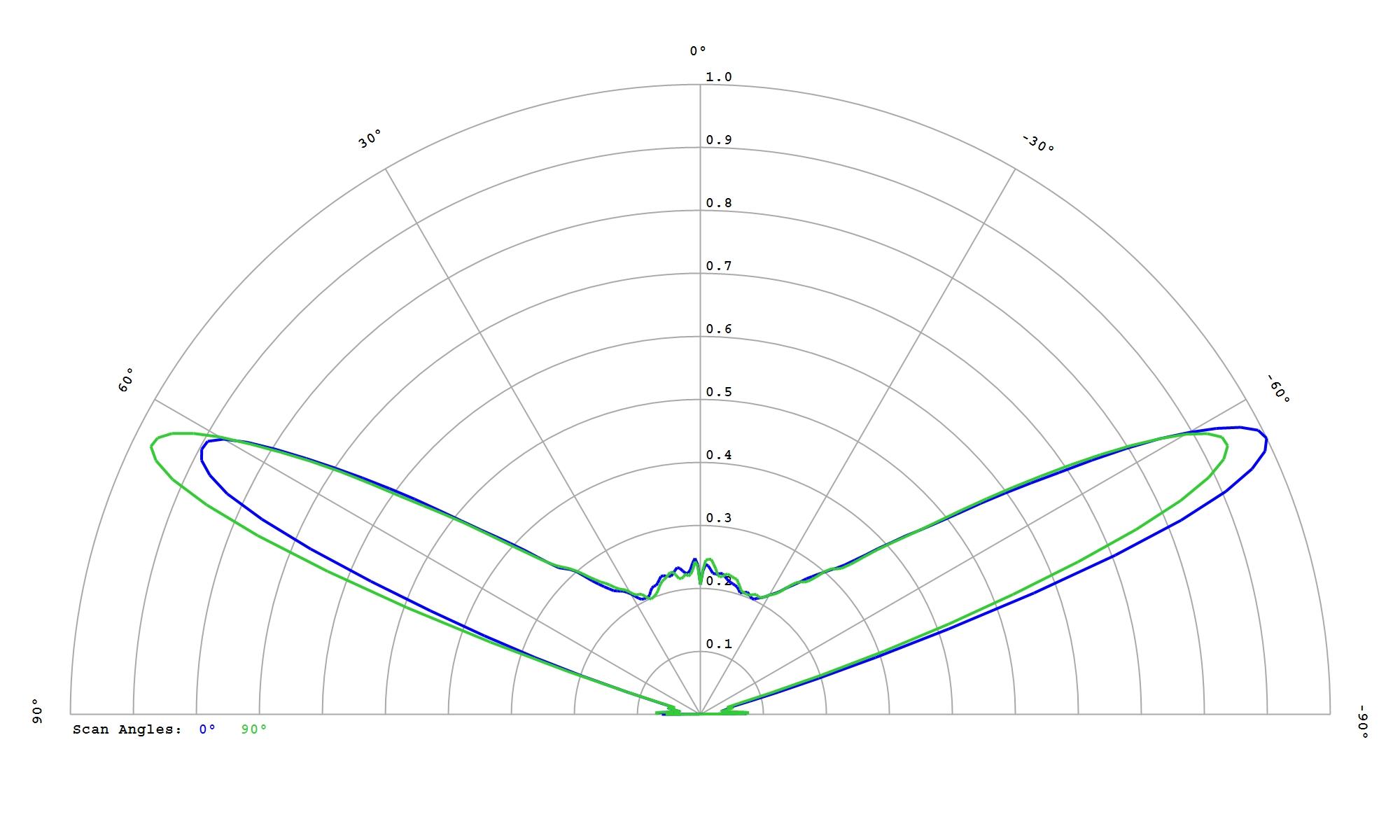

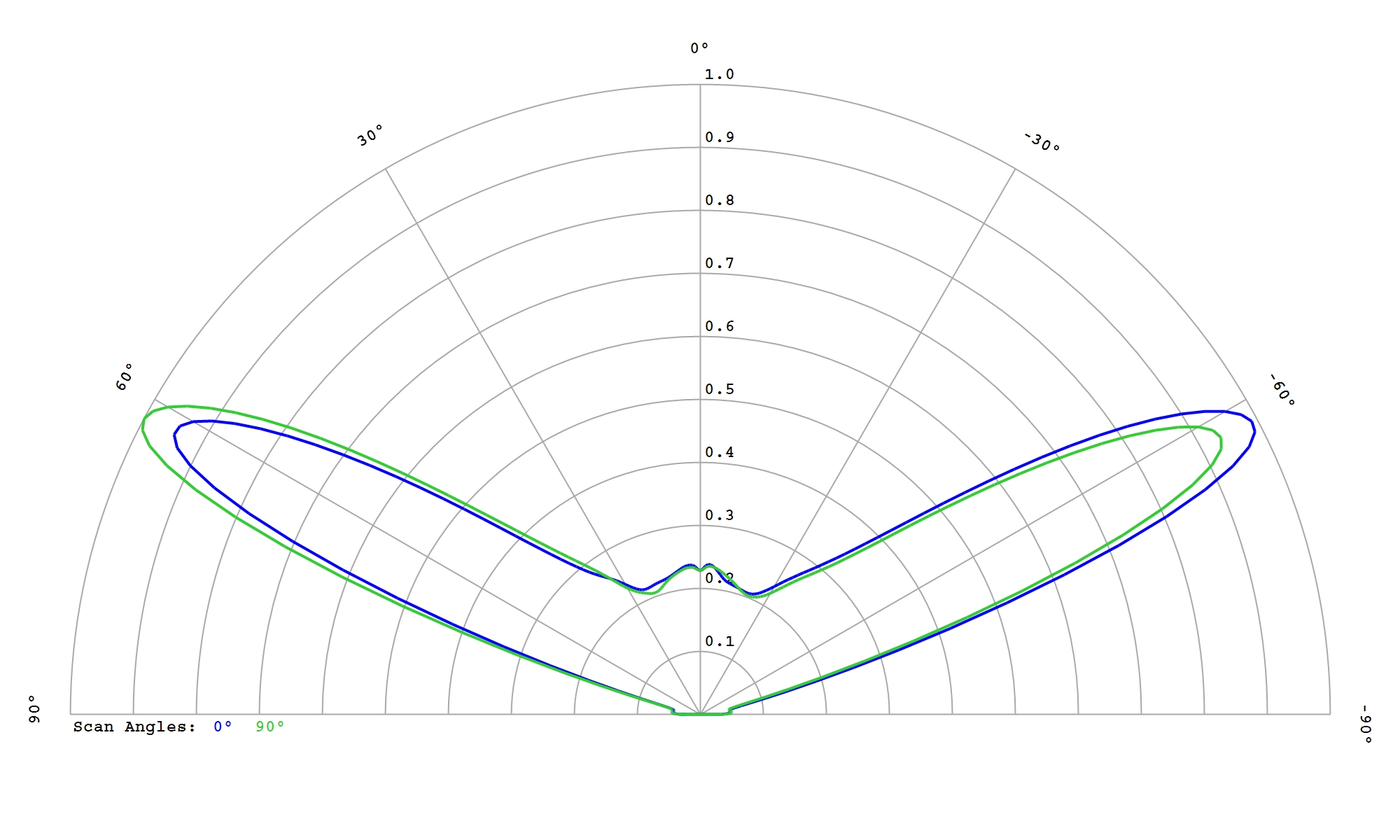

Cree XLamp XQ-E HD PC Amber
Eff:
93.0%
FWHM:
139°
Cd/Im:
0.7
Download

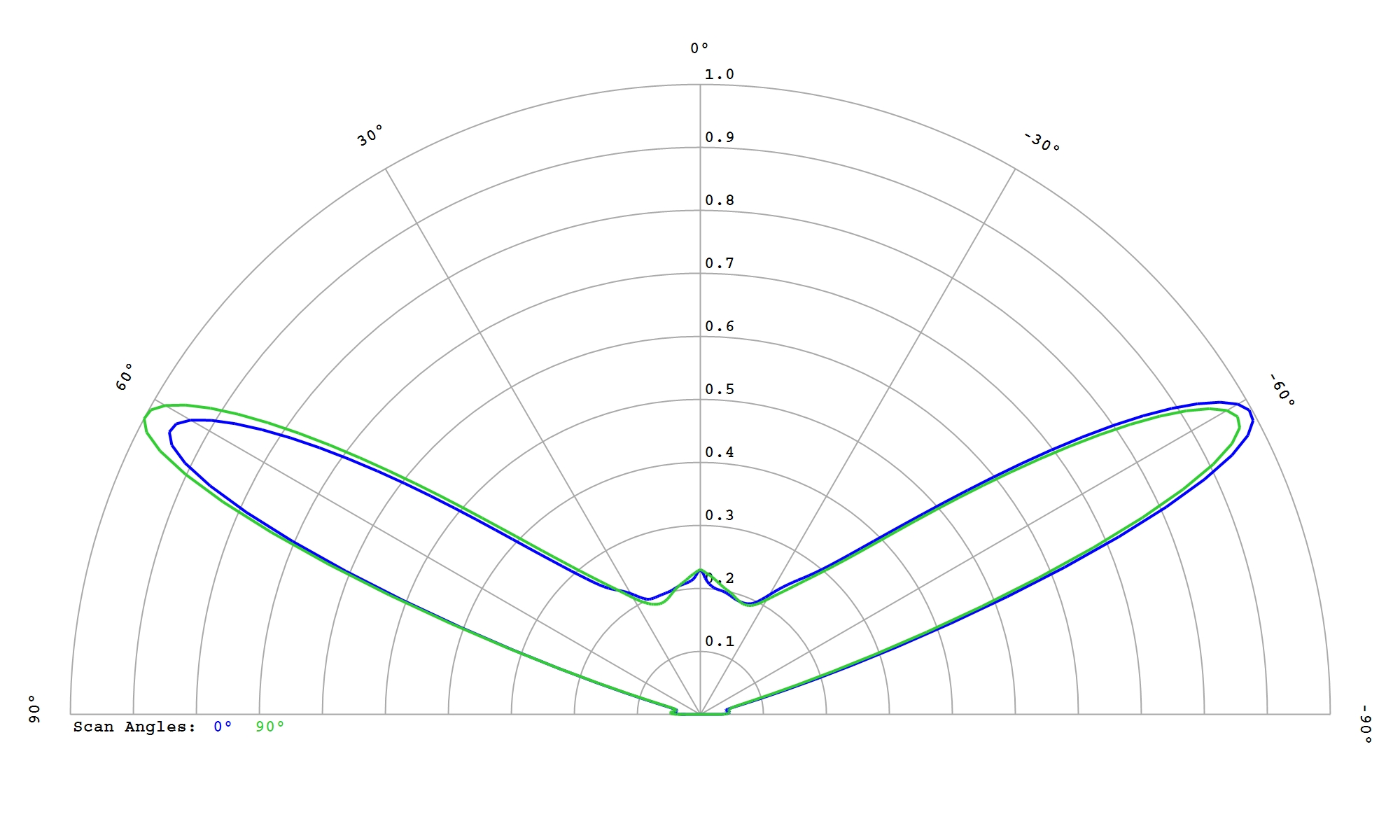

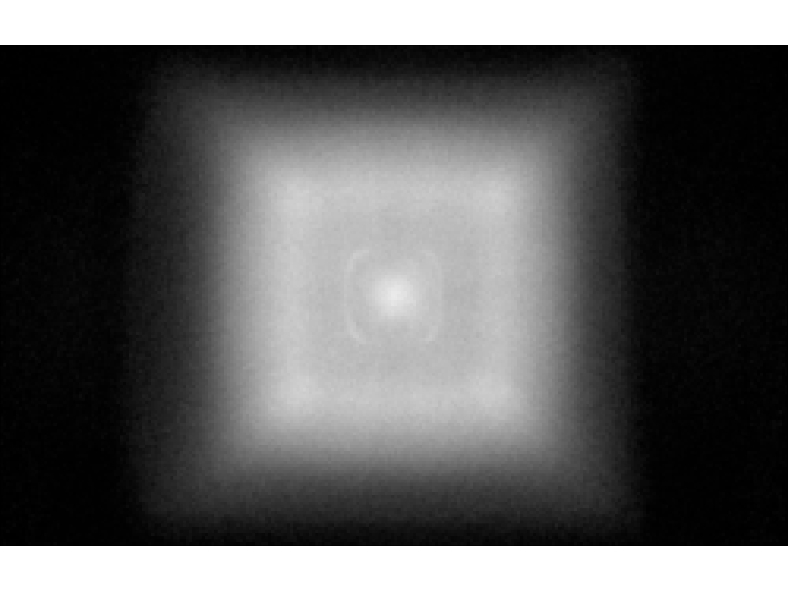

Cree XLamp XQ-E HD White
Eff:
90.0%
FWHM:
130°
Cd/Im:
0.9
Download

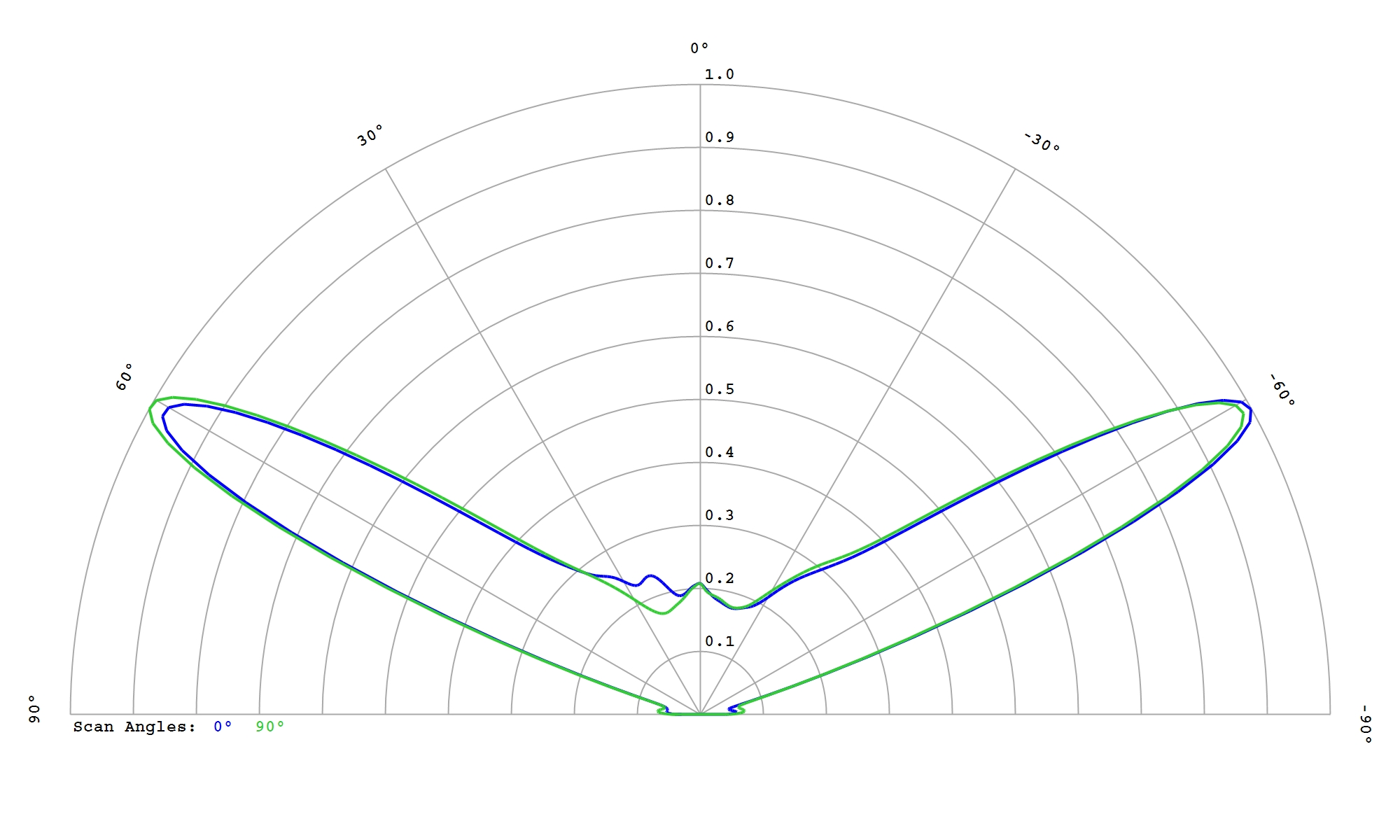

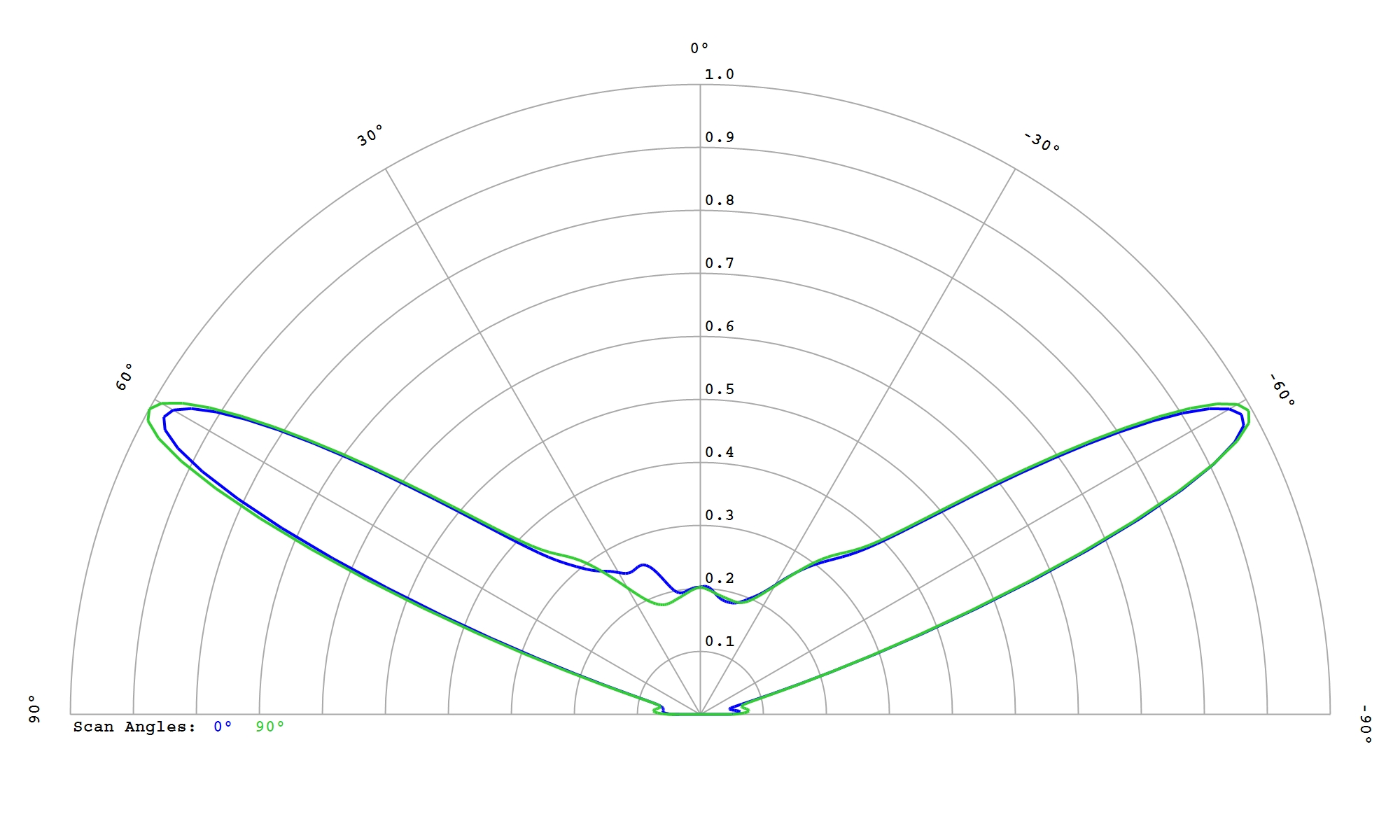

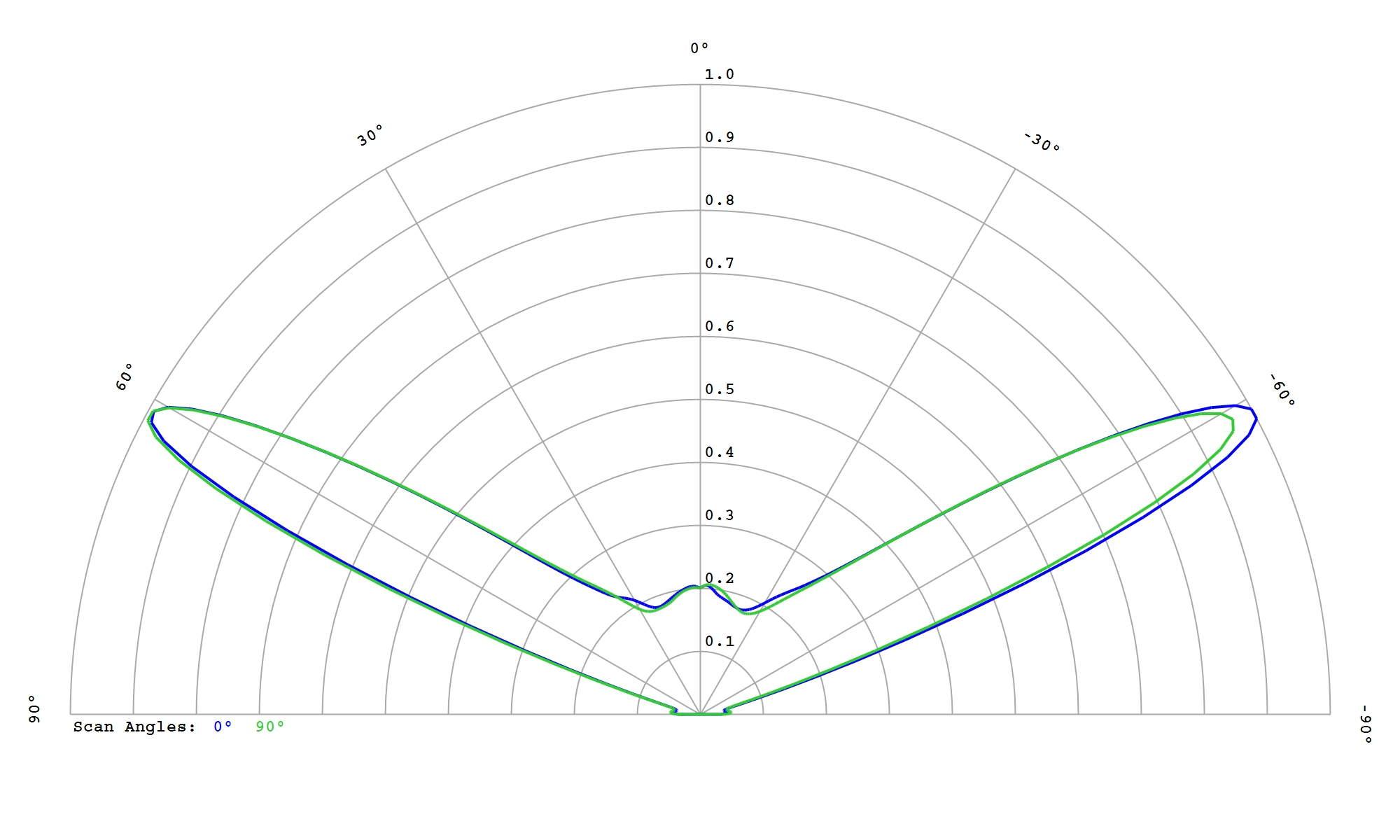

Cree XLamp XQ-E HI Blue
Eff:
95.0%
FWHM:
134°
Cd/Im:
0.9
Download

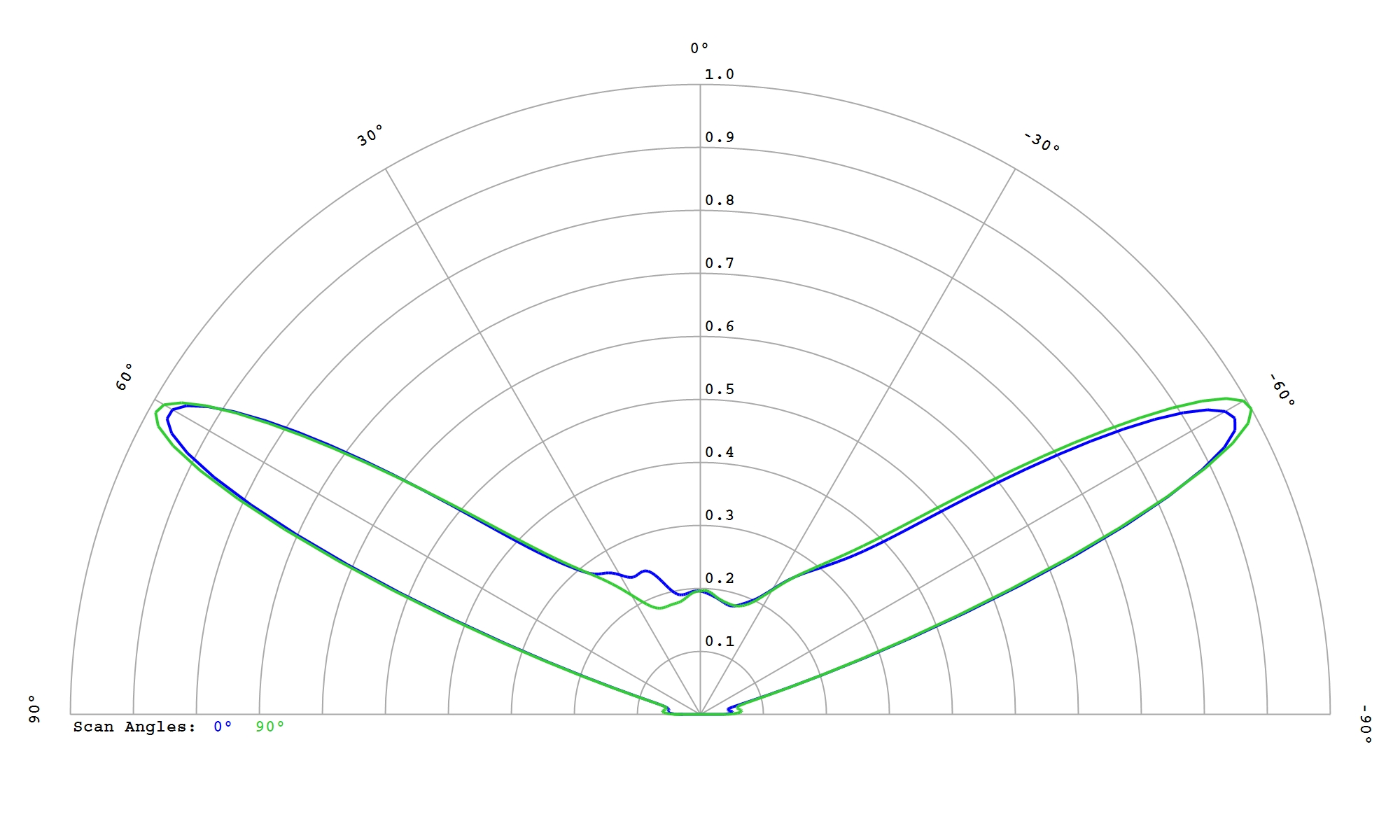

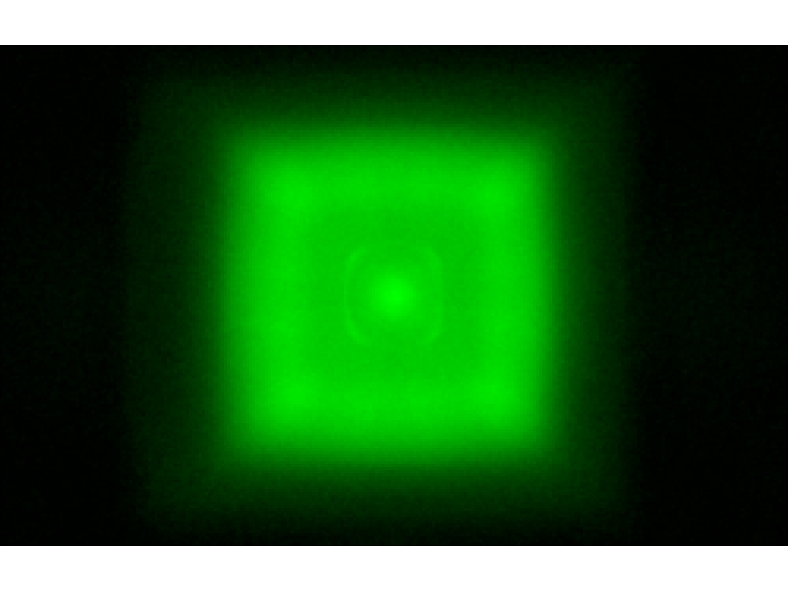

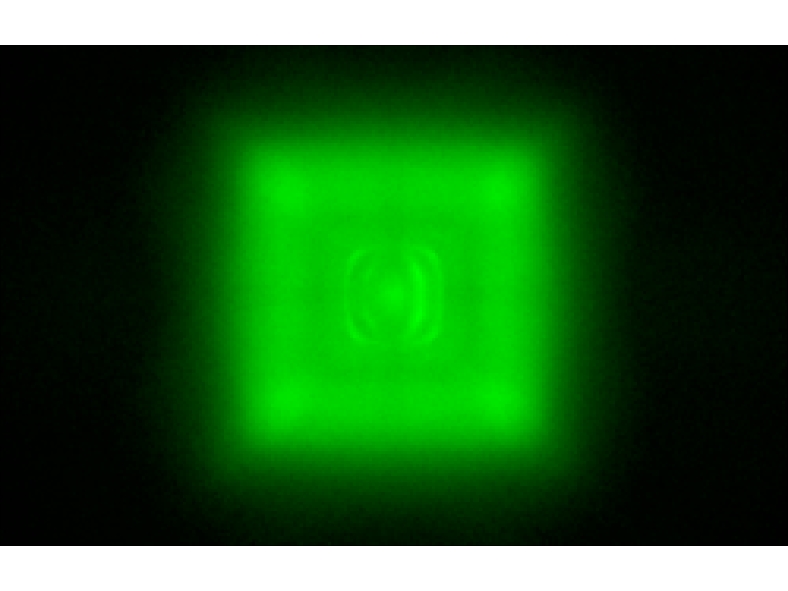

Cree XLamp XQ-E HI Green
Eff:
93.5%
FWHM:
134°
Cd/Im:
0.9
Download

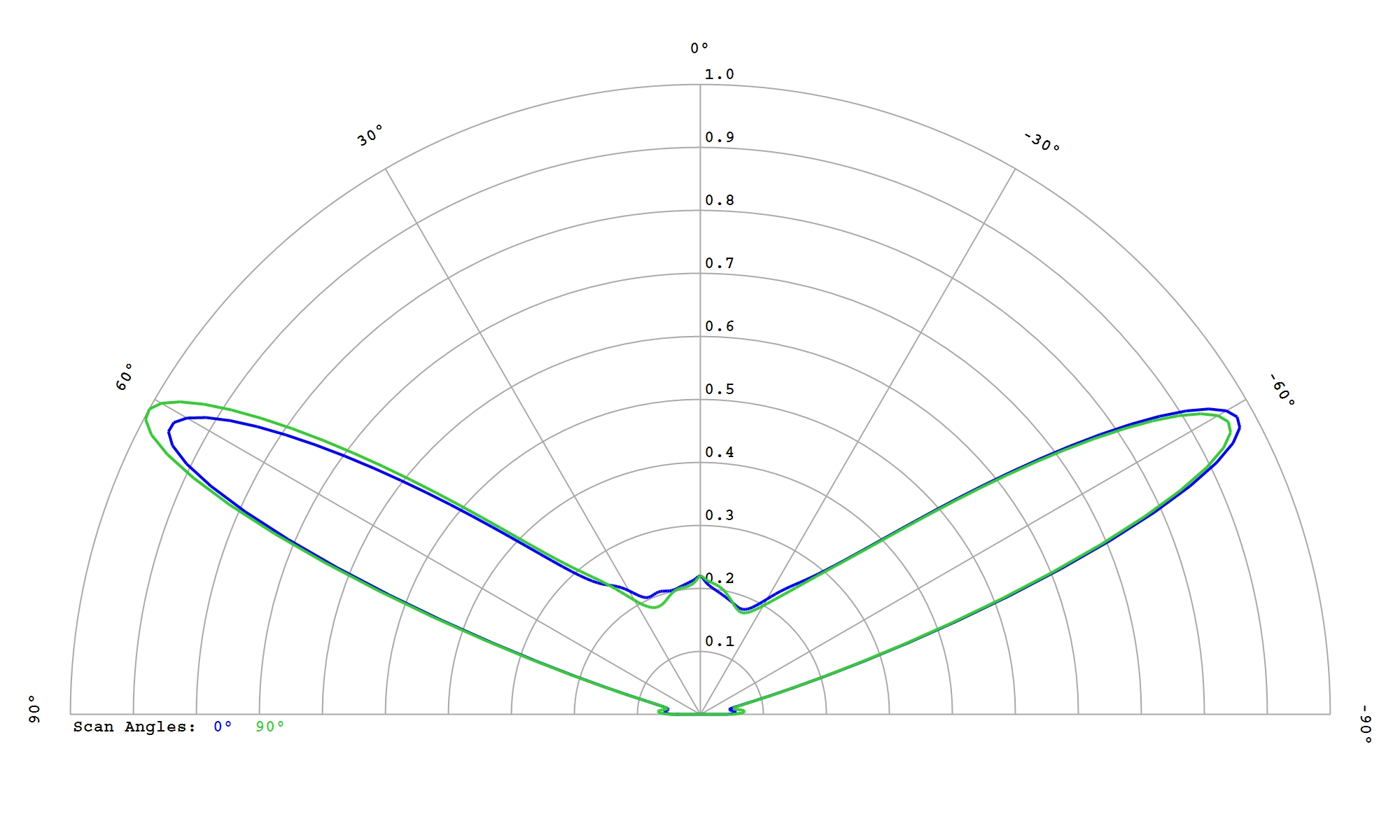

Cree XLamp XQ-E HI PC Amber
Eff:
95.0%
FWHM:
138°
Cd/Im:
0.9
Download
Cree XLamp XQ-E HI Red
Eff:
94.5%
FWHM:
132°
Cd/Im:
0.9
Download

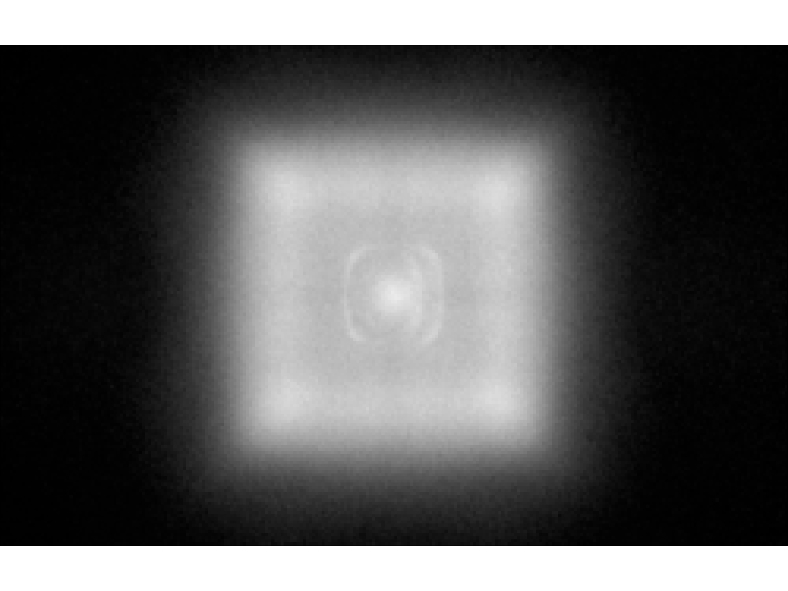

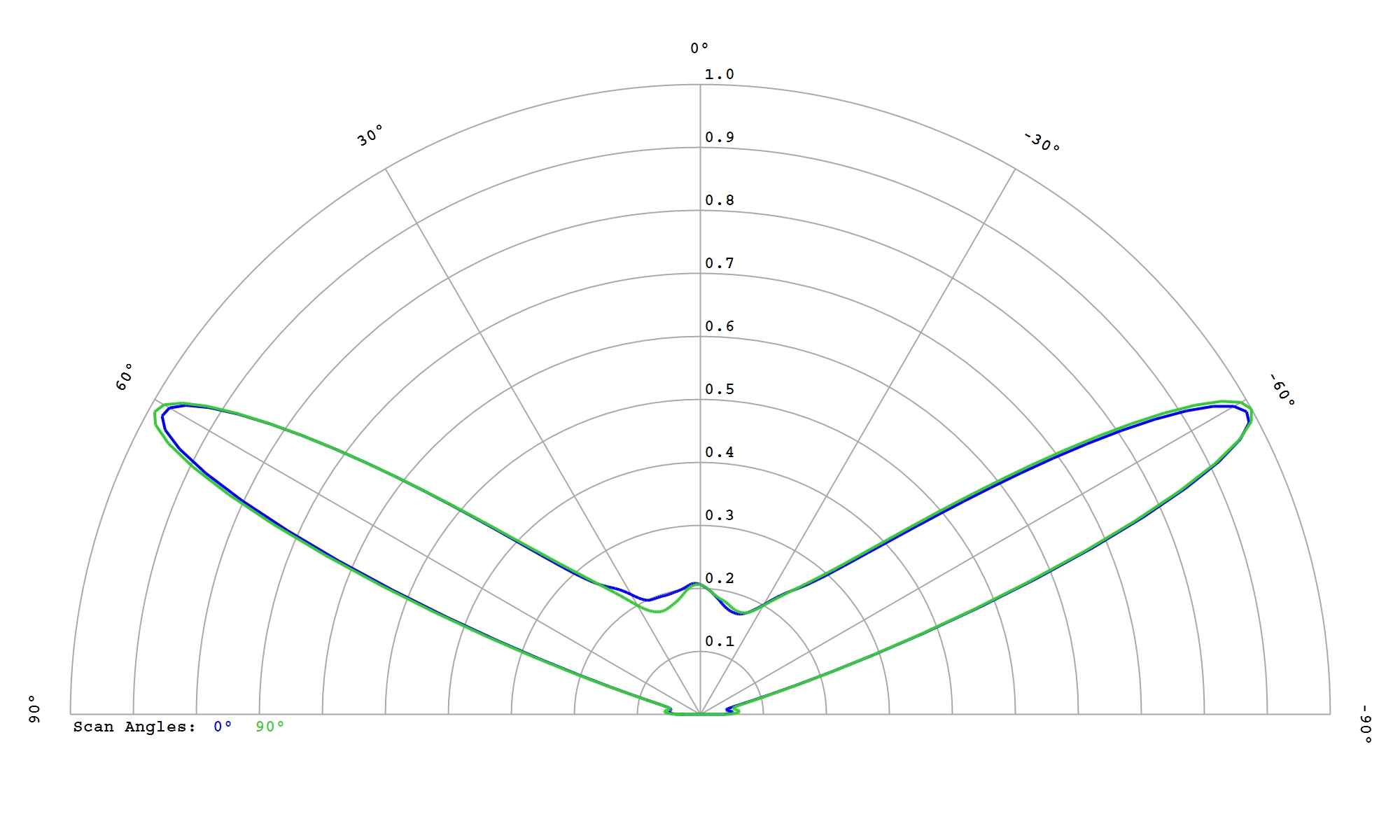

Cree XLamp XQ-E HI White
Eff:
91.0%
FWHM:
132°
Cd/Im:
0.9
Download
Cree XLamp XT-E White
Eff:
89.4%
FWHM:
134°
Cd/Im:
0.6
Download

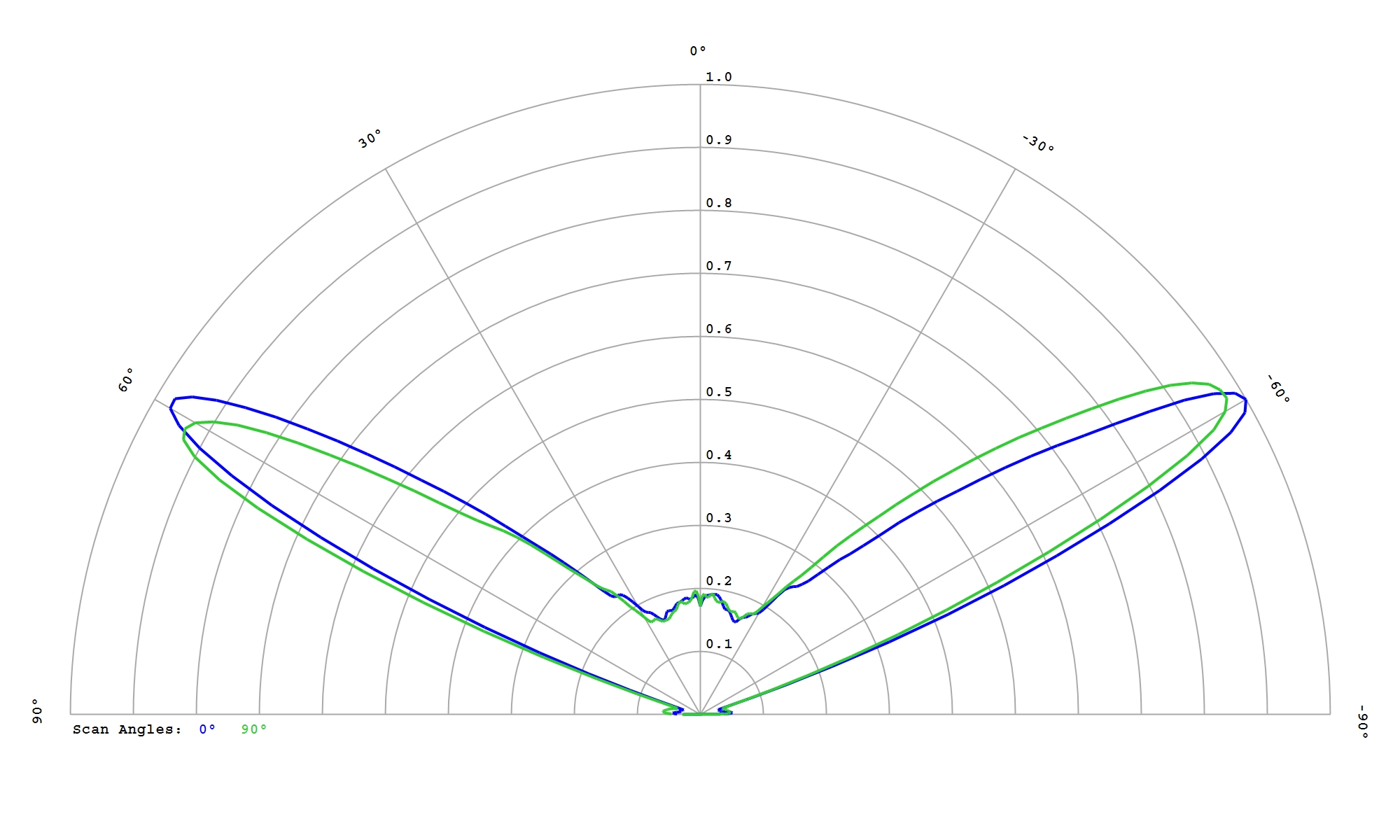

LUMILEDS LUXEON 2835 PC Amber
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.8
Download

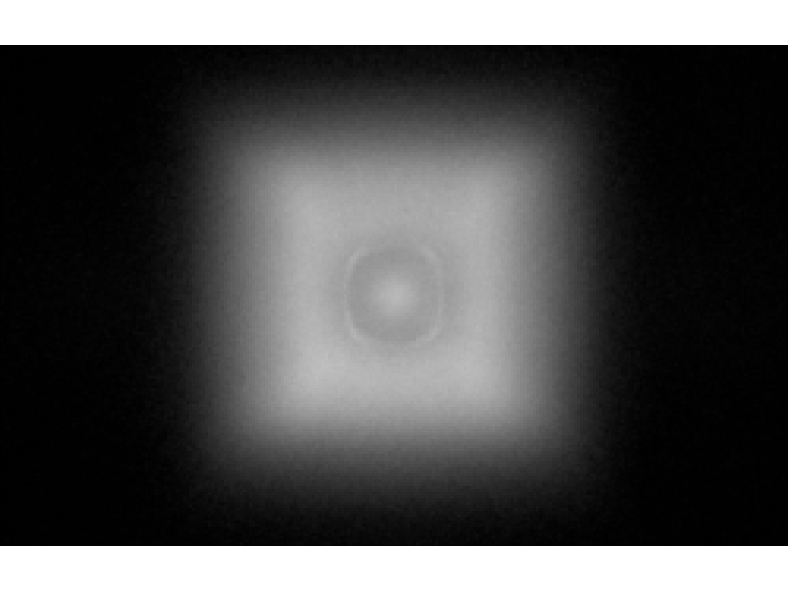

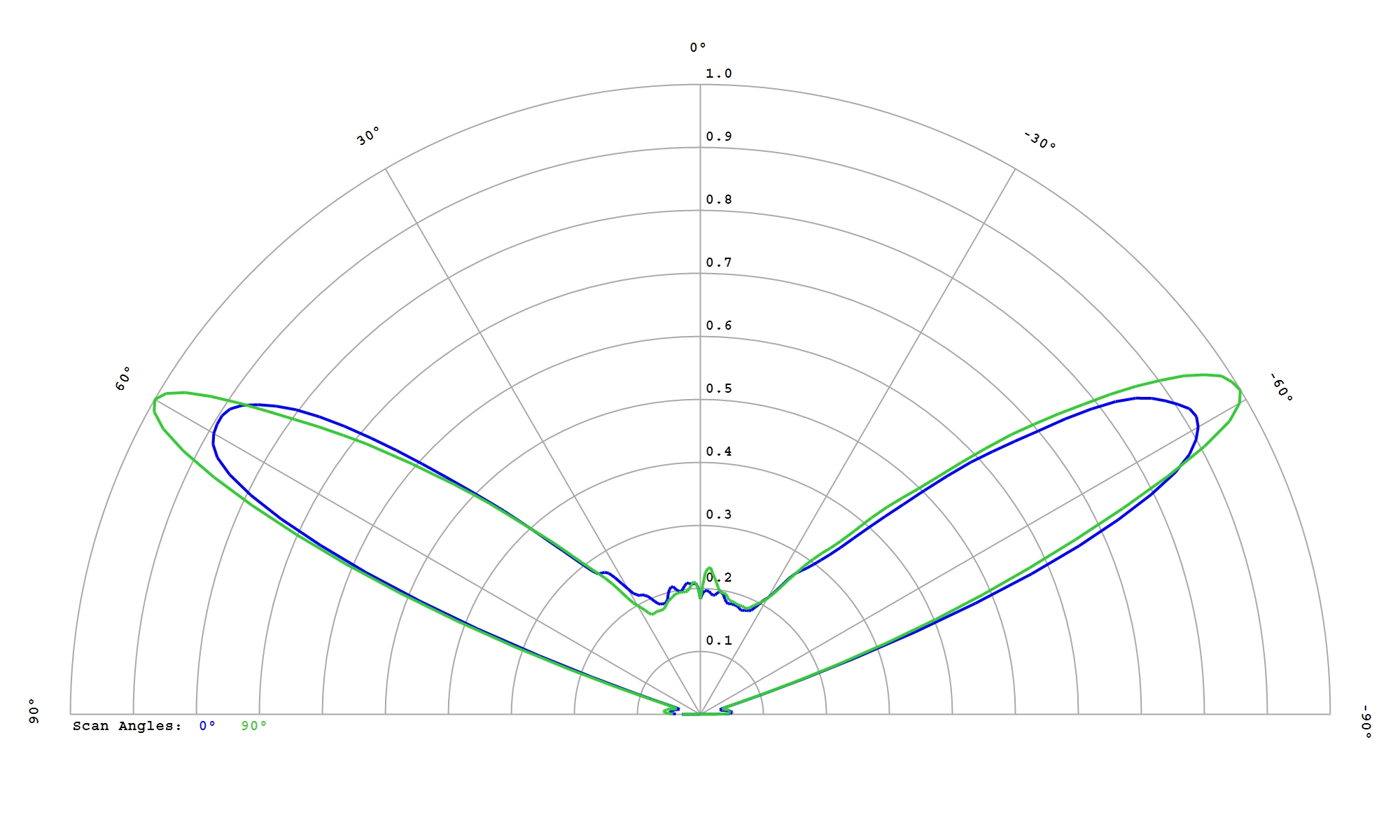

LUMILEDS LUXEON 2835C 6V White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.6
Download

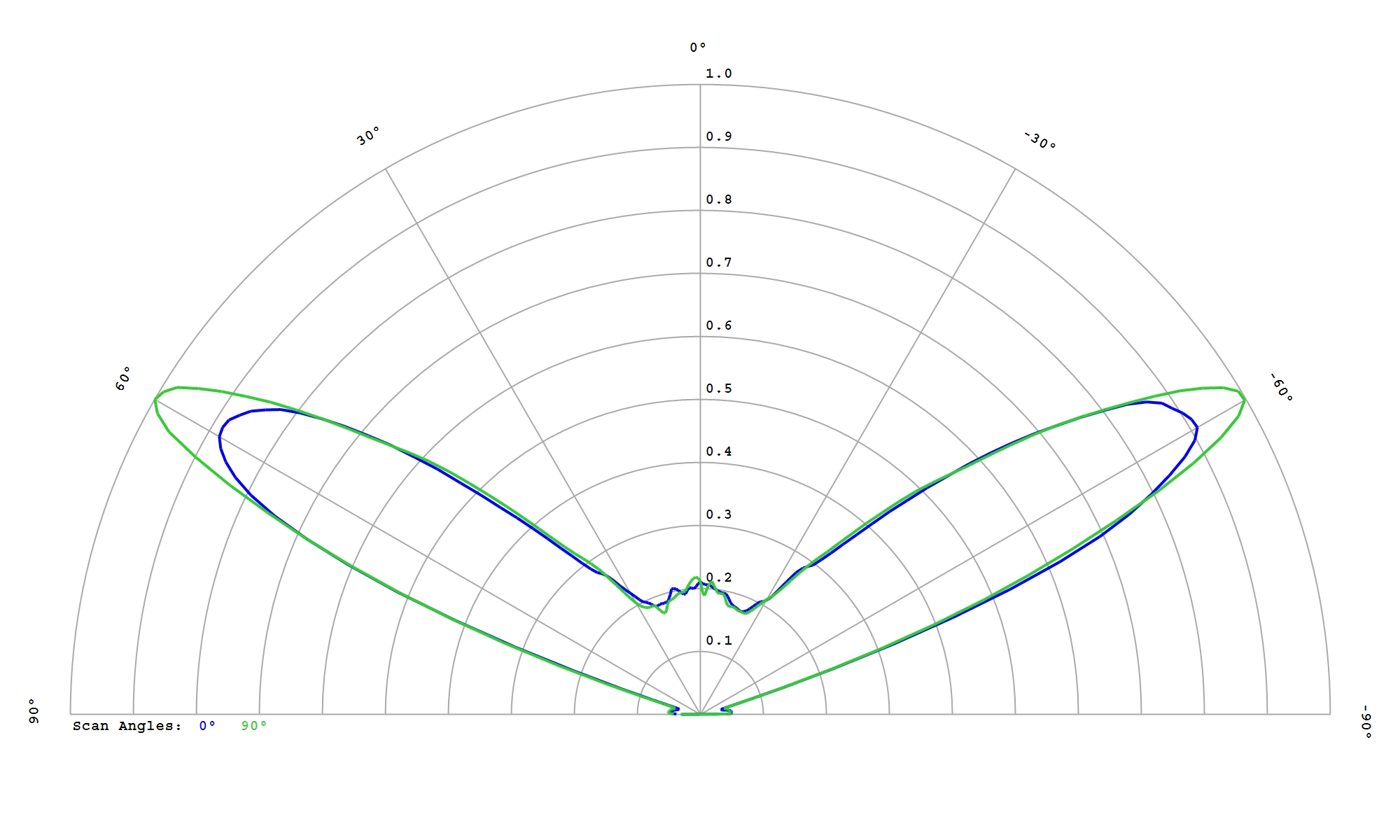

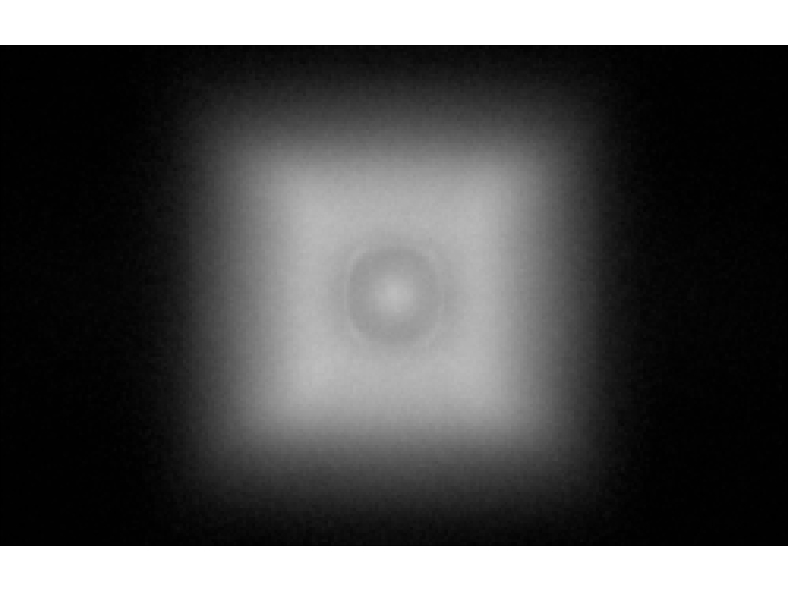

LUMILEDS LUXEON 2835E 9V White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download

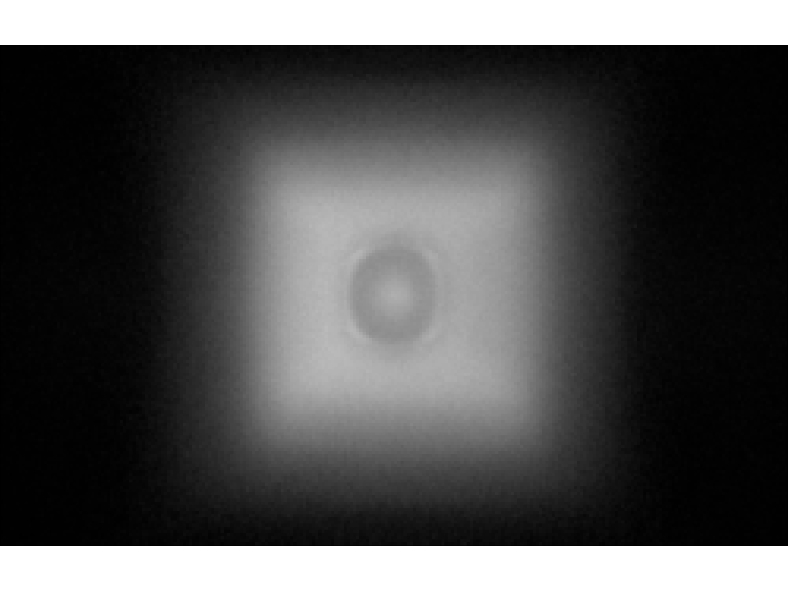

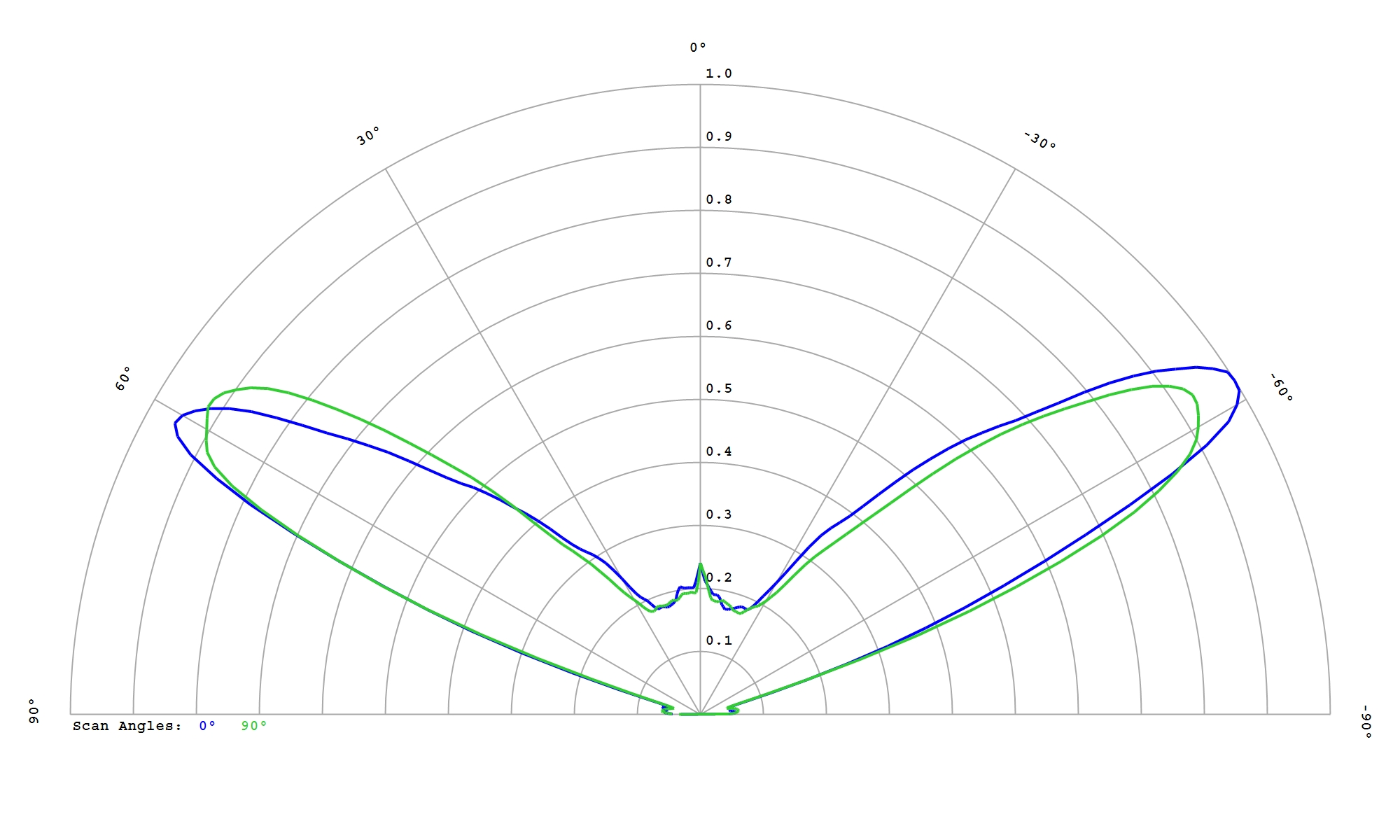

LUMILEDS LUXEON 2835N 3V White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download

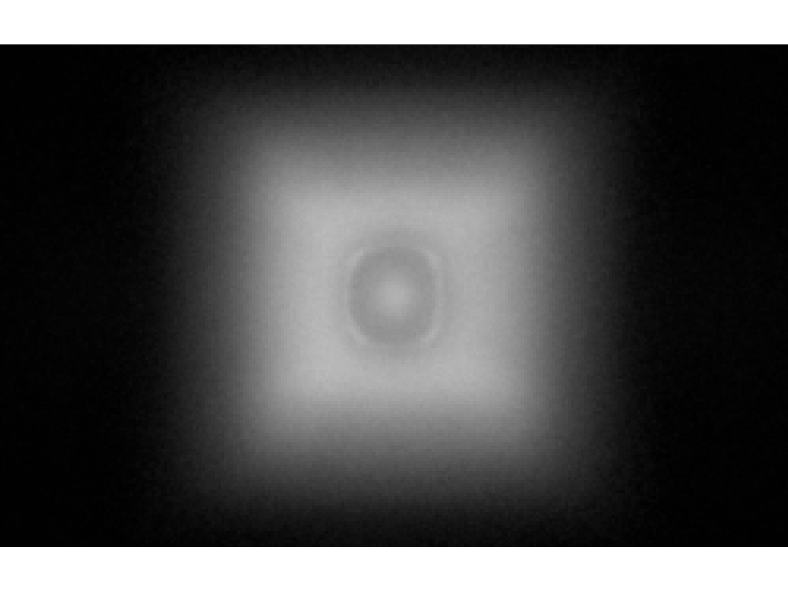

LUMILEDS LUXEON 2835S 3V White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download

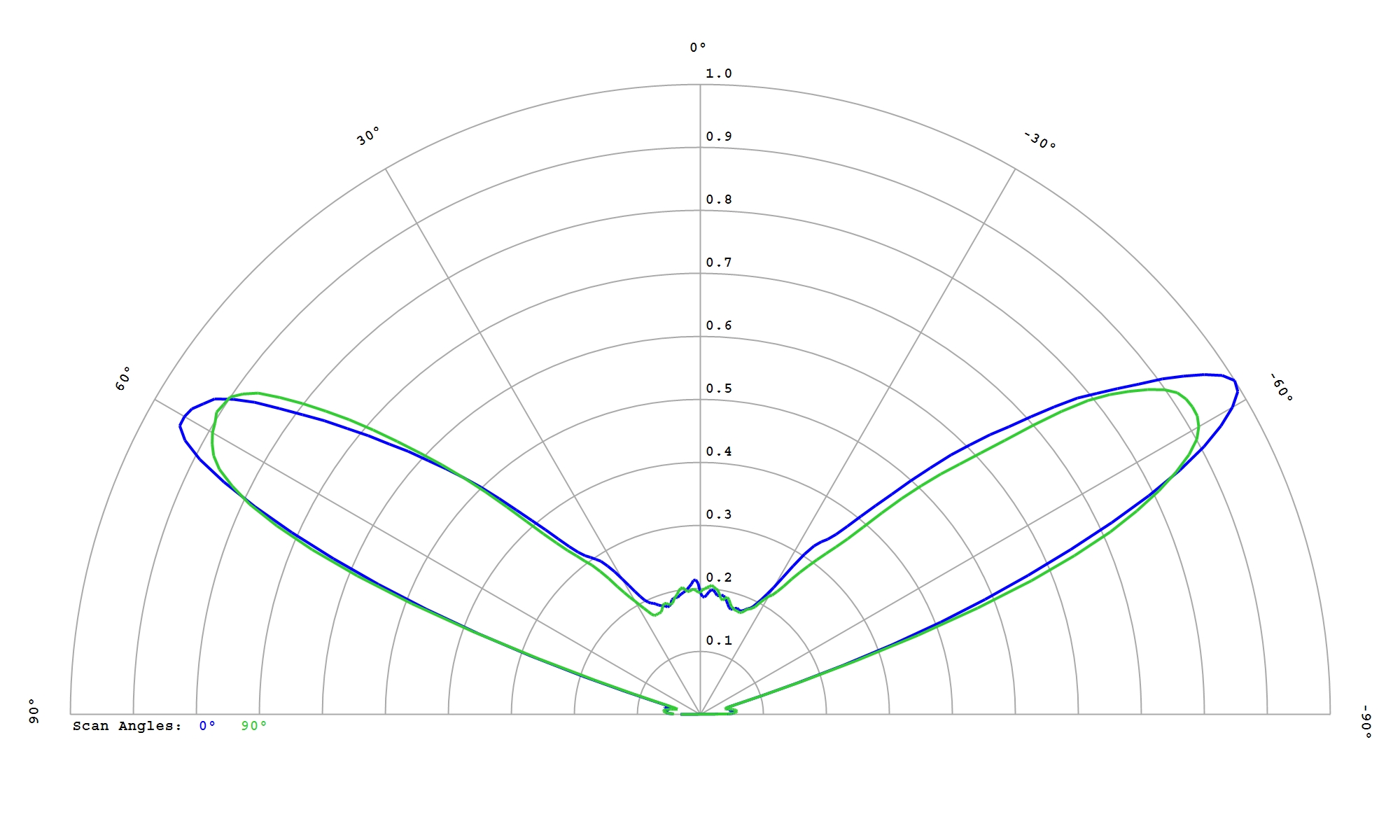

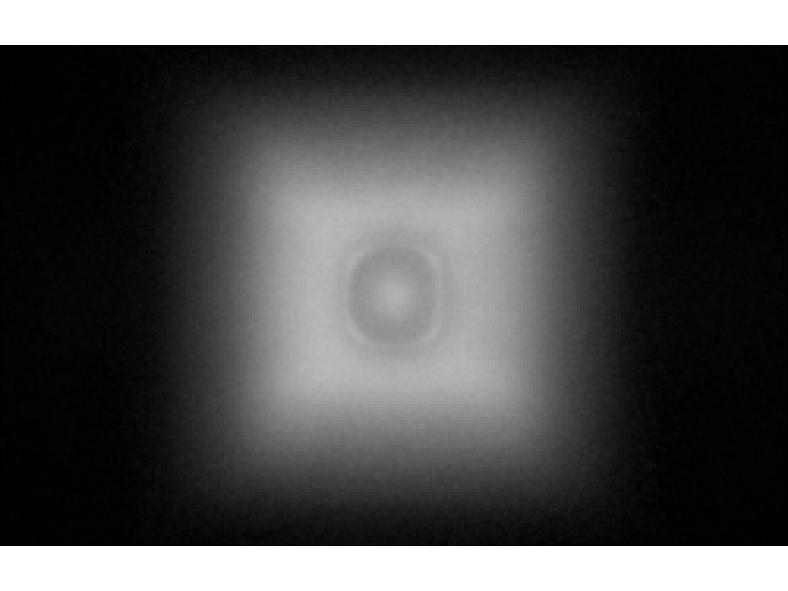

LUMILEDS LUXEON 2835S 6V White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 3014 White
Eff:
96.0%
FWHM:
133°
Cd/Im:
0.9
Download

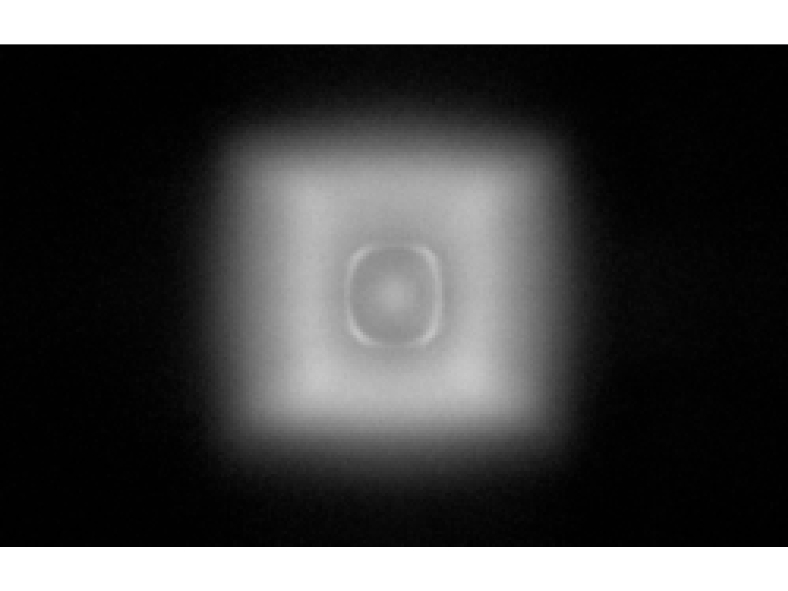

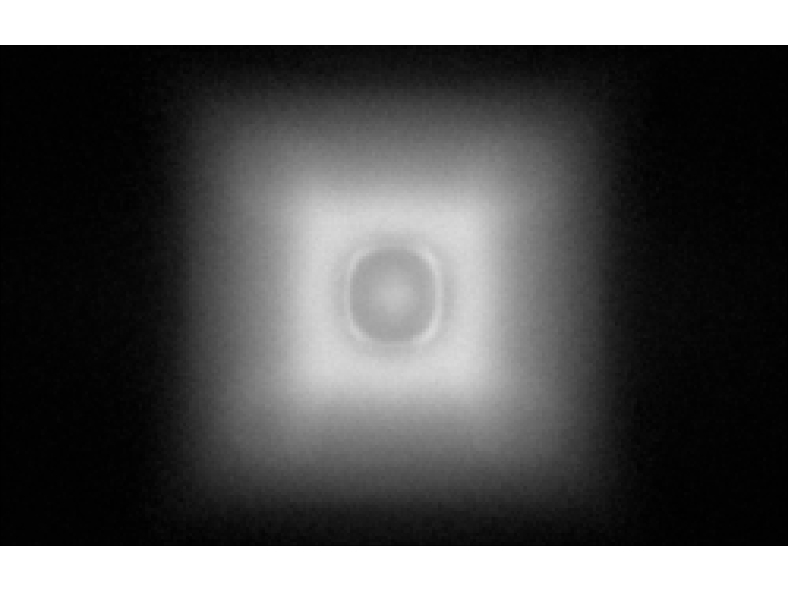

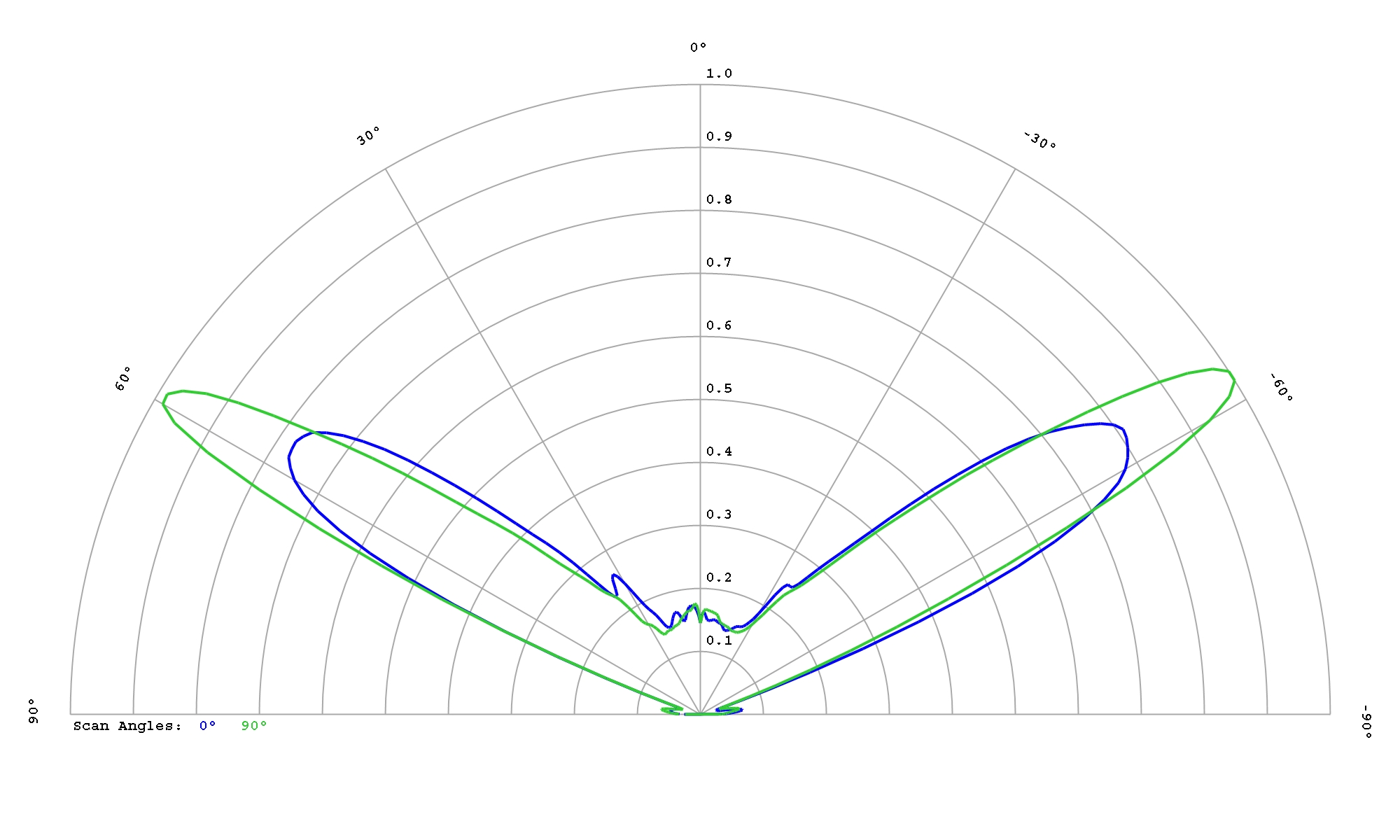

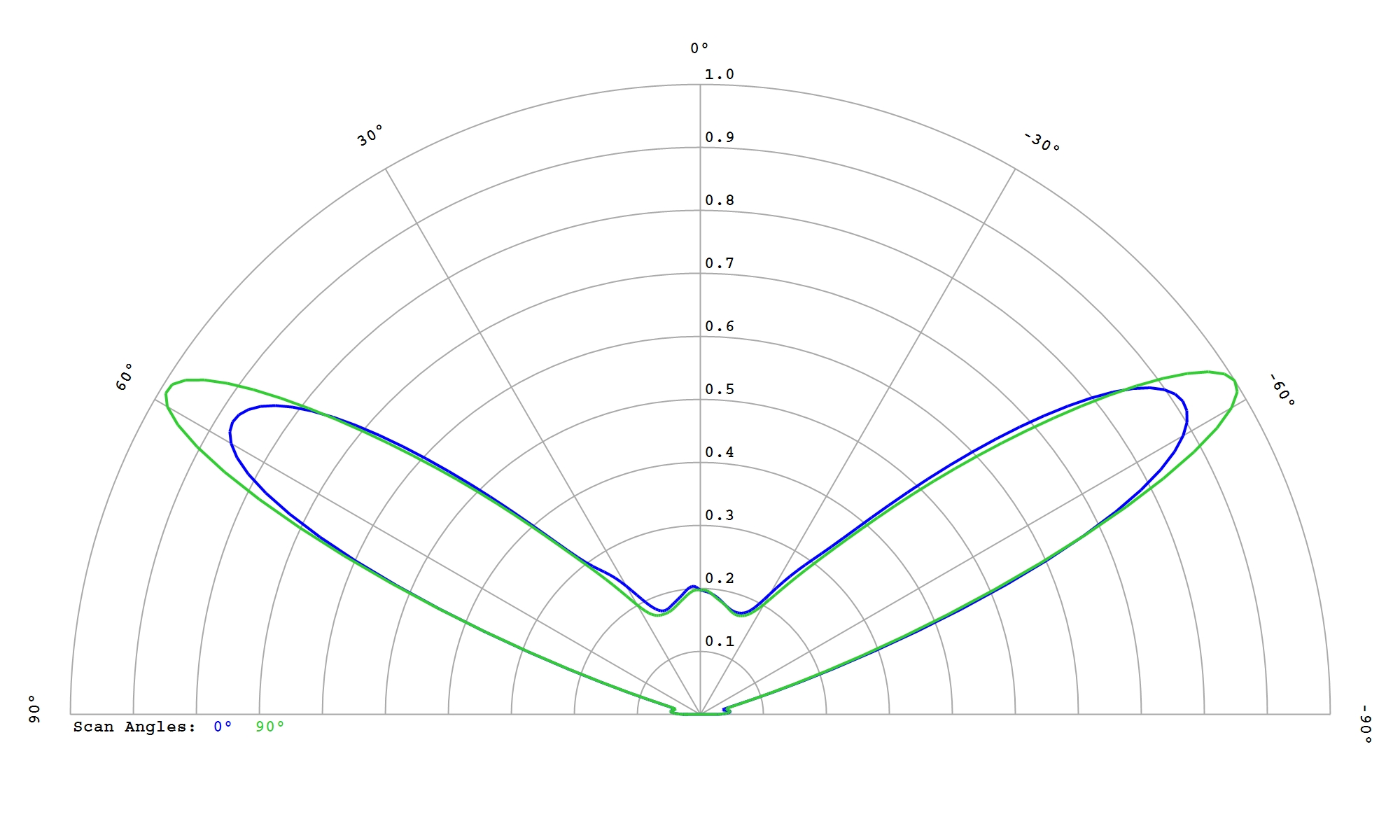

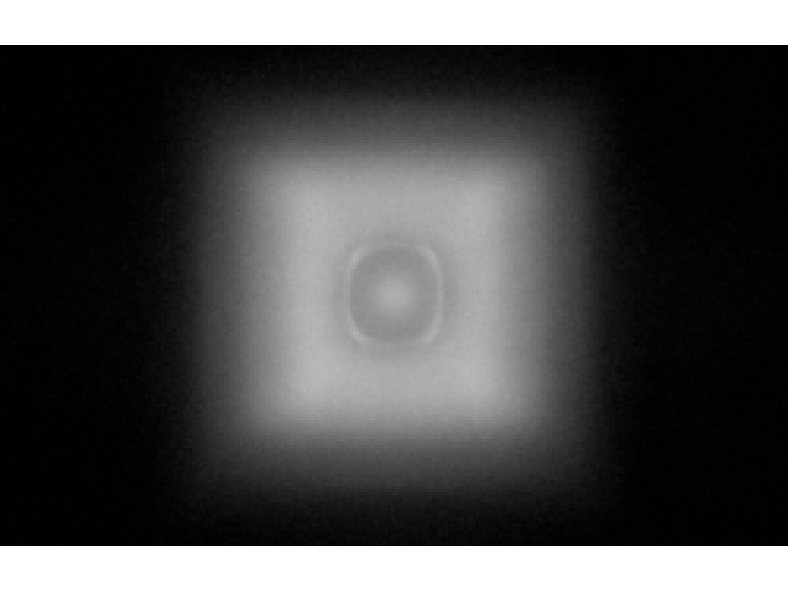

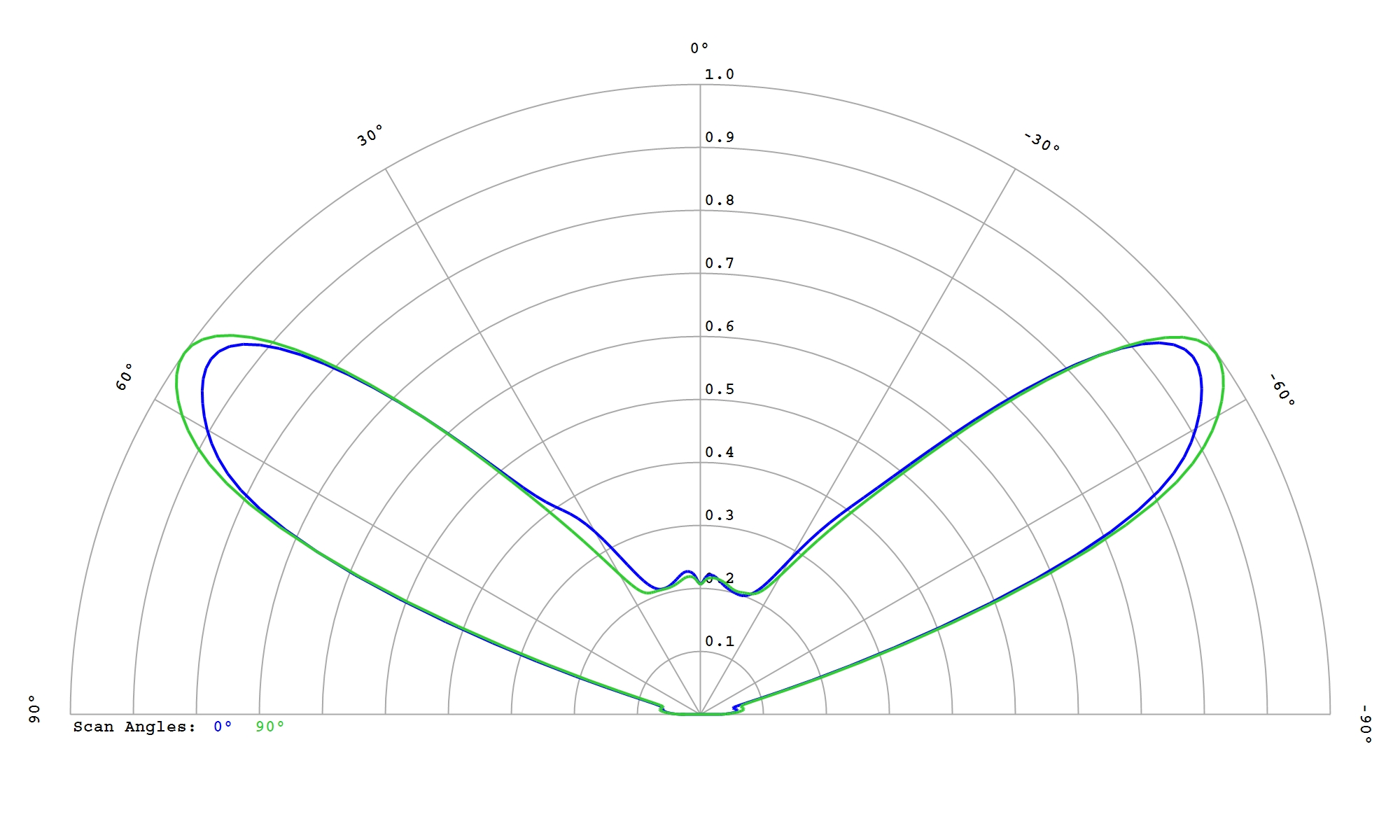

LUMILEDS LUXEON 3030 2D White
Eff:
95.5%
FWHM:
131°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.6
Download

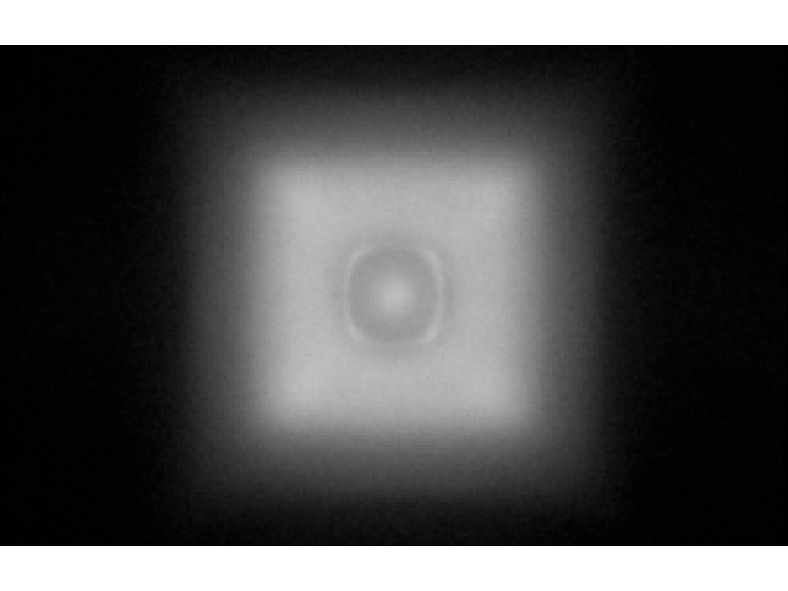

LUMILEDS LUXEON 3030 HE White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.7
Download

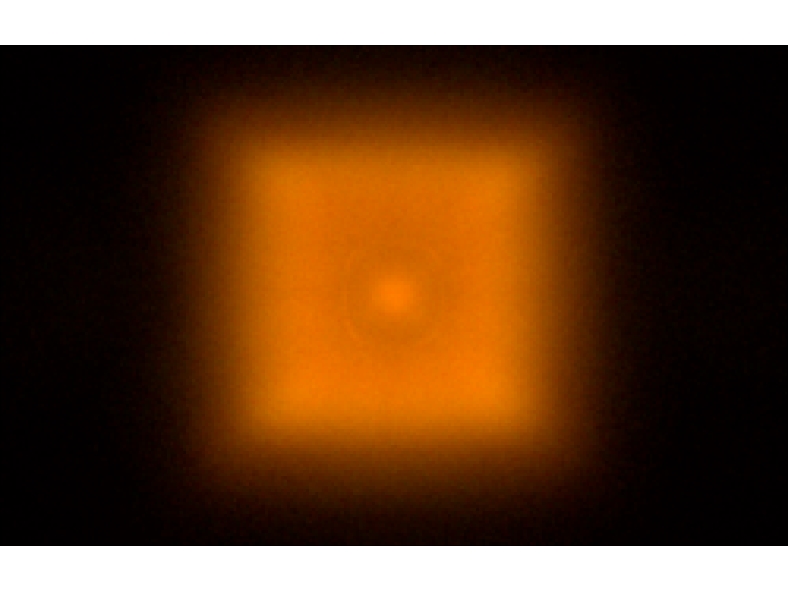

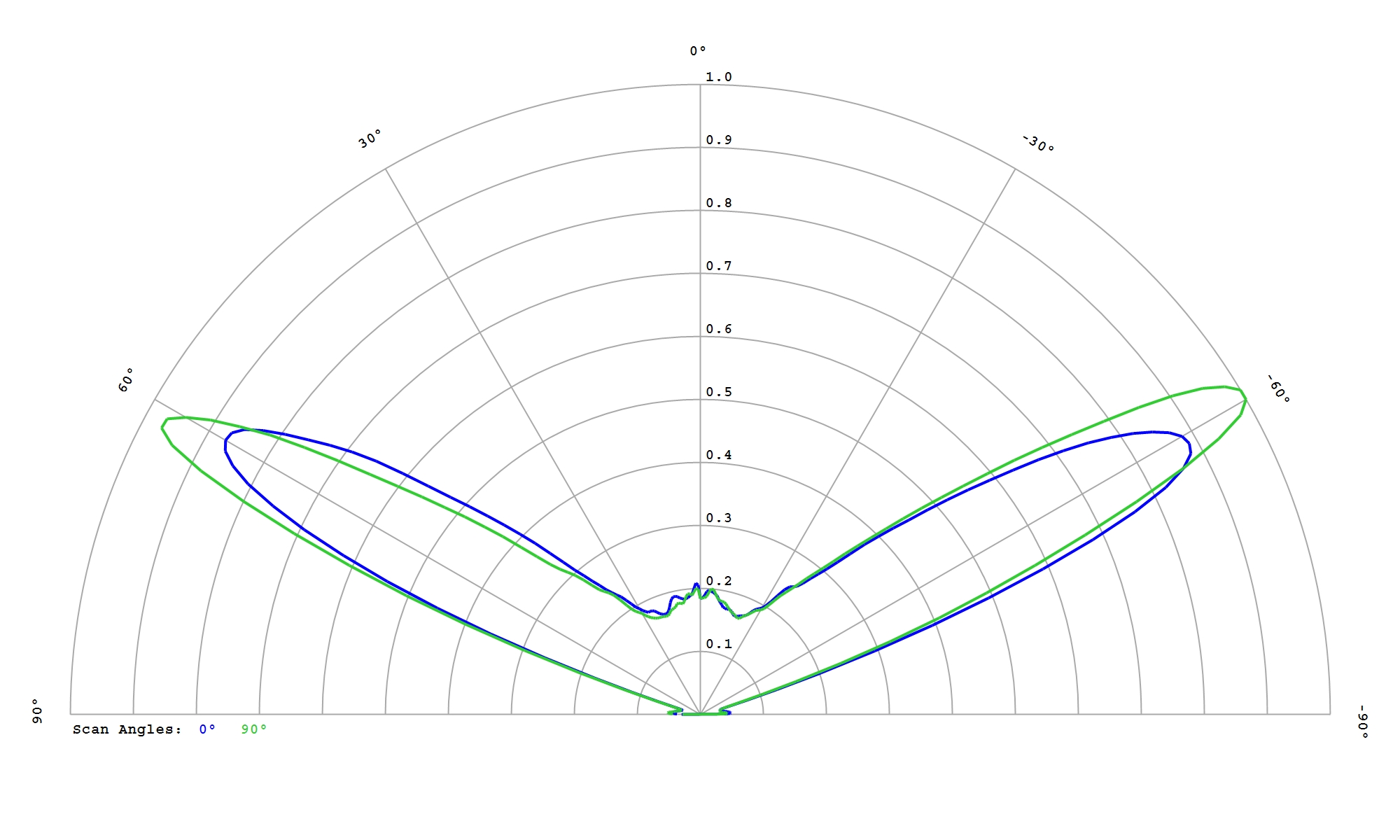

LUMILEDS LUXEON 3535L PC Amber
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Blue
Eff:
89.5%
FWHM:
144°
Cd/Im:
0.7
Download

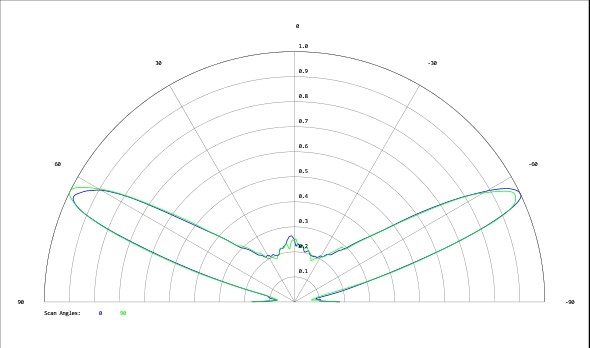

LUMILEDS LUXEON C Lime
Eff:
90.5%
FWHM:
143.5°
Cd/Im:
0.7
Download

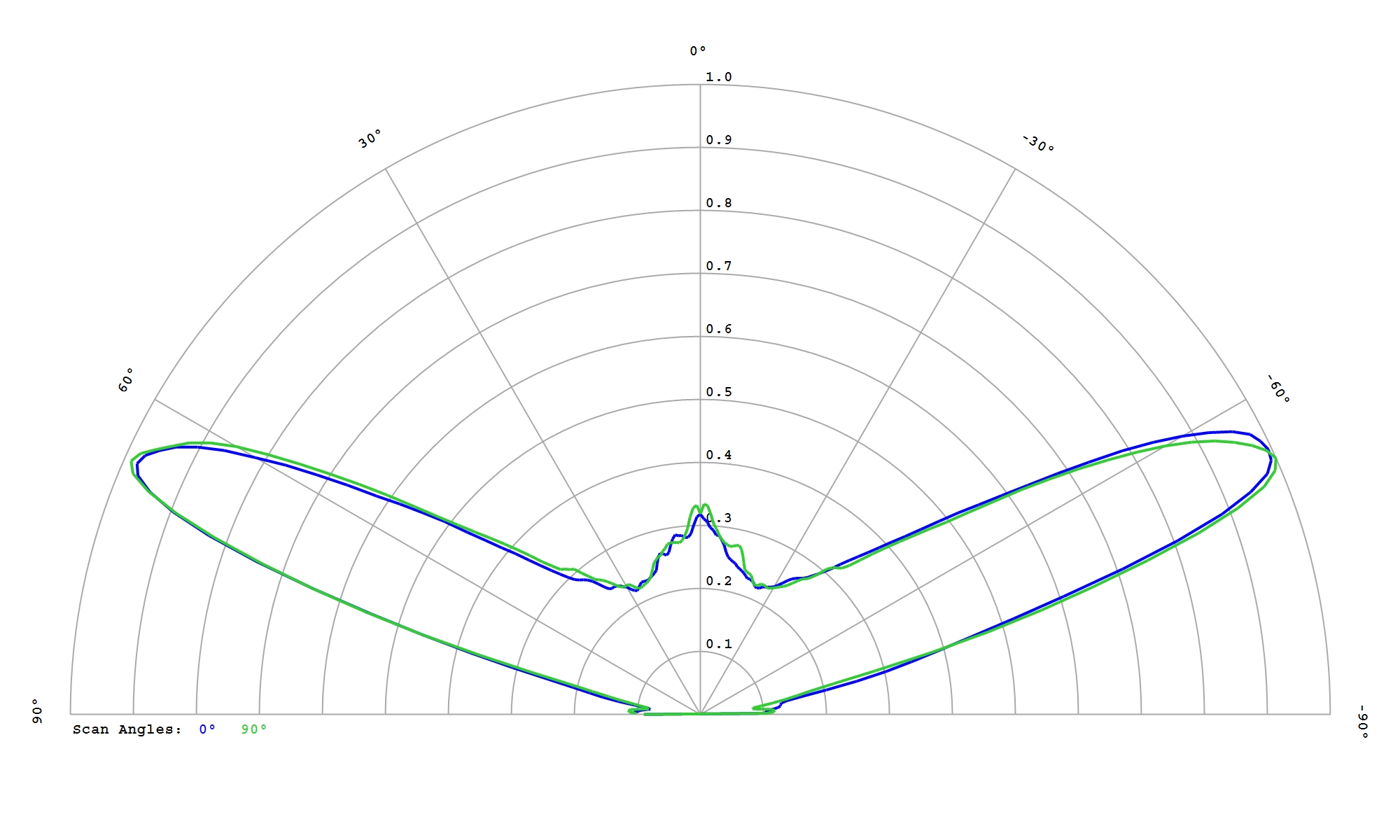

LUMILEDS LUXEON C PC Amber
Eff:
86.5%
FWHM:
147°
Cd/Im:
0.6
Download
LUMILEDS LUXEON C Red
Eff:
88.5%
FWHM:
146°
Cd/Im:
0.6
Download

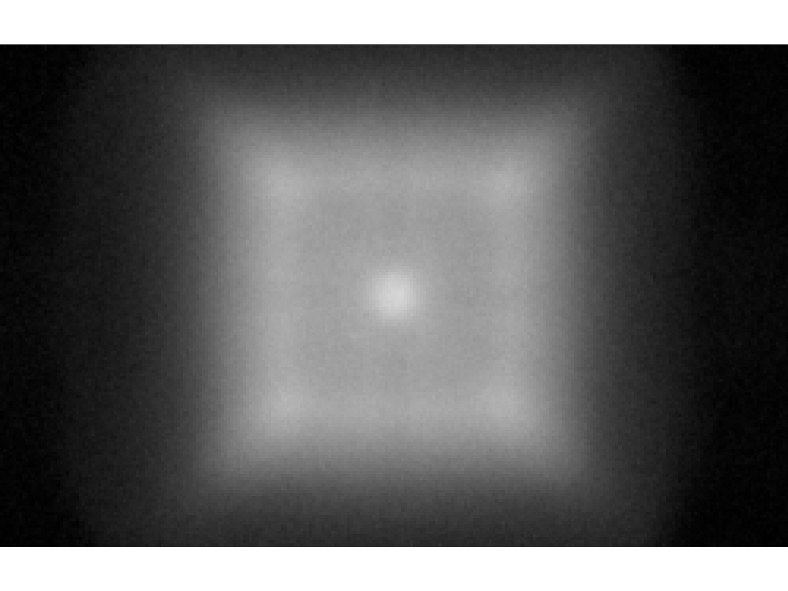

LUMILEDS LUXEON C White
Eff:
88.5%
FWHM:
143°
Cd/Im:
0.7
Download
LUMILEDS LUXEON CZ White
Eff:
96.0%
FWHM:
134°
Cd/Im:
1.0
Download

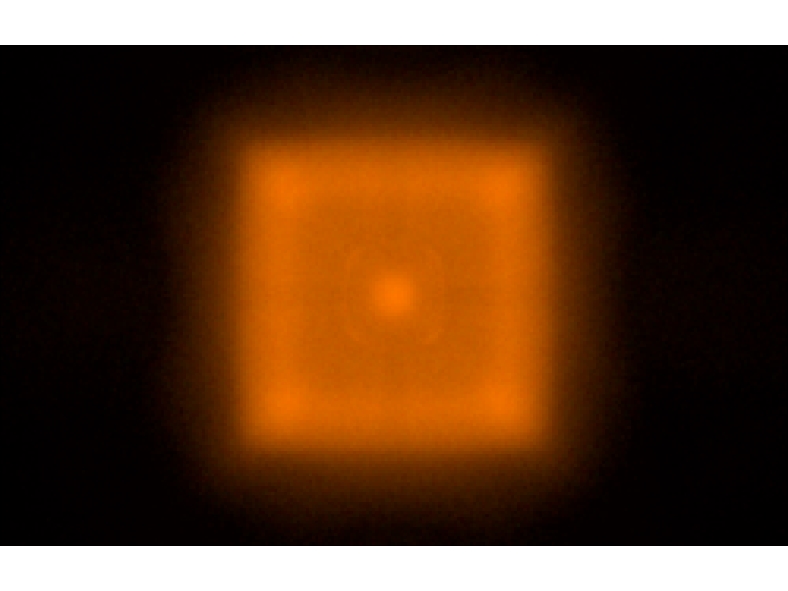

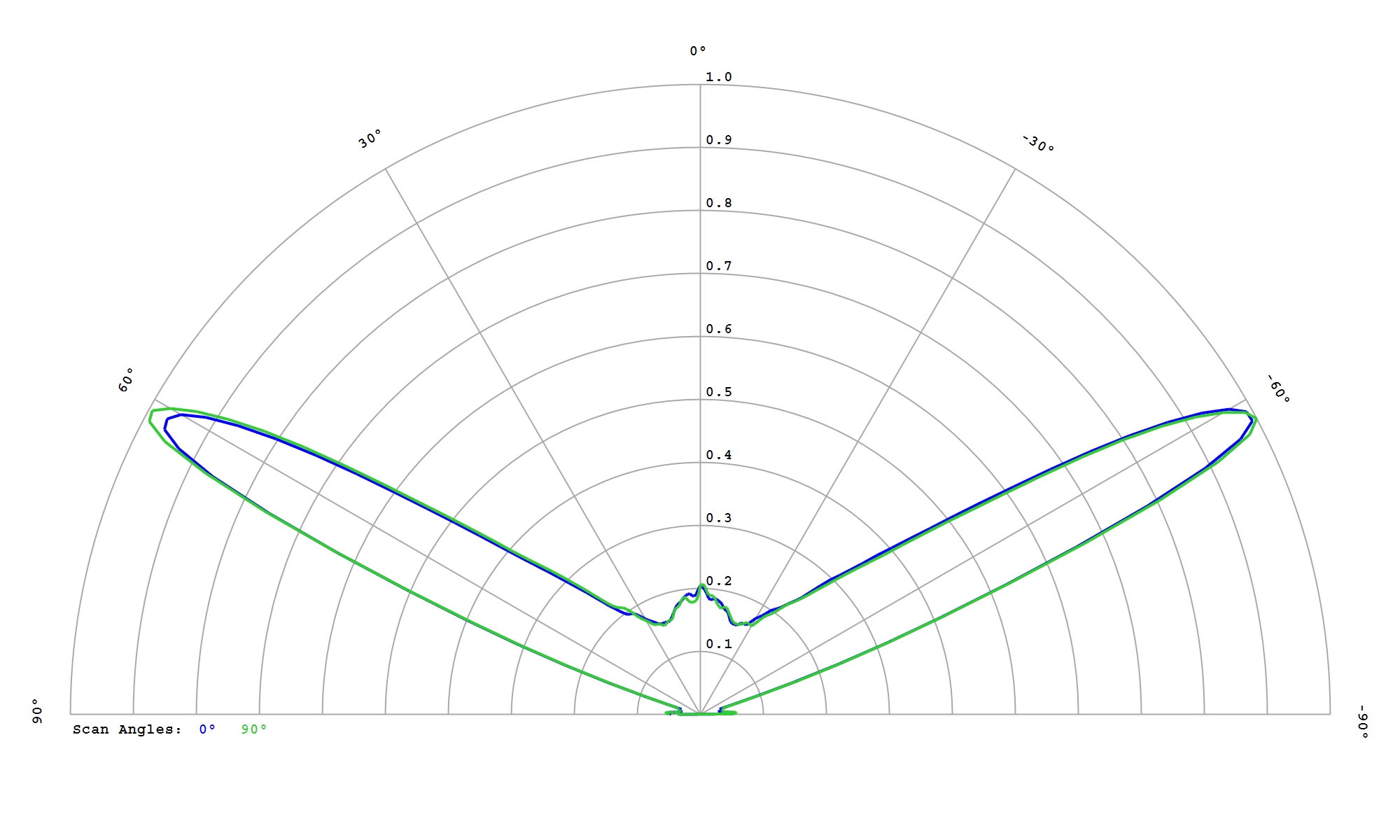

LUMILEDS LUXEON CZ PC Amber
Eff:
96.0%
FWHM:
134°
Cd/Im:
1.0
Download

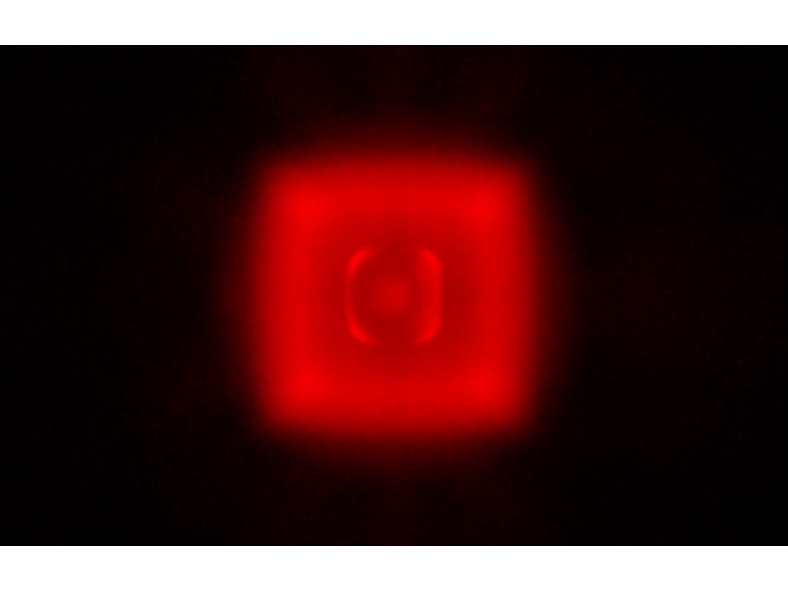

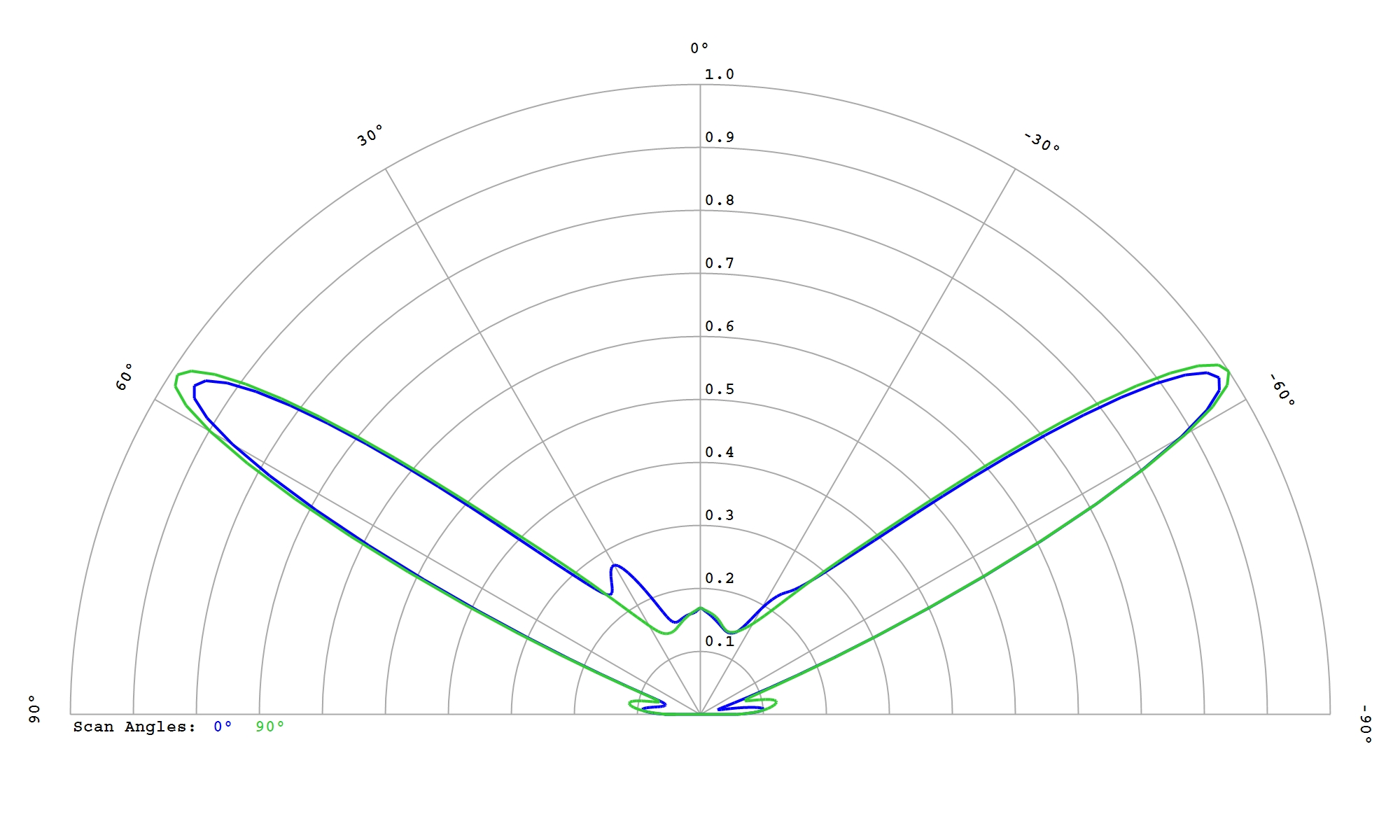

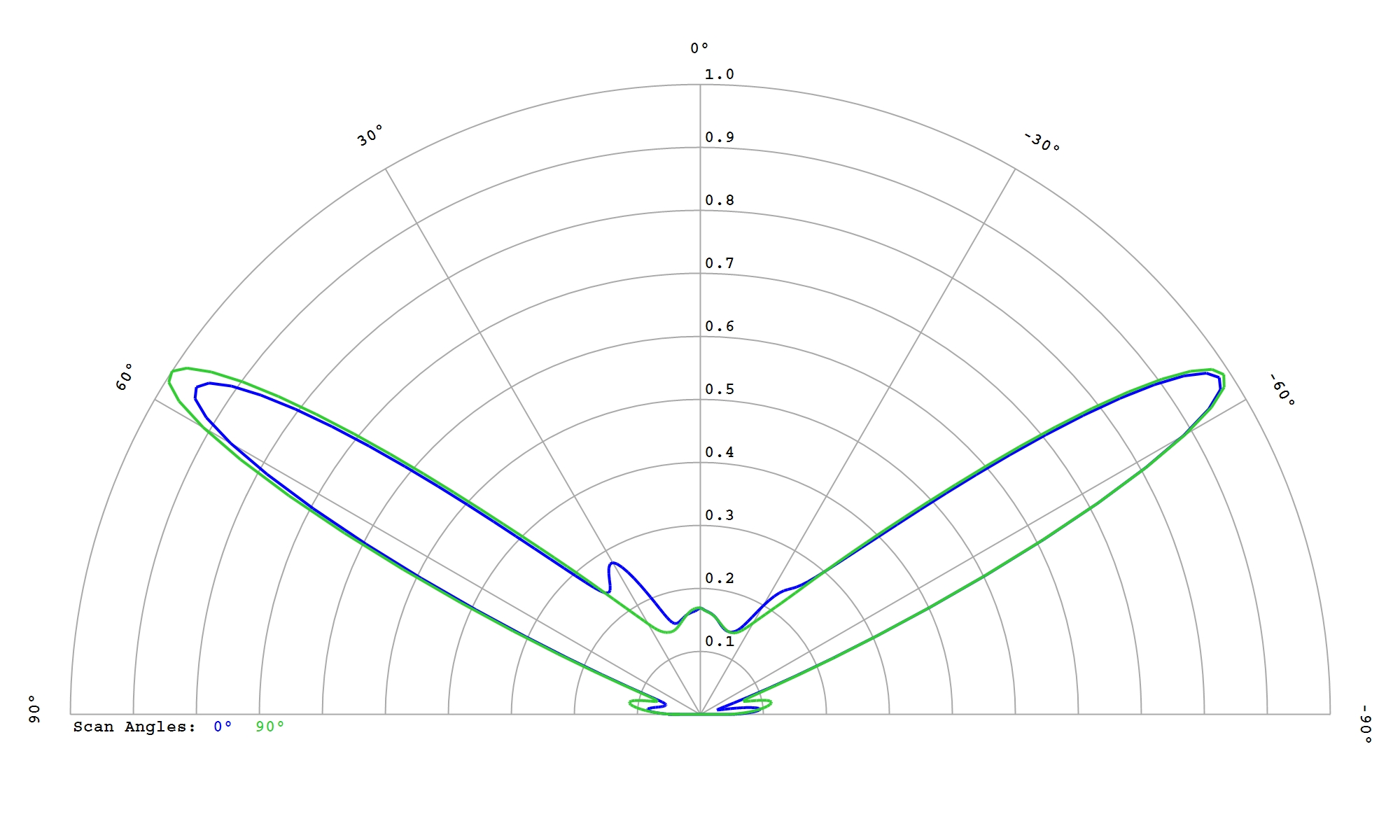

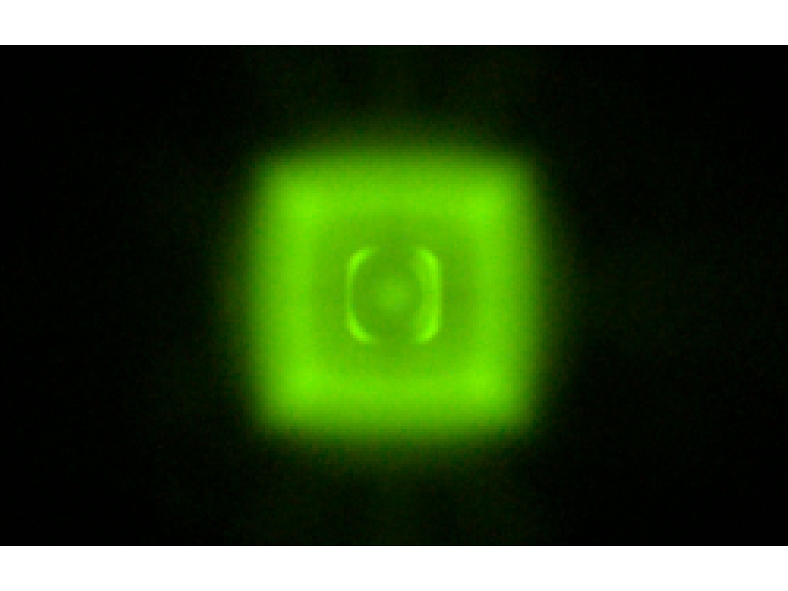

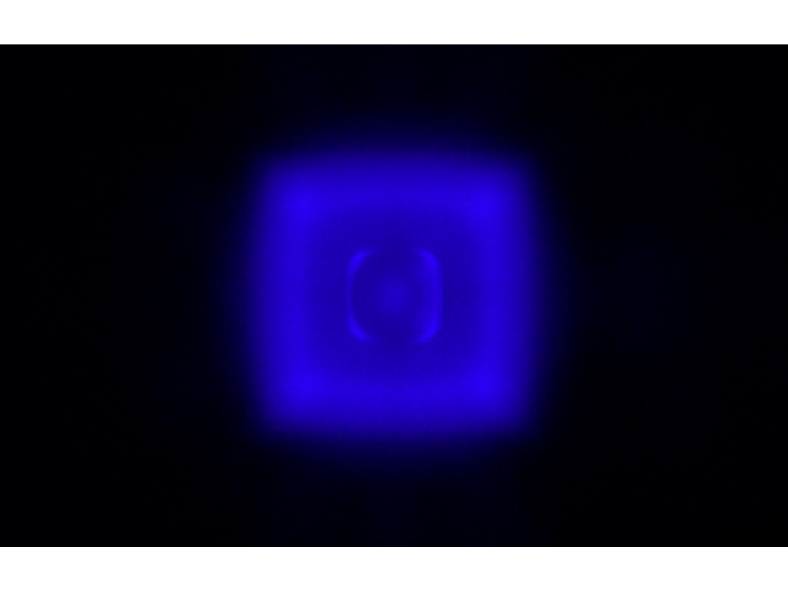

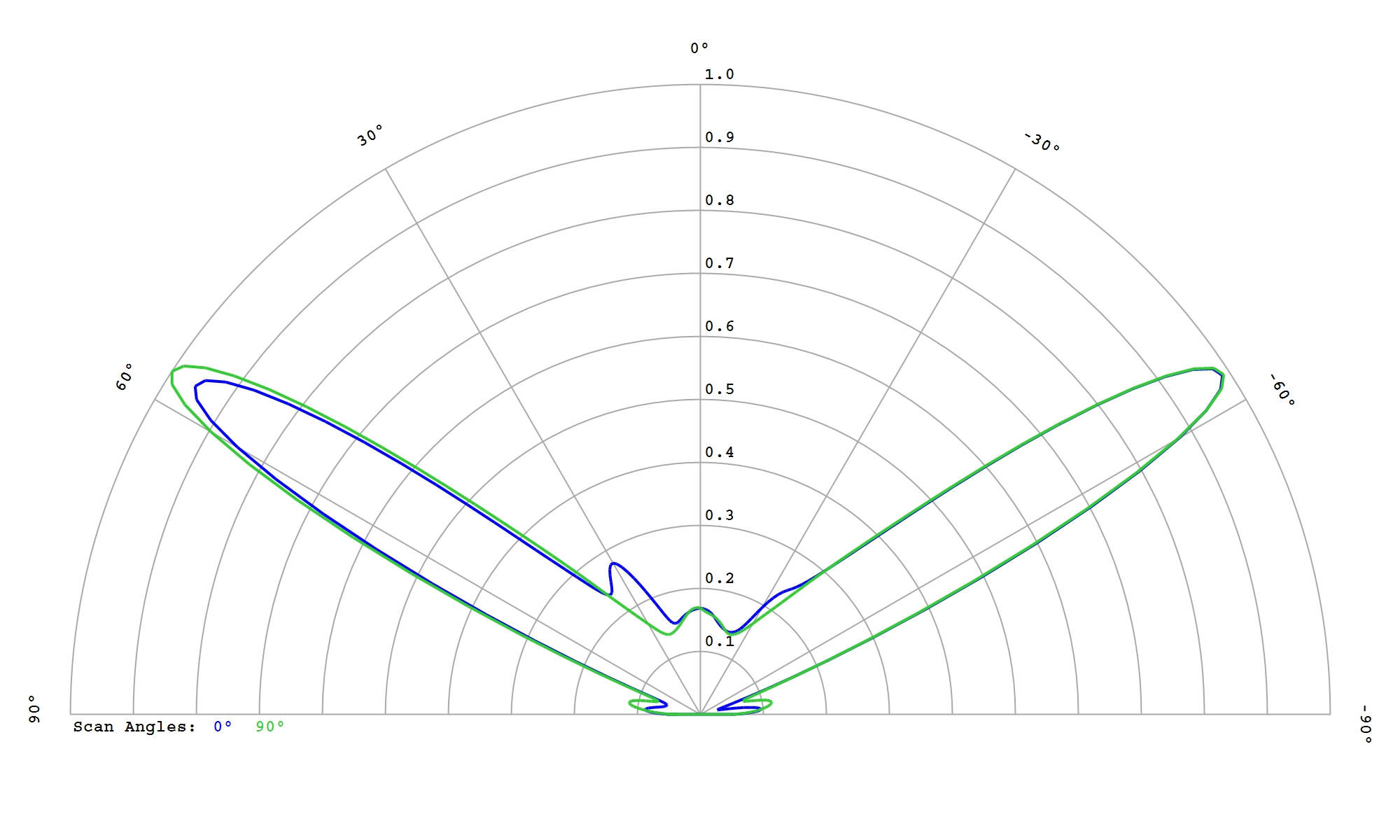

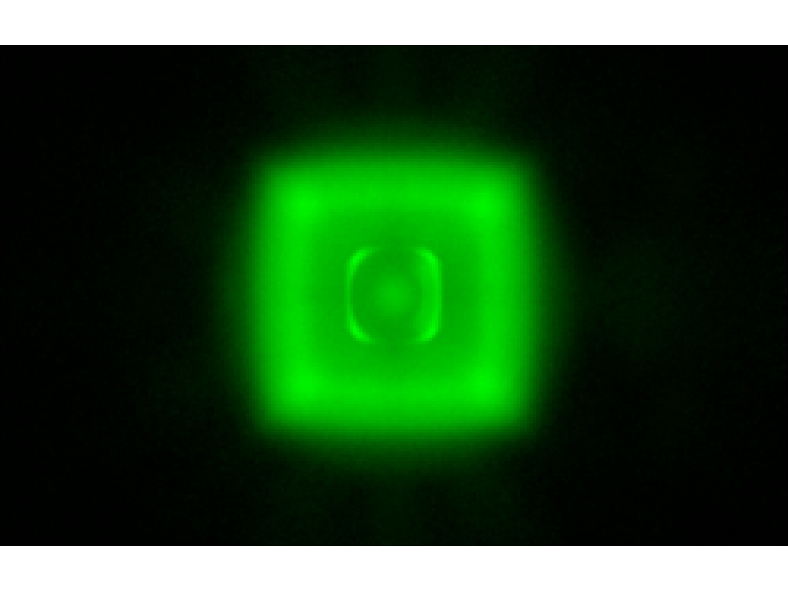

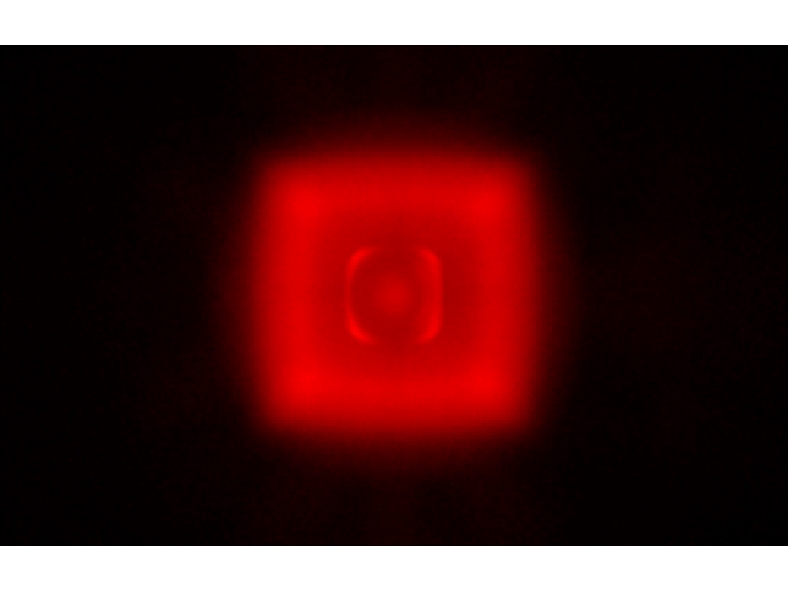

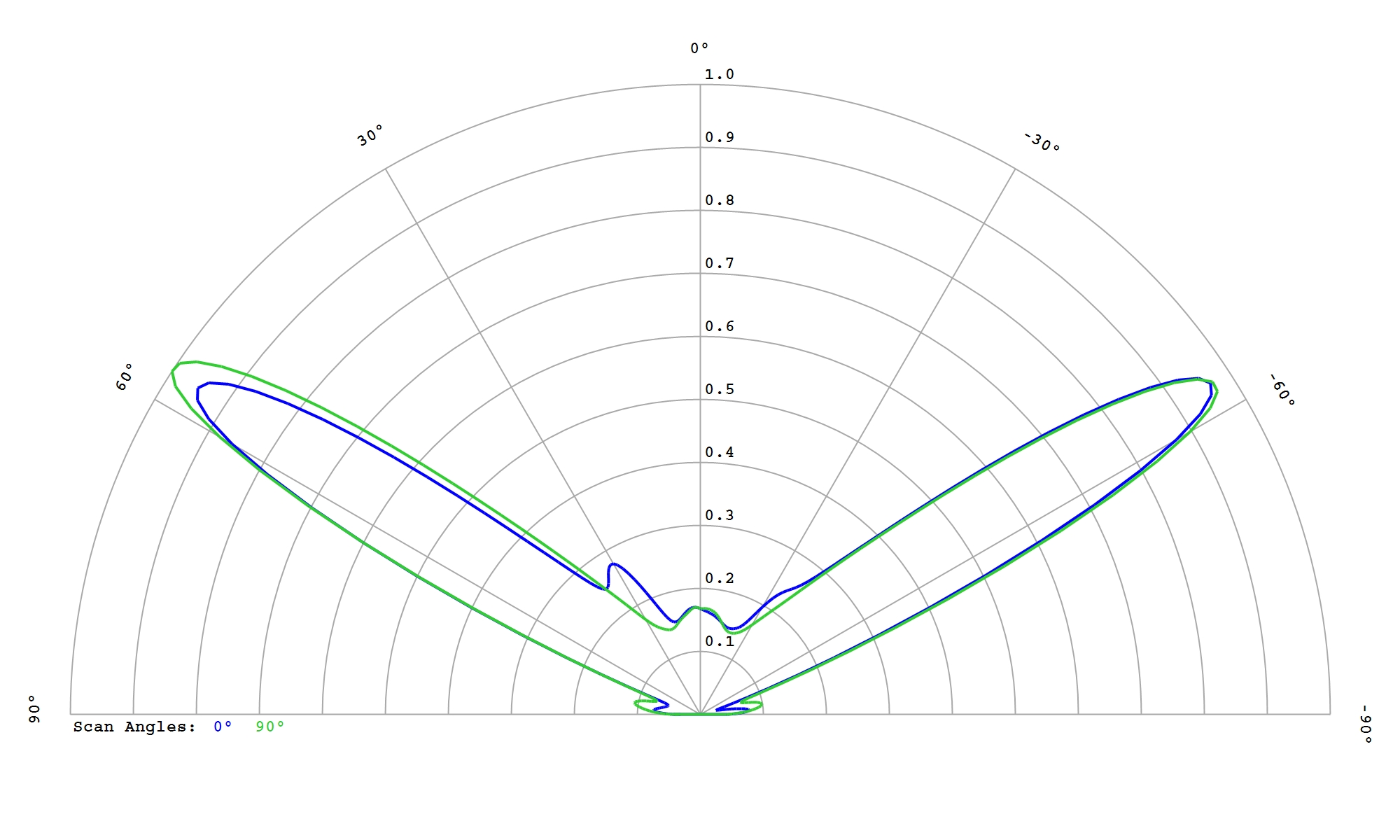

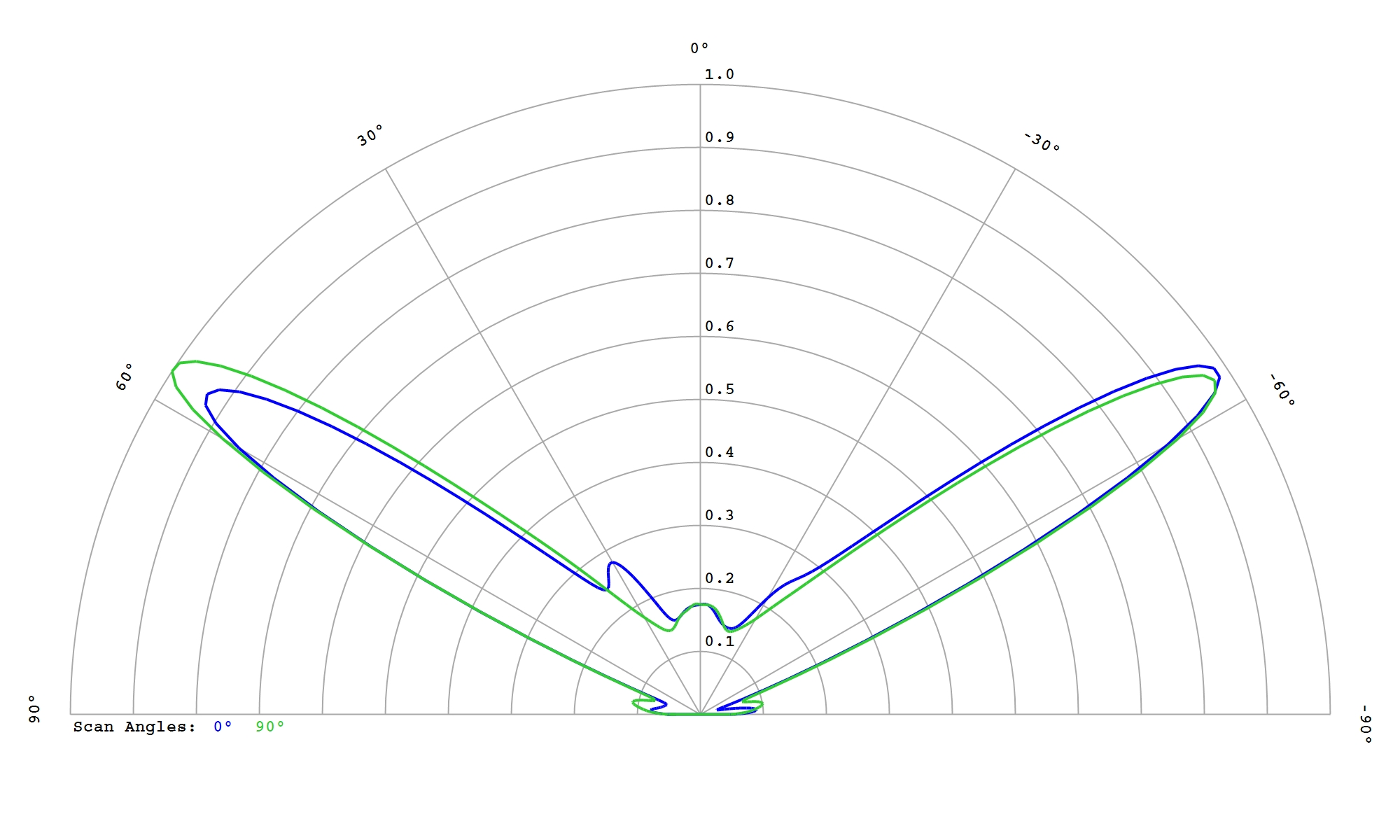

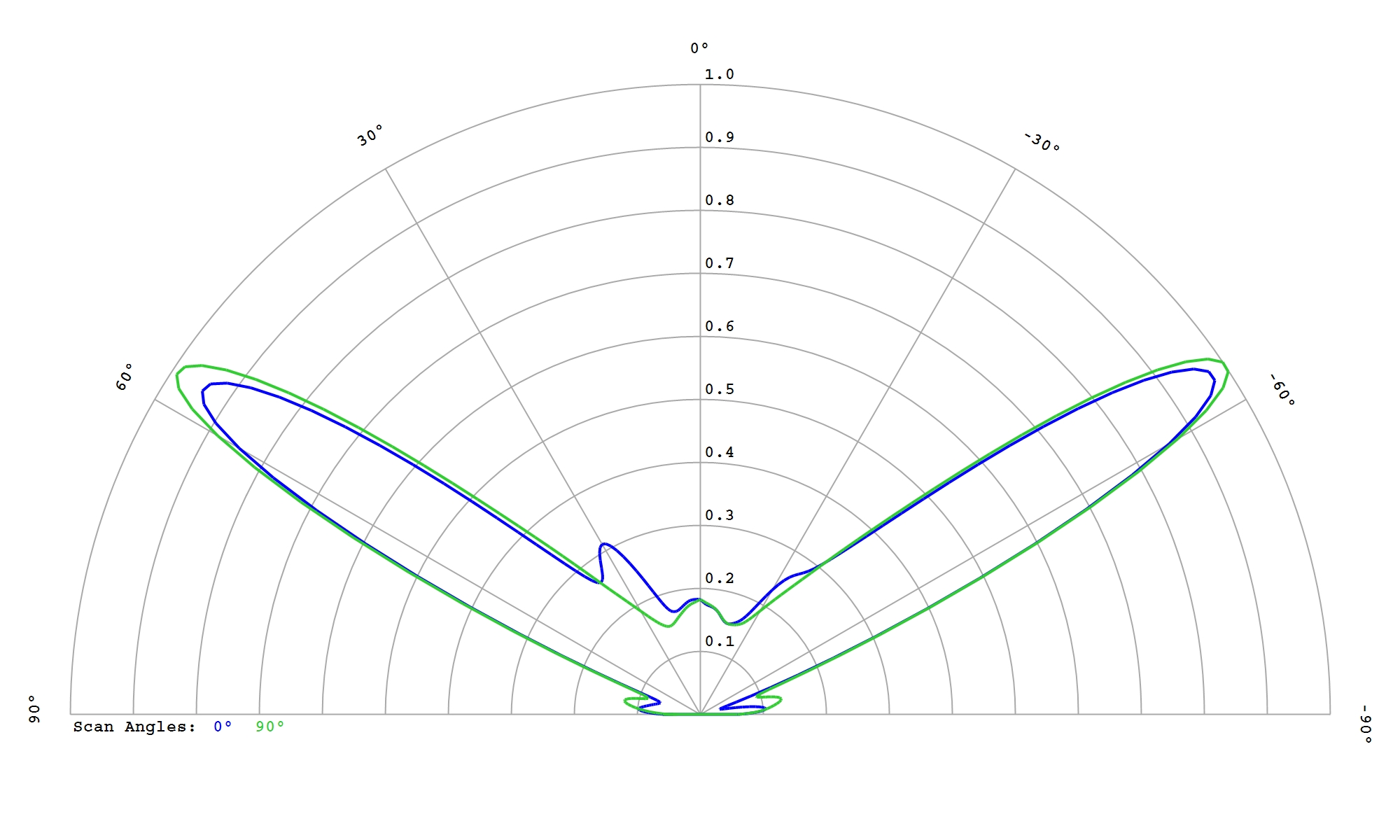

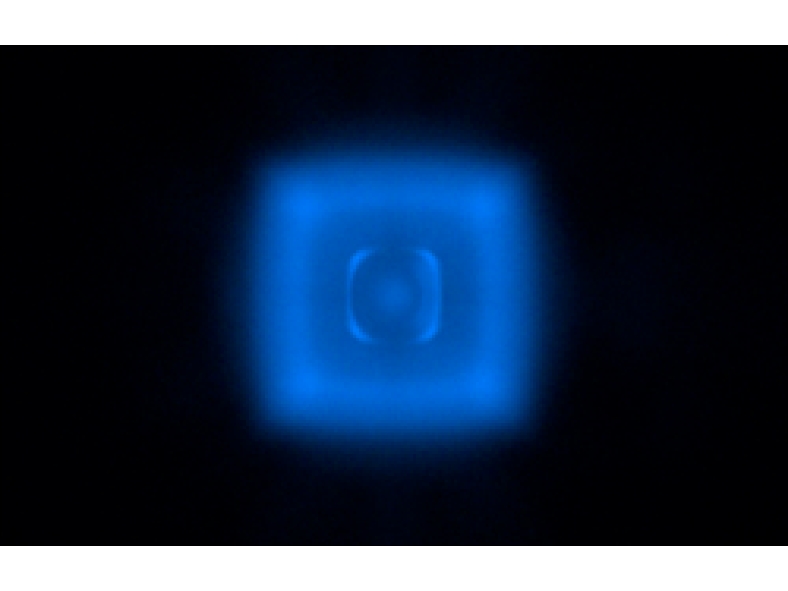

LUMILEDS LUXEON HL1Z CSP White
Eff:
93.5%
FWHM:
127°
Cd/Im:
0.9
Download

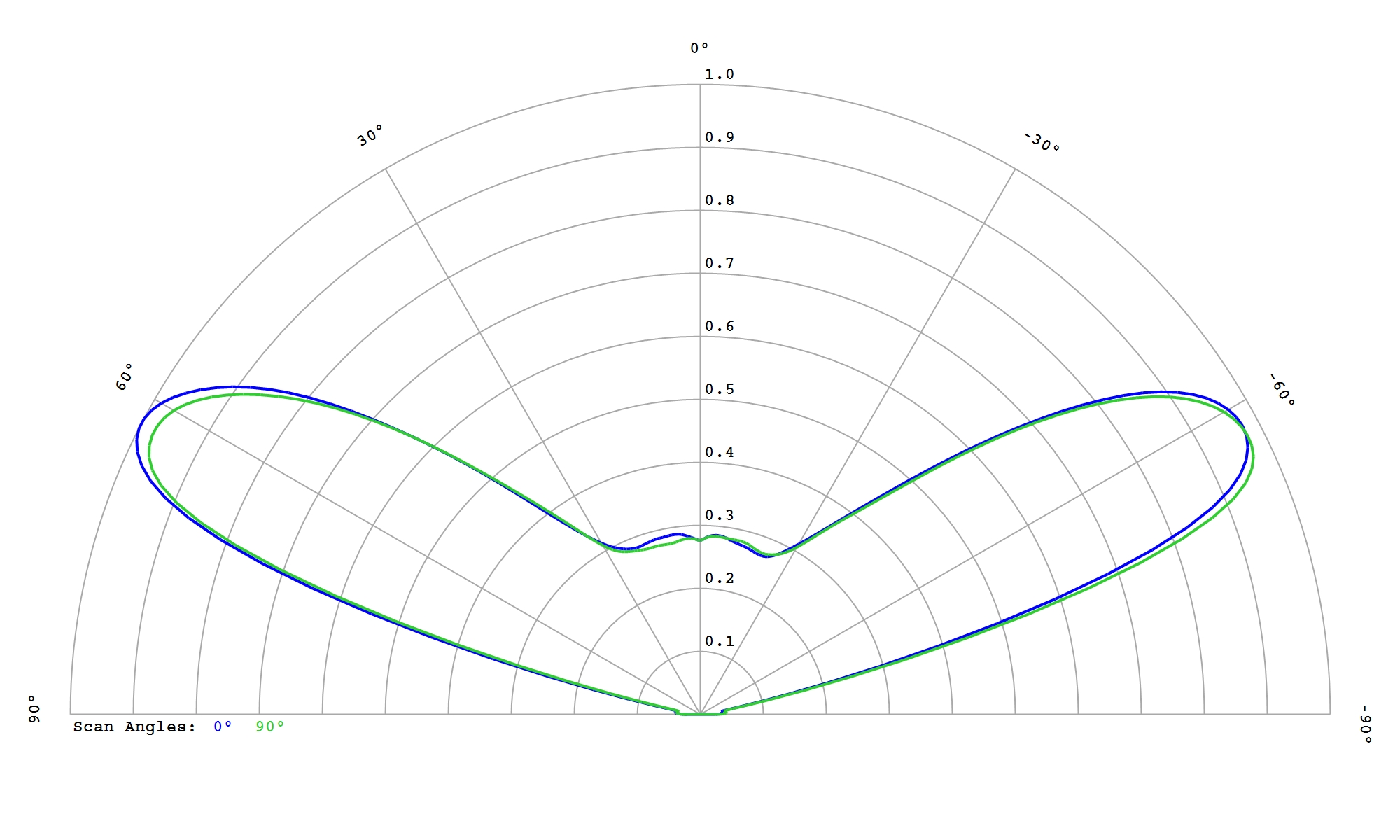

LUMILEDS LUXEON HL2X White
Eff:
94.5%
FWHM:
146°
Cd/Im:
0.5
Download
LUMILEDS LUXEON HL2X-D White
Eff:
91.5%
FWHM:
149°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2X-P White
Eff:
92.5%
FWHM:
148°
Cd/Im:
0.4
Download
LUMILEDS LUXEON HL2Z White
Eff:
94.5%
FWHM:
130°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL4X White
Eff:
92.5%
FWHM:
148°
Cd/Im:
0.4
Download

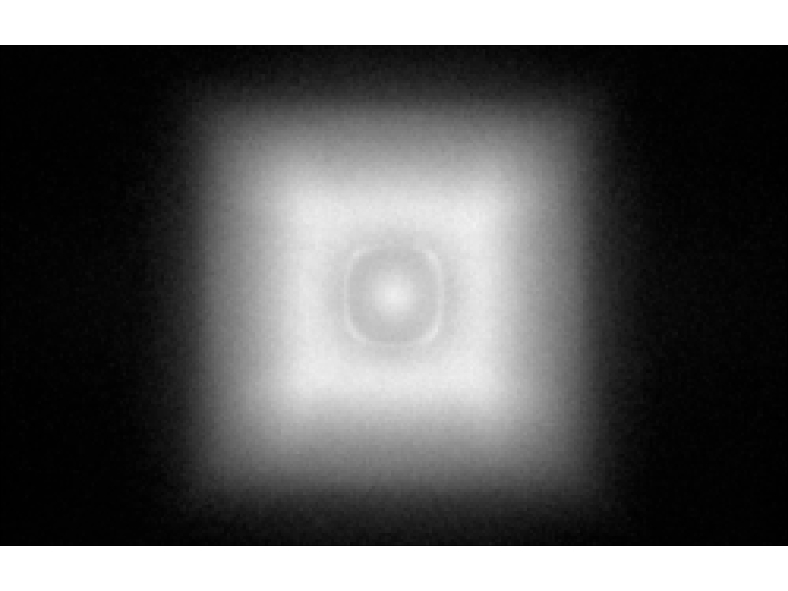

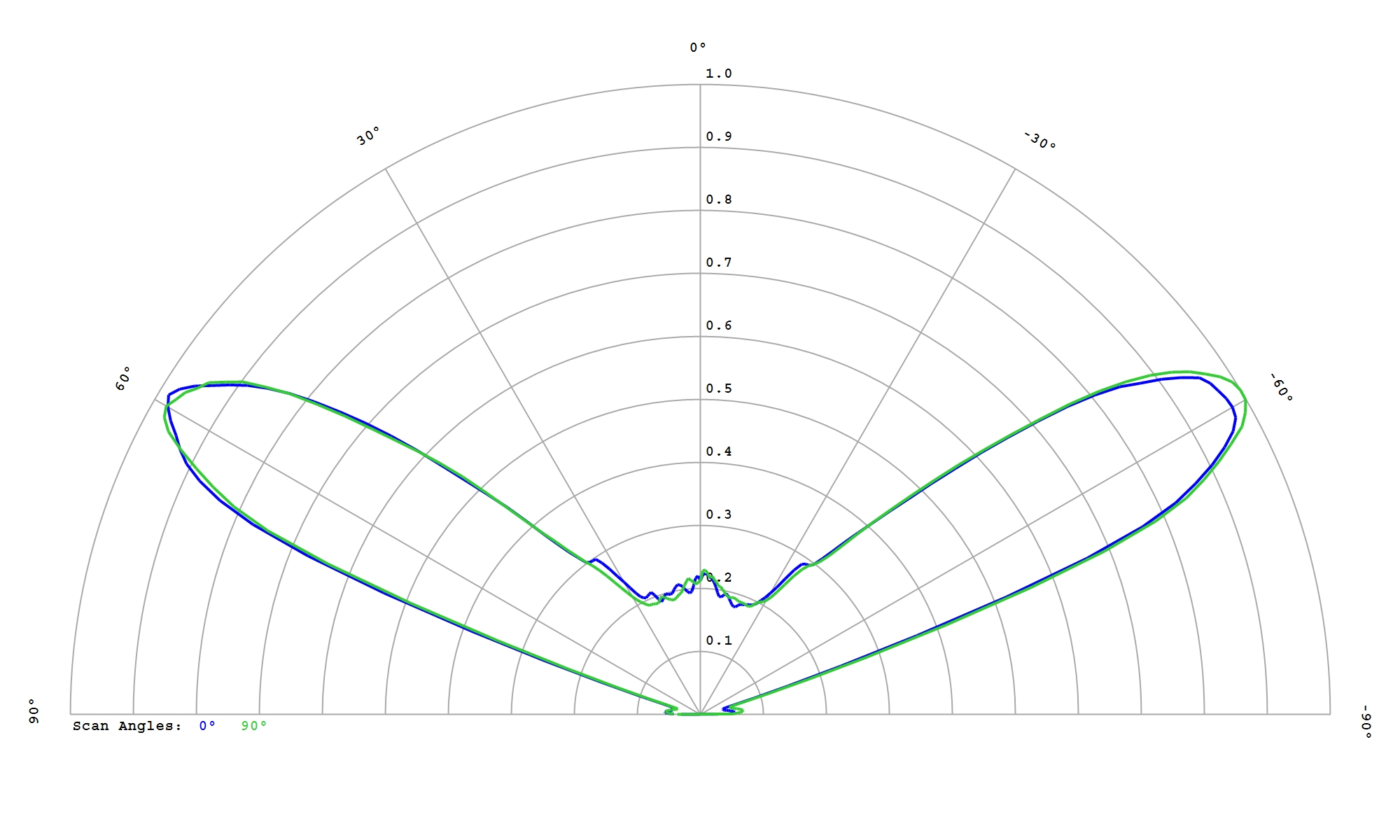

LUMILEDS LUXEON HL4Z White
Eff:
96.0%
FWHM:
138°
Cd/Im:
0.6
Download
LUMILEDS LUXEON IR 2720
Eff:
96.5%
FWHM:
132°
Ipk/W:
0.8
Download
LUMILEDS LUXEON Rebel ES White
Eff:
91.0%
FWHM:
140°
Cd/Im:
0.6
Download

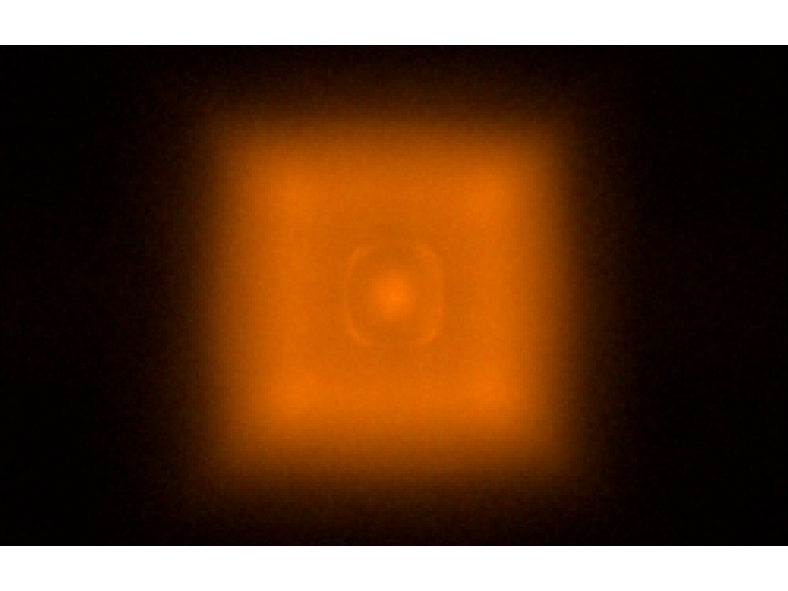

LUMILEDS LUXEON Rebel PC Amber
Eff:
94.0%
FWHM:
136°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix Blue
Eff:
96.0%
FWHM:
136°
Cd/Im:
1.1
Download
LUMILEDS LUXEON Rubix Green
Eff:
95.5%
FWHM:
136°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
96.5%
FWHM:
136°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix White
Eff:
95.5%
FWHM:
136.0°
Cd/Im:
1.0
Download
LUMILEDS LUXEON SunPlus 20 Line Cool White
Eff:
91.0%
FWHM:
144°
Cd/Im:
0.7
Download
LUMILEDS LUXEON SunPlus 20 Line Deep Red
Eff:
84.5%
FWHM:
148°
Cd/Im:
0.6
Download
LUMILEDS LUXEON SunPlus 20 Line Far Red
Eff:
85.5%
FWHM:
148°
Cd/Im:
0.6
Download

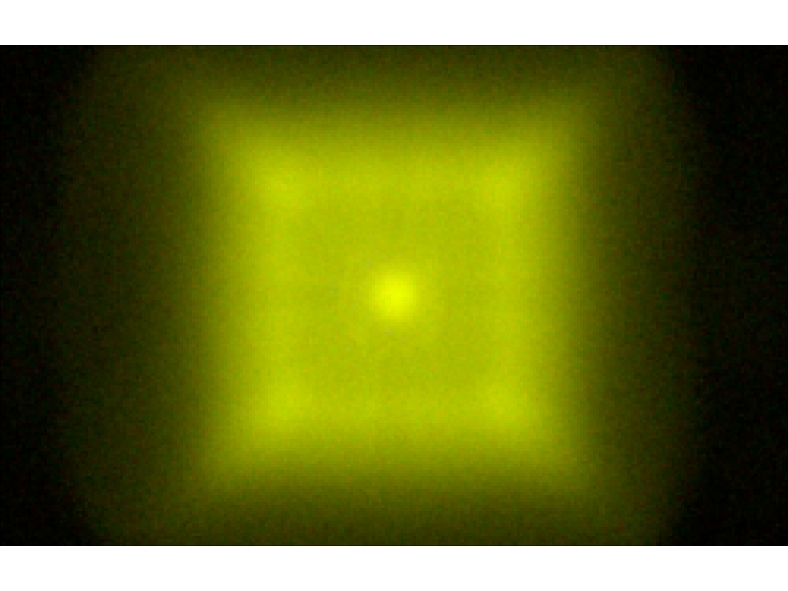

LUMILEDS LUXEON SunPlus 20 Line Lime
Eff:
88.5%
FWHM:
144°
Cd/Im:
0.7
Download
LUMILEDS LUXEON SunPlus 20 Line Royal Blue
Eff:
87.5%
FWHM:
143°
Cd/Im:
0.7
Download
LUMILEDS LUXEON TX White
Eff:
91.4%
FWHM:
139°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Z ES White
Eff:
92.5%
FWHM:
130°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Z PC Amber
Eff:
95.5%
FWHM:
134°
Cd/Im:
1.0
Download

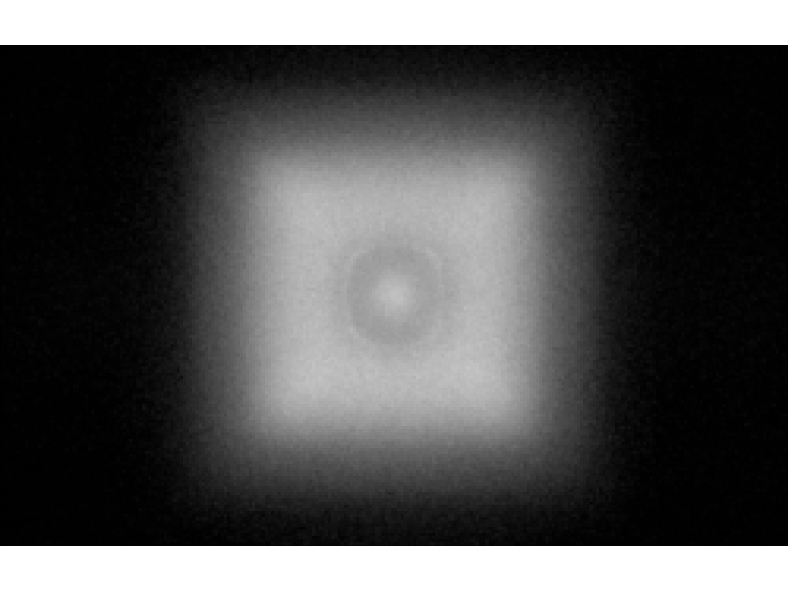

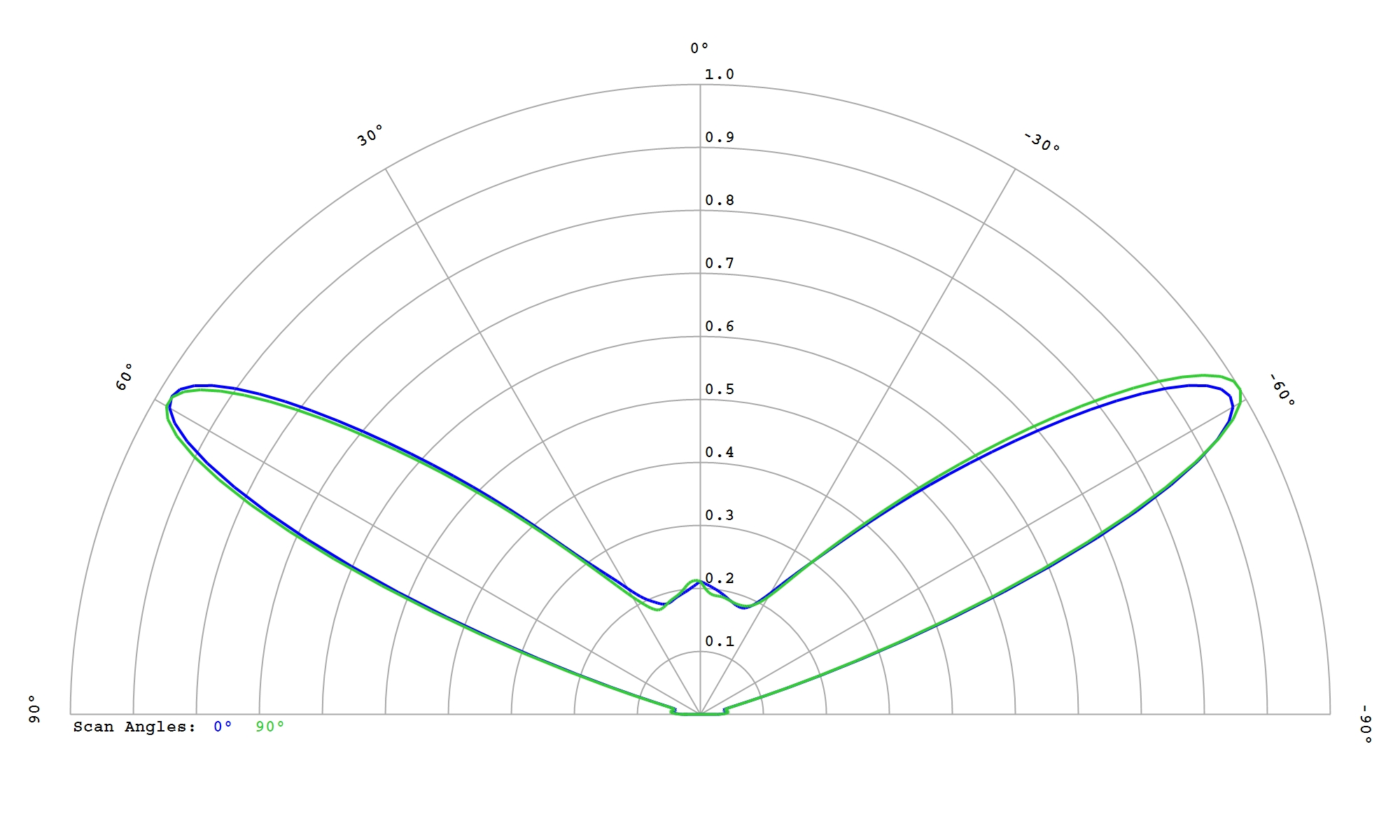

Luminus Devices SST 05-IR-B40 850nm
Eff:
96.0%
FWHM:
123°
Ipk/W:
0.5
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.9
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
95.0%
FWHM:
128°
Cd/Im:
0.7
Download

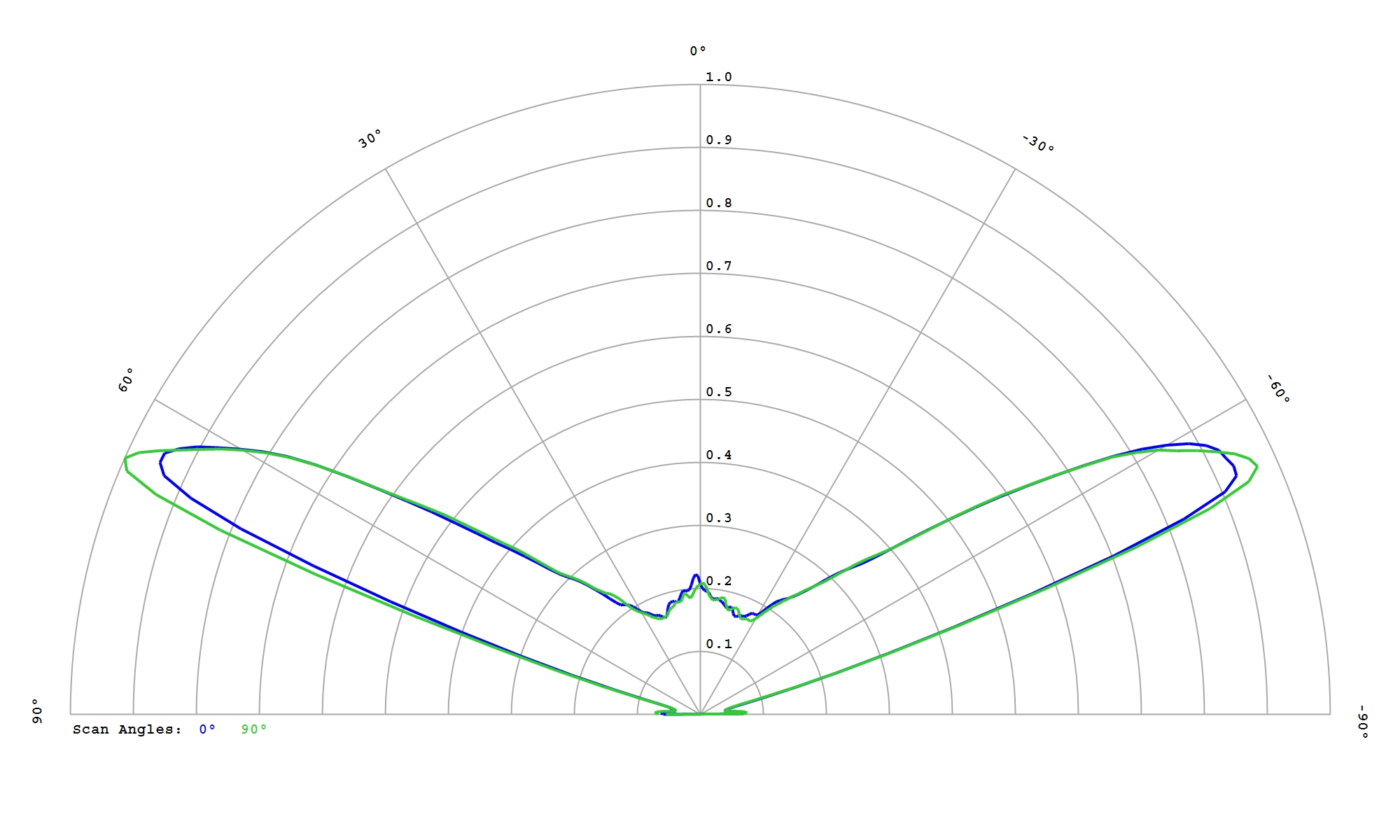

Luminus Devices SST 10-DR-B130 Deep Red
Eff:
94.5%
FWHM:
141°
Cd/Im:
0.7
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
94.5%
FWHM:
128°
Cd/Im:
0.6
Download
Luminus Devices SST 10-FR-B130 Far Red
Eff:
94.0%
FWHM:
141°
Cd/Im:
0.8
Download
Luminus Devices SST 10-FR-B90 Far Red
Eff:
95.0%
FWHM:
128°
Cd/Im:
0.7
Download

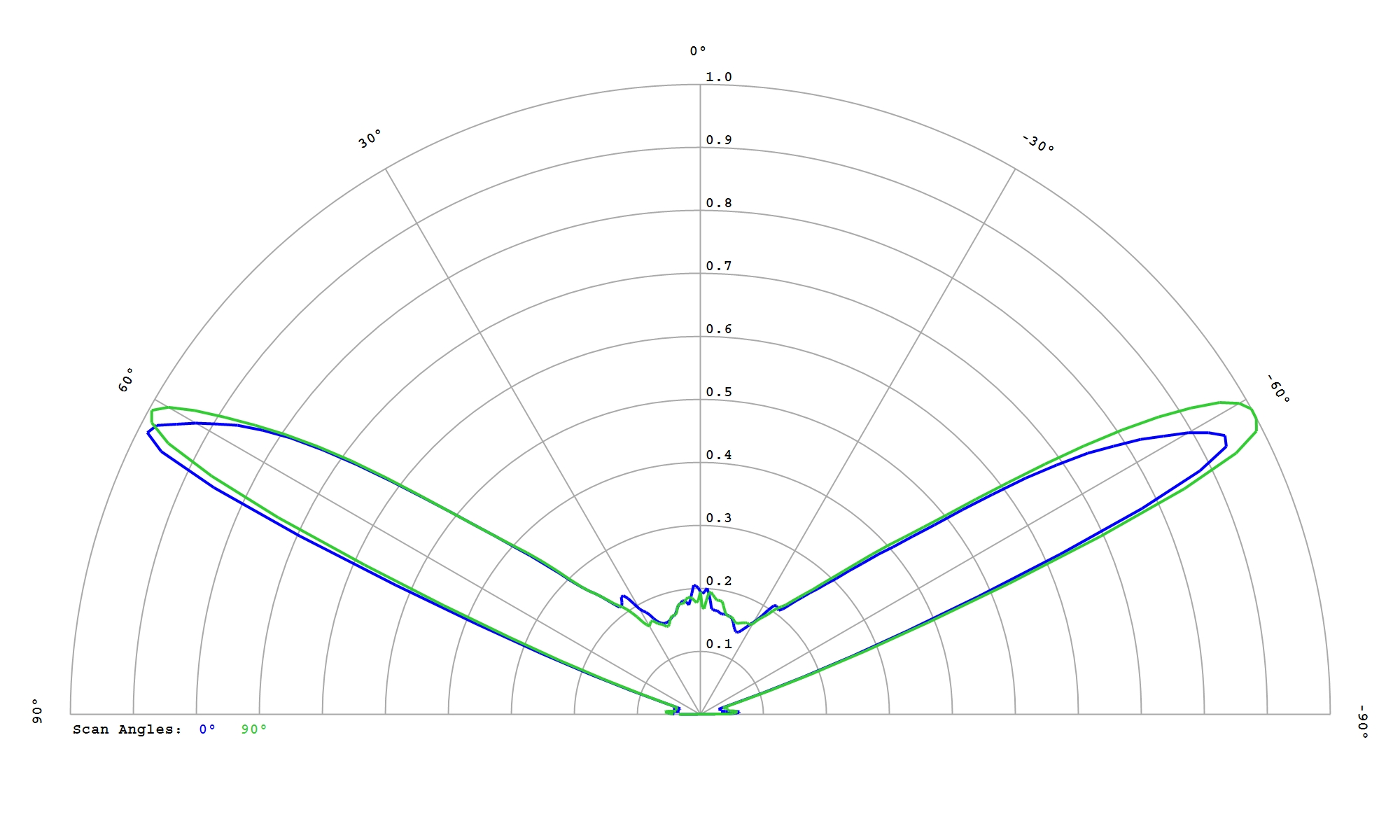

Luminus Devices SST 10-G-B130 Green
Eff:
95.5%
FWHM:
134°
Cd/Im:
0.9
Download
Luminus Devices SST 10-G-B90 Green
Eff:
93.5%
FWHM:
127°
Cd/Im:
0.7
Download

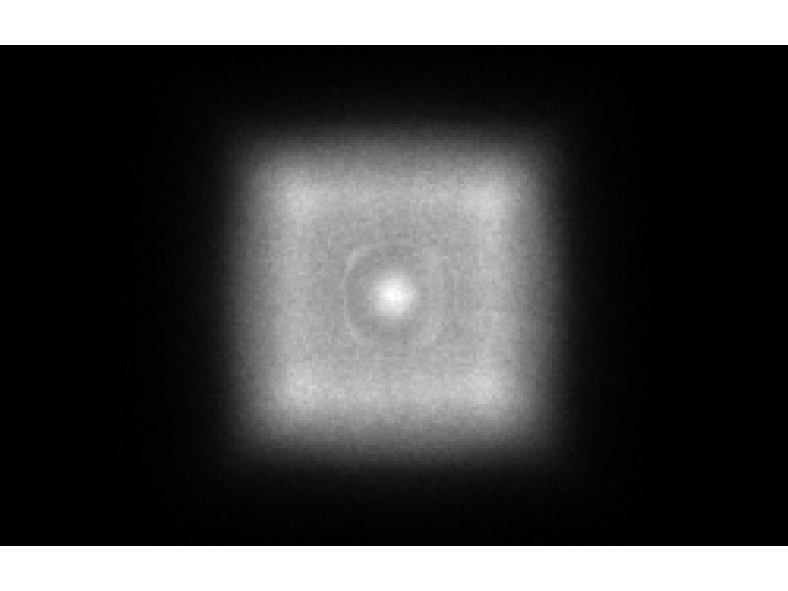

Luminus Devices SST 10-IR-B130 940nm
Eff:
95.5%
FWHM:
136°
Ipk/W:
0.7
Download

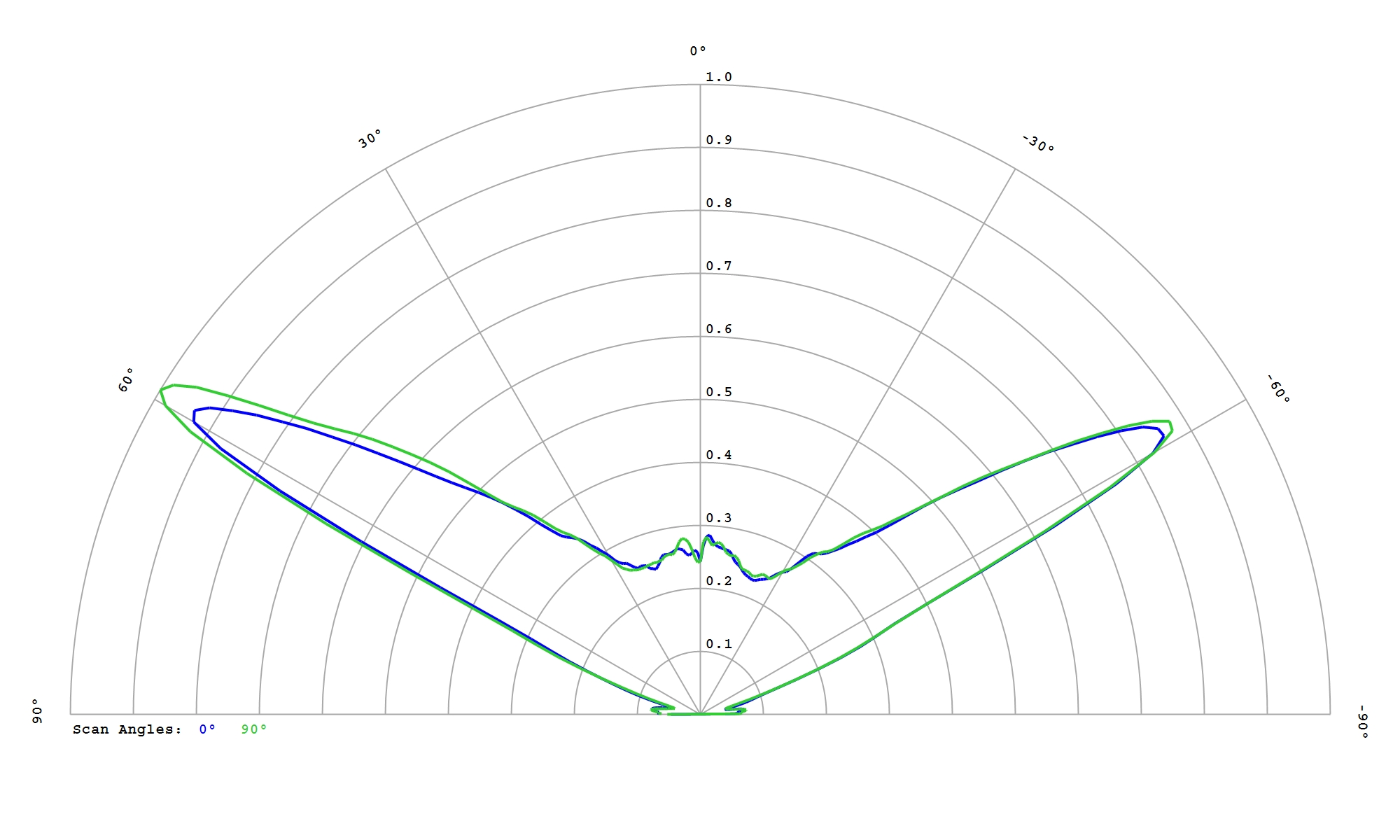

Luminus Devices SST 10-IR-B90 940nm
Eff:
95.0%
FWHM:
127°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
96.0%
FWHM:
135°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
95.0%
FWHM:
127°
Ipk/W:
0.7
Download
Luminus Devices SST 10-R-B130 Red
Eff:
94.5%
FWHM:
141°
Cd/Im:
0.7
Download
Luminus Devices SST 10-R-B90 Red
Eff:
94.0%
FWHM:
128°
Cd/Im:
0.6
Download
Luminus Devices SST 10-SB-B130 Sky Blue
Eff:
95.5%
FWHM:
134°
Cd/Im:
0.9
Download
Luminus Devices SST 10-SB-B90 Sky Blue
Eff:
94.5%
FWHM:
128°
Cd/Im:
0.8
Download

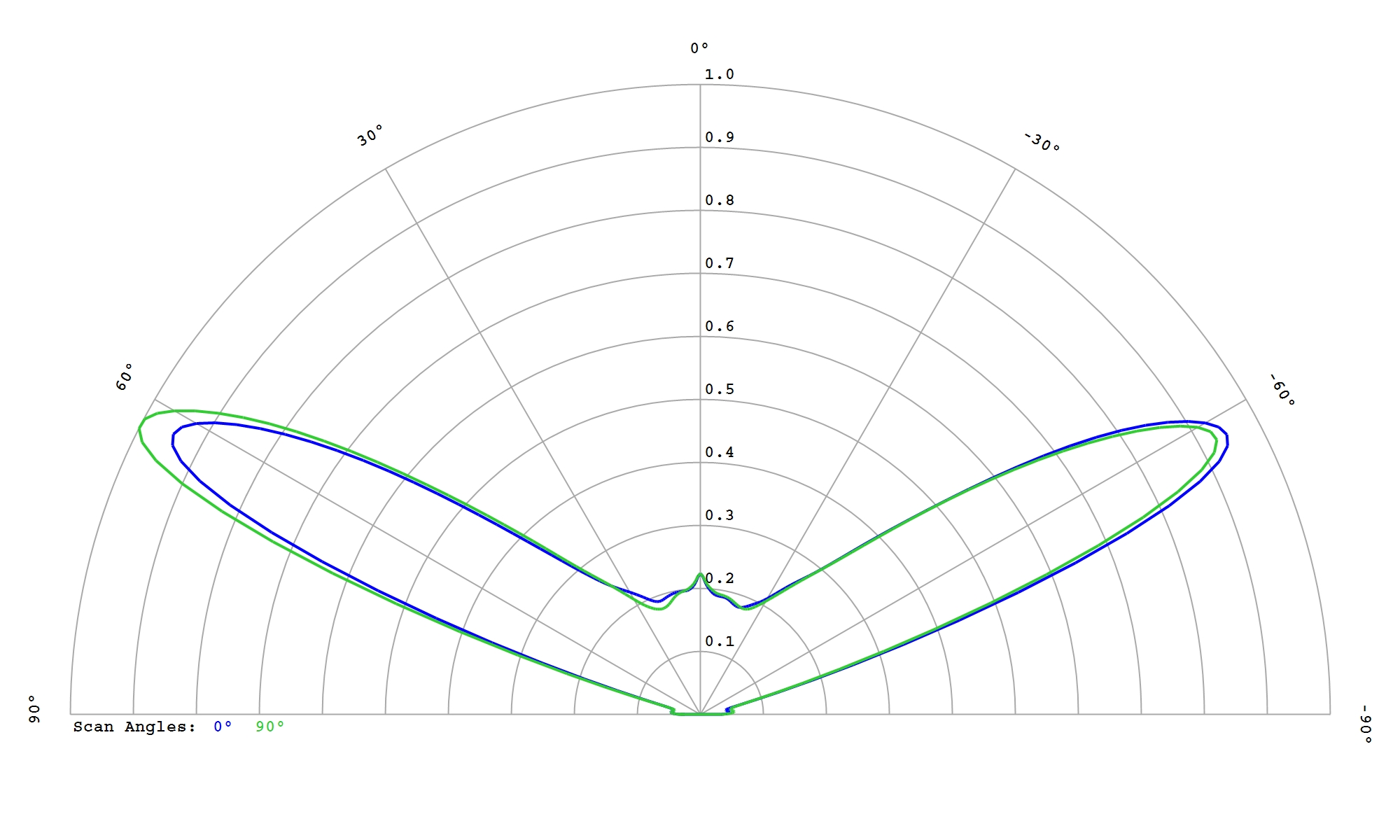

Luminus Devices SST 20-WxH White Hi CRI
Eff:
95.0%
FWHM:
135°
Cd/Im:
0.7
Download

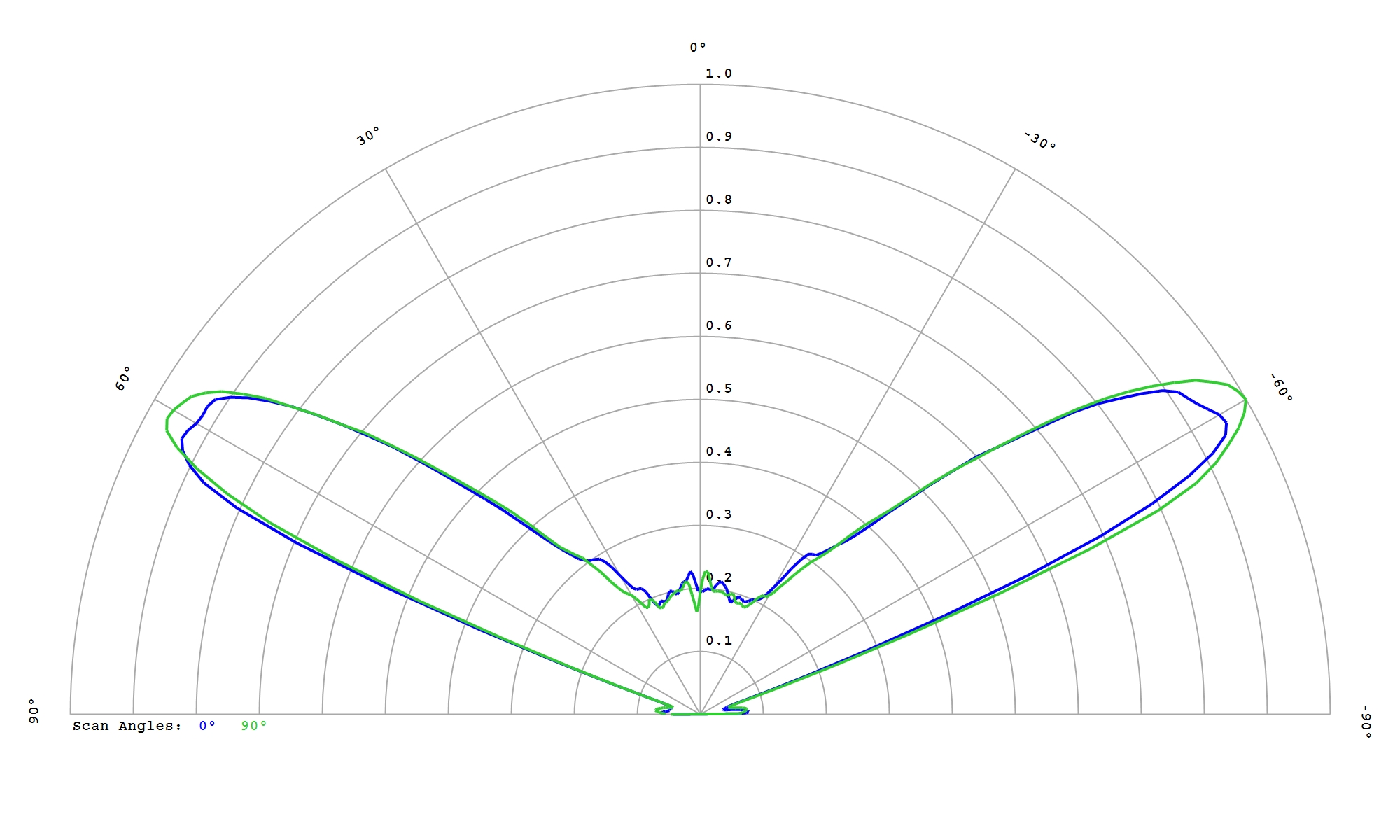

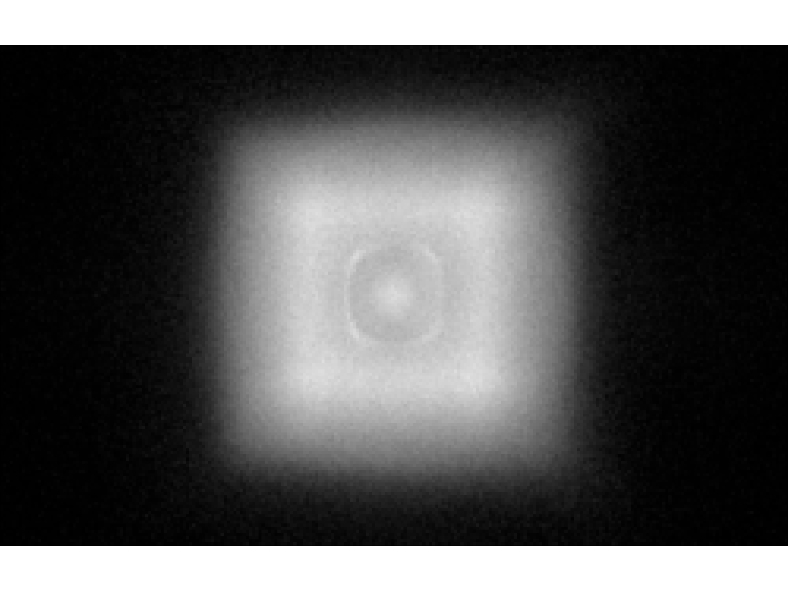

Luminus Devices SST-25-WES White
Eff:
94.5%
FWHM:
136°
Cd/Im:
0.6
Download
Nichia 219 White
Eff:
91.0%
FWHM:
140°
Cd/Im:
0.5
Download
Nichia 229A White
Eff:
91.5%
FWHM:
149°
Cd/Im:
0.4
Download
Nichia 757G White
Eff:
95.5%
FWHM:
133.5°
Cd/Im:
0.6
Download

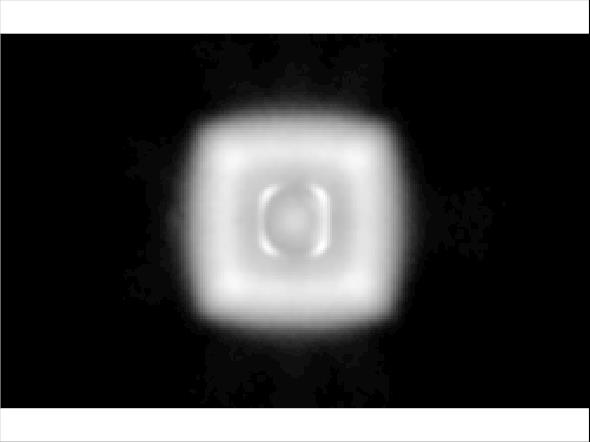

Nichia NCSW CSP E17A White
Eff:
93.5%
FWHM:
125°
Cd/Im:
0.8
Download
Nichia NF2W 757G-MT Tunable
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.7
Download

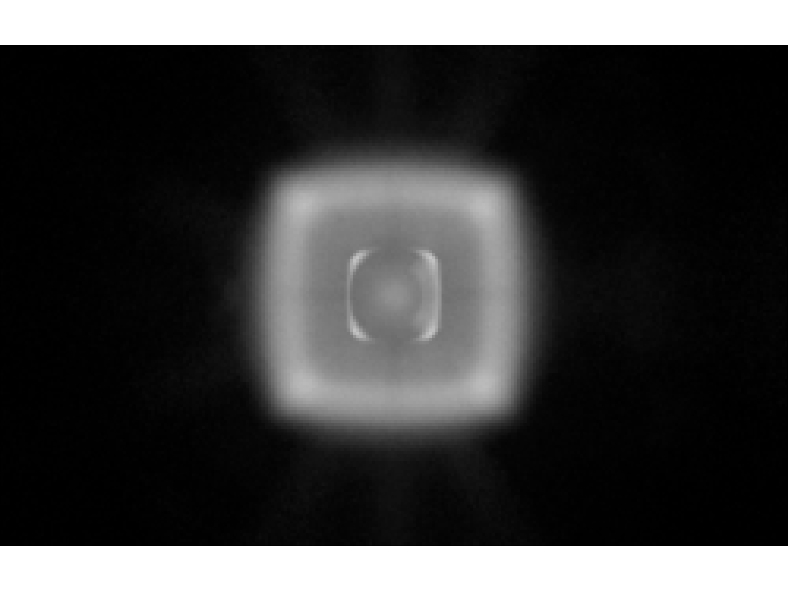

Nichia NFSW CSP E11A White
Eff:
93.0%
FWHM:
123°
Cd/Im:
1.1
Download
Nichia NVSL 219B White
Eff:
93.5%
FWHM:
136°
Cd/Im:
0.7
Download
Nichia NVSW 219C White
Eff:
94.0%
FWHM:
142°
Cd/Im:
0.5
Download
Nichia NVSW 219F White
Eff:
95.0%
FWHM:
145°
Cd/Im:
0.5
Download
Nichia NVSW 319A White
Eff:
93.0%
FWHM:
144°
Cd/Im:
0.4
Download
Nichia NVSW CSP E21A White
Eff:
88.0%
FWHM:
125°
Cd/Im:
0.7
Download
Osram PL-Brick HP 3800 740 2x8
Eff:
95.0%
FWHM:
141°
Cd/Im:
0.6
Download
Osram DURIS E 2835 Gen2
Eff:
95.5%
FWHM:
132°
Cd/Im:
0.7
Download
Osram DURIS E 2835 White
Eff:
96.0%
FWHM:
138°
Cd/Im:
0.6
Download
Osram DURIS E2 White
Eff:
93.0%
FWHM:
128°
Cd/Im:
1.0
Download
Osram DURIS S2 White
Eff:
94.2%
FWHM:
135°
Cd/Im:
0.6
Download
Osram DURIS S5 Deep Blue
Eff:
96.5%
FWHM:
135°
Cd/Im:
0.8
Download
Osram DURIS S5 GP PSLM31.14 Purple
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.7
Download
Osram DURIS S5 GP PSLR31.14 Purple
Eff:
96.0%
FWHM:
133°
Cd/Im:
0.7
Download

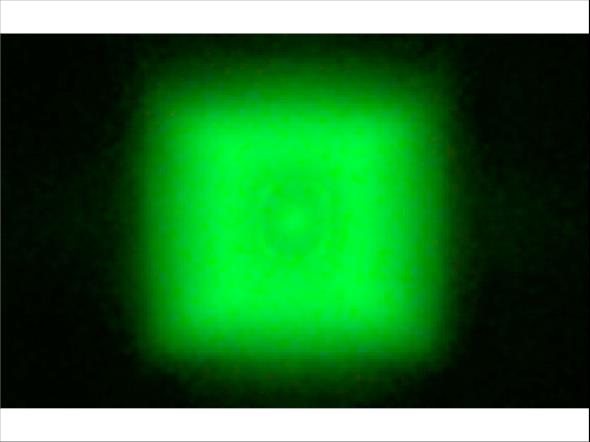

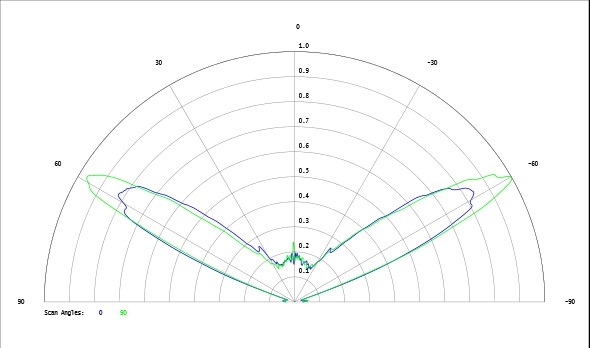

Osram DURIS S5 Green
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.7
Download
Osram DURIS S5 Red
Eff:
96.5%
FWHM:
134°
Cd/Im:
0.8
Download
Osram DURIS S5 White
Eff:
92.0%
FWHM:
129°
Cd/Im:
0.6
Download
Osram OSCONIQ C 2424 White
Eff:
96.0%
FWHM:
132°
Cd/Im:
0.8
Download
Osram OSLON Black SFH 4716AS IR
Eff:
96.0%
FWHM:
135°
Ipk/W:
1.0
Download
Osram OSLON Black SFH 4725S IR
Eff:
96.5%
FWHM:
123°
Ipk/W:
0.8
Download
Osram OSLON Boost HM KW CELMM1.TG
Eff:
95.5%
FWHM:
133°
Cd/Im:
1.2
Download
Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
94.0%
FWHM:
120°
Cd/Im:
1.3
Download

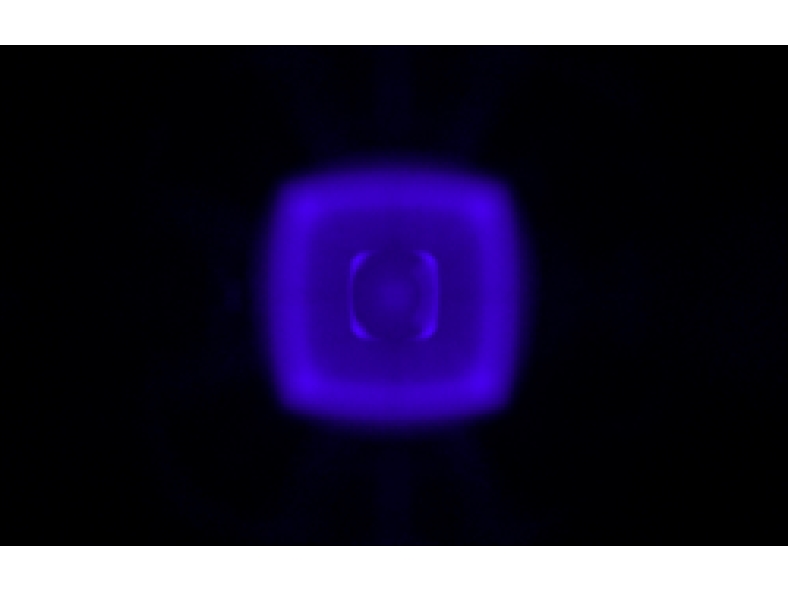

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
94.5%
FWHM:
120°
Ipk/W:
1.3
Download
Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
94.0%
FWHM:
121°
Cd/Im:
1.2
Download
Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
92.5%
FWHM:
124°
Cd/Im:
1.0
Download
Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
94.0%
FWHM:
120°
Cd/Im:
1.3
Download
Osram OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
93.5%
FWHM:
121°
Cd/Im:
1.2
Download

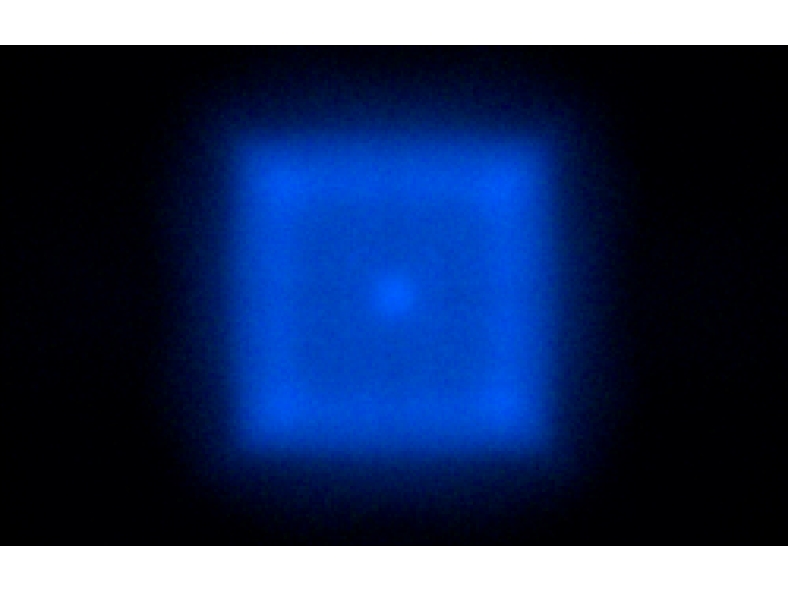

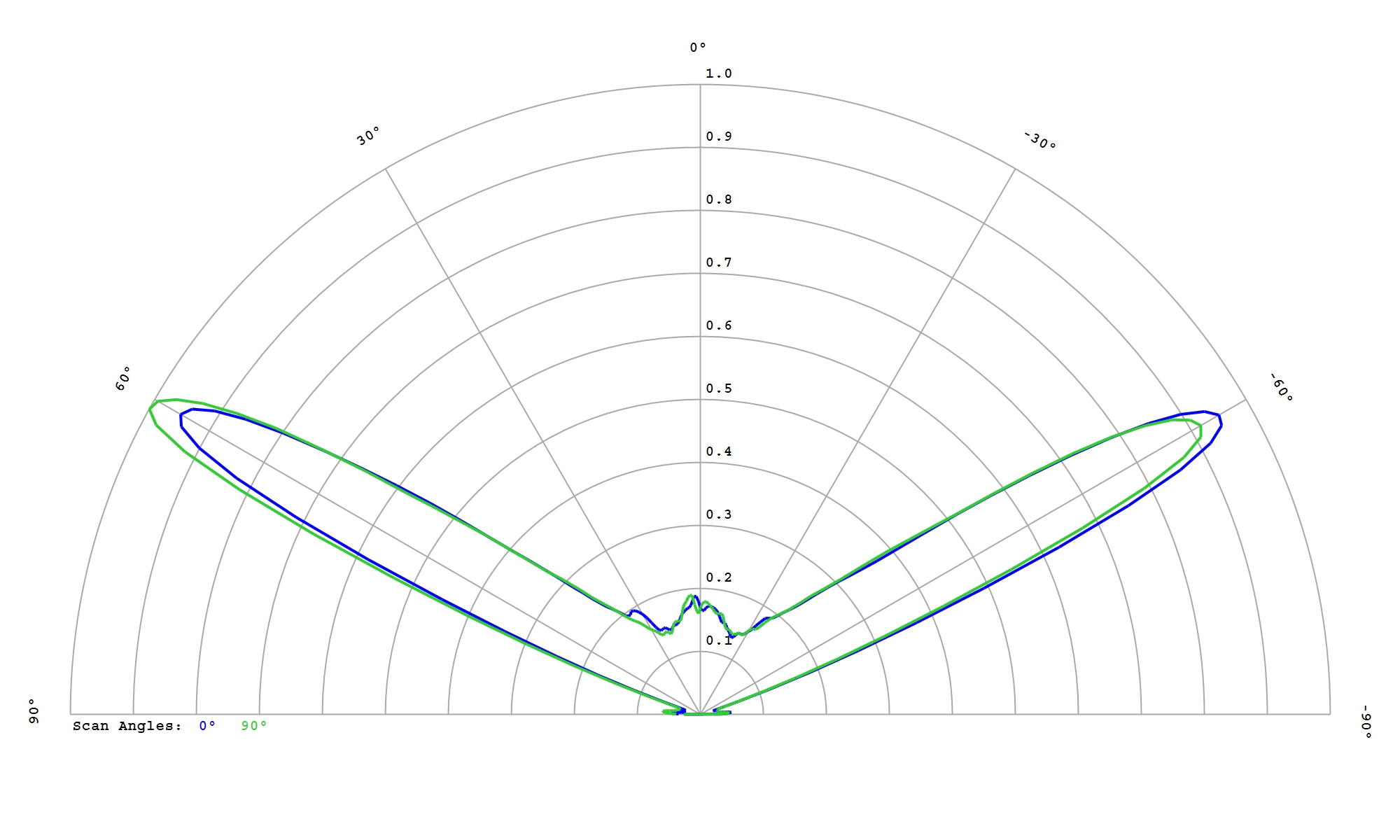

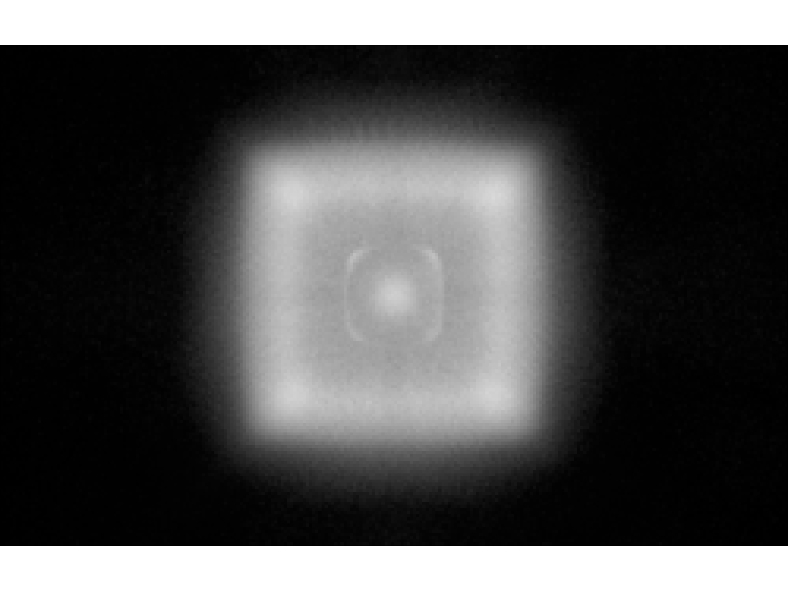

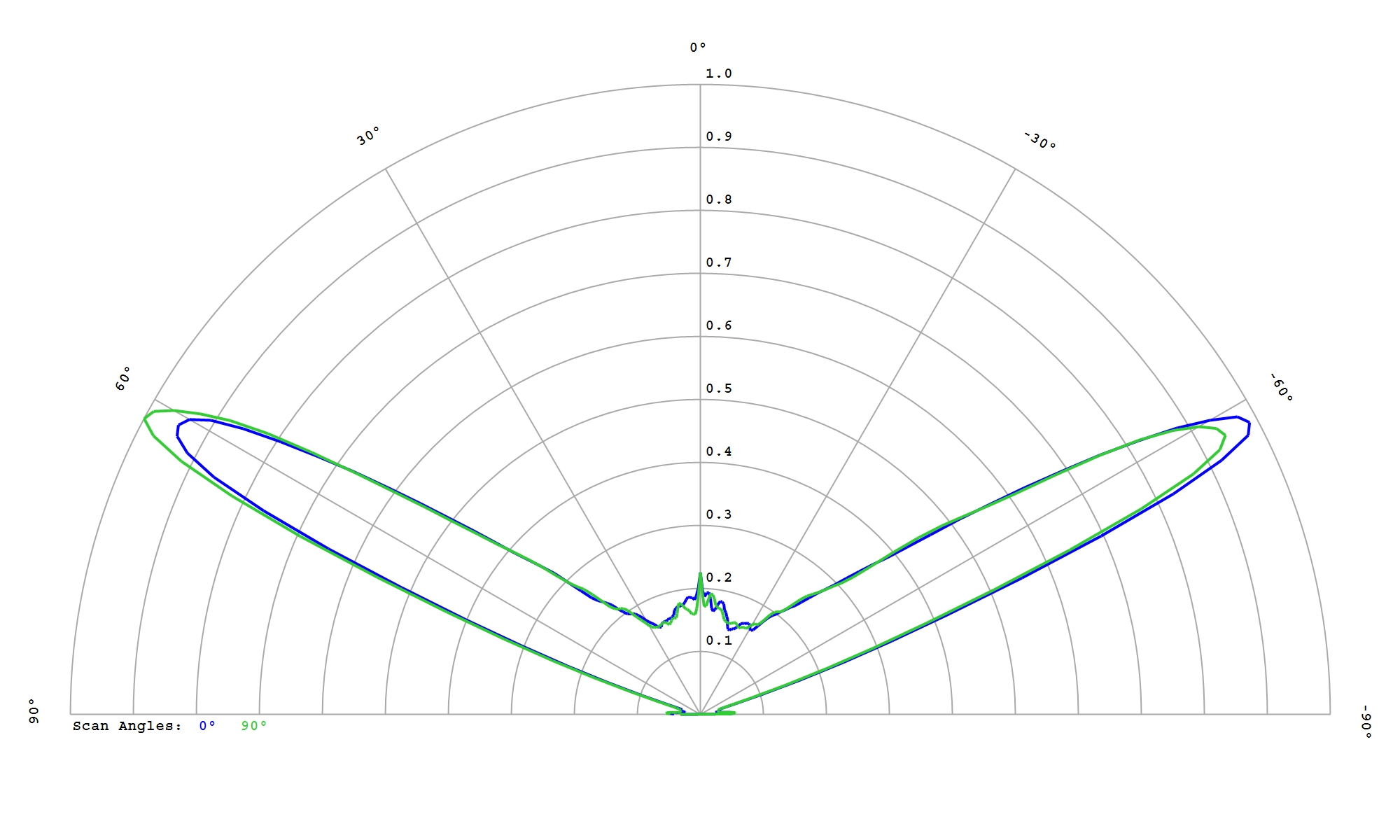

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
96.0%
FWHM:
134°
Cd/Im:
1.0
Download

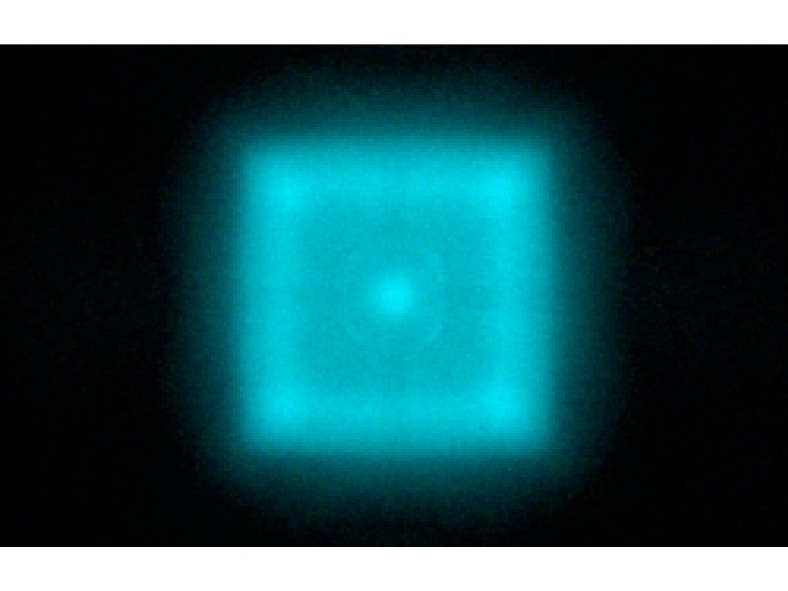

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
96.0%
FWHM:
133°
Cd/Im:
1.0
Download
Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
96.5%
FWHM:
134°
Ipk/W:
1.0
Download

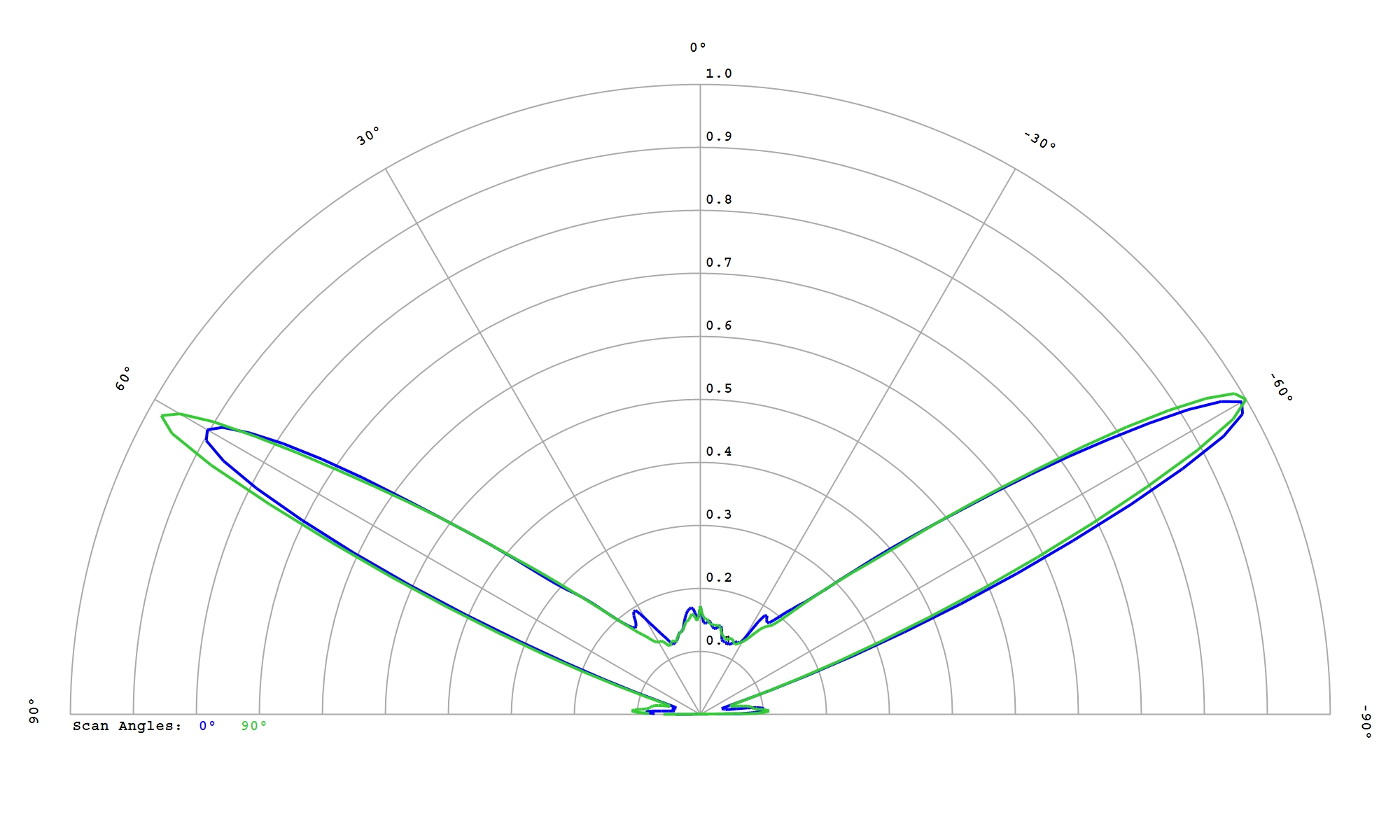

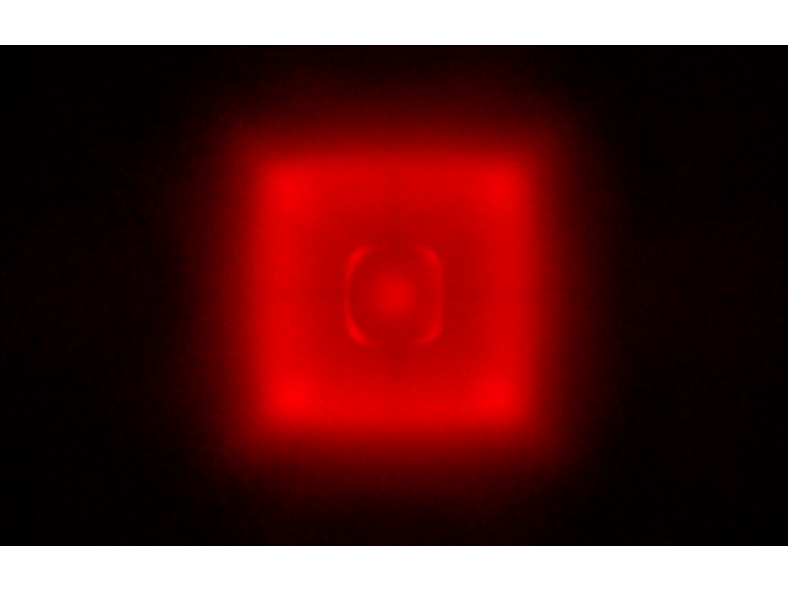

Osram OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
95.0%
FWHM:
132°
Cd/Im:
1.0
Download

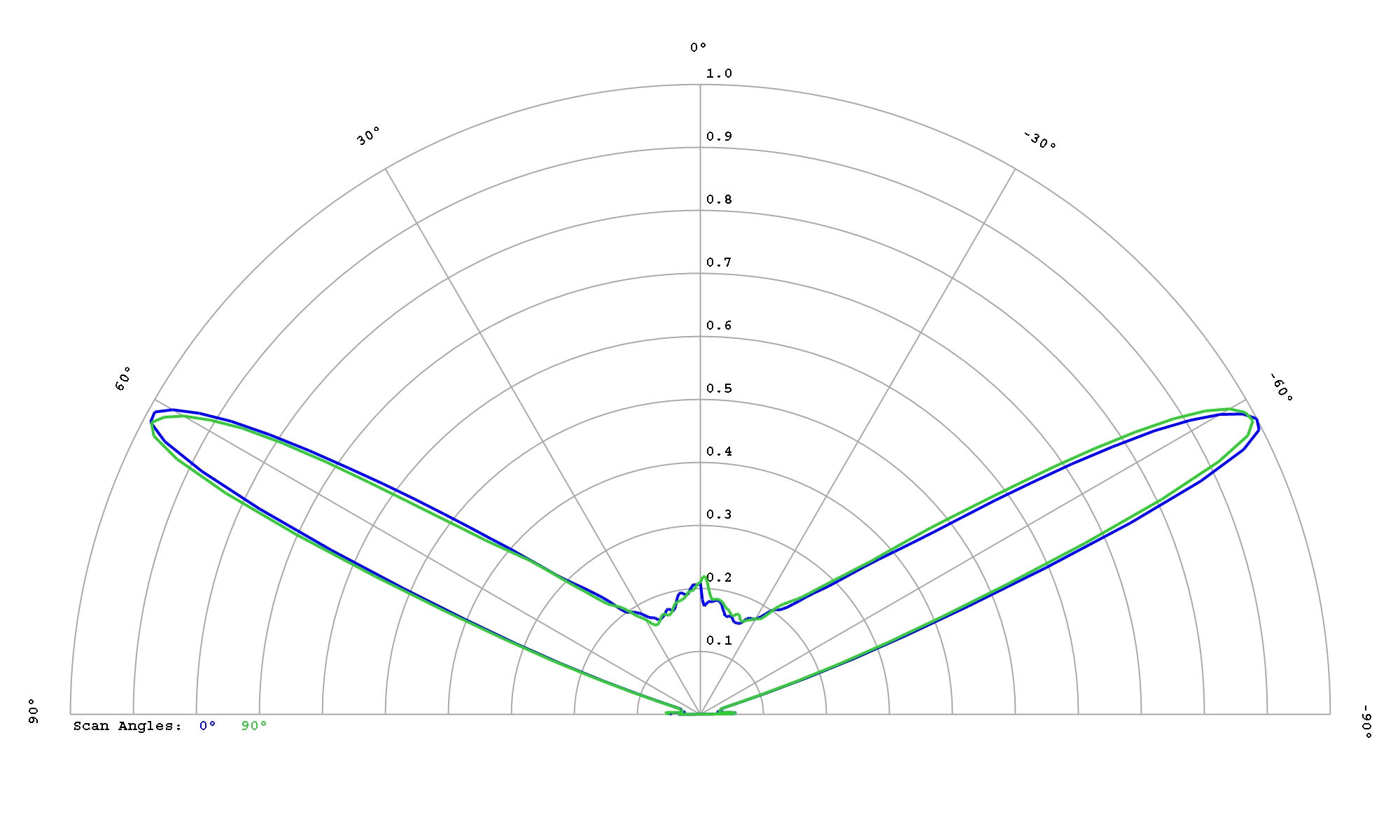

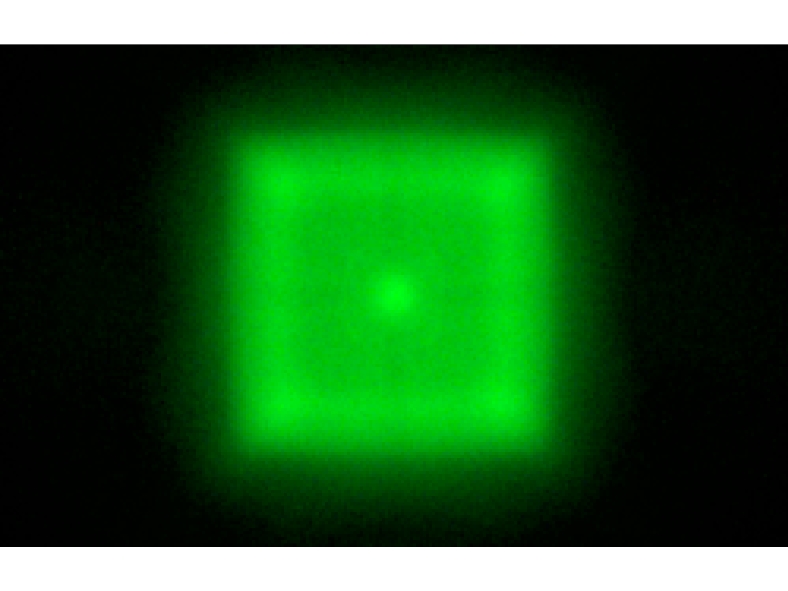

Osram OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.9
Download

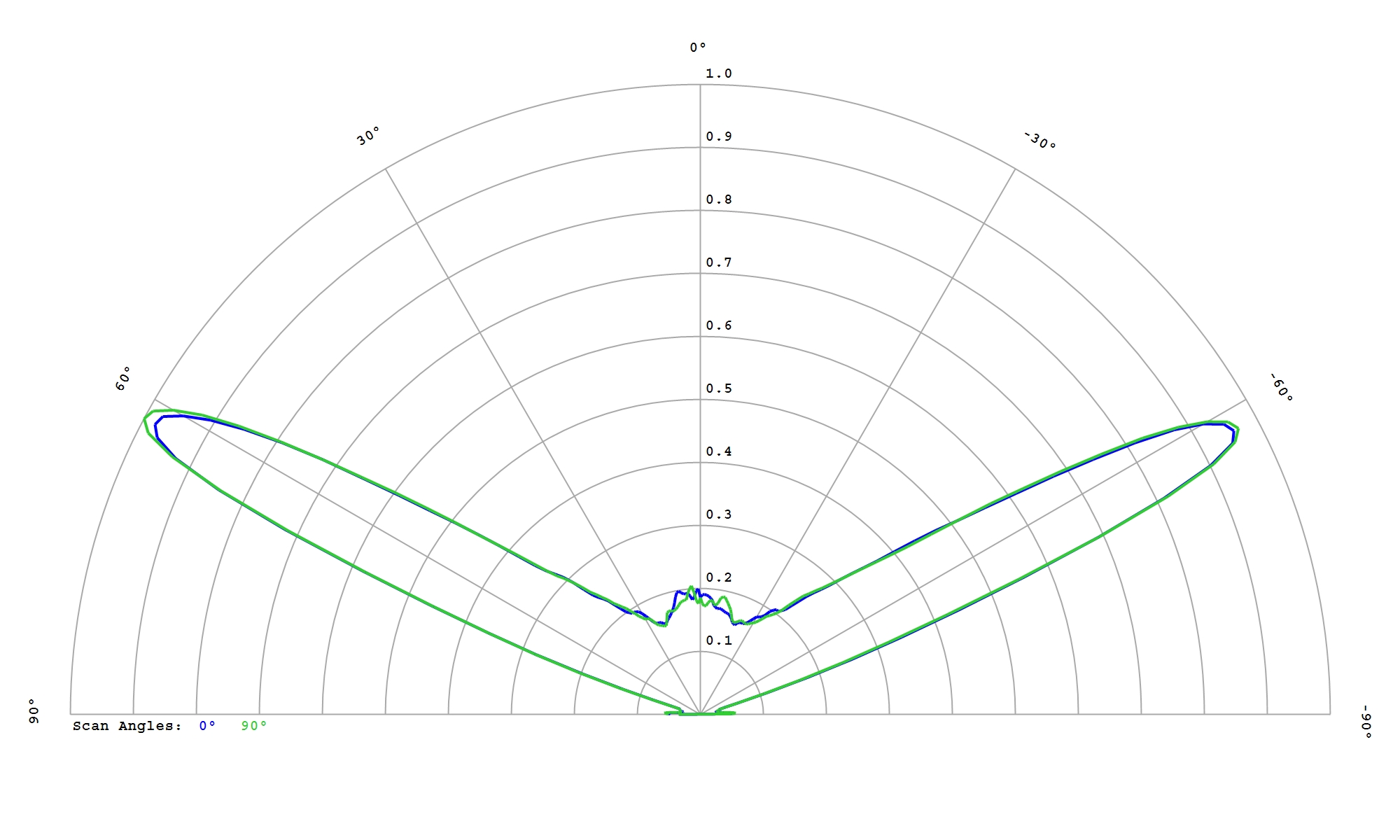

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.0
Download
Osram OSLON Pure 1414 GW VJLPL1.CM White
Eff:
96.0%
FWHM:
131°
Cd/Im:
1.0
Download

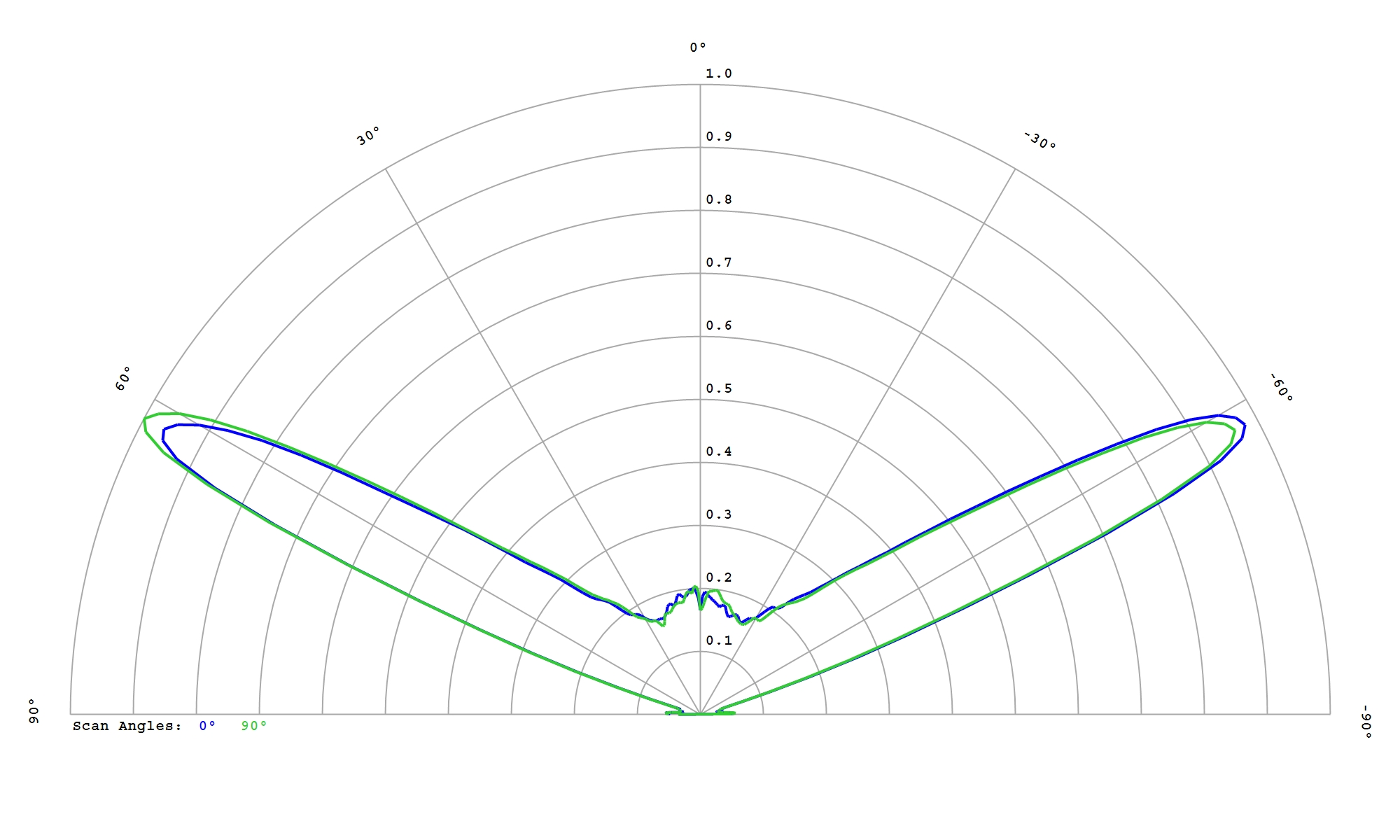

Osram OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
96.0%
FWHM:
135°
Cd/Im:
0.9
Download

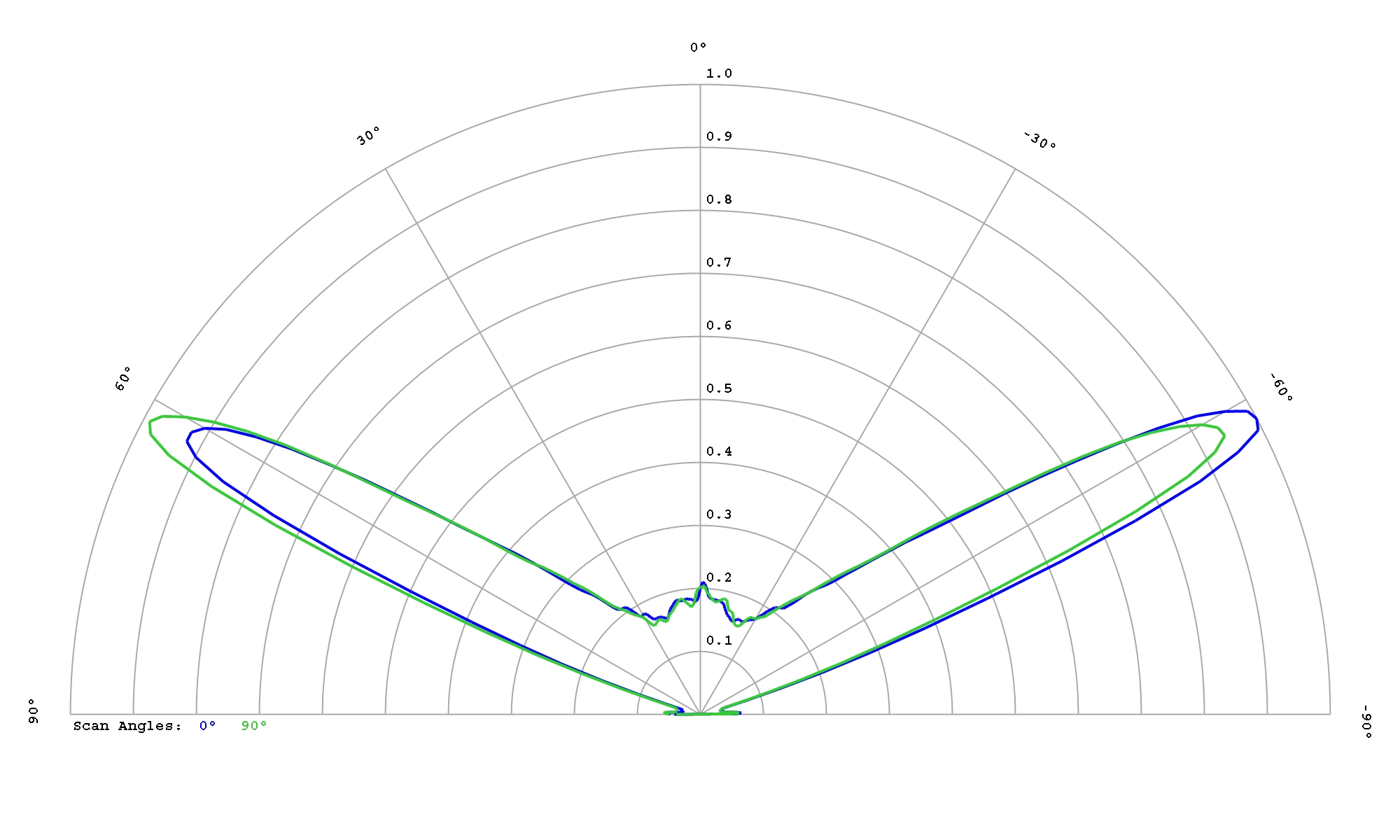

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
95.5%
FWHM:
135°
Cd/Im:
0.9
Download
Osram OSLON Square Flat White
Eff:
95.0%
FWHM:
135°
Cd/Im:
0.8
Download
Osram OSLON Square Gen 3 White
Eff:
92.3%
FWHM:
136.2°
Cd/Im:
0.6
Download
Osram OSLON Square Gen 5 GW CSSRM3
Eff:
95.5%
FWHM:
140°
Cd/Im:
0.6
Download
Osram OSLON Square White
Eff:
92.0%
FWHM:
135°
Cd/Im:
57.0
Download

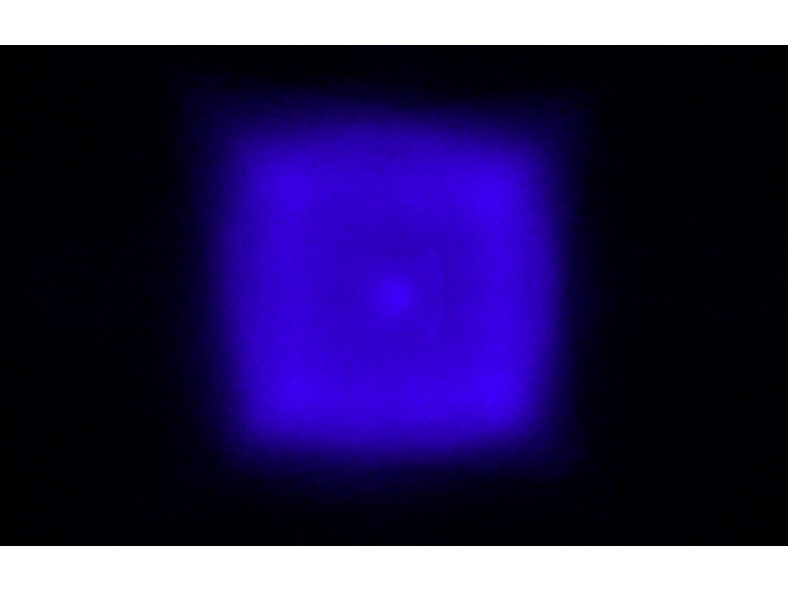

Osram OSLON SSL 120 GD CSSPM1.14 Deep Blue
Eff:
95.5%
FWHM:
134°
Cd/Im:
0.9
Download
Osram OSLON SSL 120 GF CSSPM1.24 Far Red
Eff:
96.0%
FWHM:
135°
Cd/Im:
1.5
Download

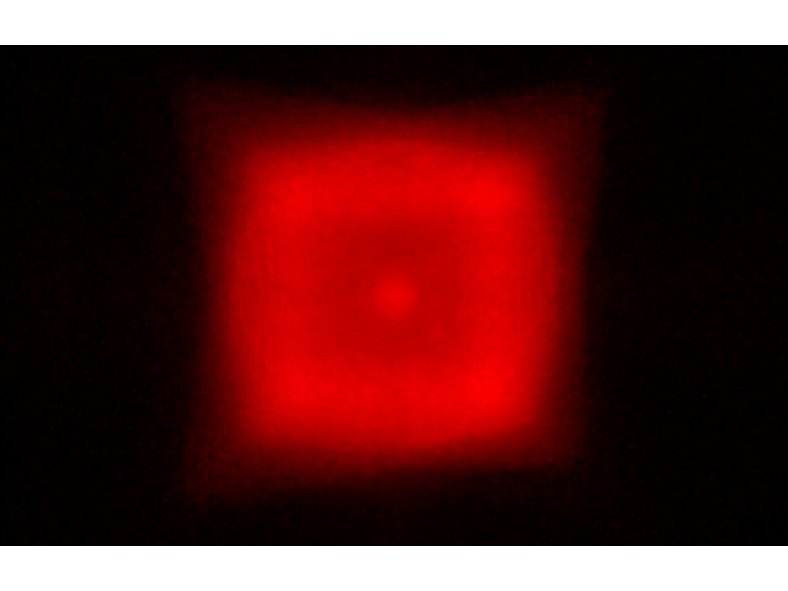

Osram OSLON SSL 120 GH CSSPM1.24 Hyper Red
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.8
Download
Osram OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
95.5%
FWHM:
142°
Cd/Im:
0.8
Download
Osram OSLON SSL 150 degree White
Eff:
91.5%
FWHM:
132°
Cd/Im:
0.8
Download

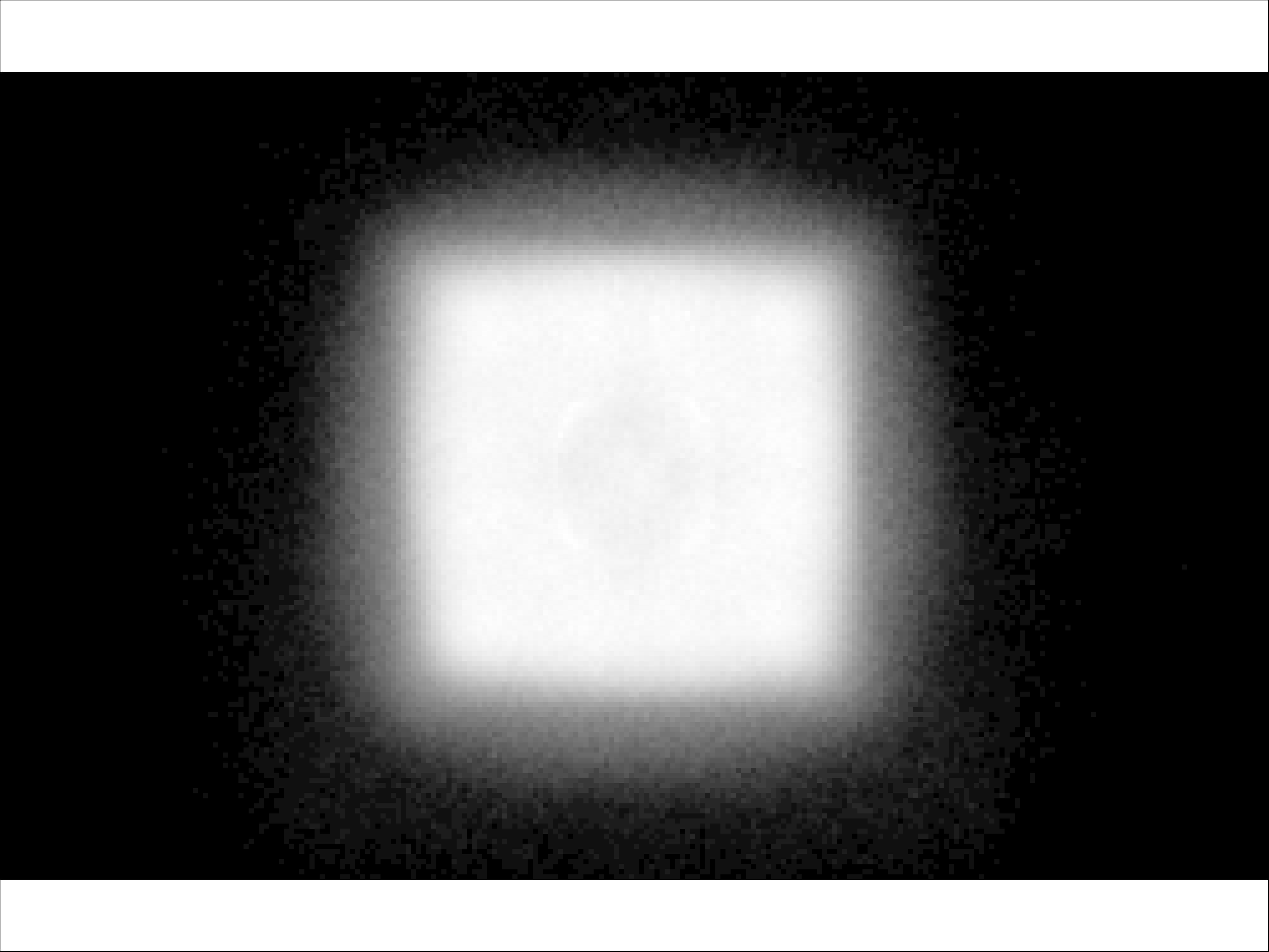

Osram OSLON SSL 80 White
Eff:
92.4%
FWHM:
125°
Cd/Im:
0.7
Download

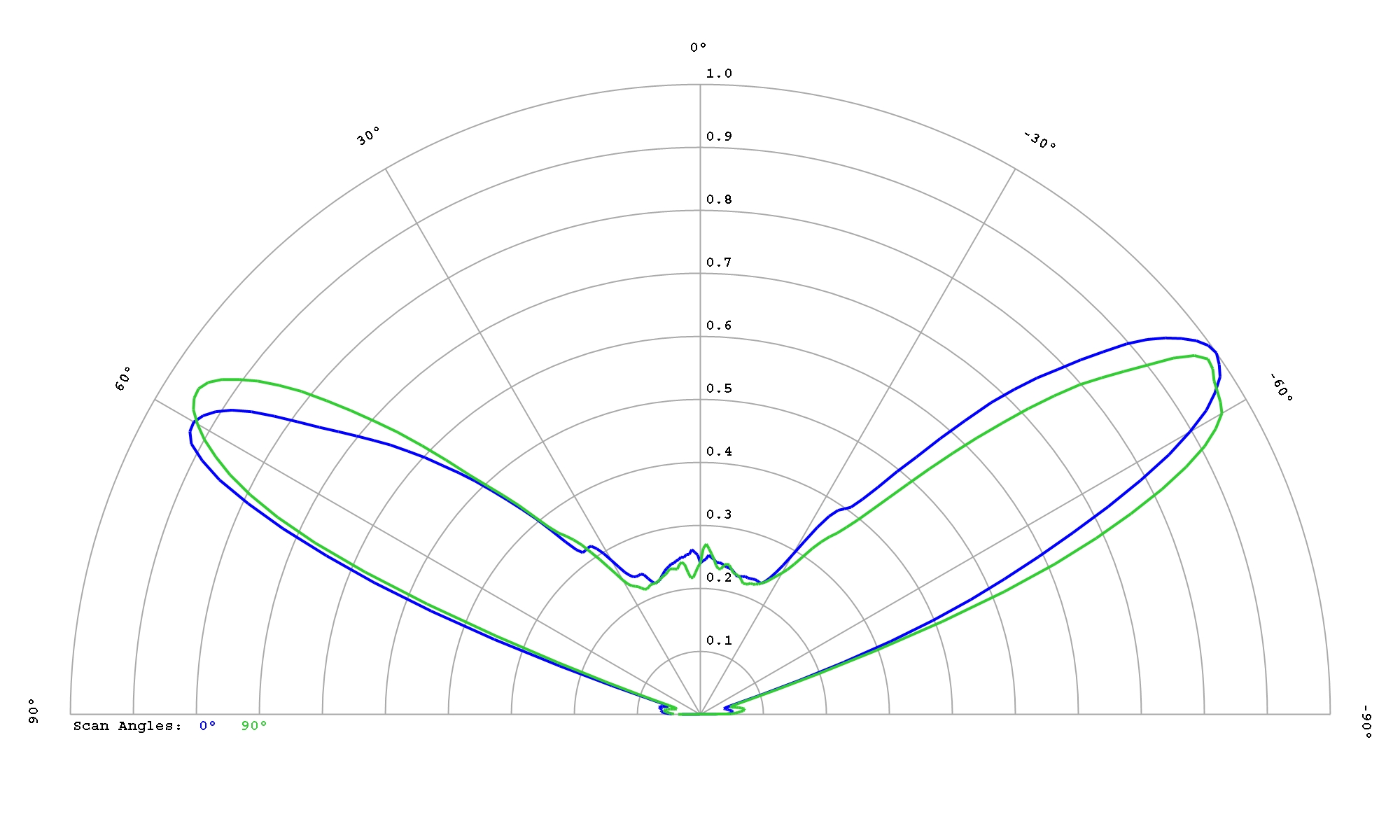

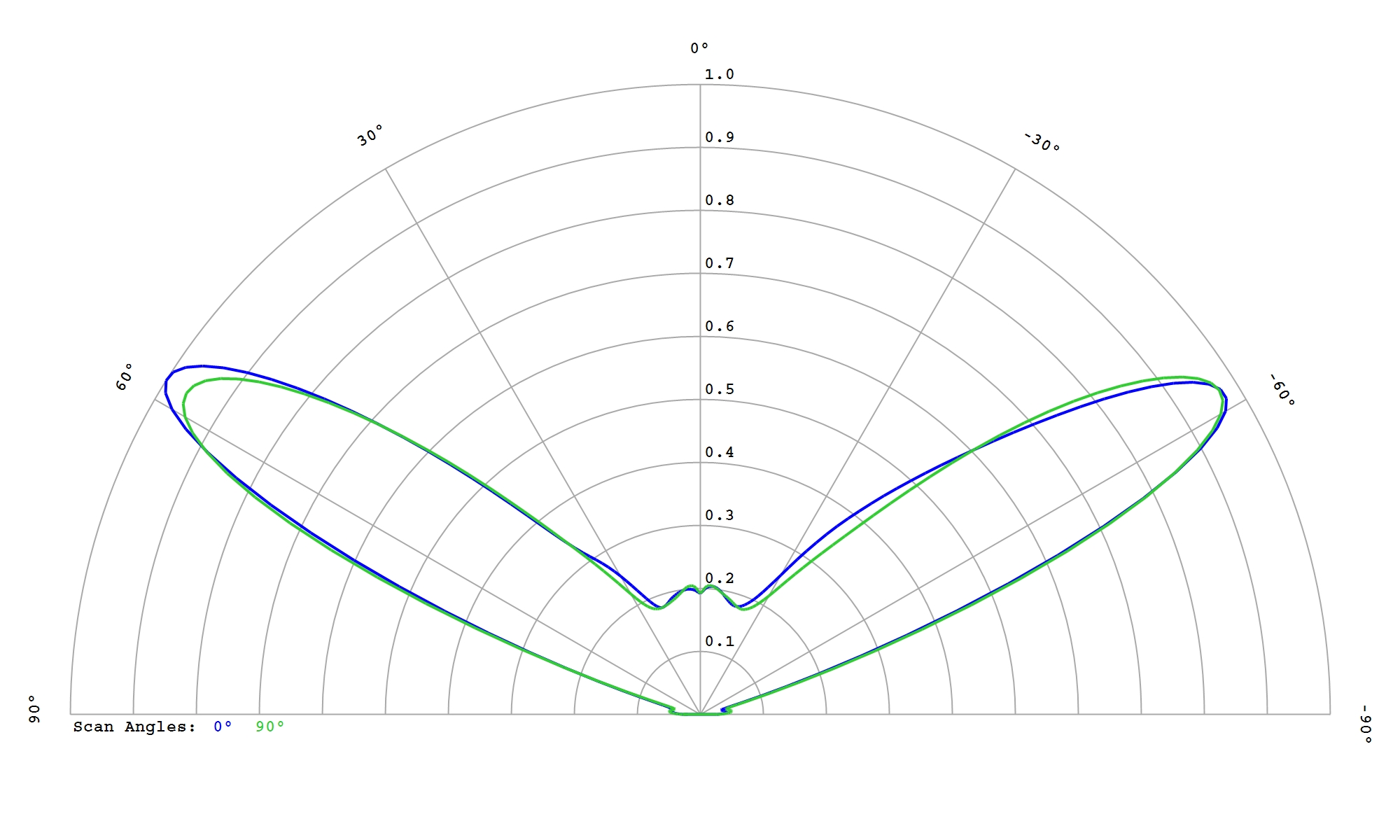

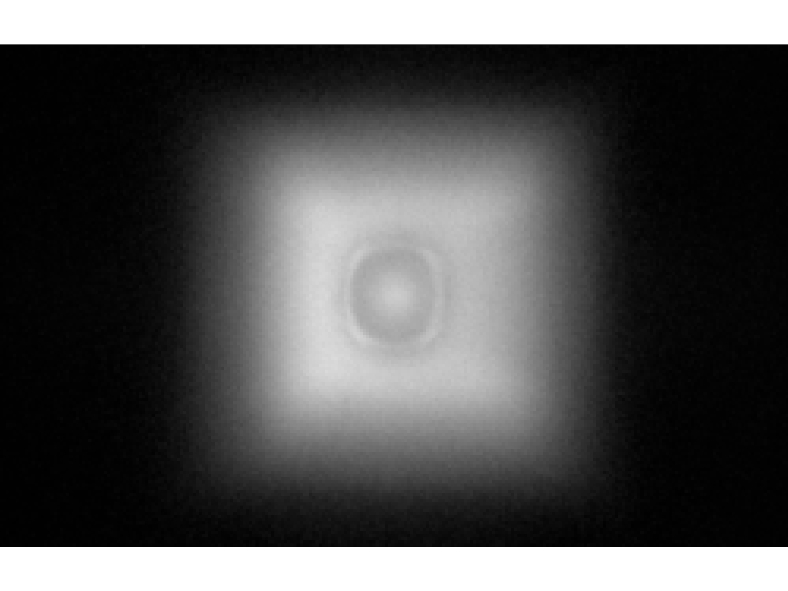

Samsung 2835 LM281B+ White
Eff:
93.0%
FWHM:
136°
Cd/Im:
0.5
Download
Samsung 3030 LM301B White
Eff:
95.5%
FWHM:
137°
Cd/Im:
0.6
Download
Samsung 3535 LH351B White
Eff:
90.0%
FWHM:
140°
Cd/Im:
0.5
Download

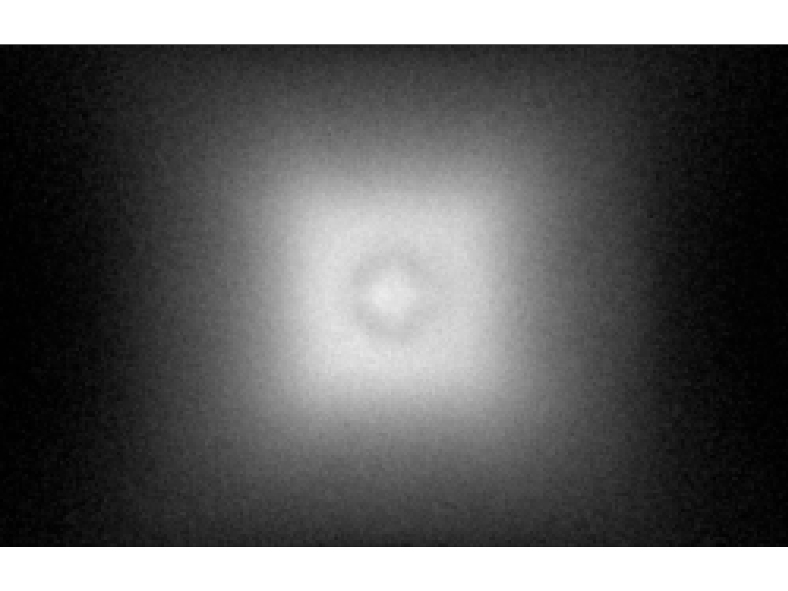

Samsung 3535 LH351D White
Eff:
89.0%
FWHM:
147°
Cd/Im:
0.4
Download

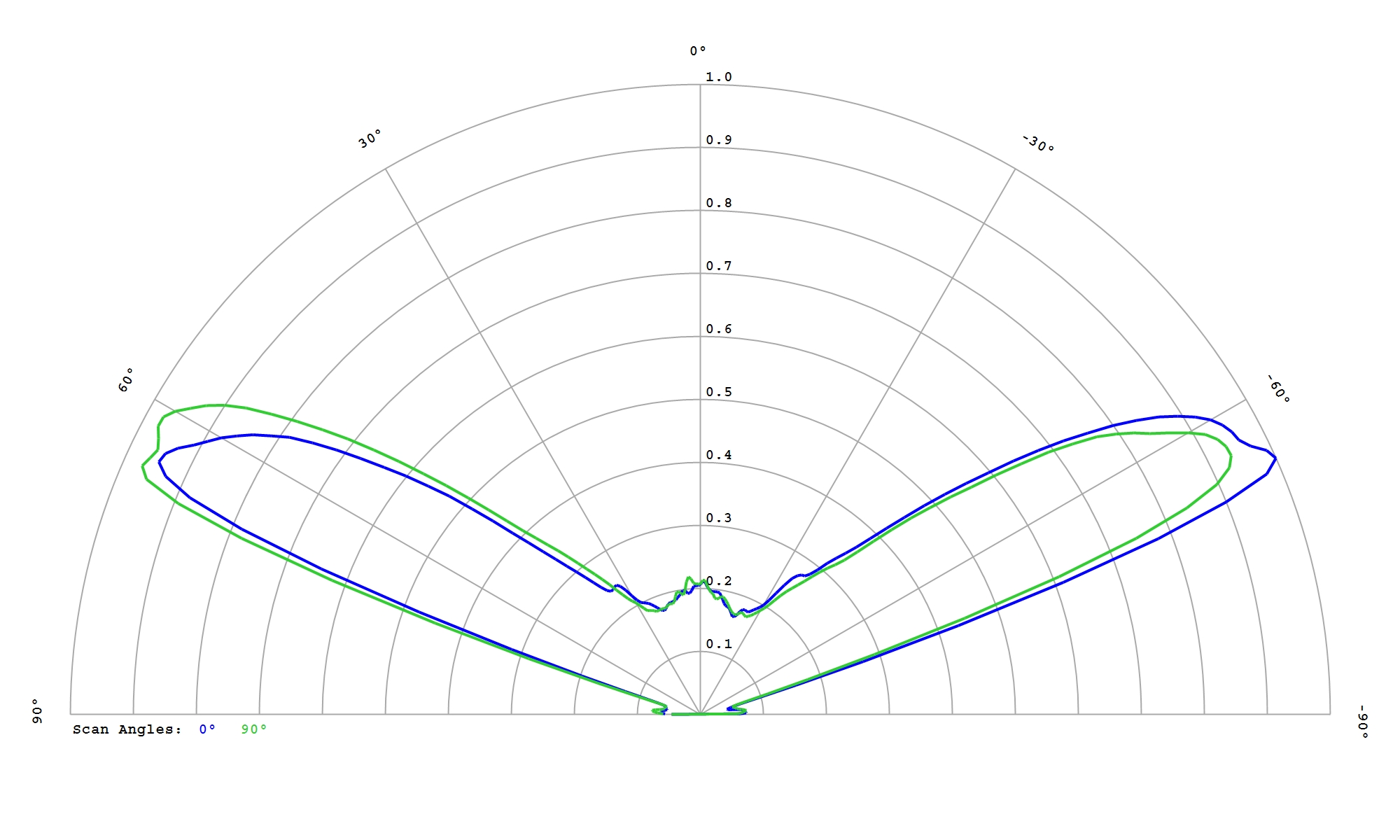

Samsung 3535 LH351H Blue
Eff:
95.5%
FWHM:
140°
Cd/Im:
0.6
Download
Samsung 3535 LH351H Deep Red
Eff:
95.5%
FWHM:
138°
Cd/Im:
0.8
Download
Samsung 3535 LH351H Red
Eff:
96.0%
FWHM:
134°
Cd/Im:
0.9
Download
Samsung 3535 LH351H-B White
Eff:
94.0%
FWHM:
145°
Cd/Im:
0.5
Download
Samsung 3535 LH351H-C White
Eff:
95.5%
FWHM:
143°
Cd/Im:
0.5
Download
Samsung 3535 LH351Z White
Eff:
91.0%
FWHM:
140°
Cd/Im:
0.6
Download
Samsung CSP LH151B White
Eff:
94.5%
FWHM:
125°
Cd/Im:
0.9
Download
Samsung CSP LH181B White
Eff:
94.5%
FWHM:
129°
Cd/Im:
0.6
Download
Samsung CSP LH231B White
Eff:
94.0%
FWHM:
131°
Cd/Im:
0.5
Samsung CSP LM101B White
Eff:
94.5%
FWHM:
126°
Cd/Im:
0.9
Download
Samsung LM 101A White
Eff:
90.0%
FWHM:
125°
Cd/Im:
0.6
Download
Seoul CSP SZ8Y11 White
Eff:
89.5%
FWHM:
127°
Cd/Im:
0.7
Download
Seoul CSP SZ8Y15 White
Eff:
90.5%
FWHM:
125°
Cd/Im:
0.9
Download
Seoul CSP SZ8Y19 White
Eff:
84.0%
FWHM:
128°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22 White
Eff:
91.5%
FWHM:
132°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
141°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y22P White
Eff:
94.0%
FWHM:
141°
Cd/Im:
0.5
Download
Seoul MidPower 3030 STB0C2PB Blue
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.7
Download
Seoul MidPower 3030 STDRC12B Deep Red
Eff:
94.5%
FWHM:
121°
Cd/Im:
1.2
Download
Seoul MidPower 3030 STFRC12B Far Red
Eff:
96.0%
FWHM:
134°
Cd/Im:
1.1
Download
Seoul MidPower MJT4040 White
Eff:
90.5%
FWHM:
130°
Cd/Im:
0.5
Download

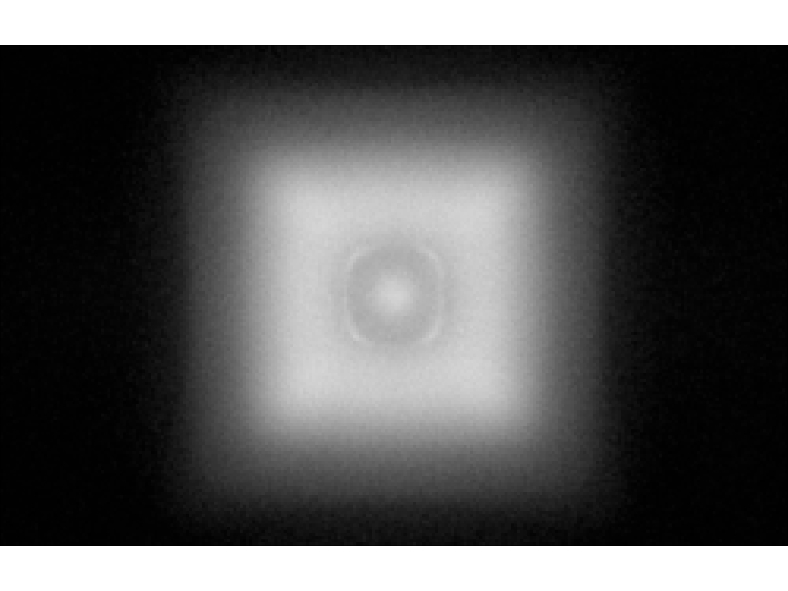

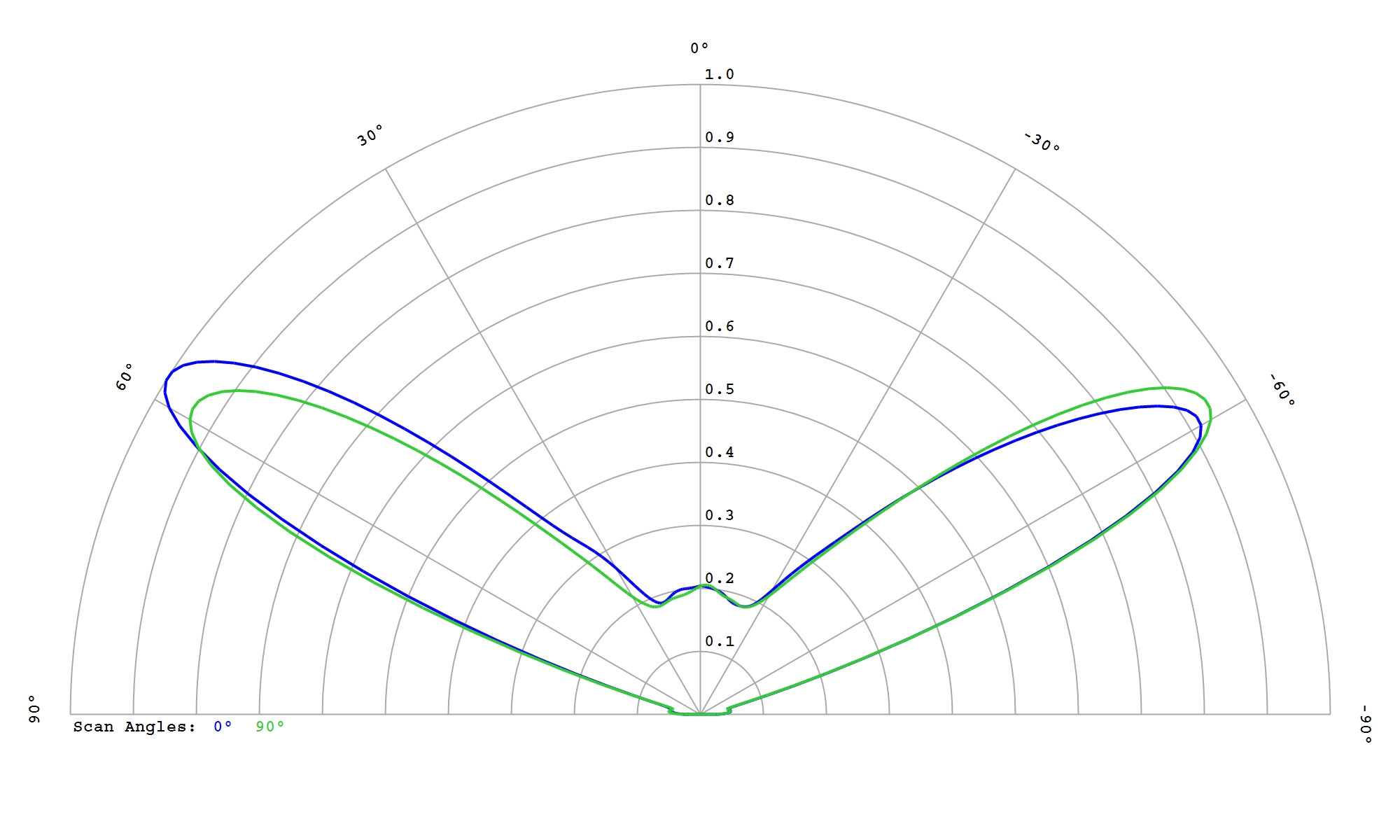

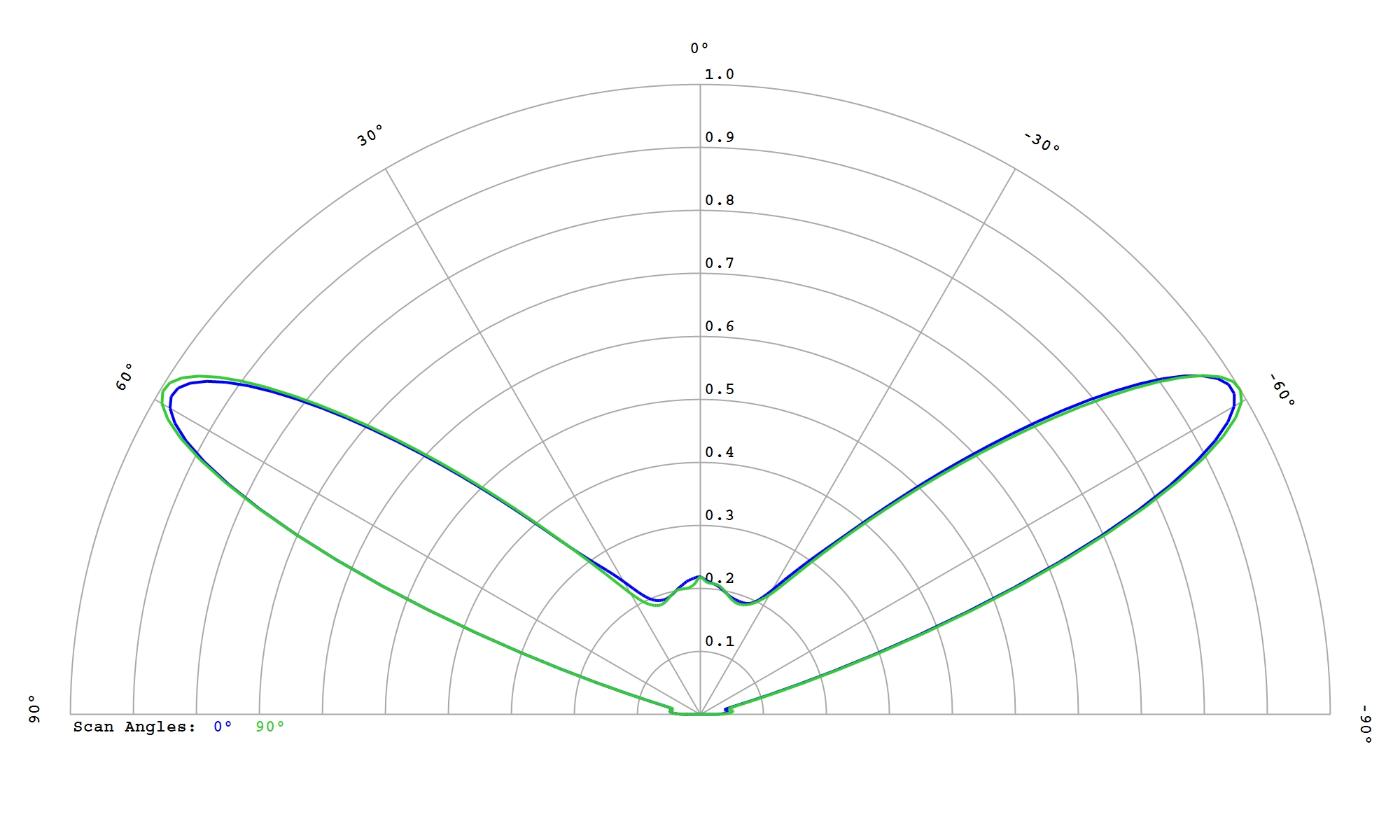

Seoul STW8 C2SB-NT White
Eff:
96.0%
FWHM:
137°
Cd/Im:
0.6
Download

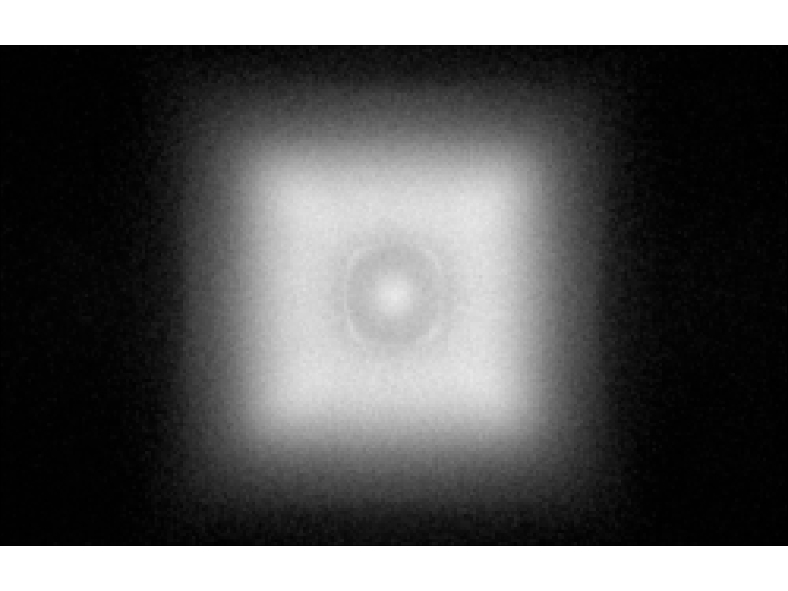

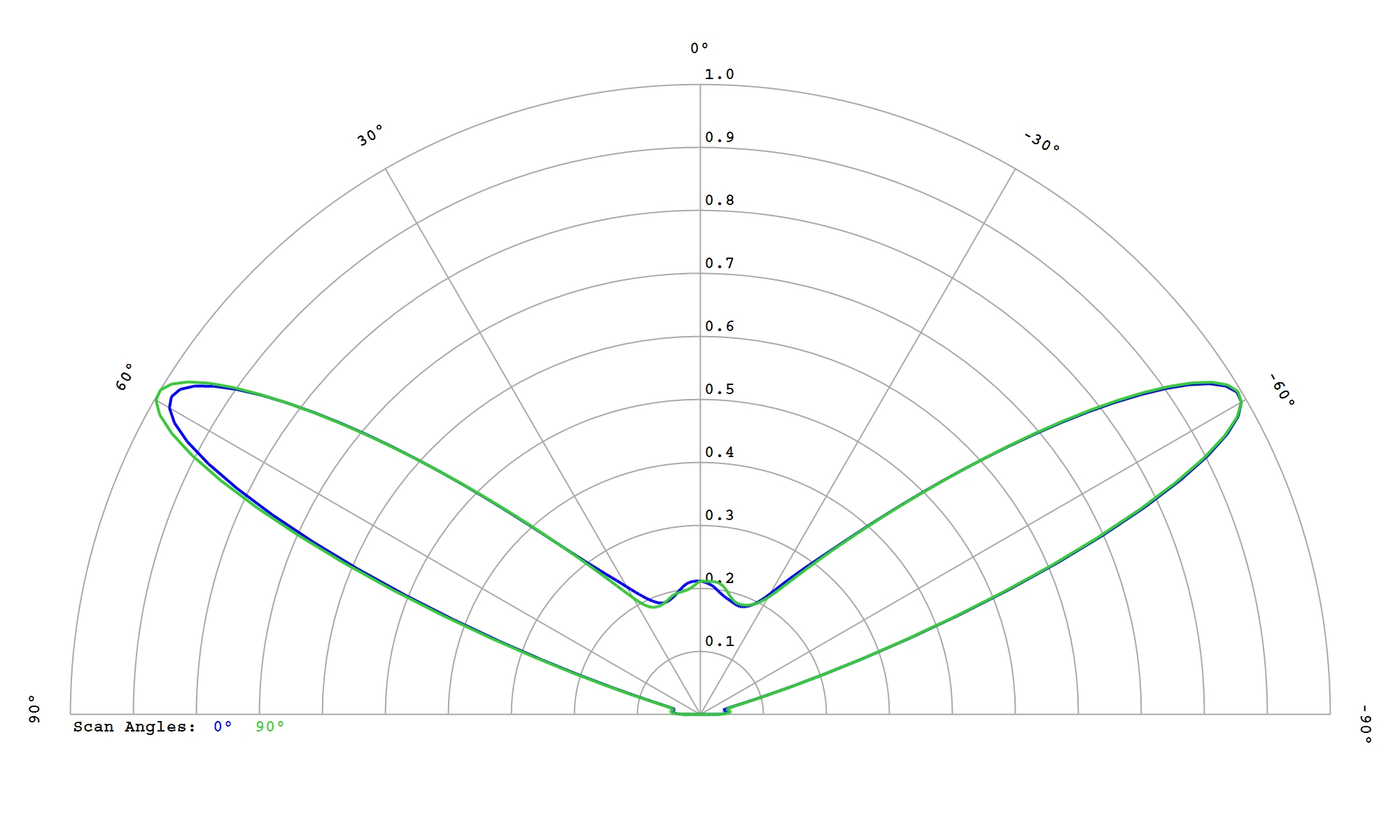

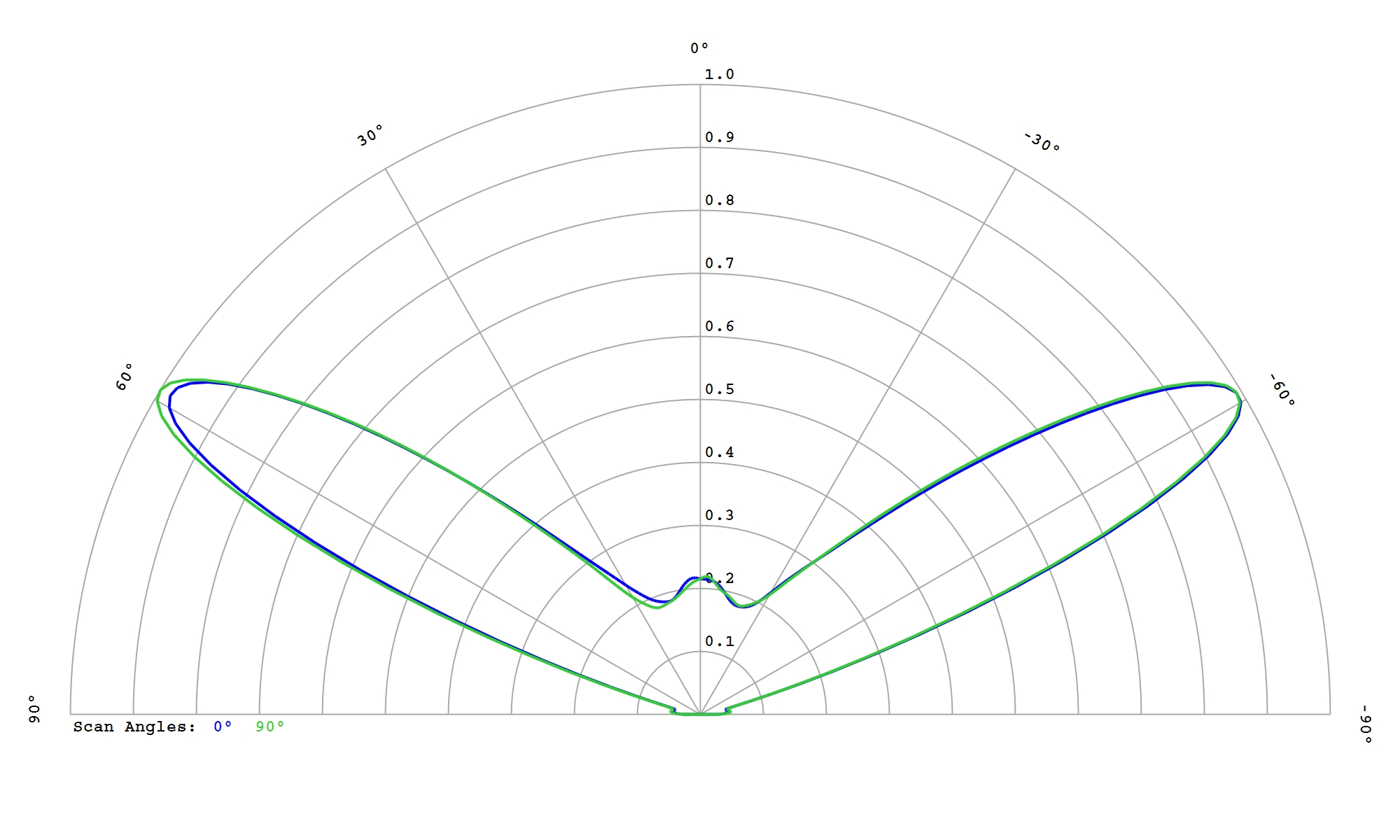

Seoul STWS C2PB-E0 White
Eff:
96.0%
FWHM:
136°
Cd/Im:
0.6
Download
Seoul SunLike STW9 C2SB-S
Eff:
96.0%
FWHM:
135°
Cd/Im:
0.6
Download

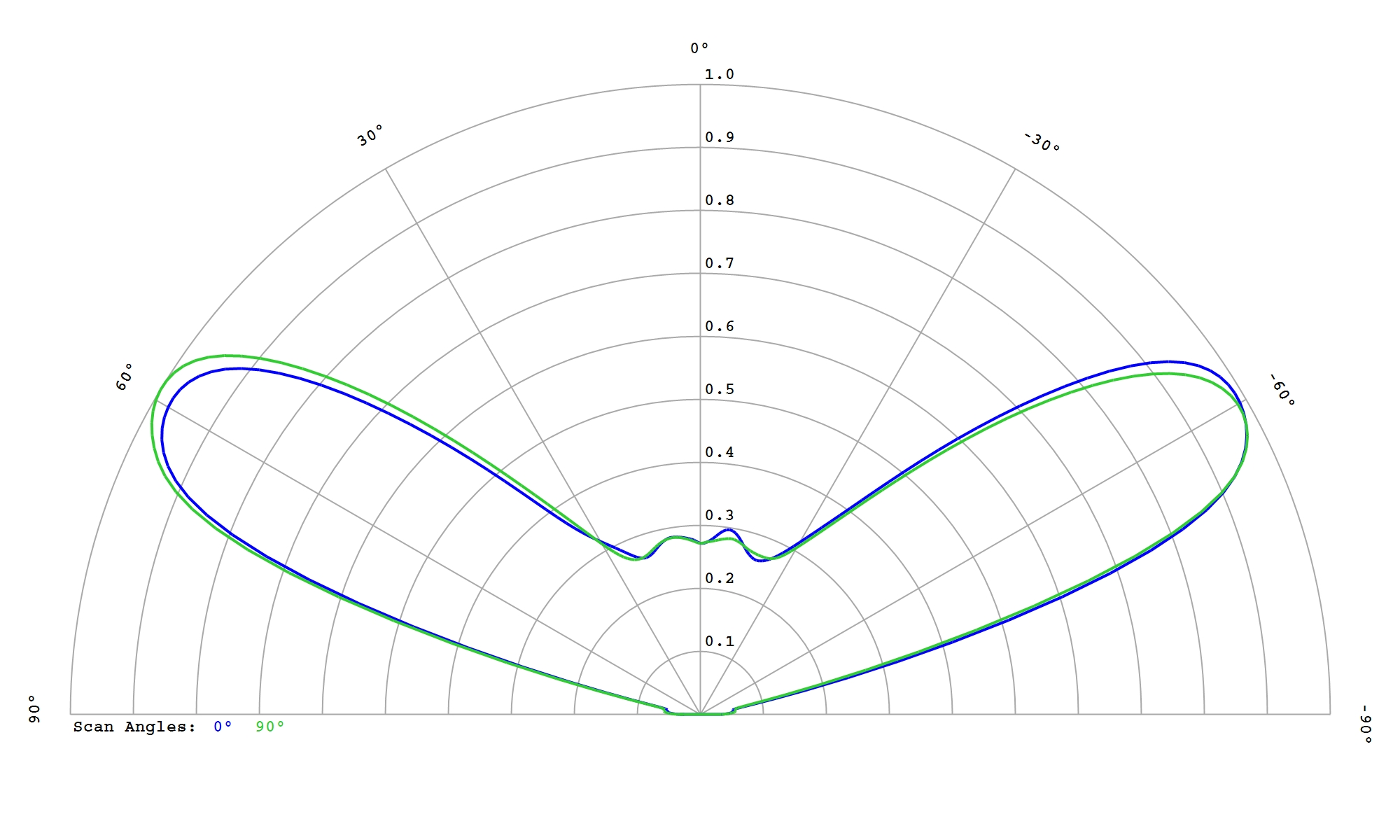

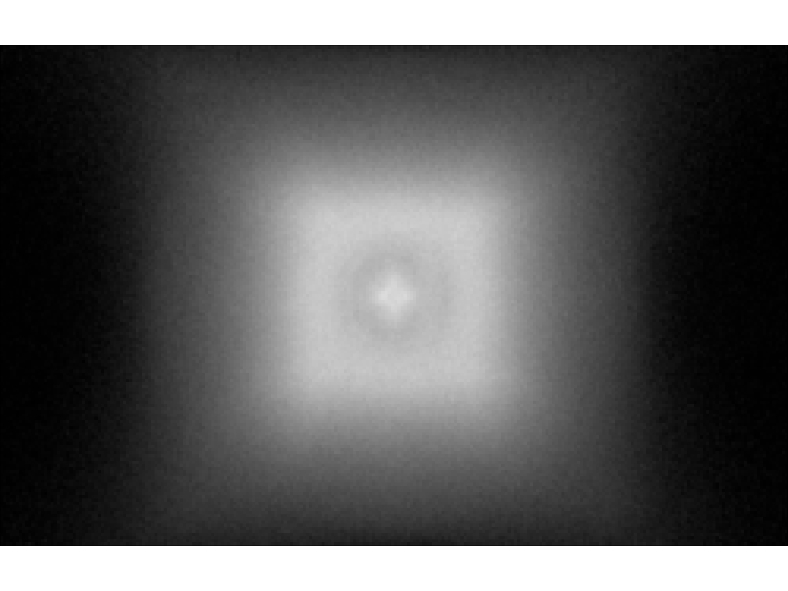

Seoul Z - Power Z5 M0 White
Eff:
91.0%
FWHM:
146°
Cd/Im:
0.6
Download
Seoul Z - Power Z5 M4 White
Eff:
94.5%
FWHM:
143°
Cd/Im:
0.5
Download
Toshiba TL 1L2 White
Eff:
88.0%
FWHM:
142°
Cd/Im:
0.5
Download
