75.0 x 50.0mm Asymmetrical III Medium Freeform

Part number

12774

Dimensions

75.0 x 50.0mm

Drawing Number

70286

Optic type

Freeform

Beam type

Asymmetrical III Medium

Applications

Street

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

94.0%

FWHM:

134 x 30.5°

Cd/Im:

0.9

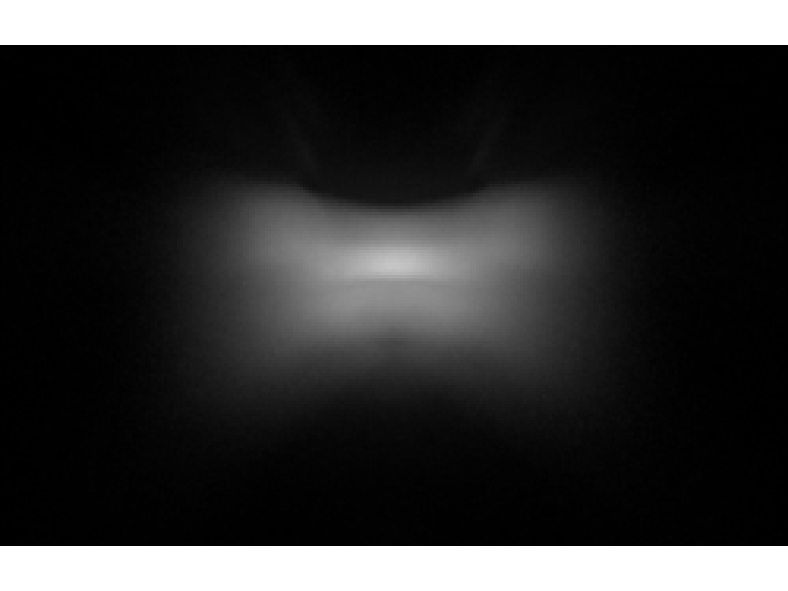

Carclo Optics - 12774 Mini Hubble Spot Image Bridgelux 3030 Gen2

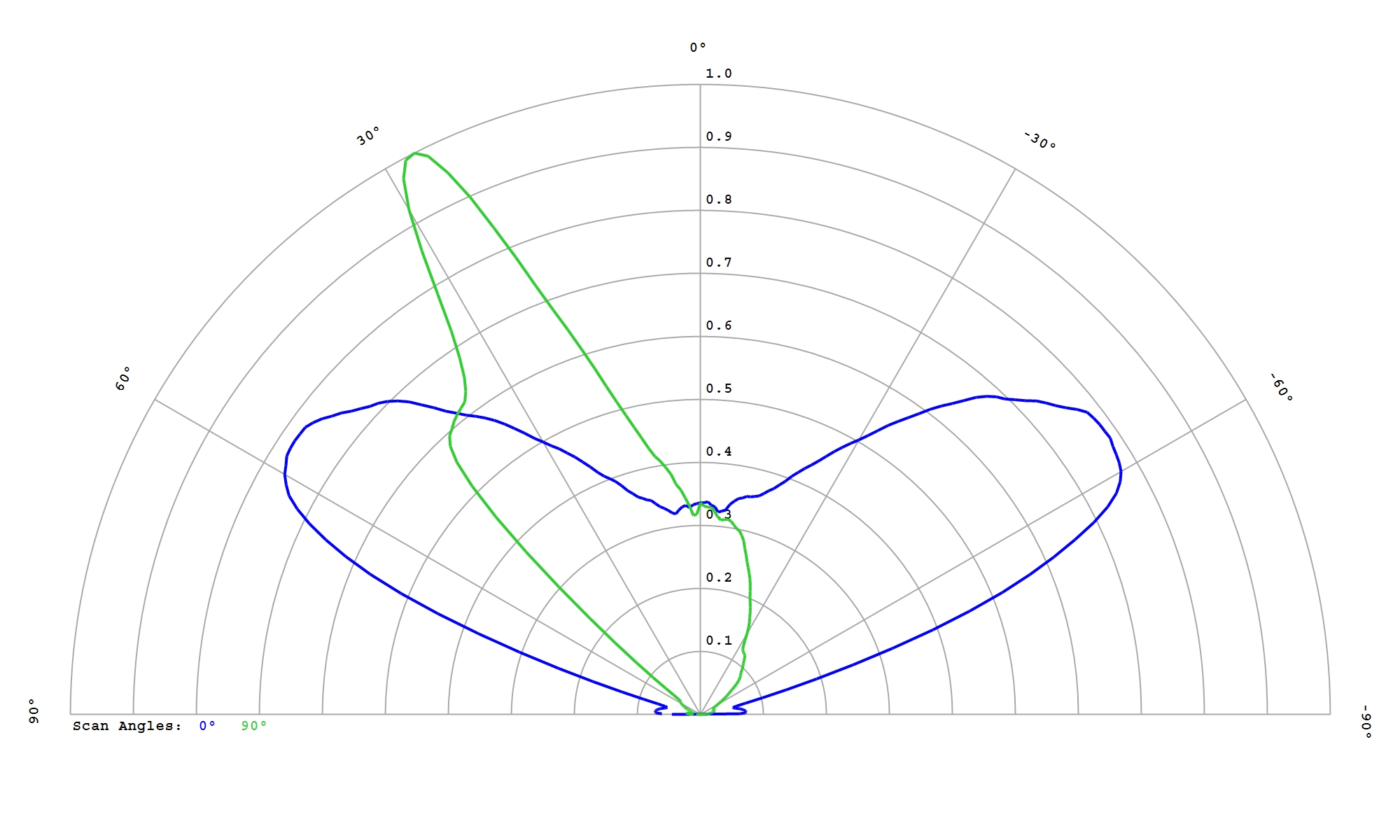

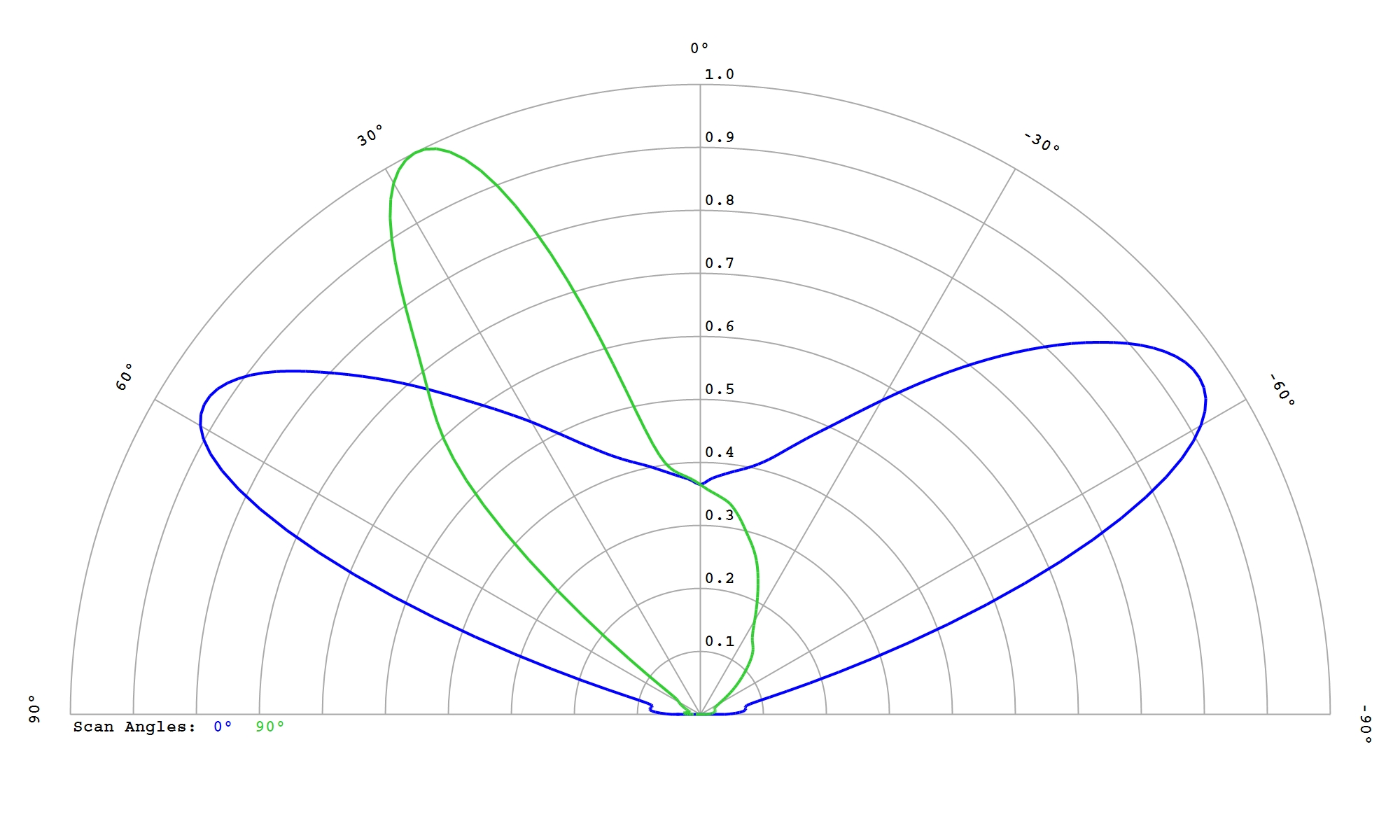

Carclo Optics - 12774 Mini Hubble Cross Section Bridgelux 3030 Gen2

Download

ies

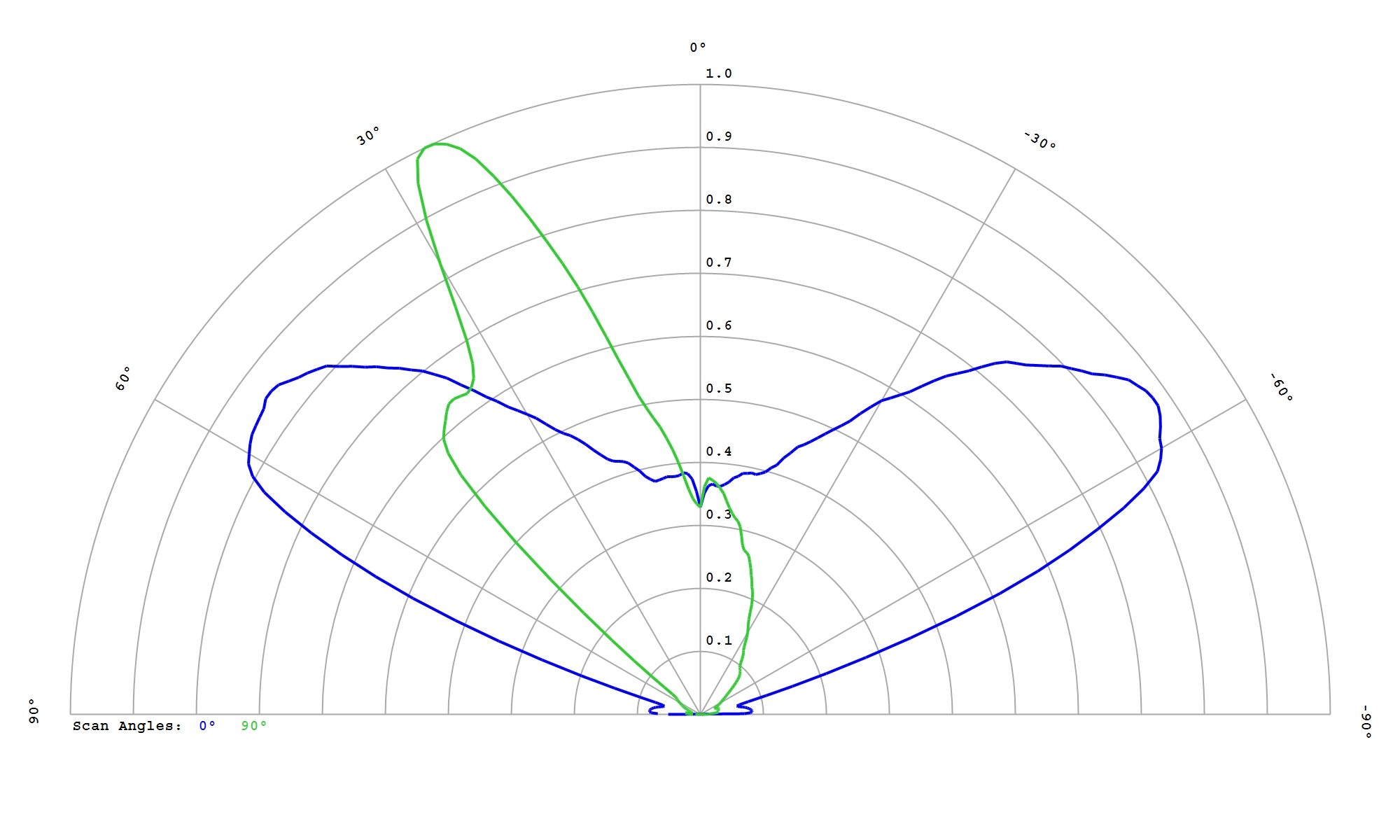

Cree JB2835B 3V G-Class White

Eff:

93.5%

FWHM:

138 x 35 x 26°

Cd/Im:

0.7


Download

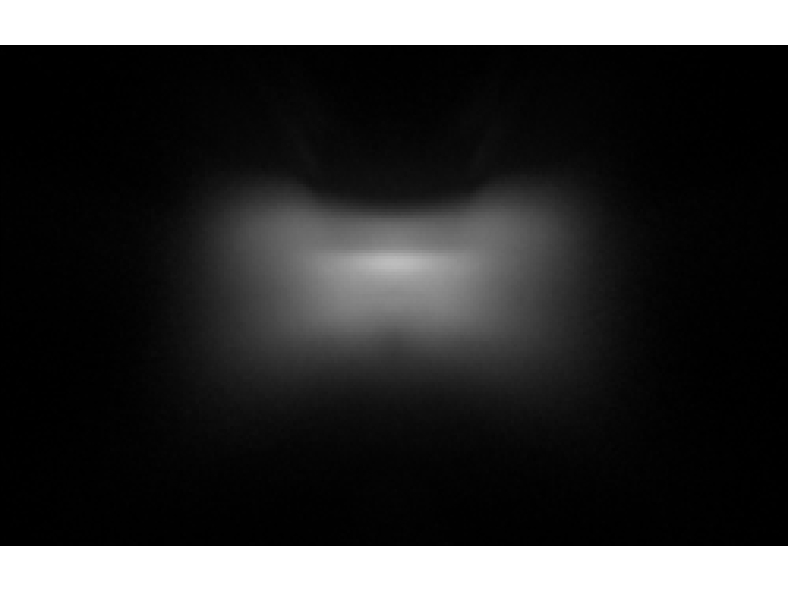

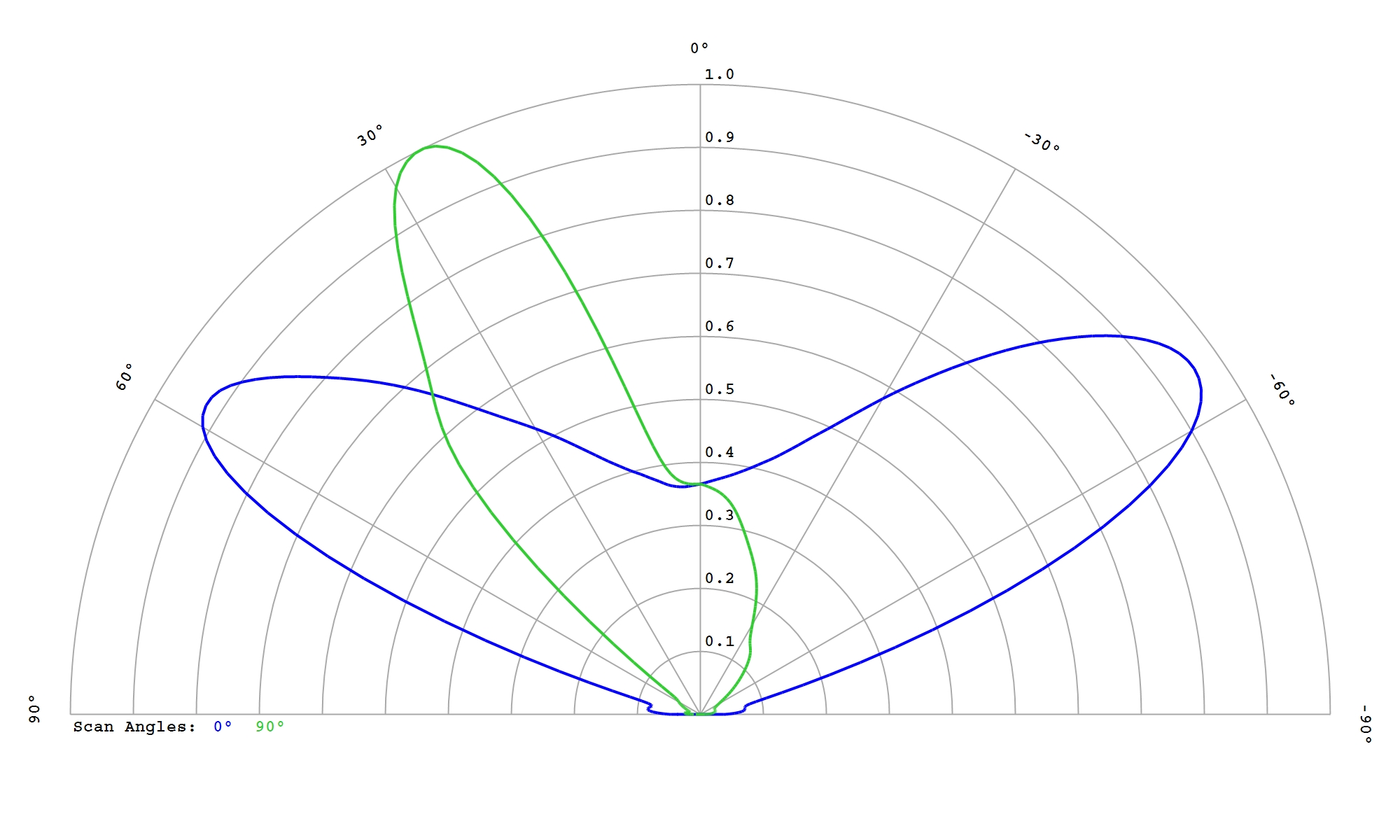

Cree JB2835B 3V J-Class White

Eff:

93.5%

FWHM:

138 x 35 x 27°

Cd/Im:

0.7


Download

Cree JB3030 3V P-Class White

Eff:

92.5%

FWHM:

135 x 33 x 25°

Cd/Im:

0.7

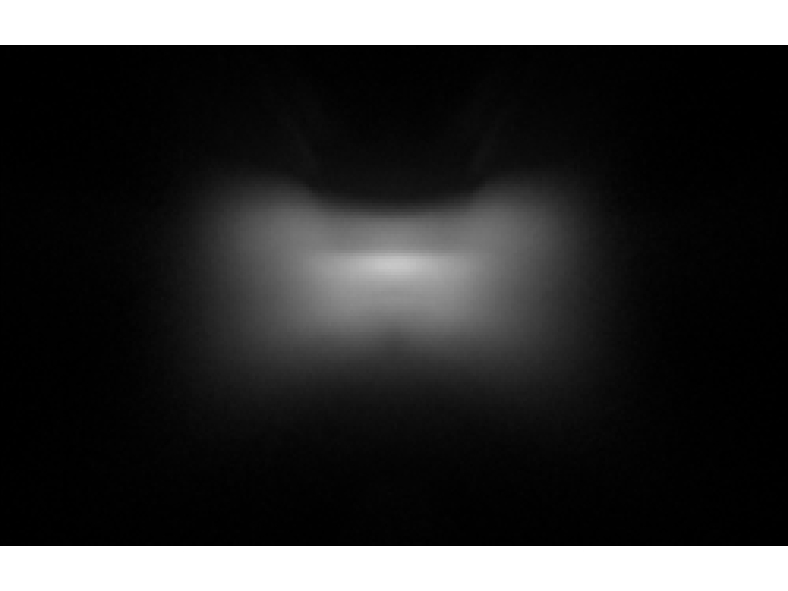

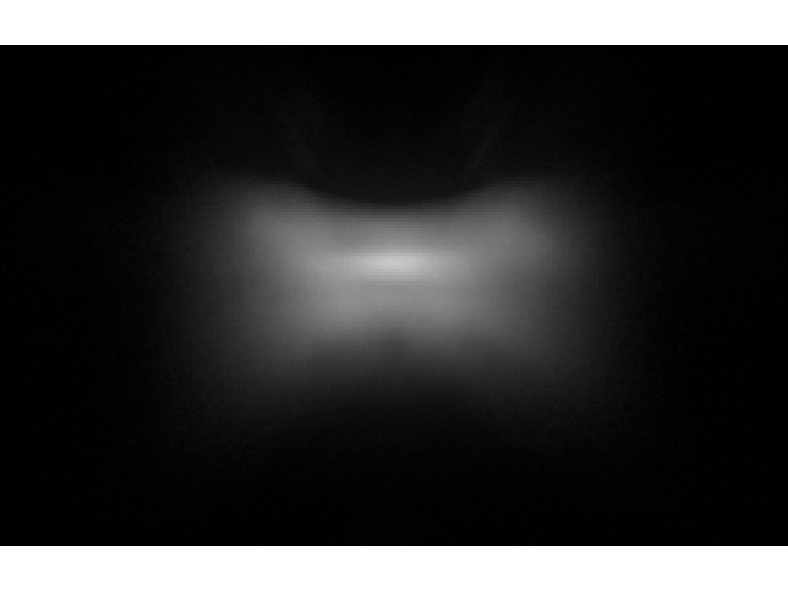

Carclo Optics - 12774 Spot Image Cree JB3030 3V White

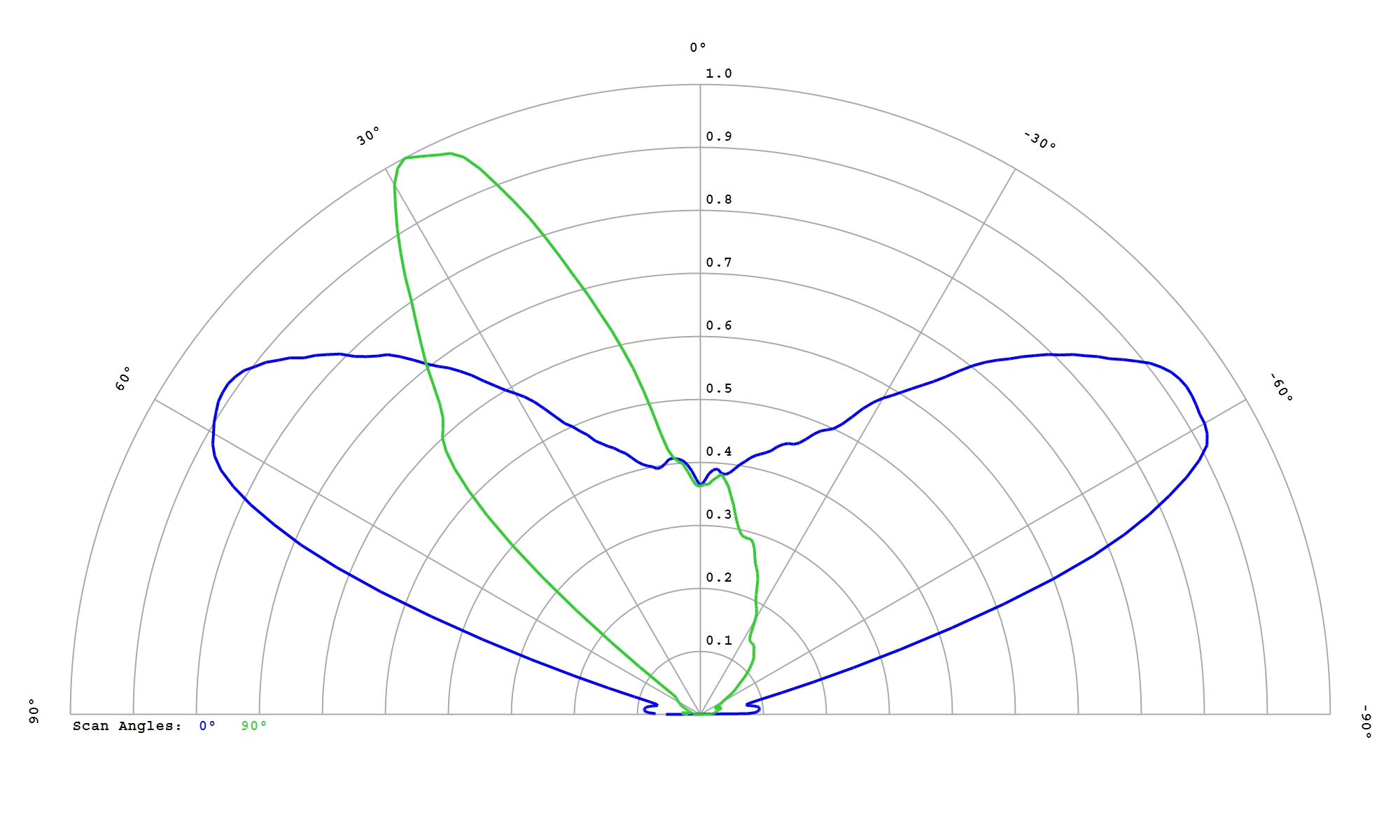

Carclo Optics - 12774 Cross Section Cree JB3030 3V White

Download

ies

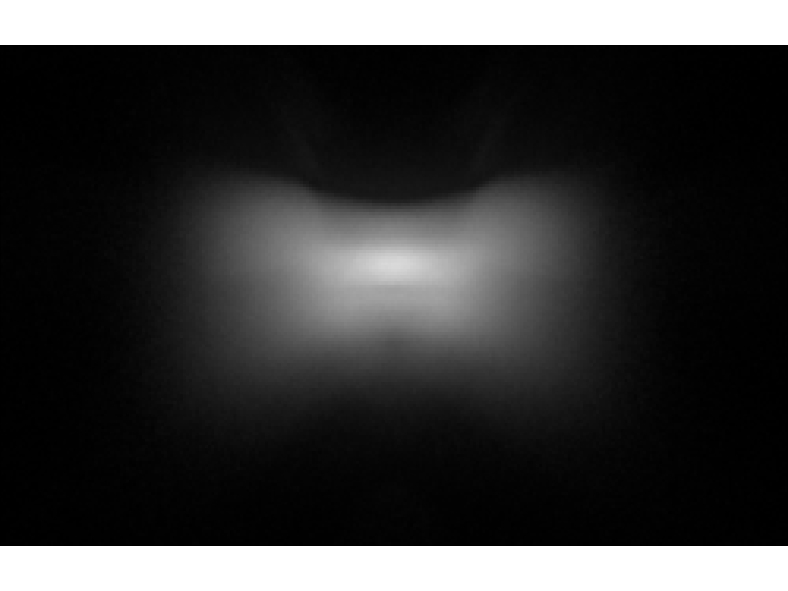

Cree JB3030C 3V E-Class White

Eff:

94.0%

FWHM:

140 x 37 x 28°

Cd/Im:

0.7


Download

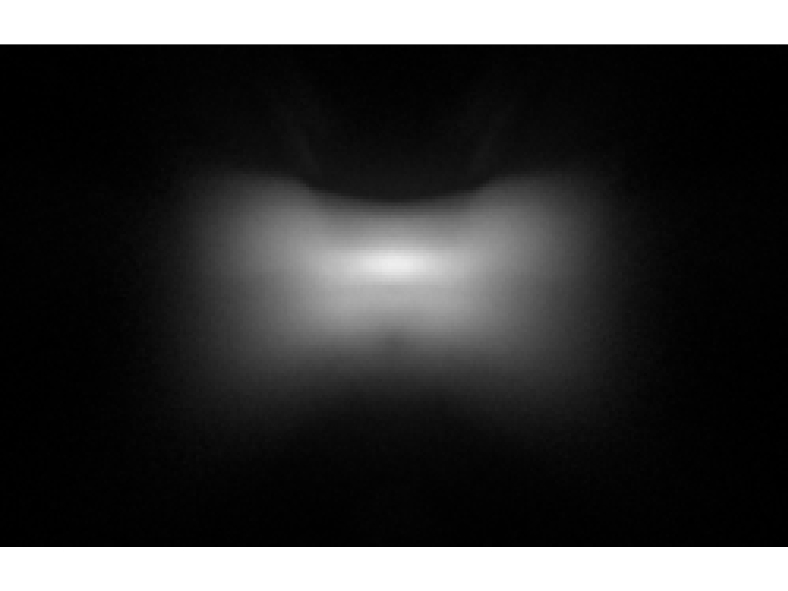

Cree JB3030C 3V F-Class White

Eff:

94.0%

FWHM:

140 x 35 x 27°

Cd/Im:

0.7


Download

Cree JE2835 3V PC Amber

Eff:

94.0%

FWHM:

142 x 19.5 x 27°

Cd/Im:

1.6

Download

IES

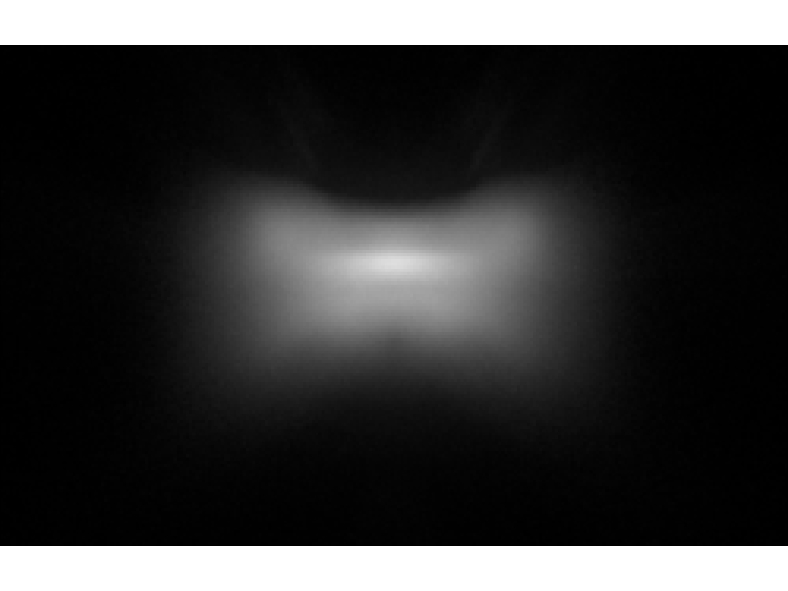

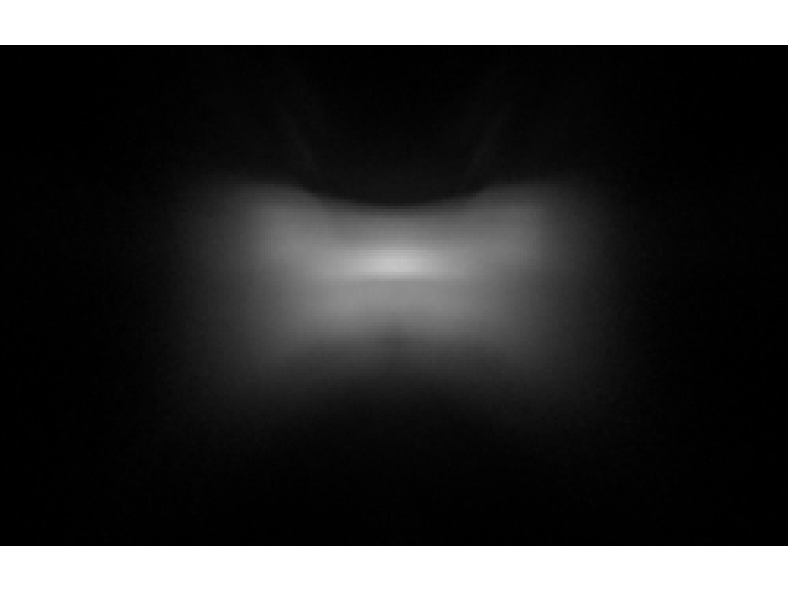

Cree JE2835 3V White

Eff:

94.0%

FWHM:

138 x 33 x 27°

Cd/Im:

0.8

Download

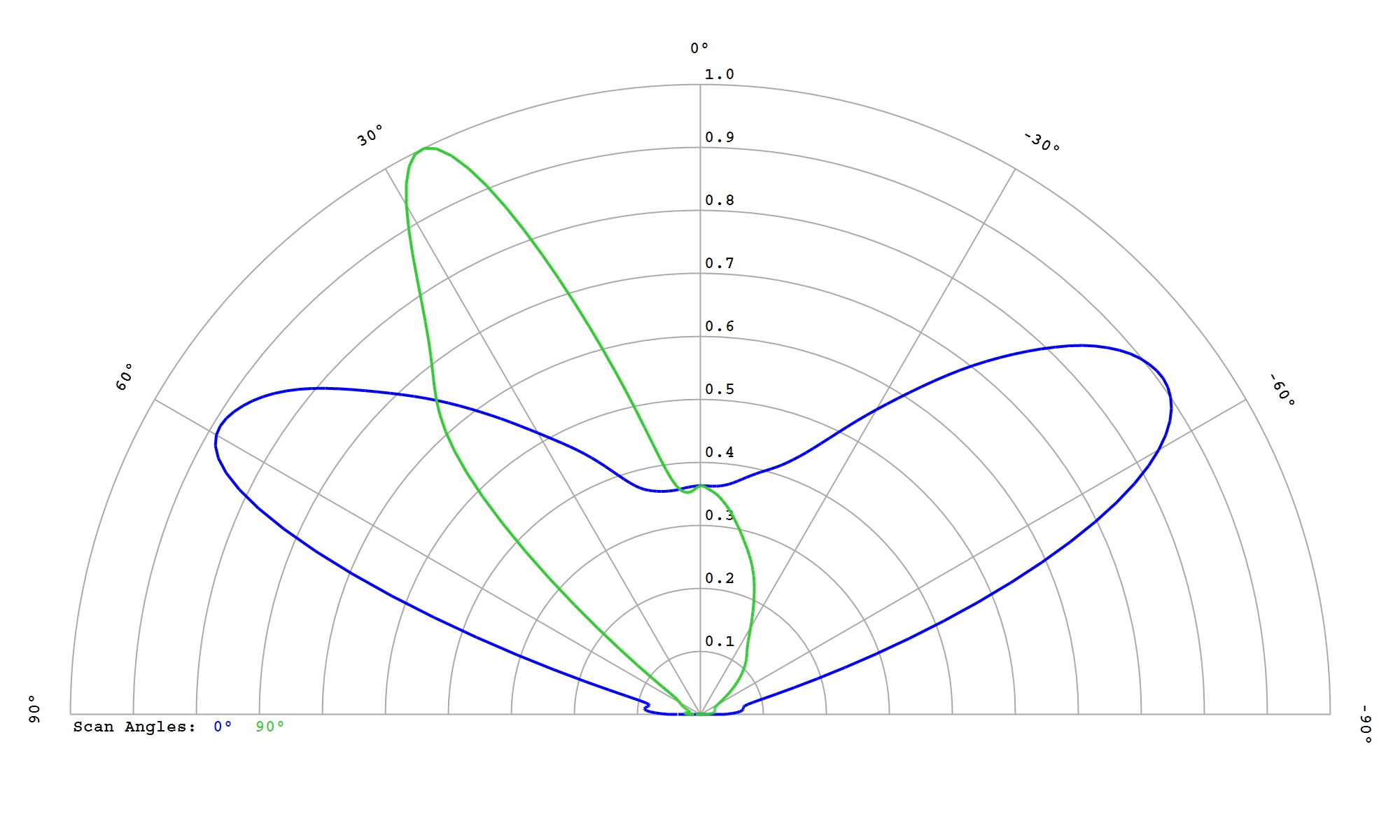

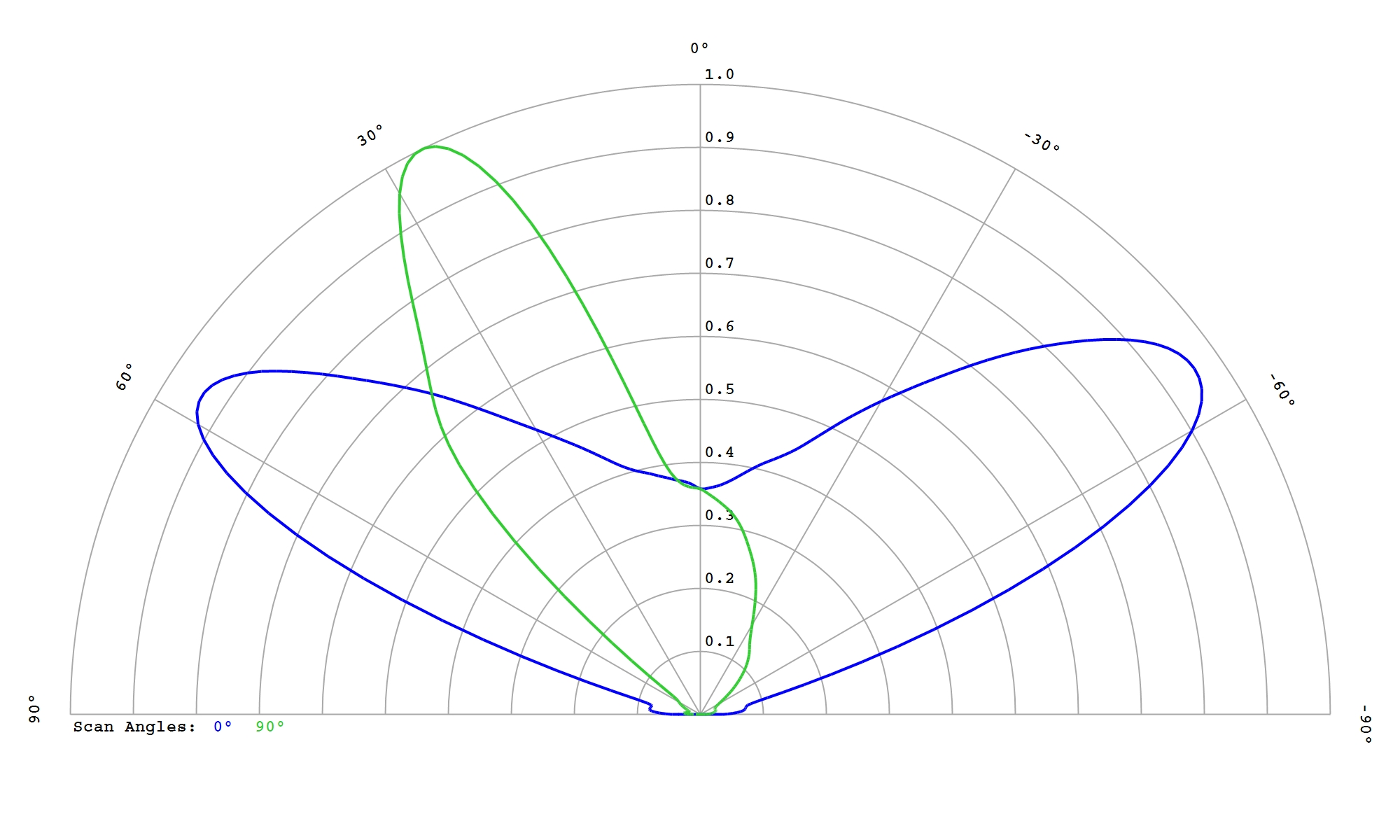

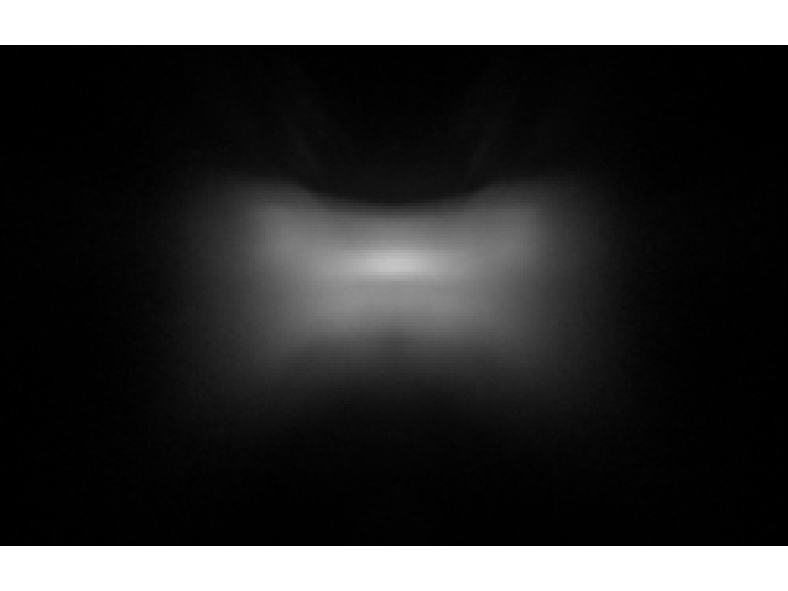

Cree JK2835 6V White

Eff:

94.0%

FWHM:

137 x 35 x 24°

Cd/Im:

0.8

Download

ies

Cree XLamp CSP XD16 Cool White

Eff:

90.5%

FWHM:

137 x 29°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

93.0%

FWHM:

139 x 28 x 28°

Cd/Im:

1.0

Download

IES

Cree XLamp XB-D PC Amber

Eff:

90.0%

FWHM:

144 x 39 x 31°

Cd/Im:

0.6

Download

IES

Cree XLamp XB-D White

Eff:

85.6%

FWHM:

131x28x30°

Cd/Im:

0.4

Simulation Data

Simulation Data

Download

IES

Cree XLamp XB-H White

Eff:

92.0%

FWHM:

139 x 49.5°

Cd/Im:

0.6

Carclo Optics - 12774 Mini Hubble Spot Image Cree XLamp XB-H

Carclo Optics - 12774 Mini Hubble Cross Section Cree XLamp XB-H

Download

ies

Cree XLamp XE-G PC Amber

Eff:

90.5%

FWHM:

145 x 29.5 x 32°

Cd/Im:

0.8

Download

IES

Cree XLamp XE-G White

Eff:

91.0%

FWHM:

143 x 26.5 x 32°

Cd/Im:

0.9

Download

ies

Cree XLamp XHP35 HI White

Eff:

86.5%

FWHM:

50.8 x 35.1 x 29°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

86.0%

FWHM:

144 x 52 x 30°

Cd/Im:

0.5

Carclo Optics – 12774 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12774 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XP-E2 PC Amber

Eff:

91.0%

FWHM:

142 x 56 x 32°

Cd/Im:

0.6

Download

IES

Cree XLamp XP-G2 White

Eff:

83.0%

FWHM:

148x40x30°

Cd/Im:

0.3

Simulation Data

Simulation Data

Download

ies

Cree XLamp XP-G3 White 1800K

Eff:

90.0%

FWHM:

145 x 52 x 30°

Cd/Im:

0.5

Download

IES

Cree XLamp XP-L HI White

Eff:

86.2%

FWHM:

142.9x32°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

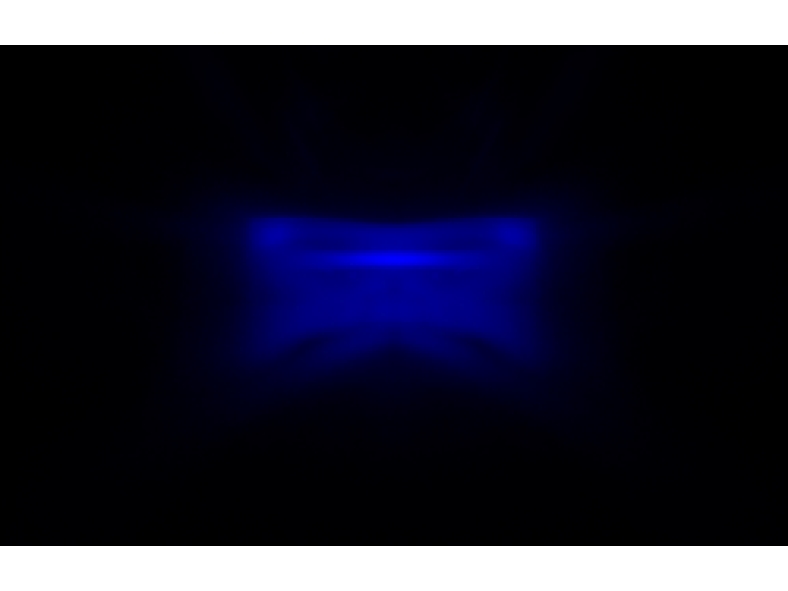

Cree XLamp XQ-A Blue

Eff:

93.5%

FWHM:

128 x 9.9 x 27°

Cd/Im:

1.8

Download

Cree XLamp XQ-A Green

Eff:

92.5%

FWHM:

127 x 20 x 27°

Cd/Im:

1.8

Download

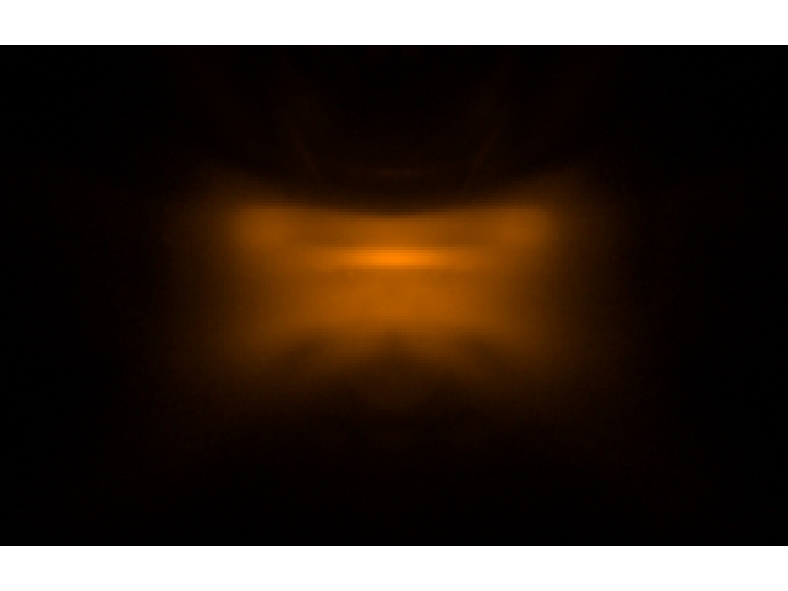

Cree XLamp XQ-A PC Amber

Eff:

91.5%

FWHM:

137 x 24.5 x 29°

Cd/Im:

1.0

Download

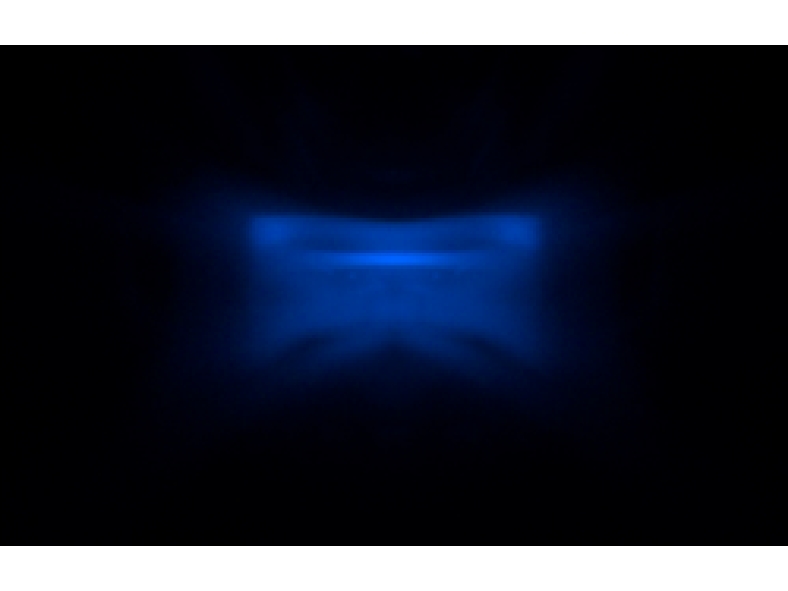

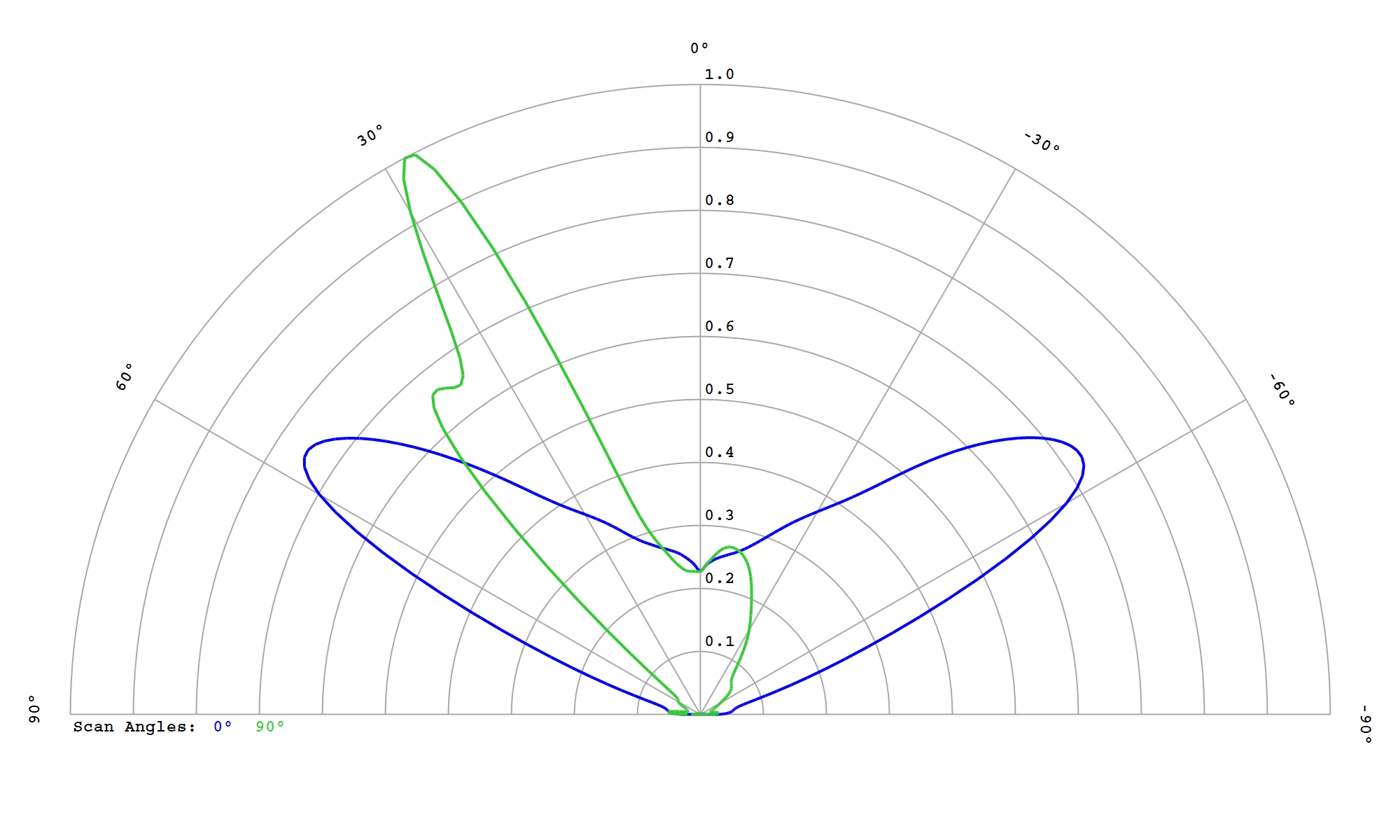

Cree XLamp XQ-A PC Blue

Eff:

91.5%

FWHM:

130 x 21 x 28°

Cd/Im:

1.8

Download

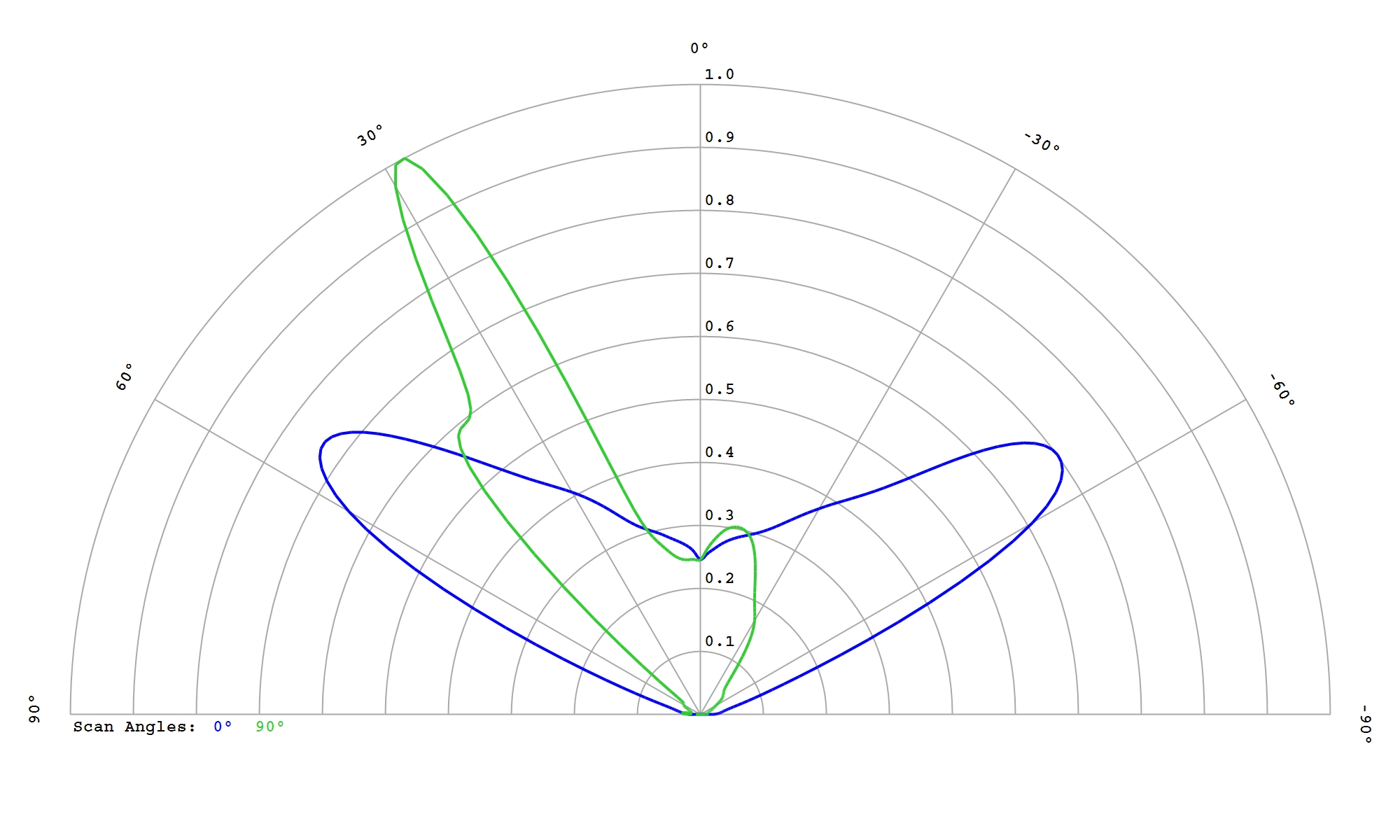

Cree XLamp XQ-A Red

Eff:

93.0%

FWHM:

128 x 21.5 x 29°

Cd/Im:

1.5

Download

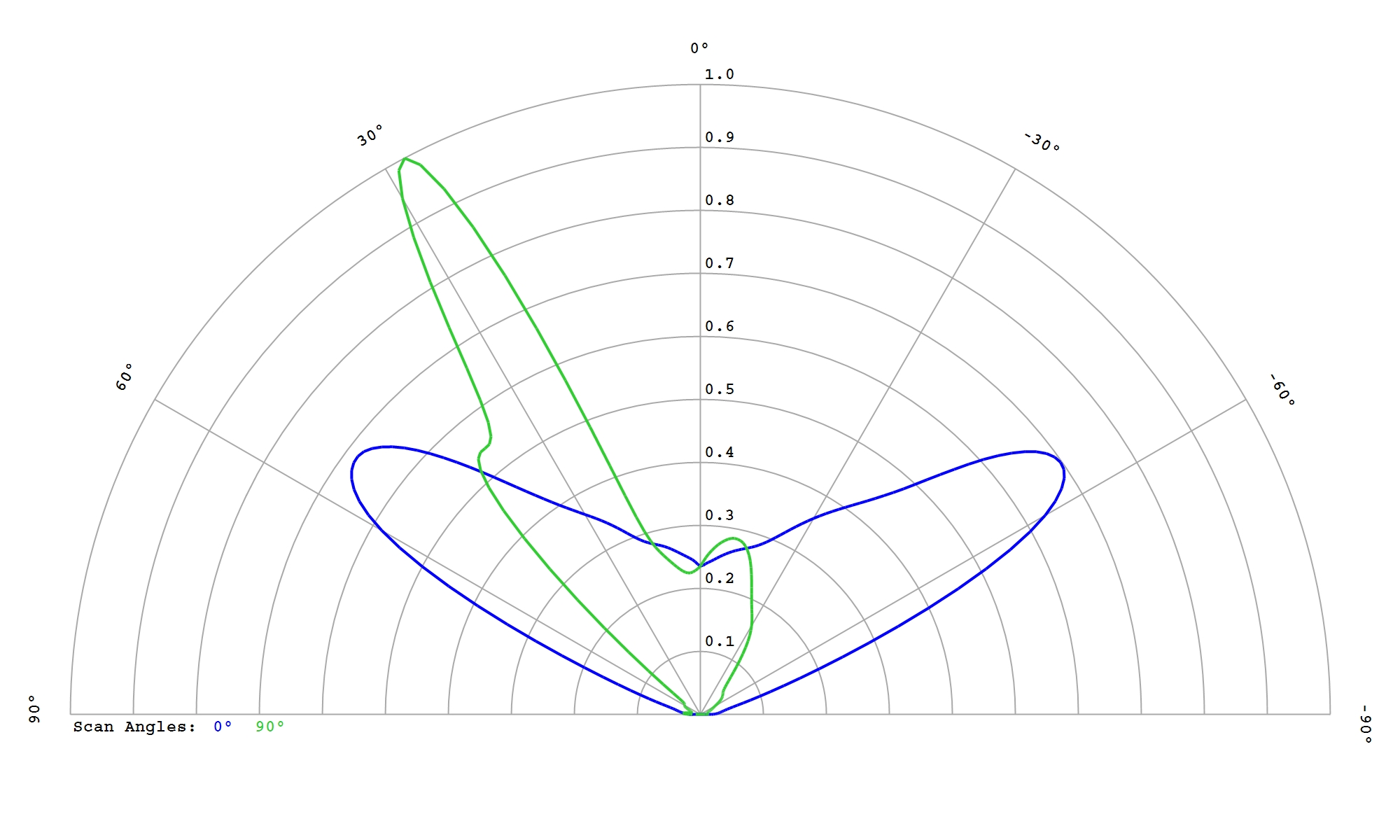

Cree XLamp XQ-A Red-Orange

Eff:

93.0%

FWHM:

129 x 20.5 x 29°

Cd/Im:

1.6


Download

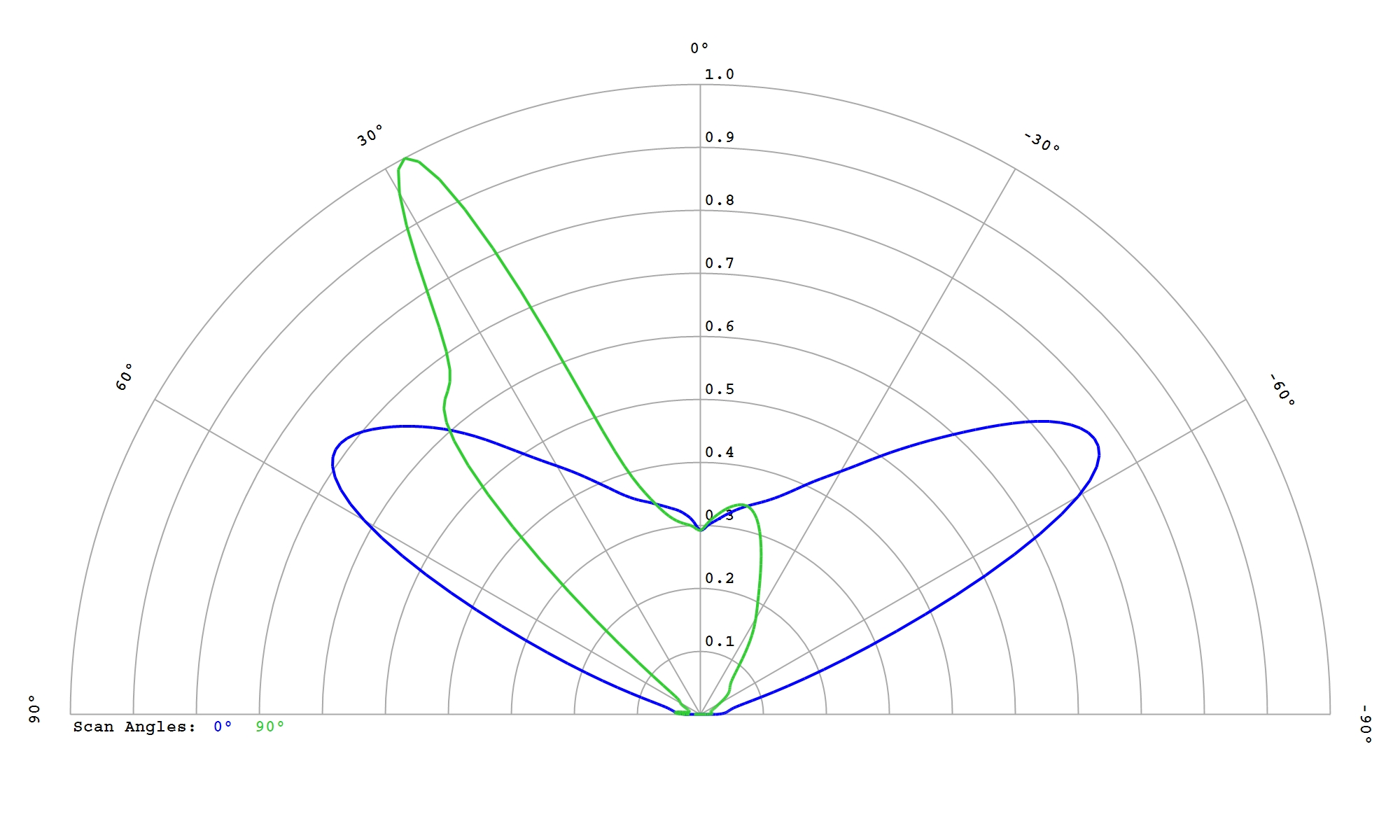

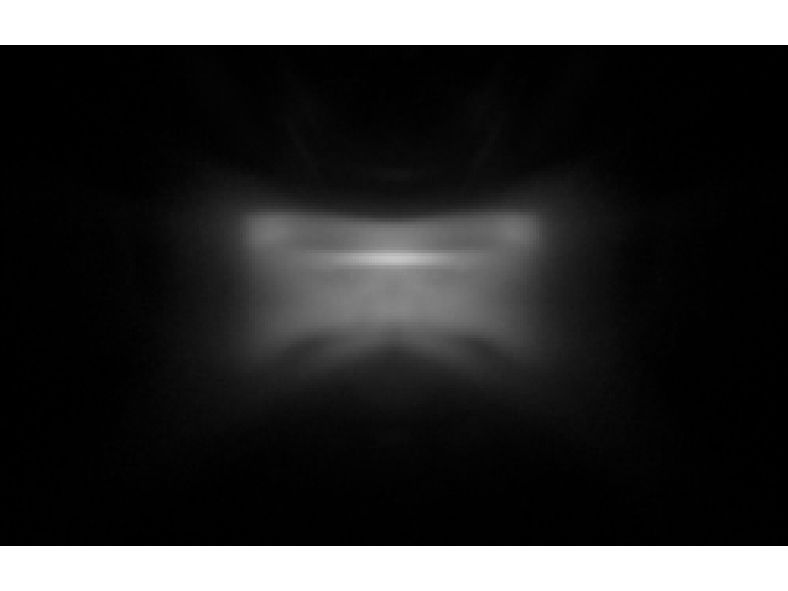

Cree XLamp XQ-A White

Eff:

91.5%

FWHM:

130 x 21.5 x 28°

Cd/Im:

1.3

Download

Cree XLamp XQ-E HD PC Amber

Eff:

91.5%

FWHM:

140 x 28.5 x 30°

Cd/Im:

0.9

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

92.5%

FWHM:

139 X 23.5 X 29°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

90.5%

FWHM:

138 x 23.5 x 28°

Cd/Im:

1.2

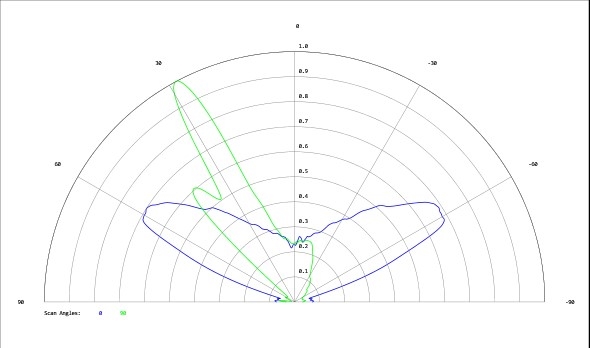

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI PC Amber

Eff:

93.0%

FWHM:

141 x 25 x 31°

Cd/Im:

1.3

Download

IES

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

136 x 22.5 x 28°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI White

Eff:

92.0%

FWHM:

139 X 24 X 29°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

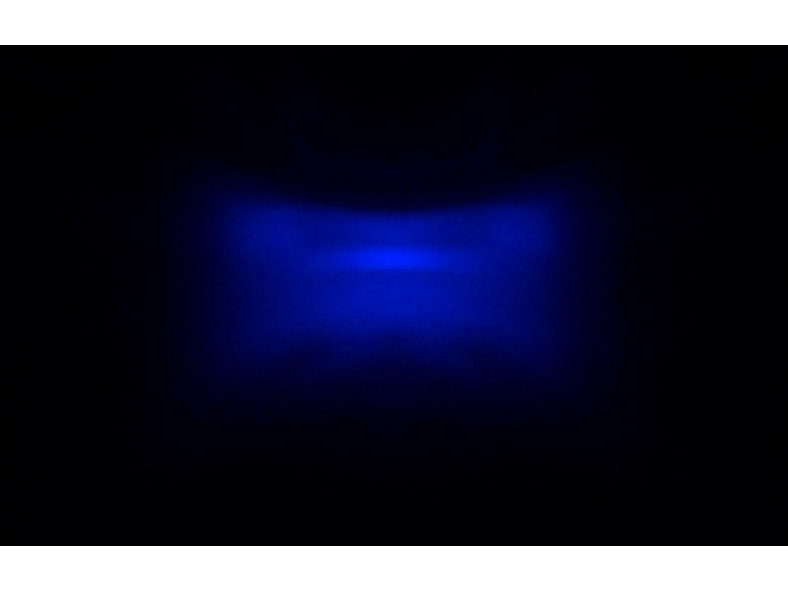

Cree XLamp XQ-E Plus HD Blue

Eff:

92.0%

FWHM:

137 x 26.5 x 29°

Cd/Im:

1.0


Download

Cree XLamp XQ-E Plus HD Green

Eff:

90.5%

FWHM:

136 x 26.5 x 28°

Cd/Im:

0.9


Download

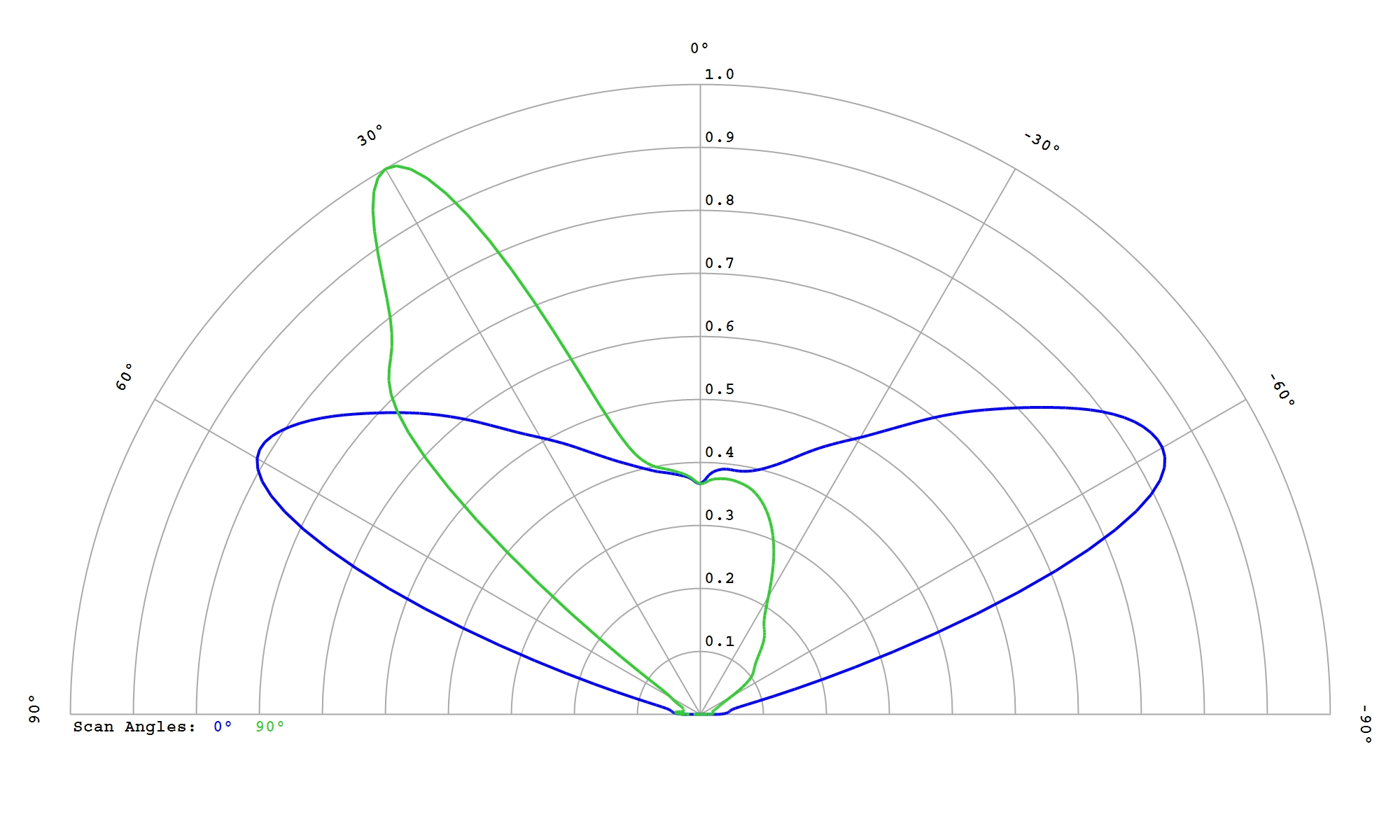

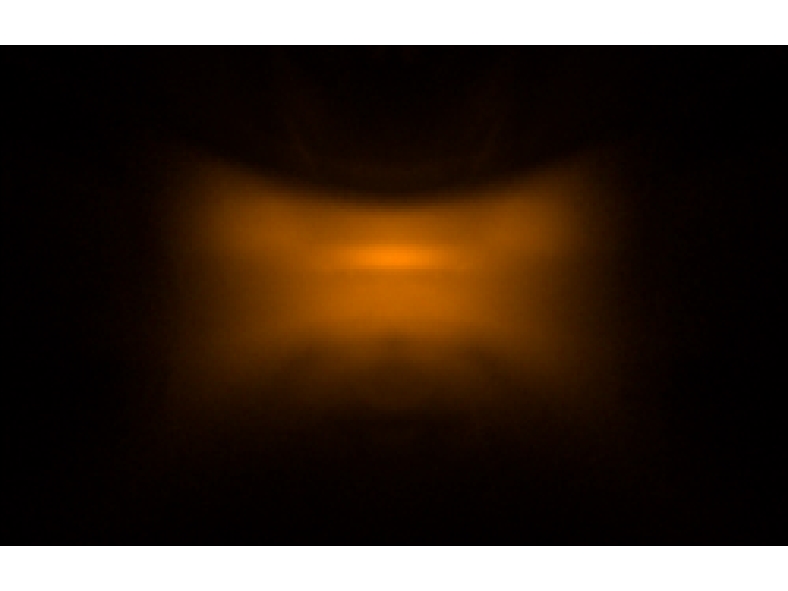

Cree XLamp XQ-E Plus HD PC Amber

Eff:

90.0%

FWHM:

140 x 29.5 x 30°

Cd/Im:

0.8


Download

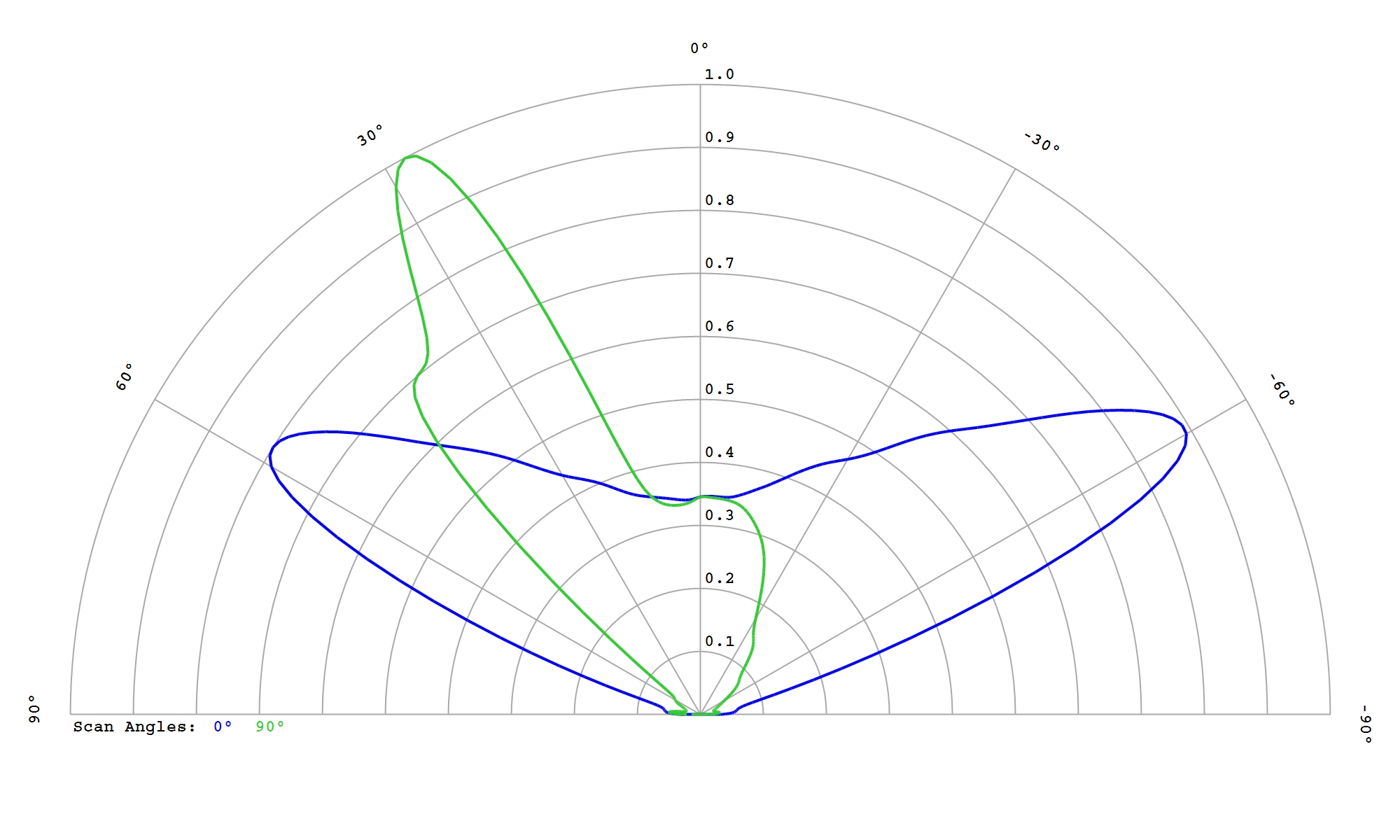

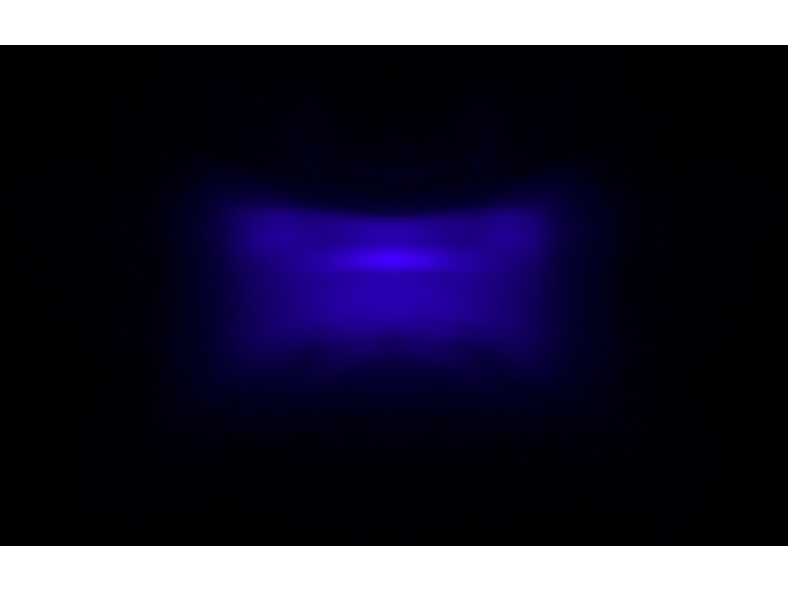

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

92.5%

FWHM:

135 x 25.5 x 28°

Ipk/W:

1.0


Download

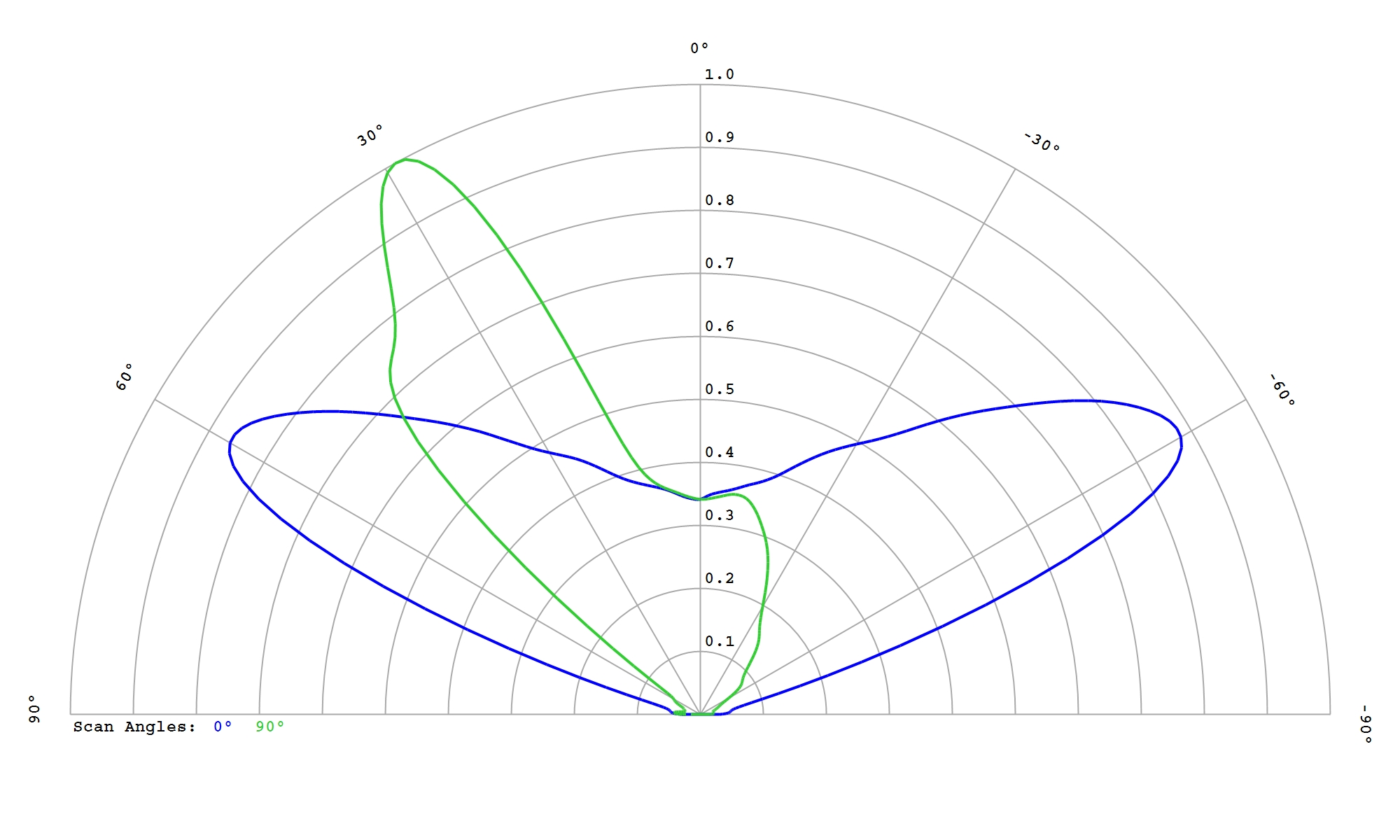

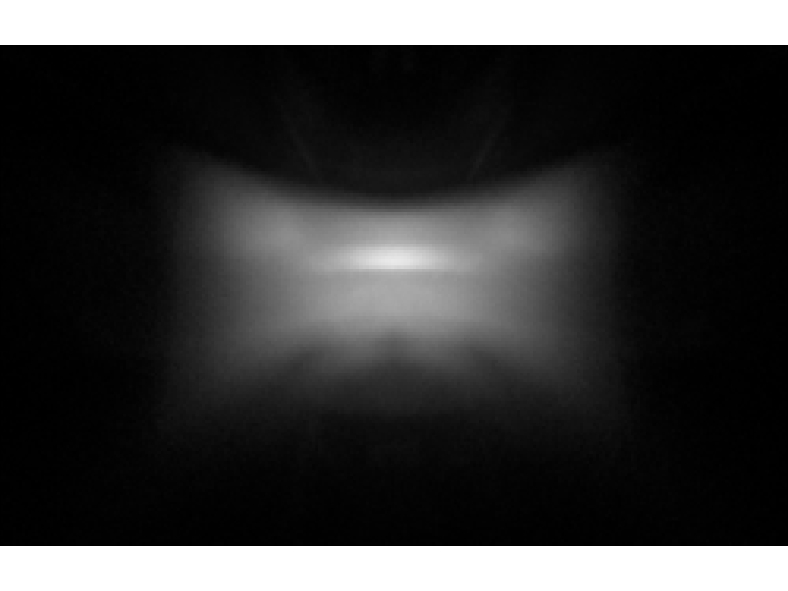

Cree XLamp XQ-E Plus HD White

Eff:

90.0%

FWHM:

138 x 29.5 x 28°

Cd/Im:

0.8


Download

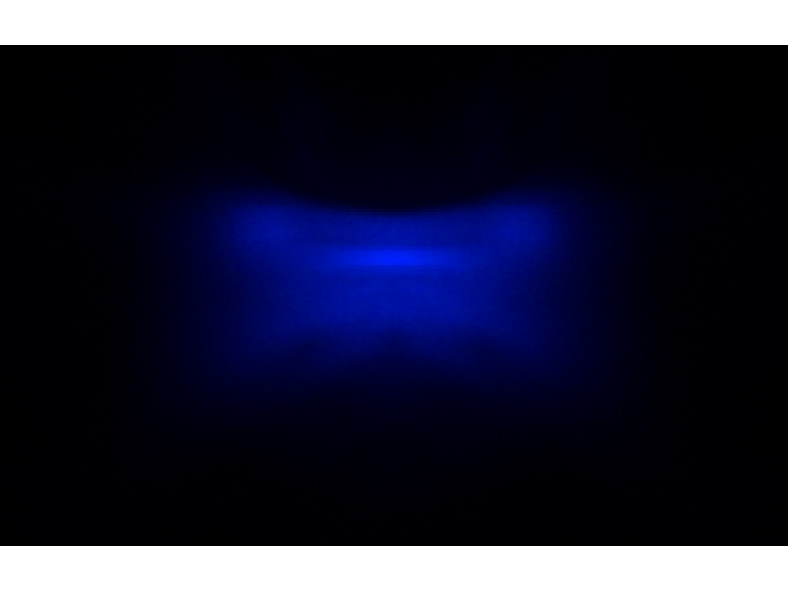

Cree XLamp XQ-E Plus HI Blue

Eff:

91.0%

FWHM:

140 x 25.5 x 27°

Cd/Im:

1.1


Download

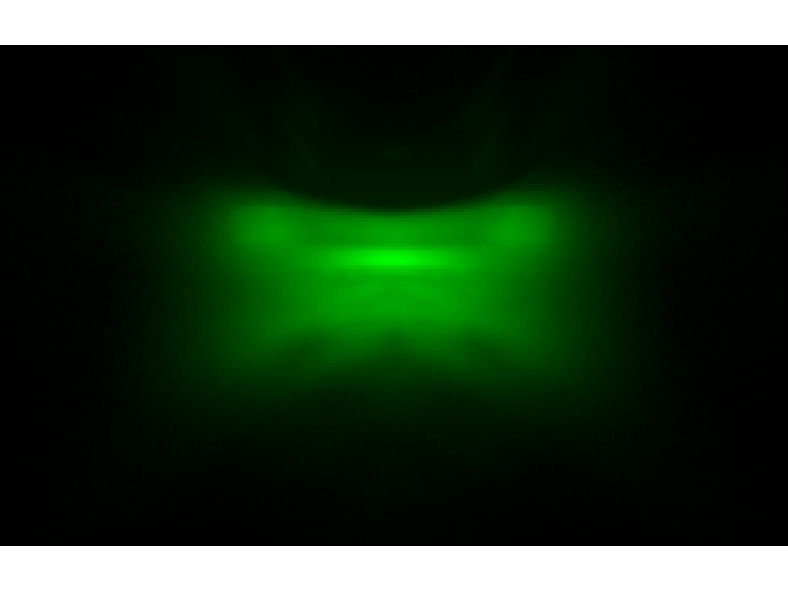

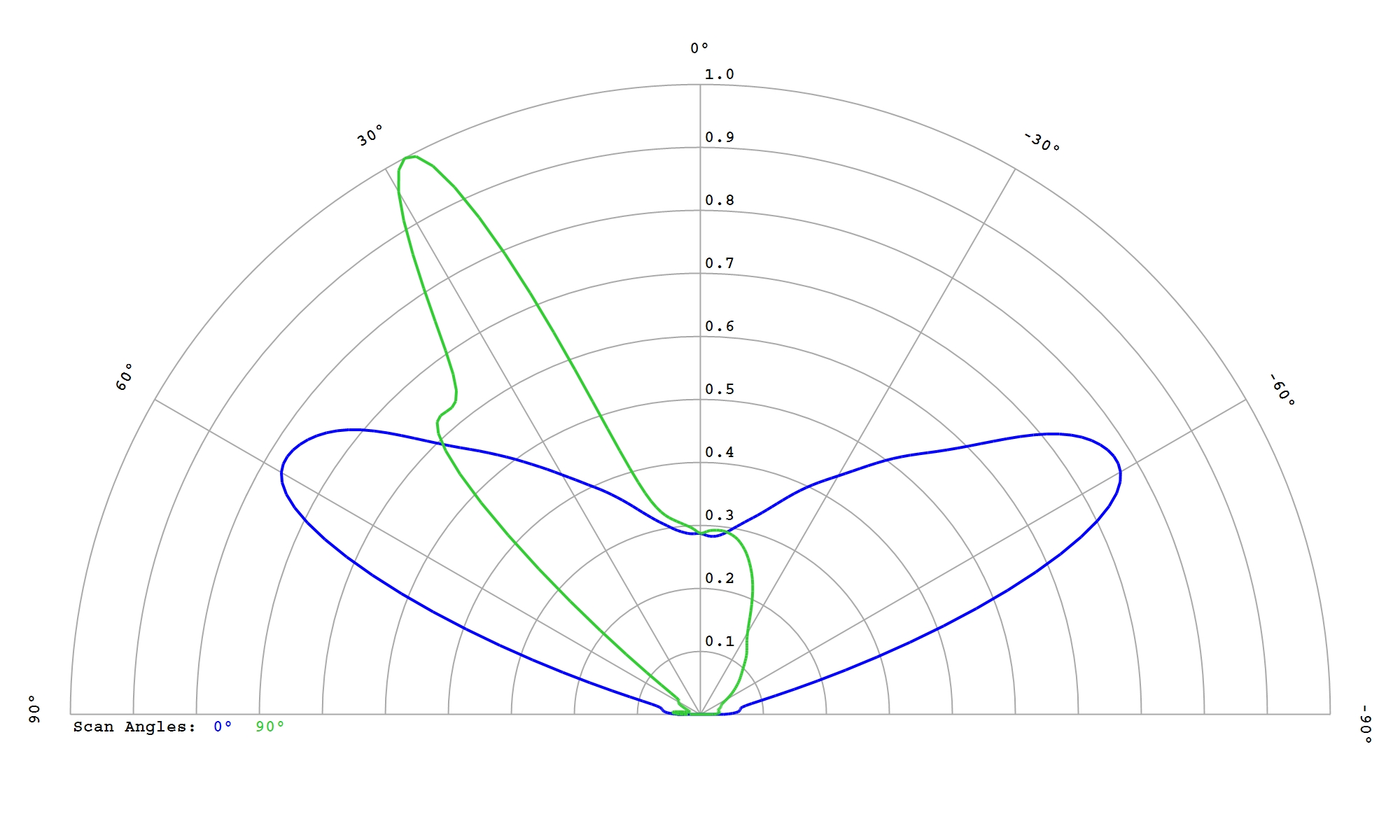

Cree XLamp XQ-E Plus HI Green

Eff:

89.5%

FWHM:

140 x 25 x 27°

Cd/Im:

1.1


Download

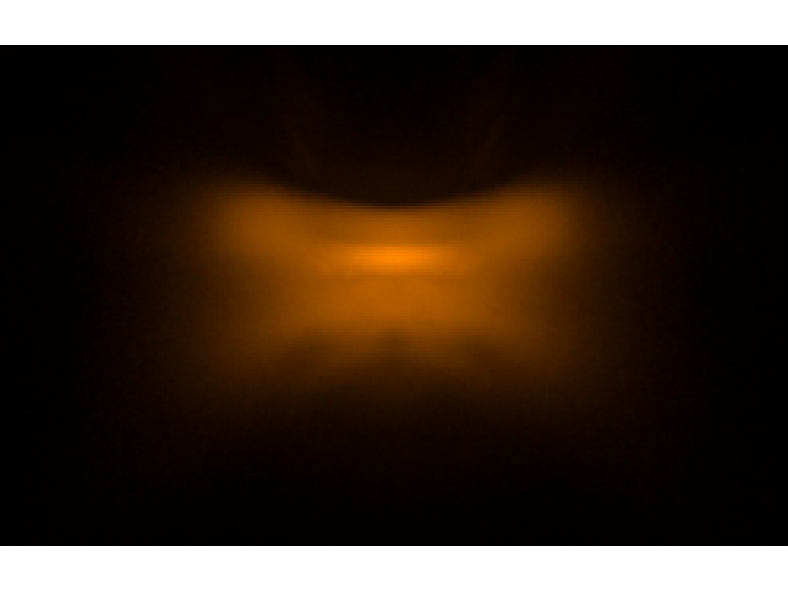

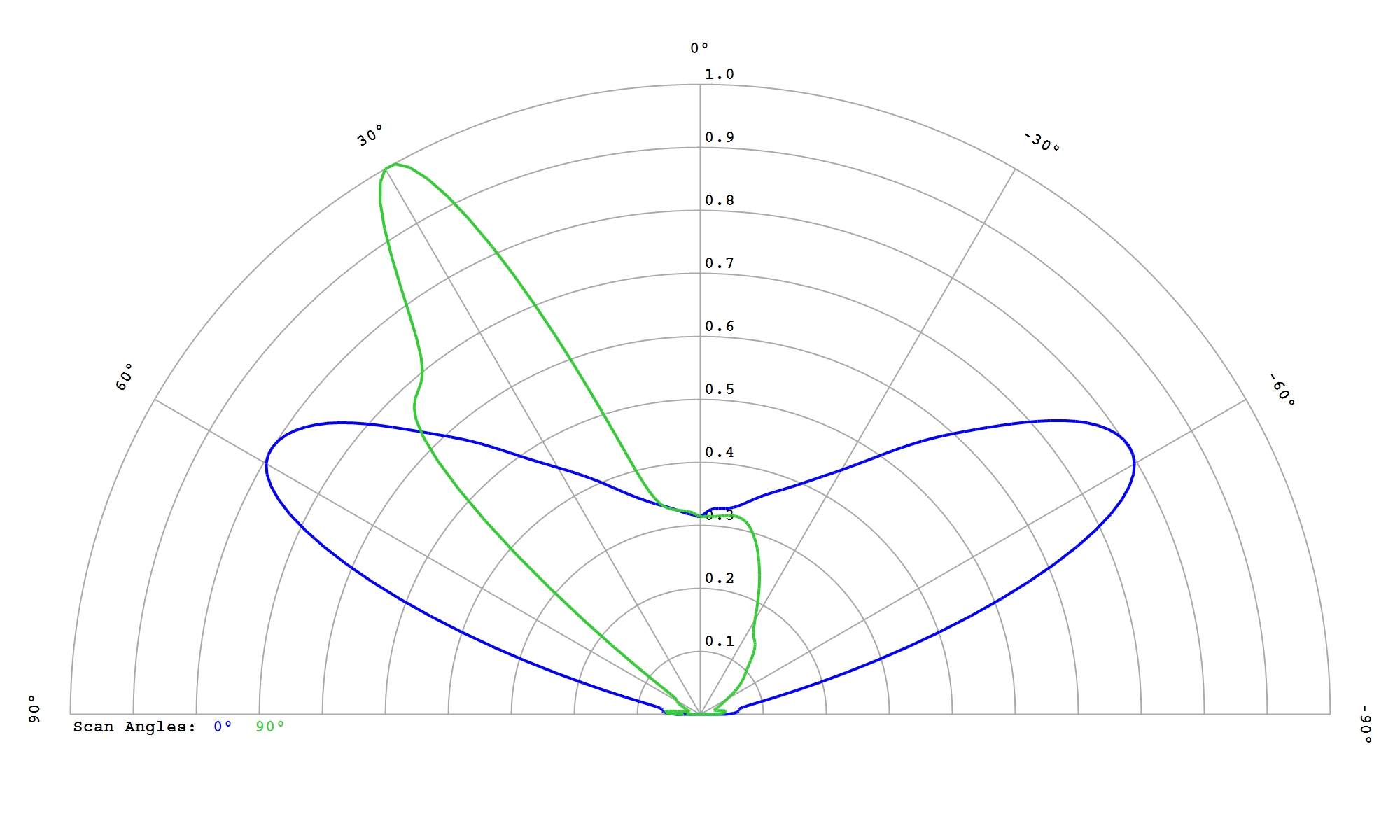

Cree XLamp XQ-E Plus HI PC Amber

Eff:

90.5%

FWHM:

141 x 29 x 30°

Cd/Im:

0.9


Download

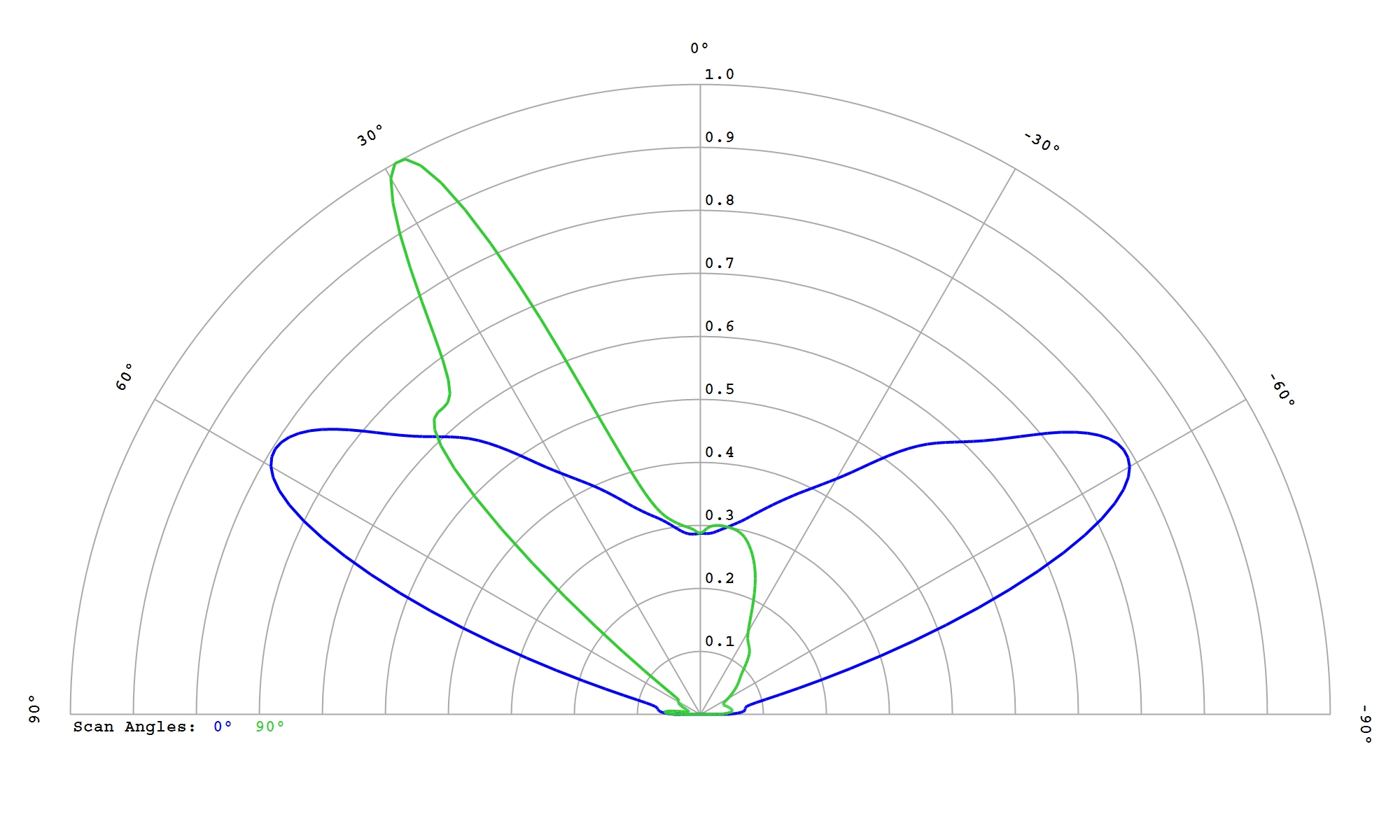

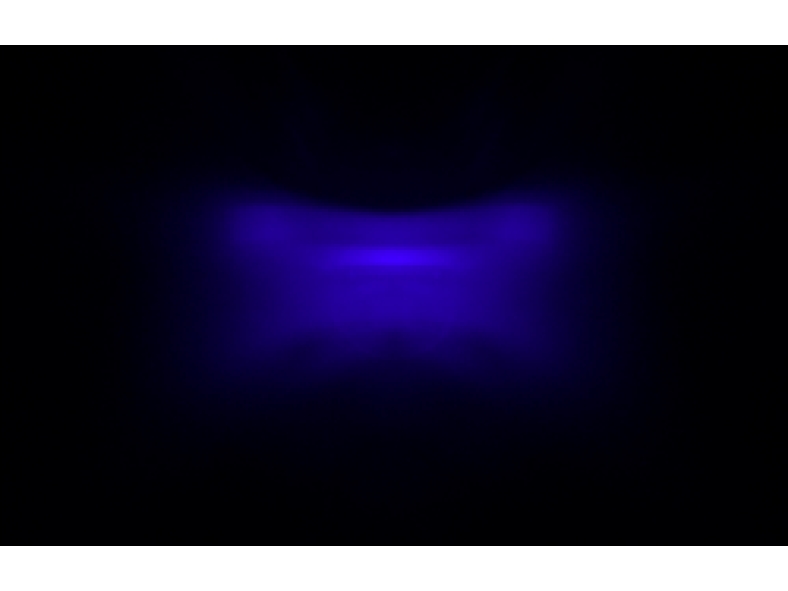

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

91.5%

FWHM:

140 x 25 x 28°

Ipk/W:

1.1


Download

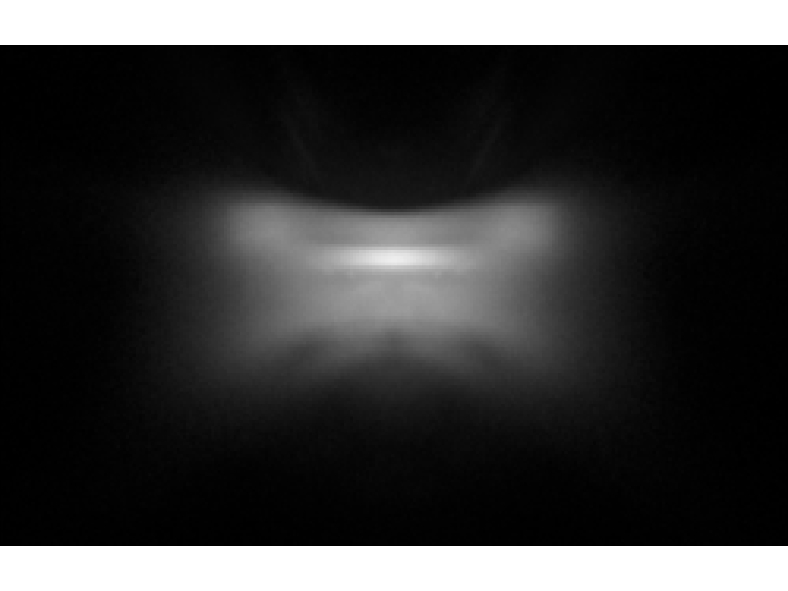

Cree XLamp XQ-E Plus HI White

Eff:

91.5%

FWHM:

140 x 26.5 x 29°

Cd/Im:

1.1


Download

Cree XLamp XQ-E HD White

Eff:

83.0%

FWHM:

130x30x28°

Cd/Im:

1.0

Simulation Data

Simulation Data

Download

1

Cree XLamp XT-E White

Eff:

84.5%

FWHM:

138x39x26°

Cd/Im:

0.7

Simulation Data

Simulation Data

Download

IES

LUMILEDS LUXEON 2835 PC Amber

Eff:

94.0%

FWHM:

137 x 31 x 26°

Cd/Im:

1.0

Download

IES

LUMILEDS LUXEON 2835C 6V White

Eff:

94.0%

FWHM:

138 x 33 x 26°

Cd/Im:

0.7

Download

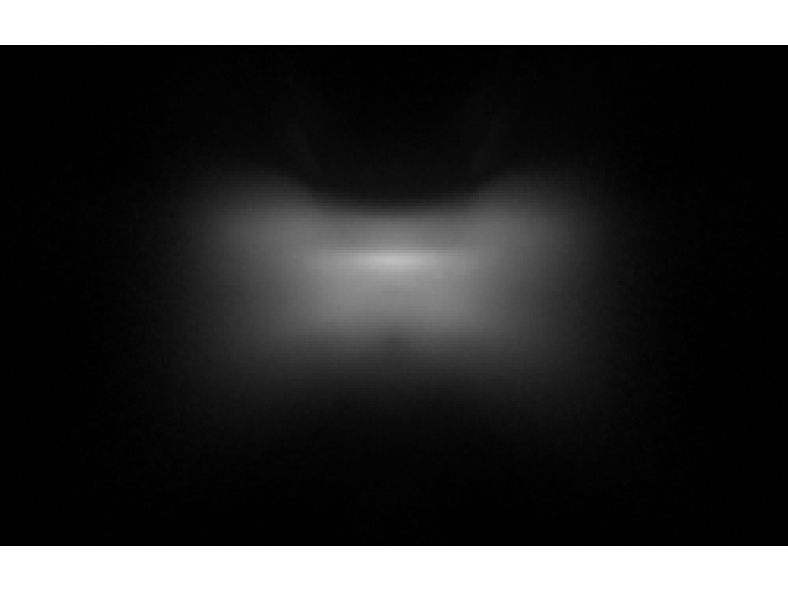

LUMILEDS LUXEON 2835E 9V White

Eff:

94.0%

FWHM:

140 x 31 x 28°

Cd/Im:

0.7

Download

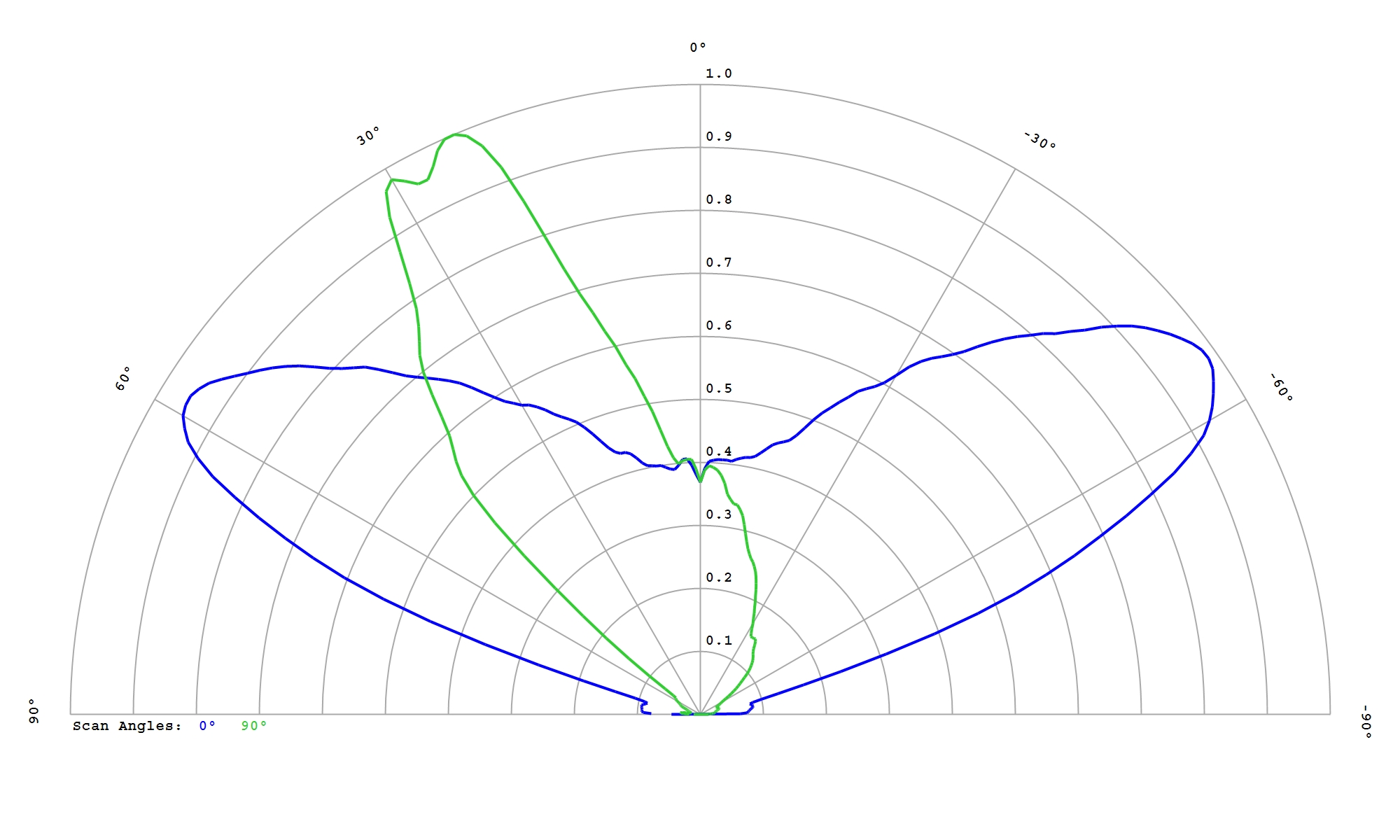

LUMILEDS LUXEON 2835N 3V White

Eff:

94.0%

FWHM:

140 x 37 x 24°

Cd/Im:

0.7

Download

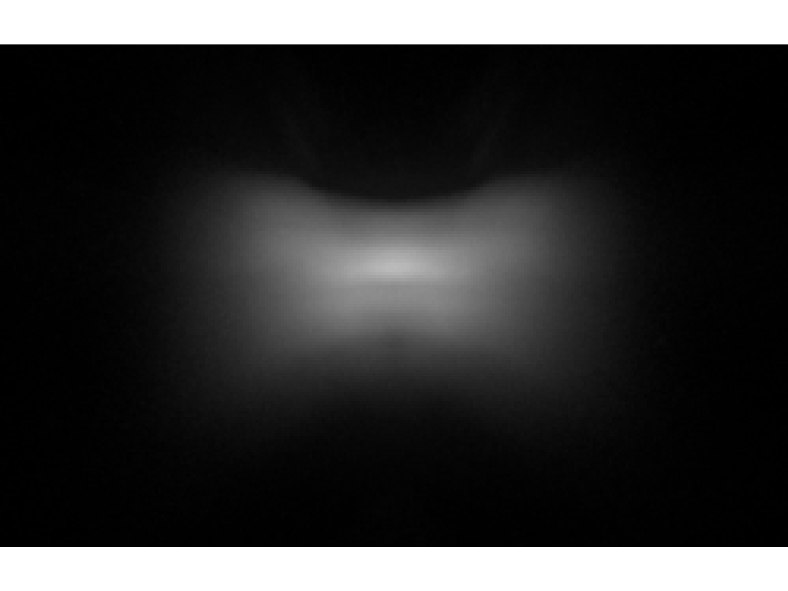

LUMILEDS LUXEON 2835S 3V White

Eff:

94.0%

FWHM:

140 x 36 x 25°

Cd/Im:

0.7

Download

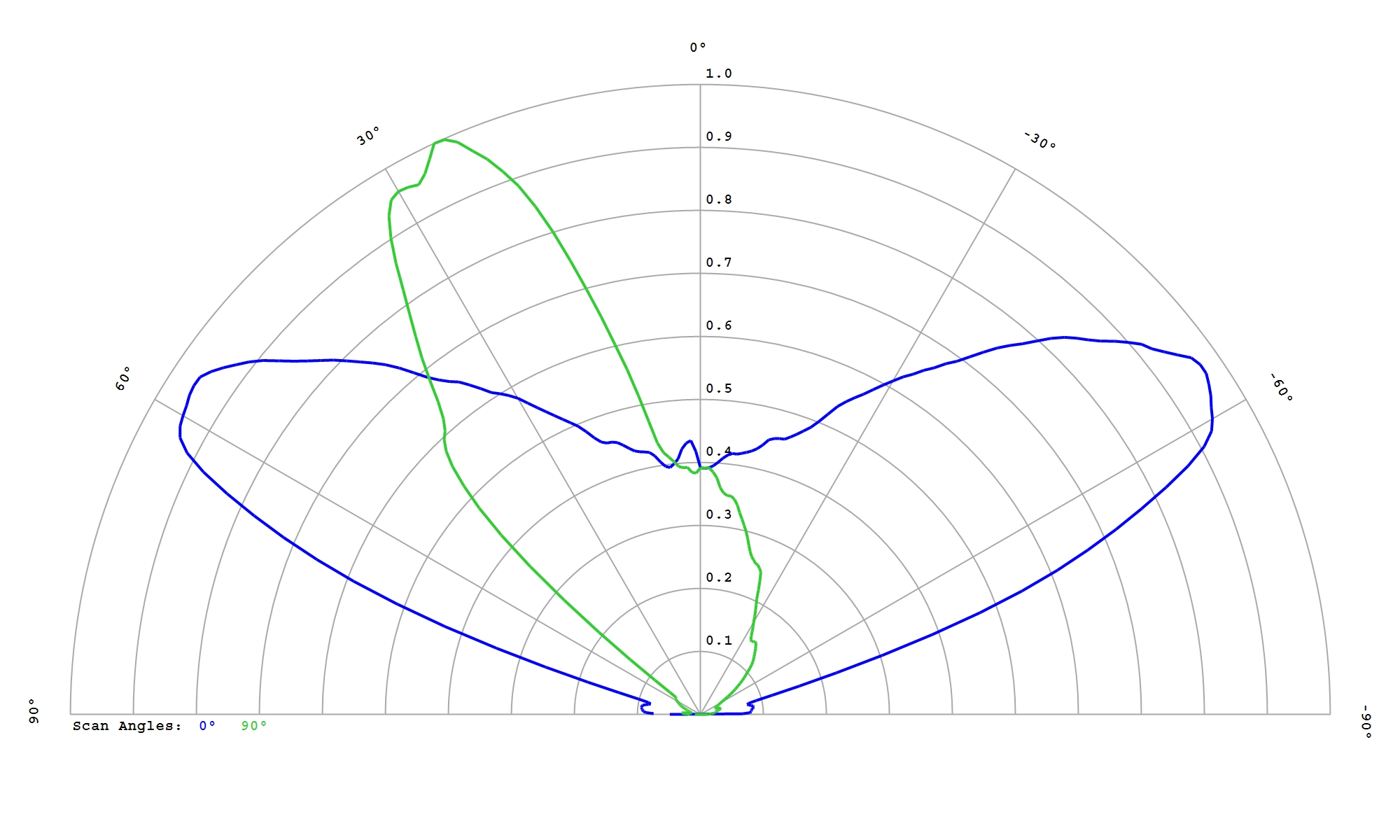

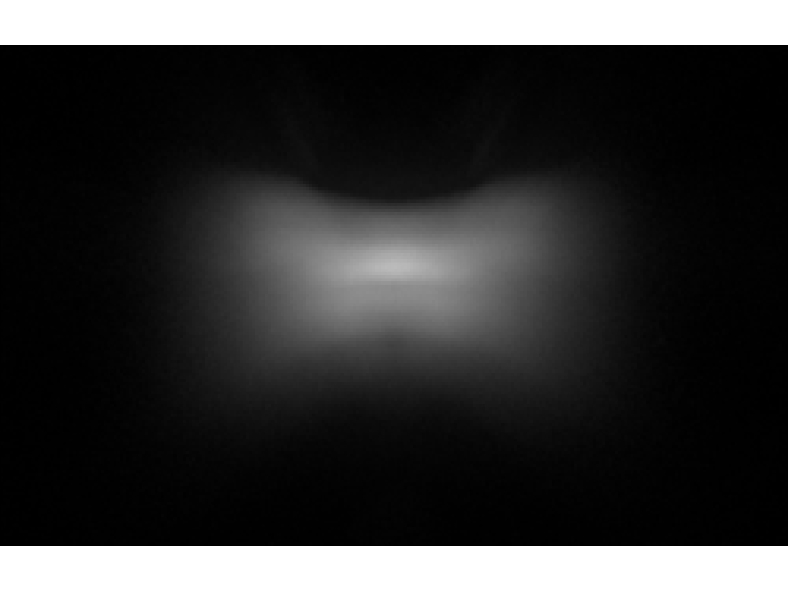

LUMILEDS LUXEON 2835S 6V White

Eff:

94.0%

FWHM:

140 x 36 x 25°

Cd/Im:

0.7

Download

LUMILEDS LUXEON 3014 White

Eff:

94.0%

FWHM:

136 x 27.5 x 26°

Cd/Im:

1.3

Download

IES

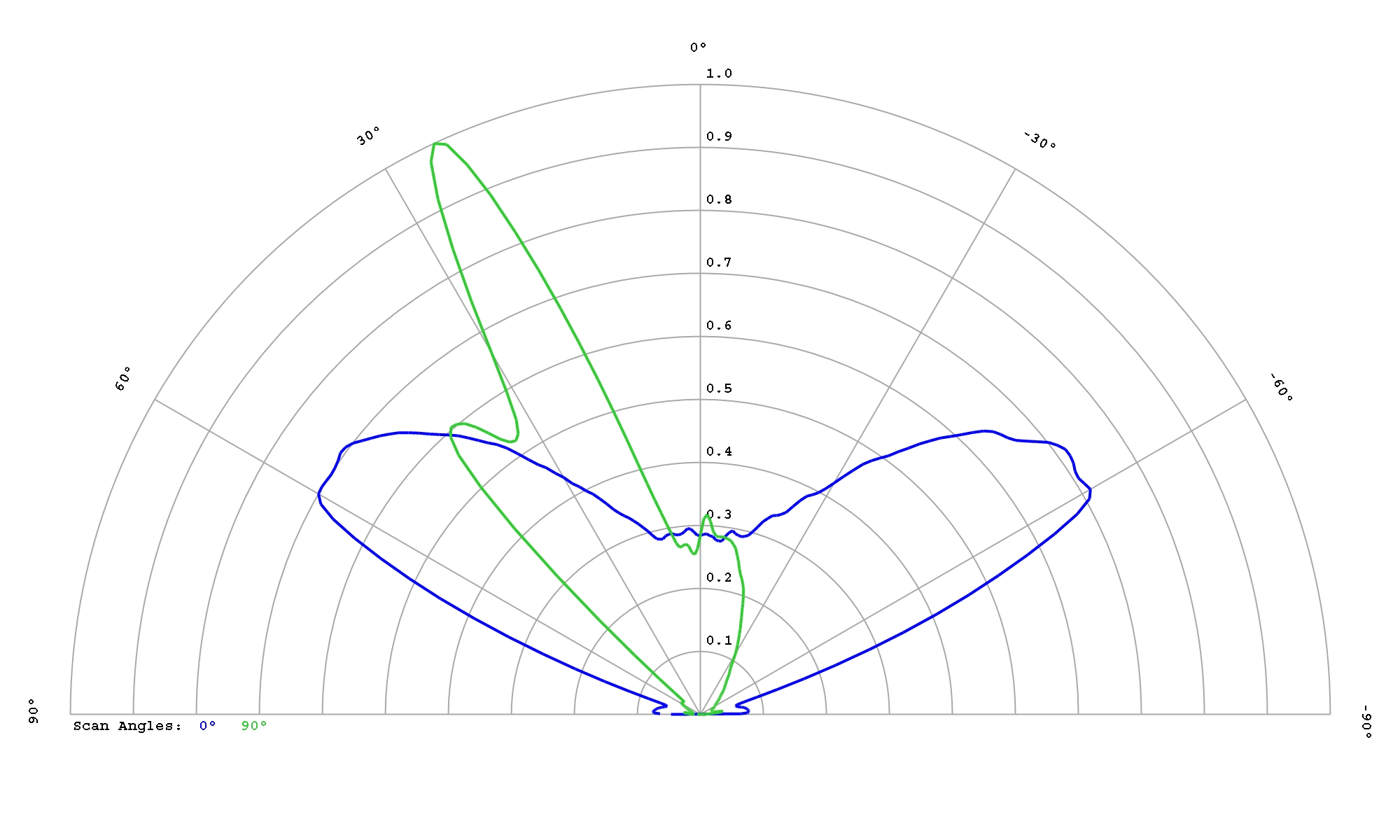

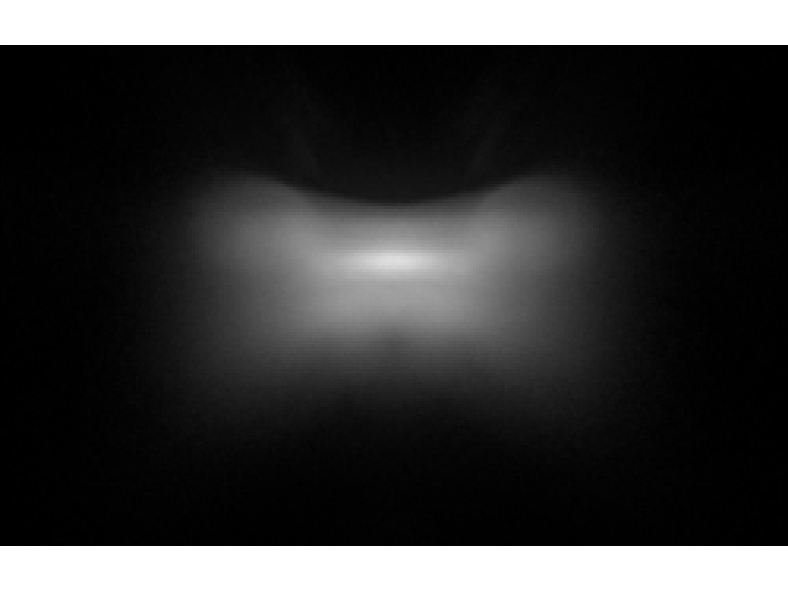

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

94.0%

FWHM:

140 x 31 x 28°

Cd/Im:

0.7


Download

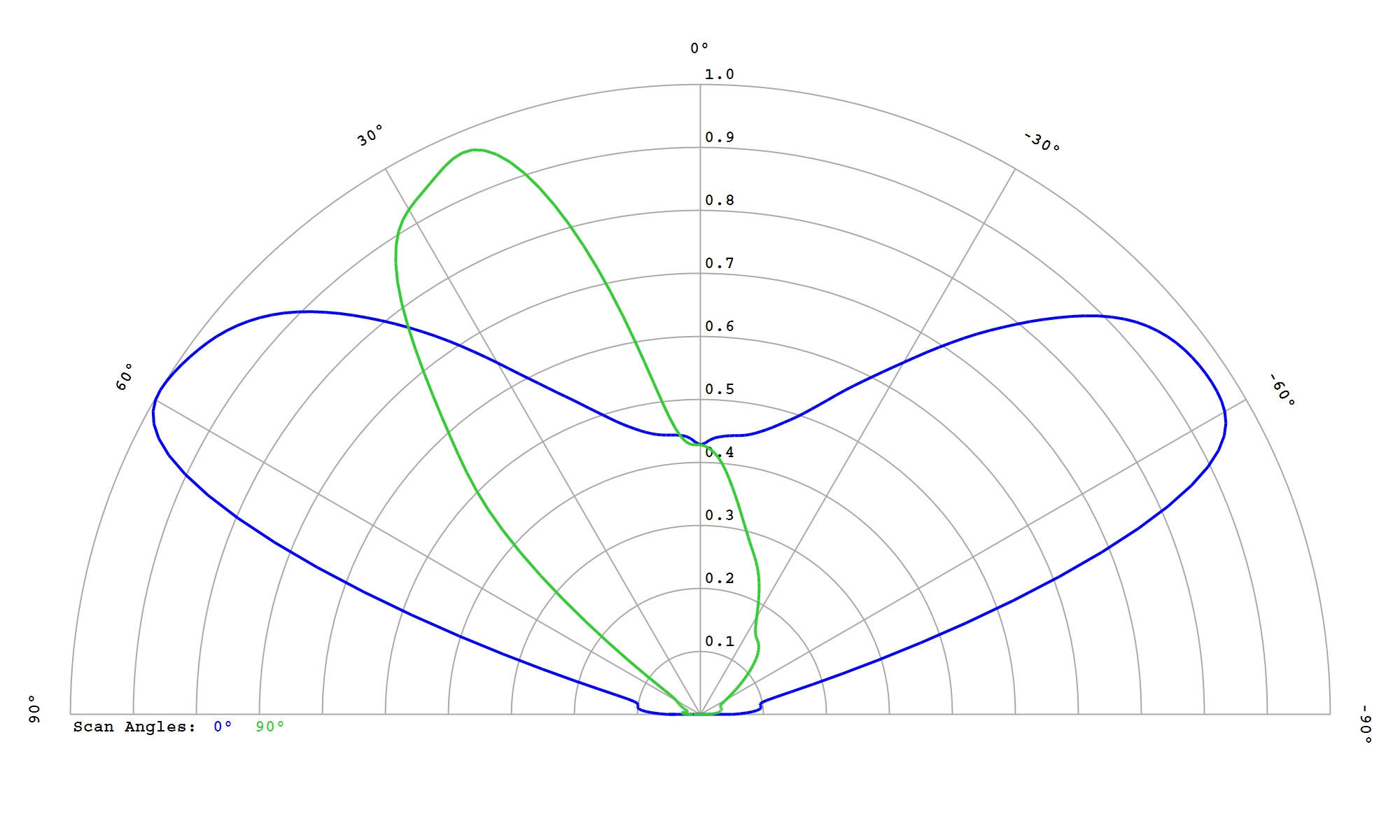

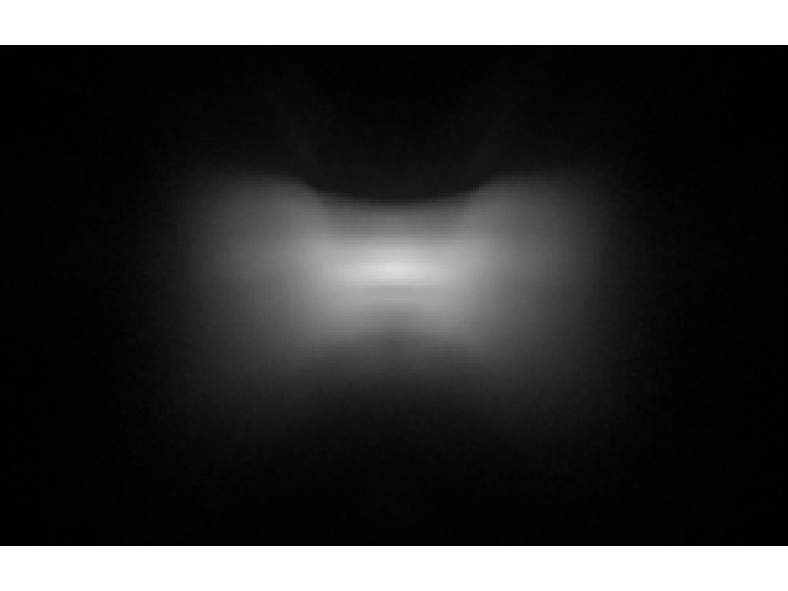

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

93.5%

FWHM:

141 x 48 x 23°

Cd/Im:

0.6


Download

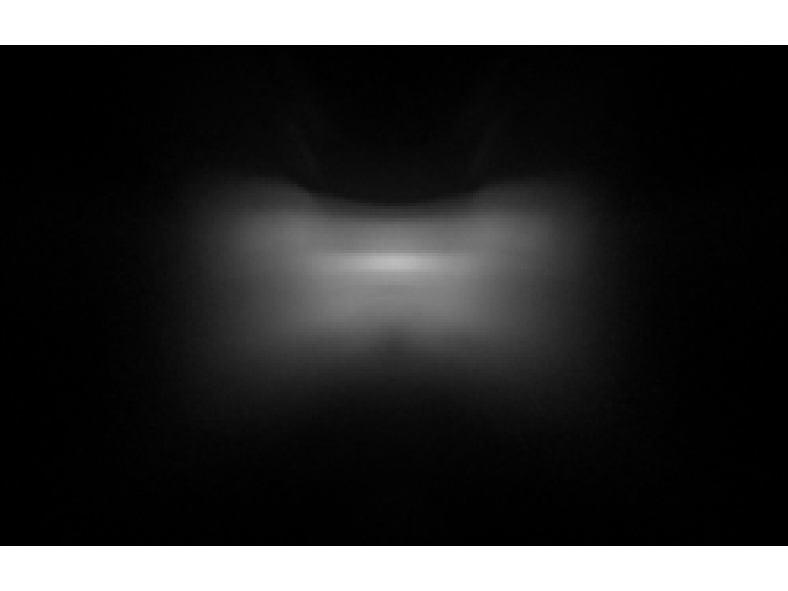

LUMILEDS LUXEON 3030 2D Square White

Eff:

94.0%

FWHM:

139 x 30 x 26°

Cd/Im:

0.8


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

94.0%

FWHM:

135 x 28 x 25°

Cd/Im:

0.9

Download

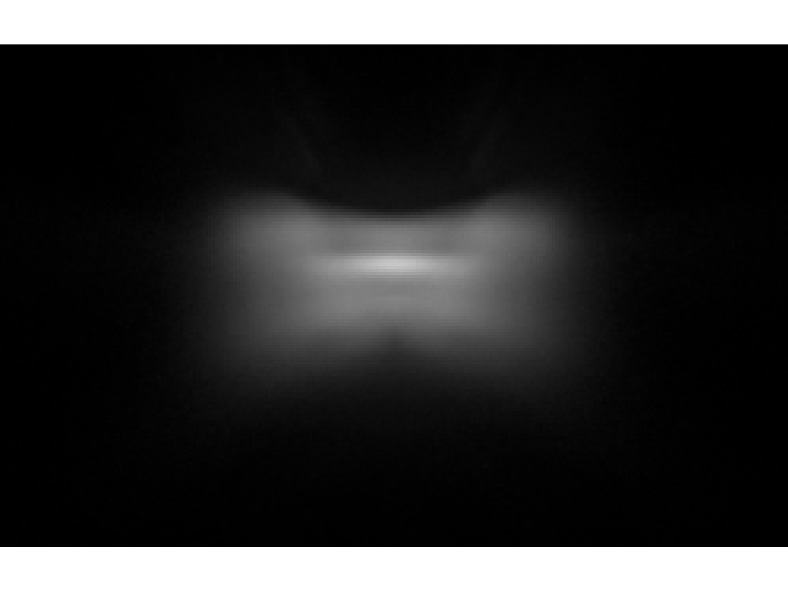

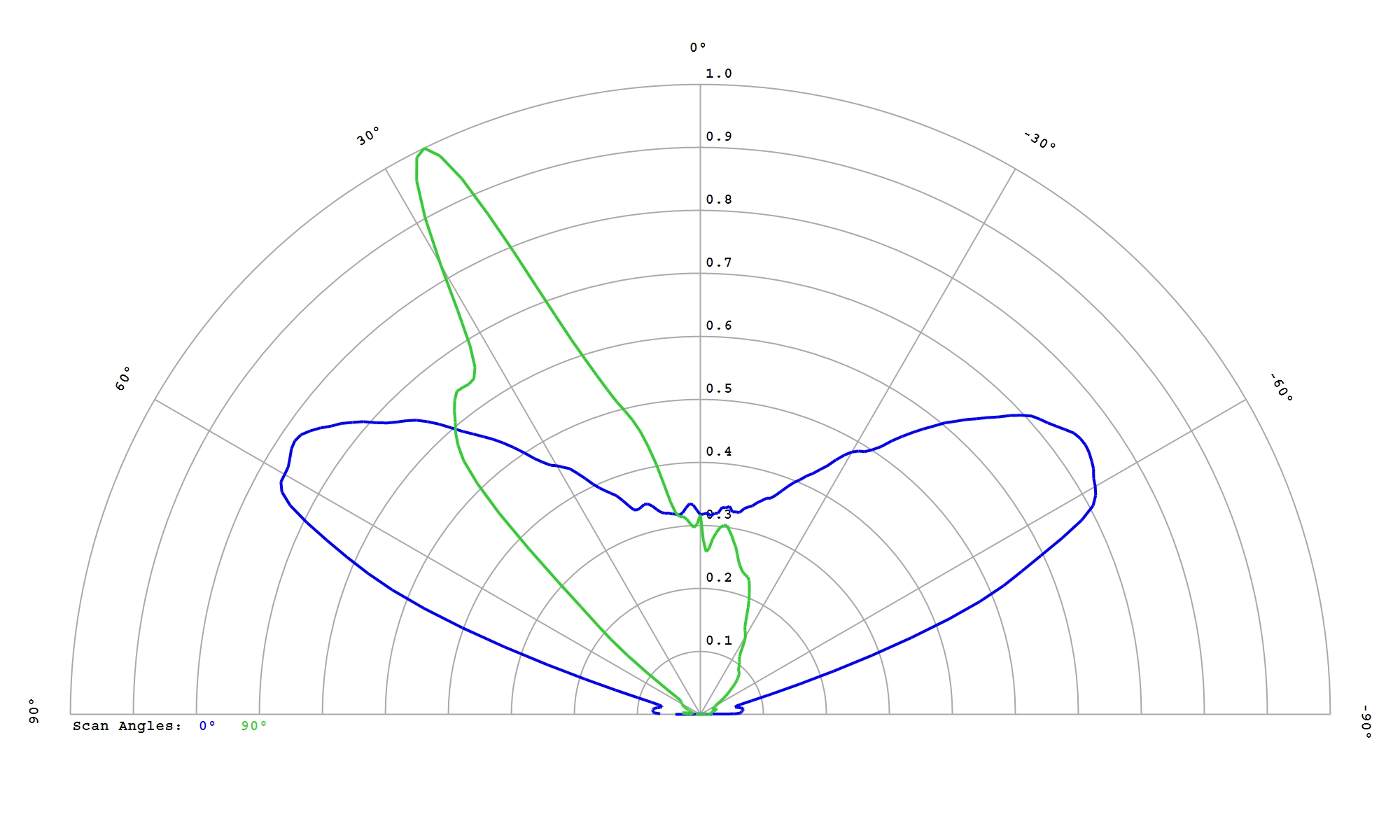

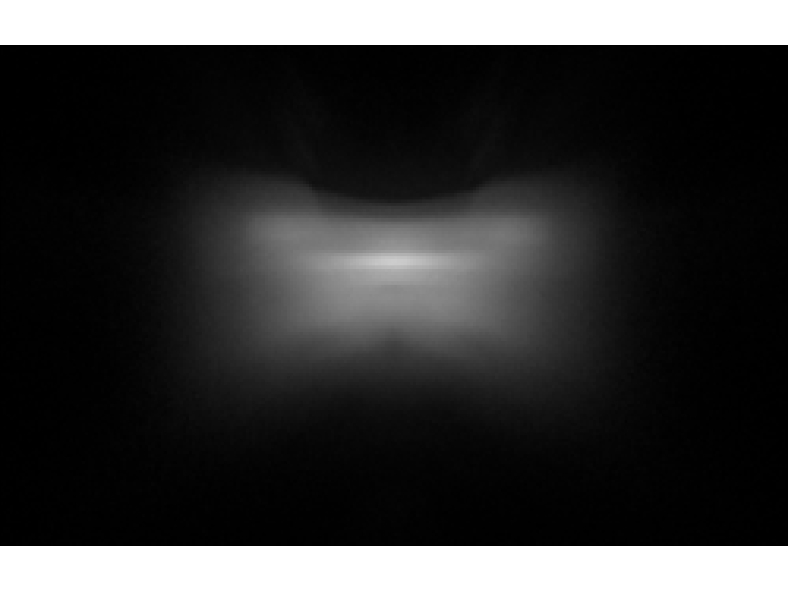

LUMILEDS LUXEON 3030 HE White

Eff:

94.0%

FWHM:

140 x 29.5 x 26°

Cd/Im:

0.9

Download

LUMILEDS LUXEON 3535L PC Amber

Eff:

94.0%

FWHM:

139 x 28 x 27°

Cd/Im:

0.9

Download

IES

LUMILEDS LUXEON C Blue

Eff:

88.0%

FWHM:

153 x 27.5 x 31°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

88.5%

FWHM:

150 x 28.0 x 31°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C PC Amber

Eff:

84.0%

FWHM:

153 x 30 x 32°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON C Red

Eff:

87.0%

FWHM:

152 x 29.5 x 30°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

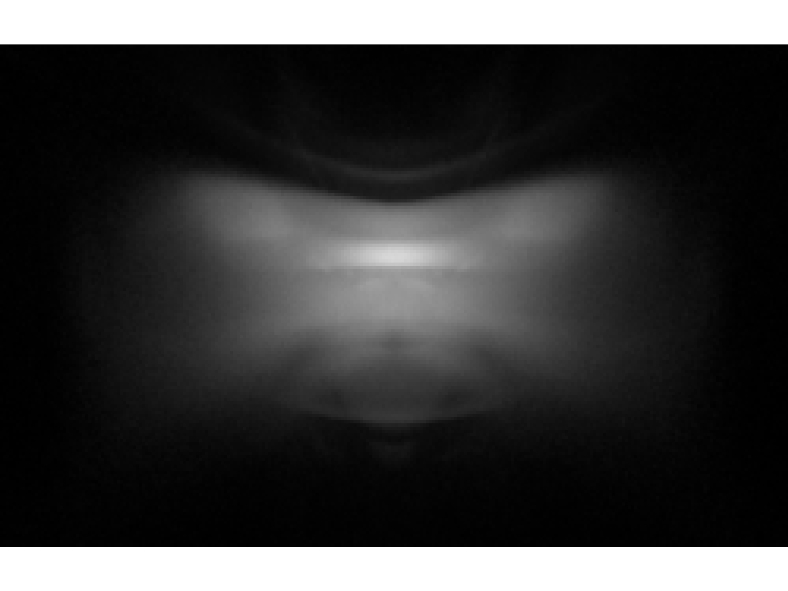

LUMILEDS LUXEON C White

Eff:

86.5%

FWHM:

150 x 28 x 32°

Cd/Im:

0.9

Download

LUMILEDS LUXEON CZ White

Eff:

94.0%

FWHM:

139 x 24 x 29°

Cd/Im:

1.3

Carclo Optics 12774 Spot Image Luxeon CZ 5M CW

Carclo Optics 12774 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON CZ PC Amber

Eff:

94.0%

FWHM:

138 x 24 x 29°

Cd/Im:

1.3

Download

IES

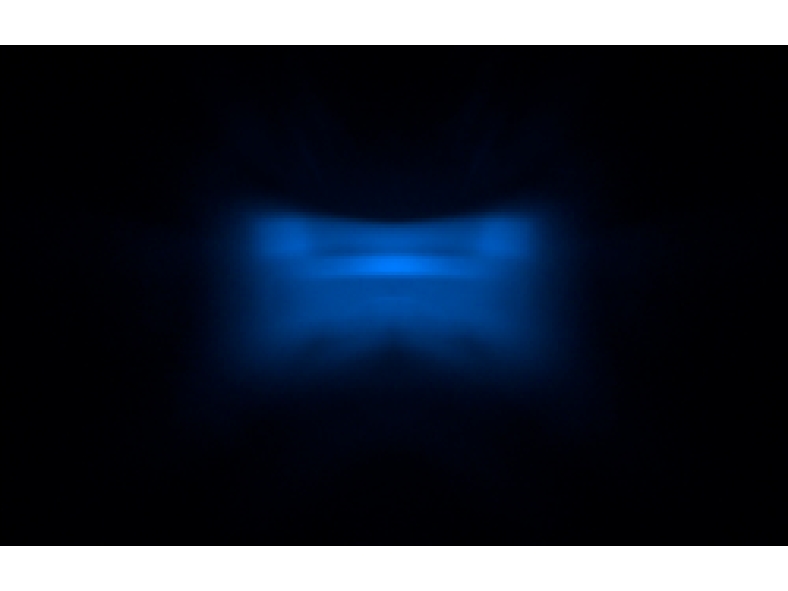

LUMILEDS LUXEON HL1Z Color Blue

Eff:

92.0%

FWHM:

132 x 27 x 25°

Cd/Im:

1.2

Download

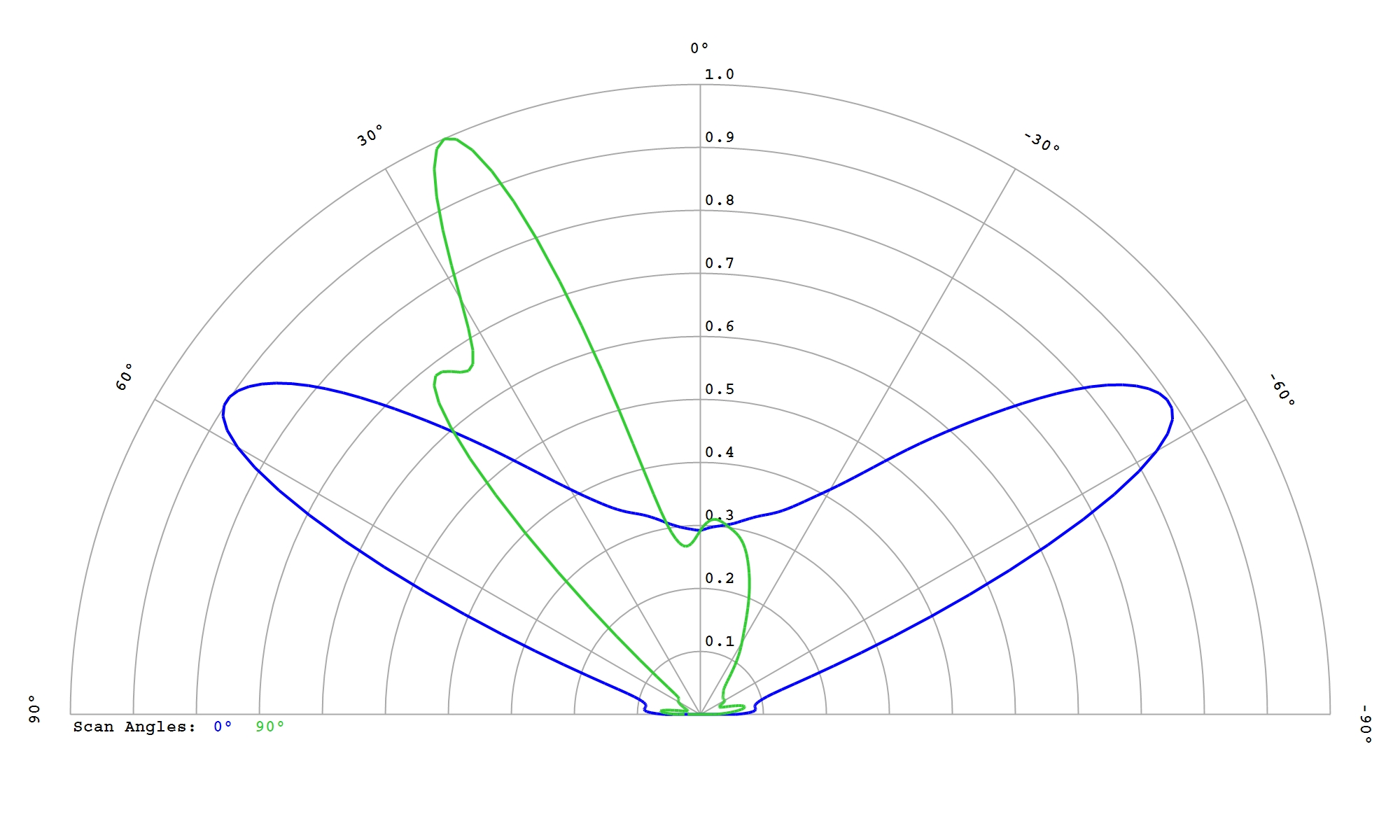

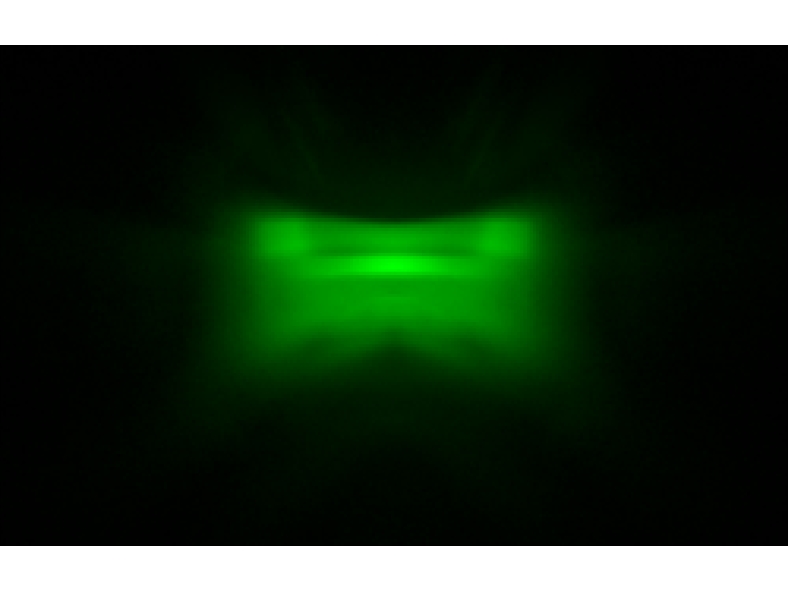

LUMILEDS LUXEON HL1Z Color Green

Eff:

91.5%

FWHM:

132 x 26.5 x 25°

Cd/Im:

1.3

Download

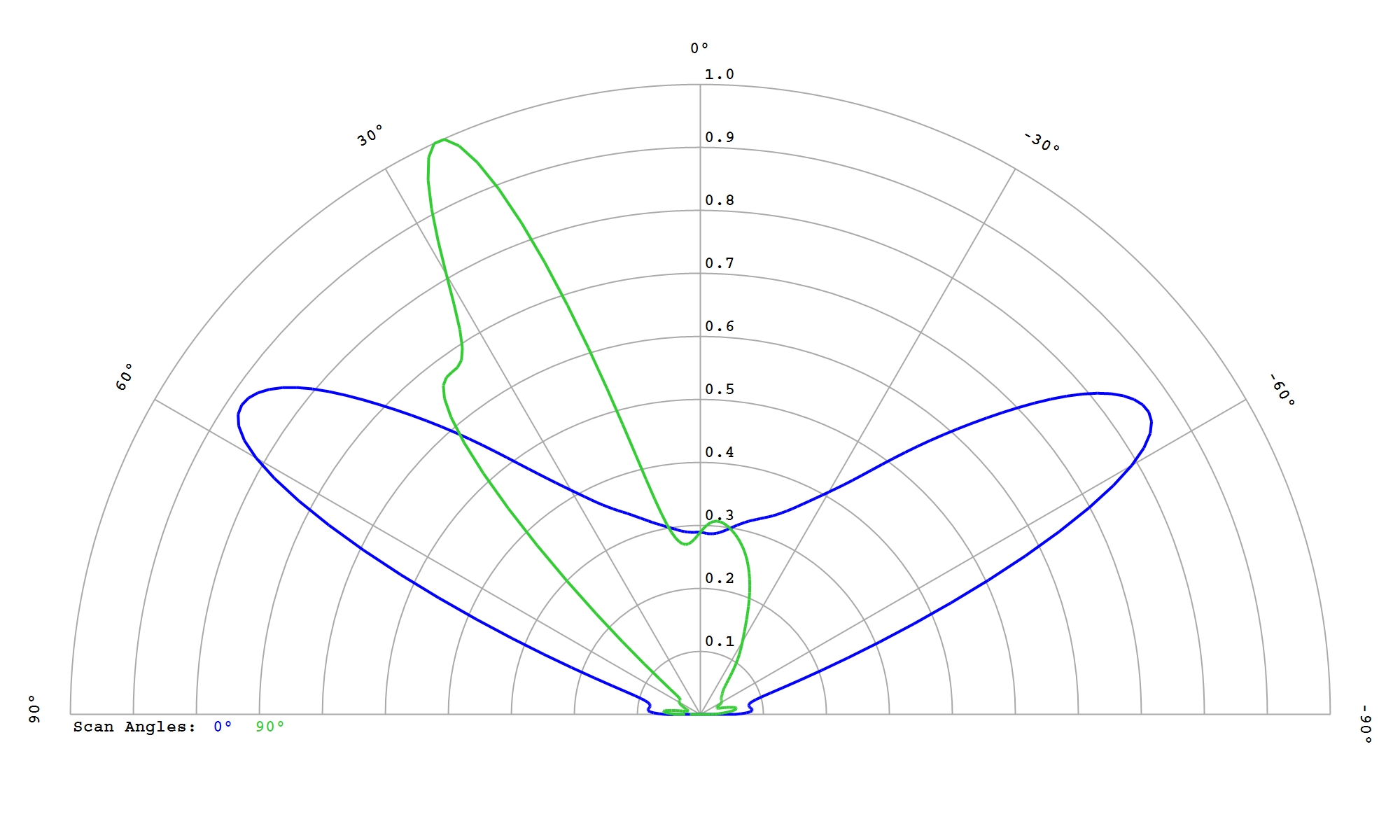

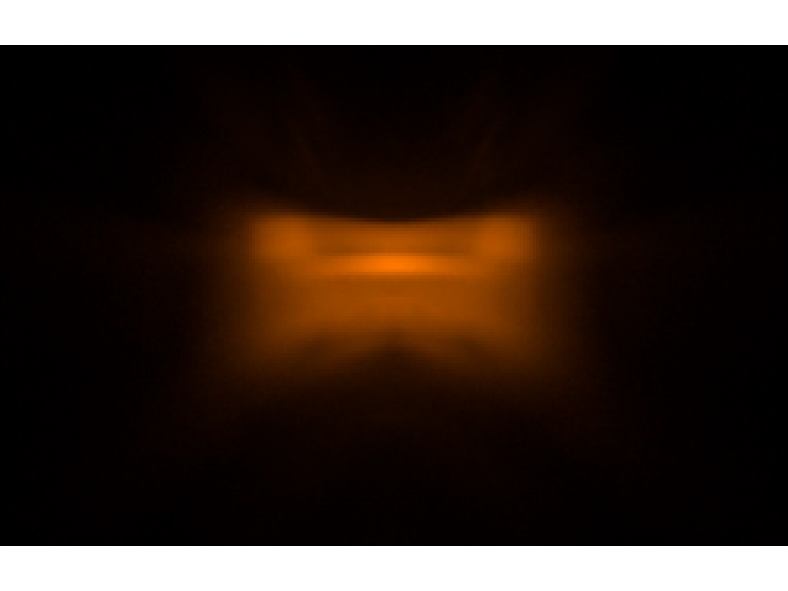

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

92.0%

FWHM:

131 x 26 x 25°

Cd/Im:

1.2


Download

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

90.0%

FWHM:

131 x 27.5 x 24°

Cd/Im:

1.1


Download

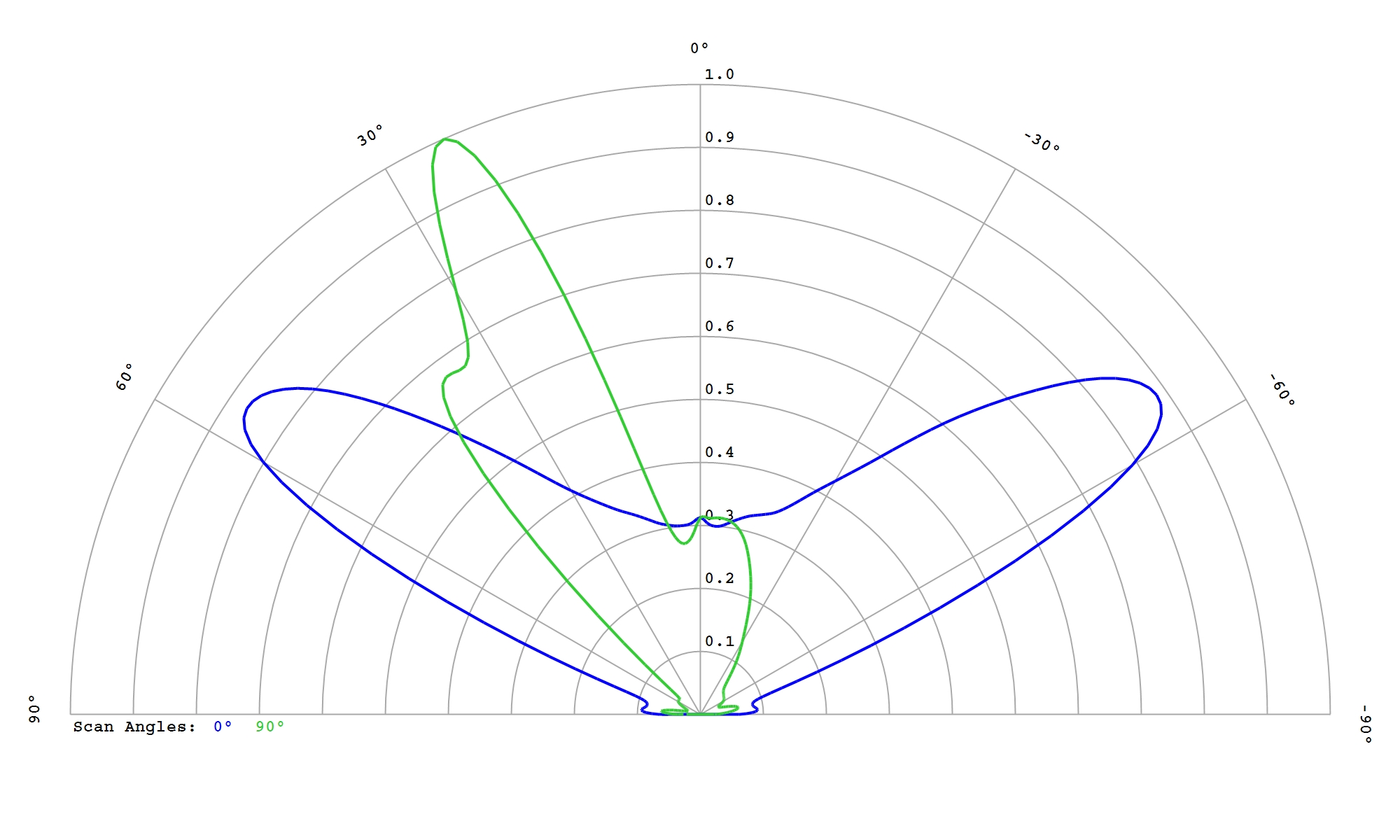

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

92.0%

FWHM:

131 x 26 x 25°

Cd/Im:

1.2

Download

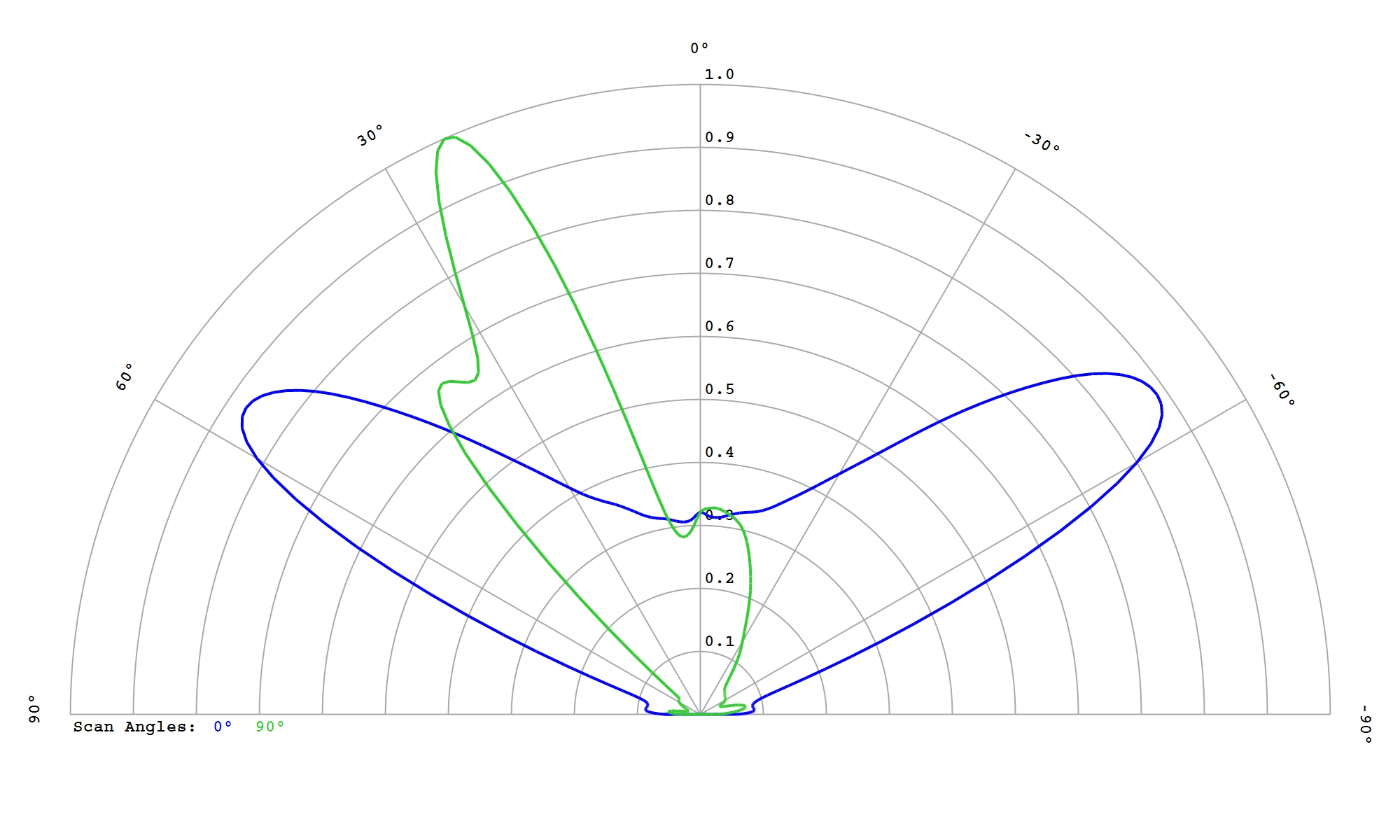

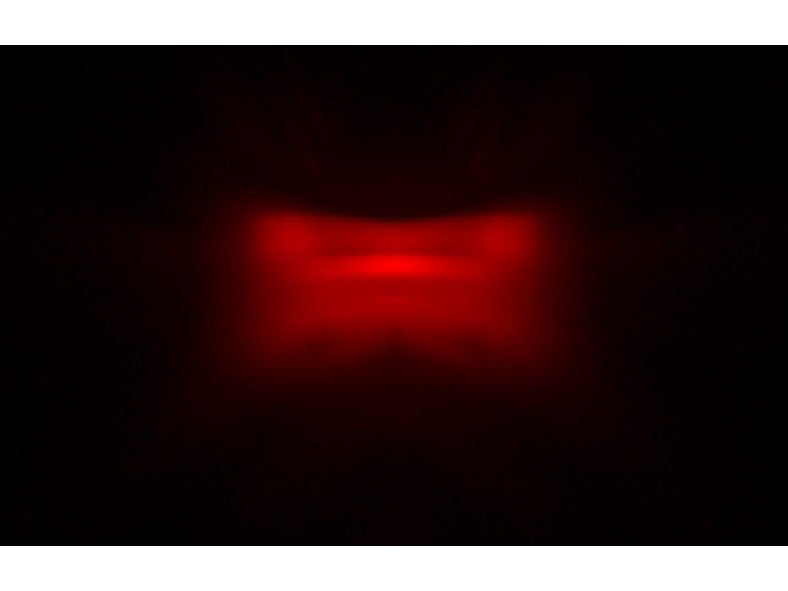

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

92.0%

FWHM:

132 x 27.5 x 24°

Cd/Im:

1.2


Download

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

92.5%

FWHM:

132 x 27.5 x 25°

Ipk/W:

1.2


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.5%

FWHM:

132 x 27 x 24°

Cd/Im:

1.3

Download

ies

LUMILEDS LUXEON HL2X White

Eff:

91.5%

FWHM:

145 x 54 x 31°

Cd/Im:

0.6

Download

ies

LUMILEDS LUXEON HL2Z White

Eff:

93.0%

FWHM:

133 x 32 x 26°

Cd/Im:

0.9

Carclo Optics – 12774 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12774 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

95.0%

FWHM:

136 x 26 x 28°

Ipk/W:

1.1

Carclo Optics - 12774 50x50mm Asymmetrical Medium Spot Image Luxeon IR 2720

Carclo Optics - 12774 50x50mm Asymmetrical Medium Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

83.0%

FWHM:

144x38x28°

Cd/Im:

0.3

Simulation Data

Simulation Data

Download

ies

LUMILEDS LUXEON Rebel PC Amber

Eff:

92.5%

FWHM:

139 x 31 x 29°

Cd/Im:

0.8

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

94.5%

FWHM:

142 x 23.5 x 31°

Cd/Im:

1.4

Carclo Optics – 12774 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12774 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

94.0%

FWHM:

141 x 24 x 30°

Cd/Im:

1.4

Carclo Optics – 12774 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12774 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

94.5%

FWHM:

140 x 23 x 30°

Cd/Im:

1.4

Carclo Optics – 12774 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12774 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

94.5%

FWHM:

141 x 23 x 30°

Cd/Im:

1.4

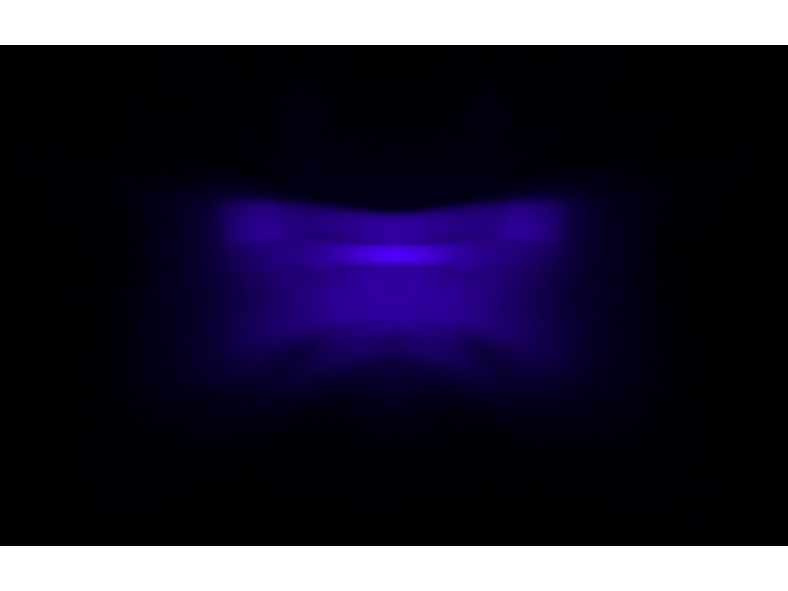

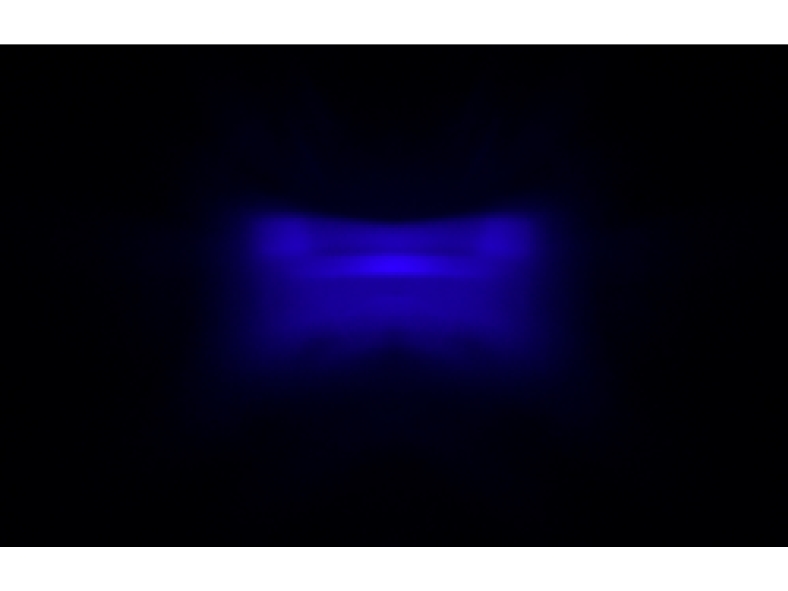

Carclo Optics – 12774 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12774 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

94.0%

FWHM:

141 x 24 x 30°

Cd/Im:

1.3

Carclo Optics - 12774 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12774 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON TX White

Eff:

92.0%

FWHM:

143 x 33 x 29°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Z ES White

Eff:

87.3%

FWHM:

134x27x28°

Cd/Im:

1.1

Simulation Data

Simulation Data

Download

IES

LUMILEDS LUXEON Z PC Amber

Eff:

94.0%

FWHM:

138 x 23.5 x 29°

Cd/Im:

1.3

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

92.0%

FWHM:

126 x 25 x 27°

Cd/Im:

0.9

Carclo Optics - 12774 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12774 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Nichia 219 White

Eff:

82.0%

FWHM:

144x38x25°

Cd/Im:

0.3

Simulation Data

Simulation Data

Download

ies

Nichia 757G White

Eff:

93.5%

FWHM:

136 x 35.5 x 24°

Cd/Im:

0.8

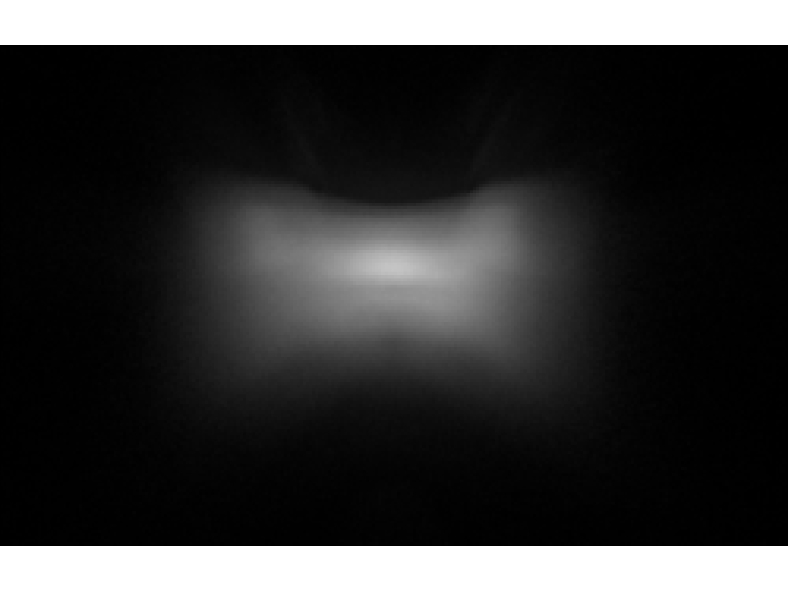

Carclo Optics - Simulated Spot Image

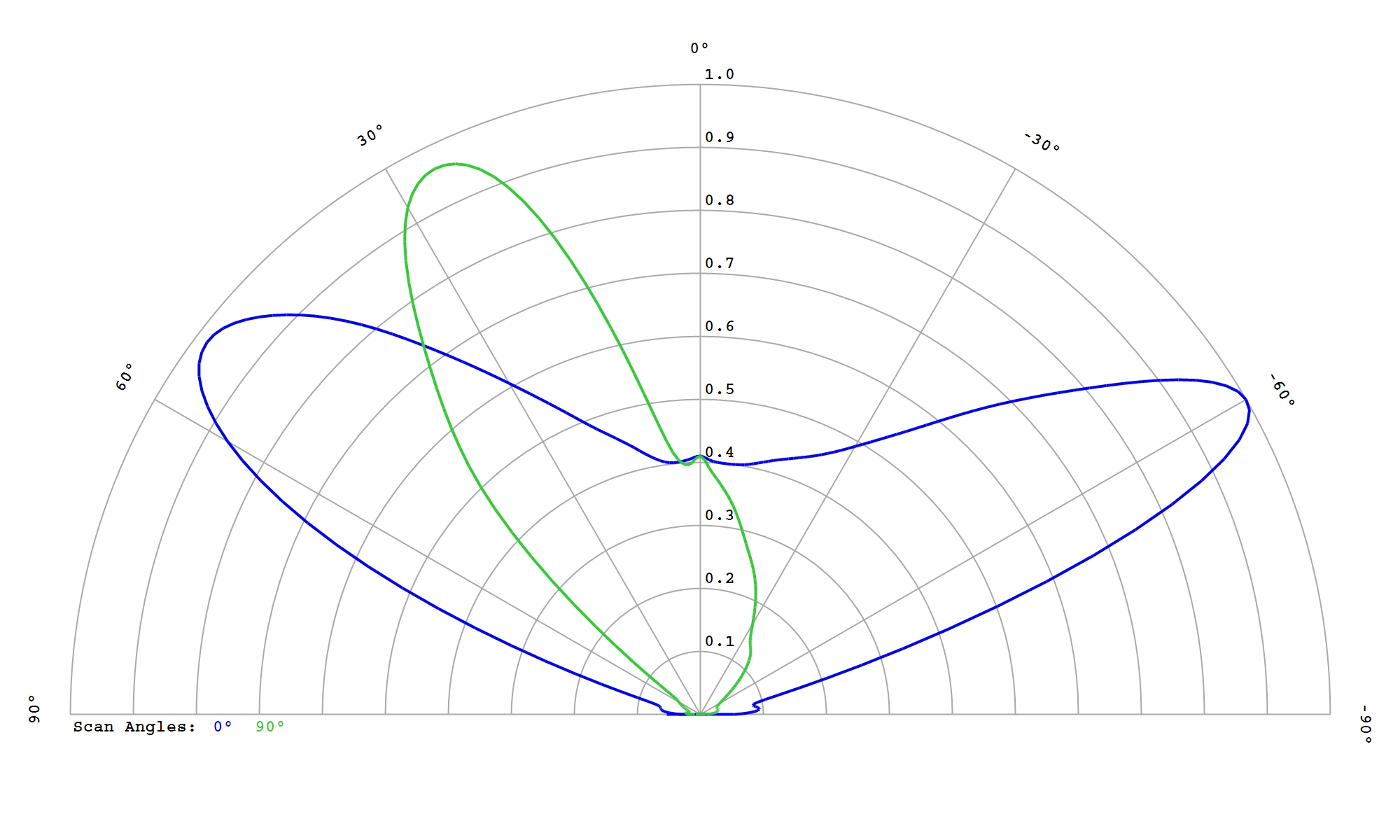

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NCSW CSP E17A White

Eff:

92.0%

FWHM:

130 x 28.5 x 23.0°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFSW CSP E11A White

Eff:

92.0%

FWHM:

130 x 24.5 x 23°

Cd/Im:

1.7

Download

ies

Nichia NVSW CSP E21A White

Eff:

92.5%

FWHM:

130 x 32 x 23°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E 2835 Gen2

Eff:

94.0%

FWHM:

137 x 30 x 25°

Cd/Im:

0.9

Carclo Optics - 12774 Mini Hubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12774 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E2 White

Eff:

87.0%

FWHM:

133 x 21.9 x 25°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S2 White

Eff:

92.0%

FWHM:

138 x 35 x 28°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Deep Blue

Eff:

94.5%

FWHM:

140 x 28 x 25°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Green

Eff:

93.5%

FWHM:

138 x 26.5 x 27°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Red

Eff:

94.0%

FWHM:

137 x 25.5 x 27°

Cd/Im:

1.0

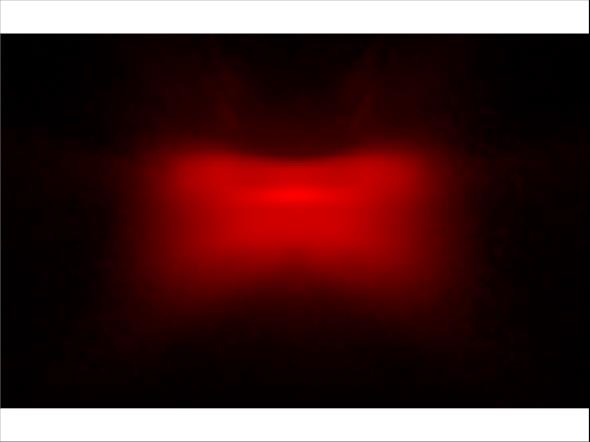

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 White

Eff:

94.0%

FWHM:

138 X 22.5 X 29°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSCONIQ C 2424 White

Eff:

94.0%

FWHM:

135 x 31 x 23°

Cd/Im:

0.9

Carclo Optics - 12774 Spot Image OSCONIQ C2424

Carclo Optics - 12774 Cross Section OSCONIQ C2424

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

94.0%

FWHM:

139 x 21.5 x 29°

Cd/Im:

1.8

Carclo Optics – 12774 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12774 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

93.0%

FWHM:

127 x 25 x 21°

Cd/Im:

2.1


Download

ies

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

94.0%

FWHM:

127 x 24.5 x 22°

Ipk/W:

2.0


Download

ies

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

92.5%

FWHM:

127 x 24.5 x 22°

Cd/Im:

2.0


Download

ies

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

92.0%

FWHM:

129 x 24 x 24°

Cd/Im:

1.7


Download

ies

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

92.5%

FWHM:

126 x 25 x 21°

Cd/Im:

2.1


Download

ies

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

92.5%

FWHM:

127 x 24.5 x 22°

Cd/Im:

2.0



Download

ies

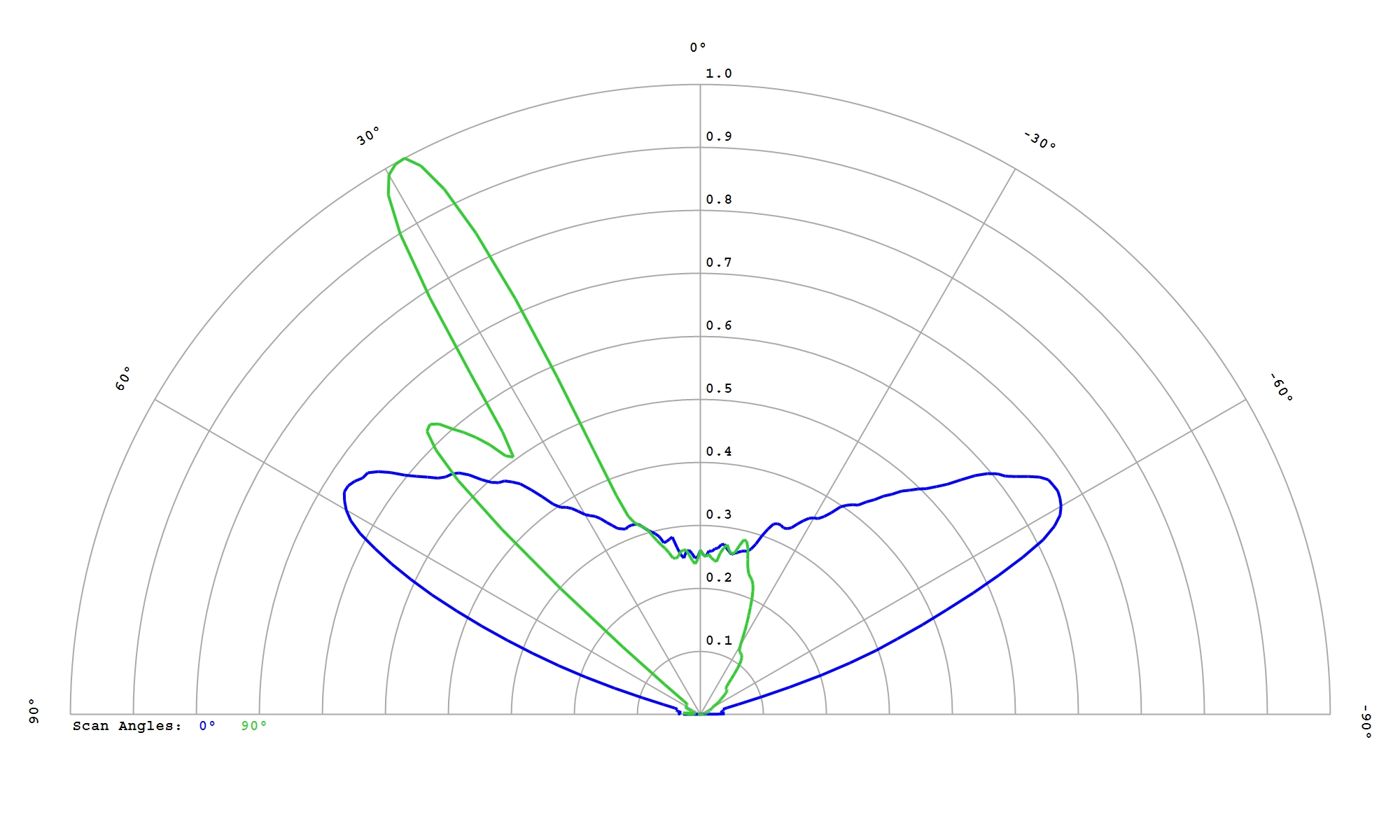

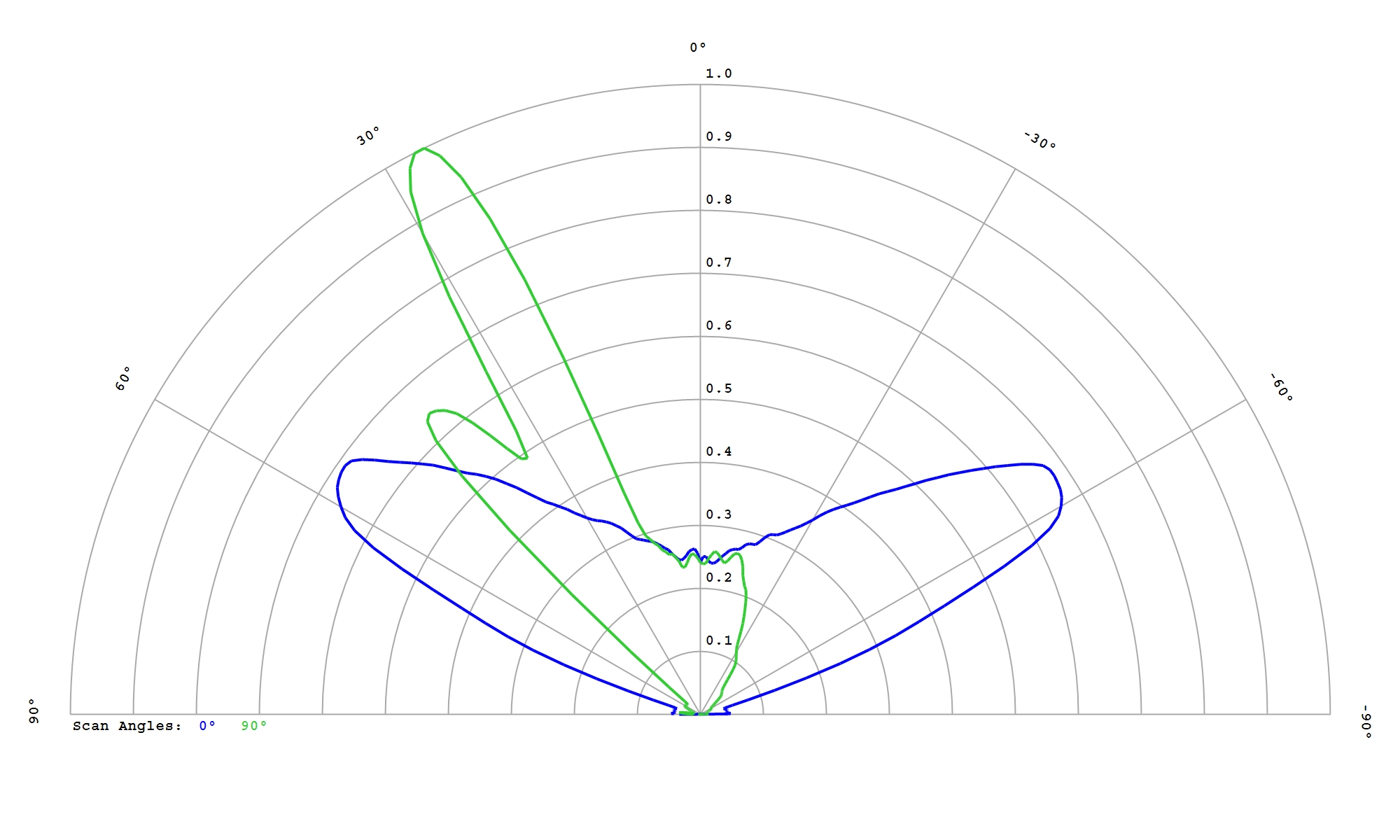

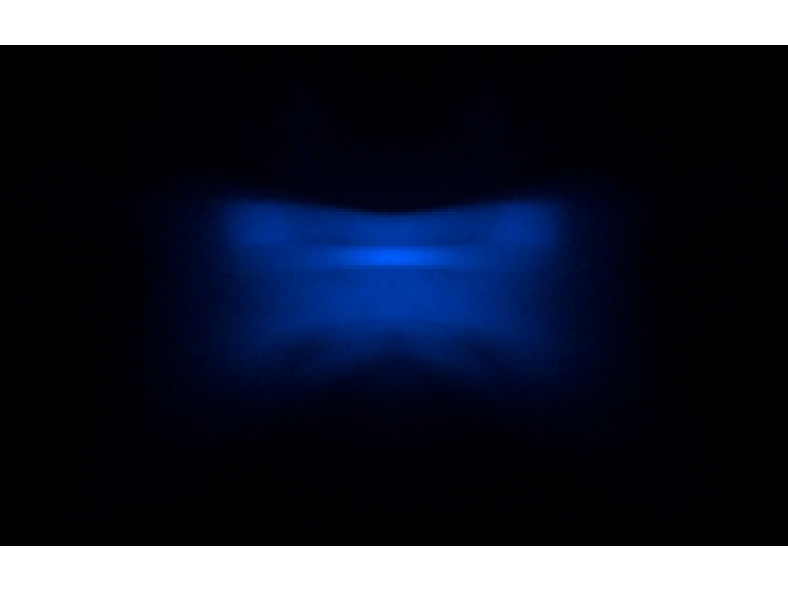

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

94.5%

FWHM:

137 x 24 x 29°

Cd/Im:

1.2


Download

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

94.5%

FWHM:

137 x 23.5 x 29°

Cd/Im:

1.3


Download

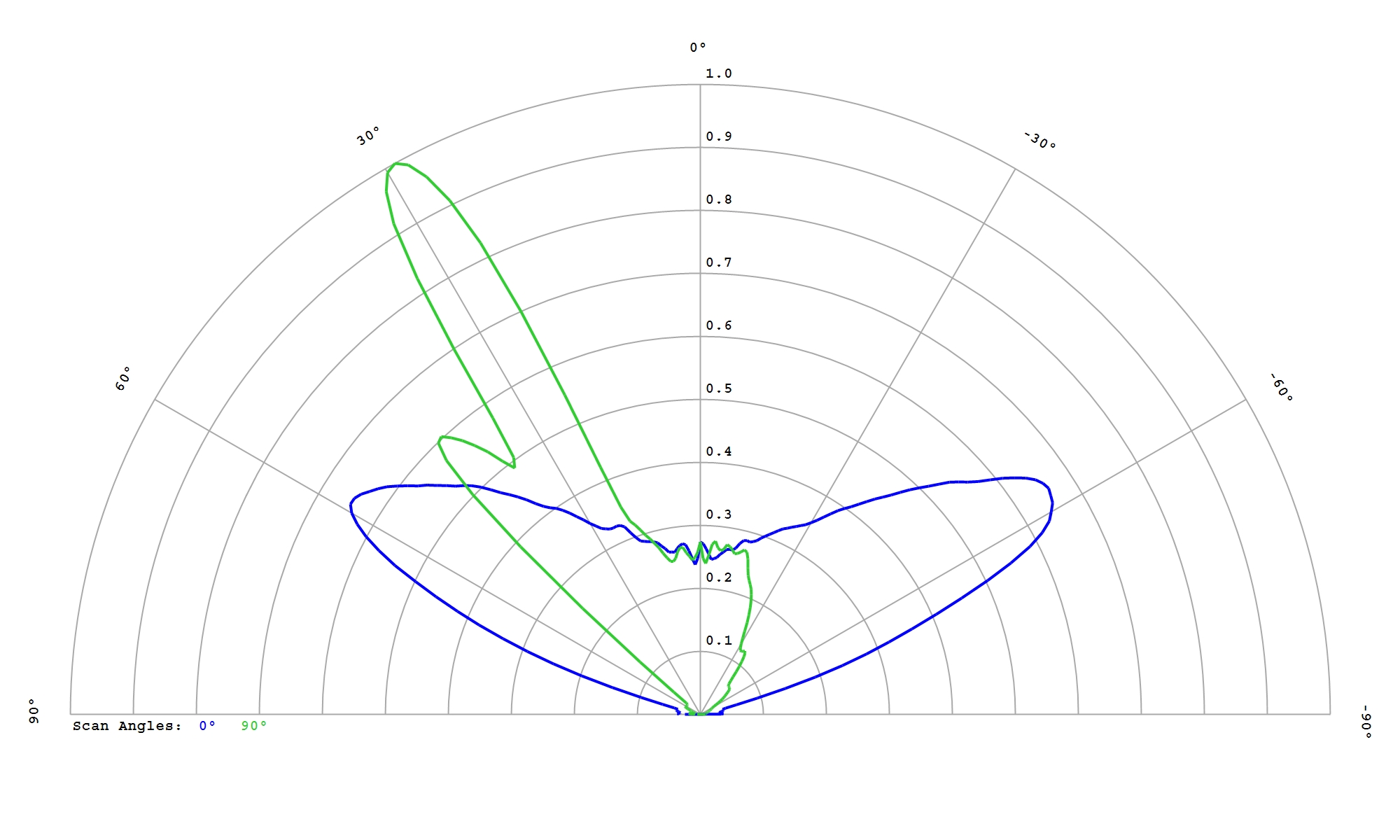

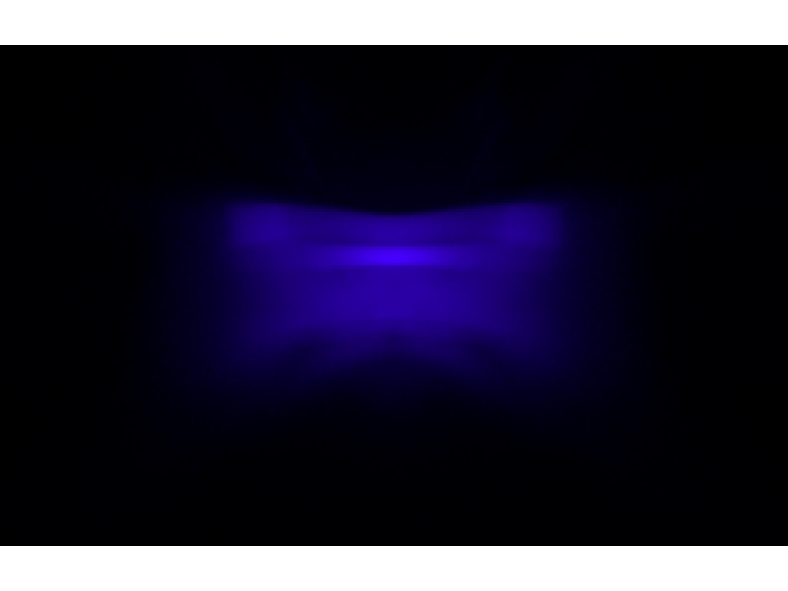

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

95.0%

FWHM:

138 x 23.5 x 29°

Ipk/W:

1.3


Download

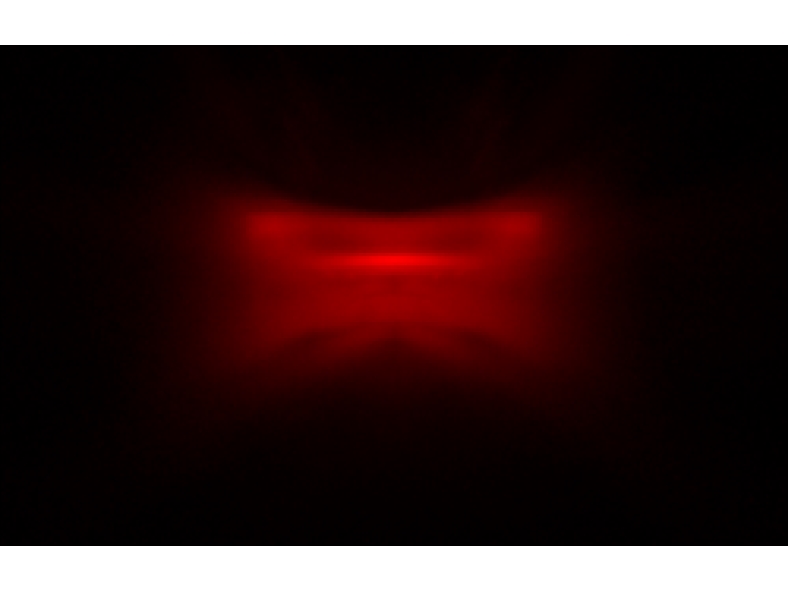

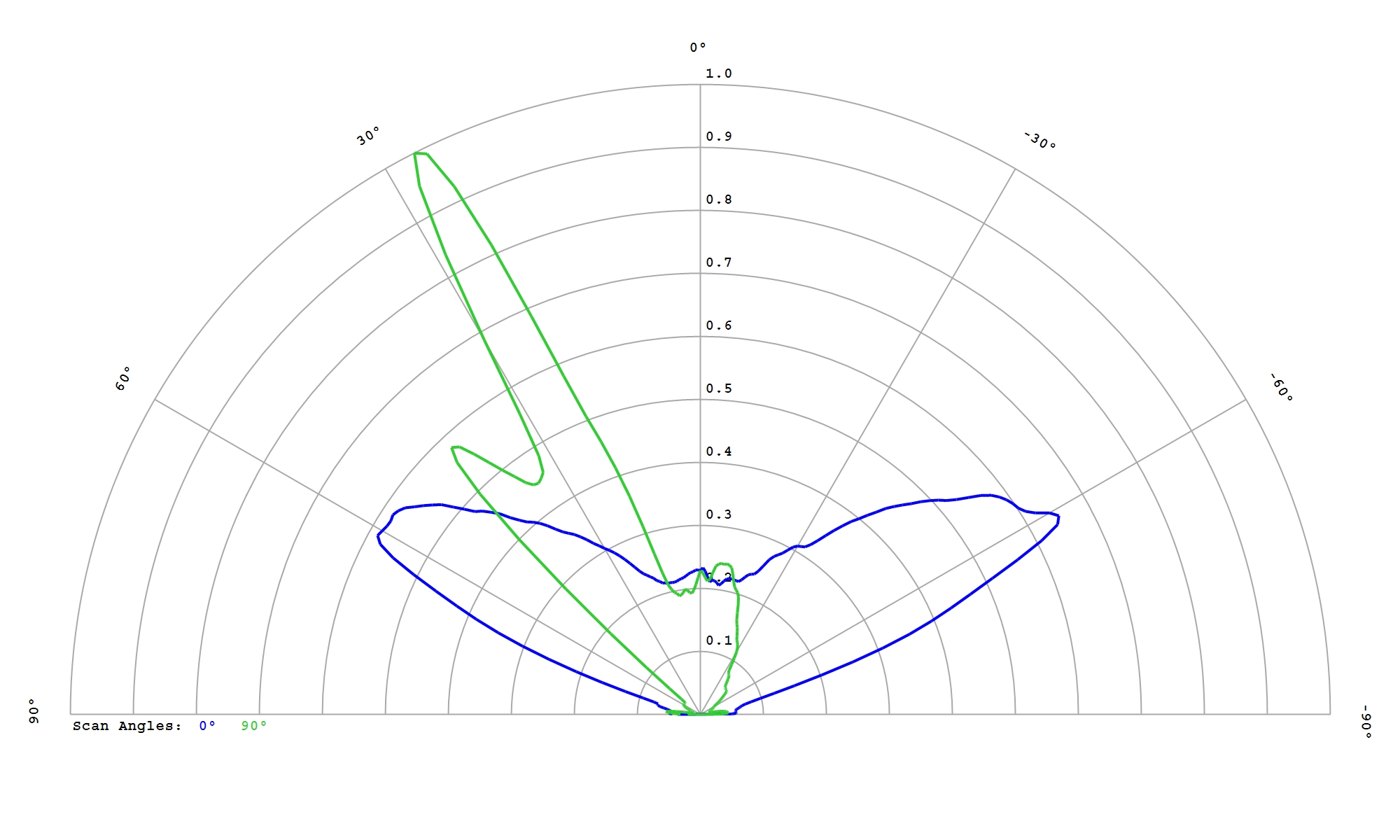

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

93.5%

FWHM:

138 x 24 x 27°

Cd/Im:

1.6


Download

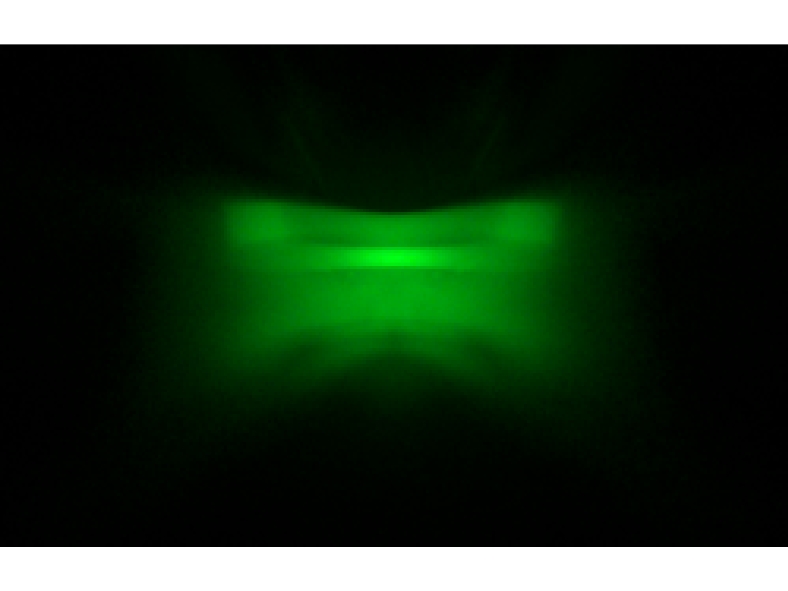

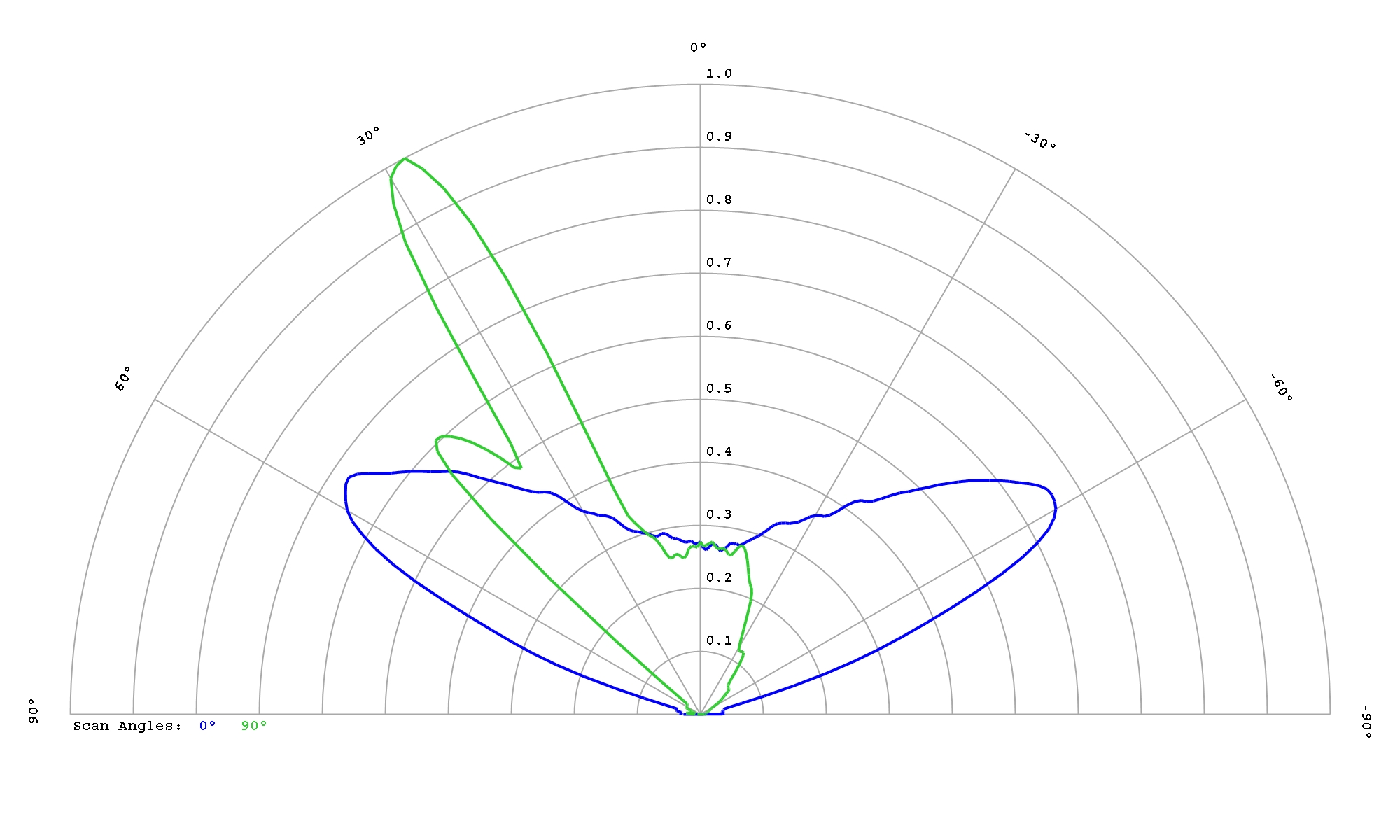

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

94.0%

FWHM:

137 x 24.5 x 29°

Cd/Im:

1.3


Download

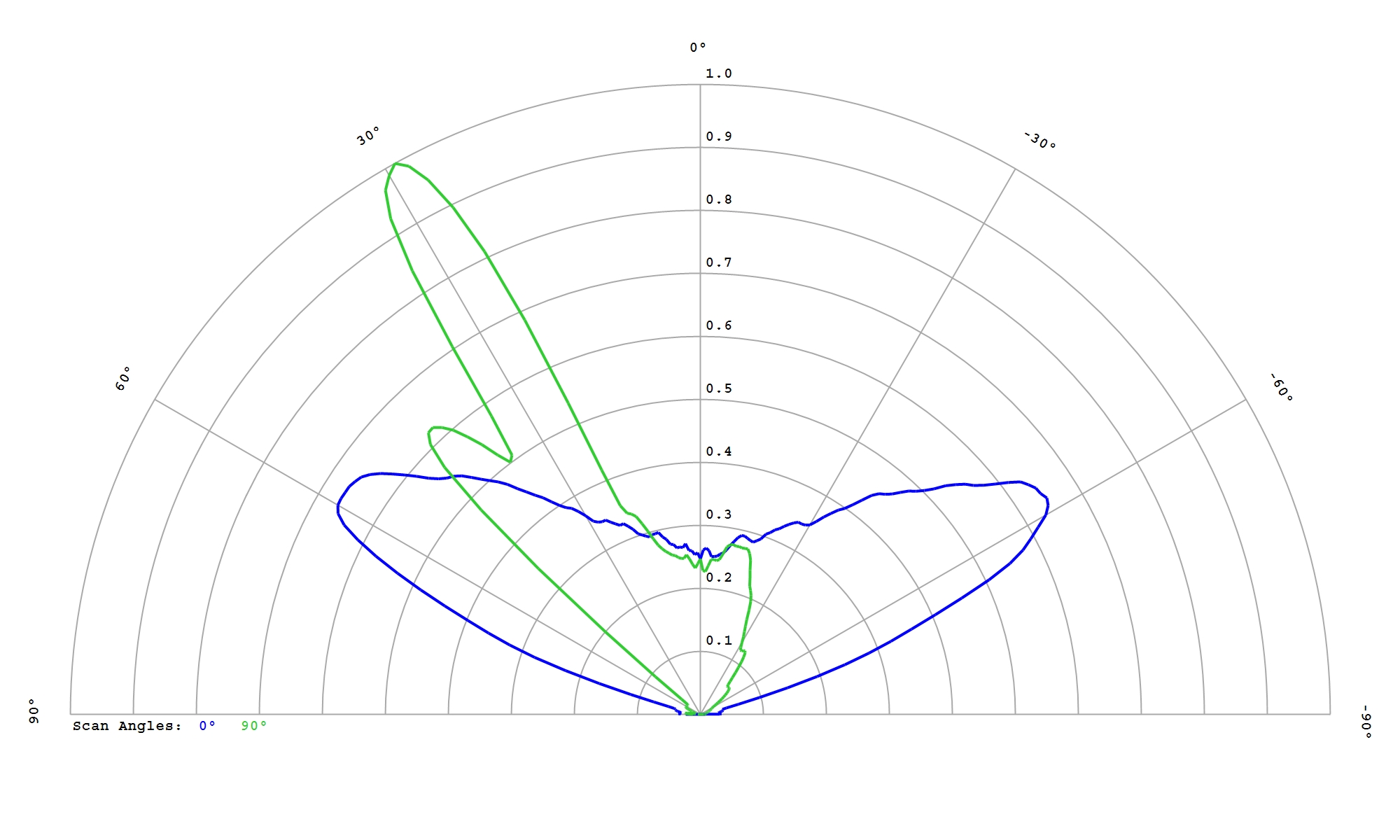

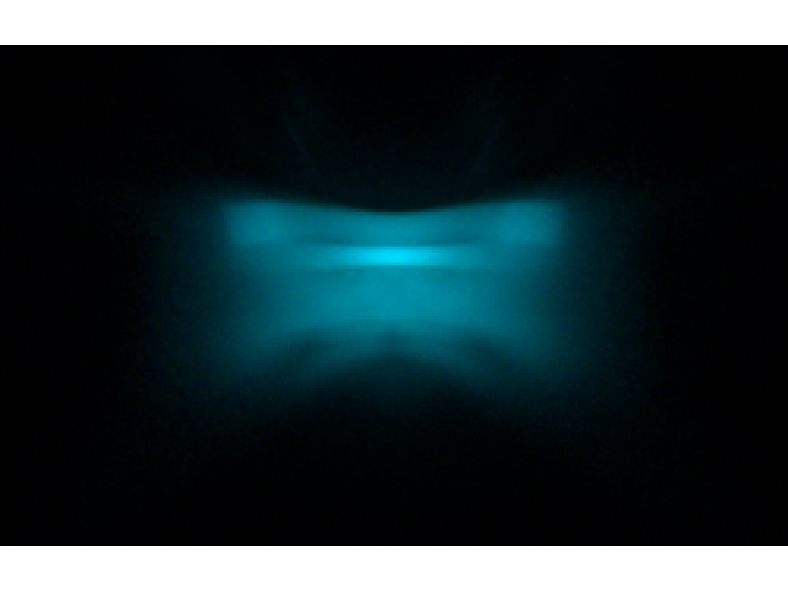

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

94.0%

FWHM:

138 x 24 x 29°

Cd/Im:

1.2


Download

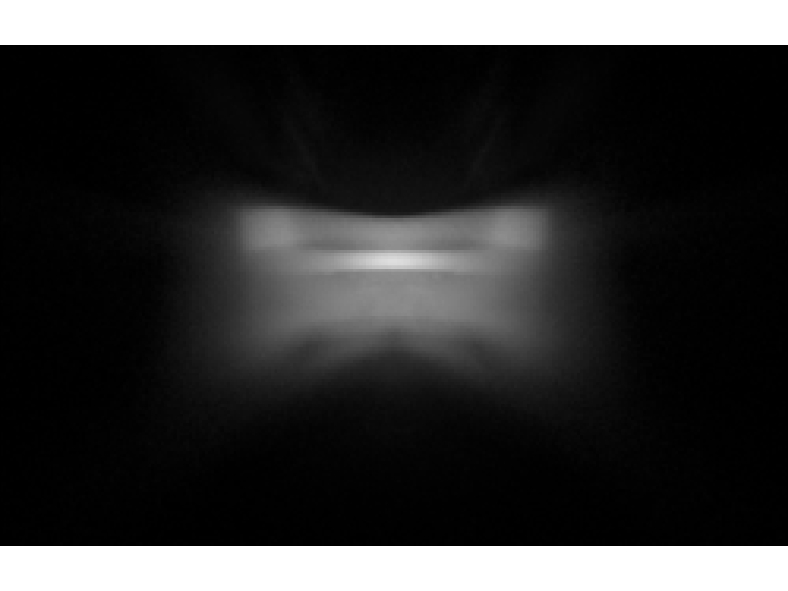

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

94.0%

FWHM:

135 x 25 x 27°

Cd/Im:

1.3

Download

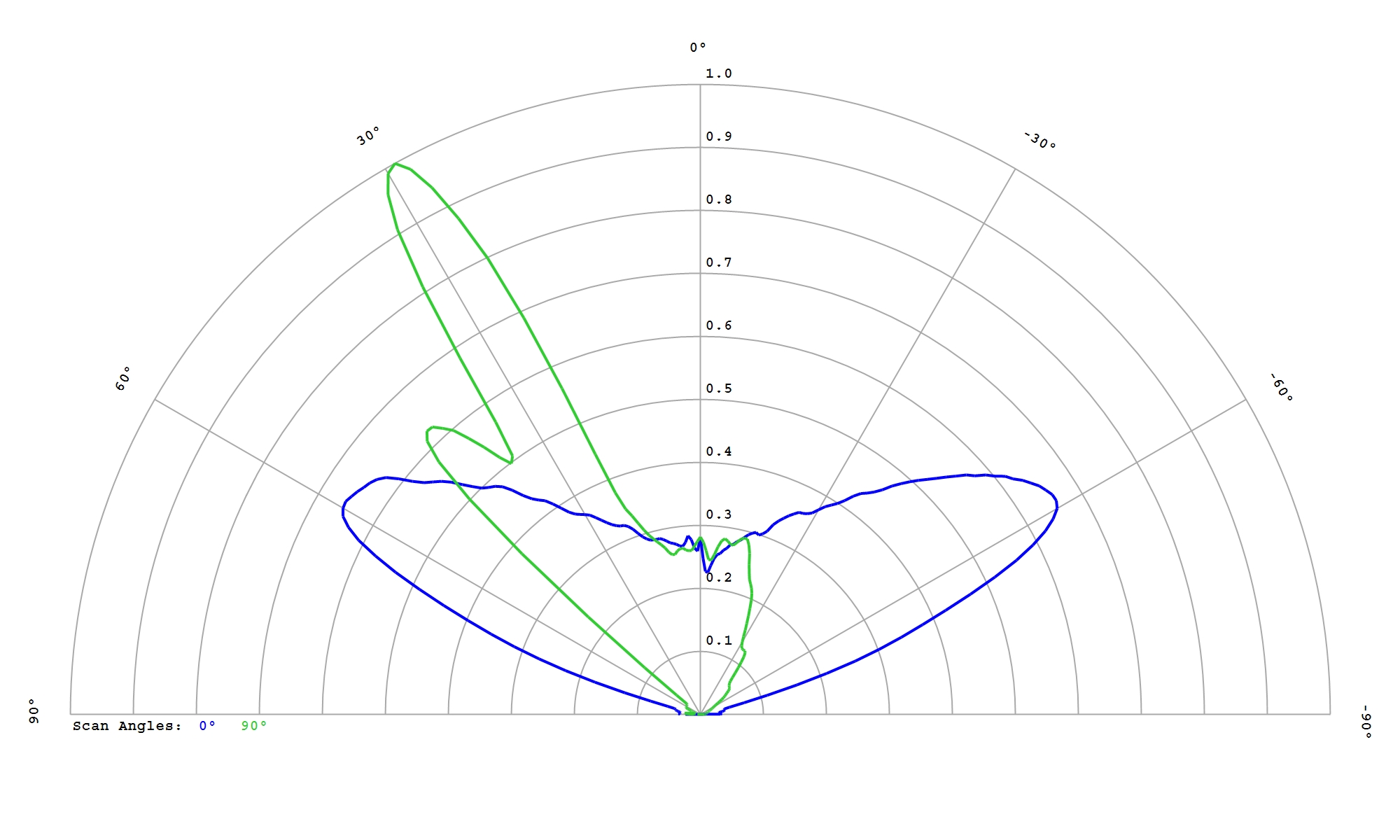

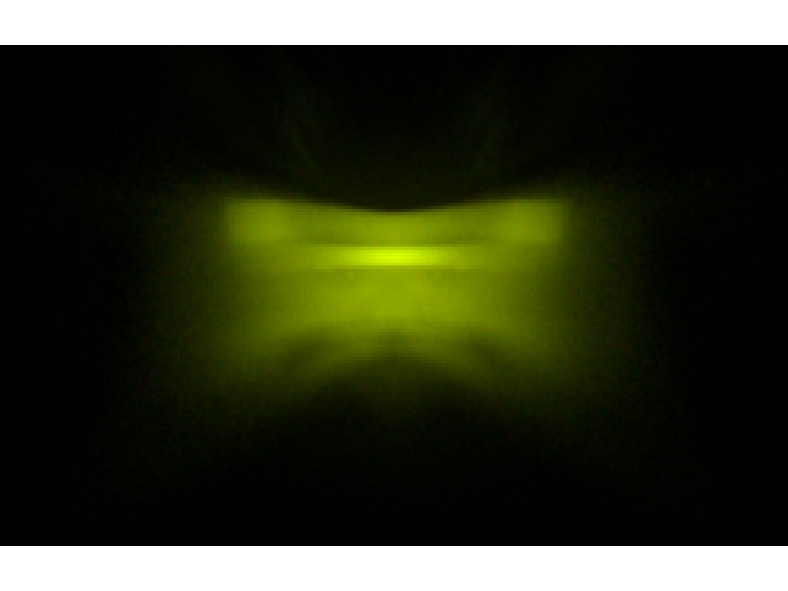

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

94.0%

FWHM:

139 x 24.5 x 29°

Cd/Im:

1.2


Download

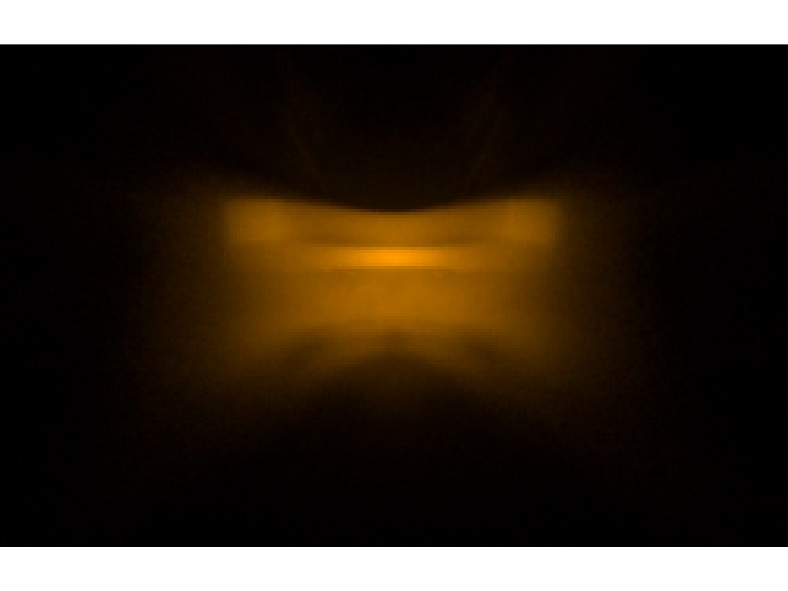

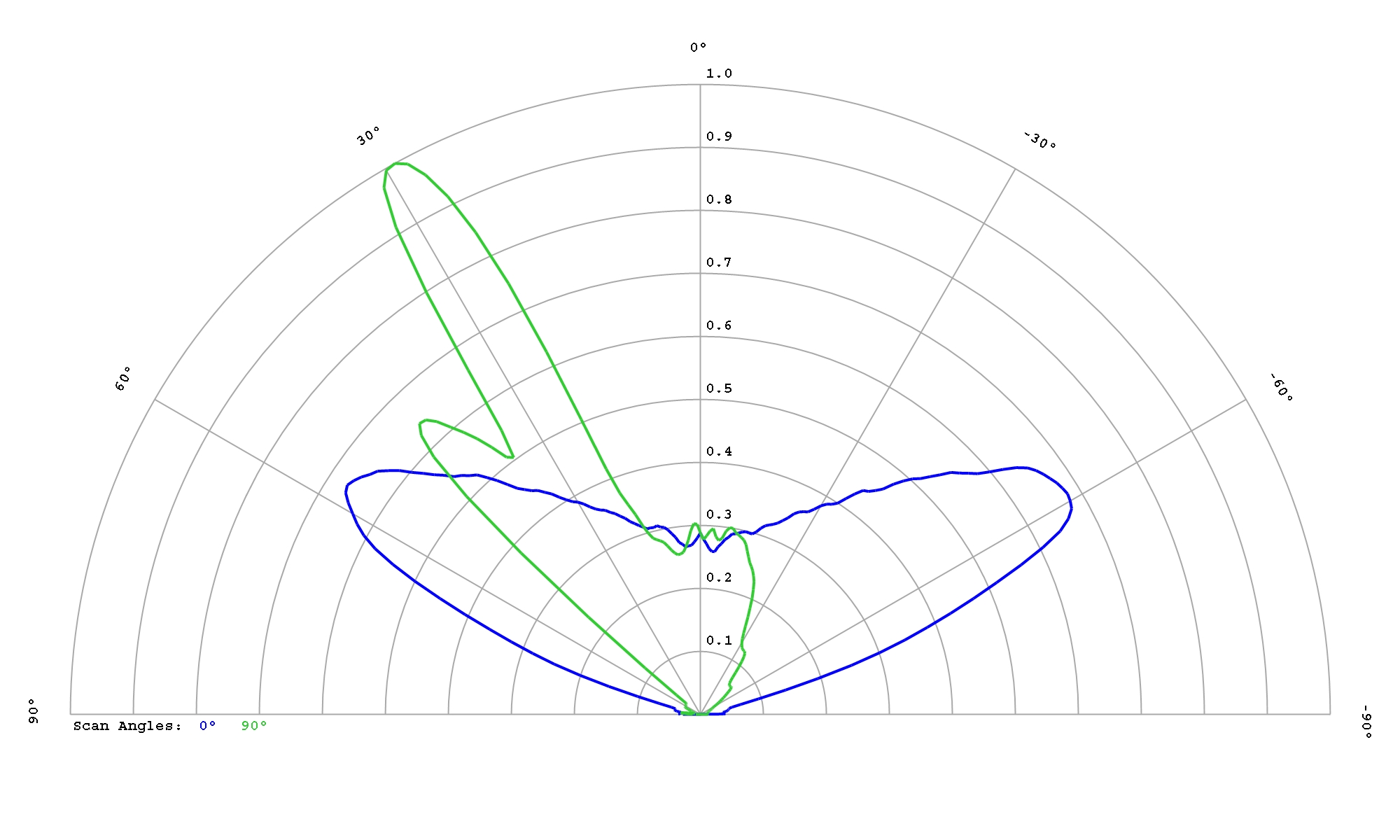

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

94.0%

FWHM:

139 x 25 x 30°

Cd/Im:

1.2


Download

Osram OSLON Square Gen 3 White

Eff:

86.4%

FWHM:

138.5 x 33.3 x 25°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

93.5%

FWHM:

142 x 49°

Cd/Im:

0.7

Carclo Optics - 12774 Mini Hubble Spot Image Oslon Square Gen 5

Carclo Optics - 12774 Mini Hubble Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square White

Eff:

86.0%

FWHM:

136 x 29 x 27.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

94.0%

FWHM:

146 x 28.5 x 31°

Cd/Im:

1.0

Carclo Optics – 12774 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

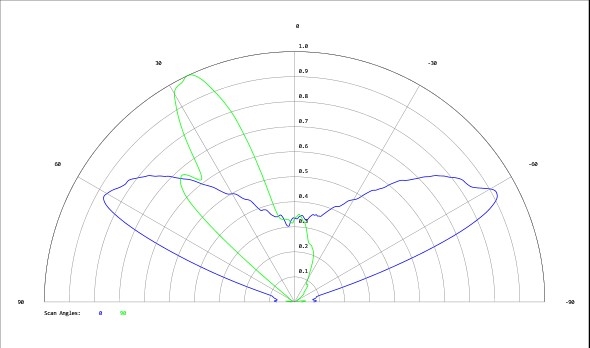

Carclo Optics – 12774 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OSLON SSL 150 degree White

Eff:

93.5%

FWHM:

143 x 27.5 x 28°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 80 White

Eff:

94.0%

FWHM:

124 x 25.5 x 28°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 2835 LM281B+ White

Eff:

91.5%

FWHM:

138 x 35 x 24°

Cd/Im:

0.7



Download

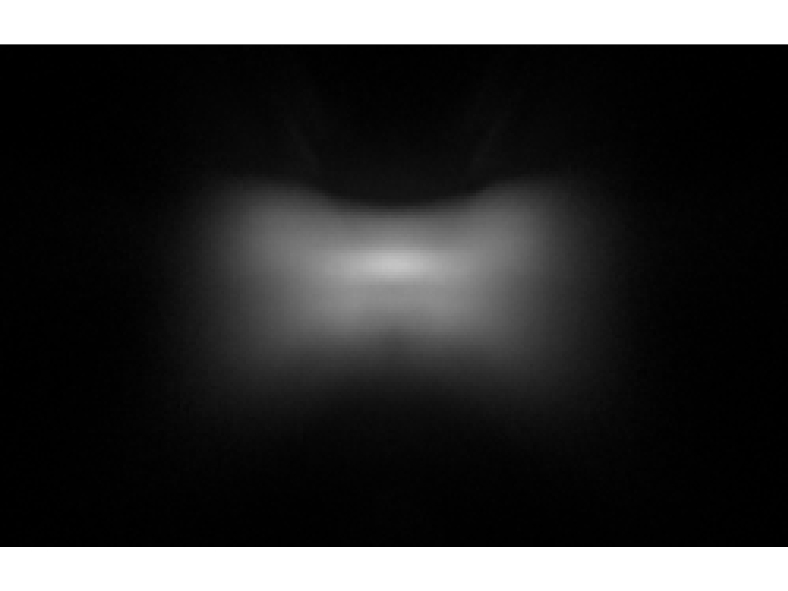

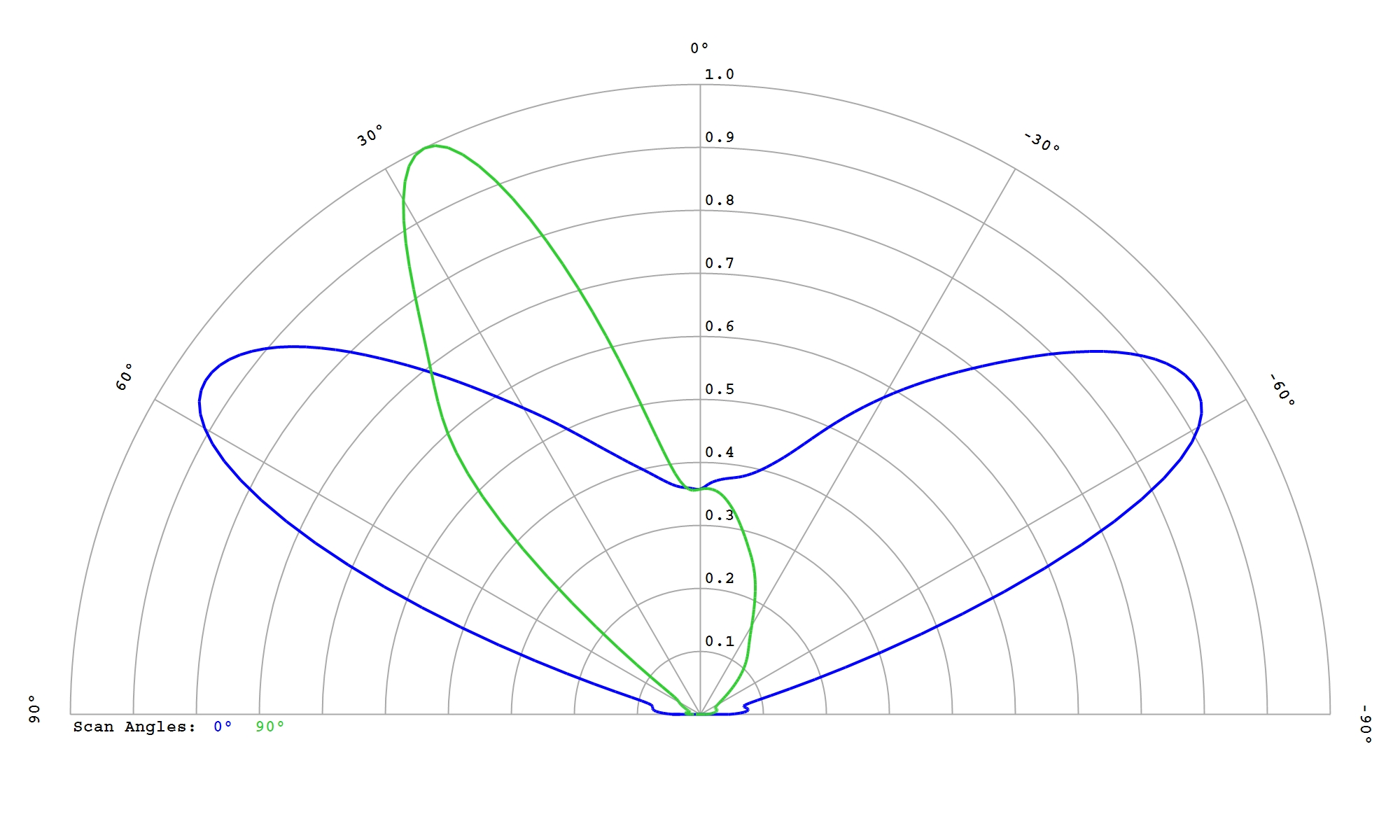

Samsung 2835 LM282B+ White

Eff:

94.0%

FWHM:

137 x 33 x 26°

Cd/Im:

0.8



Download

Samsung 3030 LM301B White

Eff:

93.5%

FWHM:

139 x 34 x 27°

Cd/Im:

0.8

Download

ies

Samsung 3535 LH351B White

Eff:

83.0%

FWHM:

140x40x28°

Cd/Im:

0.6

Simulation Data

Download

ies

Samsung 3535 LH351Z White

Eff:

83.0%

FWHM:

140x38x28°

Cd/Im:

0.6

Simulation Data

Simulation Data

Download

ies

Samsung CSP LH151B White

Eff:

93.0%

FWHM:

129 x 27.5 x 23°

Cd/Im:

1.3

Carclo Optics – 12774 – Samsung_LH151B_spot-image

Carclo Optics – 12774 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

93.0%

FWHM:

131 x 33.5 x 26°

Cd/Im:

0.8

Carclo Optics -12774 Sport Image - Samsung LH181B 4000K

Carclo Optics -12774 Cross Section Image - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

92.5%

FWHM:

133 x 32.5 x 25°

Cd/Im:

0.7

Carclo Optics -12774 Spot Image - Samsung LH231B 5000K

Carclo Optics -12774 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

93.0%

FWHM:

130 x 26 x 24°

Cd/Im:

1.2

Carclo Optics -12774 Spot Image - Samsung LM101B 5000K

Carclo Optics -12774 Cross Section Image - Samsung LM101B 5000K

Download

ies

Samsung LM 101A White

Eff:

90.0%

FWHM:

129 x 29.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung LM 101A White

Eff:

90.0%

FWHM:

129 x 29.5 x 24°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

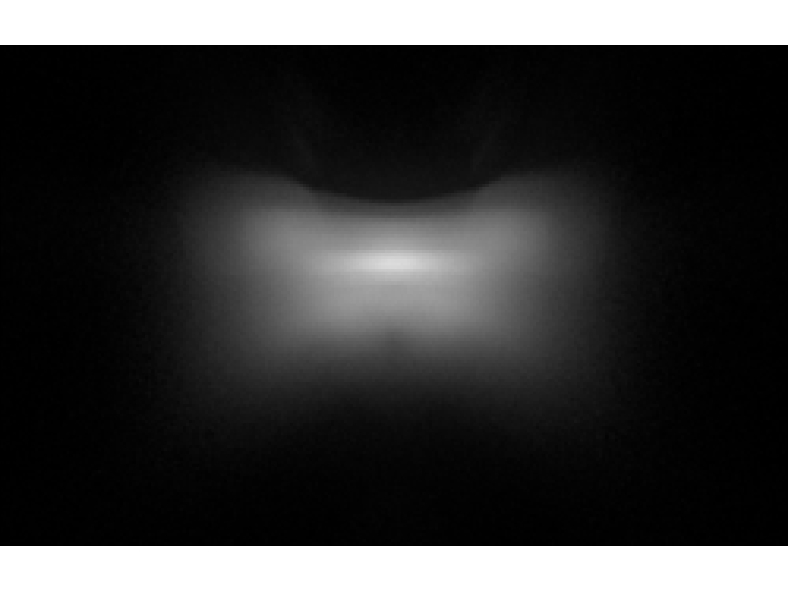

Seoul 3030 STW8C12E-E0 White

Eff:

94.0%

FWHM:

140 x 34 x 26°

Cd/Im:

0.7

Download

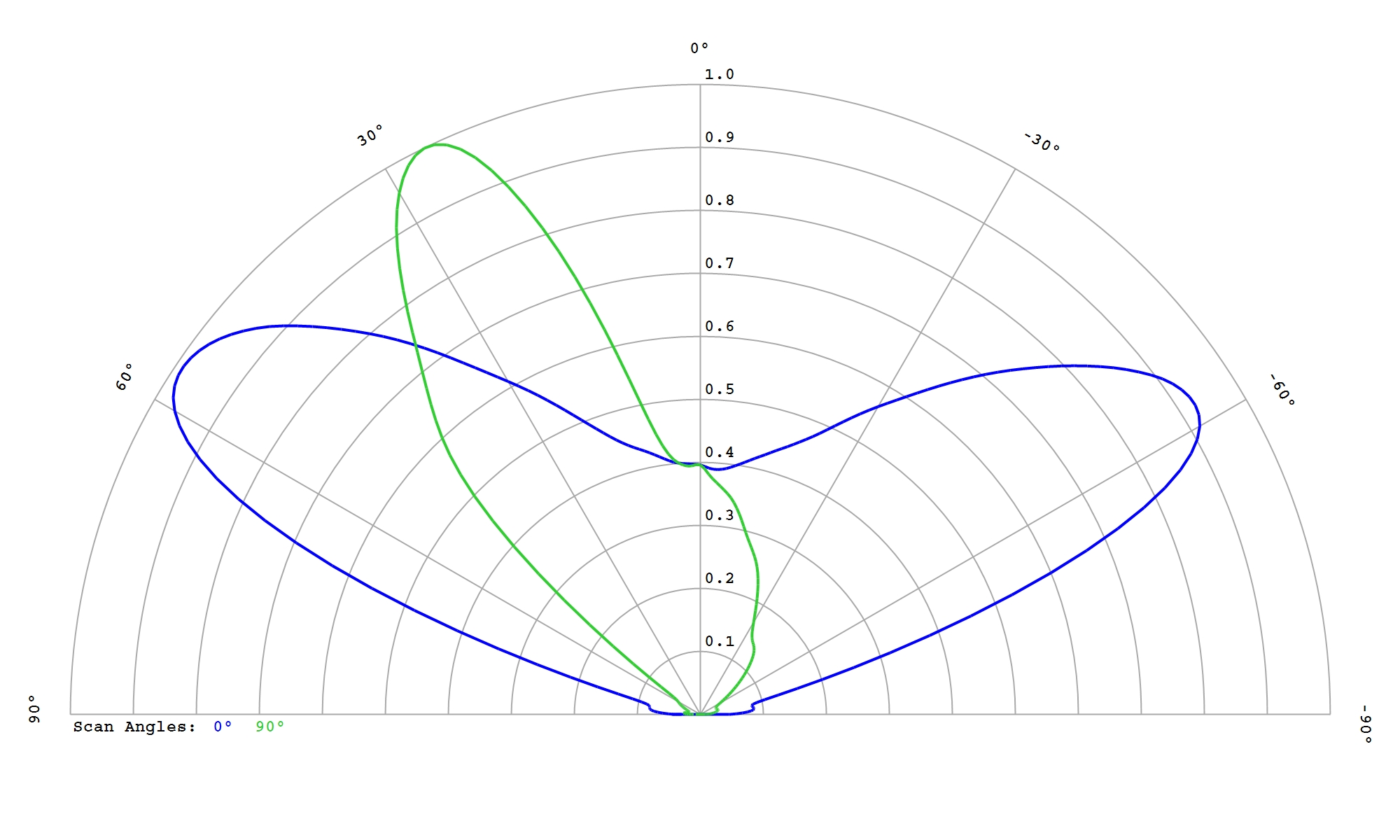

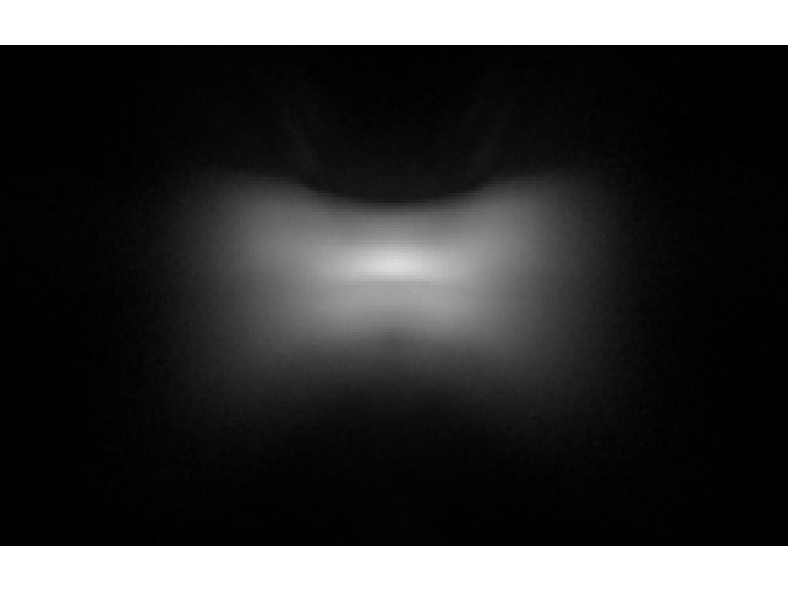

Seoul 3528 G STW8A2PD-G700 White

Eff:

94.0%

FWHM:

139 x 35 x 25°

Cd/Im:

0.7

Download

Seoul CSP SZ8Y11 White

Eff:

89.5%

FWHM:

131 x 29.5 x 26°

Cd/Im:

1.2

Carclo Optics -12774 Spot Image - Seoul Z8Y11

Carclo Optics -12774 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y15 White

Eff:

90.5%

FWHM:

132 X 27 X 25°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul CSP SZ8Y19 White

Eff:

90.5%

FWHM:

132 x 33.5 x 27°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul CSP SZ8Y22 White

Eff:

91.0%

FWHM:

133 x 36.5 x 28°

Cd/Im:

0.7

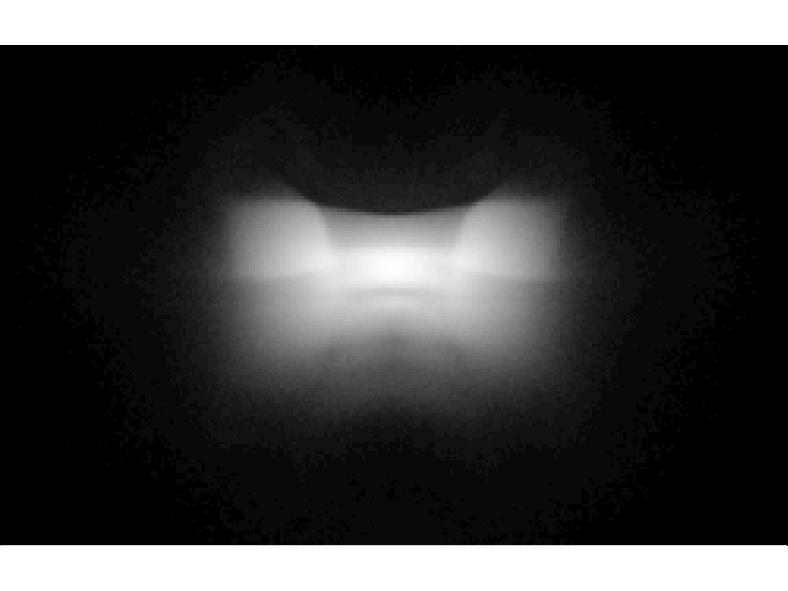

Carclo Optics -12774 Spot Image - Seoul SZ8Y22

Carclo Optics -12774 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul MidPower MJT4040 White

Eff:

86.0%

FWHM:

131x35x25°

Cd/Im:

0.7

Simulation Data

Simulation Data

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

94.0%

FWHM:

139 x 36 x 24°

Cd/Im:

0.7

Carclo Optics - 12774 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12774 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

94.0%

FWHM:

138 x 38 x 25°

Cd/Im:

0.7

Carclo Optics - 12774 Spot Image STWS C2PB-E0

Carclo Optics - 12774 Cross Section STWS C2PB-E0

Download

ies

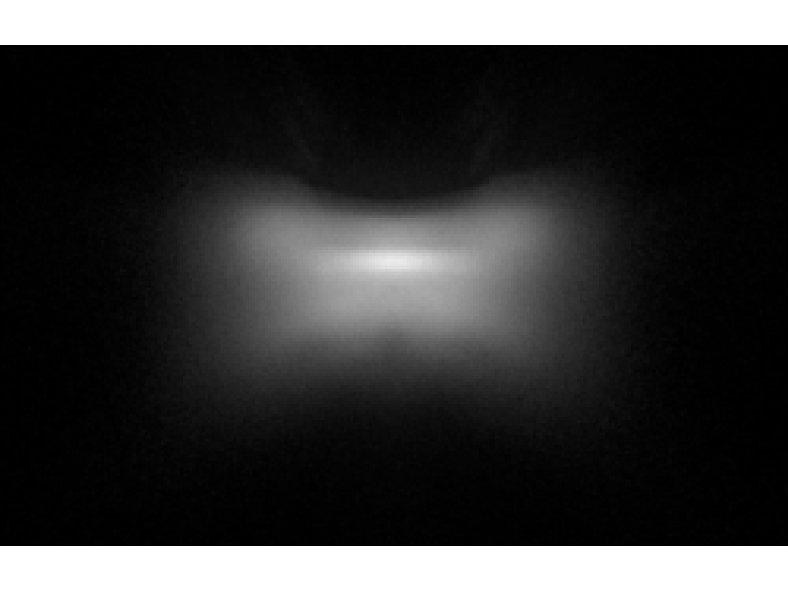

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

94.0%

FWHM:

140 x 31 x 27°

Cd/Im:

0.8

Download

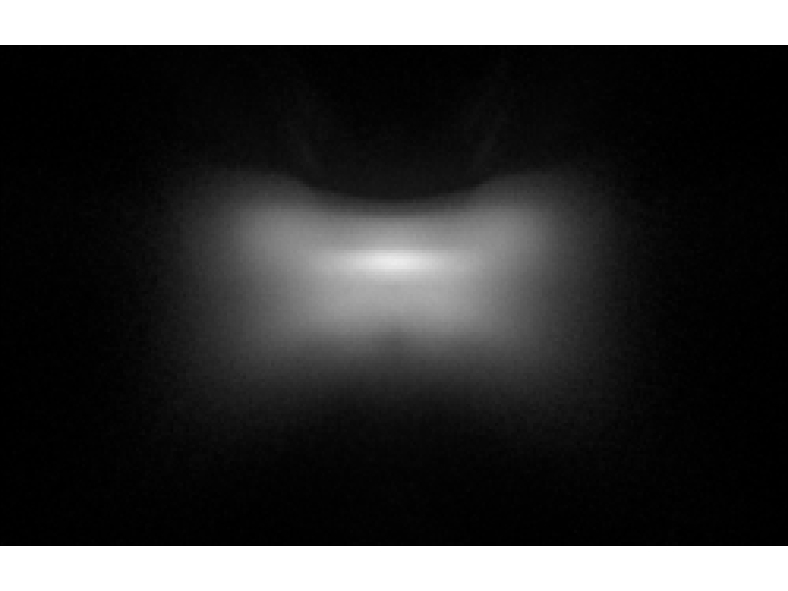

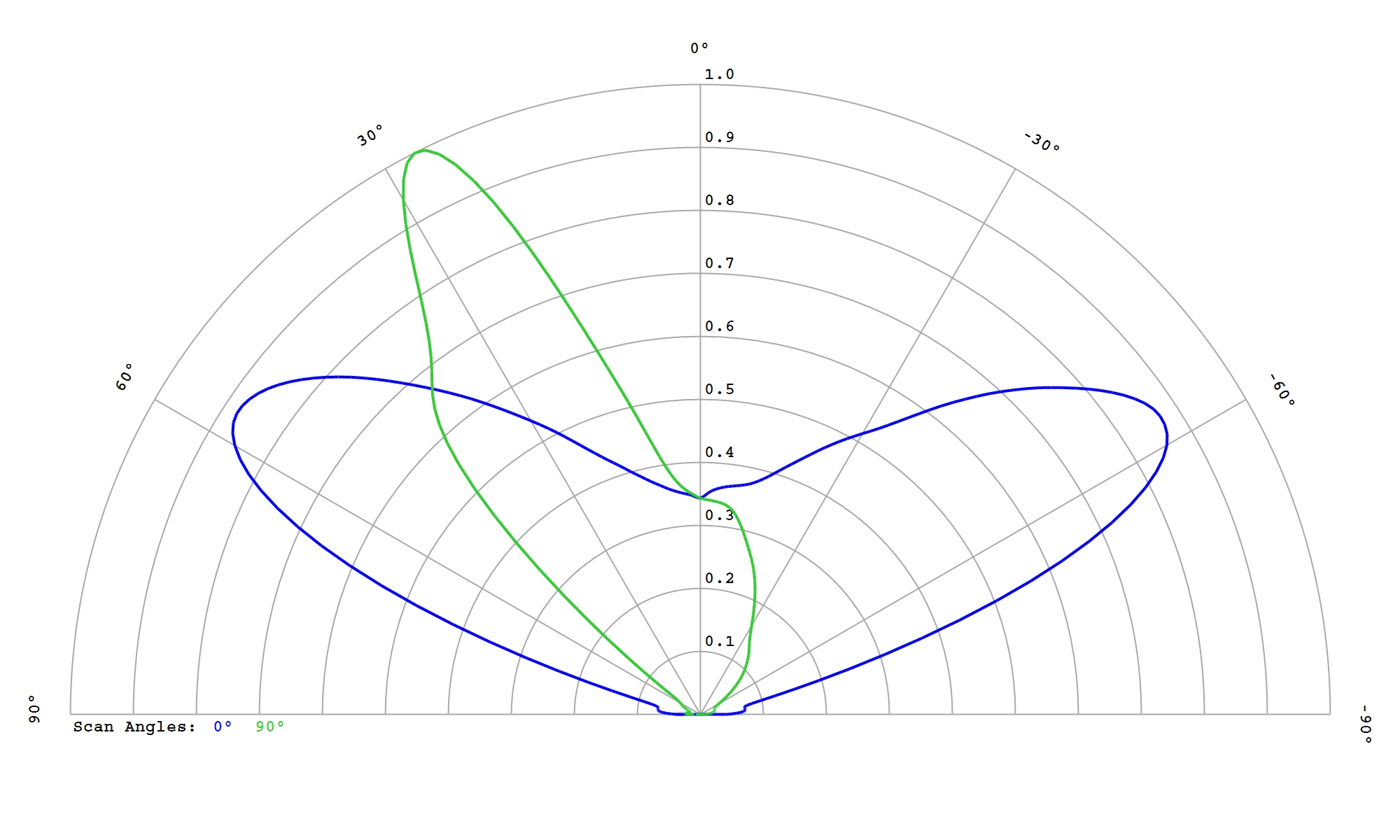

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

94.0%

FWHM:

140 x 32 x 26°

Cd/Im:

0.8

Download

Seoul Z - Power Z5-M0 White

Eff:

83.0%

FWHM:

150x40x35°

Cd/Im:

0.3

Simulation Data

Simulation Data

Download

ies

Seoul Z - Power Z5-M1 White

Eff:

93.0%

FWHM:

109 x 36 x 29°

Cd/Im:

0.7

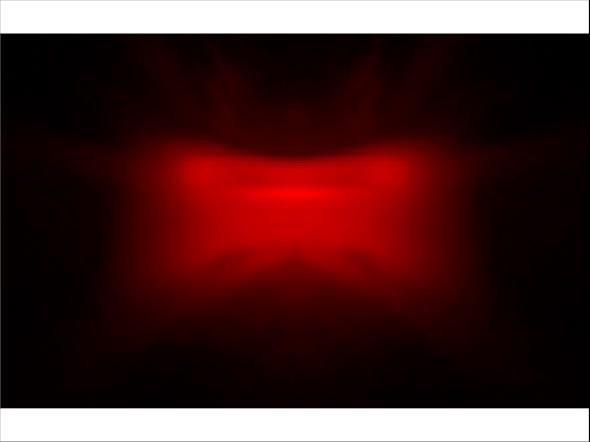

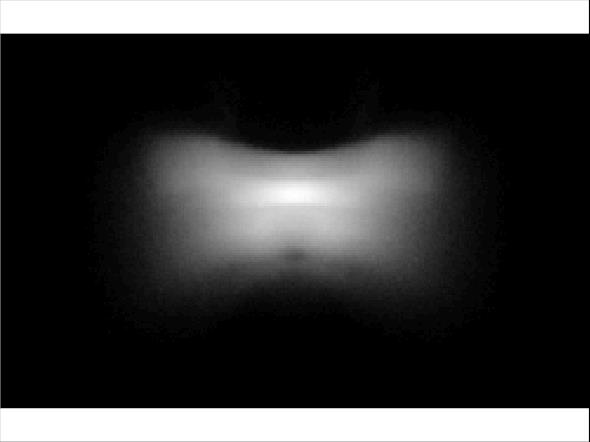

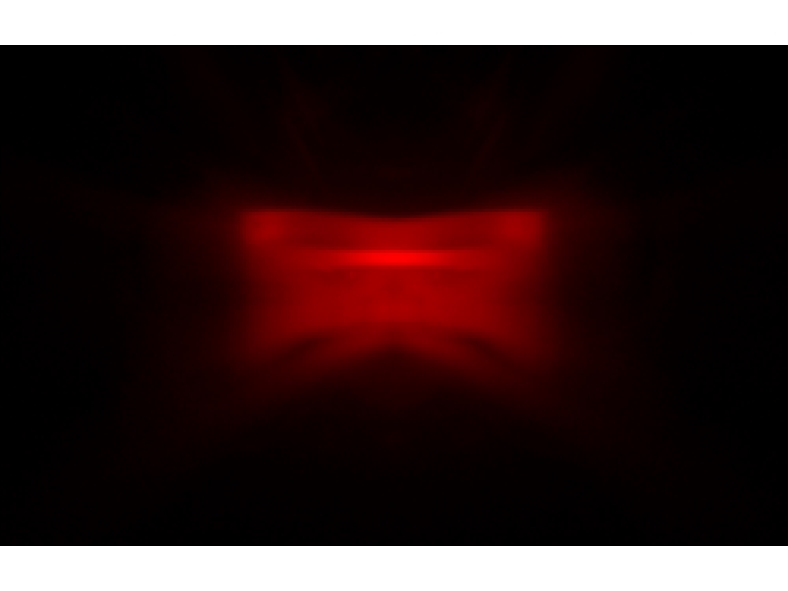

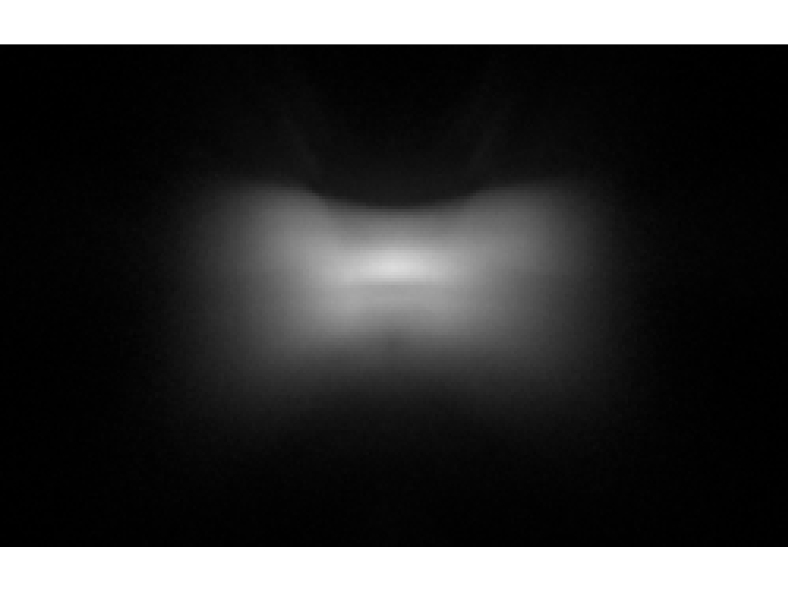

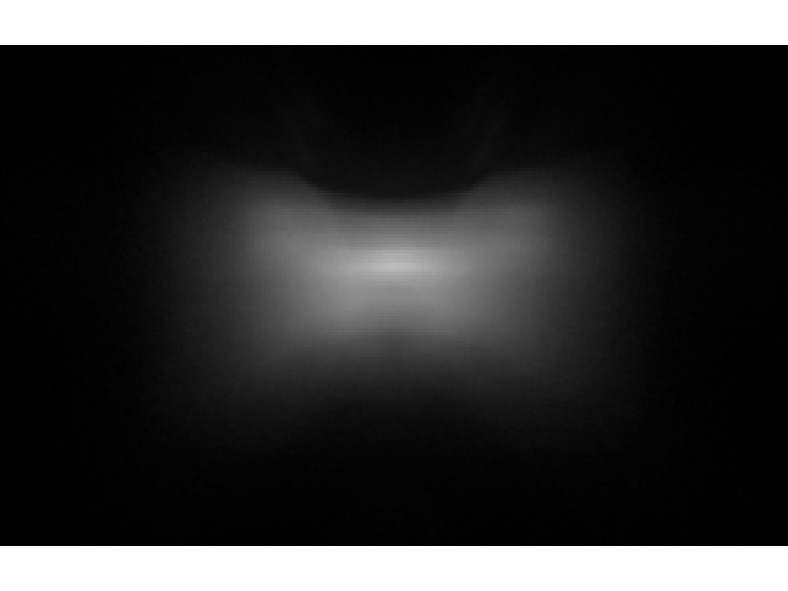

Carclo Optics - Simulated Spot Image

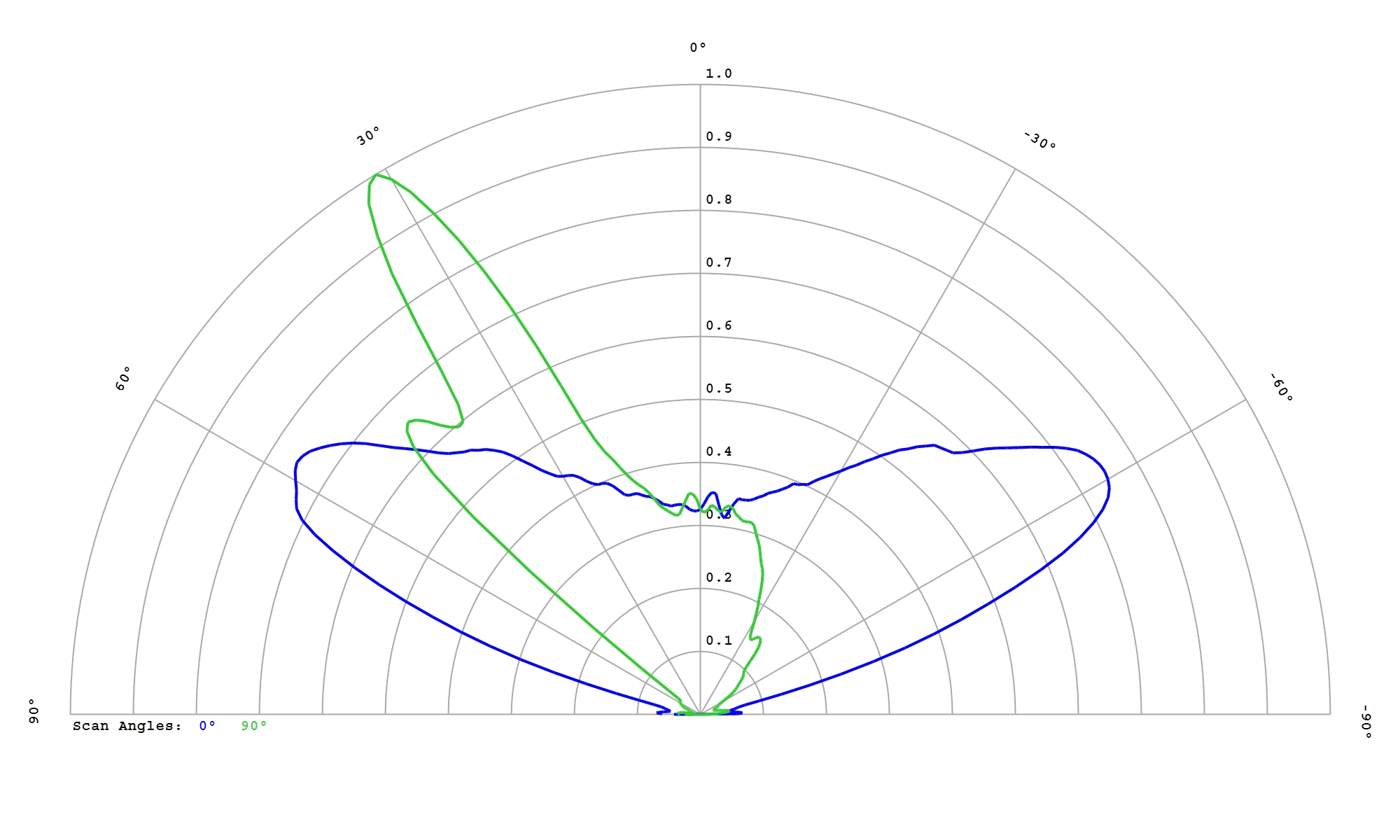

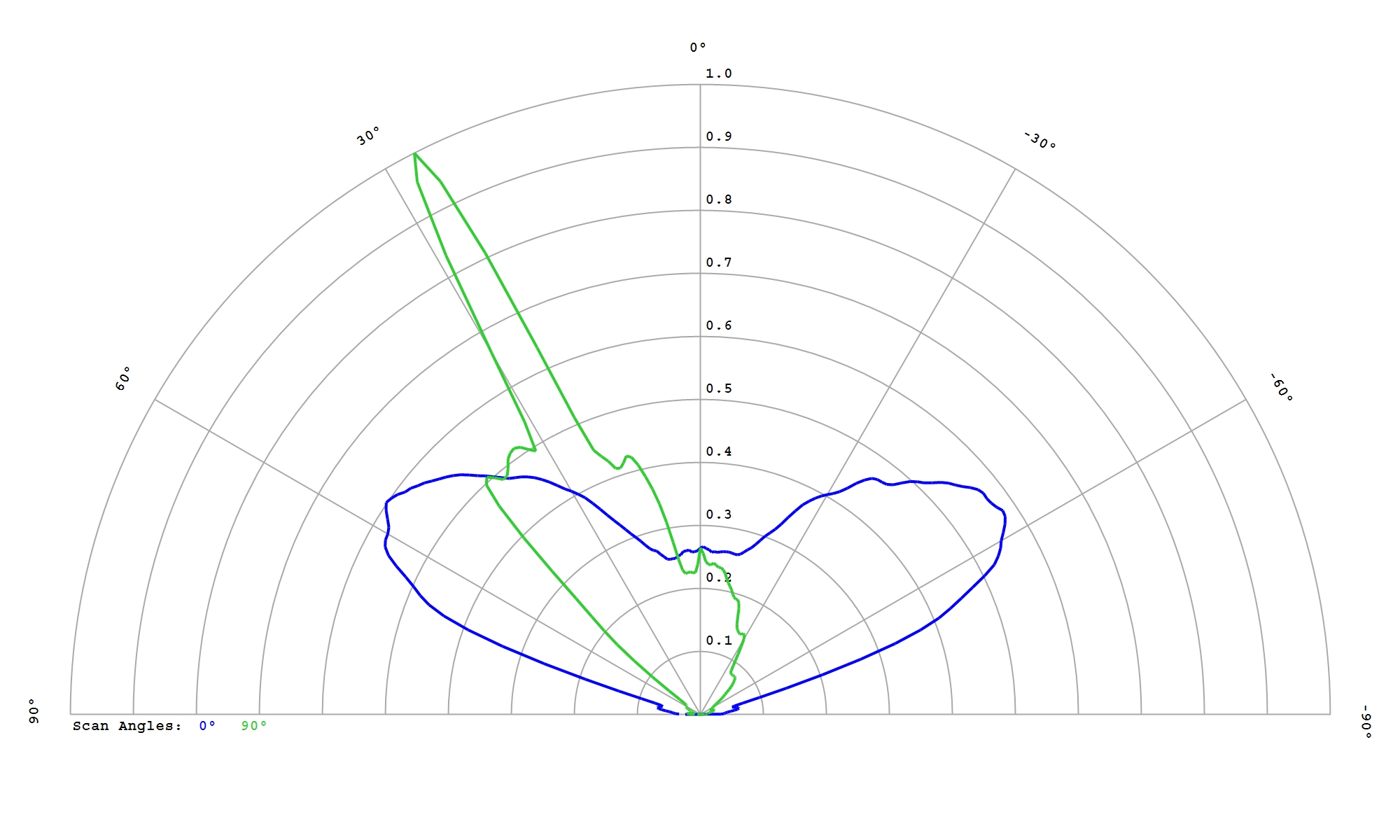

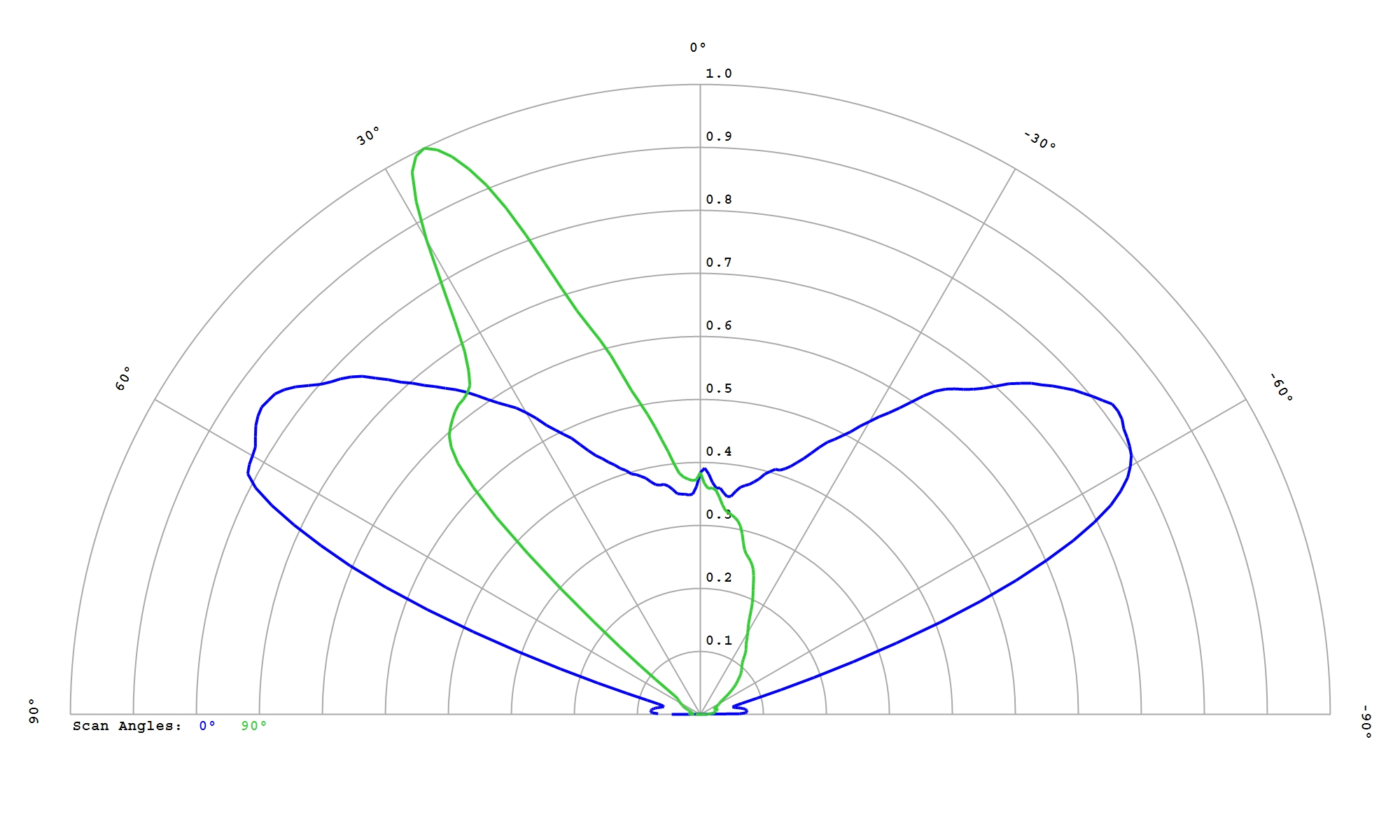

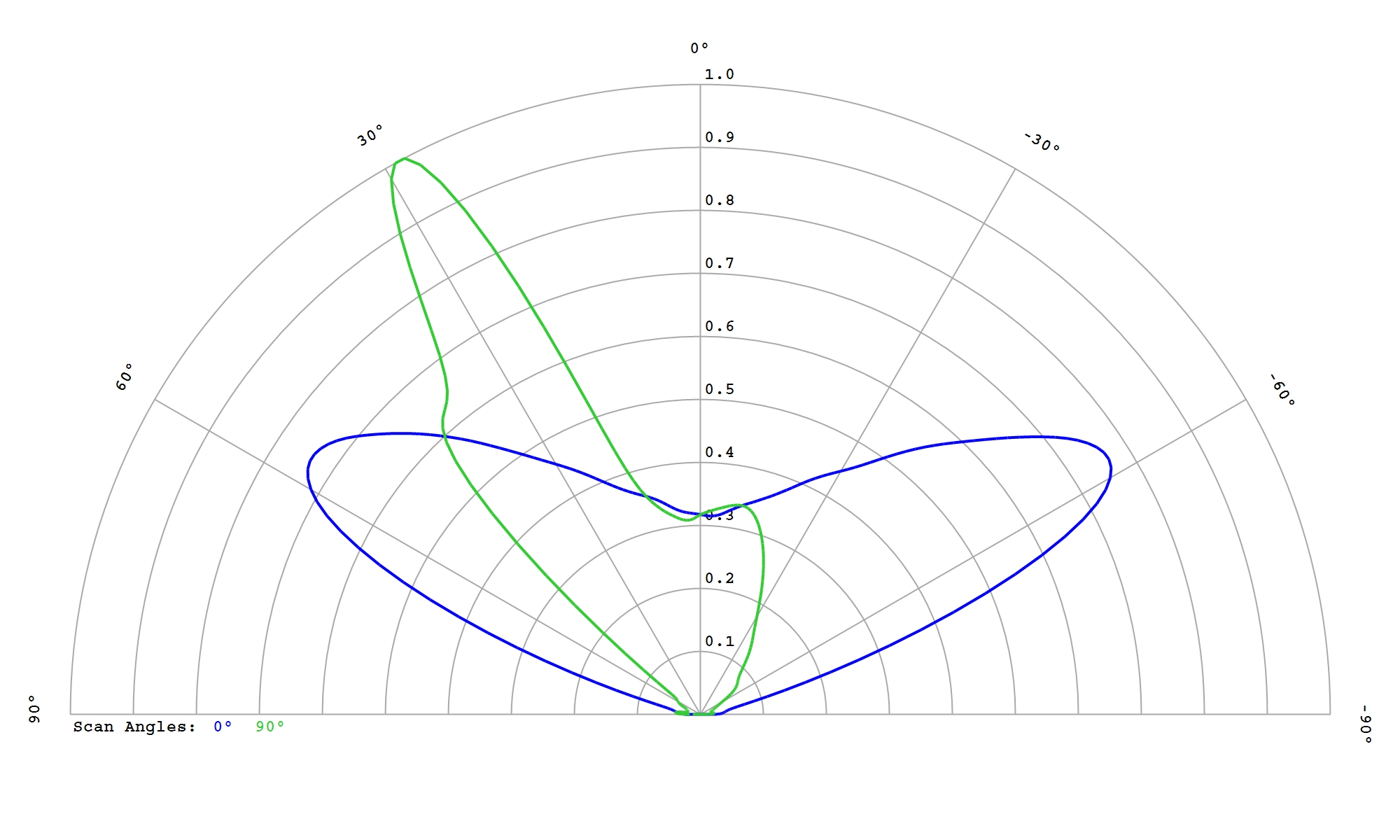

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

144 x 34 x 28.5°

Cd/Im:

0.6

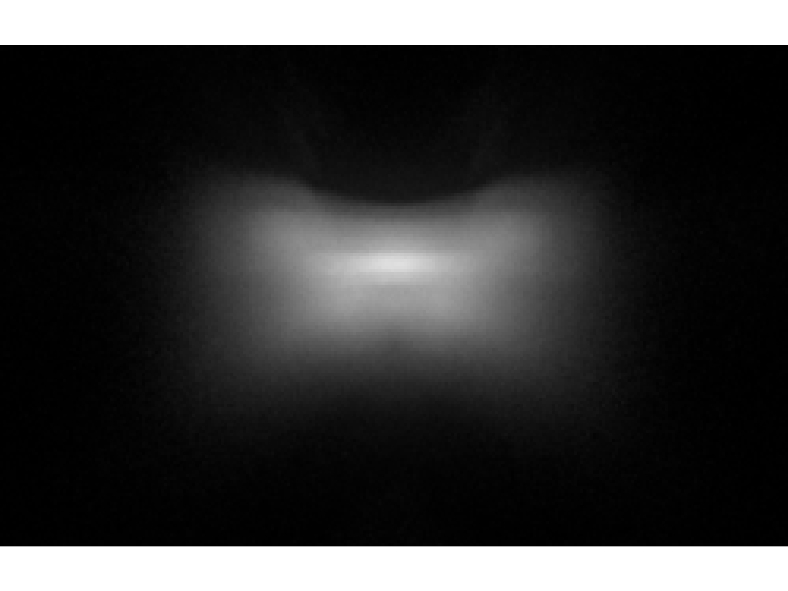

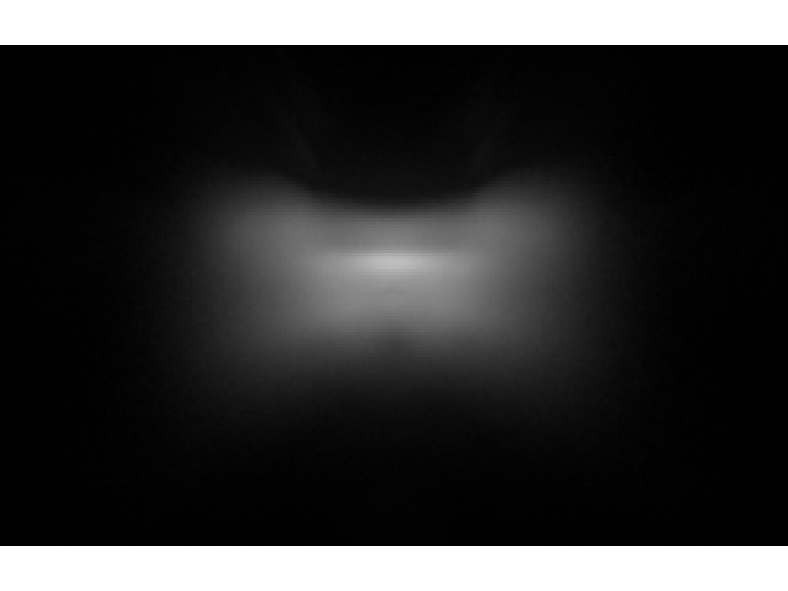

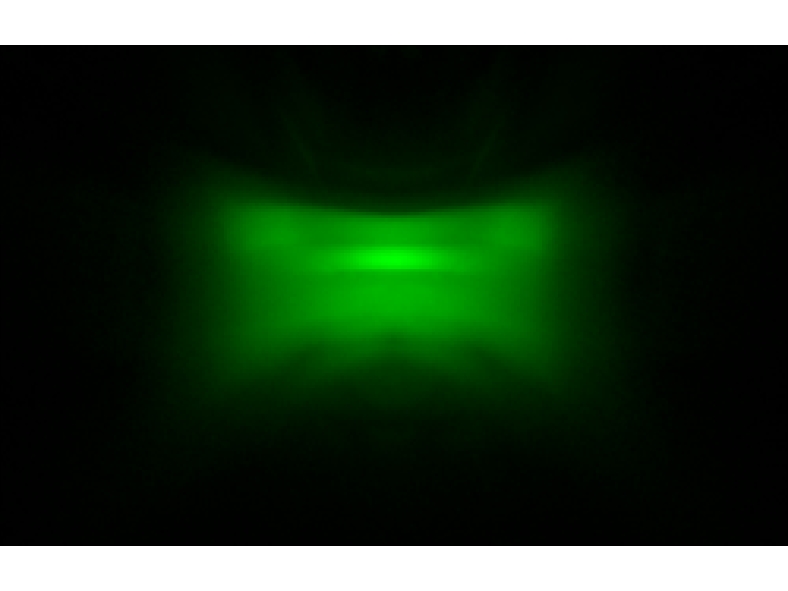

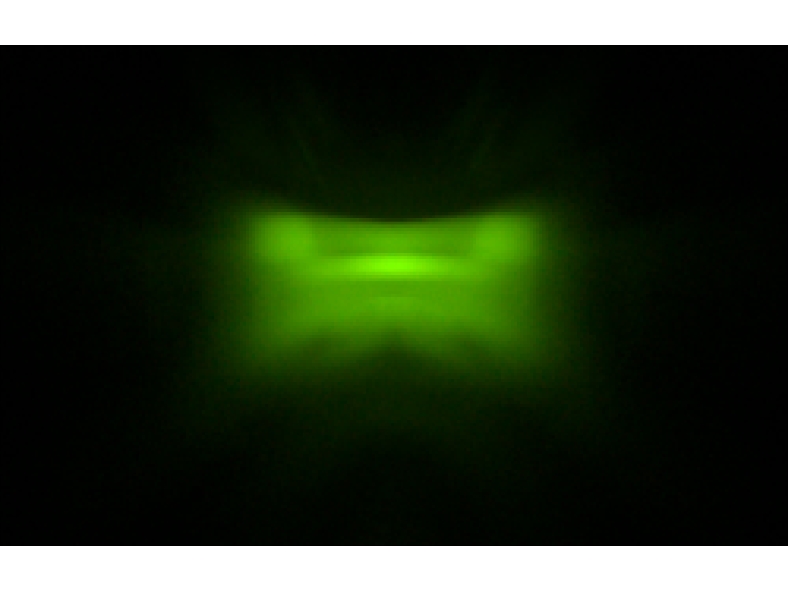

Carclo Optics - Simulated Spot Image

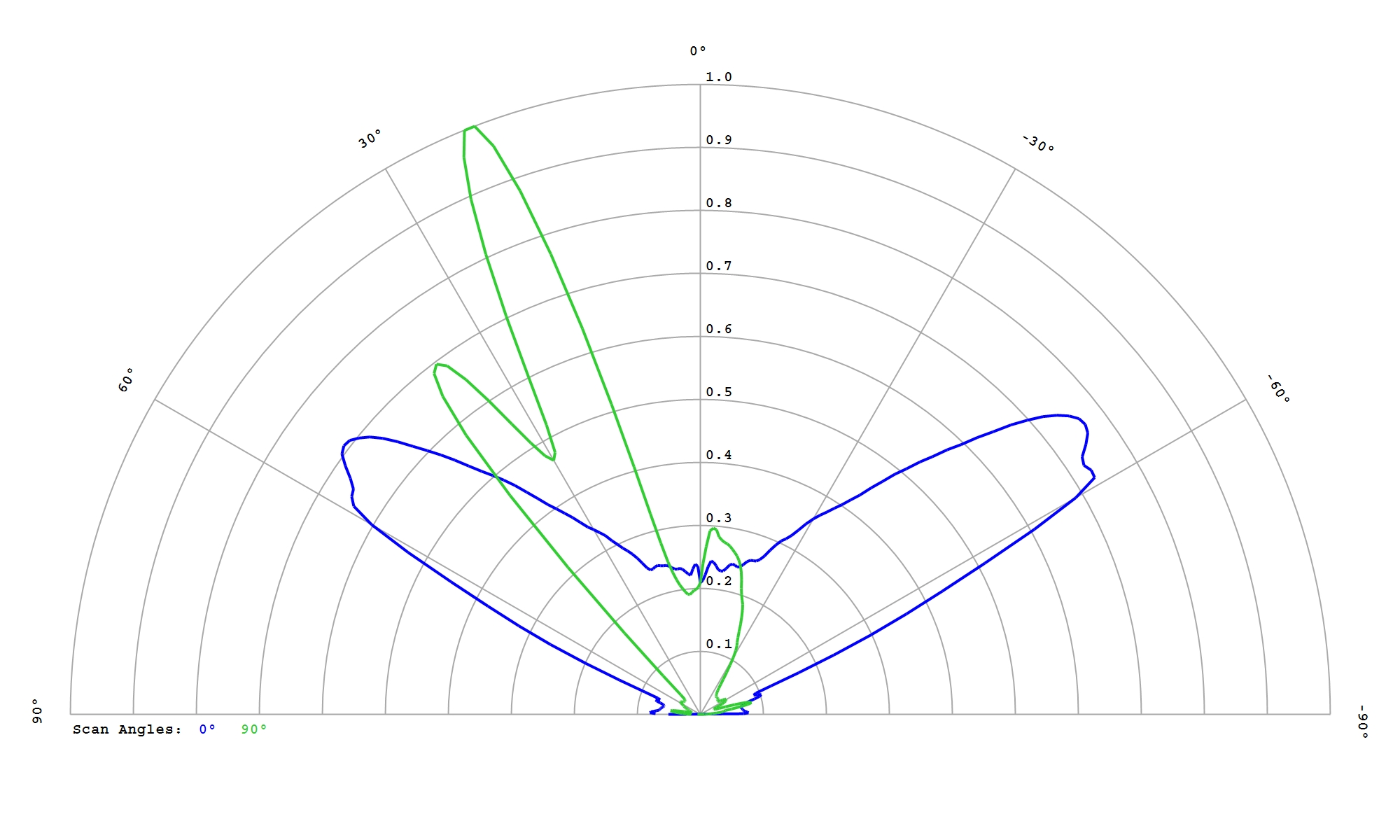

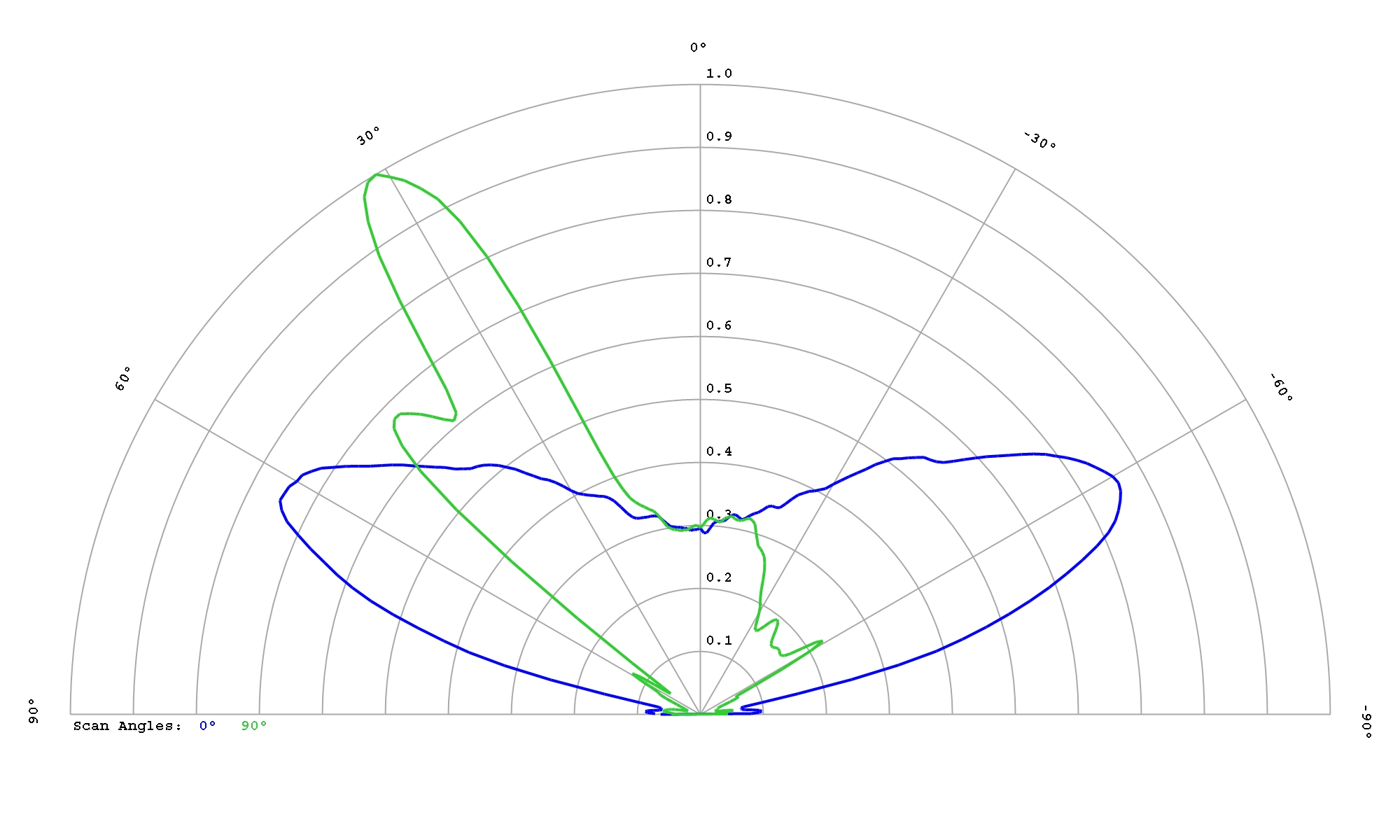

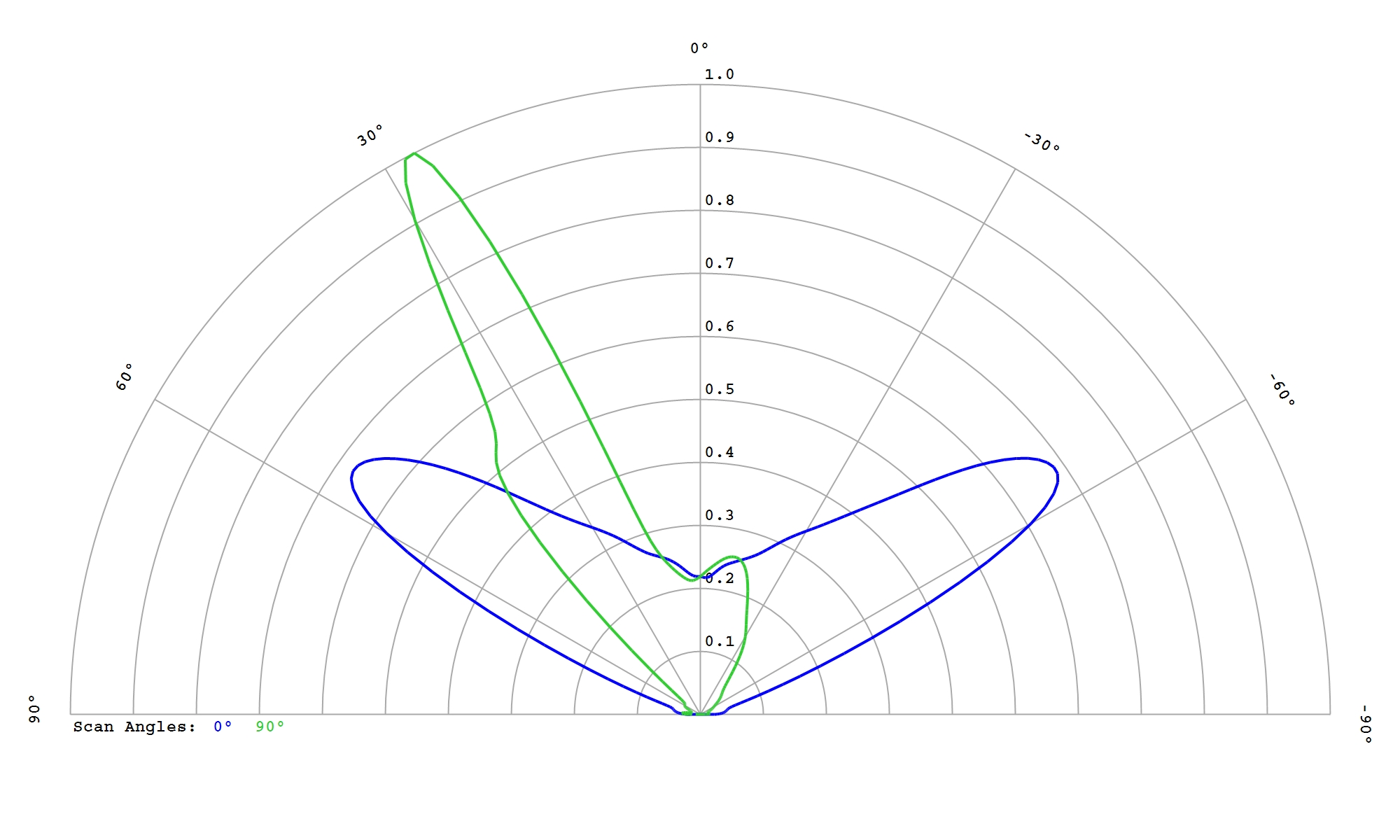

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

92.0%

FWHM:

135 x 32.5 x 30°

Cd/Im:

0.7

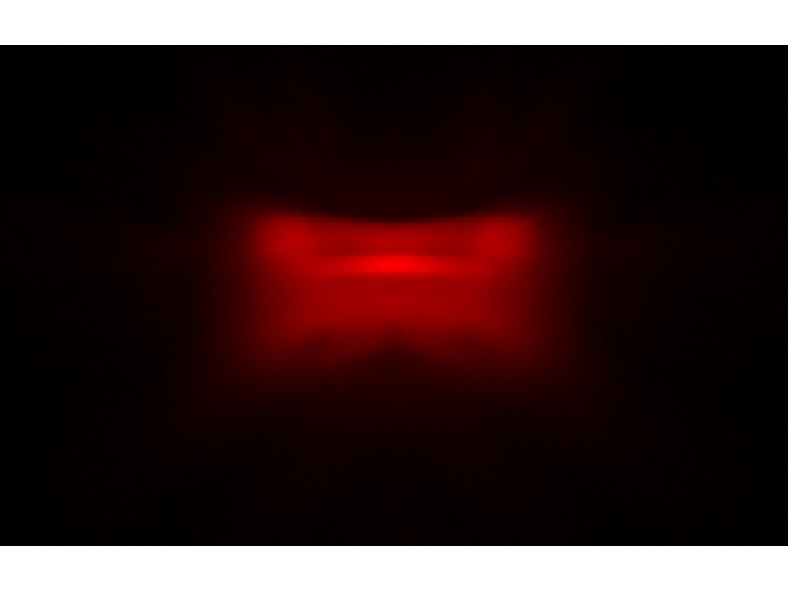

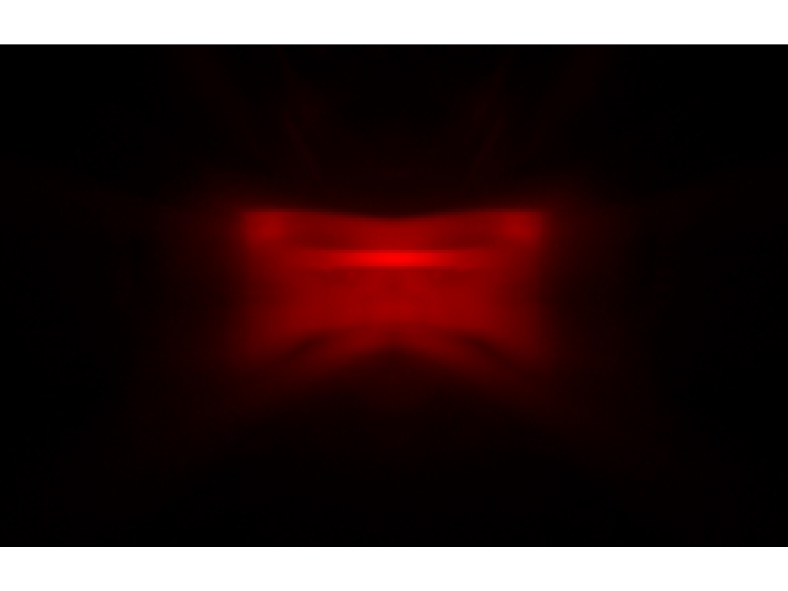

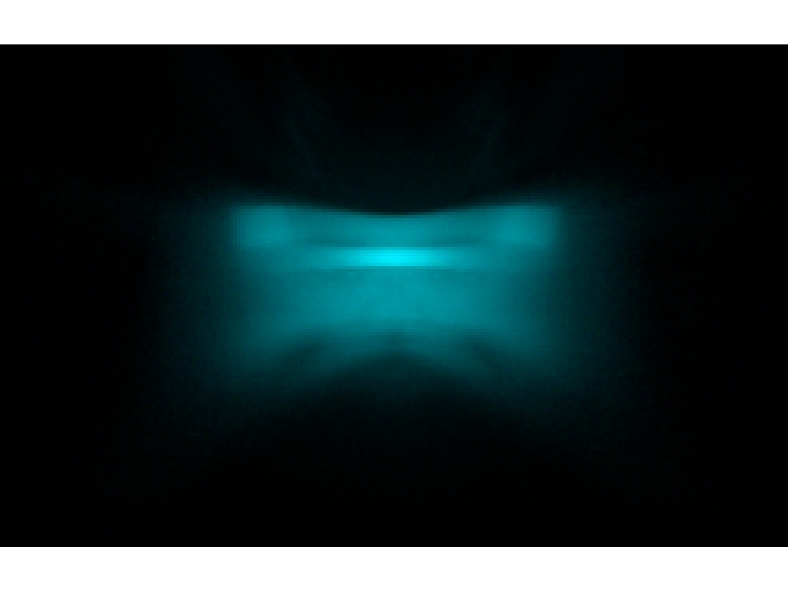

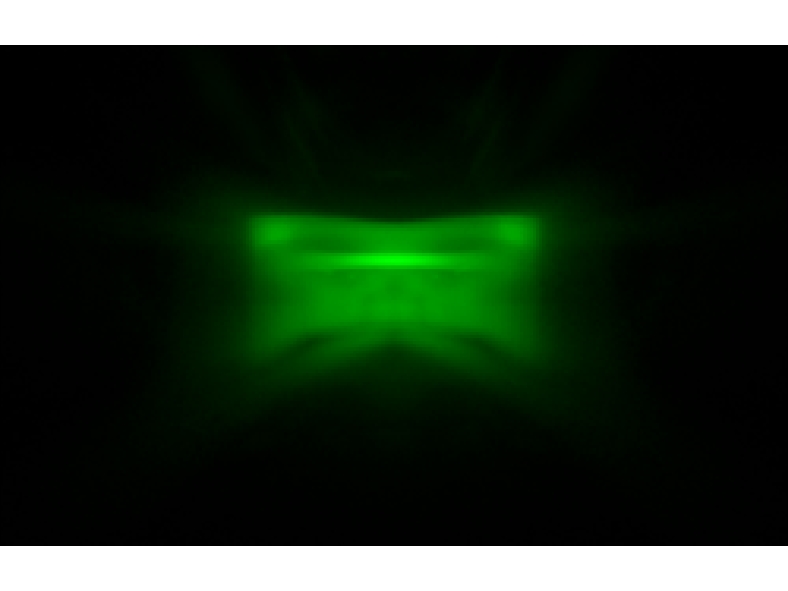

Carclo Optics - Simulated Spot Image

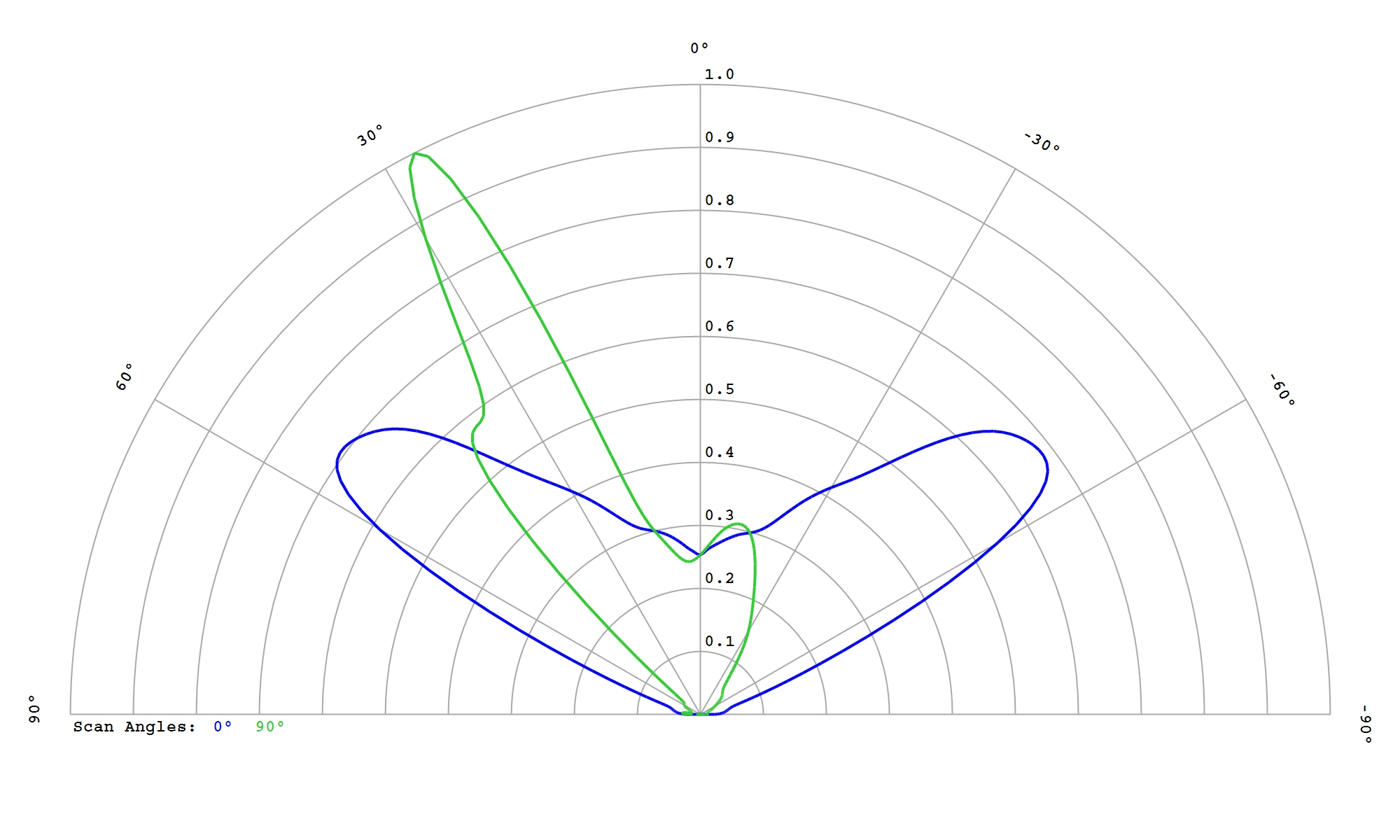

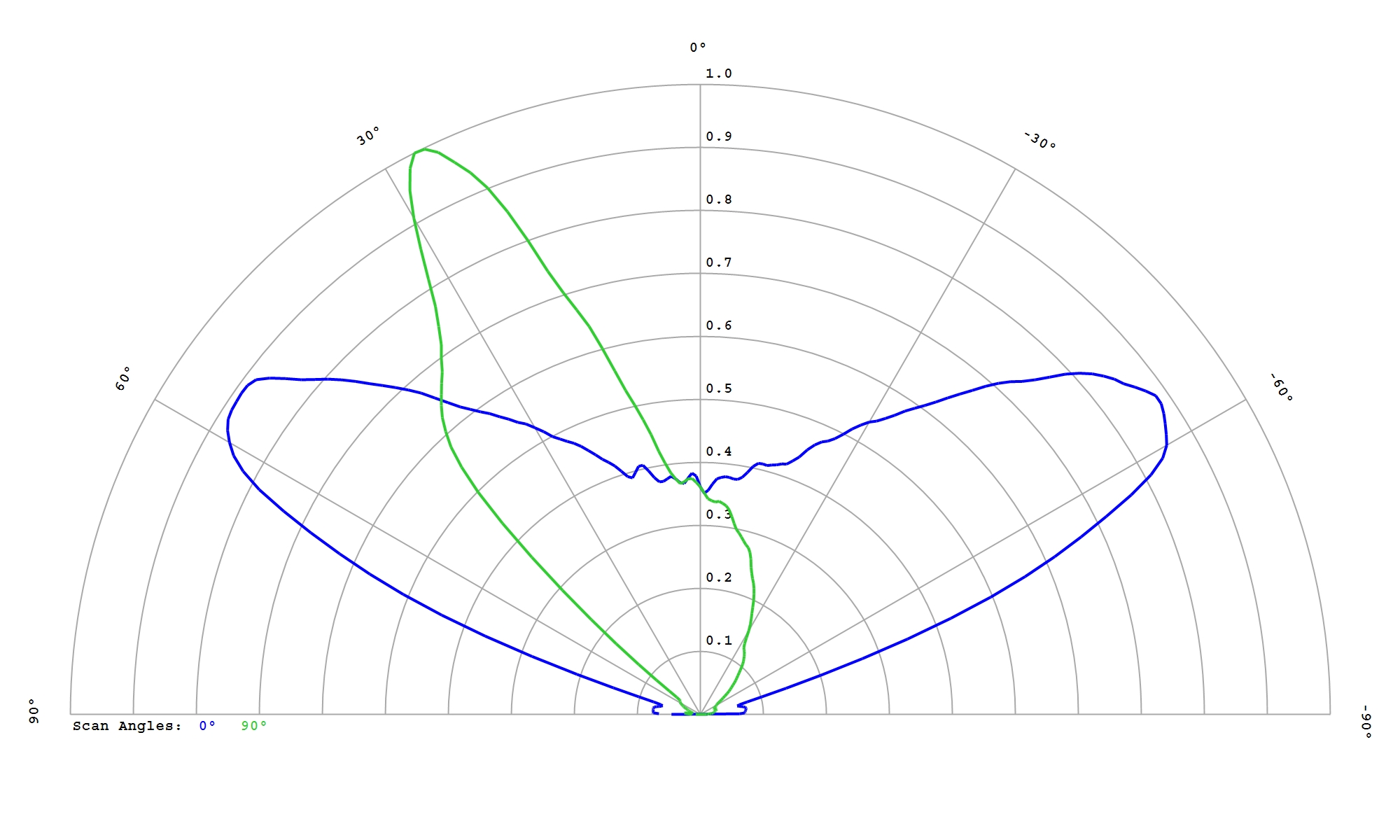

Carclo Optics - Simulated Horizontal Cross Section

Download

ies
