Mini Hubble Type II
75.0 x 50.0mm Asymmetrical II Medium Freeform
Part number
12770
Dimensions
75.0 x 50.0mm
Drawing Number
70285
Optic type
Freeform
Beam type
Asymmetrical II Medium
Applications
Street
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
94.5%
FWHM:
148 x 54°
Cd/Im:
0.5
Download

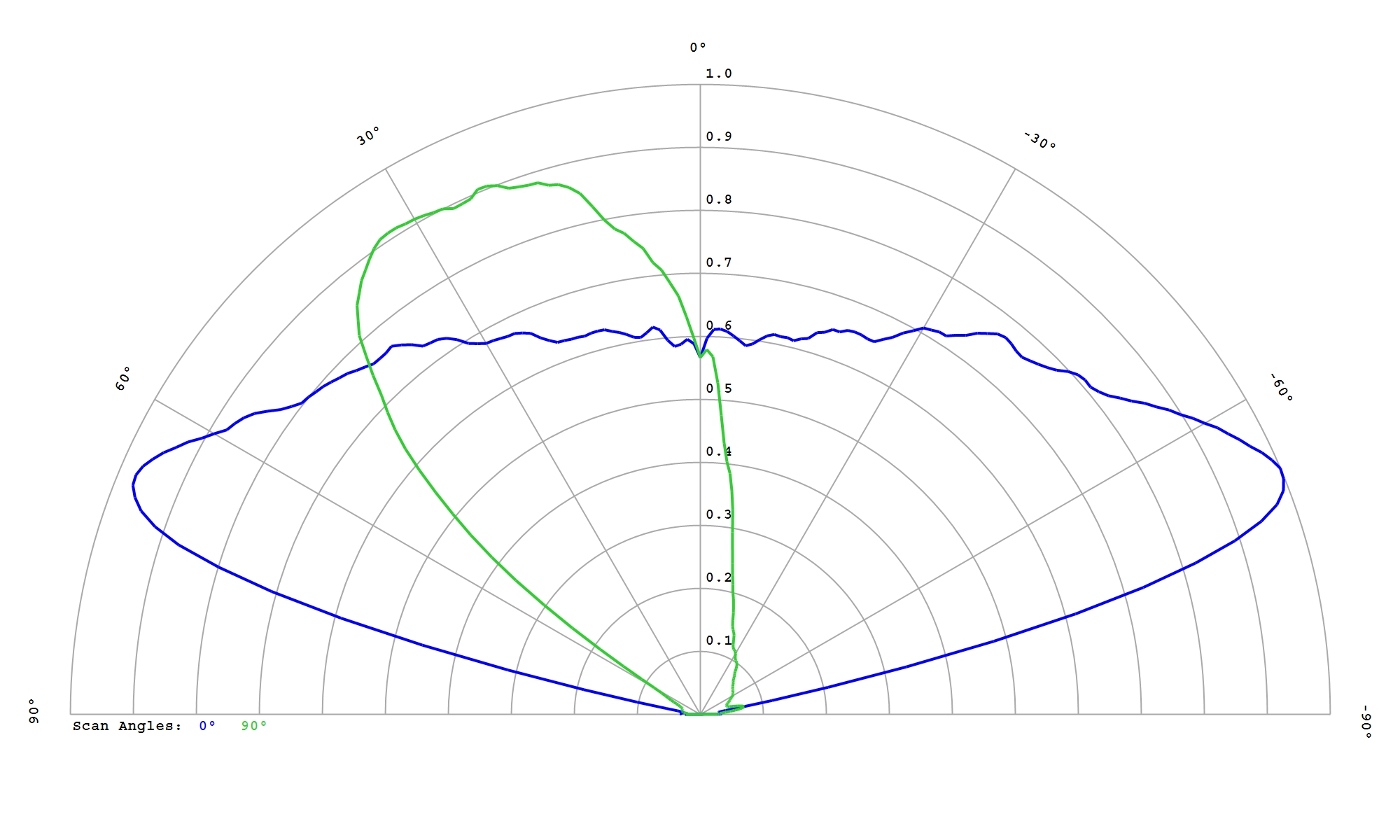

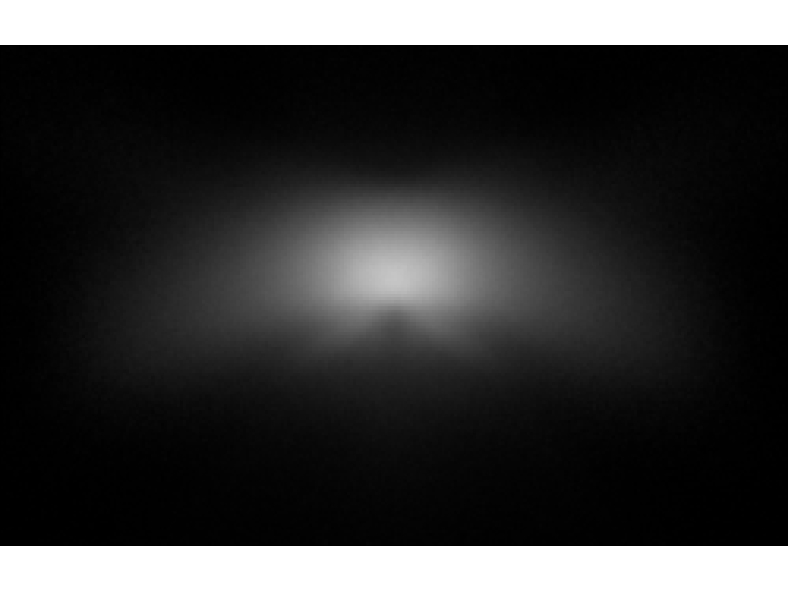

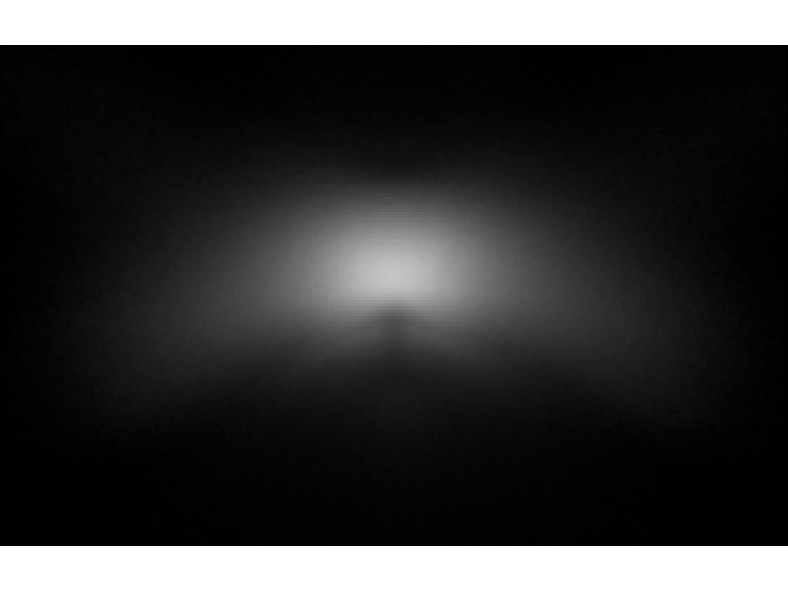

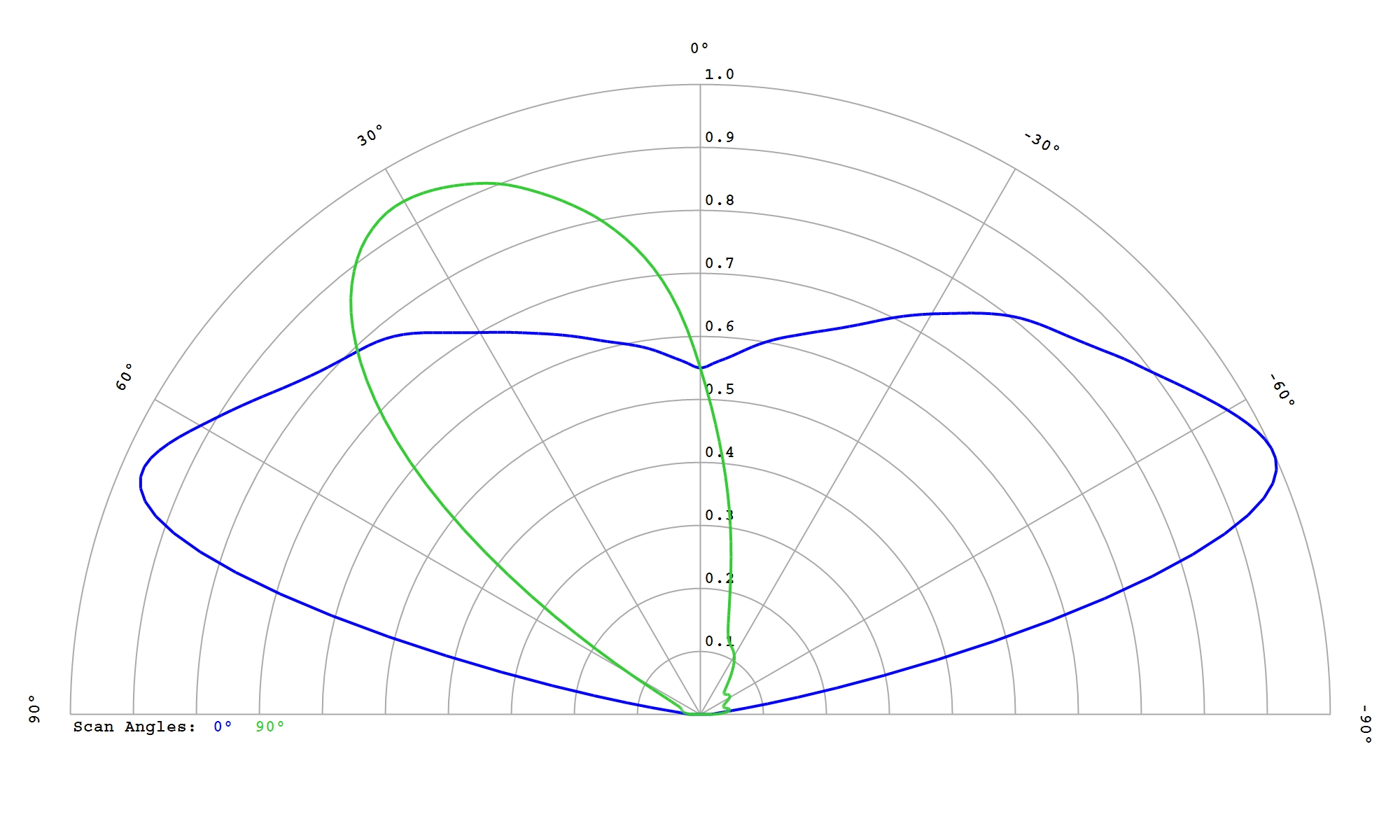

Cree JB2835B 3V G-Class White
Eff:
94.0%
FWHM:
152 x 56 x 33°
Cd/Im:
0.4
Download

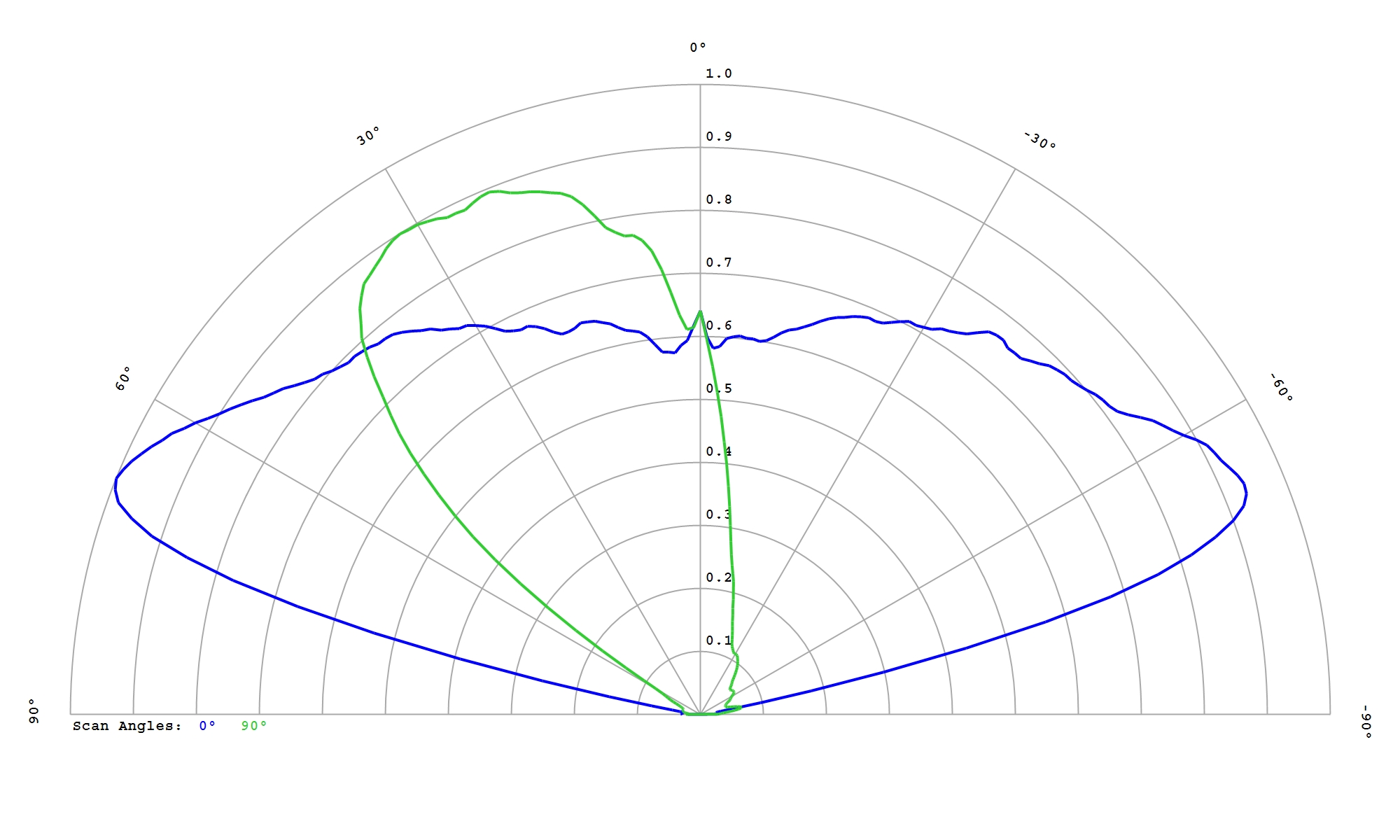

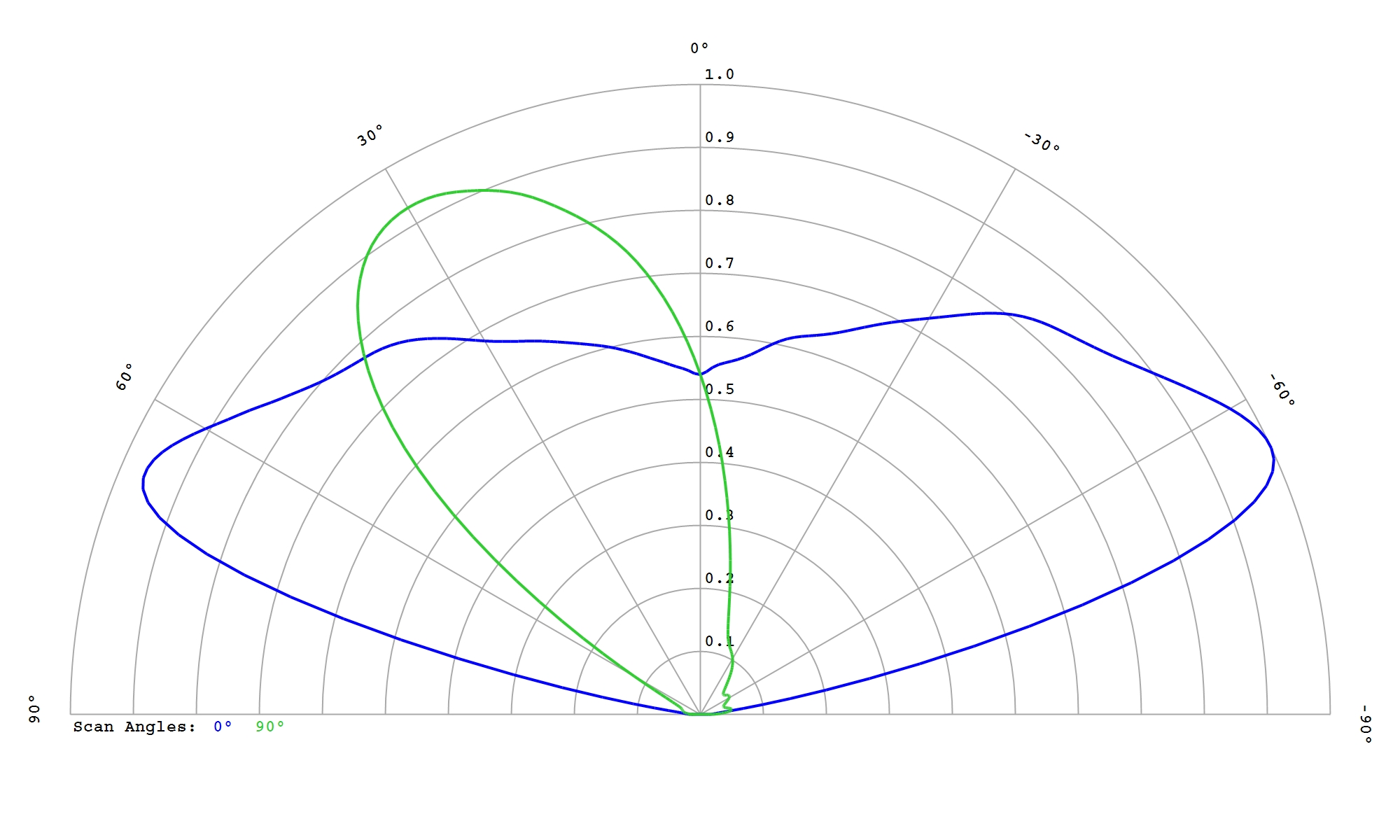

Cree JB2835B 3V J-Class White
Eff:
94.0%
FWHM:
152 x 57 x 31°
Cd/Im:
0.4
Download
Cree JB3030 3V P-Class White
Eff:
93.0%
FWHM:
148 x 55 x 21°
Cd/Im:
0.5
Download

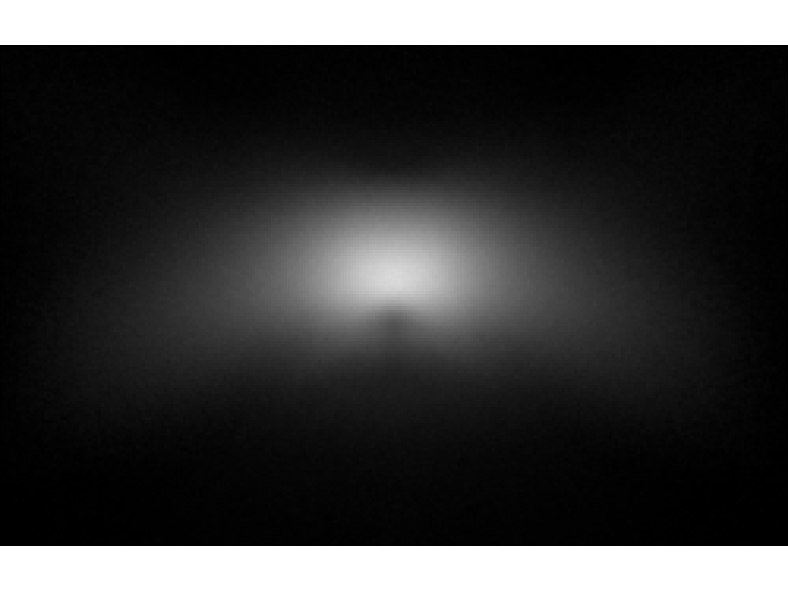

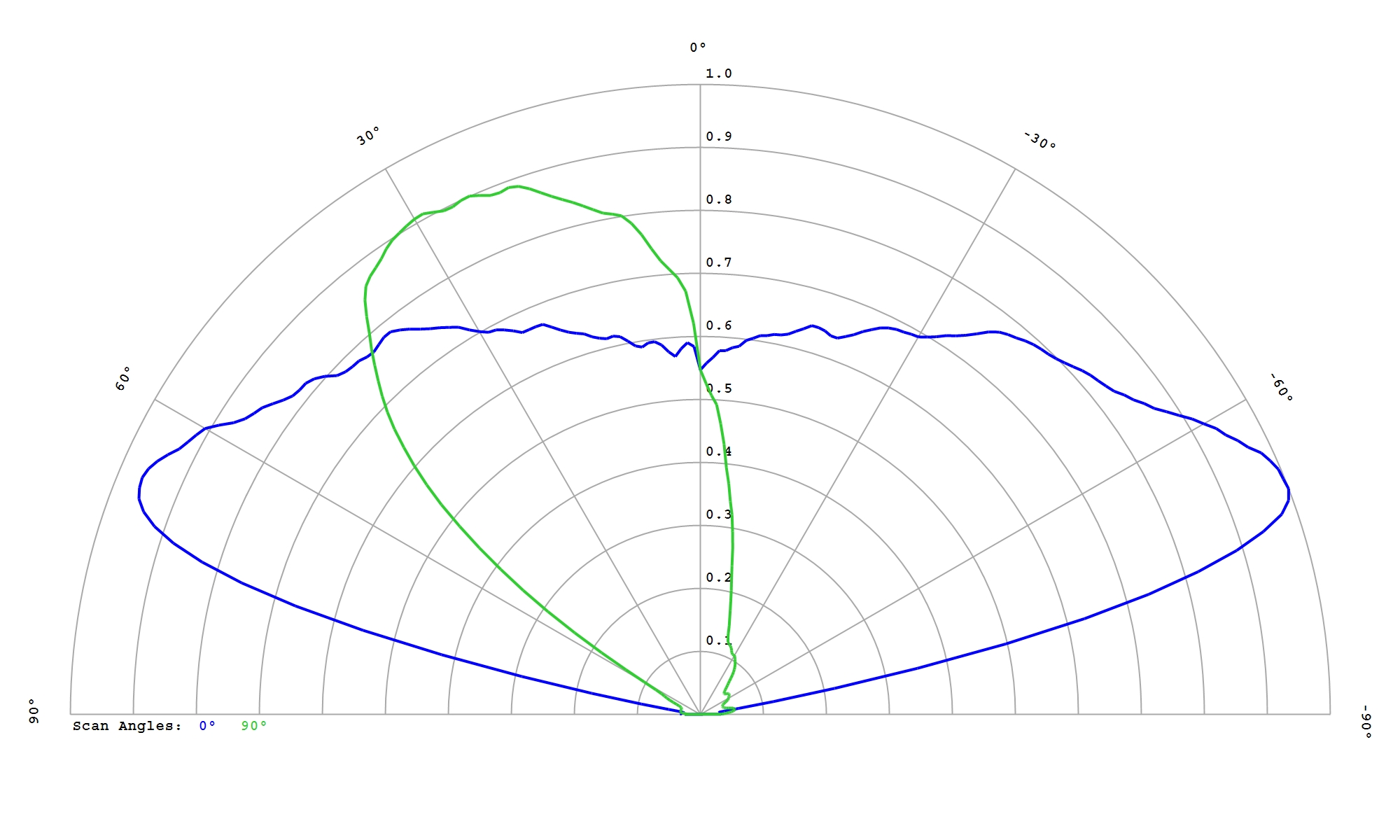

Cree JB3030C 3V E-Class White
Eff:
94.5%
FWHM:
153 x 57 x 30°
Cd/Im:
0.4
Download

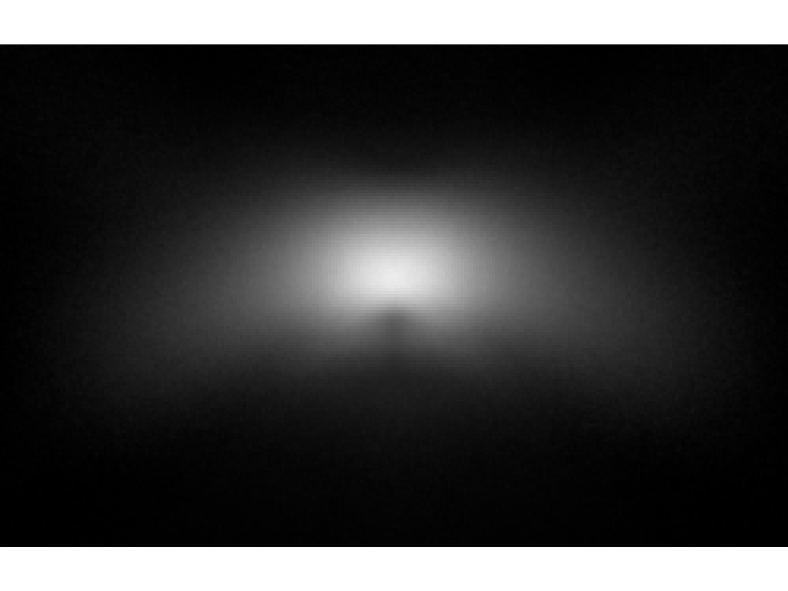

Cree JB3030C 3V F-Class White
Eff:
94.5%
FWHM:
153 x 56 x 30°
Cd/Im:
0.5
Download
Cree JE2835 3V PC Amber
Eff:
94.5%
FWHM:
154 x 58 x 36°
Cd/Im:
0.5
Download

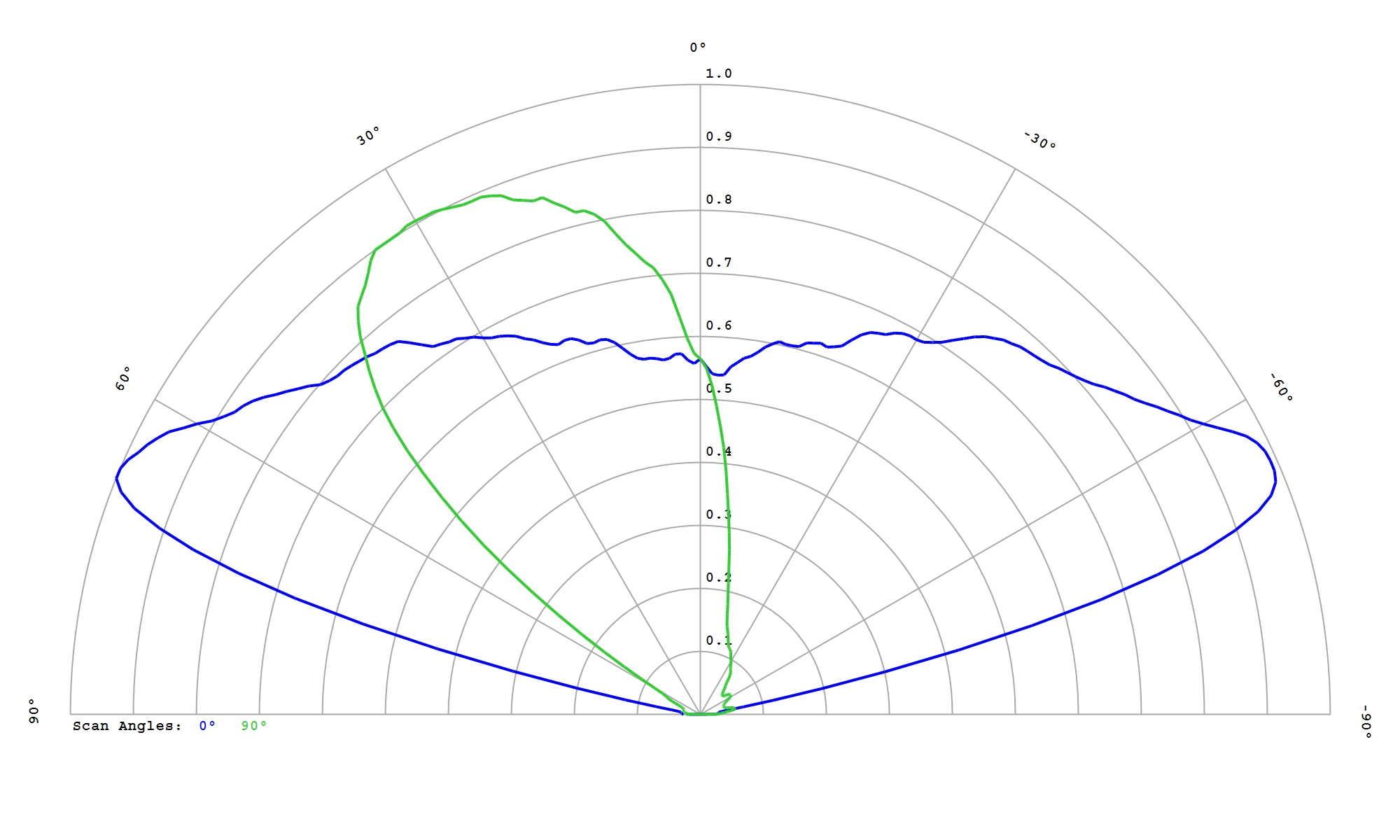

Cree JE2835 3V White
Eff:
94.5%
FWHM:
151 x 56 x 29°
Cd/Im:
0.4
Download
Cree JK2835 6V White
Eff:
94.0%
FWHM:
151 x 56 x 34°
Cd/Im:
0.5
Download
Cree XLamp CSP XD16 Cool White
Eff:
91.0%
FWHM:
151 x 58 x 34°
Cd/Im:
0.5
Download
Cree XLamp CSP XD16 Premium White
Eff:
93.5%
FWHM:
152 x 55 x 36°
Cd/Im:
0.5
Download
Cree XLamp XB-D PC Amber
Eff:
91.5%
FWHM:
157 x 59 x 32°
Cd/Im:
0.4
Download
Cree XLamp XB-D White
Eff:
87.0%
FWHM:
153x55x25°
Cd/Im:
0.4
Download
Cree XLamp XB-H White
Eff:
93.0%
FWHM:
154 x 55°
Cd/Im:
0.5
Download
Cree XLamp XE-G PC Amber
Eff:
91.5%
FWHM:
158 x 57 x 38°
Cd/Im:
0.5
Download
Cree XLamp XE-G White
Eff:
91.5%
FWHM:
157 x 57 x 36°
Cd/Im:
0.5
Download
Cree XLamp XHP35.2 HI White
Eff:
86.5%
FWHM:
157 x 55 x 25°
Cd/Im:
0.4
Download

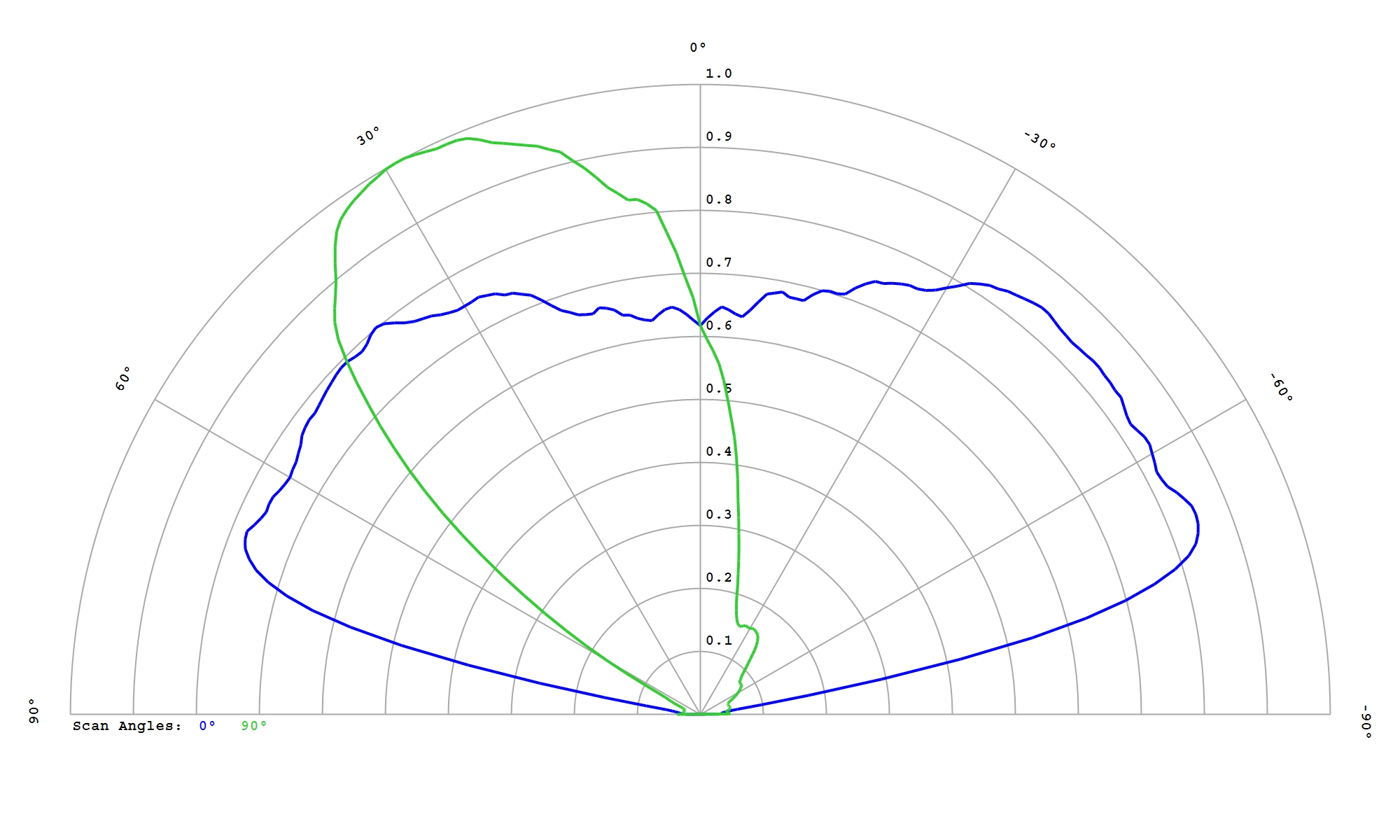

Cree XLamp XP-E2 PC Amber
Eff:
92.5%
FWHM:
156 x 57 x 29°
Cd/Im:
0.4
Download
Cree XLamp XP-G2 White
Eff:
89.0%
FWHM:
158x60x30°
Cd/Im:
0.4
Download
Cree XLamp XP-G3 White 1800K
Eff:
91.0%
FWHM:
158 x 59 x 30°
Cd/Im:
0.4
Download
Cree XLamp XP-L HI White
Eff:
87.9%
FWHM:
155.8 x 53.6 x 30°
Cd/Im:
0.4
Download

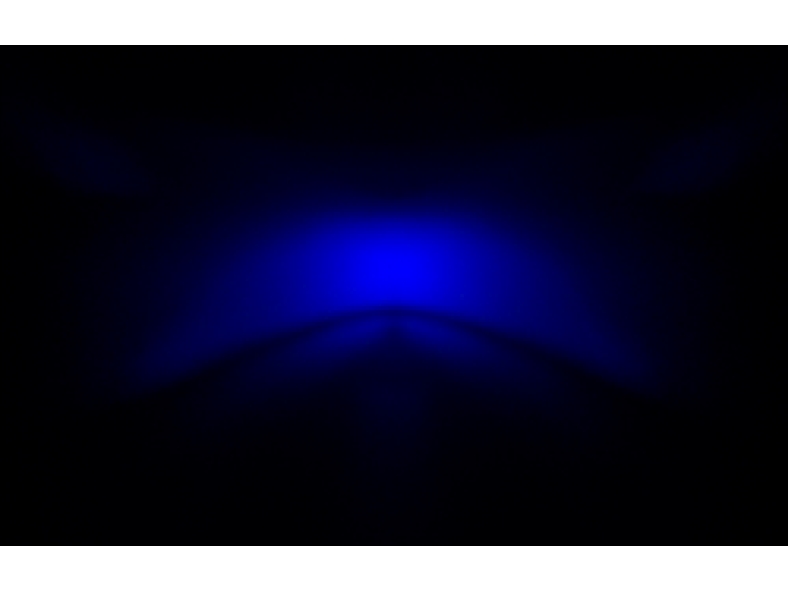

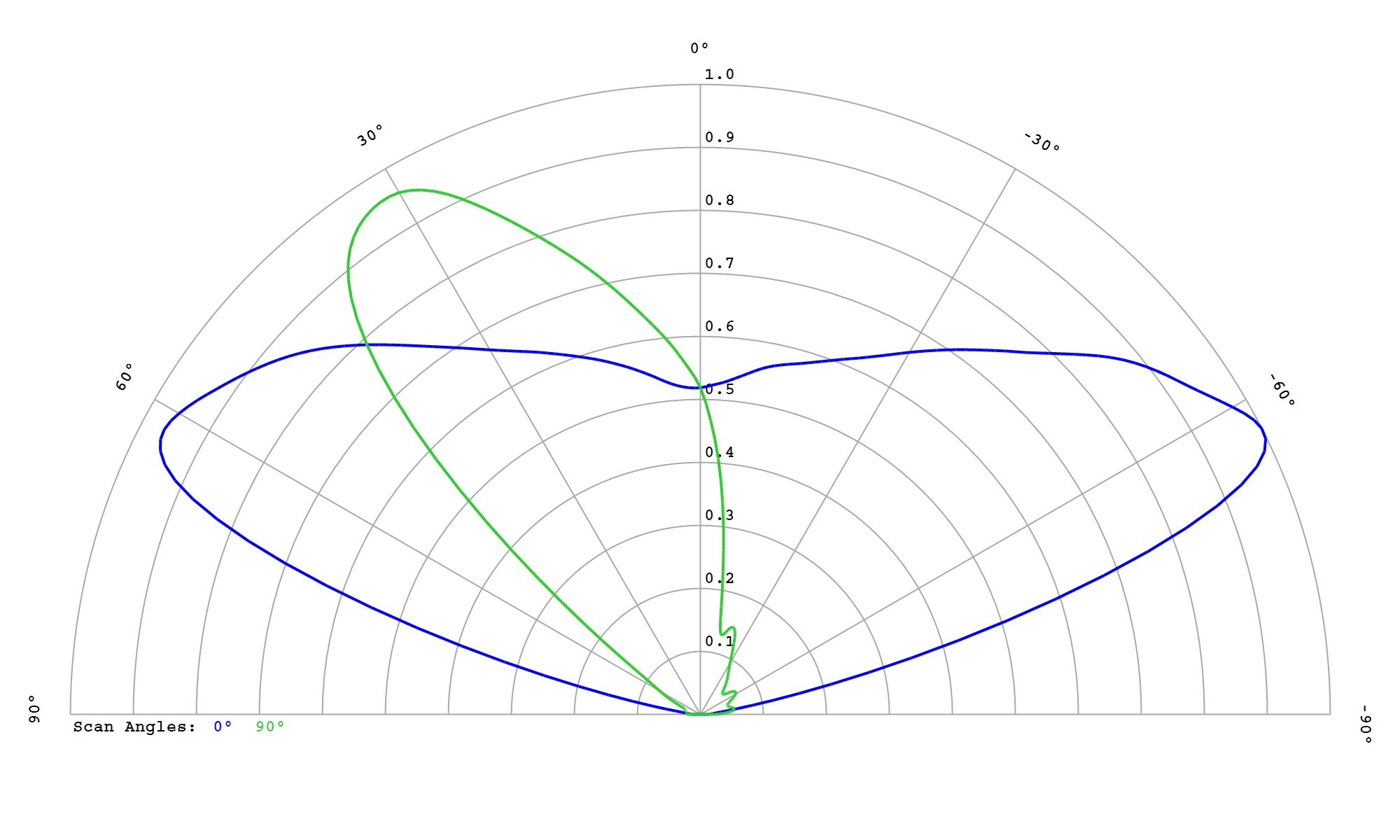

Cree XLamp XQ-A Blue
Eff:
94.5%
FWHM:
139 x 47 x 36°
Cd/Im:
0.6
Download

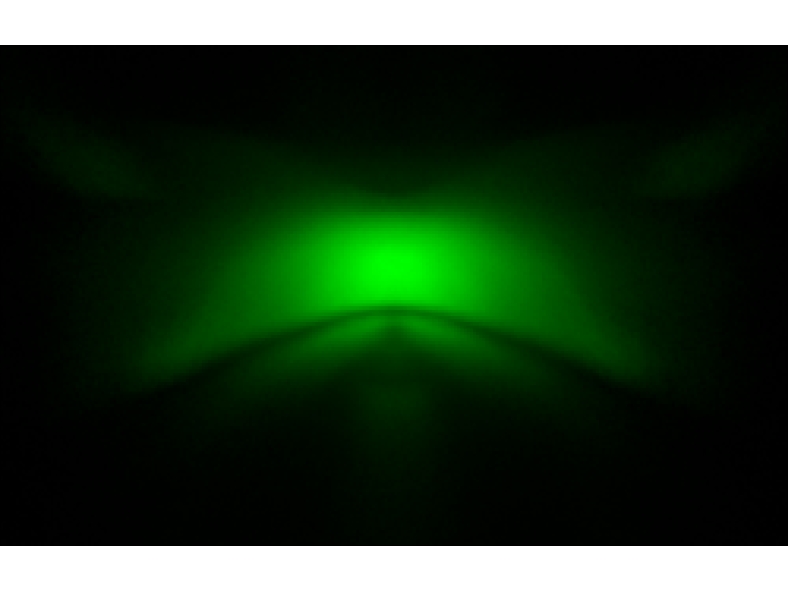

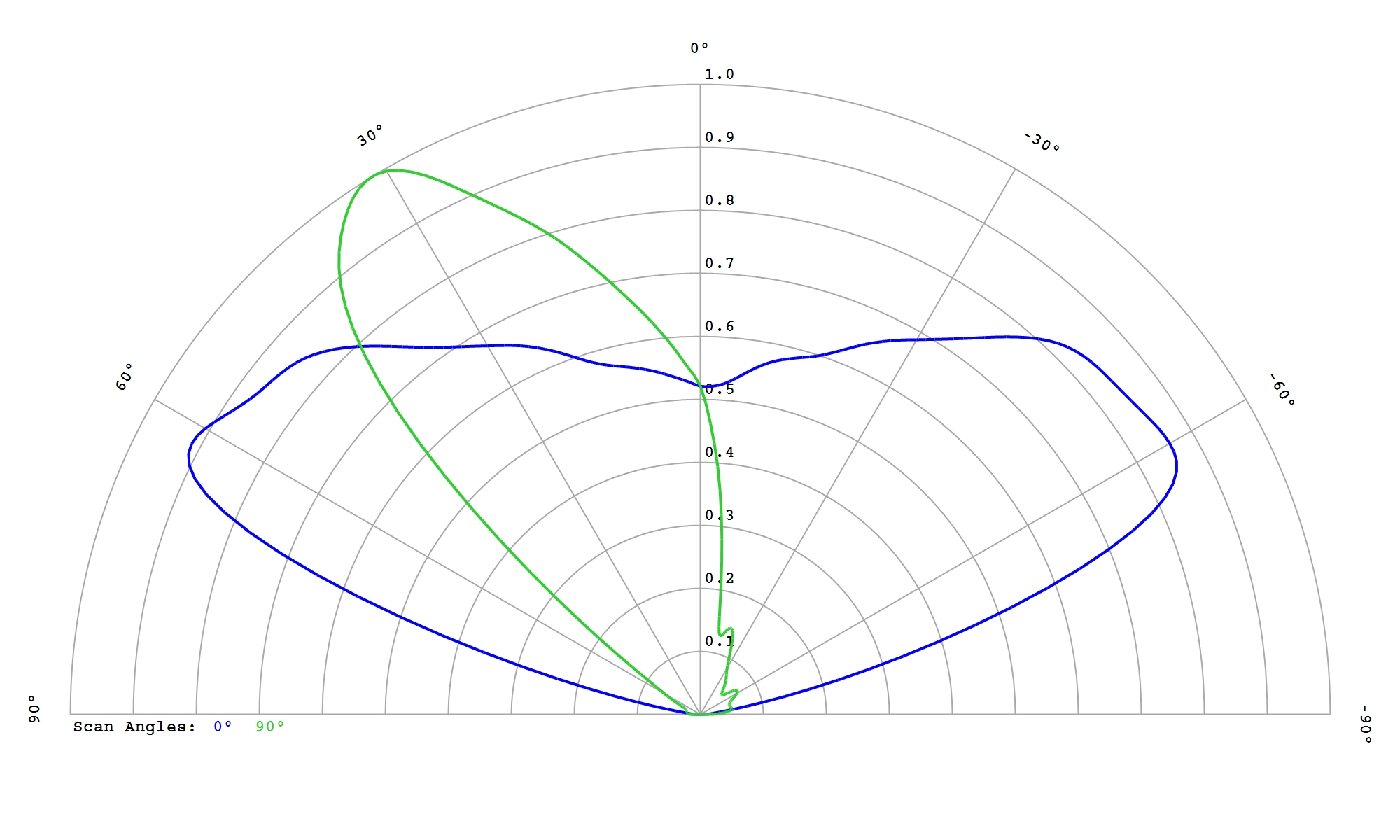

Cree XLamp XQ-A Green
Eff:
93.5%
FWHM:
141 x 40 x 33°
Cd/Im:
0.6
Download

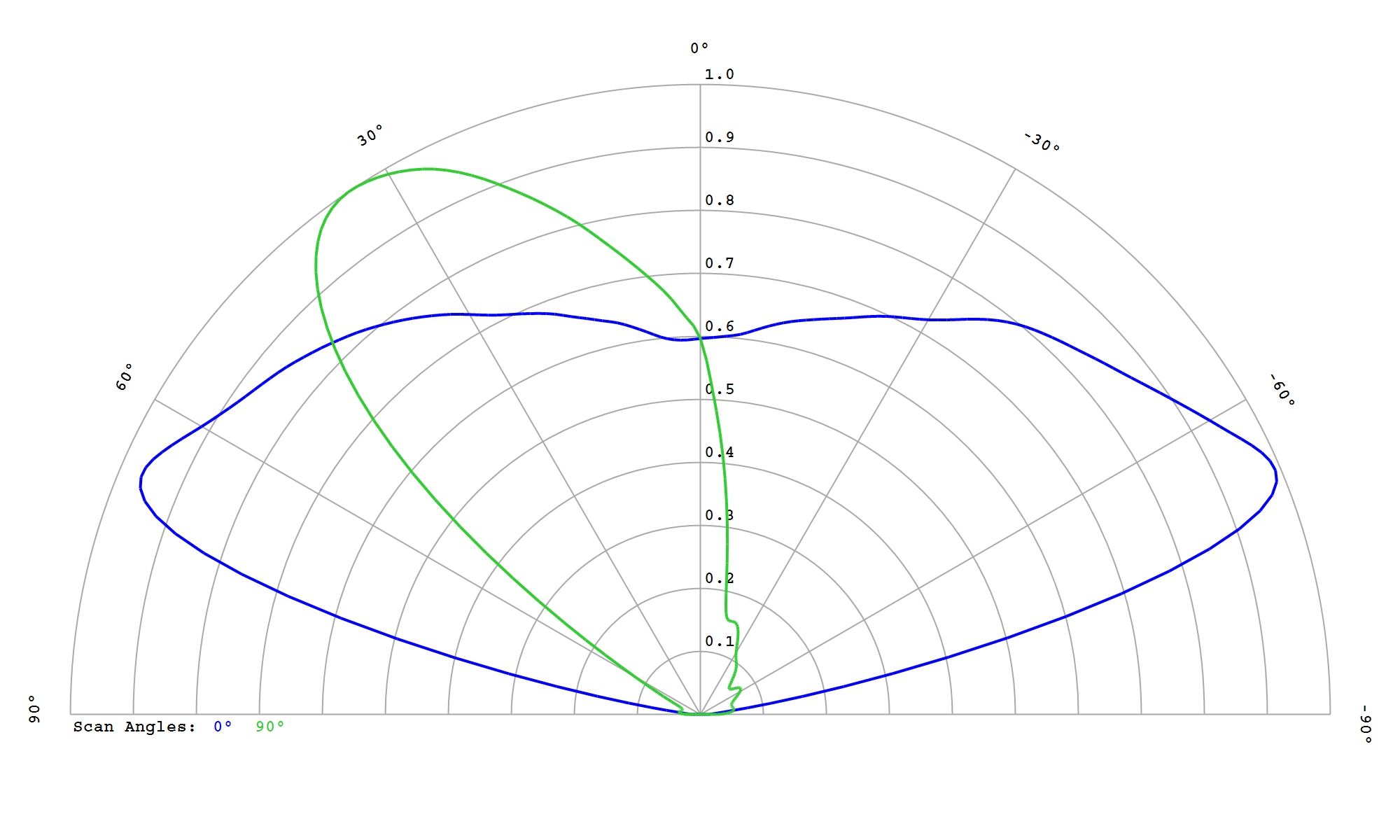

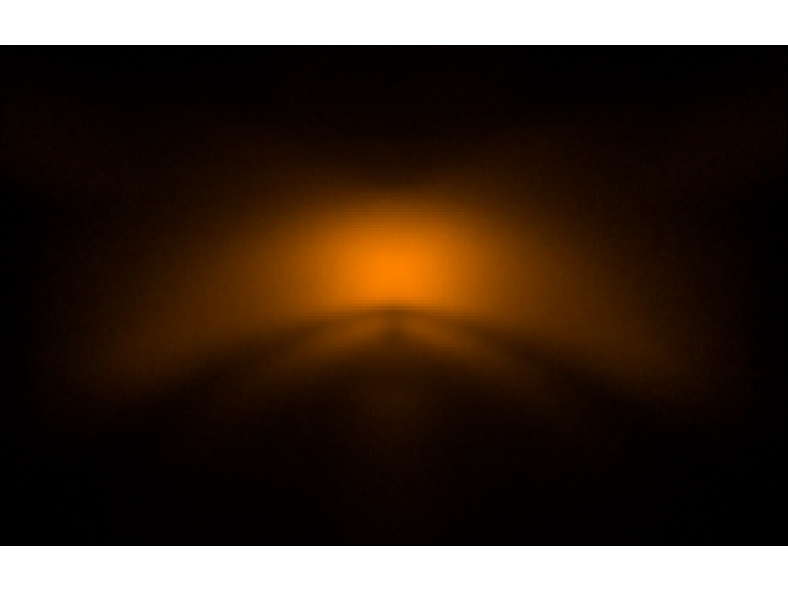

Cree XLamp XQ-A PC Amber
Eff:
93.0%
FWHM:
146 x 51 x 34°
Cd/Im:
0.5
Download

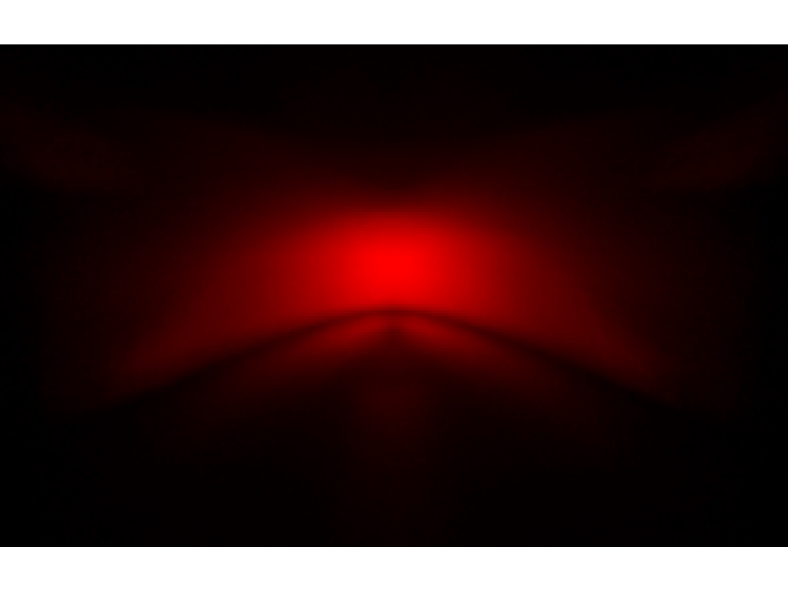

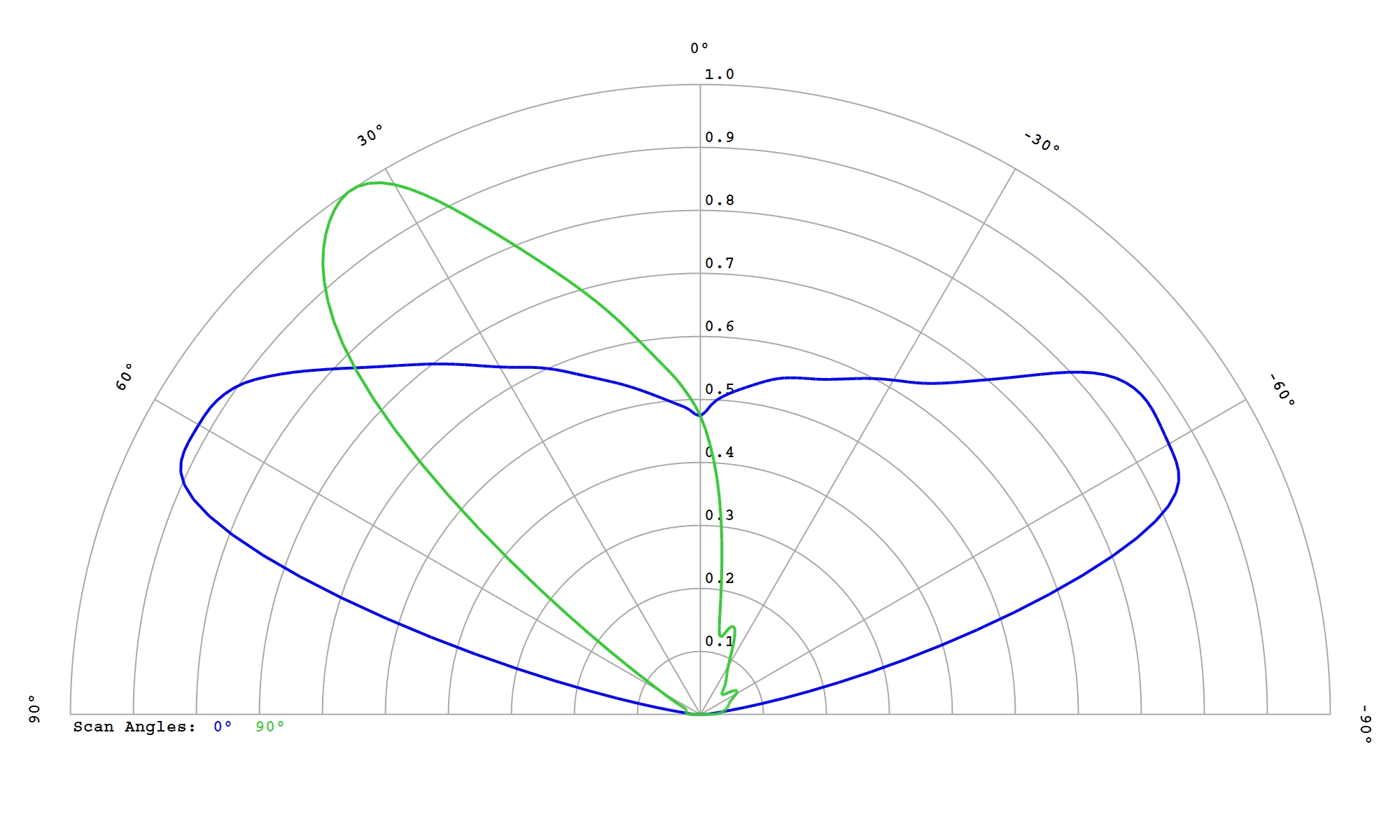

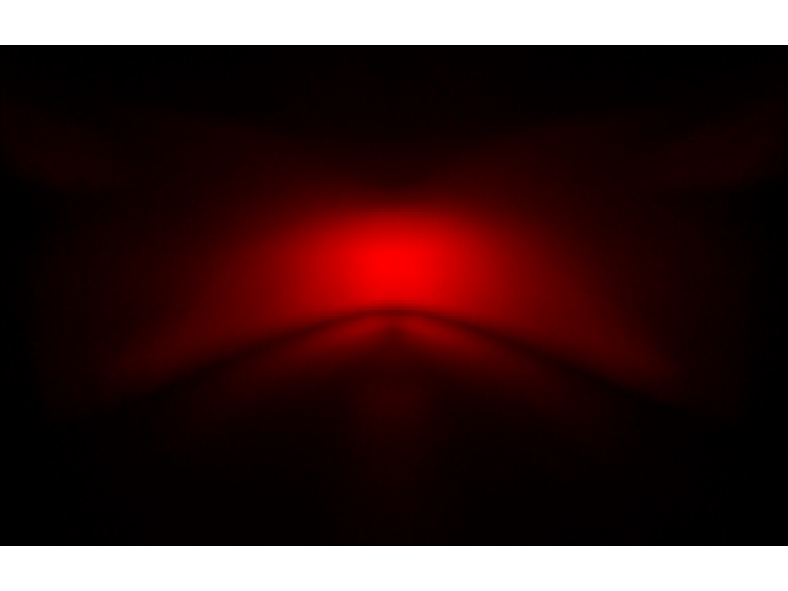

Cree XLamp XQ-A Red
Eff:
94.0%
FWHM:
143 x 48.5 x 34°
Cd/Im:
0.6
Download
Cree XLamp XQ-A Red
Eff:
94.0%
FWHM:
143 x 48.5 x 34°
Cd/Im:
0.6
Download

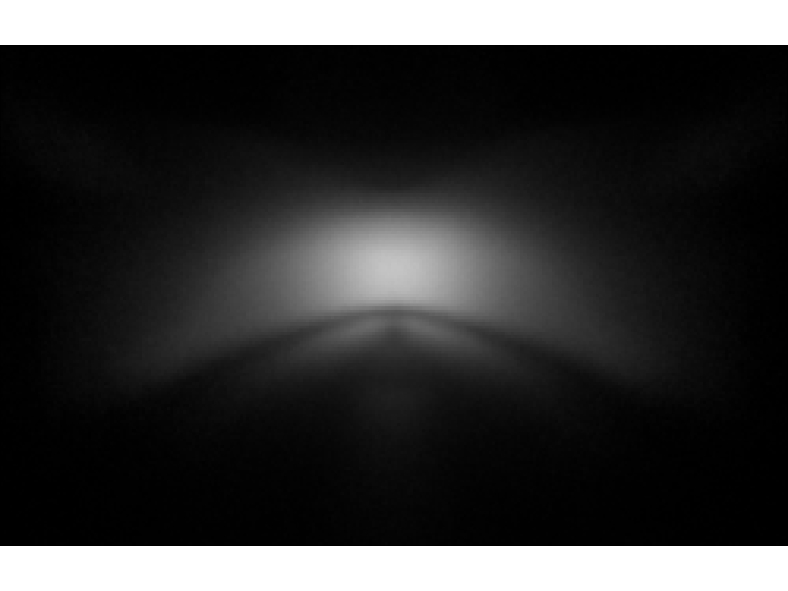

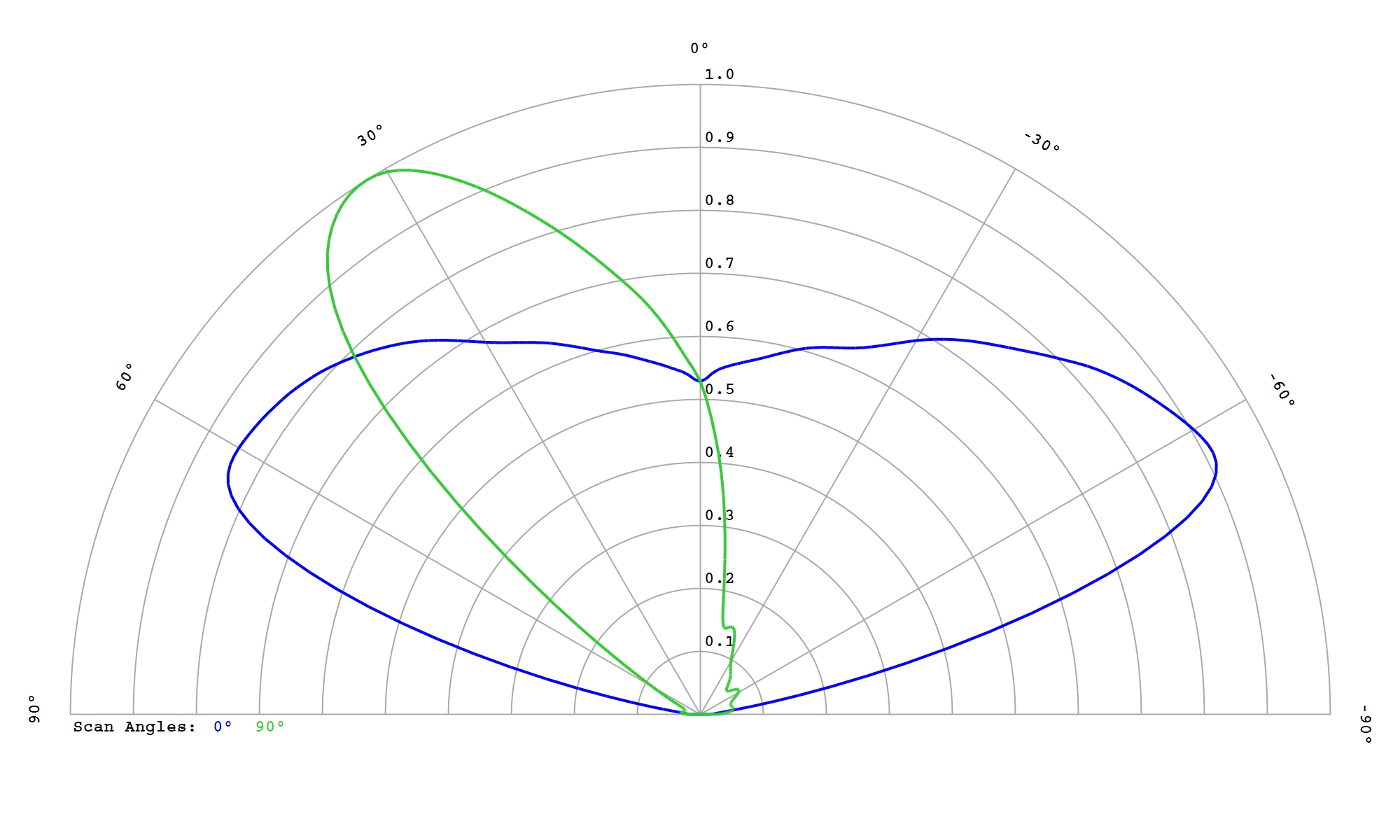

Cree XLamp XQ-A White
Eff:
93.5%
FWHM:
141 x 49 x 33°
Cd/Im:
0.6
Download

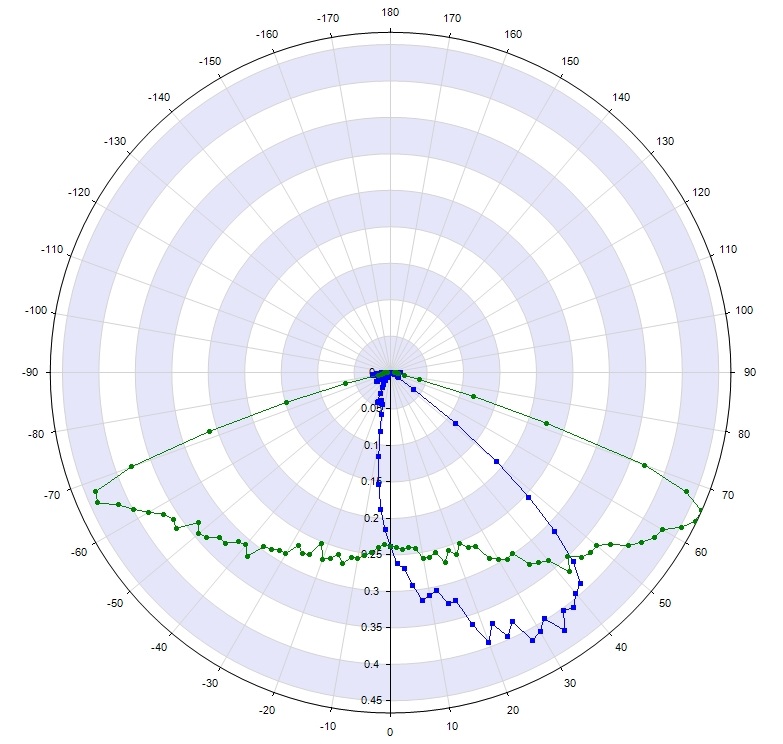

Cree XLamp XQ-E HD PC Amber
Eff:
92.5%
FWHM:
153 x 58 x 40°
Cd/Im:
0.5
Download

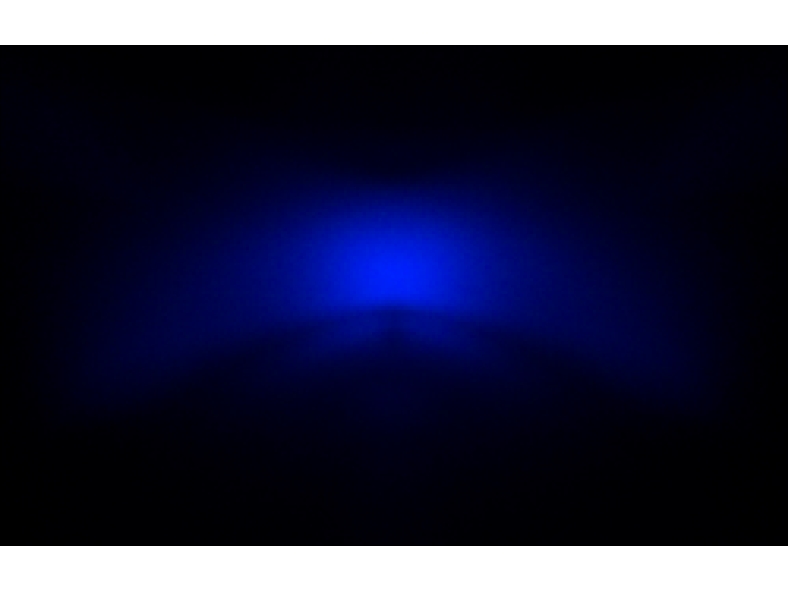

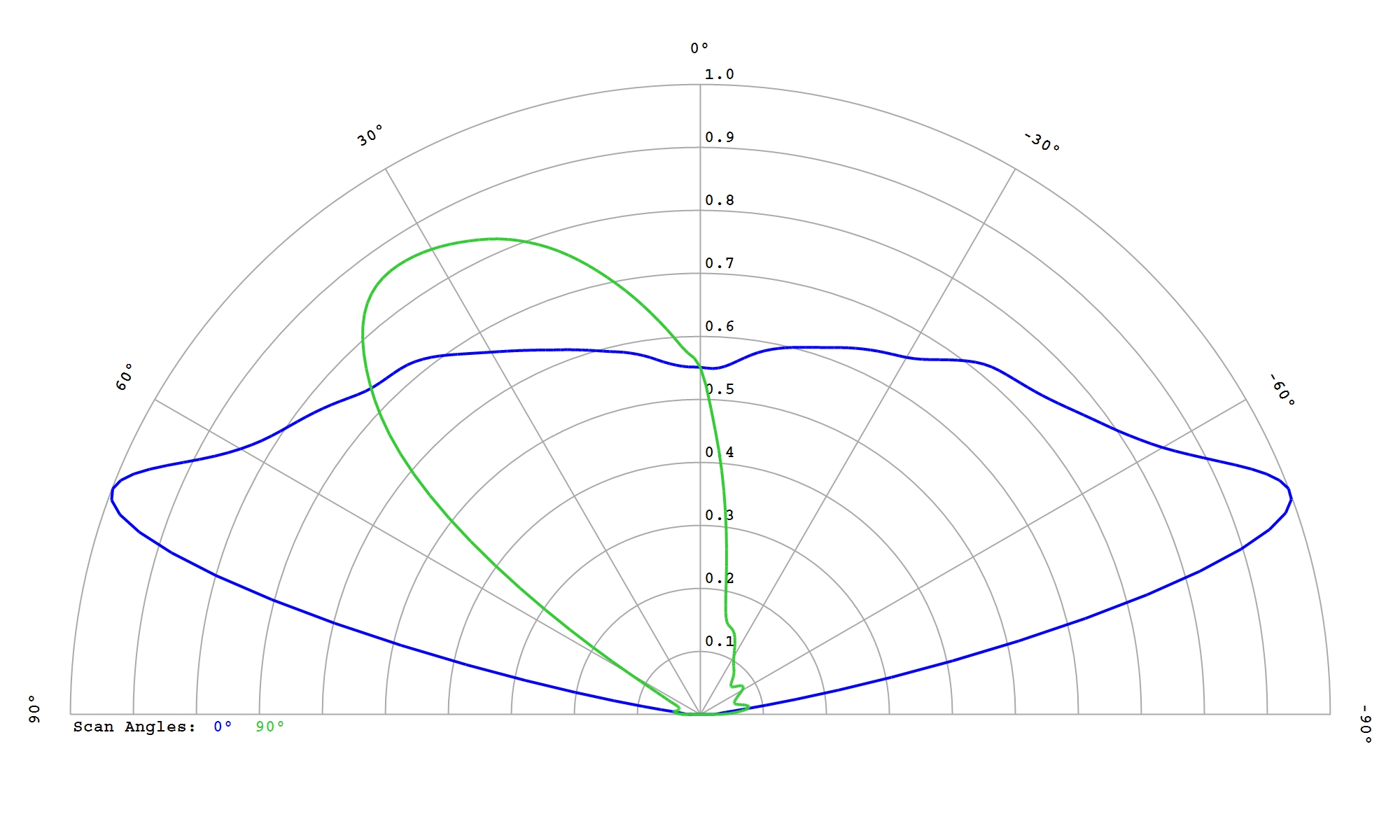

Cree XLamp XQ-E HI Blue
Eff:
93.5%
FWHM:
153 X 57 X 40°
Cd/Im:
0.6
Download

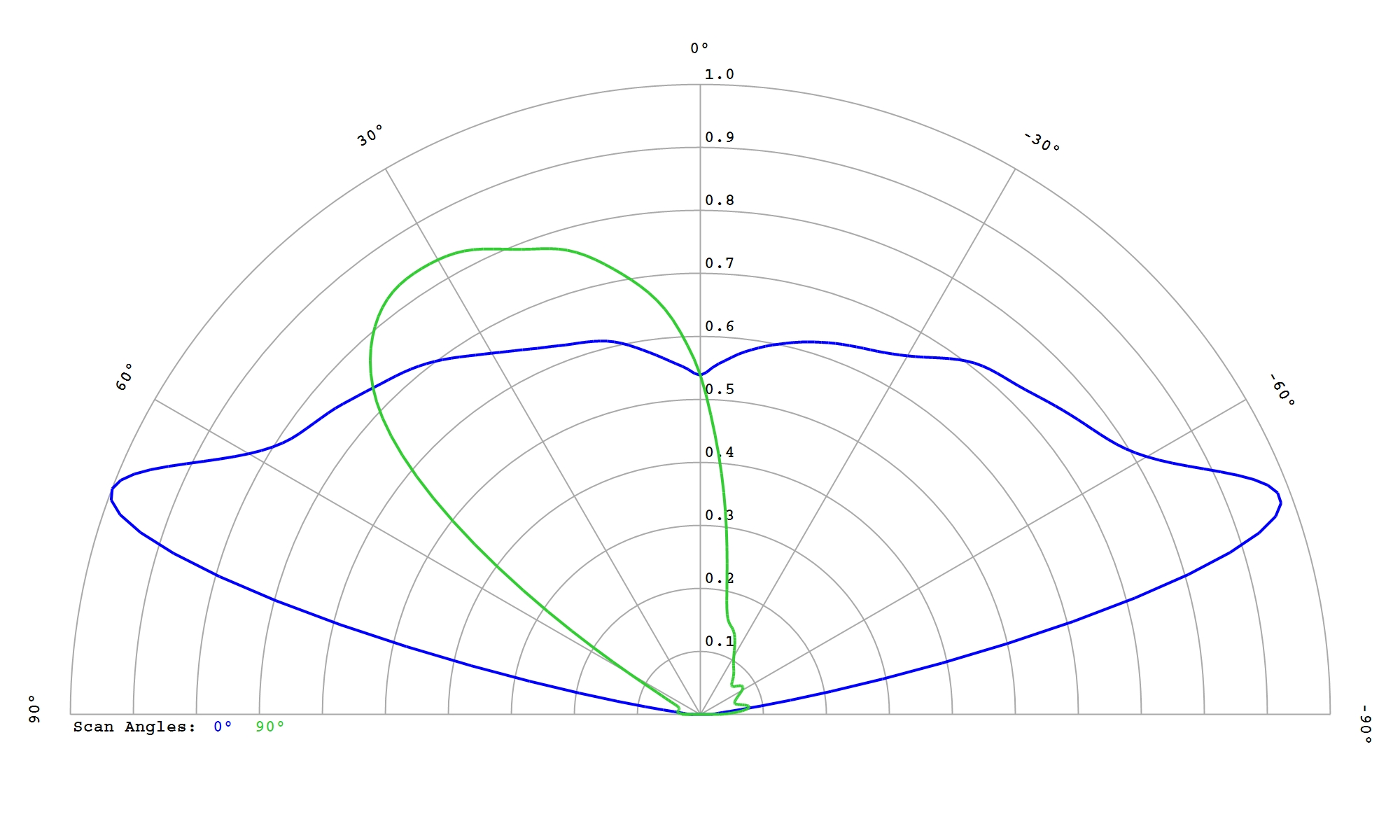

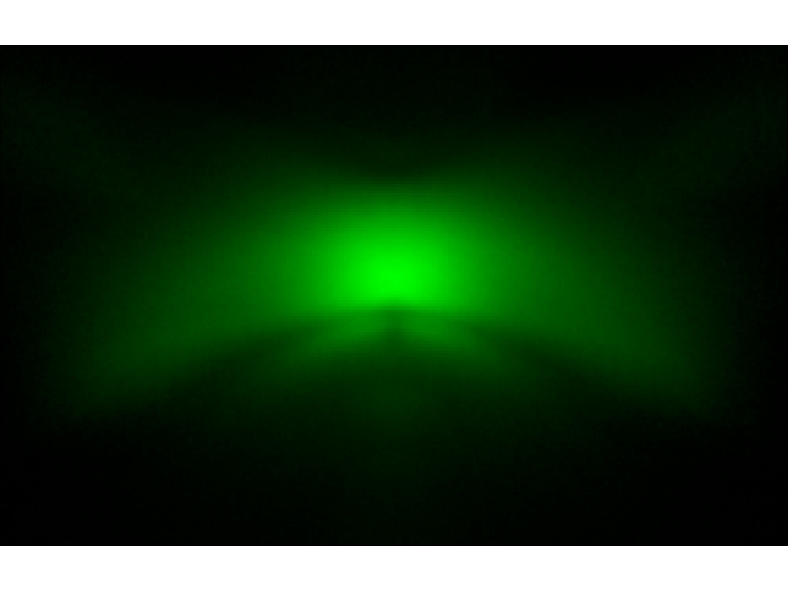

Cree XLamp XQ-E HI Green
Eff:
91.5%
FWHM:
152 x 56 x 39°
Cd/Im:
0.6
Download

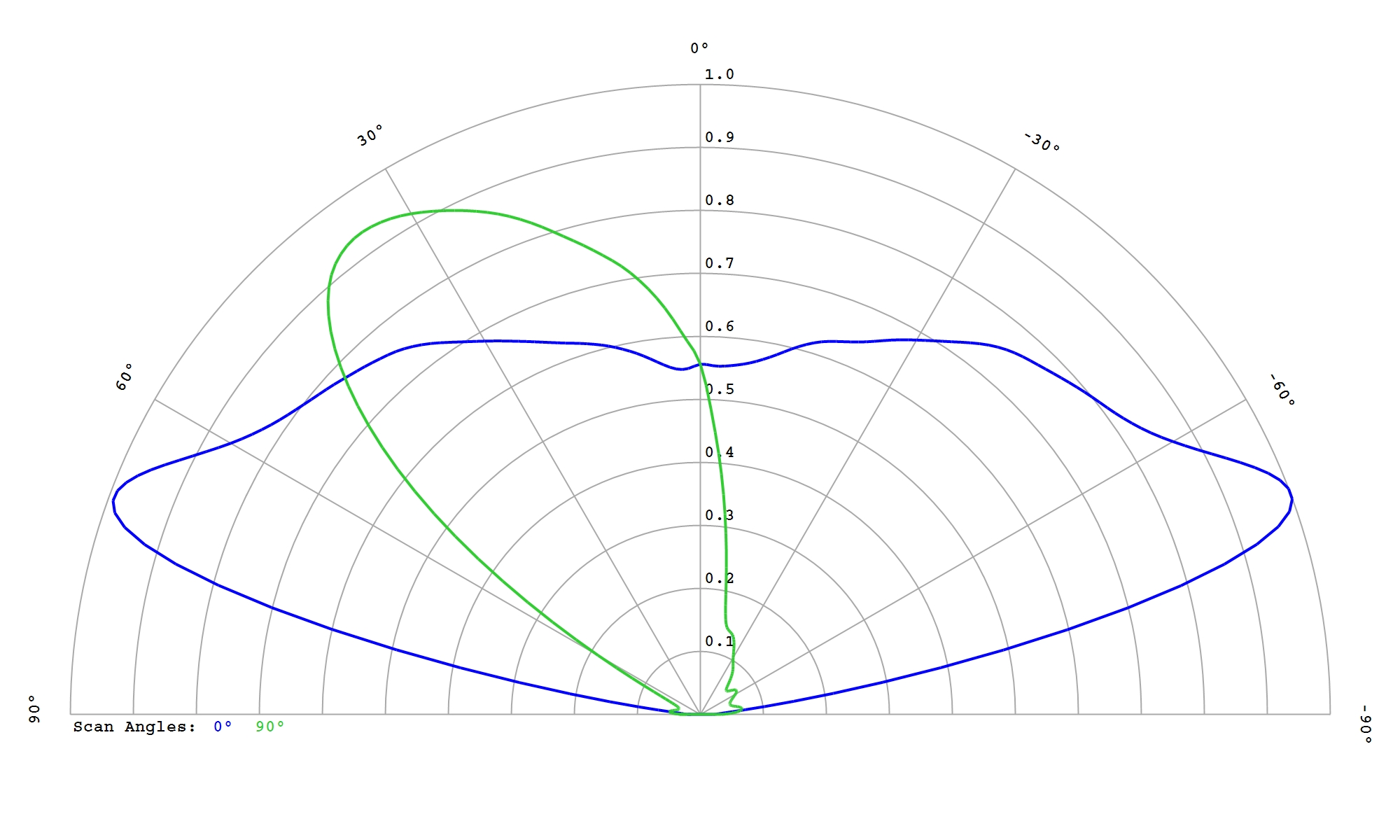

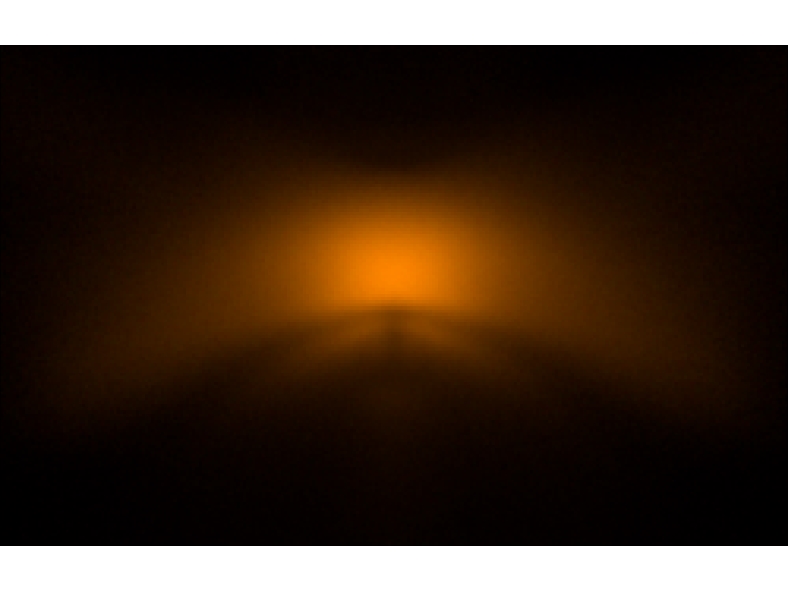

Cree XLamp XQ-E HI PC Amber
Eff:
93.5%
FWHM:
155 x 57 x 35°
Cd/Im:
0.6
Download
Cree XLamp XQ-E HI Red
Eff:
39.0%
FWHM:
151 x 56 x 37°
Cd/Im:
0.5
Download

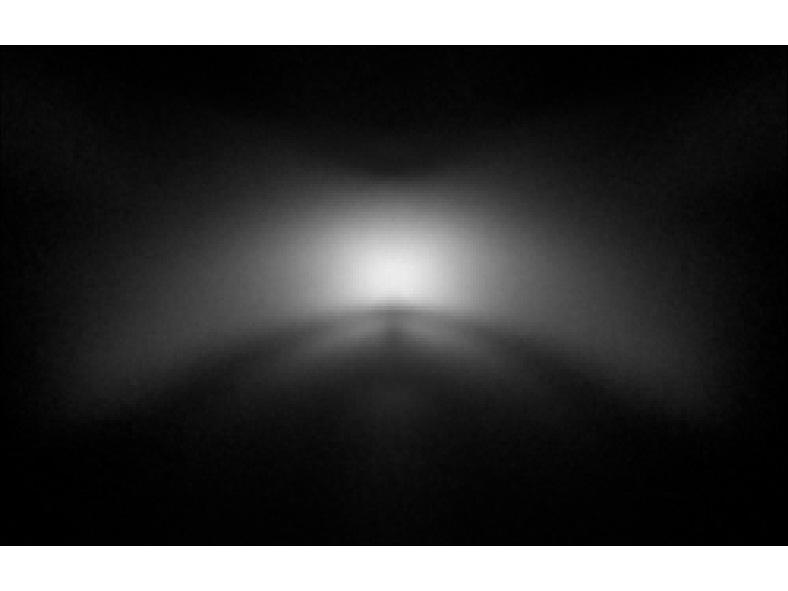

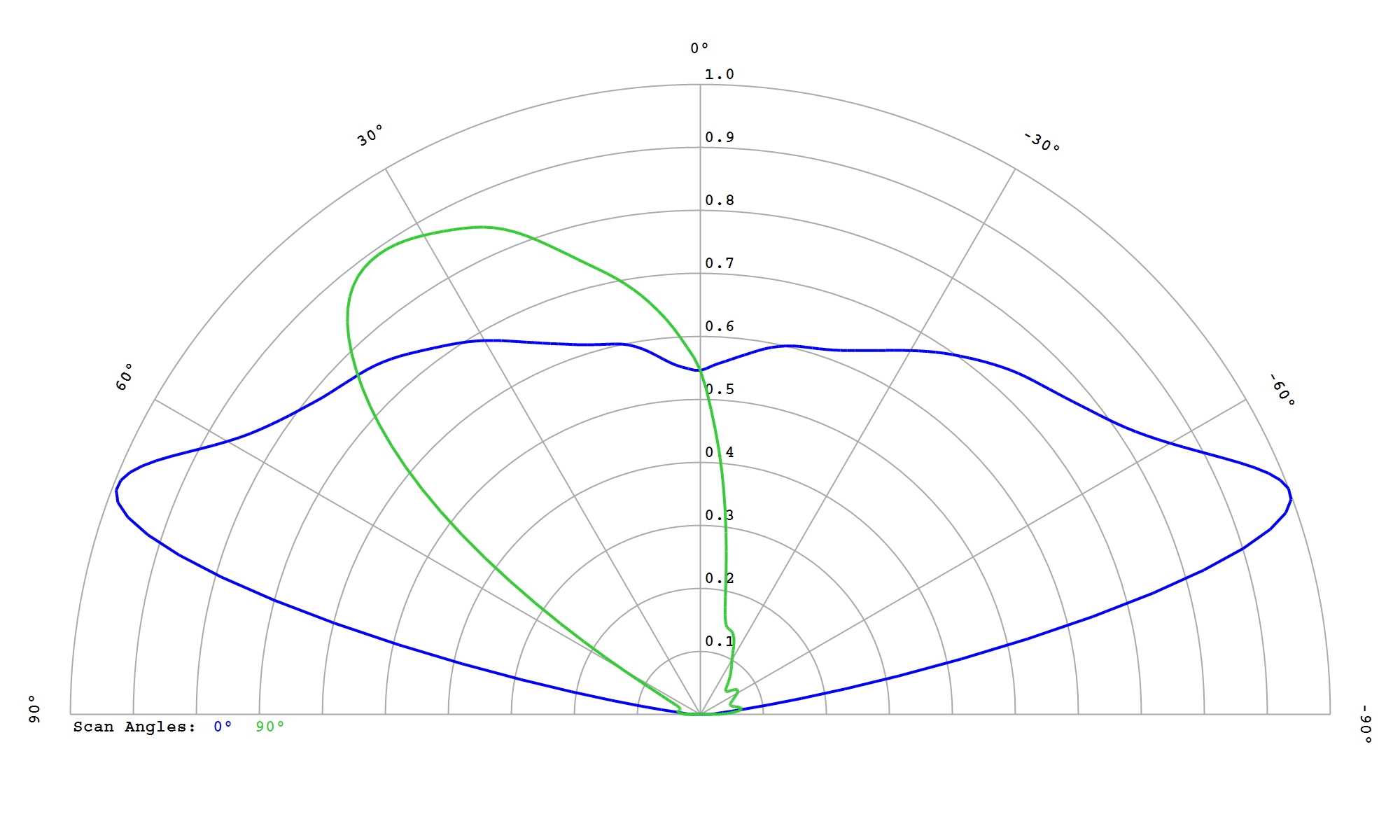

Cree XLamp XQ-E HI White
Eff:
86.0%
FWHM:
150 x 52.2 x 39°
Cd/Im:
0.6
Download
Cree XLamp XQ-E HD White
Eff:
88.0%
FWHM:
144x54x32°
Cd/Im:
0.5
Download
Cree XLamp XT-E White
Eff:
86.0%
FWHM:
152x53x25°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 2835 PC Amber
Eff:
94.5%
FWHM:
151 x 55 x 33°
Cd/Im:
0.5
Download

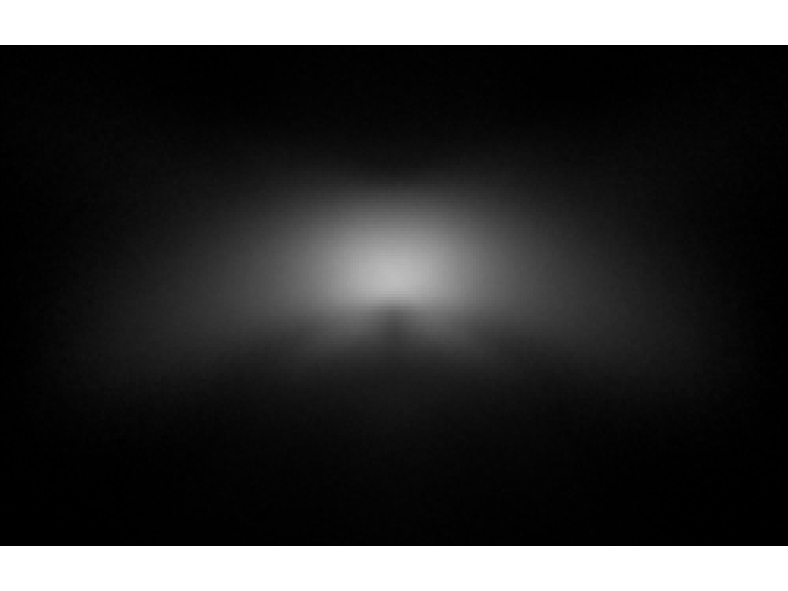

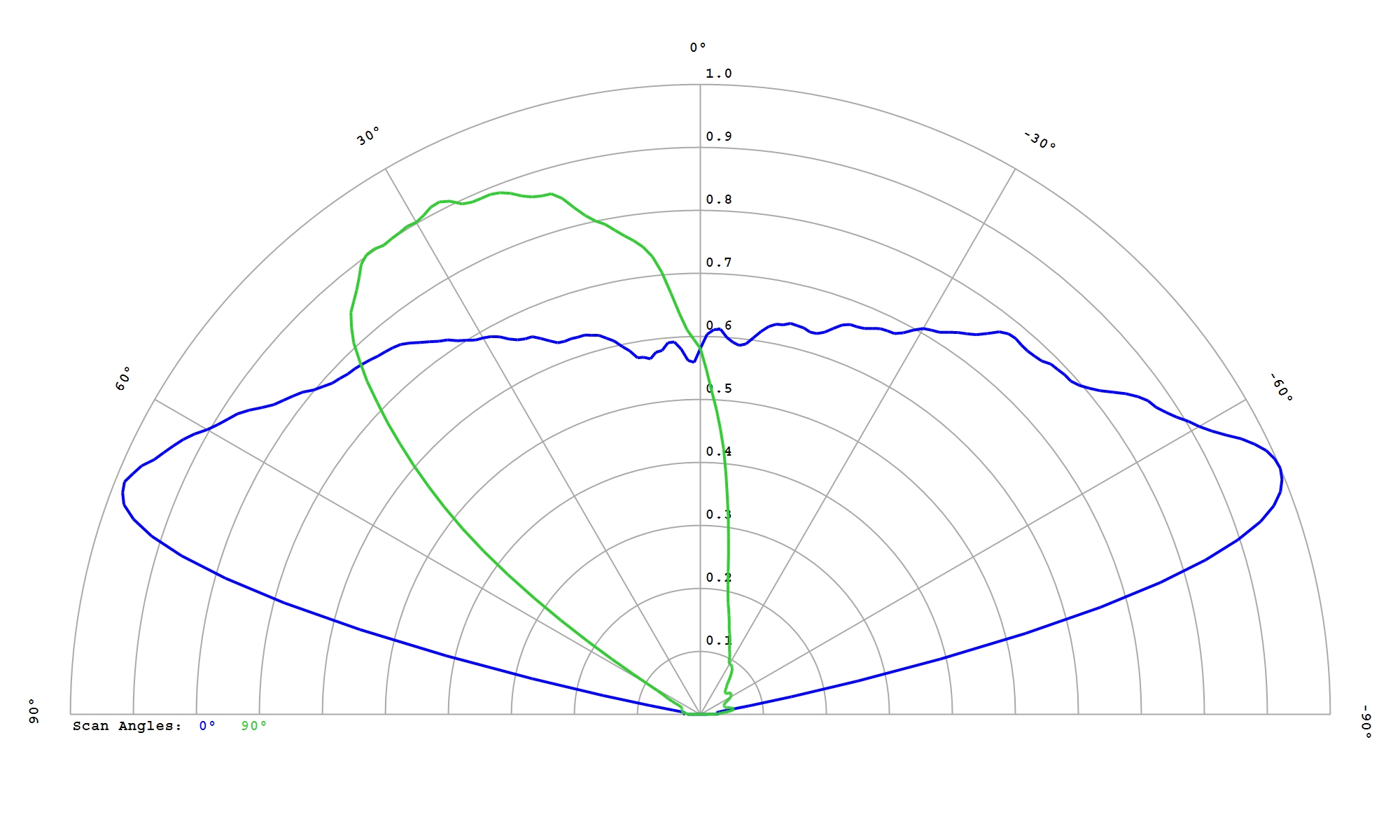

LUMILEDS LUXEON 2835C 6V White
Eff:
94.5%
FWHM:
153 x 57 x 27°
Cd/Im:
0.4
Download

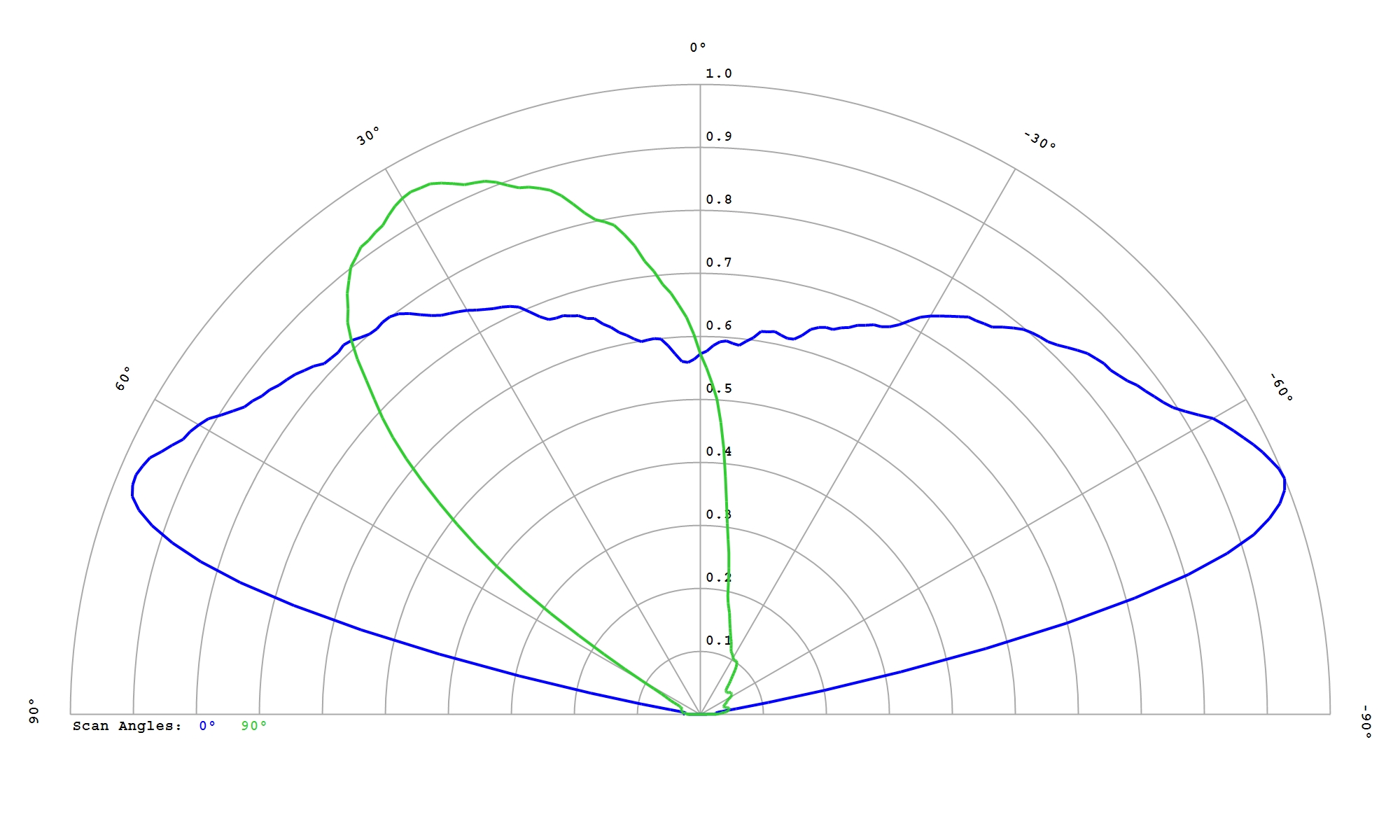

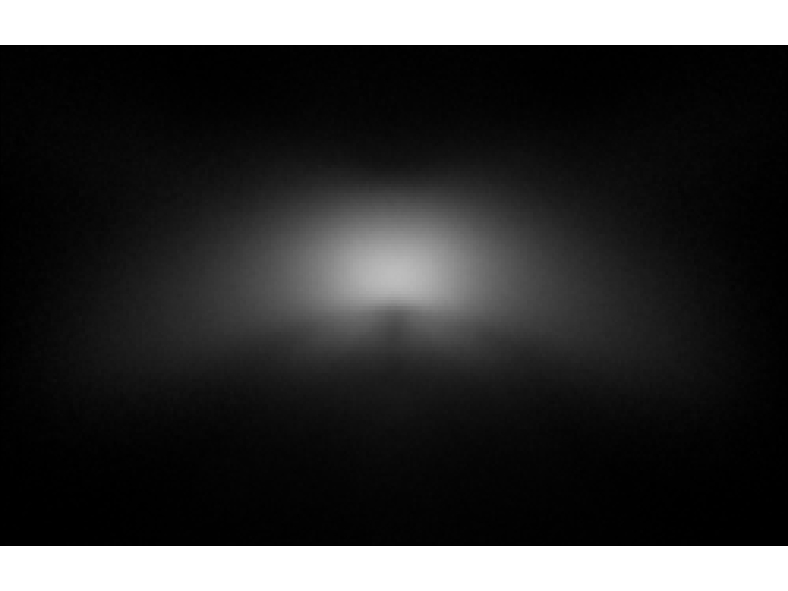

LUMILEDS LUXEON 2835E 9V White
Eff:
94.5%
FWHM:
153 x 56 x 28°
Cd/Im:
0.4
Download

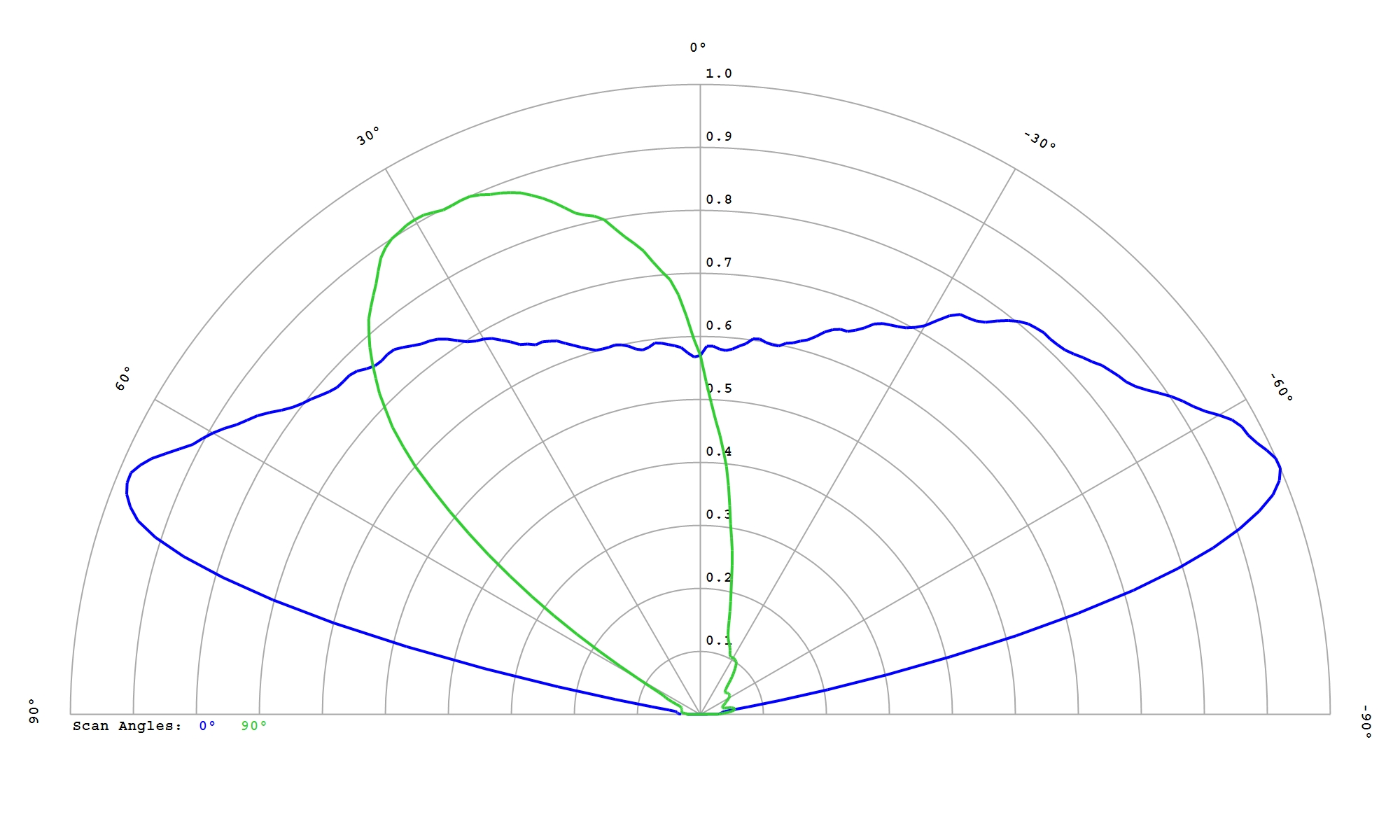

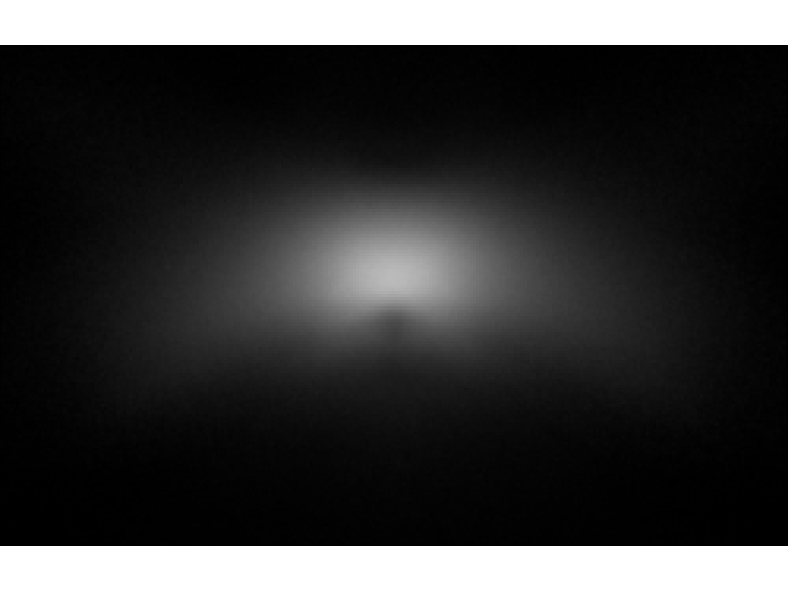

LUMILEDS LUXEON 2835N 3V White
Eff:
94.5%
FWHM:
153 x 55 x 30°
Cd/Im:
0.4
Download

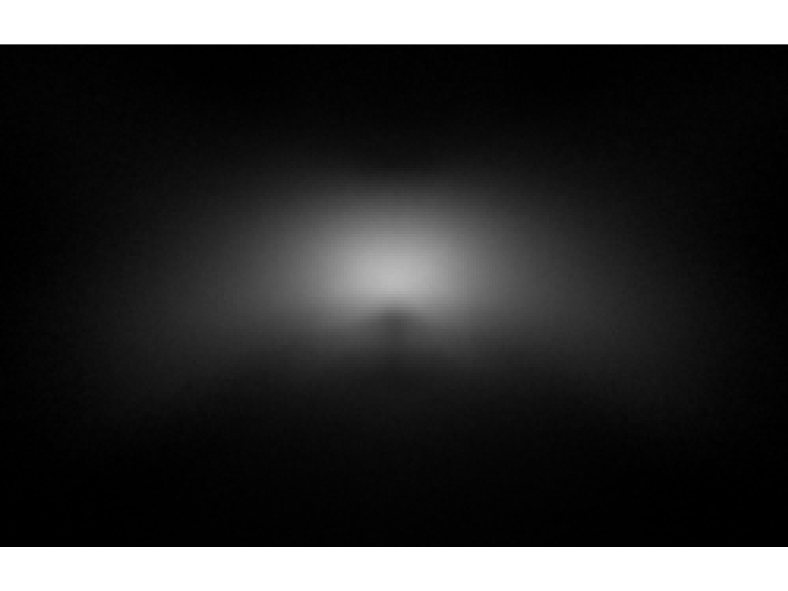

LUMILEDS LUXEON 2835S 3V White
Eff:
94.5%
FWHM:
153 x 57 x 26°
Cd/Im:
0.4
Download

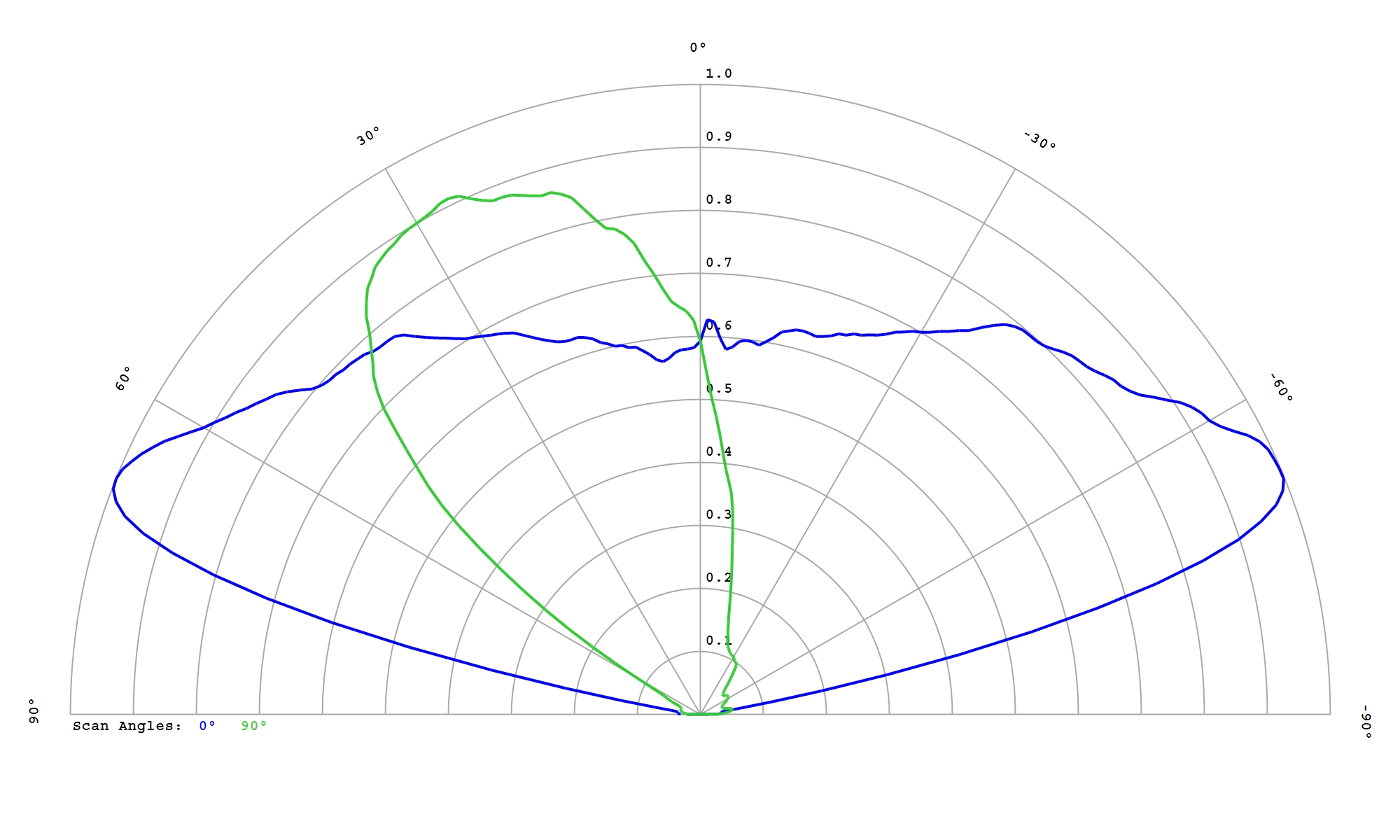

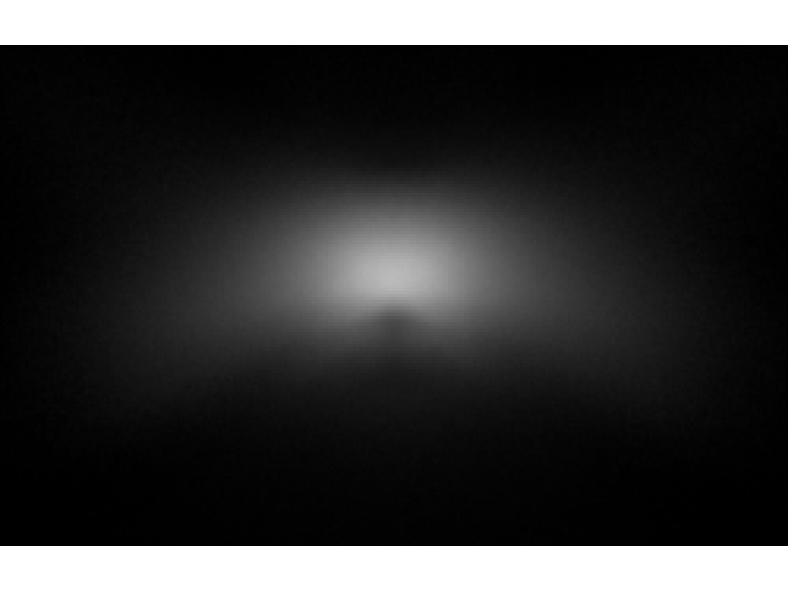

LUMILEDS LUXEON 2835S 6V White
Eff:
94.5%
FWHM:
153 x 57 x 26°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 3014 White
Eff:
94.5%
FWHM:
151 x 55 x 34°
Cd/Im:
0.5
Download

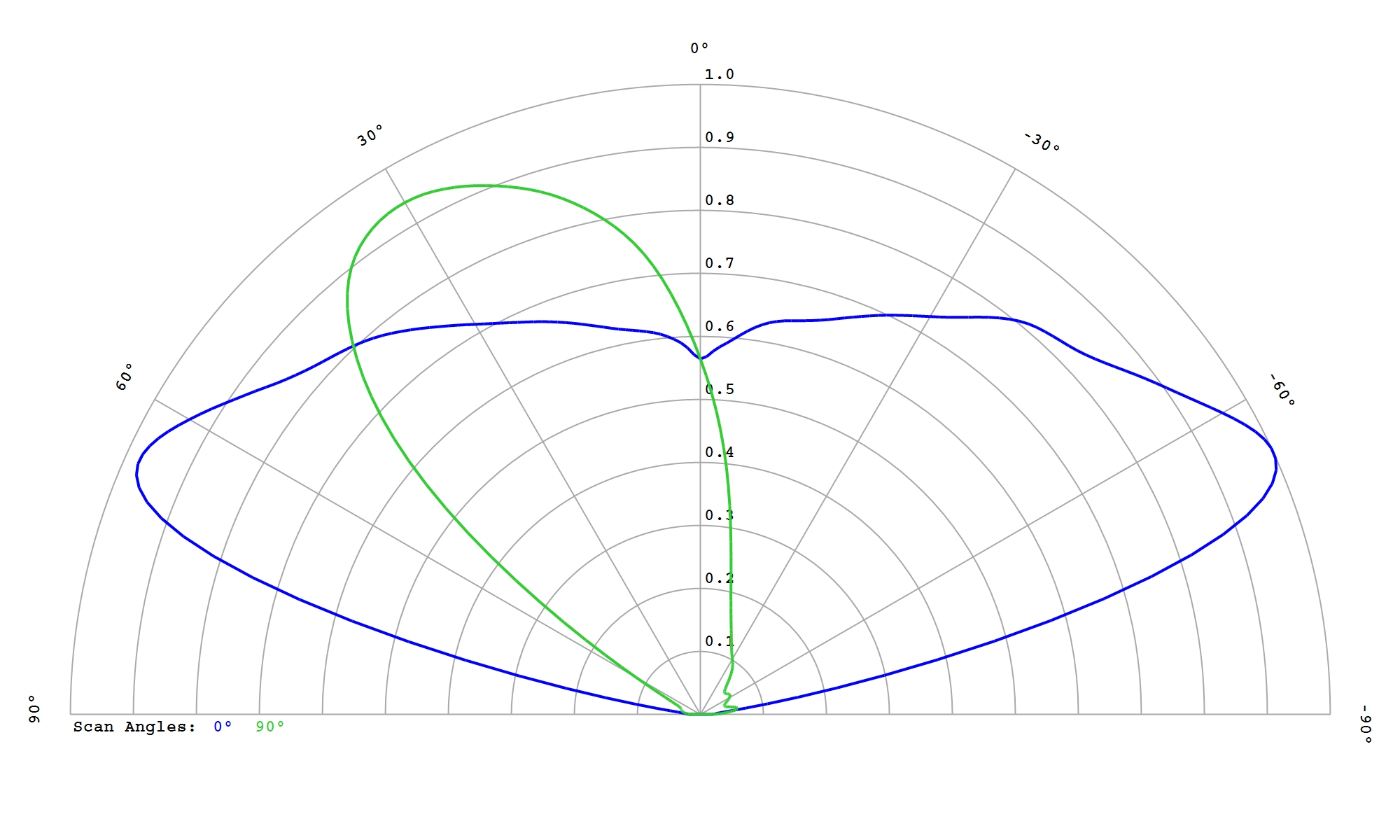

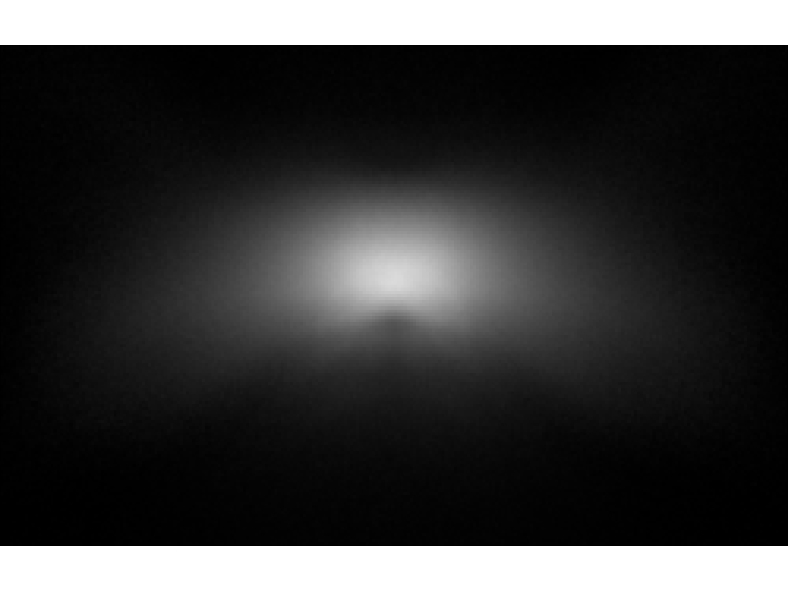

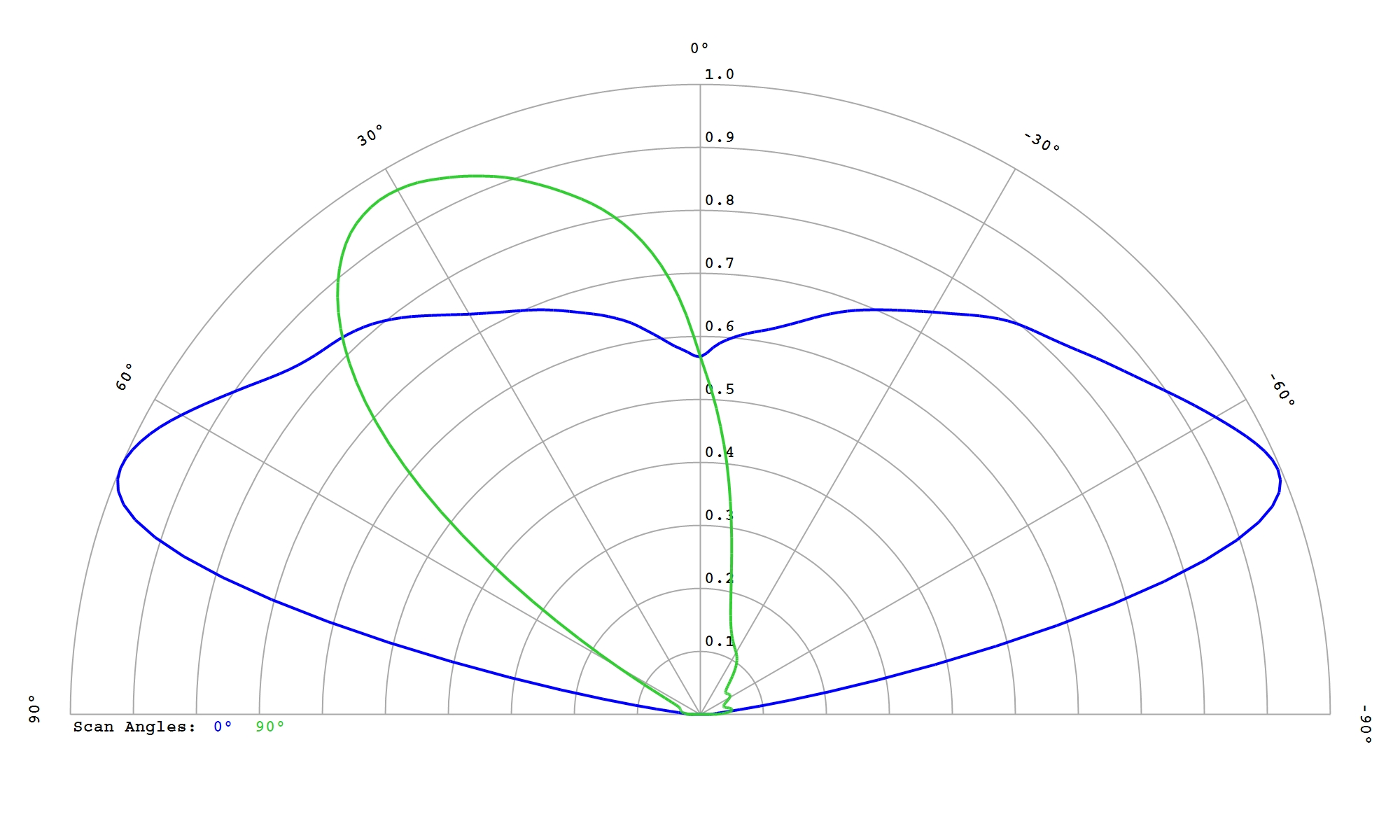

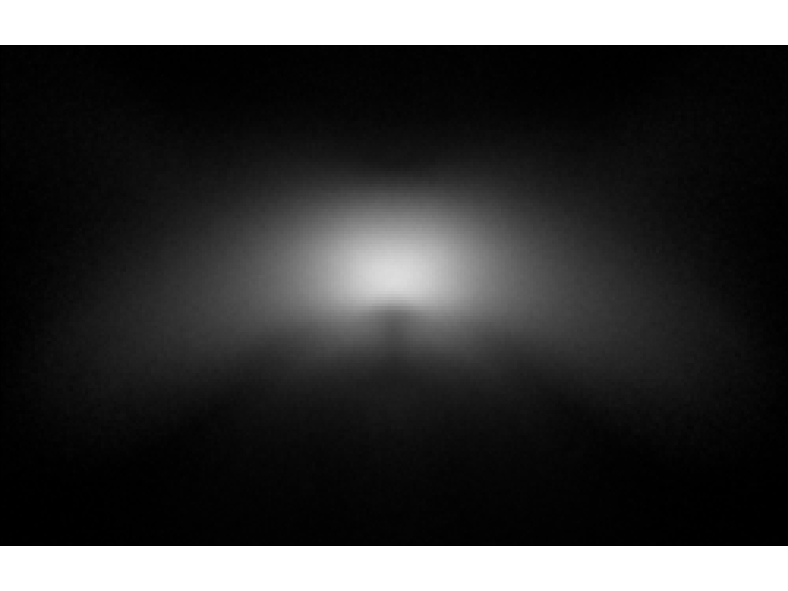

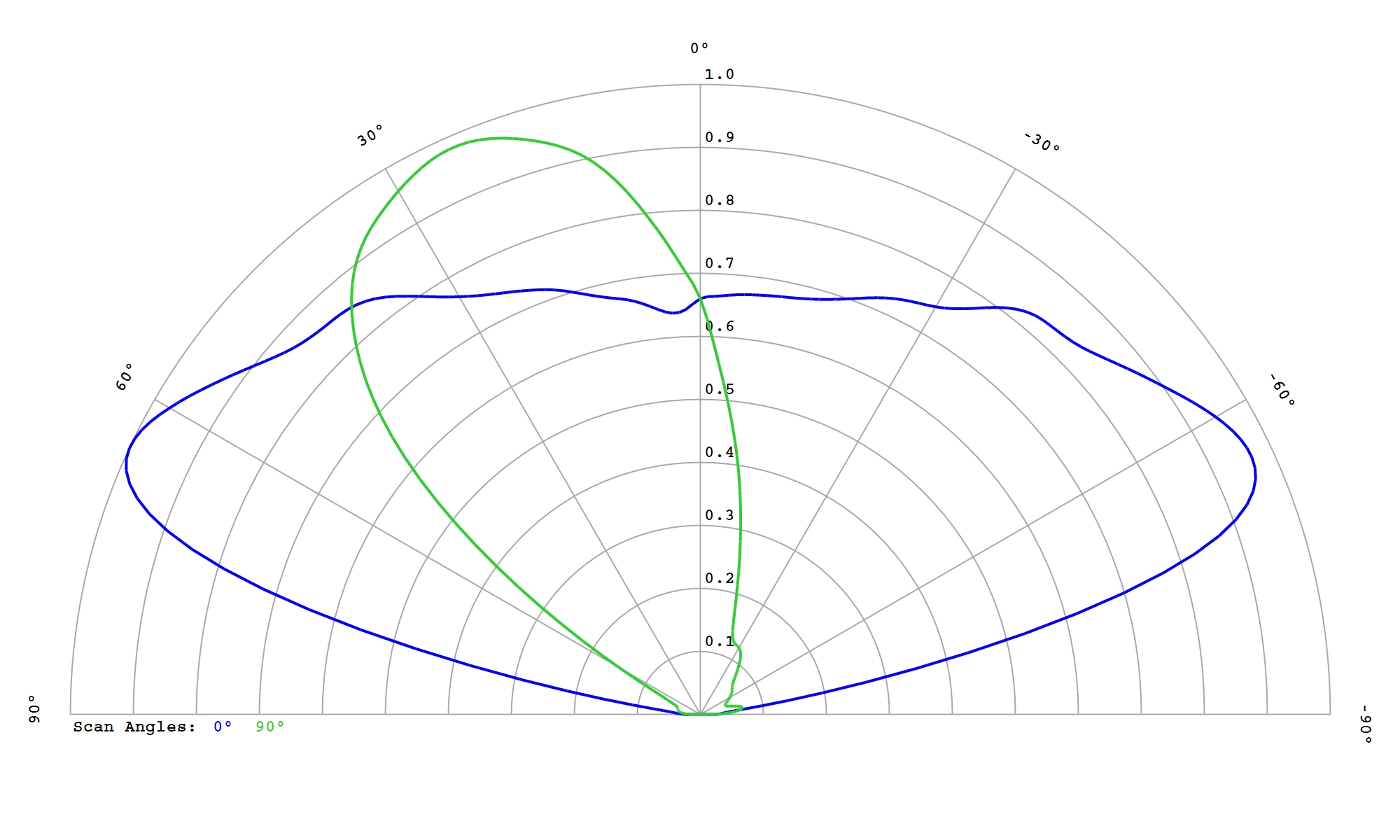

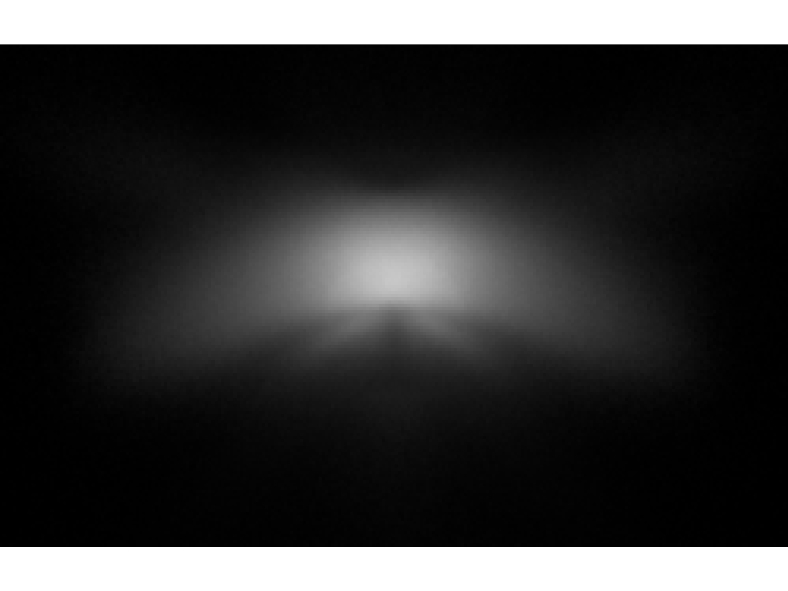

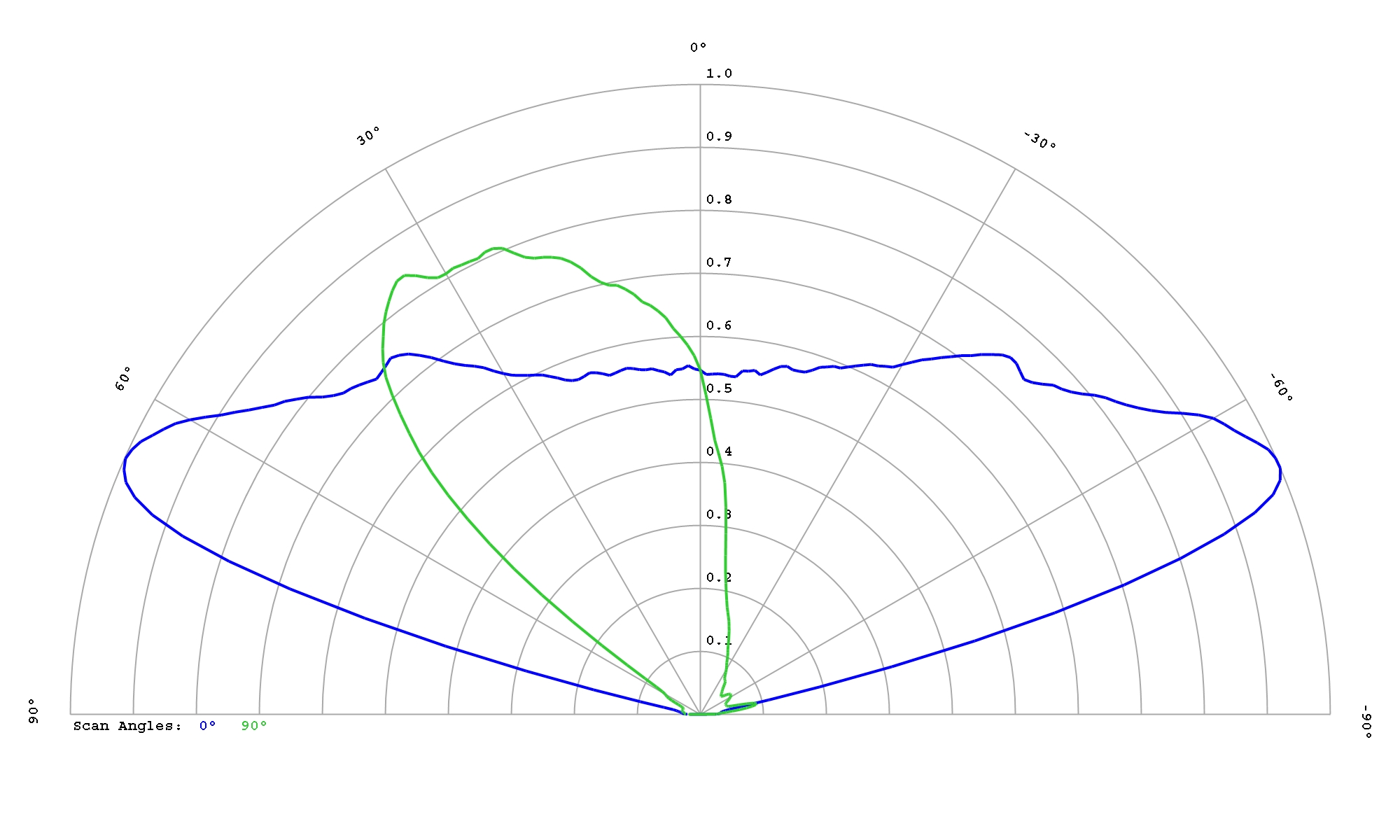

LUMILEDS LUXEON 3030 2D White
Eff:
94.0%
FWHM:
149 x 54 x 35°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3030 HE Plus White
Eff:
94.5%
FWHM:
152 x 57 x 27°
Cd/Im:
0.5
Download

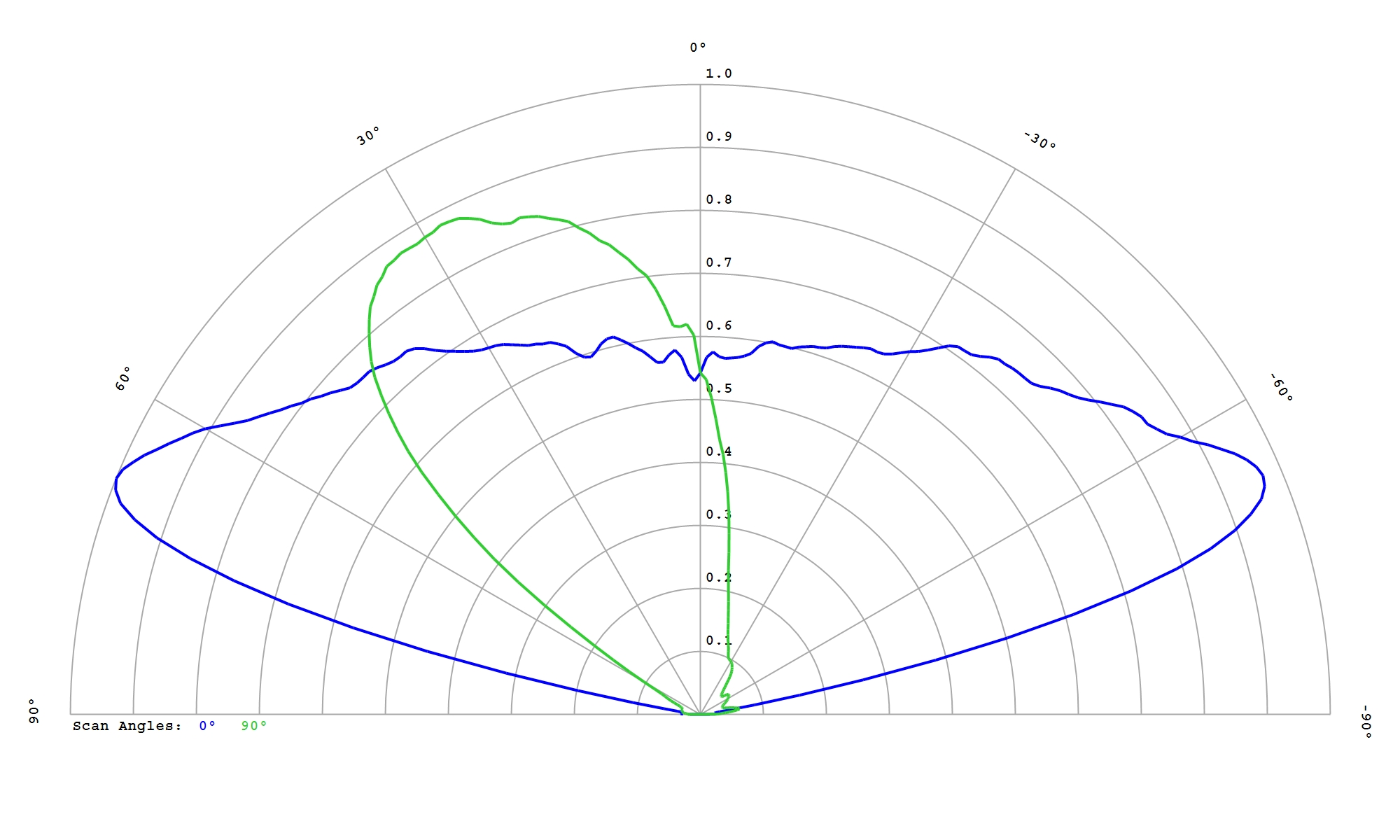

LUMILEDS LUXEON 3030 HE White
Eff:
94.5%
FWHM:
153 x 56 x 28°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 3535L PC Amber
Eff:
94.5%
FWHM:
153 x 55 x 33°
Cd/Im:
0.4
Download
LUMILEDS LUXEON C Blue
Eff:
86.0%
FWHM:
161 x 61 x 38°
Cd/Im:
0.5
Download
LUMILEDS LUXEON C Lime
Eff:
89.5%
FWHM:
161 x 60 x 35°
Cd/Im:
0.5
Download
LUMILEDS LUXEON C PC Amber
Eff:
86.0%
FWHM:
162 x 63 x 35°
Cd/Im:
0.5
Download
LUMILEDS LUXEON C Red
Eff:
88.0%
FWHM:
162 x 65 x 33°
Cd/Im:
0.5
Download

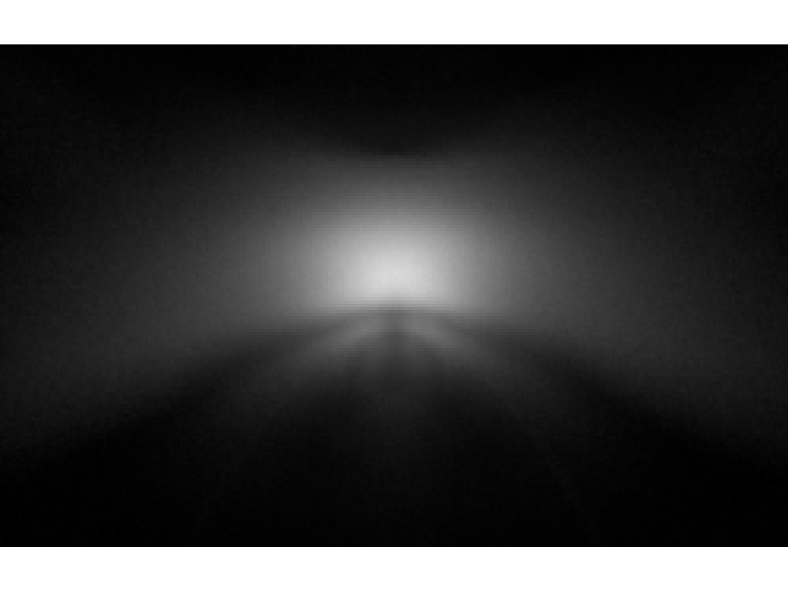

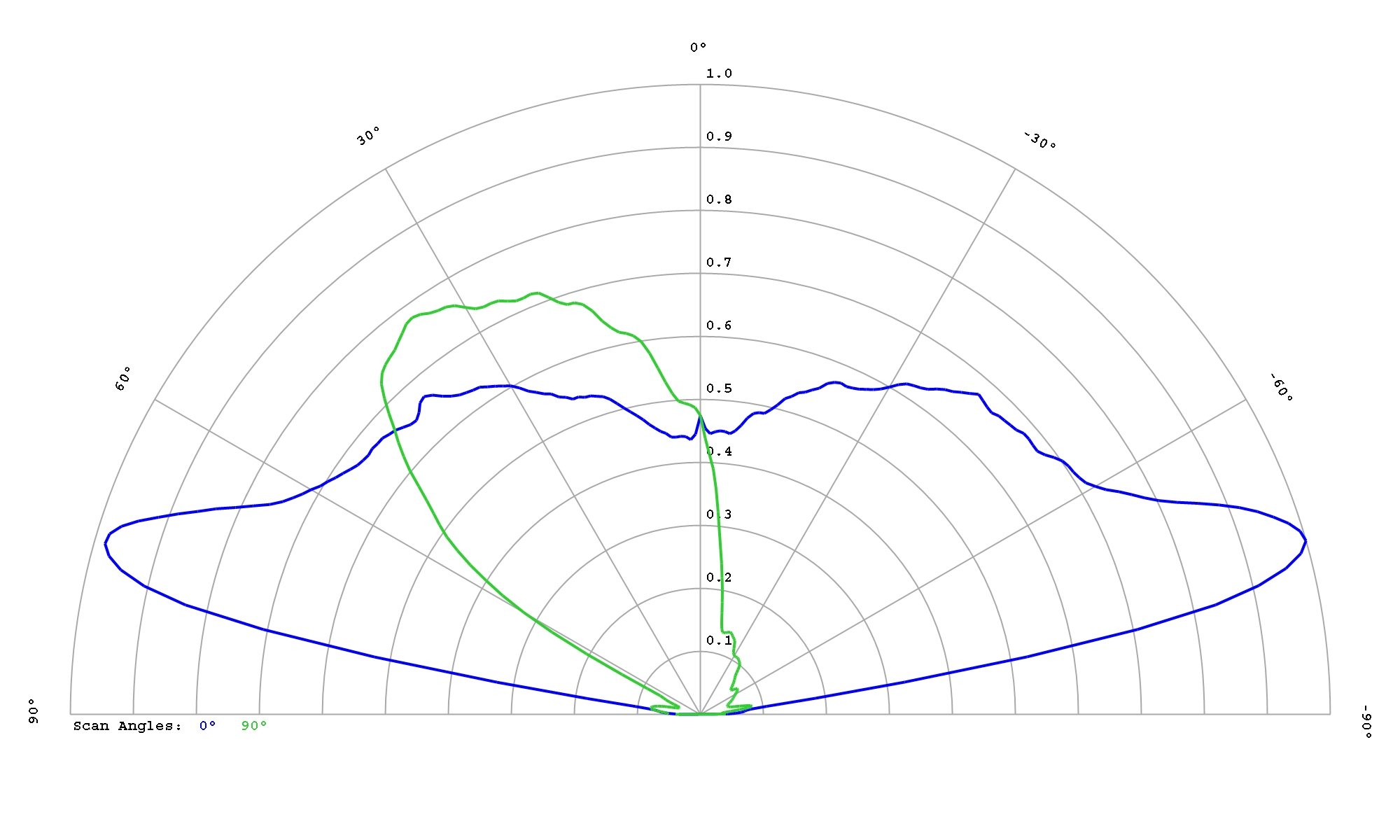

LUMILEDS LUXEON C White
Eff:
88.0%
FWHM:
160 x 62 x 36°
Cd/Im:
0.5
Download
LUMILEDS LUXEON CZ White
Eff:
94.5%
FWHM:
153 x 54 x 40°
Cd/Im:
0.6
Download
LUMILEDS LUXEON CZ PC Amber
Eff:
94.5%
FWHM:
152 x 56 x 34°
Cd/Im:
0.6
Download

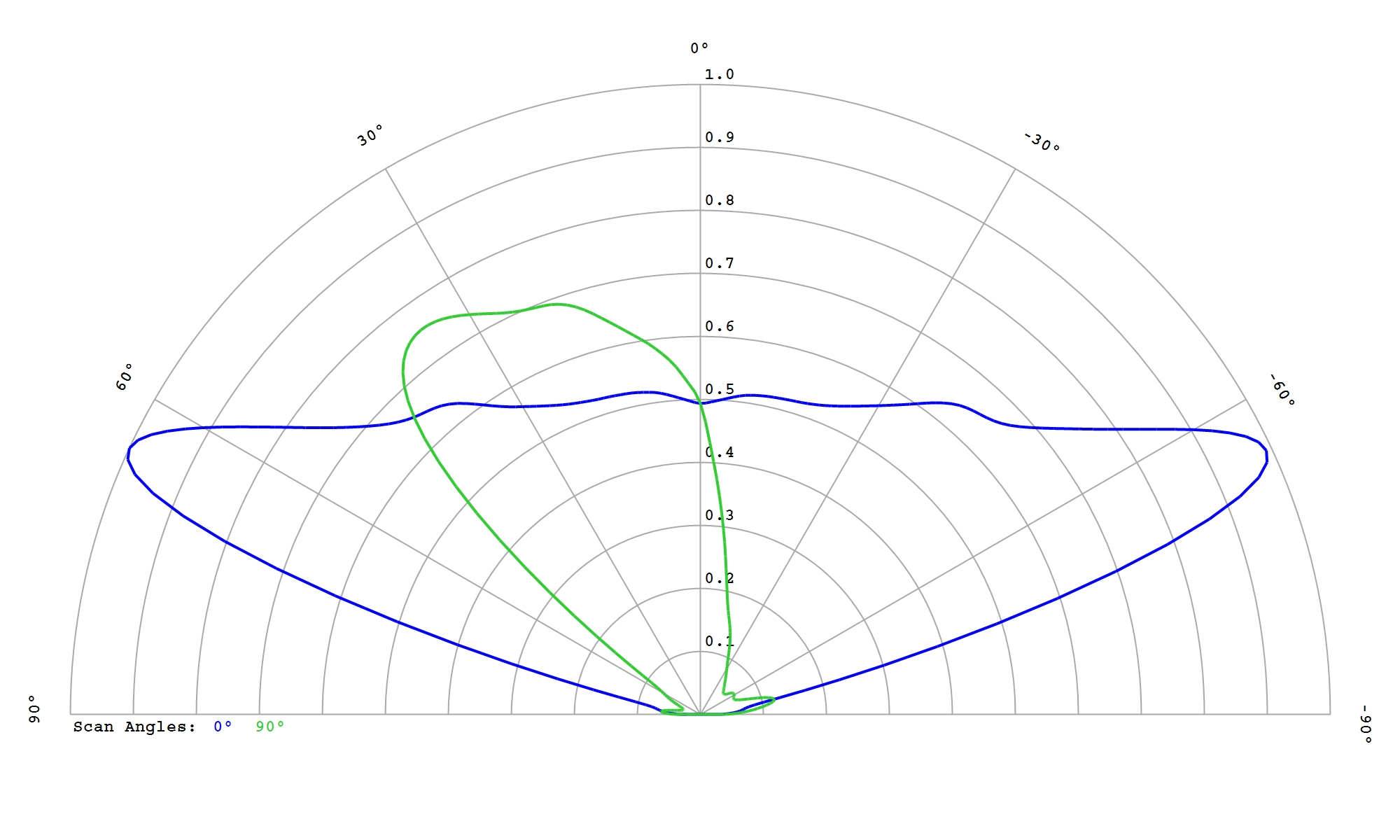

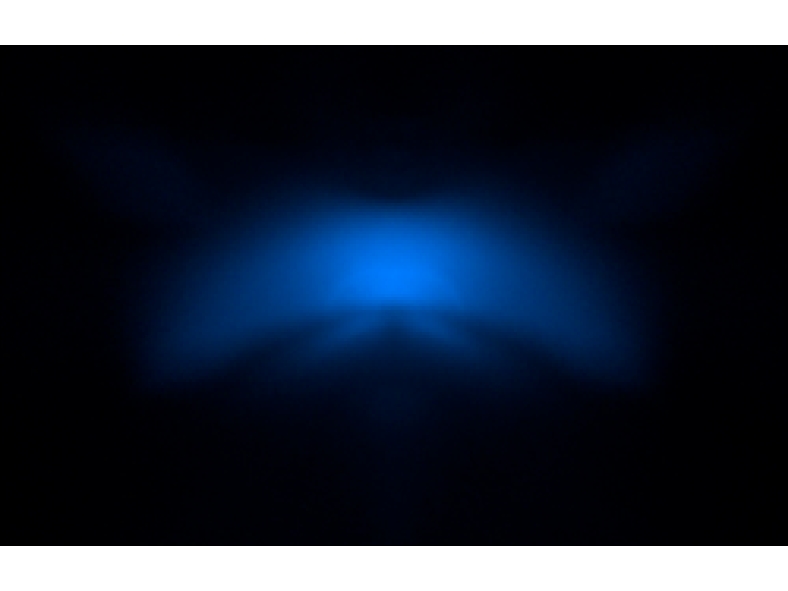

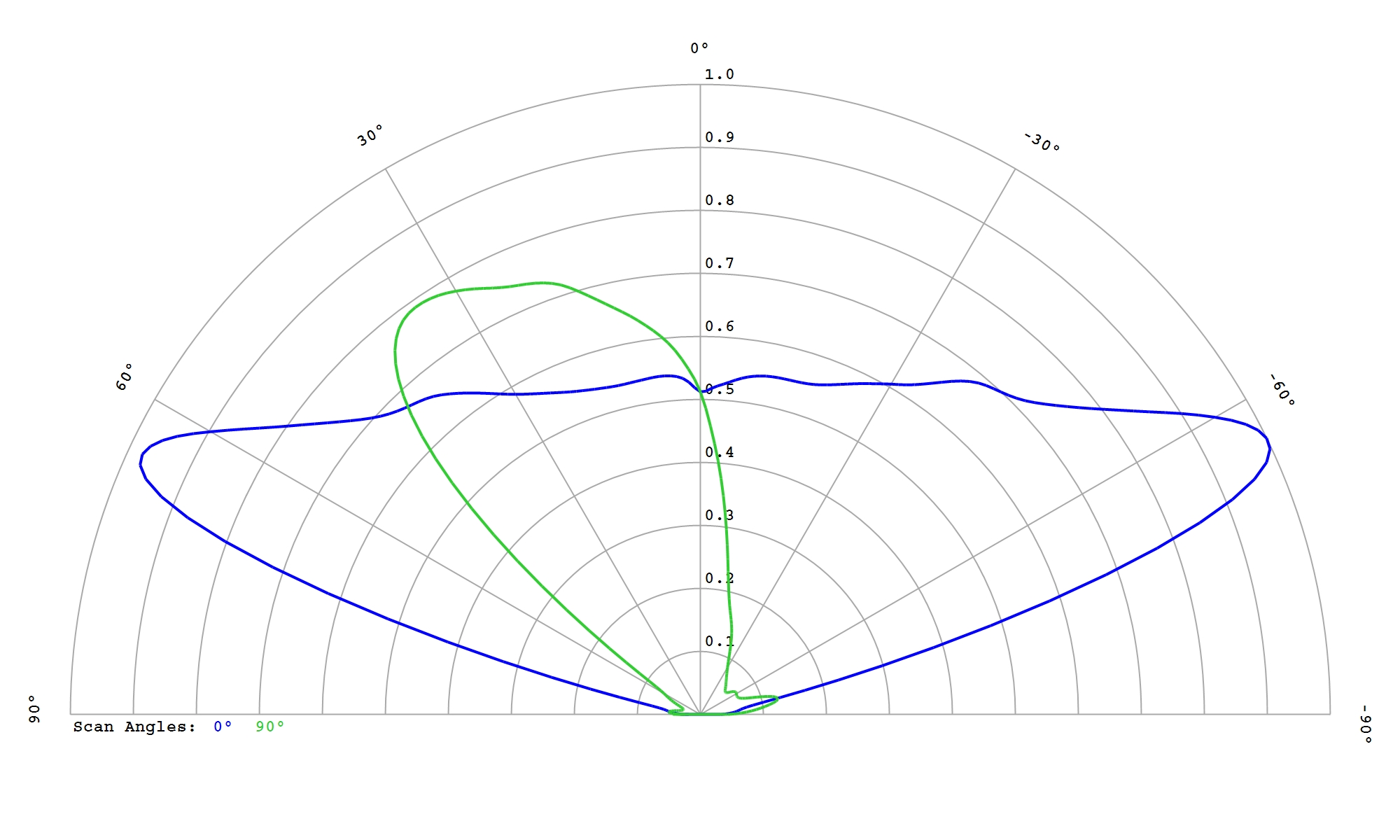

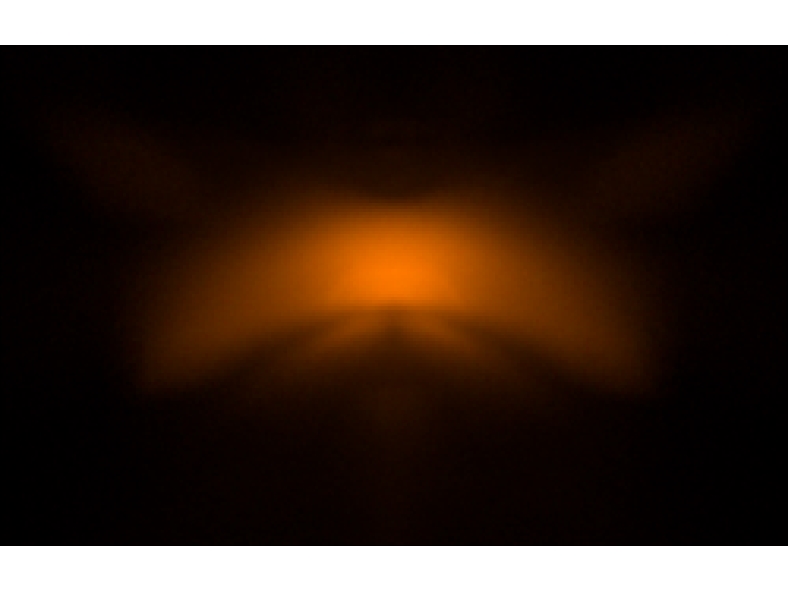

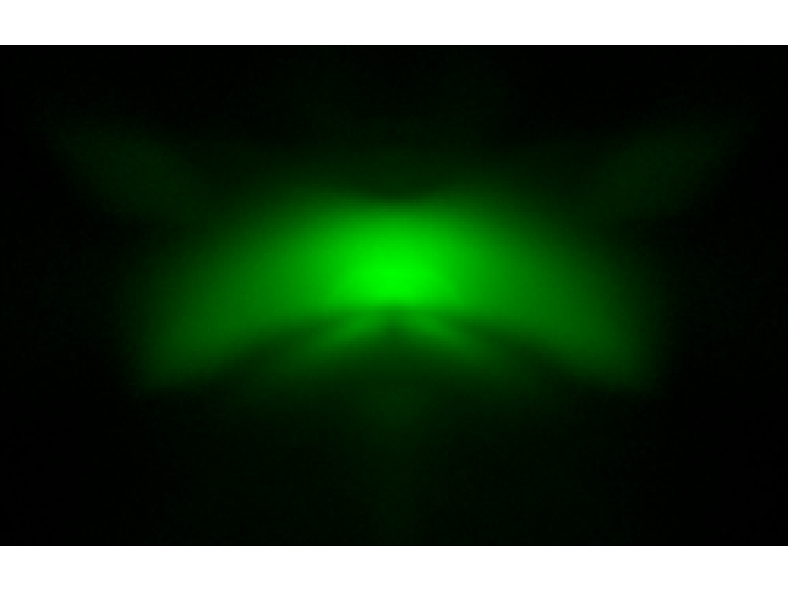

LUMILEDS LUXEON HL1Z CSP White
Eff:
92.5%
FWHM:
145 x 54 x 34°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL2Z White
Eff:
93.0%
FWHM:
146 x 56 x 20°
Cd/Im:
0.5
Download
LUMILEDS LUXEON IR 2720
Eff:
95.0%
FWHM:
150 x 56 x 29°
Ipk/W:
0.5
Download
LUMILEDS LUXEON Rebel ES White
Eff:
89.0%
FWHM:
152x56x30°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Rebel PC Amber
Eff:
93.0%
FWHM:
153 x 56 x 37°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rubix Blue
Eff:
95.0%
FWHM:
154 x 57 x 36°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix Green
Eff:
94.5%
FWHM:
154 x 56 x 40°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix Red
Eff:
95.0%
FWHM:
154 x 57 x 37°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
95.5%
FWHM:
154 x 58 x 38°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix White
Eff:
94.5%
FWHM:
154 x 57 x 34°
Cd/Im:
0.6
Download
LUMILEDS LUXEON TX White
Eff:
58.0%
FWHM:
156 x 58 x 29°
Cd/Im:
0.5
Download
LUMILEDS LUXEON TX White
Eff:
87.3%
FWHM:
154.5 x 56.6 x 30°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Z ES White
Eff:
88.6%
FWHM:
148x51x29°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Z PC Amber
Eff:
94.5%
FWHM:
152 x 57 x 37°
Cd/Im:
0.6
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
94.0%
FWHM:
148 x 52 x 25°
Cd/Im:
0.5
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
93.5%
FWHM:
146 x 51 x 34°
Cd/Im:
0.5
Download
Luminus Devices SST 10-G-B90 Green
Eff:
92.5%
FWHM:
147 x 51 x 23°
Cd/Im:
0.5
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
94.0%
FWHM:
147 x 49 x 28°
Ipk/W:
0.6
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
94.0%
FWHM:
145 x 50 x 31°
Ipk/W:
0.5
Download
Nichia 219 White
Eff:
88.0%
FWHM:
156x58x30°
Cd/Im:
0.4
Download

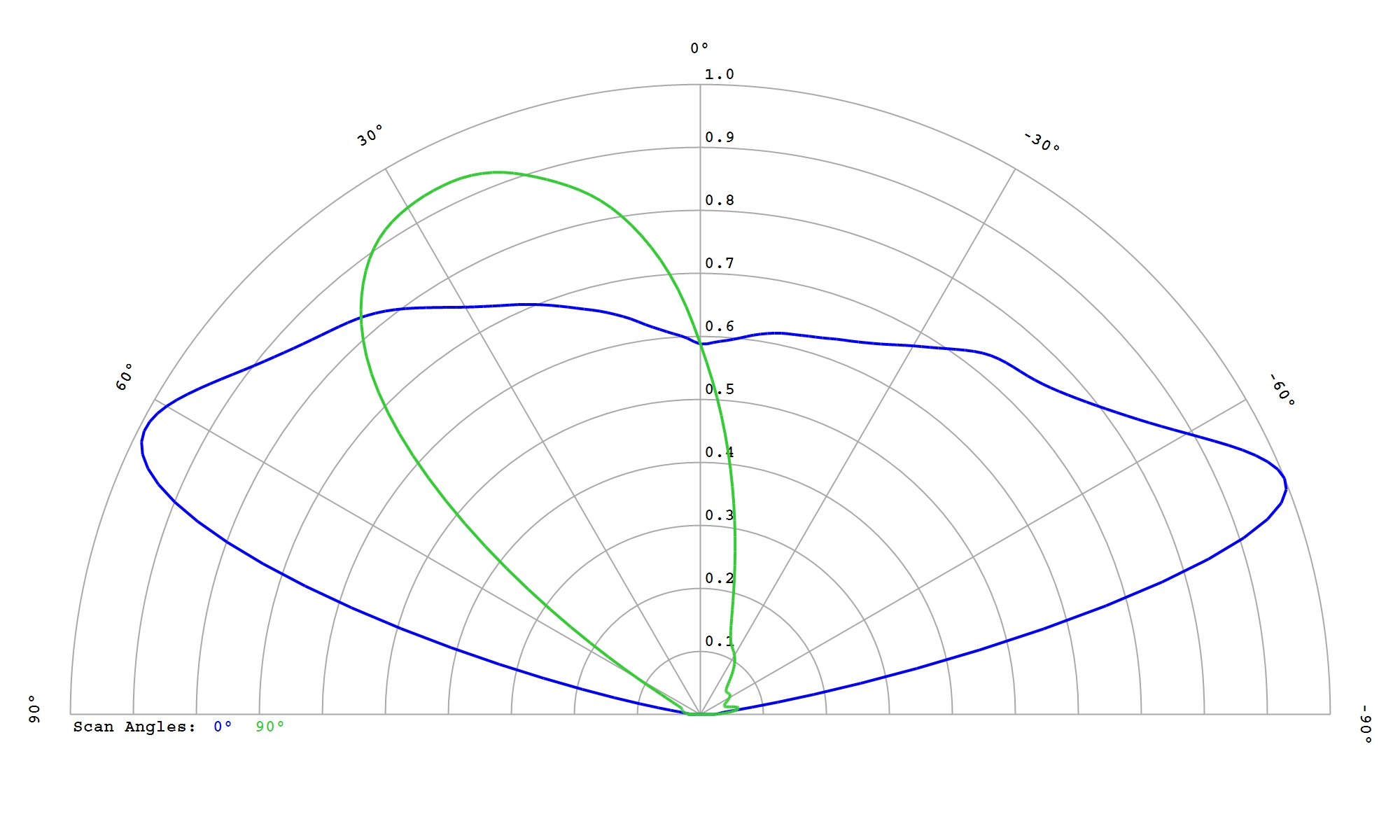

Nichia 757G White
Eff:
94.0%
FWHM:
149 x 55 x 24°
Cd/Im:
0.5
Download
Nichia NCSW CSP E17A White
Eff:
91.5%
FWHM:
142 x 53 x 34°
Cd/Im:
0.6
Download

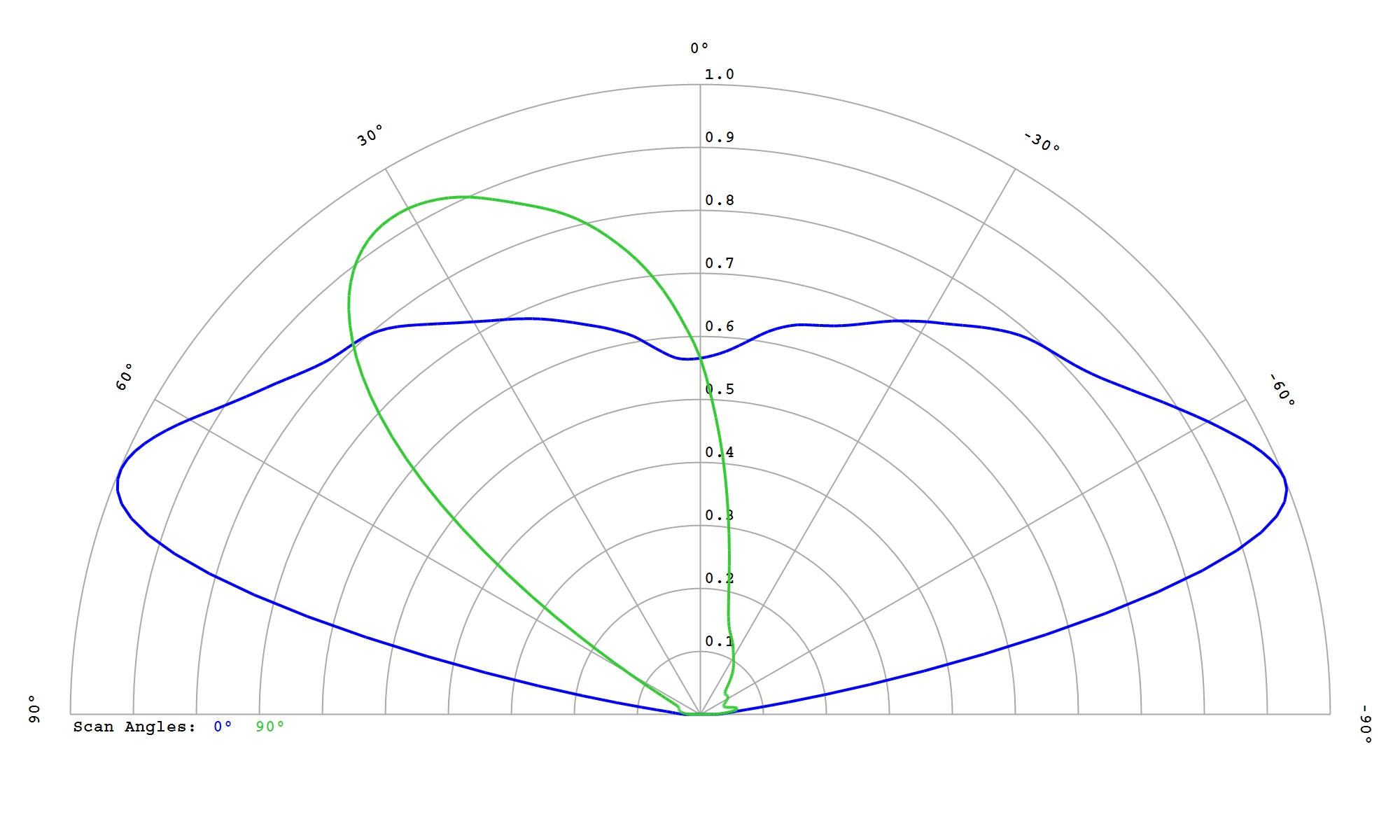

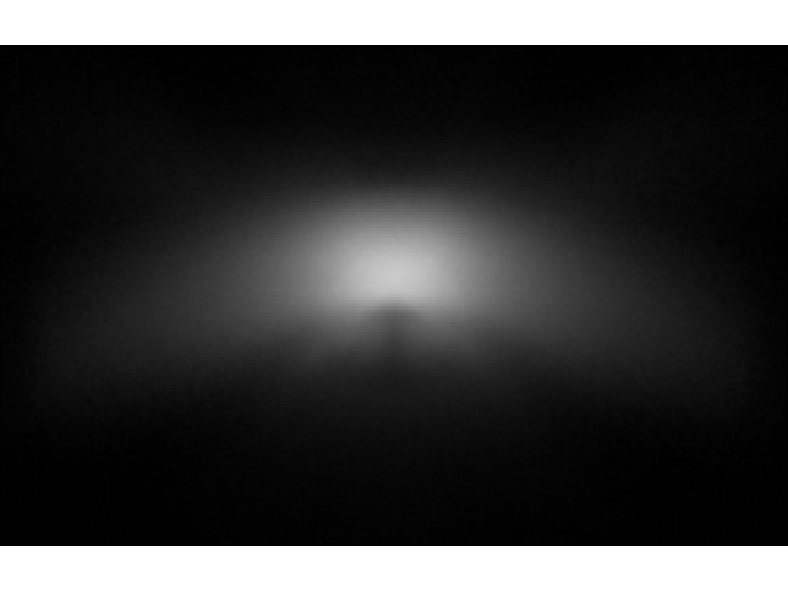

Nichia NF2W 385AR-V2 White
Eff:
93.5%
FWHM:
152 x 60 x 25°
Cd/Im:
0.4
Download
Nichia NFSW CSP E11A White
Eff:
91.5%
FWHM:
142 x 51 x 38°
Cd/Im:
0.7
Download
Nichia NVSW CSP E21A White
Eff:
91.5%
FWHM:
144 x 53 x 21°
Cd/Im:
0.6
Download
Osram OS DURIS E 2835 Gen2
Eff:
94.0%
FWHM:
149 x 55 x 32°
Cd/Im:
0.5
Download
Osram OS DURIS E 2835 White
Eff:
94.5%
FWHM:
154 x 57 x 23°
Cd/Im:
0.5
Download
Osram OS DURIS E2 White
Eff:
94.0%
FWHM:
148 X 54 X 32°
Cd/Im:
0.6
Download
Osram OS DURIS S2 White
Eff:
91.0%
FWHM:
152 x 58 x 33°
Cd/Im:
0.5
Download
Osram OS DURIS S5 Deep Blue
Eff:
95.0%
FWHM:
153 x 57 x 35°
Cd/Im:
0.5
Download
Osram OS DURIS S5 Green
Eff:
94.0%
FWHM:
151 x 56 x 30°
Cd/Im:
0.5
Download
Osram OS DURIS S5 Red
Eff:
94.5%
FWHM:
150 x 54 x 34°
Cd/Im:
0.5
Download
Osram OS DURIS S5 White
Eff:
94.0%
FWHM:
150 X 55 X 0.5°
Cd/Im:
26.0
Download
Osram OS OSCONIQ C 2424 White
Eff:
94.0%
FWHM:
149 x 55 x 30°
Cd/Im:
0.5
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
94.5%
FWHM:
152 x 55 x 37°
Cd/Im:
0.7
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
93.0%
FWHM:
139 x 49 x 36°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
93.5%
FWHM:
140 x 49 x 36°
Ipk/W:
0.8
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
92.5%
FWHM:
141 x 51 x 38°
Cd/Im:
0.7
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
91.5%
FWHM:
143 x 52 x 37°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
92.5%
FWHM:
139 x 49 x 38°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
92.0%
FWHM:
140 x 50 x 36°
Cd/Im:
0.8
Download

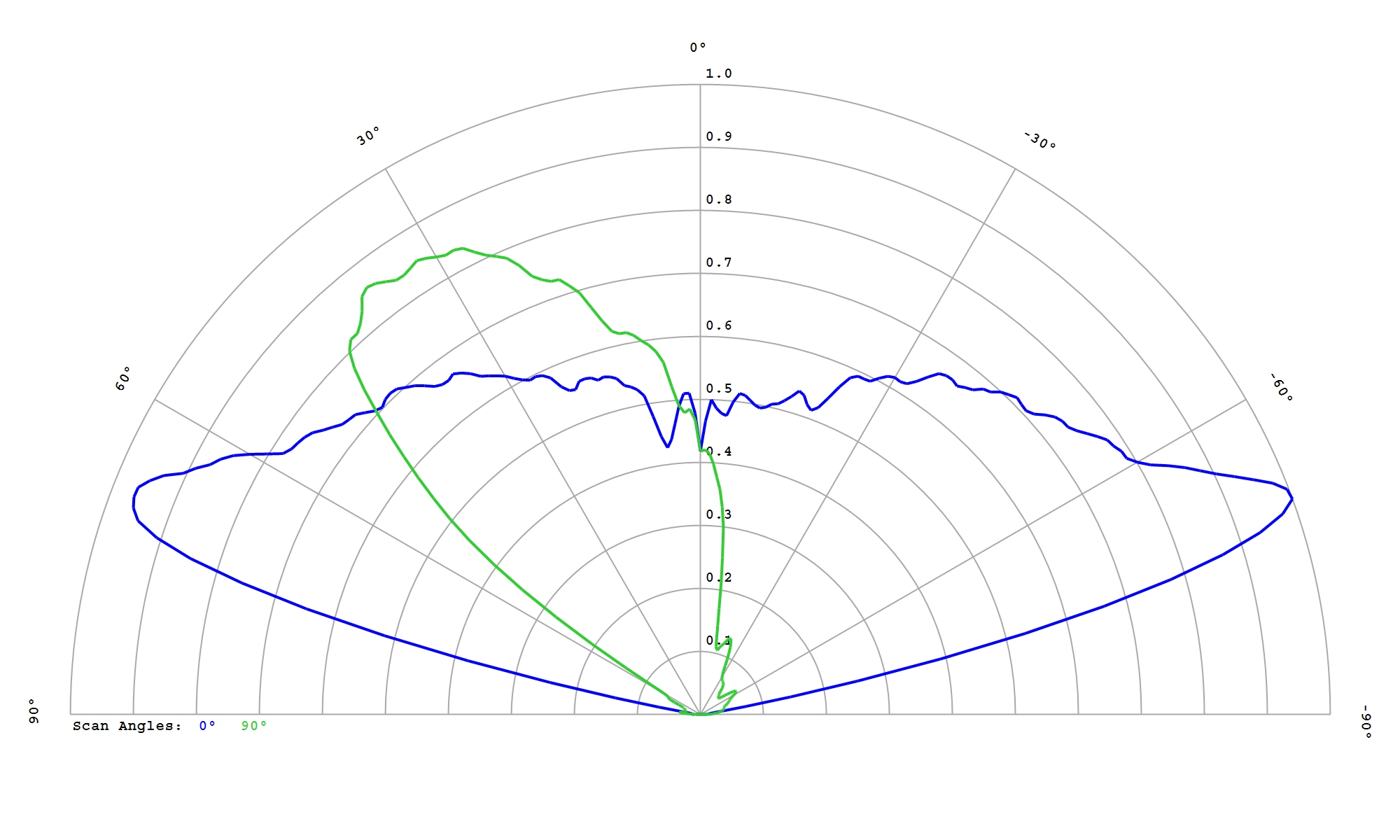

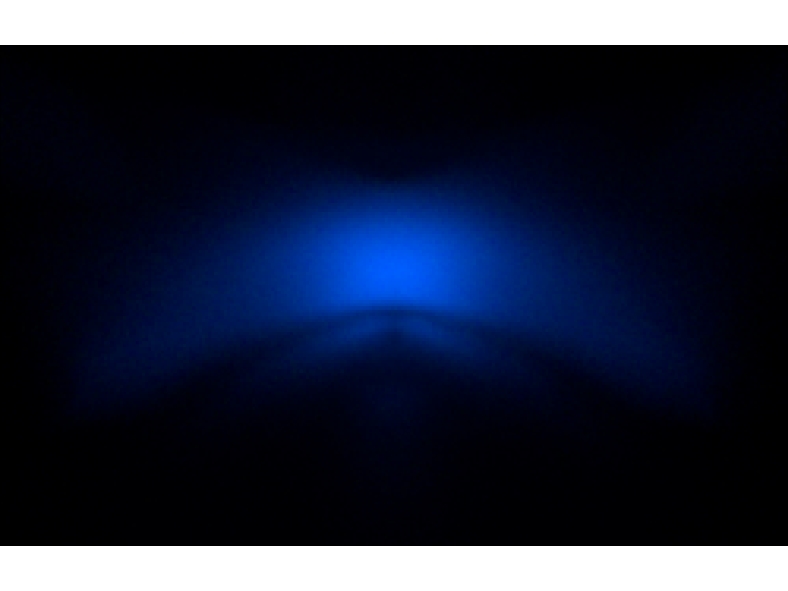

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
95.0%
FWHM:
152 x 56 x 38°
Cd/Im:
0.6
Download

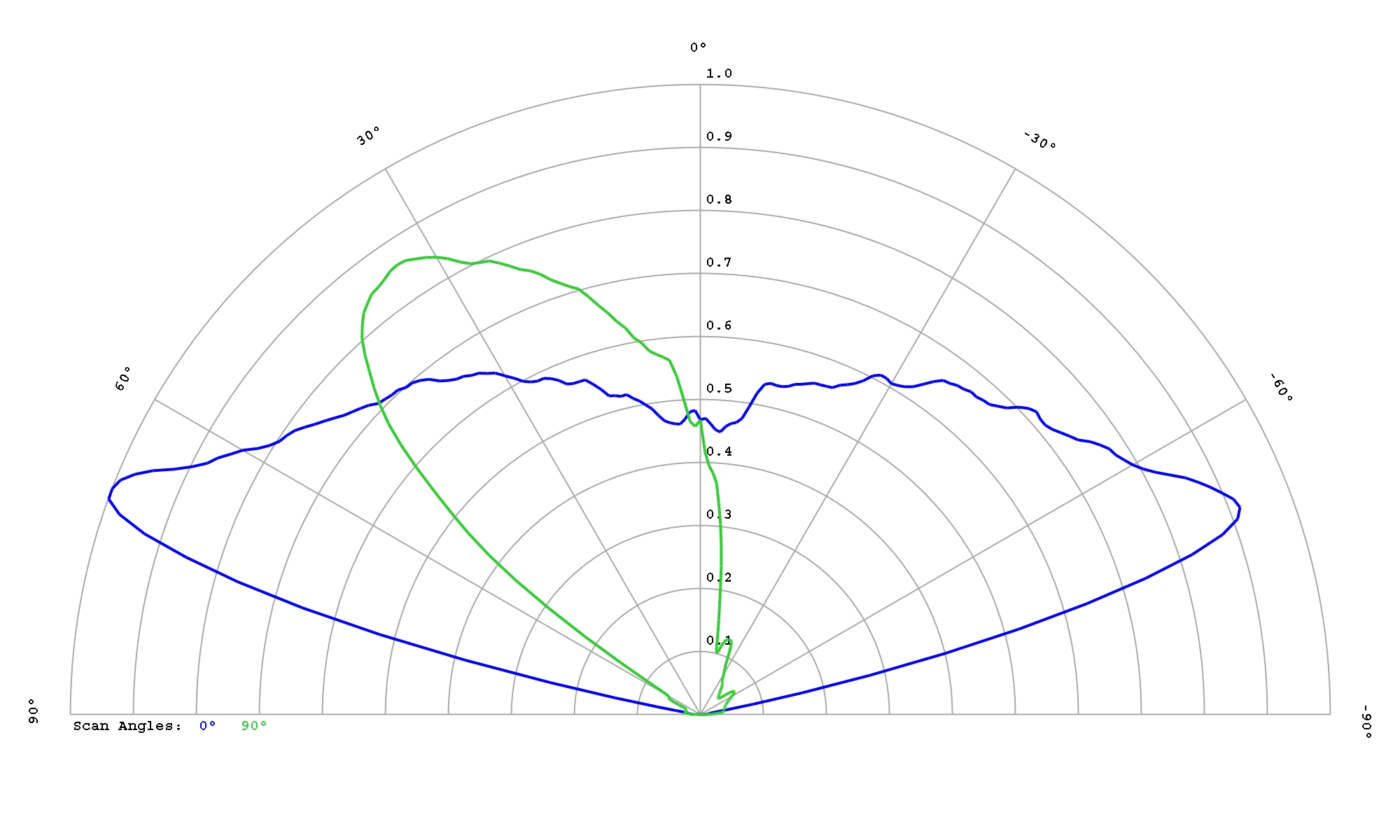

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
95.0%
FWHM:
151 x 53 x 34°
Cd/Im:
0.6
Download

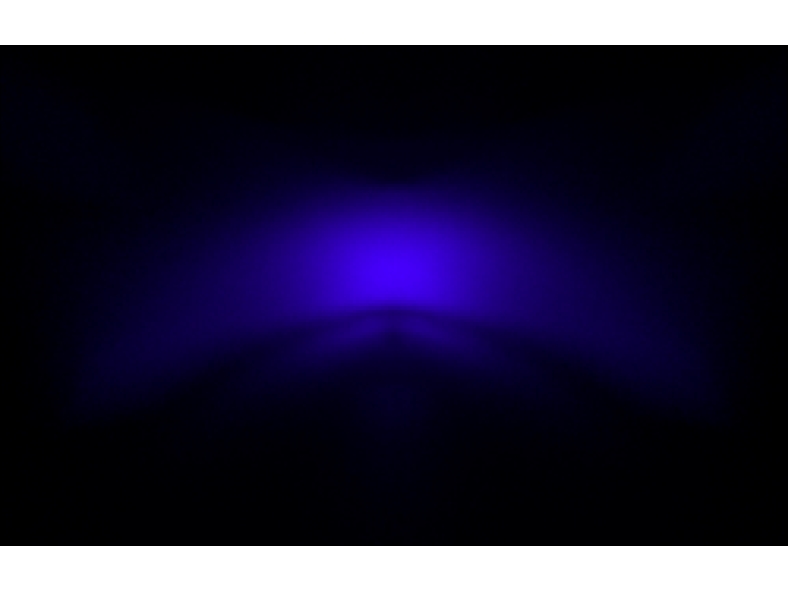

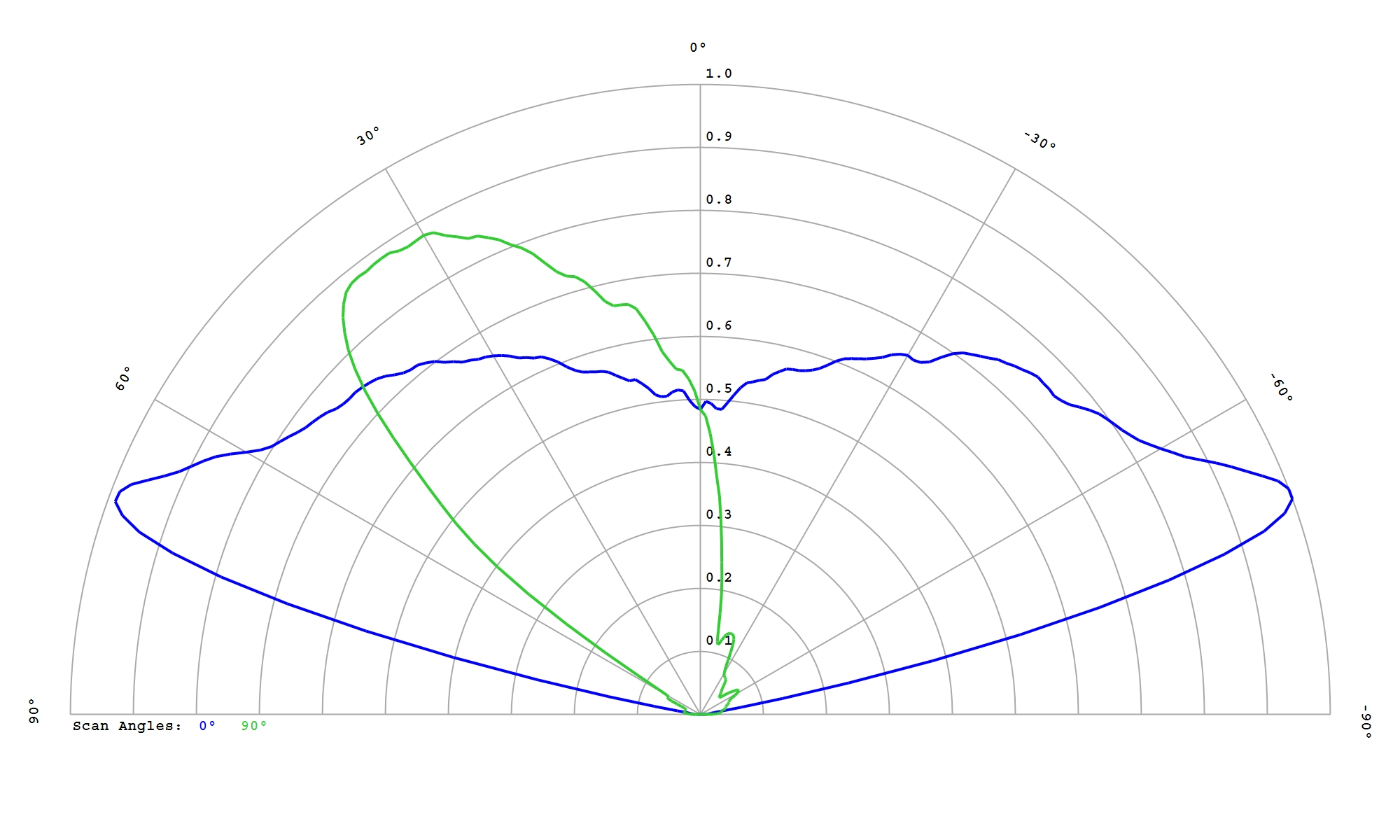

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
95.5%
FWHM:
153 x 55 x 38°
Ipk/W:
0.6
Download

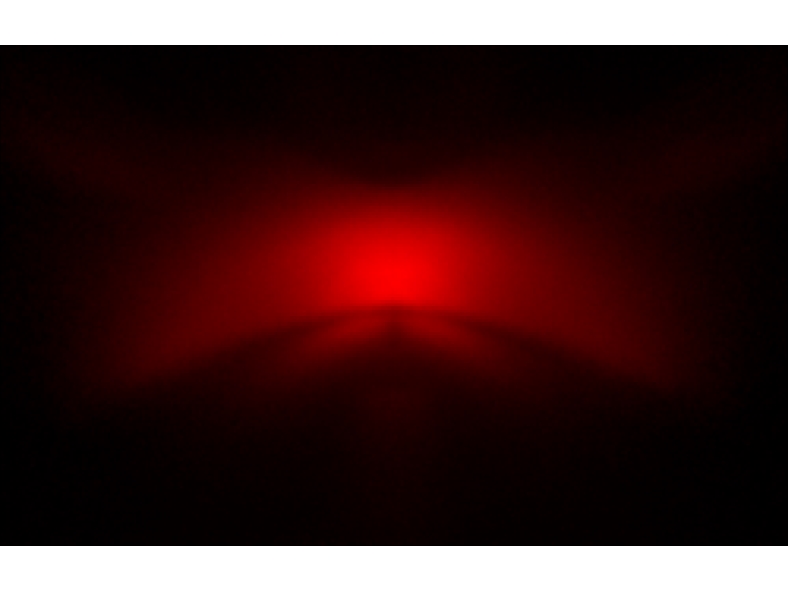

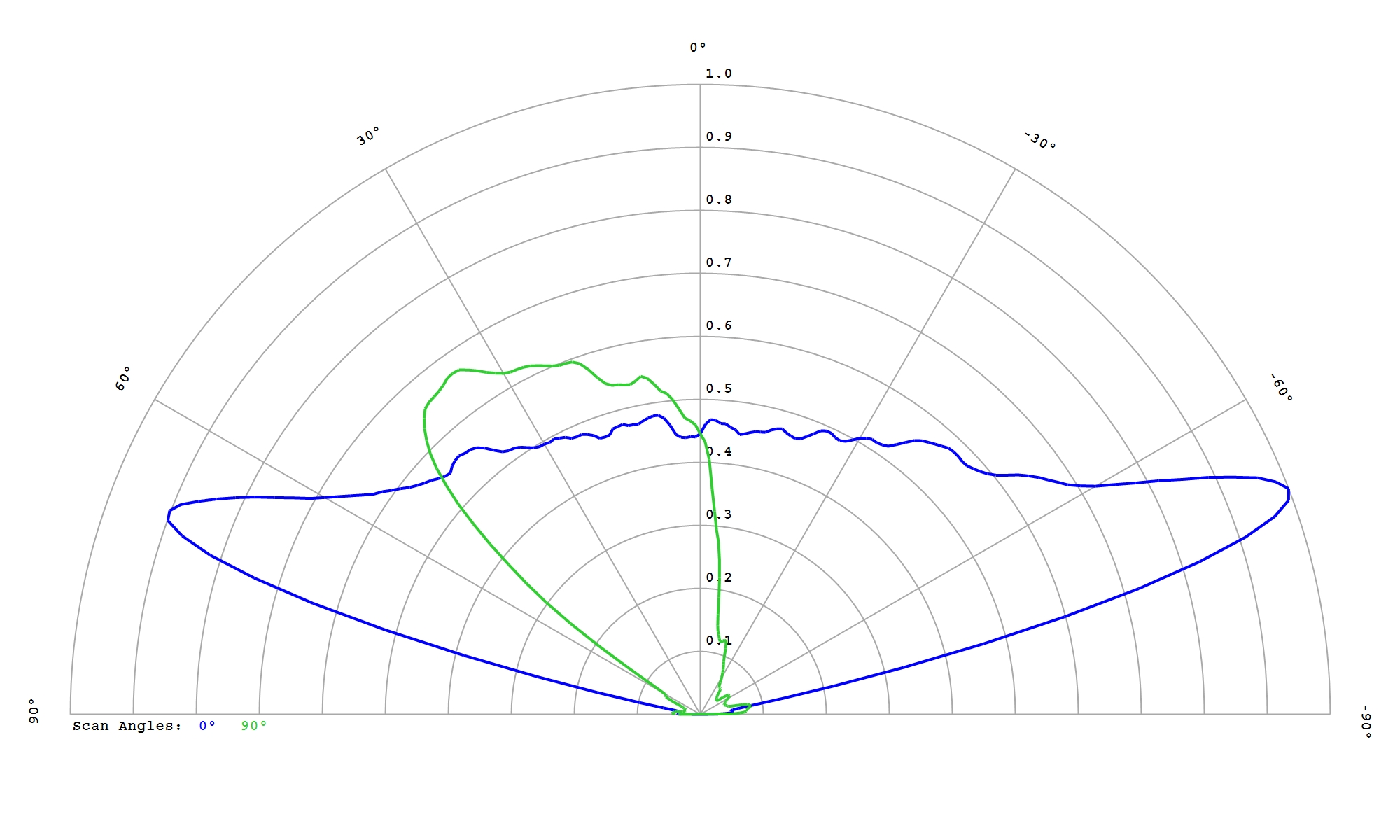

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
94.0%
FWHM:
151 x 56 x 36°
Cd/Im:
0.7
Download

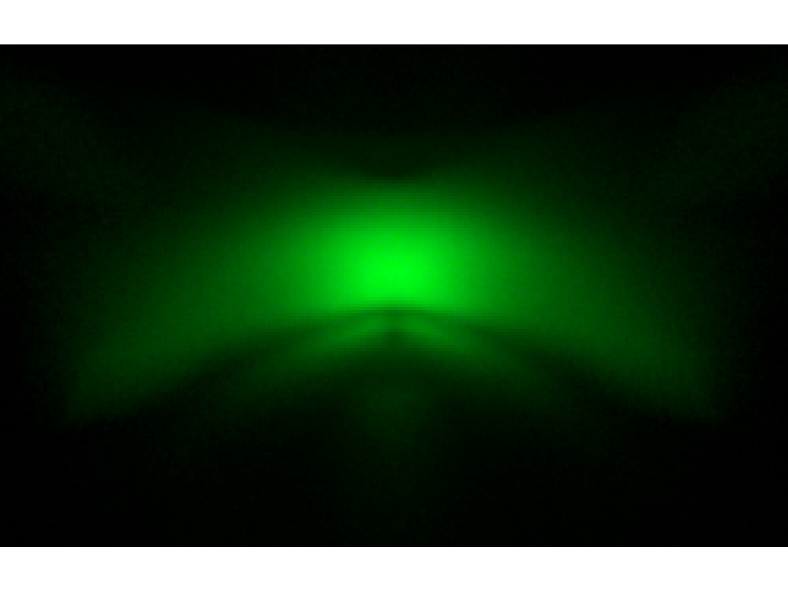

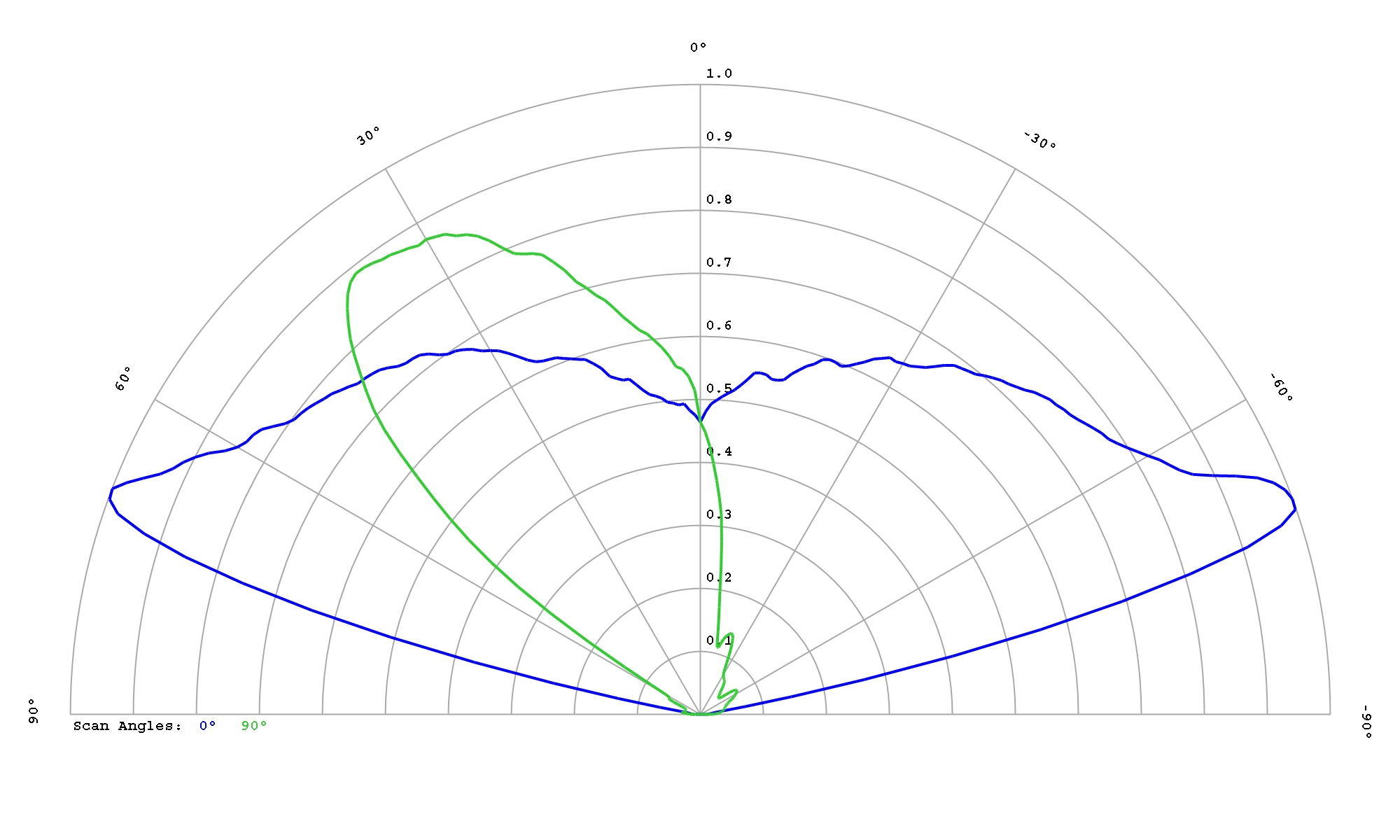

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
94.5%
FWHM:
153 x 55 x 37°
Cd/Im:
0.6
Download

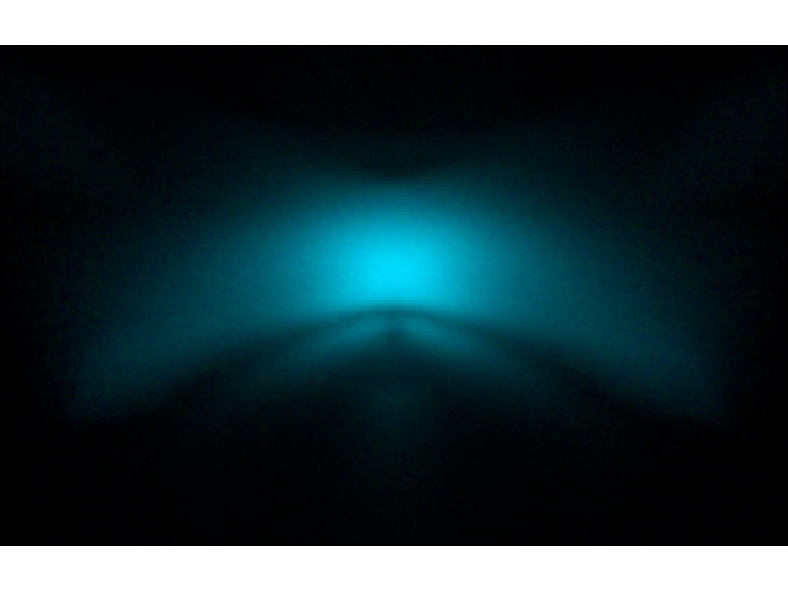

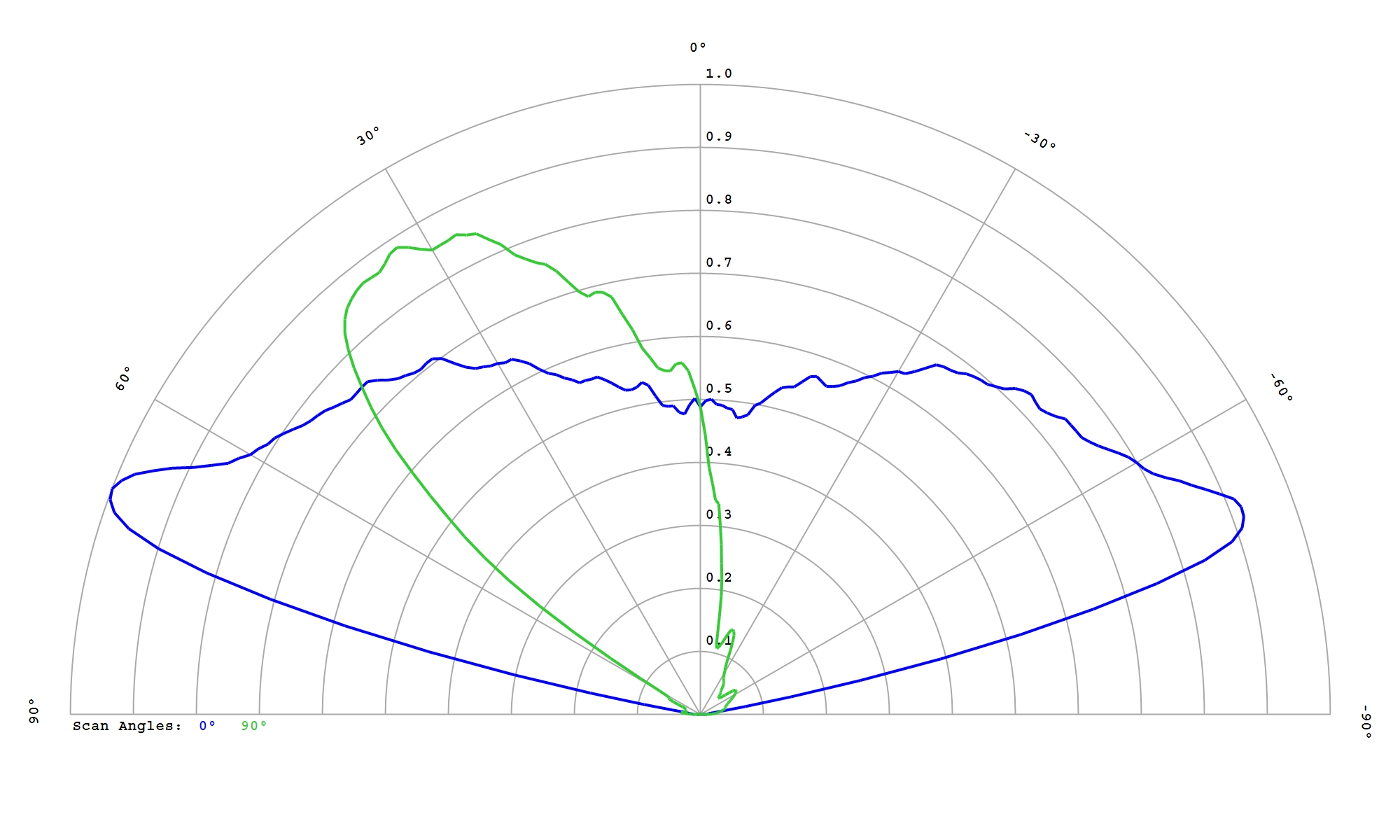

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
95.0%
FWHM:
153 x 54 x 34°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1414 GW VJLPL1.CM White
Eff:
94.5%
FWHM:
150 x 52 x 37°
Cd/Im:
0.6
Download

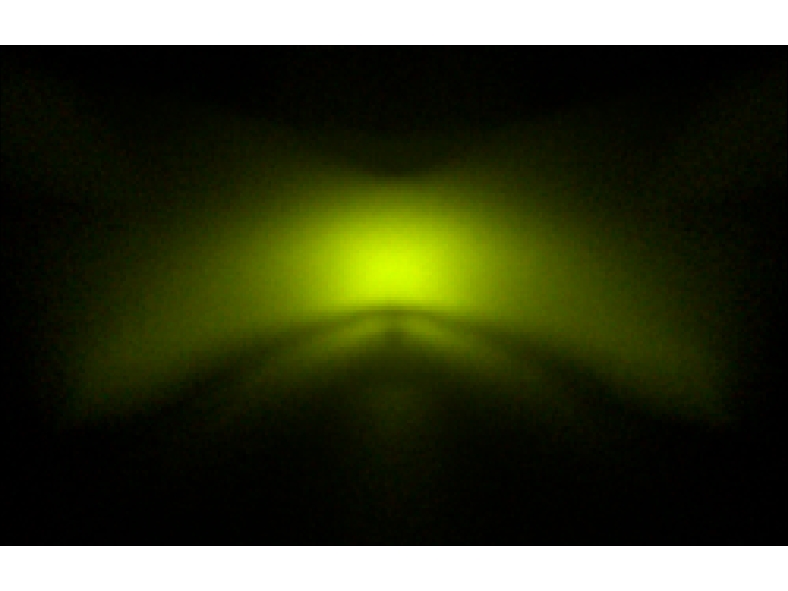

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
94.5%
FWHM:
153 x 54 x 39°
Cd/Im:
0.6
Download

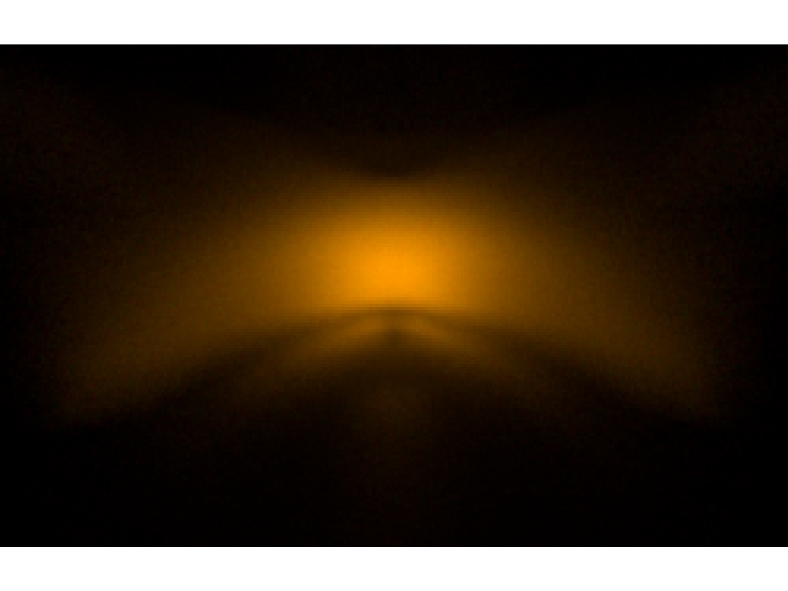

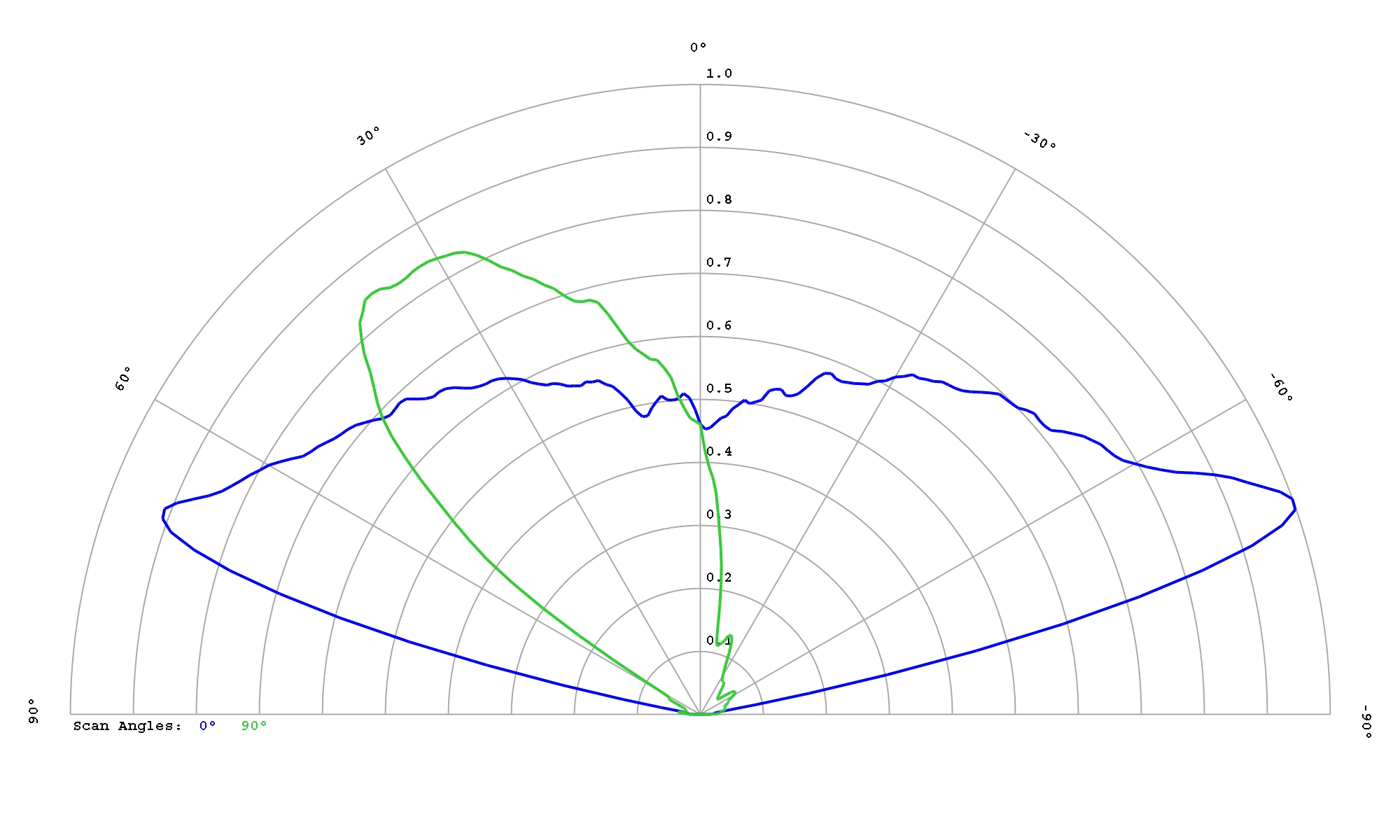

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
94.5%
FWHM:
153 x 53 x 38°
Cd/Im:
0.6
Download
Osram OS OSLON Square Flat White
Eff:
93.5%
FWHM:
151 x 56 x 33°
Cd/Im:
0.5
Download
Osram OS OSLON Square Gen 3 White
Eff:
87.8%
FWHM:
152.3 x 53.0 x 35°
Cd/Im:
0.5
Download
Osram OS OSLON Square Gen 3 White
Eff:
94.0%
FWHM:
154 x 55 x 35°
Cd/Im:
0.5
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
94.0%
FWHM:
155 x 57°
Cd/Im:
0.4
Download
Osram OS OSLON Square White
Eff:
88.0%
FWHM:
149 x 53.1 x 37.5°
Cd/Im:
0.4
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
94.5%
FWHM:
156 x 60 x 41°
Cd/Im:
0.5
Download
Osram OS OSLON SSL 150 degree White
Eff:
93.5%
FWHM:
154 x 58 x 36°
Cd/Im:
0.6
Download
Osram OS OSLON SSL 80 White
Eff:
94.0%
FWHM:
146 x 46 x 22°
Cd/Im:
0.5
Download

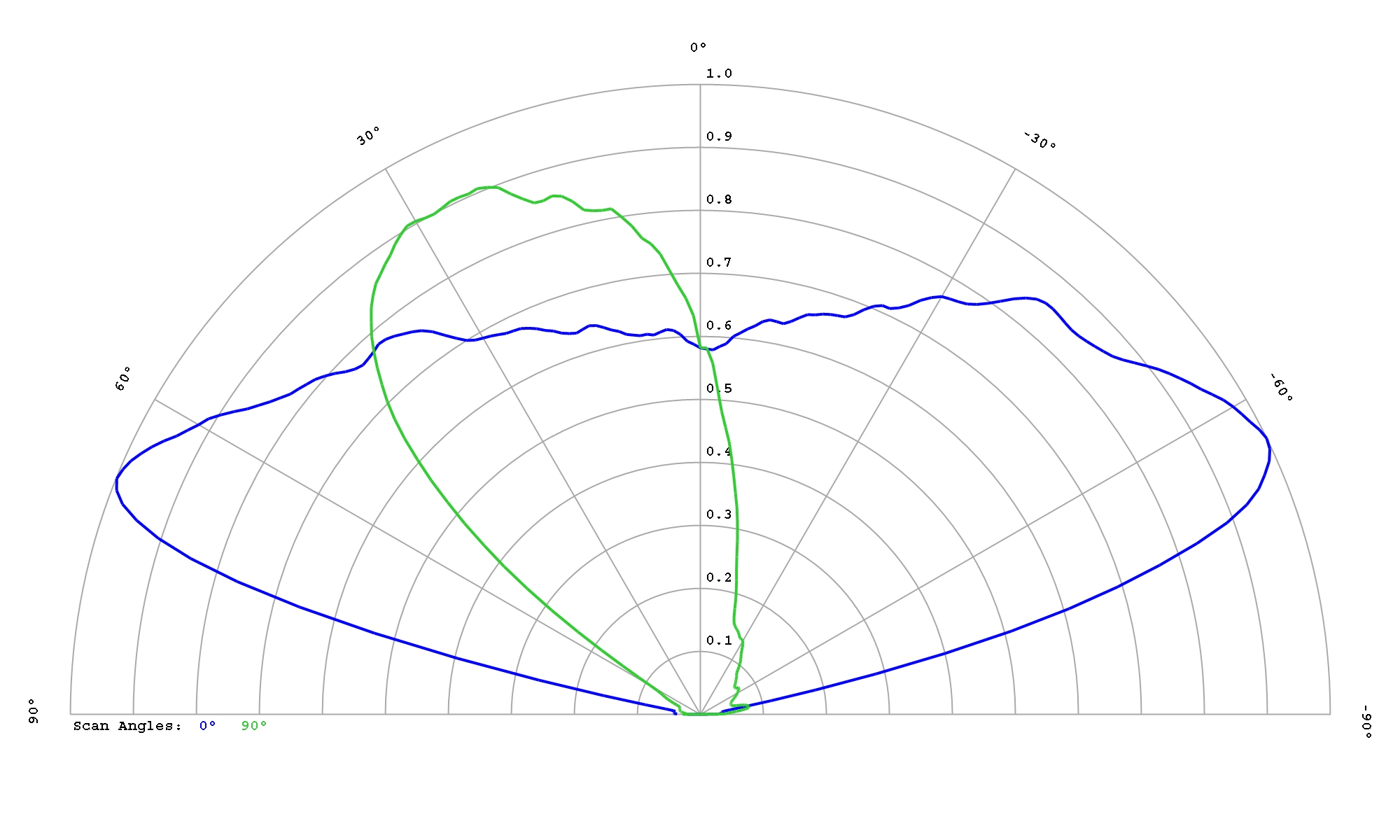

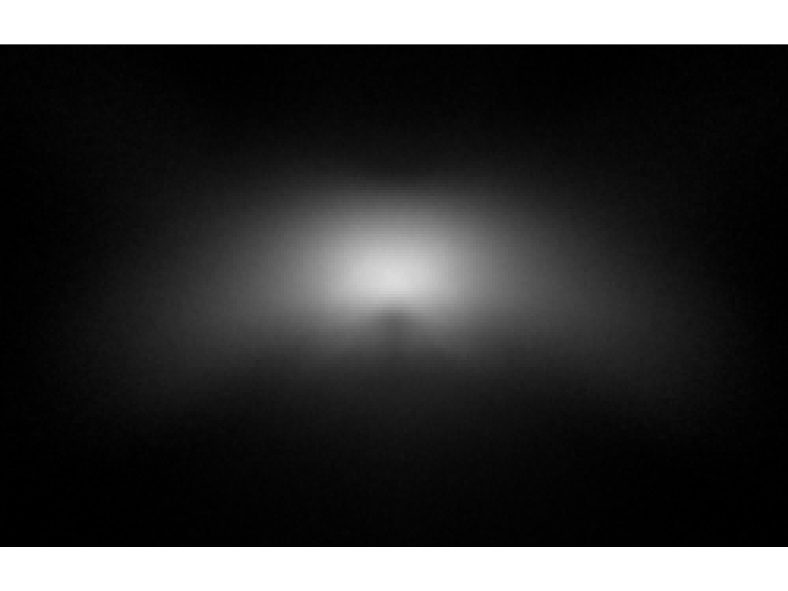

Samsung 2835 LM281B+ White
Eff:
92.5%
FWHM:
151 x 56 x 25°
Cd/Im:
0.4
Download
Samsung 3030 LM301B White
Eff:
94.0%
FWHM:
153 x 57 x 28°
Cd/Im:
0.5
Download
Samsung 3535 LH351B White
Eff:
88.0%
FWHM:
152x52x34°
Cd/Im:
0.4
Download
Samsung 3535 LH351Z White
Eff:
88.0%
FWHM:
152x52x34°
Cd/Im:
0.4
Download
Samsung CSP LH151B White
Eff:
93.0%
FWHM:
143 x 52 x 35°
Cd/Im:
0.6
Download
Samsung CSP LH181B White
Eff:
93.0%
FWHM:
145 x 54 x 19°
Cd/Im:
0.5
Download
Samsung CSP LH231B White
Eff:
92.5%
FWHM:
146 x 55 x 23°
Cd/Im:
0.5
Download
Samsung CSP LM101B White
Eff:
93.0%
FWHM:
143 x 51 x 37°
Cd/Im:
0.6
Download
Samsung LM 101A White
Eff:
88.0%
FWHM:
144 x 53 x 37°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y11 White
Eff:
88.5%
FWHM:
146 x 53 x 37°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y15 White
Eff:
88.5%
FWHM:
145 x 54 x 41°
Cd/Im:
0.6
Download

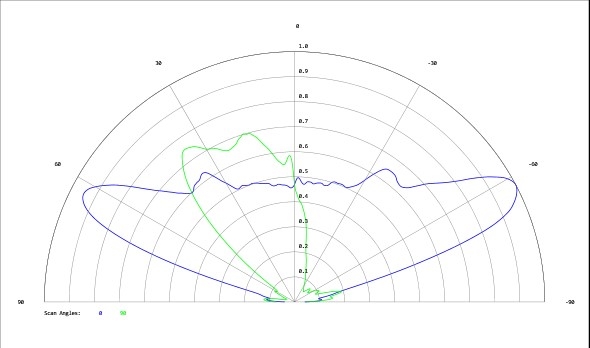

Seoul CSP SZ8Y19 White
Eff:
89.5%
FWHM:
145 x 54 x 36°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y22 White
Eff:
90.5%
FWHM:
148 x 53 x 16°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22P White
Eff:
92.5%
FWHM:
157 x 59 x 25°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y22P White
Eff:
92.5%
FWHM:
157 x 59 x 25°
Cd/Im:
0.4
Download
Seoul MidPower MJT4040 White
Eff:
87.0%
FWHM:
146x89x20°
Cd/Im:
0.4
Download
Seoul STW8 C2SB-NT White
Eff:
94.5%
FWHM:
152 x 54 x 26°
Cd/Im:
0.4
Download
Seoul STWS C2PB-E0 White
Eff:
94.5%
FWHM:
151 x 57 x 27°
Cd/Im:
0.5
Download
Seoul SunLike STW9 C2SB-S
Eff:
94.5%
FWHM:
151 x 54 x 23°
Cd/Im:
0.5
Download
Seoul Z - Power Z5 M0 White
Eff:
89.0%
FWHM:
160x58x35°
Cd/Im:
0.4
Download
Seoul Z - Power Z5 M1 White
Eff:
93.5%
FWHM:
152 x 55 x 33°
Cd/Im:
0.5
Download
Toshiba TL 1L2 White
Eff:
91.0%
FWHM:
159 X 84 X 0.4°
Cd/Im:
0.4
Download
Toshiba TL 1L4 White
Eff:
87.0%
FWHM:
146 x 53 x 30°
Cd/Im:
0.4
Download
