75.0 x 50.0mm Elliptical I Medium Freeform | Carclo Optics

Carclo Optics 12766

75.0 x 50.0mm Elliptical I Medium Freeform

Part number

12766

Dimensions

75.0 x 50.0mm

Drawing Number

70284

Optic type

Freeform

Beam type

Elliptical I Medium

Applications

Street

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

95.5%

FWHM:

146 x 81°

Cd/Im:

1.8

Carclo Optics - 12766 Mini Hubble Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12766 Mini Hubble Cross Section Bridgelux 3030 Gen2

Download

ies

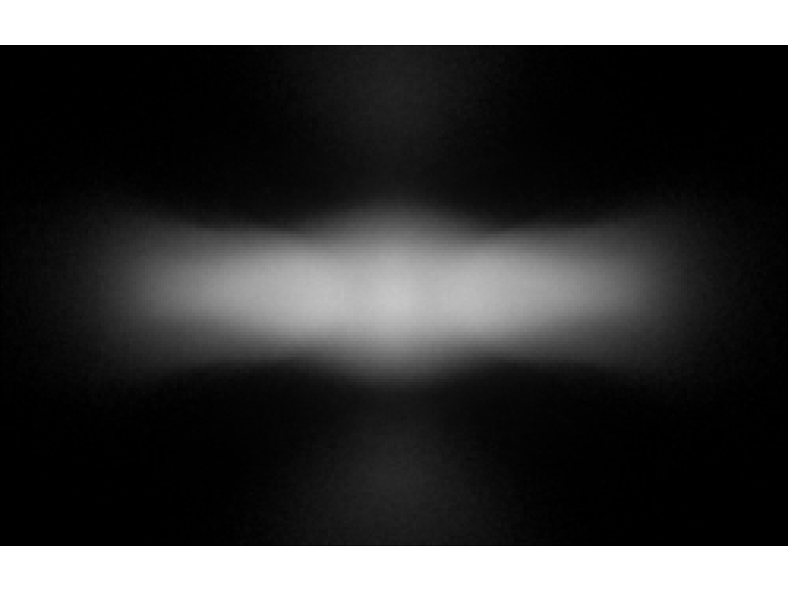

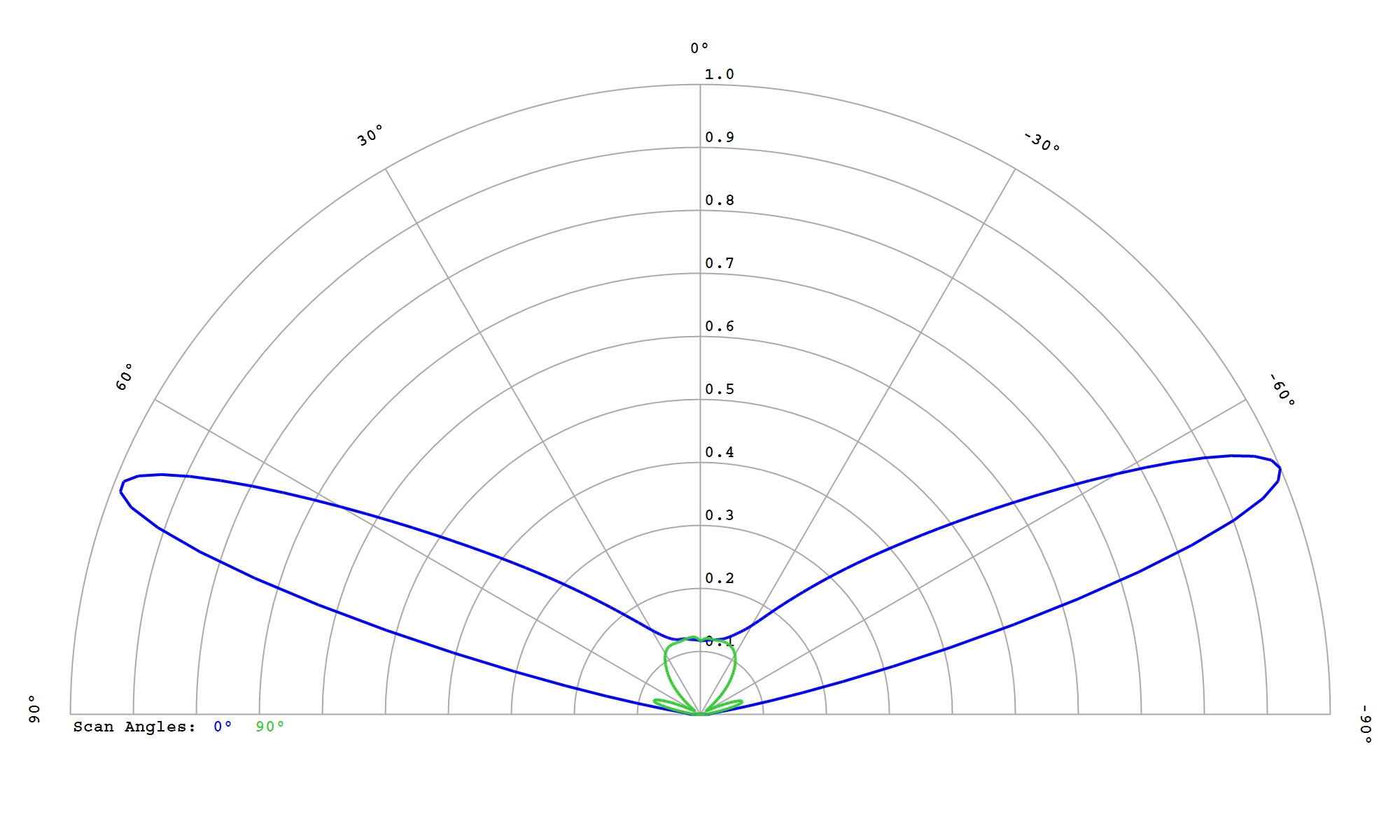

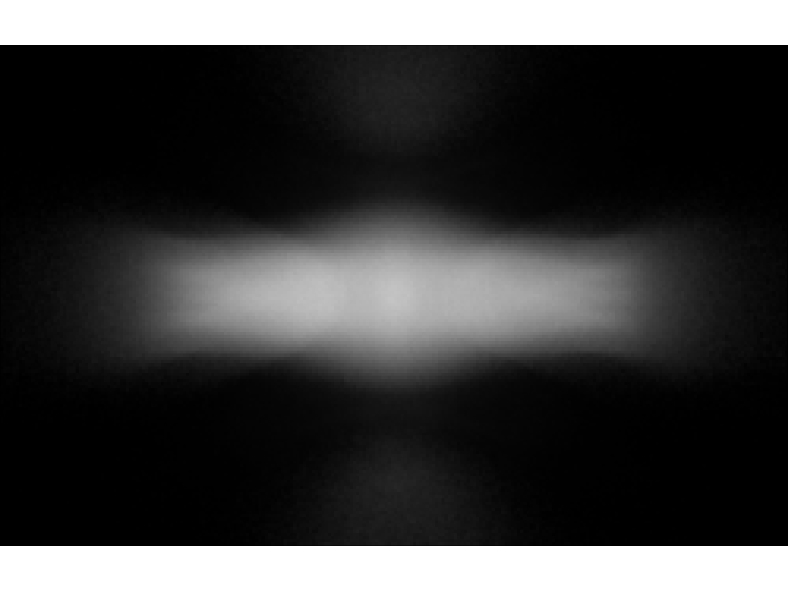

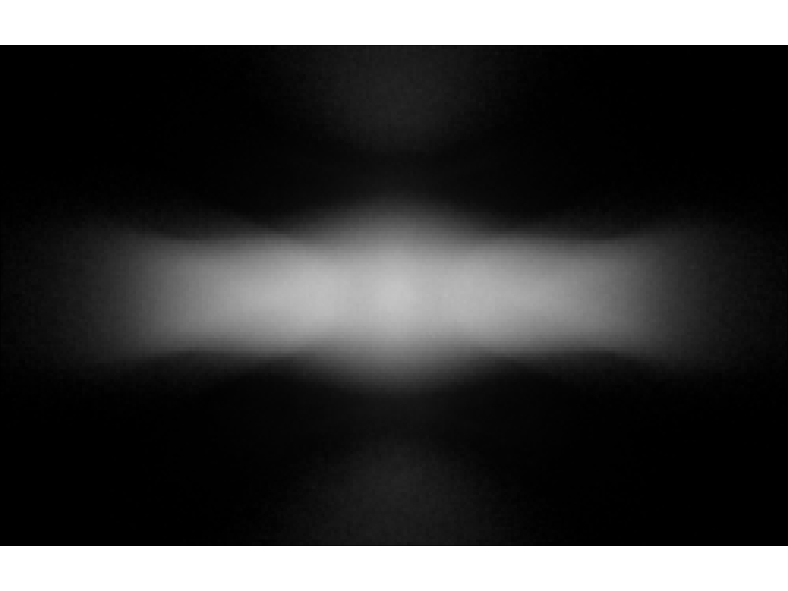

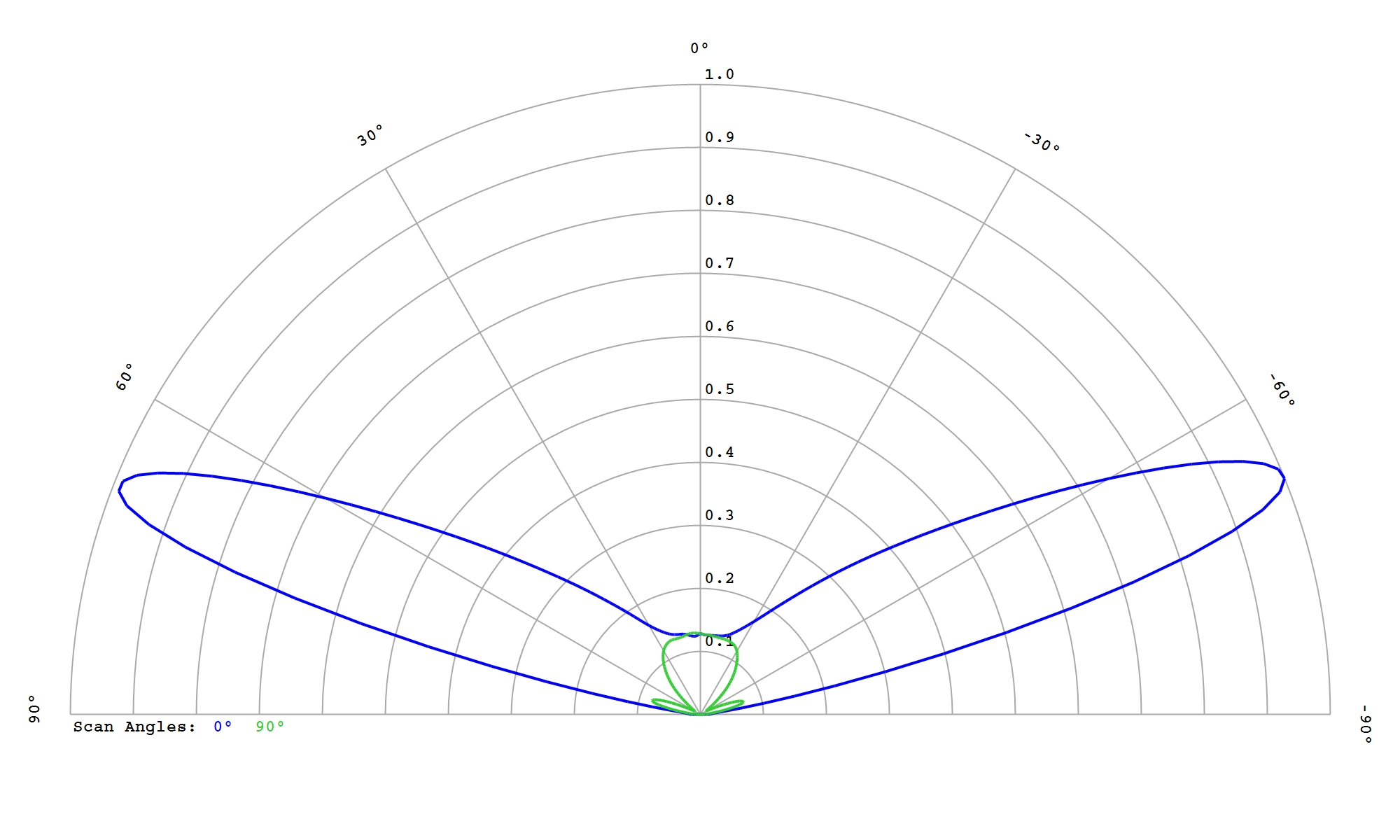

Cree JB2835B 3V G-Class White

Eff:

95.0%

FWHM:

149 x 86°

Cd/Im:

1.6


Download

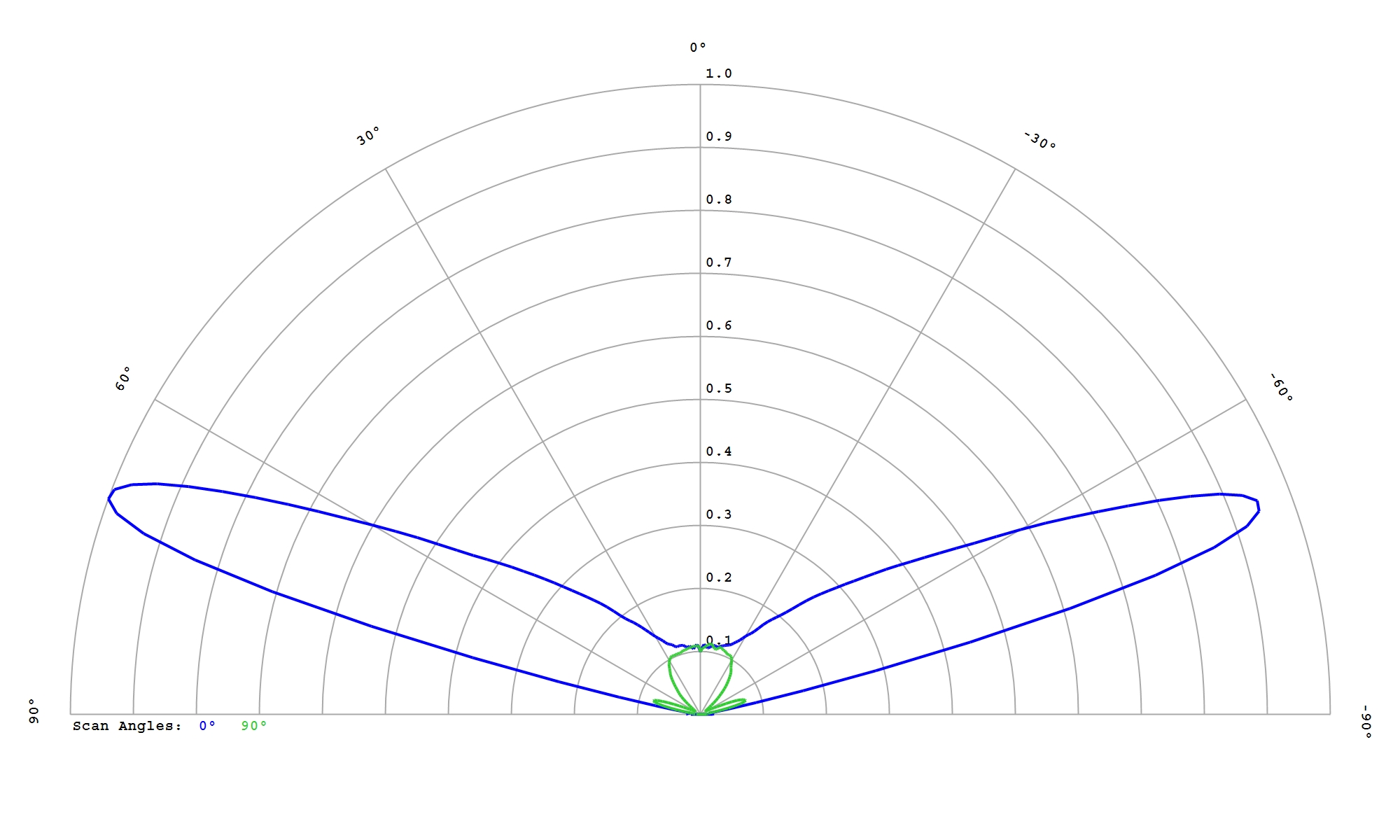

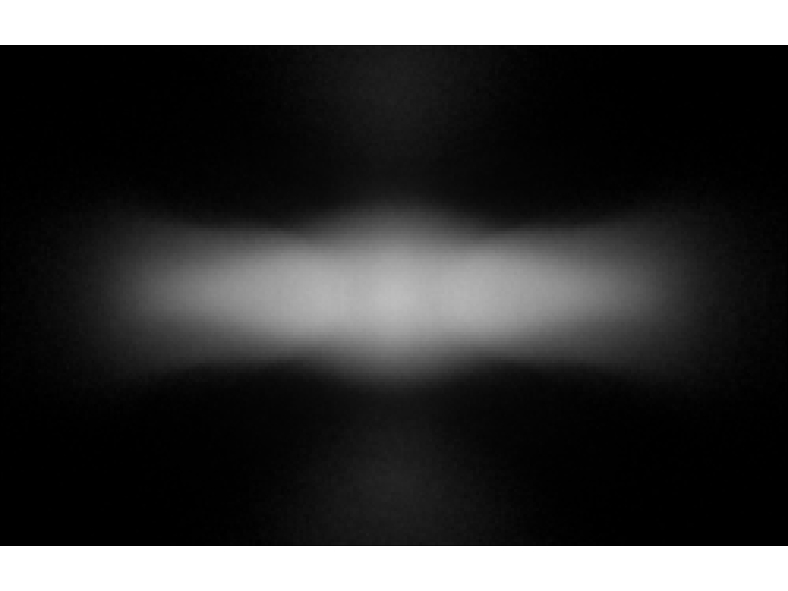

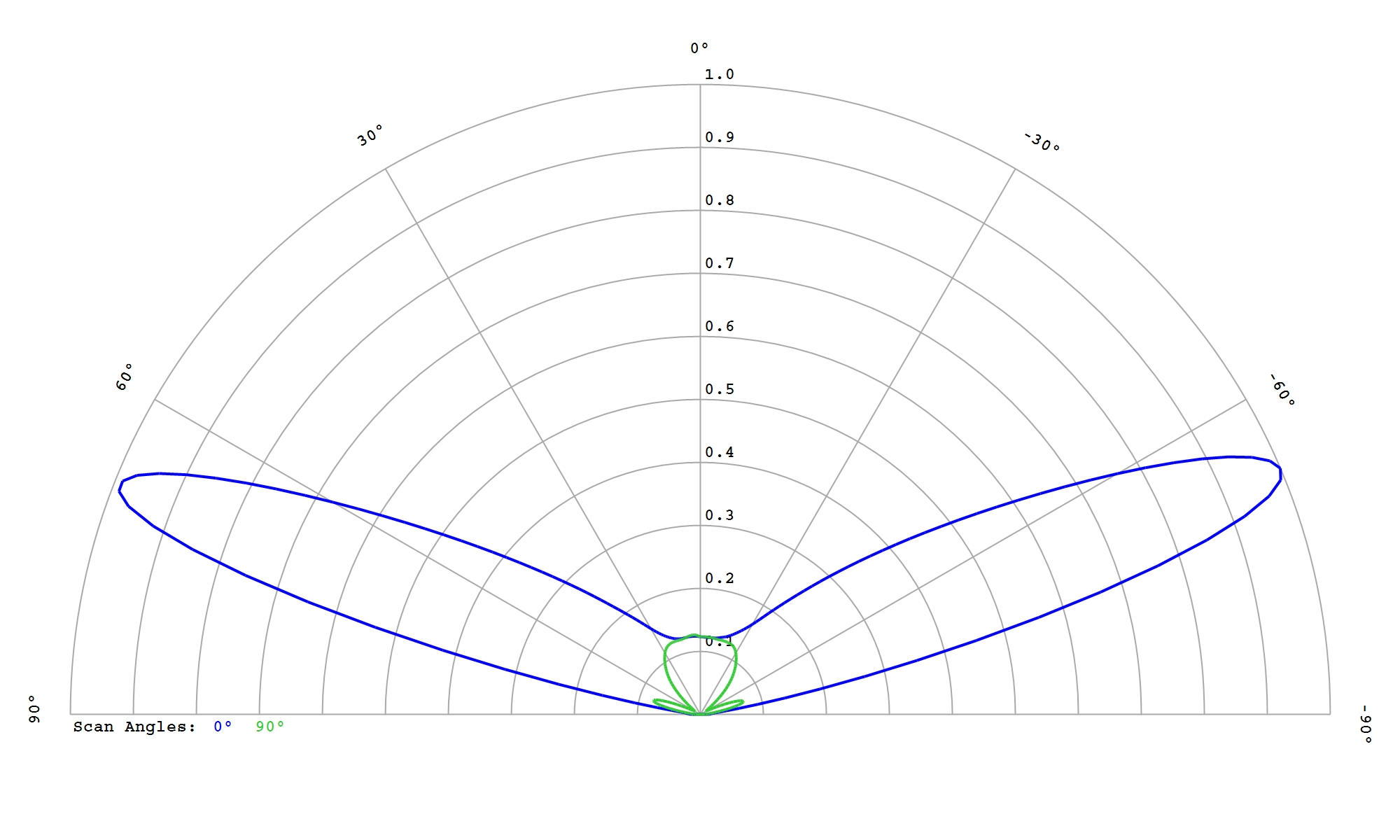

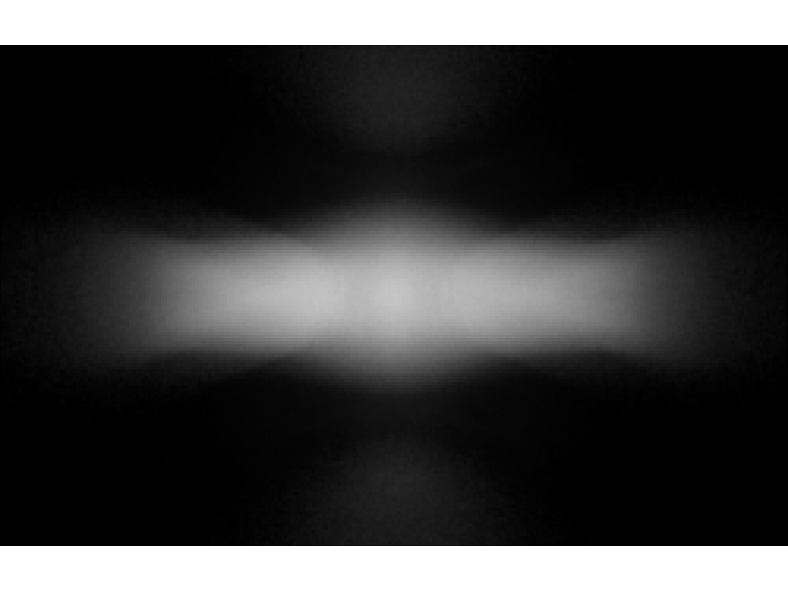

Cree JB2835B 3V J-Class White

Eff:

95.0%

FWHM:

150 x 85°

Cd/Im:

1.6


Download

Cree JB3030 3V P-Class White

Eff:

94.5%

FWHM:

146 x 83°

Cd/Im:

1.5

Carclo Optics - 12766 Spot Image Cree JB3030 3V White

Carclo Optics - 12766 Cross Section Cree JB3030 3V White

Download

ies

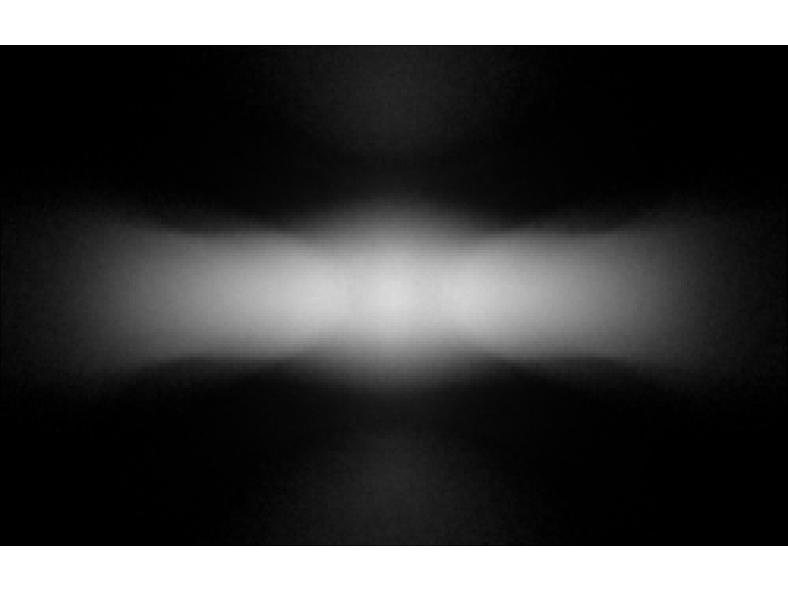

Cree JB3030C 3V E-Class White

Eff:

95.0%

FWHM:

152 x 83°

Cd/Im:

1.4


Download

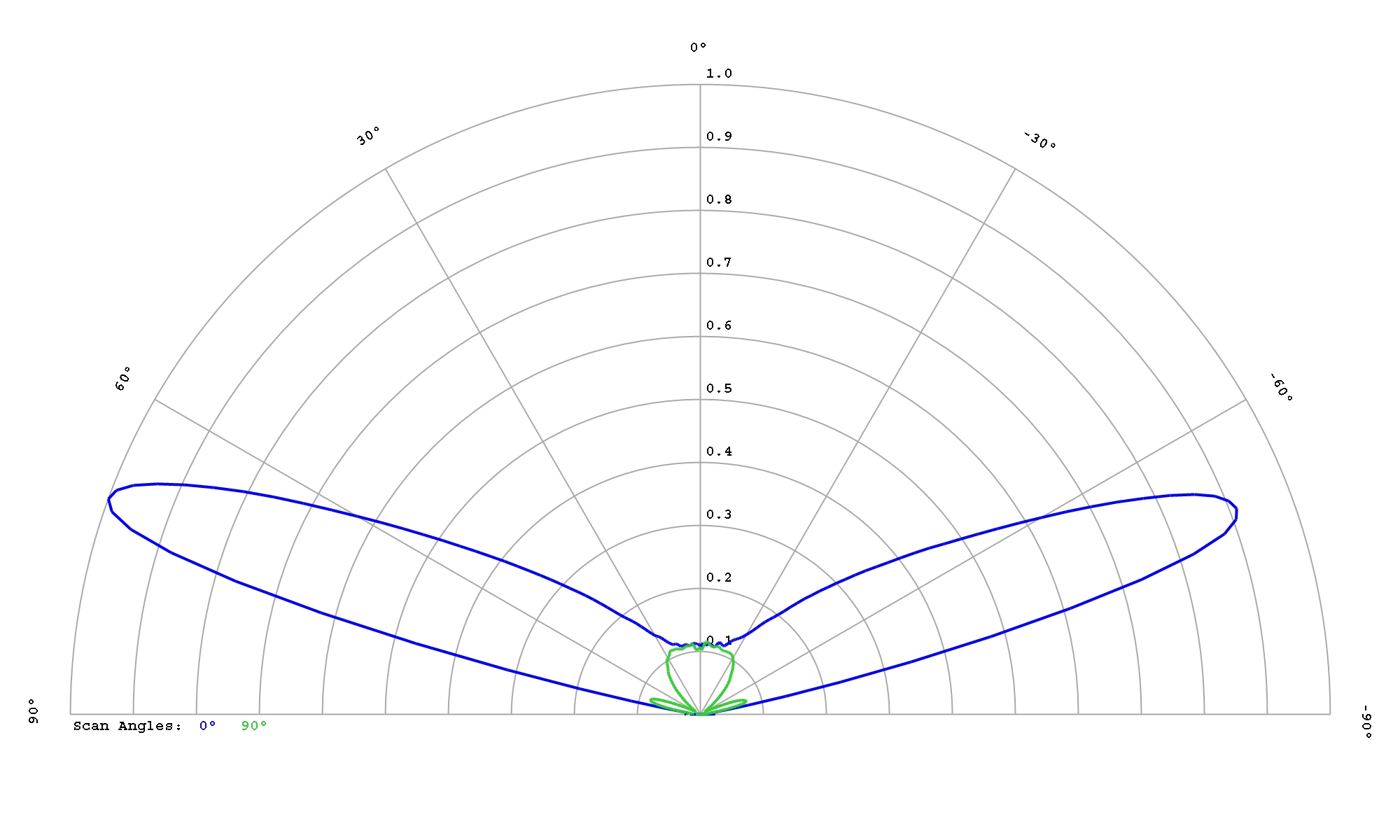

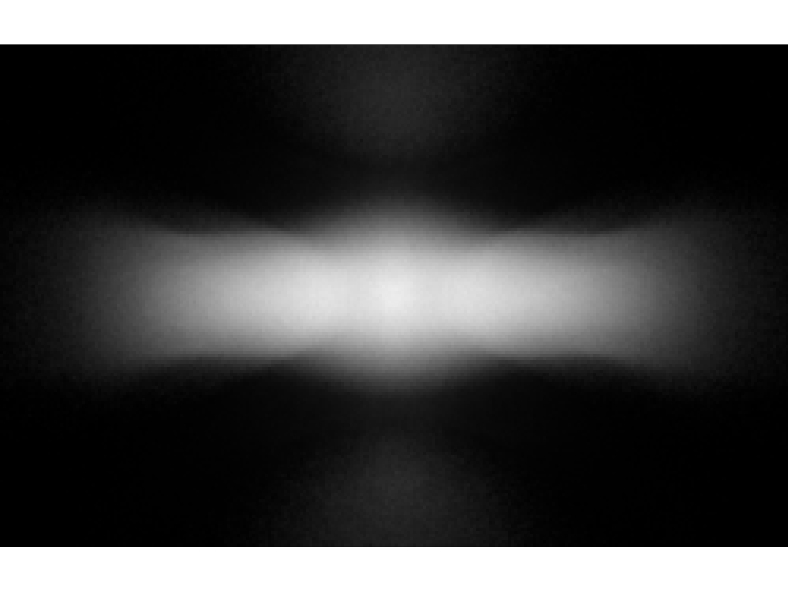

Cree JB3030C 3V F-Class White

Eff:

95.5%

FWHM:

151 x 88°

Cd/Im:

1.5


Download

Cree JE2835 3V PC Amber

Eff:

95.5%

FWHM:

146 x 88°

Cd/Im:

3.7

Download

IES

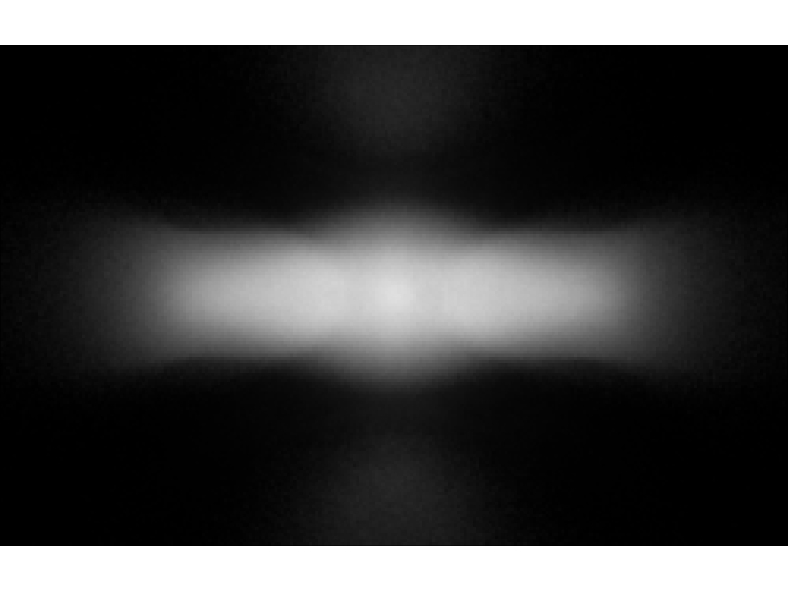

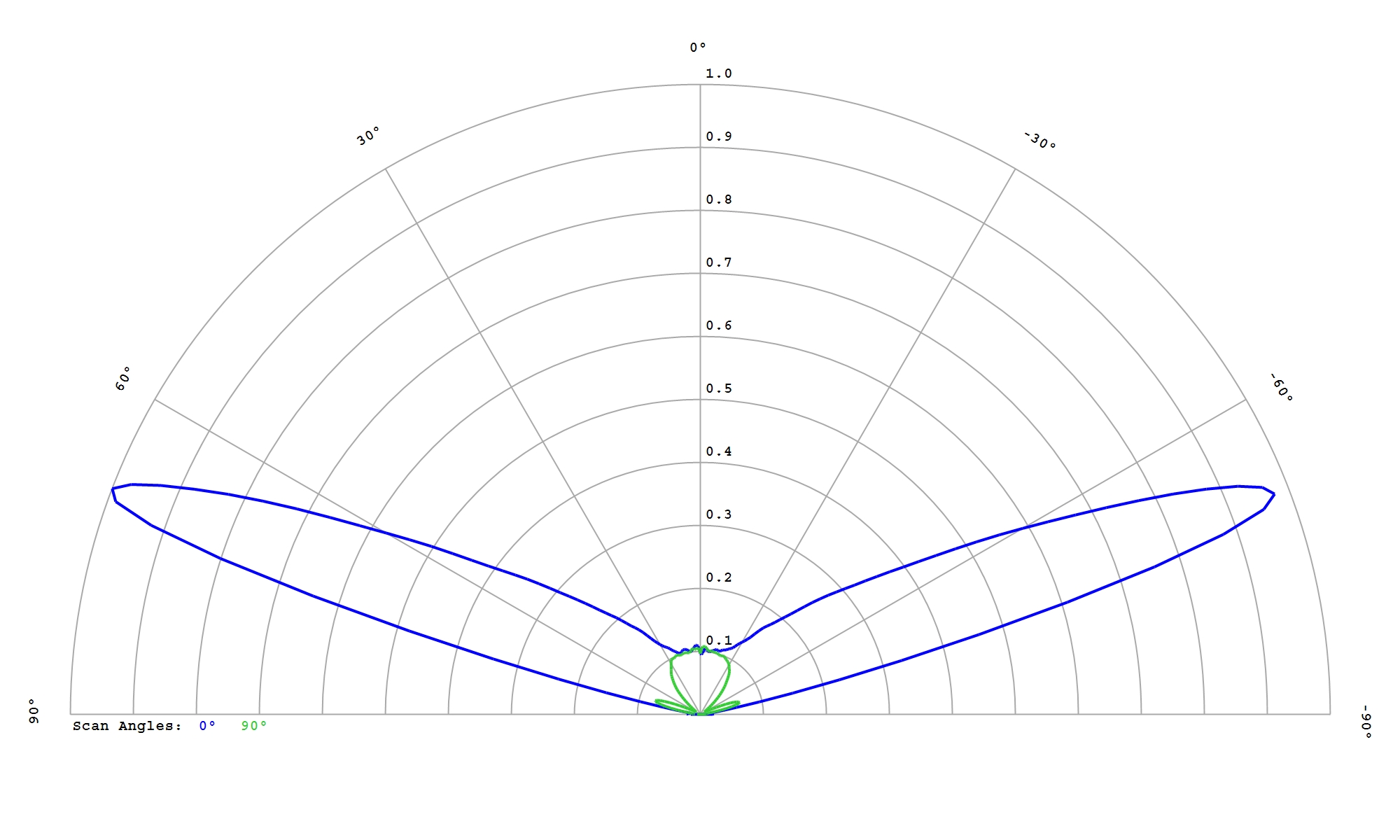

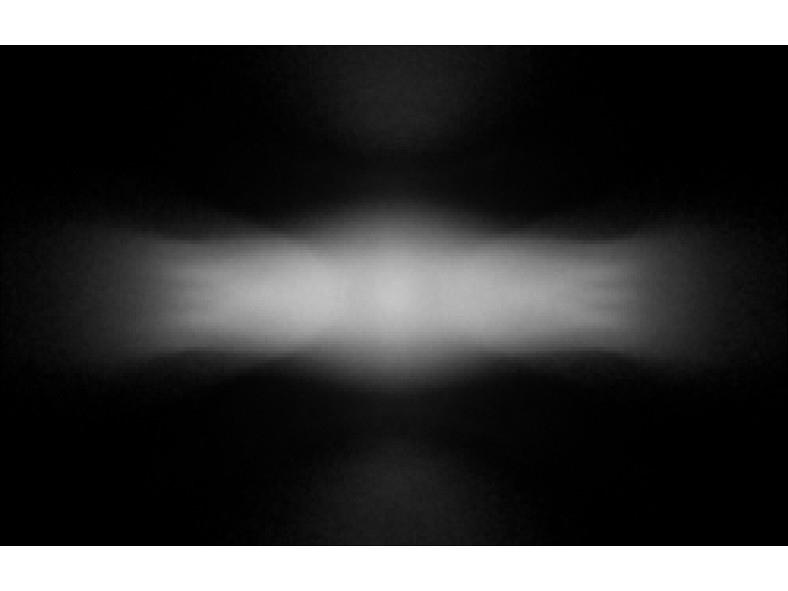

Cree JE2835 3V White

Eff:

95.5%

FWHM:

147 x 85°

Cd/Im:

1.7

Download

Cree JK2835 6V White

Eff:

95.0%

FWHM:

149 x 83°

Cd/Im:

1.6

Download

ies

Cree XLamp CSP XD16 Cool White

Eff:

92.5%

FWHM:

150 x 86°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp CSP XD16 Premium White

Eff:

94.5%

FWHM:

150 x 88°

Cd/Im:

2.3

Download

IES

Cree XLamp XB-D PC Amber

Eff:

92.0%

FWHM:

155 x 85°

Cd/Im:

1.3

Download

IES

Cree XLamp XB-D White

Eff:

88.4%

FWHM:

153x88x0°

Cd/Im:

1.8

Simulation Data

Simulation Data

Download

IES

Cree XLamp XB-H White

Eff:

94.0%

FWHM:

153 x 79°

Cd/Im:

1.3

Carclo Optics - 12766 Mini Hubble Spot Image Cree XLamp XB-H

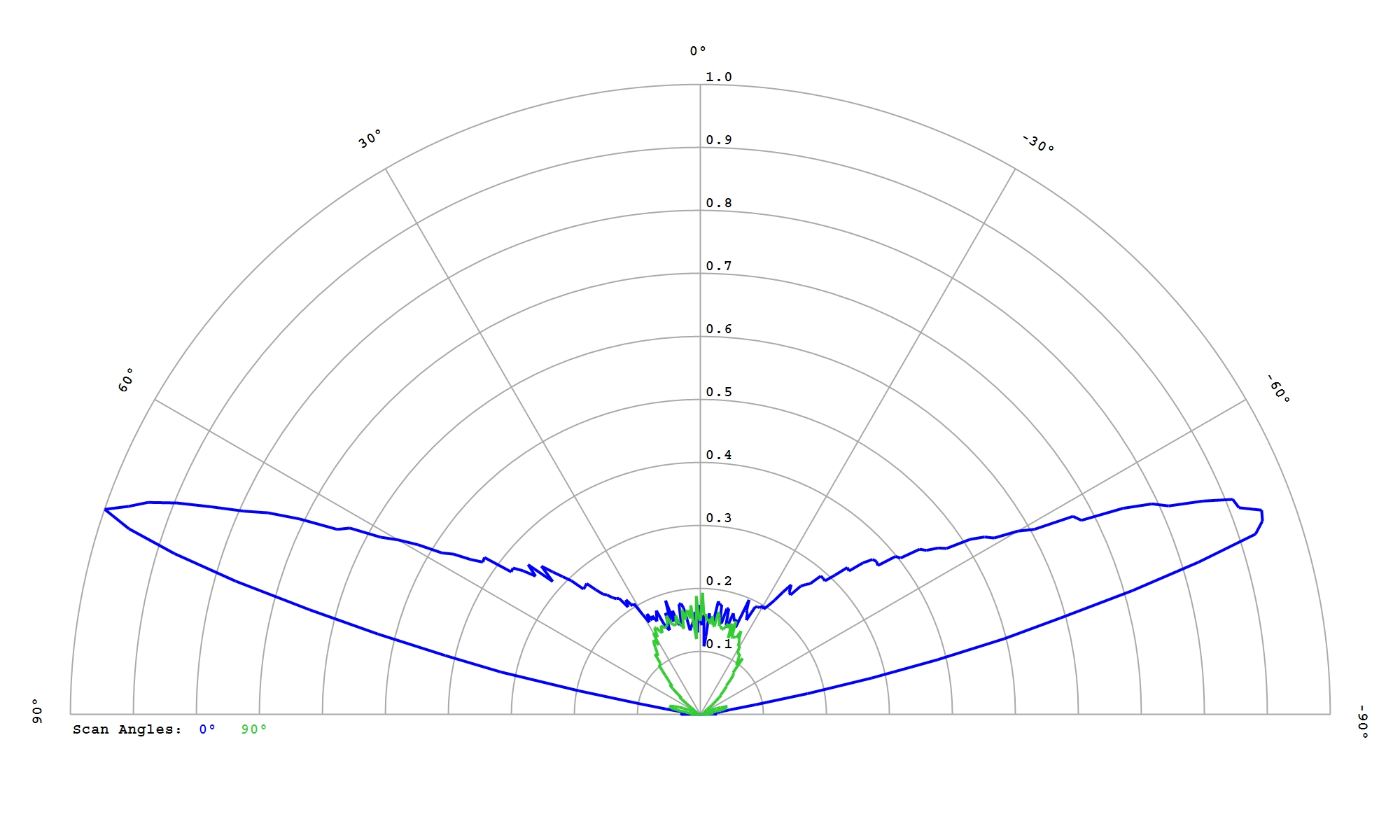

Carclo Optics - 12766 Mini Hubble Cross Section Cree XLamp XB-H

Download

ies

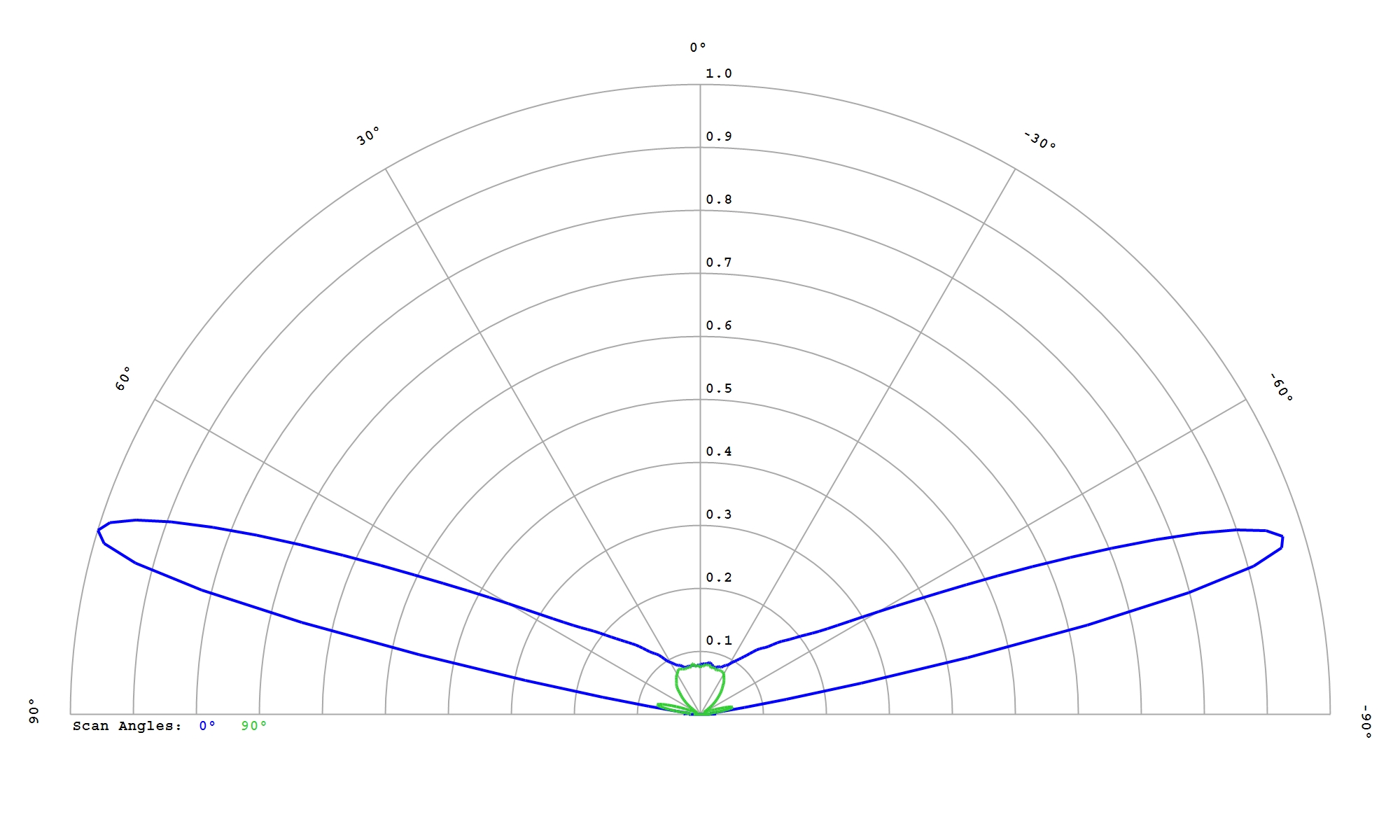

Cree XLamp XE-G PC Amber

Eff:

93.0%

FWHM:

155 x 90°

Cd/Im:

2.0

Download

IES

Cree XLamp XE-G White

Eff:

93.0%

FWHM:

154 x 88°

Cd/Im:

2.2

Download

ies

Cree XLamp XHP35 HD White

Eff:

91.5%

FWHM:

158 x 88°

Cd/Im:

0.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XHP35.2 HI White

Eff:

90.5%

FWHM:

156 x 87°

Cd/Im:

0.9

Carclo Optics – 12766 Spot Image Cree XLamp XHP35.2 HI White

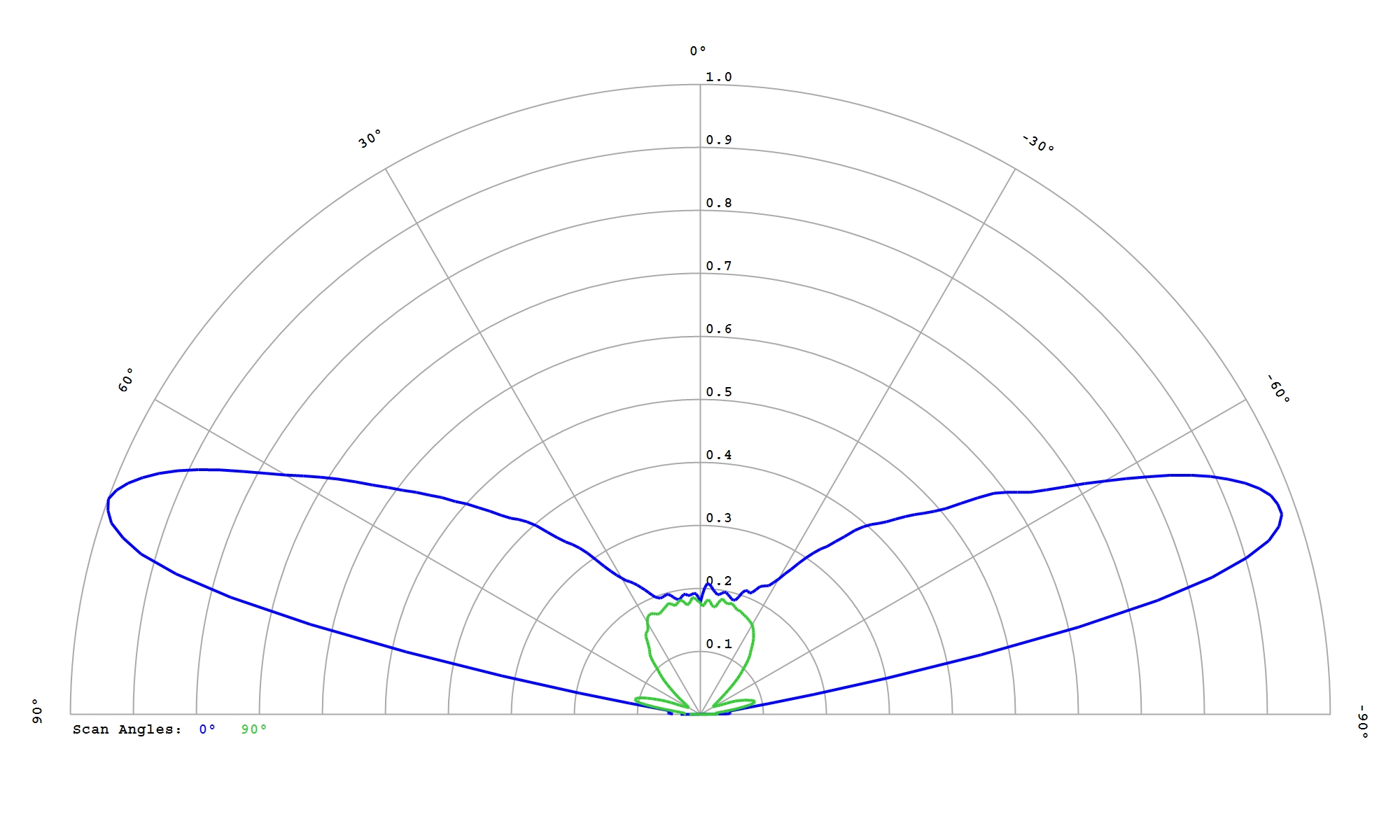

Carclo Optics – 12766 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

86.0%

FWHM:

156 x 91°

Cd/Im:

0.6

Carclo Optics - 12766 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 12766 Cross Section Cree XLamp XHP35.2 White

Download

ies

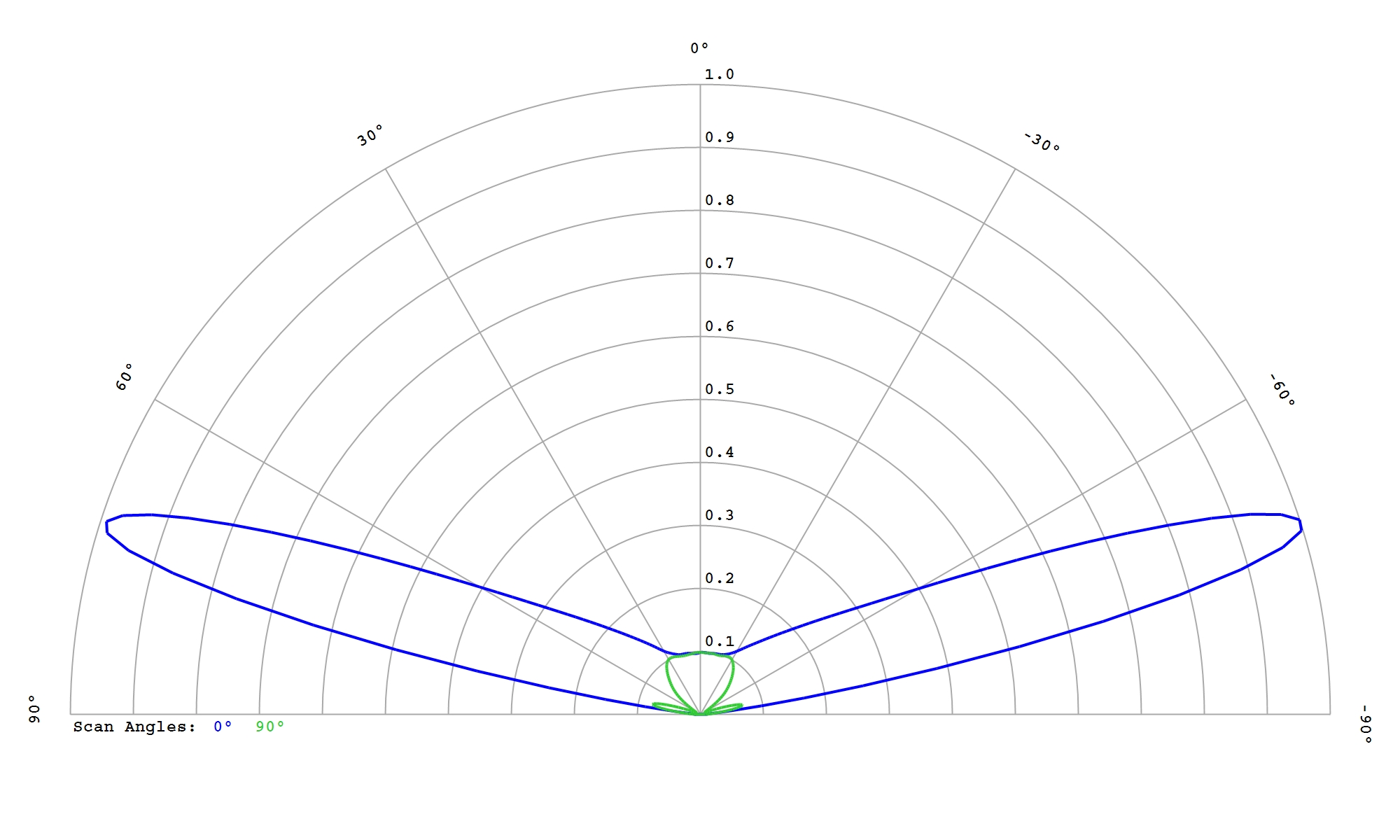

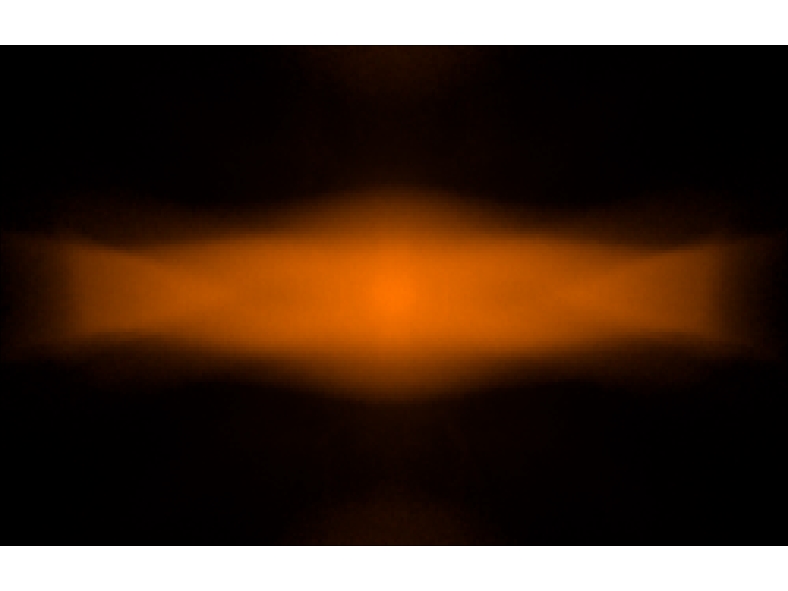

Cree XLamp XP-E2 Amber

Eff:

93.5%

FWHM:

155 x 97°

Cd/Im:

2.0

Download

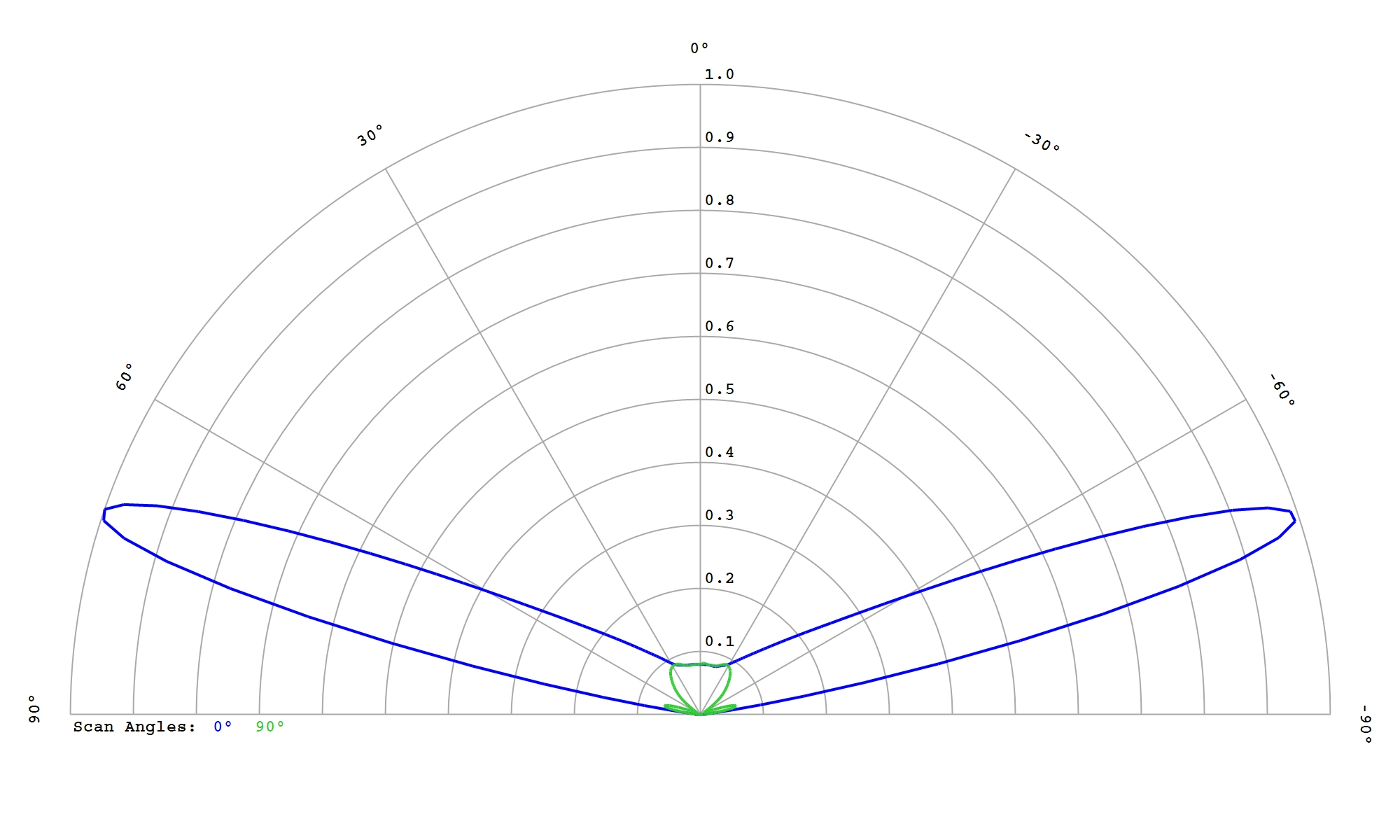

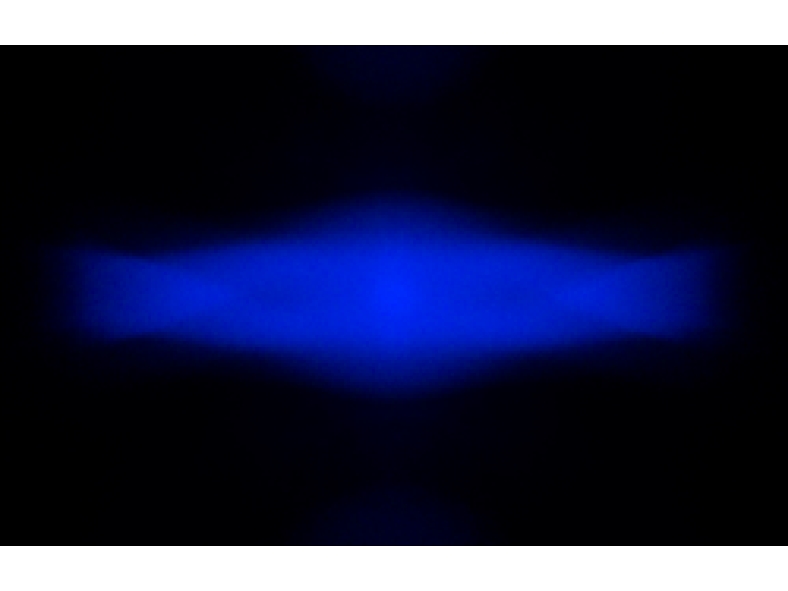

Cree XLamp XP-E2 Blue

Eff:

95.0%

FWHM:

153 x 97°

Cd/Im:

2.6

Download

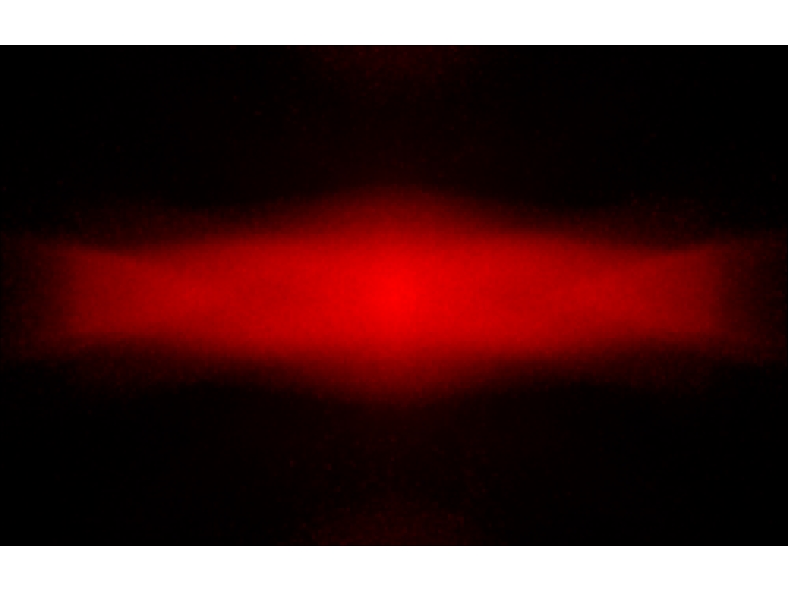

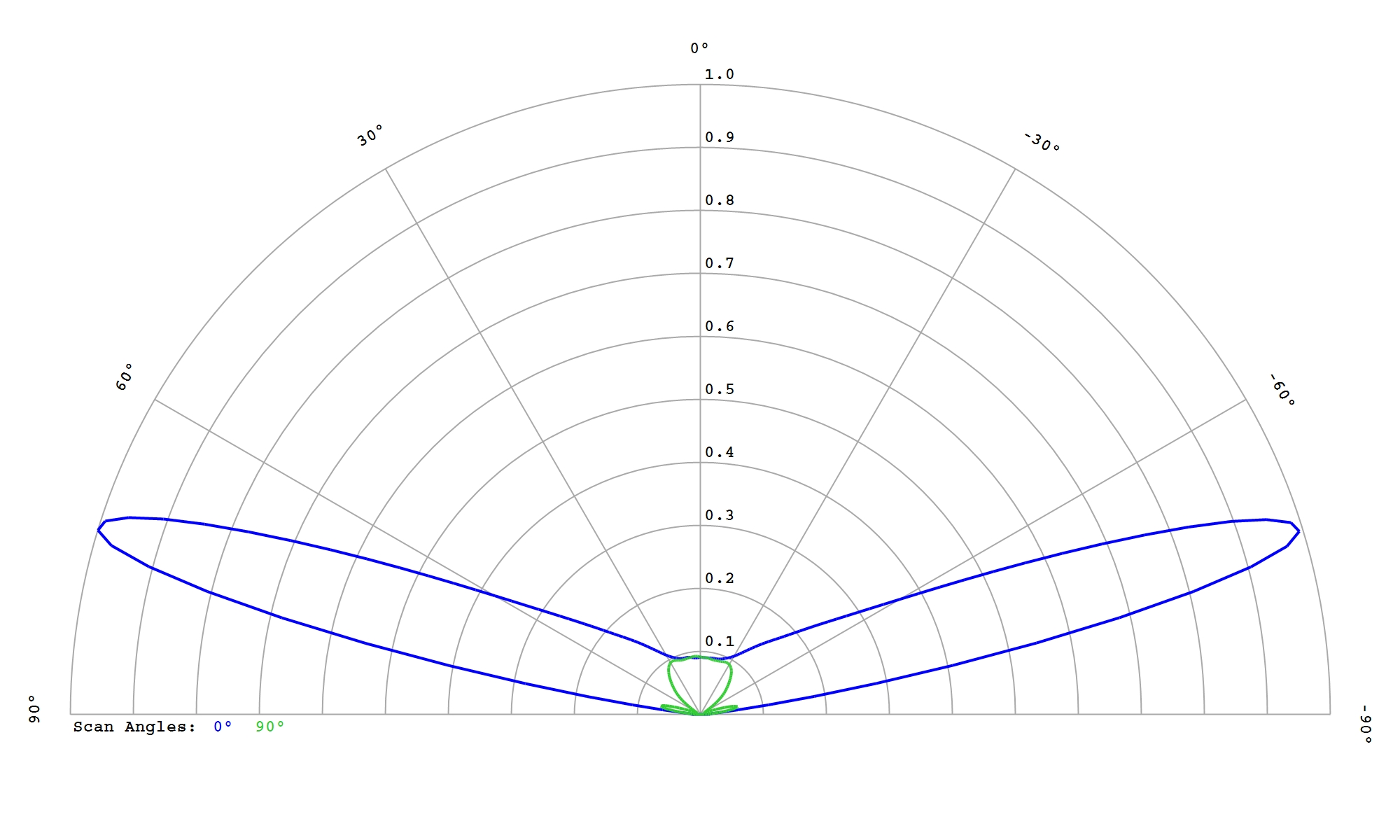

Cree XLamp XP-E2 Far Red

Eff:

94.5%

FWHM:

155 x 98°

Ipk/W:

2.2

Download

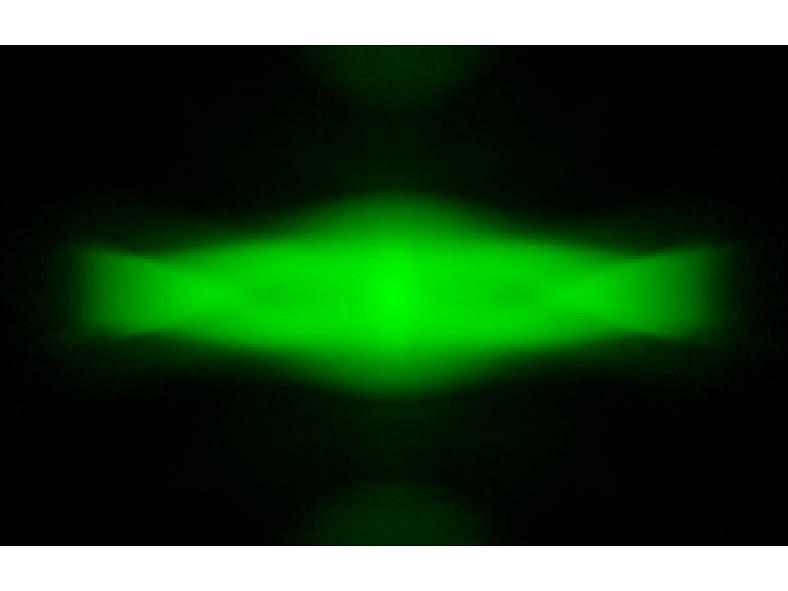

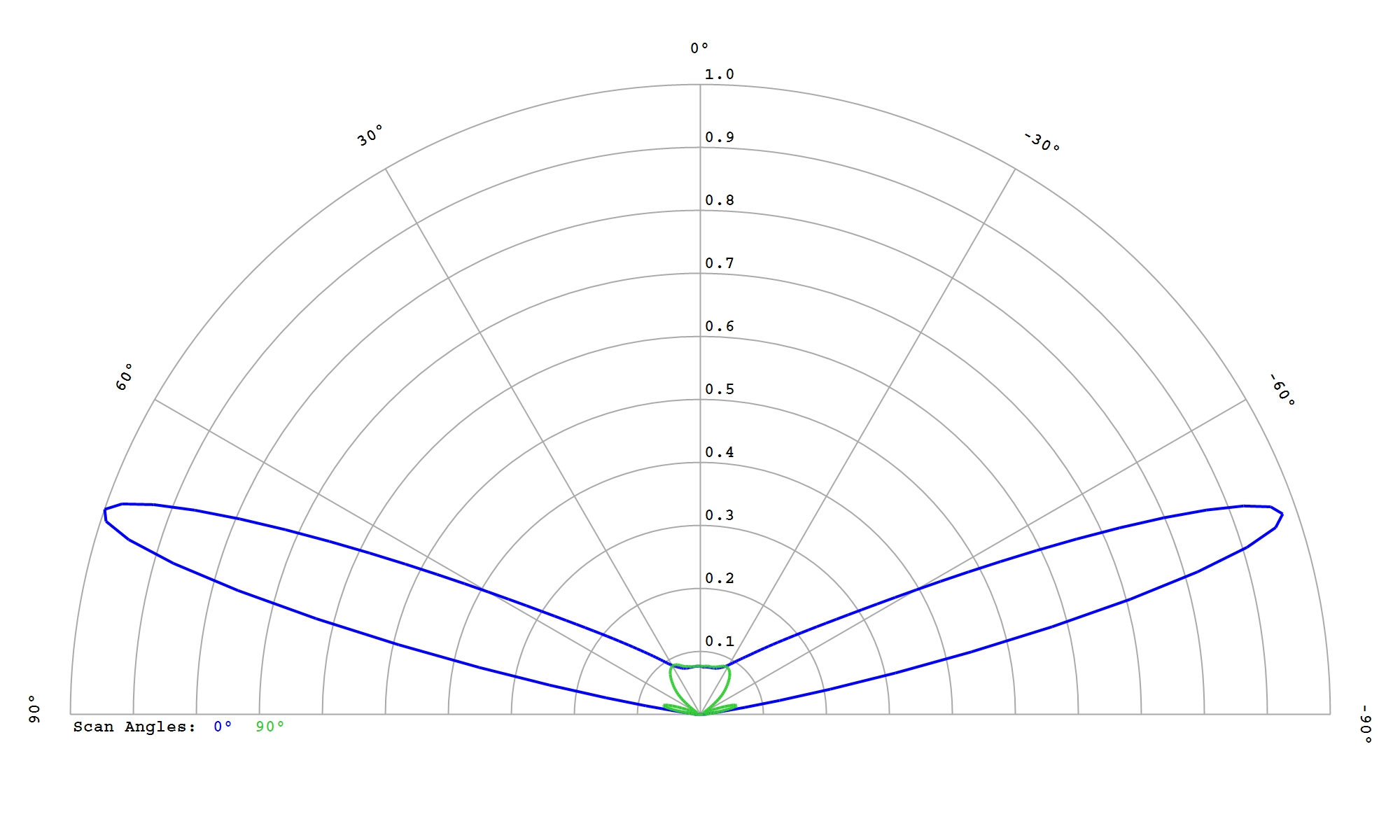

Cree XLamp XP-E2 Green

Eff:

94.5%

FWHM:

153 x 97°

Cd/Im:

2.5

Download

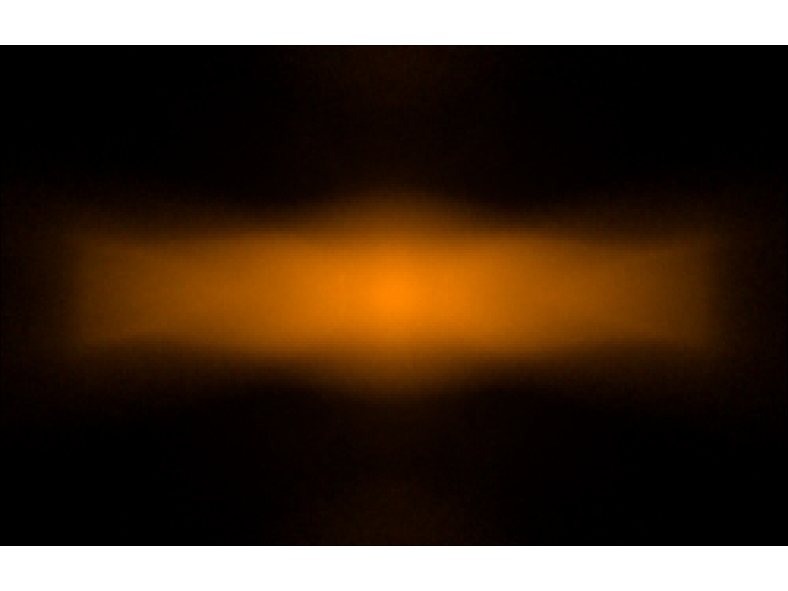

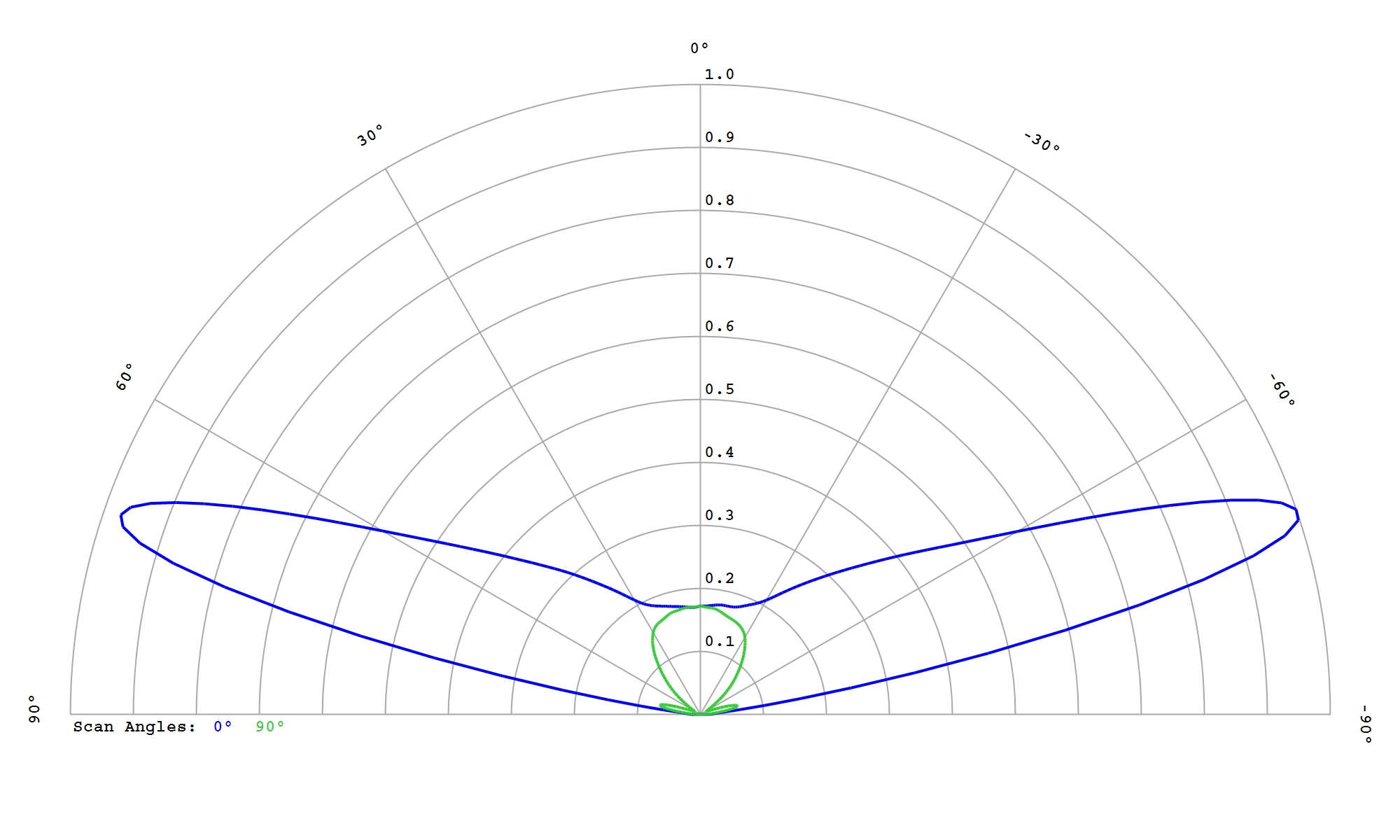

Cree XLamp XP-E2 PC Amber

Eff:

93.5%

FWHM:

154 x 84°

Cd/Im:

1.4


Download

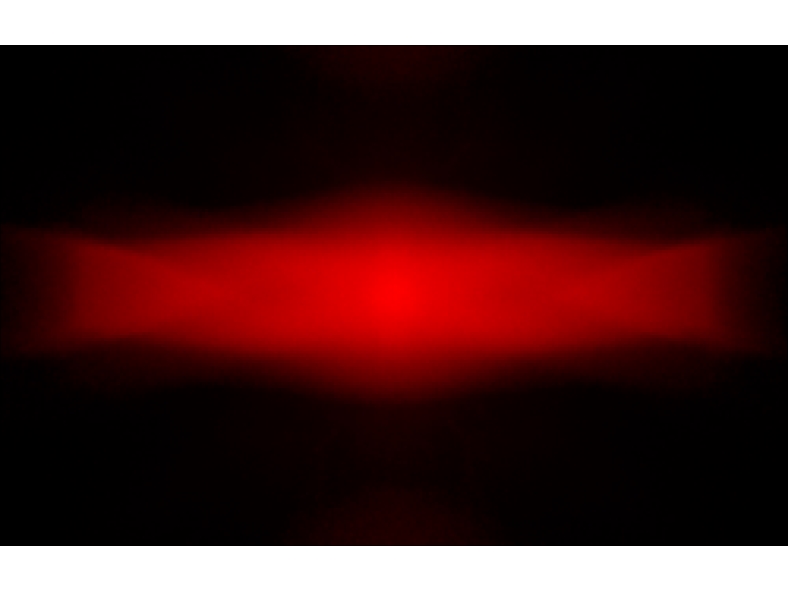

Cree XLamp XP-E2 Photo Red

Eff:

94.0%

FWHM:

155 x 94°

Ipk/W:

2.0


Download

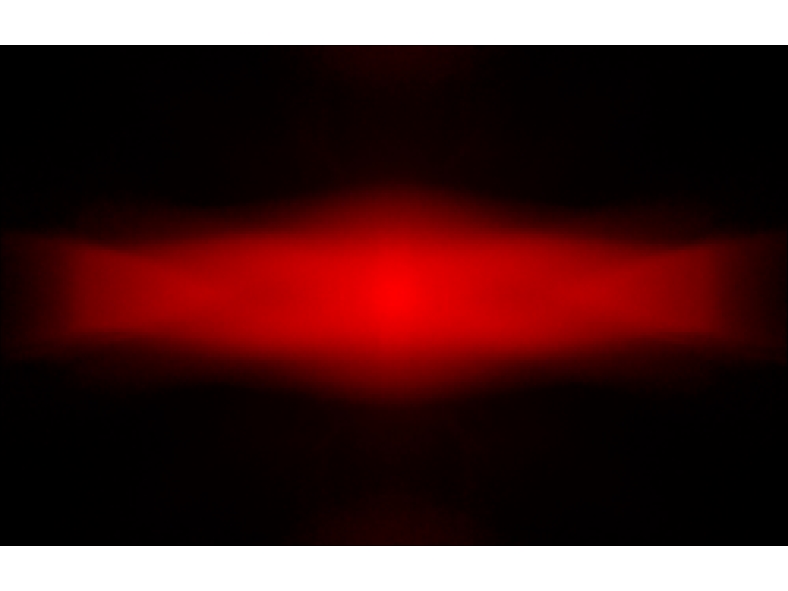

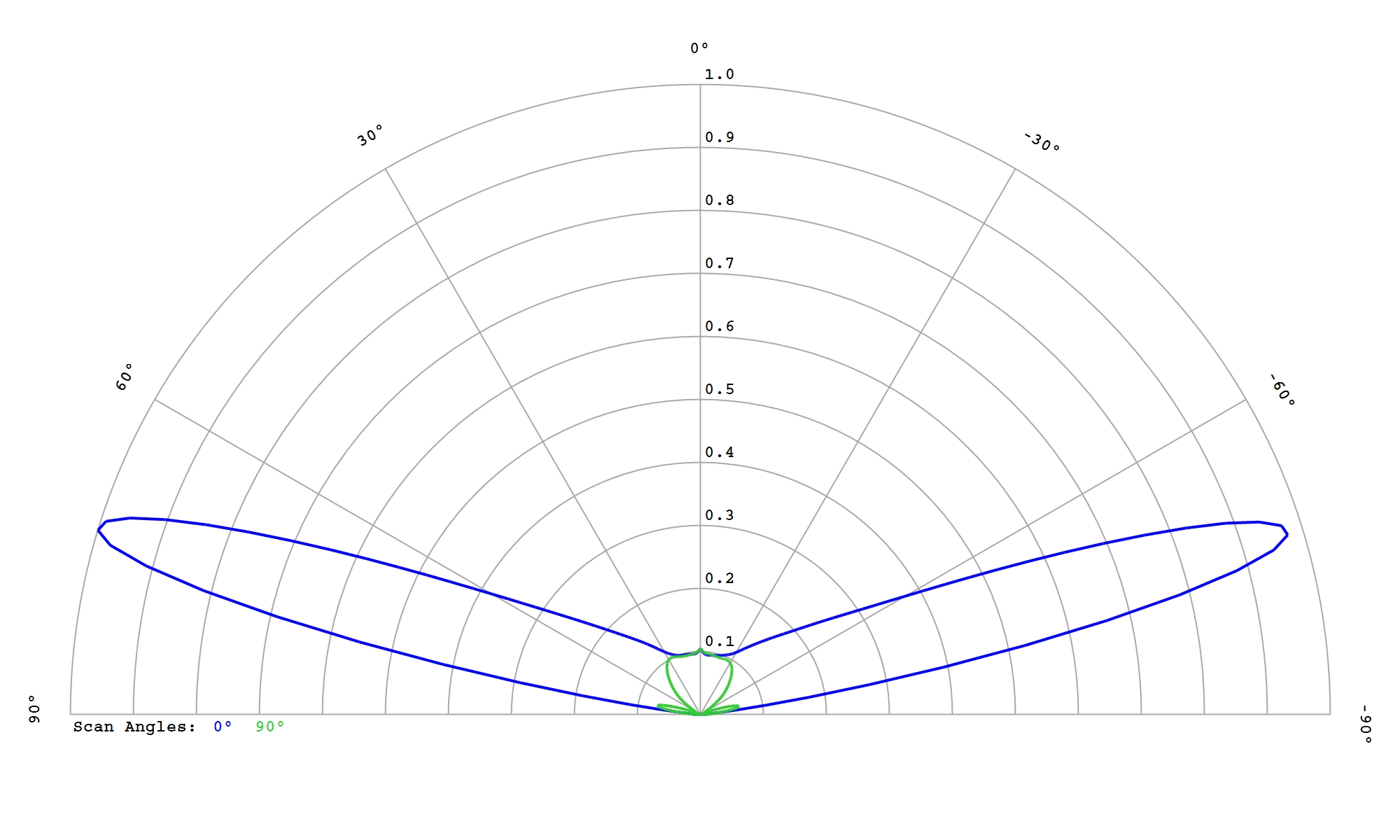

Cree XLamp XP-E2 Red

Eff:

93.5%

FWHM:

155 x 94°

Cd/Im:

2.1

Download

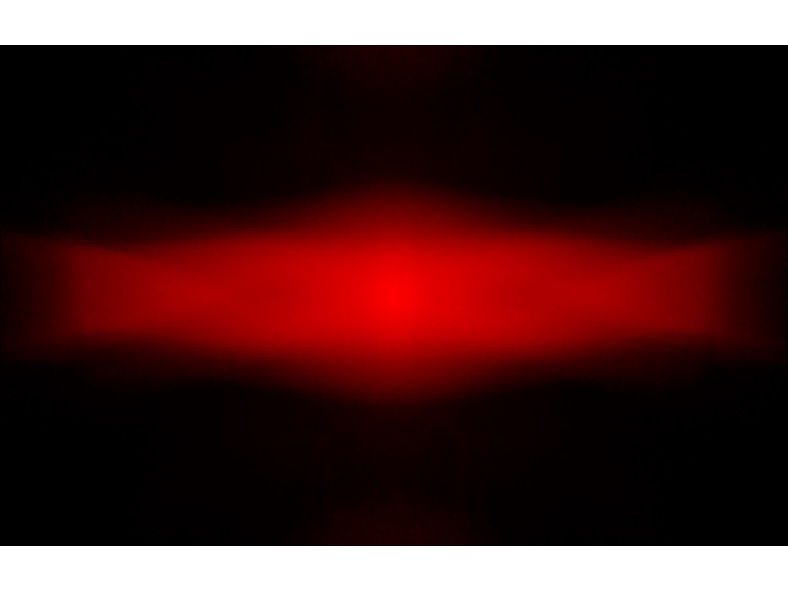

Cree XLamp XP-E2 Red-Orange

Eff:

93.5%

FWHM:

155 x 97°

Cd/Im:

2.0


Download

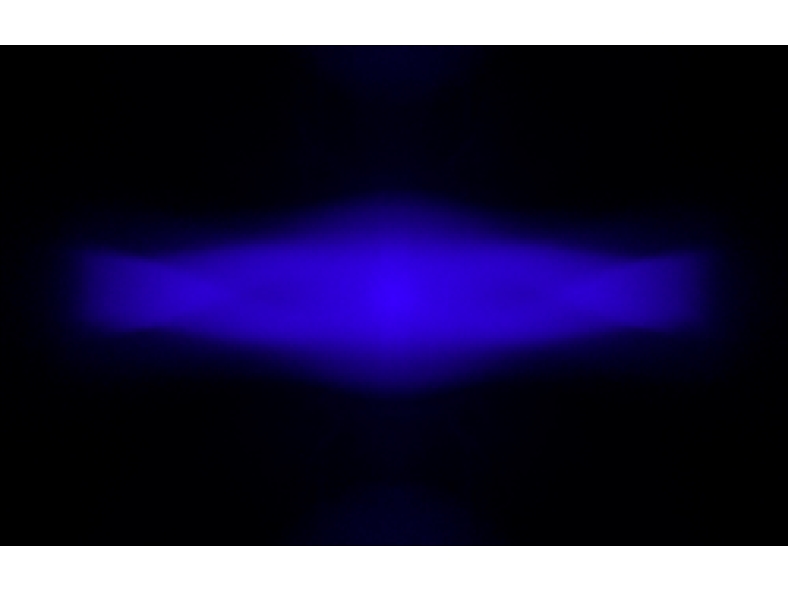

Cree XLamp XP-E2 Royal Blue

Eff:

94.5%

FWHM:

153 x 91°

Ipk/W:

2.7


Download

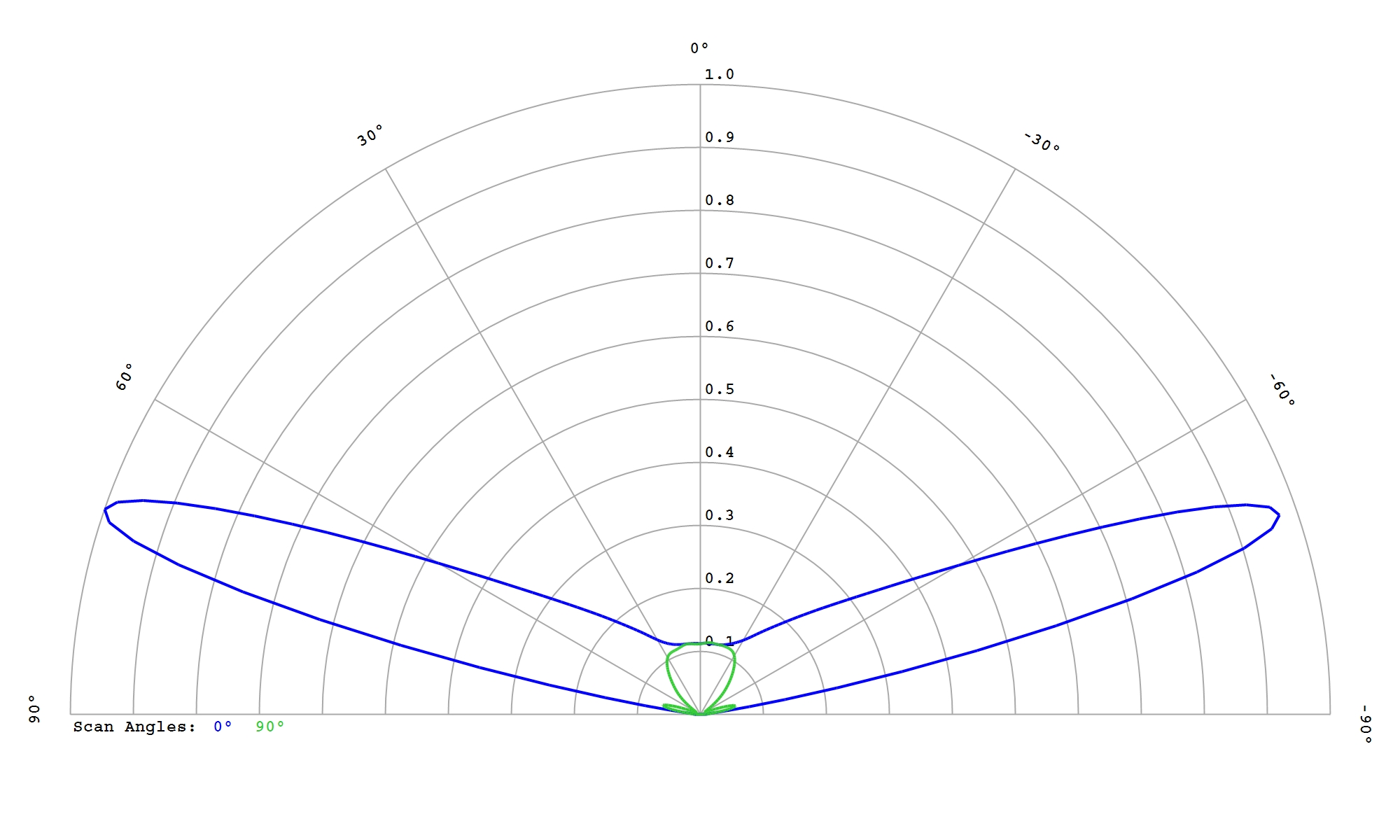

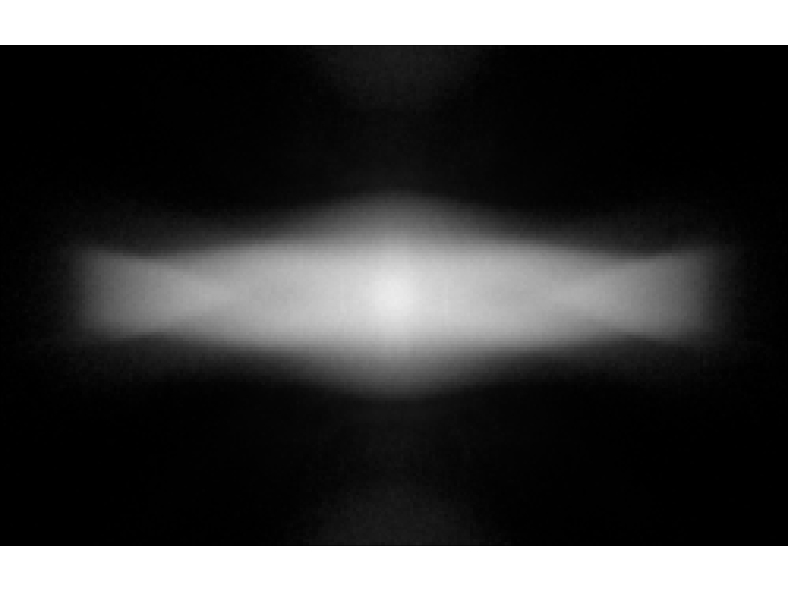

Cree XLamp XP-E2 White

Eff:

94.5%

FWHM:

153 x 86°

Cd/Im:

2.1

Download

Cree XLamp XP-G2 White

Eff:

91.0%

FWHM:

156*90*0°

Cd/Im:

1.5

Simulation Data

Simulation Data

Download

1

Cree XLamp XP-G3 White

Eff:

92.5%

FWHM:

155 x 89°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-G3 White 1800K

Eff:

92.0%

FWHM:

155 x 88°

Cd/Im:

1.1

Download

IES

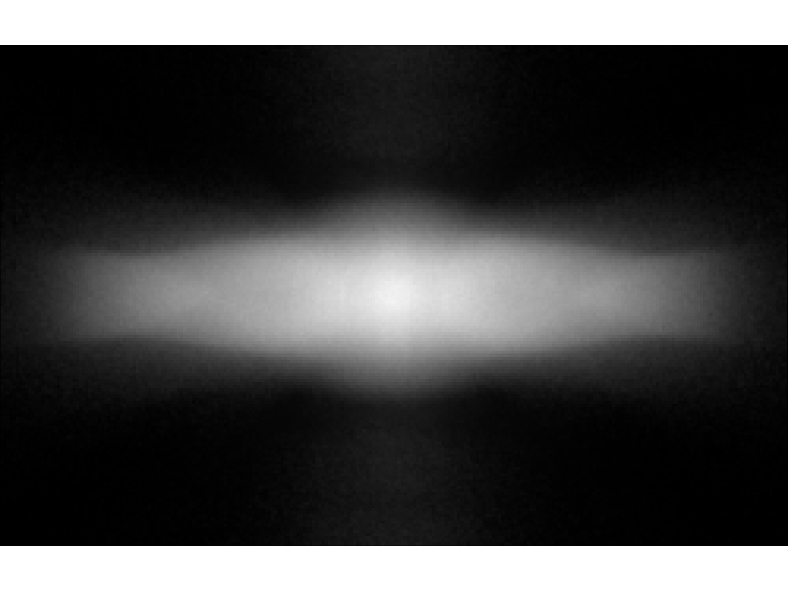

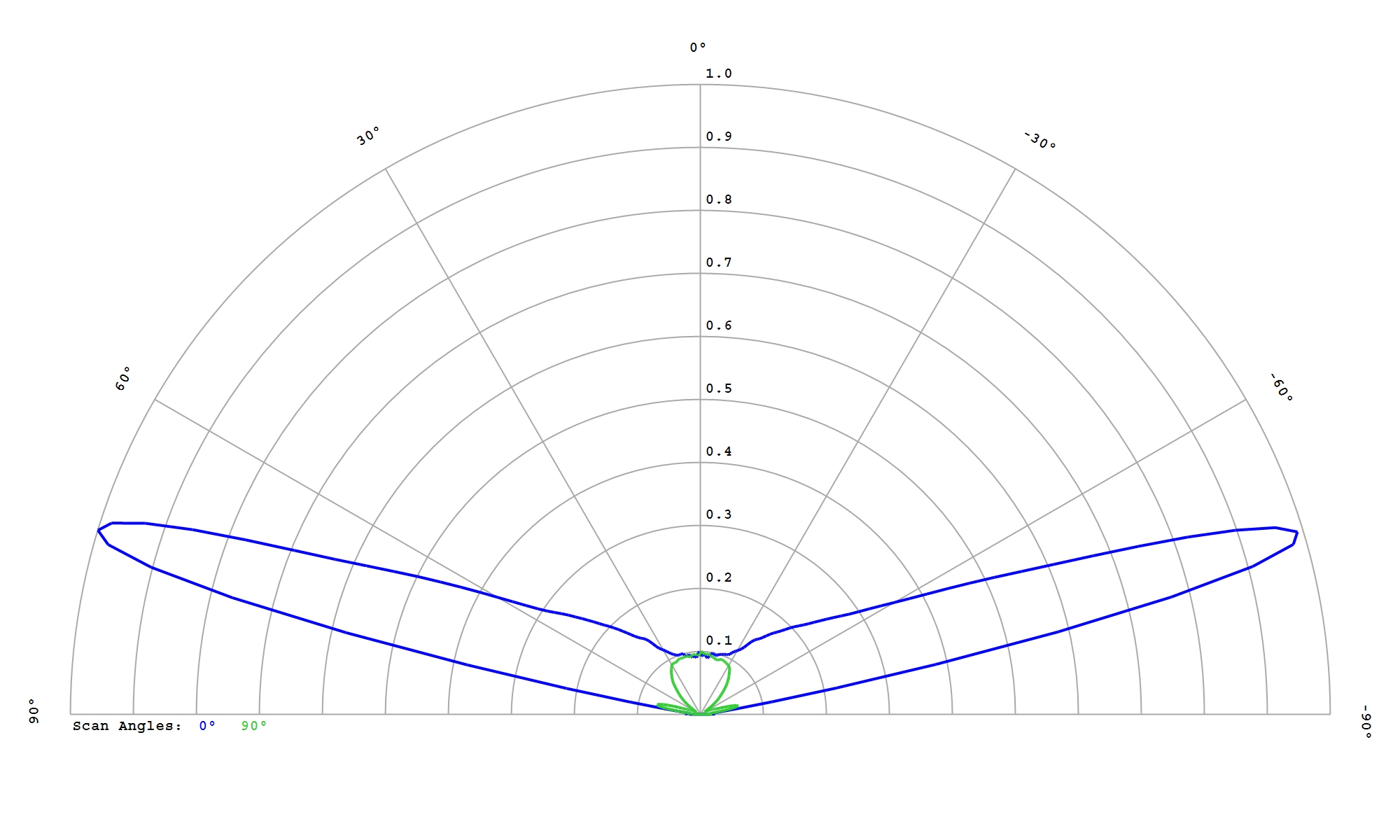

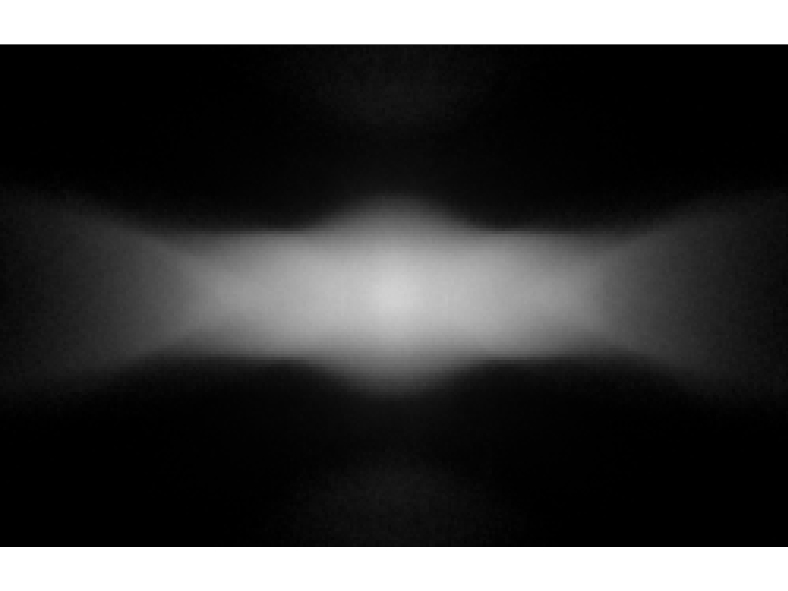

Cree XLamp XP-G4 HI White

Eff:

93.0%

FWHM:

155 x 89°

Cd/Im:

1.7

Download

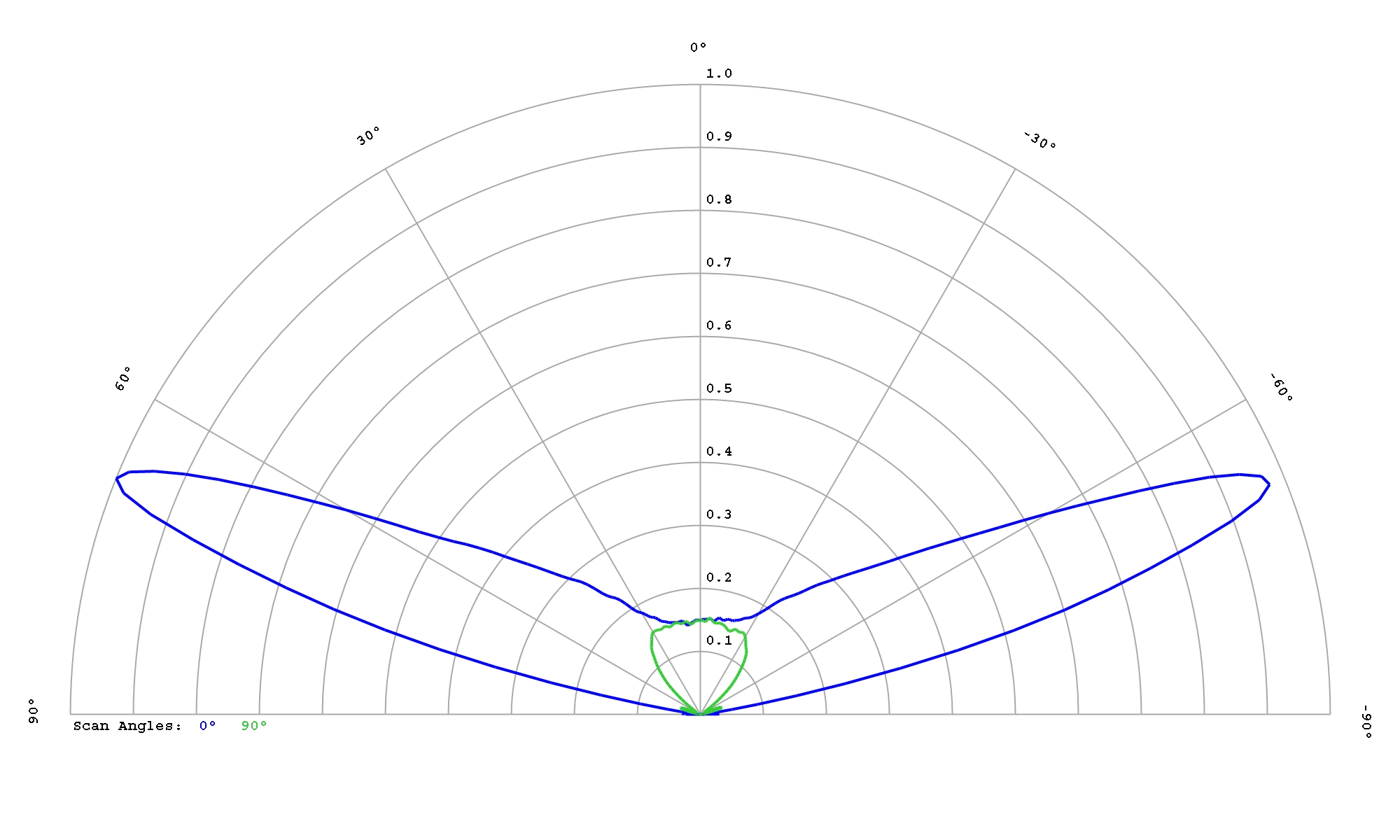

Cree XLamp XP-G4 White

Eff:

95.5%

FWHM:

150 x 90°

Cd/Im:

1.3

Download

IES

Cree XLamp XP-L HI White

Eff:

91.4%

FWHM:

154.2°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-L HI White

Eff:

94.5%

FWHM:

156 x 87°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XP-P White

Eff:

95.5%

FWHM:

150 x 88°

Cd/Im:

3.2

Carclo Optics – 12766 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12766 Cree Xlamp XP-P - Cross-Section

Download

ies

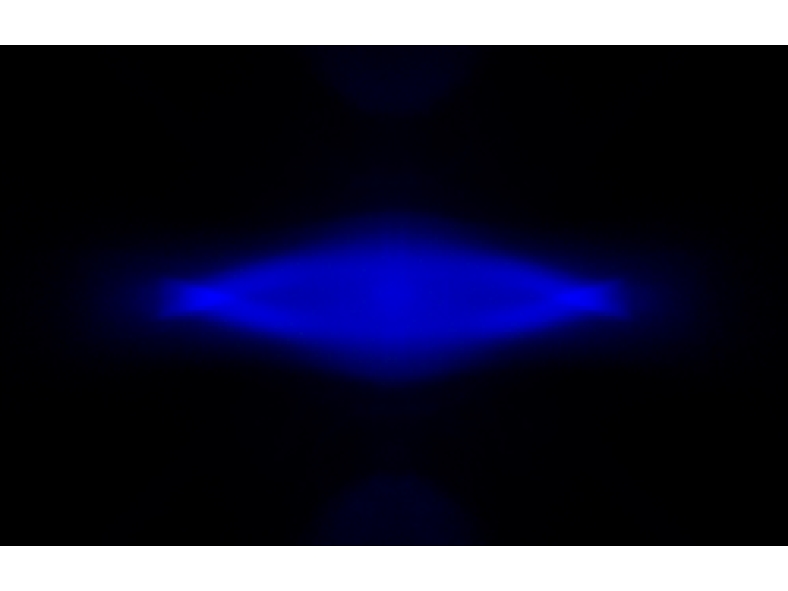

Cree XLamp XQ-A Blue

Eff:

95.0%

FWHM:

144 x 81°

Cd/Im:

5.1

Download

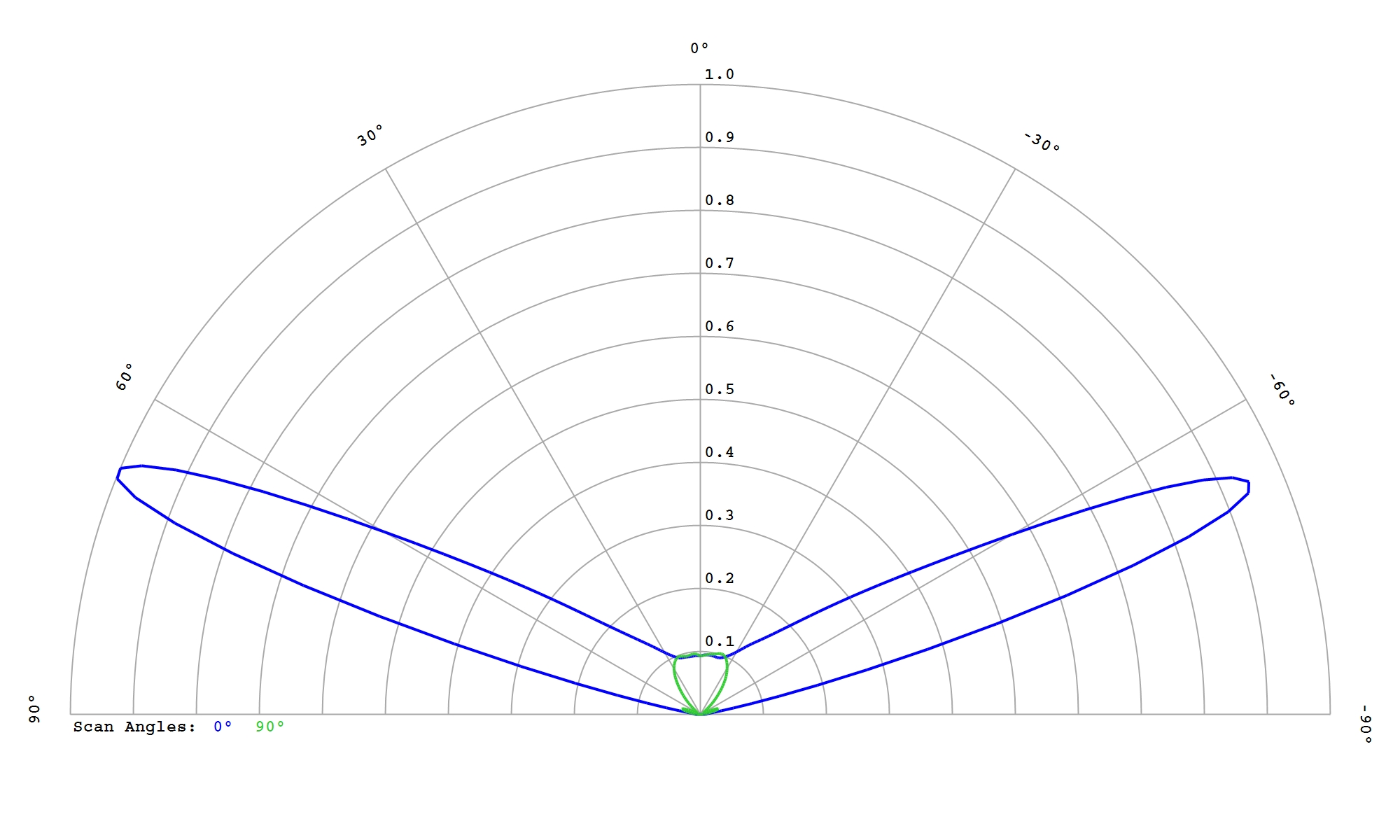

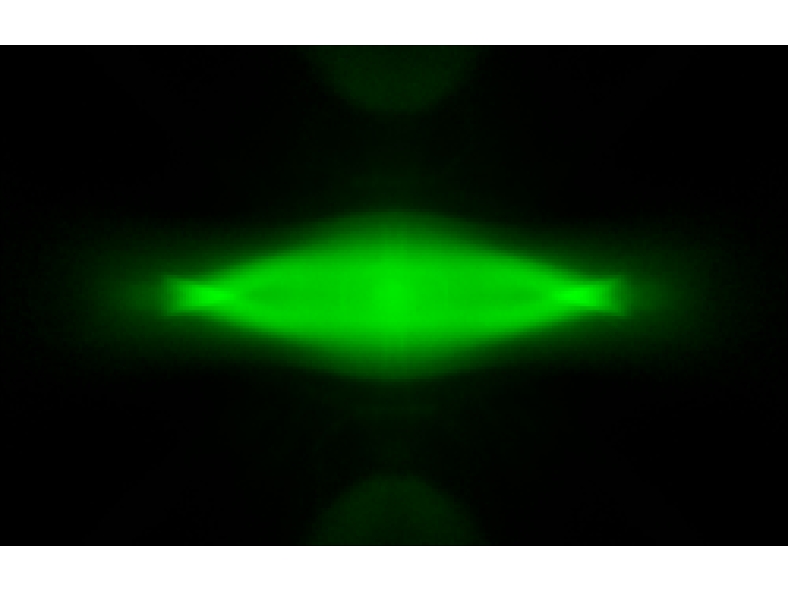

Cree XLamp XQ-A Green

Eff:

94.0%

FWHM:

144 x 77°

Cd/Im:

4.6

Download

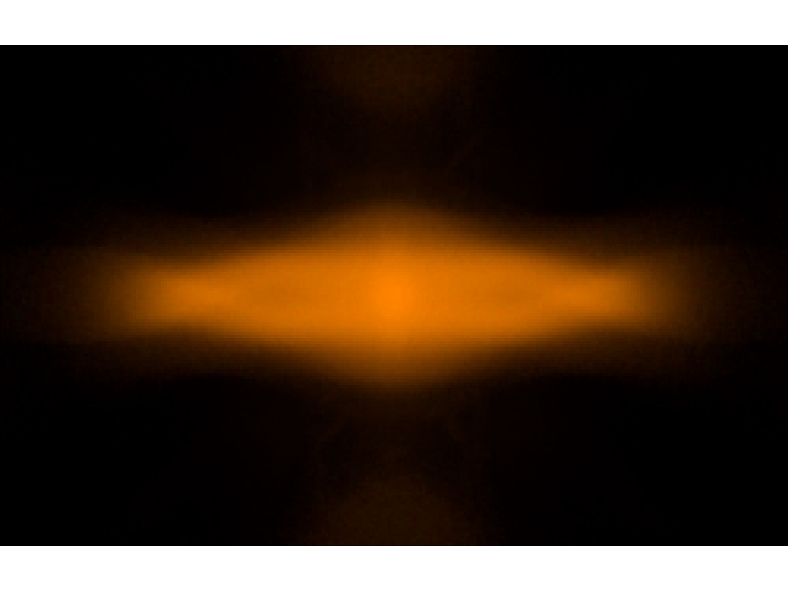

Cree XLamp XQ-A PC Amber

Eff:

92.5%

FWHM:

150 x 83°

Cd/Im:

2.6

Download

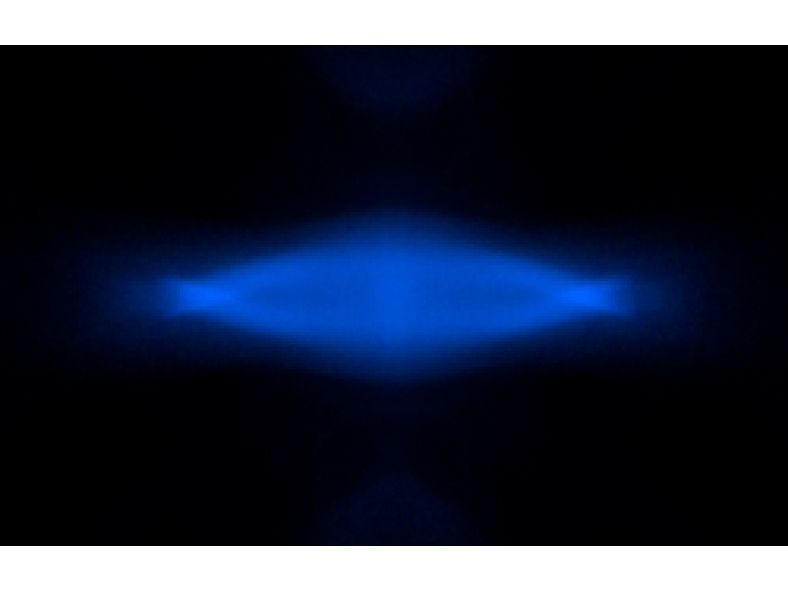

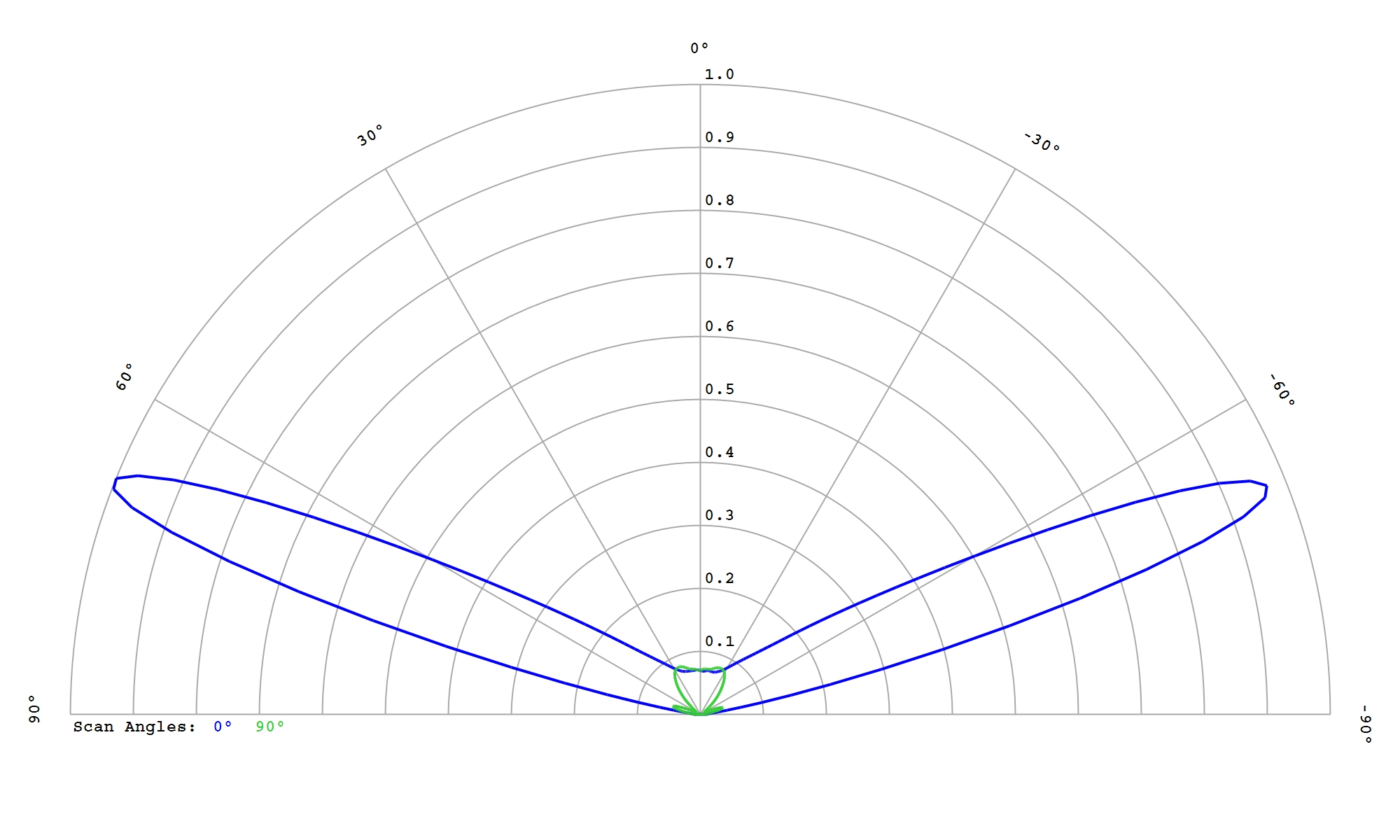

Cree XLamp XQ-A PC Blue

Eff:

92.5%

FWHM:

145 x 85°

Cd/Im:

4.5

Download

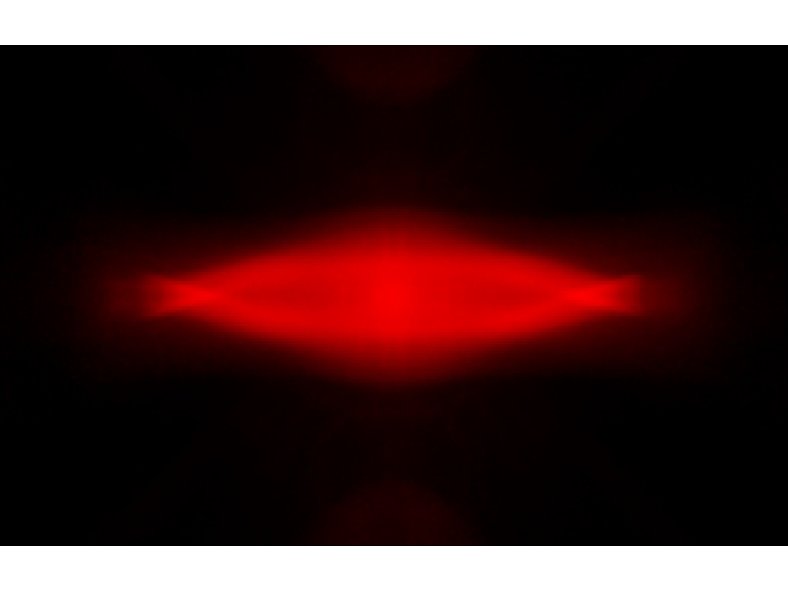

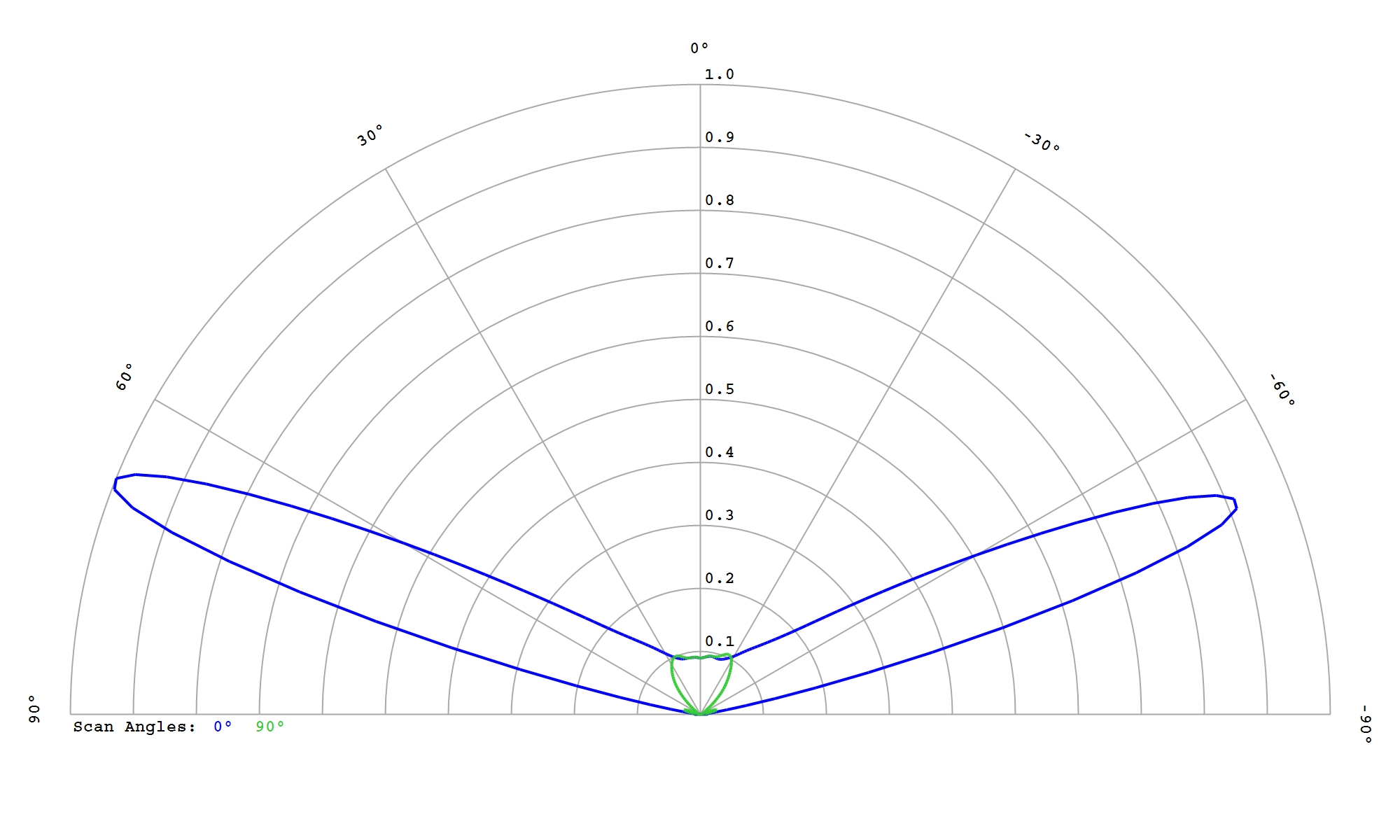

Cree XLamp XQ-A Red

Eff:

94.5%

FWHM:

146 x 83°

Cd/Im:

4.1

Download

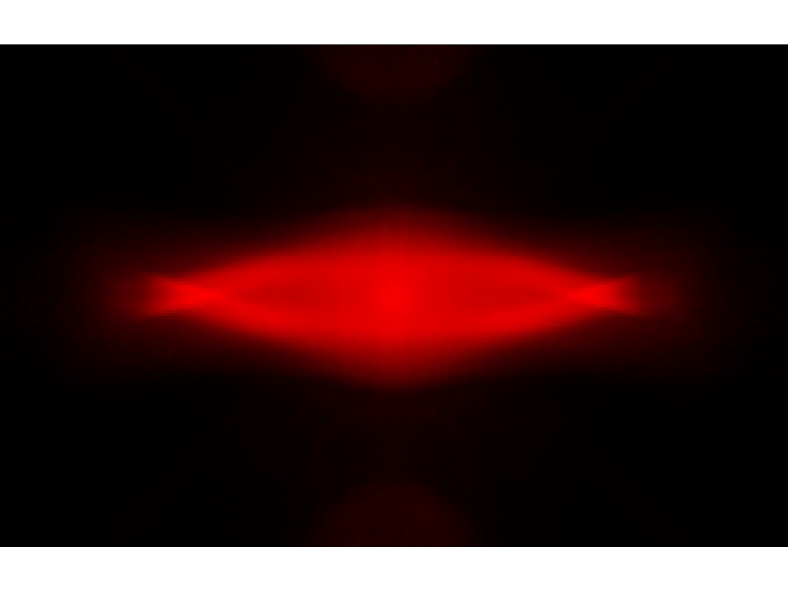

Cree XLamp XQ-A Red-Orange

Eff:

94.5%

FWHM:

146 x 84°

Cd/Im:

4.2


Download

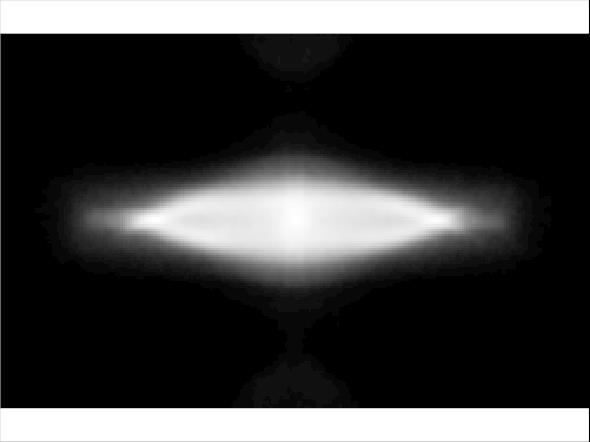

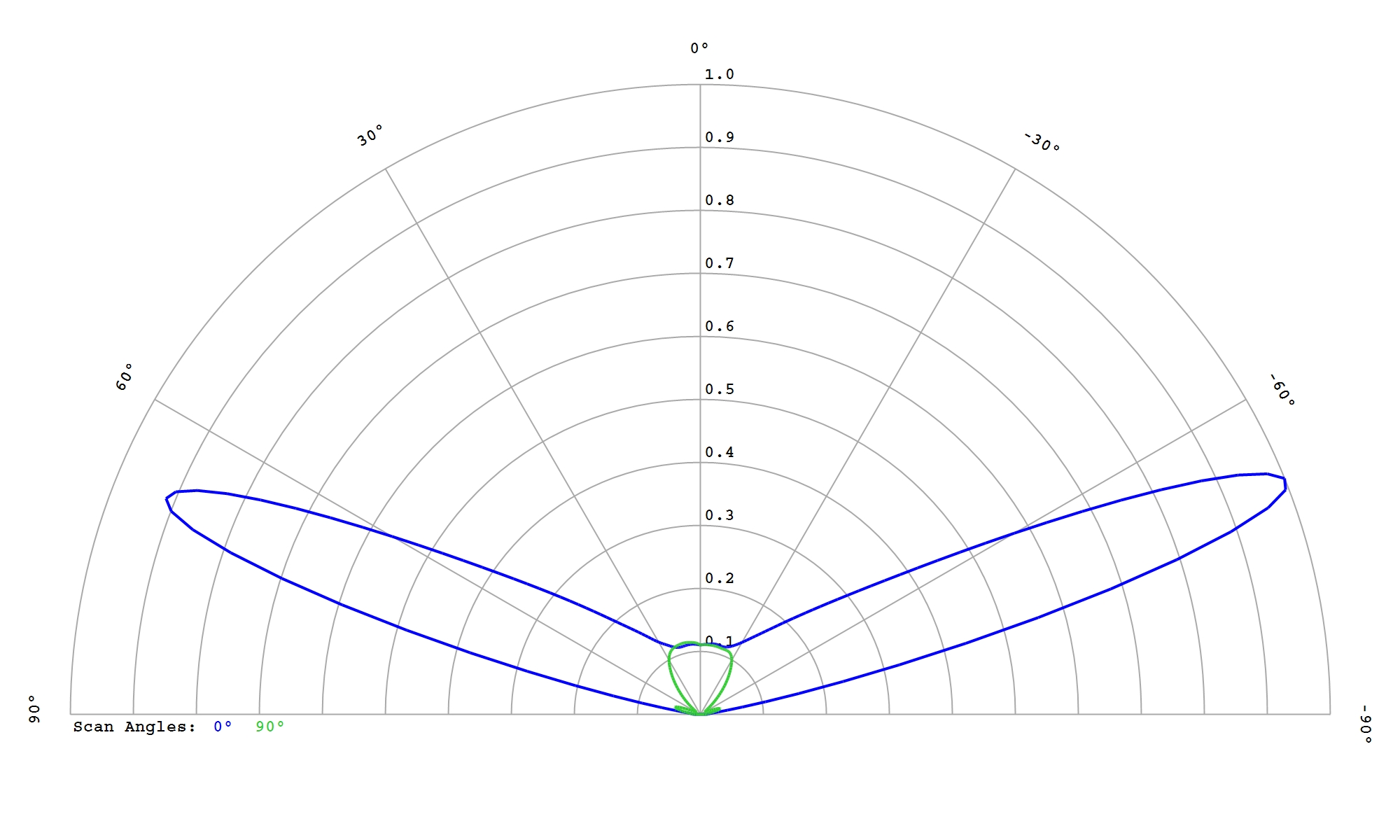

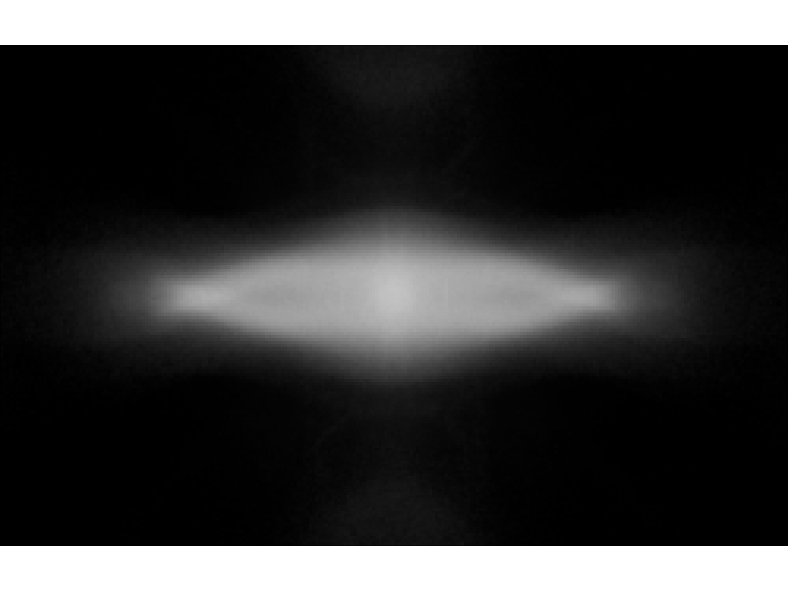

Cree XLamp XQ-A White

Eff:

93.0%

FWHM:

146 x 80°

Cd/Im:

3.2

Download

Cree XLamp XQ-E HD PC Amber

Eff:

93.0%

FWHM:

151 x 85°

Cd/Im:

2.1

Download

IES

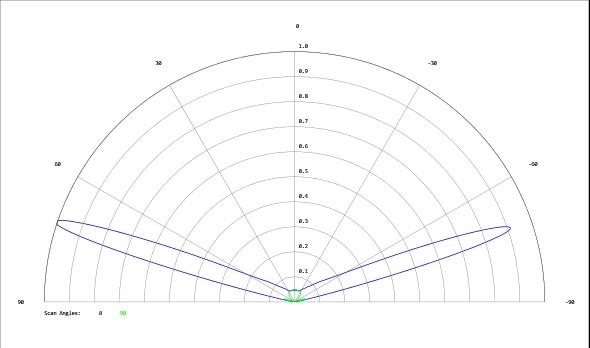

Cree XLamp XQ-E HI Blue

Eff:

94.0%

FWHM:

149 X 90°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

92.5%

FWHM:

149 x 87°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI PC Amber

Eff:

94.5%

FWHM:

152 x 88°

Cd/Im:

3.3

Download

IES

Cree XLamp XQ-E HI Red

Eff:

94.0%

FWHM:

147 x 87°

Cd/Im:

3.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI White

Eff:

93.5%

FWHM:

149 x 88°

Cd/Im:

3.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

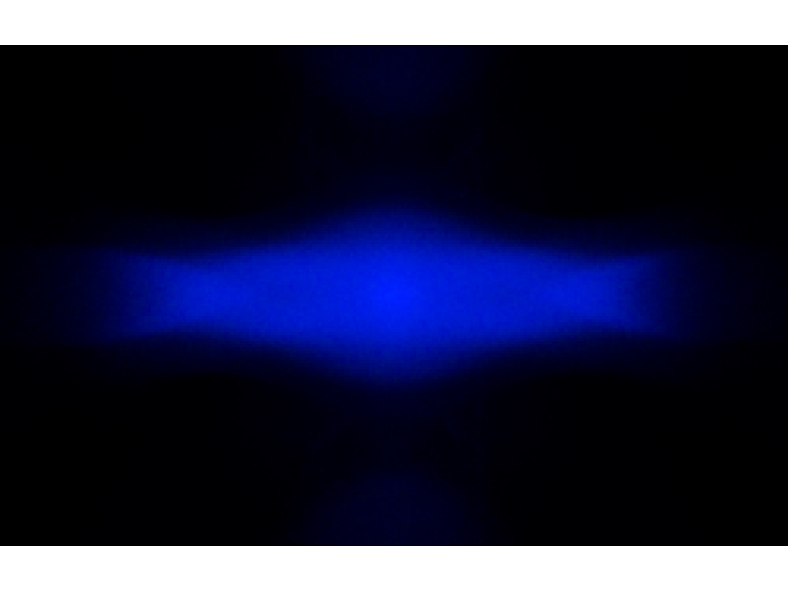

Cree XLamp XQ-E Plus HD Blue

Eff:

93.0%

FWHM:

149 x 87°

Cd/Im:

2.5


Download

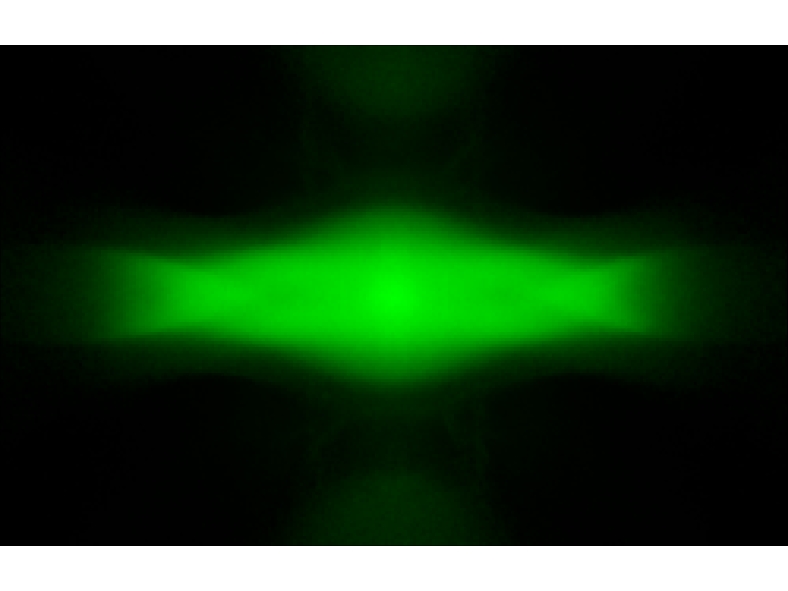

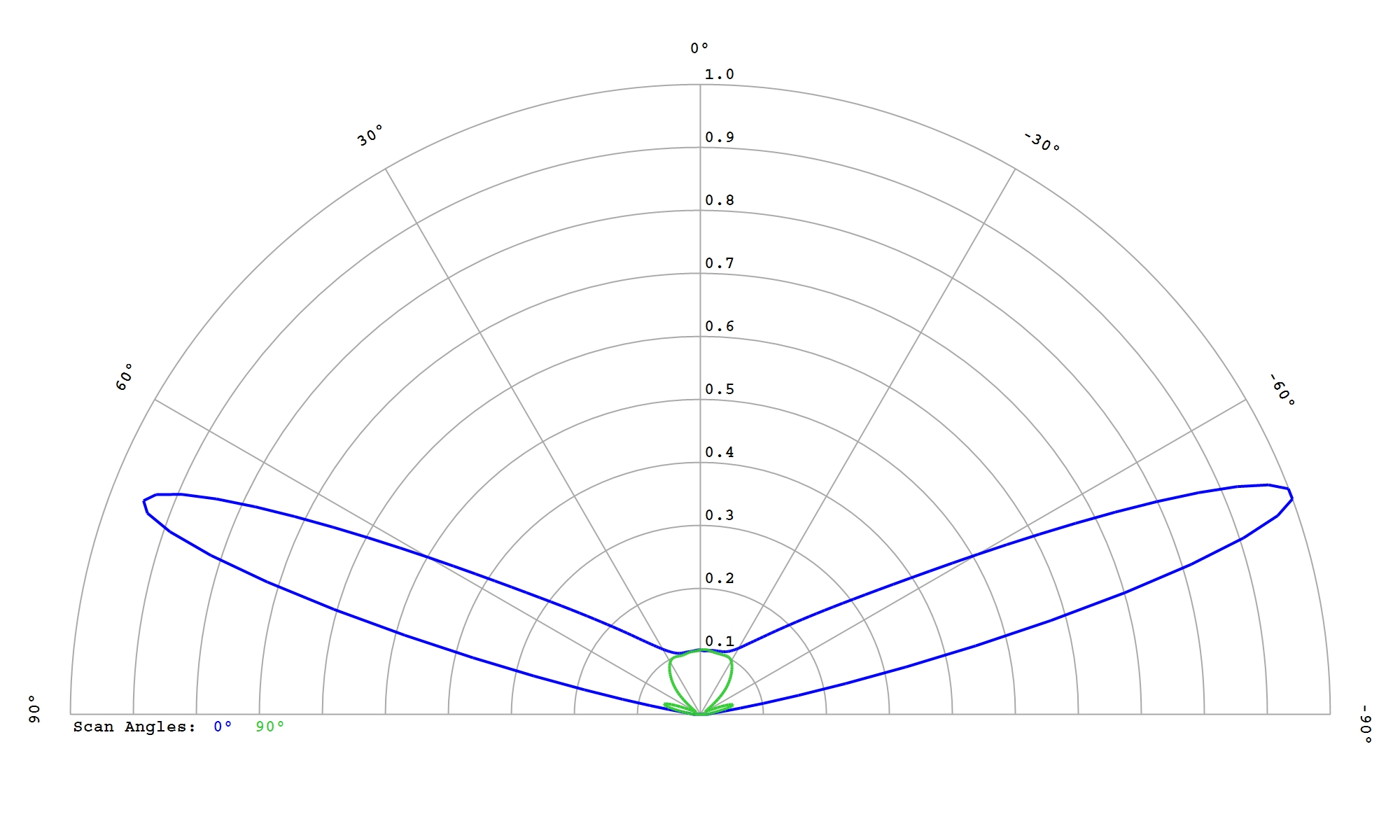

Cree XLamp XQ-E Plus HD Green

Eff:

92.0%

FWHM:

149 x 91°

Cd/Im:

2.3


Download

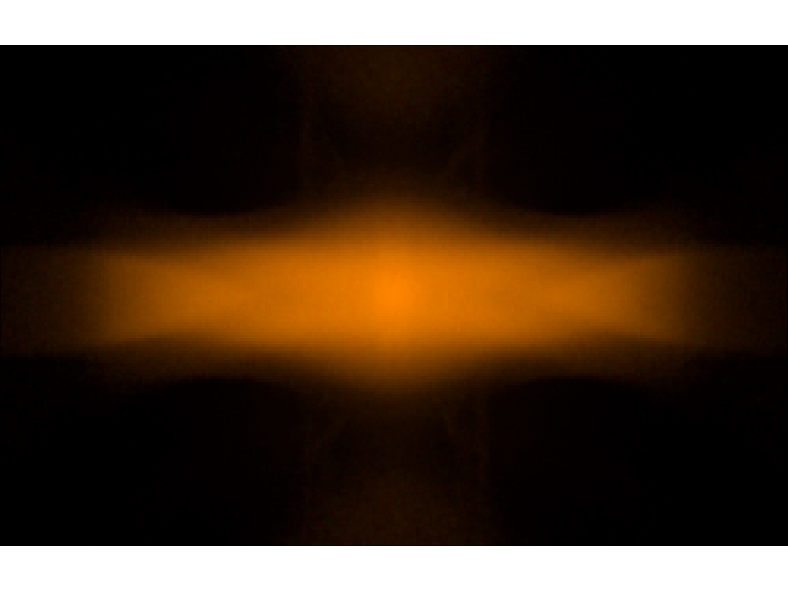

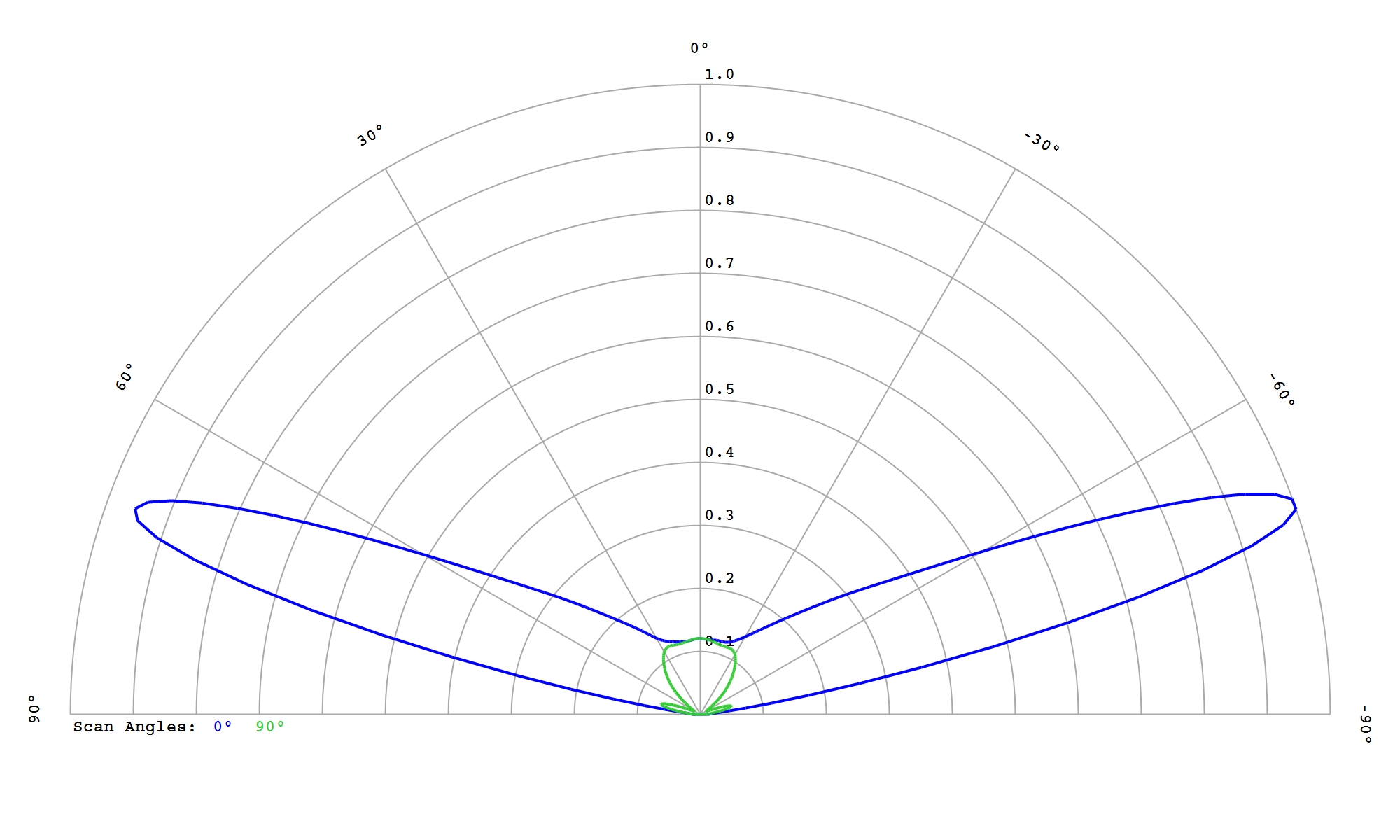

Cree XLamp XQ-E Plus HD PC Amber

Eff:

91.0%

FWHM:

152 x 86°

Cd/Im:

1.8


Download

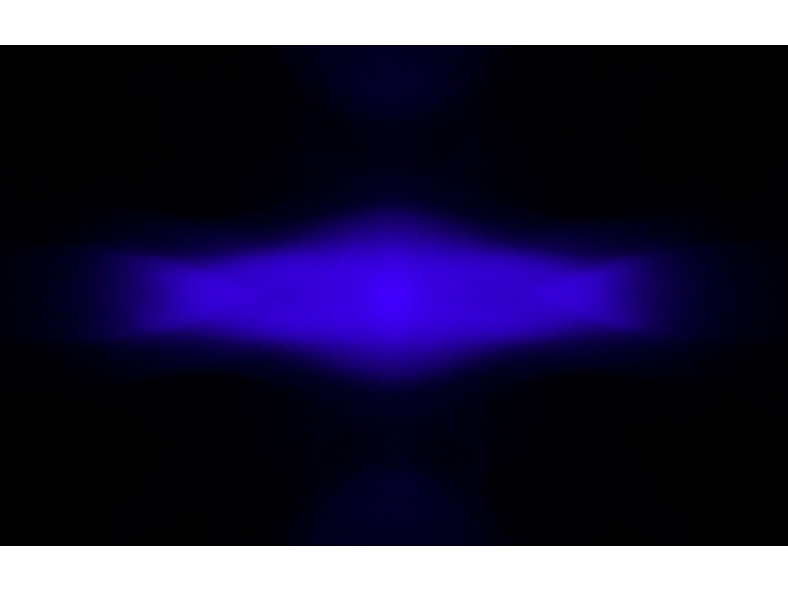

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

93.5%

FWHM:

148 x 87°

Ipk/W:

2.5


Download

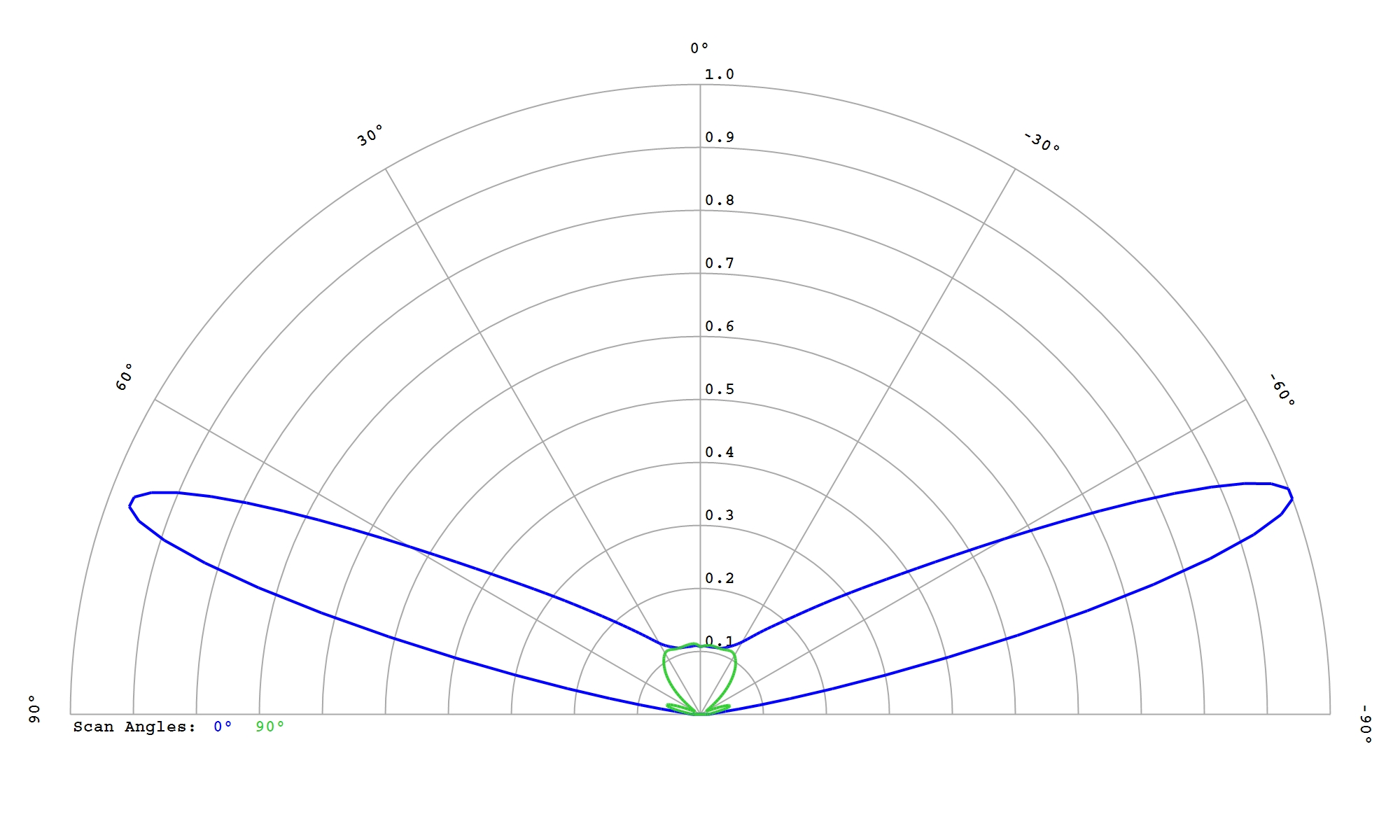

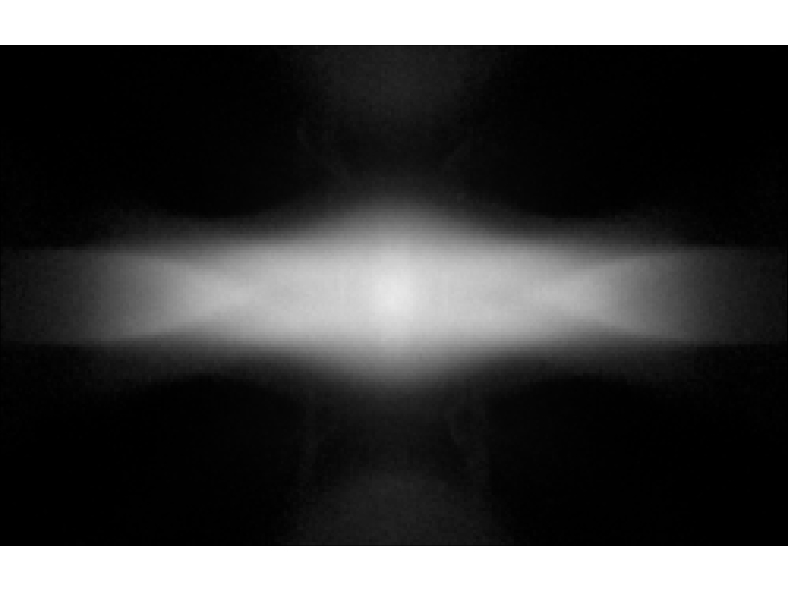

Cree XLamp XQ-E Plus HD White

Eff:

91.5%

FWHM:

151 x 91°

Cd/Im:

1.8


Download

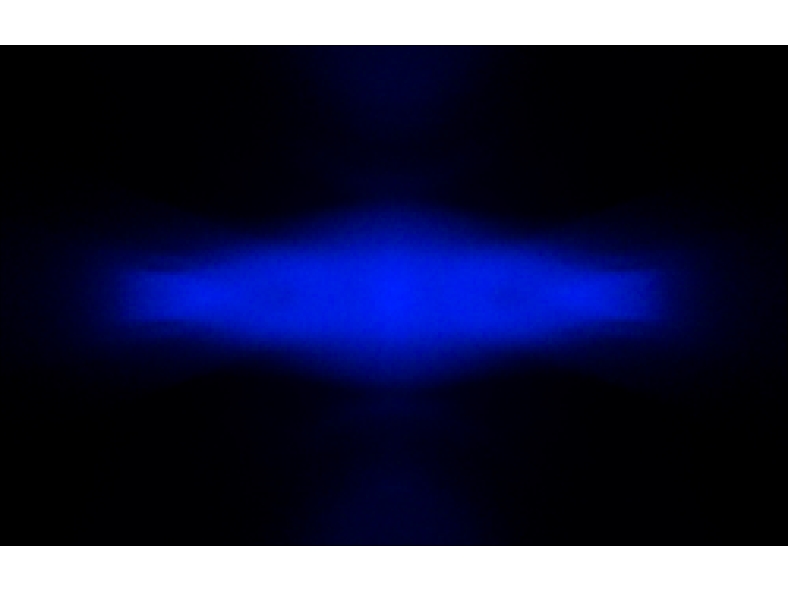

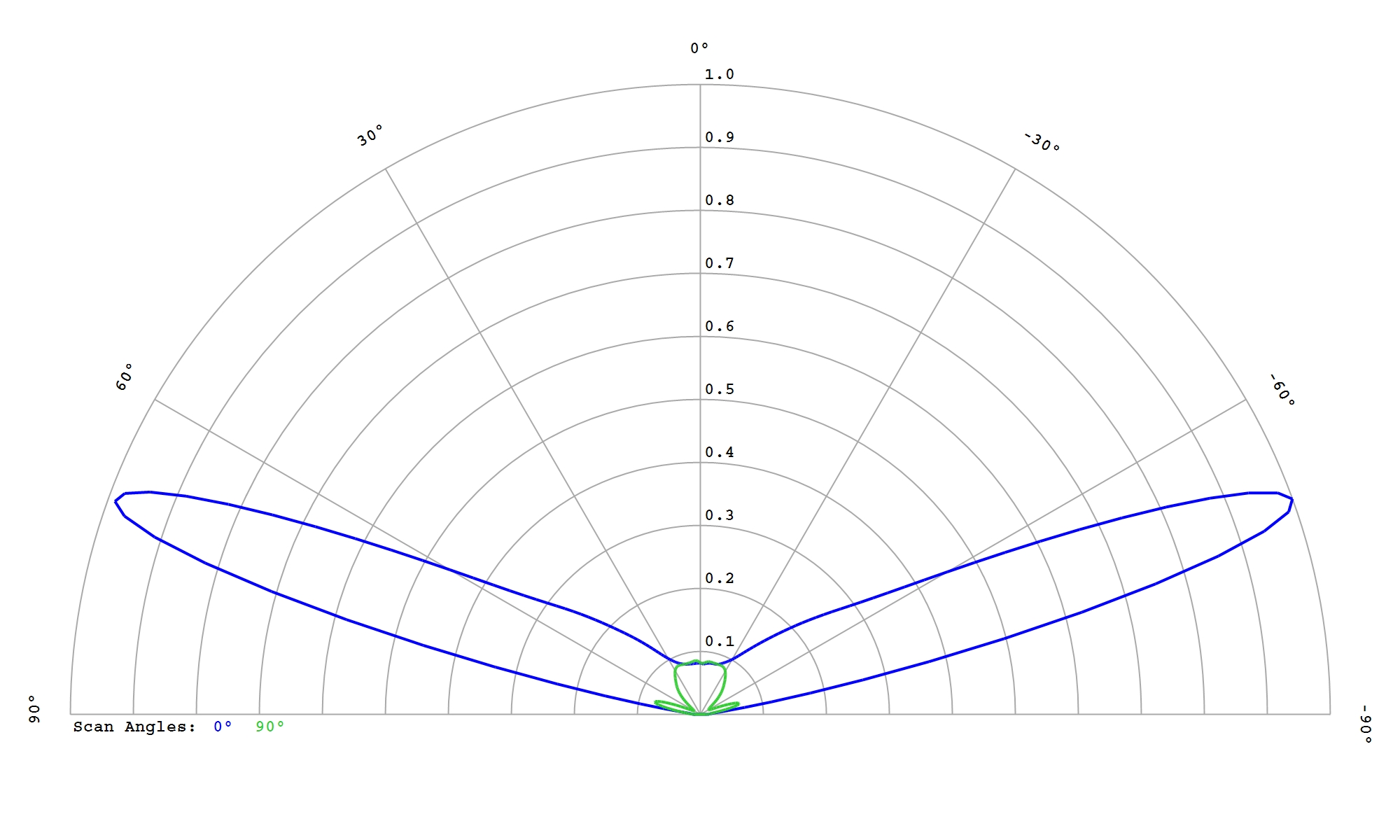

Cree XLamp XQ-E Plus HI Blue

Eff:

93.0%

FWHM:

150 x 88°

Cd/Im:

2.8


Download

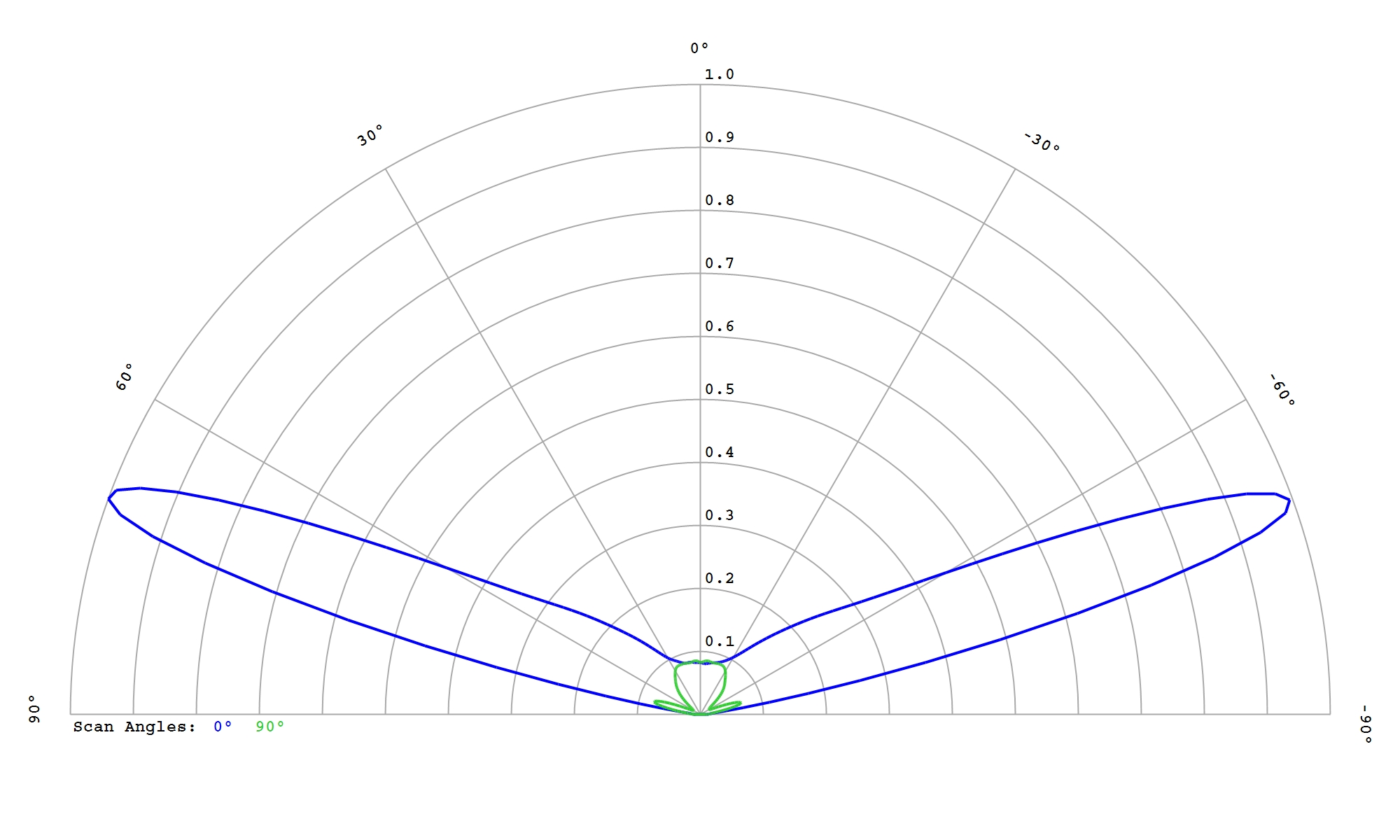

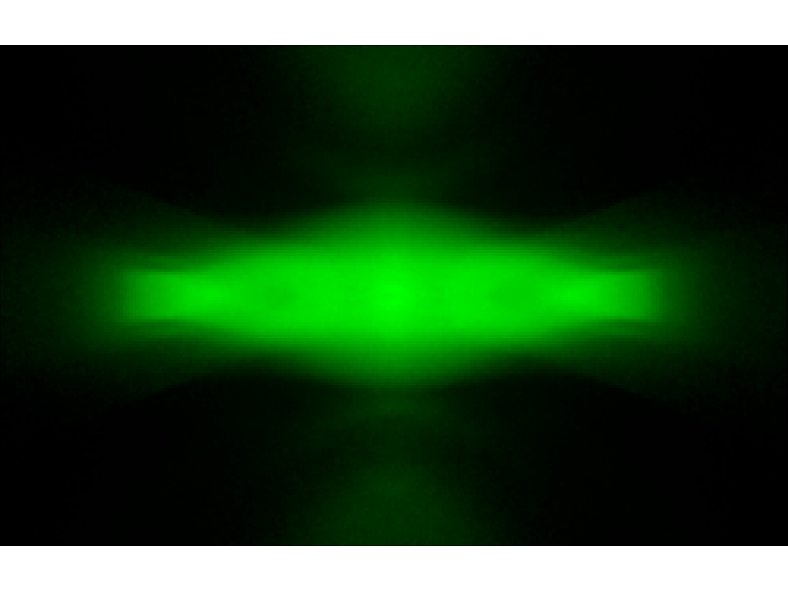

Cree XLamp XQ-E Plus HI Green

Eff:

92.0%

FWHM:

150 x 91°

Cd/Im:

2.7


Download

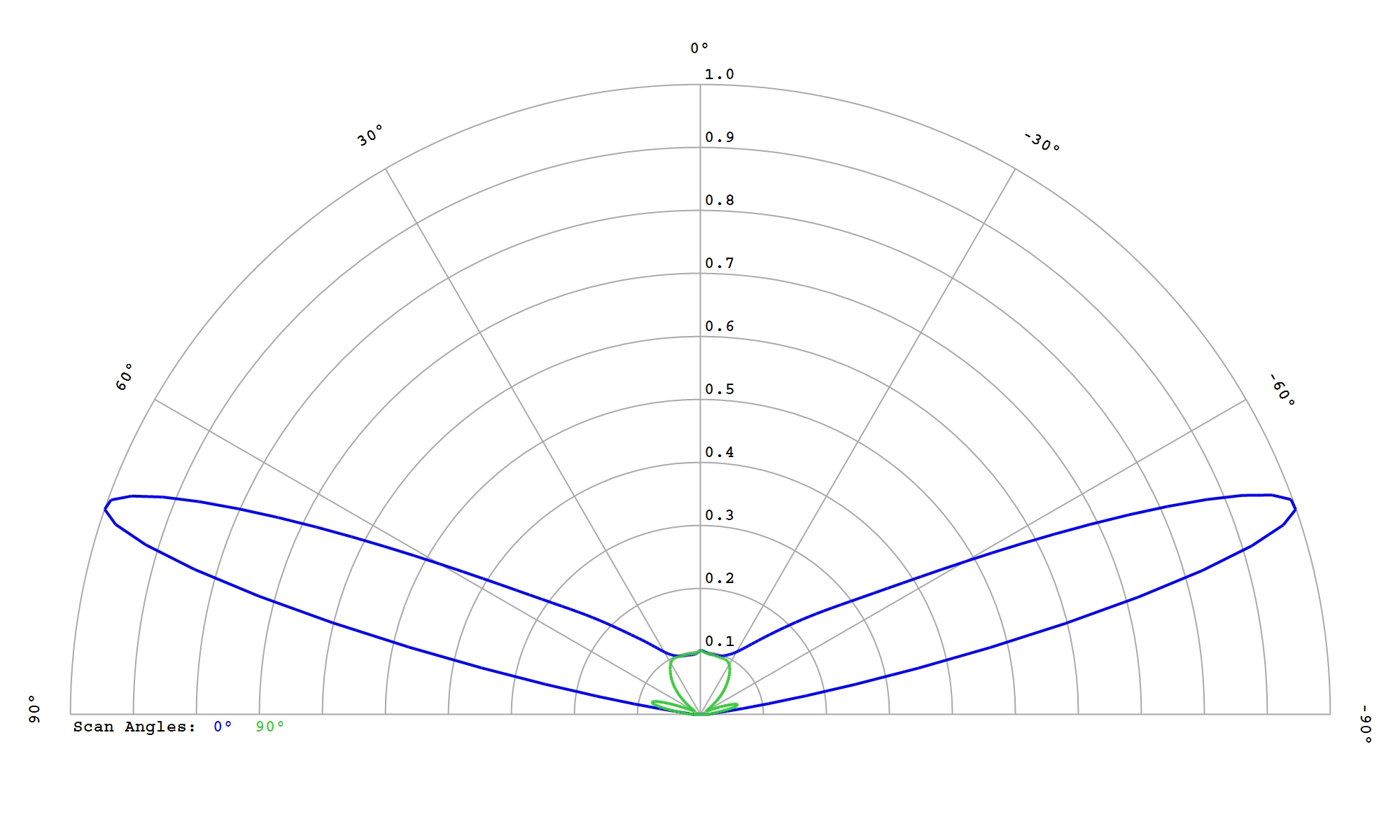

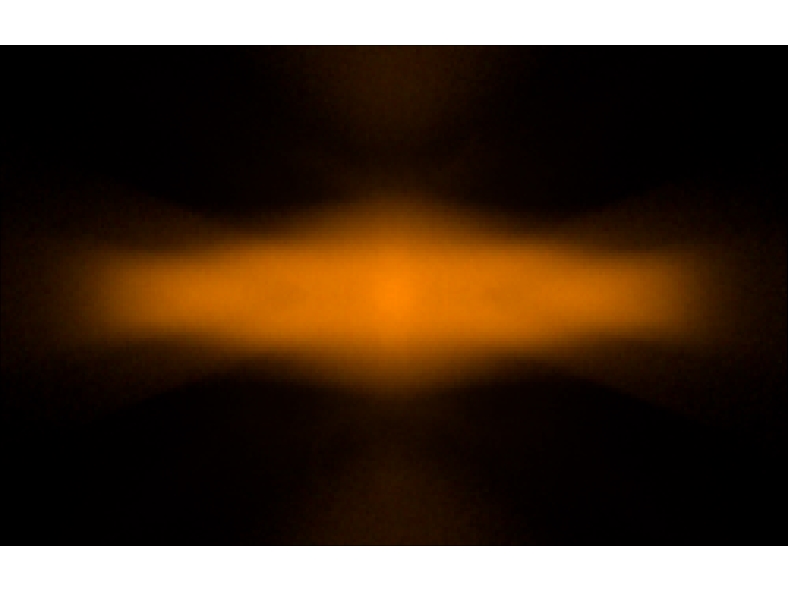

Cree XLamp XQ-E Plus HI PC Amber

Eff:

92.5%

FWHM:

152 x 87°

Cd/Im:

2.3


Download

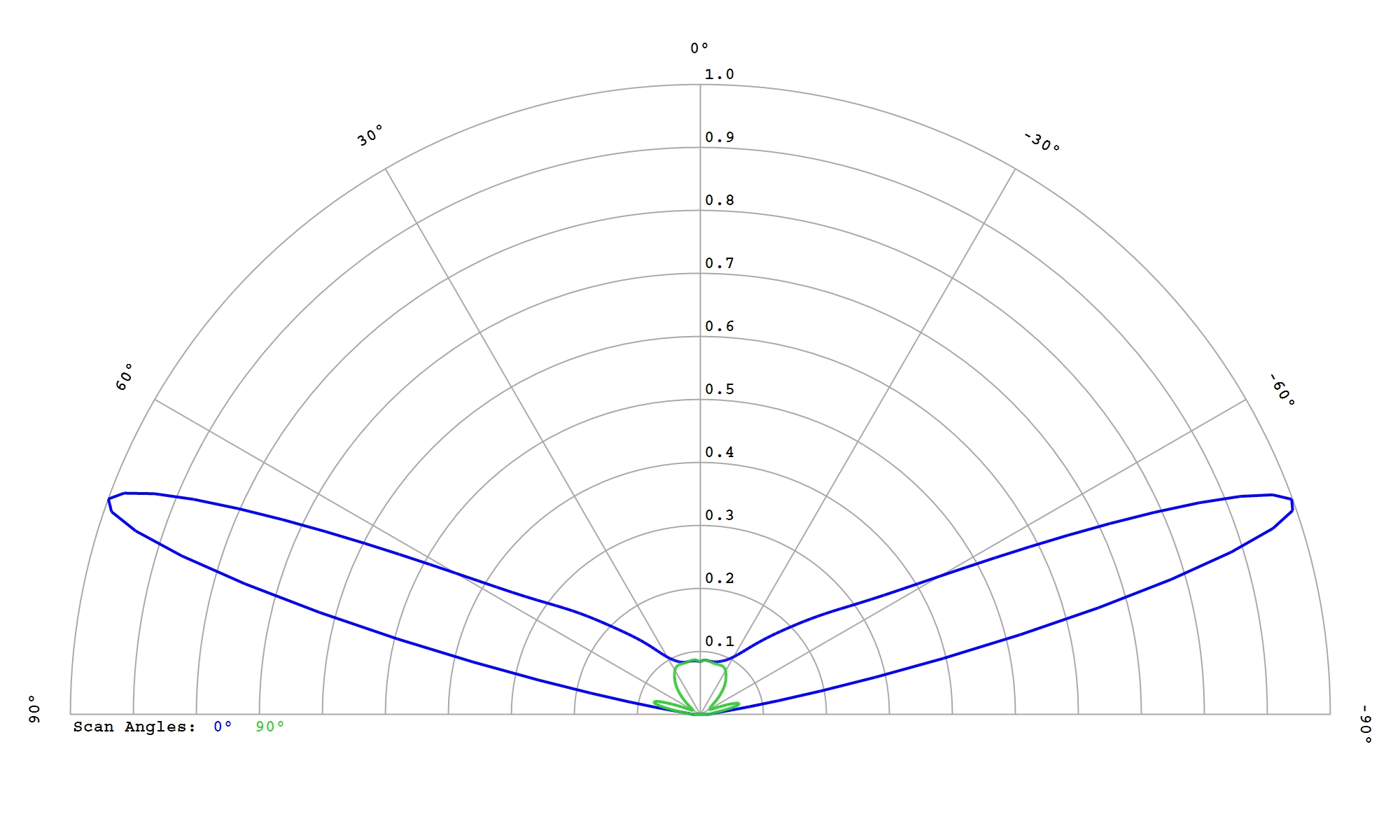

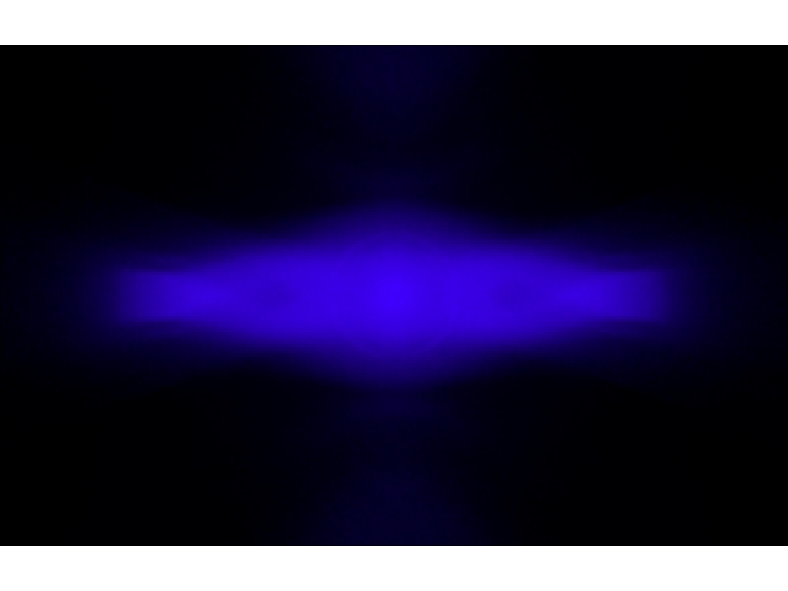

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

93.5%

FWHM:

150 x 88°

Ipk/W:

2.8


Download

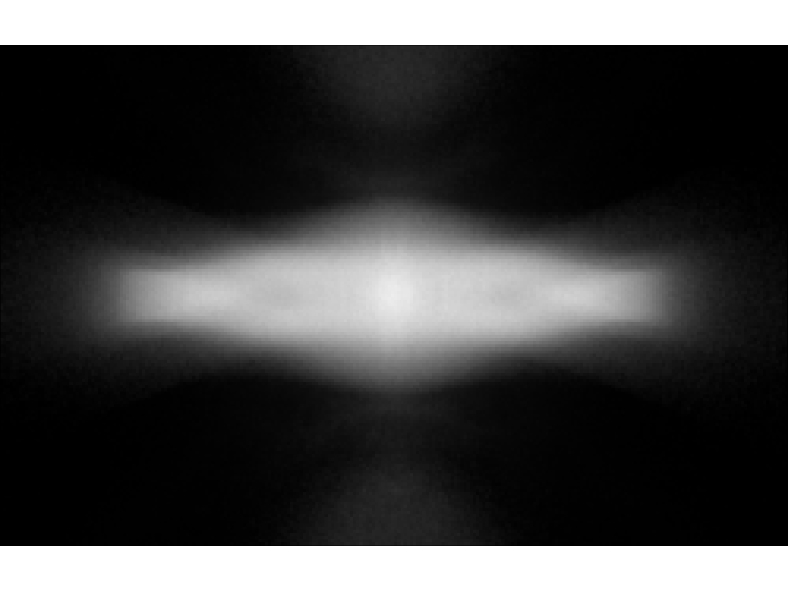

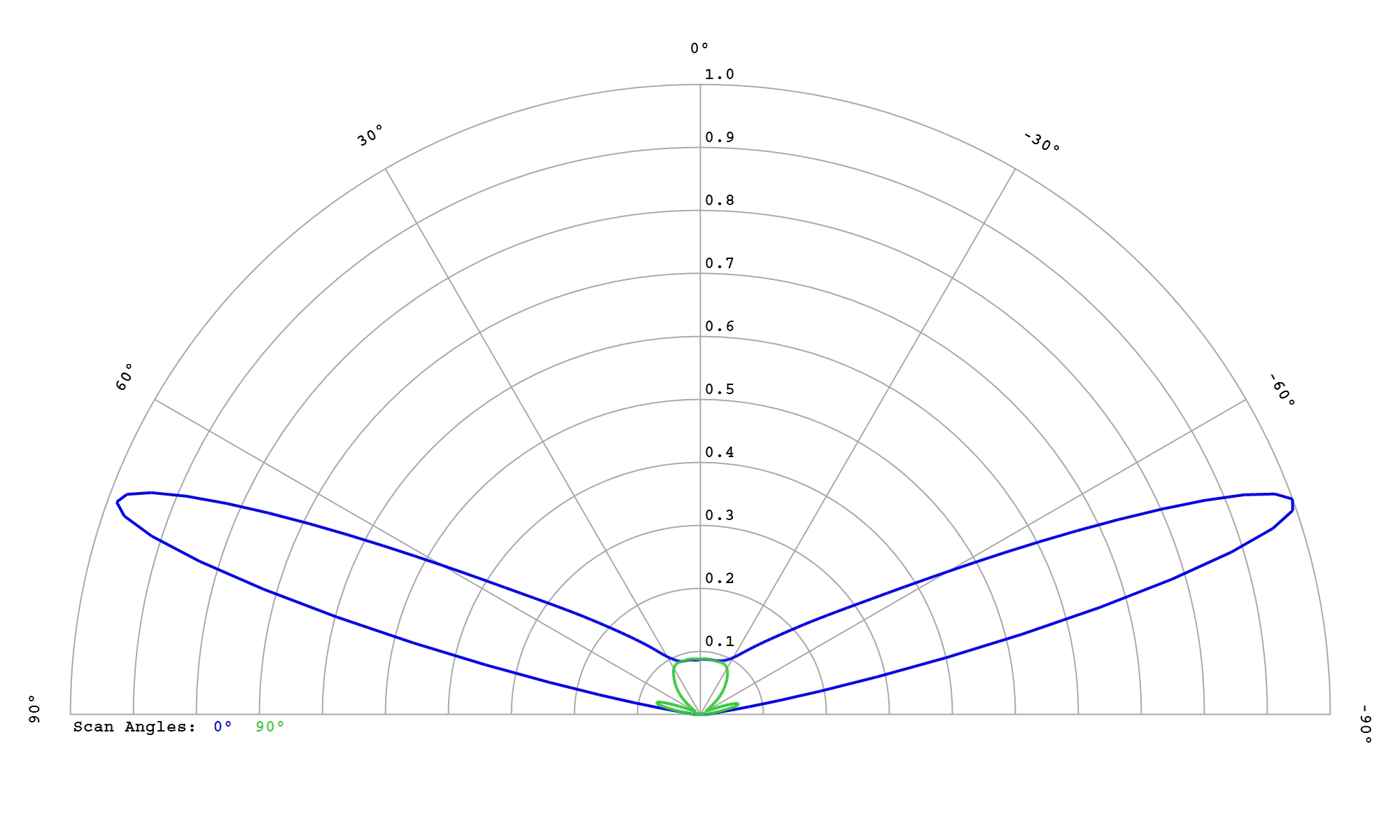

Cree XLamp XQ-E Plus HI White

Eff:

93.0%

FWHM:

150 x 90°

Cd/Im:

2.7


Download

Cree XLamp XQ-E HD White

Eff:

90.0%

FWHM:

144x70x0°

Cd/Im:

2.6

Simulation Data

Simulation Data

Download

ies

Cree XLamp XT-E HE White

Eff:

93.5%

FWHM:

154 x 88°

Cd/Im:

1.3

Download

ies

Cree XLamp XT-E White

Eff:

88.7%

FWHM:

152x82x0°

Cd/Im:

1.6

Simulation Data

Simulation Data

Download

IES

LUMILEDS LUXEON 2835 PC Amber

Eff:

95.5%

FWHM:

148 x 84°

Cd/Im:

2.5

Download

IES

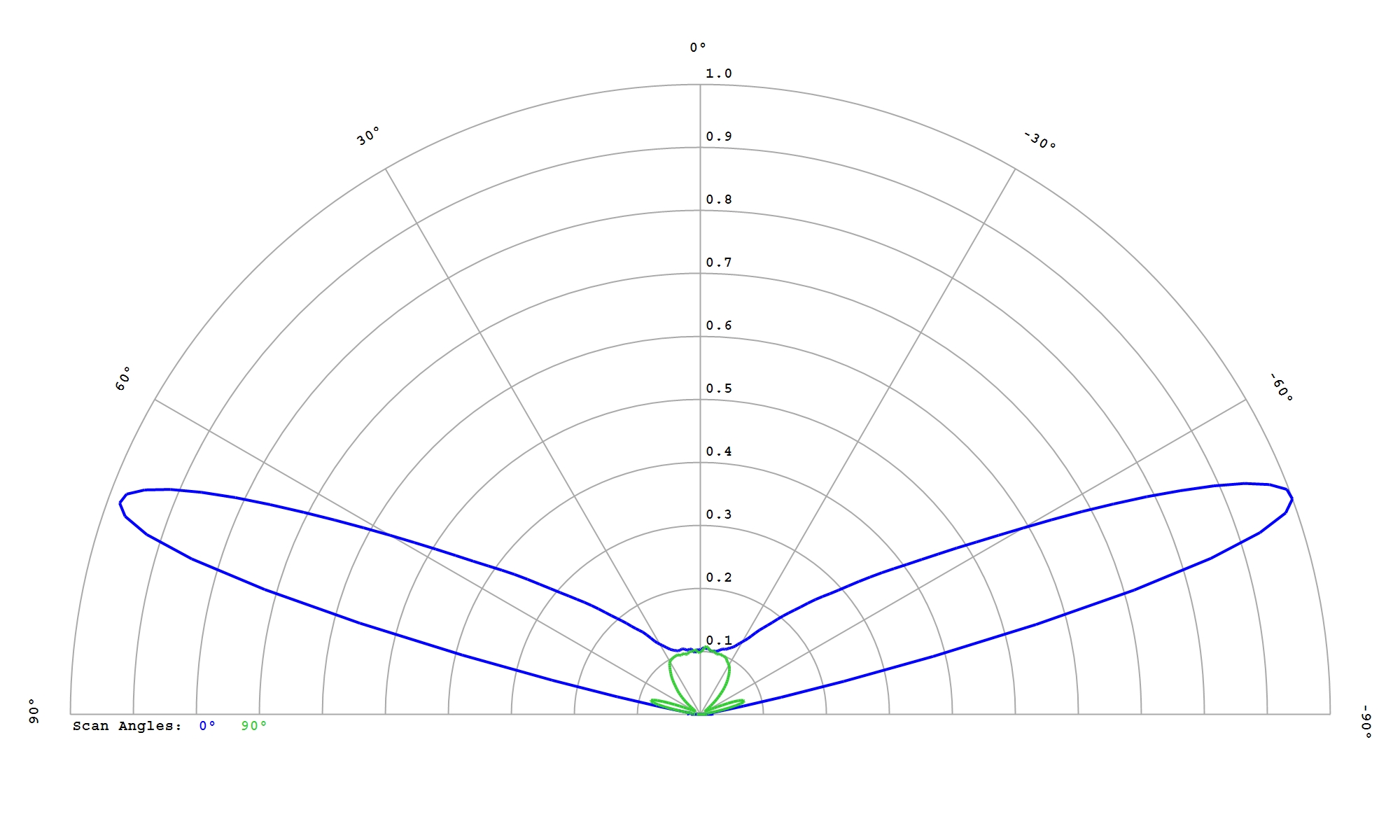

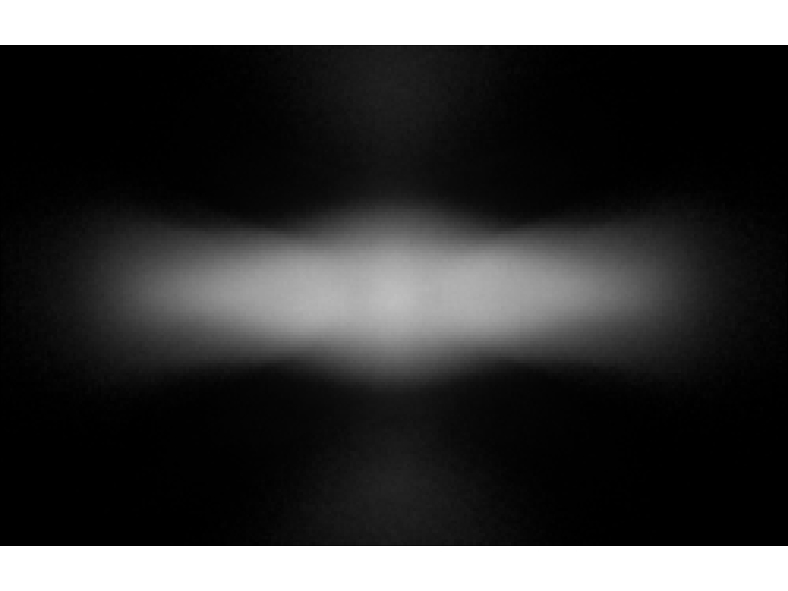

LUMILEDS LUXEON 2835C 6V White

Eff:

95.5%

FWHM:

151 x 86°

Cd/Im:

1.7

Download

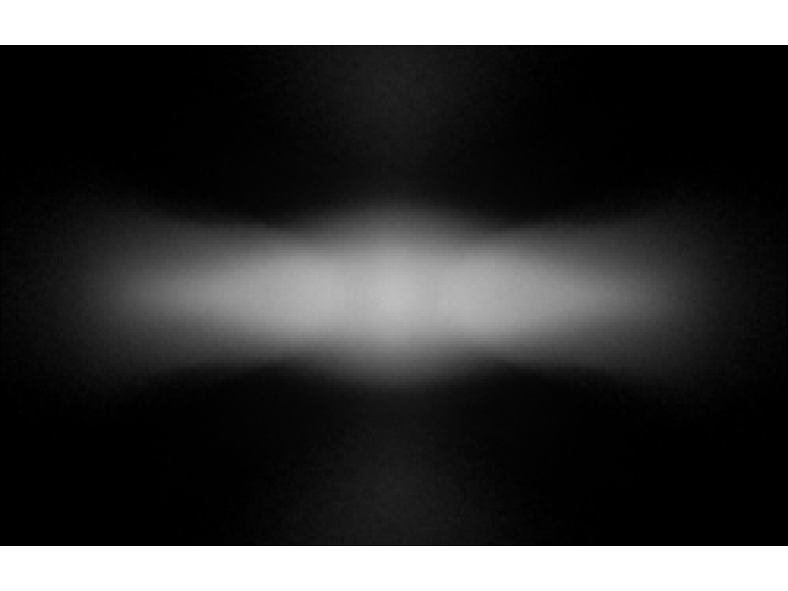

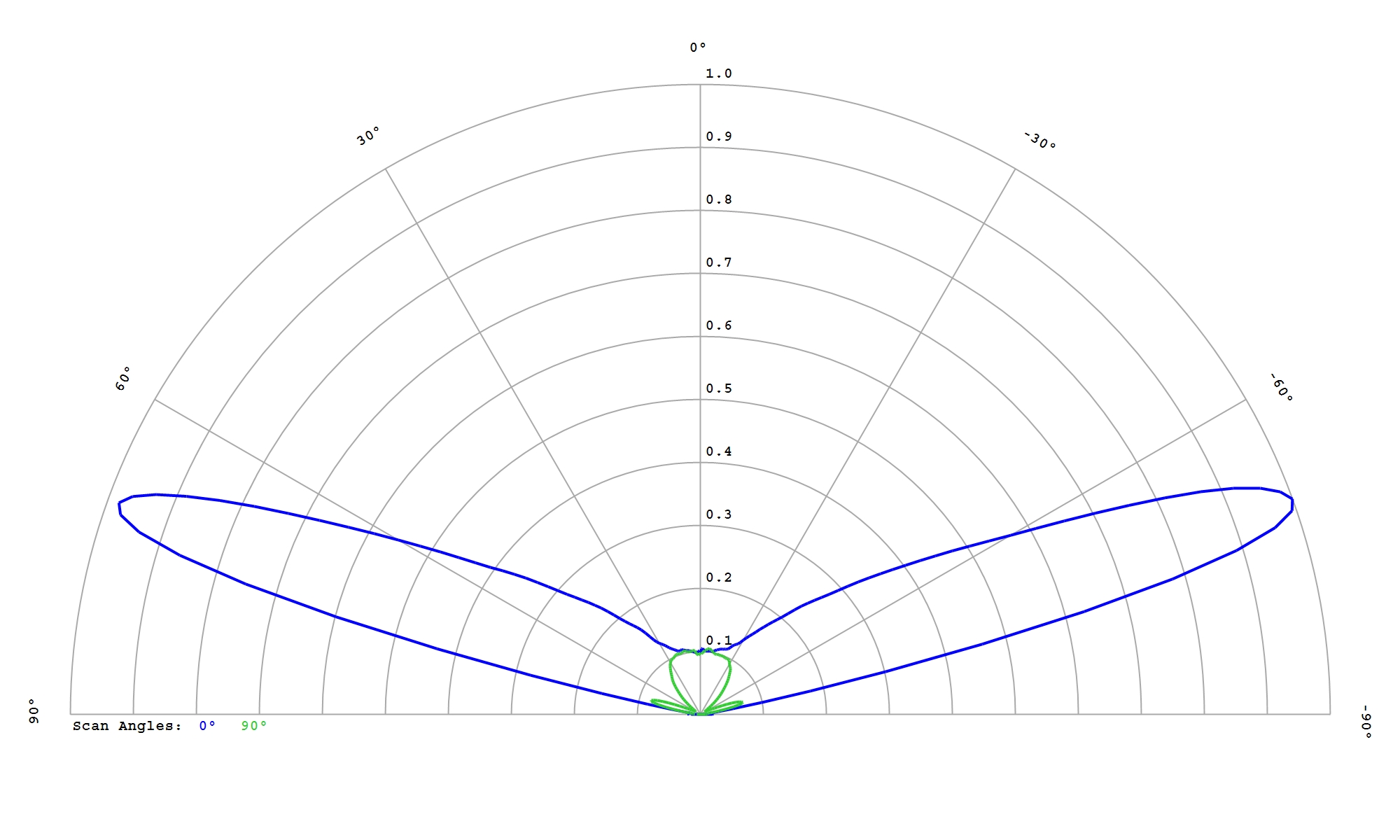

LUMILEDS LUXEON 2835E 9V White

Eff:

95.5%

FWHM:

151 x 86°

Cd/Im:

1.7

Download

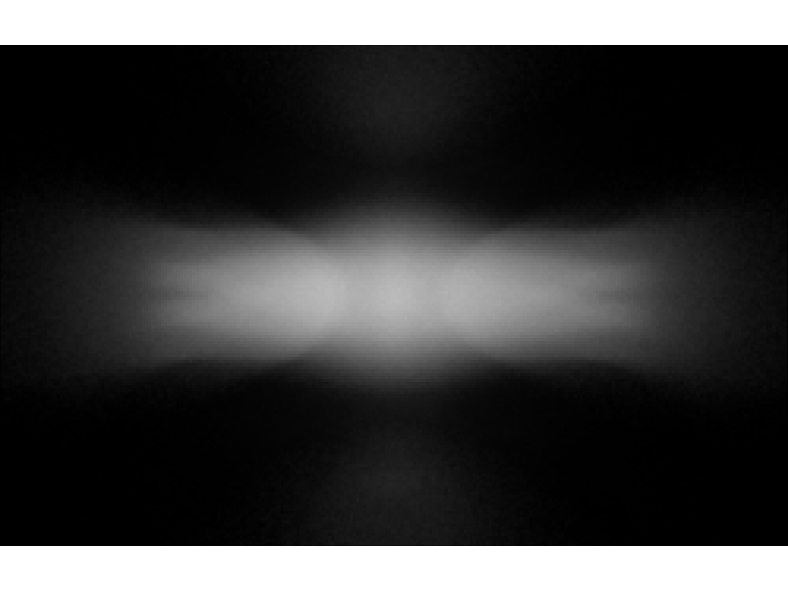

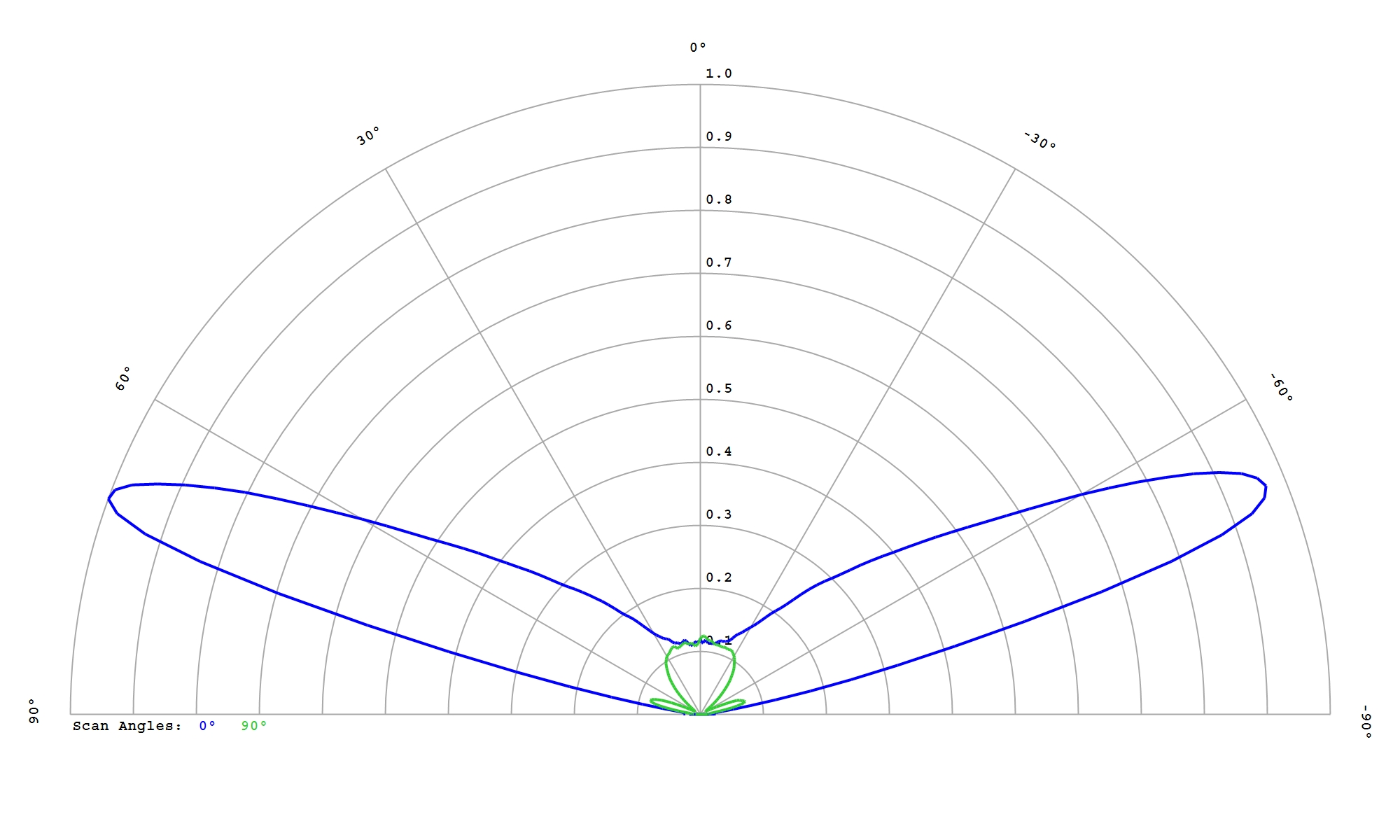

LUMILEDS LUXEON 2835N 3V White

Eff:

95.5%

FWHM:

149 x 86°

Cd/Im:

1.5

Download

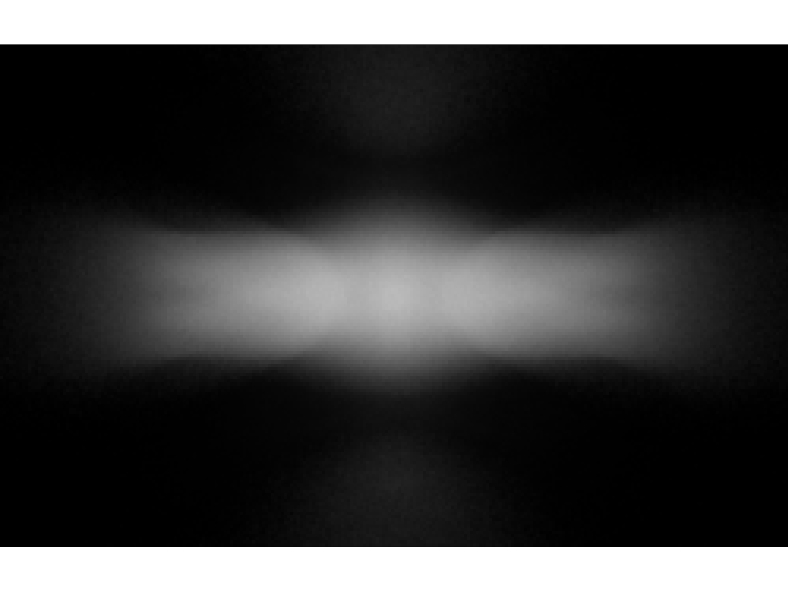

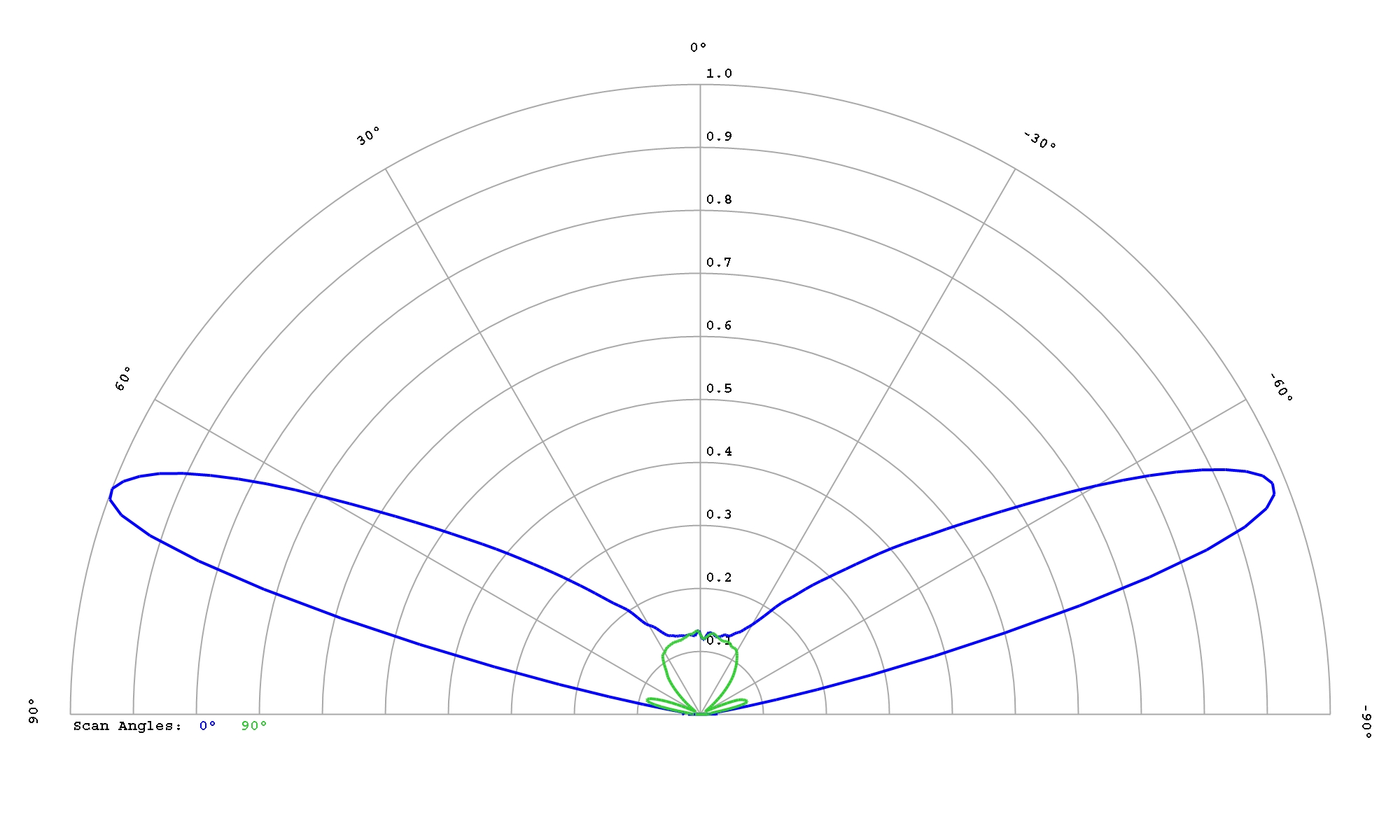

LUMILEDS LUXEON 2835S 3V White

Eff:

95.5%

FWHM:

151 x 86°

Cd/Im:

1.4

Download

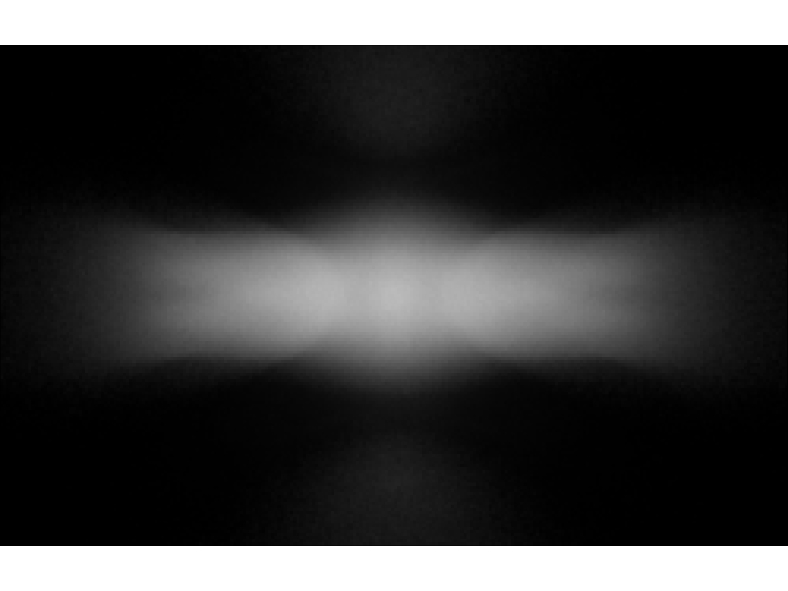

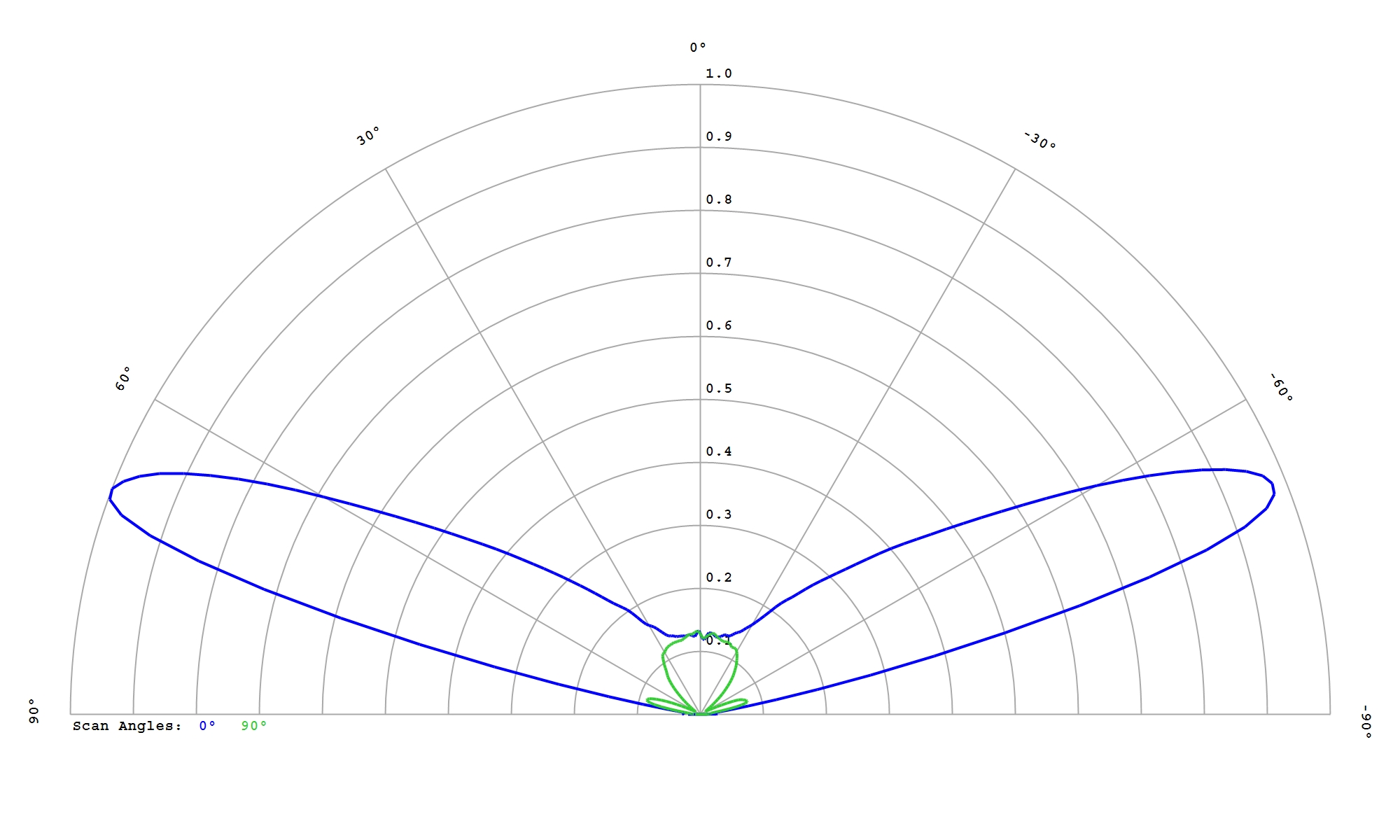

LUMILEDS LUXEON 2835S 6V White

Eff:

95.5%

FWHM:

151 x 86°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 3014 White

Eff:

95.5%

FWHM:

147 x 87°

Cd/Im:

2.9

Download

IES

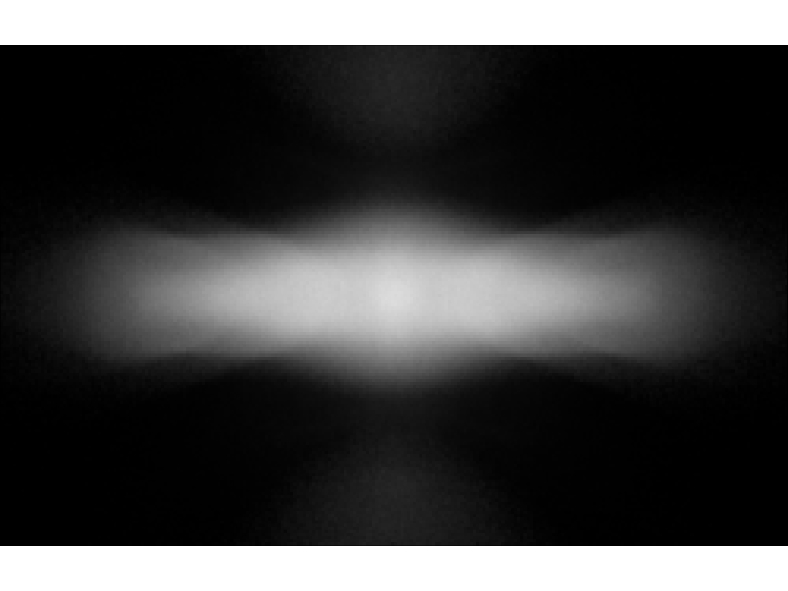

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

95.5%

FWHM:

152 x 87°

Cd/Im:

1.6


Download

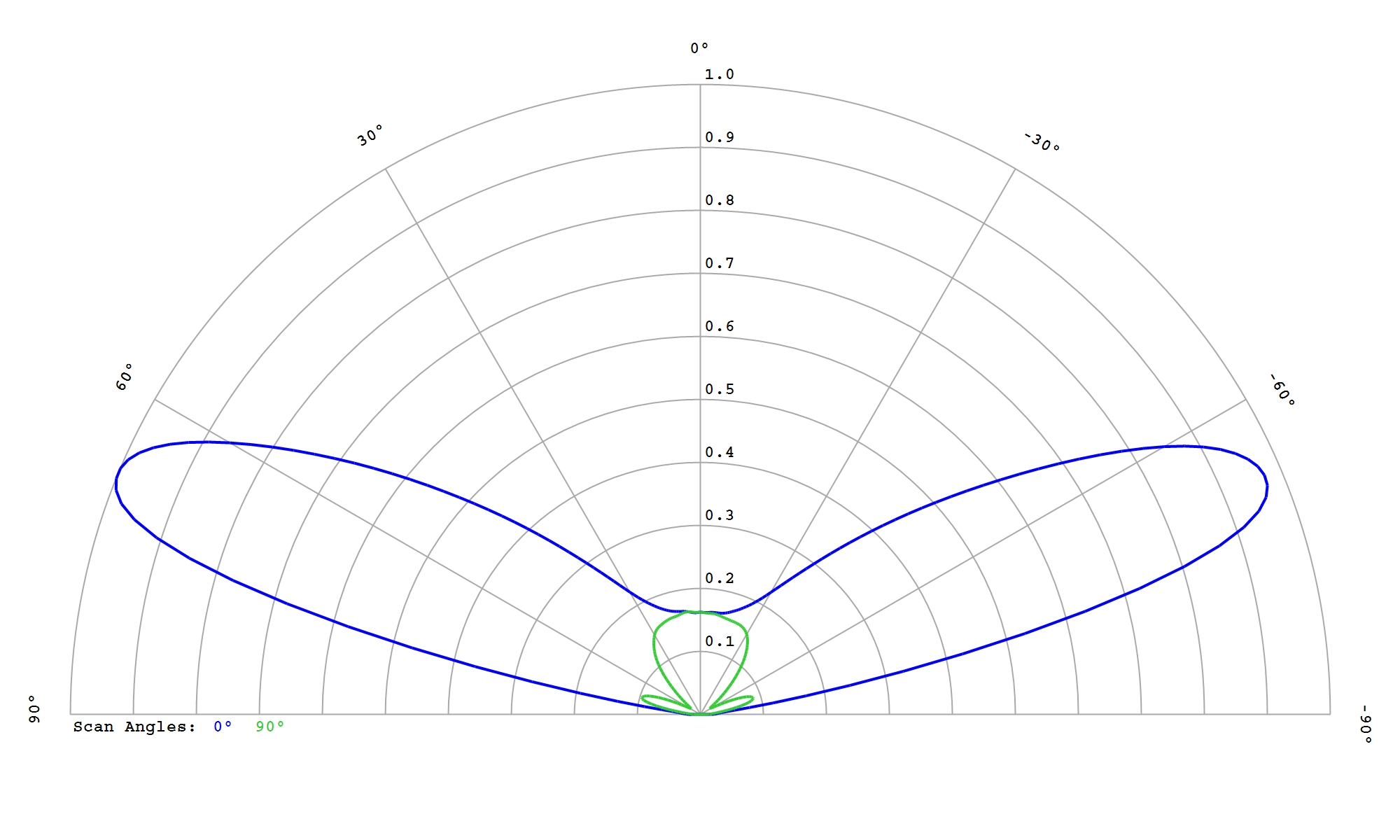

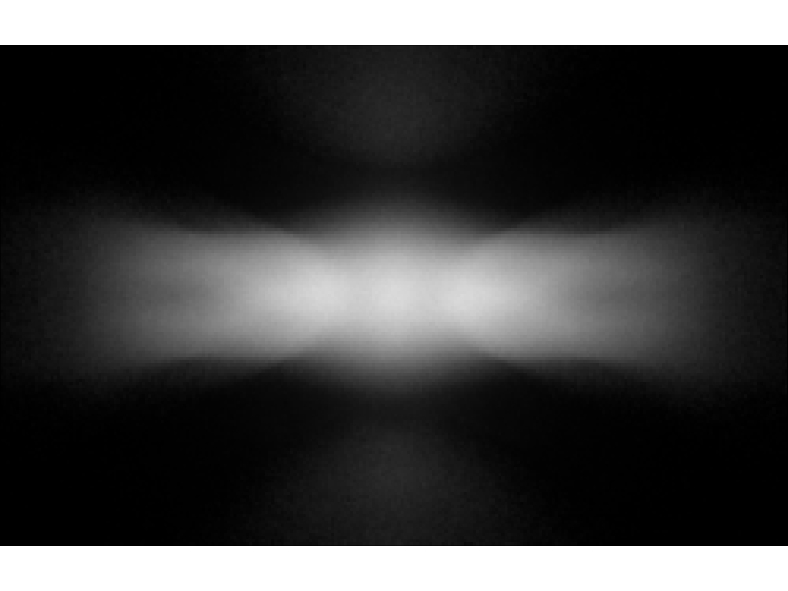

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

95.0%

FWHM:

153 x 85°

Cd/Im:

1.1


Download

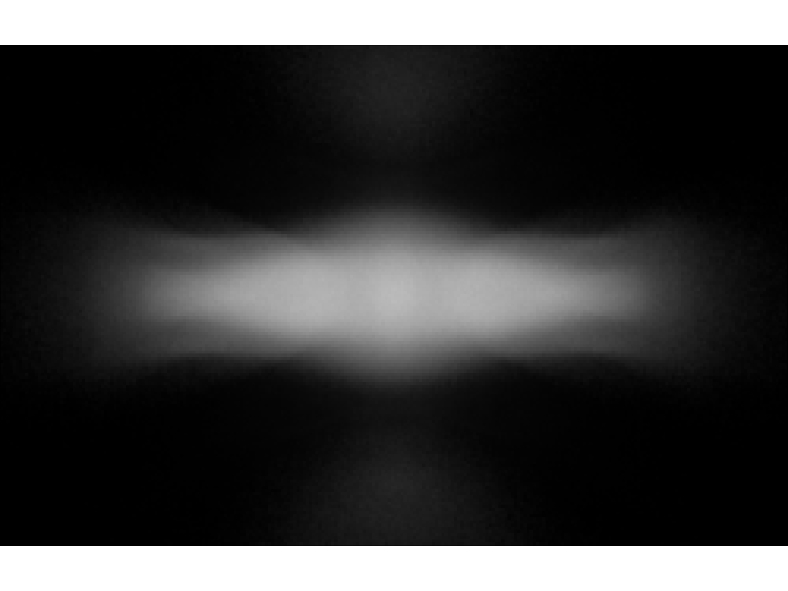

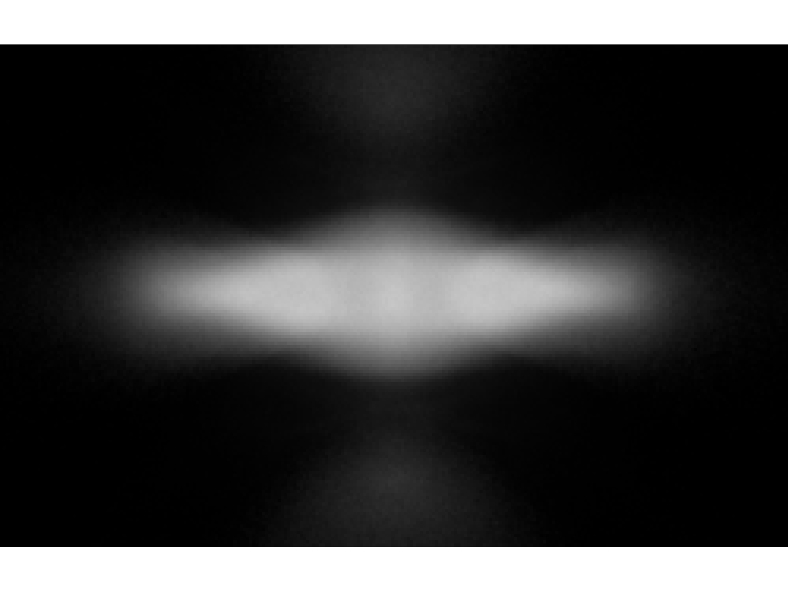

LUMILEDS LUXEON 3030 2D Square White

Eff:

95.5%

FWHM:

149 x 86°

Cd/Im:

1.8


Download

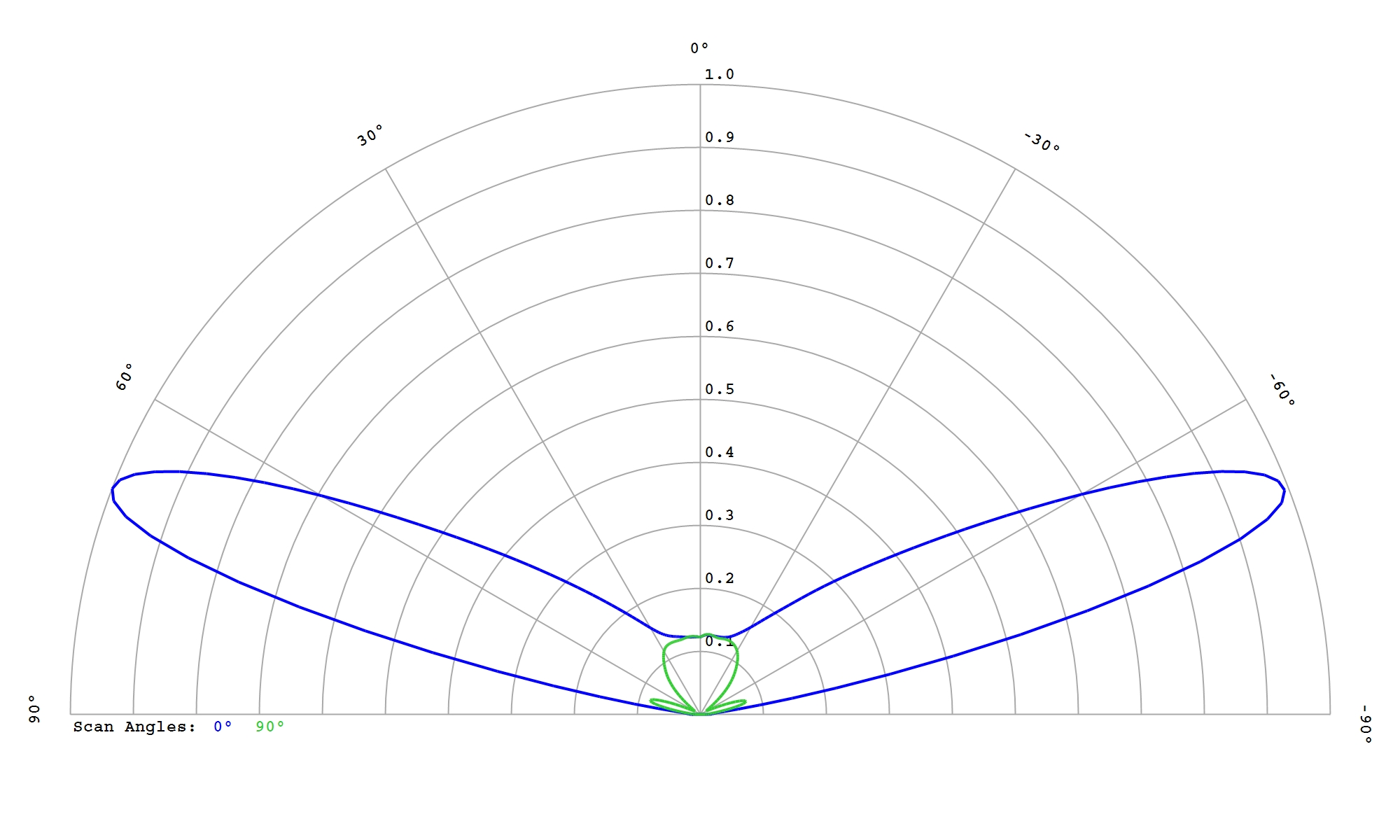

LUMILEDS LUXEON 3030 2D Round White

Eff:

95.0%

FWHM:

148 x 86°

Cd/Im:

2.2

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

95.5%

FWHM:

150 x 83°

Cd/Im:

1.6

Carclo Optics – 12766 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12766 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

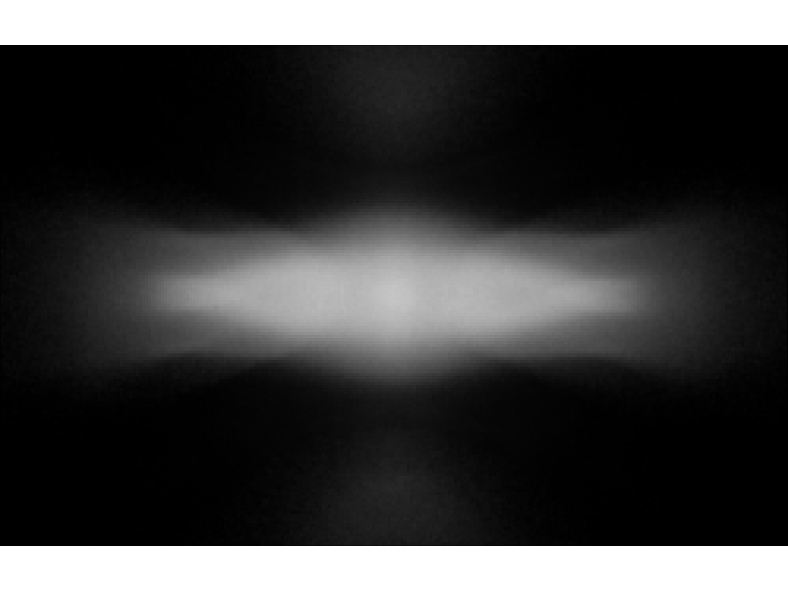

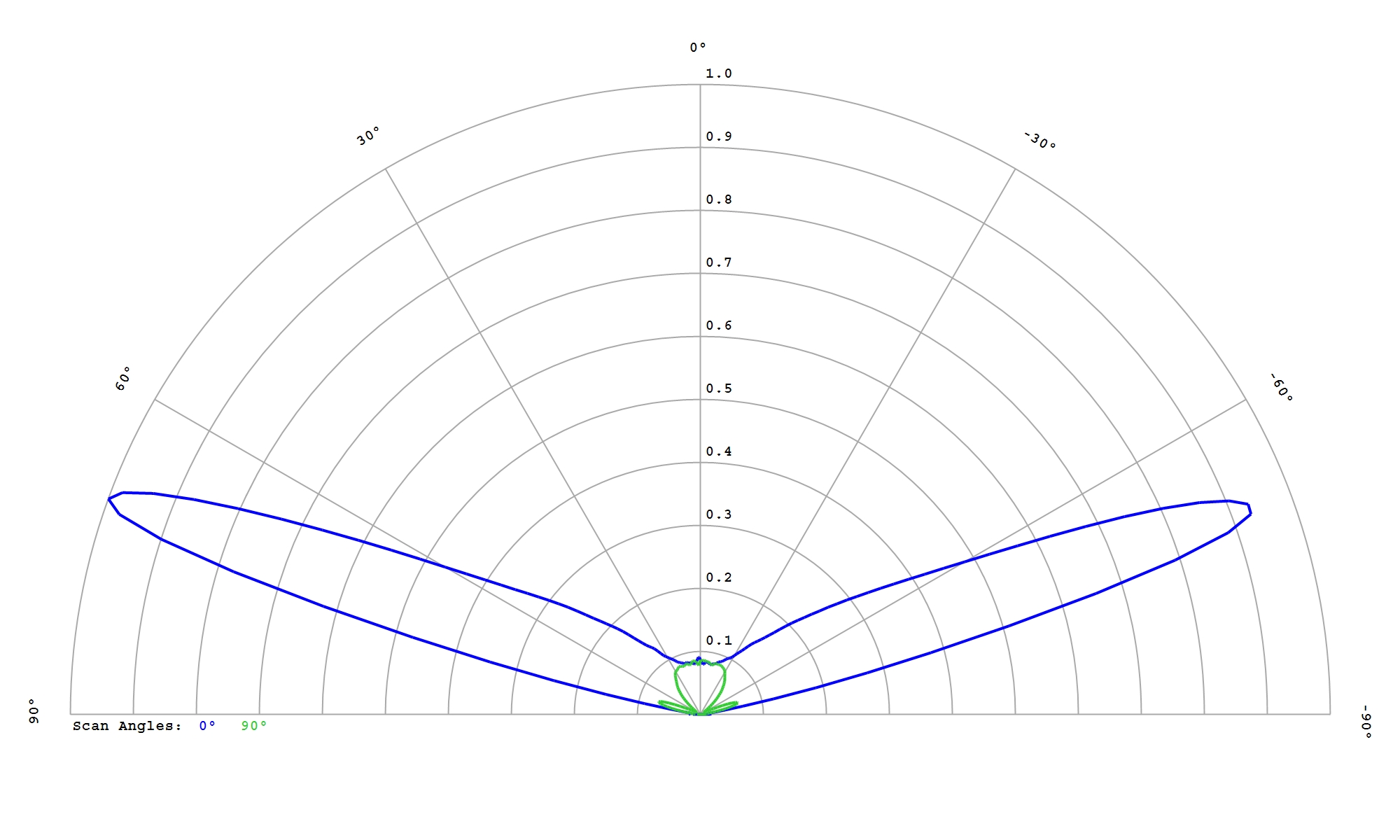

LUMILEDS LUXEON 3030 HE White

Eff:

95.5%

FWHM:

148 x 88°

Cd/Im:

2.1

Download

LUMILEDS LUXEON 3535L Blue

Eff:

95.5%

FWHM:

148 x 94°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L Green

Eff:

95.0%

FWHM:

148 x 94°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535L PC Amber

Eff:

95.5%

FWHM:

150 x 85°

Cd/Im:

2.3

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

95.5%

FWHM:

145 x 93°

Cd/Im:

4.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

88.5%

FWHM:

157 x 102°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Lime

Eff:

89.5%

FWHM:

157 x 102°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

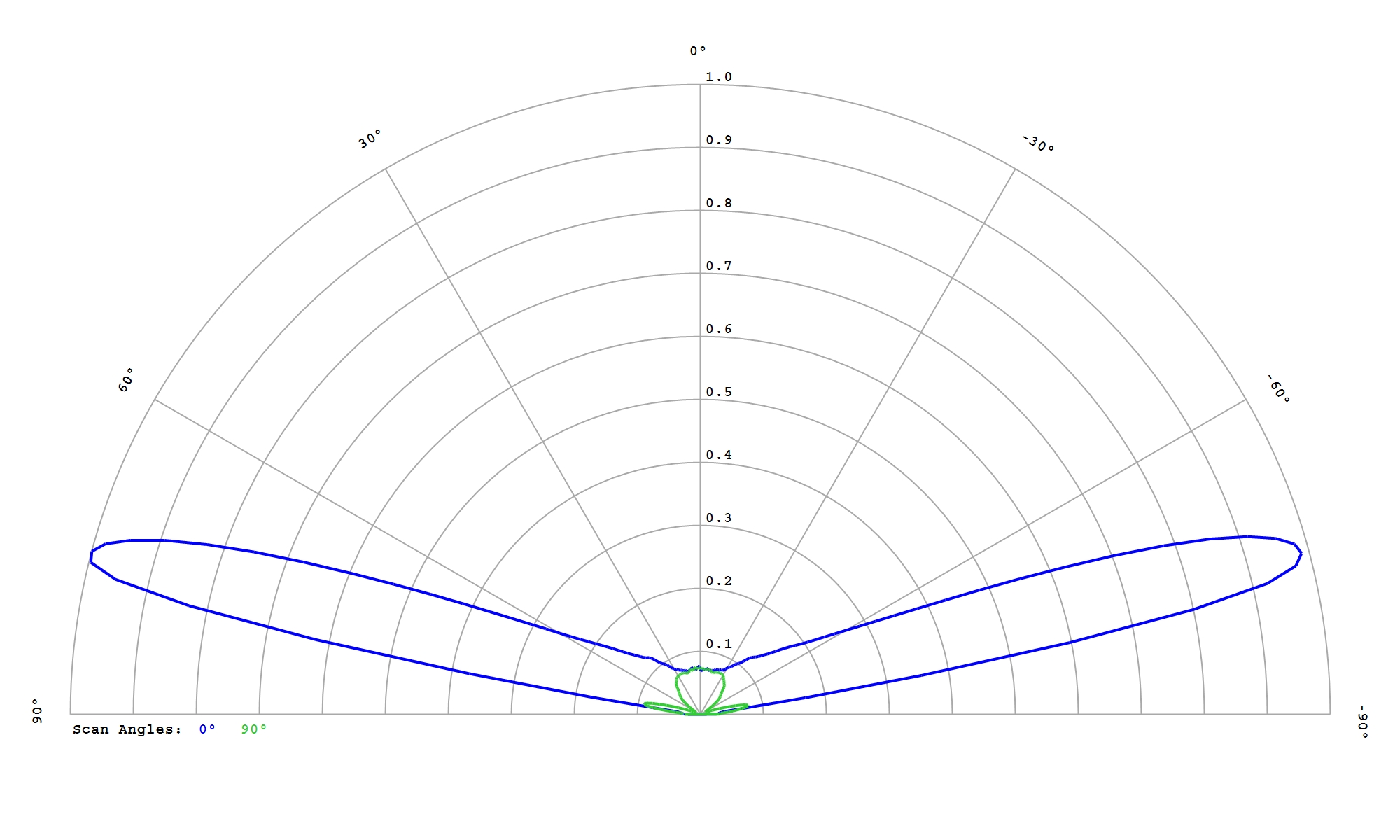

LUMILEDS LUXEON C PC Amber

Eff:

86.0%

FWHM:

159 x 102°

Cd/Im:

1.8

Download

IES

LUMILEDS LUXEON C Red

Eff:

87.5%

FWHM:

157 x 102°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

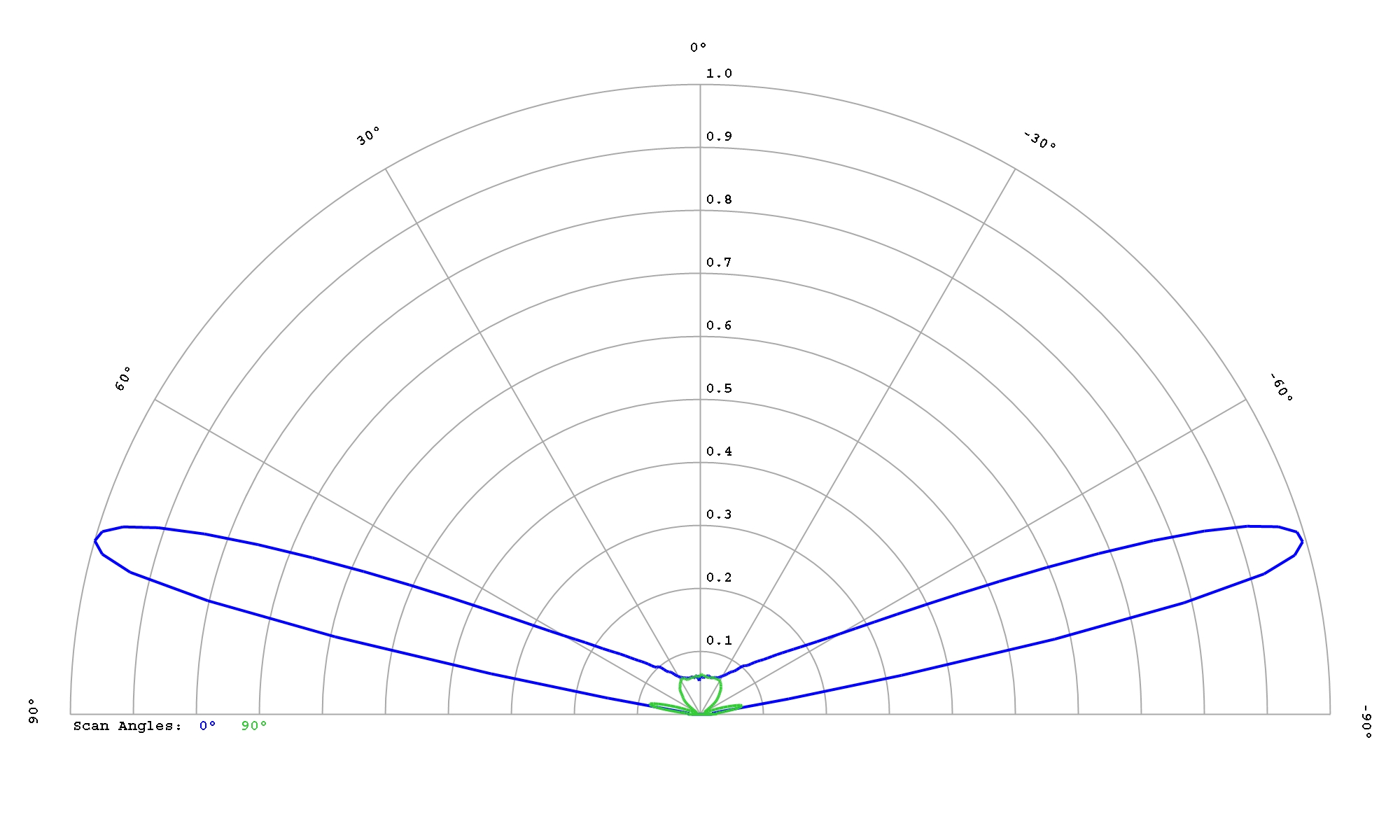

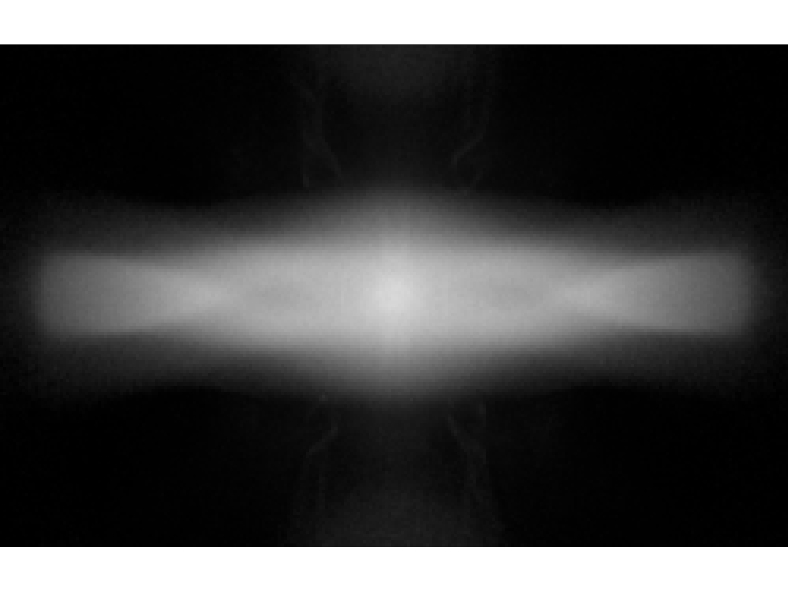

LUMILEDS LUXEON C White

Eff:

88.0%

FWHM:

157 x 100°

Cd/Im:

2.1

Download

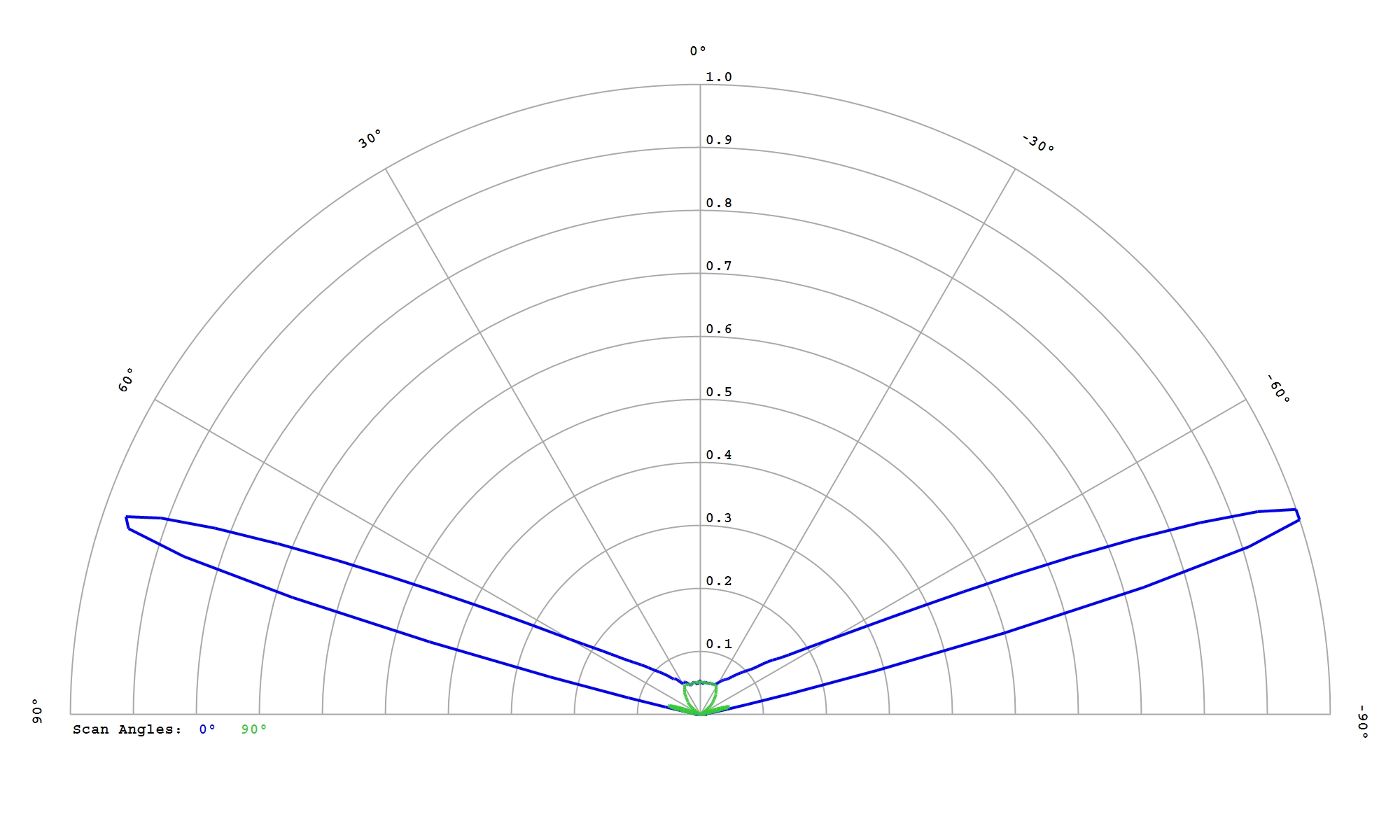

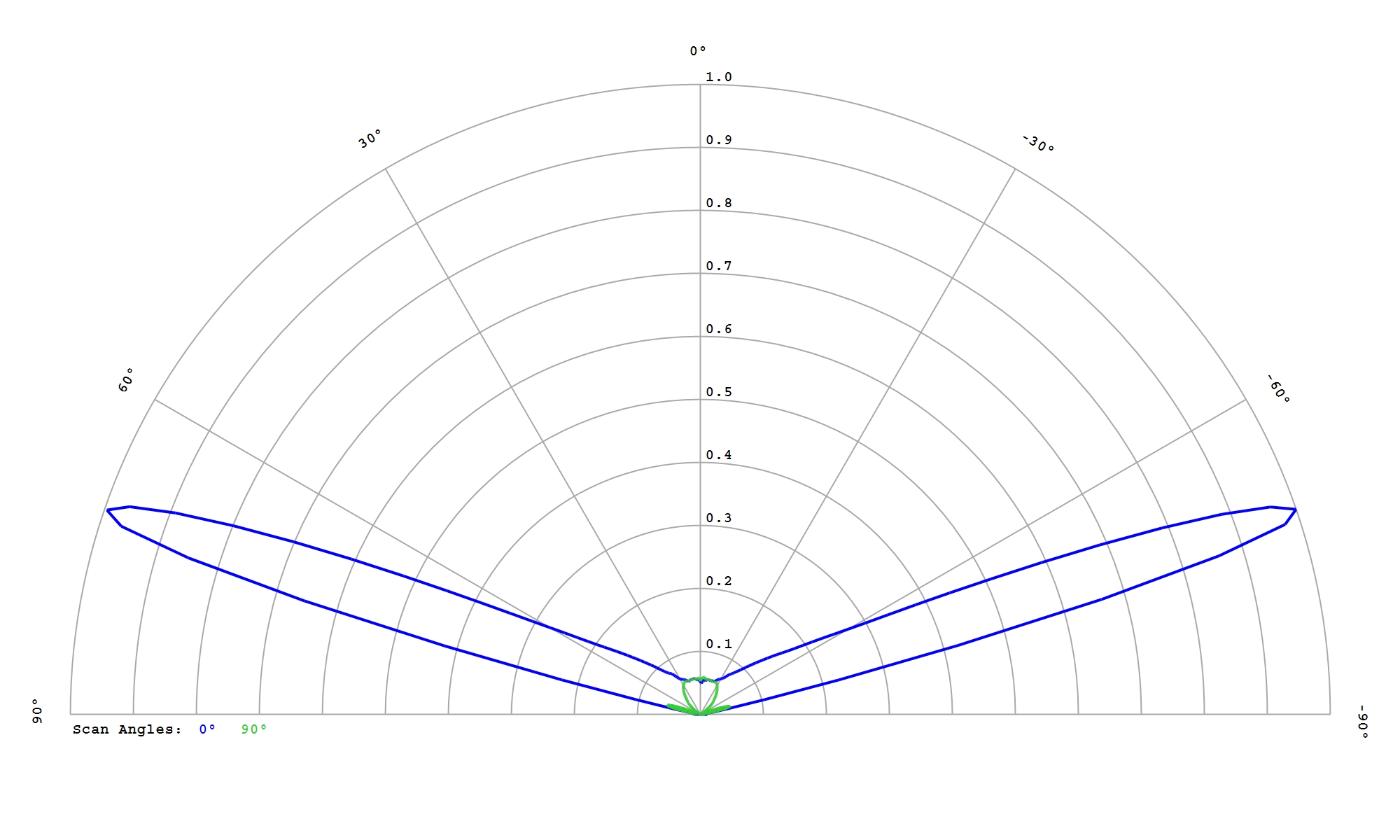

LUMILEDS LUXEON CZ White

Eff:

95.0%

FWHM:

150 x 89°

Cd/Im:

3.4

Carclo Optics 12766 Spot Image Luxeon CZ 5M CW

Carclo Optics 12766 Cross Section Luxeon CZ 5M CW

Download

ies

LUMILEDS LUXEON CZ PC Amber

Eff:

95.5%

FWHM:

149 x 87°

Cd/Im:

3.2

Download

IES

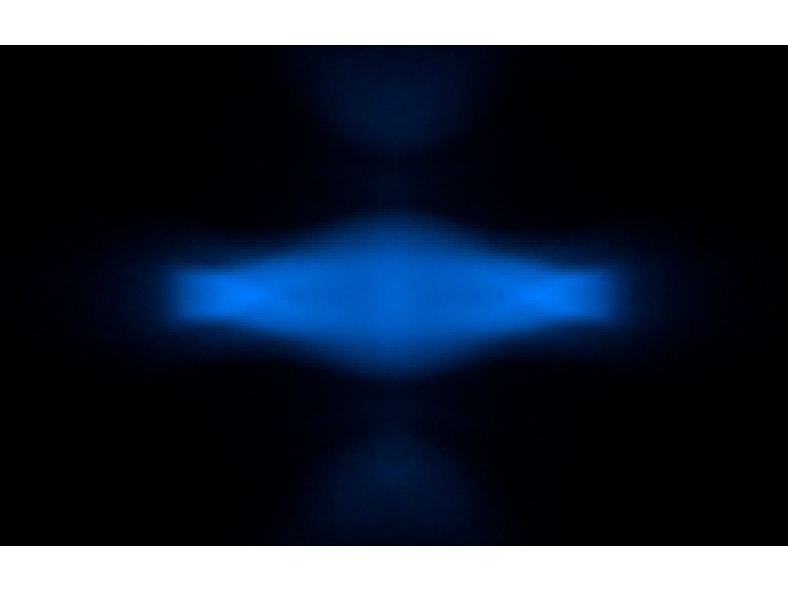

LUMILEDS LUXEON HL1Z Color Blue

Eff:

93.0%

FWHM:

143 x 86°

Cd/Im:

3.0

Download

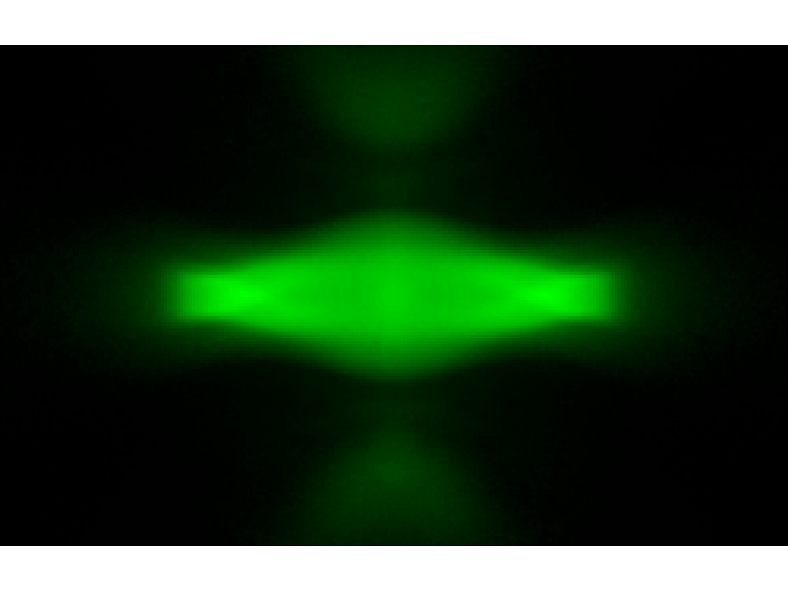

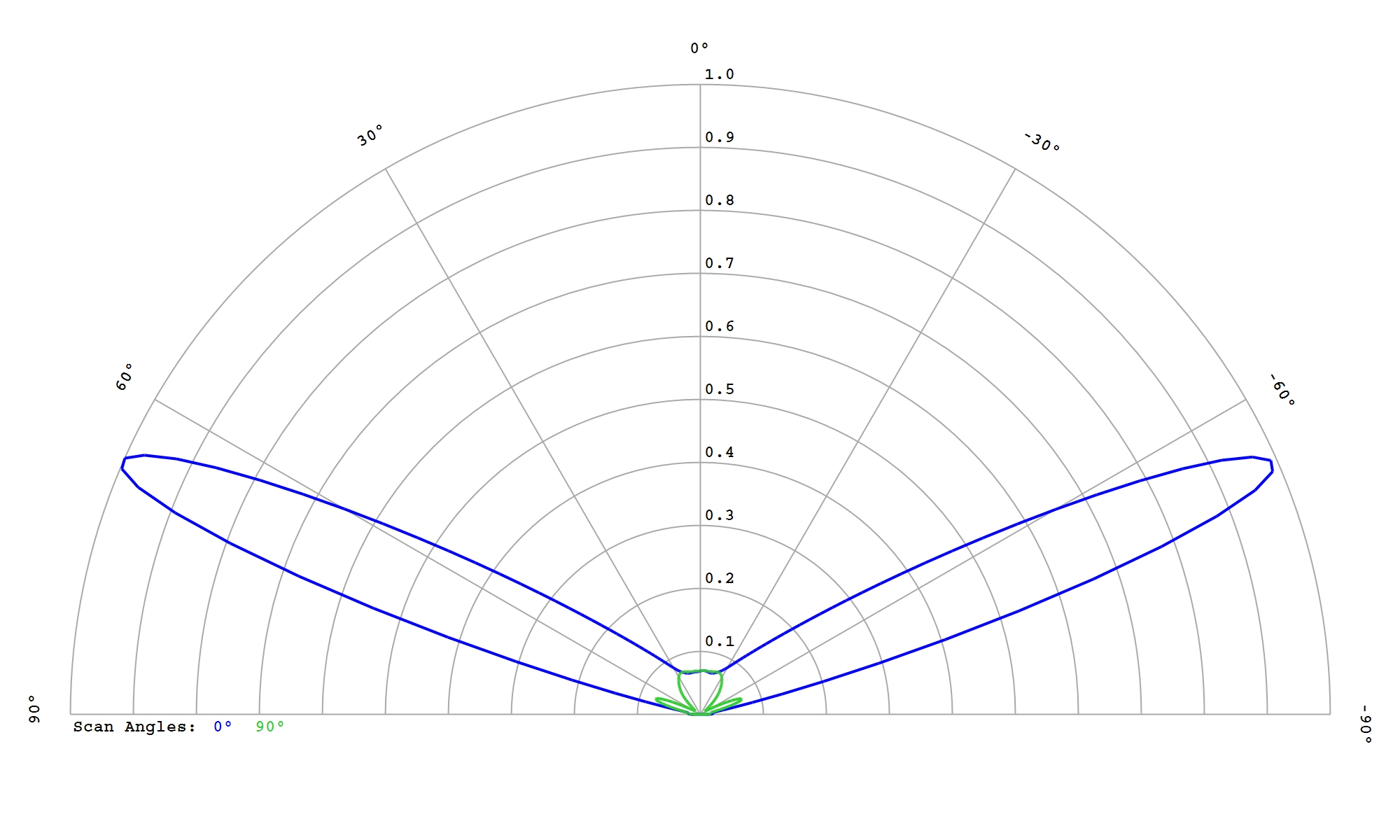

LUMILEDS LUXEON HL1Z Color Green

Eff:

92.5%

FWHM:

143 x 87°

Cd/Im:

3.1

Download

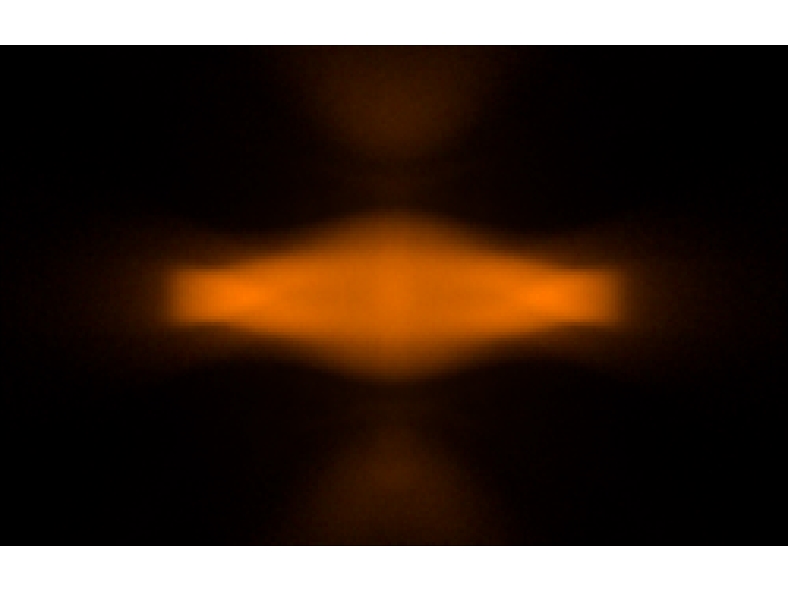

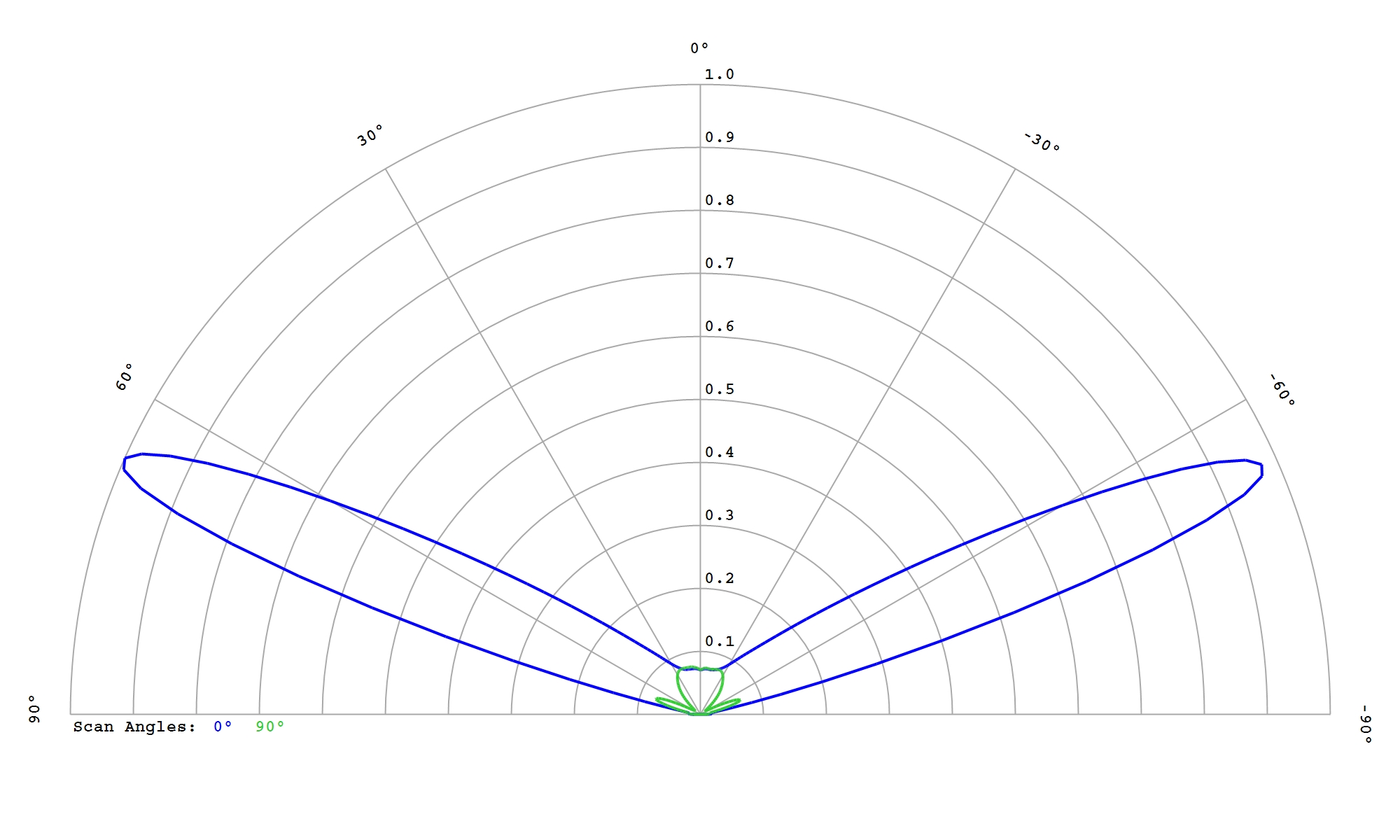

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

93.0%

FWHM:

143 x 86°

Cd/Im:

2.9


Download

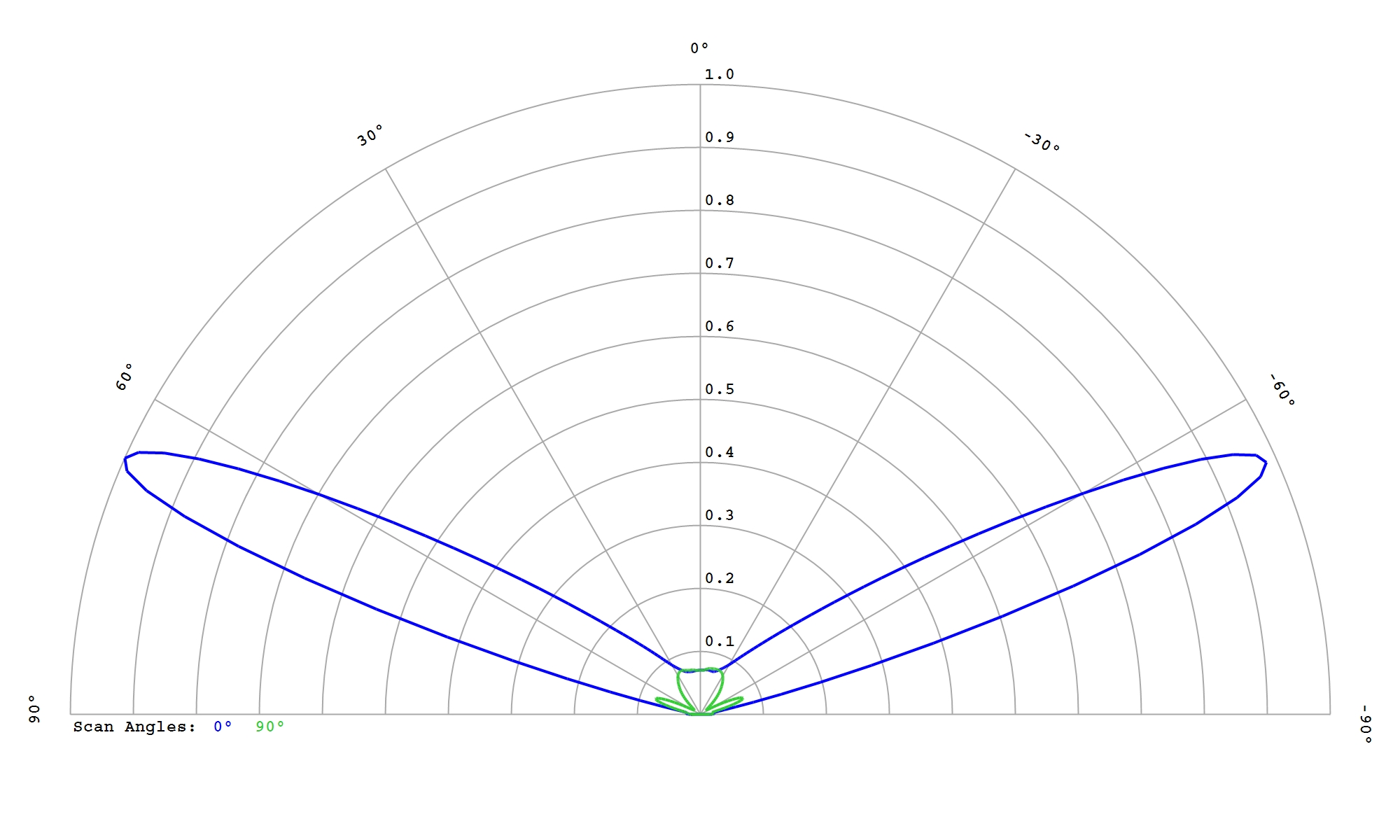

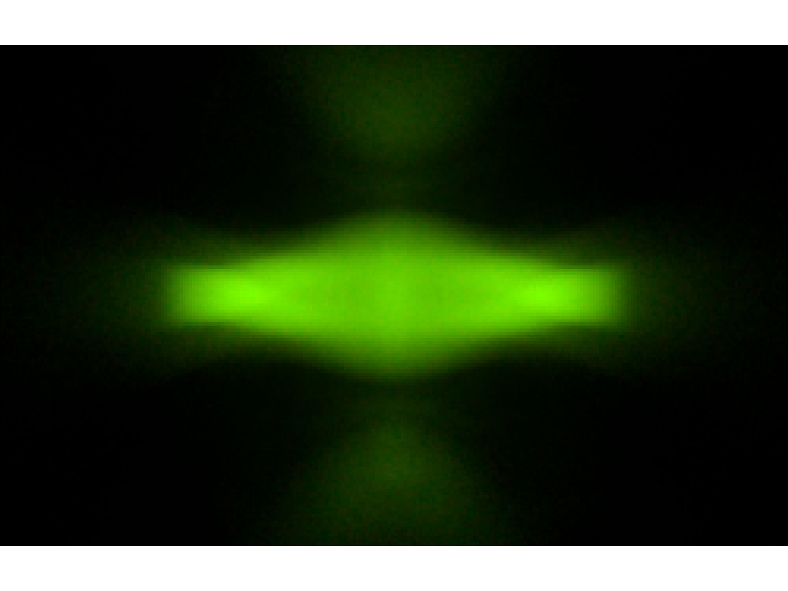

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

91.0%

FWHM:

143 x 86°

Cd/Im:

2.8


Download

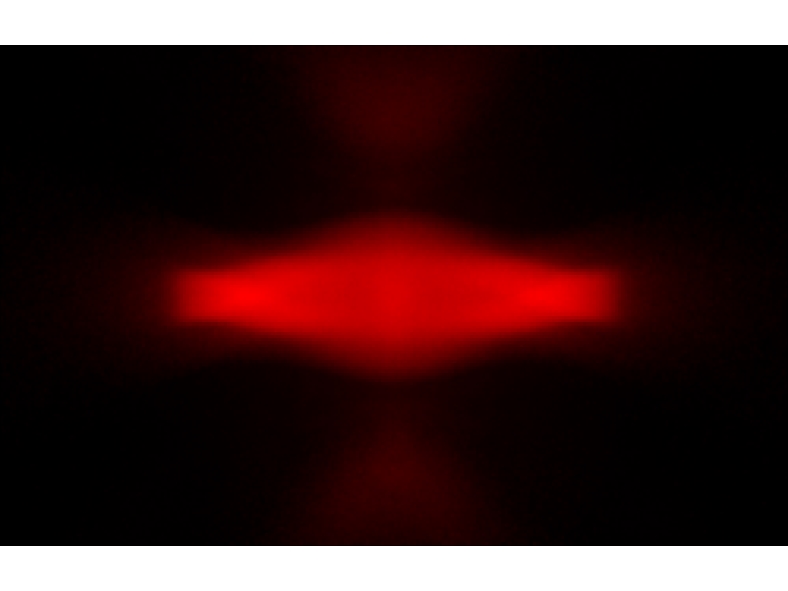

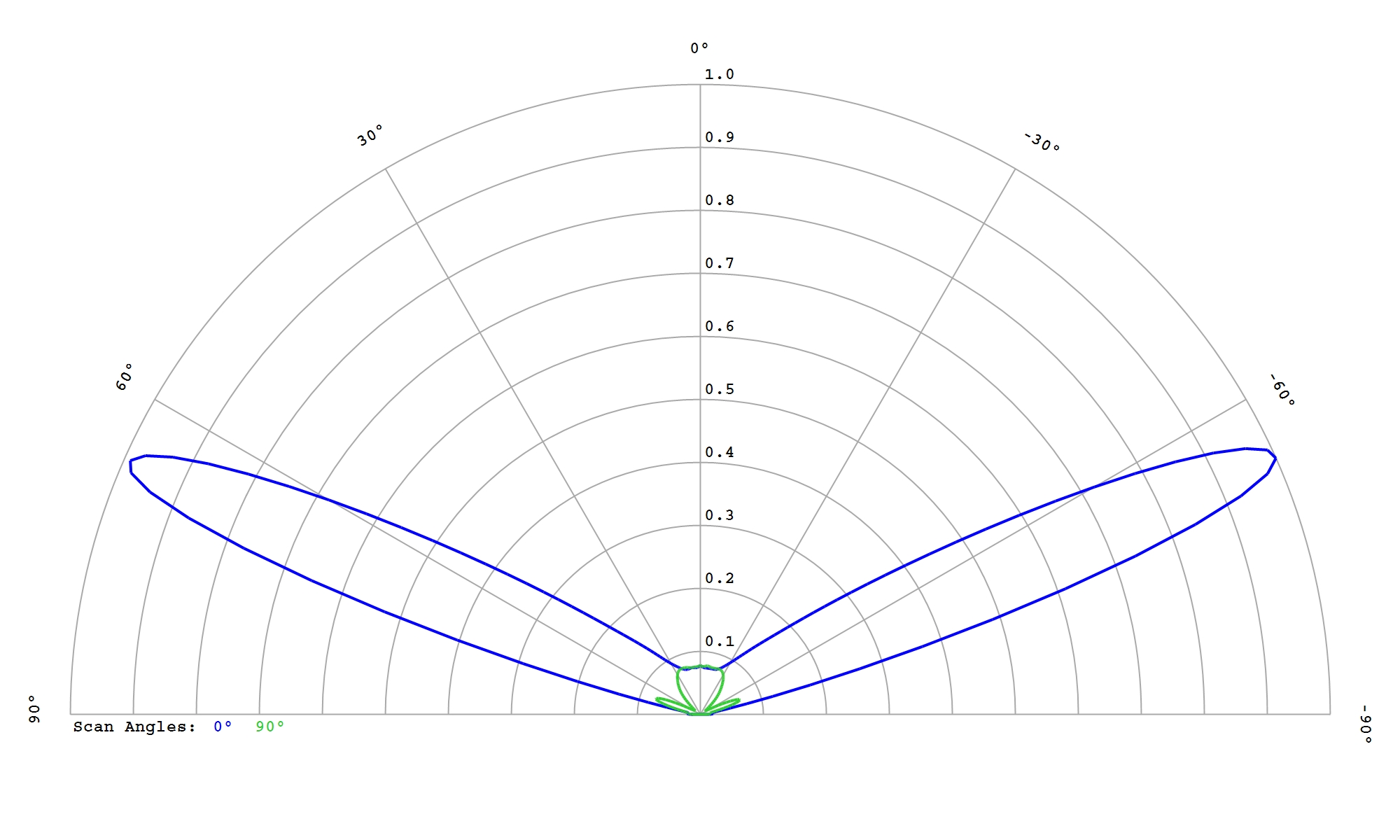

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

93.0%

FWHM:

143 x 86°

Cd/Im:

2.9

Download

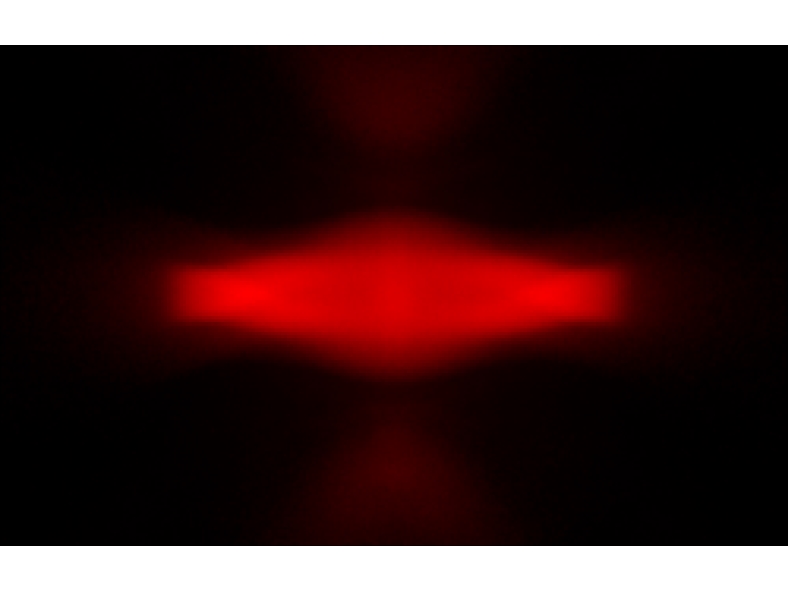

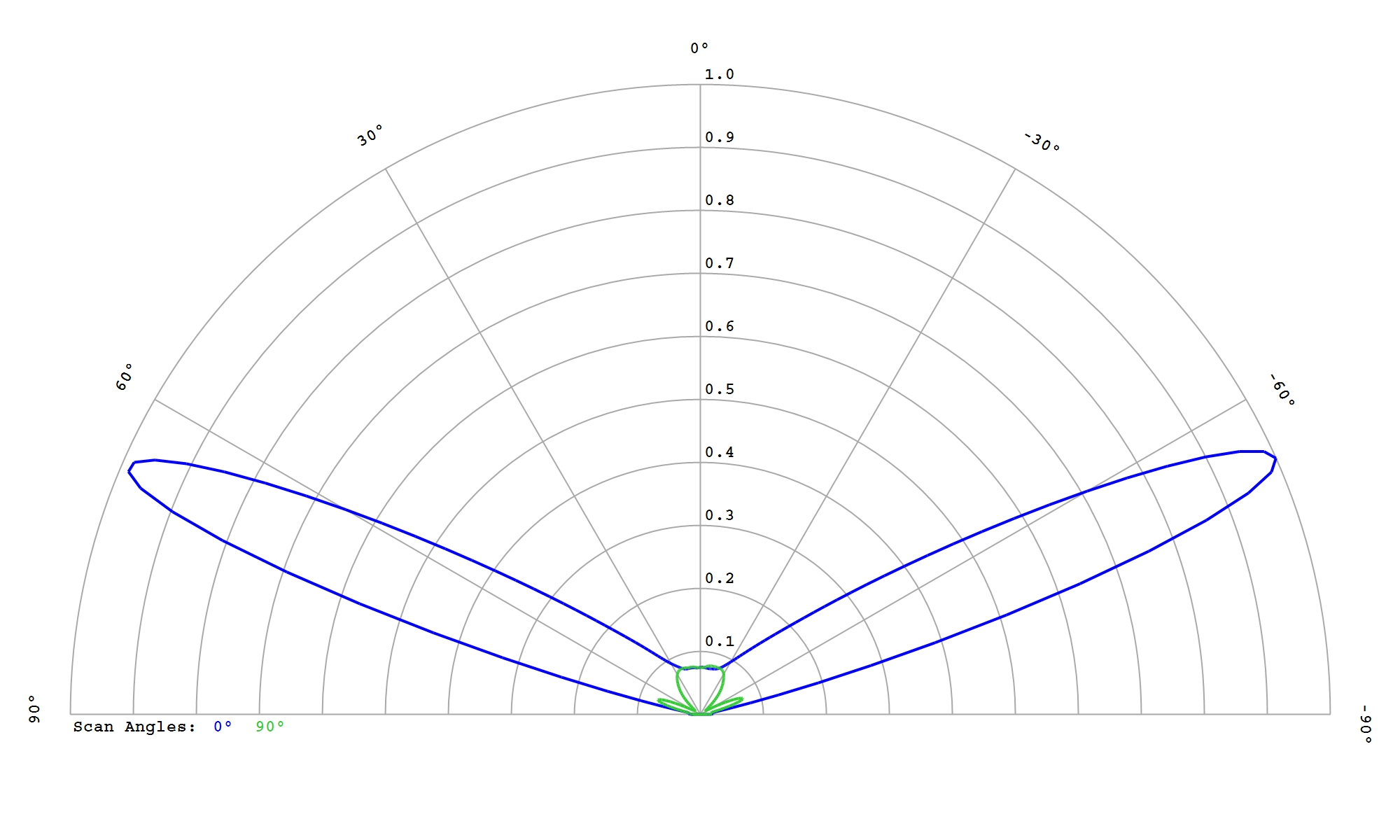

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

93.5%

FWHM:

143 x 85°

Cd/Im:

2.9


Download

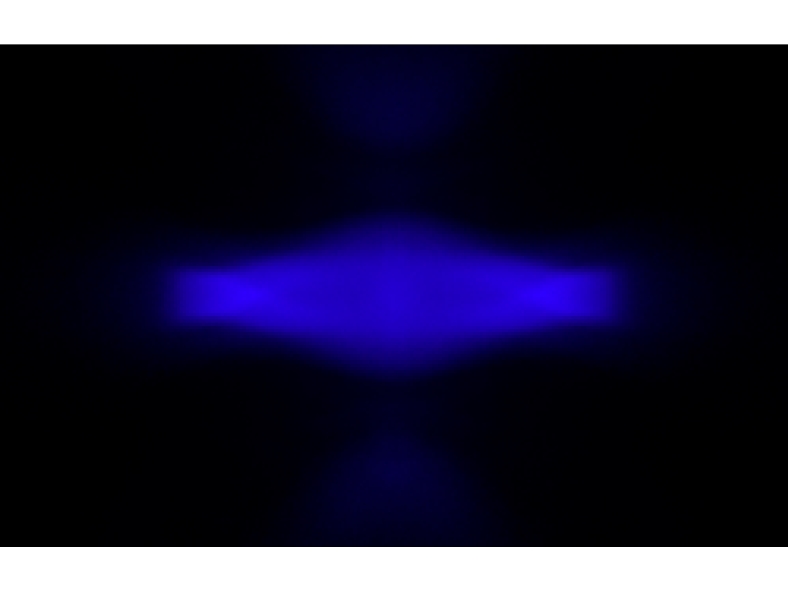

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

94.0%

FWHM:

143 x 87°

Ipk/W:

3.0


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

94.0%

FWHM:

143 x 87°

Cd/Im:

3.1

Download

ies

LUMILEDS LUXEON HL2X White

Eff:

94.0%

FWHM:

156 x 90°

Cd/Im:

1.0

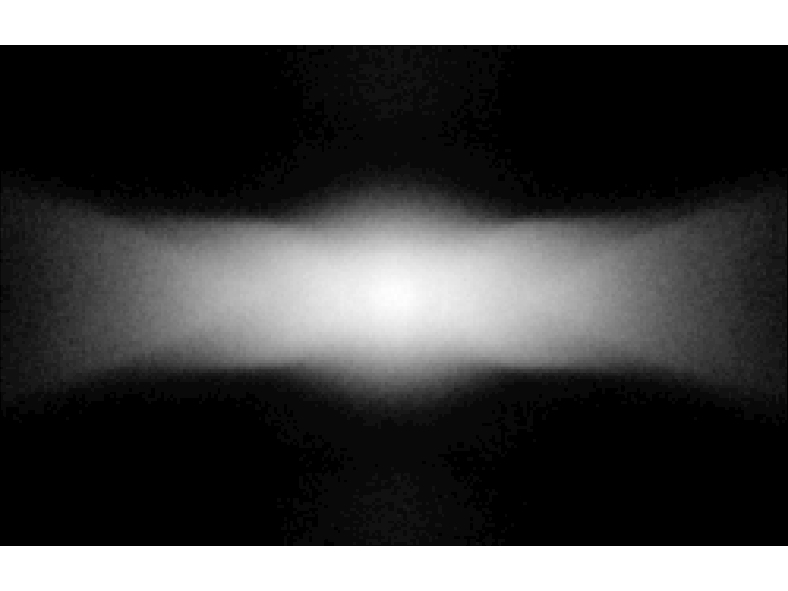

Carclo Optics - 12766 Spot Image Luxeon HL2X

Carclo Optics - 12766 Cross Section Luxeon HL2X

Download

ies

LUMILEDS LUXEON HL2X-D White

Eff:

91.5%

FWHM:

158 x 94°

Cd/Im:

0.8

Download

IES

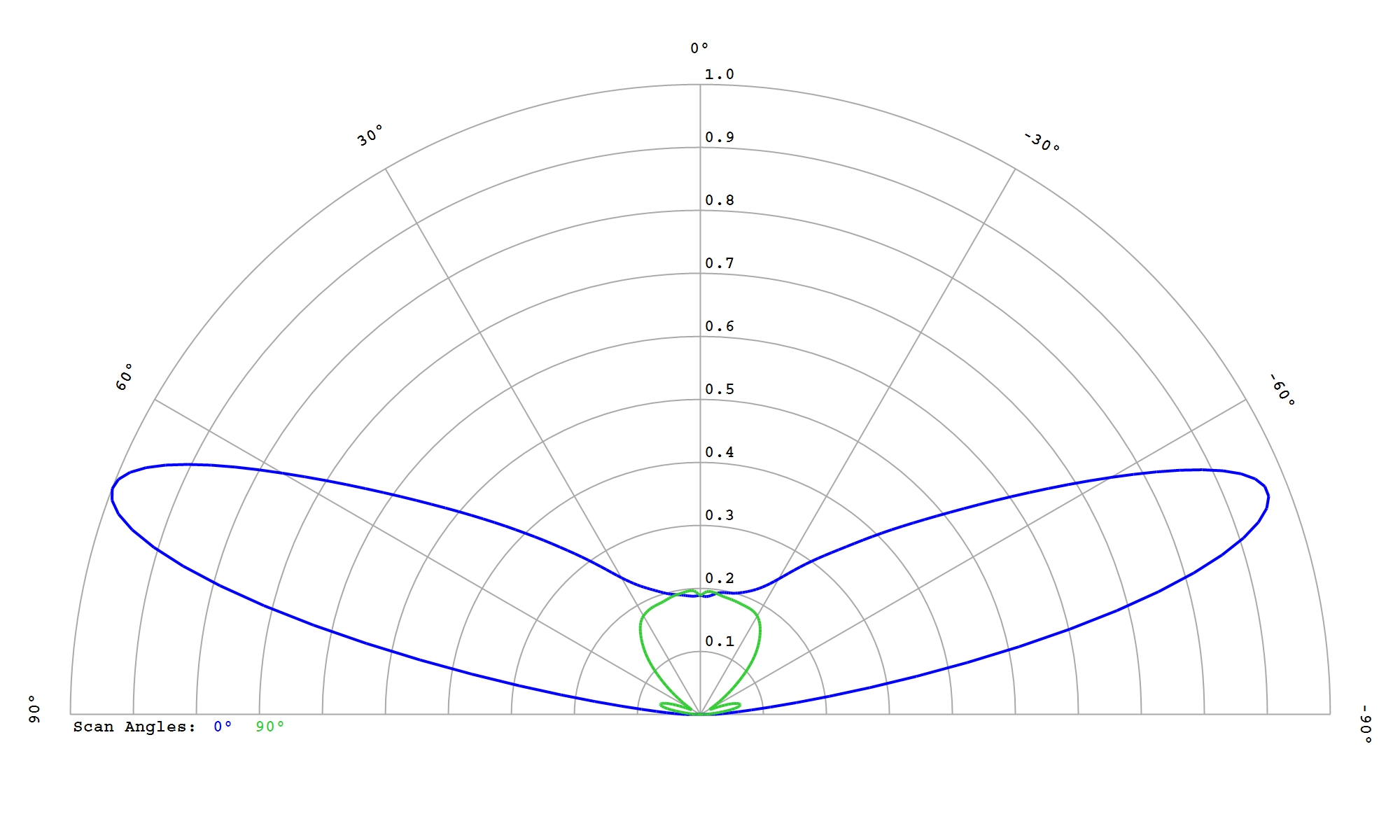

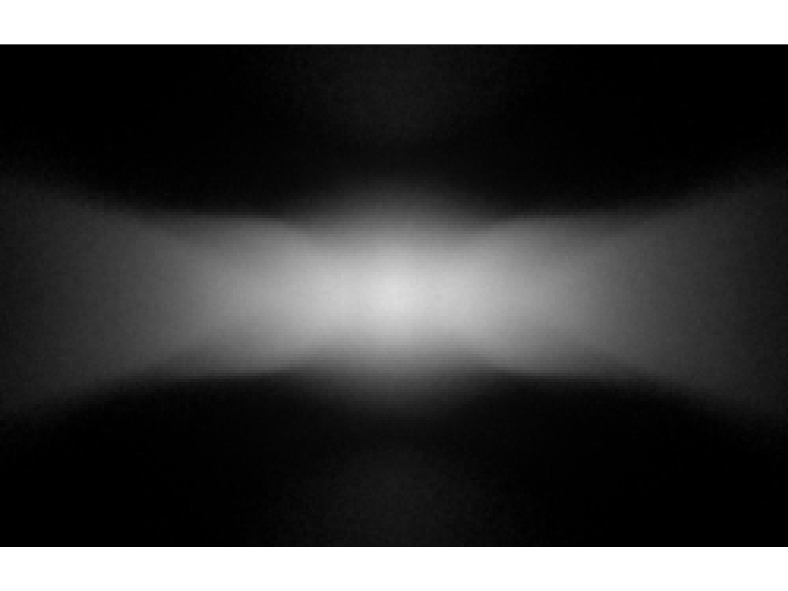

LUMILEDS LUXEON HL2X-E White

Eff:

94.0%

FWHM:

156 x 91°

Cd/Im:

0.9

Download

LUMILEDS LUXEON HL2X-P White

Eff:

92.5%

FWHM:

157 x 94°

Cd/Im:

0.8

Download

ies

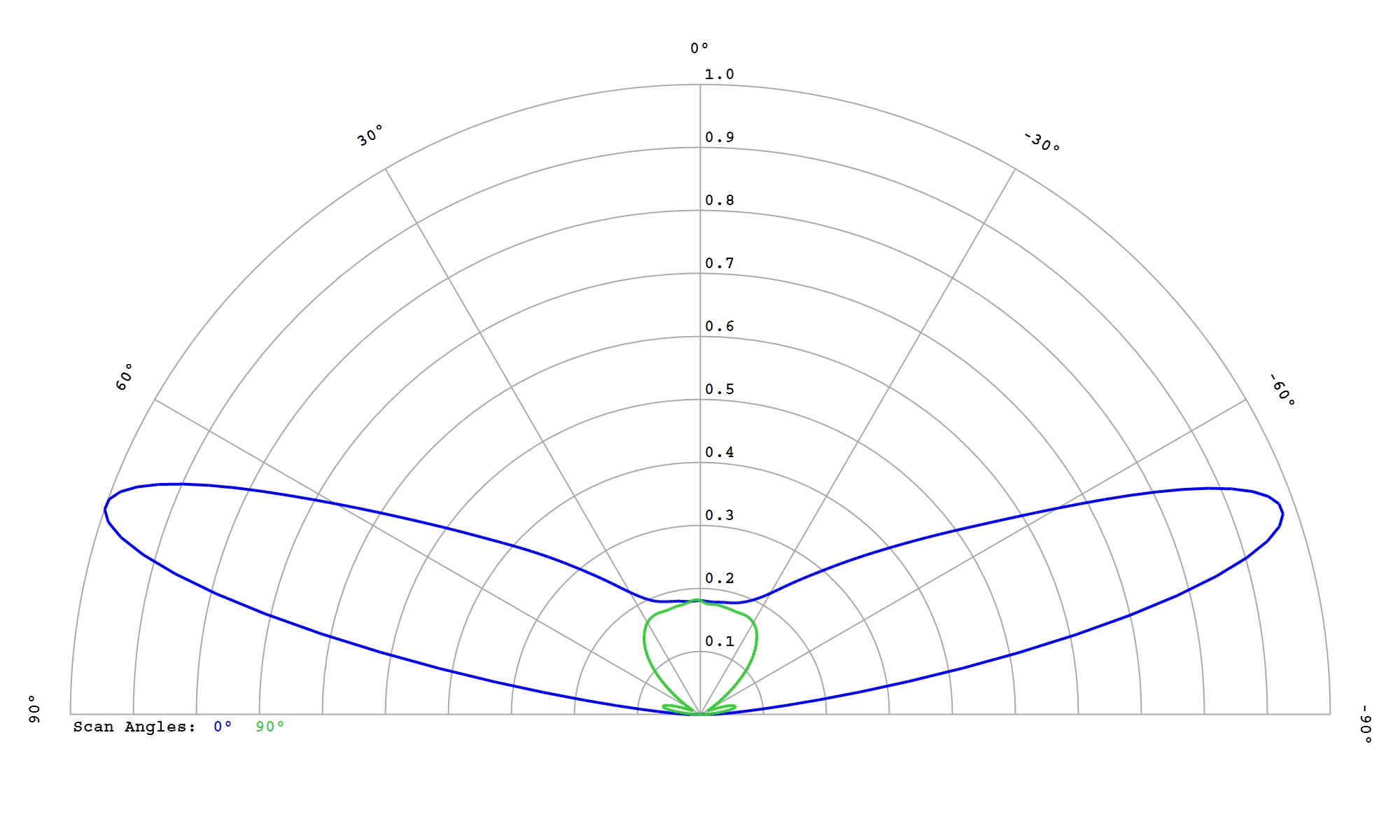

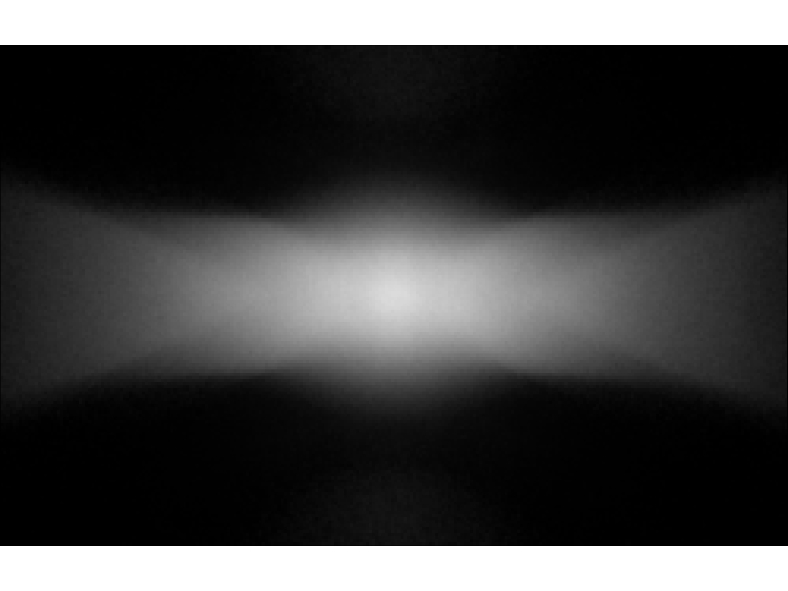

LUMILEDS LUXEON HL2X-V White

Eff:

94.0%

FWHM:

157 x 93°

Cd/Im:

1.0

Download

LUMILEDS LUXEON HL2Z White

Eff:

94.5%

FWHM:

146 x 85°

Cd/Im:

1.8

Carclo Optics – 12766 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12766 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

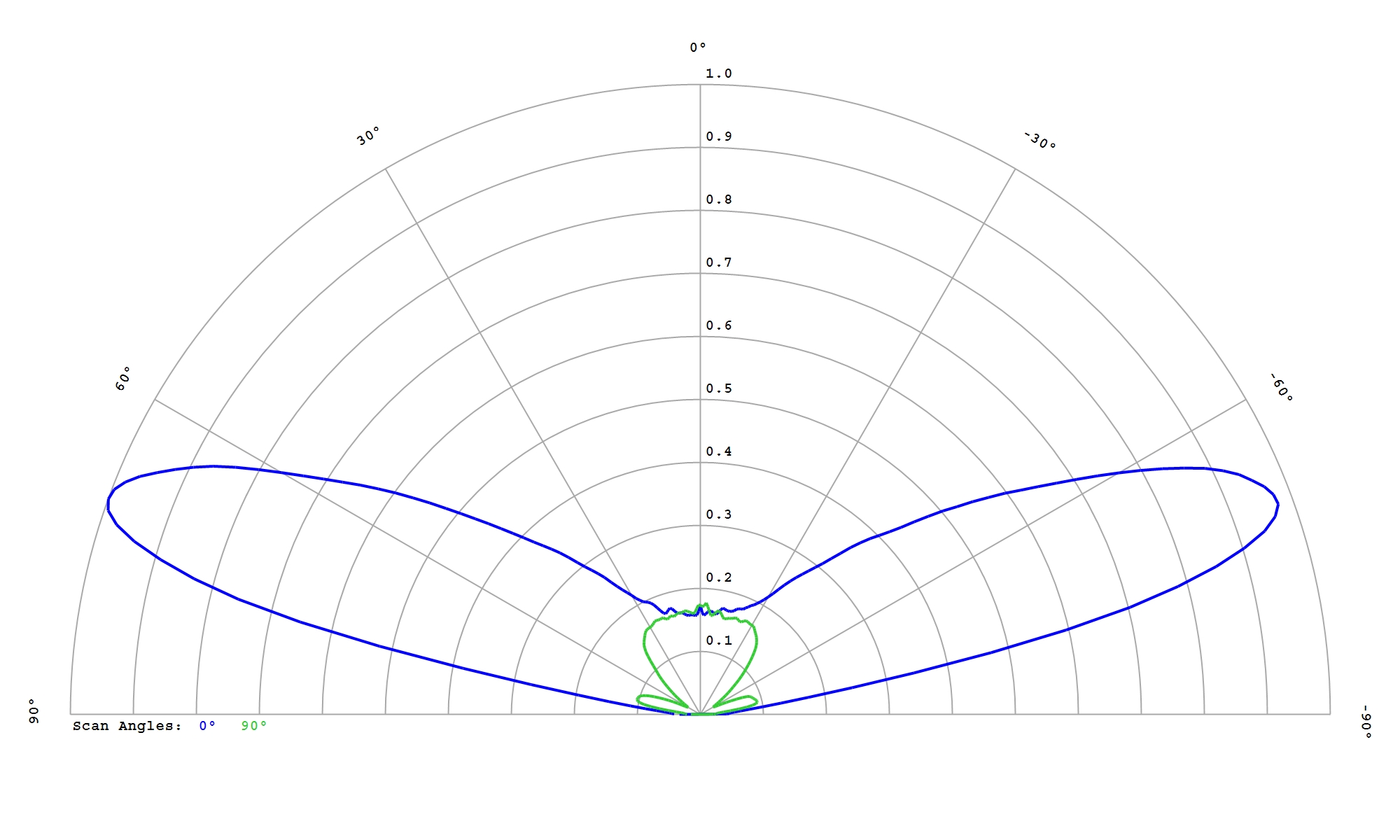

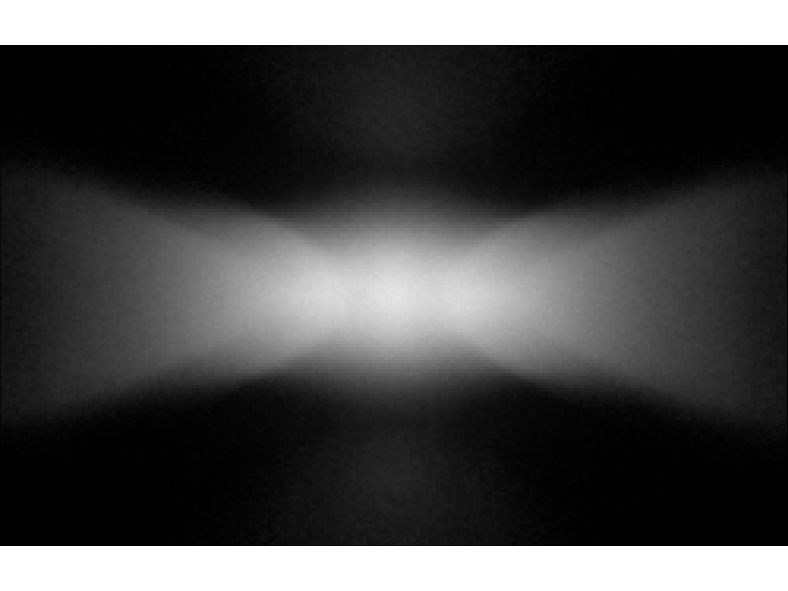

LUMILEDS LUXEON HL4X White

Eff:

92.0%

FWHM:

156 x 90°

Cd/Im:

0.8

Download

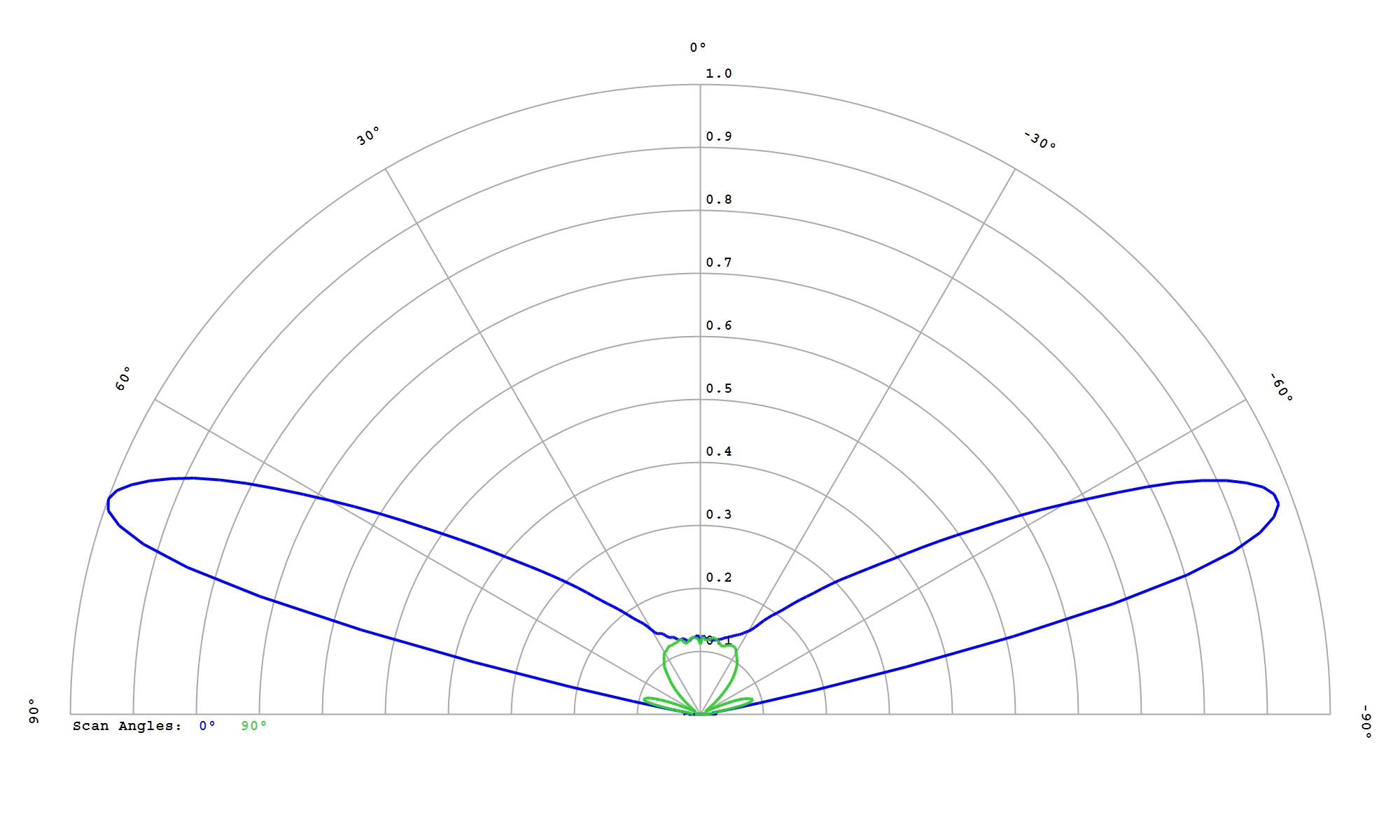

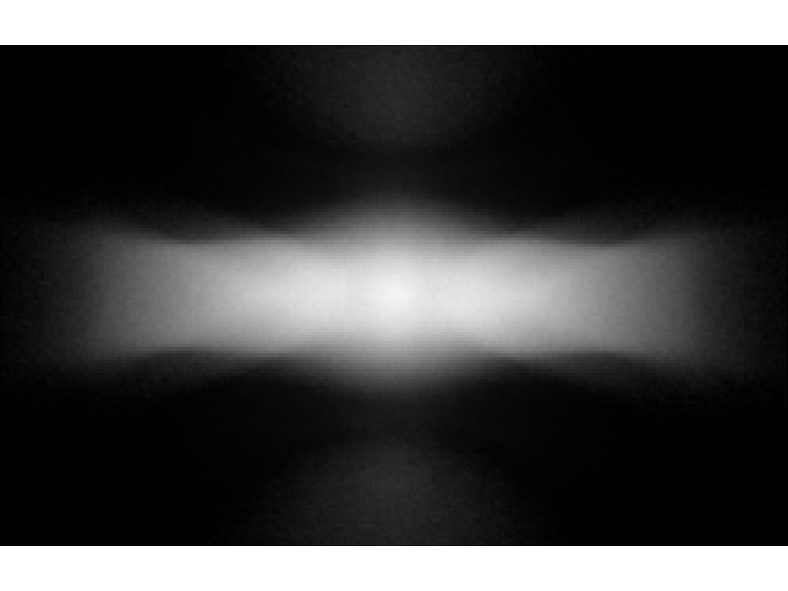

LUMILEDS LUXEON HL4Z White

Eff:

95.0%

FWHM:

152 x 86°

Cd/Im:

1.3

Download

LUMILEDS LUXEON IR 2720

Eff:

96.0%

FWHM:

146 x 88°

Ipk/W:

2.5

Carclo Optics - 12766 10mm Elliptical Medium Spot Image Luxeon IR 2720

Carclo Optics - 12766 10mm Elliptical Medium Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

91.0%

FWHM:

150*90*0°

Cd/Im:

1.3

Simulation Data

Simulation Data

Download

ies

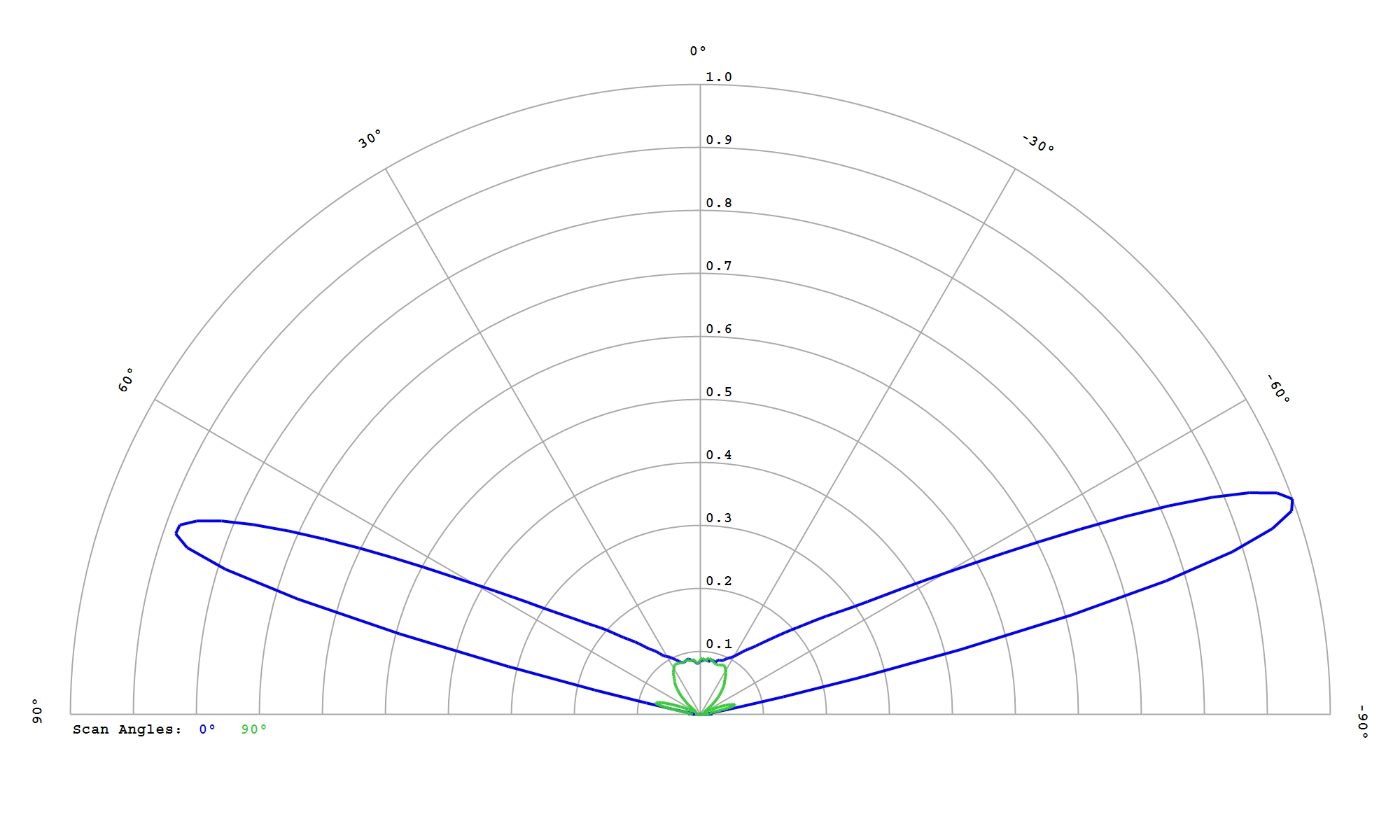

LUMILEDS LUXEON Rebel PC Amber

Eff:

93.5%

FWHM:

151 x 88°

Cd/Im:

1.9

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

95.5%

FWHM:

151 x 83°

Cd/Im:

3.6

Carclo Optics – 12766 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12766 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

95.5%

FWHM:

151 x 95°

Cd/Im:

3.6

Carclo Optics – 12766 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12766 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

95.5%

FWHM:

151 x 89°

Cd/Im:

3.5

Carclo Optics – 12766 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12766 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

96.0%

FWHM:

151 x 90°

Cd/Im:

3.7

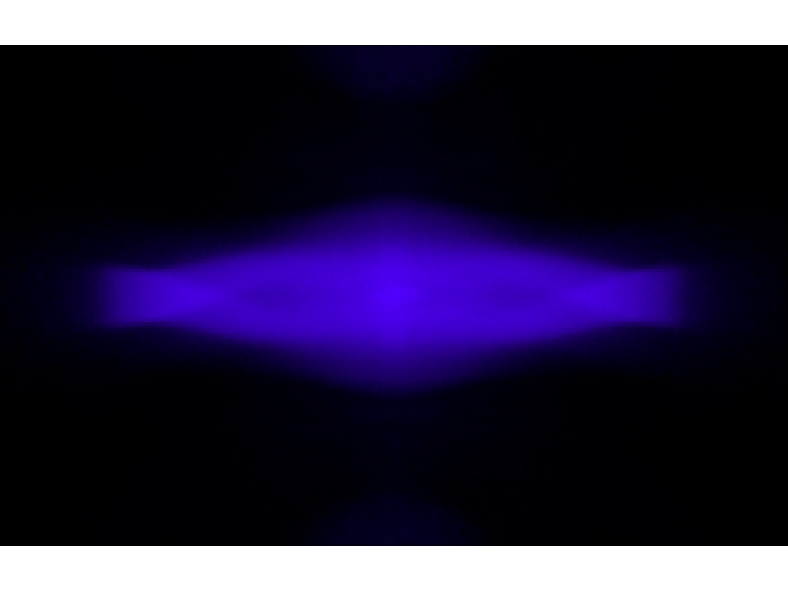

Carclo Optics – 12766 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12766 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

95.0%

FWHM:

151 x 90°

Cd/Im:

3.2

Carclo Optics - 12766 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12766 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON TX White

Eff:

94.0%

FWHM:

154 x 91°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON Z ES White

Eff:

91.0%

FWHM:

146x86x0°

Cd/Im:

2.4

Simulation Data

Download

IES

LUMILEDS LUXEON Z PC Amber

Eff:

95.0%

FWHM:

149 x 89°

Cd/Im:

3.4

Download

IES

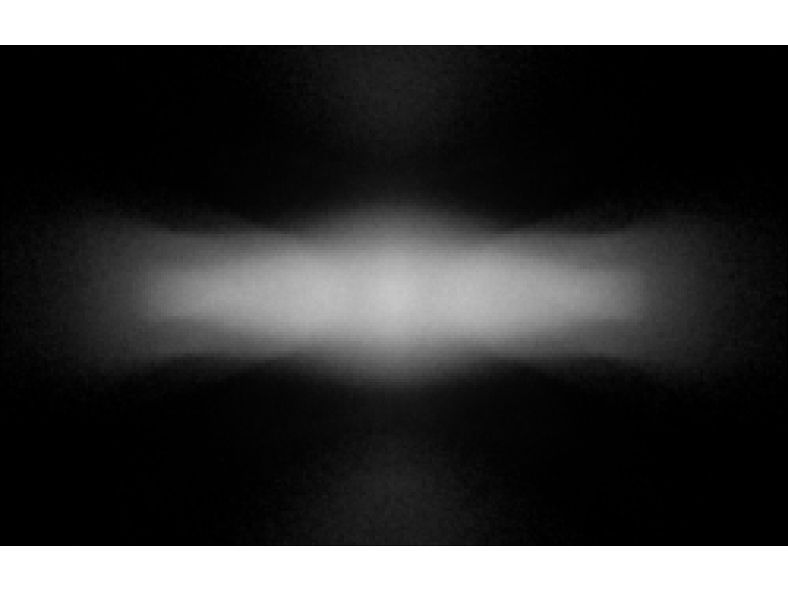

Luminus Devices MP-3030-11F2 White

Eff:

95.5%

FWHM:

149 x 86°

Cd/Im:

1.8


Download

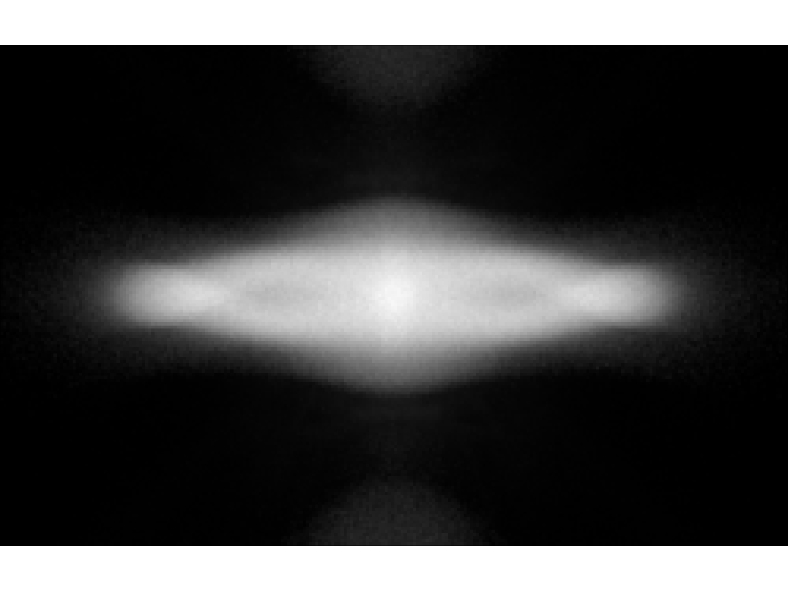

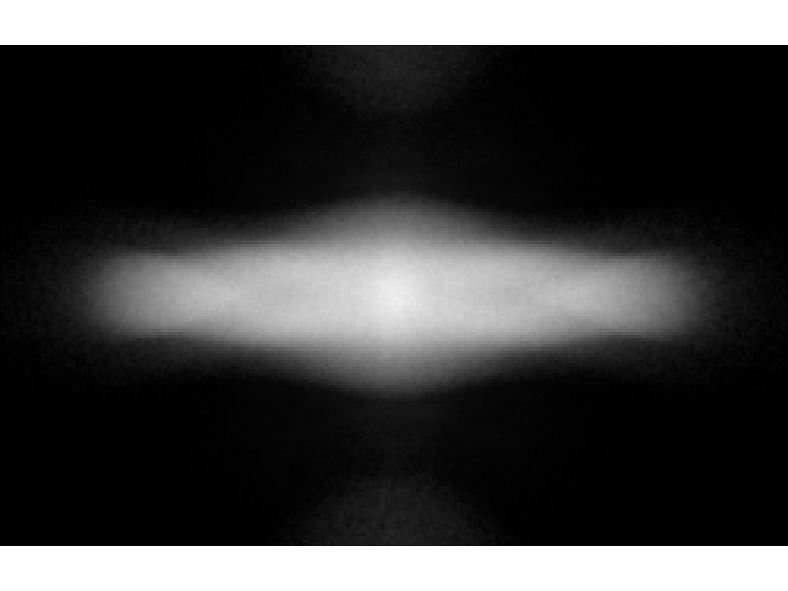

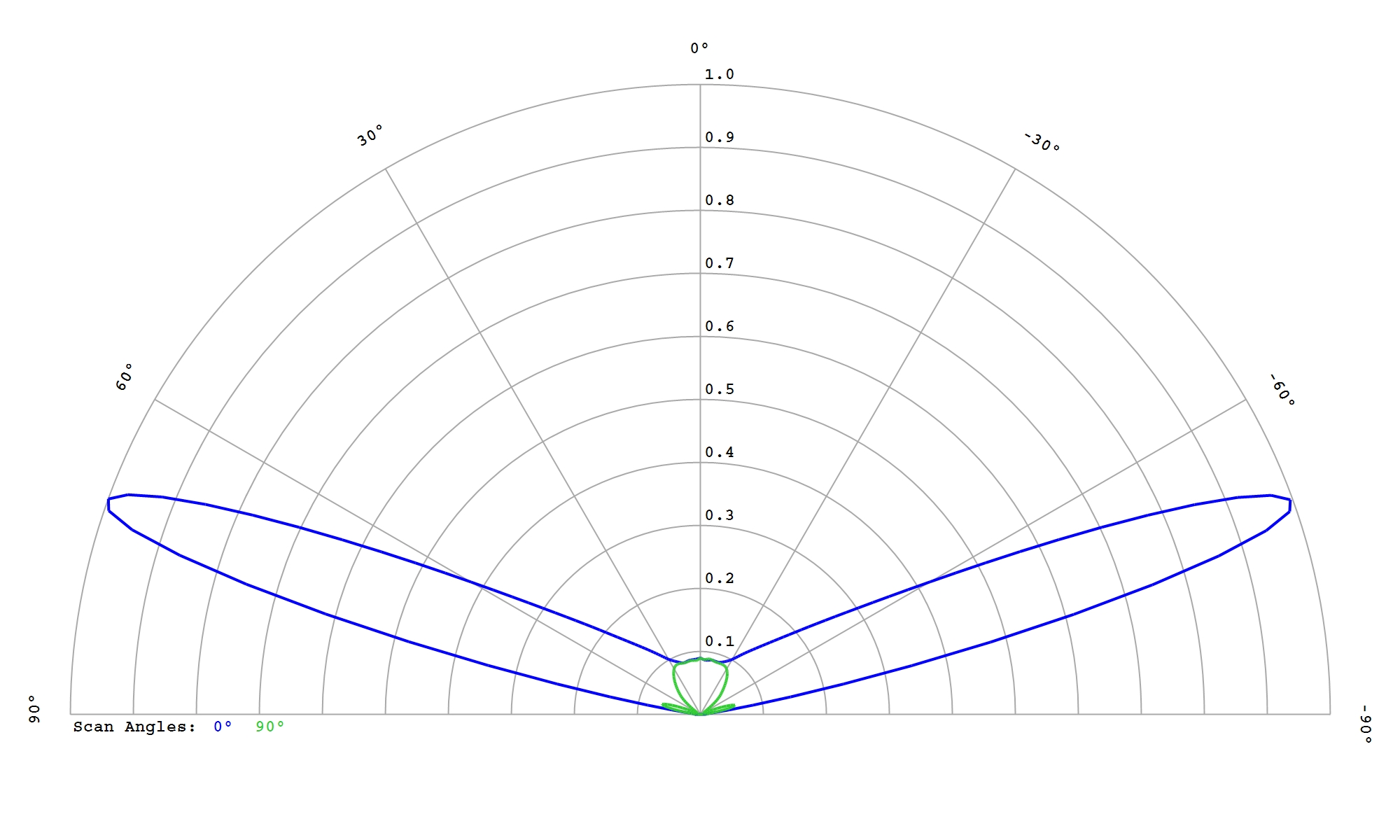

Luminus Devices SFT-12R-WES-A White

Eff:

95.5%

FWHM:

150 x 93°

Cd/Im:

3.4


Download

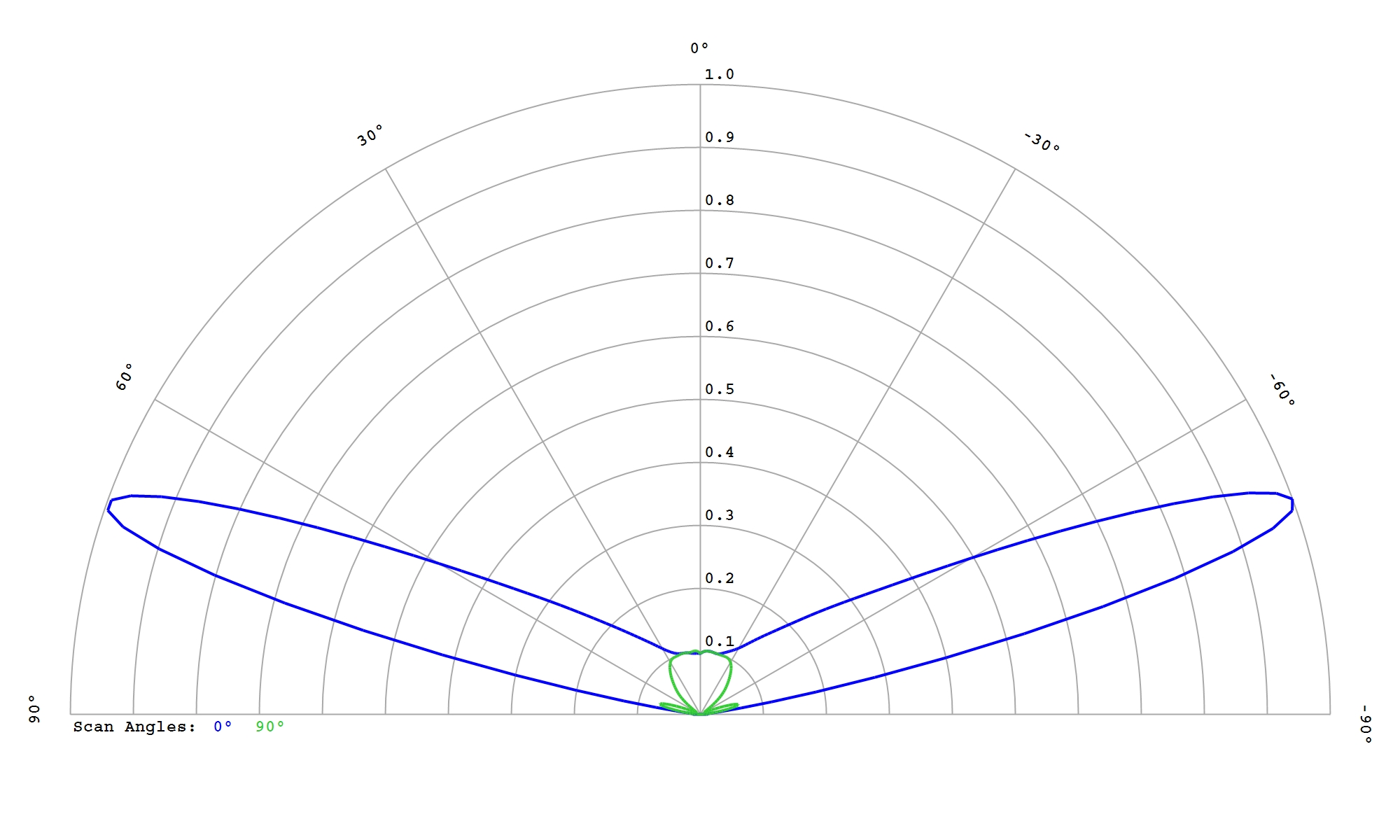

Luminus Devices SFT-25R-WES-A White

Eff:

95.5%

FWHM:

152 x 85°

Cd/Im:

2.4


Download

Luminus Devices SST 05-IR-B40 850nm

Eff:

95.5%

FWHM:

145 x 36°

Ipk/W:

1.5

Carclo Optics - 12766 Spot Image Luminus SST-05-IR-B40

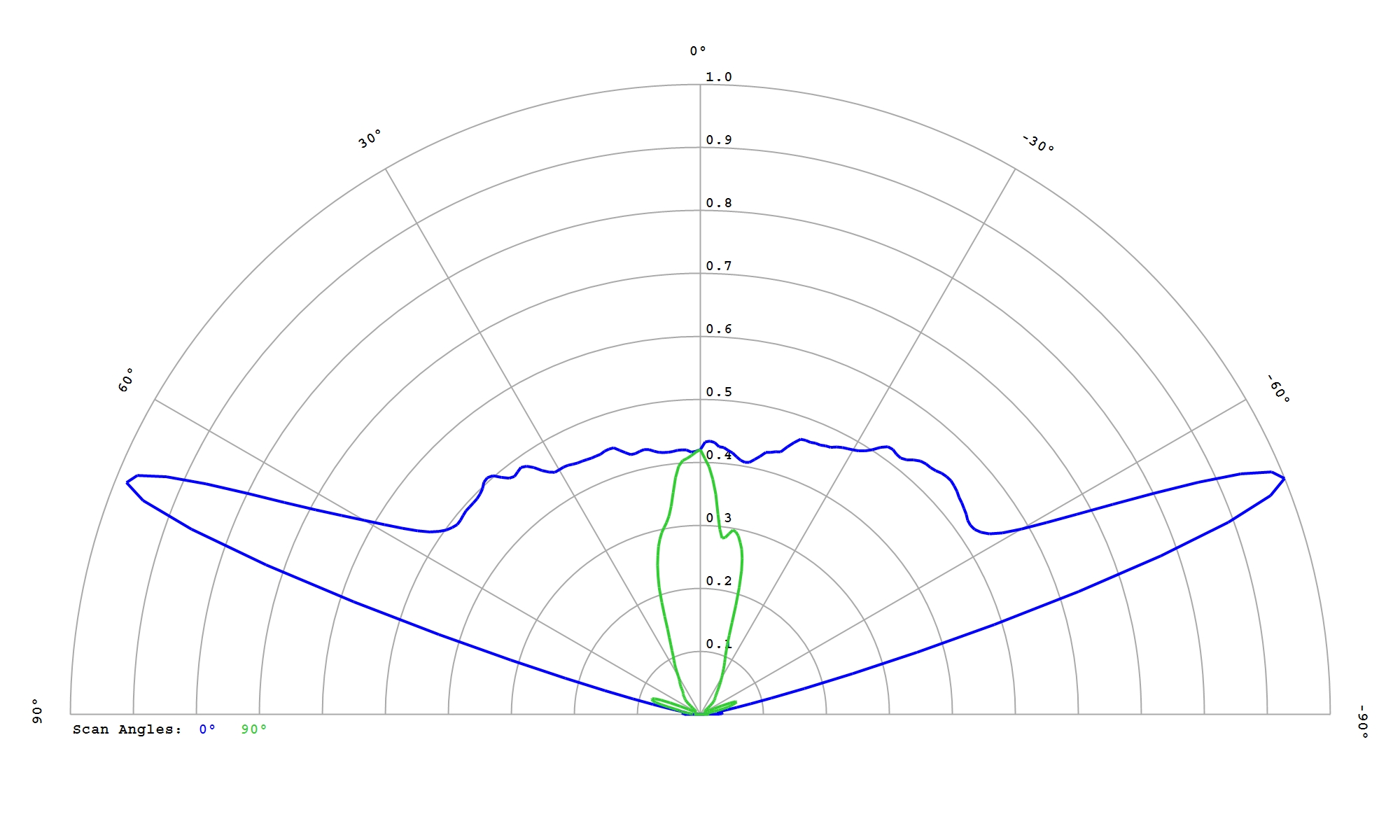

Carclo Optics - 12766 Cross Section Luminus SST-05-IR-B40

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

95.5%

FWHM:

149 x 89°

Cd/Im:

2.8

Carclo Optics - 12766 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 12766 Luminus_SST-10_B_B130 - Cross section image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

94.5%

FWHM:

146 x 70°

Cd/Im:

1.9

Carclo Optics - 12766 Luminus_SST-10_B_B90 - spot image

Carclo Optics - 12766 Luminus_SST-10_B_B90 - cross section image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

94.0%

FWHM:

154 x 97°

Cd/Im:

2.0

Carclo Optics – 12766 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12766 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

94.0%

FWHM:

146 x 70°

Cd/Im:

1.5

Carclo Optics - 12766 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics – 12766 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

94.5%

FWHM:

149 x 88°

Cd/Im:

2.7

Carclo Optics - 12766 Luminus_SST-10_G_B130 - spot - image

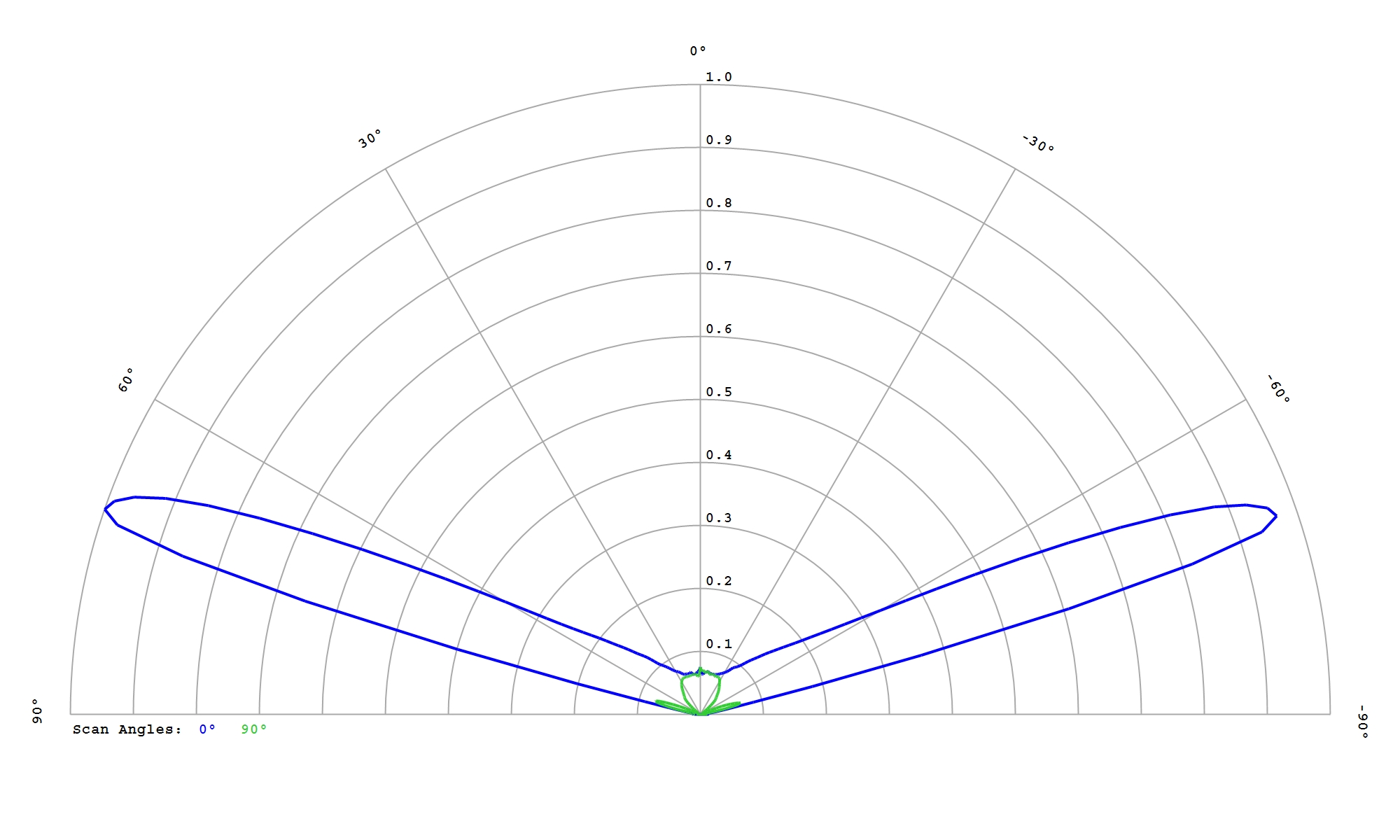

Carclo Optics - 12766 Luminus_SST-10_G_B130 - cross section - image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

93.5%

FWHM:

145 x 70°

Cd/Im:

1.9

Carclo Optics - 12766 Luminus_SST-10_G_B90- Spot - image

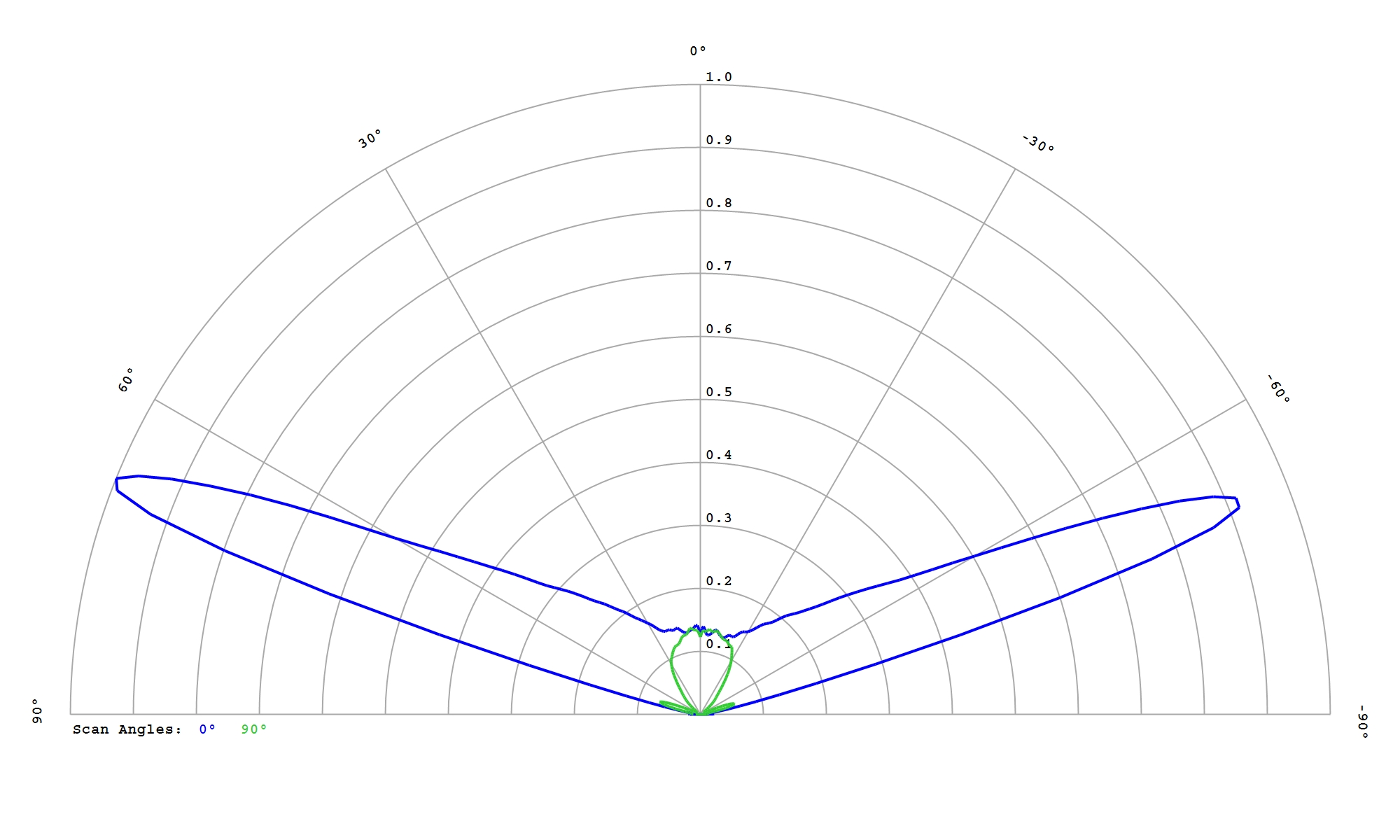

Carclo Optics - 12766 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

95.0%

FWHM:

145 x 70°

Ipk/W:

1.4

Carclo Optics - 12766 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12766 Cross Section Luminus SST-10-IR-B90

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

95.5%

FWHM:

150 x 88°

Ipk/W:

2.1


Download

ies

Luminus Devices SST 10-IRD-B90 810nm

Eff:

95.0%

FWHM:

145 x 70°

Ipk/W:

1.6


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

94.5%

FWHM:

149 x 85°

Cd/Im:

1.8

Carclo Optics – 12766 - Luxeon_ST_20_W_spot-image

Carclo Optics – 12766 - Luxeon_SST_20_W_cross vertical section

Download

ies

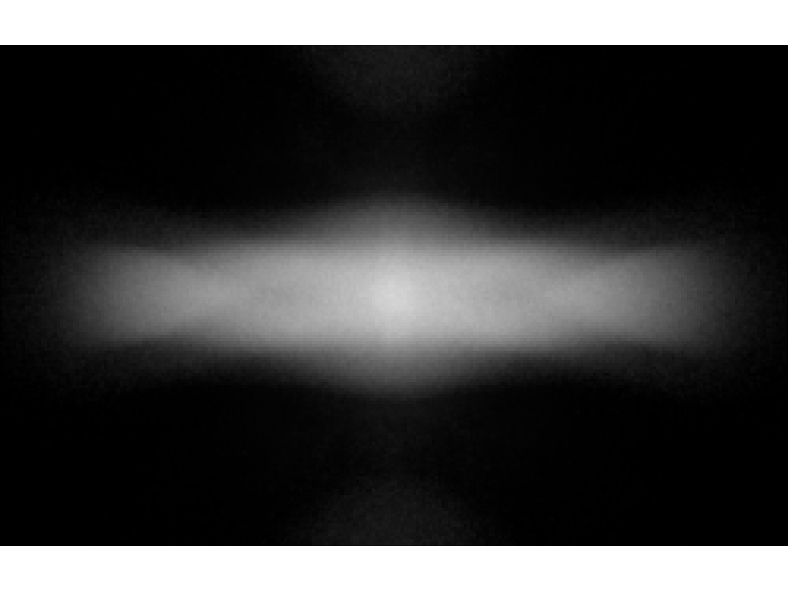

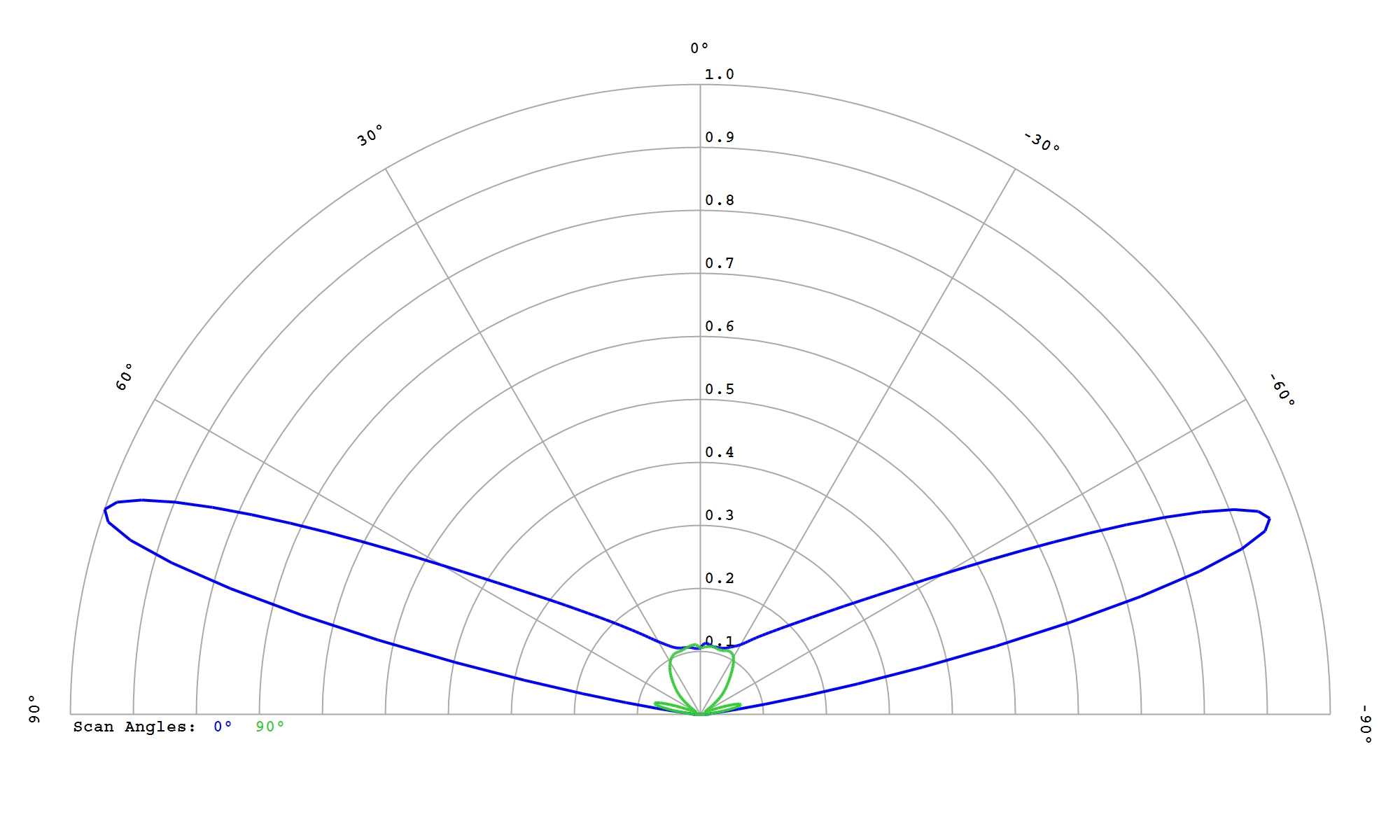

Luminus Devices SST-12-WS Gen2 White

Eff:

94.5%

FWHM:

153 x 85°

Cd/Im:

2.1


Download

Luminus Devices SST-12-WxS White

Eff:

94.5%

FWHM:

153 x 89°

Cd/Im:

2.2

Download

ies

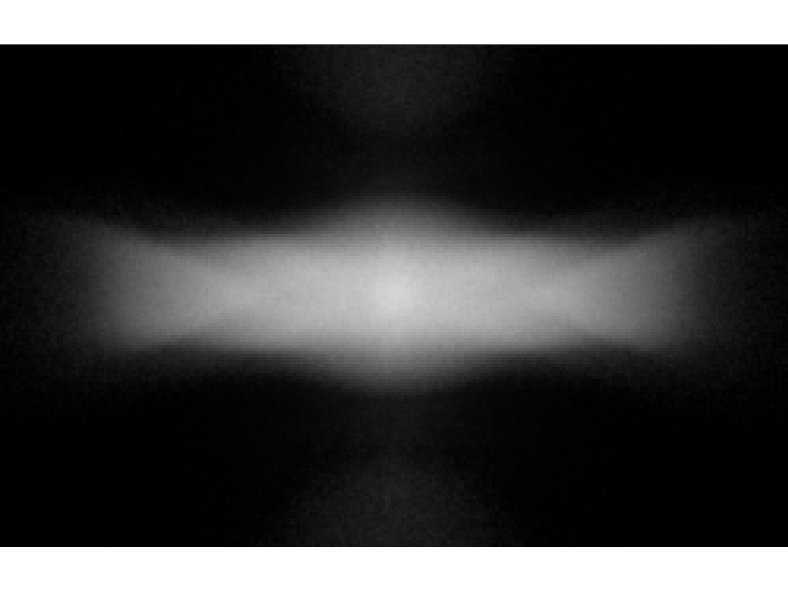

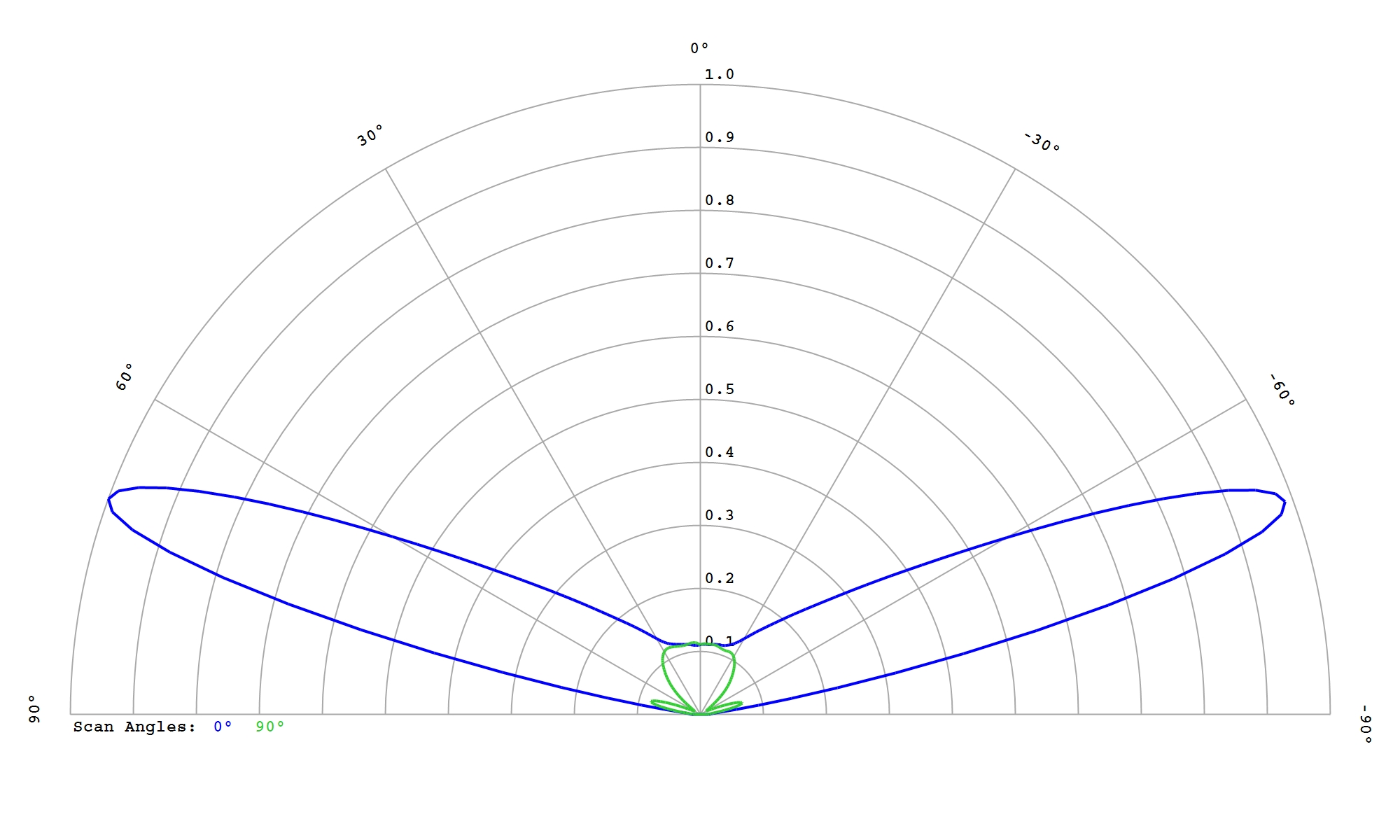

Luminus Devices SST-20-W Gen2 White

Eff:

94.5%

FWHM:

152 x 91°

Cd/Im:

1.7


Download

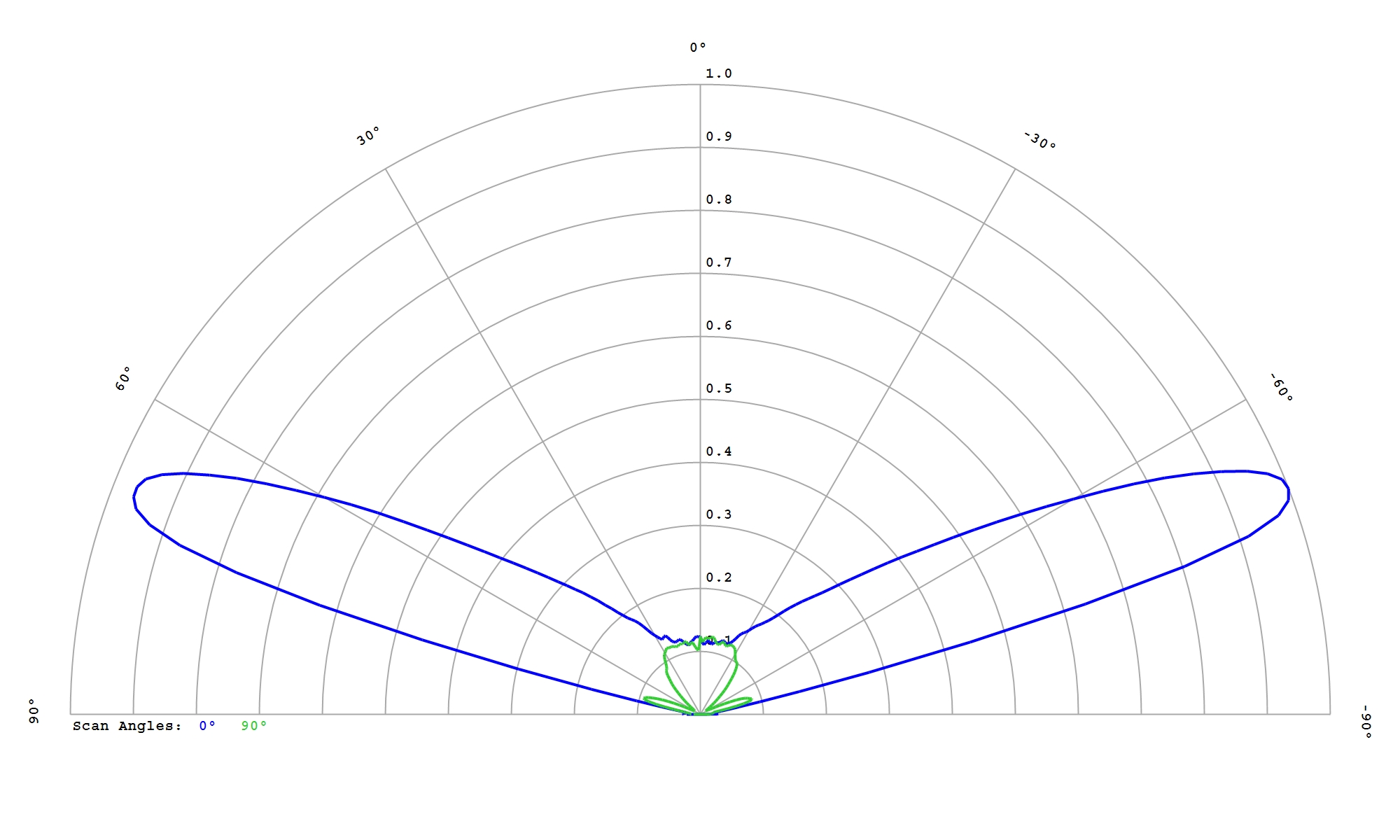

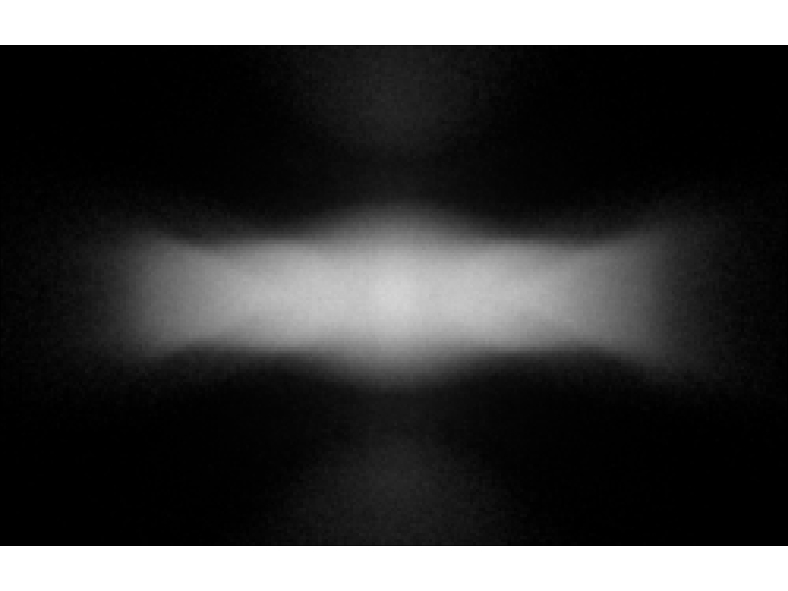

Luminus Devices SST-25-WES White

Eff:

94.5%

FWHM:

149 x 87°

Cd/Im:

1.4

Download

Nichia 219 White

Eff:

90.0%

FWHM:

150*90*0°

Cd/Im:

1.3

Simulation Data

Simulation Data

Download

ies

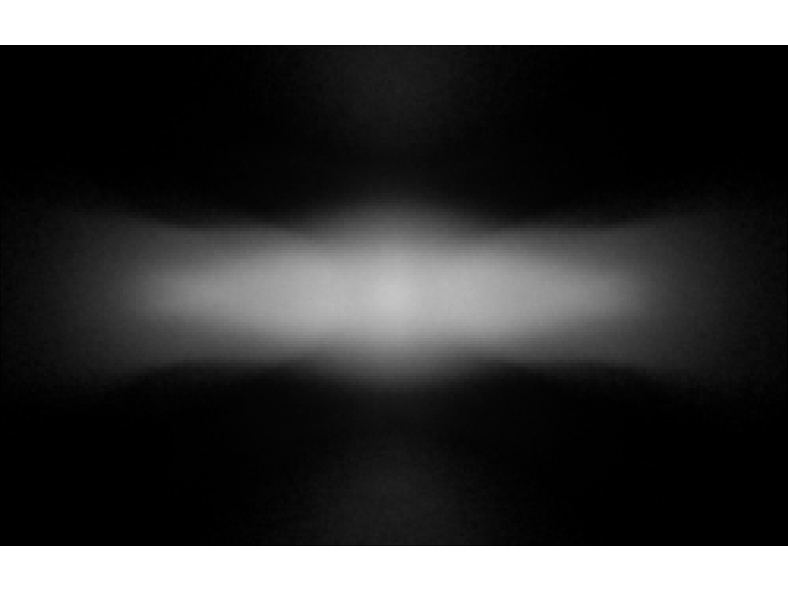

Nichia 757G White

Eff:

95.5%

FWHM:

147 x 83°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

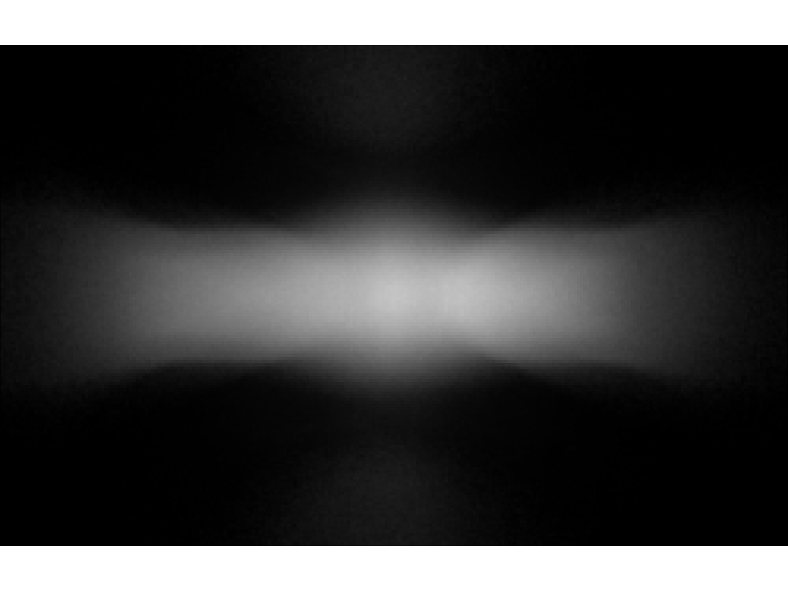

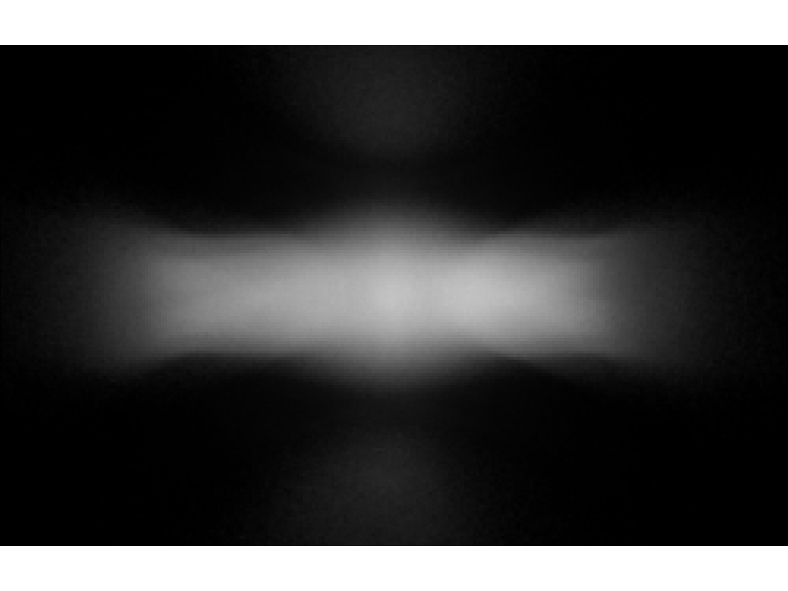

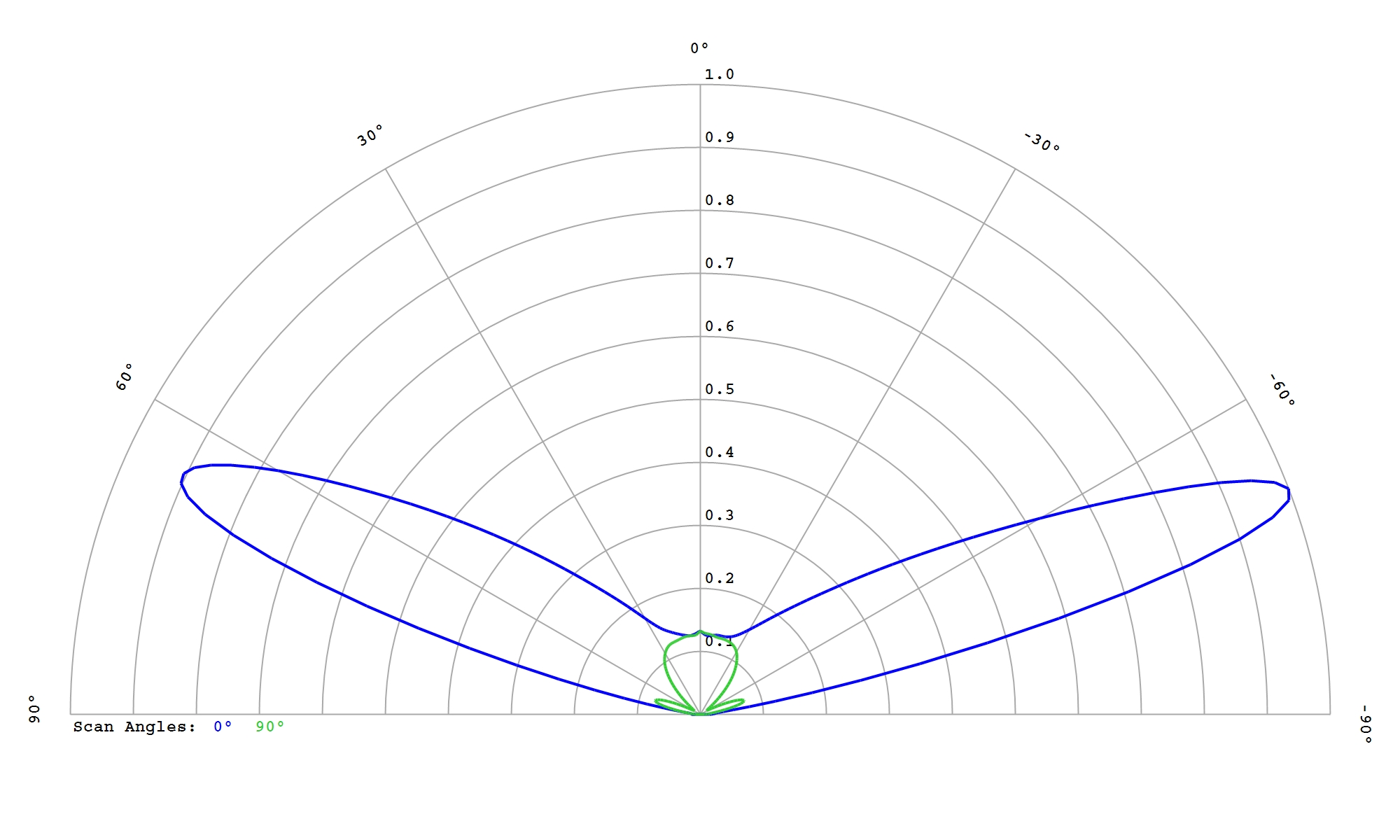

Nichia 757G White

Eff:

95.5%

FWHM:

150 x 85 °

Cd/Im:

1.9

Carclo Optics 12766 Simulated Spot Image Nichia 757G-MT

Carclo Optics 12766 Cross section Image Nichia 757G-MT

Download

ies

Nichia NCSW CSP E17A White

Eff:

93.5%

FWHM:

142 x 84°

Cd/Im:

2.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

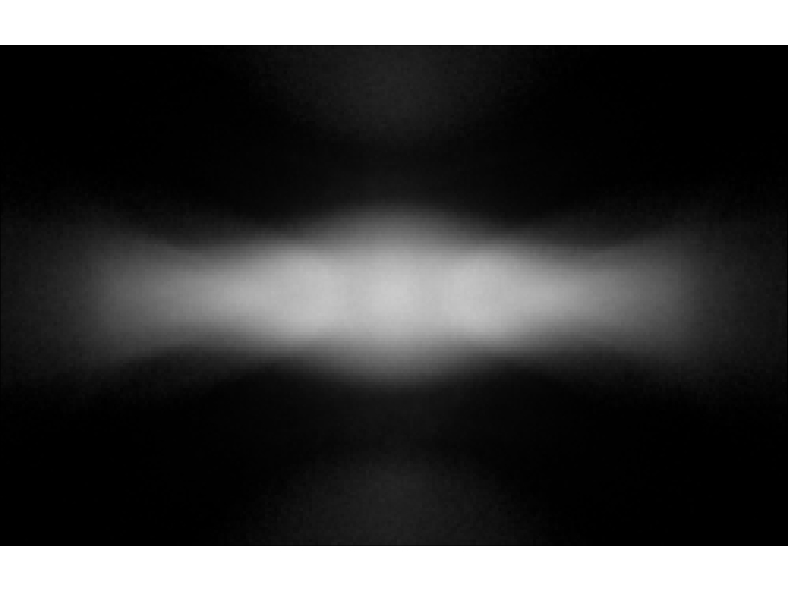

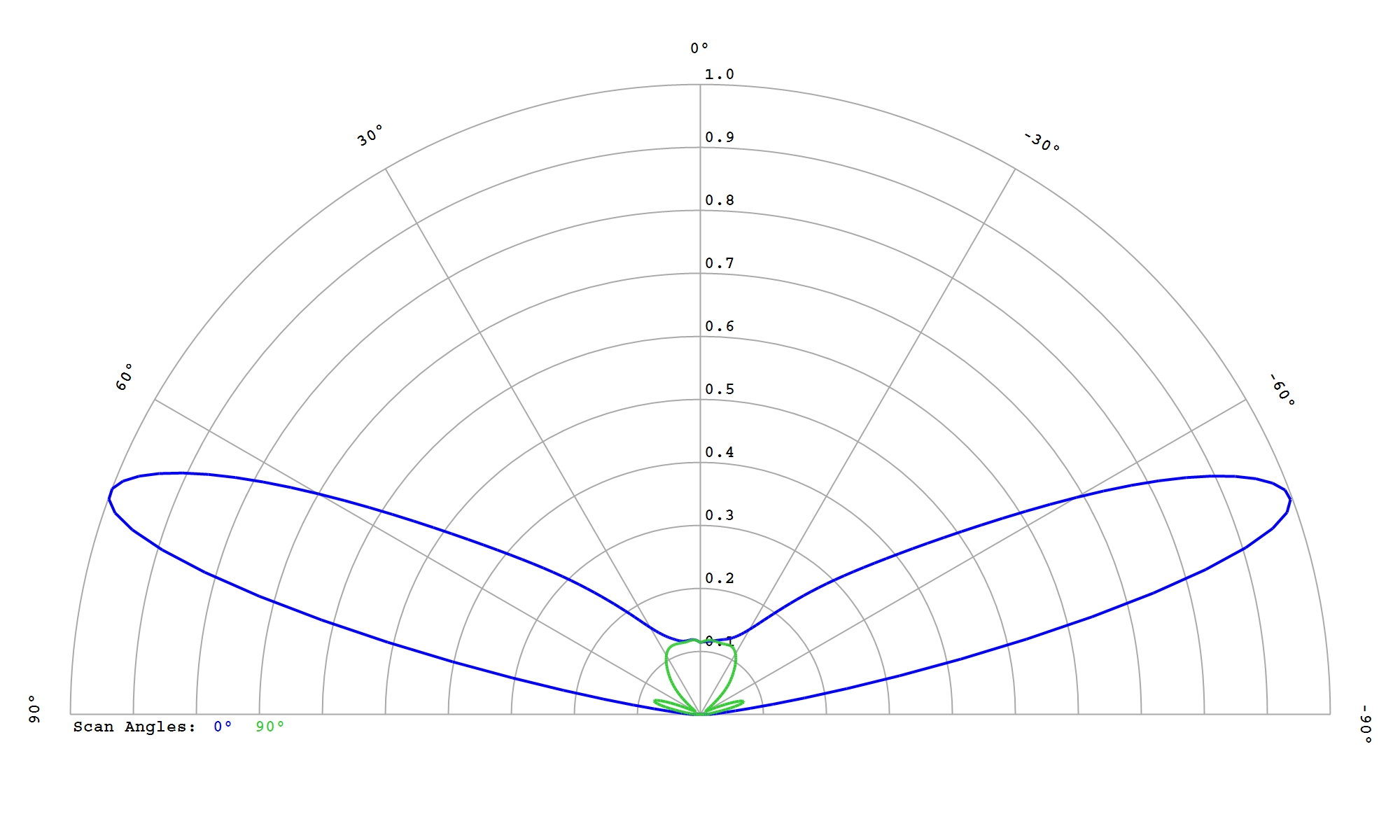

Nichia NF2W 385AR-V2 White

Eff:

94.5%

FWHM:

148 x 89°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NFSW CSP E11A White

Eff:

93.5%

FWHM:

140 x 87°

Cd/Im:

4.6

Download

ies

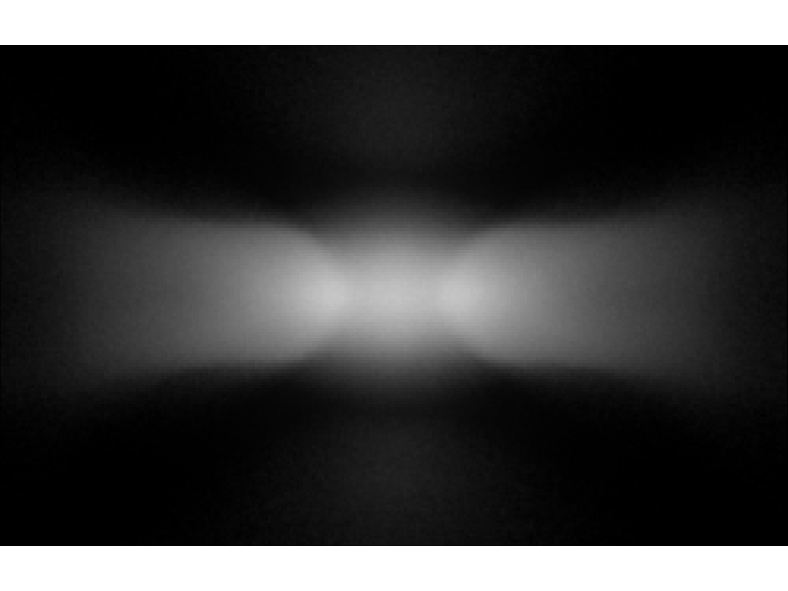

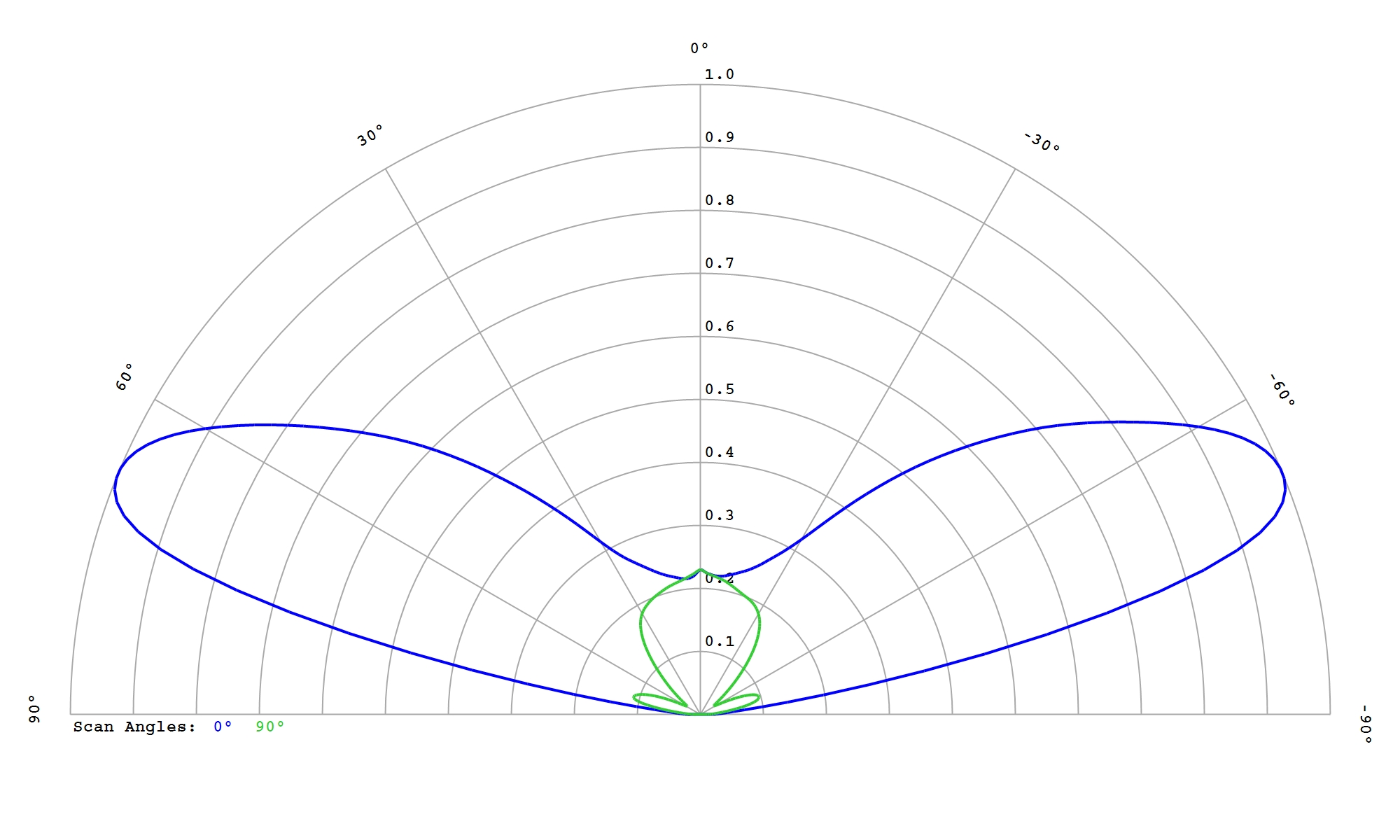

Nichia NVSL 219B White

Eff:

93.0%

FWHM:

151 x 91°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219C White

Eff:

94.0%

FWHM:

153 x 90°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

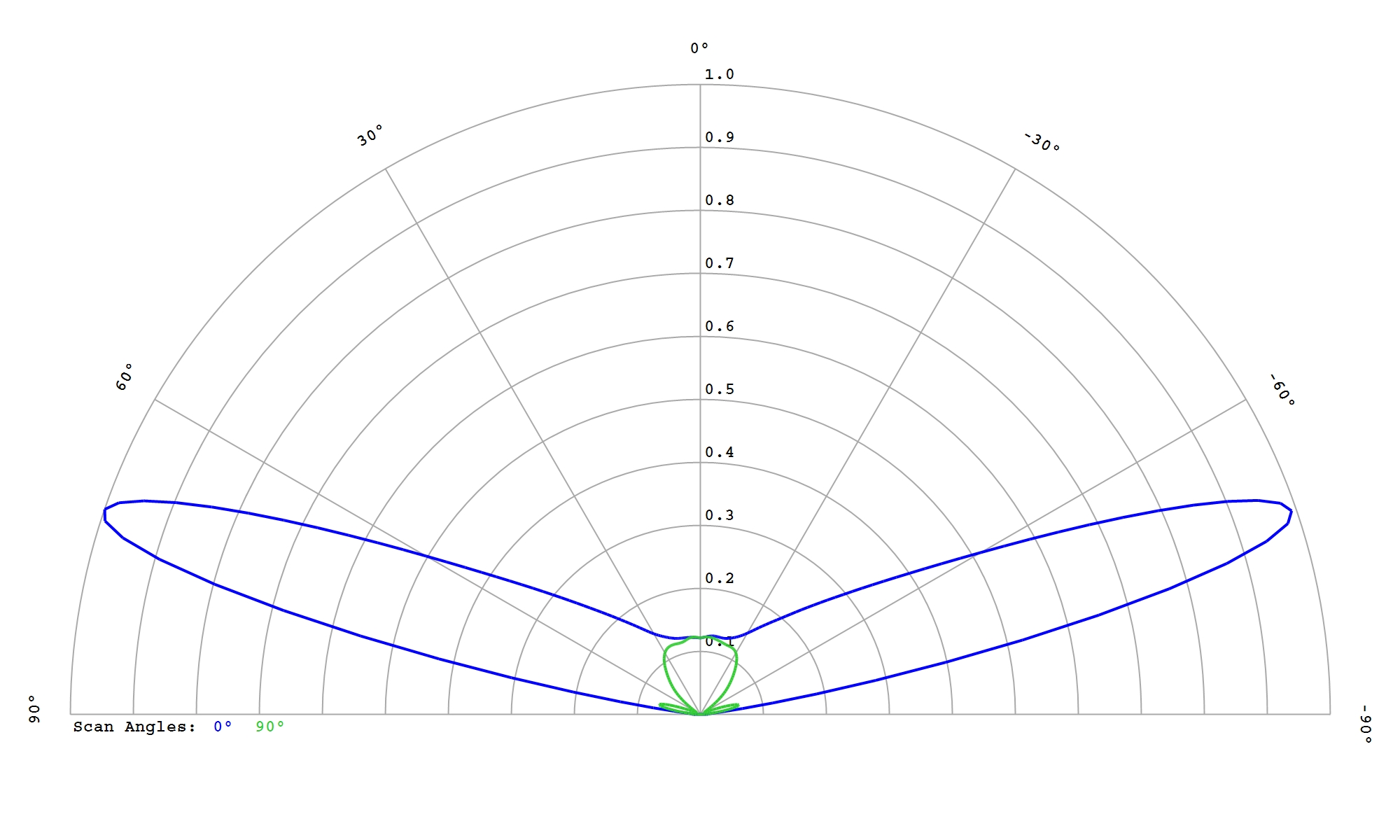

Nichia NVSW 219F White

Eff:

94.5%

FWHM:

156 x 88°

Cd/Im:

1.1

Carclo Optics – 12766 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12766 Nichia NVSW 219F White - Cross-Section

Download

ies

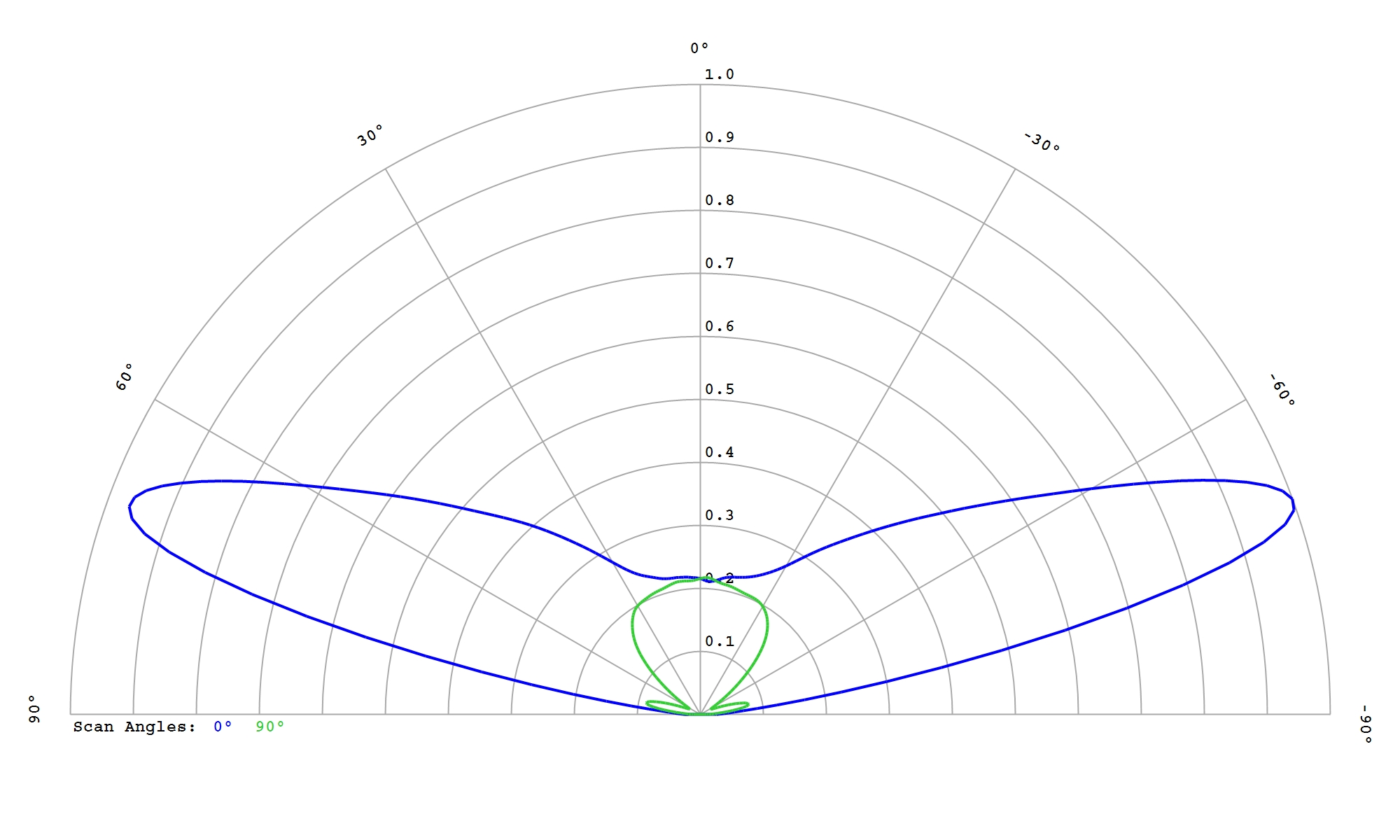

Nichia NVSW 319A White

Eff:

93.0%

FWHM:

156 x 92°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

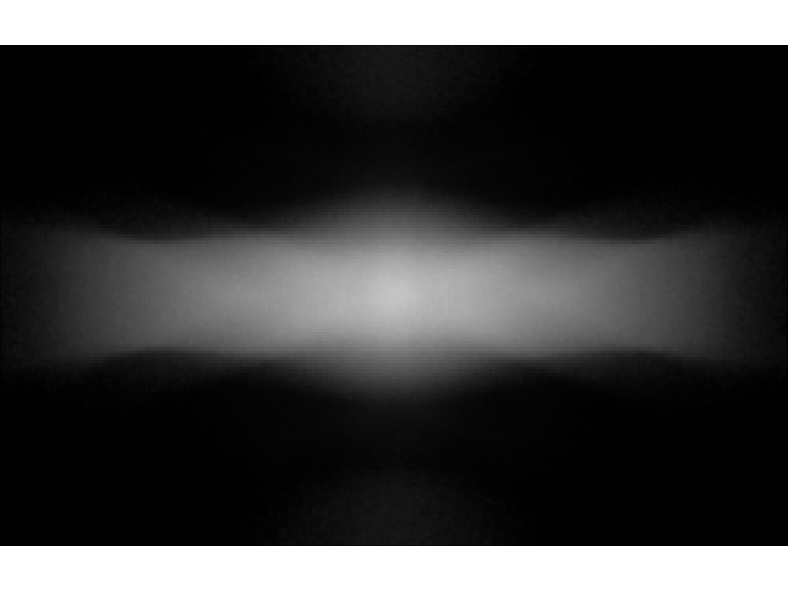

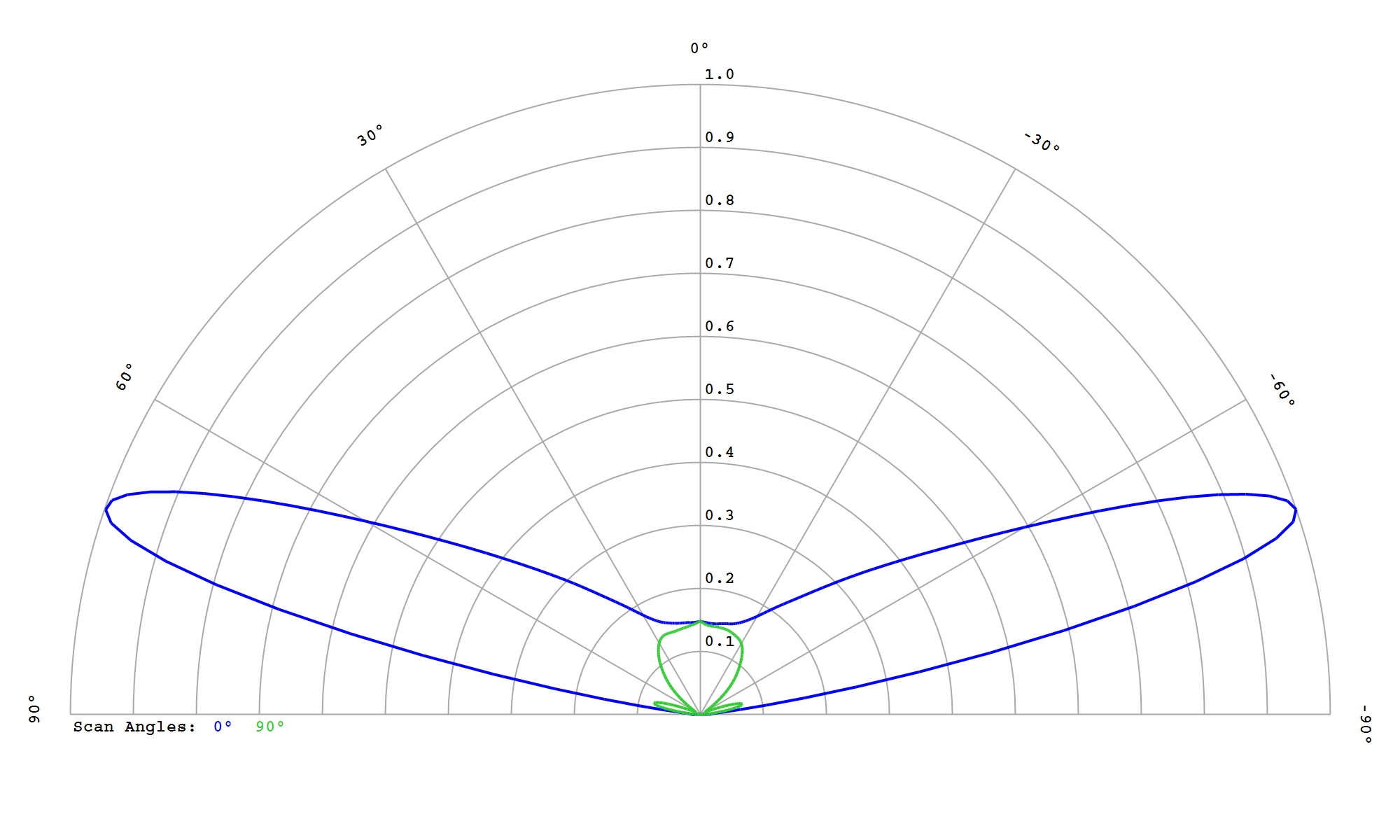

Nichia NVSW CSP E21A White

Eff:

94.0%

FWHM:

143 x 82°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E 2835 Gen2

Eff:

95.5%

FWHM:

146 x 86°

Cd/Im:

2.0

Carclo Optics - 12766 Mini Hubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12766 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E 2835 White

Eff:

95.5%

FWHM:

152°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E2 White

Eff:

95.5%

FWHM:

145 x 87°

Cd/Im:

3.8

Carclo Optics - Simulated Spot Image

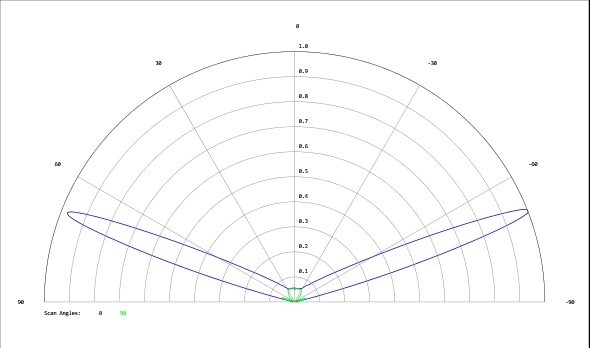

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E3 White

Eff:

95.5%

FWHM:

158 x 86°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S2 White

Eff:

93.5%

FWHM:

151 x 85°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Deep Blue

Eff:

96.0%

FWHM:

149 x 91°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Green

Eff:

95.5%

FWHM:

149 x 85°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Red

Eff:

96.0%

FWHM:

149 x 84°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 White

Eff:

95.5%

FWHM:

149 x 85°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSCONIQ C 2424 White

Eff:

95.0%

FWHM:

147 x 86°

Cd/Im:

1.9

Carclo Optics - 12766 Spot Image OSCONIQ C2424

Carclo Optics - 12766 Cross Section OSCONIQ C2424

Download

ies

Osram OSLON Black SFH 4716AS IR

Eff:

95.5%

FWHM:

148 x 96°

Ipk/W:

2.8

Carclo Optics – 12766 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12766 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Black SFH 4725S IR

Eff:

96.5%

FWHM:

140 x 73°

Ipk/W:

2.0

Carclo Optics 12766 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 12766 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

95.0%

FWHM:

149 x 82°

Cd/Im:

4.8

Carclo Optics – 12766 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12766 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

ies

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

94.5%

FWHM:

137 x 84°

Cd/Im:

5.4


Download

ies

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

95.0%

FWHM:

138 x 83°

Ipk/W:

5.4


Download

ies

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

94.0%

FWHM:

138 x 84°

Cd/Im:

5.2


Download

ies

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

93.0%

FWHM:

141 x 86°

Cd/Im:

4.3


Download

ies

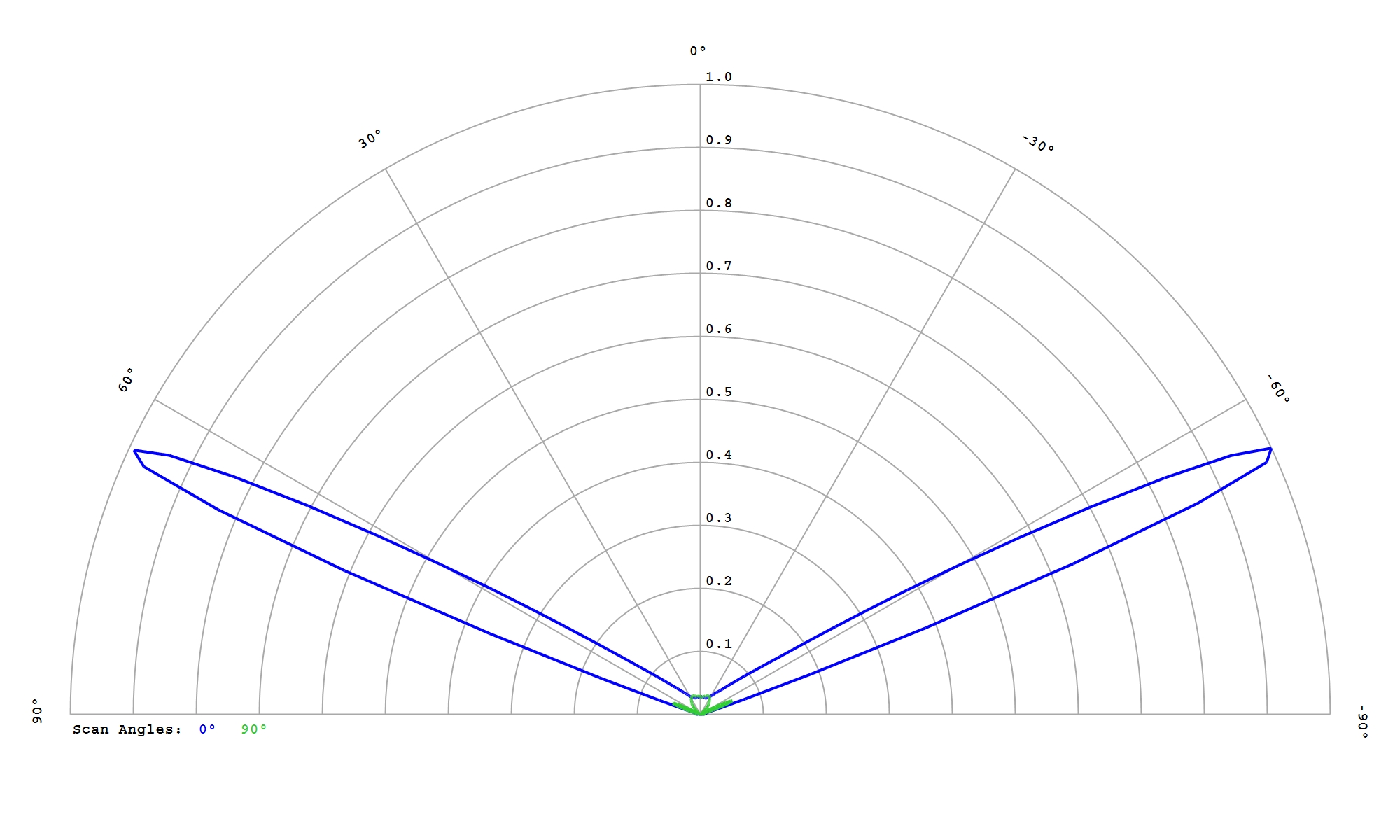

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

94.0%

FWHM:

137 x 85°

Cd/Im:

5.6


Download

ies

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

93.5%

FWHM:

138 x 84°

Cd/Im:

5.1



Download

ies

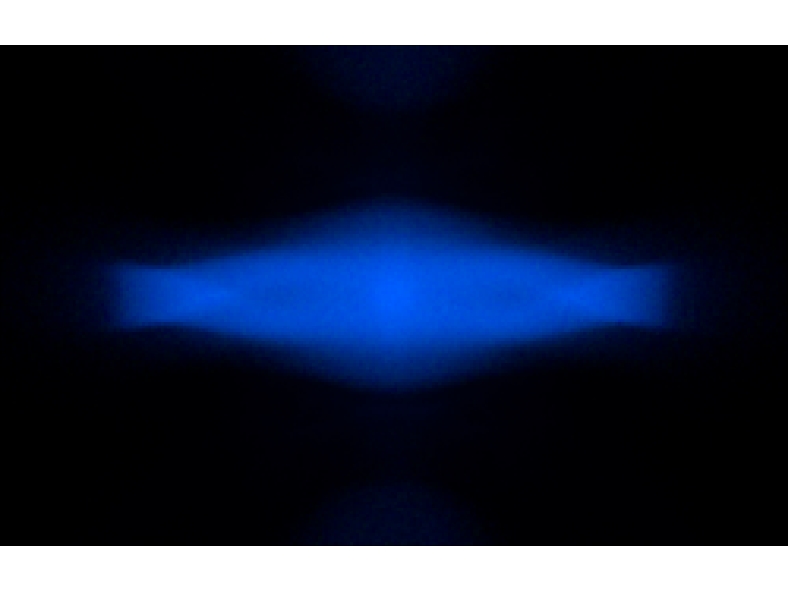

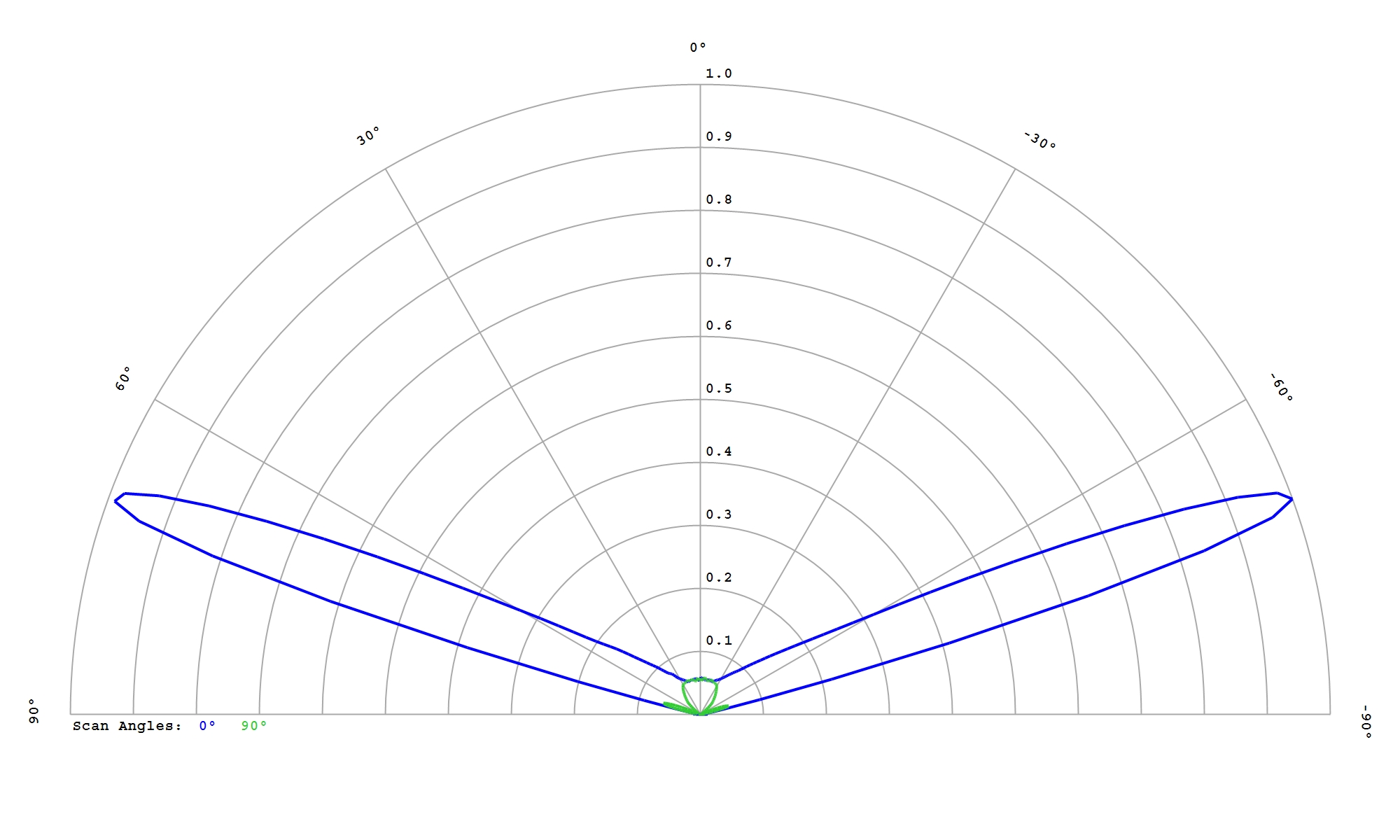

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

95.5%

FWHM:

150 x 80°

Cd/Im:

3.2


Download

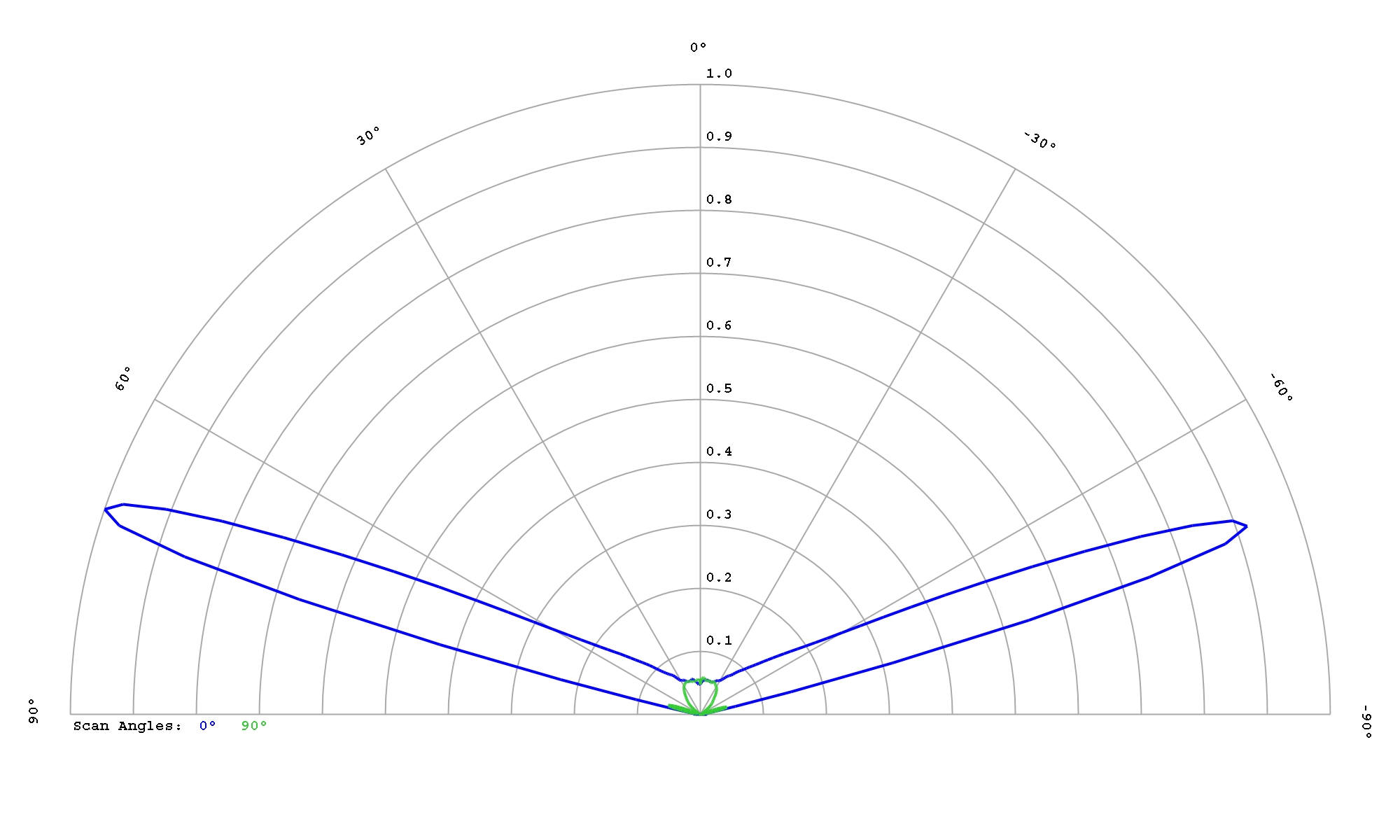

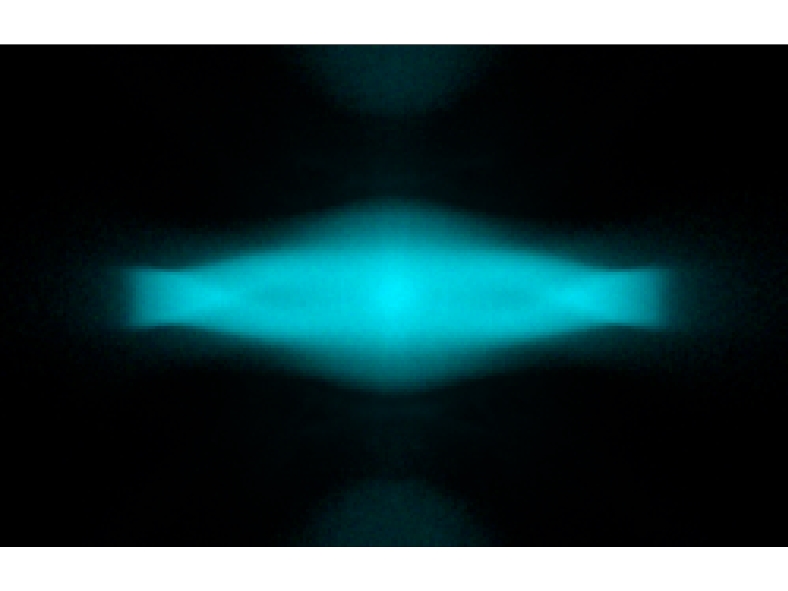

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

95.5%

FWHM:

149 x 87°

Cd/Im:

3.2


Download

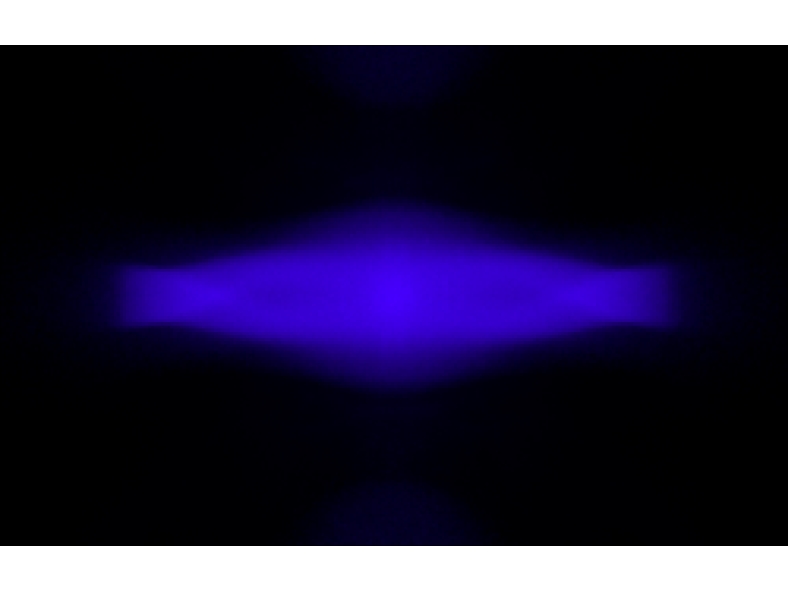

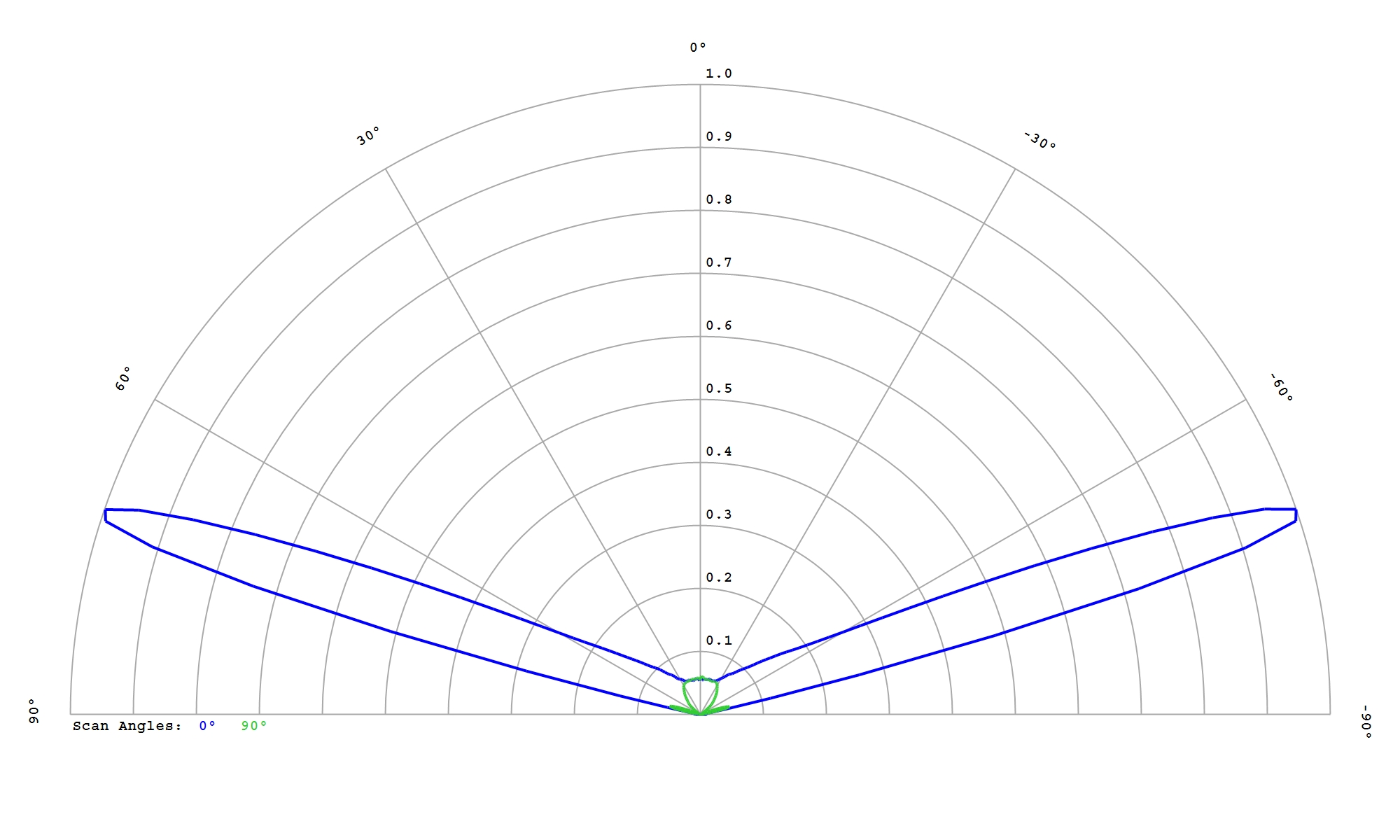

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

96.0%

FWHM:

150 x 82°

Ipk/W:

3.2


Download

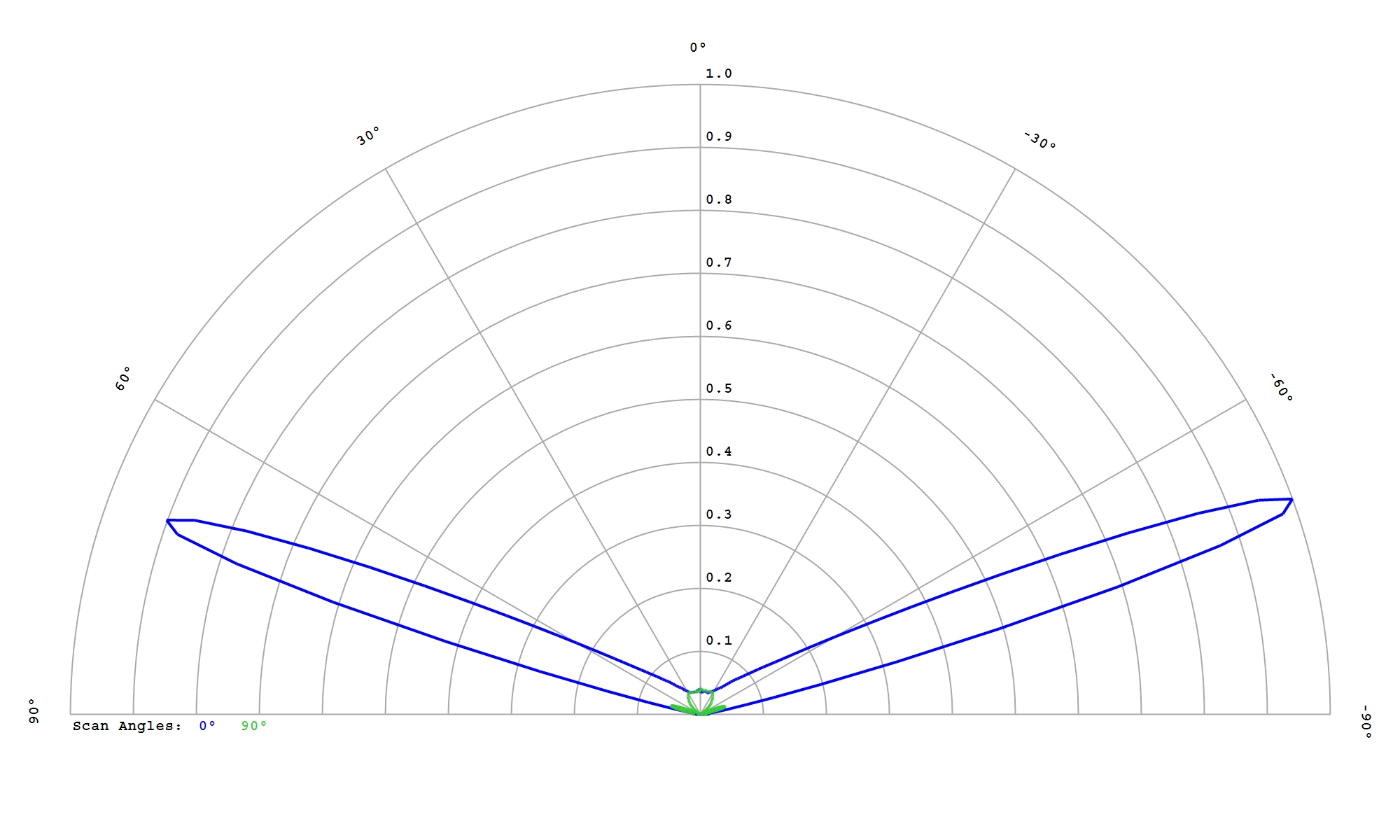

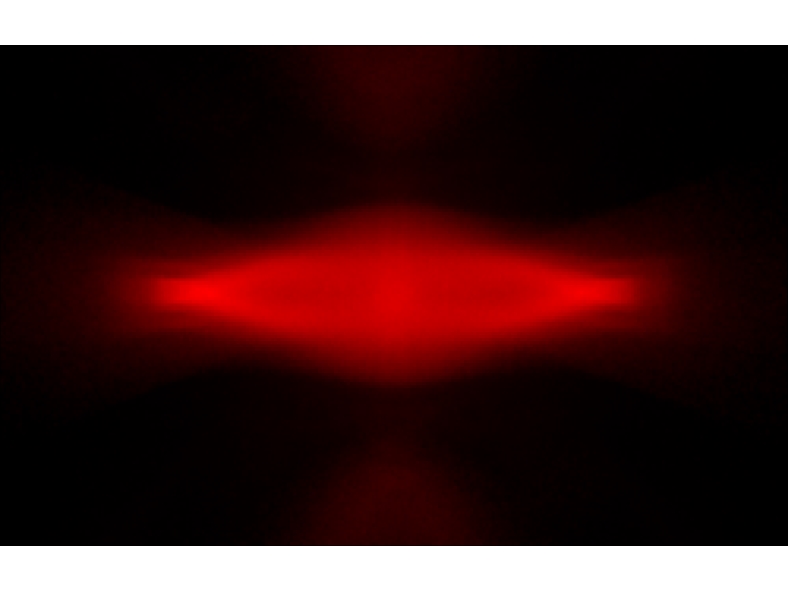

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

94.5%

FWHM:

147 x 88°

Cd/Im:

4.5


Download

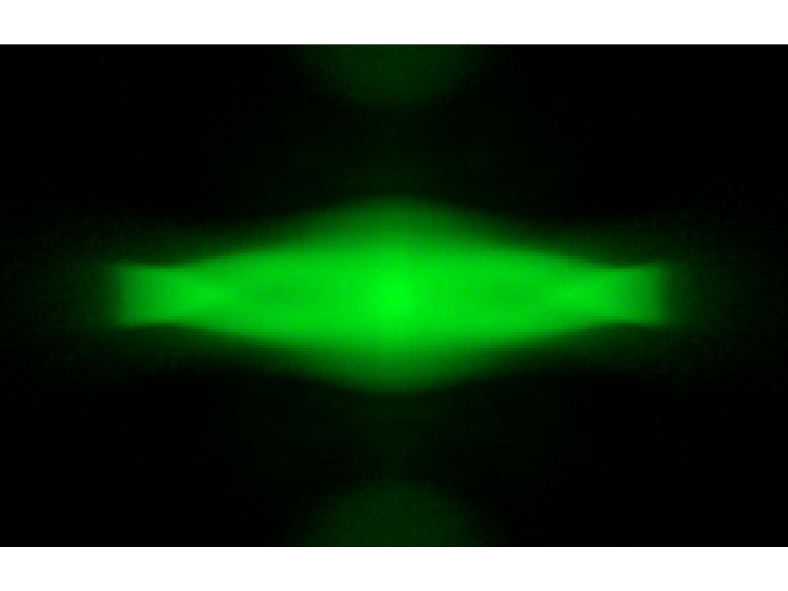

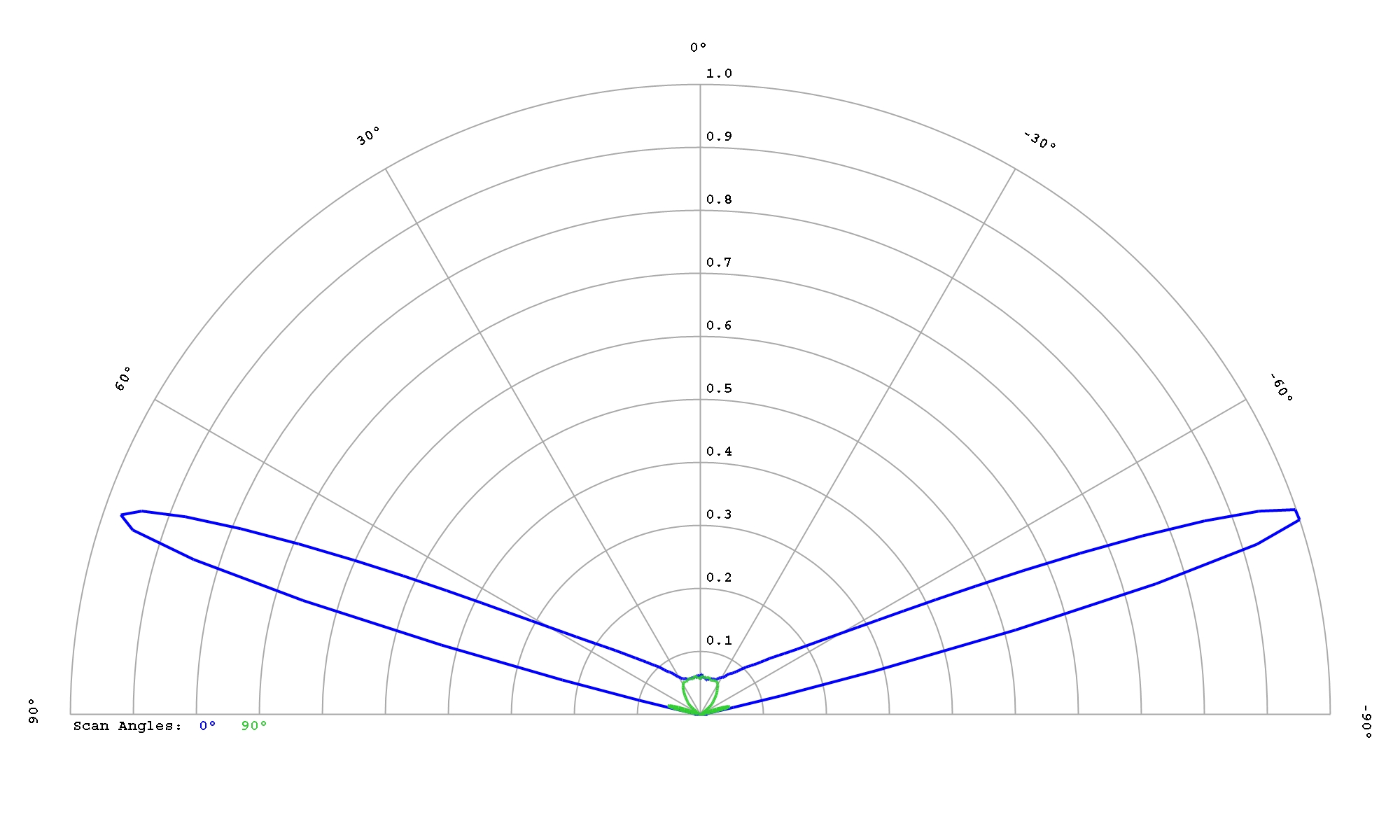

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

95.5%

FWHM:

150 x 86°

Cd/Im:

3.1


Download

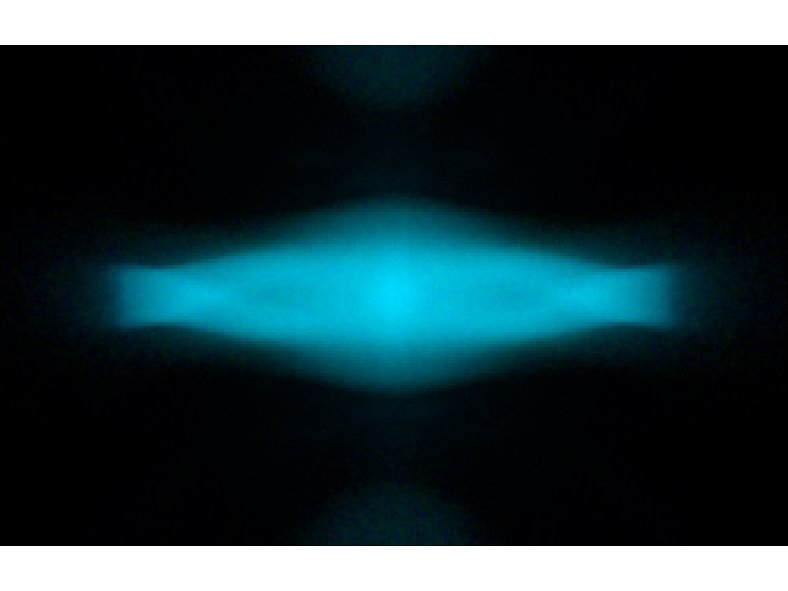

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

95.5%

FWHM:

150 x 87°

Cd/Im:

3.2


Download

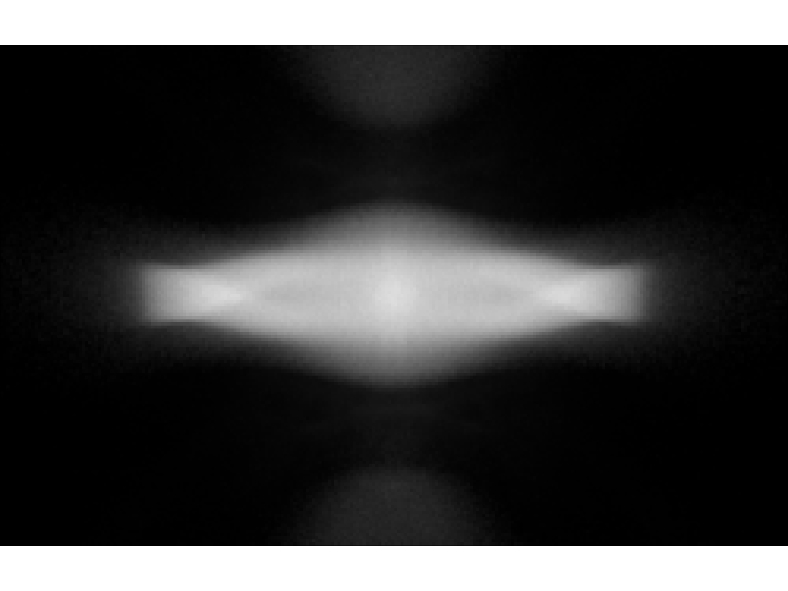

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

95.5%

FWHM:

147 x 86°

Cd/Im:

3.2

Download

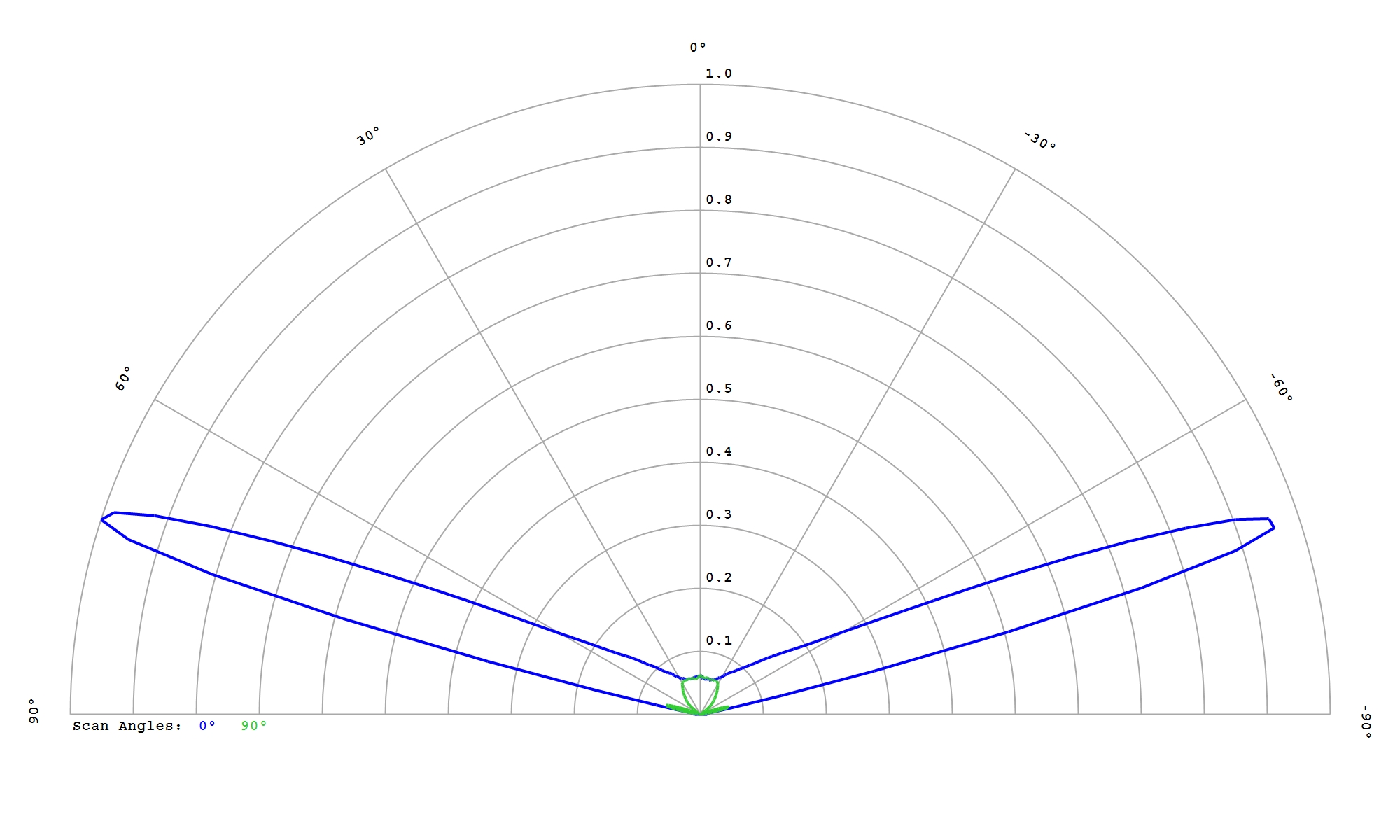

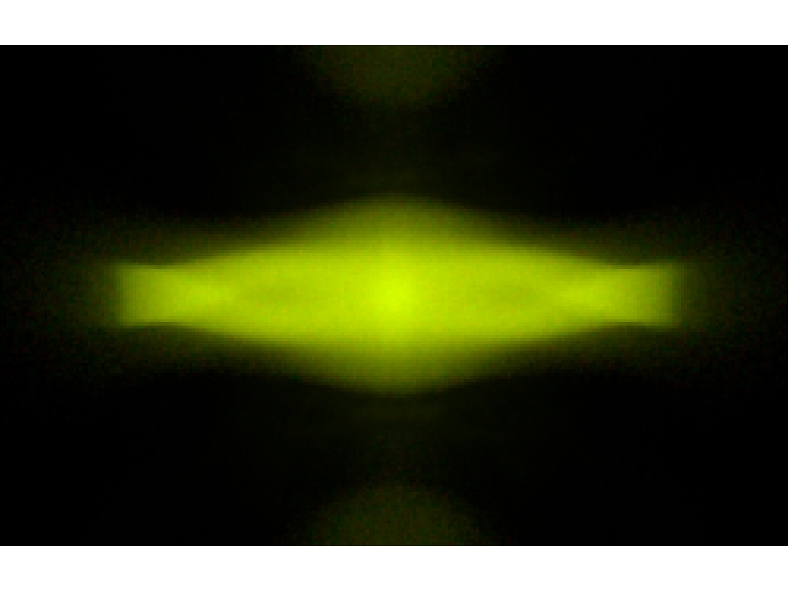

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

95.5%

FWHM:

150 x 87°

Cd/Im:

3.0


Download

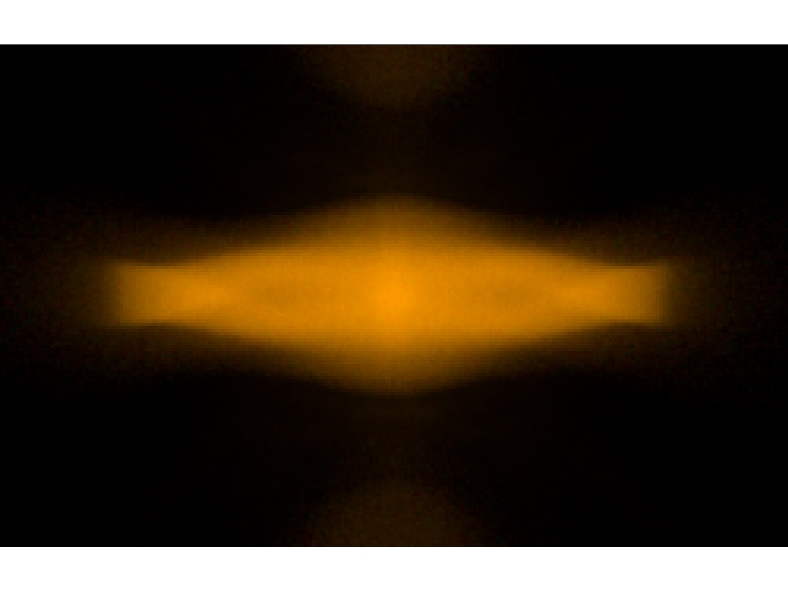

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

95.5%

FWHM:

150 x 85°

Cd/Im:

3.1


Download

Osram OSLON Square Flat White

Eff:

94.5%

FWHM:

149 x 88°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 3 White

Eff:

91.1%

FWHM:

149.8 x 155.4 x 12°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 3 White

Eff:

95.0%

FWHM:

153°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

95.0%

FWHM:

153 x 86°

Cd/Im:

1.3

Carclo Optics - 12766 Mini Hubble Spot Image Oslon Square Gen 5

Carclo Optics - 12766 Mini Hubble Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square White

Eff:

95.0%

FWHM:

152 x 85°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

95.0%

FWHM:

154 x 99°

Cd/Im:

2.4

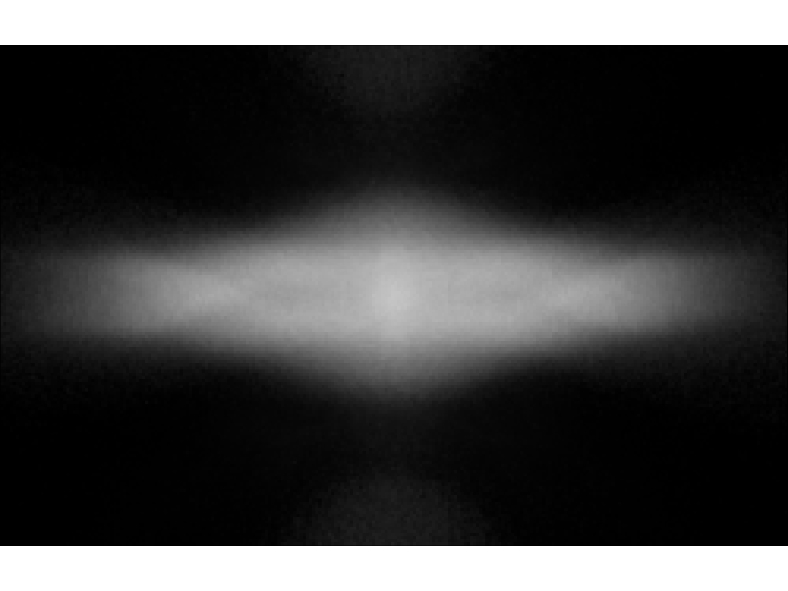

Carclo Optics – 12766 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12766 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OSLON SSL 150 degree White

Eff:

94.5%

FWHM:

151 x 95°

Cd/Im:

2.8

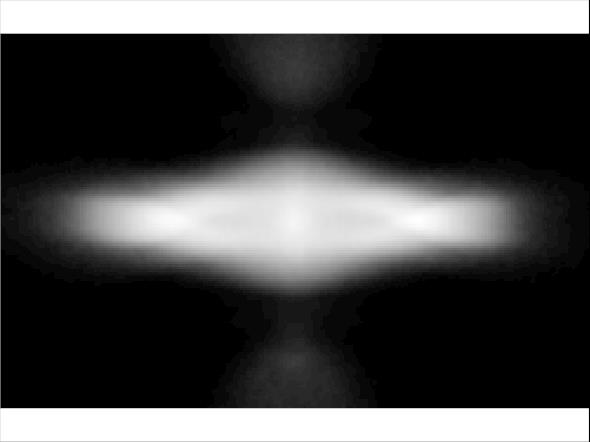

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 80 White

Eff:

95.5%

FWHM:

145 x 66°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

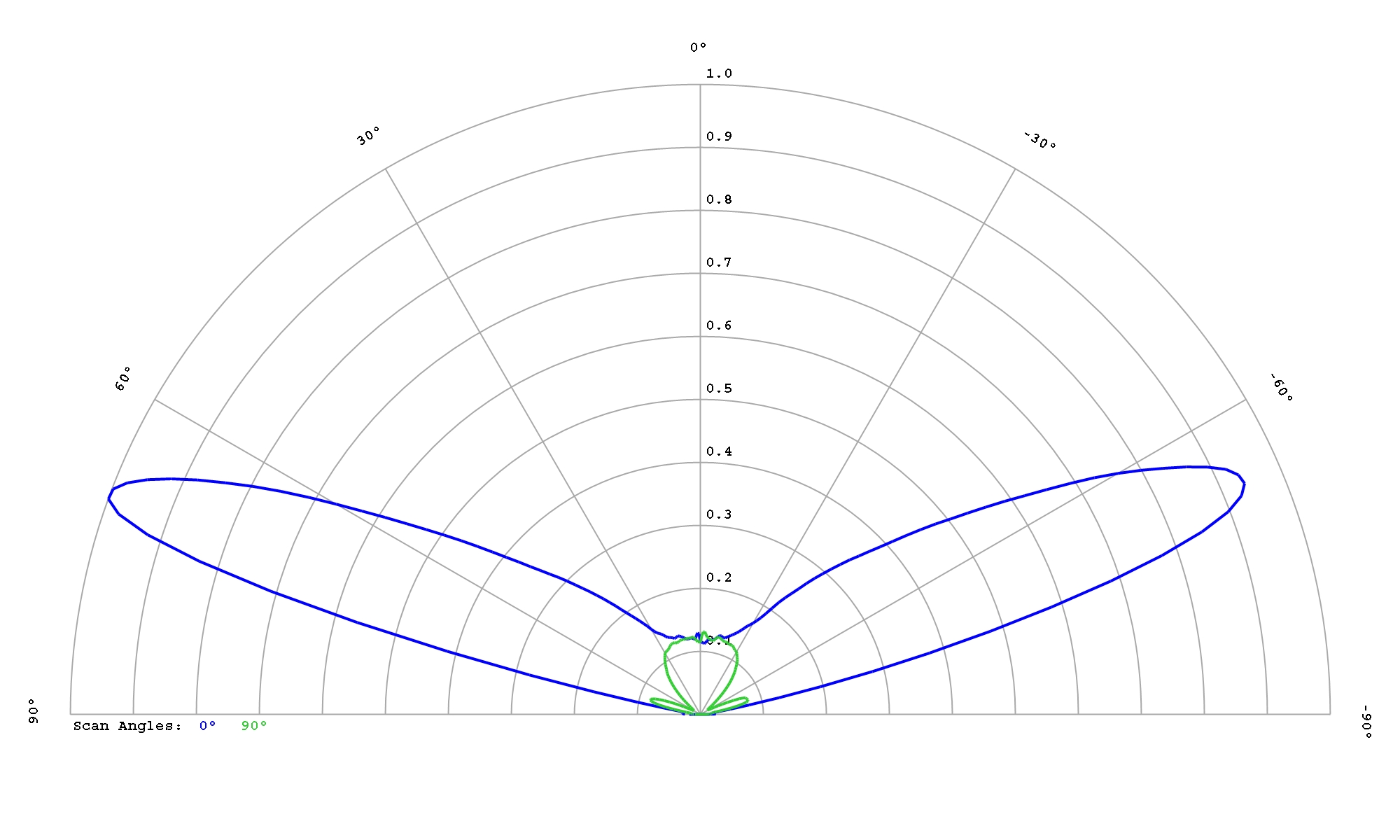

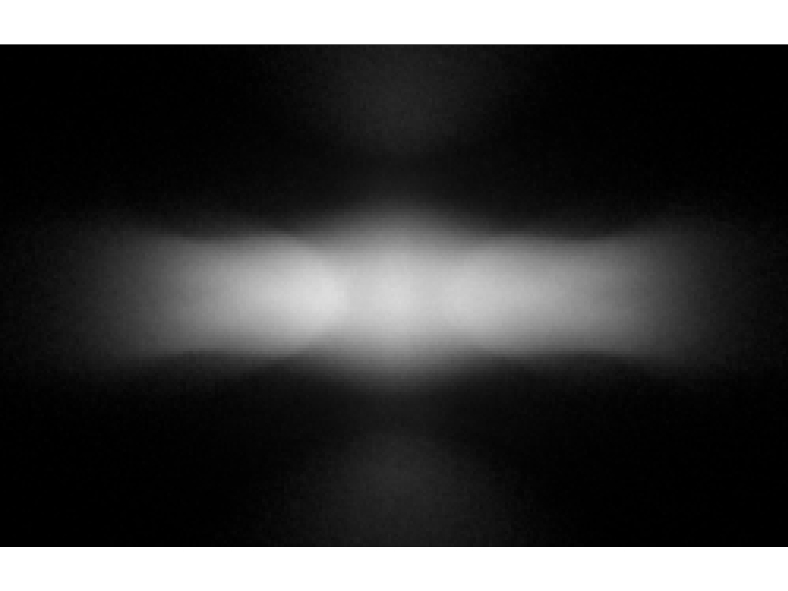

Samsung 2835 LM281B+ White

Eff:

93.0%

FWHM:

149 x 85°

Cd/Im:

1.3



Download

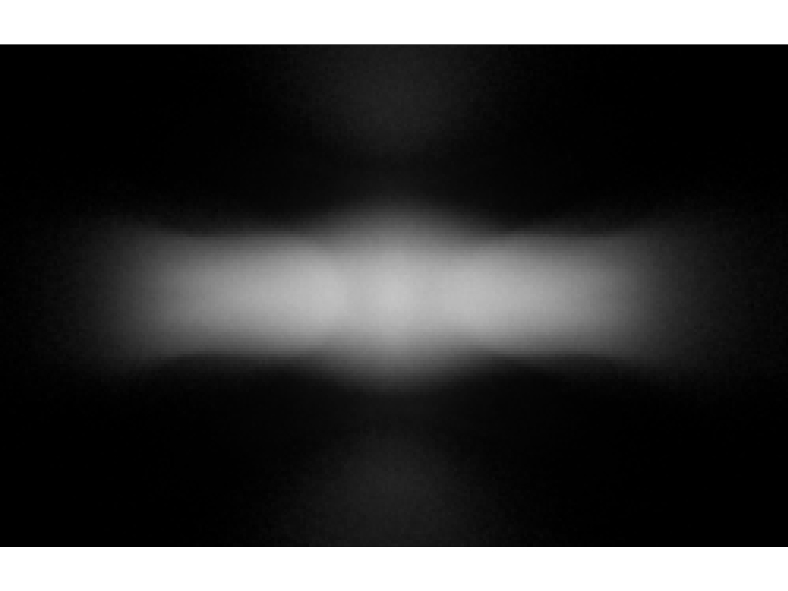

Samsung 2835 LM282B+ White

Eff:

95.5%

FWHM:

148 x 85°

Cd/Im:

1.5



Download

Samsung 3030 LM301B White

Eff:

95.0%

FWHM:

149 x 87°

Cd/Im:

1.6

Download

ies

Samsung 3535 LH351B White

Eff:

90.0%

FWHM:

152x90x0°

Cd/Im:

1.1

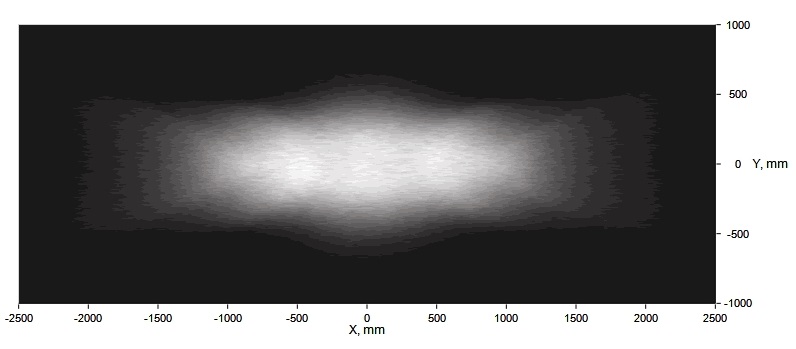

Simulation Data

Simulation Data

Download

ies

Samsung 3535 LH351D White

Eff:

85.5%

FWHM:

98 x 33.5°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Samsung 3535 LH351Z White

Eff:

90.0%

FWHM:

152x90x0°

Cd/Im:

1.5

Simulation Data

Simulation Data

Download

ies

Samsung CSP LH151B White

Eff:

94.5%

FWHM:

141 x 84°

Cd/Im:

3.1

Carclo Optics – 12766 – Samsung_LH151B_spot-image

Carclo Optics – 12766 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

94.5%

FWHM:

145 x 84°

Cd/Im:

1.6

Carclo Optics -12766 Sport Image - Samsung LH181B 4000K

Carclo Optics -12766 Cross Section Image - Samsung LH181B 4000K

Download

ies

Samsung CSP LH231B White

Eff:

94.0%

FWHM:

146 x 83°

Cd/Im:

1.3

Carclo Optics -12766 Spot Image - Samsung LH231B 5000KL

Carclo Optics -12766 Cross Section - Samsung LH231B 5000K

Download

ies

Samsung CSP LM101B White

Eff:

94.5%

FWHM:

142 x 86°

Cd/Im:

2.9

Carclo Optics -12766 Sport Image - Samsung LM101B 5000K

Carclo Optics -12766 Cross Section Image - Samsung LM101B 5000K

Download

ies

Samsung LM 101A White

Eff:

91.0%

FWHM:

142 x 84°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

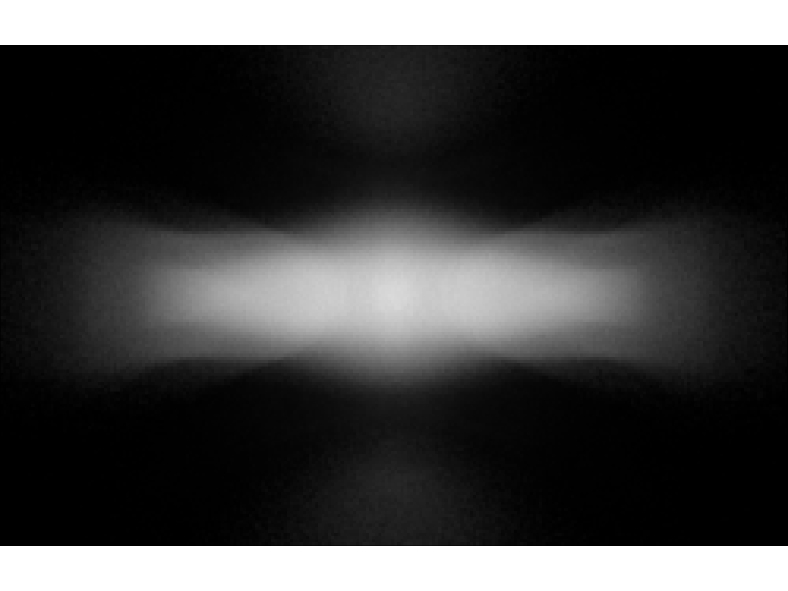

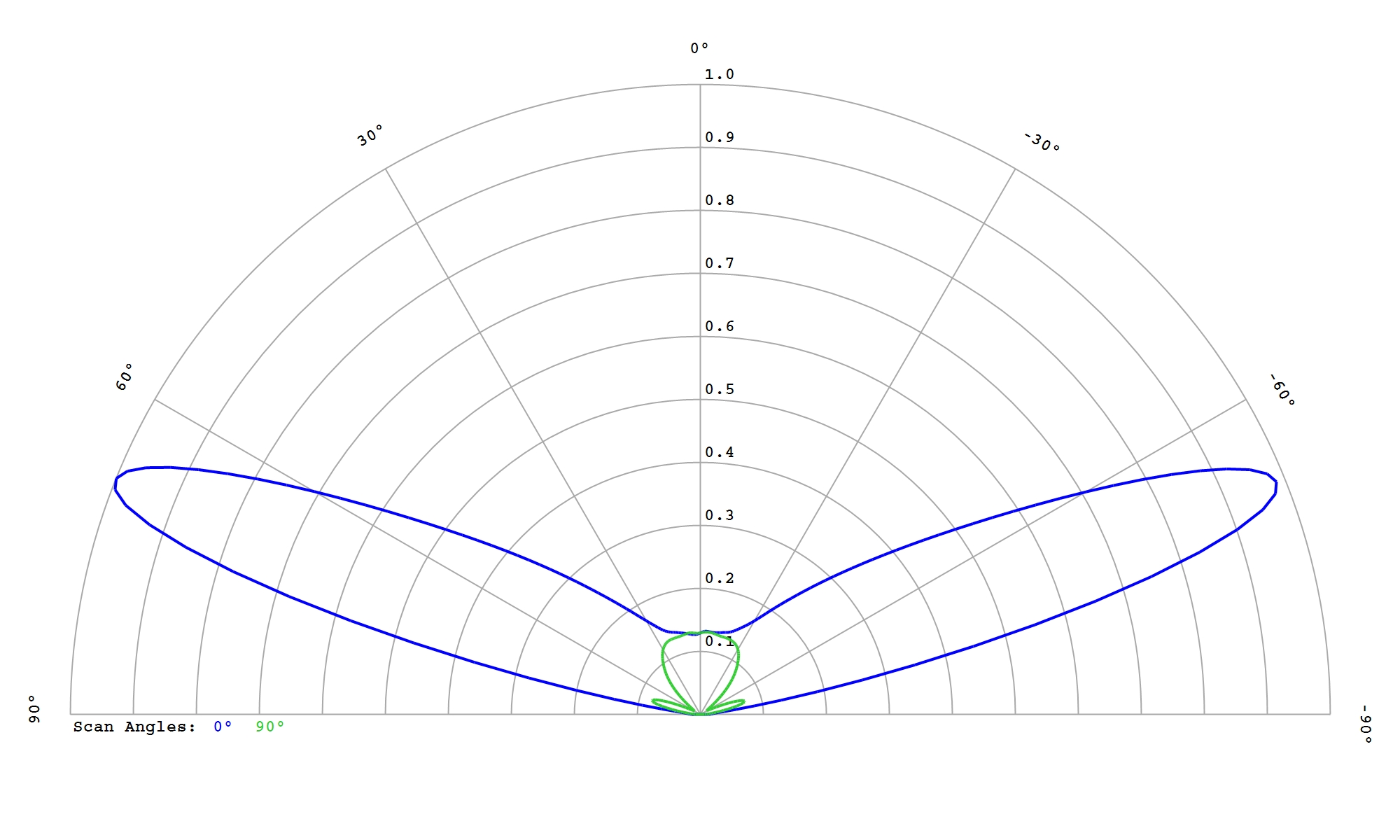

Seoul 3030 STW8C12E-E0 White

Eff:

95.5%

FWHM:

150 x 87°

Cd/Im:

1.6

Download

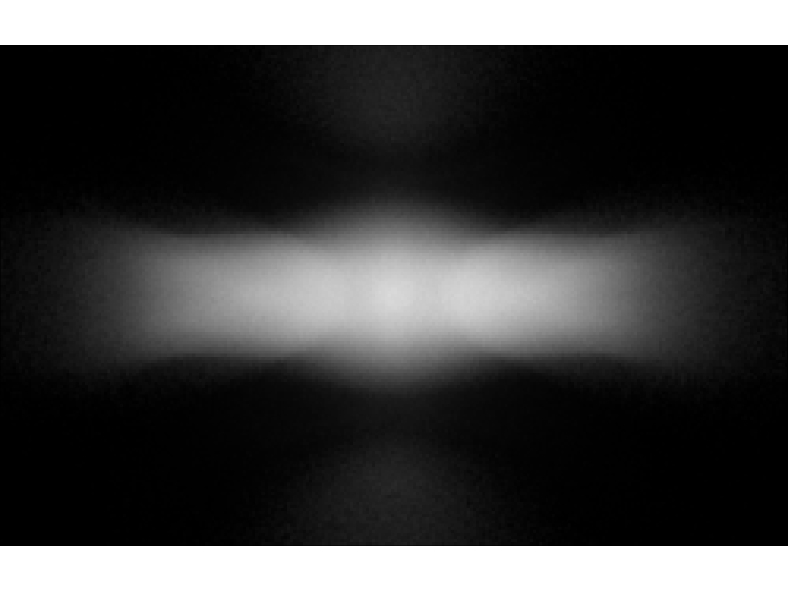

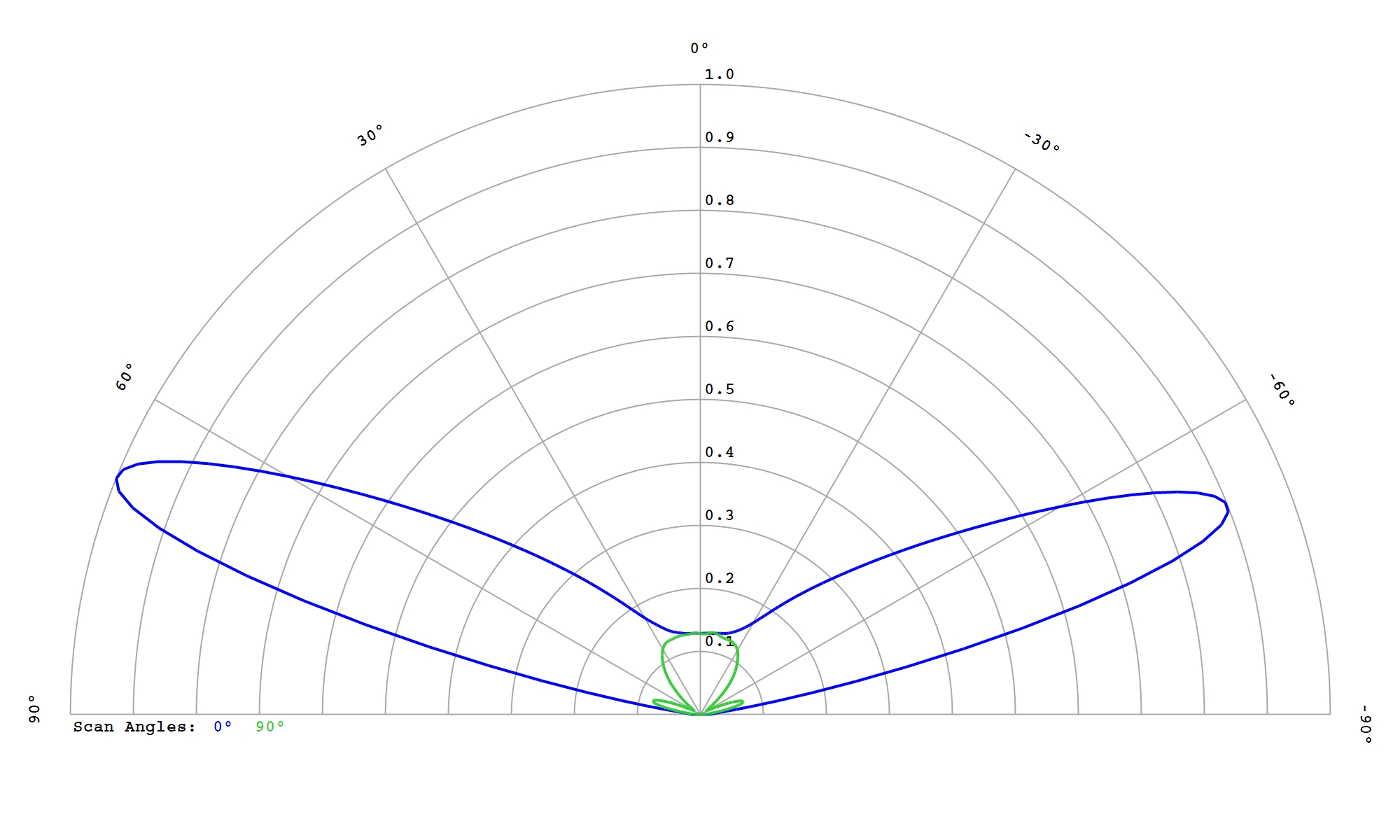

Seoul 3528 G STW8A2PD-G700 White

Eff:

95.5%

FWHM:

150 x 84°

Cd/Im:

1.4

Download

Seoul CSP SZ8Y11 White

Eff:

90.5%

FWHM:

144 x 87°

Cd/Im:

2.8

Carclo Optics -12766 Spot Image - Seoul Z8Y11

Carclo Optics -12766 Cross Section Image - Seoul Z8Y11

Download

ies

Seoul CSP SZ8Y15 White

Eff:

92.0%

FWHM:

144 x 89°

Cd/Im:

3.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul CSP SZ8Y19 White

Eff:

92.5%

FWHM:

145 x 85°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul CSP SZ8Y22 White

Eff:

92.5%

FWHM:

147 x 86°

Cd/Im:

1.3

Carclo Optics -12766 Spot Image - Seoul SZ8Y22

Carclo Optics -12766 Cross Section Image - Seoul SZ8Y22

Download

ies

Seoul CSP SZ8Y22P White

Eff:

93.5%

FWHM:

156 x 87°

Cd/Im:

1.2

Carclo Optics - 12766 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12766 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul CSP SZ8Y22P White

Eff:

93.5%

FWHM:

156 x 87°

Cd/Im:

1.2

Carclo Optics - 12766 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12766 Cross Section Image - Seoul SZ8Y22P

Download

ies

Seoul MidPower MJT4040 White

Eff:

90.4%

FWHM:

145x82x0°

Cd/Im:

1.2

Simulation Data

Simulation Data

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

95.5%

FWHM:

149 x 85°

Cd/Im:

1.4

Carclo Optics - 12766 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12766 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

95.5%

FWHM:

150 x 83°

Cd/Im:

1.4

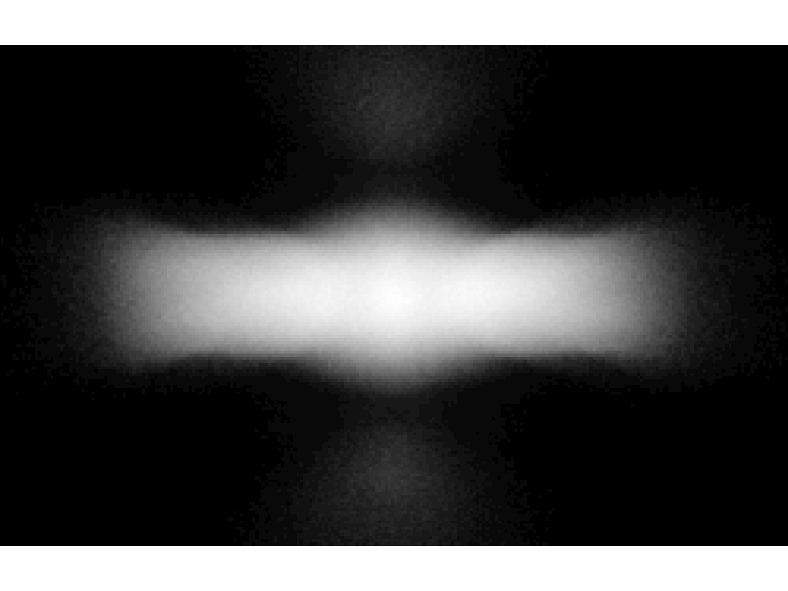

Carclo Optics - 12766 Spot Image STWS C2PB-E0

Carclo Optics - 12766 Cross Section STWS C2PB-E0

Download

ies

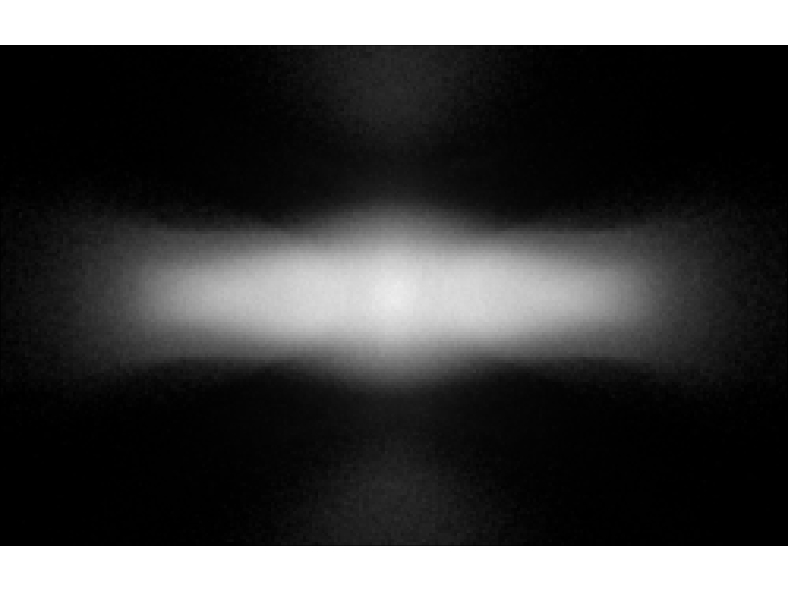

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

95.5%

FWHM:

149 x 84°

Cd/Im:

1.8

Download

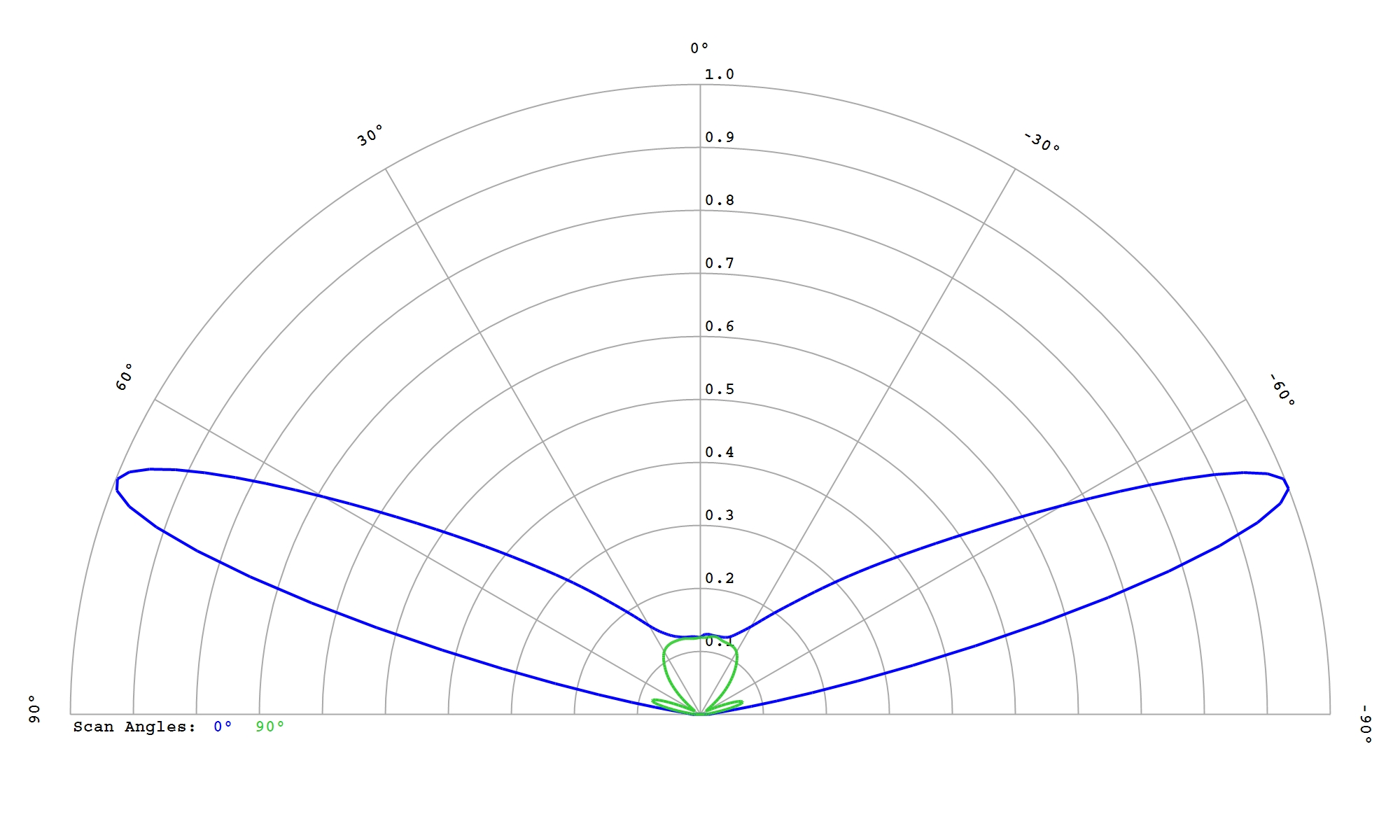

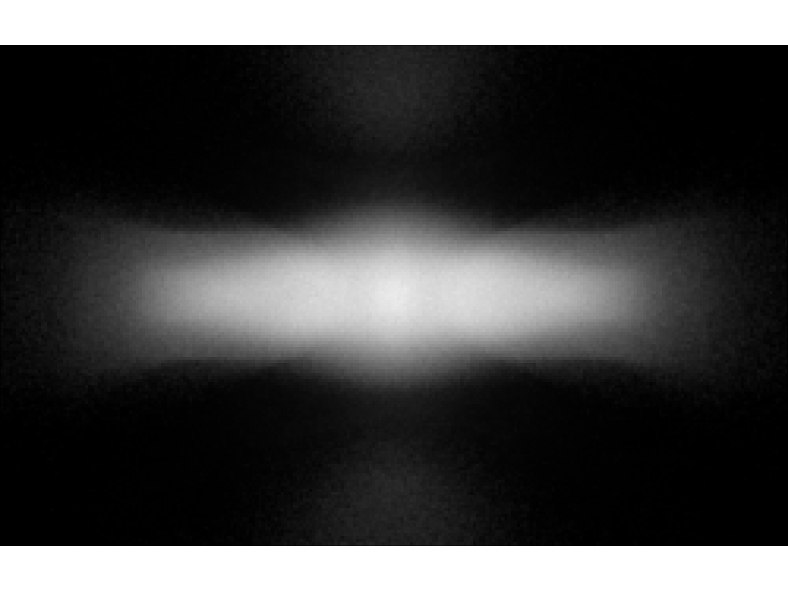

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

95.5%

FWHM:

149 x 87°

Cd/Im:

1.7

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

95.5%

FWHM:

149 x 85°

Cd/Im:

1.5

Carclo Optics - 12766 Mini Hubble Spot Image Seoul Sunlike 3030

Carclo Optics - 12766 Mini Hubble Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5-M0 White

Eff:

91.0%

FWHM:

160*90*0°

Cd/Im:

1.4

Simulation Data

Simulation Data

Download

ies

Seoul Z - Power Z5-M1 White

Eff:

94.5%

FWHM:

150 x 86°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

94.5%

FWHM:

153 x 89°

Cd/Im:

1.1

Carclo Optics – 12766 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 12766 Seoul Z-Power Z5 - Cross-Section

Download

ies

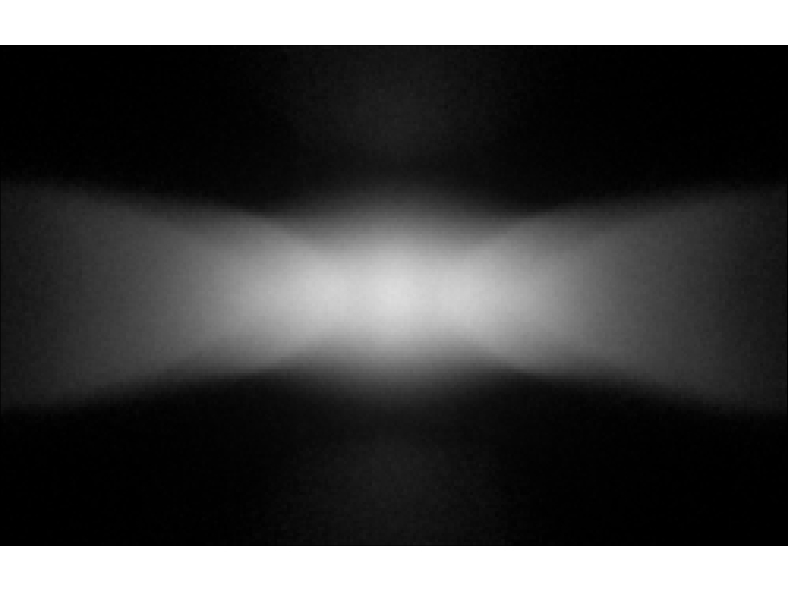

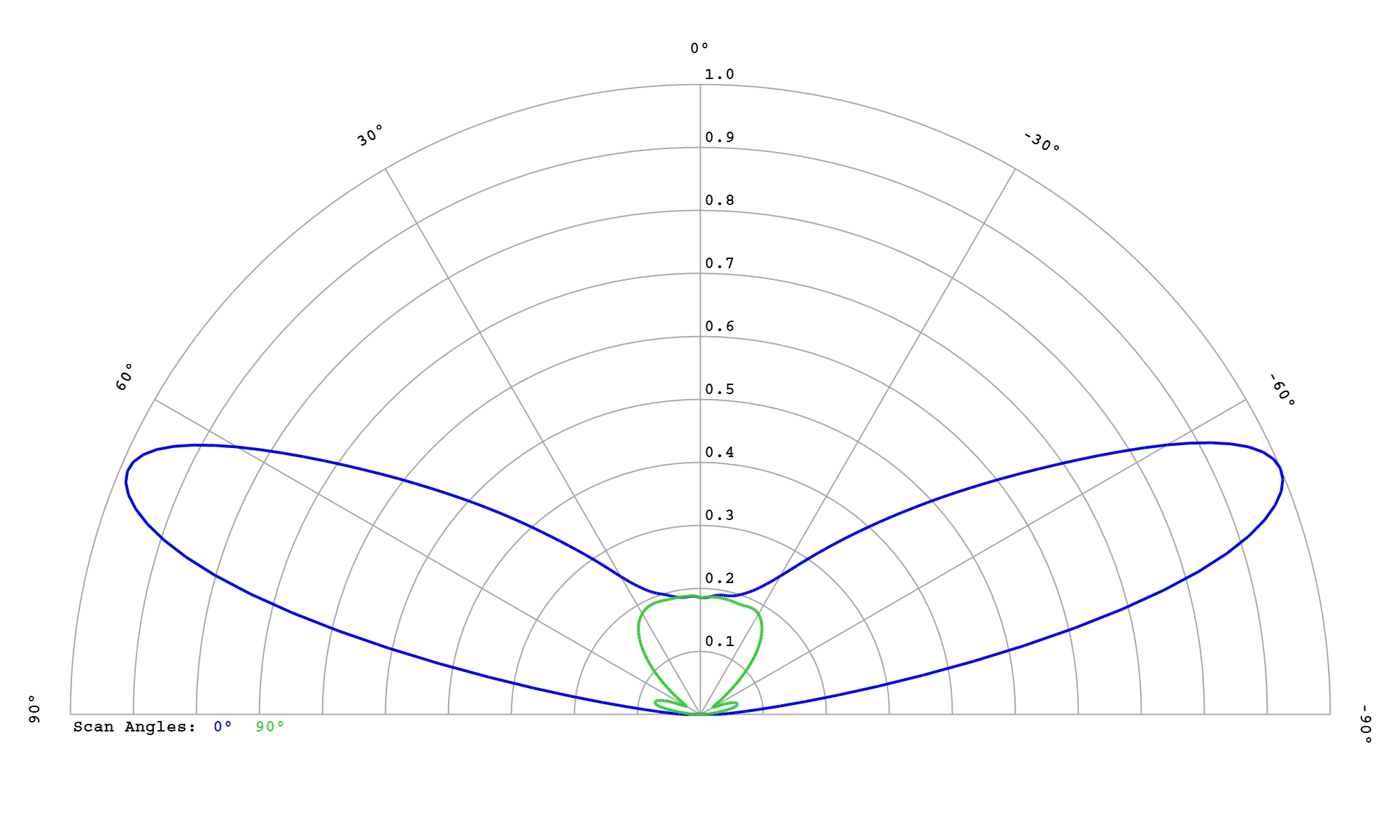

Seoul Z - Power Z5-M5 White

Eff:

92.0%

FWHM:

156 x 93°

Cd/Im:

0.9

Download

Toshiba TL 1L2 White

Eff:

92.0%

FWHM:

155 x 94°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

94.0%

FWHM:

148 x 89°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies
