Carclo Optics 12685 Reflector
54.0mm Wide Spot Mirror Reflector
Part number
12685
Dimensions
54.0mm
Drawing Number
70178
Optic type
Reflector
Finish
Mirror
Beam type
Wide Spot
Applications
Office
Retail
Special order only. Please contact us for further information.
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

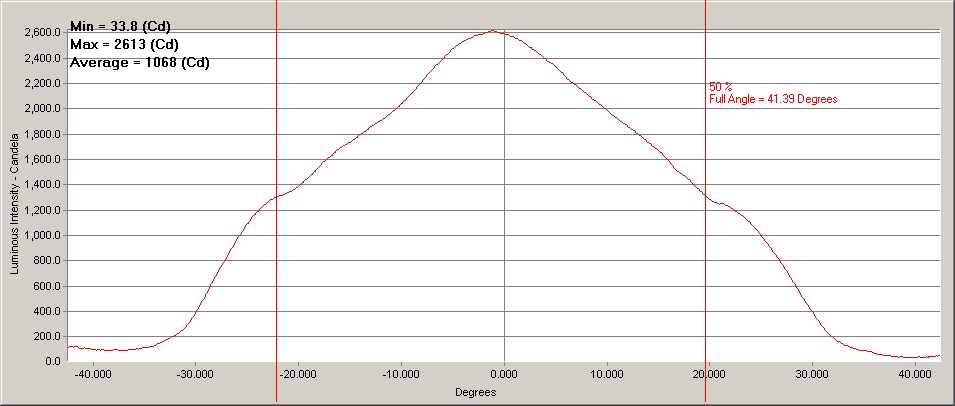

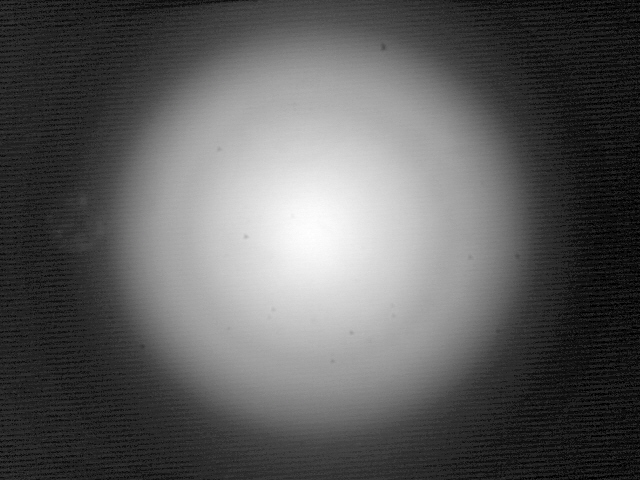

Cree XLamp CXA 1816 White
Eff:
81.0%
FWHM:
41°
Cd/Im:
1.9
Download

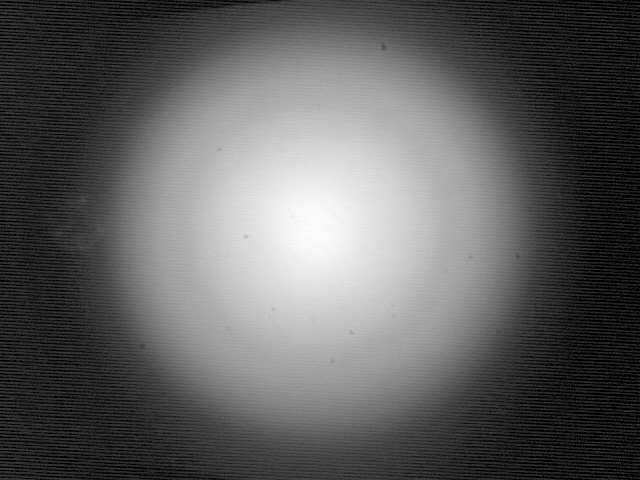

Cree XLamp CXA 1820 White
Eff:
81.5%
FWHM:
44°
Cd/Im:
2.0
Download

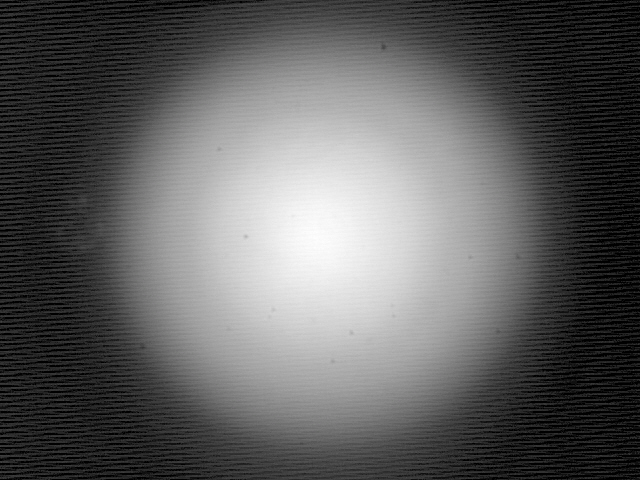

Cree XLamp CXA 1830 White
Eff:
80.0%
FWHM:
45°
Cd/Im:
1.8
Download

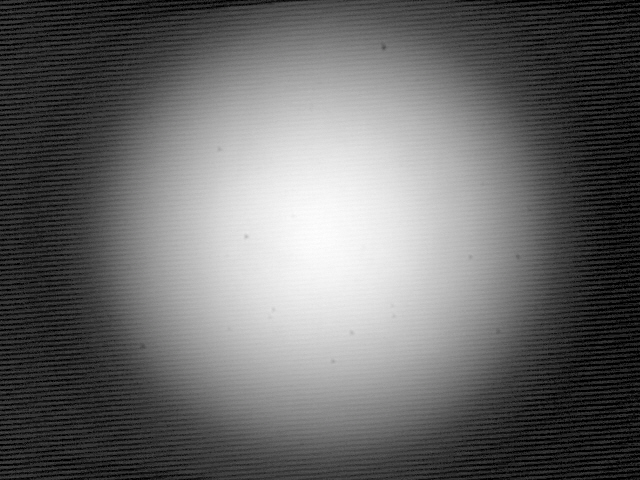

Cree XLamp CXA 2530 White
Eff:
74.0%
FWHM:
48°
Cd/Im:
1.6
Download

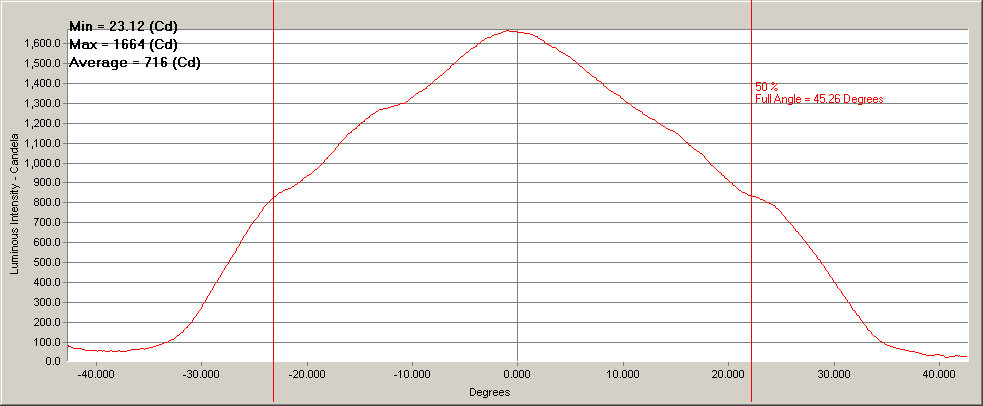

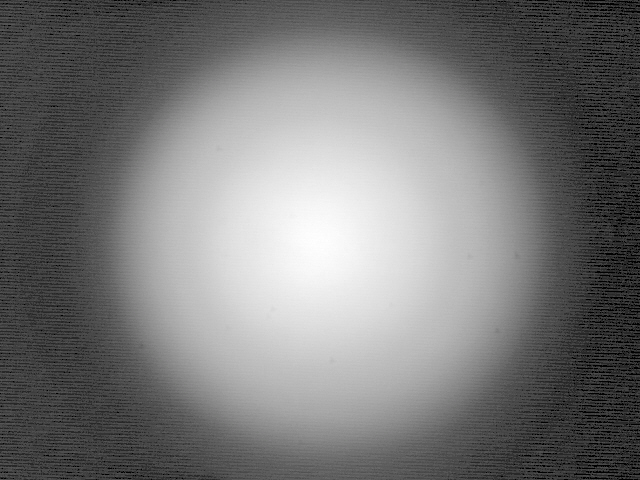

LG Innotek COB 10W White
Eff:
74.0%
FWHM:
46°
Cd/Im:
2.3
Download
LUMILEDS LUXEON 1203
Eff:
76.5%
FWHM:
34.7°
Cd/Im:
2.5
Download
LUMILEDS LUXEON 1205
Eff:
74.2%
FWHM:
43.1°
Cd/Im:
2.0
Download
LUMILEDS LUXEON 1208
Eff:
73.2%
FWHM:
45°
Cd/Im:
1.9
Download

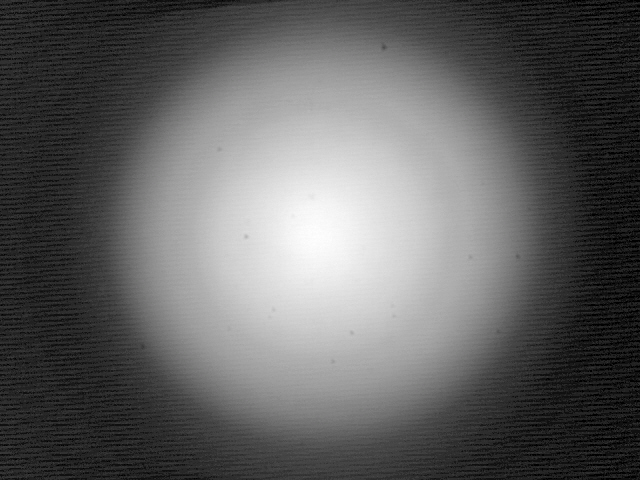

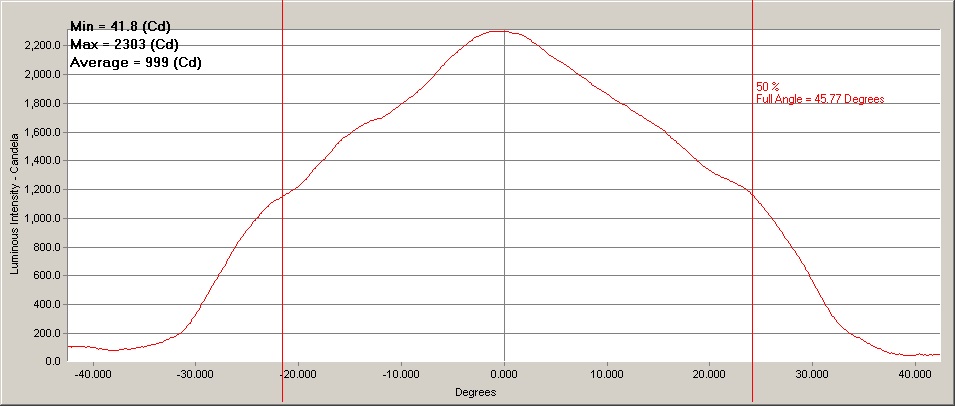

Nichia NSBWL 121A White
Eff:
80.0%
FWHM:
45°
Cd/Im:
1.9
Download

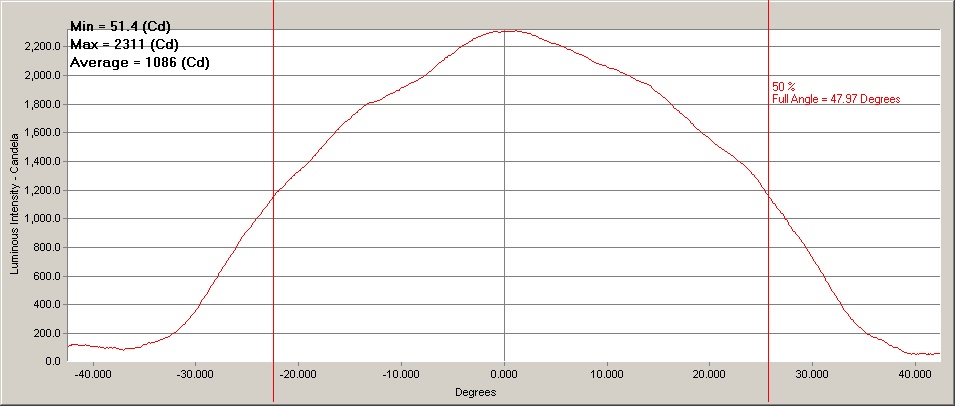

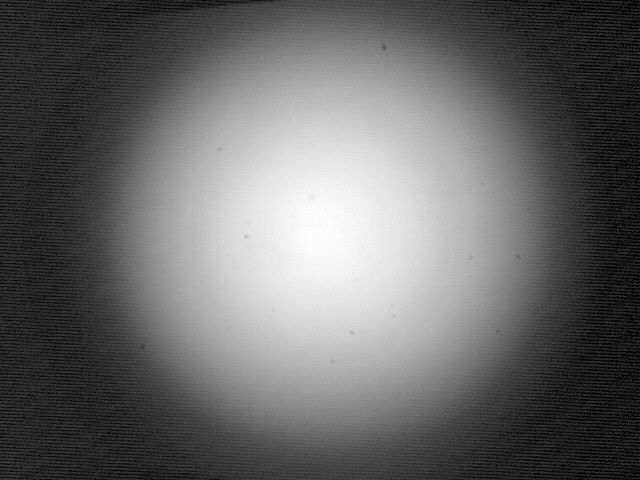

Nichia NSCNJ 216A White
Eff:
78.0%
FWHM:
48°
Cd/Im:
1.7
Download

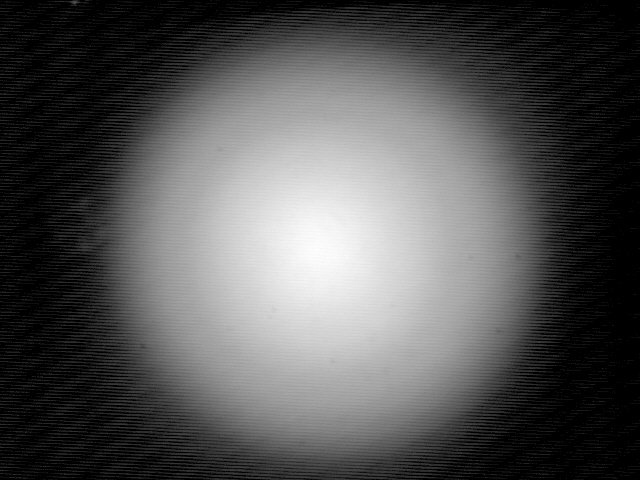

Osram OS SOLERIQ S13 White
Eff:
81.0%
FWHM:
43°
Cd/Im:
2.3
Download

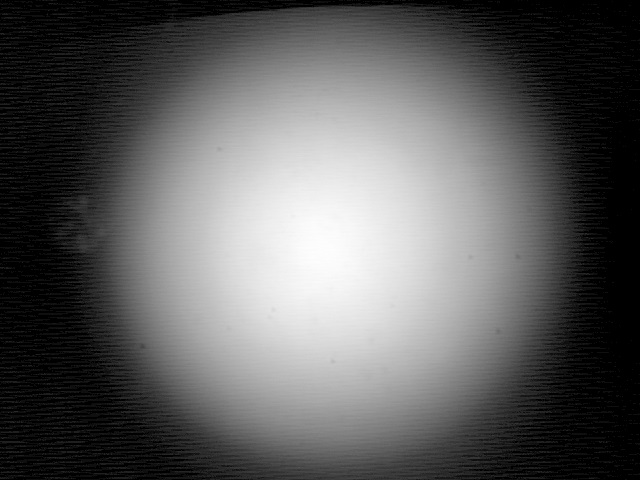

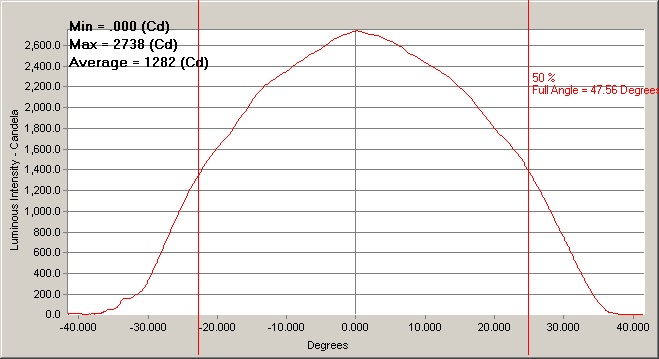

Osram OS SOLERIQ S19 White
Eff:
76.0%
FWHM:
47°
Cd/Im:
1.8
Download

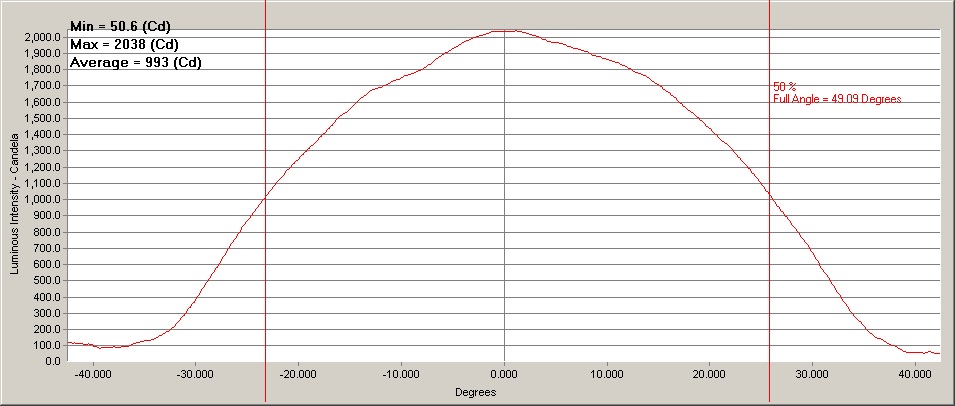

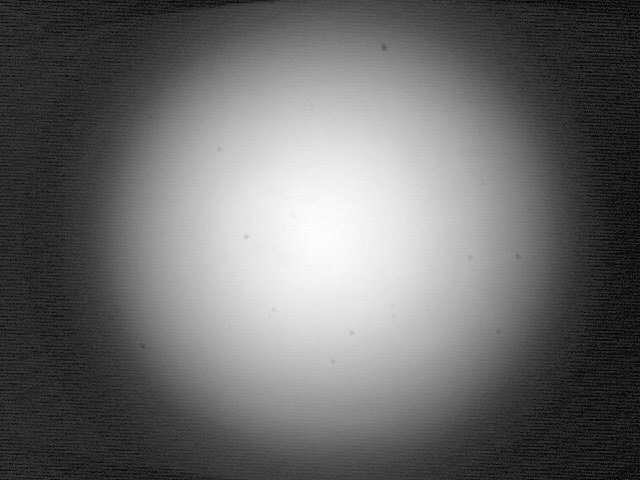

Samsung COB1 LC040B White
Eff:
80.0%
FWHM:
48°
Cd/Im:
1.7
Download

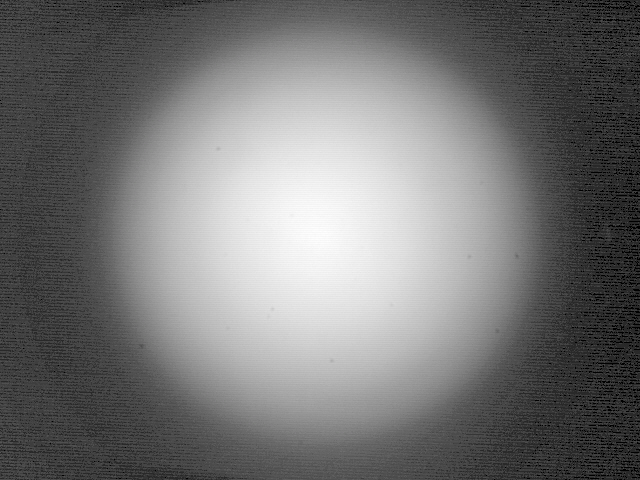

Sharp Mega Zenigata 25W White
Eff:
77.3%
FWHM:
46.9°
Cd/Im:
2.1
Download
