37.0mm Asymmetrical Narrow Freeform

Part number

12587

Dimensions

37.0mm

Drawing Number

70085

Optic type

Freeform

Beam type

Asymmetrical Narrow

Applications

Street

Emergency / Hazard

Special order only. Please contact us for further information.

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

89.5%

FWHM:

141 x 21.5°

Cd/Im:

1.6

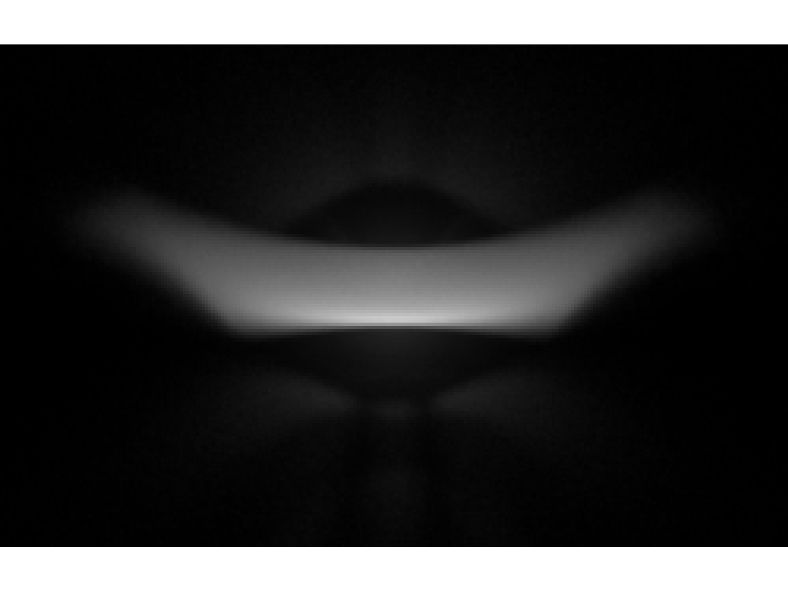

Carclo Optics - 12587 Hubble Spot Image Bridgelux 3030 Gen2

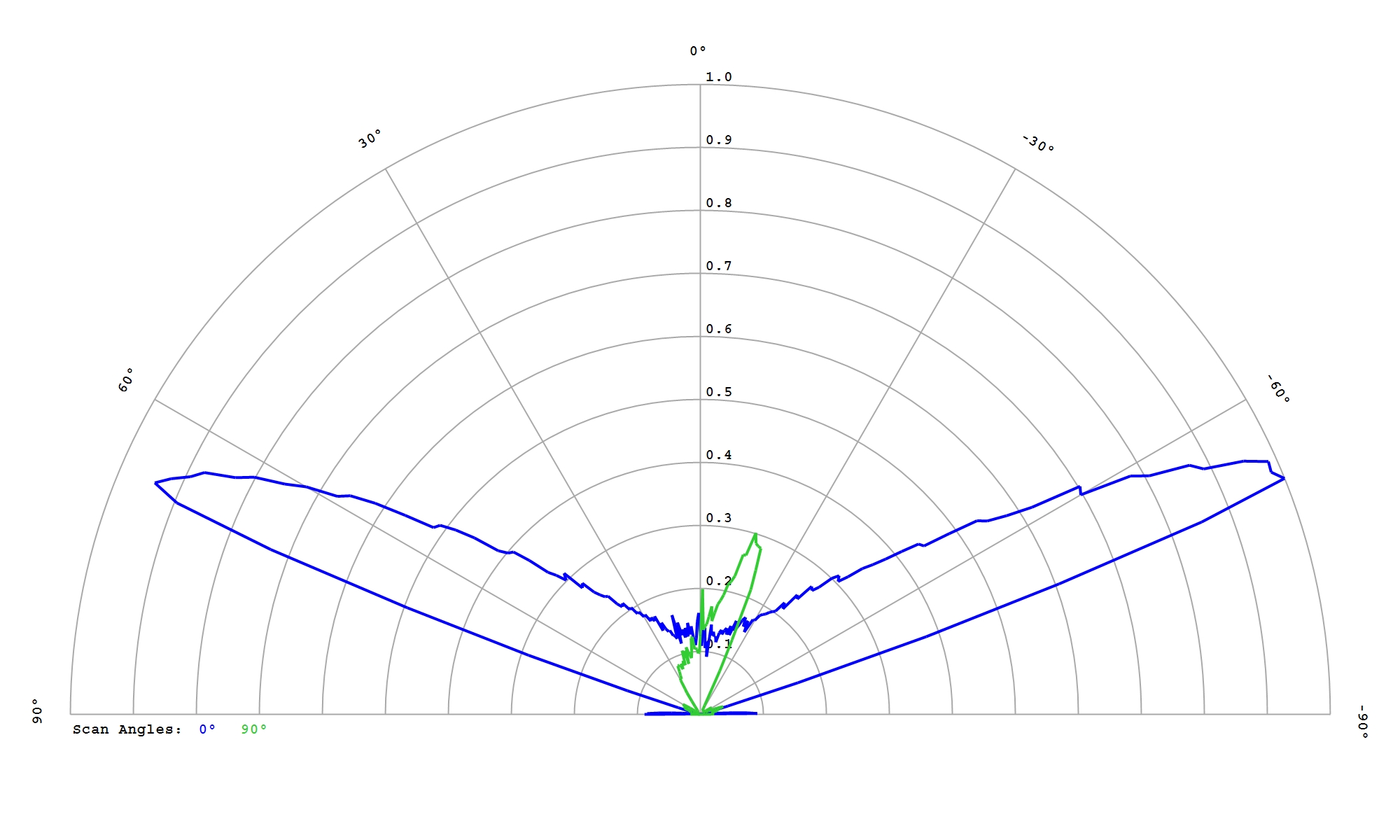

Carclo Optics - 12587 Hubble Cross Section Bridgelux 3030 Gen2

Download

IES

Broadcom Jade White

Eff:

85.4%

FWHM:

149 x 35 x 14°

Cd/Im:

0.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

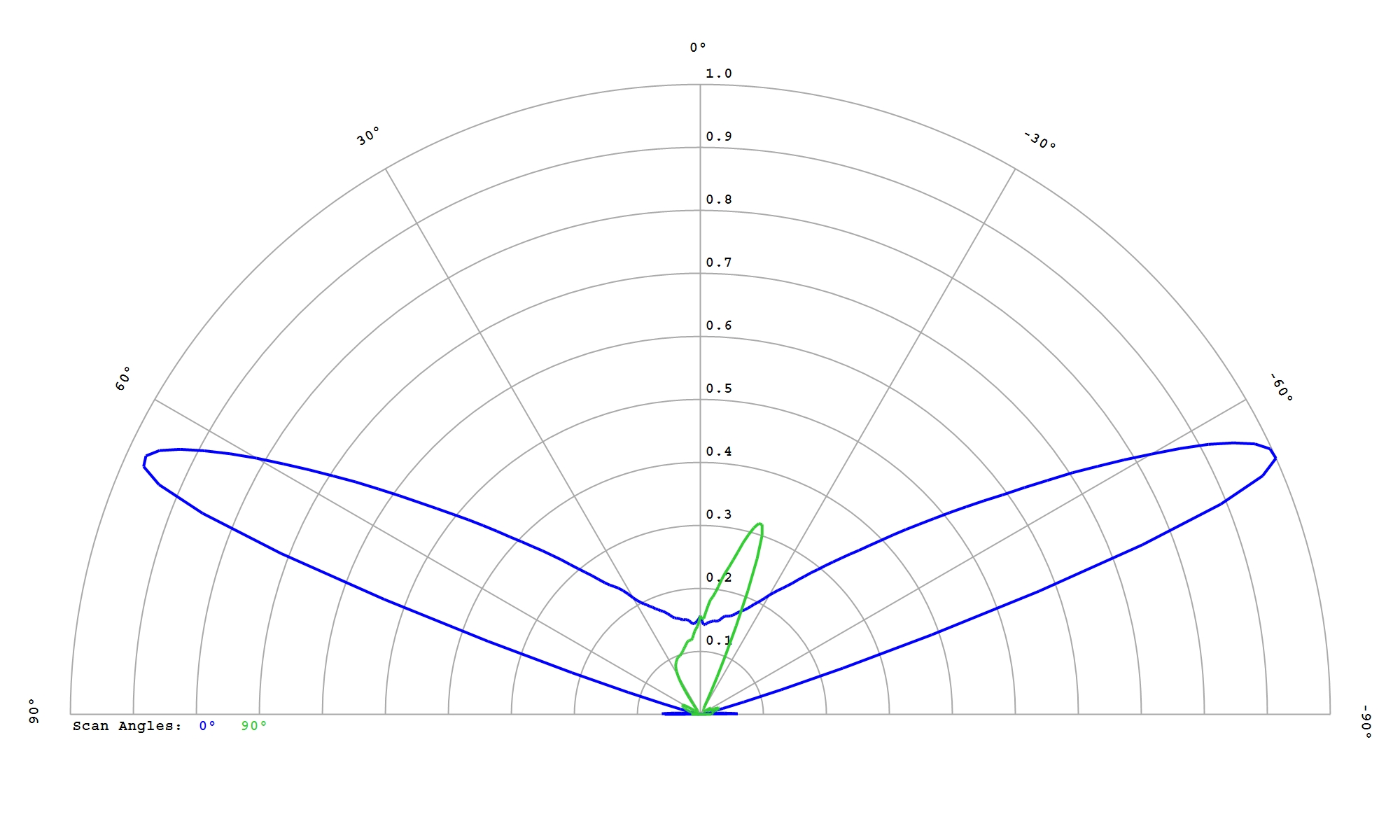

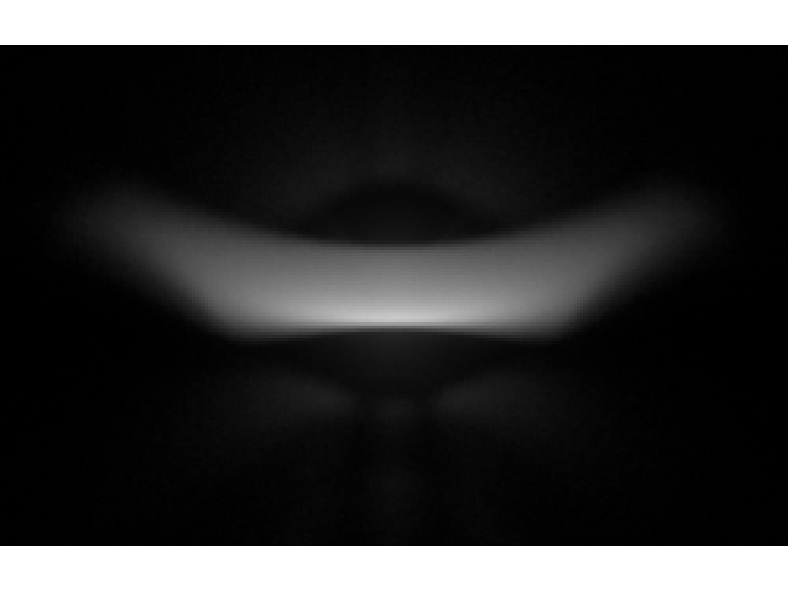

Cree JB2835B 3V G-Class White

Eff:

89.5%

FWHM:

140 x 18.5 x 18°

Cd/Im:

1.4


Download

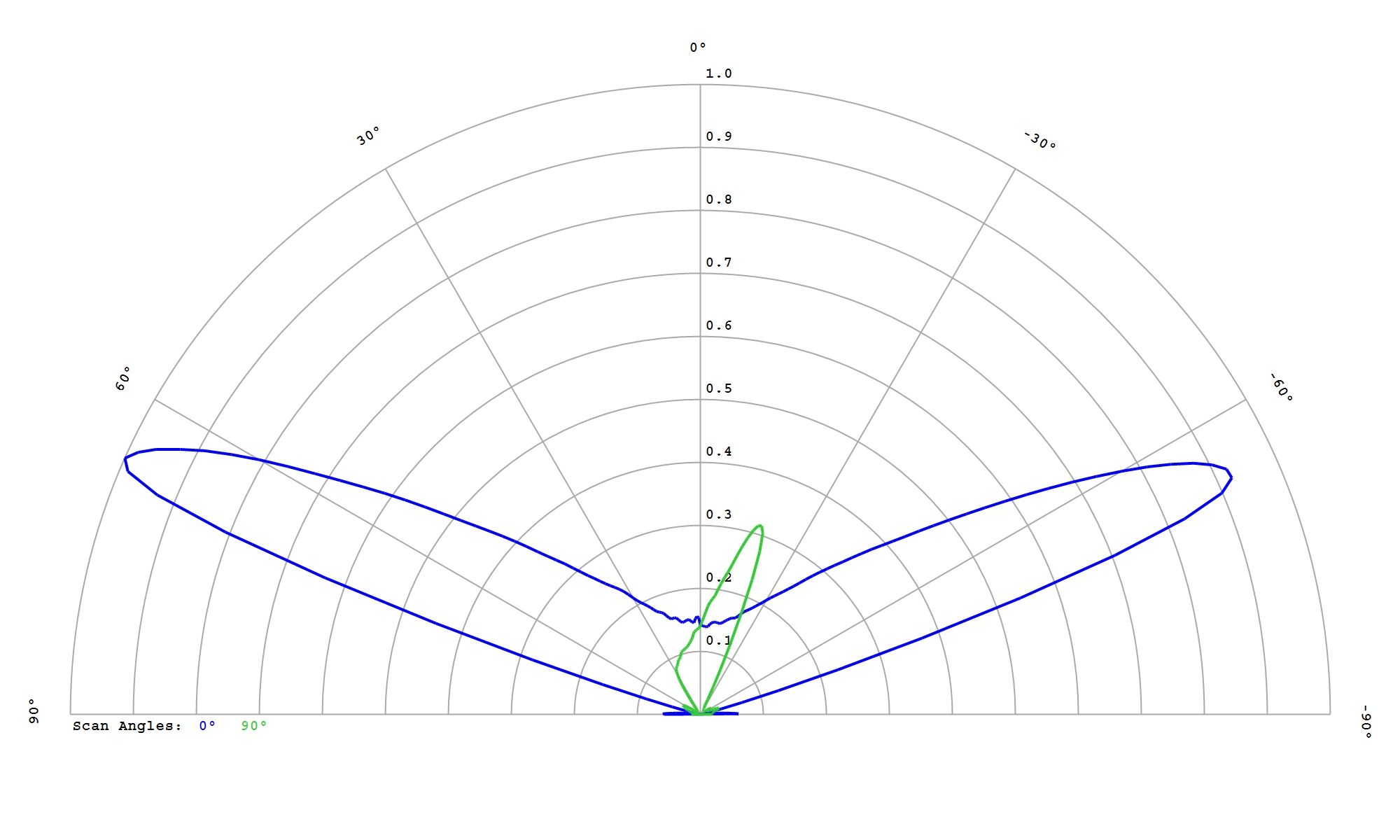

Cree JB2835B 3V J-Class White

Eff:

89.5%

FWHM:

141 x 19.5 x 18°

Cd/Im:

1.5


Download

Cree JB3030 3V P-Class White

Eff:

89.5%

FWHM:

140 x 22.5 x 17°

Cd/Im:

1.5

Carclo Optics - 12587 Spot Image Cree JB3030 3V White

Carclo Optics - 12587 Cross Section Cree JB3030 3V White

Download

IES

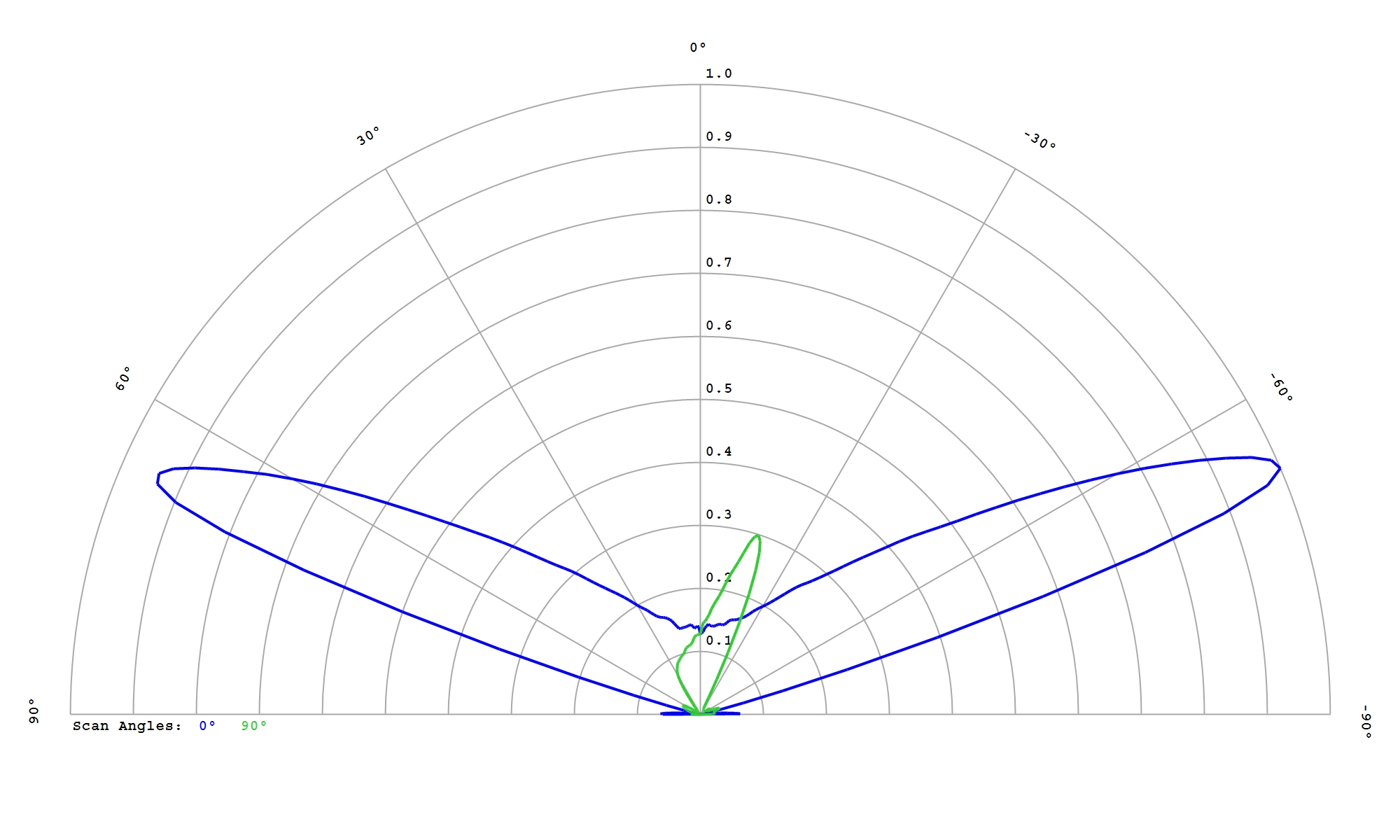

Cree JB3030C 3V E-Class White

Eff:

89.5%

FWHM:

142 x 19 x 18°

Cd/Im:

1.4


Download

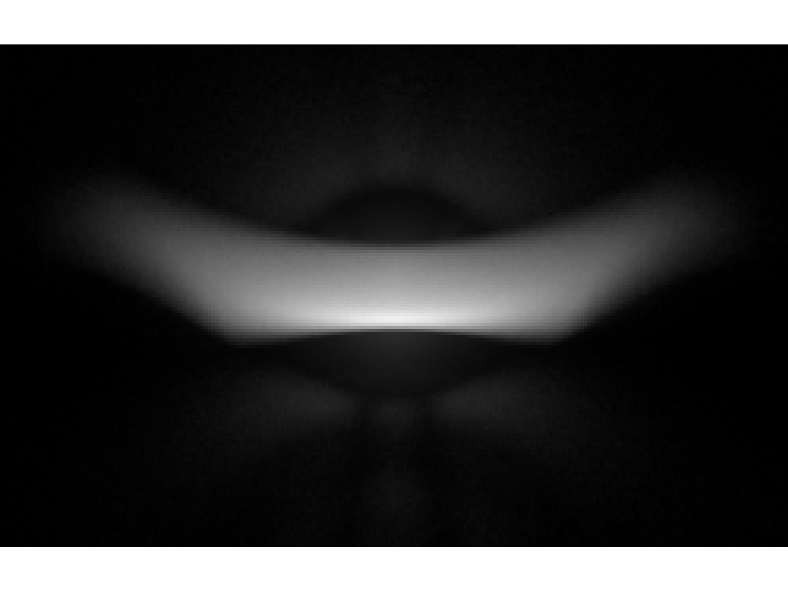

Cree JB3030C 3V F-Class White

Eff:

89.5%

FWHM:

142 x 20 x 18°

Cd/Im:

1.5


Download

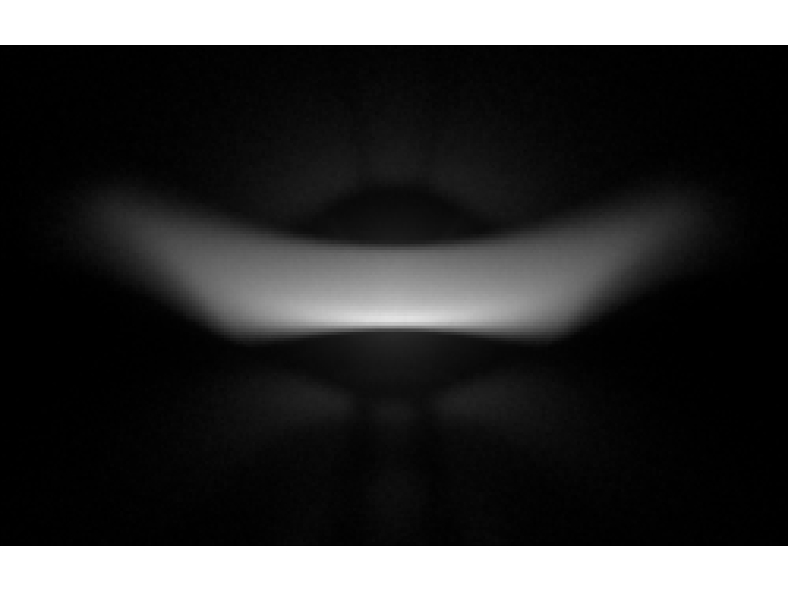

Cree JE2835 3V White

Eff:

89.5%

FWHM:

141 x 18 x 19°

Cd/Im:

1.4

Download

Cree JK2835 6V White

Eff:

89.5%

FWHM:

140 x 22.5 x 17°

Cd/Im:

1.5

Download

IES

Cree JQ5050 9V White

Eff:

89.5%

FWHM:

144 x 29.5 x 15°

Cd/Im:

1.3

Carclo Optics - 12587 Spot Image Cree JQ5050 9V White

Carclo Optics - 12587 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

89.5%

FWHM:

144 x 33 x 14°

Cd/Im:

1.3

Carclo Optics - 12587 Spot Image Cree JR5050 24V White

Carclo Optics - 12587 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

89.5%

FWHM:

143 x 31 x 15°

Cd/Im:

1.2

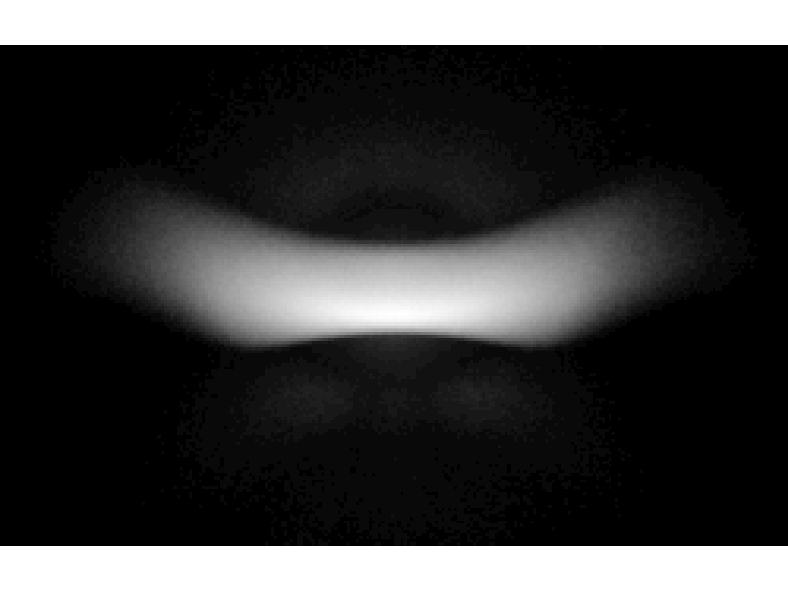

Carclo Optics - 12587 Spot Image Cree JR5050 36V White

Carclo Optics - 12587 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

89.5%

FWHM:

144 x 32 x 15°

Cd/Im:

1.2

Carclo Optics - 12587 Spot Image Cree JR5050 6V White

Carclo Optics - 12587 Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

89.5%

FWHM:

144 x 28.5 x 17°

Cd/Im:

1.3


Download

IES

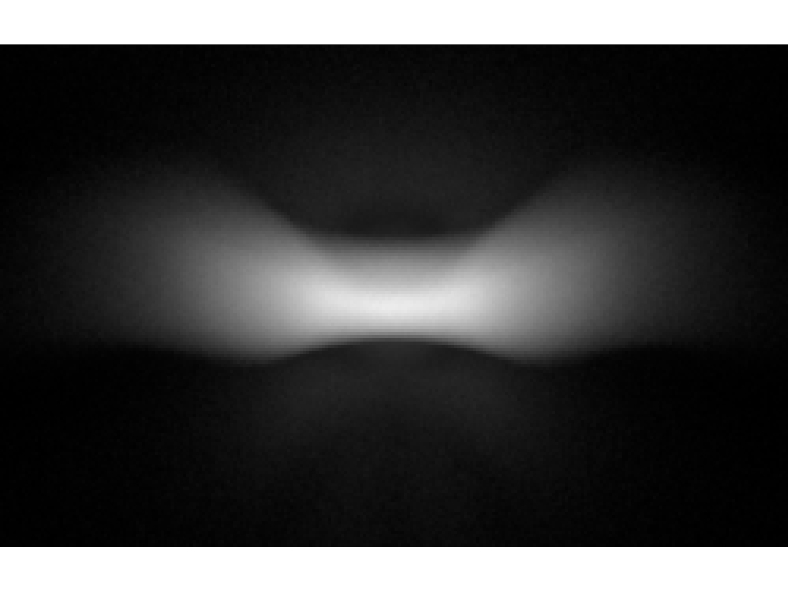

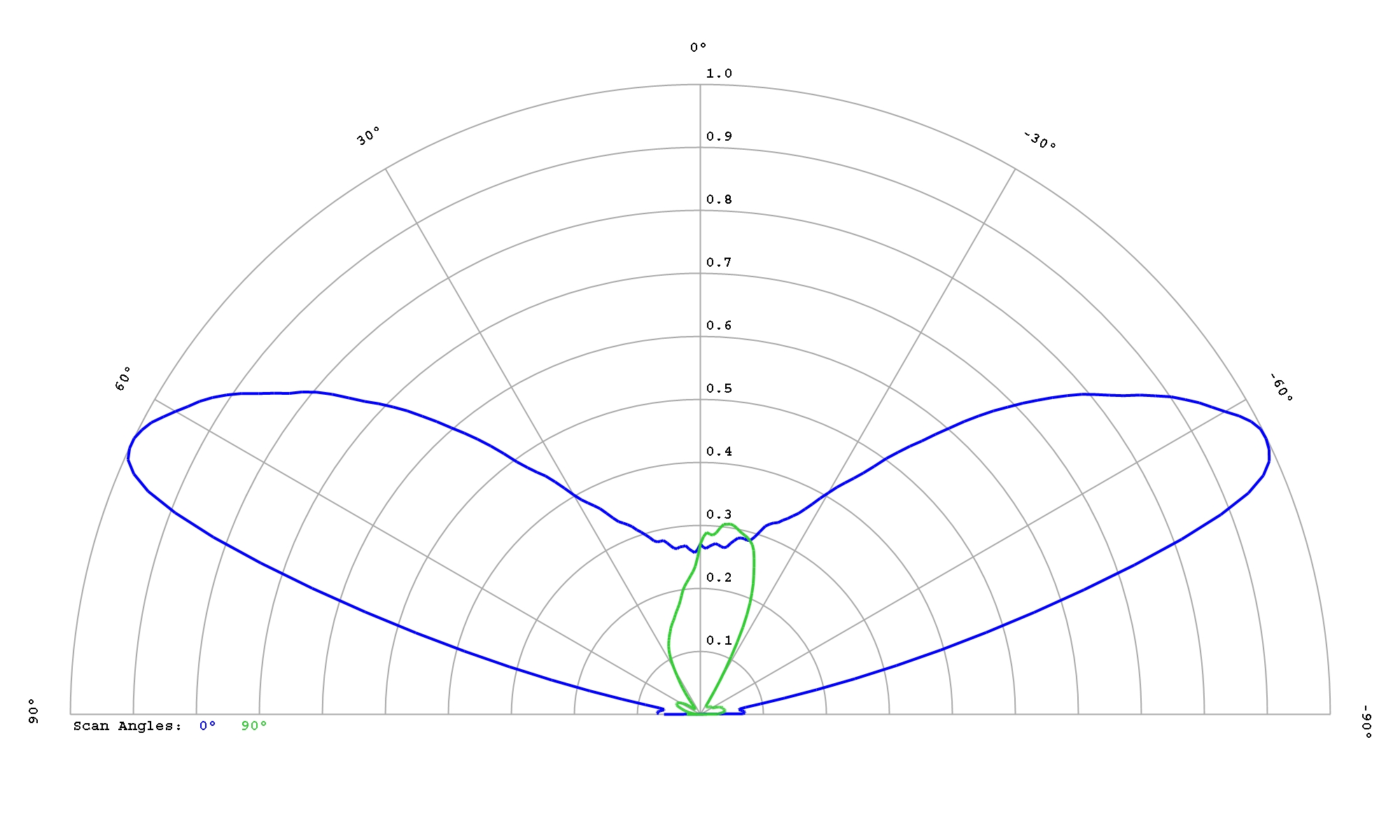

Cree JU7070B 12V K-Class White

Eff:

89.0%

FWHM:

147 x 43 x 9°

Cd/Im:

0.9

Download

Cree XLamp CSP XD16 Cool White

Eff:

88.0%

FWHM:

141 x 22.5 x 20°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

89.0%

FWHM:

142 x 14 x 19°

Cd/Im:

1.7

Download

IES

Cree XLamp MH-D White

Eff:

85.7%

FWHM:

151 x 45 x 10°

Cd/Im:

0.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-D White

Eff:

83.6%

FWHM:

143 x 15 x 19°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XB-H White

Eff:

89.0%

FWHM:

142 x 27°

Cd/Im:

1.2

Carclo Optics - 12587 Hubble Spot Image Cree XLamp XB-H

Carclo Optics - 12587 Hubble Cross Section Cree XLamp XB-H

Download

IES

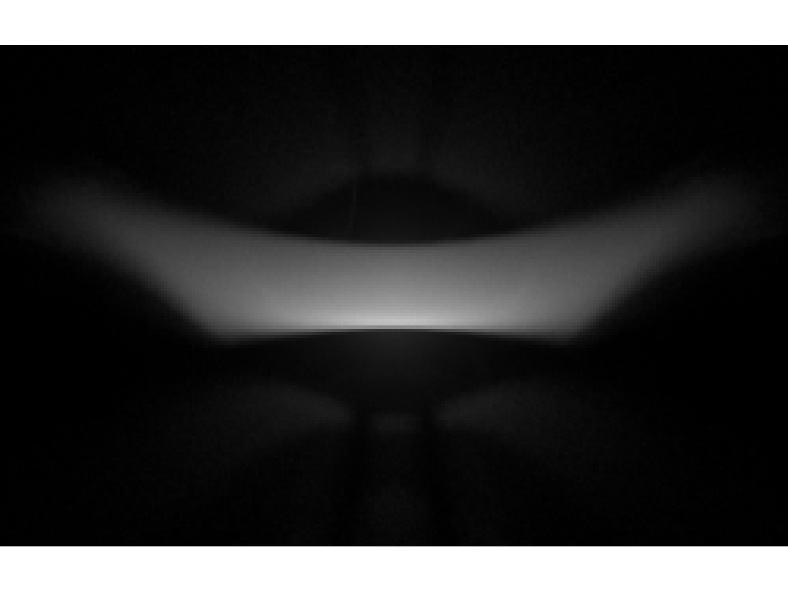

Cree XLamp XE-G White

Eff:

88.5%

FWHM:

144 x 16 x 20°

Cd/Im:

1.4

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

87.0%

FWHM:

149 x 44.5 x 6°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

86.0%

FWHM:

147 x 41 x 15°

Cd/Im:

1.0

optic-12587-Cree_XHP50-White-spot-image

optic-12587-Cree_XHP50-White-cross-section-image

Download

IES

Cree XLamp XHP-70 White

Eff:

87.0%

FWHM:

151 x 50 x 13°

Cd/Im:

0.8

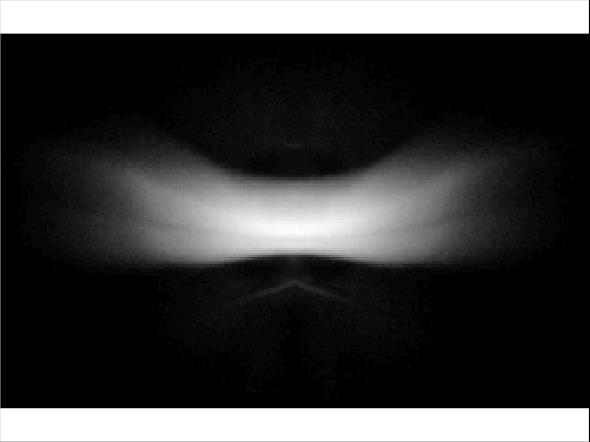

Carclo Optics - 12587 Spot Image Cree XLamp XHP-70

Carclo Optics - 12587 Cross Section Cree XLamp XHP-70

Download

IES

Cree XLamp XHP-70 White

Eff:

85.1%

FWHM:

150 x 46 x 11°

Cd/Im:

0.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

83.9%

FWHM:

144 x 26 x 18°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

82.4%

FWHM:

144 x 29 x 18°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

88.0%

FWHM:

144 x 31 x 18°

Cd/Im:

1.3

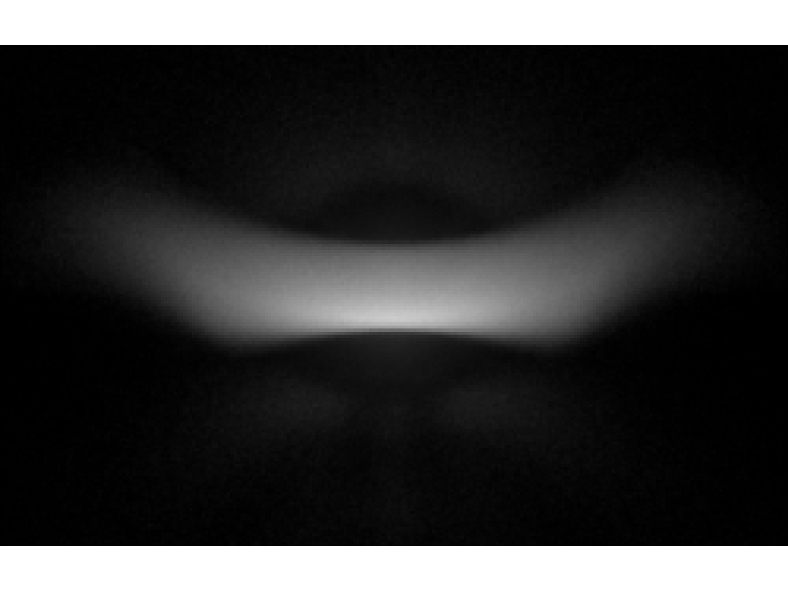

Carclo Optics – 12587 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 12587 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

87.0%

FWHM:

147 x 38 x 18°

Cd/Im:

1.1

Carclo Optics - 12587 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 12587 Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

88.5%

FWHM:

145 x 34 x 17°

Cd/Im:

1.2

optic-12587-Cree_XHP50.3 HI-spot-image.jpg

optic-12587-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

87.5%

FWHM:

146 x 40 x 16°

Cd/Im:

1.1



Download

IES

Cree XLamp XHP70.2 White

Eff:

86.5%

FWHM:

151 x 54 x 14°

Cd/Im:

0.8

Carclo Optics – 12587 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 12587 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

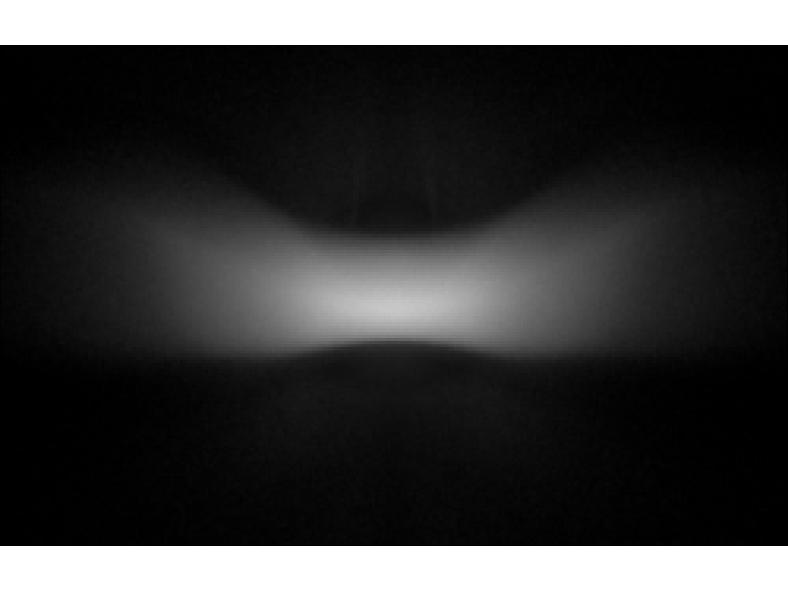

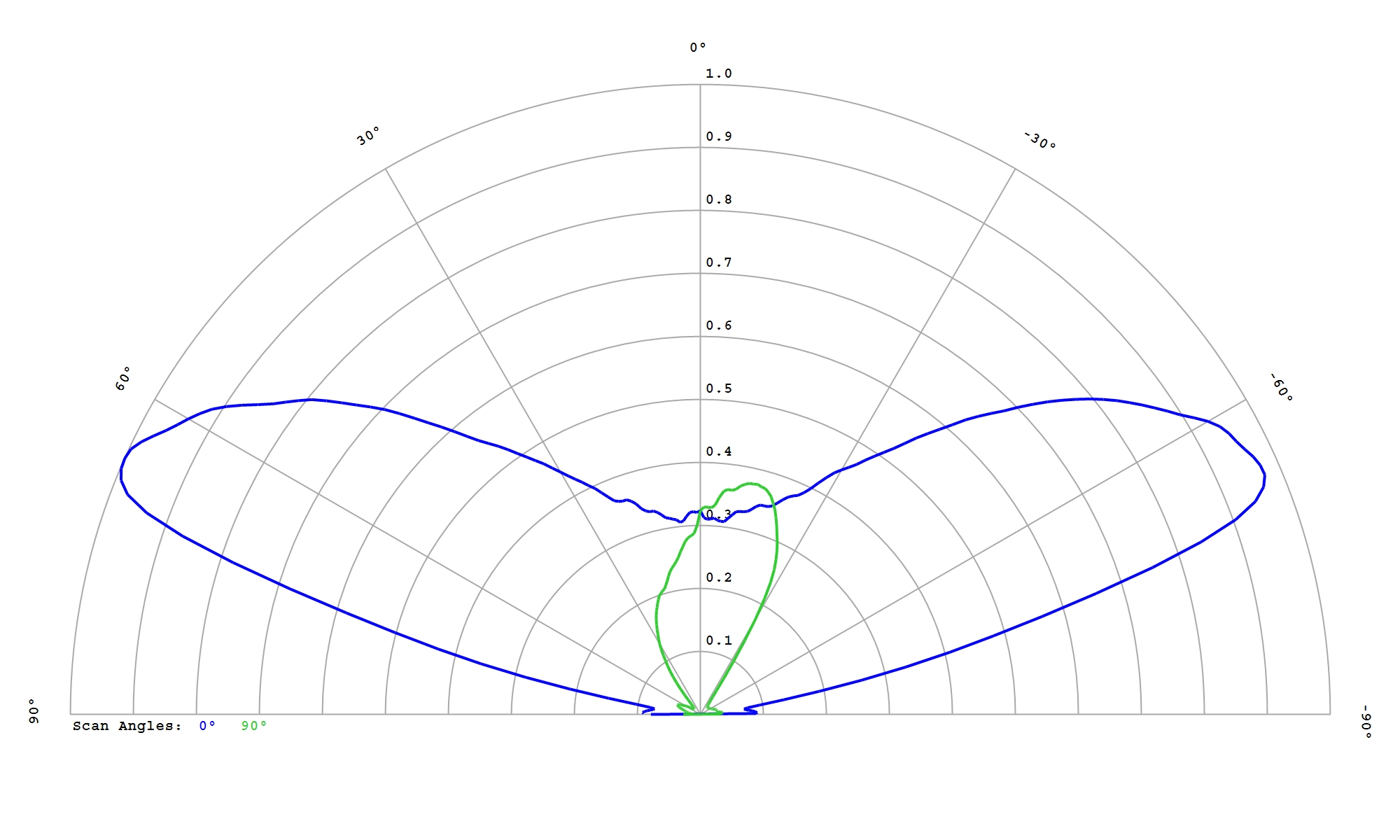

Cree XLamp XHP70.3 HD White

Eff:

86.5%

FWHM:

150 x 50 x 13°

Cd/Im:

0.7

Download

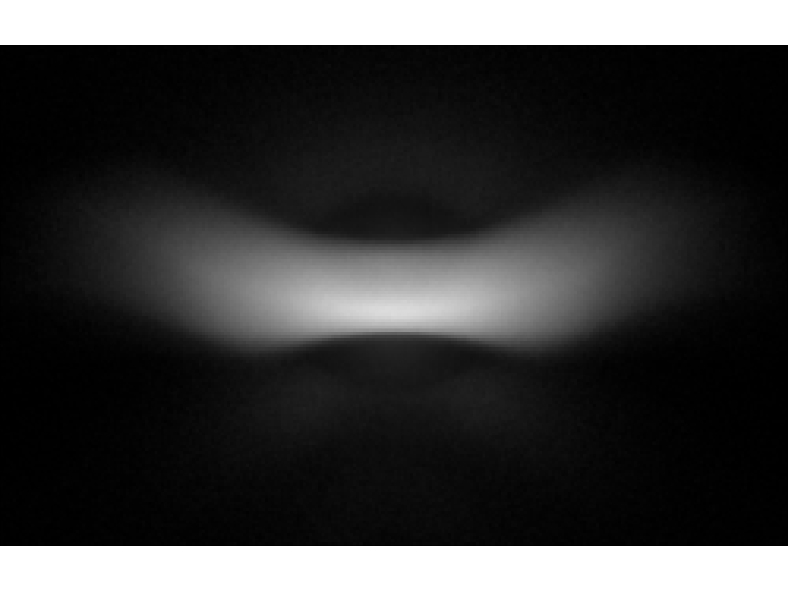

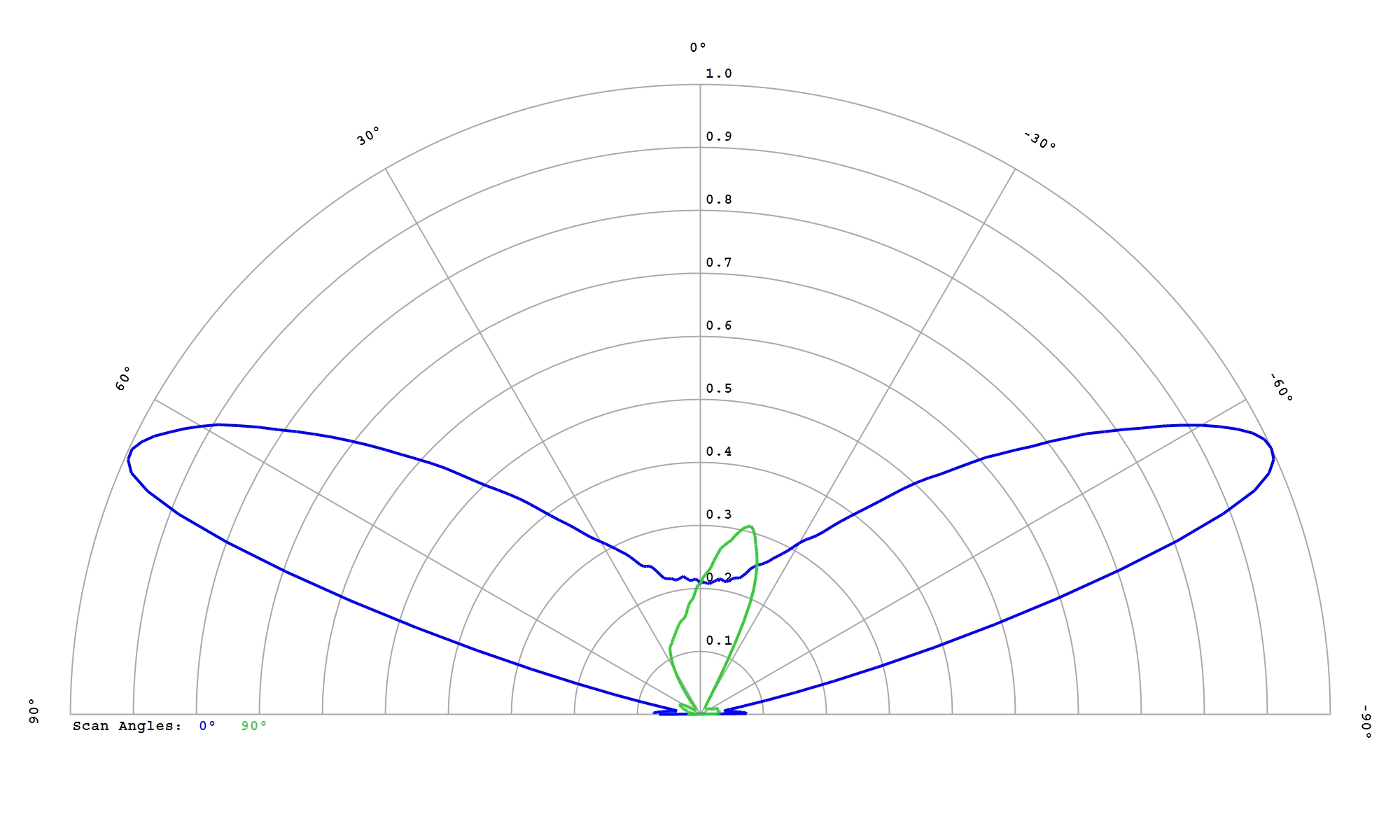

Cree XLamp XHP70.3 HI White

Eff:

88.5%

FWHM:

146 x 34 x 15°

Cd/Im:

1.1

Download

Cree XLamp XM-L White

Eff:

86.0%

FWHM:

145 x 25 x 19°

Cd/Im:

1.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XM-L2 White

Eff:

88.0%

FWHM:

150*60*22°

Cd/Im:

1.3

Download

ies

Cree XLamp XM-L3 White

Eff:

87.5%

FWHM:

147 x 28 x 19°

Cd/Im:

1.2

Carclo Optics - 12587 Spot Image Cree XM-L3

Carclo Optics - 12587 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-E2 White

Eff:

89.5%

FWHM:

145 x 15.5 x 21°

Cd/Im:

1.4

Download

IES

Cree XLamp XP-G2 White

Eff:

85.9%

FWHM:

144 x 17 x 21°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-G3 White

Eff:

82.0%

FWHM:

144.5 x 24.1 x 18°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

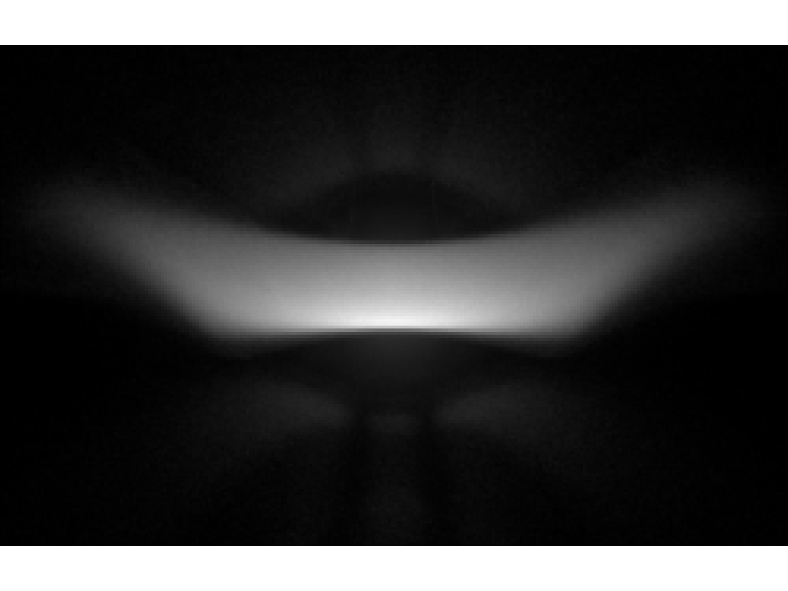

Cree XLamp XP-G4 HI White

Eff:

88.5%

FWHM:

144 x 18.5 x 20°

Cd/Im:

1.4

Download

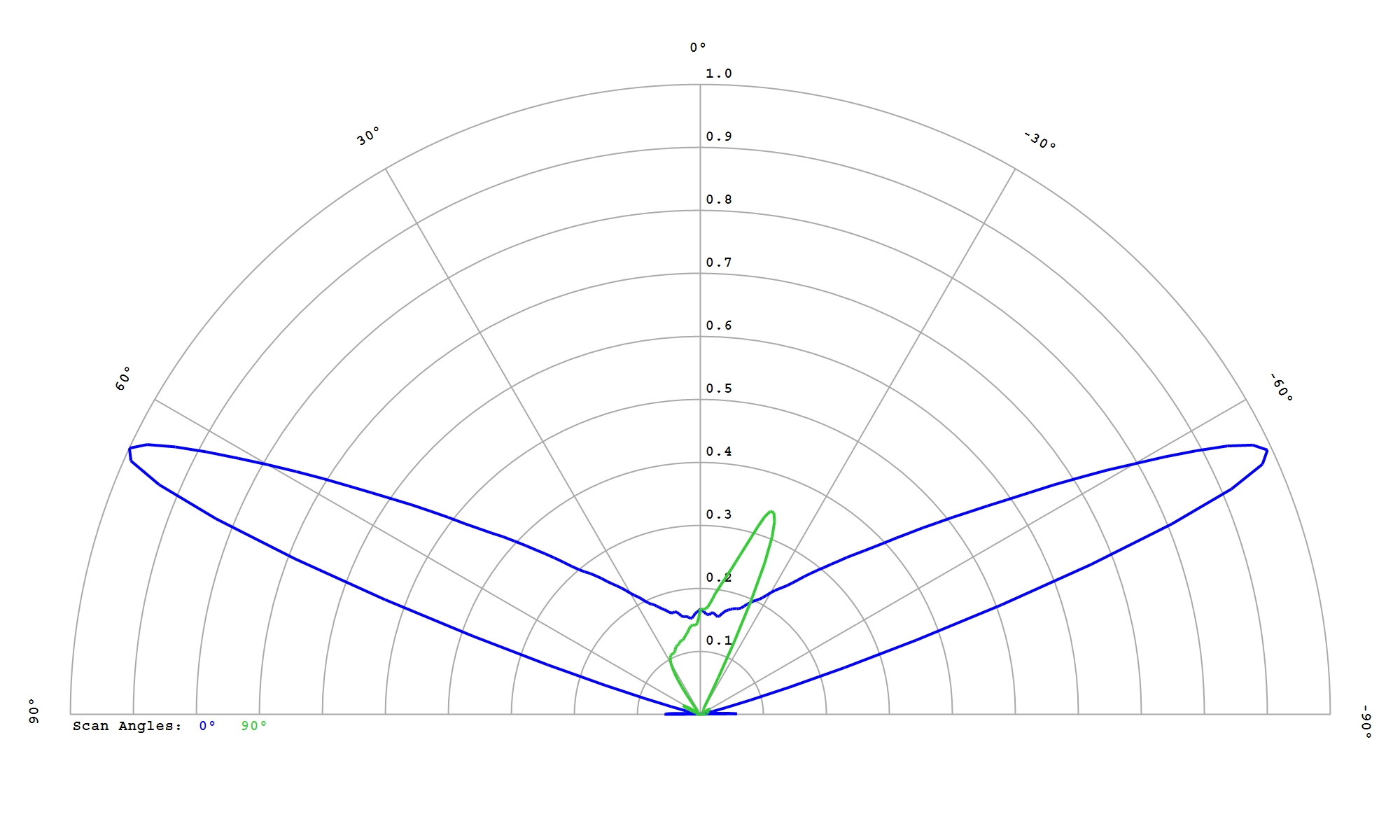

Cree XLamp XP-G4 White

Eff:

90.0%

FWHM:

140 x 22 x 20°

Cd/Im:

1.4

Download

IES

Cree XLamp XP-L HI White

Eff:

85.9%

FWHM:

143.4 x 20 x 17.7°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

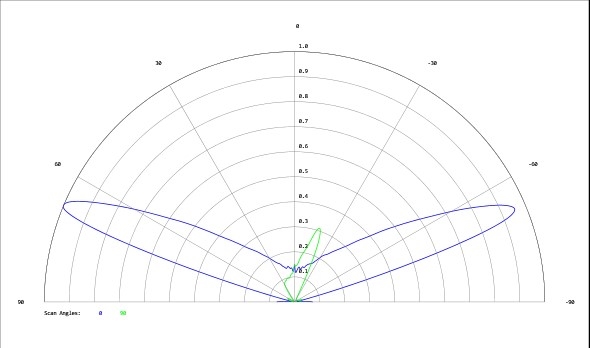

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L2 White

Eff:

87.0%

FWHM:

145 x 32 x 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

89.5%

FWHM:

142 x 12 x 20°

Cd/Im:

1.6

Carclo Optics – 12587 Cree Xlamp XP-P - Spot Image

Carclo Optics – 12587 Cree Xlamp XP-P - Cross-Section

Download

IES

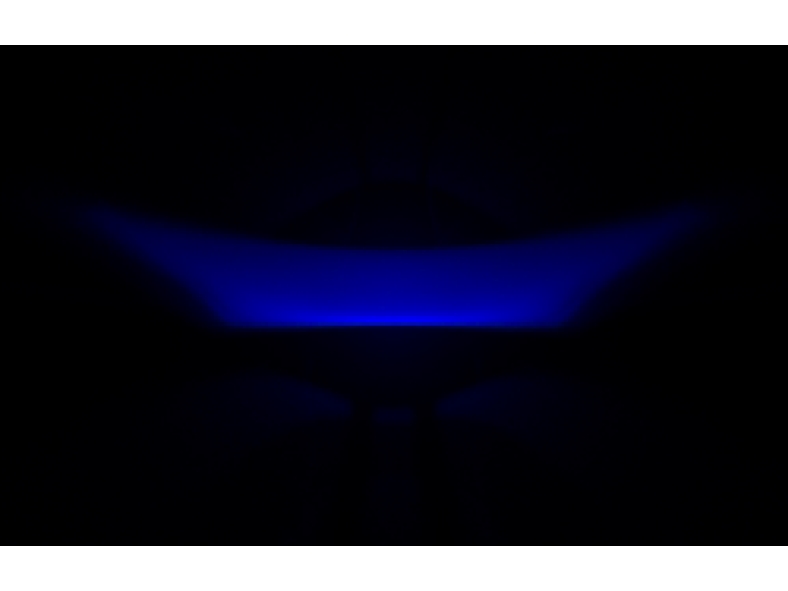

Cree XLamp XQ-A Blue

Eff:

89.0%

FWHM:

138 x 7.2 x 19°

Cd/Im:

1.8

Download

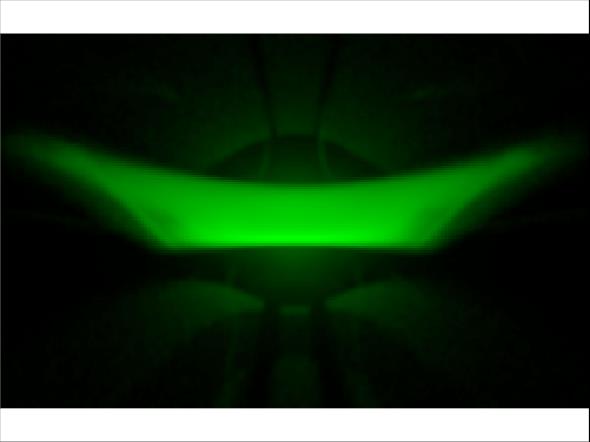

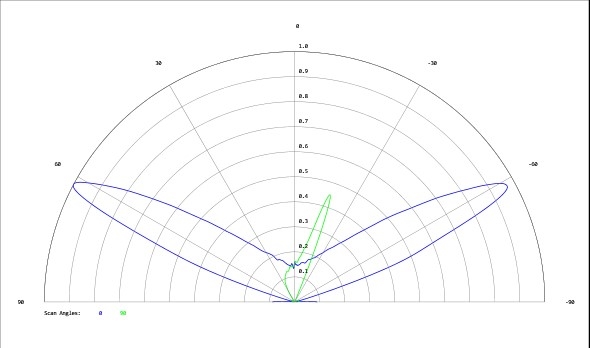

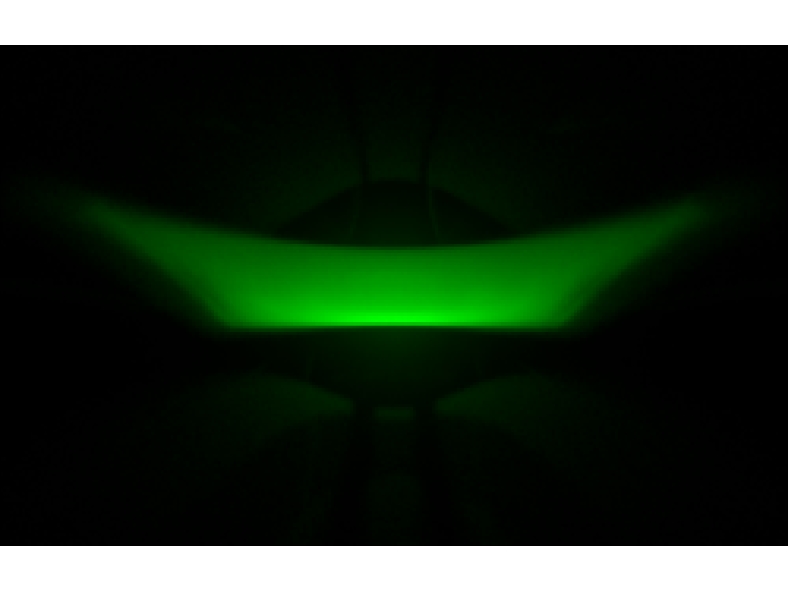

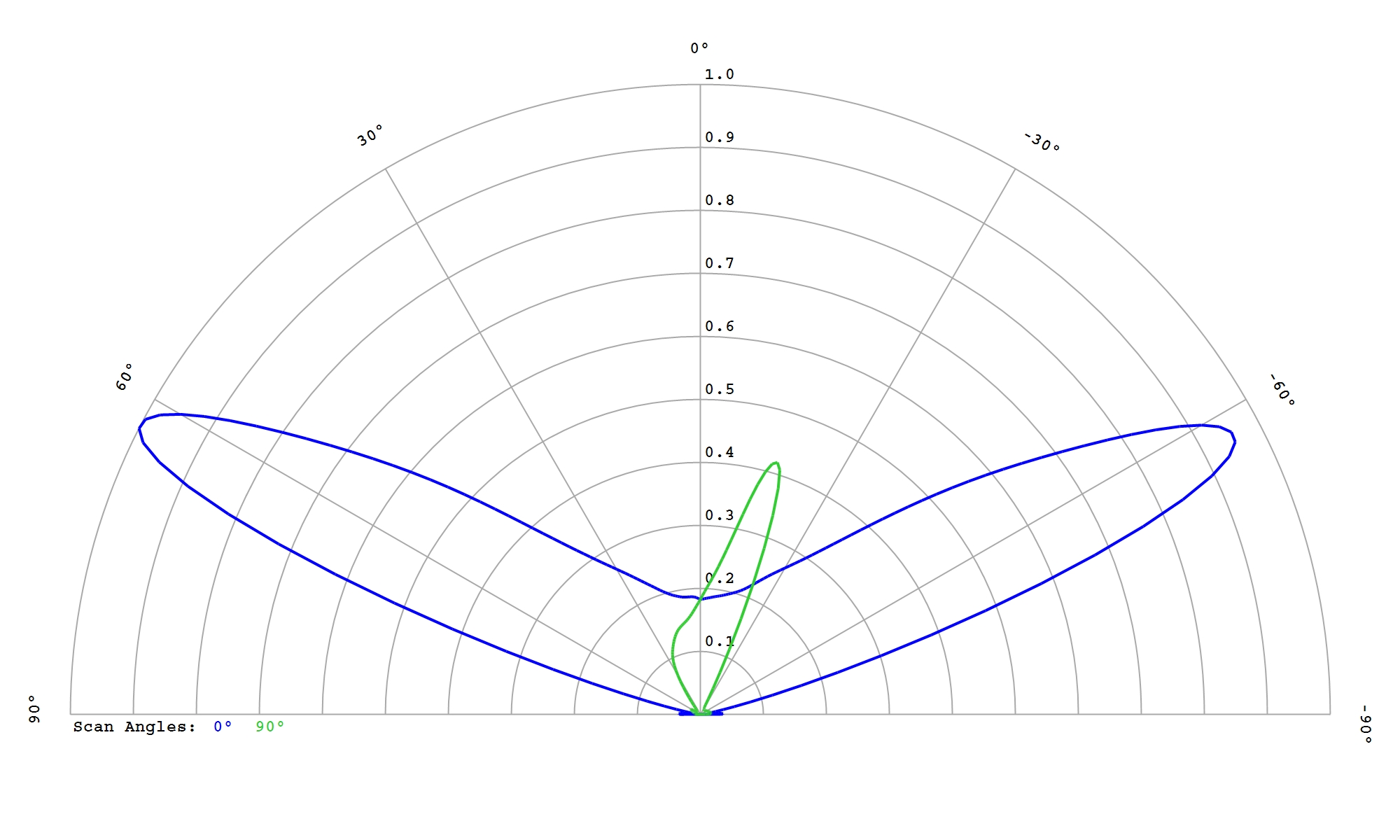

Cree XLamp XQ-A Green

Eff:

89.0%

FWHM:

138 x 11.5 x 19°

Cd/Im:

1.5

Download

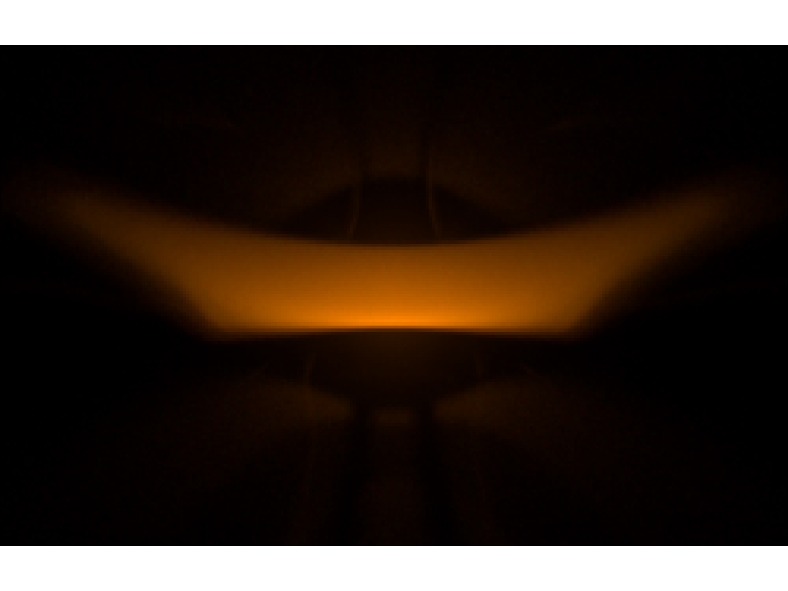

Cree XLamp XQ-A PC Amber

Eff:

88.5%

FWHM:

142 x 14 x 20°

Cd/Im:

1.4

Download

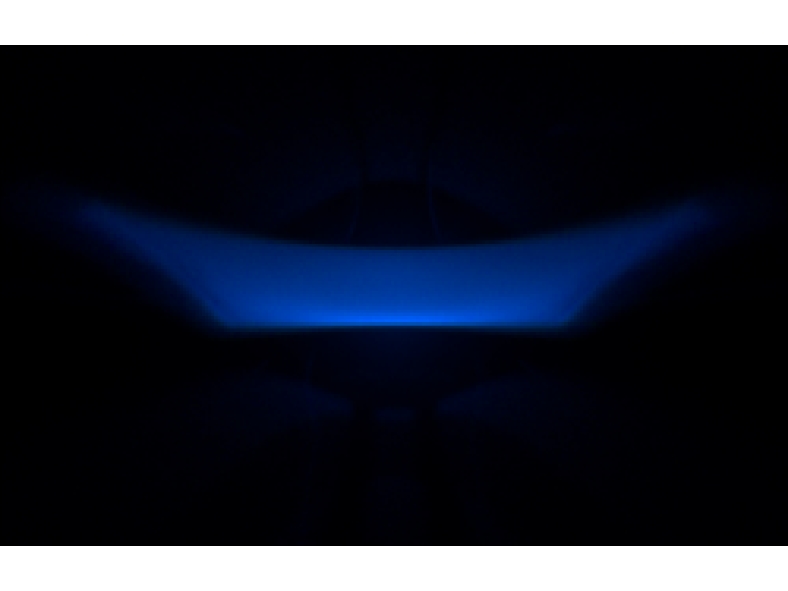

Cree XLamp XQ-A PC Blue

Eff:

88.0%

FWHM:

141 x 8.7 x 19°

Cd/Im:

1.7

Download

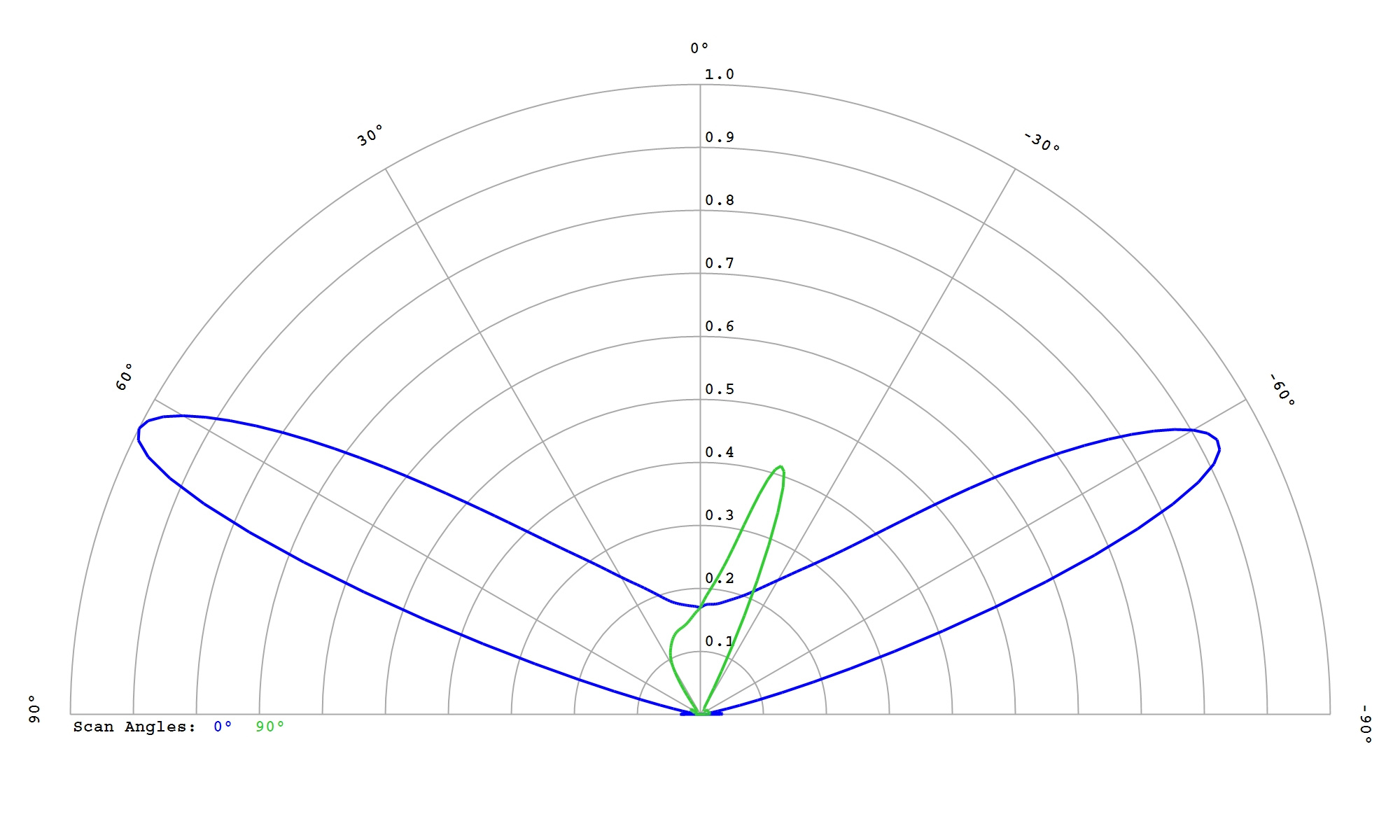

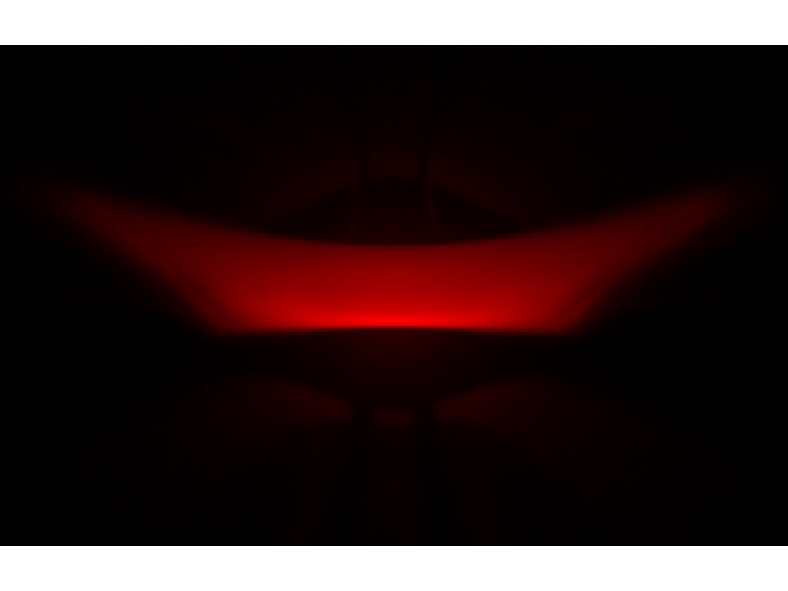

Cree XLamp XQ-A Red

Eff:

90.0%

FWHM:

139 x 11 x 20°

Cd/Im:

1.4

Download

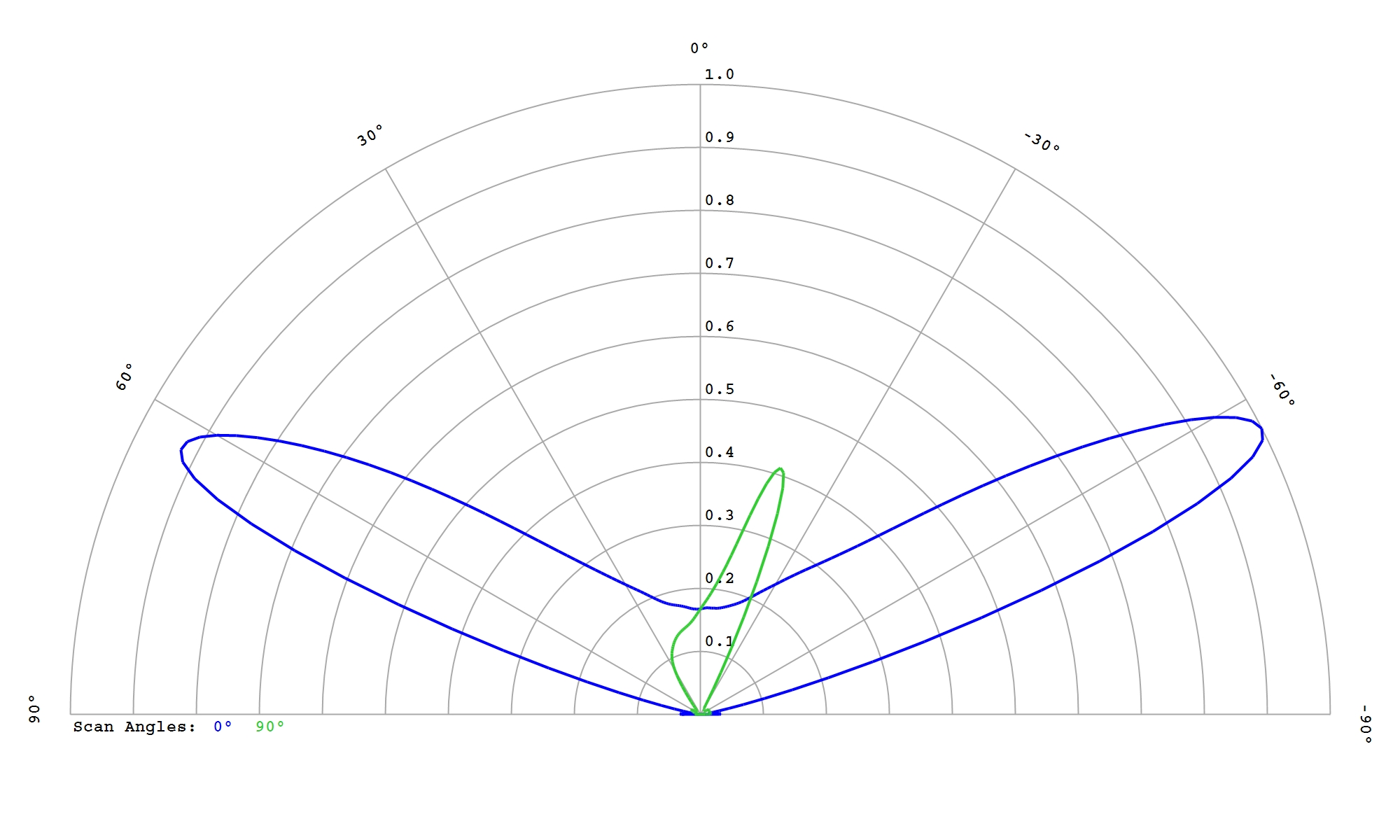

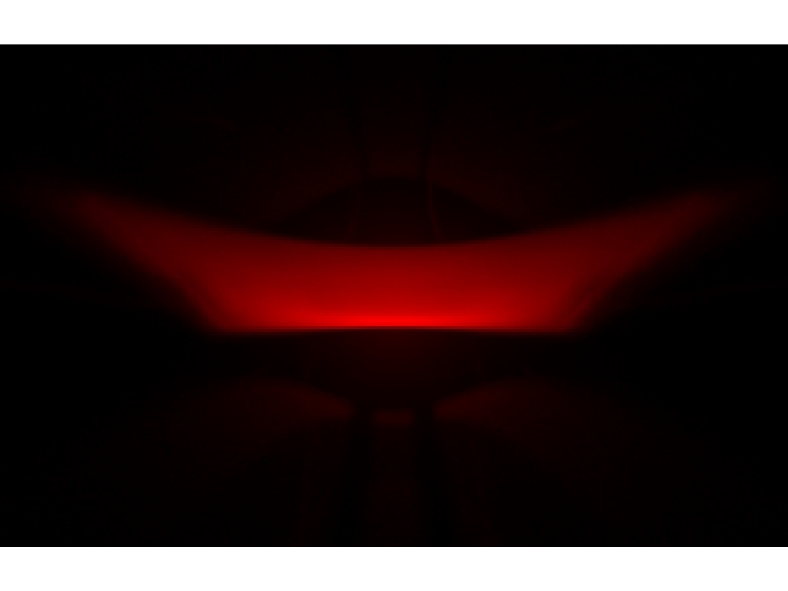

Cree XLamp XQ-A Red-Orange

Eff:

90.0%

FWHM:

139 x 9.5 x 20°

Cd/Im:

1.5


Download

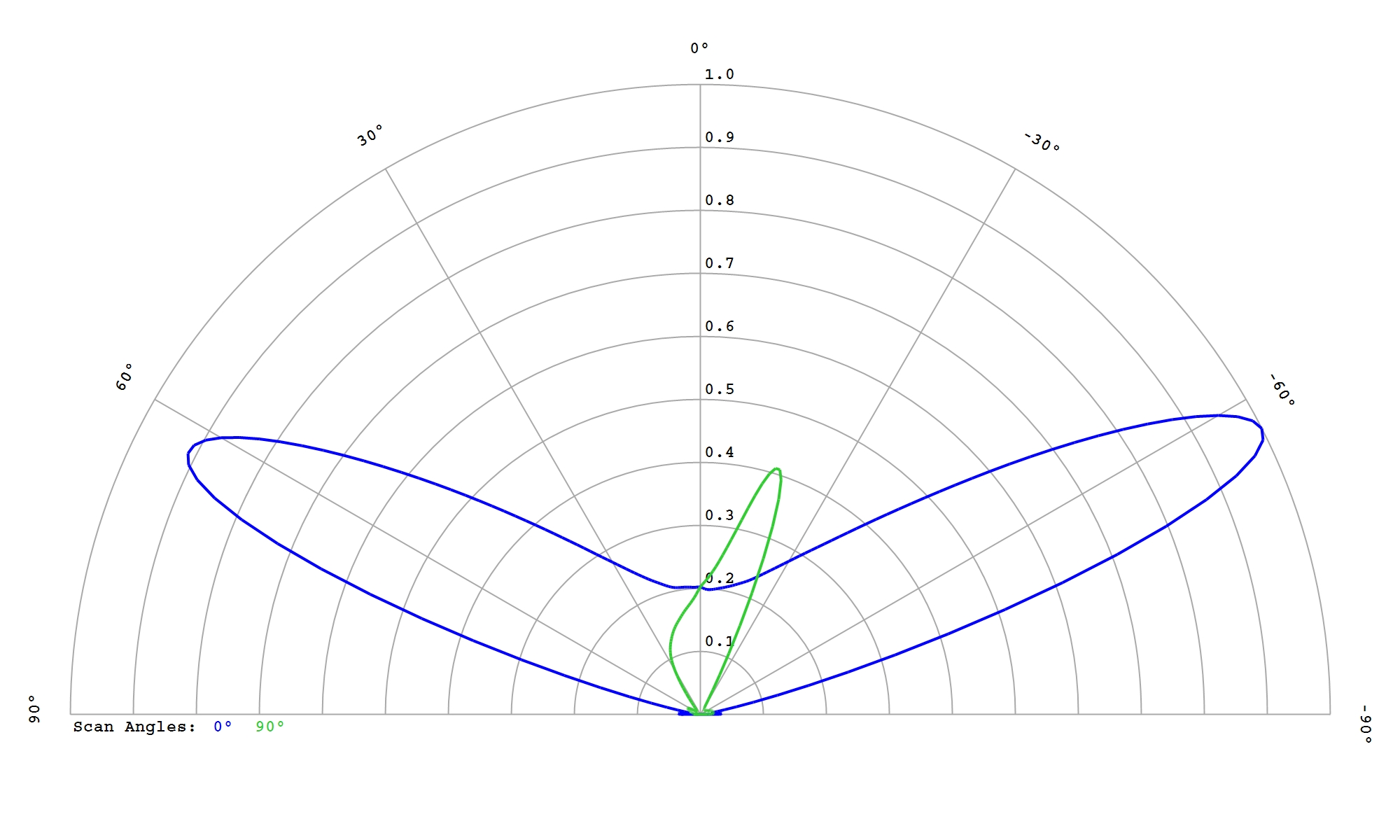

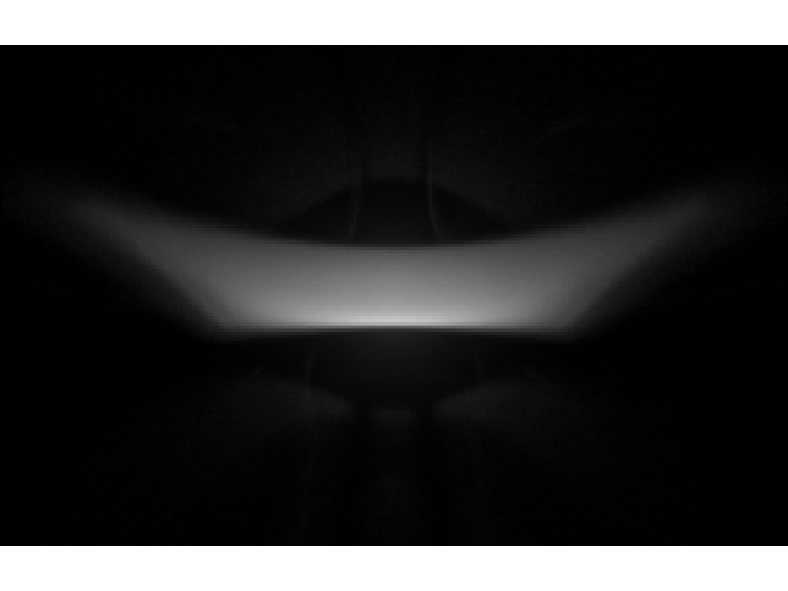

Cree XLamp XQ-A White

Eff:

88.5%

FWHM:

140 x 13 x 19°

Cd/Im:

1.3

Download

Cree XLamp XQ-E HI Blue

Eff:

87.5%

FWHM:

142 X 12.0 X 6.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

87.5%

FWHM:

142 x 12 x 6°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

88.0%

FWHM:

141 X 13.5 X 6°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

83.0%

FWHM:

140 x 9.8 x 19.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

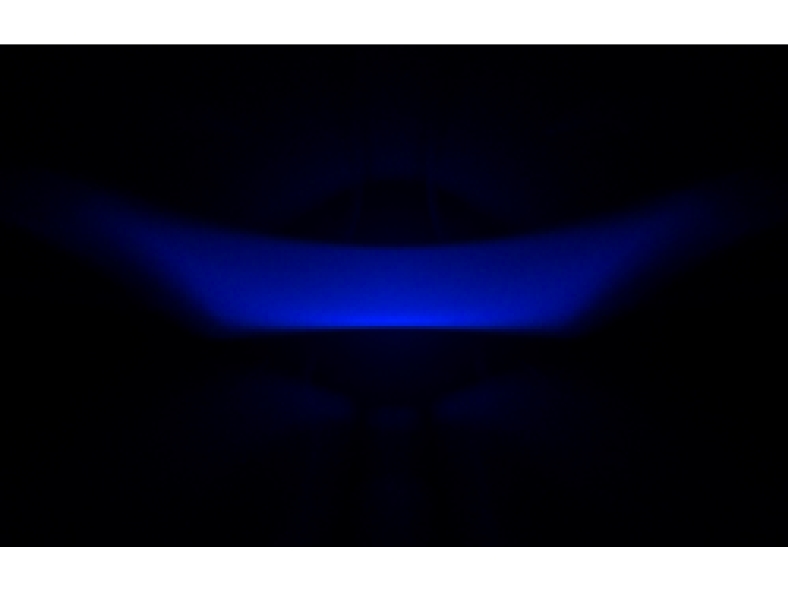

Cree XLamp XQ-E Plus HD Blue

Eff:

88.0%

FWHM:

141 x 12.5 x 19°

Cd/Im:

1.7


Download

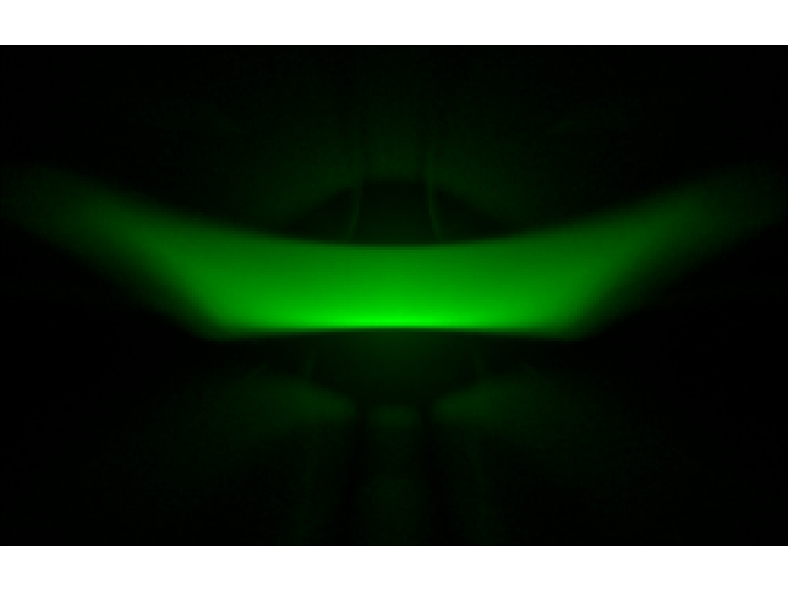

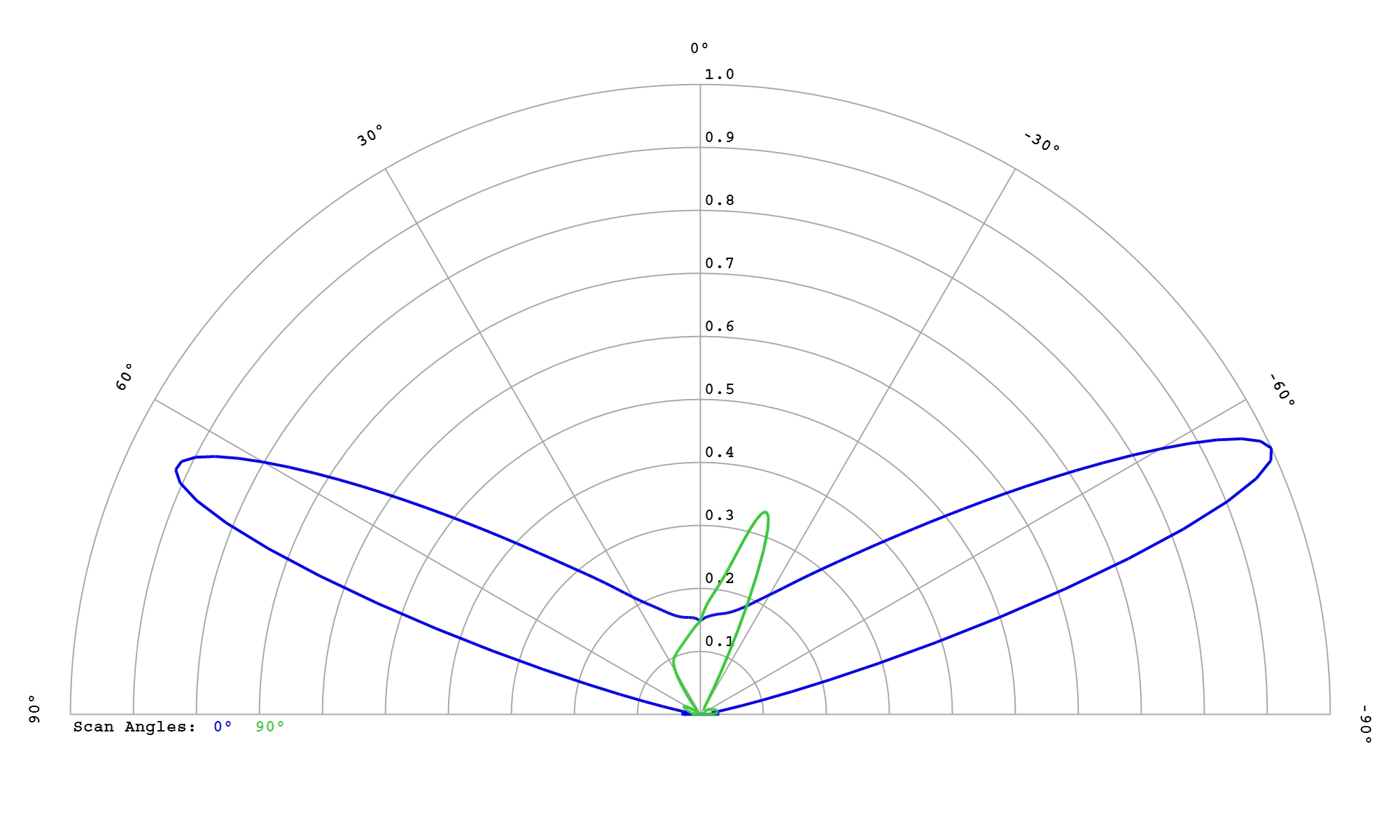

Cree XLamp XQ-E Plus HD Green

Eff:

88.0%

FWHM:

141 x 12.5 x 20°

Cd/Im:

1.6


Download

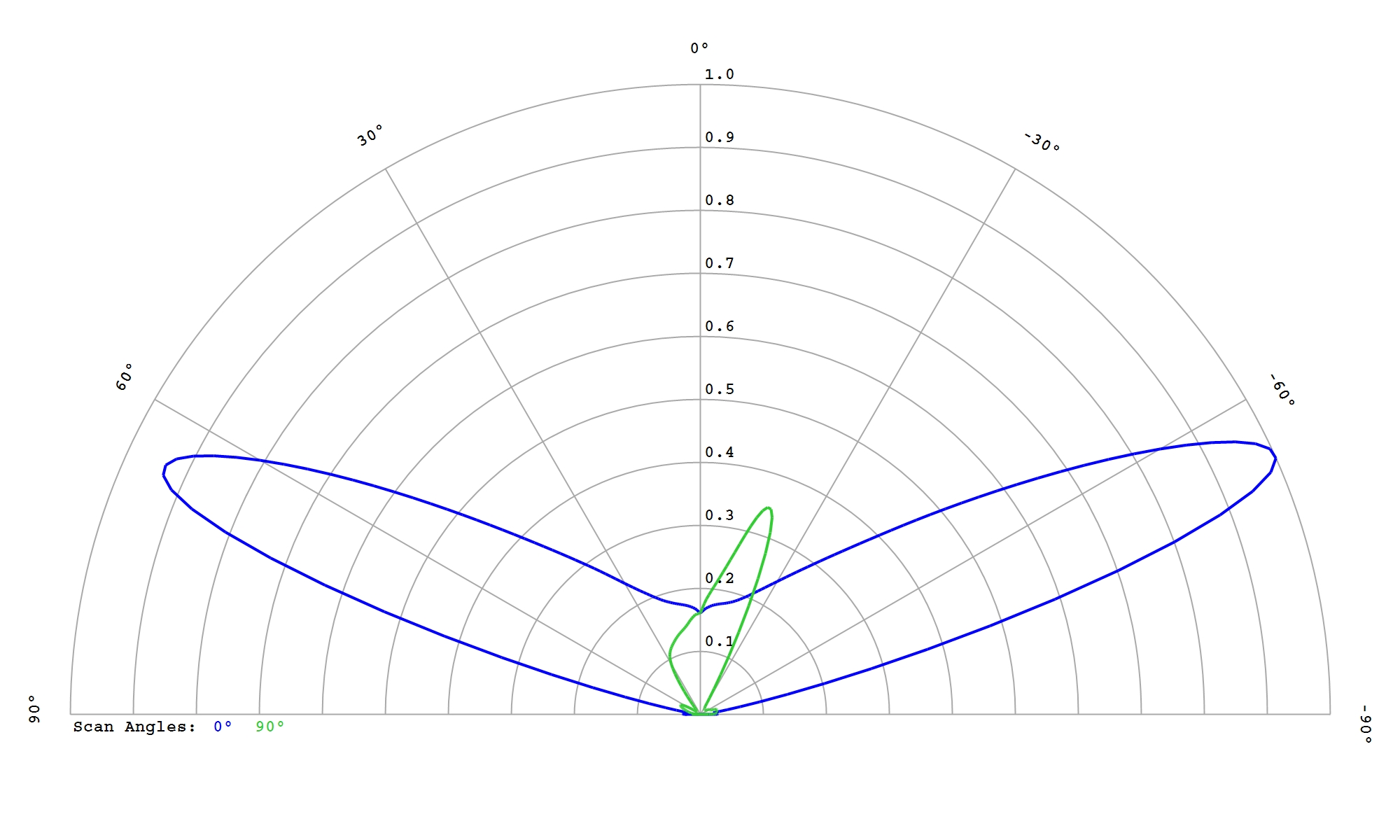

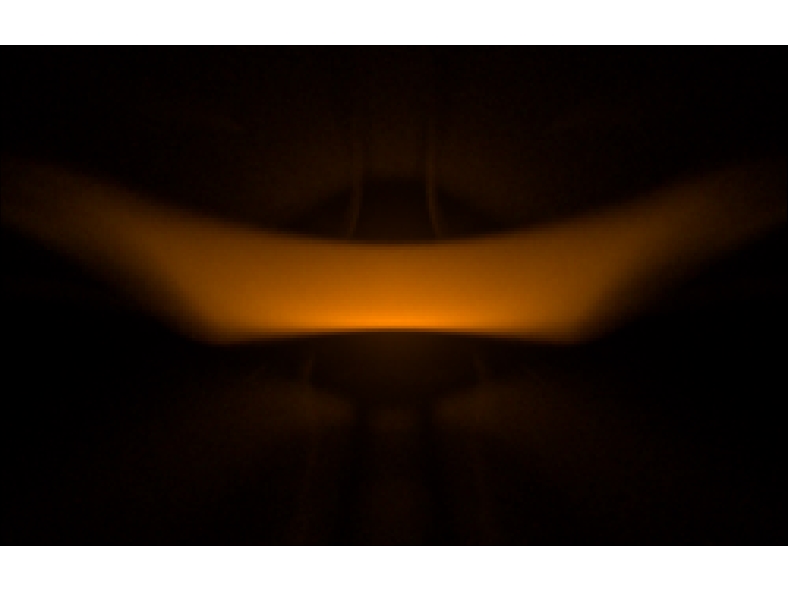

Cree XLamp XQ-E Plus HD PC Amber

Eff:

88.0%

FWHM:

143 x 17 x 20°

Cd/Im:

1.4


Download

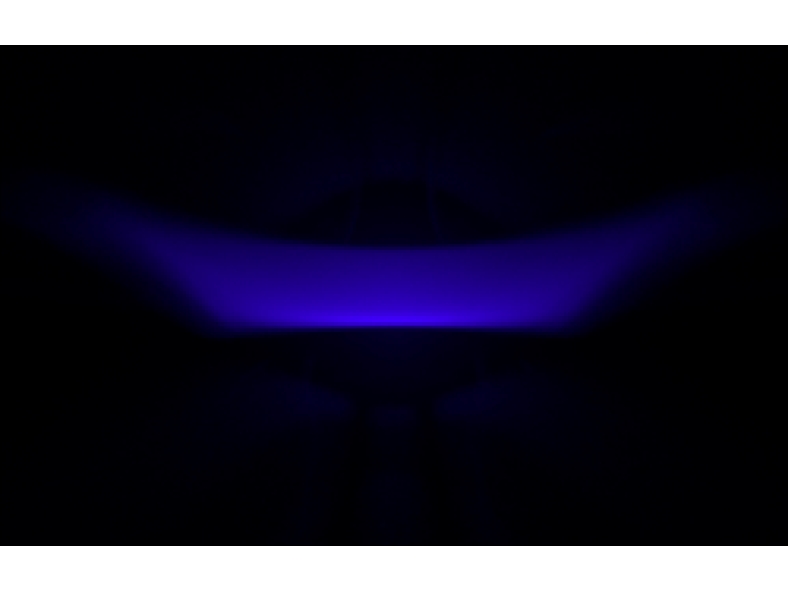

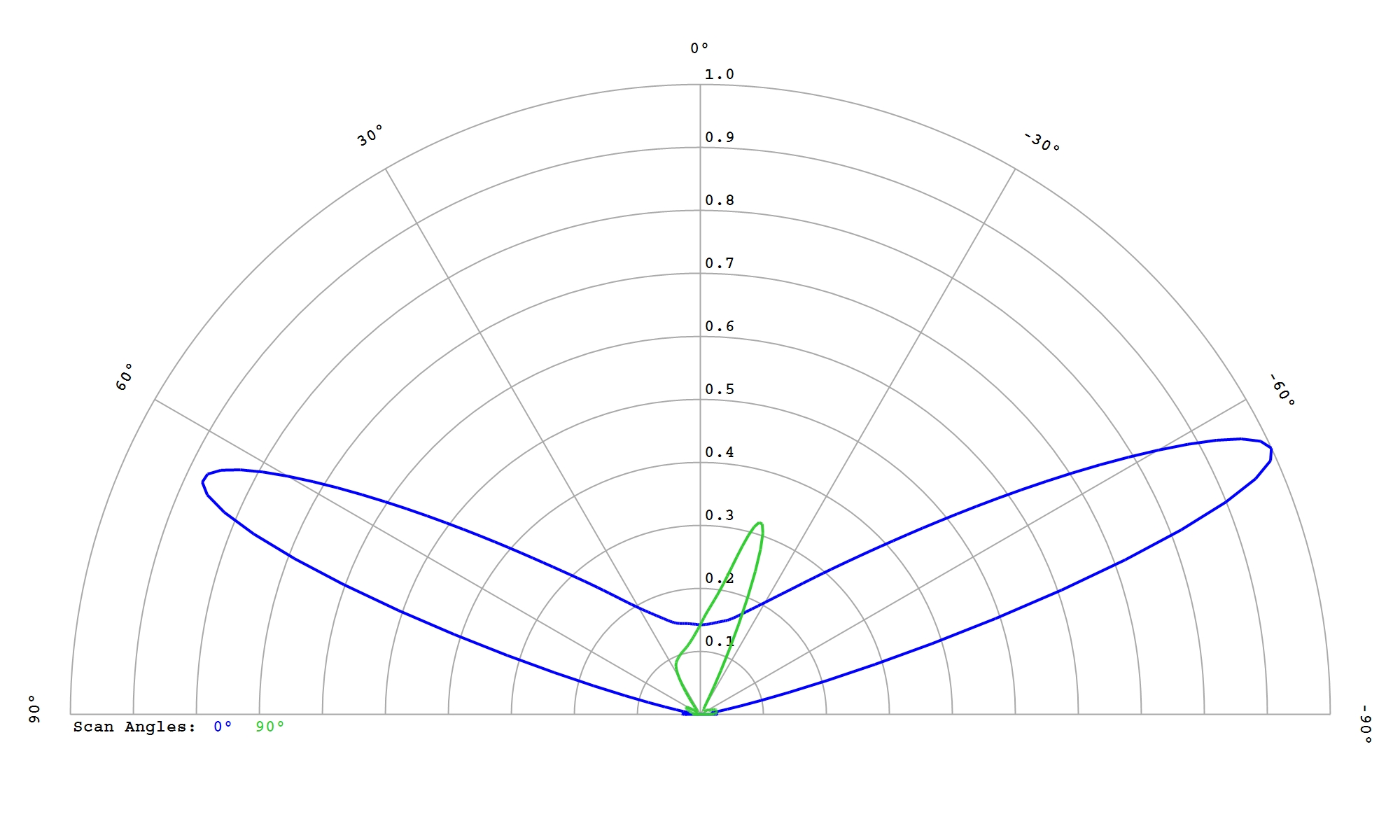

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

87.0%

FWHM:

141 x 12 x 19°

Ipk/W:

1.8


Download

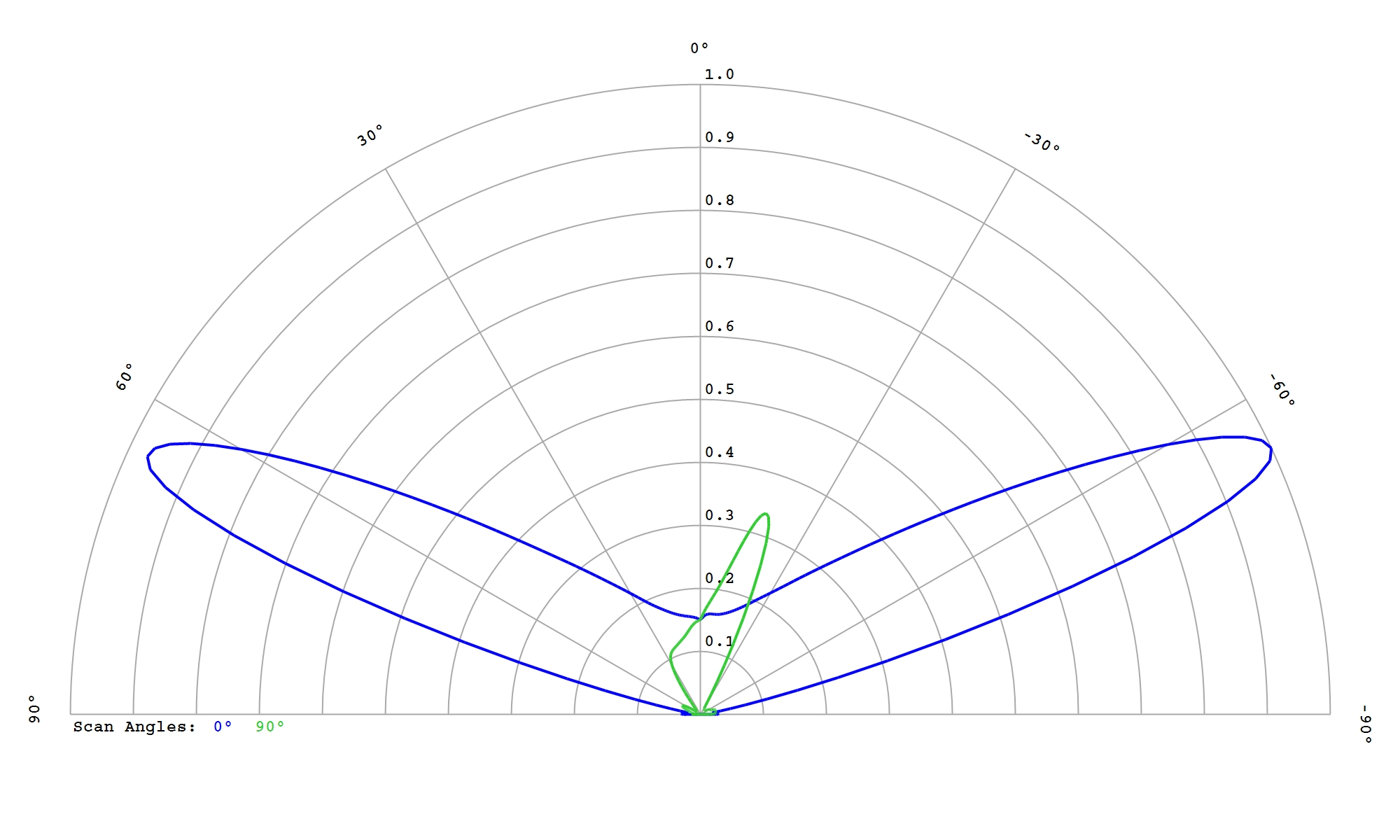

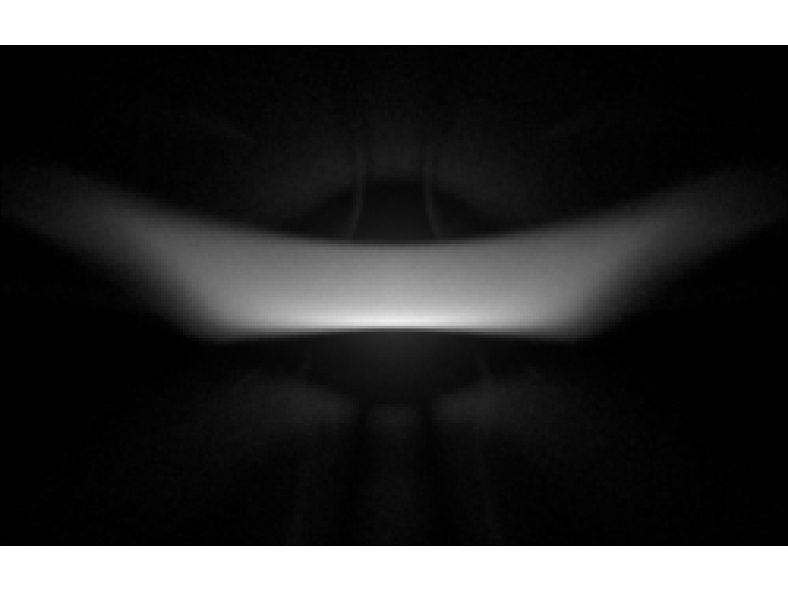

Cree XLamp XQ-E Plus HD White

Eff:

87.5%

FWHM:

142 x 14 x 20°

Cd/Im:

1.4


Download

Cree XLamp XQ-E Plus HI Blue

Eff:

88.0%

FWHM:

142 x 13 x 19°

Cd/Im:

1.9


Download

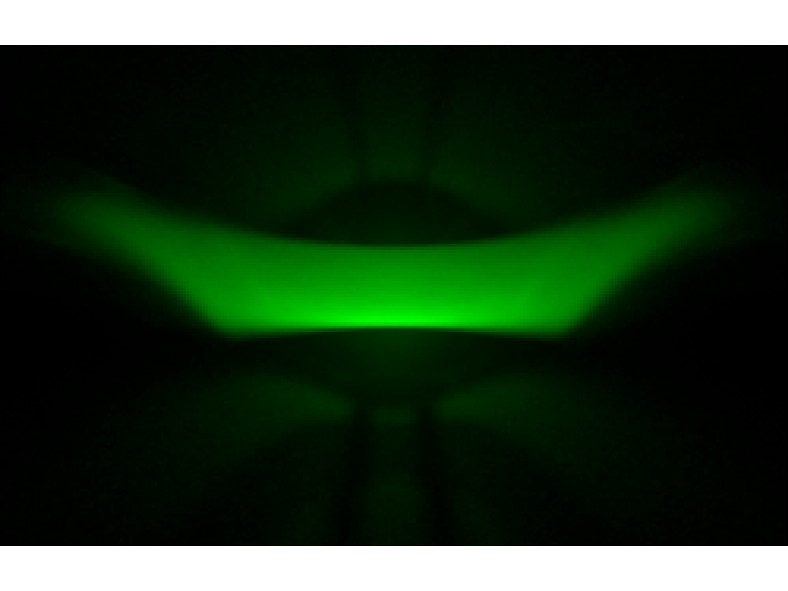

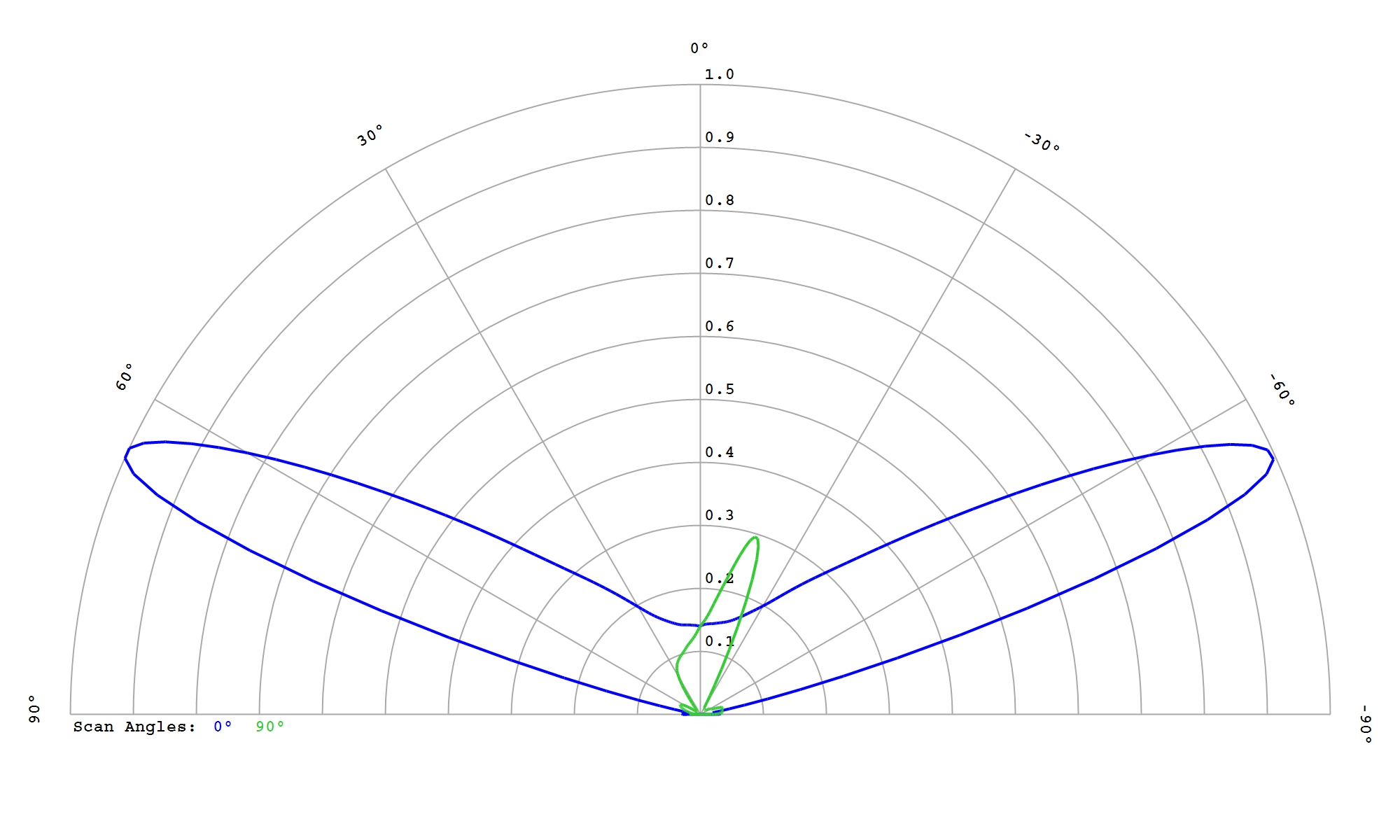

Cree XLamp XQ-E Plus HI Green

Eff:

88.5%

FWHM:

142 x 14.5 x 19°

Cd/Im:

1.7


Download

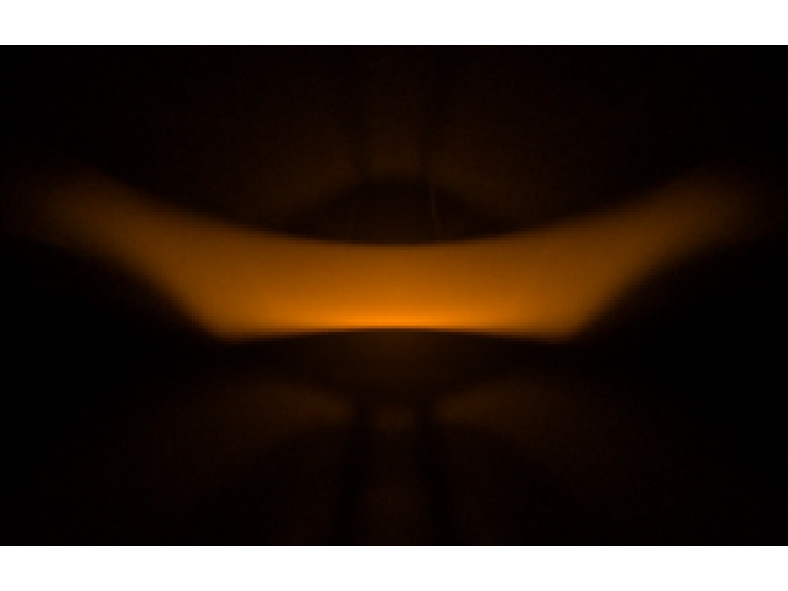

Cree XLamp XQ-E Plus HI PC Amber

Eff:

88.0%

FWHM:

143 x 16 x 20°

Cd/Im:

1.6


Download

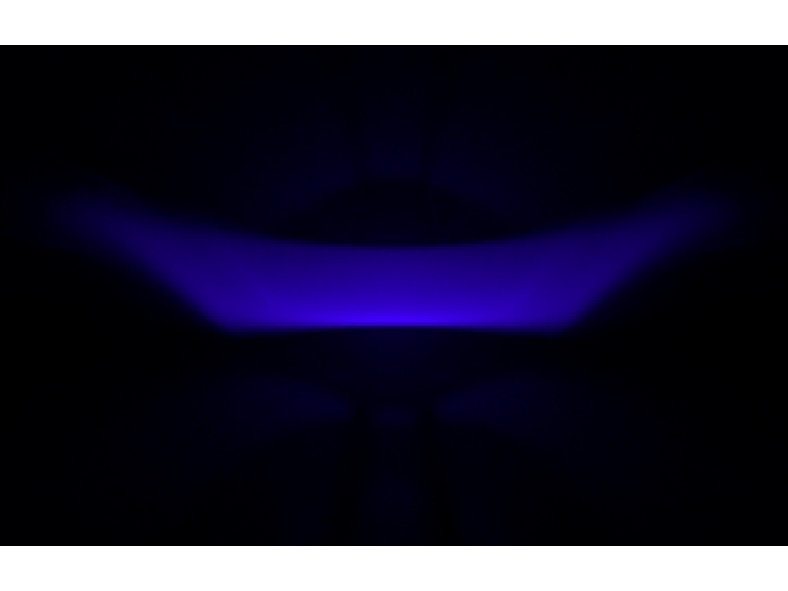

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

87.0%

FWHM:

142 x 13 x 19°

Ipk/W:

1.8


Download

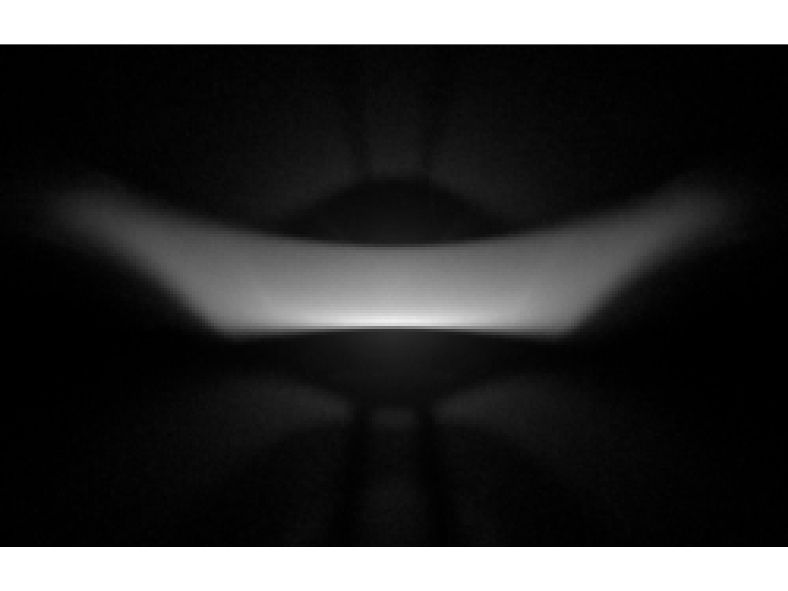

Cree XLamp XQ-E Plus HI White

Eff:

88.5%

FWHM:

142 x 12.5 x 20°

Cd/Im:

1.7


Download

Cree XLamp XQ-E HD White

Eff:

86.3%

FWHM:

138 x 12x 19°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XT-E HE White

Eff:

88.0%

FWHM:

145 x 26 x 6°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

Eff:

84.3%

FWHM:

144 x 17 x 19°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

Eff:

91.0%

Download

ies

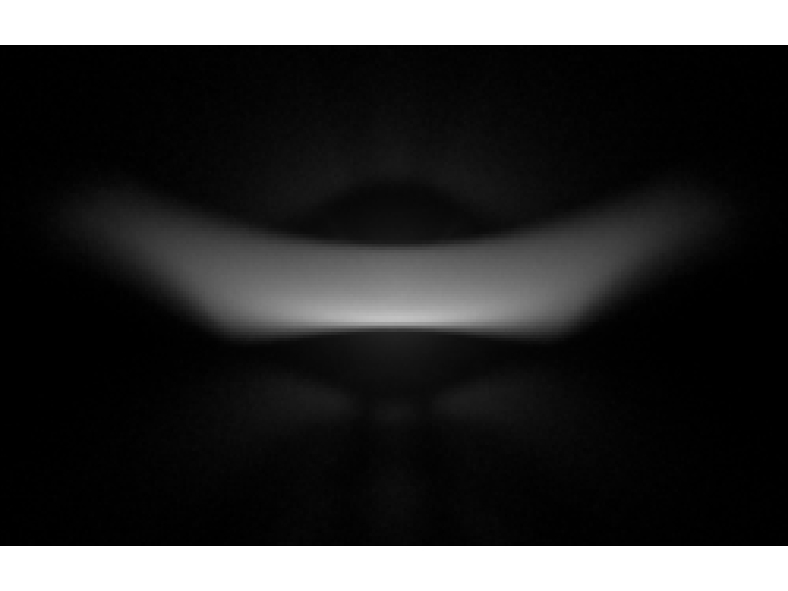

LUMILEDS LUXEON 2835C 6V White

Eff:

89.5%

FWHM:

141 x 18.5 x 18°

Cd/Im:

1.4

Download

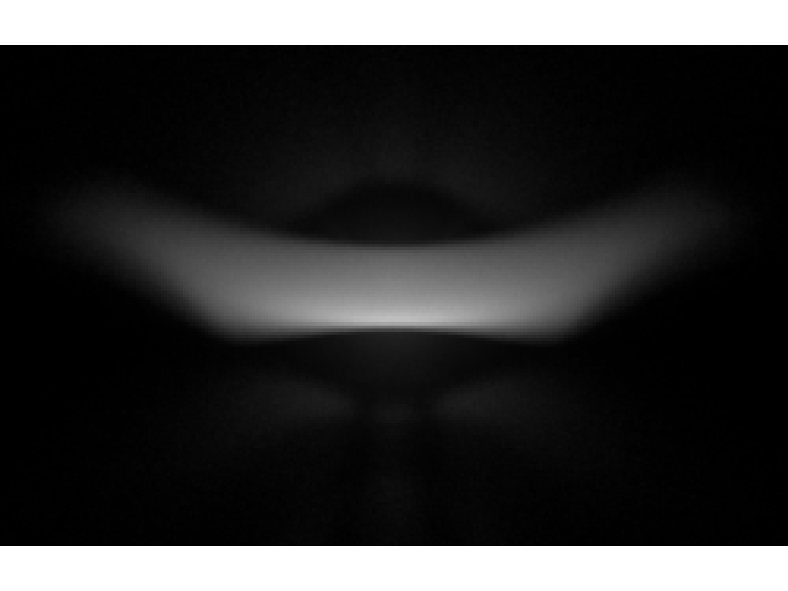

LUMILEDS LUXEON 2835E 9V White

Eff:

89.5%

FWHM:

142 x 21.5 x 19°

Cd/Im:

1.4

Download

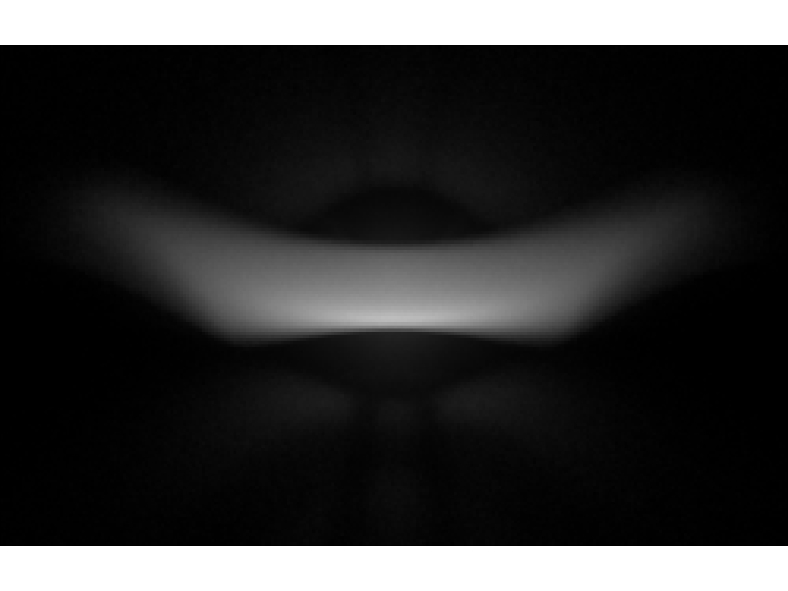

LUMILEDS LUXEON 2835N 3V White

Eff:

89.5%

FWHM:

142 x 20 x 18°

Cd/Im:

1.4

Download

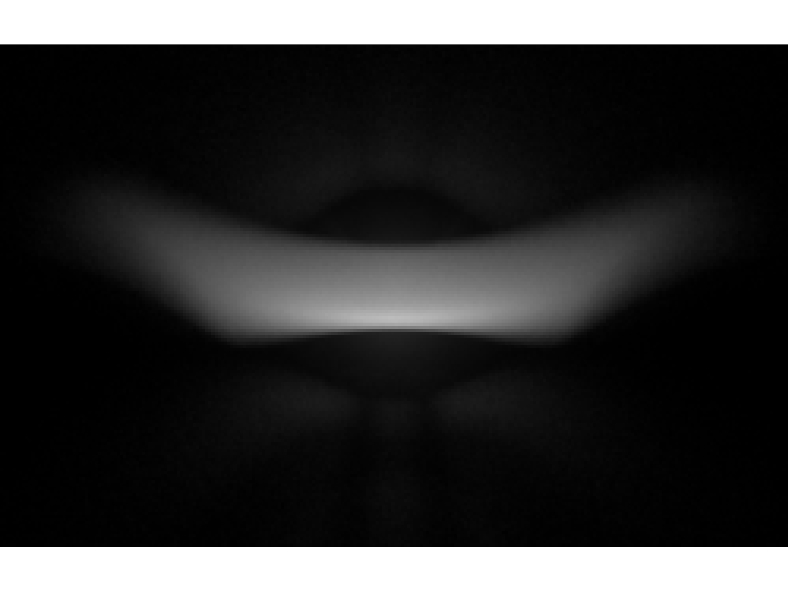

LUMILEDS LUXEON 2835S 3V White

Eff:

89.5%

FWHM:

142 x 20 x 18°

Cd/Im:

1.4

Download

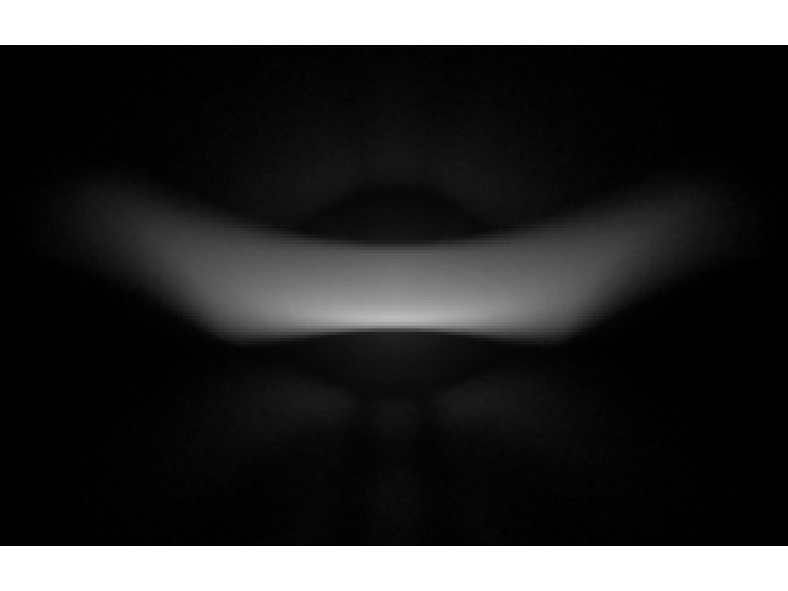

LUMILEDS LUXEON 2835S 6V White

Eff:

89.5%

FWHM:

142 x 20 x 18°

Cd/Im:

1.4

Download

LUMILEDS LUXEON 3014 White

Eff:

89.5%

FWHM:

141 x 10.5 x 19°

Cd/Im:

1.5

Download

IES

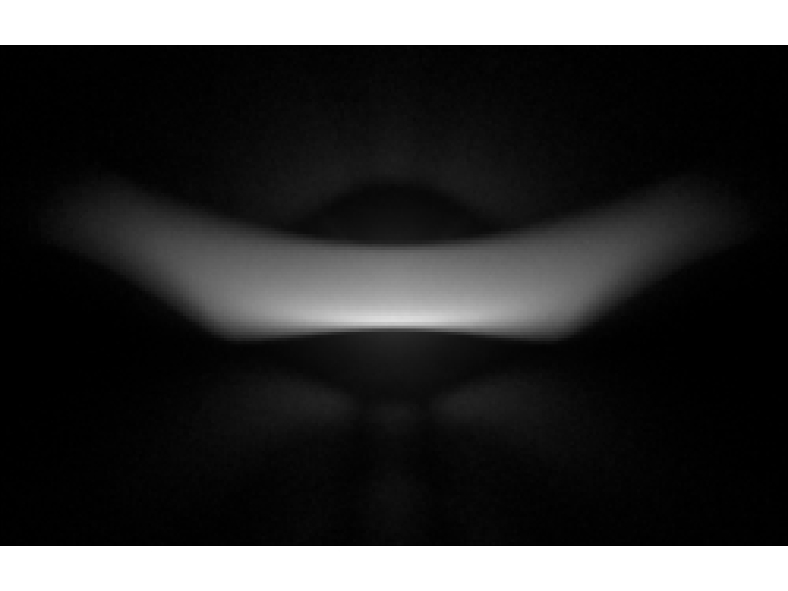

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

89.5%

FWHM:

142 x 18.5 x 19°

Cd/Im:

1.5


Download

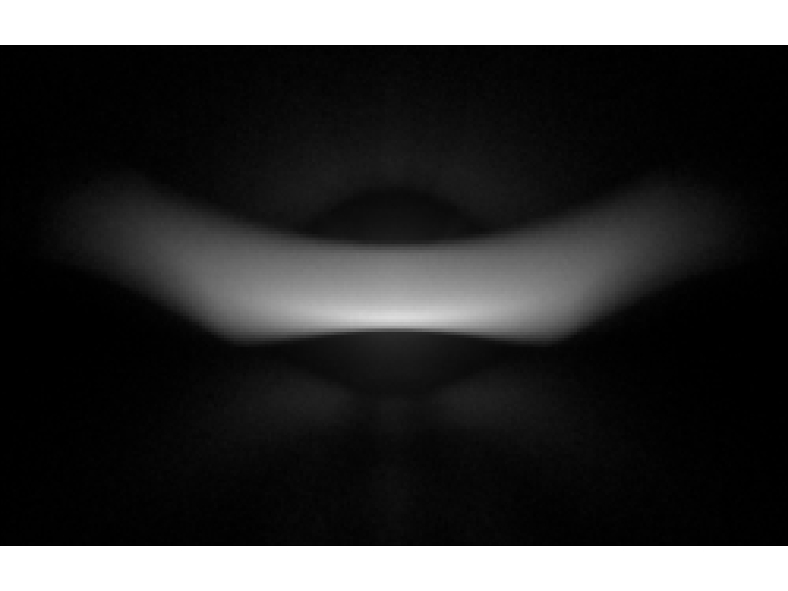

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

89.5%

FWHM:

142 x 23.5 x 17°

Cd/Im:

1.4


Download

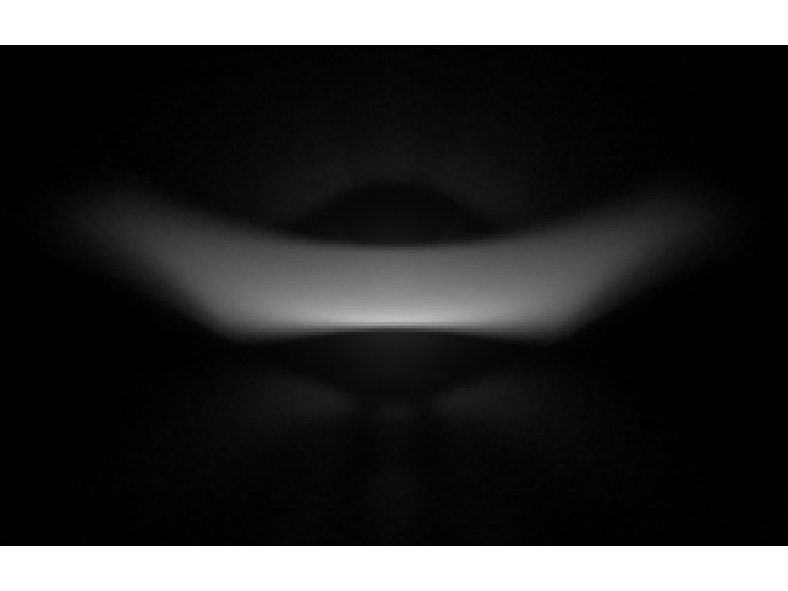

LUMILEDS LUXEON 3030 2D Square White

Eff:

89.5%

FWHM:

141 x 16.5 x 18°

Cd/Im:

1.5


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

89.5%

FWHM:

139 x 14.5 x 18°

Cd/Im:

1.6

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

89.5%

FWHM:

141 x 17.5 x 18°

Cd/Im:

1.5

Carclo Optics – 12587 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12587 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

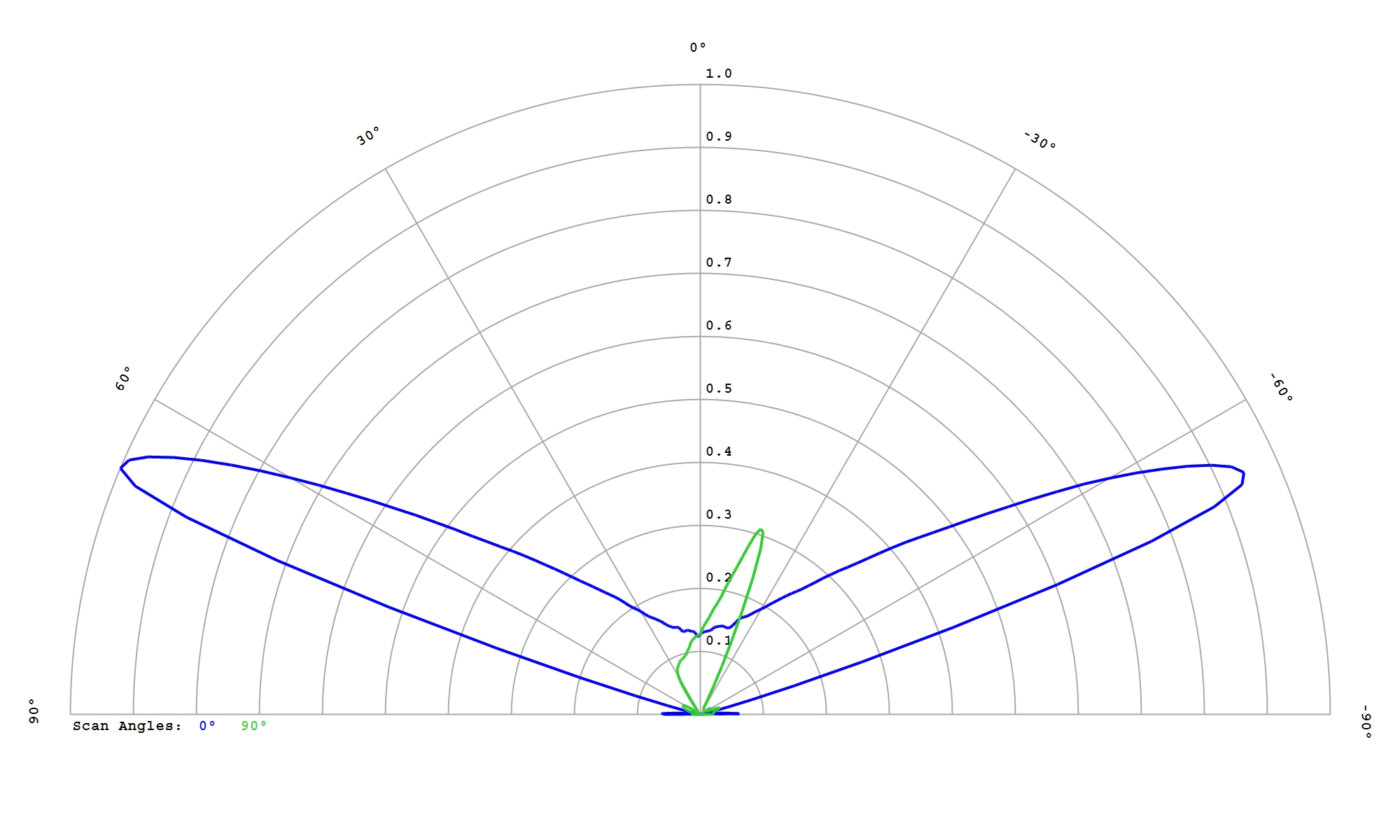

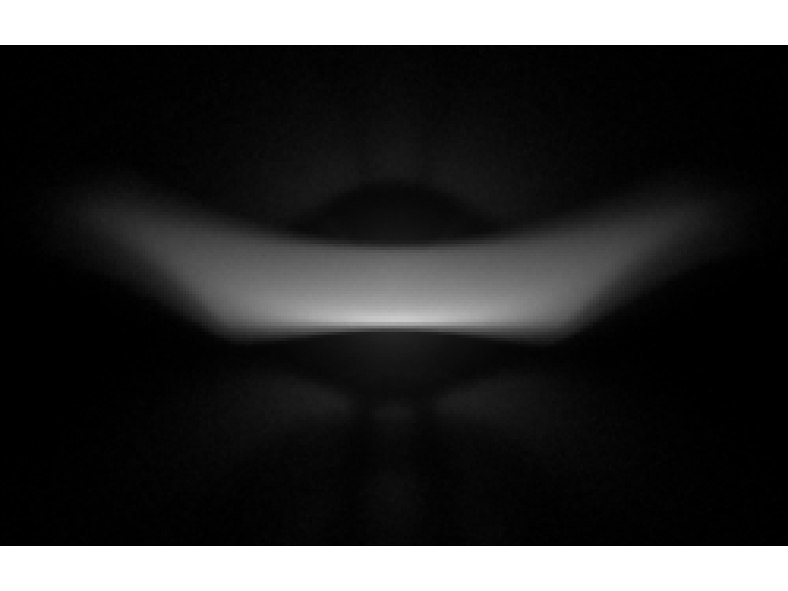

LUMILEDS LUXEON 3030 HE White

Eff:

89.5%

FWHM:

141 x 16.5 x 19°

Cd/Im:

1.5

Download

LUMILEDS LUXEON 3535L Blue

Eff:

88.5%

FWHM:

142 x 13 x 6°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

88.5%

FWHM:

143 x 13°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

89.0%

FWHM:

142 x 10.5°

Cd/Im:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

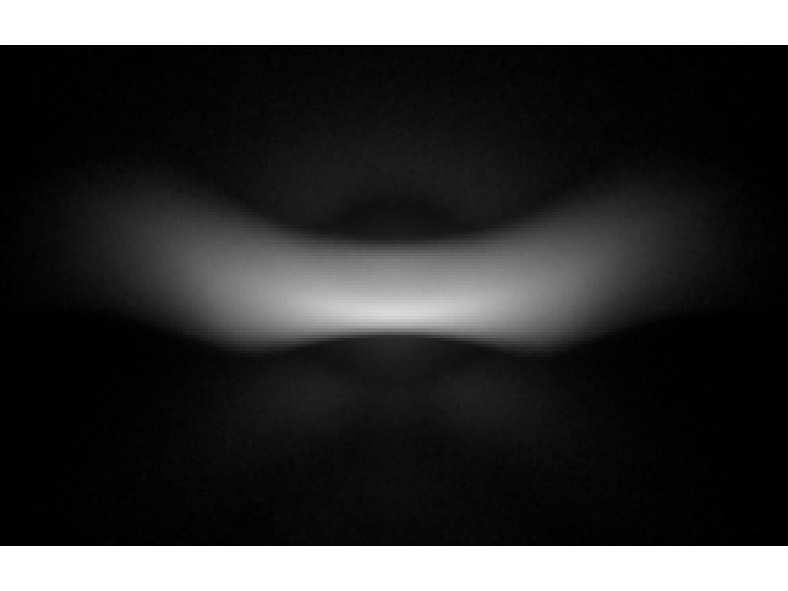

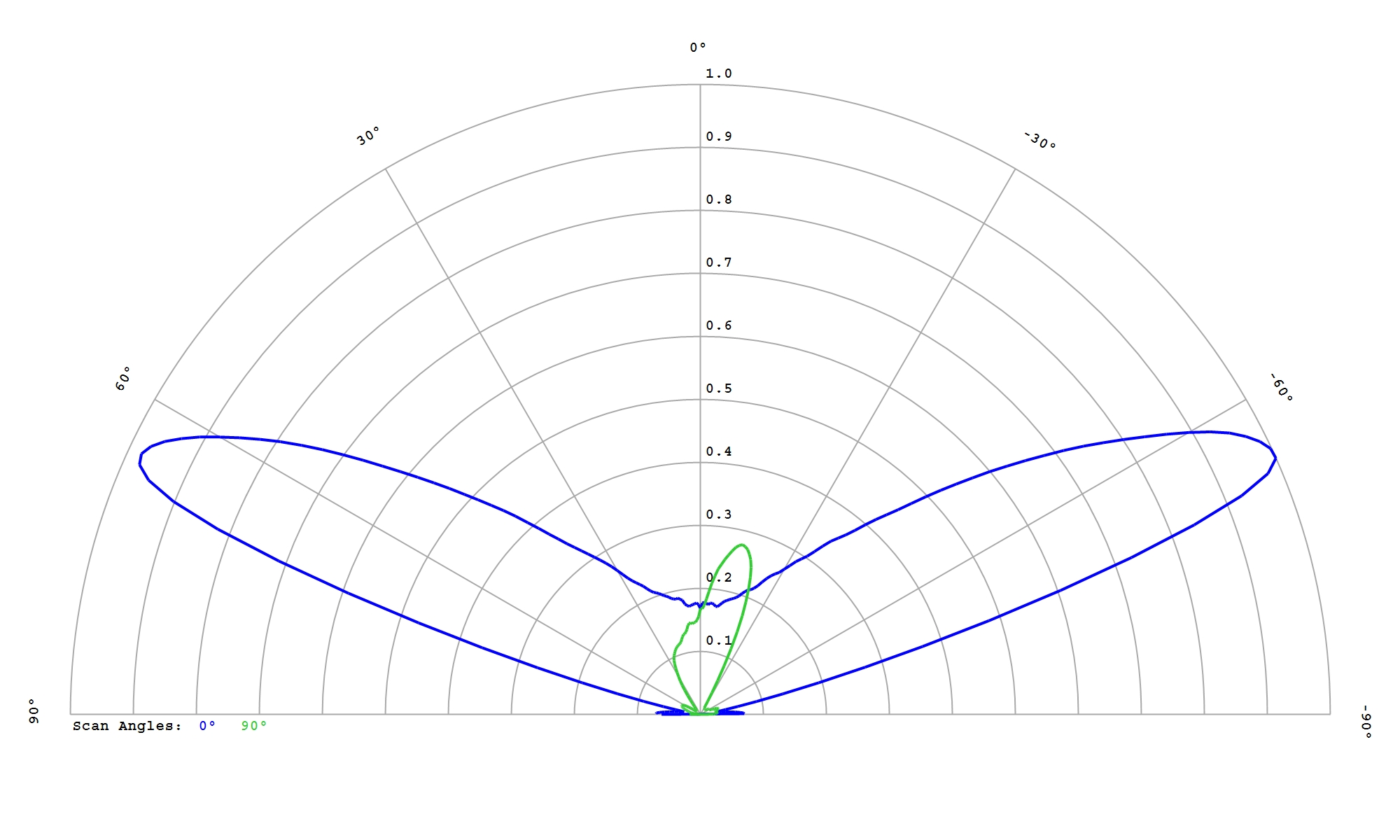

LUMILEDS LUXEON 5050 HE 24V White

Eff:

89.0%

FWHM:

143 x 33 x 14°

Cd/Im:

1.2

Download

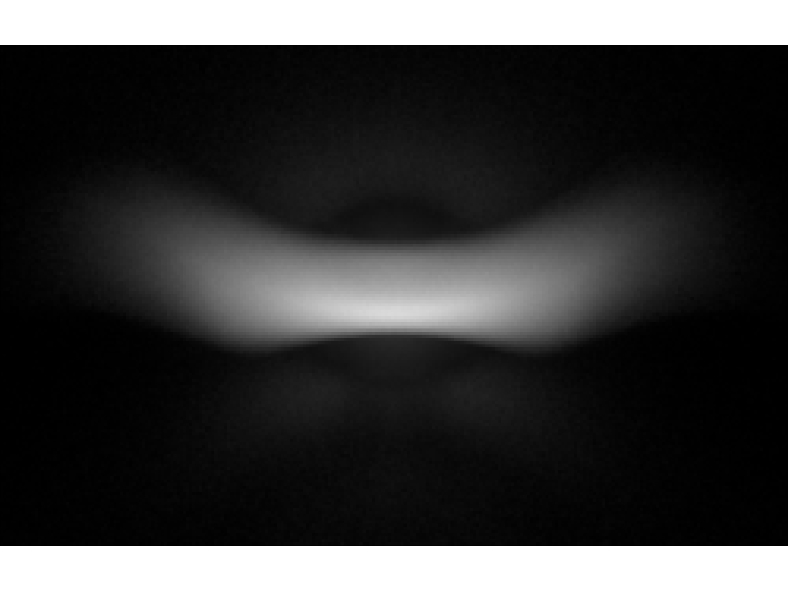

LUMILEDS LUXEON 5050 HE 6V White

Eff:

89.0%

FWHM:

144 x 33 x 15°

Cd/Im:

1.2

Download

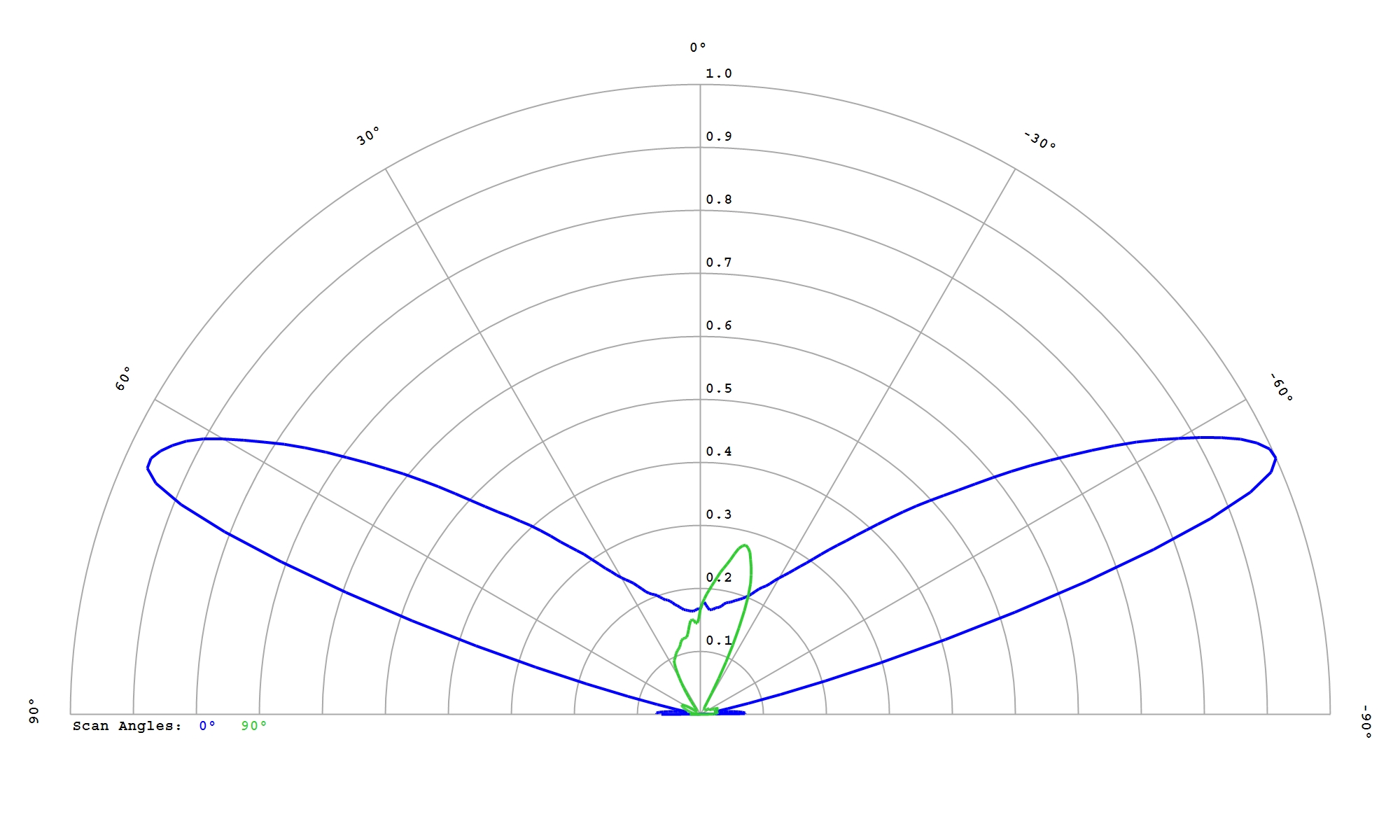

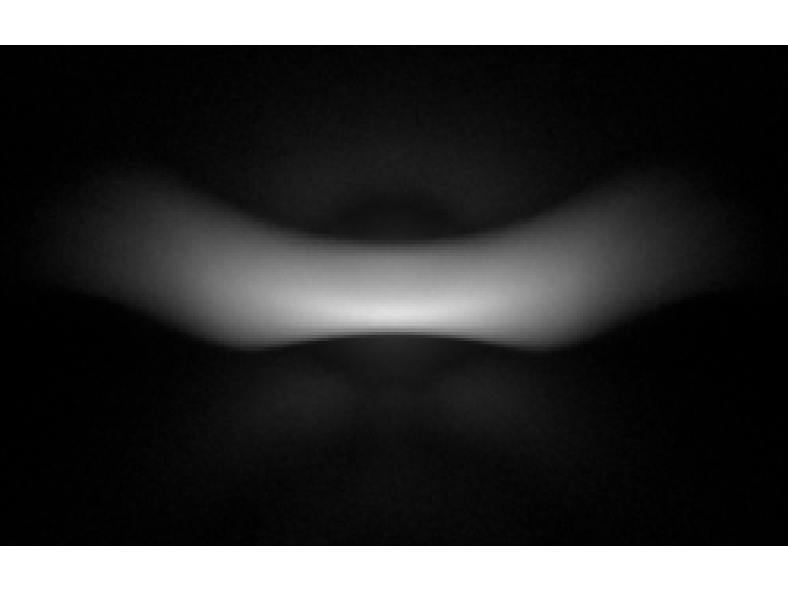

LUMILEDS LUXEON 5050 Round 24V White

Eff:

89.5%

FWHM:

144 x 32 x 15°

Cd/Im:

1.2


Download

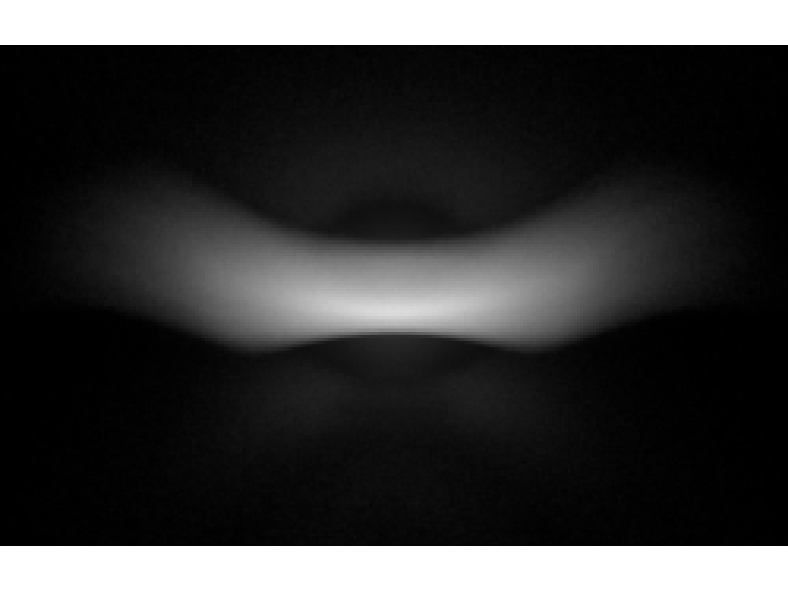

LUMILEDS LUXEON 5050 Square 30V White

Eff:

89.5%

FWHM:

144 x 35 x 14°

Cd/Im:

1.2


Download

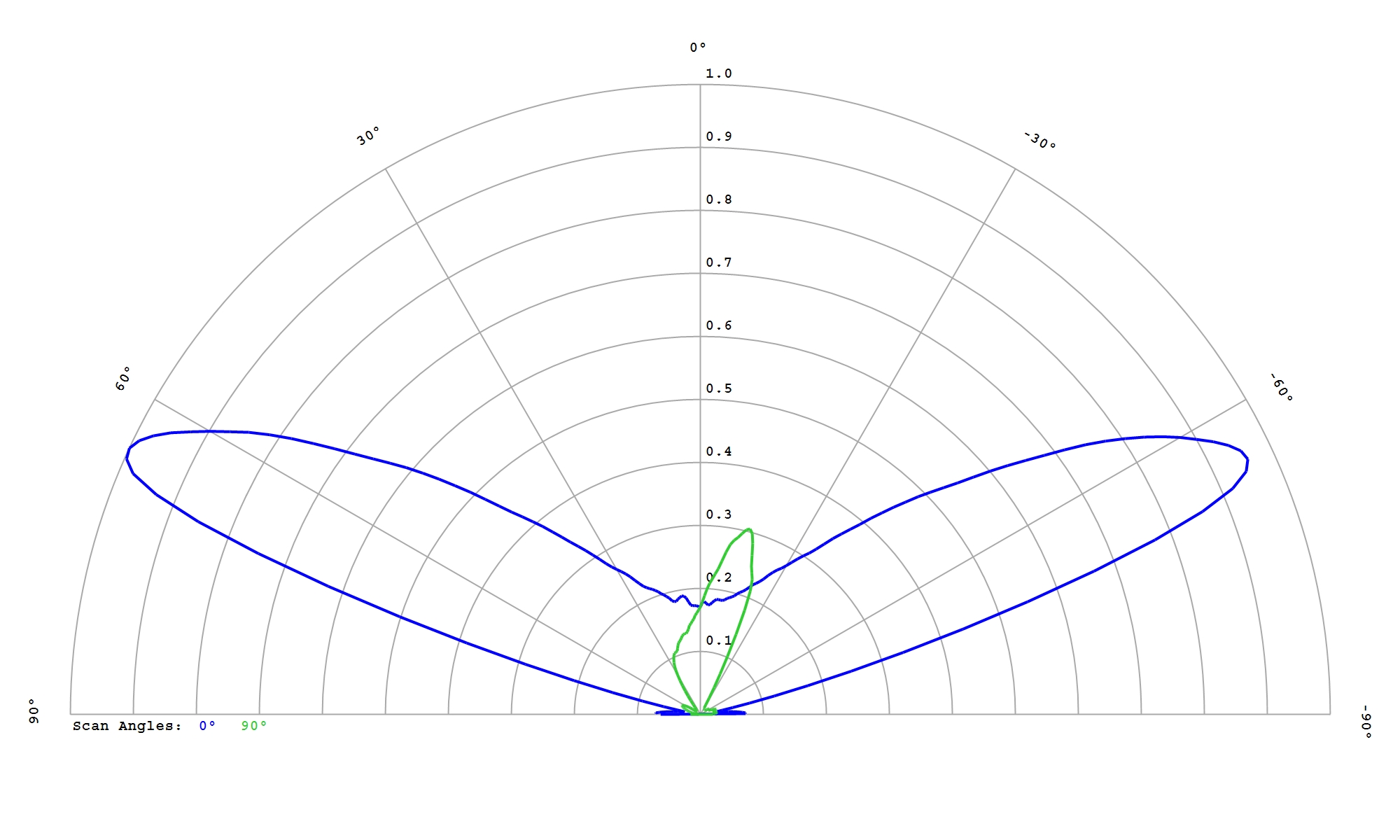

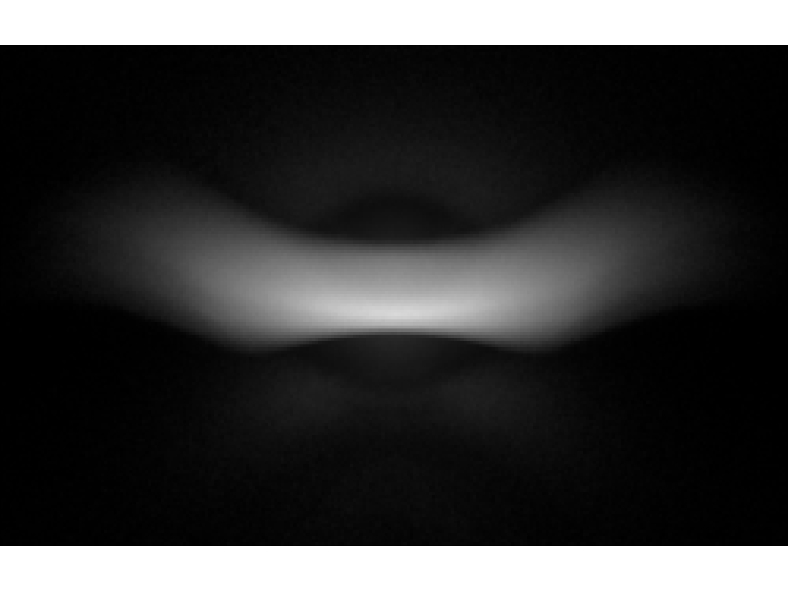

LUMILEDS LUXEON 5050 Square 6V White

Eff:

89.5%

FWHM:

143 x 27 x 15°

Cd/Im:

1.2


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

89.0%

FWHM:

144 x 27 x 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

89.0%

FWHM:

148 x 44 x8°

Cd/Im:

0.9

Carclo Optics – 12587 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 12587 Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

83.0%

FWHM:

146.0 x 11.0 x 6°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

85.0%

FWHM:

146 x 15.5 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

83.0%

FWHM:

147.0 x 13.0 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

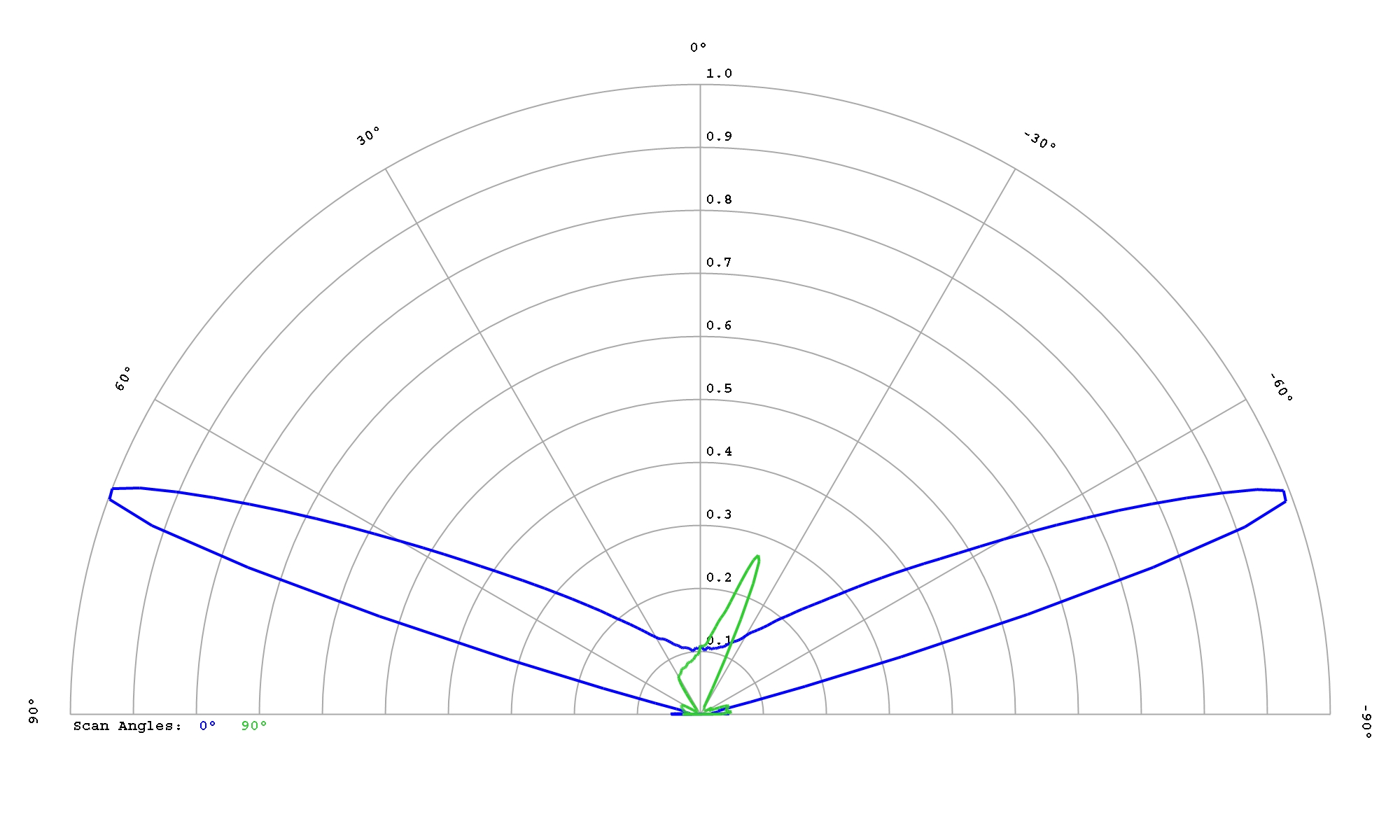

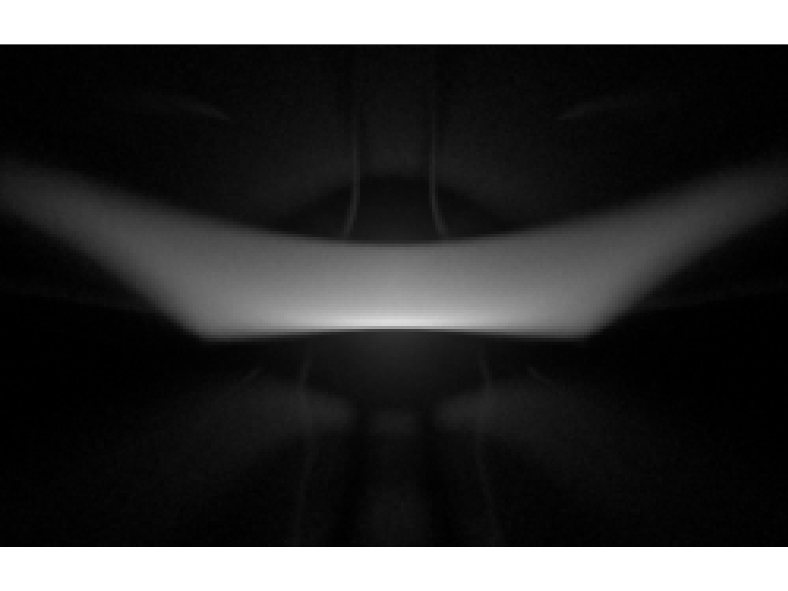

LUMILEDS LUXEON C White

Eff:

85.0%

FWHM:

146 x 13.5 x 20°

Cd/Im:

1.7

Download

LUMILEDS LUXEON CZ White

Eff:

89.5%

FWHM:

142 x 11 x 20°

Cd/Im:

1.7

Carclo Optics 12587 Spot Image Luxeon CZ 5M CW

Carclo Optics 12587 Cross Section Luxeon CZ 5M CW

Download

IES

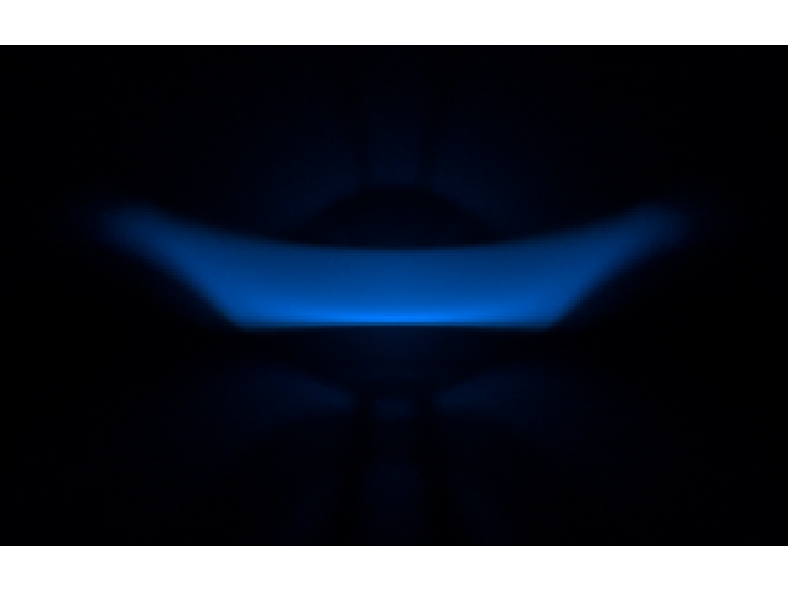

LUMILEDS LUXEON HL1Z Color Blue

Eff:

88.5%

FWHM:

138 x 10.5 x 18°

Cd/Im:

2.2

Download

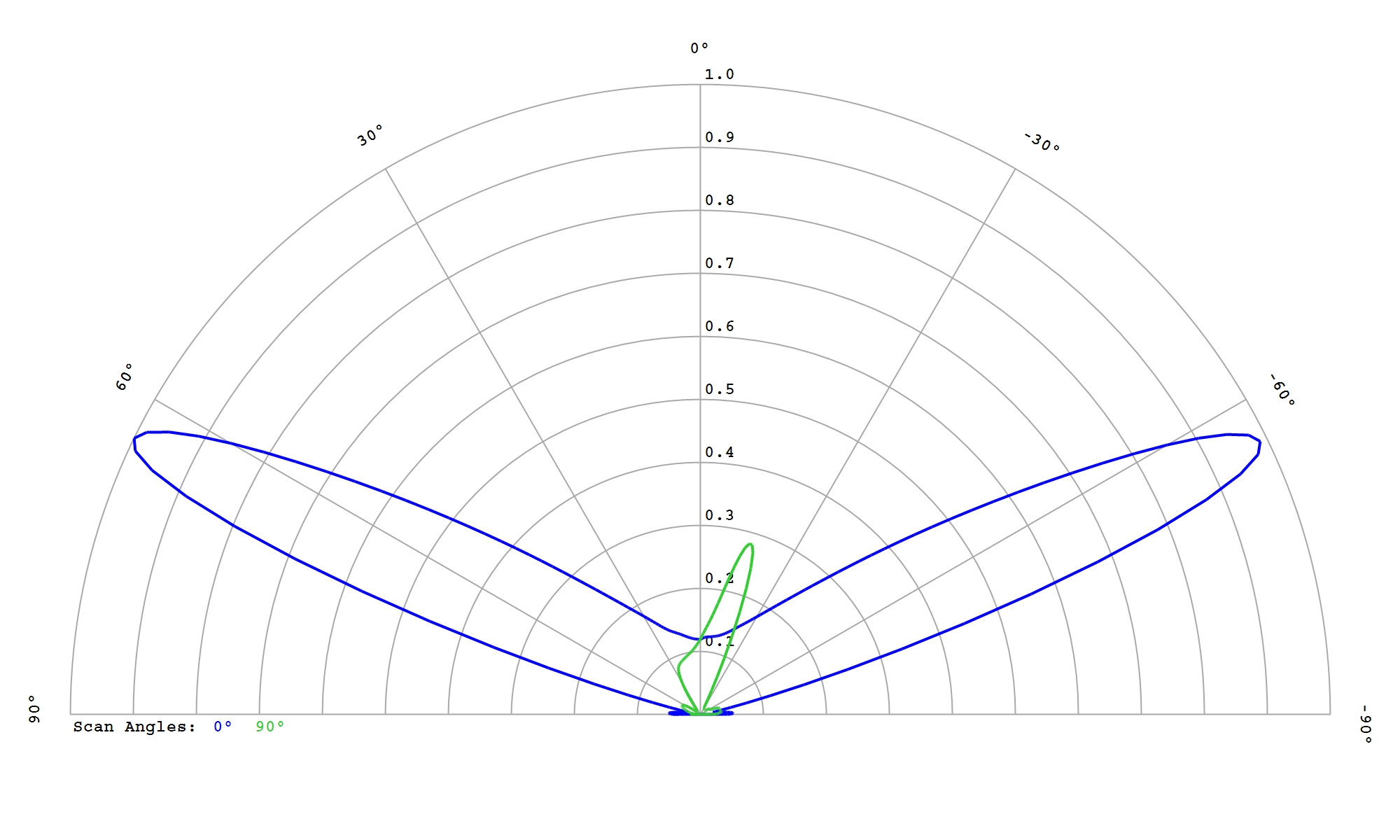

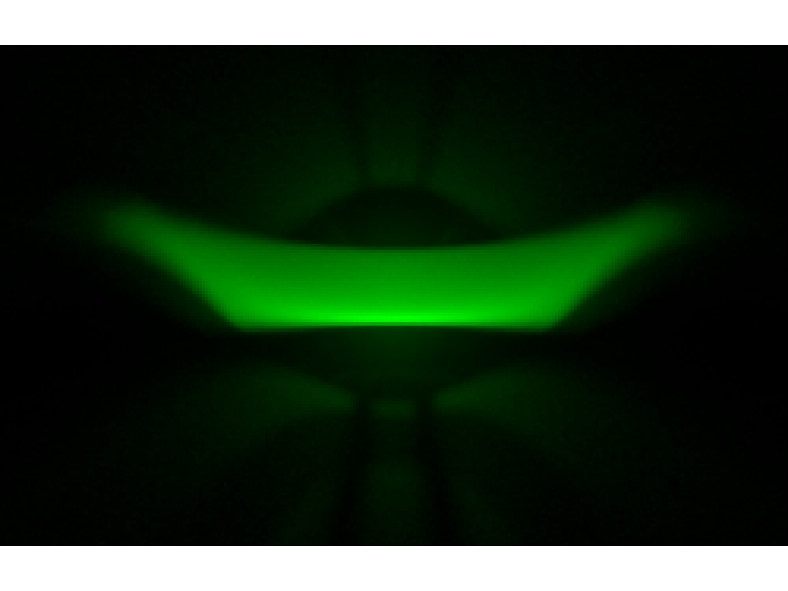

LUMILEDS LUXEON HL1Z Color Green

Eff:

88.5%

FWHM:

138 x 11 x 18°

Cd/Im:

2.1

Download

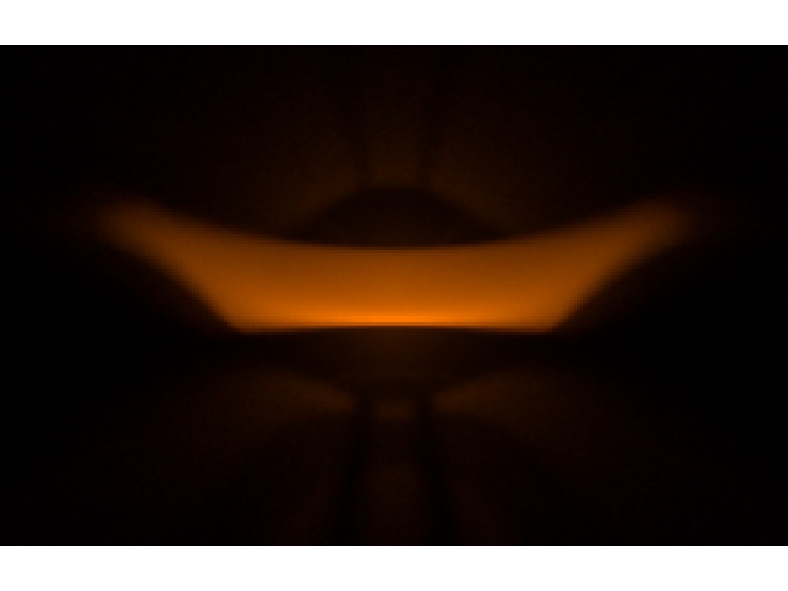

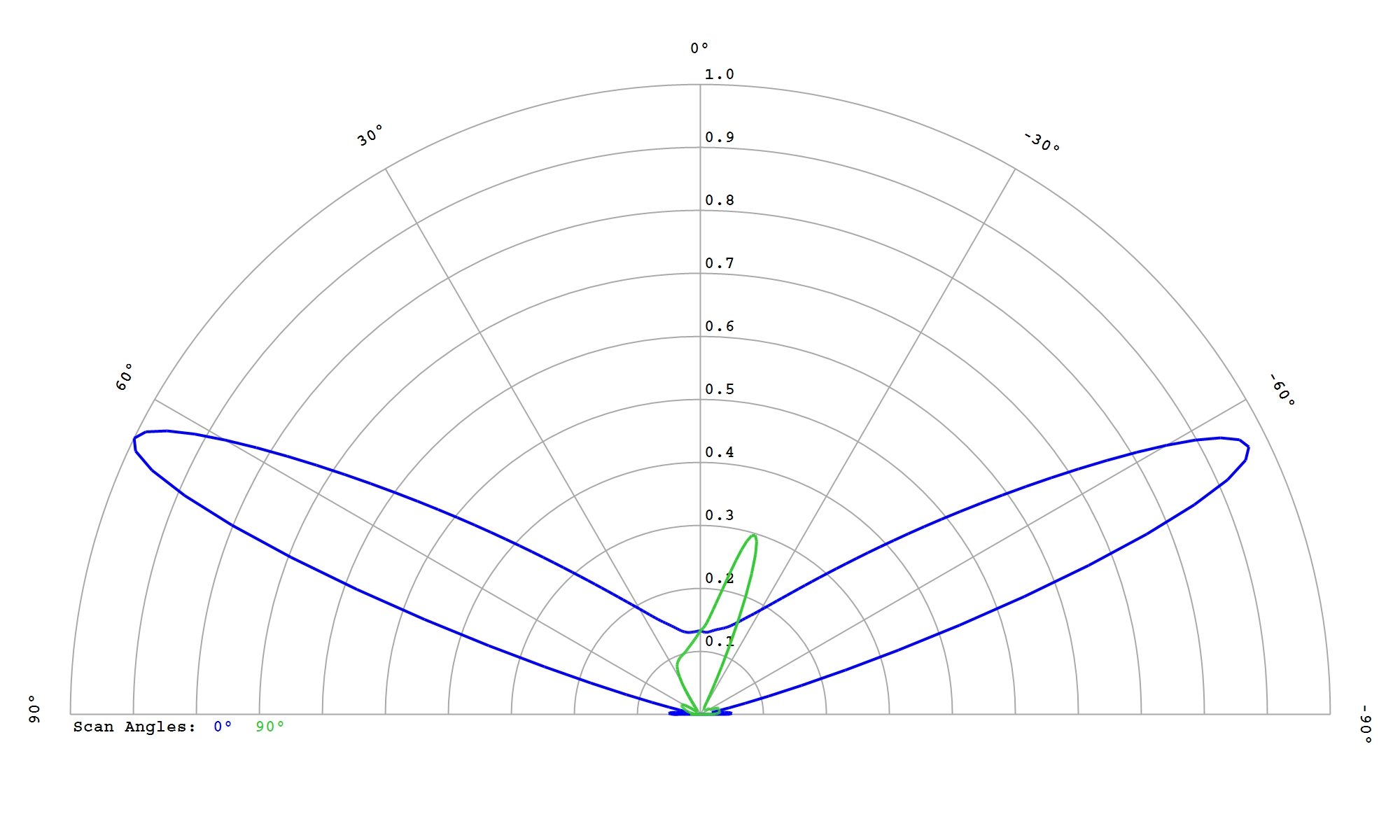

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

88.5%

FWHM:

138 x 12.5 x 18°

Cd/Im:

1.9


Download

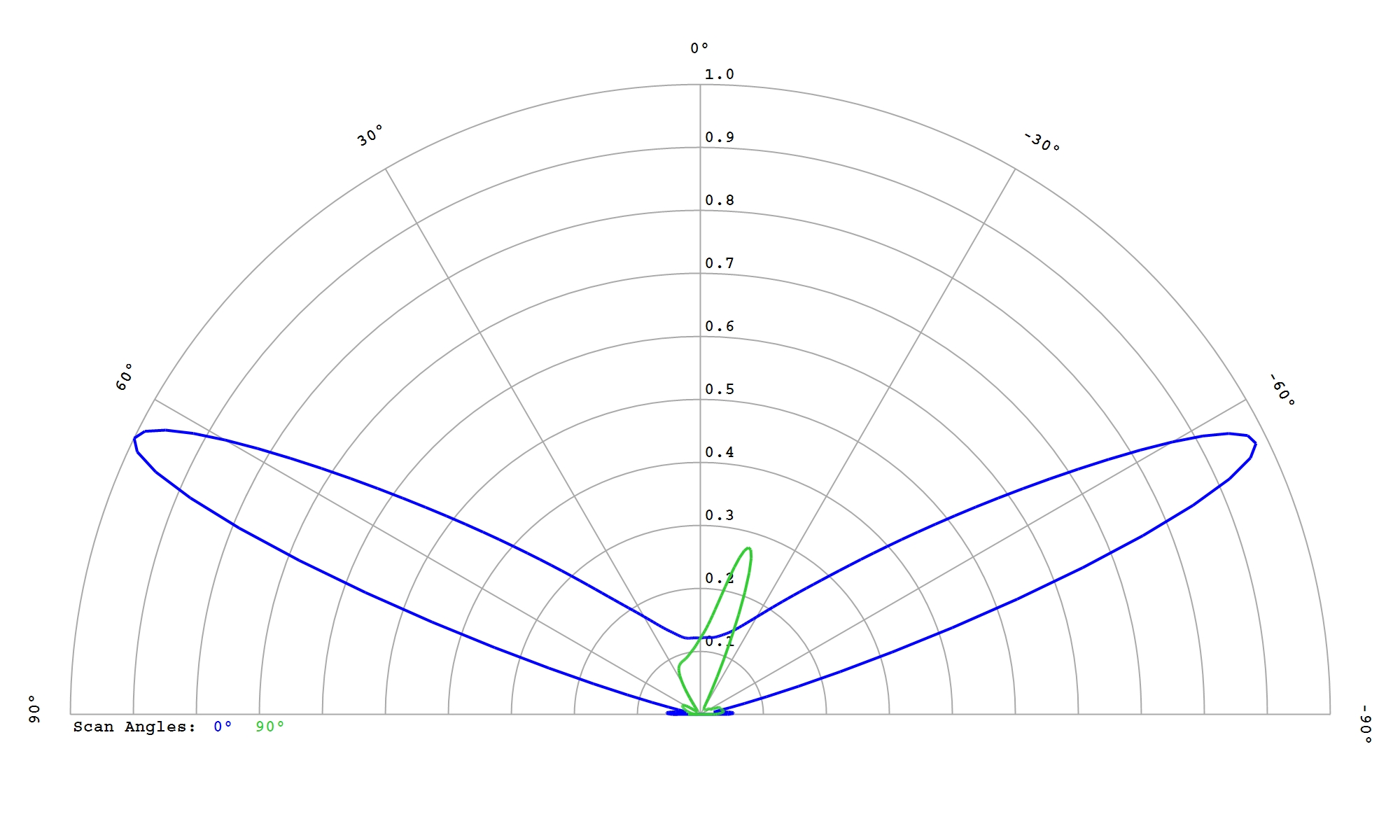

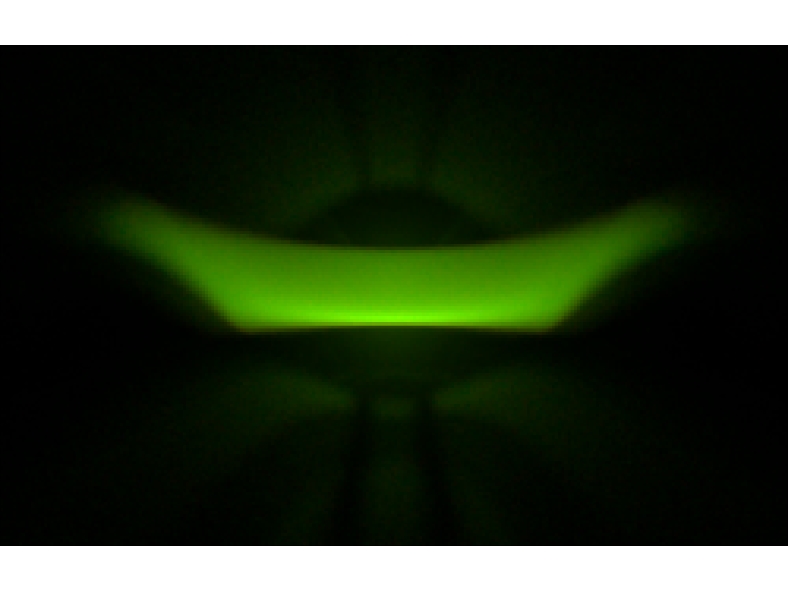

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

87.5%

FWHM:

138 x 12 x 18°

Cd/Im:

2.0


Download

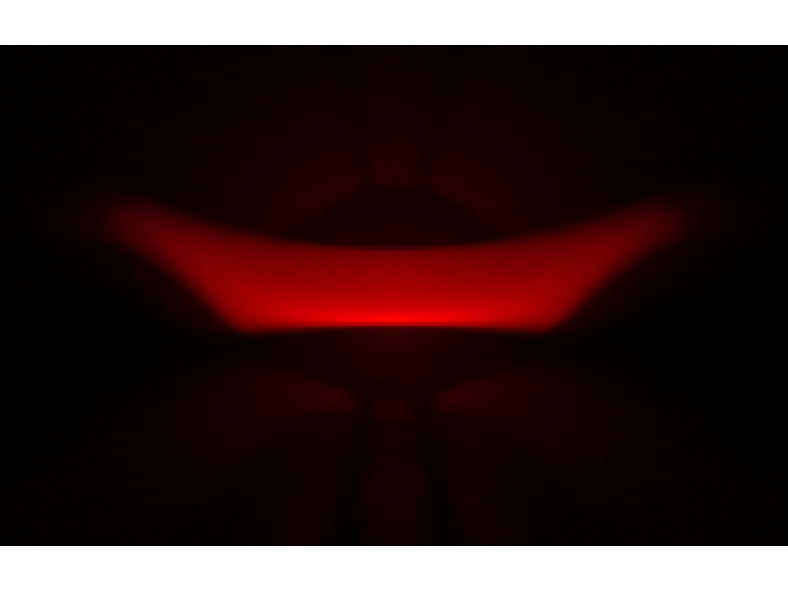

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

89.0%

FWHM:

138 x 12 x 18°

Cd/Im:

1.9

Download

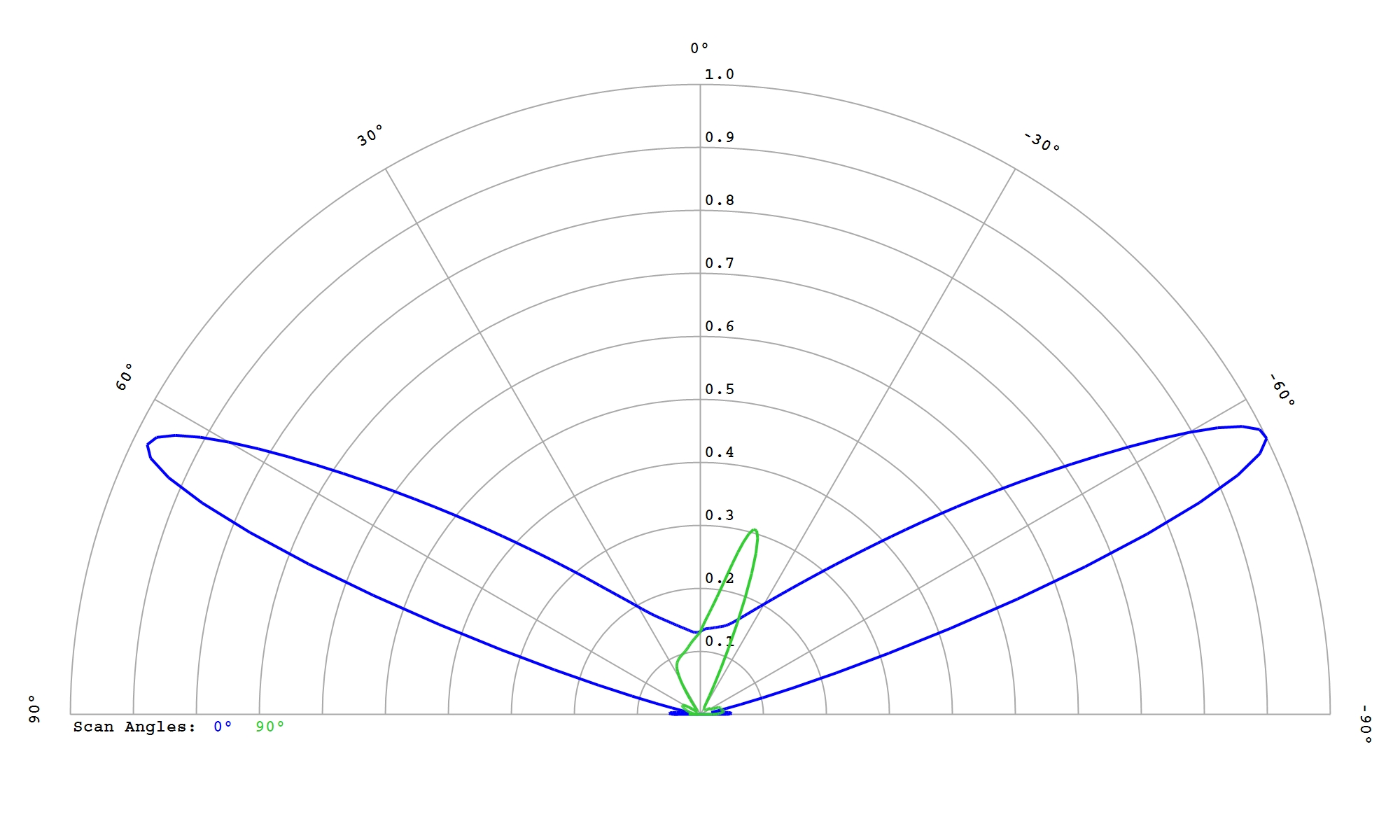

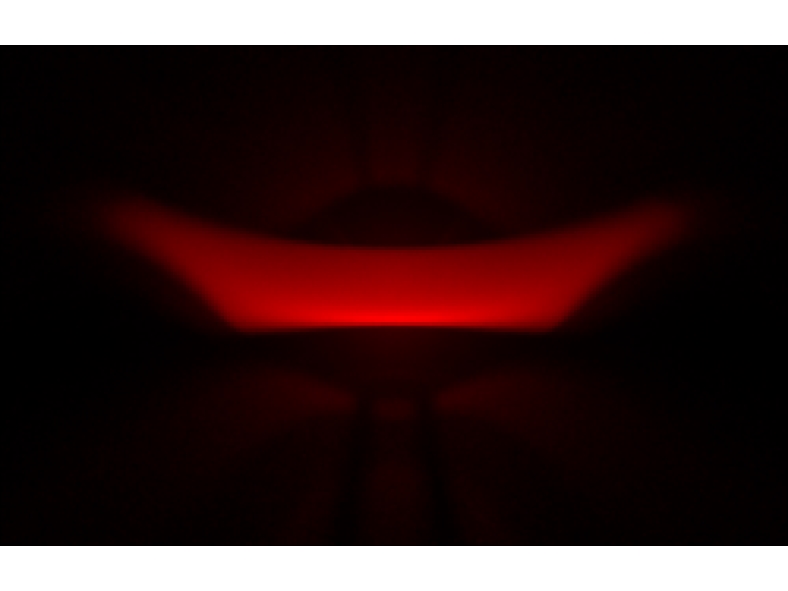

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

89.5%

FWHM:

138 x 13 x 18°

Cd/Im:

1.8


Download

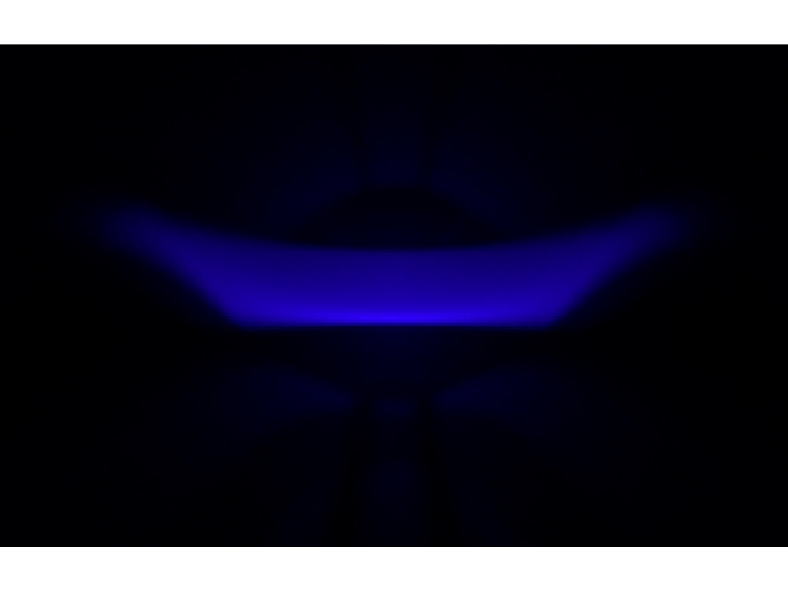

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

87.5%

FWHM:

138 x 10 x 17°

Ipk/W:

2.2


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

89.0%

FWHM:

138 x 11.5 x 18°

Cd/Im:

2.0

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

89.0%

FWHM:

143 x 29.5 x 20°

Cd/Im:

1.3

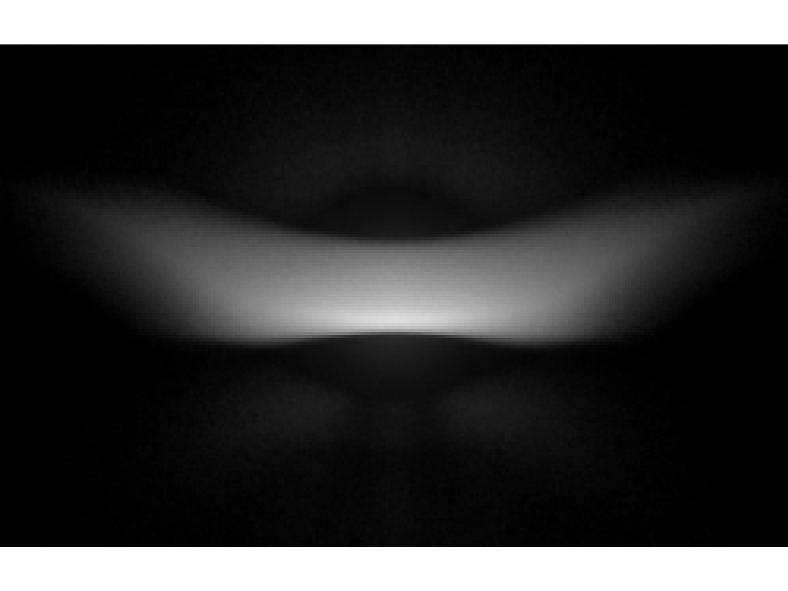

Carclo Optics - 12587 Spot Image Luxeon HL2X

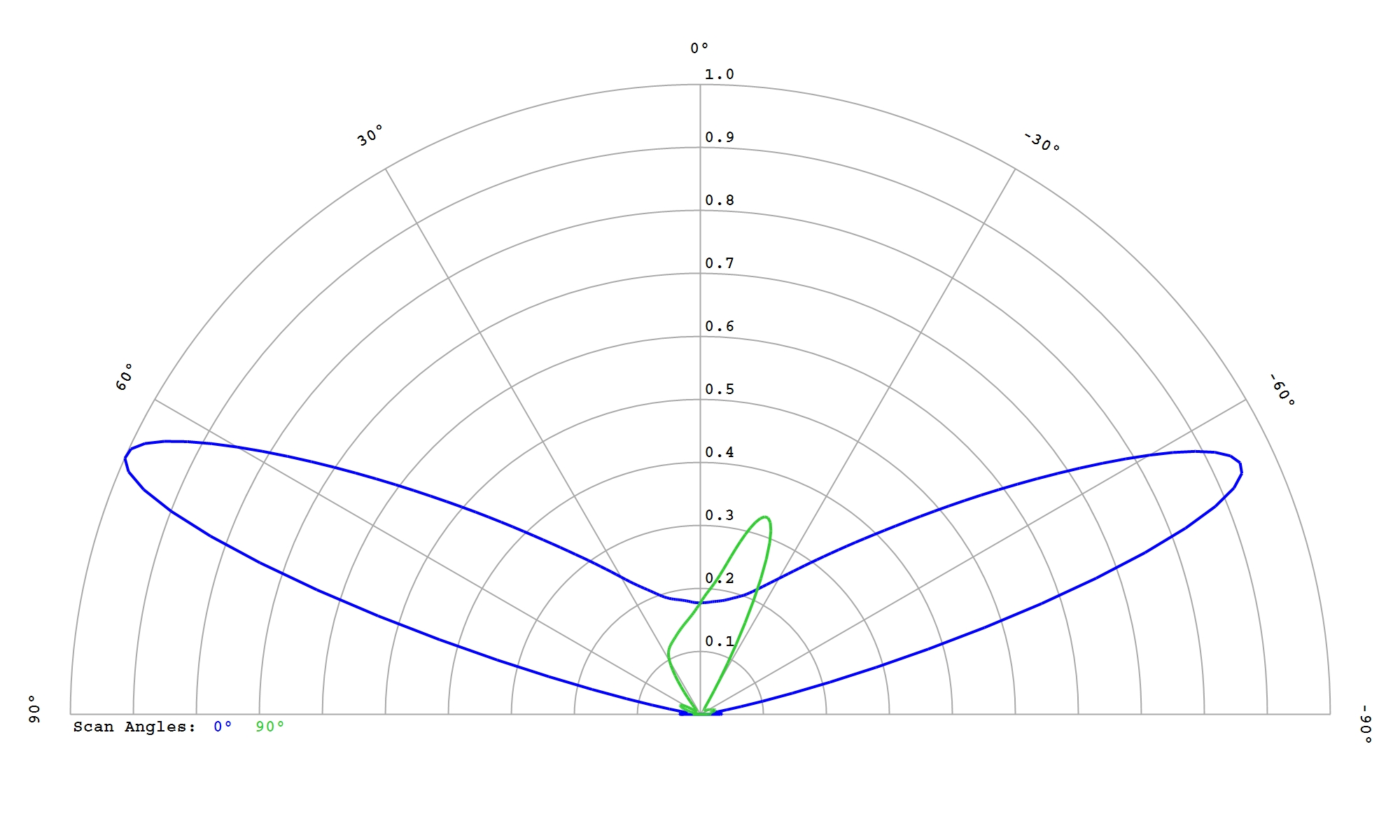

Carclo Optics - 12587 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

89.5%

FWHM:

147 x 31 x 20°

Cd/Im:

1.2

Download

IES

LUMILEDS LUXEON HL2X-E White

Eff:

89.5%

FWHM:

144 x 26 x 19°

Cd/Im:

1.3

Download

LUMILEDS LUXEON HL2X-P White

Eff:

89.5%

FWHM:

145 x 24.5 x 19°

Cd/Im:

1.2

Download

IES

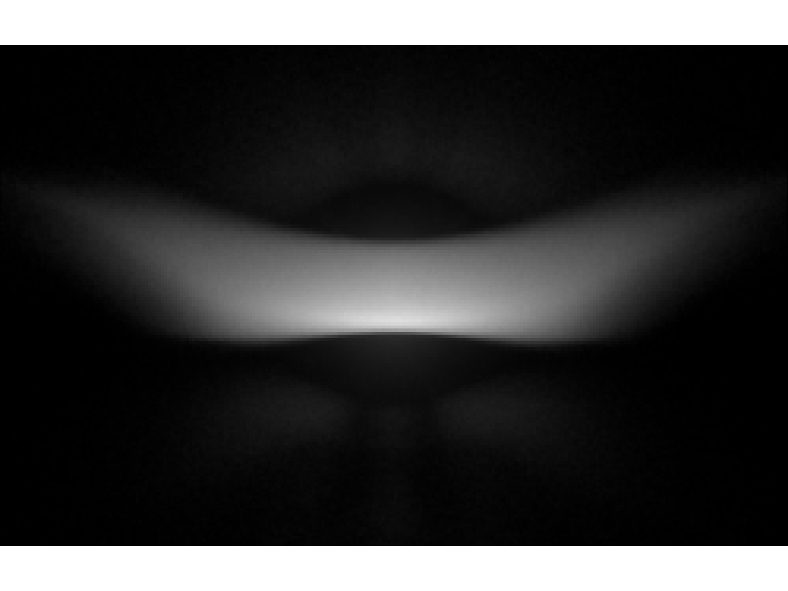

LUMILEDS LUXEON HL2X-V White

Eff:

89.5%

FWHM:

145 x 25.5 x 20°

Cd/Im:

1.3

Download

LUMILEDS LUXEON HL2Z White

Eff:

89.5%

FWHM:

139 x 15.5 x 18°

Cd/Im:

1.7

Carclo Optics – 12587 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12587 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

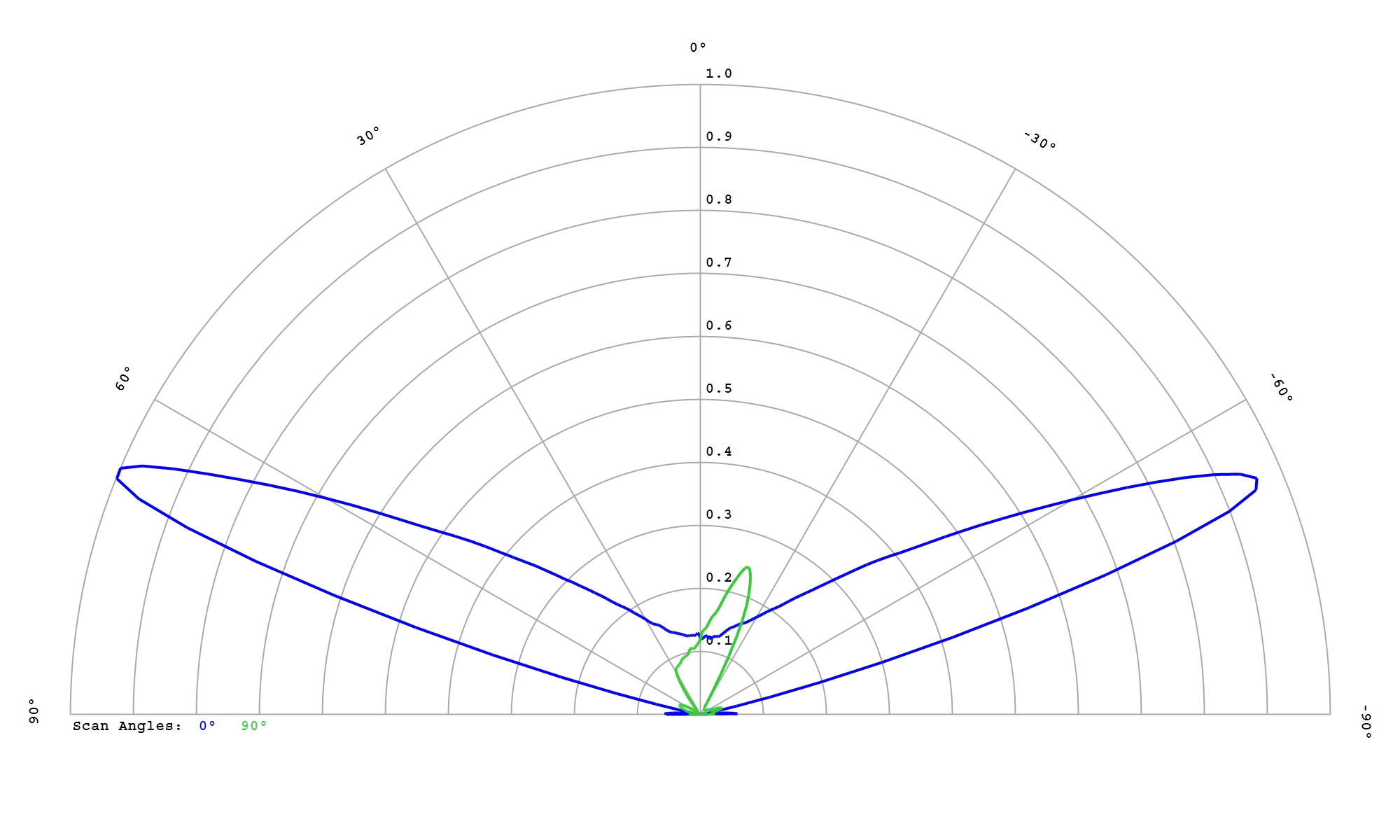

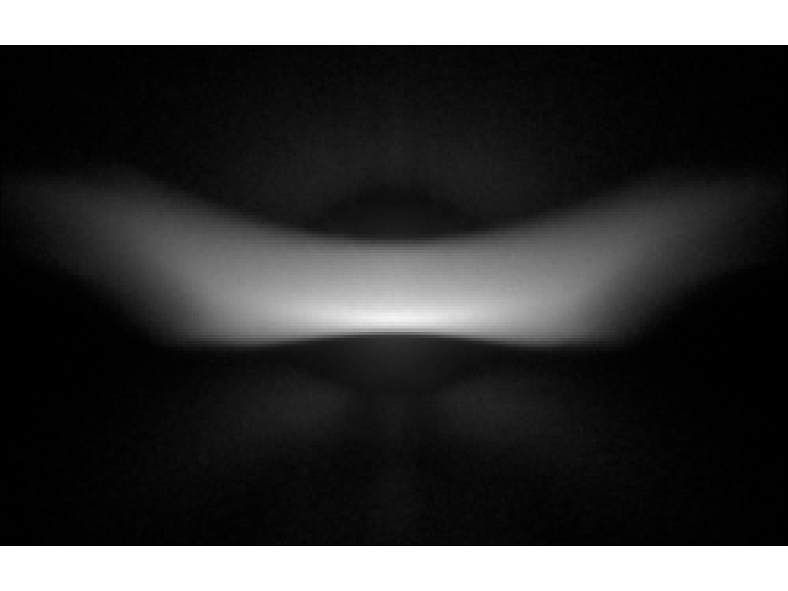

LUMILEDS LUXEON HL4X White

Eff:

88.5%

FWHM:

145 x 26.5 x 18°

Cd/Im:

1.4

Download

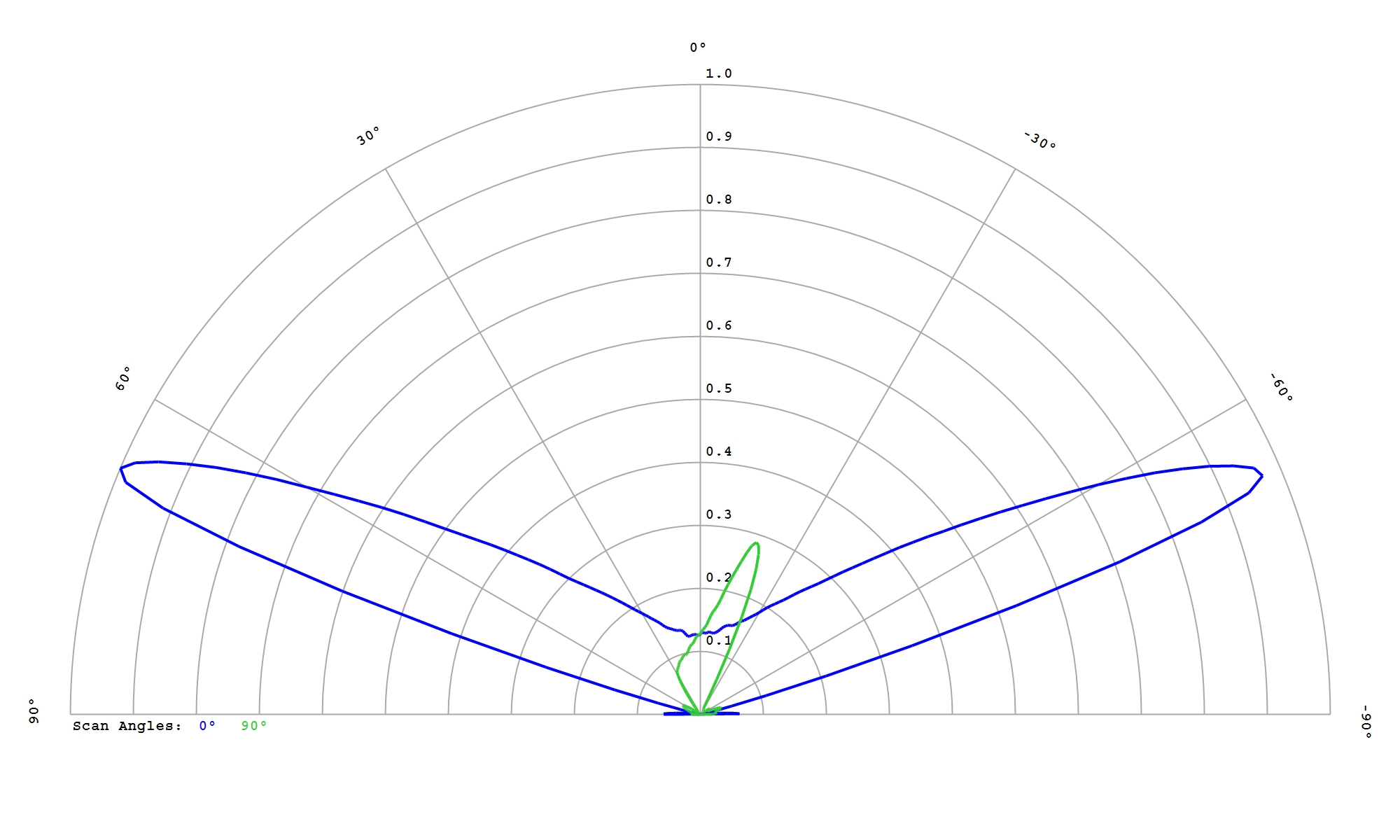

LUMILEDS LUXEON HL4Z White

Eff:

89.5%

FWHM:

143 x 18.5 x 18°

Cd/Im:

1.5

Download

LUMILEDS LUXEON IR 2720

Eff:

92.5%

FWHM:

140 x 16.5°

Ipk/W:

1.5

Carclo Optics - 12587 Asymmetrical Narrow Spot Image Luxeon IR 2720

Carclo Optics - 12587 Asymmetrical Narrow Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON M White

Eff:

85.3%

FWHM:

147 x 41 x 14°

Cd/Im:

1.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON MX White

Eff:

88.0%

FWHM:

147 X 37.5°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

86.0%

FWHM:

142 x 24 x 16°

Cd/Im:

1.4

carclo optics - simulated spot image

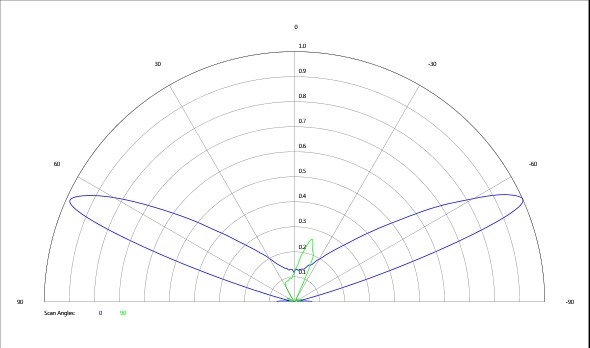

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

84.7%

FWHM:

142 x 19 x 19°

Cd/Im:

1.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel White

Eff:

85.7%

FWHM:

141 x 14 x 19°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

89.5%

FWHM:

142 x 9.5 x 20°

Cd/Im:

2.0

Carclo Optics – 12587 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 12587 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

89.5%

FWHM:

143 x 9.4 x 20°

Cd/Im:

1.9

Carclo Optics – 12587 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12587 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

143 x 12 x 21°

Cd/Im:

1.6

Carclo Optics – 12587 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12587 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

88.5%

FWHM:

142 x 8.8 x 20°

Cd/Im:

2.0

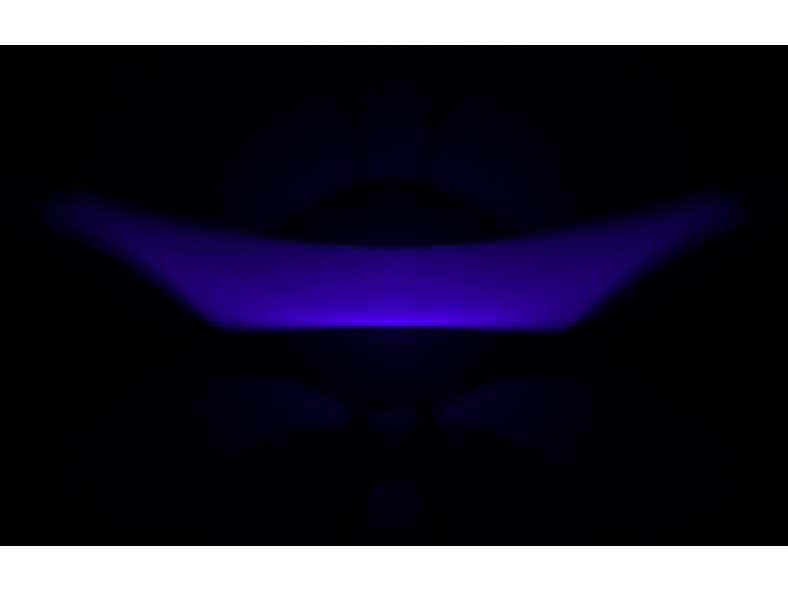

Carclo Optics – 12587 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12587 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

143 x 10 x 20°

Cd/Im:

1.8

Carclo Optics - 12587 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12587 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

85.3%

FWHM:

142 x 15 x 19°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

86.5%

FWHM:

144 x 30 x 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

89.5%

FWHM:

147 x 39 x 9°

Cd/Im:

1.0


Download

IES

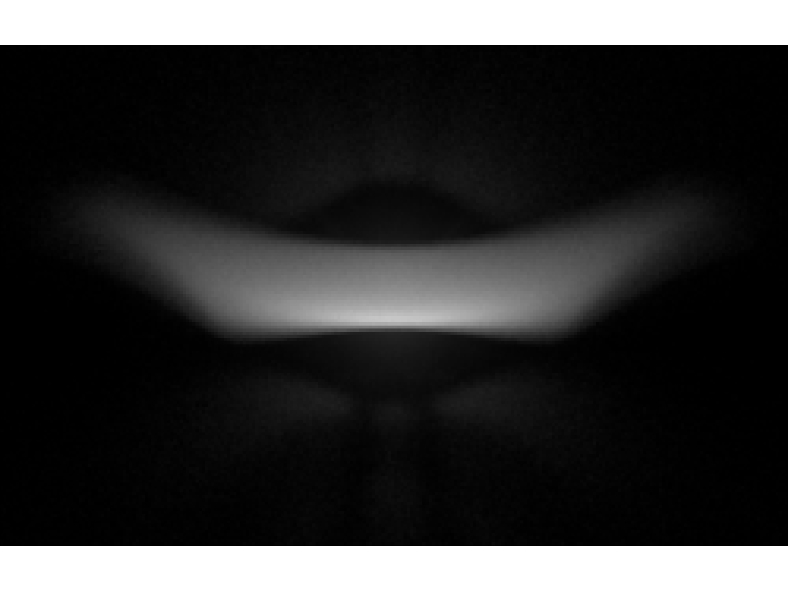

Luminus Devices MP-3030-11F2 White

Eff:

89.5%

FWHM:

142 x 21.5 x 18°

Cd/Im:

1.4


Download

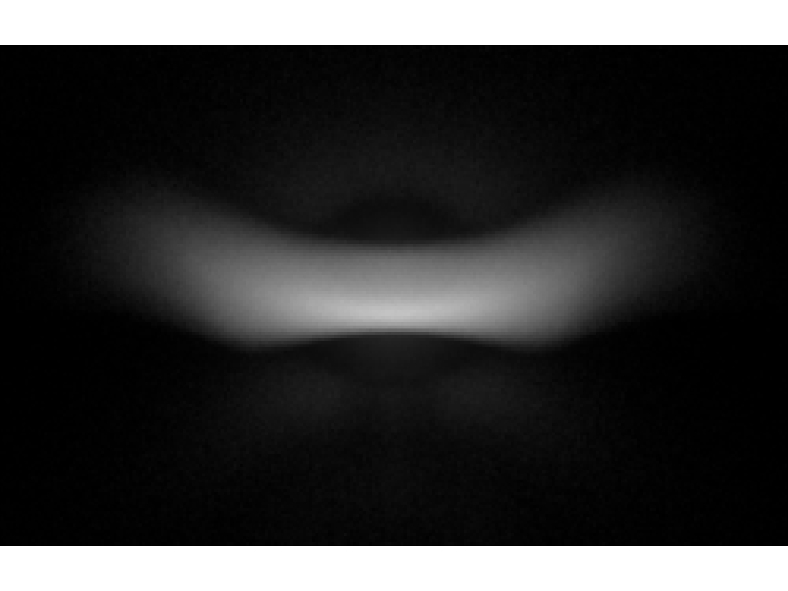

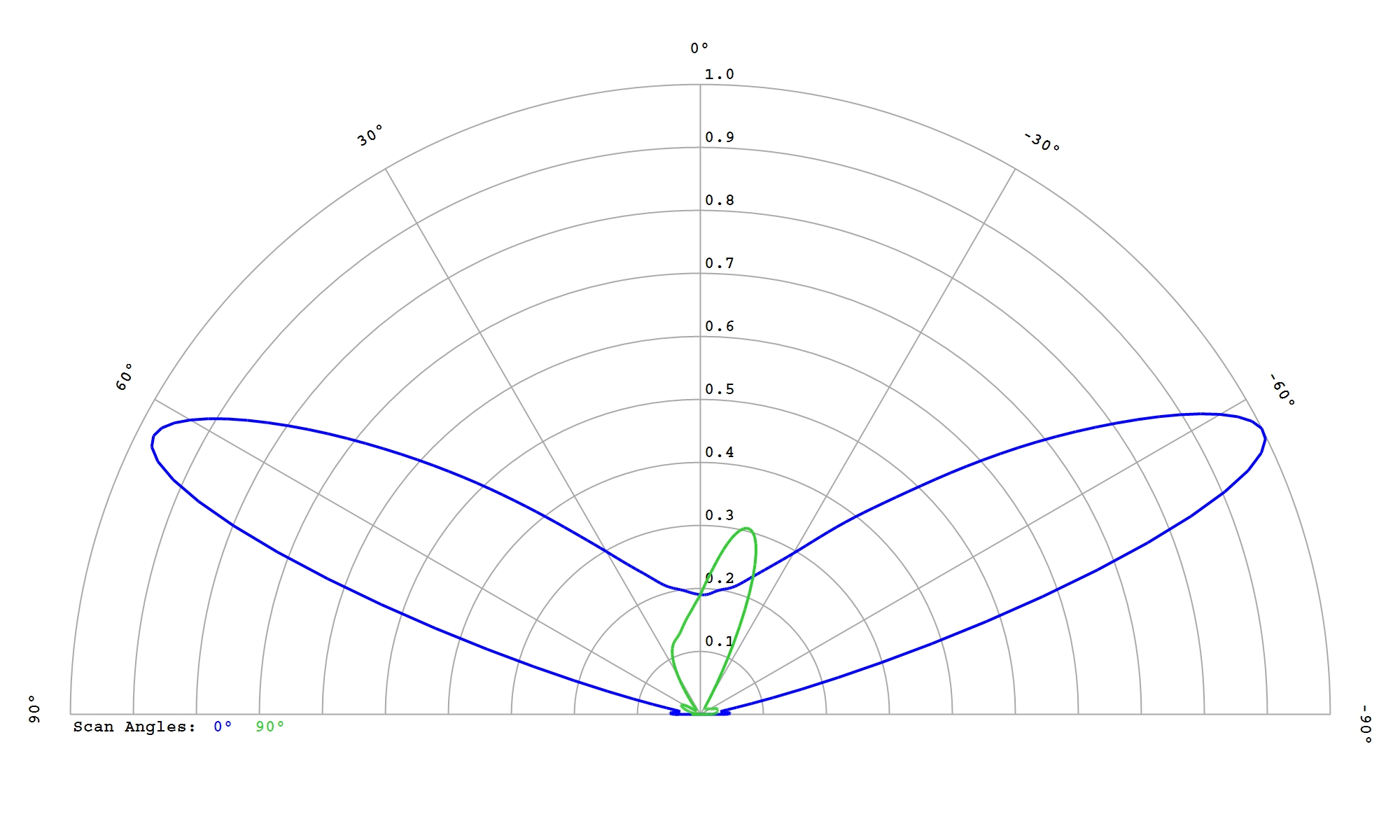

Luminus Devices MP-5050-240E White

Eff:

89.5%

FWHM:

142 x 31 x 16°

Cd/Im:

1.3


Download

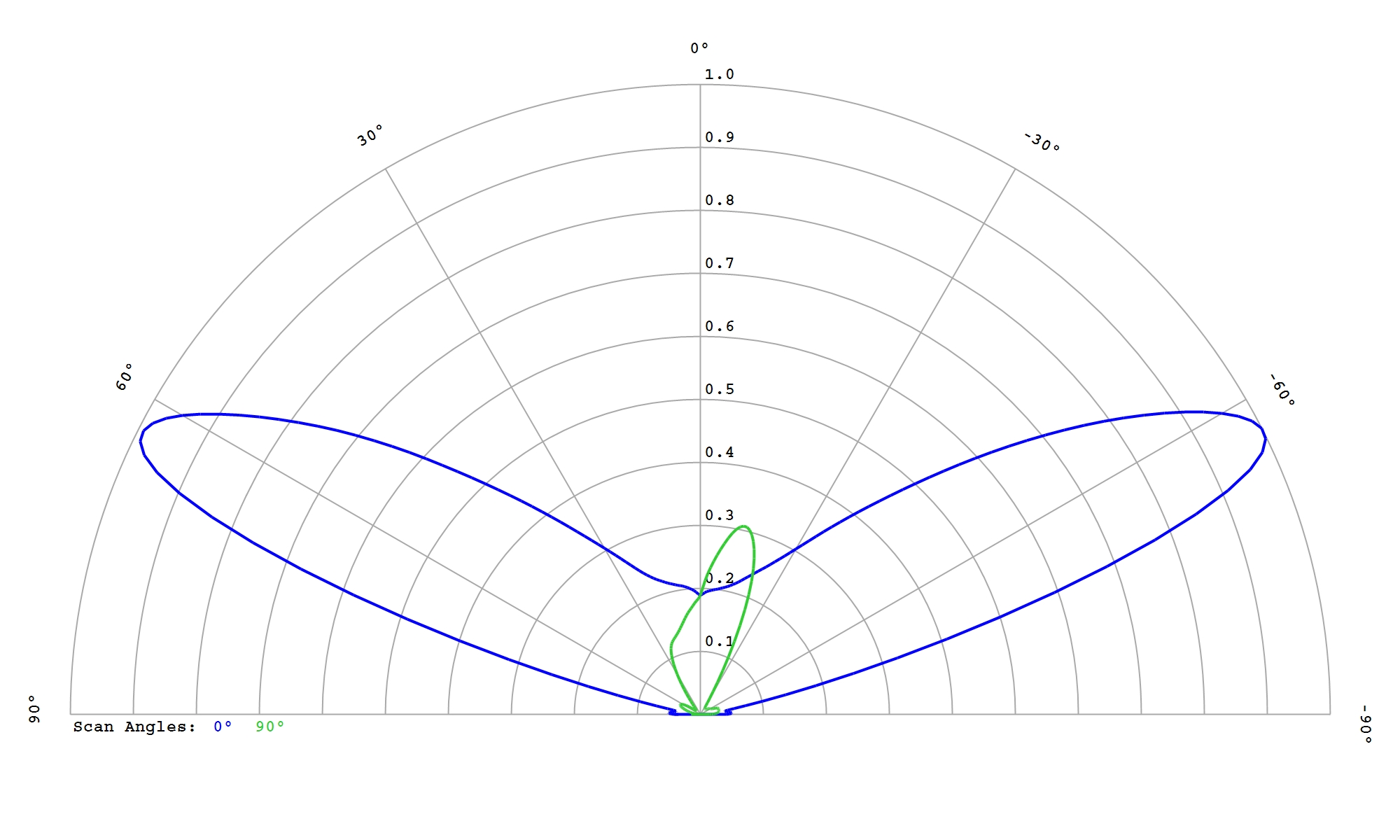

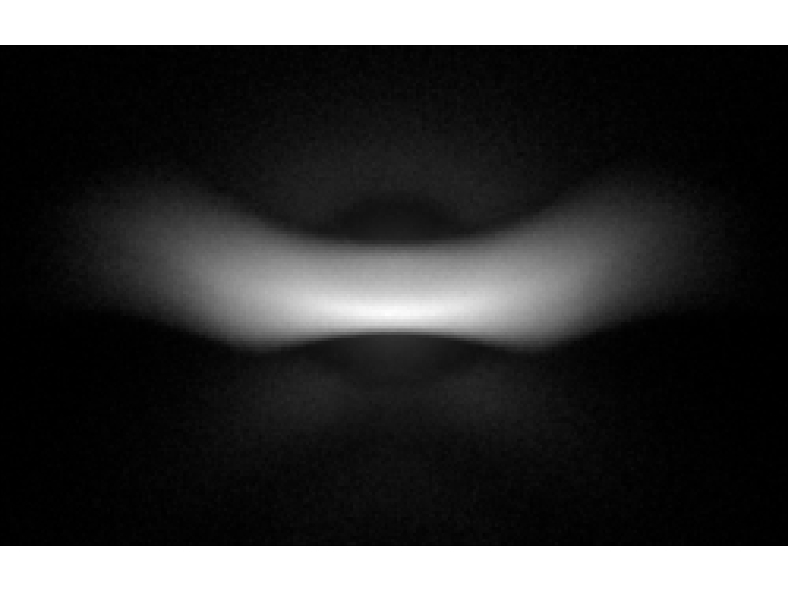

Luminus Devices MP-5050-810E White

Eff:

89.5%

FWHM:

143 x 31 x 14°

Cd/Im:

1.3


Download

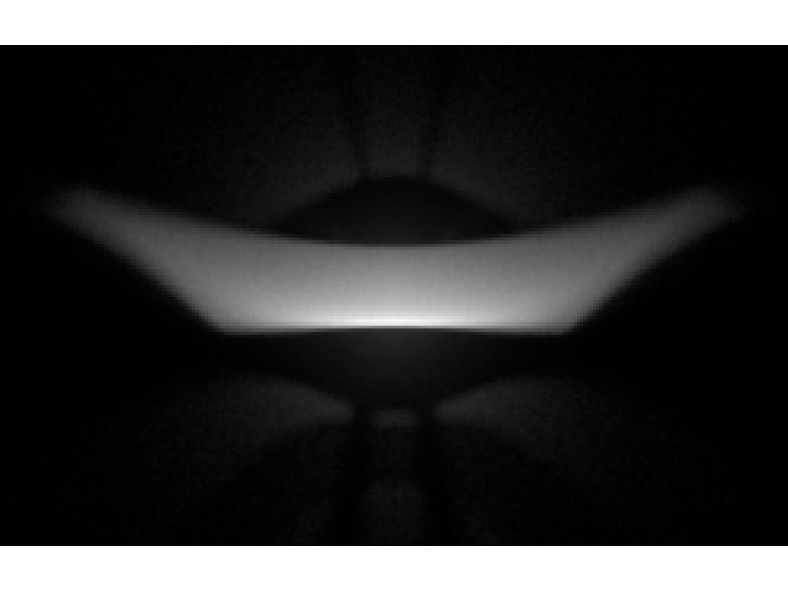

Luminus Devices SFT-12R-WES-A White

Eff:

89.5%

FWHM:

142 x 12 x 20°

Cd/Im:

1.7


Download

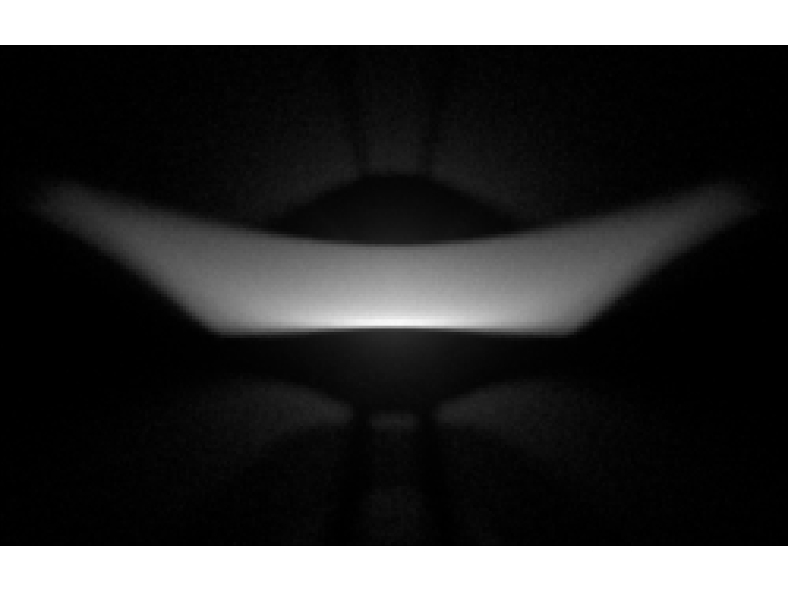

Luminus Devices SFT-12R-WES-F White

Eff:

89.5%

FWHM:

143 x 12.5 x 20°

Cd/Im:

1.5


Download

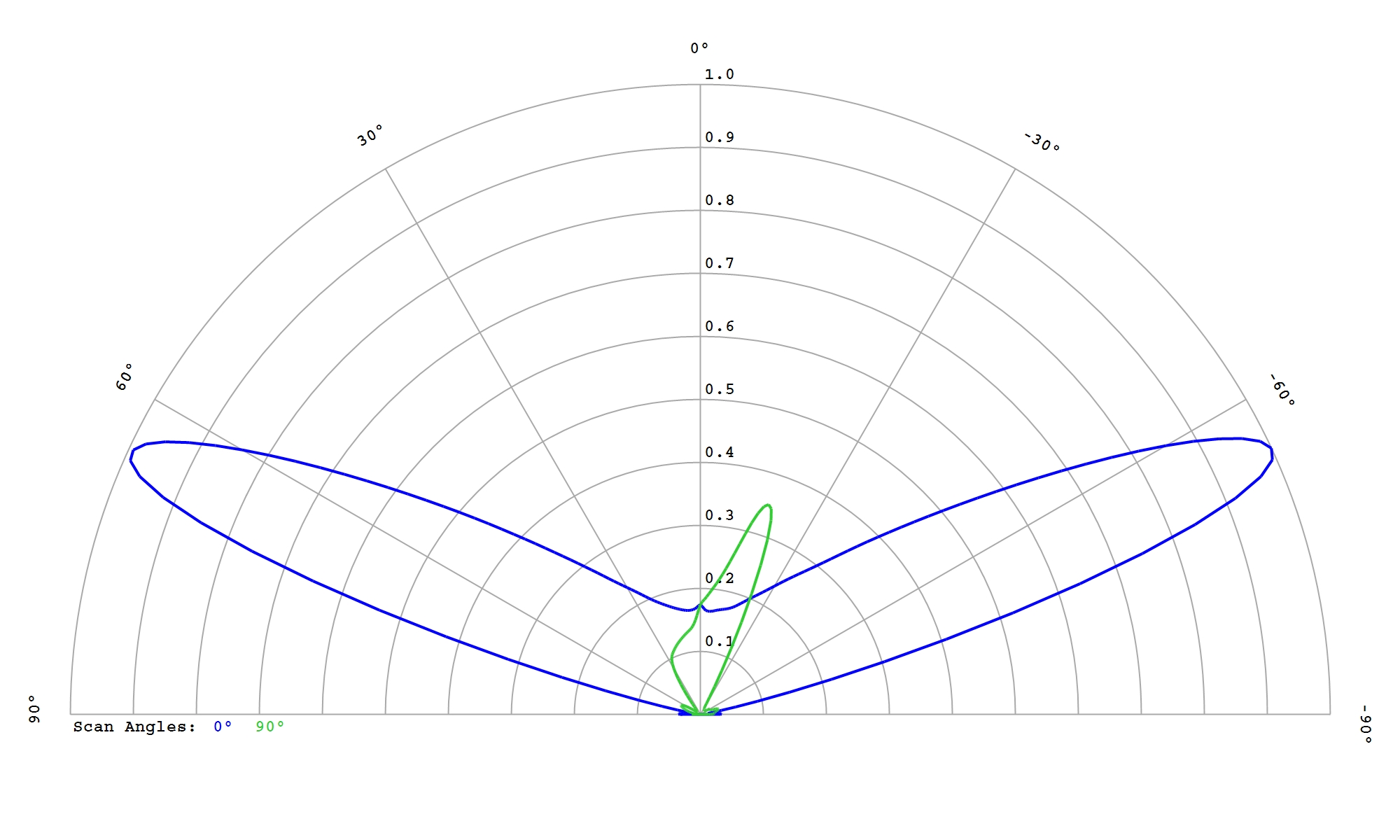

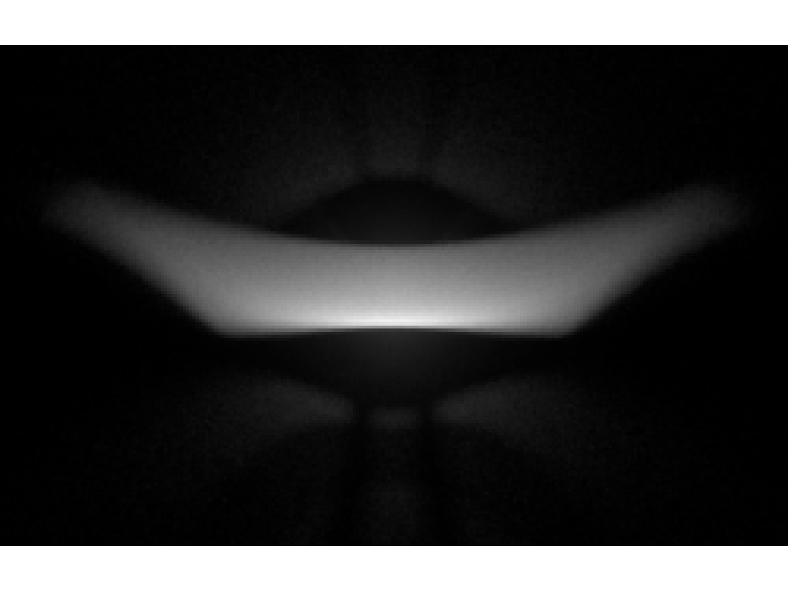

Luminus Devices SFT-25R-WES-A White

Eff:

89.5%

FWHM:

143 x 14 x 20°

Cd/Im:

1.5


Download

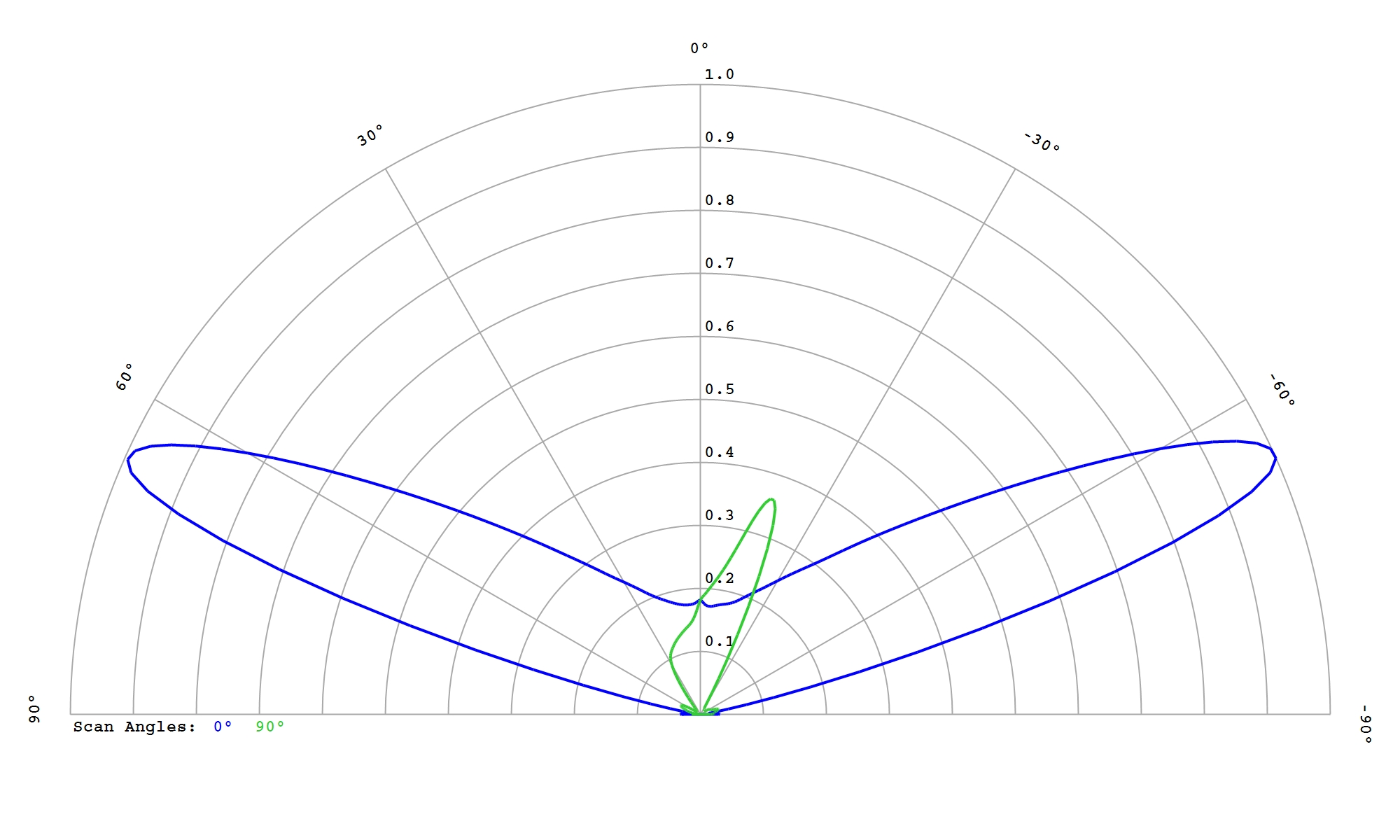

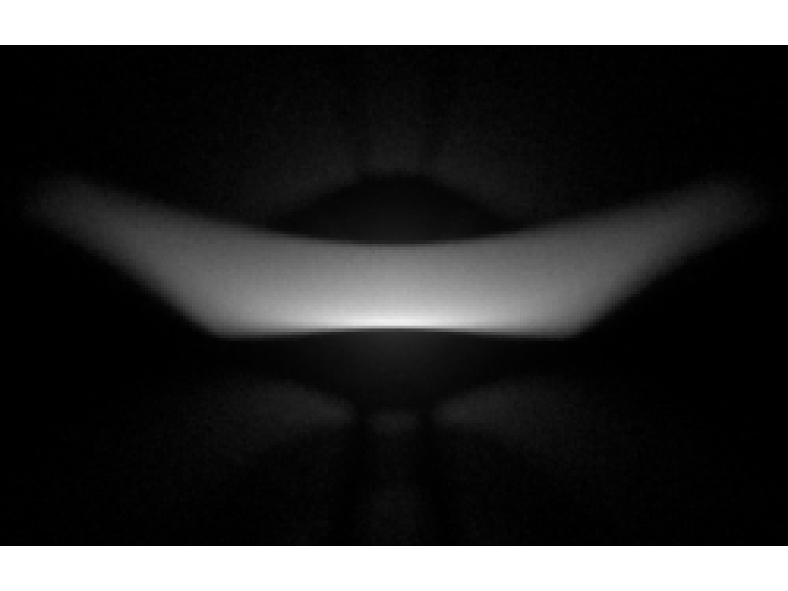

Luminus Devices SFT-25R-WES-F White

Eff:

89.5%

FWHM:

144 x 14.5 x 20°

Cd/Im:

1.4


Download

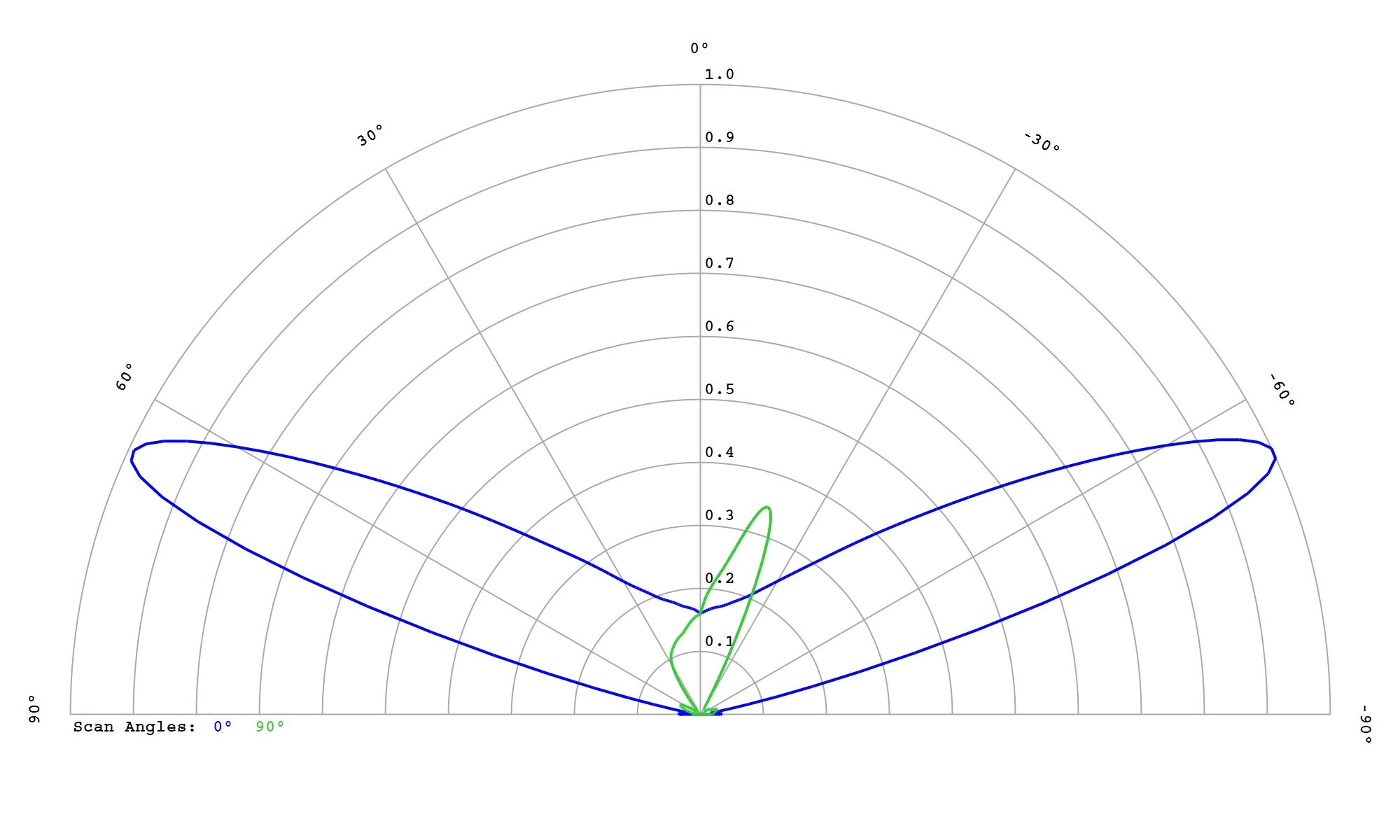

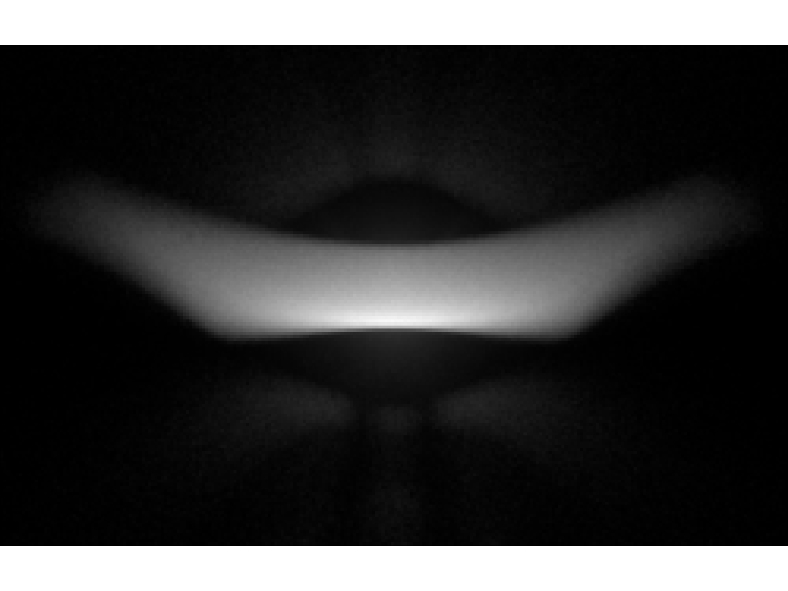

Luminus Devices SFT-40-W Gen2 White

Eff:

89.5%

FWHM:

143 x 20.5 x 20°

Cd/Im:

1.4


Download

Luminus Devices SFT-40-WxS White

Eff:

89.5%

FWHM:

143 x 23.5 x 19°

Cd/Im:

1.5

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

89.5%

FWHM:

144 x 21.5 x 18°

Cd/Im:

1.4

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

92.0%

FWHM:

140 x 22.5 x 11°

Ipk/W:

1.1

Carclo Optics - 12587 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 12587 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

87.0%

FWHM:

140 x 14 x 19°

Cd/Im:

1.3

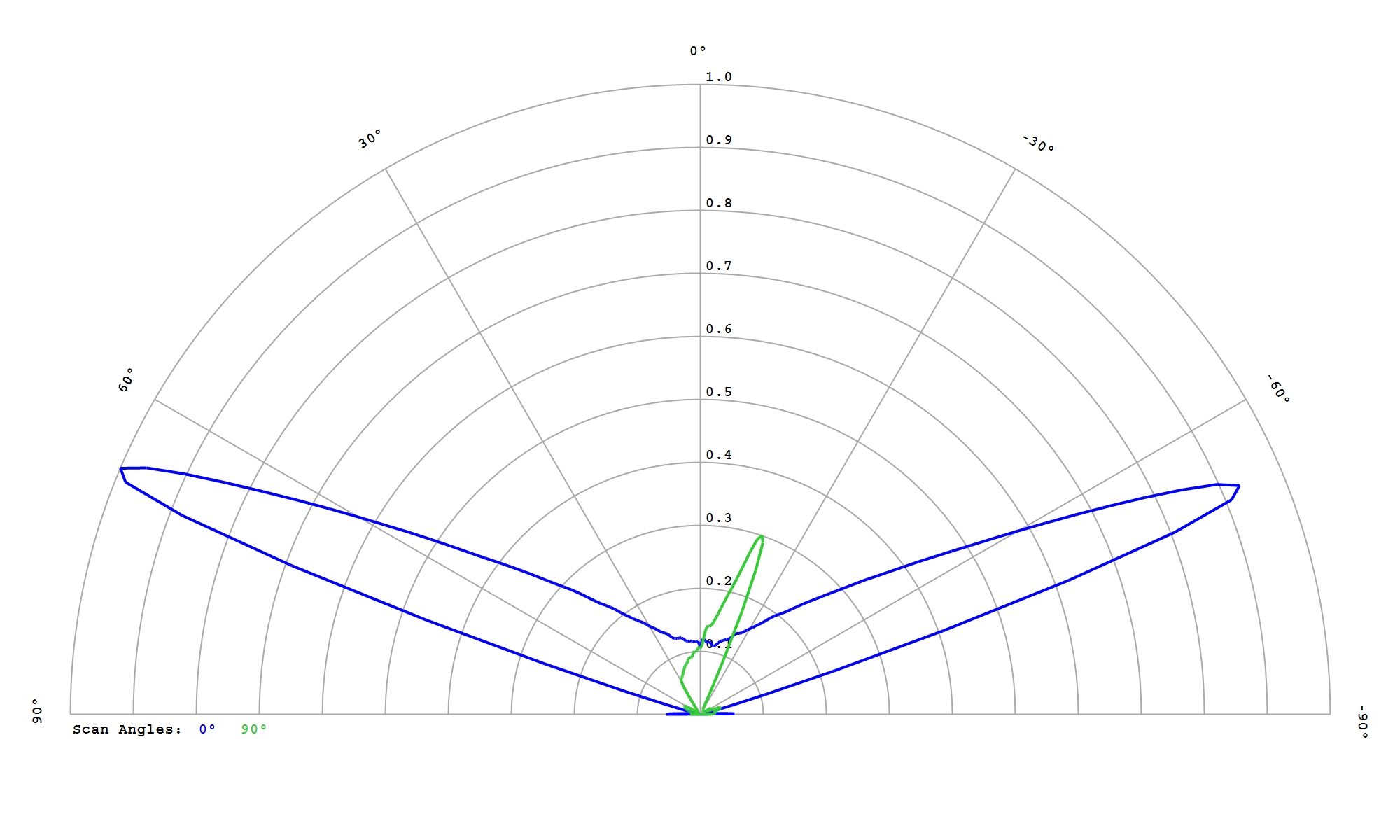

Carclo Optics - 12587 Luminus_SST-10_B_B90 - spot image

Carclo Optics - 12587 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.0%

FWHM:

144 x 17 x 21°

Cd/Im:

1.6

Carclo Optics – 12587 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12587 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

90.0%

FWHM:

139 x 19.5 x 19°

Cd/Im:

1.1

Carclo Optics - 12587 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics – 12587 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

89.0%

FWHM:

141x 13.5 x 19°

Cd/Im:

1.9

Carclo Optics - 12587 Luminus_SST-10_G_B130 - sport - image

Carclo Optics - 12587 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

89.0%

FWHM:

140 x 15.5 x 19°

Cd/Im:

1.3

Carclo Optics - 12587 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12587 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

93.0%

FWHM:

143 x 17.5 x 20°

Ipk/W:

1.4

Carclo Optics - 12587 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12587 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

92.5%

FWHM:

141 x 27 x 19°

Ipk/W:

1.0

Carclo Optics - 12587 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12587 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

93.0%

FWHM:

142 x 17.5 x 20°

Ipk/W:

1.5


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

92.5%

FWHM:

140 x 22 x 20°

Ipk/W:

1.1


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

89.0%

FWHM:

141 x 16.5 x 19°

Cd/Im:

1.6

Carclo Optics – 12587 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12587 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

88.5%

FWHM:

149 x 28 x 21°

Cd/Im:

1.4

Carclo Optics – 12587 - Luxeon_SST_40_W_spot-image

Carclo Optics – 12587 - Luxeon_SST_40_W_cross vertical section

Download

IES

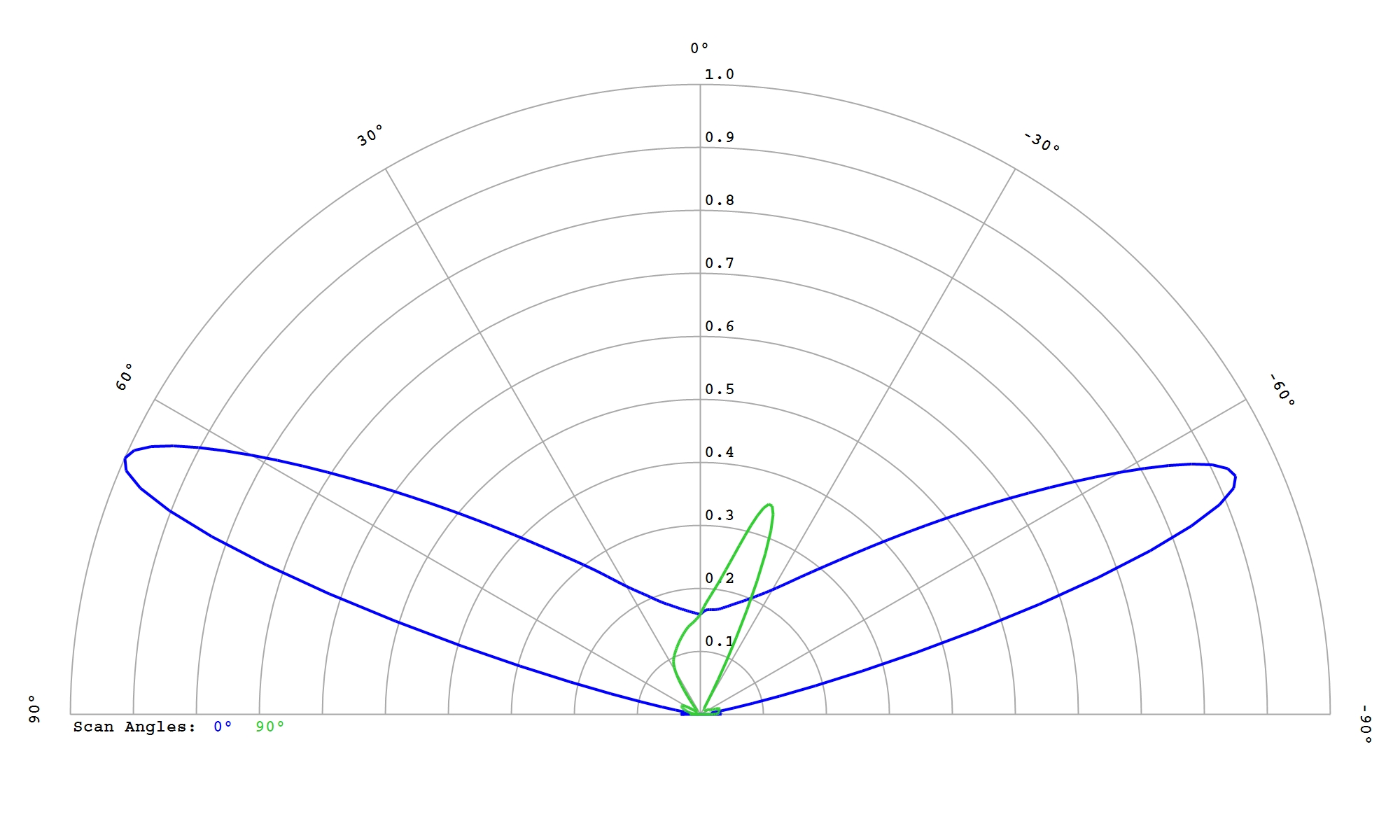

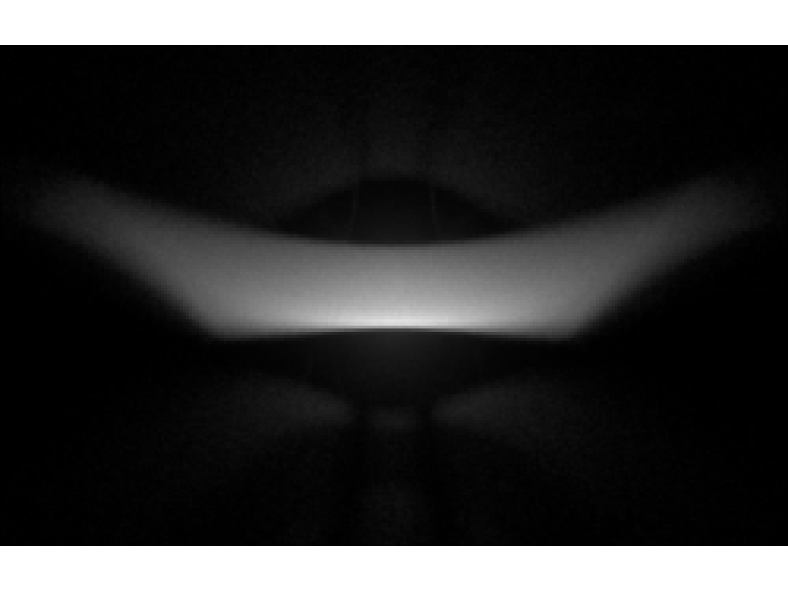

Luminus Devices SST-12-WS Gen2 White

Eff:

89.0%

FWHM:

144 x 15 x 20°

Cd/Im:

1.5


Download

Luminus Devices SST-12-WxS White

Eff:

89.0%

FWHM:

143 x 14 x 20°

Cd/Im:

1.6

Download

IES

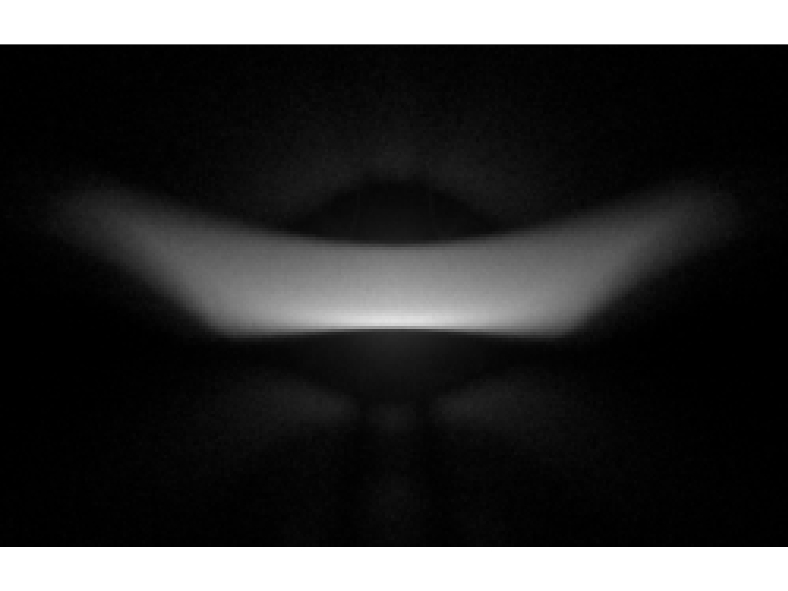

Luminus Devices SST-20-W Gen2 White

Eff:

89.0%

FWHM:

142 x 16 x 19°

Cd/Im:

1.6


Download

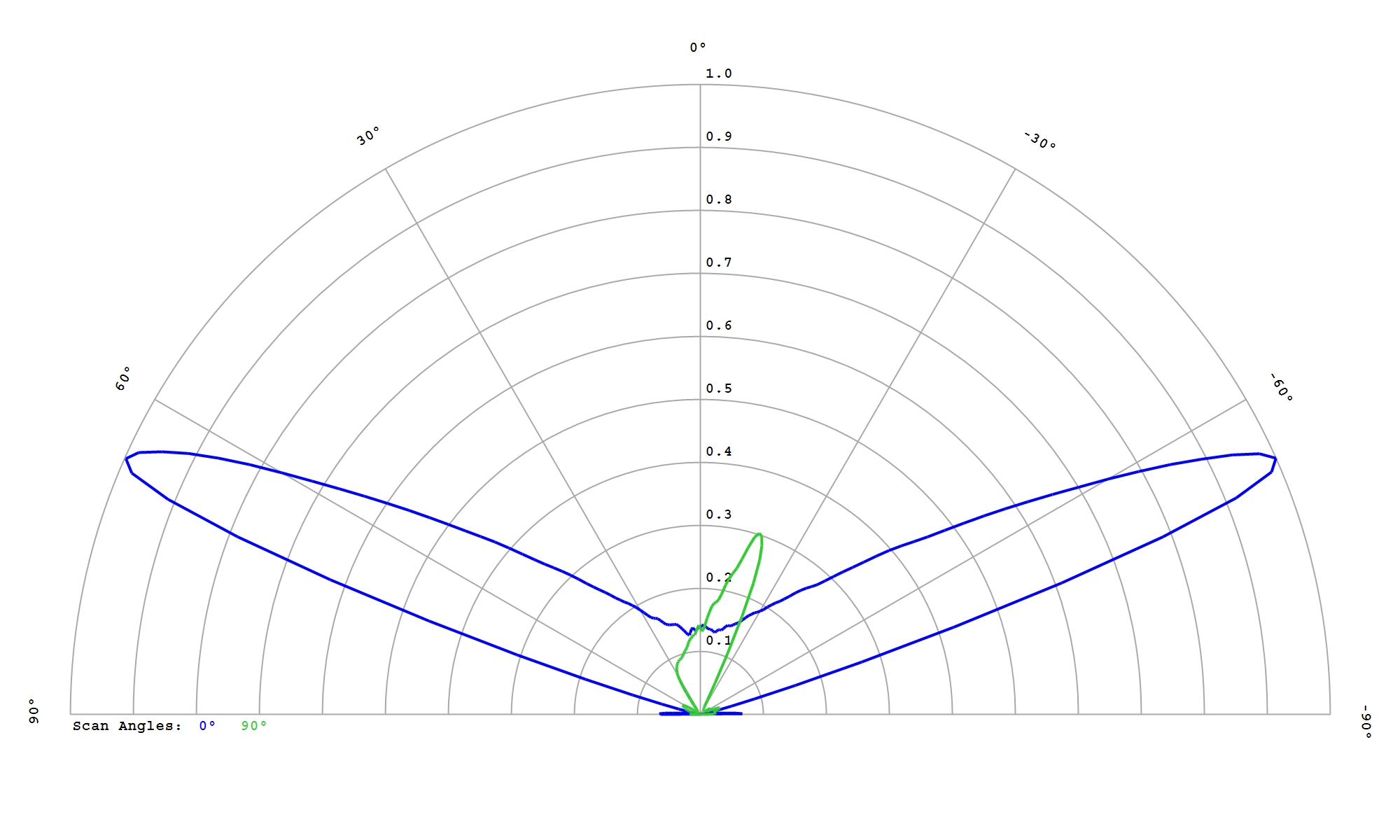

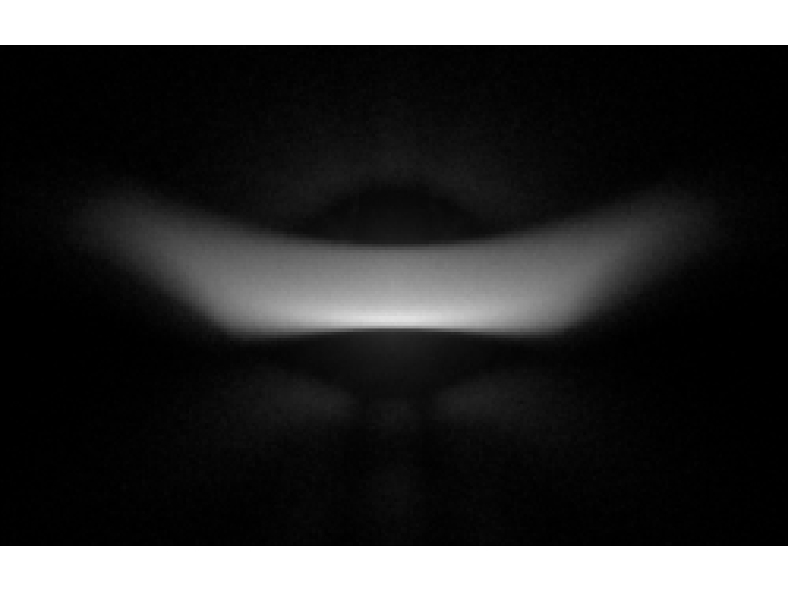

Luminus Devices SST-25-WES White

Eff:

89.0%

FWHM:

141 x 25 x 18°

Cd/Im:

1.5

Download

Luminus Devices SST-70X-W White

Eff:

89.0%

FWHM:

147 x 33 x 19°

Cd/Im:

1.3

Download

IES

Nichia 219 White

Eff:

84.4%

FWHM:

142 x 18 x 19°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Nichia 229A White

Eff:

87.0%

FWHM:

146 x 27 x 6°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757 White

Eff:

86.2%

FWHM:

139 x 17 x 17°

Cd/Im:

1.6

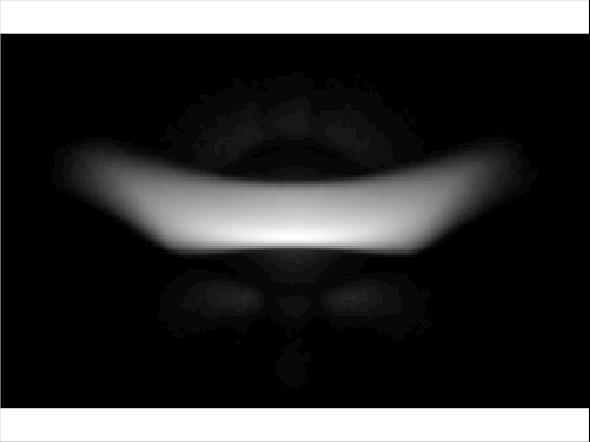

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Nichia 757G White

Eff:

89.0%

FWHM:

140 x 22 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

89.5%

FWHM:

140 x 23.5 x 16°

Cd/Im:

1.6

Carclo Optics 12587 Simulated Spot Image Nichia 757G-MT

Carclo Optics 12587 Cross section Image Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

88.0%

FWHM:

137 x 11.5 x 6°

Cd/Im:

6.0

Carclo Optics - Simulated Spot Image

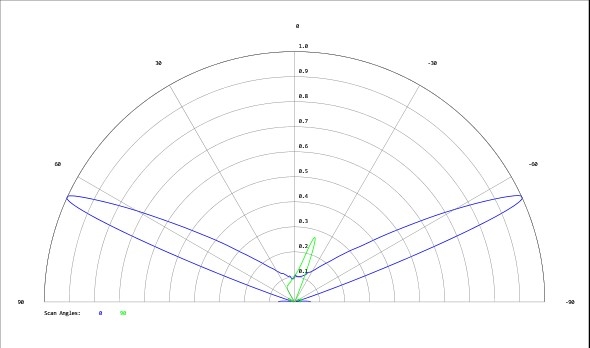

Carclo Optics - Simulated Cross Section

Download

txt

Nichia NF2W 385AR-V2 White

Eff:

88.5%

FWHM:

144 x 22.5 x 6°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 481AR White

Eff:

80.0%

FWHM:

145 X 34°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

88.5%

FWHM:

145 x 31 x 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

88.5%

FWHM:

145 X 32 X 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

88.5%

FWHM:

145 x 32 x 6°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

88.5%

FWHM:

137 x 9.1 x 18°

Cd/Im:

2.2

Download

IES

Nichia NV4W 144AR White

Eff:

85.5%

FWHM:

149 x 40.5 x 6°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

87.5%

FWHM:

142 x 22 x 6°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

88.0%

FWHM:

143 x 18.5 x 6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

89.0%

FWHM:

144 x 23.5 x 20°

Cd/Im:

1.3

Carclo Optics – 12587 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12587 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

87.5%

FWHM:

144 x 24.5 x 6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

82.0%

FWHM:

137 x 13.1 x 16.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

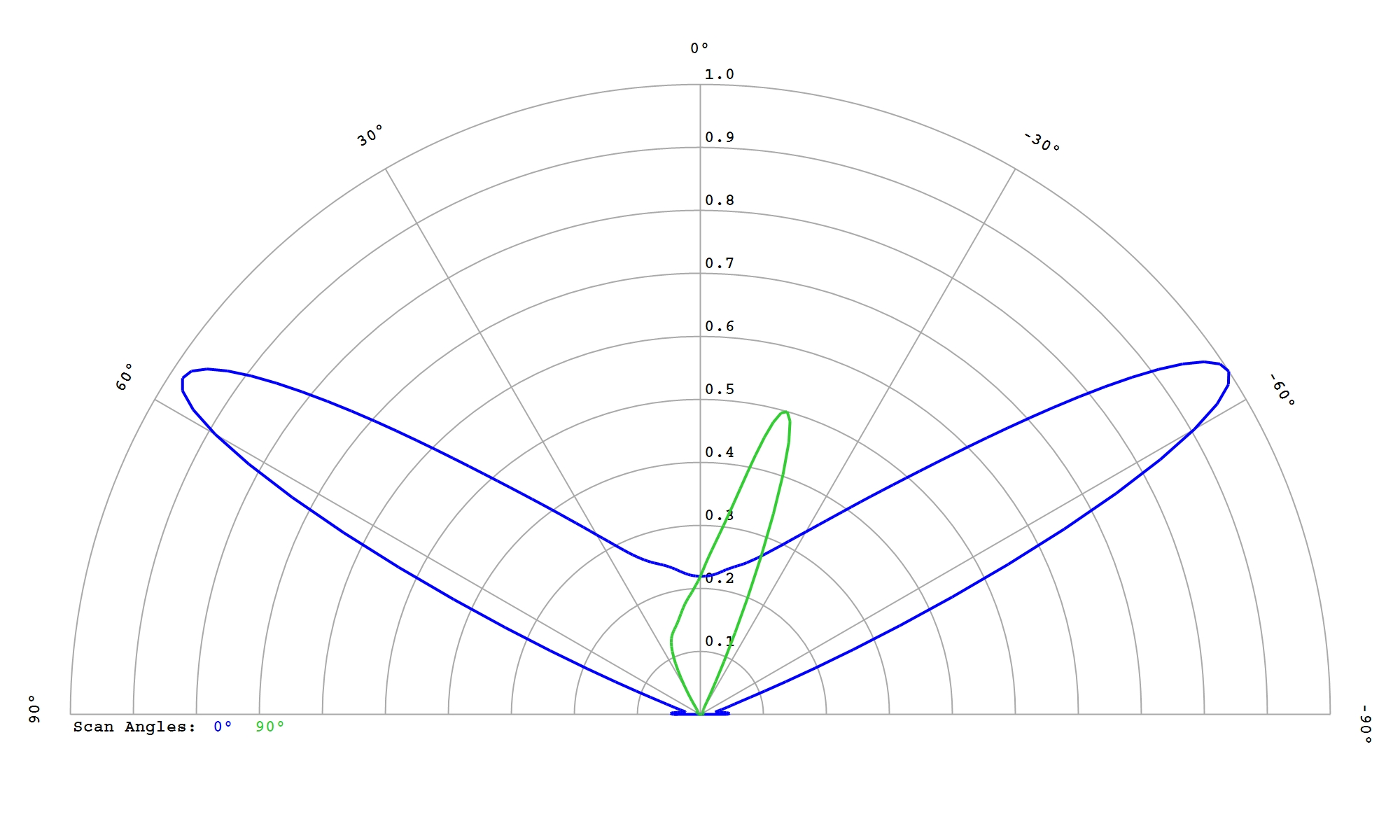

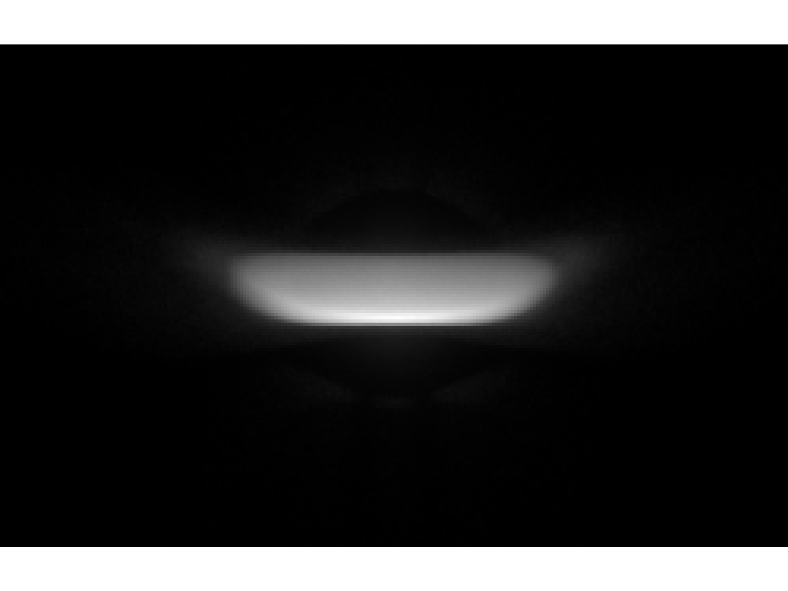

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

90.5%

FWHM:

128 x 14 x 17°

Cd/Im:

1.7

Download

Osram DURIS E 2835 Gen2

Eff:

89.5%

FWHM:

140 x 20.5 x 18°

Cd/Im:

1.5

Carclo Optics - 12587 Bubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12587 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

89.0%

FWHM:

141 x 19.5 x 6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E2 White

Eff:

84.0%

FWHM:

140 x 10.3 x 19°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P10 White

Eff:

83.4%

FWHM:

147 x 31 x 14°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS P8 White

Eff:

83.8%

FWHM:

139.8 x 20.1 x 17°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S2 White

Eff:

89.6%

FWHM:

140.1 x 15.5 x 19°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Deep Blue

Eff:

87.5%

FWHM:

141 x 12.5 x 6°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

89.5%

FWHM:

141 x 14.5 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

90.0%

FWHM:

141 x 17 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

84.0%

FWHM:

139 X 13.6 X 18.5°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen2 White

Eff:

88.0%

FWHM:

142.2 x 29.8 x 13.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S8 Gen3 White

Eff:

89.5%

FWHM:

145 x 30°

Cd/Im:

1.2

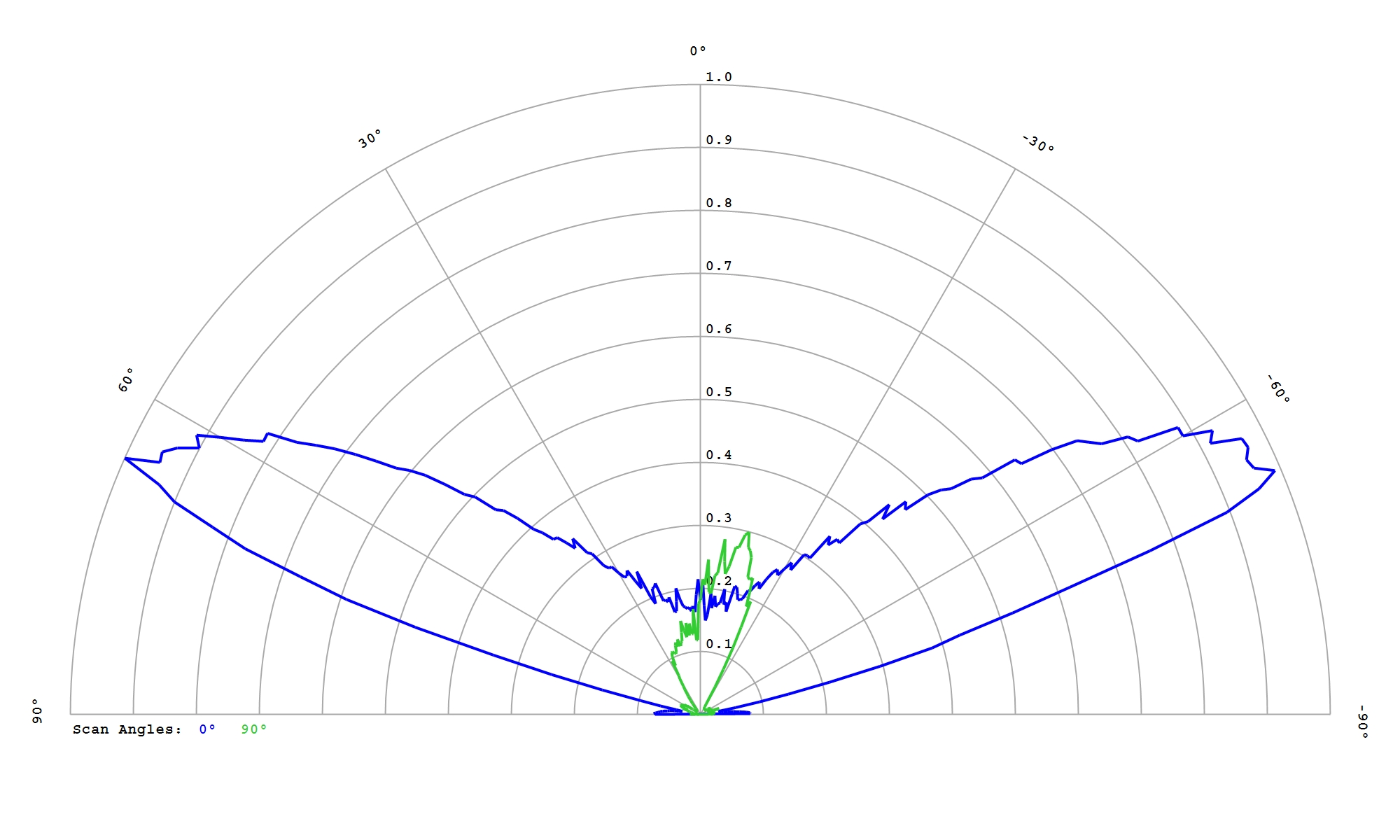

Carclo Optics - 12587 Hubble Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 12587 Hubble Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram DURIS S8 White

Eff:

90.6%

FWHM:

144.1 x 32.1 x 14°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

Osram OSCONIQ C 2424 White

Eff:

89.5%

FWHM:

140 x 15.5 x 18°

Cd/Im:

1.6

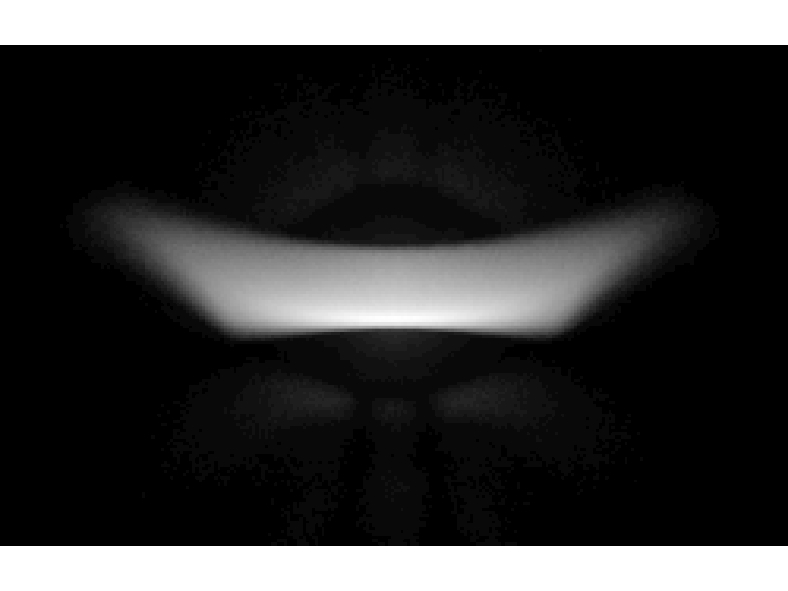

Carclo Optics - 12587 Spot Image OSCONIQ C2424

Carclo Optics - 12587 Cross Section OSCONIQ C2424

Download

IES

Osram OSCONIQ P3737 White

Eff:

86.5%

FWHM:

144 x 26.5 x 18°

Cd/Im:

1.3

Carclo Optics 12587 Spot Image Osram Osconiq P3737

Carclo Optics 12587 Cross Section Image Osram Osconiq P3737

Download

IES

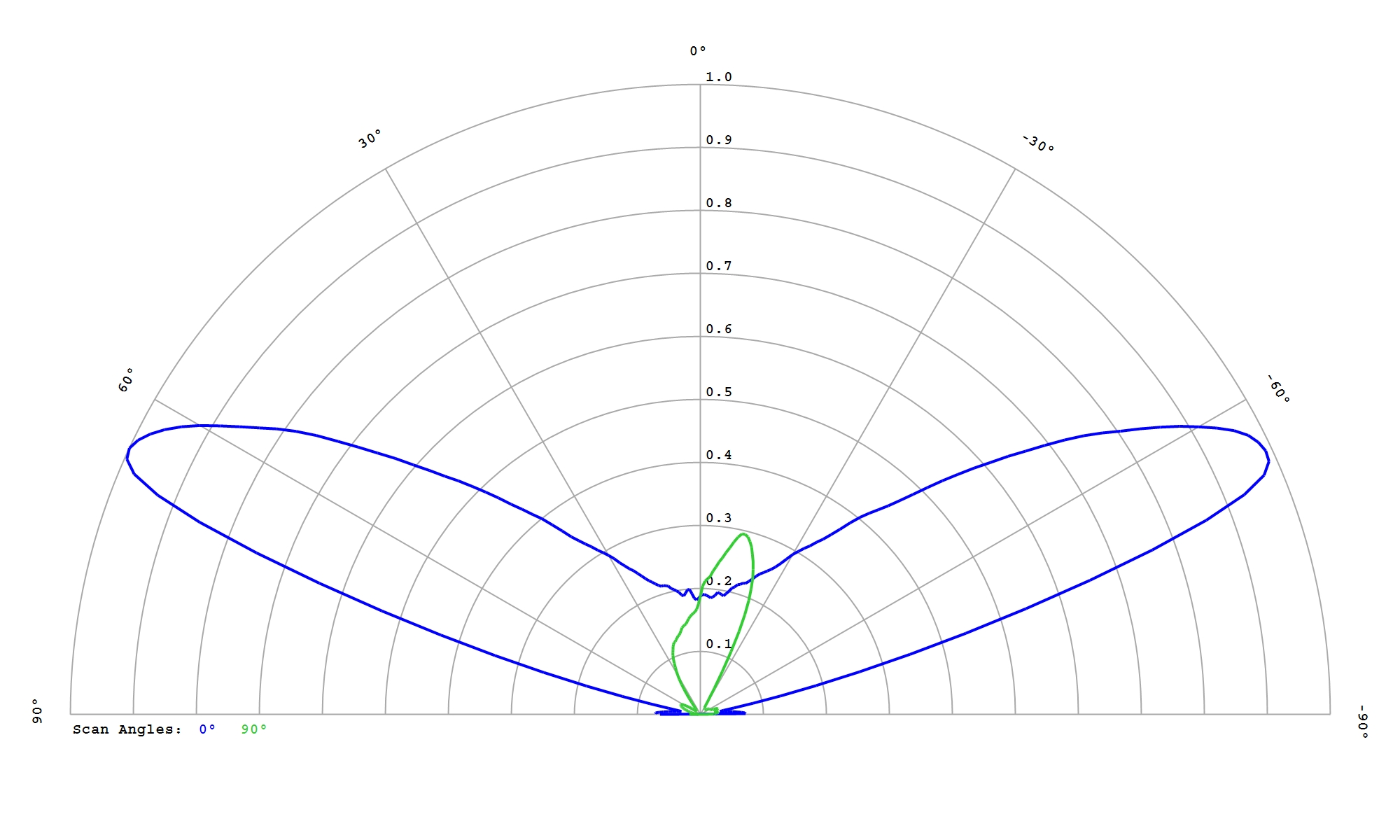

Osram OSCONIQ S 5050 GW Q9LR32.PM

Eff:

89.5%

FWHM:

145 x 37 x 14°

Cd/Im:

1.2



Download

IES

Osram OSLON Black SFH 4716AS IR

Eff:

91.5%

FWHM:

141 x 12.5 x 20°

Ipk/W:

2.3

Carclo Optics – 12587 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12587 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OSLON Black SFH 4725S IR

Eff:

93.5%

FWHM:

136 x 16 x 18°

Ipk/W:

1.3

Carclo Optics 12587 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 12587 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

89.5%

FWHM:

142 x 9.3 x 20°

Cd/Im:

1.8

Carclo Optics – 12587 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12587 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

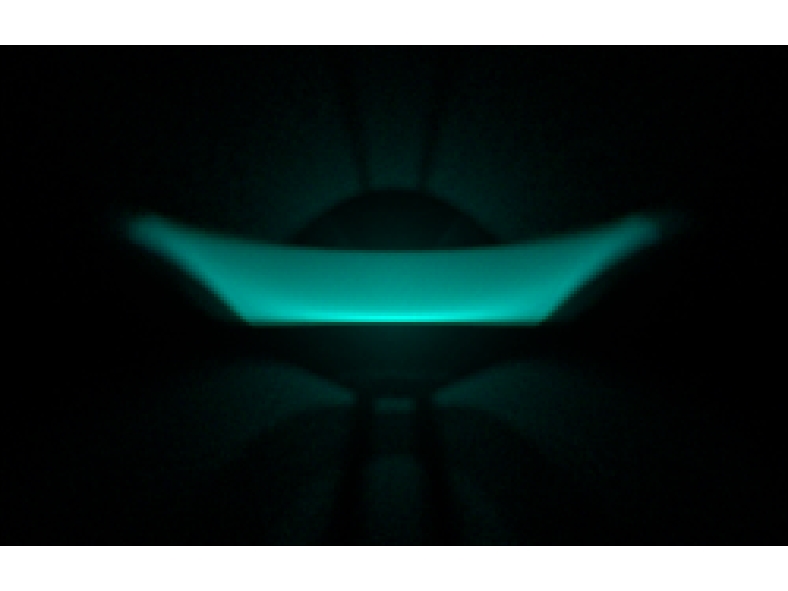

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

89.5%

FWHM:

135 x 7.3 x 17°

Cd/Im:

2.7


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

88.0%

FWHM:

135 x 7.3 x 17°

Ipk/W:

2.8


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

89.0%

FWHM:

136 x 8.5 x 18°

Cd/Im:

2.4


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

89.5%

FWHM:

137 x 9.2 x 18°

Cd/Im:

2.3


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

89.0%

FWHM:

135 x 7 x 17°

Cd/Im:

2.7


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

89.0%

FWHM:

136 x 8.3 x 18°

Cd/Im:

2.4



Download

IES

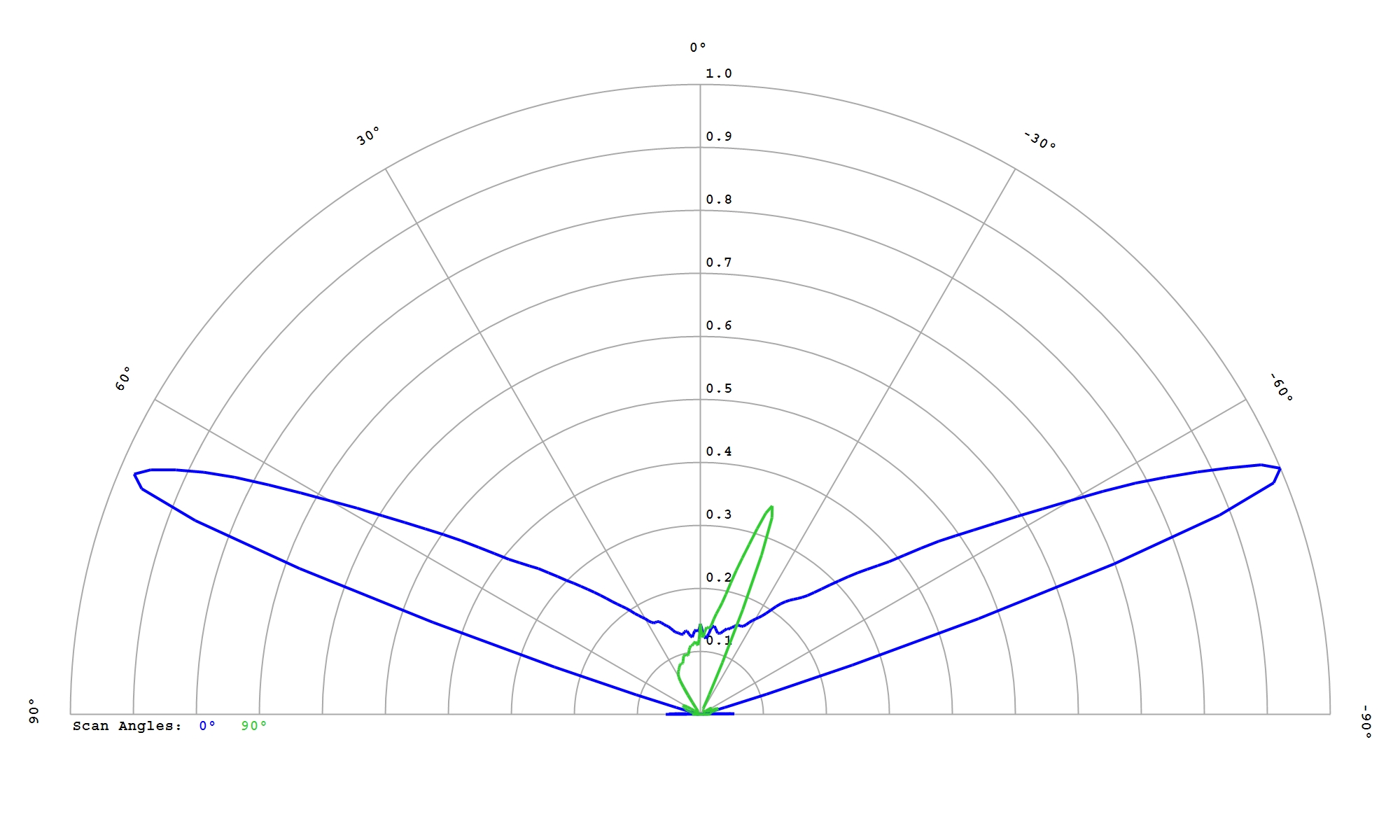

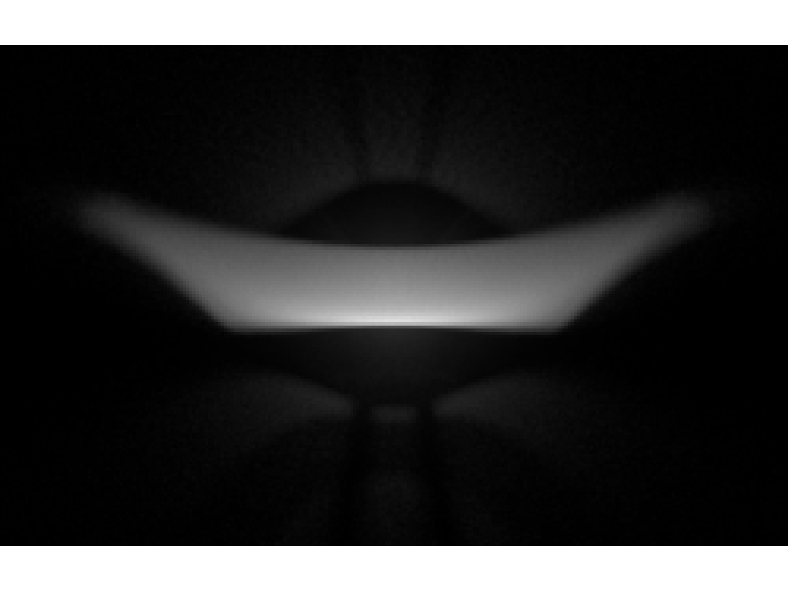

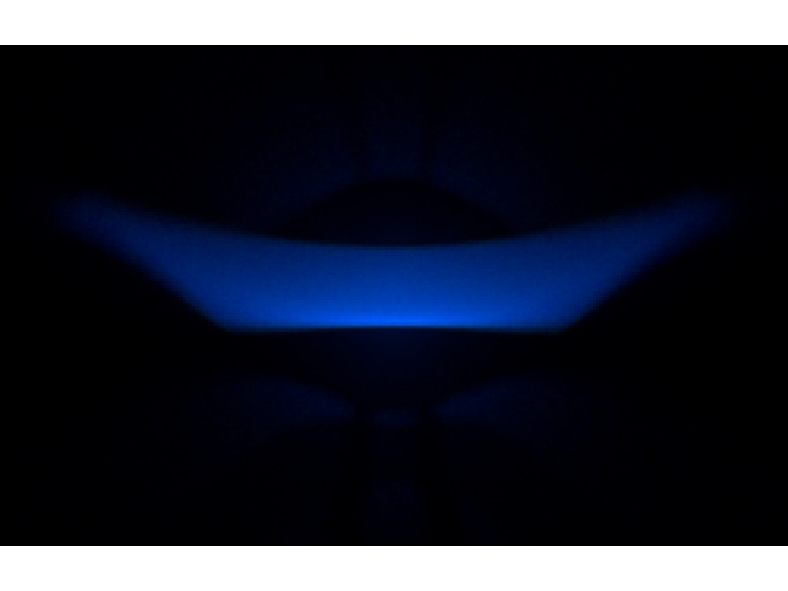

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

89.5%

FWHM:

142 x 10.5 x 19°

Cd/Im:

1.8


Download

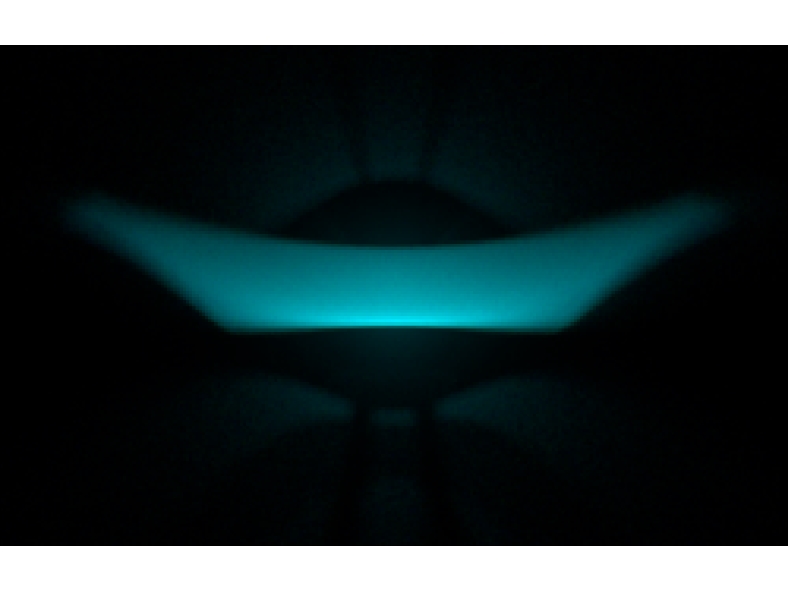

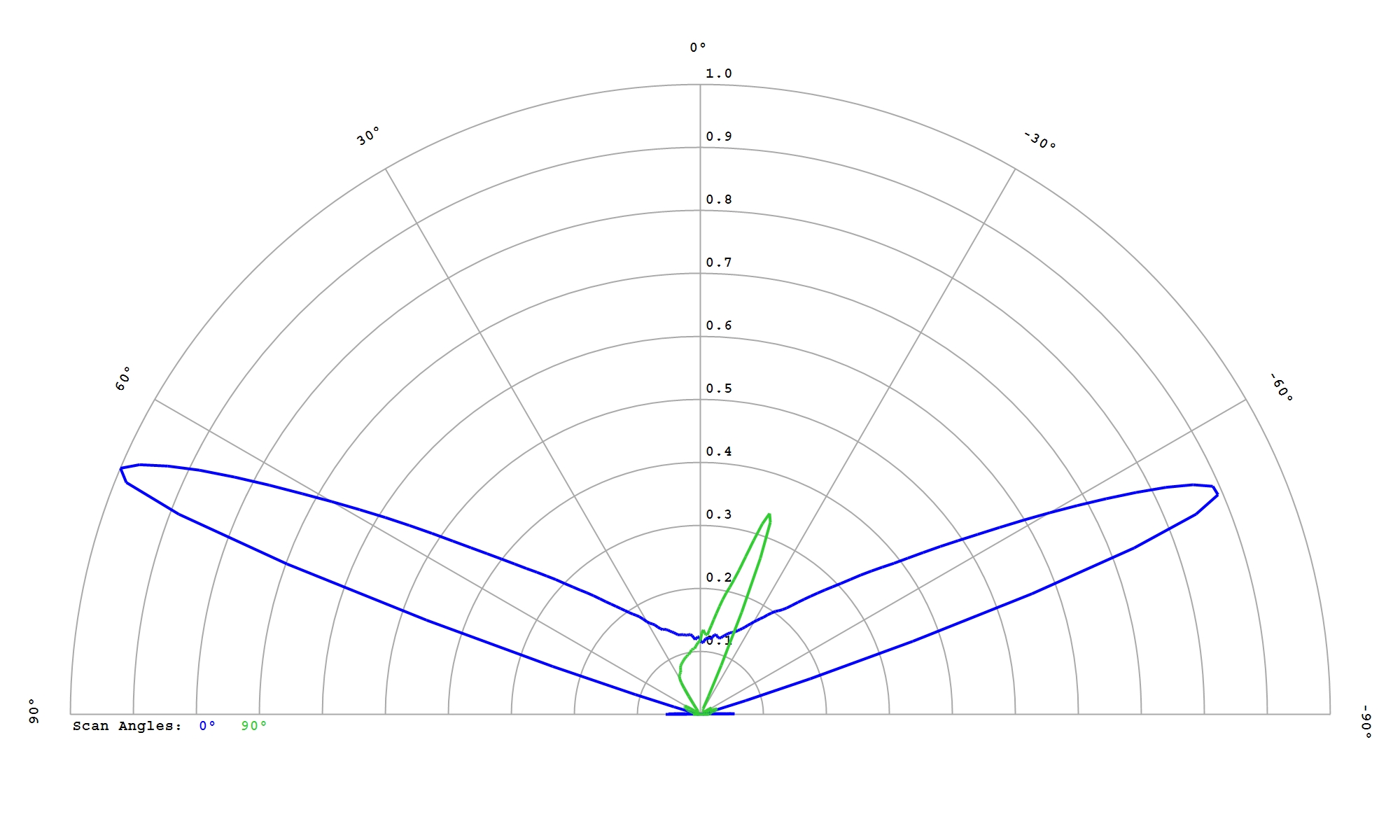

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

90.0%

FWHM:

141 x 11.5 x 19°

Cd/Im:

1.9


Download

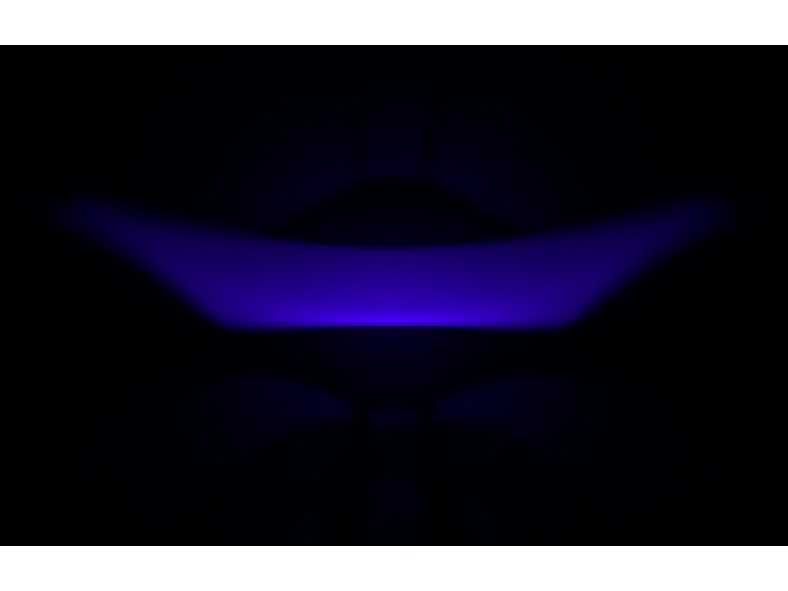

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

88.5%

FWHM:

141 x 11.5 x 19°

Ipk/W:

1.8


Download

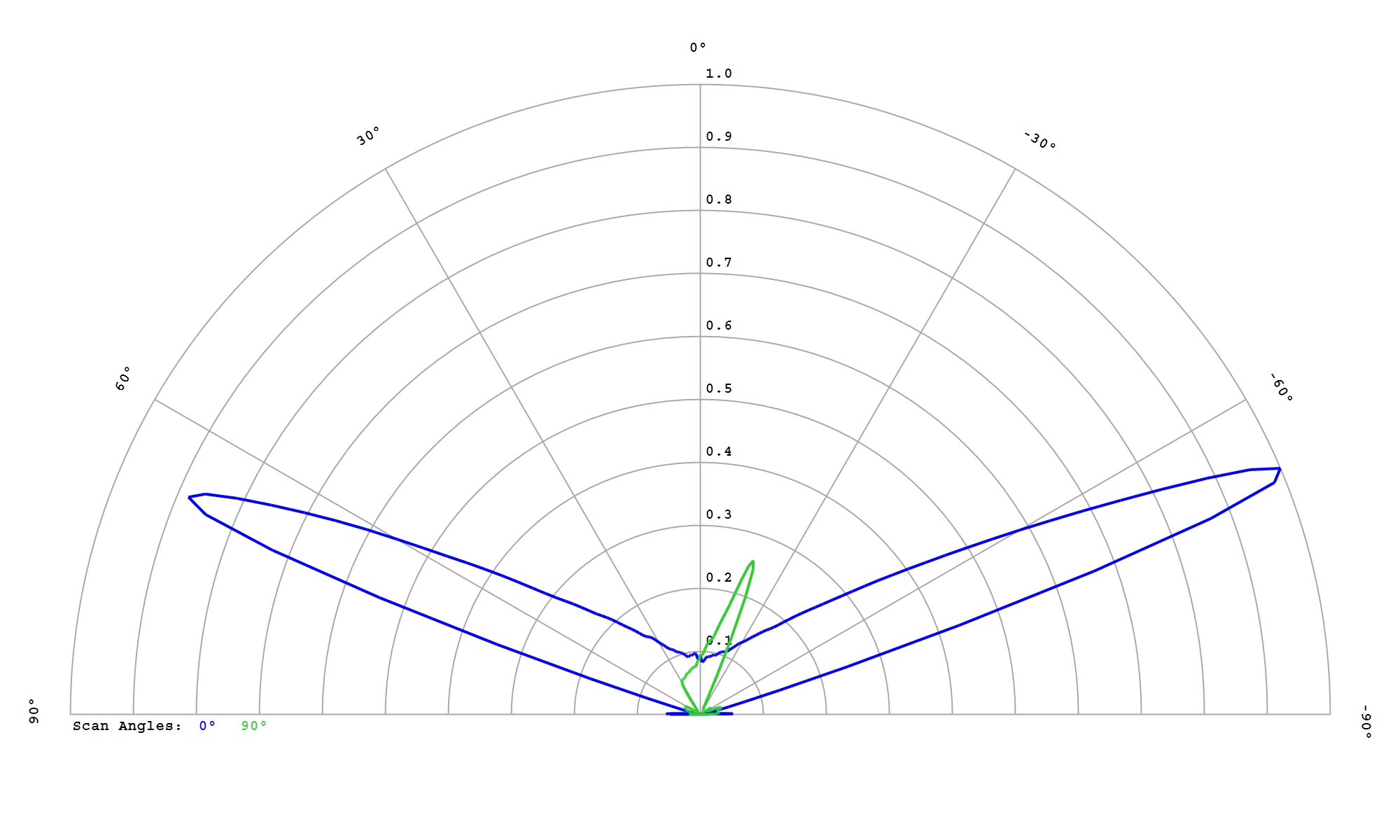

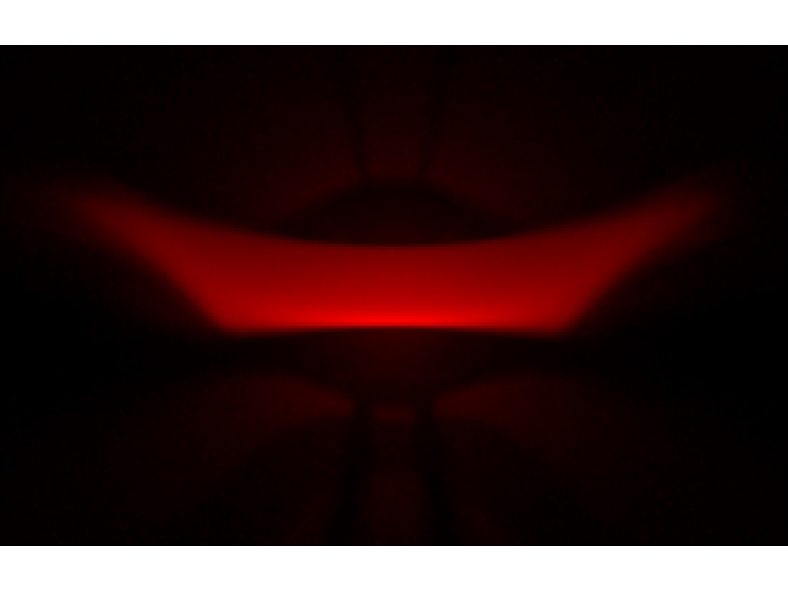

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

90.0%

FWHM:

141 x 11 x 19°

Cd/Im:

2.2


Download

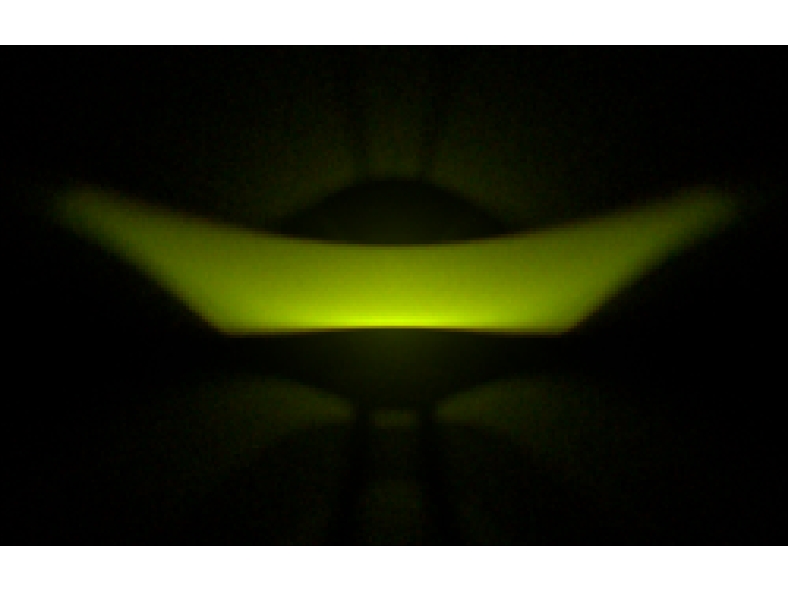

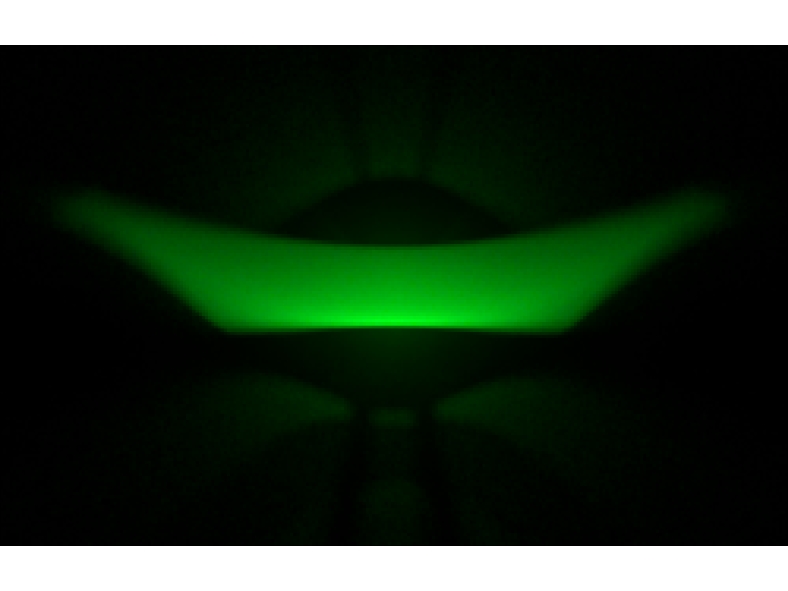

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

89.5%

FWHM:

142 x 11 x 20°

Cd/Im:

1.7


Download

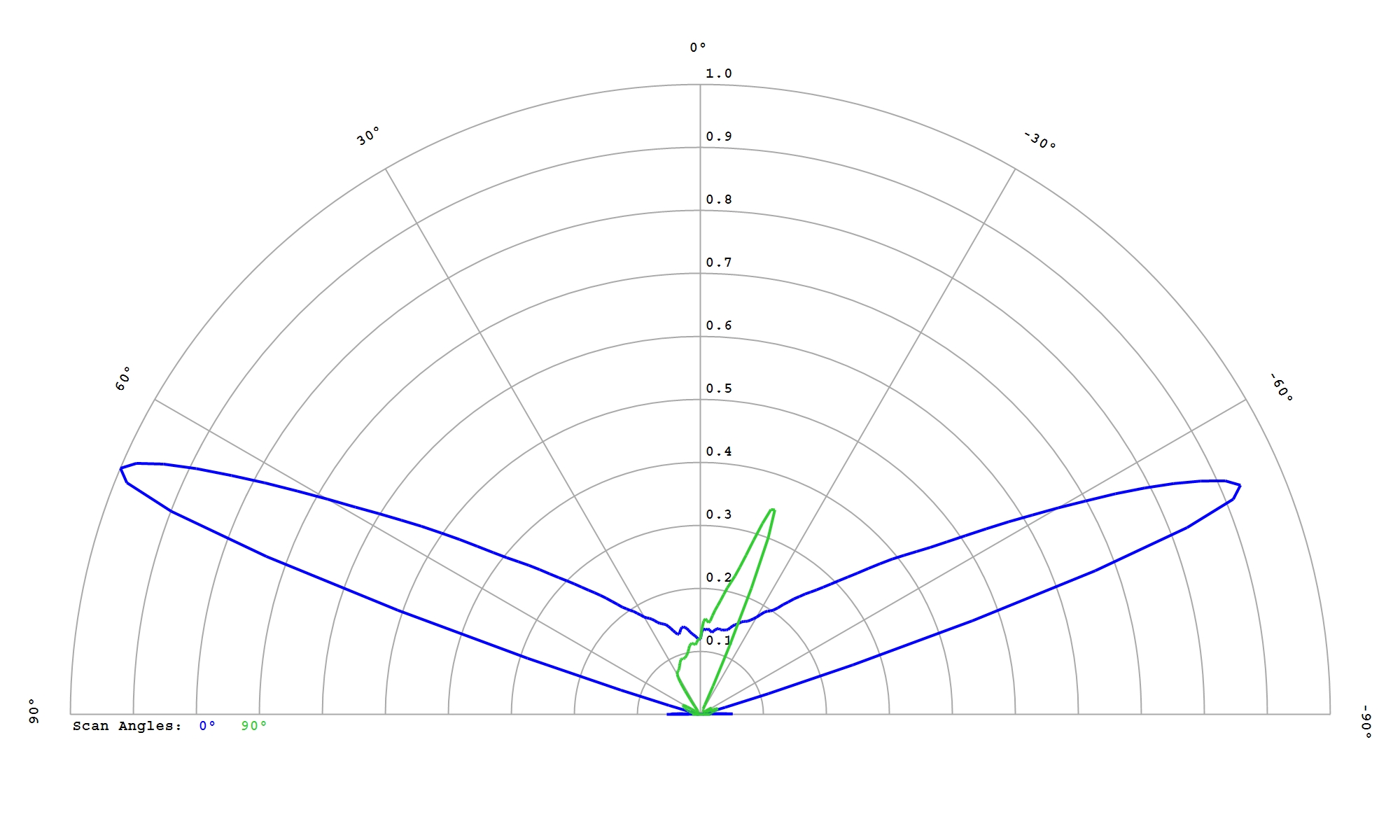

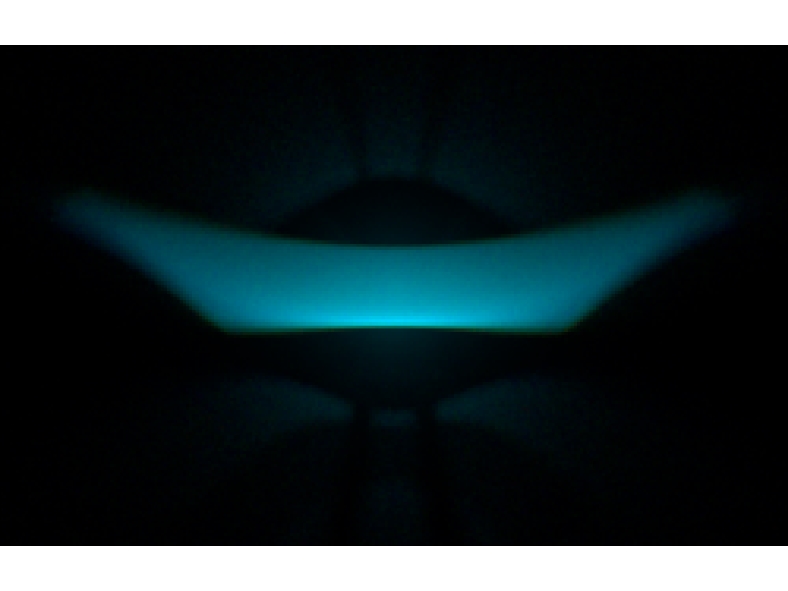

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

89.5%

FWHM:

142 x 12 x 20°

Cd/Im:

1.7


Download

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

89.5%

FWHM:

140 x 11.5 x 19°

Cd/Im:

1.8

Download

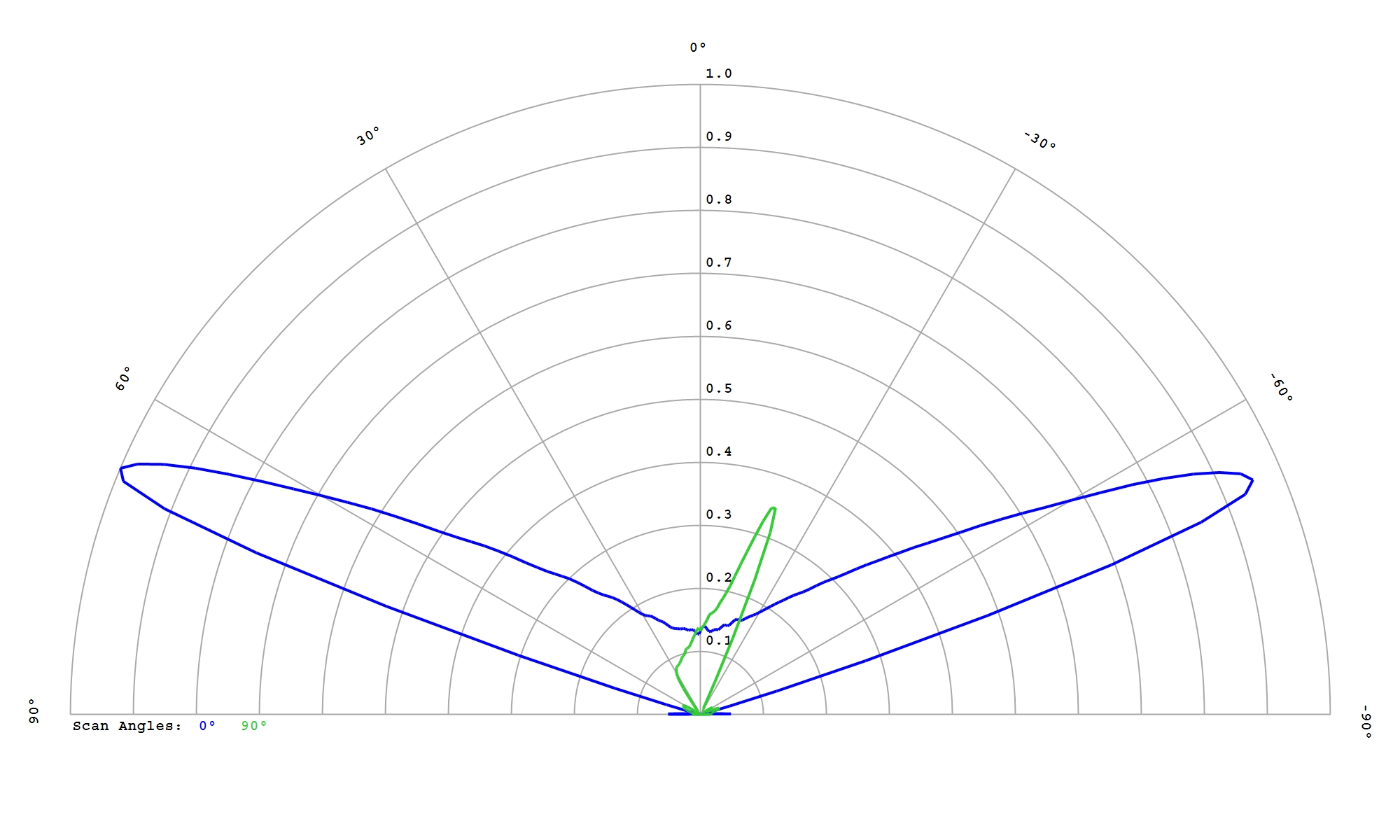

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

89.5%

FWHM:

142 x 12.5 x 20°

Cd/Im:

1.6


Download

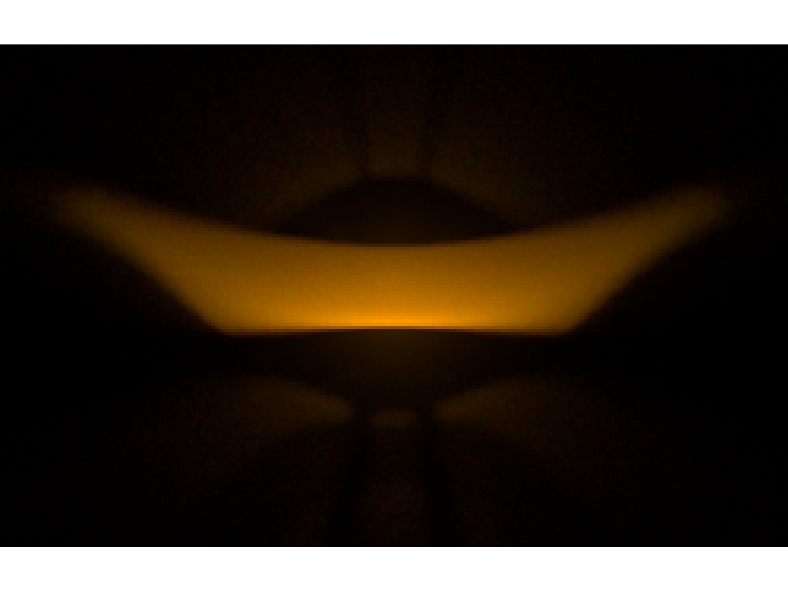

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

89.5%

FWHM:

142 x 12.5 x 20°

Cd/Im:

1.7


Download

Osram OSLON Square Flat White

Eff:

89.0%

FWHM:

141 x 14.5 x 6°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

83.7%

FWHM:

140.8 x 16.9 x 20°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

89.5%

FWHM:

143 x 25°

Cd/Im:

1.4

Carclo Optics - 12587 Hubble Spot Image Oslon Square Gen 5

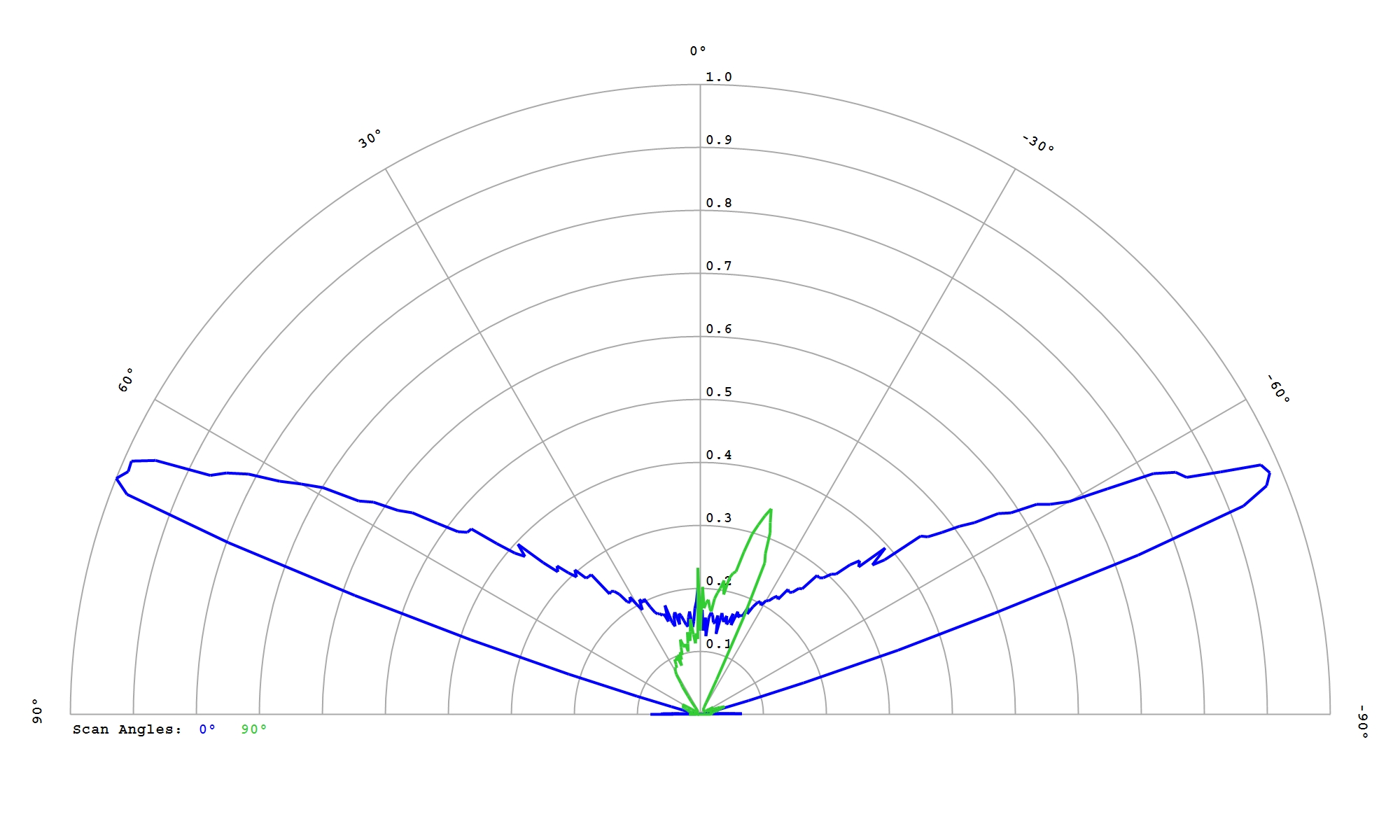

Carclo Optics - 12587 Hubble Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

84.0%

FWHM:

140 x 14.6 x 19.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

89.0%

FWHM:

144 x 13x 20°

Cd/Im:

1.8

Carclo Optics – 12587 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12587 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 150 degree White

Eff:

85.4%

FWHM:

141 x 10 x 19°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Osram OSLON SSL 80 White

Eff:

86.2%

FWHM:

139 x 23 x 19°

Cd/Im:

1.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Osram OSTAR Stage LE-UW-S2WN

Eff:

89.5%

FWHM:

144 x 25.5 x 19°

Cd/Im:

1.3

Carclo Optics – 12587 Osram Ostar Stage LE-UW-S2WN - Spot Image

Carclo Optics – 12587 Osram Ostar Stage LE-UW-S2WN - Cross-Section

Download

IES

Plessey PLW 7070GA White

Eff:

87.5%

FWHM:

147 x 38 °

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

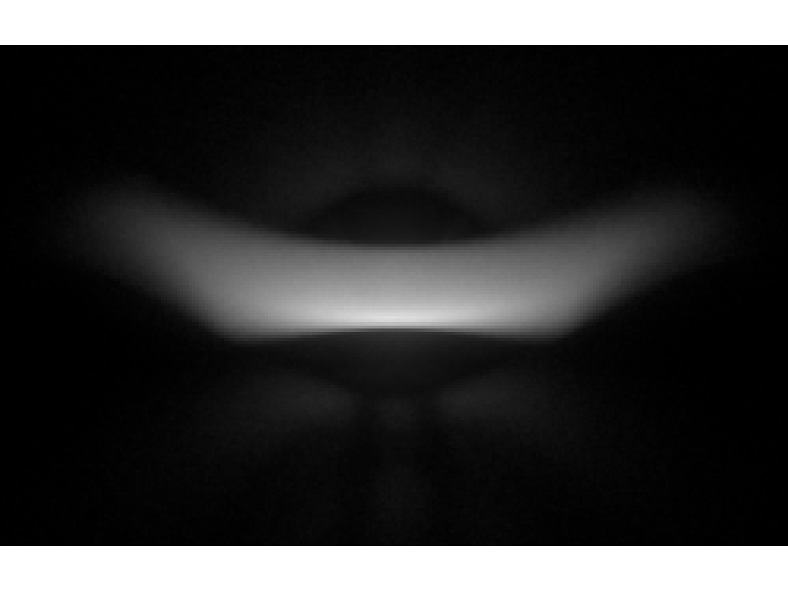

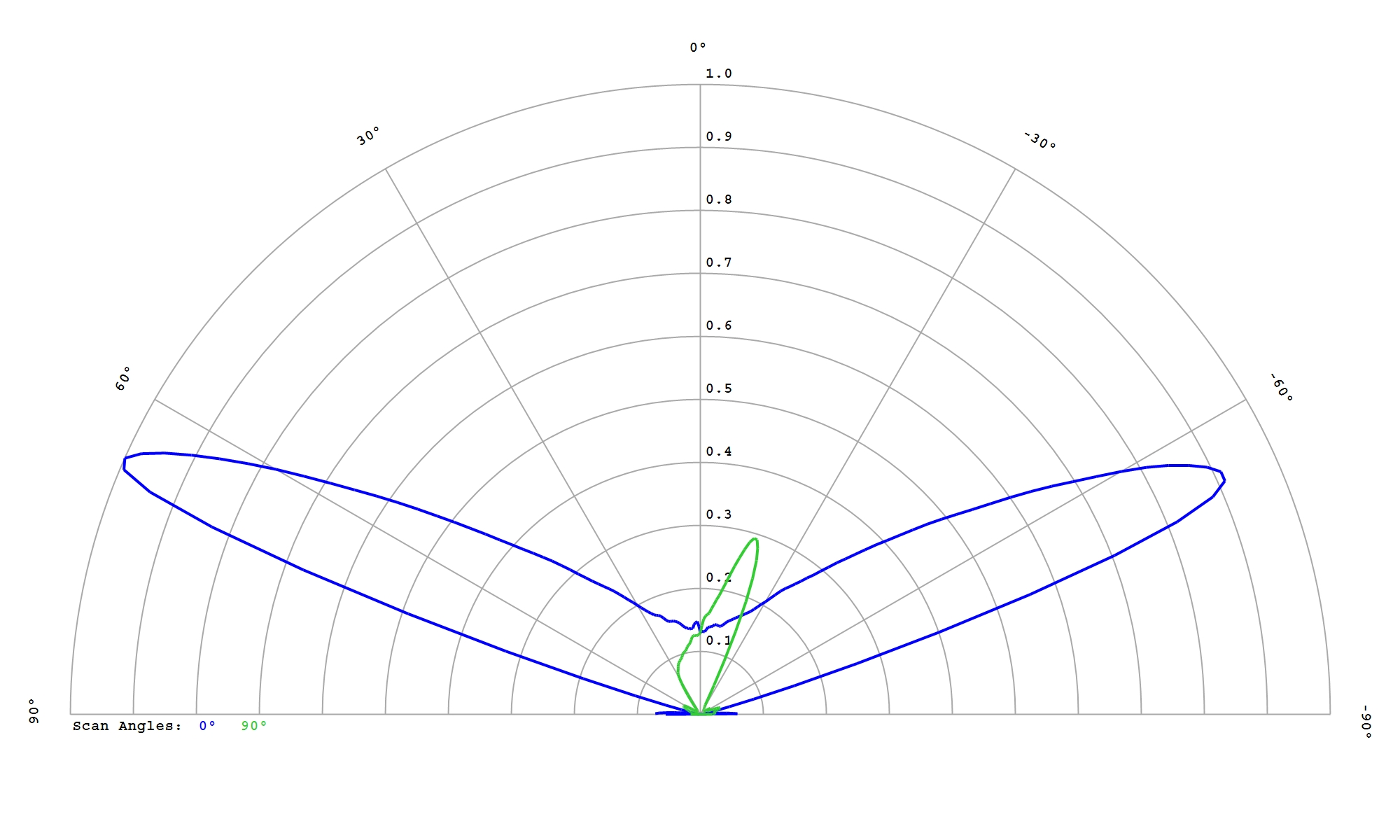

Samsung 2835 LM281B+ White

Eff:

89.5%

FWHM:

141 x 21.5 x 18°

Cd/Im:

1.5



Download

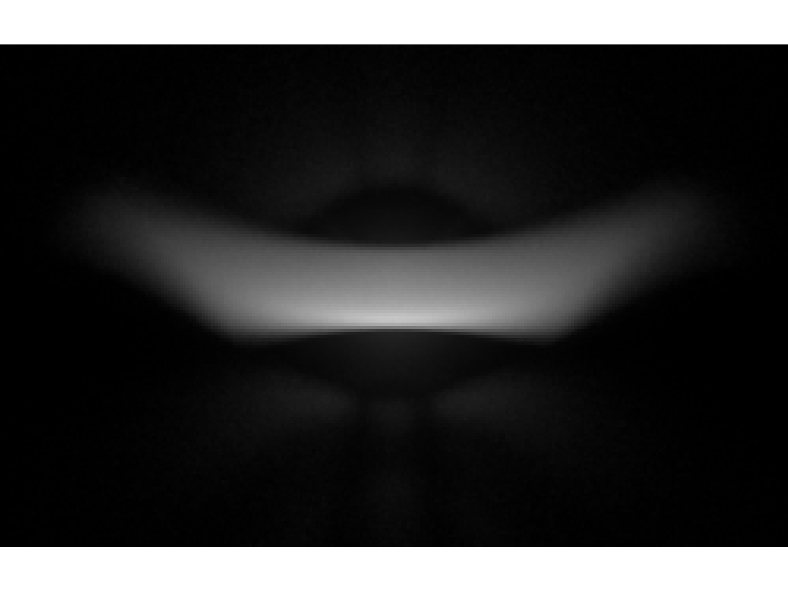

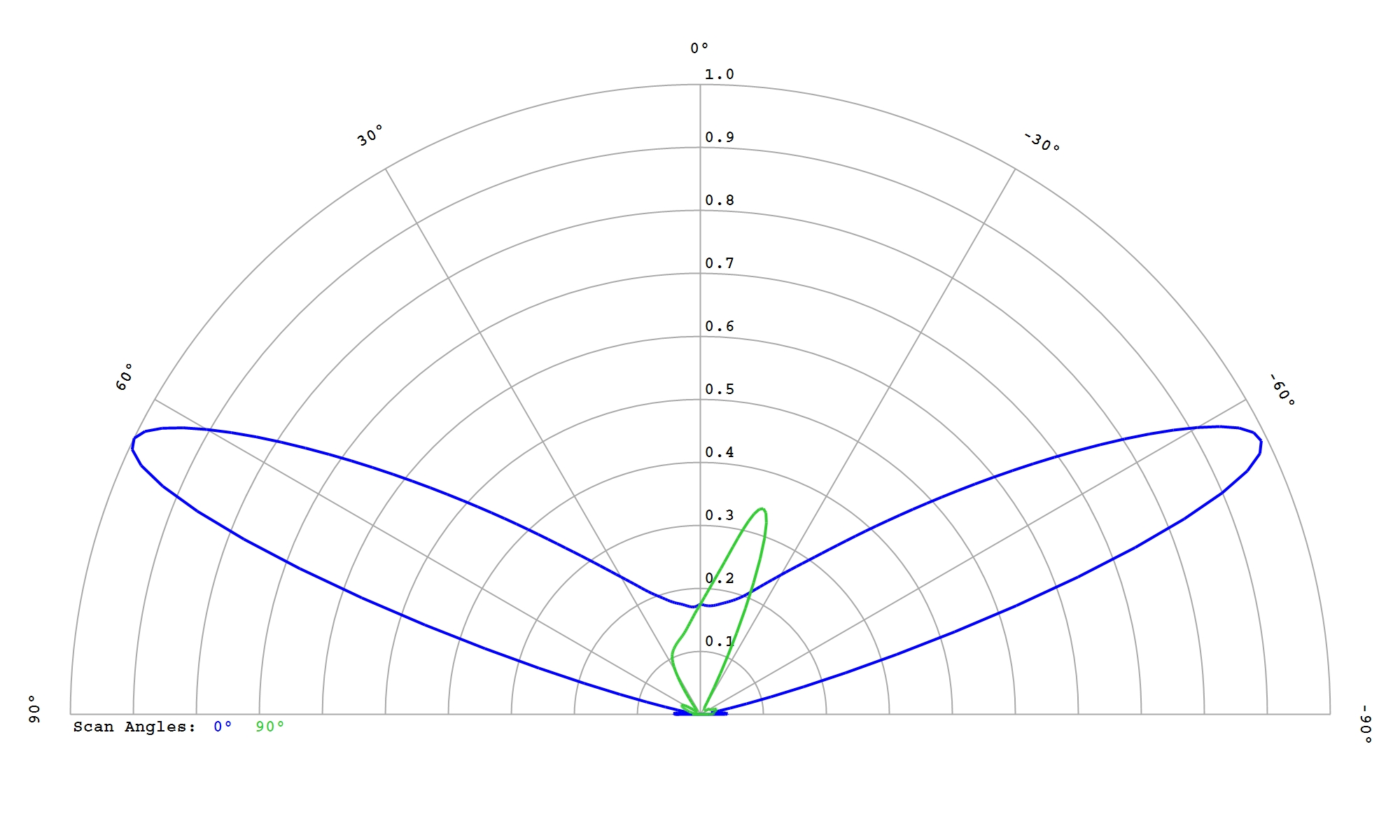

Samsung 2835 LM282B+ White

Eff:

89.5%

FWHM:

141 x 19.5 x 18°

Cd/Im:

1.4



Download

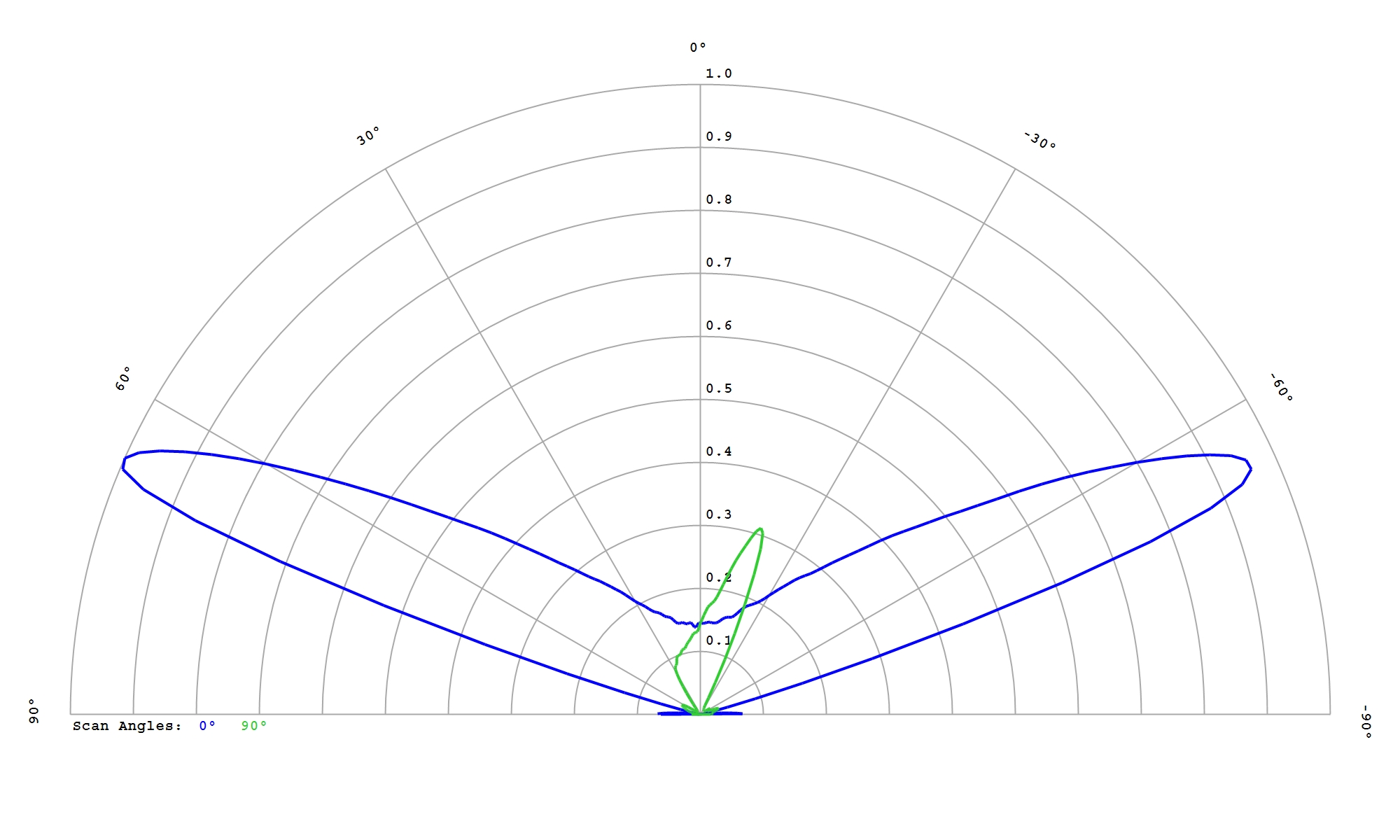

Samsung 3030 LM301B White

Eff:

89.5%

FWHM:

142 x 23 x 18°

Cd/Im:

1.4

Download

IES

Samsung 3535 LH351D White

Eff:

89.0%

FWHM:

146 x 29.5 x 6°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

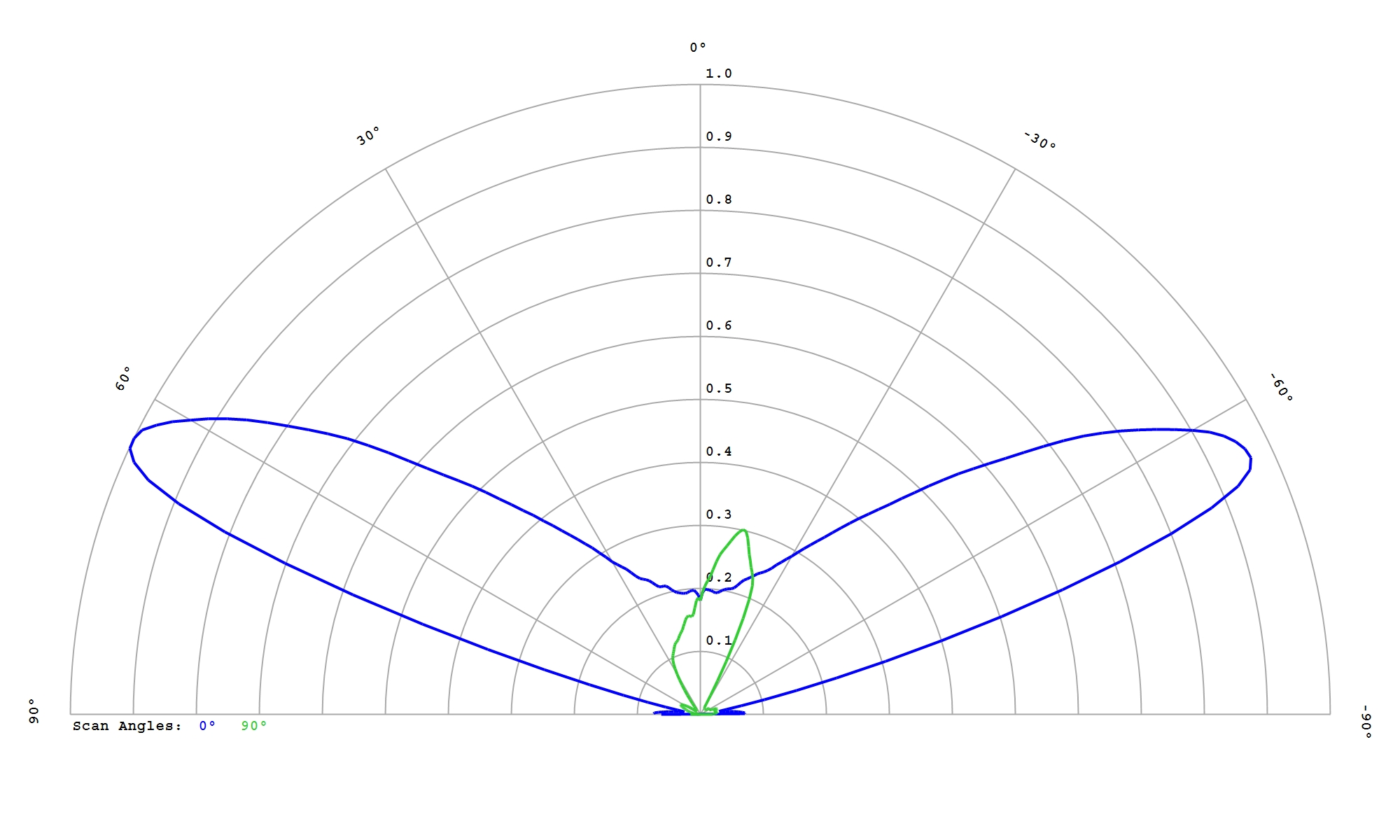

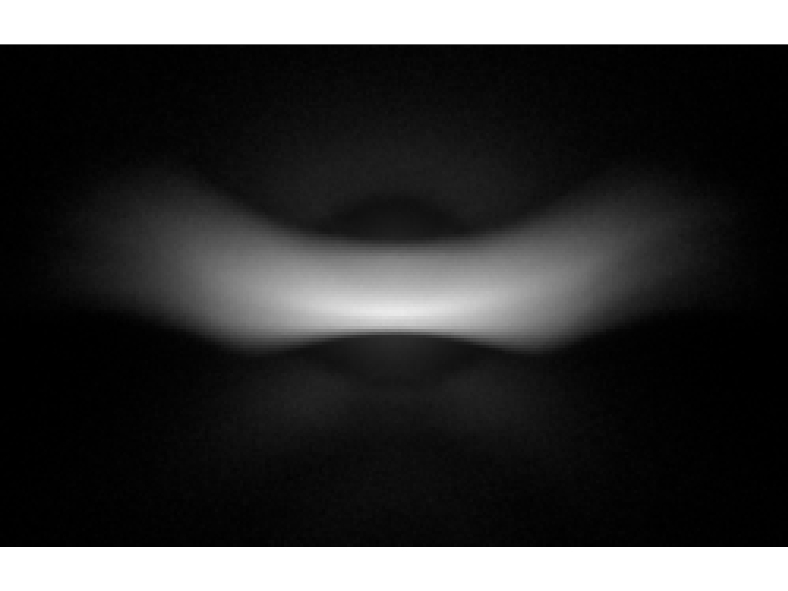

Samsung 5050 LH502C White

Eff:

89.5%

FWHM:

144 x 33 x 14°

Cd/Im:

1.2


Download

IES

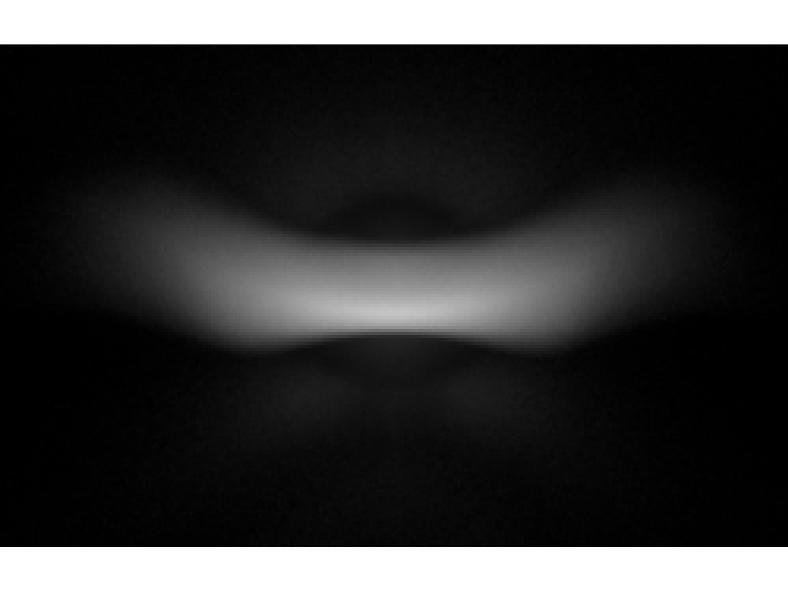

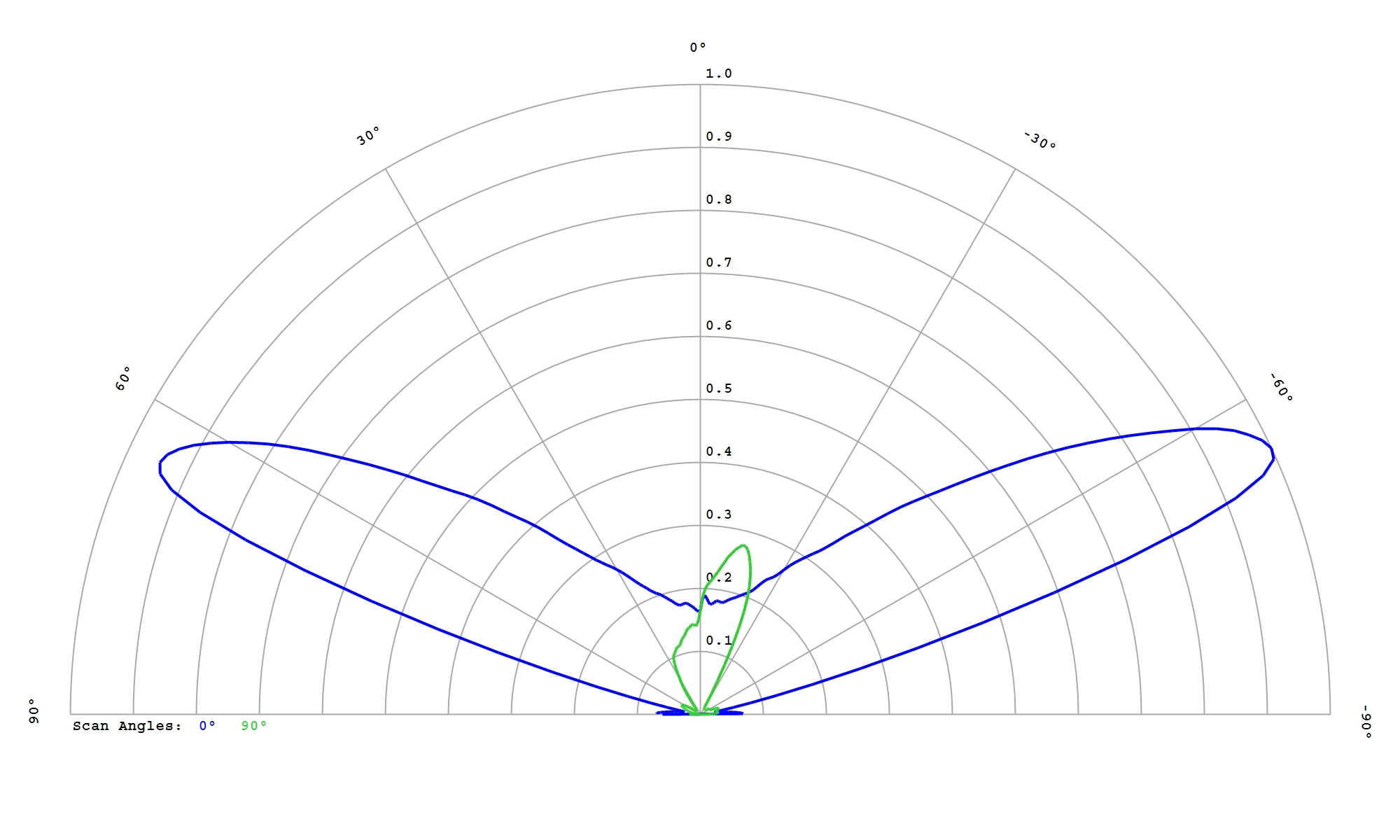

Samsung 5050 LH502D White

Eff:

89.5%

FWHM:

143 x 31 x 15°

Cd/Im:

1.2


Download

IES

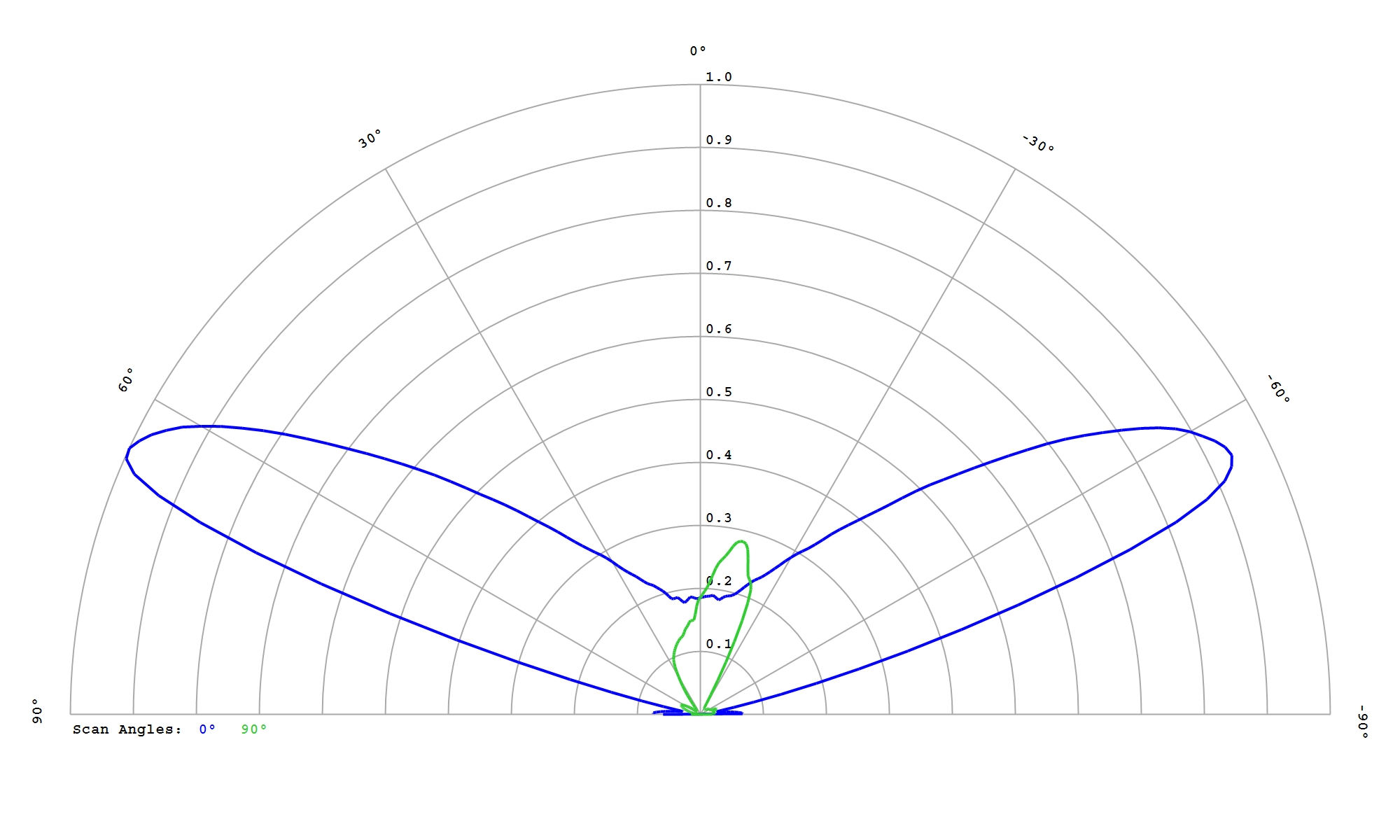

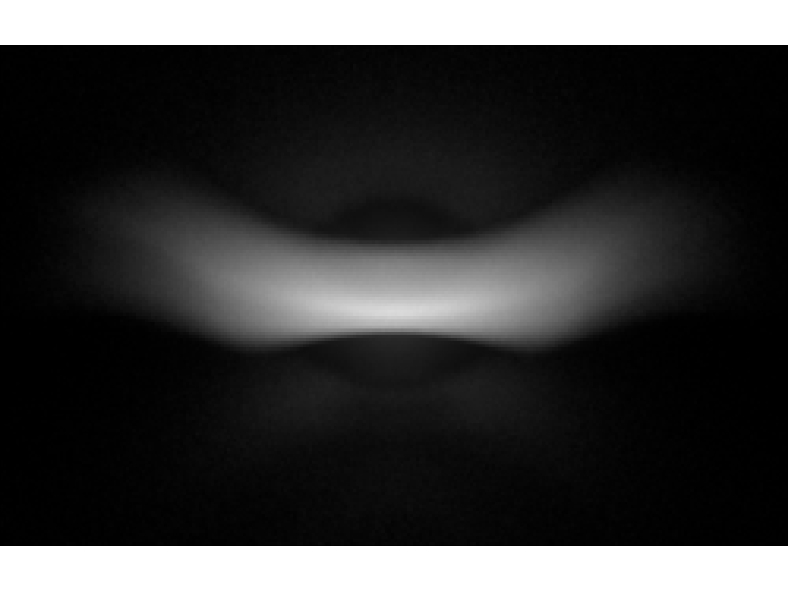

Samsung 5050 LH508C White

Eff:

89.5%

FWHM:

143 x 34 x 14°

Cd/Im:

1.2


Download

IES

Samsung CSP LH151B White

Eff:

89.5%

FWHM:

137 x 12 x 18°

Cd/Im:

2.0

Carclo Optics – 12587 – Samsung_LH151B_spot-image

Carclo Optics – 12587 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

89.5%

FWHM:

138 x 16 x 17°

Cd/Im:

1.7

Carclo Optics -12587 Sport Image - Samsung LH181B 4000K

Carclo Optics -12587 Cross Section Image - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

89.0%

FWHM:

139 x 21.5 x17°

Cd/Im:

1.7

Carclo Optics -12587 Spot Image - Samsung LH231B 5000KL

Carclo Optics -12587 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

89.0%

FWHM:

137 x 10.5 x 18°

Cd/Im:

1.9

Carclo Optics -12587 Sport Image - Samsung LM101B 5000K

Carclo Optics -12587 Cross Section Image - Samsung LM101B 5000K

Download

IES

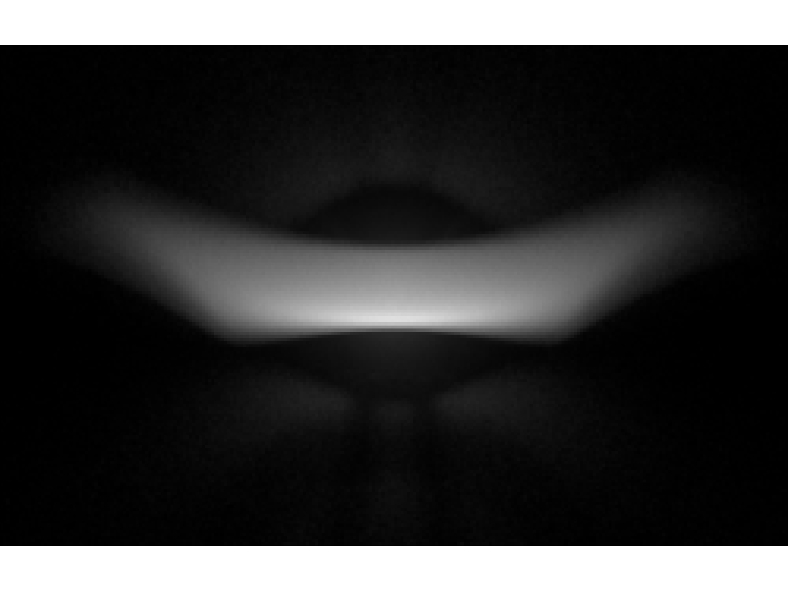

Seoul 3030 STW8C12E-E0 White

Eff:

89.5%

FWHM:

142 x 18 x 19°

Cd/Im:

1.4

Download

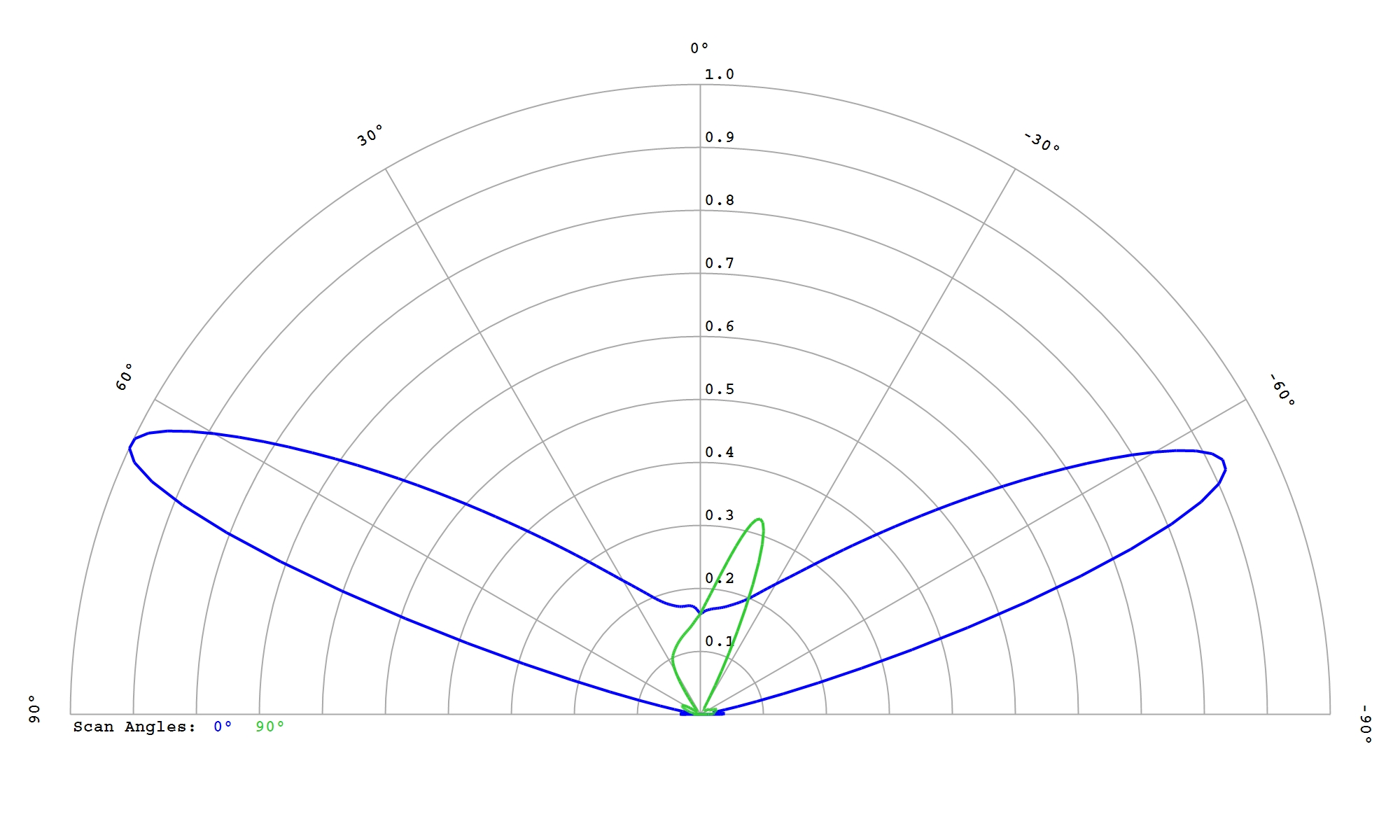

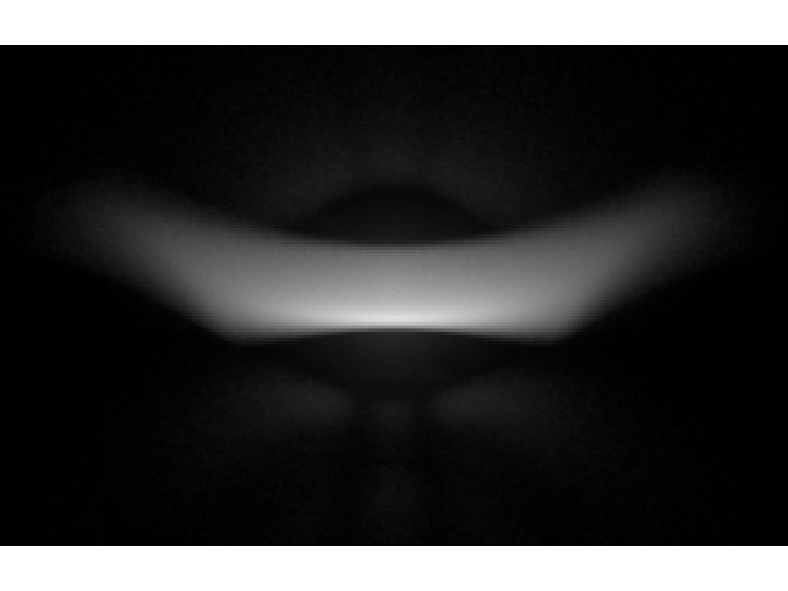

Seoul 3528 G STW8A2PD-G700 White

Eff:

89.5%

FWHM:

142 x 17.5 x 18°

Cd/Im:

1.5

Download

Seoul CSP SZ8Y11 White

Eff:

86.5%

FWHM:

138 x 10.5 x 18°

Cd/Im:

2.4

Carclo Optics -12587 Spot Image - Seoul Z8Y11

Carclo Optics -12587 Cross Section Image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

87.0%

FWHM:

137 X 8.4 X 6°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

81.0%

FWHM:

137.3 x 14.9 x 16.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

88.5%

FWHM:

139 x15.5 x16°

Cd/Im:

1.9

Carclo Optics -12587 Spot Image - Seoul SZ8Y22

Carclo Optics -12587 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

88.0%

FWHM:

144 x 20.5 x 18°

Cd/Im:

1.5

Carclo Optics - 12587 Spot Image - Seoul SZ8Y22P

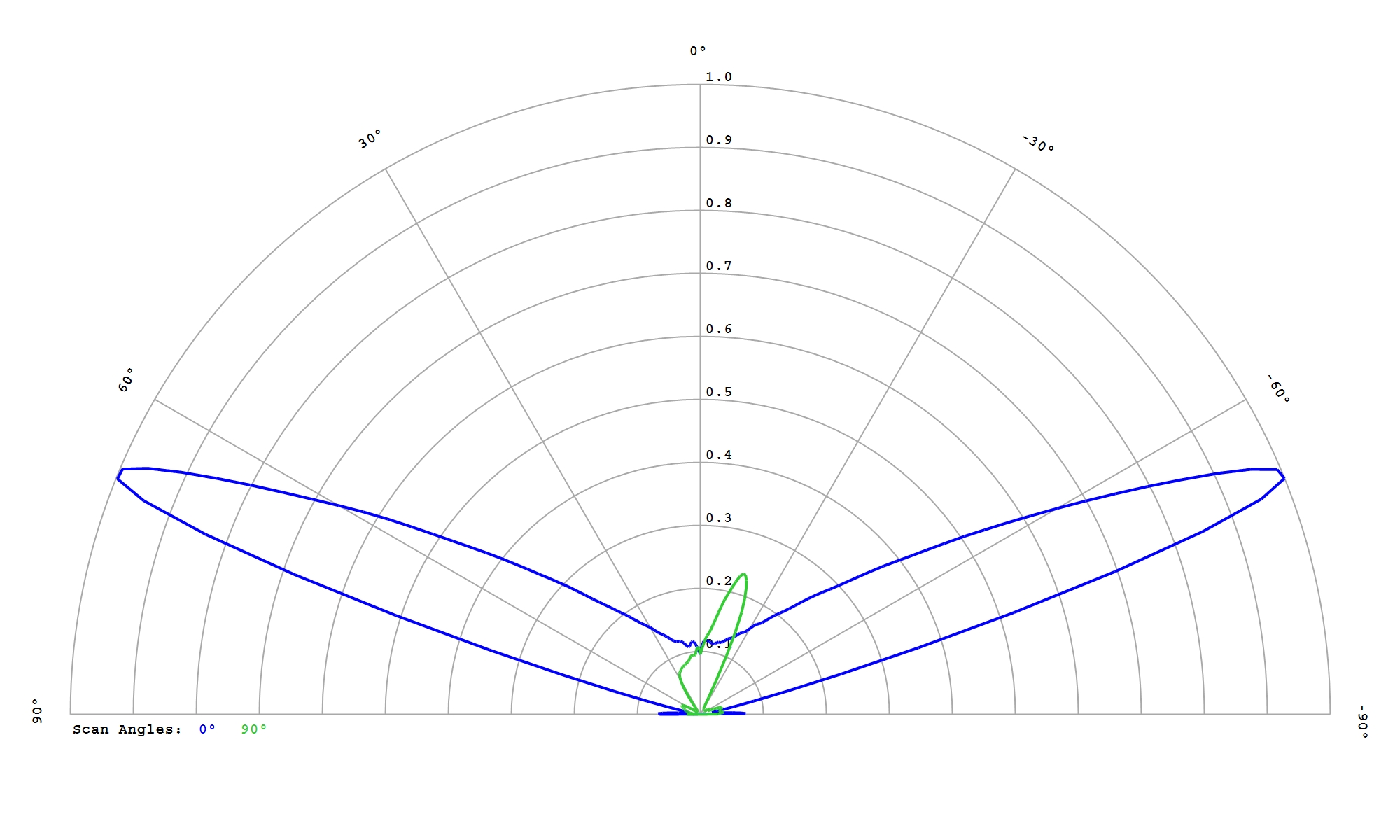

Carclo Optics - 12587 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y22P White

Eff:

88.0%

FWHM:

144 x 20.5 x18°

Cd/Im:

1.5

Carclo Optics - 12587 Spot Image - Seoul SZ8Y22P

Carclo Optics - 12587 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul CSP SZ8Y50 White

Eff:

88.5%

FWHM:

147 x 35 x12°

Cd/Im:

1.1

Carclo Optics - 12587 Spot Image - Seoul SSC SZ8Y50

Carclo Optics - 12587 Cross section Image - Seoul SSC SZ8Y50

Download

IES

Seoul MidPower MJT4040 White

Eff:

89.0%

FWHM:

149 x 26 x 25°

Cd/Im:

1.2

Download

IES

Seoul MJT 5050 White

Eff:

83.8%

FWHM:

142.3 x 24 x 17°

Cd/Im:

1.3

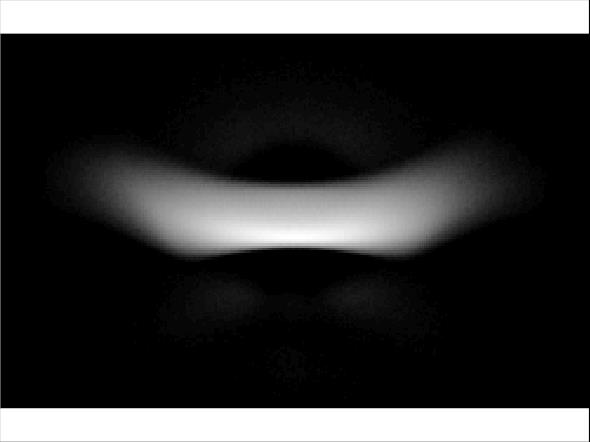

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

89.5%

FWHM:

141 x 19.5 x 17°

Cd/Im:

1.4

Carclo Optics - 12587 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12587 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

89.5%

FWHM:

141 x 20.5 x 18°

Cd/Im:

1.5

Carclo Optics - 12587 Spot Image STWS C2PB-E0

Carclo Optics - 12587 Cross Section STWS C2PB-E0

Download

IES

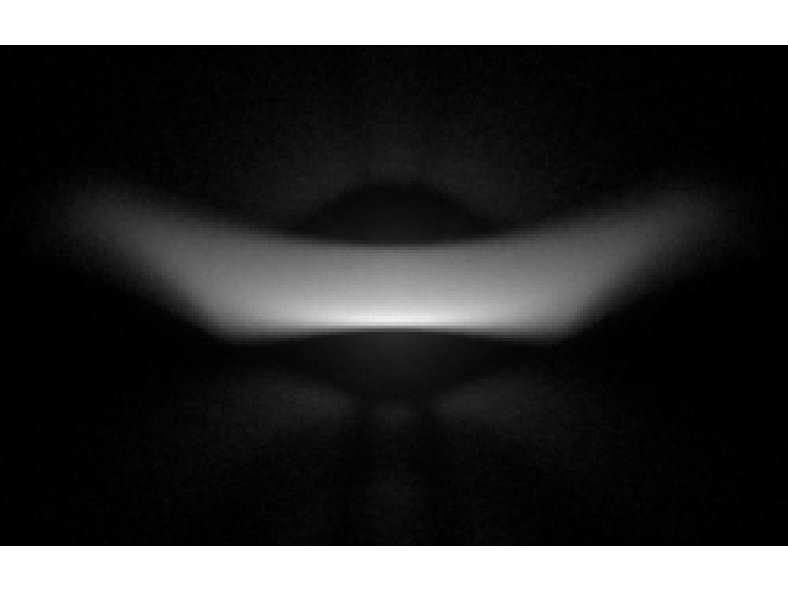

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

89.5%

FWHM:

142 x 19.5 x 19°

Cd/Im:

1.4

Download

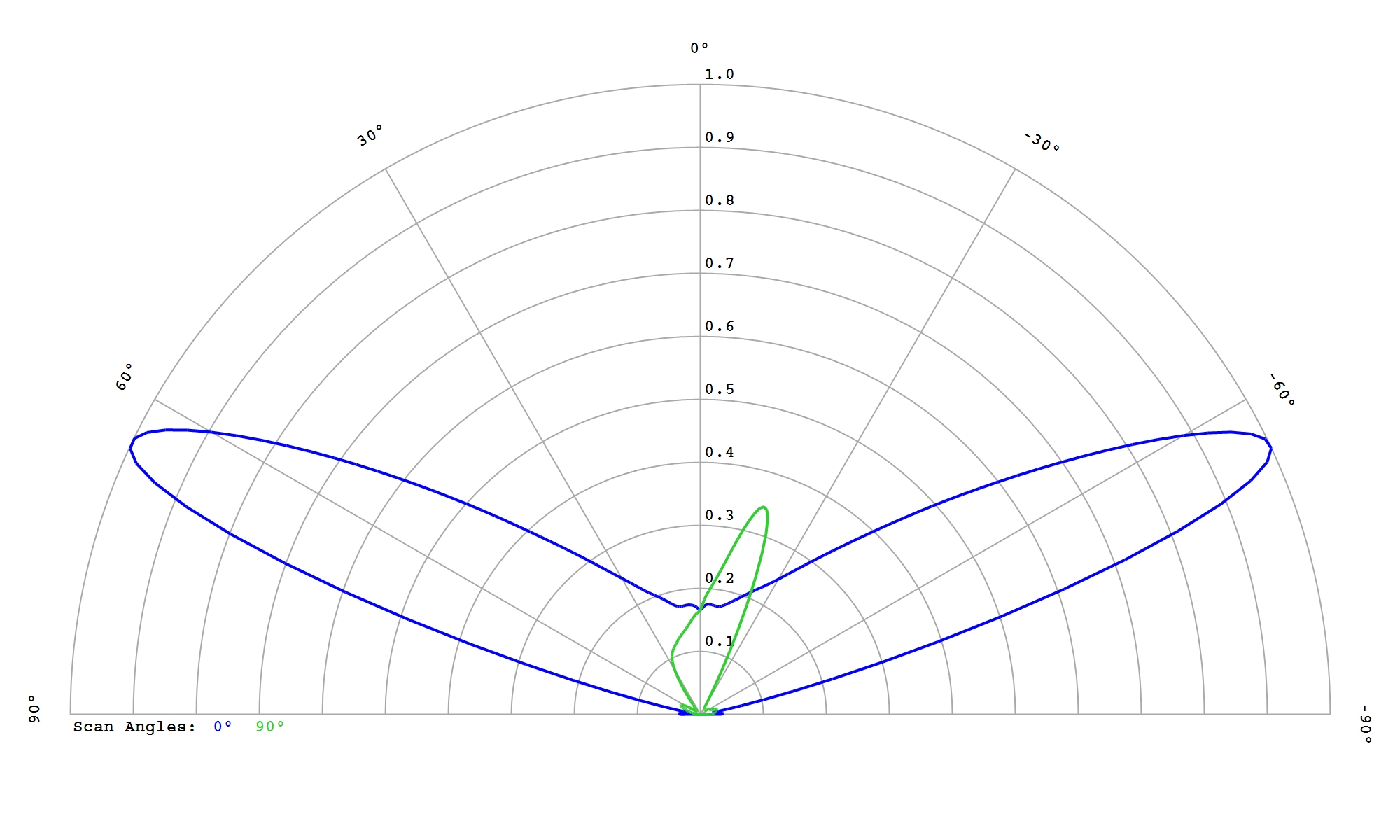

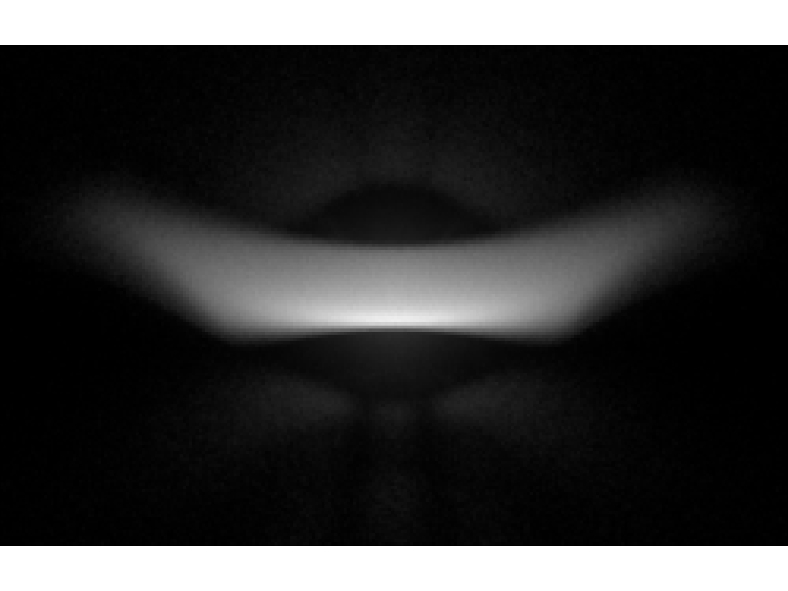

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

89.5%

FWHM:

142 x 20.5 x 19°

Cd/Im:

1.4

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

89.5%

FWHM:

141 x 23 x 18°

Cd/Im:

1.5

Carclo Optics - 12587 Hubble Spot Image Seoul Sunlike 3030

Carclo Optics - 12587 Hubble Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5-M0 White

Eff:

85.5%

FWHM:

142 x 24 x 20°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M1 White

Eff:

86.0%

FWHM:

140 x 21 x 18°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul Z - Power Z5-M4 White

Eff:

89.5%

FWHM:

141 x 24 x 19°

Cd/Im:

1.3

Carclo Optics – 12587 Seoul Z-Power Z5 - Spot Image

Carclo Optics – 12587 Seoul Z-Power Z5 - Cross-Section

Download

IES

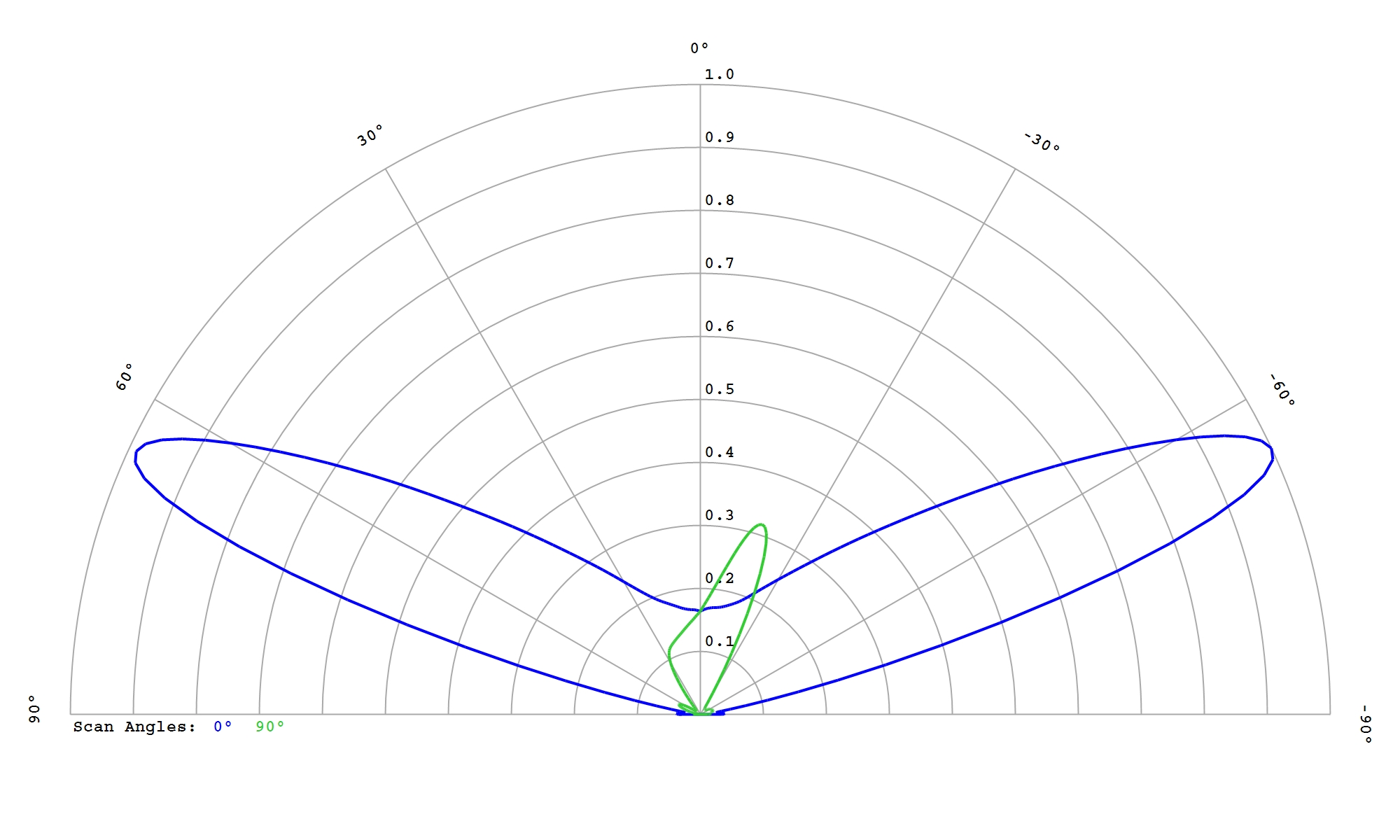

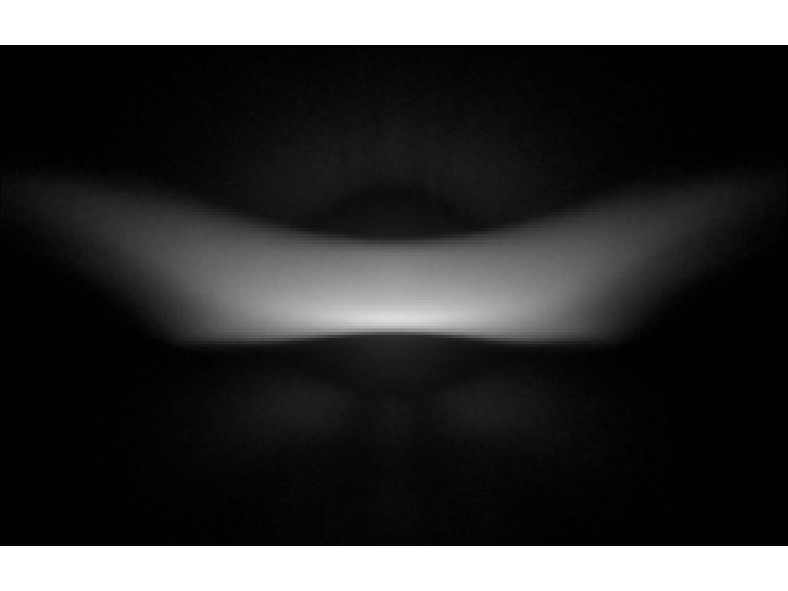

Seoul Z - Power Z5-M5 White

Eff:

89.0%

FWHM:

144 x 25.5 x 19°

Cd/Im:

1.2

Download

Seoul Z - Power Z5-P0 White

Eff:

85.4%

FWHM:

141 x 16 x 19°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Stanley 6J White

Eff:

84.0%

FWHM:

146 X 32.1 X 14.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

144 x 17.7 x 18.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

83.6%

FWHM:

140 x 17 x 17°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
