Carclo Optics Reflector 12530

17.0mm Medium Spot Diffuse Reflector

Part number

12530

Dimensions

17.0mm

Drawing Number

70029

Optic type

Reflector

Finish

Diffuse

Beam type

Medium Spot

Applications

Retail

UV-C Lighting

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Cree XLamp XB-D White

FWHM:

53°

Cd/Im:

1.4

Download

ies

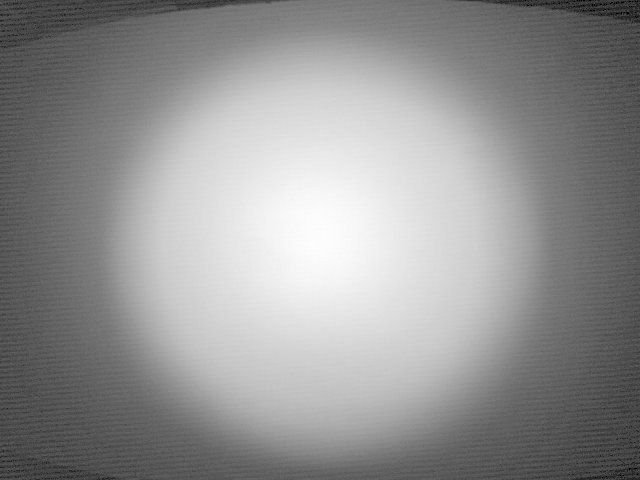

Cree XLamp XM-L White

FWHM:

58°

Cd/Im:

1.2

Download

ies

Cree XLamp XM-L2 White

FWHM:

59°

Cd/Im:

1.2

12530 Led Cree XLamp XM-L2 White Spot Image

12530 Led Cree XLamp XM-L2 White Cross Section

Download

Cree XLamp XP-G2 White

FWHM:

57°

Cd/Im:

1.4

Download

ies

Cree XLamp XT-E White

FWHM:

53.5°

Cd/Im:

1.3

Download

ies

LG Innotek 3535LG White

FWHM:

55.5°

Cd/Im:

1.5

Download

ies

LUMILEDS LUXEON Rebel White

FWHM:

52°

Cd/Im:

1.5

Download

ies

Luminus Devices XBT 1313 UV Gen2

Eff:

76.1%

FWHM:

49°

Ipk/W:

1.3


Download

Luminus Devices XBT 3535 UV

Eff:

79.5%

FWHM:

40°

Ipk/W:

1.6


Download

Nichia 219 White

FWHM:

53.7°

Cd/Im:

1.5

Download

ies

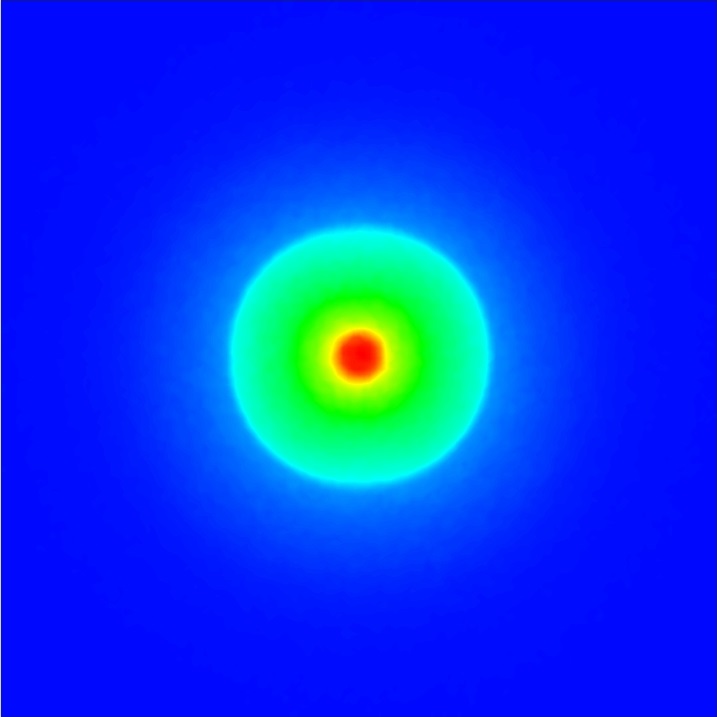

Osram OS OSLON UV 3636 SU CULBN1.VC

Eff:

79.7%

FWHM:

35°

Ipk/W:

1.7

Download

Osram OS OSLON UV 3636 SU CULCN1.VC

Eff:

80.5%

FWHM:

36°

Ipk/W:

1.6

Download

Osram OS OSLON UV 3636 SU CULDN1.VC

Eff:

80.2%

FWHM:

44°

Ipk/W:

1.5

Download

Samsung UV 351A

Eff:

81.1%

FWHM:

33°

Ipk/W:

1.7

Download

Samsung UV 352B

Eff:

80.8%

FWHM:

35°

Ipk/W:

1.6

Download

Samsung UV 353B

Eff:

81.3%

FWHM:

40°

Ipk/W:

1.6

Download

Seoul UV CA3535 CUD7GF1B

Eff:

80.0%

FWHM:

35°

Ipk/W:

1.7

Download

Seoul Z - Power Z5 M0 White

FWHM:

54.1°

Cd/Im:

1.3

Download

ies

Seoul Z - Power Z5 P0 White

FWHM:

53.7°

Cd/Im:

1.4

Download

ies

Stanley 1N White

FWHM:

52.5°

Cd/Im:

1.4

Download

ies

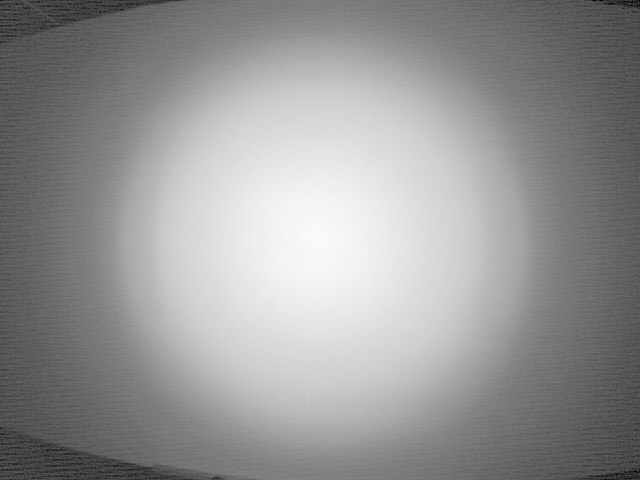

Stanley 6J White

FWHM:

56.1°

Cd/Im:

1.3

Download

ies
