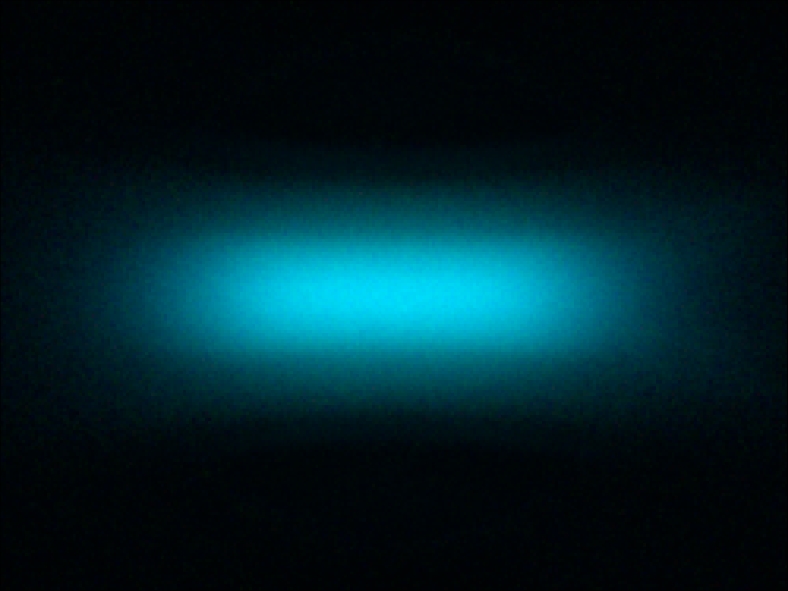

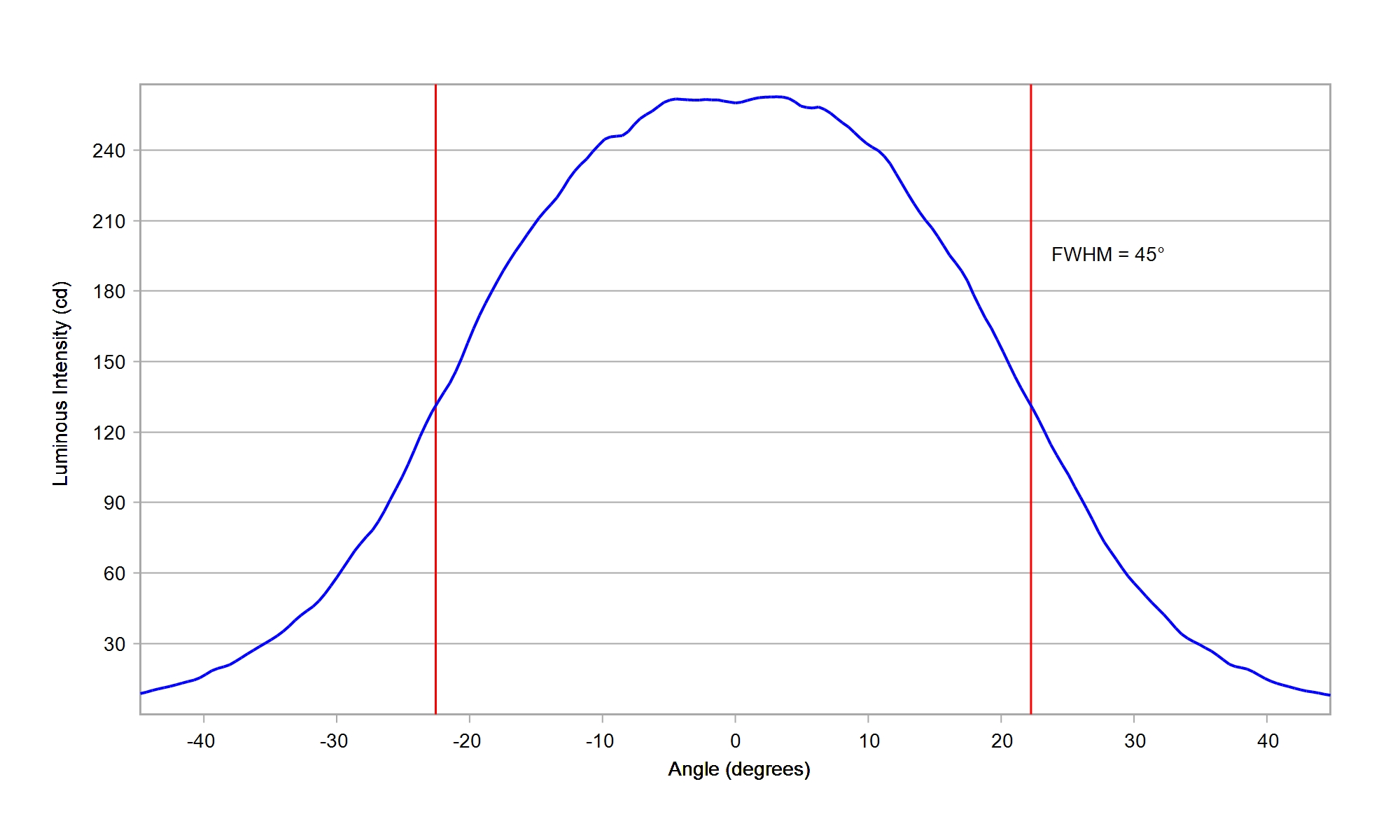

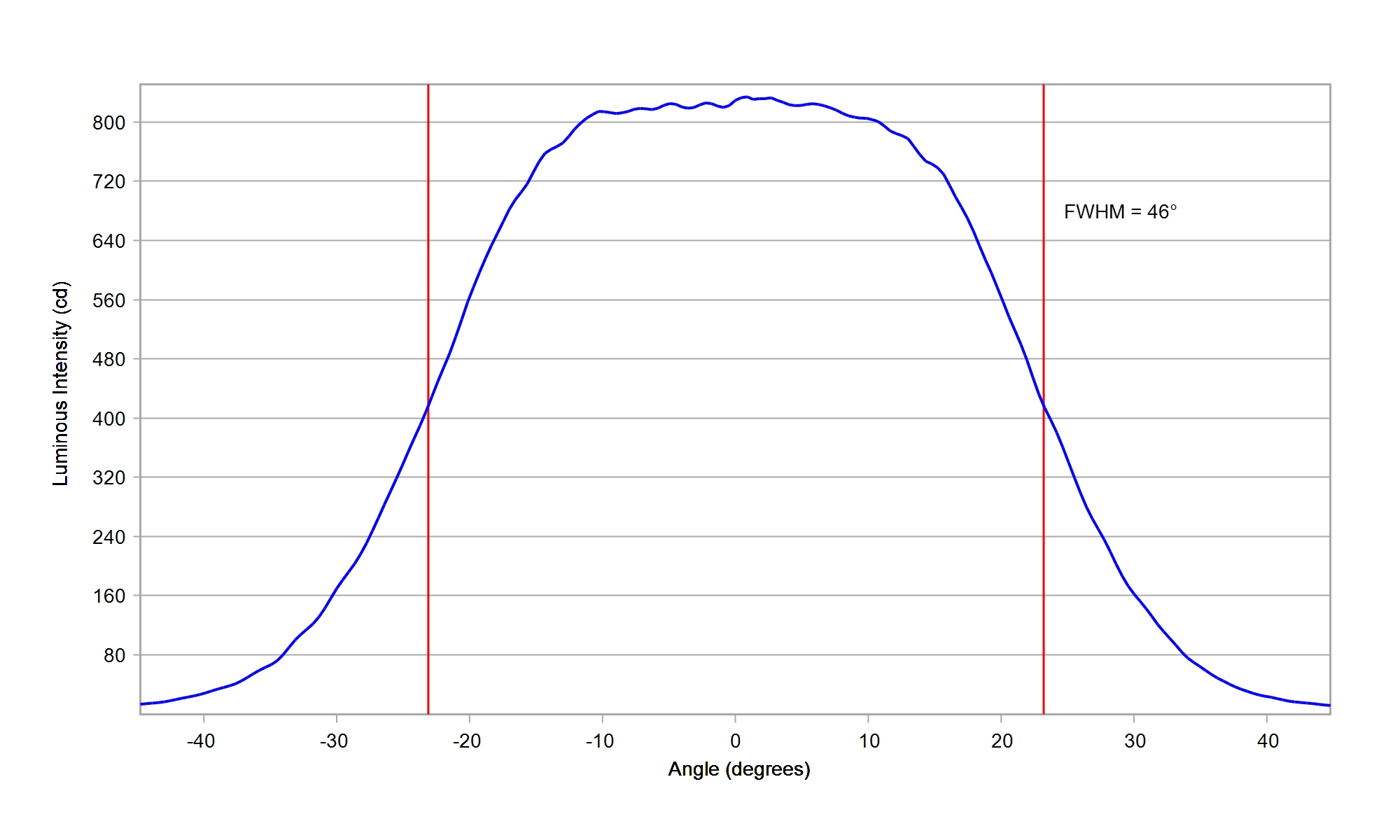

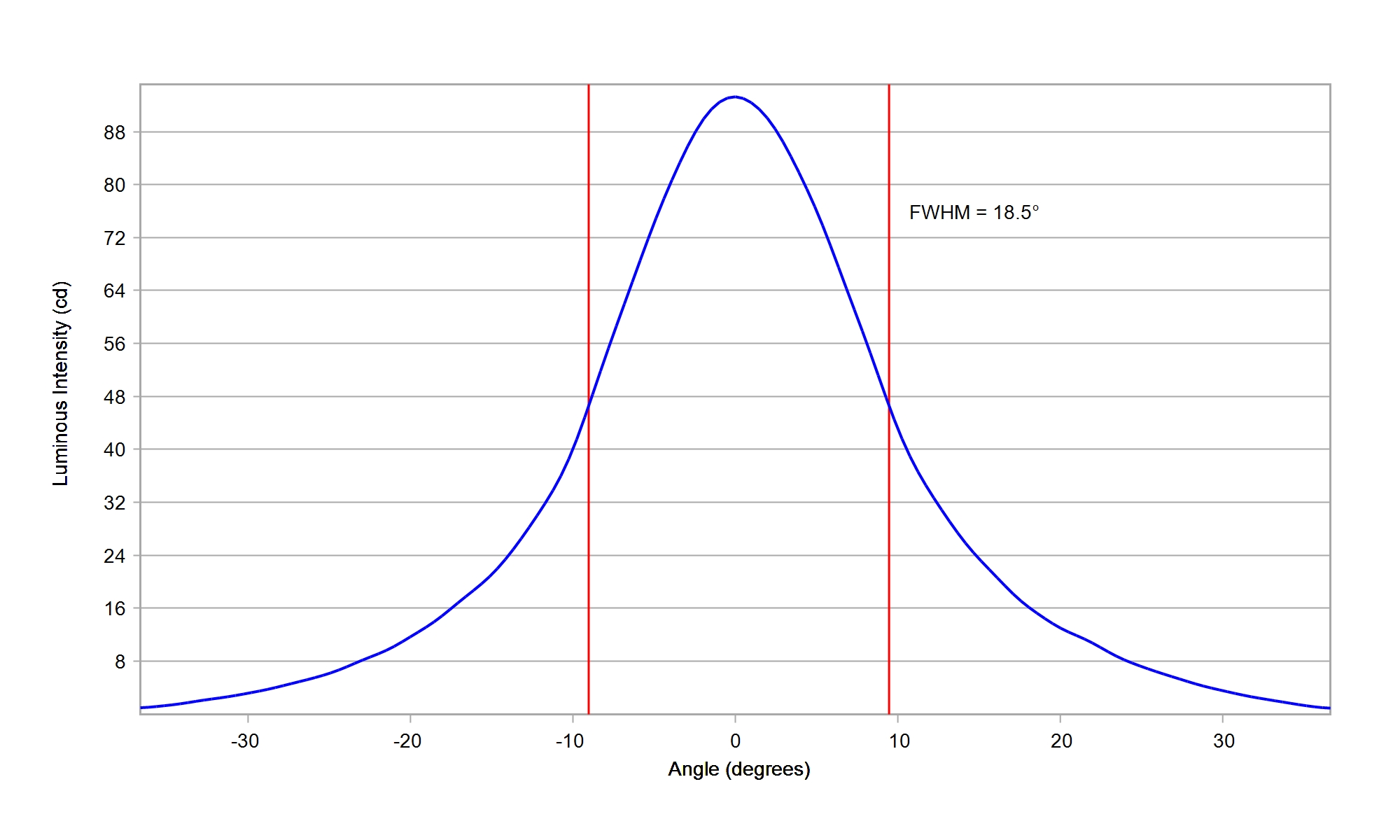

10.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

12086

Dimensions

10.0mm

Drawing Number

60656

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Downloads

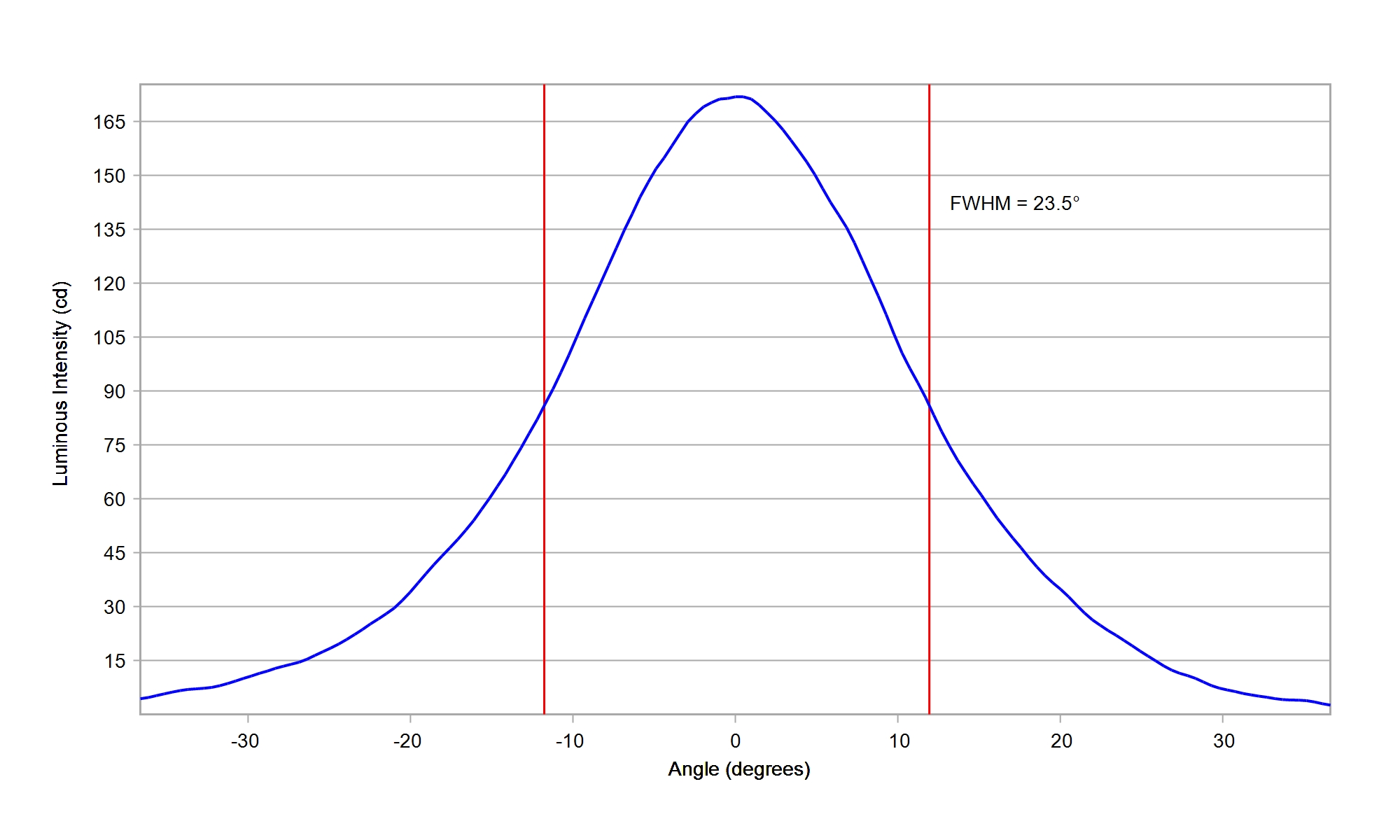

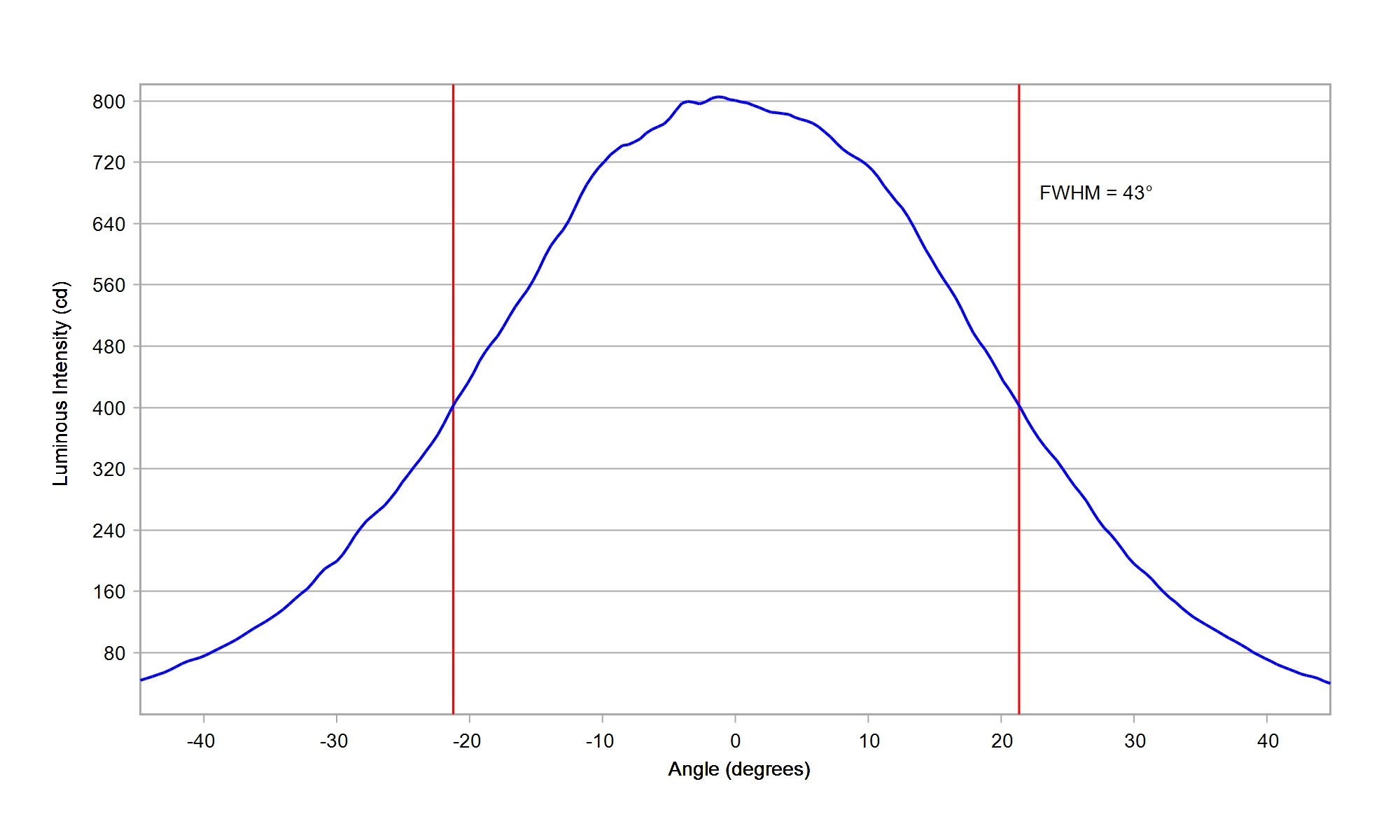

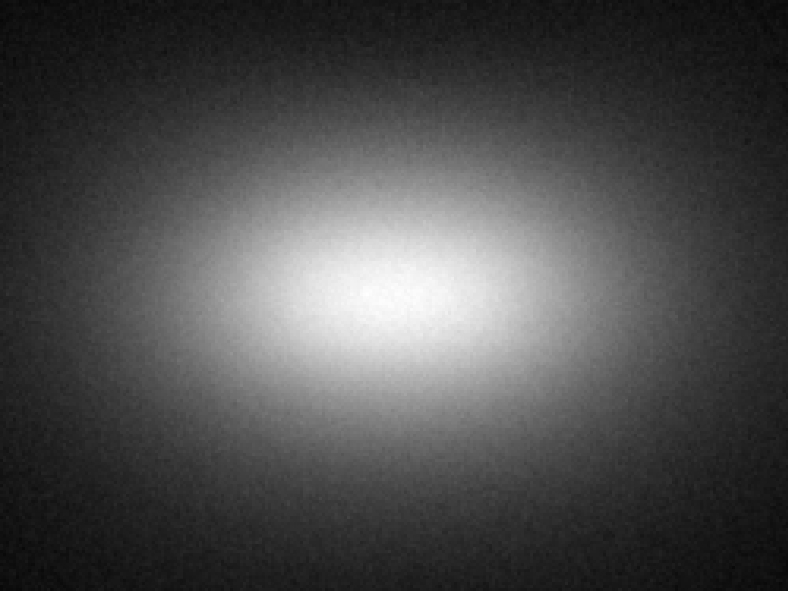

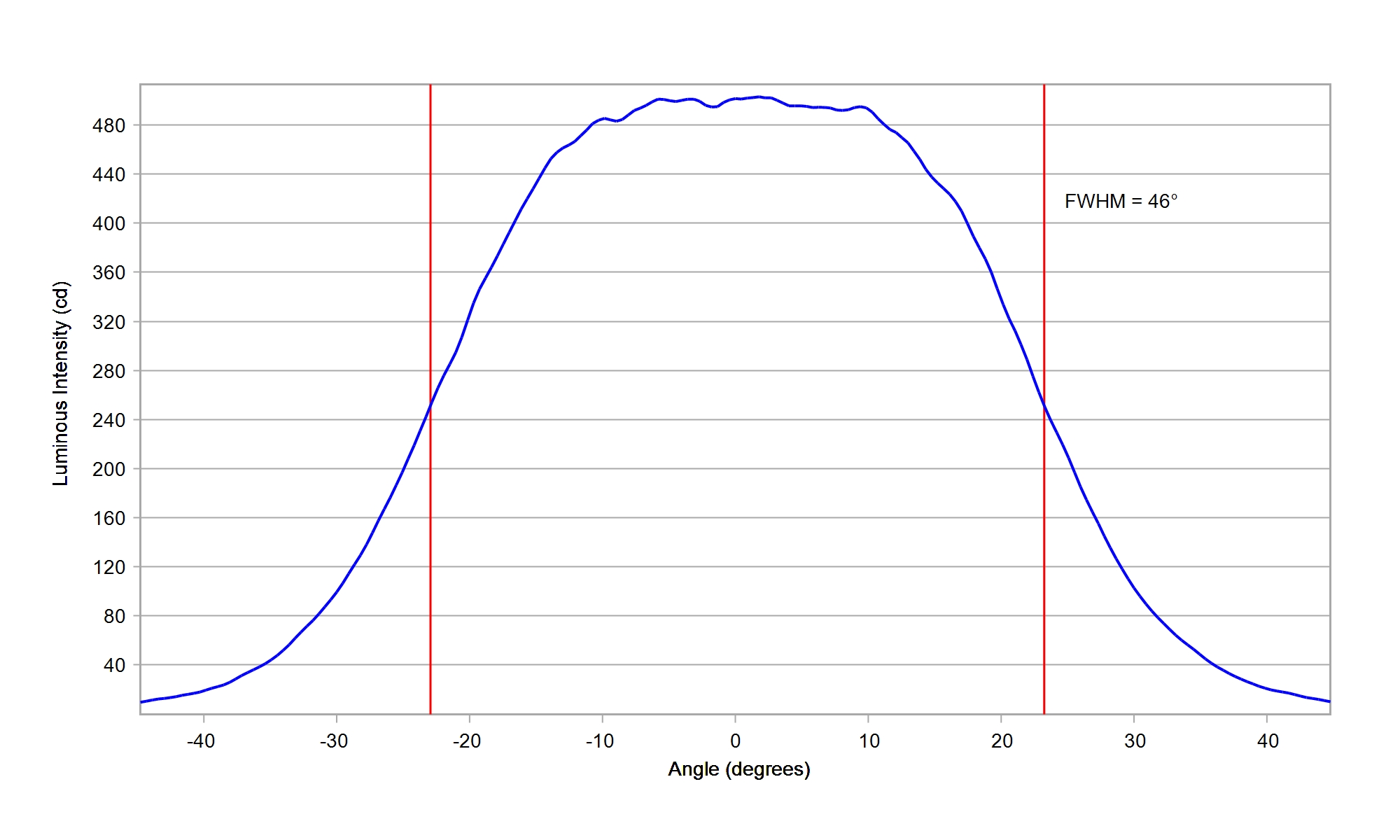

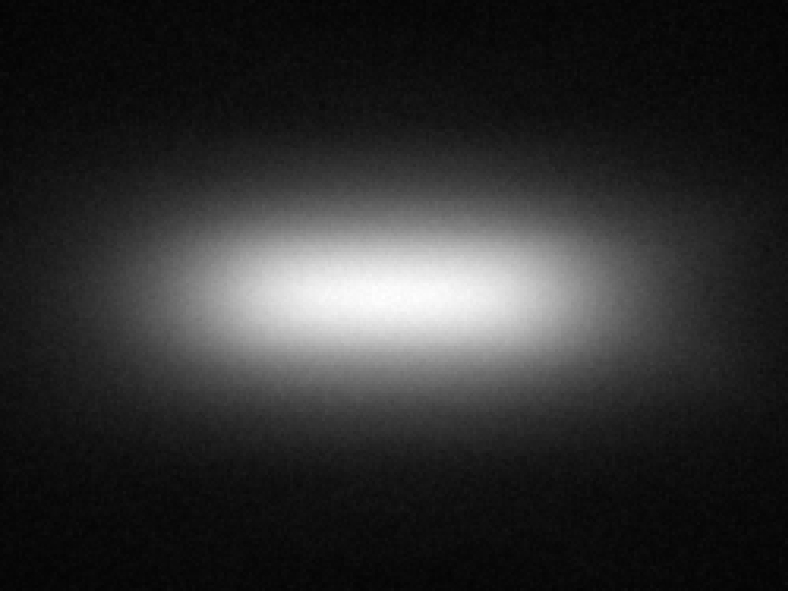

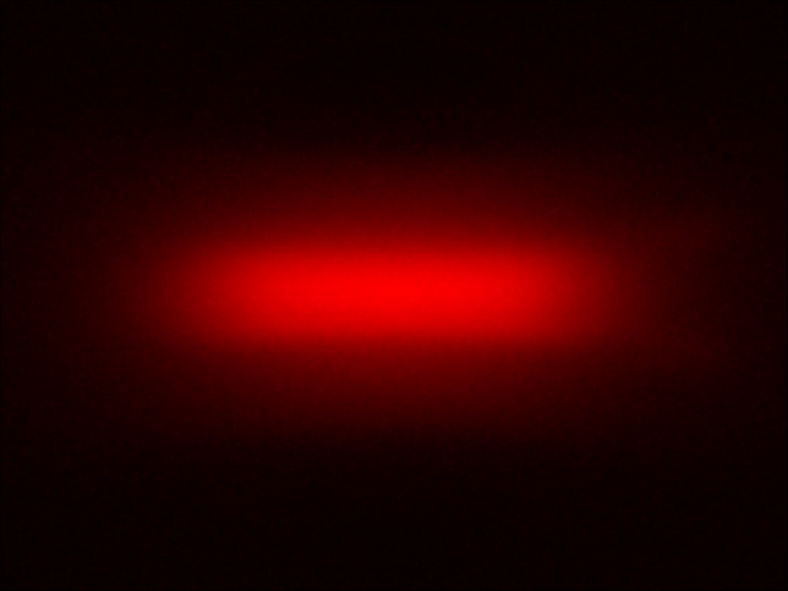

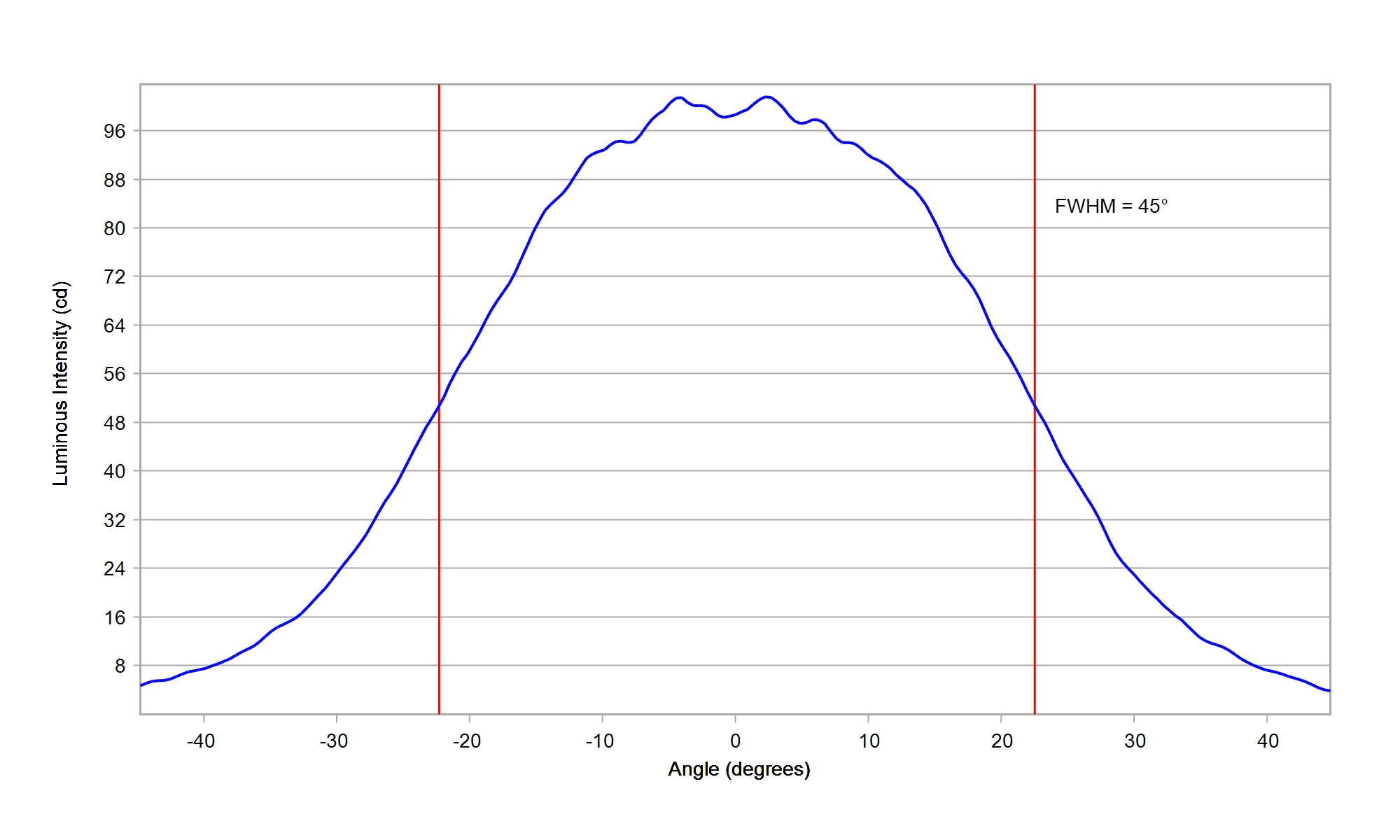

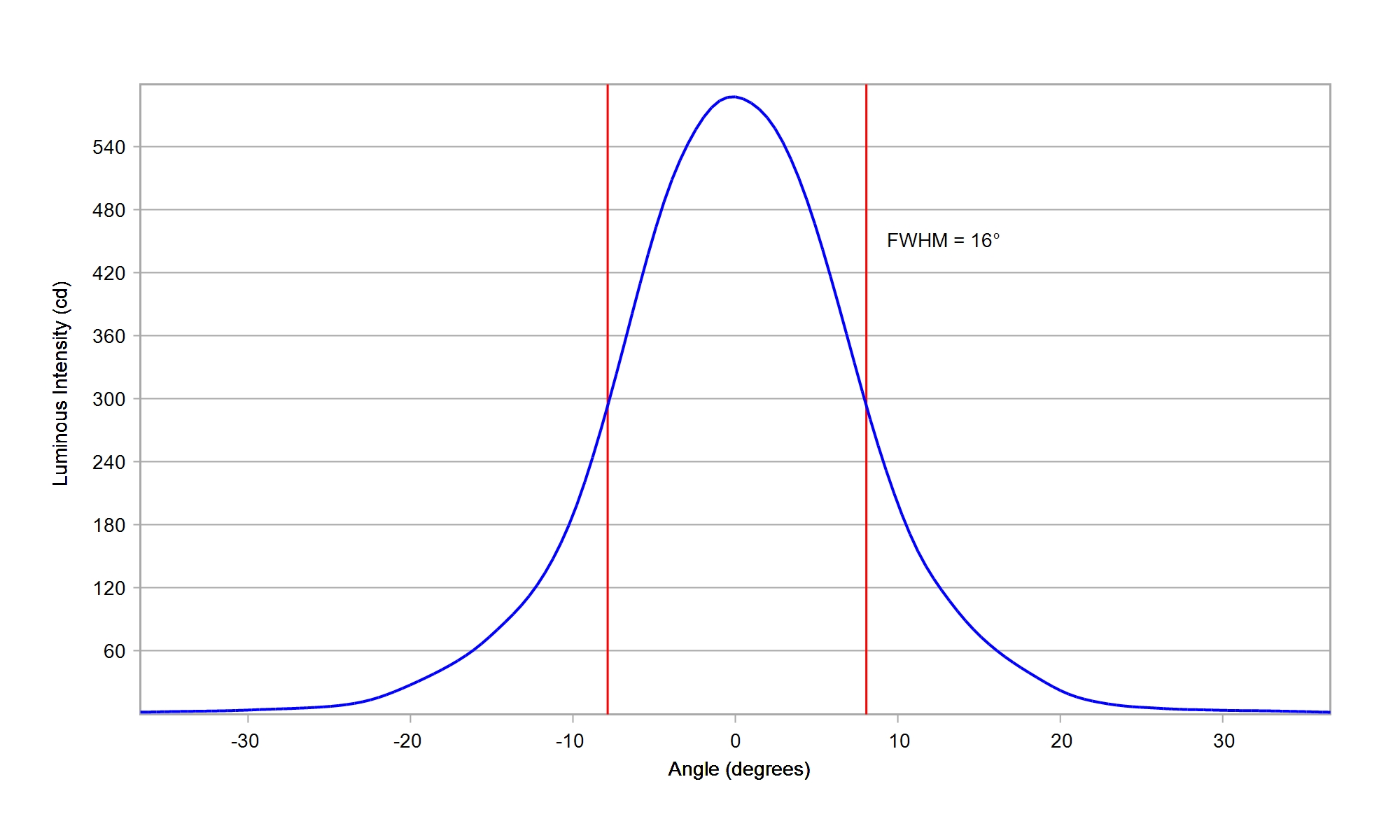

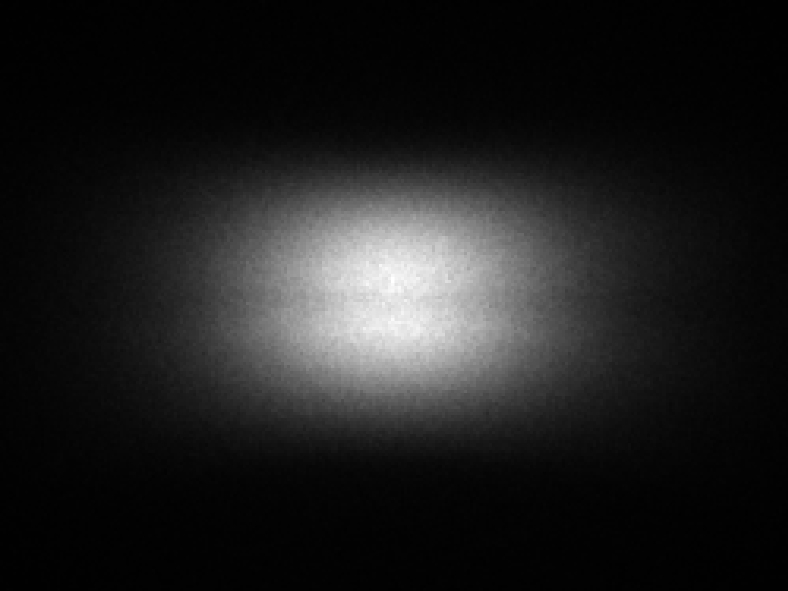

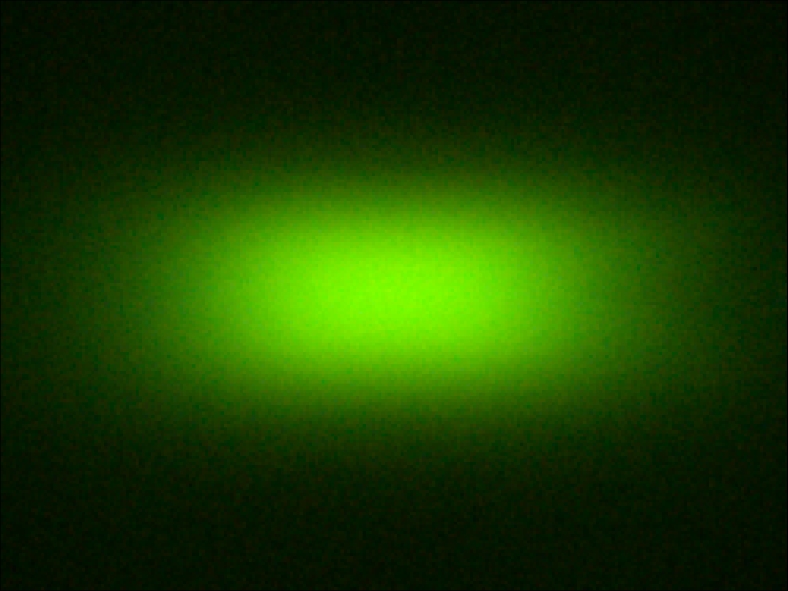

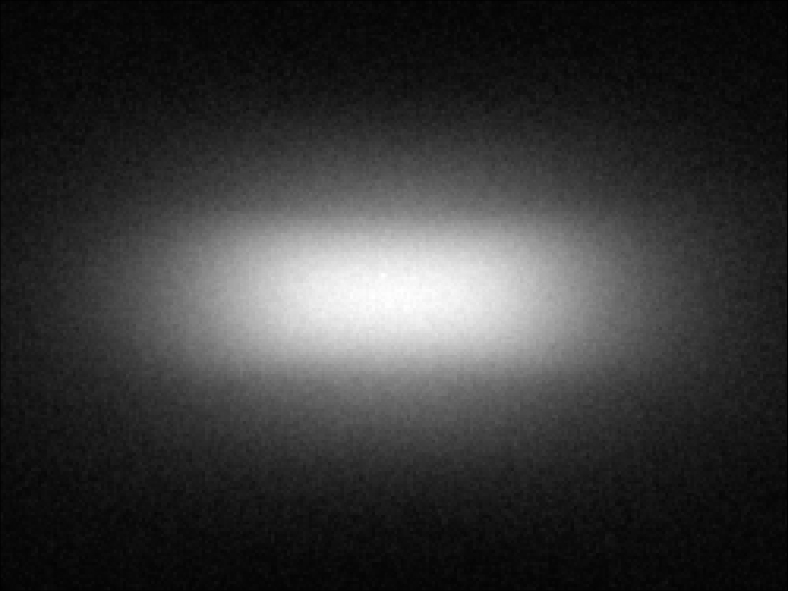

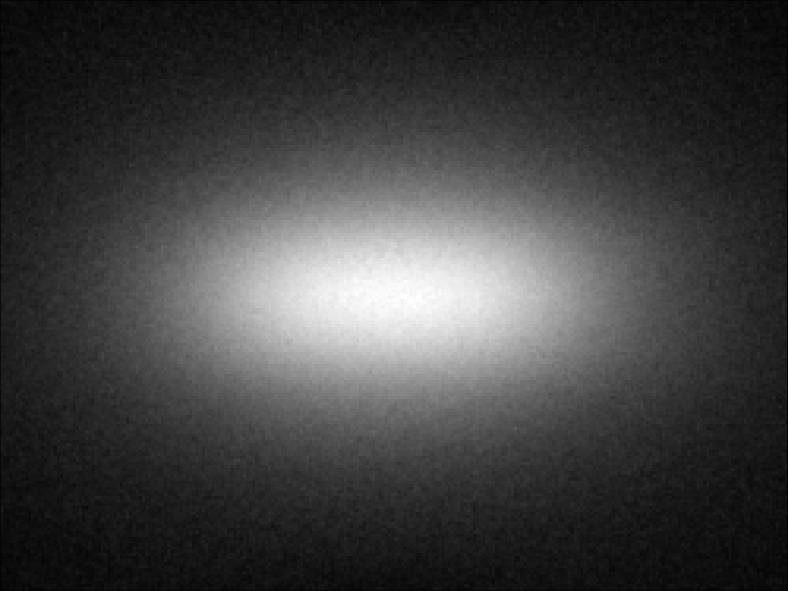

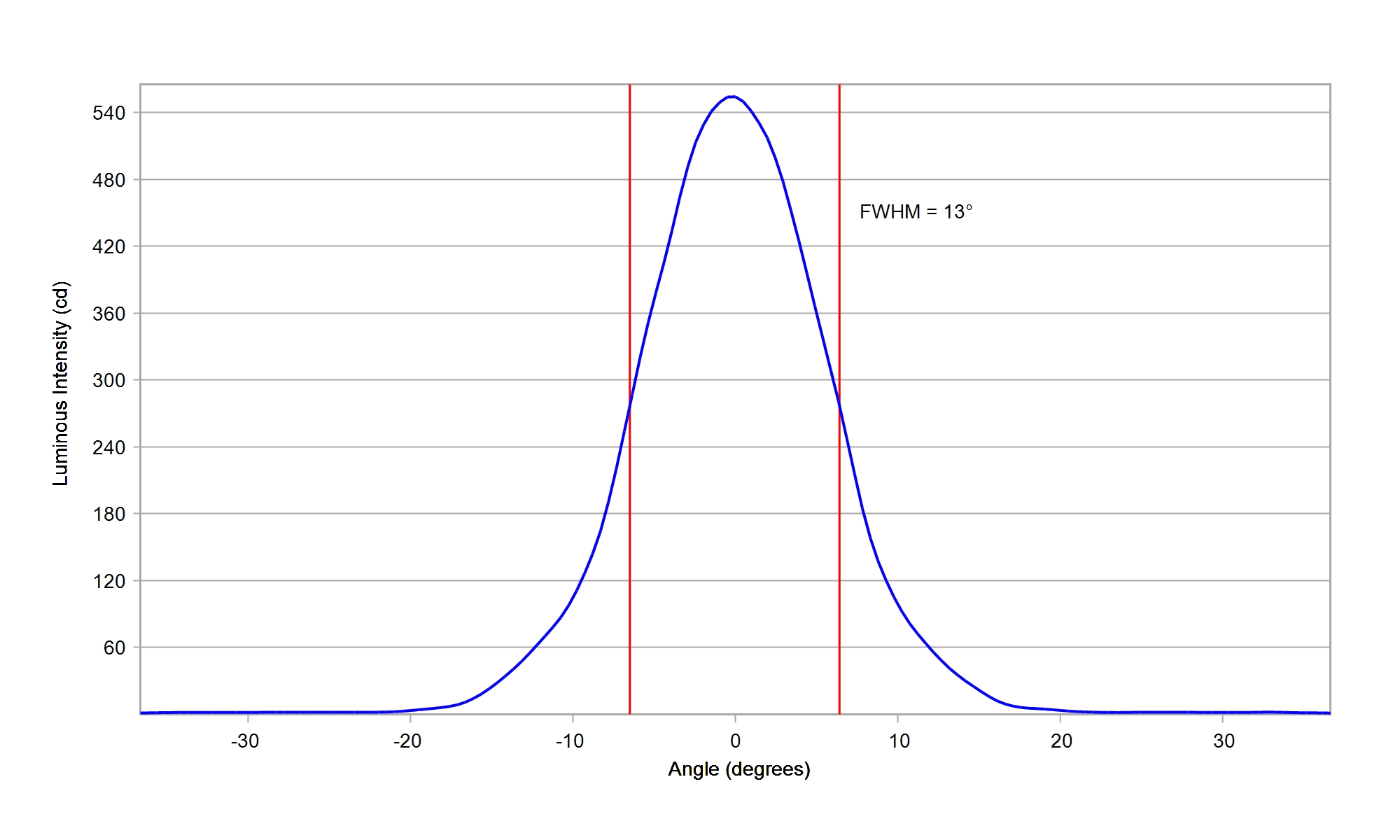

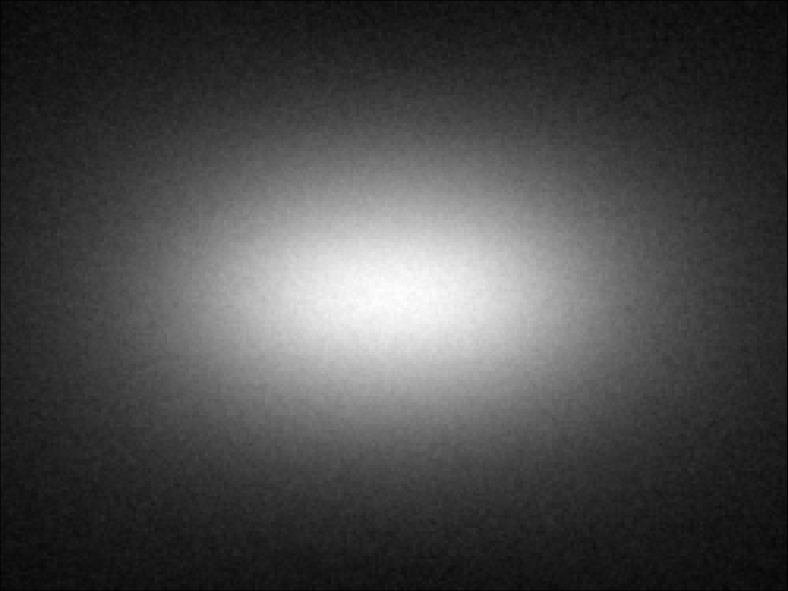

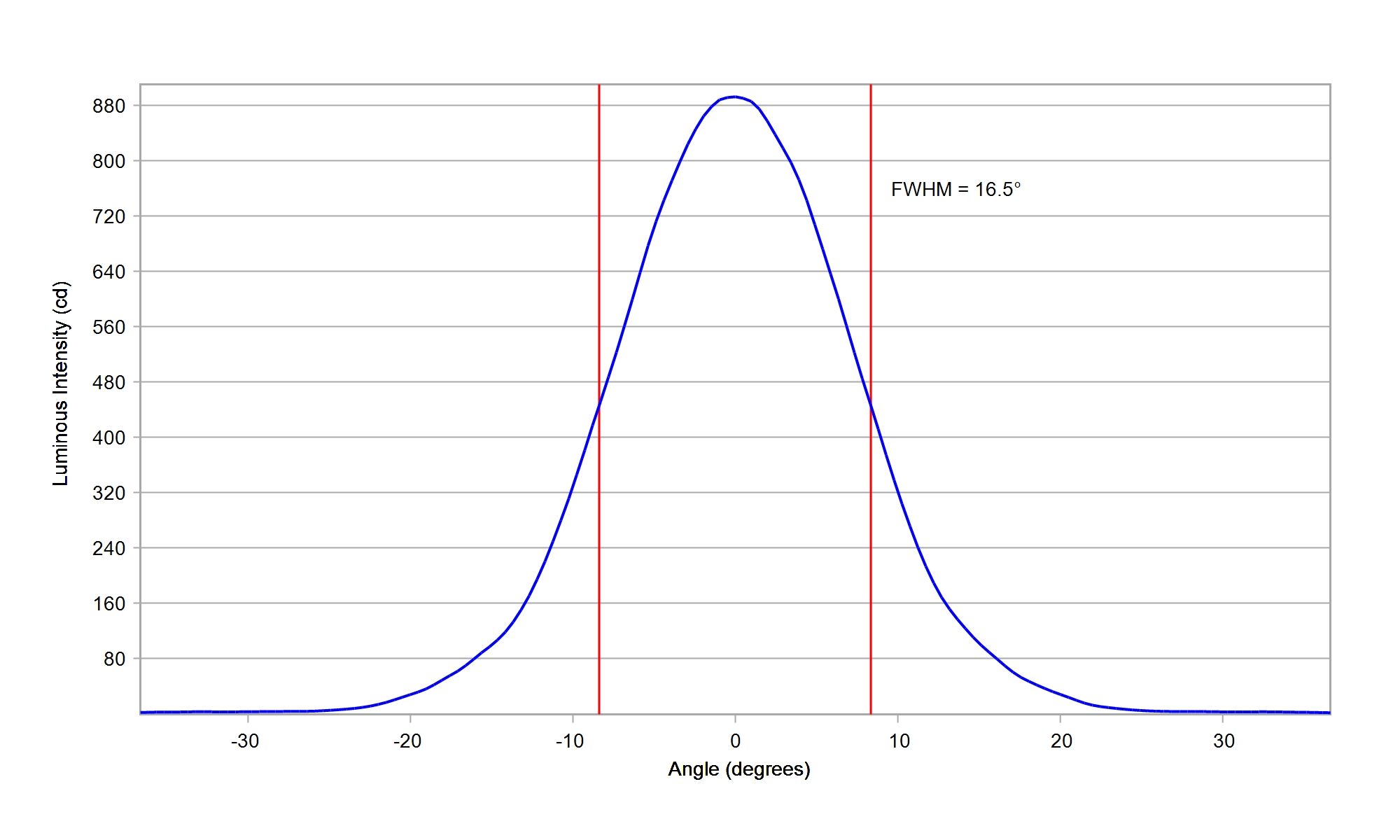

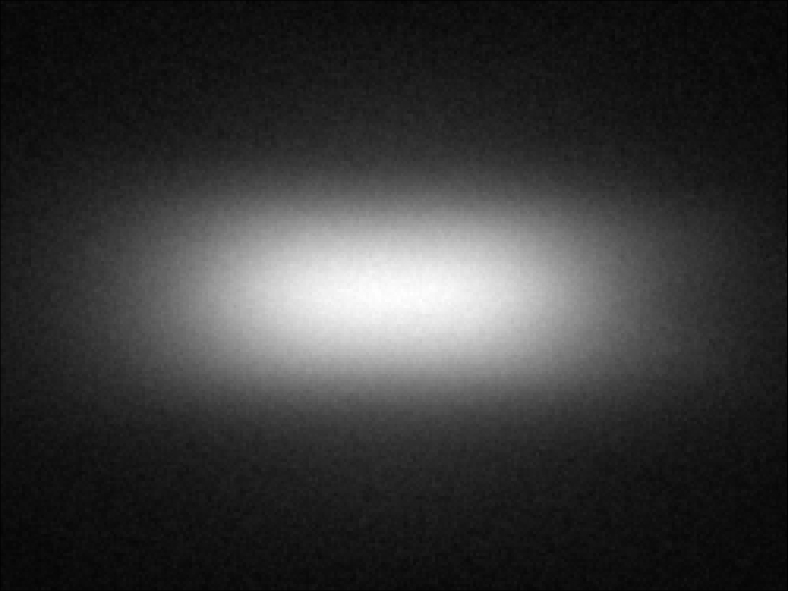

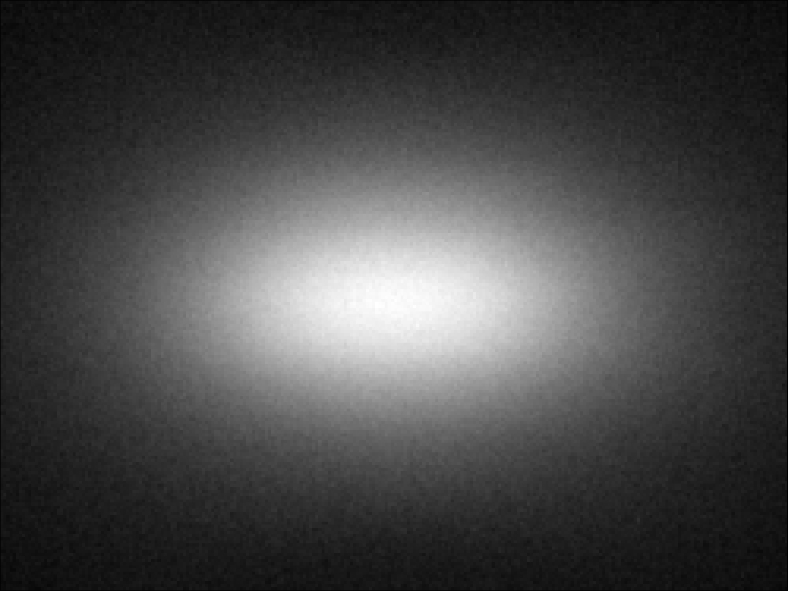

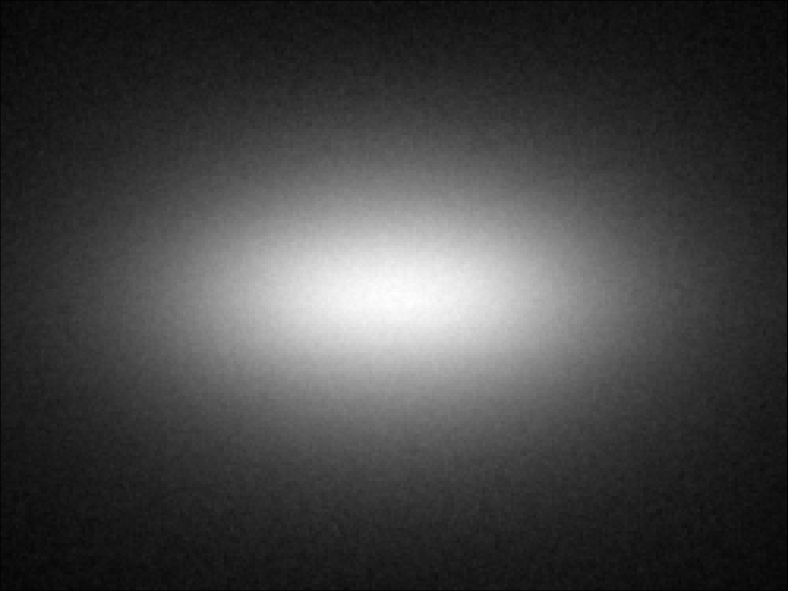

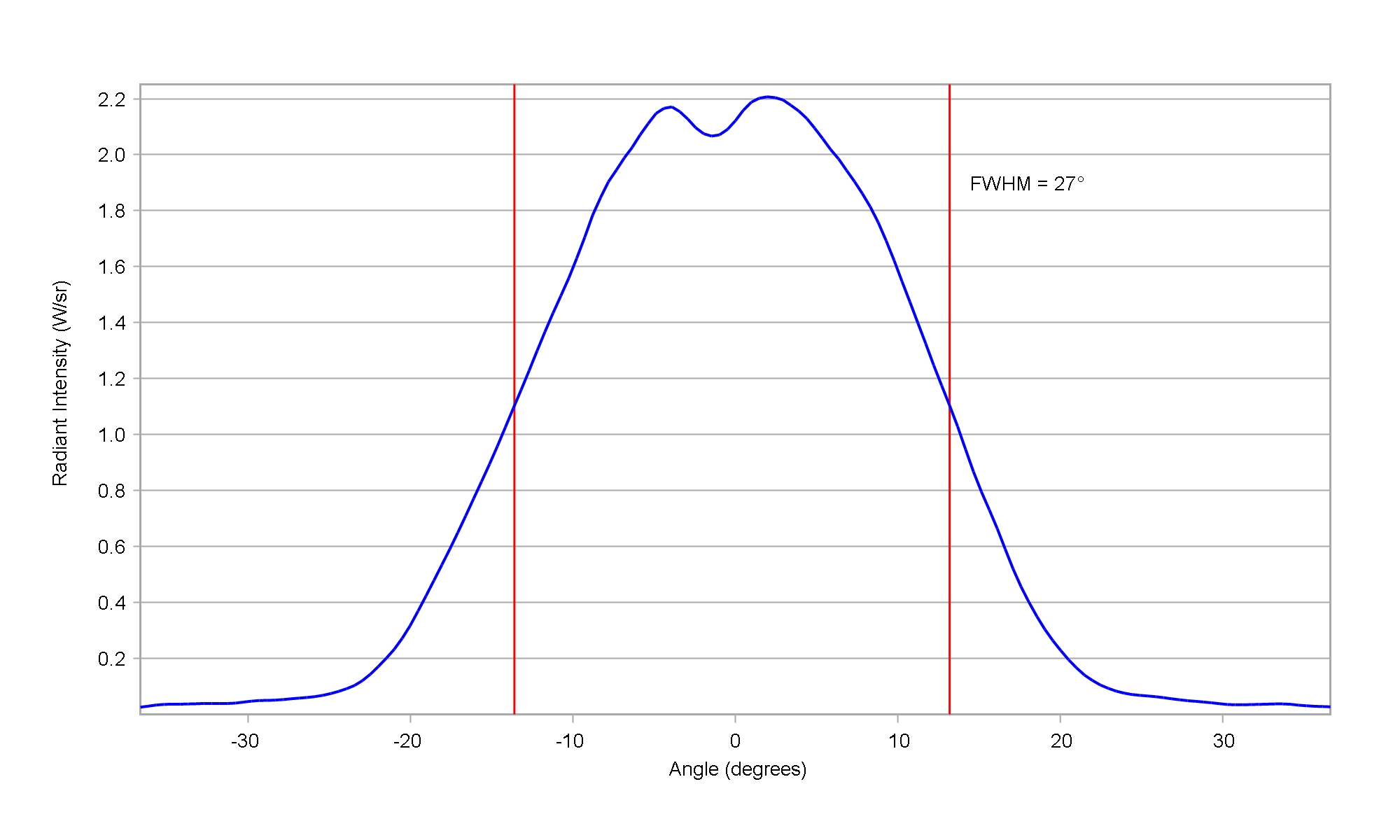

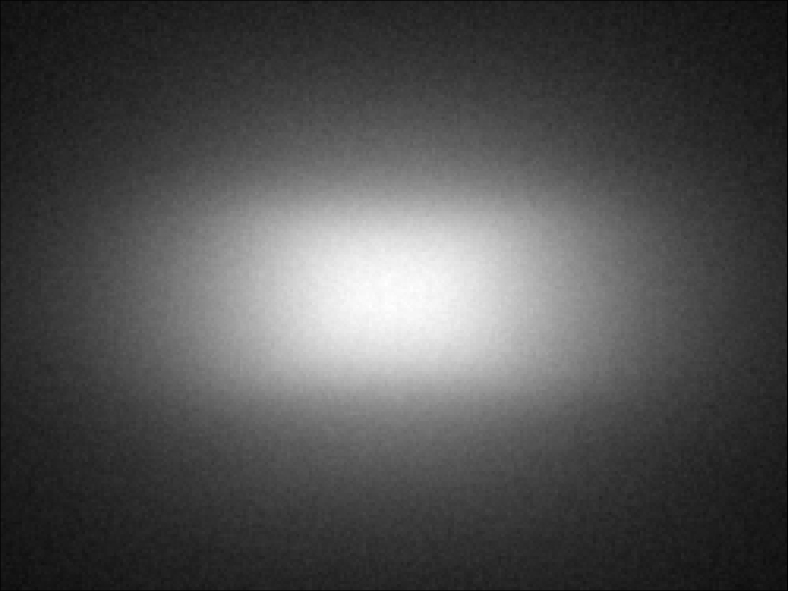

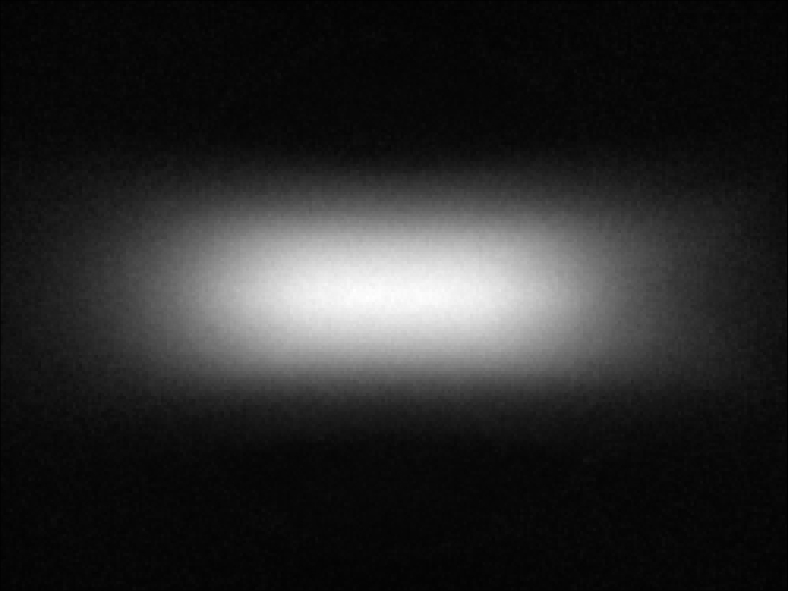

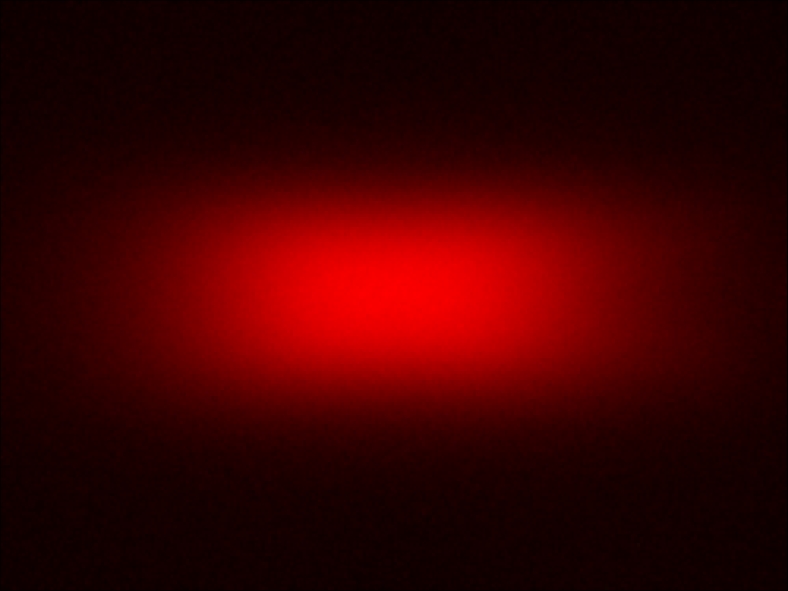

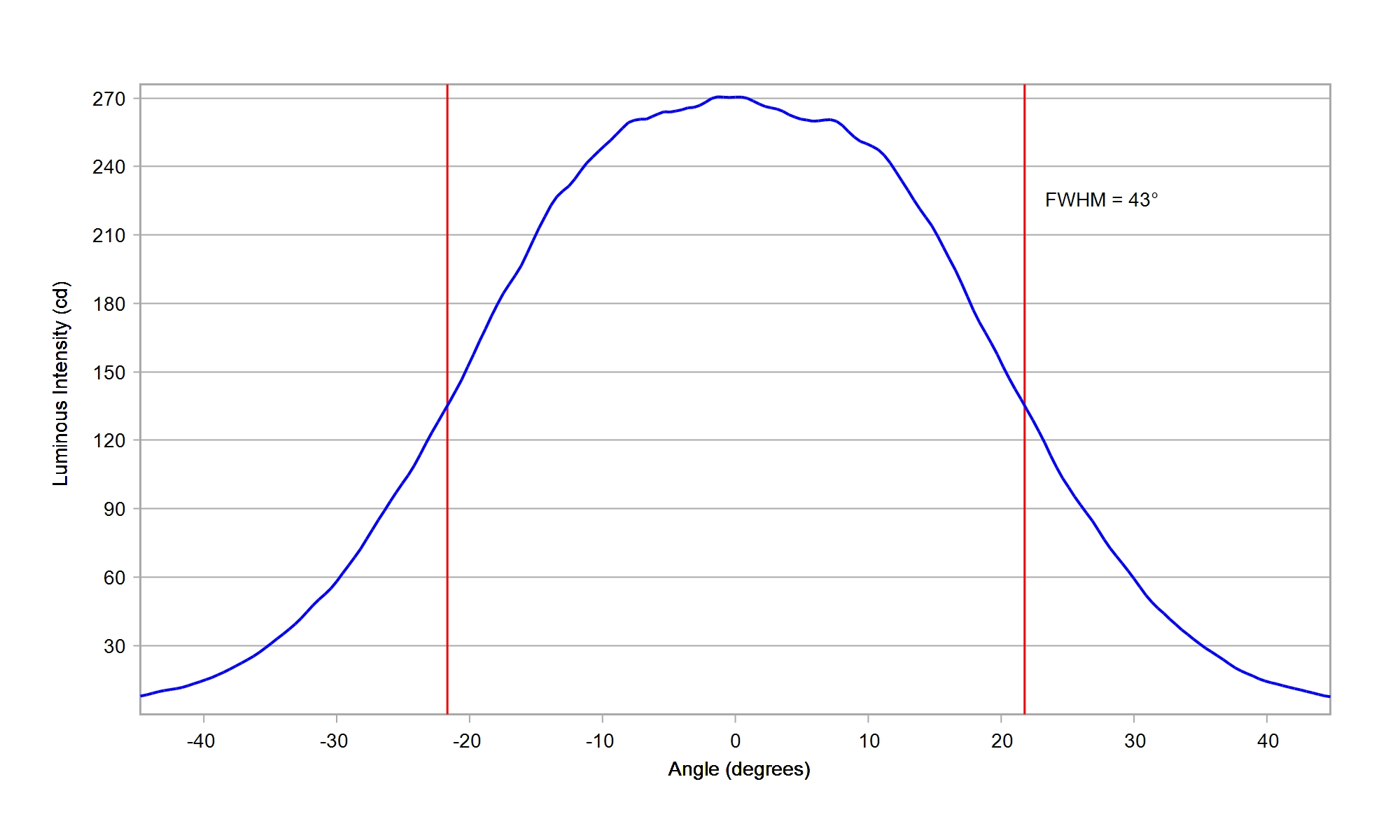

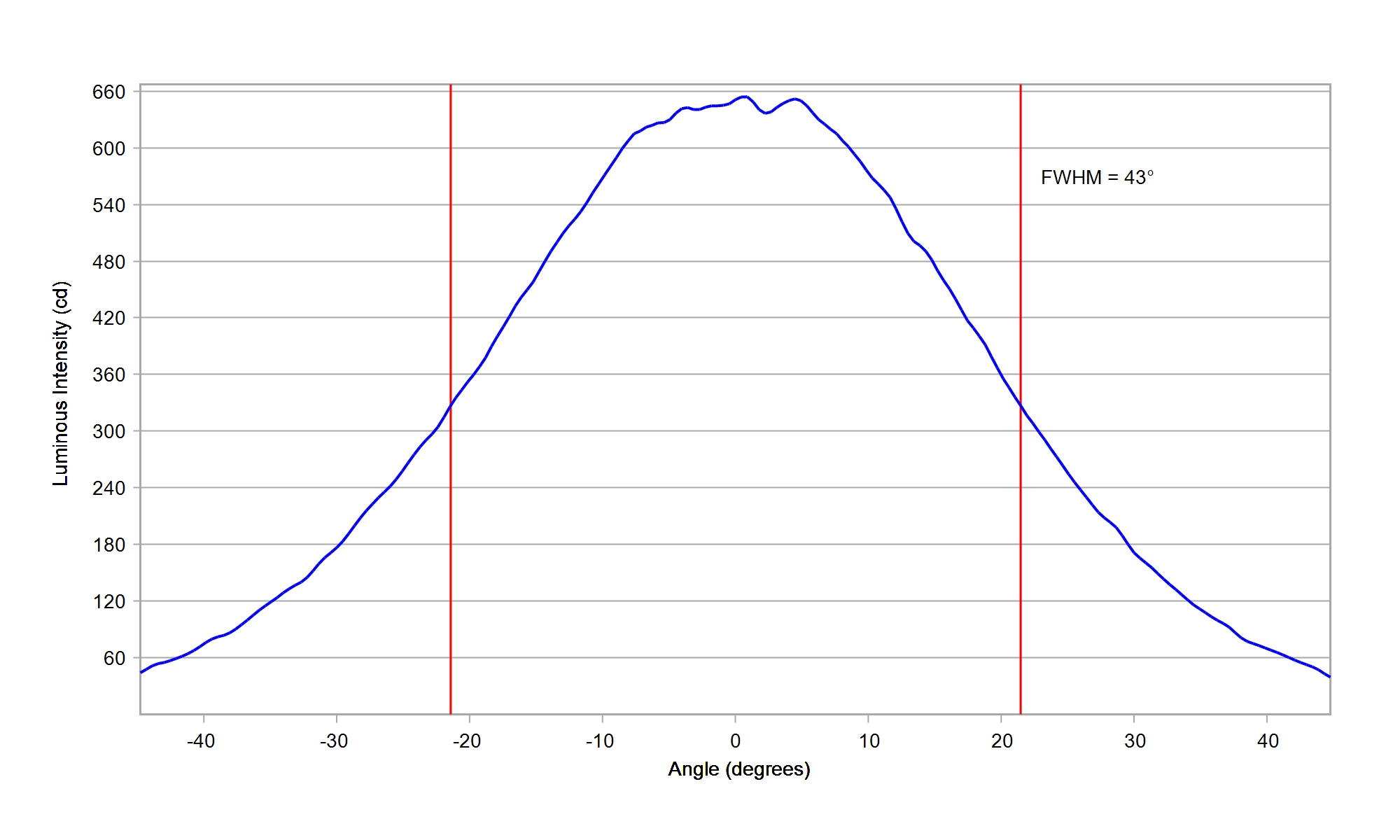

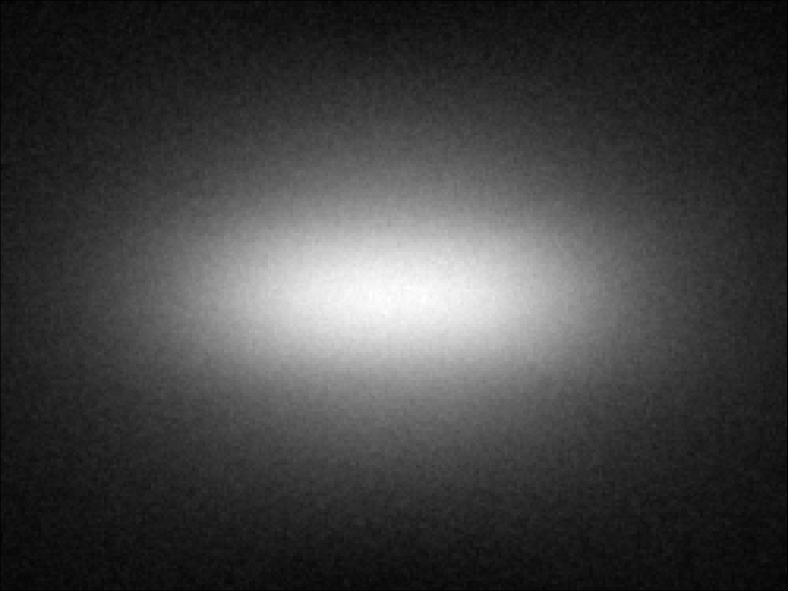

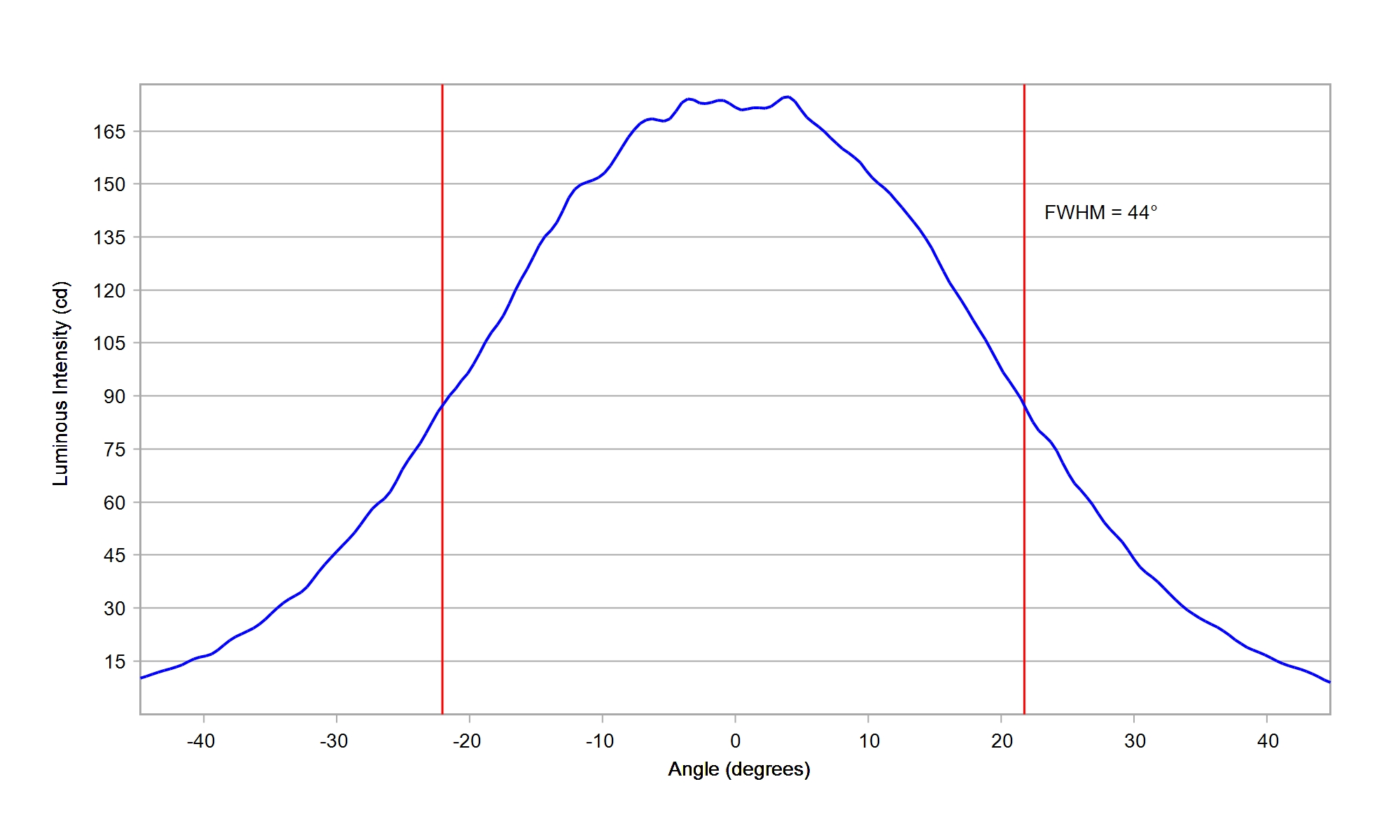

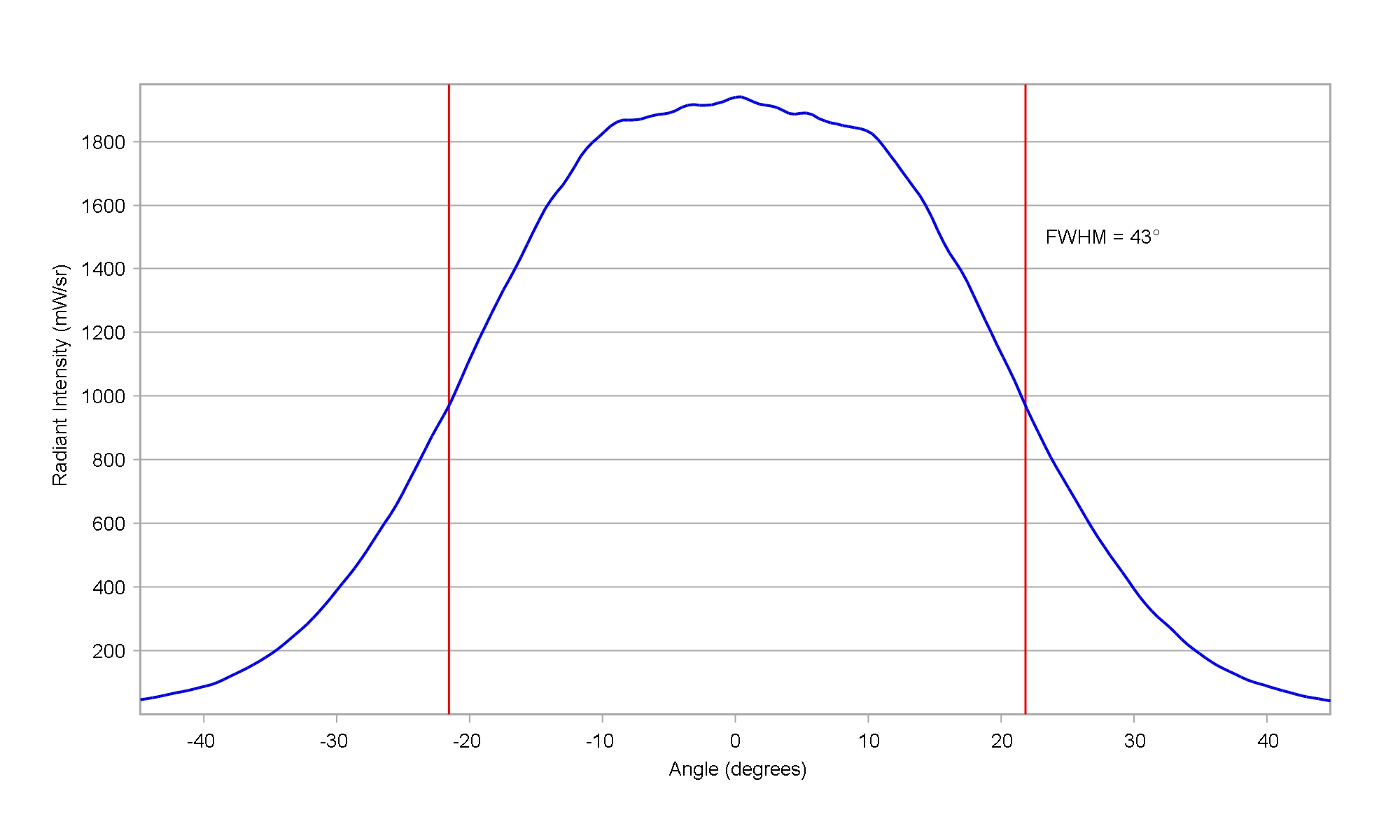

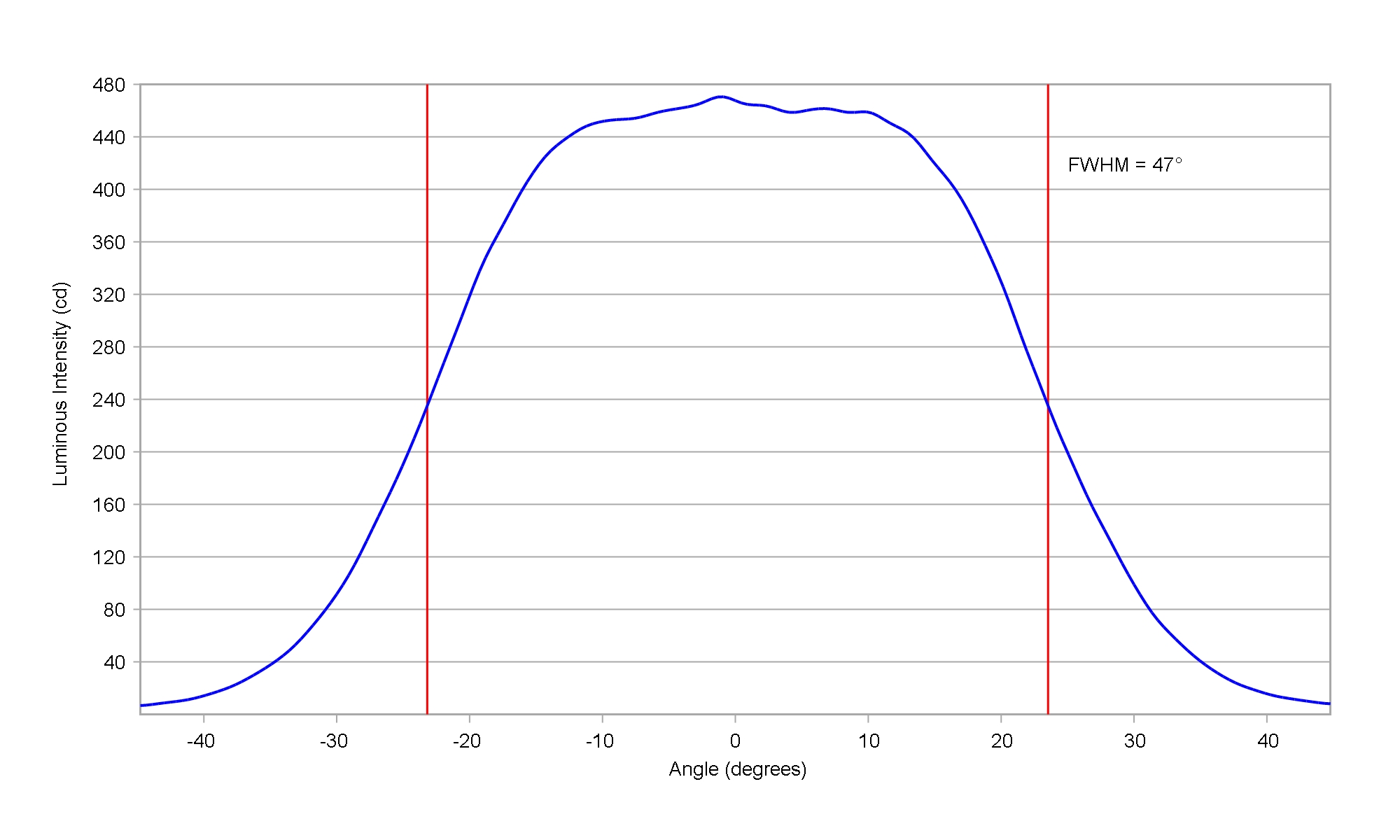

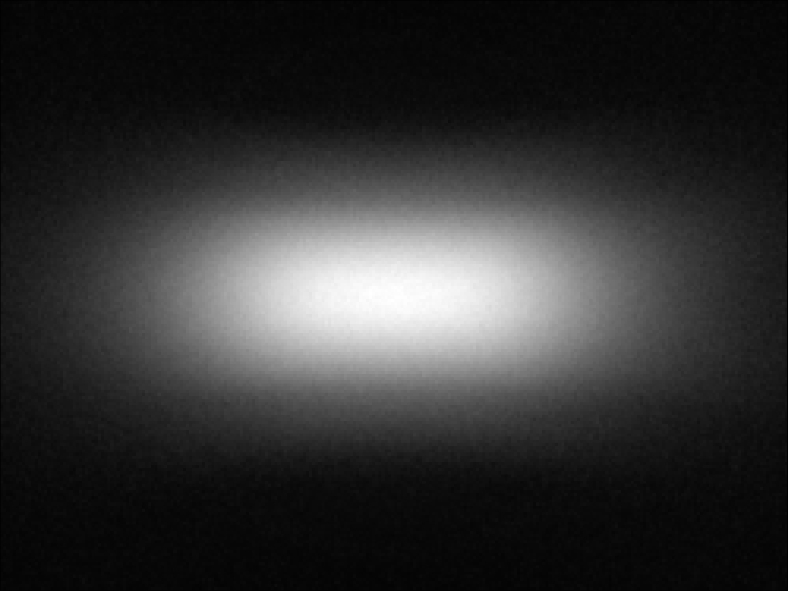

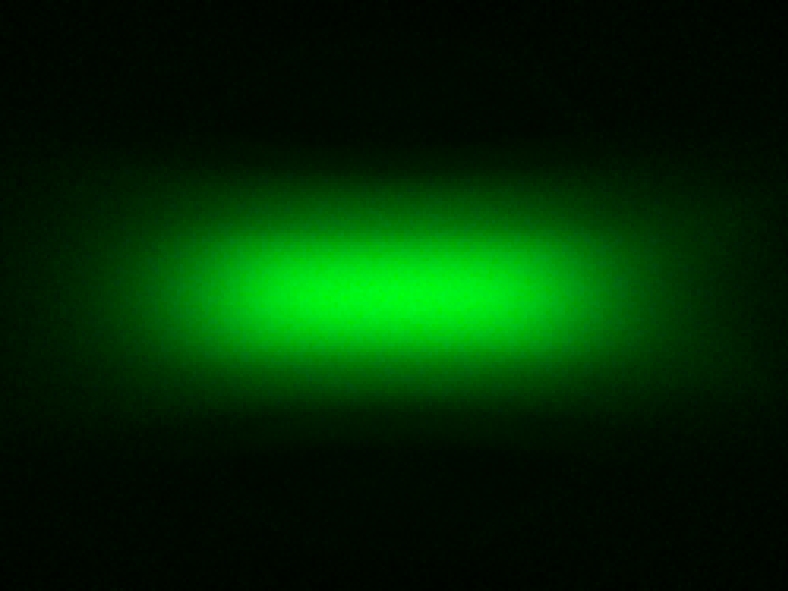

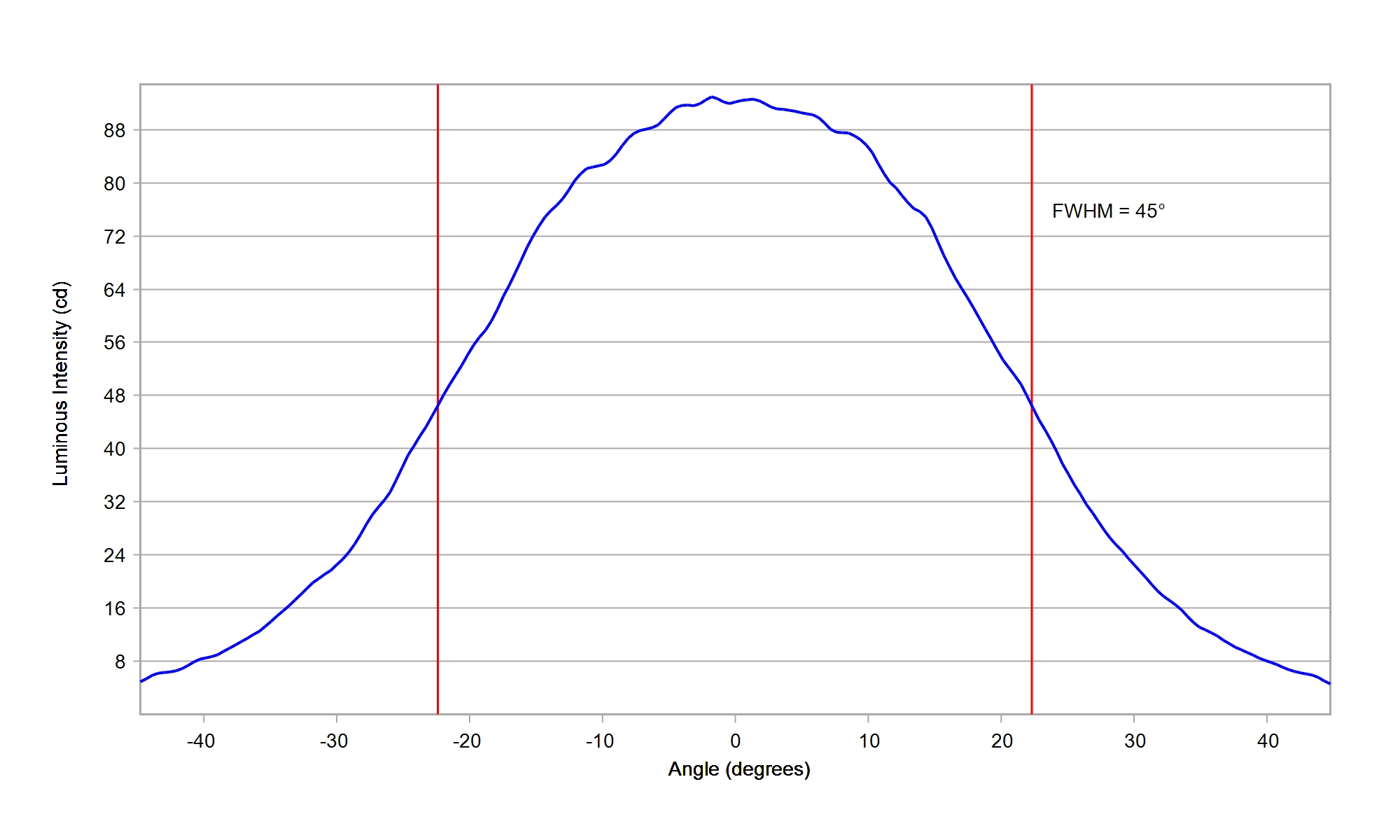

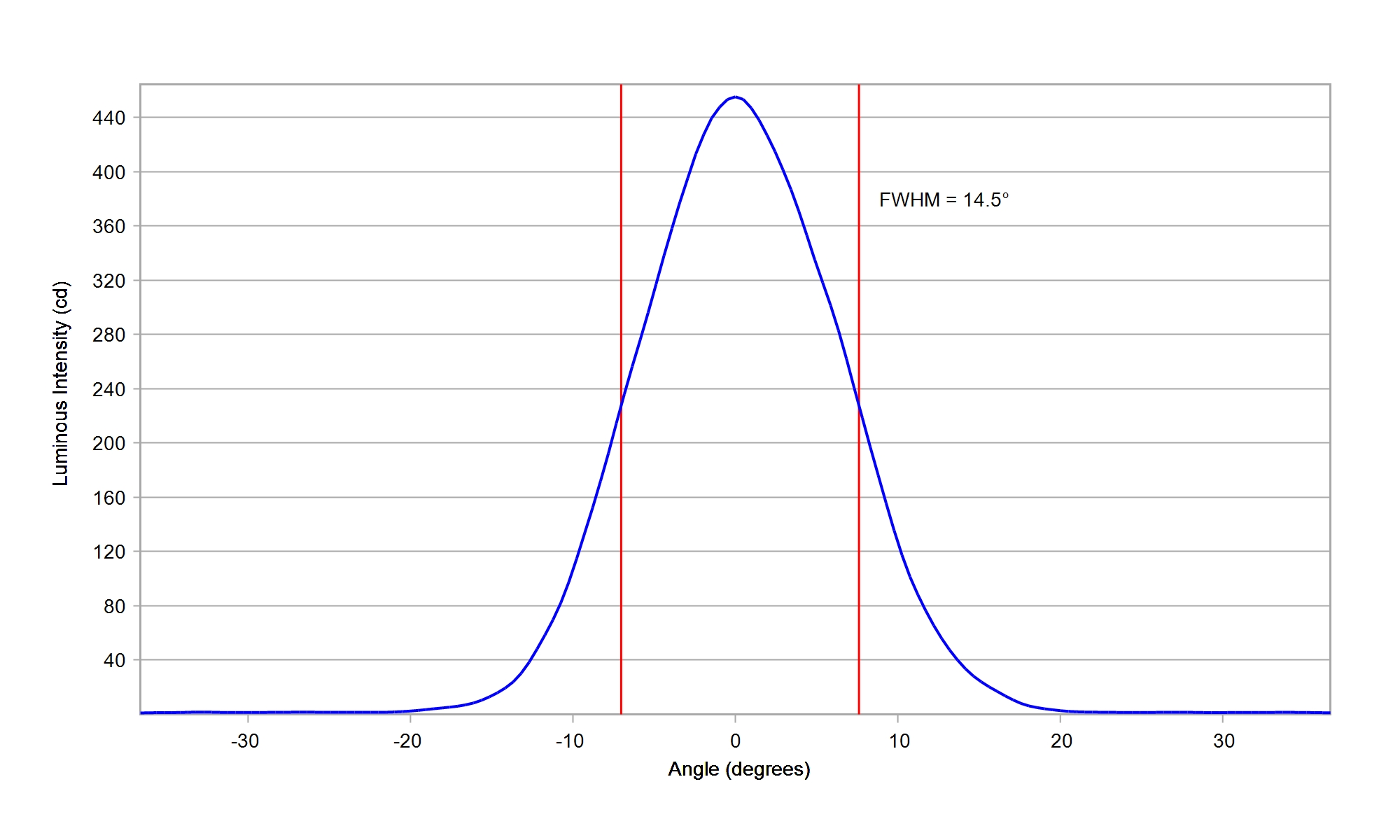

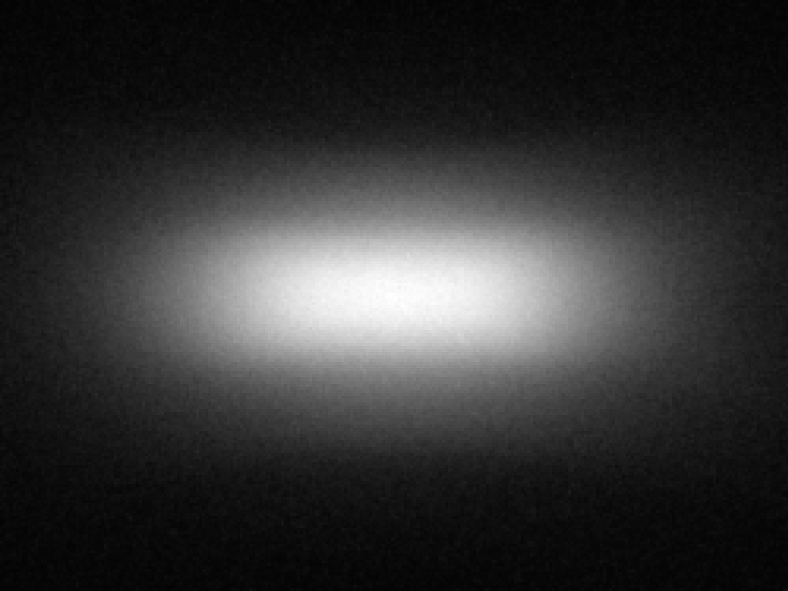

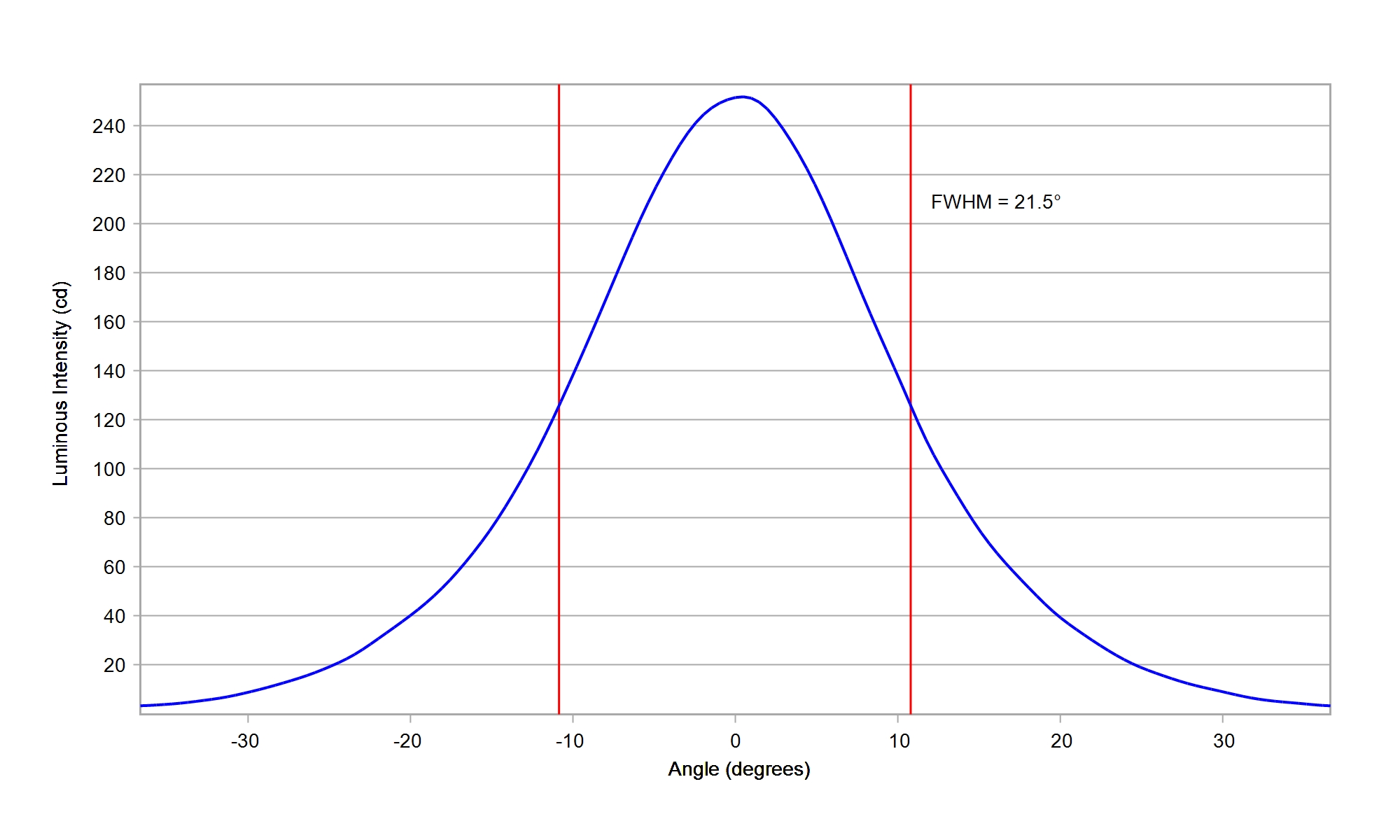

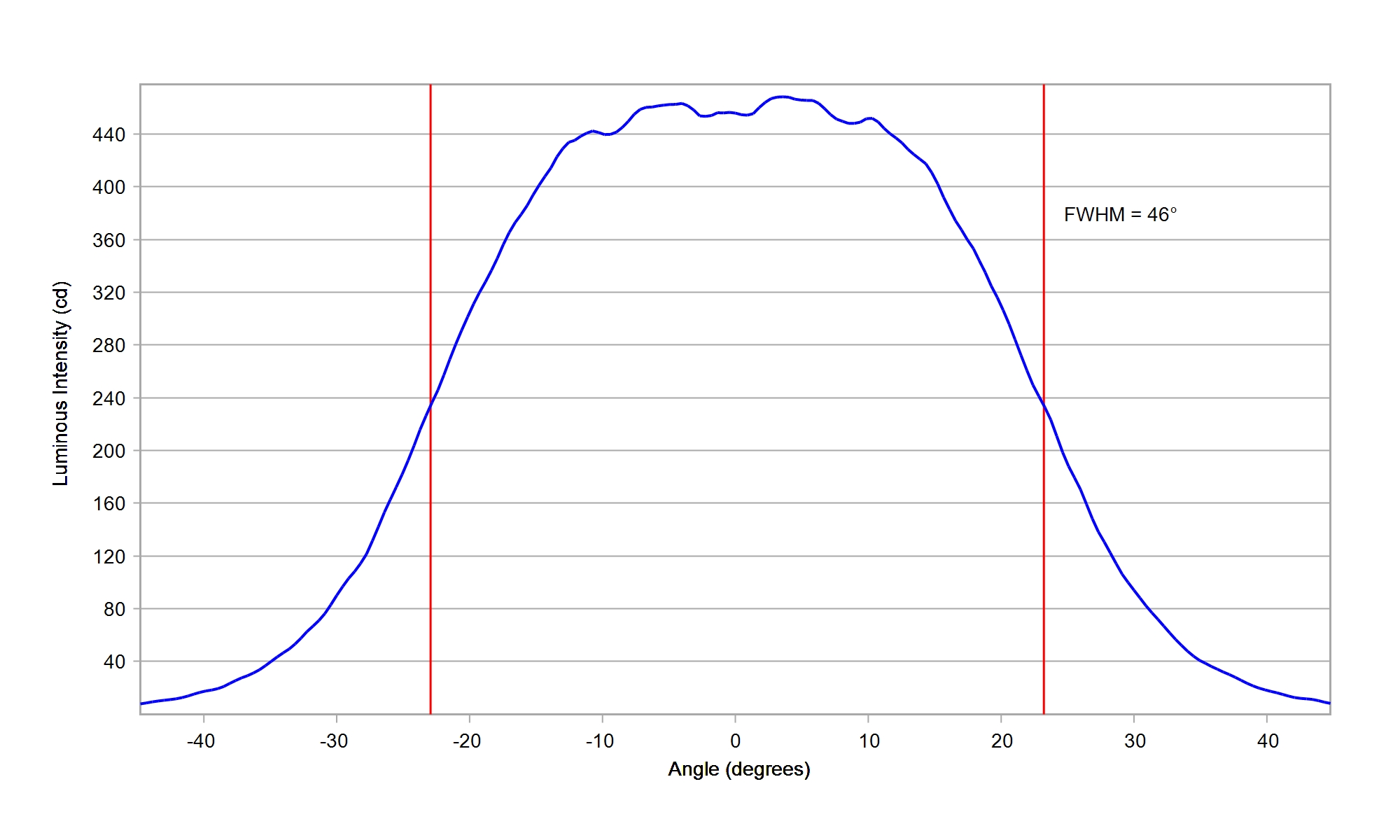

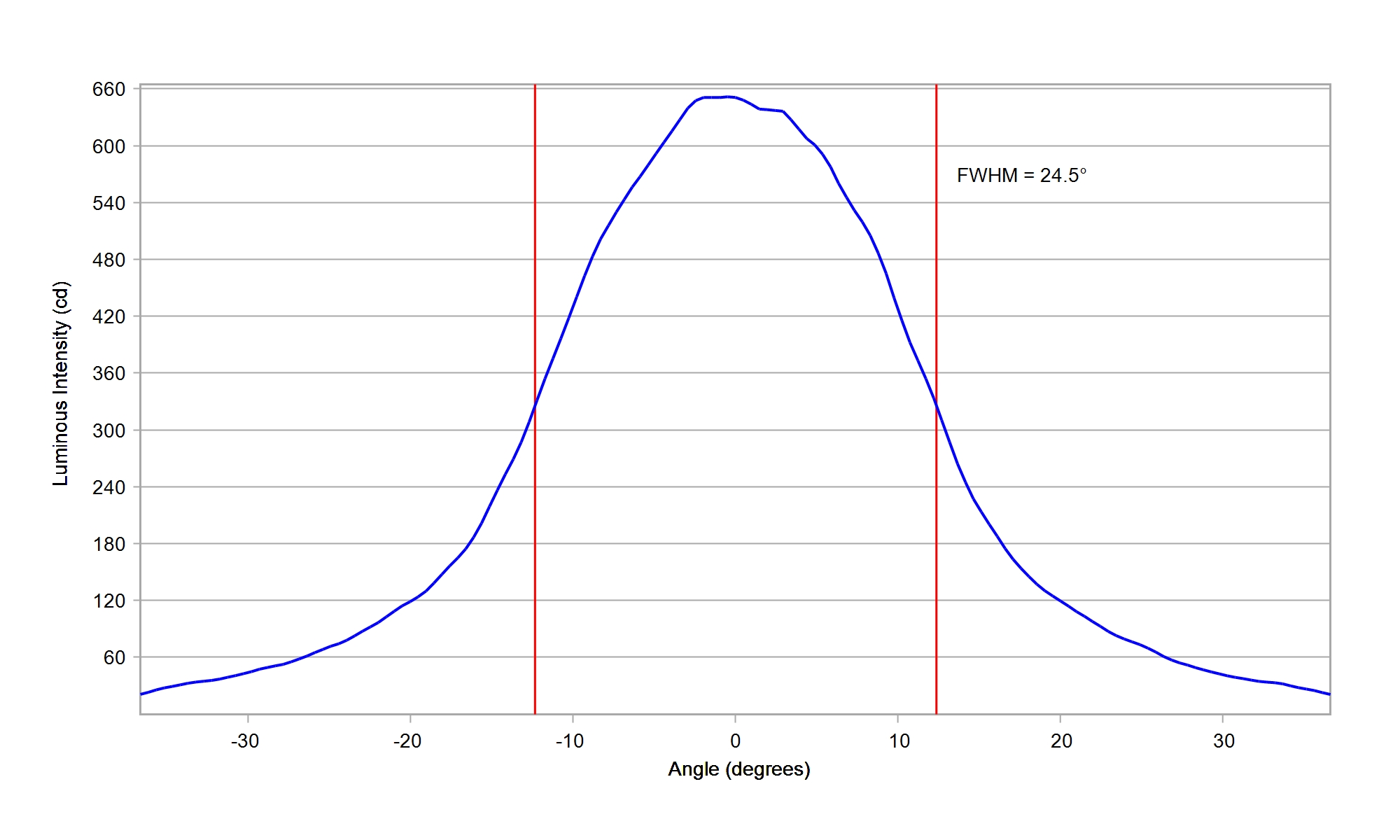

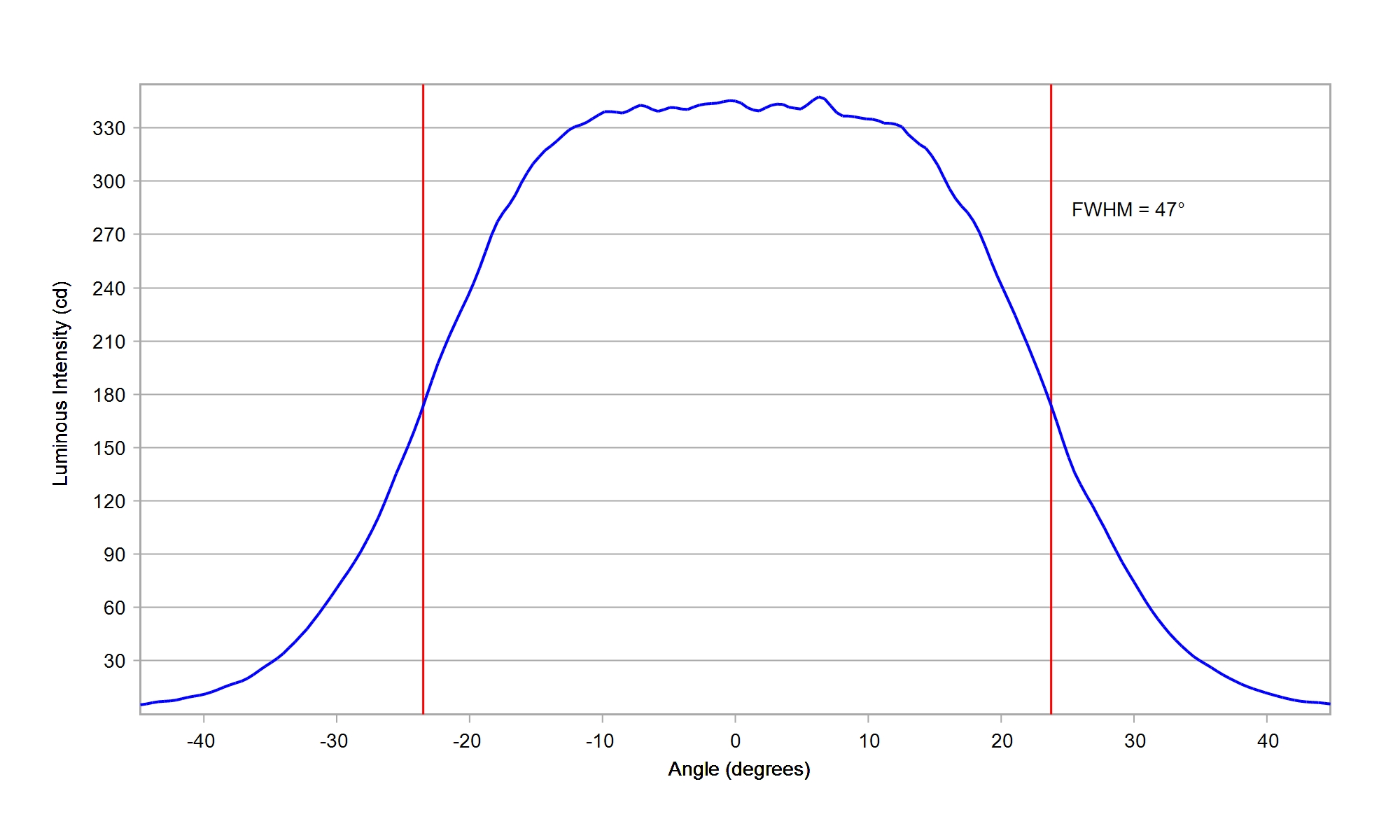

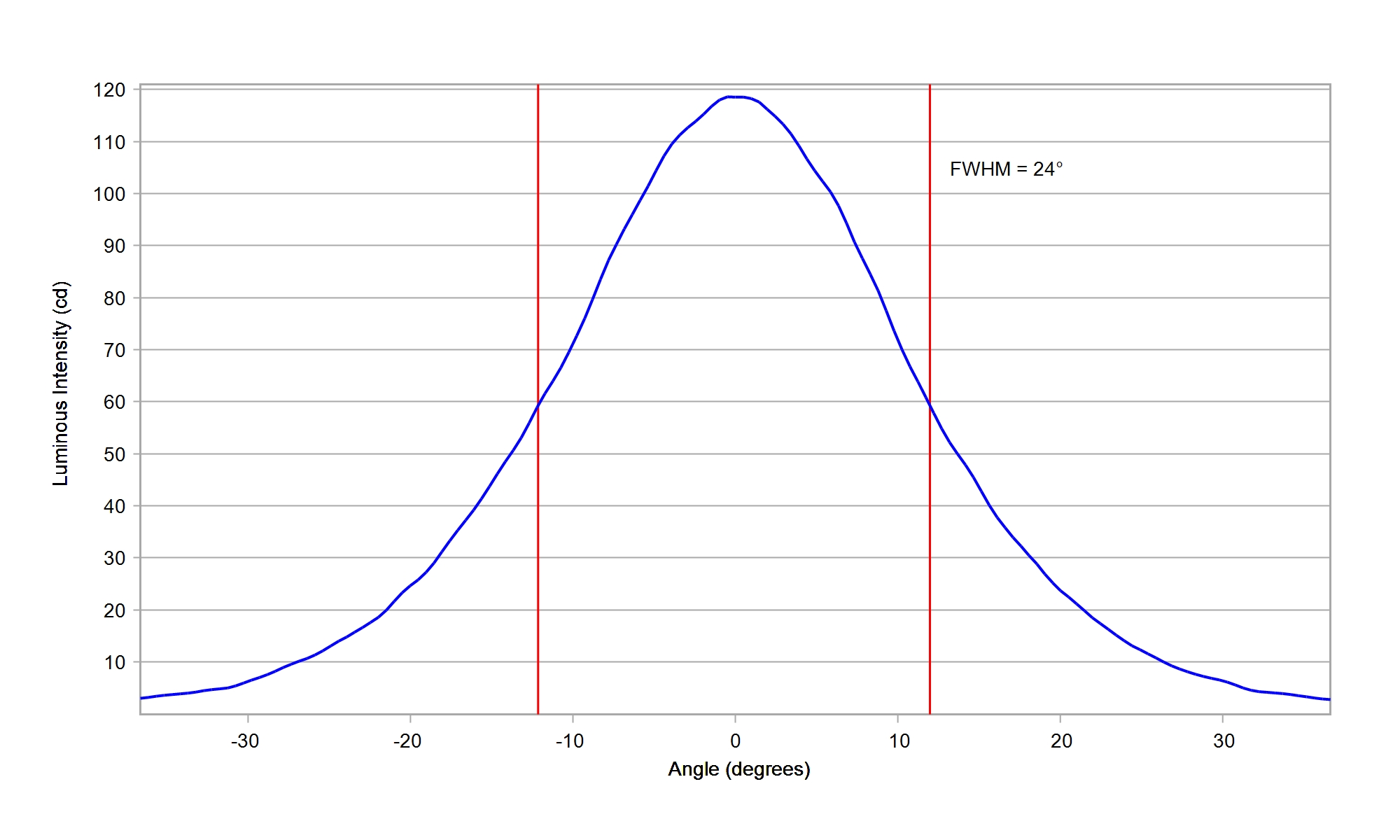

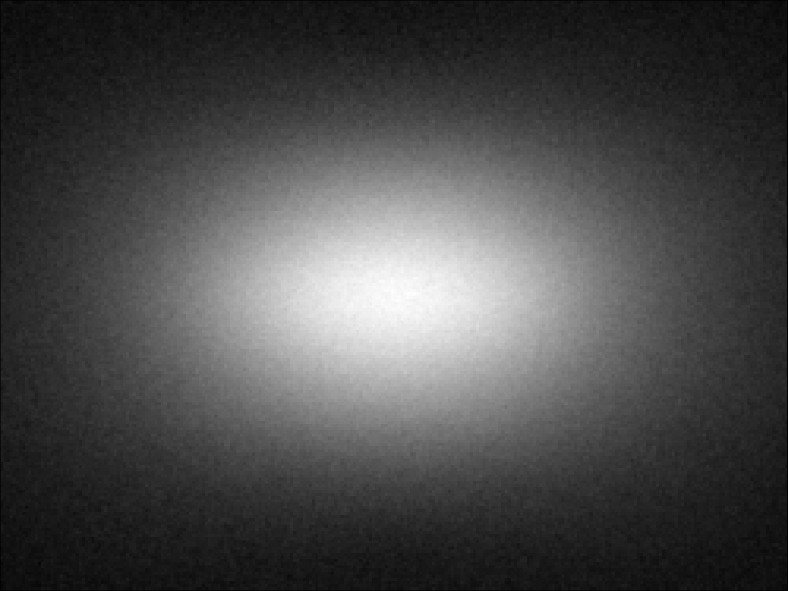

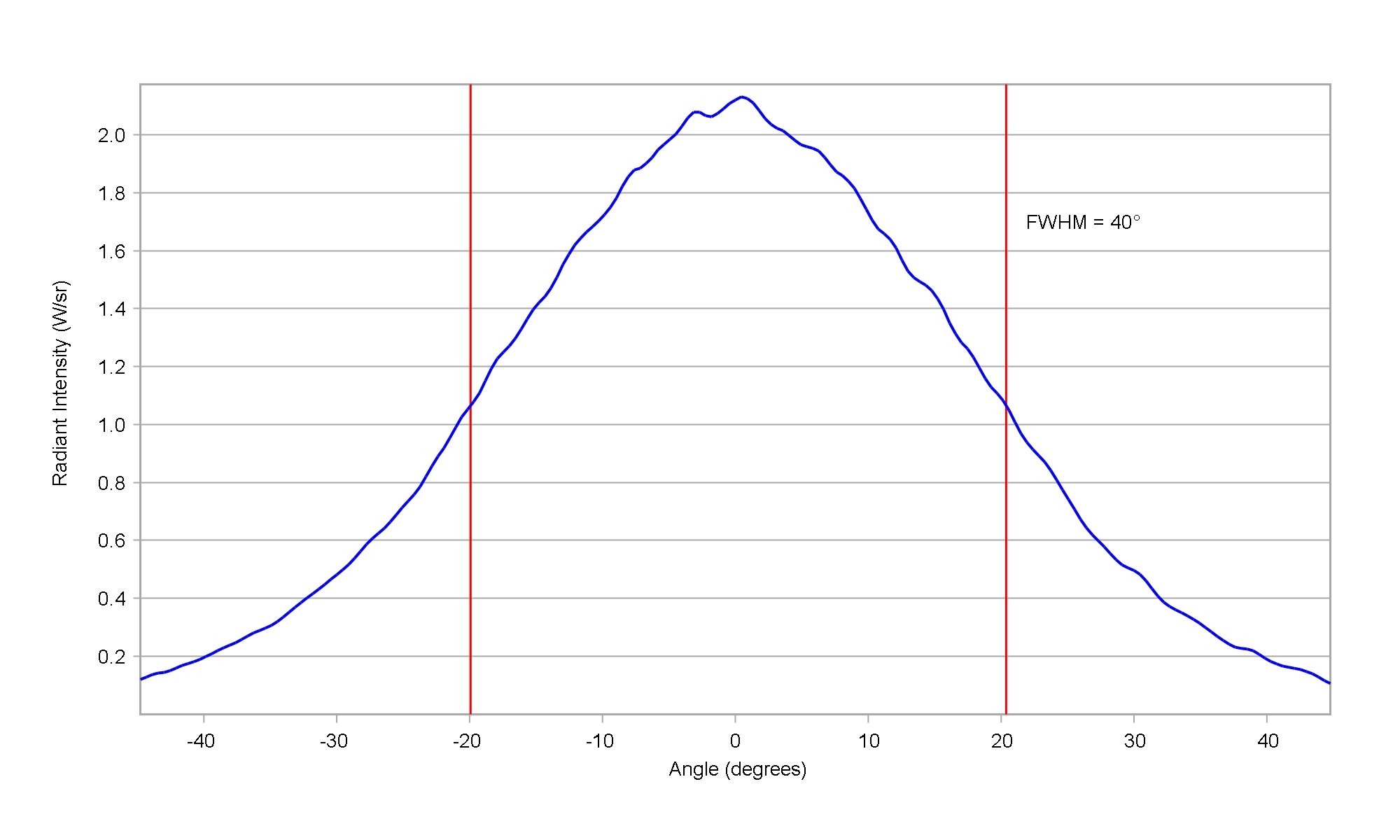

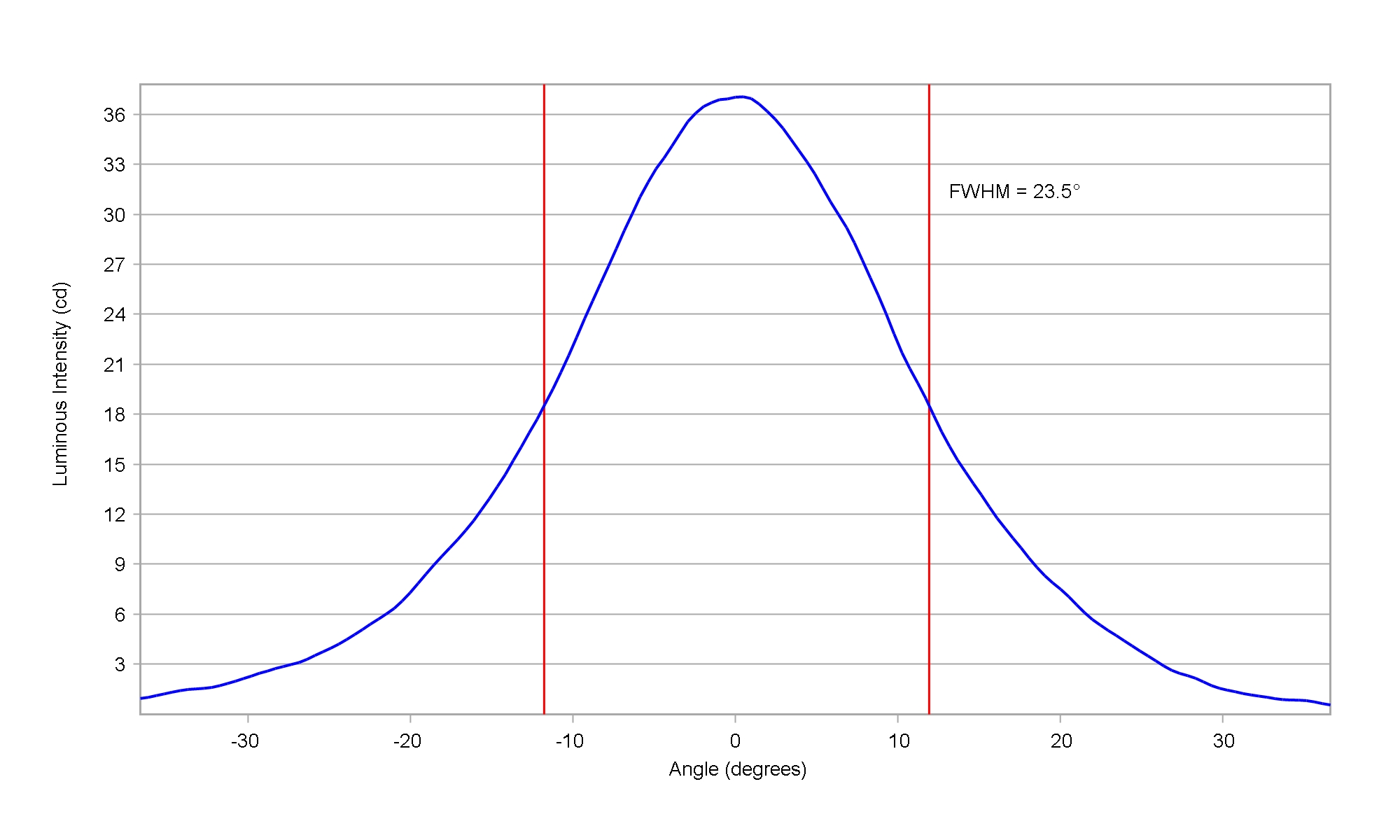

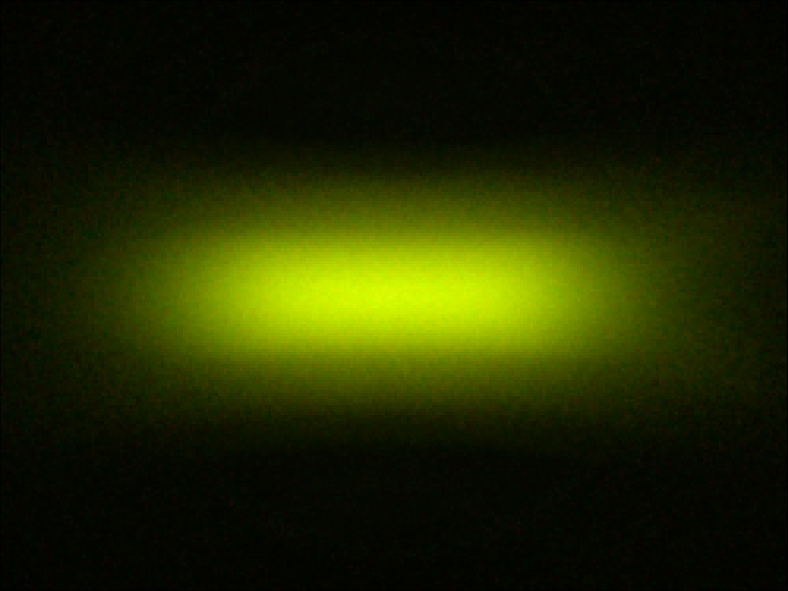

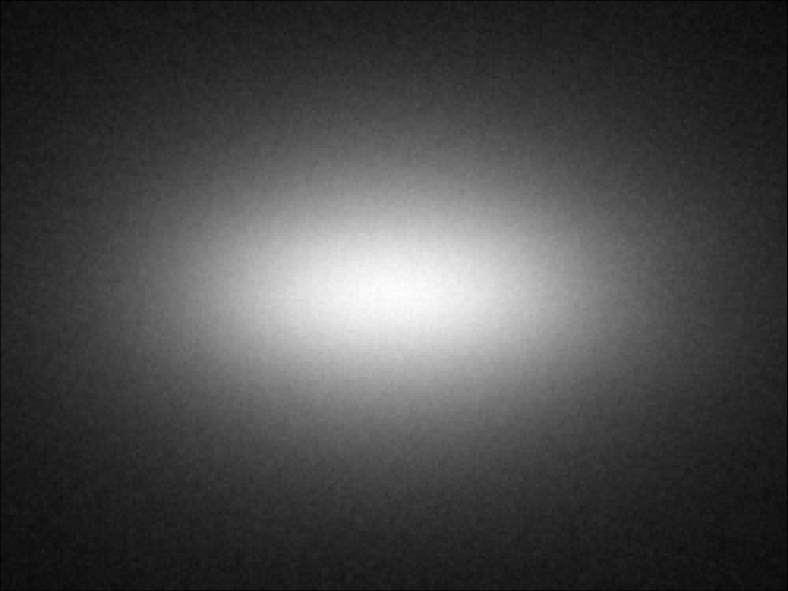

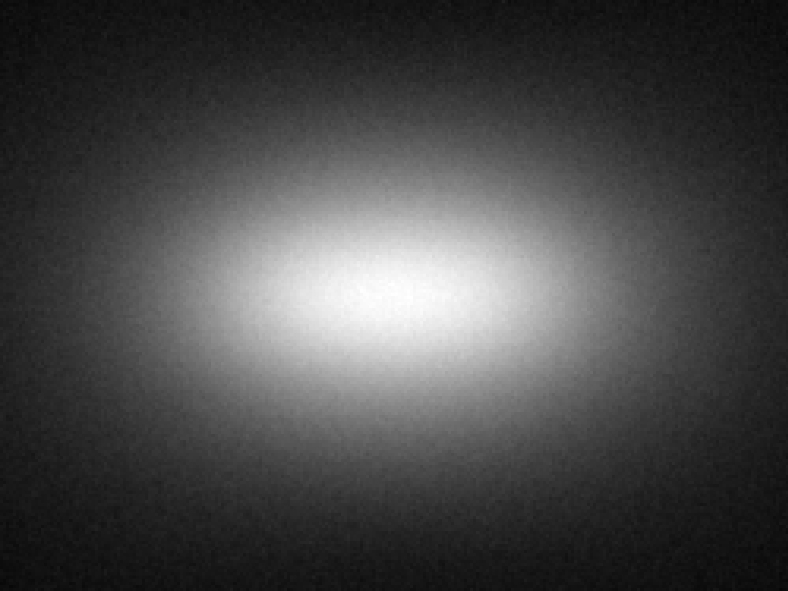

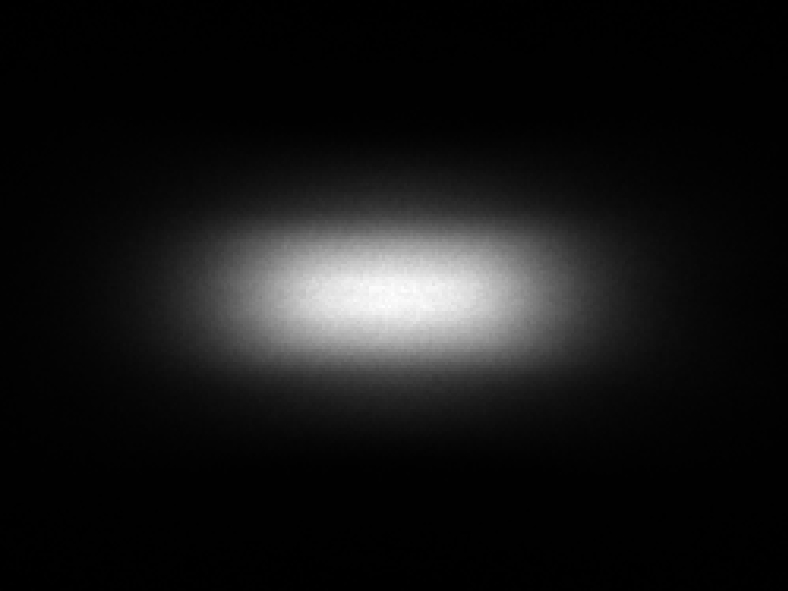

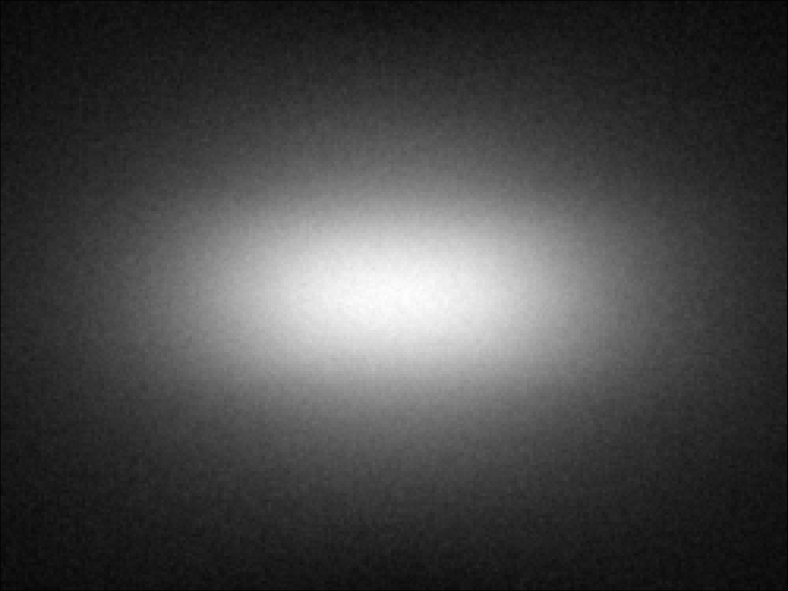

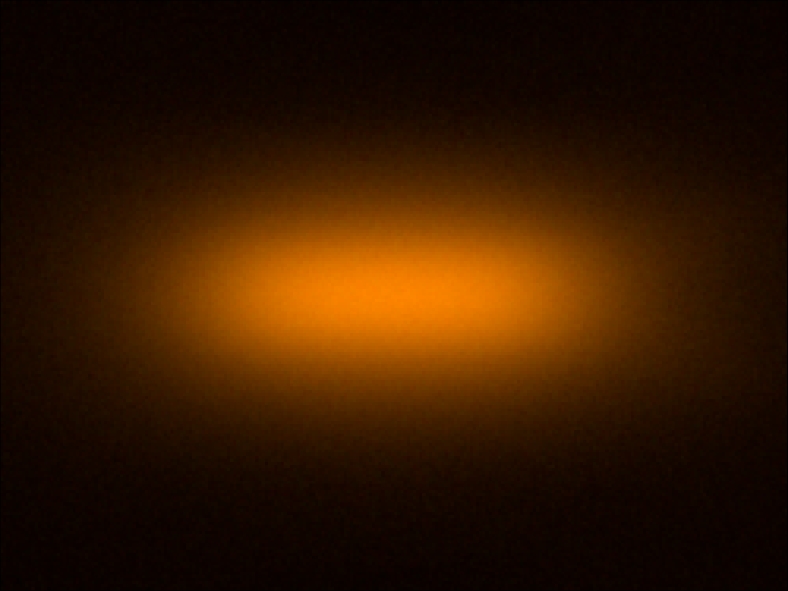

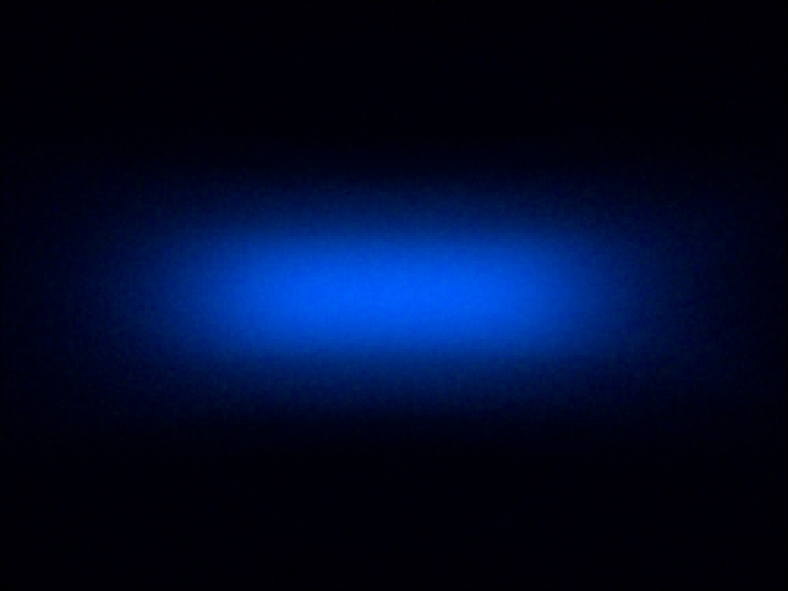

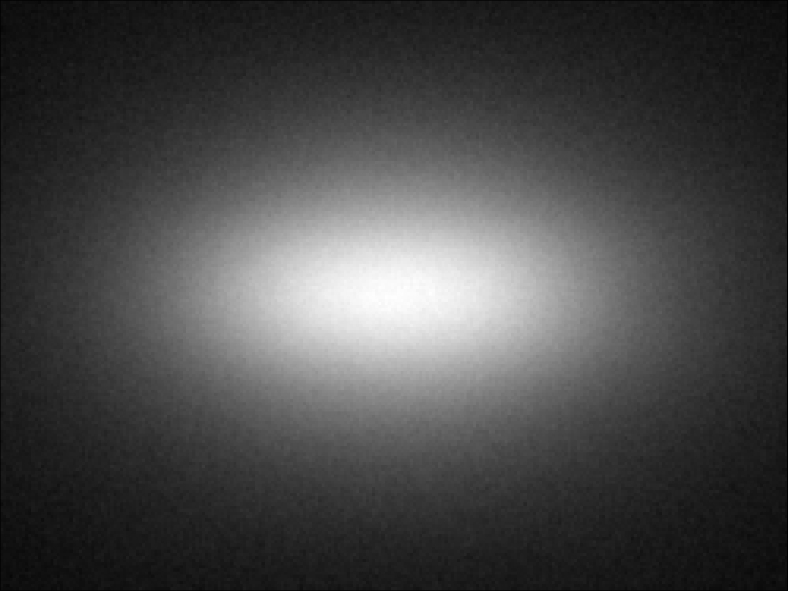

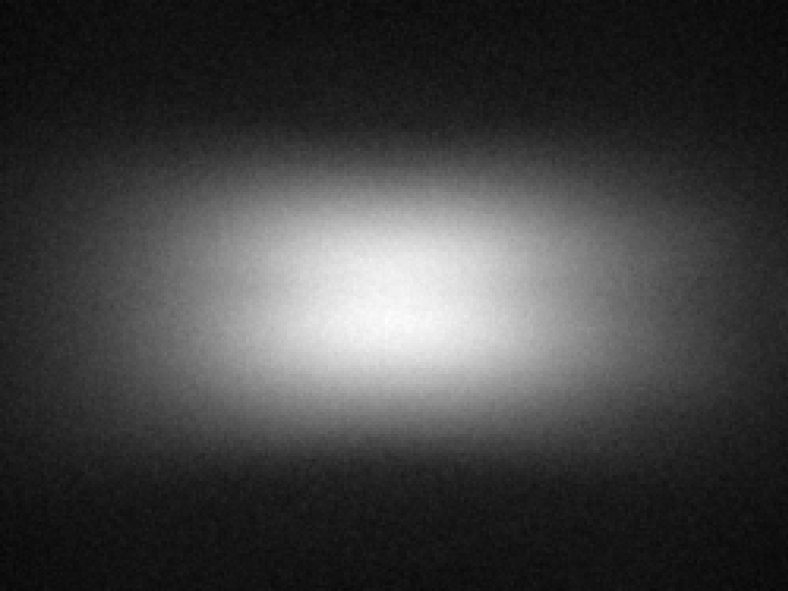

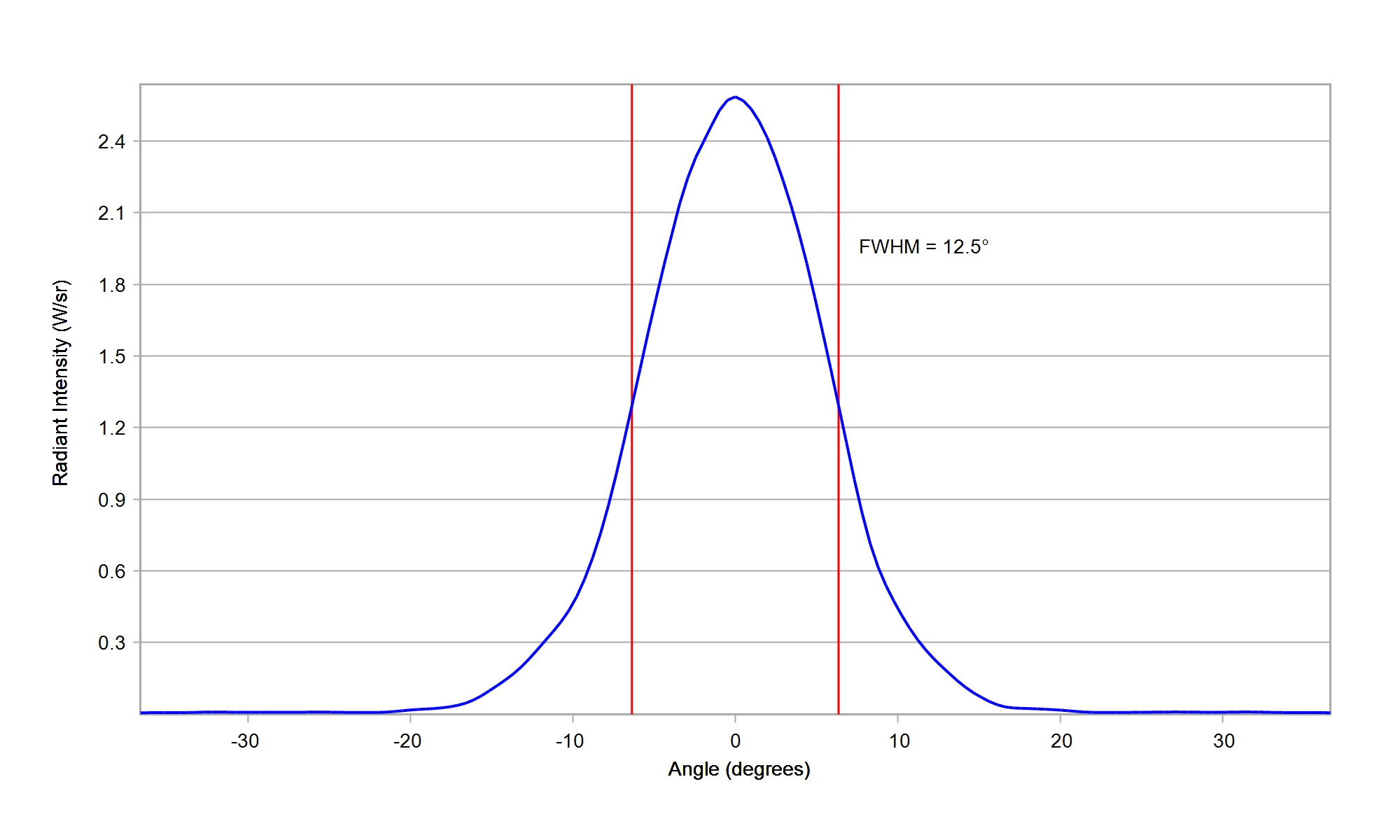

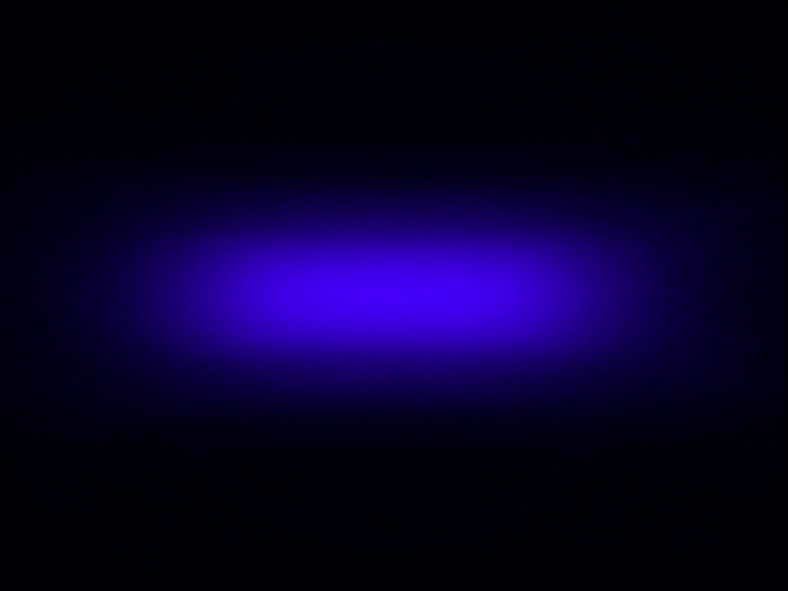

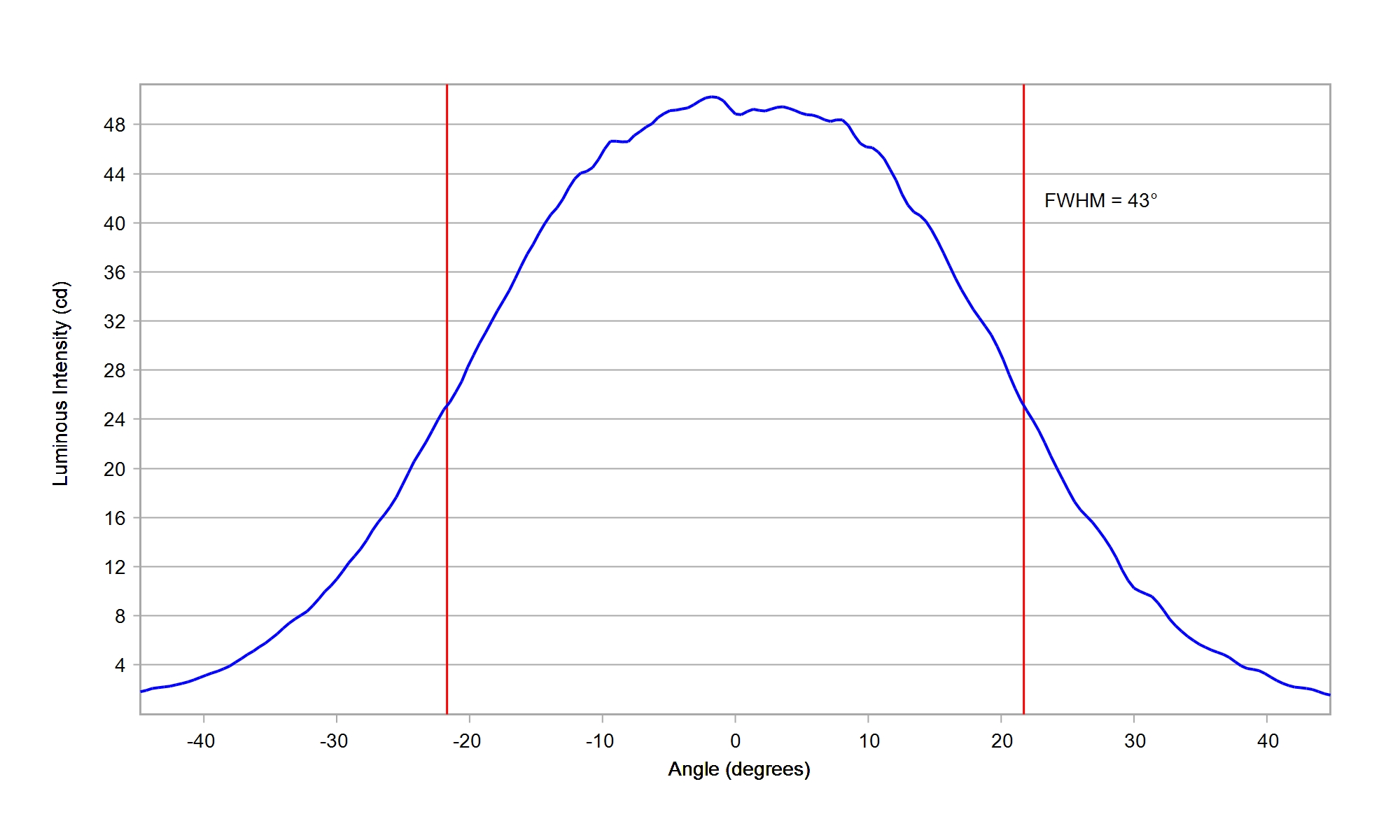

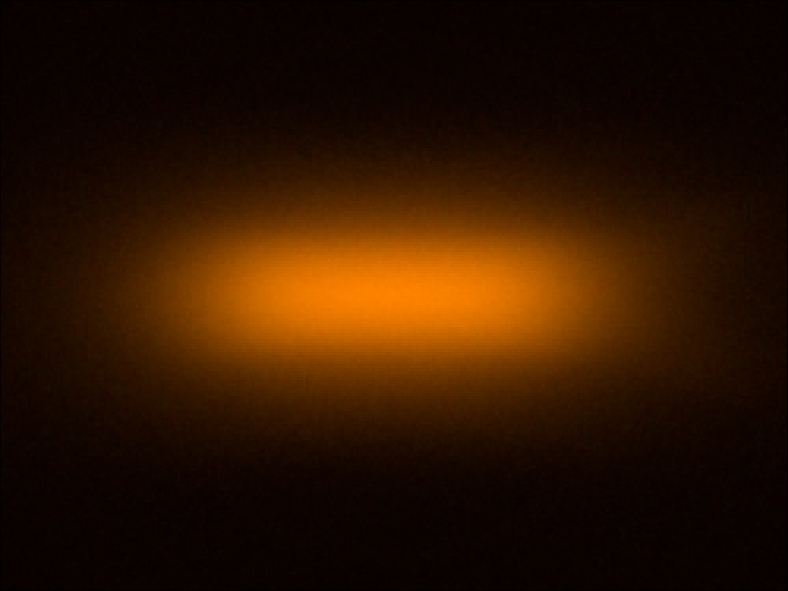

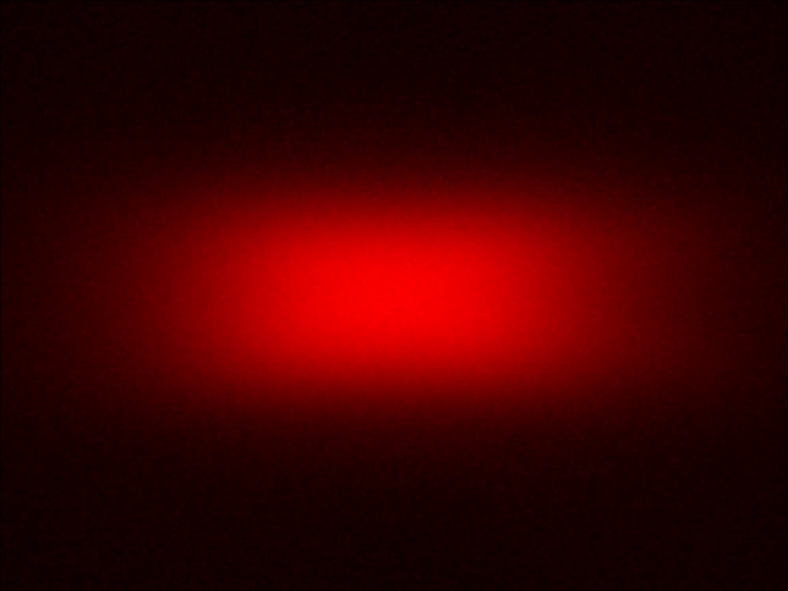

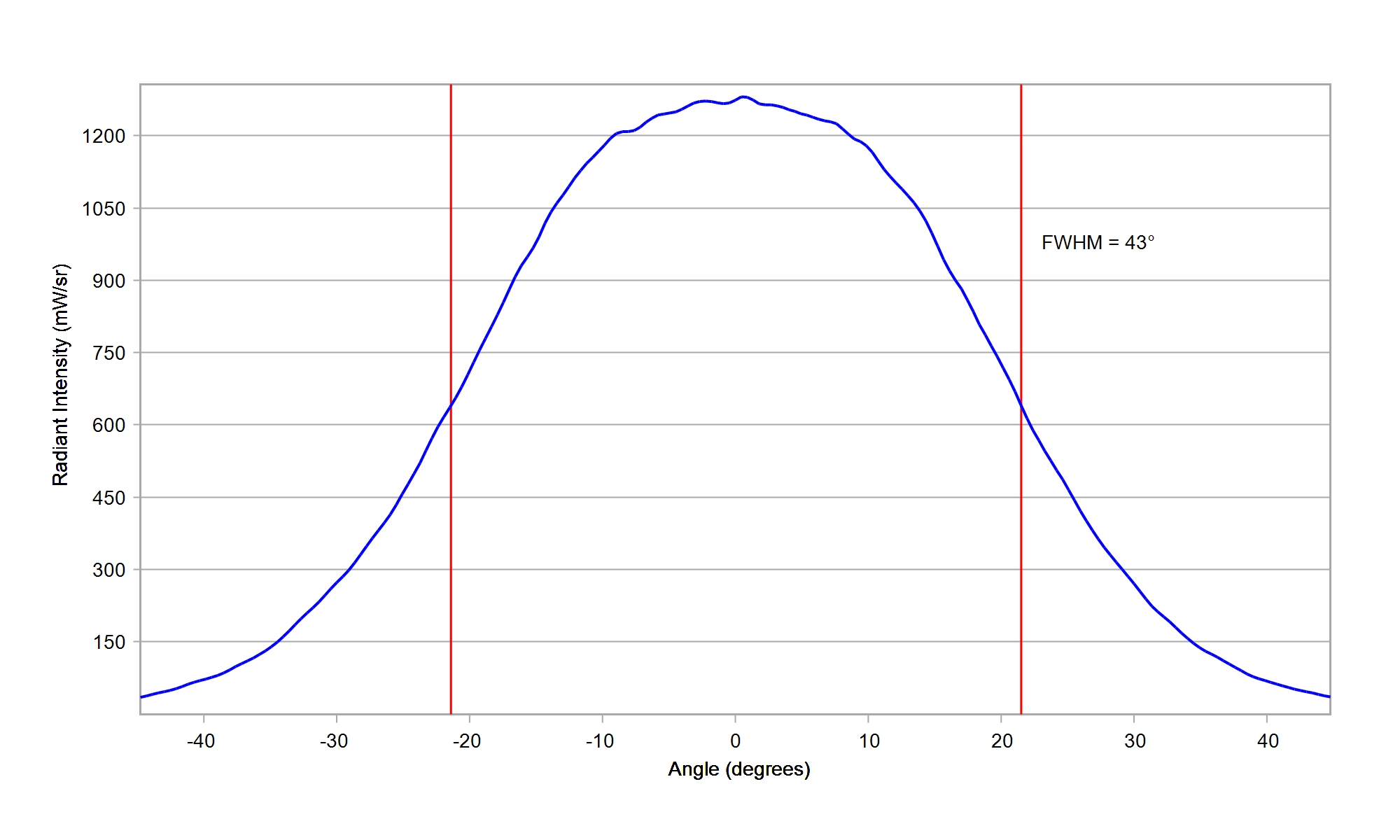

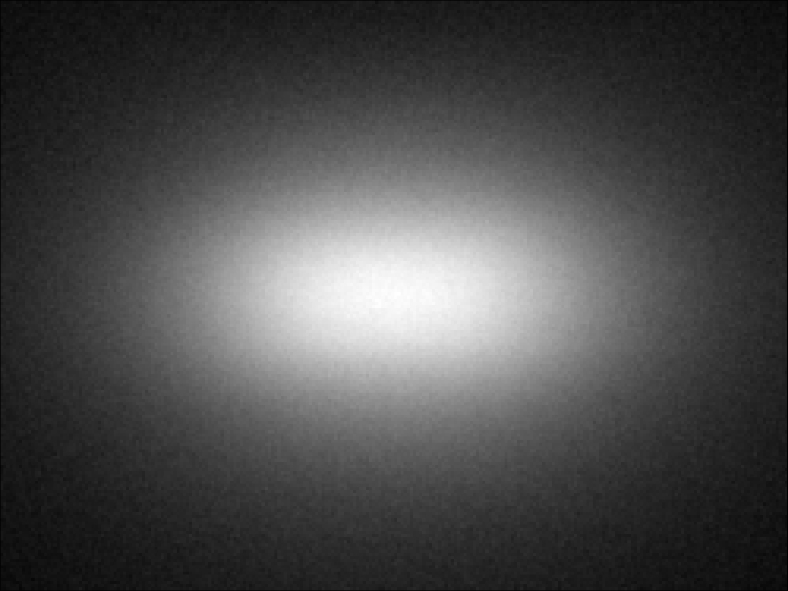

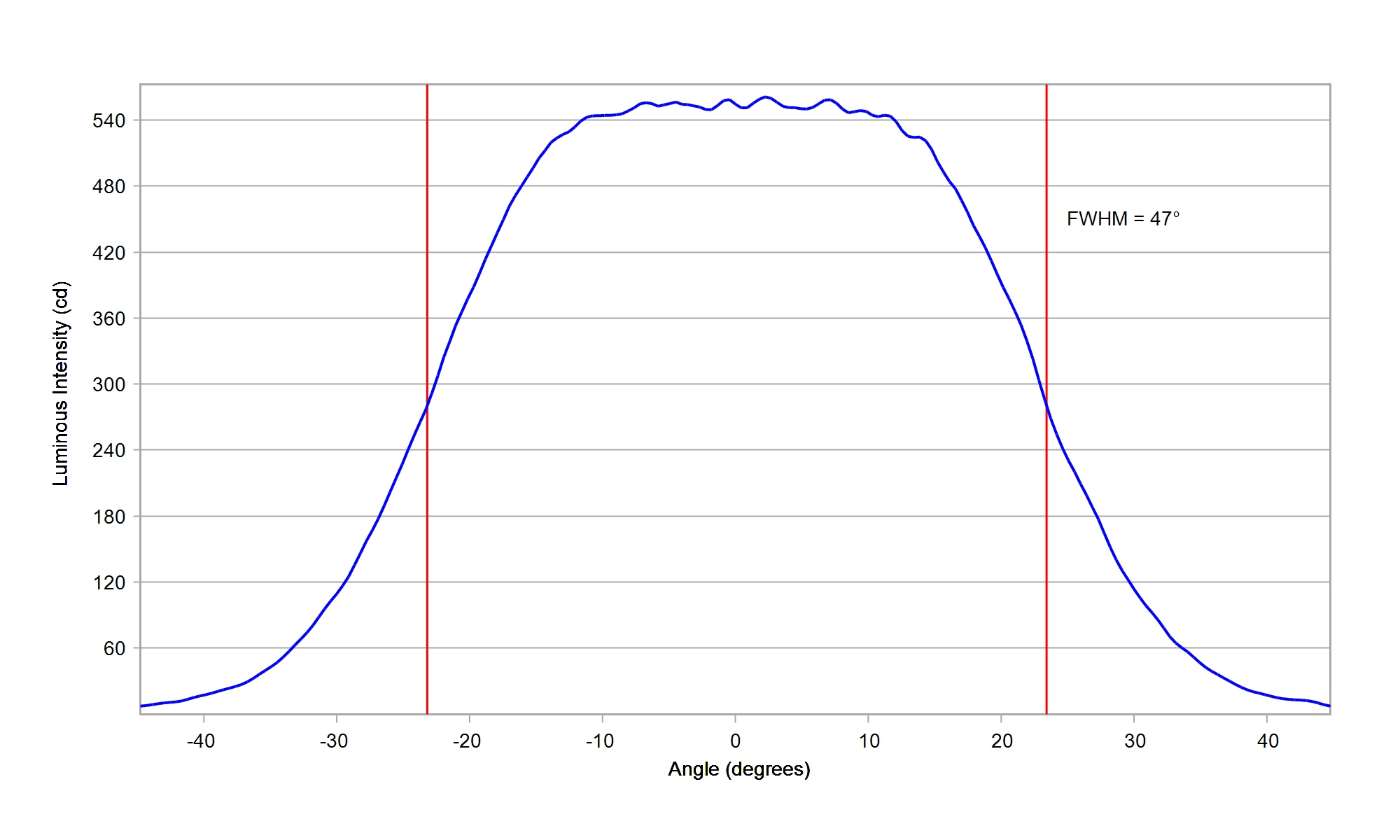

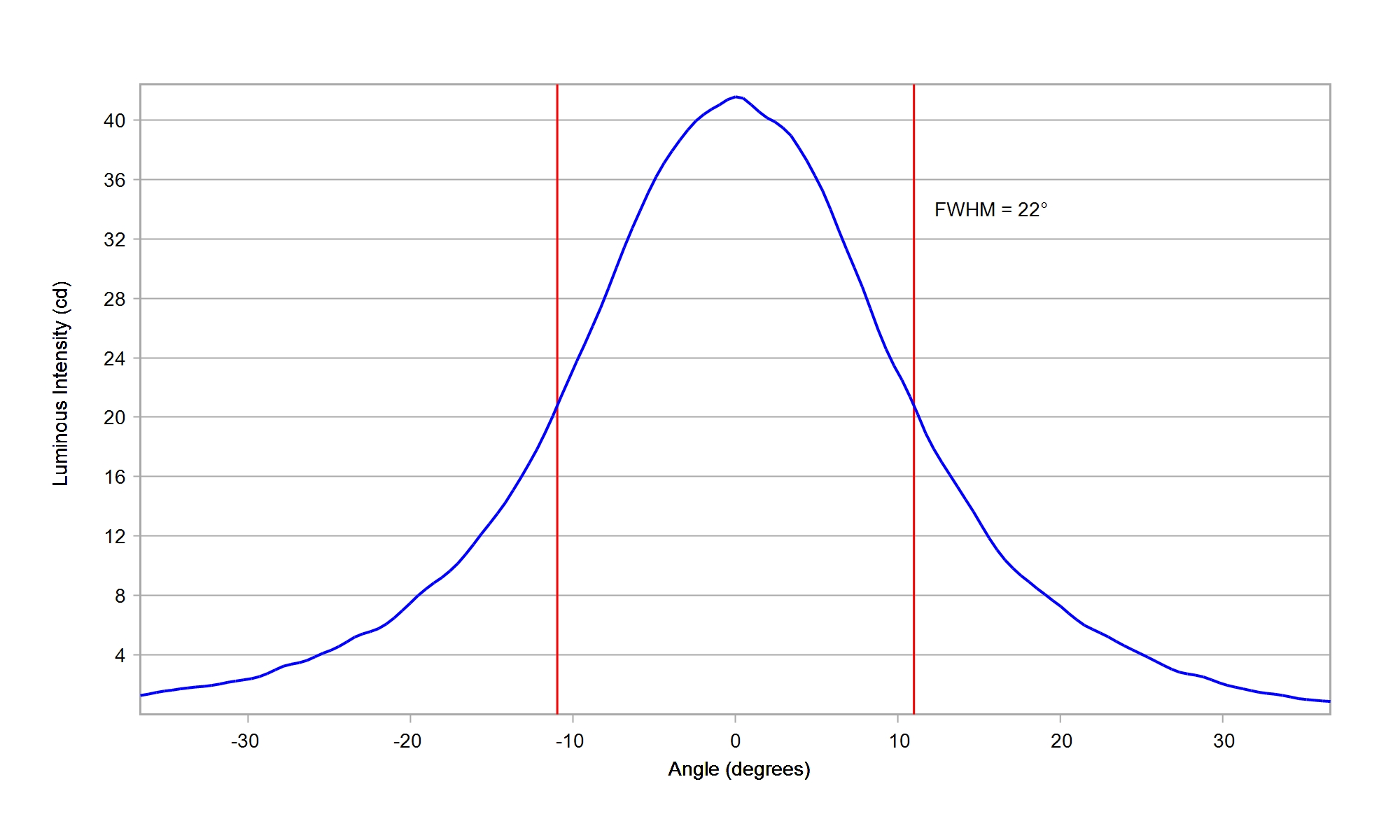

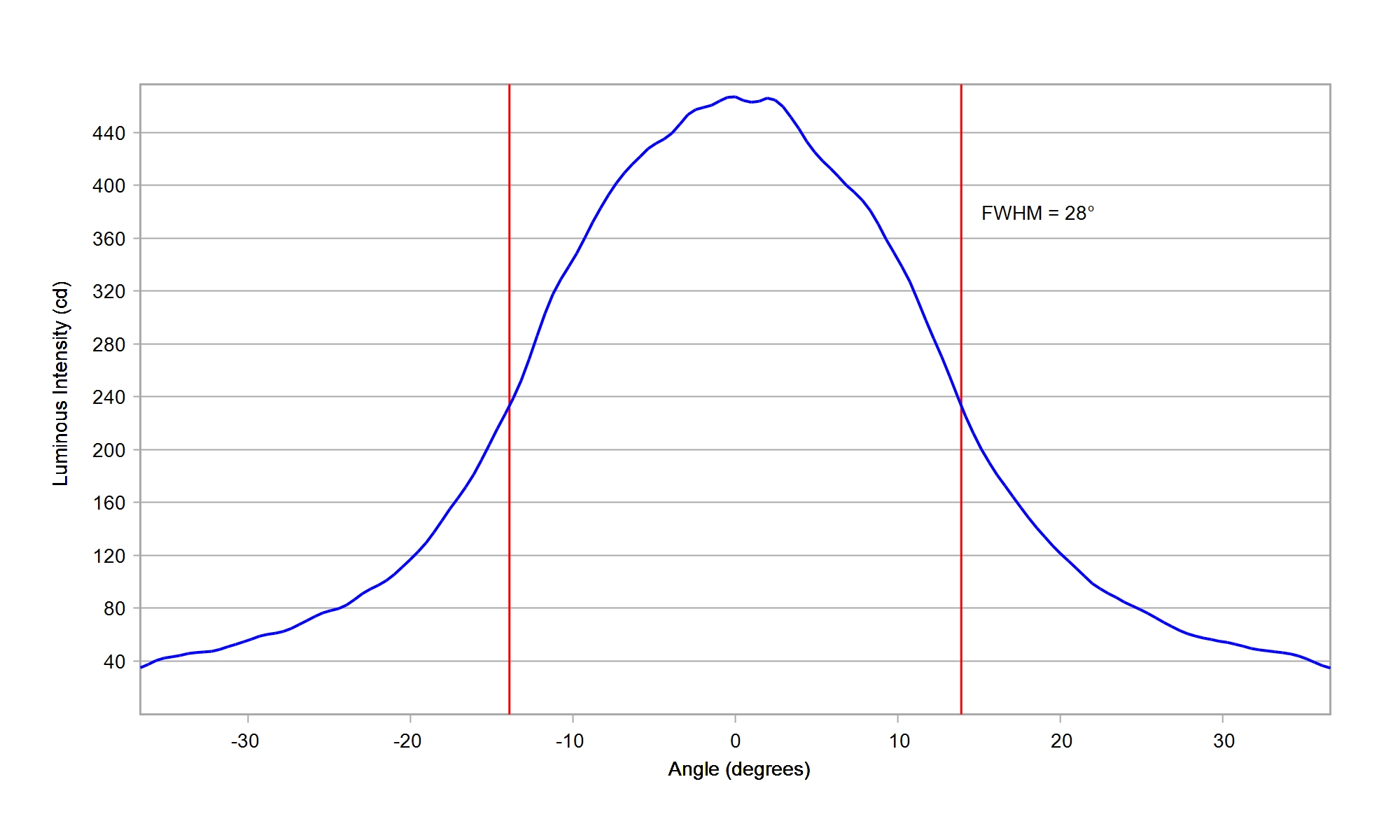

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

91.0%

FWHM:

44 x 20.5°

Cd/Im:

3.0

Carclo Optics - 12086 10mm Spot Image Bridgelux 3030 Gen2

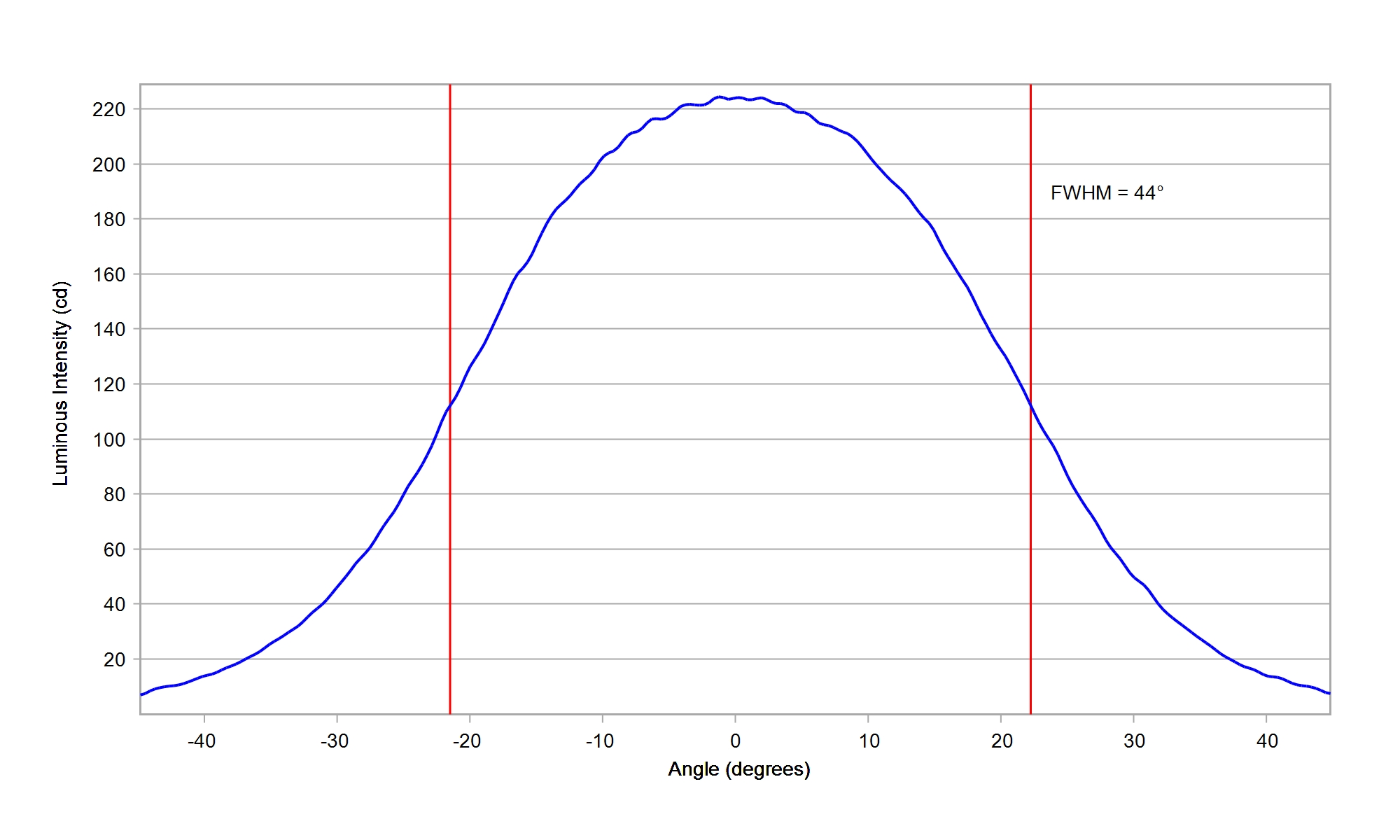

Carclo Optics - 12086 10mm Horizontal Cross Section Bridgelux 3030 Gen2

,

Carclo Optics - 12086 10mm Vertical Cross Section Bridgelux 3030 Gen2

Download

IES

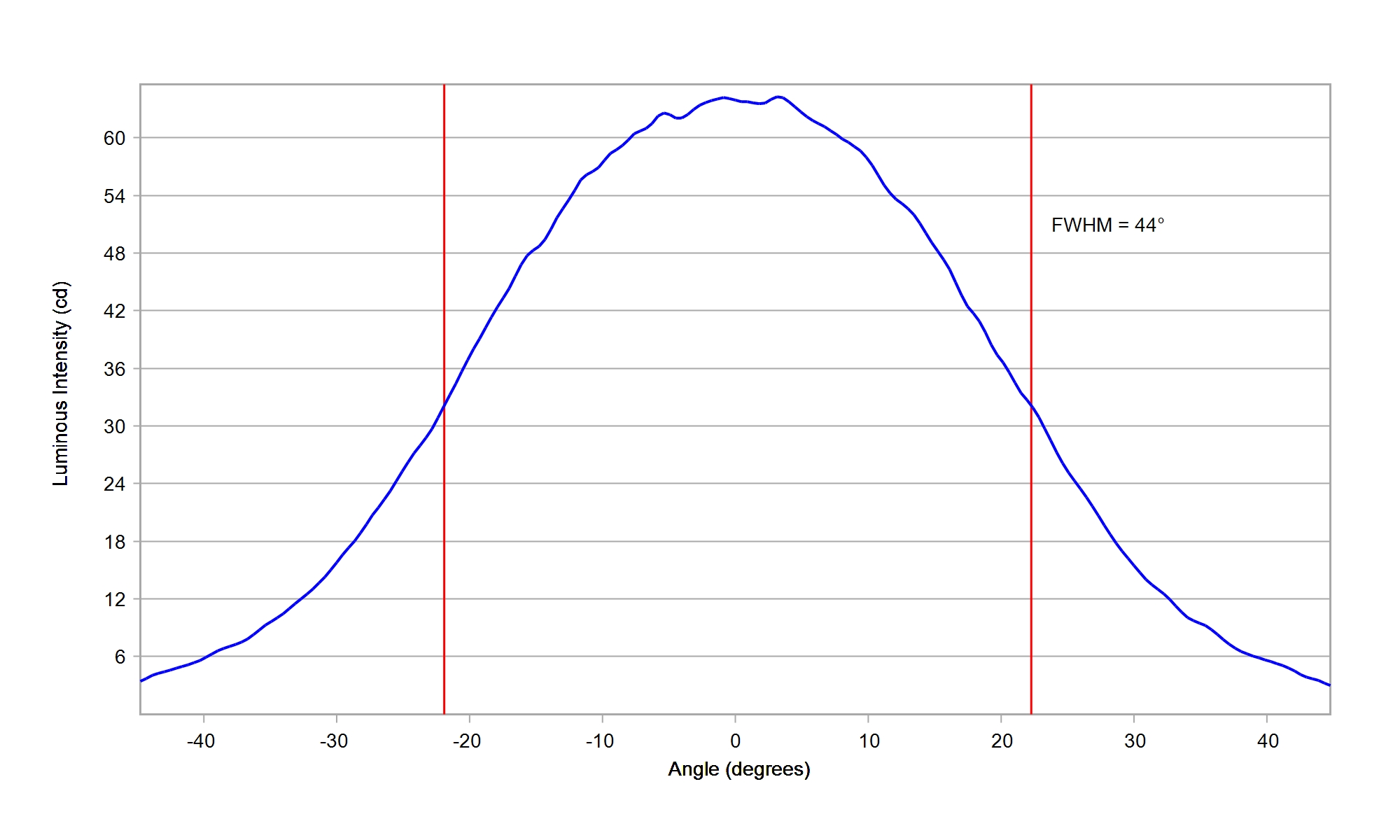

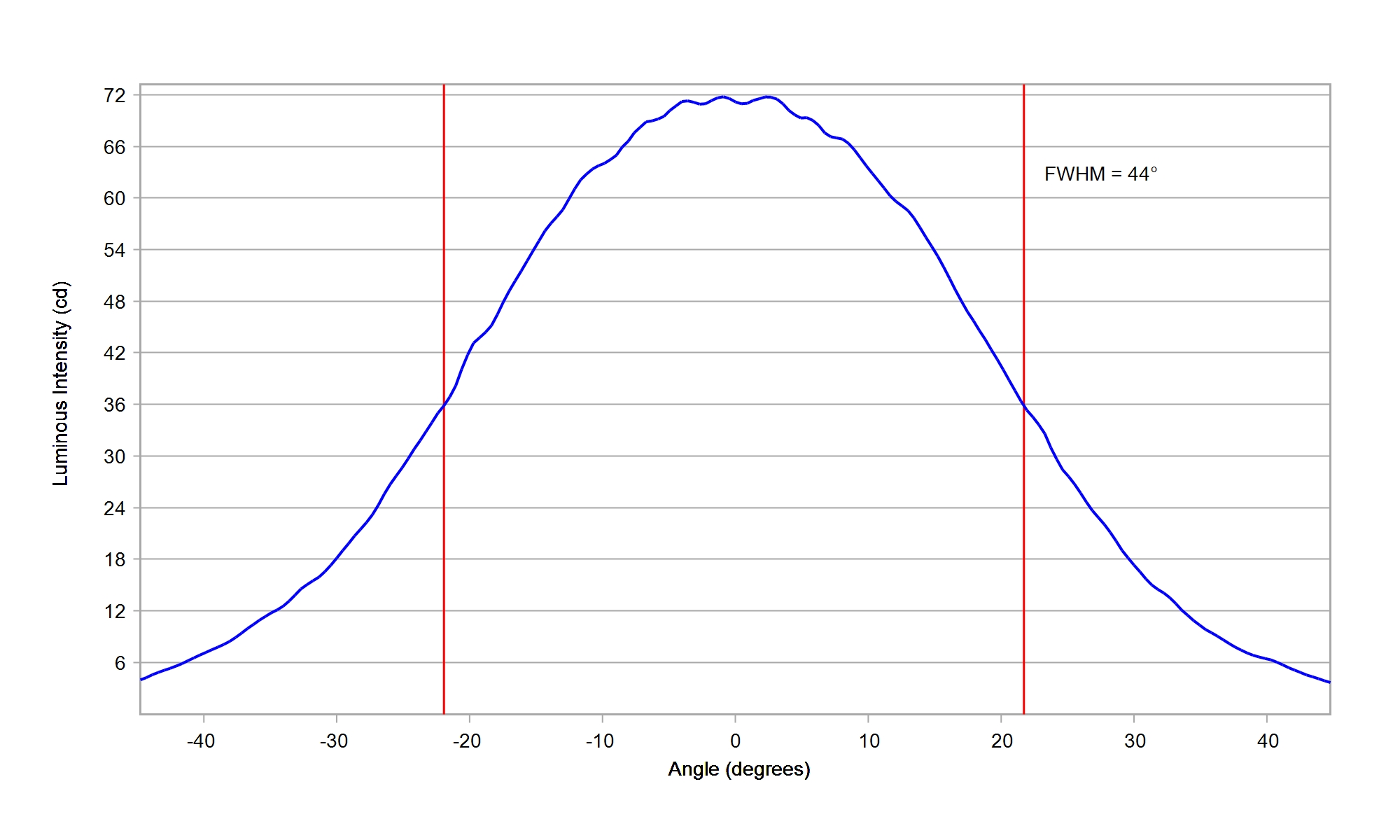

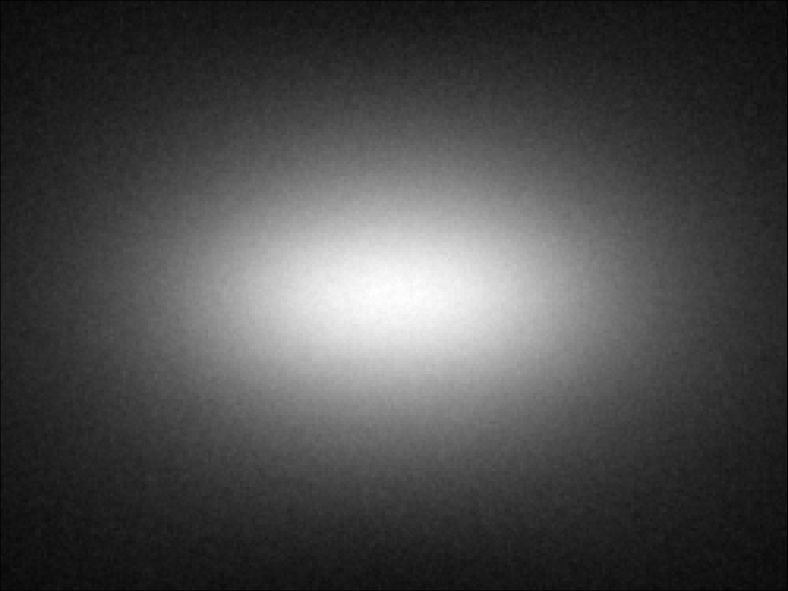

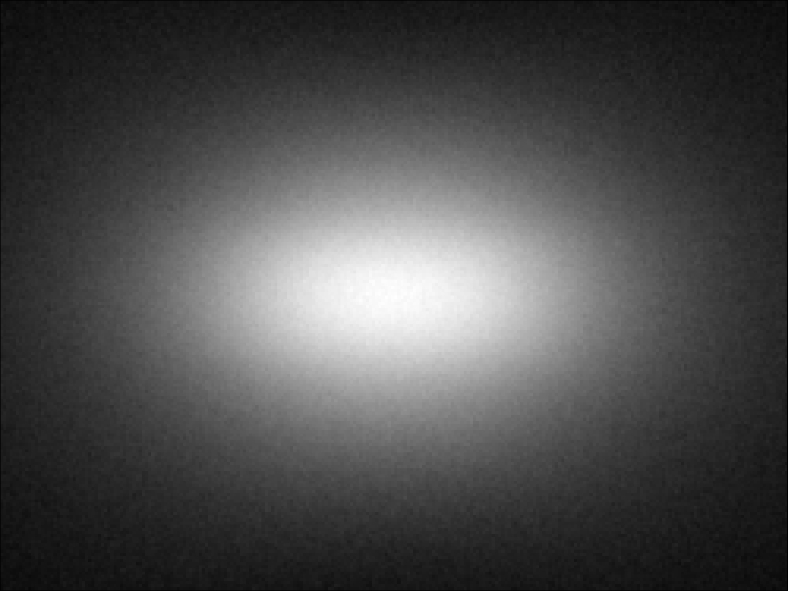

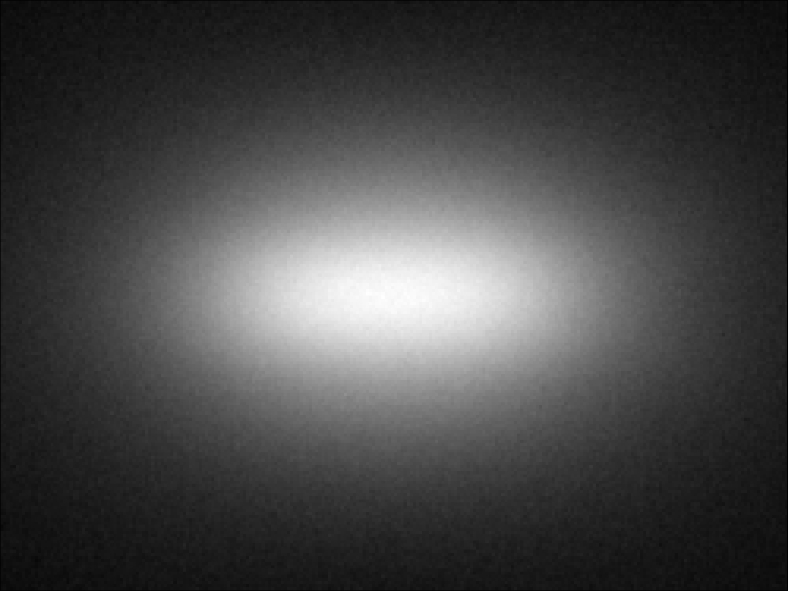

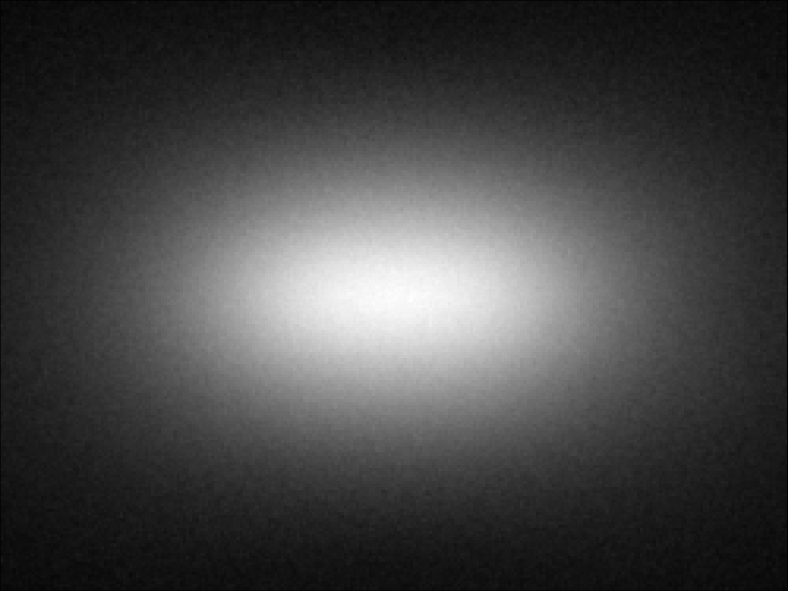

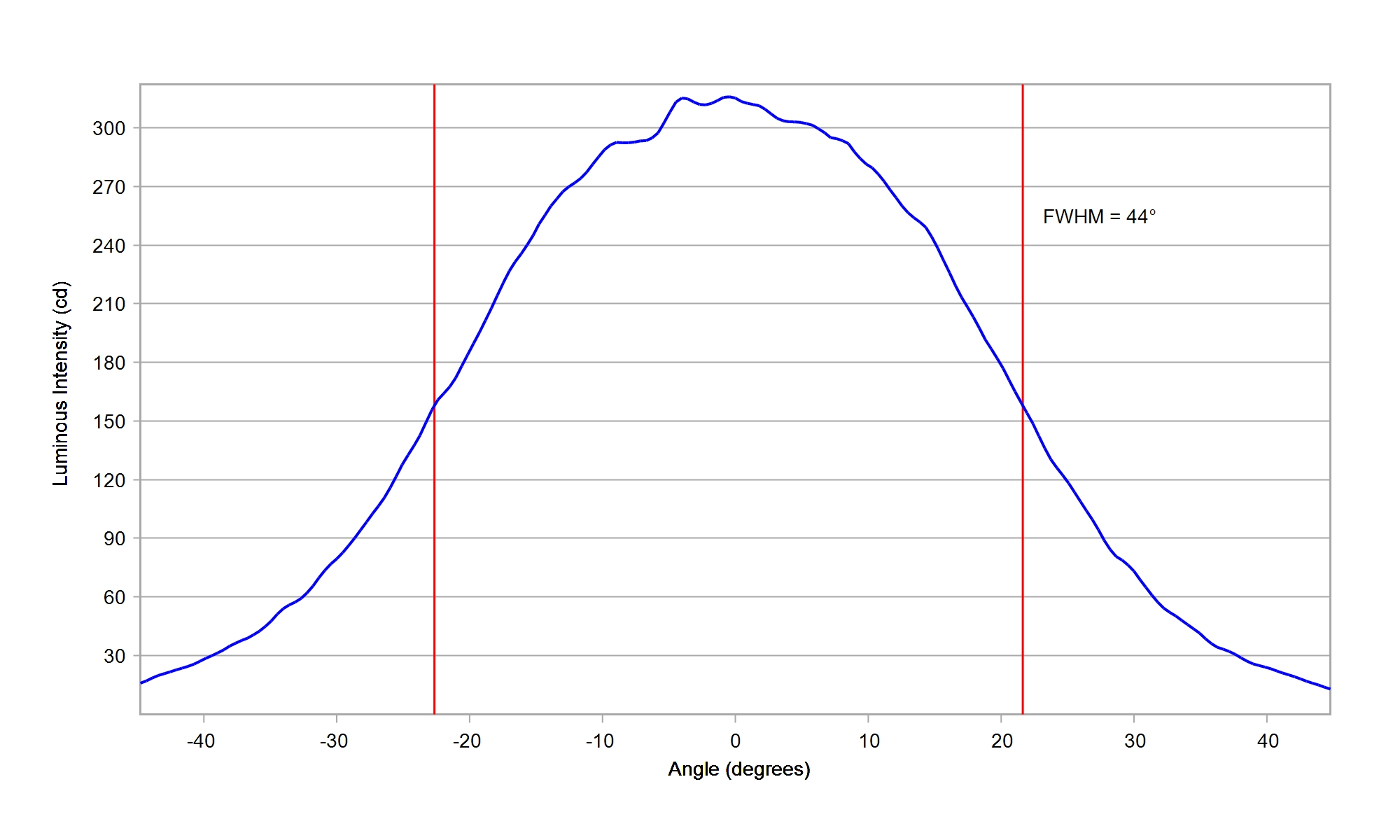

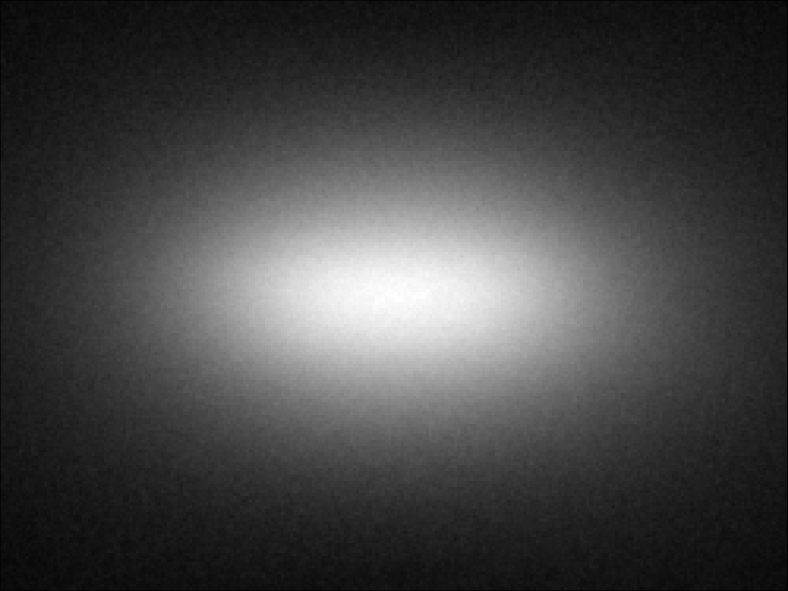

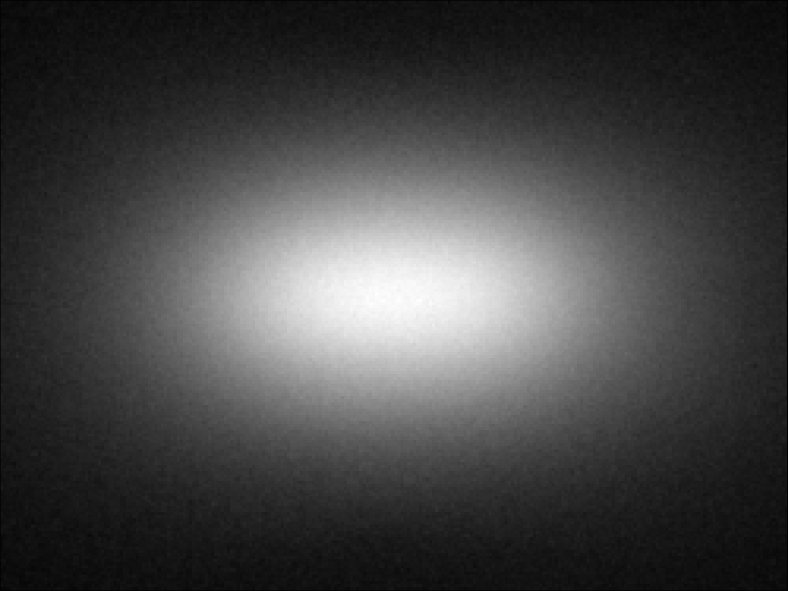

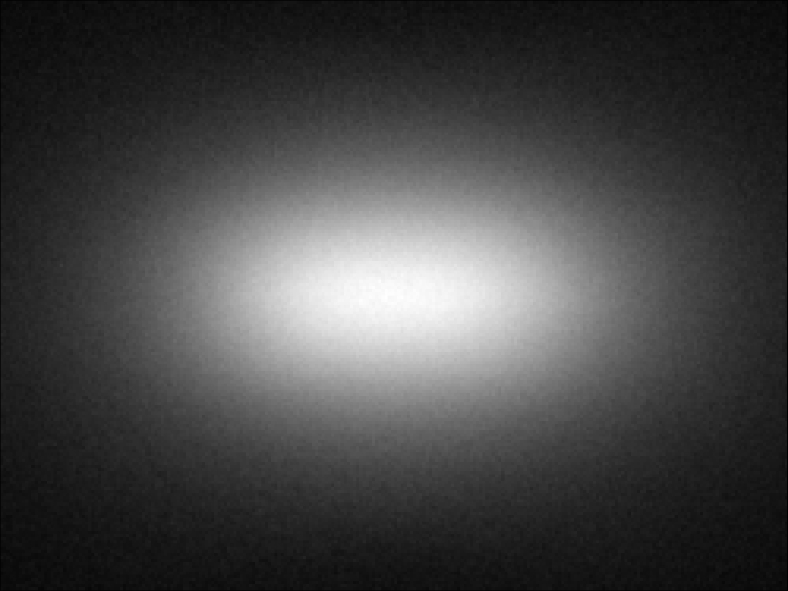

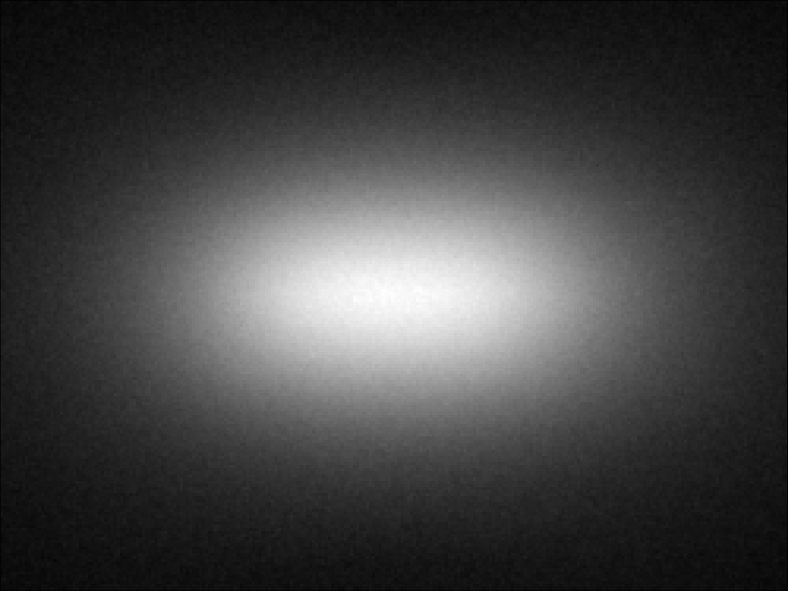

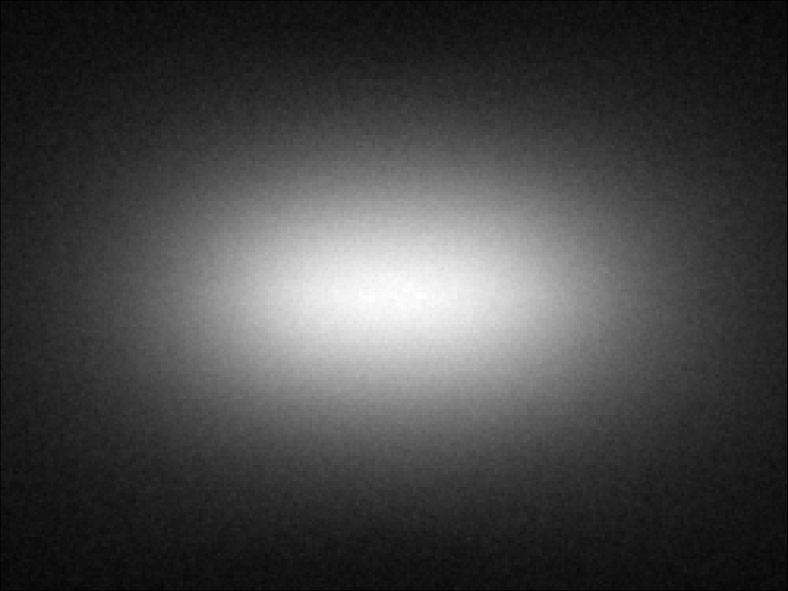

Cree JK2835 6V White

Eff:

90.5%

FWHM:

43 x 21.5°

Cd/Im:

2.6


,


Download

IES

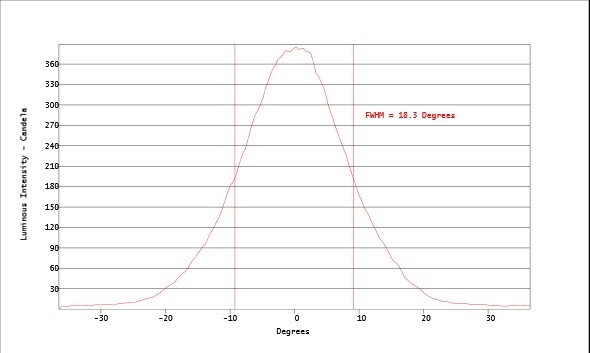

Cree XLamp CSP XD16 Cool White

Eff:

90.5%

FWHM:

43.0 x 18.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

91.5%

FWHM:

45 x 17°

Cd/Im:

3.6


,


Download

IES

Cree XLamp XB-D White

Eff:

85.6%

FWHM:

44.7 x 20.7°

Cd/Im:

3.0

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

90.0%

FWHM:

42 x 21°

Cd/Im:

2.8

Carclo Optics - 12086 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 12086 10mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 12086 10mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

91.5%

FWHM:

46 x 14°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G Green

Eff:

91.5%

FWHM:

46 x 14.5°

Cd/Im:

3.7


,


Download

IES

Cree XLamp XE-G Red

Eff:

90.5%

FWHM:

45 x 14.5°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G White

Eff:

91.0%

FWHM:

45 x 15°

Cd/Im:

3.7


,


Download

IES

Cree XLamp XP-C White

Eff:

87.8%

FWHM:

46.2 x 12.5°

Cd/Im:

5.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.1%

FWHM:

43 x 16°

Cd/Im:

3.5

Spot Image

Cross Section

Download

ies

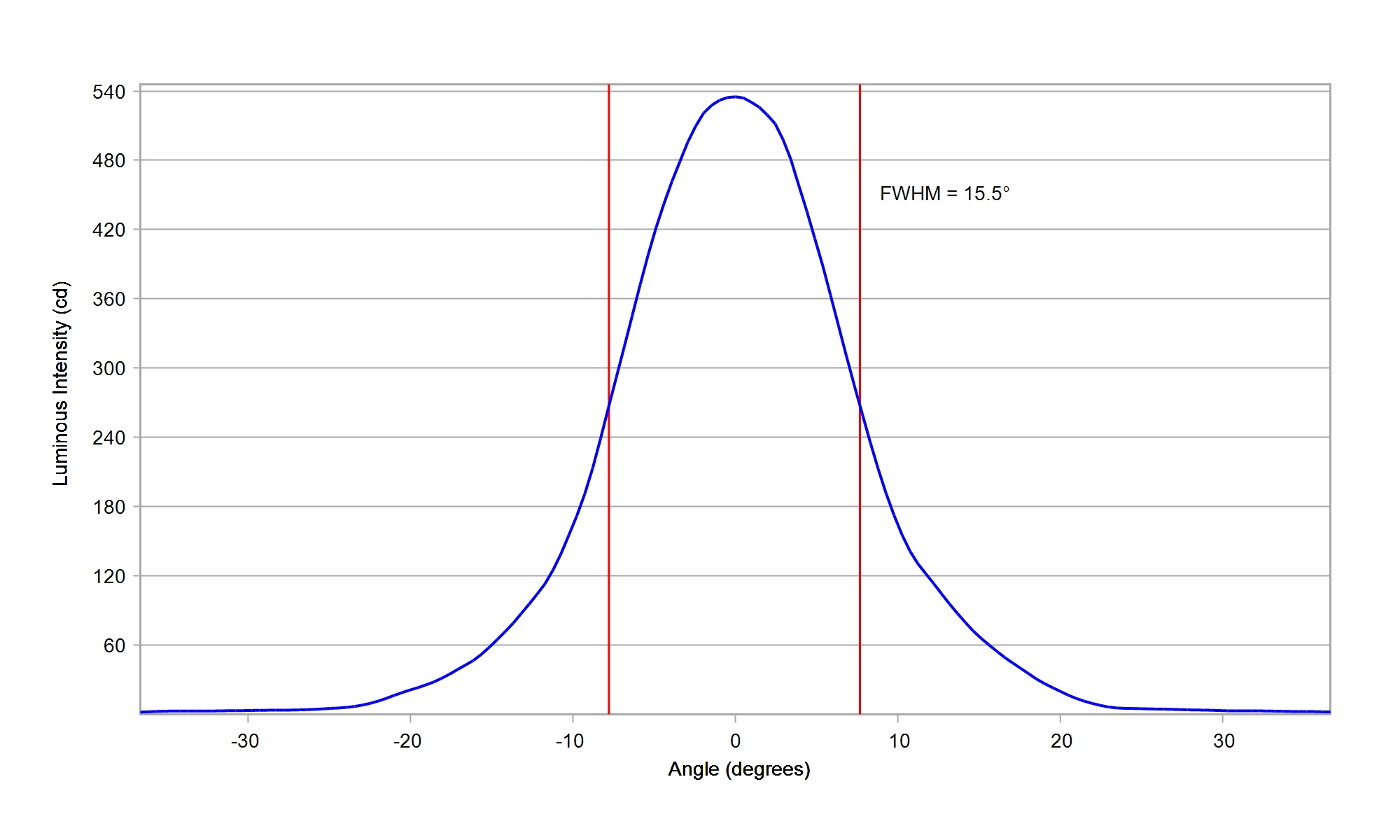

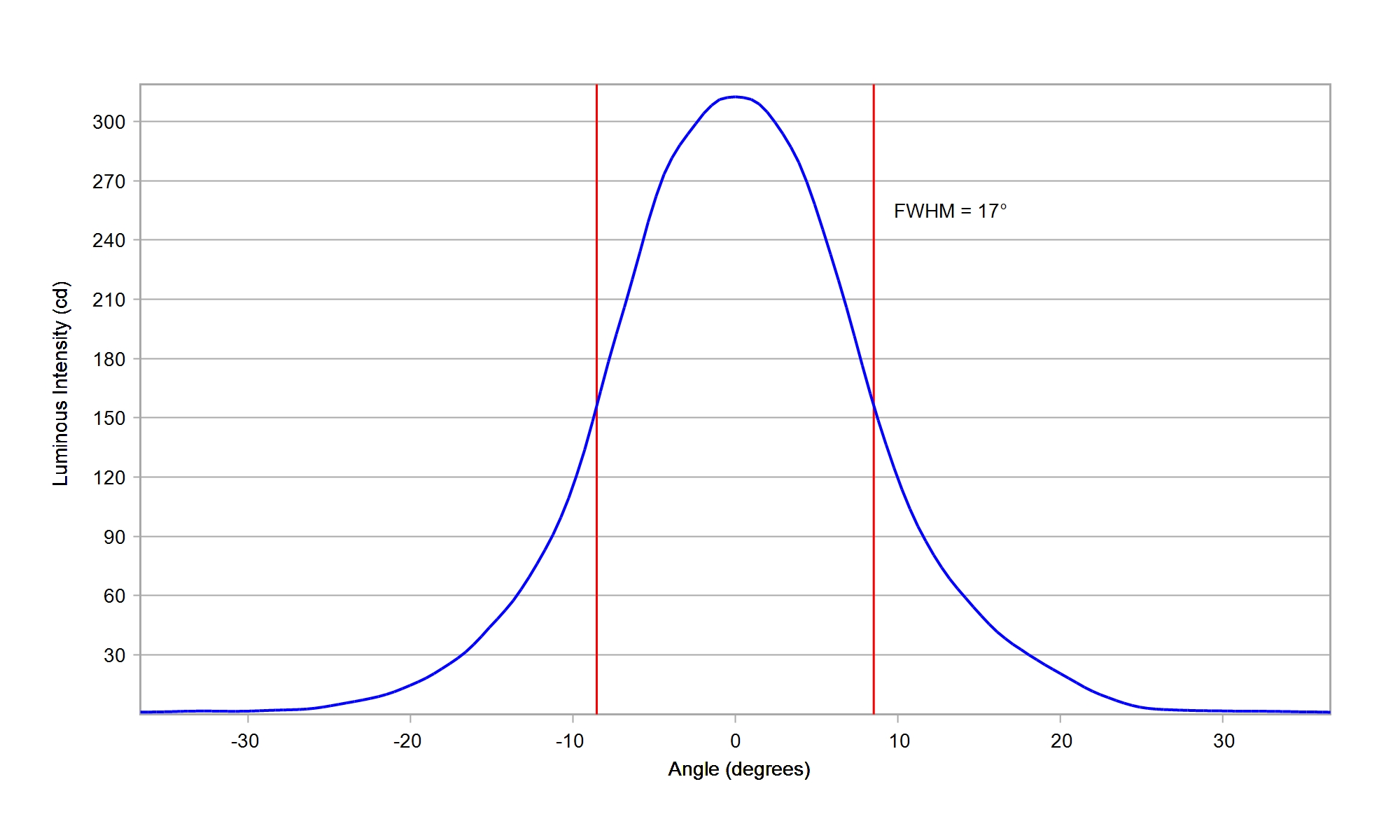

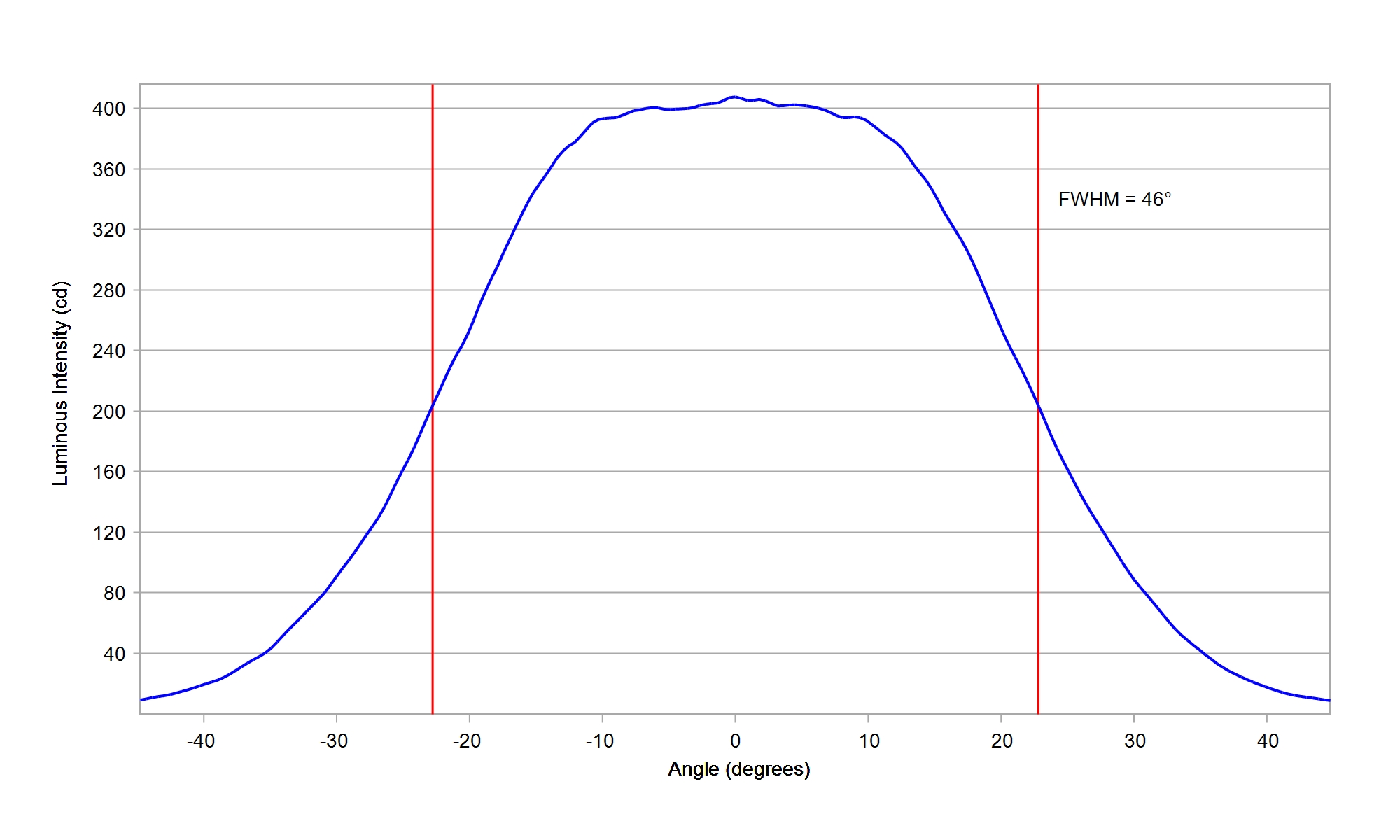

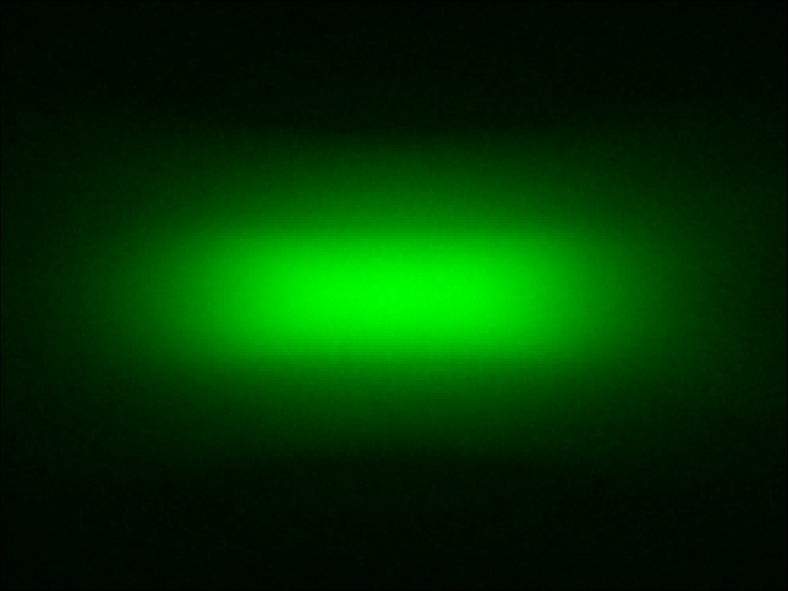

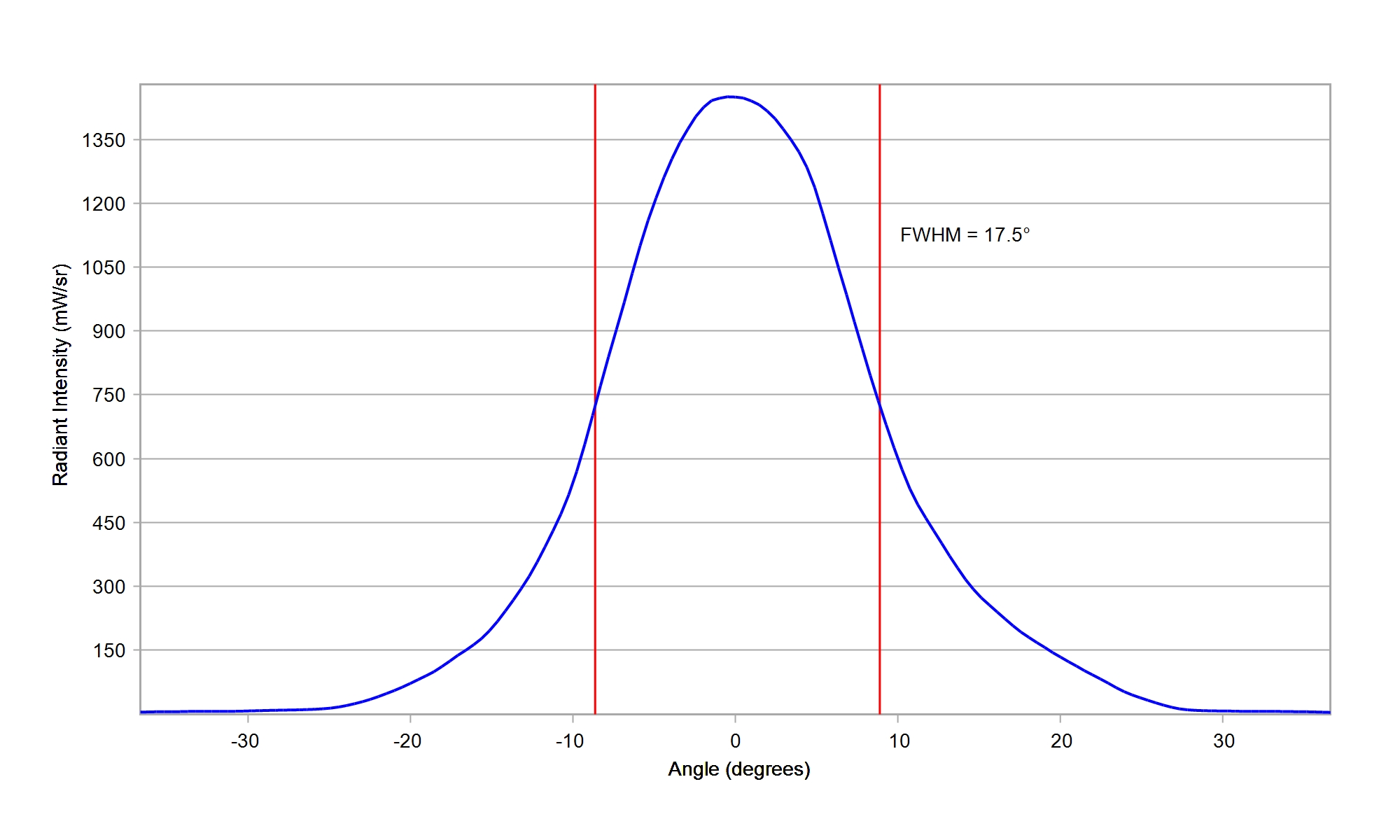

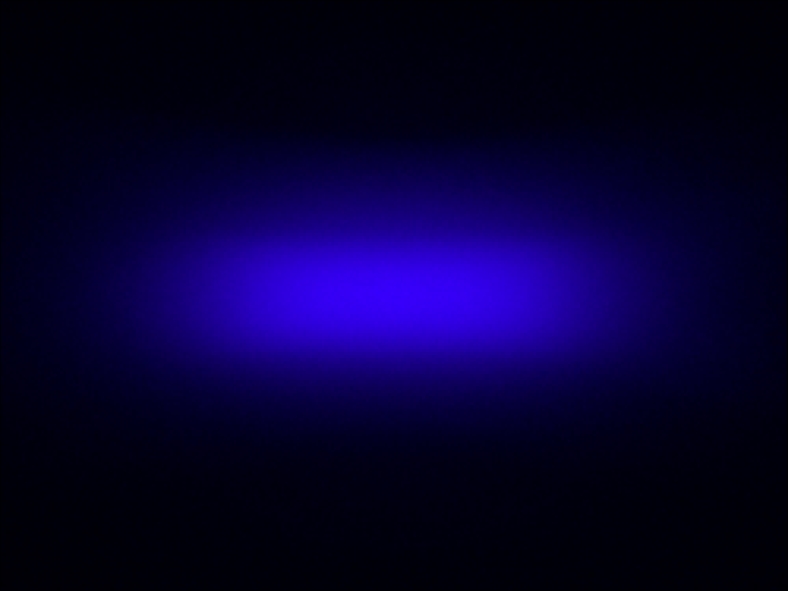

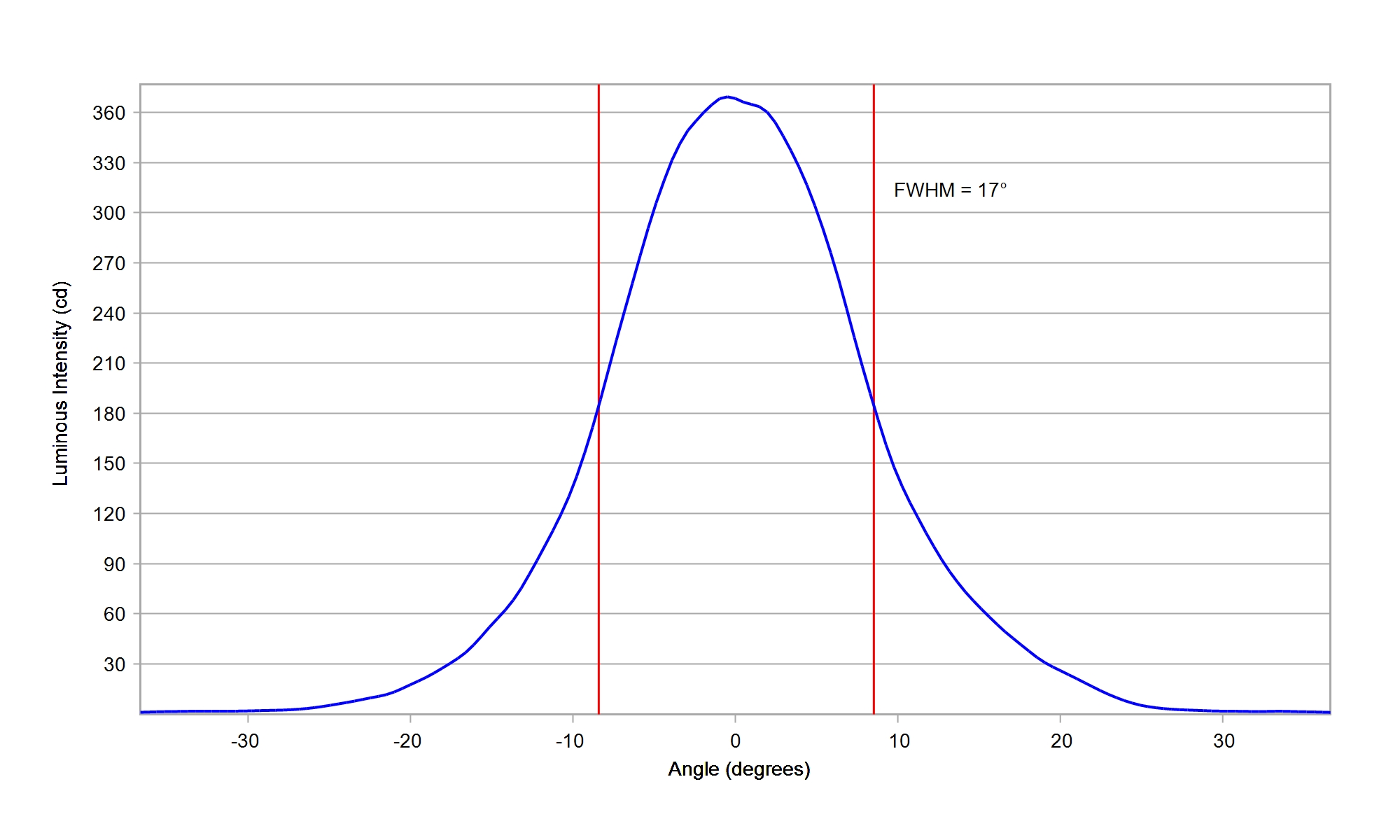

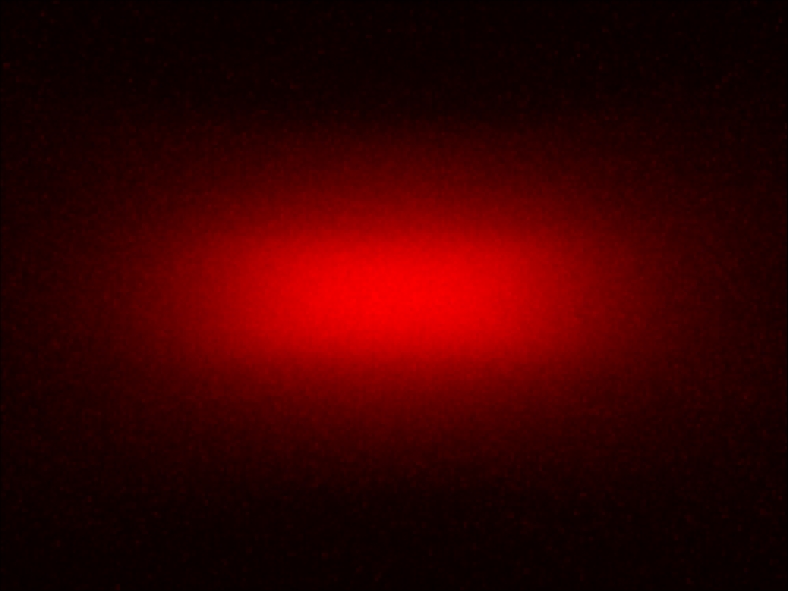

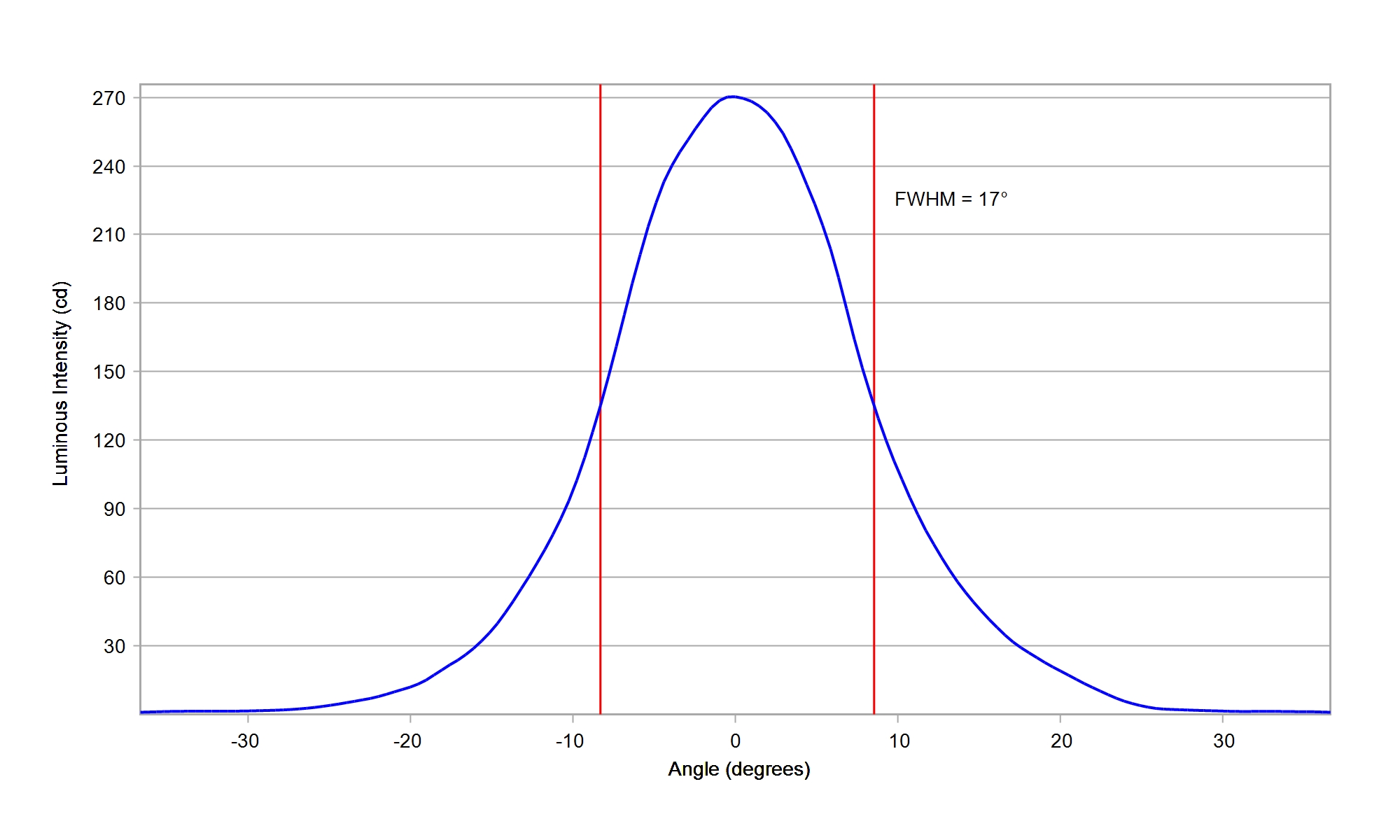

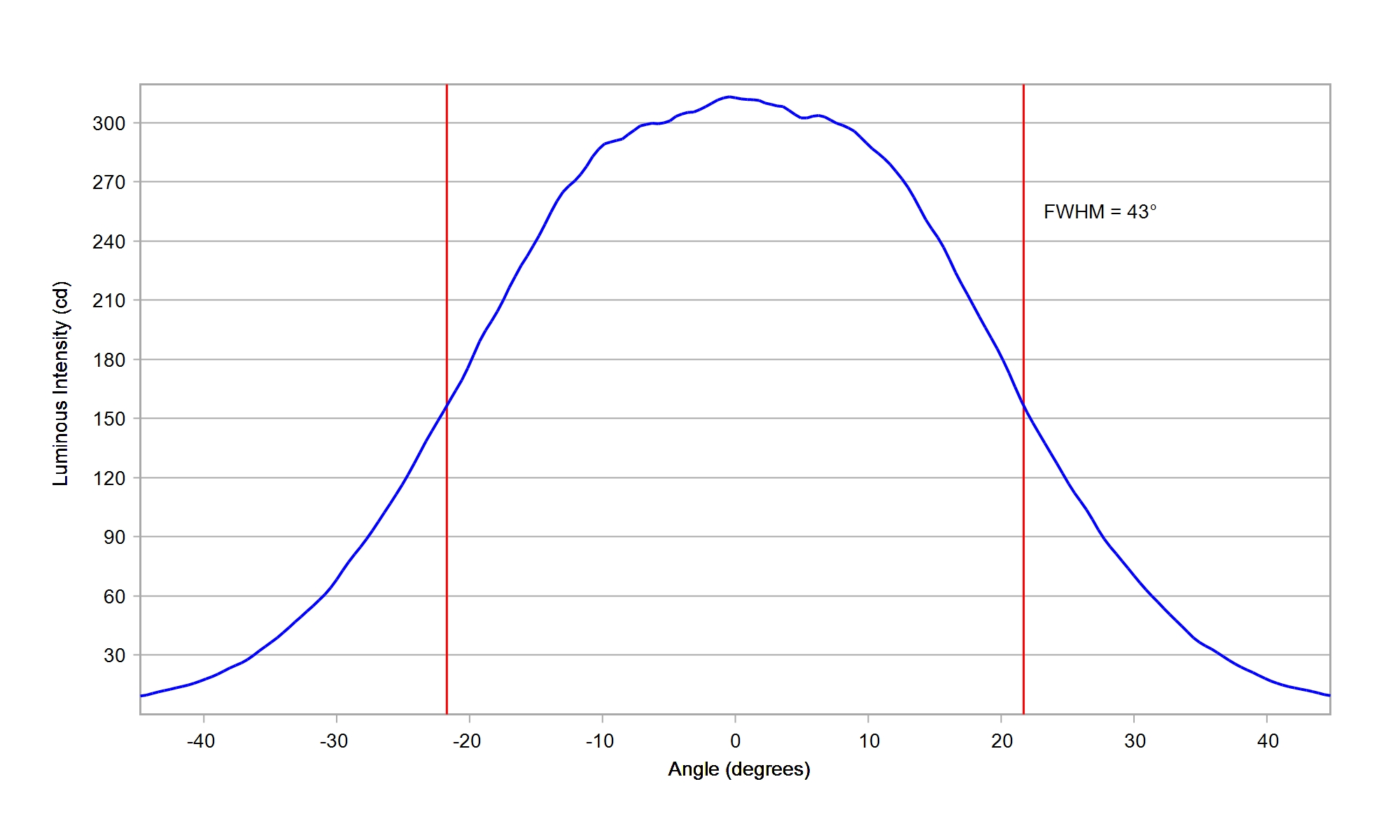

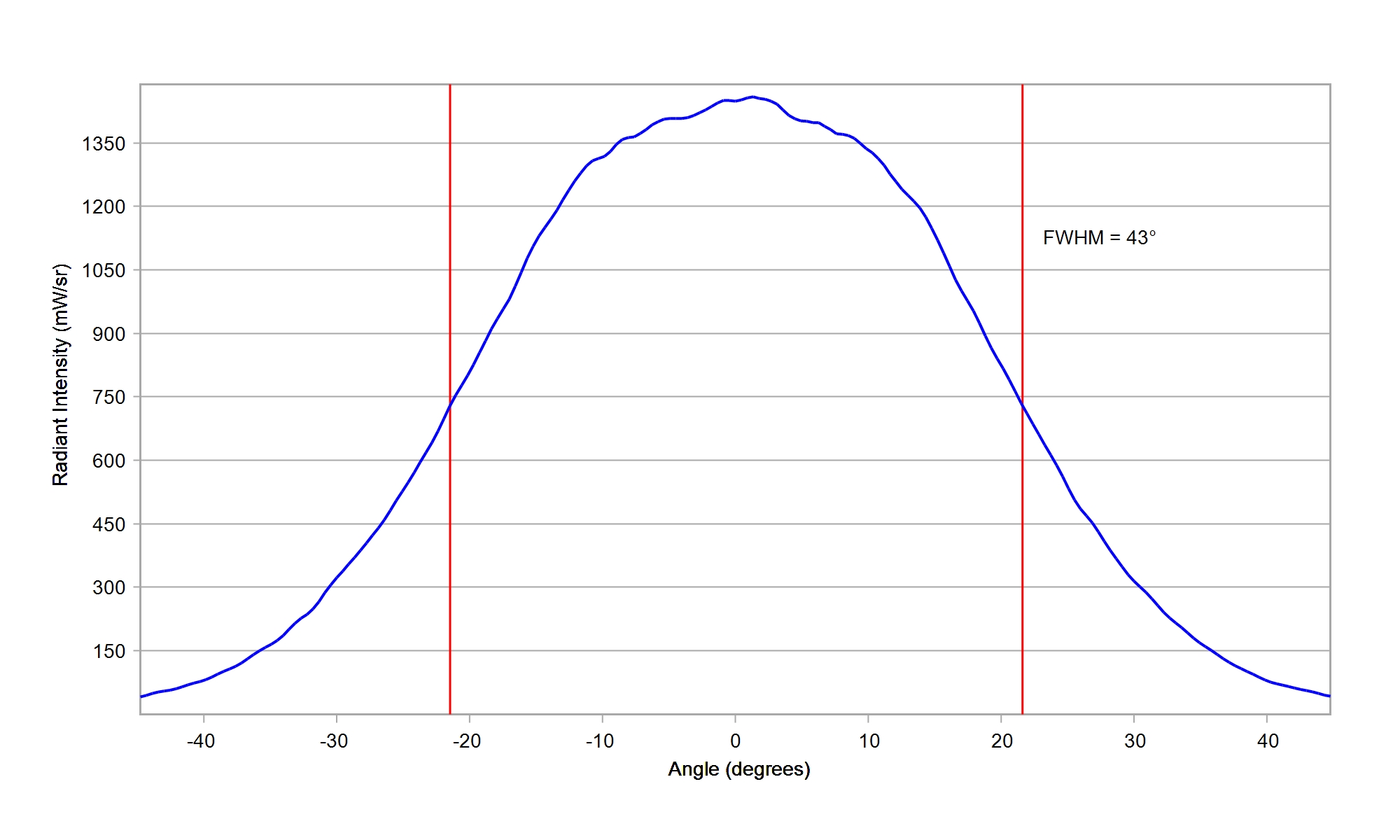

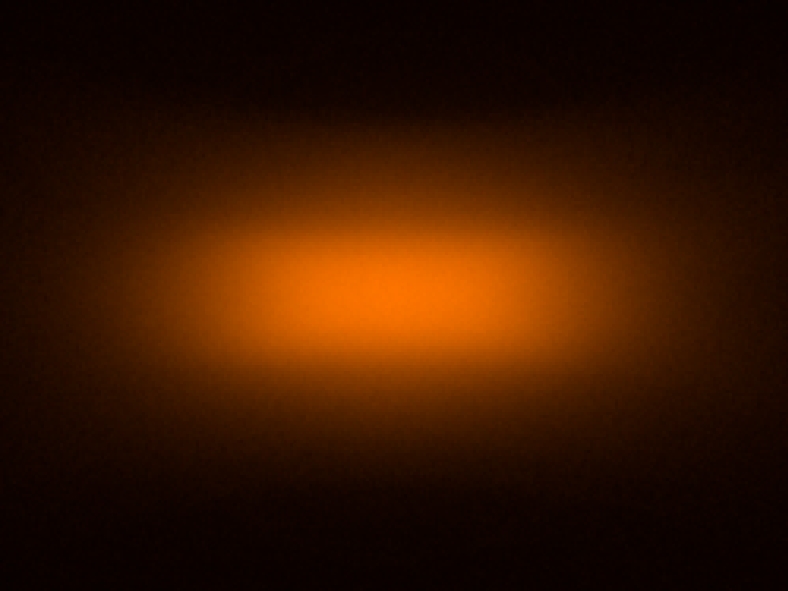

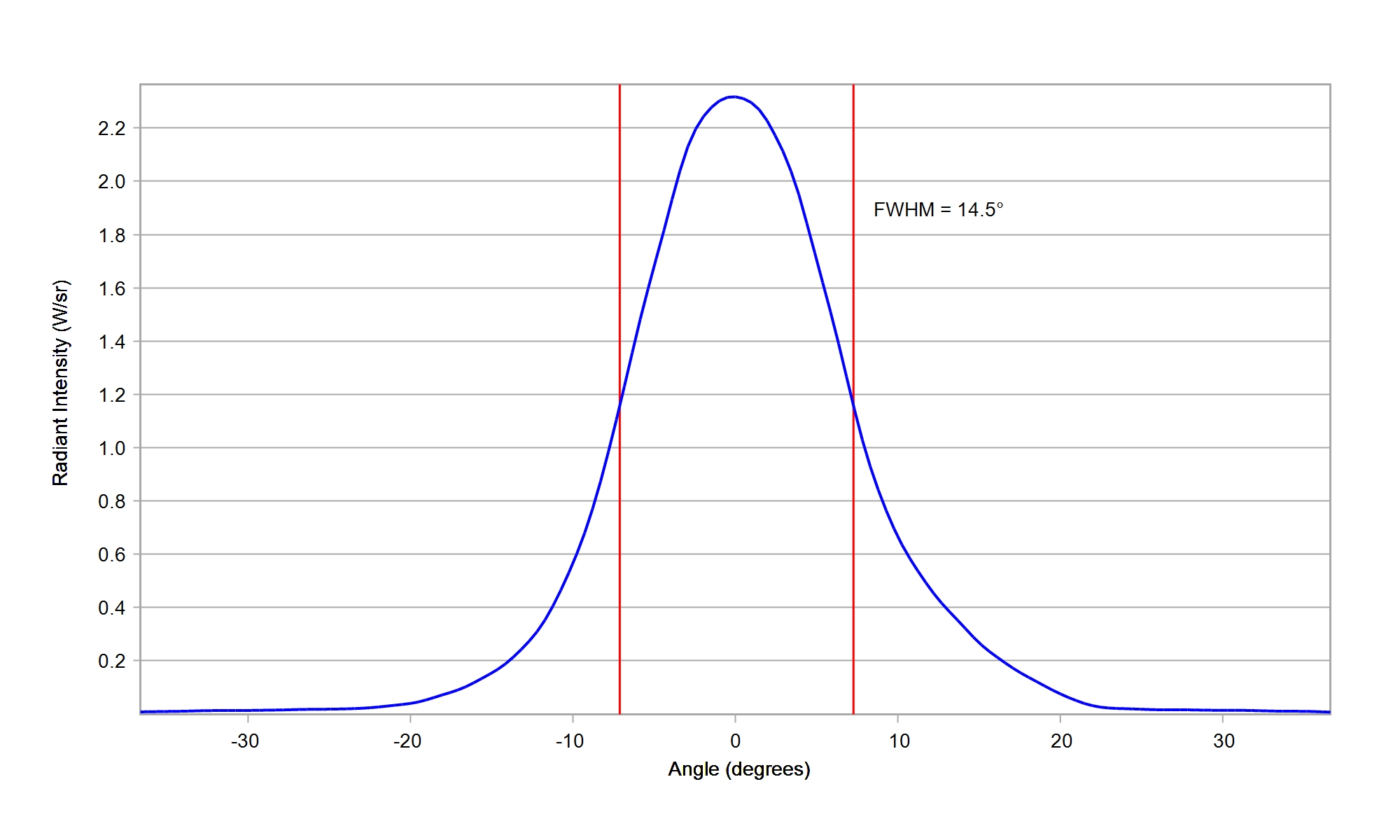

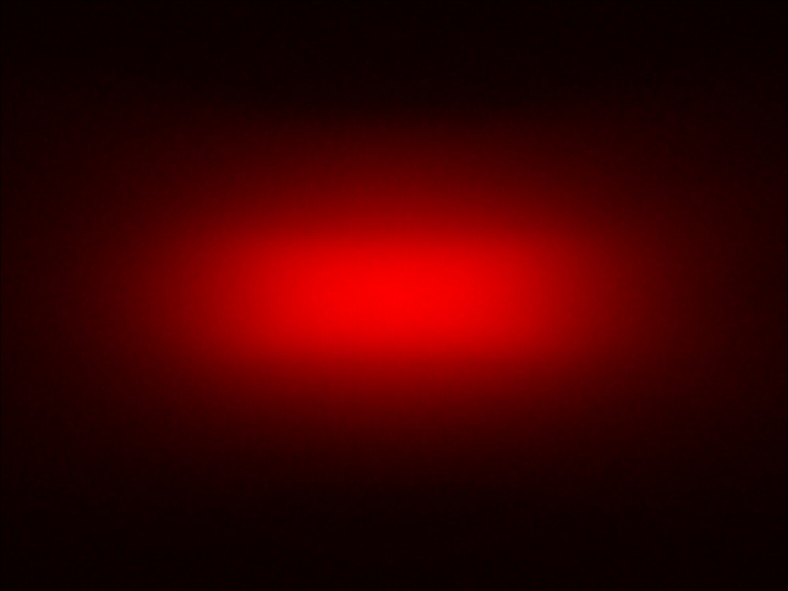

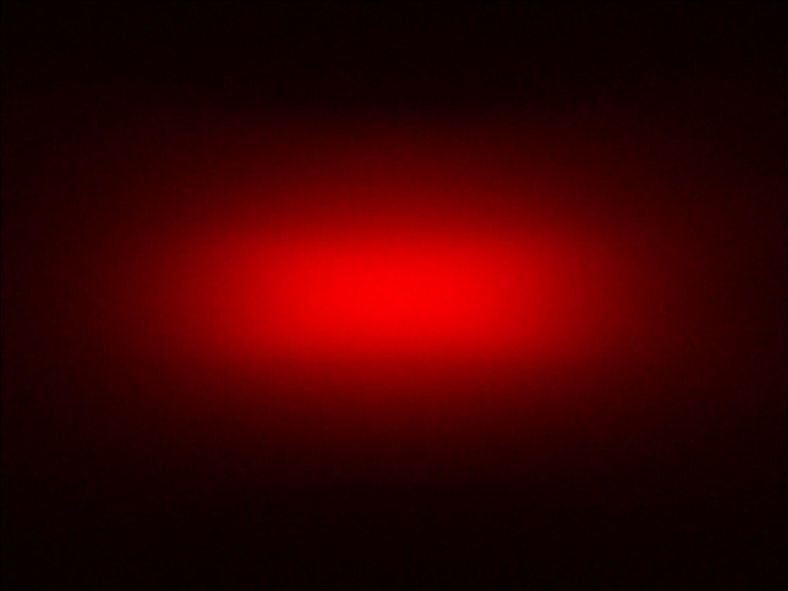

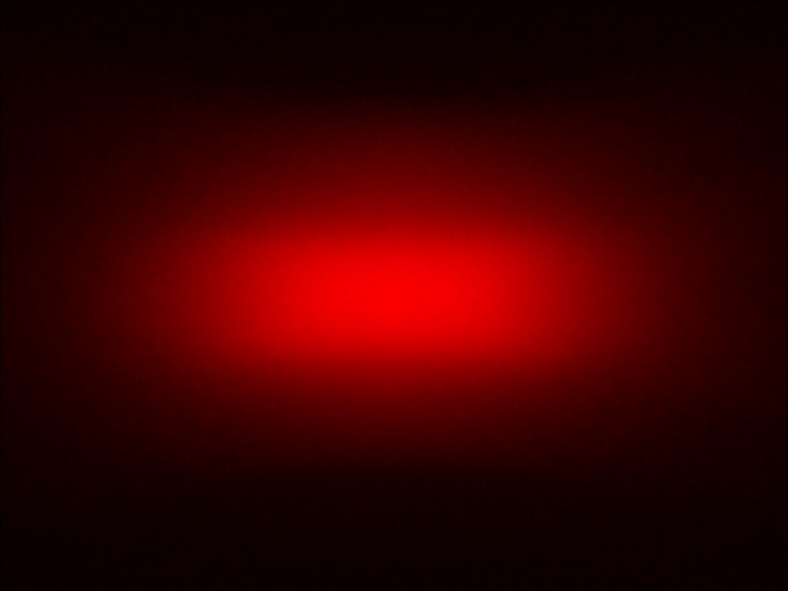

Cree XLamp XP-E2 White

Eff:

92.0%

FWHM:

45 x 15°

Cd/Im:

4.1


,


Download

IES

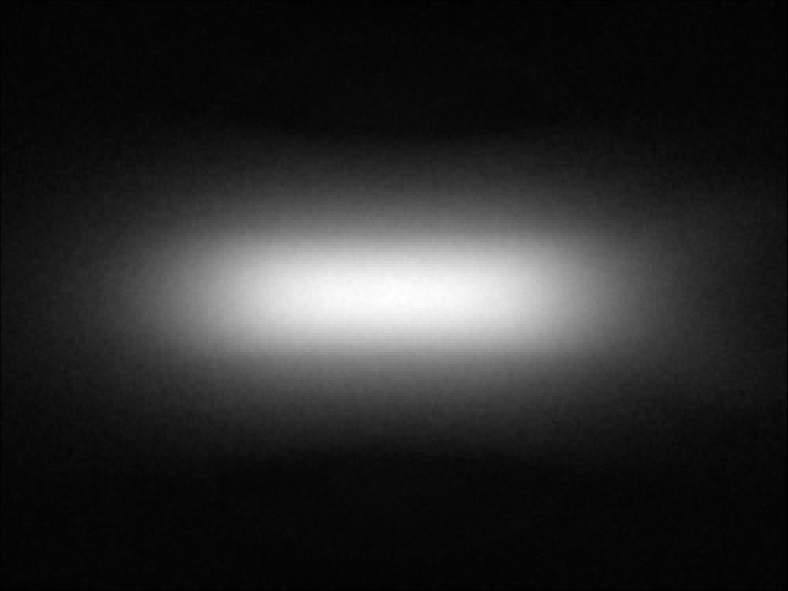

Cree XLamp XP-G White

Eff:

86.5%

FWHM:

43.6 x 23.3°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

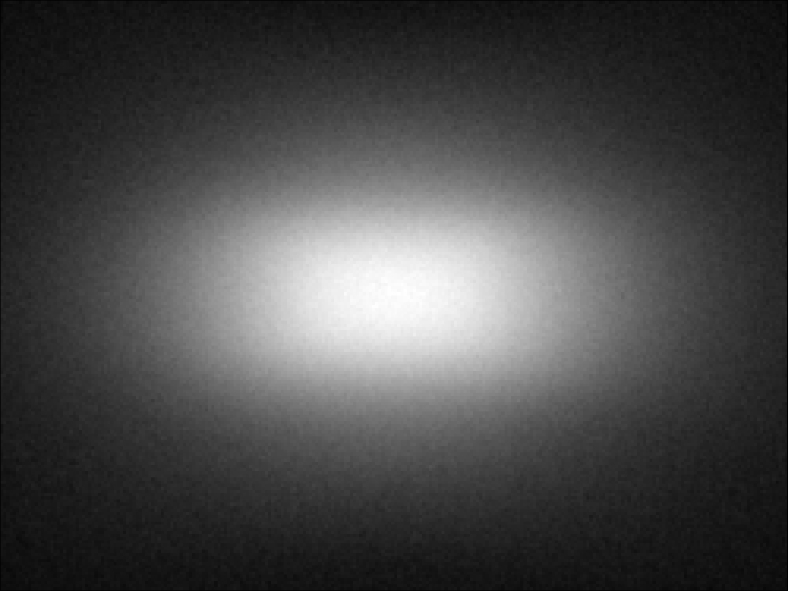

Cree XLamp XP-G3 White

Eff:

81.0%

FWHM:

48 x 29.6°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

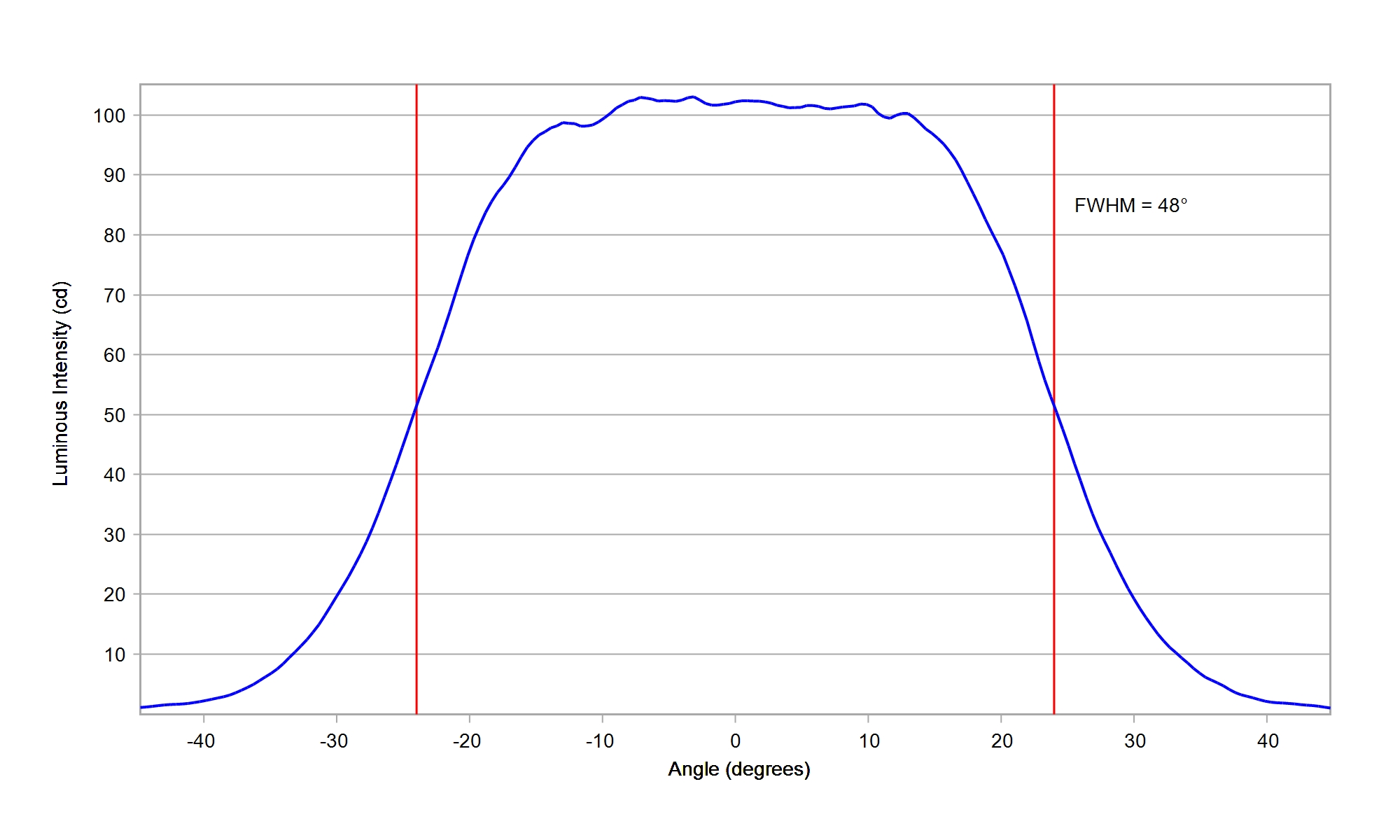

Cree XLamp XQ-A Blue

Eff:

91.5%

FWHM:

48.5 x 10.5°

Cd/Im:

4.8

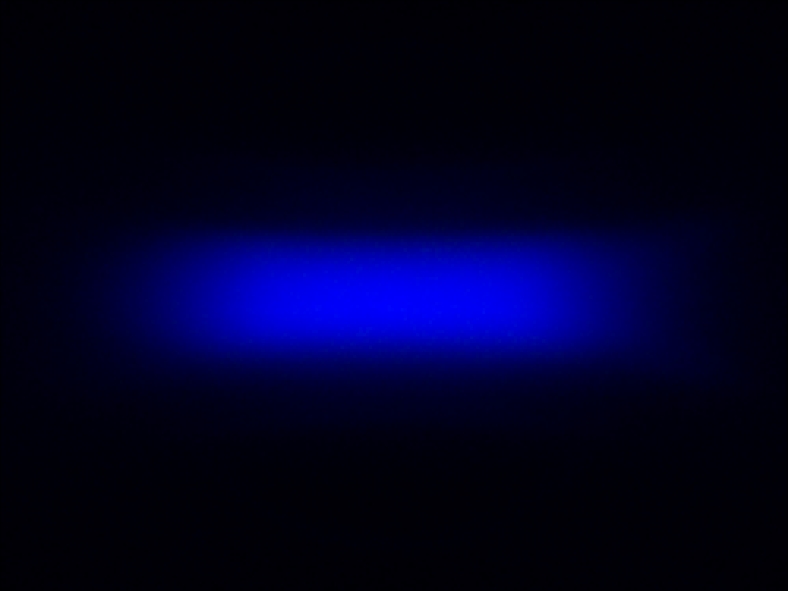

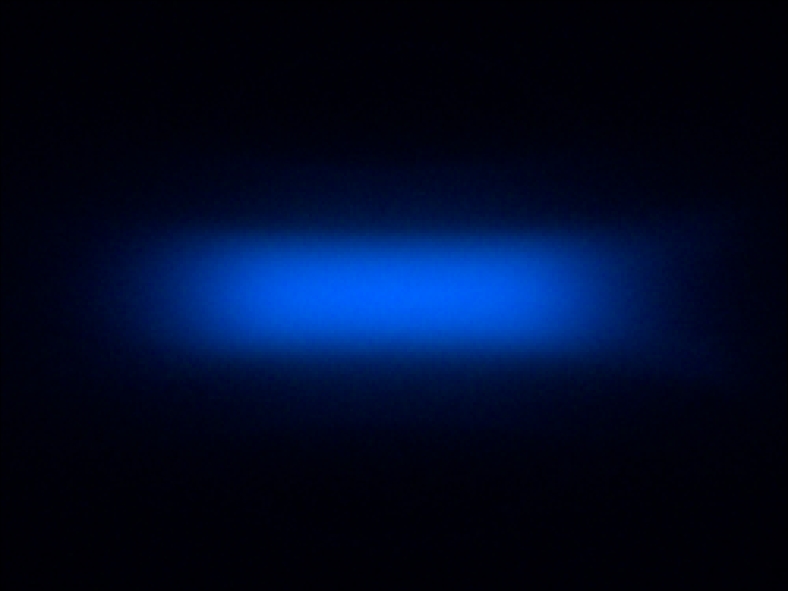

Carclo Optics - Simulated Spot Image

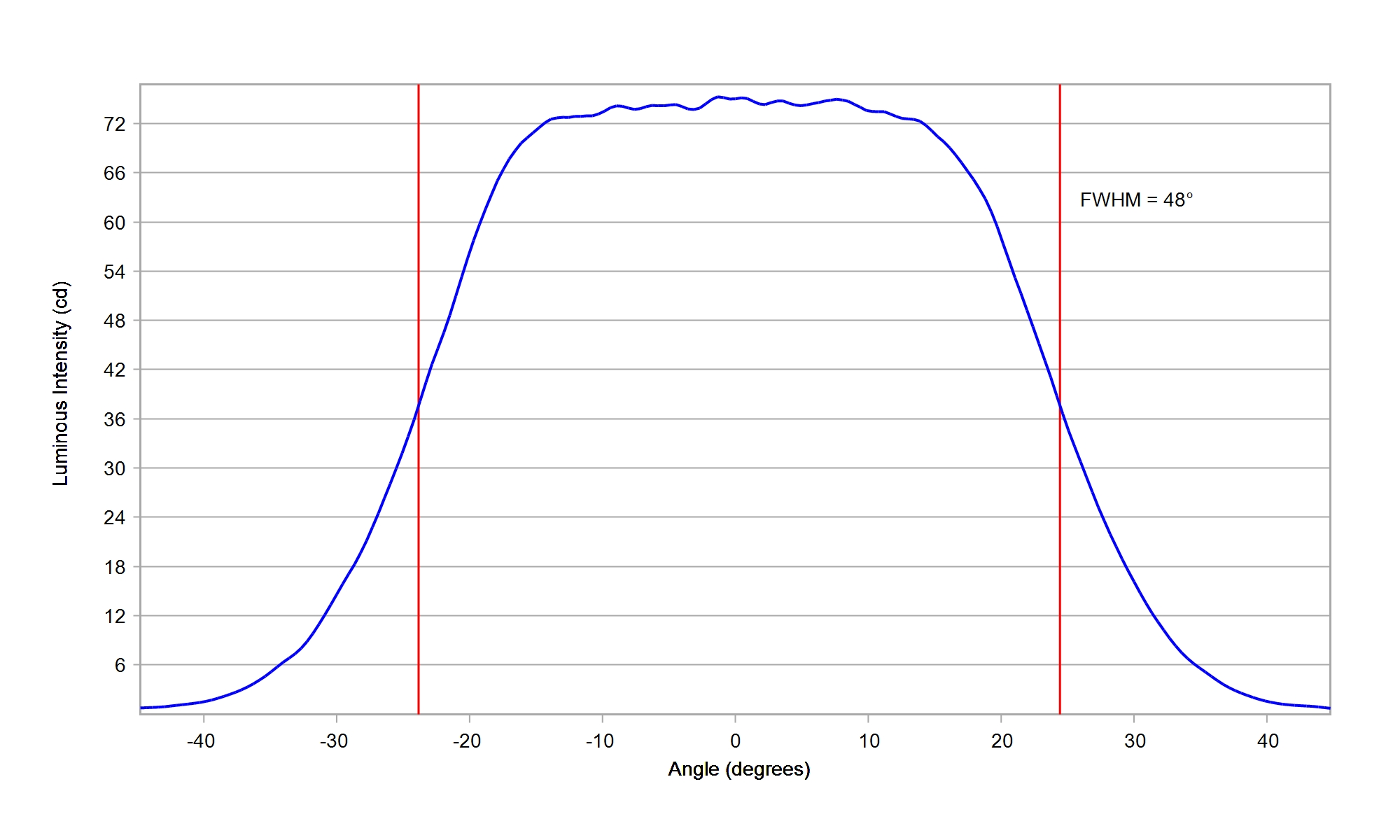

Carclo Optics - Simulated Horizontal Cross Section

,

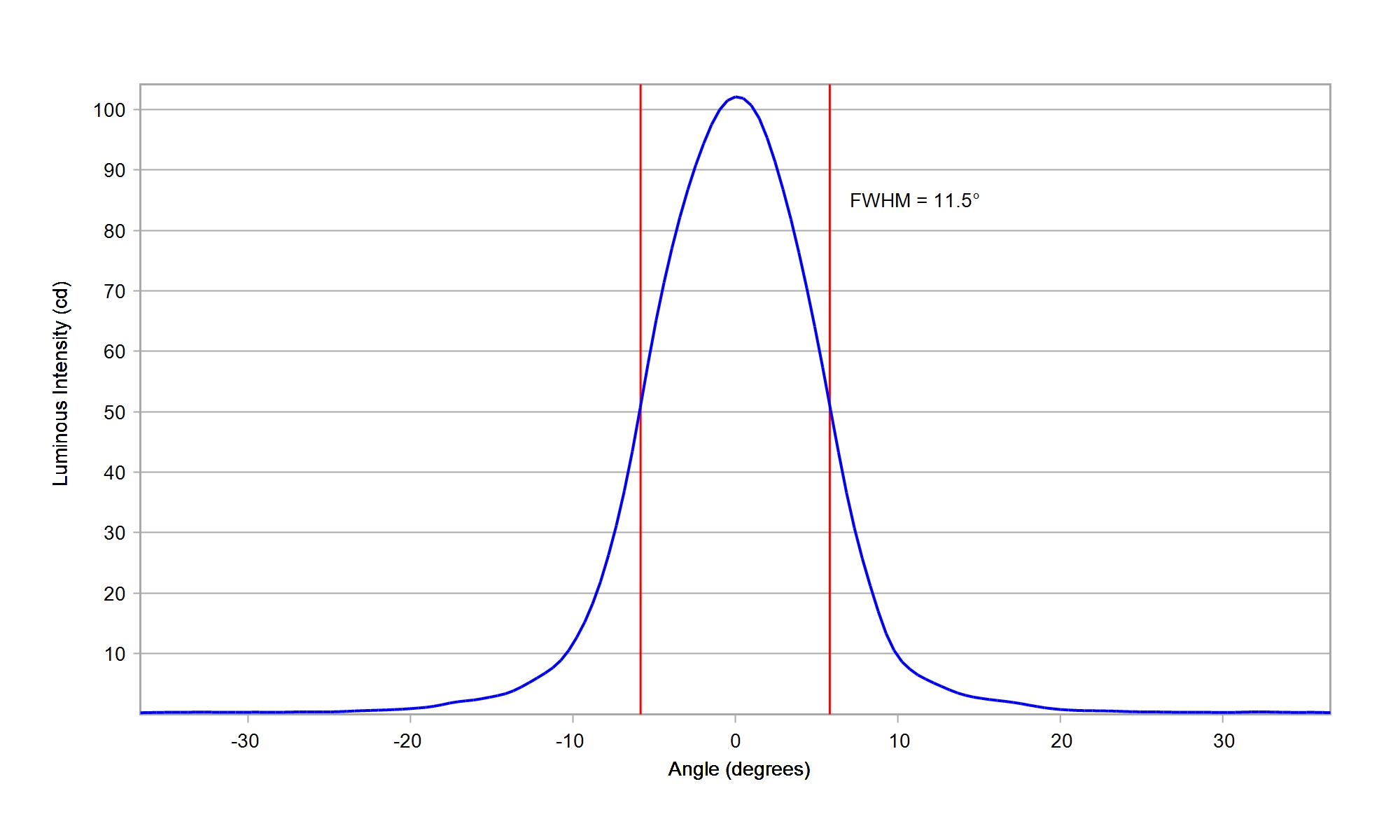

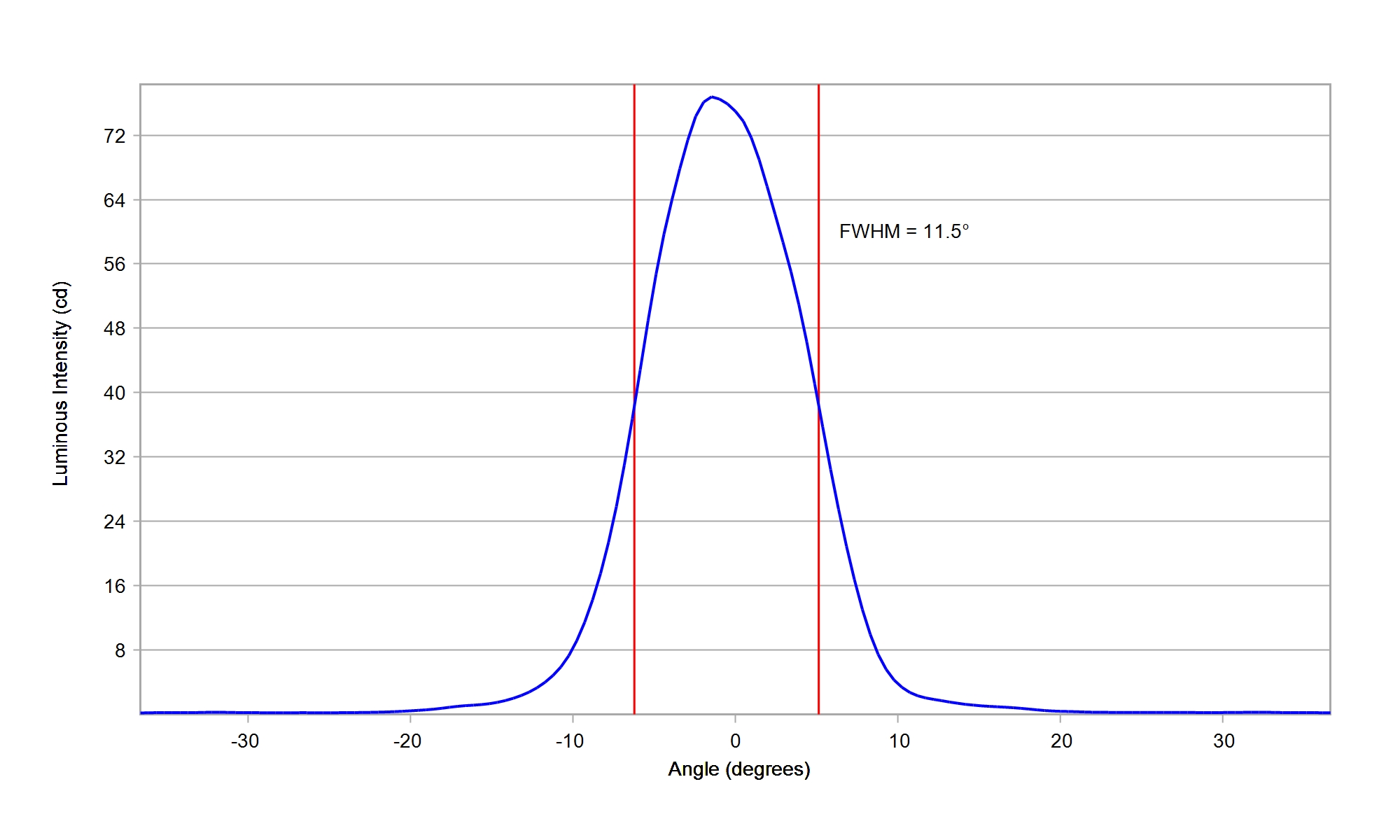

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

92.0%

FWHM:

47.0 x 10.5°

Cd/Im:

4.9

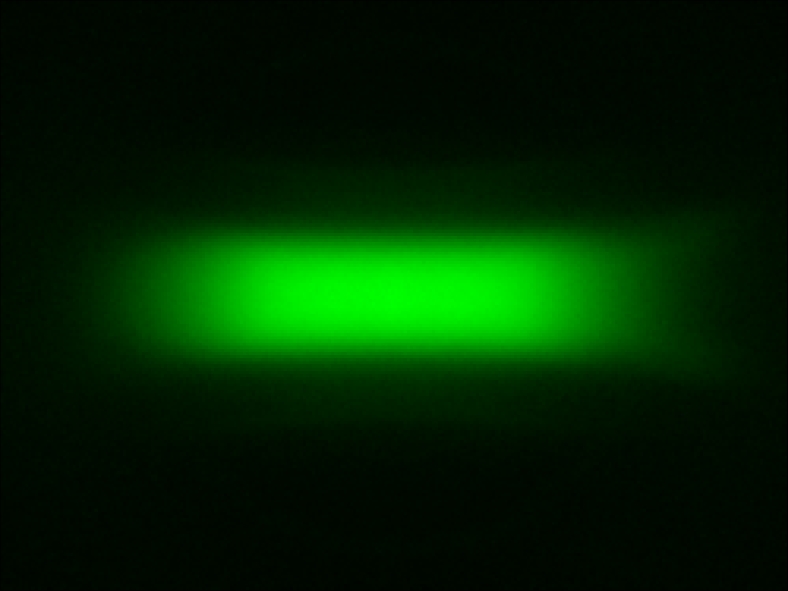

Carclo Optics - Simulated Spot Image

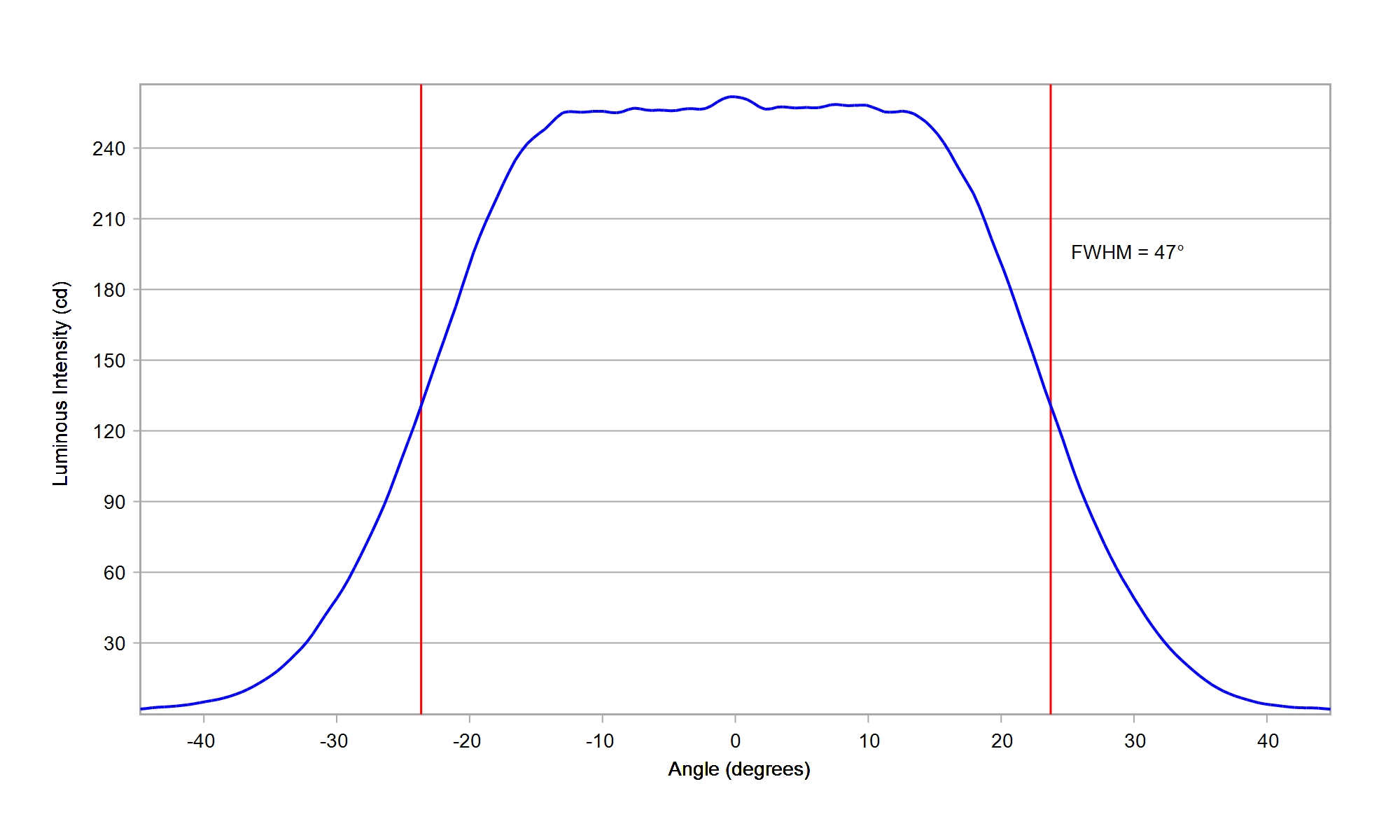

Carclo Optics - Simulated Horizontal Cross Section

,

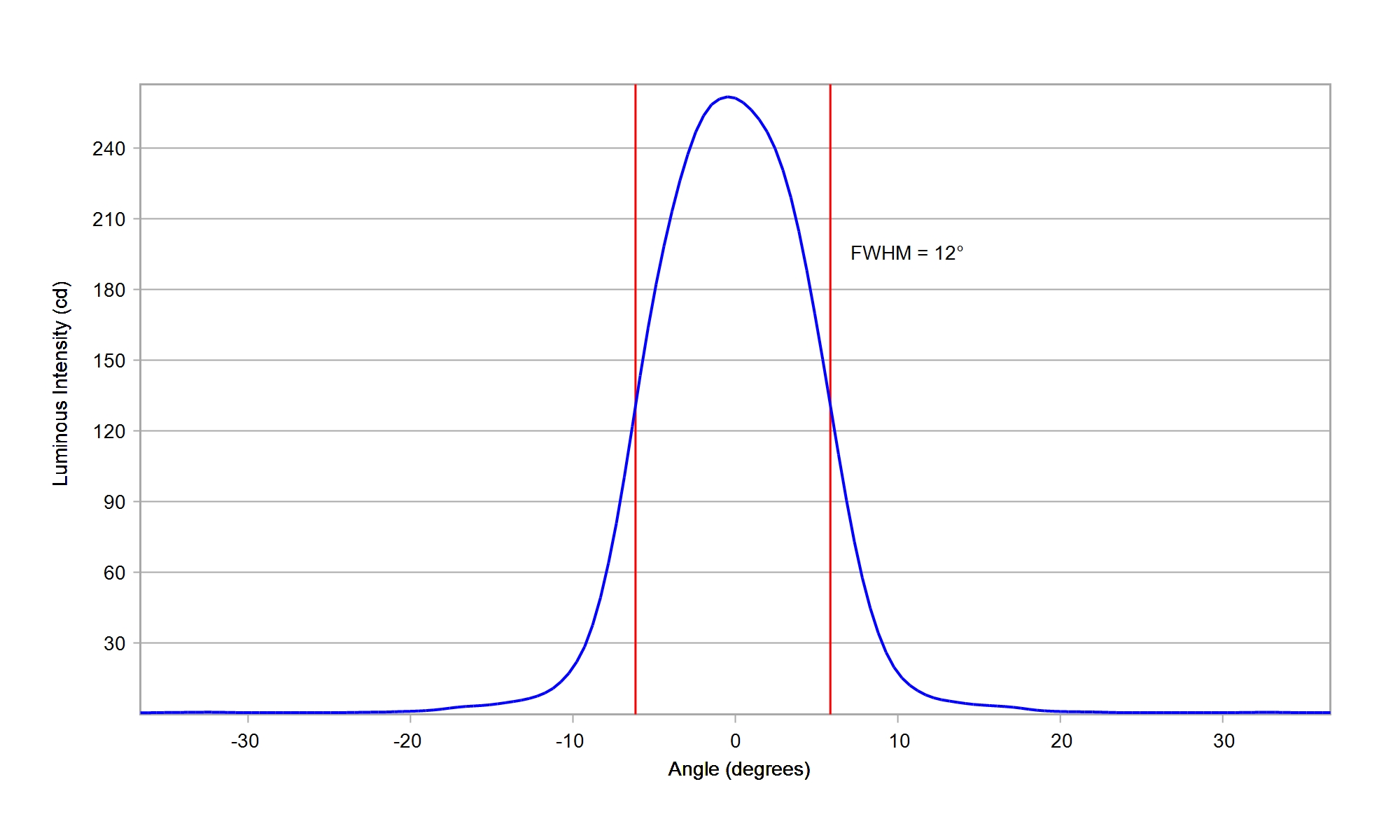

Carclo Optics - Simulated Vertical Cross Section

Download

IES

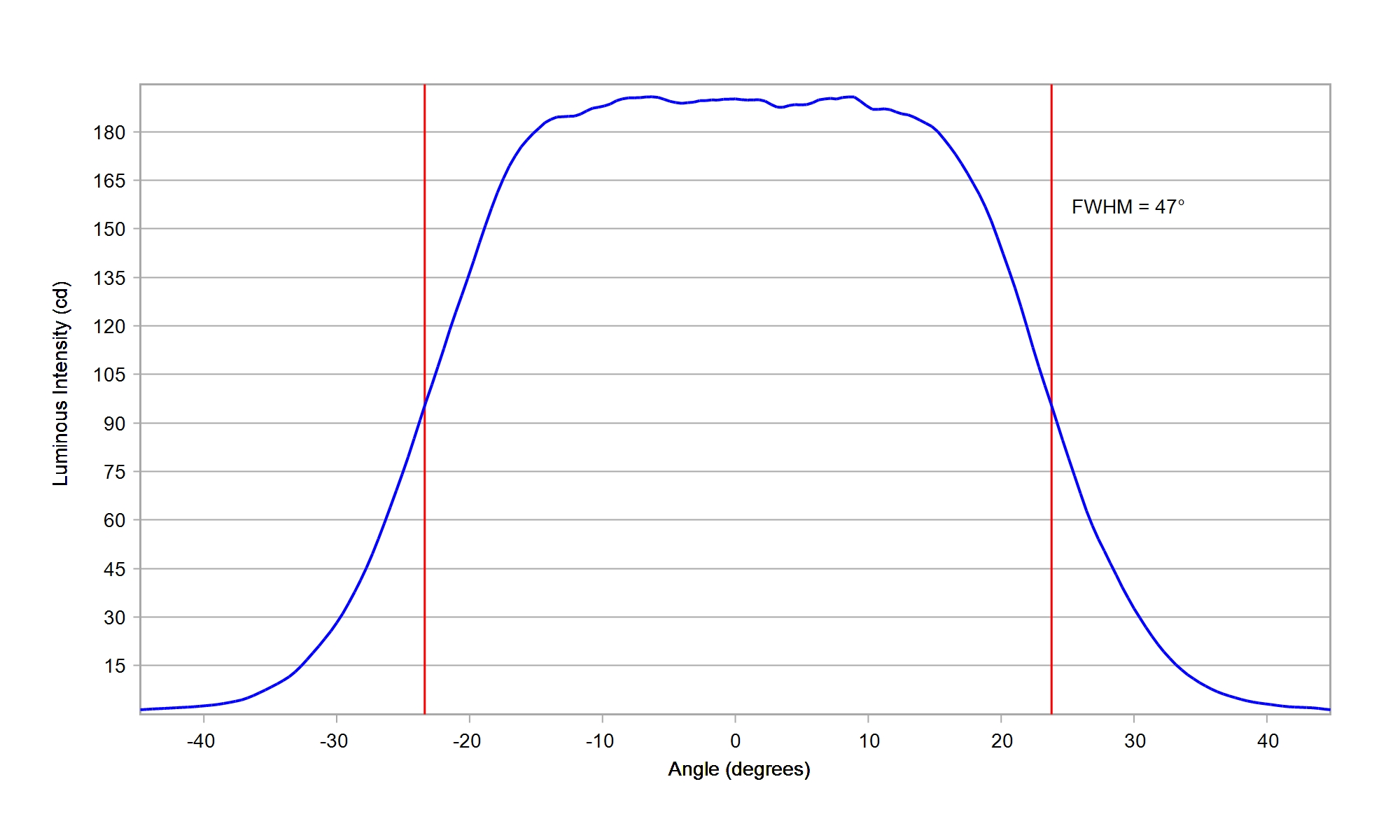

Cree XLamp XQ-A Red

Eff:

91.5%

FWHM:

46.5 x 11.0°

Cd/Im:

4.8

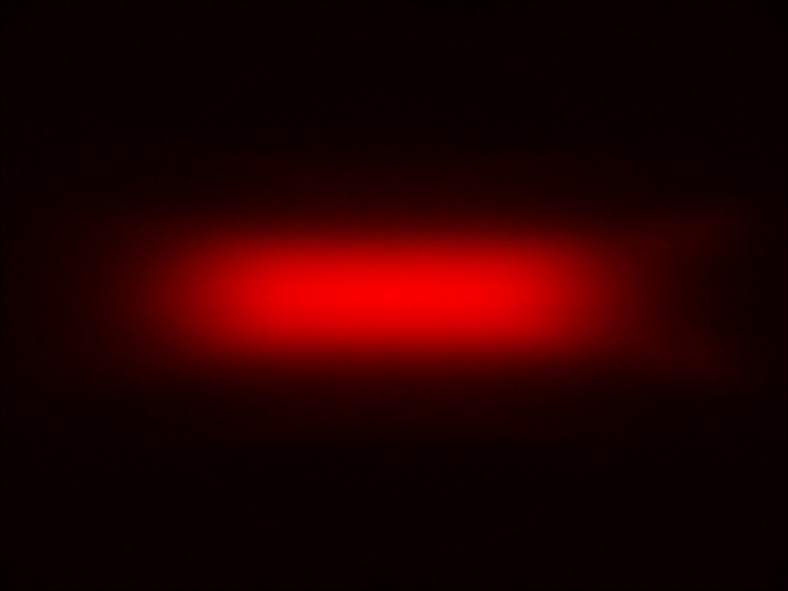

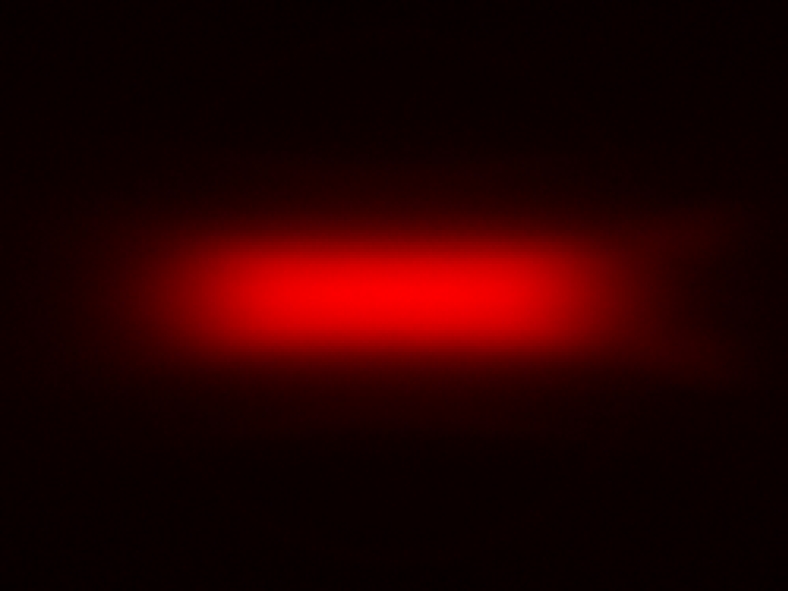

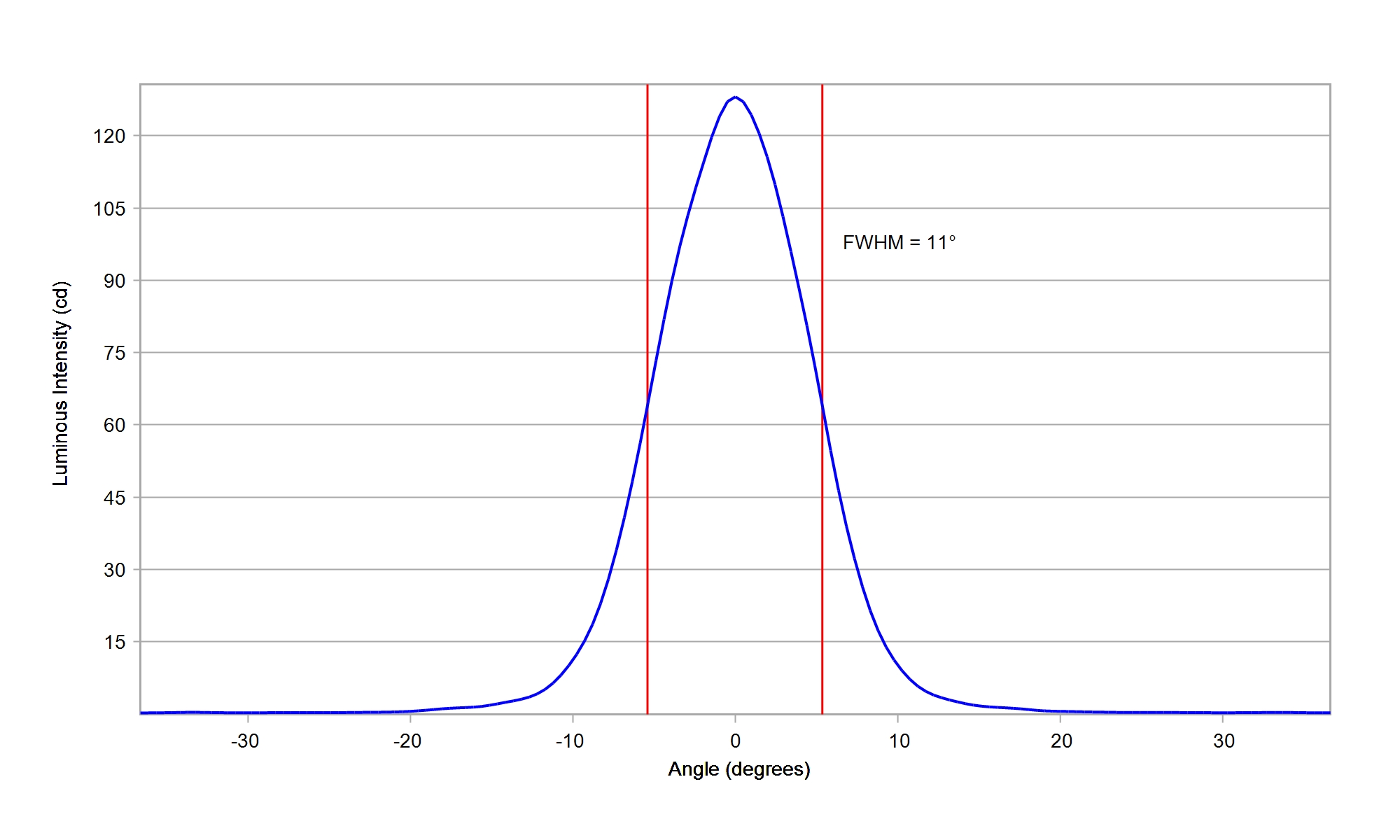

Carclo Optics - Simulated Spot Image

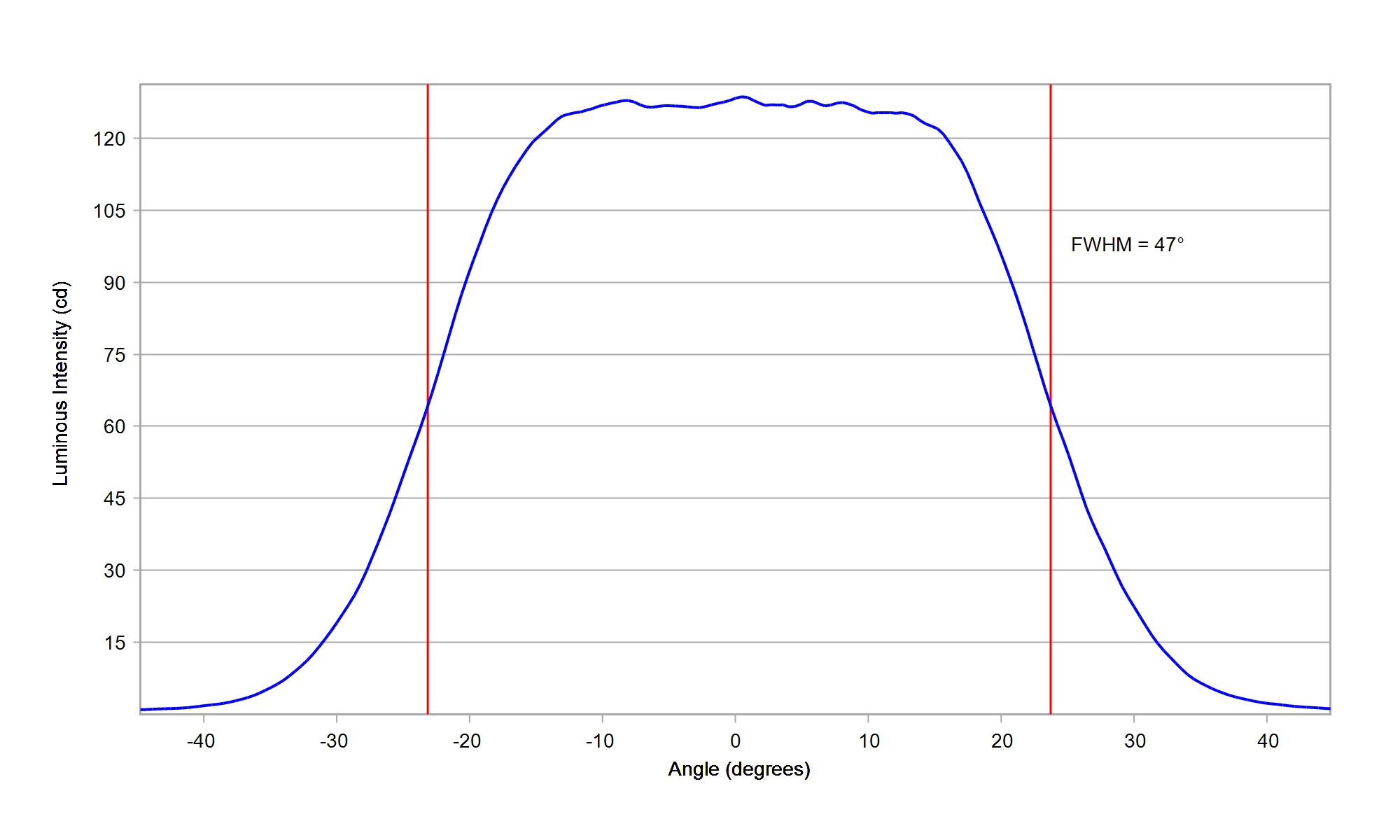

Carclo Optics - Simulated Horizontal Cross Section

,

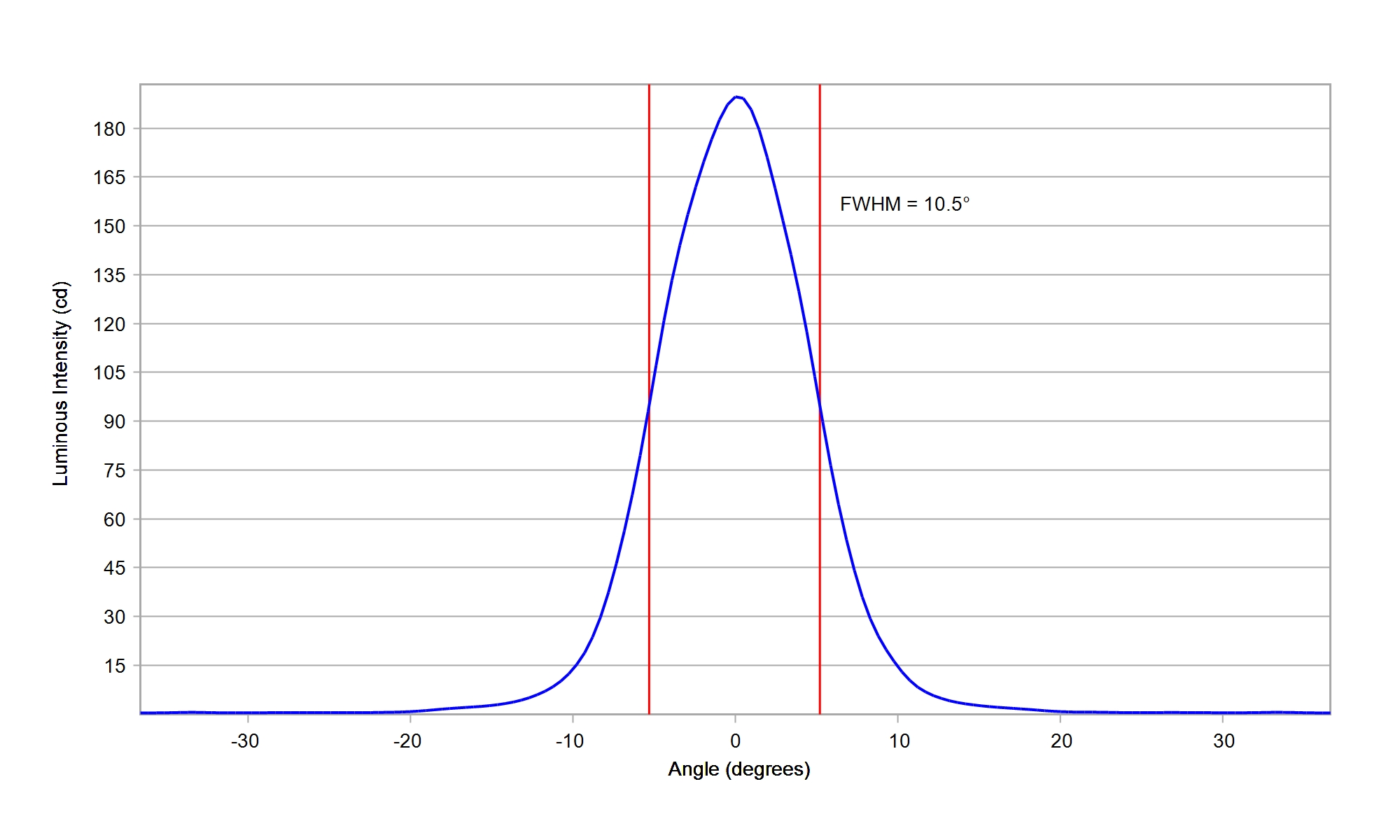

Carclo Optics - Simulated Vertical Cross Section

Download

IES

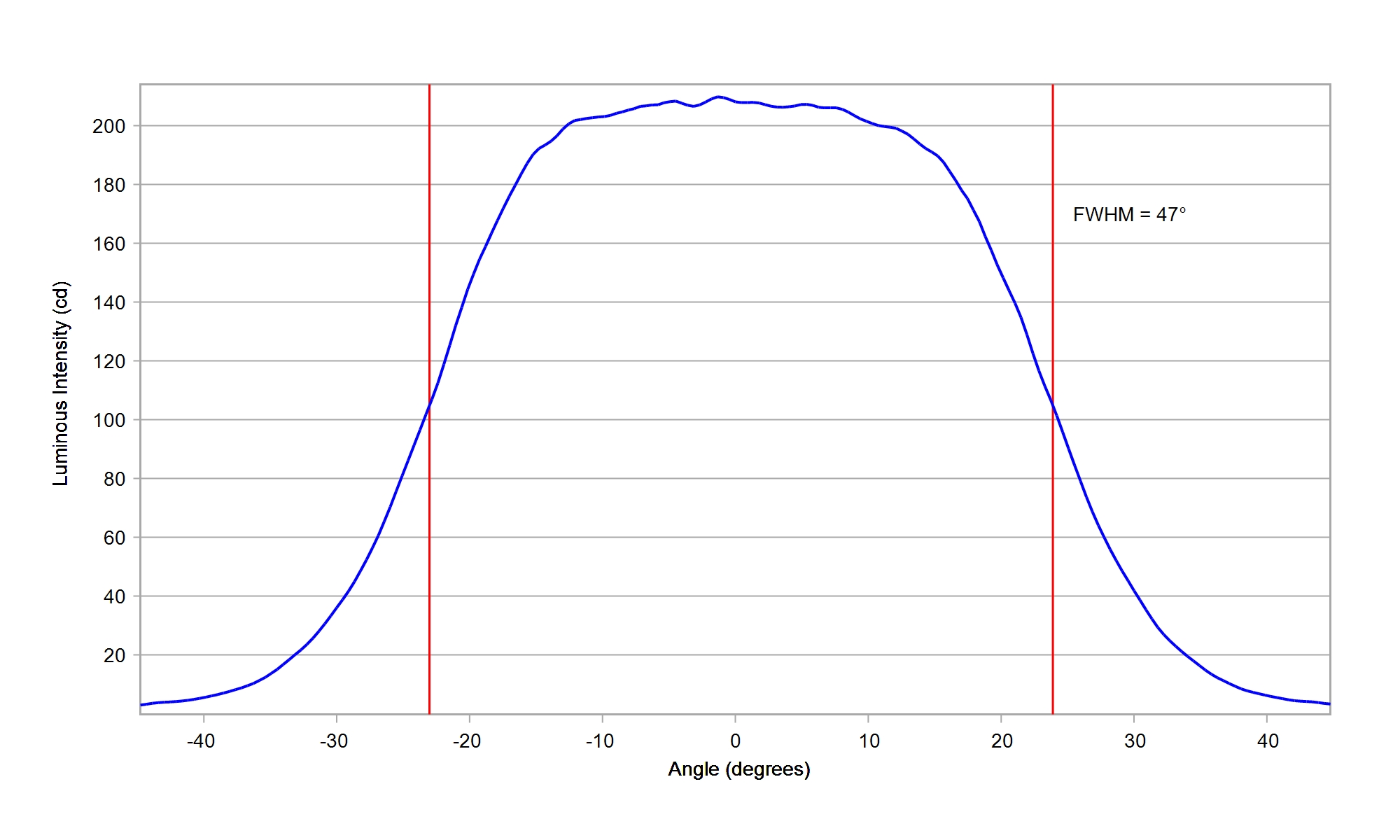

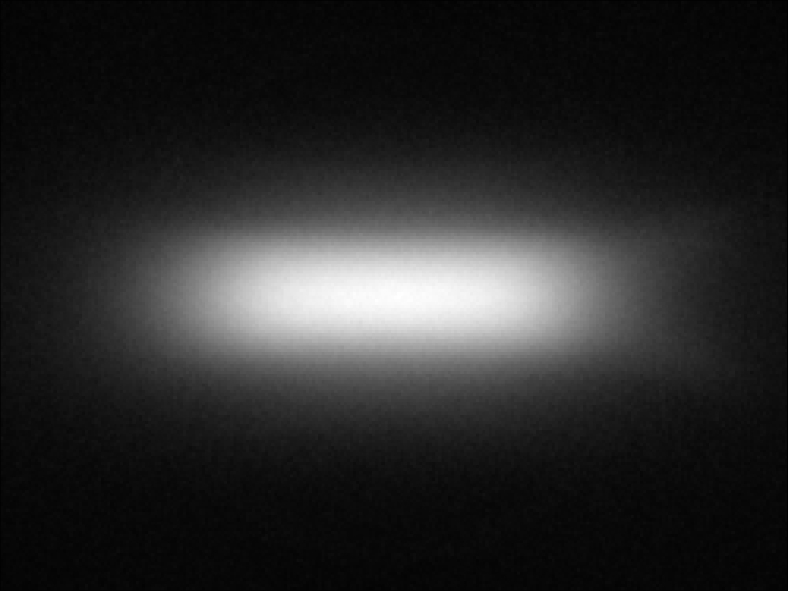

Cree XLamp XQ-A White

Eff:

92.0%

FWHM:

48 x 10.5°

Cd/Im:

5.9


,

Download

IES

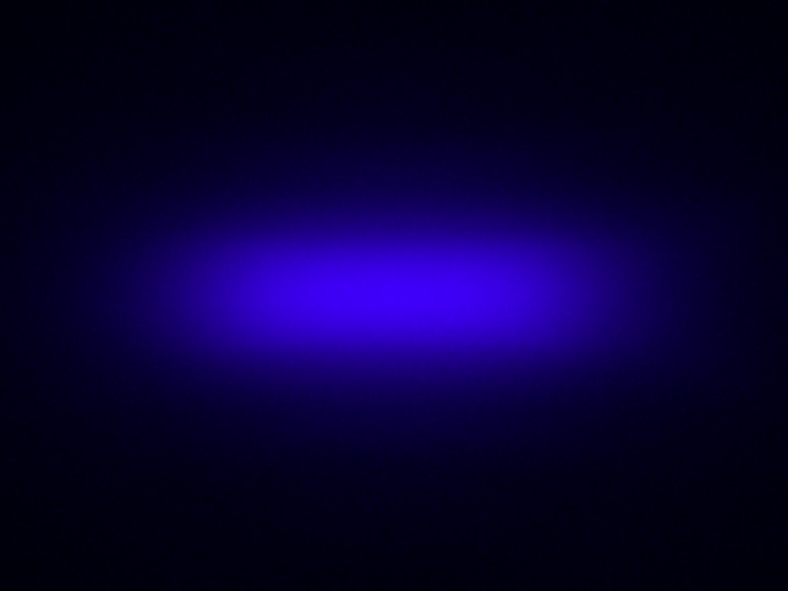

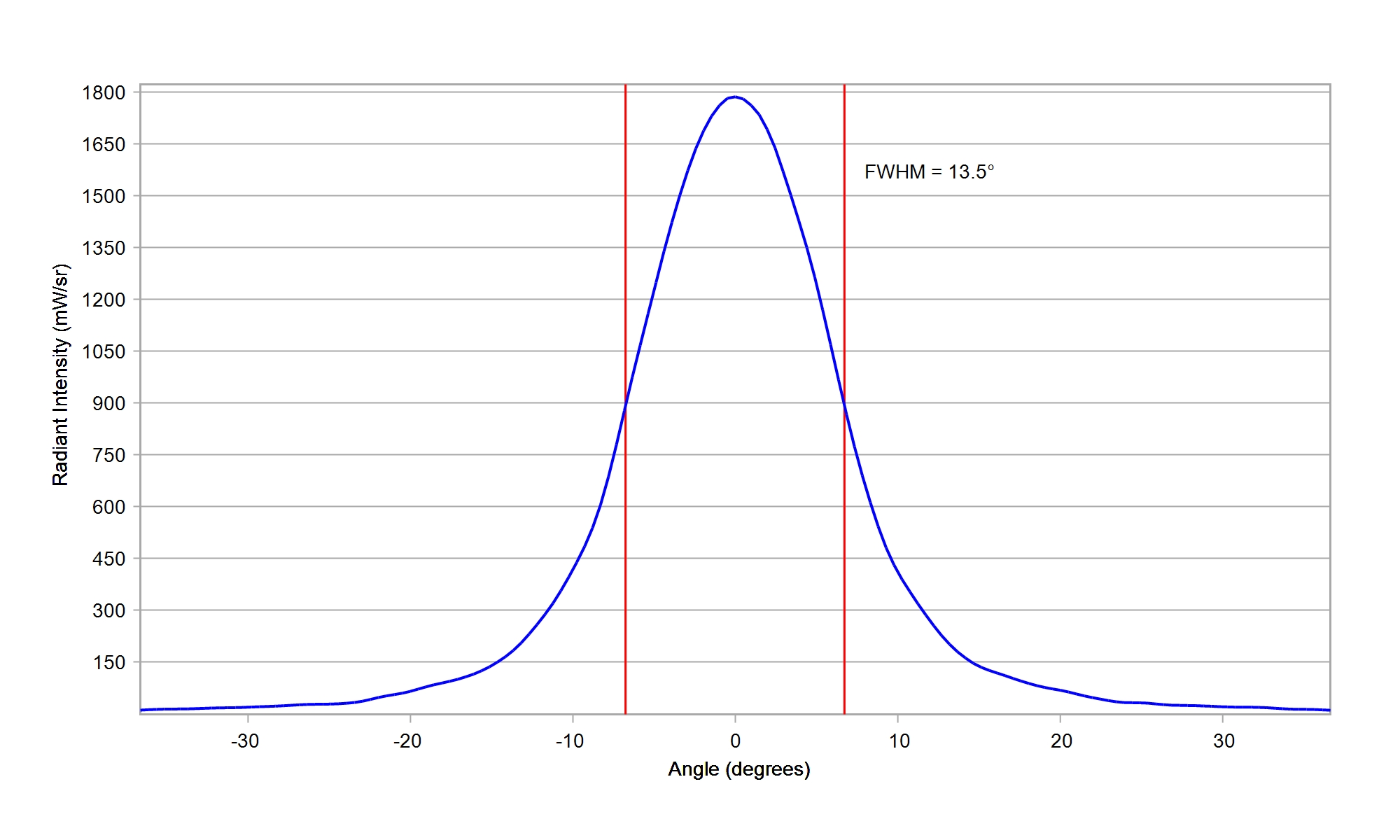

Cree XLamp XQ-E HI Blue

Eff:

91.0%

FWHM:

47.5 X 12.5°

Cd/Im:

3.5

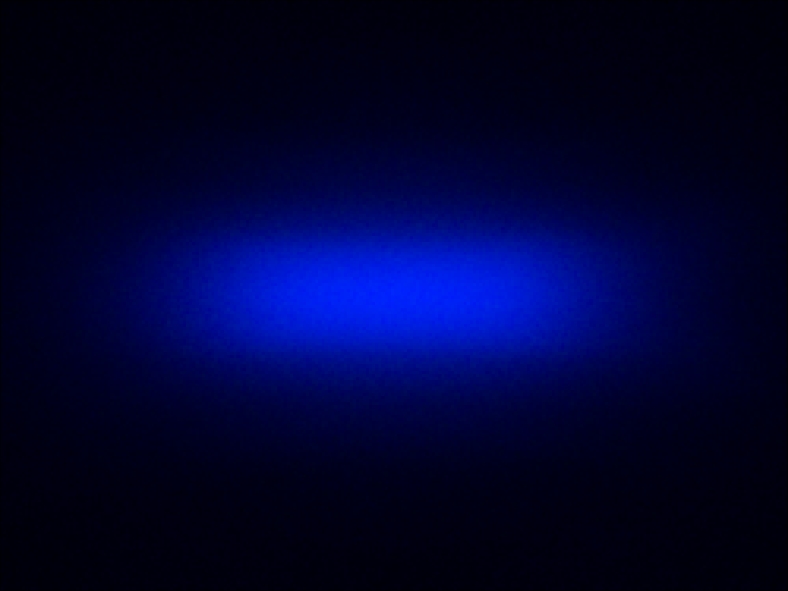

Carclo Optics - Simulated Spot Image

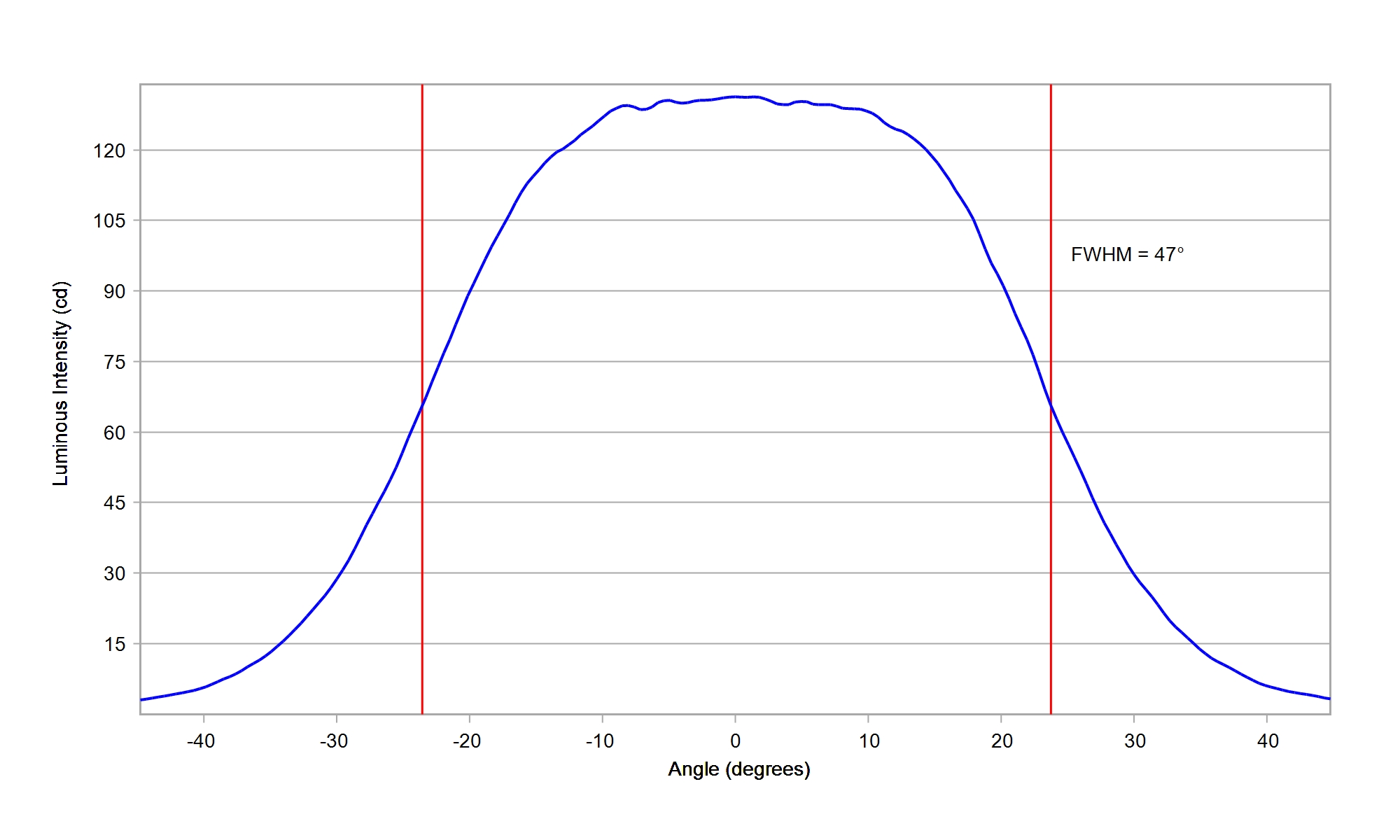

Carclo Optics - Simulated Horizontal Cross Section

,

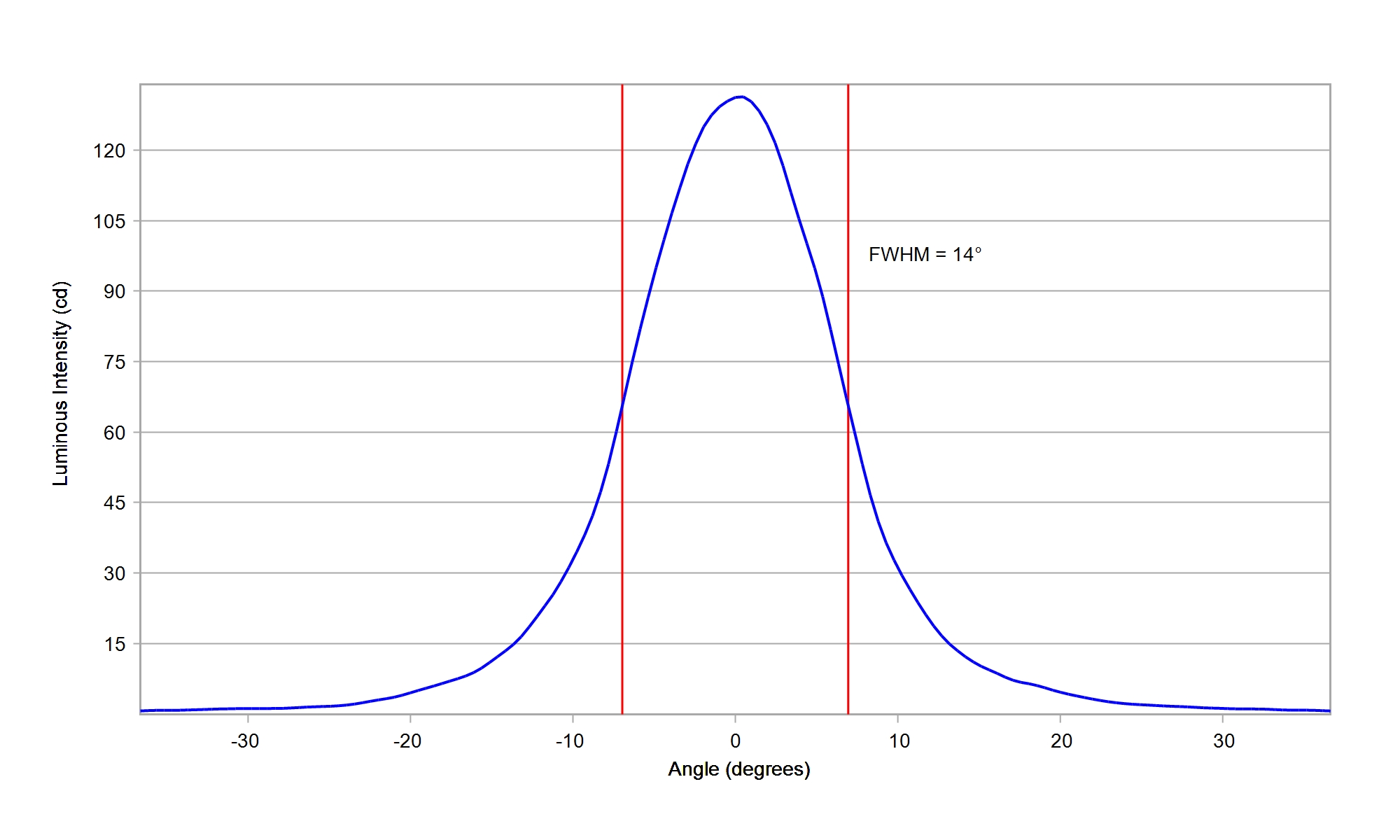

Carclo Optics - Simulated Vertical Cross Section

Download

IES

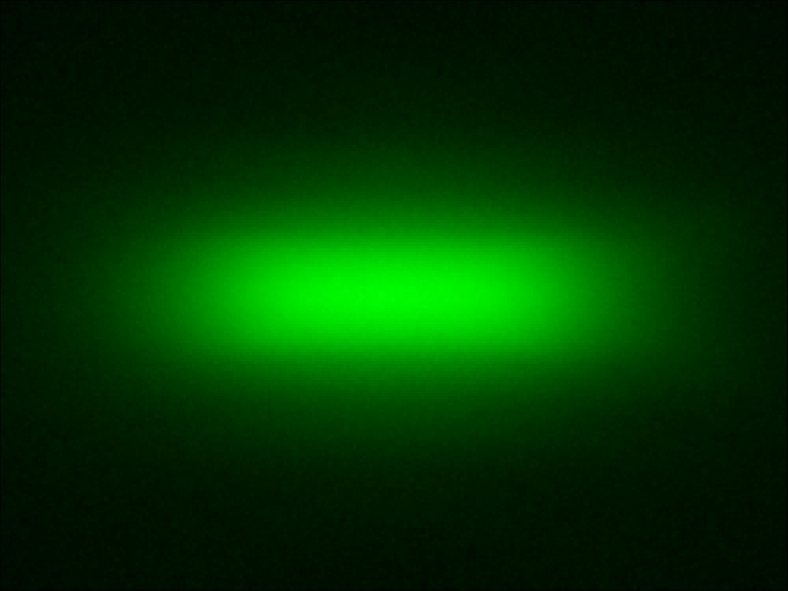

Cree XLamp XQ-E HI Green

Eff:

91.5%

FWHM:

47.0 x 12.5°

Cd/Im:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

91.5%

FWHM:

45.5 X 12.5°

Cd/Im:

3.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

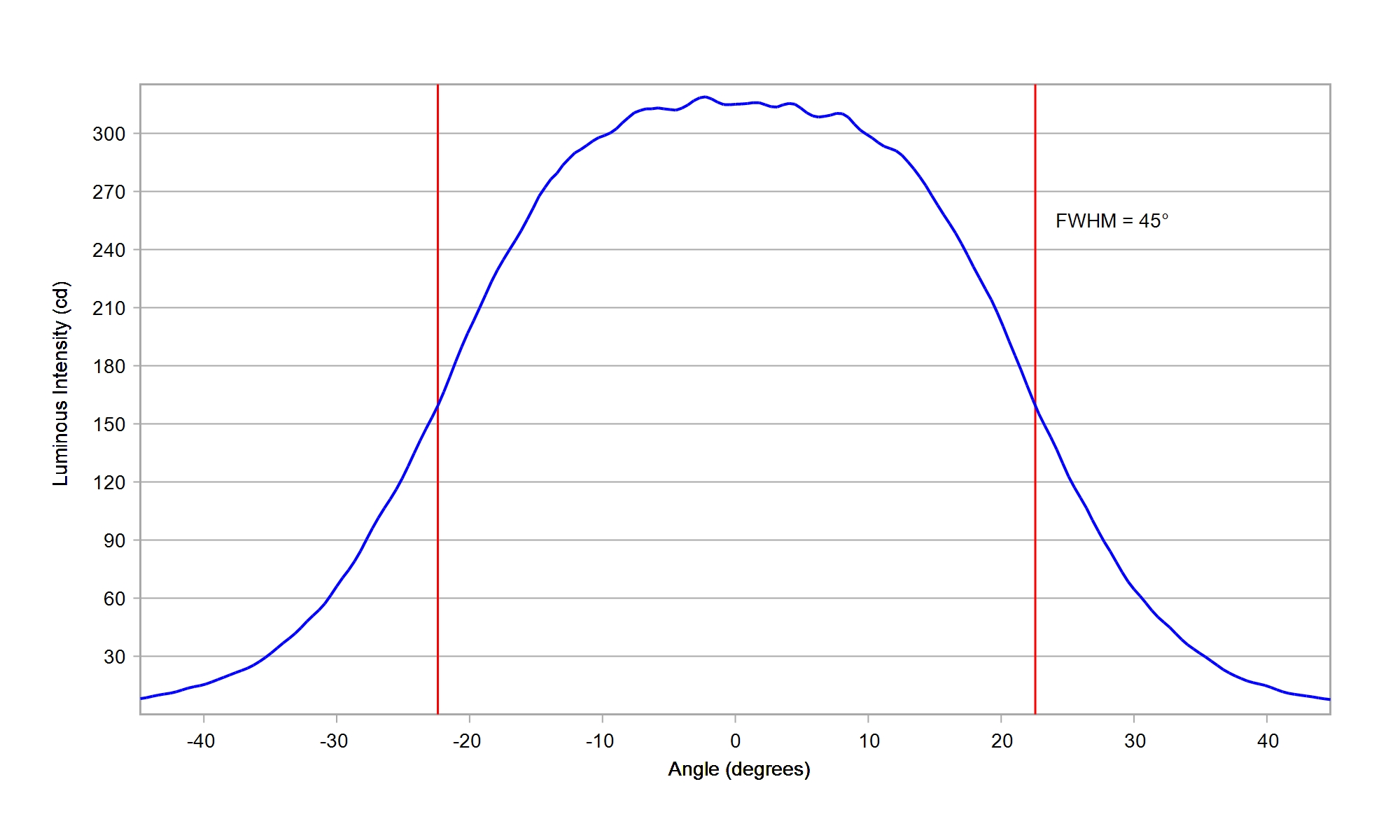

Cree XLamp XQ-E HI White

Eff:

92.5%

FWHM:

47 x 11.5°

Cd/Im:

4.9


,


Download

IES

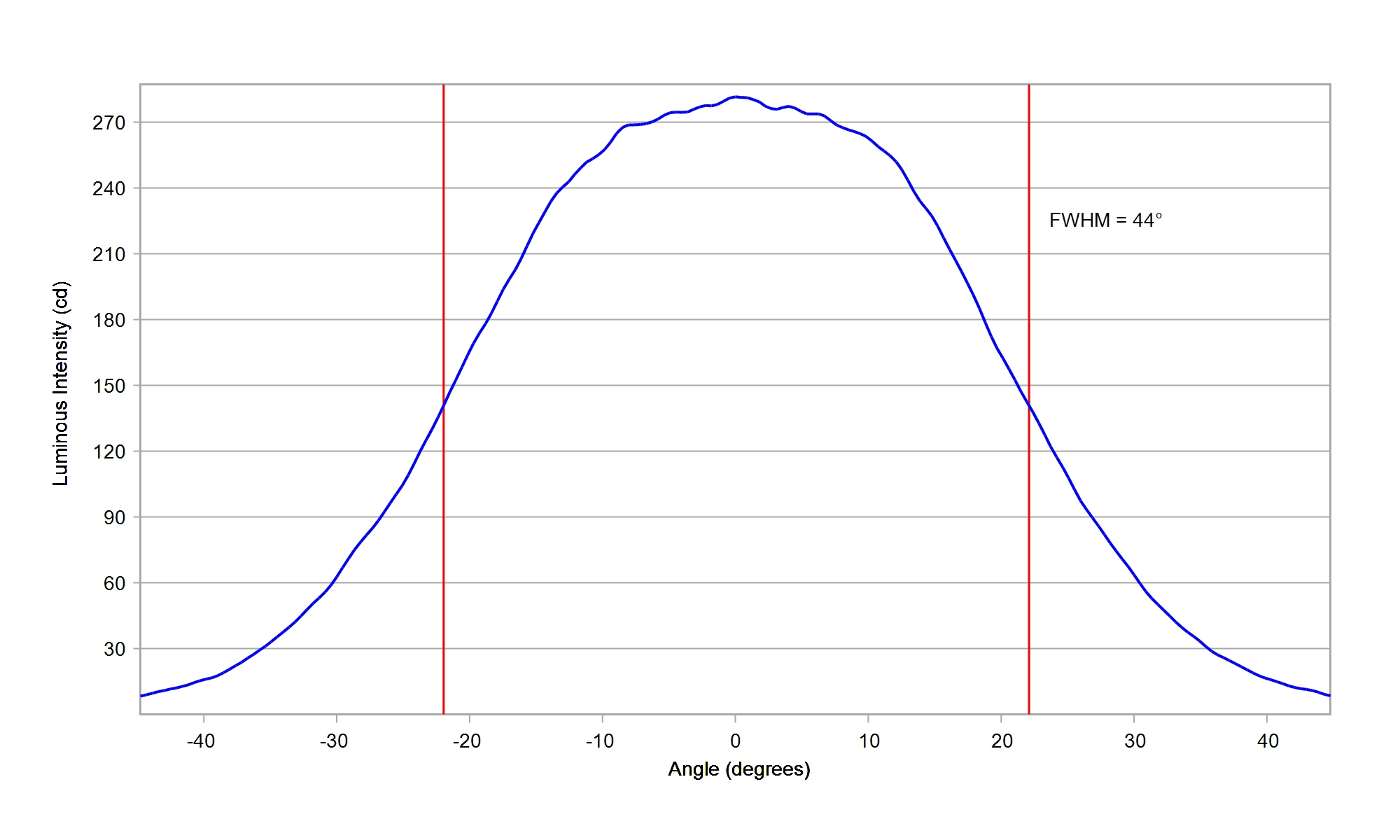

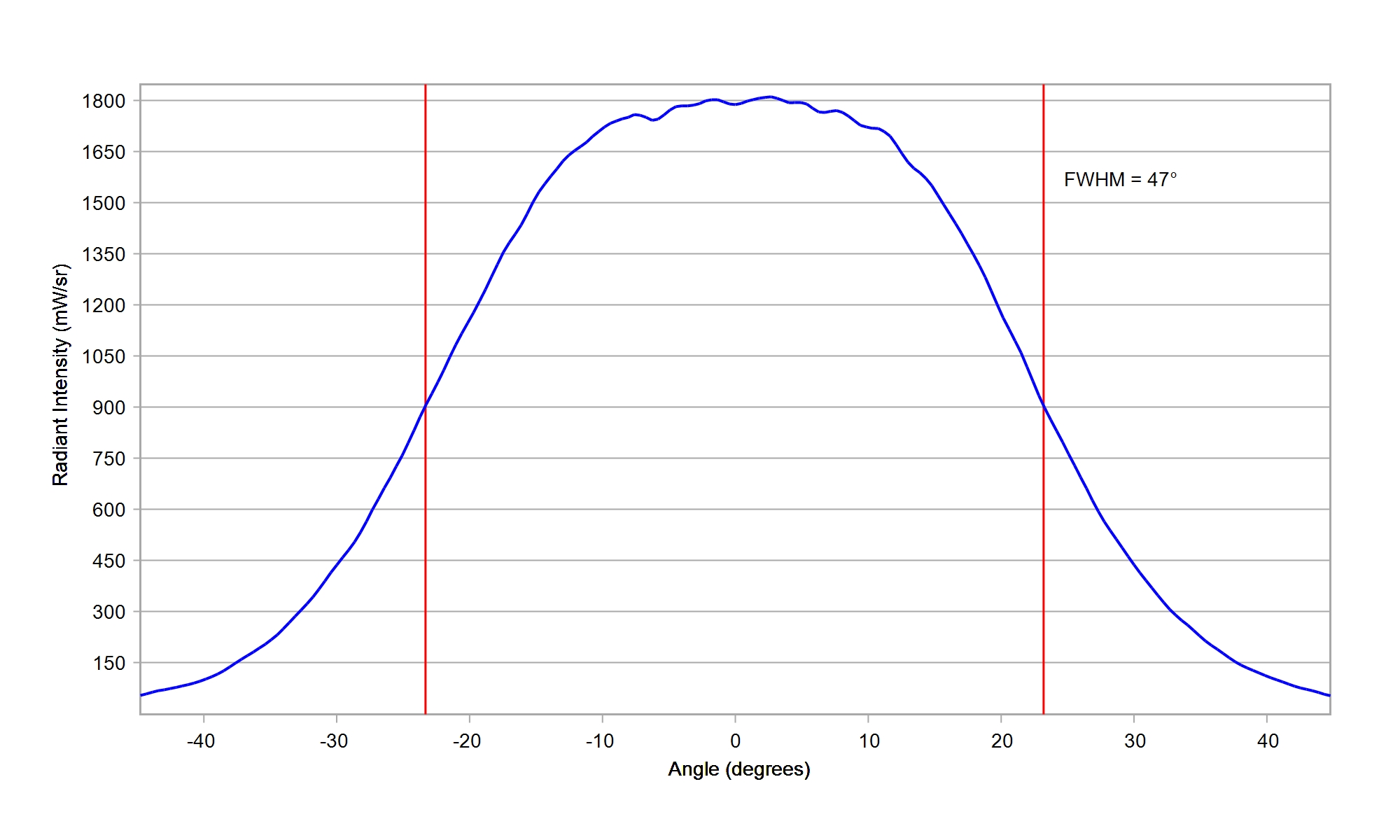

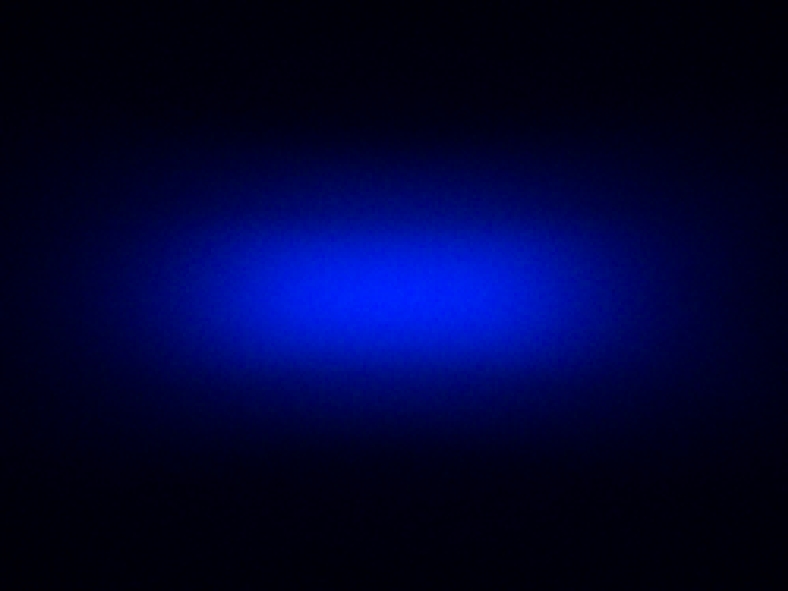

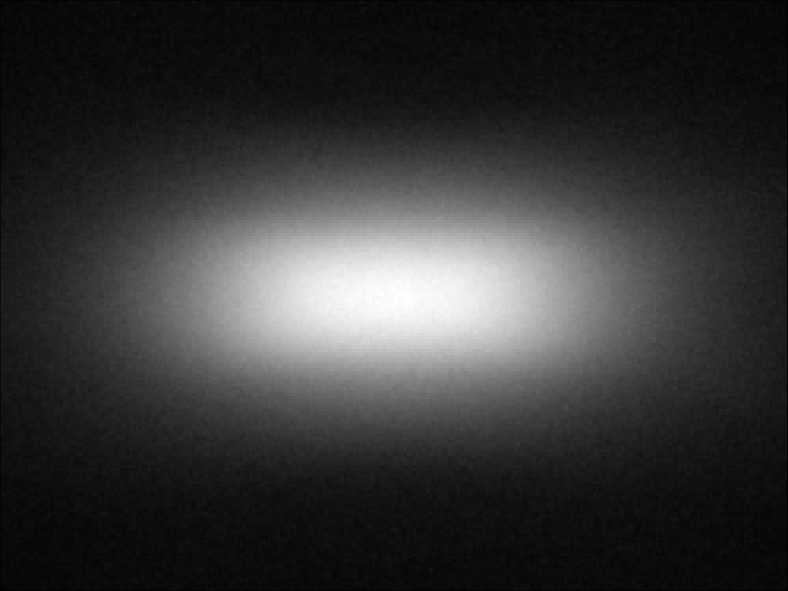

Cree XLamp XQ-E HD White

Eff:

91.5%

FWHM:

46 x 14°

Cd/Im:

4.2


,

Download

IES

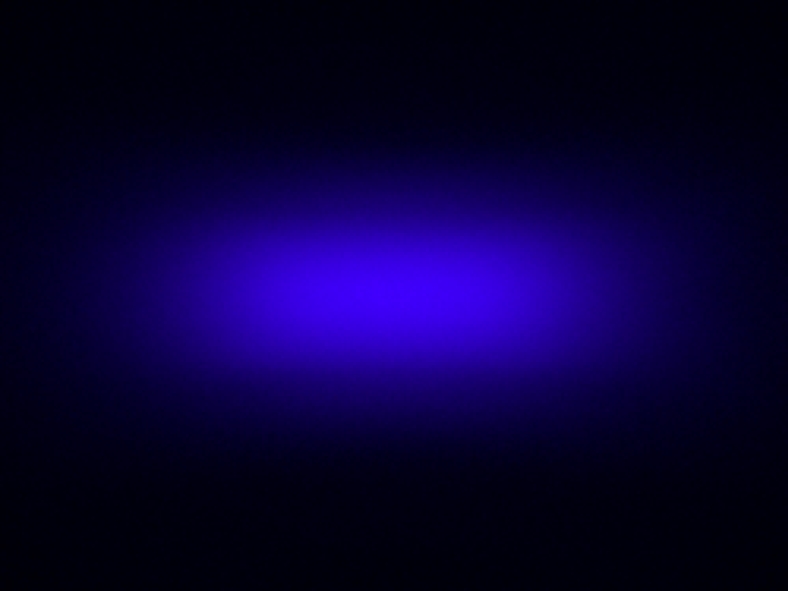

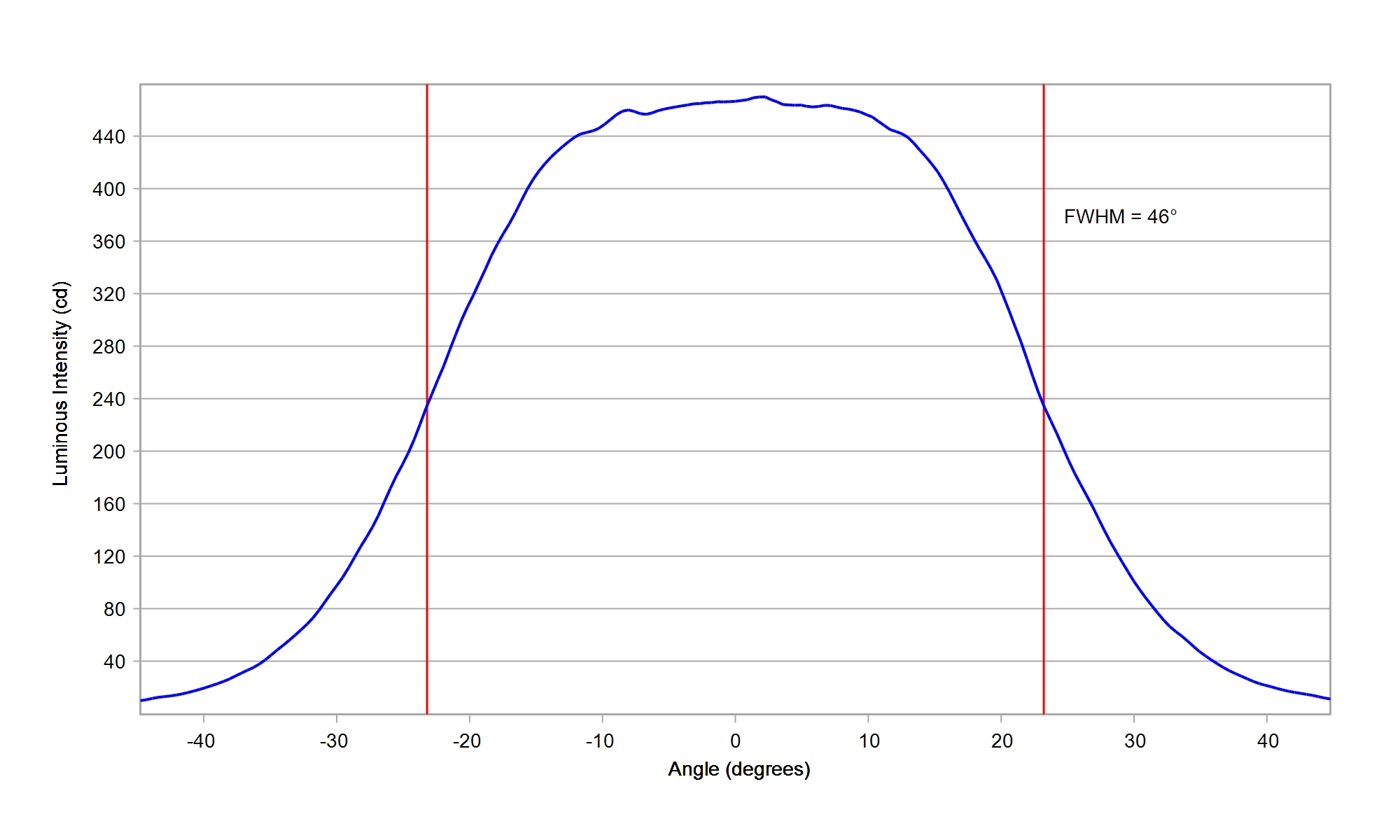

Everlight Shuen White

Eff:

82.6%

FWHM:

45.1°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

92.5%

FWHM:

38.5 x 26.0°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

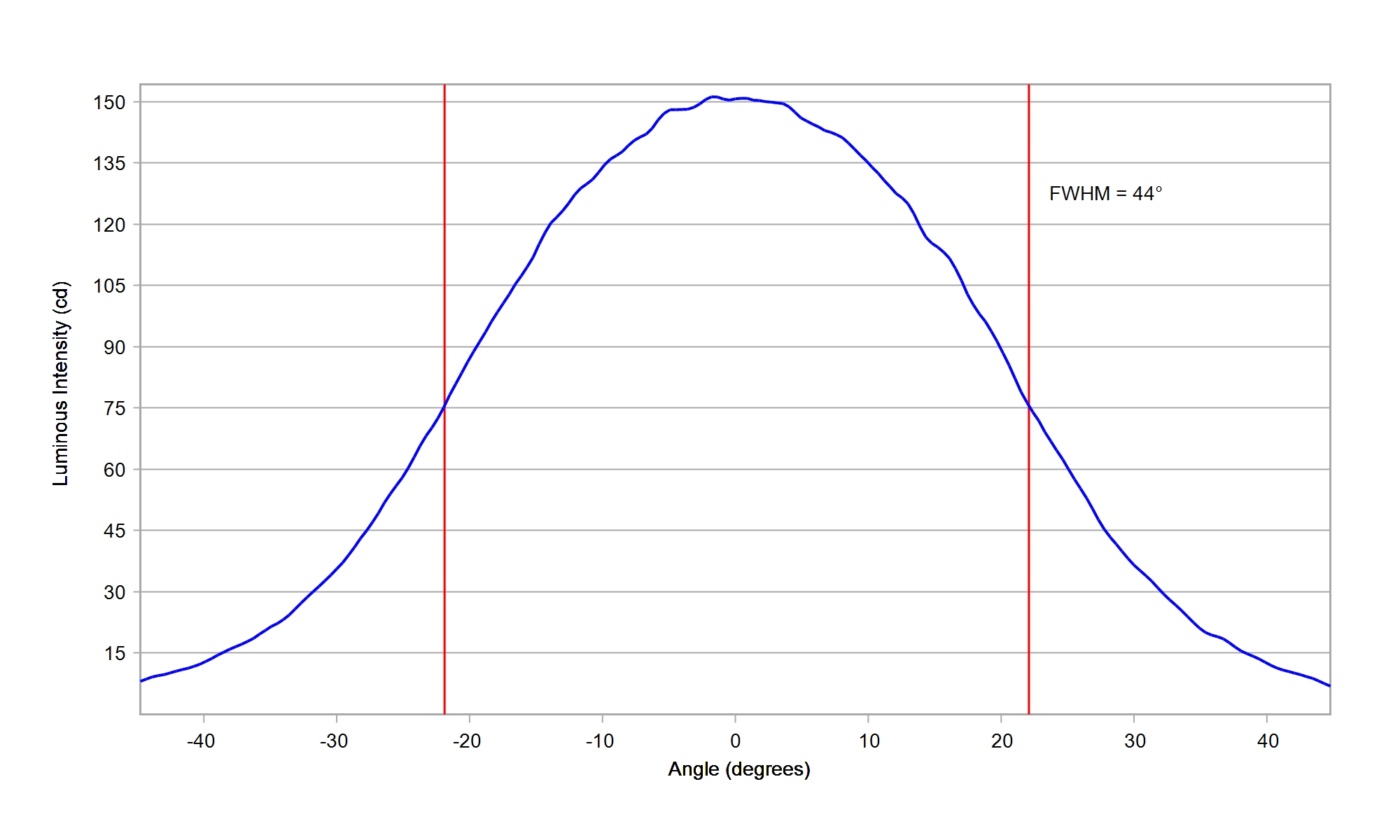

LUMILEDS LUXEON 3014 White

Eff:

92.0%

FWHM:

46 x 12.5°

Cd/Im:

4.2


,


Download

IES

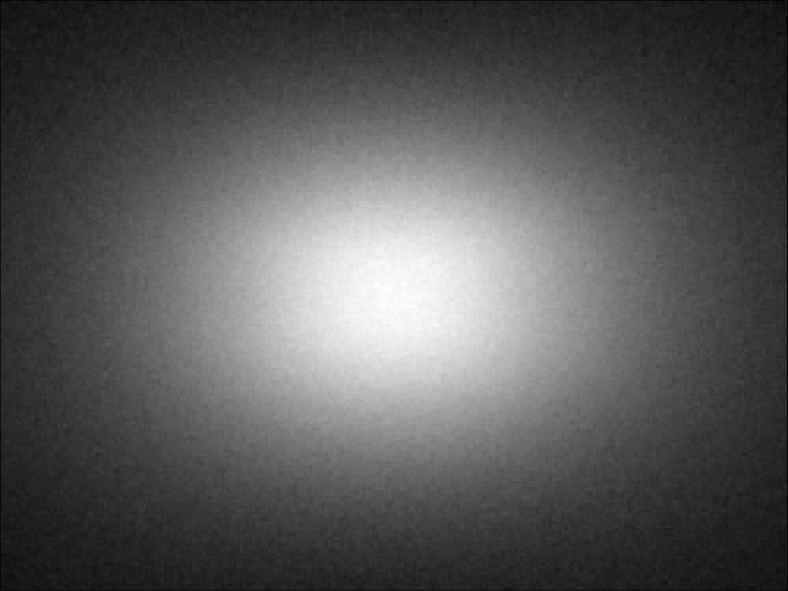

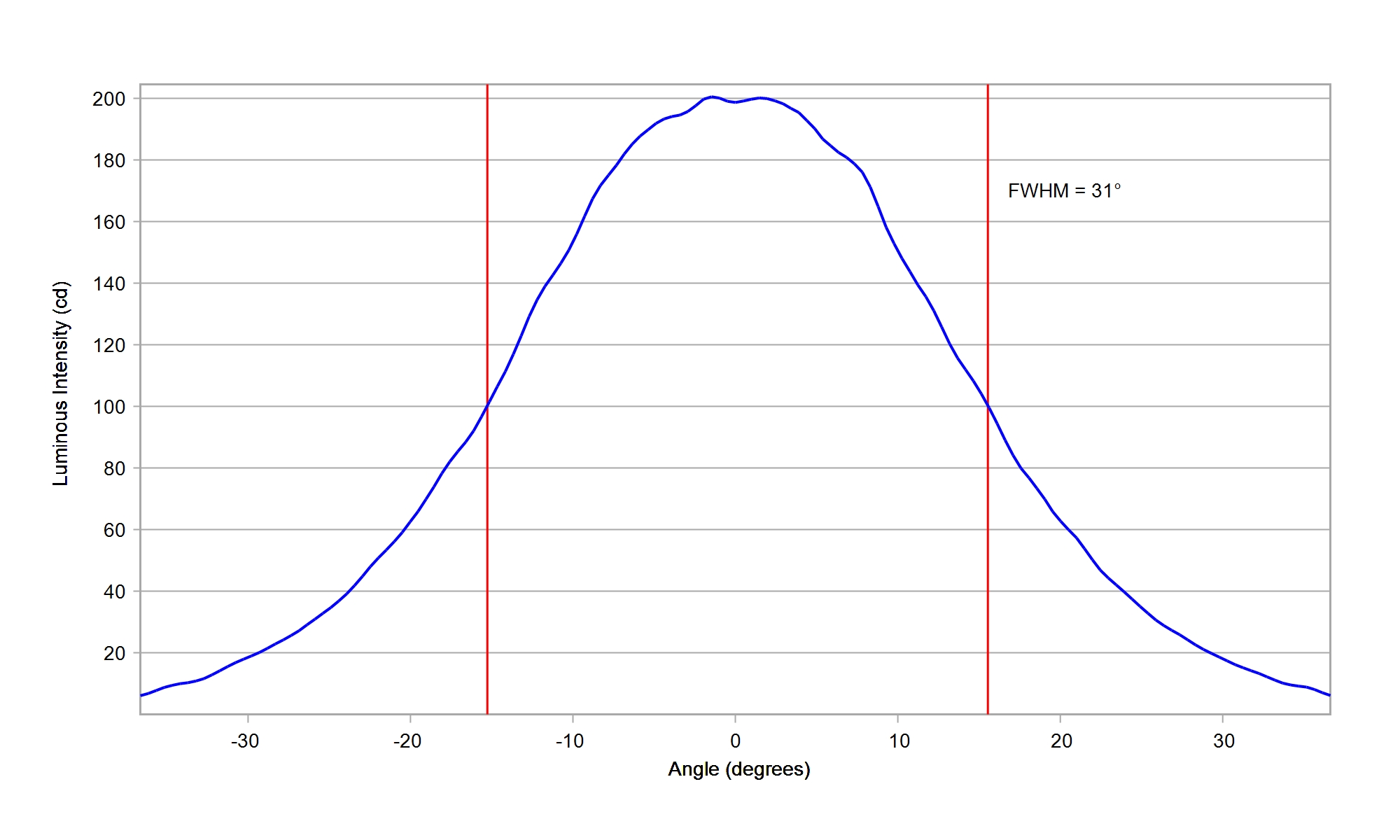

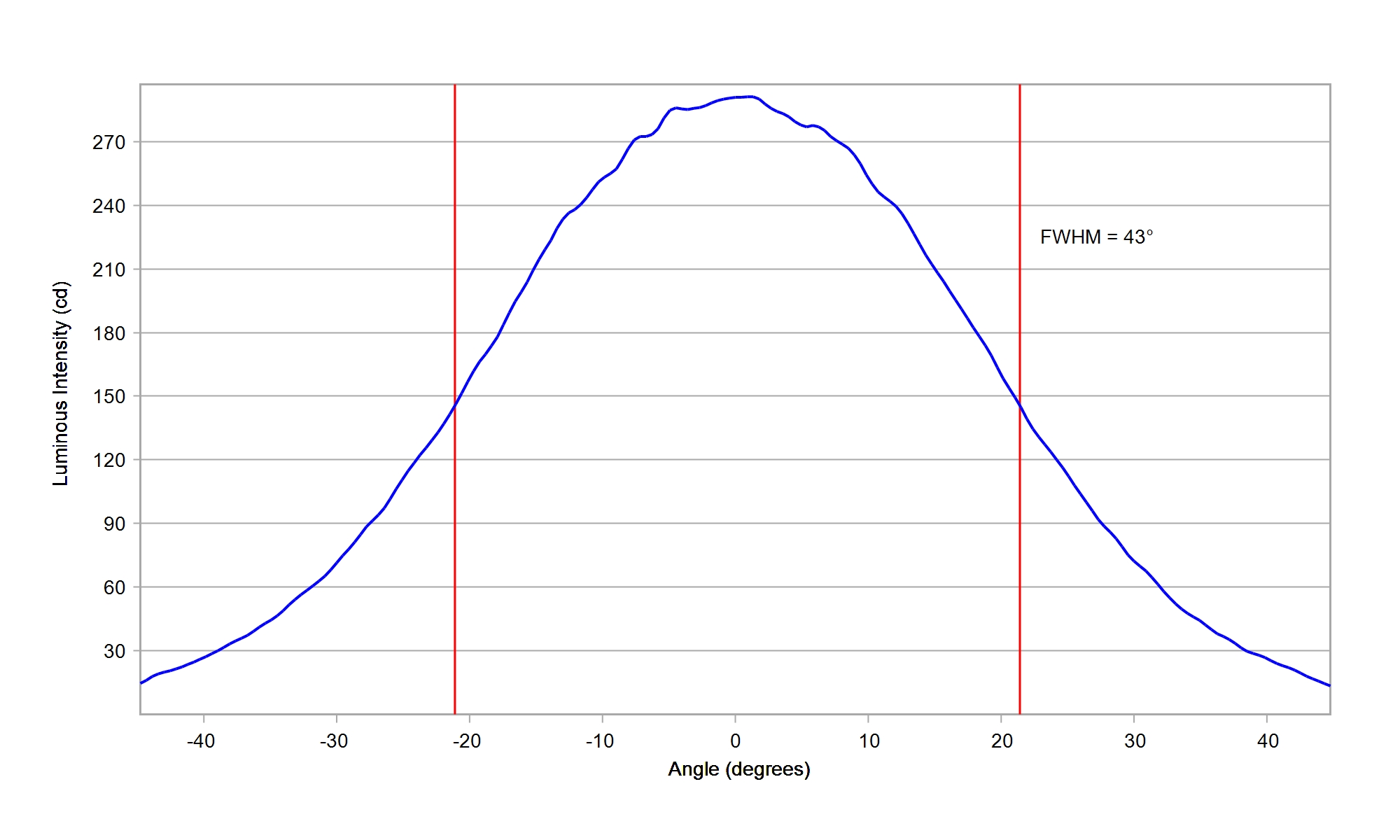

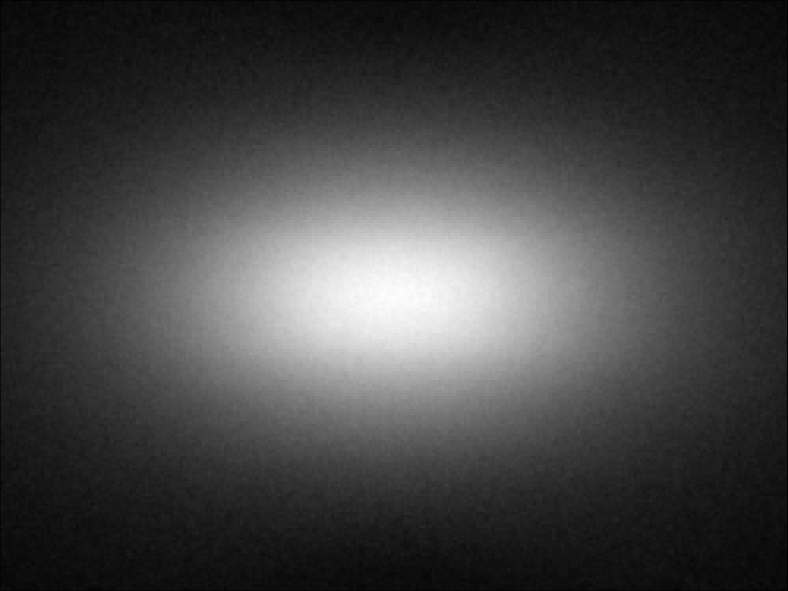

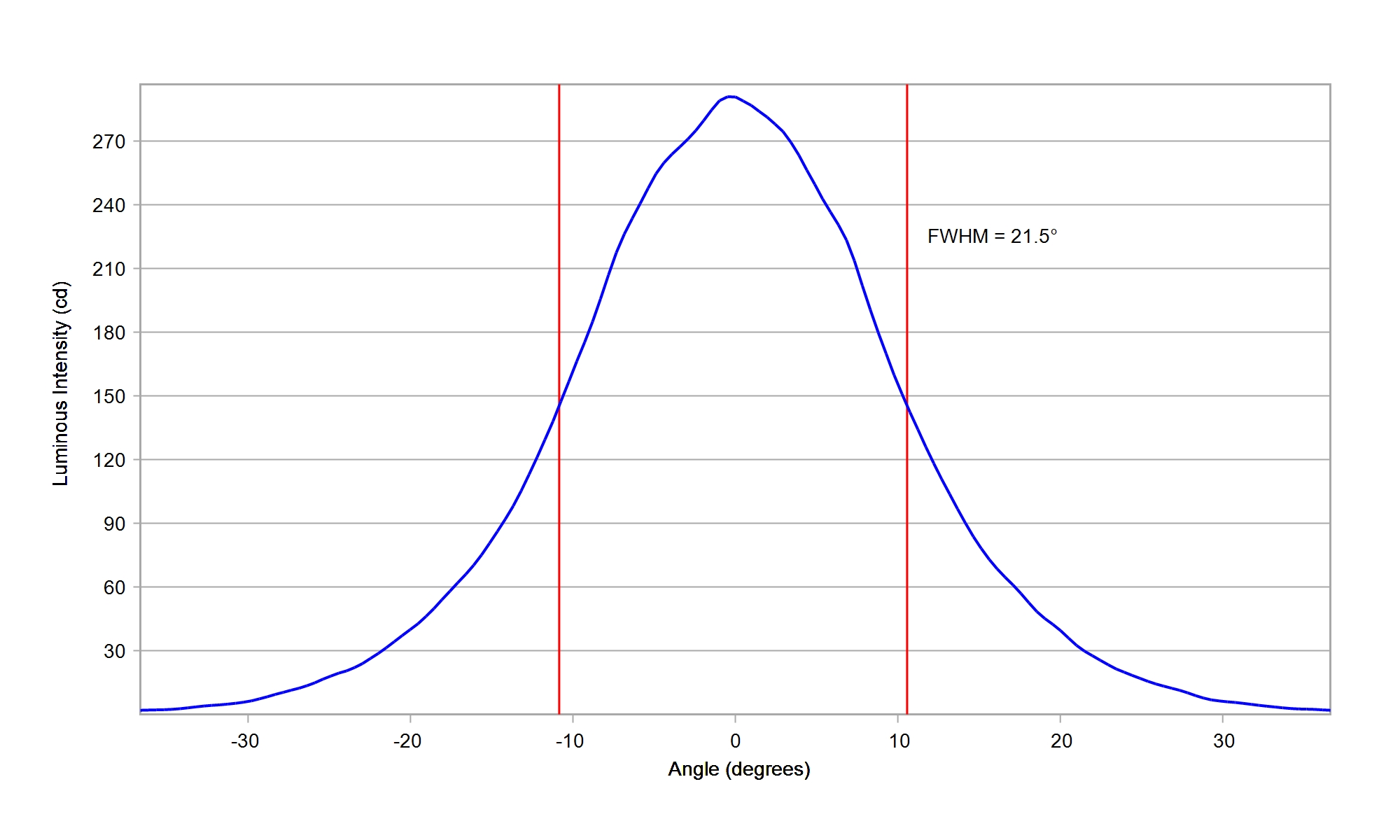

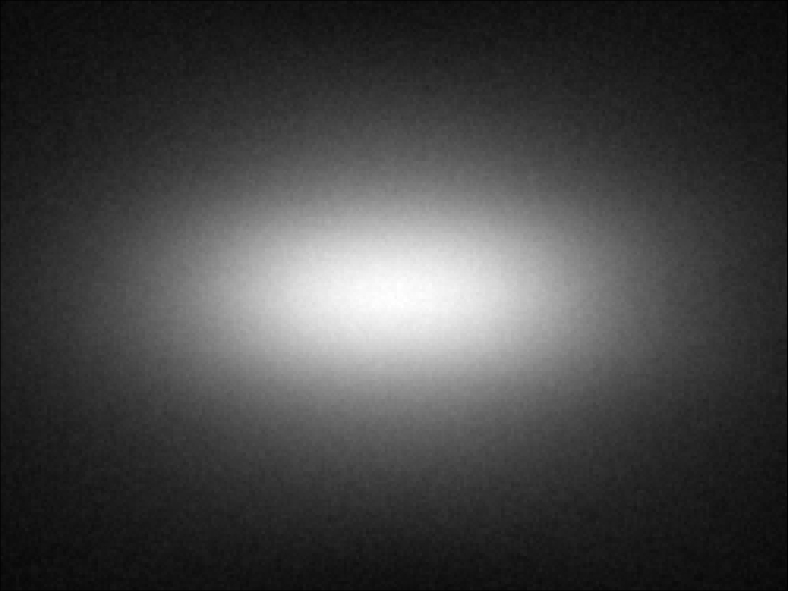

LUMILEDS LUXEON 3030 2D White

Eff:

90.5%

FWHM:

44 x 18.5°

Cd/Im:

3.2


,


Download

IES

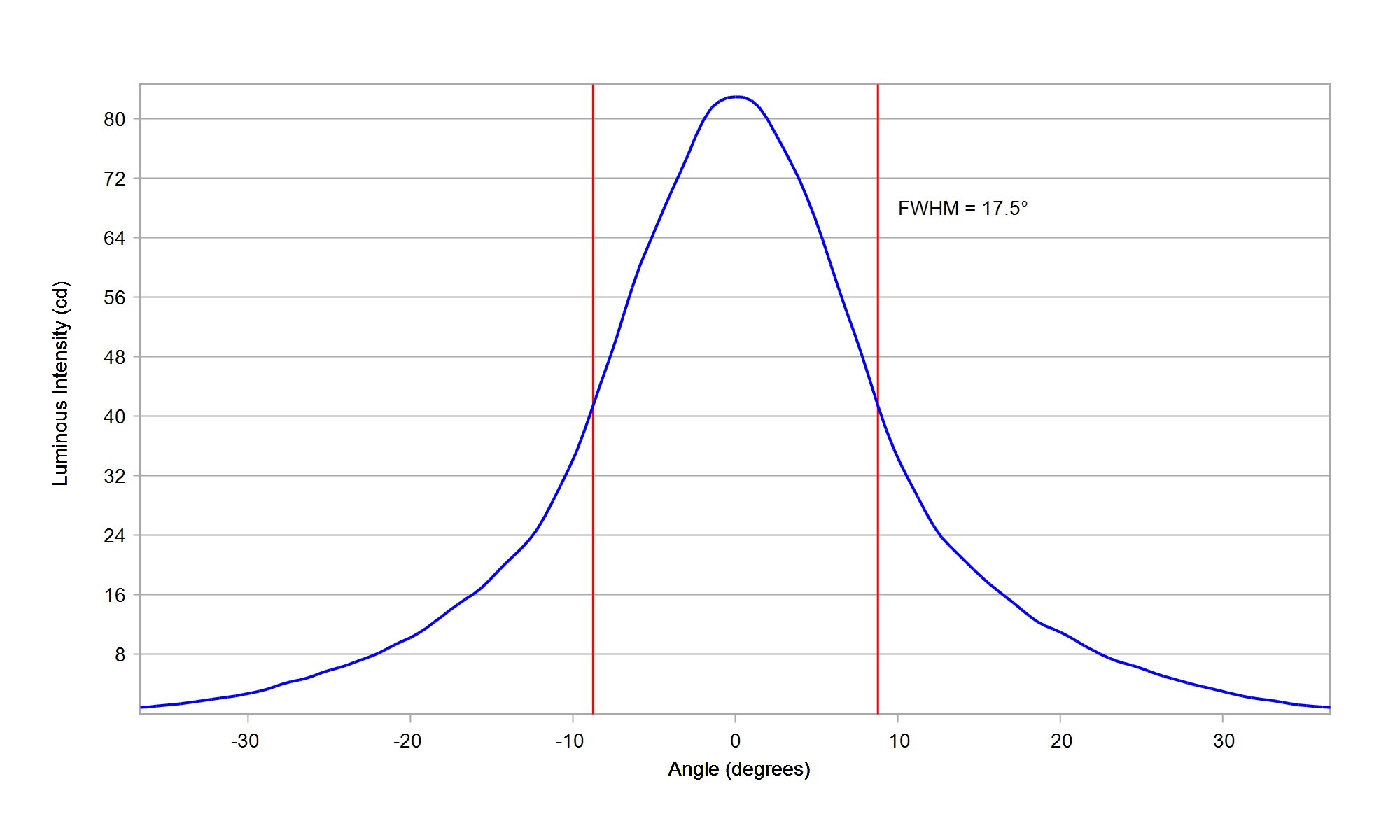

LUMILEDS LUXEON 3030 HE Plus White

Eff:

90.5%

FWHM:

43 x 21.5°

Cd/Im:

2.8

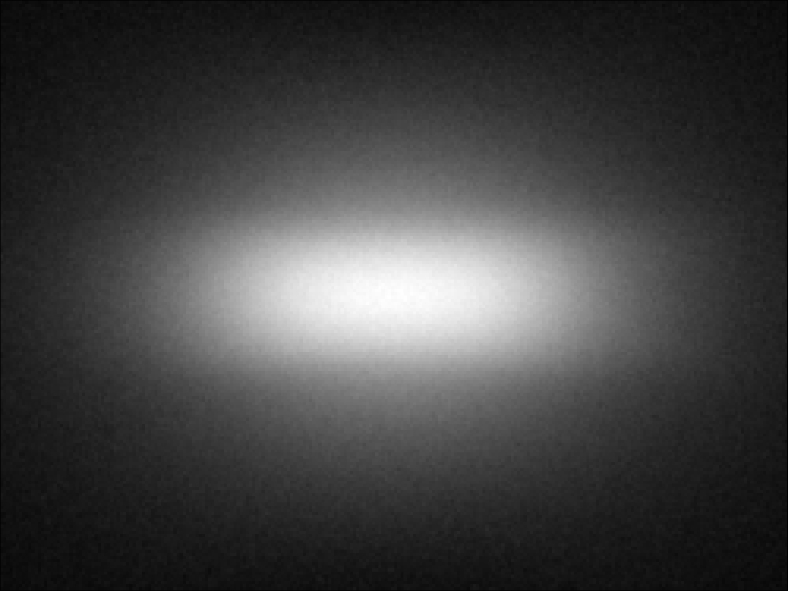

Carclo Optics – 12086 – Luxeon_3030_HE_Plus_spot-image

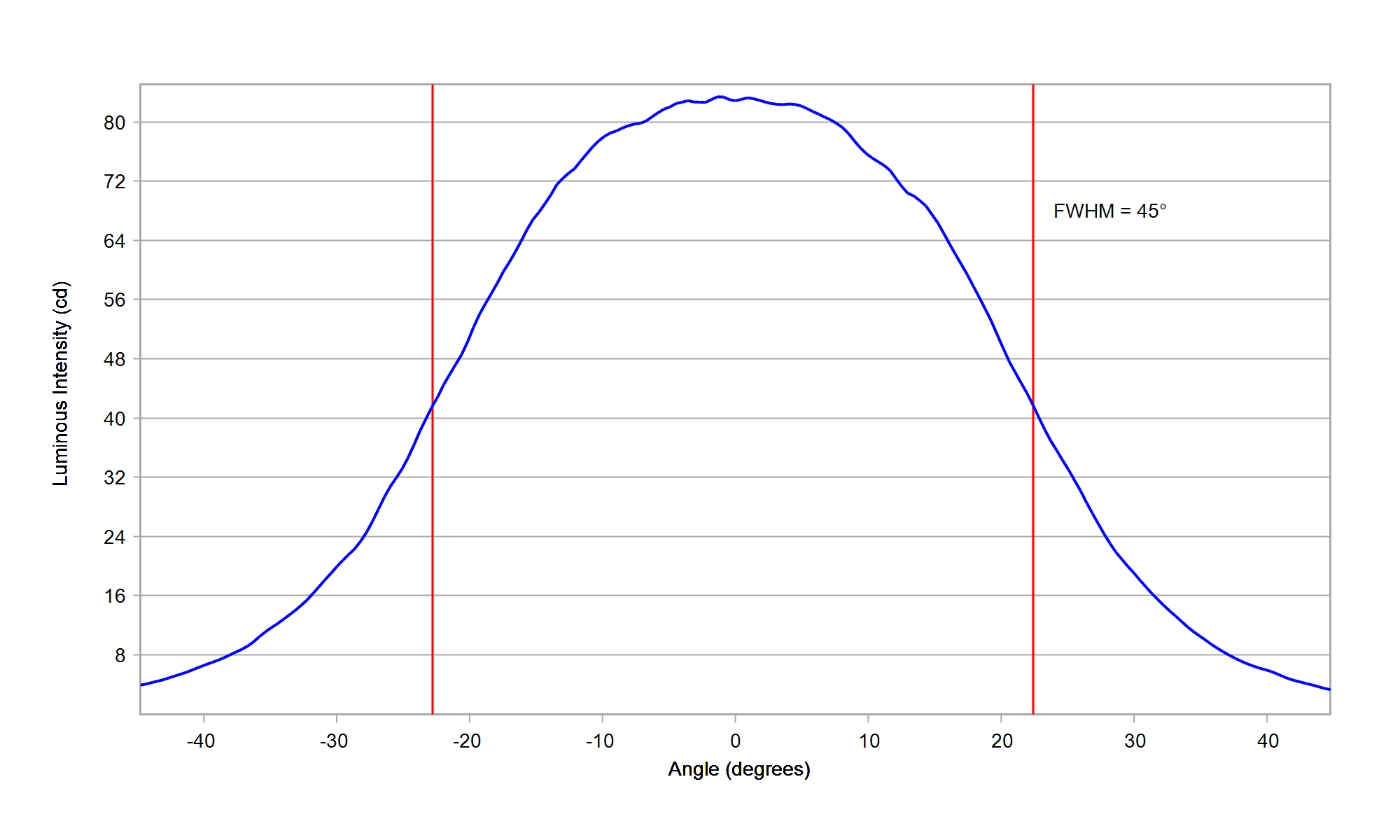

Carclo Optics – 12086 Horizontal – Luxeon_3030_HE_Plus_cross vertical section

,

Carclo Optics – 12086 Vertical – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

82.0%

FWHM:

51.7 x 22.7°

Cd/Im:

1.6

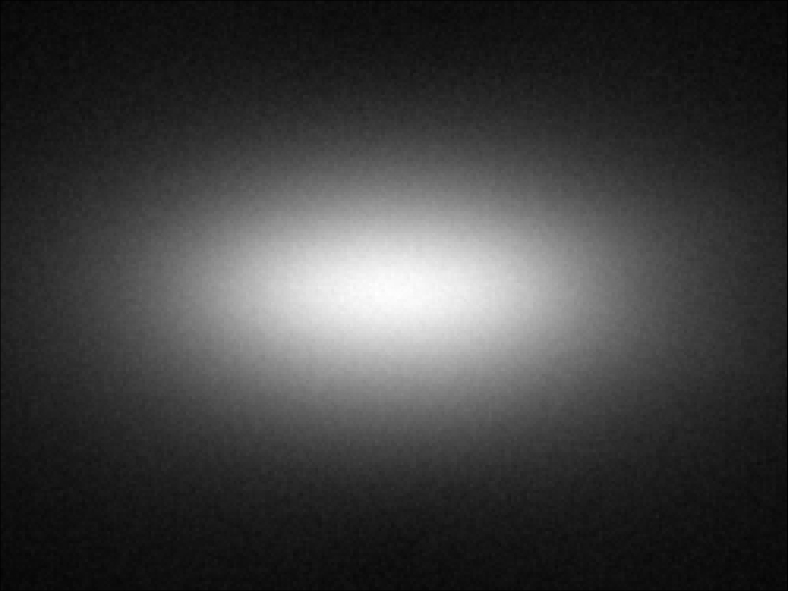

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

LUMILEDS LUXEON 3535 HV White

Eff:

83.7%

FWHM:

53°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

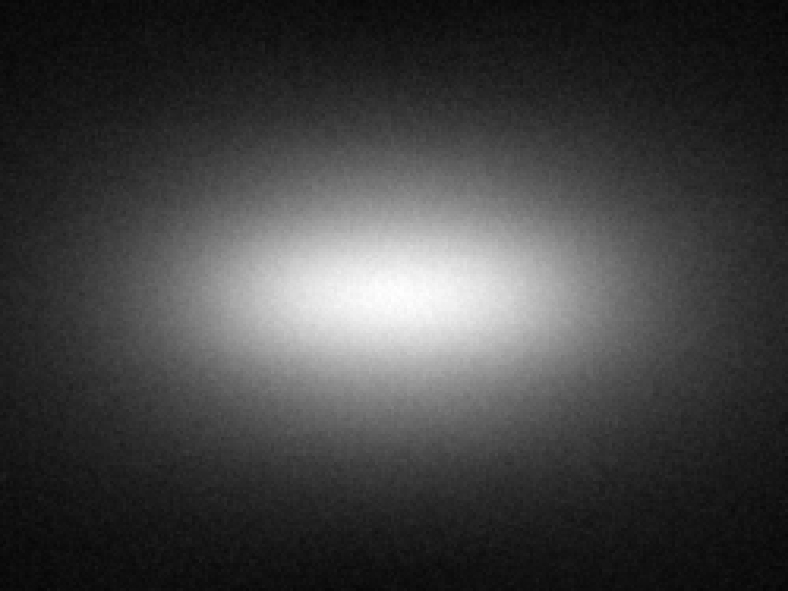

LUMILEDS LUXEON 3535 L White

Eff:

91.0%

FWHM:

45 x 18.5°

Cd/Im:

3.1


,


Download

IES

LUMILEDS LUXEON C Blue

Eff:

86.0%

FWHM:

44.5 X 15°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

88.0%

FWHM:

43.5 x 15.5°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

85.5%

FWHM:

42.5 x 16.0°

Cd/Im:

2.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

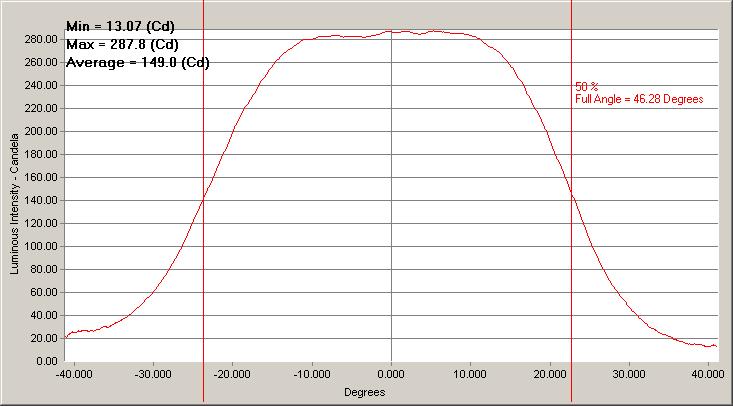

LUMILEDS LUXEON C White

Eff:

82.7%

FWHM:

46.3 x 13.6°

Cd/Im:

4.2

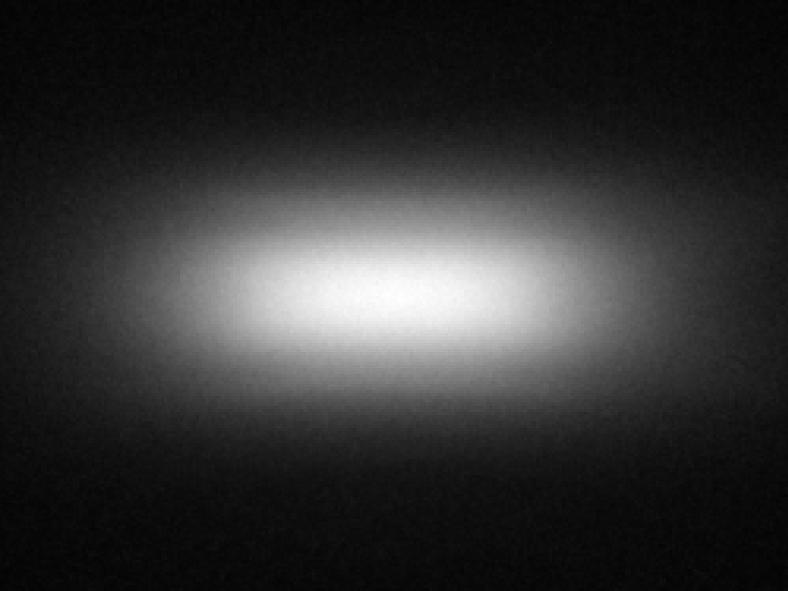

Spot Image

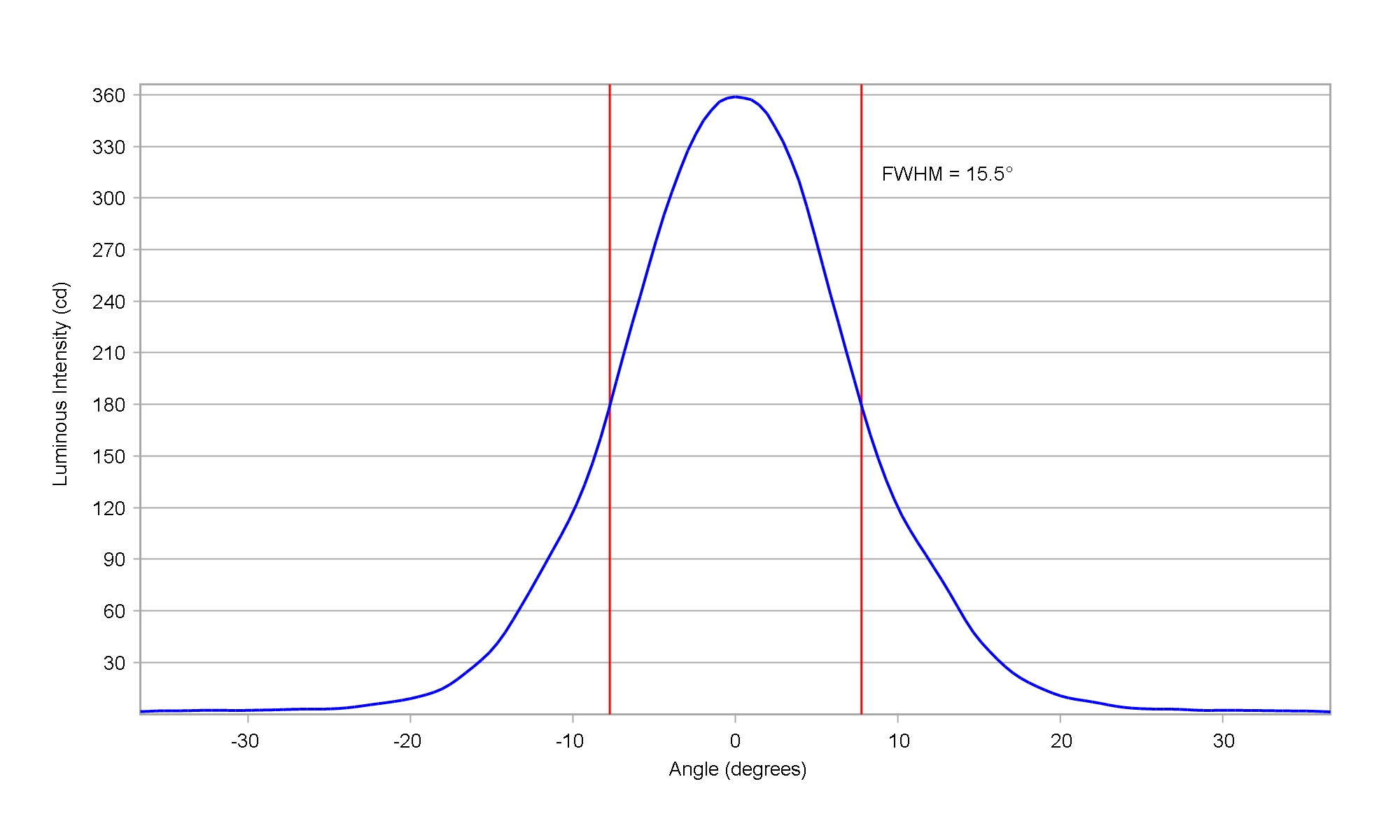

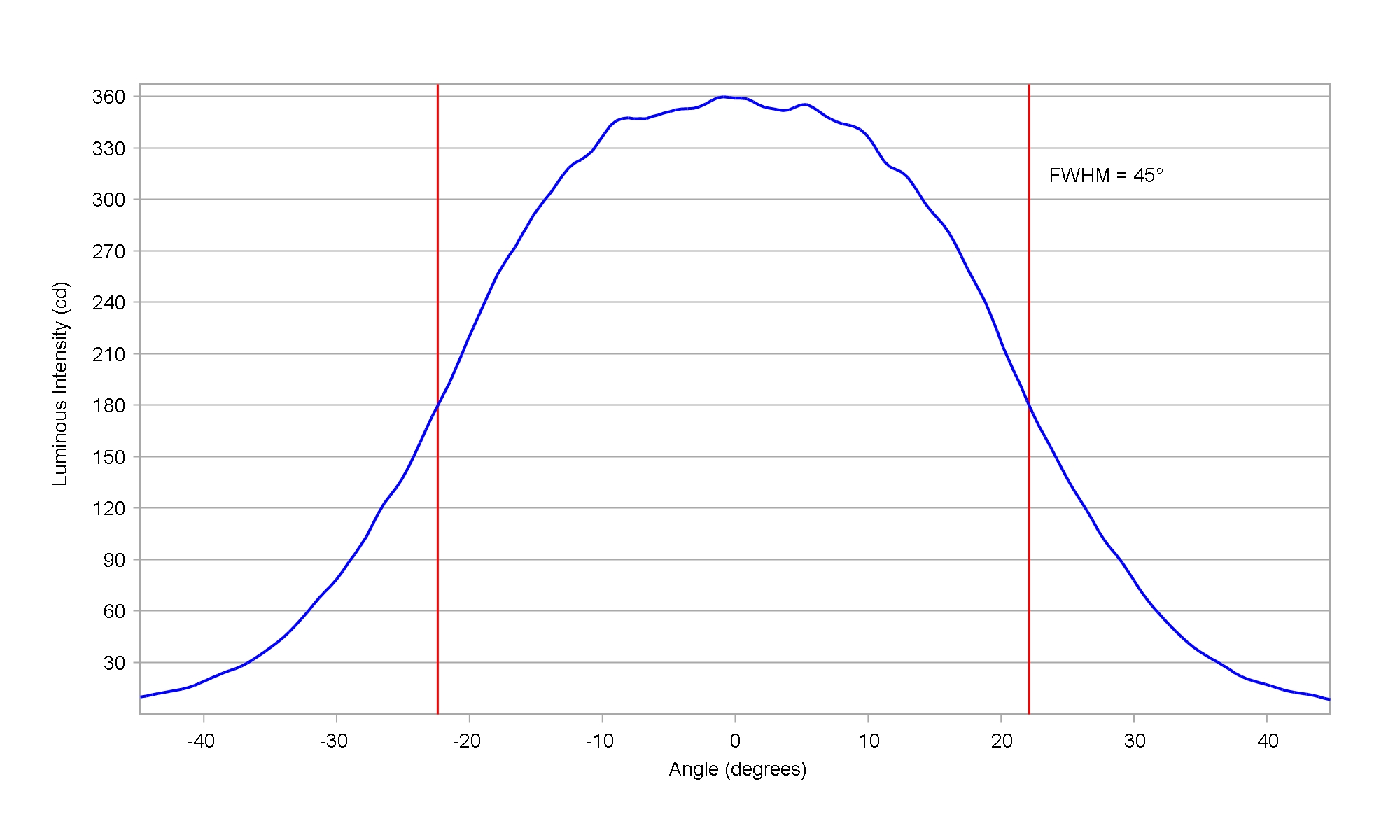

Cross Section

Download

ies

LUMILEDS LUXEON CSP 05 White

Eff:

85.5%

FWHM:

44 x 18°

Cd/Im:

2.2


,


Download

IES

LUMILEDS LUXEON CZ White

Eff:

92.5%

FWHM:

46.5 x 12°

Cd/Im:

5.0

Carclo Optics 12086 Spot Image Luxeon CZ 5M CW

Carclo Optics 12086 Cross Section Luxeon CZ 5M CW

,

Carclo Optics 12086 Cross Section Luxeon CZ 5M CW

Download

IES

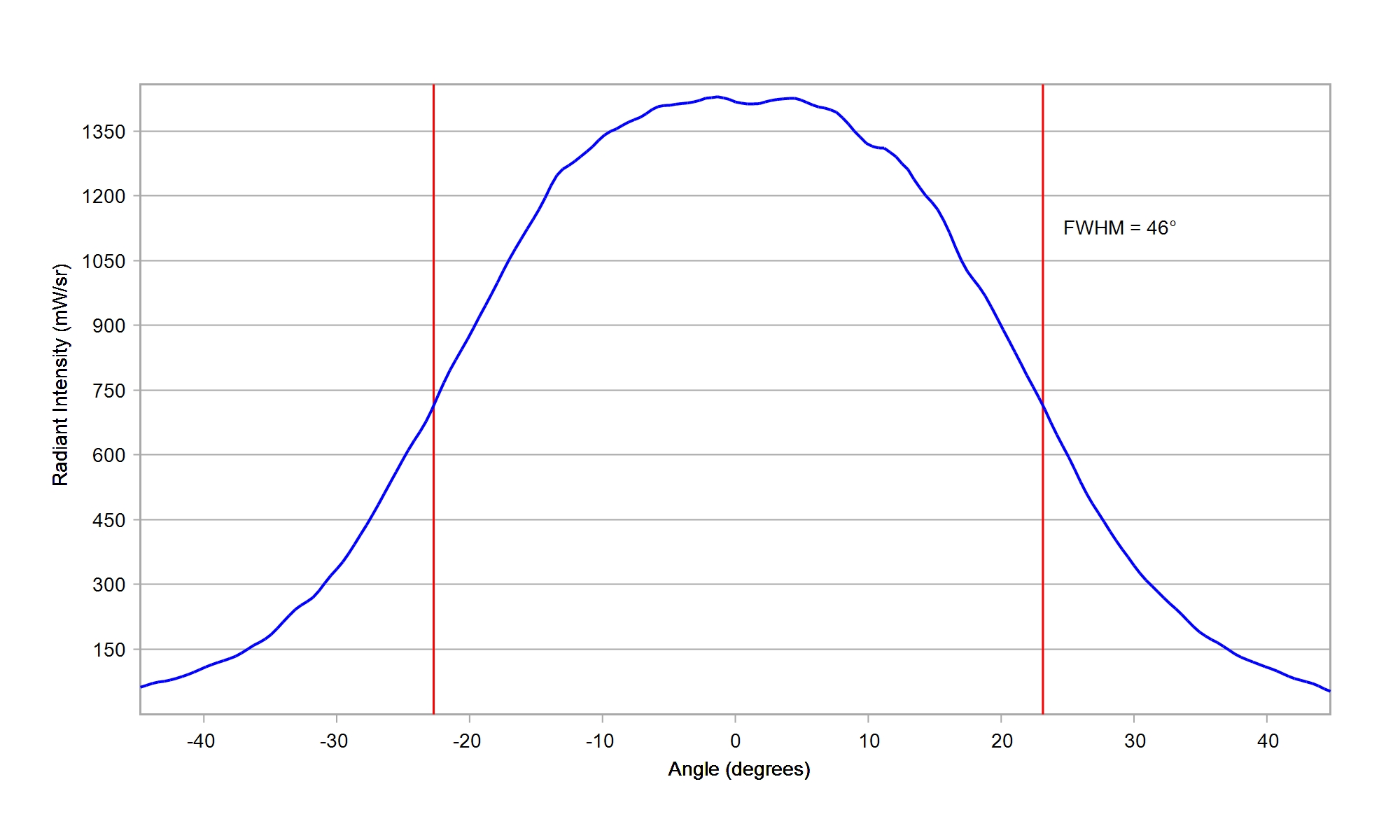

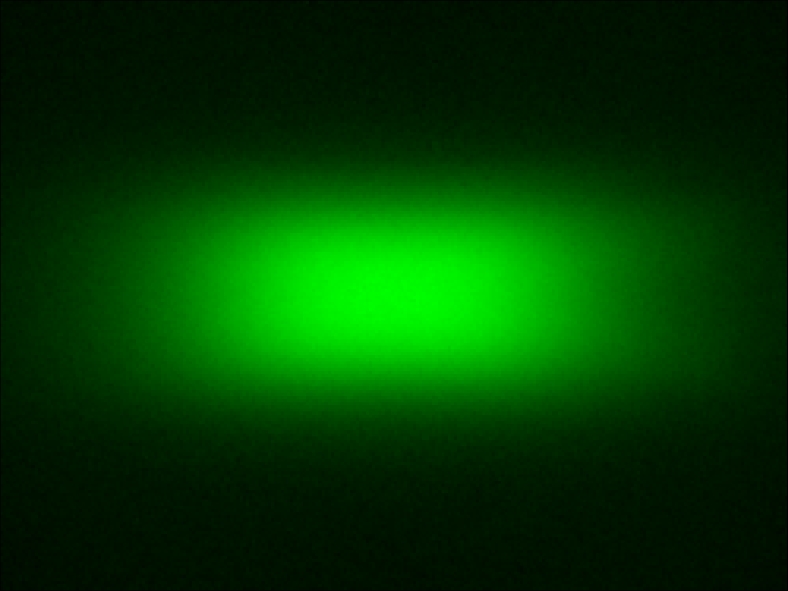

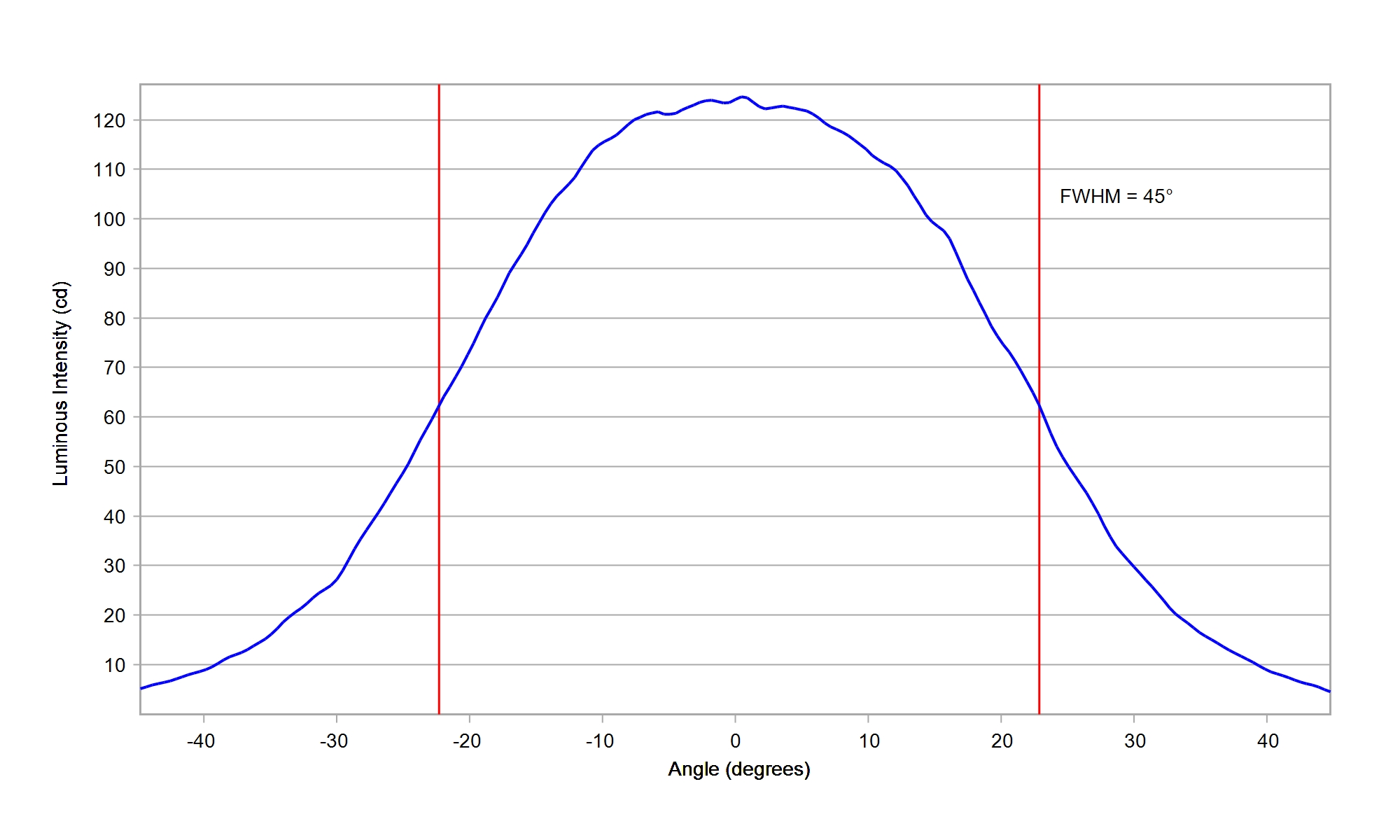

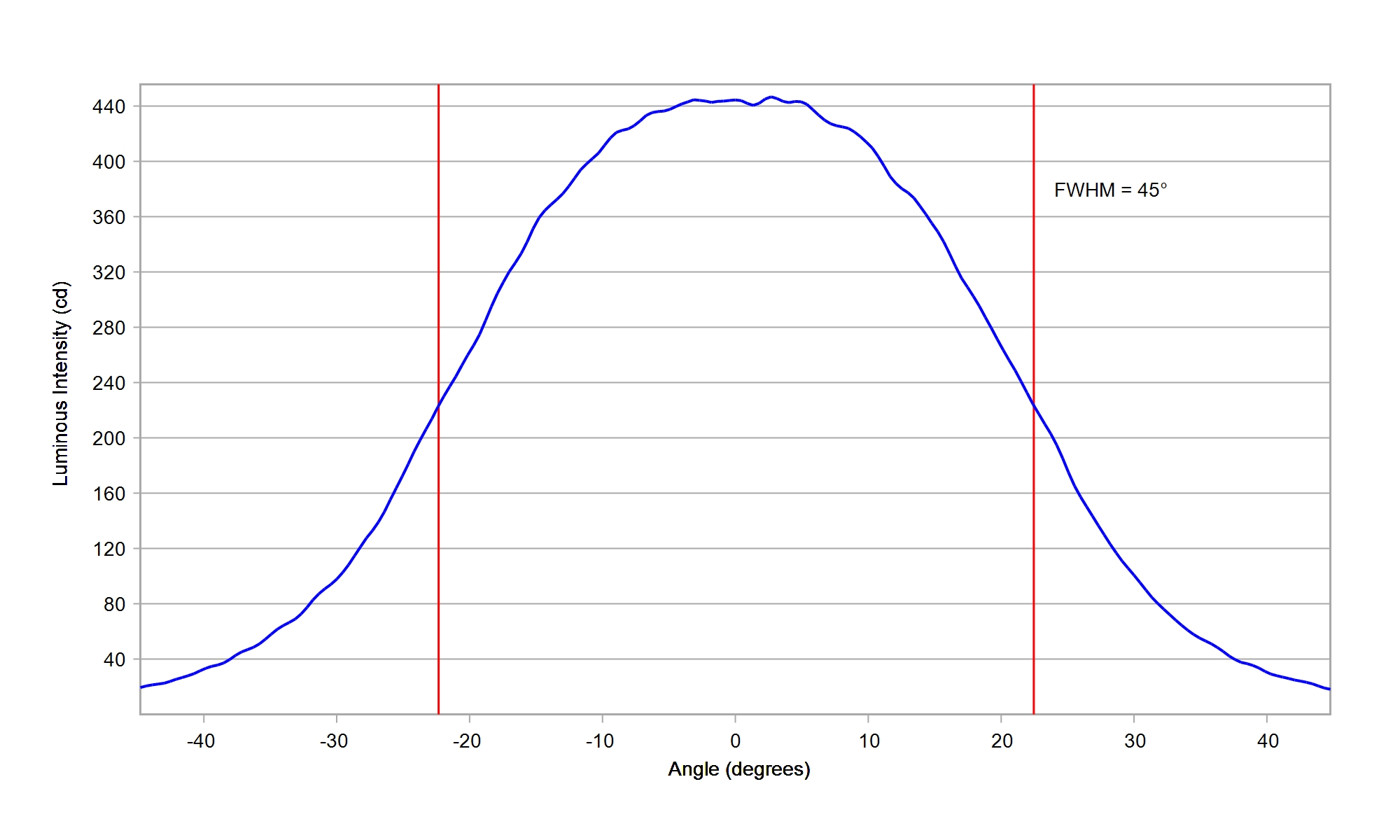

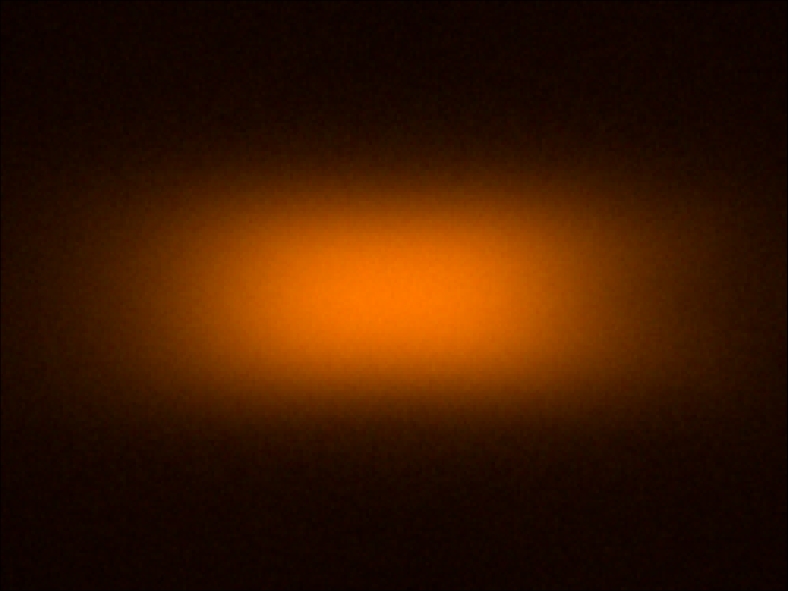

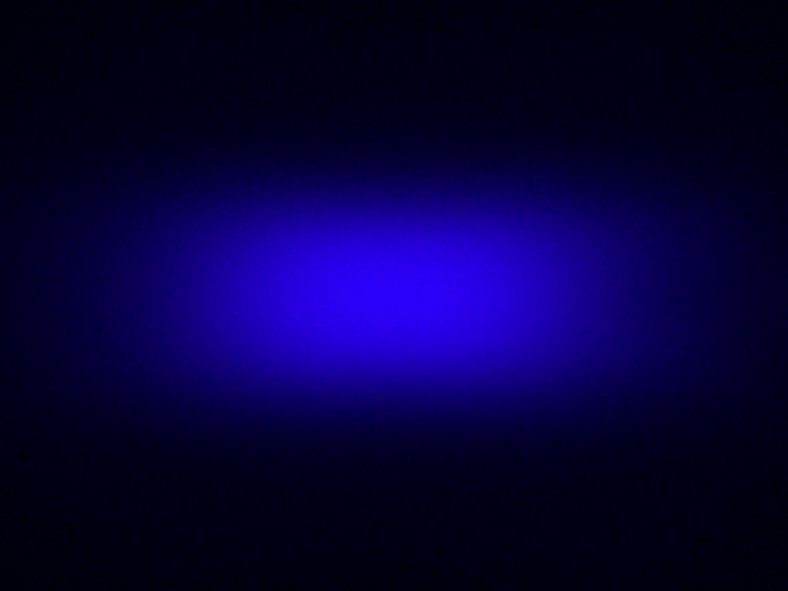

LUMILEDS LUXEON HL1Z CSP White

Eff:

91.5%

FWHM:

44 x 19°

Cd/Im:

3.0


,


Download

IES

LUMILEDS LUXEON IR 2720

Eff:

93.5%

FWHM:

42.5 / 18.0°

Ipk/W:

3.4

Carclo Optics - 12086 10mm Elliptical Ripple Linear Spot Image Luxeon IR 2720

Carclo Optics - 12086 10mm Elliptical Ripple Linear Cross Section Horizontal Luxeon IR 2720

,

Carclo Optics - 12086 10mm Elliptical Ripple Linear Cross Section Vertical Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

93.5%

FWHM:

43.5 x 15°

Ipk/W:

3.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

81.7%

FWHM:

36 x 39°

Cd/Im:

1.0

carclo simulated spot image

carclo simulated cross section

Download

ies

LUMILEDS LUXEON Q White

Eff:

81.7%

FWHM:

50.9x27.7°

Cd/Im:

1.4

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON R White

Eff:

83.0%

FWHM:

44 X 24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

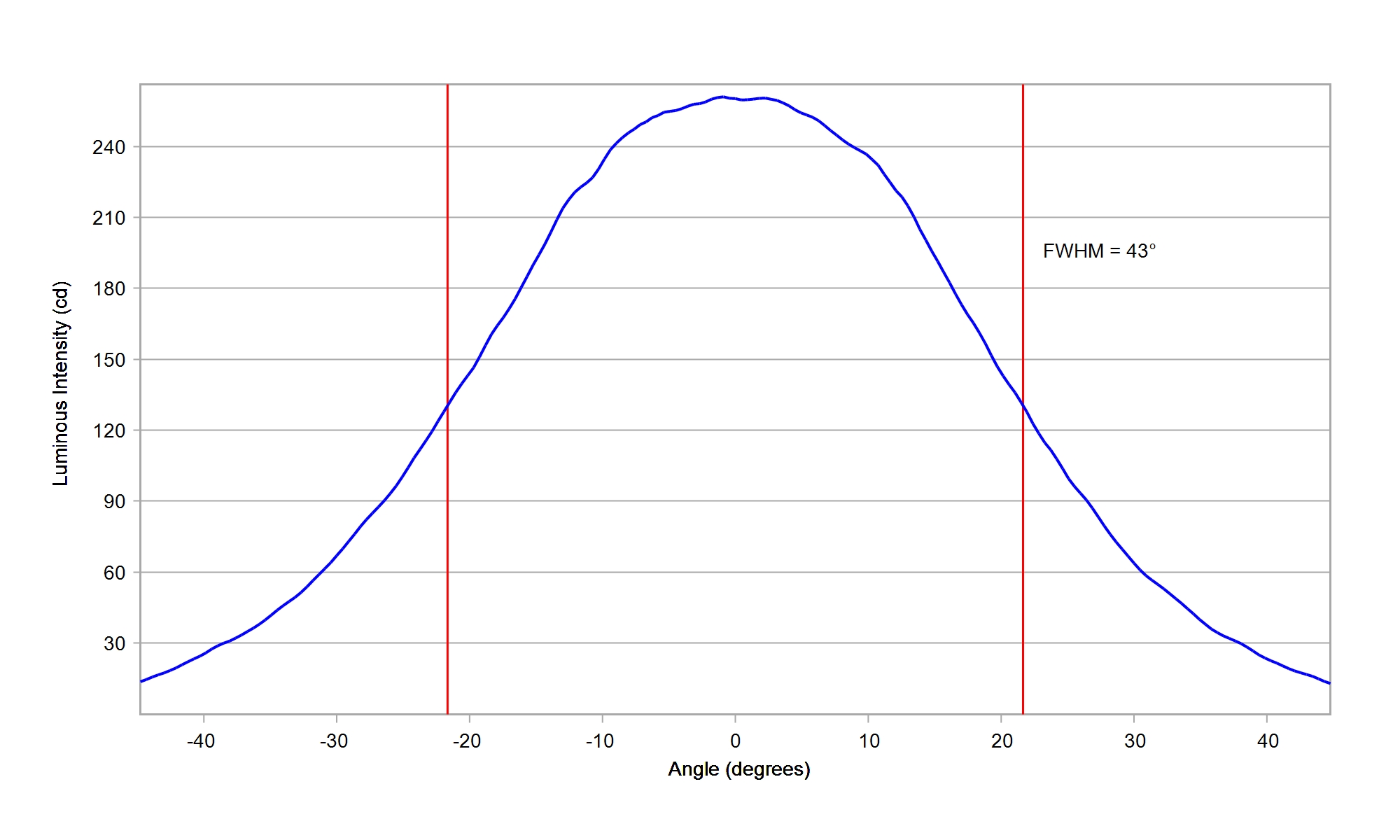

LUMILEDS LUXEON Rebel ES White

Eff:

83.0%

FWHM:

44 x 24.4°

Cd/Im:

2.5

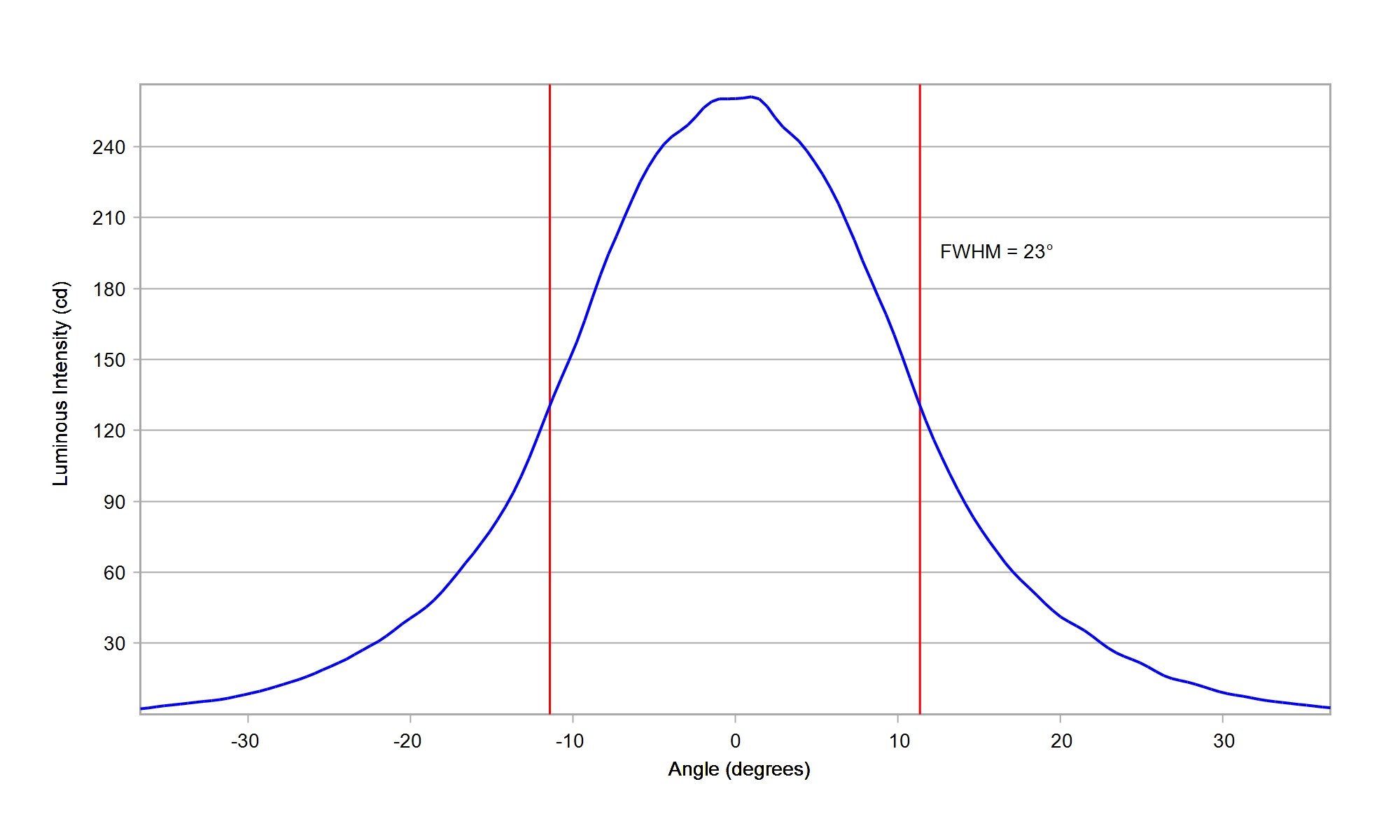

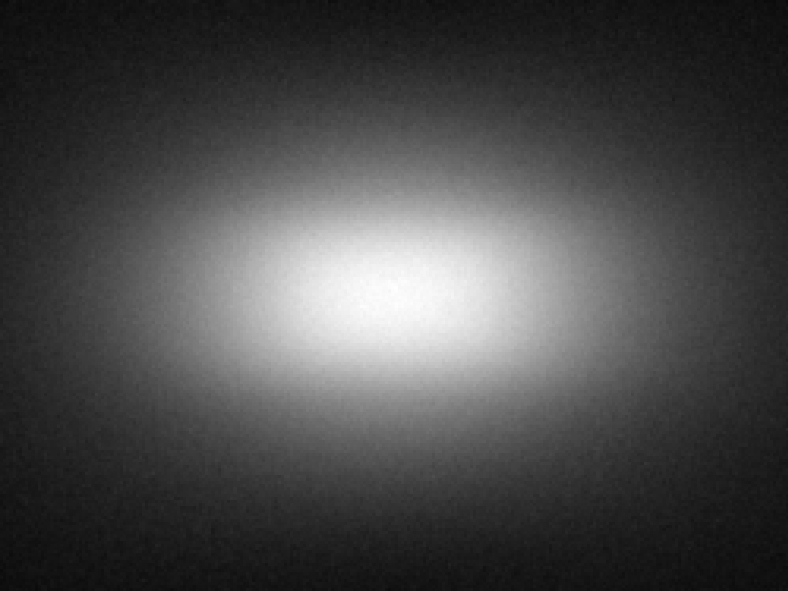

Spot Image

Cross Section

Download

ies

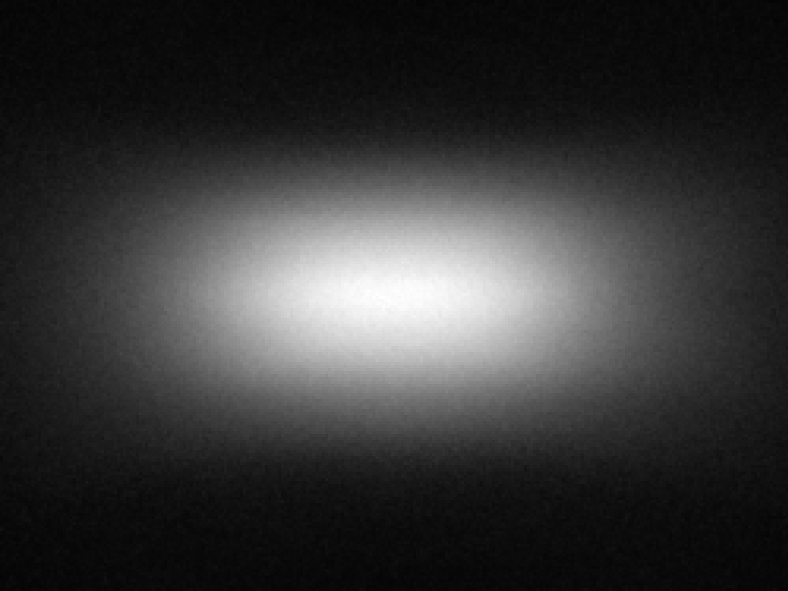

LUMILEDS LUXEON Rebel White

Eff:

84.3%

FWHM:

46 x 16°

Cd/Im:

3.1

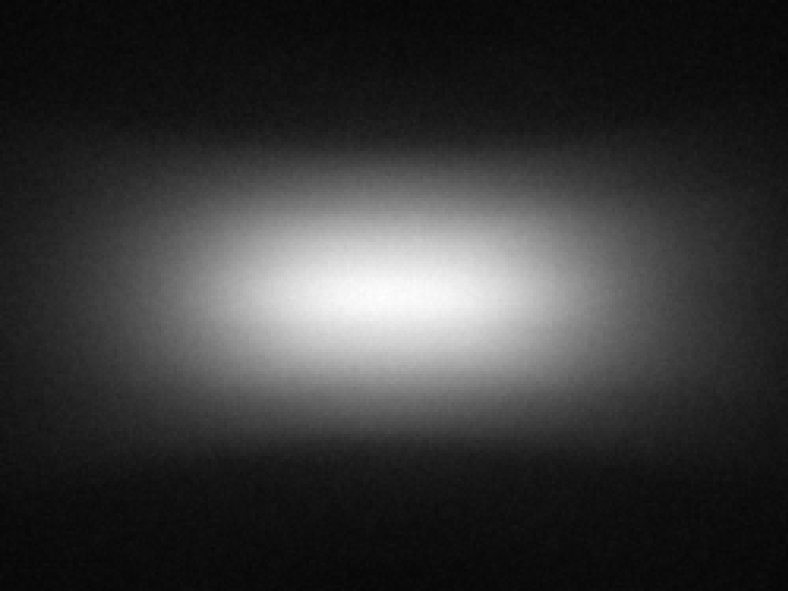

Spot Image

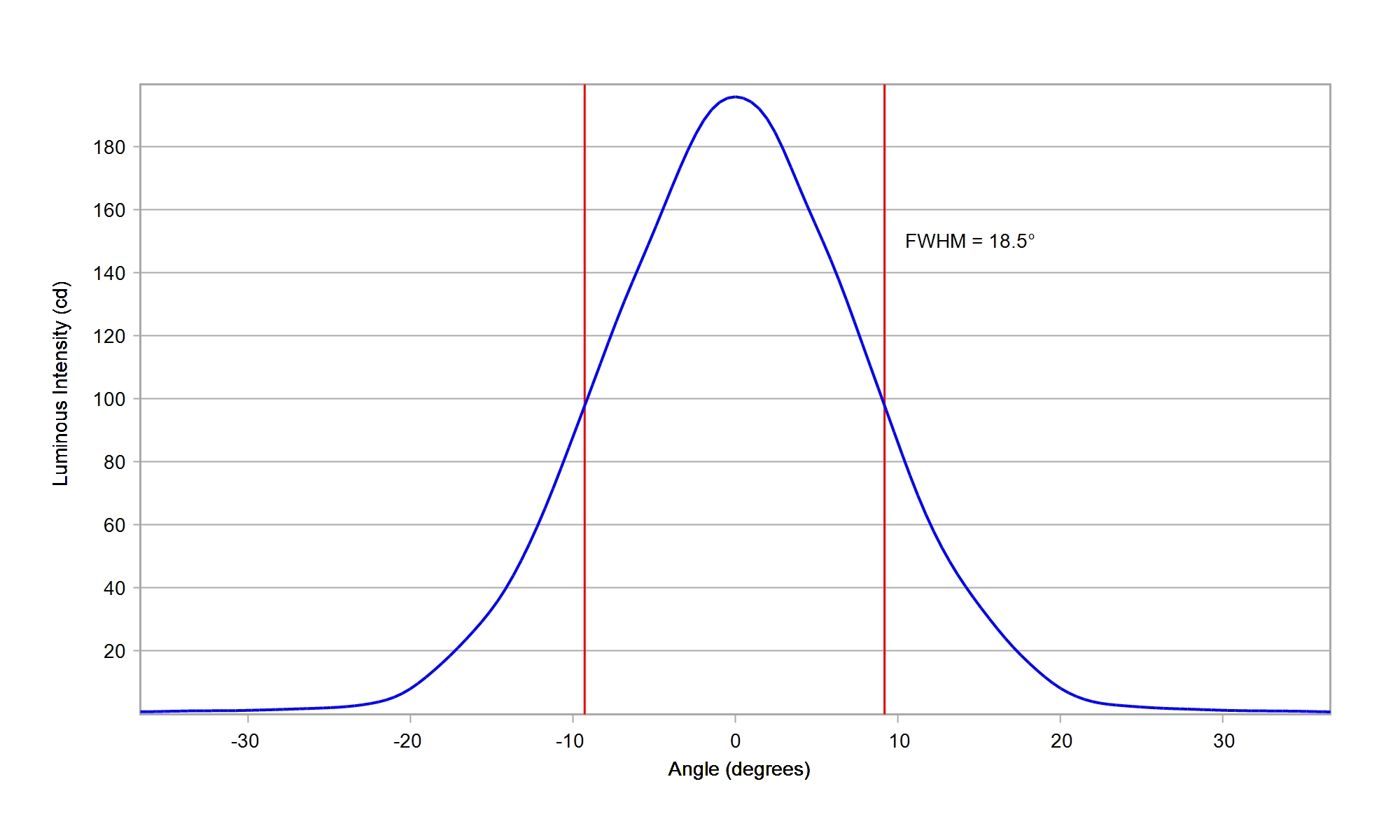

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

92.5%

FWHM:

47 x 12.5°

Cd/Im:

5.0

Carclo Optics - 12086 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 12086 Horizontal Cross Section Lumileds Luxeon Rubix Blue

,

Carclo Optics - 12086 Vertical Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

92.5%

FWHM:

46 x 12.5°

Cd/Im:

5.0

Carclo Optics – 12086 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 12086 Horizontal Cross Section Lumileds Luxeon Rubix Green

,

Carclo Optics – 12086 Vertical Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

93.5%

FWHM:

46 x 11.5°

Cd/Im:

5.3

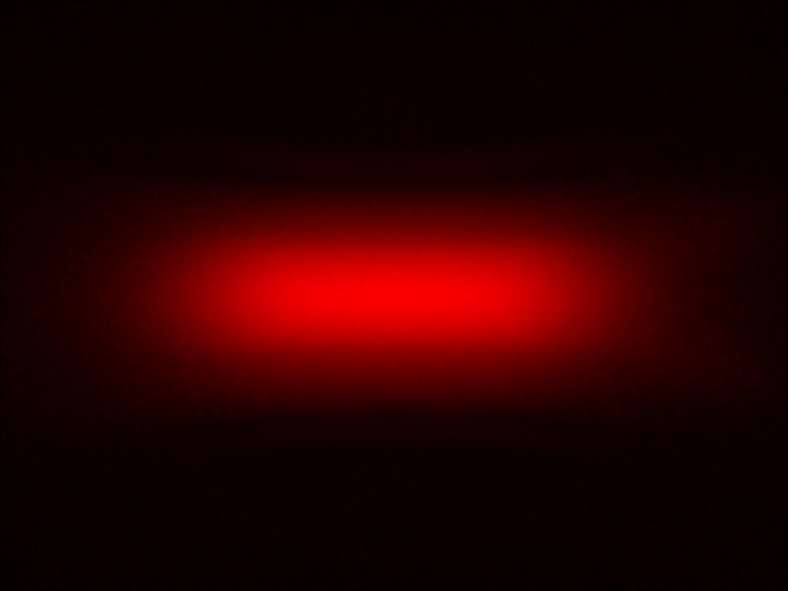

Carclo Optics – 12086 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12086 Horizontal Cross Section Lumileds Luxeon Rubix Red

,

Carclo Optics – 12086 Vertical Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

92.0%

FWHM:

48 x 12°

Cd/Im:

5.9

Carclo Optics – 12086 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12086 Horizontal Cross Section Lumileds Luxeon Rubix Royal Blue

,

Carclo Optics – 12086 Vertical Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

92.5%

FWHM:

46 x 12.5°

Cd/Im:

5.0

Carclo Optics - 12086 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12086 Horizontal Cross Section Lumileds Luxeon Rubix White

,

Carclo Optics - 12086 Vertical Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON T White

Eff:

83.0%

FWHM:

44x24.4°

Cd/Im:

2.5

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON TX White

Eff:

83.0%

FWHM:

49.6 x 26.4°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

92.5%

FWHM:

47 x 12.5°

Cd/Im:

4.7


,

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

90.5%

FWHM:

45 x 17°

Cd/Im:

3.5

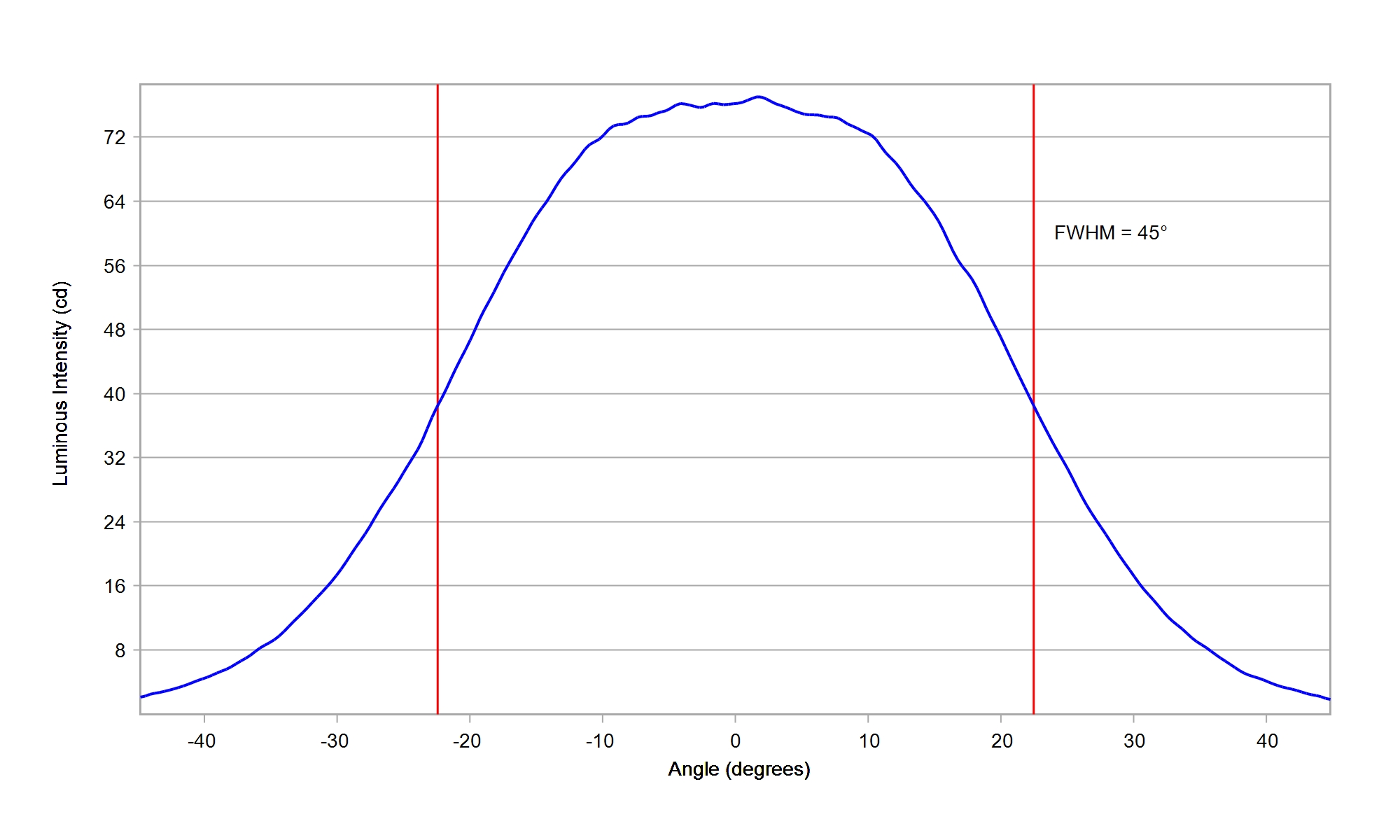

optic-12086-Luminus_SST-10_B_B130-horizontal cross section

,

optic-12086-Luminus_SST-10_B_B130-vertical cross section

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

89.0%

FWHM:

44 x 19°

Cd/Im:

3.0

Carclo Optics - 12086 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 12086 Luminus_SST-10_B_B90 - cross-horizontal image

,

Carclo Optics - 12086 Luminus_SST-10_B_B90 - cross-vertical image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

92.0%

FWHM:

42 x 18.5°

Cd/Im:

3.5

Carclo Optics – 12086 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 12086 Horizontal Luminus_SST-10_DR_B130- Cross section – image

,

Carclo Optics – 12086 Vertical Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

90.5%

FWHM:

42 X 19.5°

Cd/Im:

3.1

Carclo Optics - 12086 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 12086 Luminus_SST-10_DR_B90- Cross section horizontal image

,

Carclo Optics - 12086 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

92.0%

FWHM:

44 x 17°

Cd/Im:

3.6

Carclo Optics - 12086 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 12086 Luminus_SST-10_G_B130 - cross - horizontal- section- image

,

Carclo Optics - 12086 Luminus_SST-10_G_B130 - cross - vertical- section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

90.0%

FWHM:

43 X 19.5°

Cd/Im:

3.0

Carclo Optics - 12086 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 12086 Luminus_SST-10_G_B90- Cross horizontal section - image

,

Carclo Optics - 12086 Luminus_SST-10_G_B90- Cross vertical section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

93.5%

FWHM:

41 x 19.5°

Ipk/W:

3.4

Carclo Optics - 12086 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12086 Horizontal Cross Section Luminus SST-10-IR-B130

,

Carclo Optics - 12086 Vertical Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

92.0%

FWHM:

41 x 21.5°

Ipk/W:

3.1

Carclo Optics - 12086 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 12086 Horizontal Cross Section Luminus SST-10-IR-B90

,

Carclo Optics - 12086 Vertical Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

94.0%

FWHM:

43 x 19°

Ipk/W:

3.4


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

92.0%

FWHM:

43 x 21°

Ipk/W:

3.0


,


Download

IES

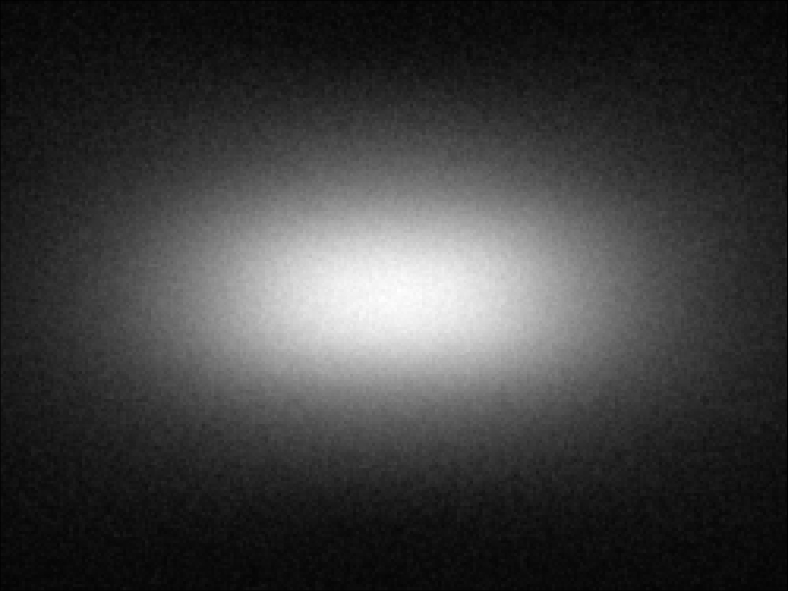

Luminus Devices SST 20-WxH White Hi CRI

Eff:

91.0%

FWHM:

43 x 20°

Cd/Im:

3.0

Carclo Optics – 12086 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12086 Horizontal - Luxeon_SST_20_W_cross vertical section

,

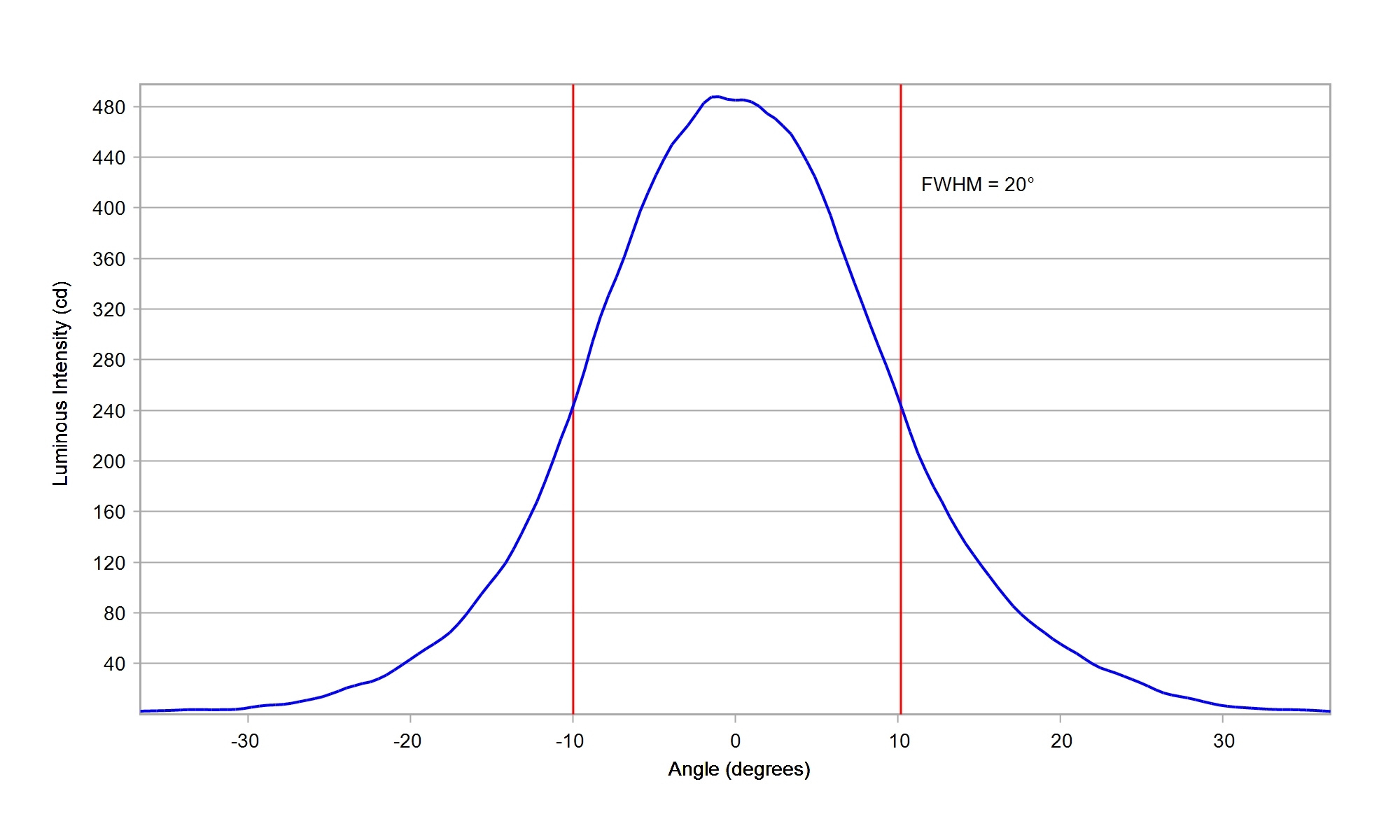

Carclo Optics – 12086 Vertical - Luxeon_SST_20_W_cross vertical section

Download

IES

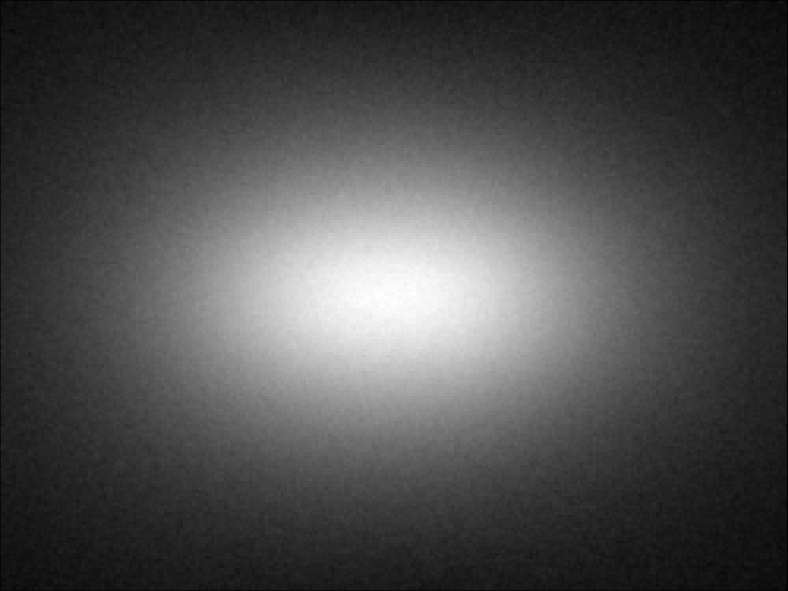

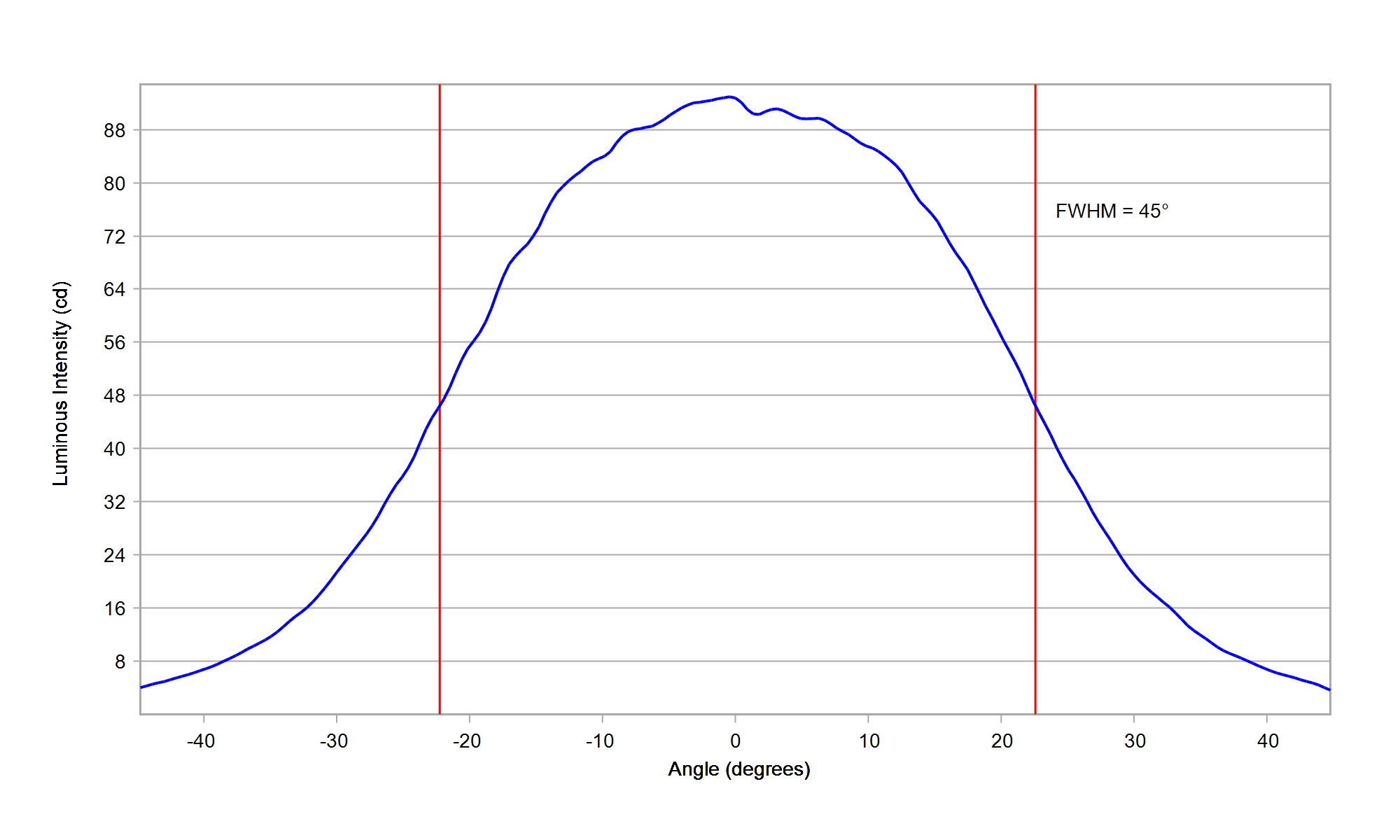

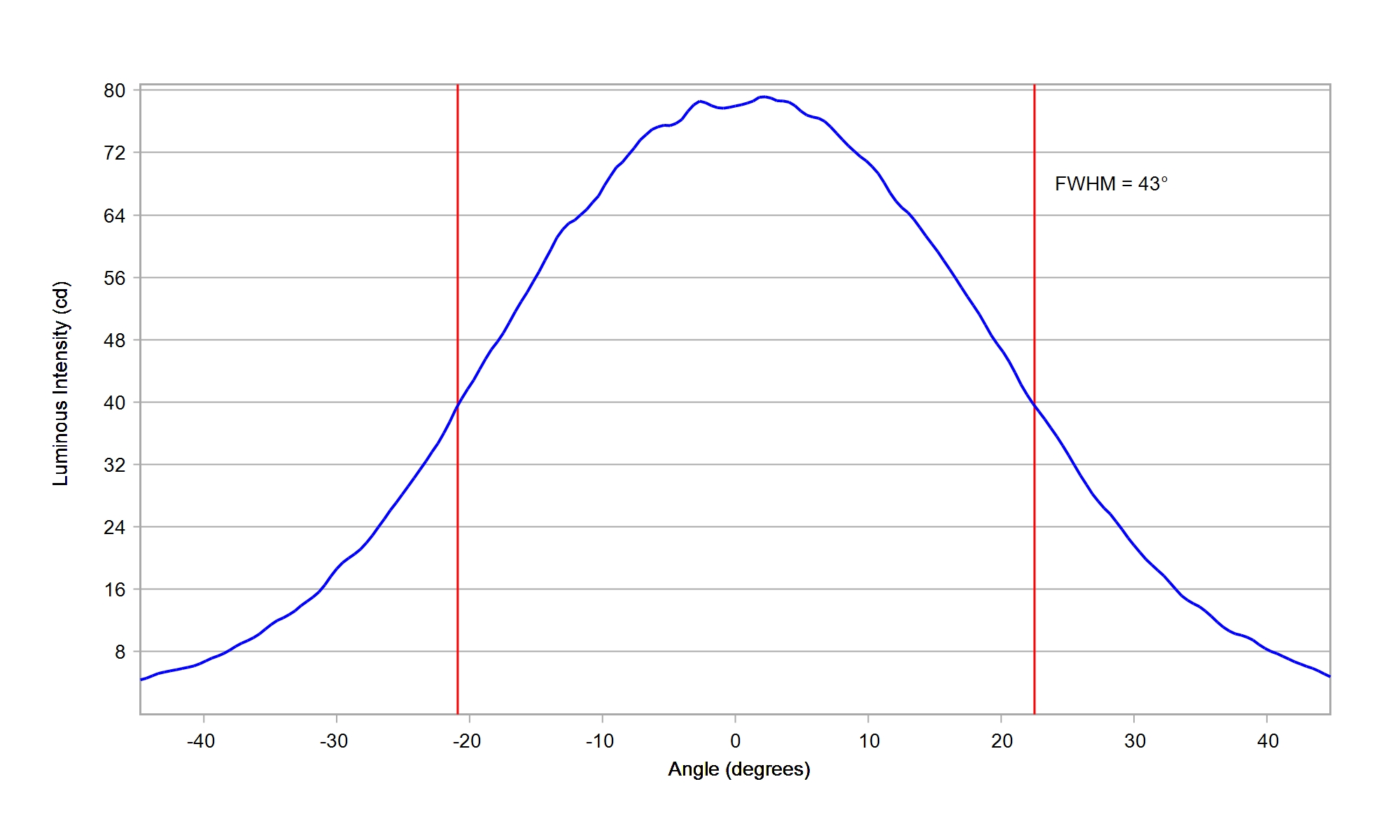

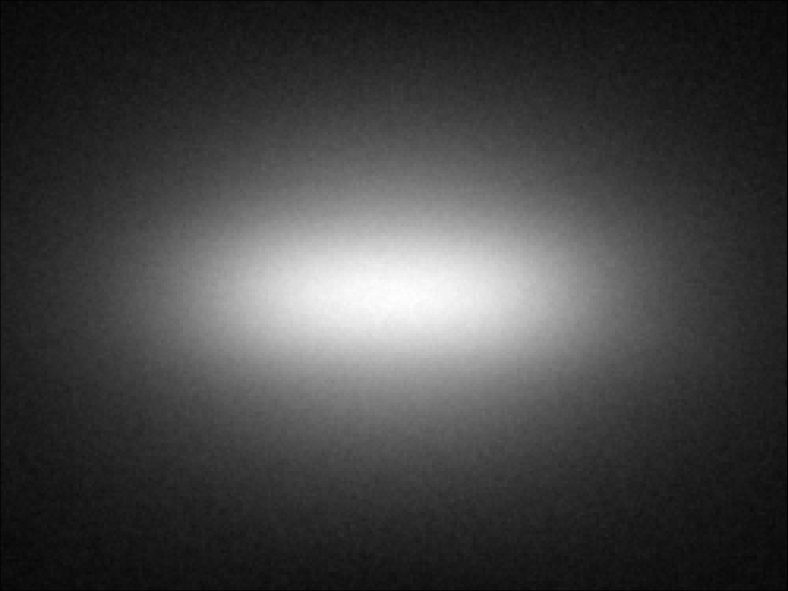

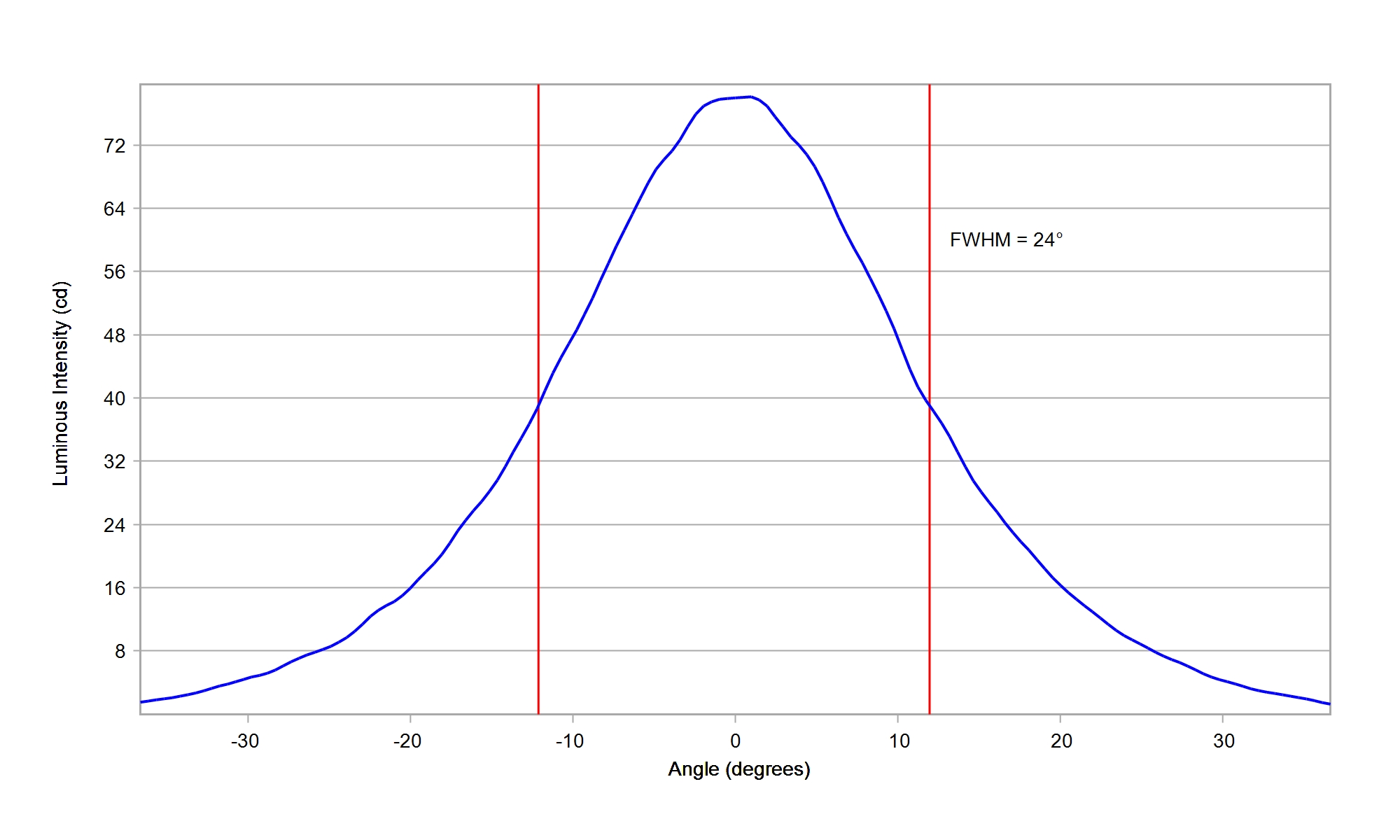

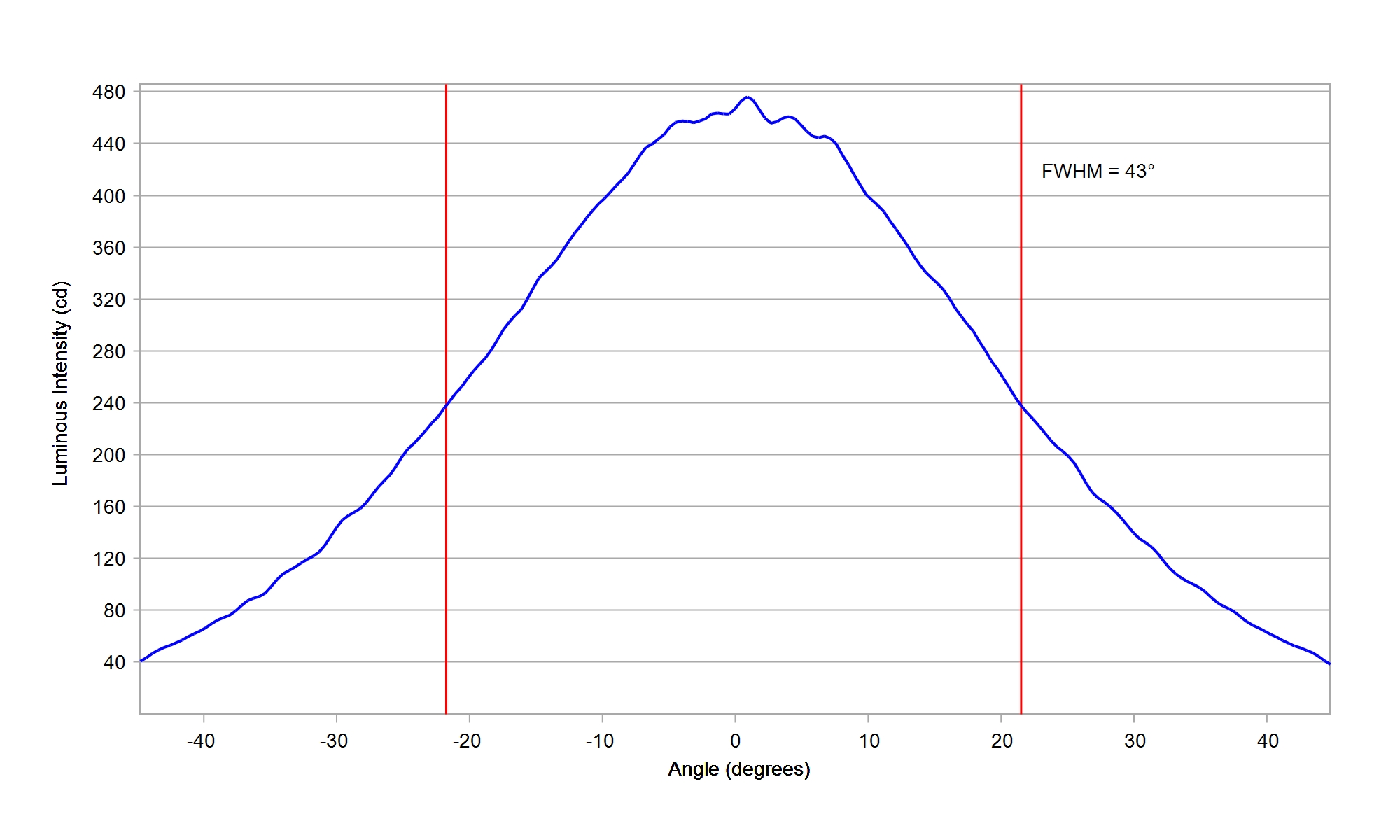

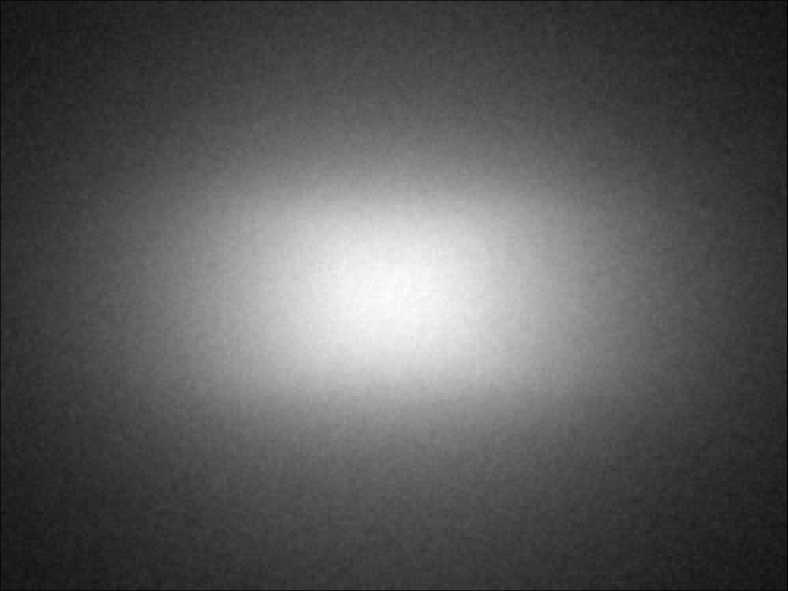

Nichia 757 White

Eff:

90.0%

FWHM:

44 x 23.5°

Cd/Im:

2.3


,


Download

IES

Nichia 757G White

Eff:

90.0%

FWHM:

43 x 23.5°

Cd/Im:

2.5

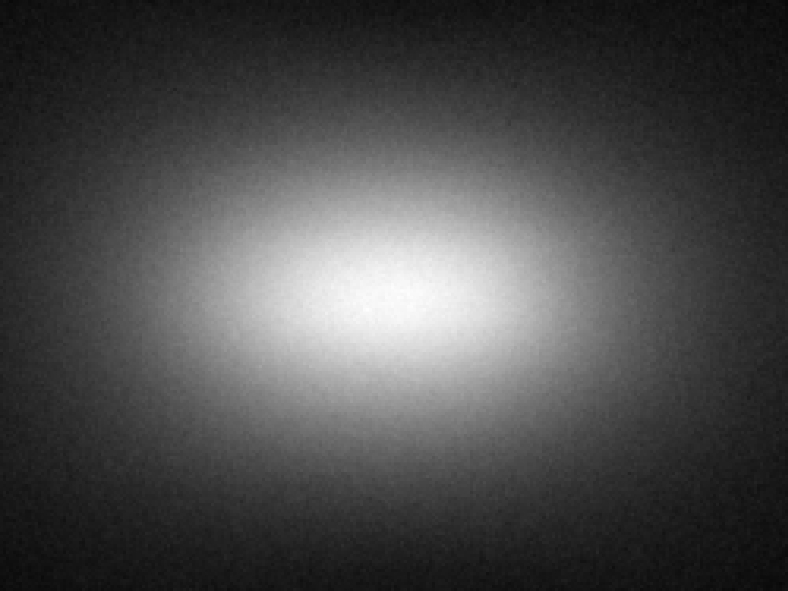

Carclo Optics 12086 10mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 12086 10mm Cross Horizontal Section Nichia 757G-MT

,

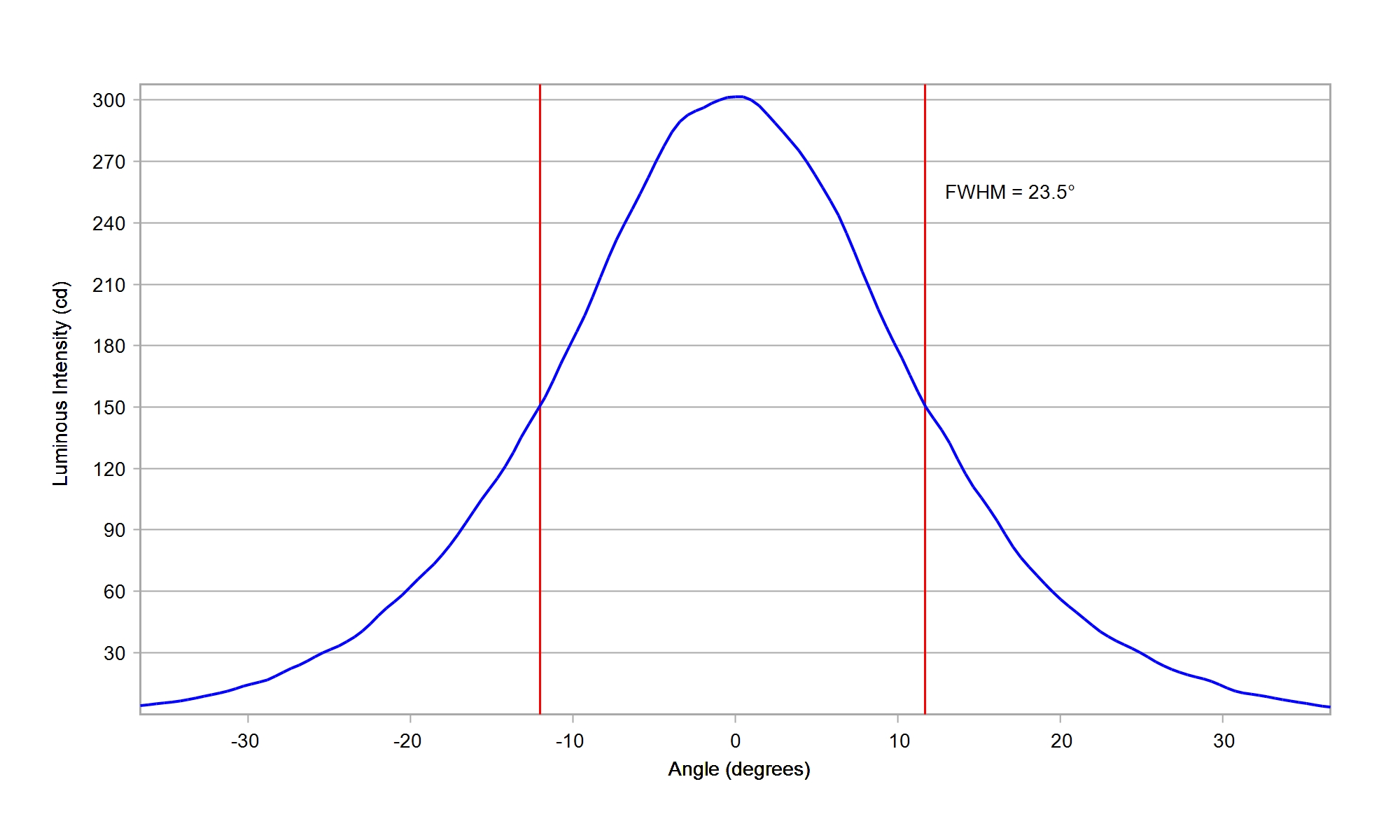

Carclo Optics 12086 10mm Cross Vertical Section Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

91.0%

FWHM:

43 x 22°

Cd/Im:

2.8


,


Download

IES

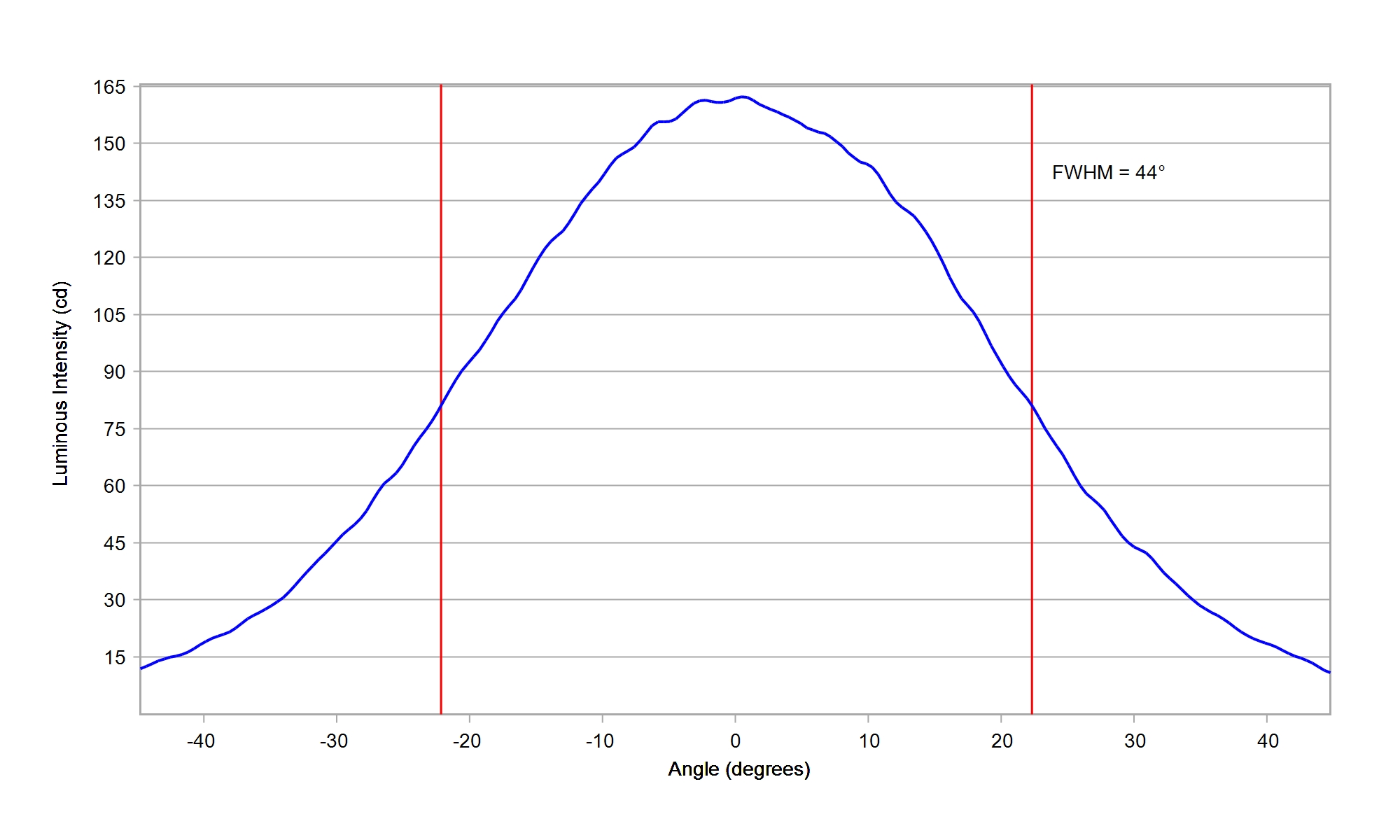

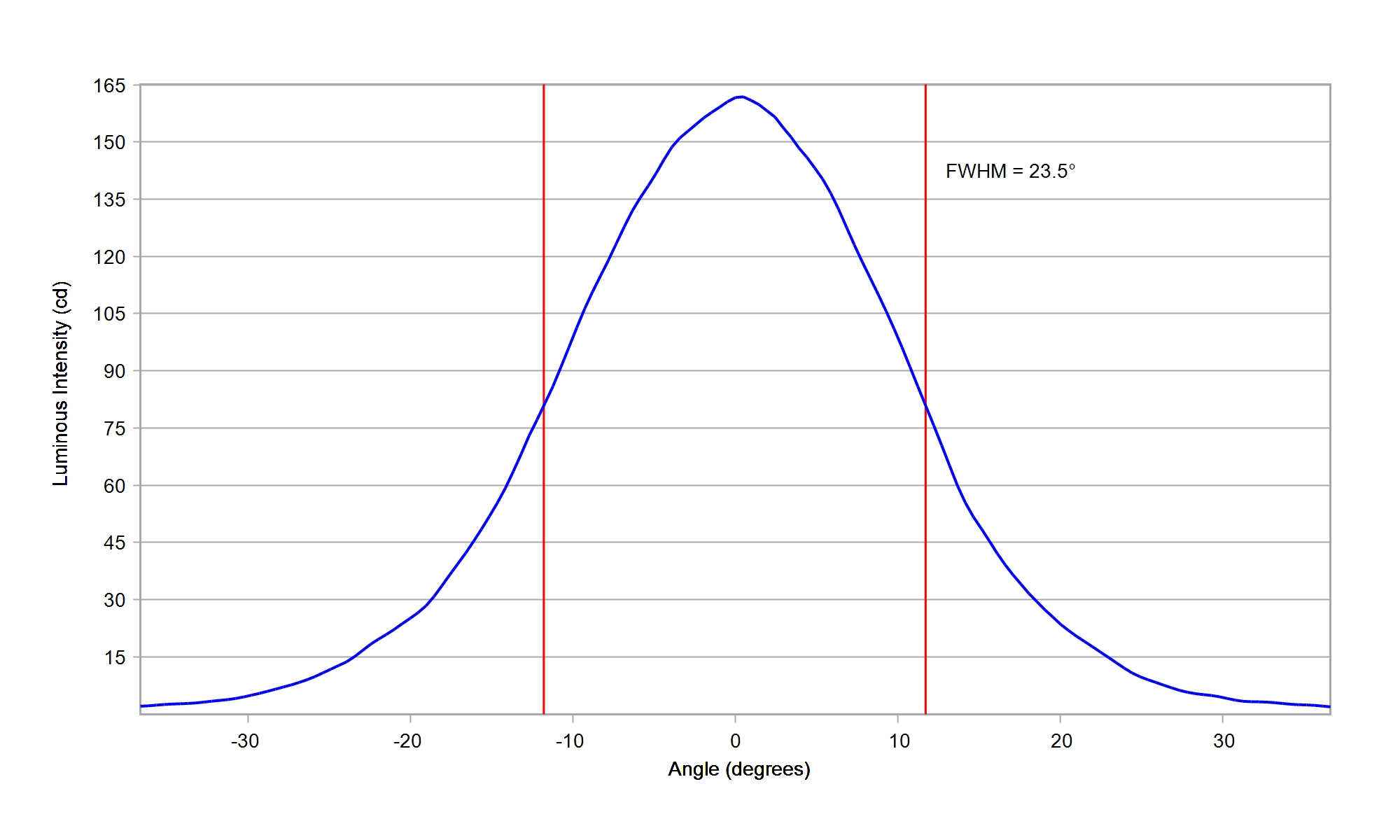

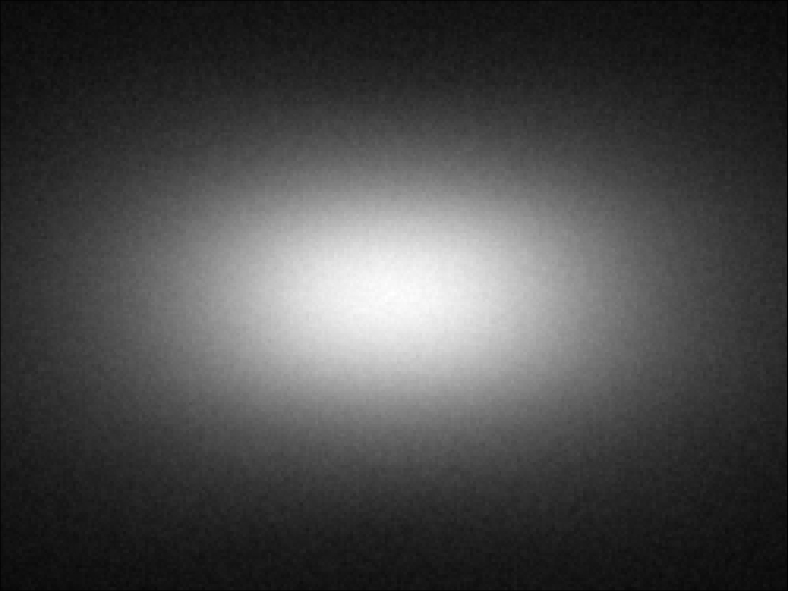

Nichia NF2W 385AR-V2 White

Eff:

89.5%

FWHM:

43 x 24°

Cd/Im:

2.5


,


Download

IES

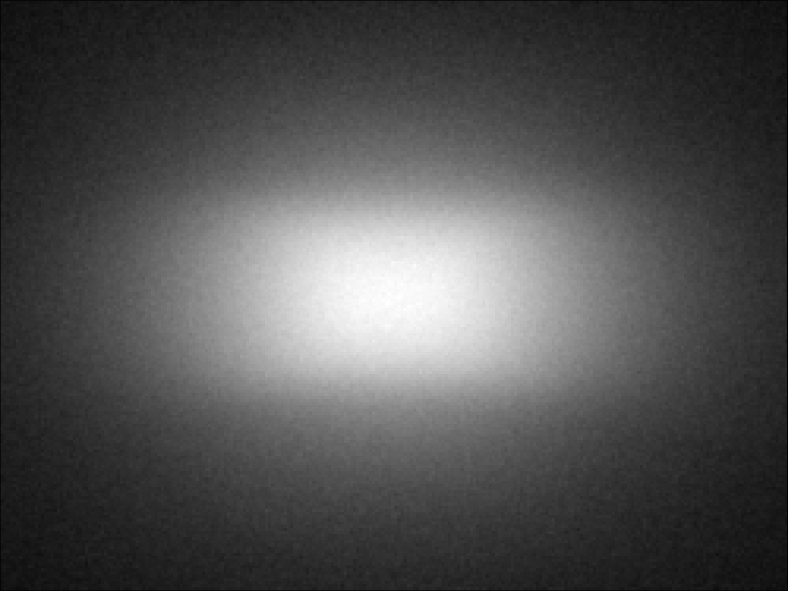

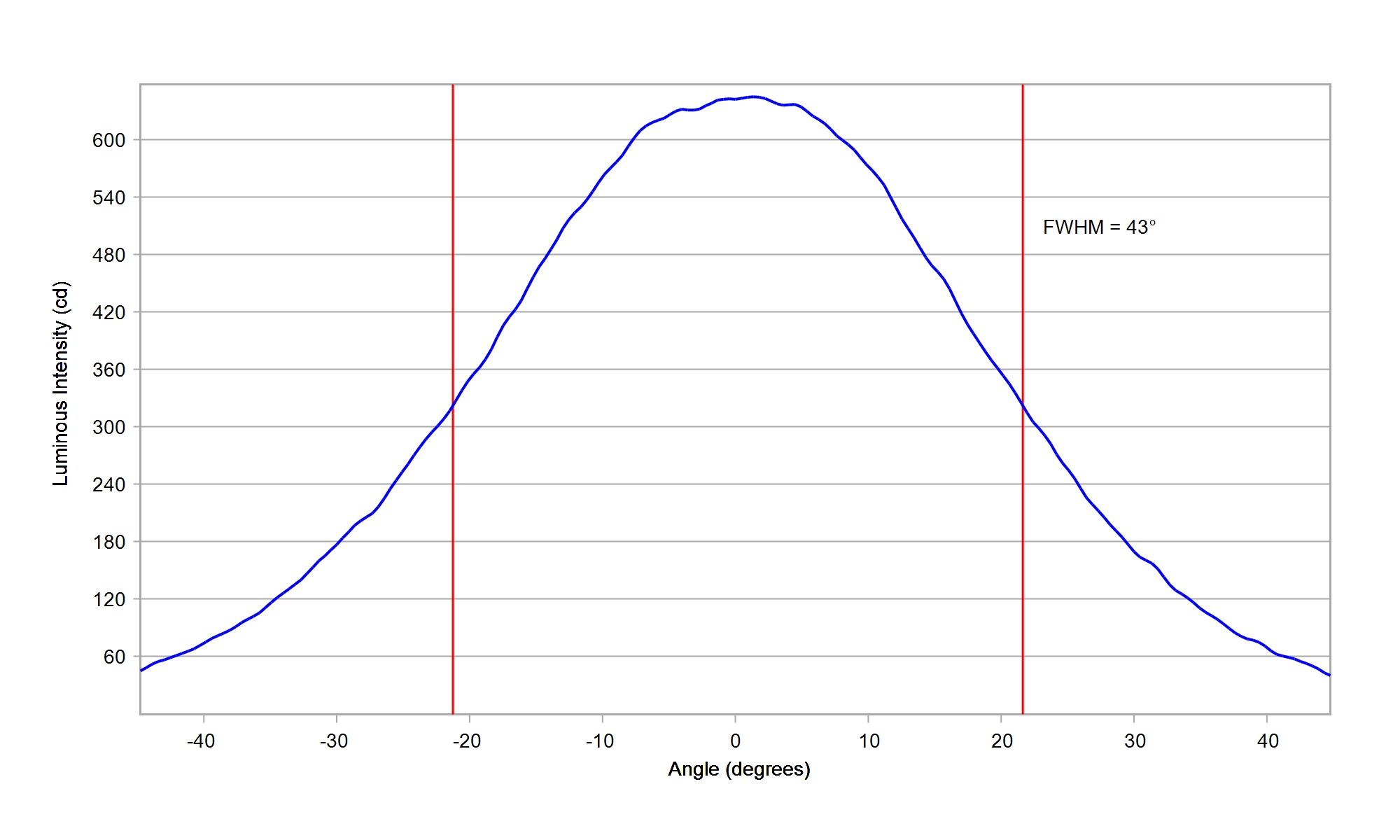

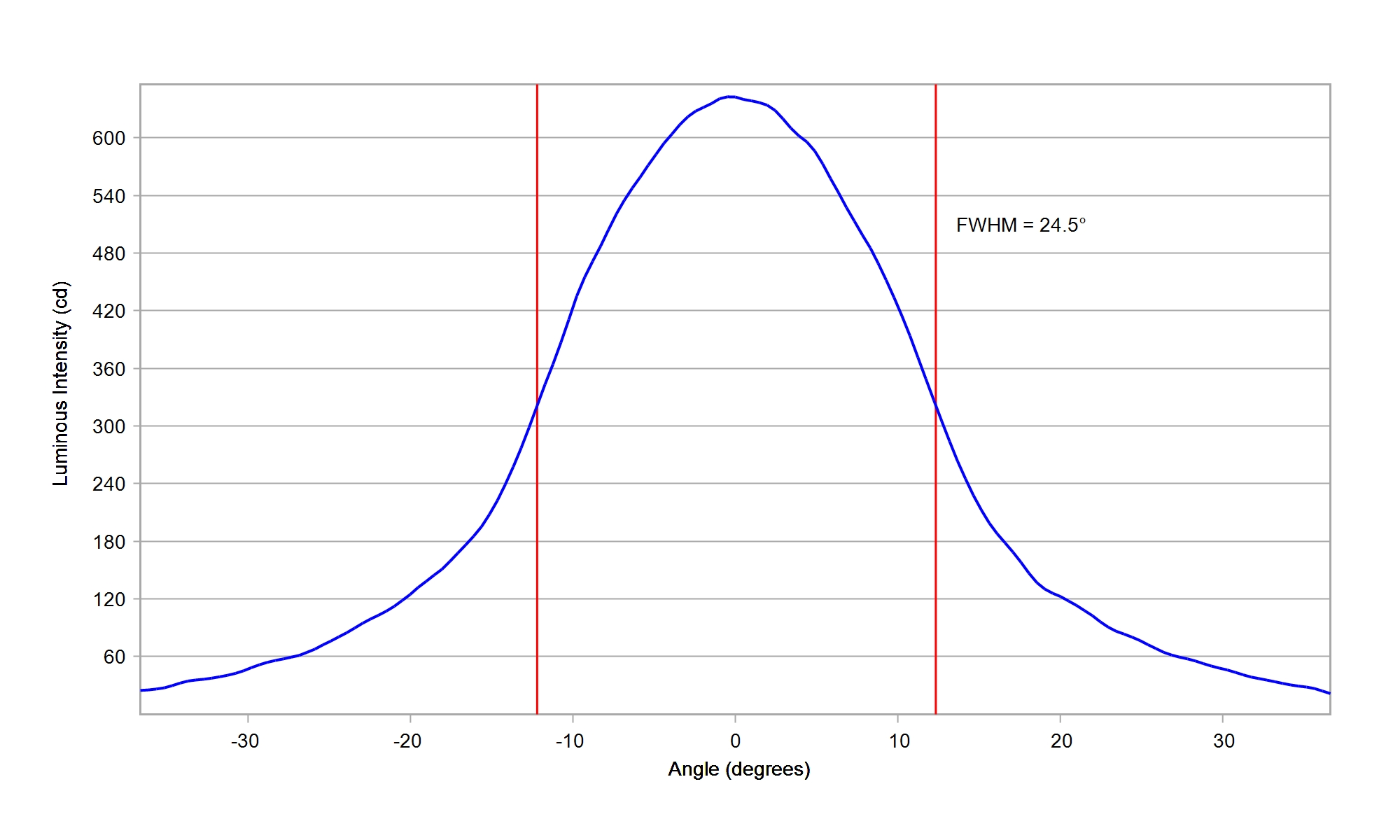

Nichia NVSL 219B White

Eff:

90.0%

FWHM:

44 x 18.5°

Cd/Im:

3.5


,


Download

IES

Nichia NVSW 219C White

Eff:

89.0%

FWHM:

41.0 x 24.5°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

84.5%

FWHM:

42 x 25°

Cd/Im:

2.2

Carclo Optics – 12086 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12086 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 12086 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

88.0%

FWHM:

41.5 x 27°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

90.5%

FWHM:

44 x 24°

Cd/Im:

2.5


,


Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.4%

FWHM:

44.7 x 21.7°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

90.5%

FWHM:

44 x 19°

Cd/Im:

2.7

Carclo Optics - 12086 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12086 10mm Horizontal Cross Section Osram DURIS E 2835 Gen2

,

Carclo Optics - 12086 10mm Vertical Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

90.0%

FWHM:

43 x 19.5°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

92.0%

FWHM:

45 x 14°

Cd/Im:

3.8


,


Download

IES

Osram OS DURIS E3 White

Eff:

91.5%

FWHM:

47 x 14°

Cd/Im:

4.0


,


Download

IES

Osram OS DURIS S2 White

Eff:

91.0%

FWHM:

45 x 16.5°

Cd/Im:

3.0


,


Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

89.5%

FWHM:

43.0 x 18.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

91.0%

FWHM:

43.0 X 19.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

91.5%

FWHM:

42.5 x 18.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

90.5%

FWHM:

44 x 21°

Cd/Im:

2.6


,


Download

IES

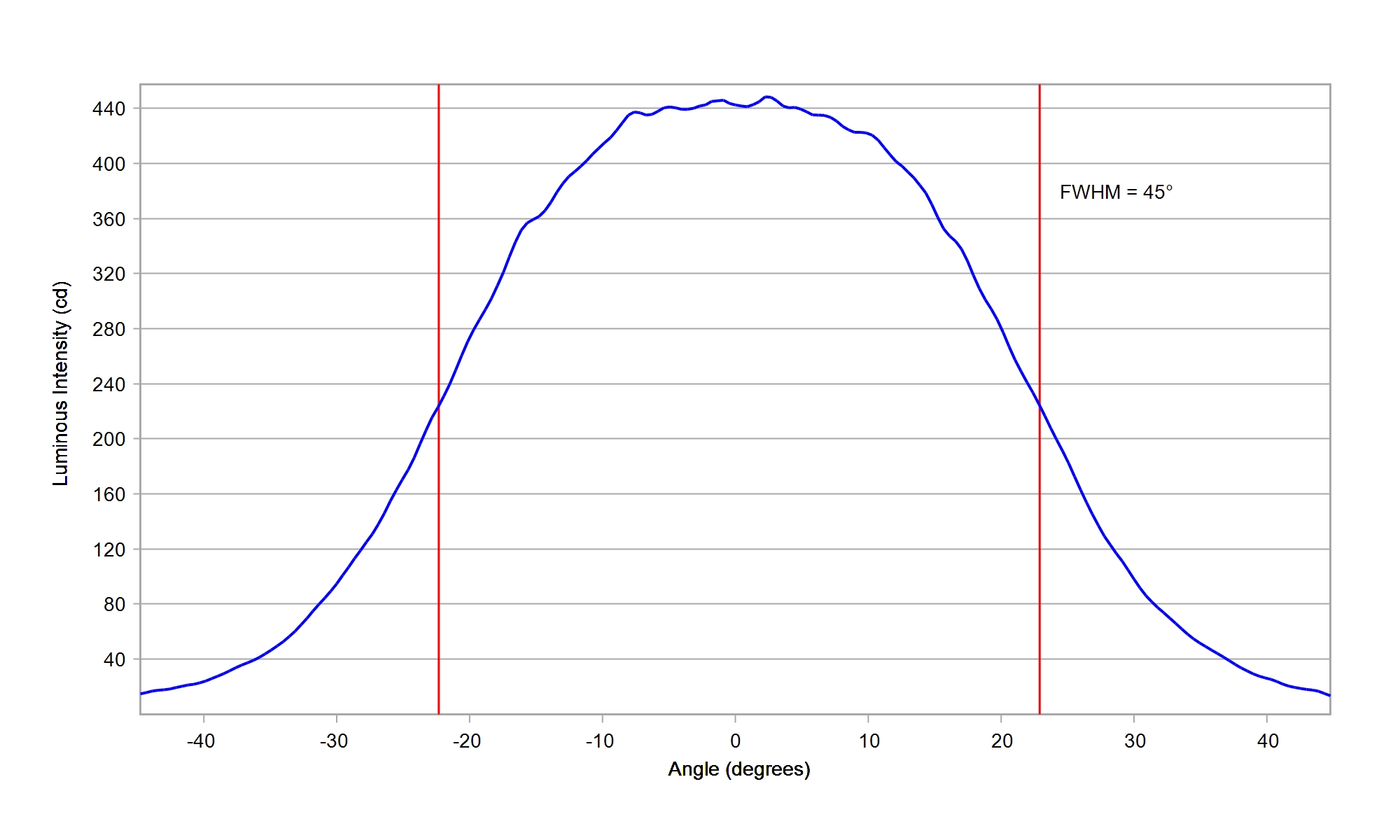

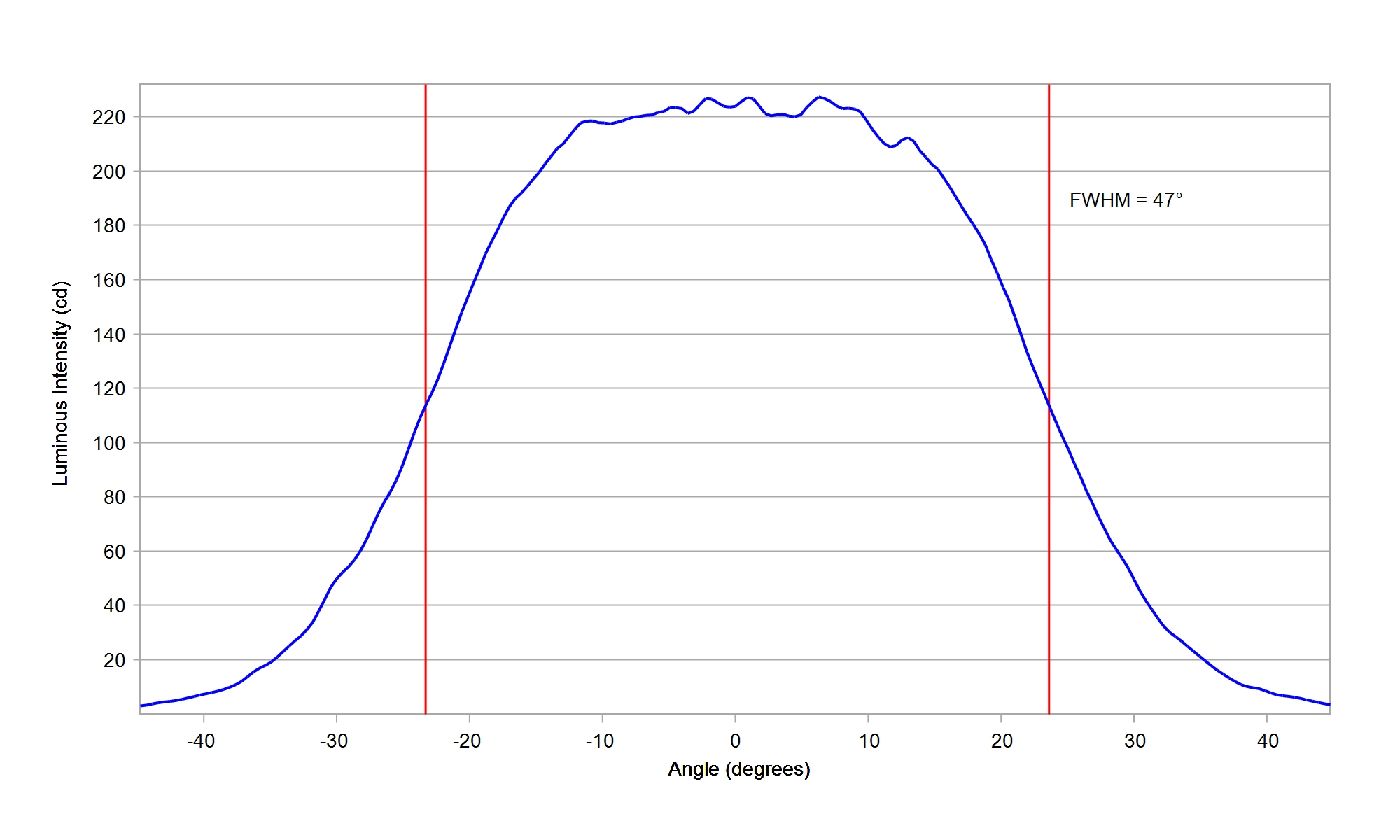

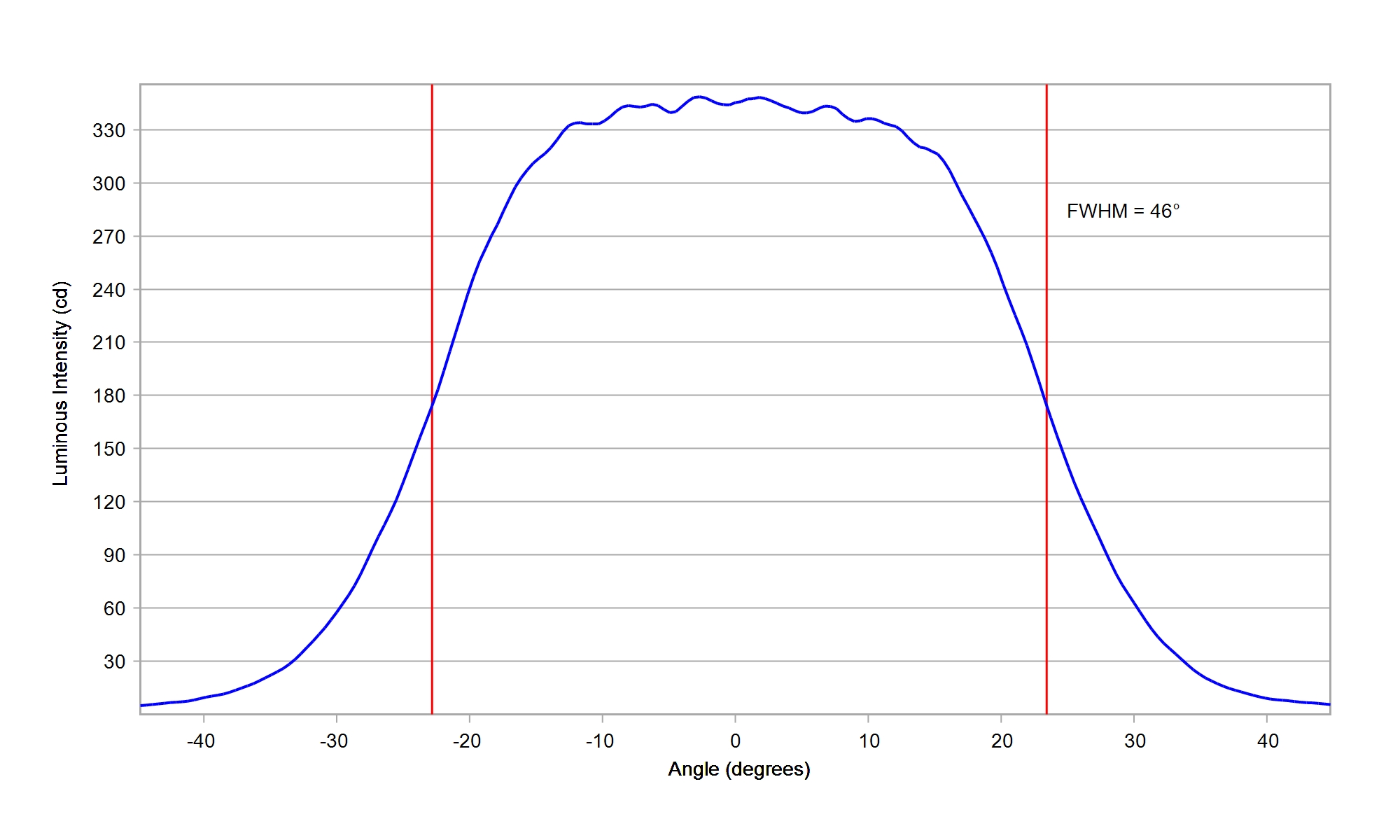

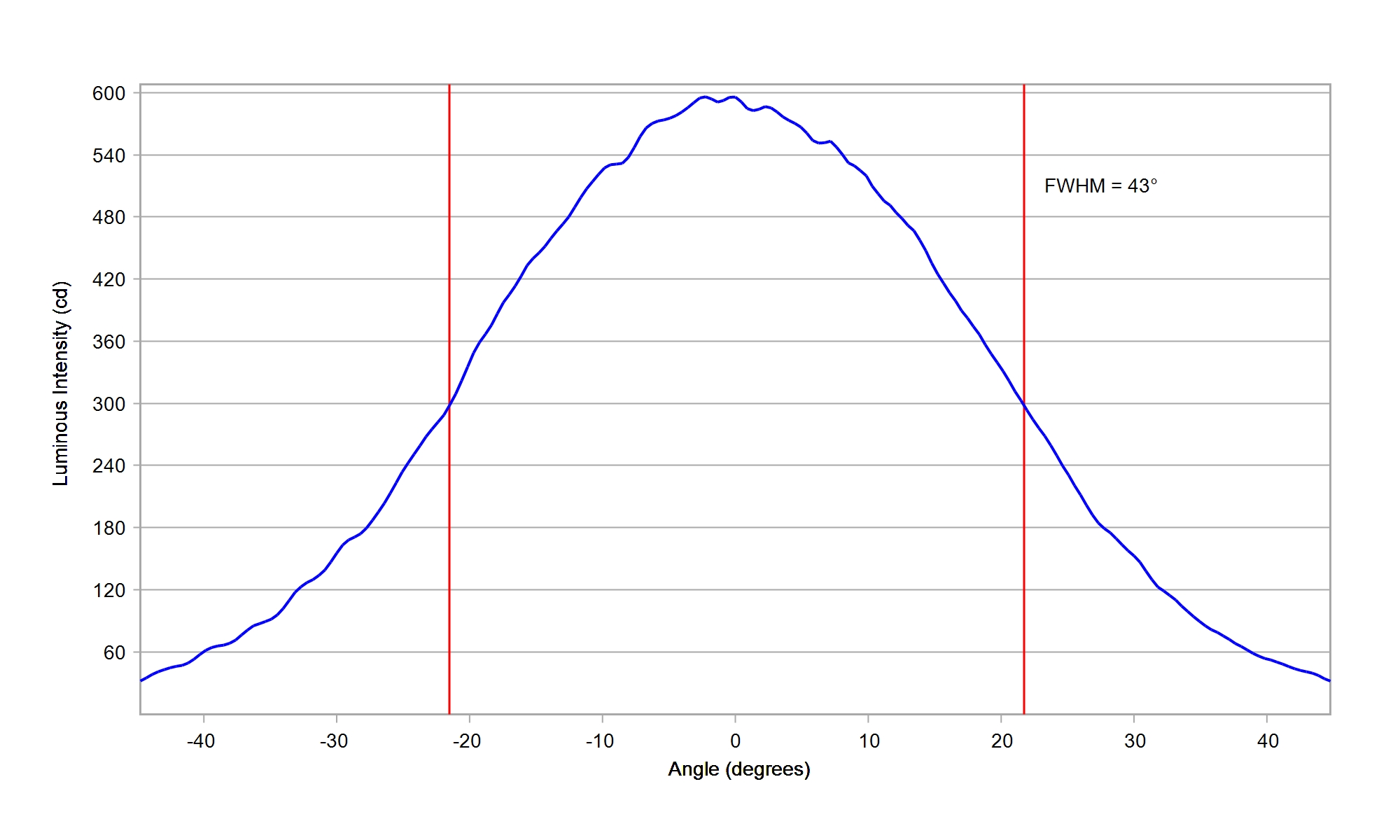

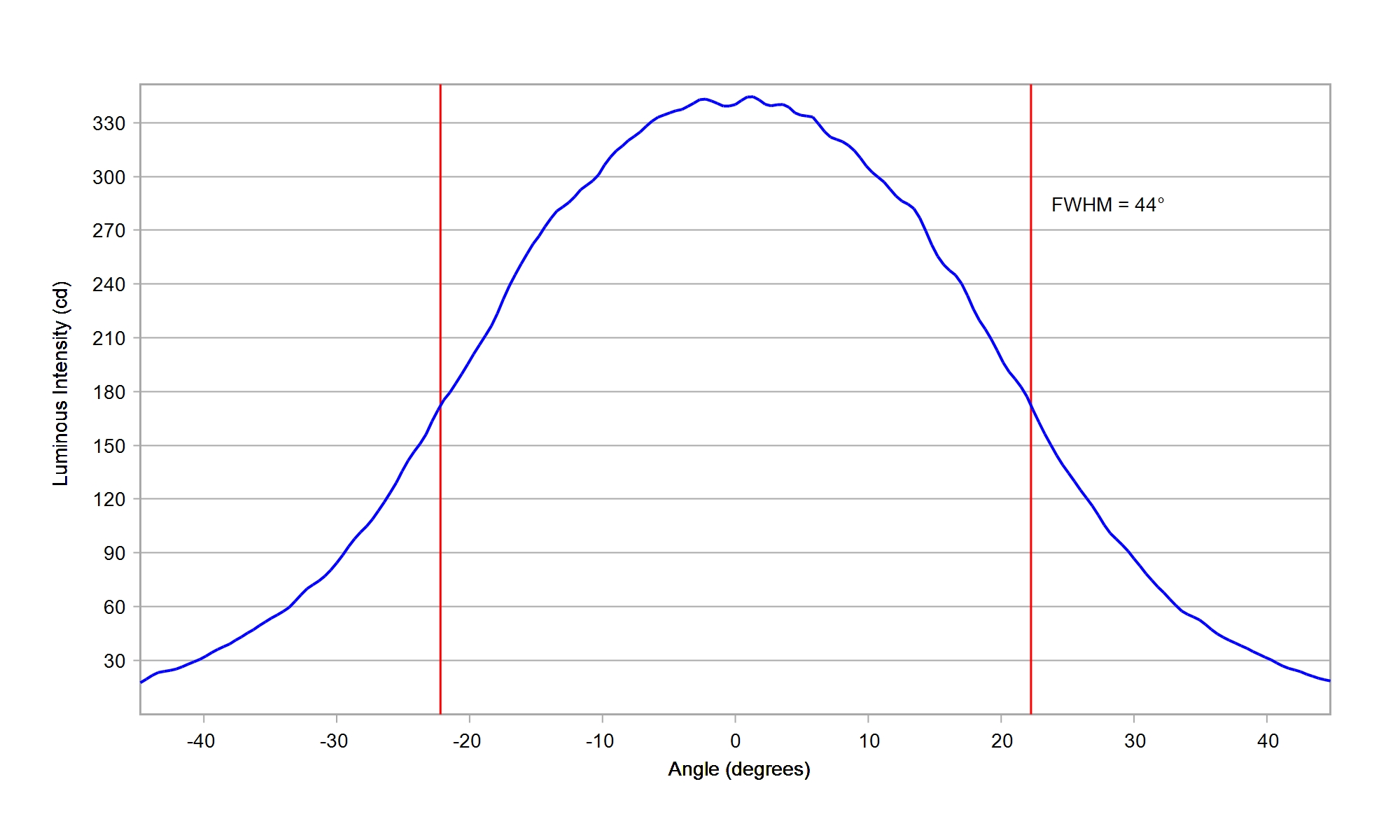

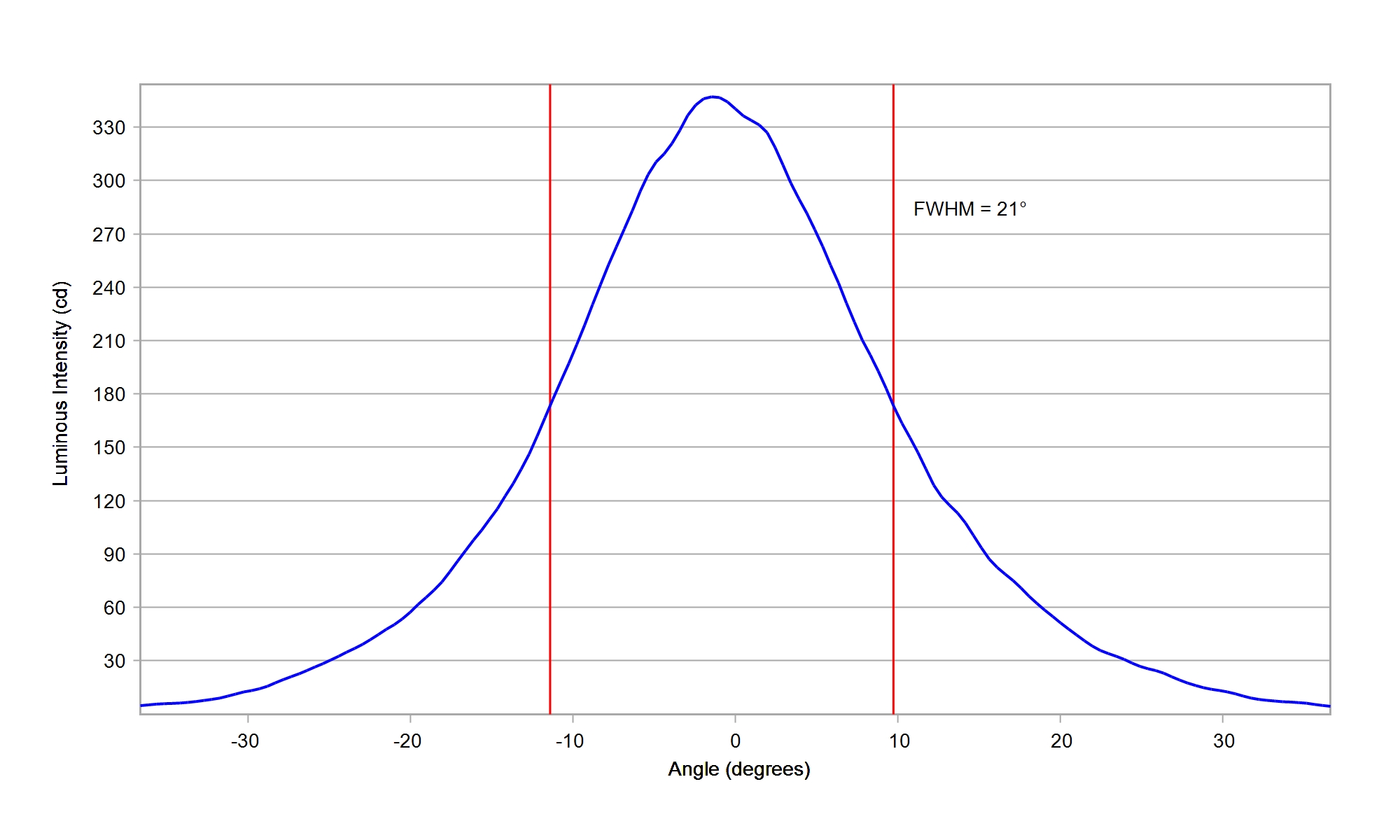

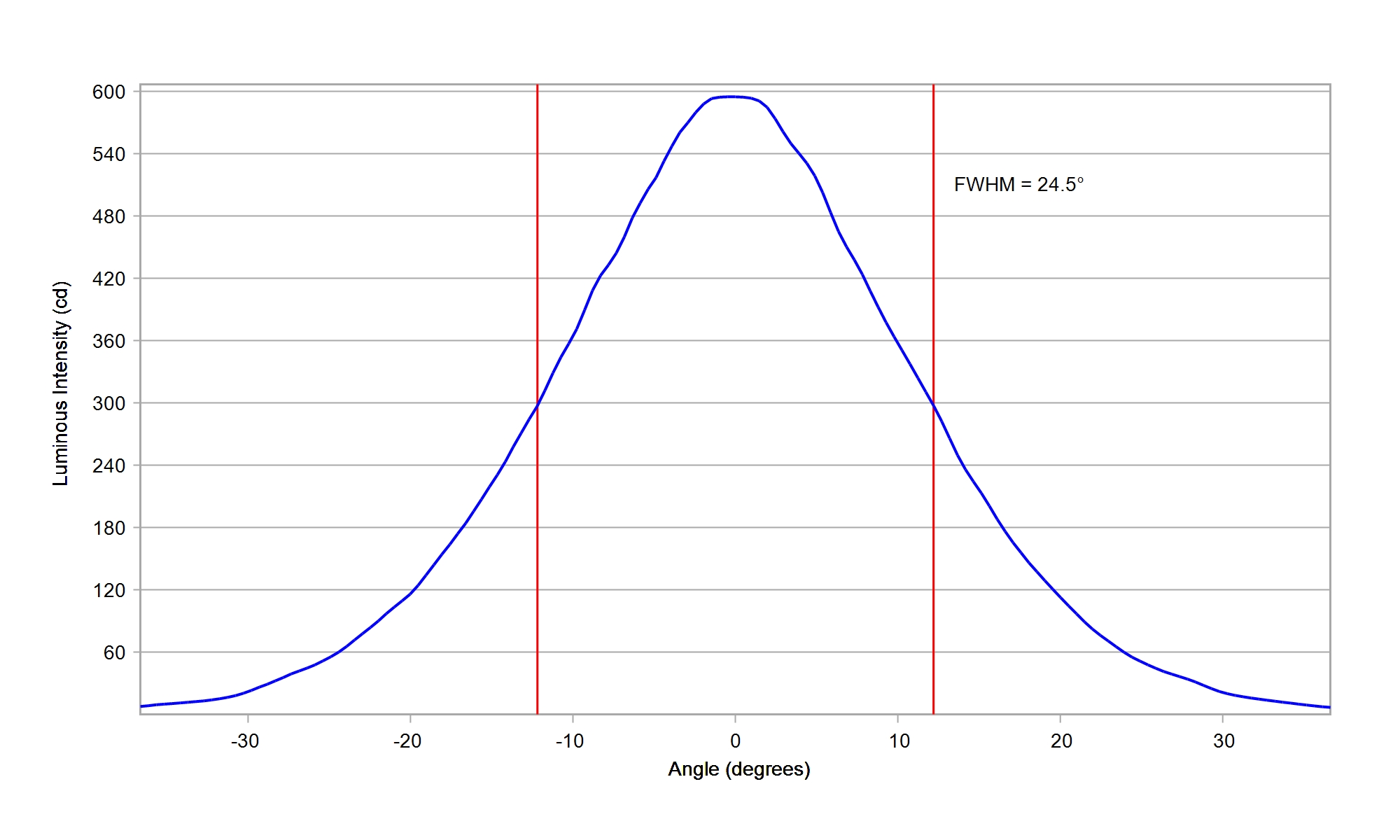

Osram OS OSCONIQ C 2424 White

Eff:

91.5%

FWHM:

43 x 20.5°

Cd/Im:

3.0

Carclo Optics - 12086 Spot Image OSCONIQ C2424

Carclo Optics - 12086 Horizontal Cross Section OSCONIQ C2424

,

Carclo Optics - 12086 Vertical Cross Section OSCONIQ C2424

Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

93.5%

FWHM:

43 x 16°

Ipk/W:

3.9

Carclo Optics – 12086 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12086 Horizontal Cross Section OSRAM OS Oslon Black IR SFH 4716AS

,

Carclo Optics – 12086 Vertical Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

92.5%

FWHM:

48 x 9.8°

Cd/Im:

6.0

Carclo Optics – 12086 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12086 Horizontal – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

,

Carclo Optics – 12086 Vertical – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

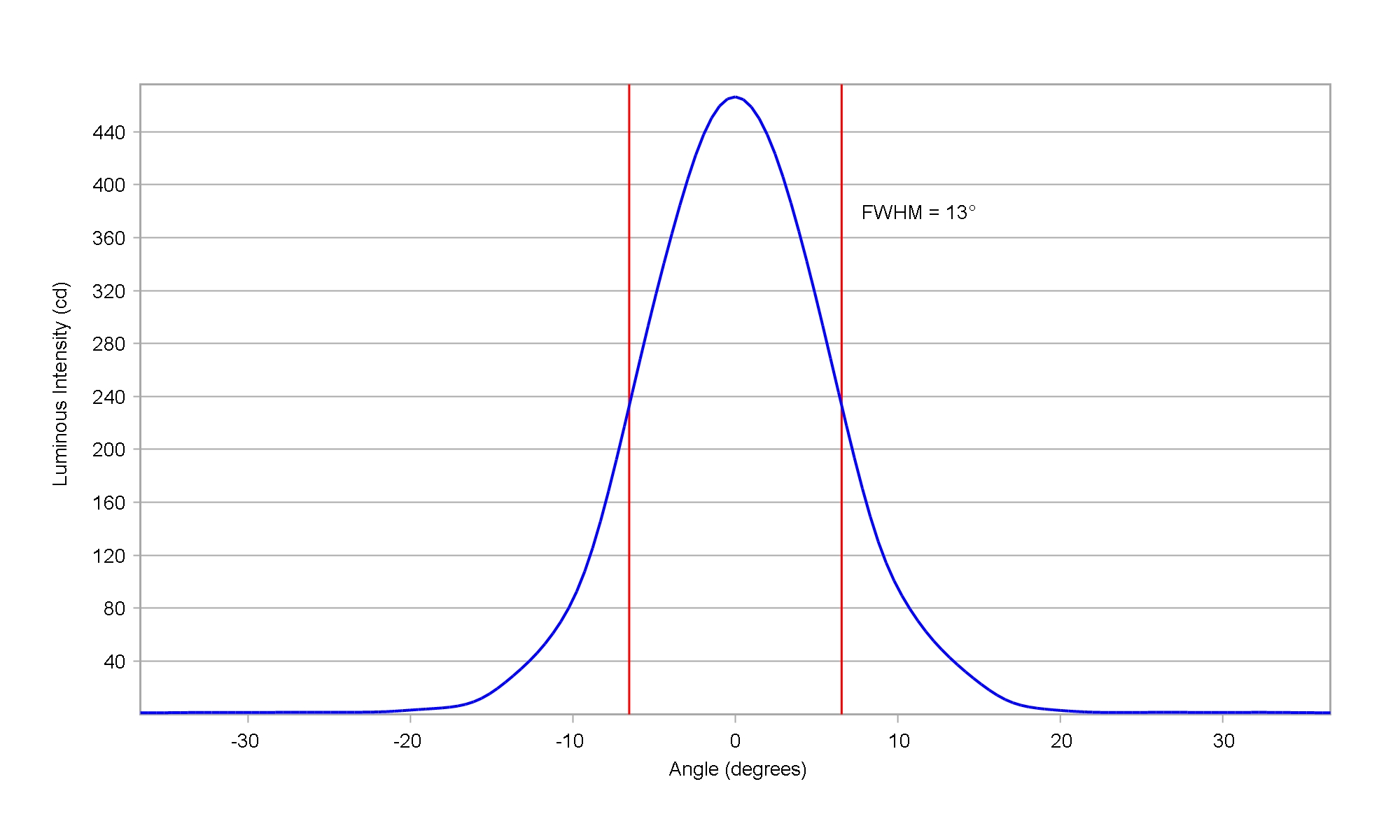

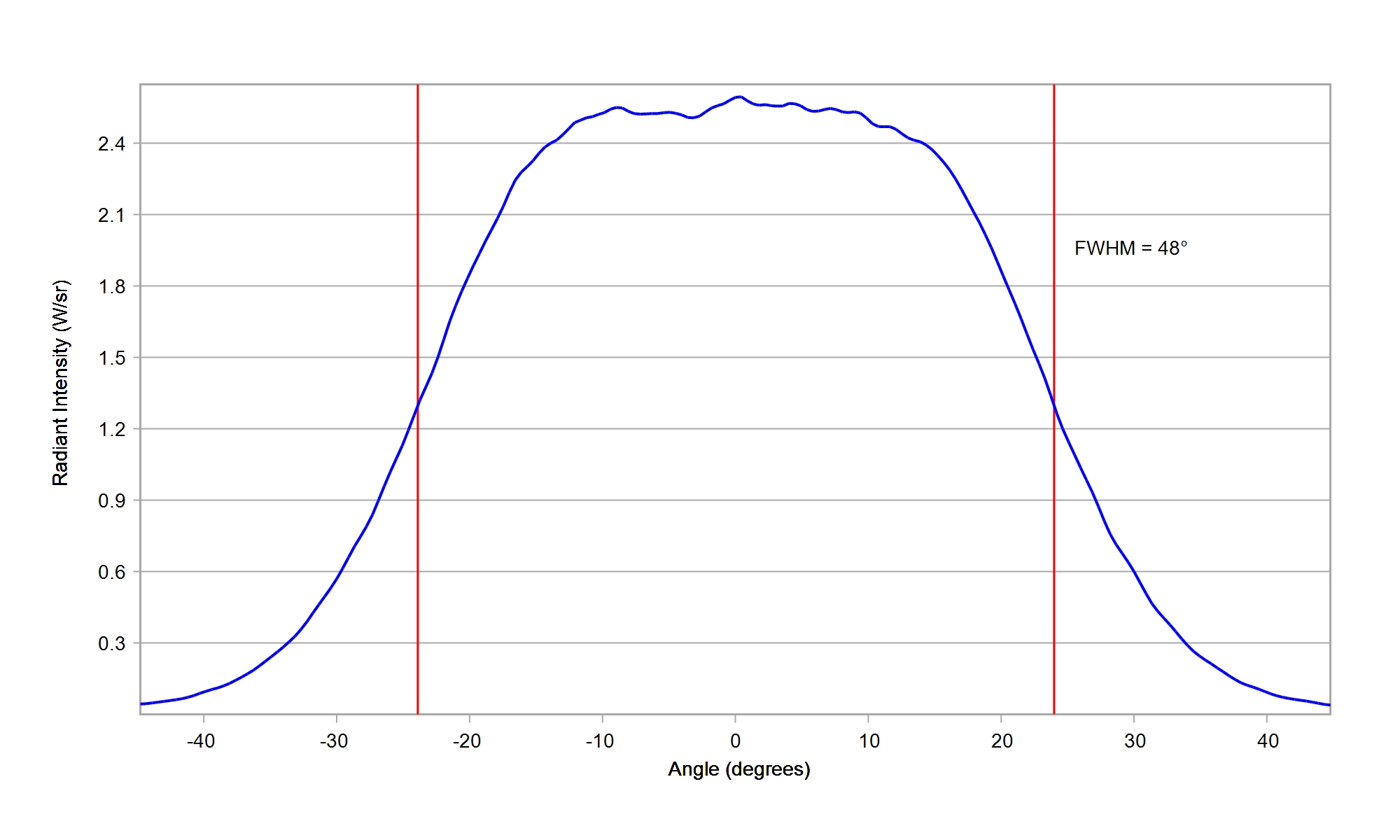

Osram OS OSLON Square Flat White

Eff:

91.0%

FWHM:

44.0 x 16.5°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

83.3%

FWHM:

49.5 x 26.7°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulation Vertical Cross Section

Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

90.5%

FWHM:

42 x 22.5°

Cd/Im:

2.7

Carclo Optics - 12086 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 12086 10mm Horizontal Cross Section Oslon Square Gen 5

,

Carclo Optics - 12086 10mm Vertical Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

83.0%

FWHM:

52 x 25.1°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

92.0%

FWHM:

45 x 15.5°

Cd/Im:

3.9

Carclo Optics – 12086 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12086 Horizontal Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

,

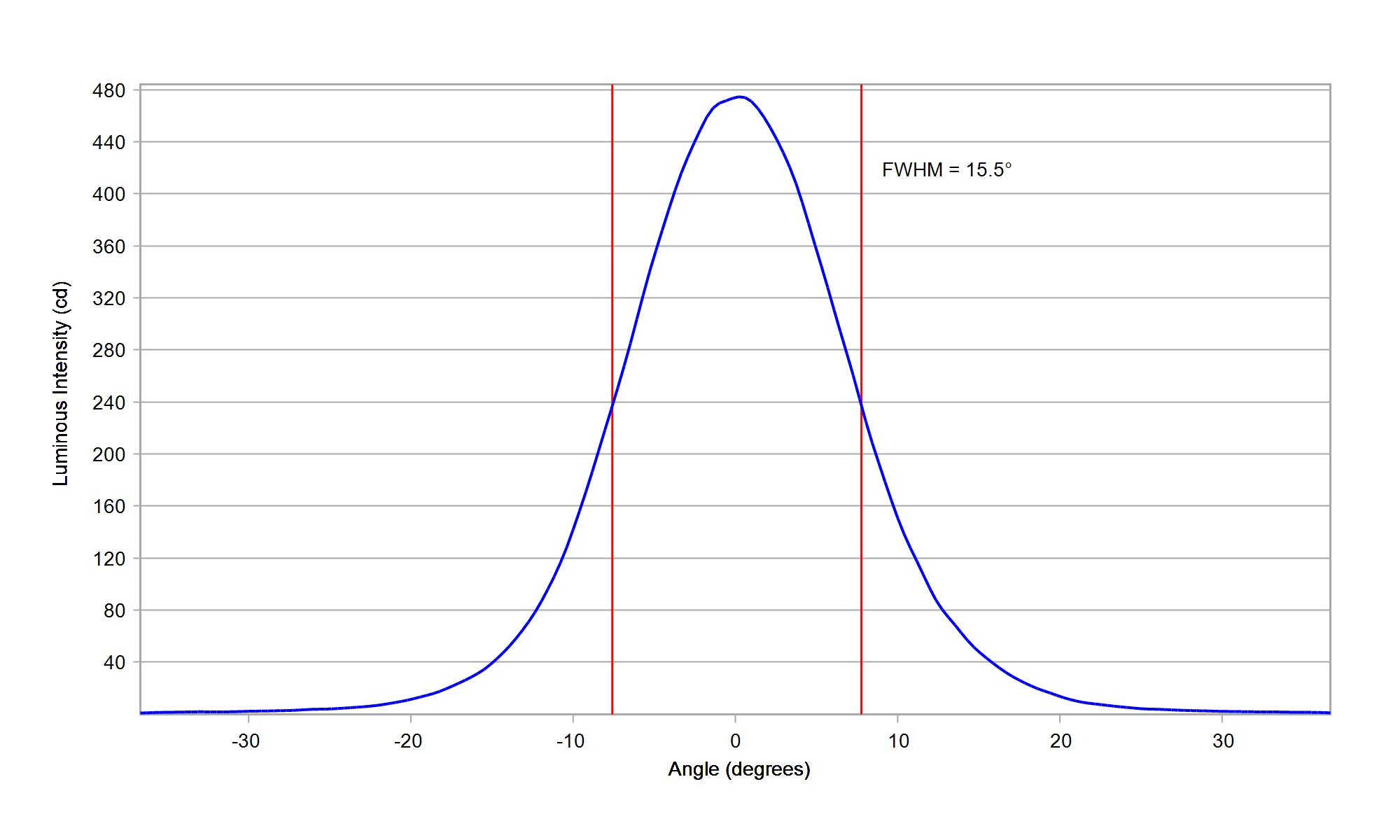

Carclo Optics – 12086 Vertical Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

87.1%

FWHM:

45.5 x 16.3°

Cd/Im:

4.1

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 White

Eff:

85.5%

FWHM:

44.8 x 19.7°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

91.0%

FWHM:

44 x 19.5°

Ipk/W:

3.0


,


Download

IES

Osram OS OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

91.0%

FWHM:

43 x 22°

Cd/Im:

2.8



,


Download

IES

Osram OS OSLON SSL 80 GW CS8PM1.PM White

Eff:

91.0%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

IES

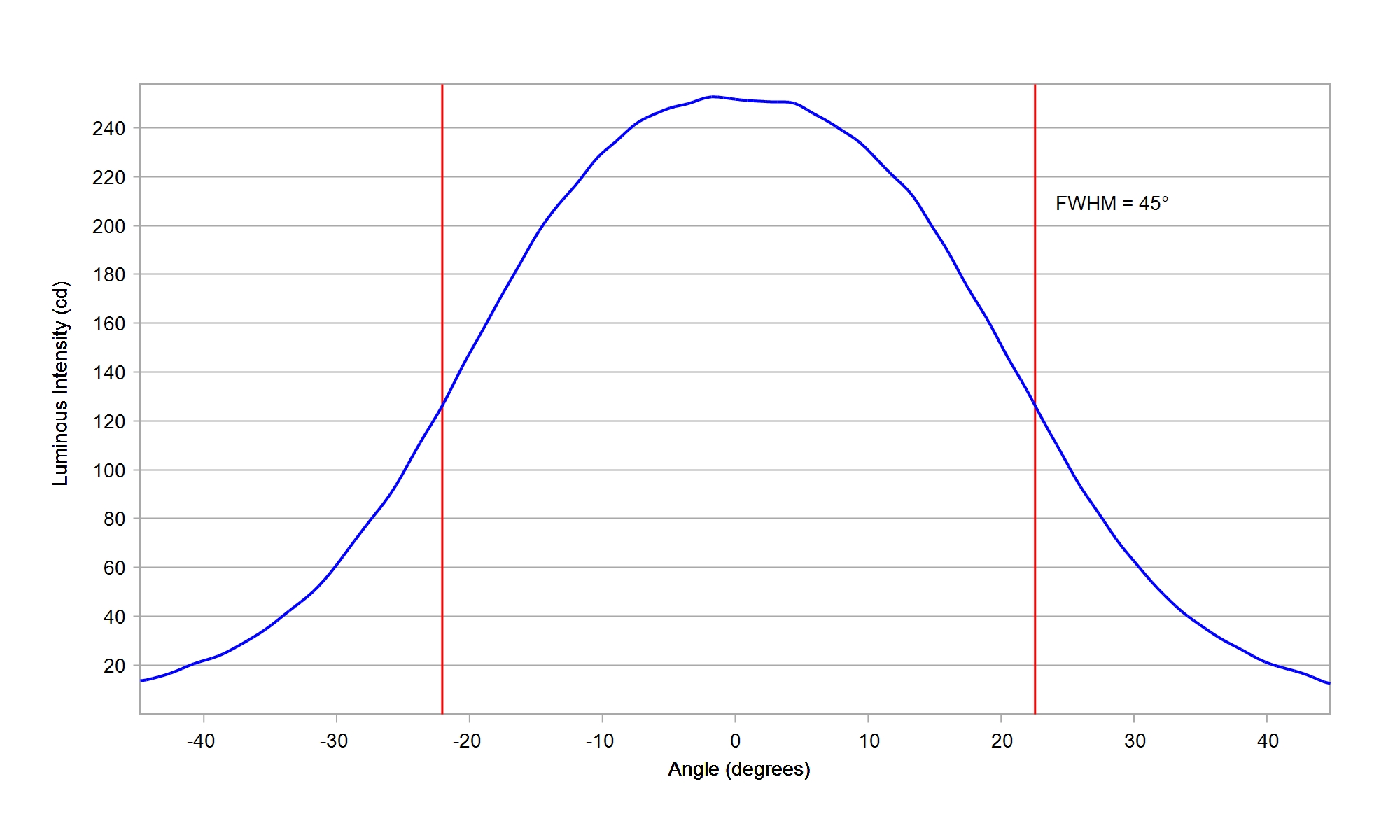

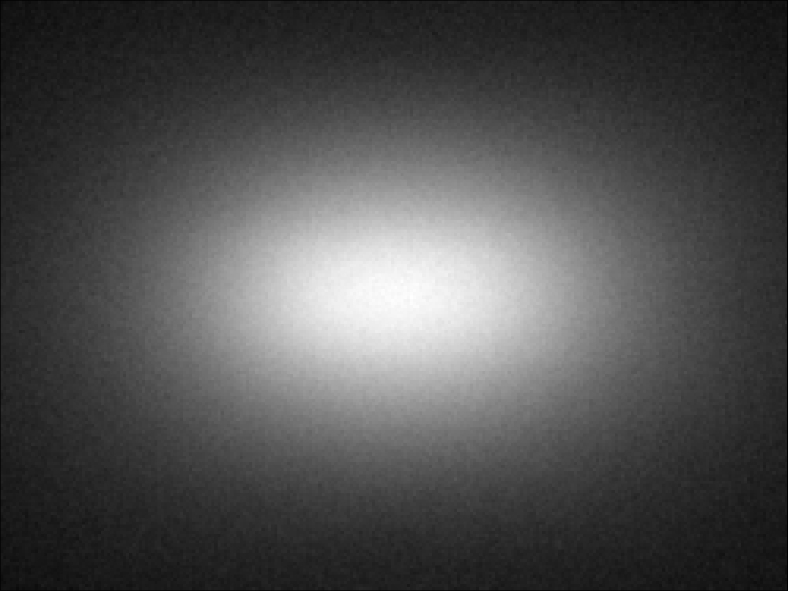

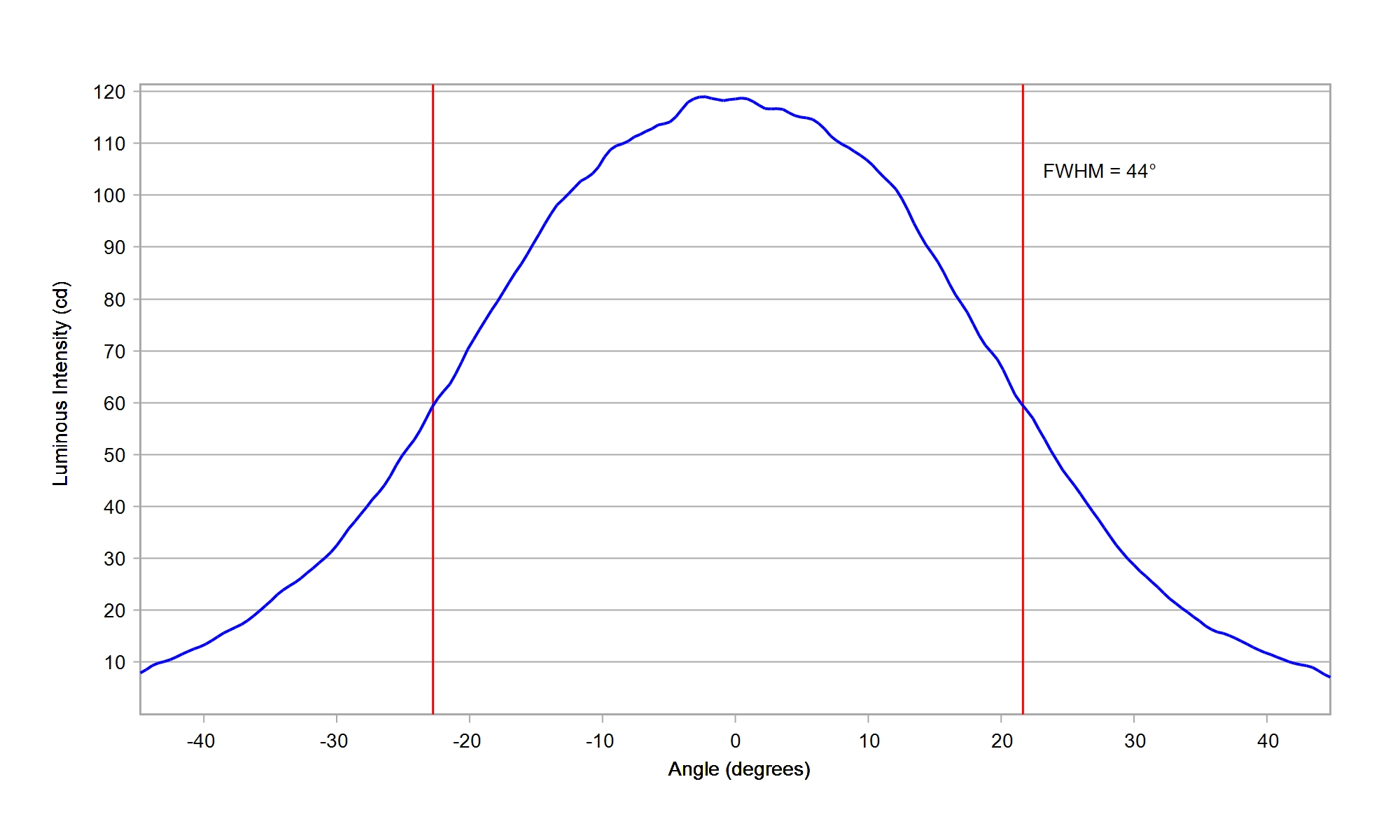

Samsung 3030 LM301B White

Eff:

90.5%

FWHM:

45 x 21°

Cd/Im:

2.8


,


Download

IES

Samsung 3535 LH351B White

Eff:

89.5%

FWHM:

42 x 24.5°

Cd/Im:

2.5


,


Download

IES

Samsung 3535 LH351Z White

Eff:

84.0%

FWHM:

53.7 x 24.3°

Cd/Im:

1.6

carclo simulated spot image

carclo simulated horizontal cross section

,

carclo simulated vertical cross section

Download

ies

Samsung CSP LH151B White

Eff:

87.0%

FWHM:

42 x 21°

Cd/Im:

2.7

Carclo Optics – 12086 – Samsung_LH151B_spot-image

Carclo Optics – 12086 Horizontal – Samsung_LH151B_cross section

,

Carclo Optics – 12086 Vertical – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH231B White

Eff:

90.0%

FWHM:

43.5 x 27°

Cd/Im:

2.0

Carclo Optics -12086 Spot Image - Samsung LH231B 5000K

Carclo Optics -12086 Cross Section Horizontal - Samsung LH231B 5000K

,

Carclo Optics -12086 Cross Section Vertical - Samsung LH231B 5000K

Download

IES

Seoul MidPower MJT3030 White

Eff:

83.5%

FWHM:

51 x 25°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

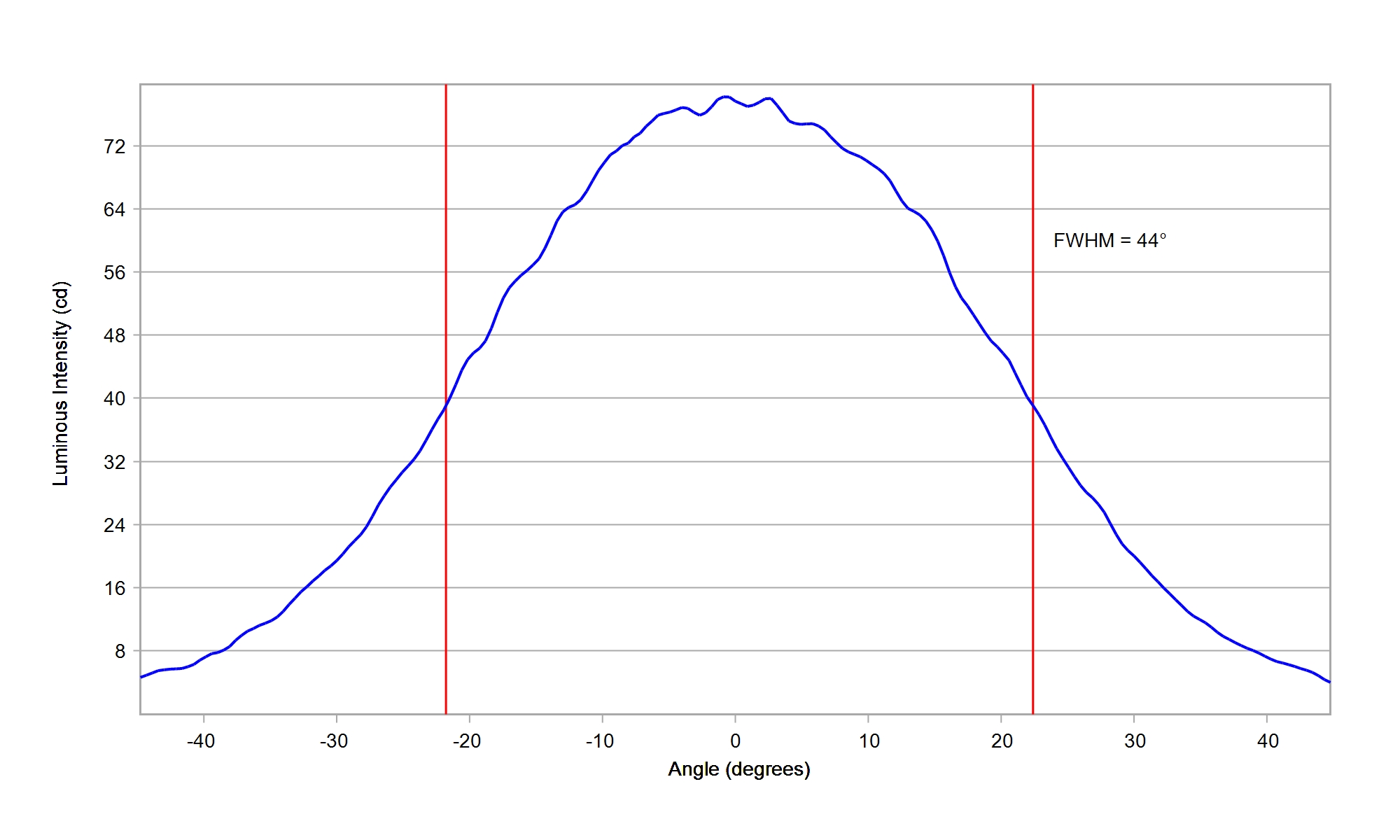

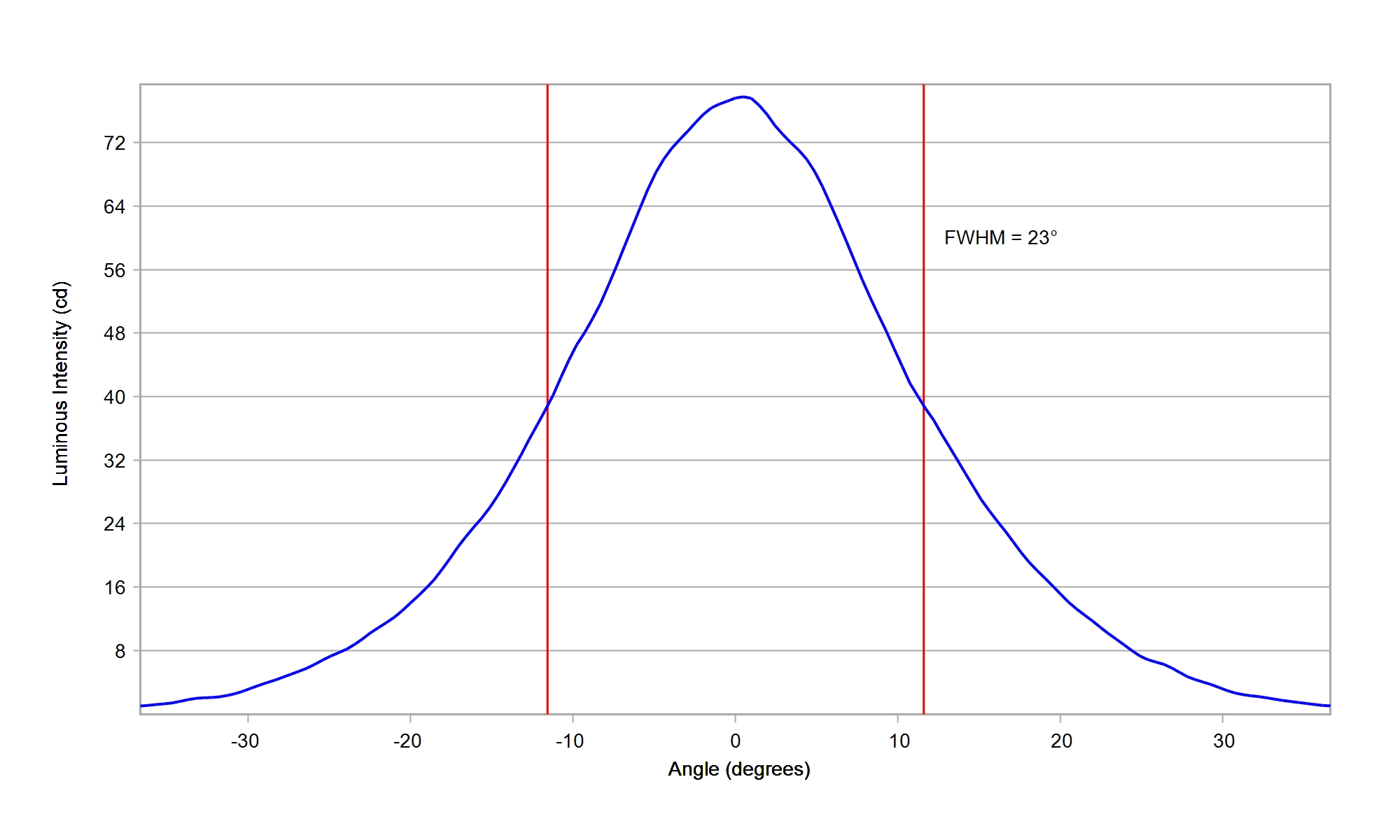

Seoul STW8 C2SB-NT White

Eff:

90.5%

FWHM:

43 x 22.5°

Cd/Im:

2.7

Carclo Optics - 12086 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 12086 Horizontal Cross Section Seoul STW8 C2SB-NT

,

Carclo Optics - 12086 Vertical Cross Section Seoul STW8 C2SB-NT

Download

IES

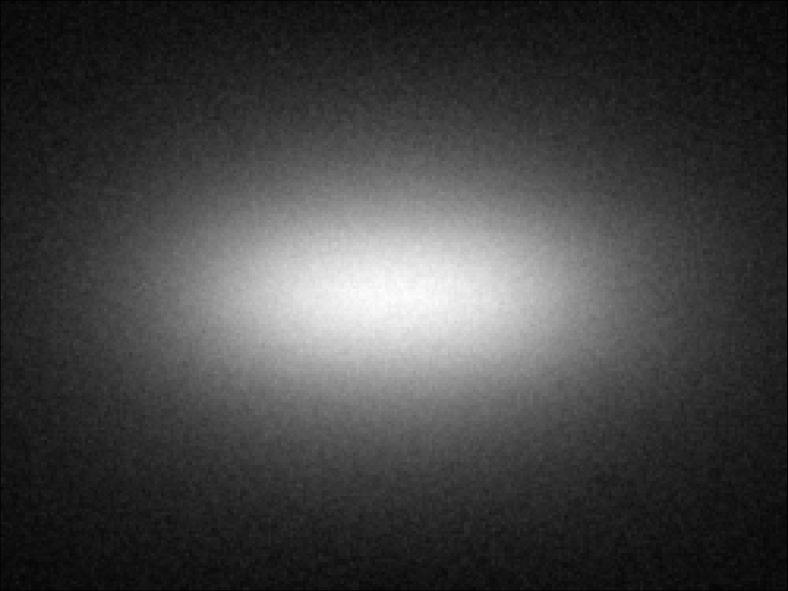

Seoul STWS C2PB-E0 White

Eff:

90.5%

FWHM:

43 x 23°

Cd/Im:

2.5

Carclo Optics - 12086 Spot Image STWS C2PB-E0

Carclo Optics - 12086 Horizontal Cross Section STWS C2PB-E0

,

Carclo Optics - 12086 Vertical Cross Section STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

91.0%

FWHM:

43 x 22°

Cd/Im:

2.8

Carclo Optics - 12086 10mm Spot Image Seoul Sunlike 3030

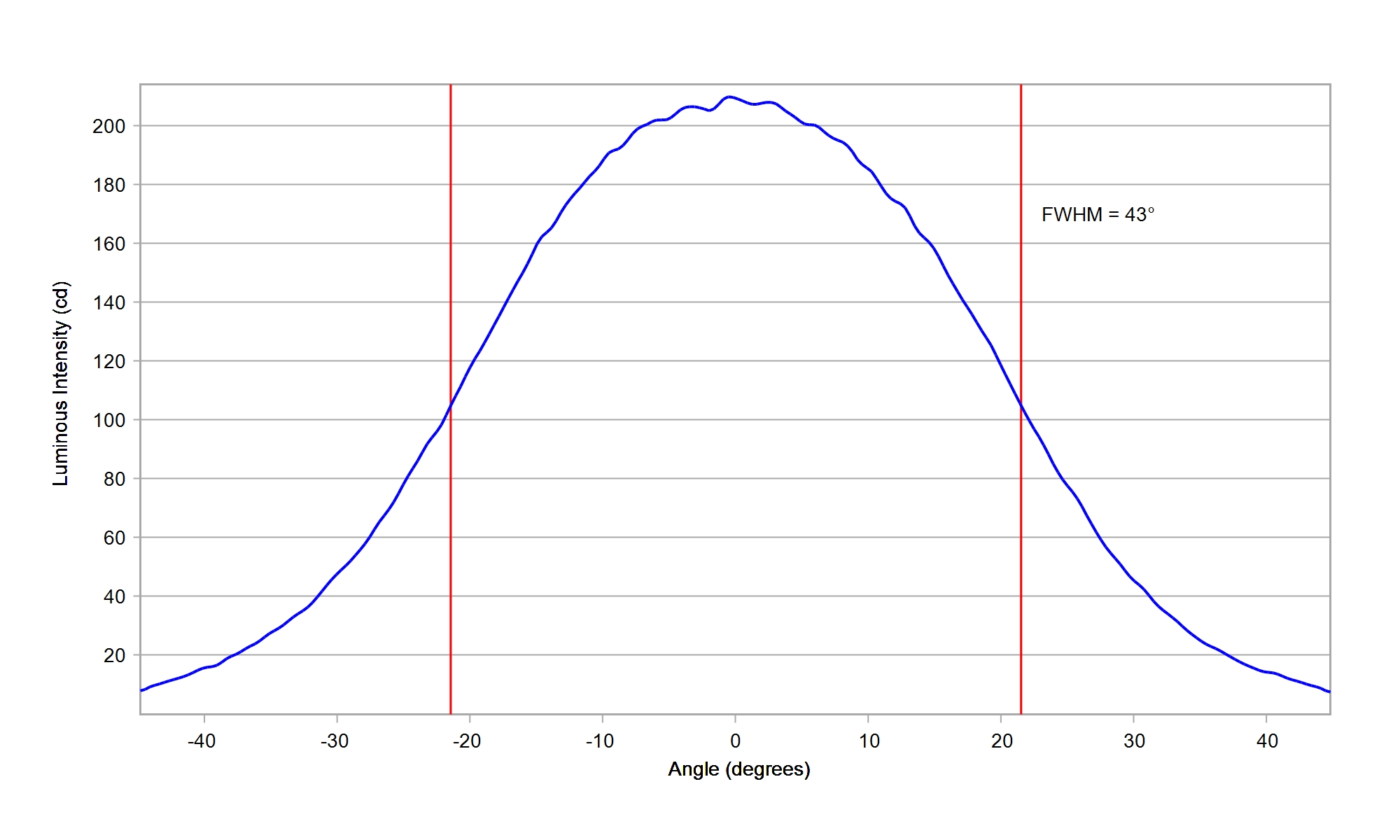

Carclo Optics - 12086 10mm Horizontal Cross Section Seoul Sunlike 3030

,

Carclo Optics - 12086 10mm Vertical Cross Section Seoul Sunlike 3030

Download

IES

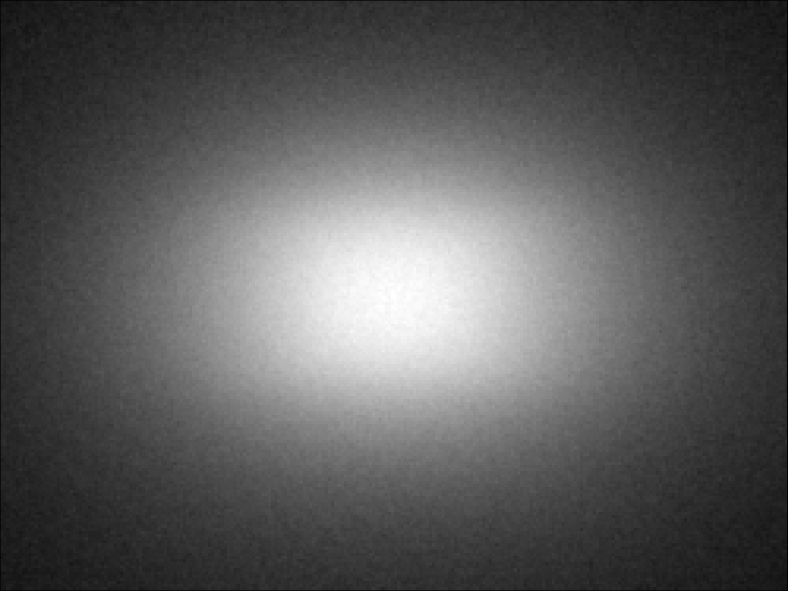

Seoul Z - Power Z5 M1 White

Eff:

83.3%

FWHM:

48.5 x 27.7°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

84.0%

FWHM:

42 x 25°

Cd/Im:

2.1

Carclo Optics – 12086 Seoul Z-Power Z5 - Spot Image

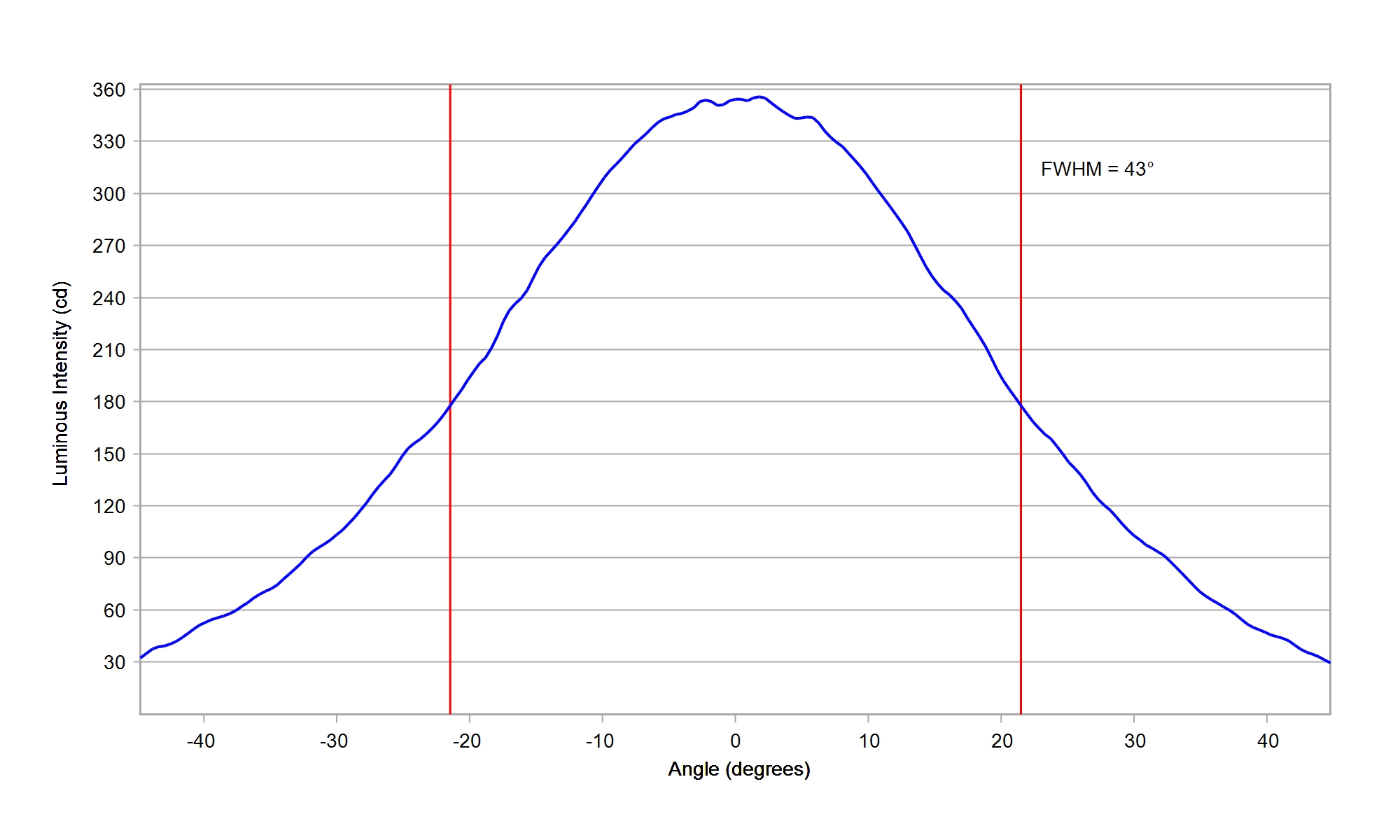

Carclo Optics – 12086 Horizontal Seoul Z-Power Z5 - Cross-Section

,

Carclo Optics – 12086 Vertical Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5 P0 White

FWHM:

46.0 x 20.0°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Seoul Z - Power Z5 White

Eff:

84.3%

FWHM:

44.5 x 16.2°

Cd/Im:

3.7

Spot Image

Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

83.0%

FWHM:

48.9 x 27.6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies
