10.0mm Medium Spot Frosted TIR LED Lenses | Carclo Optics

Carclo Optics 12084

10.0mm Medium Spot Frosted TIR LED Lenses

Part number

12084

Dimensions

10.0mm

Drawing Number

60657

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Medium Spot

Applications

Architectural

Landscape & Garden

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

92.5%

FWHM:

29 x 30°

Cd/Im:

2.9

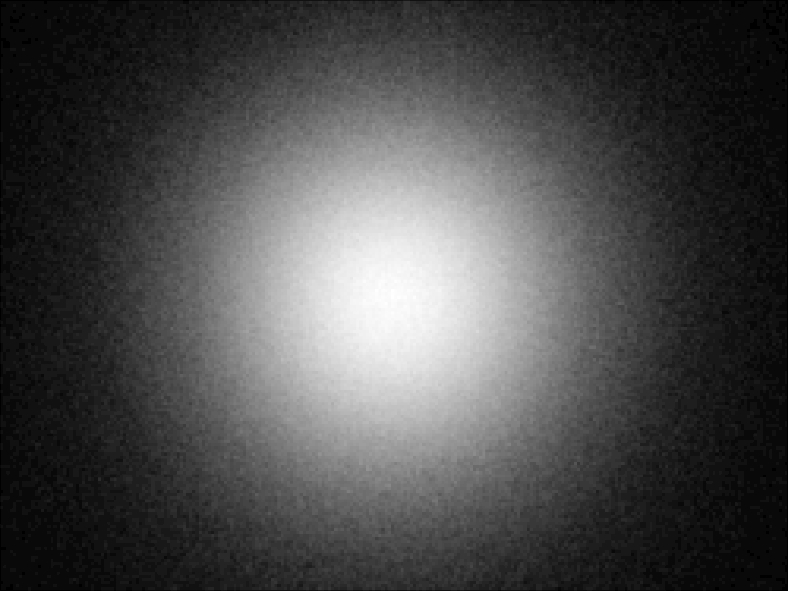

Carclo Optics - 12084 10mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 12084 10mm Cross Section Bridgelux 3030 Gen2

Download

ies

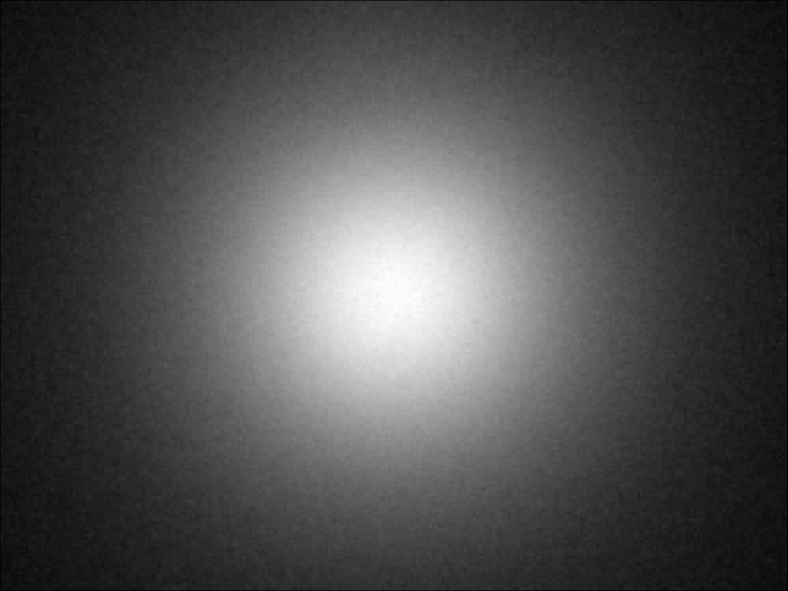

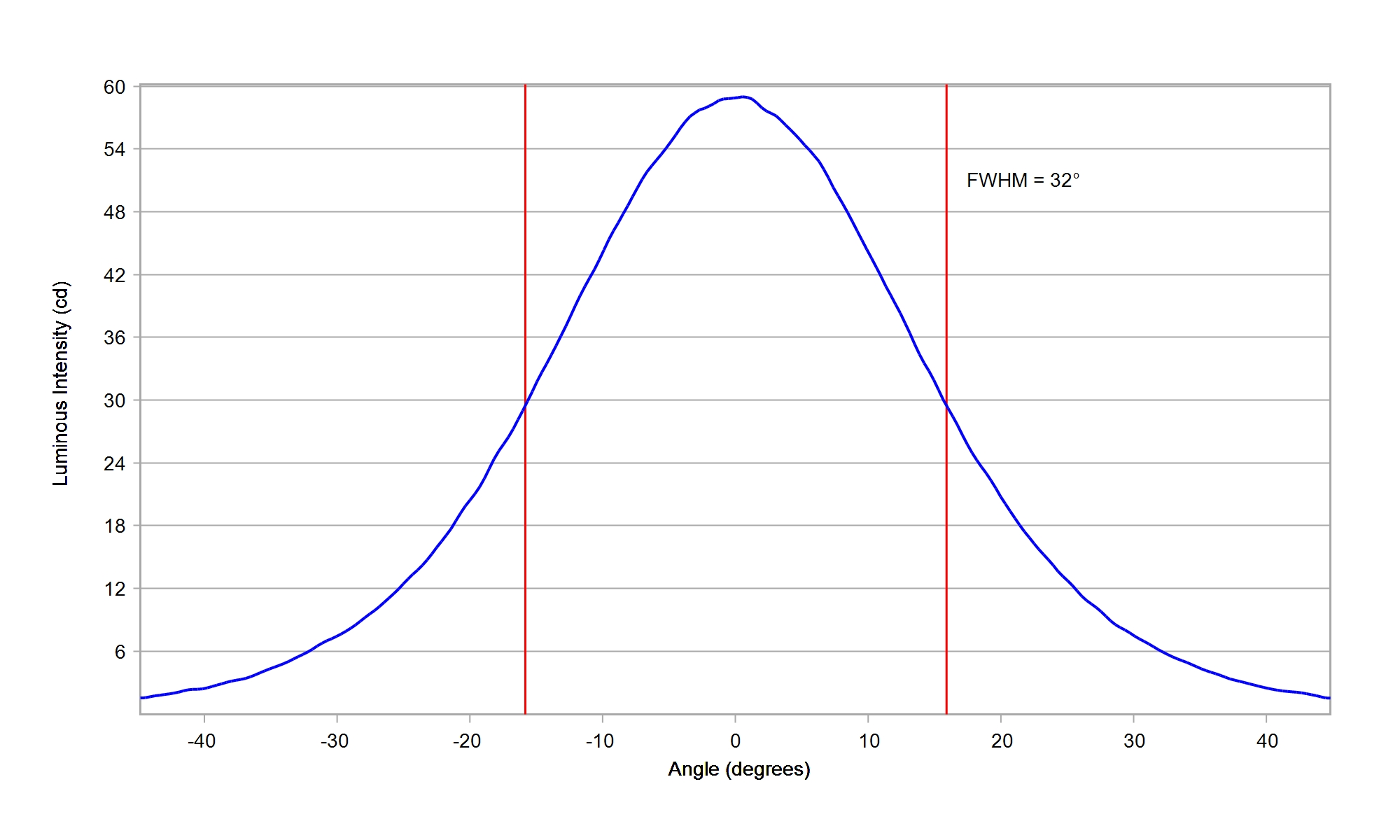

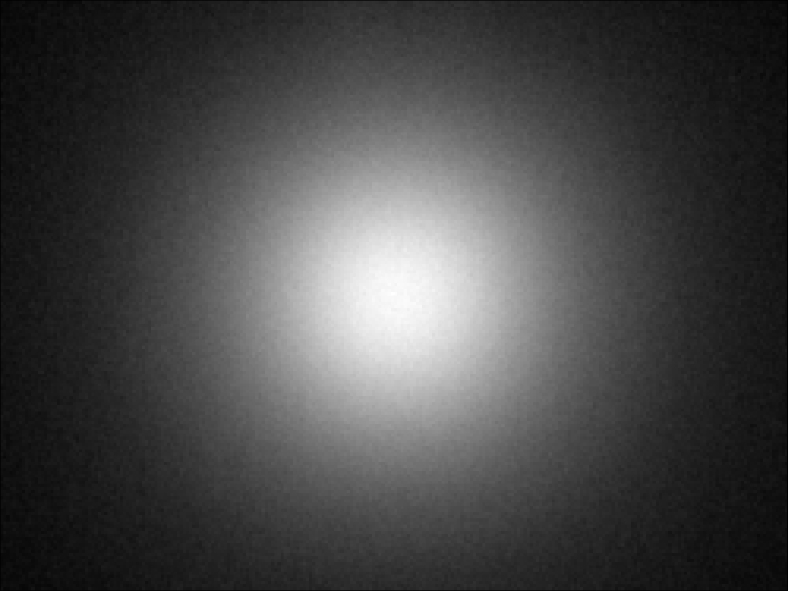

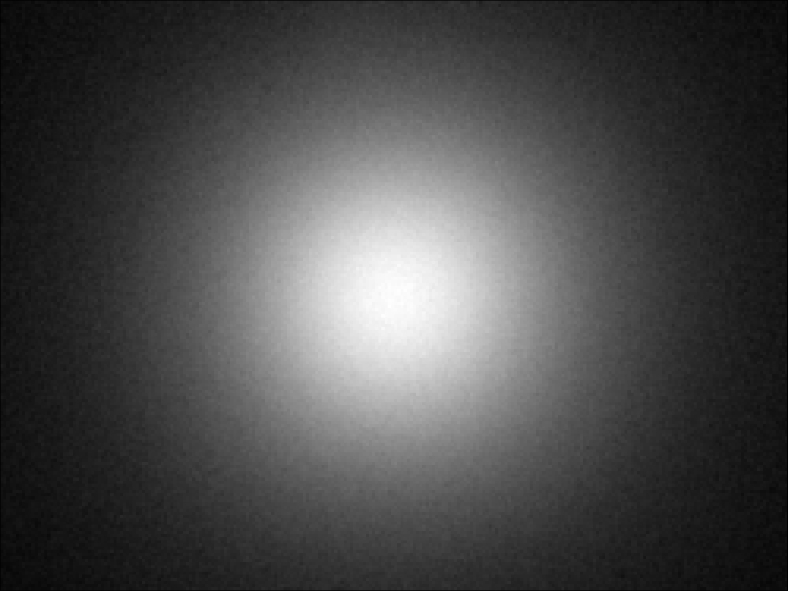

Cree JB2835B 3V G-Class White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.3


Download

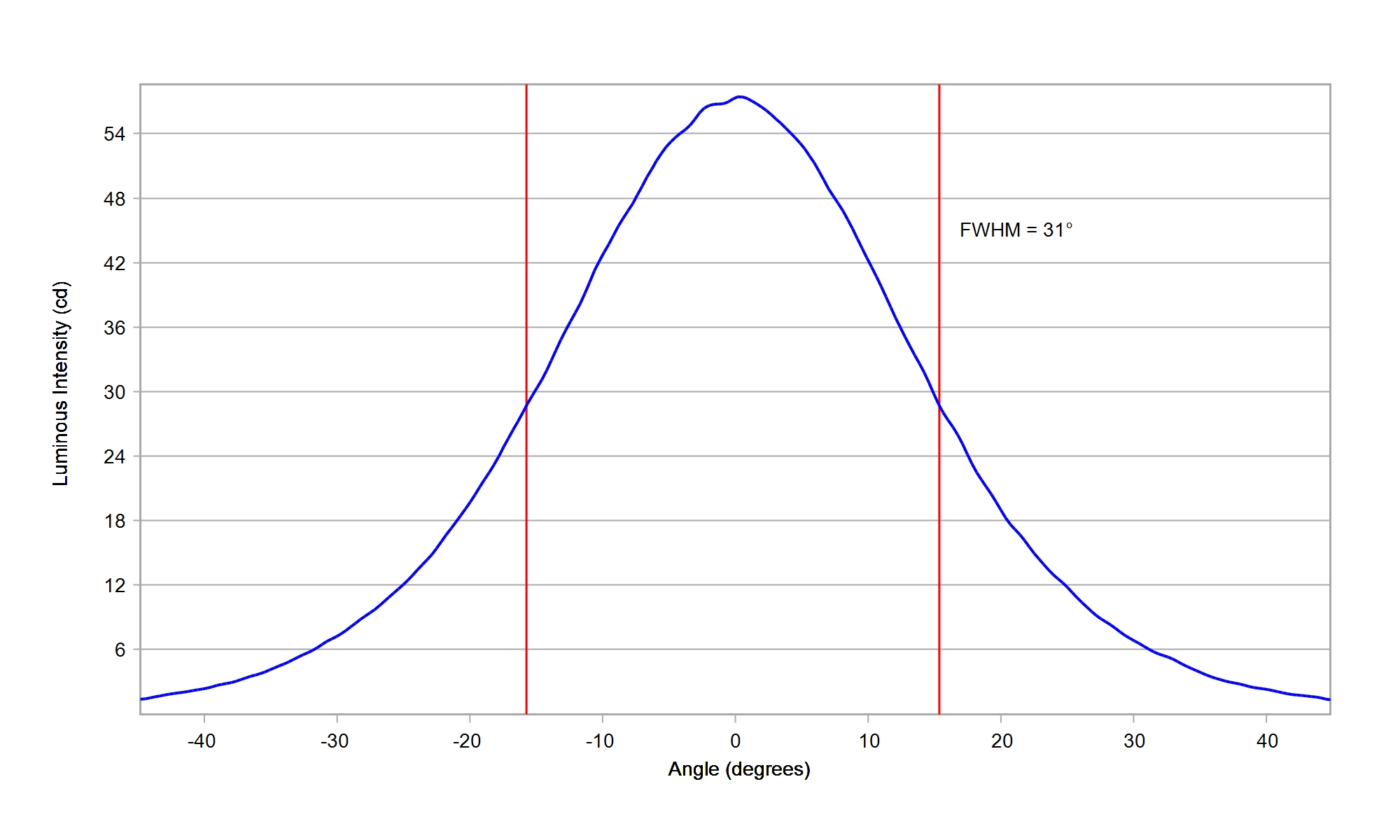

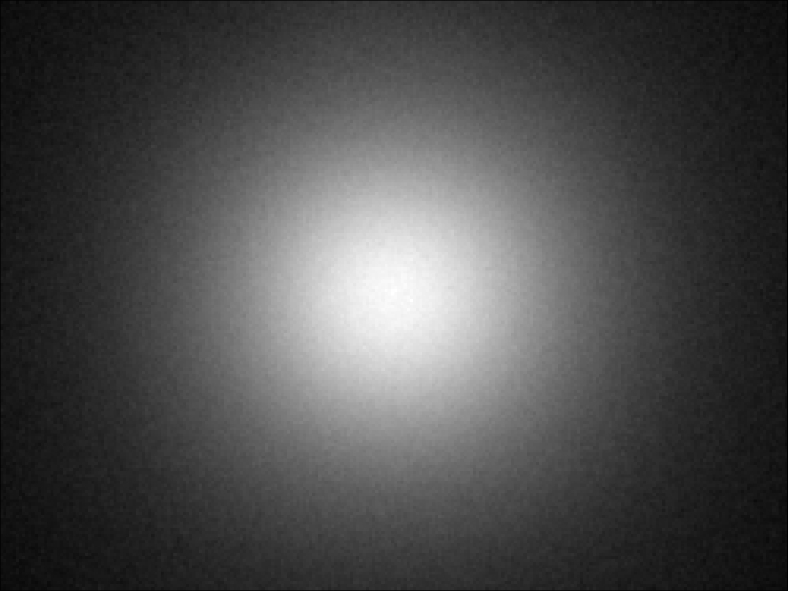

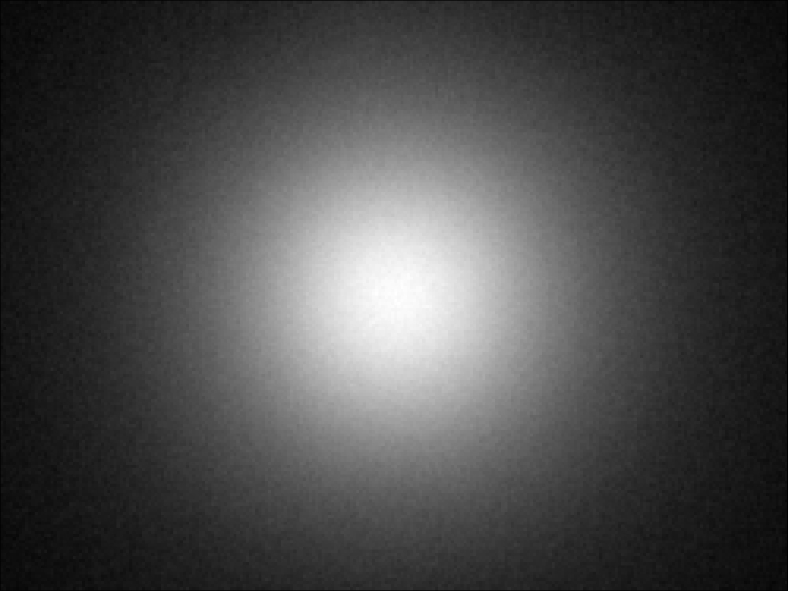

Cree JB2835B 3V J-Class White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.4


Download

Cree JB3030 3V P-Class White

Eff:

92.0%

FWHM:

34.0°

Cd/Im:

2.1

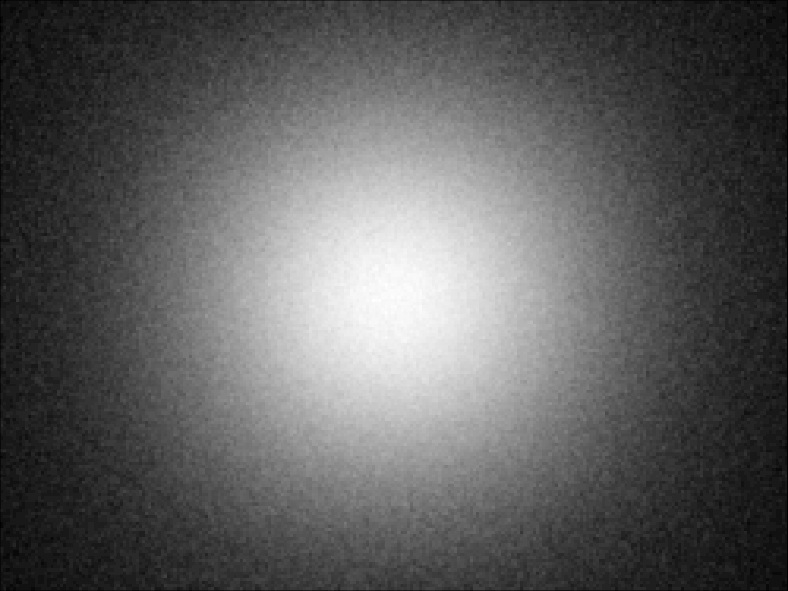

Carclo Optics - 12084 Spot Image Cree JB3030 3V White

Carclo Optics - 12084 Cross Section Cree JB3030 3V White

Download

ies

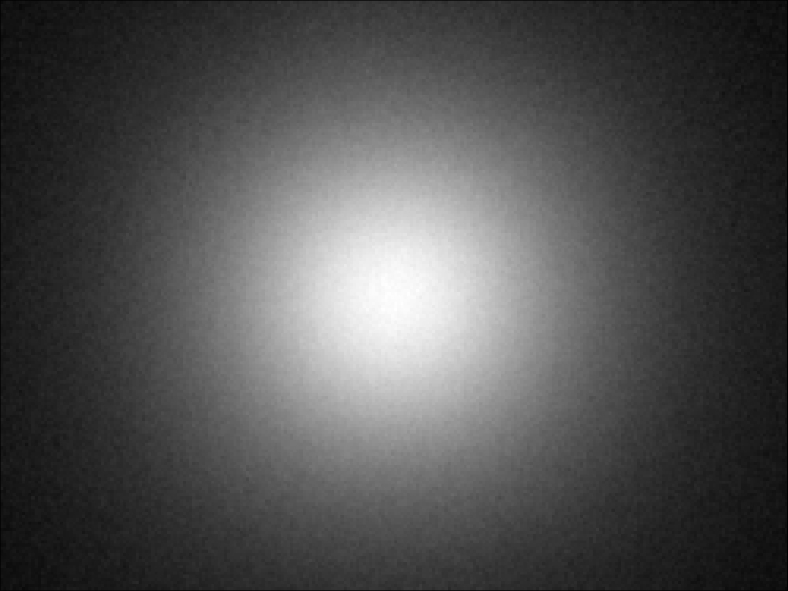

Cree JB3030C 3V E-Class White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.3


Download

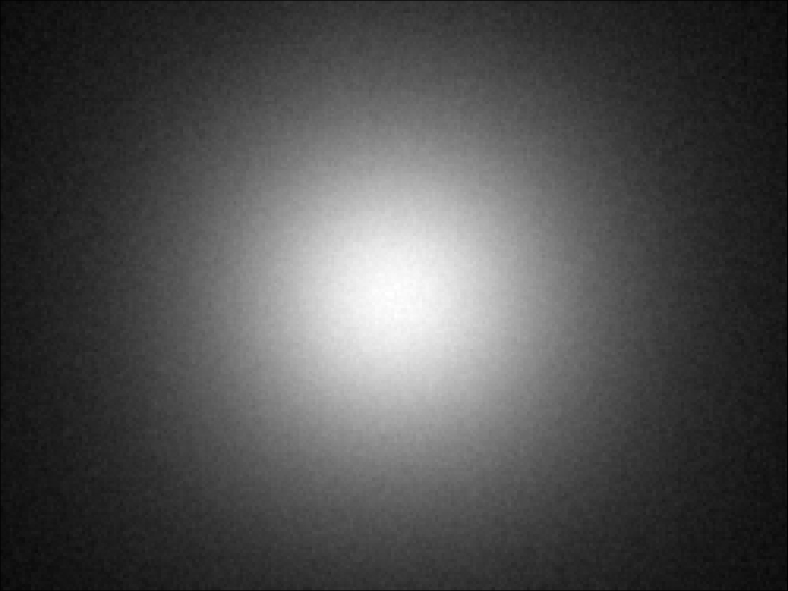

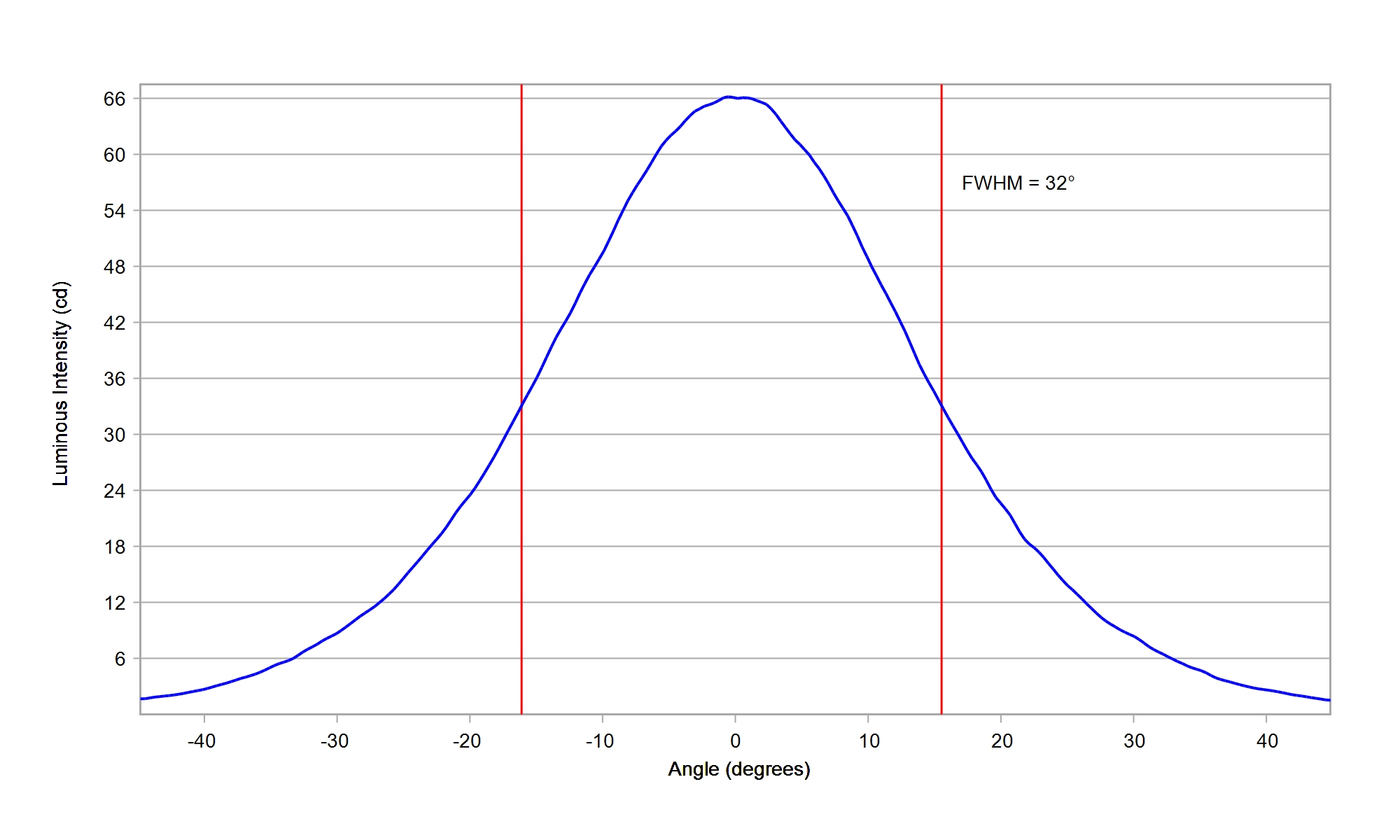

Cree JB3030C 3V F-Class White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.4


Download

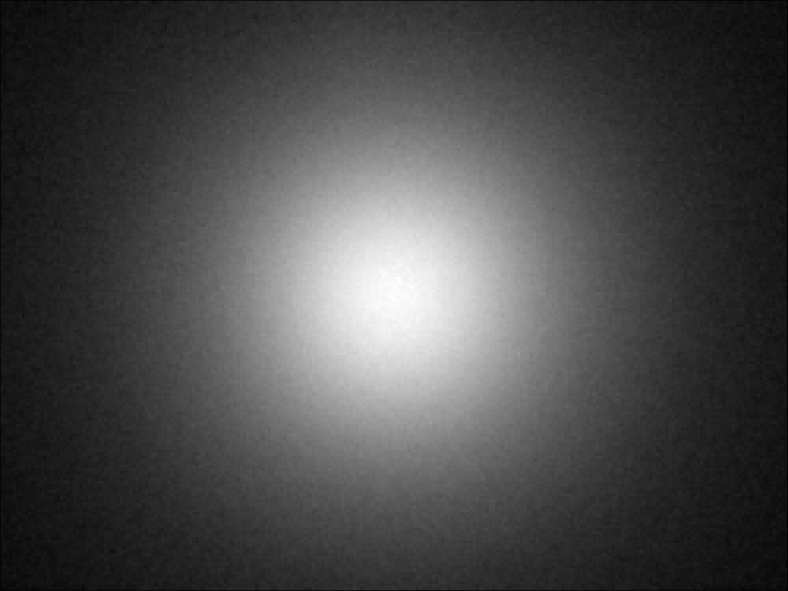

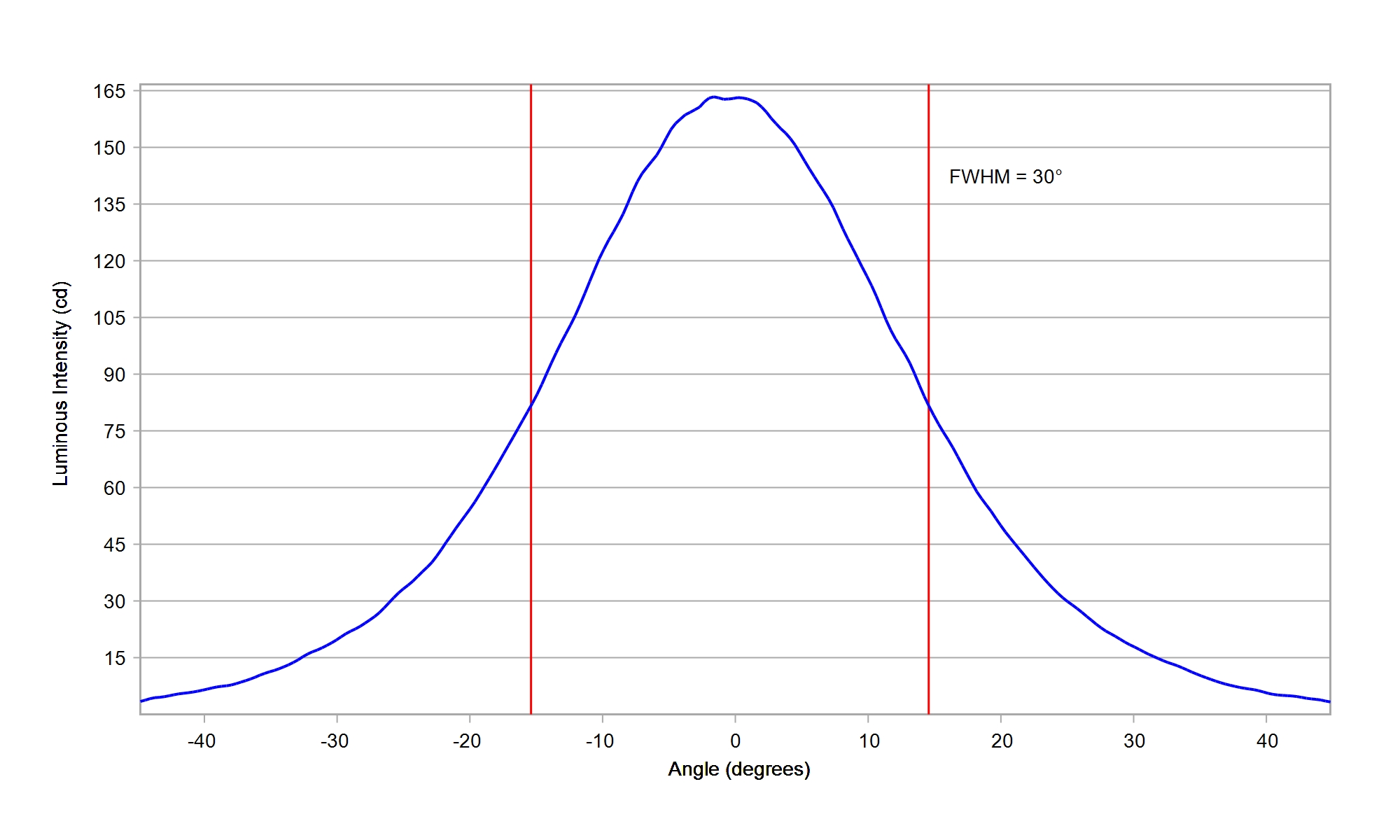

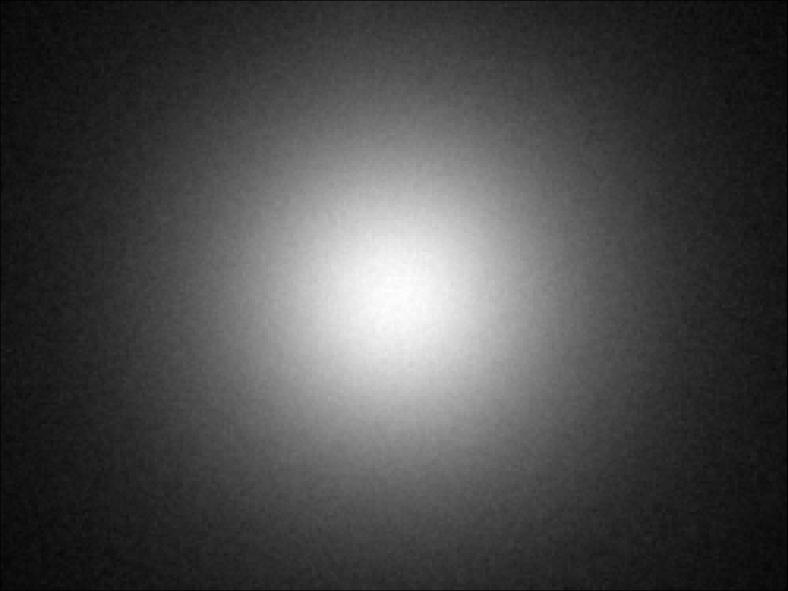

Cree JE2835 3V White

Eff:

92.5%

FWHM:

29.5°

Cd/Im:

2.6

Download

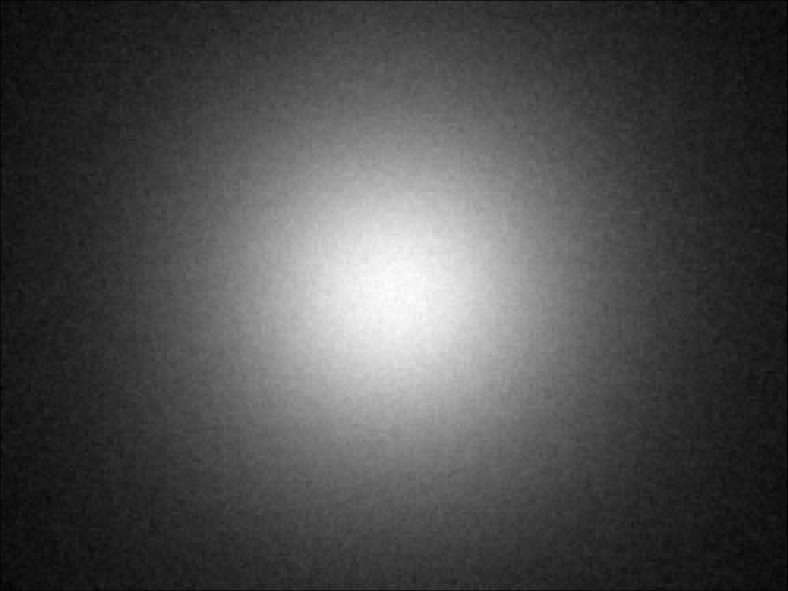

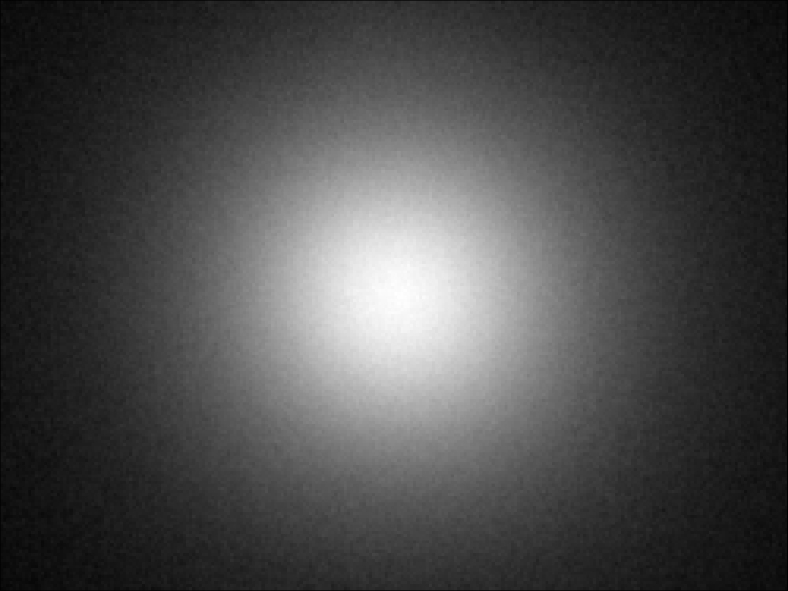

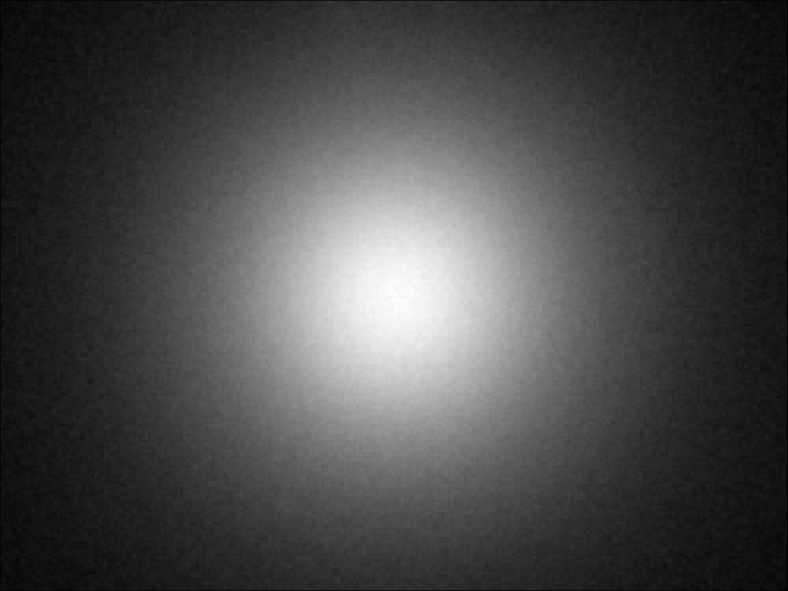

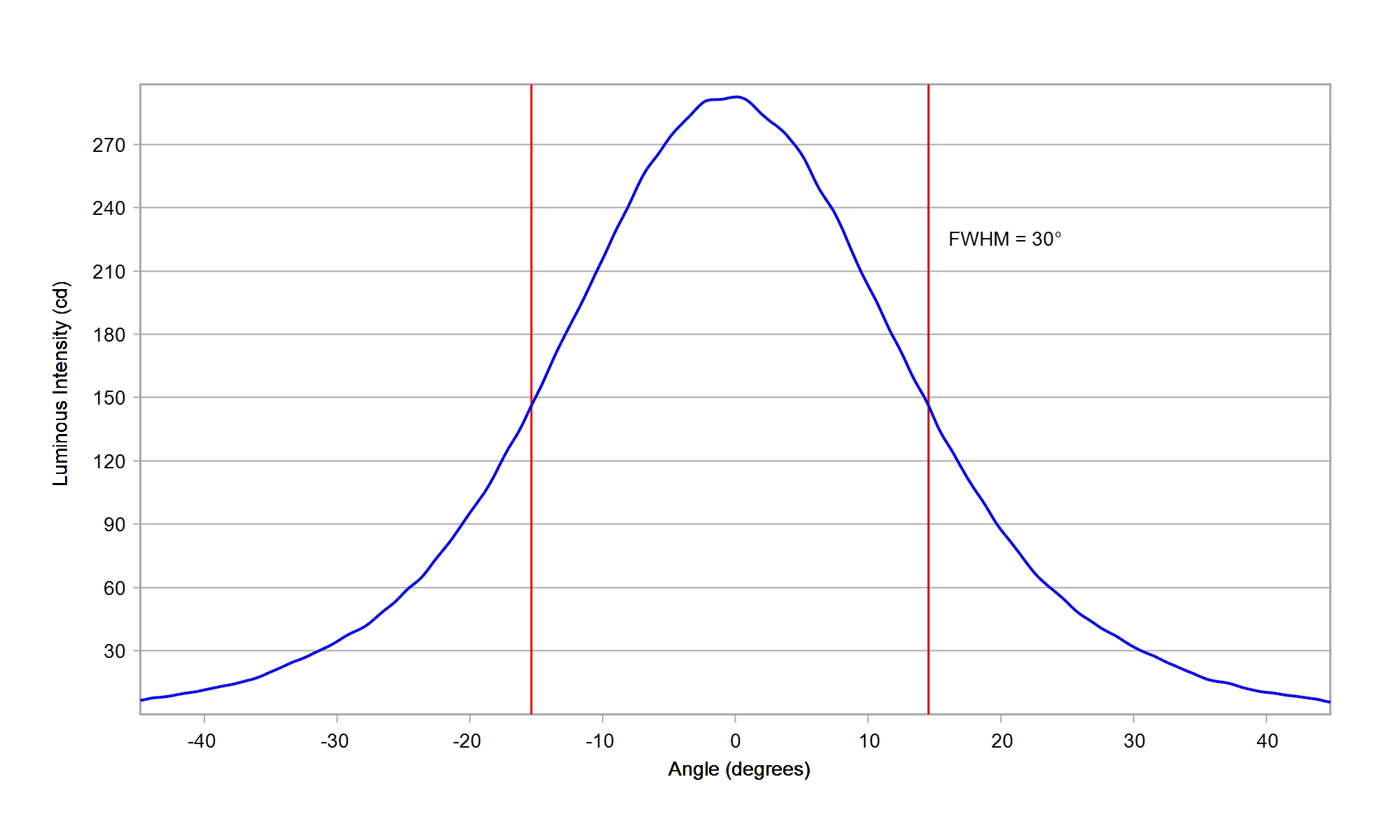

Cree JK2835 6V White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.7

Download

ies

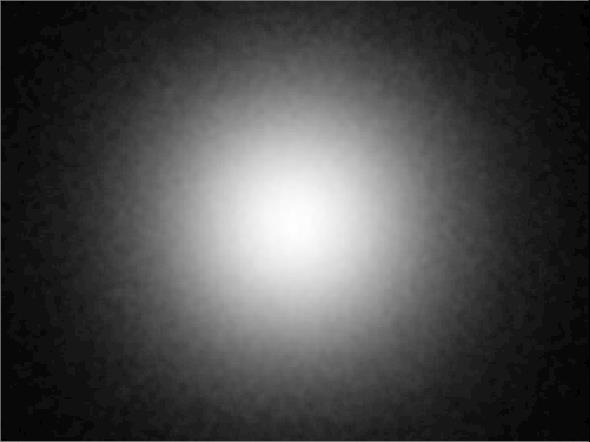

Cree XLamp CSP XD16 Cool White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

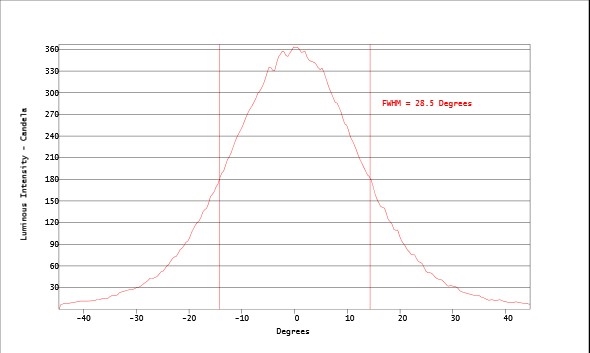

Carclo Optics - Simulated Cross Section

Download

ies

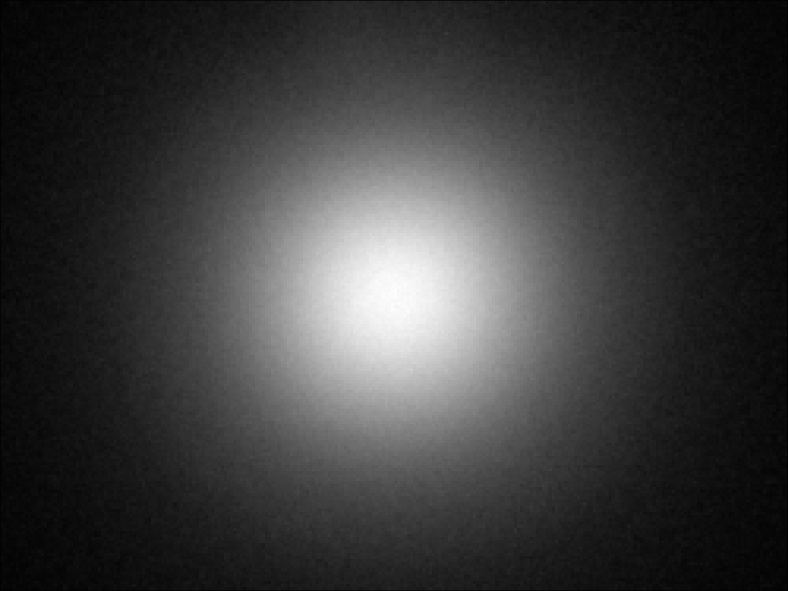

Cree XLamp CSP XD16 Premium White

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.4

Download

IES

Cree XLamp XB-D White

Eff:

87.3%

FWHM:

26.8°

Cd/Im:

3.4

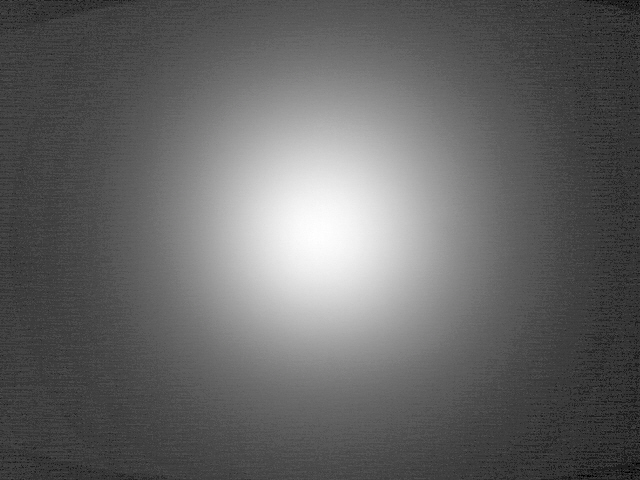

Spot Image

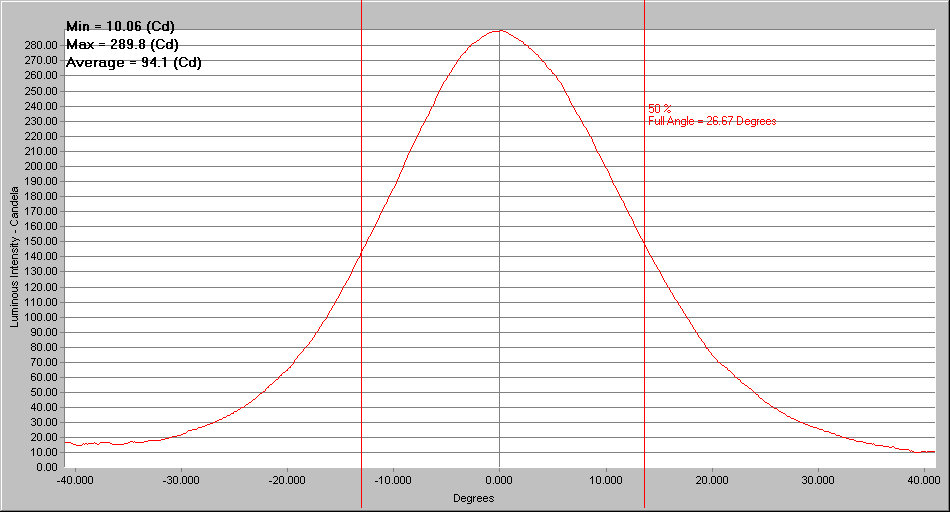

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.7

Carclo Optics - 12084 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 12084 10mm Cross Section Cree XLamp XB-H

Download

ies

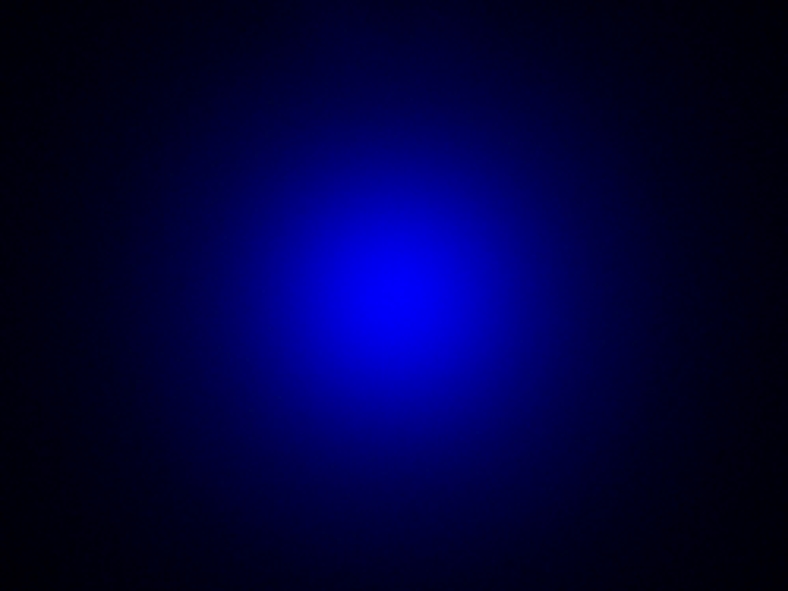

Cree XLamp XE-G Blue

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.4

Download

ies

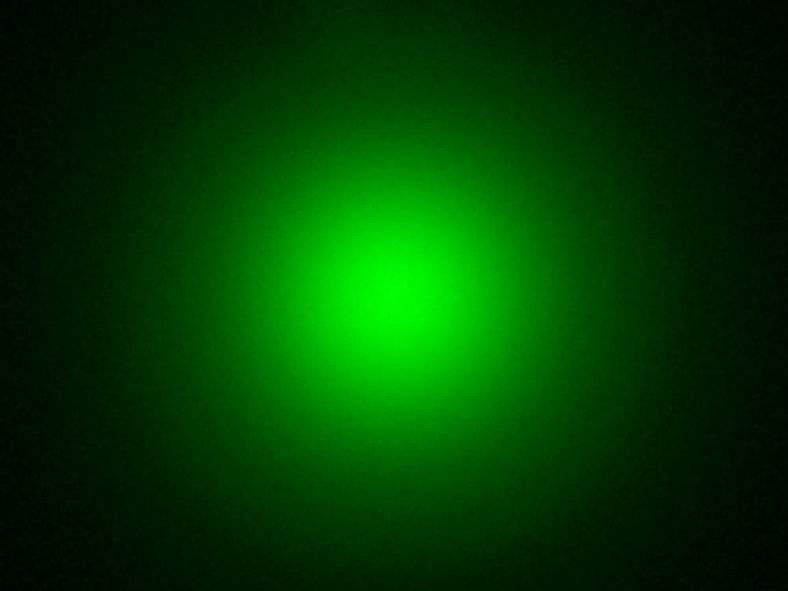

Cree XLamp XE-G Green

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.3

Download

ies

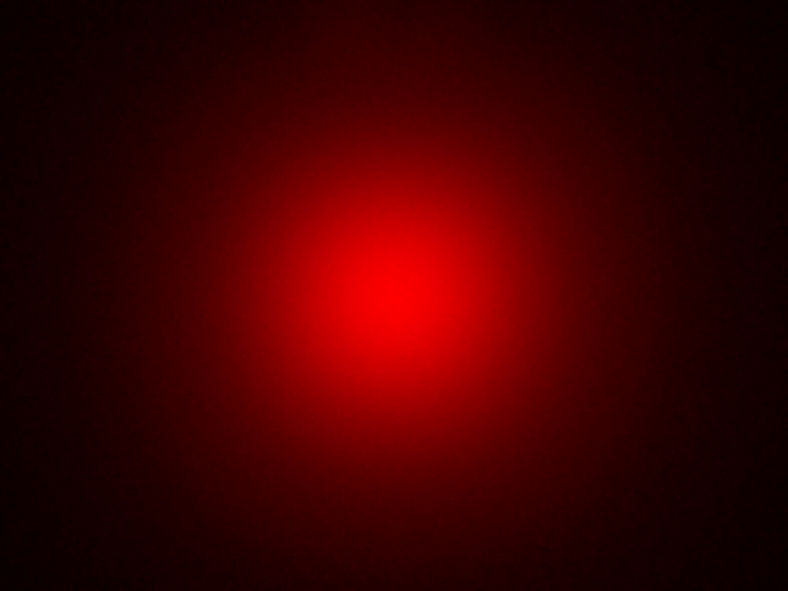

Cree XLamp XE-G Red

Eff:

91.0%

FWHM:

26°

Cd/Im:

3.4

Download

ies

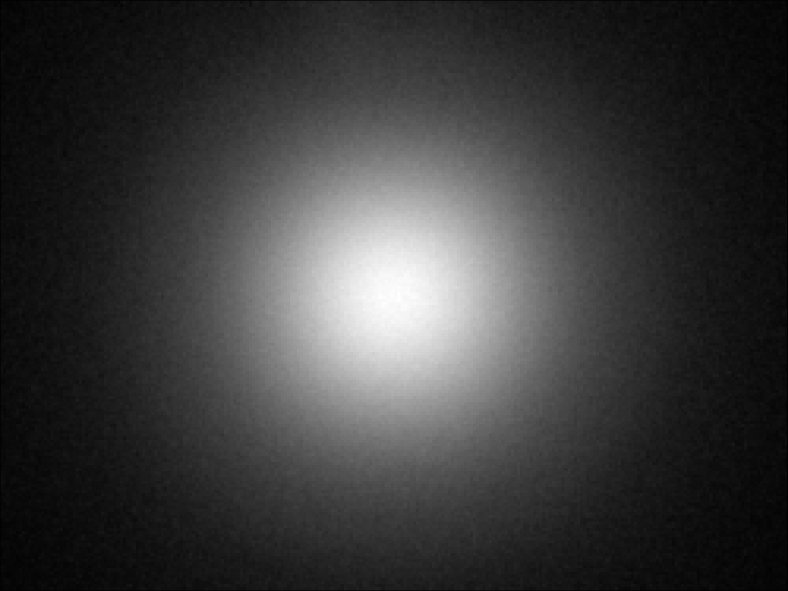

Cree XLamp XE-G White

Eff:

92.0%

FWHM:

26°

Cd/Im:

3.4

Download

ies

Cree XLamp XP-E White

Eff:

87.2%

FWHM:

25.9°

Cd/Im:

3.2

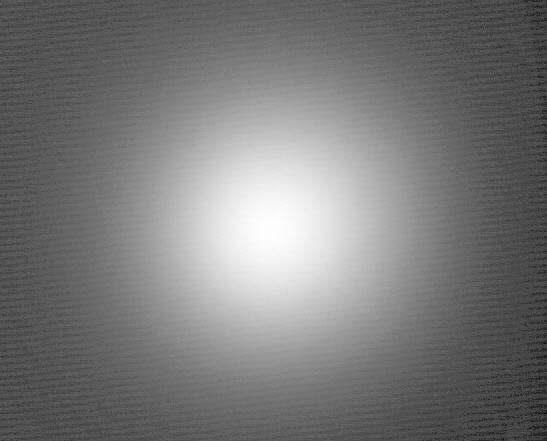

Spot Image

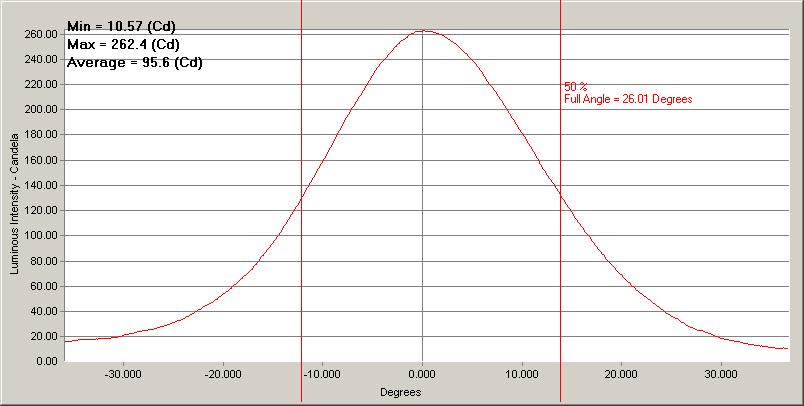

Cross Section

Download

ies

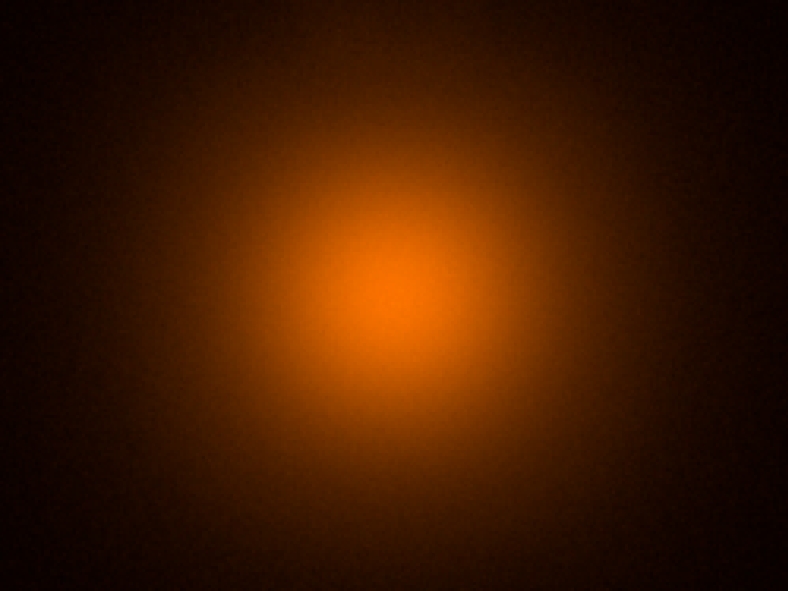

Cree XLamp XP-E2 Amber

Eff:

92.5%

FWHM:

28°

Cd/Im:

3.2

Download

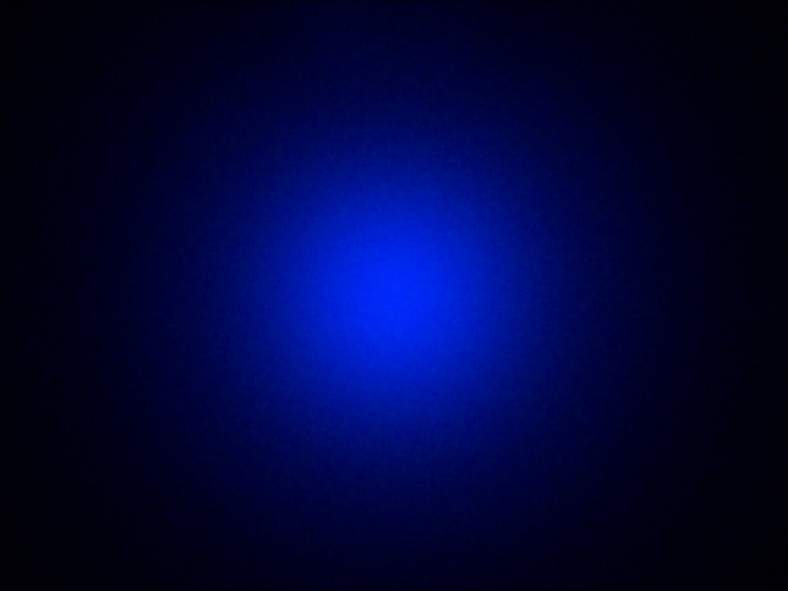

Cree XLamp XP-E2 Blue

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.6

Download

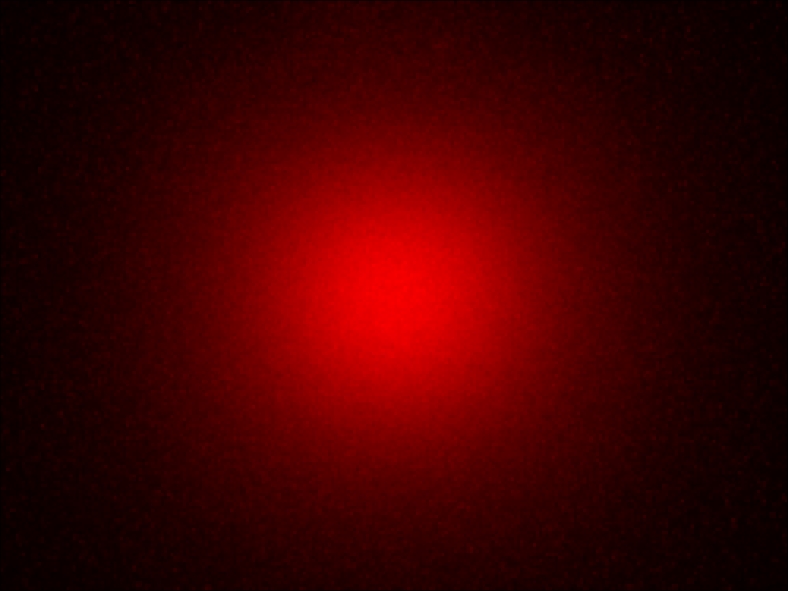

Cree XLamp XP-E2 Far Red

Eff:

94.0%

FWHM:

28°

Ipk/W:

3.4

Download

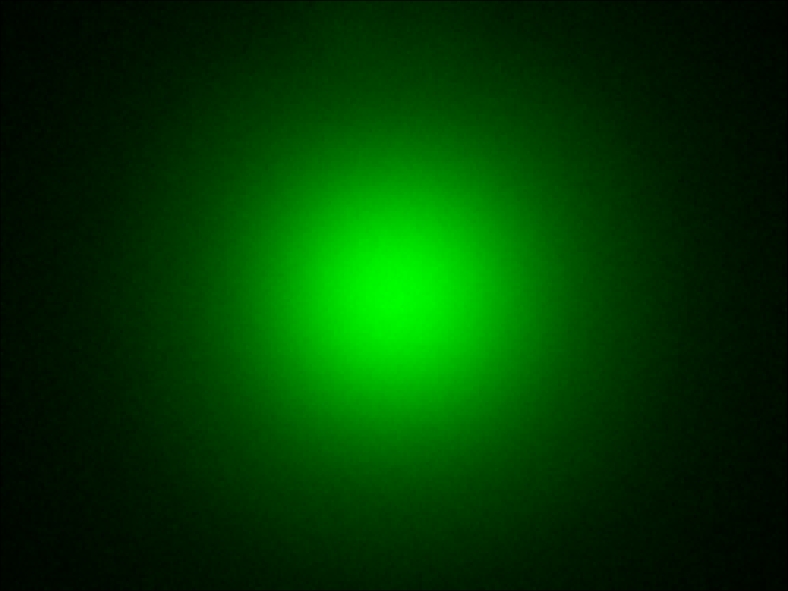

Cree XLamp XP-E2 Green

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.6

Download

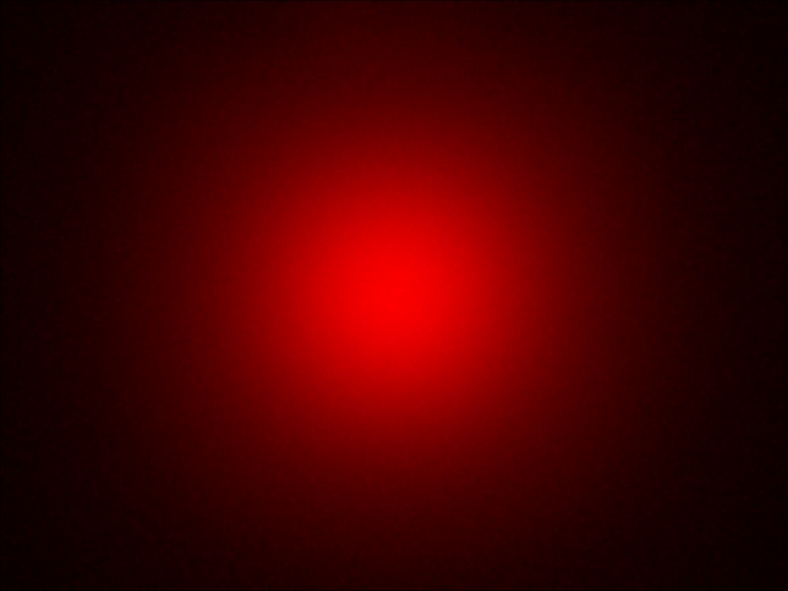

Cree XLamp XP-E2 Photo Red

Eff:

92.5%

FWHM:

28°

Ipk/W:

3.1


Download

Cree XLamp XP-E2 Red

Eff:

93.0%

FWHM:

28°

Cd/Im:

3.2

Download

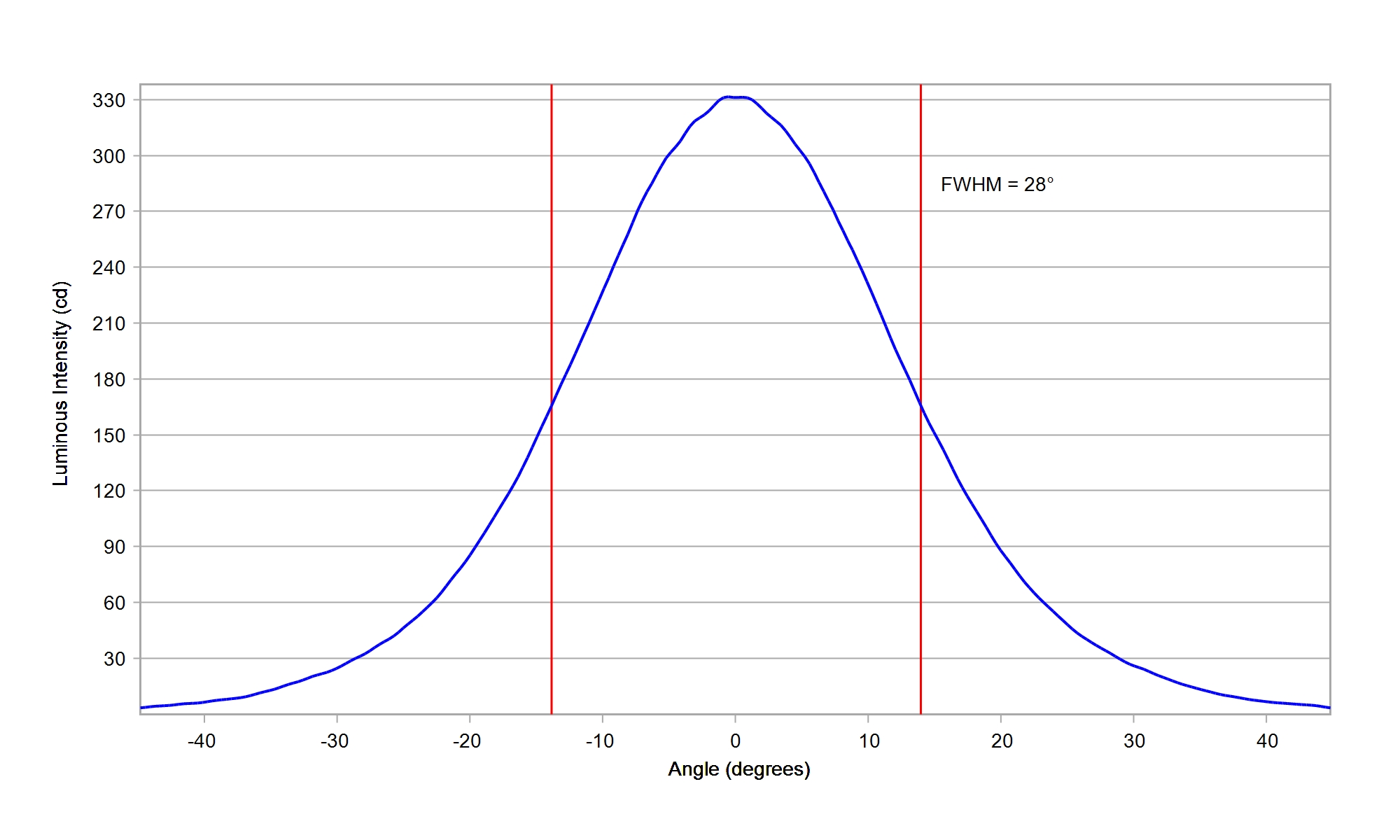

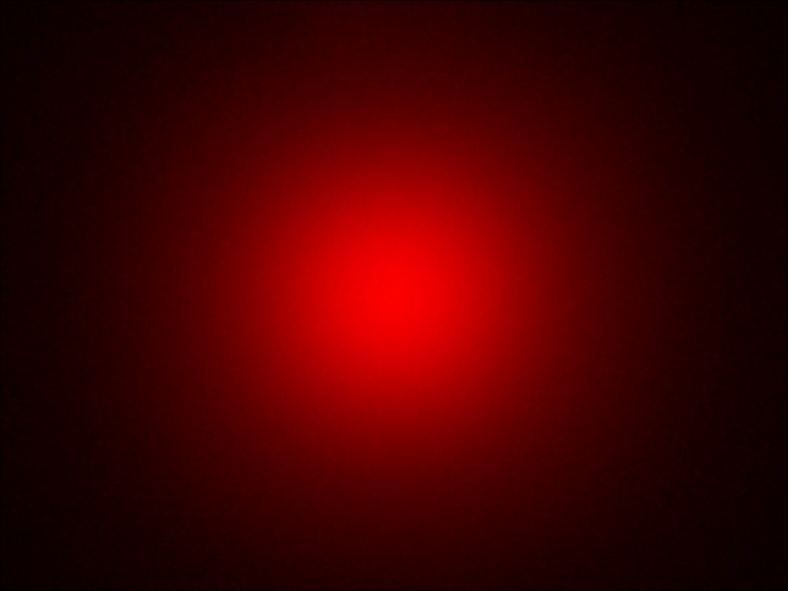

Cree XLamp XP-E2 Red-Orange

Eff:

92.5%

FWHM:

28°

Cd/Im:

3.3


Download

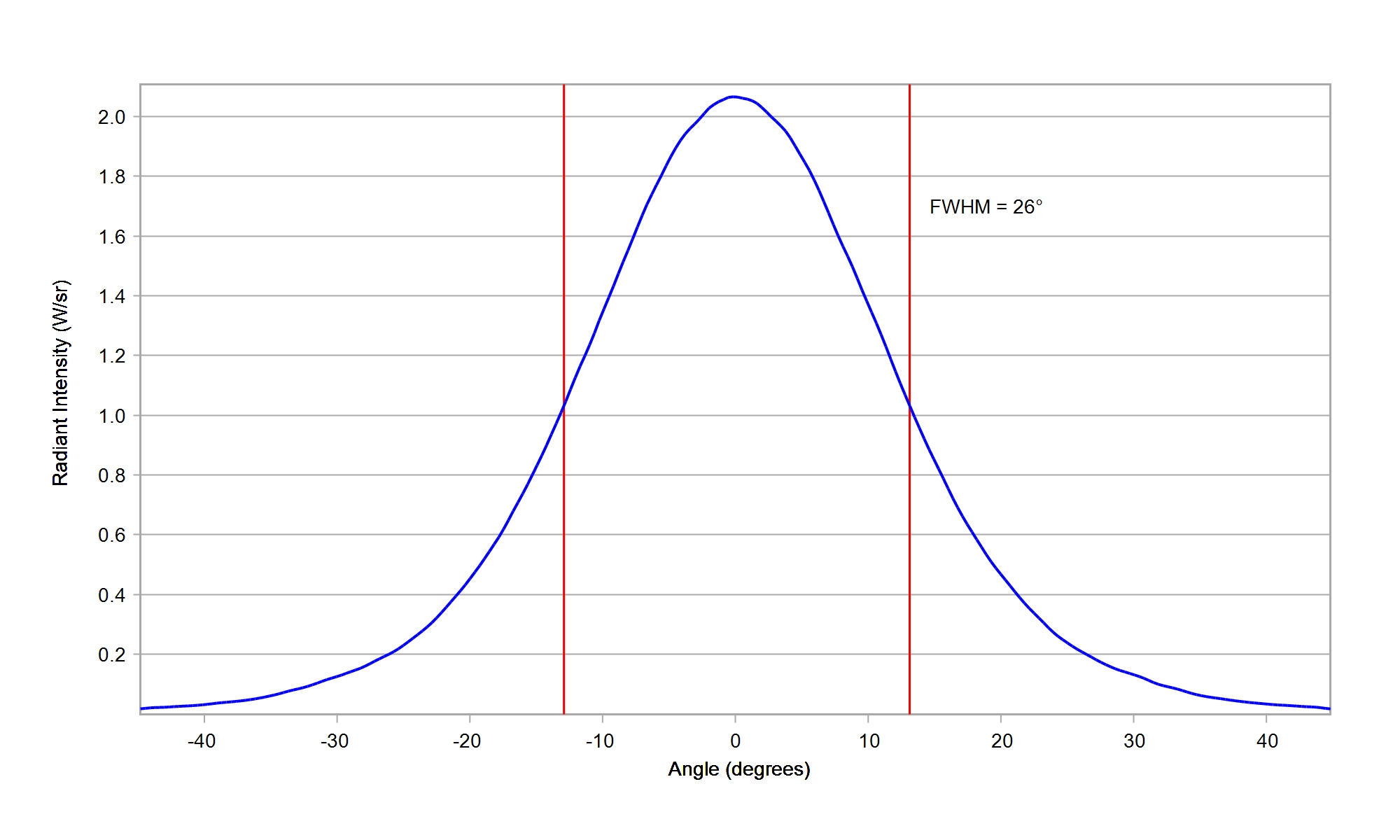

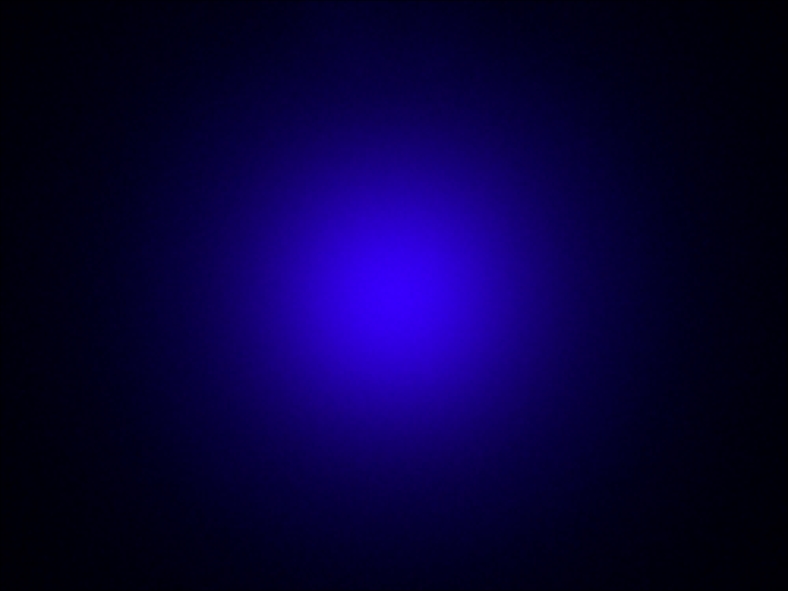

Cree XLamp XP-E2 Royal Blue

Eff:

91.5%

FWHM:

26°

Ipk/W:

3.5


Download

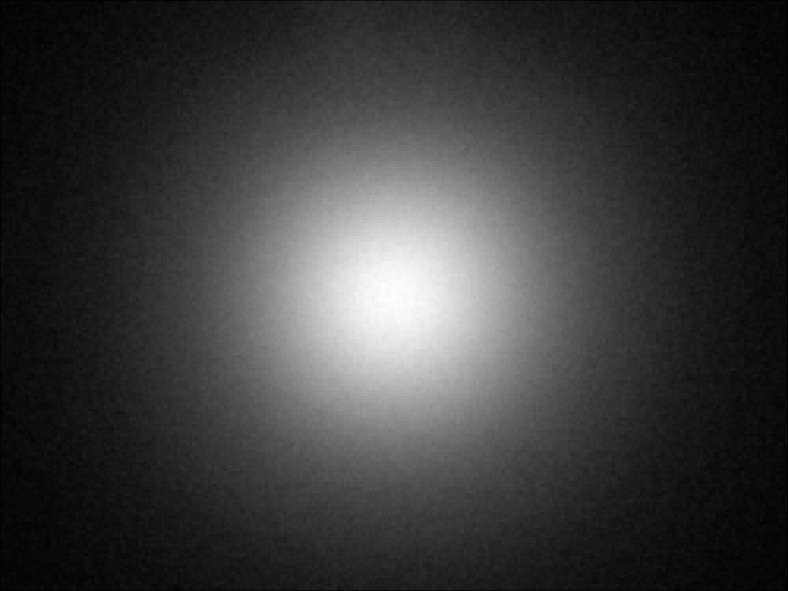

Cree XLamp XP-E2 White

Eff:

92.5%

FWHM:

26.5°

Cd/Im:

3.5

Download

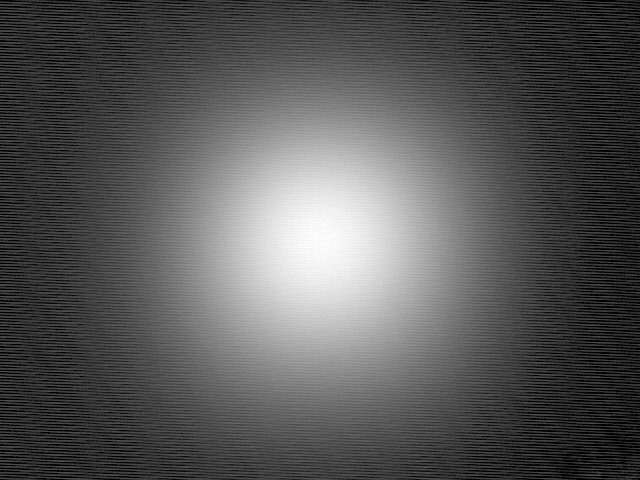

Cree XLamp XP-G White

Eff:

84.7%

FWHM:

30°

Cd/Im:

2.7

Spot Image

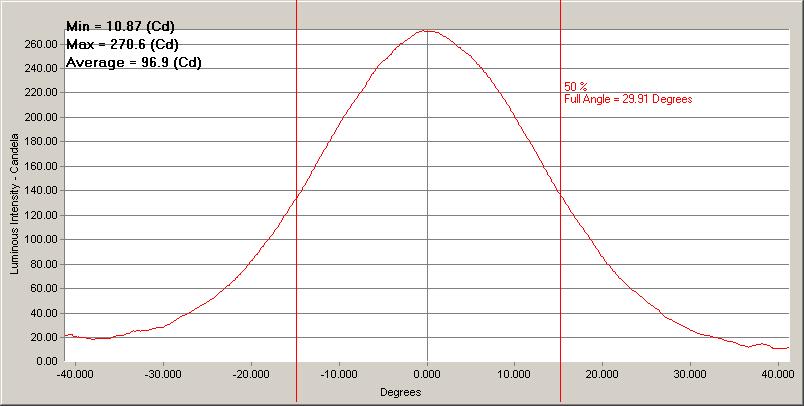

Cross Section

Download

ies

Cree XLamp XP-G2 White

Eff:

84.9%

FWHM:

28.9°

Cd/Im:

3.3

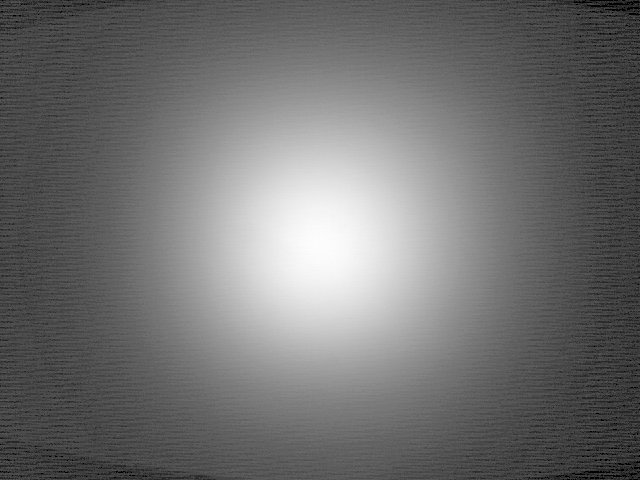

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

88.0%

FWHM:

30.5°

Cd/Im:

1.7

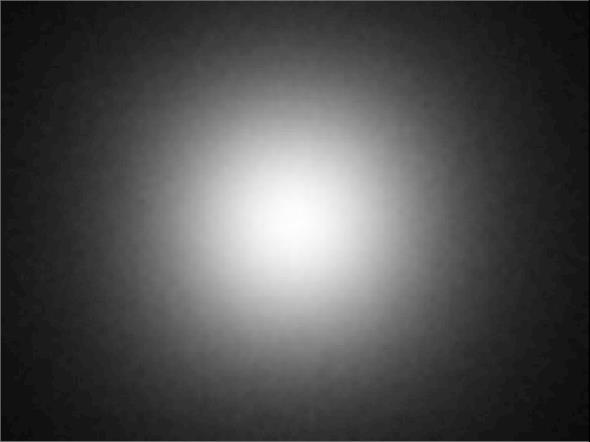

Carclo Optics - Simulated Spot Image

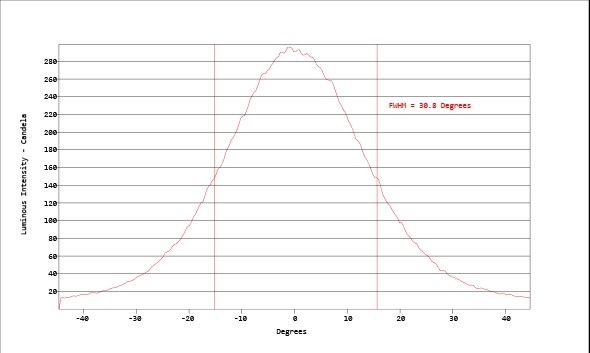

Carclo Optics - Simulated Cross Section

Download

ies

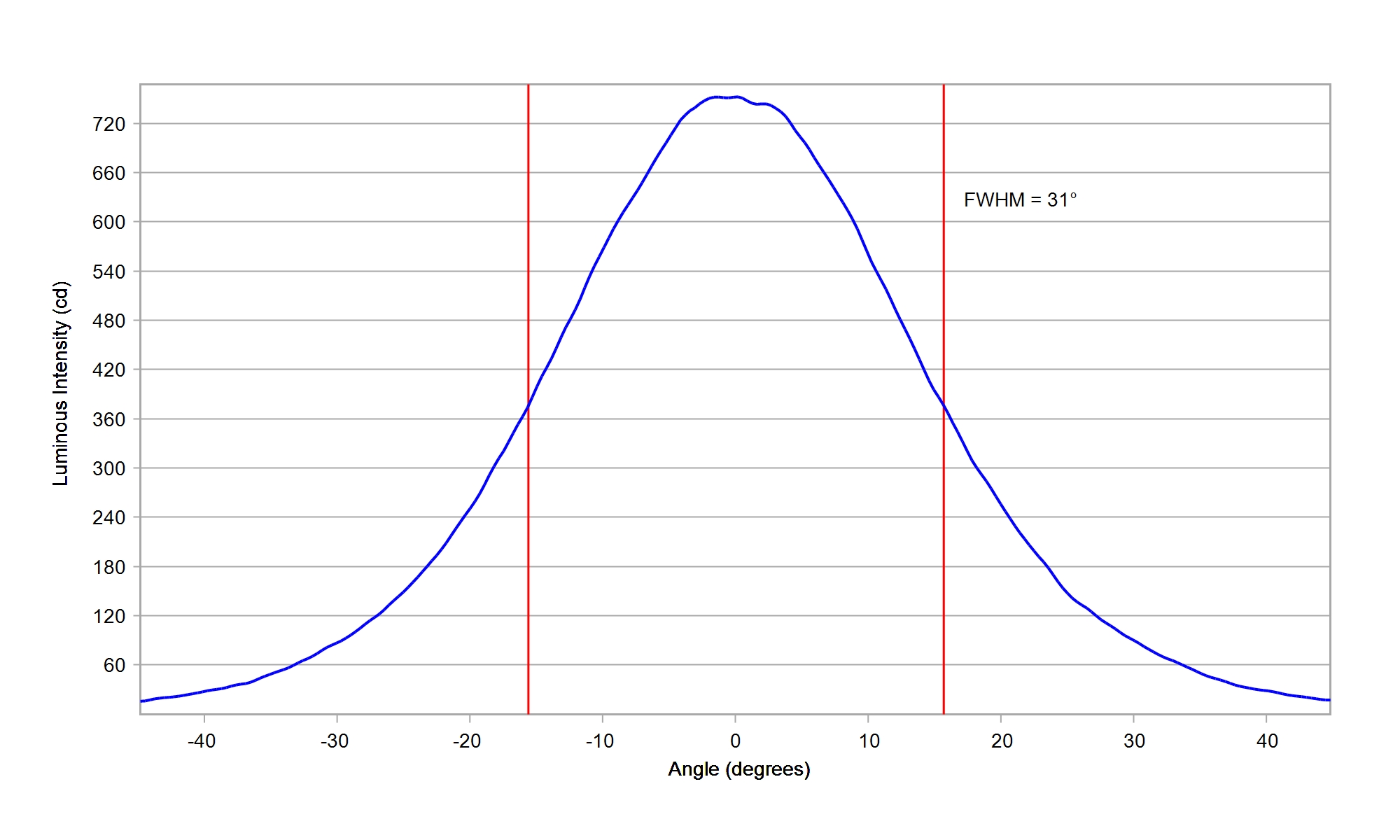

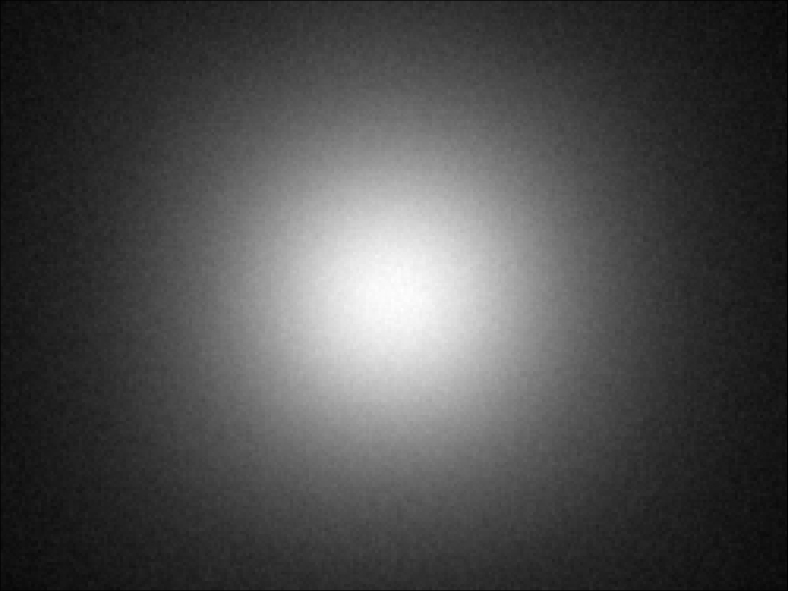

Cree XLamp XP-G4 White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.6

Download

IES

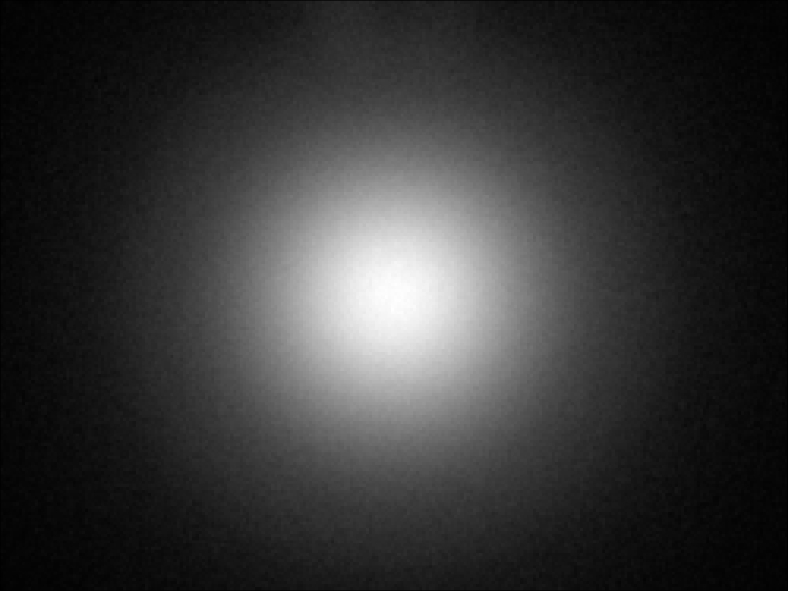

Cree XLamp XP-GR White

Eff:

93.0%

FWHM:

25°

Cd/Im:

3.9

Download

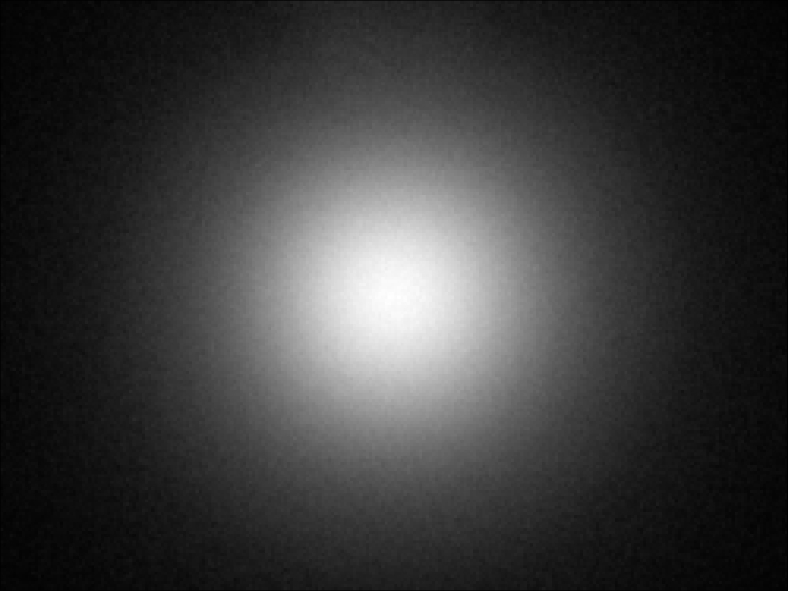

Cree XLamp XP-LR White

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.5

Download

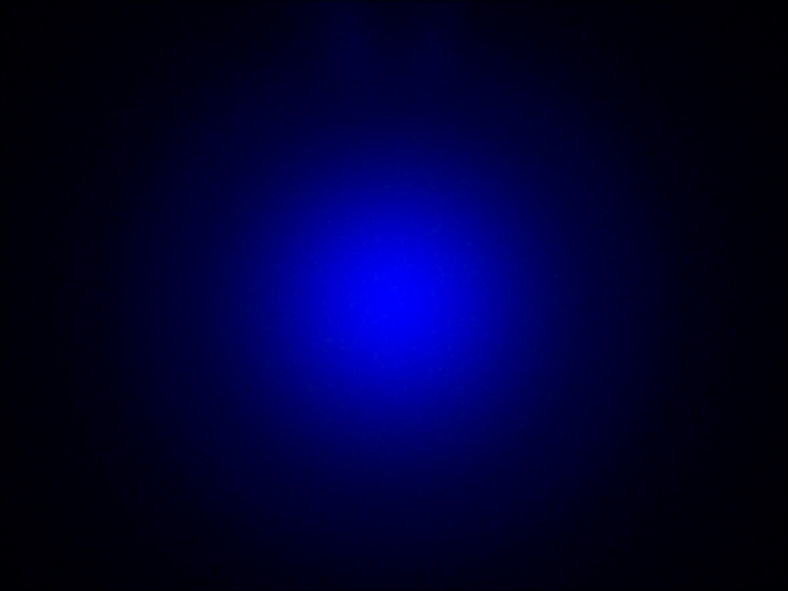

Cree XLamp XQ-A Blue

Eff:

92.0%

FWHM:

23.5°

Cd/Im:

4.3

Download

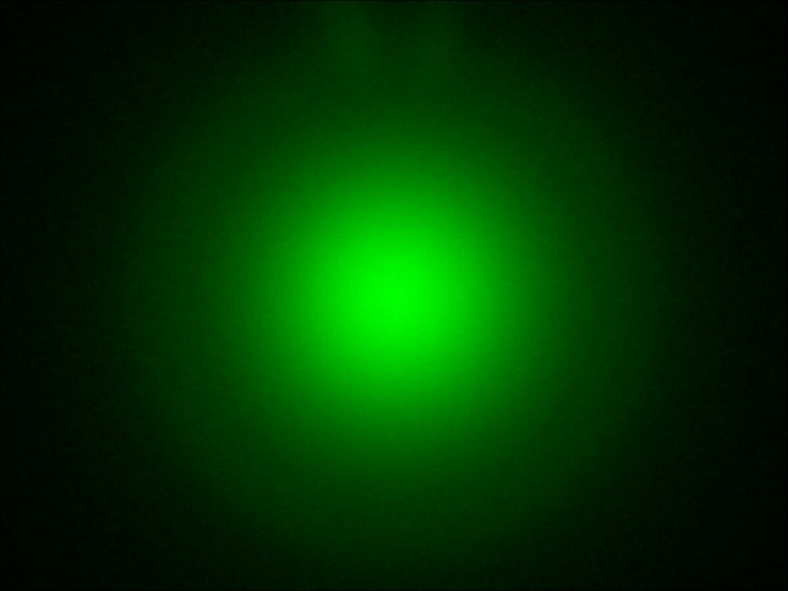

Cree XLamp XQ-A Green

Eff:

92.0%

FWHM:

23.5°

Cd/Im:

4.2

Download

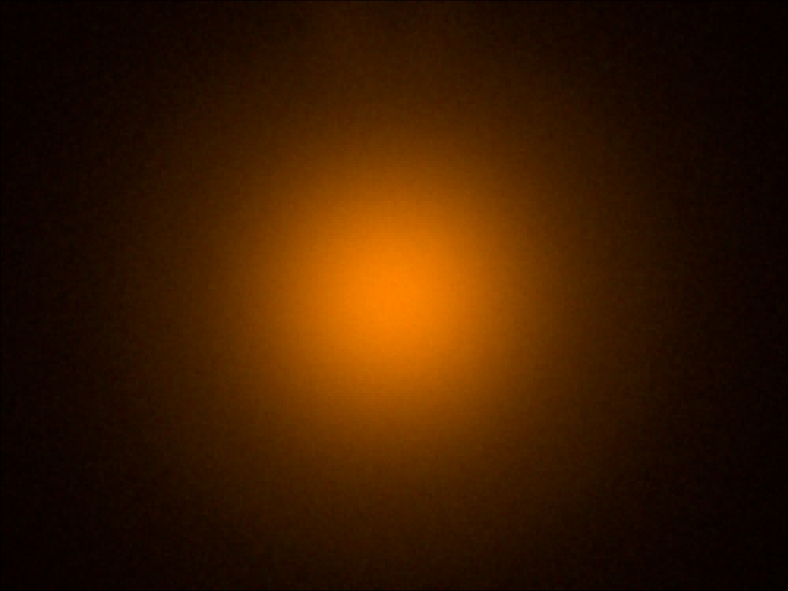

Cree XLamp XQ-A PC Amber

Eff:

92.0%

FWHM:

25°

Cd/Im:

3.7

Download

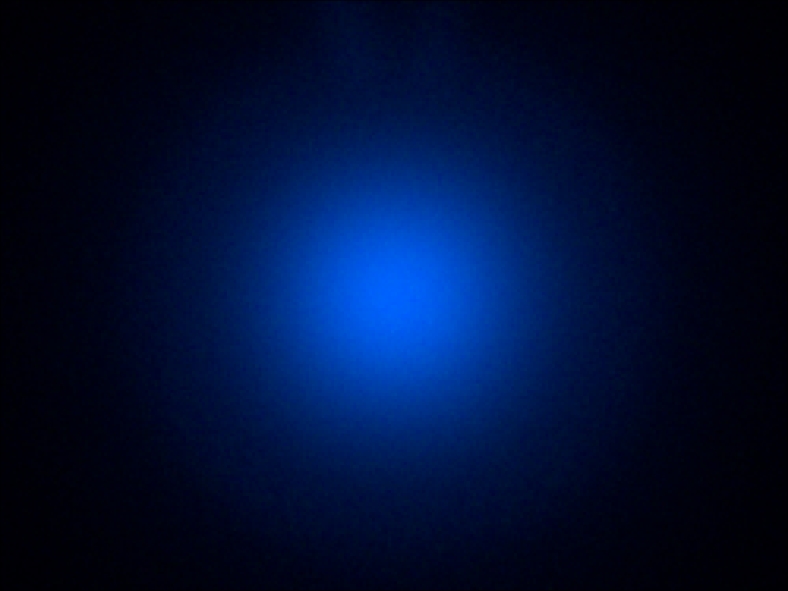

Cree XLamp XQ-A PC Blue

Eff:

91.5%

FWHM:

23.5°

Cd/Im:

4.3

Download

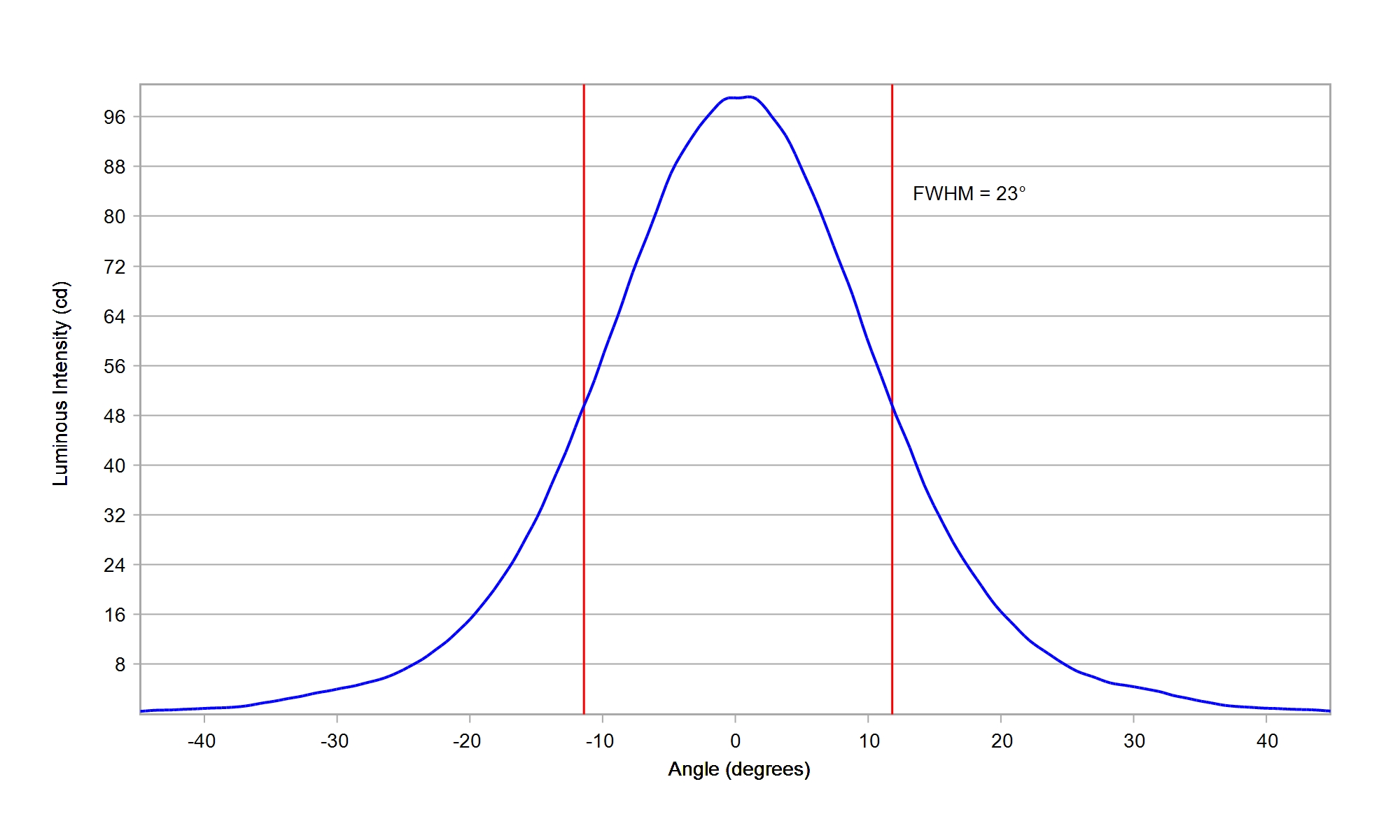

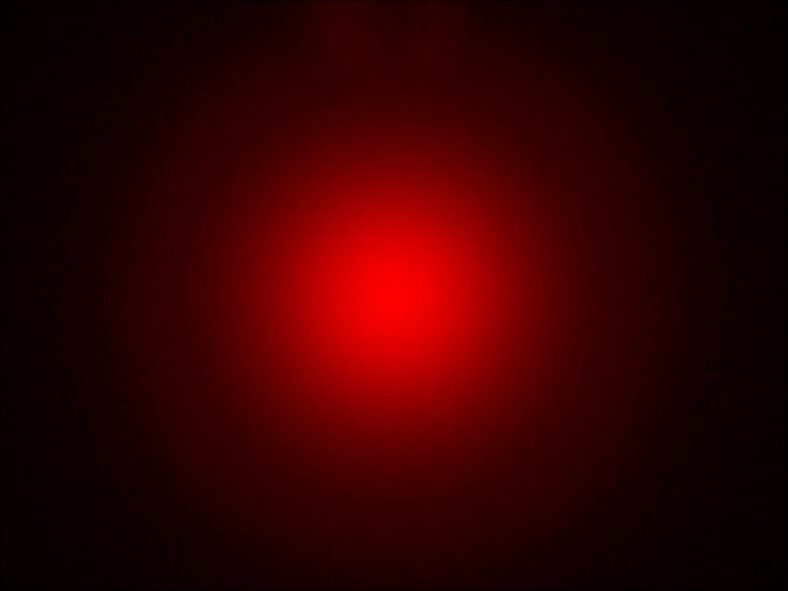

Cree XLamp XQ-A Red

Eff:

93.0%

FWHM:

23.0°

Cd/Im:

4.3

Download

Cree XLamp XQ-A Red-Orange

Eff:

92.5%

FWHM:

23°

Cd/Im:

4.5


Download

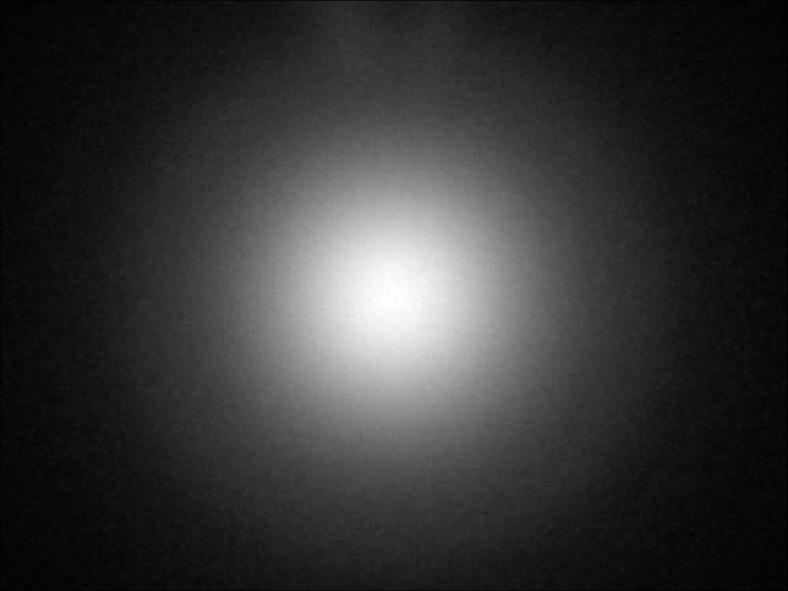

Cree XLamp XQ-A White

Eff:

92.0%

FWHM:

24.5°

Cd/Im:

3.8

Download

Cree XLamp XQ-E HI Blue

Eff:

92.0%

FWHM:

25.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

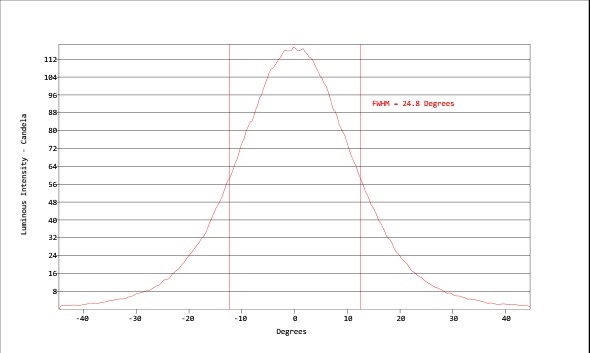

Carclo Optics - Simulated Cross Section

Download

ies

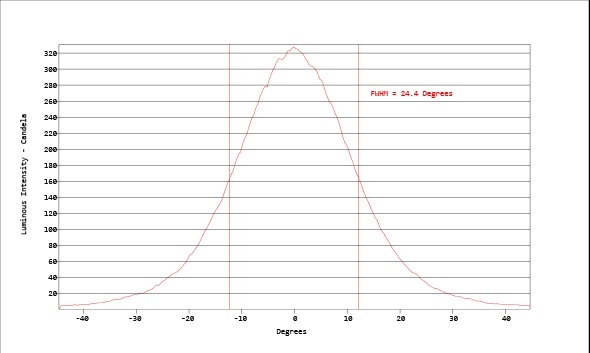

Cree XLamp XQ-E HI Green

Eff:

92.0%

FWHM:

24.5°

Cd/Im:

3.0

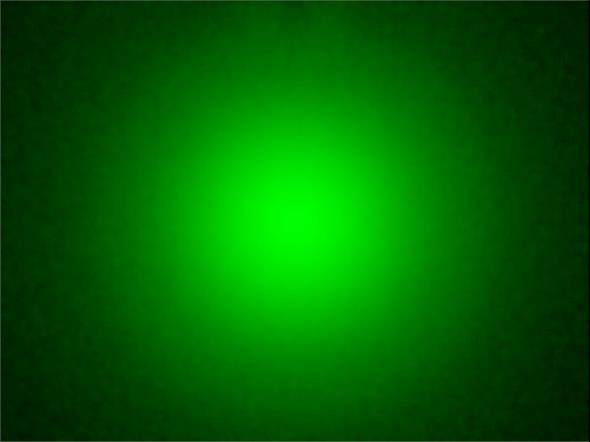

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

24.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

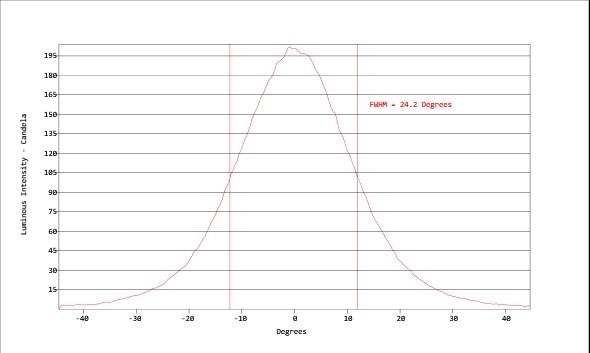

Carclo Optics - Simulated Cross Section

Download

ies

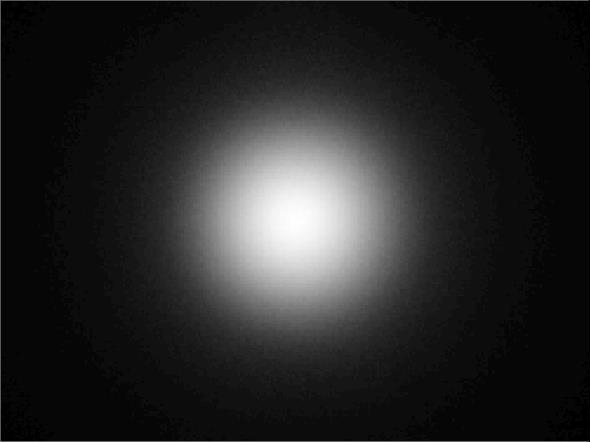

Cree XLamp XQ-E HI White

Eff:

88.0%

FWHM:

21°

Cd/Im:

3.7

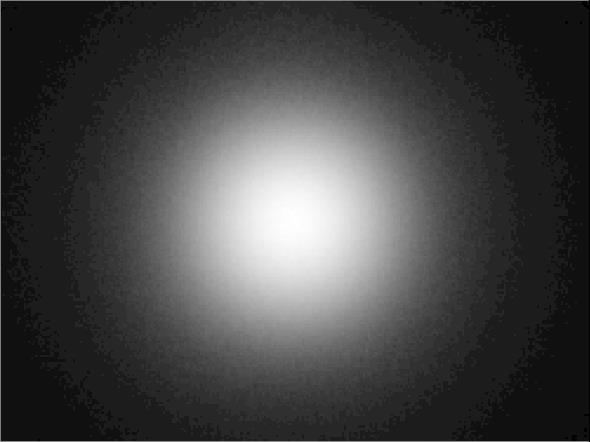

Carclo Optics - Simulated Spot Image

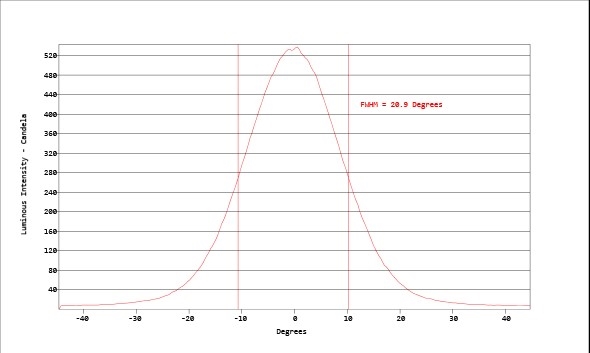

Carclo Optics - Simulated Cross Section

Download

ies

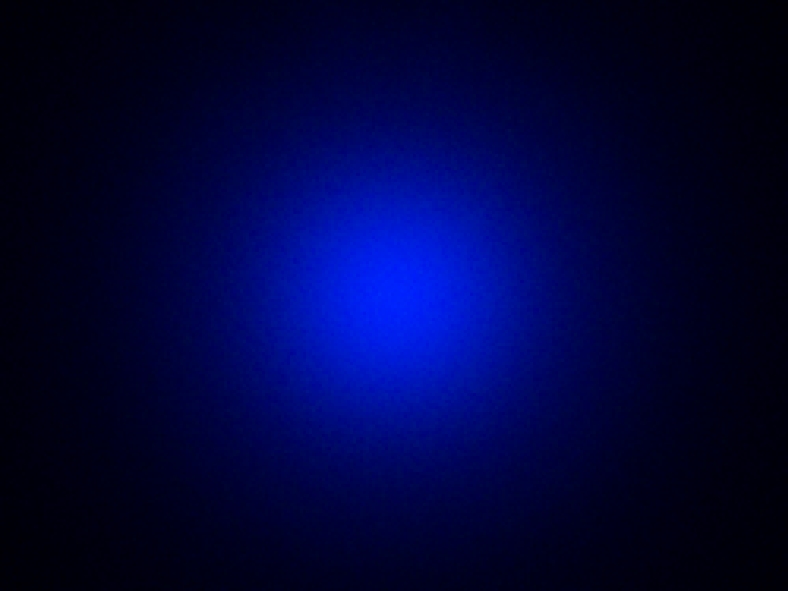

Cree XLamp XQ-E Plus HD Blue

Eff:

91.5%

FWHM:

27°

Cd/Im:

3.3


Download

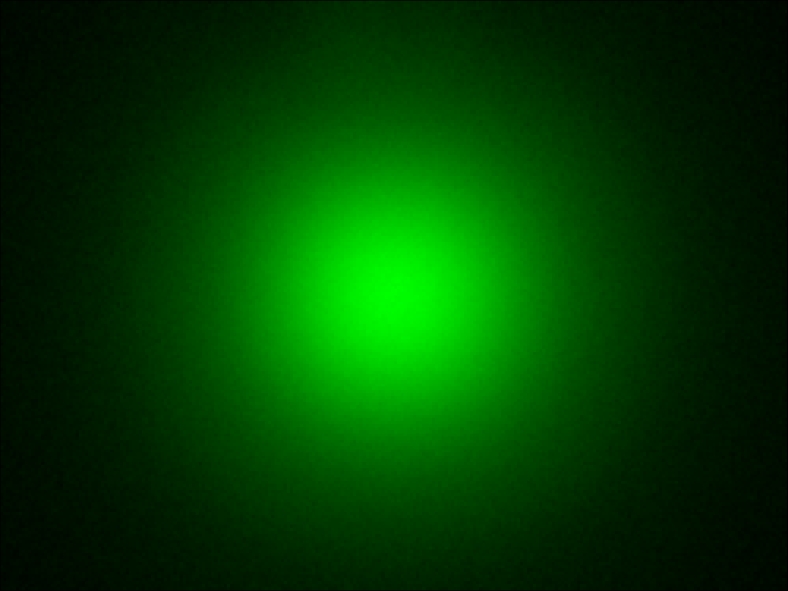

Cree XLamp XQ-E Plus HD Green

Eff:

91.5%

FWHM:

27°

Cd/Im:

3.2


Download

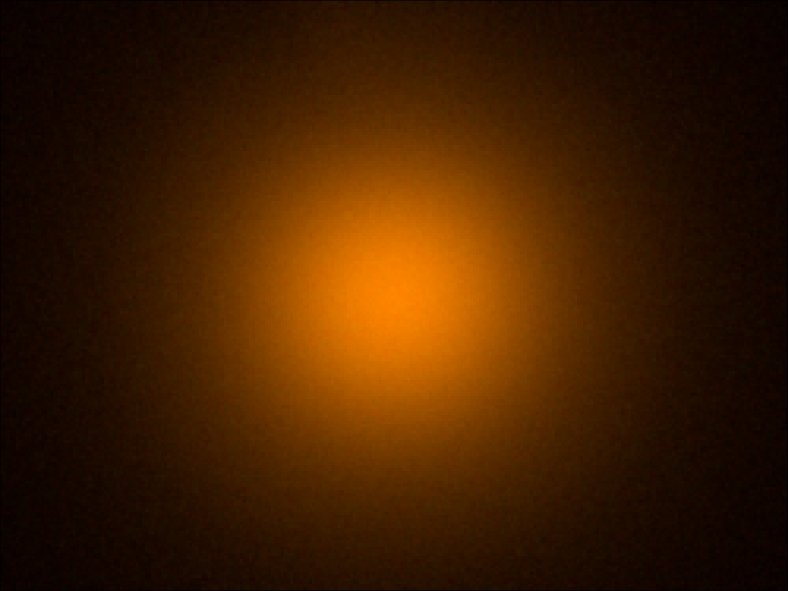

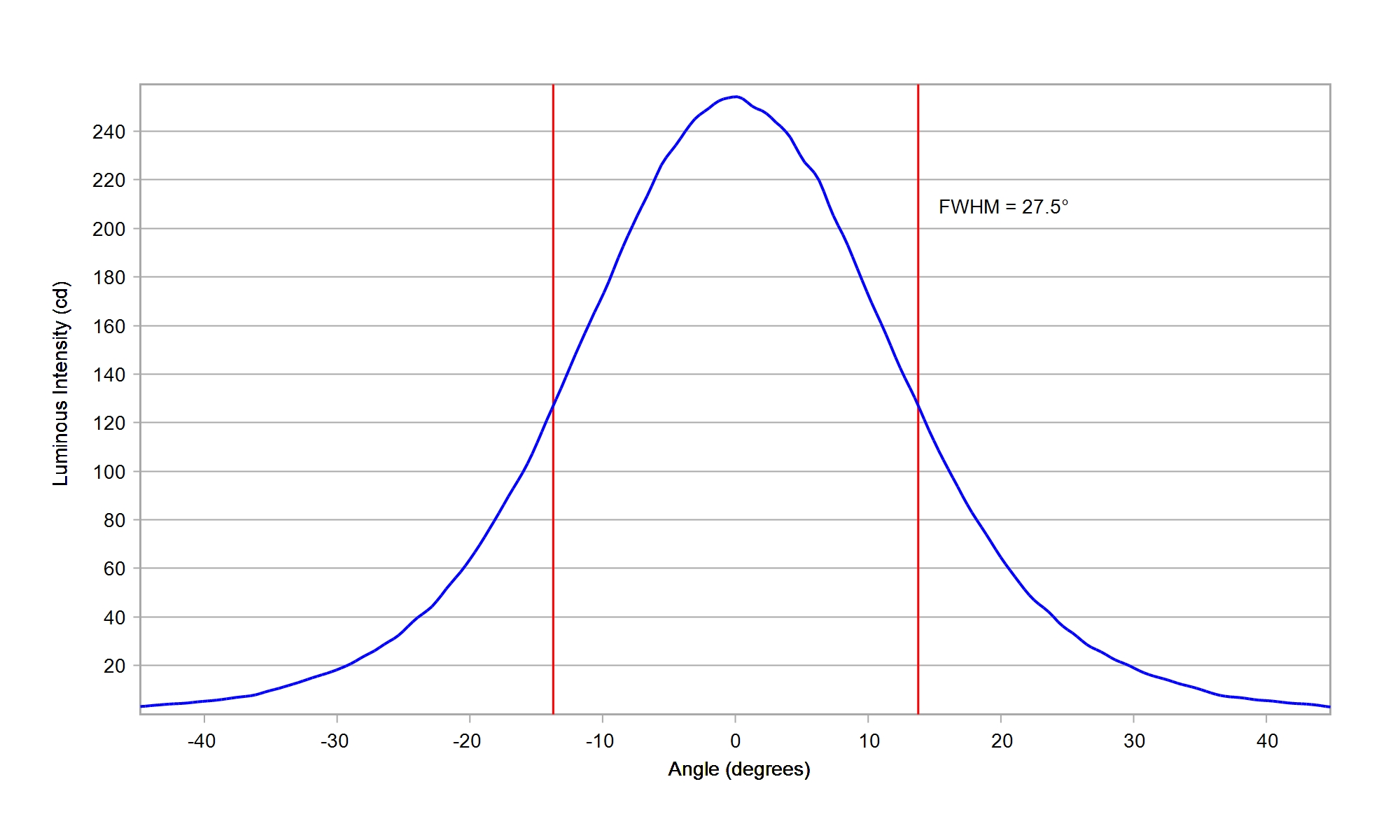

Cree XLamp XQ-E Plus HD PC Amber

Eff:

91.0%

FWHM:

27.5°

Cd/Im:

3.2


Download

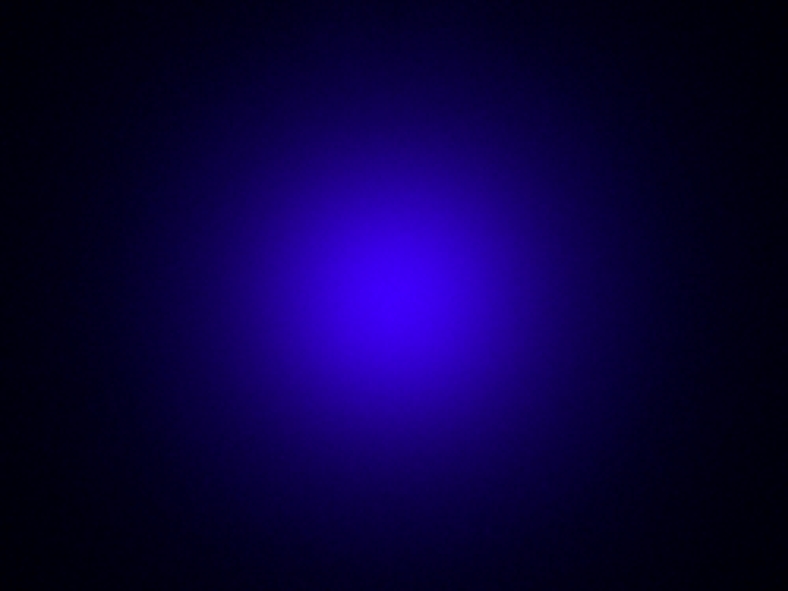

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

91.0%

FWHM:

27°

Ipk/W:

3.2

Download

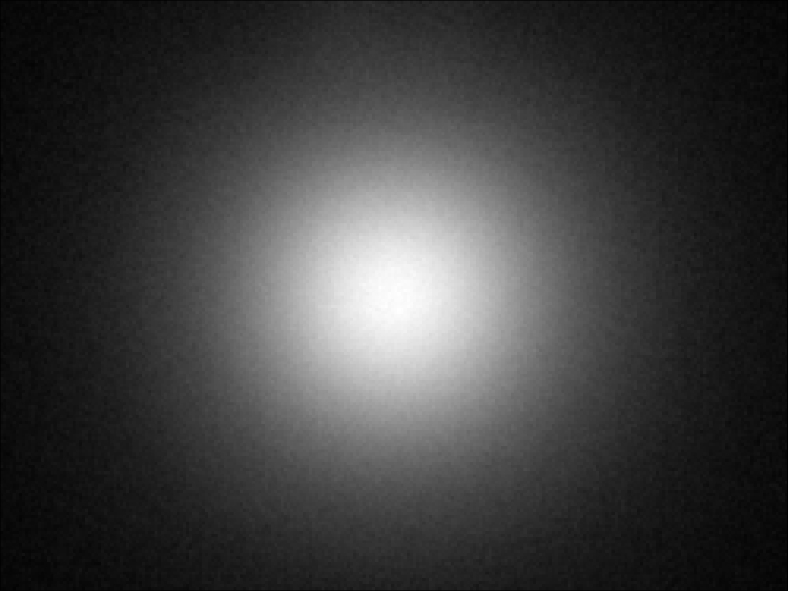

Cree XLamp XQ-E Plus HD White

Eff:

91.5%

FWHM:

27.5°

Cd/Im:

3.1


Download

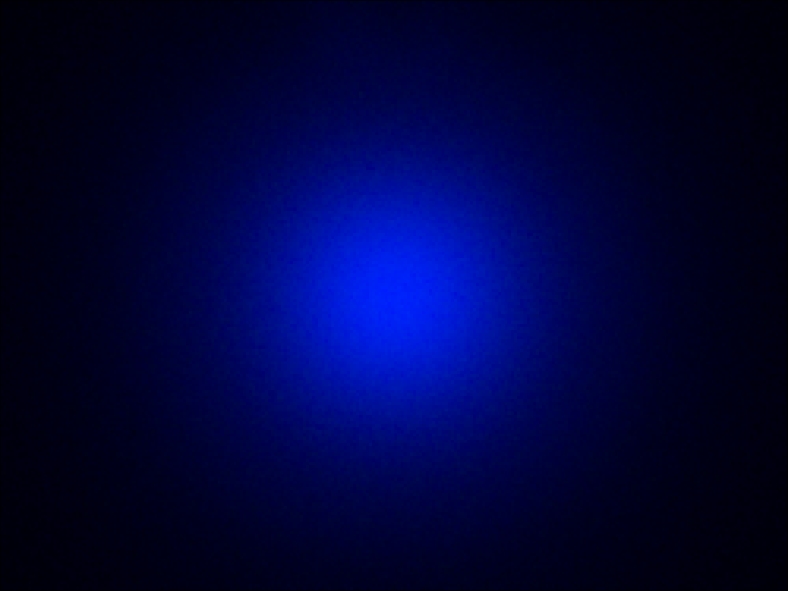

Cree XLamp XQ-E Plus HI Blue

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.4


Download

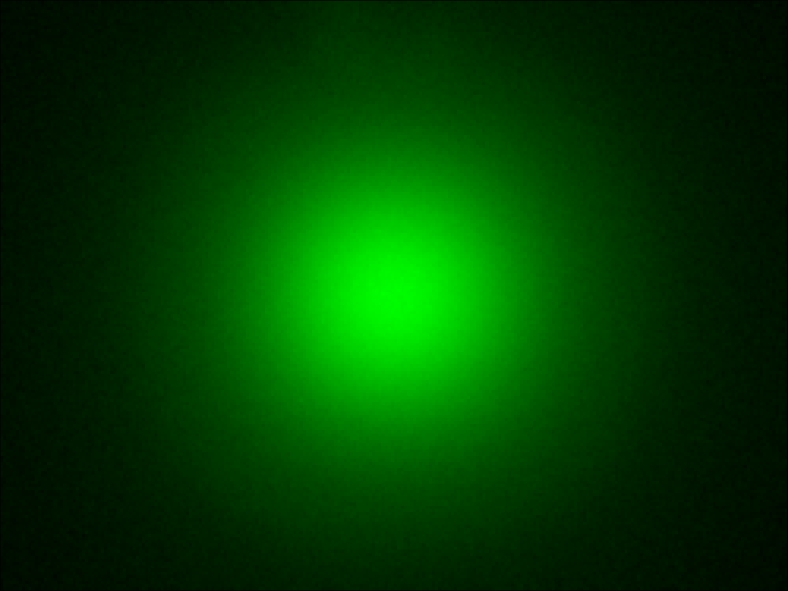

Cree XLamp XQ-E Plus HI Green

Eff:

92.5%

FWHM:

25.5°

Cd/Im:

3.2


Download

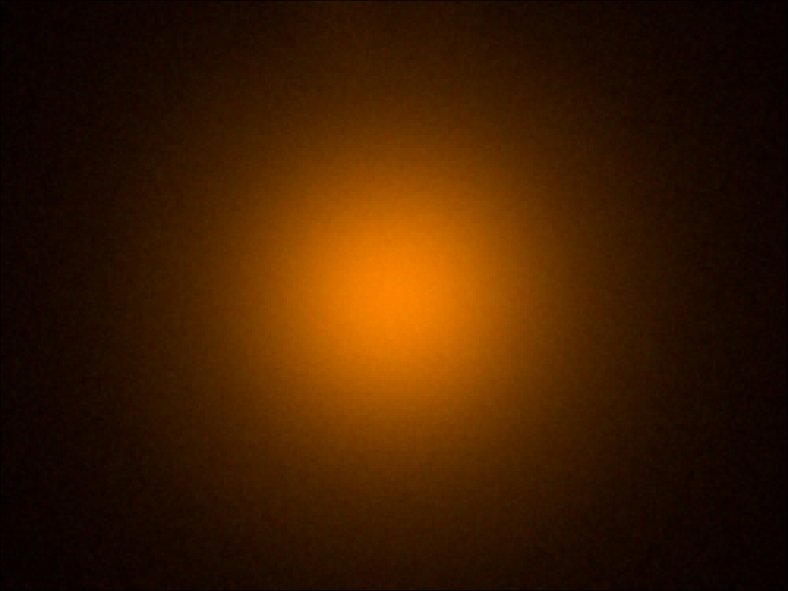

Cree XLamp XQ-E Plus HI PC Amber

Eff:

92.0%

FWHM:

26.5°

Cd/Im:

3.3


Download

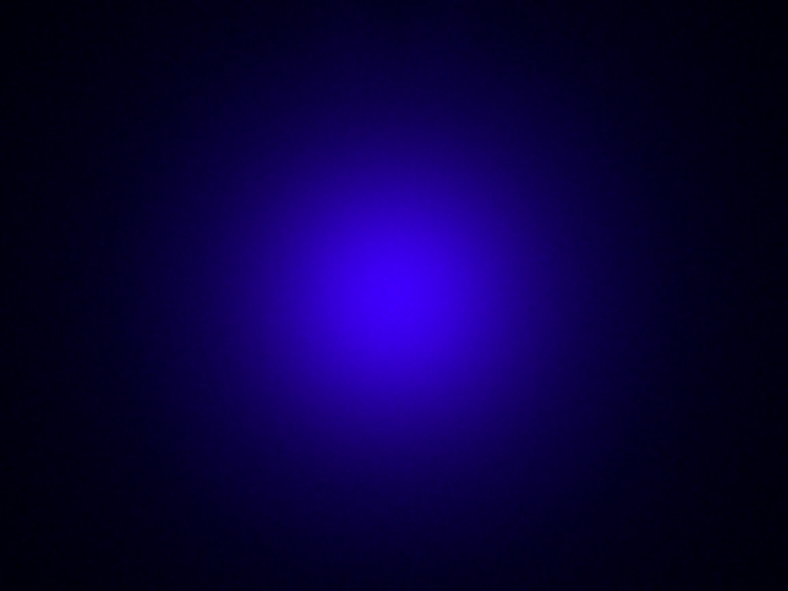

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

92.0%

FWHM:

25.5°

Ipk/W:

3.3


Download

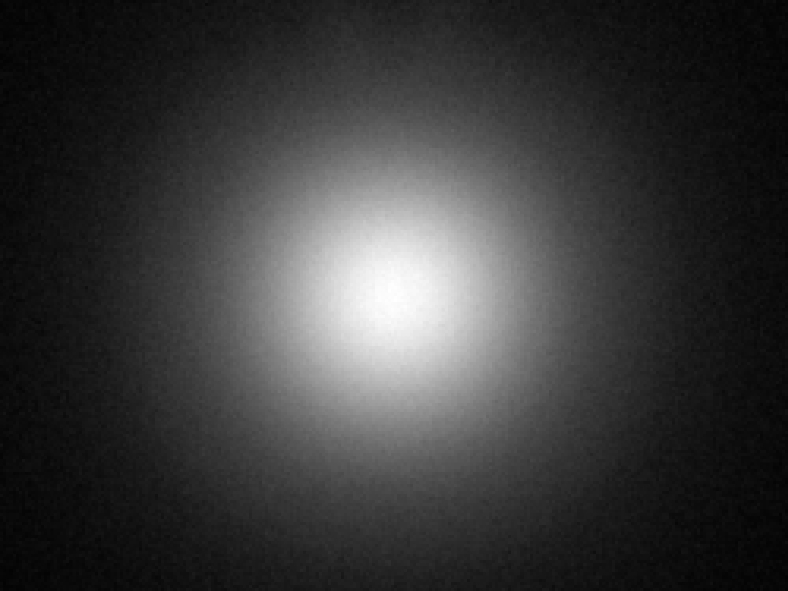

Cree XLamp XQ-E Plus HI White

Eff:

92.5%

FWHM:

25.5°

Cd/Im:

3.6


Download

Cree XLamp XQ-E HD White

Eff:

88.0%

FWHM:

24°

Cd/Im:

2.9

carclo optics - simulated spot image

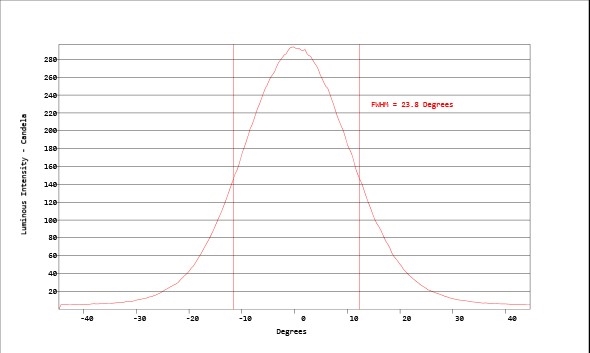

carclo optics - simulated cross section

Download

ies

Everlight Shuen White

Eff:

82.3%

FWHM:

30.9°

Cd/Im:

2.5

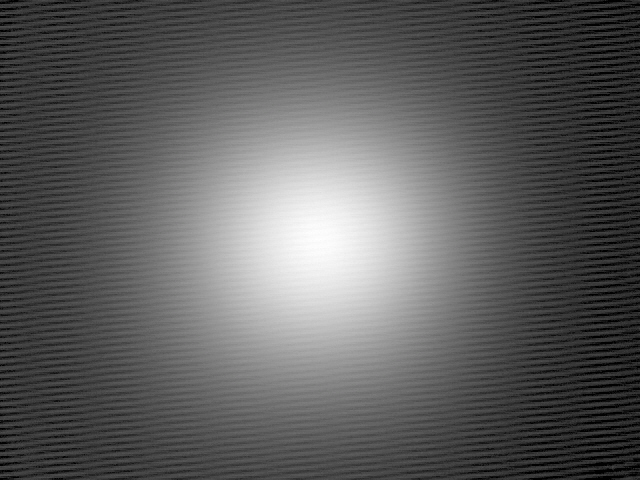

Spot Image

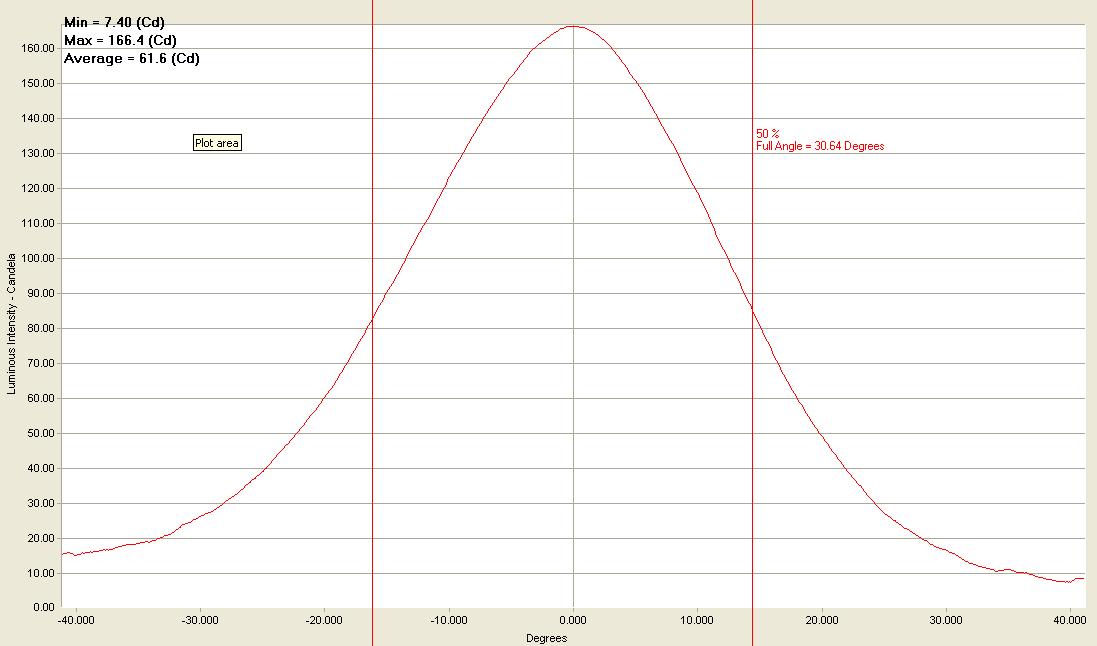

Cross Section

Download

ies

LG Innotek 3535LG White

Eff:

85.3%

FWHM:

29.5°

Cd/Im:

2.2

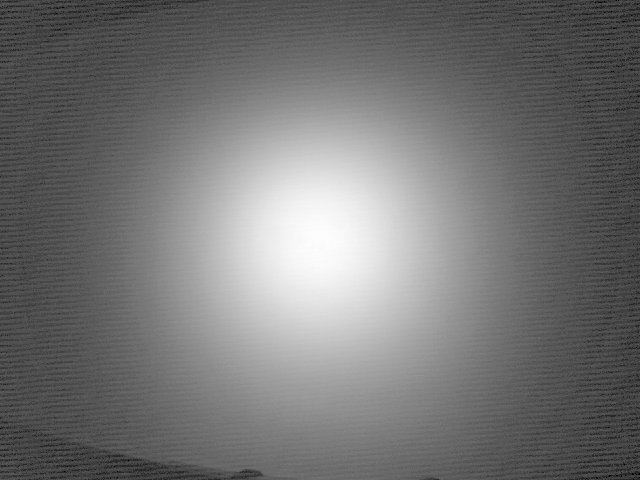

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

93.5%

FWHM:

32.5°

Ipk/W:

2.2

Carclo Optics - Simulated Spot Image

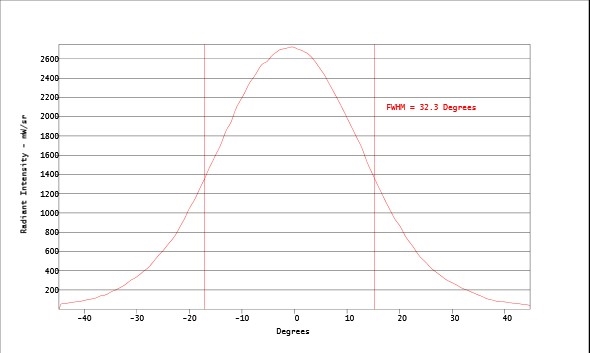

Carclo Optics - Simulated Cross Section

Download

ies

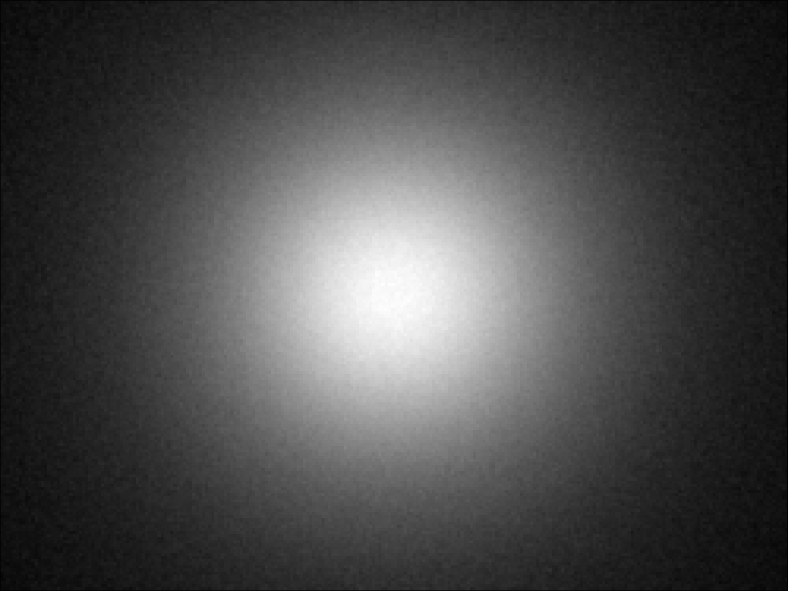

LUMILEDS LUXEON 2835C 6V White

Eff:

79.5%

FWHM:

31°

Cd/Im:

2.2

Download

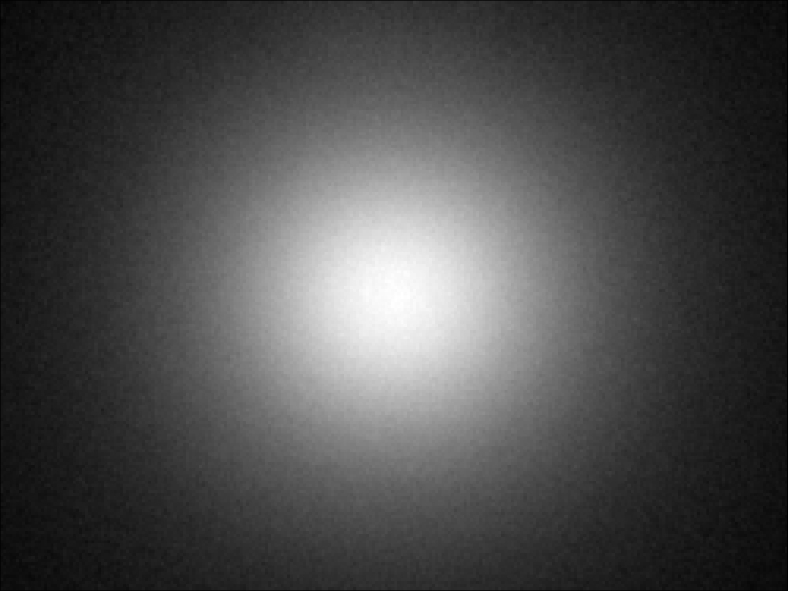

LUMILEDS LUXEON 2835E 9V White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.5

Download

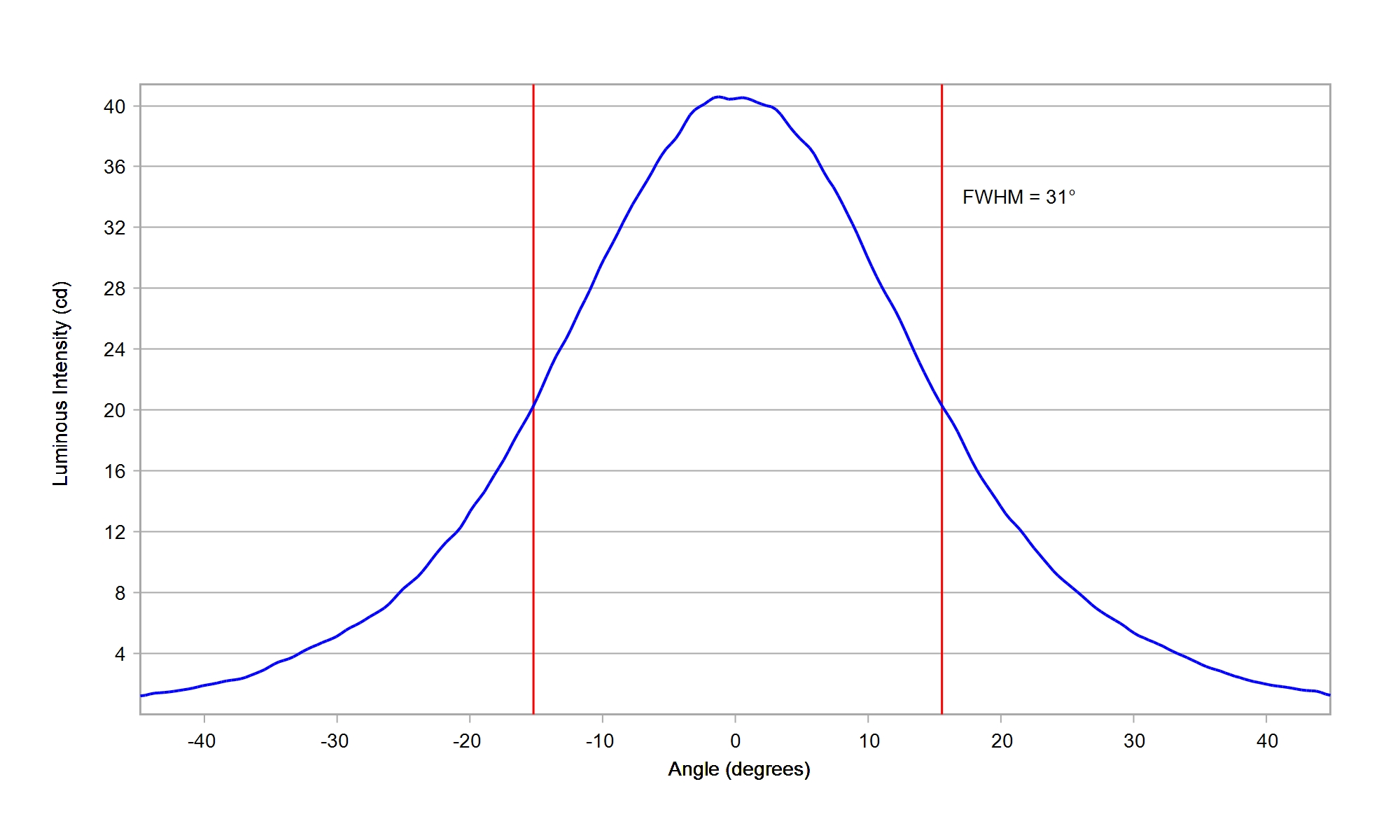

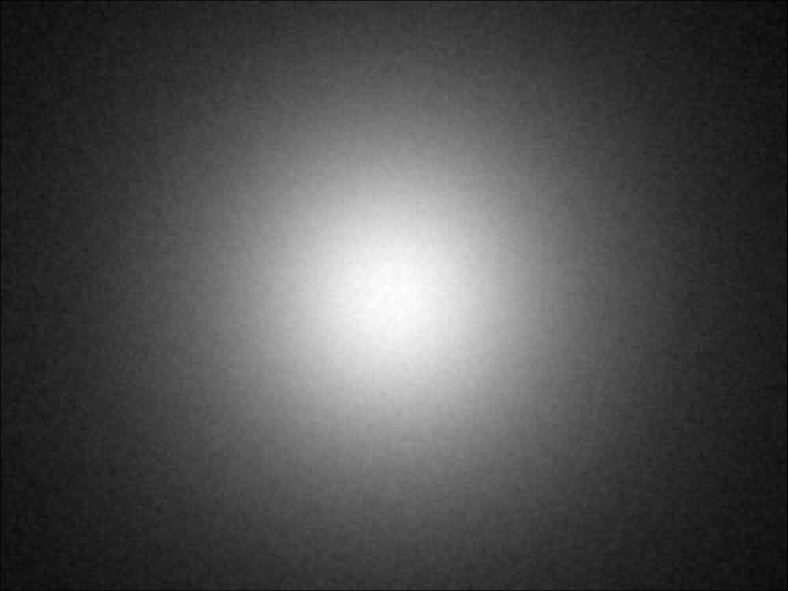

LUMILEDS LUXEON 2835N 3V White

Eff:

80.0%

FWHM:

31°

Cd/Im:

2.0

Download

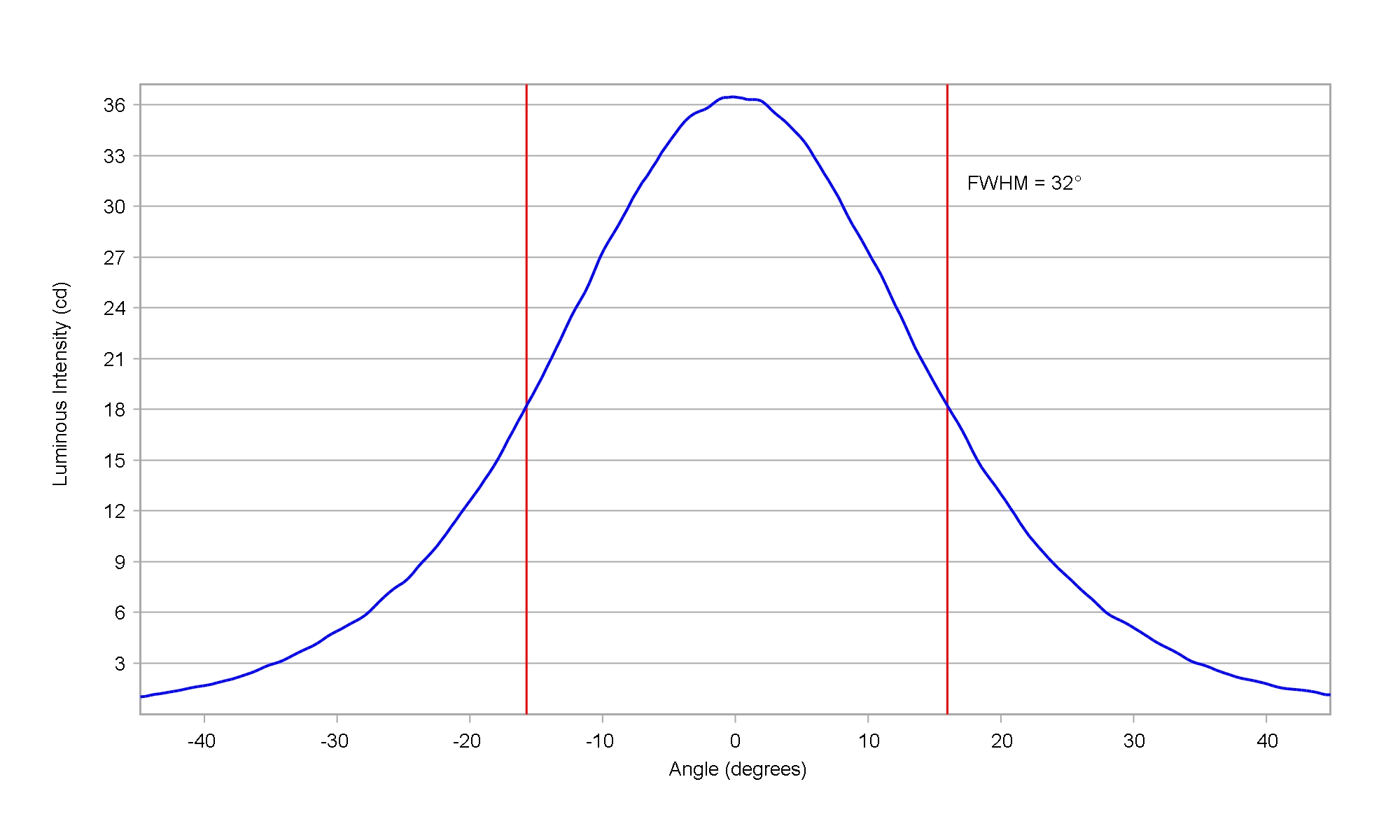

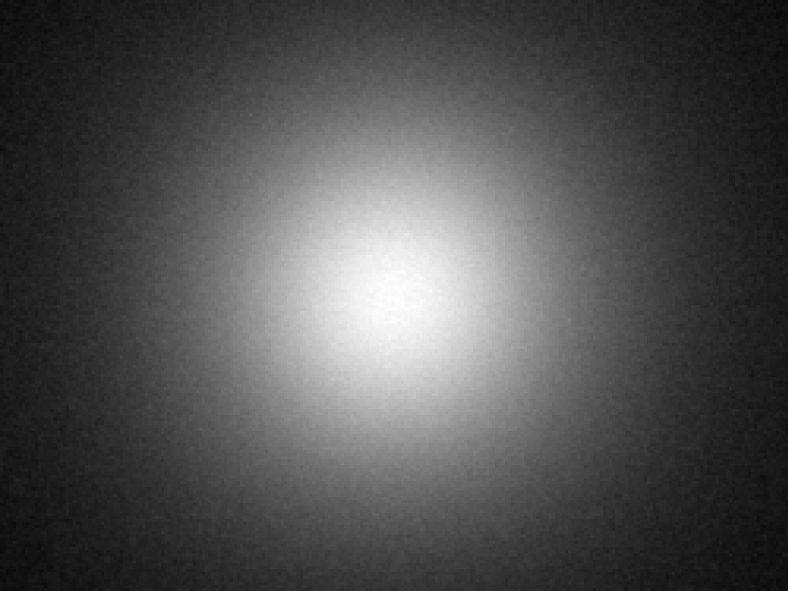

LUMILEDS LUXEON 2835S 3V White

Eff:

80.0%

FWHM:

32°

Cd/Im:

1.9

Download

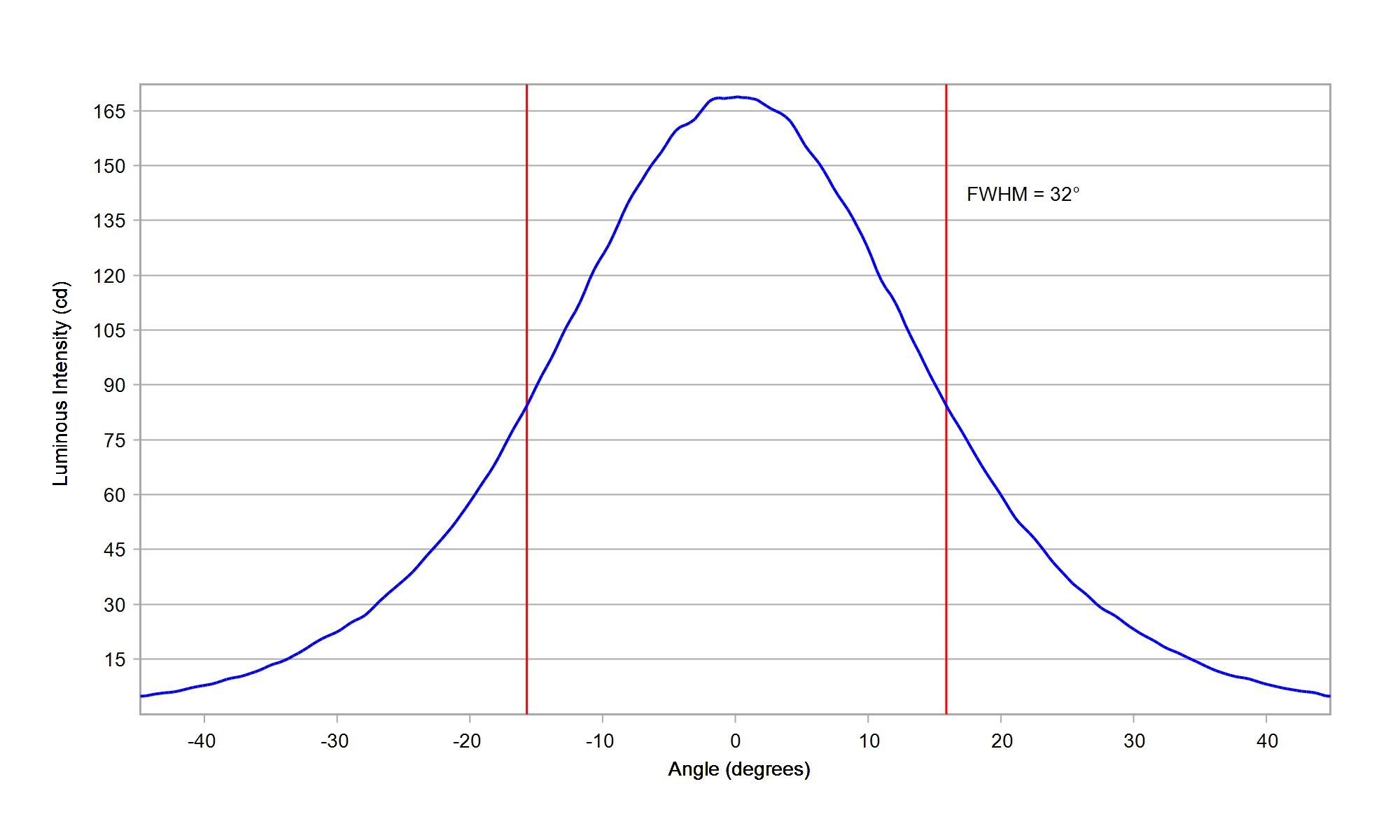

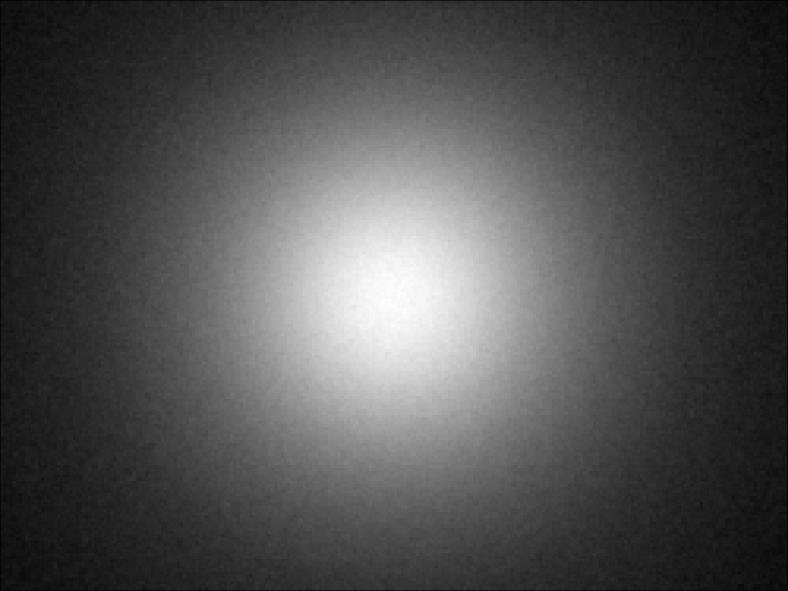

LUMILEDS LUXEON 2835S 6V White

Eff:

80.0%

FWHM:

32°

Cd/Im:

2.0

Download

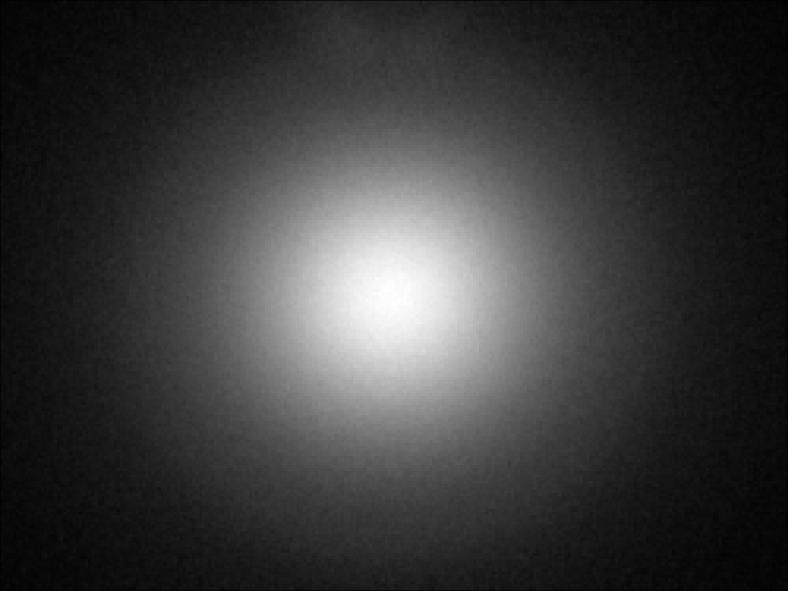

LUMILEDS LUXEON 3014 White

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.5

Download

IES

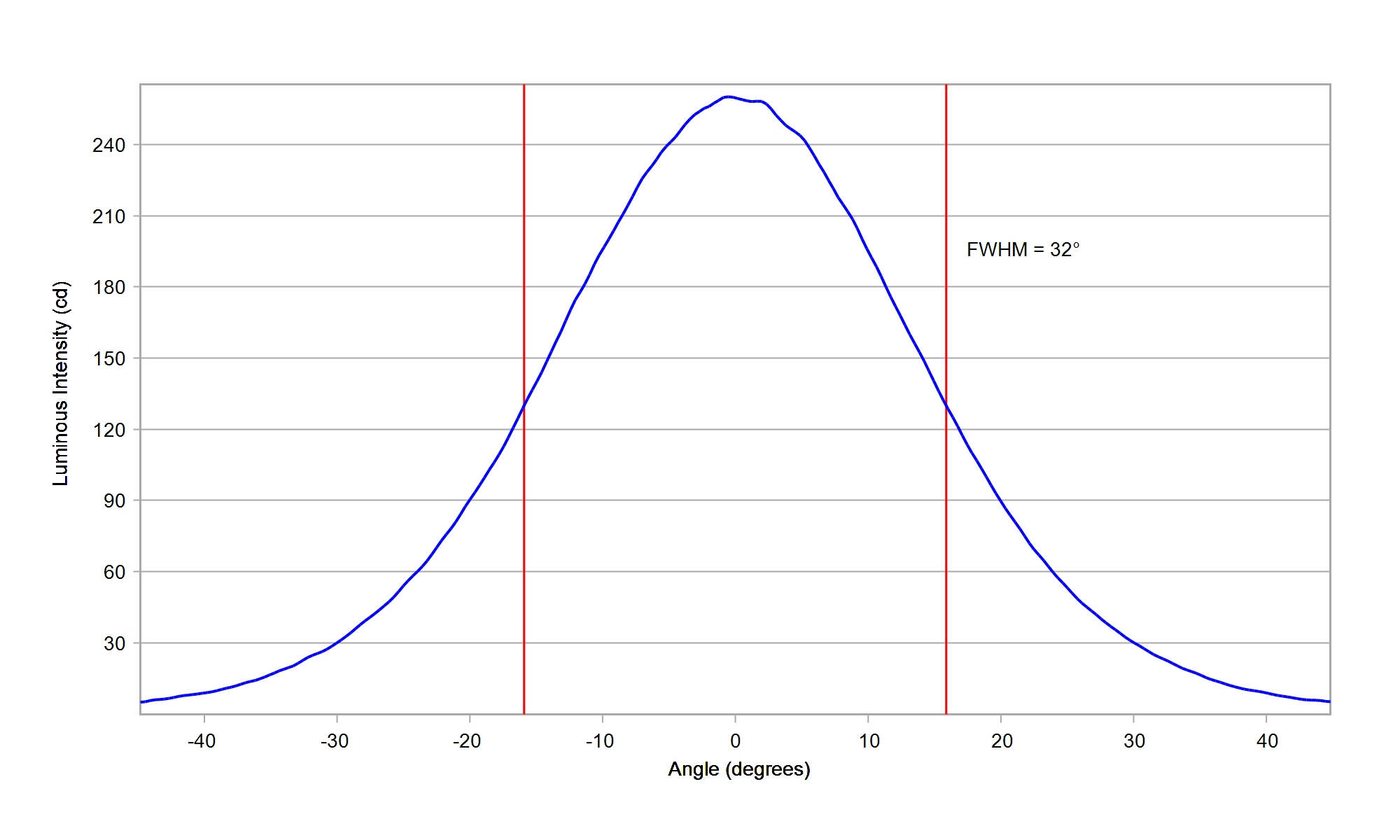

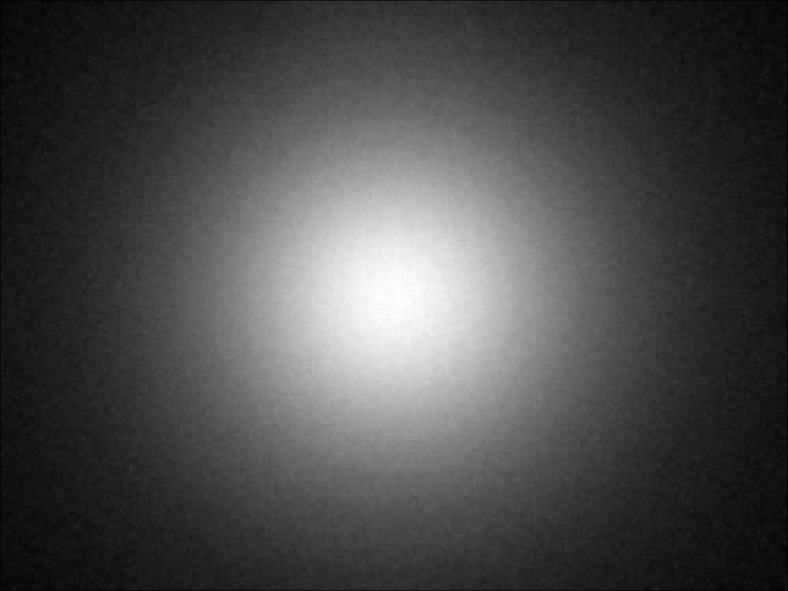

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.7


Download

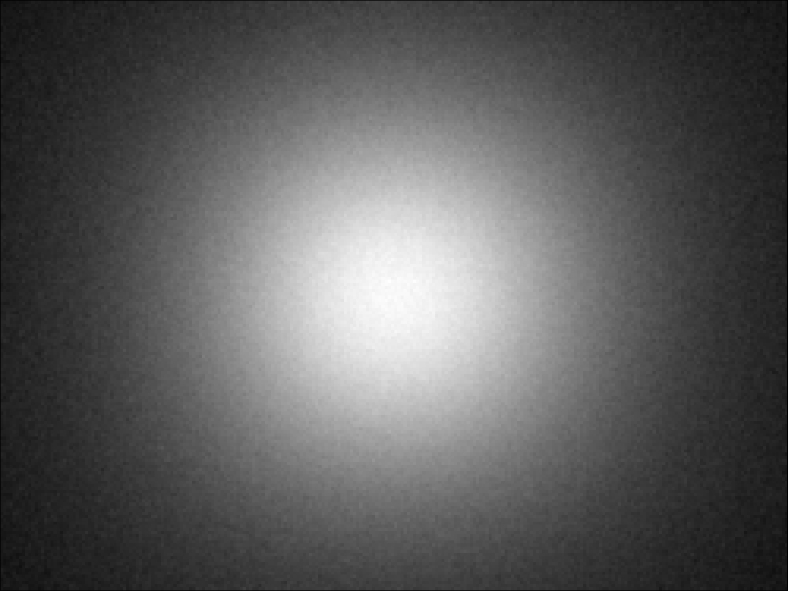

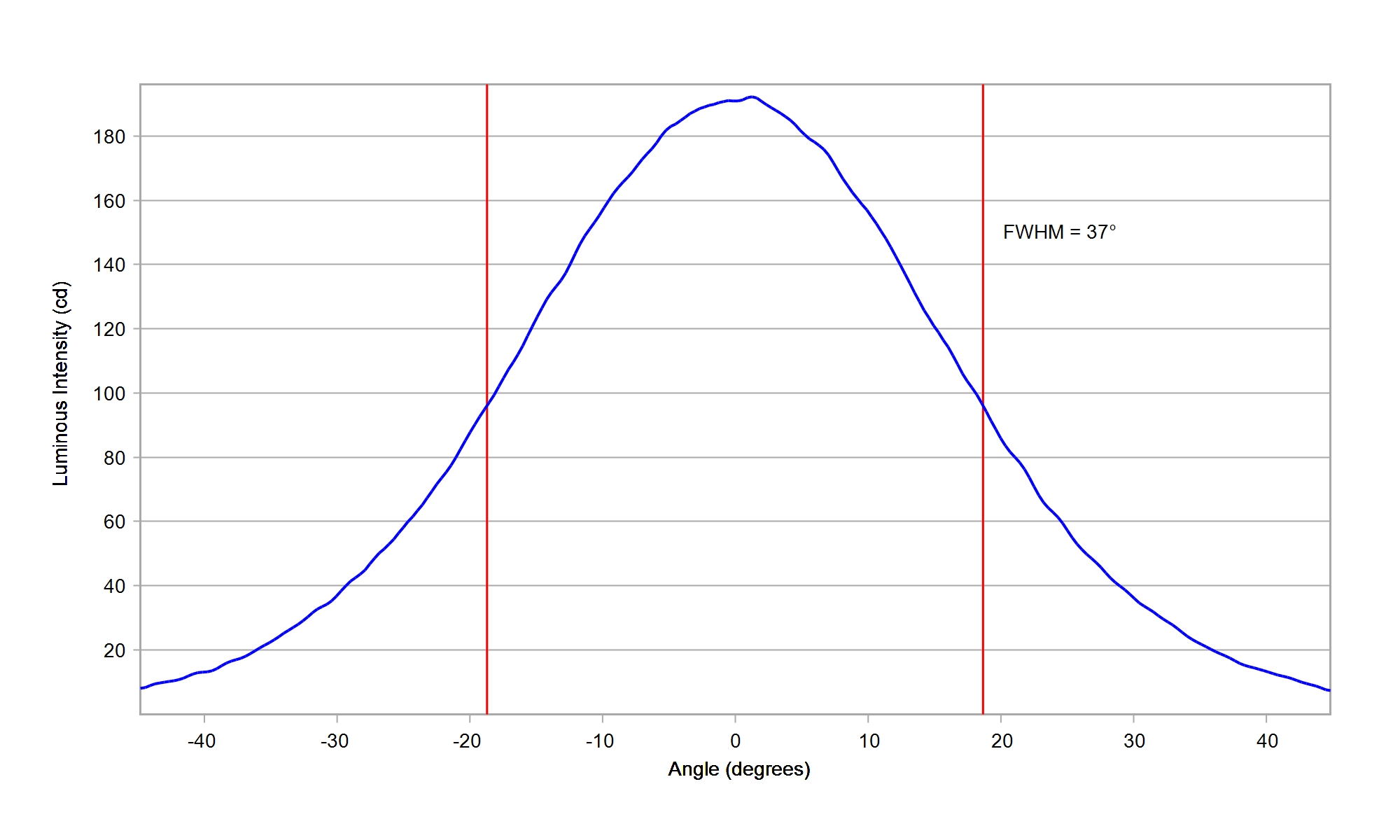

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

92.0%

FWHM:

37°

Cd/Im:

1.9


Download

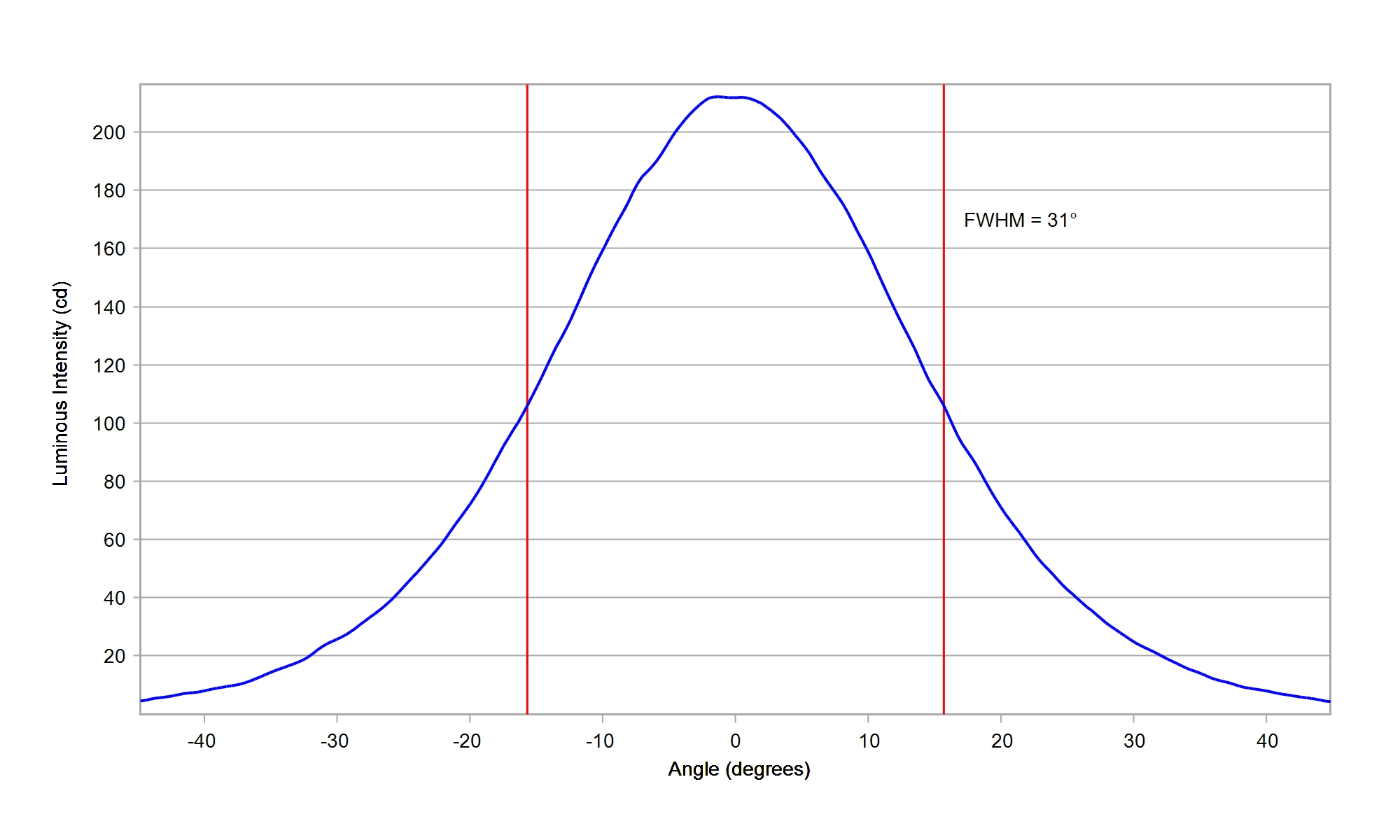

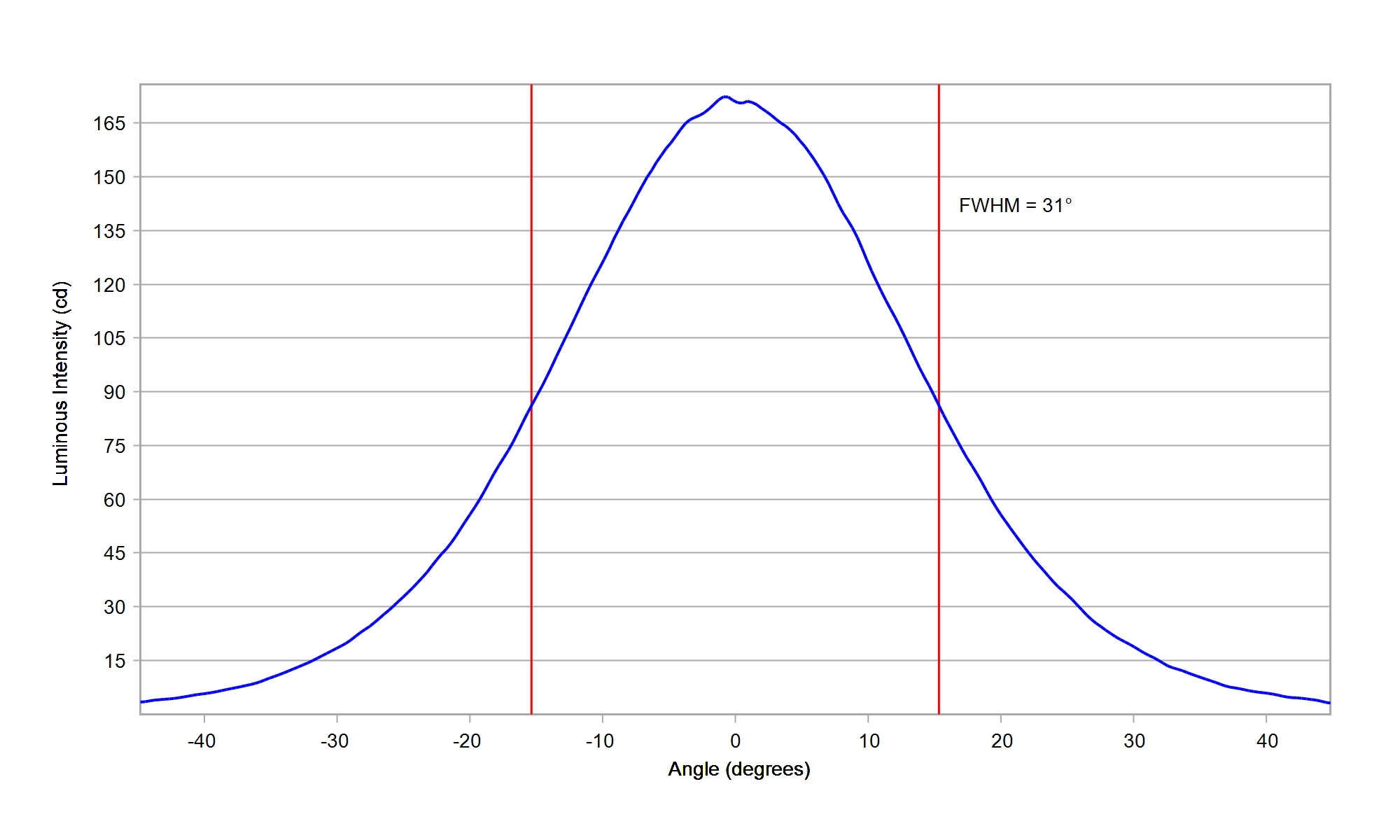

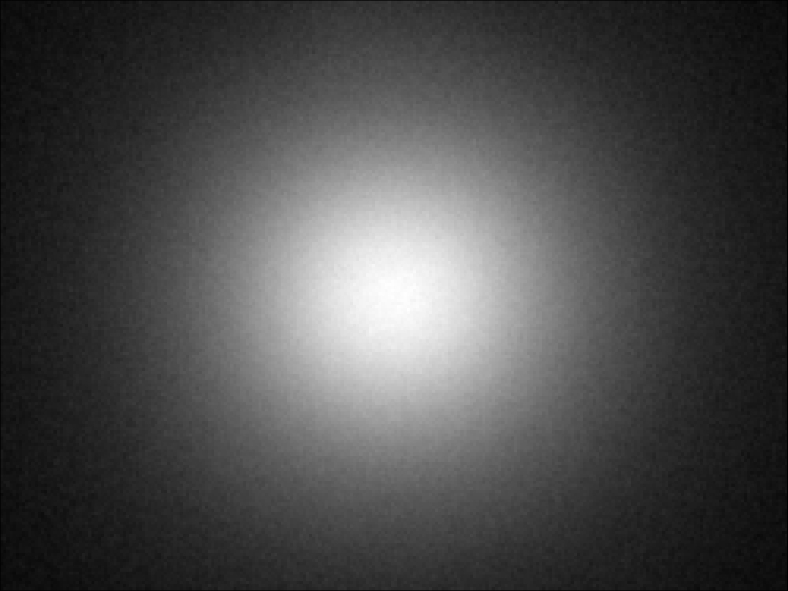

LUMILEDS LUXEON 3030 2D Square White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.5


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.5

Download

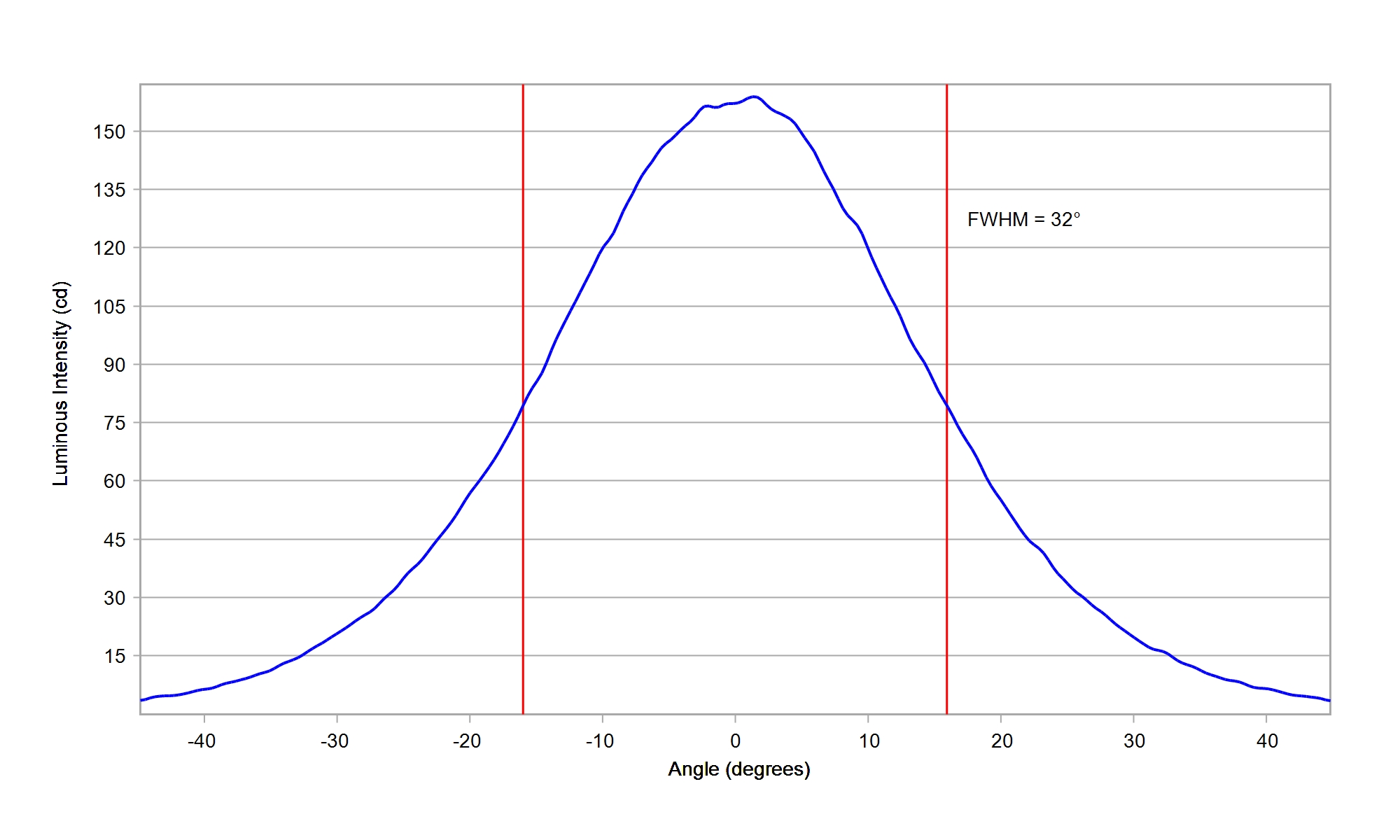

LUMILEDS LUXEON 3030 HE Plus White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.8

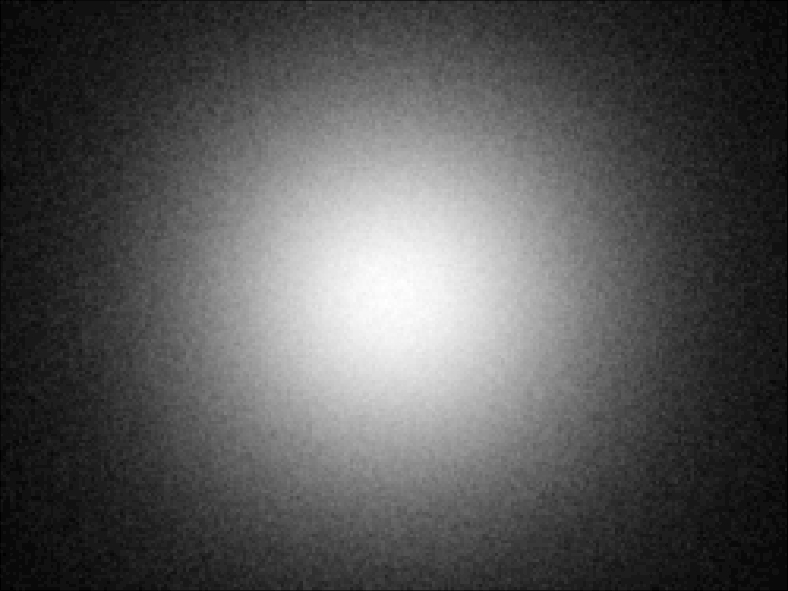

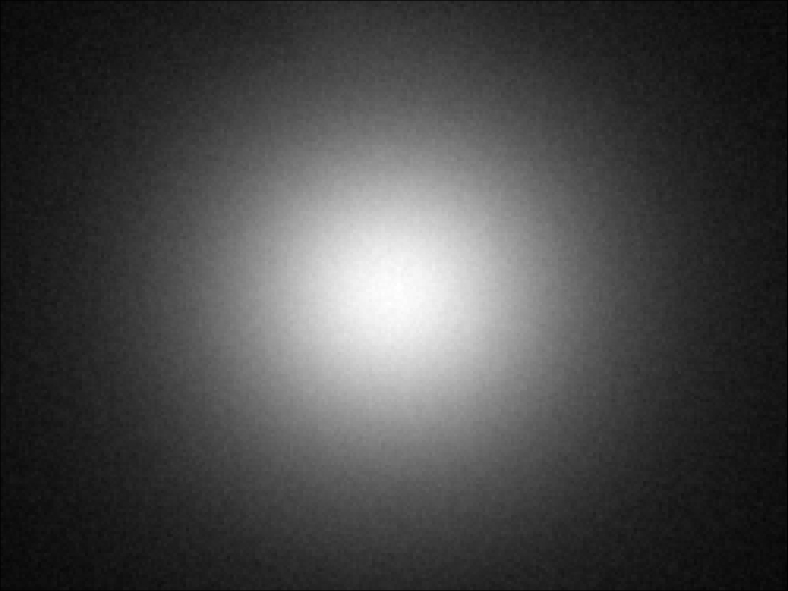

Carclo Optics – 12084 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 12084 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

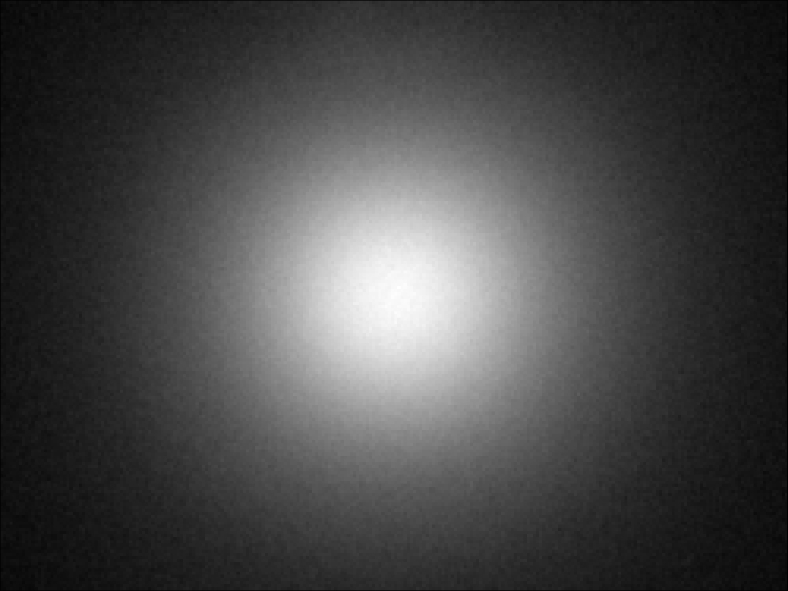

LUMILEDS LUXEON 3030 HE White

Eff:

92.5%

FWHM:

29.5°

Cd/Im:

2.9

Download

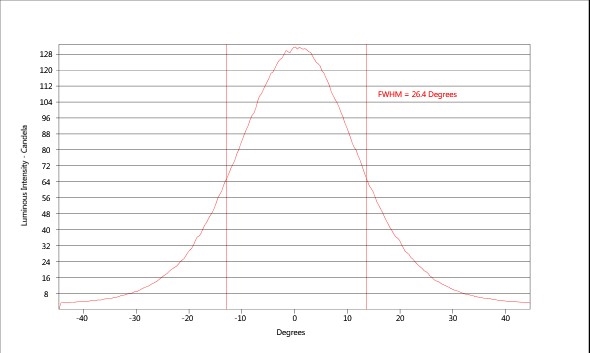

LUMILEDS LUXEON 3535 HV White

Eff:

88.5%

FWHM:

26°

Cd/Im:

2.4

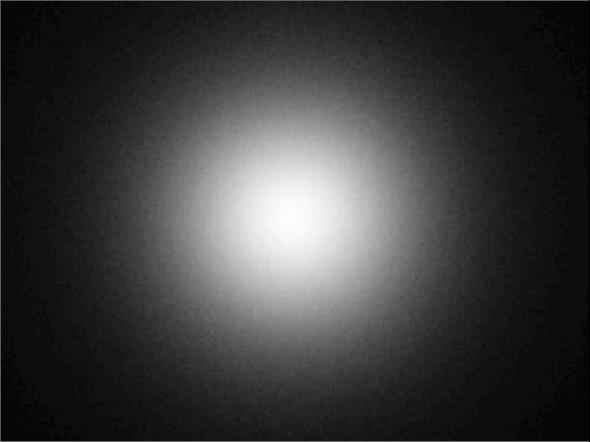

carclo optics - simulated spot image

Download

ies

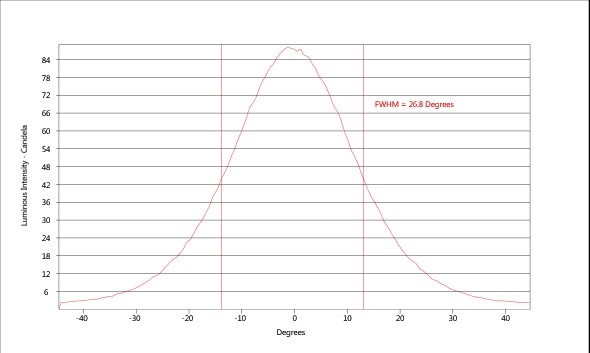

LUMILEDS LUXEON 3535 L White

Eff:

88.5%

FWHM:

27°

Cd/Im:

2.3

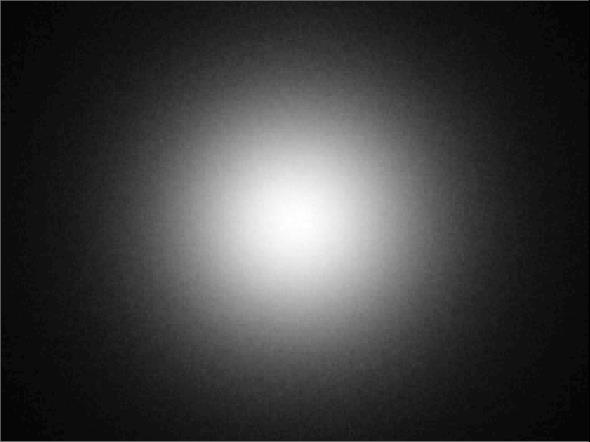

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

86.5%

FWHM:

26.5°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

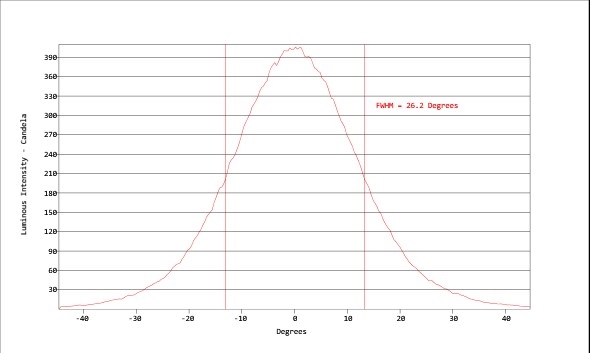

LUMILEDS LUXEON C Lime

Eff:

88.0%

FWHM:

26.0°

Cd/Im:

2.9

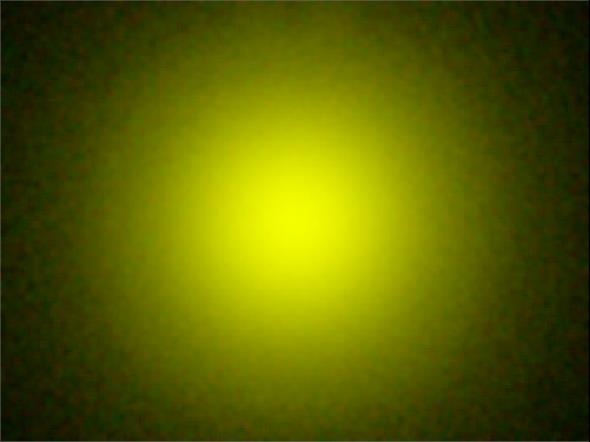

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

85.5%

FWHM:

27.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

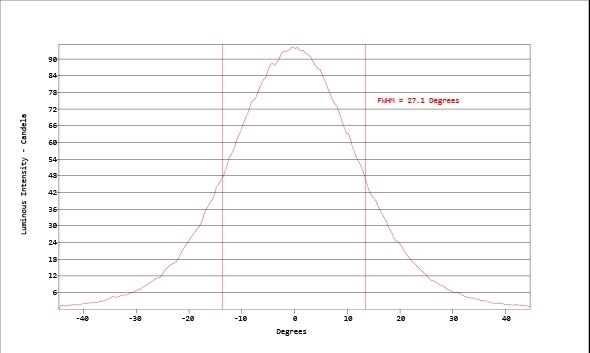

Carclo Optics - Simulated Cross Section

Download

ies

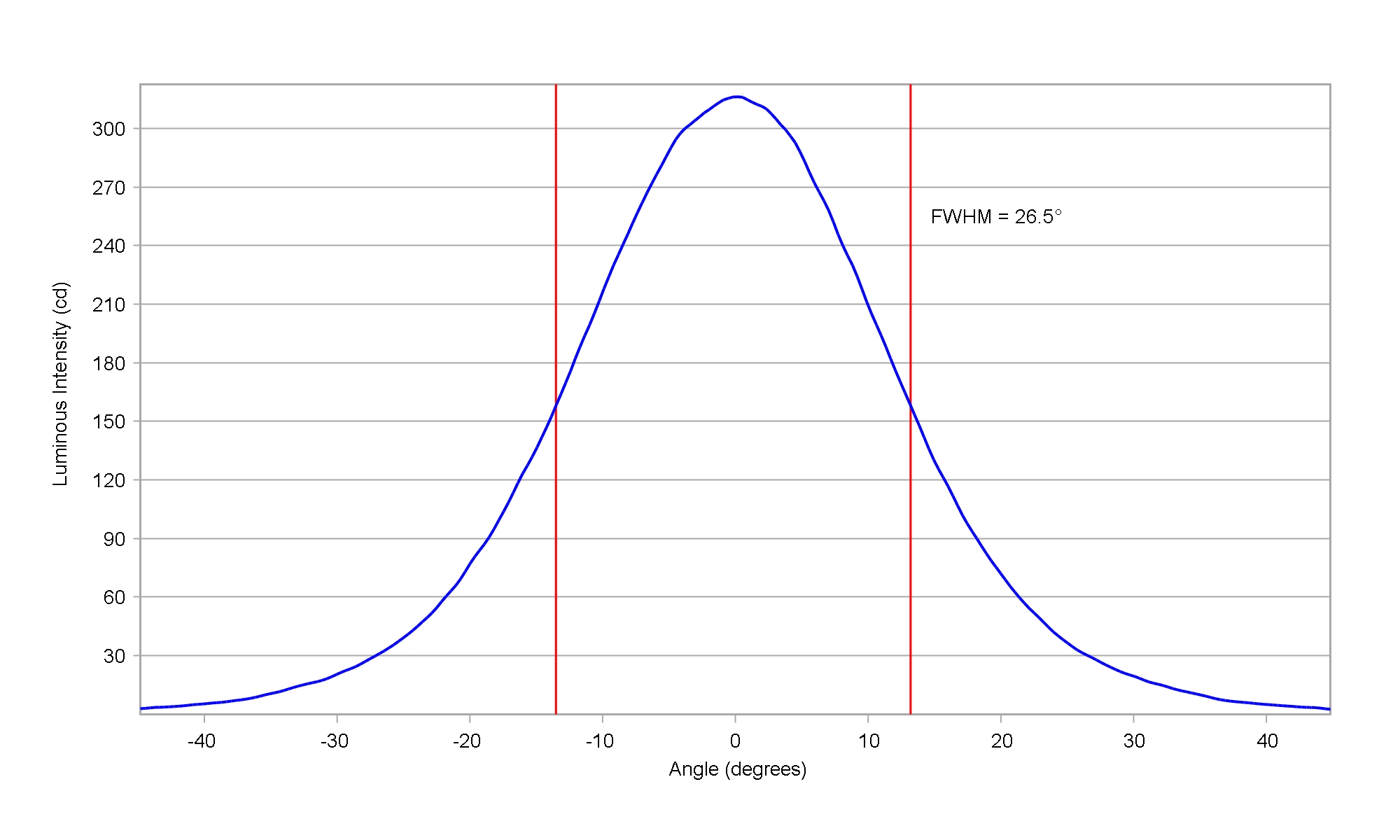

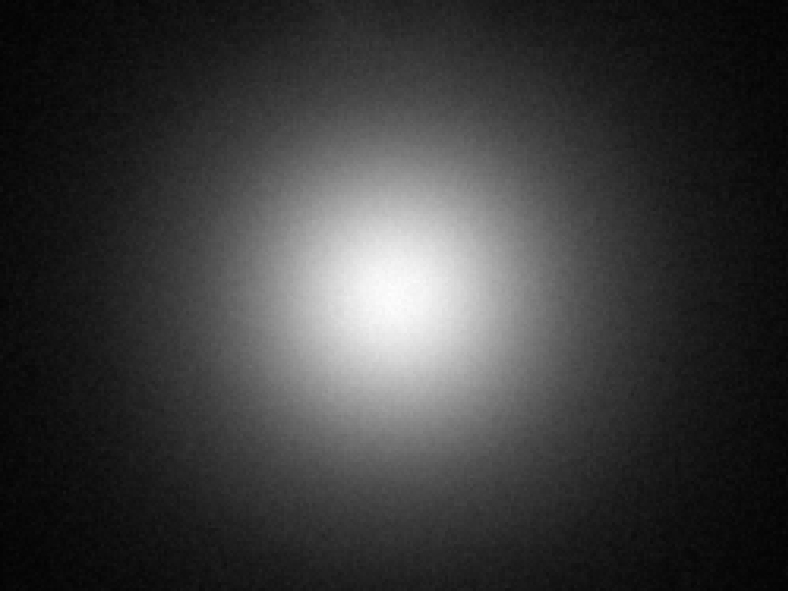

LUMILEDS LUXEON C White

Eff:

88.0%

FWHM:

26.5°

Cd/Im:

3.3

Download

LUMILEDS LUXEON CZ White

Eff:

93.0%

FWHM:

24°

Cd/Im:

4.6

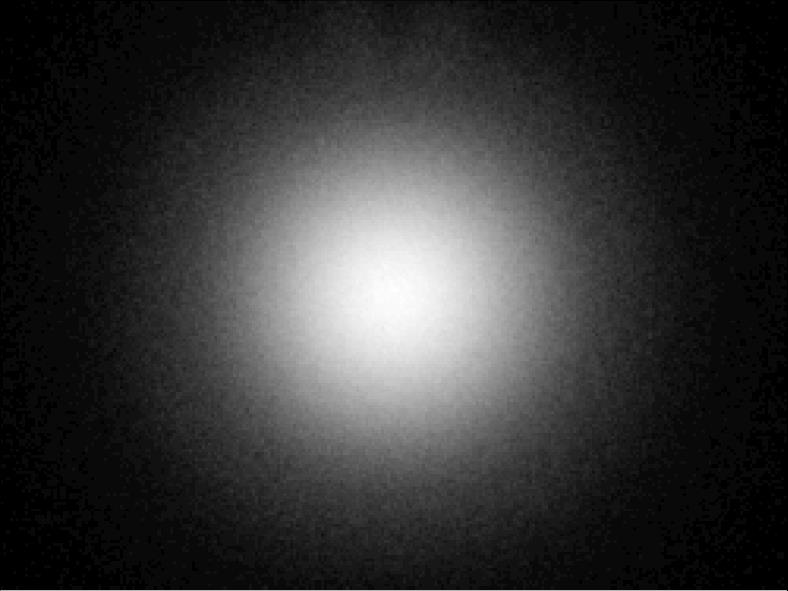

Carclo Optics 12084 Spot Image Luxeon CZ CW

Carclo Optics 12084 Cross Section Luxeon CZ CW

Download

ies

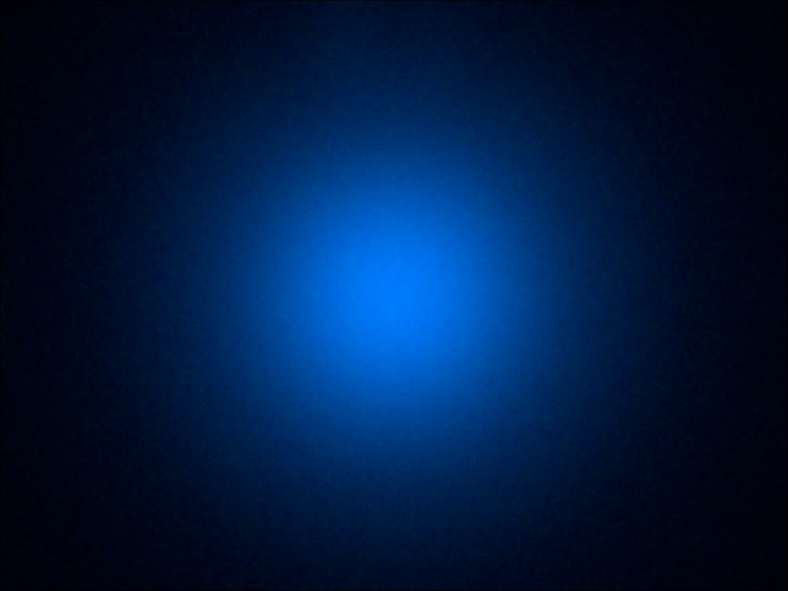

LUMILEDS LUXEON HL1Z Color Blue

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

3.0

Download

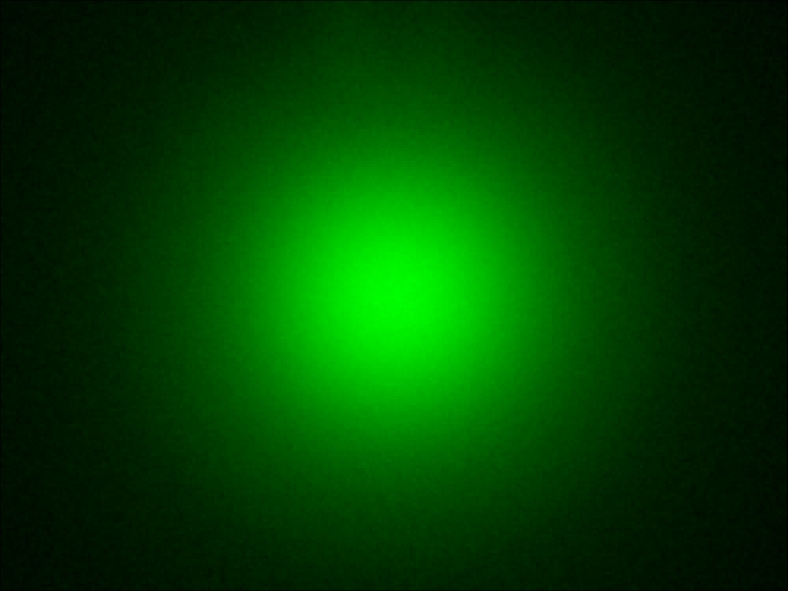

LUMILEDS LUXEON HL1Z Color Green

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

2.8

Download

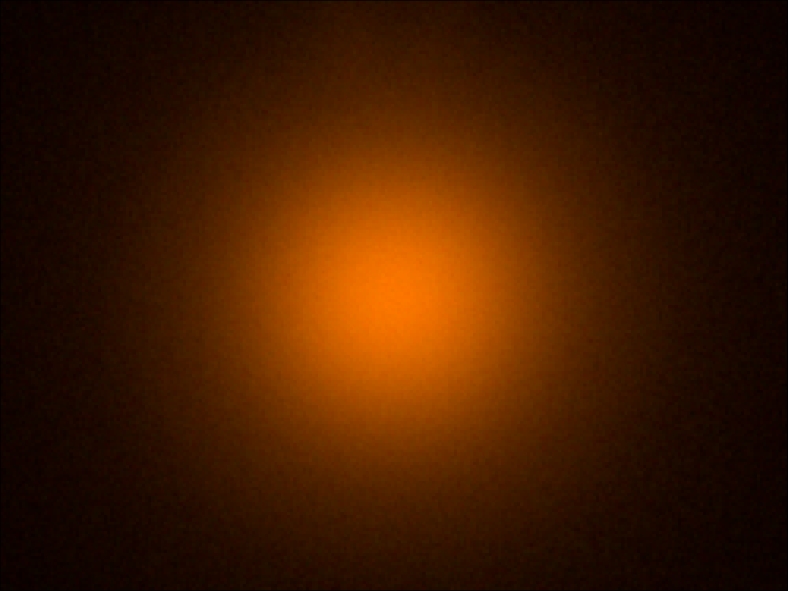

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

2.8


Download

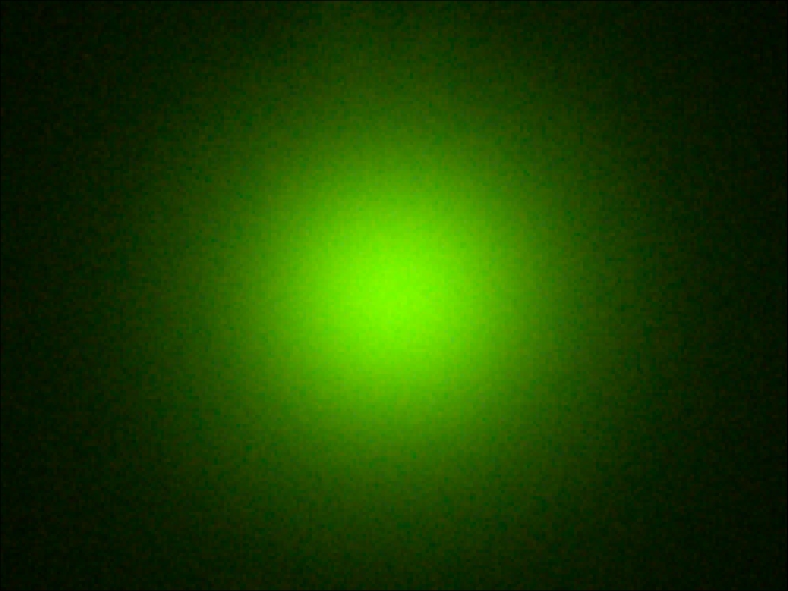

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

91.5%

FWHM:

28°

Cd/Im:

2.6


Download

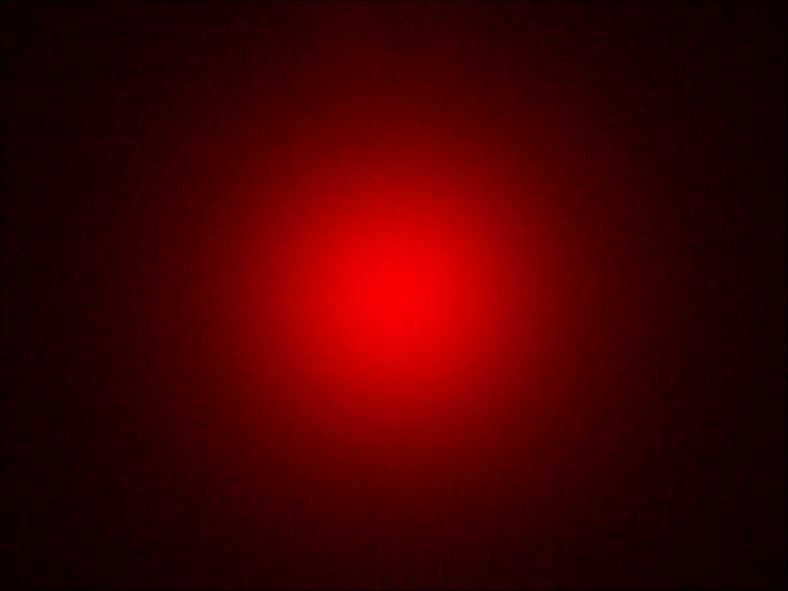

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

3.2

Download

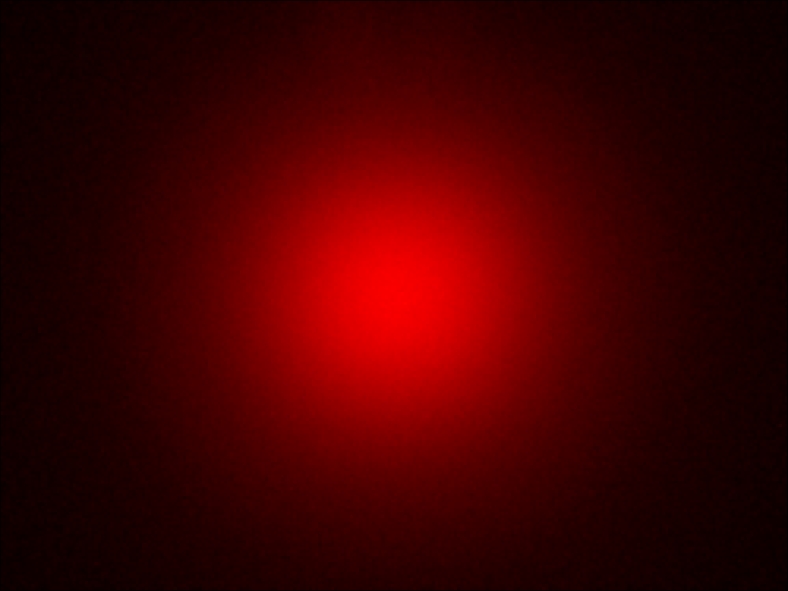

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.1


Download

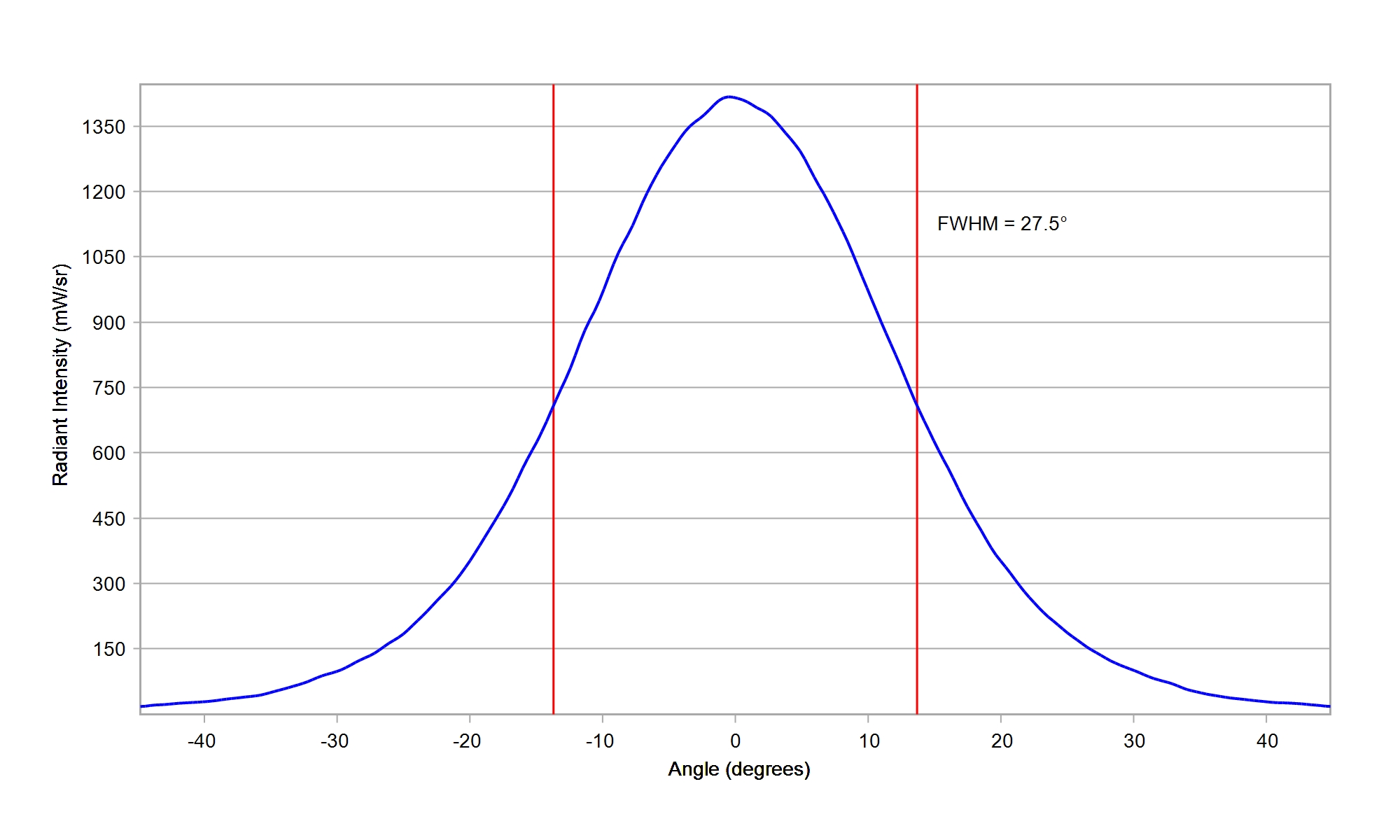

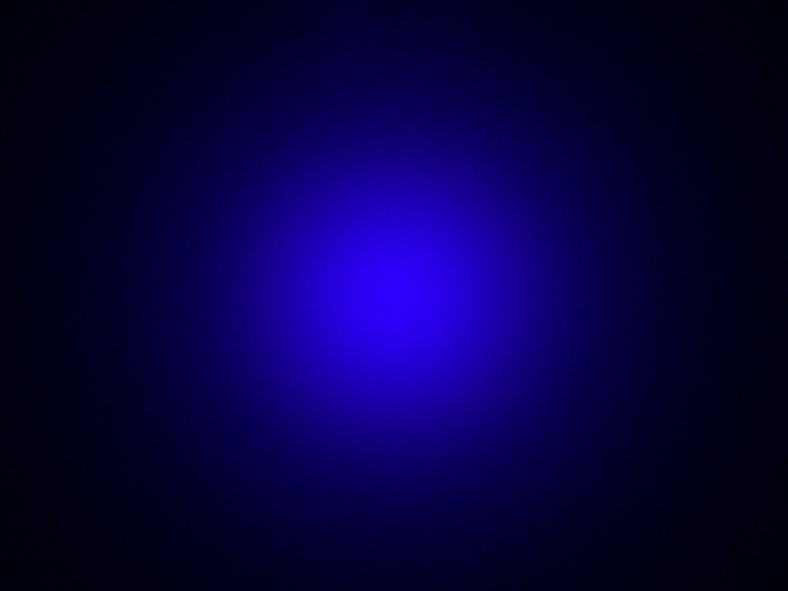

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

91.5%

FWHM:

27.5°

Ipk/W:

2.7


Download

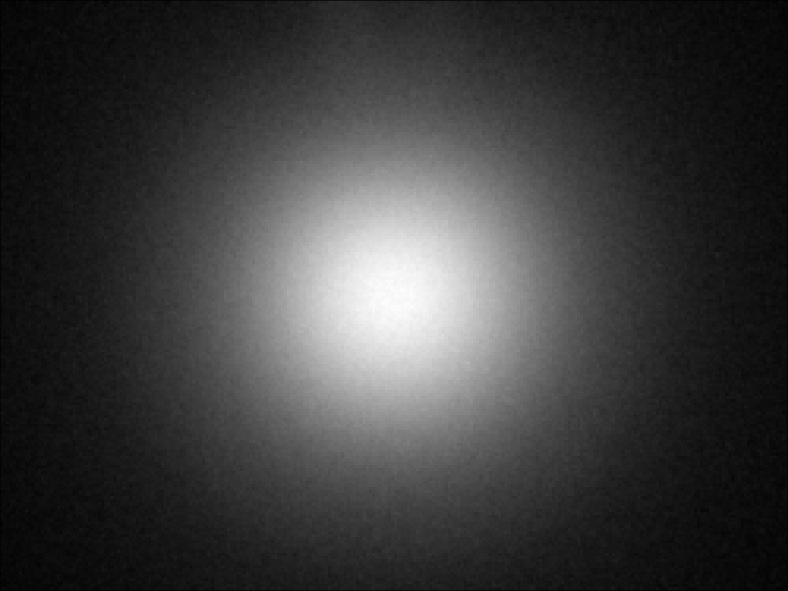

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

3.0

Download

ies

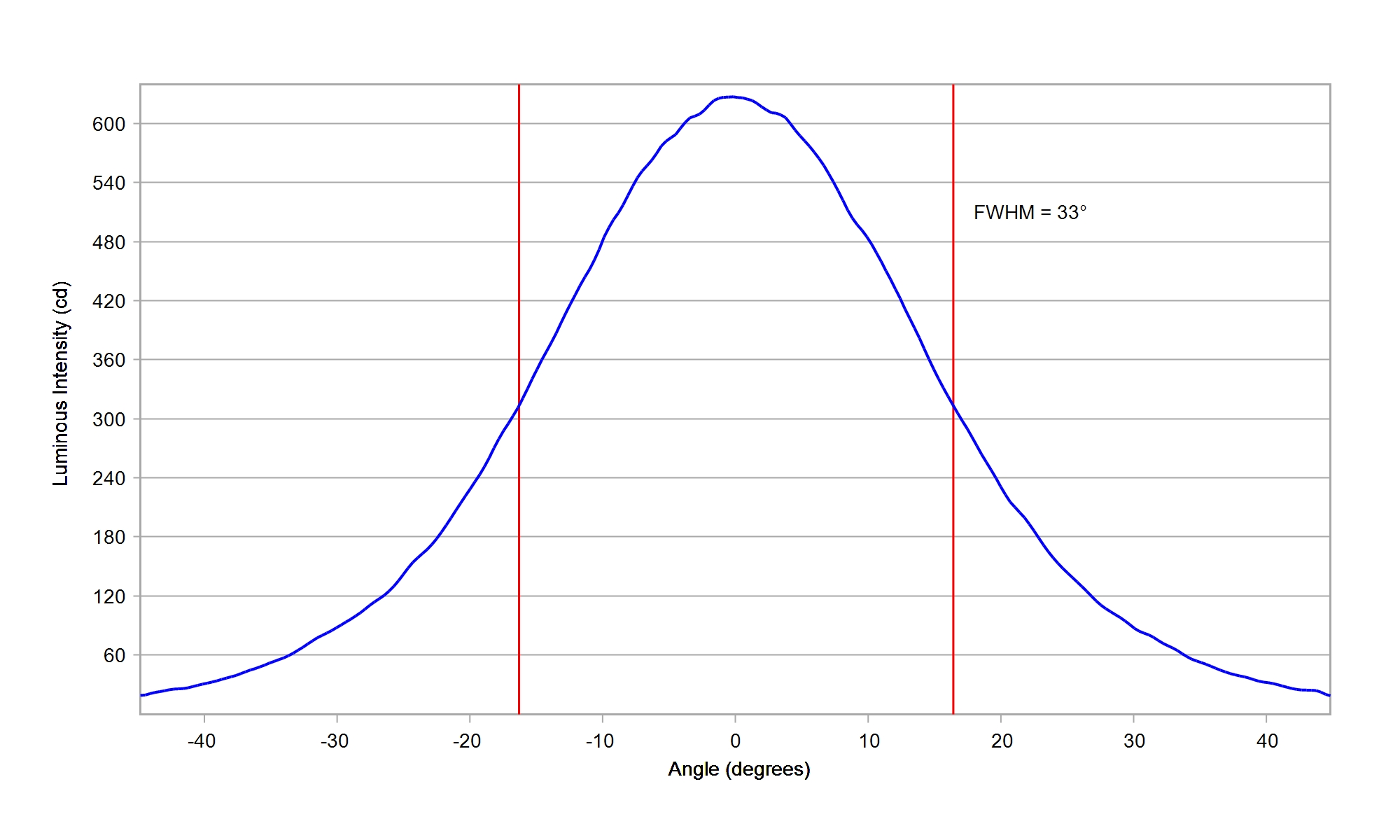

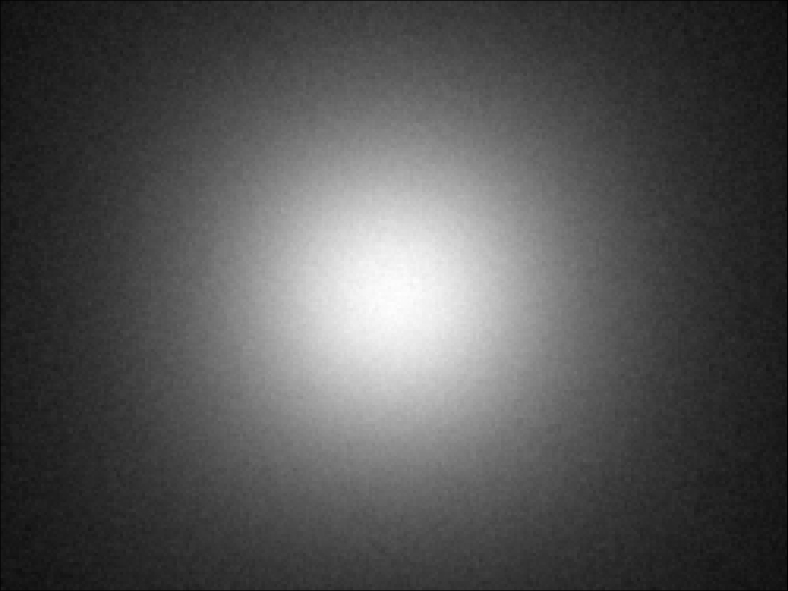

LUMILEDS LUXEON HL2X-V White

Eff:

92.0%

FWHM:

33°

Cd/Im:

2.2

Download

LUMILEDS LUXEON HL2Z White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.3

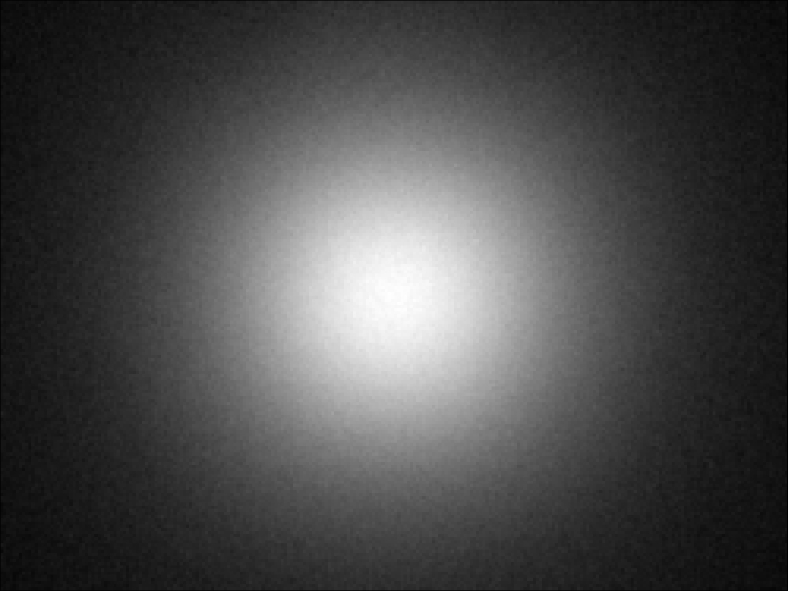

Carclo Optics – 12084 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 12084 Lumileds Luxeon HL2Z - Cross-Section

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

94.0%

FWHM:

27.0°

Ipk/W:

3.4

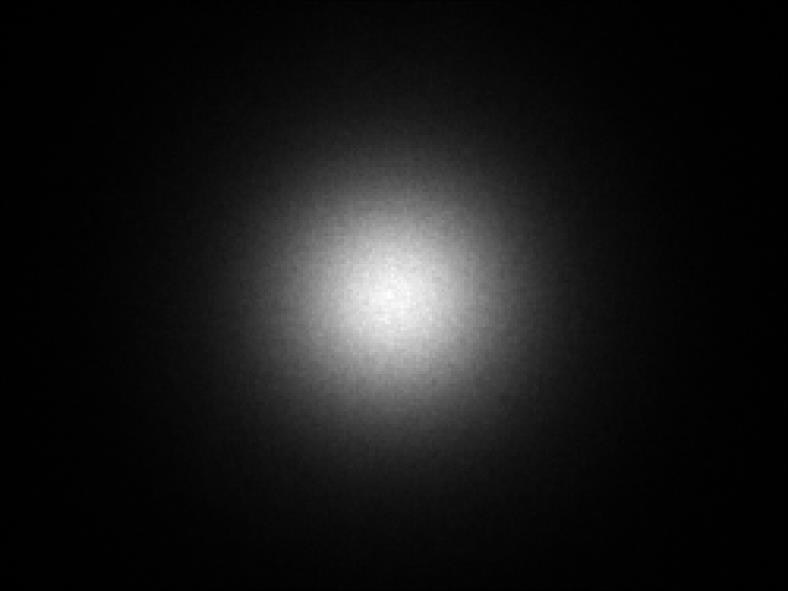

Carclo Optics - 12084 10mm Medium Frosted Spot Image Luxeon IR 2720

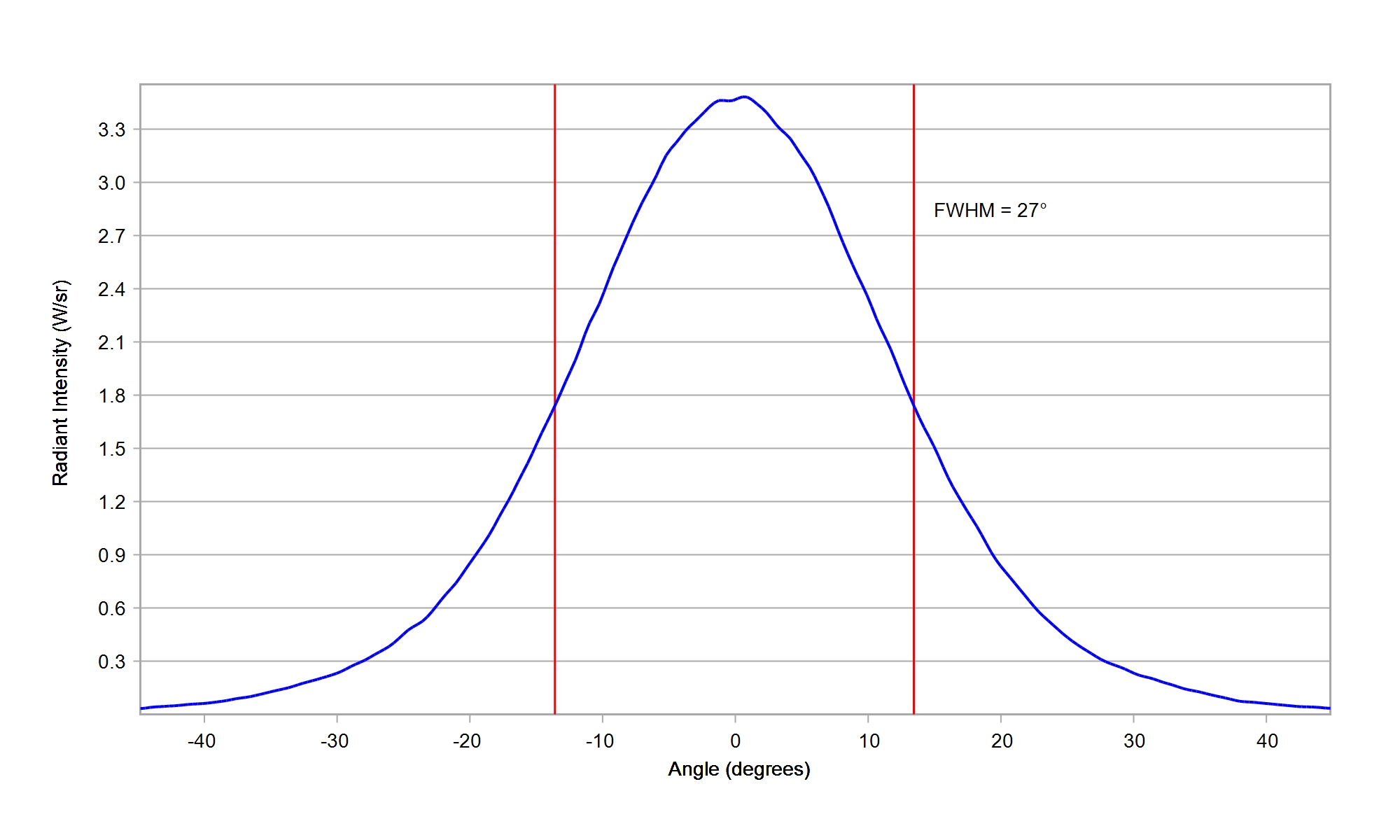

Carclo Optics - 12084 10mm Medium Frosted Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

94.0%

FWHM:

27.0°

Ipk/W:

3.4

Carclo Optics - 12084 10mm Medium Frosted Spot Image Luxeon IR 2720

Carclo Optics - 12084 10mm Medium Frosted Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON IR Compact 850nm

Eff:

94.0%

FWHM:

25.5°

Ipk/W:

3.1

Carclo Optics - Simulated Spot Image

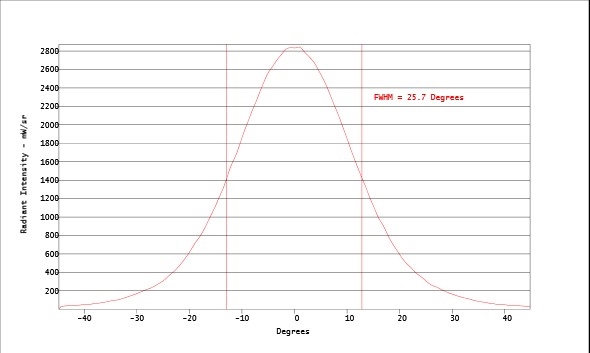

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

94.0%

FWHM:

27.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON MZ White

Eff:

88.4%

FWHM:

28.1°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

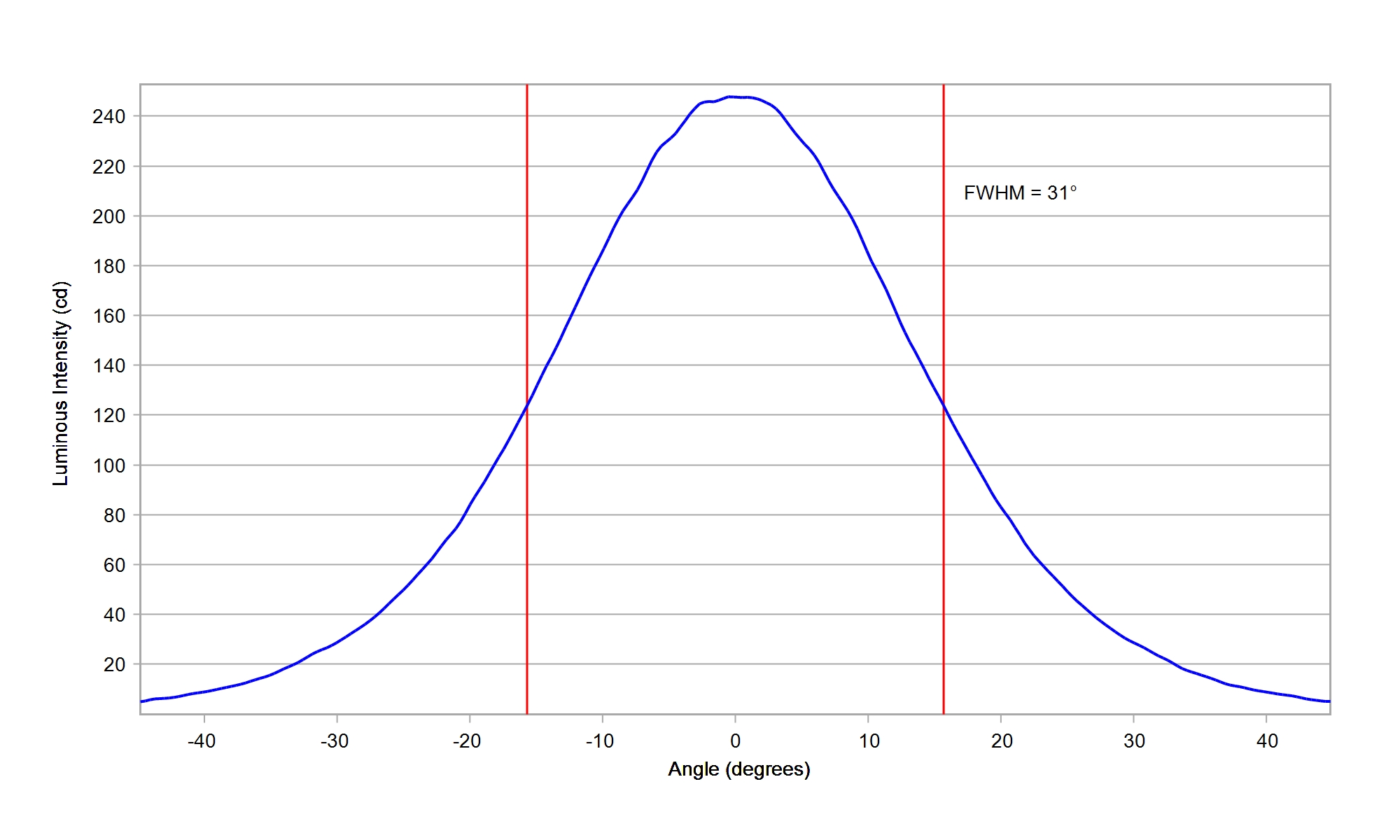

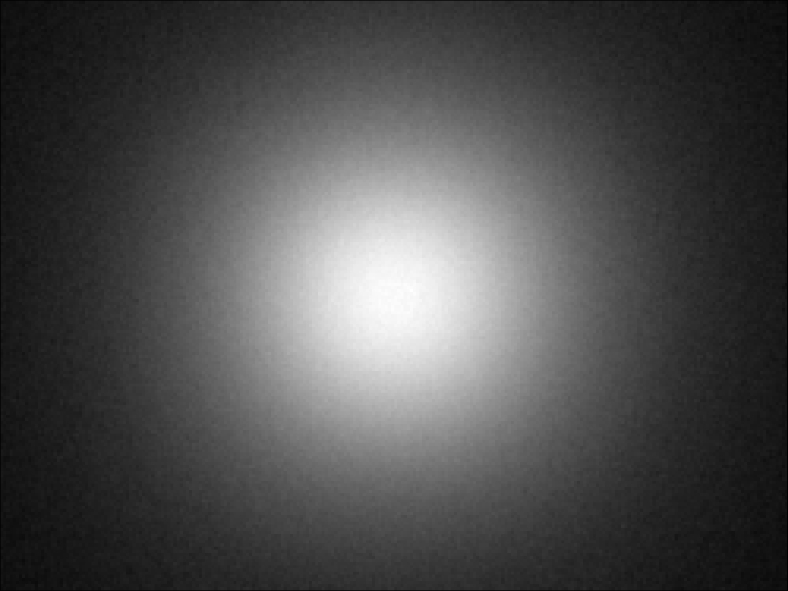

LUMILEDS LUXEON Rebel ES White

Eff:

91.0%

FWHM:

31°

Cd/Im:

2.4

Download

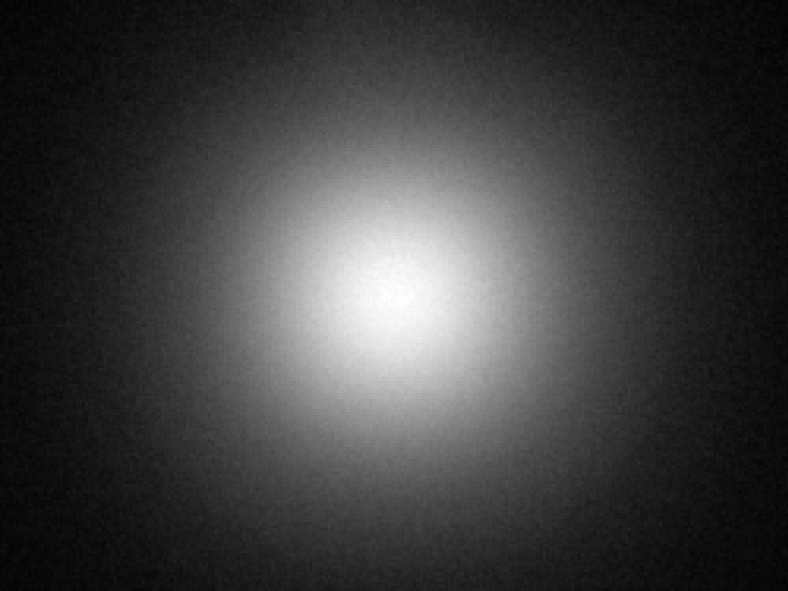

LUMILEDS LUXEON Rebel Plus White

Eff:

92.0%

FWHM:

28°

Cd/Im:

3.3

Download

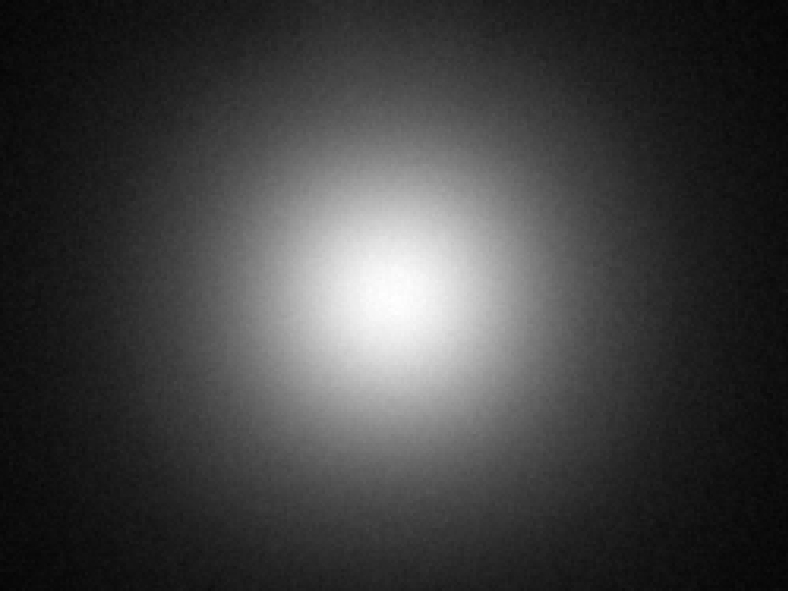

LUMILEDS LUXEON Rebel White

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

3.2

Download

LUMILEDS LUXEON Rubix Blue

Eff:

93.0%

FWHM:

24°

Cd/Im:

4.5

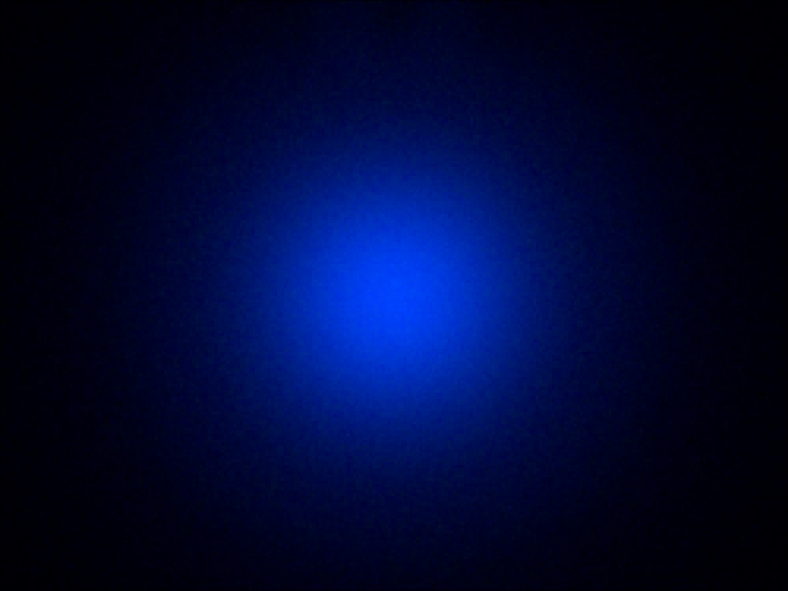

Carclo Optics - 12084 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 12084 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.4

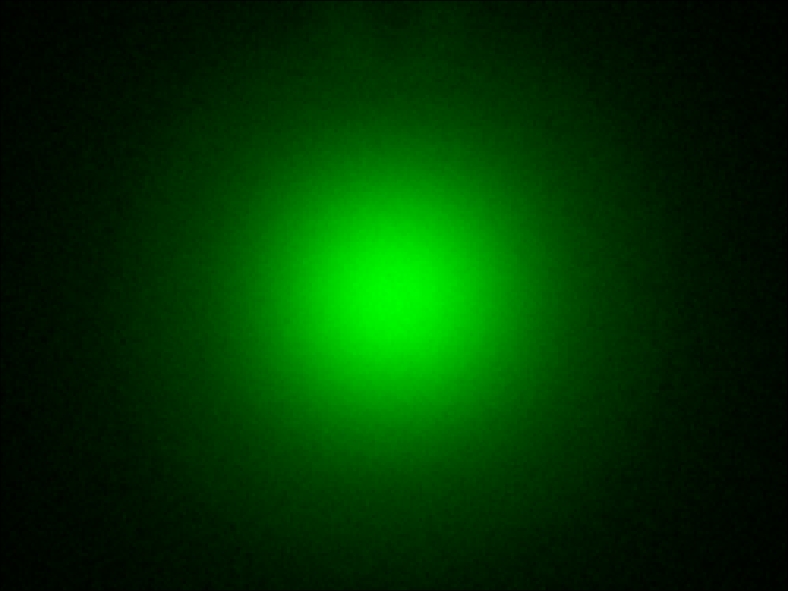

Carclo Optics – 12084 Spot Image Lumileds Luxeon Rubix Green

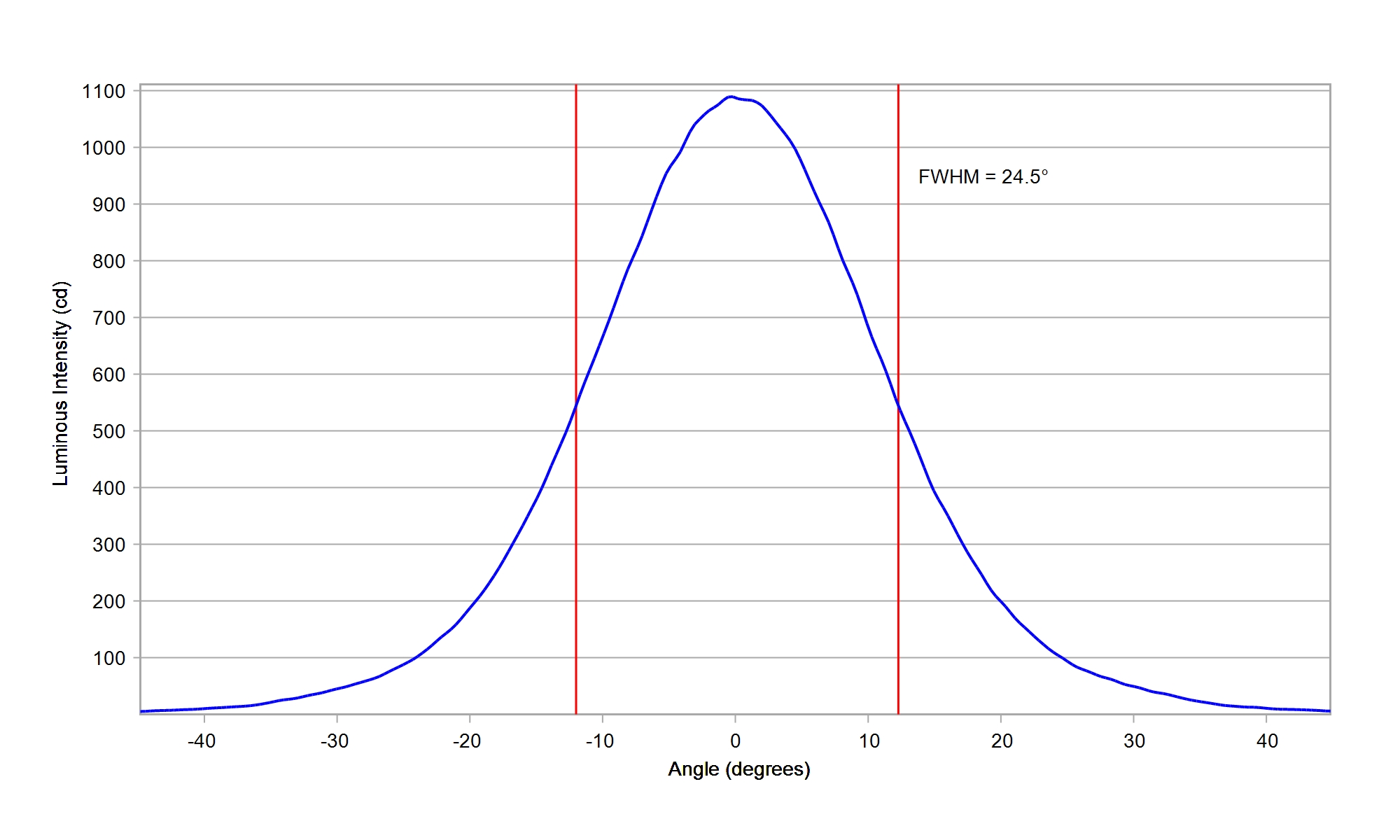

Carclo Optics – 12084 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

93.5%

FWHM:

24°

Cd/Im:

4.5

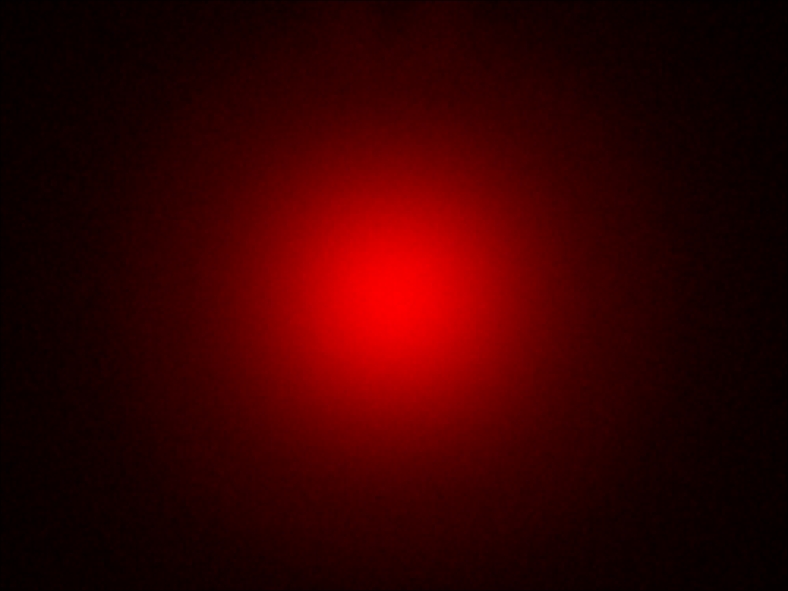

Carclo Optics – 12084 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 12084 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

92.5%

FWHM:

24°

Cd/Im:

4.5

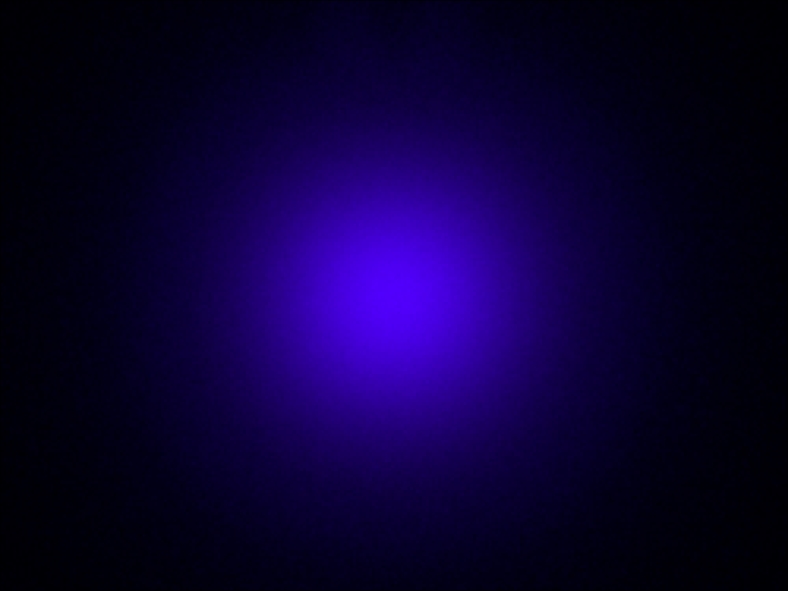

Carclo Optics – 12084 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 12084 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.3

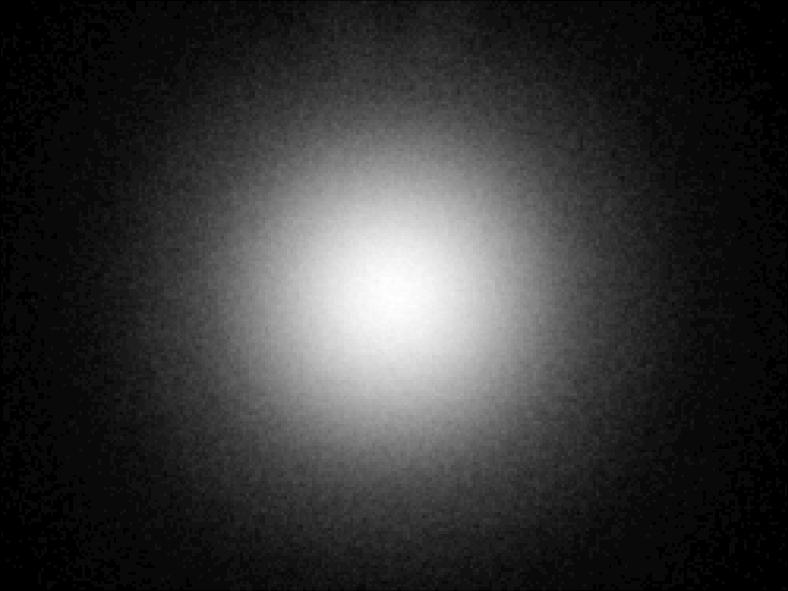

Carclo Optics - 12084 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 12084 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON TX White

Eff:

88.1%

FWHM:

27.5°

Cd/Im:

2.2

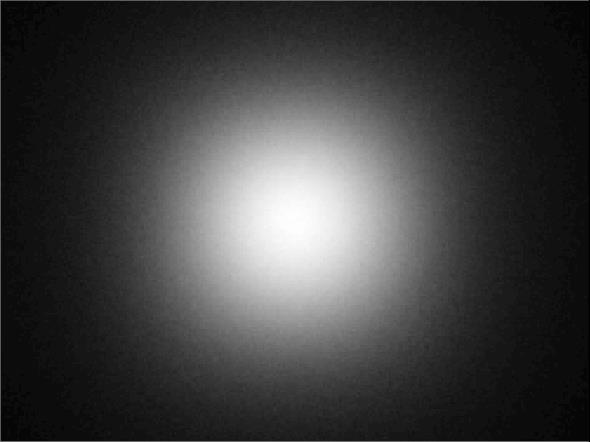

carclo optics - simulated spot image

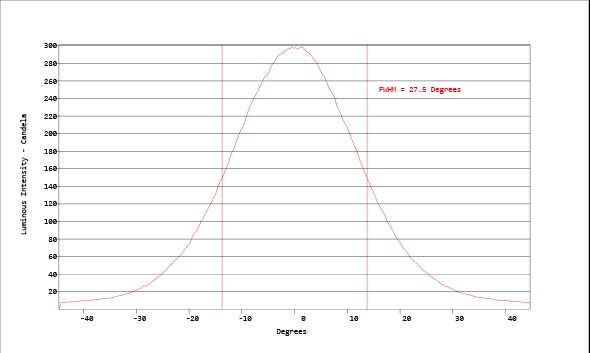

carclo optics - simulated cross section

,

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

88.0%

FWHM:

21.4°

Cd/Im:

3.7

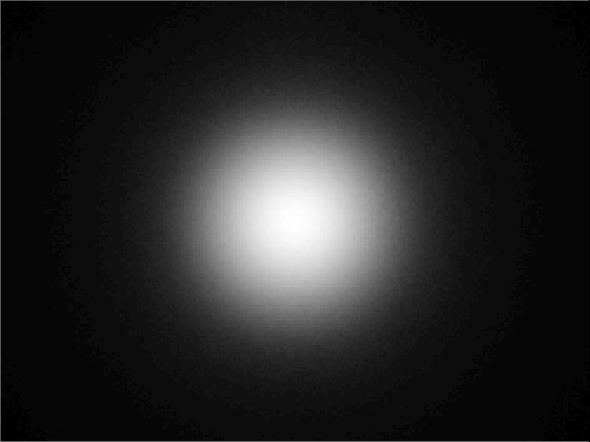

carclo optics - simulated spot image

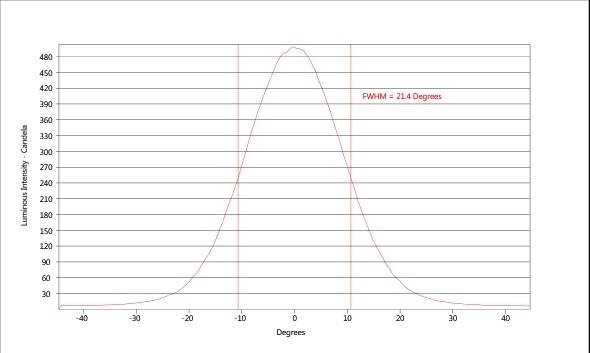

carclo optics - simulated cross section

Download

ies

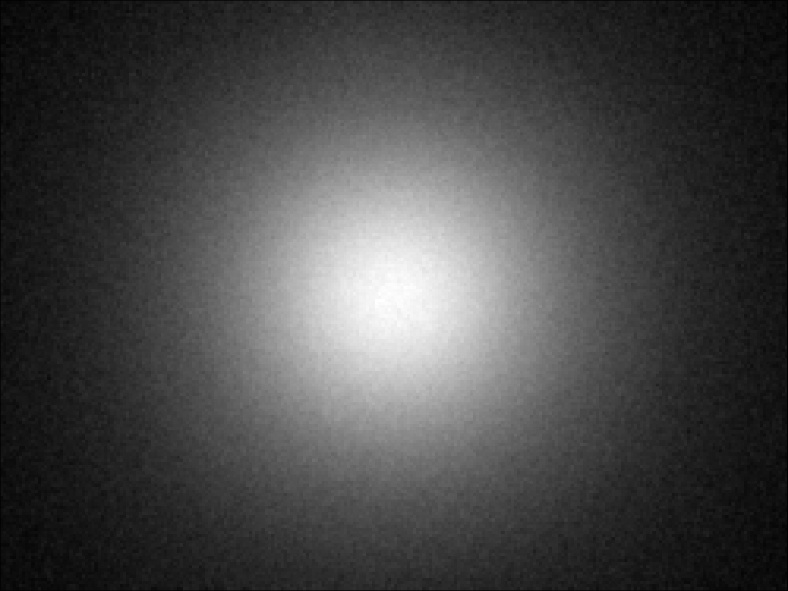

Luminus Devices MP-3030-11F2 White

Eff:

92.5%

FWHM:

29.5°

Cd/Im:

2.8


Download

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

27°

Cd/Im:

3.4

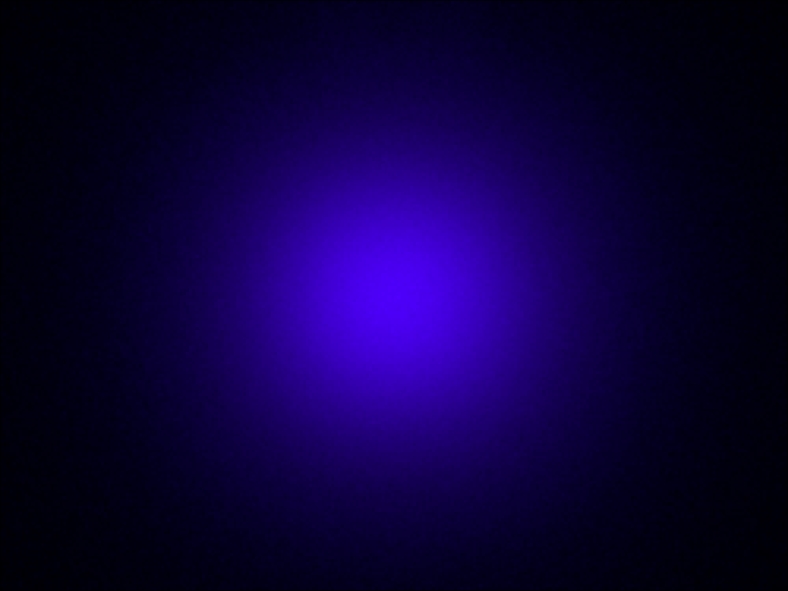

Carclo Optics - 12084 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 12084 Luminus_SST-10_B_B130 - cross section image

Download

ies

Luminus Devices SST 10-B-B90 Blue

Eff:

90.5%

FWHM:

29°

Cd/Im:

2.9

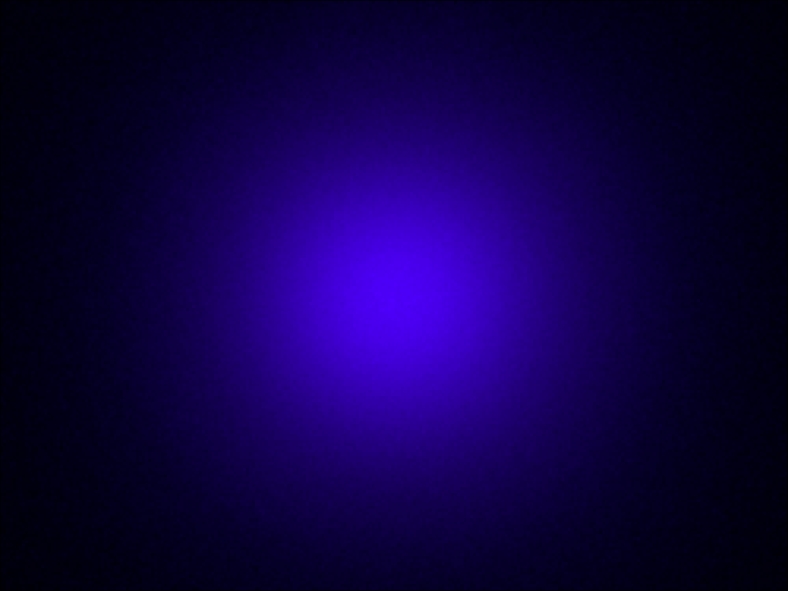

Carclo Optics - 12084 Luminus_SST-10_B_B90 - spot - image

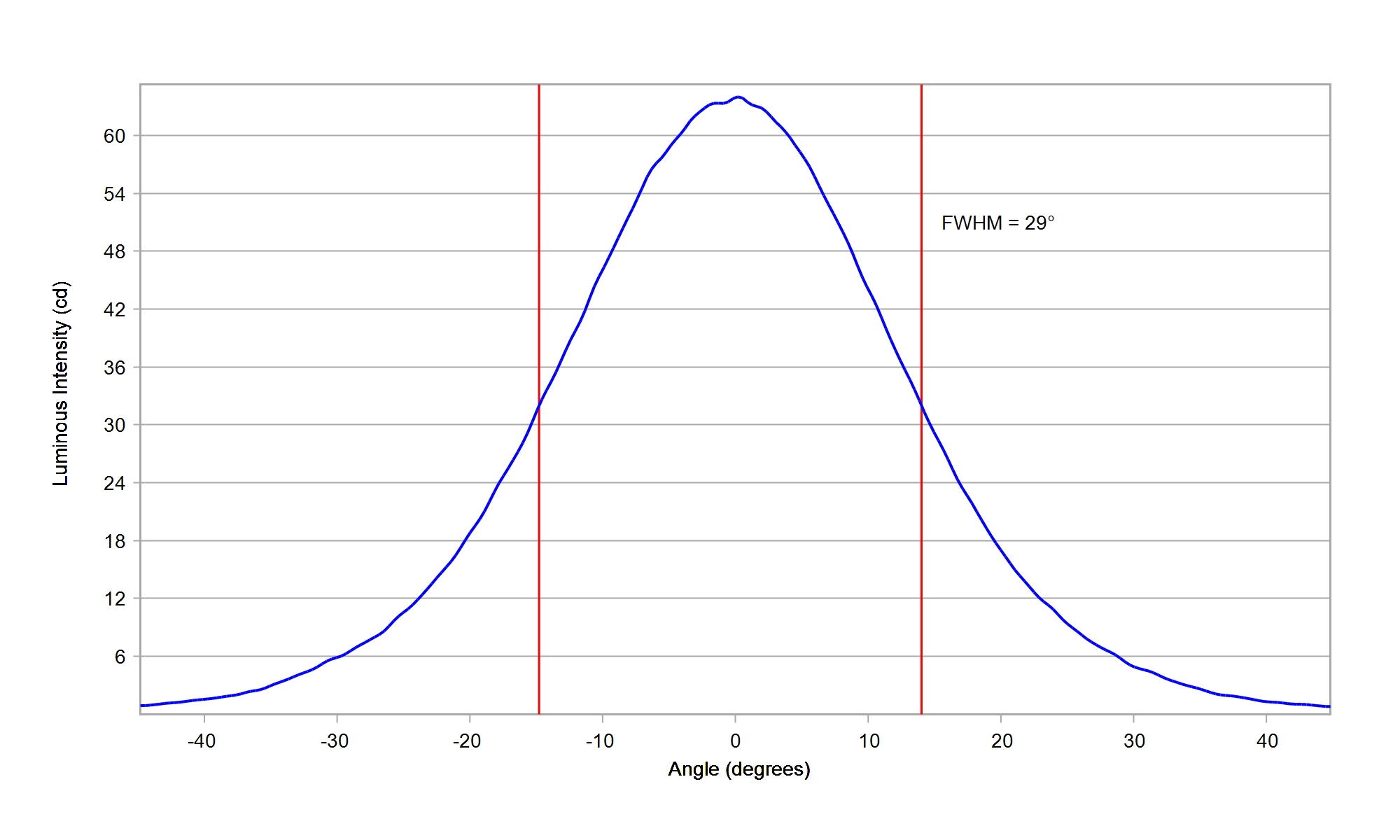

Carclo Optics - 12084 Luminus_SST-10_B_B90 - cross- image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

27.5°

Cd/Im:

3.2

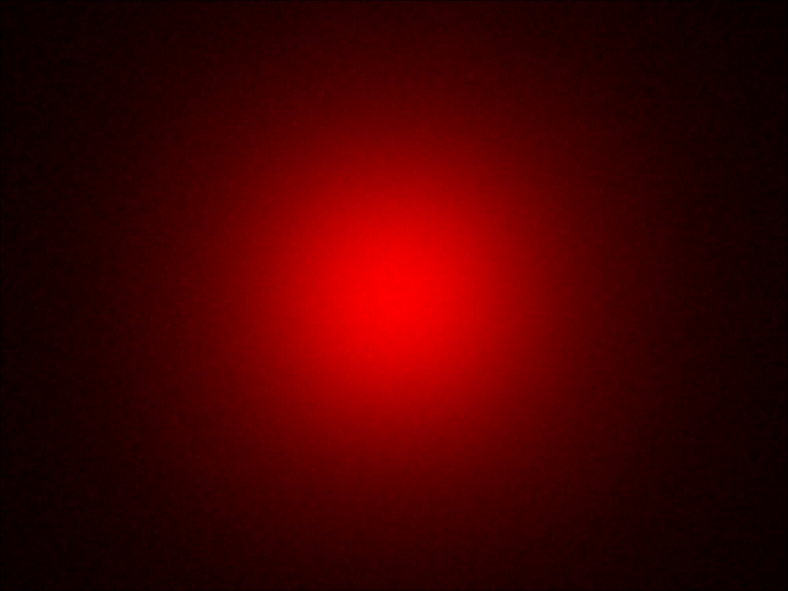

Carclo Optics – 12084 Luminus_SST-10_DR_B130- Spot - image

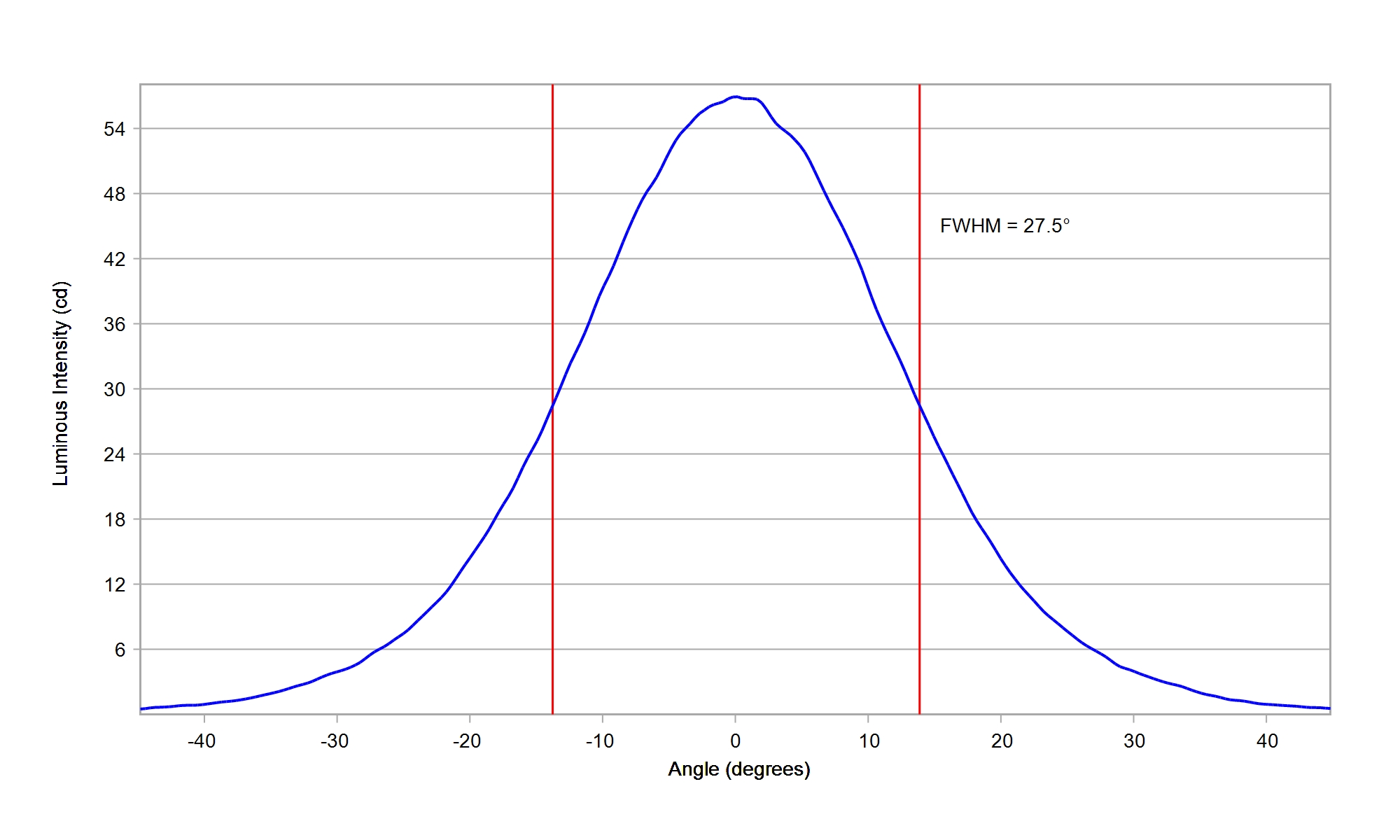

Carclo Optics – 12084 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.8

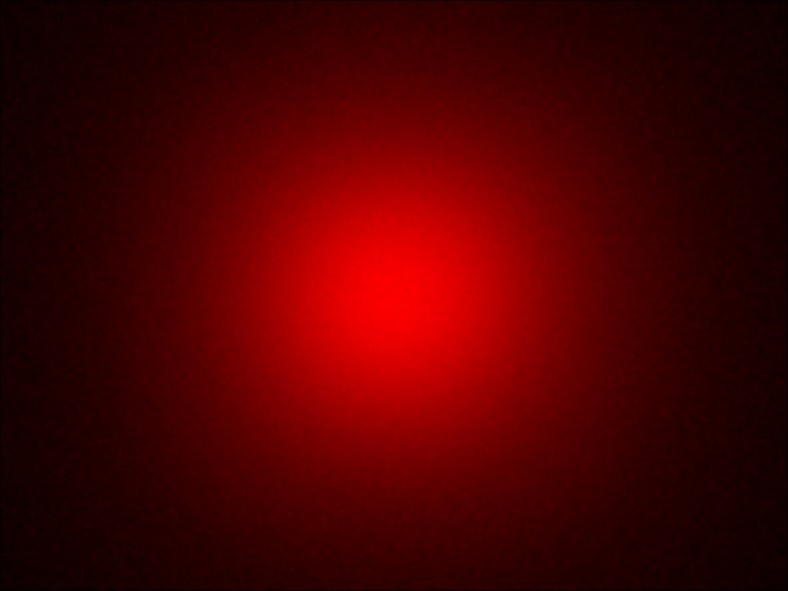

Carclo Optics - 12084 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 12084 Luminus_SST-10_DR_B90 - Cross section image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.5

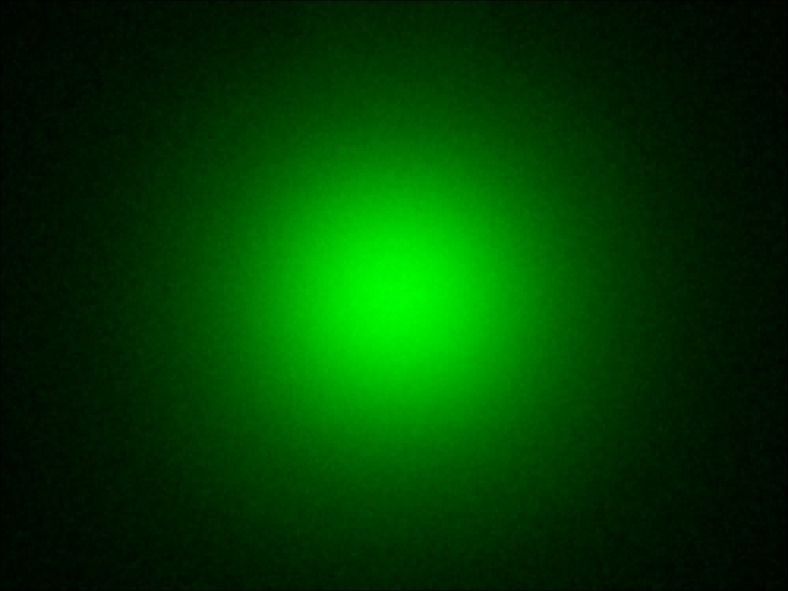

Carclo Optics - 12084 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 12084 Luminus_SST-10_G_B130 - cross -section- image

Download

ies

Luminus Devices SST 10-G-B90 Green

Eff:

91.5%

FWHM:

29°

Cd/Im:

2.9

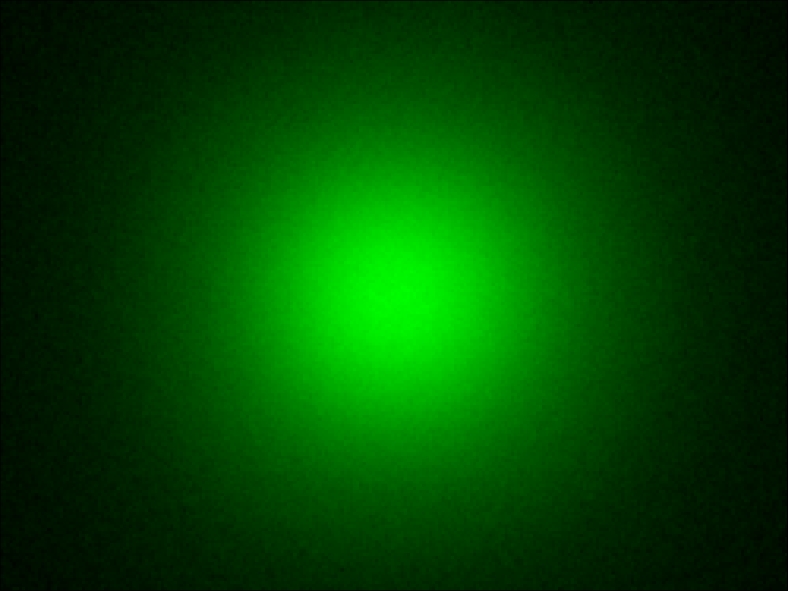

Carclo Optics - 12084 Luminus_SST-10_G_B90- Spot - image

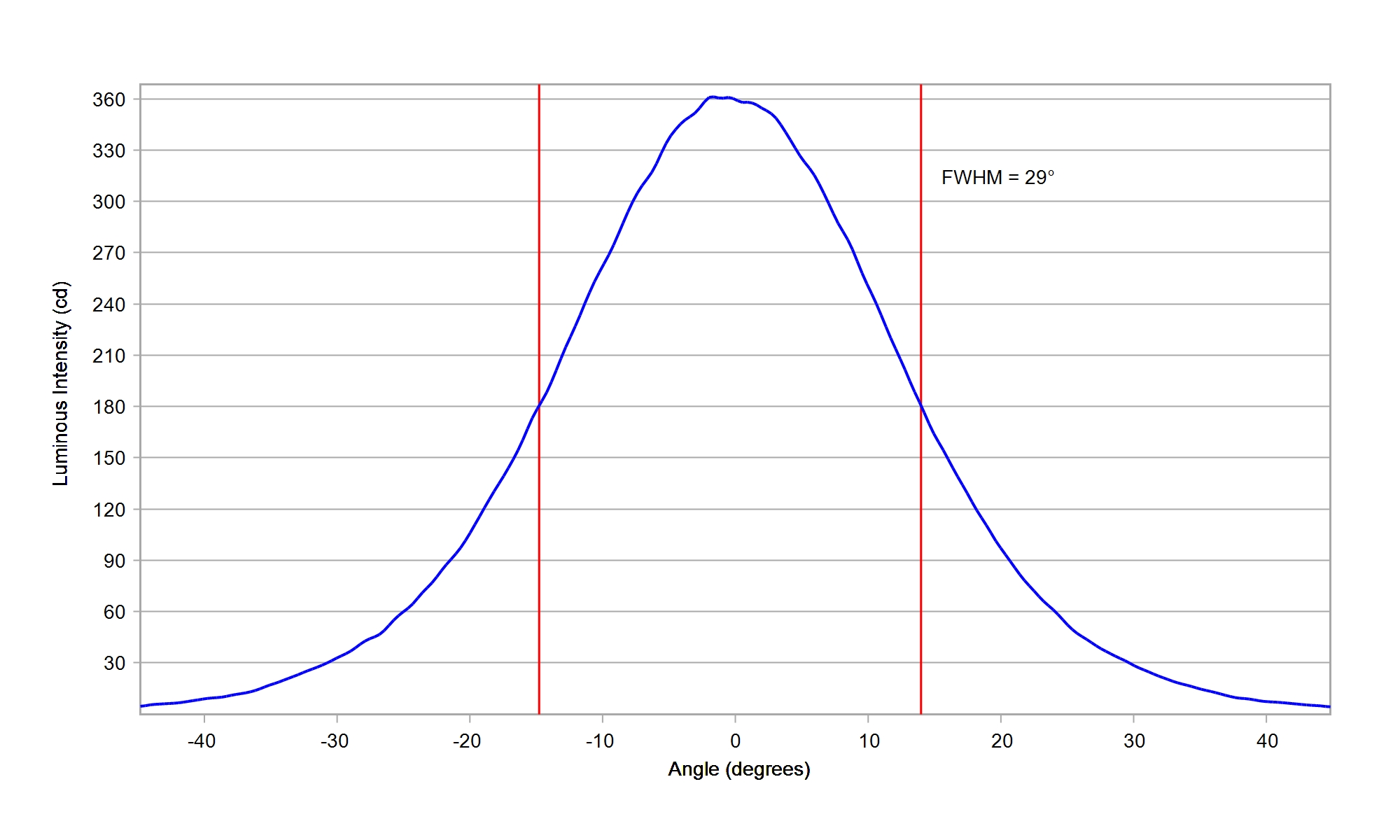

Carclo Optics - 12084 Luminus_SST-10_G_B90- Cross section - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

94.5%

FWHM:

28.5°

Ipk/W:

3.2

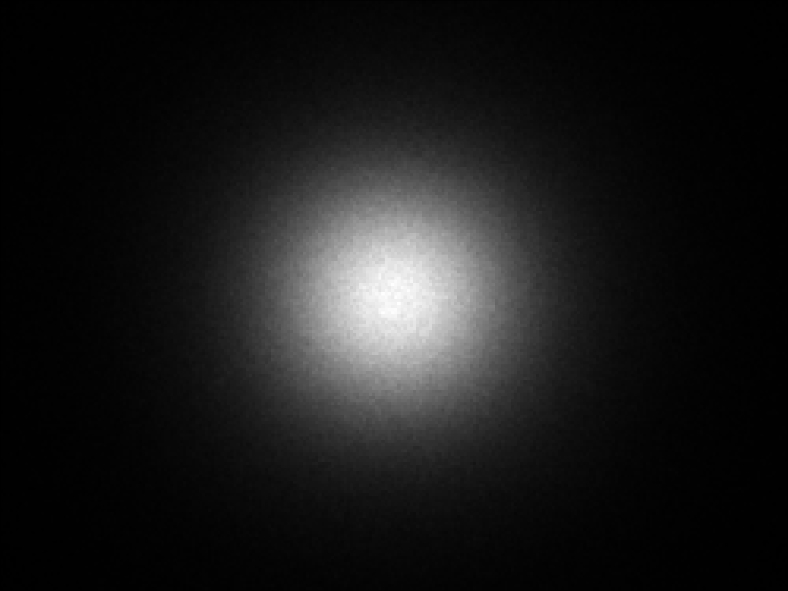

Carclo Optics - 12084 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 12084 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IR-B90 940nm

Eff:

93.0%

FWHM:

30.0°

Ipk/W:

2.9

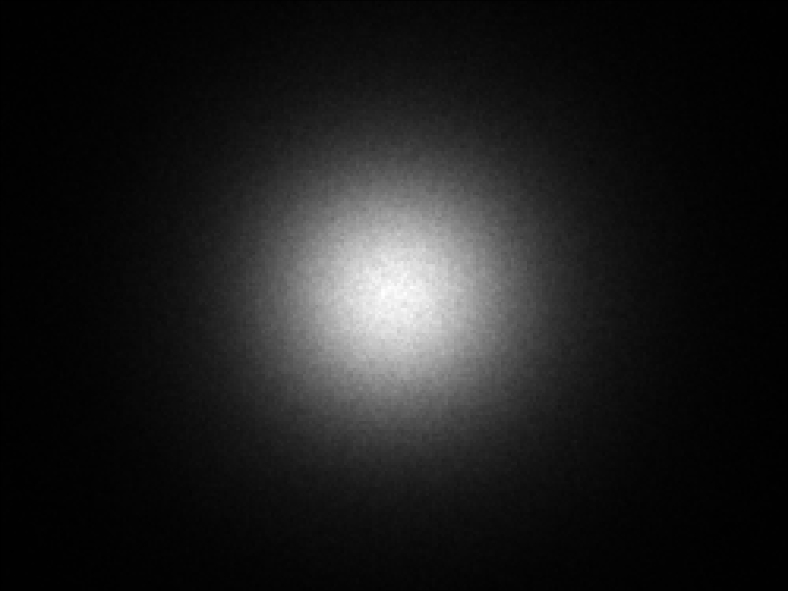

Carclo Optics - 12084 Spot Image Luminus SST-10-IR-B90

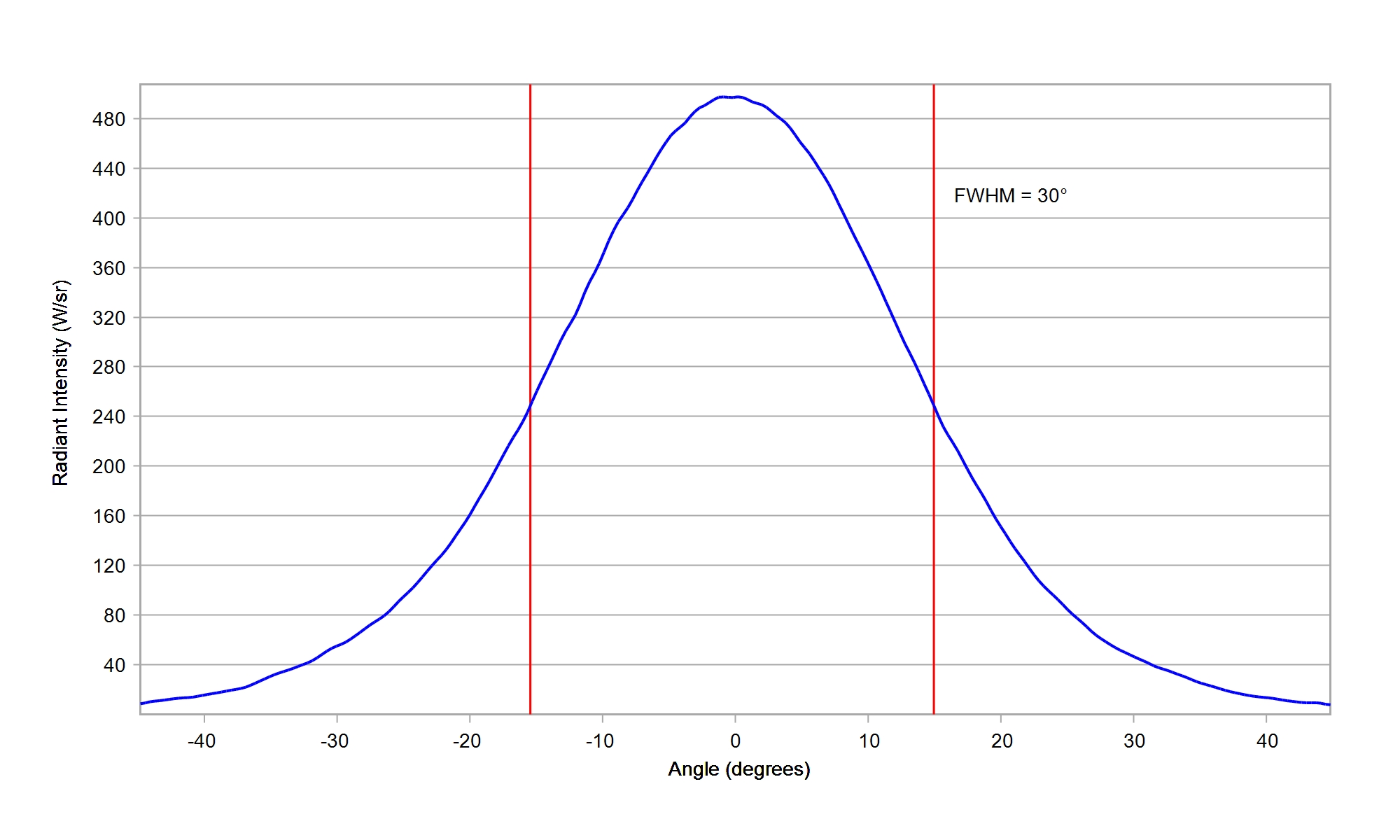

Carclo Optics - 12084 Cross Section Luminus SST-10-IR-B90

Download

ies

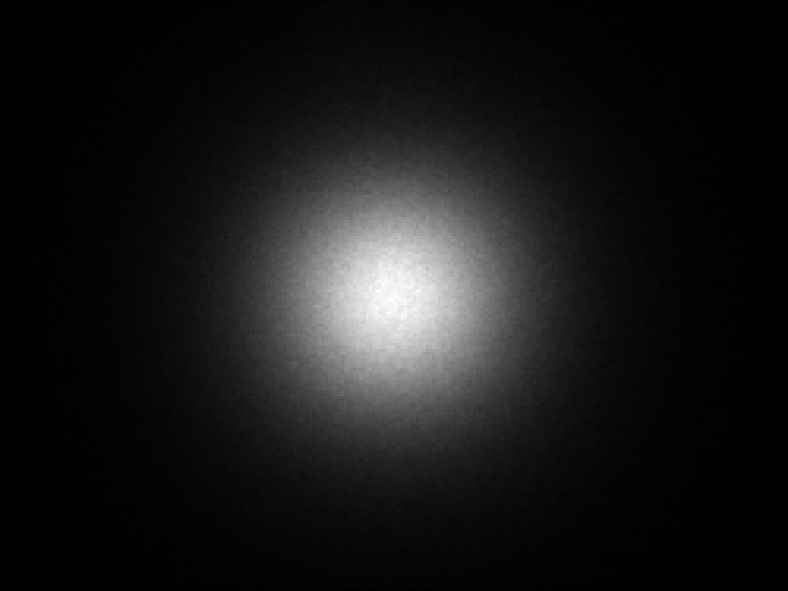

Luminus Devices SST 10-IRD-B130 810nm

Eff:

94.5%

FWHM:

27.5°

Ipk/W:

3.4


Download

ies

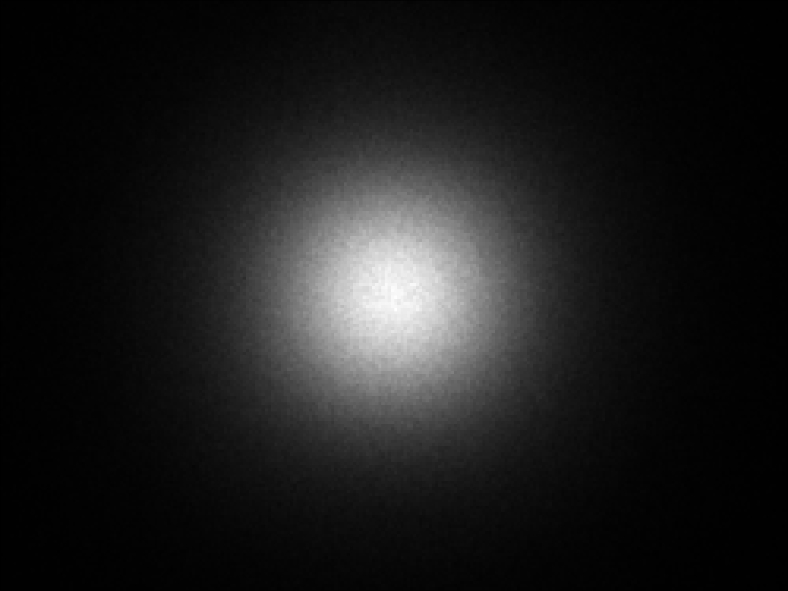

Luminus Devices SST 10-IRD-B90 810nm

Eff:

93.5%

FWHM:

29.5°

Ipk/W:

2.9


Download

ies

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.8

Carclo Optics – 12084 - Luxeon_SST_20_W_spot-image

Carclo Optics – 12084 - Luxeon_SST_20_W_cross vertical section

Download

ies

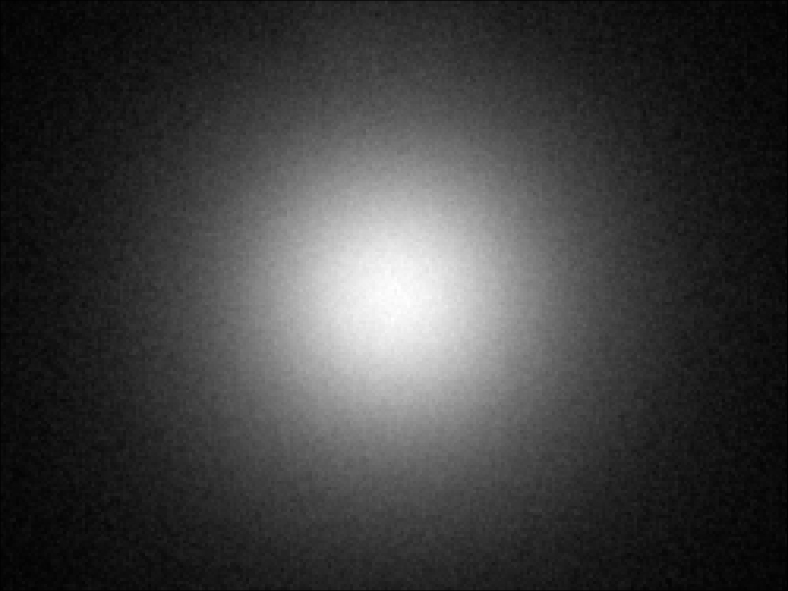

Luminus Devices SST-12-WS Gen2 White

Eff:

92.5%

FWHM:

27.5°

Cd/Im:

3.4


Download

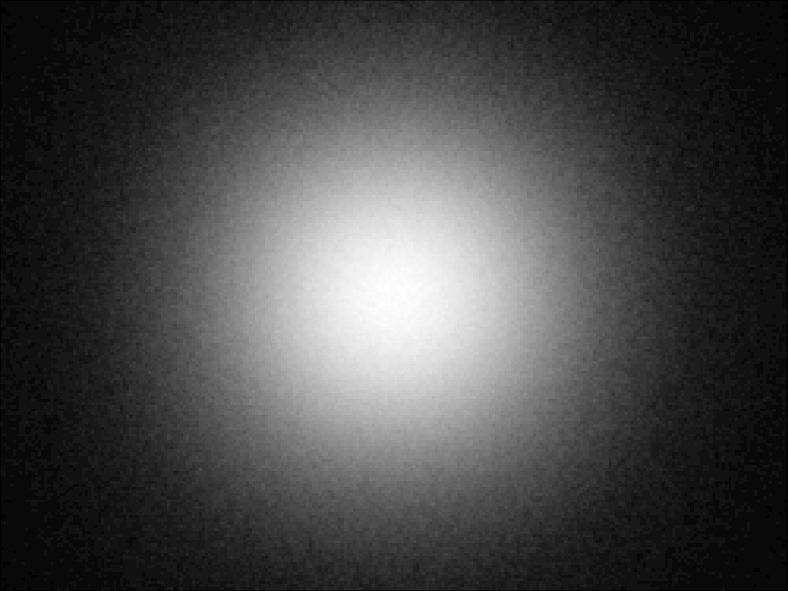

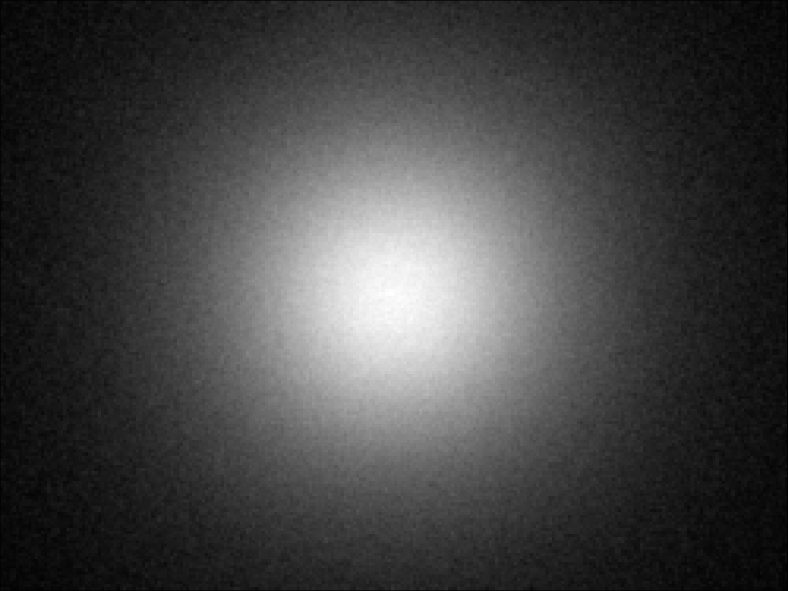

Luminus Devices SST-20-W Gen2 White

Eff:

92.0%

FWHM:

29.5°

Cd/Im:

3.0


Download

Nichia 219 White

Eff:

79.0%

FWHM:

30.9°

Cd/Im:

2.6

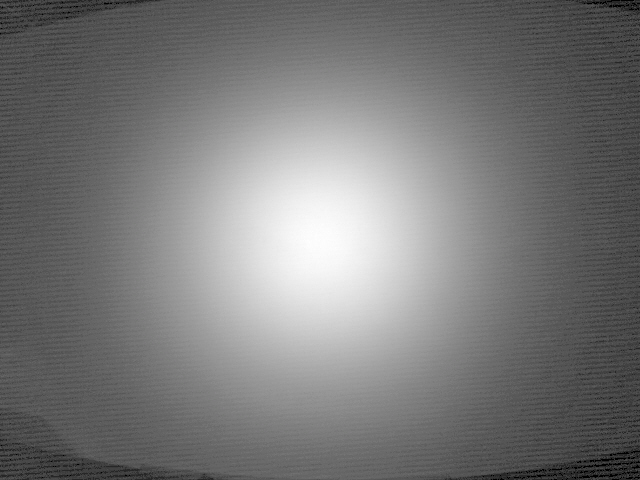

Spot Image

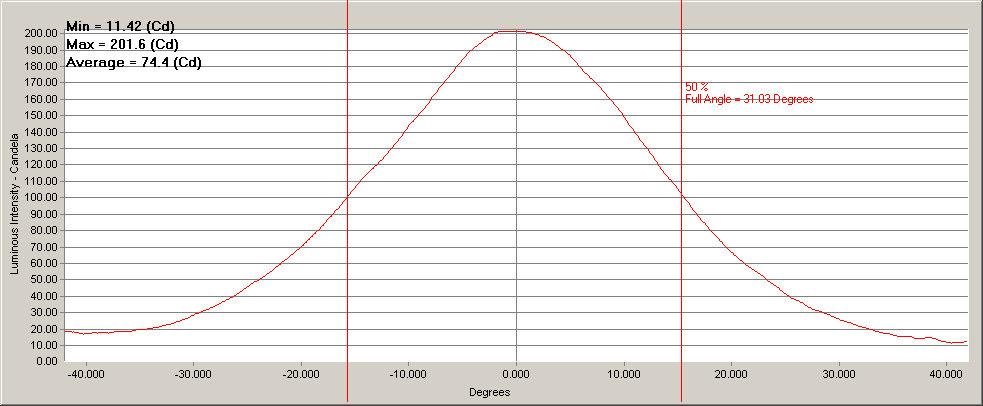

Cross Section

Download

ies

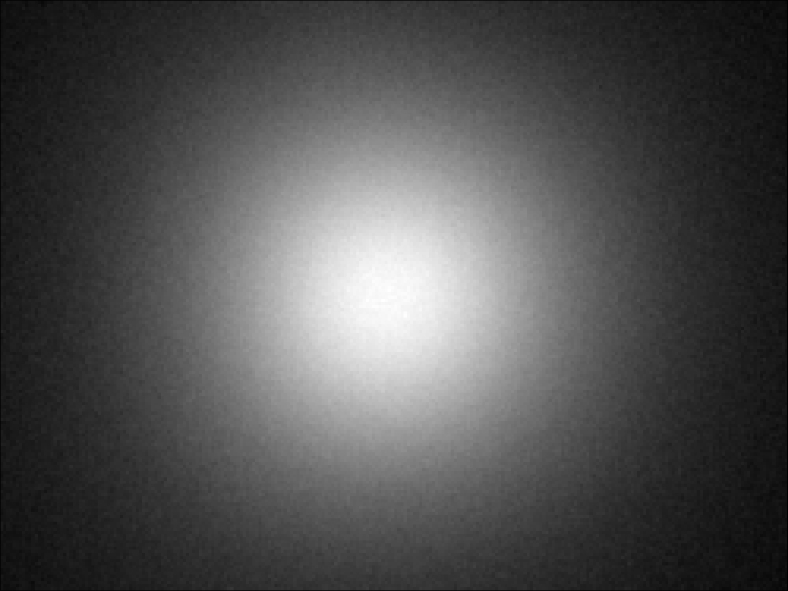

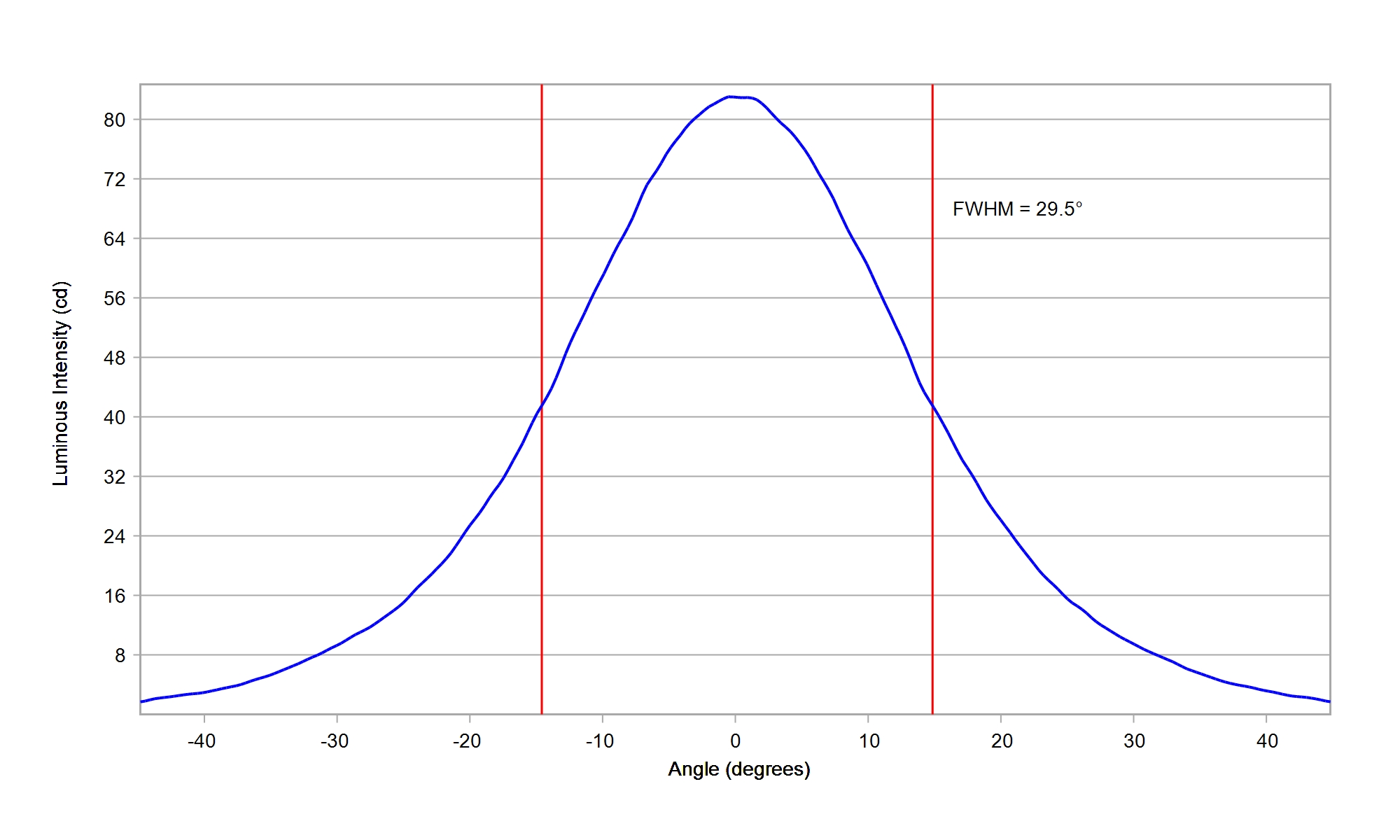

Nichia 757 White

Eff:

89.0%

FWHM:

29°

Cd/Im:

1.8

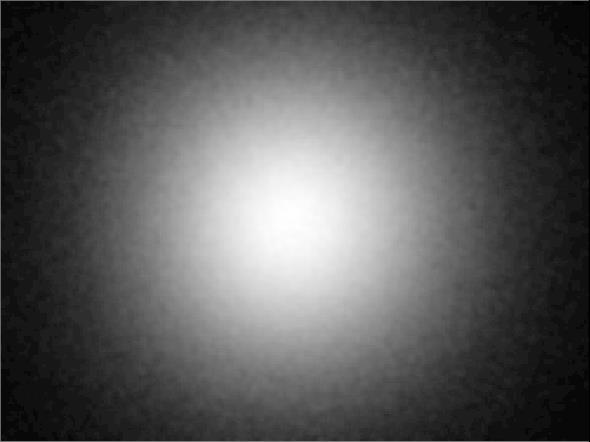

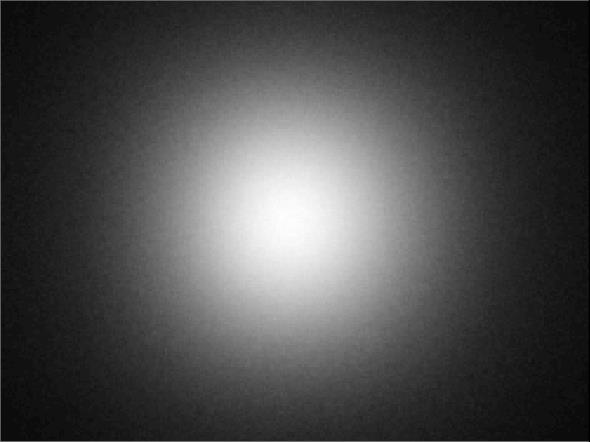

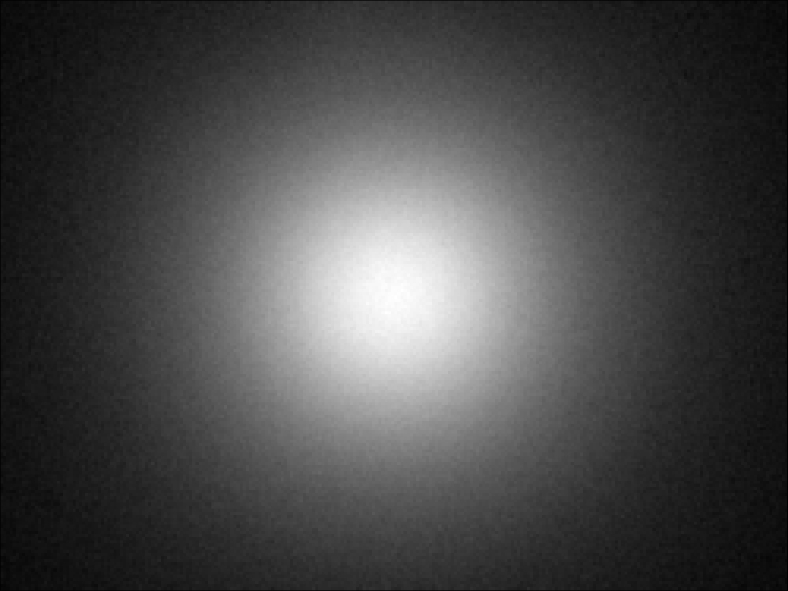

carclo optics - simulated spot image

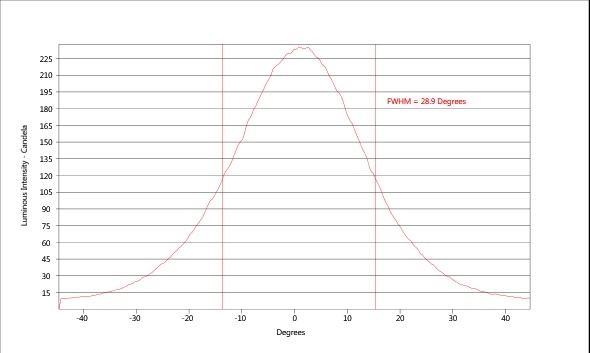

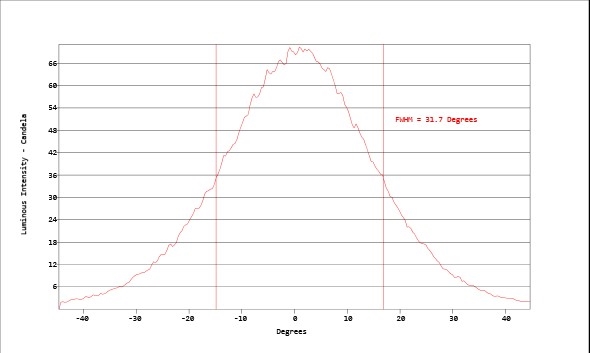

carclo optics - simulated cross section

Download

ies

Nichia 757G White

Eff:

92.0%

FWHM:

32.0°

Cd/Im:

1.9

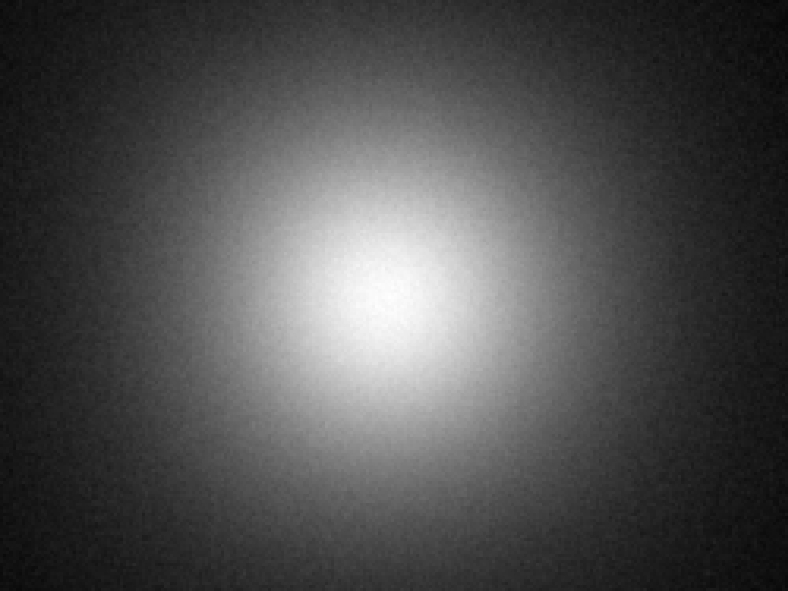

Carclo Optics - Simulated Spot Image

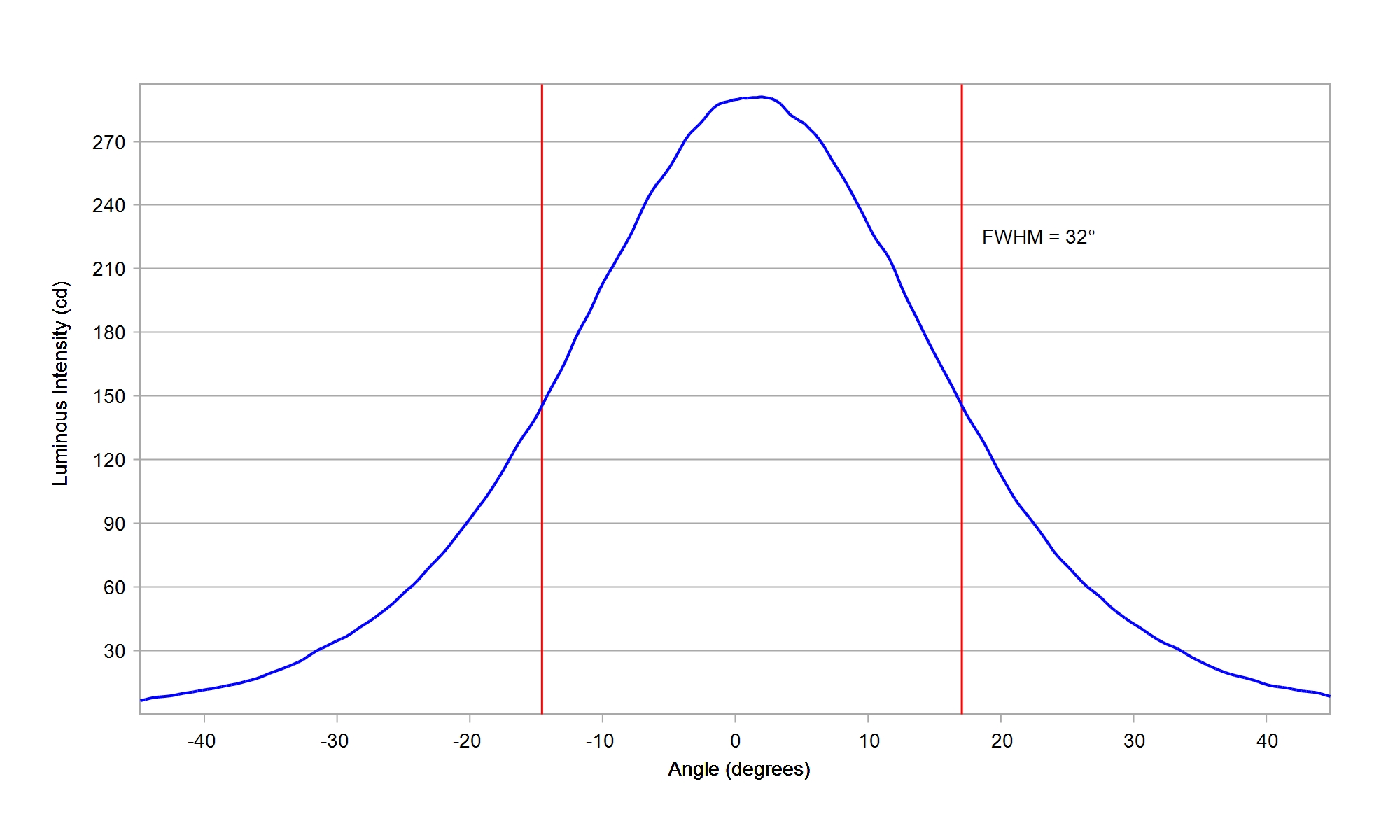

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.4

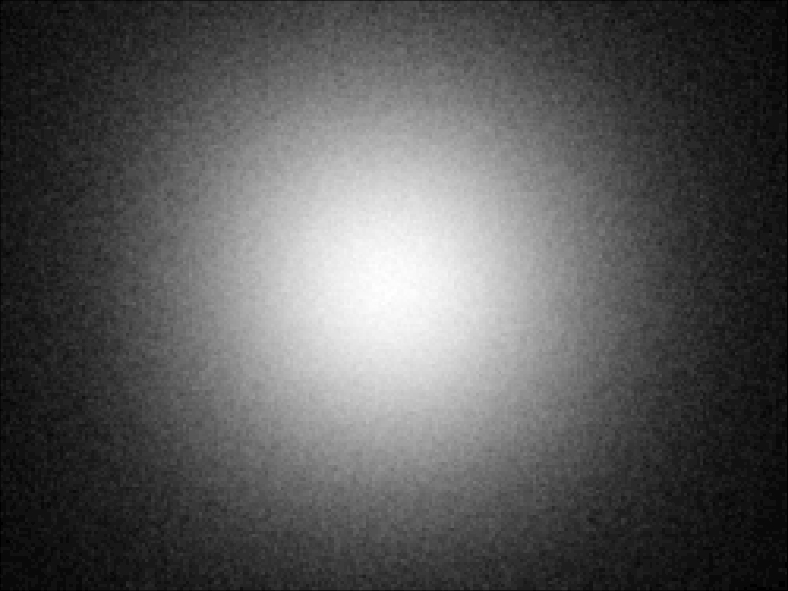

Carclo Optics 12084 10mm Simulated Spot Image Nichia 757G-MT

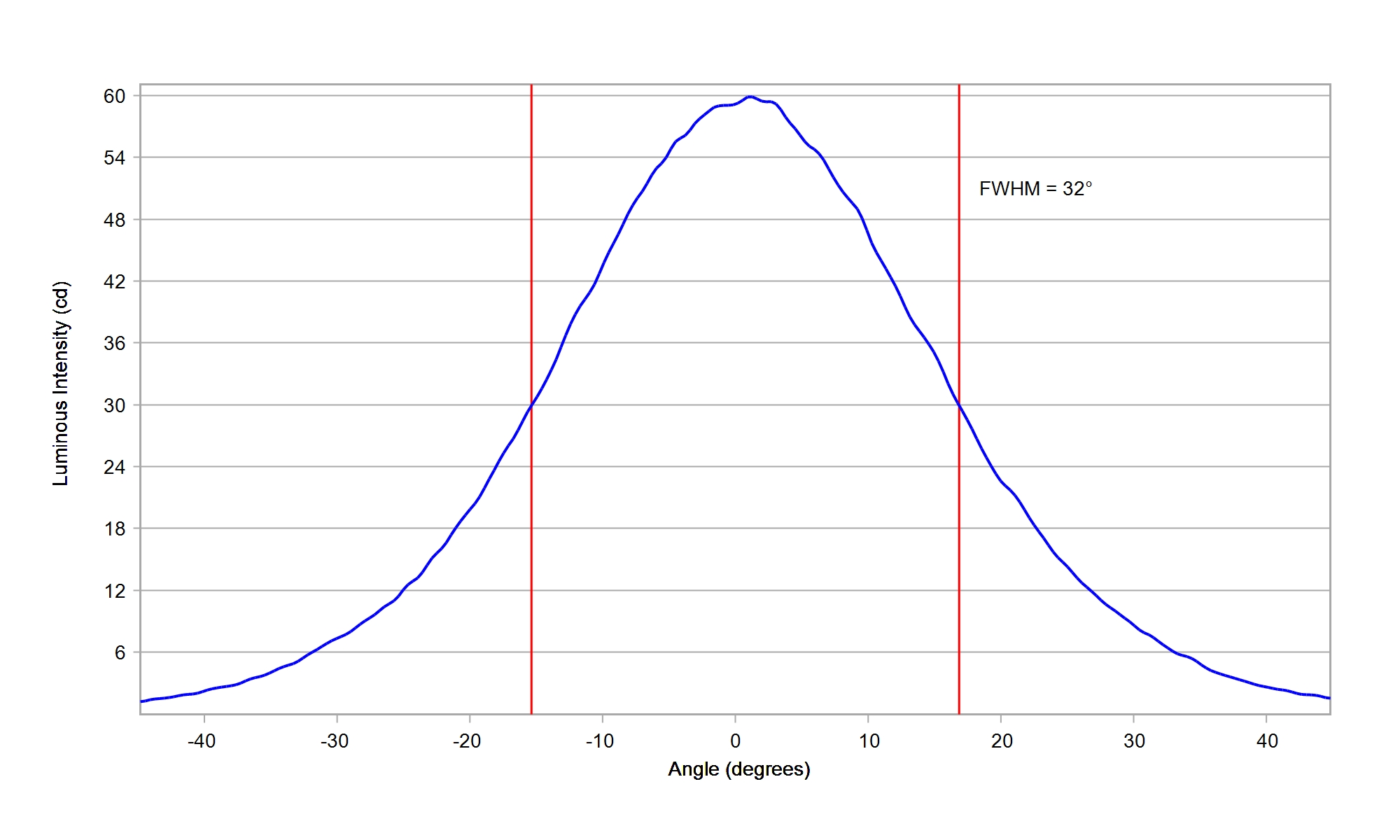

Carclo Optics 12084 10mm Cross Horizontal Section Nichia 757G-MT

Download

ies

Nichia NCSW CSP E17A White

Eff:

87.0%

FWHM:

27.7°

Cd/Im:

2.0

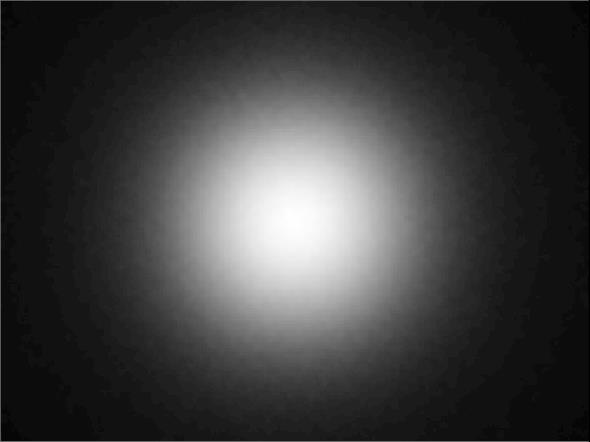

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 385AR-V2 White

Eff:

92.0%

FWHM:

33.0°

Cd/Im:

1.9

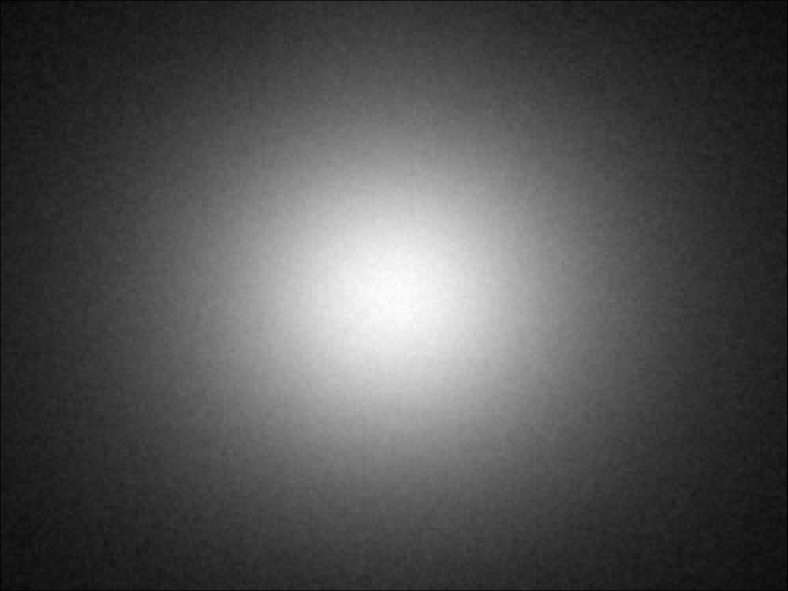

Carclo Optics - Simulated Spot Image

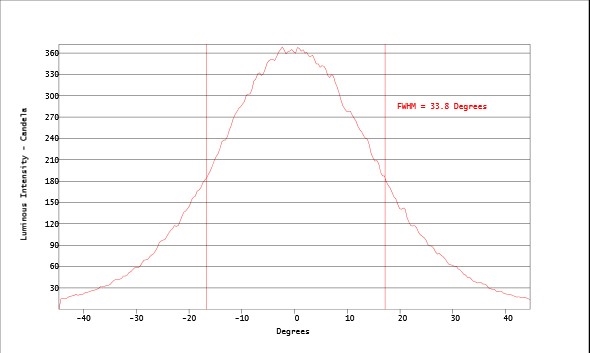

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSL 219B White

Eff:

90.0%

FWHM:

28.5°

Cd/Im:

2.5

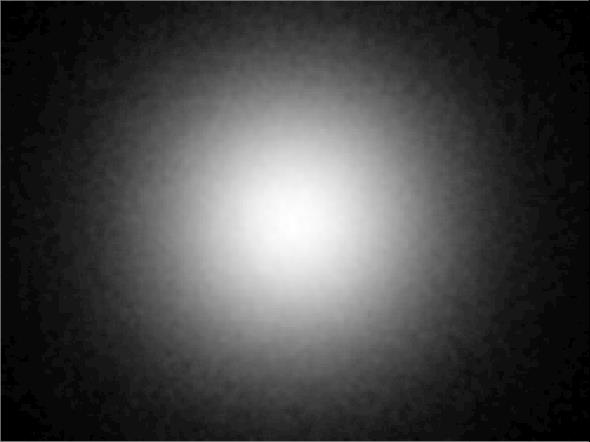

Carclo Optics - Simulated Spot Image

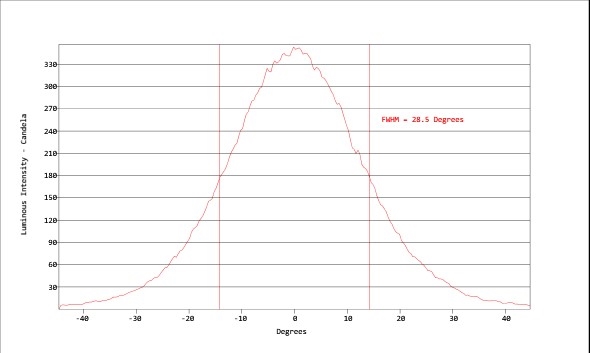

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219C White

Eff:

91.0%

FWHM:

32.5°

Cd/Im:

1.9

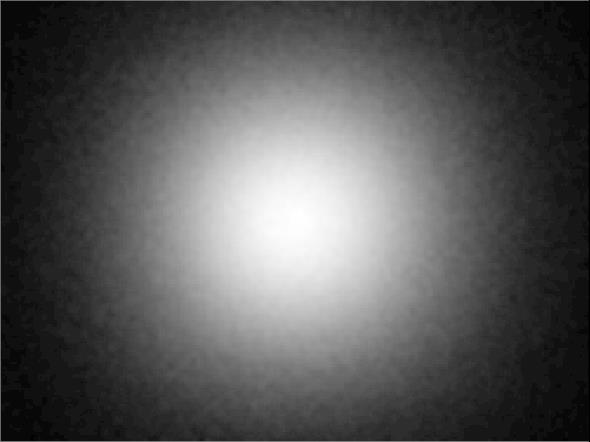

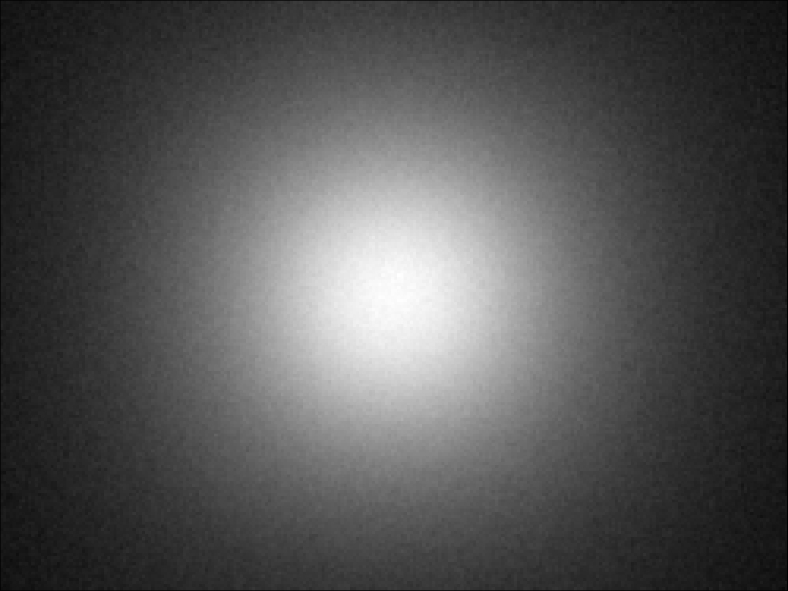

Carclo Optics - Simulated Spot Image

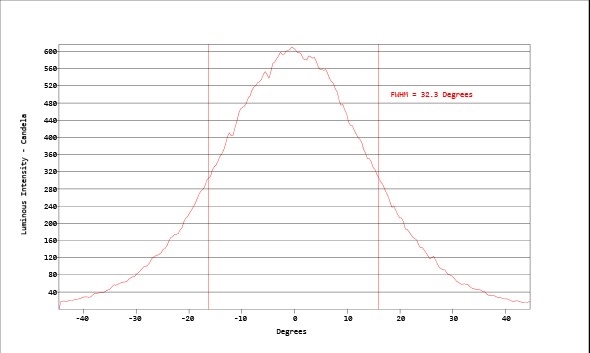

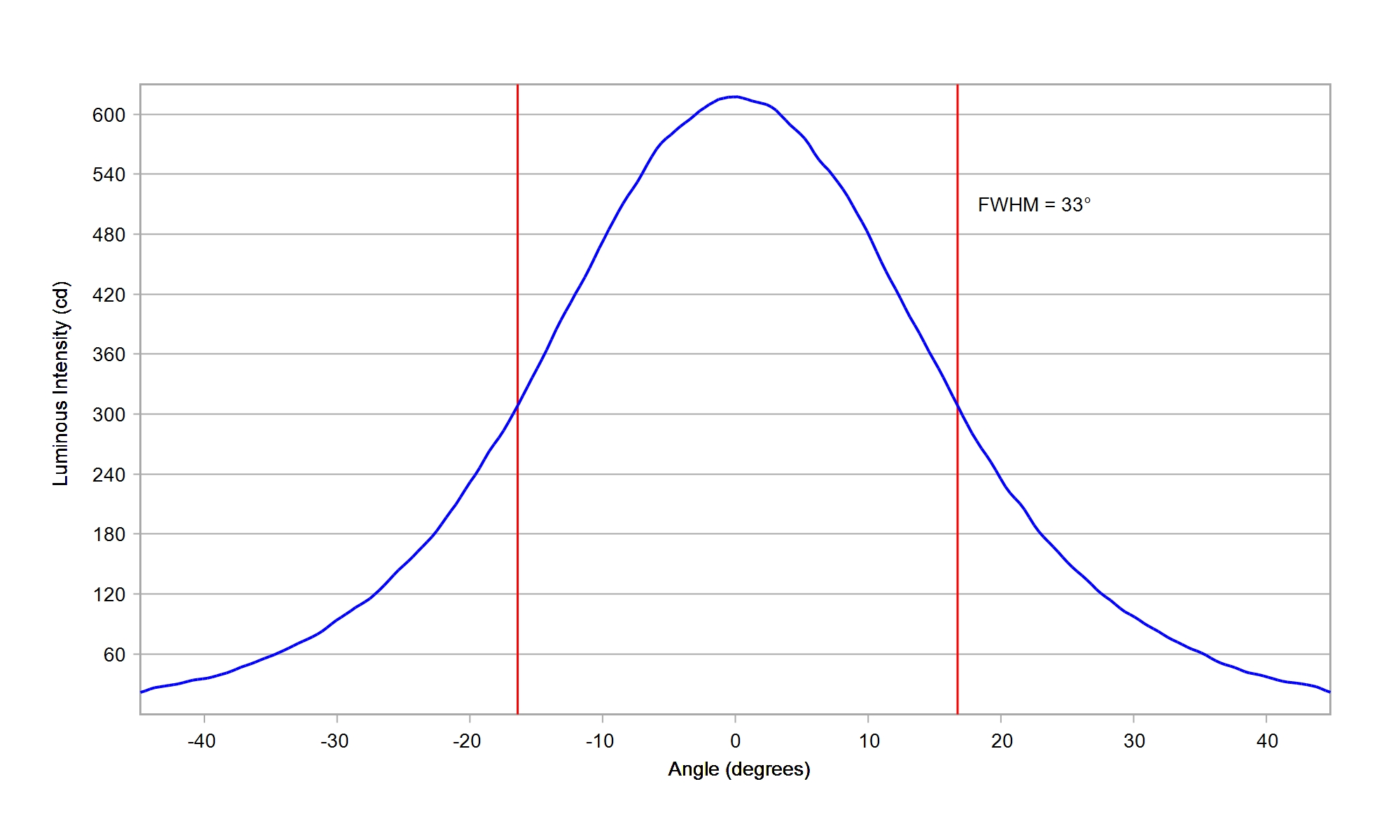

Carclo Optics - Simulated Cross Section

Download

ies

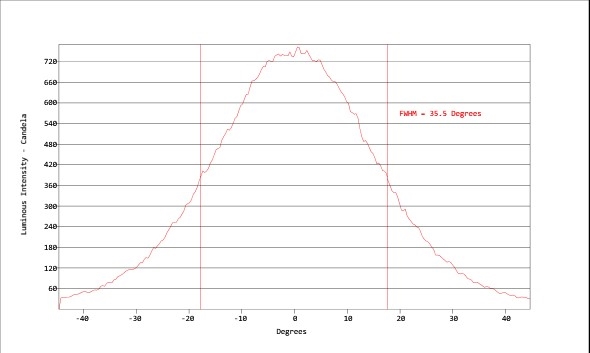

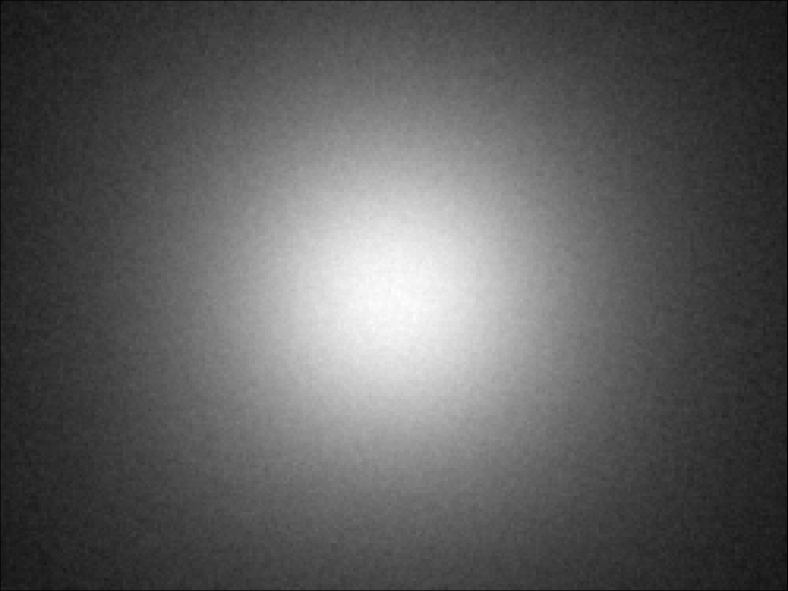

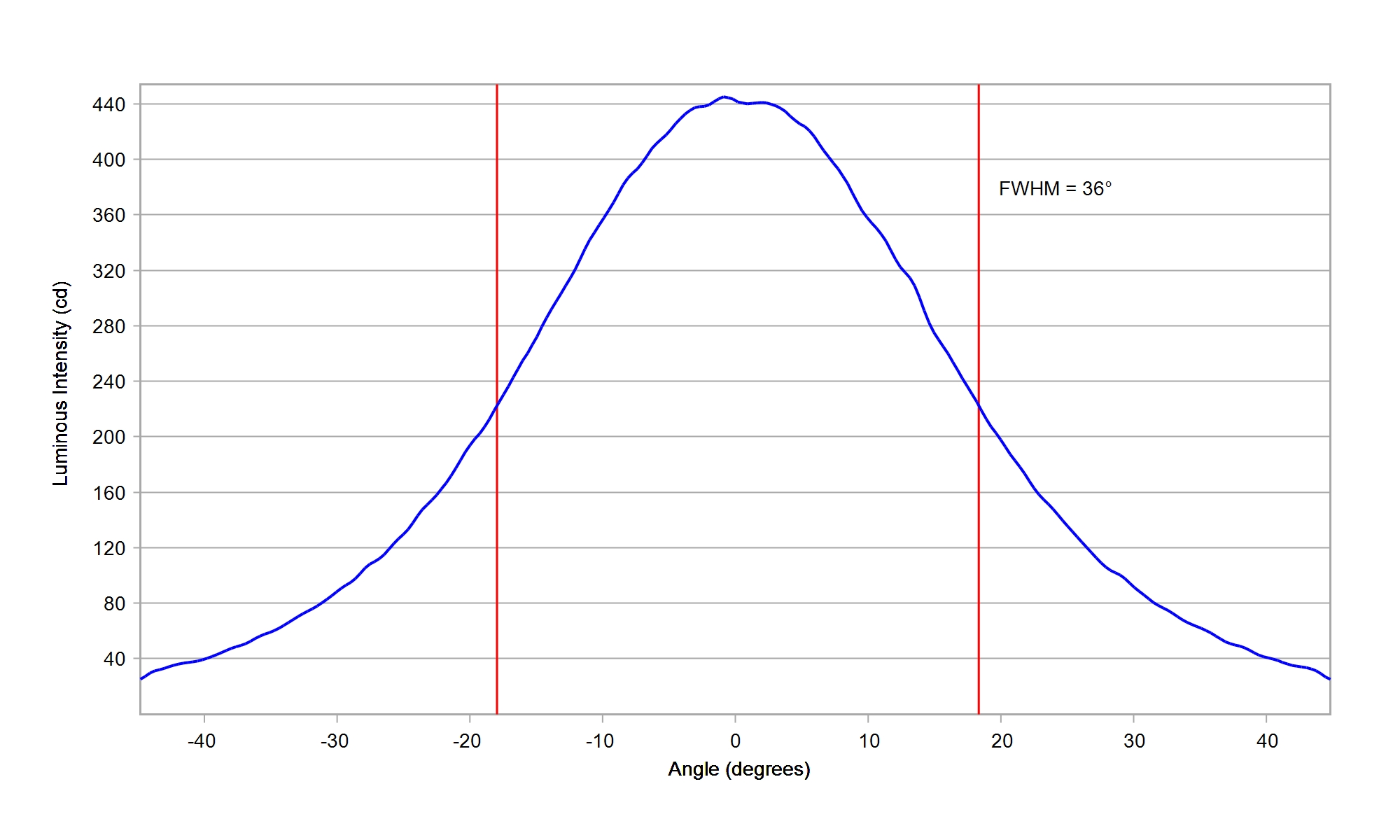

Nichia NVSW 319A White

Eff:

90.0%

FWHM:

35.5°

Cd/Im:

1.6

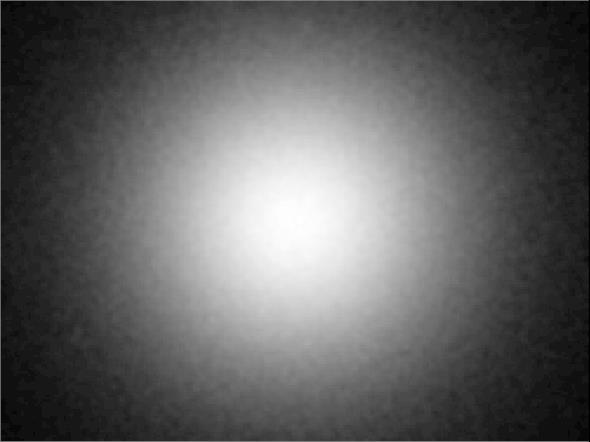

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW CSP E21A White

Eff:

88.0%

FWHM:

29.7°

Cd/Im:

1.7

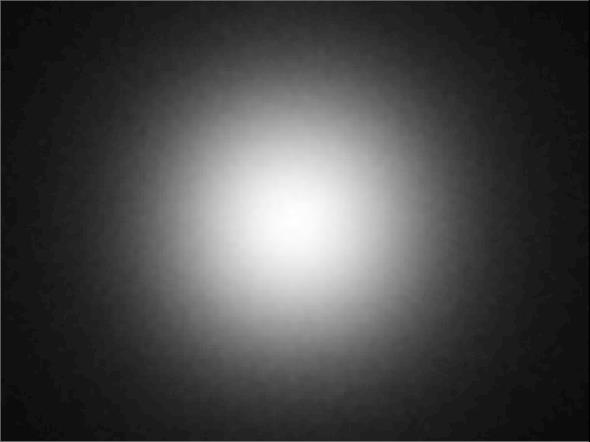

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia Top Emitting NCSL 119-H3 White

Eff:

79.8%

FWHM:

28.8°

Cd/Im:

2.6

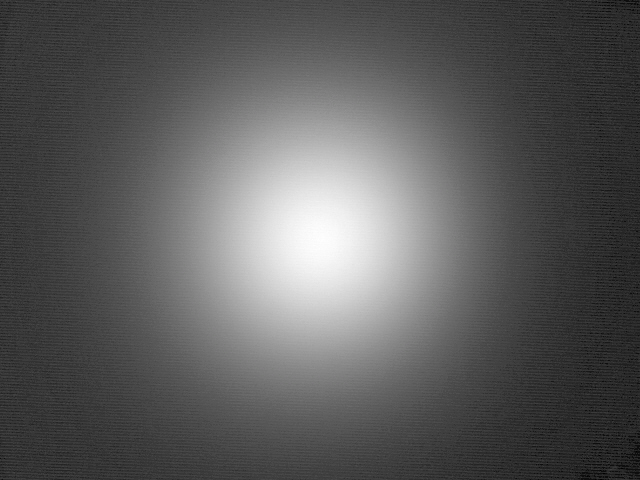

Spot Image

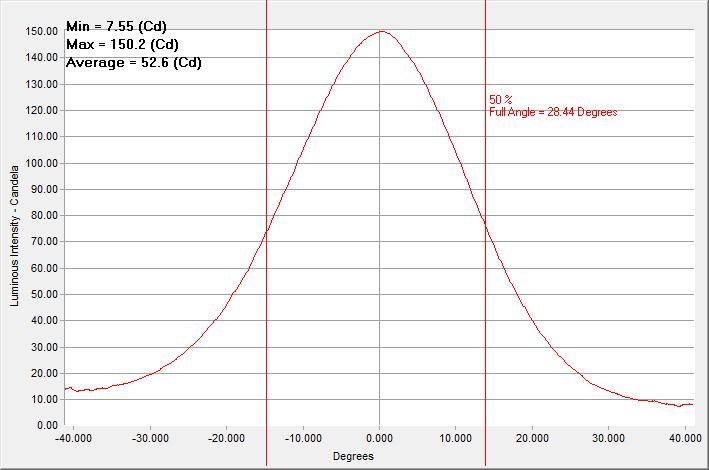

Cross Section

Download

ies

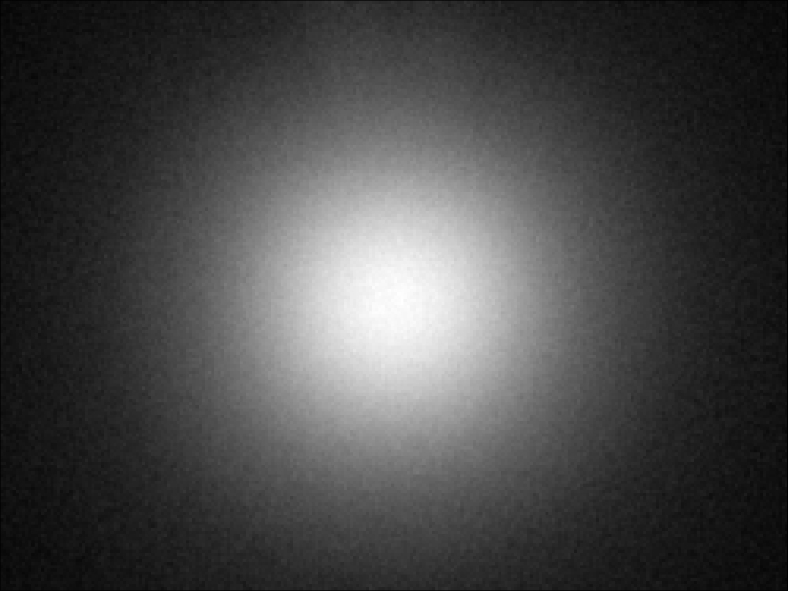

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.7

Download

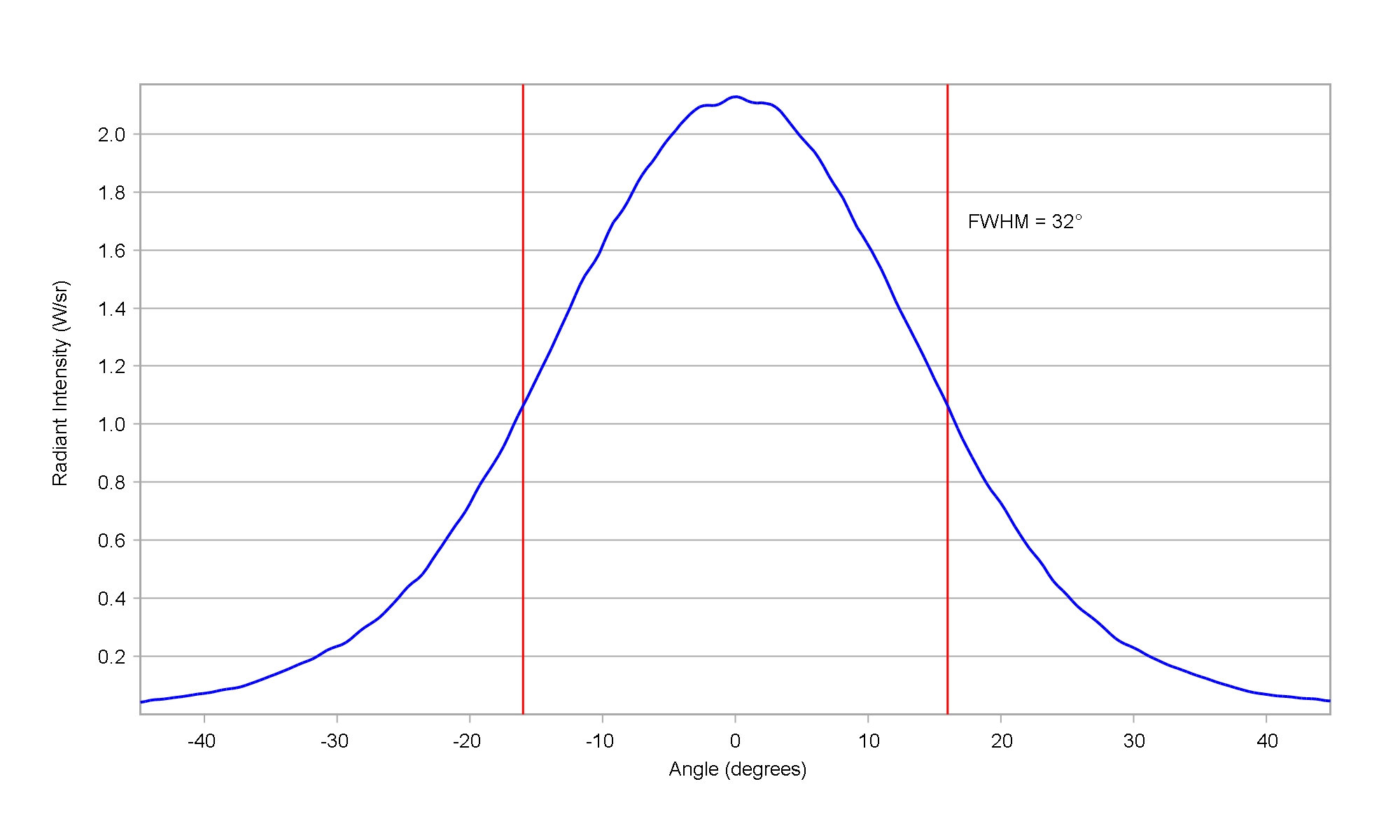

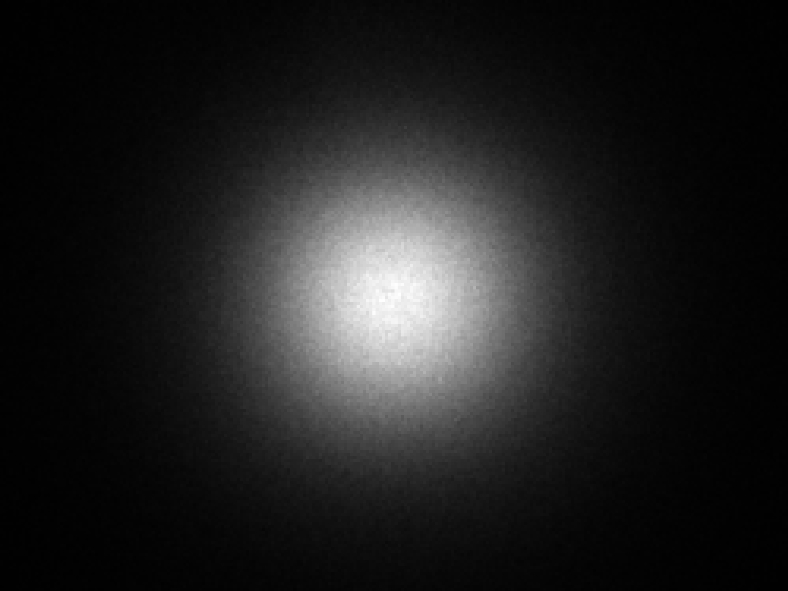

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

94.0%

FWHM:

32°

Ipk/W:

2.6

Download

IES

Osram DURIS E 2835 Gen2

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.8

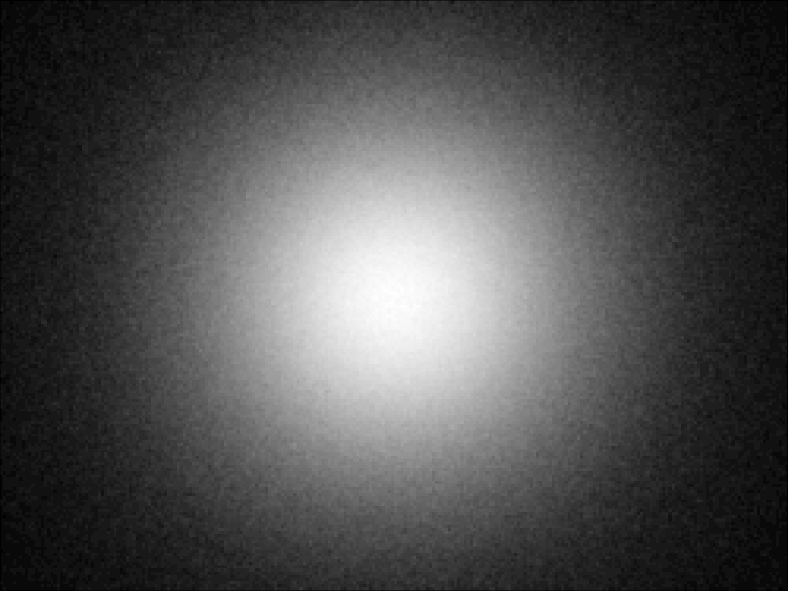

Carclo Optics - 12084 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 12084 10mm Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram DURIS E 2835 White

Eff:

92.0%

FWHM:

30.5°

Cd/Im:

2.2

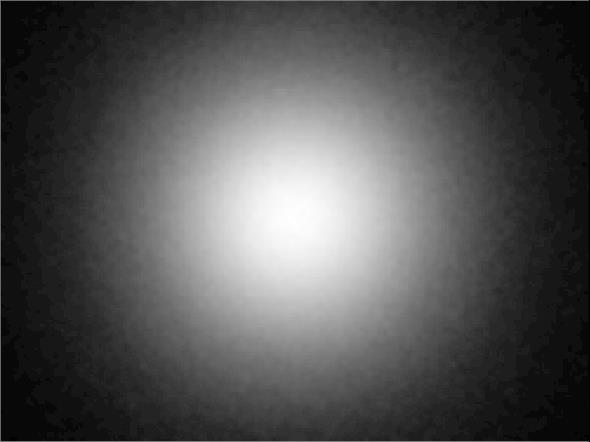

Carclo Optics - Simulated Spot Image

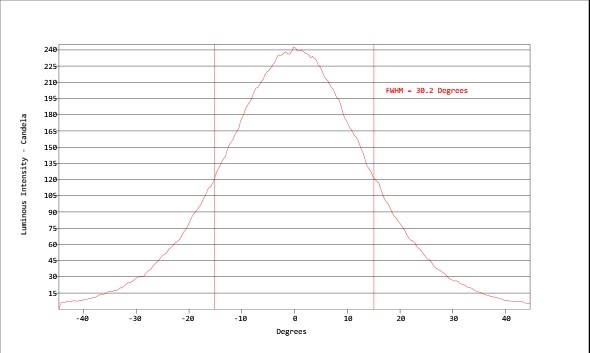

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E2 White

Eff:

88.0%

FWHM:

23.2°

Cd/Im:

3.0

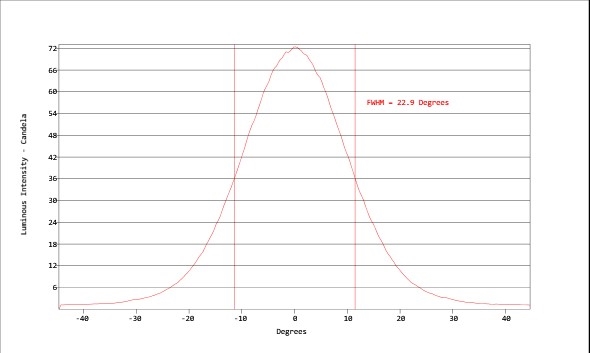

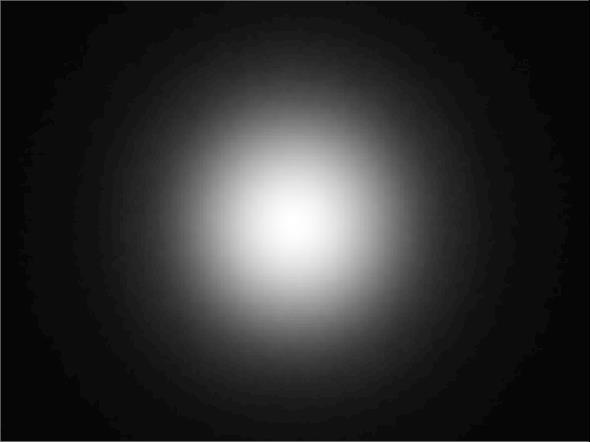

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS E3 White

Eff:

91.5%

FWHM:

23.6°

Cd/Im:

3.2

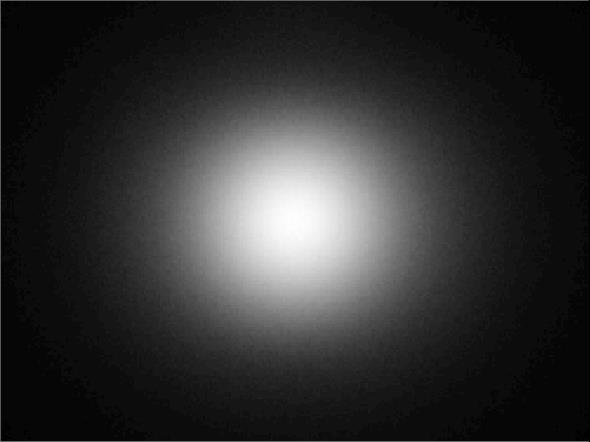

Carclo Optics - Simulated Spot Image

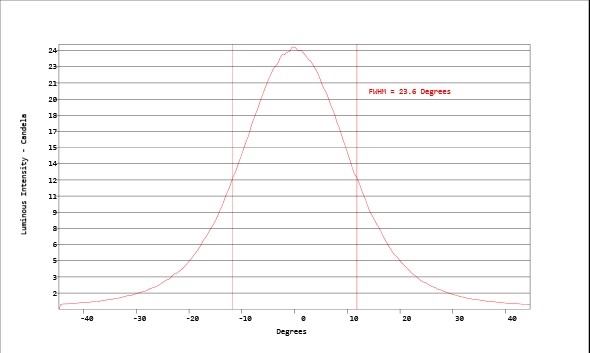

Carclo Optics - Simulated Cross Section Image

Download

ies

Osram DURIS S2 White

Eff:

93.7%

FWHM:

25.0°

Cd/Im:

2.3

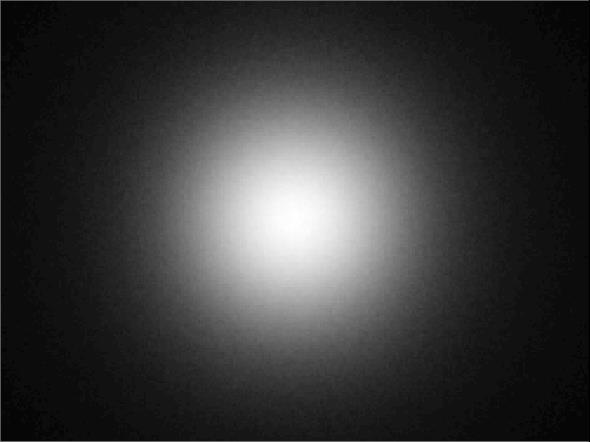

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Deep Blue

Eff:

91.5%

FWHM:

31.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

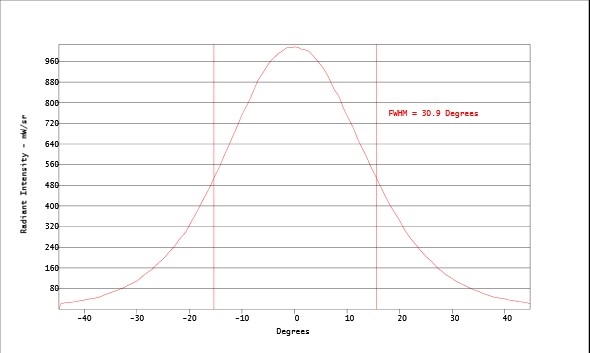

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Green

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.4

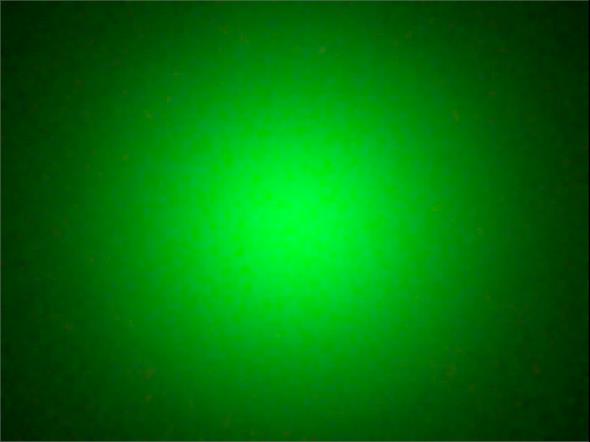

Carclo Optics - Simulated Spot Image

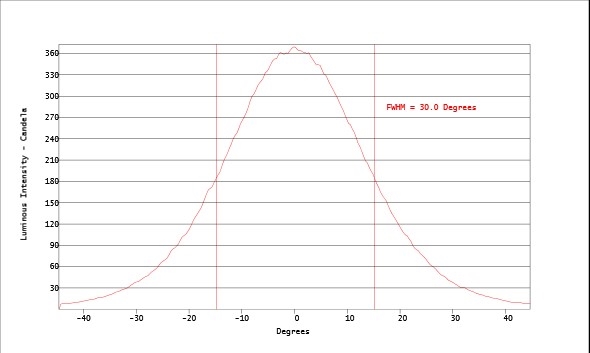

Carclo Optics - Simulated Cross Section

Download

ies

Osram DURIS S5 Red

Eff:

93.0%

FWHM:

28.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

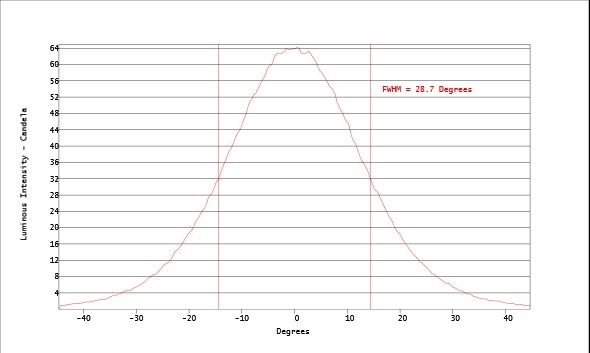

Carclo Optics - Simulated Cross Section

Download

ies

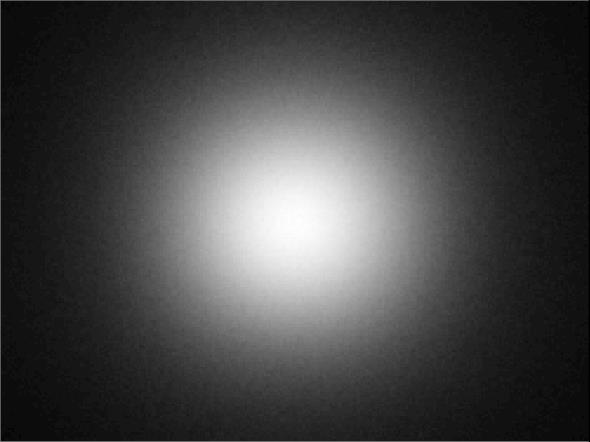

Osram DURIS S5 White

Eff:

89.0%

FWHM:

28.2°

Cd/Im:

41.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSCONIQ C 2424 White

Eff:

92.5%

FWHM:

29°

Cd/Im:

3.2

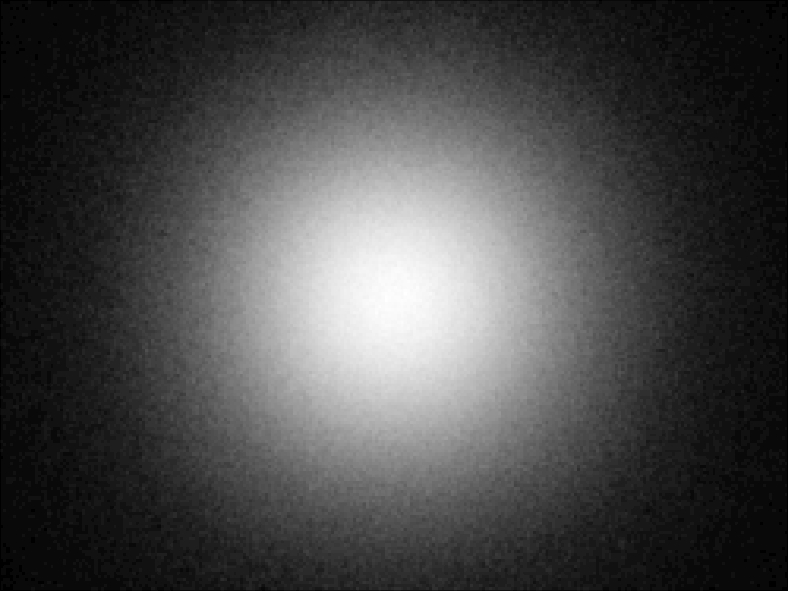

Carclo Optics - 12084 Spot Image OSCONIQ C2424

Carclo Optics - 12084 Cross Section OSCONIQ C2424

Download

ies

Osram OSLON Black SFH 4716AS IR

Eff:

94.0%

FWHM:

26°

Ipk/W:

3.5

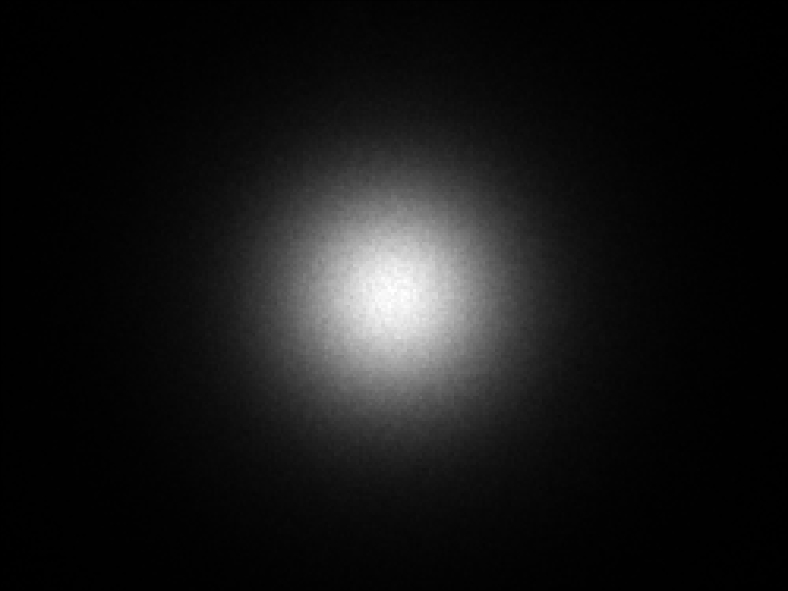

Carclo Optics – 12084 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 12084 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OSLON Boost HM KW CELMM1.TG

Eff:

93.0%

FWHM:

23°

Cd/Im:

4.7

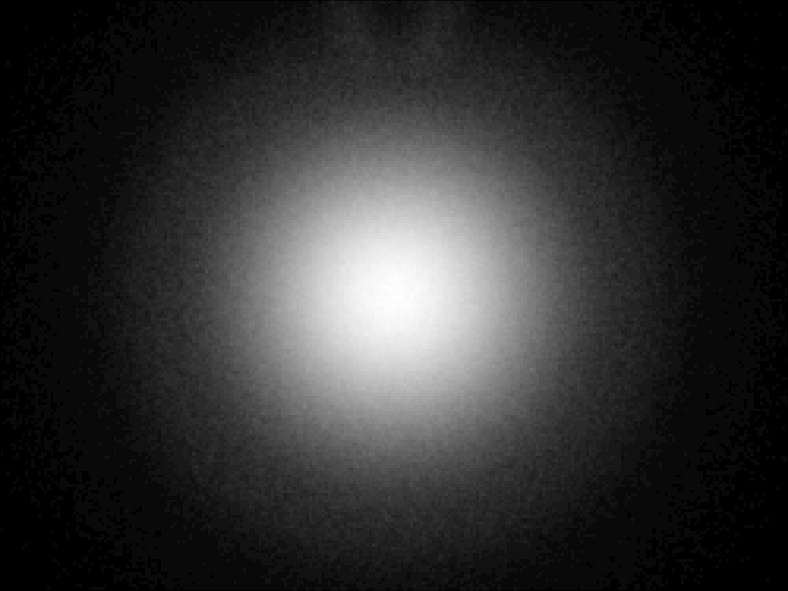

Carclo Optics – 12084 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 12084 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

ies

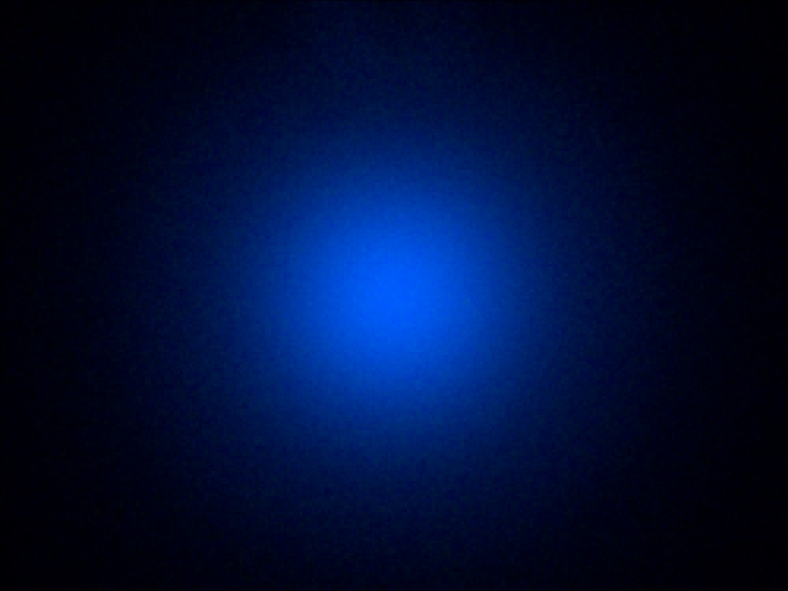

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.5


Download

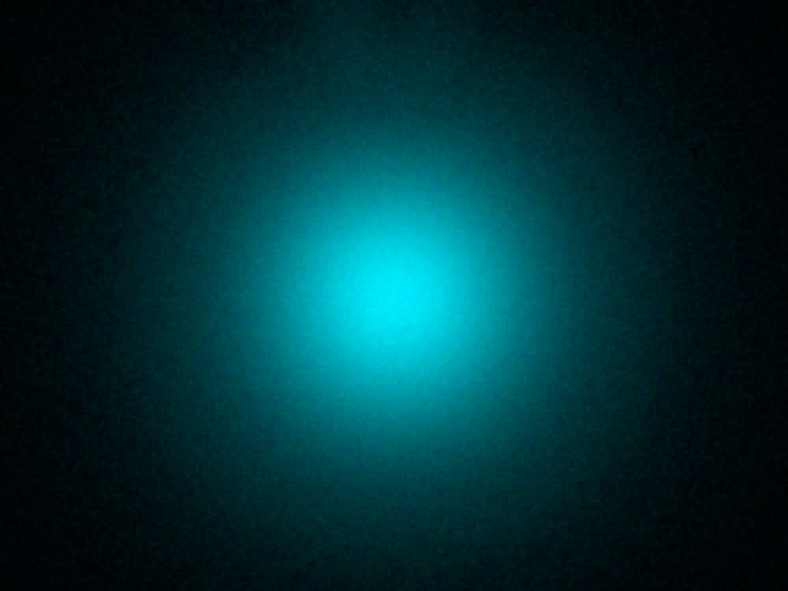

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.4


Download

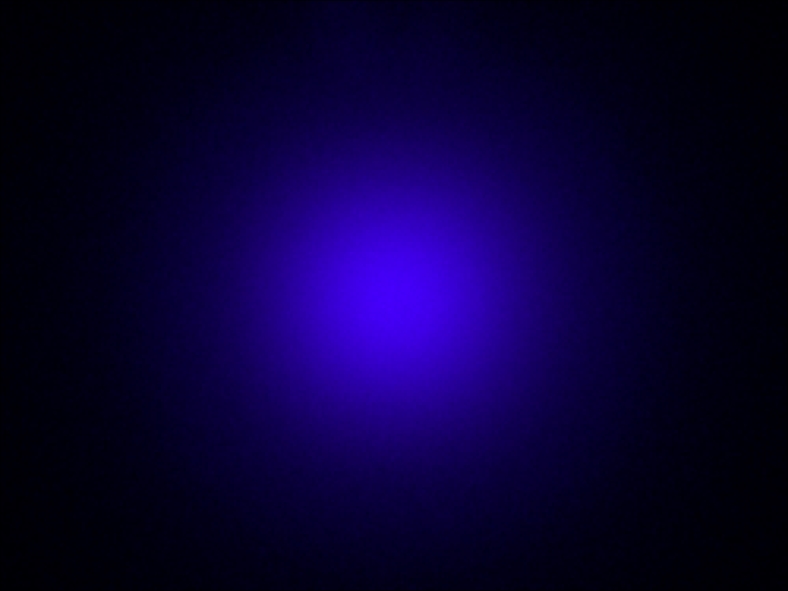

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

92.0%

FWHM:

24.5°

Ipk/W:

4.0


Download

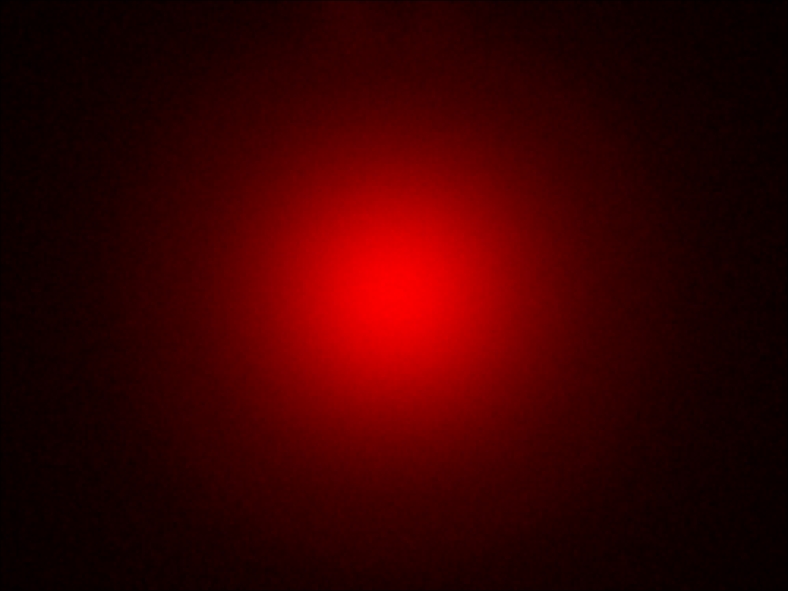

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.1


Download

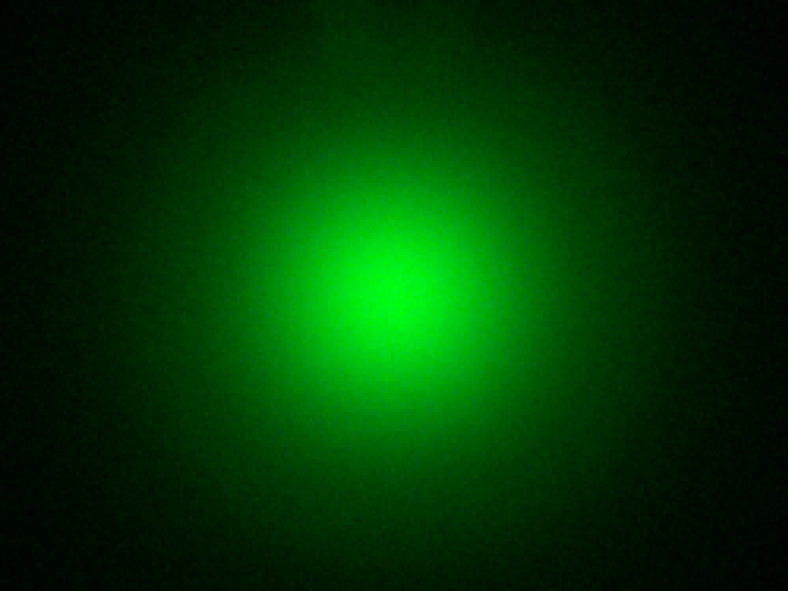

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.1


Download

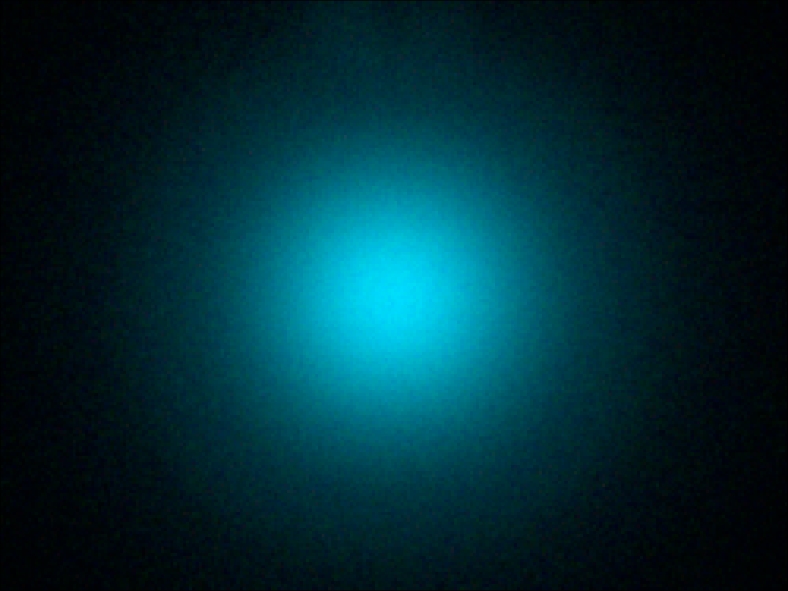

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.5


Download

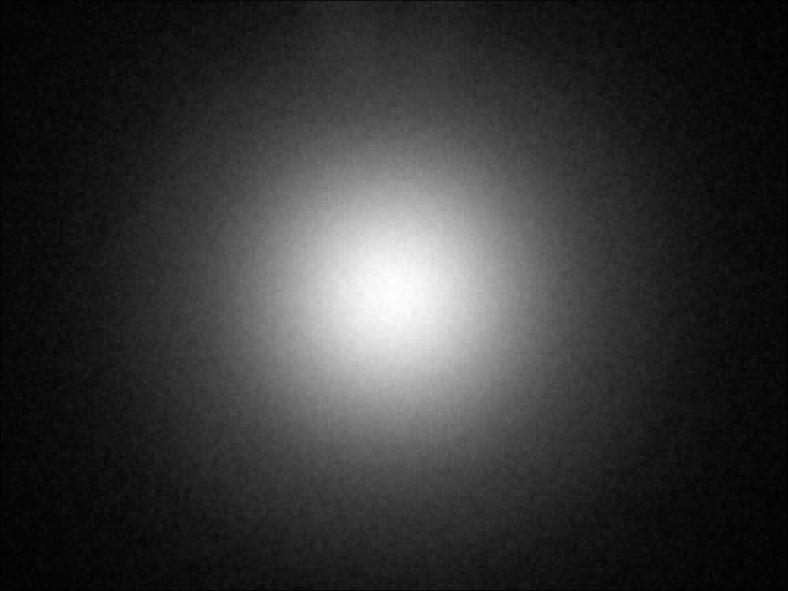

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

93.0%

FWHM:

25°

Cd/Im:

3.9

Download

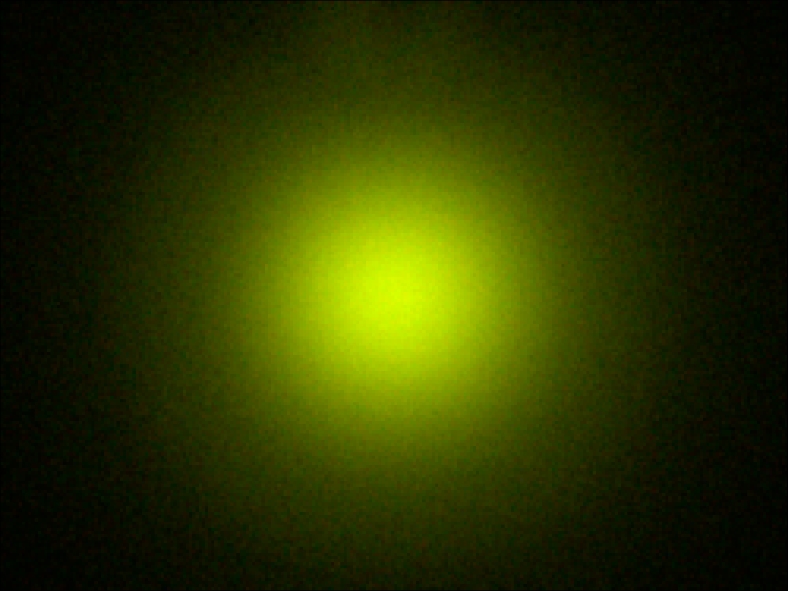

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.1


Download

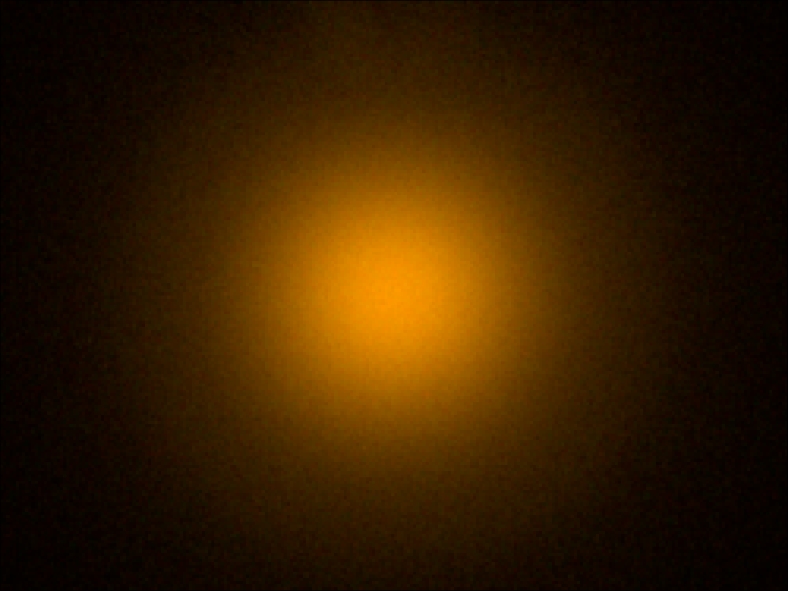

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.1


Download

Osram OSLON Square Flat White

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

2.8

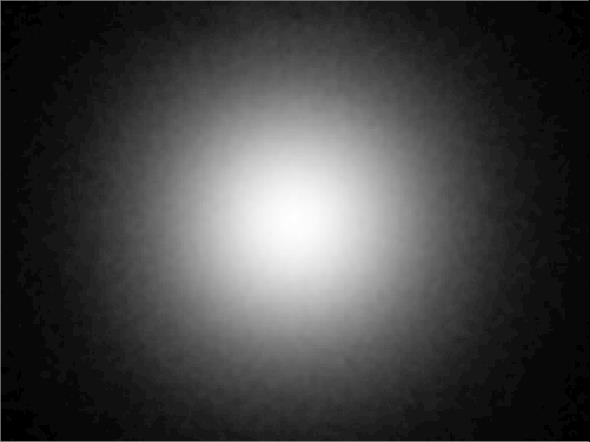

Carclo Optics - Simulated Spot Image

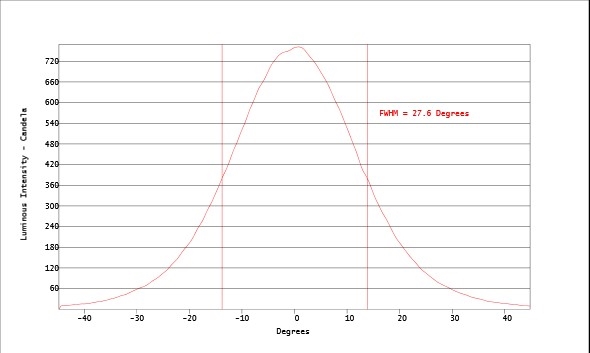

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 3 White

Eff:

88.3%

FWHM:

27.9°

Cd/Im:

2.2

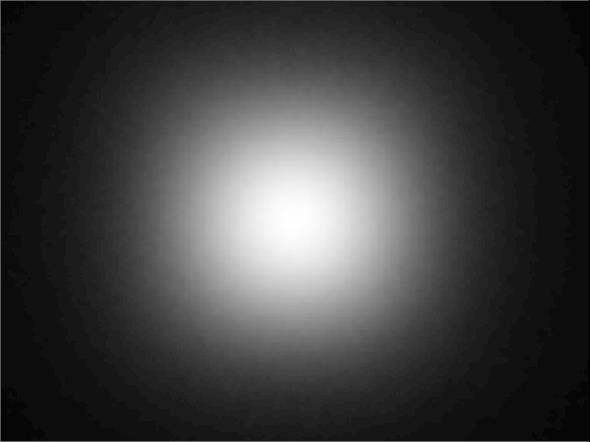

Carclo Optics - Simulated Spot Image

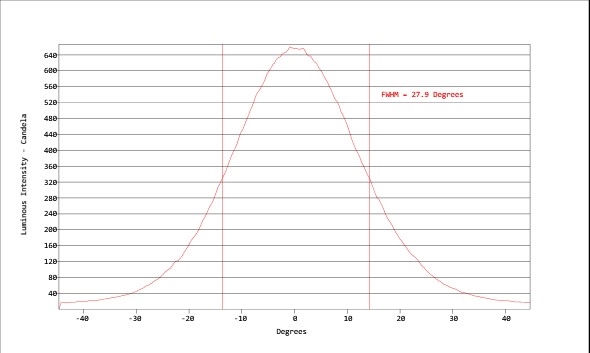

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

92.0%

FWHM:

31.0 x 30.5°

Cd/Im:

2.7

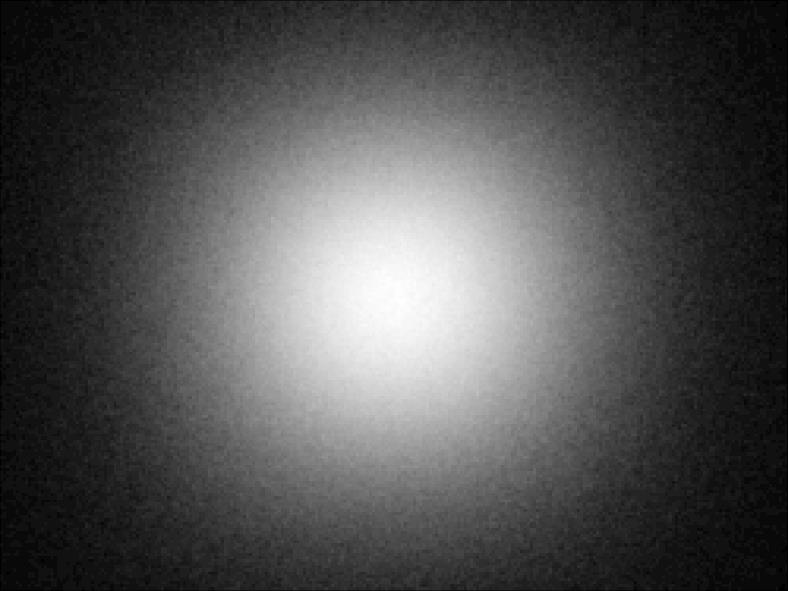

Carclo Optics - 12084 10mm Spot Image Oslon Square Gen 5

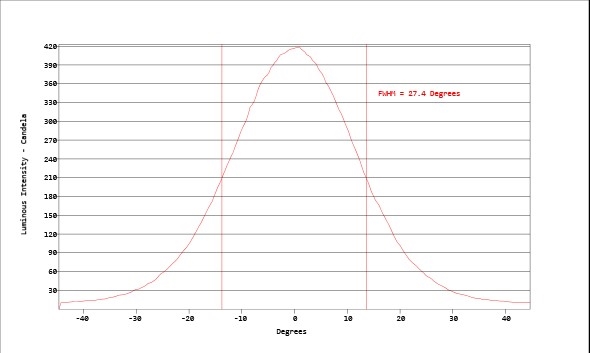

Carclo Optics - 12084 10mm Cross Section Oslon Square Gen 5

Download

ies

Osram OSLON Square White

Eff:

88.0%

FWHM:

28°

Cd/Im:

2.3

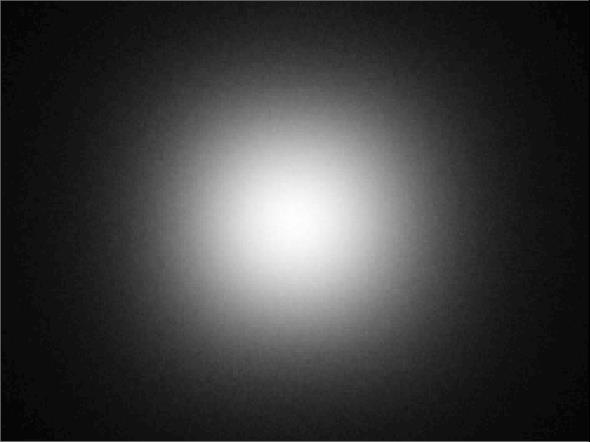

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.7

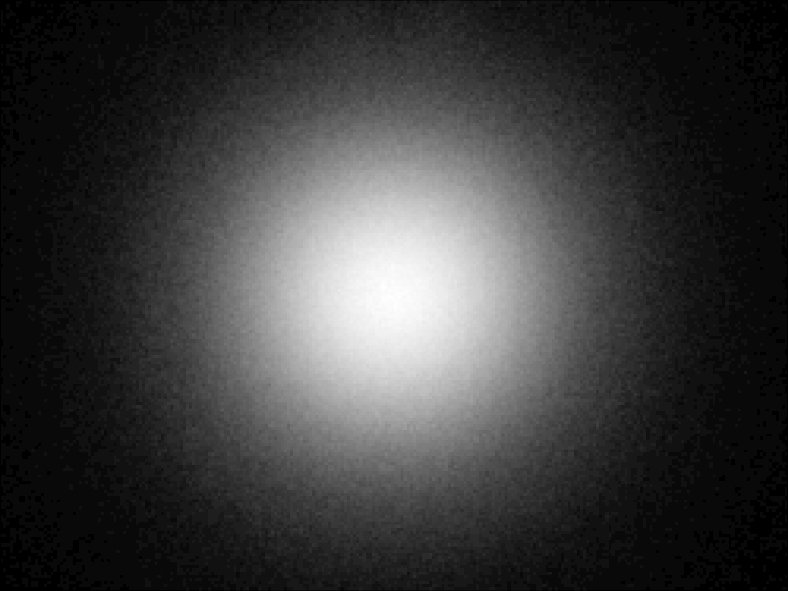

Carclo Optics – 12084 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 12084 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

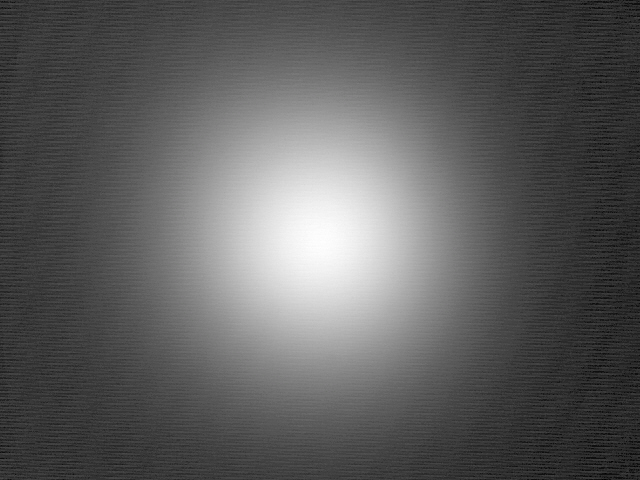

Osram OSLON SSL 80 White

Eff:

83.5%

FWHM:

30°

Cd/Im:

2.7

Spot Image

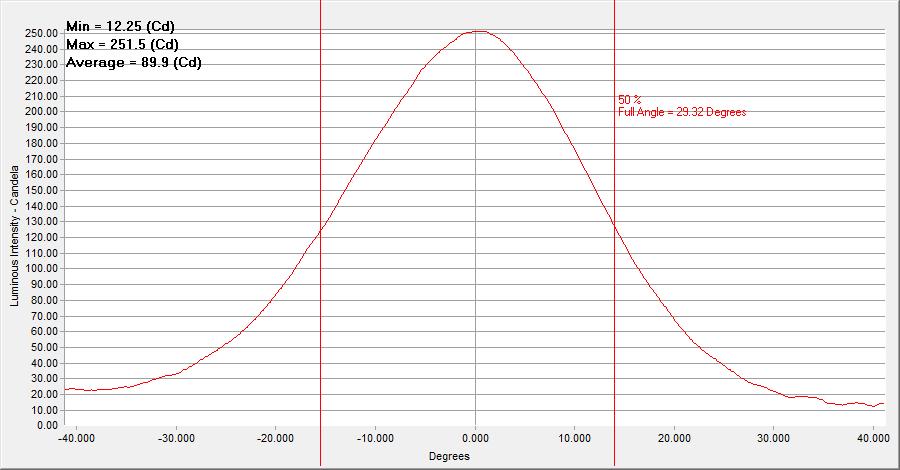

Cross Section

Download

ies

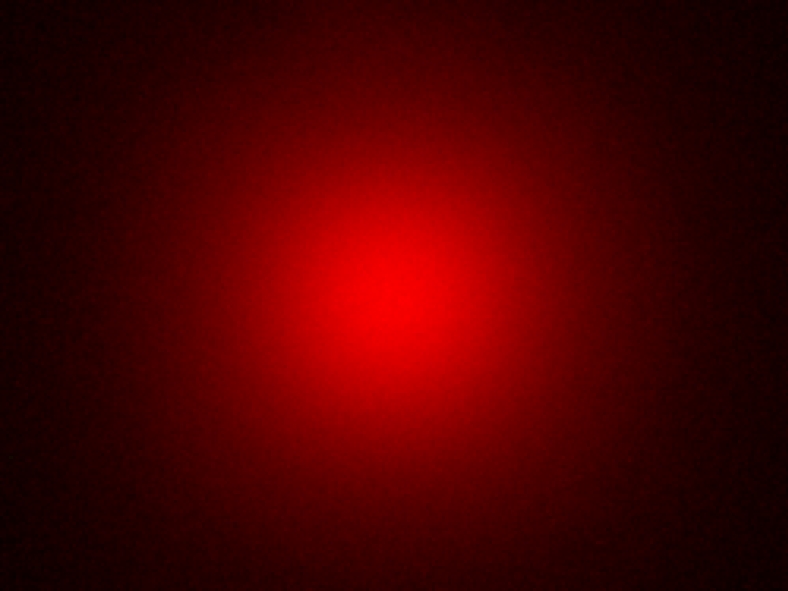

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

92.5%

FWHM:

29°

Ipk/W:

2.8


Download

IES

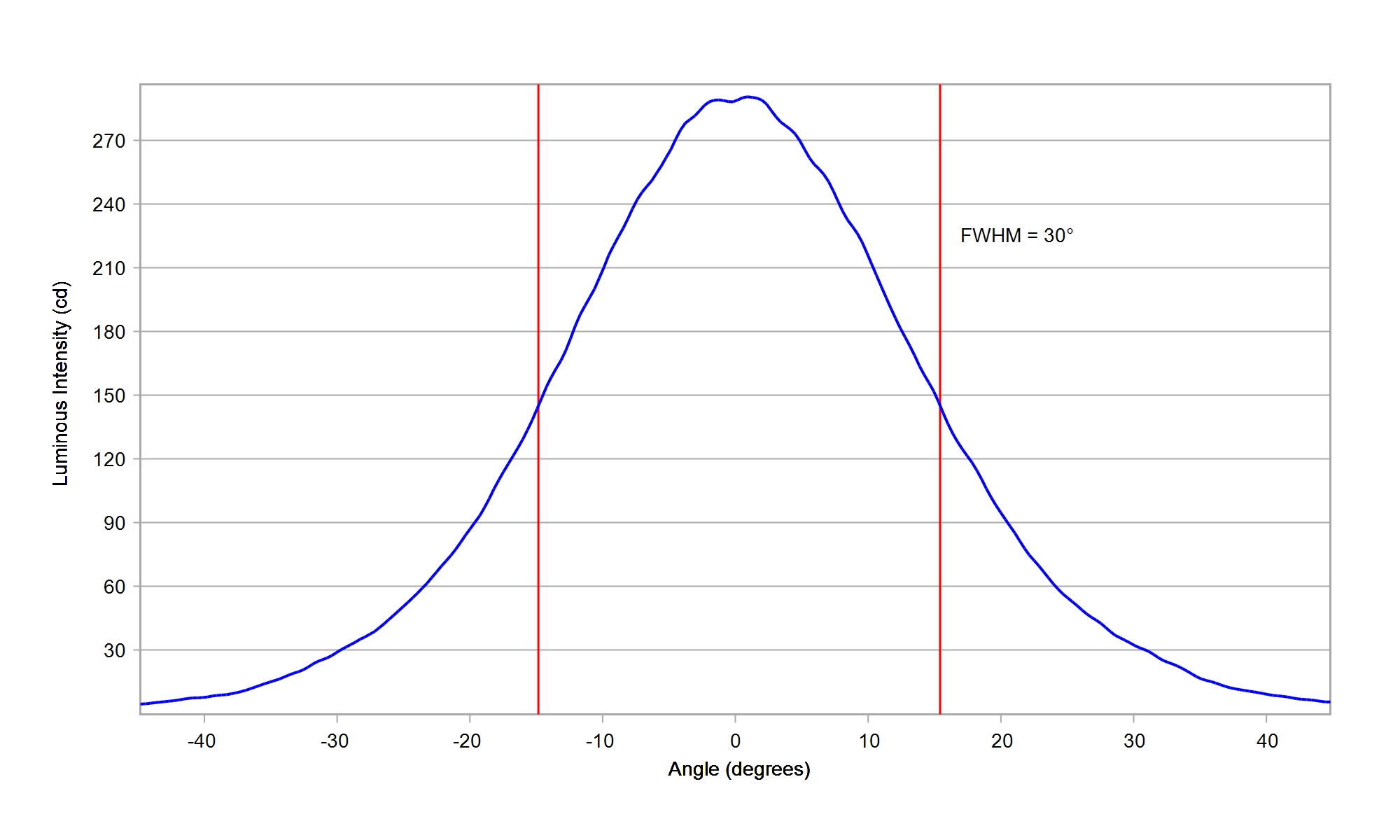

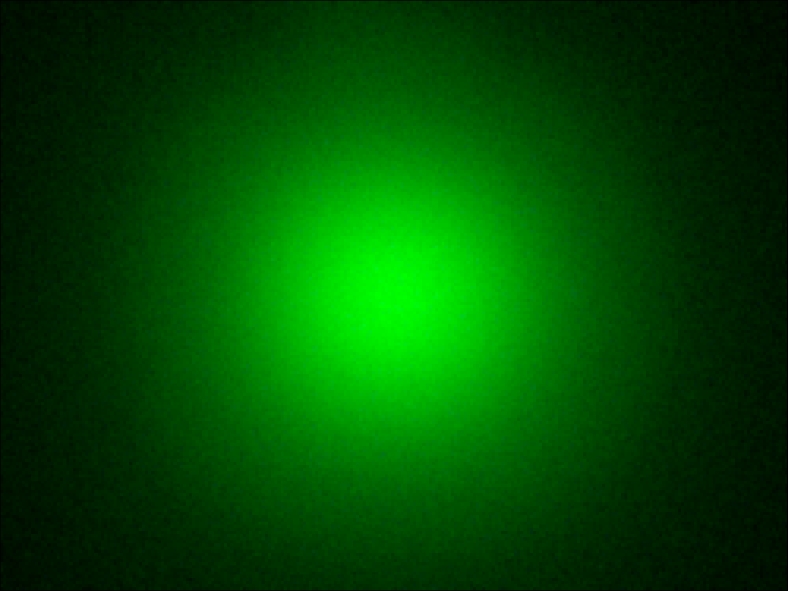

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.7



Download

IES

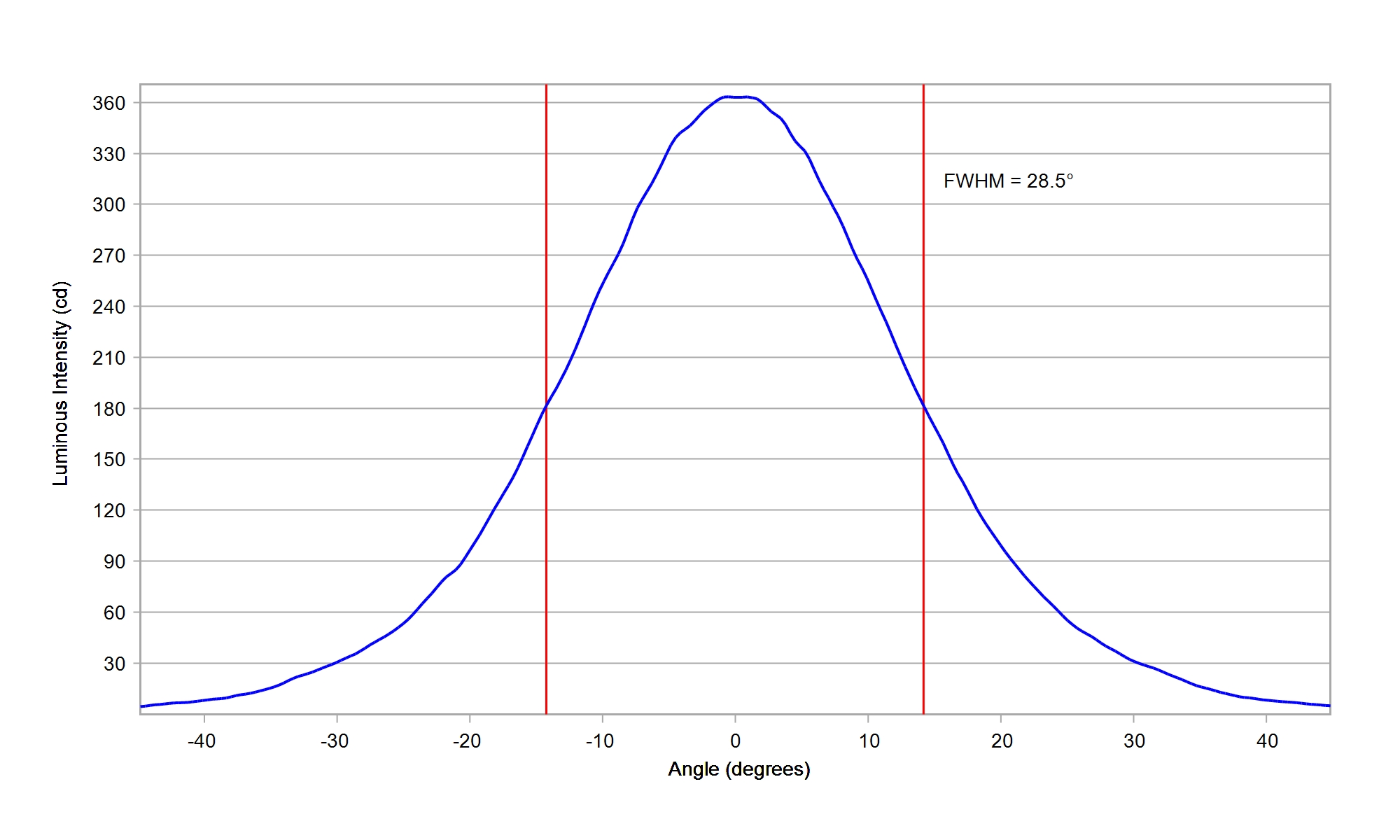

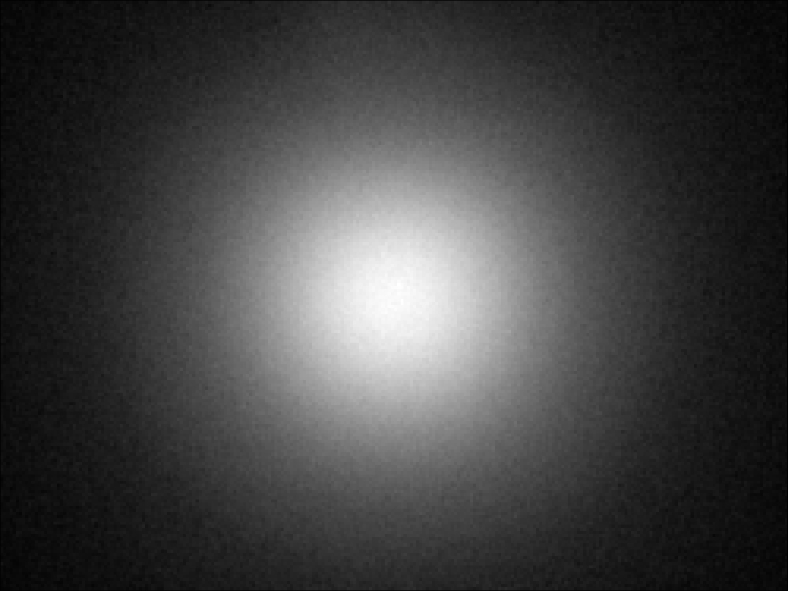

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

3.0


Download

IES

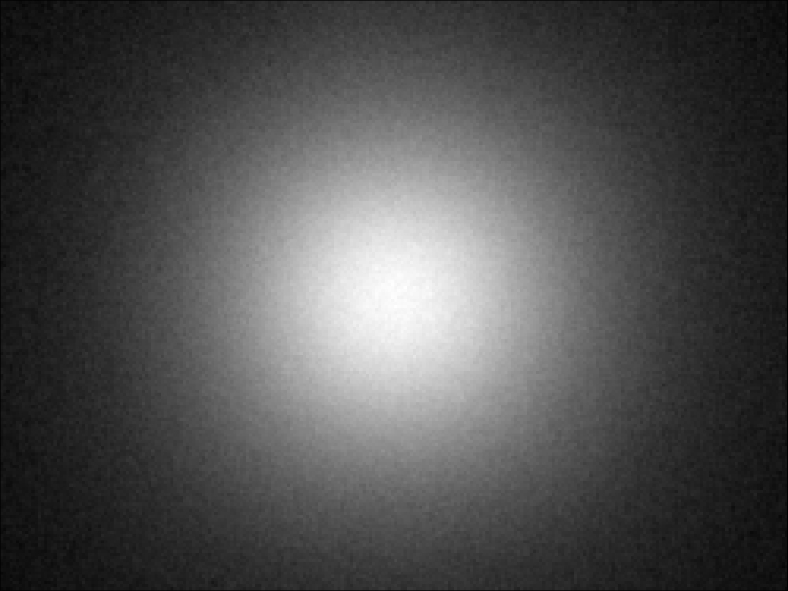

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.4

Download

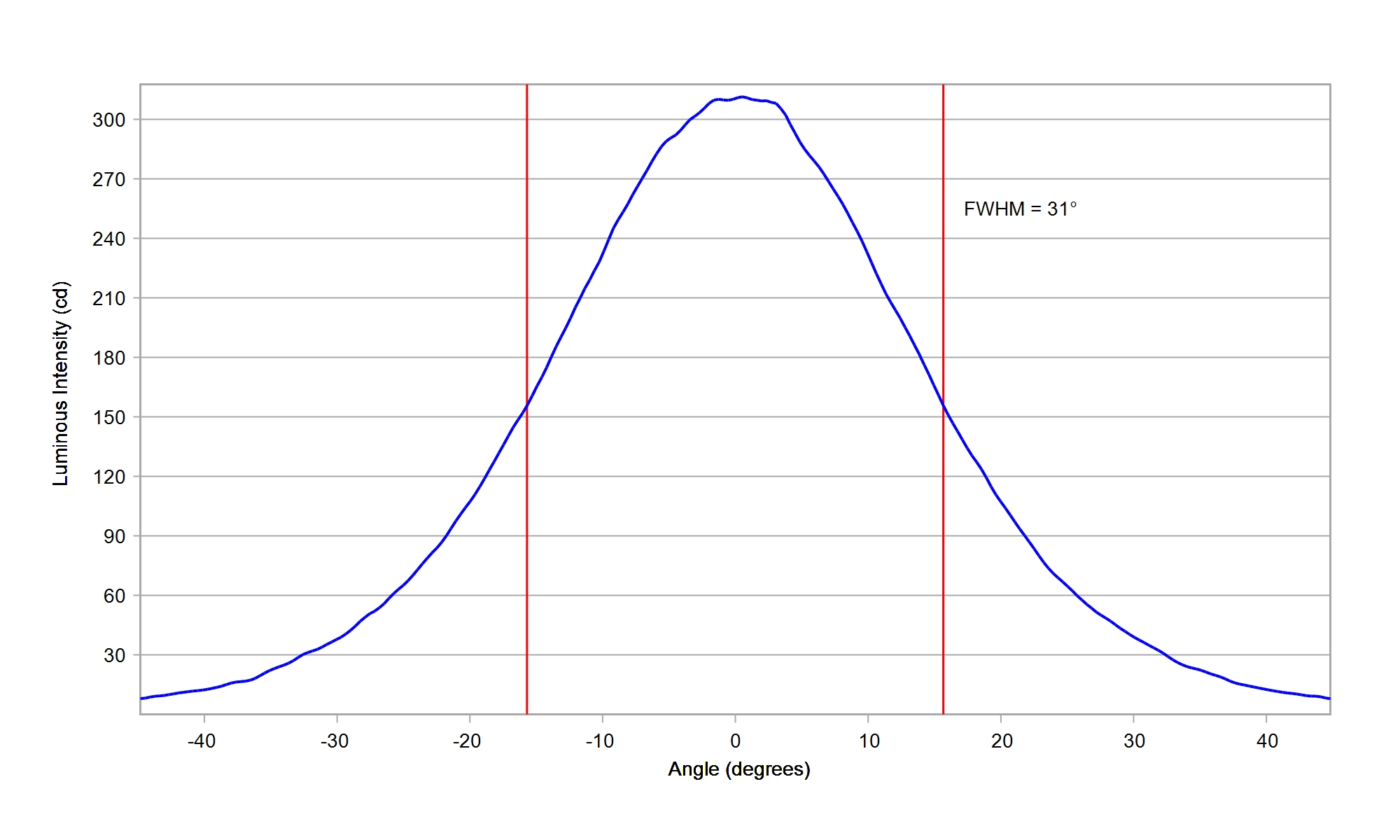

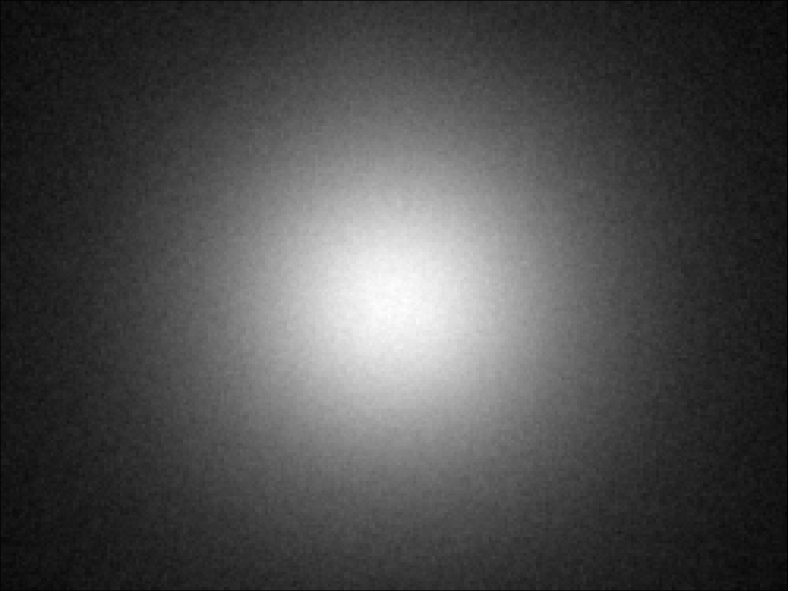

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.5

Download

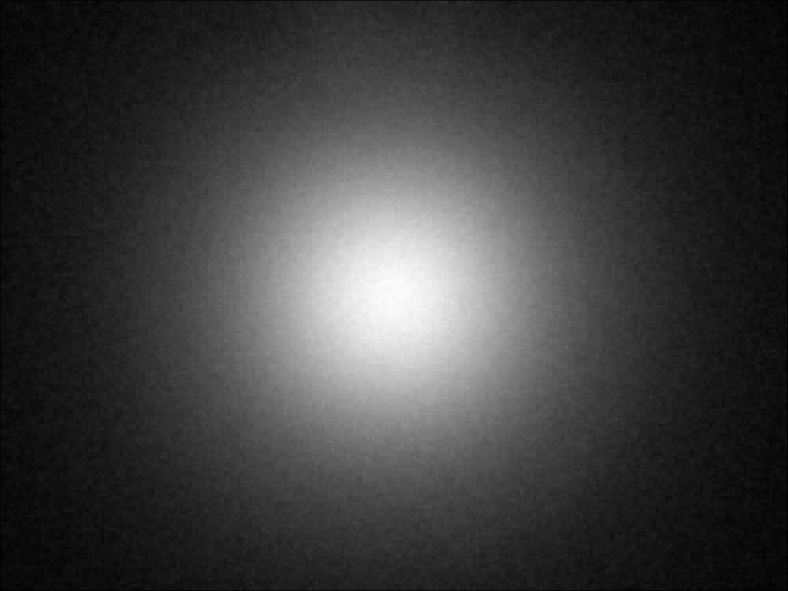

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.2

Download

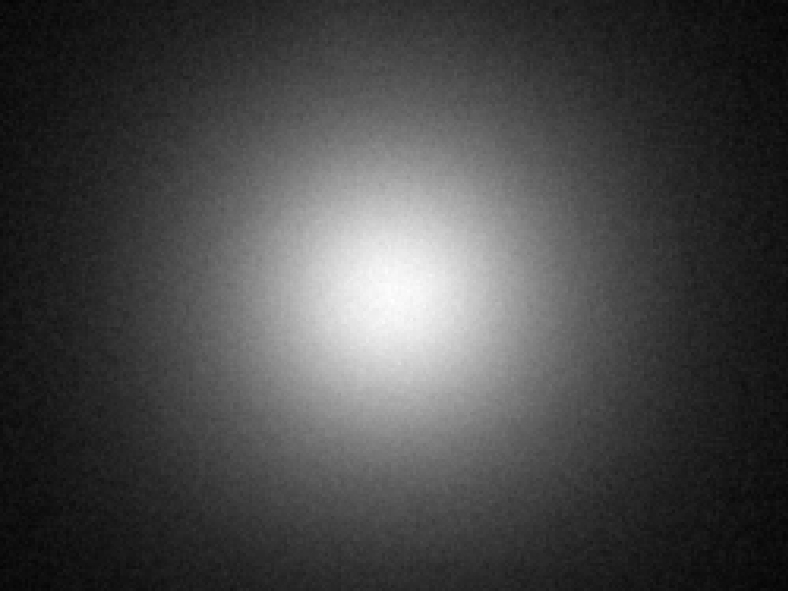

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.8

Download

Osram OSLON Signal LUW CRBP.01 White

Eff:

92.5%

FWHM:

26.5°

Cd/Im:

3.5


Download

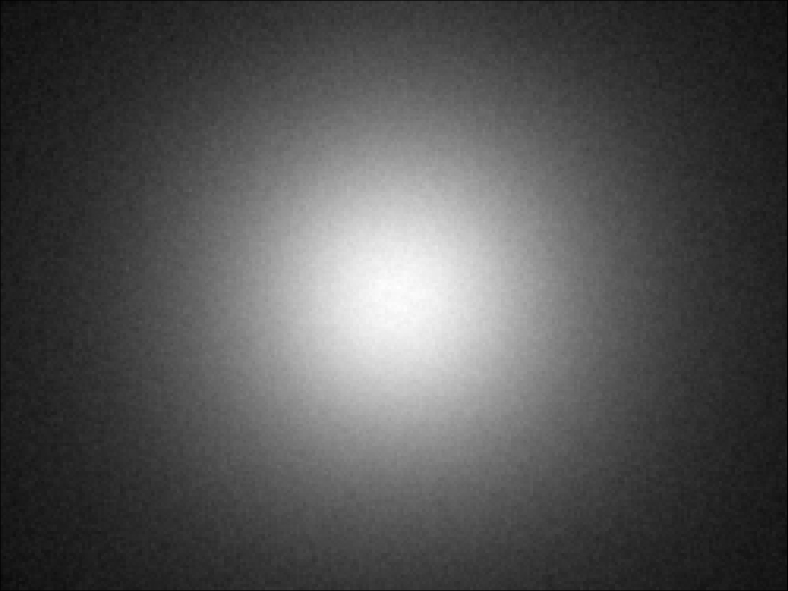

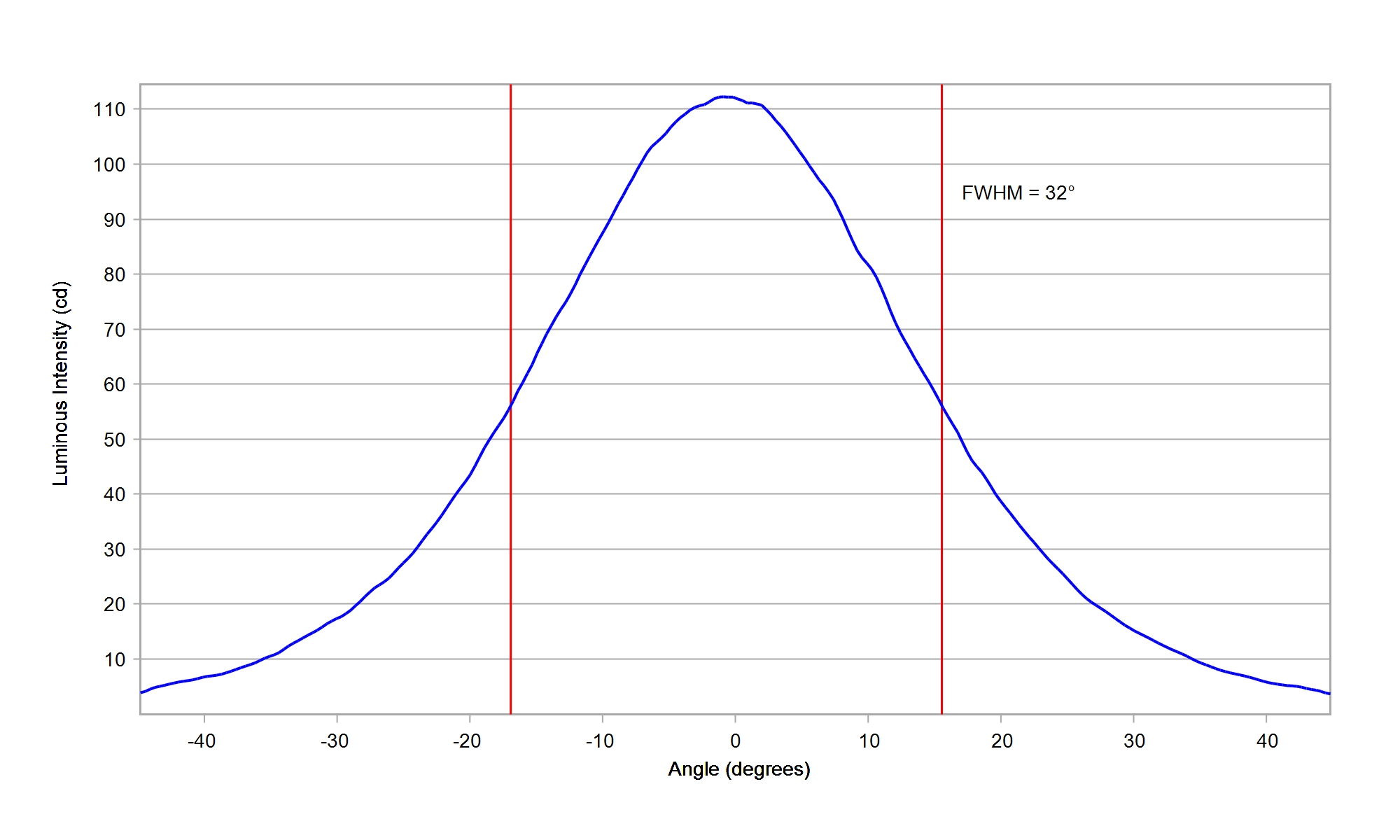

Samsung 2835 LM281B+ White

Eff:

91.5%

FWHM:

32°

Cd/Im:

2.2



Download

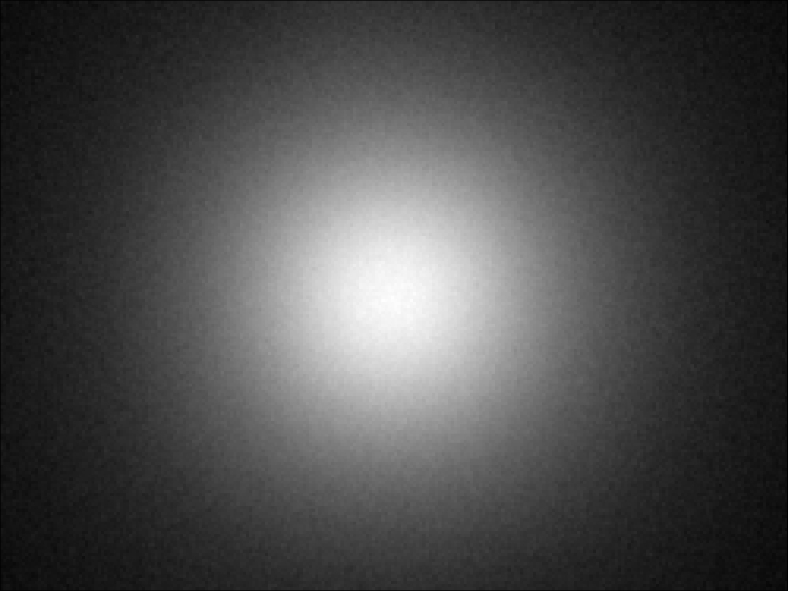

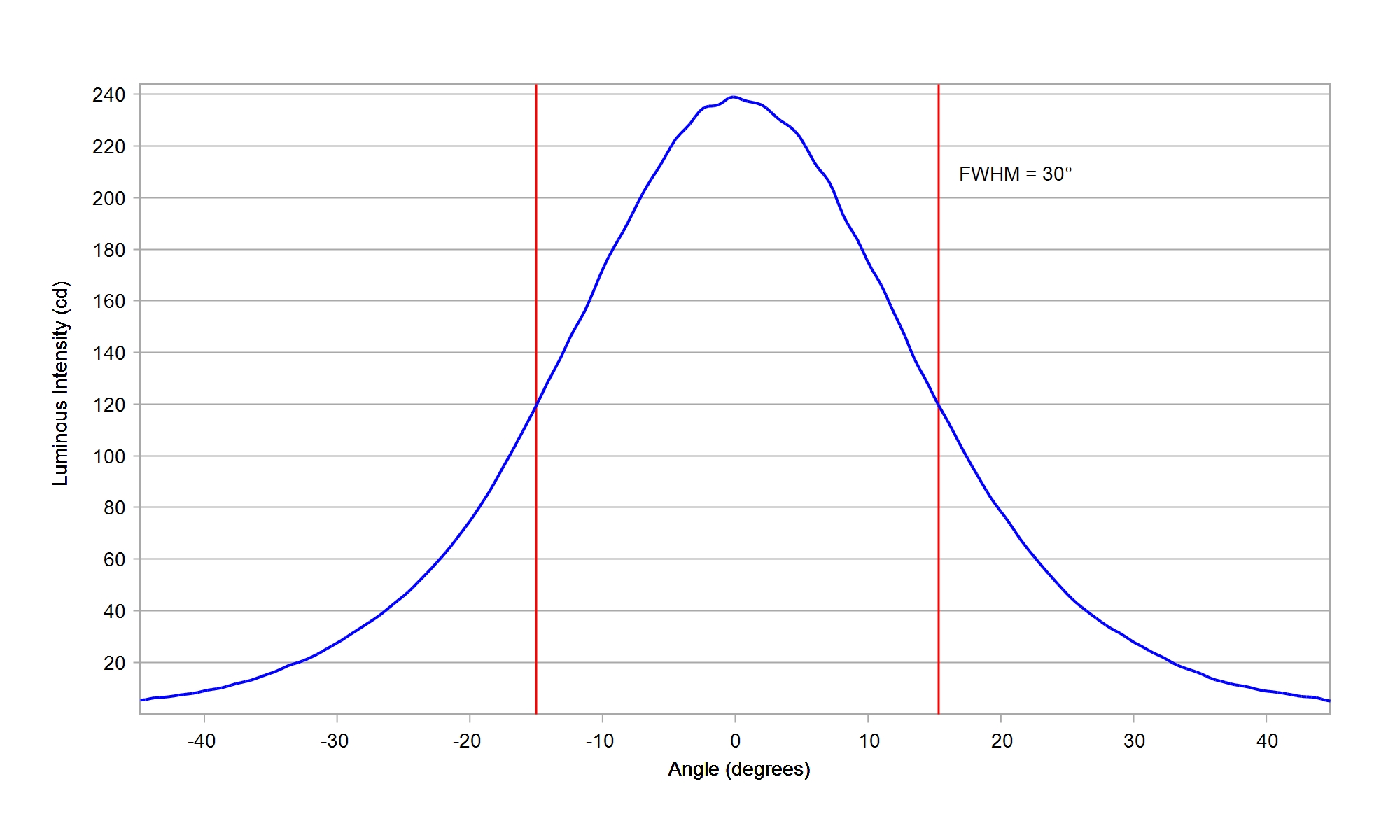

Samsung 2835 LM282B+ White

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.5



Download

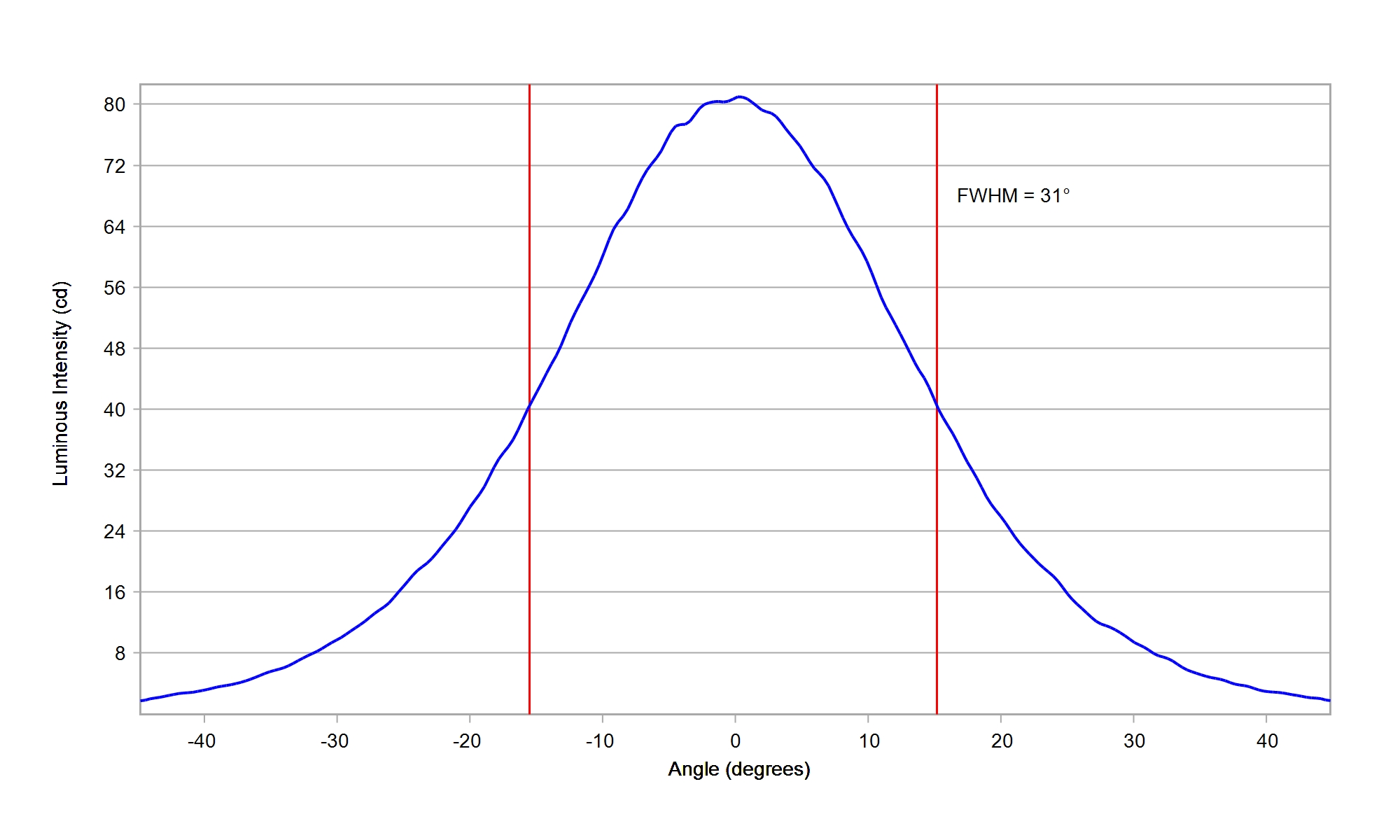

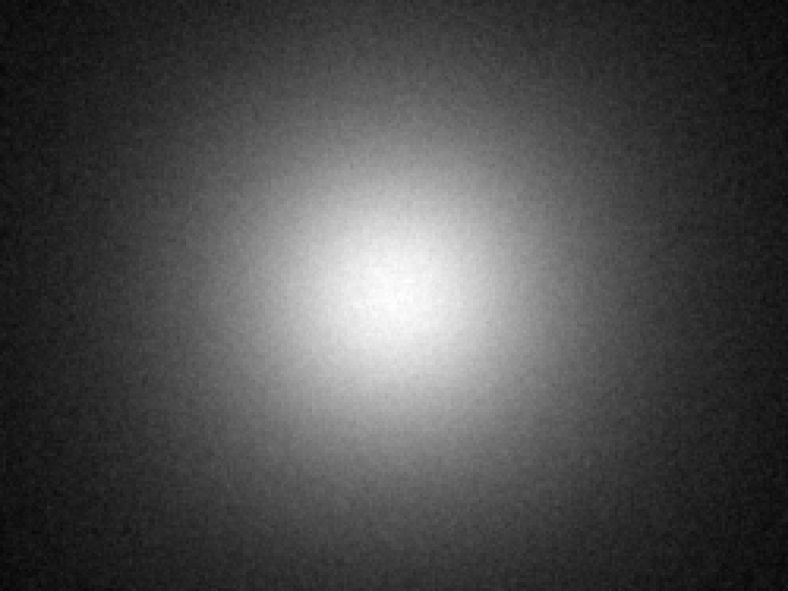

Samsung 3030 LM301B White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.8

Download

ies

Samsung 3535 LH351B White

Eff:

88.0%

FWHM:

30°

Cd/Im:

1.9

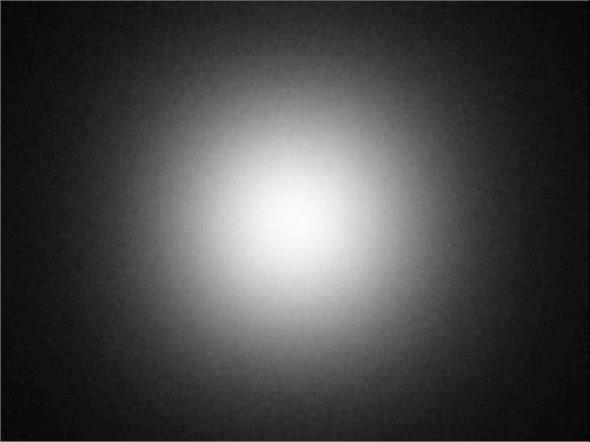

carclo simulated spot image

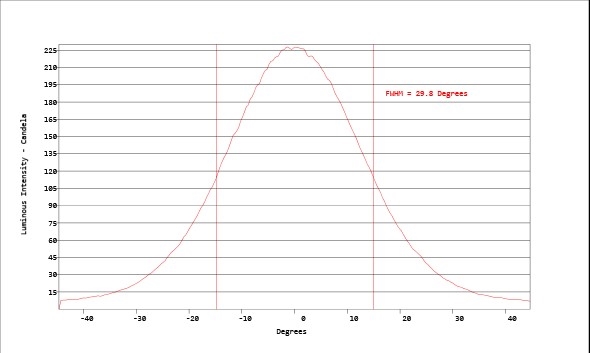

carclo simulated cross section

Download

ies

Samsung 3535 LH351Z White

Eff:

87.8%

FWHM:

26°

Cd/Im:

2.5

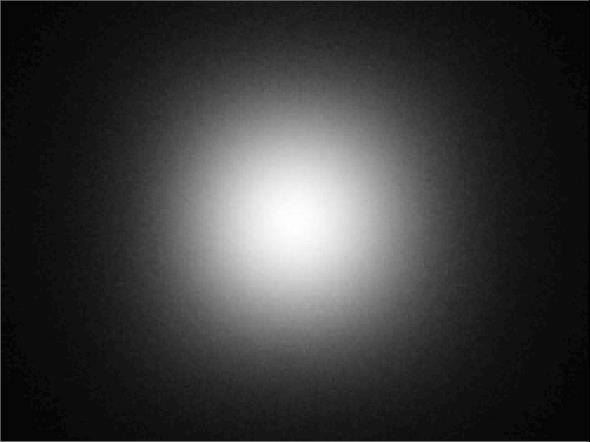

carclo simulated spot image

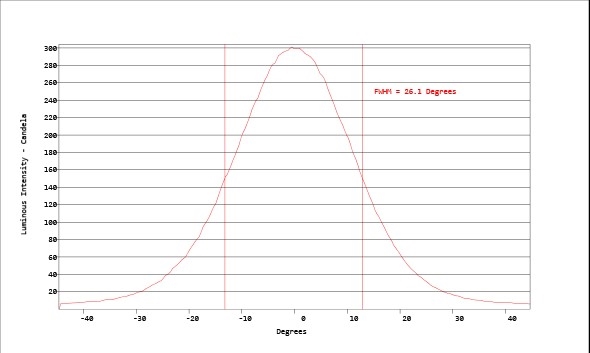

carclo simulated cross section

Download

ies

Samsung CSP LH151B White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.9

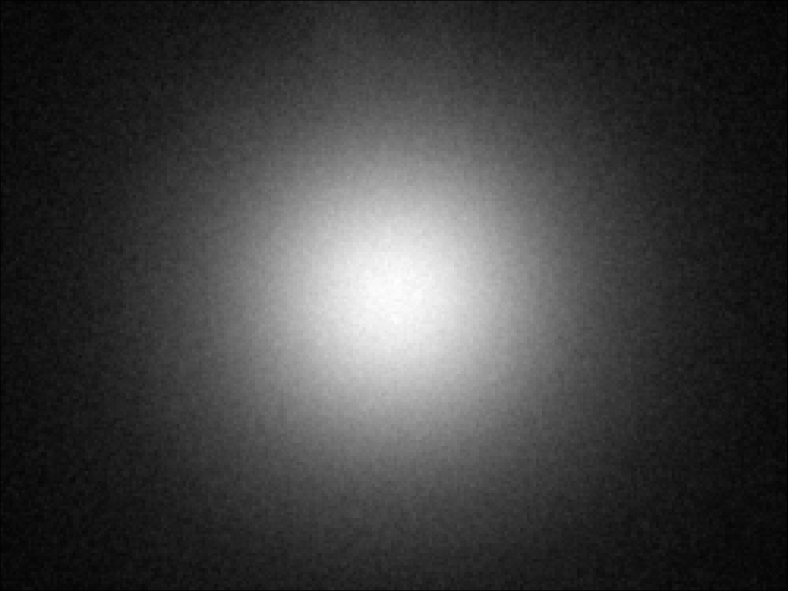

Carclo Optics – 12084 – Samsung_LH151B_spot-image

Carclo Optics – 12084 – Samsung_LH151B_cross section

Download

ies

Samsung CSP LH181B White

Eff:

92.0%

FWHM:

32.5°

Cd/Im:

2.2

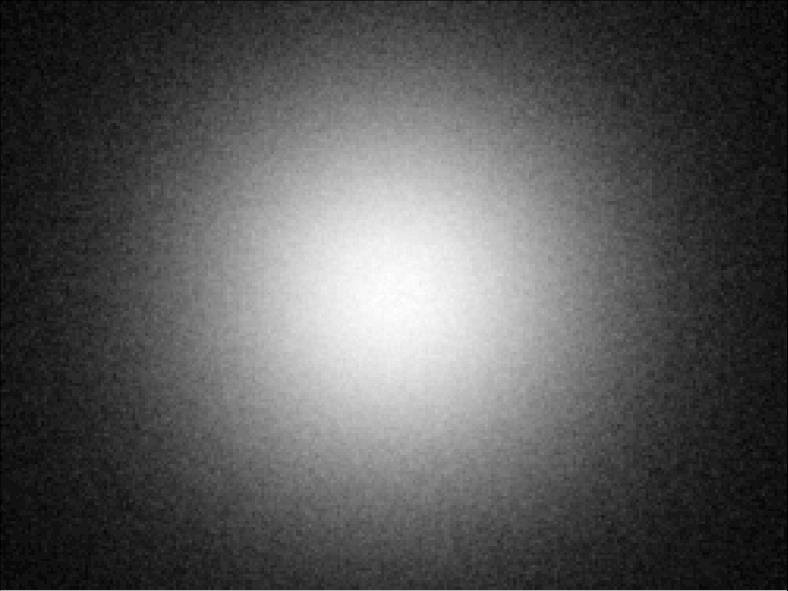

Carclo Optics - 12084 Spot Image - Samsung LH181B_4000K

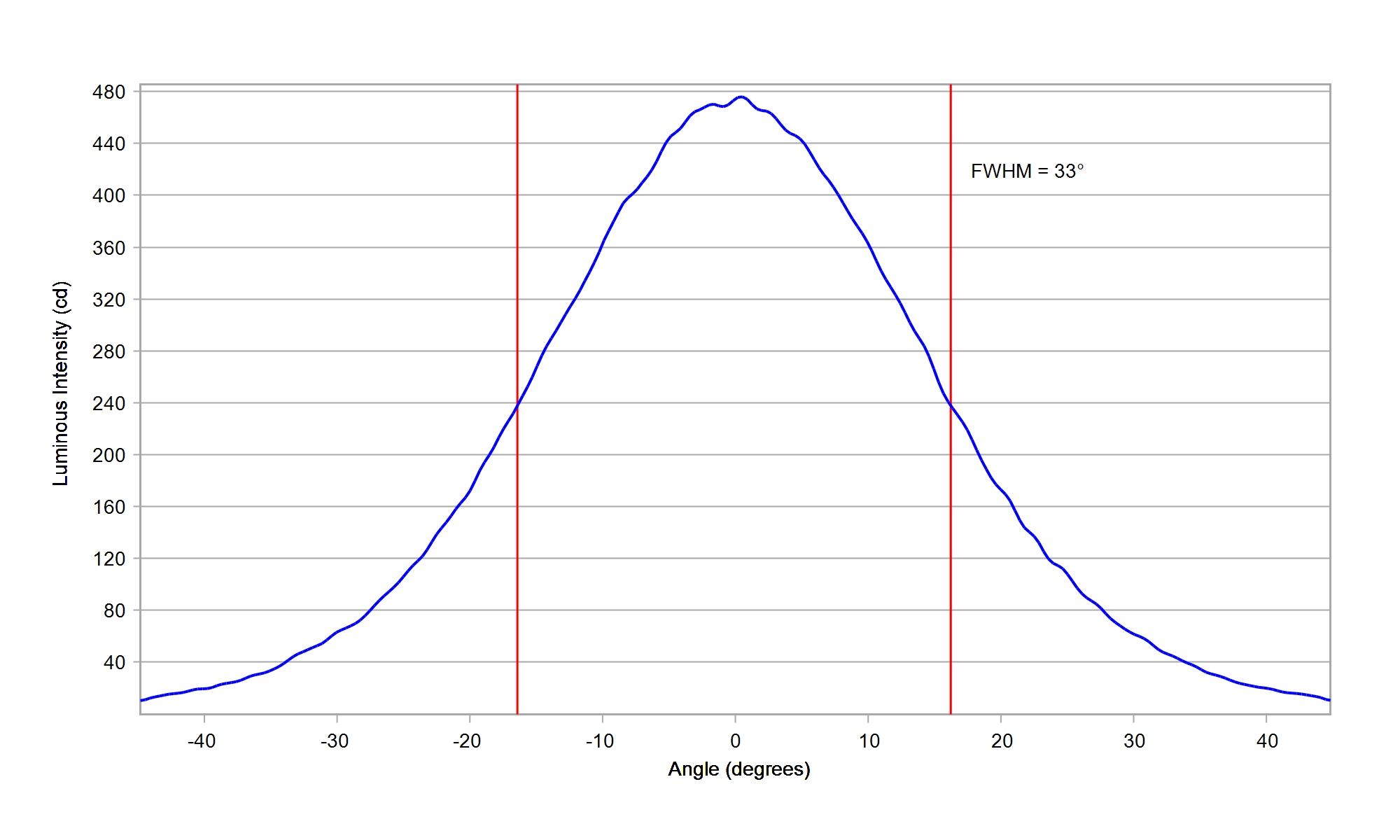

Carclo Optics - 12084 Cross Section - Samsung LH181B_4000K

Download

ies

Samsung CSP LM101B White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.8

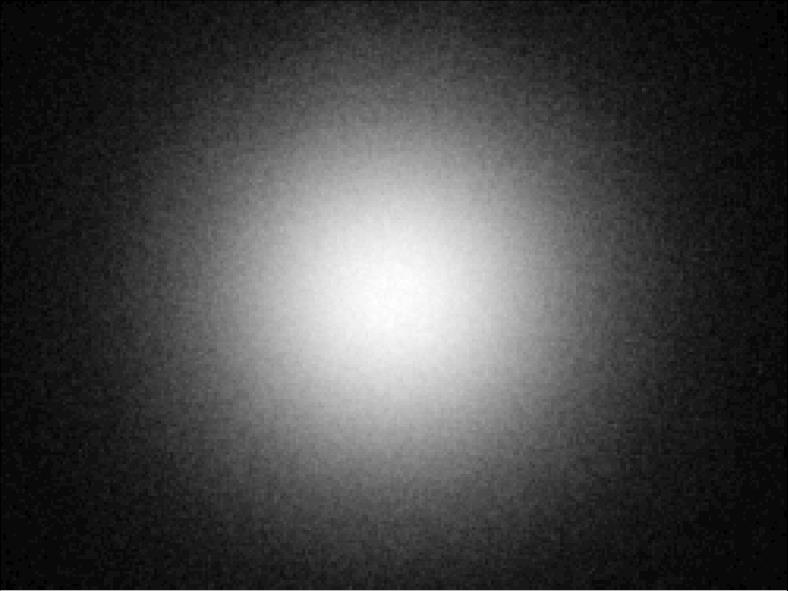

Carclo Optics -12084 Spot Image - Samsung LM101B 5000K

Carclo Optics -12084 Cross Section Image - Samsung LM101B 5000K

Download

ies

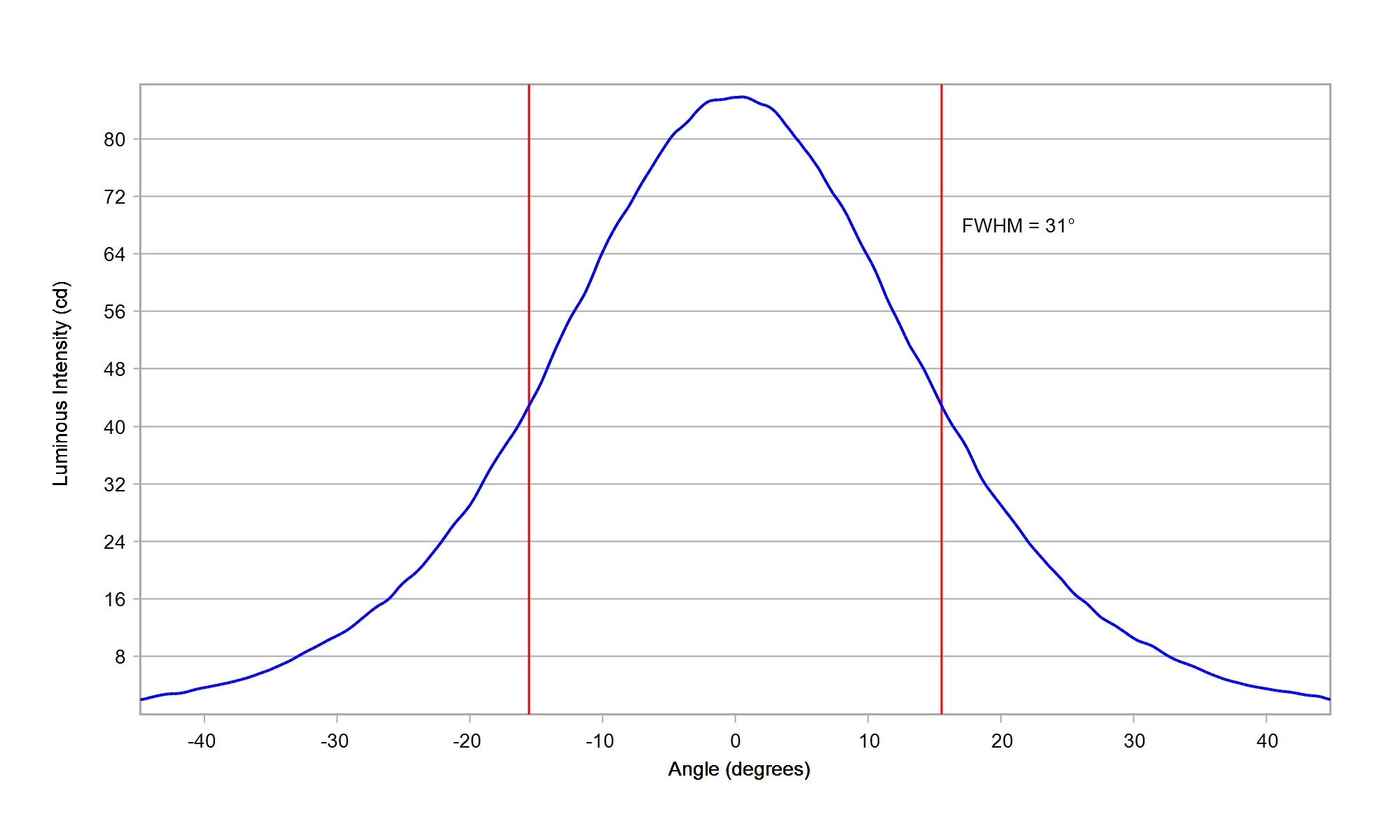

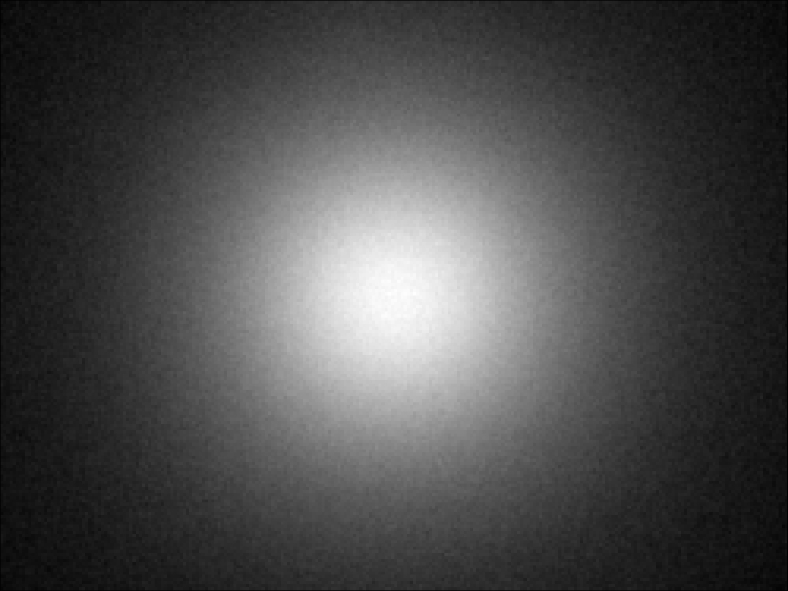

Seoul 3030 STW8C12E-E0 White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.5

Download

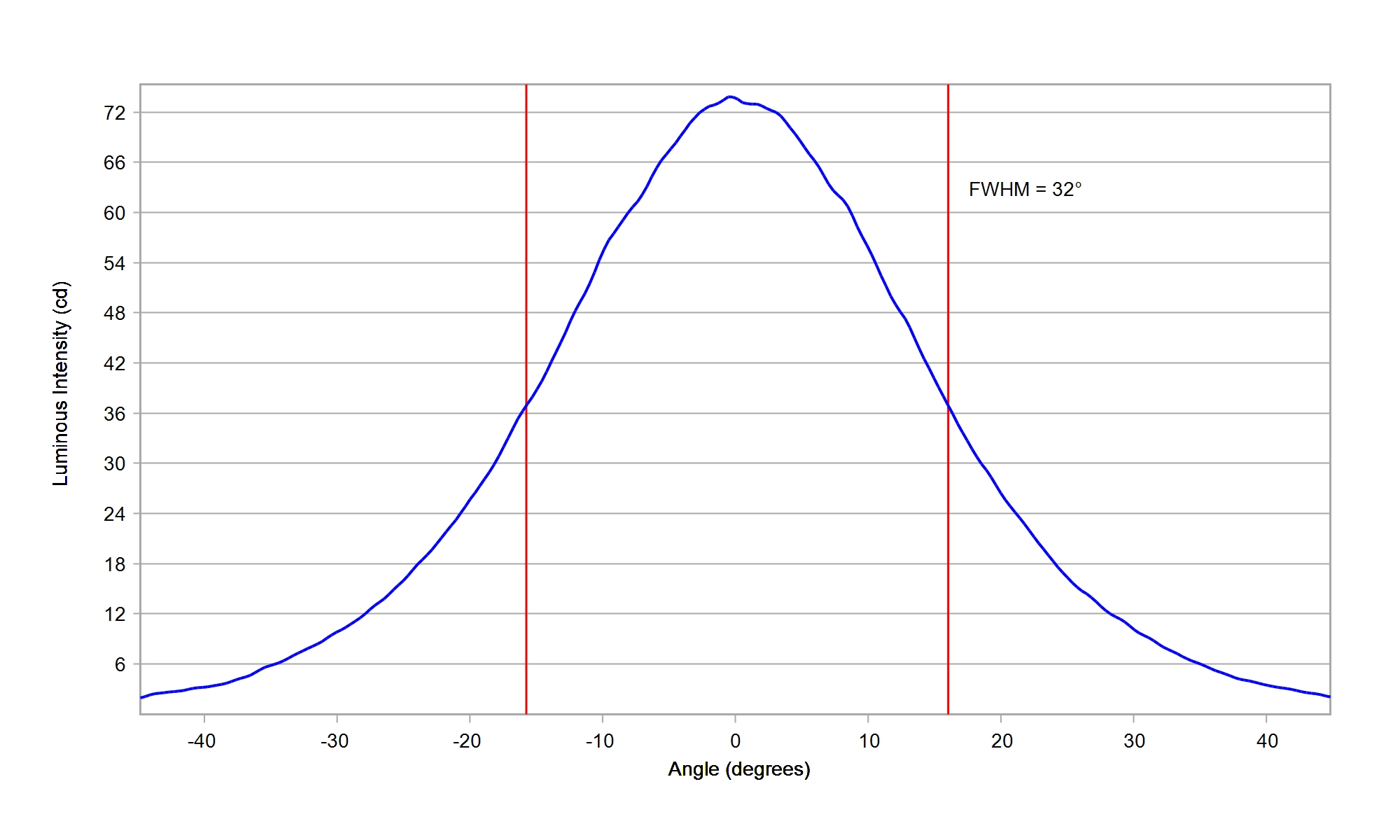

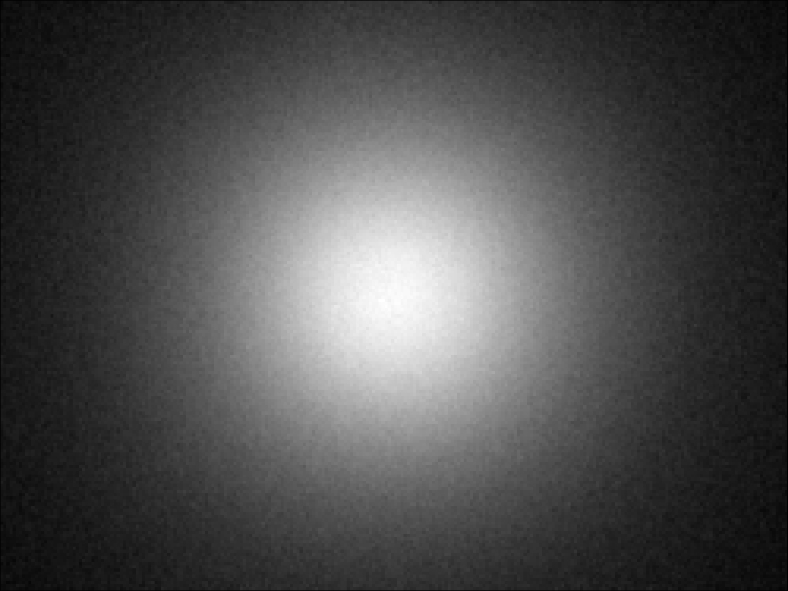

Seoul 3528 G STW8A2PD-G700 White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.5

Download

Seoul MidPower MJT3030 White

Eff:

88.6%

FWHM:

26°

Cd/Im:

2.2

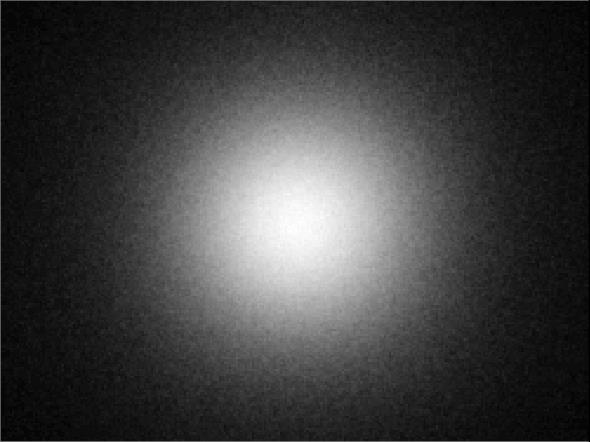

carclo optics - simulated spot image

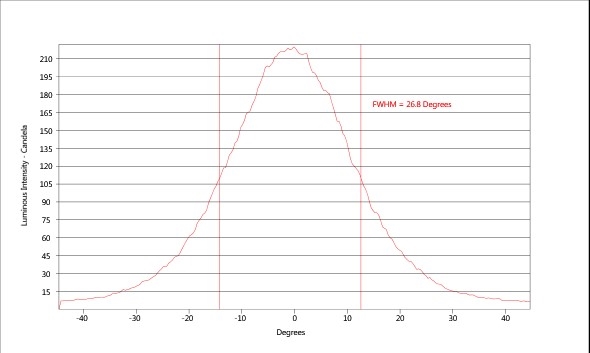

carclo optics - simulated cross section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

92.5%

FWHM:

32.0°

Cd/Im:

2.3

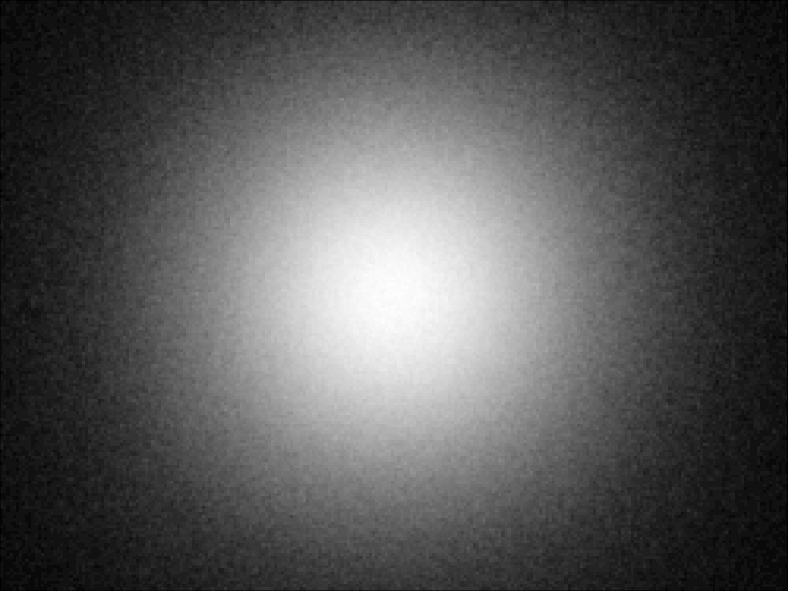

Carclo Optics - 12084 Spot Image Seoul STW8 C2SB-NT

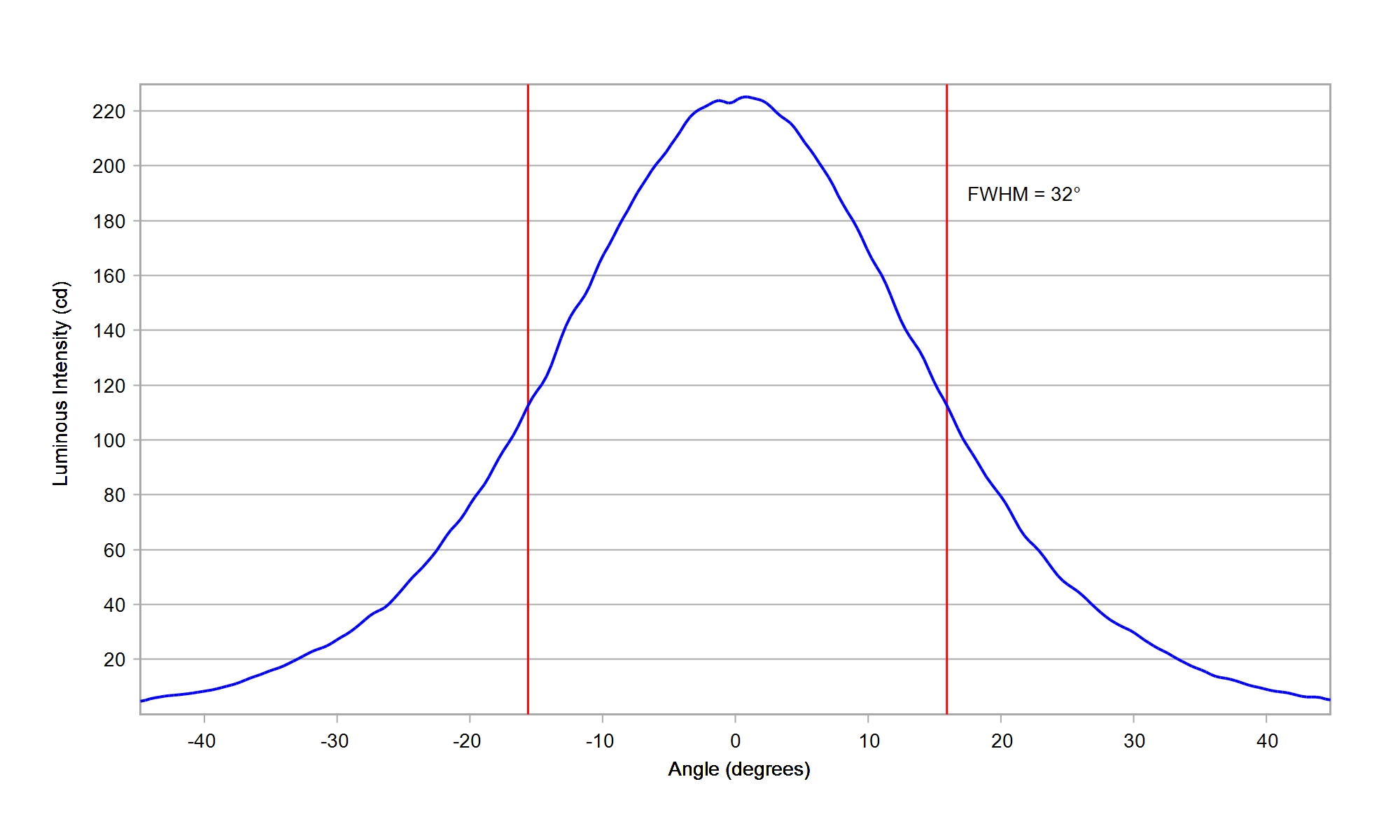

Carclo Optics - 12084 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

92.5%

FWHM:

31.0°

Cd/Im:

2.5

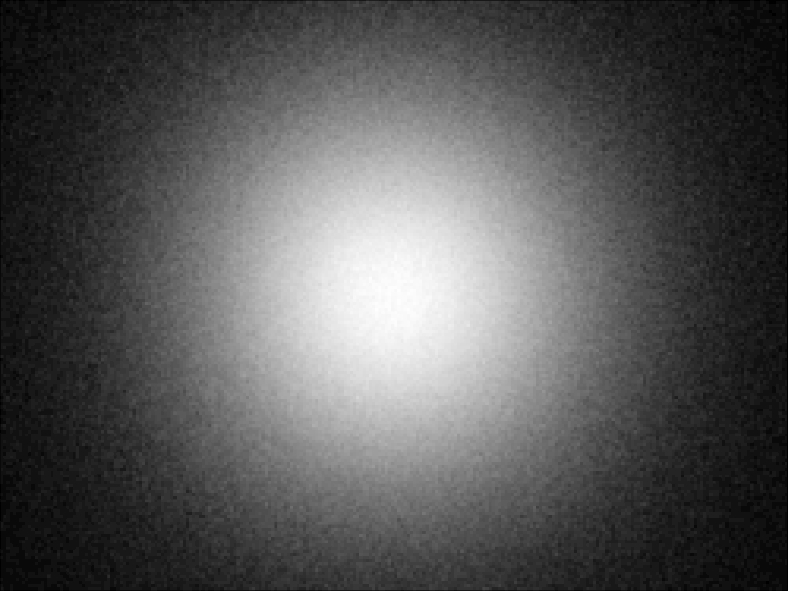

Carclo Optics - 12084 Spot Image Seoul STWS C2PB-E0

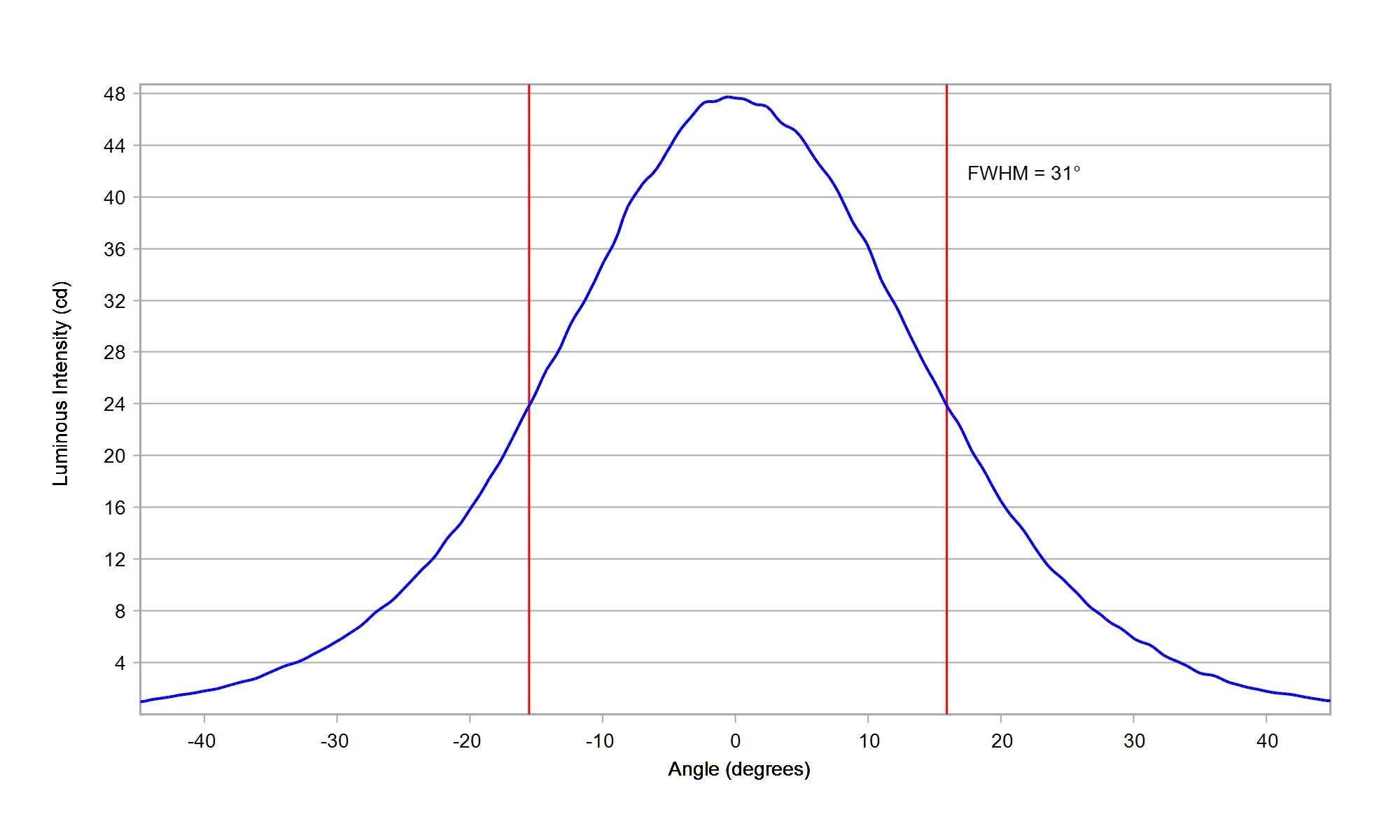

Carclo Optics - 12084 Cross Section Seoul STWS C2PB-E0

Download

ies

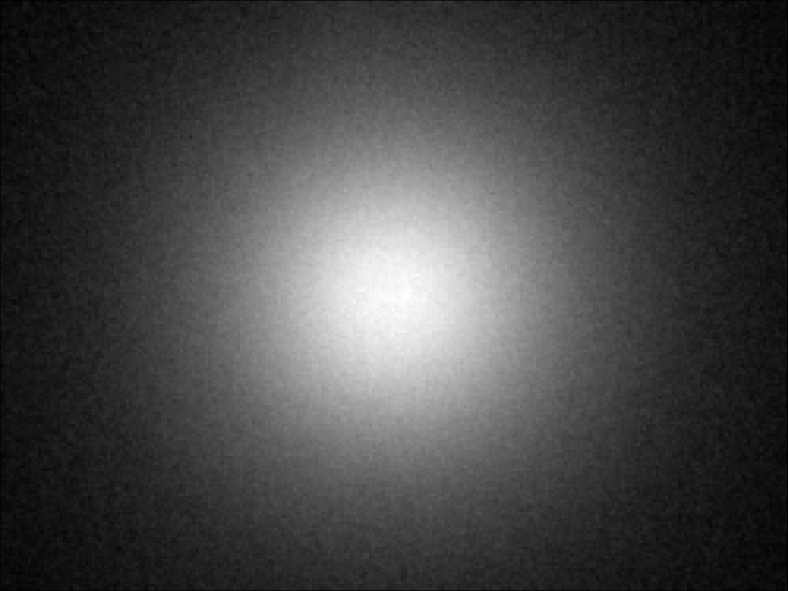

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

92.5%

FWHM:

29°

Cd/Im:

3.2

Download

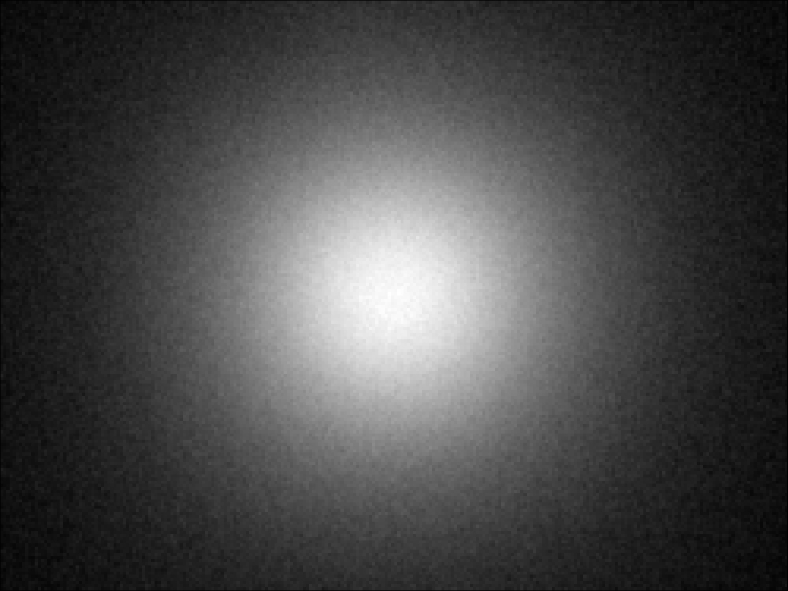

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

92.5%

FWHM:

29.5°

Cd/Im:

3.1

Download

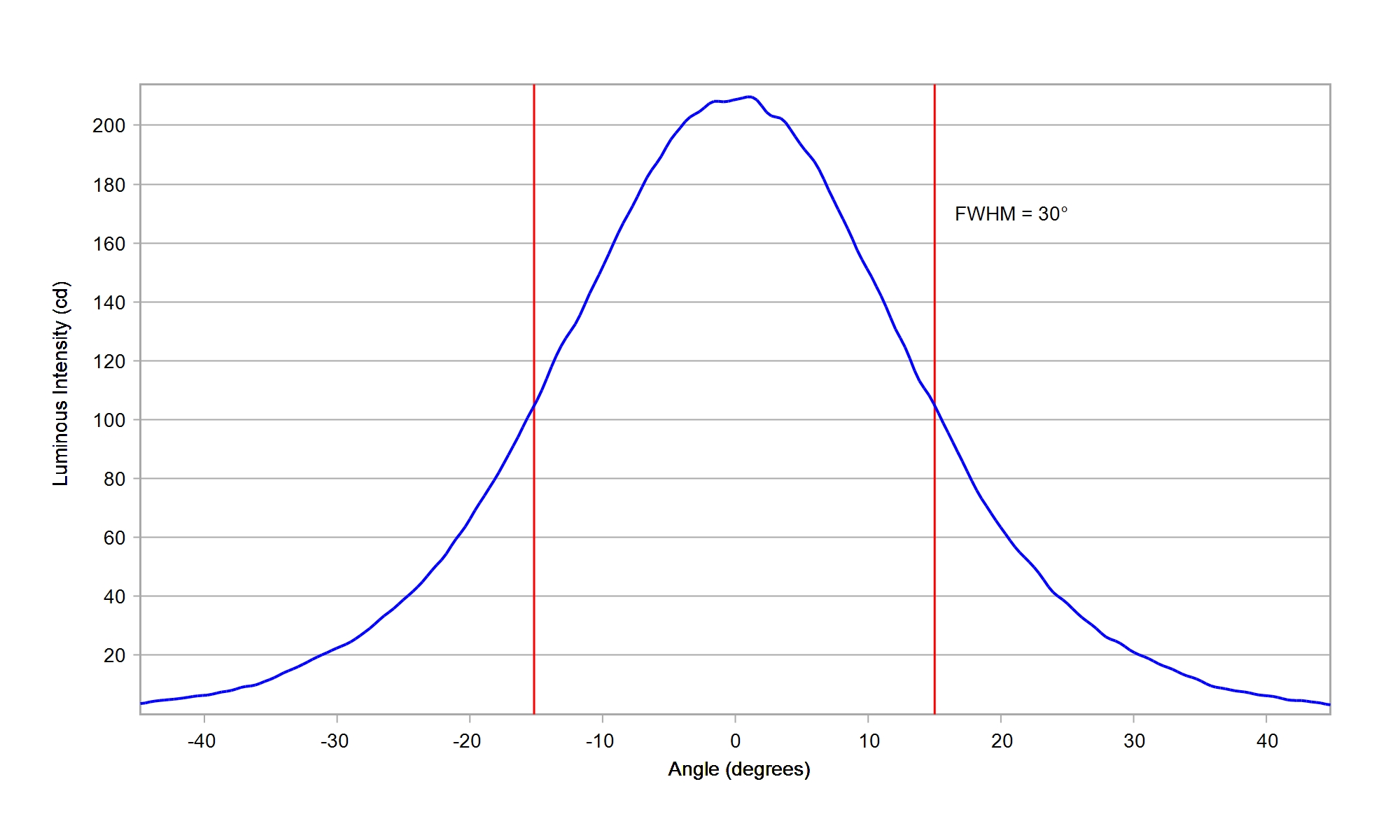

Seoul SunLike 3030 STW9C2SB-S White

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.7

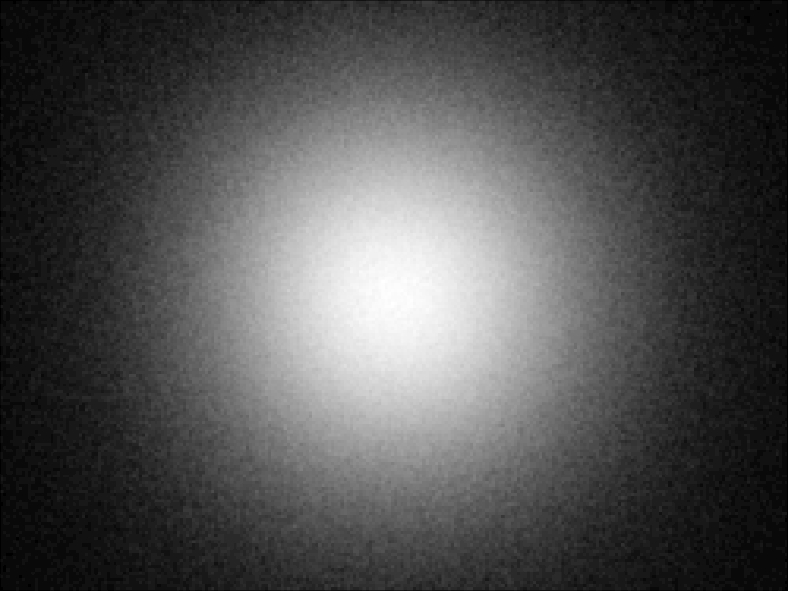

Carclo Optics - 12084 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 12084 10mm Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5-M0 White

Eff:

84.1%

FWHM:

28.1°

Cd/Im:

3.1

Spot Image

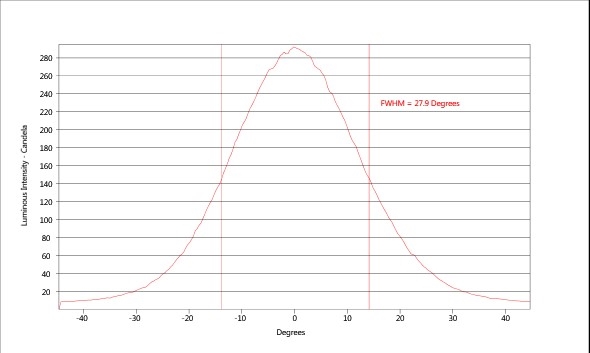

Cross Section

Download

ies

Seoul Z - Power Z5-M4 White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.2

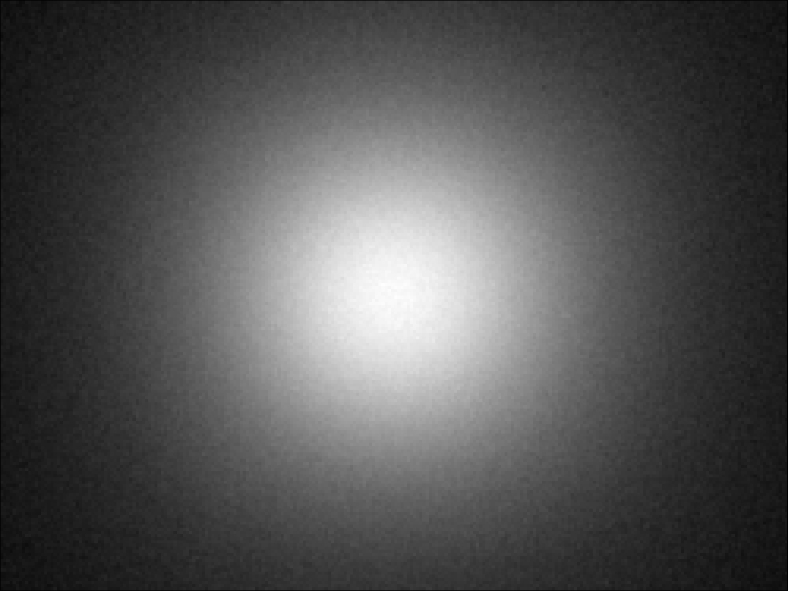

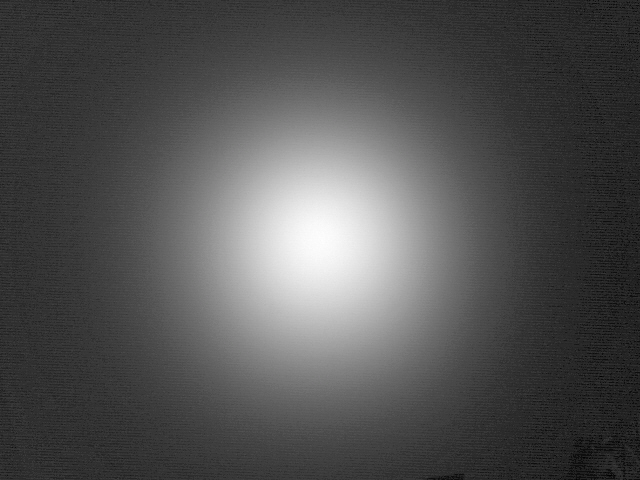

Carclo Optics – 12084 Seoul Z-Power Z5 - Spot Image

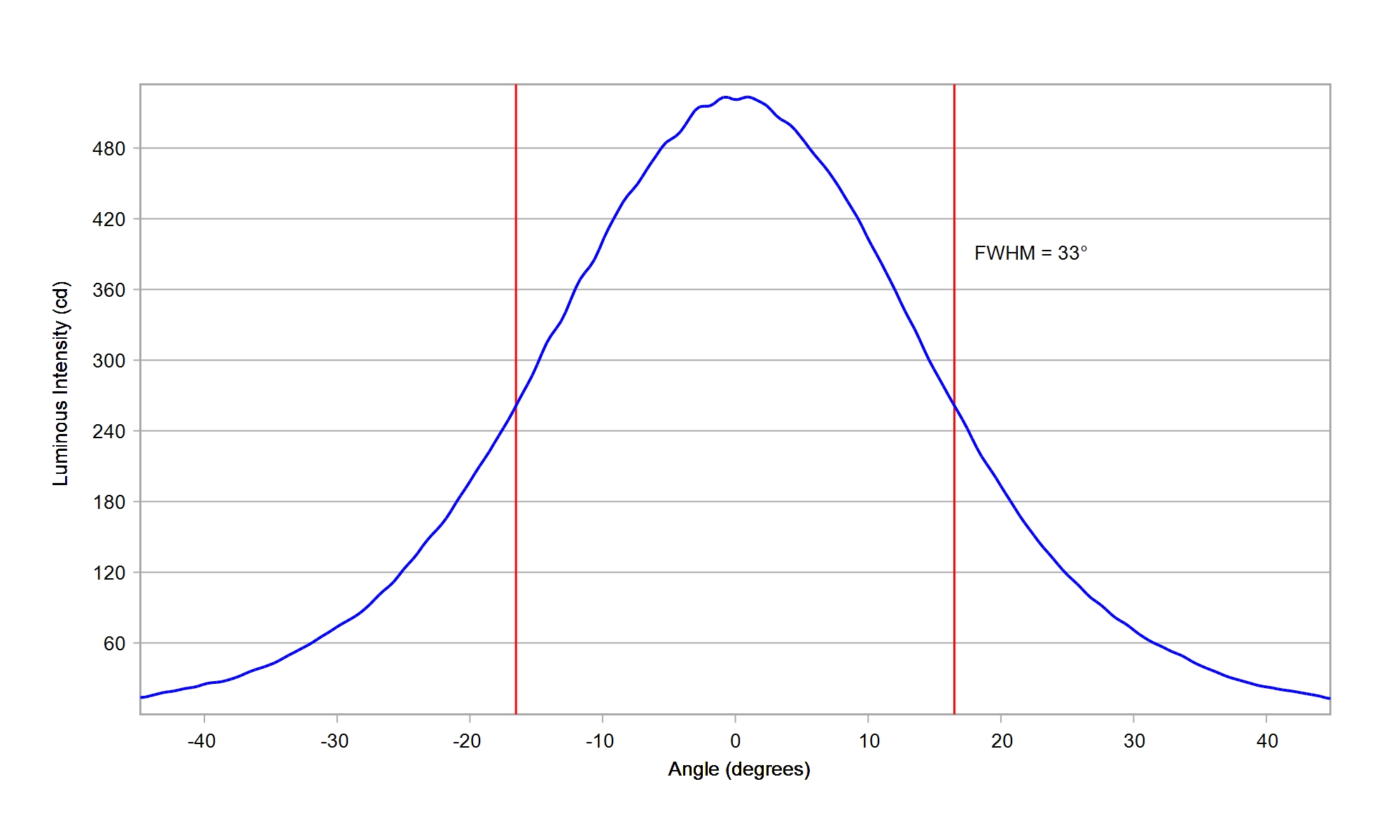

Carclo Optics – 12084 Seoul Z-Power Z5 - Cross-Section

Download

ies

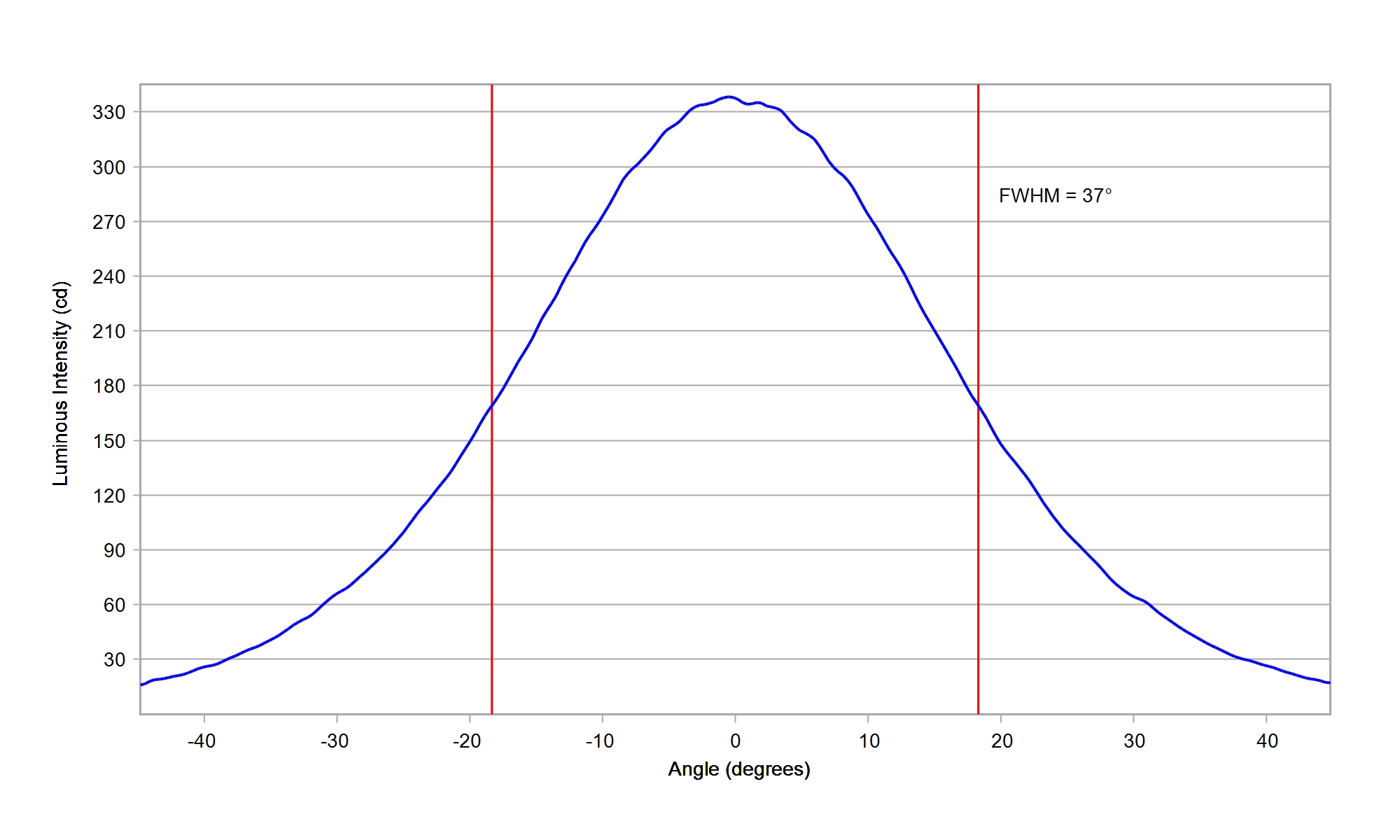

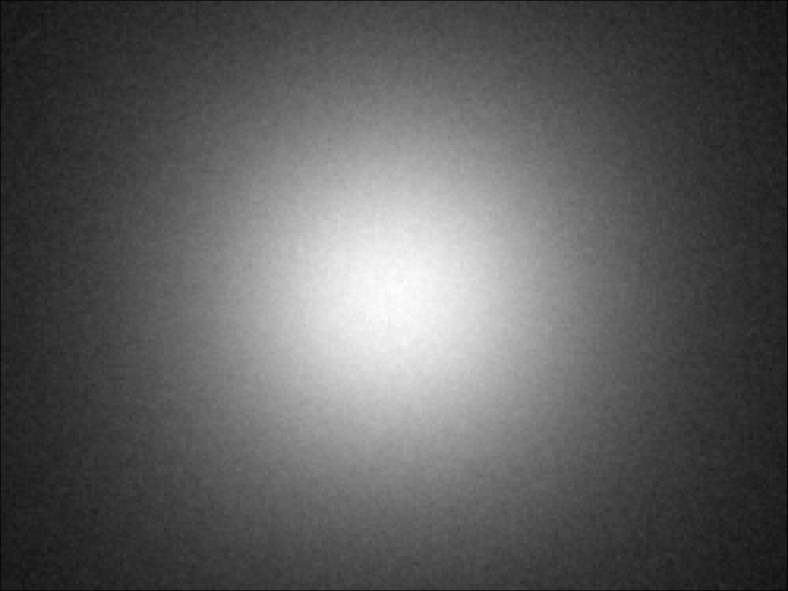

Seoul Z - Power Z5-M5 White

Eff:

91.5%

FWHM:

37°

Cd/Im:

1.9

Download

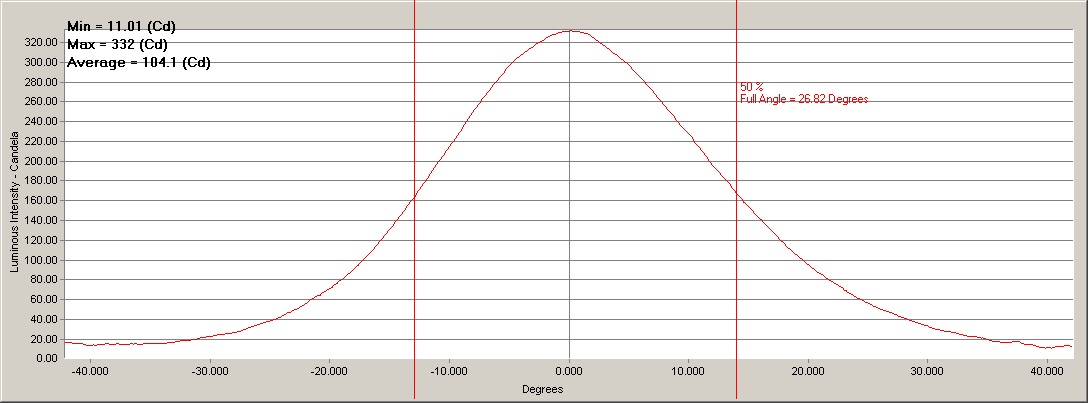

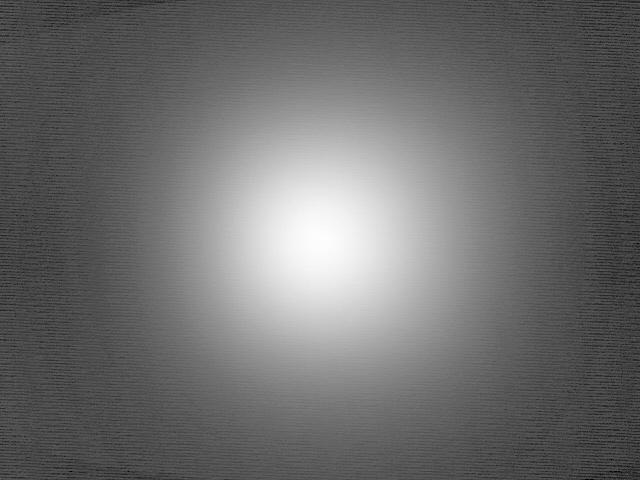

Seoul Z - Power Z5-P0 White

FWHM:

26.8°

Cd/Im:

3.4

Download

ies

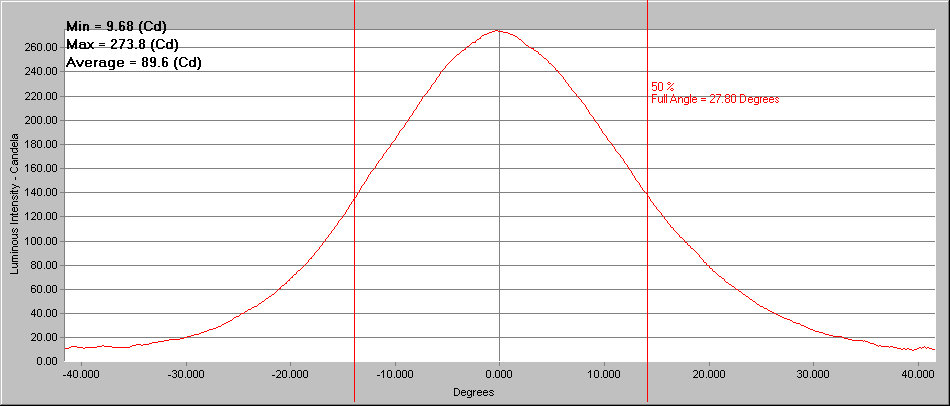

Seoul Z - Power Z5-M White

Eff:

82.8%

FWHM:

26°

Cd/Im:

3.4

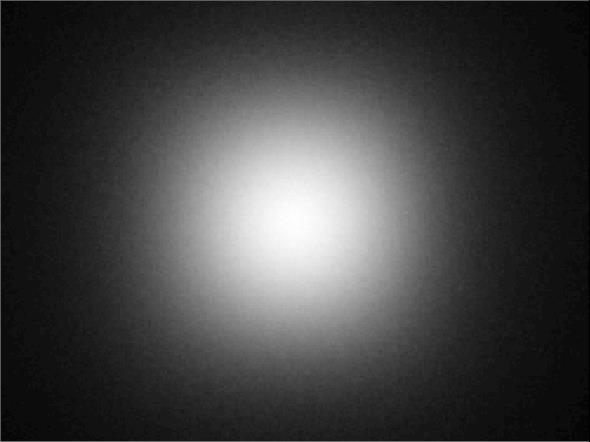

Spot Image

Cross Section

Download

ies

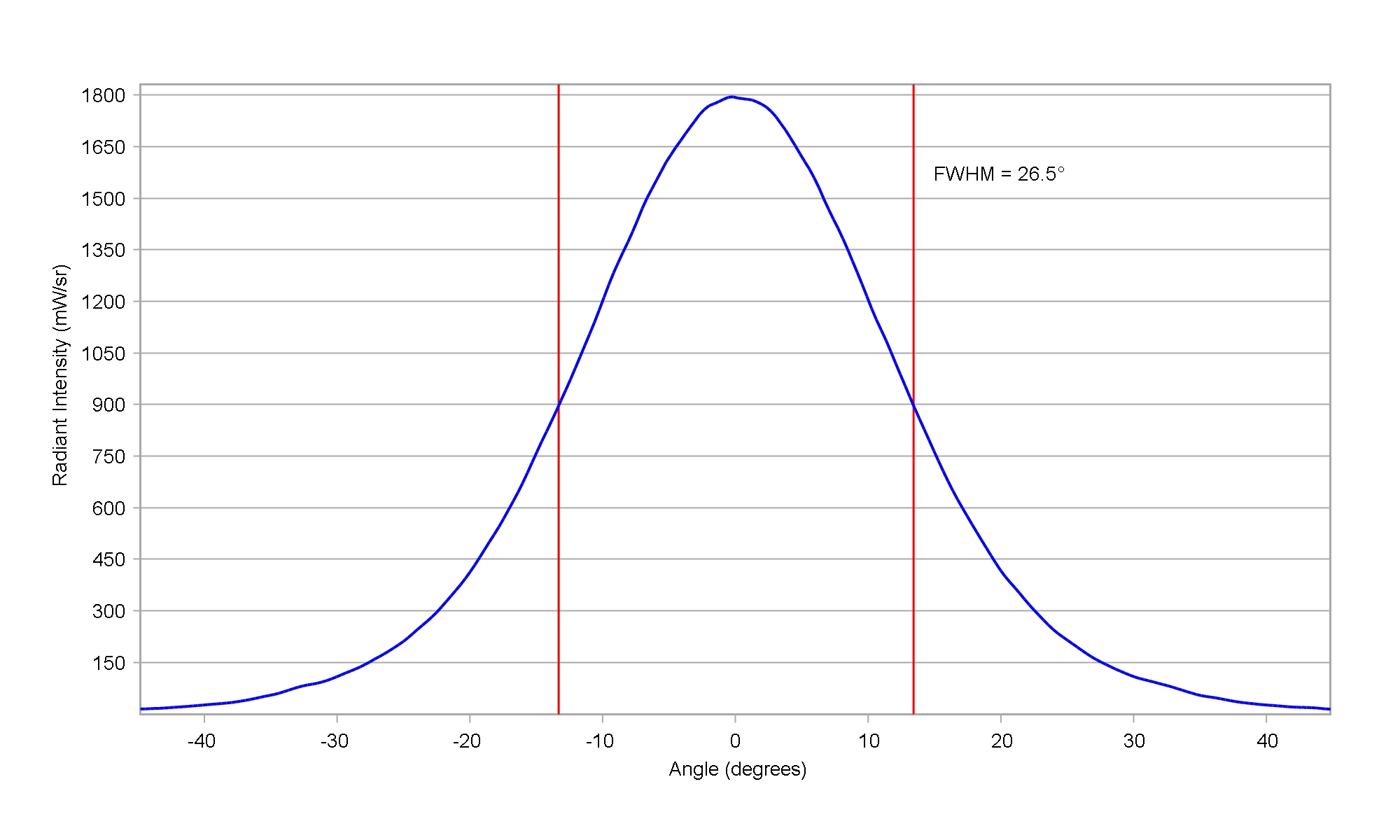

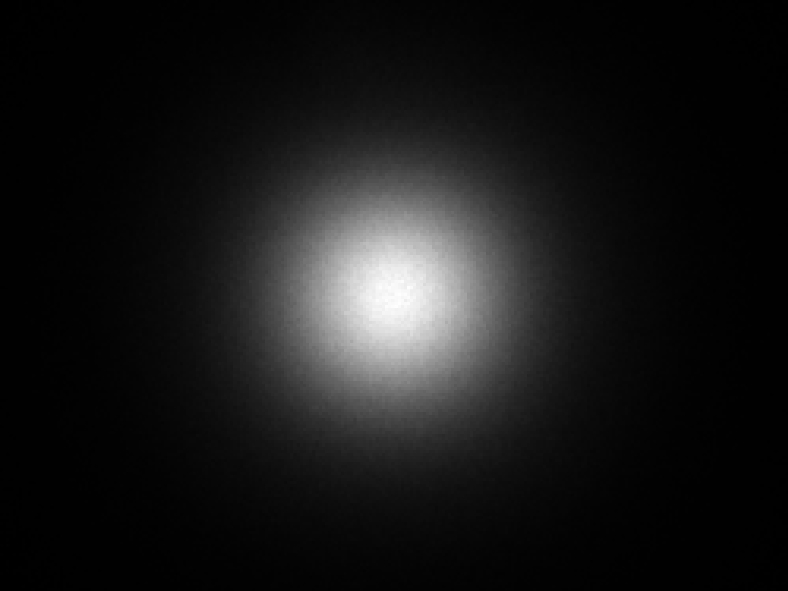

Stanley FWR1108MS IR 755nm

Eff:

94.5%

FWHM:

26.5°

Ipk/W:

3.4


Download

Toshiba TL 1L2 White

Eff:

88.0%

FWHM:

27.8°

Cd/Im:

2.1

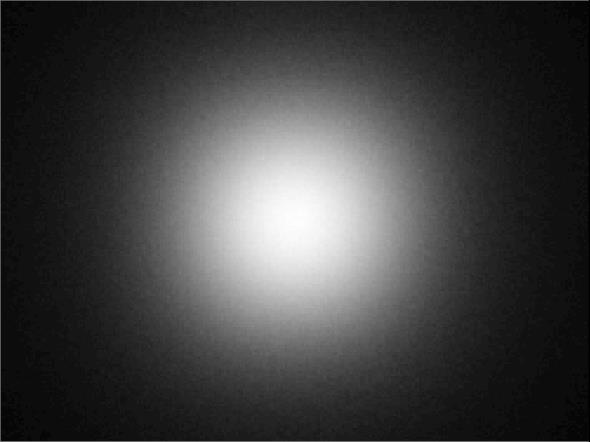

Carclo Optics - Simulated Spot Image

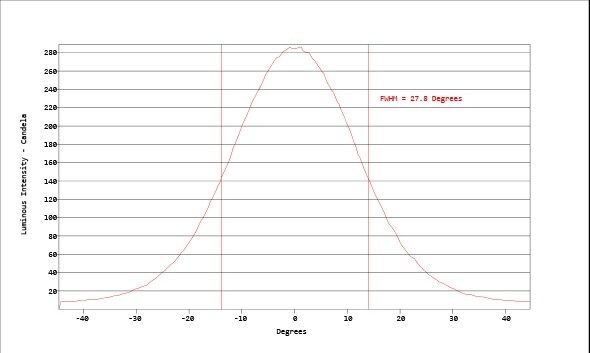

Carclo Optics - Simulated Cross Section

Download

ies

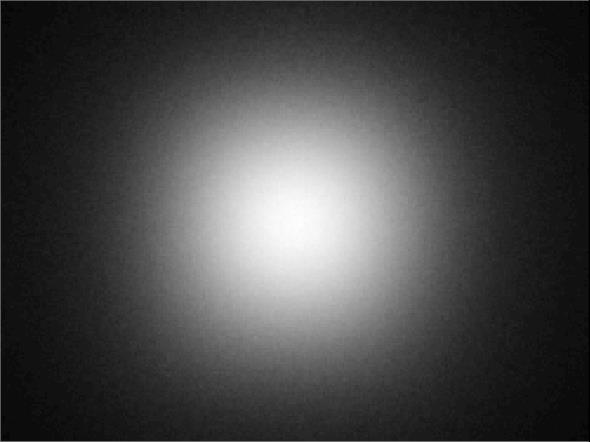

Toshiba TL 1L4 White

Eff:

88.0%

FWHM:

29.4°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

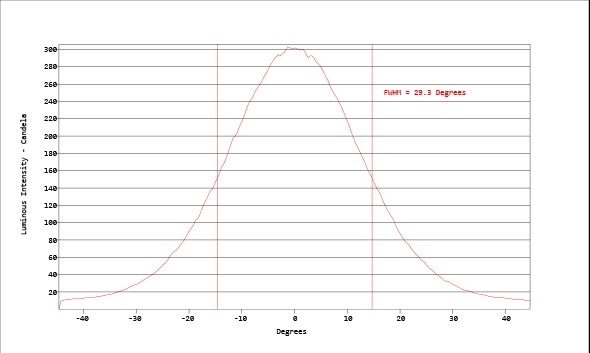

Carclo Optics - Simulated Cross Section

Download

ies
