Carclo Optics - 10785 - Ultra Wide Hybrid
12.0mm Ultra Wide Plain Hybrid
Part number
10785
Dimensions
12.0mm
Drawing Number
60618
Optic type
Hybrid
Finish
Plain
Beam type
Ultra Wide
Applications
Architectural
Industrial
Landscape & Garden
Street
Office
Horticultural
Retail
Warehouse
Wide Area
Security
Humancentric
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
95.5%
FWHM:
154 x 158°
Cd/Im:
0.4
Download

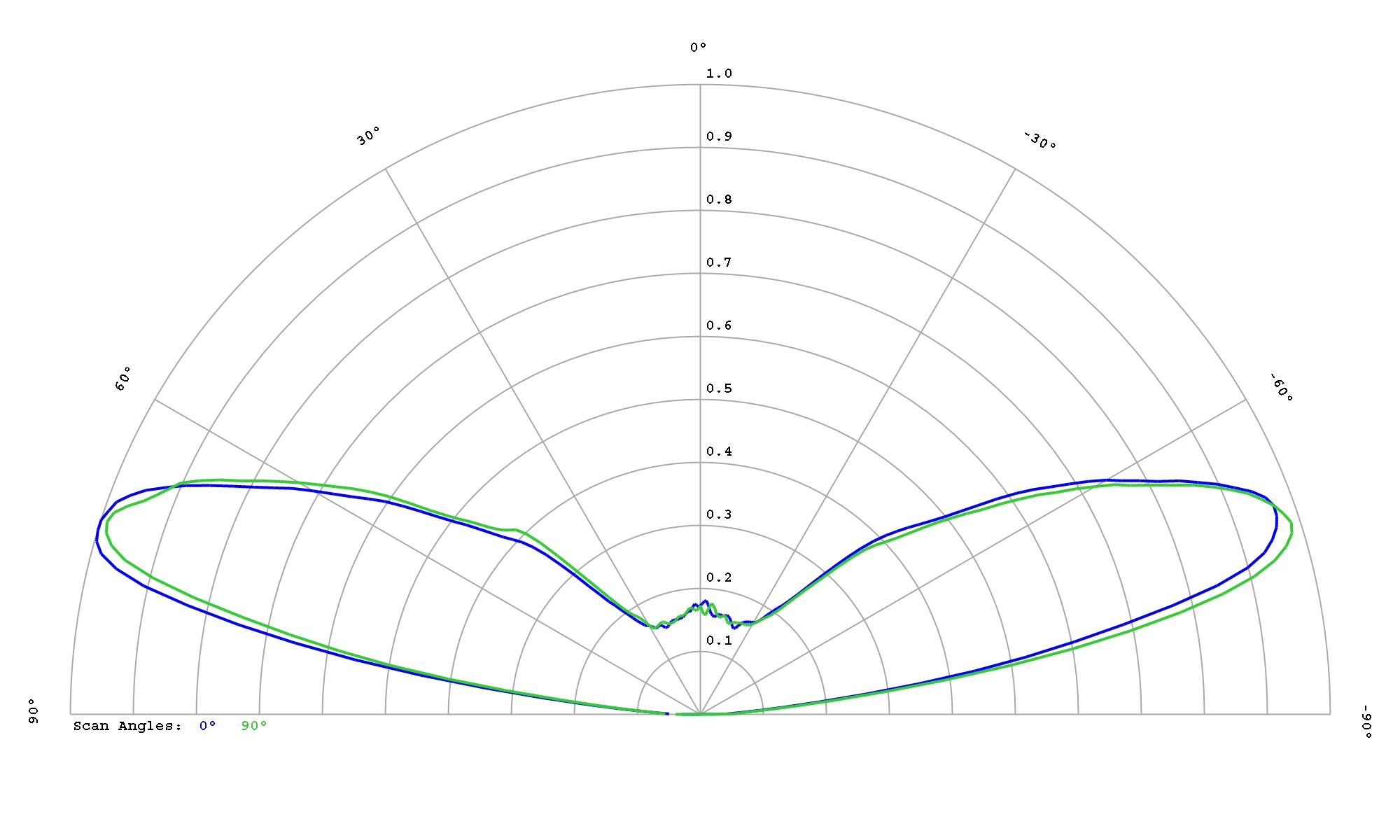

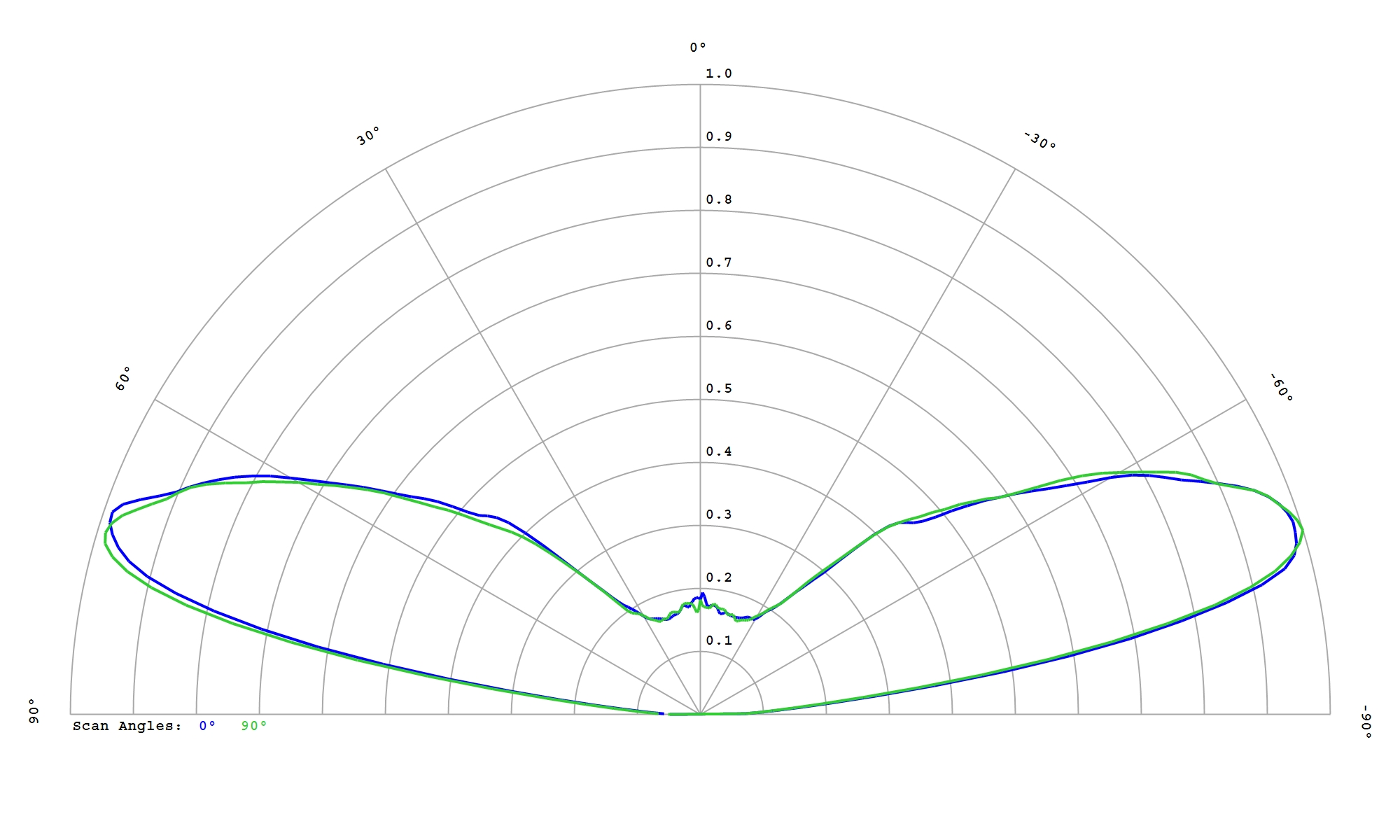

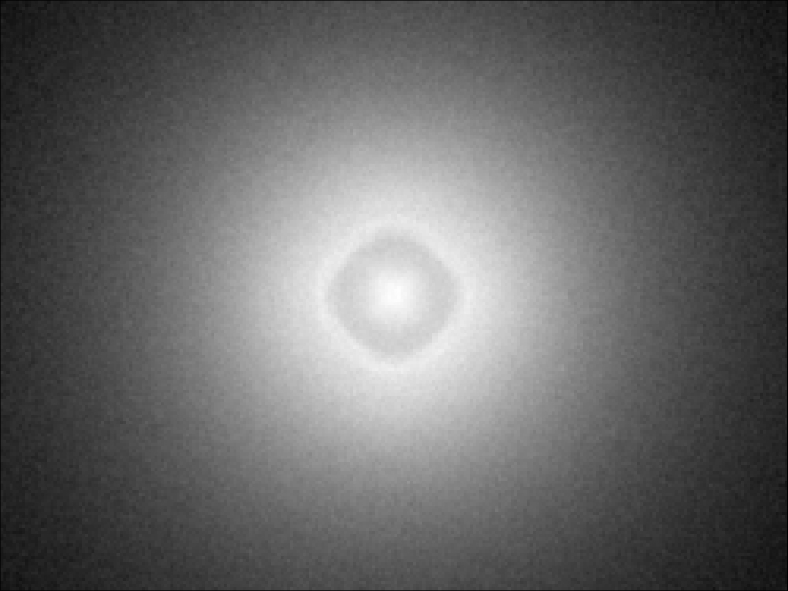

Cree JB3030 3V White
Eff:
94.5%
FWHM:
157°
Cd/Im:
0.3
Download
Cree XLamp CSP XD16 Cool White
Eff:
93.5%
FWHM:
160°
Cd/Im:
0.4
Download
Cree XLamp XB-H White
Eff:
93.5%
FWHM:
166 x 165°
Cd/Im:
0.3
Download
Cree XLamp XE-G White
Eff:
91.5%
FWHM:
164°
Cd/Im:
0.4
Download

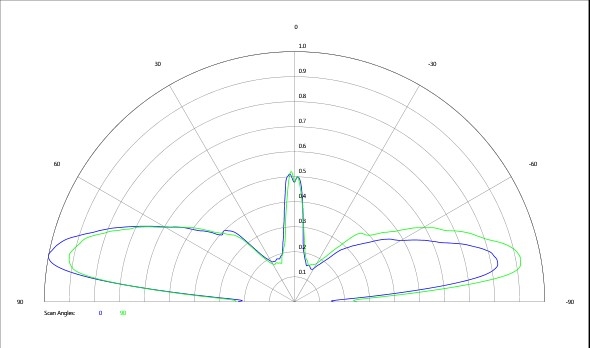

Cree XLamp XH-B White
Eff:
85.8%
FWHM:
170.3°
Cd/Im:
0.3
Download
Cree XLamp XP-E White
Eff:
90.5%
FWHM:
161.2°
Cd/Im:
0.4
Download
Cree XLamp XP-E White
Eff:
90.6%
FWHM:
161.2°
Cd/Im:
0.4
Download
Cree XLamp XP-G White
Eff:
87.4%
FWHM:
167.8°
Cd/Im:
0.3
Download

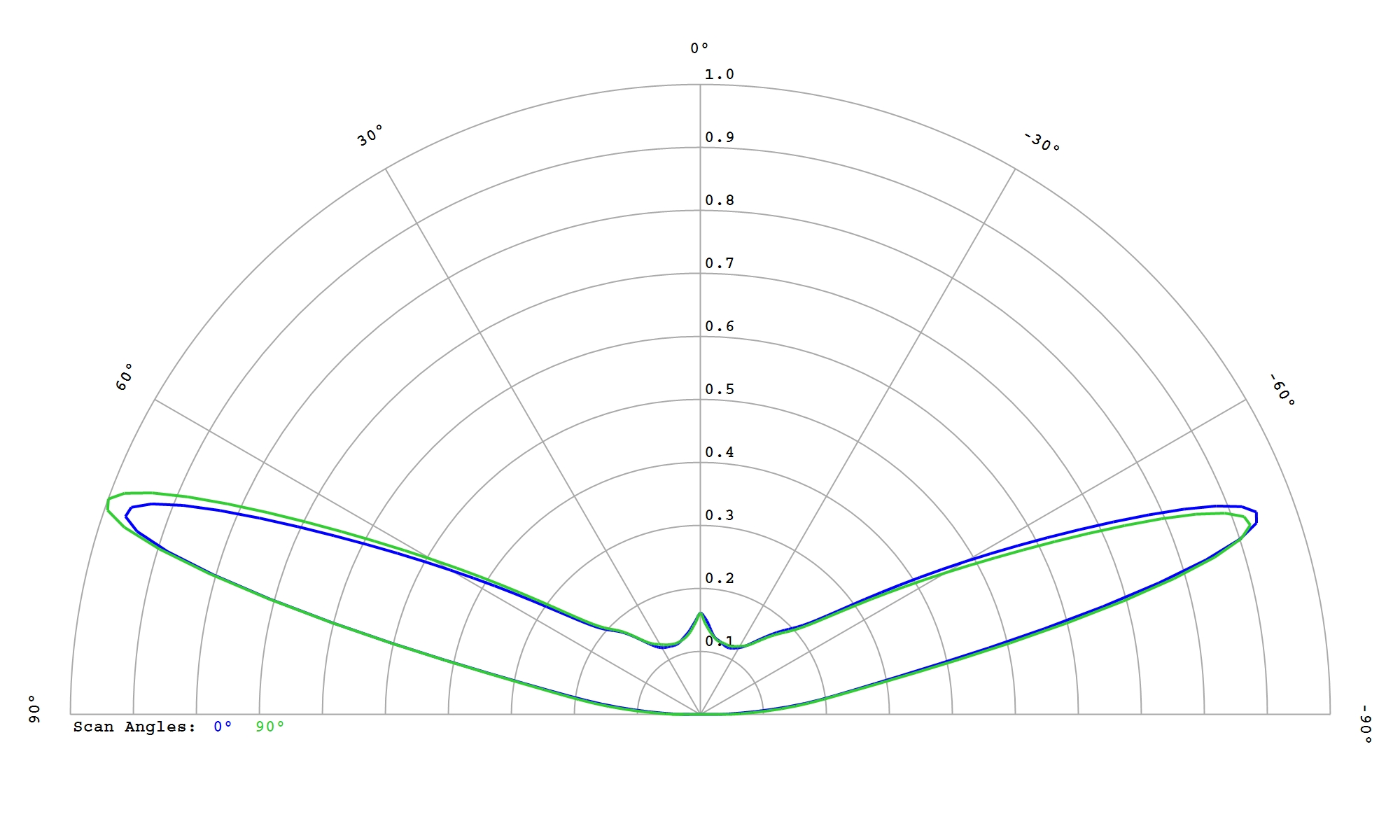

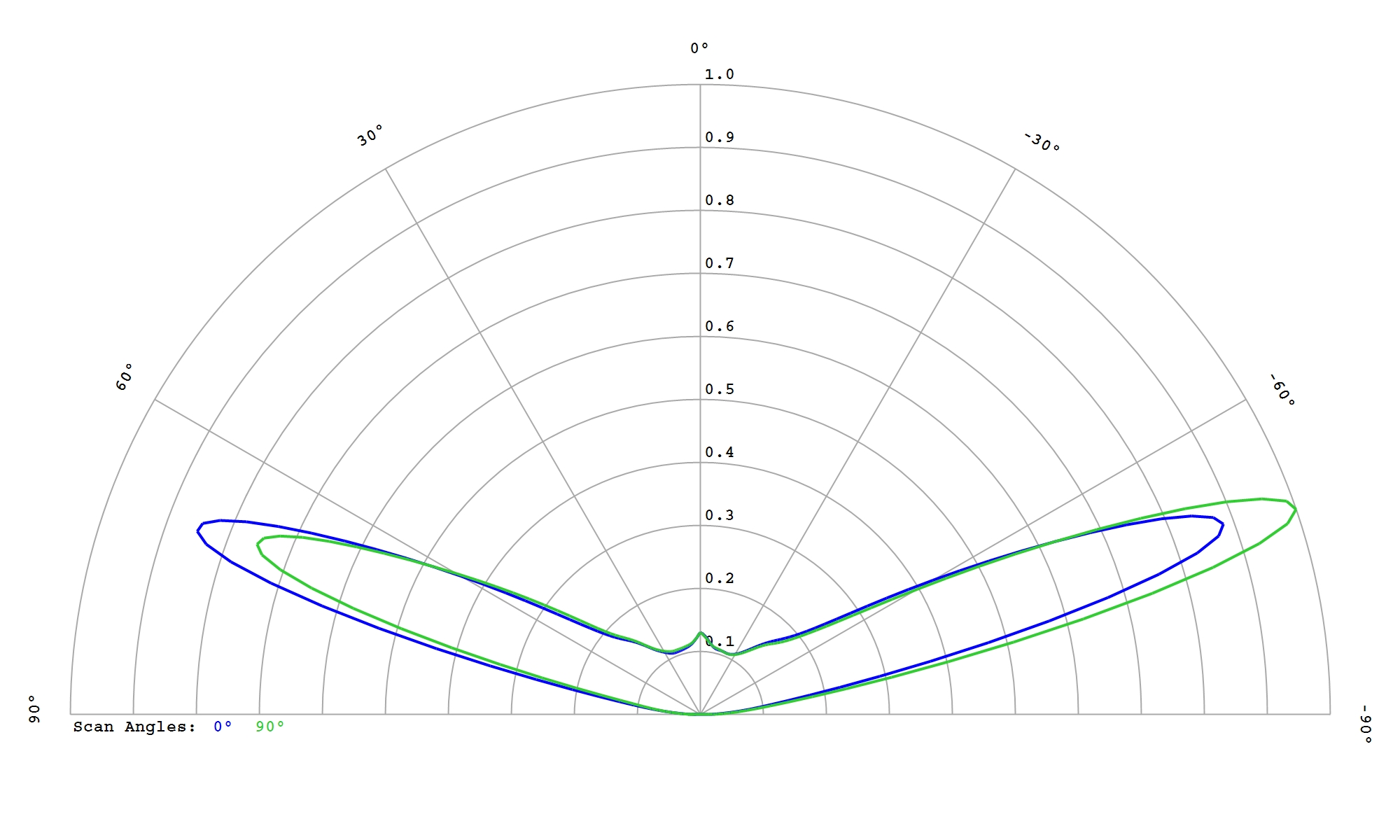

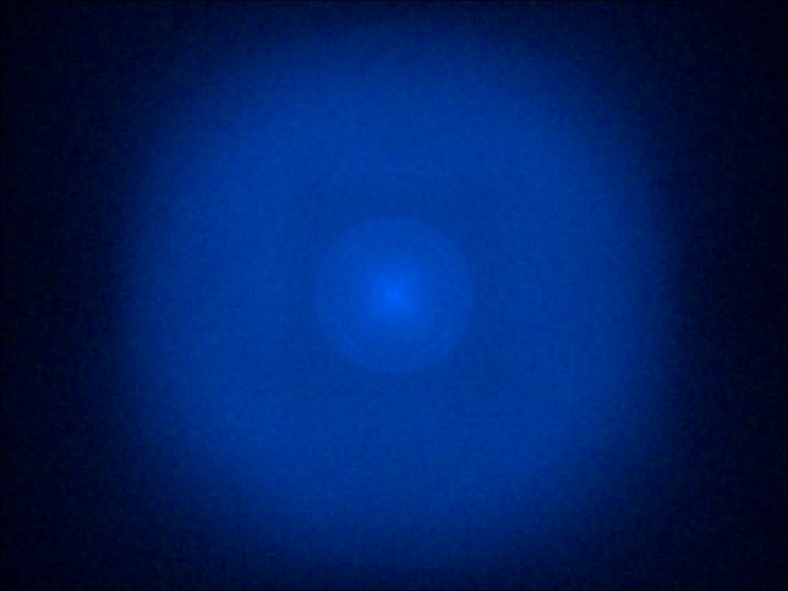

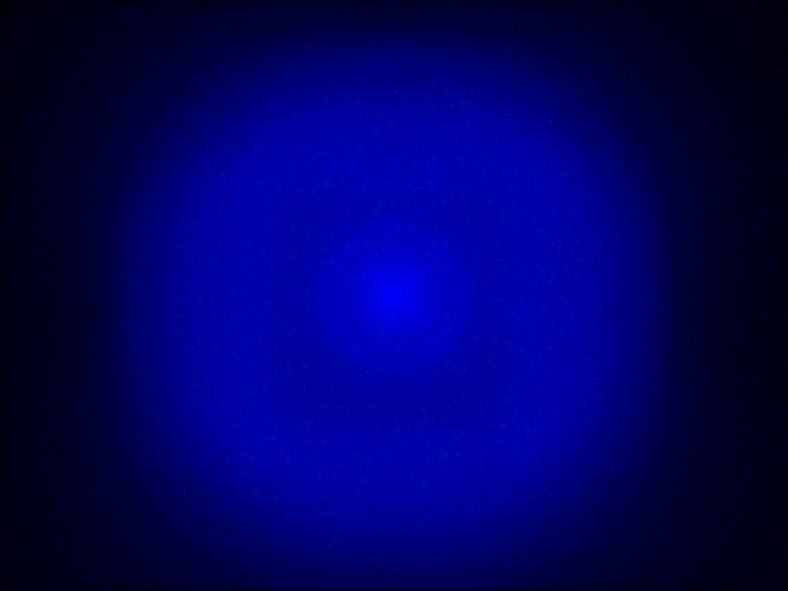

Cree XLamp XQ-A Blue
Eff:
95.0%
FWHM:
147°
Cd/Im:
0.7
Download

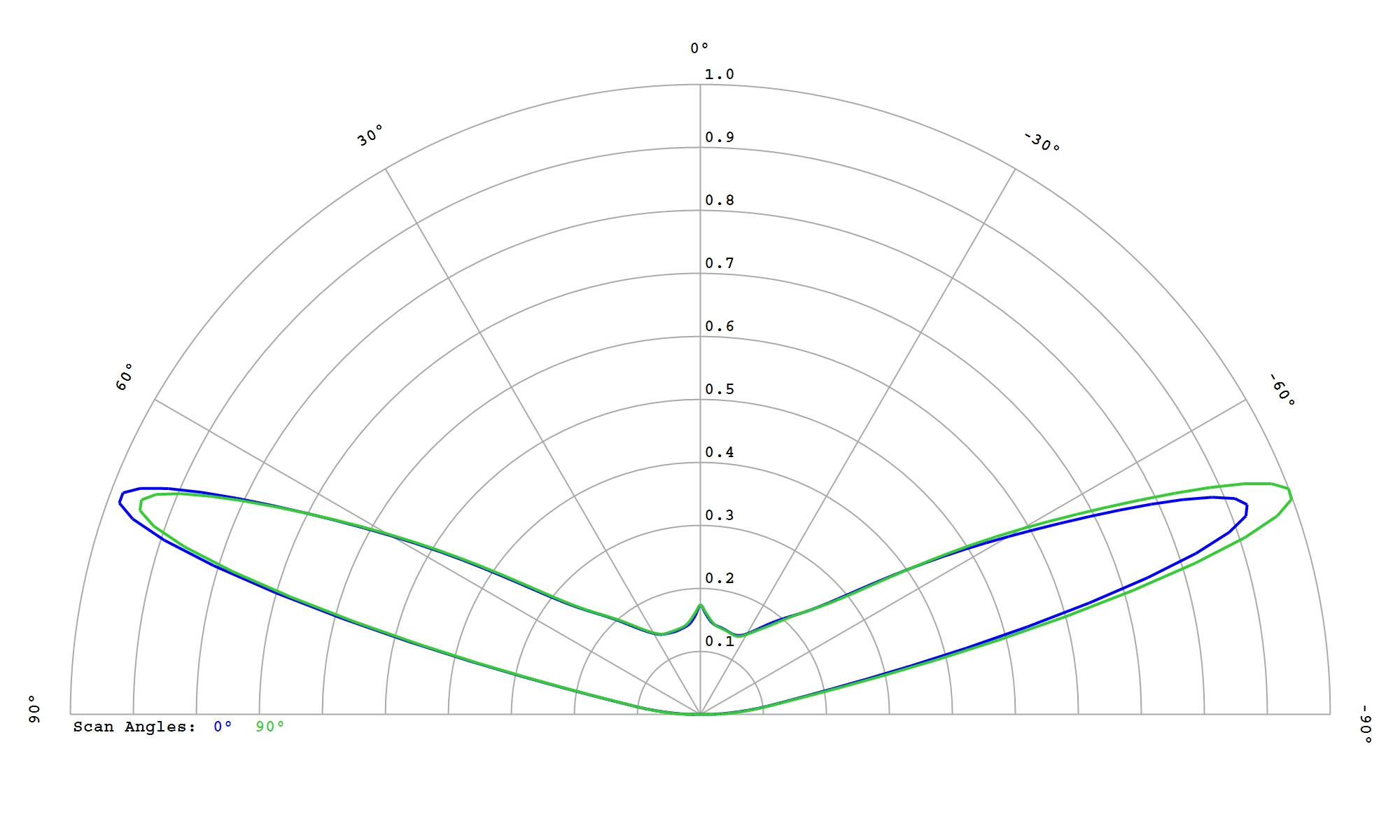

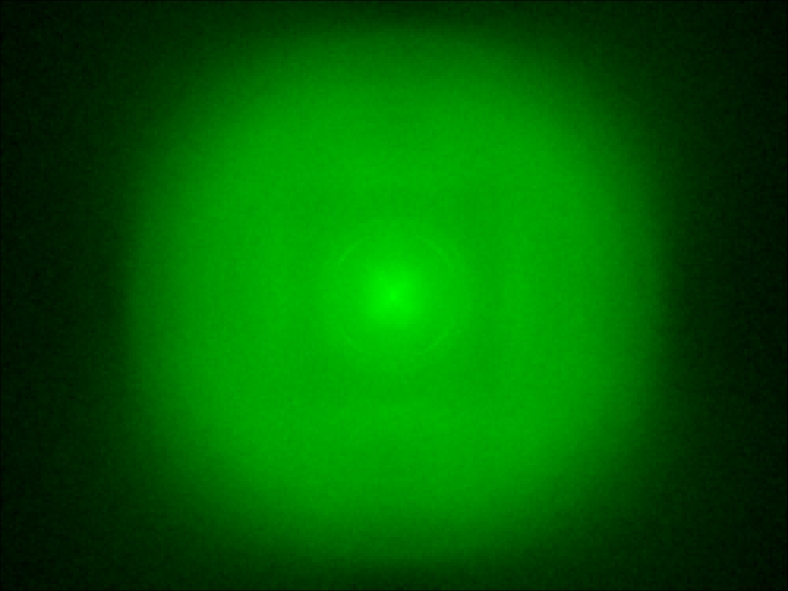

Cree XLamp XQ-A Green
Eff:
94.5%
FWHM:
147°
Cd/Im:
0.7
Download

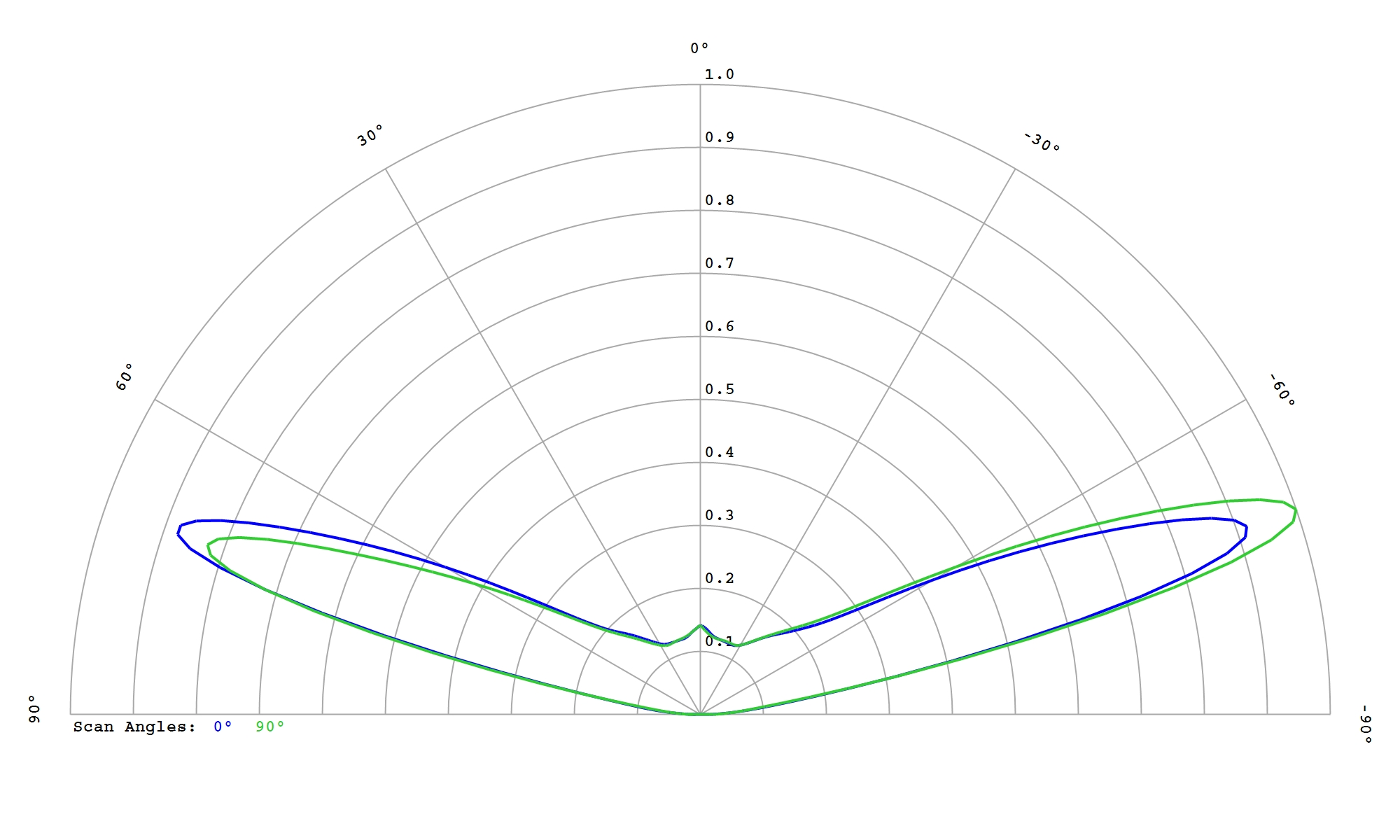

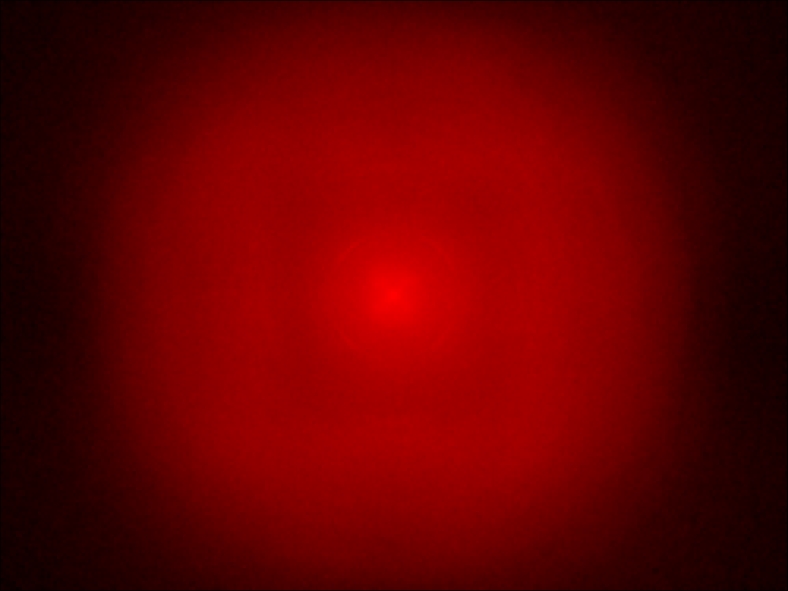

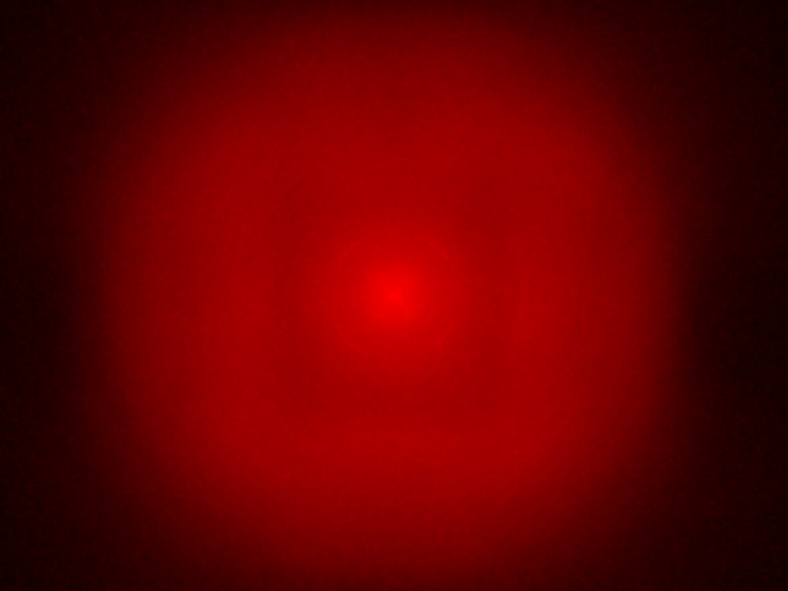

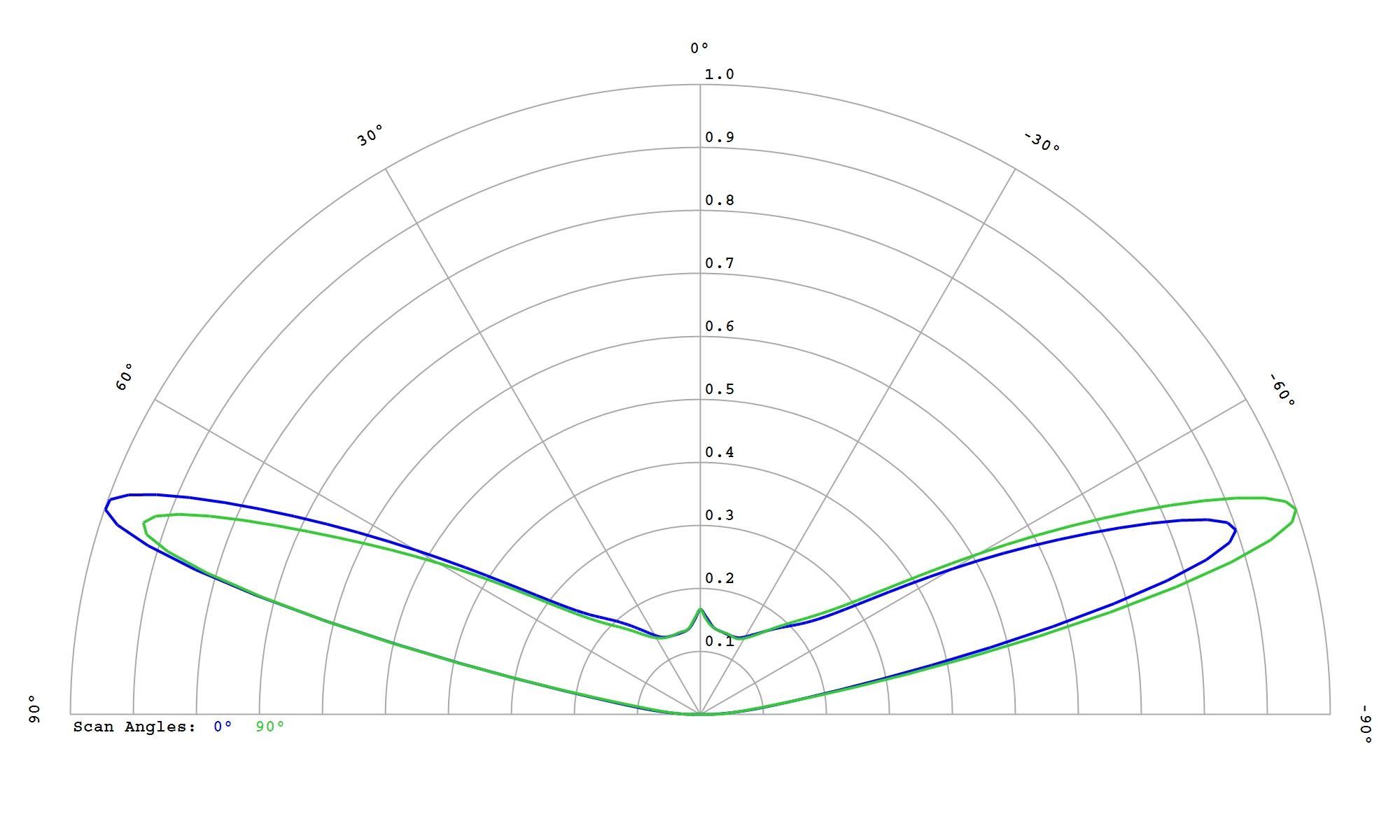

Cree XLamp XQ-A Red
Eff:
95.0%
FWHM:
151°
Cd/Im:
0.6
Download

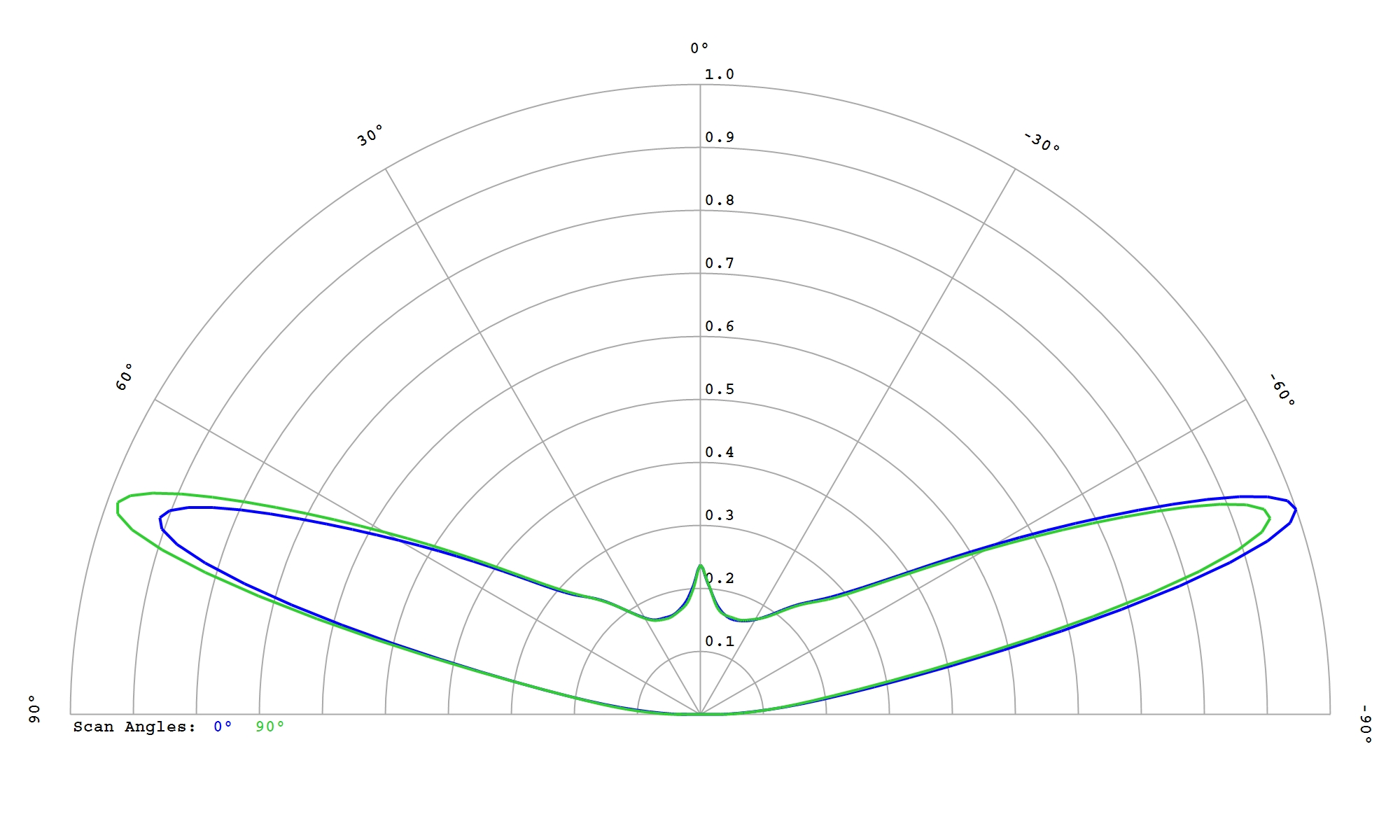

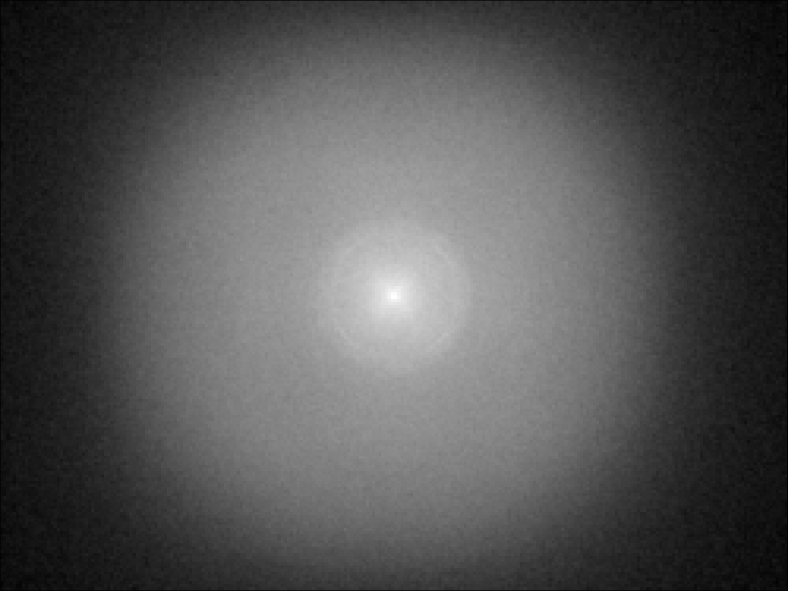

Cree XLamp XQ-A White
Eff:
89.0%
FWHM:
146°
Cd/Im:
0.6
Download

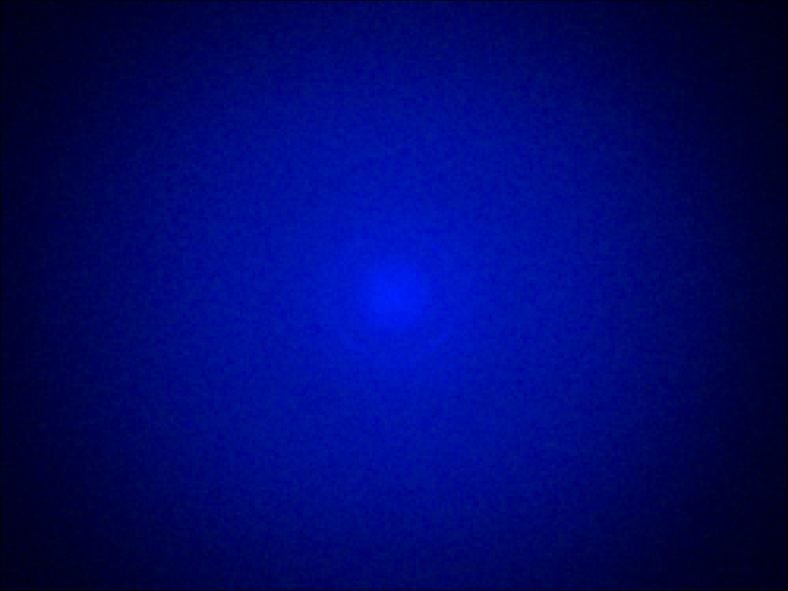

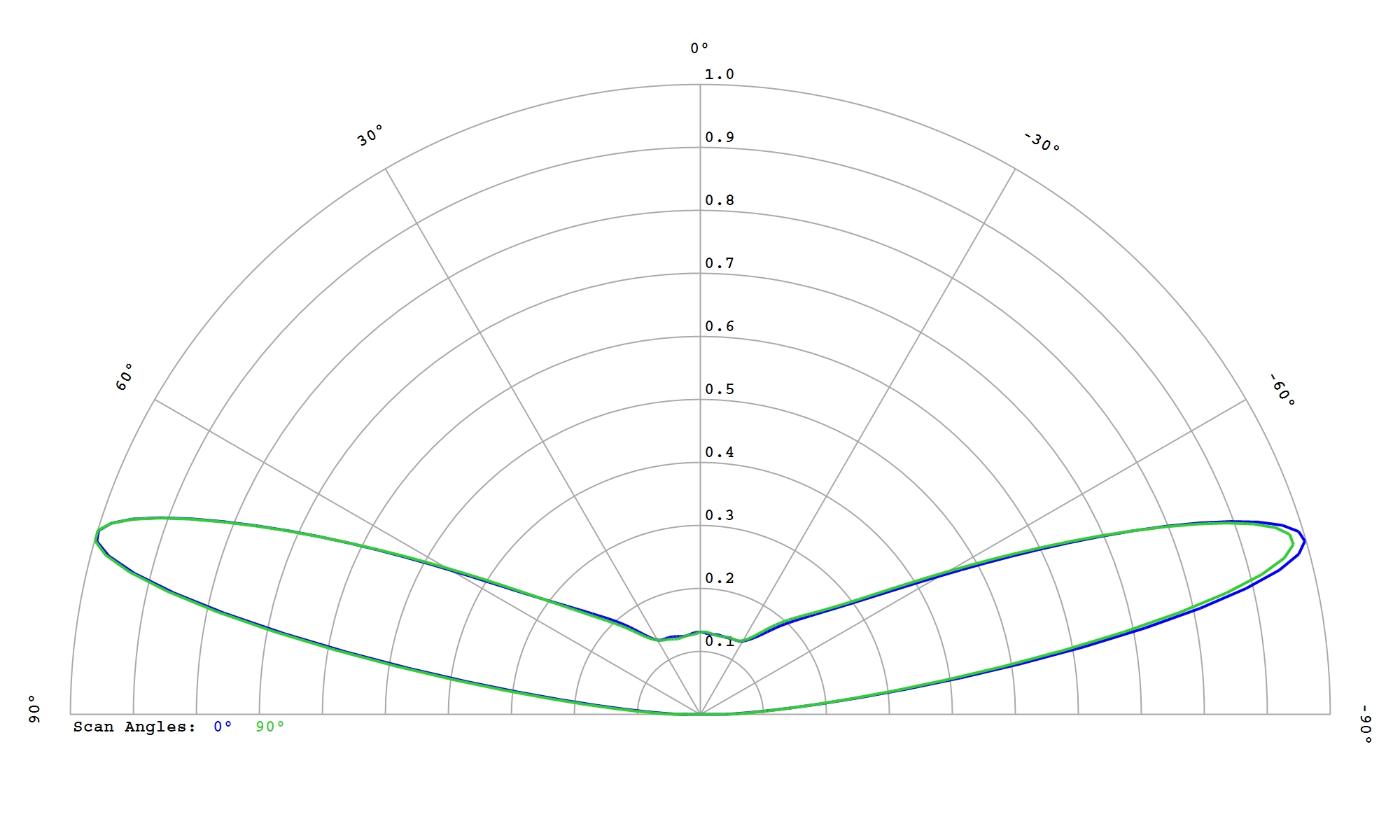

Cree XLamp XQ-E HI Blue
Eff:
94.0%
FWHM:
159°
Cd/Im:
0.5
Download

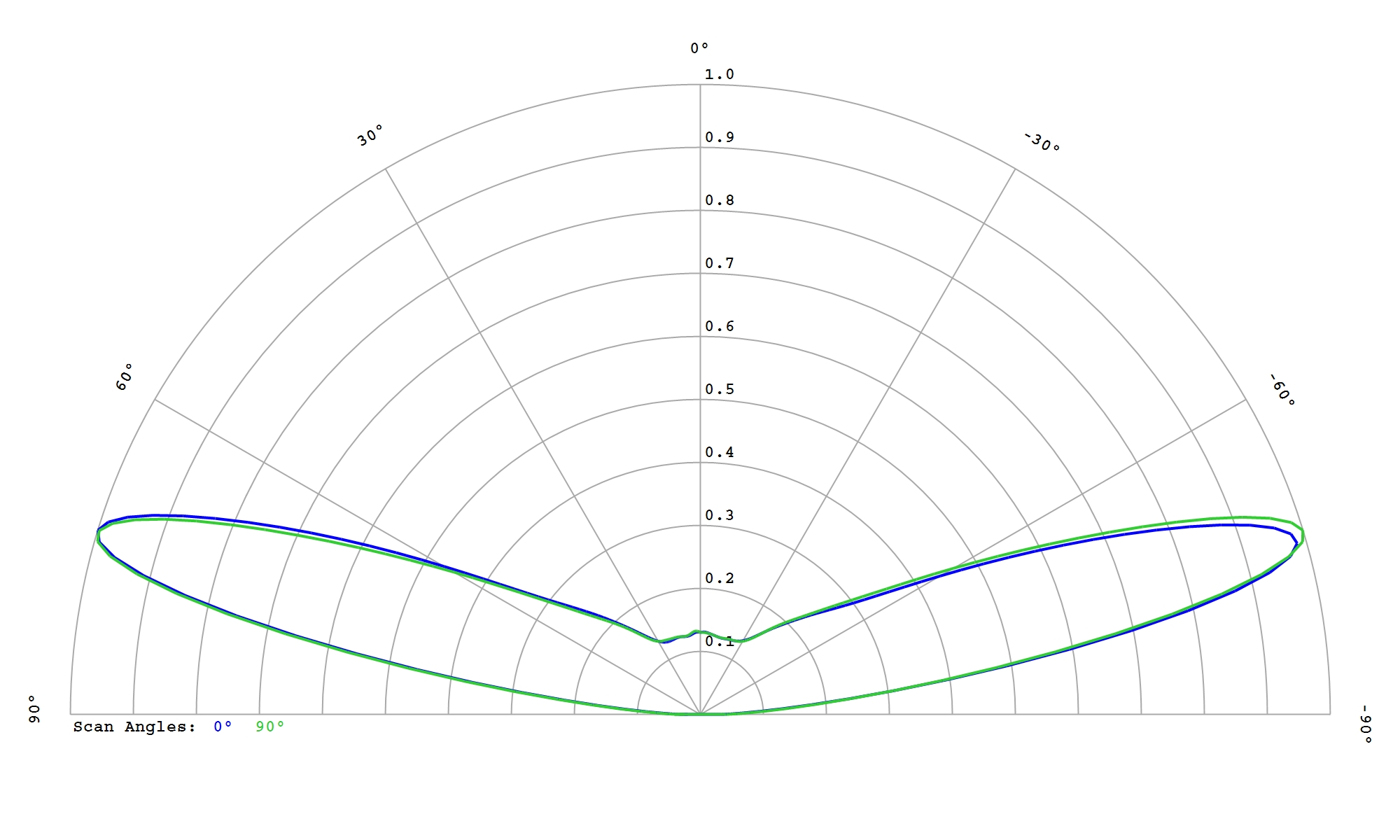

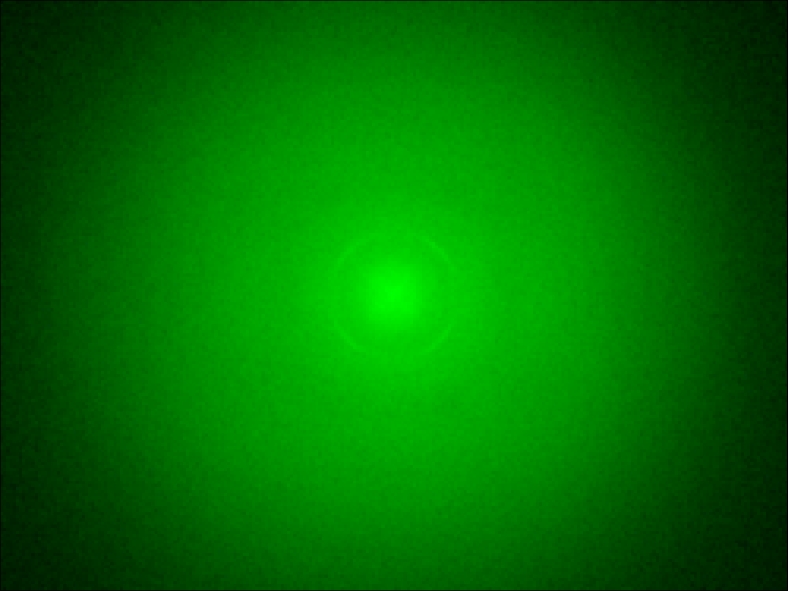

Cree XLamp XQ-E HI Green
Eff:
91.5%
FWHM:
158°
Cd/Im:
0.5
Download
Cree XLamp XQ-E HI Red
Eff:
93.5%
FWHM:
156°
Cd/Im:
0.5
Download

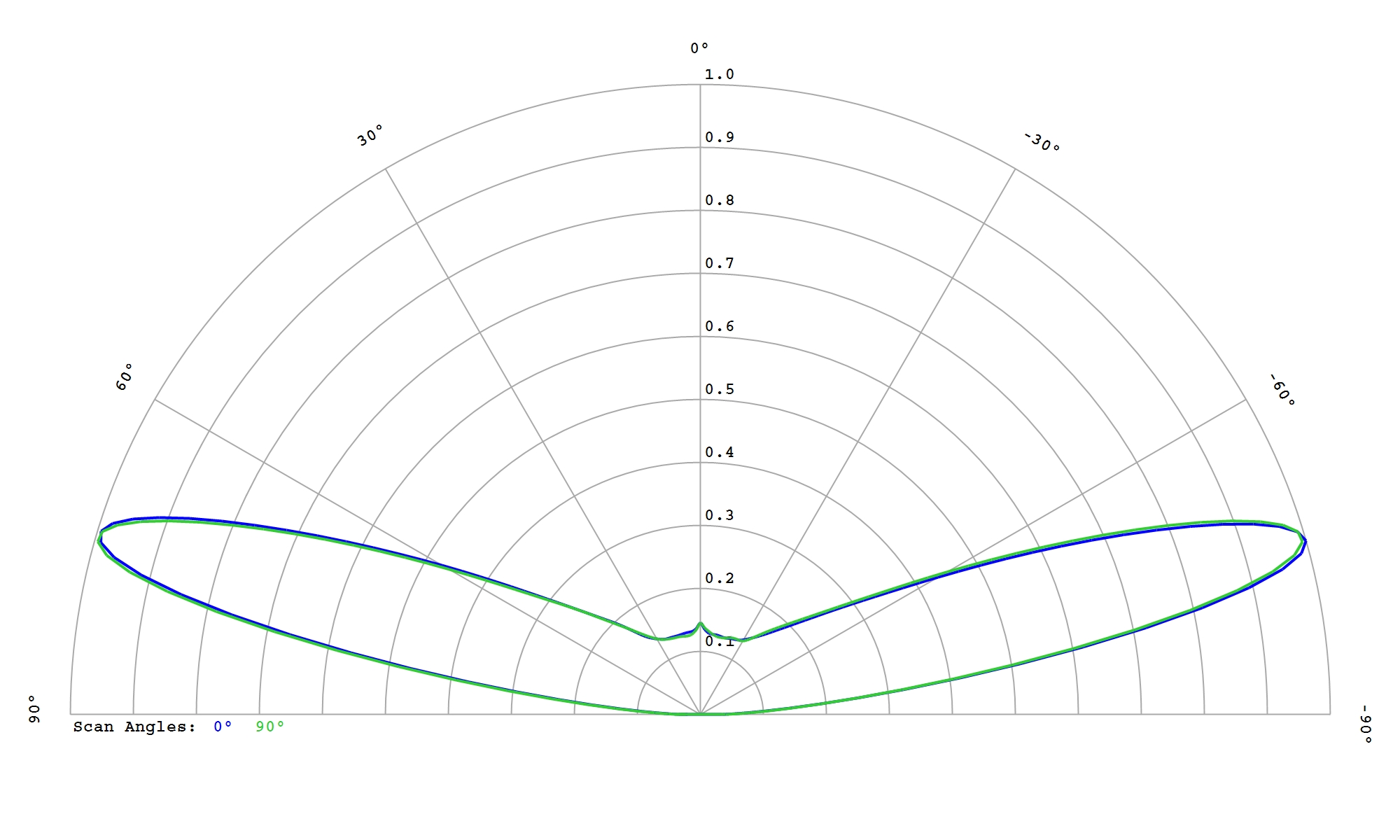

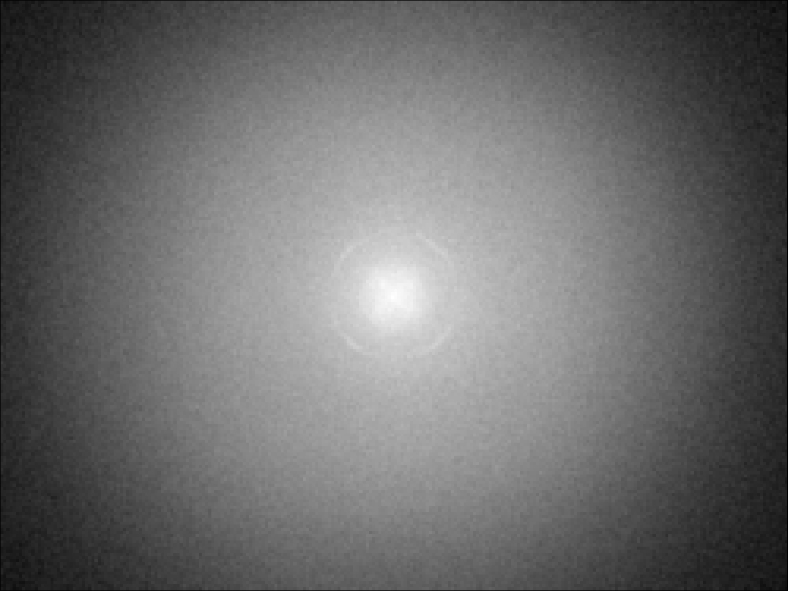

Cree XLamp XQ-E HI White
Eff:
89.0%
FWHM:
154°
Cd/Im:
0.5
Download
Cree XLamp XQ-E White
Eff:
89.0%
FWHM:
150°
Cd/Im:
0.5
Download

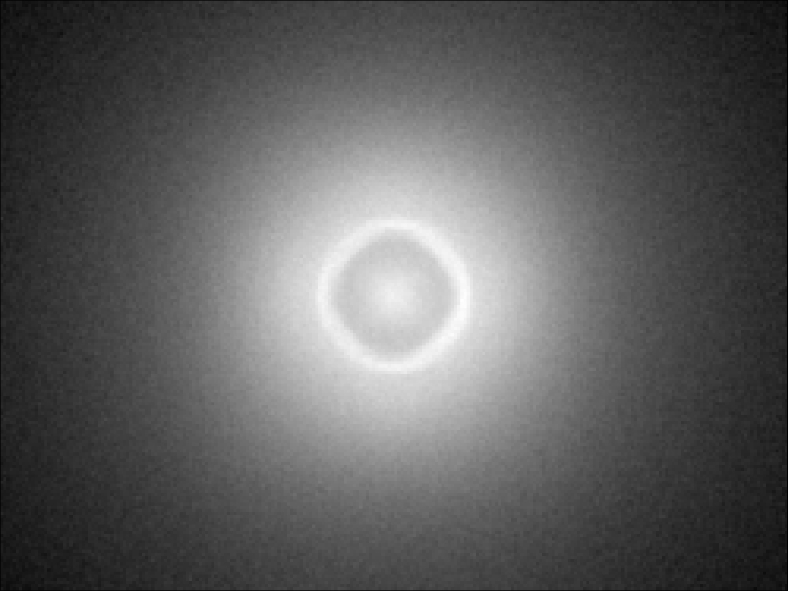

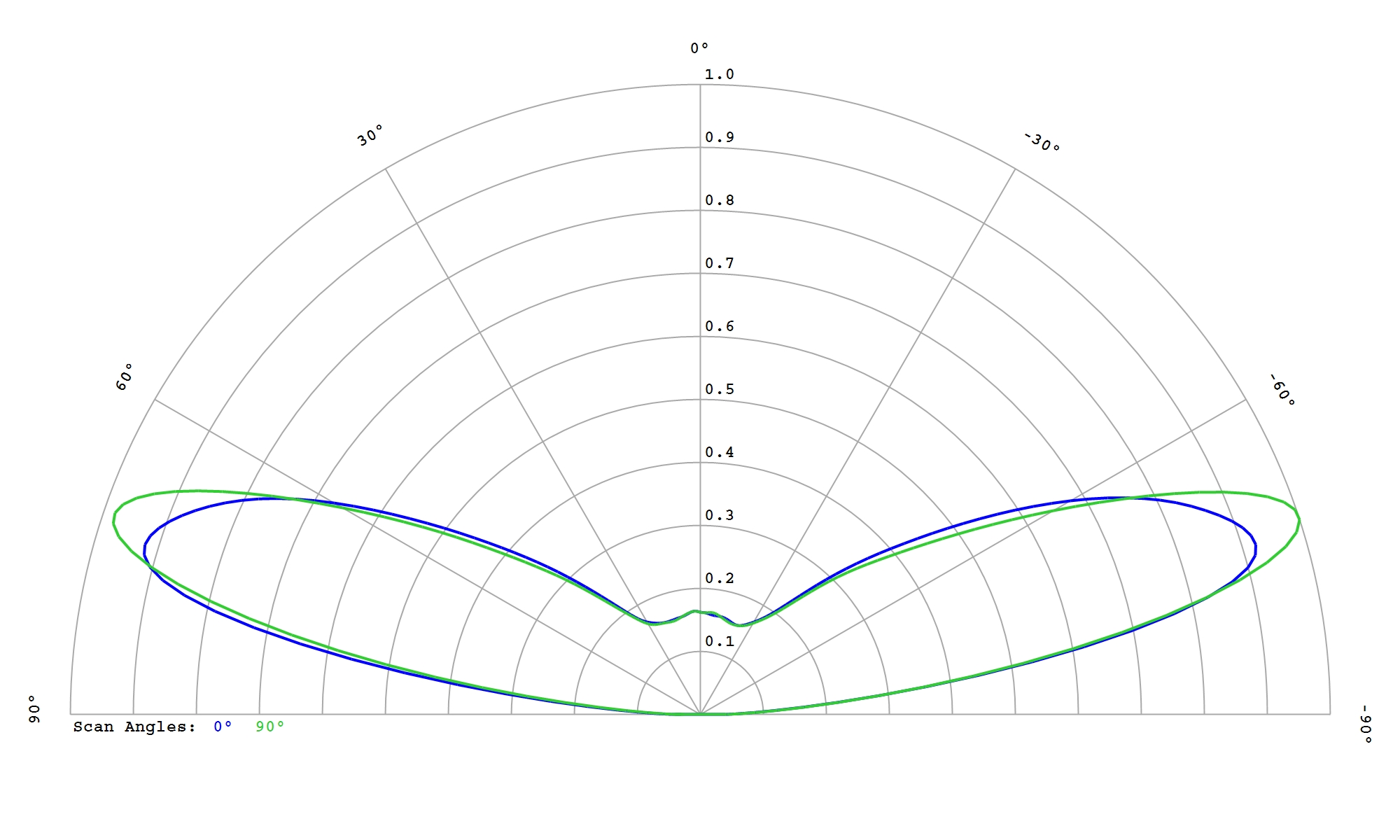

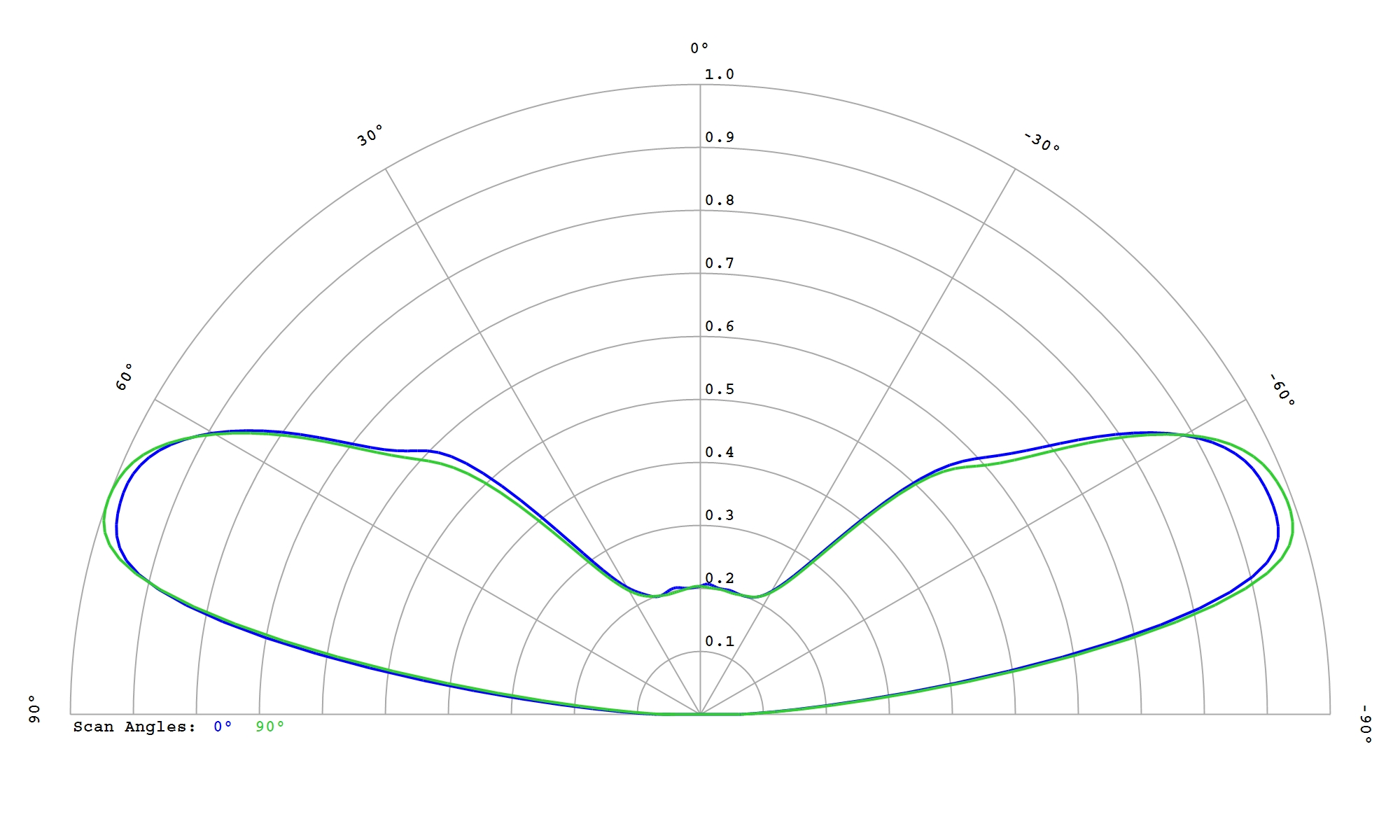

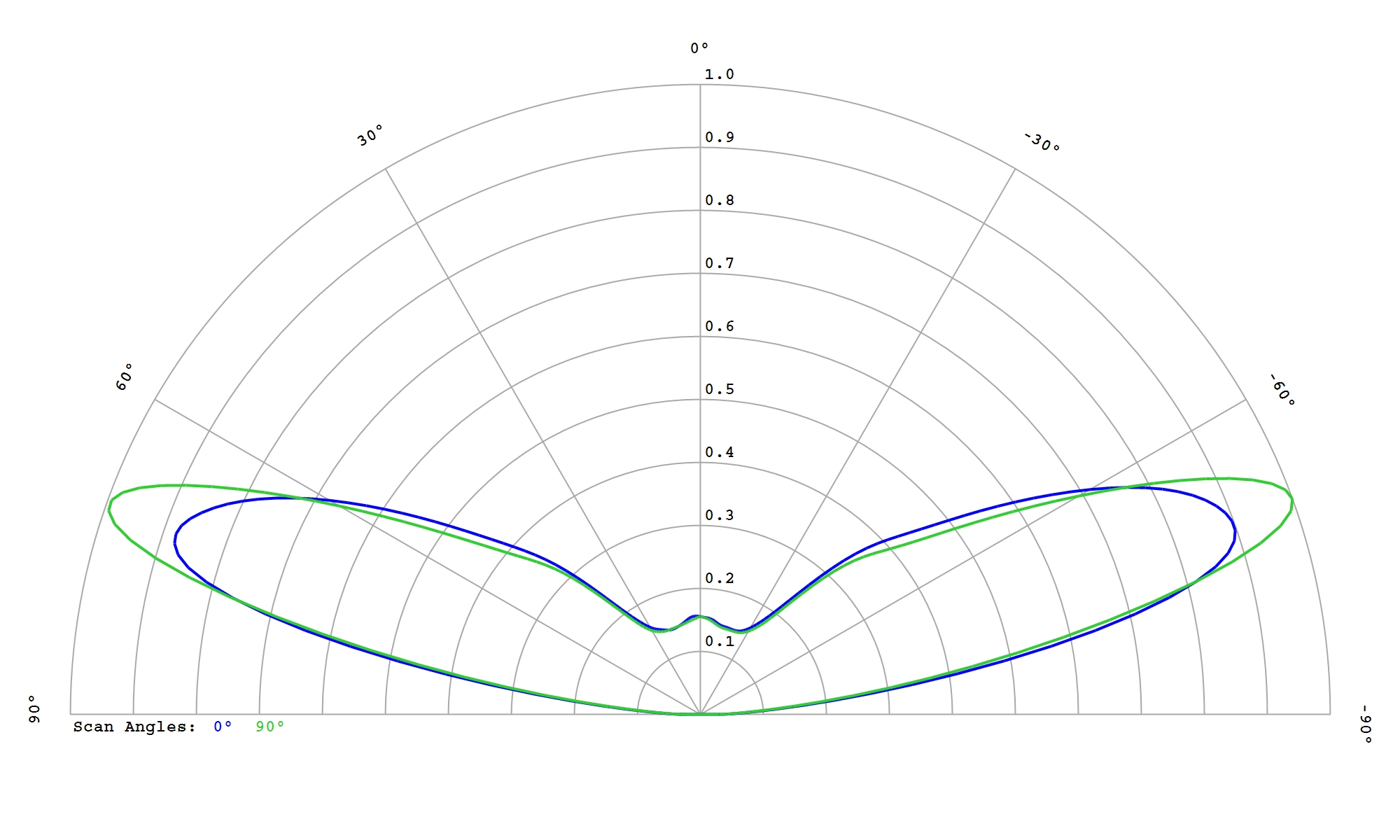

LUMILEDS LUXEON 3030 LUXEON White
Eff:
87.0%
FWHM:
153°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 3535 HV White
Eff:
92.0%
FWHM:
160°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 3535 L White
Eff:
92.0%
FWHM:
160°
Cd/Im:
0.4
Download
LUMILEDS LUXEON 7070 White
Eff:
94.0%
FWHM:
94°
Cd/Im:
0.5
Download
LUMILEDS LUXEON C Lime
Eff:
90.0%
FWHM:
168°
Cd/Im:
0.4
Download
LUMILEDS LUXEON C Red
Eff:
88.0%
FWHM:
170°
Cd/Im:
0.4
Download
LUMILEDS LUXEON CZ White
Eff:
95.5%
FWHM:
157 x 158°
Cd/Im:
0.5
Download

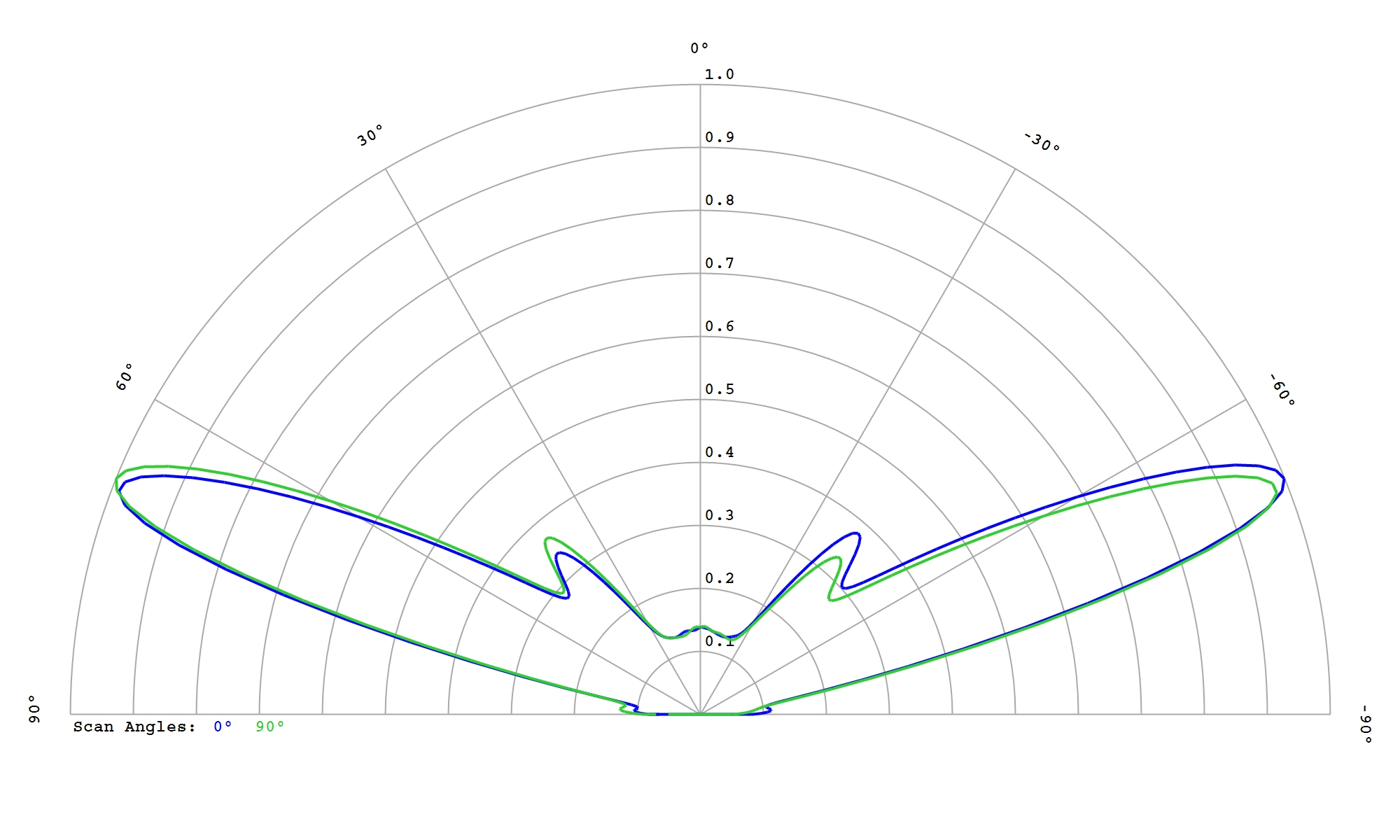

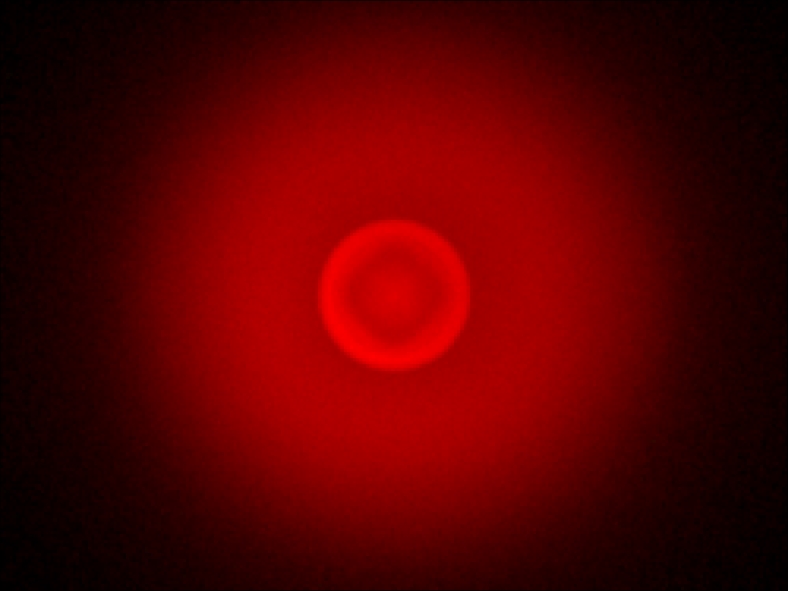

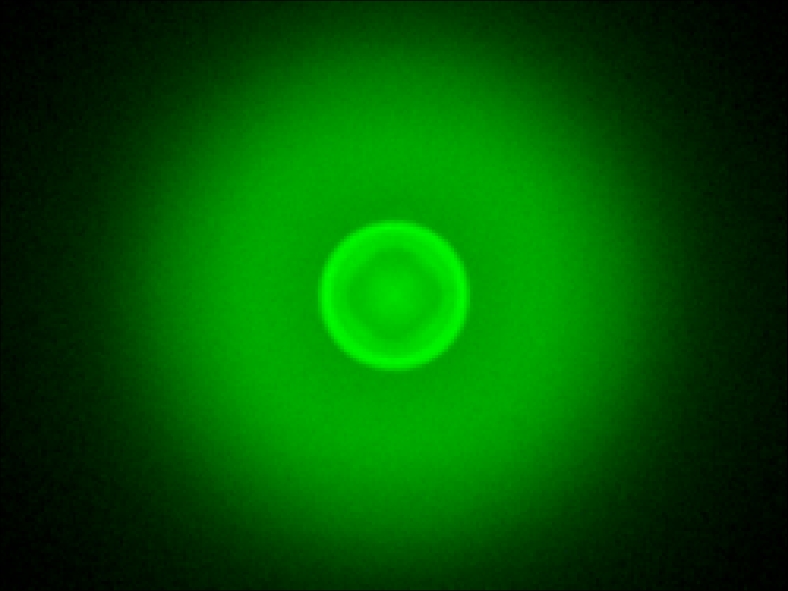

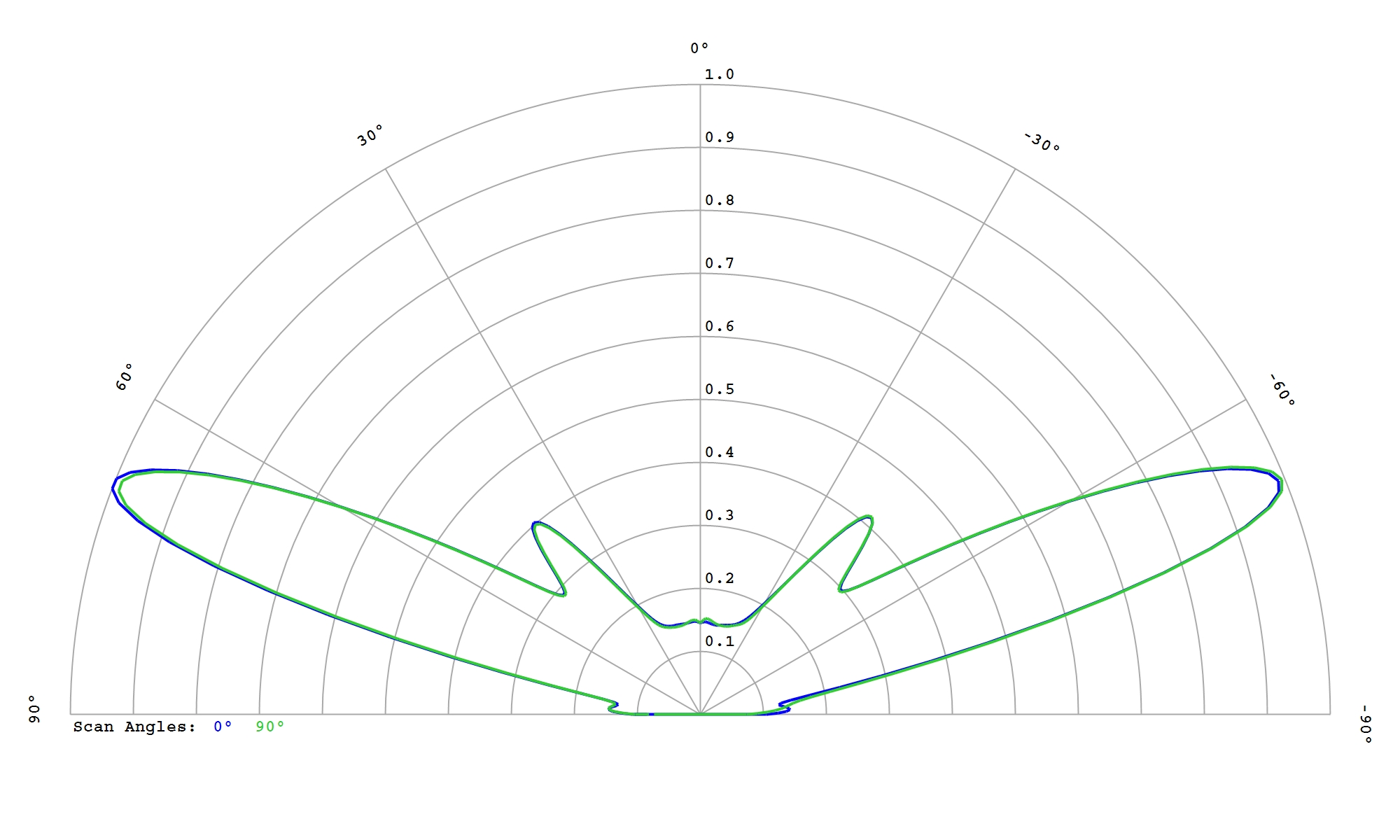

LUMILEDS LUXEON HL1Z CSP White
Eff:
94.0%
FWHM:
150°
Cd/Im:
0.5
Download
LUMILEDS LUXEON HL2Z White
Eff:
94.5%
FWHM:
155°
Cd/Im:
0.4
Download
LUMILEDS LUXEON IR 2720
Eff:
96.0%
FWHM:
156°
Ipk/W:
0.4
Download

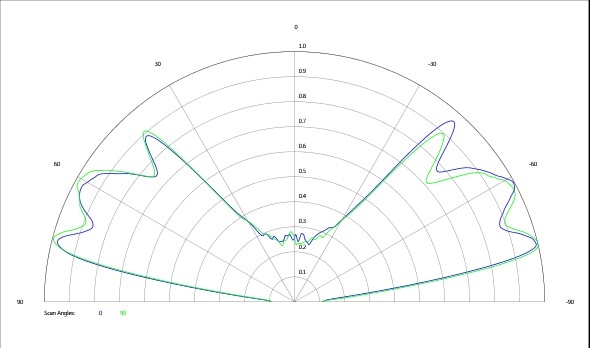

LUMILEDS LUXEON MZ White
Eff:
89.4%
FWHM:
161.9°
Cd/Im:
0.2
Download
LUMILEDS LUXEON Q White
Eff:
87.1%
FWHM:
166°
Cd/Im:
0.3
Download
LUMILEDS LUXEON R White
Eff:
88.1%
FWHM:
159.9°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Rebel ES White
Eff:
87.3%
FWHM:
164.0°
Cd/Im:
0.3
Download
LUMILEDS LUXEON Rebel White
Eff:
89.6%
FWHM:
157.7°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Rubix Blue
Eff:
96.0%
FWHM:
160°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rubix Green
Eff:
95.5%
FWHM:
159°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rubix Red
Eff:
96.0%
FWHM:
159°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
96.0%
FWHM:
160°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Rubix White
Eff:
95.5%
FWHM:
160°
Cd/Im:
0.5
Download
LUMILEDS LUXEON T White
Eff:
89.2%
FWHM:
162.7°
Cd/Im:
0.3
Download
LUMILEDS LUXEON TX White
Eff:
88.8%
FWHM:
164.0°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Z ES White
Eff:
91.5%
FWHM:
153°
Cd/Im:
0.4
Download
LUMILEDS LUXEON Z White
Eff:
90.3%
FWHM:
151°
Cd/Im:
0.5
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
95.5%
FWHM:
157°
Cd/Im:
0.5
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
94.5%
FWHM:
152°
Cd/Im:
0.4
Download

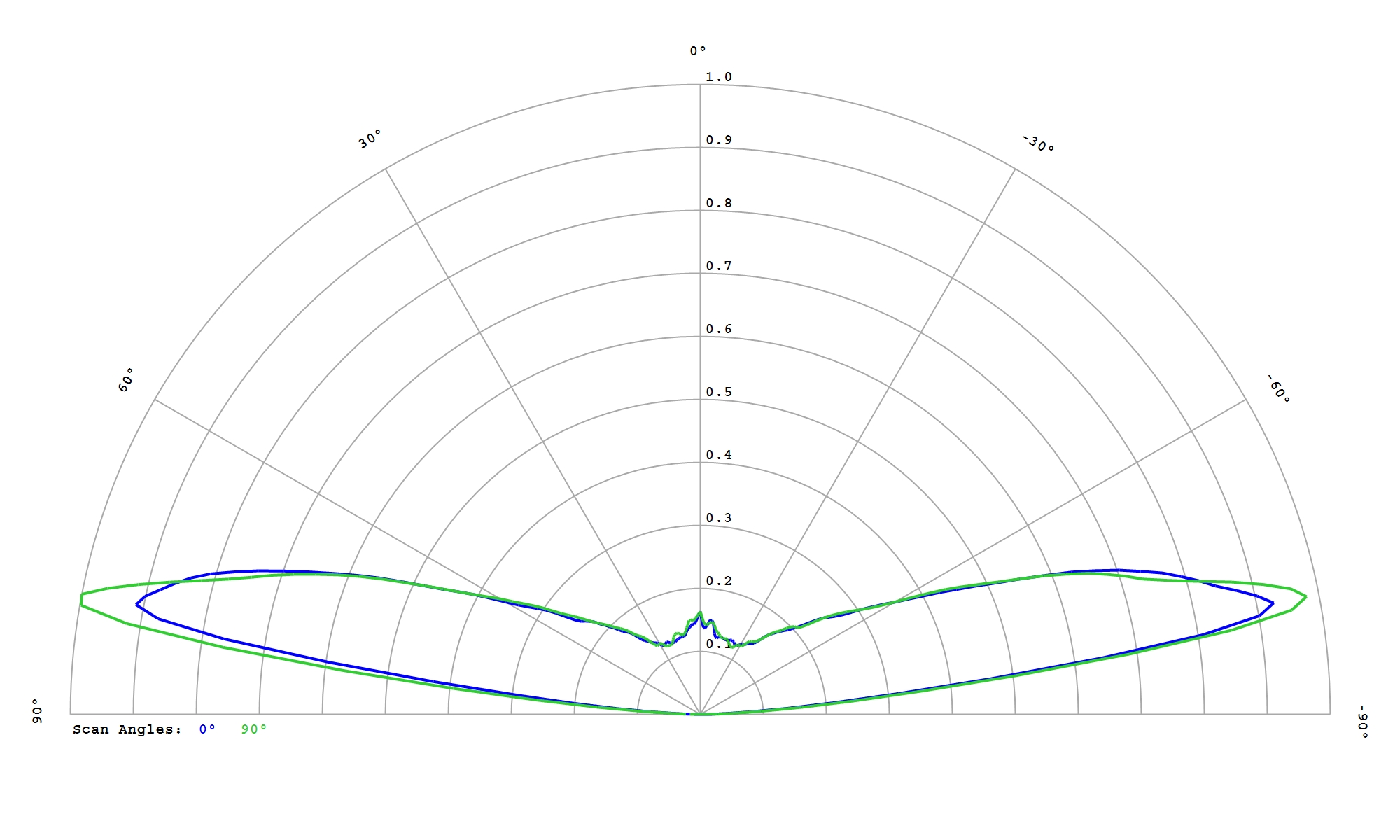

Luminus Devices SST 10-DR-B130 Deep Red
Eff:
94.5%
FWHM:
166°
Cd/Im:
0.4
Download
Luminus Devices SST 10-G-B130 Green
Eff:
95.0%
FWHM:
157°
Cd/Im:
0.5
Download
Luminus Devices SST 10-G-B90 Green
Eff:
93.5%
FWHM:
151°
Cd/Im:
0.4
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
94.5%
FWHM:
159°
Cd/Im:
0.4
Download
Nichia 219 White
Eff:
87.4%
FWHM:
162.7°
Cd/Im:
0.3
Download
Nichia 757 White
Eff:
90.4%
FWHM:
155.5°
Cd/Im:
0.4
Download
Nichia NCSW CSP E17A White
Eff:
94.0%
FWHM:
148°
Cd/Im:
0.5
Download
Nichia NFSW CSP E11A White
Eff:
93.5%
FWHM:
146°
Cd/Im:
0.5
Download

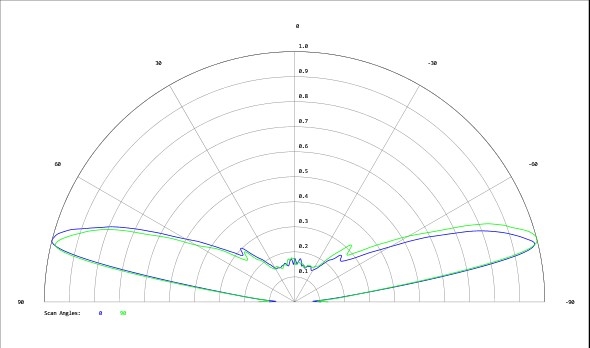

Nichia NVSL 219B White
Eff:
93.0%
FWHM:
161°
Cd/Im:
0.4
Download
Nichia NVSW 219C White
Eff:
93.0%
FWHM:
165°
Cd/Im:
0.3
Download
Nichia NVSW CSP E21A White
Eff:
87.0%
FWHM:
149°
Cd/Im:
0.4
Download

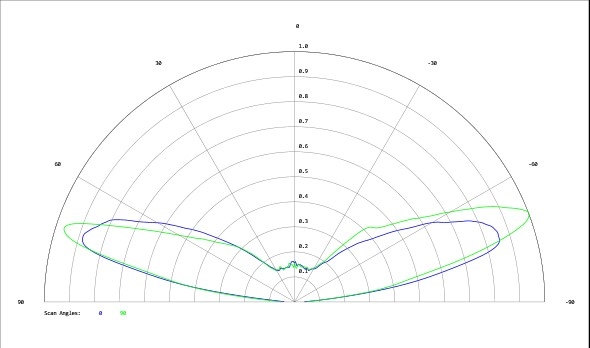

Osram OS DURIS E 2835 Gen2
Eff:
95.0%
FWHM:
156°
Cd/Im:
0.4
Download
Osram OS DURIS E 2835 White
Eff:
85.0%
FWHM:
160°
Cd/Im:
0.4
Download
Osram OS DURIS E2 White
Eff:
90.0%
FWHM:
153°
Cd/Im:
0.5
Download
Osram OS DURIS S2 White
Eff:
93.6%
FWHM:
160°
Cd/Im:
0.4
Download
Osram OS DURIS S5 Deep Blue
Eff:
95.5%
FWHM:
161°
Cd/Im:
0.4
Download
Osram OS DURIS S5 Green
Eff:
95.0%
FWHM:
158°
Cd/Im:
0.4
Download
Osram OS DURIS S5 Red
Eff:
95.5%
FWHM:
158°
Cd/Im:
0.5
Download
Osram OS DURIS S5 White
Eff:
89.0%
FWHM:
154.1°
Cd/Im:
0.4
Download
Osram OS OSCONIQ C 2424 White
Eff:
95.0%
FWHM:
157°
Cd/Im:
0.4
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
95.5%
FWHM:
156°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
95.0%
FWHM:
142°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
95.5%
FWHM:
143°
Ipk/W:
0.6
Download

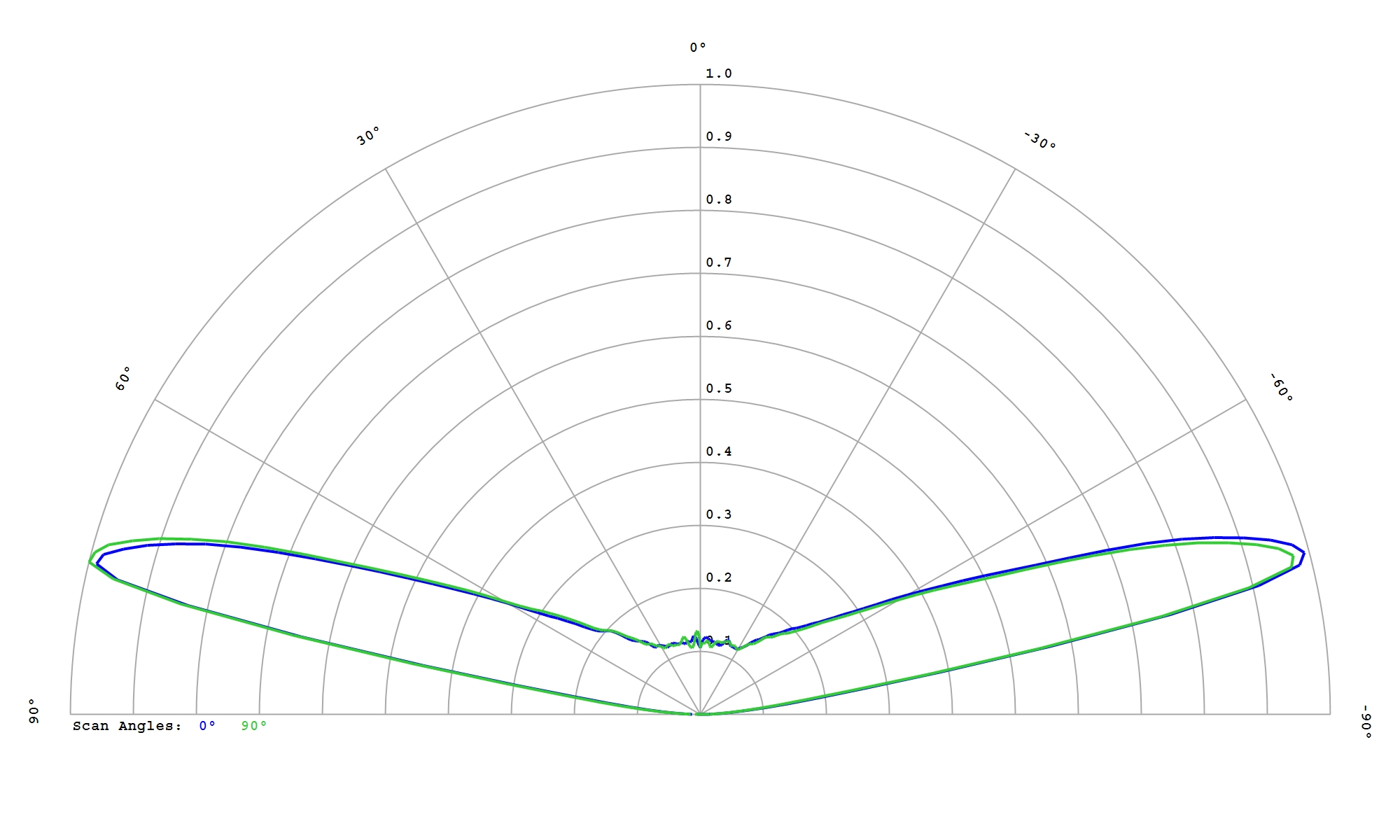

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
94.5%
FWHM:
143°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
94.0%
FWHM:
146°
Cd/Im:
0.5
Download

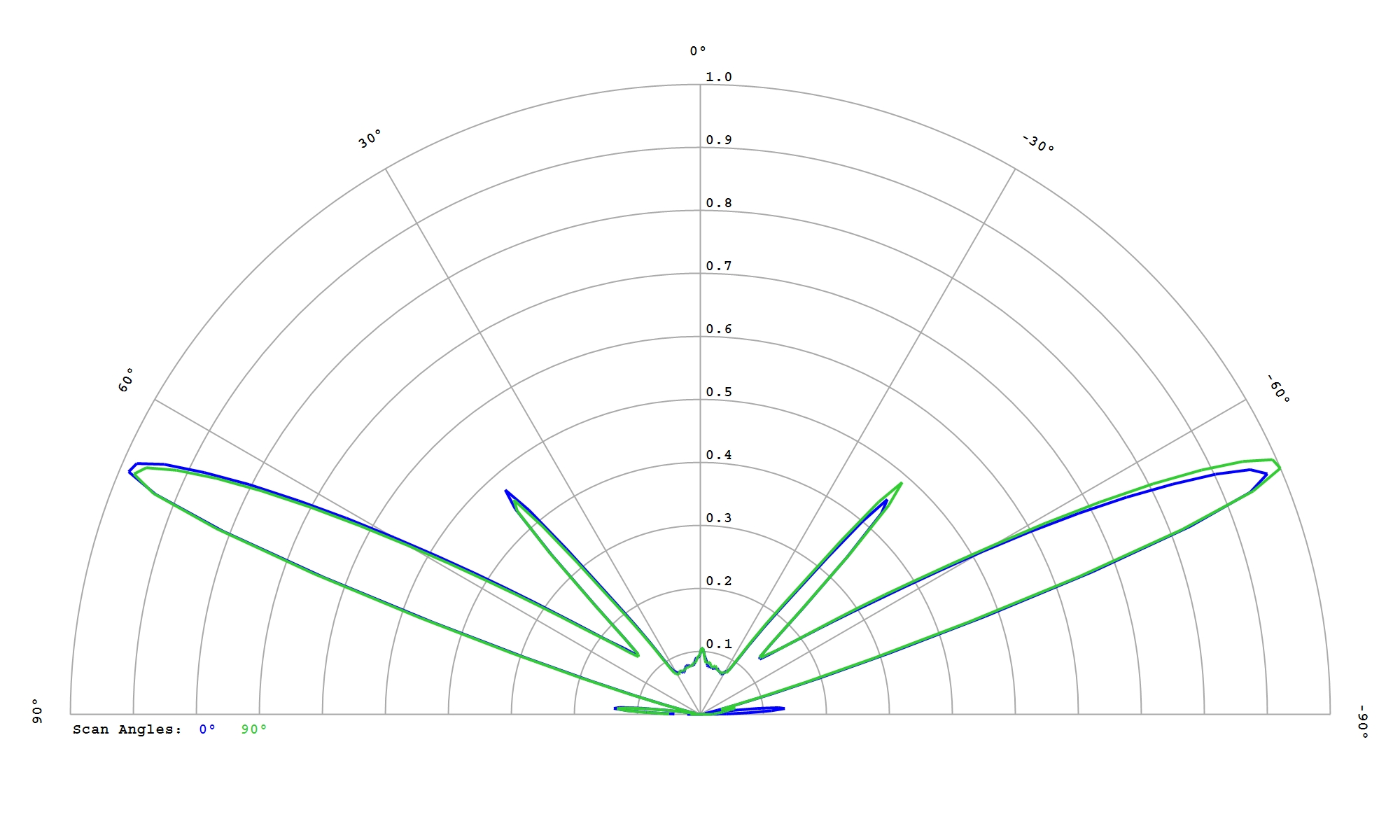

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
94.5%
FWHM:
141°
Cd/Im:
0.6
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
94.0%
FWHM:
143°
Cd/Im:
0.6
Download
Osram OS OSLON Square Flat White
Eff:
94.5%
FWHM:
157°
Cd/Im:
0.4
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
94.0%
FWHM:
165°
Cd/Im:
0.3
Download
Osram OS OSLON Square White
Eff:
88.0%
FWHM:
158.7°
Cd/Im:
0.4
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
95.0%
FWHM:
166°
Cd/Im:
0.4
Download
Osram OS OSLON SSL 150 degree White
Eff:
89.8%
FWHM:
157.8°
Cd/Im:
0.4
Download
Osram OS OSLON SSL 80 degree White
Eff:
90.5%
FWHM:
148.8°
Cd/Im:
0.3
Download
Samsung 3030 LM301B White
Eff:
95.0%
FWHM:
162°
Cd/Im:
0.3
Download
Samsung 3535 LH351B White
Eff:
89.0%
FWHM:
163°
Cd/Im:
0.3
Download
Samsung 3535 LH351Z White
Eff:
90.0%
FWHM:
163°
Cd/Im:
0.3
Download
Samsung CSP LH151B White
Eff:
94.5%
FWHM:
148°
Cd/Im:
0.5
Download
Samsung CSP LH181B White
Eff:
95.0%
FWHM:
153°
Cd/Im:
0.4
Download

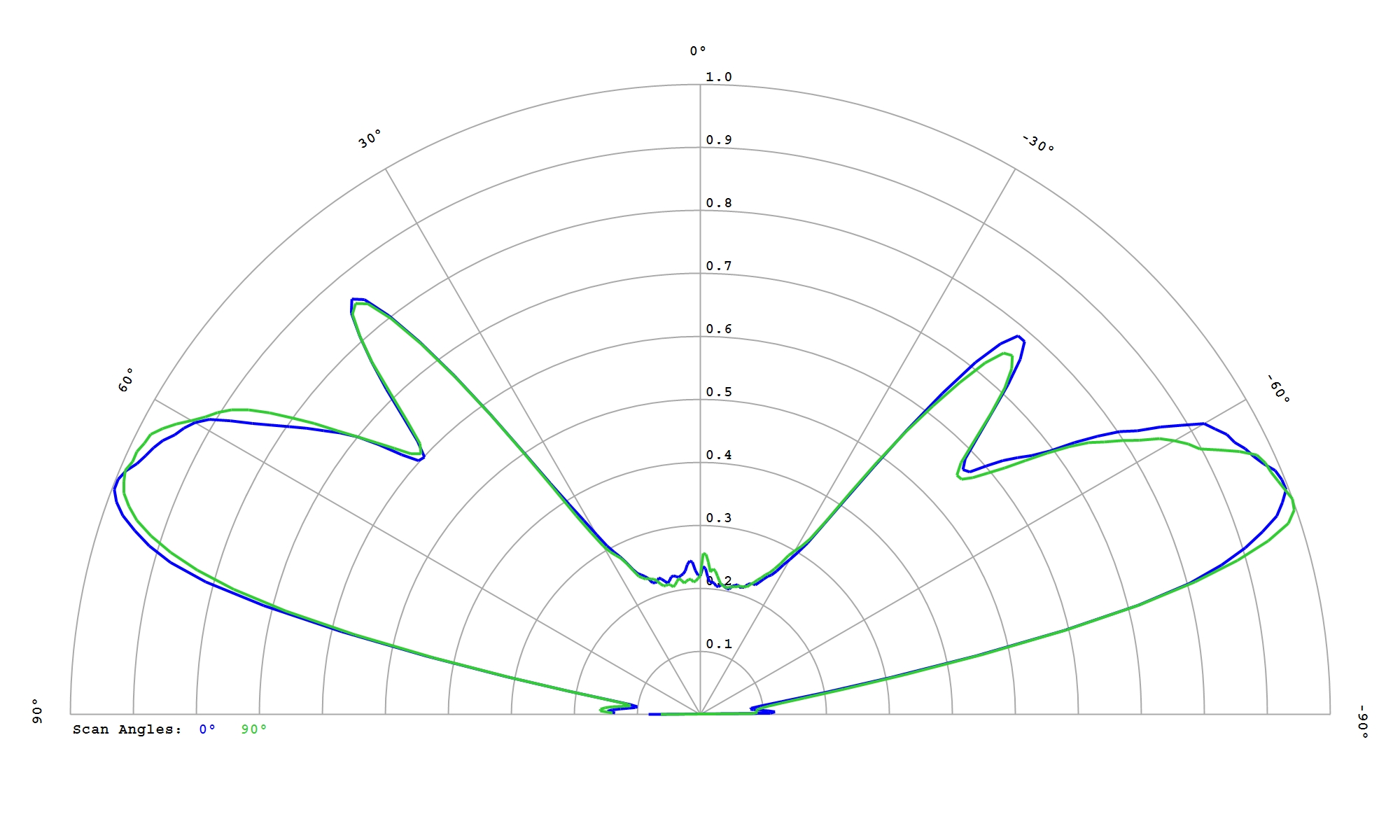

Samsung CSP LH231B White
Eff:
95.0%
FWHM:
155°
Cd/Im:
0.3
Download
Samsung CSP LM101B White
Eff:
94.5%
FWHM:
149°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y11 White
Eff:
90.0%
FWHM:
150°
Cd/Im:
0.4
Download
Seoul CSP SZ8Y15 White
Eff:
92.5%
FWHM:
147°
Cd/Im:
0.5
Download
Seoul CSP SZ8Y19 White
Eff:
86.0%
FWHM:
152°
Cd/Im:
0.3
Download
Seoul CSP SZ8Y22 White
Eff:
93.5%
FWHM:
156°
Cd/Im:
0.3
Download
Seoul MidPower MJT3030 White
Eff:
91.4%
FWHM:
160°
Cd/Im:
0.4
Download
Seoul STW8 C2SB-NT White
Eff:
95.0%
FWHM:
162°
Cd/Im:
0.3
Download
Seoul STWS C2PB-E0 White
Eff:
95.0%
FWHM:
160°
Cd/Im:
0.4
Download
Seoul Z - Power Z5 M1 White
Eff:
89.6%
FWHM:
159°
Cd/Im:
0.2
Download
Seoul Z - Power Z5 P0 White
Eff:
89.1%
FWHM:
159.4°
Cd/Im:
0.4
Download
Toshiba TL 1L2 White
Eff:
85.0%
FWHM:
166°
Cd/Im:
0.3
Download
