10.0mm Medium Spot Frosted TIR | Carclo Optics

Carclo Optics 10772

10.0mm Medium Spot Frosted TIR

Part number

10772

Dimensions

10.0mm

Drawing Number

60596

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Medium Spot

Applications

Architectural

Industrial

Landscape & Garden

Office

Horticultural

Retail

Warehouse

Wide Area

Security

Humancentric

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

92.5%

FWHM:

29 x 30°

Cd/Im:

2.9

Carclo Optics - 10772 10mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10772 10mm Cross Section Bridgelux 3030 Gen2

Download

IES

Cree JB3030 3V White

Eff:

92.0%

FWHM:

34.0°

Cd/Im:

2.1

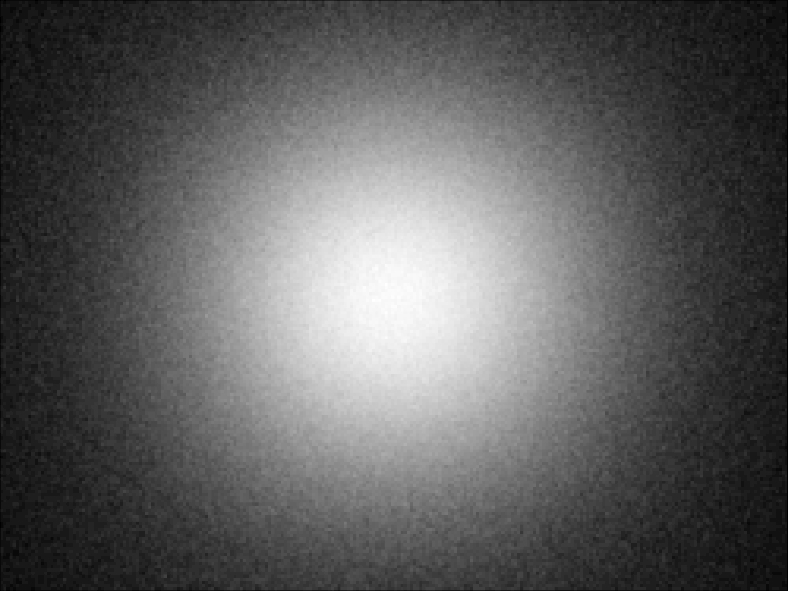

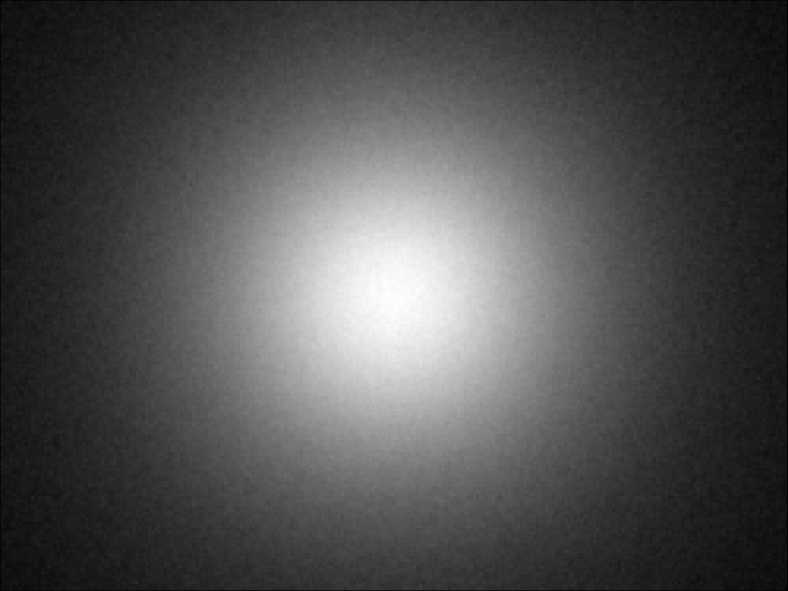

Carclo Optics - 10772 Spot Image Cree JB3030 3V White

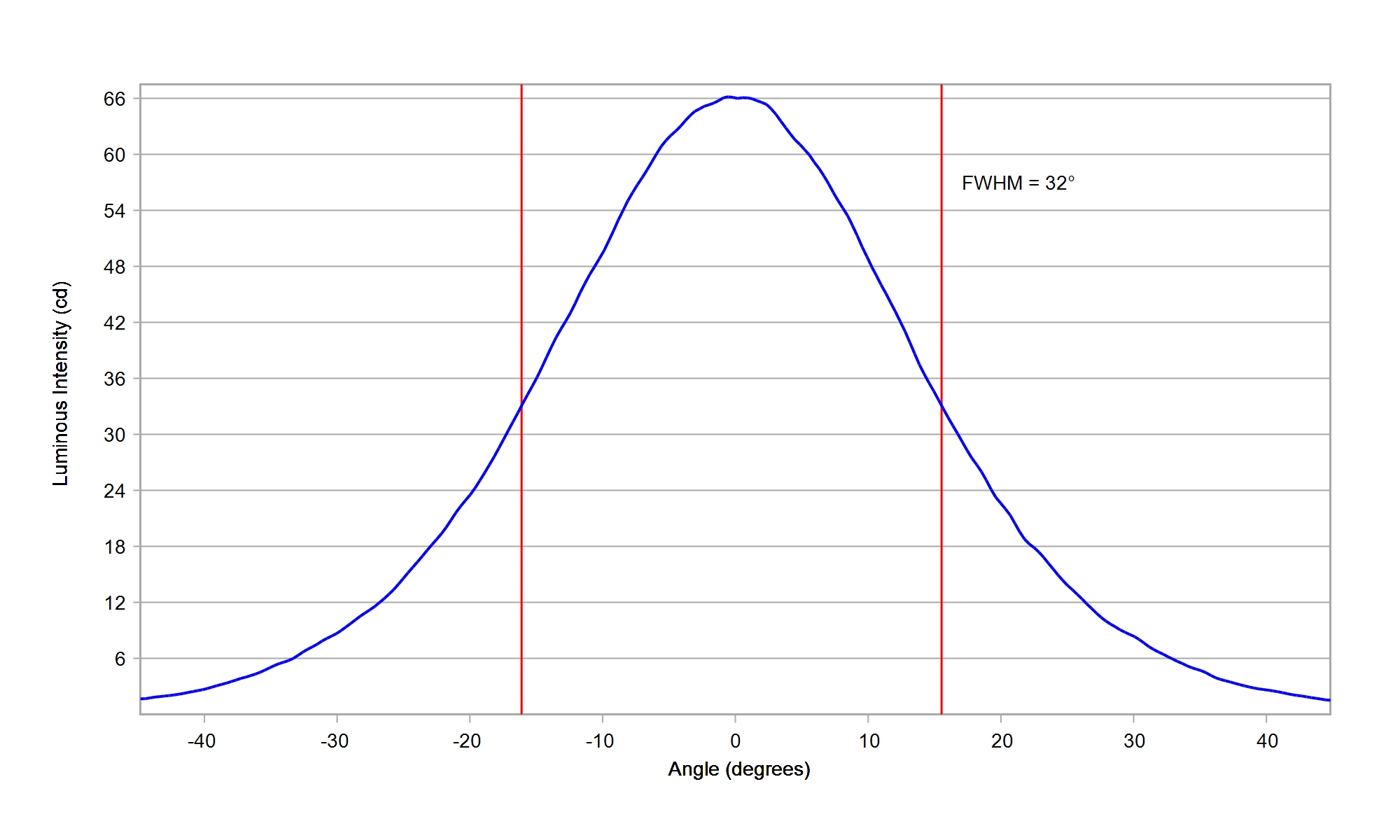

Carclo Optics - 10772 Cross Section Cree JB3030 3V White

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.3

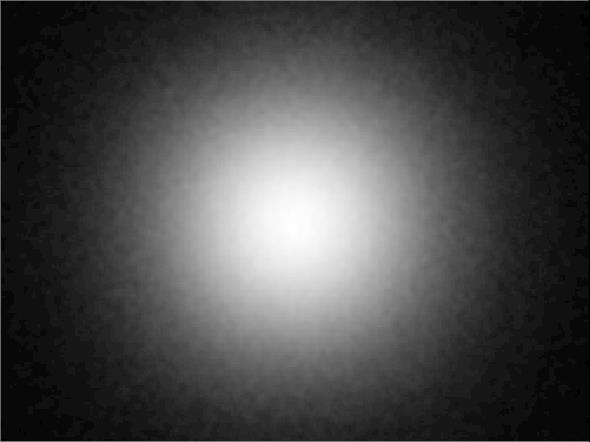

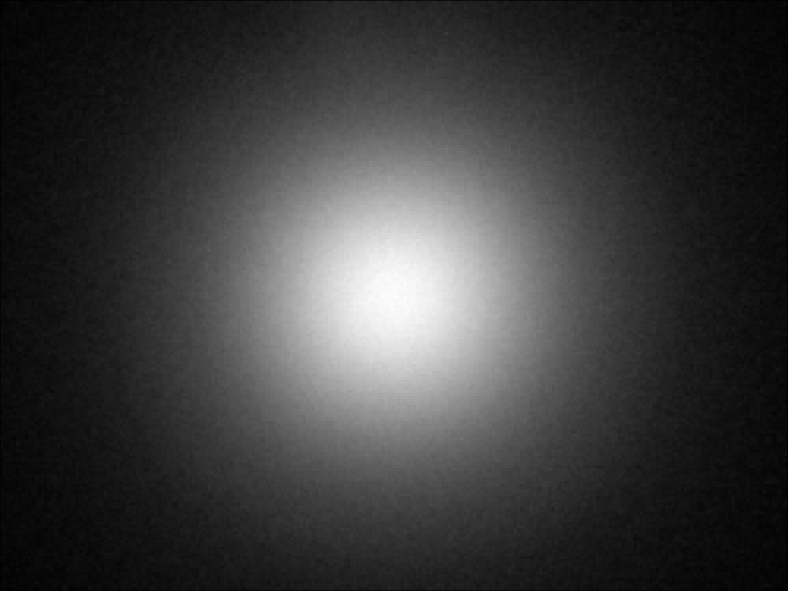

Carclo Optics - Simulated Spot Image

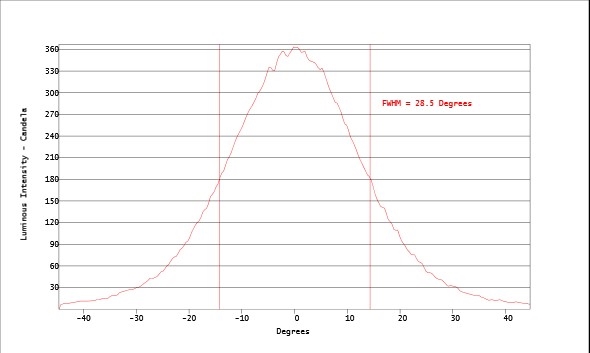

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XB-D White

Eff:

87.3%

FWHM:

26.8°

Cd/Im:

3.4

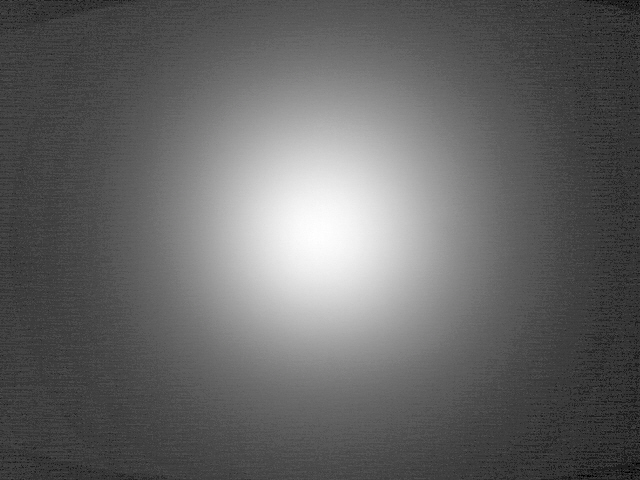

Spot Image

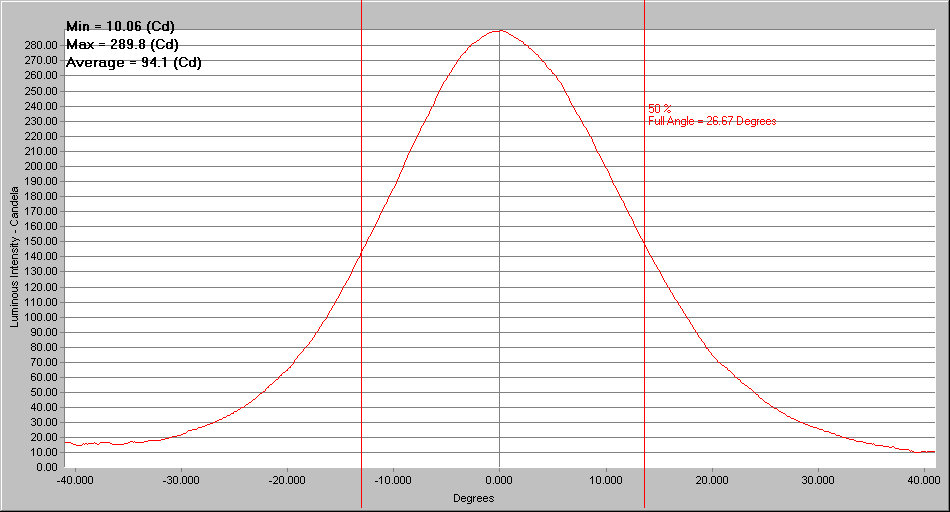

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.7

Carclo Optics - 10772 10mm Spot Image Cree XLamp XB-H

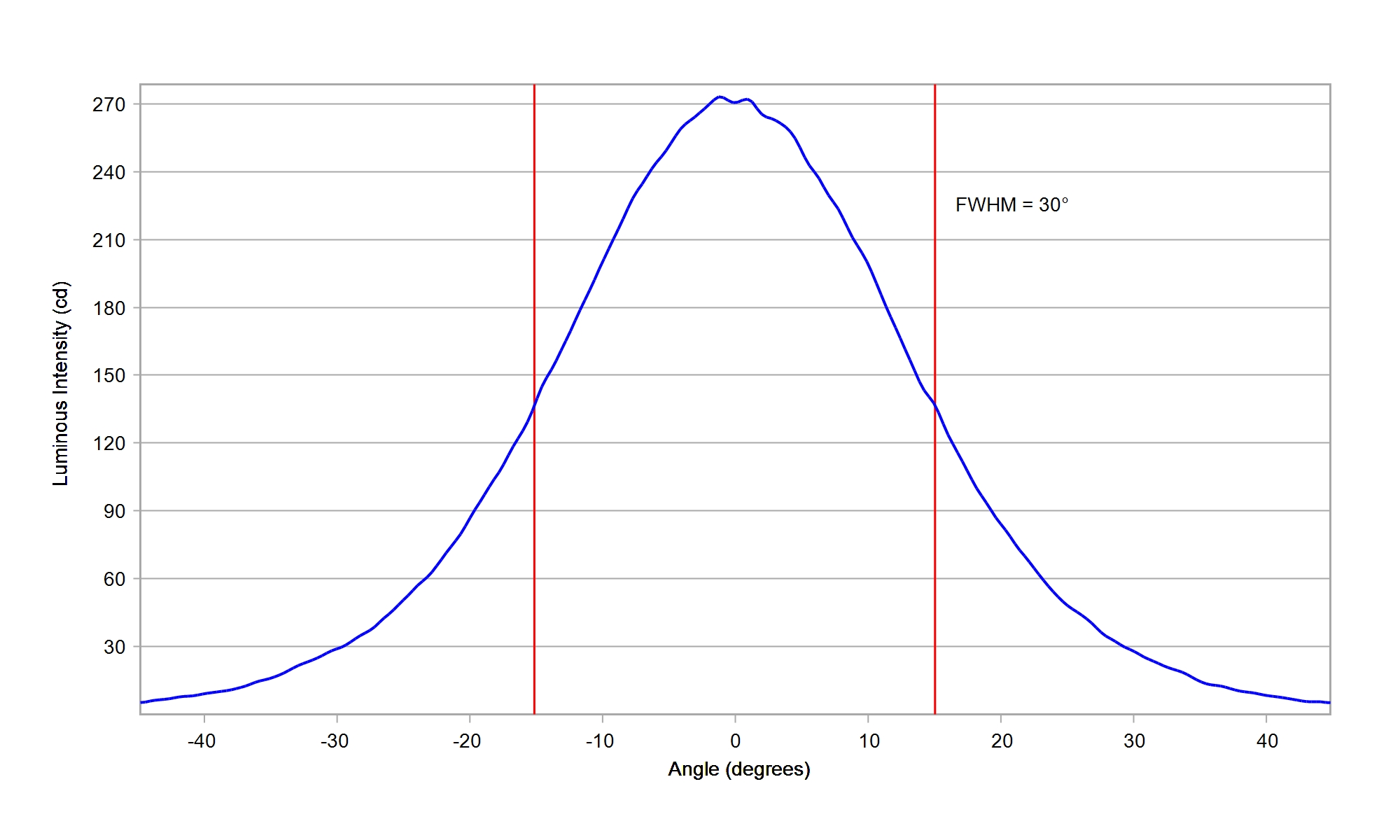

Carclo Optics - 10772 10mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XP-E White

Eff:

87.2%

FWHM:

25.9°

Cd/Im:

3.2

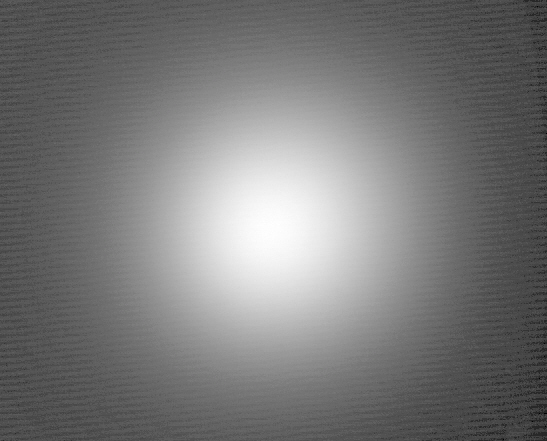

Spot Image

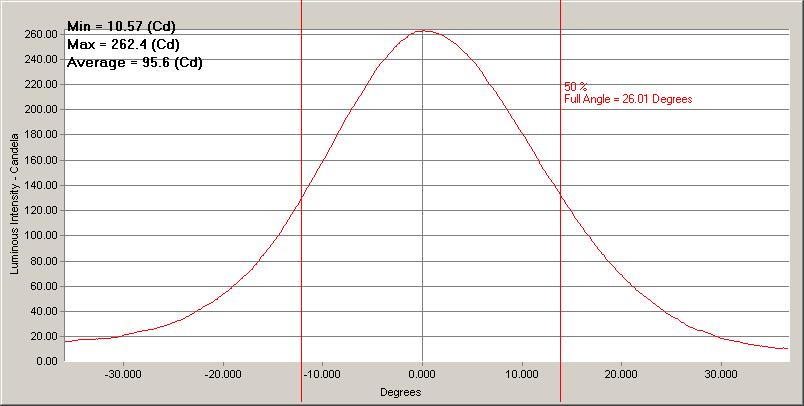

Cross Section

Download

ies

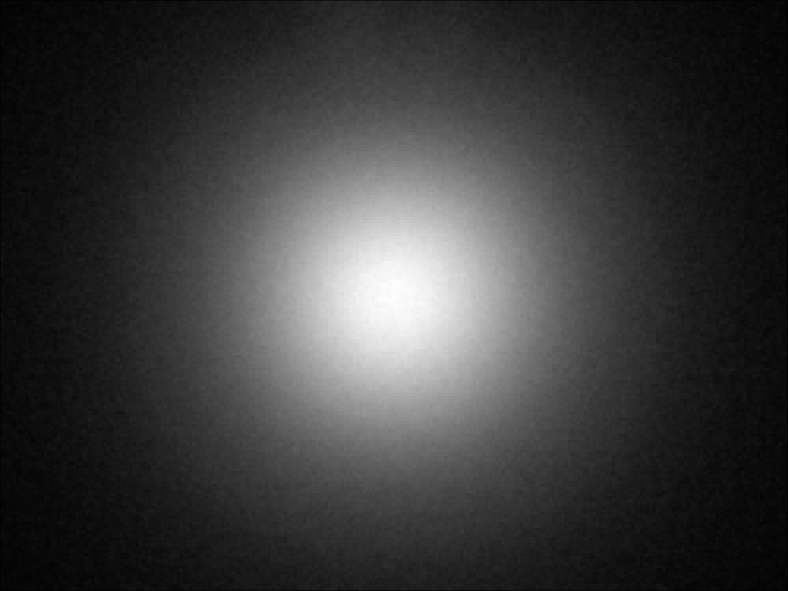

Cree XLamp XP-E2 White

Eff:

92.5%

FWHM:

26.5°

Cd/Im:

3.6

Download

IES

Cree XLamp XP-G White

Eff:

84.7%

FWHM:

30°

Cd/Im:

2.7

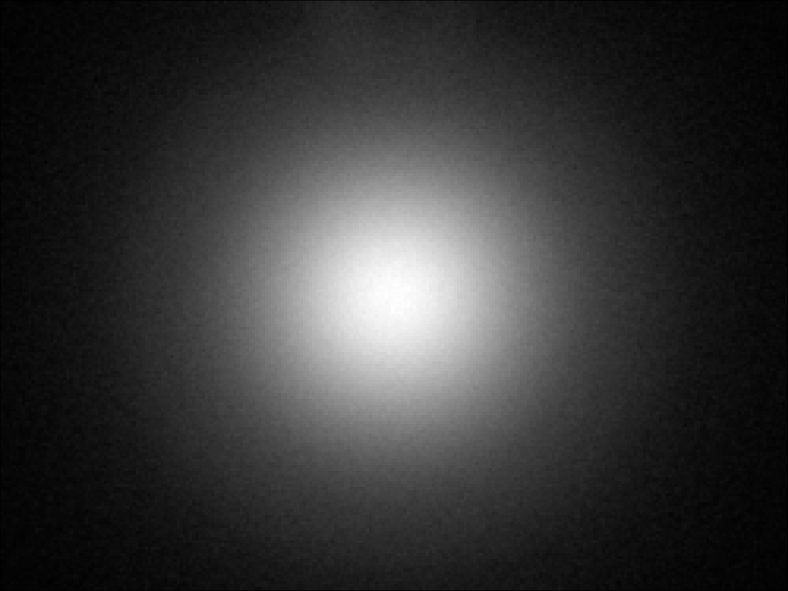

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G2 White

Eff:

84.9%

FWHM:

28.9°

Cd/Im:

3.3

Download

ies

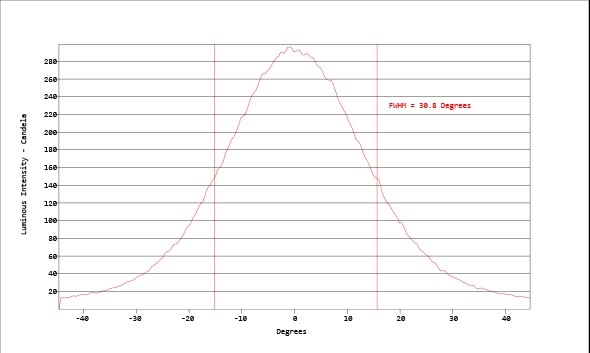

Cree XLamp XP-G3 White

Eff:

88.0%

FWHM:

30.5°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Blue

Eff:

92.0%

FWHM:

23.0°

Cd/Im:

4.0

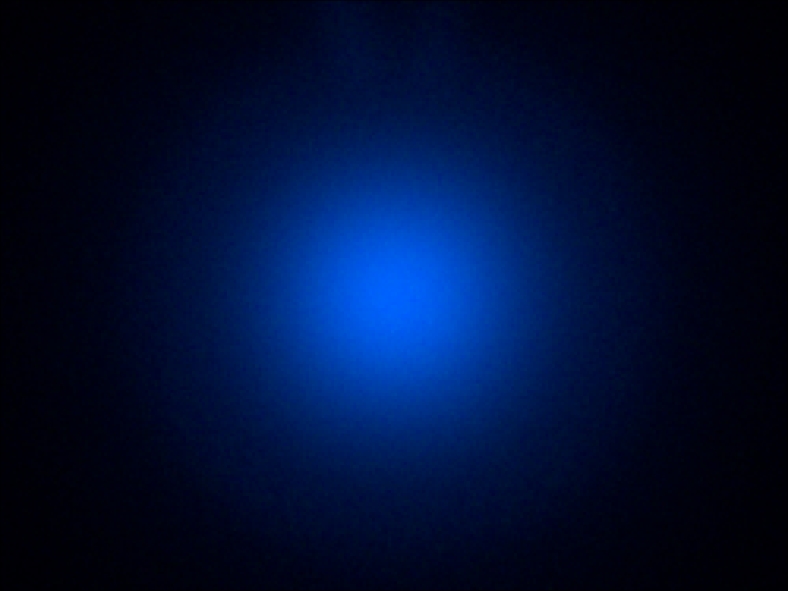

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

92.0%

FWHM:

22.5°

Cd/Im:

4.0

Carclo Optics - Simulated Spot Image

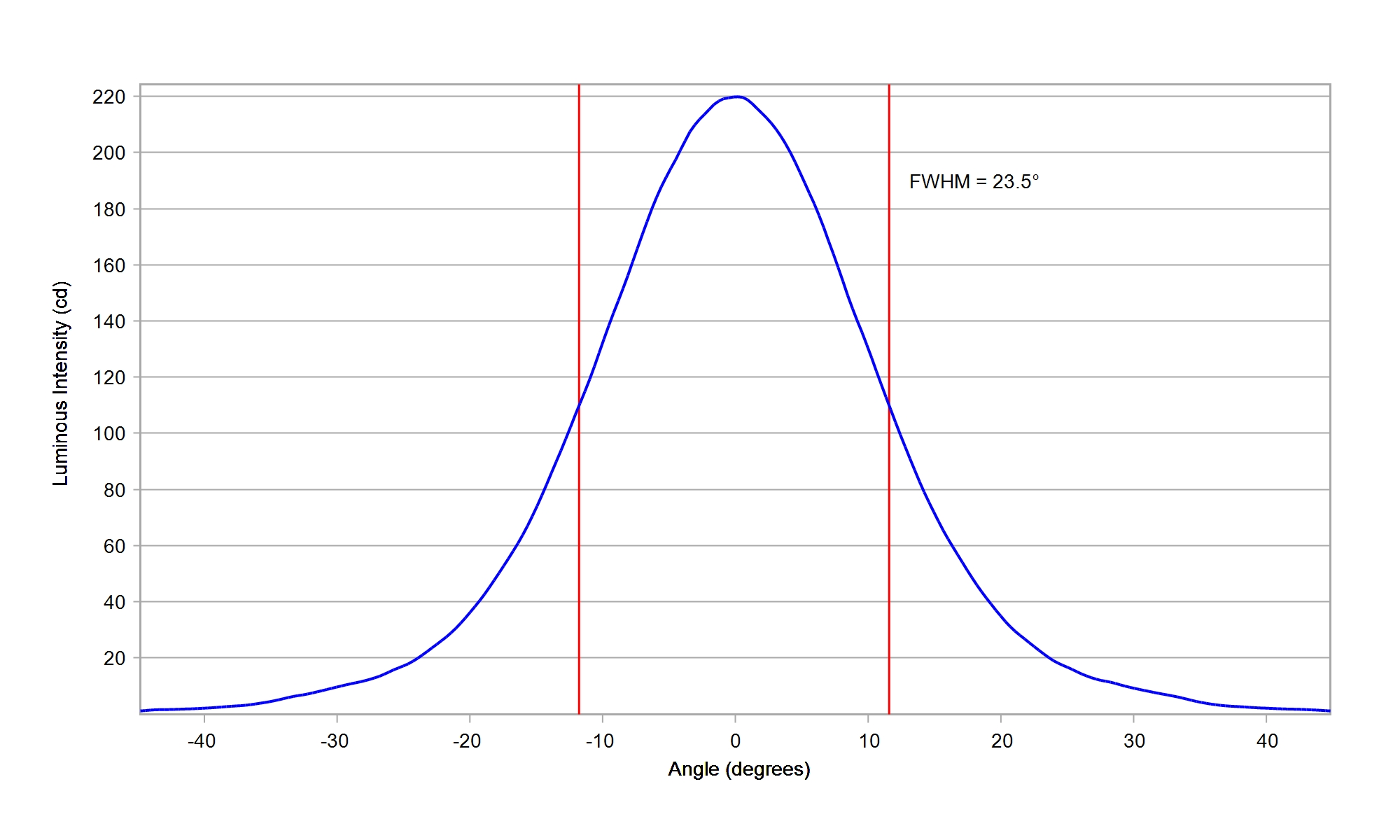

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

92.0%

FWHM:

23.0°

Cd/Im:

3.9

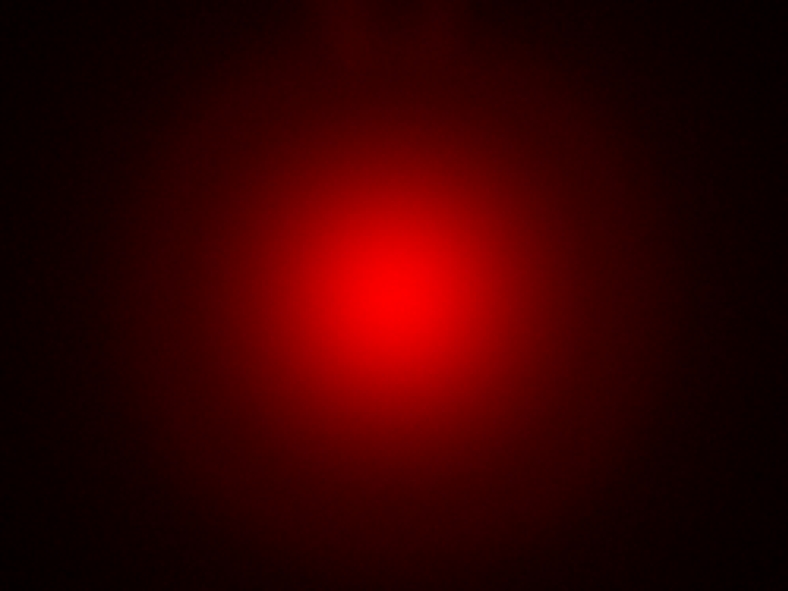

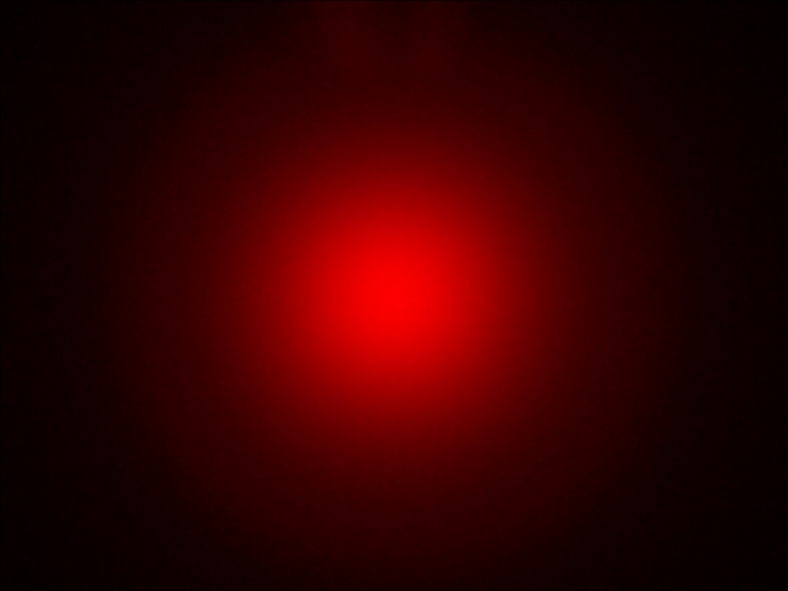

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

88.0%

FWHM:

19.7°

Cd/Im:

4.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Blue

Eff:

92.0%

FWHM:

25.0°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

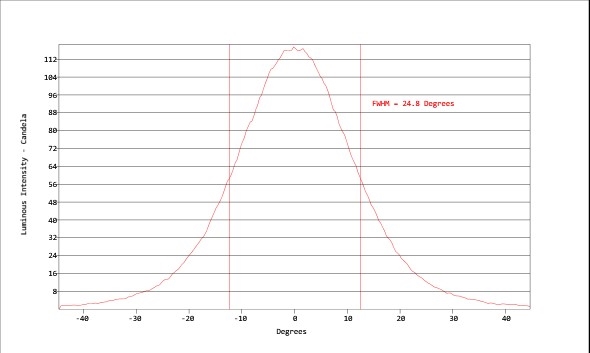

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

92.0%

FWHM:

24.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

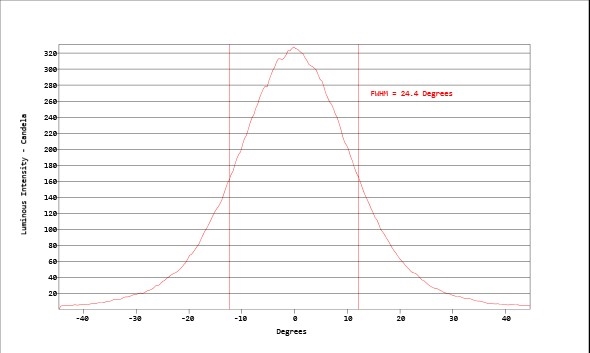

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

92.0%

FWHM:

24.0°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

88.0%

FWHM:

21°

Cd/Im:

3.7

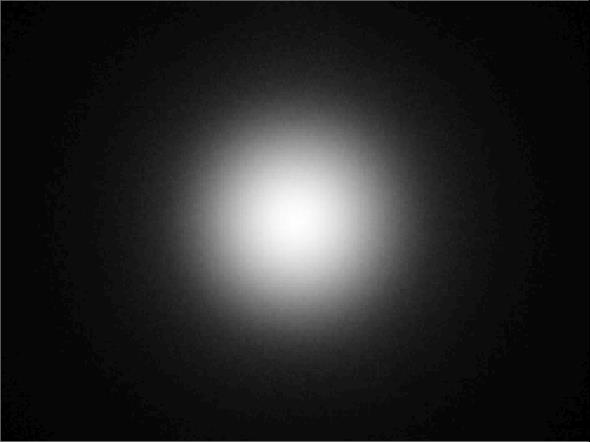

Carclo Optics - Simulated Spot Image

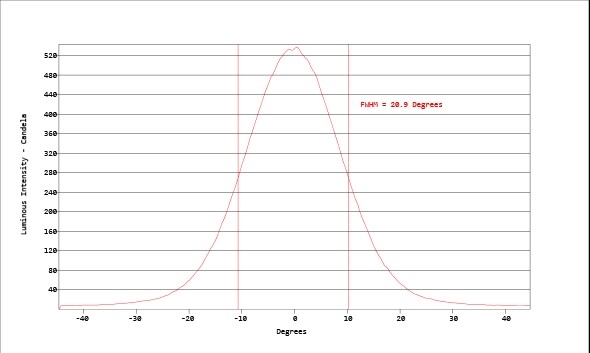

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E White

Eff:

88.0%

FWHM:

24°

Cd/Im:

2.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Cree XLamp XT-E White

FWHM:

28.55°

Cd/Im:

2.9

Download

ies

Everlight Shuen White

Eff:

82.3%

FWHM:

30.9°

Cd/Im:

2.5

Spot Image

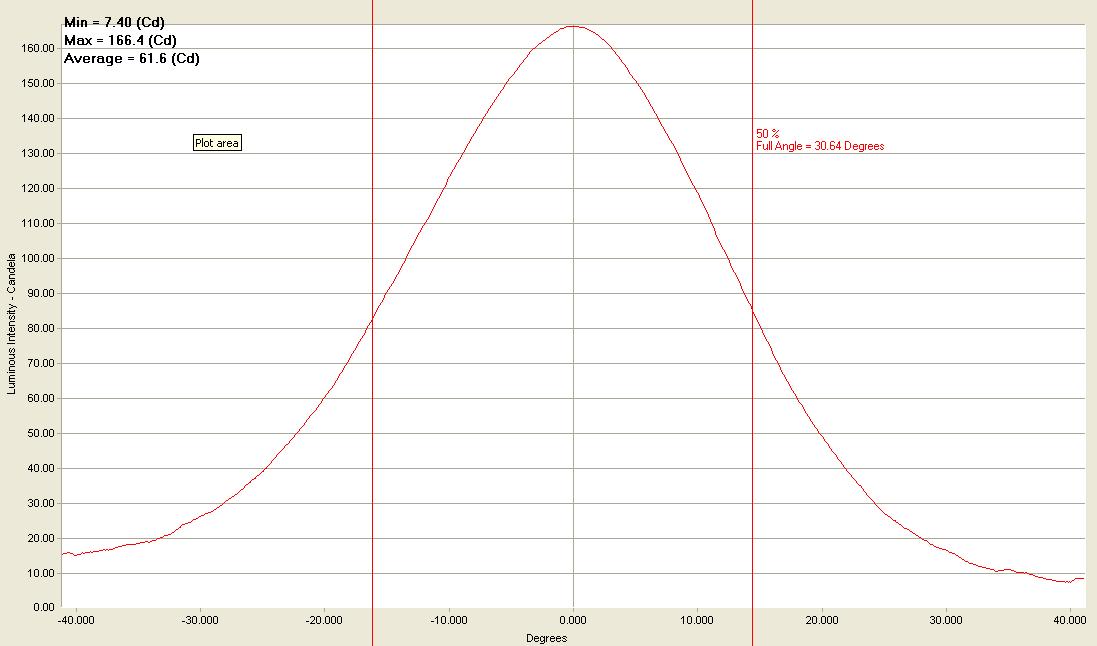

Cross Section

Download

ies

LG Innotek 3535LG White

Eff:

85.3%

FWHM:

29.5°

Cd/Im:

2.2

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

93.5%

FWHM:

32.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.8

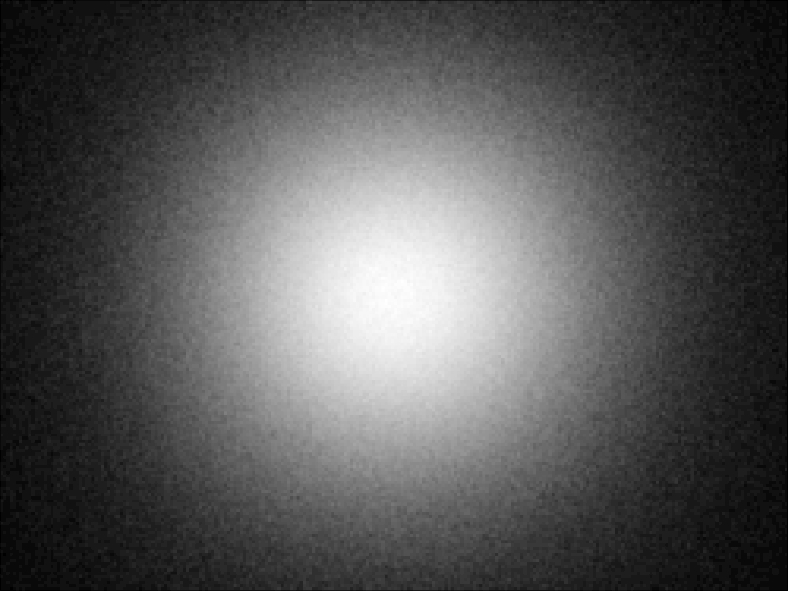

Carclo Optics – 10772 – Luxeon_3030_HE_Plus_spot-image

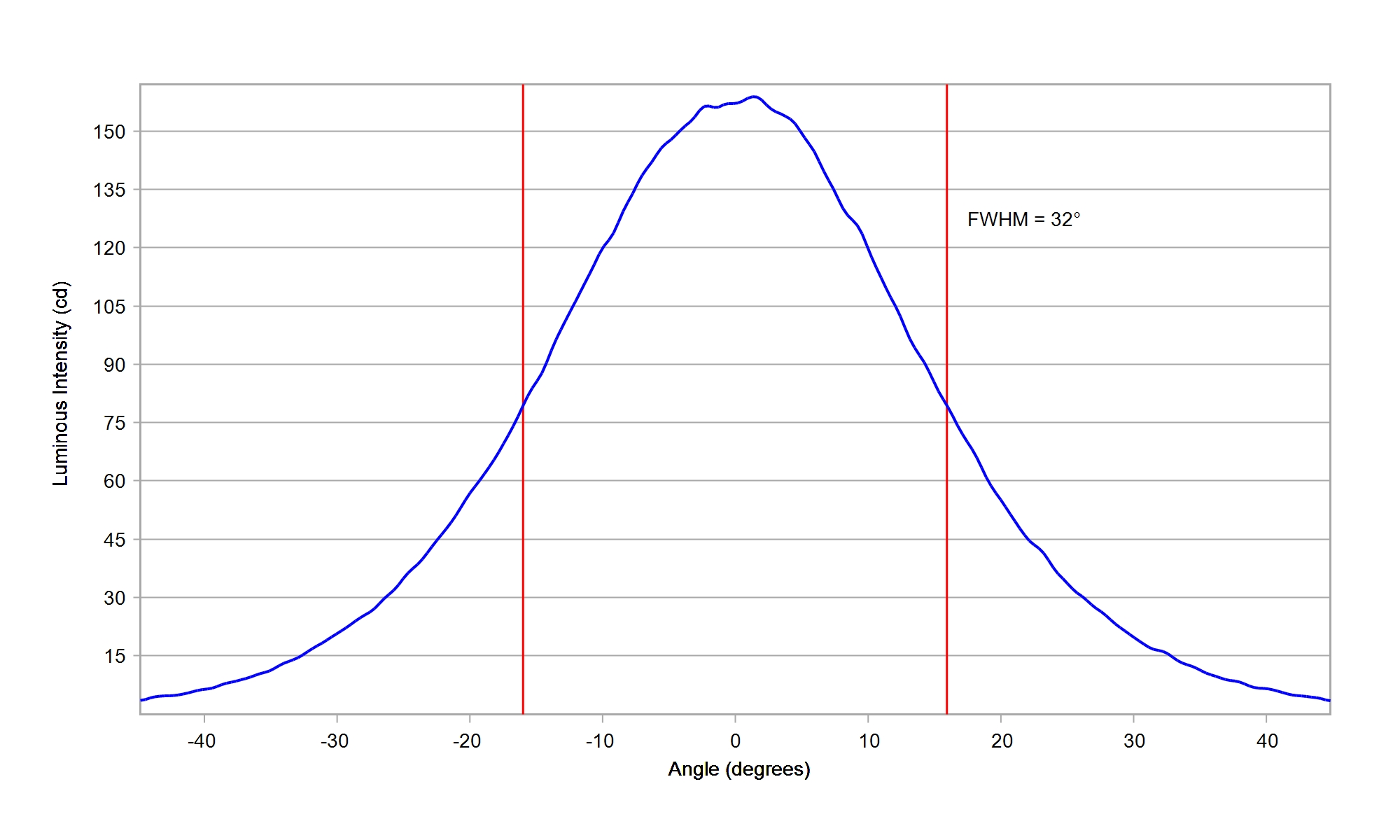

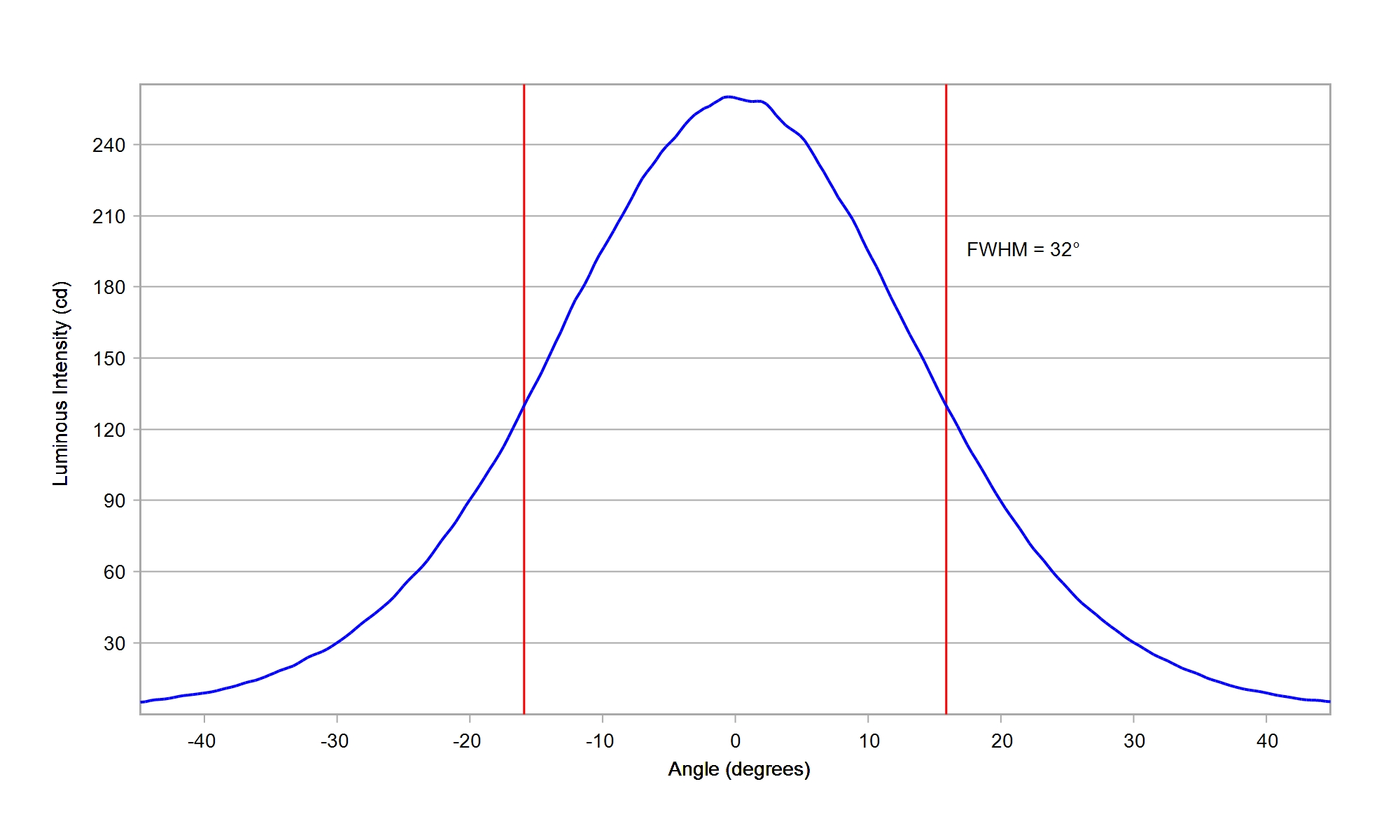

Carclo Optics – 10772 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

87.0%

FWHM:

27.0°

Cd/Im:

2.0

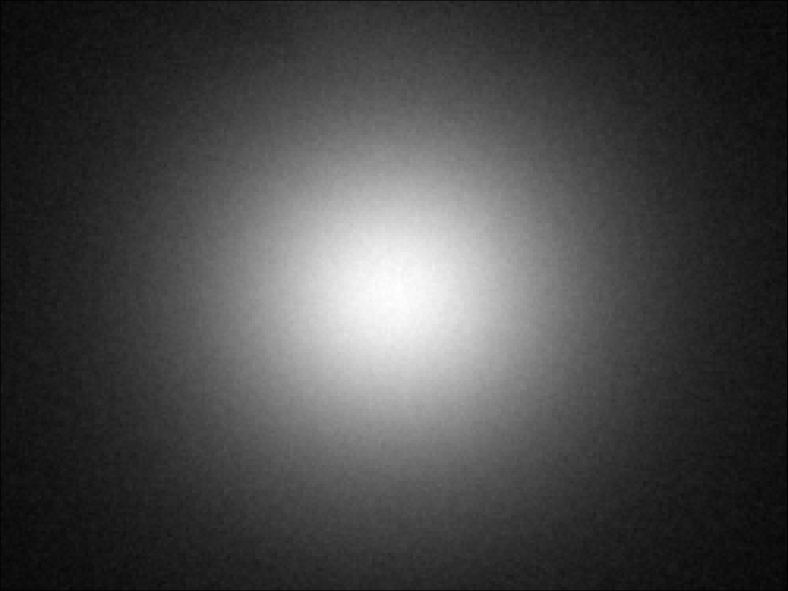

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535 HV White

Eff:

88.5%

FWHM:

26°

Cd/Im:

2.4

carclo optics - simulated spot image

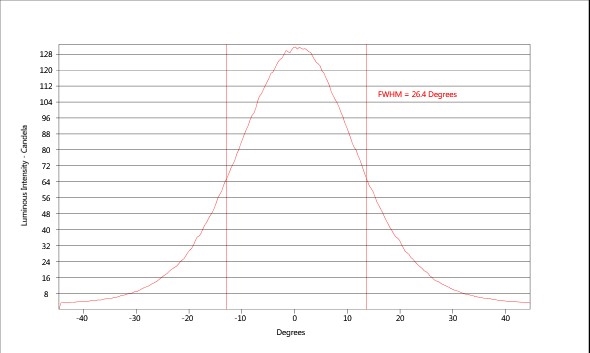

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

88.5%

FWHM:

27°

Cd/Im:

2.3

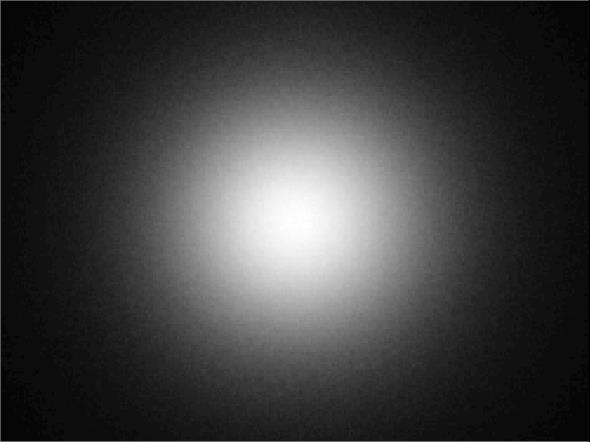

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

86.5%

FWHM:

26.5°

Cd/Im:

2.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

88.0%

FWHM:

26.0°

Cd/Im:

2.9

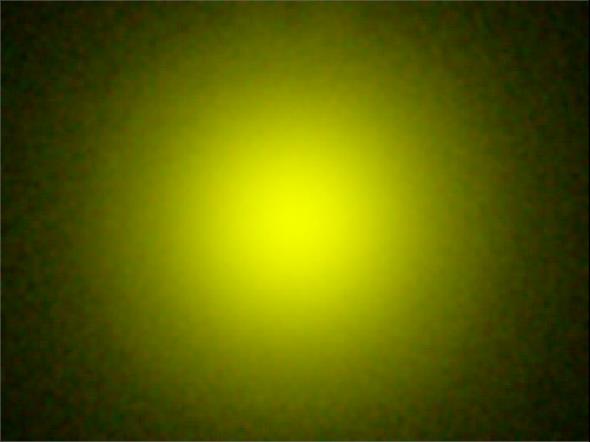

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

85.5%

FWHM:

27.0°

Cd/Im:

2.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

82.0%

FWHM:

22.8°

Cd/Im:

4.0

Spot Image

Download

ies

LUMILEDS LUXEON CSP 05 White

Eff:

88.0%

FWHM:

26.0°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CSP 10 White

Eff:

87.0%

FWHM:

27.2°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CZ White

Eff:

93.0%

FWHM:

24°

Cd/Im:

4.6

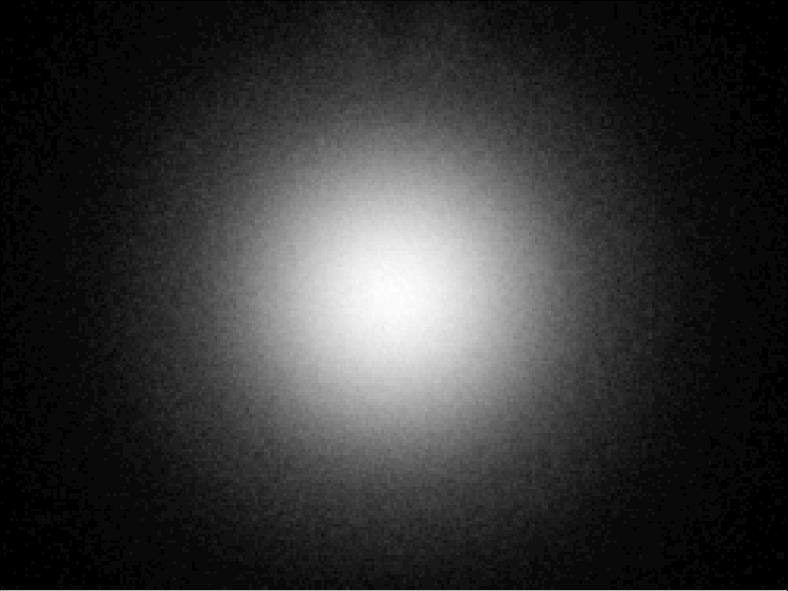

Carclo Optics 10772 Spot Image Luxeon CZ CW

Carclo Optics 10772 Cross Section Luxeon CZ CW

Download

IES

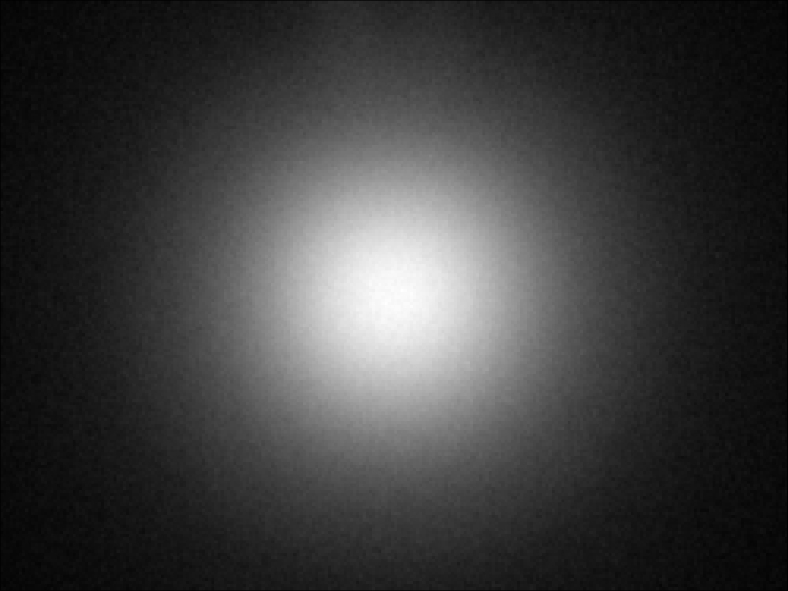

LUMILEDS LUXEON HL1Z CSP White

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

3.0

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

92.0%

FWHM:

31°

Cd/Im:

2.3

Carclo Optics – 10772 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10772 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

94.0%

FWHM:

27.0°

Cd/Im:

3.4

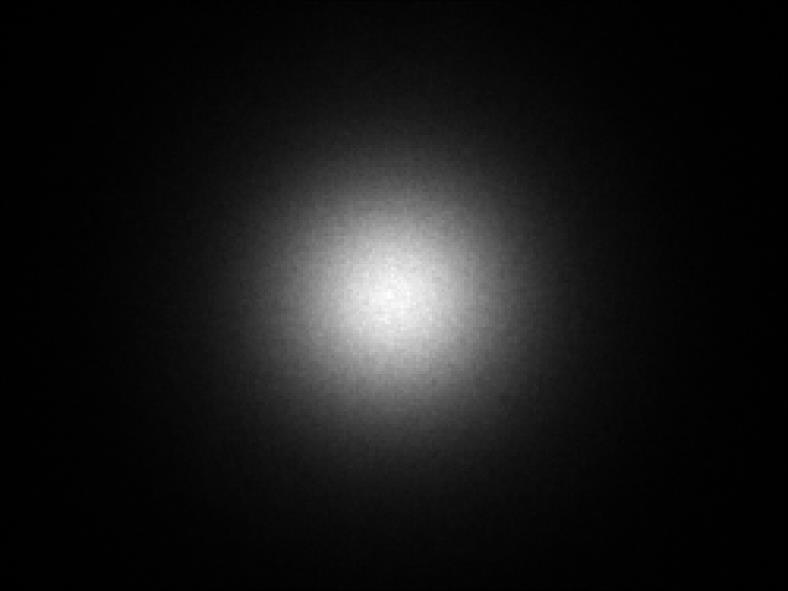

Carclo Optics - 10772 10mm Medium Frosted Spot Image Luxeon IR 2720

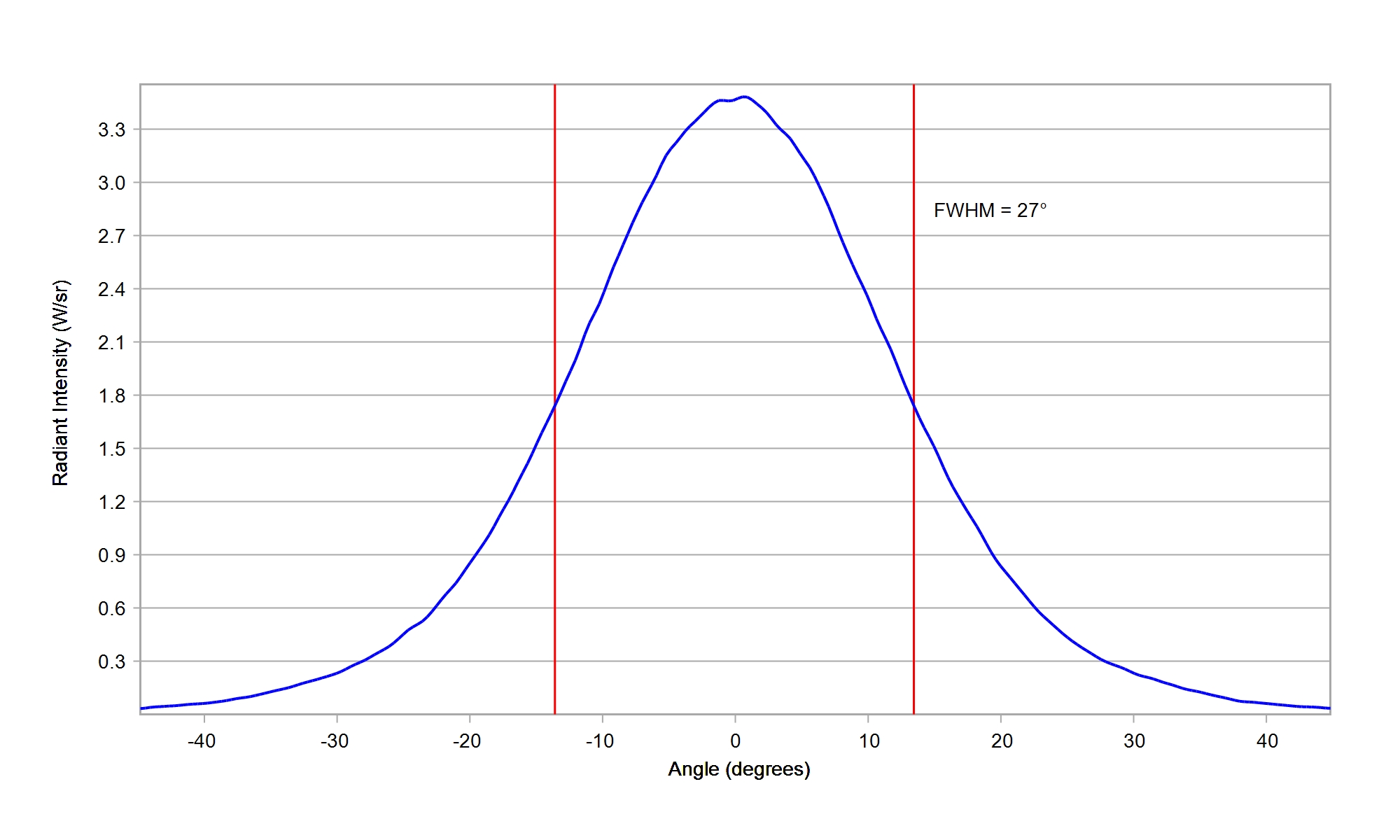

Carclo Optics - 10772 10mm Medium Frosted Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

94.0%

FWHM:

25.5°

Cd/Im:

3.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

94.0%

FWHM:

27.5°

Cd/Im:

3.0

Carclo Optics - Simulated Spot Image

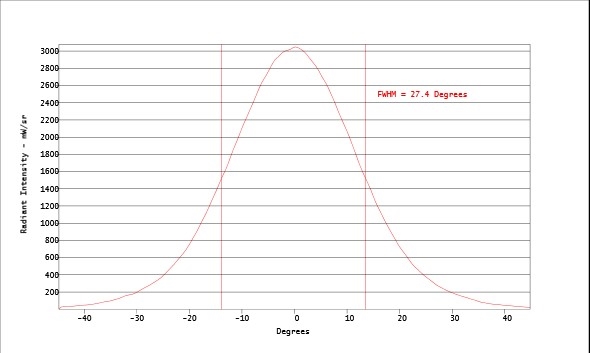

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

88.4%

FWHM:

28.1°

Cd/Im:

2.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON Q White

Eff:

86.8%

FWHM:

27.9°

Cd/Im:

2.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON R White

Eff:

82.0%

FWHM:

30.2°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

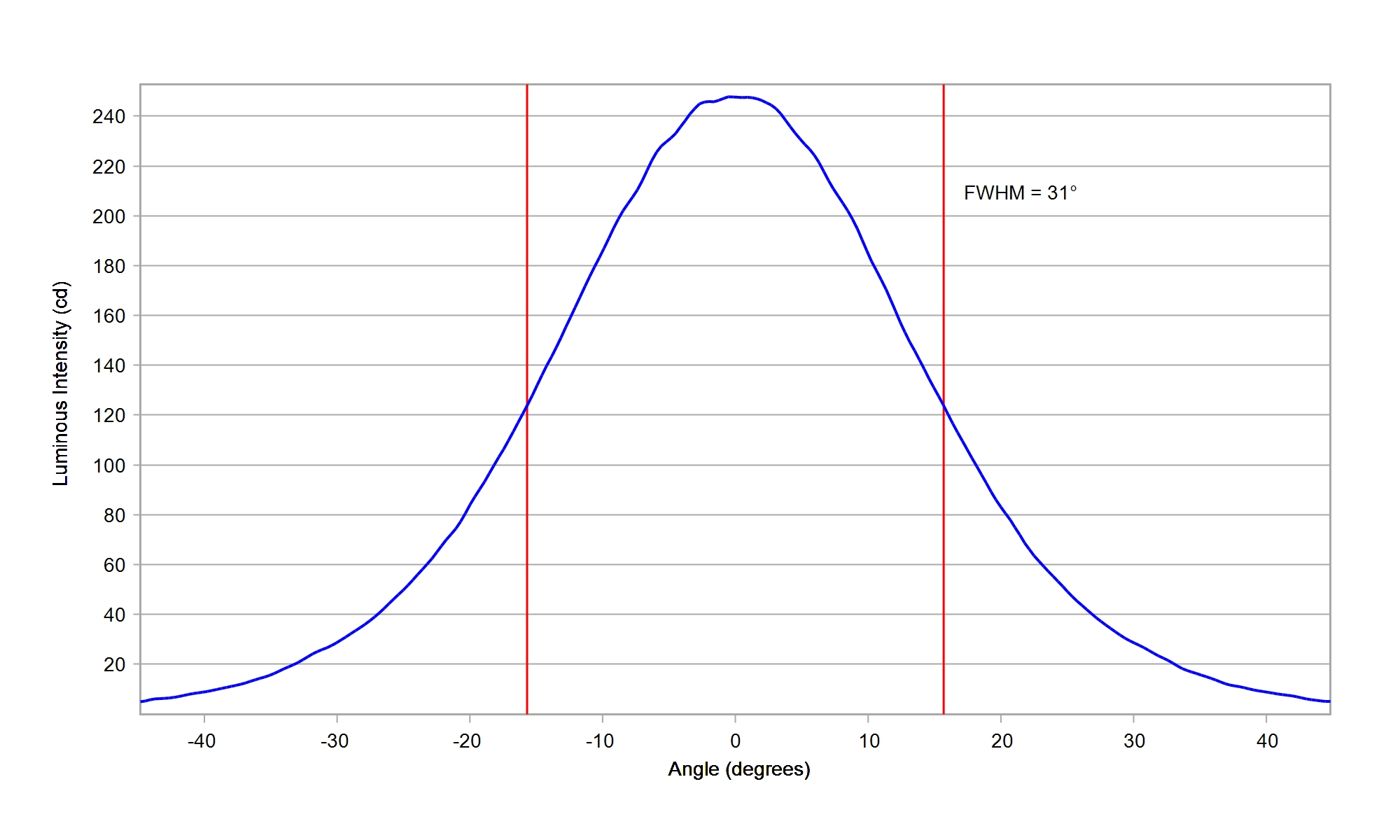

LUMILEDS LUXEON Rebel ES White

Eff:

82.0%

FWHM:

30.2°

Cd/Im:

2.6

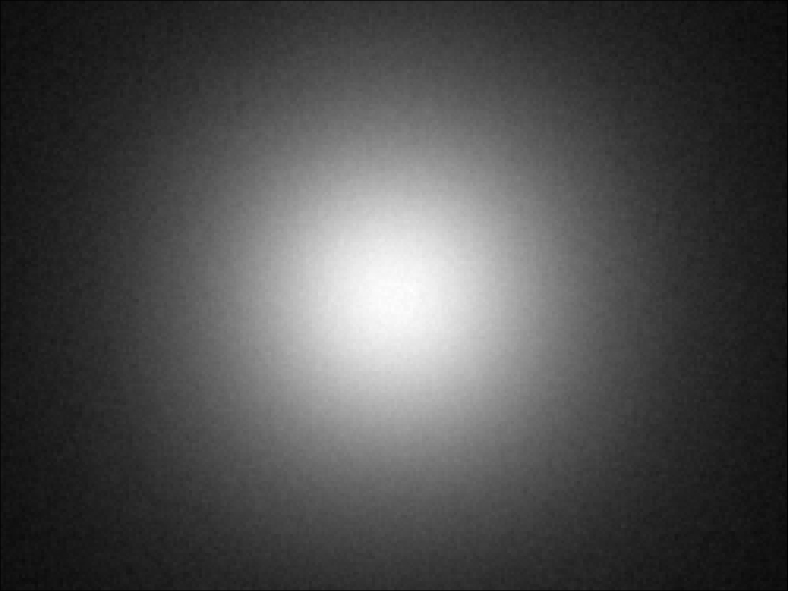

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

83.0%

FWHM:

29.8°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

93.0%

FWHM:

24°

Cd/Im:

4.5

Carclo Optics - 10772 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10772 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.4

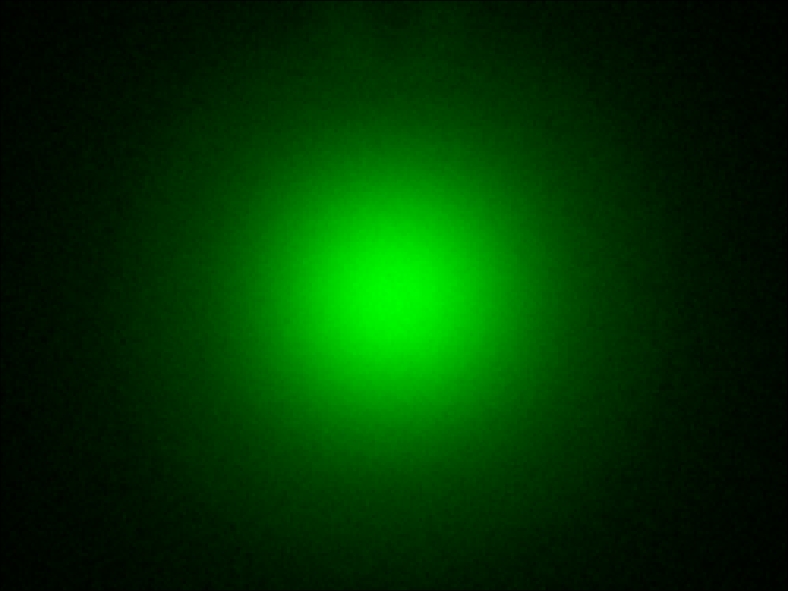

Carclo Optics – 10772 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10772 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

93.5%

FWHM:

24°

Cd/Im:

4.5

Carclo Optics – 10772 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10772 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

92.5%

FWHM:

24°

Cd/Im:

4.5

Carclo Optics – 10772 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10772 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

93.0%

FWHM:

24.5°

Cd/Im:

4.3

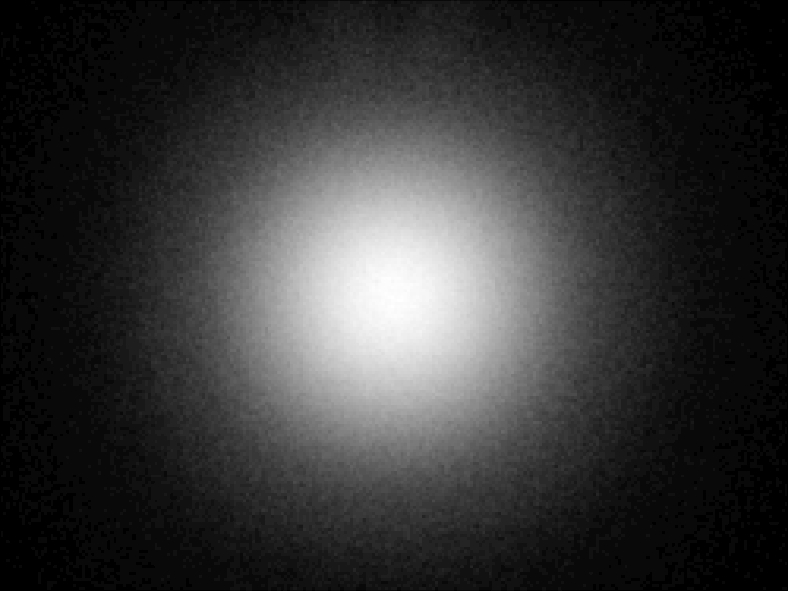

Carclo Optics - 10772 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10772 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON T White

Eff:

82.0%

FWHM:

30.2°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON TX White

Eff:

88.1%

FWHM:

27.5°

Cd/Im:

2.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

88.0%

FWHM:

21.4°

Cd/Im:

3.7

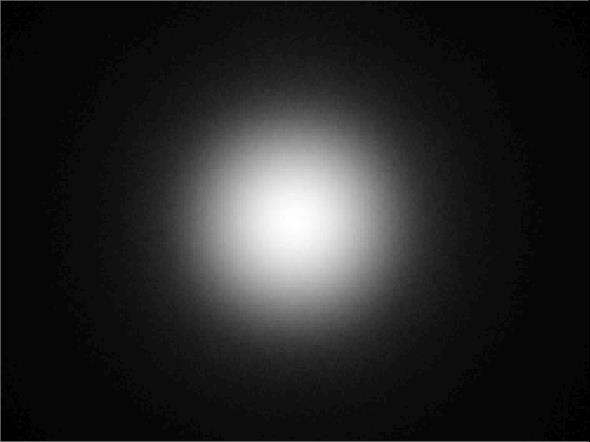

carclo optics - simulated spot image

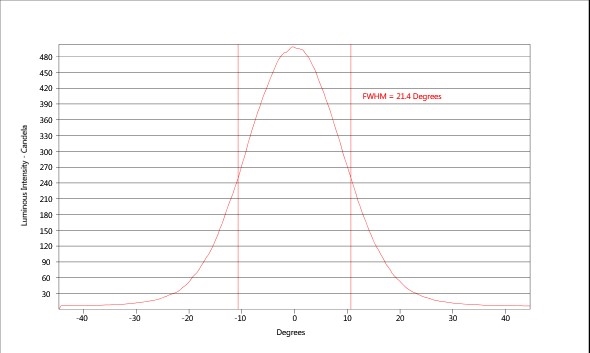

carclo optics - simulated cross section

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

91.5%

FWHM:

27°

Cd/Im:

3.4

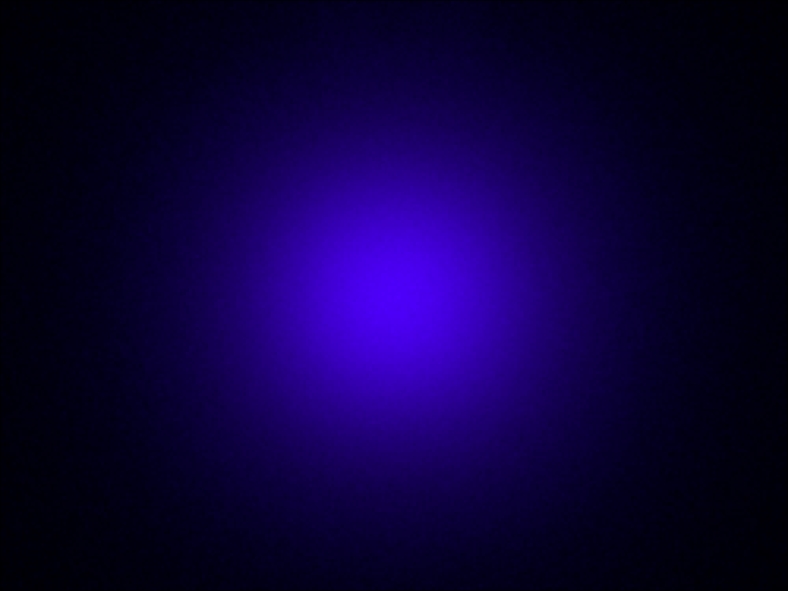

Carclo Optics - 10772 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10772 Luminus_SST-10_B_B130 - cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

90.5%

FWHM:

29°

Cd/Im:

2.9

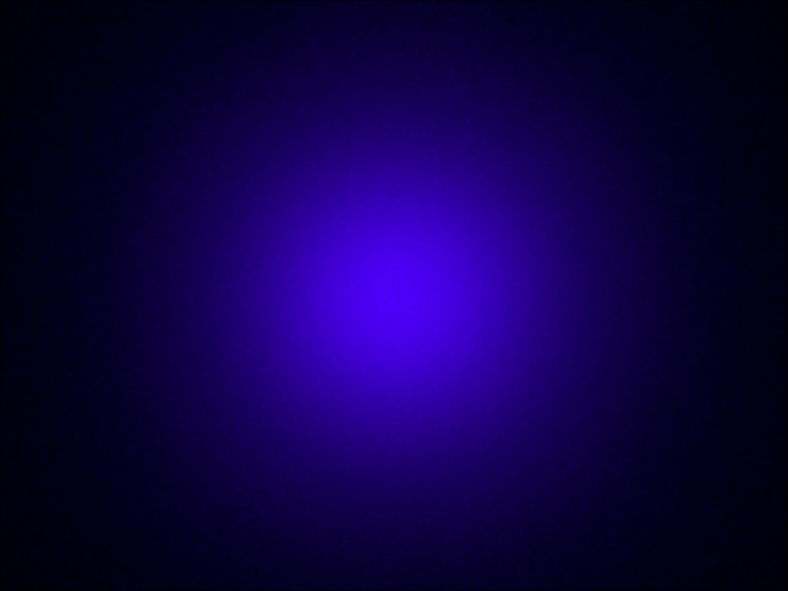

Carclo Optics - 10772 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10772 Luminus_SST-10_B_B90 - cross- image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

93.0%

FWHM:

27.5°

Cd/Im:

3.2

Carclo Optics – 10772 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10772 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

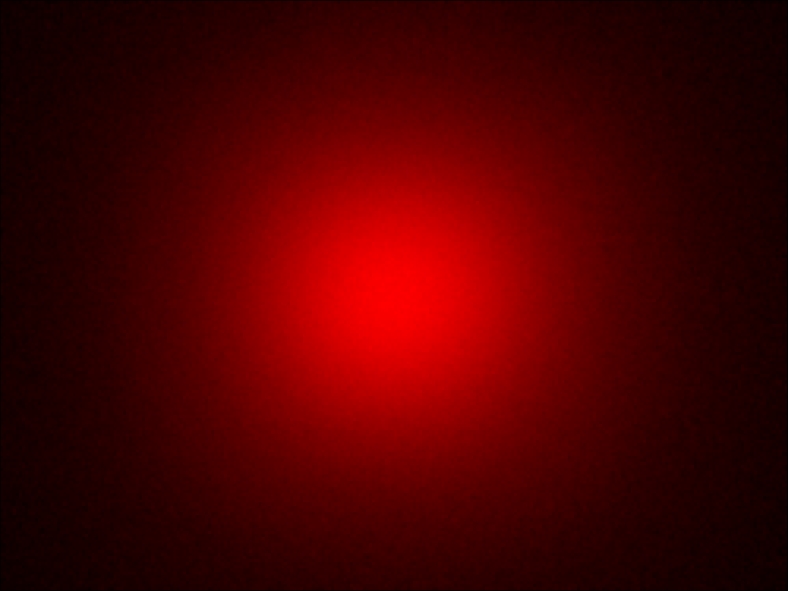

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

92.0%

FWHM:

30°

Cd/Im:

2.8

Carclo Optics - 10772 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10772 Luminus_SST-10_DR_B90- Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

92.5%

FWHM:

27°

Cd/Im:

3.5

Carclo Optics - 10772 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10772 Luminus_SST-10_G_B130 - cross -section- image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

91.5%

FWHM:

29°

Cd/Im:

2.9

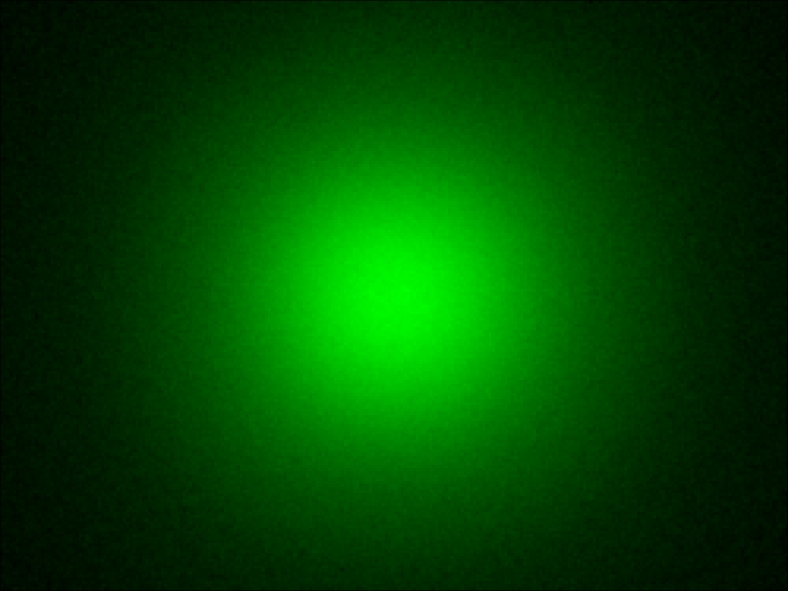

Carclo Optics - 10772 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10772 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

94.5%

FWHM:

27.5°

Ipk/W:

3.4


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

93.5%

FWHM:

29.5°

Ipk/W:

2.9


Download

IES

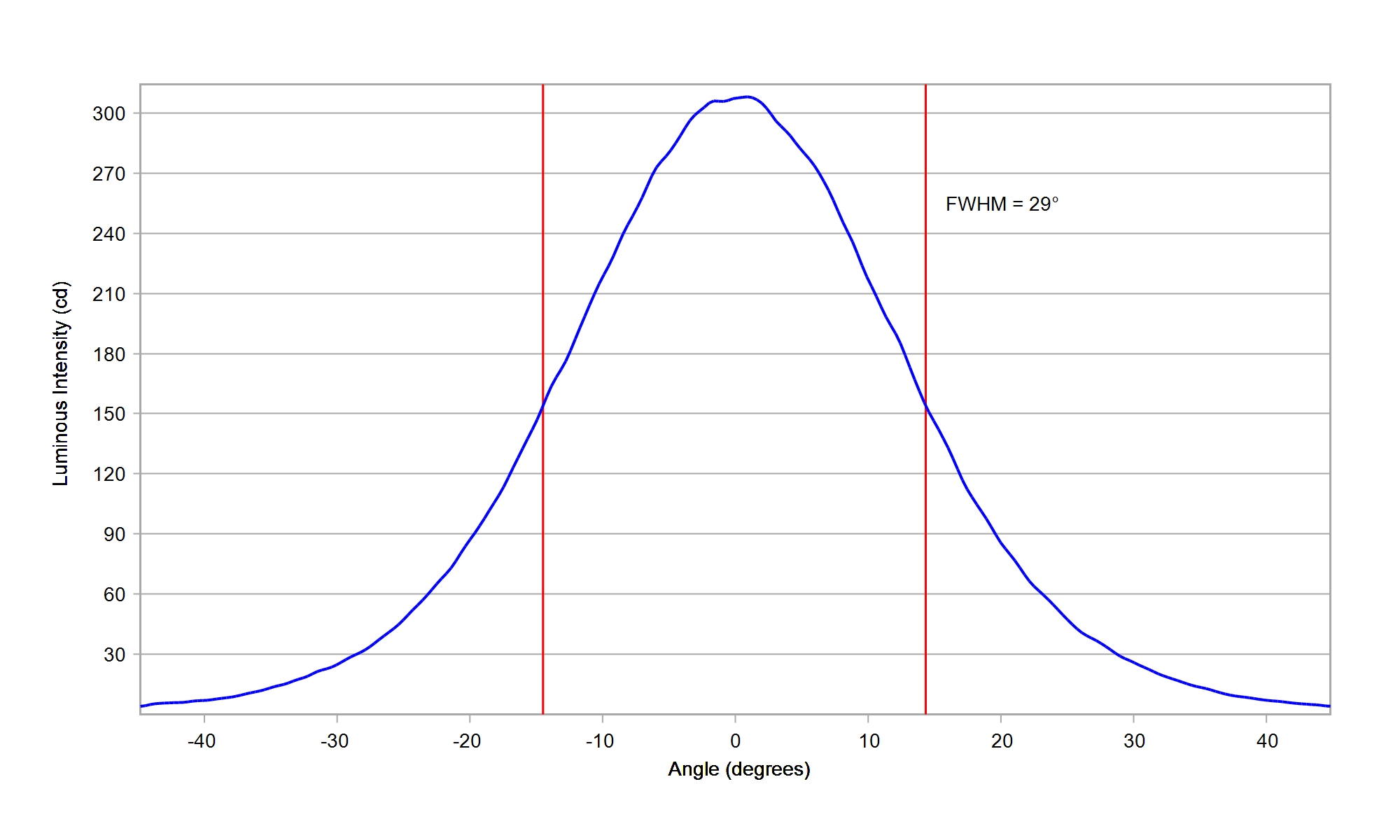

Luminus Devices SST 20-WxH White Hi CRI

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.8

Carclo Optics – 10772 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10772 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

94.5%

FWHM:

28.5°

Cd/Im:

3.2

Carclo Optics - 10772 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10772 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

93.0%

FWHM:

30.0°

Cd/Im:

2.9

Carclo Optics - 10772 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10772 Cross Section Luminus SST-10-IR-B90

Download

IES

Nichia 219 White

Eff:

79.0%

FWHM:

30.9°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Nichia 757 White

Eff:

89.0%

FWHM:

29°

Cd/Im:

1.8

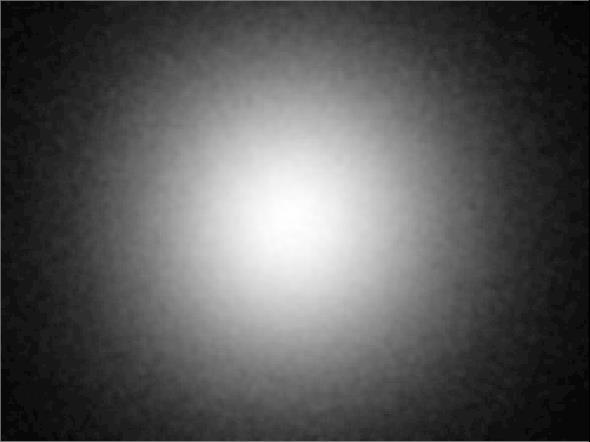

carclo optics - simulated spot image

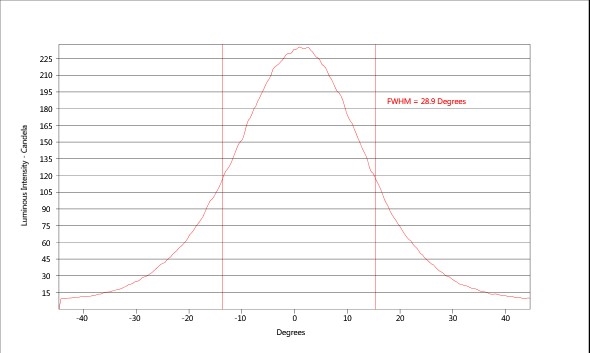

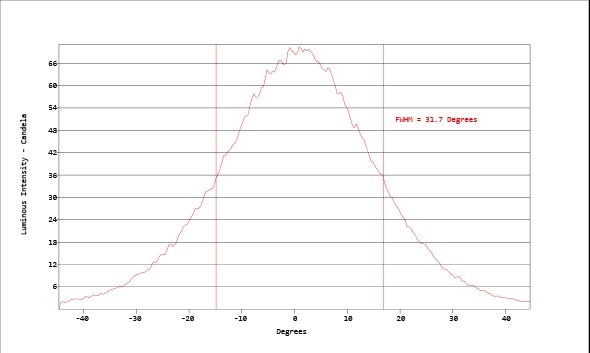

carclo optics - simulated cross section

Download

ies

Nichia 757G White

Eff:

92.0%

FWHM:

32.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

92.5%

FWHM:

32°

Cd/Im:

2.4

Carclo Optics 10772 10mm Simulated Spot Image Nichia 757G-MT

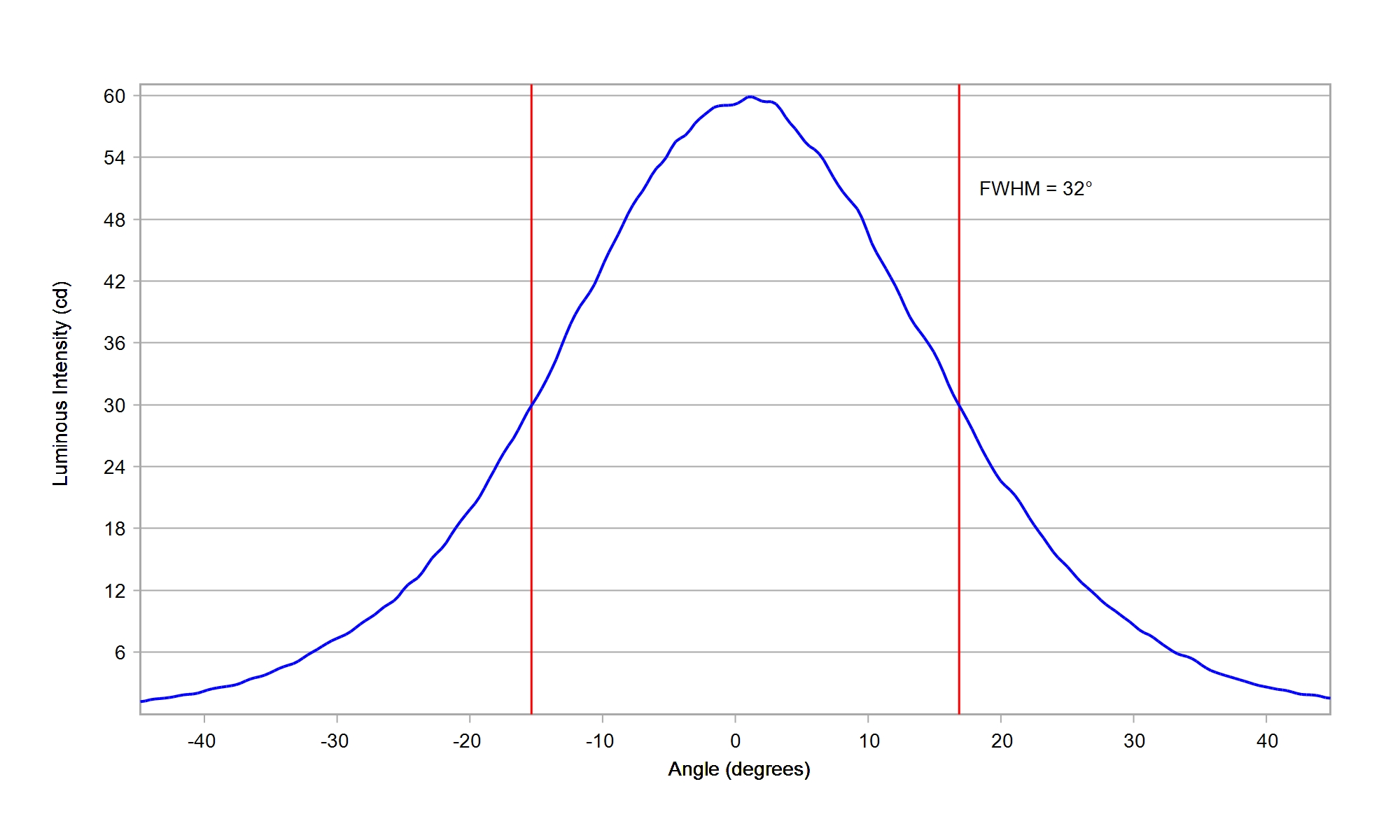

Carclo Optics 10772 10mm Cross Horizontal Section Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

87.0%

FWHM:

27.7°

Cd/Im:

2.0

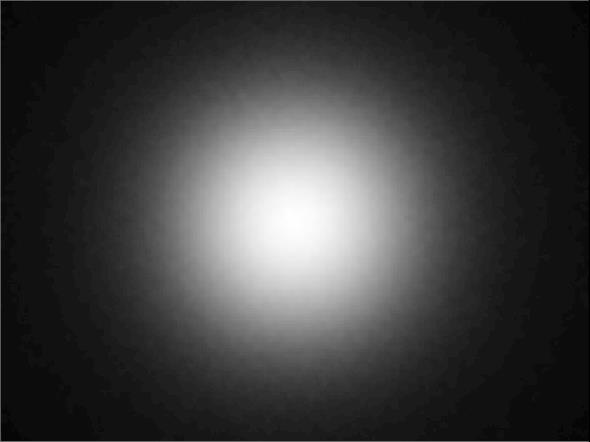

Carclo Optics - Simulated Spot Image

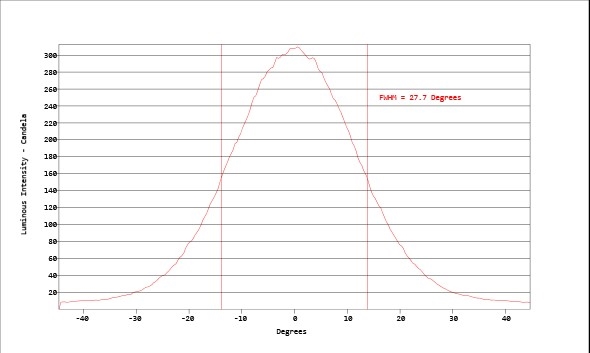

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NF2W 385AR-V2 White

Eff:

92.0%

FWHM:

33.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

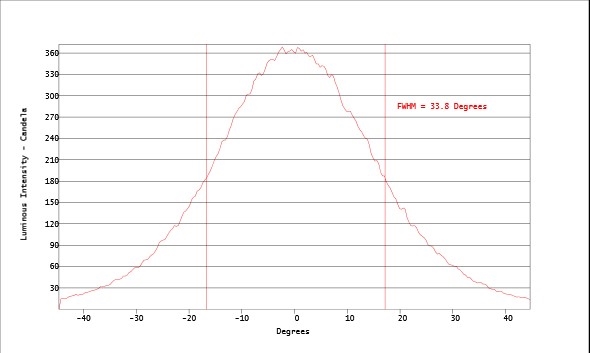

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

90.0%

FWHM:

28.5°

Cd/Im:

2.5

Carclo Optics - Simulated Spot Image

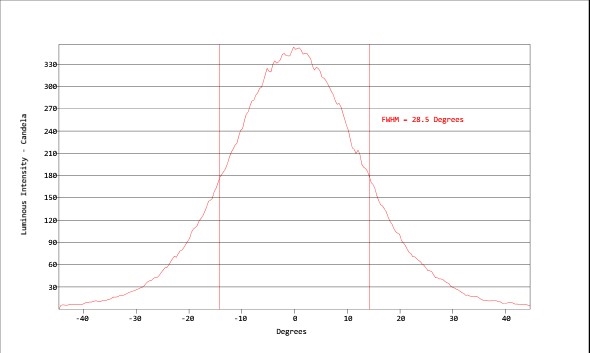

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW 219C White

Eff:

91.0%

FWHM:

32.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

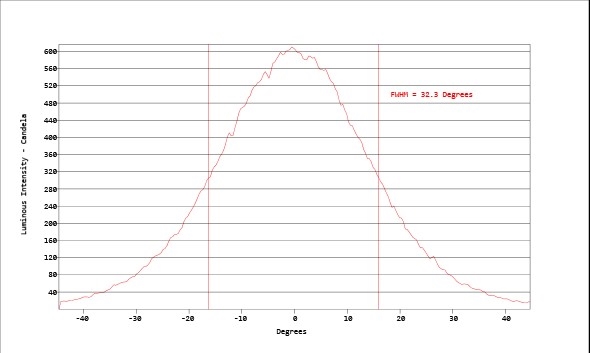

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.2

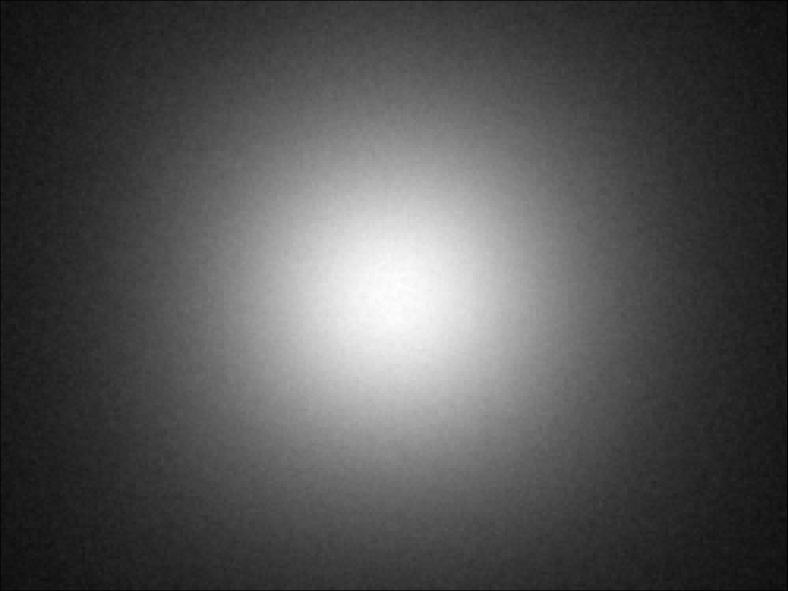

Carclo Optics – 10772 Nichia NVSW 219F White - Spot Image

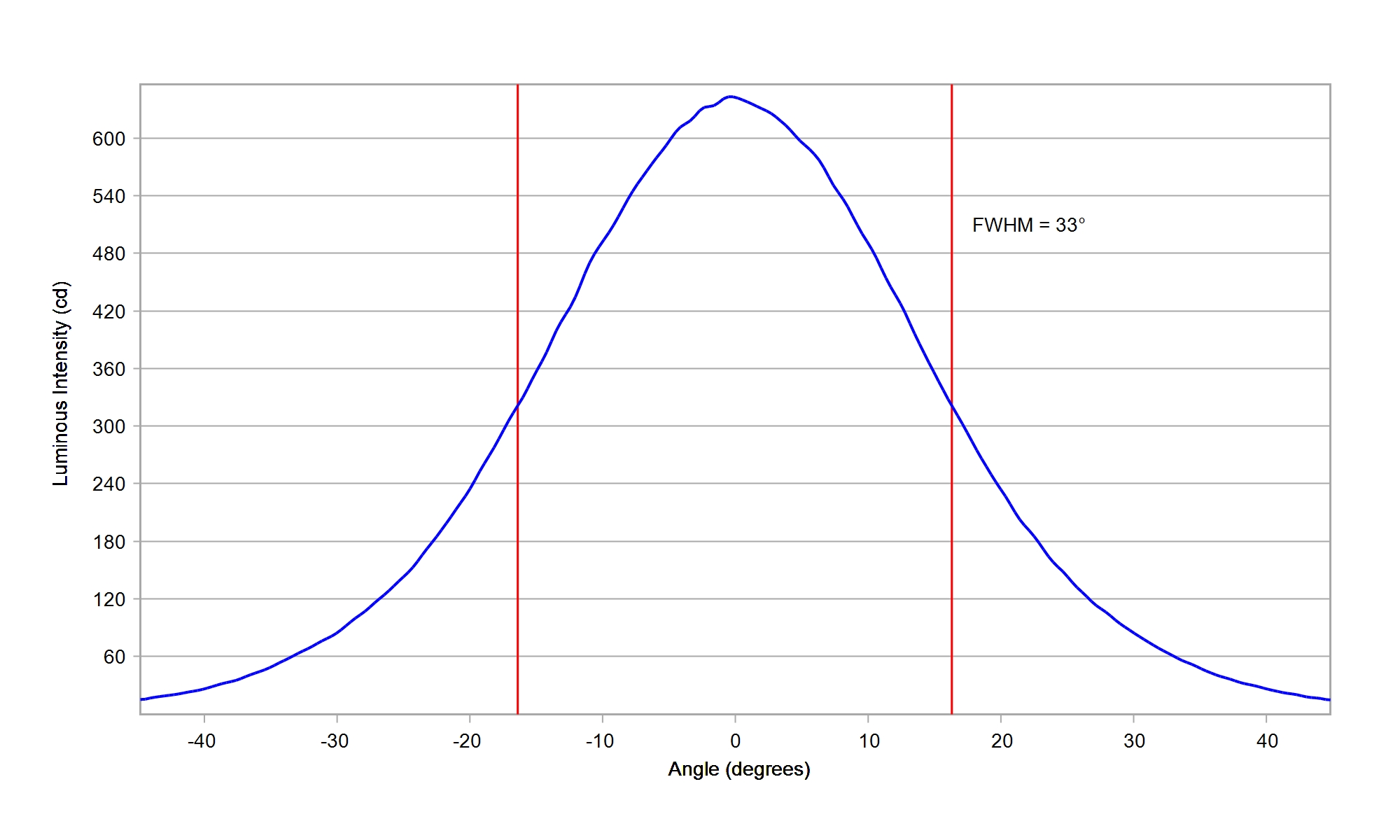

Carclo Optics – 10772 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 219F White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.2

Carclo Optics – 12084 Nichia NVSW 219F White - Spot Image

Carclo Optics – 12084 Nichia NVSW 219F White - Cross-Section

Download

ies

Nichia NVSW 319A White

Eff:

90.0%

FWHM:

36.0°

Cd/Im:

1.6

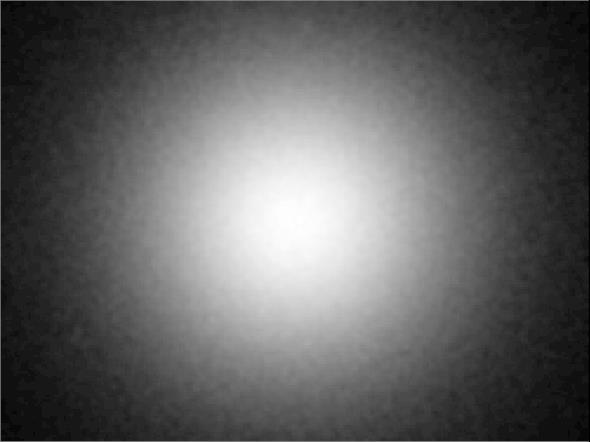

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

88.0%

FWHM:

29.7°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia Top Emitting NCSL 119-H3 White

Eff:

79.8%

FWHM:

28.8°

Cd/Im:

2.6

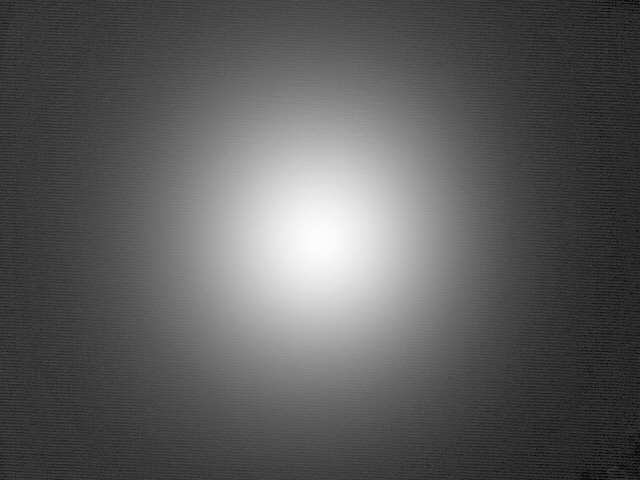

Spot Image

Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

92.5%

FWHM:

29°

Cd/Im:

2.8

Carclo Optics - 10772 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10772 10mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

92.0%

FWHM:

30.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

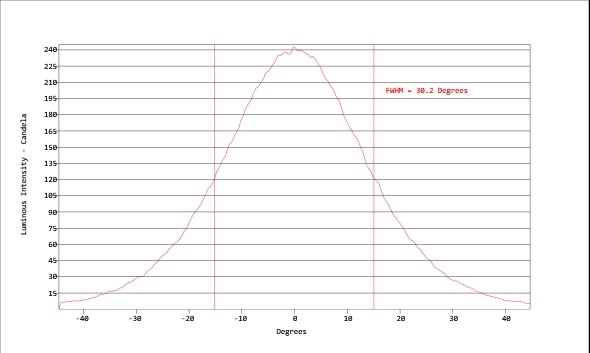

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

88.0%

FWHM:

23.2°

Cd/Im:

3.0

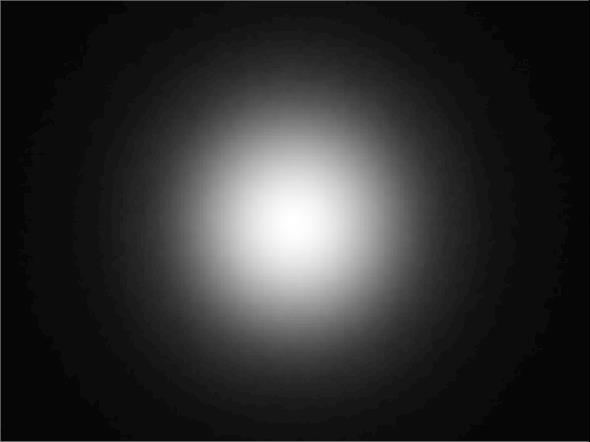

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E3 White

Eff:

91.5%

FWHM:

23.6°

Cd/Im:

3.2

Carclo Optics - Simulated Spot Image

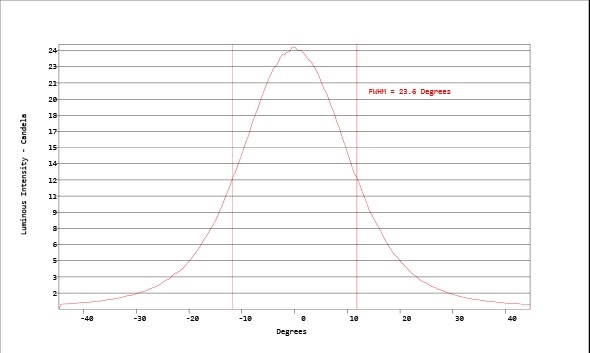

Carclo Optics - Simulated Cross Section Image

Download

ies

Osram OS DURIS S2 White

Eff:

93.7%

FWHM:

25.0°

Cd/Im:

2.3

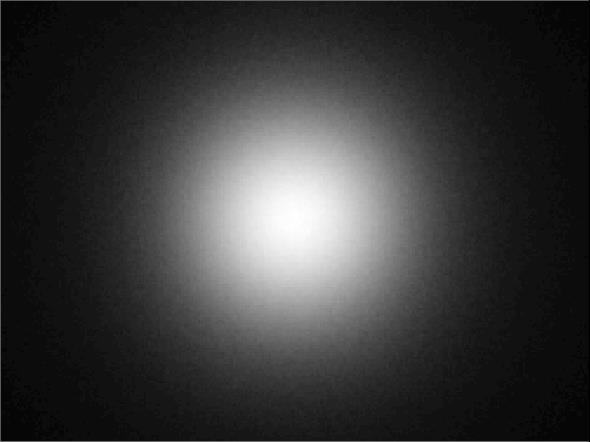

Carclo Optics - Simulated Spot Image

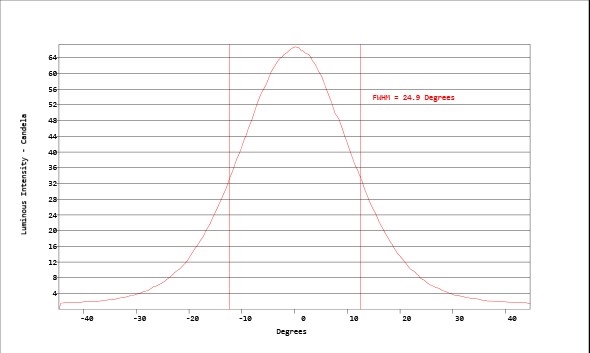

Carclo Optics - Simulated Cross Section

Download

ies

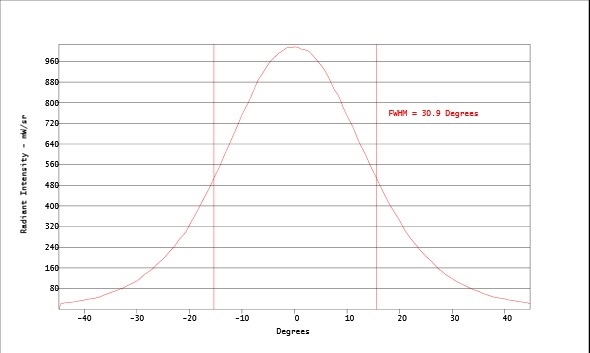

Osram OS DURIS S5 Deep Blue

Eff:

91.5%

FWHM:

31.0°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.4

Carclo Optics - Simulated Spot Image

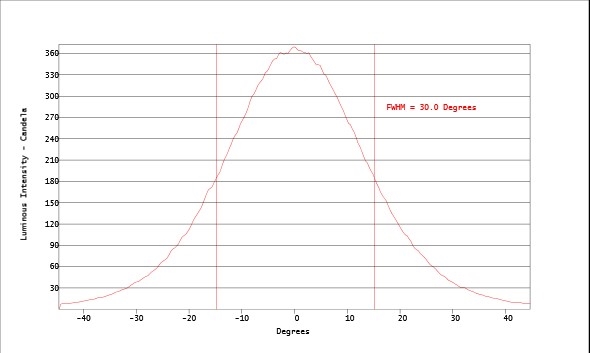

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

93.0%

FWHM:

28.0°

Cd/Im:

2.7

Carclo Optics - Simulated Spot Image

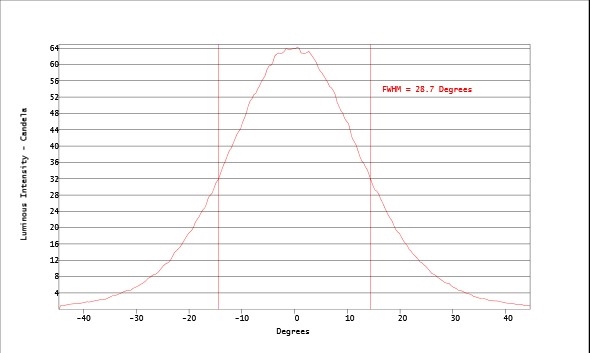

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

89.0%

FWHM:

28.2°

Cd/Im:

41.9

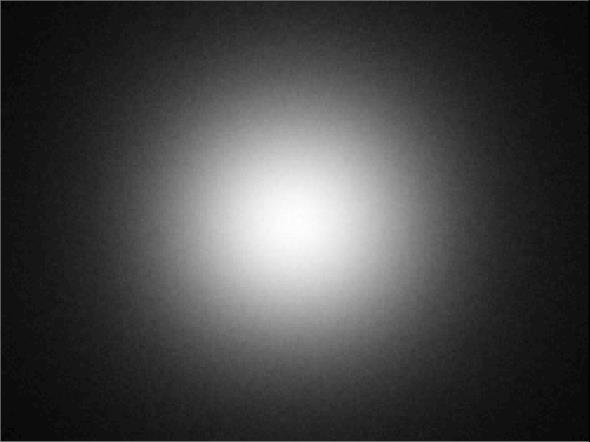

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

92.5%

FWHM:

29°

Cd/Im:

3.2

Carclo Optics - 10772 Spot Image OSCONIQ C2424

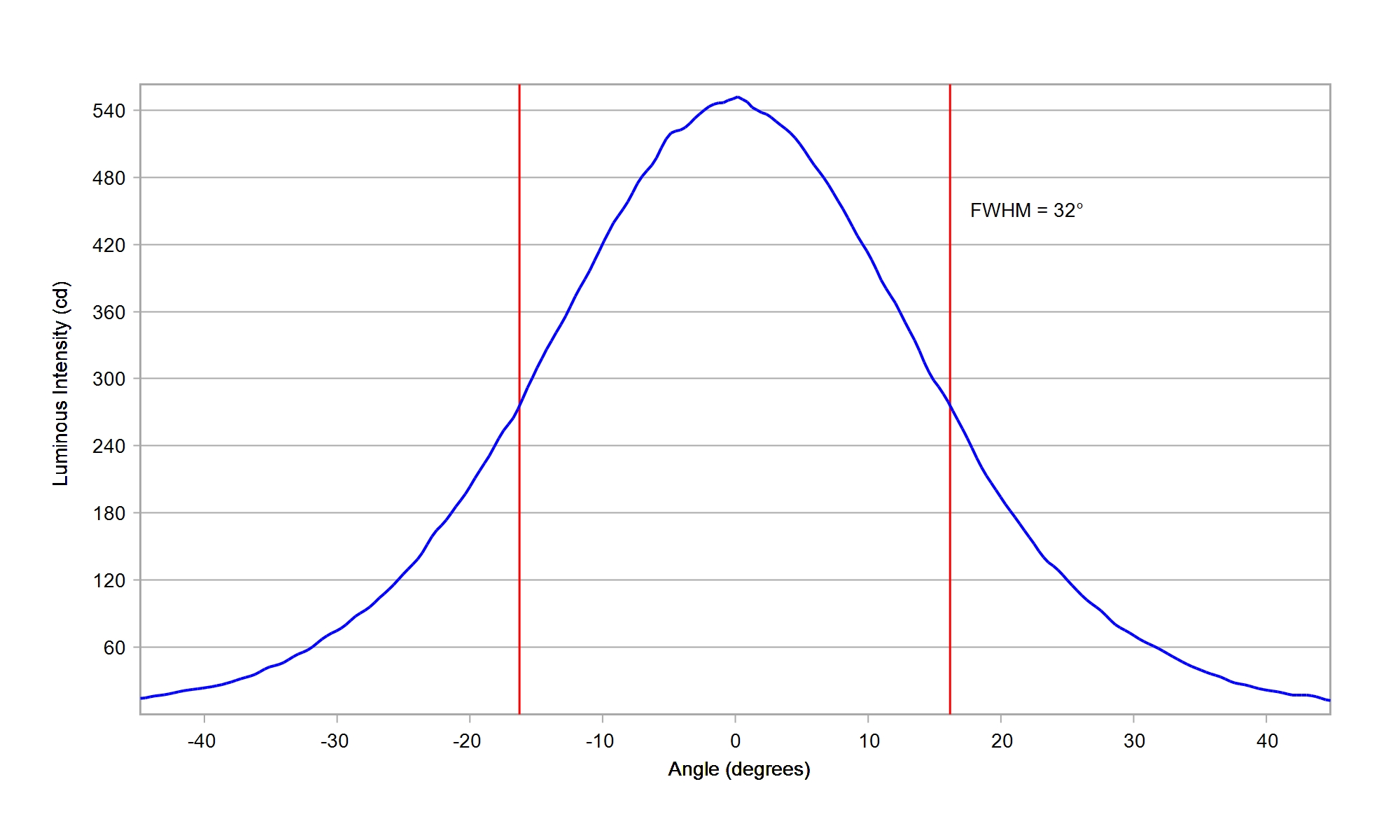

Carclo Optics - 10772 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

94.0%

FWHM:

26°

Cd/Im:

3.5

Carclo Optics – 10772 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10772 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

93.0%

FWHM:

23°

Cd/Im:

4.7

Carclo Optics – 10772 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10772 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

IES

Osram OS OSLON Square Flat White

Eff:

92.0%

FWHM:

27.5°

Cd/Im:

2.8

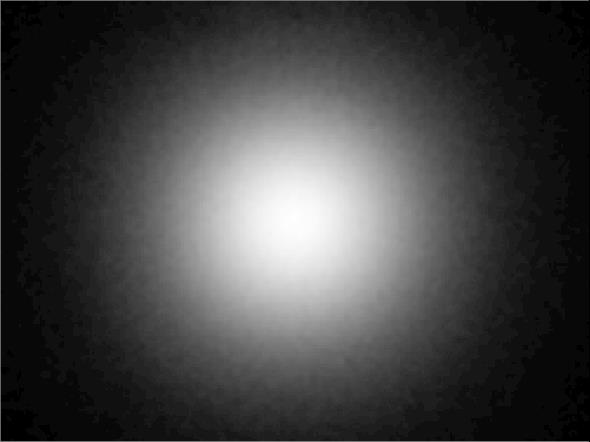

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

88.3%

FWHM:

27.9°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

92.0%

FWHM:

31.0 x 30.5°

Cd/Im:

2.7

Carclo Optics - 10772 10mm Spot Image Oslon Square Gen 5

Carclo Optics - 10772 10mm Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

88.0%

FWHM:

28°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

92.5%

FWHM:

26°

Cd/Im:

3.7

Carclo Optics – 10772 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10772 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 80 degree White

Eff:

83.5%

FWHM:

30°

Cd/Im:

2.7

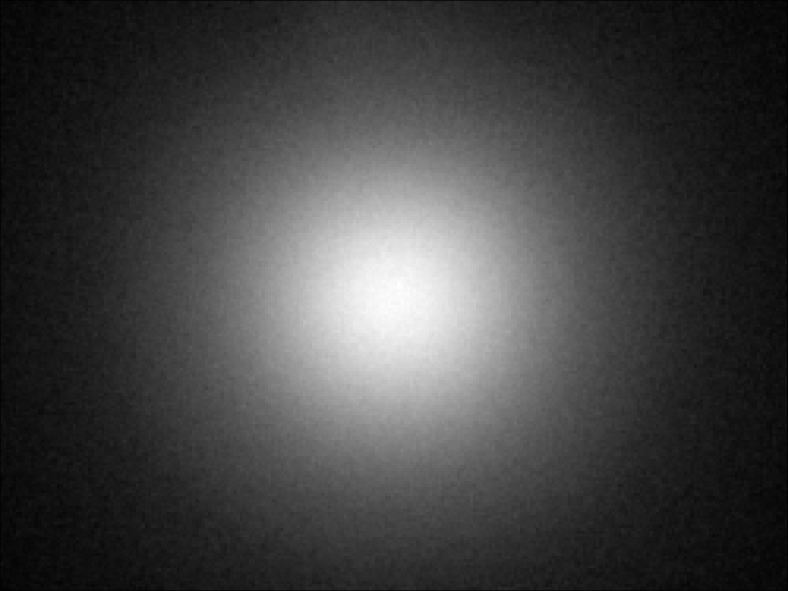

Spot Image

Cross Section

Download

ies

Samsung 3030 LM301B White

Eff:

92.5%

FWHM:

31°

Cd/Im:

2.8

Download

IES

Samsung 3535 LH351B White

Eff:

88.0%

FWHM:

30°

Cd/Im:

1.9

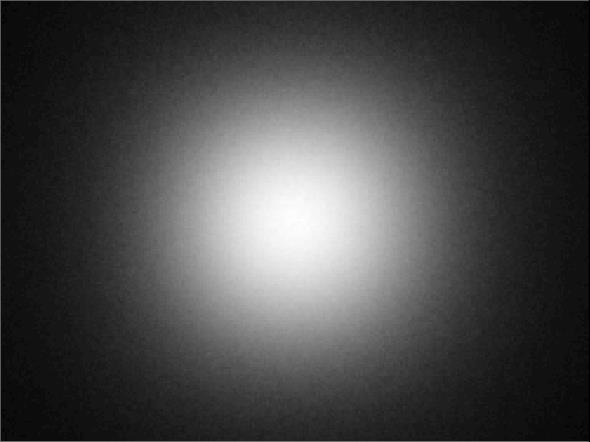

carclo simulated spot image

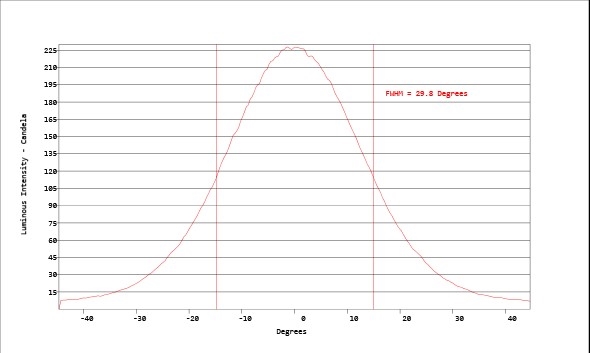

carclo simulated cross section

Download

ies

Samsung 3535 LH351Z White

Eff:

87.8%

FWHM:

26°

Cd/Im:

2.5

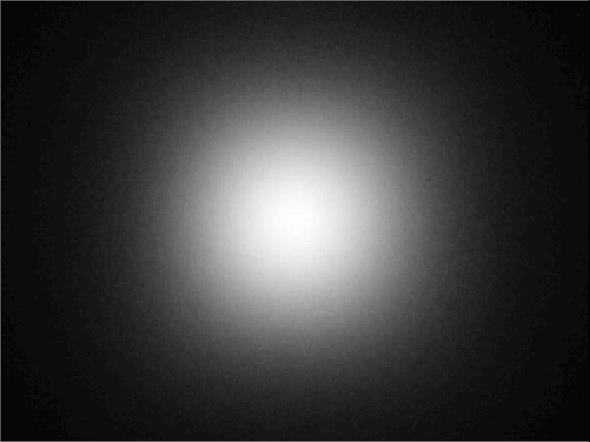

carclo simulated spot image

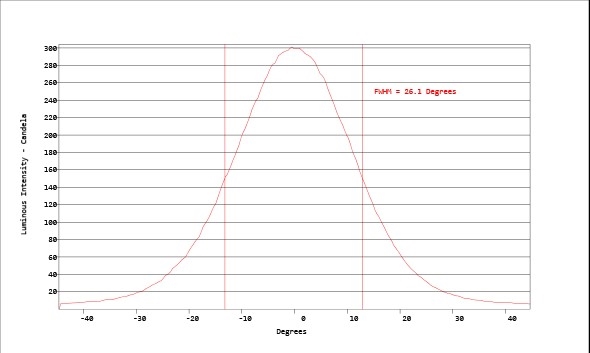

carclo simulated cross section

Download

ies

Samsung CSP LH151B White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.9

Carclo Optics – 10772 – Samsung_LH151B_spot-image

Carclo Optics – 10772 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

92.0%

FWHM:

32.5°

Cd/Im:

2.2

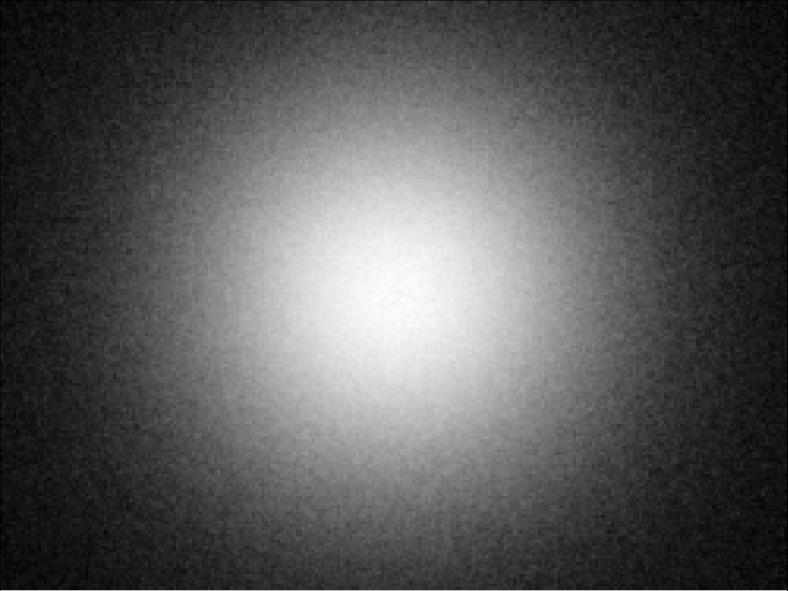

Carclo Optics - 10772 Spot Image - Samsung LH181B_4000K

Carclo Optics - 10772 Cross Section - Samsung LH181B_4000K

Download

IES

Samsung CSP LM101B White

Eff:

92.0%

FWHM:

28.5°

Cd/Im:

2.8

Carclo Optics -10772 Spot Image - Samsung LM101B 5000K

Carclo Optics -10772 Cross Section Image - Samsung LM101B 5000K

Download

IES

Seoul MidPower MJT3030 White

Eff:

88.6%

FWHM:

26°

Cd/Im:

2.2

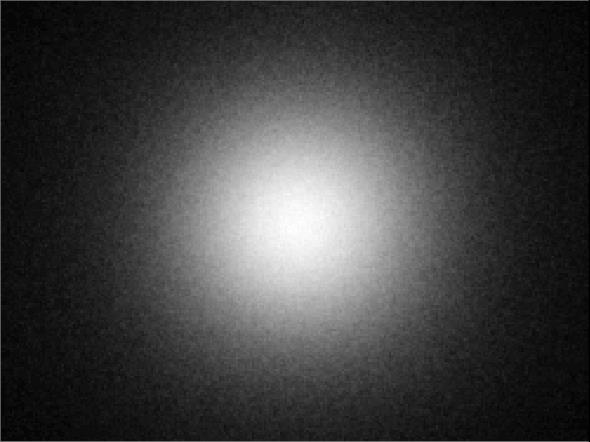

carclo optics - simulated spot image

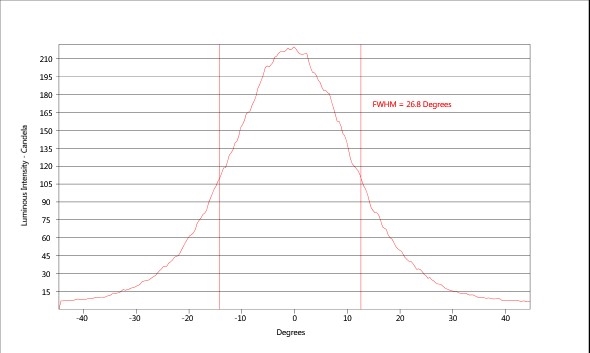

carclo optics - simulated cross section

Download

ies

Seoul STW8 C2SB-NT White

Eff:

92.5%

FWHM:

32.0°

Cd/Im:

2.3

Carclo Optics - 10772 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10772 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul STWS C2PB-E0 White

Eff:

92.5%

FWHM:

31.0°

Cd/Im:

2.5

Carclo Optics - 10772 Spot Image Seoul STWS C2PB-E0

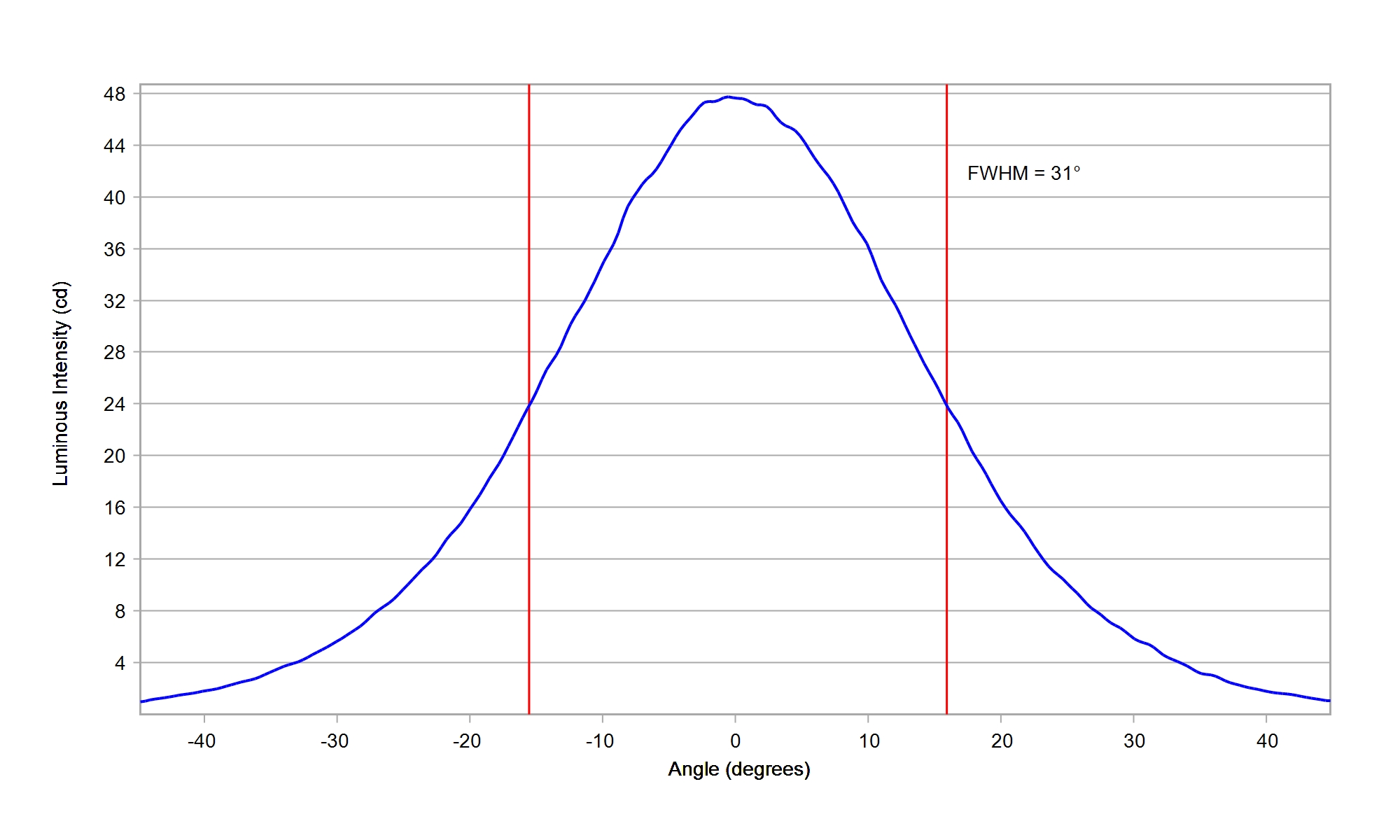

Carclo Optics - 10772 Cross Section Seoul STWS C2PB-E0

Download

IES

Seoul SunLike STW9 C2SB-S

Eff:

92.5%

FWHM:

30°

Cd/Im:

2.7

Carclo Optics - 10772 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10772 10mm Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5 M0 White

Eff:

84.1%

FWHM:

28.1°

Cd/Im:

3.1

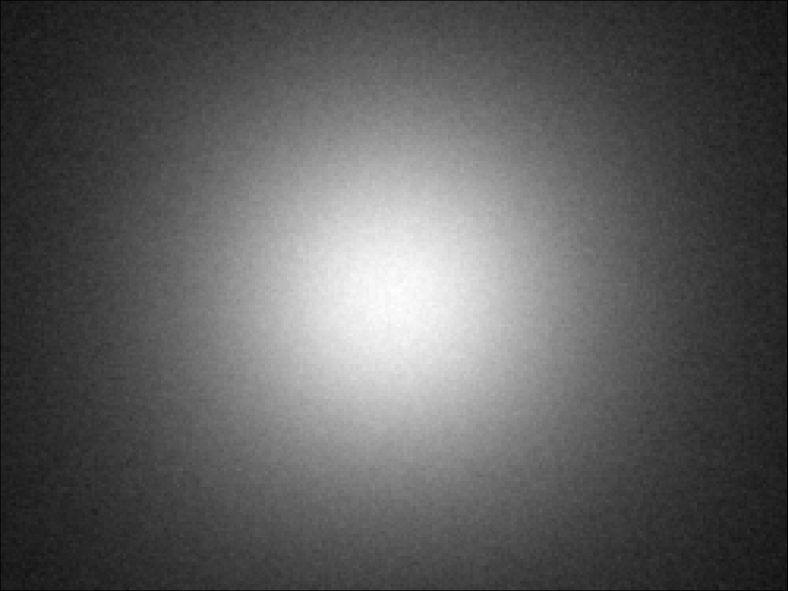

Spot Image

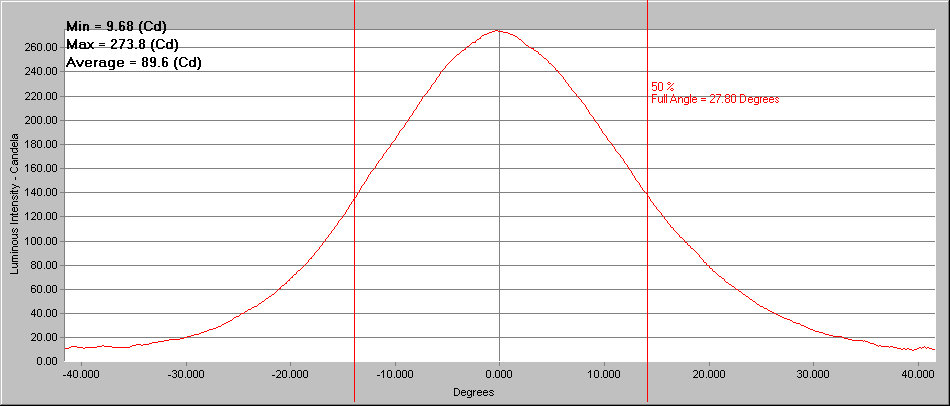

Cross Section

Download

ies

Seoul Z - Power Z5 M4 White

Eff:

91.5%

FWHM:

33°

Cd/Im:

2.2

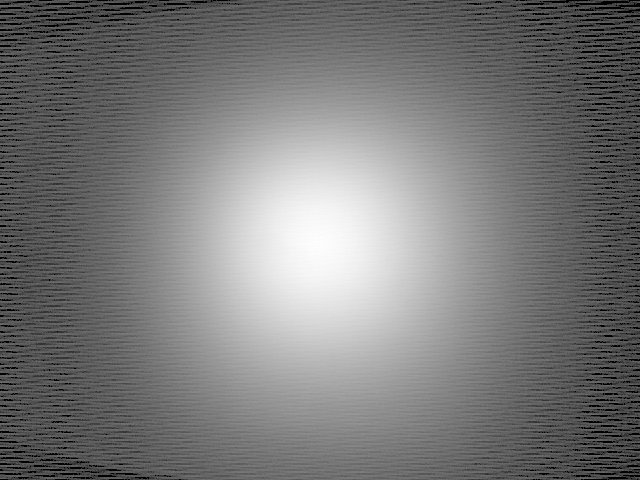

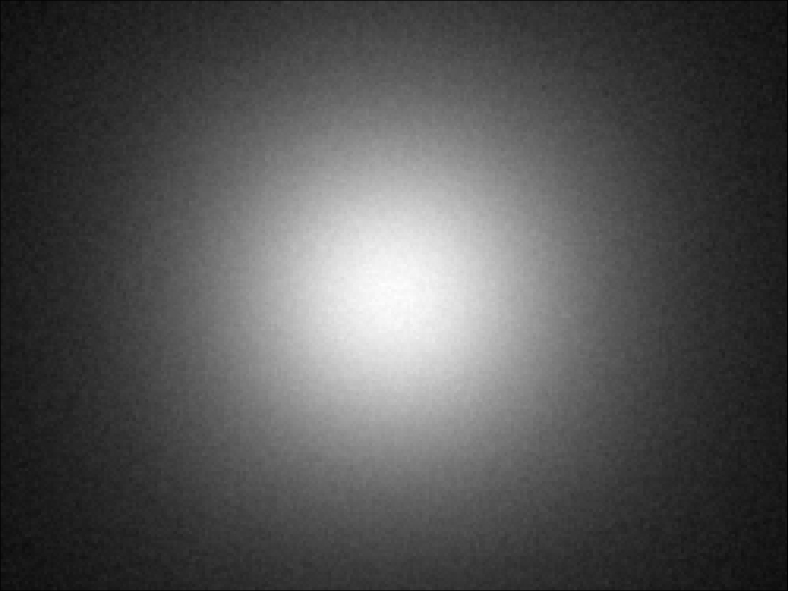

Carclo Optics – 10772 Seoul Z-Power Z5 - Spot Image

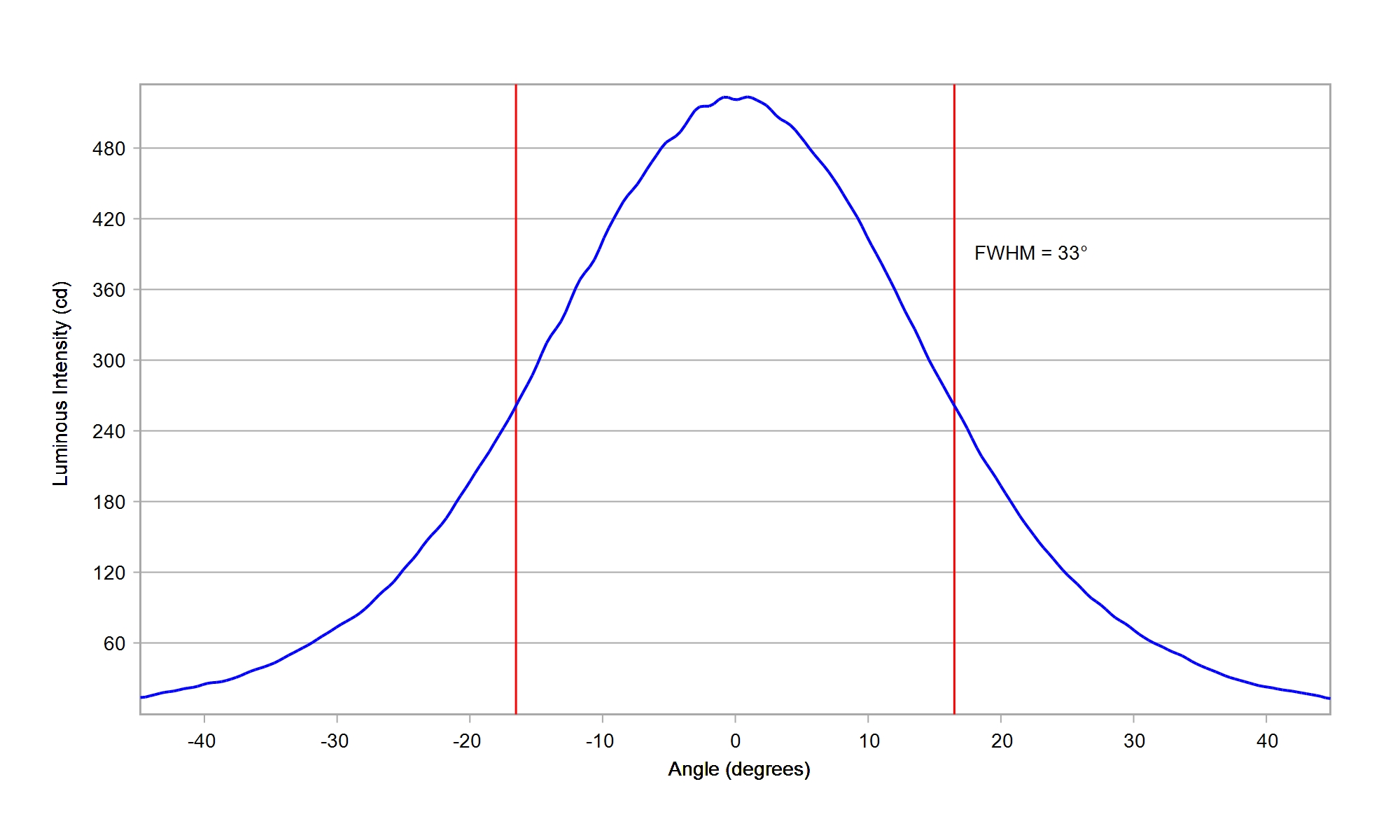

Carclo Optics – 10772 Seoul Z-Power Z5 - Cross-Section

Download

IES

Seoul Z - Power Z5 P0 White

FWHM:

26.8°

Cd/Im:

3.4

Download

ies

Seoul Z - Power Z5 White

Eff:

82.8%

FWHM:

26°

Cd/Im:

3.4

Spot Image

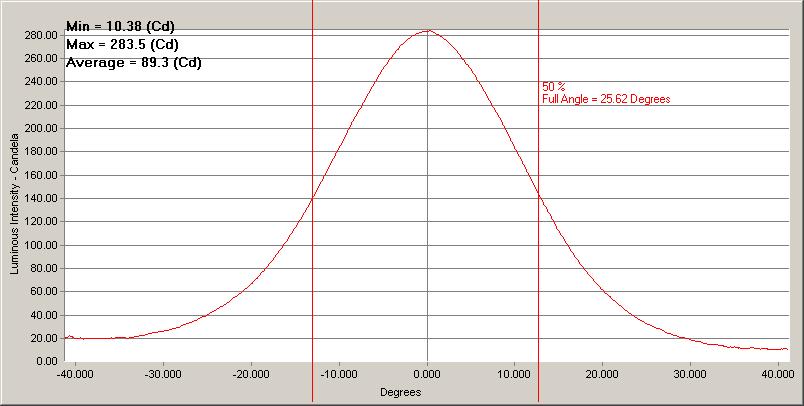

Cross Section

Download

ies

Toshiba TL 1L2 White

Eff:

88.0%

FWHM:

27.8°

Cd/Im:

2.1

Carclo Optics - Simulated Spot Image

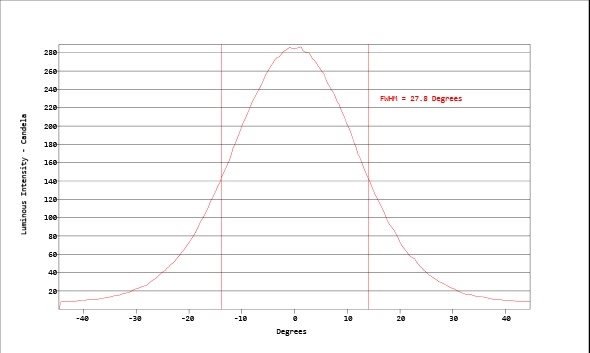

Carclo Optics - Simulated Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

88.0%

FWHM:

29.4°

Cd/Im:

1.9

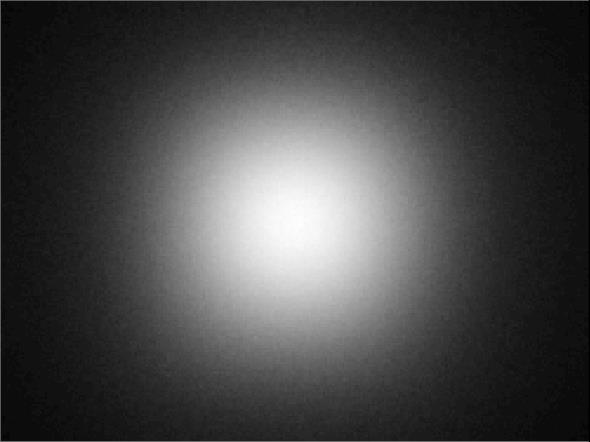

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies
