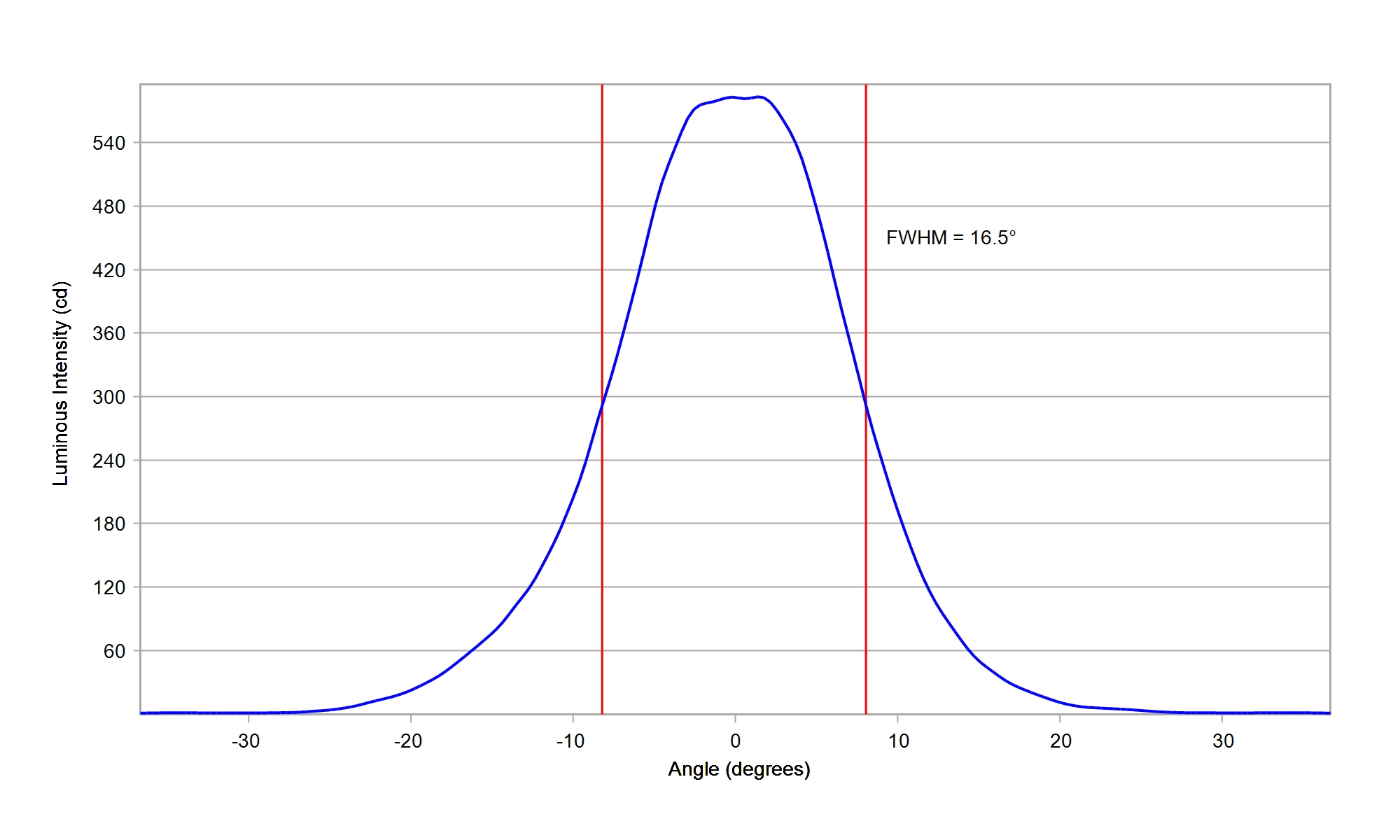

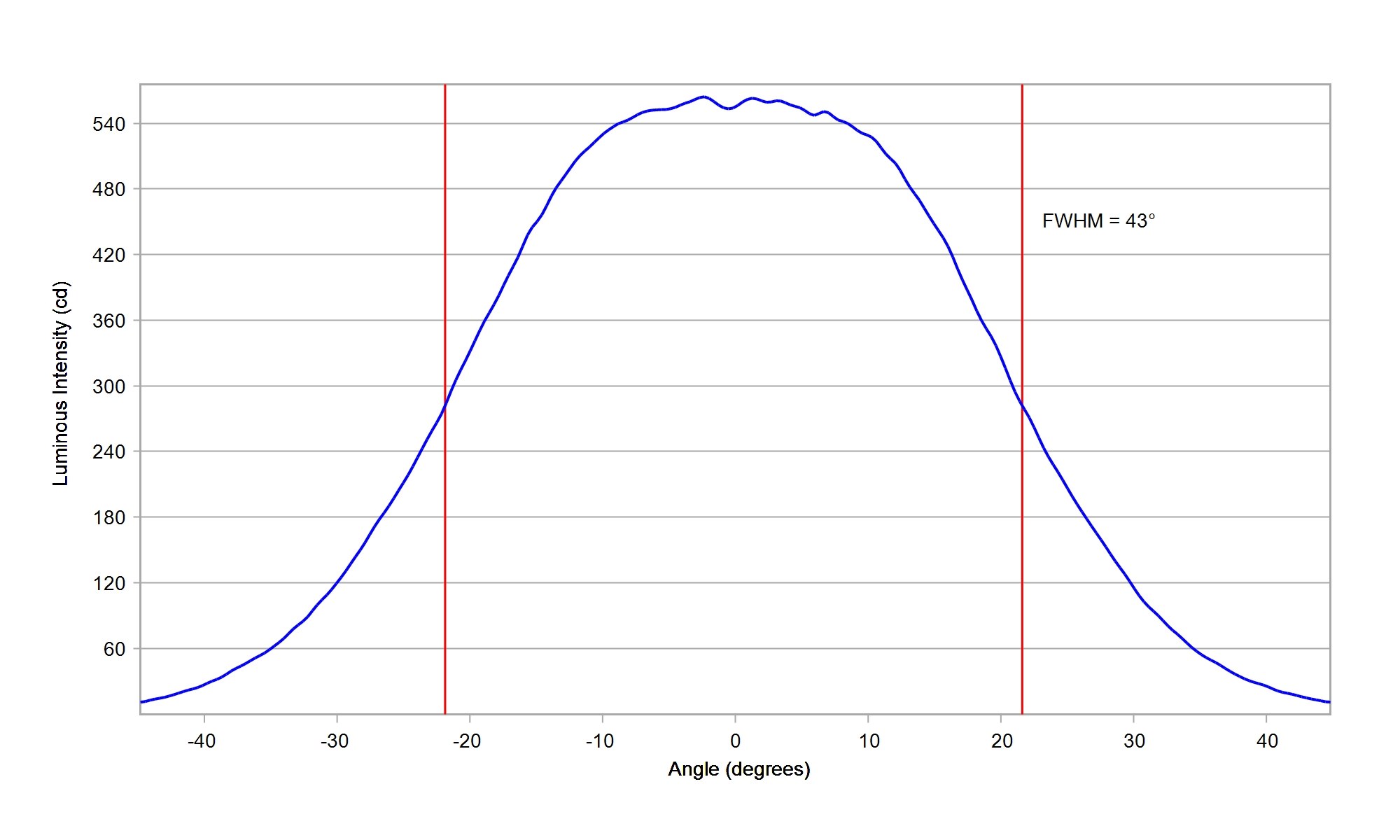

Image 30.0mm Elliptical Ripple Linear TIR LED Lenses Part number 10759 Dimensions 30.0mm Drawing Number 60580 Optic type TIR LED Lenses Finish Ripple Linear Beam type Elliptical Applications Architectural Landscape & Garden Wide Area Downloads PDF IGS Request a sample Contact Sales LEDs and Performances Select and filter based on manufacturer(s) Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Image Luminus Devices SFT-70X-WxS White Eff: 85.0%FWHM: 48 x 9.1°Cd/Im: 5.4 , DownloadIES Details Osram DURIS S8 Gen3 White Eff: 84.5%FWHM: 43.5 x 16.5°Cd/Im: 3.2 , DownloadIES Details
