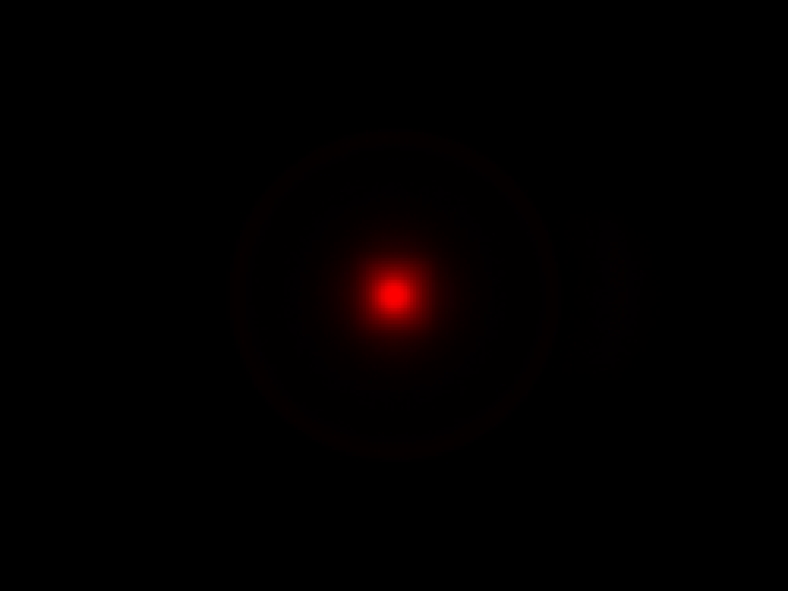

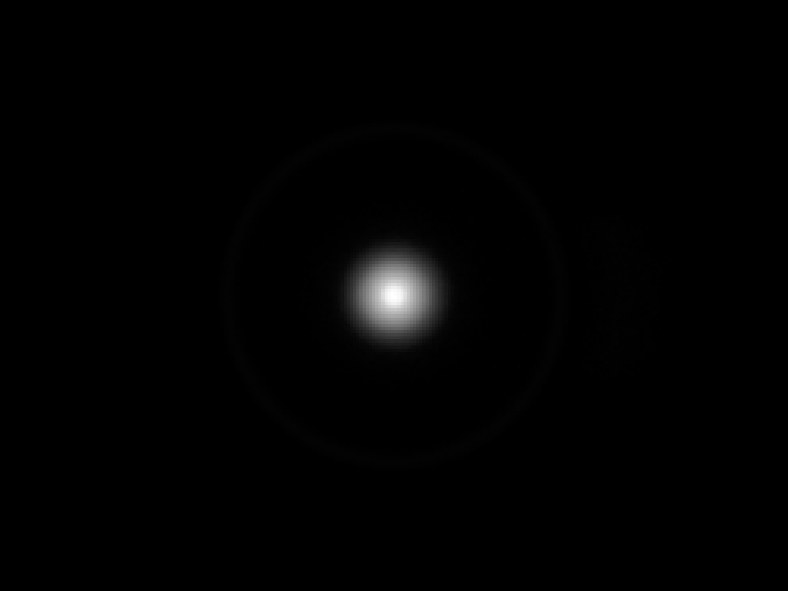

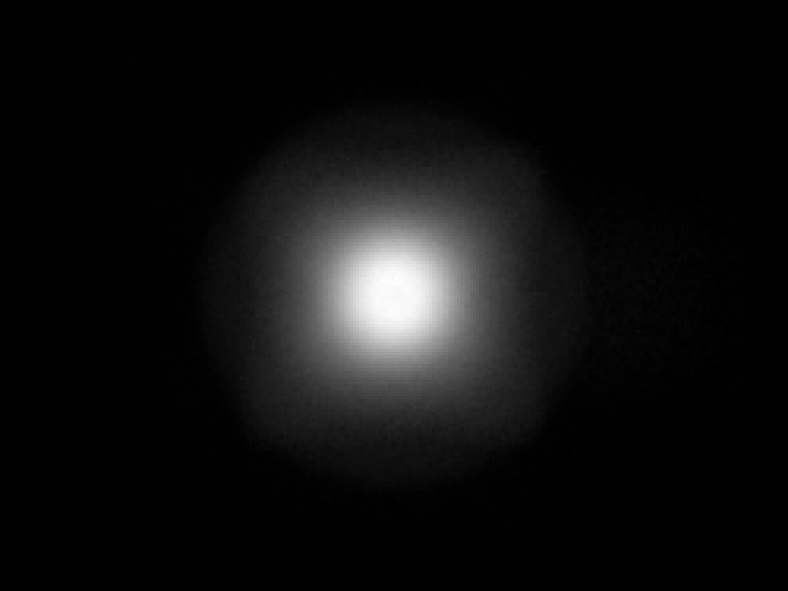

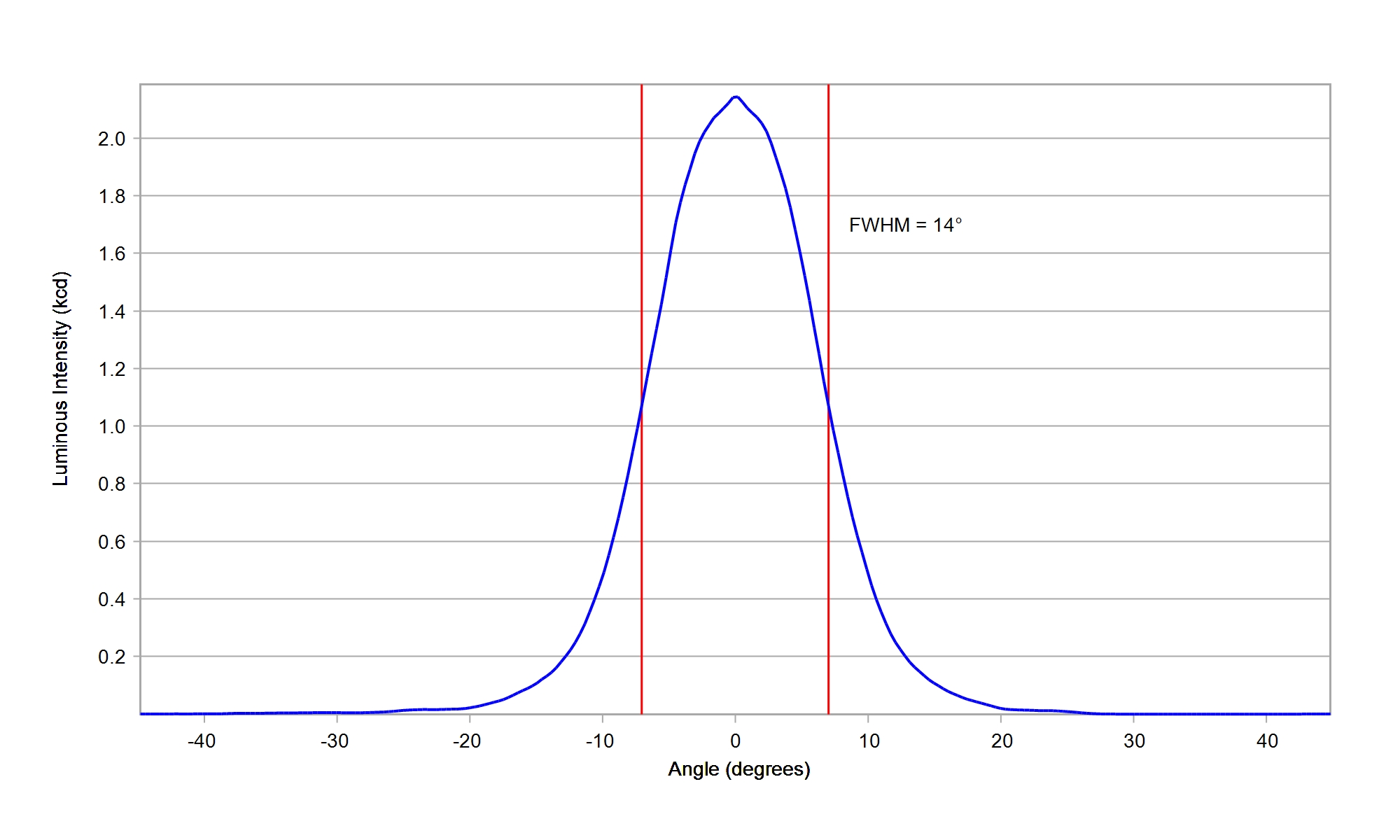

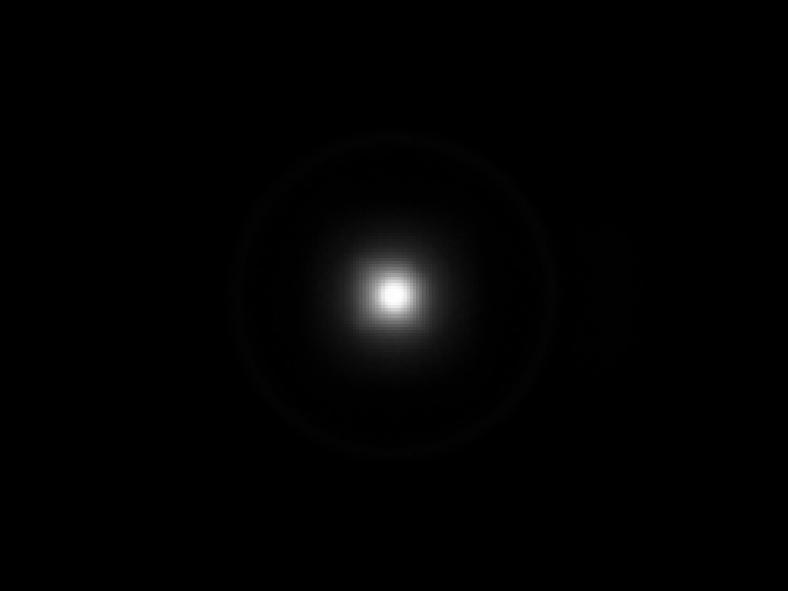

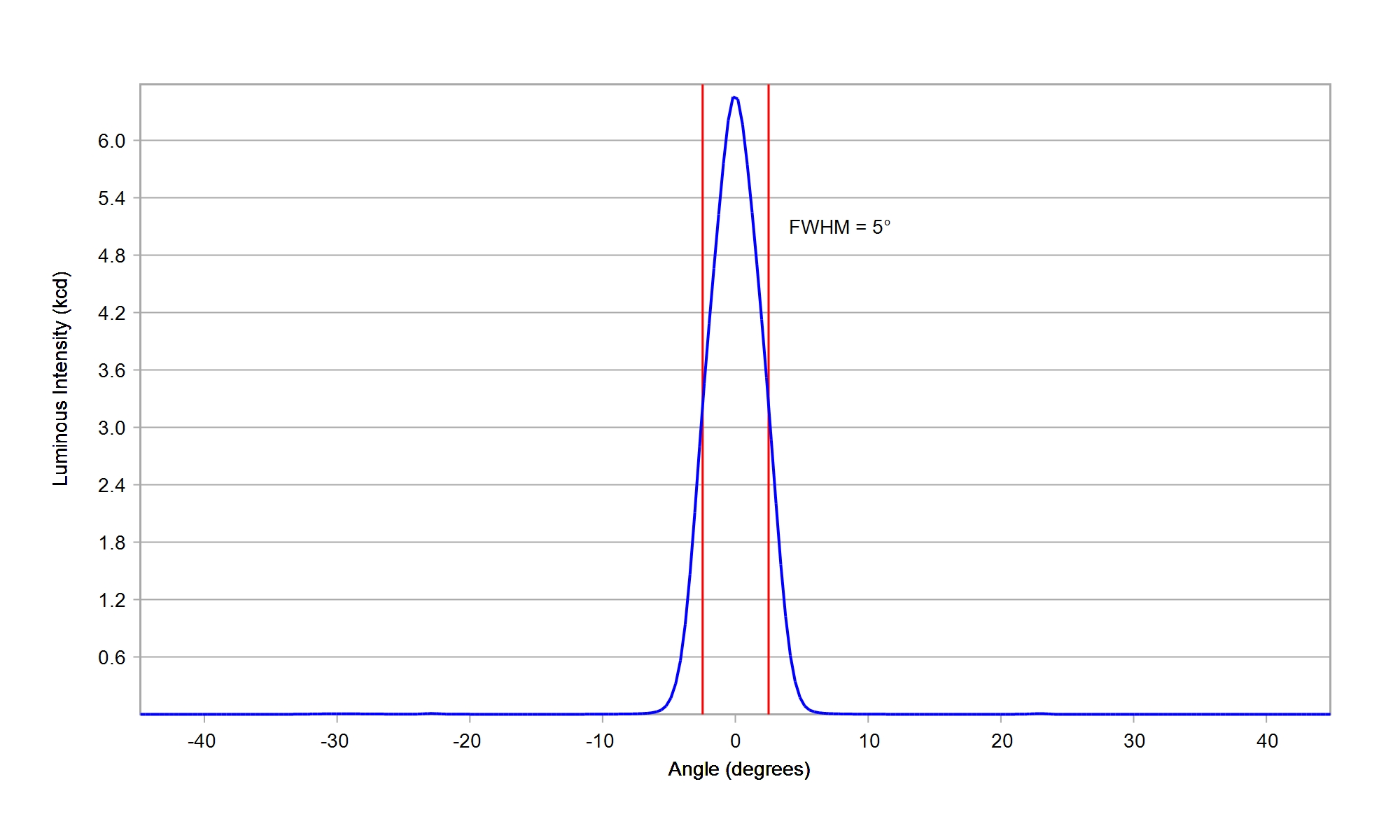

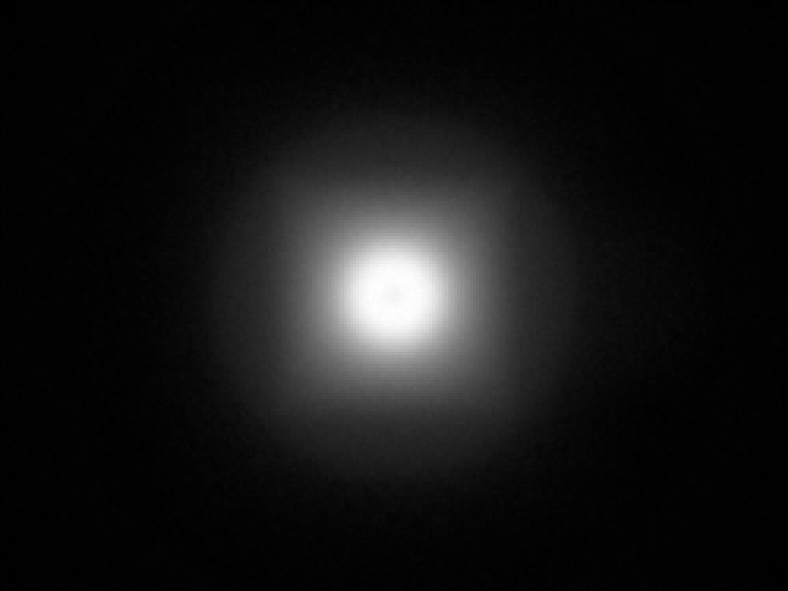

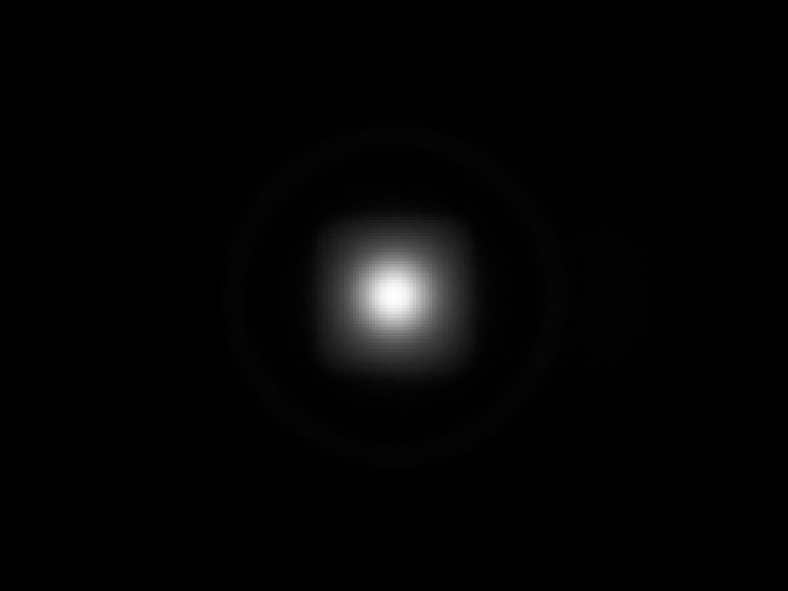

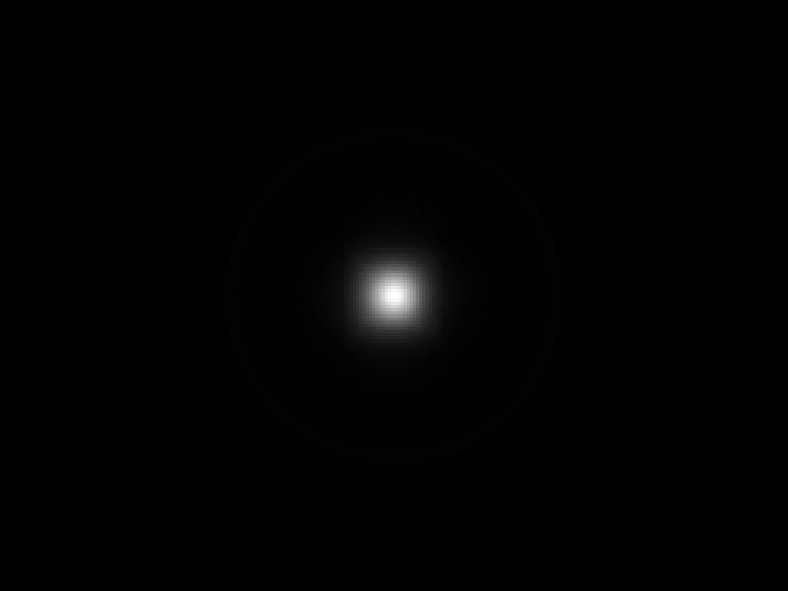

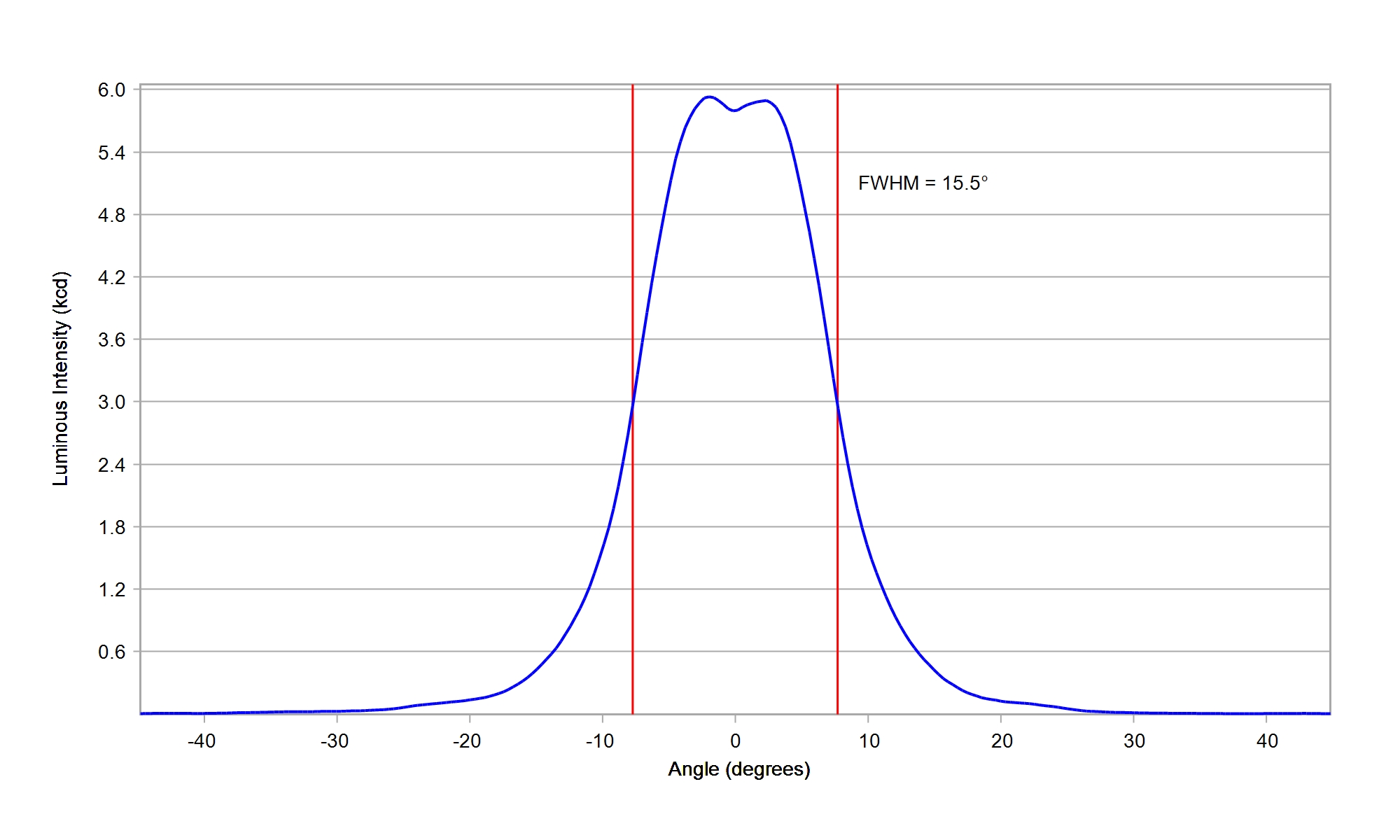

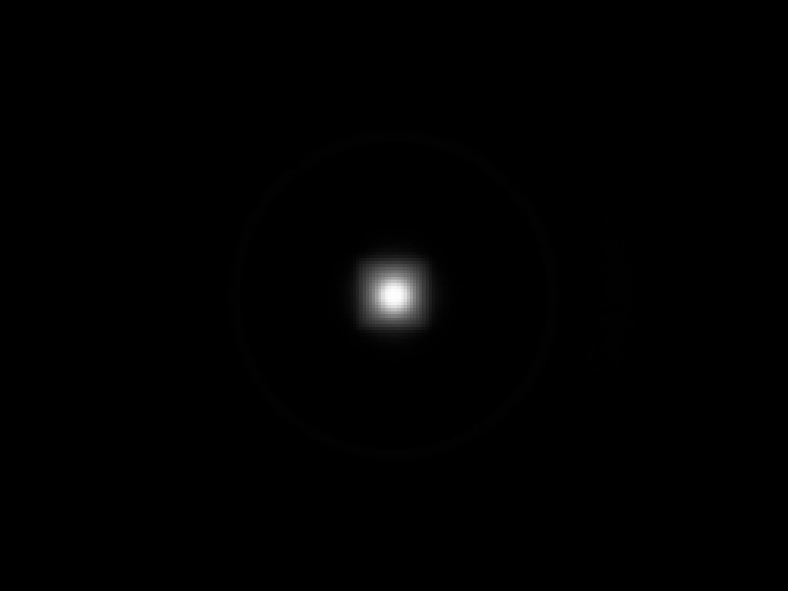

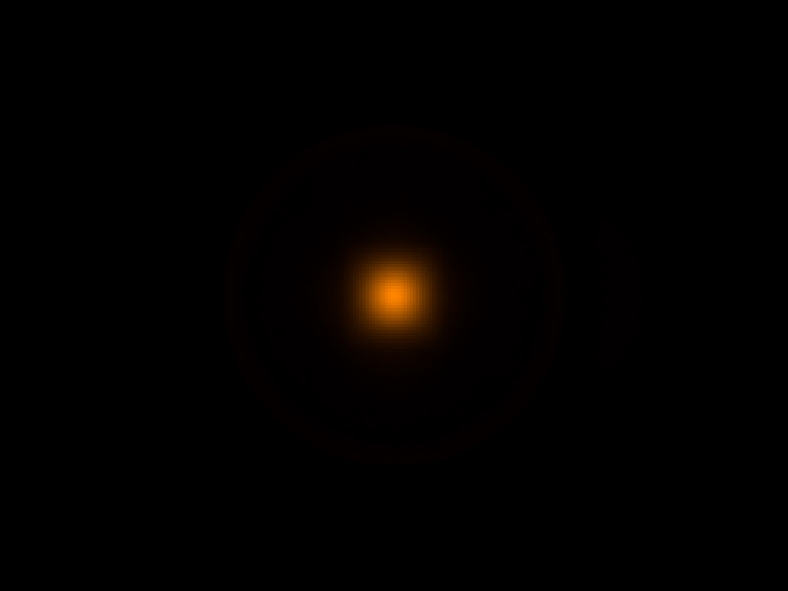

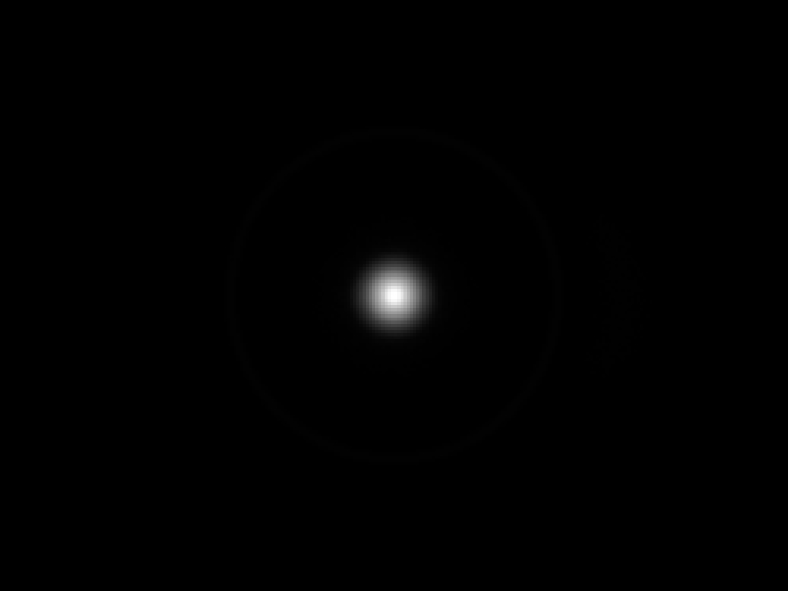

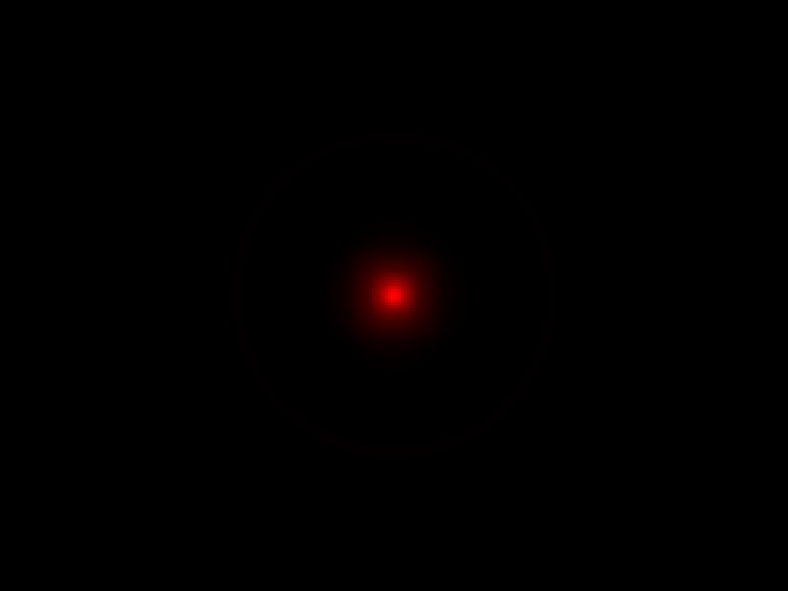

30.0mm Narrow Spot Plain TIR LED Lenses

Part number

10755

Dimensions

30.0mm

Drawing Number

60578

Optic type

TIR LED Lenses

Finish

Plain

Beam type

Narrow Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

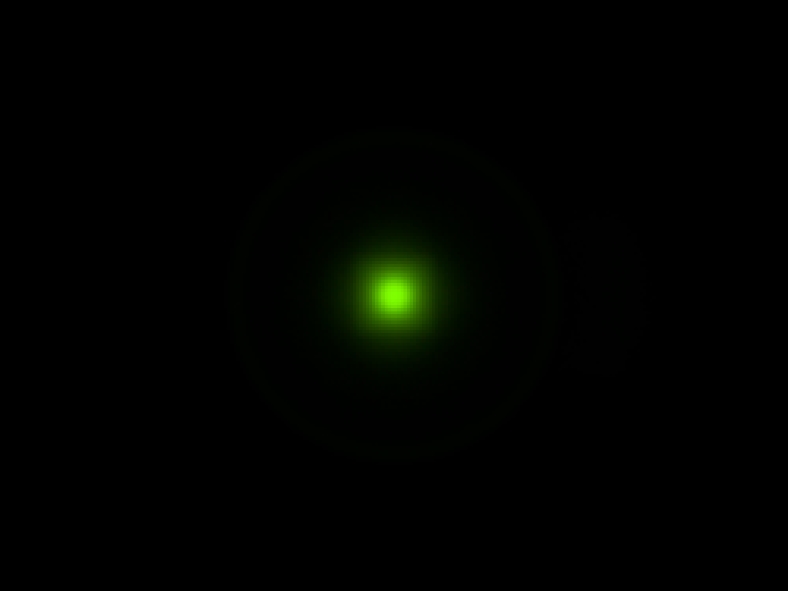

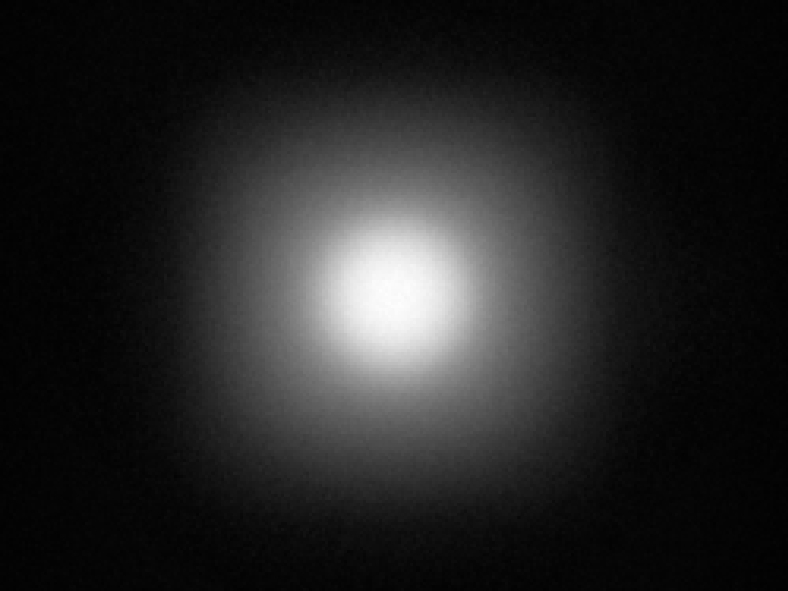

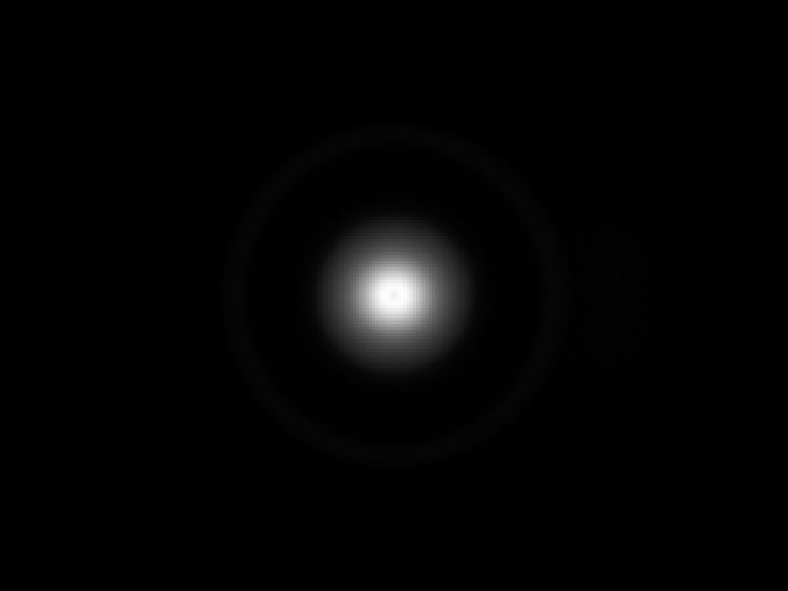

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

86.5%

FWHM:

5.7 x 6.1°

Cd/Im:

60.7

Carclo Optics - 10755 30mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10755 30mm Cross Section Bridgelux 3030 Gen2

Download

IES

Citizen CITILED CL-L020 White

Eff:

84.1%

FWHM:

23.2°

Cd/Im:

3.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED CL-L022 White

Eff:

84.3%

FWHM:

23.9°

Cd/Im:

2.8

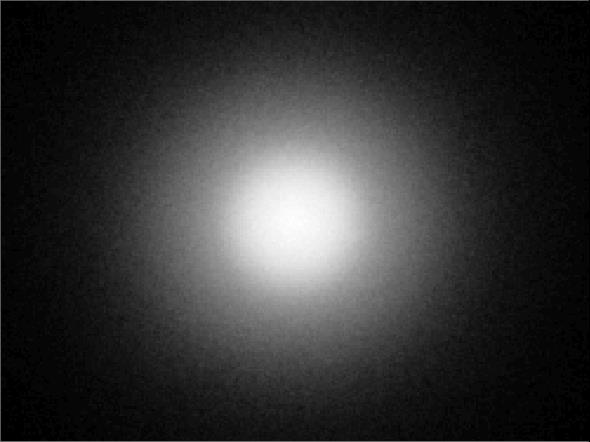

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

81.5%

FWHM:

13°

Cd/Im:

10.0

Interconnect: 6120.50 BJB 47.319.

optic-10755-Citizen_CITILED COB_CLU7A2-spot-image.jpg

optic-10755-Citizen_CITILED COB_CLU7A2-cross-section-image.jpg

Download

IES

Citizen CITILED COB CLU7A2 White

Eff:

82.0%

FWHM:

13°

Cd/Im:

10.0

Download

IES

Citizen CITILED COB CLU7B2 White

Eff:

82.0%

FWHM:

10.5°

Cd/Im:

15.6

Carclo Optics – 10755 – Citizen_Citiled COB_CLU7B2_spot-image

Carclo Optics – 10755 – Citizen_Citiled COB_CLU7B2_cross section

Download

IES

Cree JB3030 3V White

Eff:

86.0%

FWHM:

7.5°

Cd/Im:

36.1

Carclo Optics - 10755 Spot Image Cree JB3030 3V White

Carclo Optics - 10755 Cross Section Cree JB3030 3V White

Download

IES

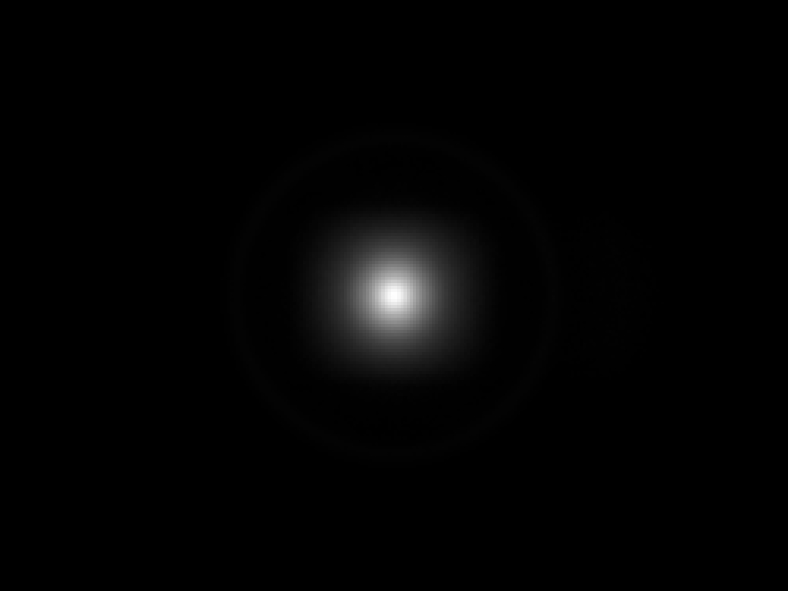

Cree JK2835 6V White

Eff:

86.0%

FWHM:

7°

Cd/Im:

42.6

Download

IES

Cree JQ5050 9V White

Eff:

86.5%

FWHM:

15.0°

Cd/Im:

10.6

Carclo Optics - 10755 Spot Image Cree JQ5050 9V White

Carclo Optics - 10755 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

86.5%

FWHM:

14.0°

Cd/Im:

11.4

Carclo Optics - 10755 Spot Image Cree JR5050 24V White

Carclo Optics - 10755 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

86.5%

FWHM:

12.5°

Cd/Im:

13.4

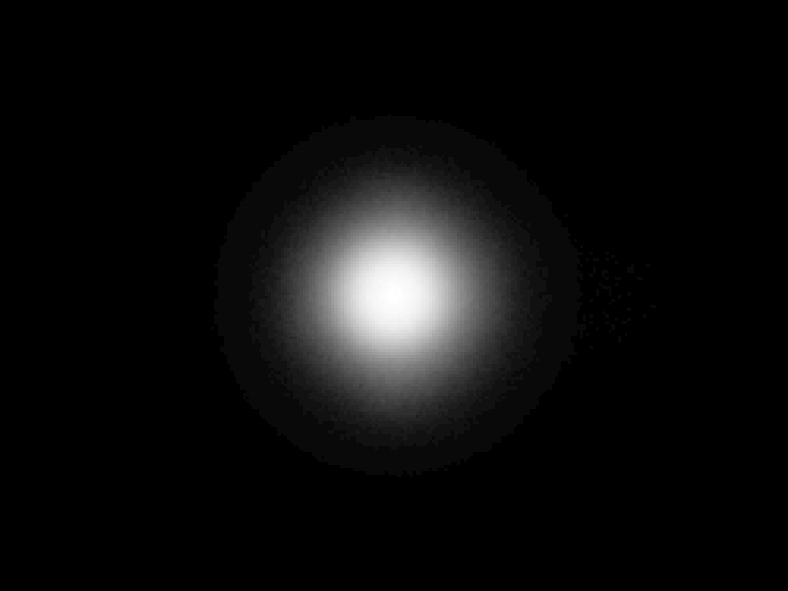

Carclo Optics - 10755 Spot Image Cree JR5050 36V White

Carclo Optics - 10755 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

86.5%

FWHM:

13.5°

Cd/Im:

11.7

Carclo Optics - 10755 Spot Image Cree JR5050 6V White

Carclo Optics - 10755 Cross Section Cree JR5050 6V White

Download

IES

Cree JR5050C 6V E-Class White

Eff:

86.0%

FWHM:

13.5°

Cd/Im:

12.1


Download

IES

Cree XLamp CHA0304 White

Eff:

84.0%

FWHM:

11°

Cd/Im:

18.2

Download

IES

Cree XLamp CHA0410 White

Eff:

84.0%

FWHM:

14.5°

Cd/Im:

10.7

Download

IES

Cree XLamp CHA0612 White

Eff:

83.5%

FWHM:

19.5°

Cd/Im:

5.5

Download

IES

Cree XLamp CMA1303 White

Eff:

83.5%

FWHM:

13.5°

Cd/Im:

10.7

Carclo Optics – 10755 – Cree_Xlamp_CMA 1303_spot-image

Carclo Optics – 10755 – Cree_Xlamp_CMA 1303_cross vertical section

Download

IES

Cree XLamp CMB1304 White

Eff:

82.0%

FWHM:

18.5°

Cd/Im:

5.7

Download

IES

Cree XLamp CMB1306 White

Eff:

82.0%

FWHM:

18.5°

Cd/Im:

5.4

Download

IES

Cree XLamp CMU1003 White

Eff:

78.5%

FWHM:

25.5°

Cd/Im:

2.6

Download

IES

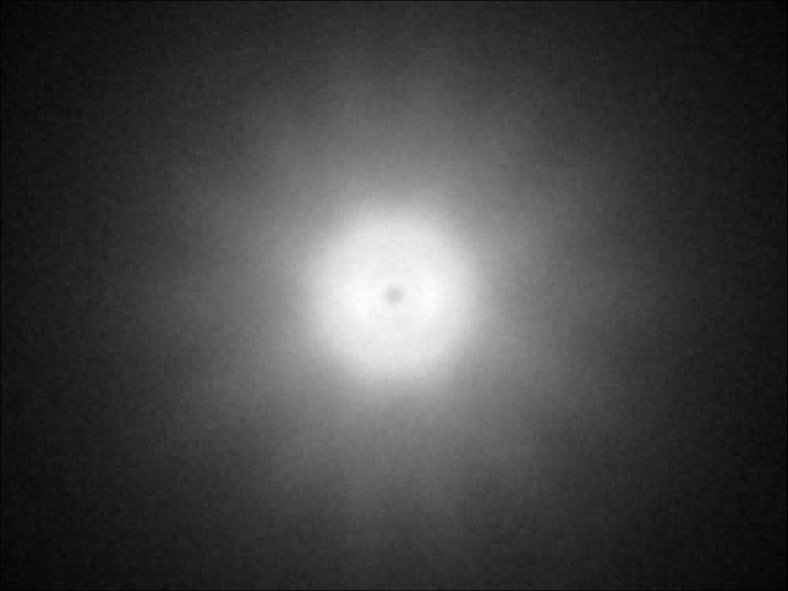

Cree XLamp CMU1006 White

Eff:

78.0%

FWHM:

26.5°

Cd/Im:

2.3

Download

IES

Cree XLamp CMU1010 White

Eff:

78.0%

FWHM:

26.5°

Cd/Im:

2.3

Download

IES

Cree XLamp CMU1013 White

Eff:

78.5%

FWHM:

25.5°

Cd/Im:

2.5

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

85.0%

FWHM:

6.2°

Cd/Im:

49.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

86.0%

FWHM:

5.7°

Cd/Im:

71.0

Download

IES

Cree XLamp CXA 1304 White

Eff:

83.2%

FWHM:

17.6°

Cd/Im:

6.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1310 White

Eff:

83.4%

FWHM:

18.6°

Cd/Im:

5.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1507 White

Eff:

83.8%

FWHM:

26.0°

Cd/Im:

2.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1512 White

Eff:

83.6%

FWHM:

24.4°

Cd/Im:

3.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXA 1520 White

Eff:

84.1%

FWHM:

25.7°

Cd/Im:

2.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp CXB1310 White

Eff:

82.0%

FWHM:

17.5°

Cd/Im:

5.9

Download

IES

Cree XLamp MH-B White

Eff:

83.2%

FWHM:

16.0°

Cd/Im:

8.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp MK-R White

FWHM:

19.3°

Cd/Im:

8.6

Download

ies

Cree XLamp MT-G White

Eff:

87.7%

FWHM:

24.9°

Cd/Im:

4.6

Download

ies

Cree XLamp MT-G2 White

Eff:

86.4%

FWHM:

22.5°

Cd/Im:

5.6

Download

ies

Cree XLamp XB-D White

Eff:

83.3%

FWHM:

5.6°

Cd/Im:

68.0

Download

ies

Cree XLamp XB-H White

Eff:

86.0%

FWHM:

7.6 x 7.7°

Cd/Im:

40.3

Carclo Optics - 10755 30mm Spot Image Cree XLamp XB-H

Carclo Optics - 10755 30mm Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

86.0%

FWHM:

7.1°

Cd/Im:

47.3

Download

IES

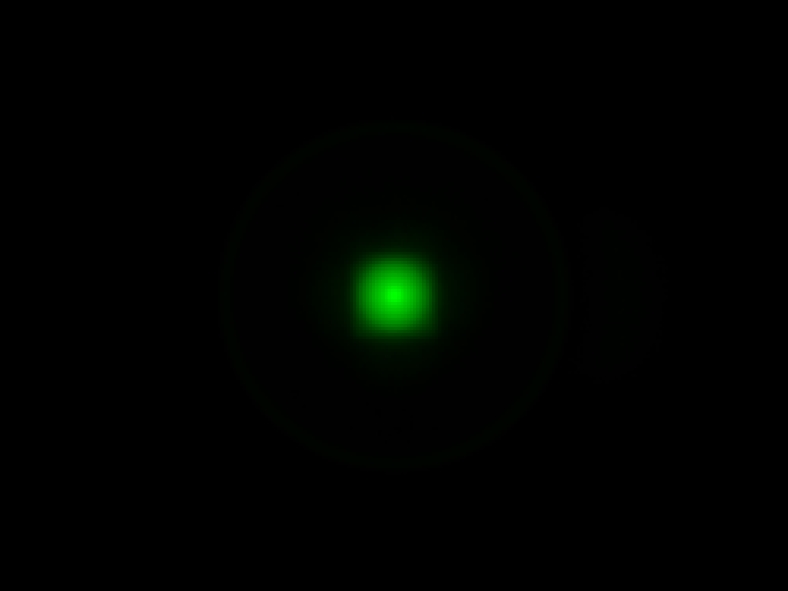

Cree XLamp XE-G Green

Eff:

86.0%

FWHM:

6.9°

Cd/Im:

53.9

Download

IES

Cree XLamp XE-G Red

Eff:

85.5%

FWHM:

6°

Cd/Im:

70.8

Download

IES

Cree XLamp XE-G White

Eff:

85.5%

FWHM:

6.4°

Cd/Im:

60.7

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

84.0%

FWHM:

17.0°

Cd/Im:

7.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

83.0%

FWHM:

17°

Cd/Im:

6.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-70 White

Eff:

85.5%

FWHM:

23.0°

Cd/Im:

4.3

Carclo Optics - 10755 Spot Image Cree XHP70

Carclo Optics - 10755 Cross Section Cree XHP70

Download

IES

Cree XLamp XHP35 HI White

Eff:

83.1%

FWHM:

8.8°

Cd/Im:

25.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

83.0%

FWHM:

12.5°

Cd/Im:

13.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

85.5%

FWHM:

9.4°

Cd/Im:

22.6

Carclo Optics – 10755 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10755 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

85.0%

FWHM:

13.5°

Cd/Im:

11.2

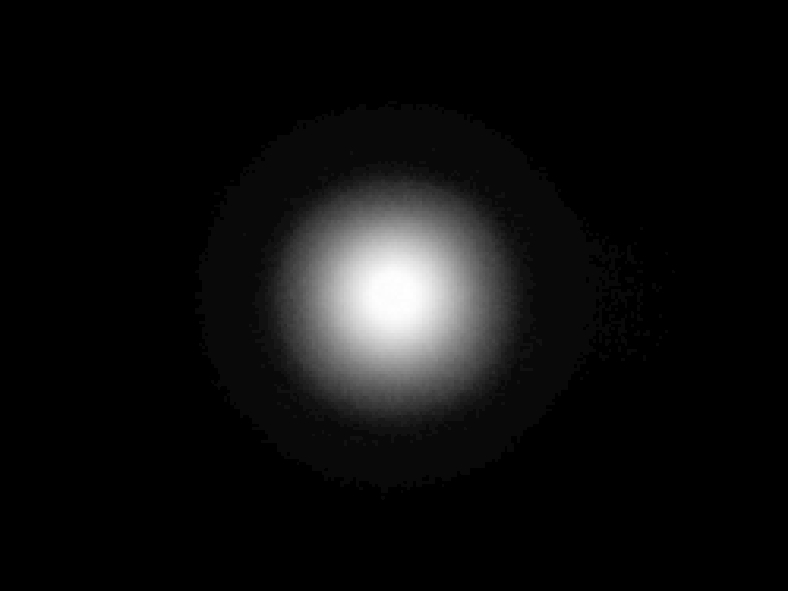

Carclo Optics - 10755 Spot Image Cree XHP35.2

Carclo Optics - 10755 Cross Section Cree XHP35.2

Download

2

Cree XLamp XHP50.3 HI White

Eff:

85.5%

FWHM:

12°

Cd/Im:

14.4

optic-10755-Cree_XHP50.3 HI-spot-image.jpg

optic-10755-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

85.0%

FWHM:

15°

Cd/Im:

8.8



Download

IES

Cree XLamp XHP70.2 White

Eff:

85.0%

FWHM:

23°

Cd/Im:

4.4

Carclo Optics – 10755 Cree Xlamp XHP70.2 - Spot Image

Carclo Optics – 10755 Cree Xlamp XHP70.2 - Cross-Section

Download

IES

Cree XLamp XM-L White

Eff:

87.2%

FWHM:

10.9°

Cd/Im:

18.9

Download

ies

Cree XLamp XM-L2 White

Eff:

87.2%

FWHM:

10.4°

Cd/Im:

17.6

optic-10755-cree-XM-L2-white-spot-image

optic-10755-plain-cree-XM-L2-white-cross-section-image

Download

ies

Cree XLamp XM-L3 White

Eff:

84.5%

FWHM:

11.0°

Cd/Im:

17.5

Carclo Optics - 10755 Spot Image Cree XM-L3

Carclo Optics - 10755 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-C White

Eff:

85.2%

FWHM:

3.7°

Cd/Im:

166.7

Download

ies

Cree XLamp XP-E White

Eff:

85.5%

FWHM:

6°

Cd/Im:

67.2

Download

ies

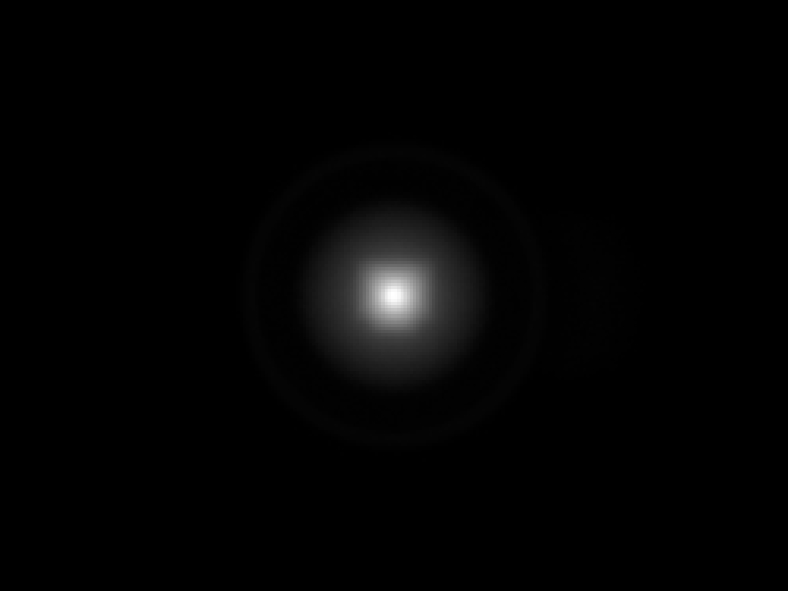

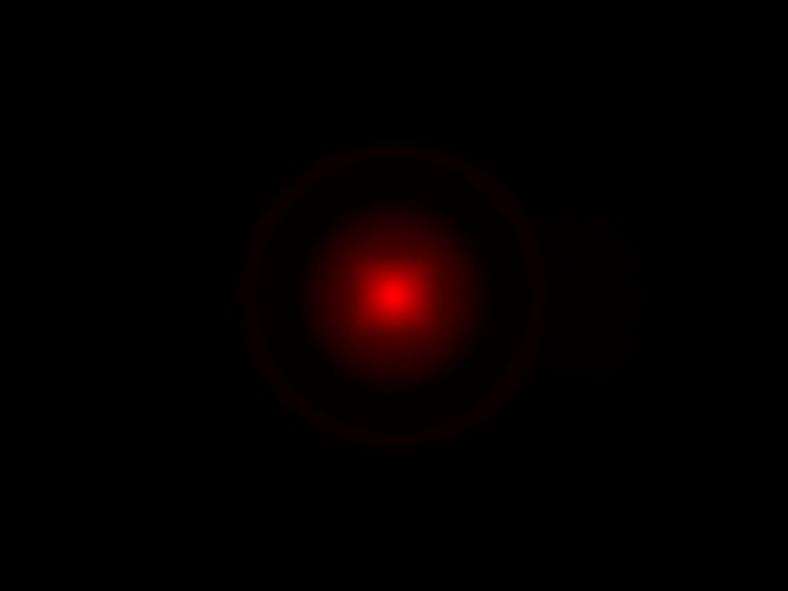

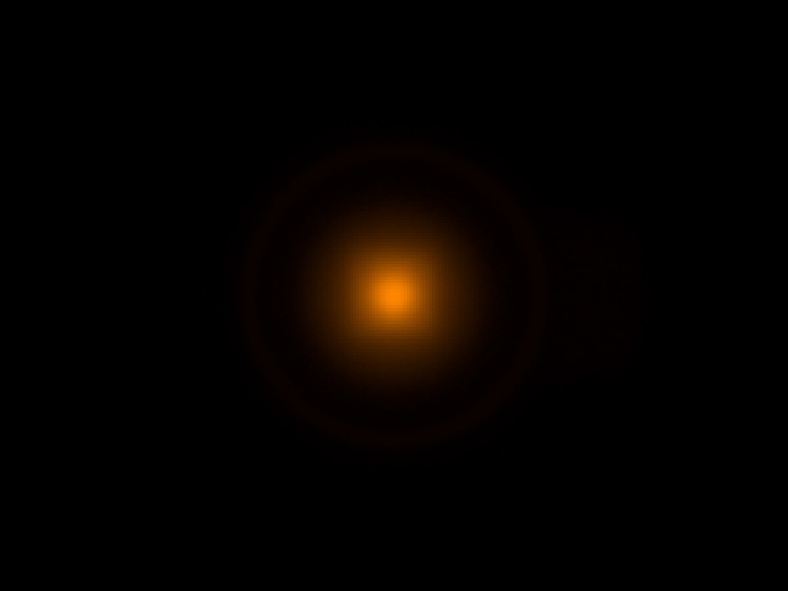

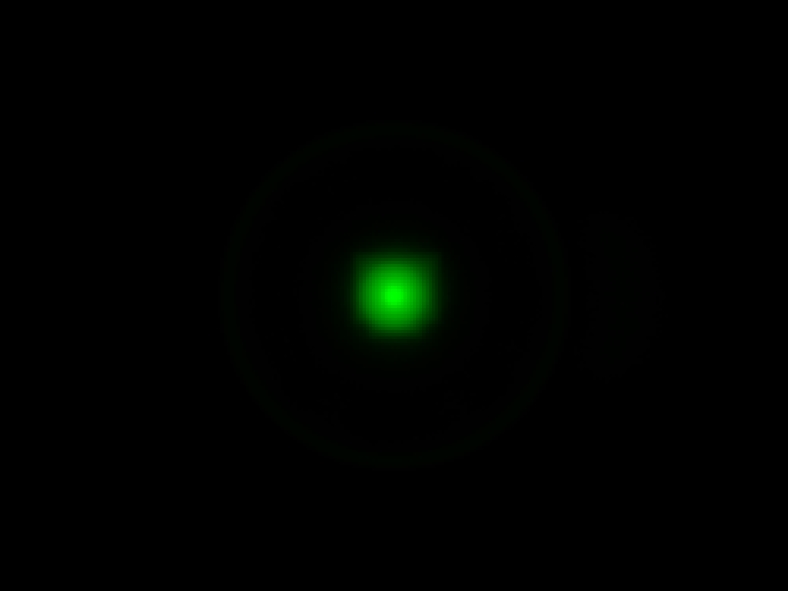

Cree XLamp XP-E2 White

Eff:

86.0%

FWHM:

6.8°

Cd/Im:

61.1

Download

IES

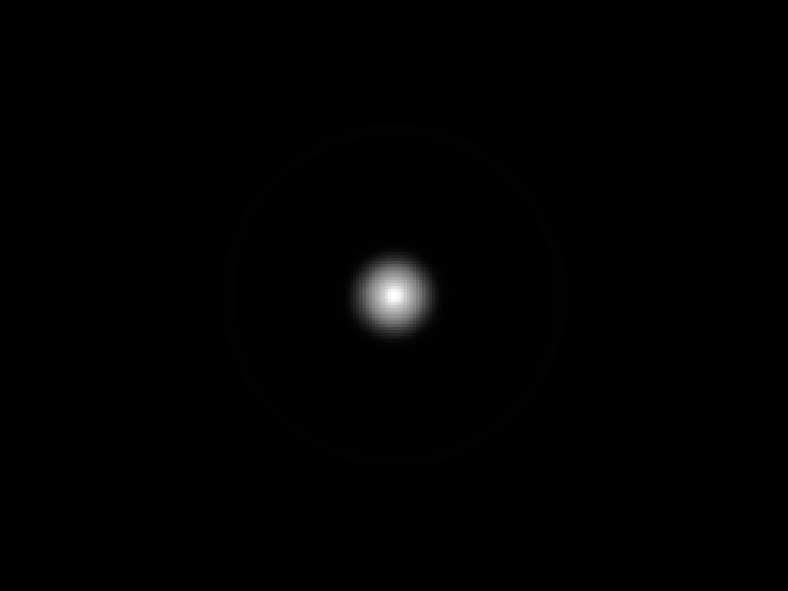

Cree XLamp XP-G White

Eff:

85.5%

FWHM:

7.1°

Cd/Im:

38.8

Download

ies

Cree XLamp XP-G2 White

FWHM:

7°

Cd/Im:

47.7

10755 Spot

10755 Cross section plot

Download

ies

Cree XLamp XP-G3 White

Eff:

83.0%

FWHM:

8.8°

Cd/Im:

24.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

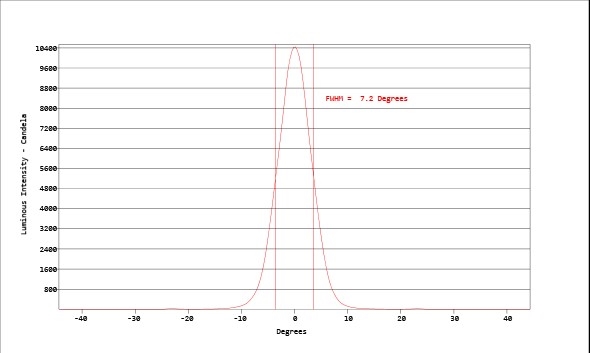

Cree XLamp XP-L HI White

Eff:

83.2%

FWHM:

7.02°

Cd/Im:

31.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

83.1%

FWHM:

10.7°

Cd/Im:

17.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

84.0%

FWHM:

11.5°

Cd/Im:

15.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

86.0%

FWHM:

5.2°

Cd/Im:

99.3

Carclo Optics – 10755 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10755 Cree Xlamp XP-P - Cross-Section

Download

IES

Cree XLamp XQ-A Blue

Eff:

85.0%

FWHM:

3.4°

Cd/Im:

182.0

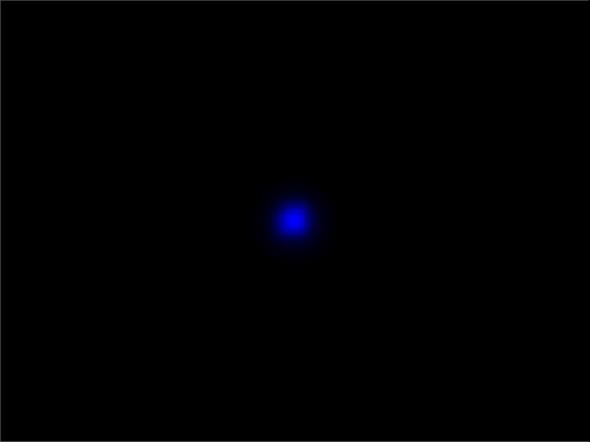

Carclo Optics - Simulated Spot Image

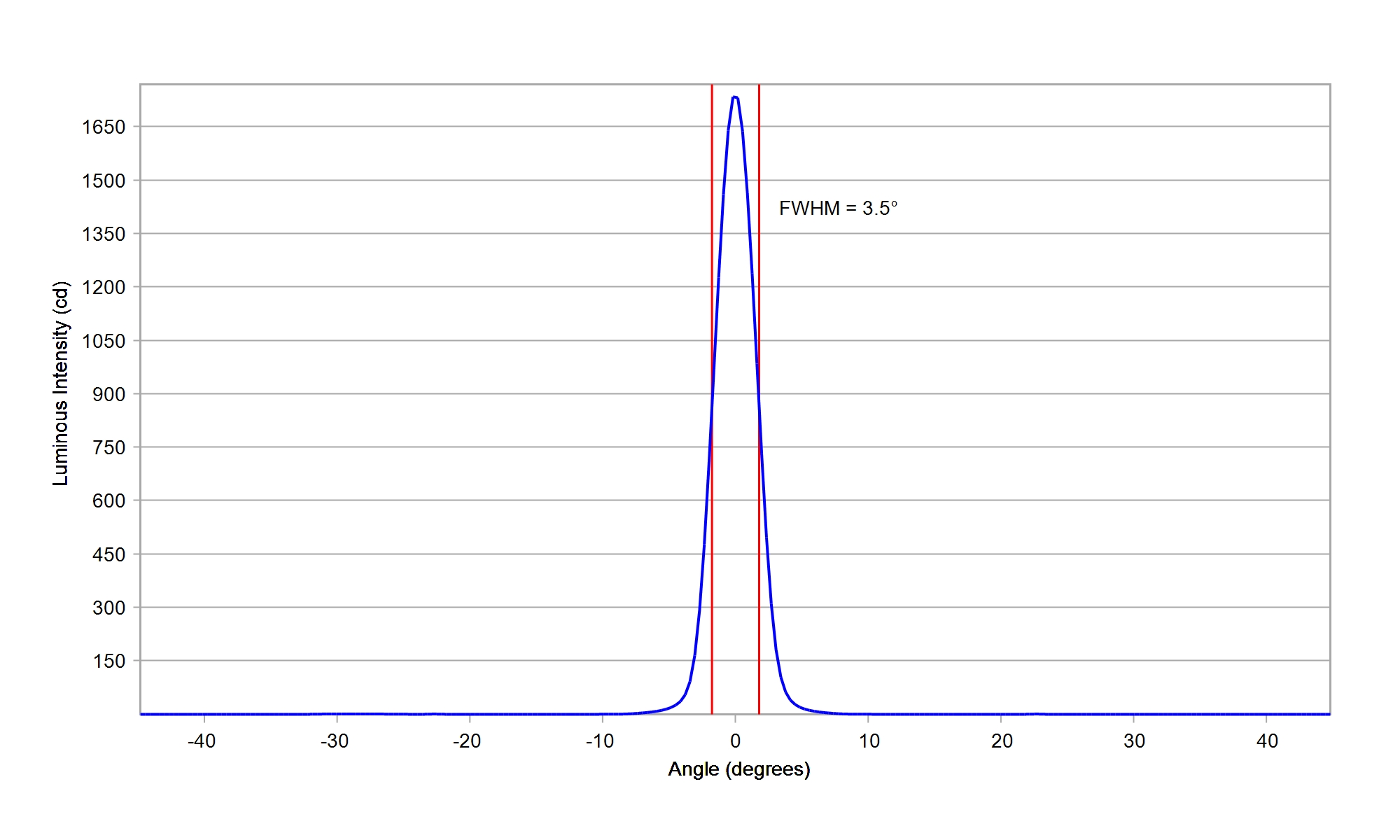

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

85.0%

FWHM:

3.1°

Cd/Im:

223.5

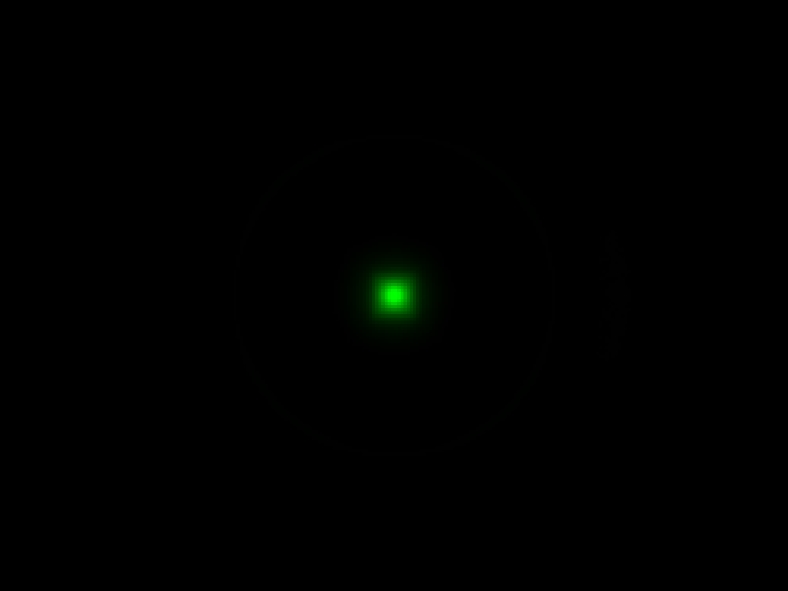

Carclo Optics - Simulated Spot Image

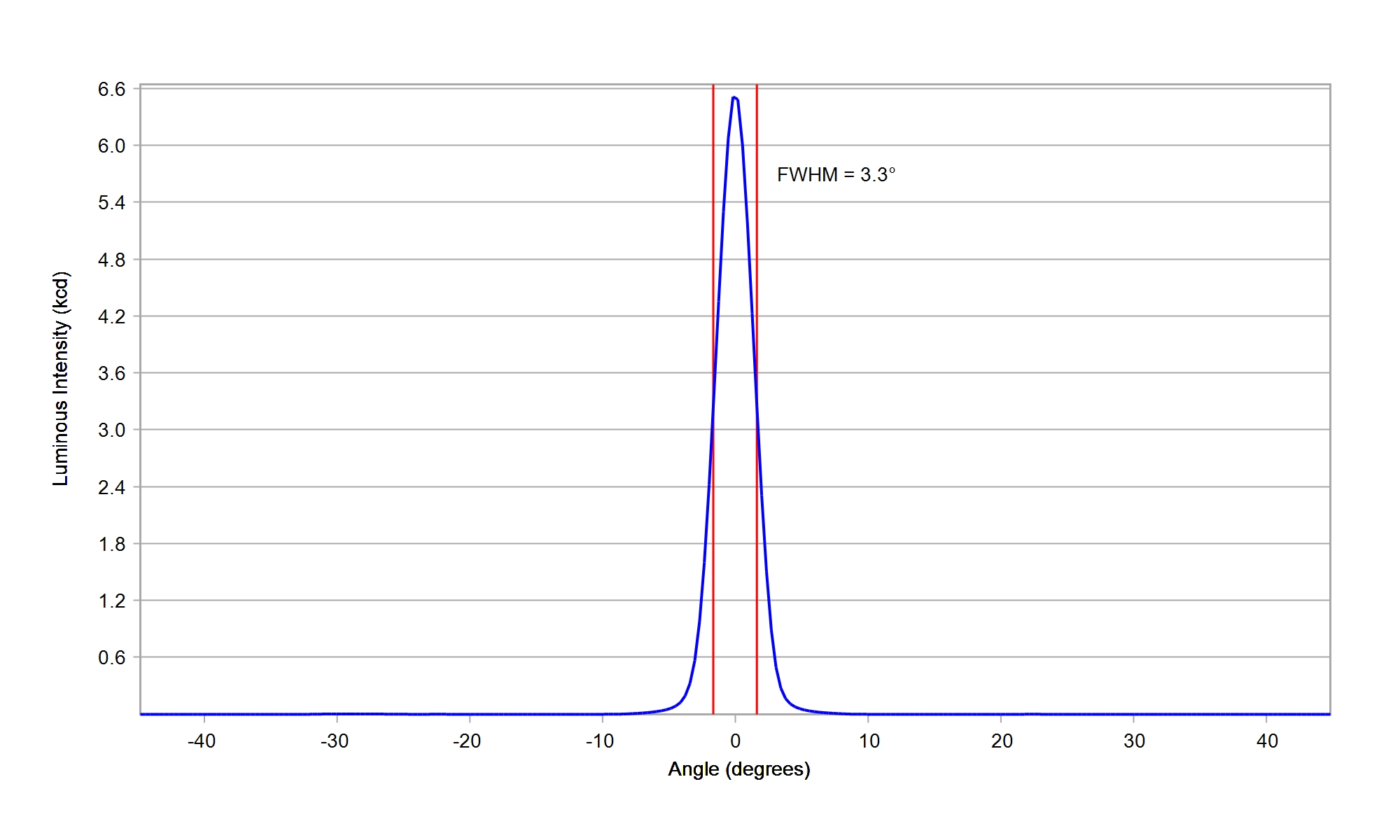

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

85.0%

FWHM:

3.4°

Cd/Im:

174.9

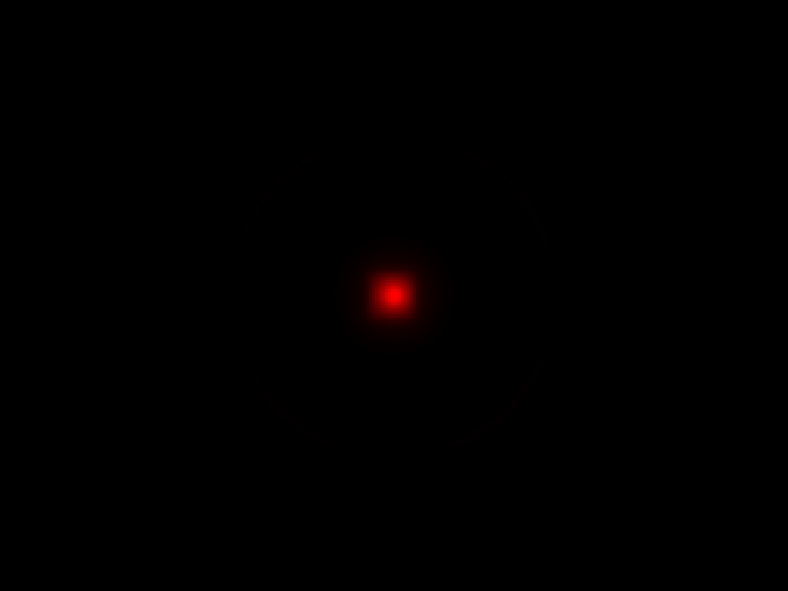

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

84.0%

FWHM:

2.8°

Cd/Im:

224.0

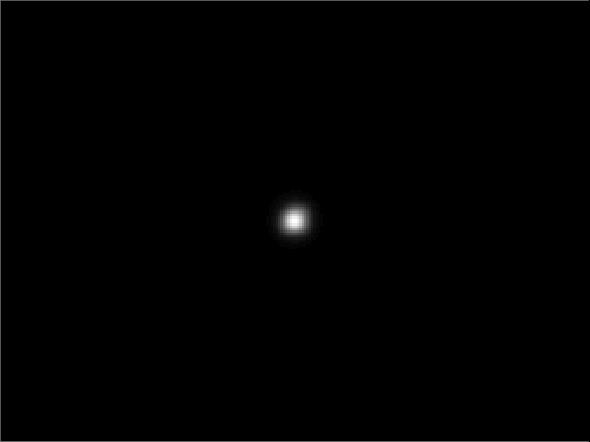

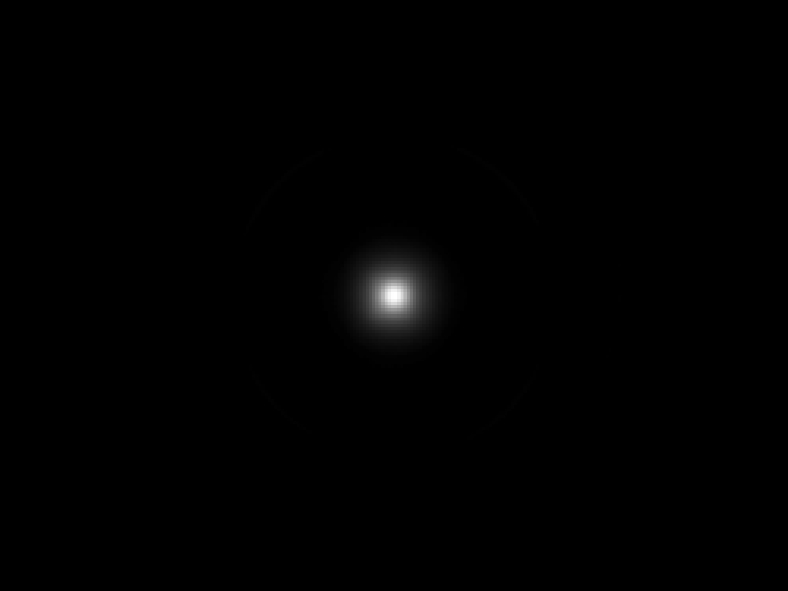

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Blue

Eff:

84.0%

FWHM:

5.0°

Cd/Im:

78.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

84.0%

FWHM:

4.4°

Cd/Im:

92.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

84.5%

FWHM:

3.7°

Cd/Im:

116.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

83.0%

FWHM:

4.0°

Cd/Im:

124.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

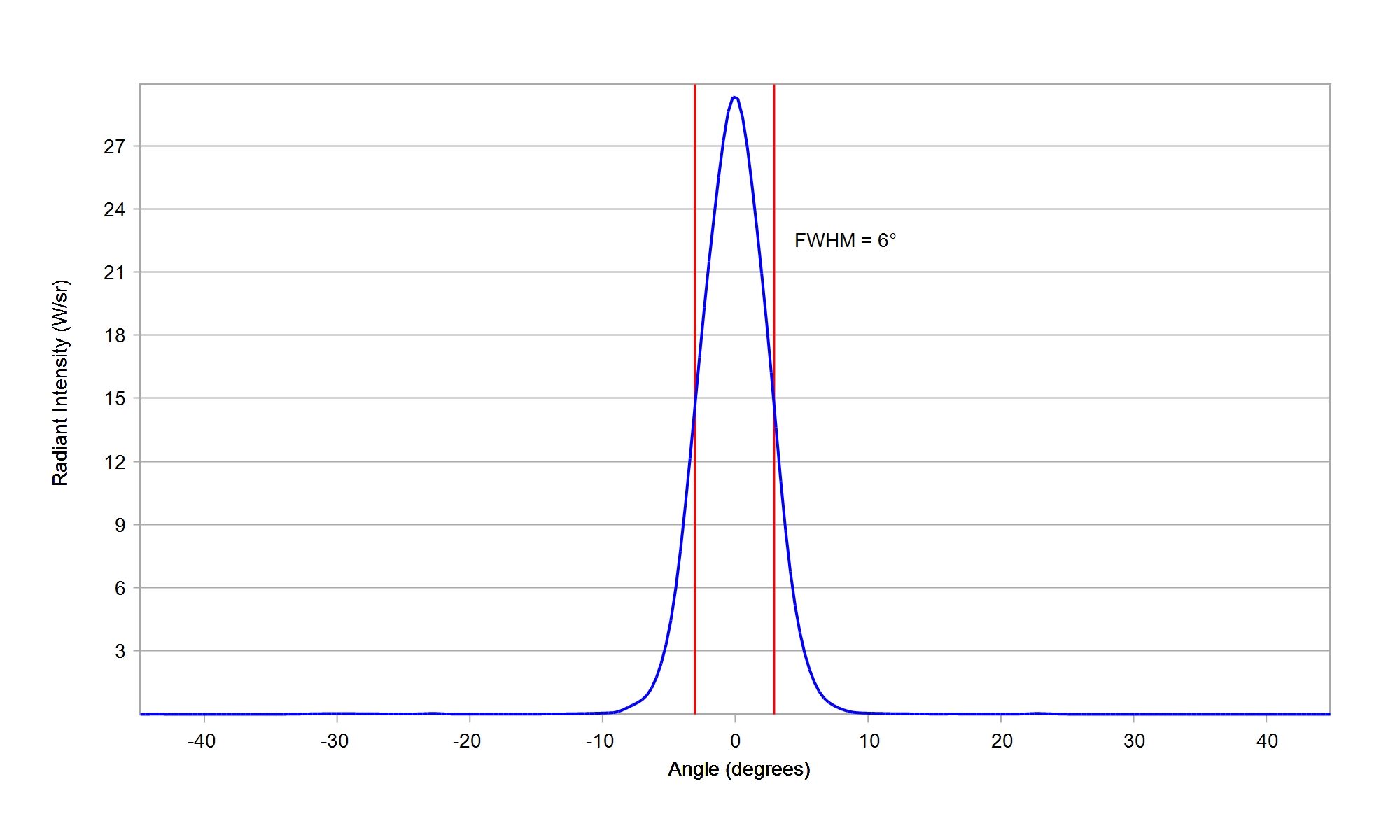

Cree XLamp XT-E HE White

Eff:

84.5%

FWHM:

7.7°

Cd/Im:

33.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

Eff:

85.8%

FWHM:

7.3°

Cd/Im:

46.2

Download

ies

Lextar Nimbus 500 White

Eff:

84.7%

FWHM:

19.8°

Cd/Im:

3.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

FWHM:

6.8°

Cd/Im:

46.2

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

90.5%

FWHM:

5.8°

Cd/Im:

66.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS CX Plus (Gen 2) M03 White

Eff:

78.0%

FWHM:

25°

Cd/Im:

3.2

Carclo Optics -10755 -Luxeon_CX_Plus_CoB_M03_WW-spot-image

Carclo Optics -10755 -Luxeon_CX_Plus_CoB_M03_WW- cross section

Download

IES

LUMILEDS CX Plus (Gen 2) S01 White

Eff:

81.5%

FWHM:

16.5°

Cd/Im:

6.6

Carclo Optics -10755 - Luxeon_CX_Plus_CoB_S01_WW - spot -image

Carclo Optics -10755 - Luxeon_CX_Plus_CoB_S01_WW - cross image

Download

IES

LUMILEDS LUXEON 3014 White

Eff:

86.5%

FWHM:

3.9°

Cd/Im:

128.3

Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

86.0%

FWHM:

7.2°

Cd/Im:

41.1

Carclo Optics – 10755 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10755 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

LUMILEDS LUXEON 3030 LUXEON White

Eff:

81.0%

FWHM:

6.0°

Cd/Im:

40.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535 HV White

Eff:

83.0%

FWHM:

4.9°

Cd/Im:

44.8

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

84.5%

FWHM:

3.8°

Cd/Im:

76.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

85.0%

FWHM:

2.9°

Cd/Im:

99.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

85.0%

FWHM:

2.5°

Cd/Im:

182.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5050 Round White

Eff:

85.0%

FWHM:

14.5°

Cd/Im:

11.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5258 White

Eff:

83.1%

FWHM:

14.1°

Cd/Im:

10.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

86.0%

FWHM:

20°

Cd/Im:

5.2

Carclo Optics – 10755 Lumileds Luxeon 7070 - Spot Image

Carclo Optics – 10755 Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

81.0%

FWHM:

10.5°

Cd/Im:

20.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

82.5%

FWHM:

7.8°

Cd/Im:

34.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

80.5%

FWHM:

8.0°

Cd/Im:

32.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 105 White

Eff:

83.5%

FWHM:

20.4°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 107 White

Eff:

83.5%

FWHM:

21.4°

Cd/Im:

4.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON COB 109 White

Eff:

83.5%

FWHM:

20.4°

Cd/Im:

4.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CSP 05 White

Eff:

82.0%

FWHM:

4.1°

Cd/Im:

45.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CSP 10 White

Eff:

83.0%

FWHM:

5.3°

Cd/Im:

29.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON CZ White

Eff:

86.0%

FWHM:

4.7 x 4.8°

Cd/Im:

116.6

Carclo Optics 10755 Spot Image Luxeon CZ 5M

Carclo Optics 10755 Cross Section Luxeon CZ 5M

Download

IES

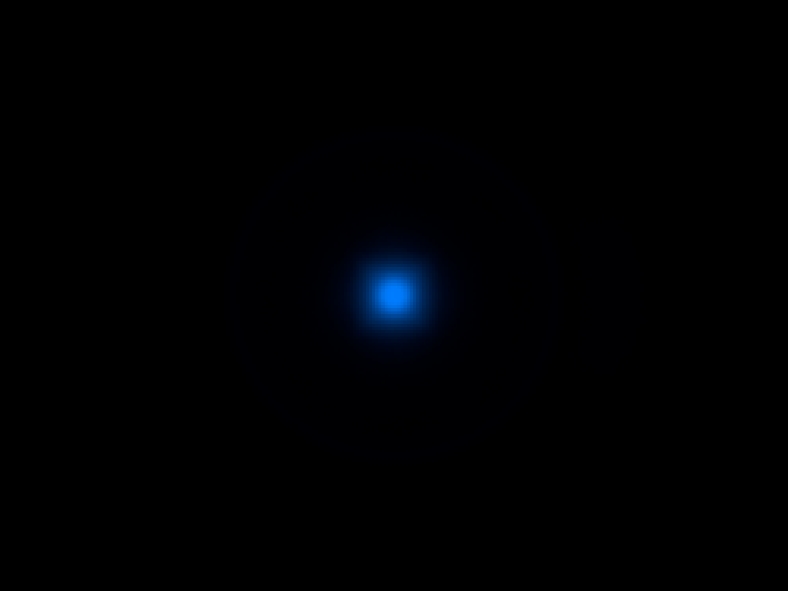

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.5%

FWHM:

4.6°

Cd/Im:

91.1

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

85.5%

FWHM:

9.0°

Cd/Im:

29.1

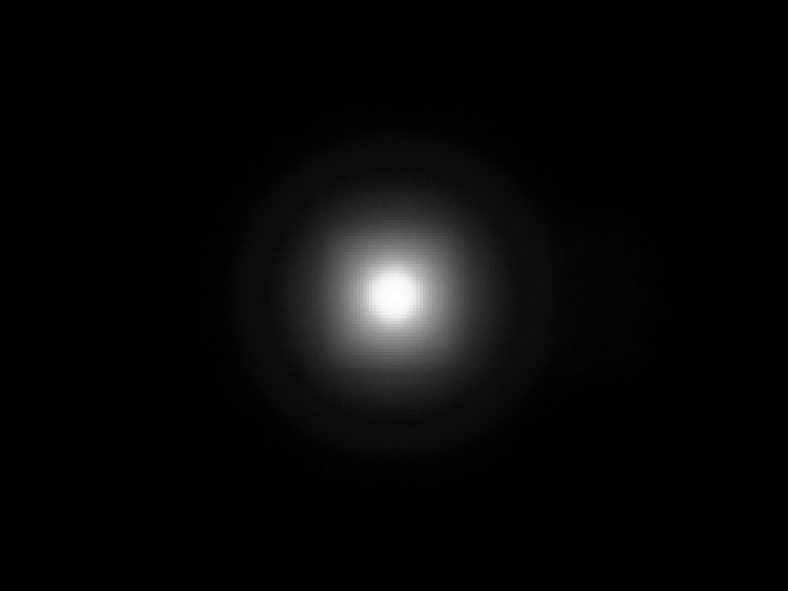

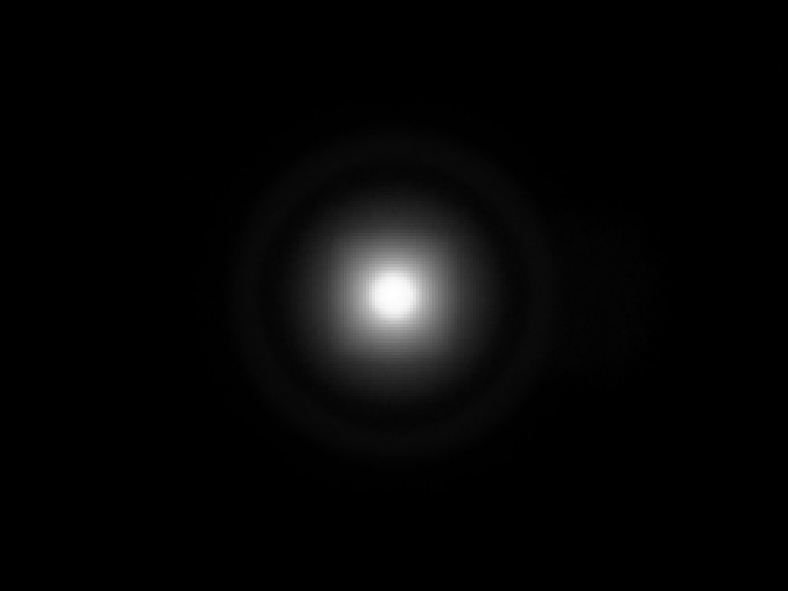

Carclo Optics - 10755 Spot Image Luxeon HL2X

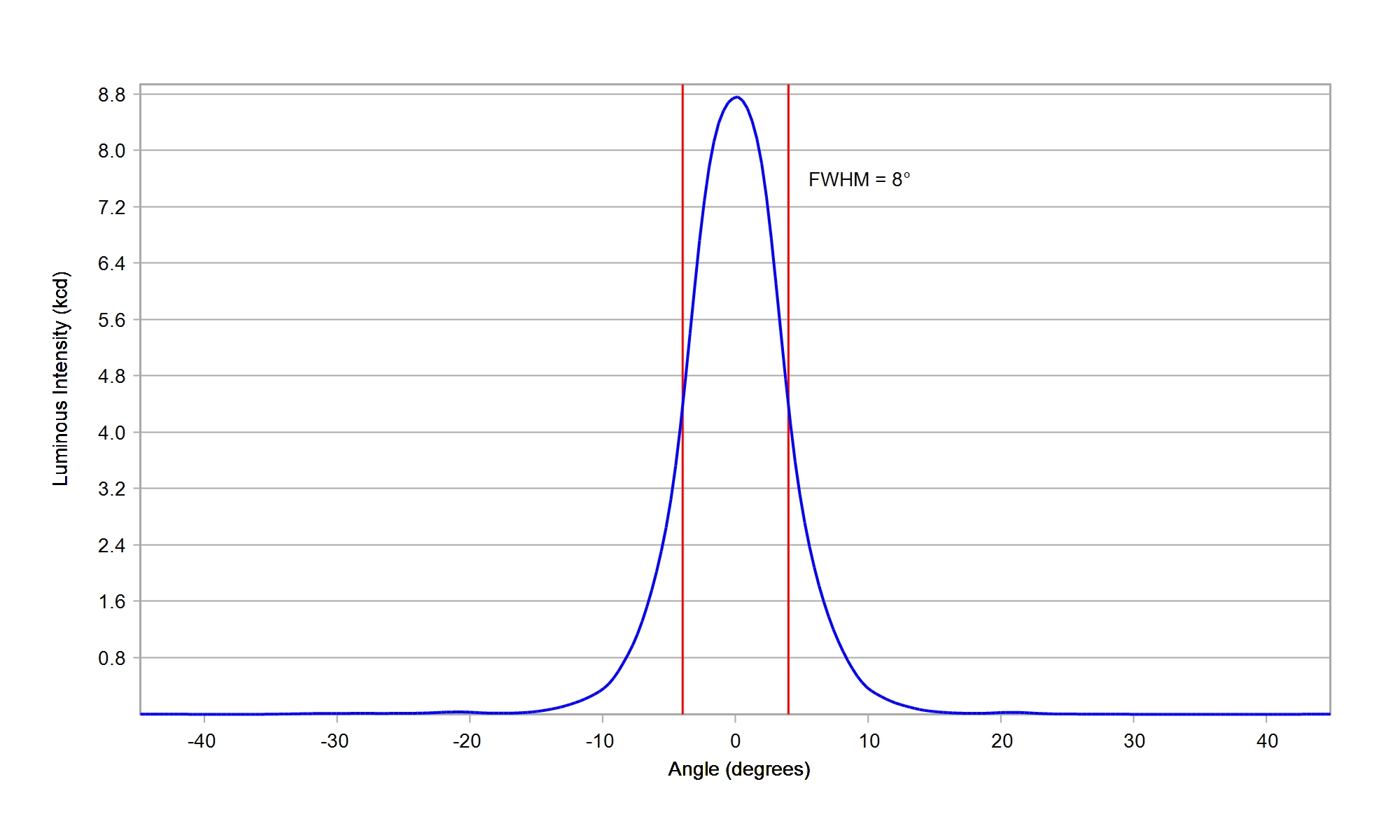

Carclo Optics - 10755 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

86.0%

FWHM:

9.6°

Cd/Im:

21.7

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

86.0%

FWHM:

10°

Cd/Im:

22.5

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

85.5%

FWHM:

6.7°

Cd/Im:

43.3

Carclo Optics – 10755 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10755 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

91.0%

FWHM:

48°

Cd/Im:

88.1

Carclo Optics 10755 Spot Image Luxeon IR 2720

Carclo Optics 10755 Cross Section image Luxeon IR 2720

Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

90.0%

FWHM:

4.9°

Ipk/W:

100.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 60 Degree

Eff:

89.5%

FWHM:

5.3°

Cd/Im:

60.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON IR Domed 90 Degree

Eff:

90.0%

FWHM:

6.3°

Cd/Im:

53.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON M White

Eff:

87.5%

FWHM:

19.5°

Cd/Im:

7.1

Download

IES

LUMILEDS LUXEON MX White

Eff:

84.5%

FWHM:

17.5°

Cd/Im:

7.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

82.9%

FWHM:

11.7°

Cd/Im:

14.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Q White

Eff:

81.1%

FWHM:

7.7°

Cd/Im:

28.7

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON R White

Eff:

85.7%

FWHM:

7.7°

Cd/Im:

38.3

Download

ies

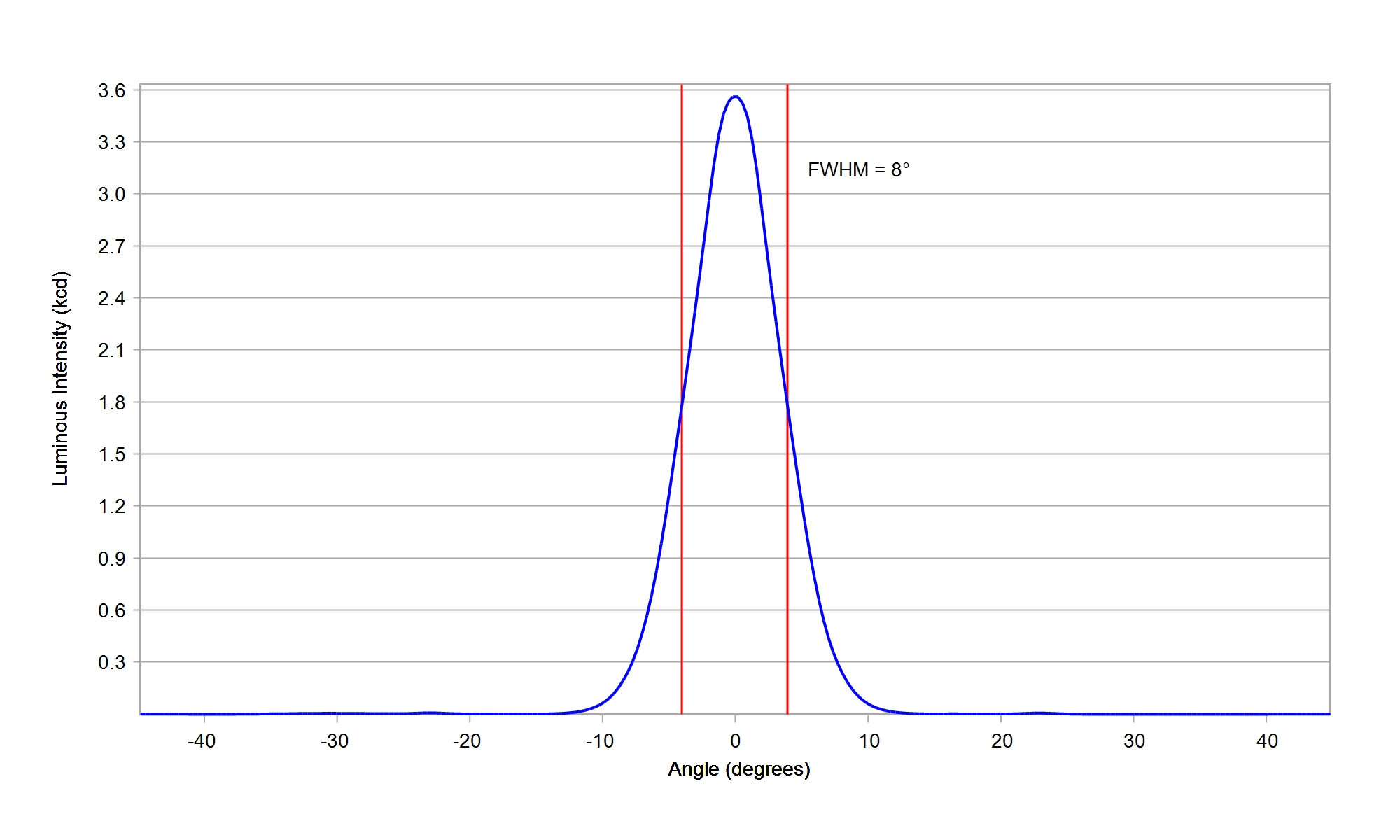

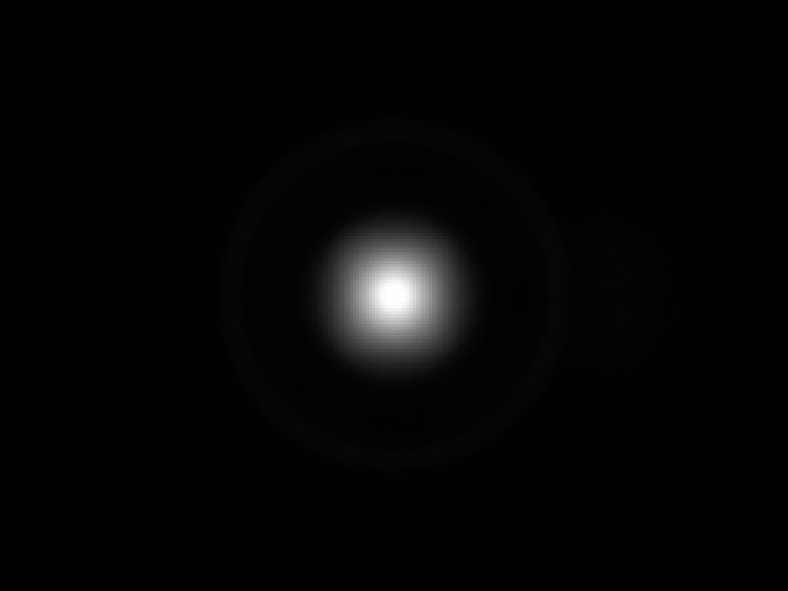

LUMILEDS LUXEON Rebel ES White

Eff:

85.7%

FWHM:

7.7°

Cd/Im:

38.3

Download

ies

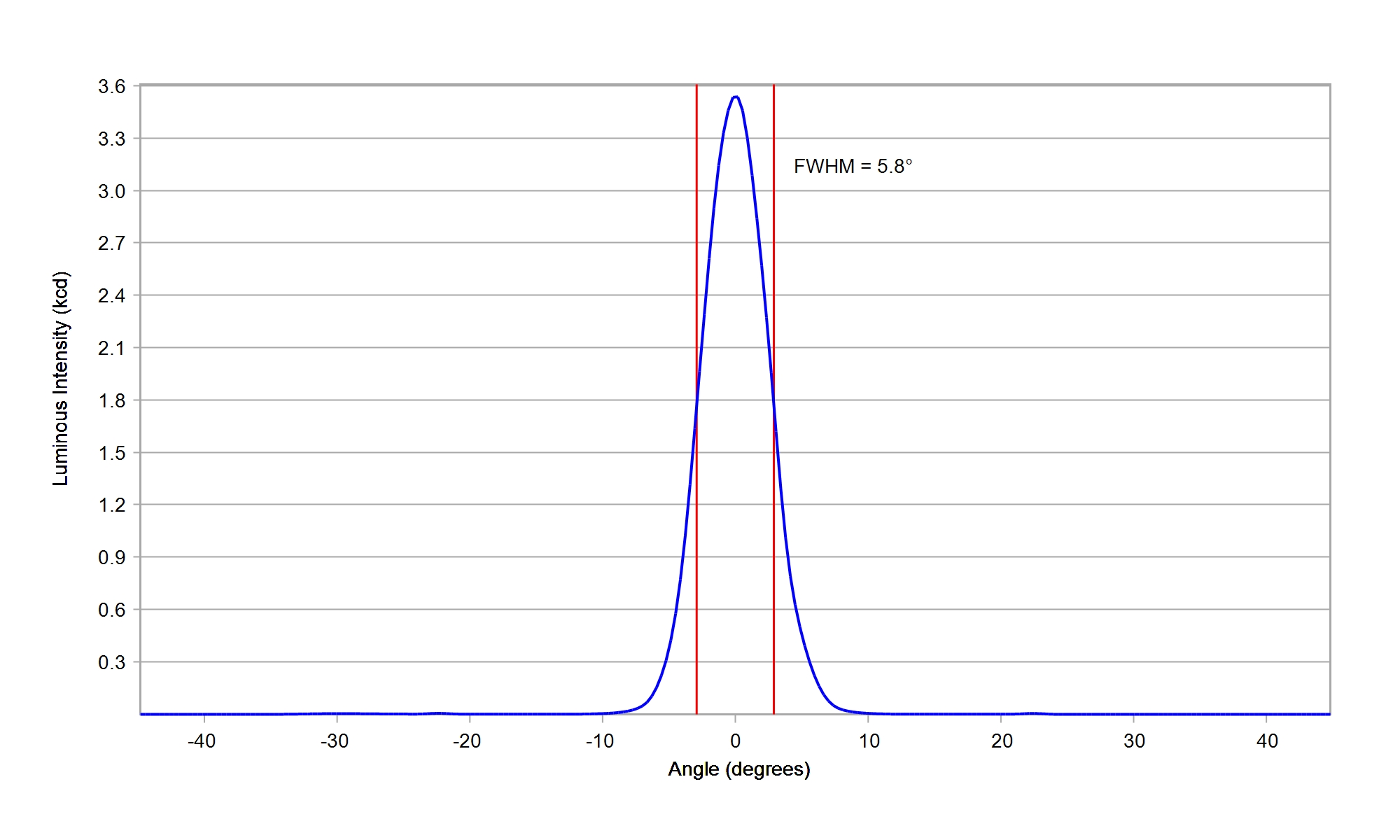

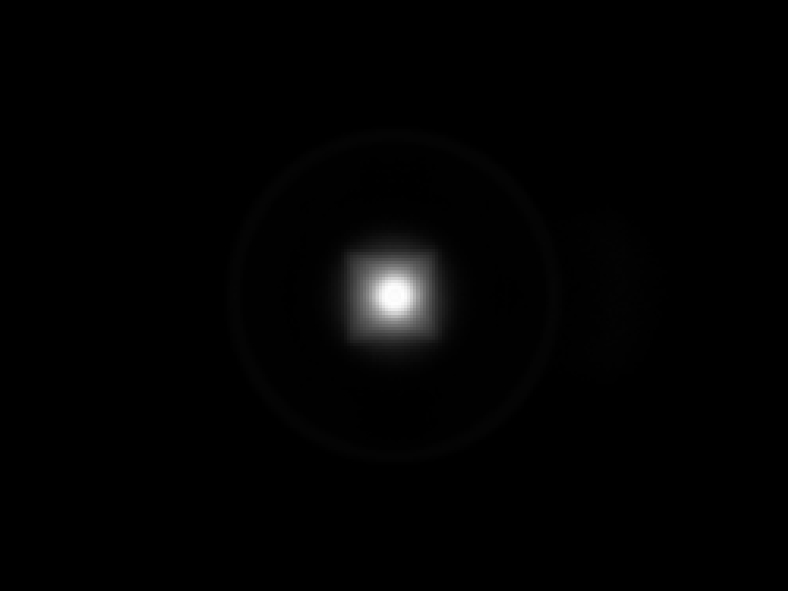

LUMILEDS LUXEON Rebel White

Eff:

85.9%

FWHM:

6.4°

Cd/Im:

75.0

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

86.0%

FWHM:

5.6°

Cd/Im:

85.2

Carclo Optics – 10755 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10755 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

86.0%

FWHM:

5.2°

Cd/Im:

101.2

Carclo Optics – 10755 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10755 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

88.0%

FWHM:

4.8°

Cd/Im:

120.3

Carclo Optics – 10755 Spot Image Lumileds Luxeon Rubix Red

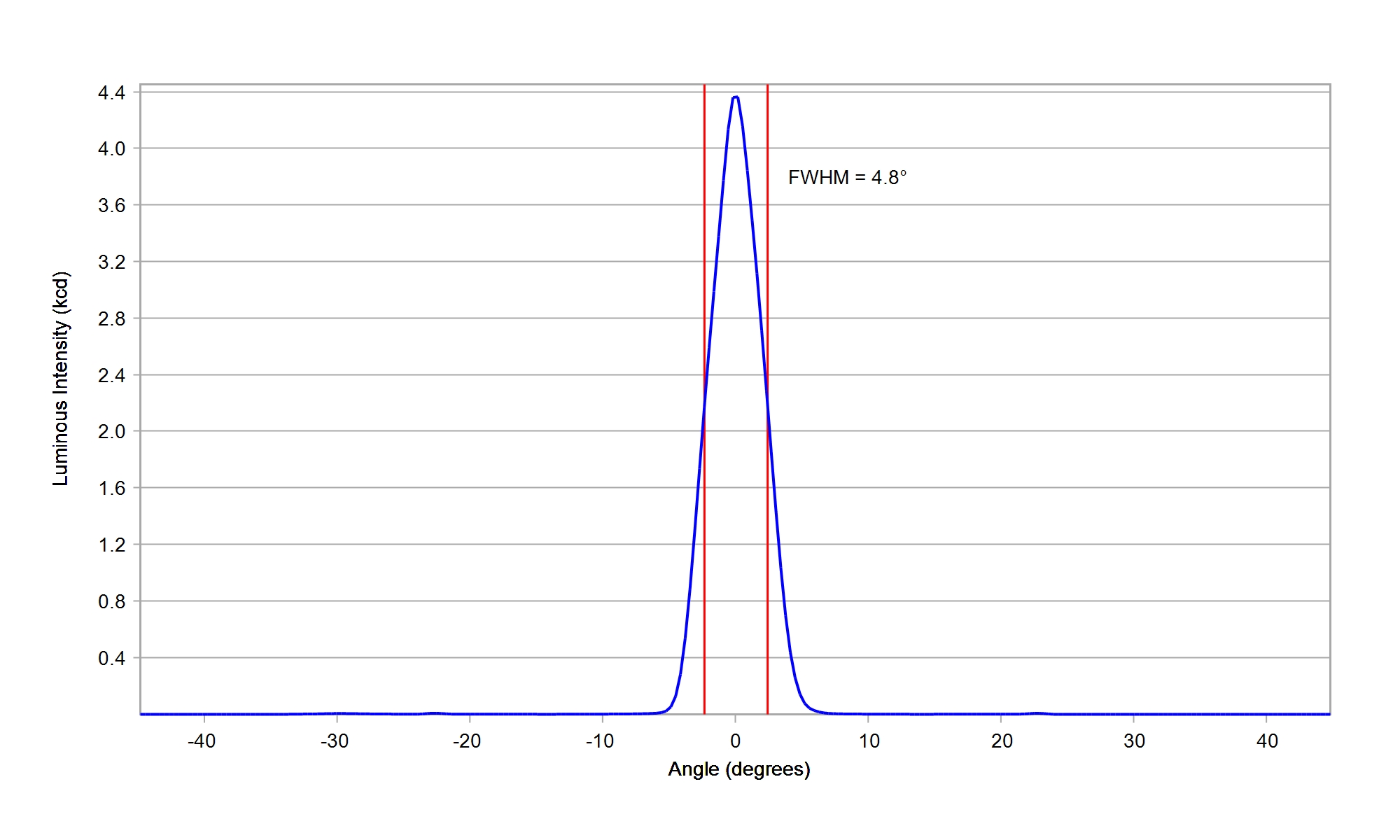

Carclo Optics – 10755 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

85.0%

FWHM:

5.7°

Cd/Im:

77.8

Carclo Optics – 10755 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10755 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

86.0%

FWHM:

5.2°

Cd/Im:

100.1

Carclo Optics - 10755 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10755 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON S1000 White

Eff:

85.5%

FWHM:

18°

Cd/Im:

7.1

Download

ies

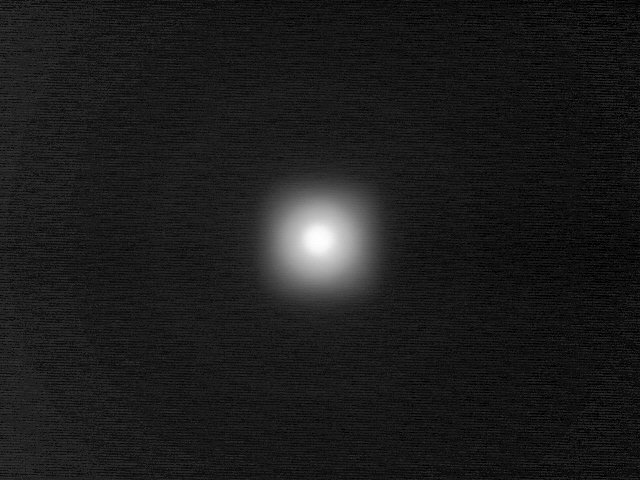

LUMILEDS LUXEON T White

Eff:

85.7%

FWHM:

7.6°

Cd/Im:

38.3

Download

ies

LUMILEDS LUXEON TX White

Eff:

82.9%

FWHM:

7.4°

Cd/Im:

32.0

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

82.5%

FWHM:

11.5°

Cd/Im:

15.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON V2 White

Eff:

85.0%

FWHM:

8.2°

Cd/Im:

32.2

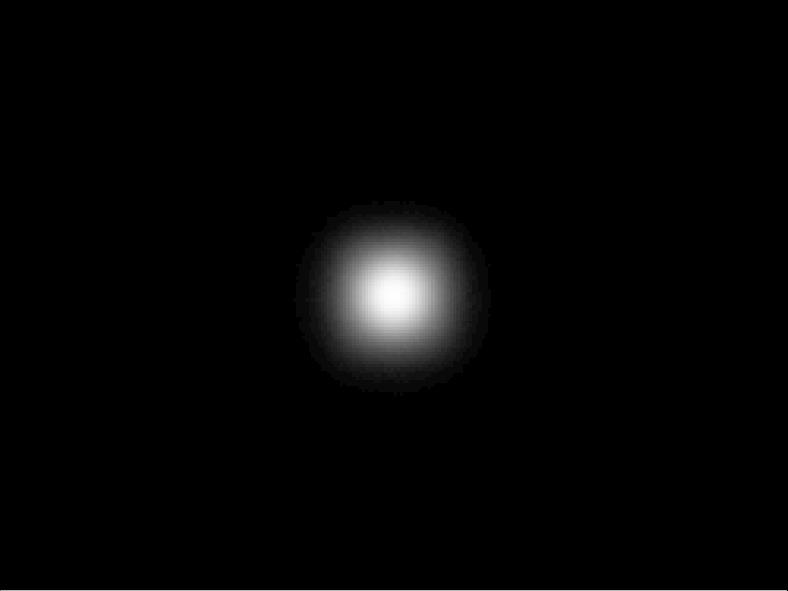

Carclo Optics 10755 Spot Image Luxeon V2

Carclo Optics 10755 Cross Section Image Luxeon V2

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

85.0%

FWHM:

4.7°

Cd/Im:

31.4

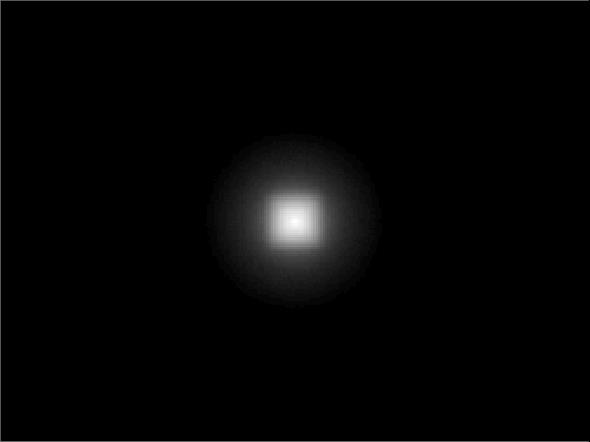

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

83.0%

FWHM:

3.8°

Cd/Im:

81.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Luminus Devices MP 7070-T200 White

Eff:

86.5%

FWHM:

20.5°

Cd/Im:

5.9


Download

IES

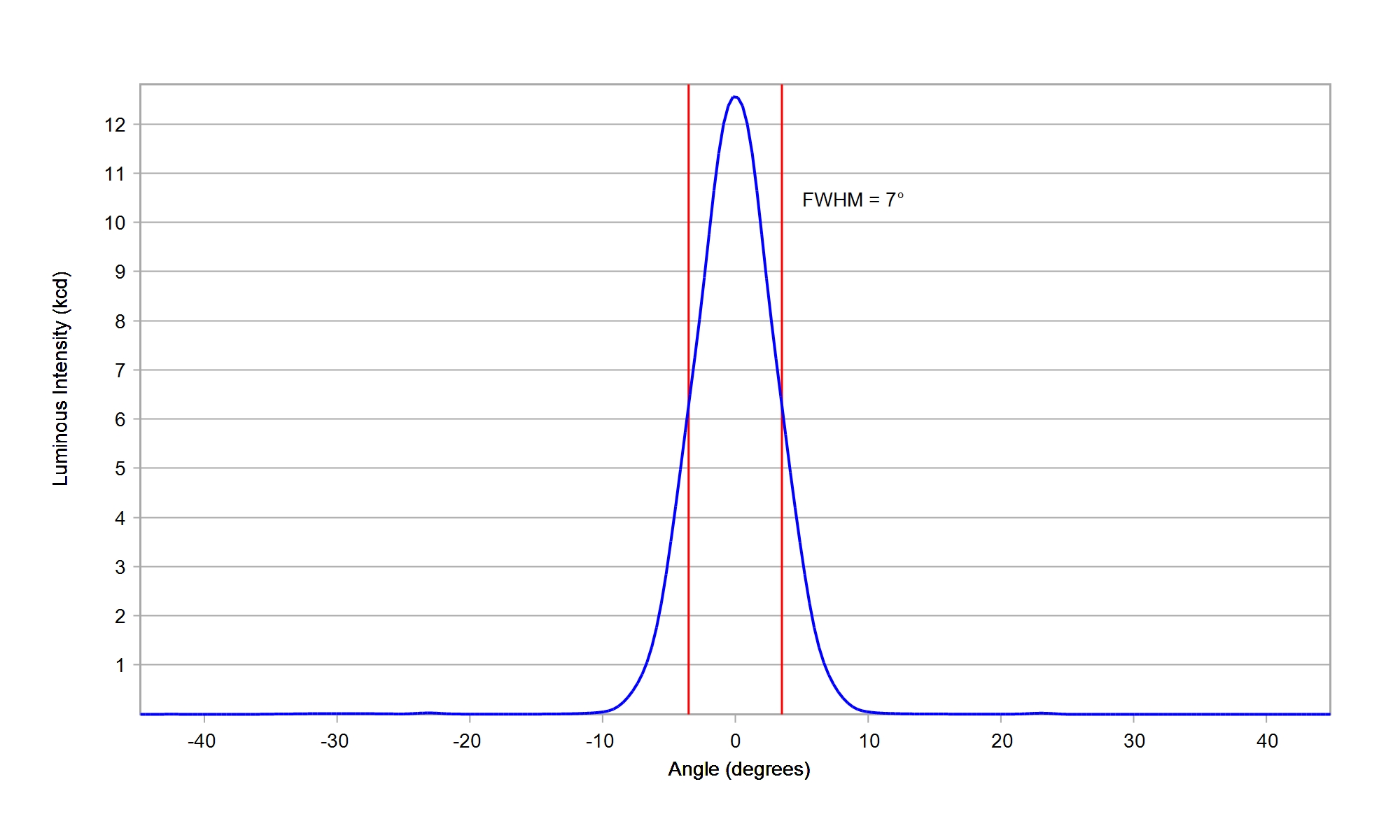

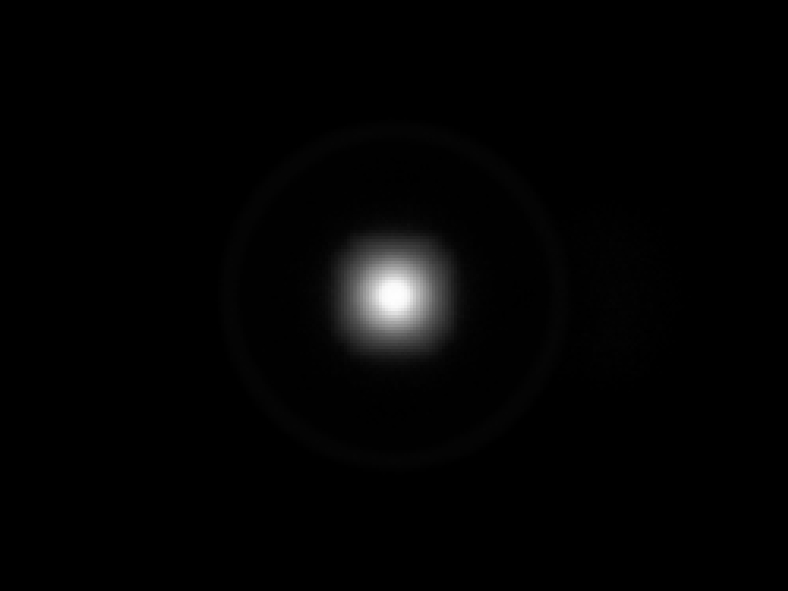

Luminus Devices SFT-40-WxS White

Eff:

86.0%

FWHM:

7°

Cd/Im:

48.6

Download

IES

Luminus Devices SFT-70X-WxS White

Eff:

86.0%

FWHM:

9.2°

Cd/Im:

26.7

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

90.5%

FWHM:

3.8°

Ipk/W:

120.2

Carclo Optics - 10755 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10755 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

83.0%

FWHM:

7.2°

Cd/Im:

60.6

Carclo Optics - 10755 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10755 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

83.5%

FWHM:

5.8°

Cd/Im:

62.5

Carclo Optics - 10755 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10755 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

88.0%

FWHM:

6.6°

Cd/Im:

60.3

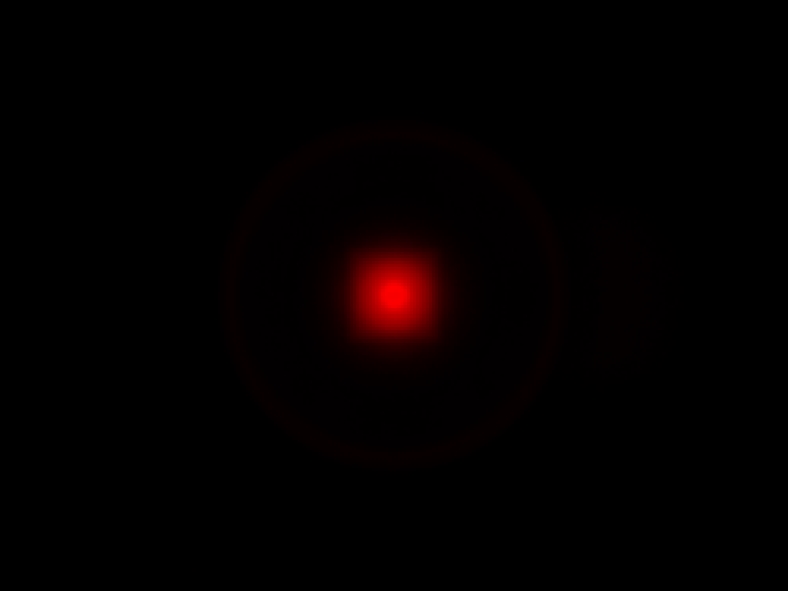

Carclo Optics – 10755 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10755 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

88.0%

FWHM:

6.3°

Cd/Im:

54.4

Carclo Optics - 10755 Luminus_SST-10_DR_B90 - Spot Image

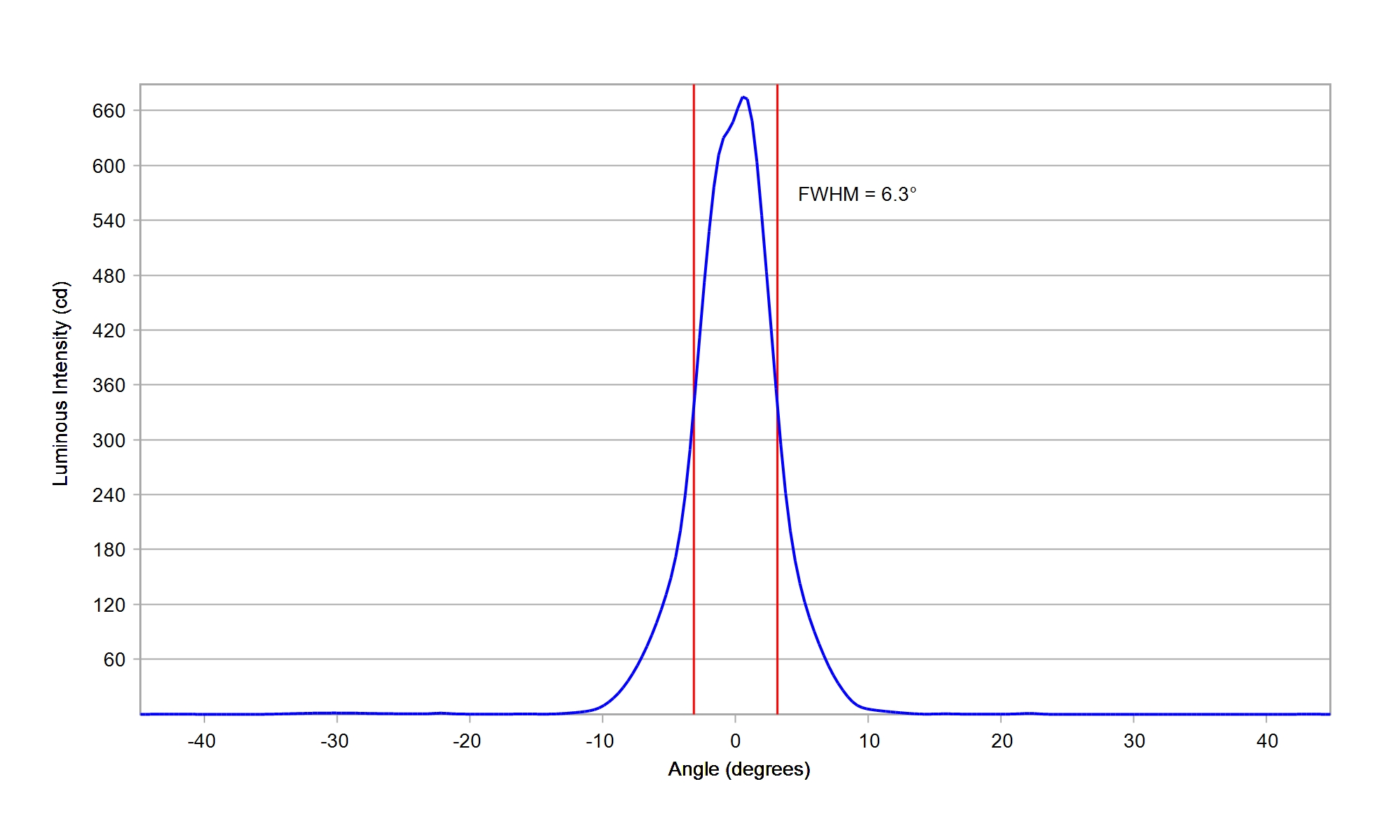

Carclo Optics - 10755 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

86.0%

FWHM:

6.7°

Cd/Im:

71.3

Carclo Optics - 10755 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10396 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

86.0%

FWHM:

5.6°

Cd/Im:

66.4

Carclo Optics – 10755 Luminus_SST-10_G_B90- Spot - image

Carclo Optics – 10755 Luminus_SST-10_G_B90- Cross section – image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.5%

FWHM:

7.8°

Ipk/W:

51.9

Carclo Optics - 10755 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10755 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

92.0%

FWHM:

5.8°

Ipk/W:

55.0

Carclo Optics - 10755 Cross Section Luminus SST-10-IR-B90

Carclo Optics - 10755 Cross Section Luminus SST-10-IR-B90

Download

IES

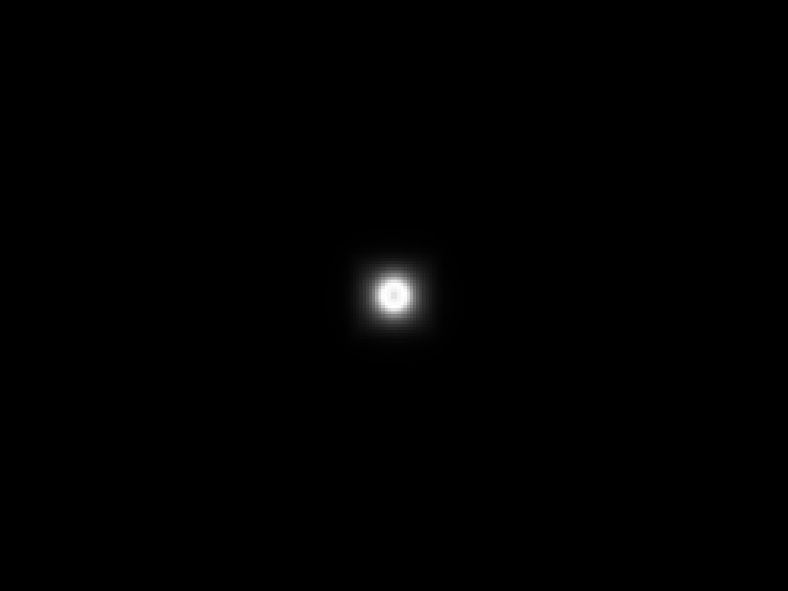

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

5.9°

Ipk/W:

62.6


Download

IES

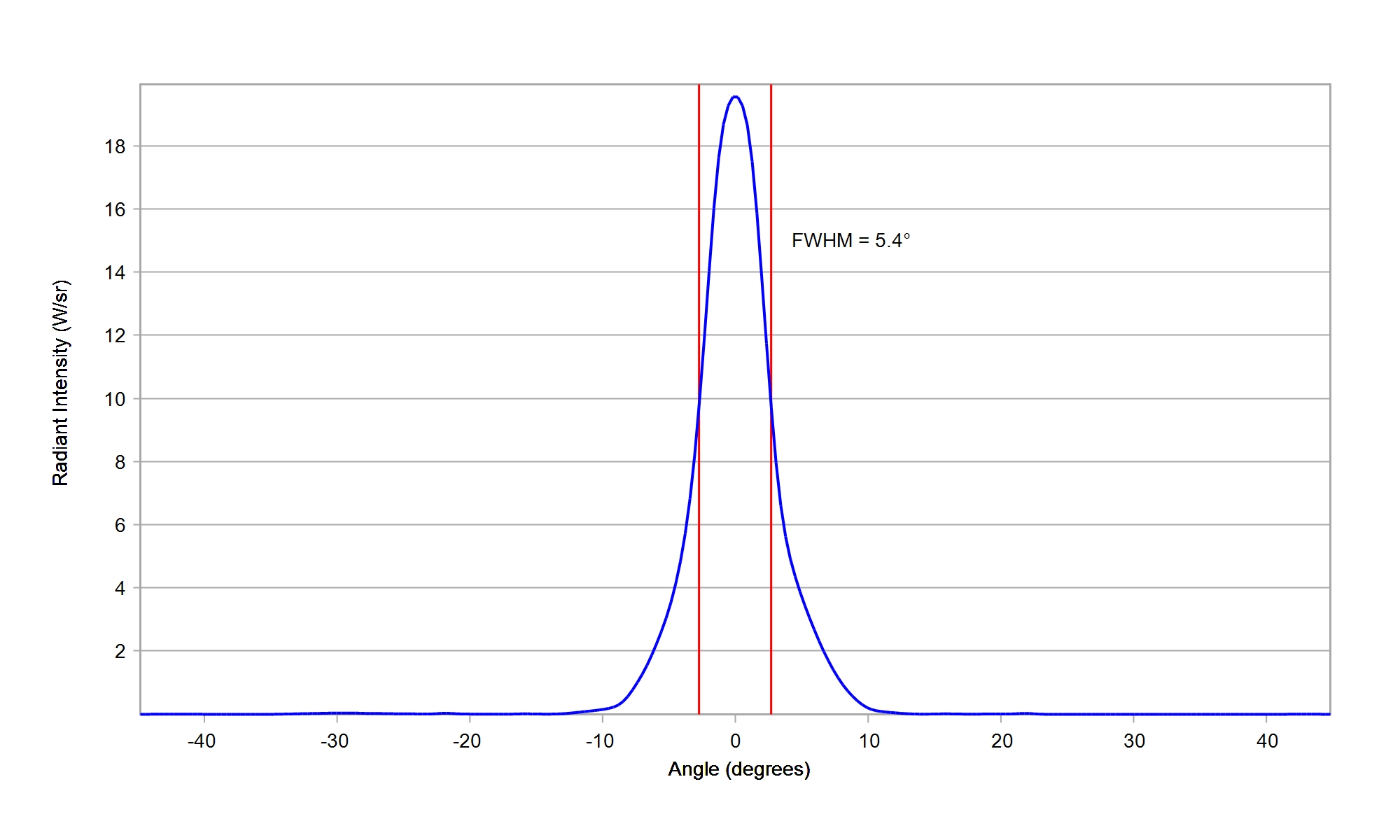

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.5%

FWHM:

5.4°

Ipk/W:

60.2


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

85.5%

FWHM:

6.5°

Cd/Im:

51.3

Carclo Optics – 10755 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10755 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

17.7

Carclo Optics – 10755 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10755 - Luxeon_SST_40_W_cross vertical section

Download

IES

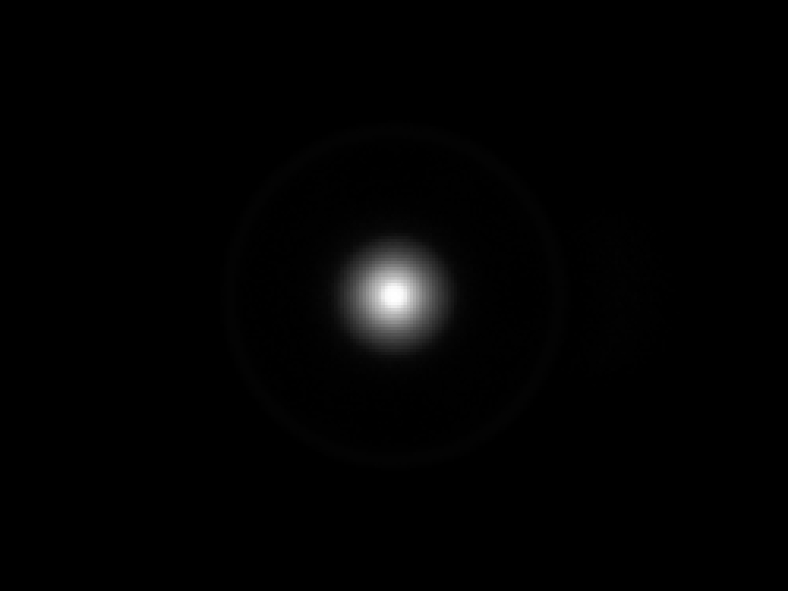

Luminus Devices SST-12-WxS White

Eff:

85.5%

FWHM:

6.1°

Cd/Im:

66.6

Download

IES

Luminus Devices SST-70X-W White

Eff:

86.0%

FWHM:

13°

Cd/Im:

13.0

Download

IES

Nichia 219 White

FWHM:

7.6°

Cd/Im:

43.7

Download

ies

Nichia 229A White

Eff:

83.5%

FWHM:

11.5°

Cd/Im:

14.5

Carclo Optics - Simulated Spot Image

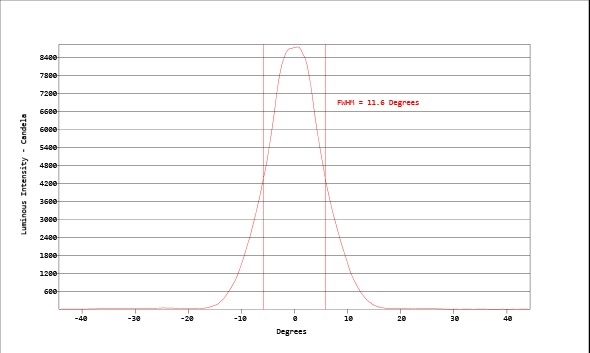

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

85.0%

FWHM:

7.2°

Cd/Im:

38.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

86.0%

FWHM:

7.7°

Cd/Im:

35.0

Carclo Optics 10755 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10755 Simulated cross section horizontal Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

84.5%

FWHM:

5.7°

Cd/Im:

64.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

85.0%

FWHM:

7.6°

Cd/Im:

31.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 481AR White

Eff:

77.0%

FWHM:

19.0°

Cd/Im:

6.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

85.5%

FWHM:

15.5°

Cd/Im:

9.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

85.5%

FWHM:

14.5°

Cd/Im:

11.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

85.5%

FWHM:

15.5°

Cd/Im:

10.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

84.5%

FWHM:

4.1°

Cd/Im:

134.1

Download

IES

Nichia NJCW S024Z White

Eff:

81.5%

FWHM:

21.0°

Cd/Im:

4.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NV4W B35AM White

Eff:

86.0%

FWHM:

11.5°

Cd/Im:

16.6

Carclo Optics – 10755 Nichia NV4WB35AM - Spot Image

Carclo Optics – 10755 Nichia NV4WB35AM - Cross-Section

Download

IES

Nichia NVSL 219B White

Eff:

83.5%

FWHM:

6.5°

Cd/Im:

46.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

84.0%

FWHM:

9.0°

Cd/Im:

28.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

85.5%

FWHM:

8.9°

Cd/Im:

29.3

Carclo Optics – 10755 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10755 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

83.5%

FWHM:

10°

Cd/Im:

21.7

Carclo Optics - Simulated Spot Image

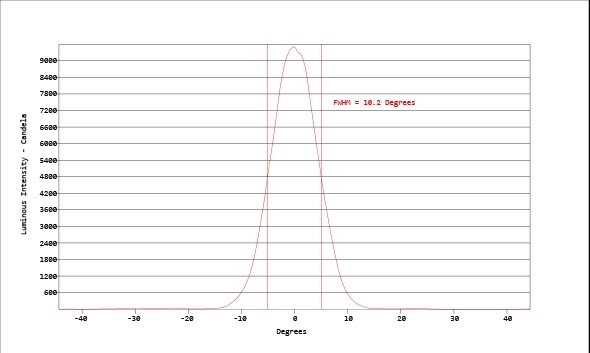

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

82.0%

FWHM:

6.8°

Cd/Im:

45.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

86.0%

FWHM:

5.3°

Cd/Im:

65.7

Carclo Optics - 10755 30mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10755 30mm Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

85.0%

FWHM:

5.8°

Cd/Im:

53.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

83.0%

FWHM:

2.8°

Cd/Im:

69.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

86.4%

FWHM:

6.7°

Cd/Im:

41.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

82.8%

FWHM:

6.9°

Cd/Im:

35.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S10 White

Eff:

85.5%

FWHM:

19.0°

Cd/Im:

6.4

Carclo Optics - Simulated Spot Image

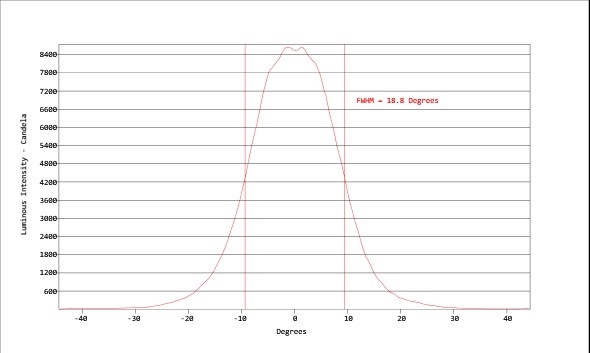

Carclo Optics - Simulated Cross Section

Download

em_

Osram OS DURIS S2 White

Eff:

88.1%

FWHM:

5.3°

Cd/Im:

42.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

6.5°

Cd/Im:

52.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

86.0%

FWHM:

6.2°

Cd/Im:

51.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

87.5%

FWHM:

5.6°

Cd/Im:

63.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

83.0%

FWHM:

6.4°

Cd/Im:

36.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

86.5%

FWHM:

18 x 16°

Cd/Im:

8.8

Carclo Optics - 10755 30mm Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10755 26.5mm Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS OSCONIQ C 2424 White

Eff:

86.5%

FWHM:

6.0°

Cd/Im:

60.5

Carclo Optics - 10755 Spot Image OSCONIQ C2424

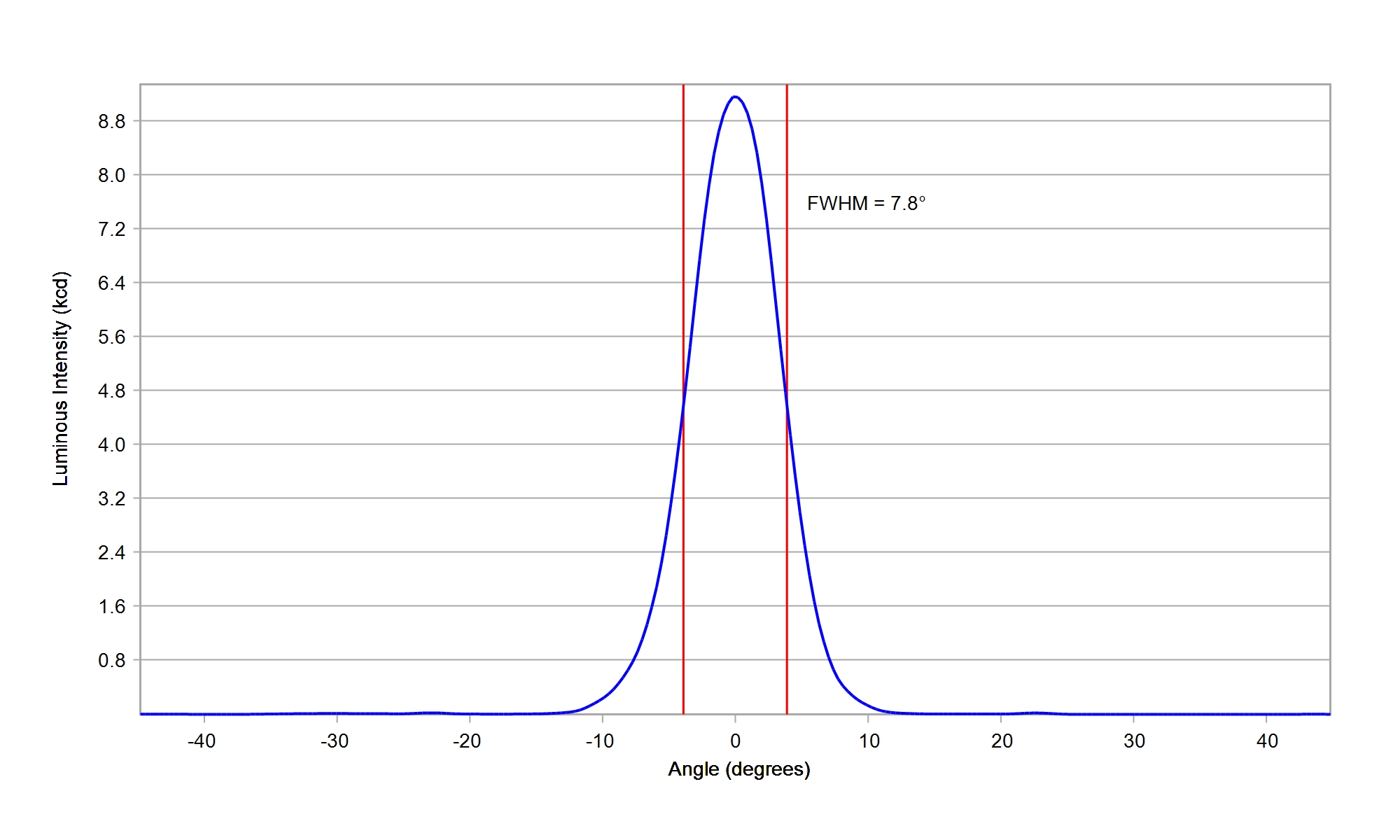

Carclo Optics - 10755 Cross Section OSCONIQ C2424

Download

IES

Osram OS OSCONIQ P3737 White

Eff:

83.0%

FWHM:

9.9°

Cd/Im:

20.0

Carclo Optics 10755 Spot Image Osram Osconiq P3737

Carclo Optics 10755 Cross Section Osram Osconiq P3737

Download

IES

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

86.5%

FWHM:

16°

Cd/Im:

9.9



Download

IES

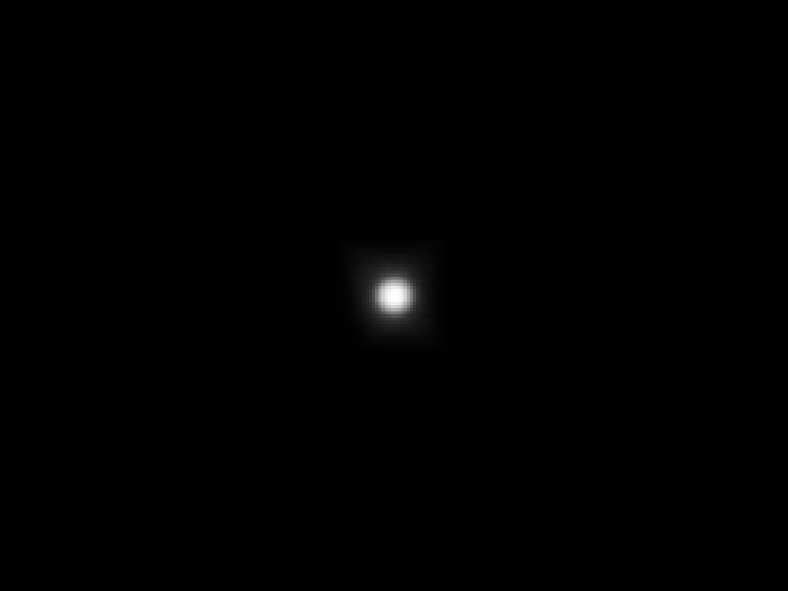

Osram OS OSLON Black SFH 4715AS IR

Eff:

90.0%

FWHM:

4.5°

Ipk/W:

84.8


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

89.0%

FWHM:

5°

Ipk/W:

89.1

Carclo Optics – 10755 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

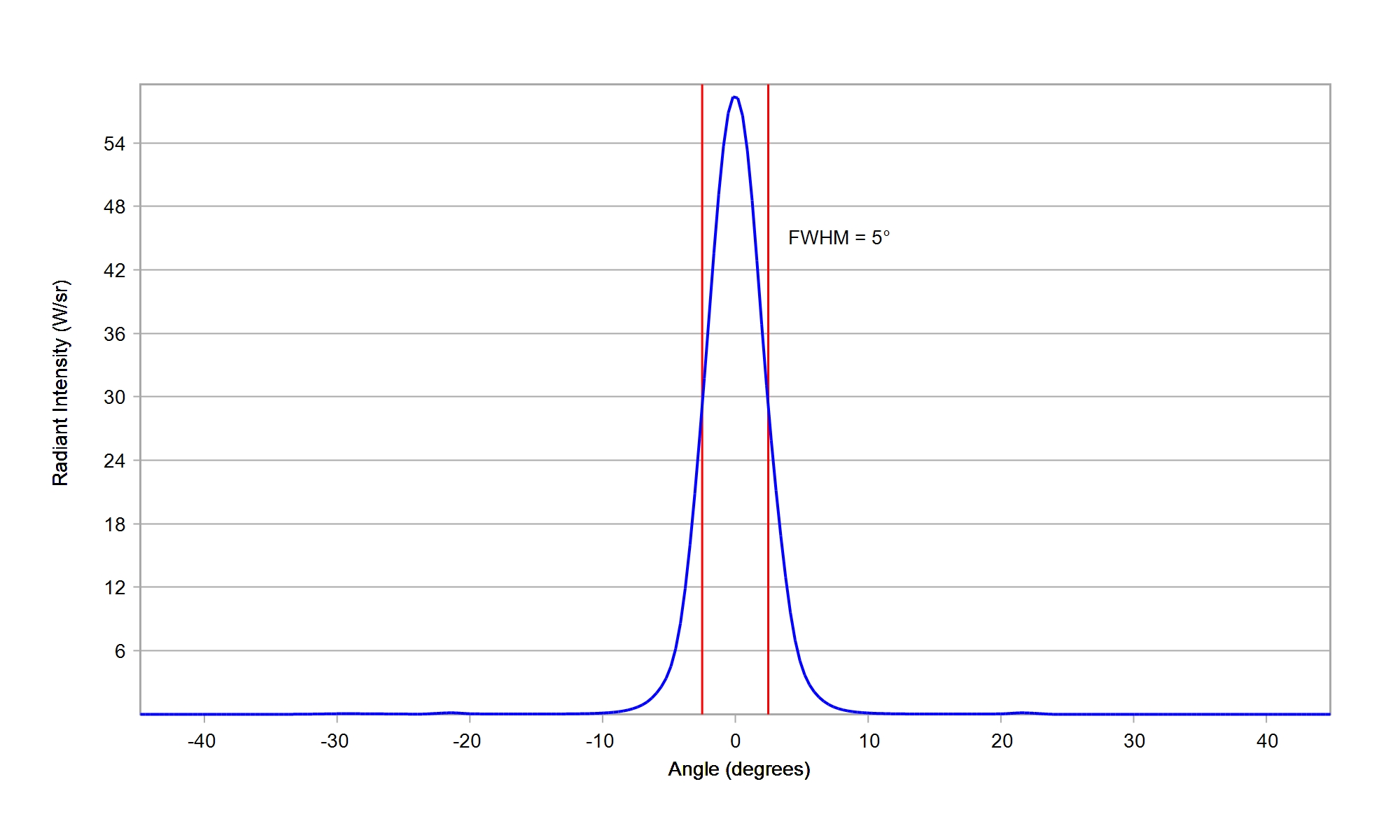

Carclo Optics – 10755 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

92.0%

FWHM:

7.6°

Cd/Im:

57.5

Carclo Optics 10755 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10755 Cross Section Horizontal Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Black SFH 4726AS IR

Eff:

91.5%

FWHM:

5.1°

Ipk/W:

88.0


Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

86.0%

FWHM:

4.2°

Cd/Im:

138.2

Carclo Optics – 10755 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10755 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

86.5%

FWHM:

3.7°

Cd/Im:

154.7


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

84.0%

FWHM:

3.9°

Ipk/W:

140.4


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

85.5%

FWHM:

3.5°

Cd/Im:

165.3


Download

IES

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

85.5%

FWHM:

3.7°

Cd/Im:

143.1


Download

IES

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

86.0%

FWHM:

3.5°

Cd/Im:

159.5


Download

IES

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

85.0%

FWHM:

3.5°

Cd/Im:

163.7



Download

IES

Osram OS OSLON Square Flat White

Eff:

85.5%

FWHM:

5.6°

Cd/Im:

69.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

83.1%

FWHM:

6.9°

Cd/Im:

35.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

85.5%

FWHM:

7.9°

Cd/Im:

36.7

Carclo Optics - 10755 30mm Spot Image Oslon Square Gen 5

Carclo Optics - 10755 30mm Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

82.0%

FWHM:

6.9°

Cd/Im:

34.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

85.5%

FWHM:

5.8°

Cd/Im:

73.5

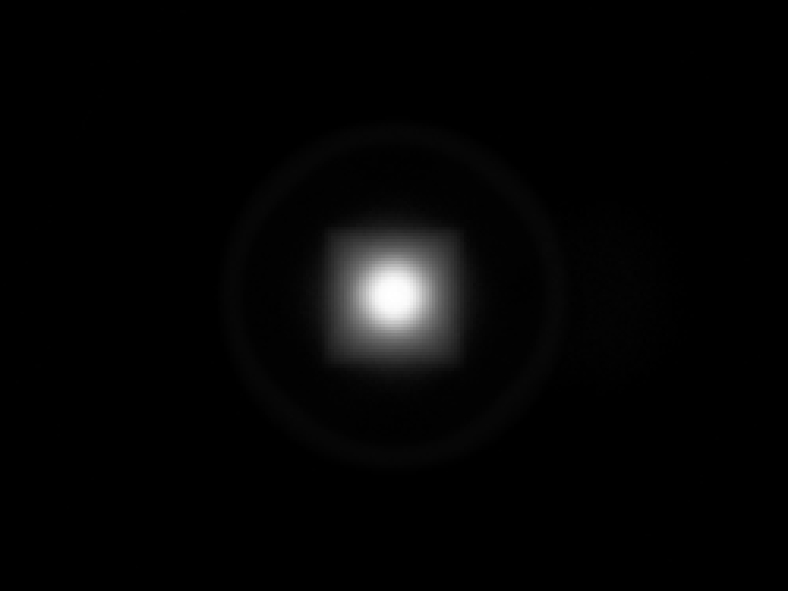

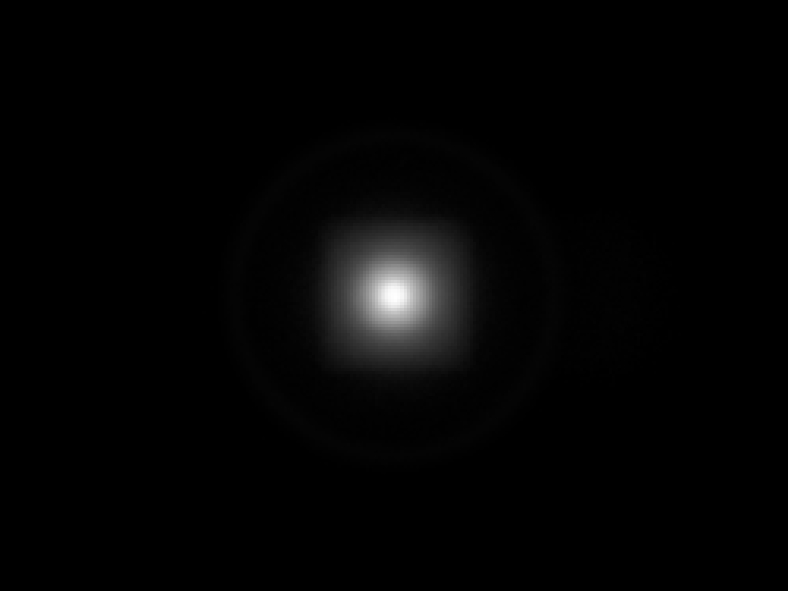

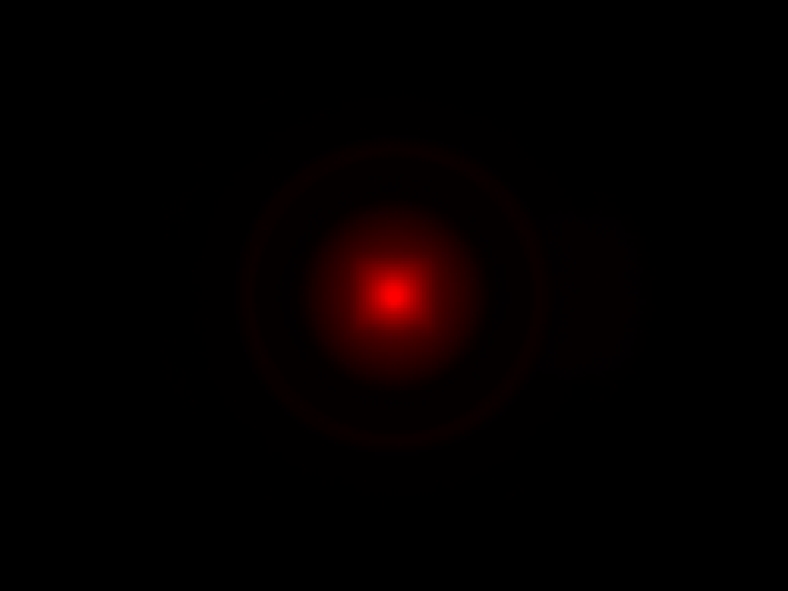

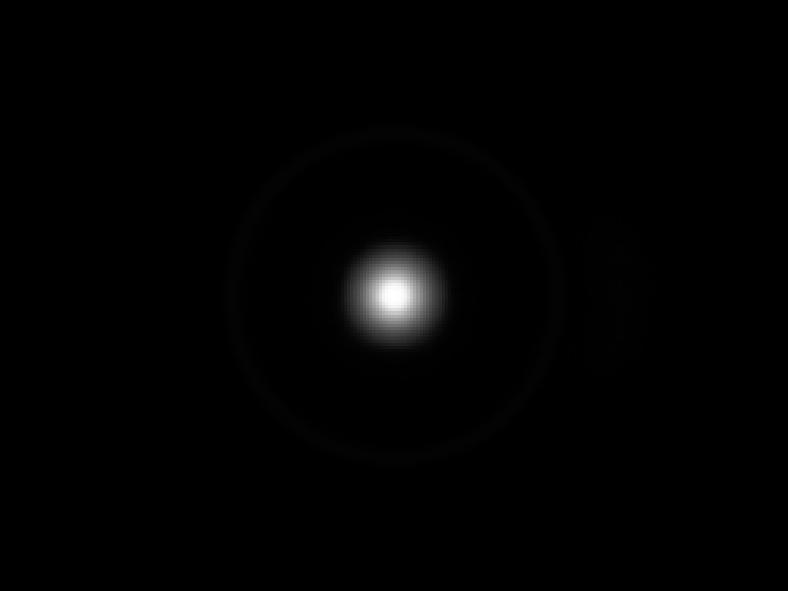

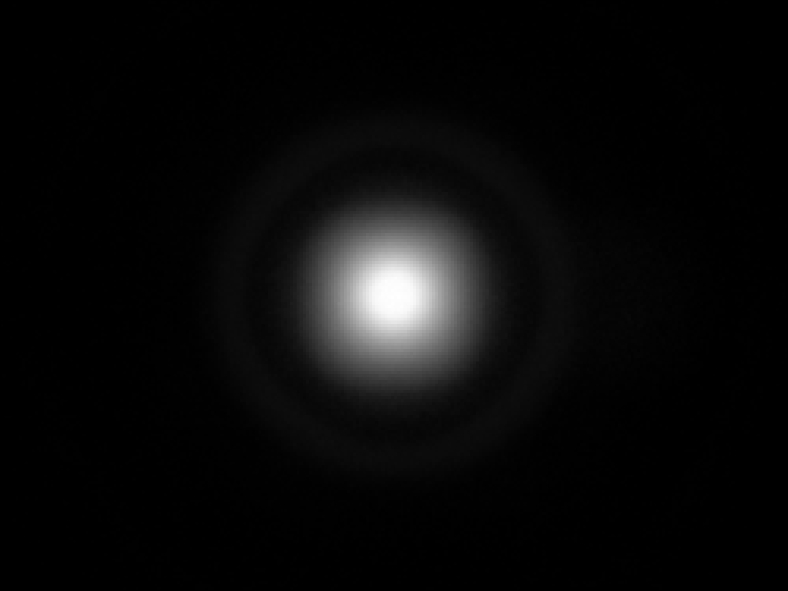

Carclo Optics – 10755 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

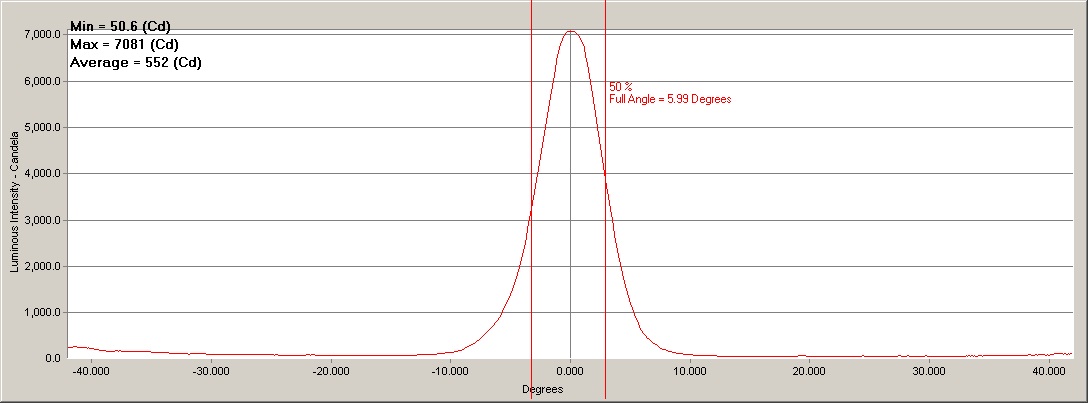

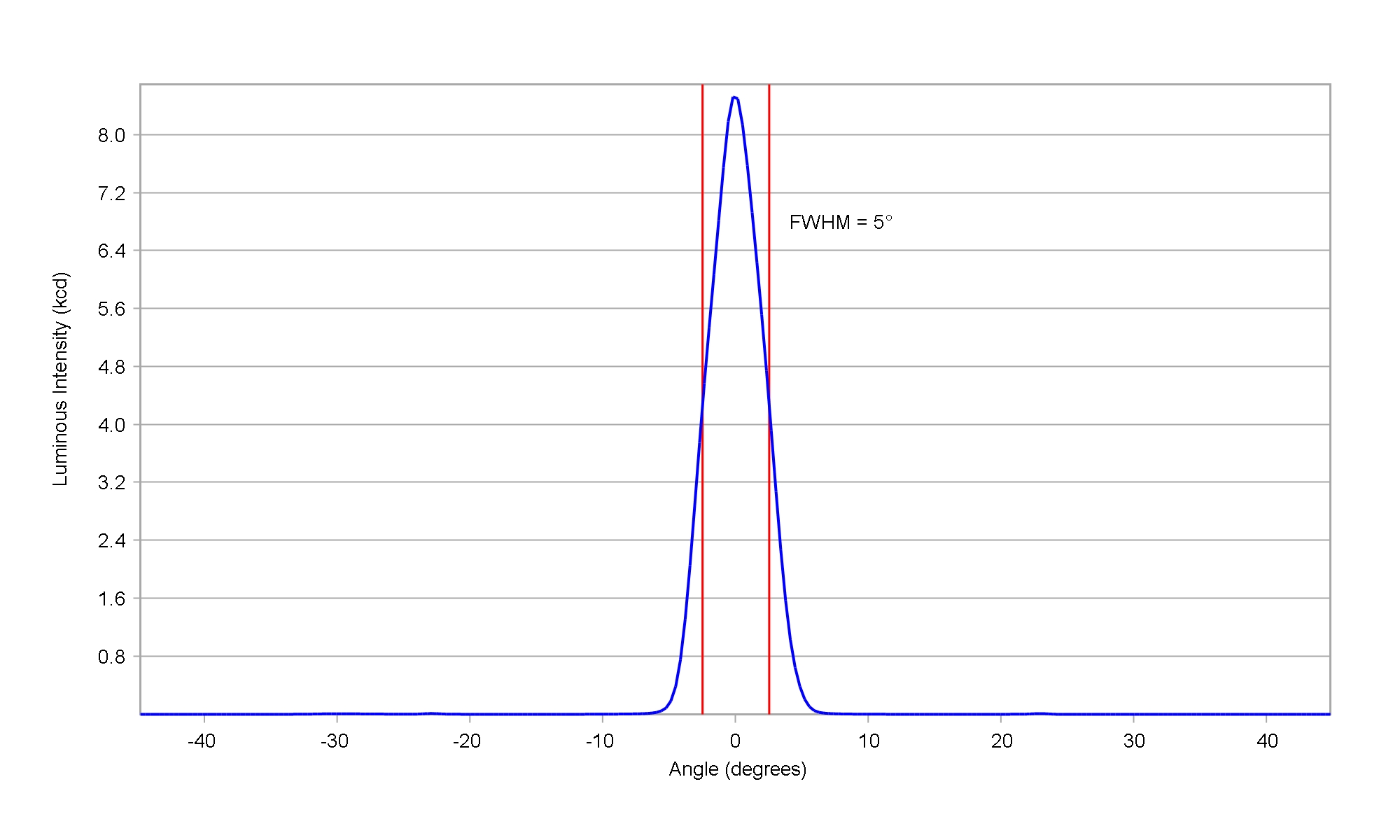

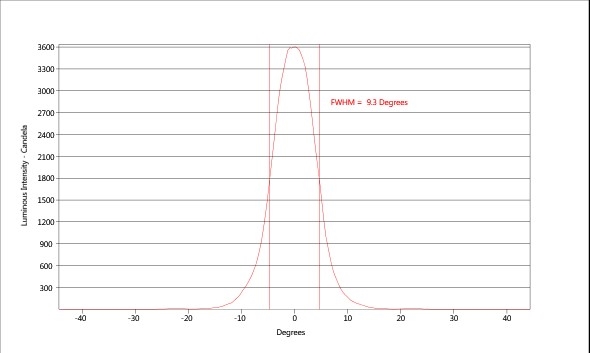

Carclo Optics – 10755 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES
