19.6mm Downlight Plain Bubble | Carclo Optics

Carclo Optics 10628

19.6mm Downlight Plain Bubble

Part number

10628

Dimensions

19.6mm

Drawing Number

60586

Optic type

Bubble

Finish

Plain

Beam type

Downlight

Applications

Architectural

Wide Area

Downloads

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

93.5%

FWHM:

114 x 113°

Cd/Im:

0.5

Carclo Optics - 10628 Bubble Spot Image Bridgelux 3030 Gen2

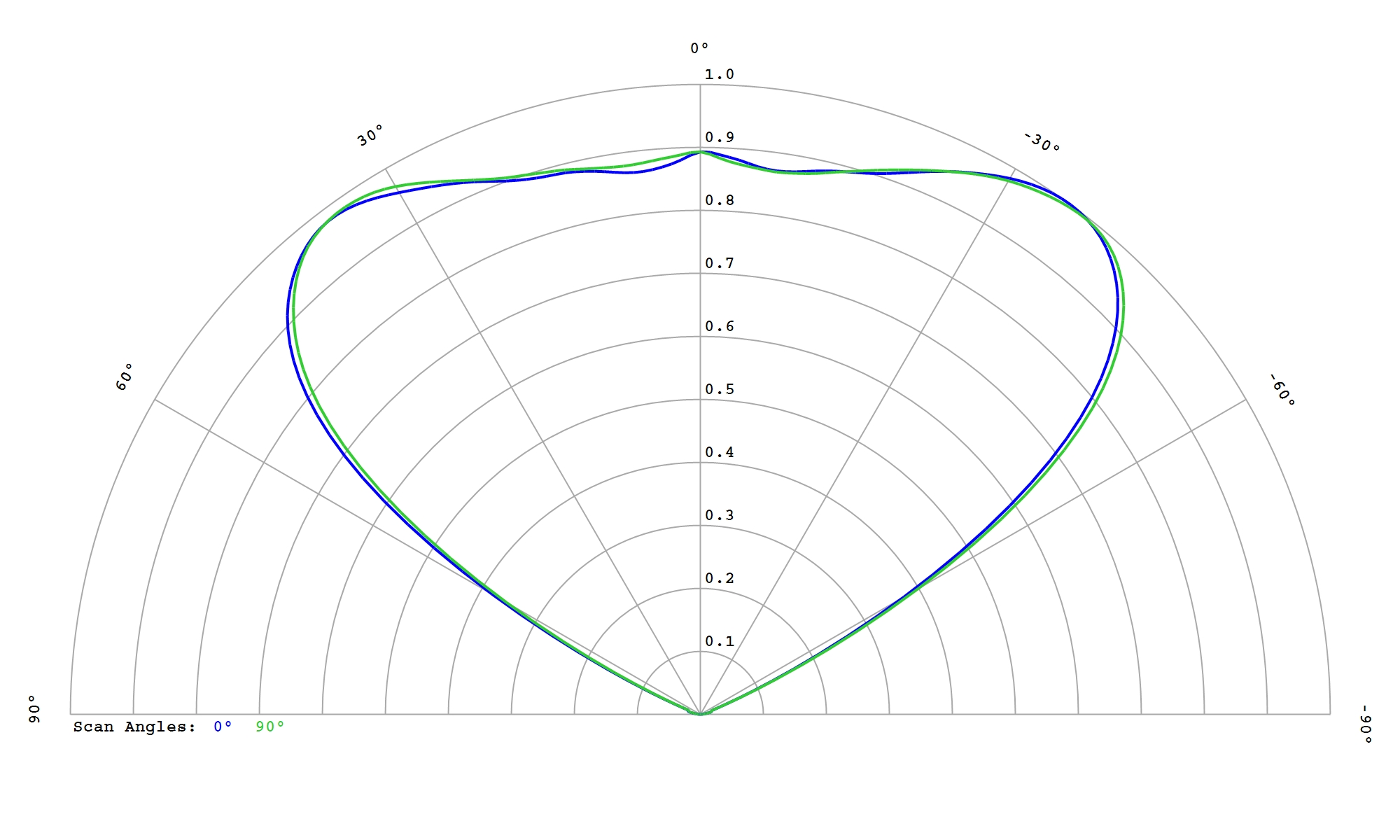

Carclo Optics - 10628 Bubble Cross Section Bridgelux 3030 Gen2

Download

IES

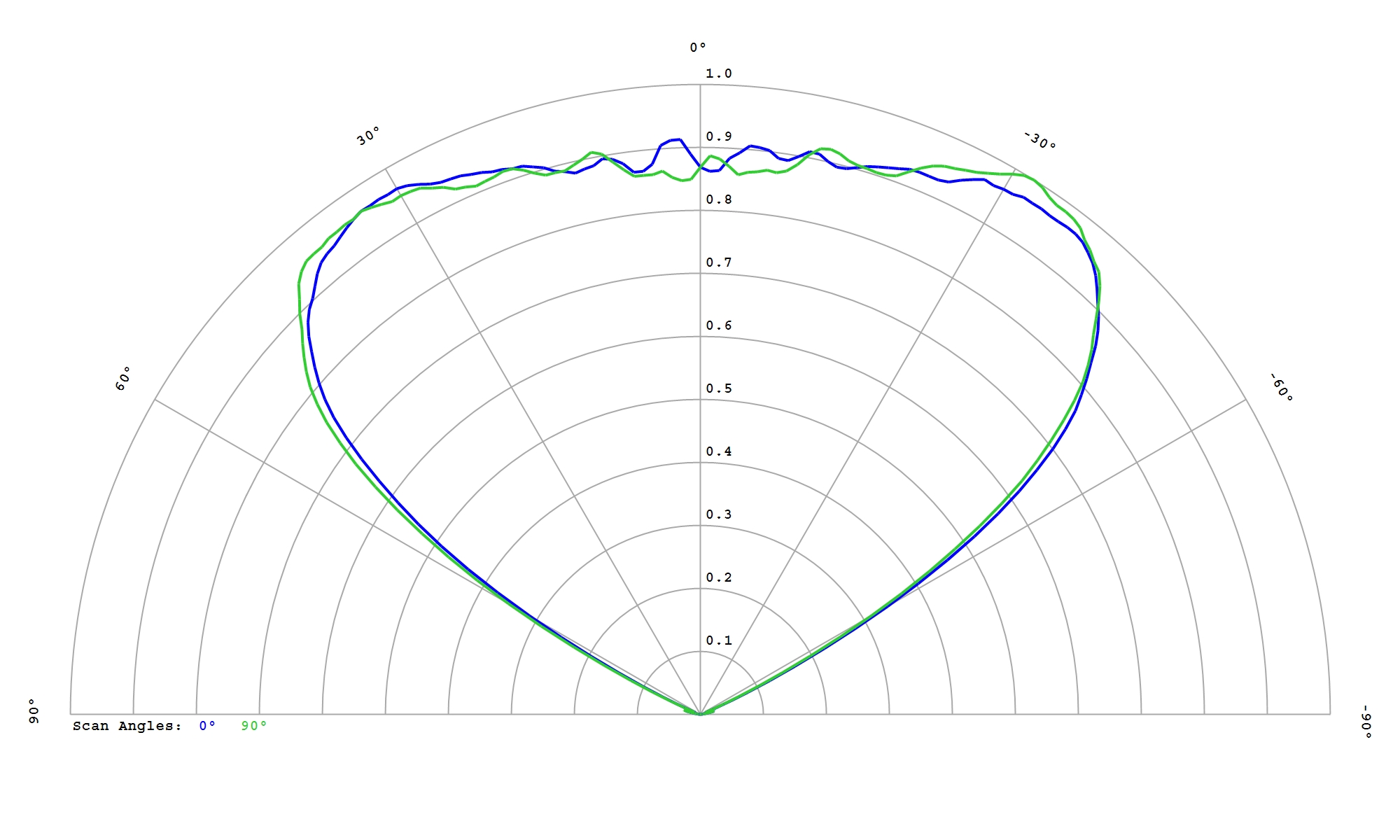

Cree JB2835B 3V G-Class White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.4


Download

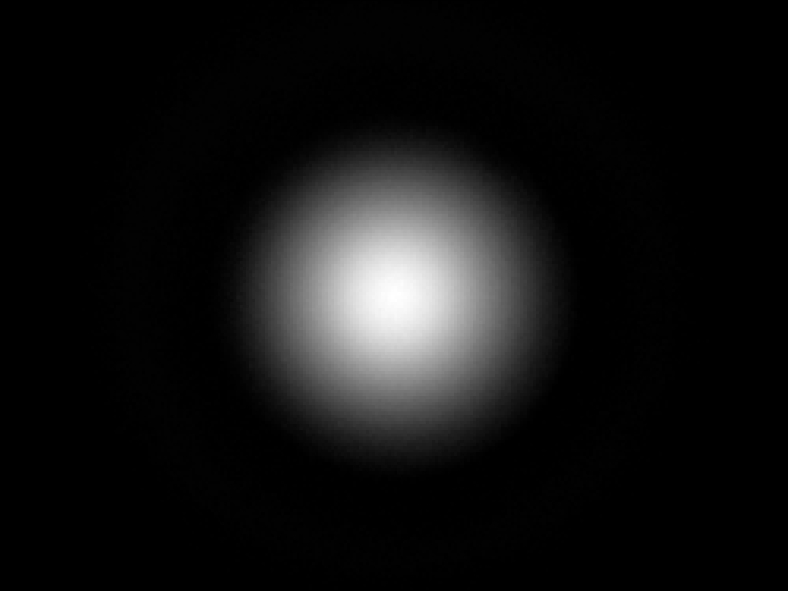

Cree JB2835B 3V J-Class White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5


Download

Cree JB3030 3V P-Class White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree JB3030 3V White

Carclo Optics - 10628 Cross Section Cree JB3030 3V White

Download

IES

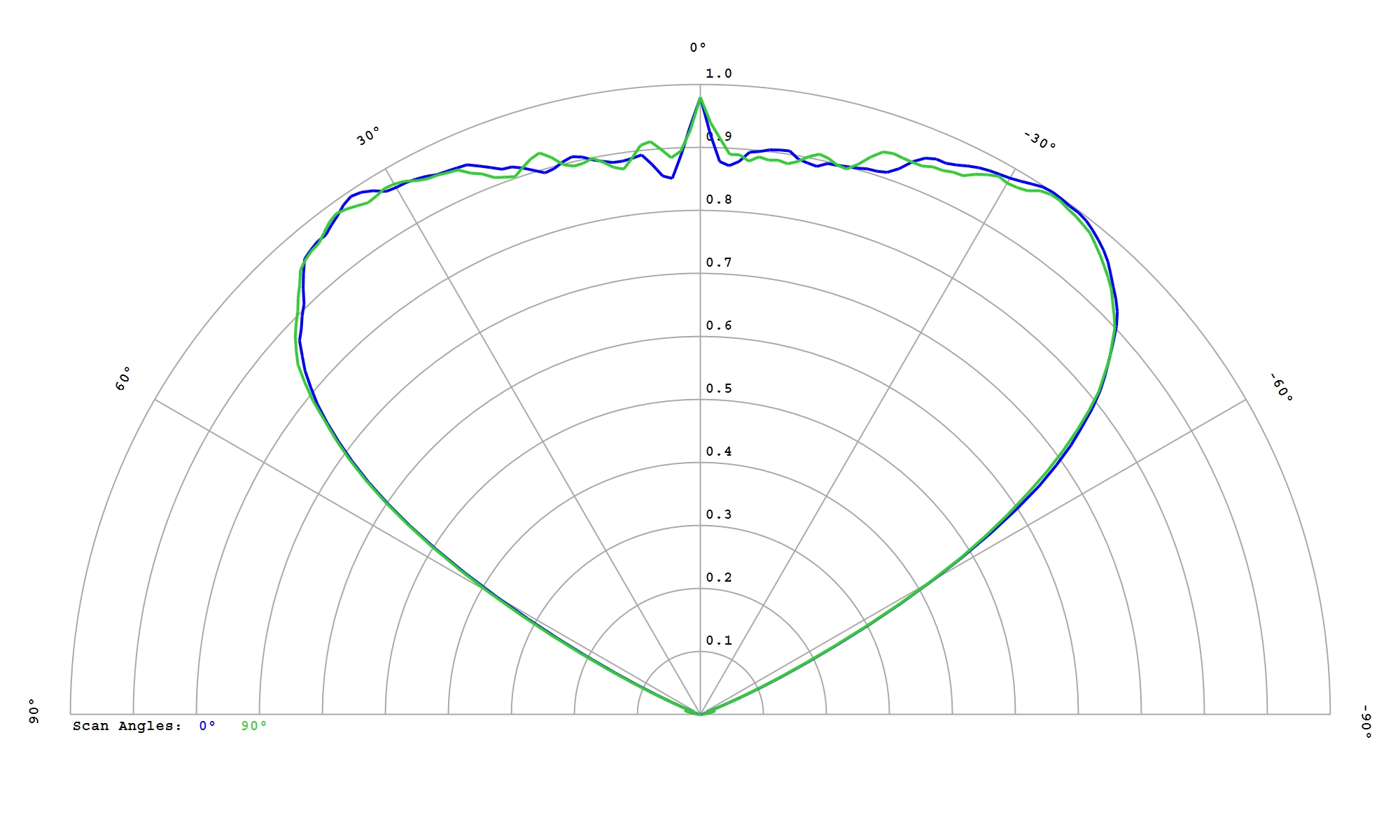

Cree JB3030C 3V E-Class White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4


Download

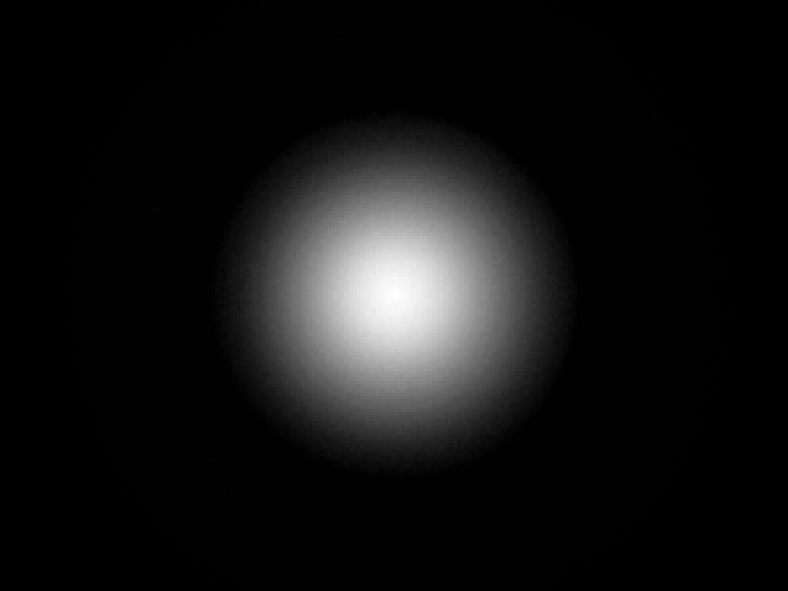

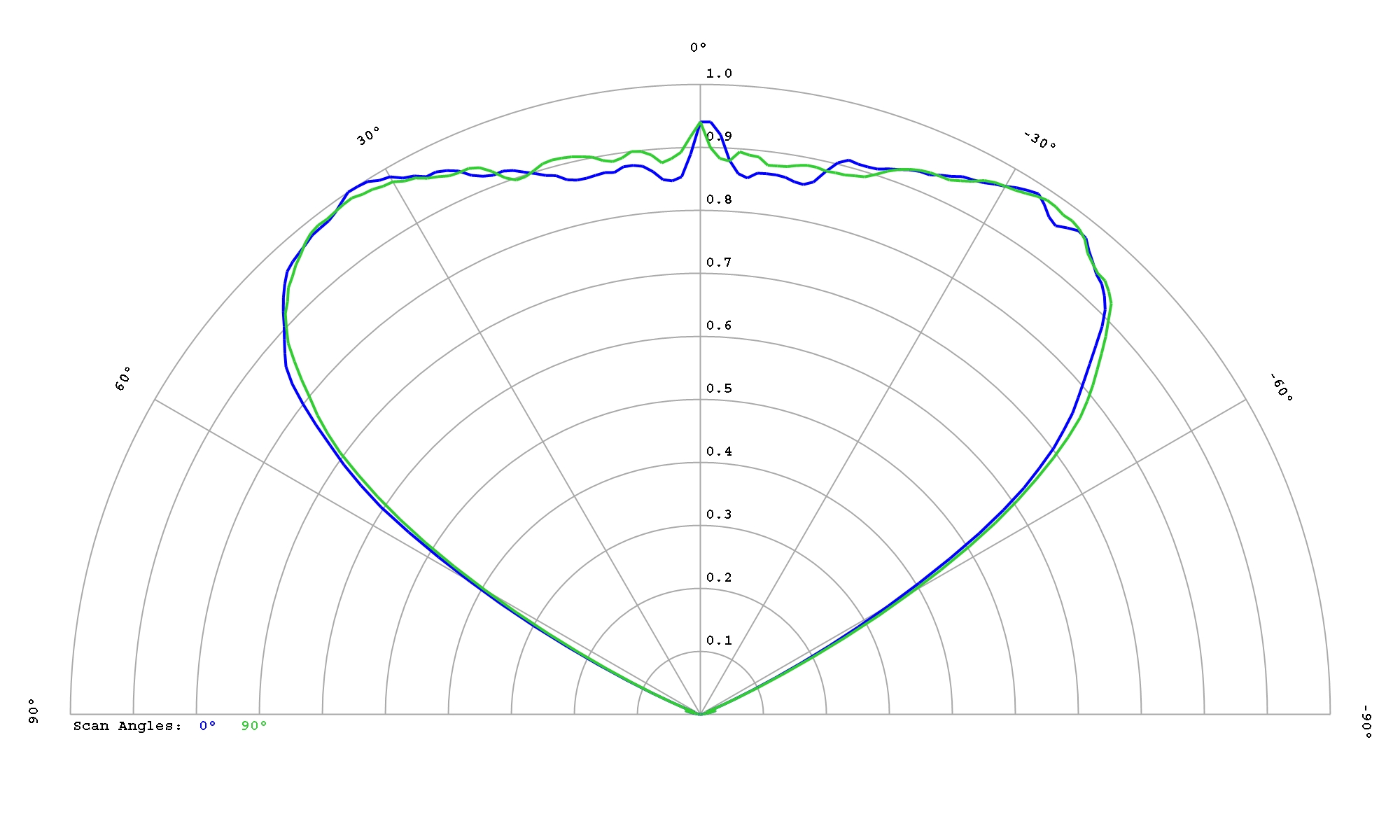

Cree JB3030C 3V F-Class White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.4


Download

Cree JE2835 3V White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5

Download

Cree JK2835 6V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5

Download

IES

Cree JQ5050 9V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5

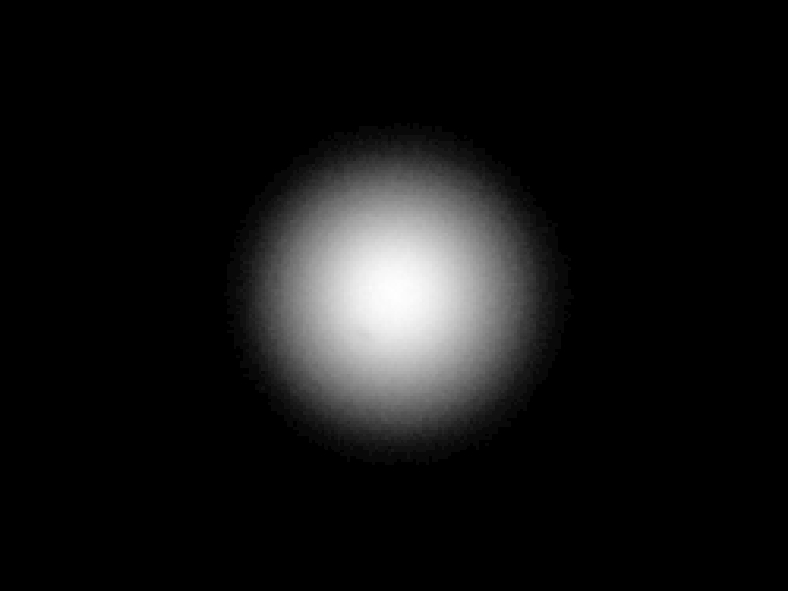

Carclo Optics - 10628 Spot Image Cree JQ5050 9V White

Carclo Optics - 10628 Cross Section Cree JQ5050 9V White

Download

IES

Cree JR5050 24V White

Eff:

93.5%

FWHM:

113°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree JR5050 24V White

Carclo Optics - 10628 Cross Section Cree JR5050 24V White

Download

IES

Cree JR5050 36V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree JR5050 36V White

Carclo Optics - 10628 Cross Section Cree JR5050 36V White

Download

IES

Cree JR5050 6V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree JR5050 6V White

Carclo Optics - 10628 Cross Section Cree JR5050 6V White

Download

IES

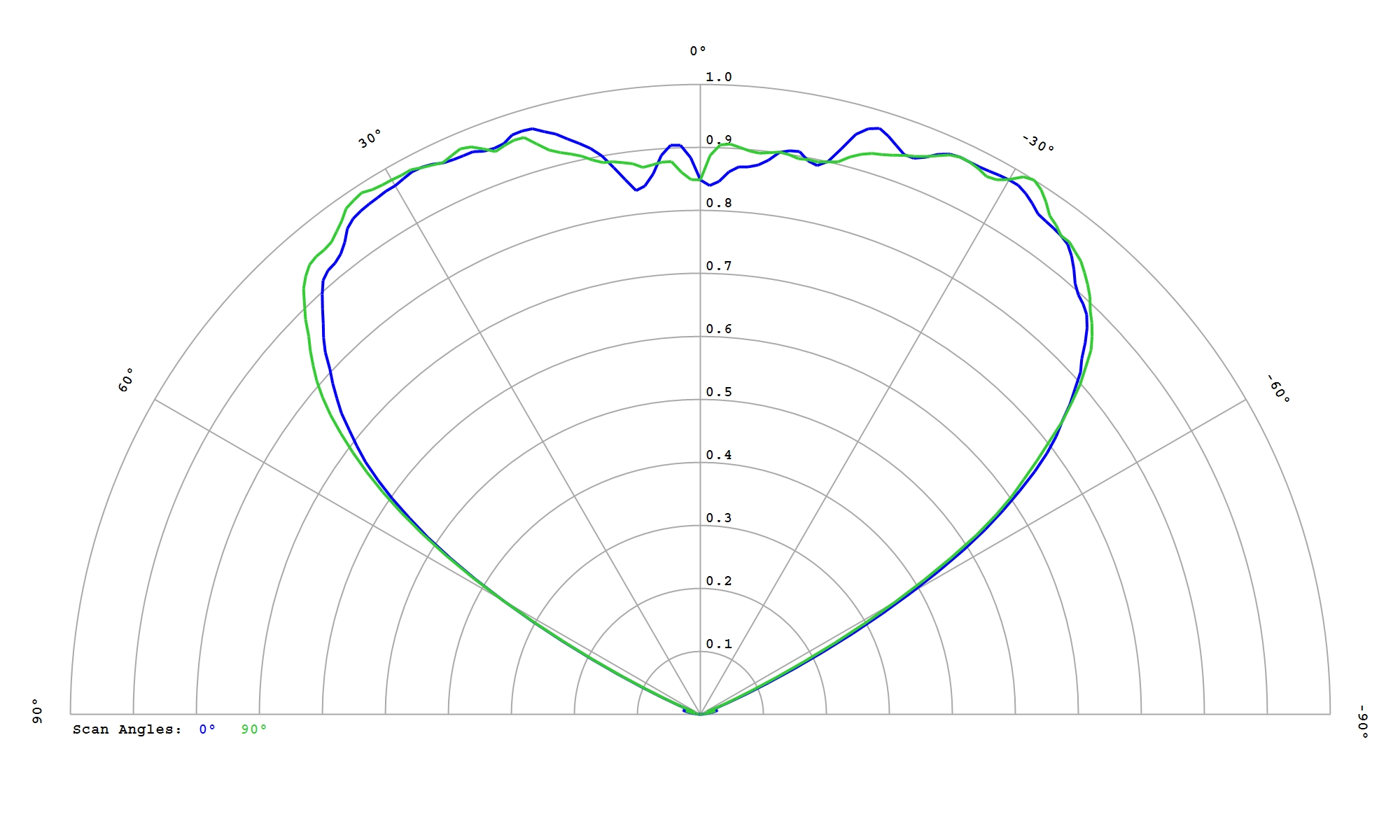

Cree JR5050C 6V E-Class White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4


Download

IES

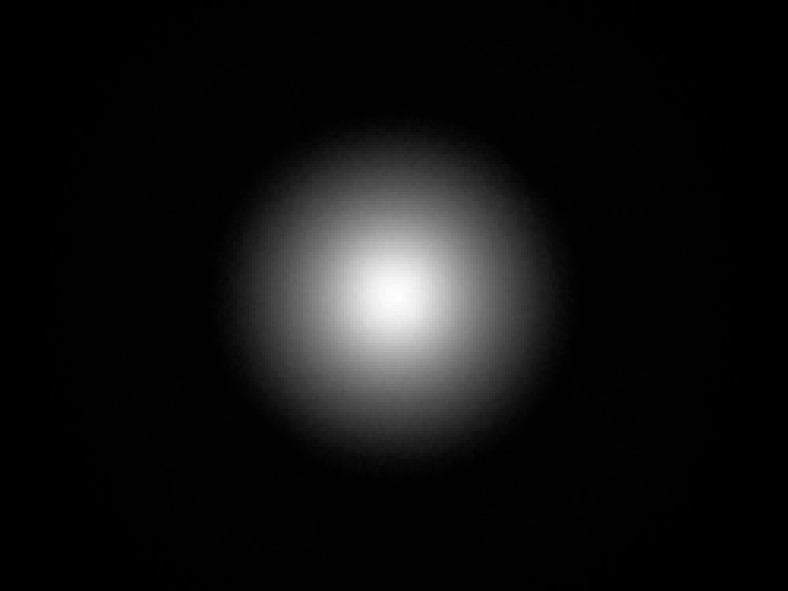

Cree JU7070B 12V K-Class White

Eff:

93.5%

FWHM:

110°

Cd/Im:

0.5

Download

Cree XLamp CSP XD16 Cool White

Eff:

93.0%

FWHM:

120°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

93.5%

FWHM:

118°

Cd/Im:

0.4

Download

IES

Cree XLamp XB-H White

Eff:

93.0%

FWHM:

105 x 106°

Cd/Im:

0.6

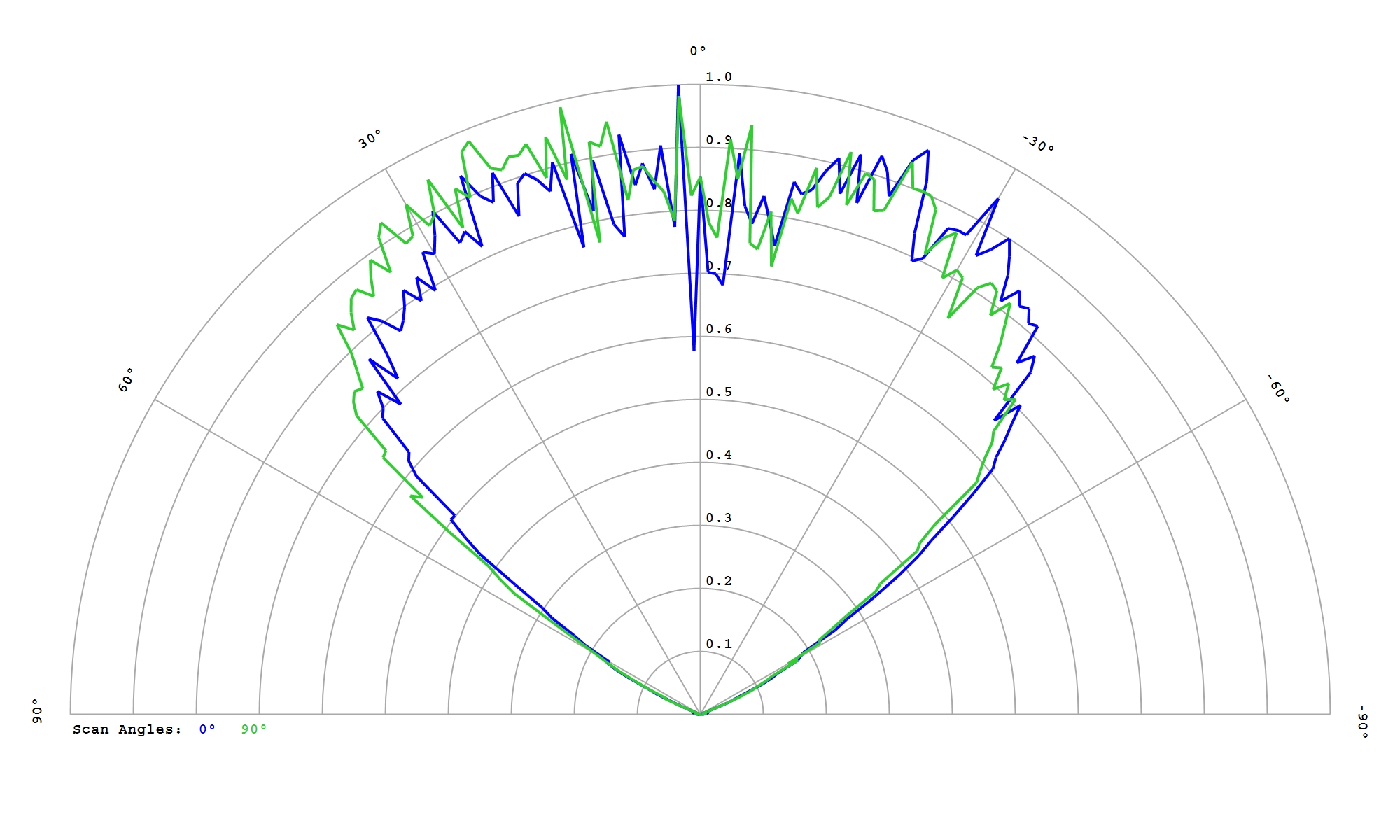

Carclo Optics - 10628 Bubble Spot Image Cree XLamp XB-H

Carclo Optics - 10628 Bubble Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G White

Eff:

92.5%

FWHM:

119°

Cd/Im:

0.5

Download

IES

Cree XLamp XH-B White

Eff:

85.1%

FWHM:

117.5°

Cd/Im:

0.3

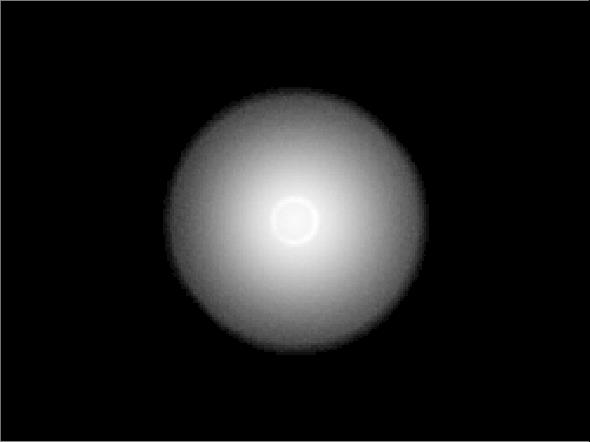

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP-50 Gen 2 White

Eff:

91.0%

FWHM:

117°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP-50 White

Eff:

86.0%

FWHM:

110°

Cd/Im:

0.3

optic-10628-Cree_XHP50-White-spot-image

optic-10628-Cree_XHP50-White-cross-section-image

Download

IES

Cree XLamp XHP35 HI White

Eff:

86.5%

FWHM:

116°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

85.3%

FWHM:

115°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35.2 HI White

Eff:

92.5%

FWHM:

116°

Cd/Im:

0.5

Carclo Optics – 10628 Spot Image Cree XLamp XHP35.2 HI White

Carclo Optics – 10628 Cross Section Cree XLamp XHP35.2 HI White

Download

2-HI-WW

Cree XLamp XHP35.2 HD White

Eff:

91.5%

FWHM:

118°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree XLamp XHP35.2 White

Carclo Optics - 10628 Cross Section Cree XLamp XHP35.2 White

Download

IES

Cree XLamp XHP50.3 HI White

Eff:

92.5%

FWHM:

116°

Cd/Im:

0.4

optic-10628-Cree_XHP50.3 HI-spot-image.jpg

optic-10628-Cree_XHP50.3 HI-cross-section-image.jpg

Download

IES

Cree XLamp XHP50.3 White

Eff:

91.5%

FWHM:

115°

Cd/Im:

0.4



Download

IES

Cree XLamp XM-L Color G2 HD RGBW

Eff:

93.0%

FWHM:

113°

Cd/Im:

0.5

Download

IES

Cree XLamp XM-L Color G2 HI RGBW

Eff:

93.0%

FWHM:

117°

Cd/Im:

0.5

Download

IES

Cree XLamp XM-L White

Eff:

86.7%

FWHM:

118.2°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XM-L3 White

Eff:

92.0%

FWHM:

121°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image Cree XM-L3

Carclo Optics - 10628 Cross Section Cree XM-L3

Download

IES

Cree XLamp XP-E White

Eff:

86.6%

FWHM:

110.4°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

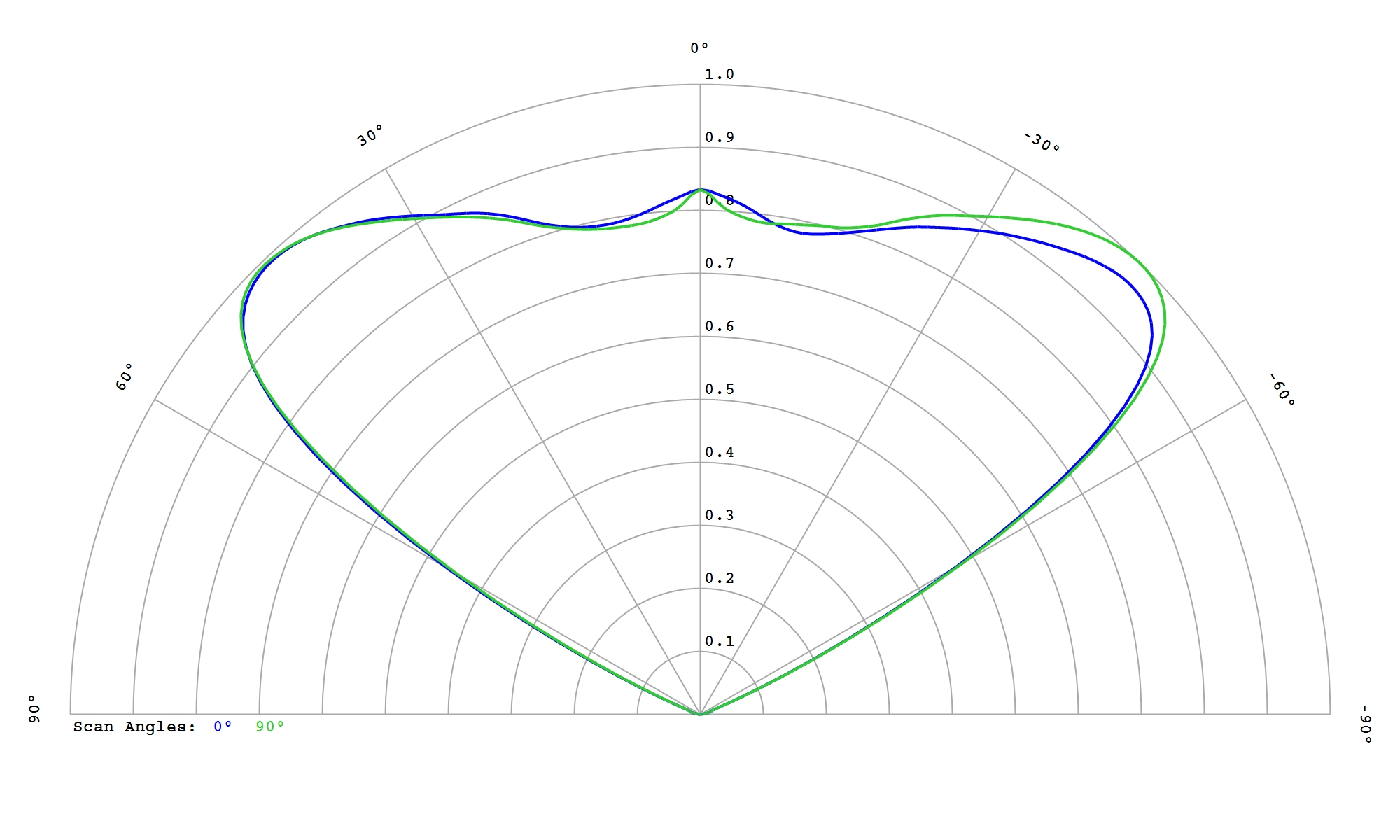

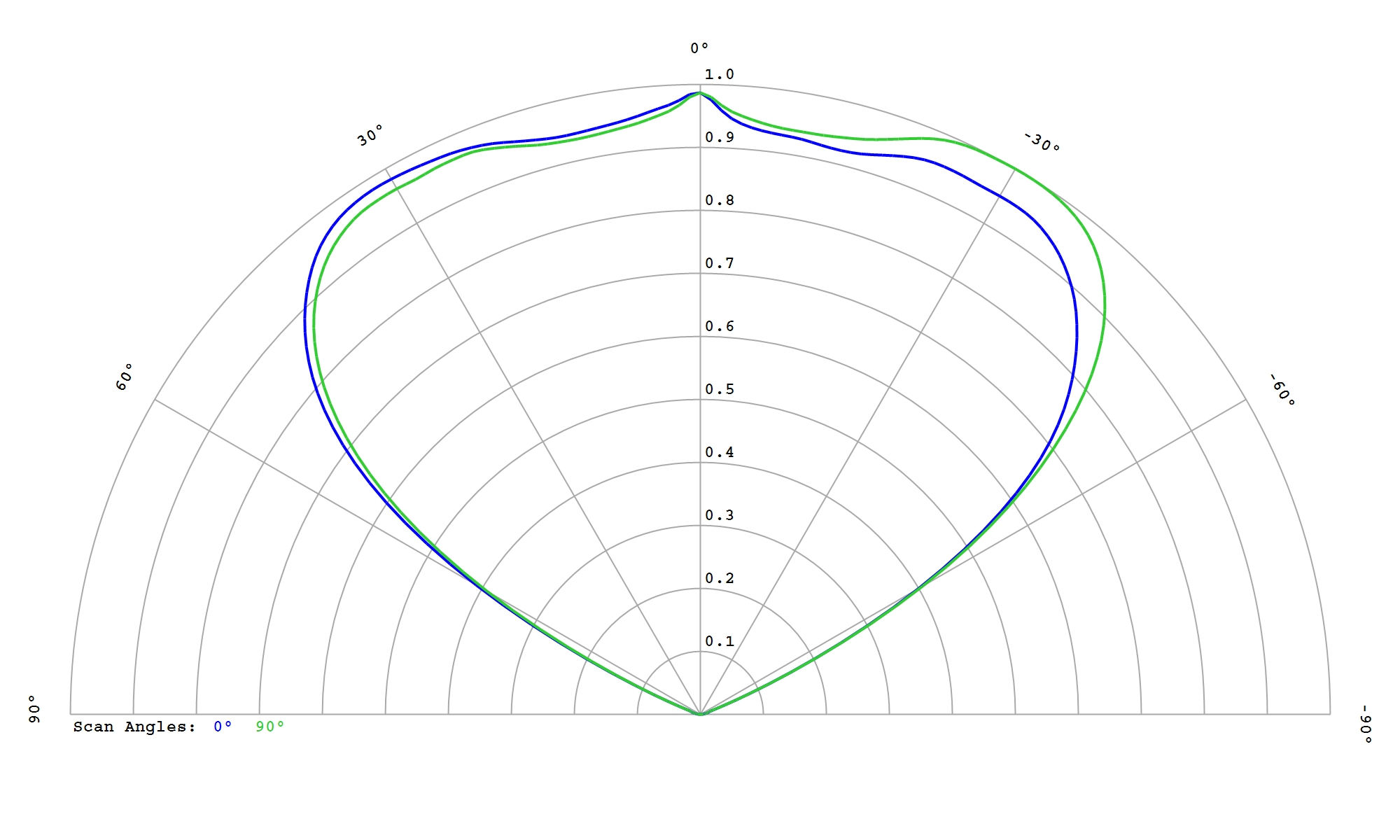

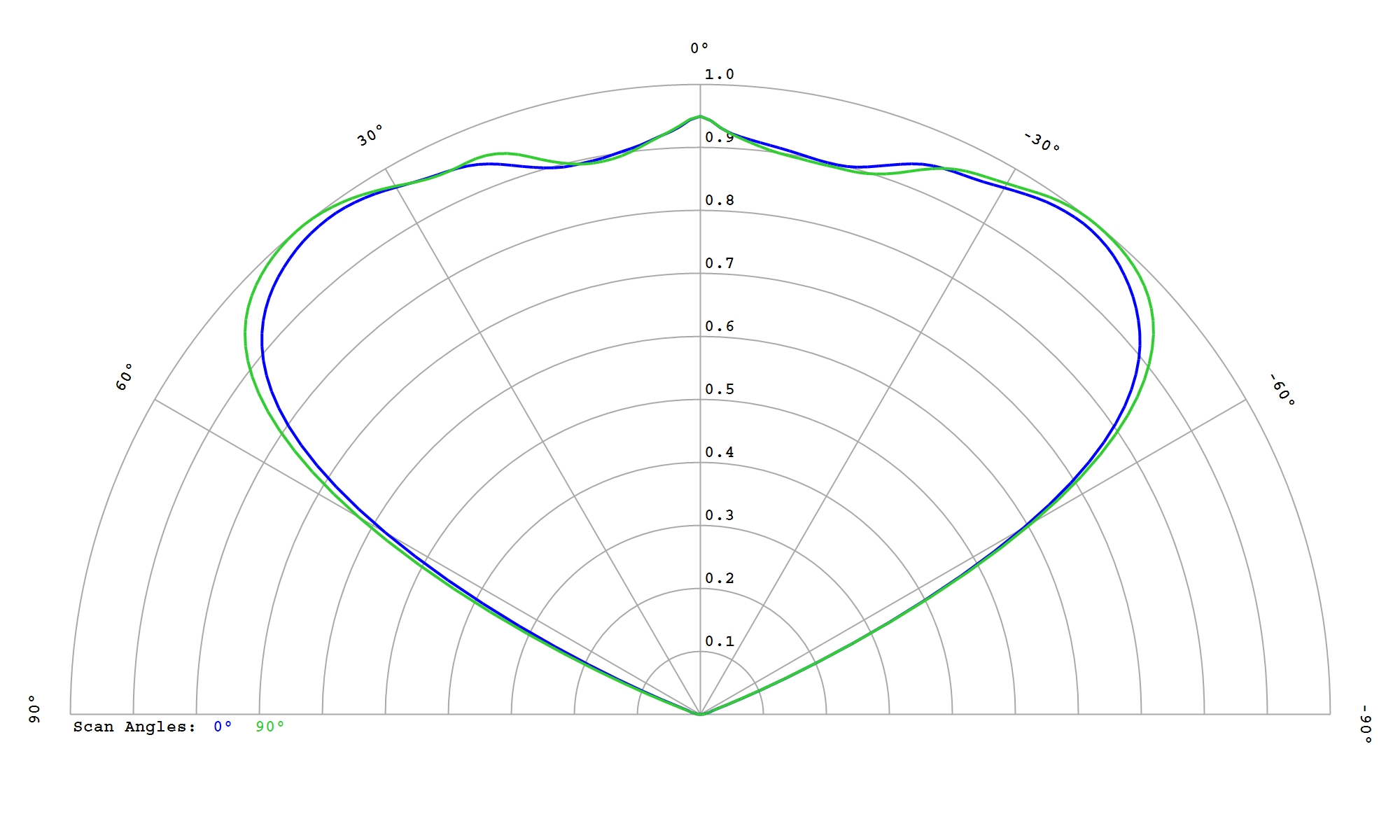

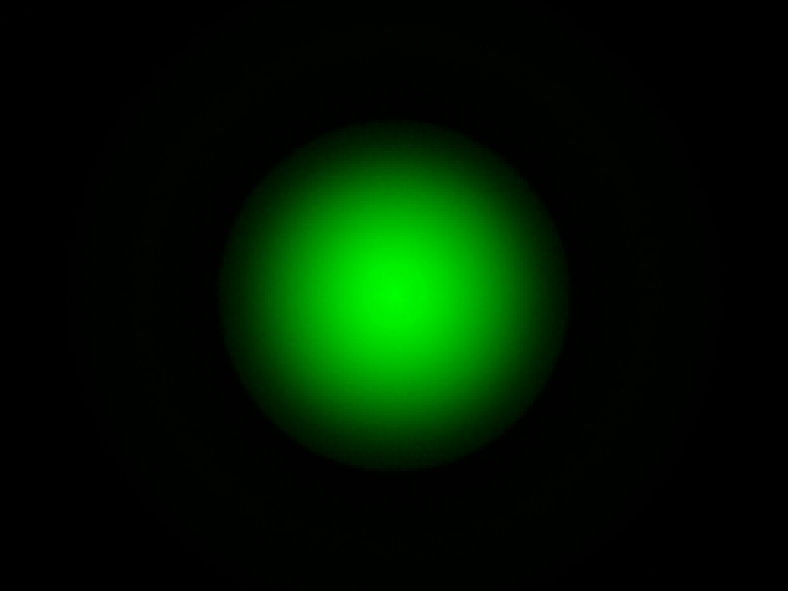

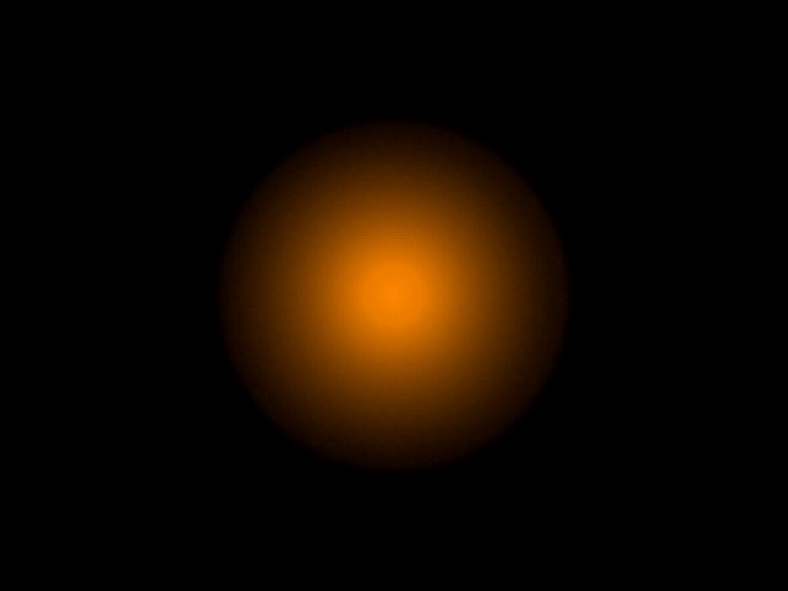

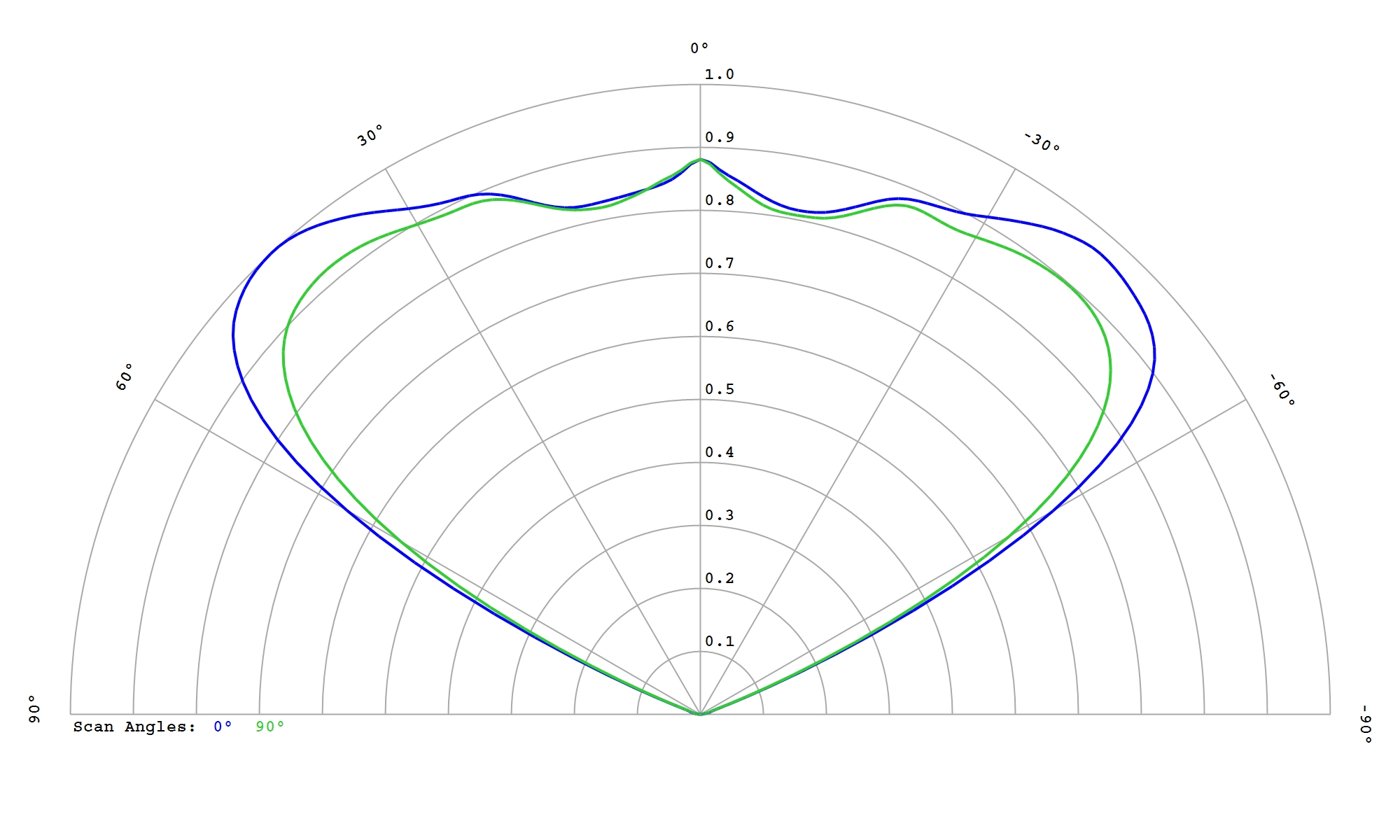

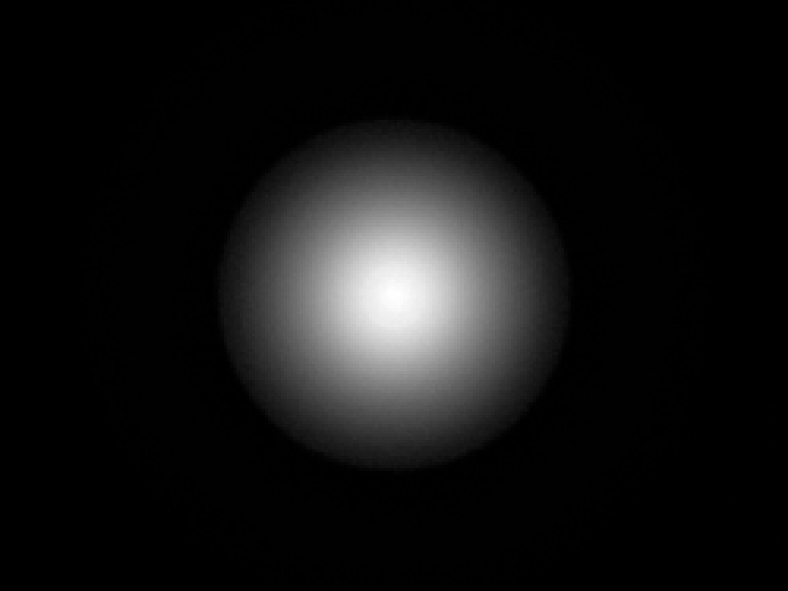

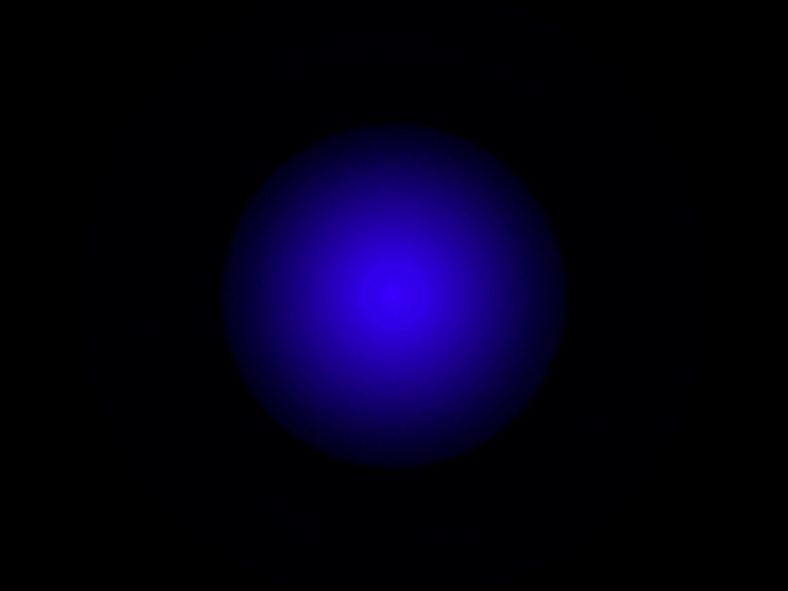

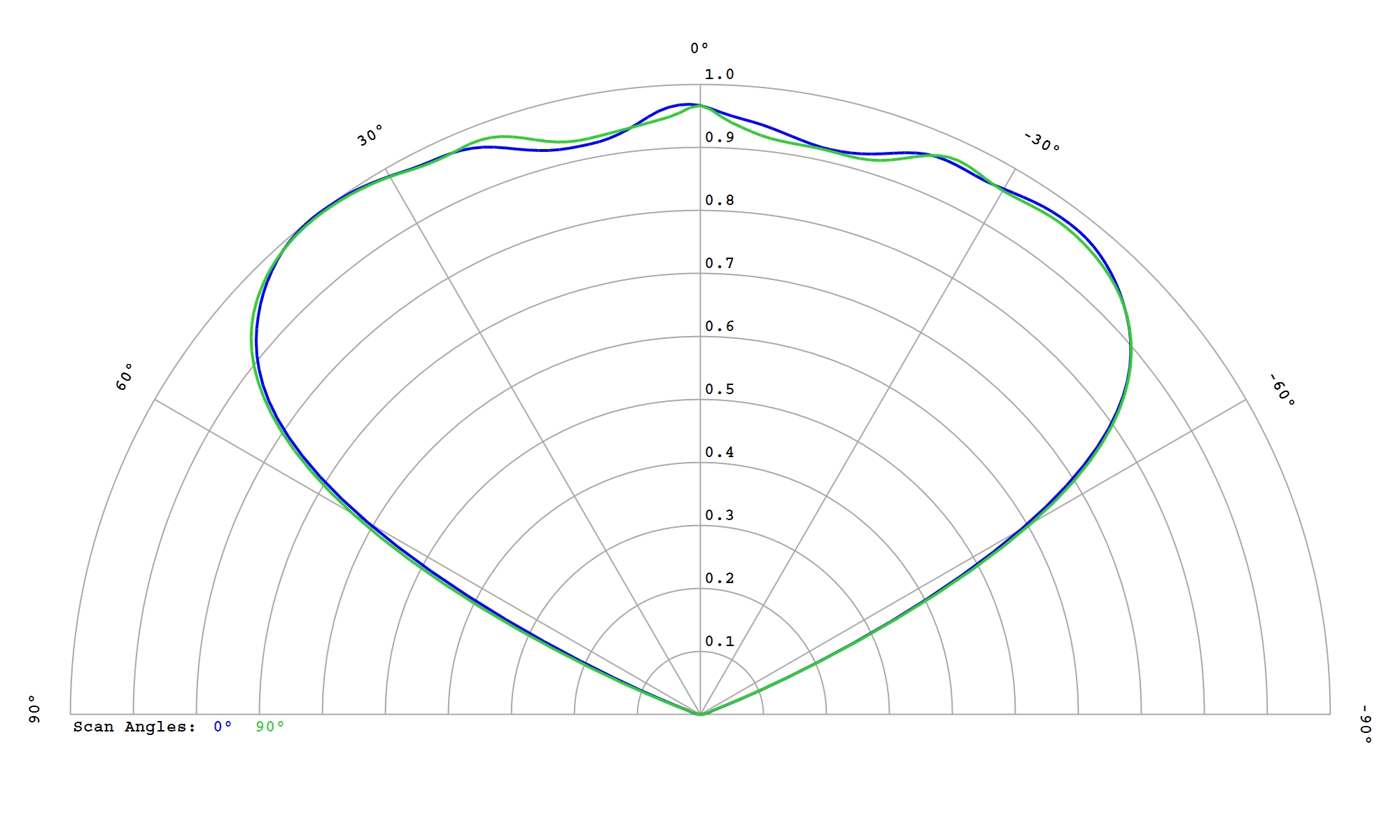

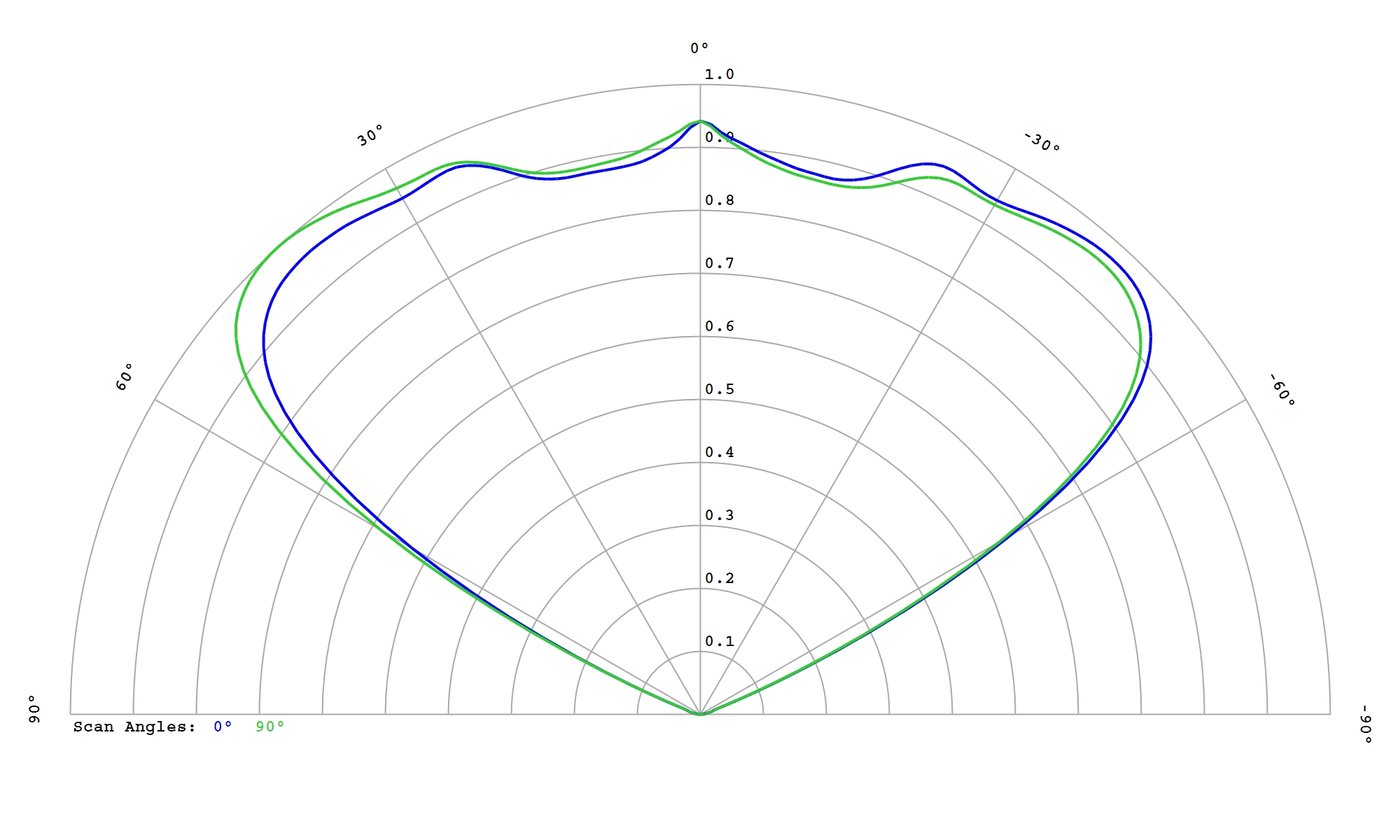

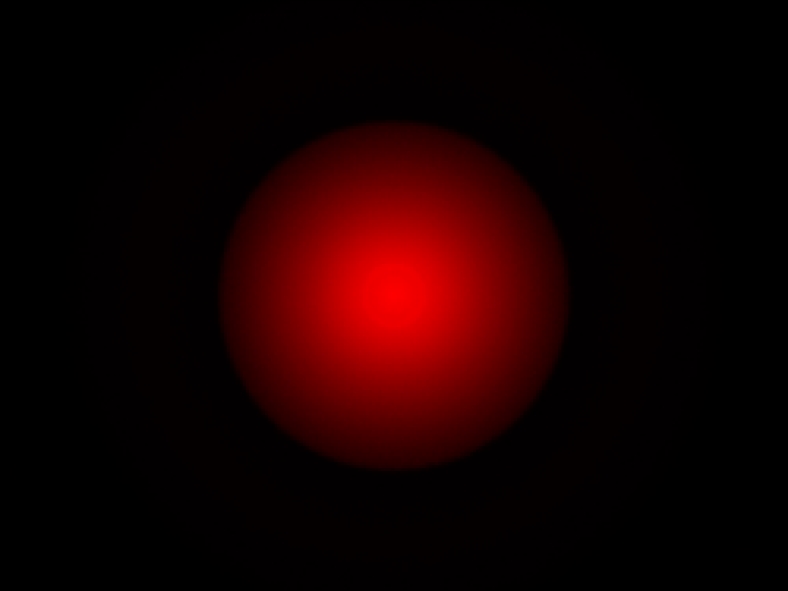

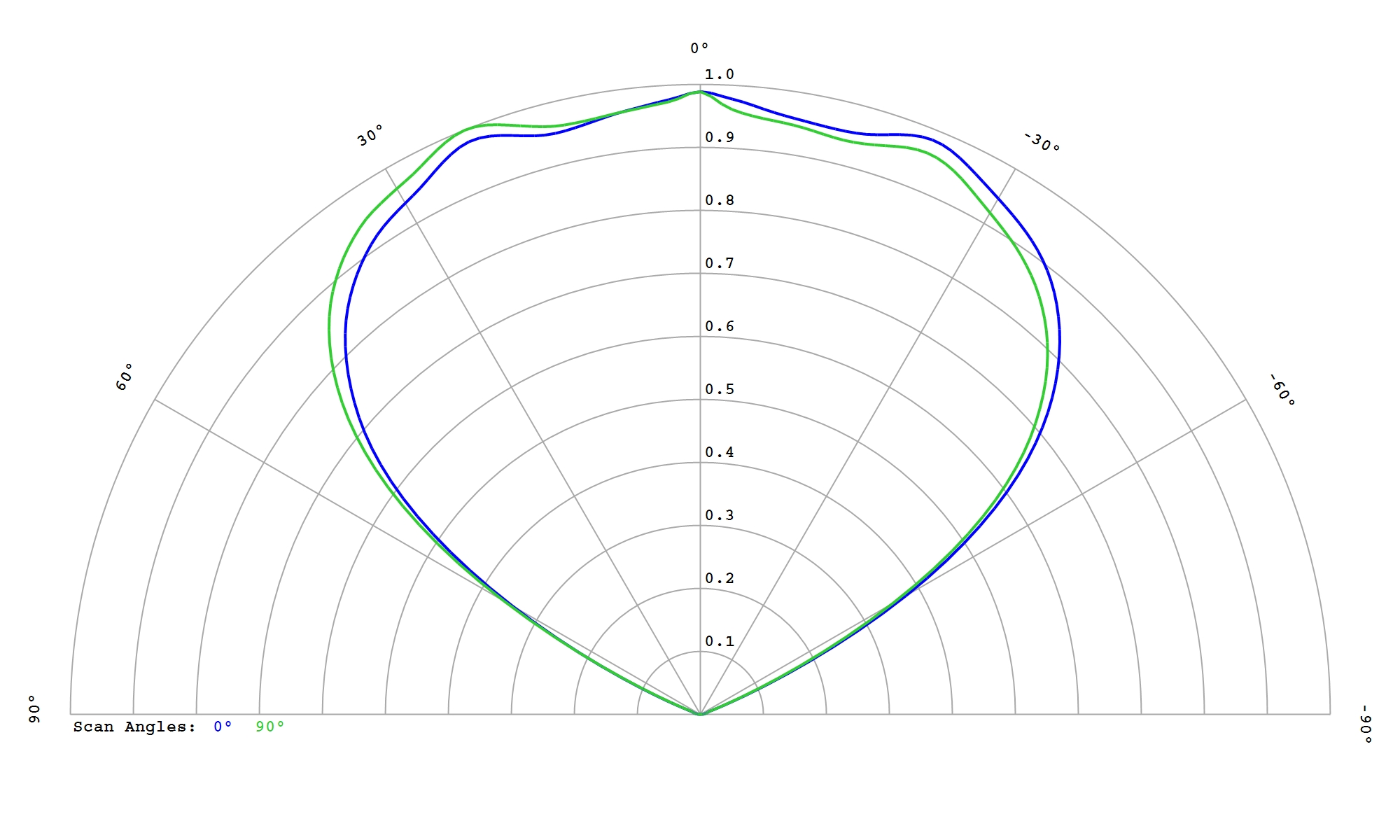

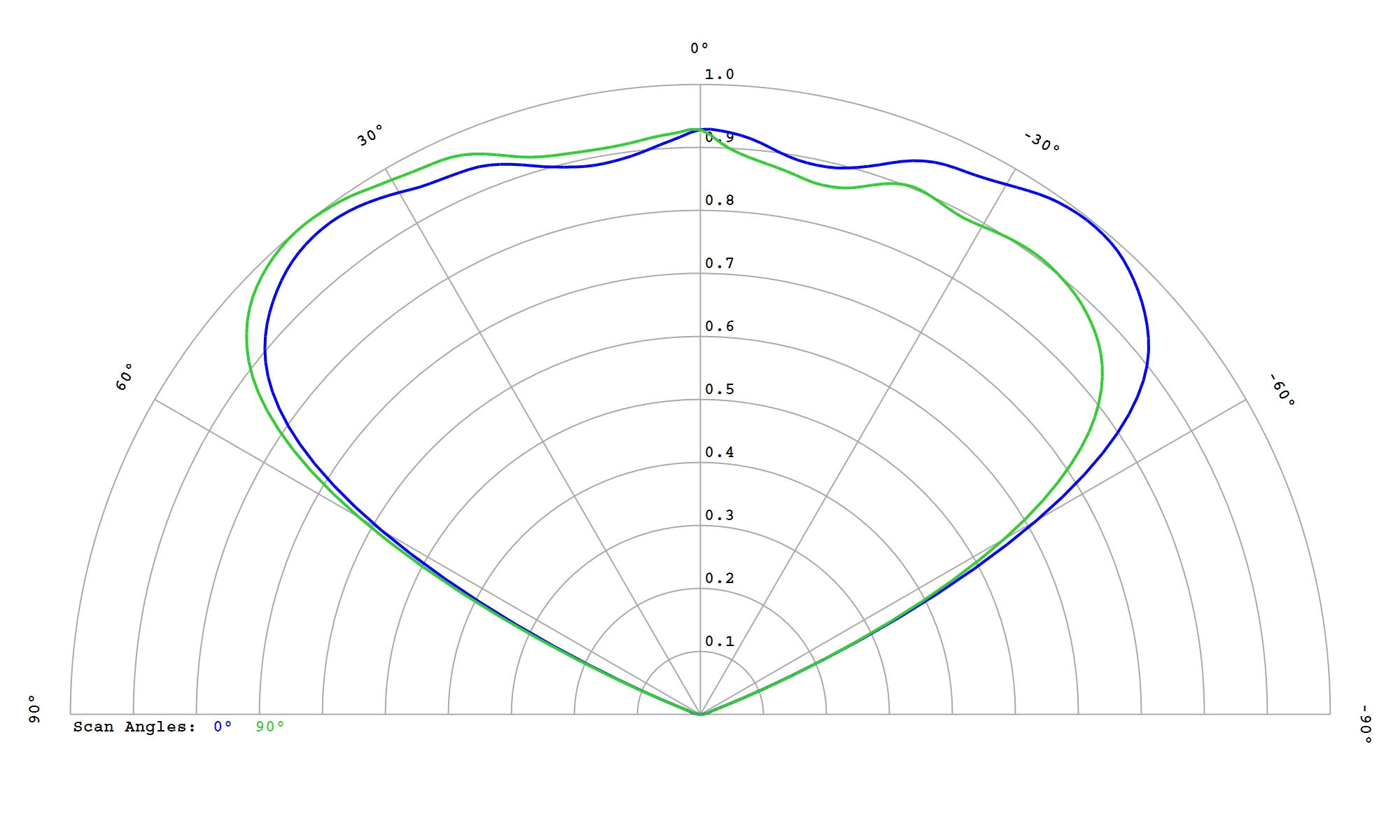

Cree XLamp XP-E2 White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.6

Download

IES

Cree XLamp XP-G White

Eff:

86.0%

FWHM:

118°

Cd/Im:

0.5

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-G2 White

Eff:

86.4%

FWHM:

116.0°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-G3 White

Eff:

86.0%

FWHM:

123°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

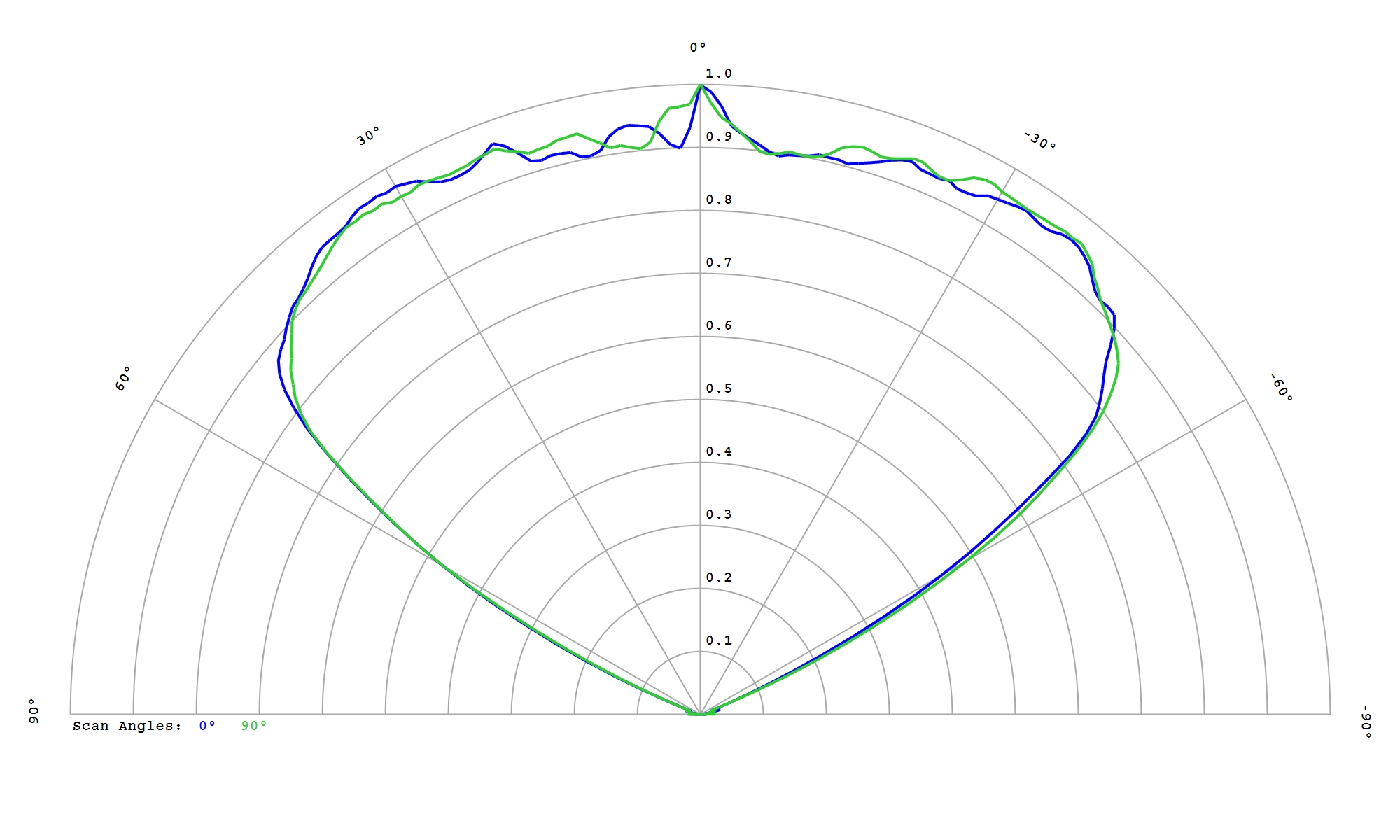

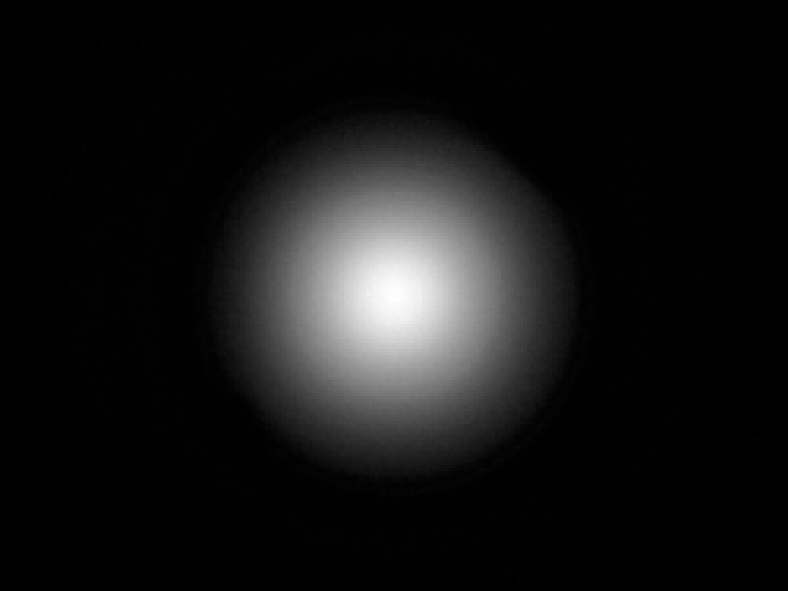

Cree XLamp XP-G4 HI White

Eff:

93.0%

FWHM:

119°

Cd/Im:

0.4

Download

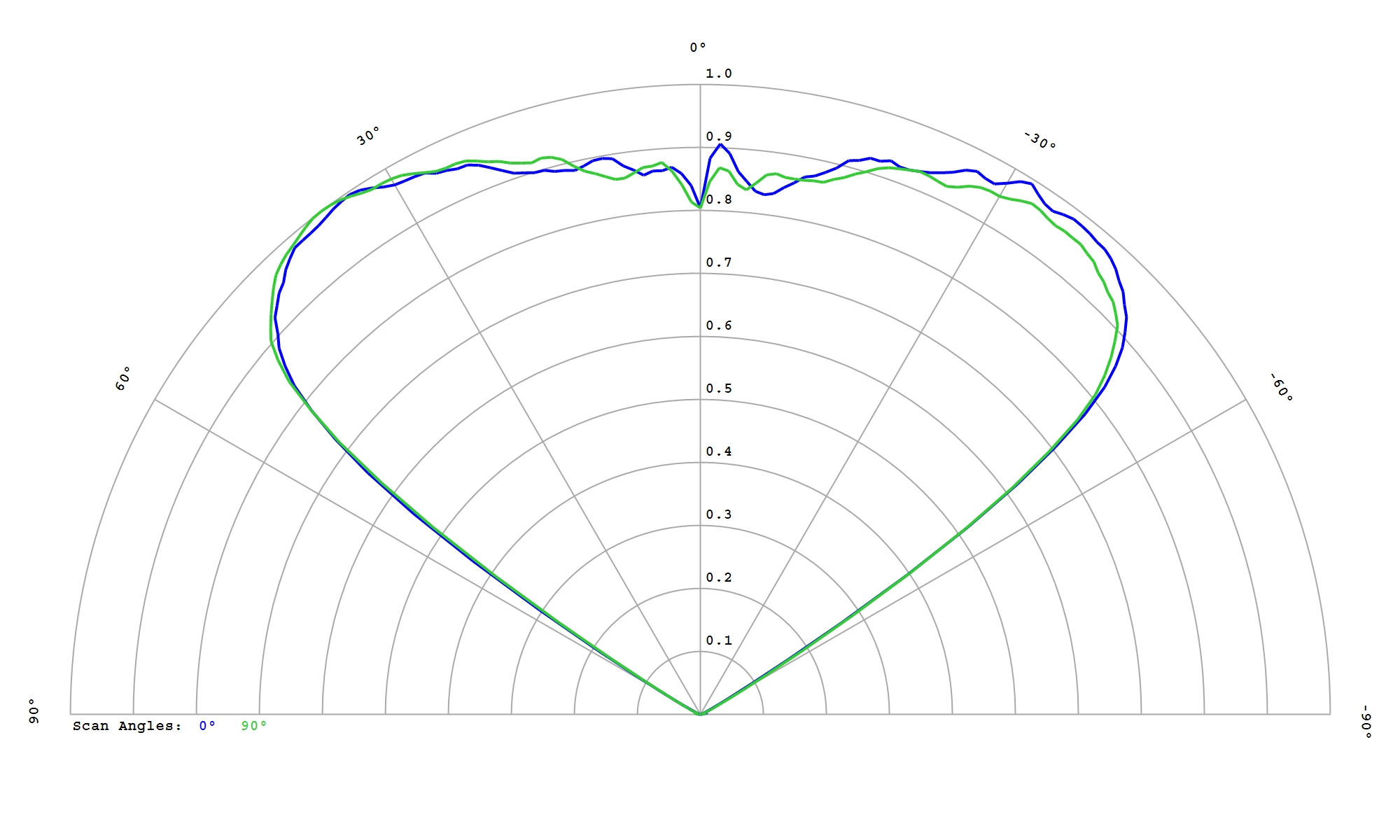

Cree XLamp XP-G4 White

Eff:

93.5%

FWHM:

111°

Cd/Im:

0.4

Download

IES

Cree XLamp XP-L HI White

Eff:

86.6%

FWHM:

117.1°

Cd/Im:

0.3

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-L White

Eff:

86.6%

FWHM:

115°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-L2 White

Eff:

91.5%

FWHM:

118°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-P White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

Carclo Optics – 10628 Cree Xlamp XP-P - Spot Image

Carclo Optics – 10628 Cree Xlamp XP-P - Cross-Section

Download

IES

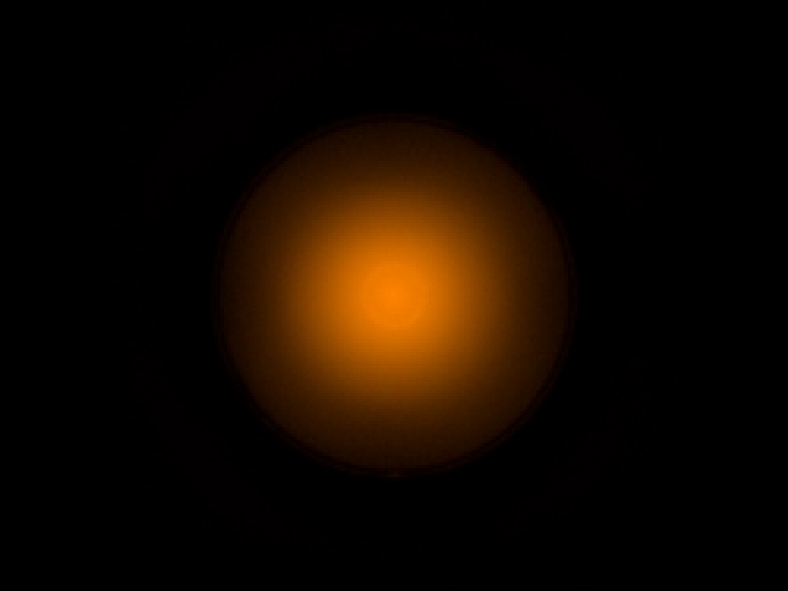

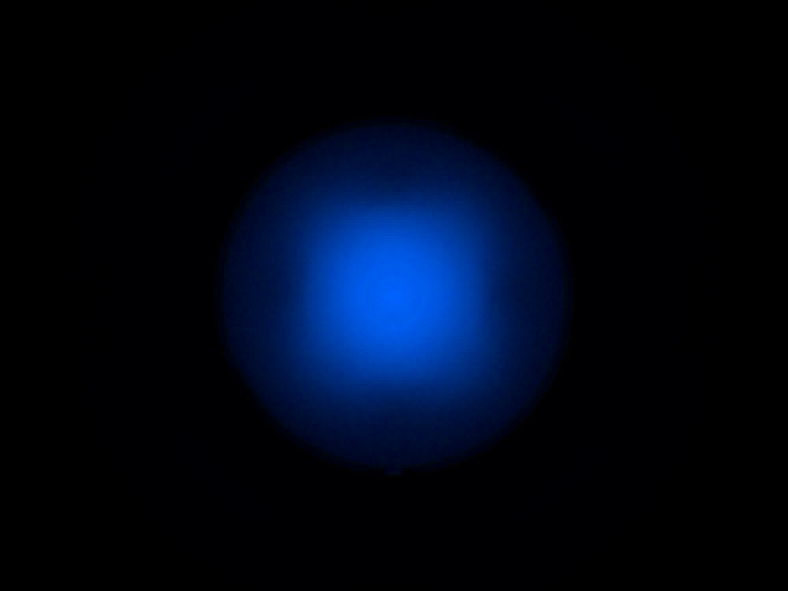

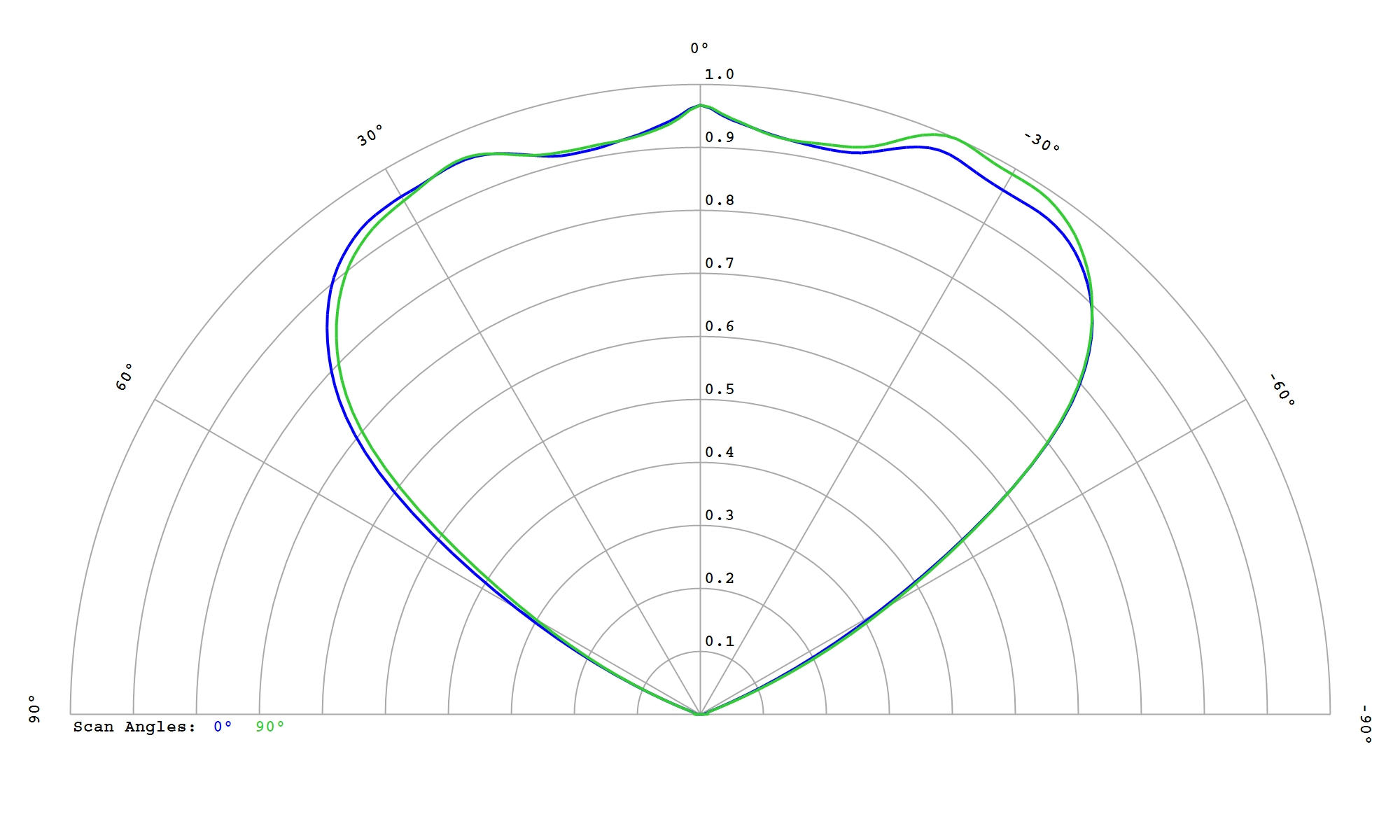

Cree XLamp XQ-A Blue

Eff:

92.5%

FWHM:

92°

Cd/Im:

0.4

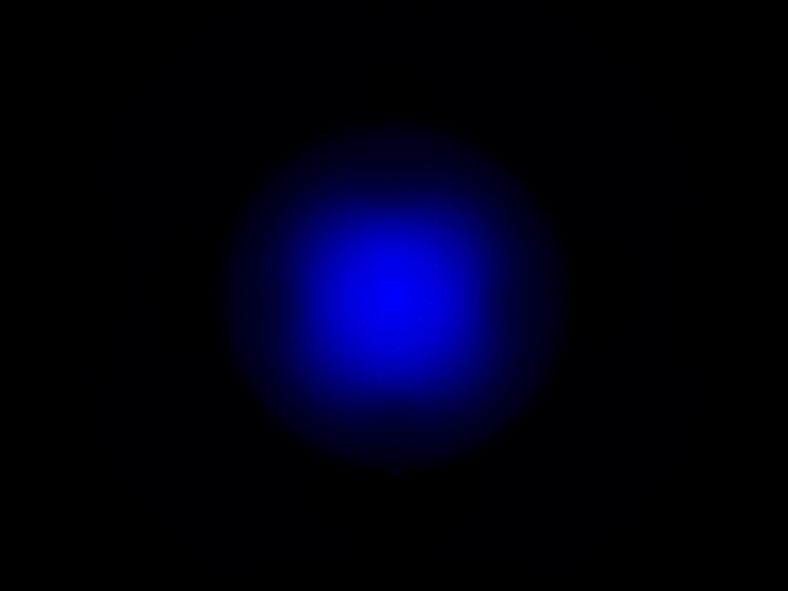

Carclo Optics - Simulated Spot Image

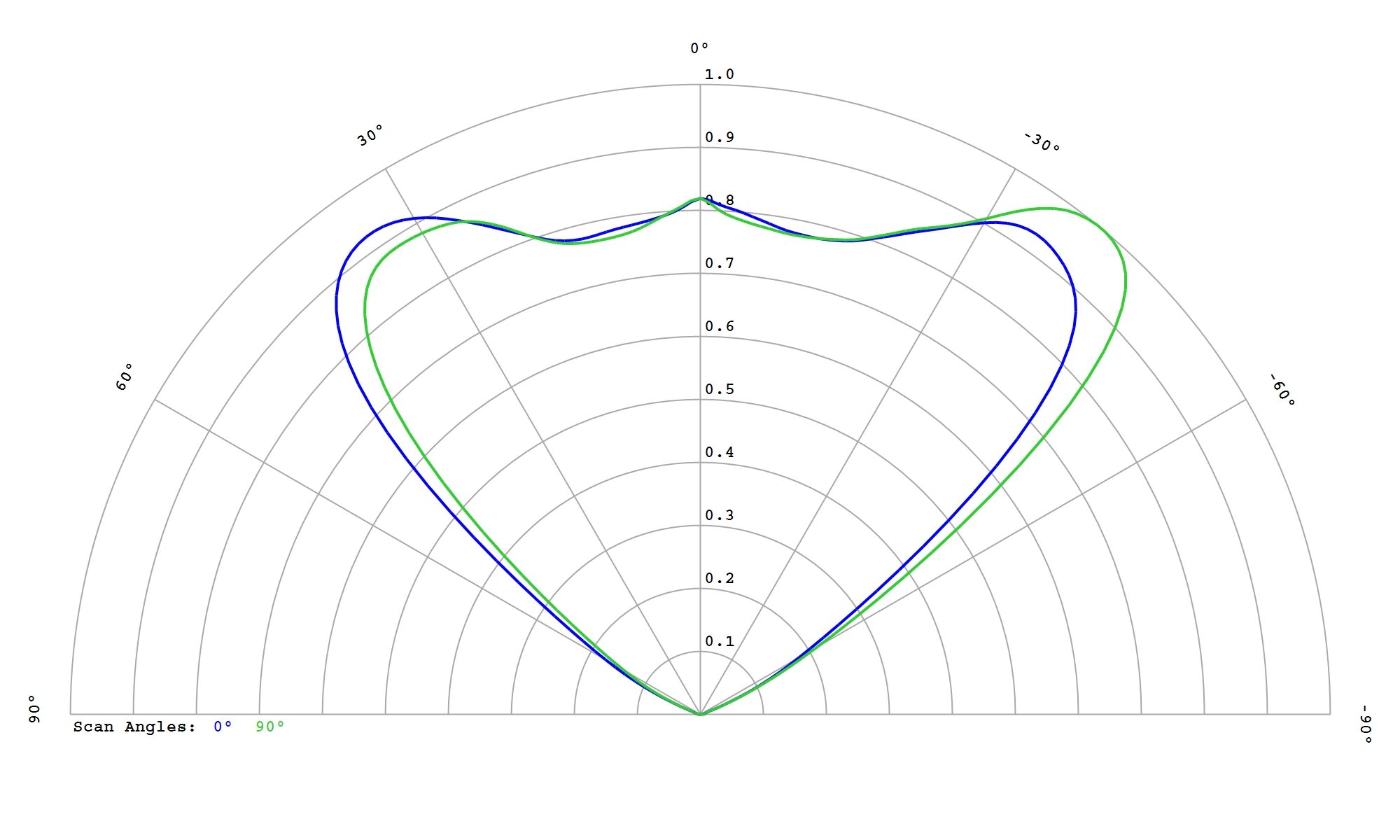

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Green

Eff:

92.5%

FWHM:

93°

Cd/Im:

0.4

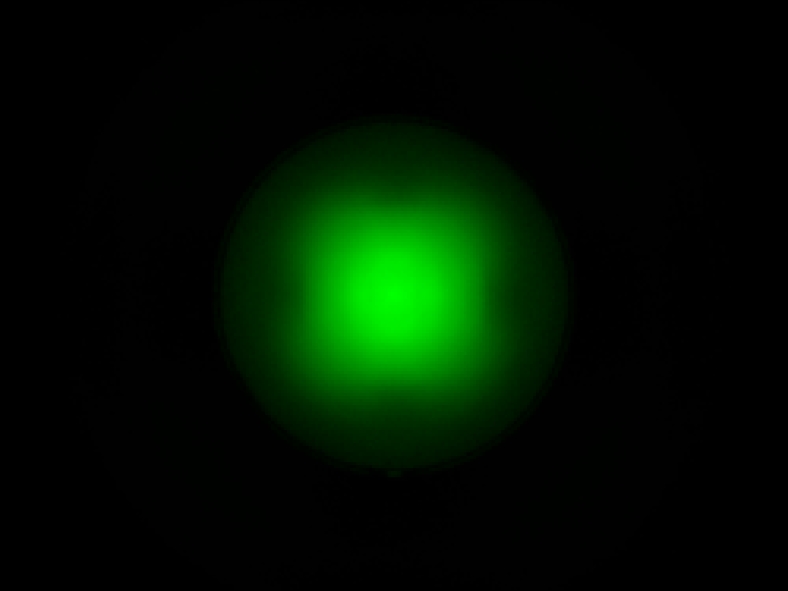

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A Red

Eff:

92.5%

FWHM:

101°

Cd/Im:

0.4

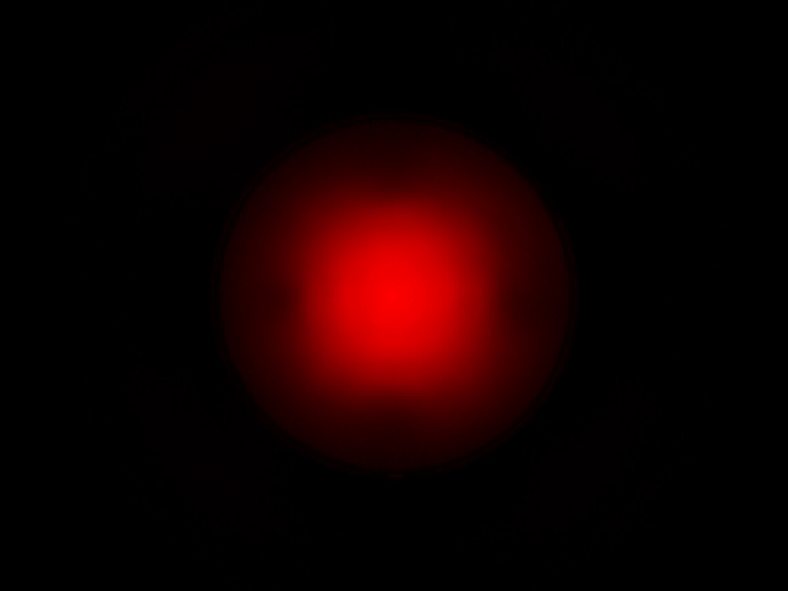

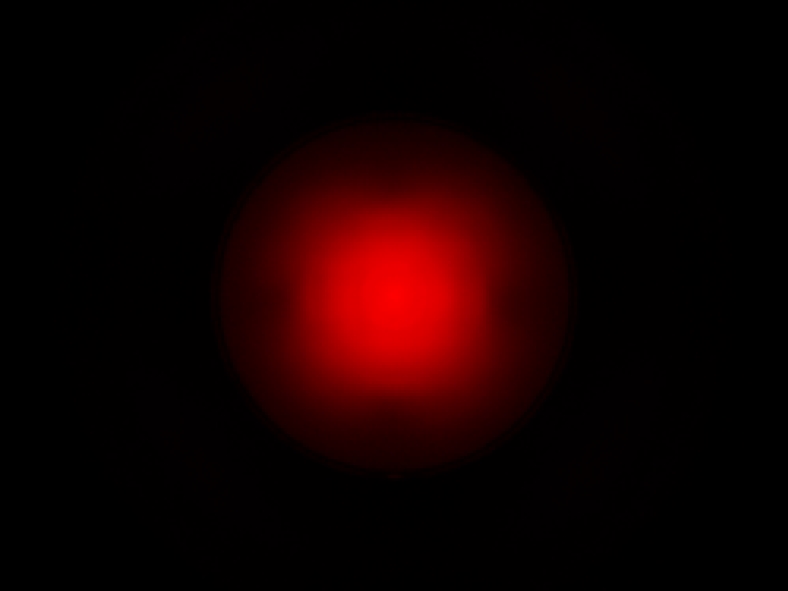

Carclo Optics - Simulated Spot Image

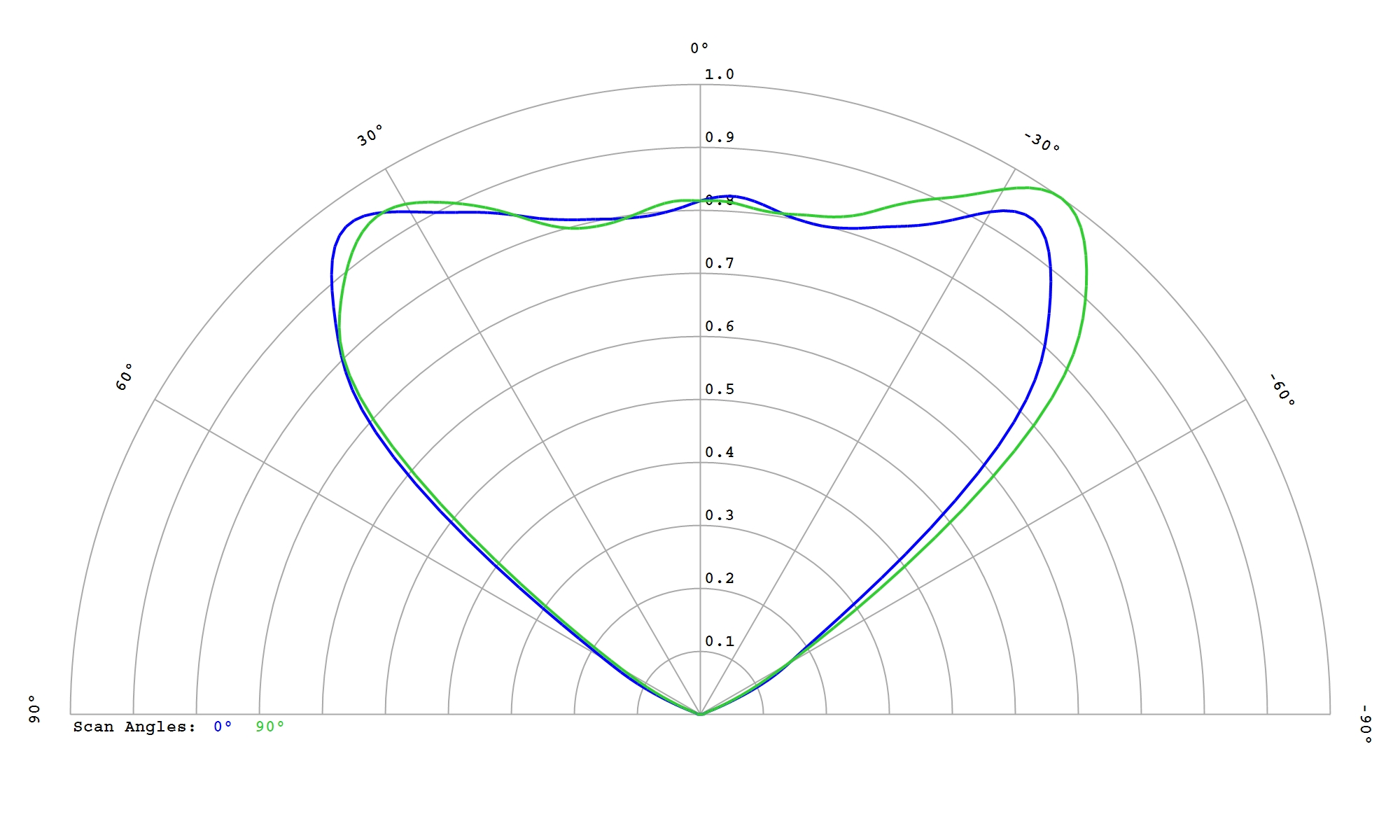

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-A White

Eff:

86.0%

FWHM:

94°

Cd/Im:

0.4

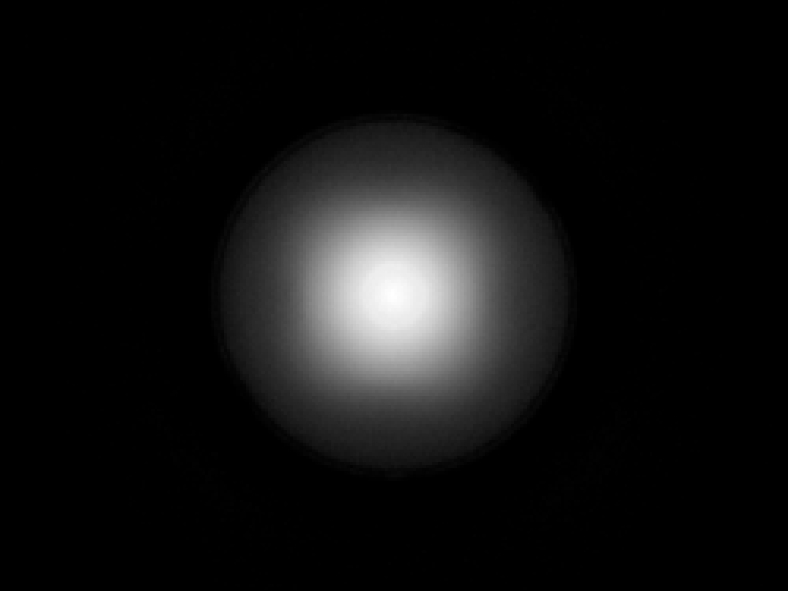

Carclo Optics - Simulated Spot Image

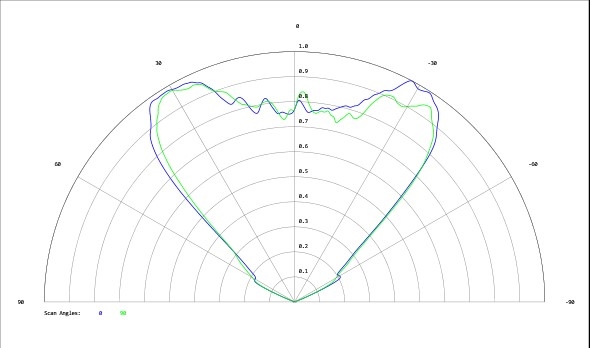

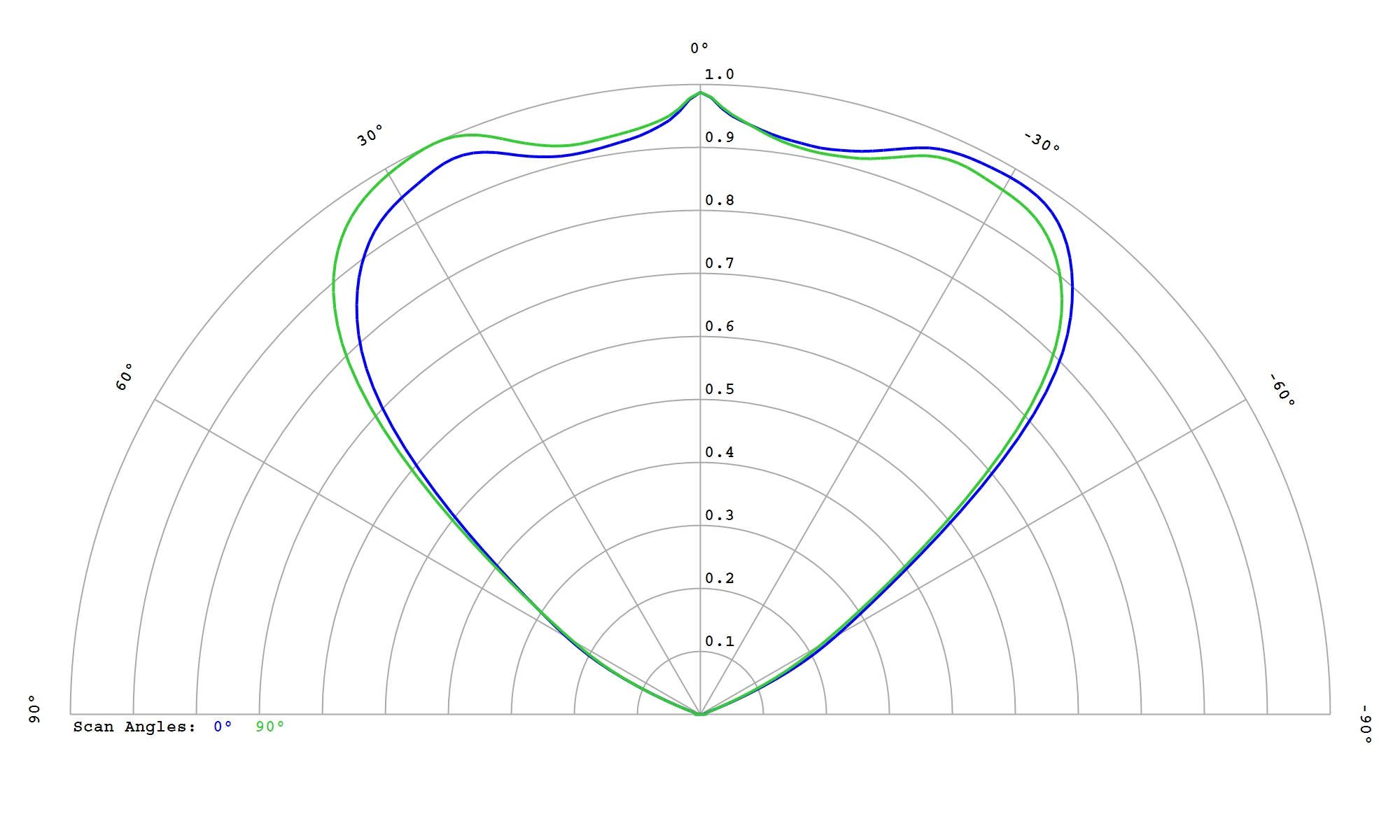

Carclo Optics - Simulated Cross Section

Download

IES

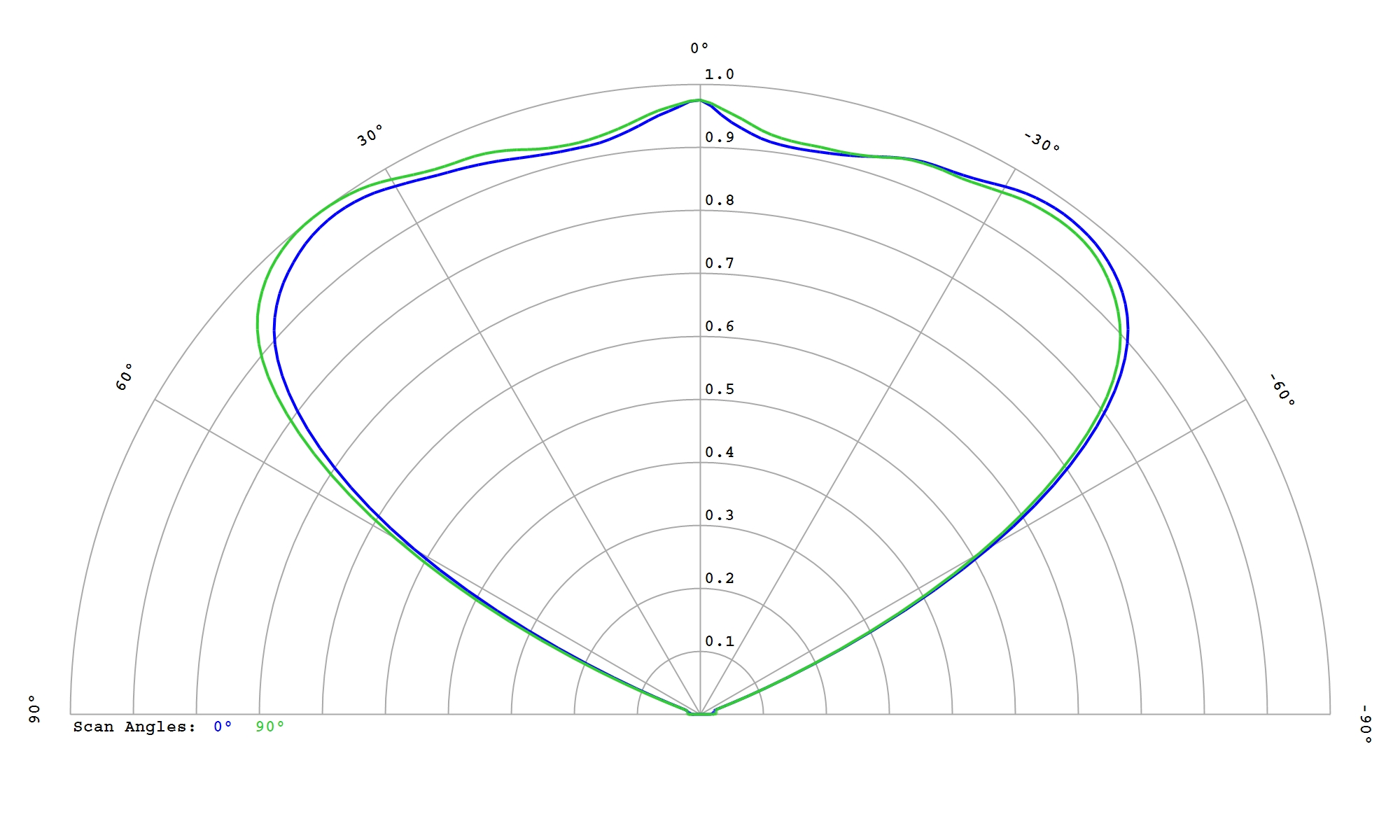

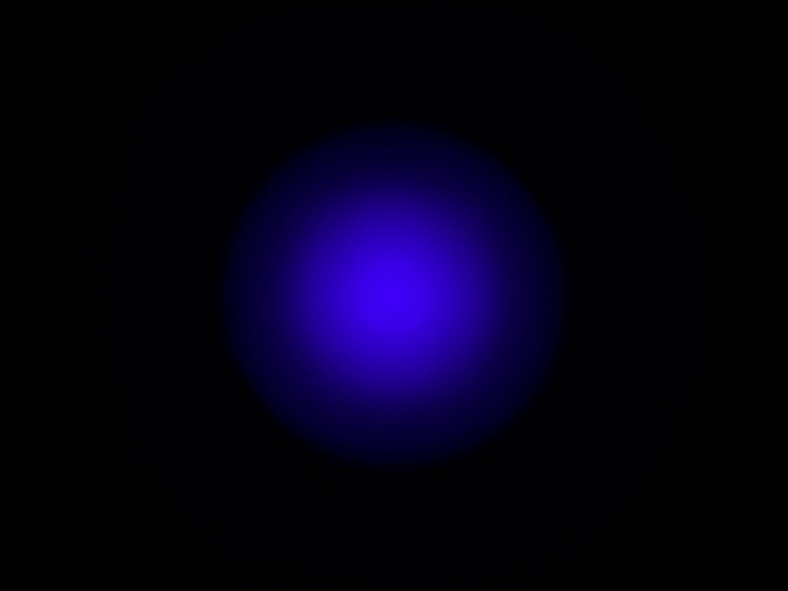

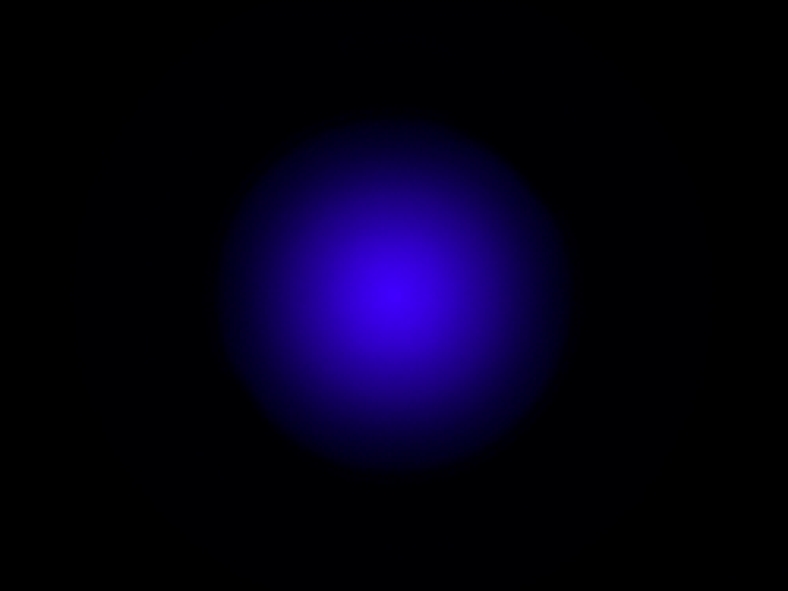

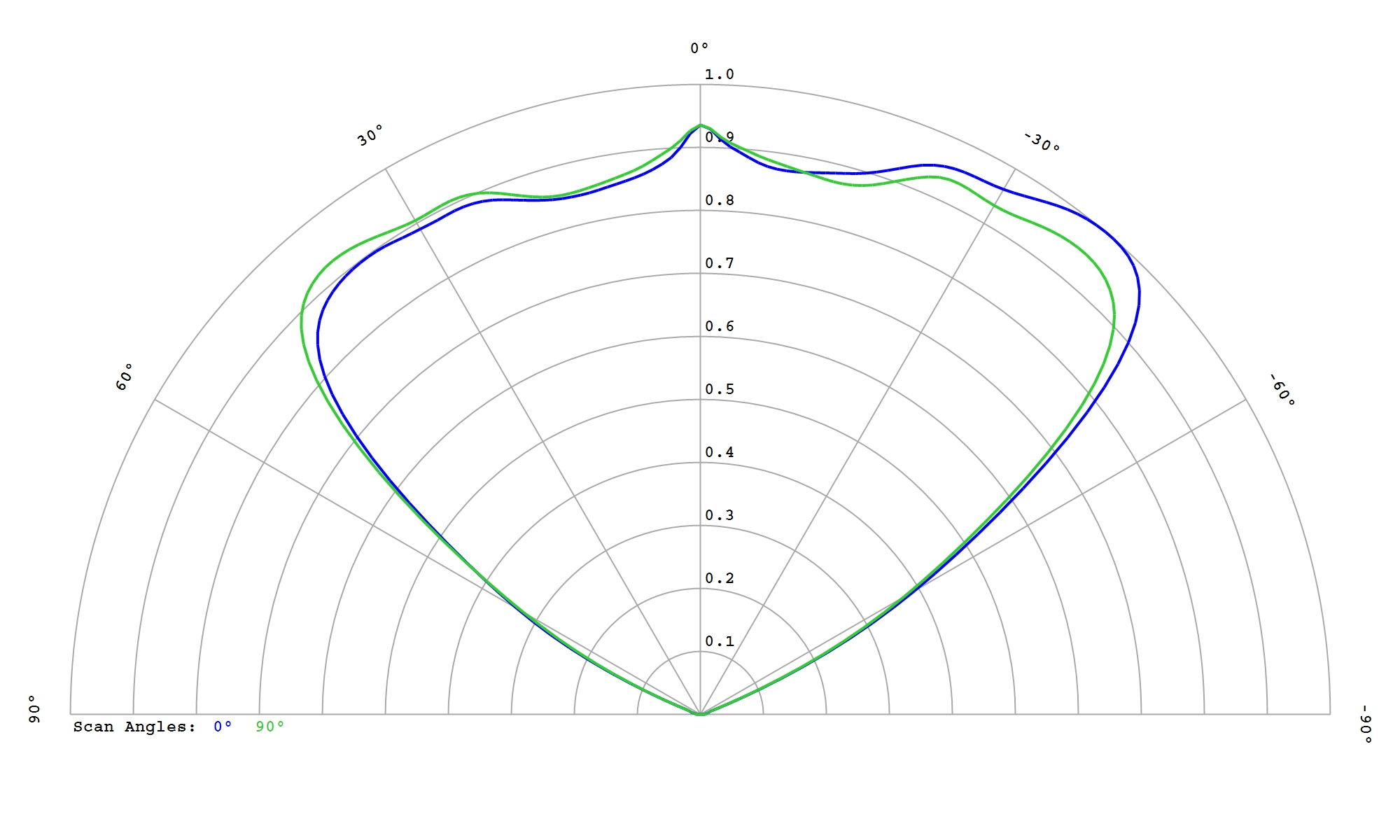

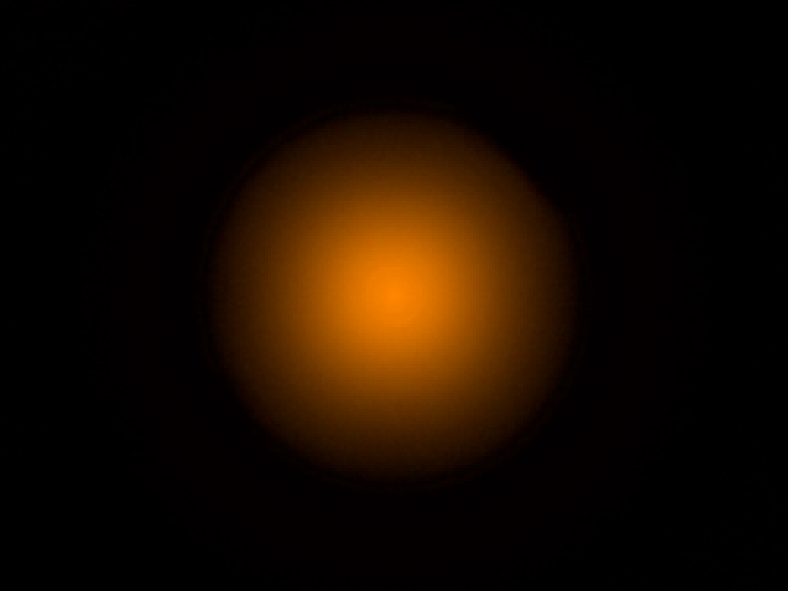

Cree XLamp XQ-E HI Blue

Eff:

92.5%

FWHM:

119°

Cd/Im:

0.3

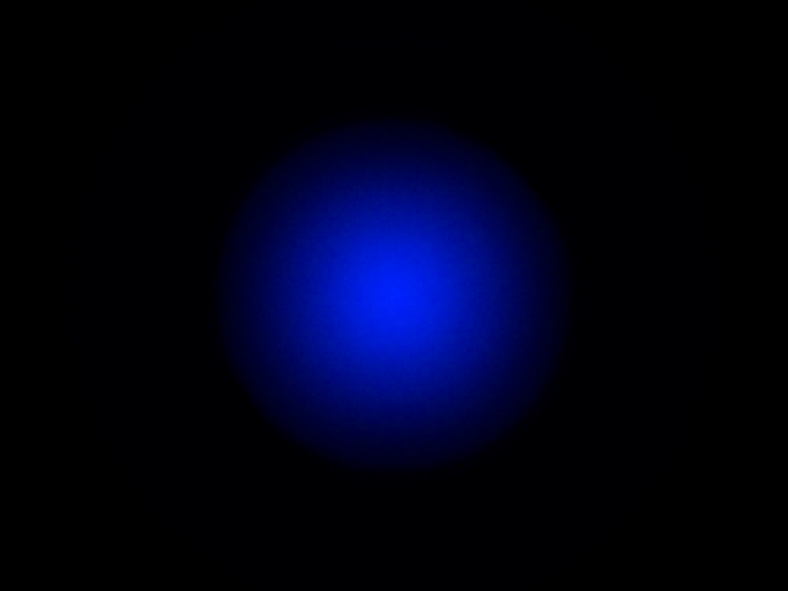

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

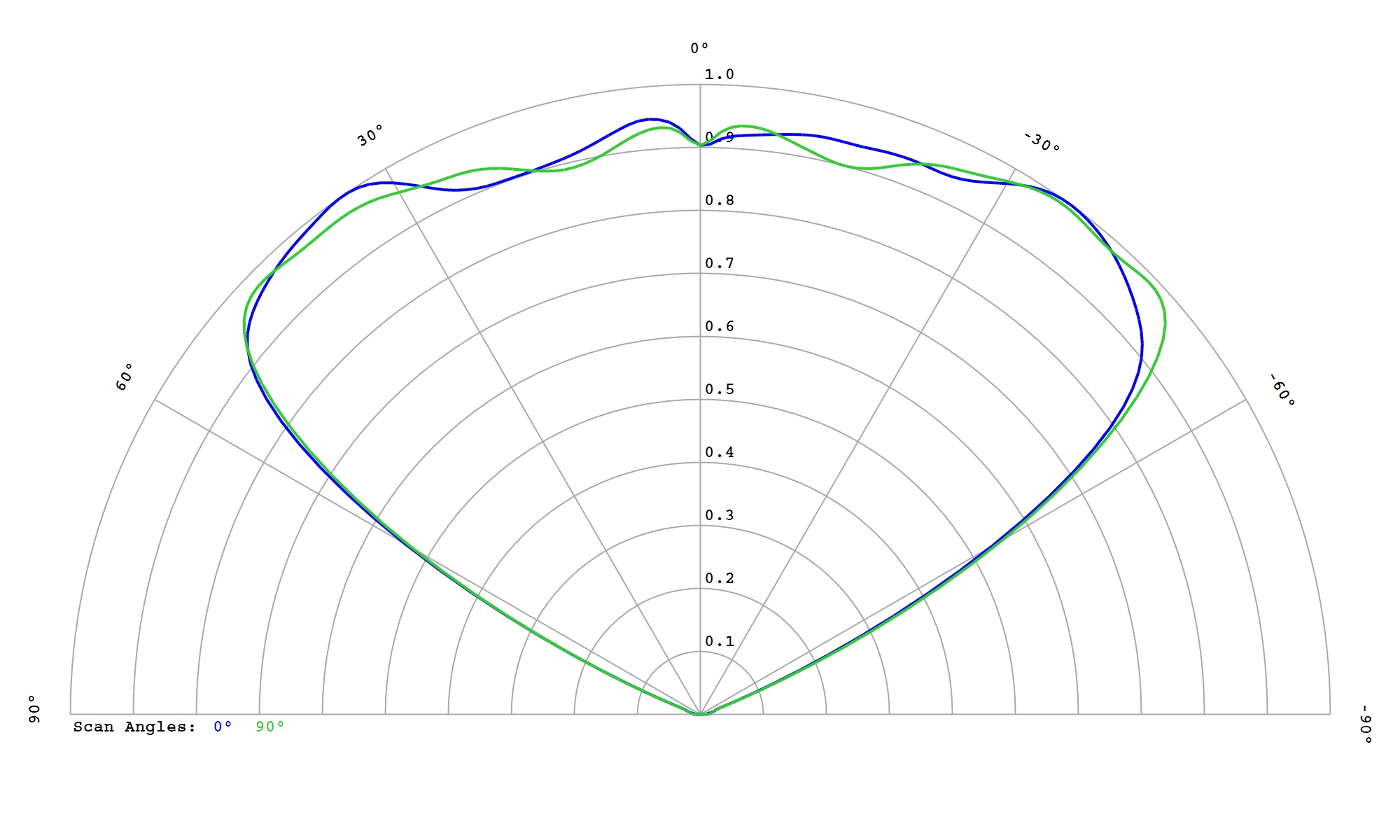

Cree XLamp XQ-E HI Green

Eff:

92.0%

FWHM:

120°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

92.5%

FWHM:

118°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

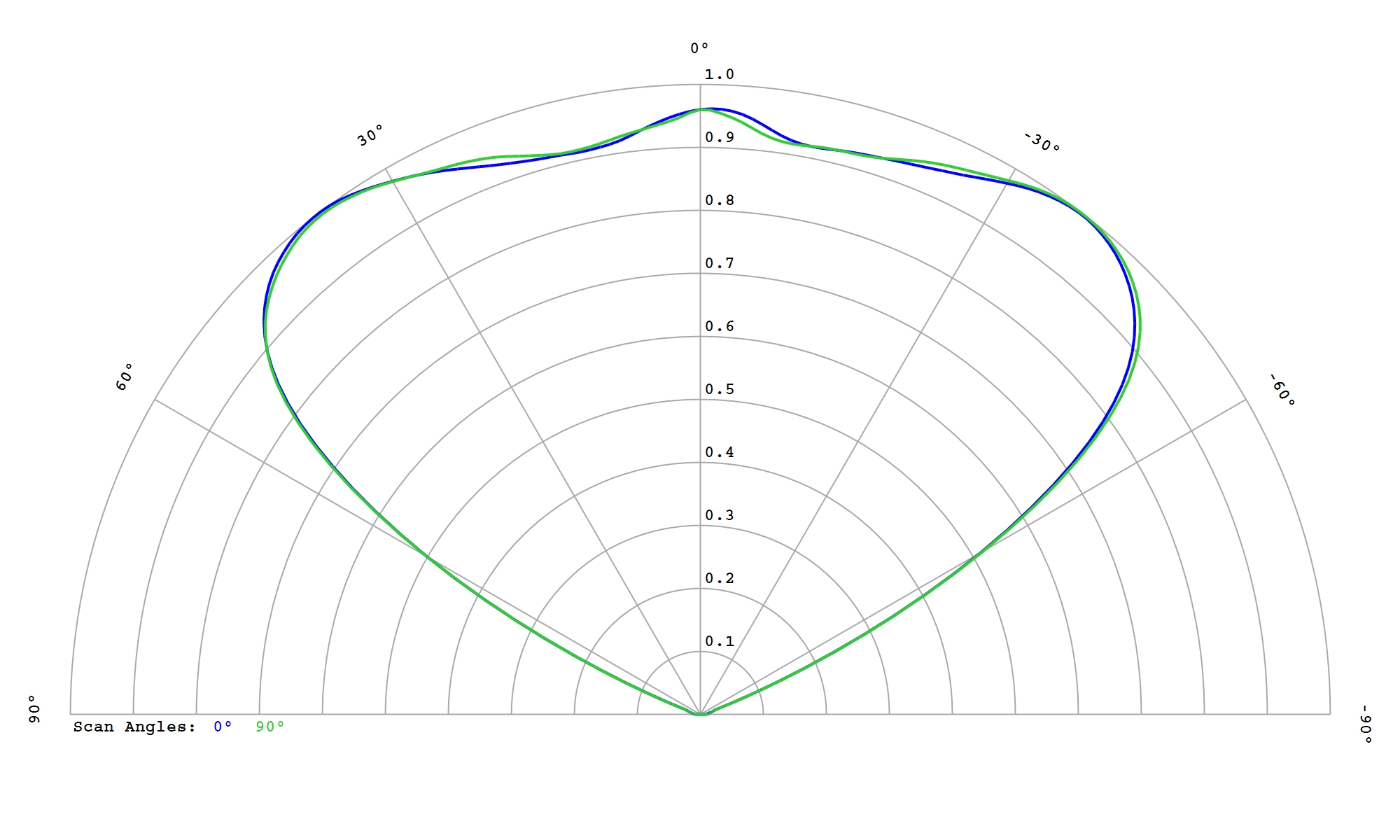

Cree XLamp XQ-E HI White

Eff:

86.0%

FWHM:

118°

Cd/Im:

0.3

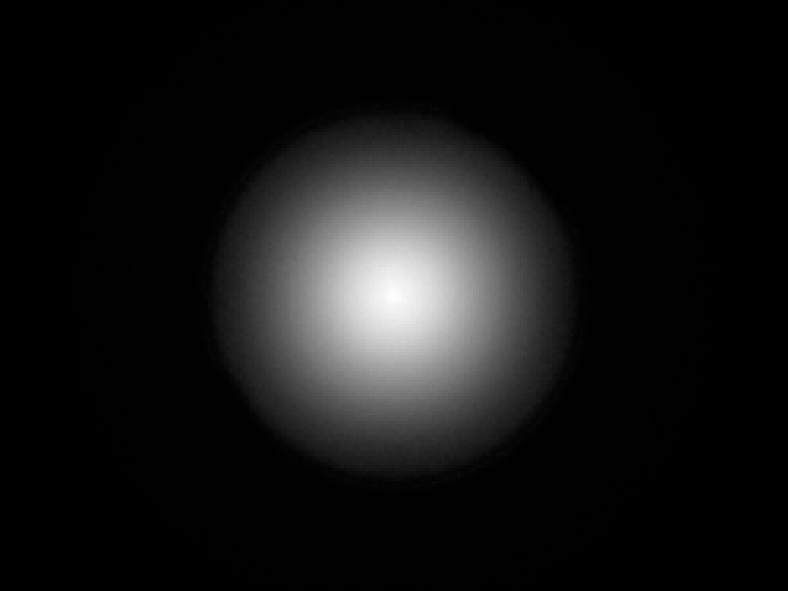

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

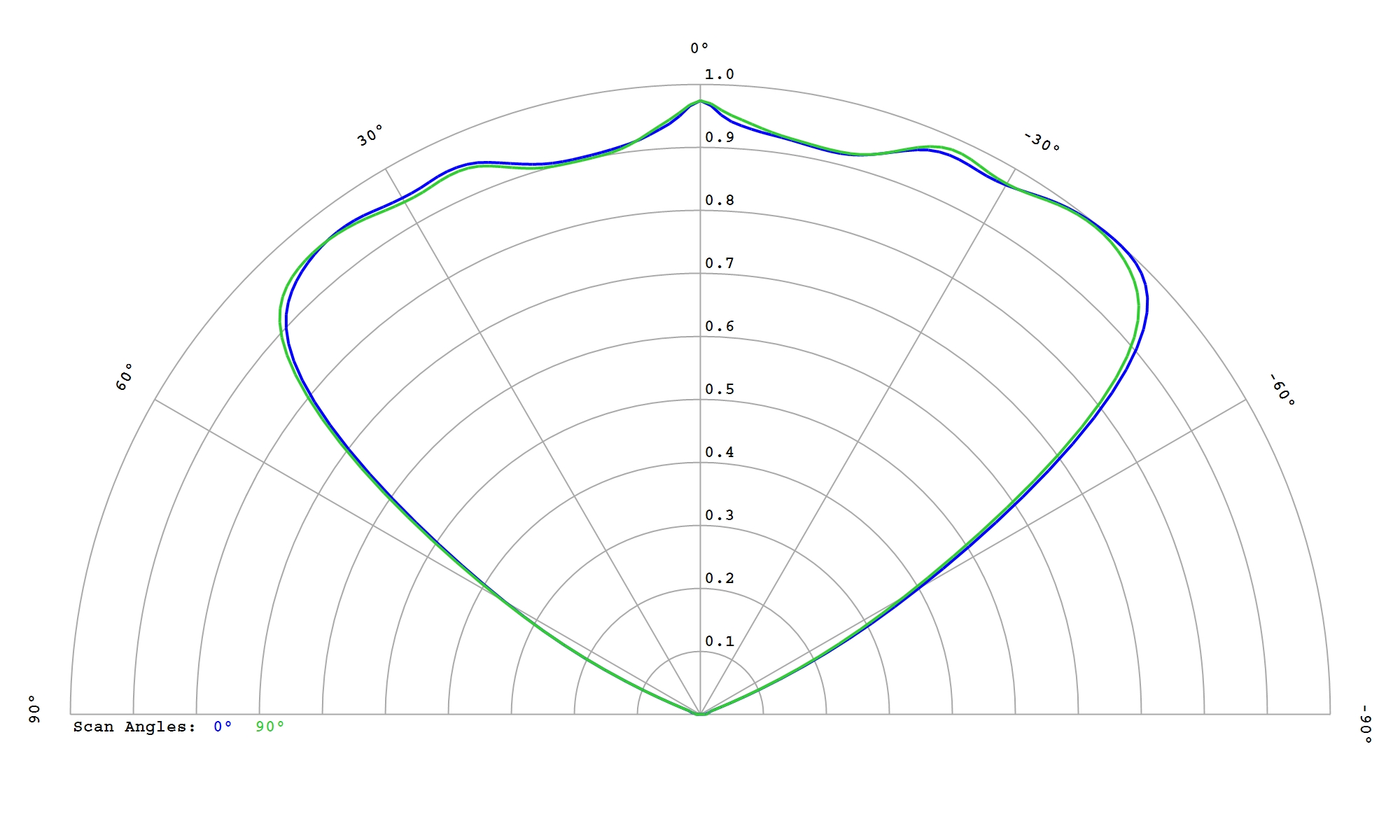

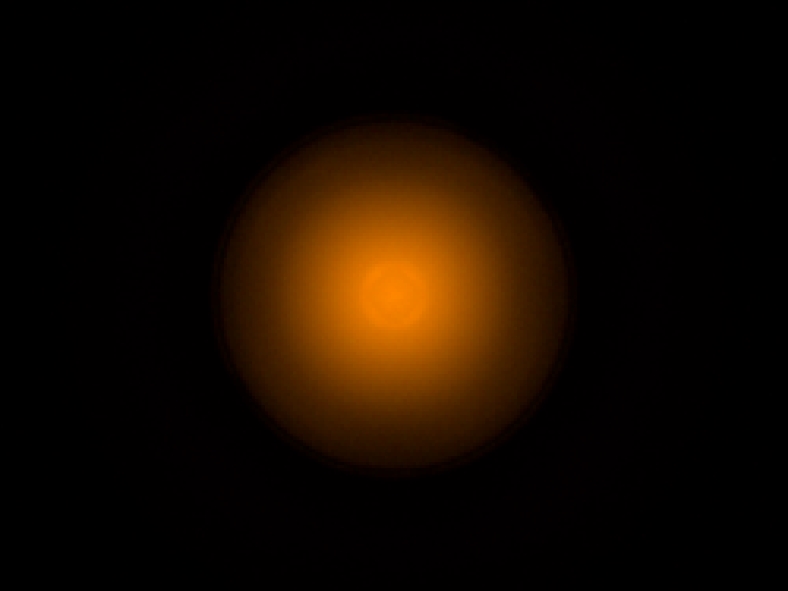

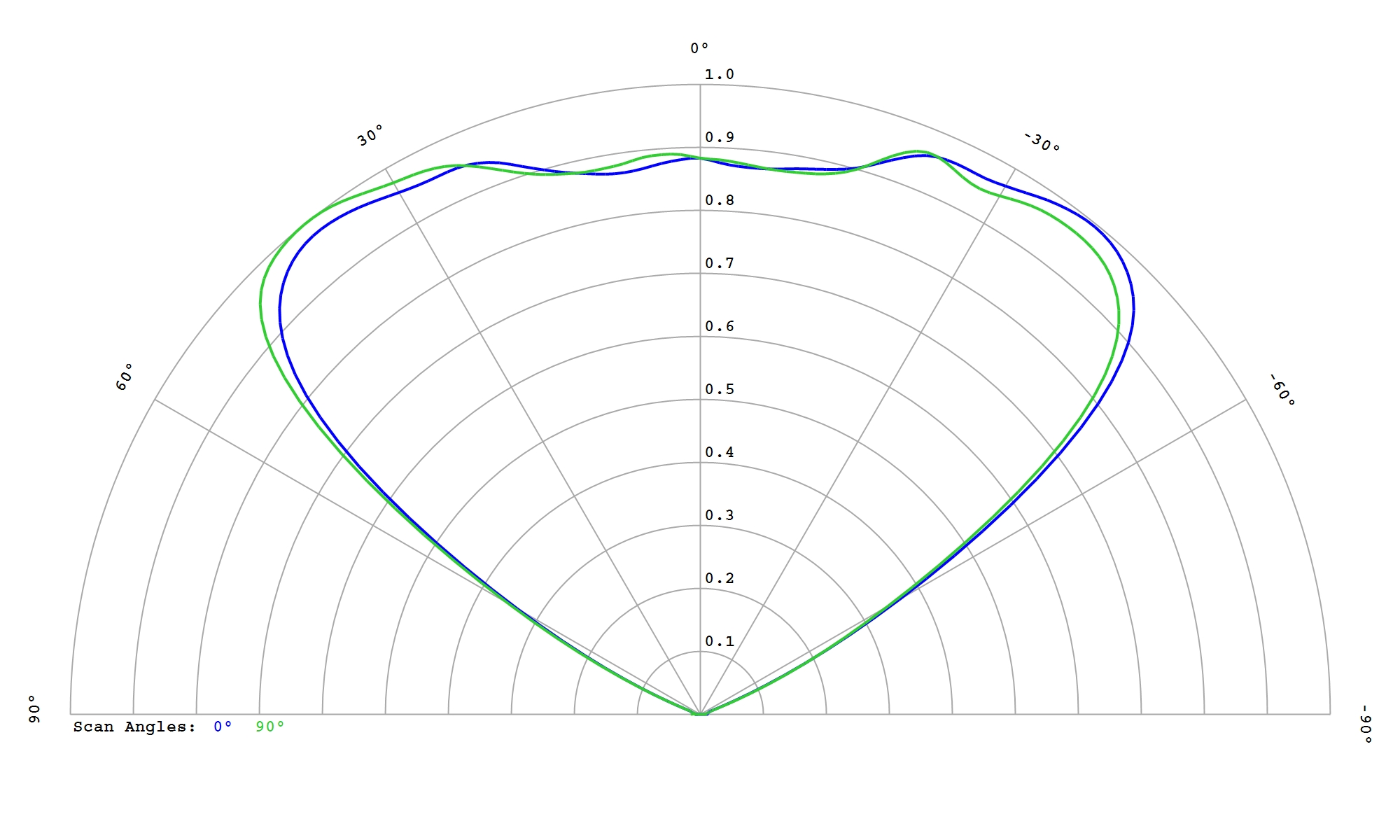

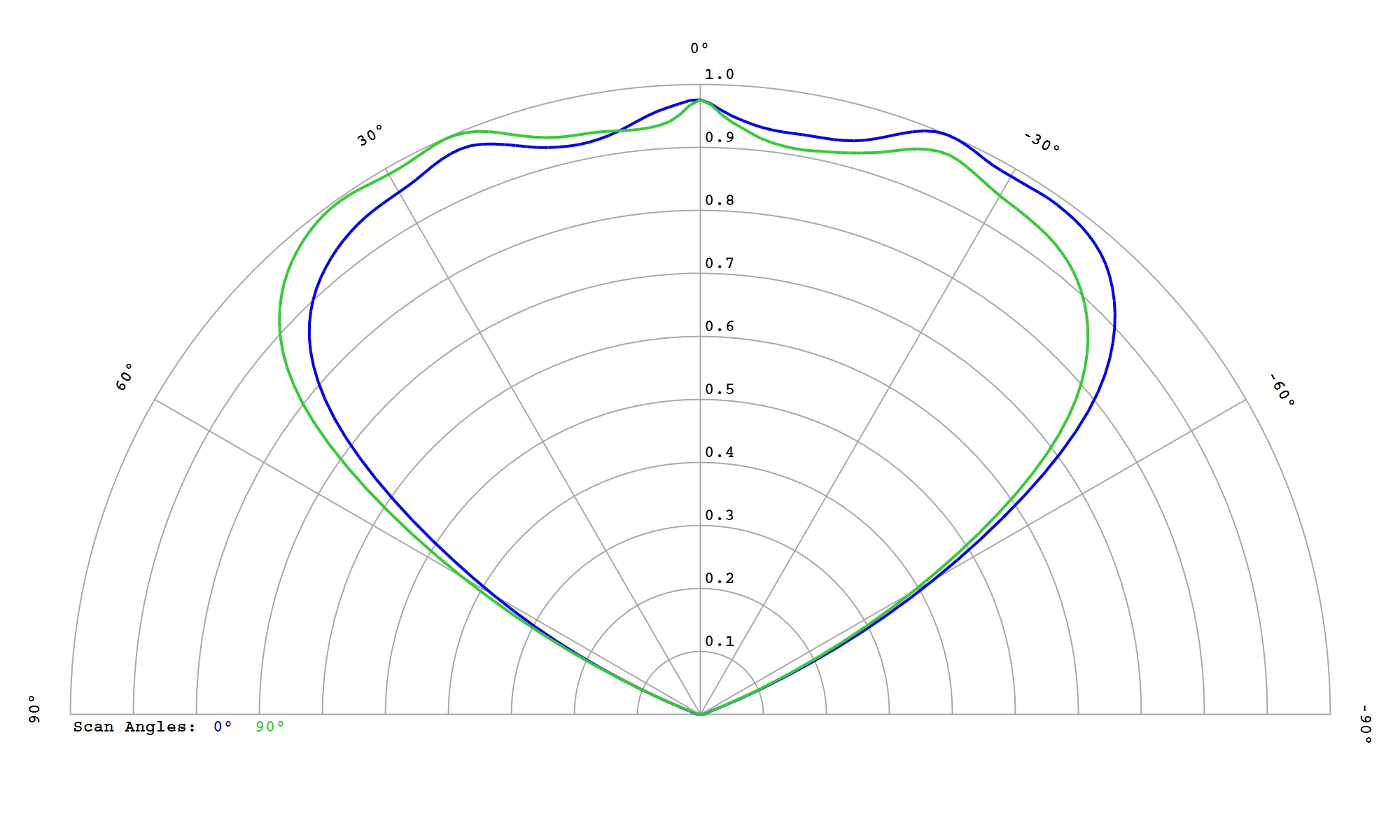

Cree XLamp XQ-E HD White

Eff:

86.0%

FWHM:

102x94°

Cd/Im:

0.3

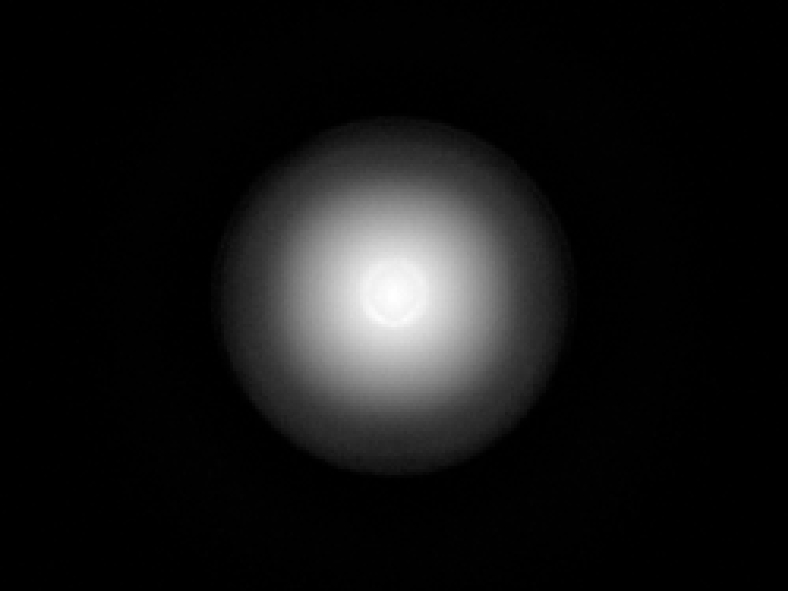

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XT-E HE White

Eff:

92.5%

FWHM:

119°

Cd/Im:

0.4

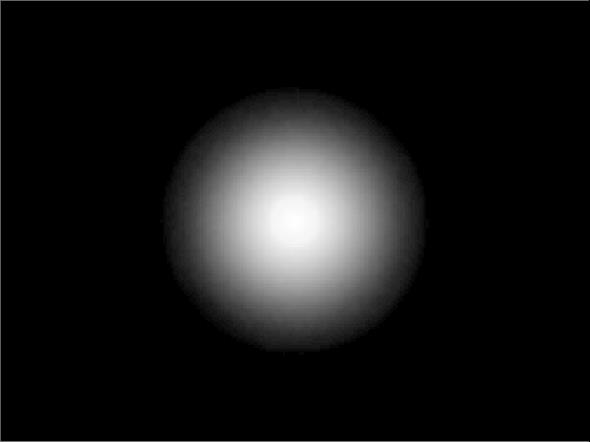

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XT-E White

Eff:

85.7%

FWHM:

119.4°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

Eff:

90.0%

FWHM:

120°

Cd/Im:

0.4

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 2835S 6V White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 3014 White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4

Download

IES

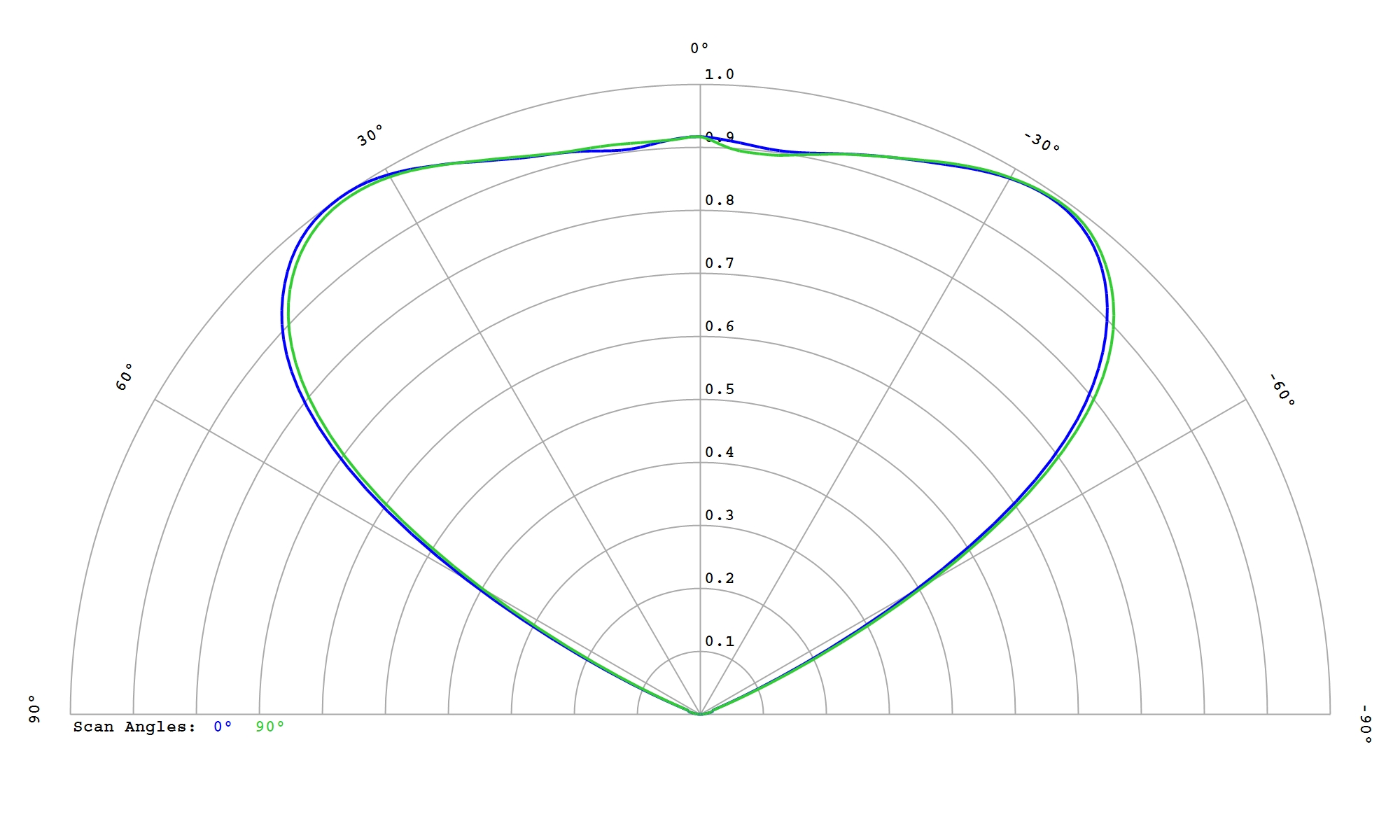

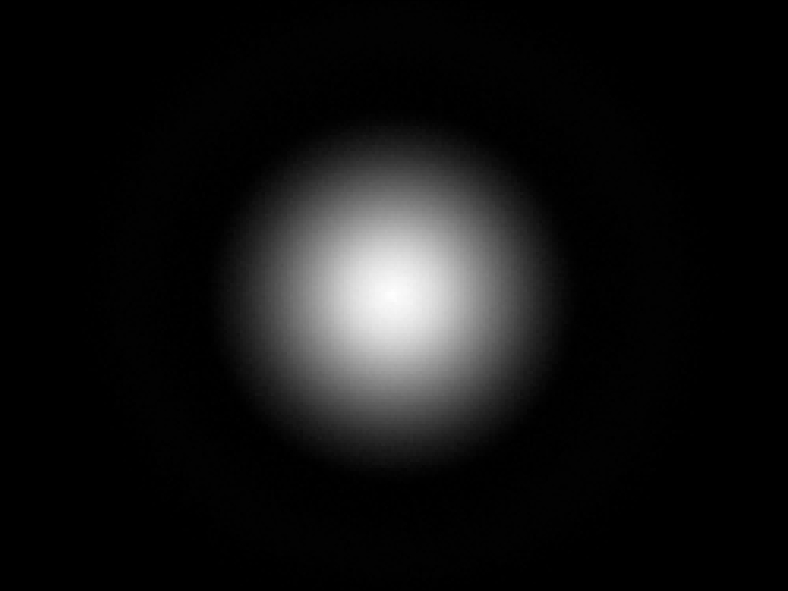

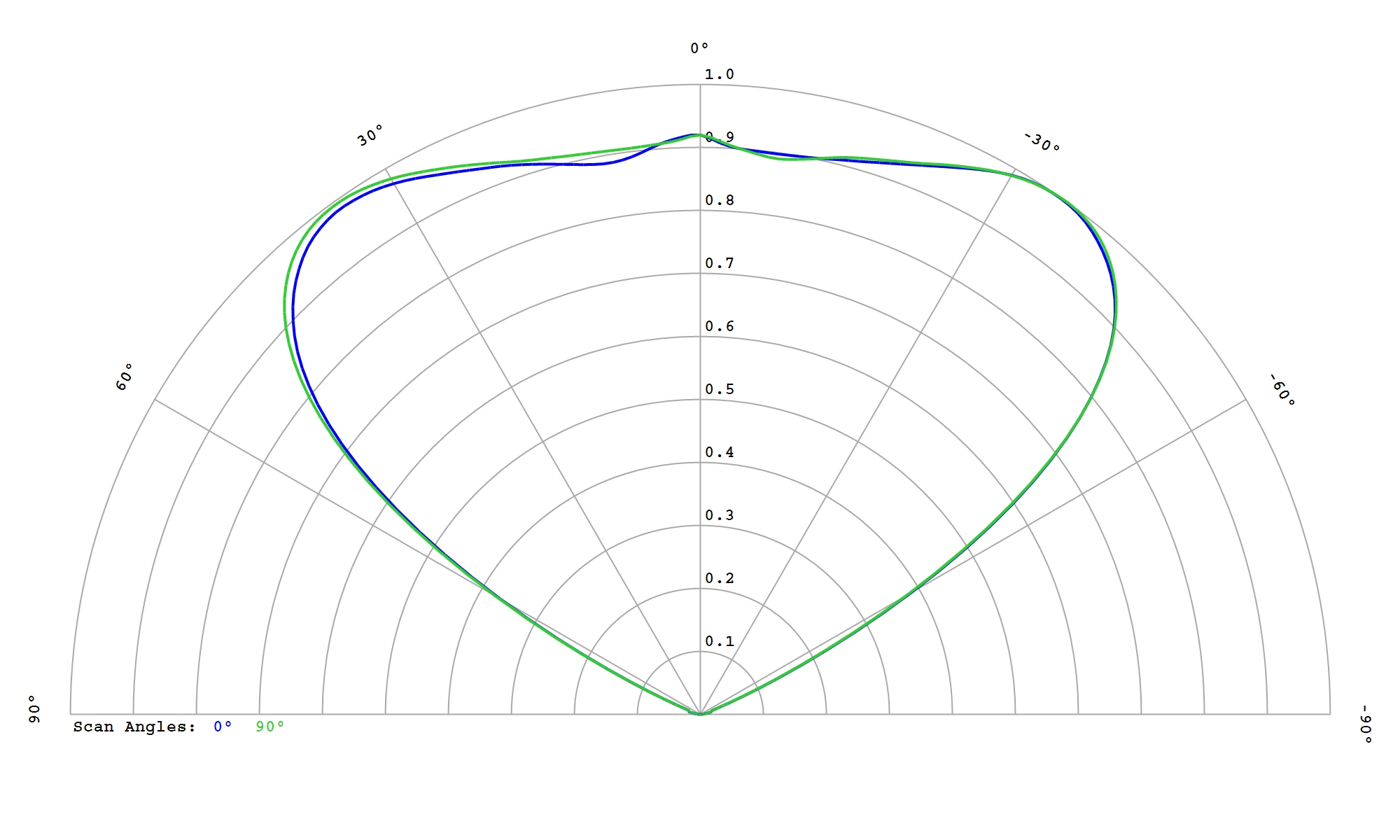

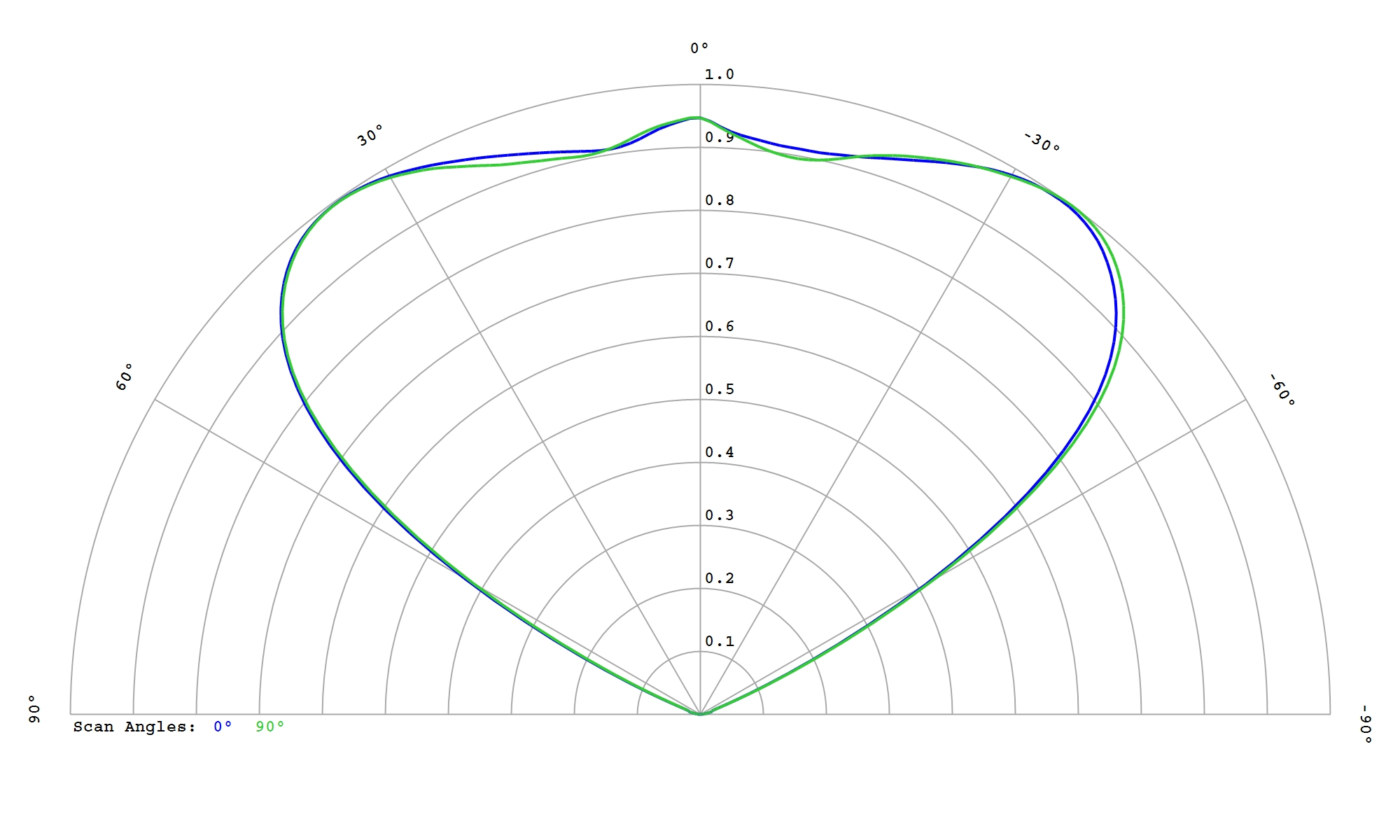

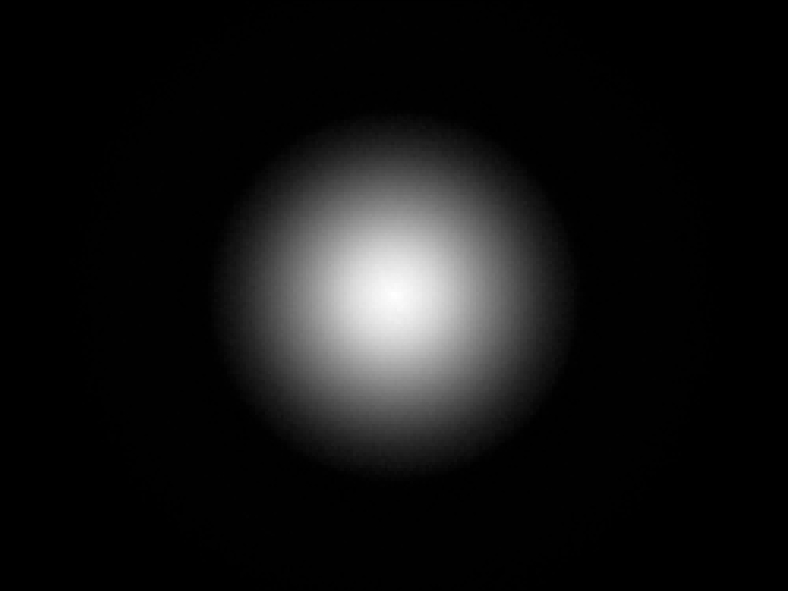

LUMILEDS LUXEON 3030 2D White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

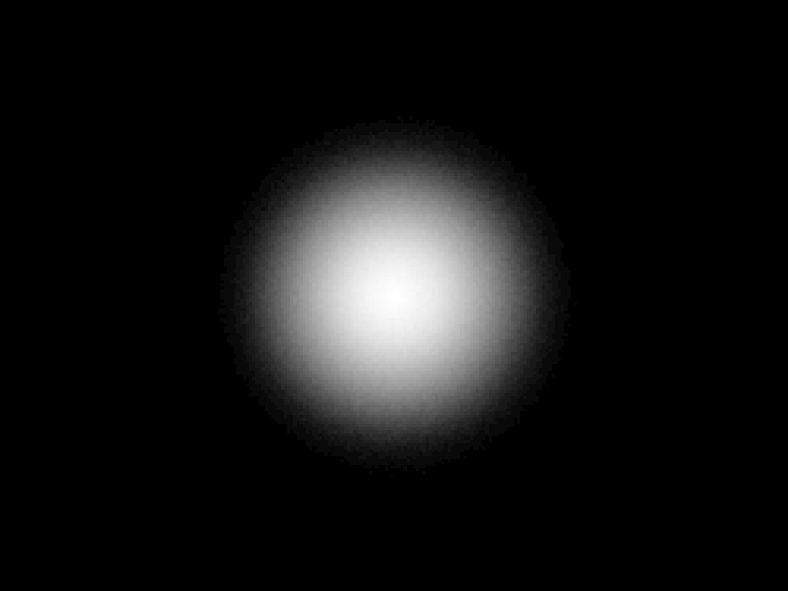

Carclo Optics – 10628 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10628 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

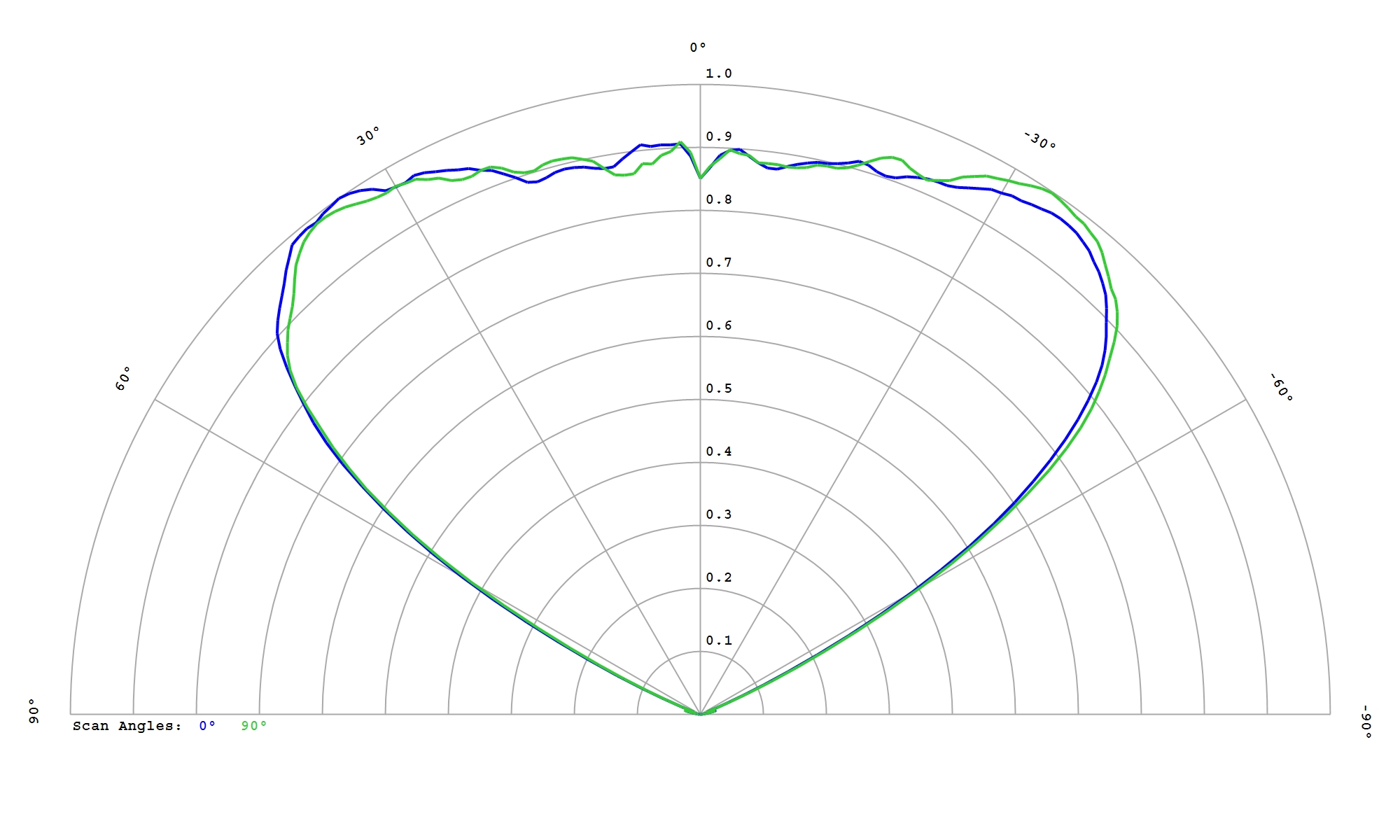

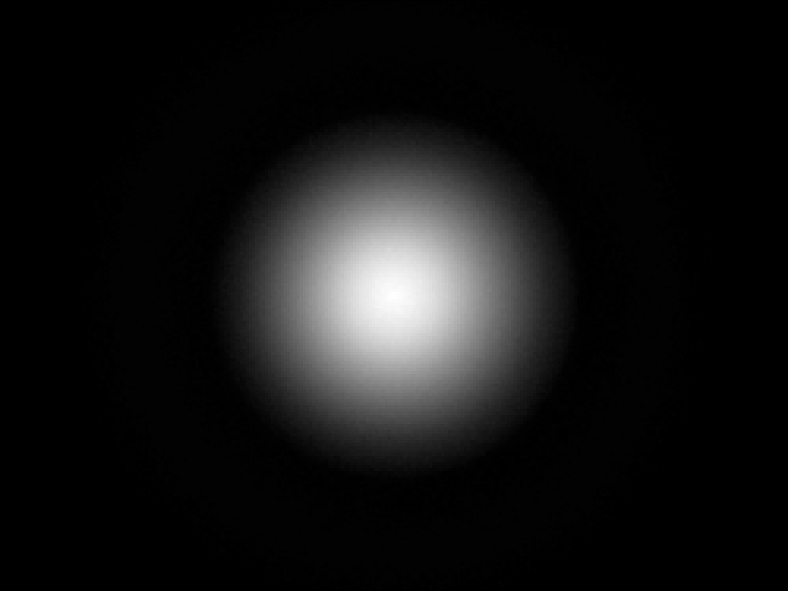

LUMILEDS LUXEON 3030 HE White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 3535 HV White

Eff:

87.0%

FWHM:

115°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

86.9%

FWHM:

110°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535L Blue

Eff:

93.0%

FWHM:

120°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Green

Eff:

93.0%

FWHM:

120°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 3535L Red

Eff:

93.0%

FWHM:

120°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 5050 HE 24V White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4

Download

LUMILEDS LUXEON 5050 HE 6V White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5

Download

LUMILEDS LUXEON 5050 Round 24V White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4


Download

LUMILEDS LUXEON 5050 Square 30V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5


Download

LUMILEDS LUXEON 5050 Square 6V White

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.4


Download

LUMILEDS LUXEON 5050 Round 6V White

Eff:

93.0%

FWHM:

113°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON 7070 White

Eff:

93.5%

FWHM:

110°

Cd/Im:

0.5

Carclo Optics – 10628 Lumileds Luxeon 7070 - Spot Image

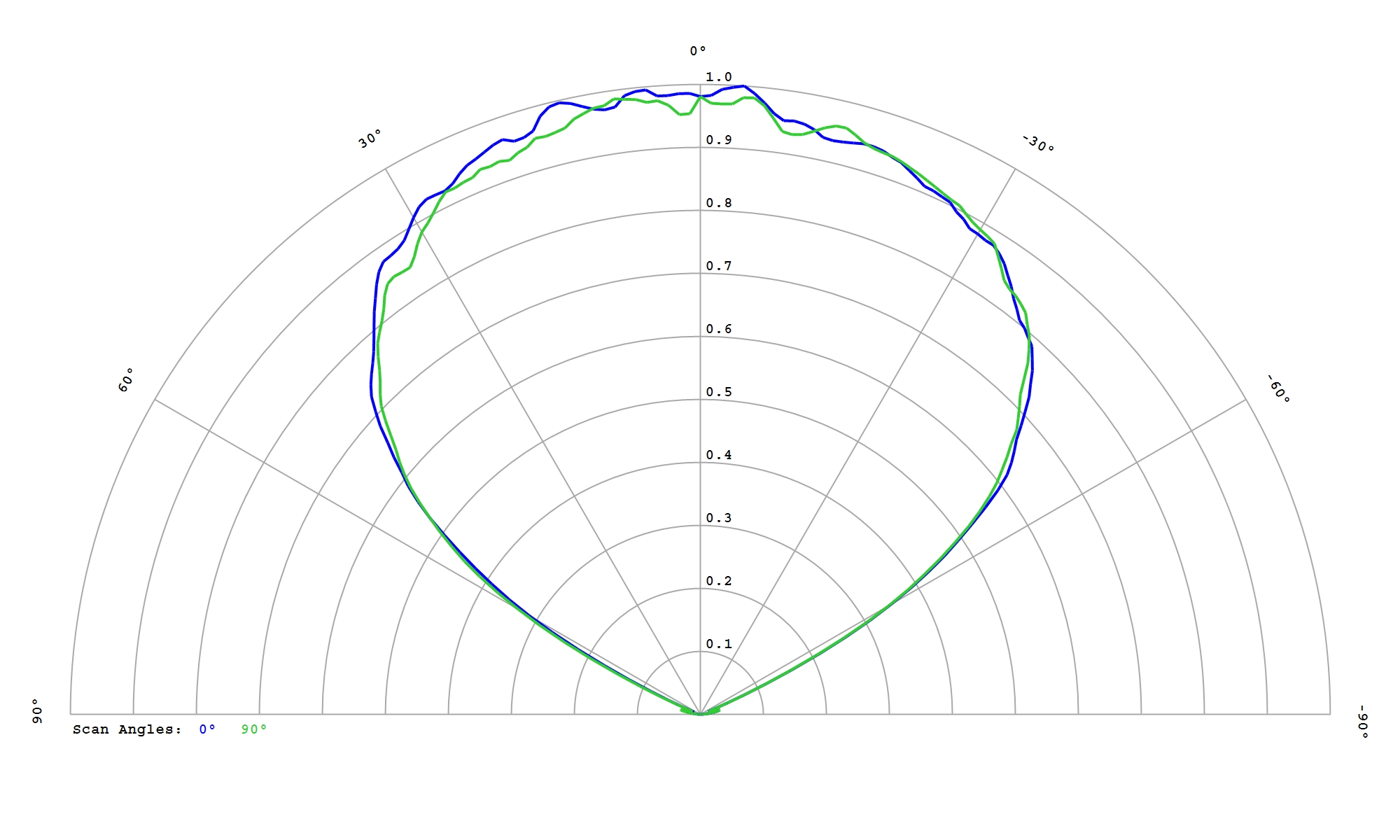

Carclo Optics – 10628 Lumileds Luxeon 7070 - Cross-Section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

87.5%

FWHM:

132°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

89.0%

FWHM:

129°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

87.0%

FWHM:

132°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

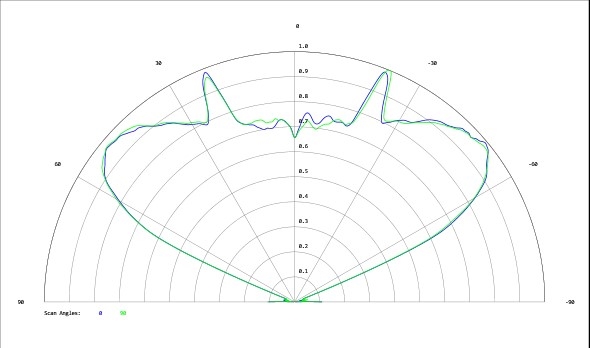

LUMILEDS LUXEON C White

Eff:

89.0%

FWHM:

130°

Cd/Im:

0.4

Download

LUMILEDS LUXEON CZ White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.5

Carclo Optics 10628 Spot Image Luxeon CZ 5M CW

Carclo Optics 10628 Cross Section Luxeon CZ 5M CW

Download

IES

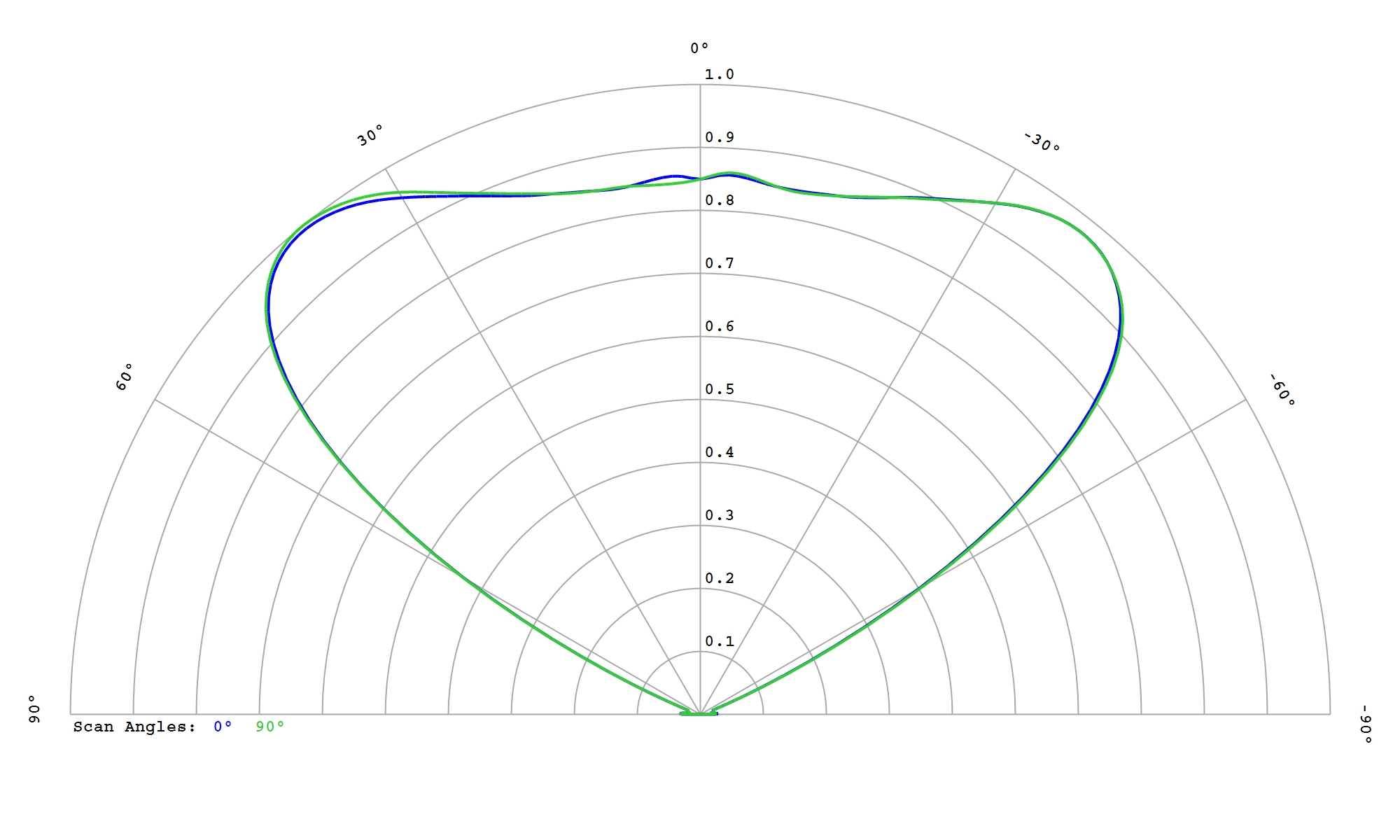

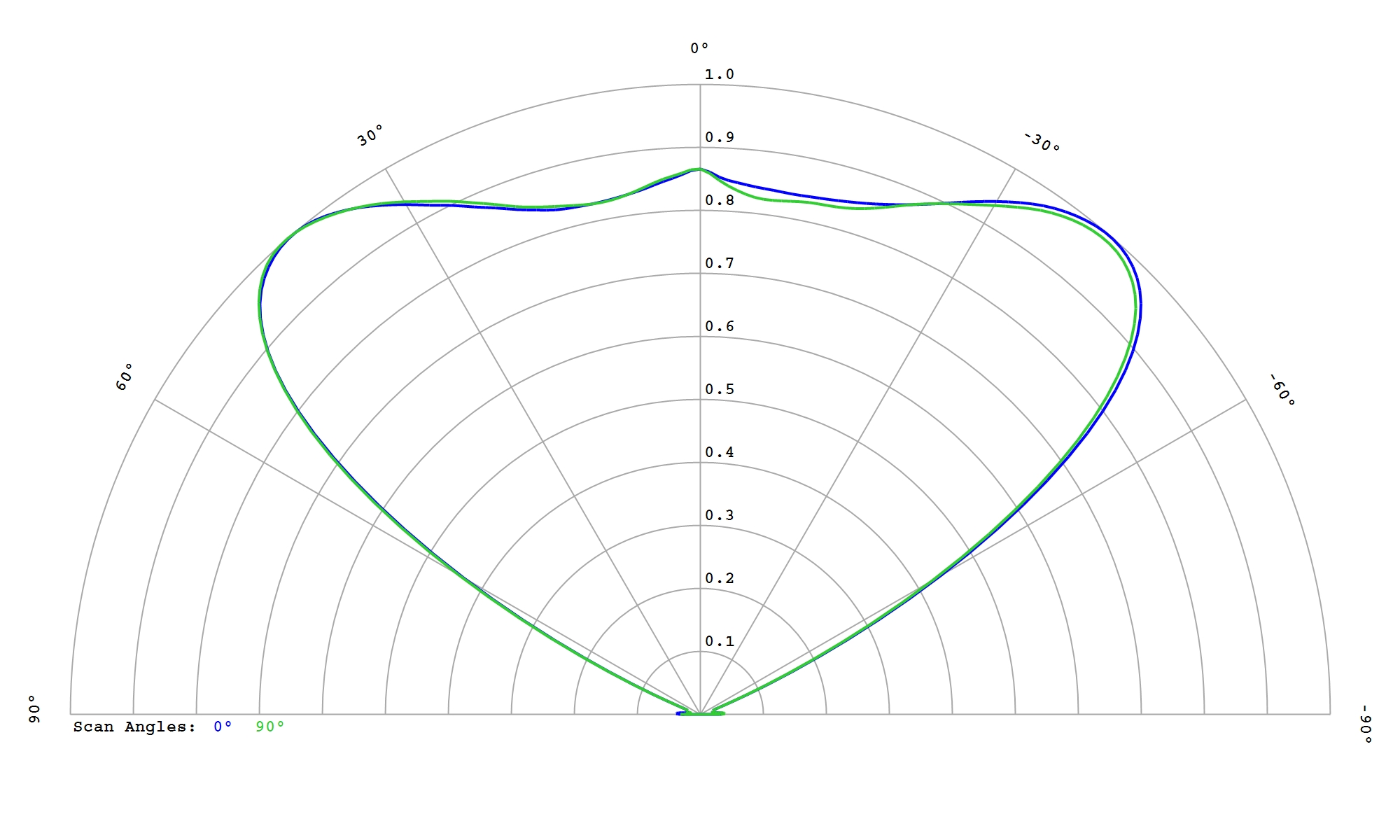

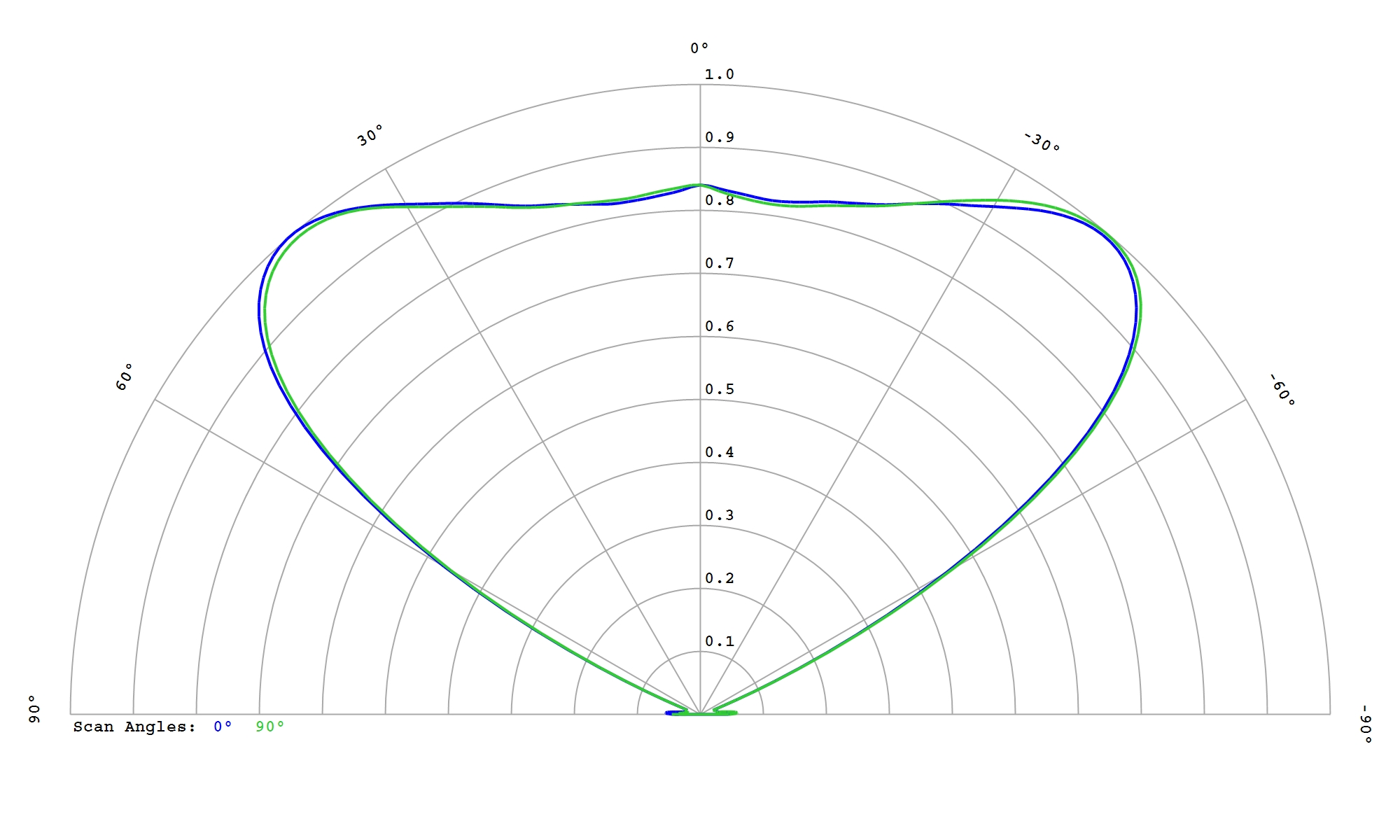

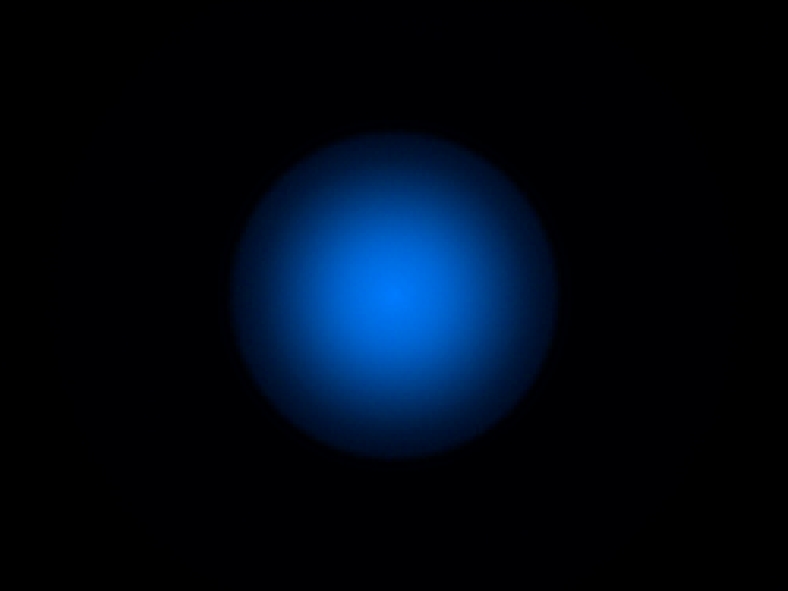

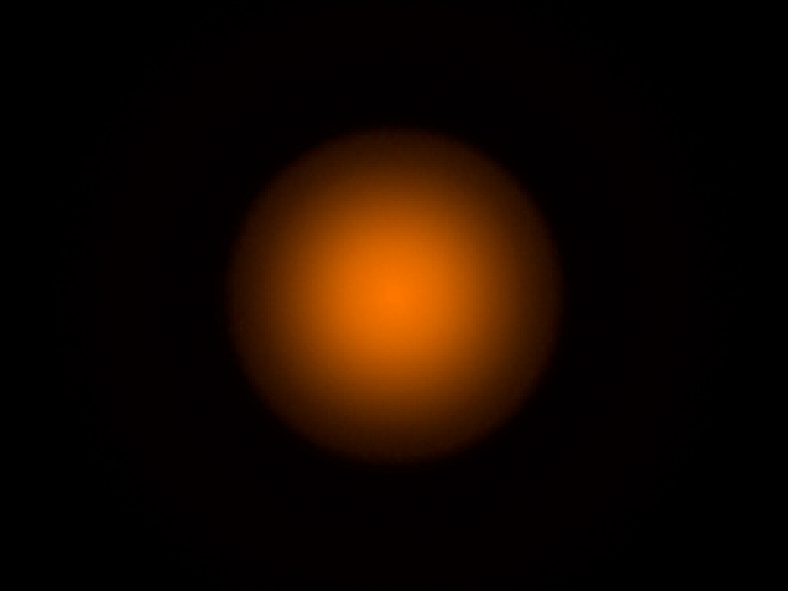

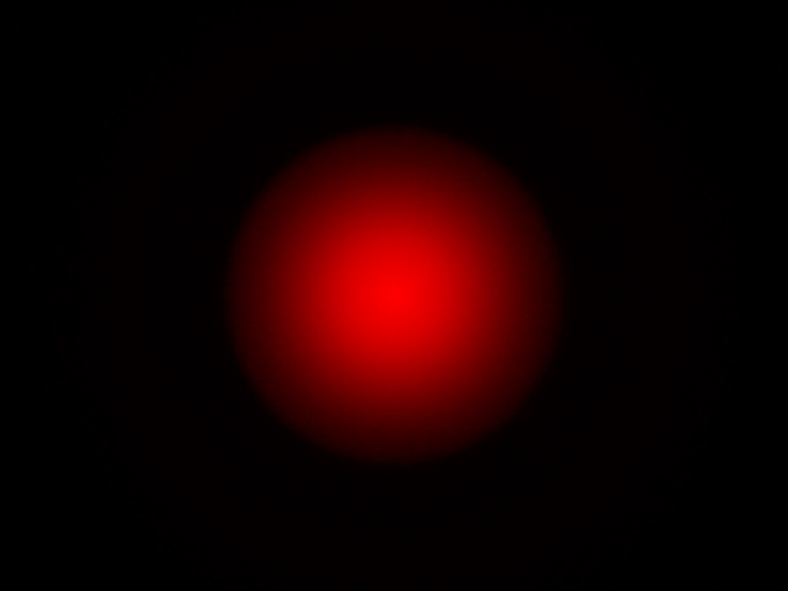

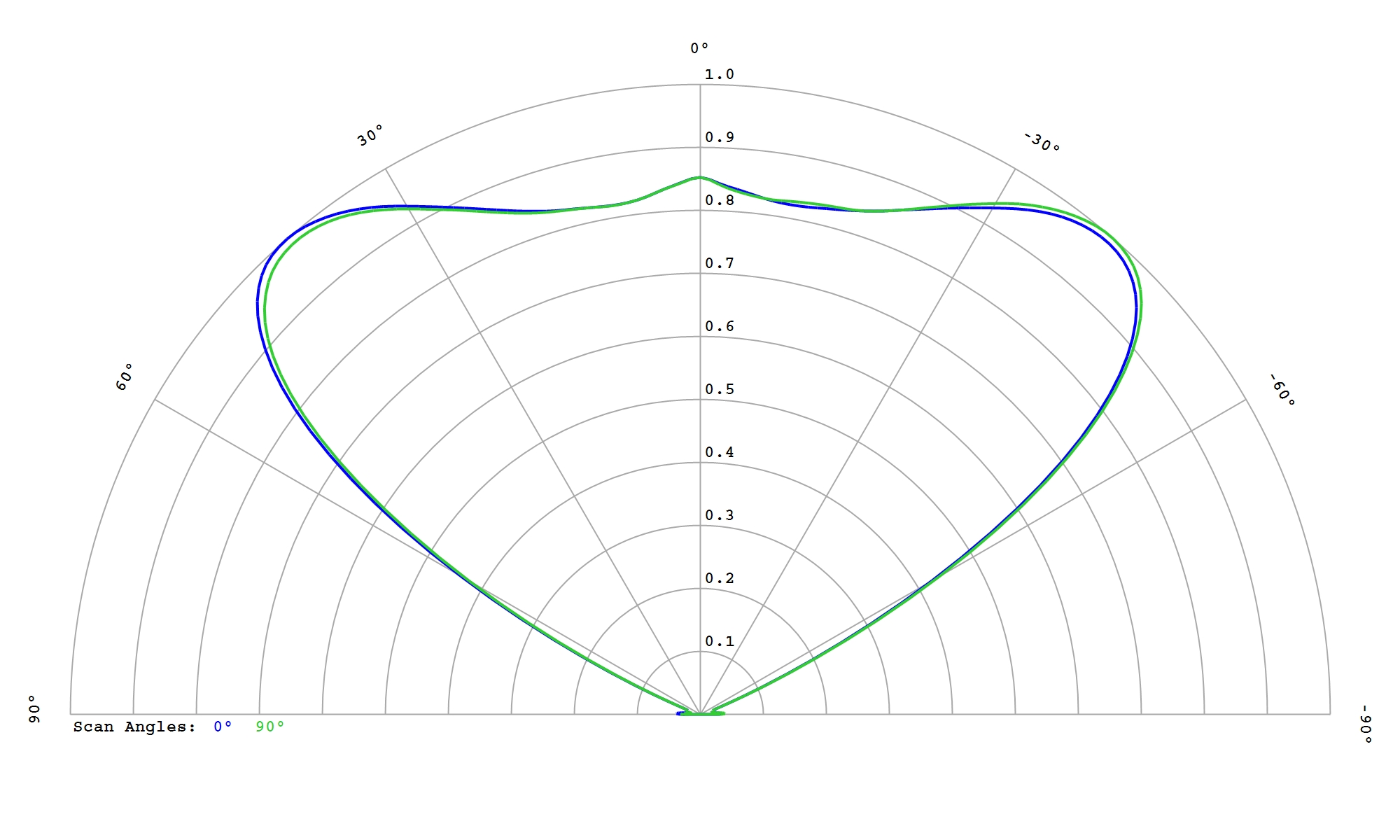

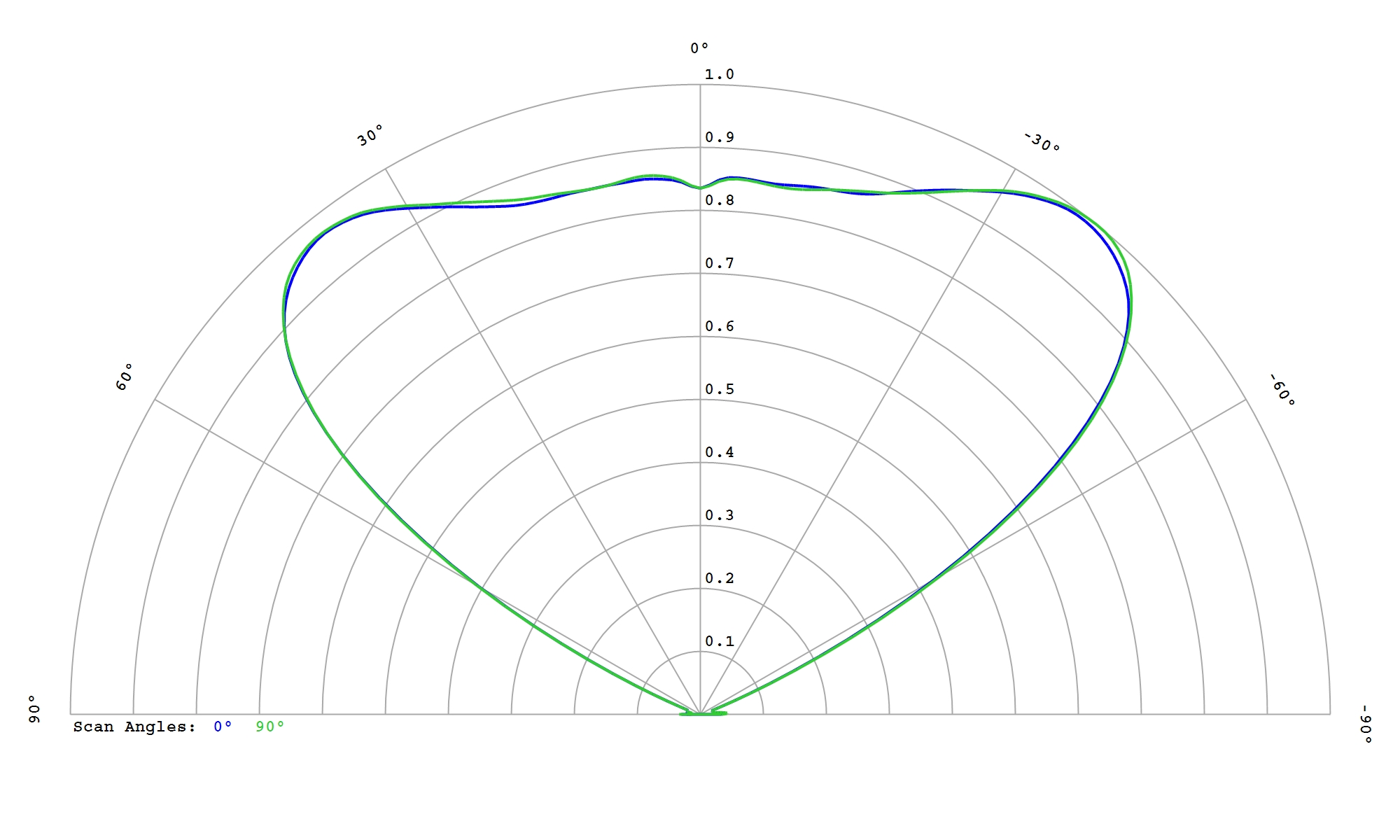

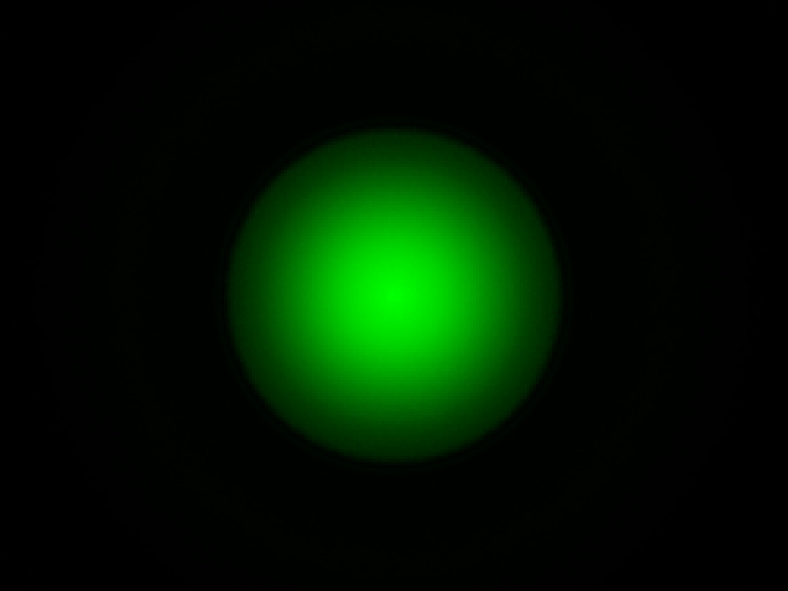

LUMILEDS LUXEON HL1Z CSP White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Download

IES

LUMILEDS LUXEON HL2X White

Eff:

92.5%

FWHM:

116°

Cd/Im:

0.5

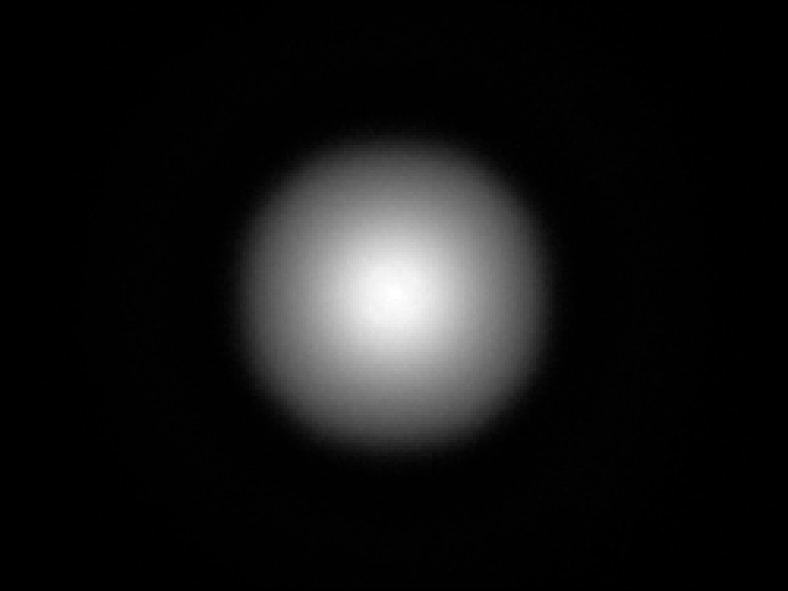

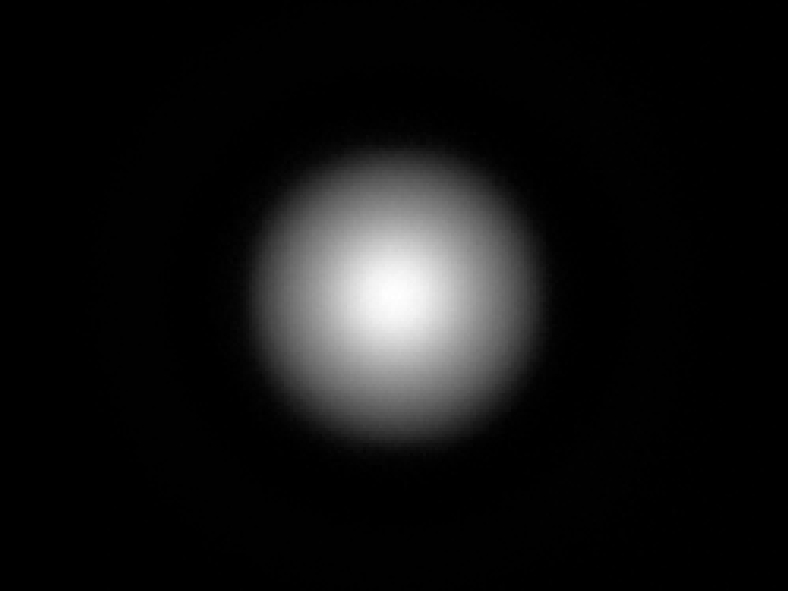

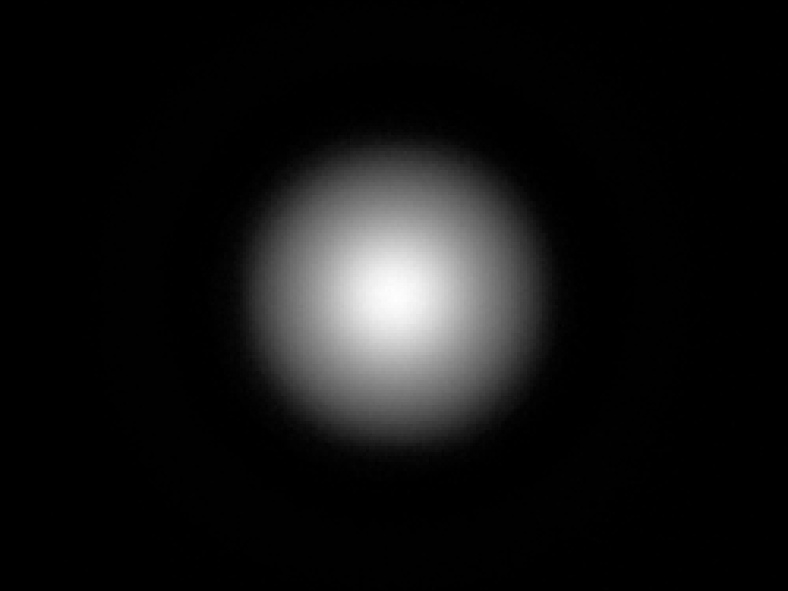

Carclo Optics - 10628 Spot Image Luxeon HL2X

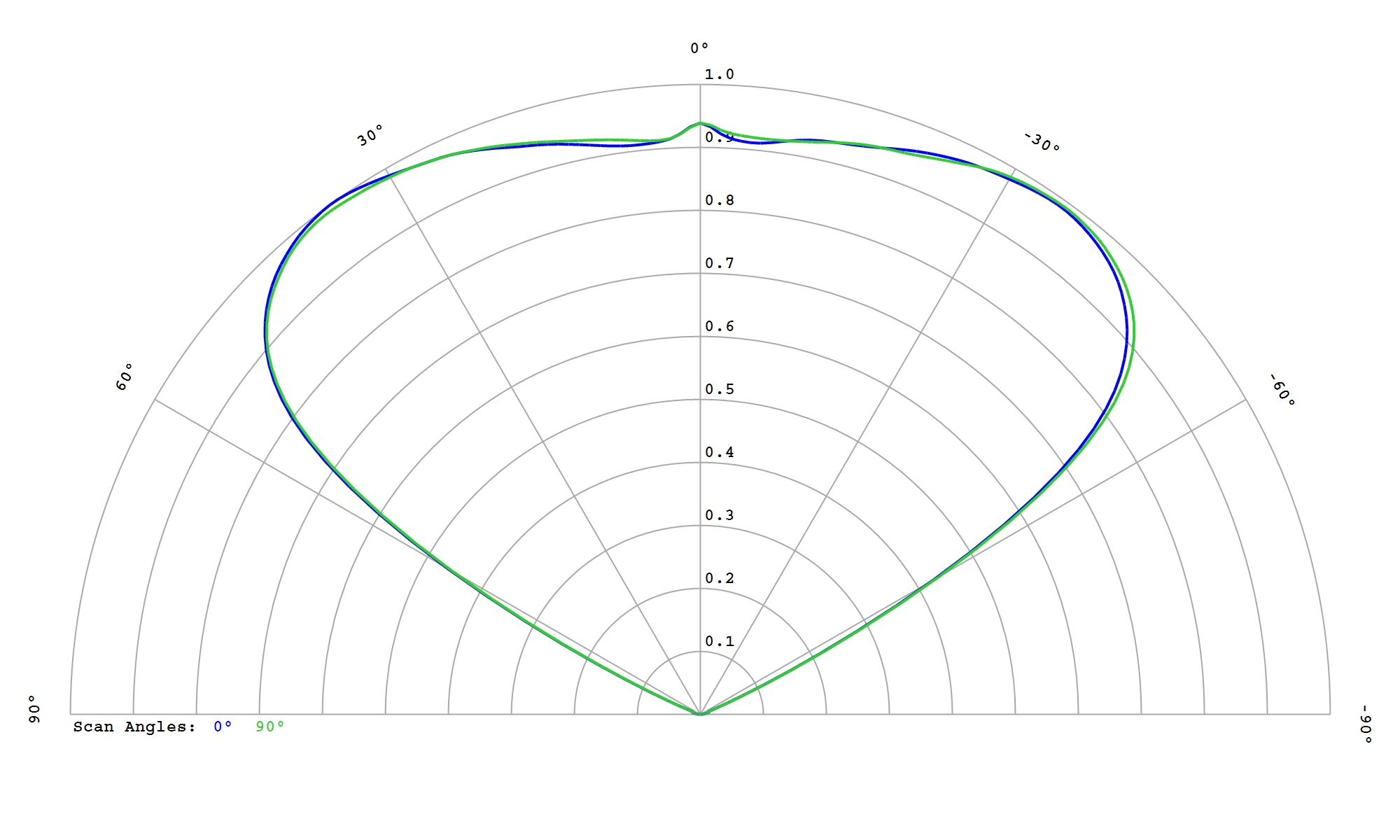

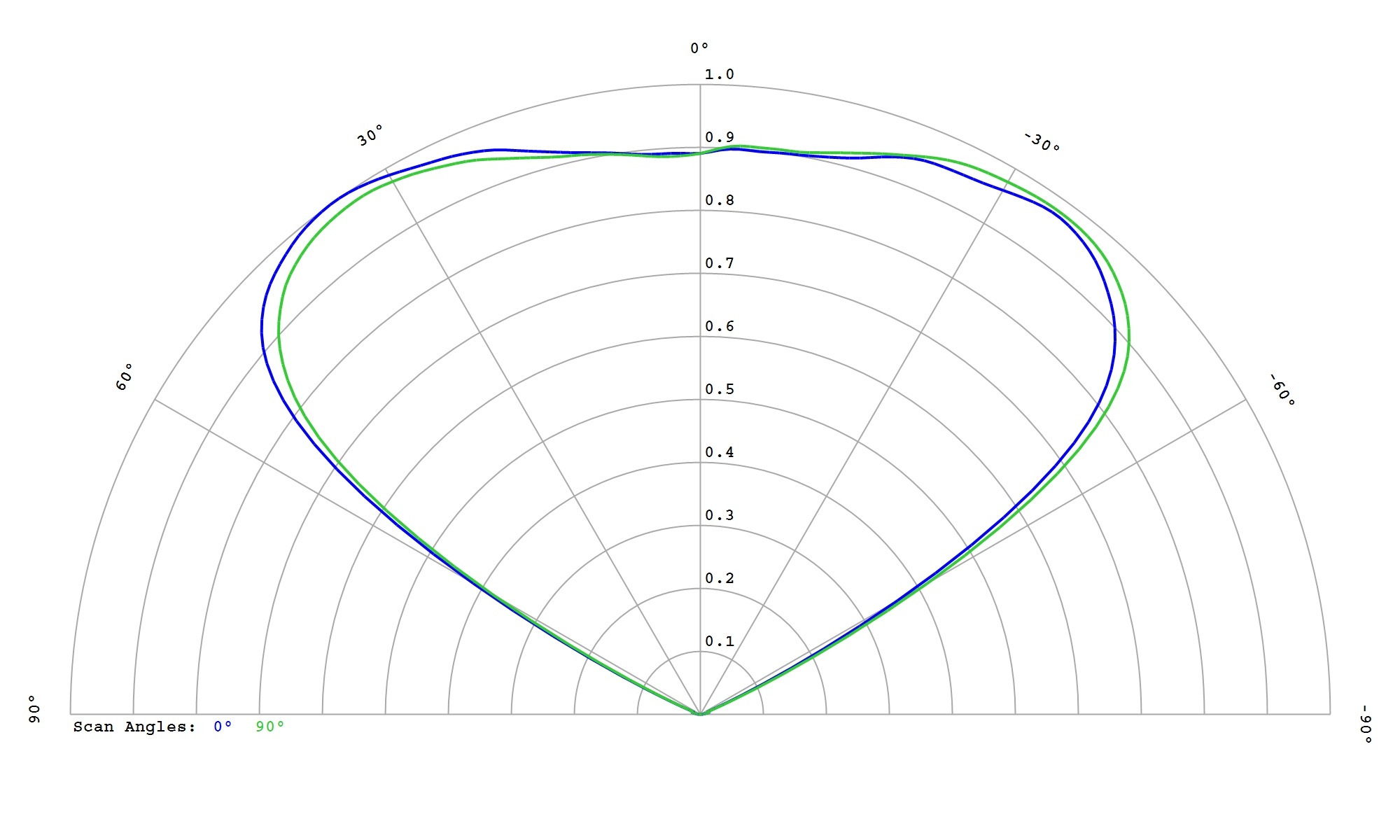

Carclo Optics - 10628 Cross Section Luxeon HL2X

Download

IES

LUMILEDS LUXEON HL2X-D White

Eff:

93.0%

FWHM:

119°

Cd/Im:

0.4

Download

IES

LUMILEDS LUXEON HL2X-P White

Eff:

93.0%

FWHM:

117°

Cd/Im:

0.4

Download

IES

LUMILEDS LUXEON HL2Z White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.4

Carclo Optics – 10628 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10628 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON HL4X White

Eff:

93.0%

FWHM:

123°

Cd/Im:

0.4

Download

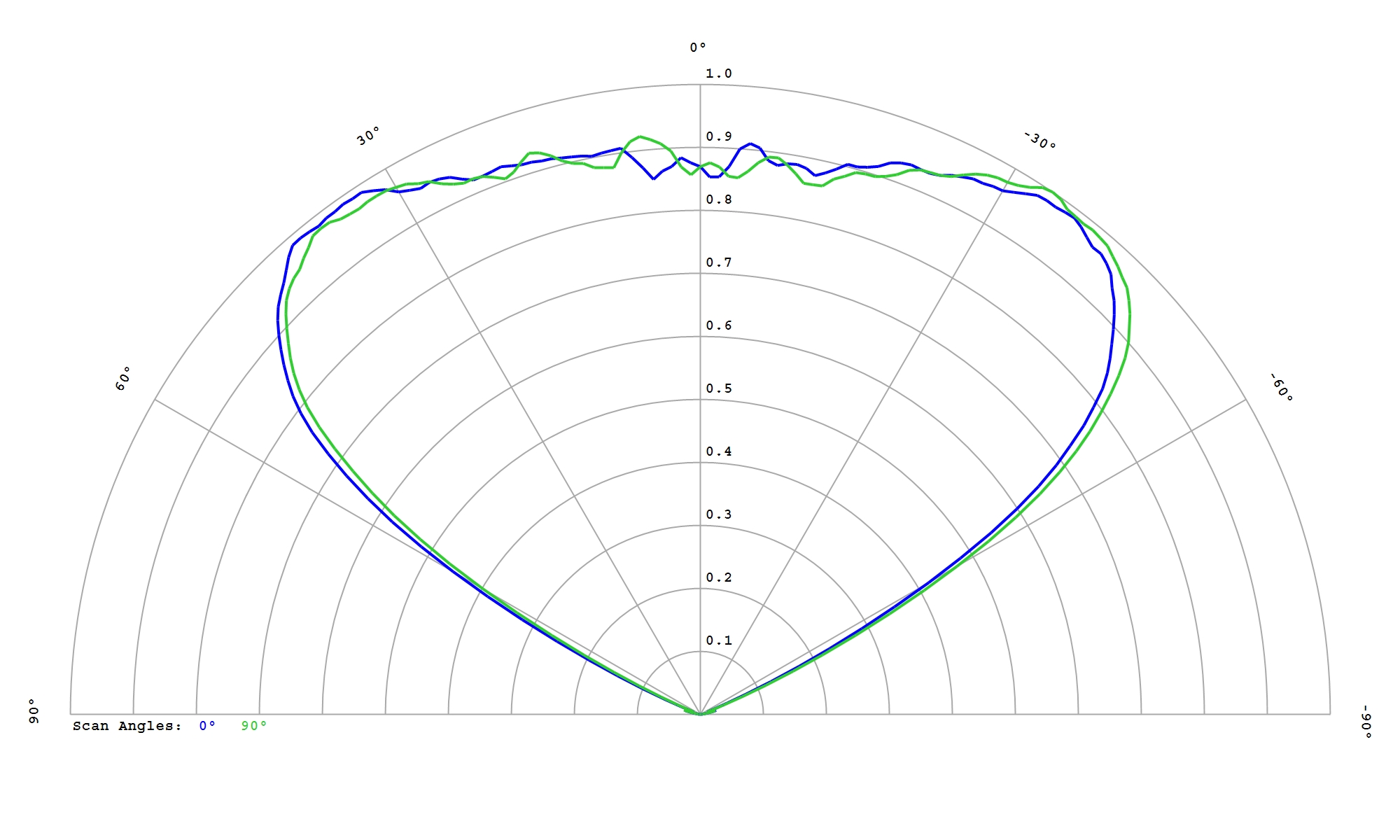

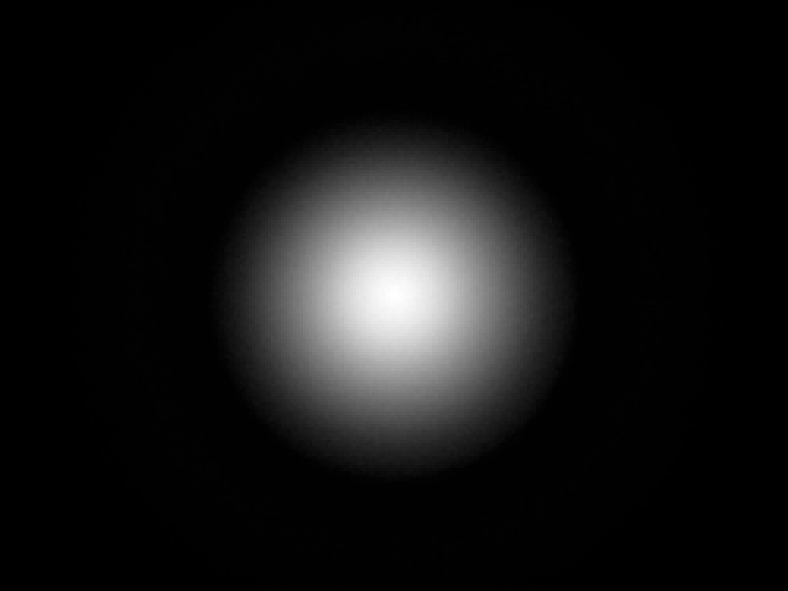

LUMILEDS LUXEON HL4Z White

Eff:

93.5%

FWHM:

118°

Cd/Im:

0.4

Download

LUMILEDS LUXEON IR 2720

Eff:

96.0%

FWHM:

116.0°

Ipk/W:

0.4

Carclo Optics - 10628 Downlight Spot Image Luxeon IR 2720

Carclo Optics - 10628 Downlight Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON M White

Eff:

86.5%

FWHM:

117°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON MX White

Eff:

92.0%

FWHM:

116°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON MZ White

Eff:

87.2%

FWHM:

115.0°

Cd/Im:

0.3

carclo optics - simulated spot image

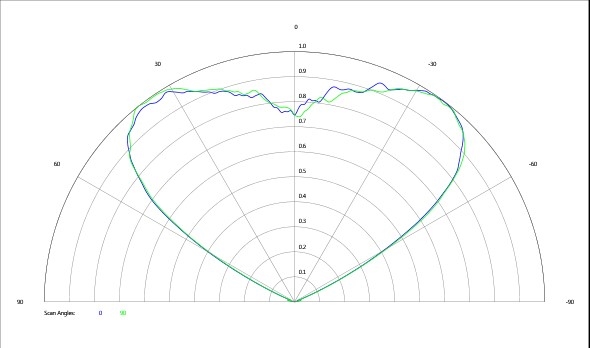

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

85.5%

FWHM:

110.5°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel White

Eff:

86.5%

FWHM:

108°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

93.5%

FWHM:

120°

Cd/Im:

0.5

Carclo Optics – 10628 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10628 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

93.5%

FWHM:

12°

Cd/Im:

0.4

Carclo Optics – 10628 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10628 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

94.5%

FWHM:

119°

Cd/Im:

0.4

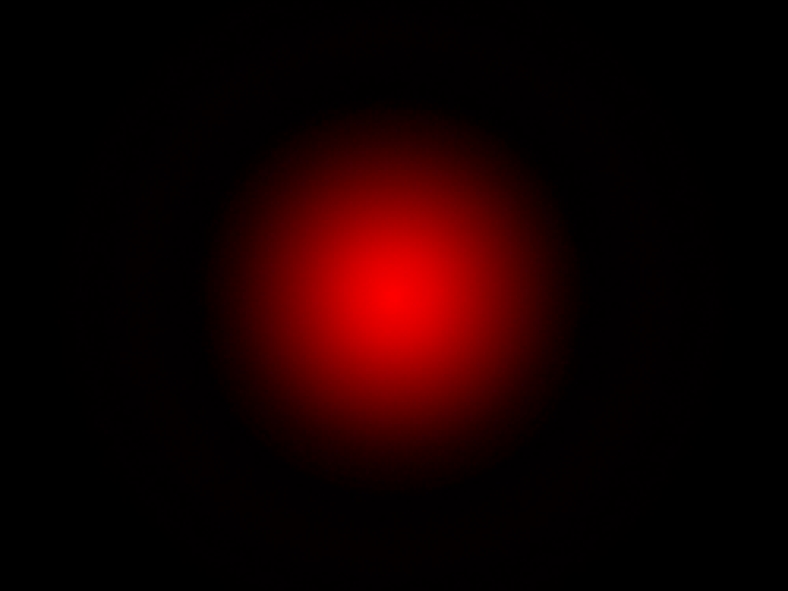

Carclo Optics – 10628 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10628 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

93.0%

FWHM:

118°

Cd/Im:

0.6

Carclo Optics – 10628 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10628 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

93.5%

FWHM:

118°

Cd/Im:

0.5

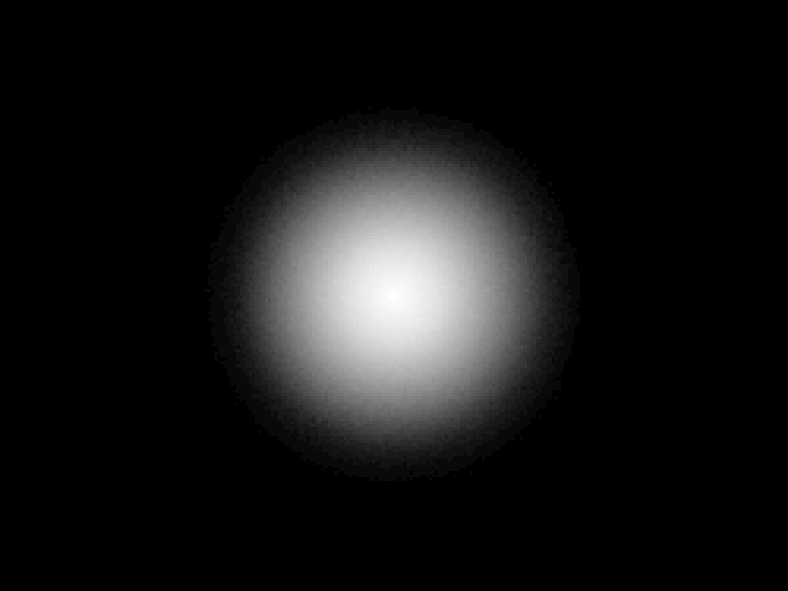

Carclo Optics - 10628 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10628 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

86.4%

FWHM:

121.1°

Cd/Im:

0.3

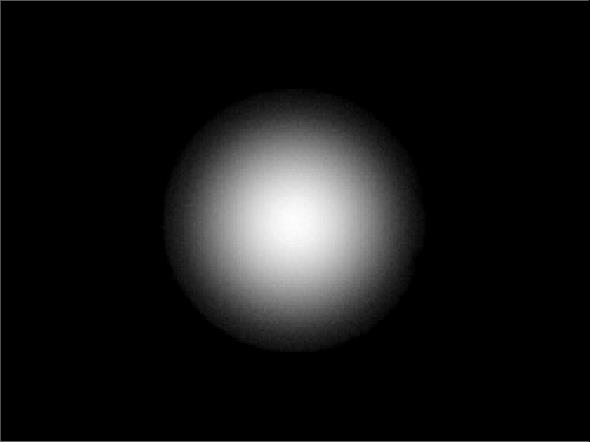

carclo optics - simulated spot image

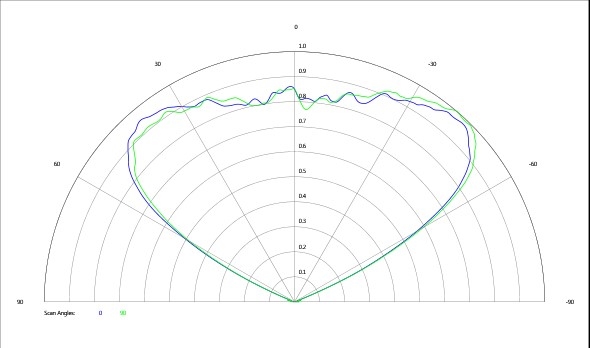

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON V White

Eff:

90.5%

FWHM:

117°

Cd/Im:

0.4

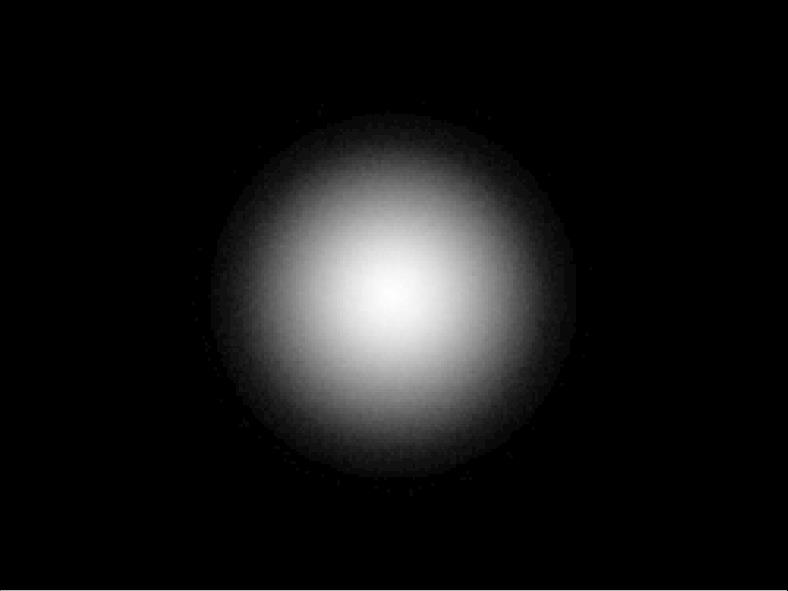

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

87.0%

FWHM:

108°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

86.7%

FWHM:

114°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

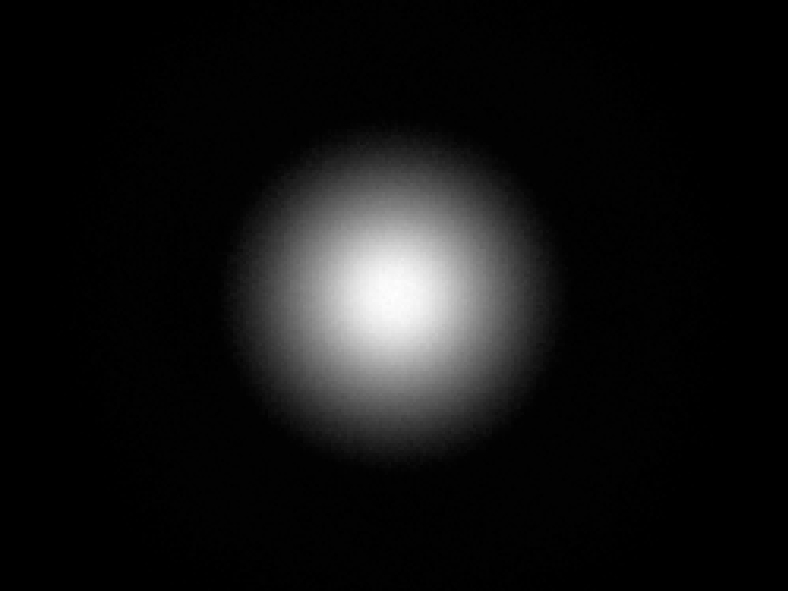

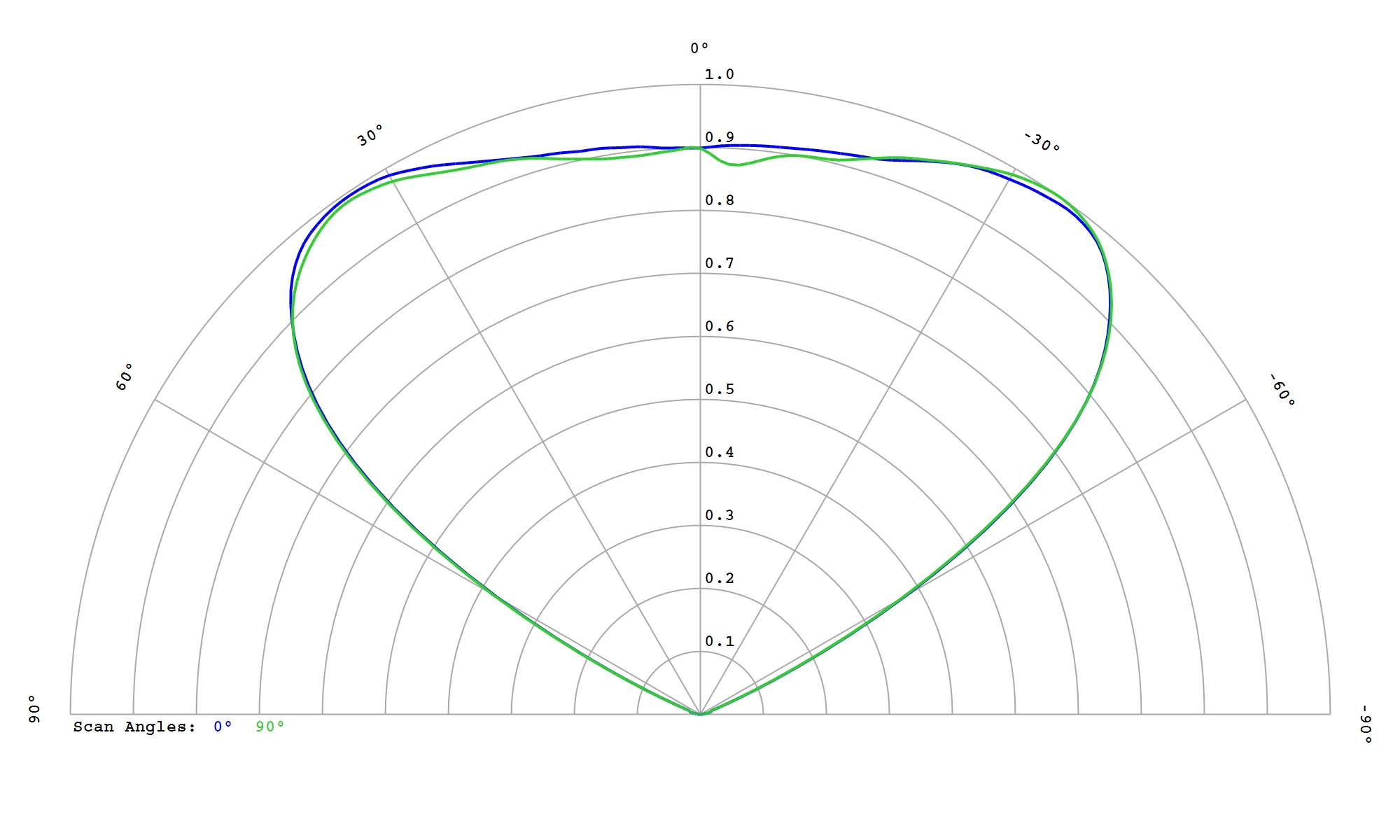

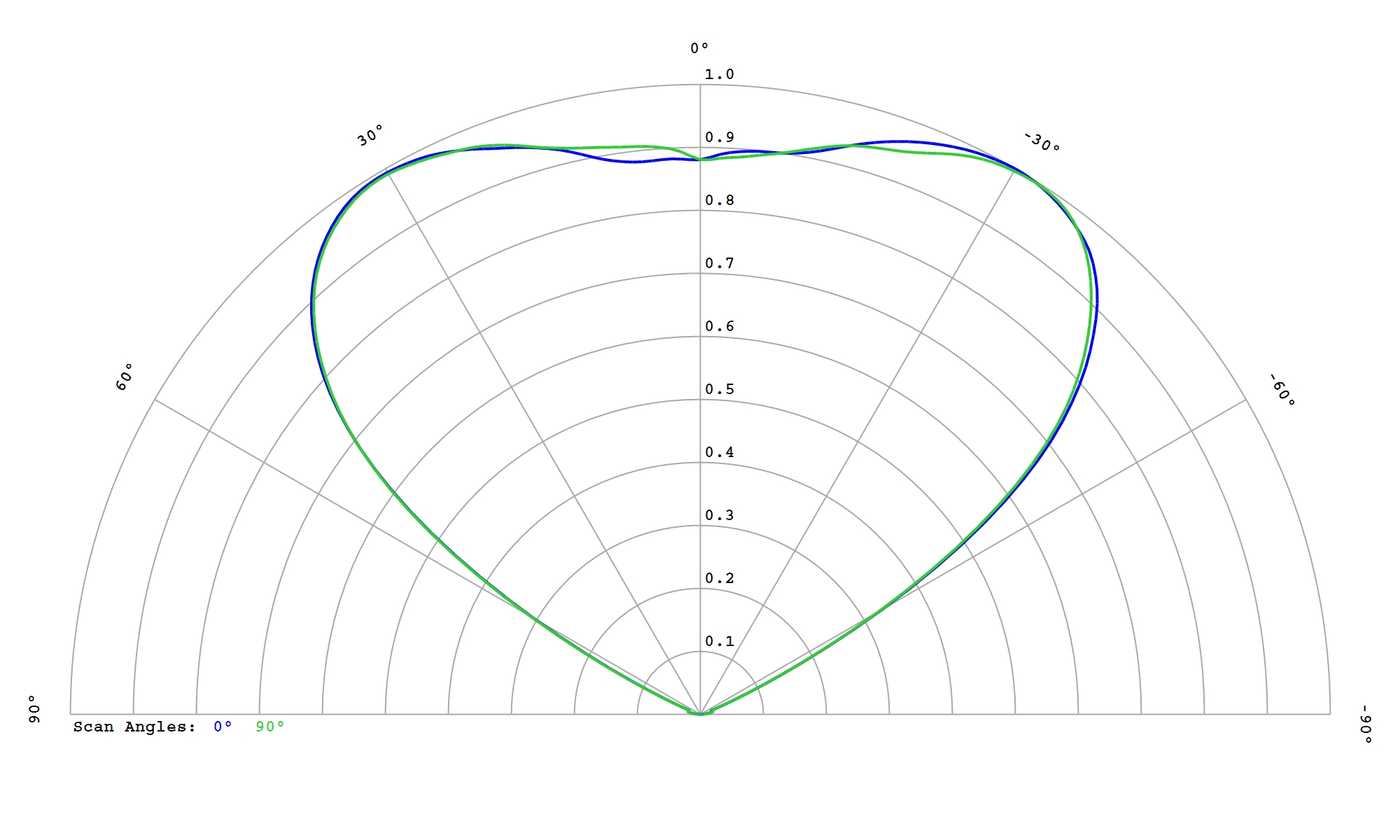

Luminus Devices MP 7070-T200 White

Eff:

93.5%

FWHM:

111°

Cd/Im:

0.5


Download

IES

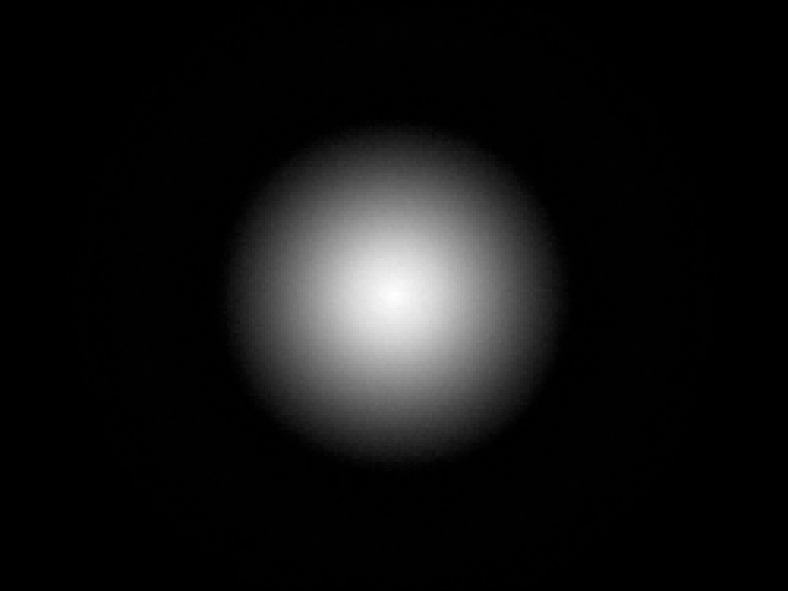

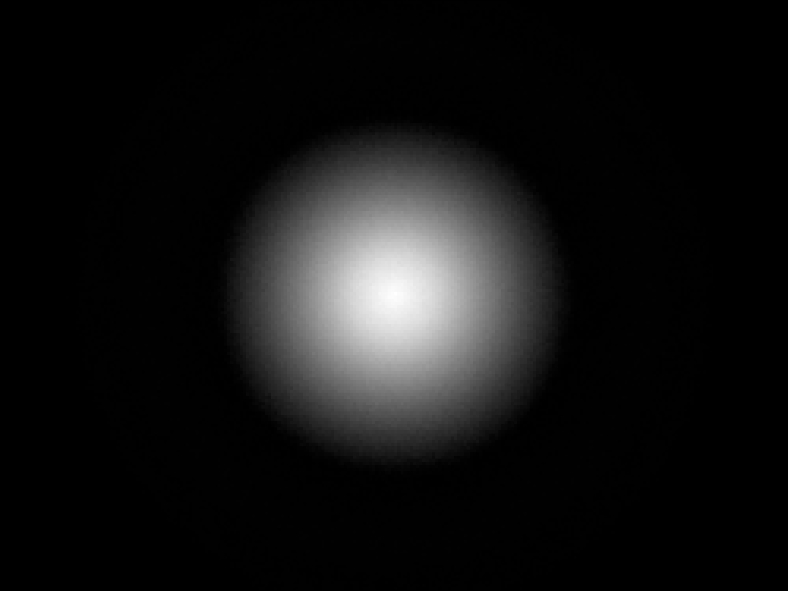

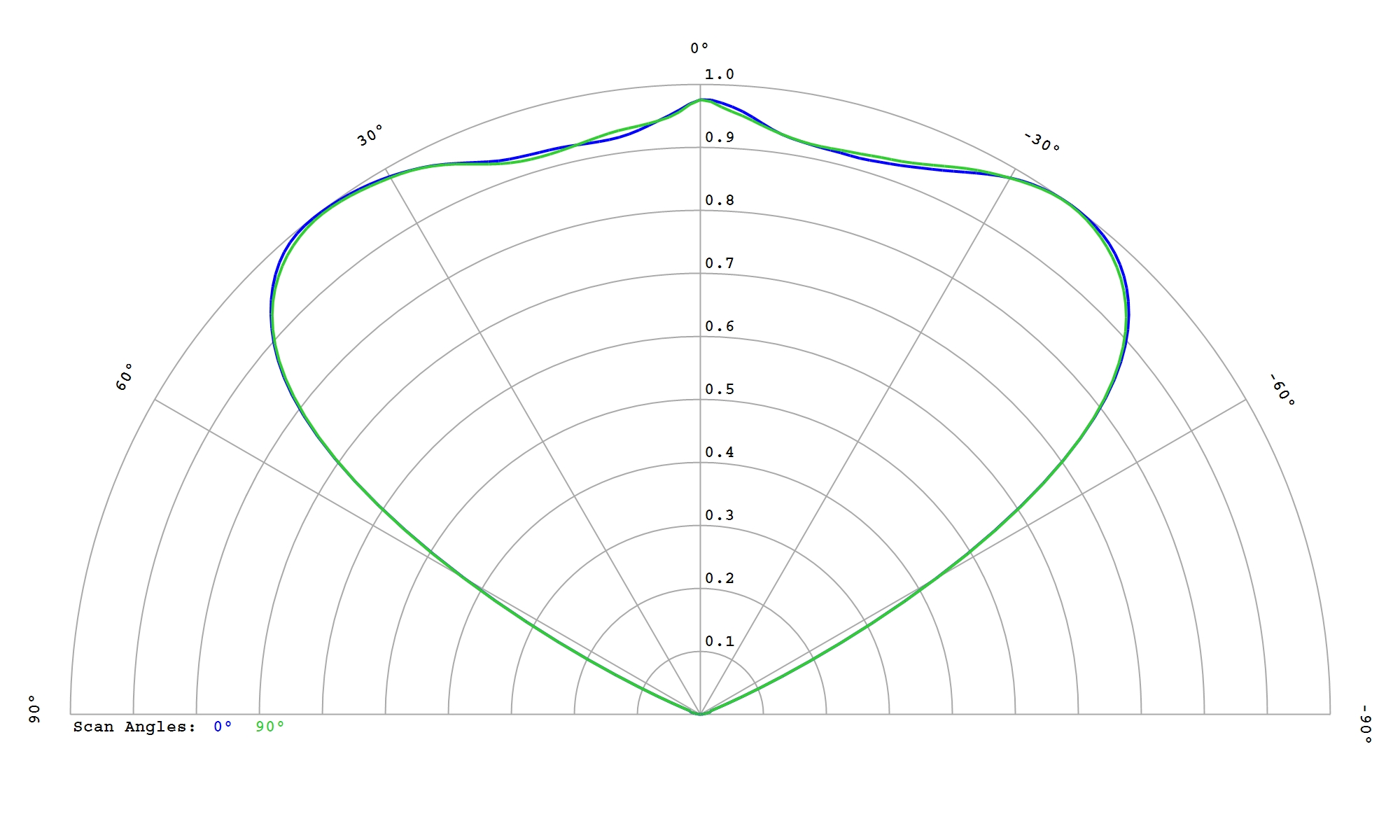

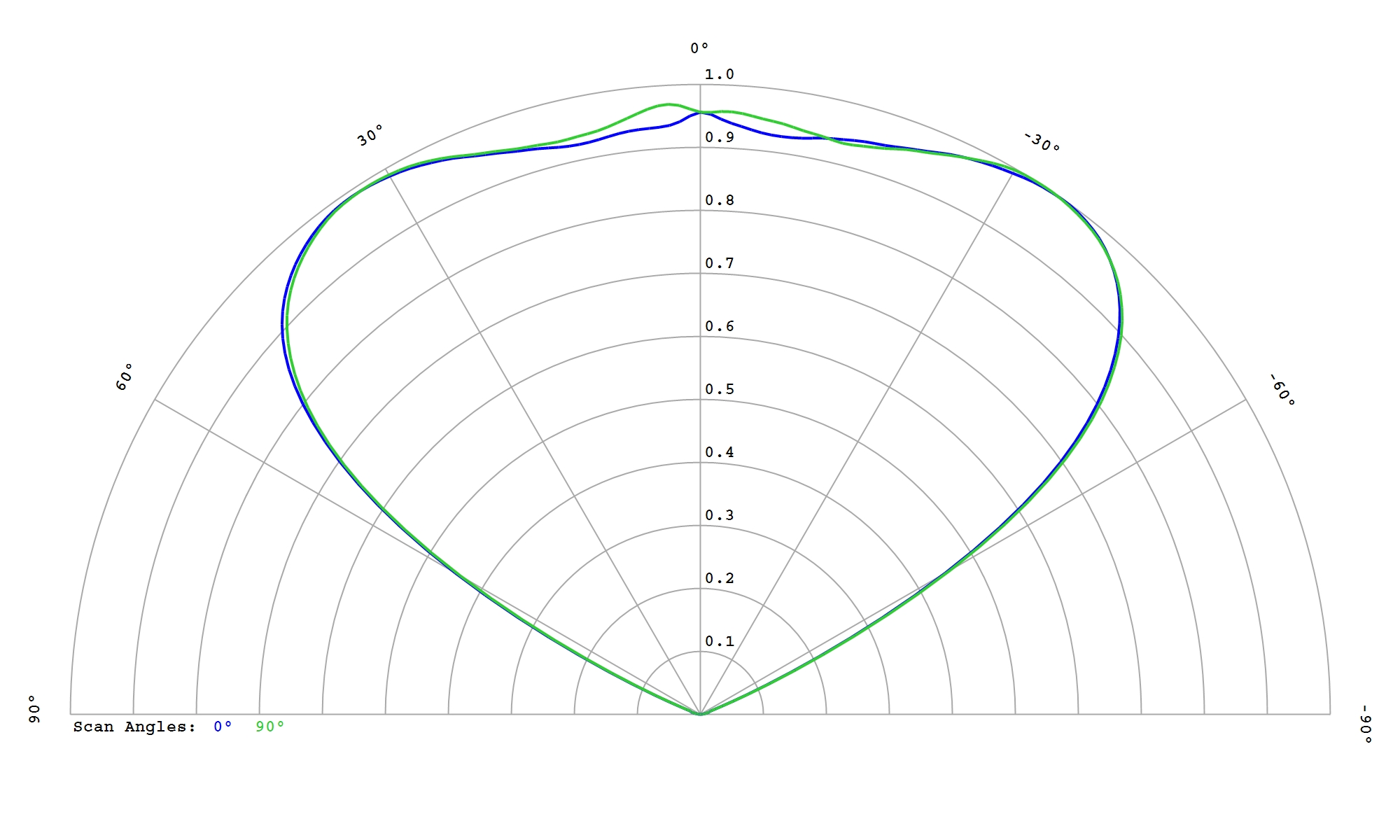

Luminus Devices SFT-40-WxS White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5

Download

IES

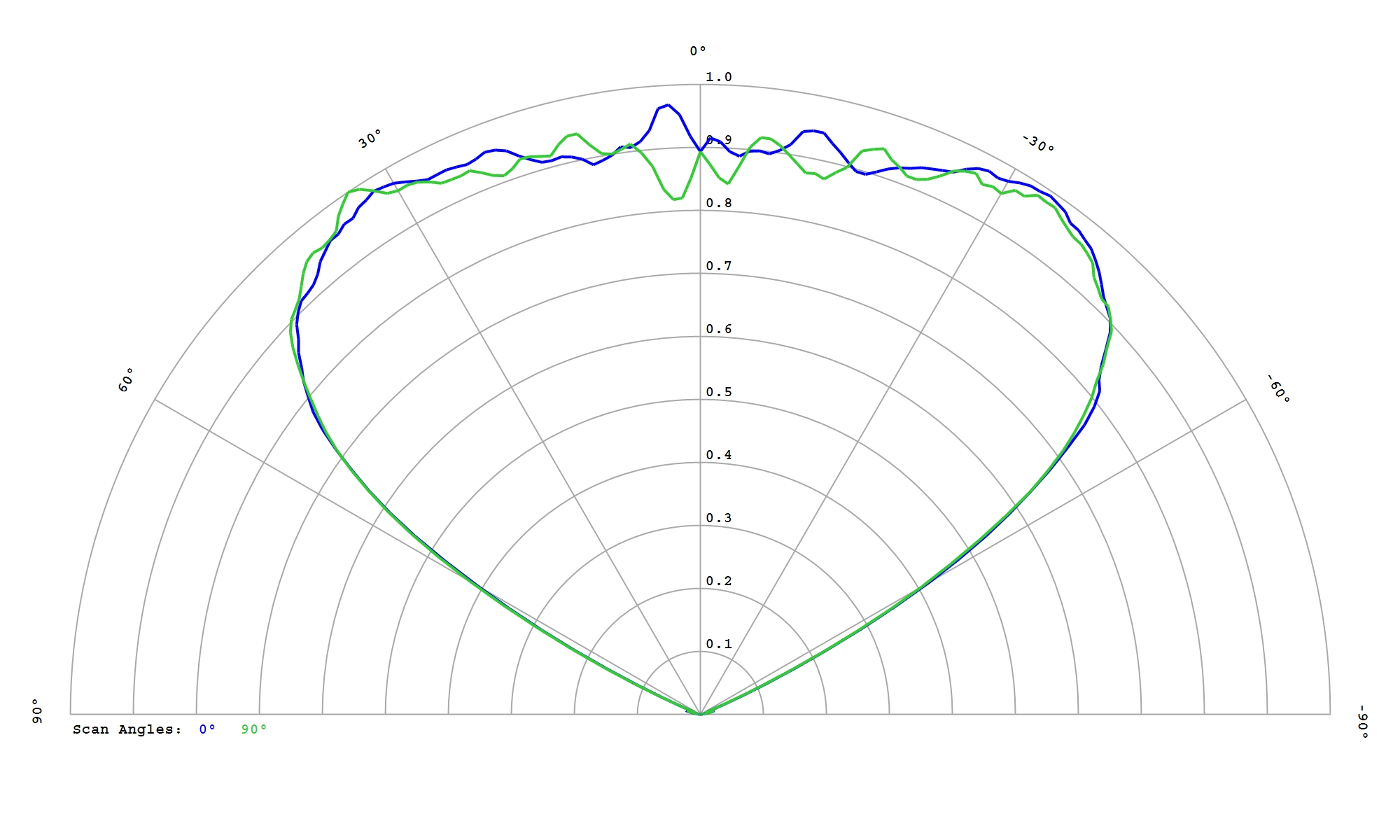

Luminus Devices SFT-70X-WxS White

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.5

Download

IES

Luminus Devices SST 05-IR-B40 850nm

Eff:

95.0%

FWHM:

40.0°

Ipk/W:

1.7

Carclo Optics - 10628 Spot Image Luminus SST-05-IR-B40

Carclo Optics - 10628 Cross Section Luminus SST-05-IR-B40

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

92.0%

FWHM:

118°

Cd/Im:

0.4

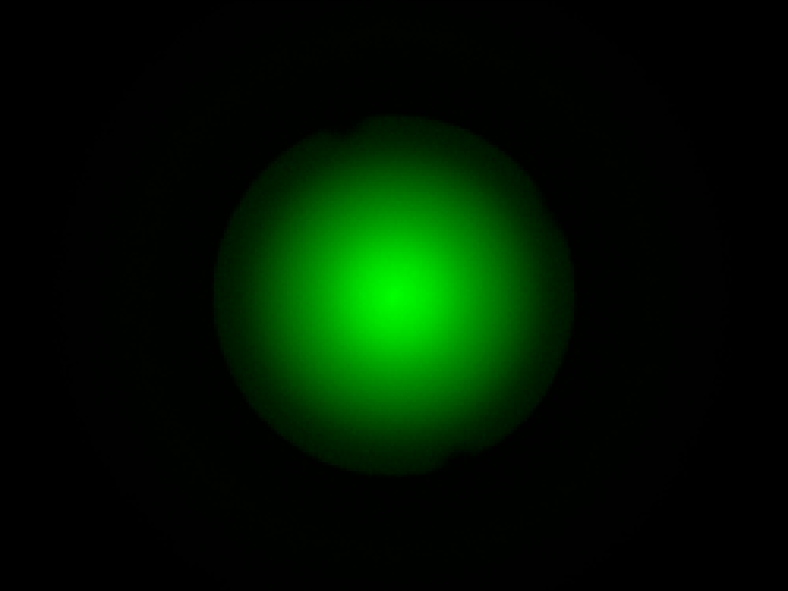

Carclo Optics - 10628 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10628 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B130 Blue

Eff:

92.0%

FWHM:

118°

Cd/Im:

0.4

Carclo Optics - 10628 Luminus_SST-10_B_B130 - Spot Image

Carclo Optics - 10628 Luminus_SST-10_B_B130 - Cross section image

Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

91.5%

FWHM:

93°

Cd/Im:

0.6

Carclo Optics - 10628 Luminus_SST-10_B_B90 - spot image

Carclo Optics - 10628 Luminus_SST-10_B_B90 - cross section image

Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

94.0%

FWHM:

124°

Cd/Im:

0.4

Carclo Optics – 10628 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10628 Luminus_SST-10_DR_B130- Cross section – image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

93.5%

FWHM:

93°

Cd/Im:

0.7

Carclo Optics - 10628 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10628 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

93.5%

FWHM:

118°

Cd/Im:

0.5

Carclo Optics - 10628 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10628 Luminus_SST-10_G_B130 - cross section - image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

92.5%

FWHM:

92°

Cd/Im:

0.7

Carclo Optics - 10628 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10628 Luminus_SST-10_G_B90- Cross section - image

Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

96.0%

FWHM:

117°

Ipk/W:

0.5

Carclo Optics - 10628 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10628 Cross Section Luminus SST-10-IR-B130

Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

95.5%

FWHM:

91.0°

Ipk/W:

0.6

Carclo Optics - 10628 Spot Image Luminus SST-10-IR-B90

Carclo Optics - 10628 Cross Section Luminus SST-10-IR-B90

Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

96.0%

FWHM:

118°

Ipk/W:

0.5


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

95.5%

FWHM:

91°

Ipk/W:

0.7


Download

IES

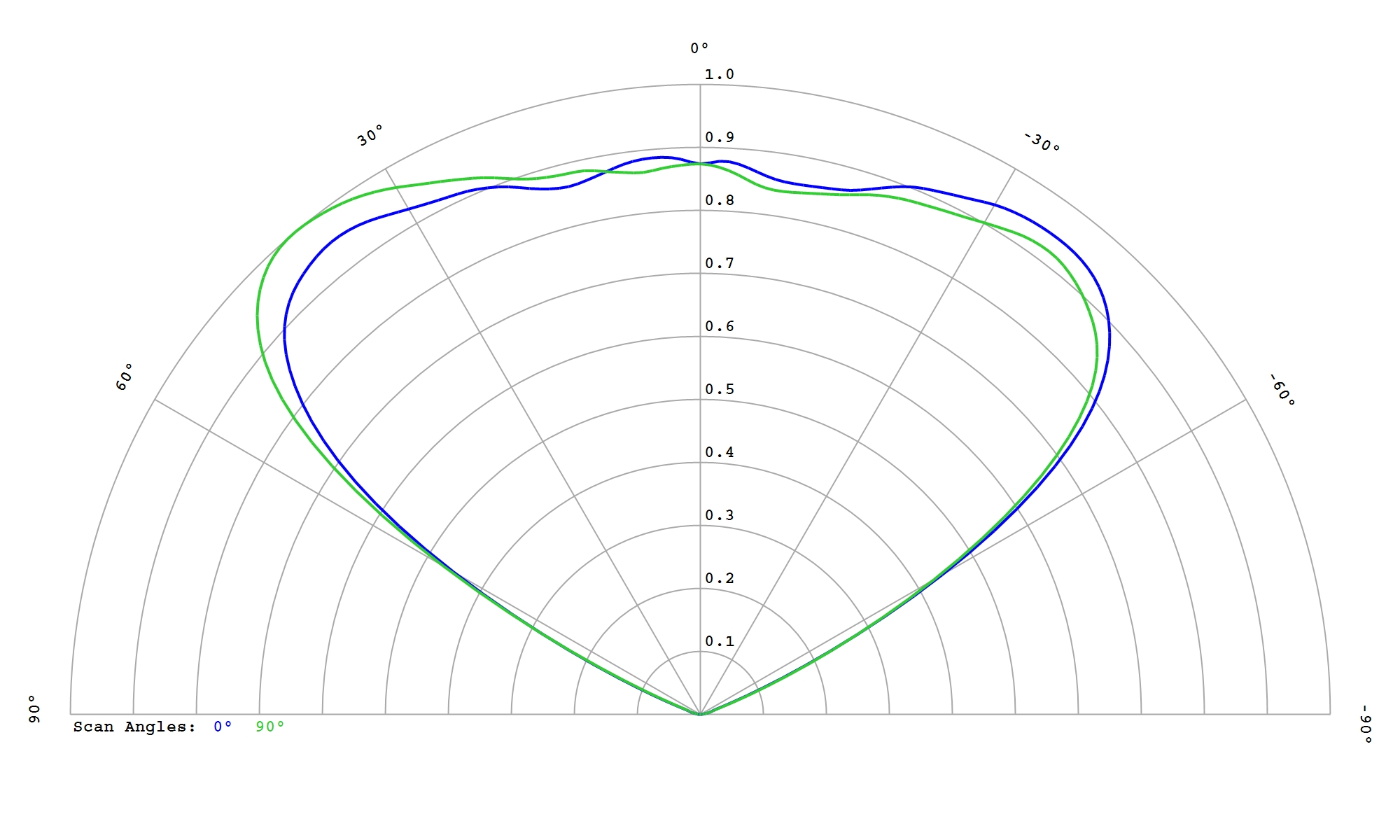

Luminus Devices SST 20-WxH White Hi CRI

Eff:

93.5%

FWHM:

117°

Cd/Im:

0.4

Carclo Optics – 10628 - Luxeon_SST_20_W_spot-image

Carclo Optics – 10628 - Luxeon_SST_20_W_cross vertical section

Download

IES

Luminus Devices SST 40-W White

Eff:

92.5%

FWHM:

125°

Cd/Im:

0.4

Carclo Optics – 10628 - Luxeon_SST_40_W_spot-image

Carclo Optics – 10628 - Luxeon_SST_40_W_cross vertical section

Download

IES

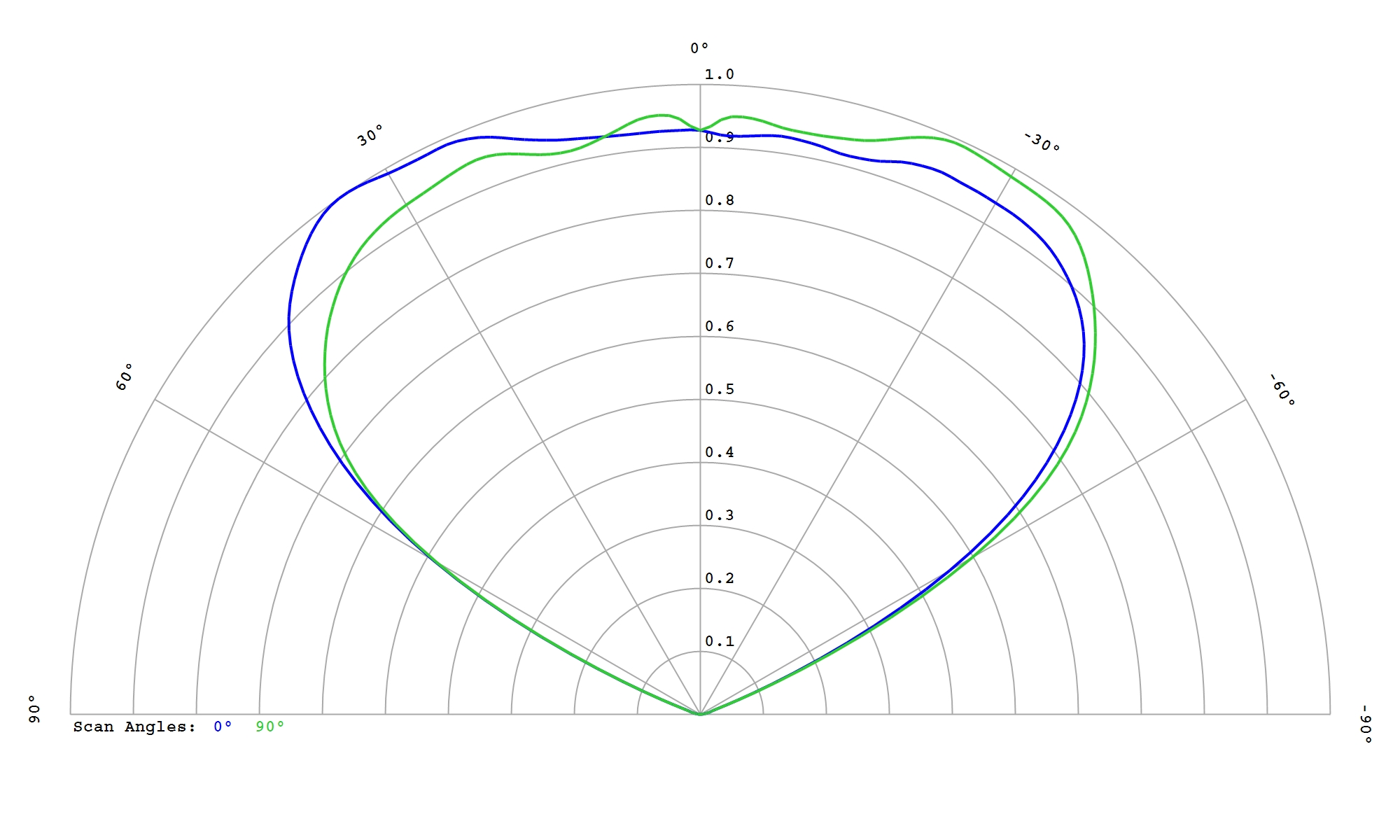

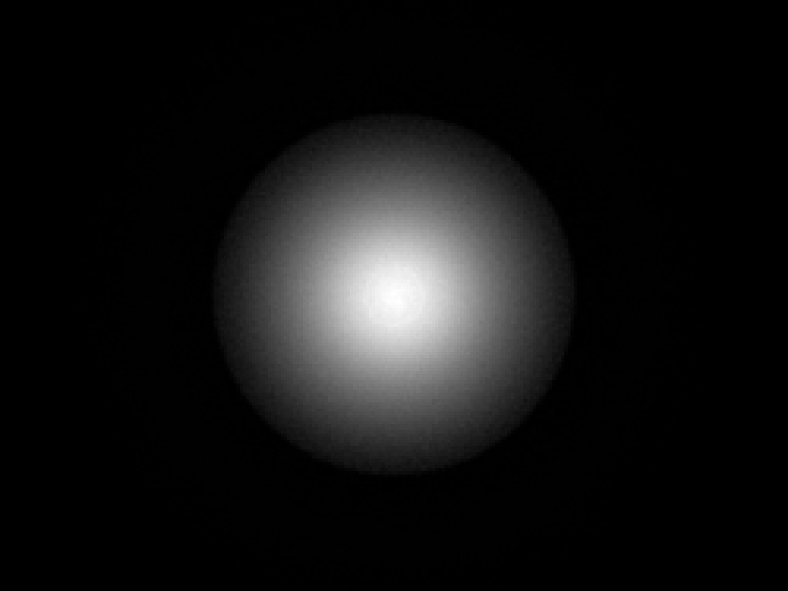

Luminus Devices SST-12-WxS White

Eff:

93.0%

FWHM:

117°

Cd/Im:

0.5

Download

IES

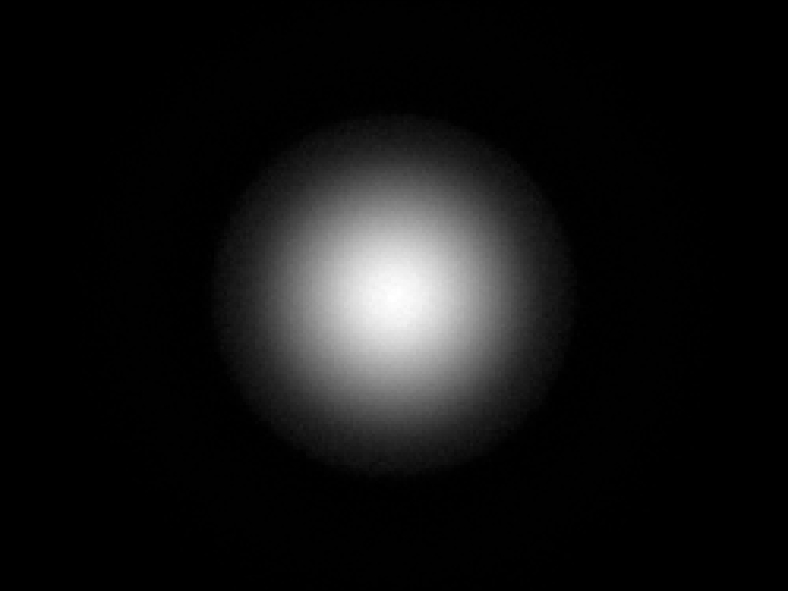

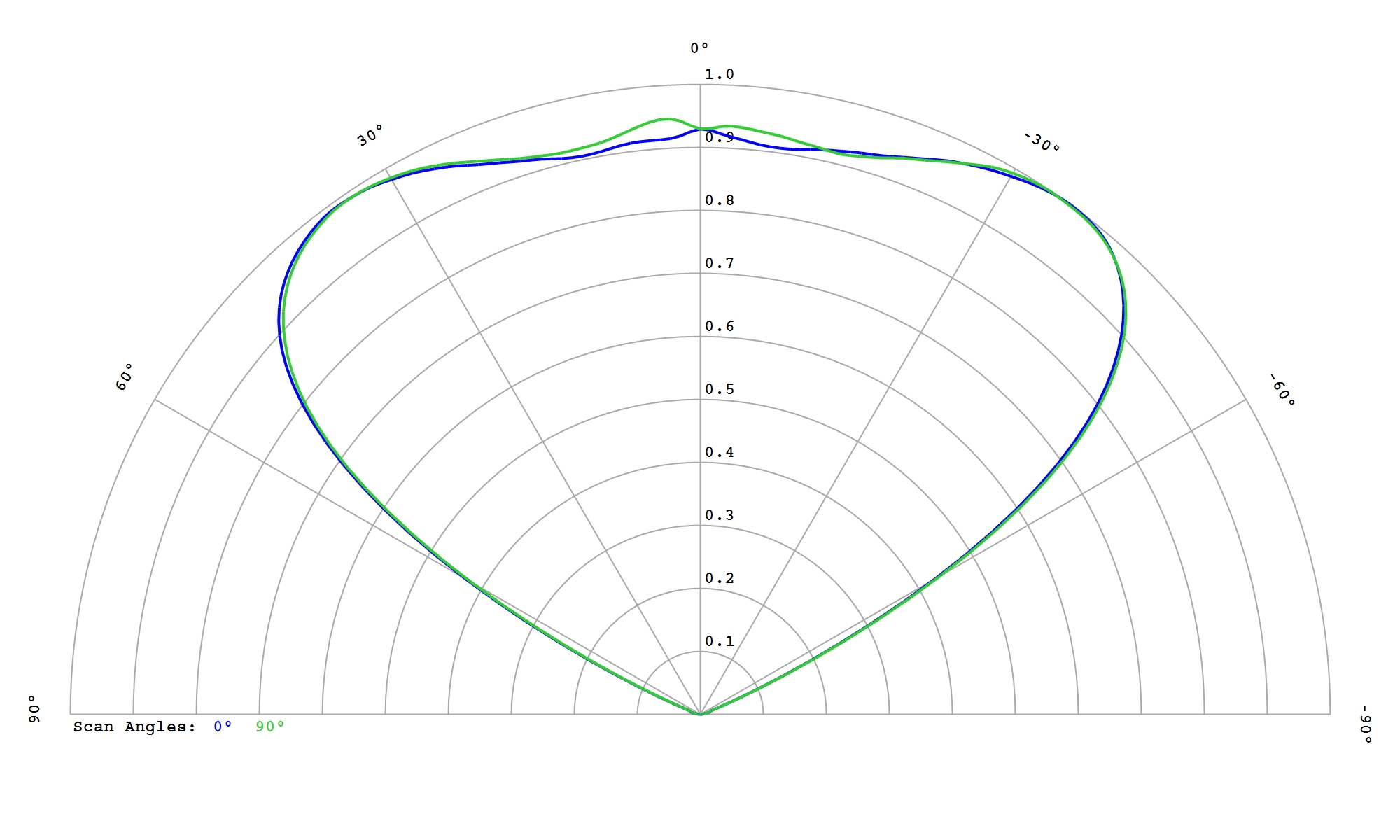

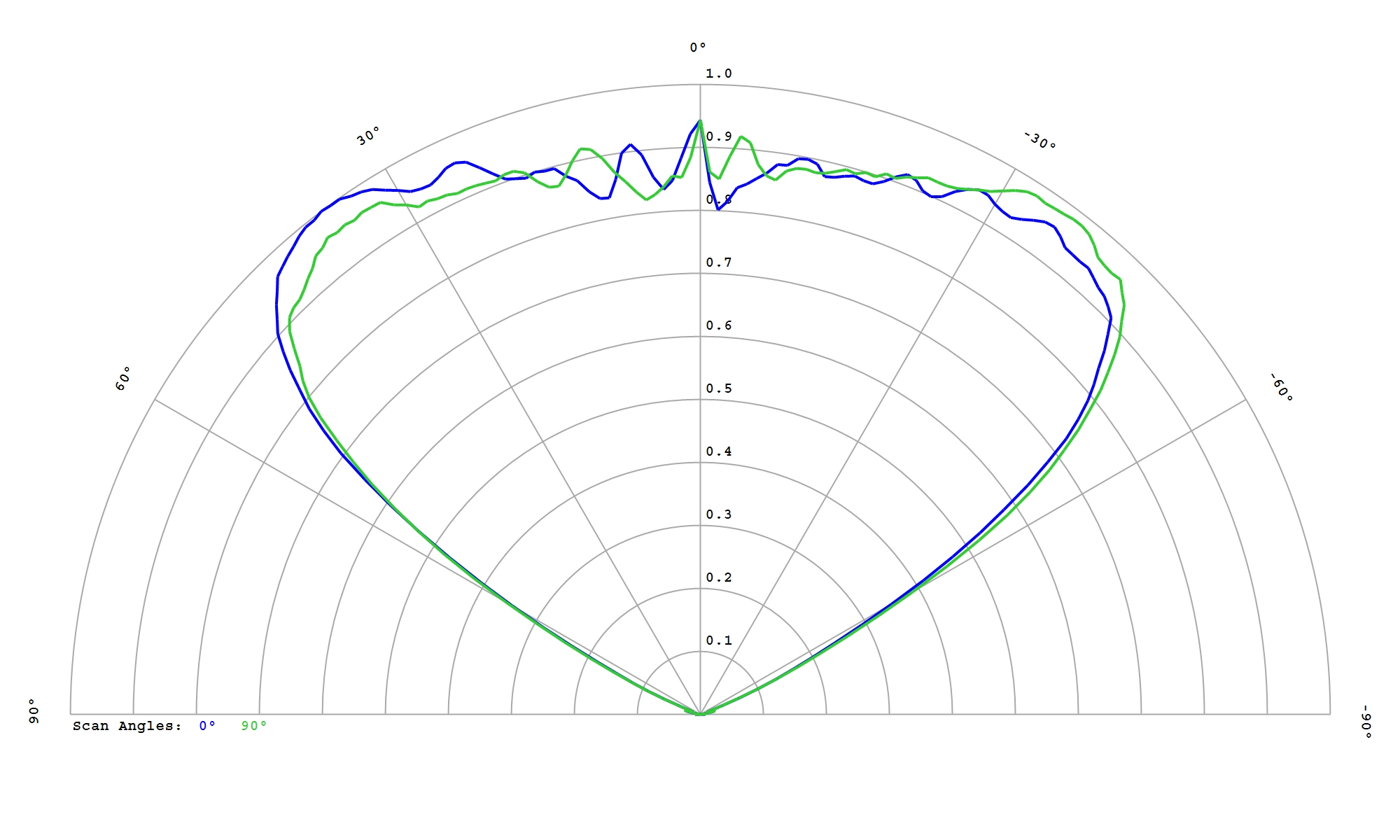

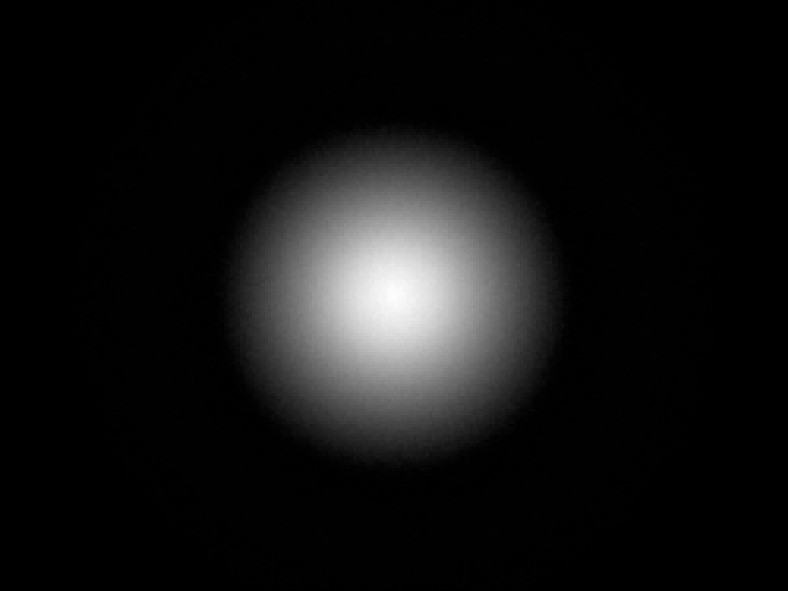

Luminus Devices SST-25-WES White

Eff:

93.0%

FWHM:

115°

Cd/Im:

0.5

Download

Luminus Devices SST-70X-W White

Eff:

93.5%

FWHM:

122°

Cd/Im:

0.5

Download

IES

Nichia 219 White

Eff:

85.6%

FWHM:

120.1°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Nichia 229A White

Eff:

91.0%

FWHM:

121°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757 White

Eff:

87.1%

FWHM:

111.9°

Cd/Im:

0.3

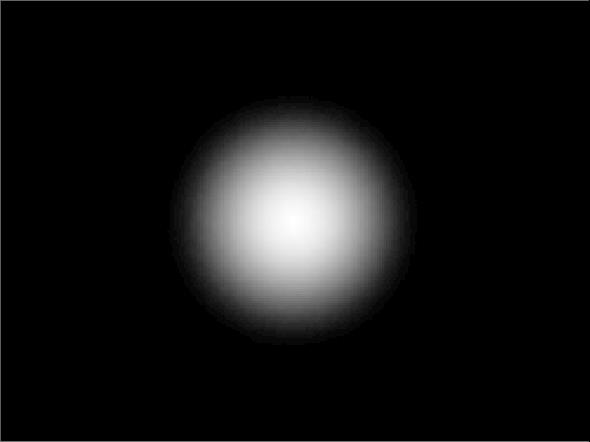

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Nichia 757G White

Eff:

93.0%

FWHM:

114°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia 757G White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

Carclo Optics 10628 Simulated Spot Image Nichia 757G-MT

Carclo Optics 10628 Cross section Image Nichia 757G-MT

Download

IES

Nichia NCSW CSP E17A White

Eff:

92.5%

FWHM:

116°

Cd/Im:

0.4

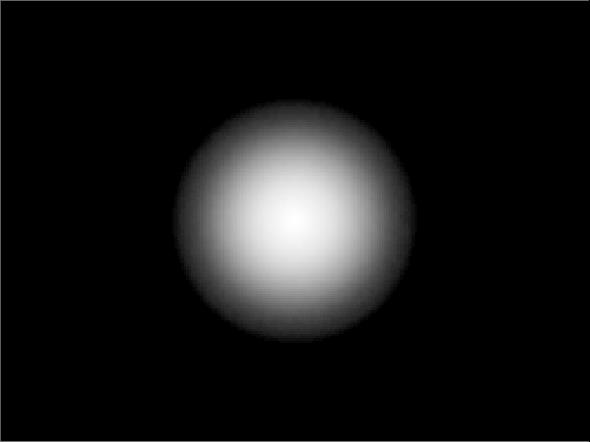

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NF2W 385AR-V2 White

Eff:

93.0%

FWHM:

118°

Cd/Im:

0.4

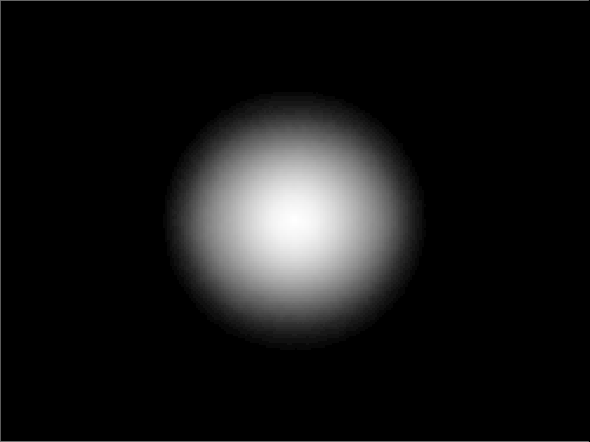

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 481AR White

Eff:

84.0%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 484AR White

Eff:

93.0%

FWHM:

112°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 486AR White

Eff:

93.0%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFMW 488AR White

Eff:

93.0%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

92.5%

FWHM:

116°

Cd/Im:

0.4

Download

IES

Nichia NV4W 144AR White

Eff:

89.0%

FWHM:

117°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSL 219B White

Eff:

91.5%

FWHM:

121°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219C White

Eff:

92.0%

FWHM:

118°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW 219F White

Eff:

93.0%

FWHM:

119°

Cd/Im:

0.4

Carclo Optics – 10628 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10628 Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW 319A White

Eff:

91.5%

FWHM:

121°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

85.0%

FWHM:

116°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

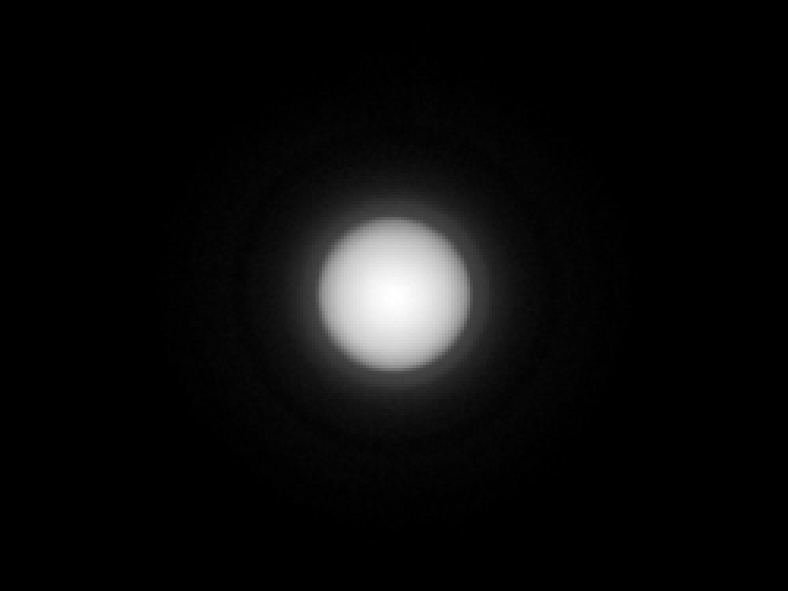

Osram Led Engin LuxiGen LZ1 00R702 IR940nm

Eff:

96.0%

FWHM:

93°

Ipk/W:

0.6

Download

IES

Osram Led Engin LuxiGen LZ4 00G108 Green

Eff:

93.5%

FWHM:

95°

Cd/Im:

0.6

Carclo Optics – 10628 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Carclo Optics – 10628 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00G108 Green

Download

IES

Osram Led Engin LuxiGen LZ4 00W408 White

Eff:

93.5%

FWHM:

104°

Cd/Im:

0.5

Carclo Optics – 10628 Spot Image OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Carclo Optics – 10628 Cross Section OSRAM Led Engin LuxiGen LZ4 - 00W408 White

Download

IES

Osram Led Engin LuxiGen LZ4 01MWCA RGBW

Eff:

93.5%

FWHM:

113°

Cd/Im:

0.5

Carclo Optics – 10628 Spot Image OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Carclo Optics – 10628 Cross Section OSRAM Led Engin LuxiGen LZ4 - 01MWCA RGBW

Download

IES

Osram OS DURIS E 2835 Gen2

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5

Carclo Optics - 10628 Bubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10628 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram OS DURIS E 2835 White

Eff:

93.0%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E2 White

Eff:

87.0%

FWHM:

116°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS E3 White

Eff:

90.2%

FWHM:

118.0°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P10 White

Eff:

87.0%

FWHM:

117°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS P8 White

Eff:

86.7%

FWHM:

113.9°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S2 White

Eff:

91.2%

FWHM:

128.5°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Deep Blue

Eff:

92.5%

FWHM:

118°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Green

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 Red

Eff:

94.0%

FWHM:

115°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S5 White

Eff:

87.0%

FWHM:

115°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen2 White

Eff:

92.0%

FWHM:

114.3°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS DURIS S8 Gen3 White

Eff:

93.5%

FWHM:

114 x 113°

Cd/Im:

0.5

Carclo Optics - 10628 Bubble Spot Image Oslon DURIS S8 Gen3

Carclo Optics - 10628 Bubble Cross Section Oslon DURIS S8 Gen3

Download

IES

Osram OS DURIS S8 White

Eff:

91.9%

FWHM:

114.7°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

IES

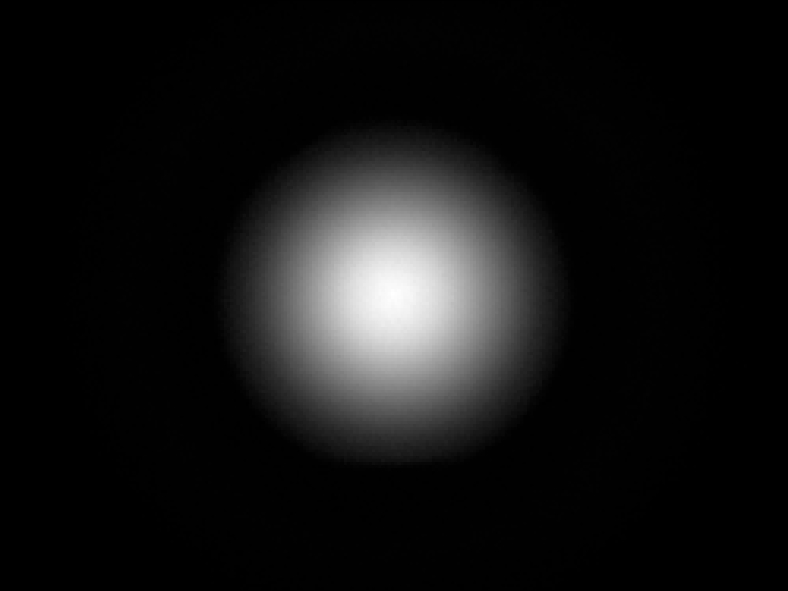

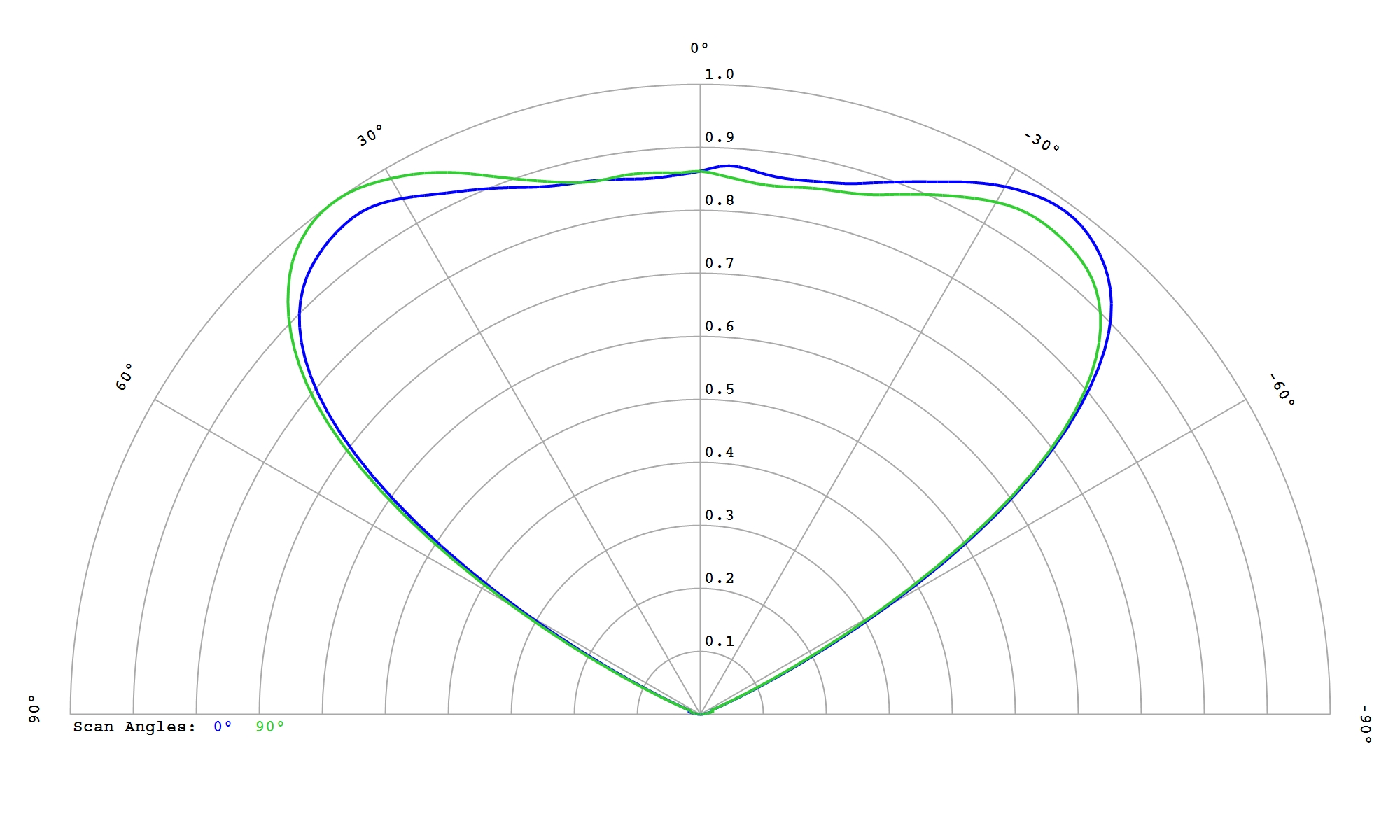

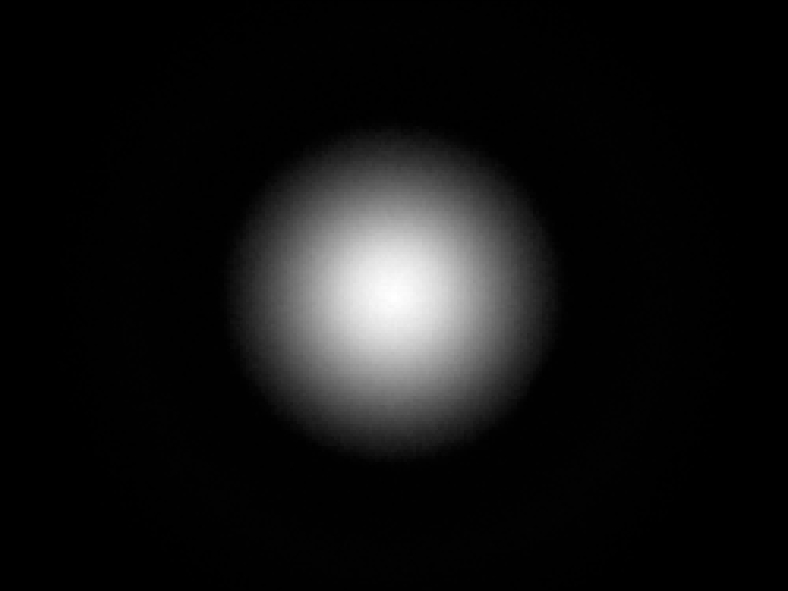

Osram OS OSCONIQ C 2424 White

Eff:

93.5%

FWHM:

115°

Cd/Im:

0.5

Carclo Optics - 10628 Spot Image OSCONIQ C2424

Carclo Optics - 10628 Cross Section OSCONIQ C2424

Download

IES

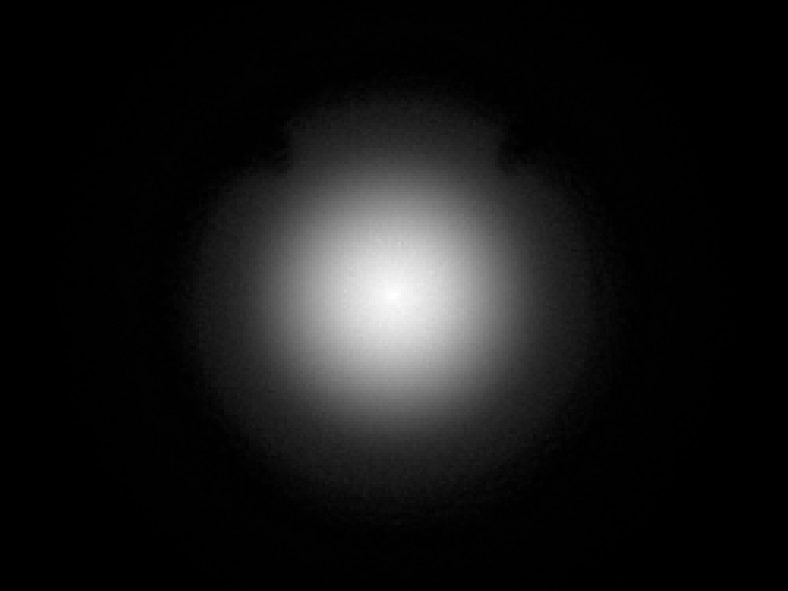

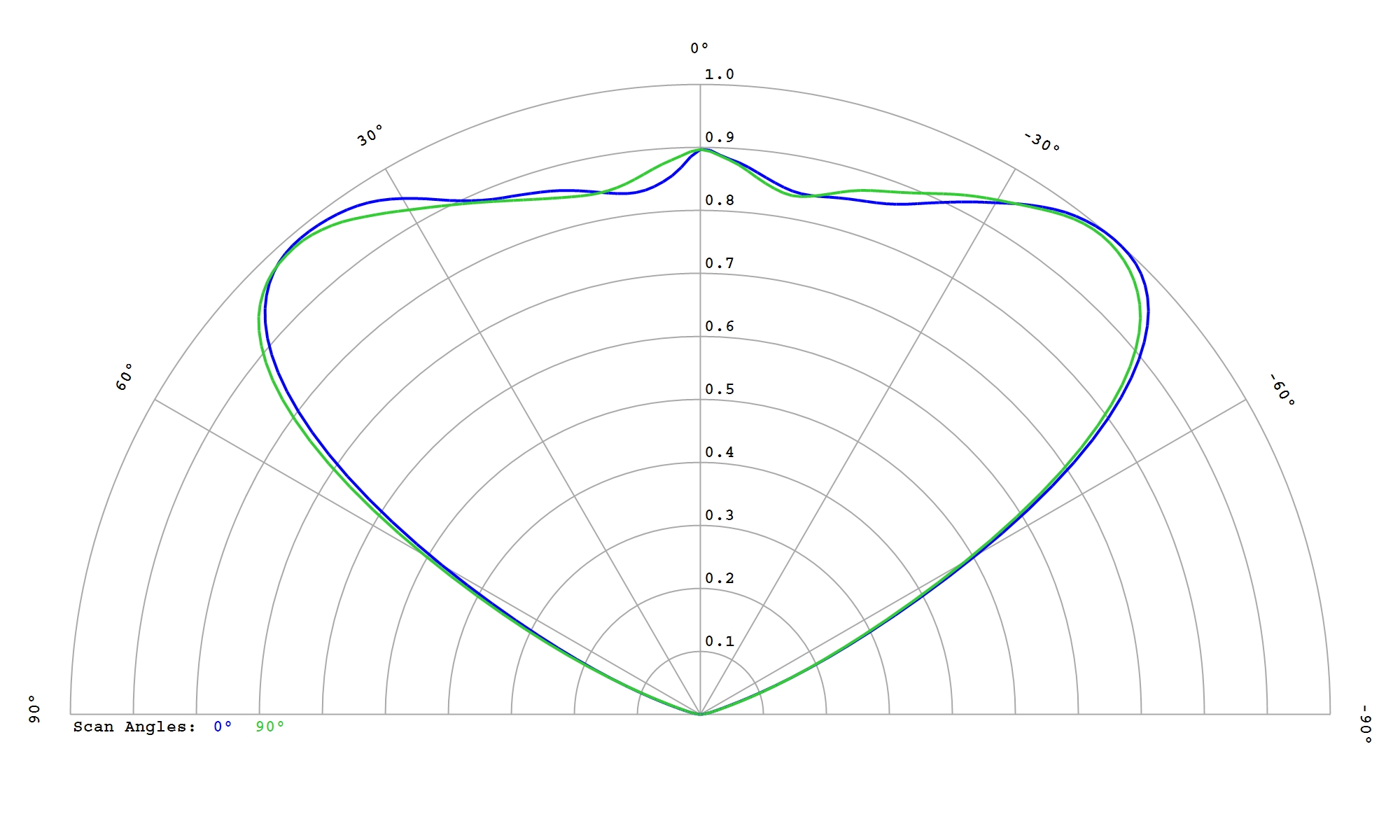

Osram OS OSCONIQ P3737 White

Eff:

91.0%

FWHM:

116°

Cd/Im:

0.4

Carclo Optics 10628 Spot Image Osram Osconiq P3737

Carclo Optics 10628 Cross Section Image Osram Osconiq P3737

Download

IES

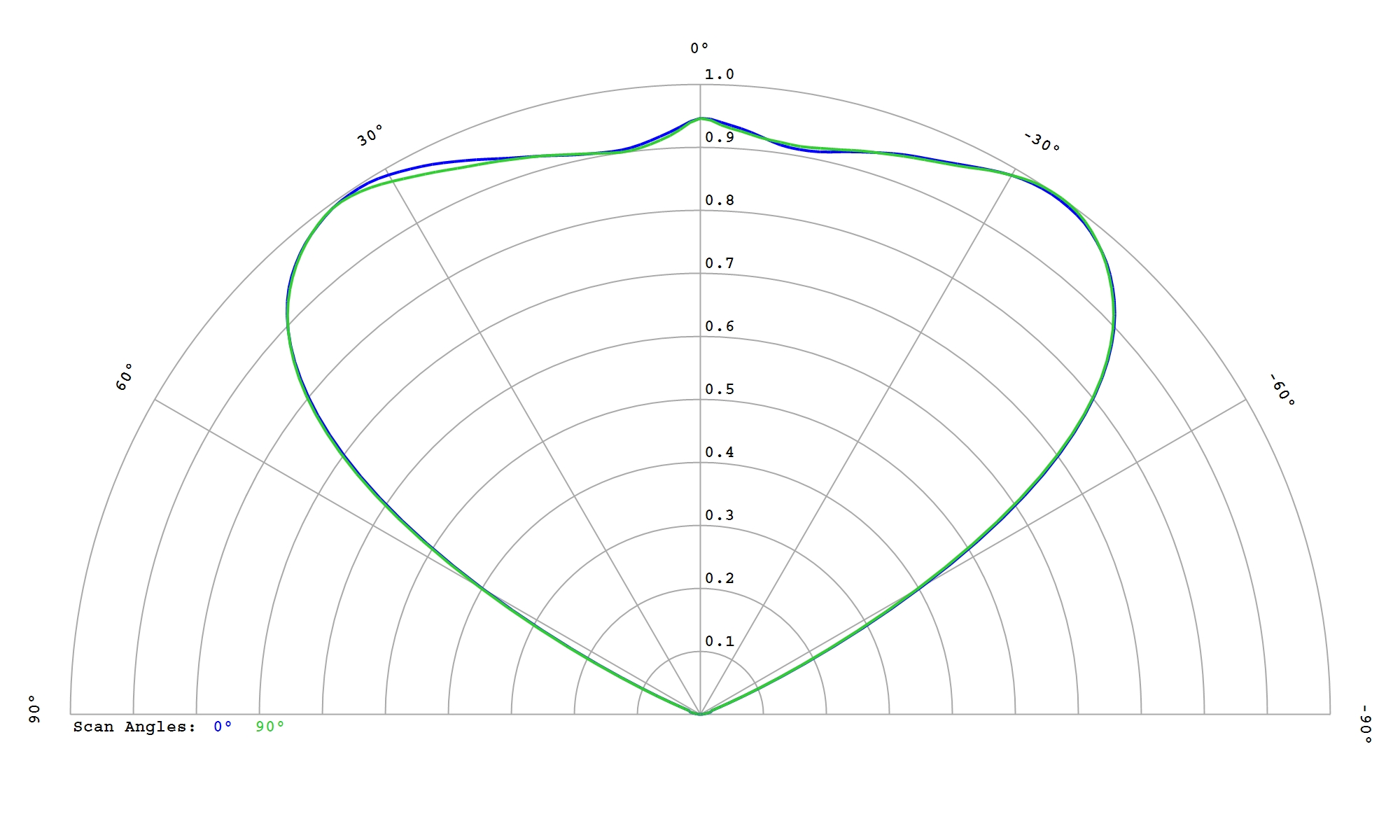

Osram OS OSCONIQ S 5050 GW Q9LR32.PM

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5



Download

IES

Osram OS OSLON Black SFH 4715AS IR

Eff:

95.0%

FWHM:

91°

Ipk/W:

0.6


Download

IES

Osram OS OSLON Black SFH 4716AS IR

Eff:

95.0%

FWHM:

123°

Ipk/W:

0.4

Carclo Optics – 10628 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10628 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

IES

Osram OS OSLON Black SFH 4725S IR

Eff:

96.0%

FWHM:

99°

Ipk/W:

0.5

Carclo Optics 10628 Spot Image Osram Oslon Black_IR_SFH_4725S

Carclo Optics 10628 Cross Section Osram Oslon Black_IR_SFH_4725S

Download

IES

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

Carclo Optics – 10628 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10628 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

94.0%

FWHM:

114°

Cd/Im:

0.5


Download

IES

Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

92.5%

FWHM:

114°

Ipk/W:

0.4


Download

IES

Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.5


Download

IES

Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

93.5%

FWHM:

121°

Cd/Im:

0.4


Download

IES

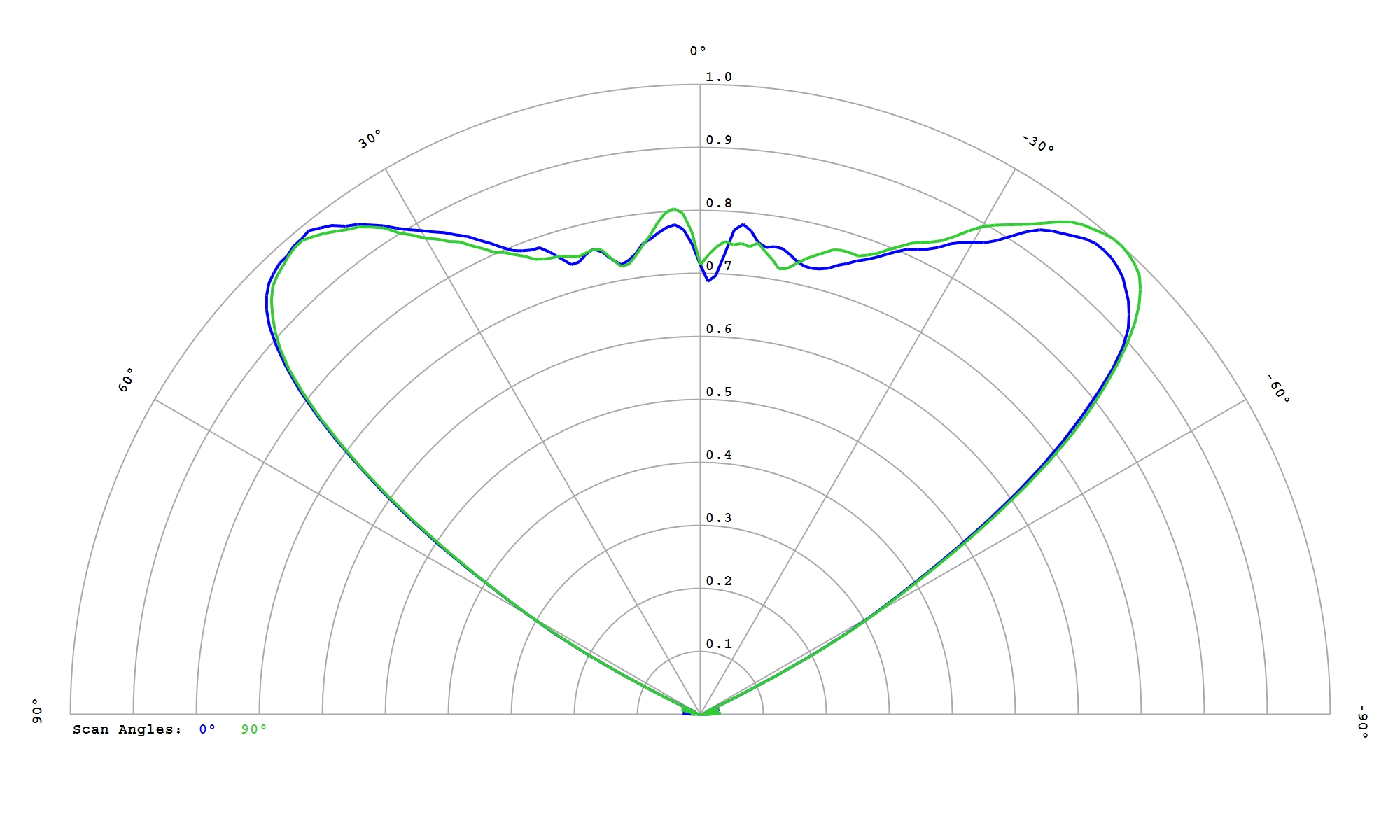

Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

93.5%

FWHM:

114°

Cd/Im:

0.4


Download

IES

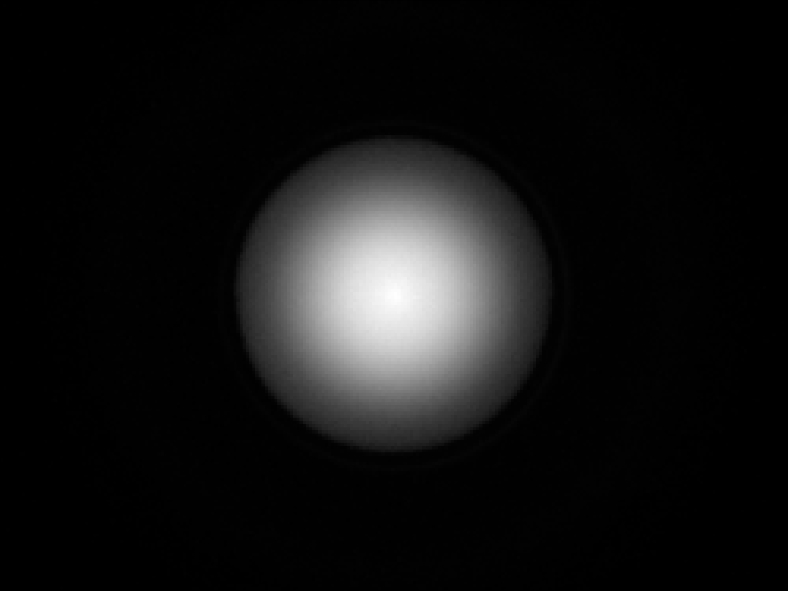

Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

93.0%

FWHM:

113°

Cd/Im:

0.4



Download

IES

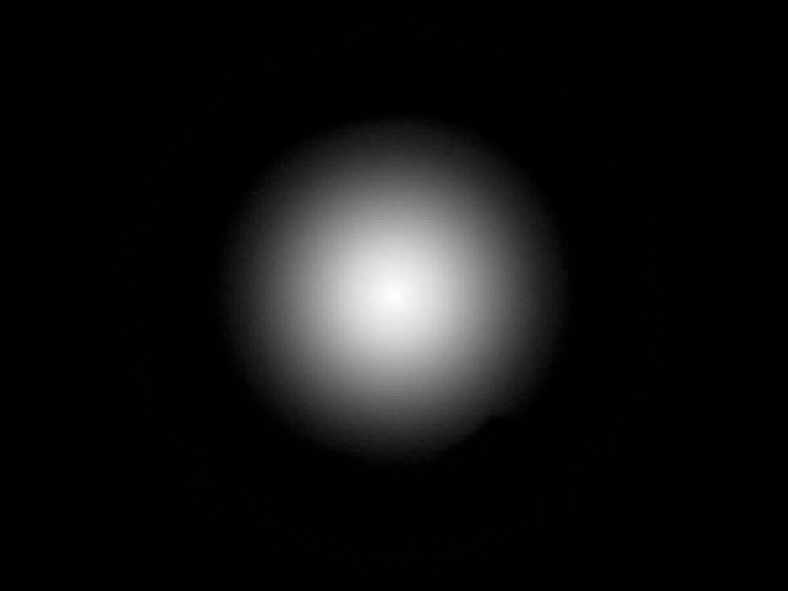

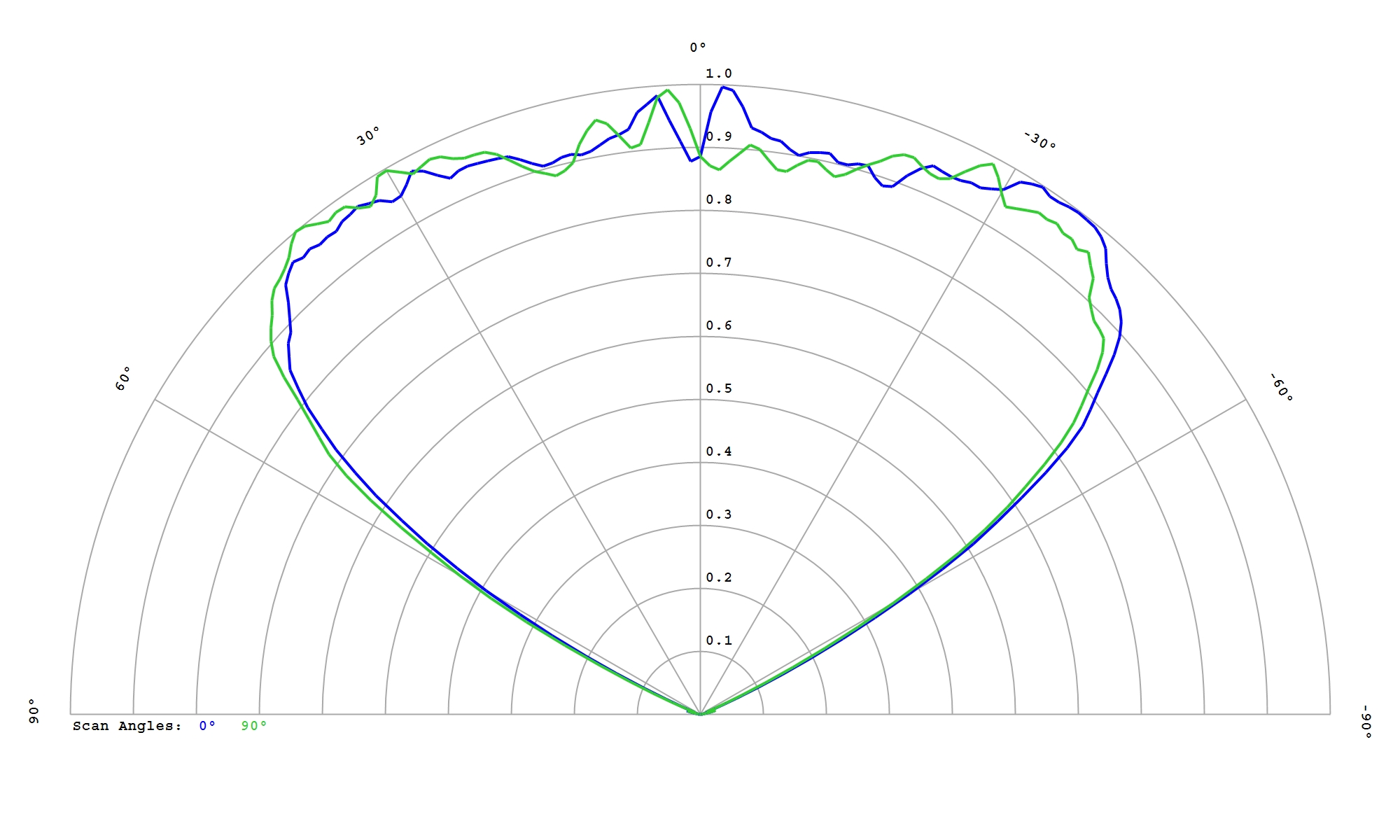

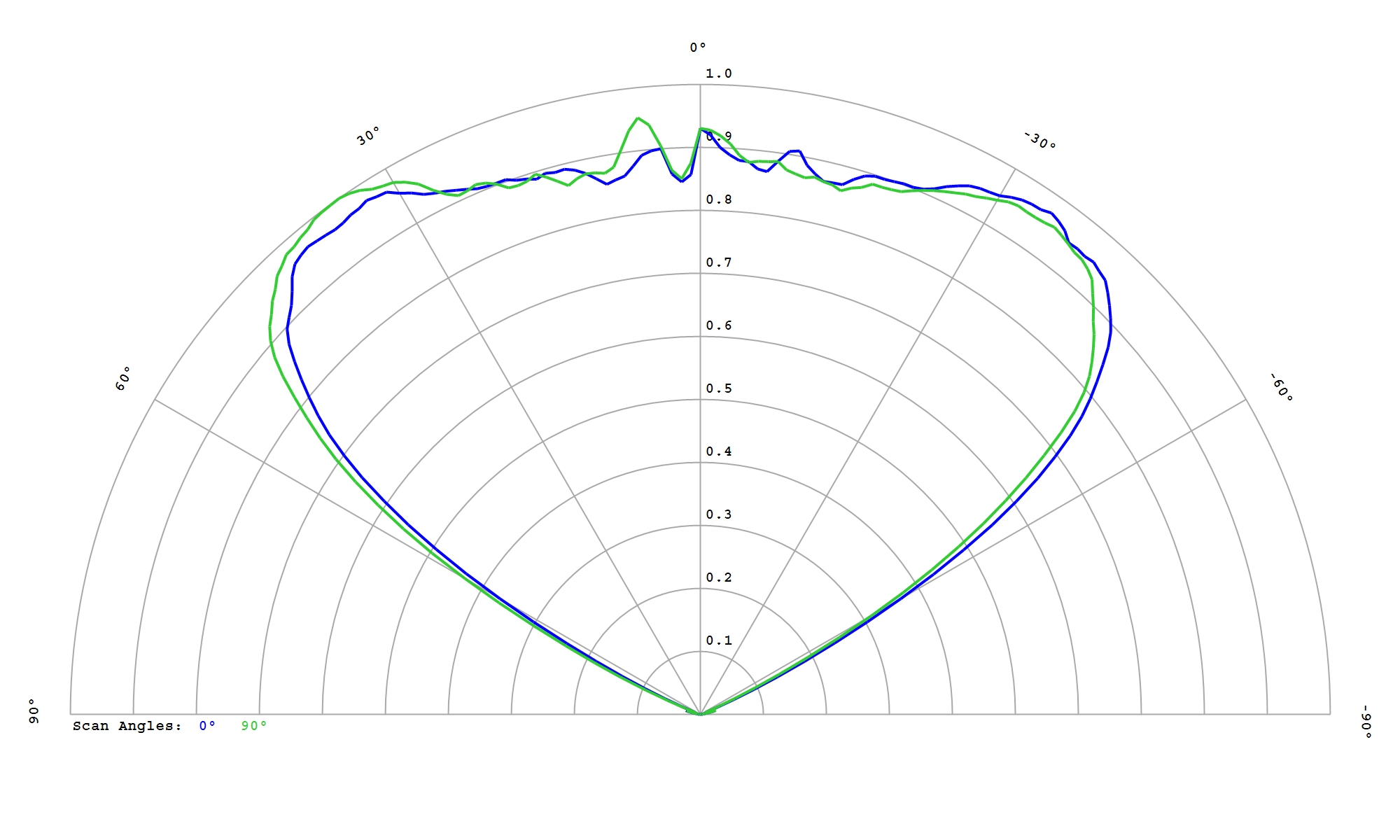

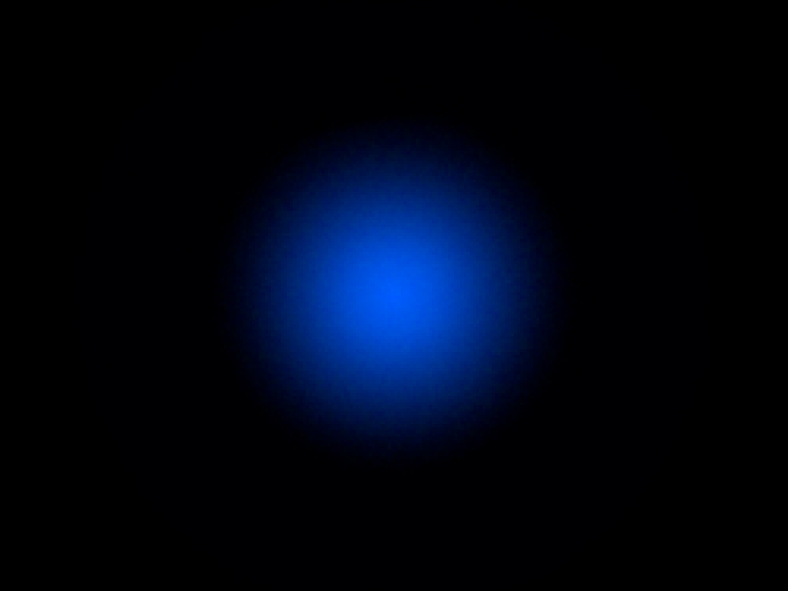

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.6


Download

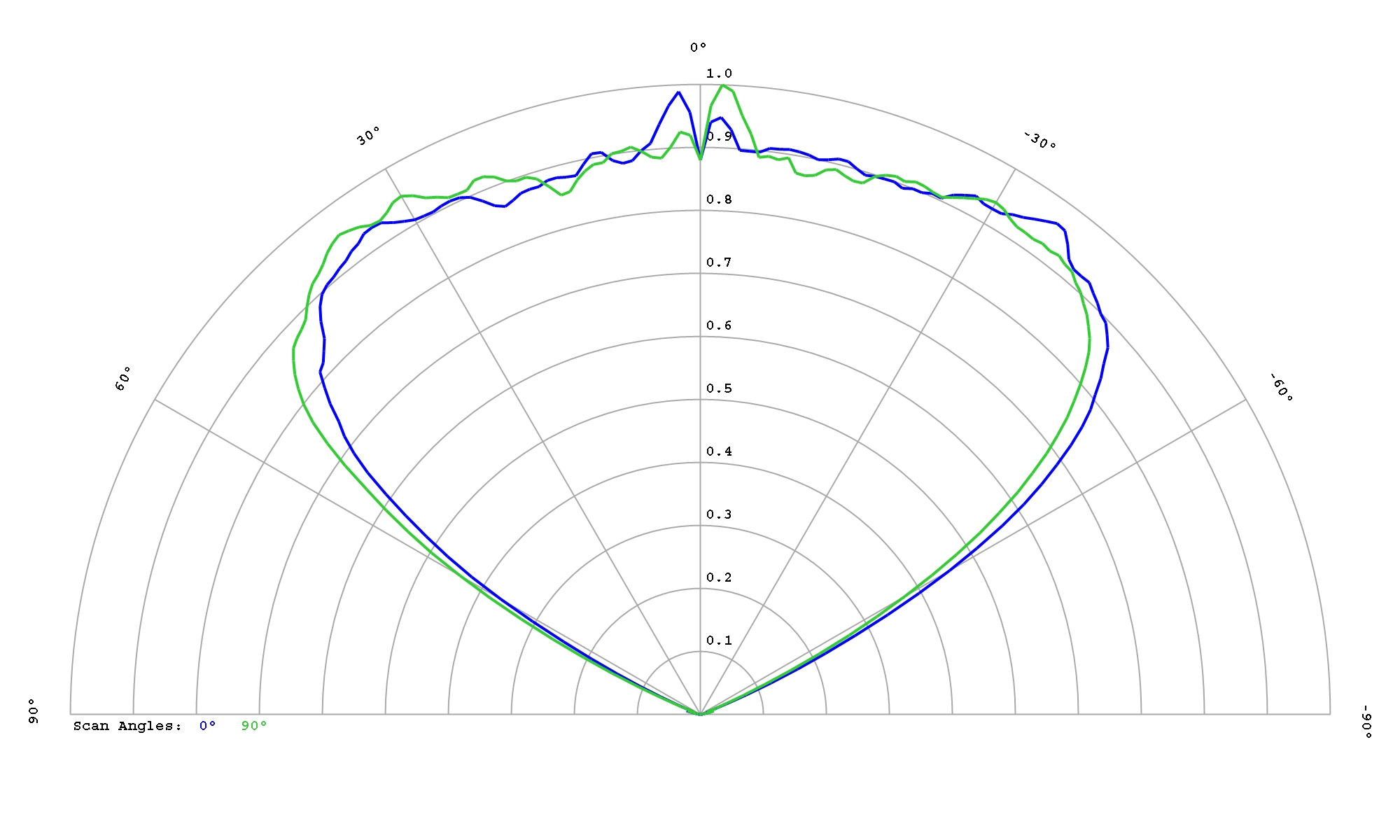

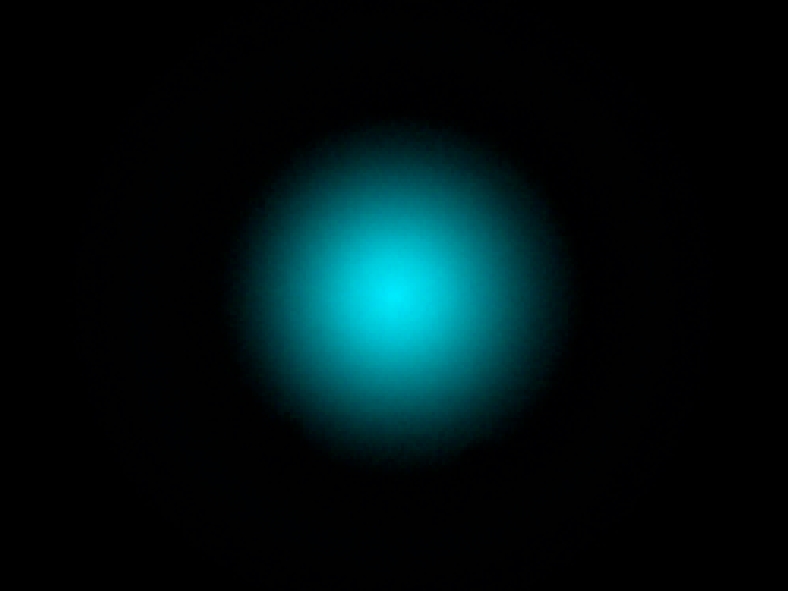

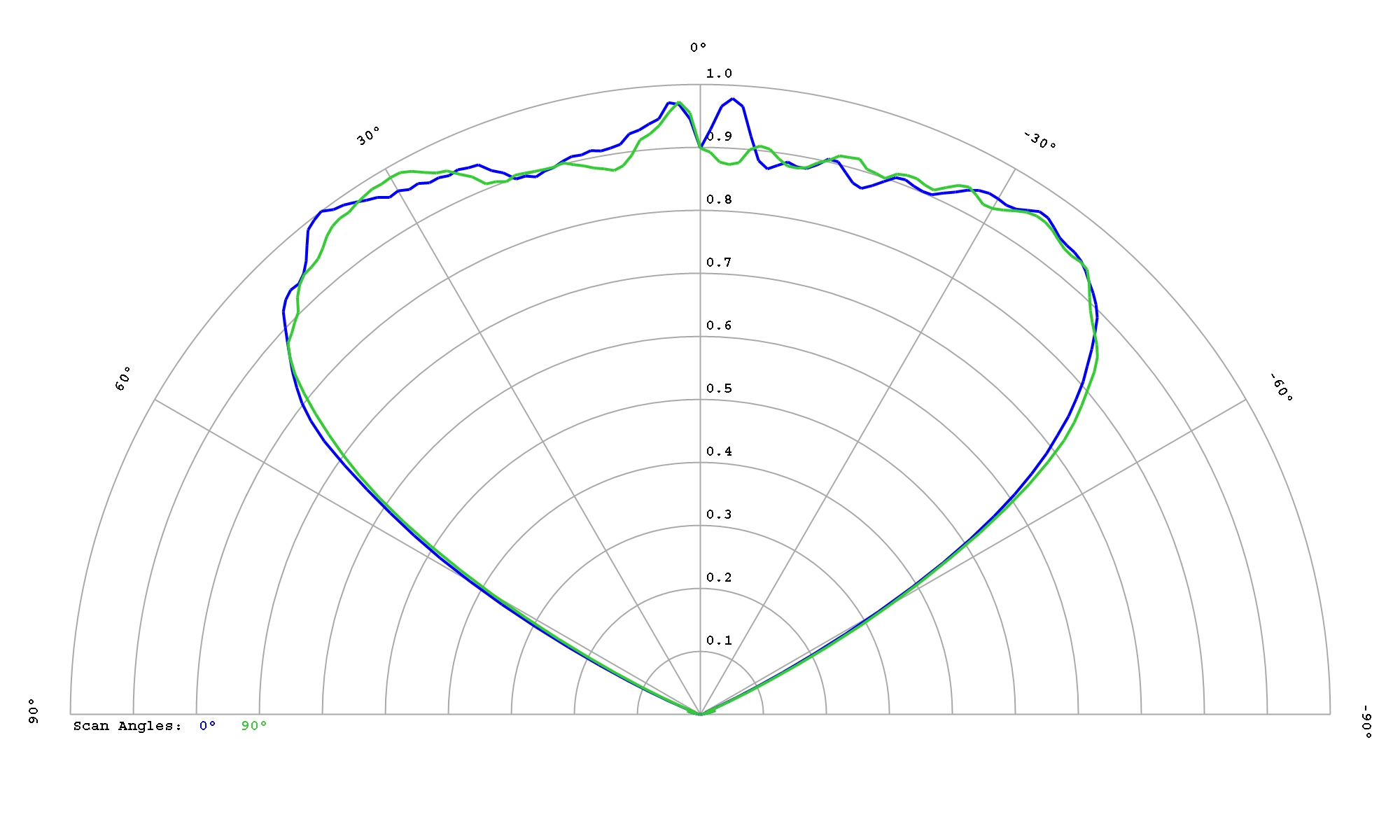

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5


Download

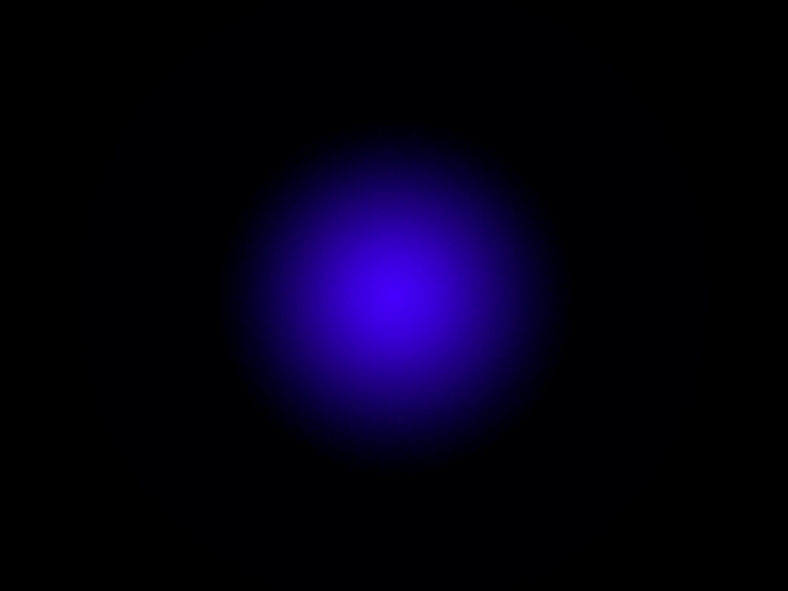

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

92.5%

FWHM:

116°

Ipk/W:

0.4


Download

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

94.0%

FWHM:

123°

Cd/Im:

0.5


Download

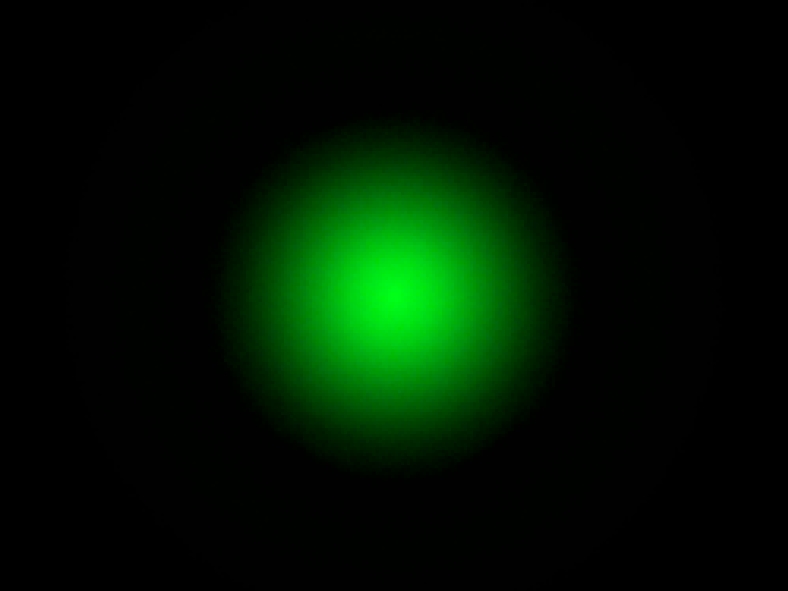

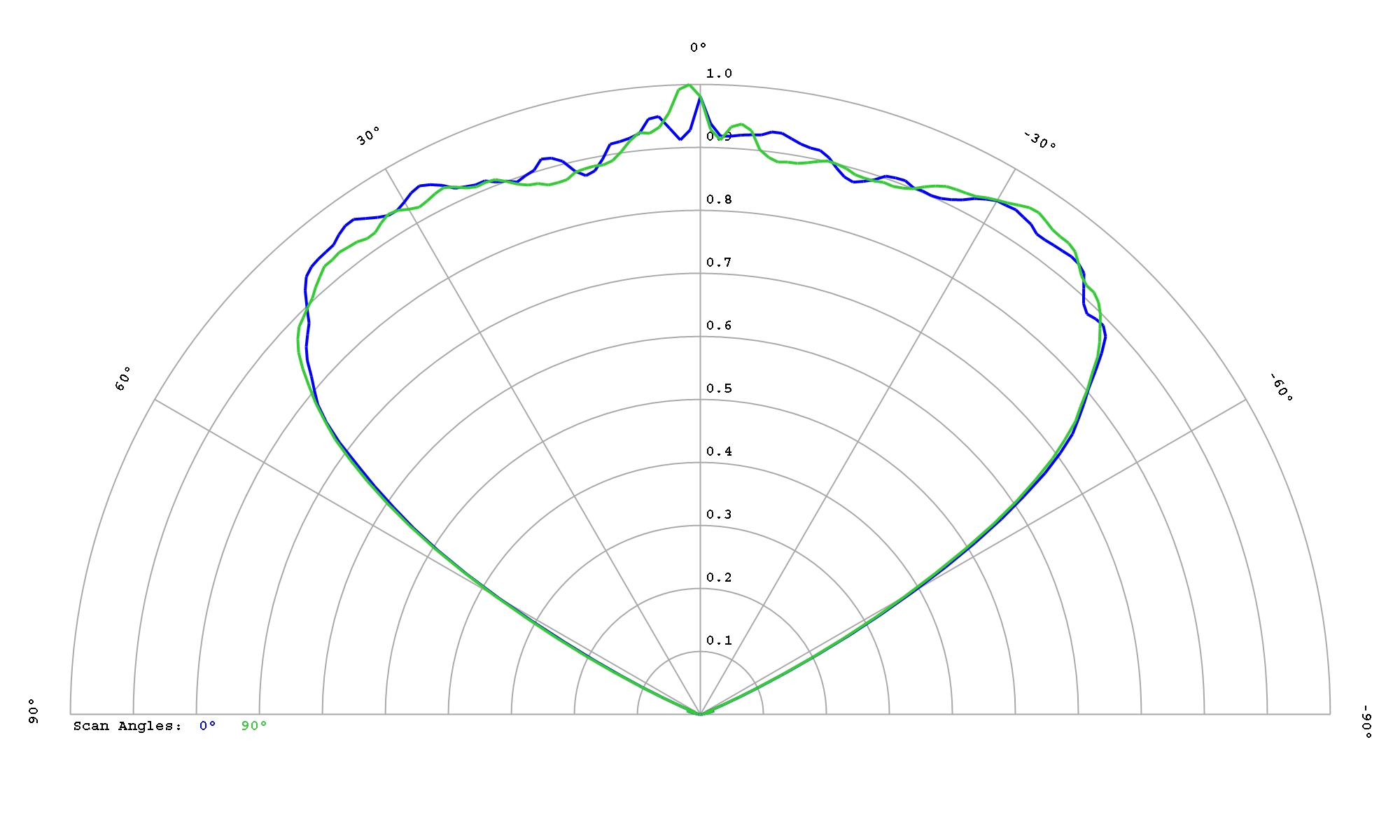

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5


Download

Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5


Download

Osram OS OSLON Pure 1414 GW VJLPL1.CM White

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5

Download

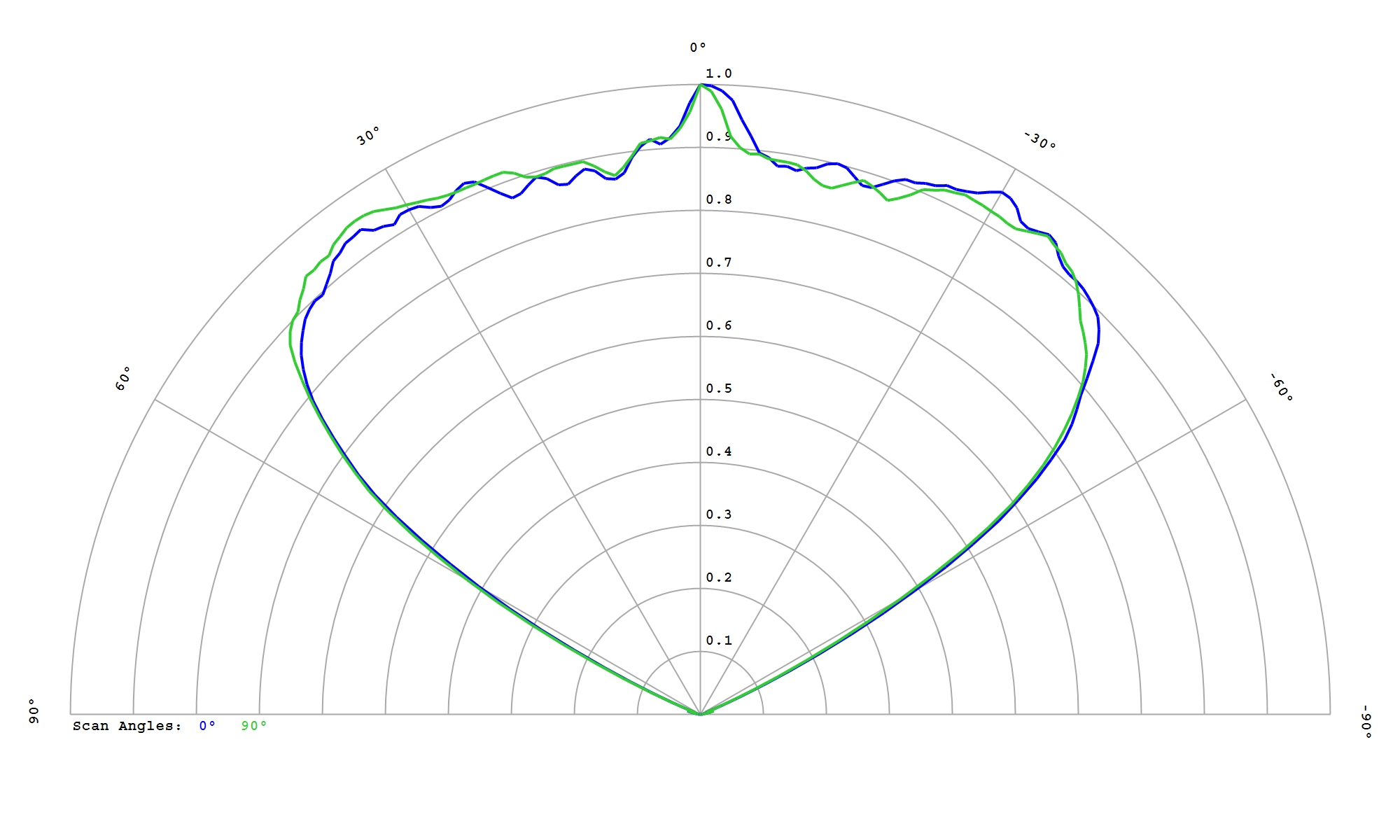

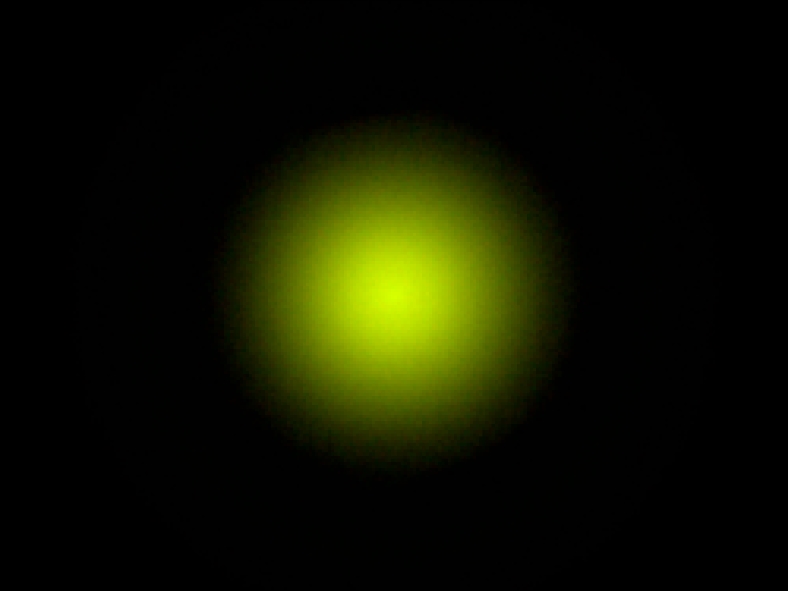

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5


Download

Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

93.5%

FWHM:

116°

Cd/Im:

0.5


Download

Osram OS OSLON Square Flat White

Eff:

93.0%

FWHM:

117°

Cd/Im:

0.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 3 White

Eff:

86.5%

FWHM:

118.0°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON Square Gen 5 GW CSSRM3

Eff:

93.0%

FWHM:

117°

Cd/Im:

0.5

Carclo Optics - 10628 Bubble Spot Image Oslon Square Gen 5

Carclo Optics - 10628 Bubble Cross Section Oslon Square Gen 5

Download

IES

Osram OS OSLON Square White

Eff:

86.0%

FWHM:

111°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

93.5%

FWHM:

122°

Cd/Im:

0.4

Carclo Optics – 10628 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10628 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OS OSLON SSL 150 degree White

Eff:

87.0%

FWHM:

125.9°

Cd/Im:

0.3
