19.7mm Ultra Wide Plain Bubble
Part number
10627
Dimensions
19.7mm
Drawing Number
60585
Optic type
Bubble
Finish
Plain
Beam type
Ultra Wide
Applications
Architectural
Wide Area
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
93.0%
FWHM:
106 x 108°
Cd/Im:
0.8
Download

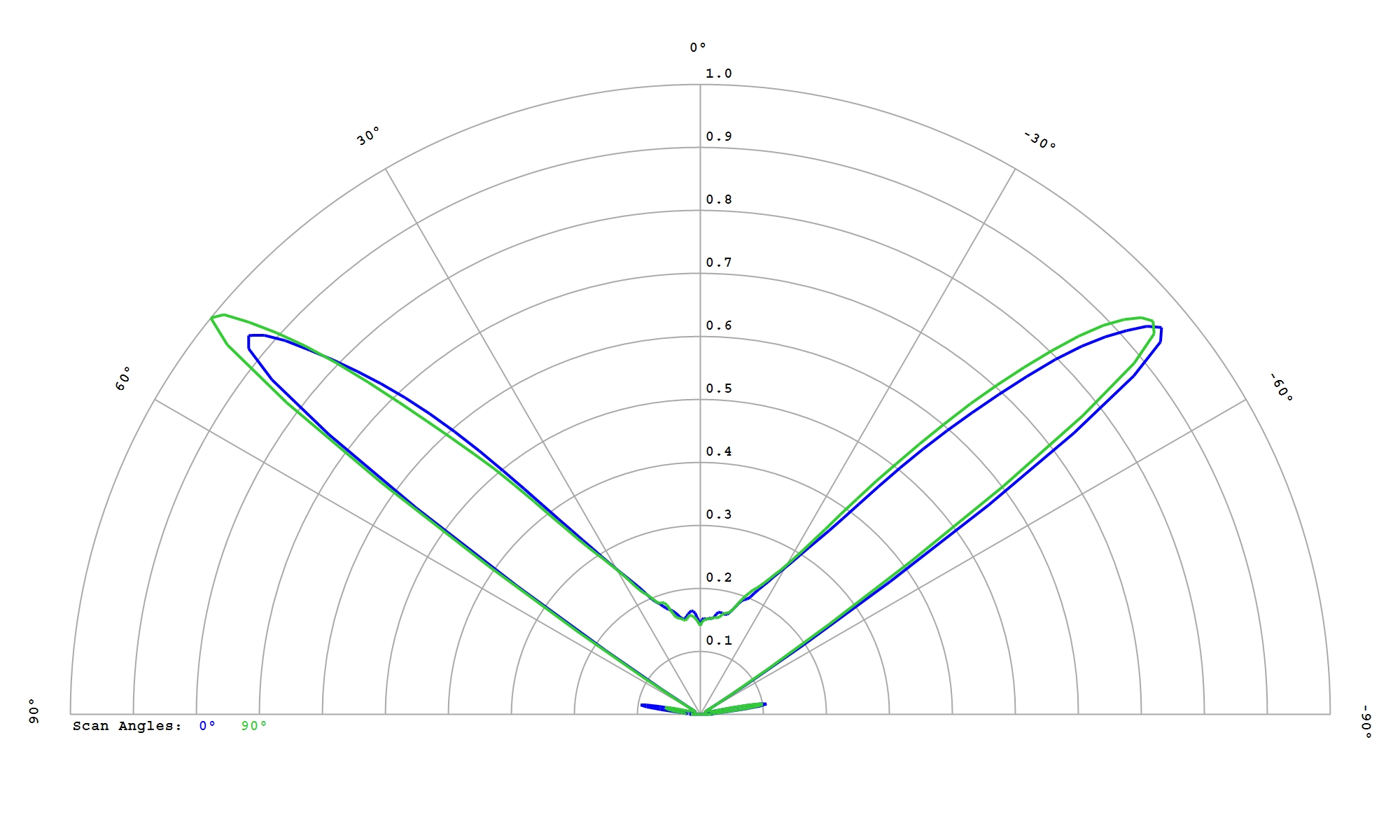

Cree JB2835B 3V G-Class White
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.7
Download

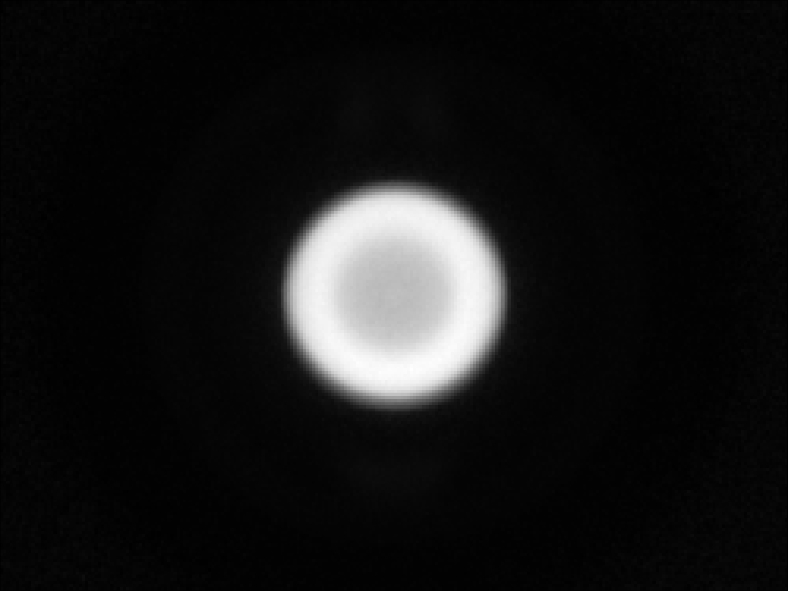

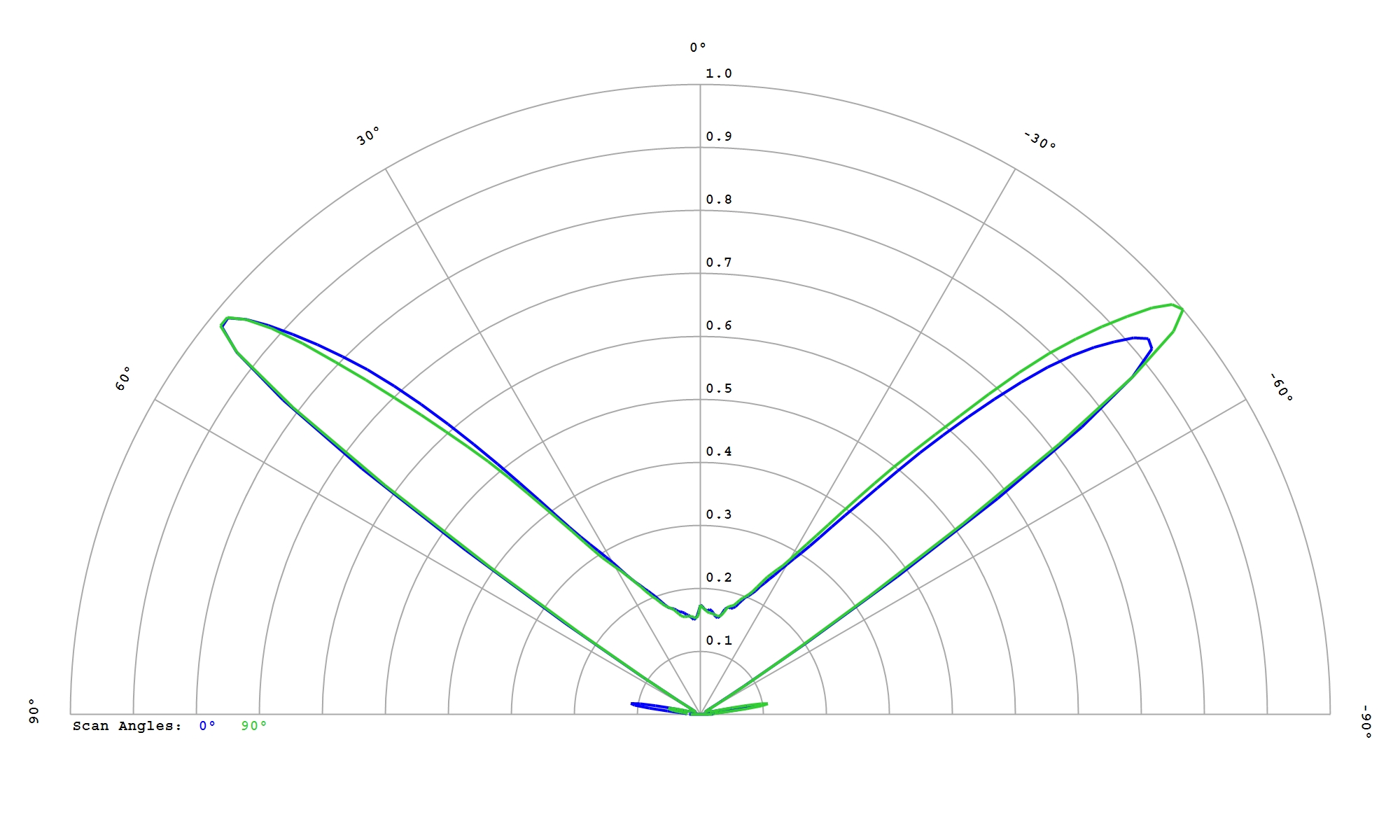

Cree JB2835B 3V J-Class White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.7
Download
Cree JB3030 3V P-Class White
Eff:
93.0%
FWHM:
106°
Cd/Im:
0.7
Download

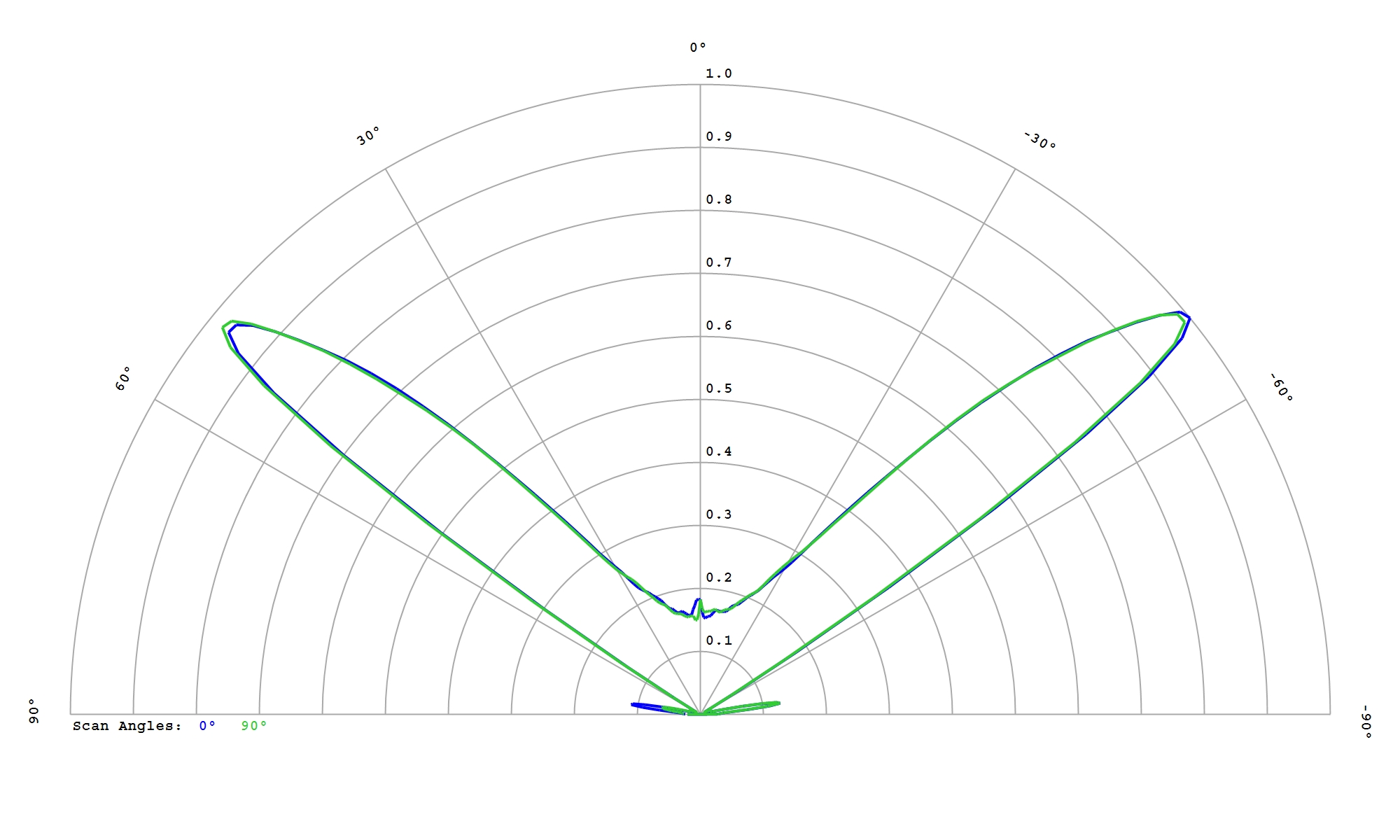

Cree JB3030C 3V E-Class White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.6
Download
Cree JB3030C 3V F-Class White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.7
Download
Cree JE2835 3V White
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.7
Download
Cree JK2835 6V White
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.7
Download
Cree JQ5050 9V White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.5
Download
Cree JR5050 24V White
Eff:
93.5%
FWHM:
110°
Cd/Im:
0.5
Download
Cree JR5050 36V White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.5
Download
Cree JR5050 6V White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.5
Download
Cree JR5050C 6V E-Class White
Eff:
93.0%
FWHM:
112°
Cd/Im:
0.5
Download
Cree XLamp CSP XD16 Cool White
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.7
Download
Cree XLamp CSP XD16 Premium White
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.8
Download
Cree XLamp MH-D White
Eff:
89.1%
FWHM:
120°
Cd/Im:
0.4
Download
Cree XLamp XB-H White
Eff:
92.0%
FWHM:
112 x 111°
Cd/Im:
0.6
Download
Cree XLamp XE-G White
Eff:
92.0%
FWHM:
112°
Cd/Im:
0.7
Download
Cree XLamp XH-B White
Eff:
87.3%
FWHM:
116°
Cd/Im:
0.5
Download
Cree XLamp XHP-50 Gen 2 White
Eff:
91.0%
FWHM:
121°
Cd/Im:
0.4
Download
Cree XLamp XHP-50 White
Eff:
89.0%
FWHM:
116°
Cd/Im:
0.4
Download
Cree XLamp XHP-70 White
Eff:
90.0%
FWHM:
122°
Cd/Im:
0.4
Download
Cree XLamp XHP-70 White
Eff:
88.5%
FWHM:
118°
Cd/Im:
0.4
Download
Cree XLamp XHP35 HI White
Eff:
88.3%
FWHM:
113°
Cd/Im:
0.6
Download
Cree XLamp XHP35 HD White
Eff:
87.2%
FWHM:
115°
Cd/Im:
0.5
Download
Cree XLamp XHP35.2 HI White
Eff:
92.0%
FWHM:
113°
Cd/Im:
0.5
Download
Cree XLamp XHP35.2 HD White
Eff:
91.0%
FWHM:
117°
Cd/Im:
0.4
Download
Cree XLamp XHP50.3 HI White
Eff:
92.5%
FWHM:
114°
Cd/Im:
0.5
Download
Cree XLamp XHP50.3 White
Eff:
91.0%
FWHM:
116°
Cd/Im:
0.4
Download
Cree XLamp XHP70.2 White
Eff:
89.5%
FWHM:
122°
Cd/Im:
0.4
Download

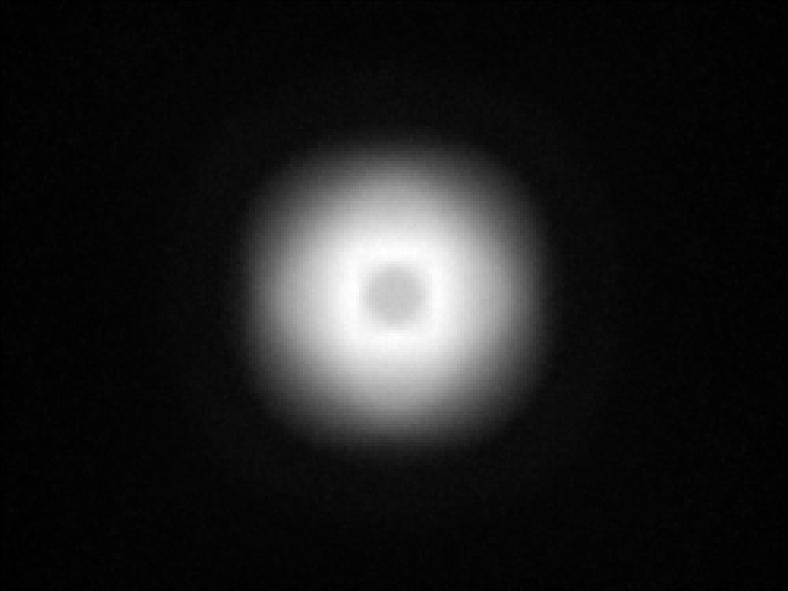

Cree XLamp XHP70.3 HD White
Eff:
90.0%
FWHM:
120°
Cd/Im:
0.4
Download

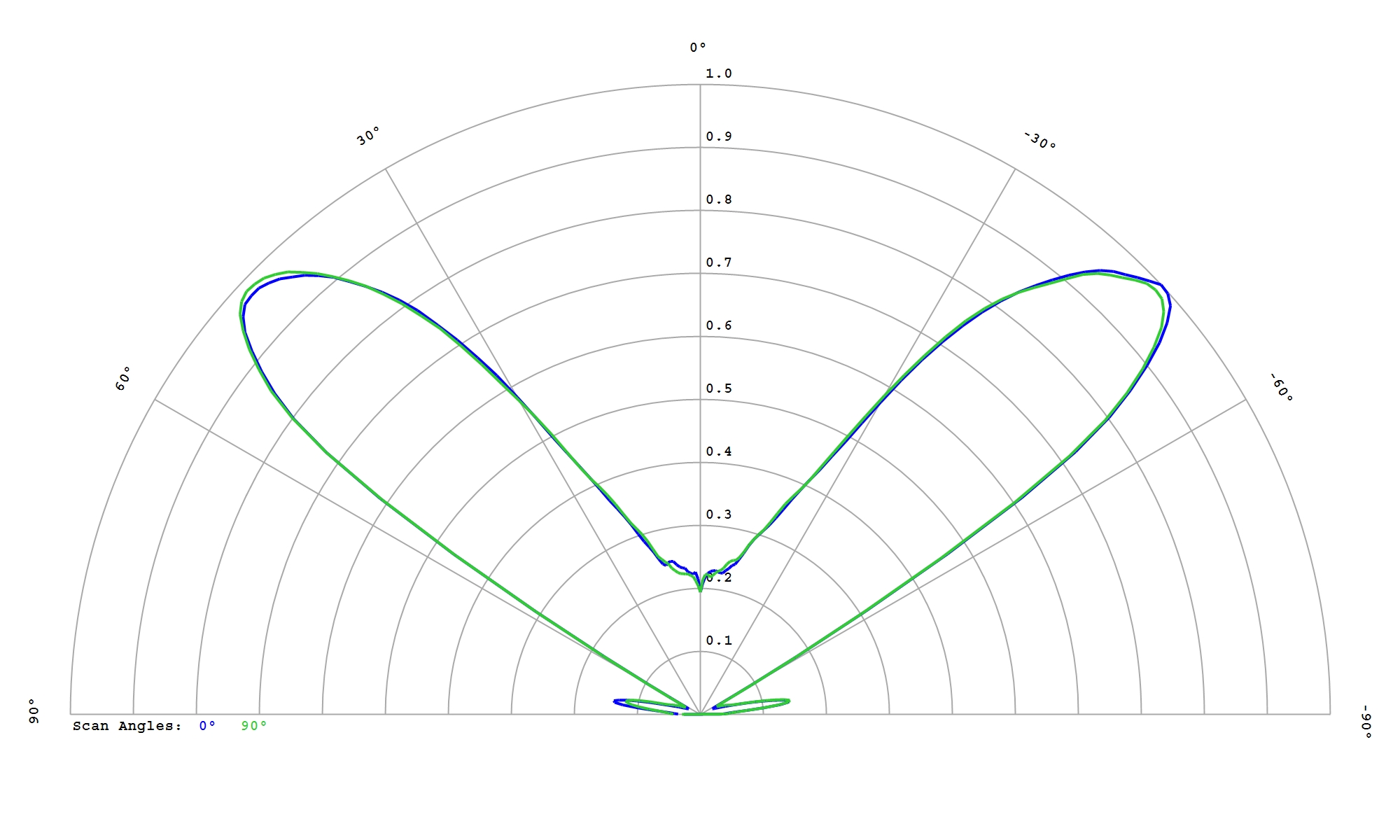

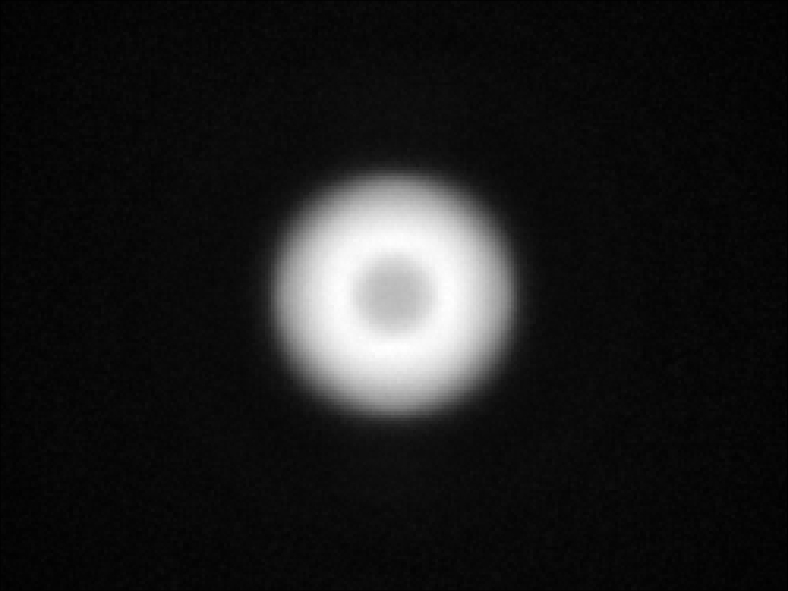

Cree XLamp XHP70.3 HI White
Eff:
92.5%
FWHM:
114°
Cd/Im:
0.4
Download
Cree XLamp XM-L White
Eff:
88.8%
FWHM:
114.3°
Cd/Im:
0.6
Download
Cree XLamp XM-L3 White
Eff:
91.5%
FWHM:
116°
Cd/Im:
0.5
Download
Cree XLamp XP-E White
Eff:
88.5%
FWHM:
110.4°
Cd/Im:
0.7
Download

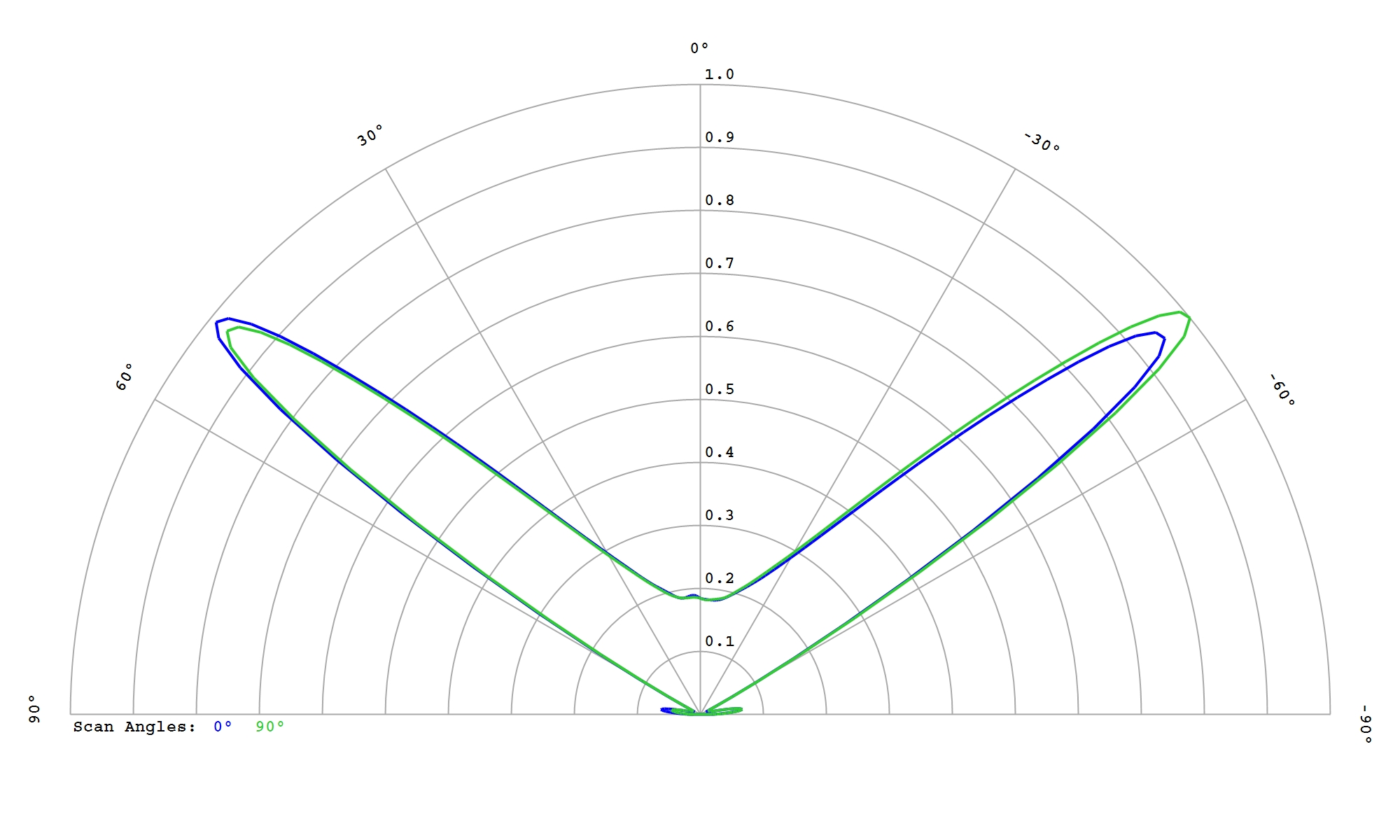

Cree XLamp XP-E2 White
Eff:
92.5%
FWHM:
113°
Cd/Im:
0.7
Download
Cree XLamp XP-G White
Eff:
88.0%
FWHM:
114°
Cd/Im:
0.6
Download
Cree XLamp XP-G2 White
Eff:
88.5%
FWHM:
114.1°
Cd/Im:
0.6
Download
Cree XLamp XP-G3 White
Eff:
87.0%
FWHM:
113°
Cd/Im:
0.6
Download
Cree XLamp XP-G4 HI White
Eff:
92.0%
FWHM:
113°
Cd/Im:
0.7
Download
Cree XLamp XP-G4 White
Eff:
92.5%
FWHM:
112°
Cd/Im:
0.6
Download
Cree XLamp XP-L HI White
Eff:
88.6%
FWHM:
112.4°
Cd/Im:
0.6
Download
Cree XLamp XP-L White
Eff:
88.7%
FWHM:
115.9°
Cd/Im:
0.5
Download
Cree XLamp XP-L2 White
Eff:
91.5%
FWHM:
115°
Cd/Im:
0.5
Download

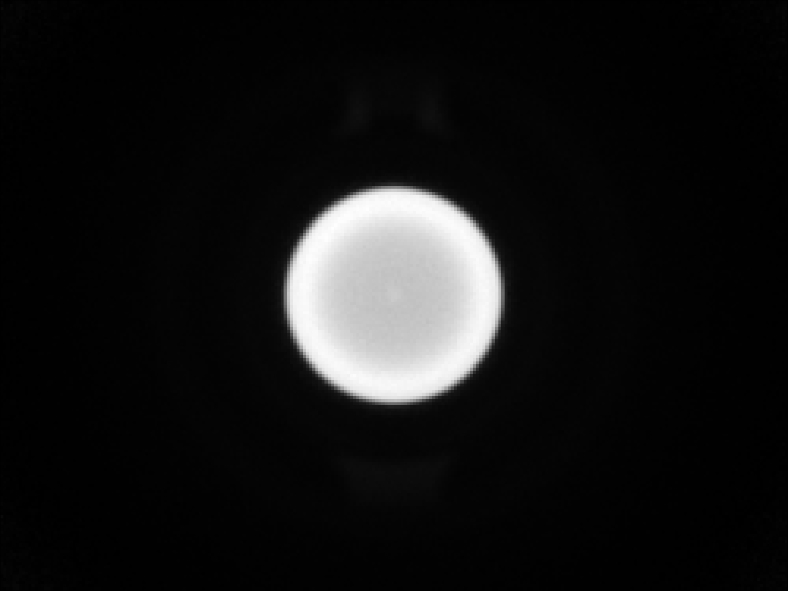

Cree XLamp XP-P White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.8
Download

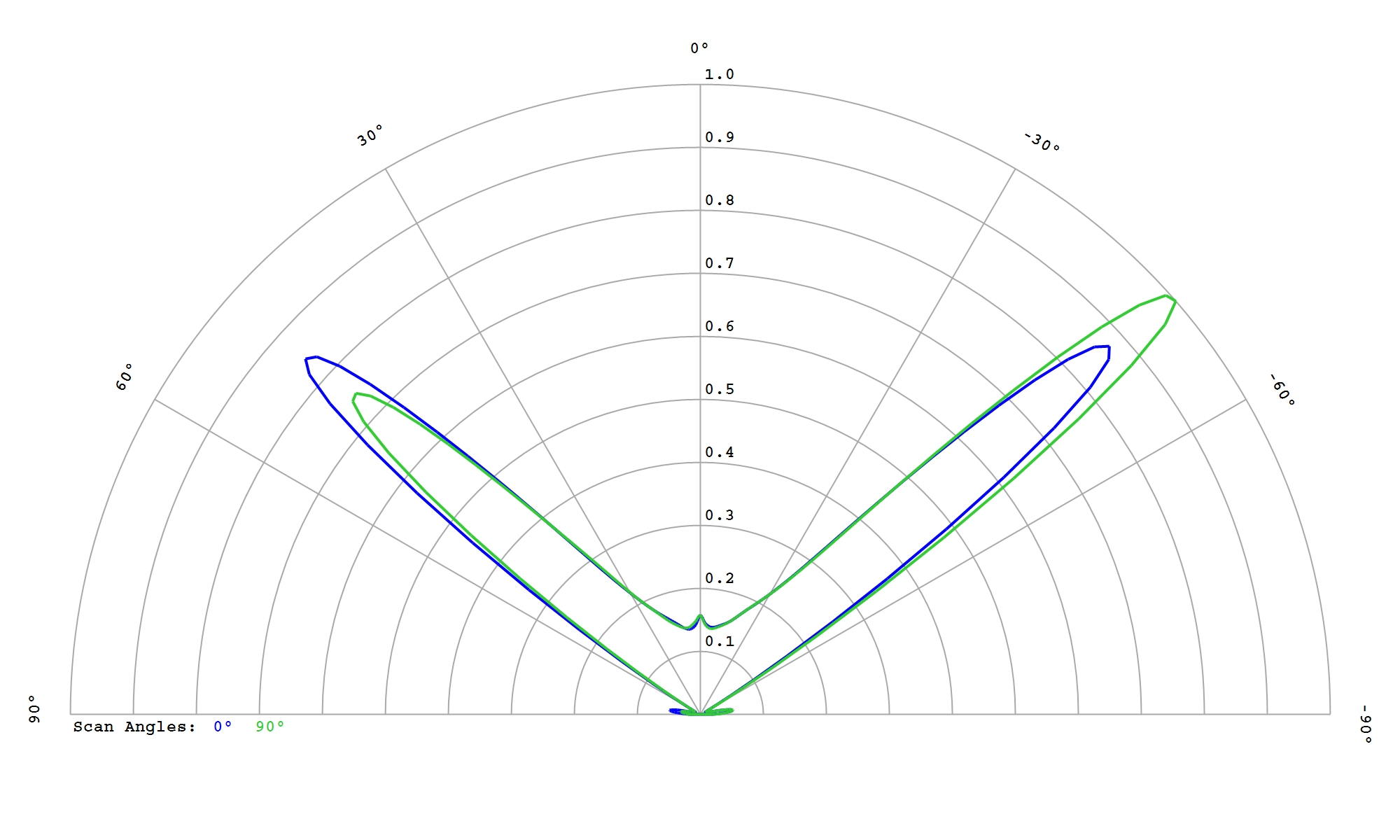

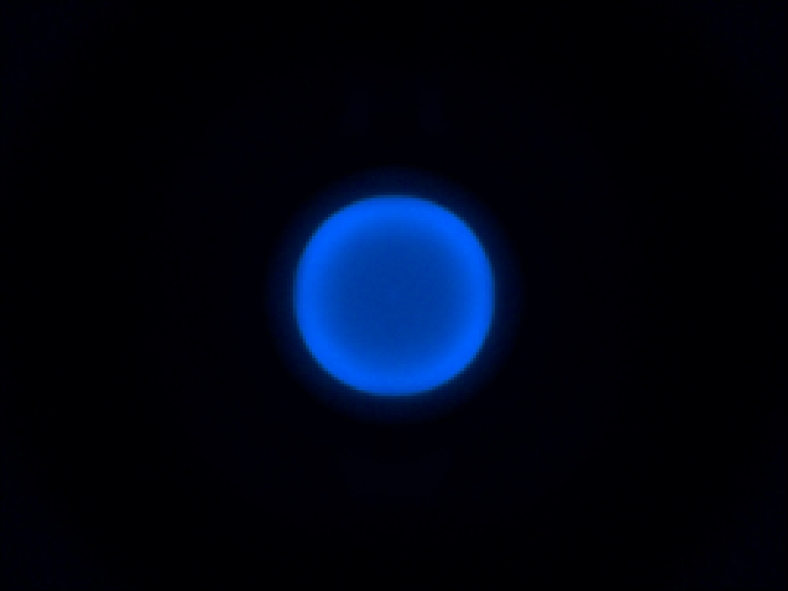

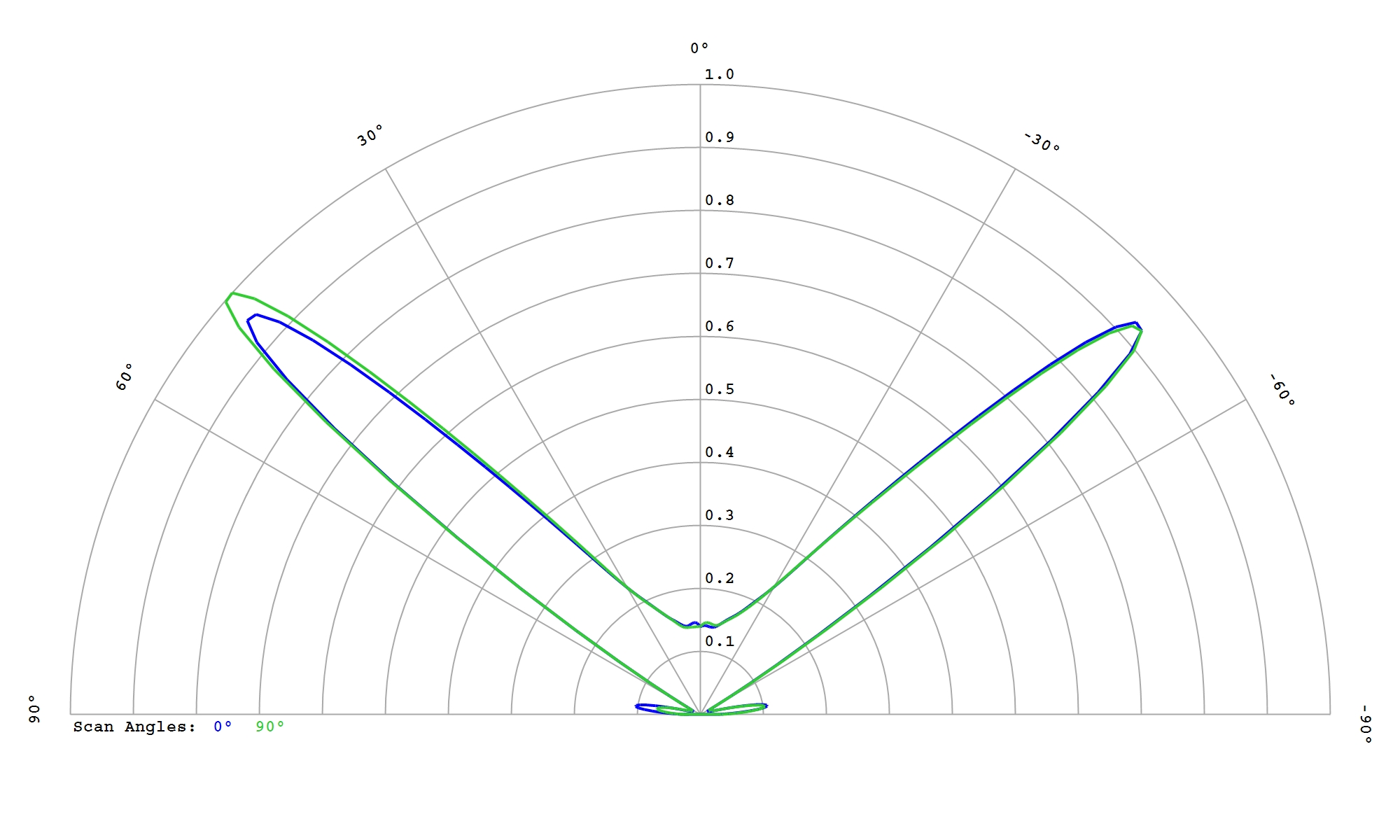

Cree XLamp XQ-A Blue
Eff:
92.0%
FWHM:
140°
Cd/Im:
1.1
Download
Cree XLamp XQ-A Green
Eff:
92.0%
FWHM:
103°
Cd/Im:
1.0
Download

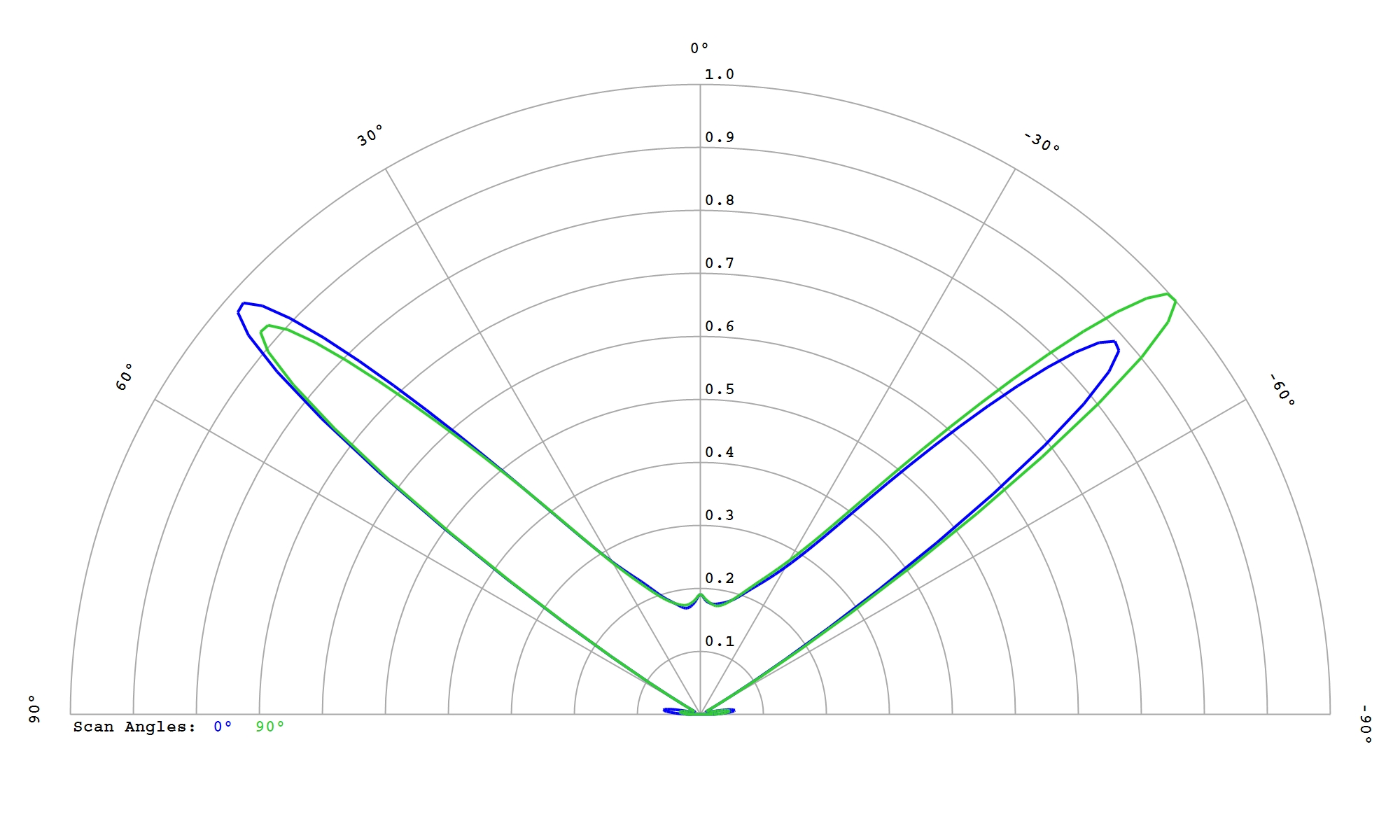

Cree XLamp XQ-A Red
Eff:
92.0%
FWHM:
106°
Cd/Im:
0.9
Download

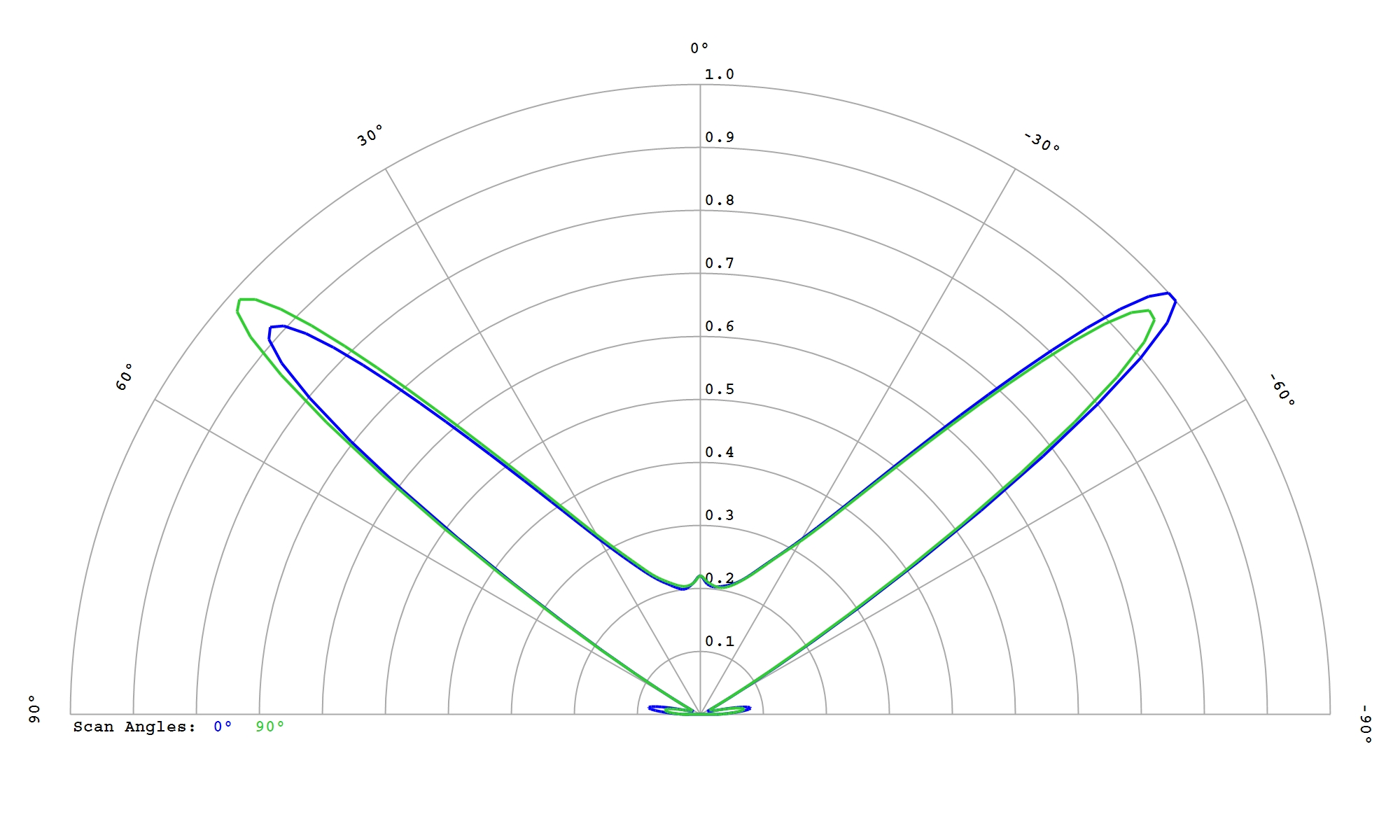

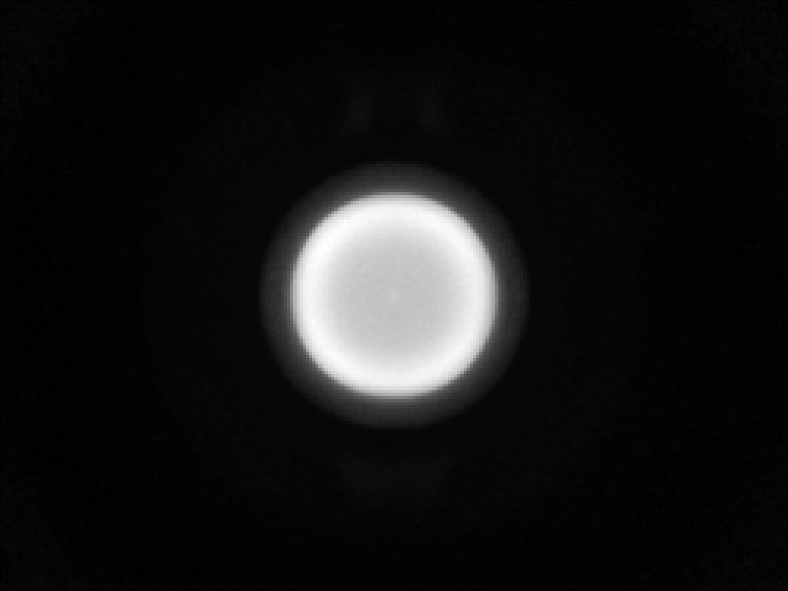

Cree XLamp XQ-A White
Eff:
88.0%
FWHM:
103°
Cd/Im:
0.9
Download
Cree XLamp XQ-E HI Blue
Eff:
92.0%
FWHM:
108°
Cd/Im:
0.8
Download

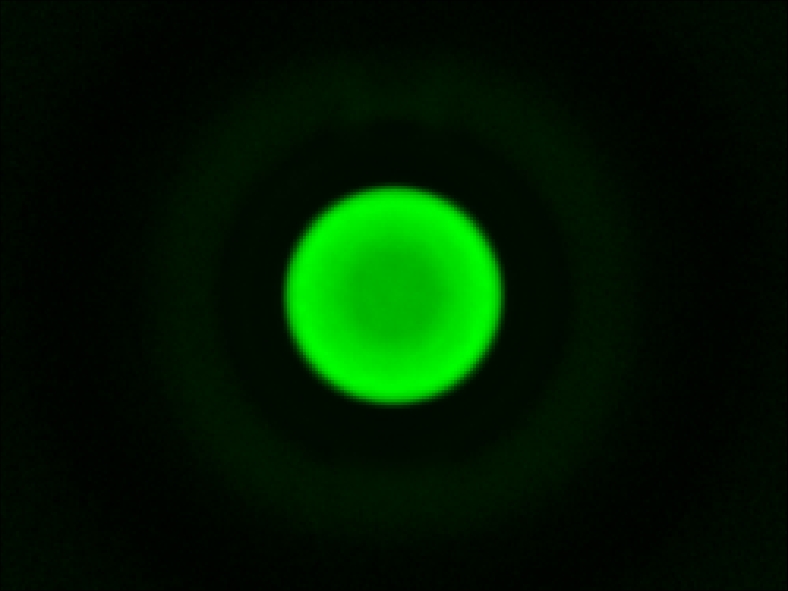

Cree XLamp XQ-E HI Green
Eff:
91.5%
FWHM:
180°
Cd/Im:
0.8
Download
Cree XLamp XQ-E HI Red
Eff:
92.0%
FWHM:
108°
Cd/Im:
0.7
Download
Cree XLamp XQ-E HI White
Eff:
88.0%
FWHM:
107°
Cd/Im:
0.8
Download
Cree XLamp XQ-E HD White
Eff:
88.0%
FWHM:
104°
Cd/Im:
0.8
Download
Cree XLamp XT-E HE White
Eff:
92.0%
FWHM:
112°
Cd/Im:
0.7
Download
Cree XLamp XT-E White
Eff:
87.4%
FWHM:
111°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 2835C 6V White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.7
Download

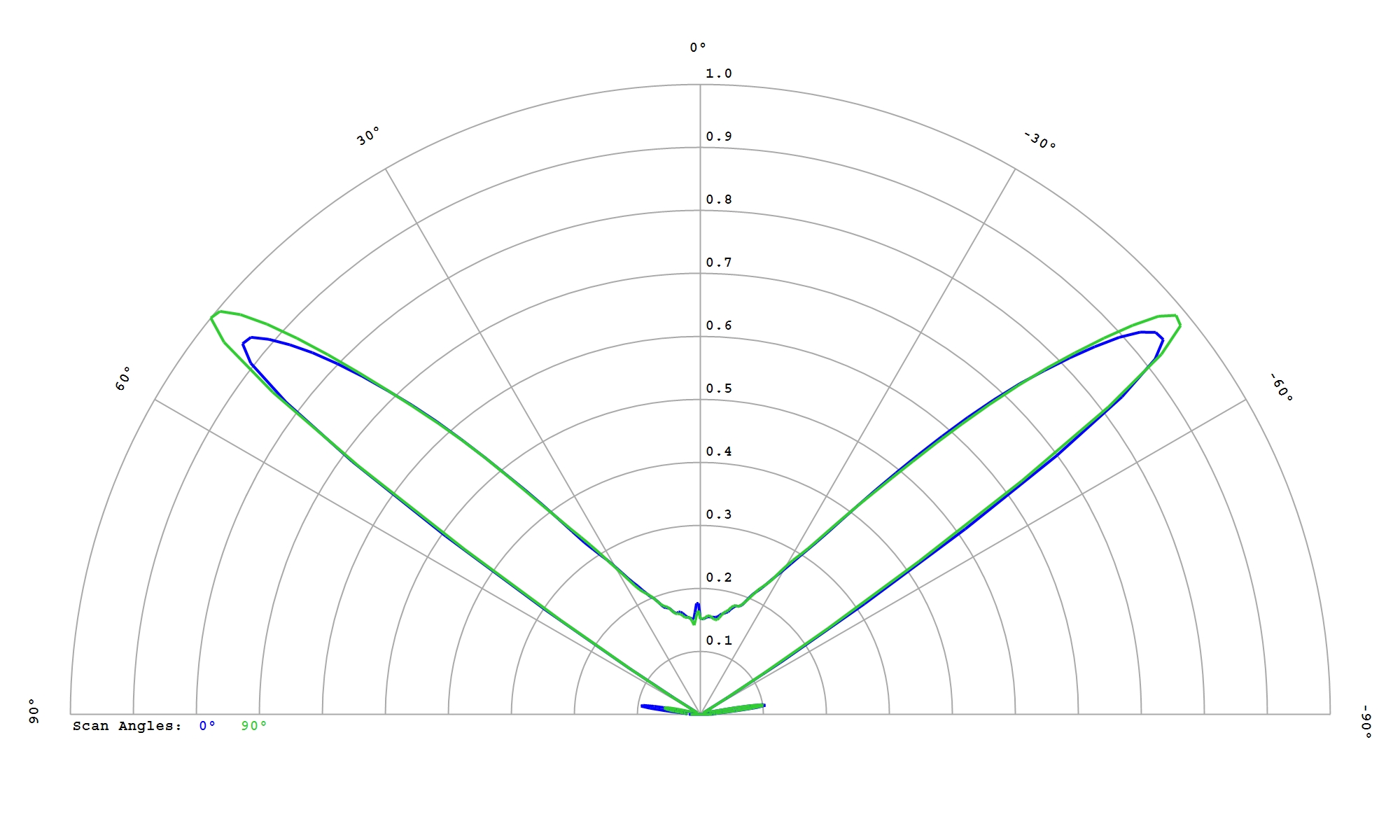

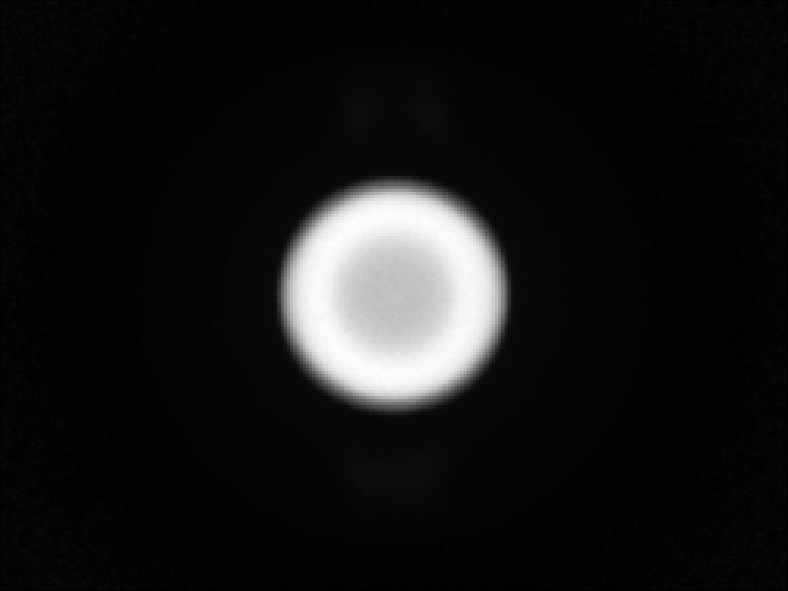

LUMILEDS LUXEON 2835E 9V White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.7
Download

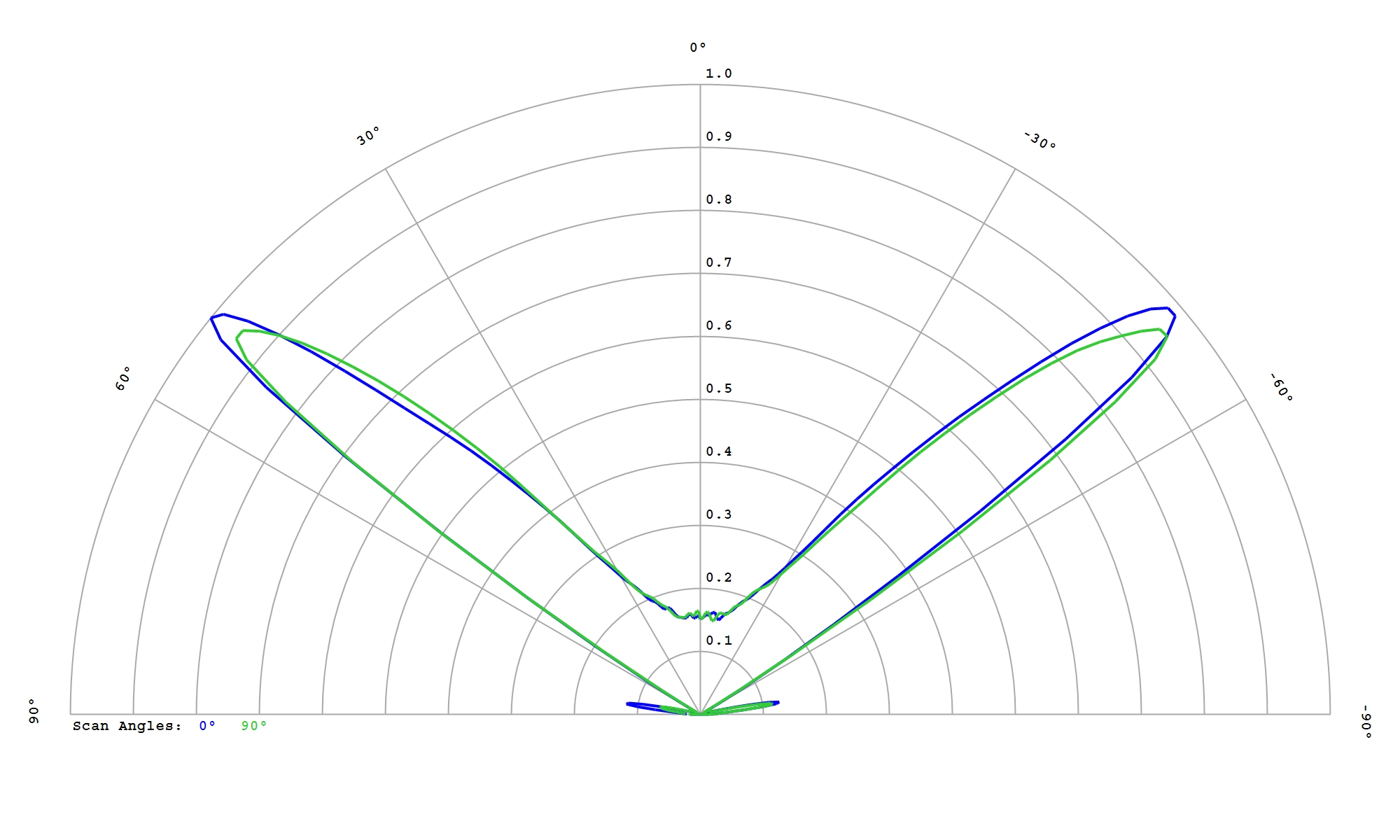

LUMILEDS LUXEON 2835N 3V White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.6
Download

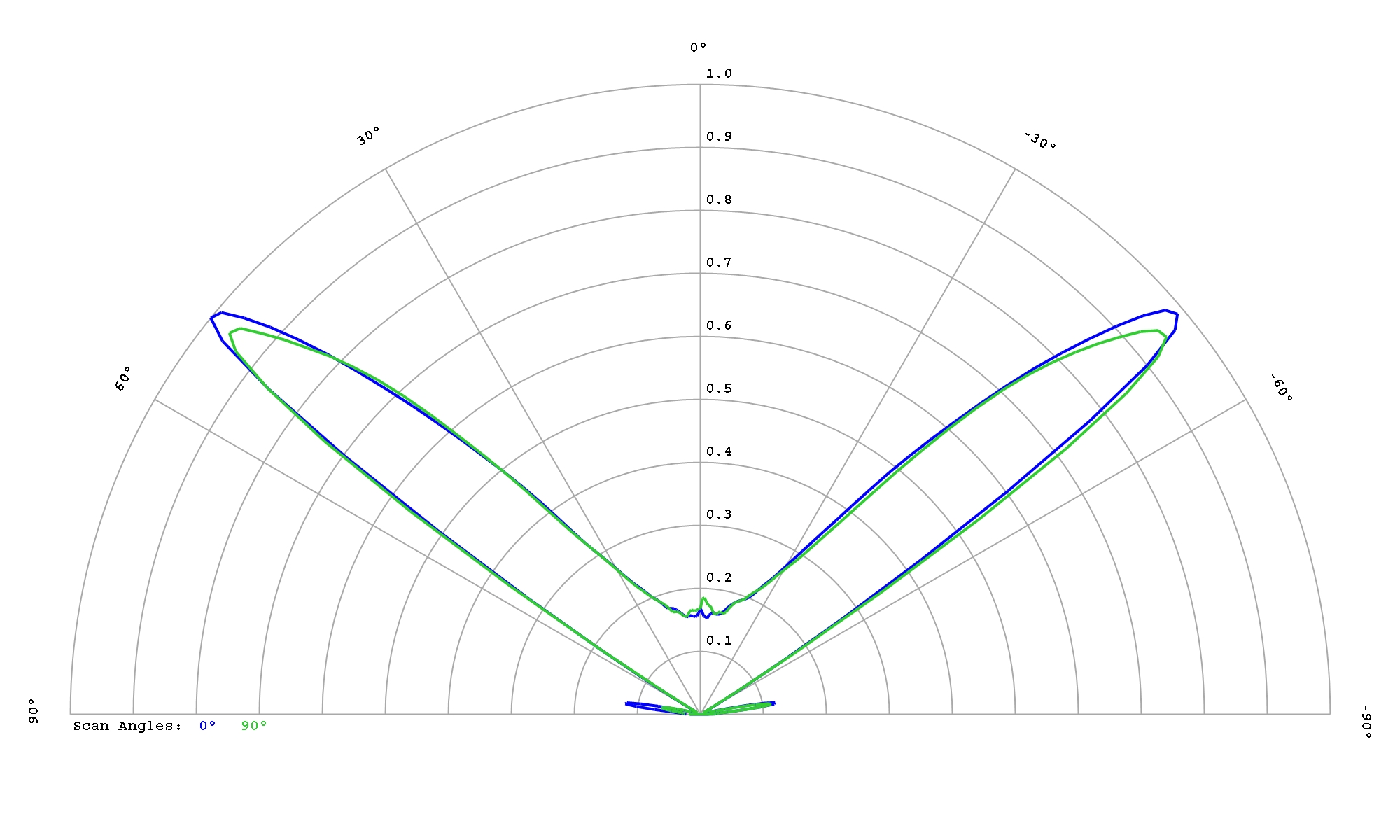

LUMILEDS LUXEON 2835S 3V White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.6
Download

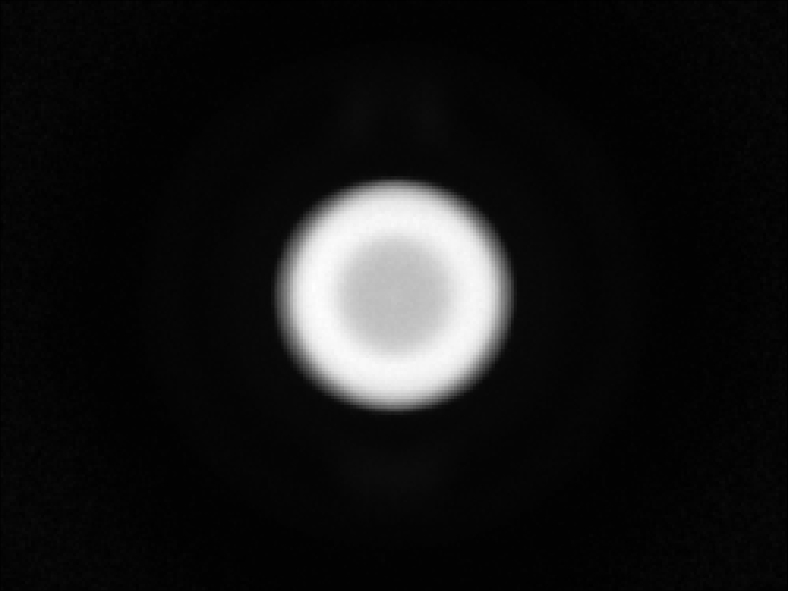

LUMILEDS LUXEON 2835S 6V White
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.6
Download
LUMILEDS LUXEON 3014 White
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.8
Download

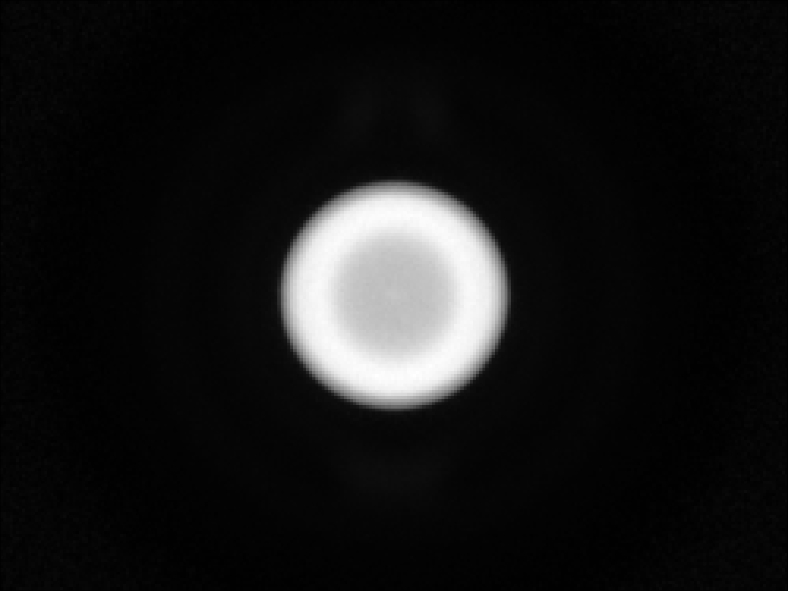

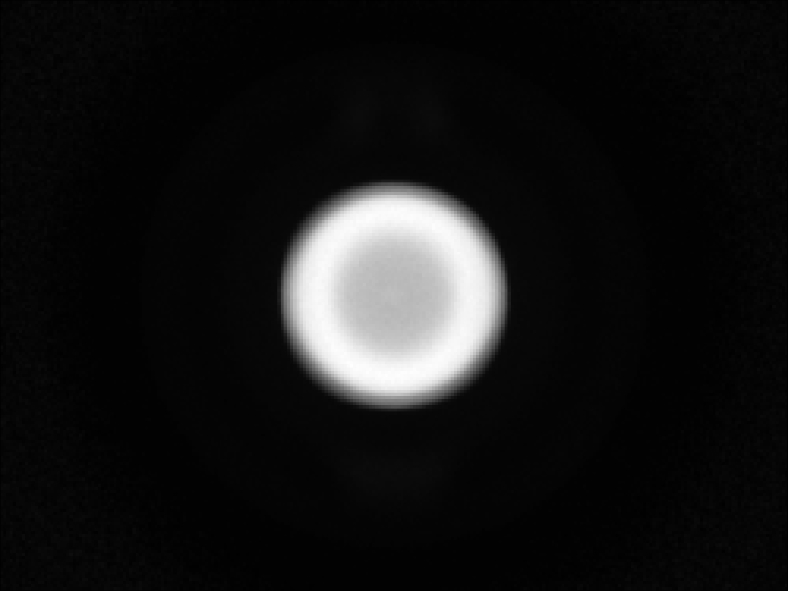

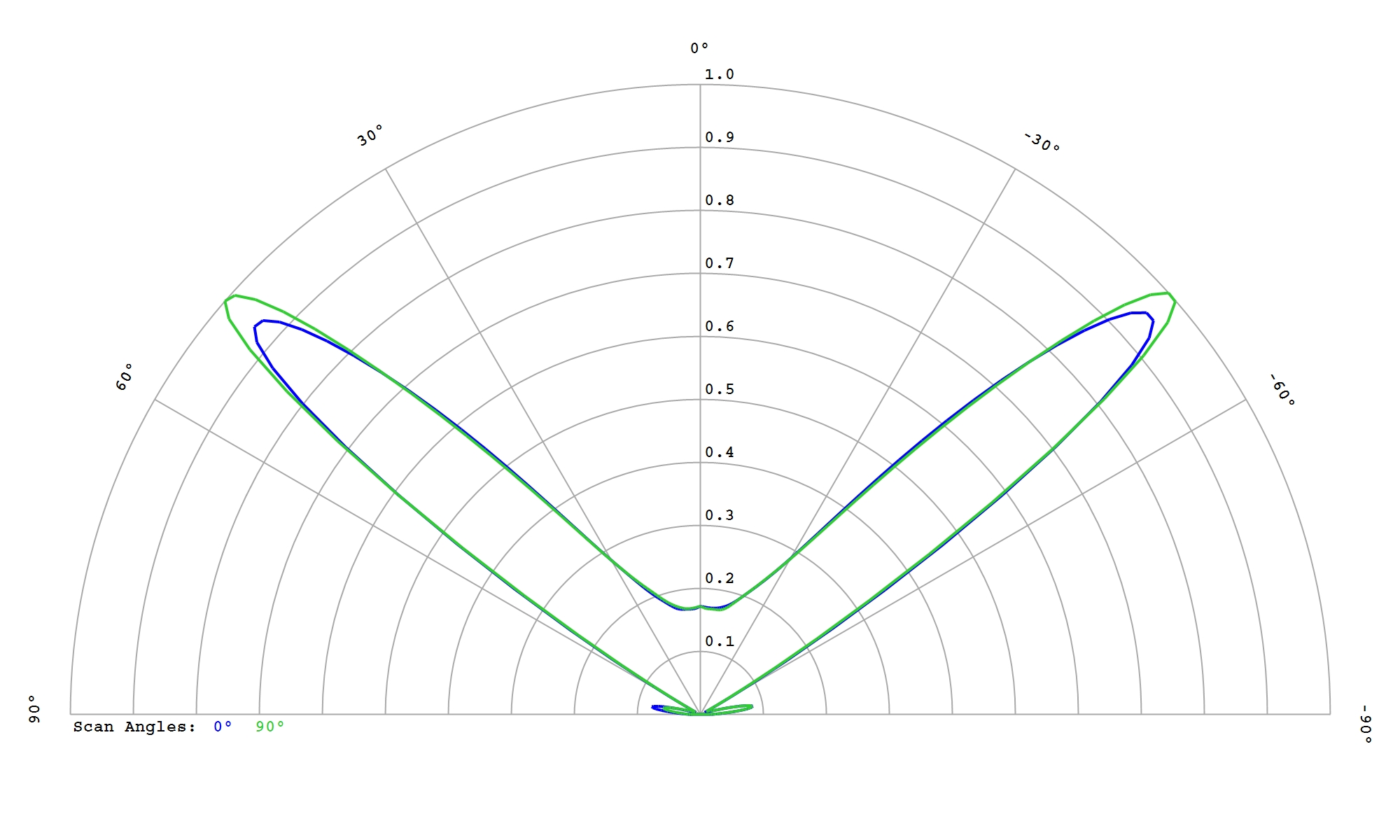

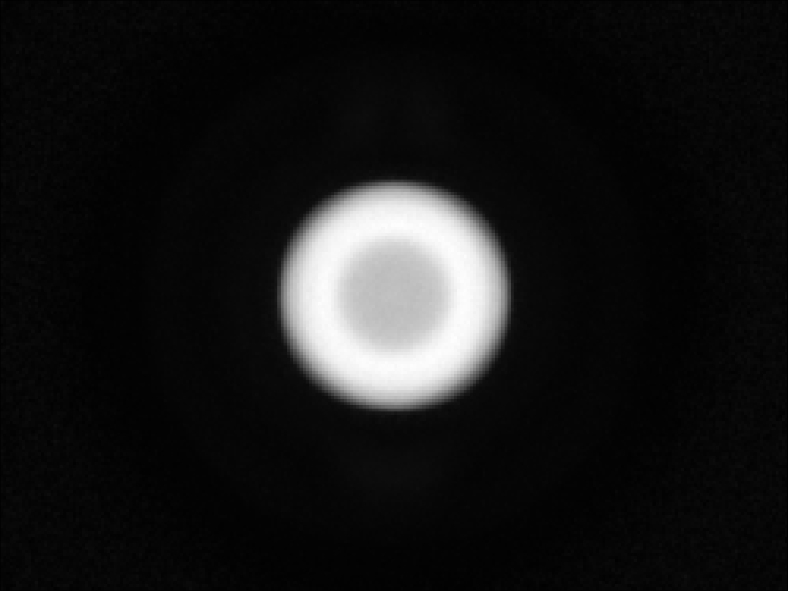

LUMILEDS LUXEON 3030 2D White
Eff:
93.0%
FWHM:
107°
Cd/Im:
0.8
Download

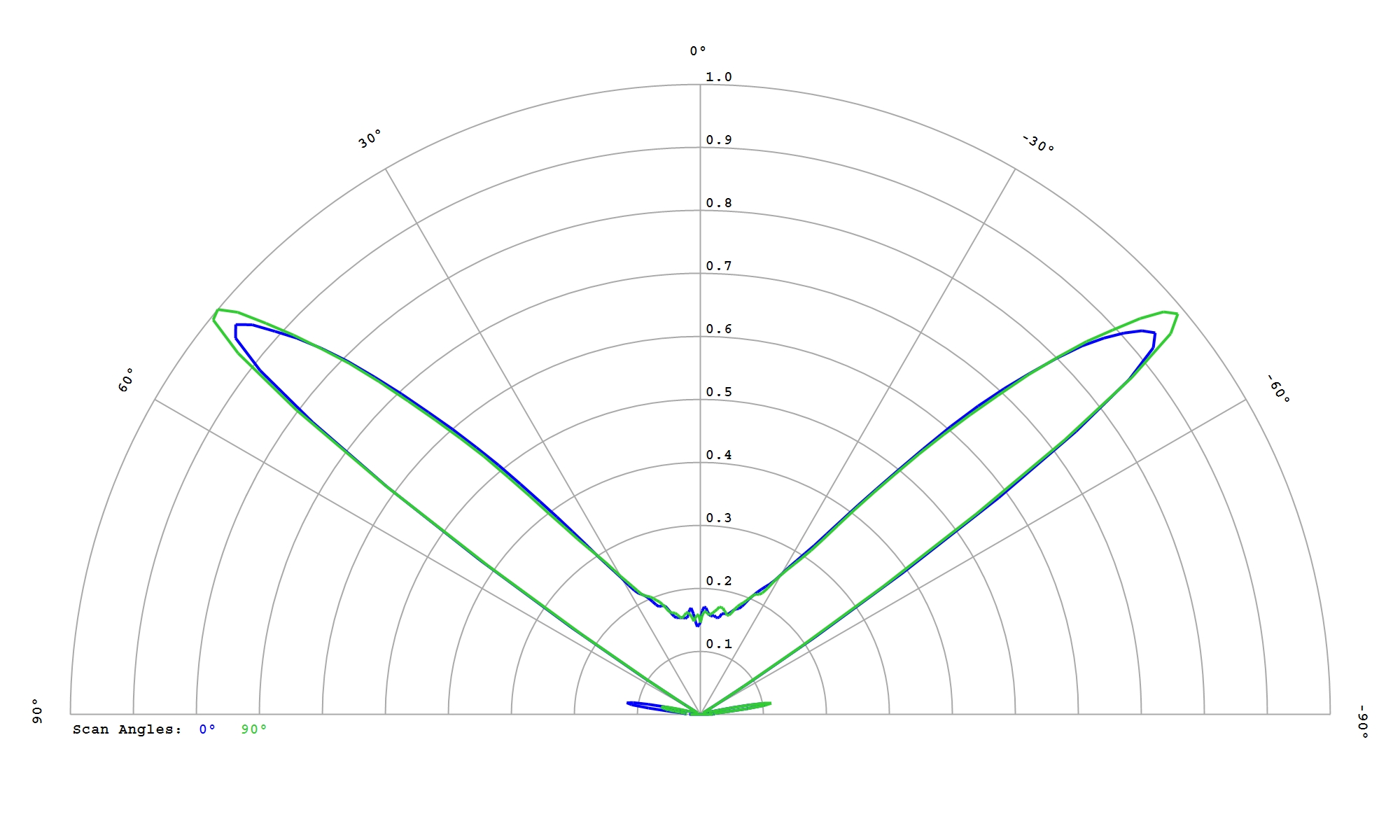

LUMILEDS LUXEON 3030 HE Plus White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.7
Download

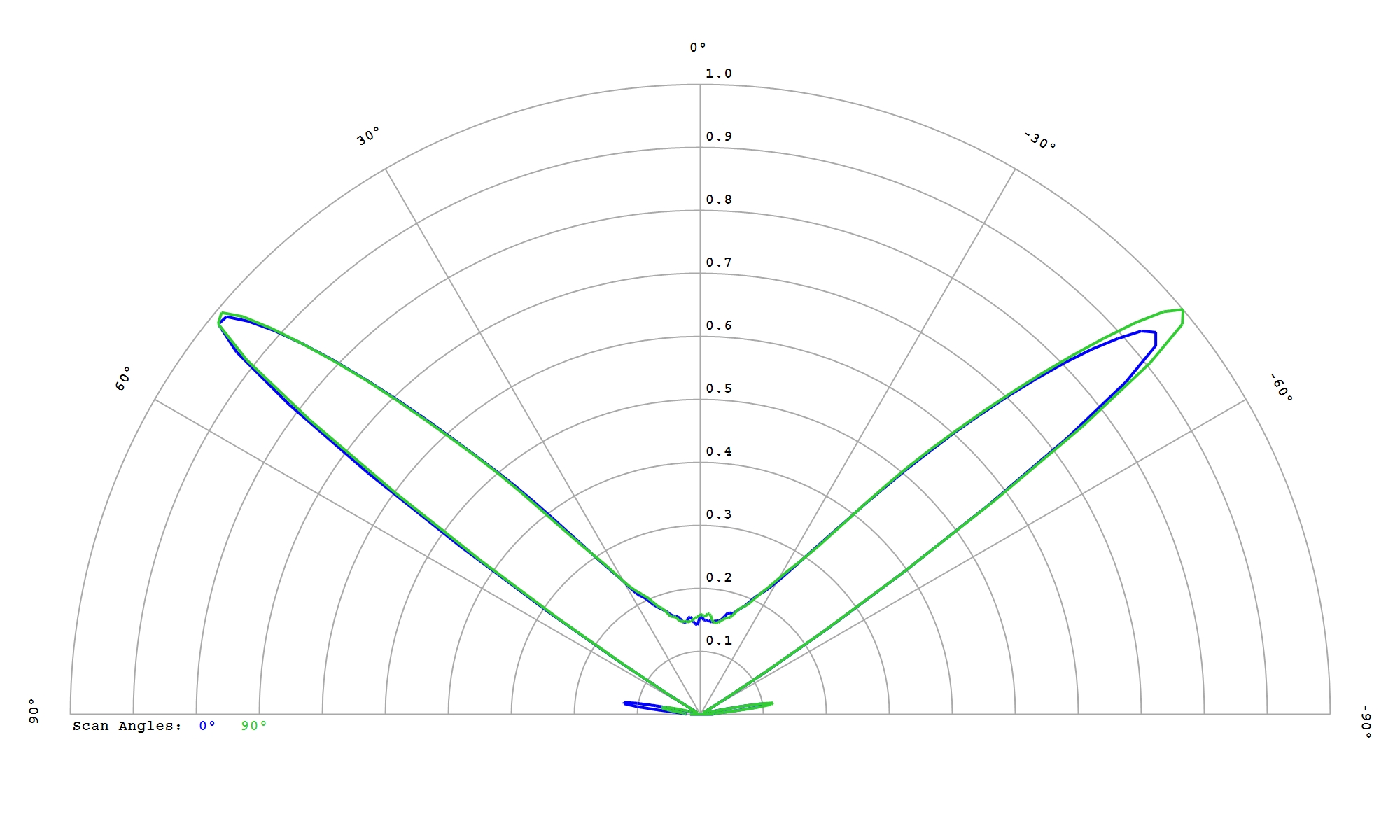

LUMILEDS LUXEON 3030 HE White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3535 HV White
Eff:
88.9%
FWHM:
110°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3535 L White
Eff:
89.0%
FWHM:
110°
Cd/Im:
0.7
Download
LUMILEDS LUXEON 3535L Blue
Eff:
92.5%
FWHM:
111°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3535L Green
Eff:
92.5%
FWHM:
111°
Cd/Im:
0.8
Download
LUMILEDS LUXEON 3535L Red
Eff:
92.5%
FWHM:
109`°
Cd/Im:
0.8
Download

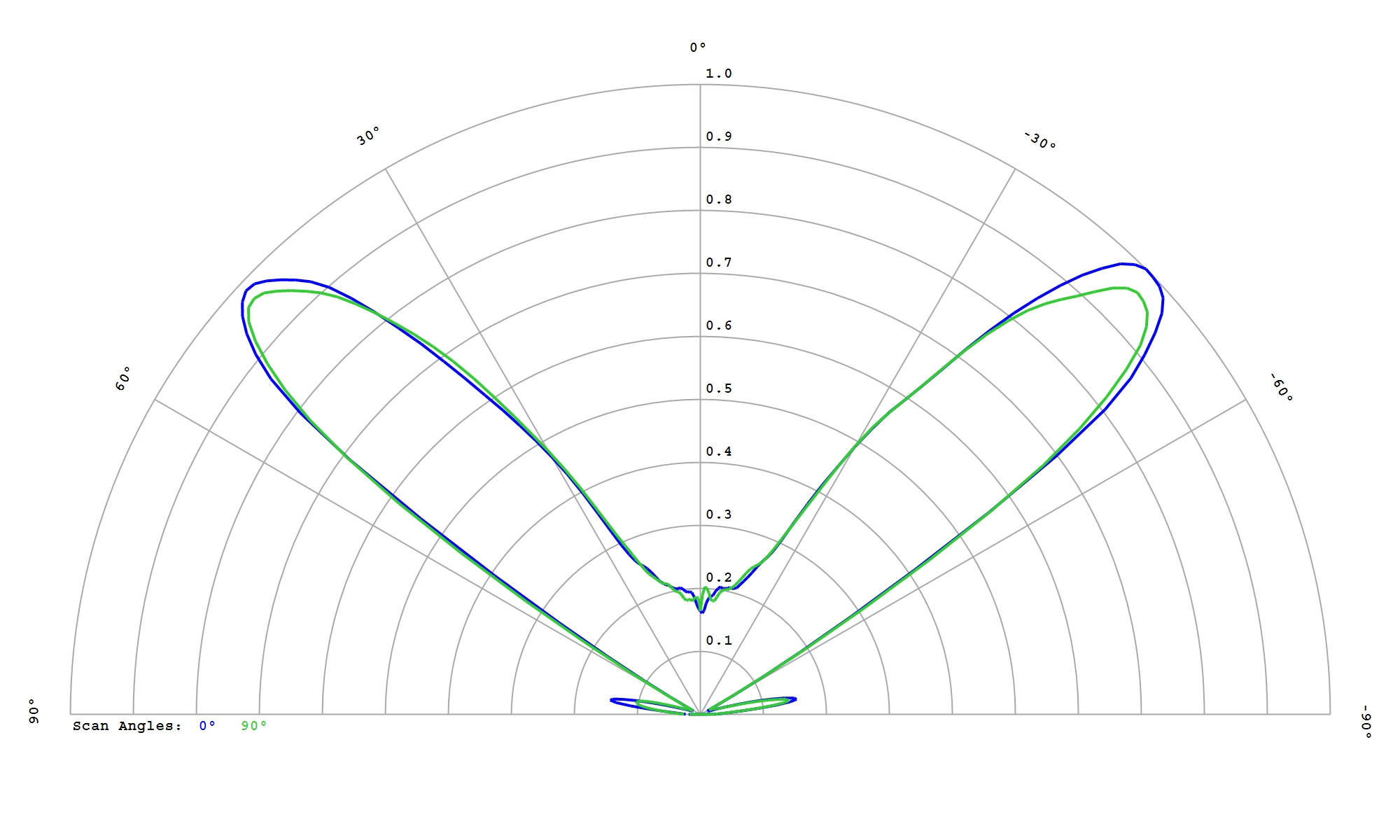

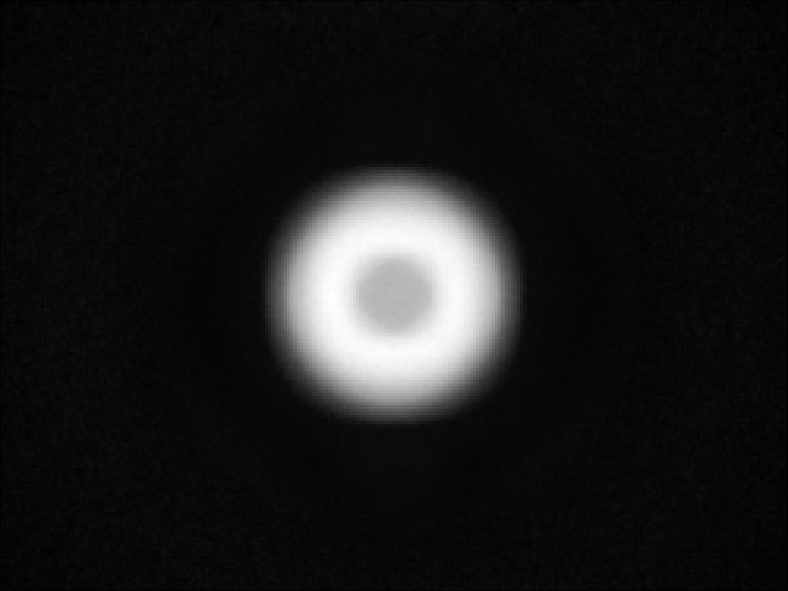

LUMILEDS LUXEON 5050 HE 24V White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.5
Download

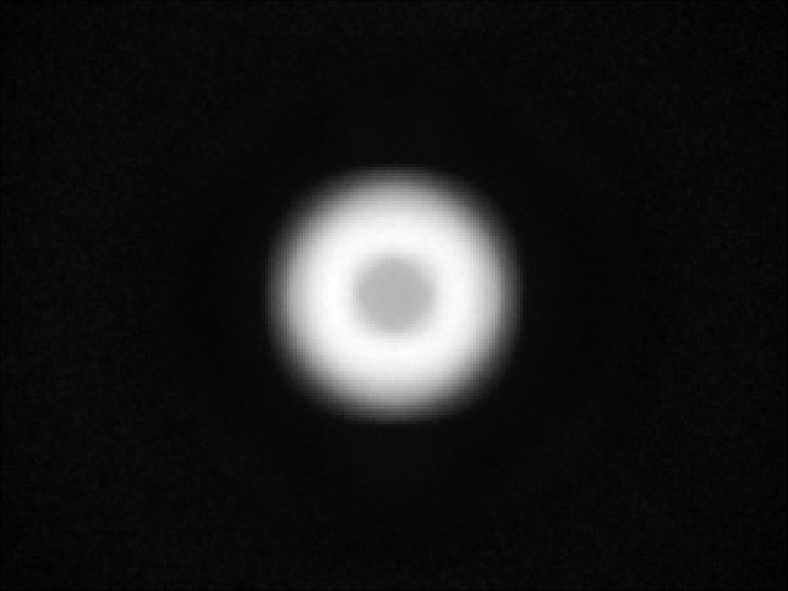

LUMILEDS LUXEON 5050 HE 6V White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.5
Download

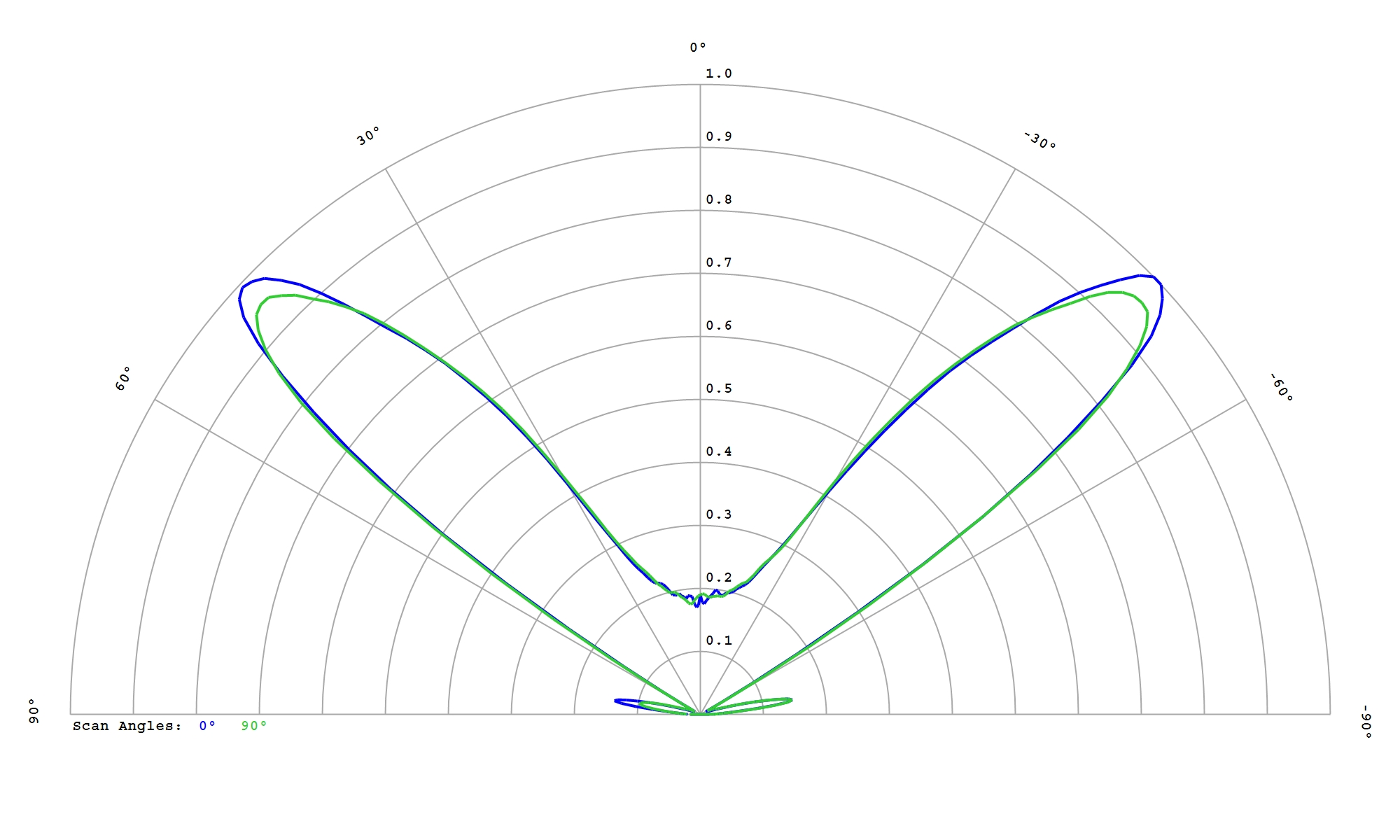

LUMILEDS LUXEON 5050 Round 24V White
Eff:
93.5%
FWHM:
111°
Cd/Im:
0.5
Download

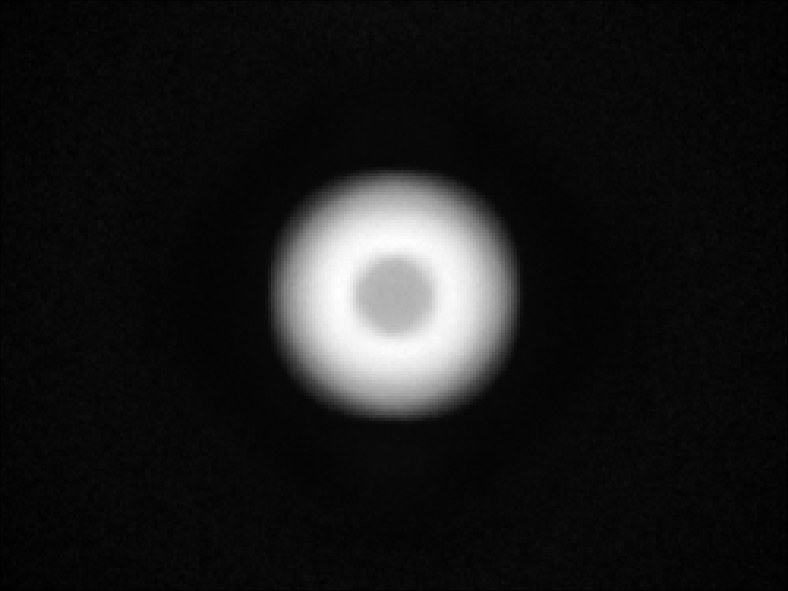

LUMILEDS LUXEON 5050 Square 30V White
Eff:
93.5%
FWHM:
112°
Cd/Im:
0.5
Download

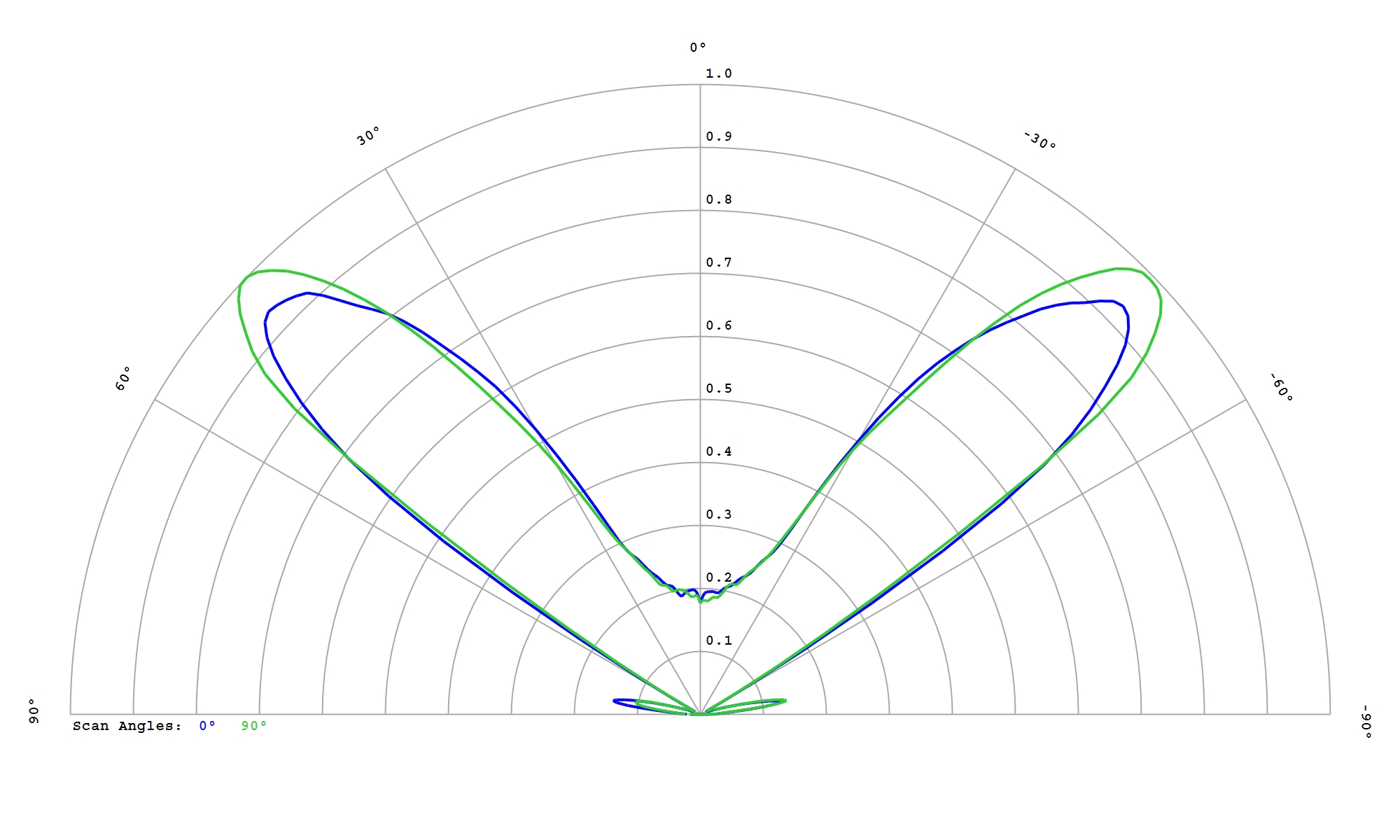

LUMILEDS LUXEON 5050 Square 6V White
Eff:
93.5%
FWHM:
111°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 5050 Round 6V White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.5
Download
LUMILEDS LUXEON 7070 White
Eff:
93.0%
FWHM:
116°
Cd/Im:
0.4
Download
LUMILEDS LUXEON C Blue
Eff:
86.5%
FWHM:
113°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Lime
Eff:
88.5%
FWHM:
115°
Cd/Im:
0.7
Download
LUMILEDS LUXEON C Red
Eff:
86.0%
FWHM:
116°
Cd/Im:
0.6
Download

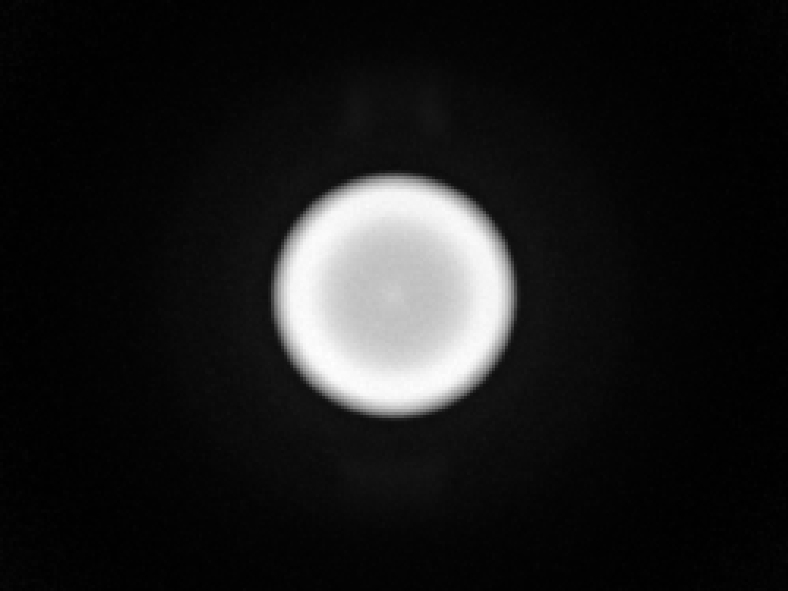

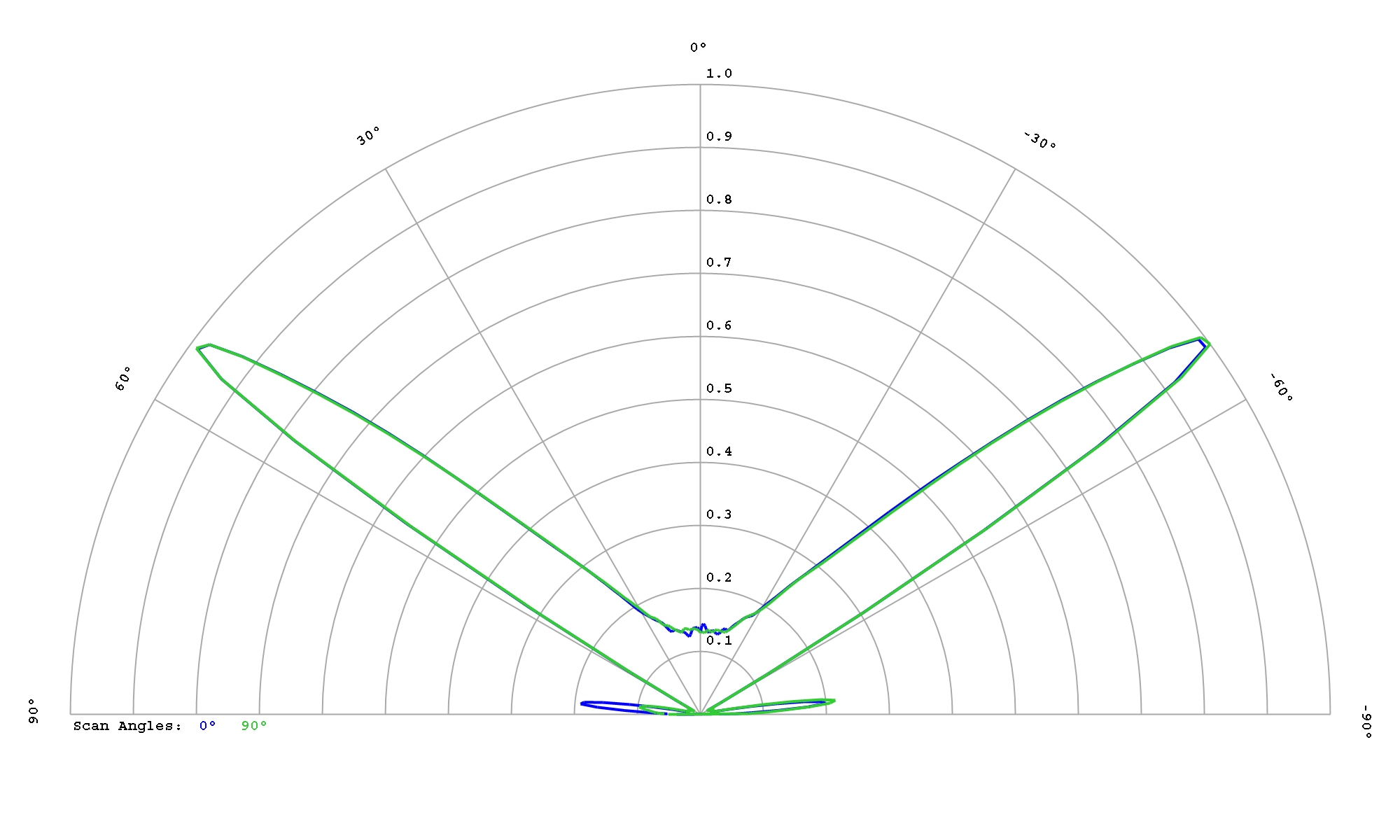

LUMILEDS LUXEON C White
Eff:
88.0%
FWHM:
114°
Cd/Im:
0.7
Download
LUMILEDS LUXEON CZ White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.9
Download

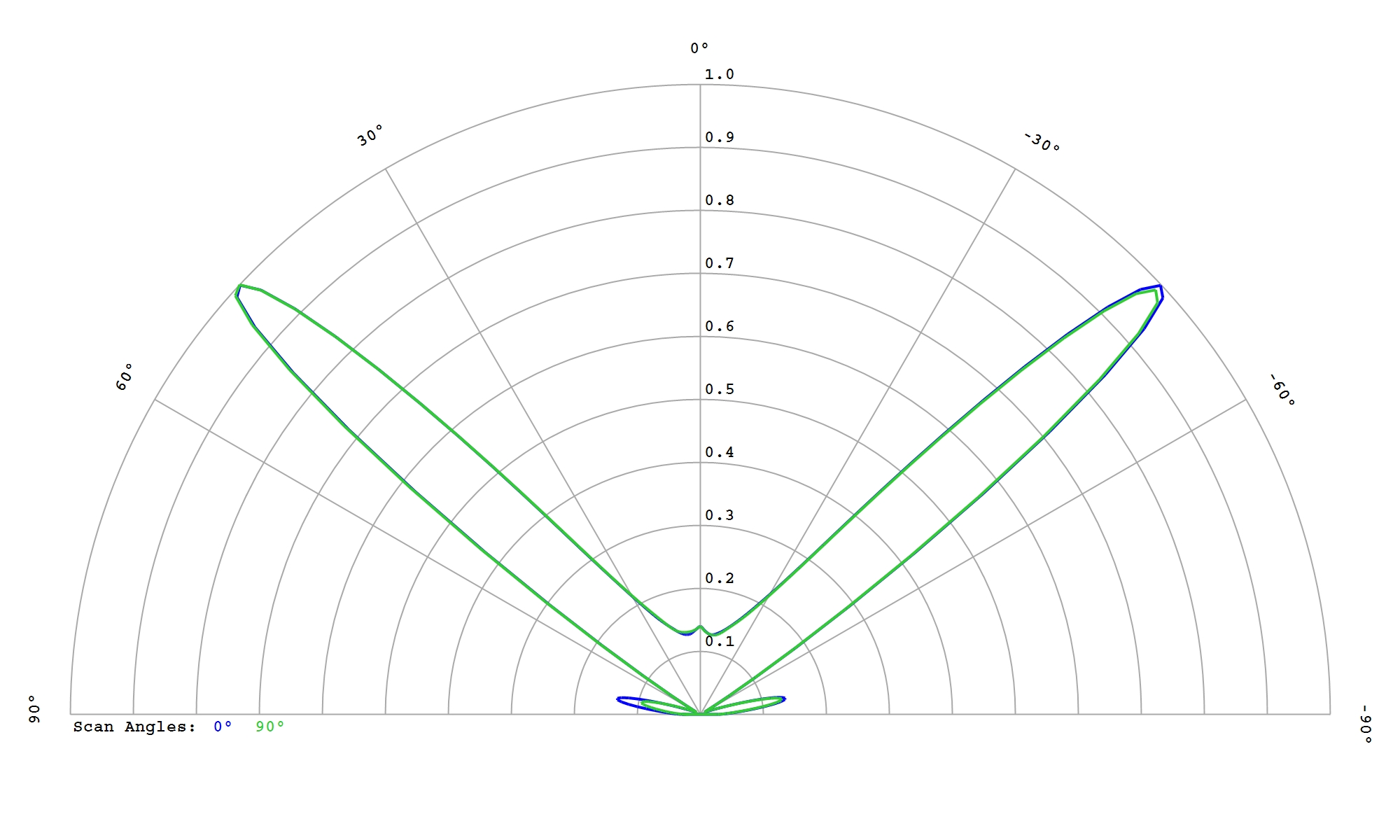

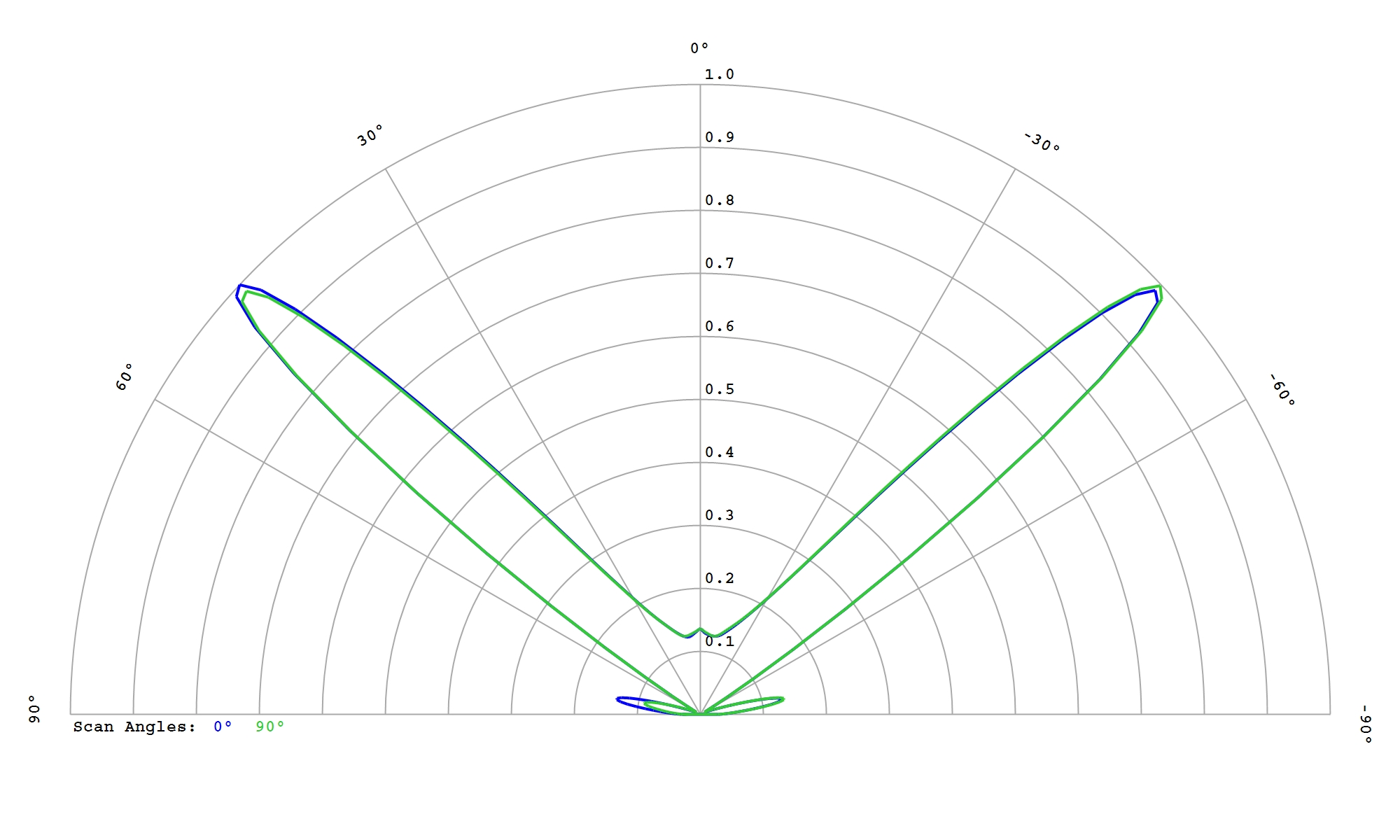

LUMILEDS LUXEON HL1Z CSP White
Eff:
93.0%
FWHM:
104°
Cd/Im:
0.9
Download

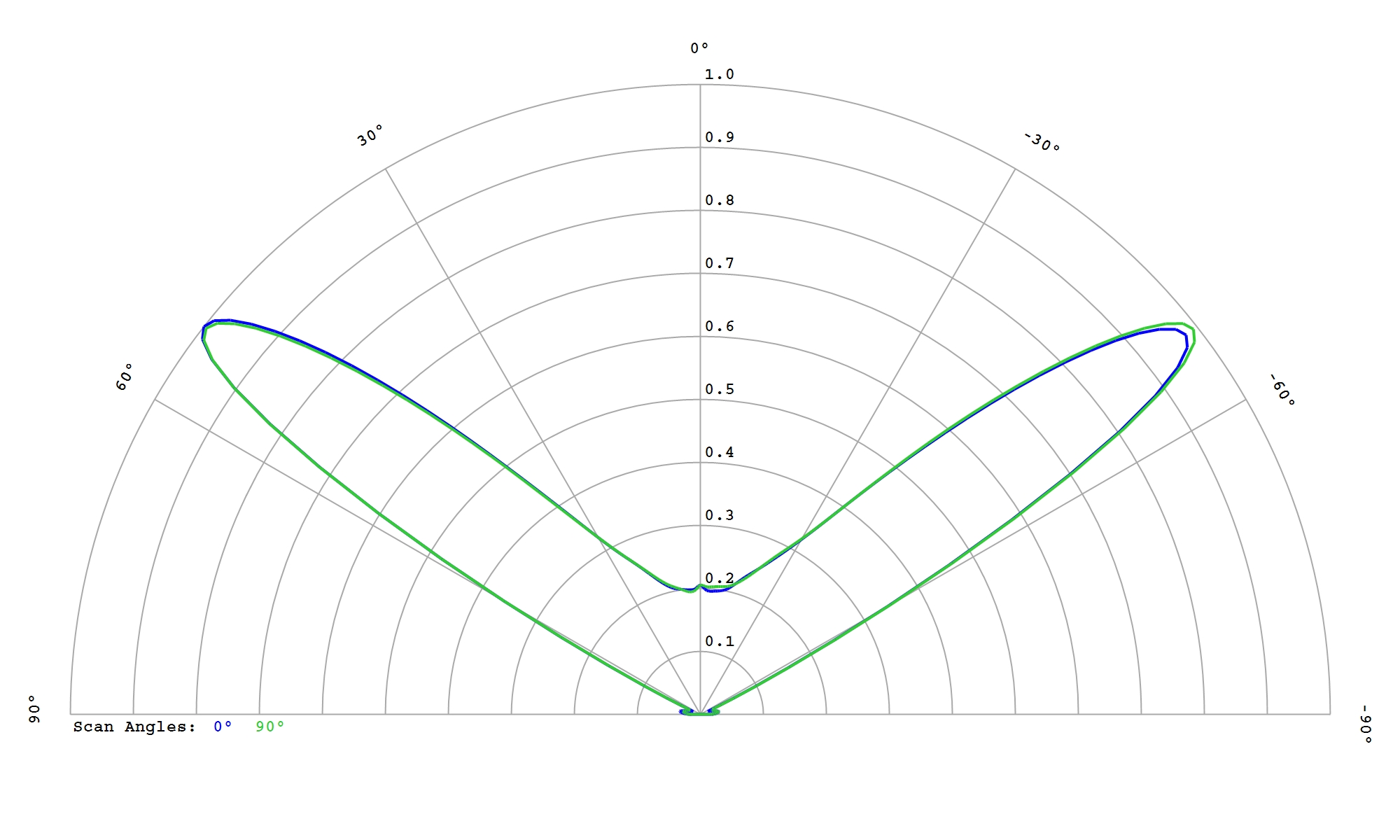

LUMILEDS LUXEON HL2X White
Eff:
92.0%
FWHM:
116°
Cd/Im:
0.6
Download
LUMILEDS LUXEON HL2X-D White
Eff:
92.5%
FWHM:
120°
Cd/Im:
0.5
Download
LUMILEDS LUXEON HL2X-P White
Eff:
92.5%
FWHM:
118°
Cd/Im:
0.5
Download
LUMILEDS LUXEON HL2Z White
Eff:
93.0%
FWHM:
106°
Cd/Im:
0.8
Download

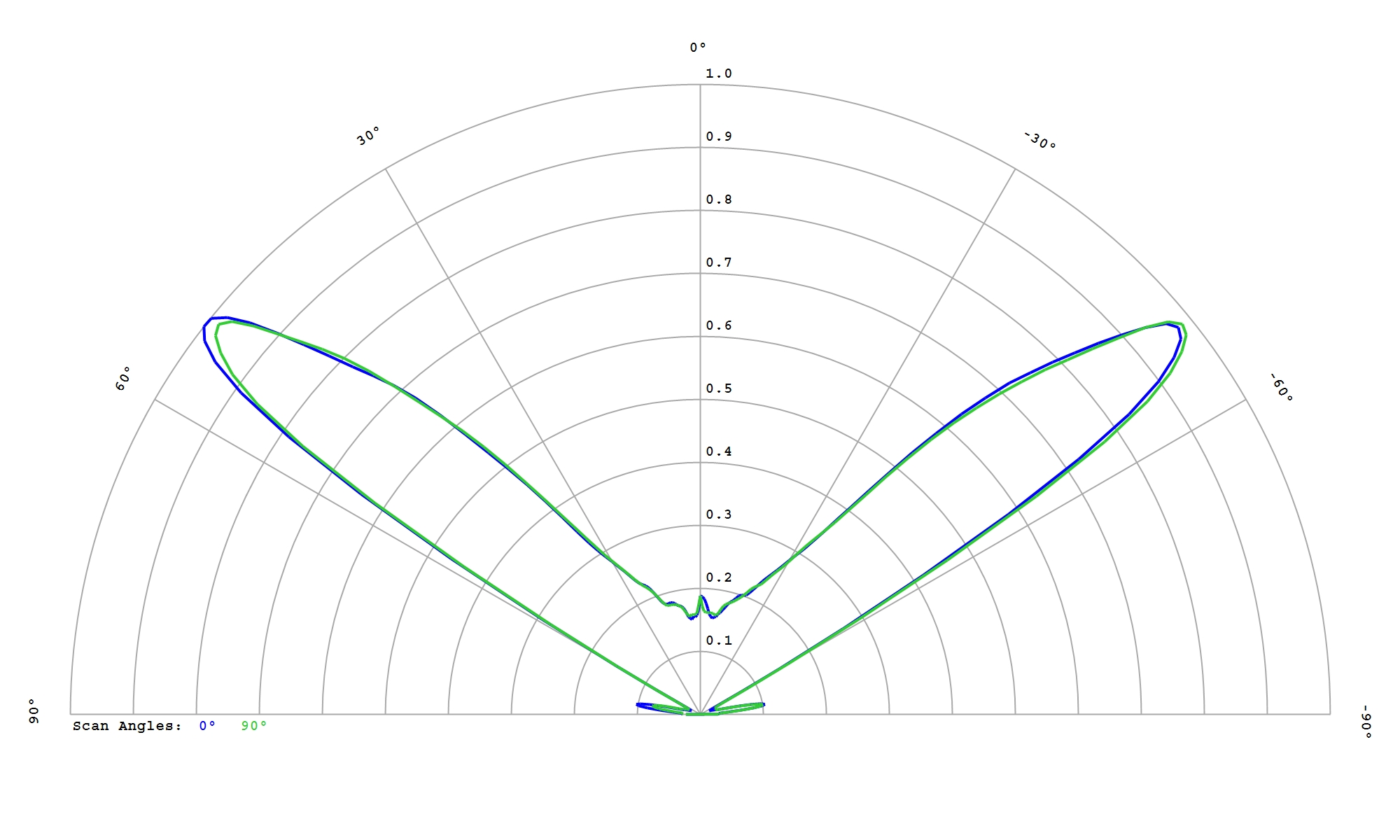

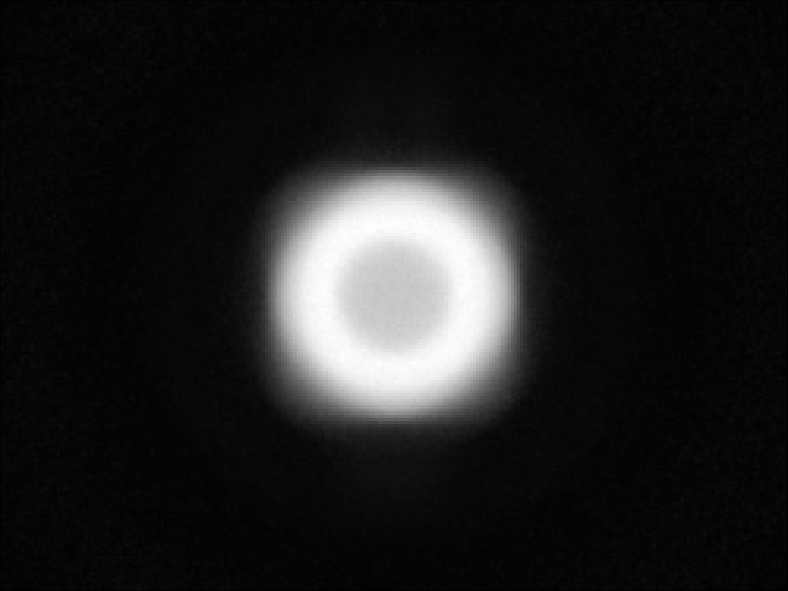

LUMILEDS LUXEON HL4X White
Eff:
92.5%
FWHM:
22 x 116°
Cd/Im:
0.5
Download

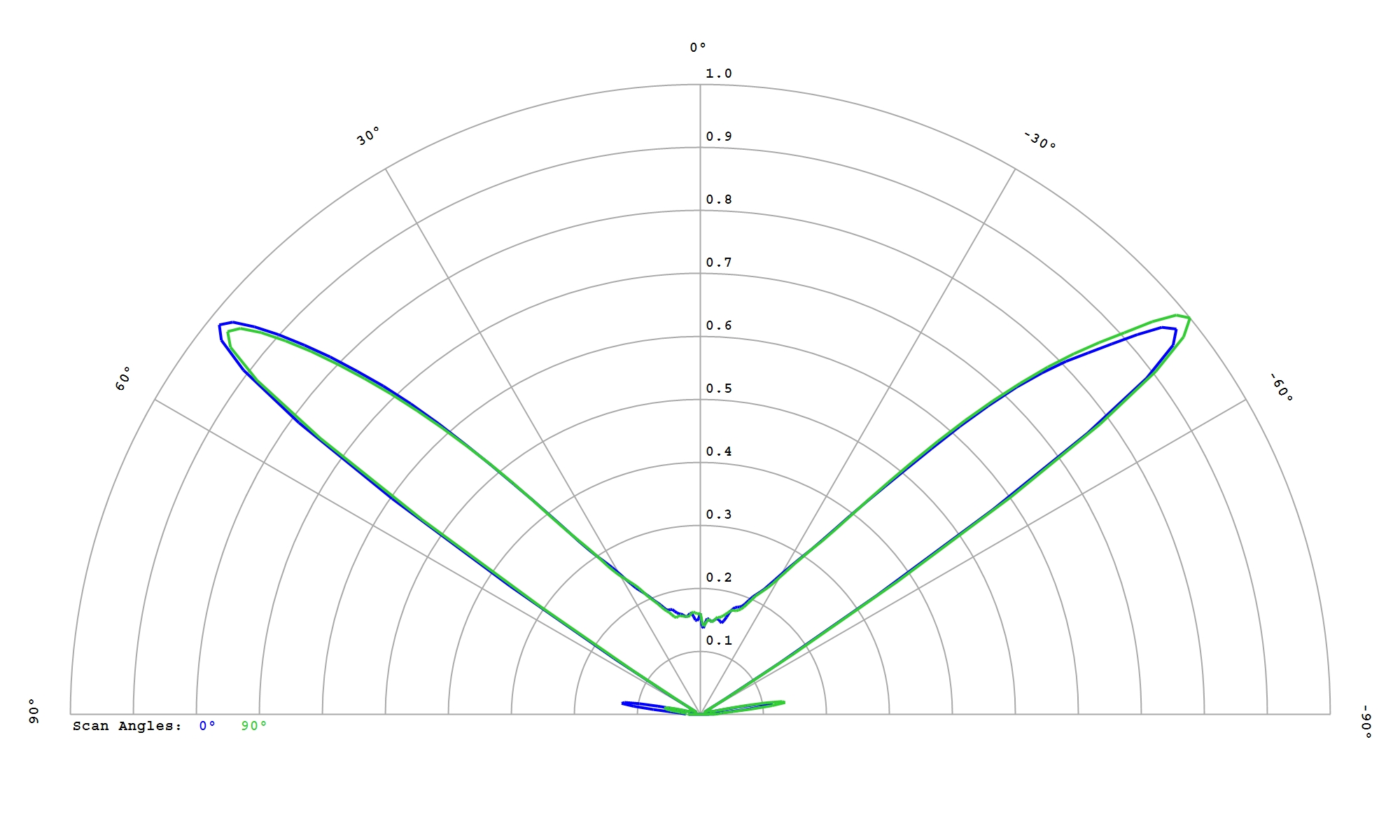

LUMILEDS LUXEON HL4Z White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.7
Download
LUMILEDS LUXEON IR 2720
Eff:
95.0%
FWHM:
108.0°
Ipk/W:
0.8
Download
LUMILEDS LUXEON M White
Eff:
88.4%
FWHM:
116°
Cd/Im:
0.4
Download
LUMILEDS LUXEON MX White
Eff:
92.0%
FWHM:
114°
Cd/Im:
0.5
Download
LUMILEDS LUXEON MZ White
Eff:
89.1%
FWHM:
110°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Rebel ES White
Eff:
87.5%
FWHM:
110.9°
Cd/Im:
0.6
Download
LUMILEDS LUXEON Rebel White
Eff:
88.3%
FWHM:
108.2°
Cd/Im:
0.7
Download
LUMILEDS LUXEON Rubix Blue
Eff:
93.0%
FWHM:
110°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix Green
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.9
Download
LUMILEDS LUXEON Rubix Red
Eff:
93.5%
FWHM:
111°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
92.5%
FWHM:
110°
Cd/Im:
1.0
Download
LUMILEDS LUXEON Rubix White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.8
Download
LUMILEDS LUXEON TX White
Eff:
88.3%
FWHM:
110.9°
Cd/Im:
0.6
Download
LUMILEDS LUXEON V White
Eff:
90.0%
FWHM:
113°
Cd/Im:
0.5
Download
LUMILEDS LUXEON Z ES White
Eff:
89.0%
FWHM:
106°
Cd/Im:
0.8
Download
LUMILEDS LUXEON Z White
Eff:
88.5%
FWHM:
105.6°
Cd/Im:
0.8
Download
Luminus Devices MP 7070-T200 White
Eff:
93.5%
FWHM:
111°
Cd/Im:
0.4
Download
Luminus Devices SFT-40-WxS White
Eff:
93.0%
FWHM:
111°
Cd/Im:
0.7
Download
Luminus Devices SFT-70X-WxS White
Eff:
93.0%
FWHM:
113°
Cd/Im:
0.6
Download
Luminus Devices SST 05-IR-B40 850nm
Eff:
93.5%
FWHM:
106°
Ipk/W:
0.6
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
91.5%
FWHM:
107°
Cd/Im:
0.9
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
90.5%
FWHM:
105°
Cd/Im:
0.7
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
93.5%
FWHM:
113°
Cd/Im:
0.8
Download
Luminus Devices SST 10-DR-B90 Deep Red
Eff:
92.5%
FWHM:
106°
Cd/Im:
0.7
Download
Luminus Devices SST 10-G-B130 Green
Eff:
92.5%
FWHM:
108°
Cd/Im:
0.9
Download
Luminus Devices SST 10-G-B90 Green
Eff:
92.0%
FWHM:
106°
Cd/Im:
0.7
Download
Luminus Devices SST 10-IR-B130 940nm
Eff:
95.0%
FWHM:
110°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IR-B90 940nm
Eff:
94.0%
FWHM:
106°
Ipk/W:
0.7
Download
Luminus Devices SST 10-IRD-B130 810nm
Eff:
95.0%
FWHM:
110°
Ipk/W:
0.8
Download
Luminus Devices SST 10-IRD-B90 810nm
Eff:
94.0%
FWHM:
105°
Ipk/W:
0.7
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.7
Download
Luminus Devices SST 40-W White
Eff:
92.0%
FWHM:
122°
Cd/Im:
0.5
Download

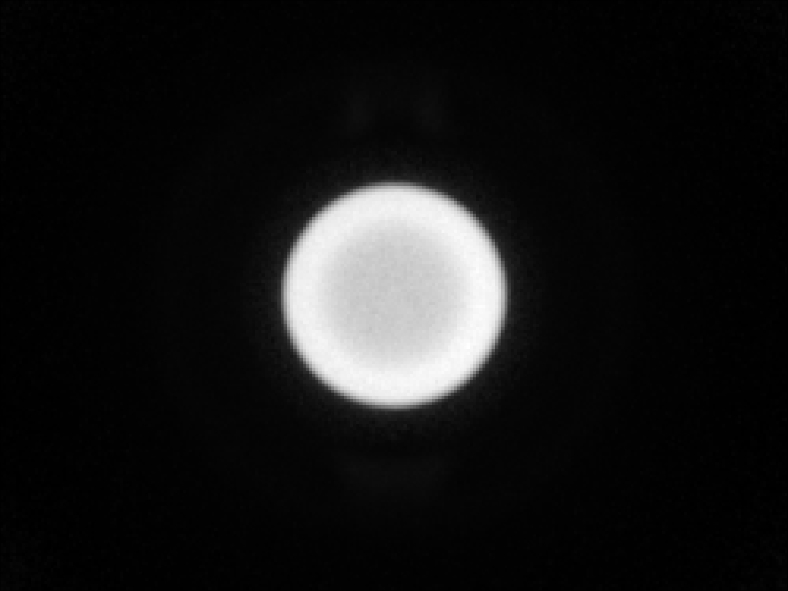

Luminus Devices SST-12-WxS White
Eff:
92.5%
FWHM:
111°
Cd/Im:
0.8
Download

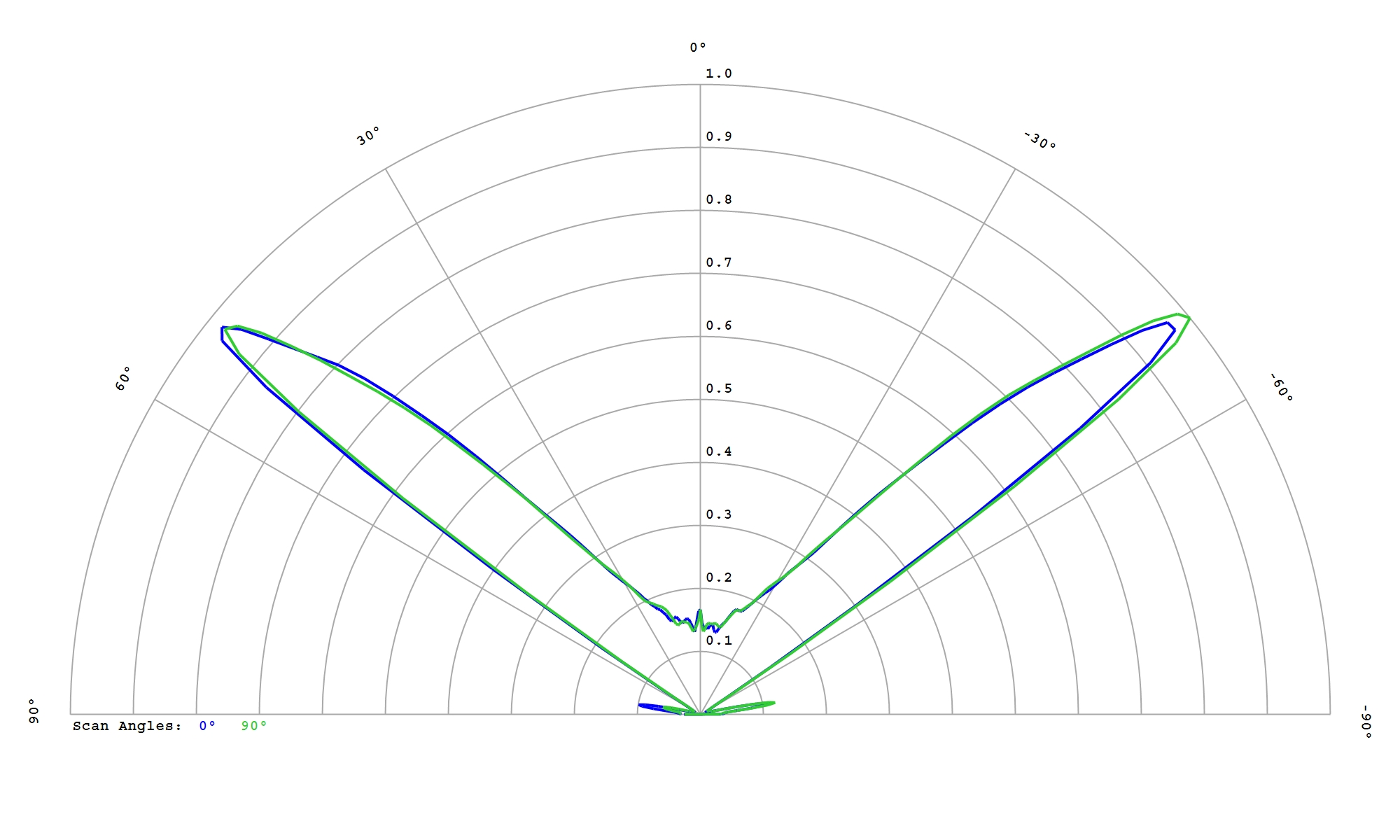

Luminus Devices SST-25-WES White
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.7
Download
Luminus Devices SST-70X-W White
Eff:
93.0%
FWHM:
116°
Cd/Im:
0.5
Download
Nichia 219 White
Eff:
87.4%
FWHM:
110°
Cd/Im:
0.6
Download
Nichia 229A White
Eff:
90.5%
FWHM:
118°
Cd/Im:
0.5
Download
Nichia 757 White
Eff:
89.0%
FWHM:
105.9°
Cd/Im:
0.7
Download
Nichia 757G White
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.8
Download
Nichia 757G White
Eff:
92.5%
FWHM:
107°
Cd/Im:
0.8
Download
Nichia NCSW CSP E17A White
Eff:
92.0%
FWHM:
103°
Cd/Im:
0.9
Download
Nichia NF2W 385AR-V2 White
Eff:
92.5%
FWHM:
110°
Cd/Im:
0.7
Download
Nichia NF2W 757G-MT Tunable
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.7
Download

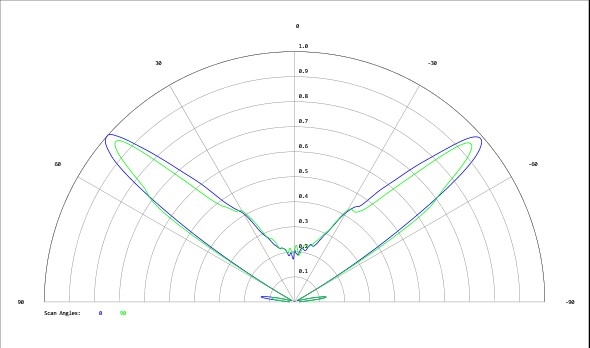

Nichia NFMW 481AR White
Eff:
84.0%
FWHM:
111°
Cd/Im:
0.5
Download
Nichia NFMW 484AR White
Eff:
93.0%
FWHM:
113°
Cd/Im:
0.5
Download

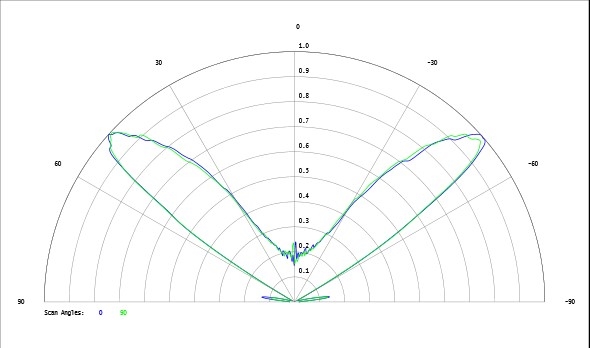

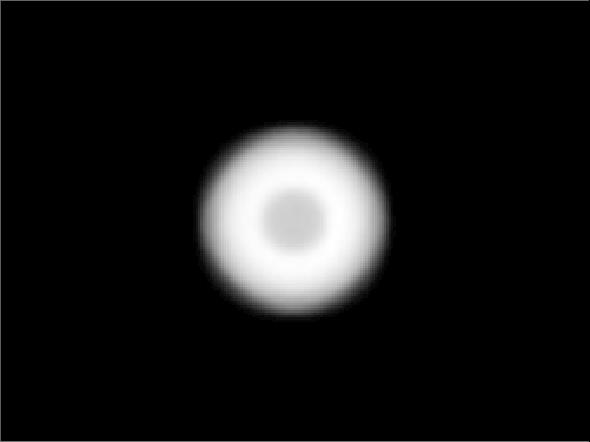

Nichia NFMW 486AR White
Eff:
93.0%
FWHM:
112°
Cd/Im:
0.5
Download

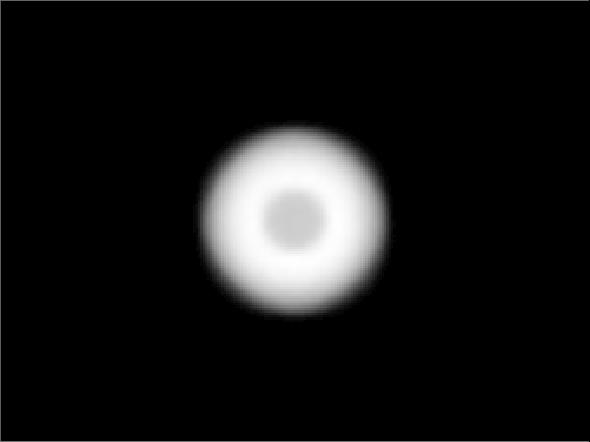

Nichia NFMW 488AR White
Eff:
93.0%
FWHM:
112°
Cd/Im:
0.5
Download
Nichia NFSW CSP E11A White
Eff:
92.0%
FWHM:
102°
Cd/Im:
1.0
Download
Nichia NV4W 144AR White
Eff:
88.5%
FWHM:
119°
Cd/Im:
0.4
Download
Nichia NVSL 219B White
Eff:
91.0%
FWHM:
110°
Cd/Im:
0.8
Download
Nichia NVSW 219C White
Eff:
91.5%
FWHM:
112°
Cd/Im:
0.7
Download
Nichia NVSW 219F White
Eff:
92.5%
FWHM:
115°
Cd/Im:
0.6
Download
Nichia NVSW 319A White
Eff:
91.0%
FWHM:
115°
Cd/Im:
0.6
Download
Nichia NVSW CSP E21A White
Eff:
87.0%
FWHM:
102°
Cd/Im:
0.8
Download

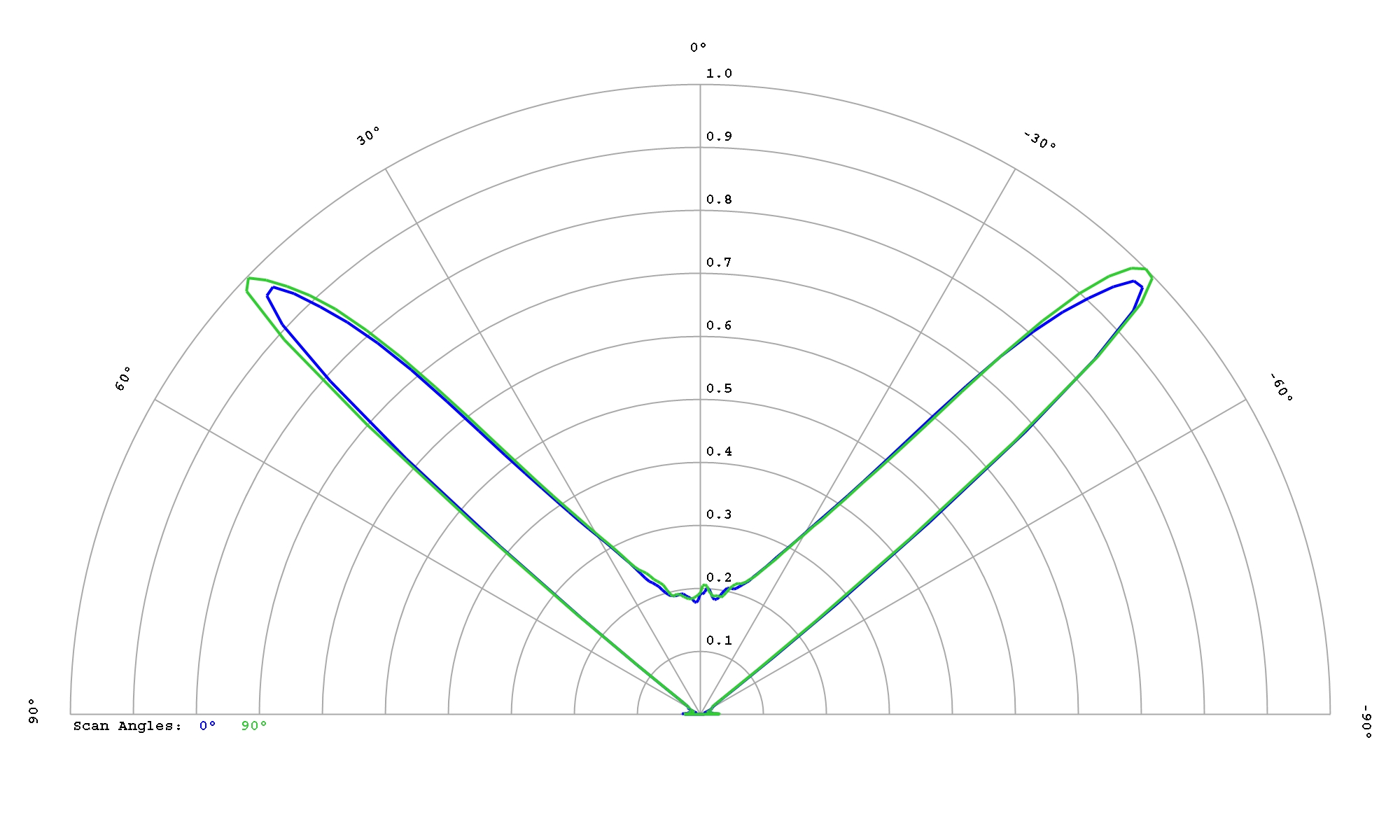

Osram Led Engin LuxiGen LZ1 00R702 IR940nm
Eff:
95.0%
FWHM:
99°
Ipk/W:
0.8
Download
Osram OS DURIS E 2835 Gen2
Eff:
93.0%
FWHM:
107°
Cd/Im:
0.7
Download
Osram OS DURIS E 2835 White
Eff:
92.5%
FWHM:
110°
Cd/Im:
0.7
Download
Osram OS DURIS E2 White
Eff:
88.0%
FWHM:
105°
Cd/Im:
0.8
Download
Osram OS DURIS E3 White
Eff:
95.1%
FWHM:
115.4°
Cd/Im:
0.6
Download
Osram OS DURIS P10 White
Eff:
88.6%
FWHM:
115°
Cd/Im:
0.4
Download
Osram OS DURIS P8 White
Eff:
88.2%
FWHM:
107.5°
Cd/Im:
0.6
Download
Osram OS DURIS S2 White
Eff:
93.6%
FWHM:
108.7°
Cd/Im:
0.7
Download
Osram OS DURIS S5 Deep Blue
Eff:
92.0%
FWHM:
108°
Cd/Im:
0.9
Download
Osram OS DURIS S5 Green
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.8
Download
Osram OS DURIS S5 Red
Eff:
93.5%
FWHM:
108°
Cd/Im:
0.8
Download
Osram OS DURIS S5 White
Eff:
89.0%
FWHM:
105.5°
Cd/Im:
0.7
Download
Osram OS DURIS S8 Gen2 White
Eff:
93.0%
FWHM:
108.8°
Cd/Im:
0.5
Download
Osram OS DURIS S8 Gen3 White
Eff:
93.5%
FWHM:
113 x 112°
Cd/Im:
0.5
Download
Osram OS DURIS S8 White
Eff:
94.0%
FWHM:
111.9°
Cd/Im:
0.5
Download
Osram OS Golden DRAGON Plus W5AM White
Eff:
94.0%
FWHM:
125°
Cd/Im:
0.1
Osram OS OSCONIQ C 2424 White
Eff:
93.0%
FWHM:
107°
Cd/Im:
0.8
Download

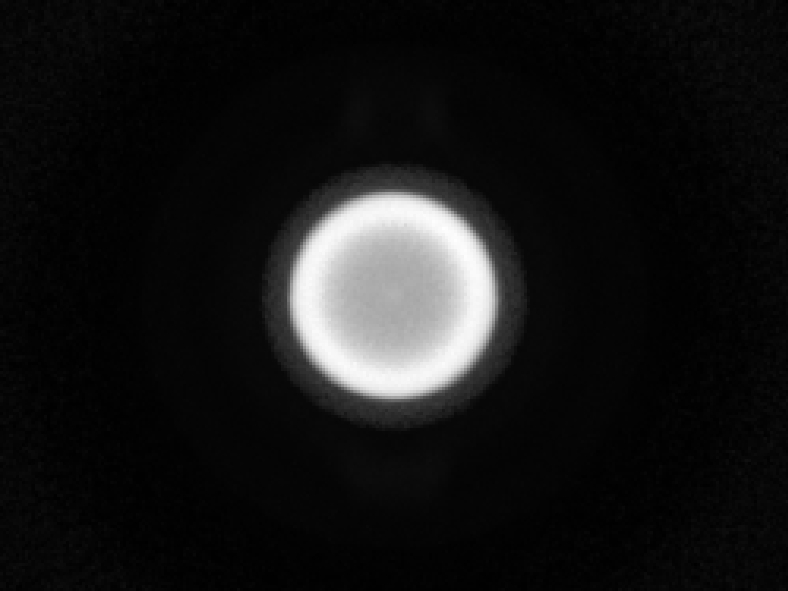

Osram OS OSCONIQ P3737 White
Eff:
90.0%
FWHM:
111°
Cd/Im:
0.5
Download
Osram OS OSCONIQ S 5050 GW Q9LR32.PM
Eff:
93.5%
FWHM:
112°
Cd/Im:
0.5
Download
Osram OS OSLON Black SFH 4715AS IR
Eff:
94.0%
FWHM:
98°
Ipk/W:
0.8
Download
Osram OS OSLON Black SFH 4716AS IR
Eff:
94.5%
FWHM:
110°
Ipk/W:
0.9
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
94.5%
FWHM:
102°
Ipk/W:
0.8
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1010 CSP GC VJLPE1.13 Cyan
Eff:
93.0%
FWHM:
99°
Cd/Im:
1.2
Download
Osram OS OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue
Eff:
92.0%
FWHM:
99°
Ipk/W:
1.2
Download
Osram OS OSLON Pure 1010 CSP GG VJLPE1.F3 Green
Eff:
93.0%
FWHM:
101°
Cd/Im:
1.1
Download
Osram OS OSLON Pure 1010 CSP GR VJLPE1.F3 Red
Eff:
93.0%
FWHM:
103°
Cd/Im:
1.0
Download
Osram OS OSLON Pure 1010 CSP GT VJLPE1.13 True Green
Eff:
93.0%
FWHM:
99°
Cd/Im:
1.2
Download
Osram OS OSLON Pure 1010 CSP GW VJLPE1.CM White
Eff:
92.5%
FWHM:
101°
Cd/Im:
1.1
Download

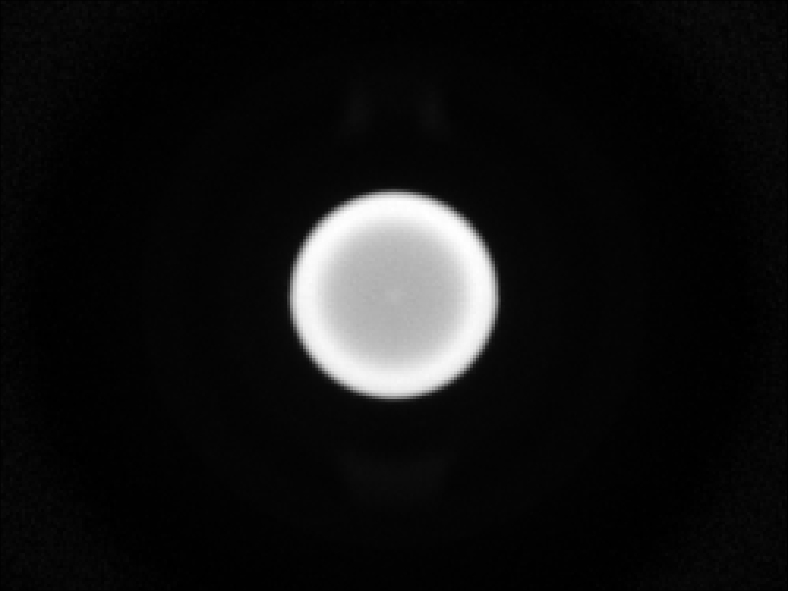

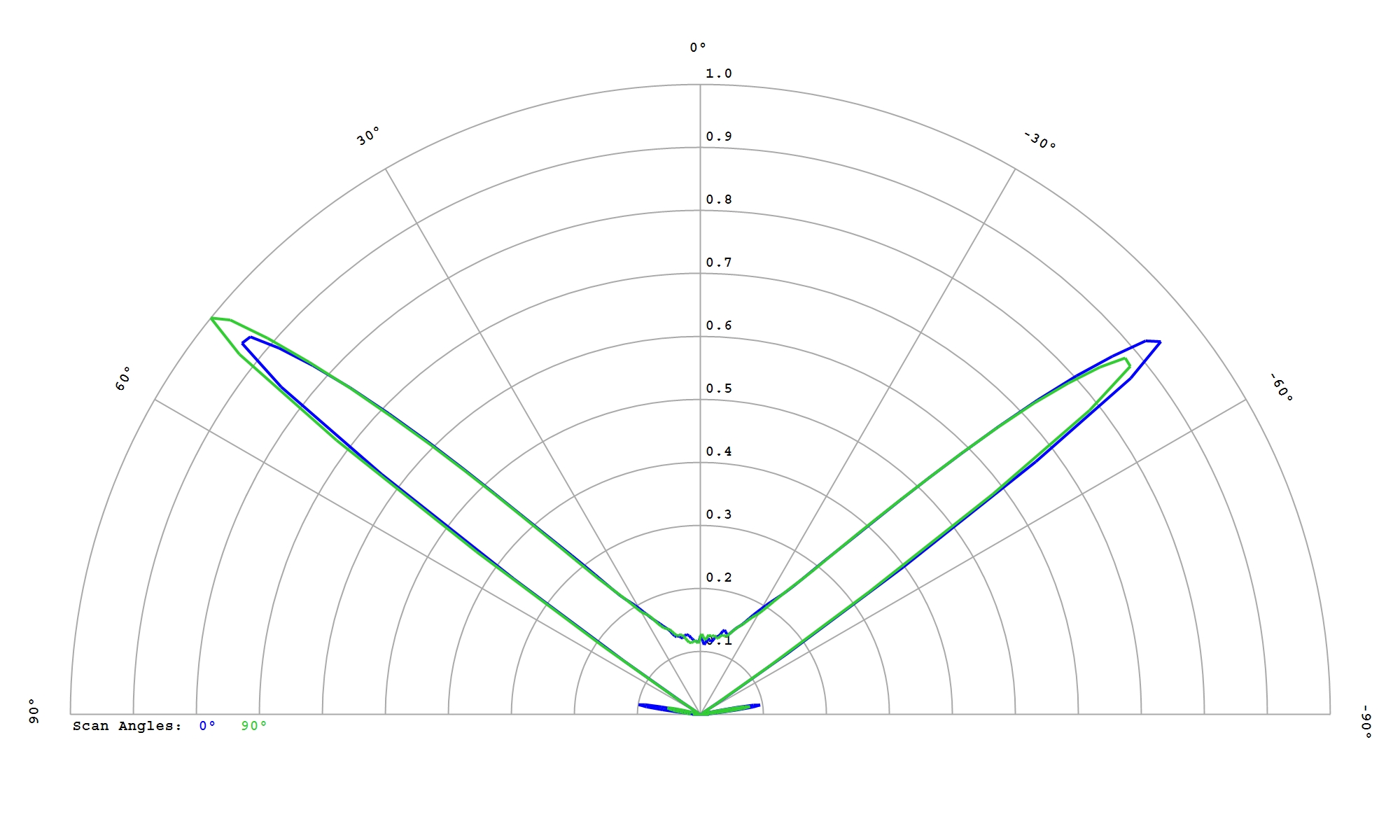

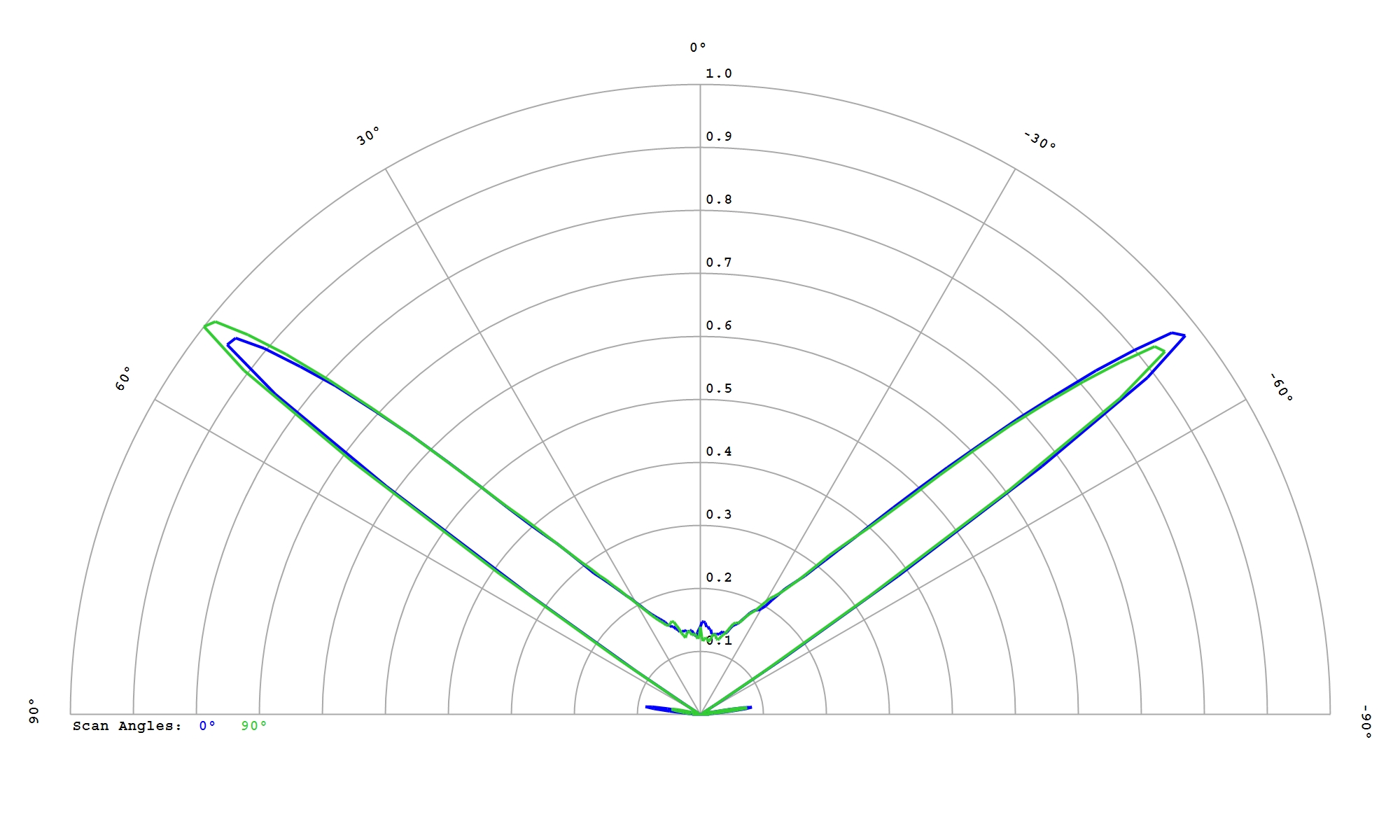

Osram OS OSLON Pure 1414 GB VJLPL1.F3 Blue
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.9
Download

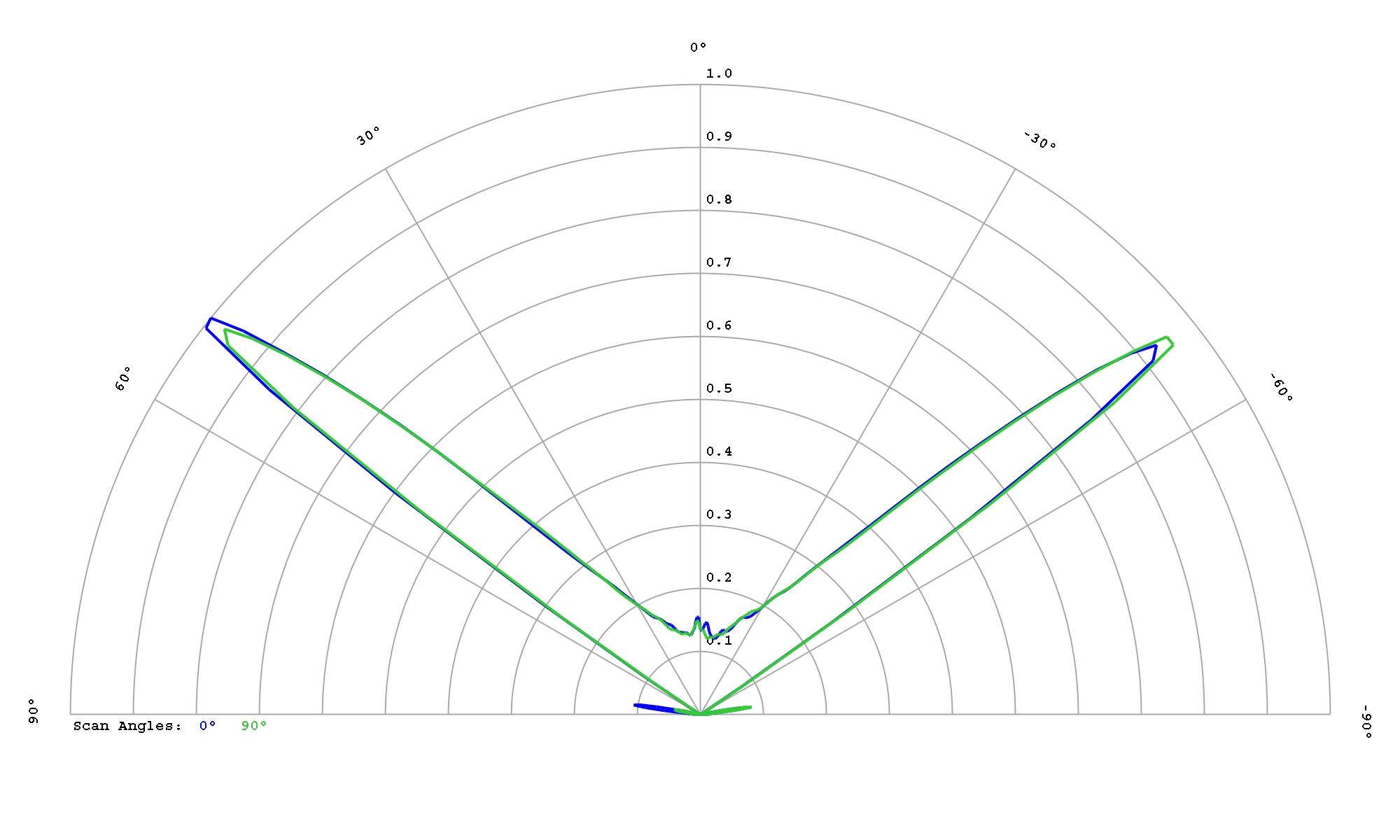

Osram OS OSLON Pure 1414 GC VJLPL1.13 Cyan
Eff:
93.0%
FWHM:
108°
Cd/Im:
0.9
Download

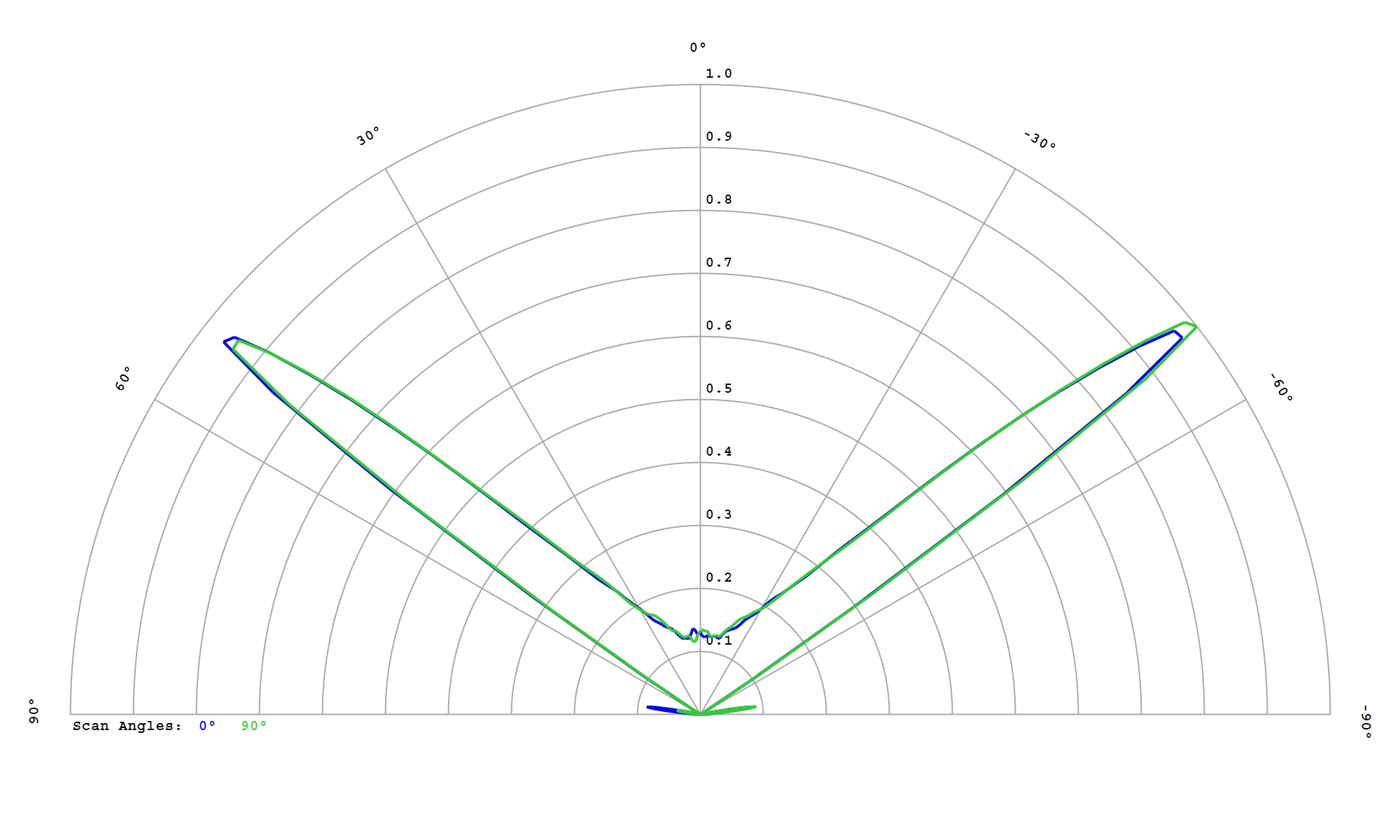

Osram OS OSLON Pure 1414 GD VJLPL1.14 Deep Blue
Eff:
92.0%
FWHM:
109°
Ipk/W:
0.9
Download

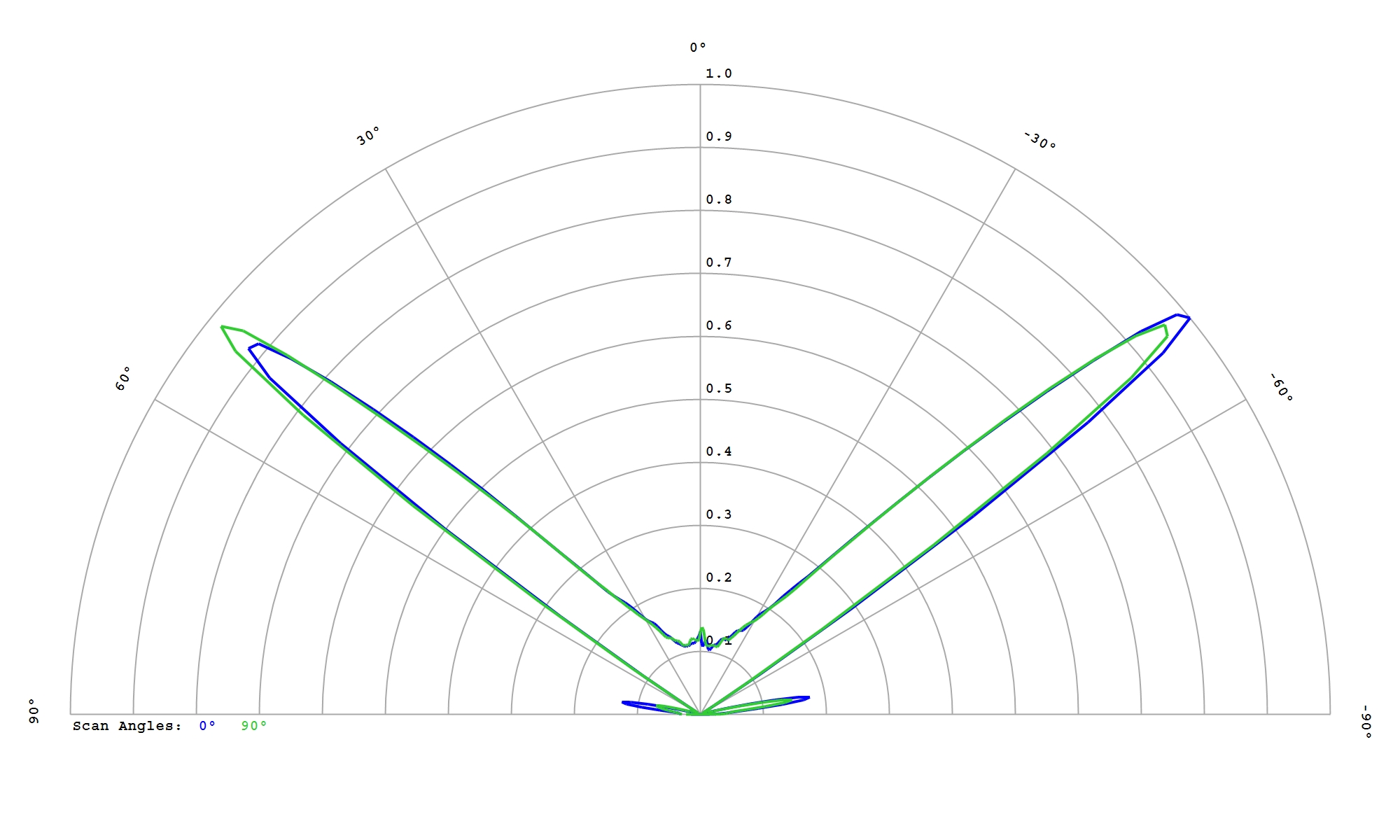

Osram OS OSLON Pure 1414 GR VJLPL1.23 Red
Eff:
93.5%
FWHM:
108°
Cd/Im:
0.9
Download

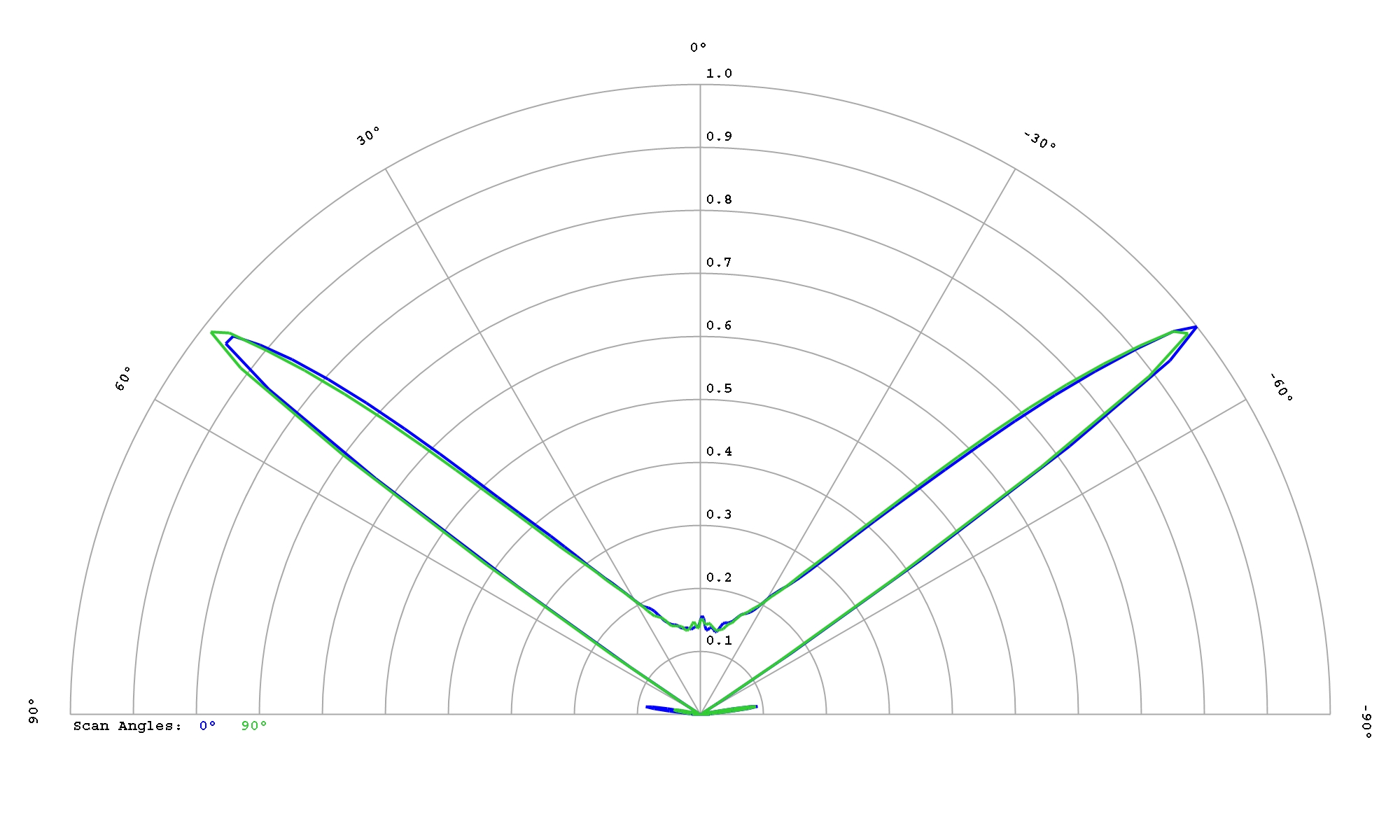

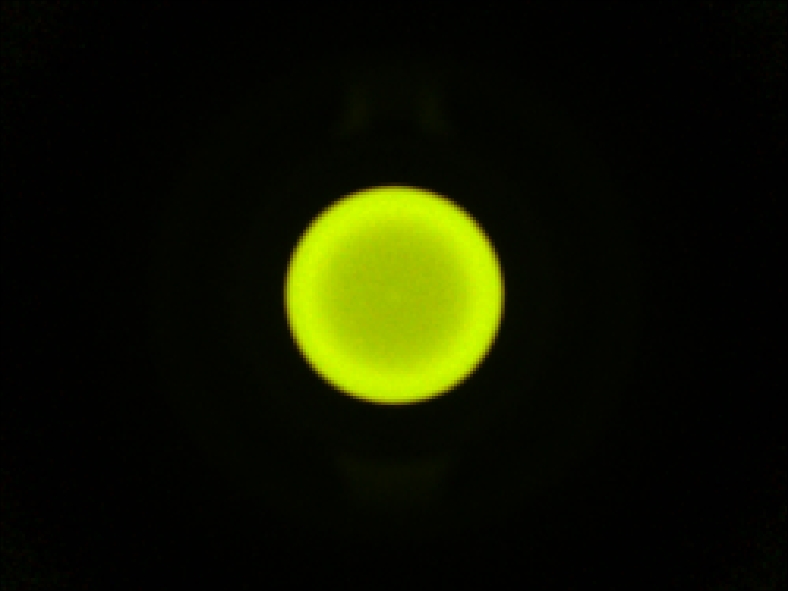

Osram OS OSLON Pure 1414 GT VJLPL1.13 True Green
Eff:
93.0%
FWHM:
109°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1414 GV VJLPL1.F3 Verde
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.9
Download
Osram OS OSLON Pure 1414 GW VJLPL1.CM White
Eff:
93.0%
FWHM:
107°
Cd/Im:
0.9
Download

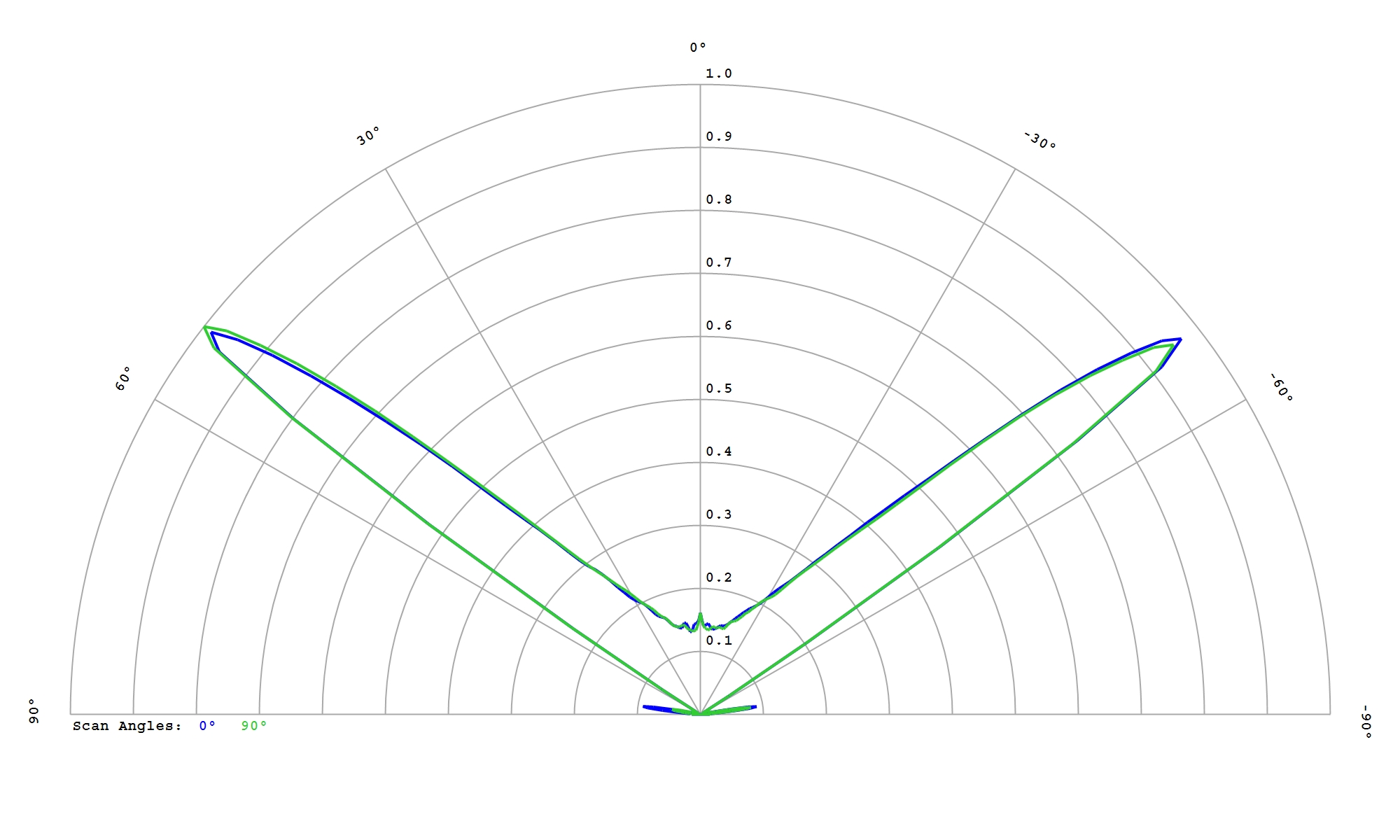

Osram OS OSLON Pure 1414 GW VJLPL1.UL Green
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.8
Download
Osram OS OSLON Pure 1414 GY VJLPL1.F3 Yellow
Eff:
93.0%
FWHM:
110°
Cd/Im:
0.8
Download
Osram OS OSLON Square Flat White
Eff:
92.5%
FWHM:
109°
Cd/Im:
0.7
Download
Osram OS OSLON Square Gen 3 White
Eff:
88.2%
FWHM:
109.4°
Cd/Im:
0.7
Download
Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
92.5%
FWHM:
112°
Cd/Im:
0.7
Download
Osram OS OSLON Square White
Eff:
88.0%
FWHM:
108°
Cd/Im:
0.6
Download
Osram OS OSLON SSL 150 degree GW CSHPM1.PM White
Eff:
92.5%
FWHM:
112°
Cd/Im:
0.8
Download
Osram OS OSLON SSL 150 degree White
Eff:
88.9%
FWHM:
108.3°
Cd/Im:
0.7
