10.0mm Wide Spot Frosted TIR LED Lenses | Carclo Optics

Carclo Optics 10624 Frosted

10.0mm Wide Spot Frosted TIR LED Lenses

Part number

10624

Dimensions

10.0mm

Drawing Number

60574

Optic type

TIR LED Lenses

Finish

Frosted

Beam type

Wide Spot

Applications

Architectural

Landscape & Garden

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

88.0%

FWHM:

43.5 x 45.5°

Cd/Im:

1.5

Carclo Optics - 10624 10mm Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10624 10mm Cross Section Bridgelux 3030 Gen2

Download

ies

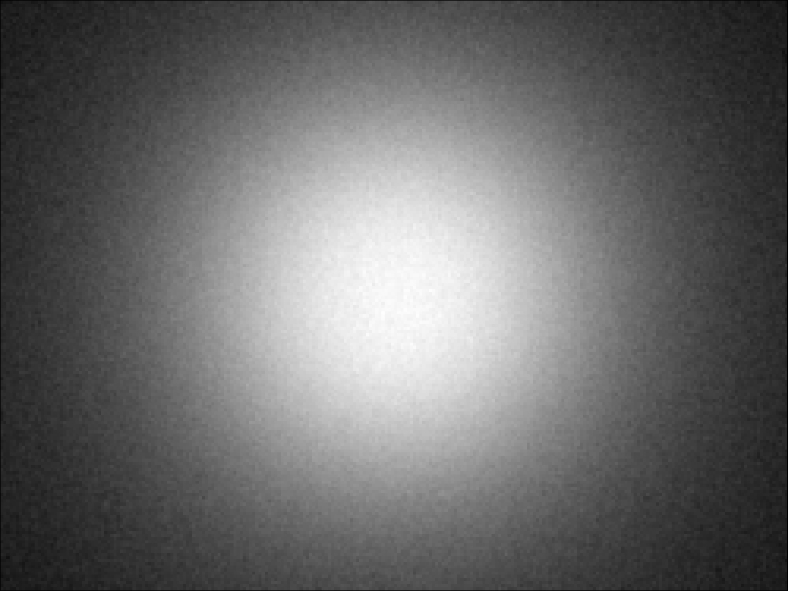

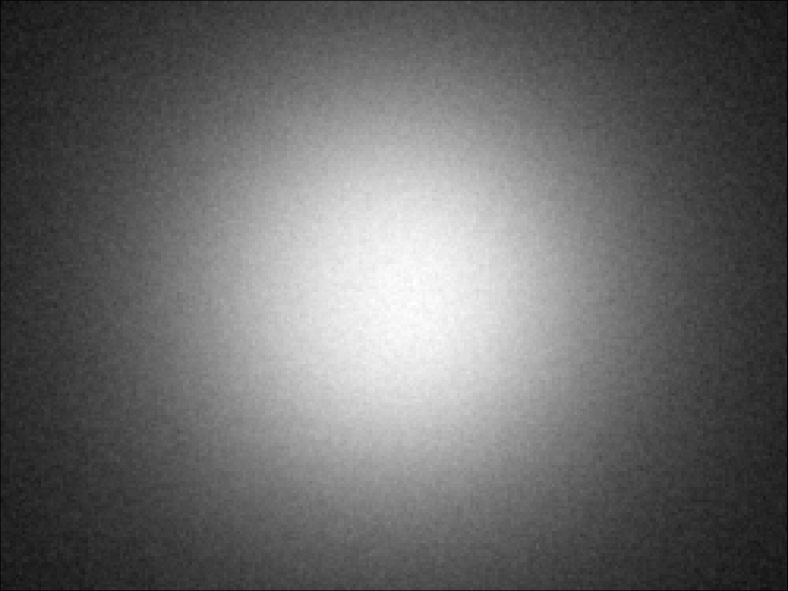

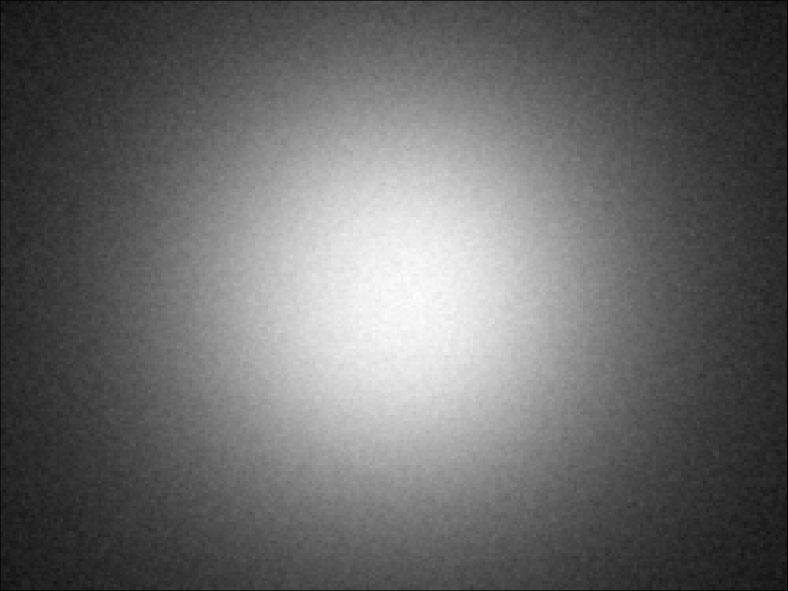

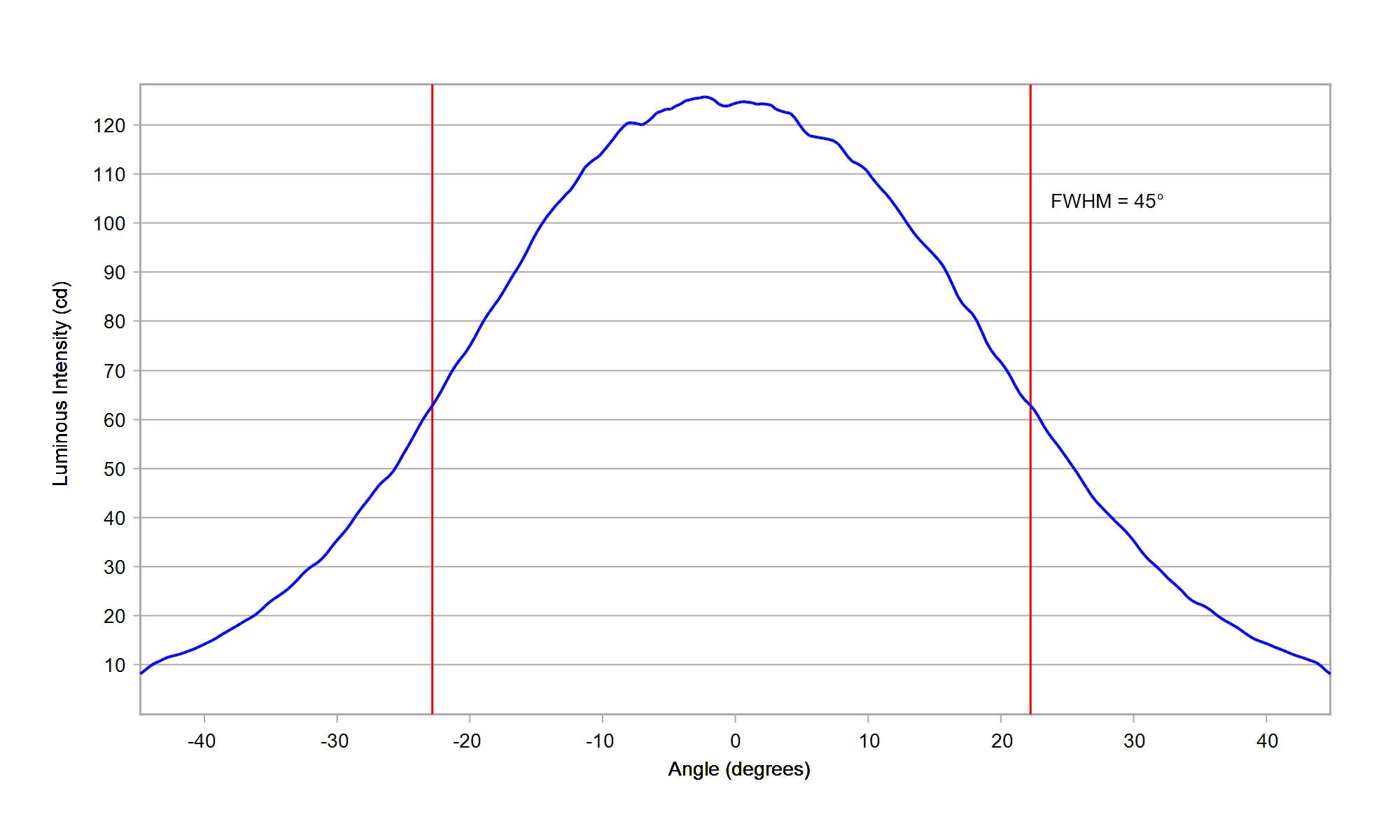

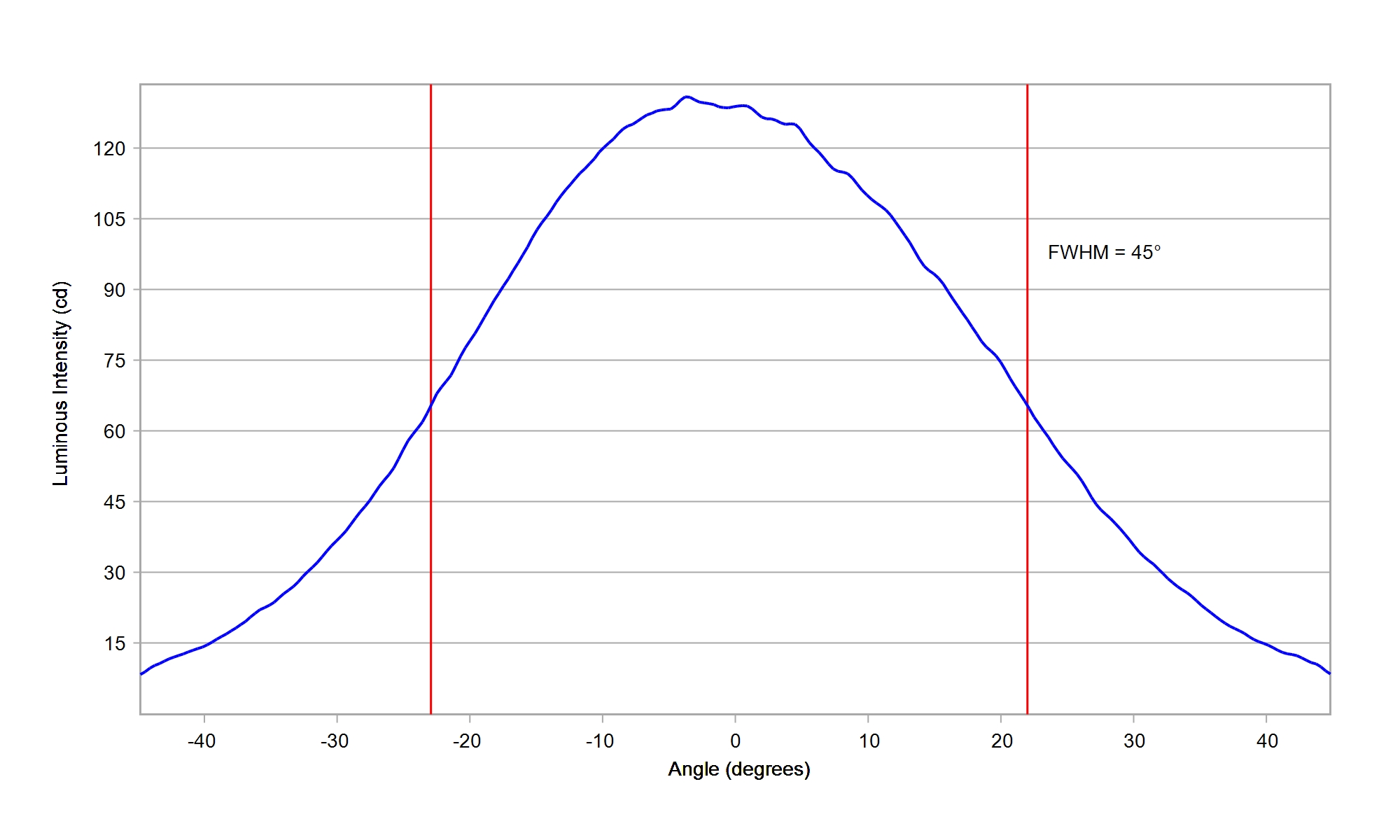

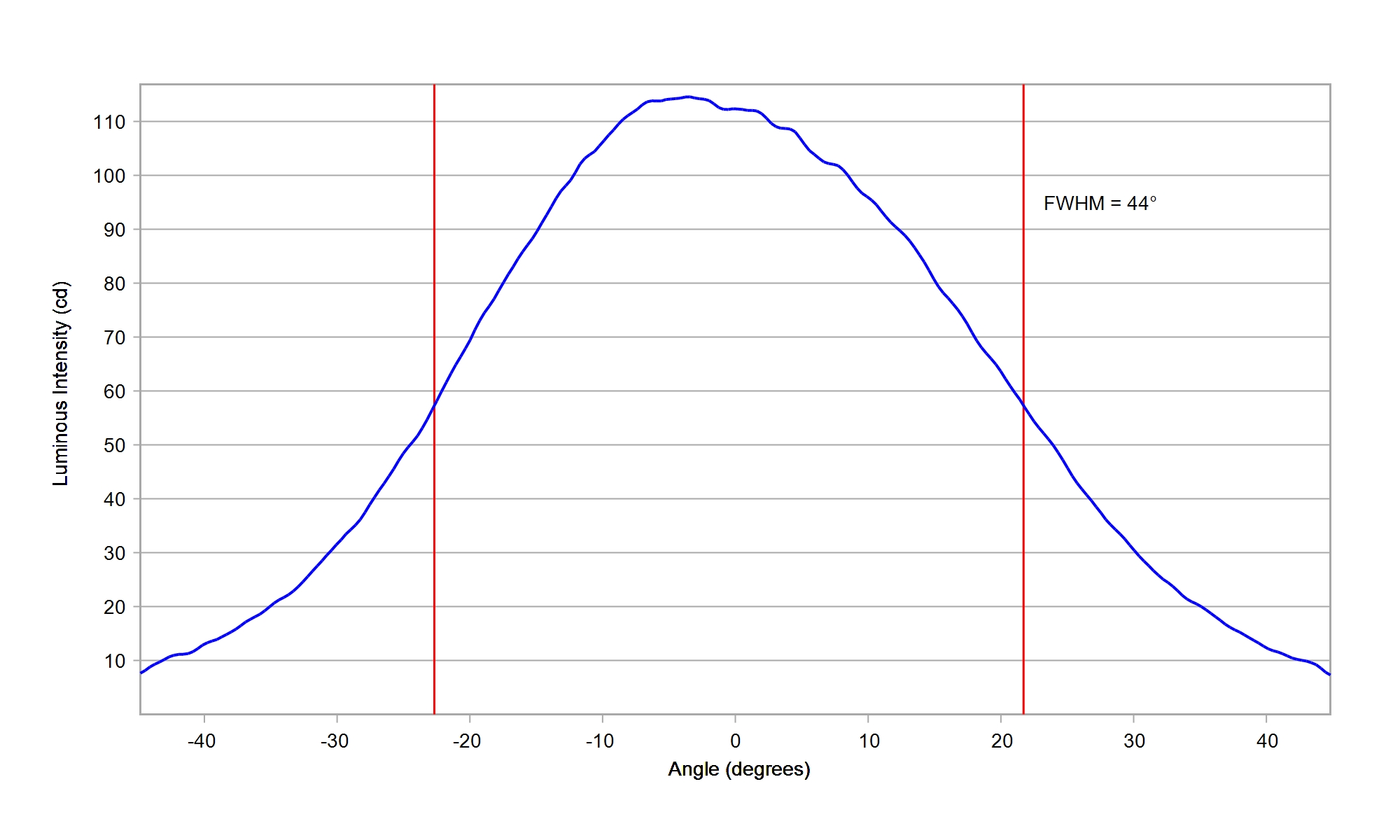

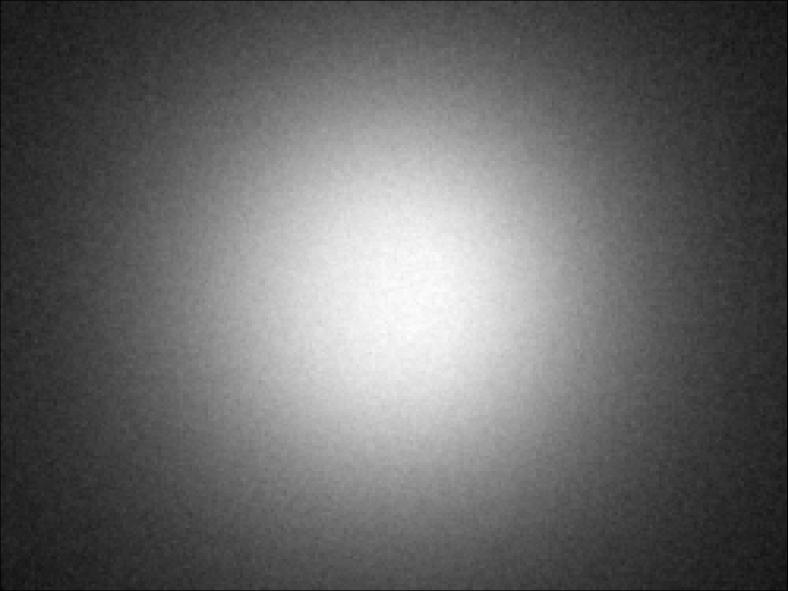

Cree JK2835 6V White

Eff:

88.0%

FWHM:

47°

Cd/Im:

1.2

Download

ies

Cree XLamp CSP XD16 Cool White

Eff:

88.5%

FWHM:

42°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

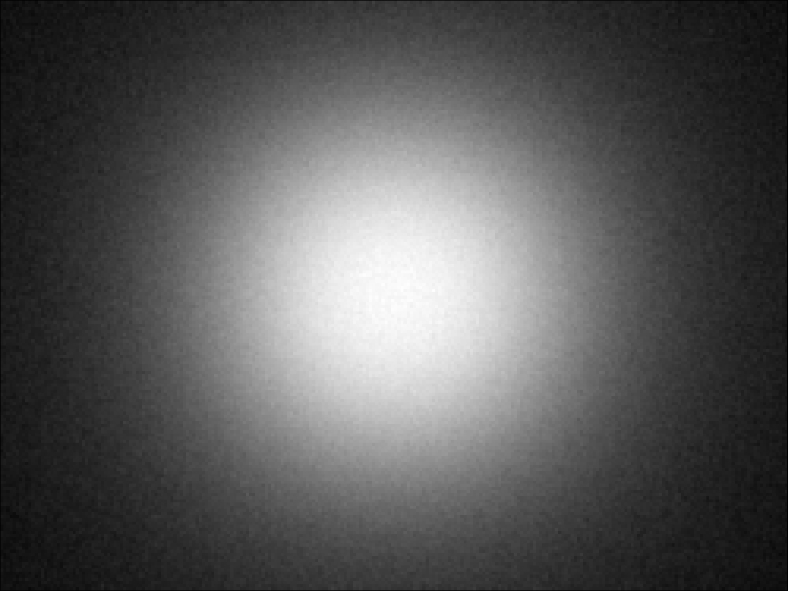

Cree XLamp CSP XD16 Premium White

Eff:

89.0%

FWHM:

40°

Cd/Im:

1.8

Download

IES

Cree XLamp XB-D White

Eff:

84.0%

FWHM:

38.1°

Cd/Im:

1.8

Spot Image

Cross Section

Download

ies

Cree XLamp XE-G Blue

Eff:

89.5%

FWHM:

32°

Cd/Im:

2.3

Download

ies

Cree XLamp XE-G Green

Eff:

89.5%

FWHM:

32°

Cd/Im:

2.3

Download

ies

Cree XLamp XE-G Red

Eff:

88.0%

FWHM:

32°

Cd/Im:

2.4

Download

ies

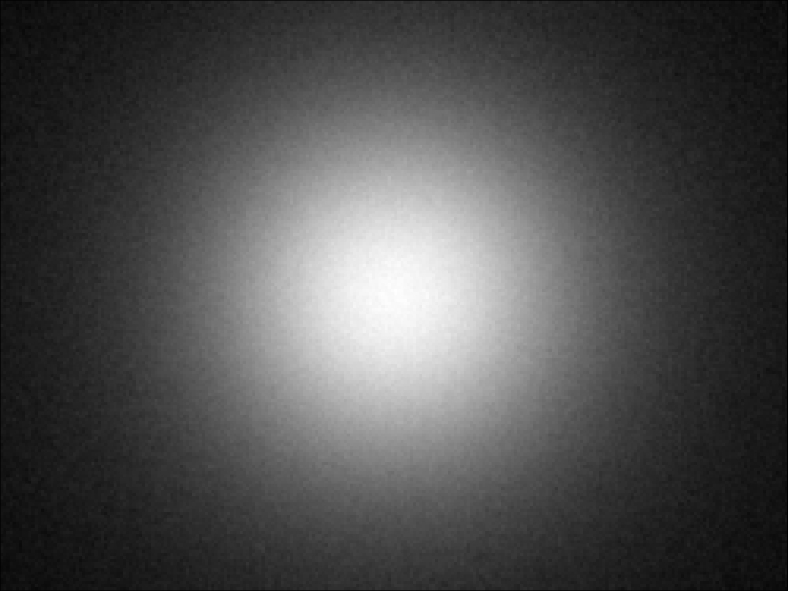

Cree XLamp XE-G White

Eff:

89.0%

FWHM:

33°

Cd/Im:

2.2

Download

ies

Cree XLamp XP-C White

Eff:

80.8%

FWHM:

32.9°

Cd/Im:

2.4

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

80.0%

FWHM:

36.7°

Cd/Im:

1.7

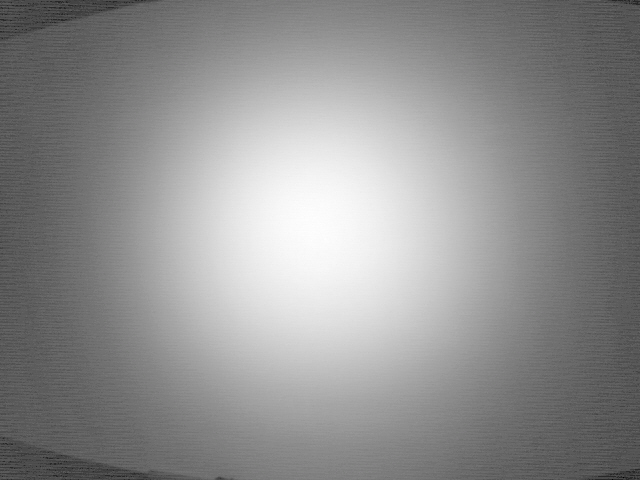

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G White

Eff:

78.3%

FWHM:

40°

Cd/Im:

1.5

Spot Image

Cross Section

Download

ies

Cree XLamp XQ-A Blue

Eff:

85.5%

FWHM:

34.0°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Green

Eff:

86.0%

FWHM:

34.5°

Cd/Im:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A Red

Eff:

86.5%

FWHM:

34.0°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-A White

Eff:

80.0%

FWHM:

33.6°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Blue

Eff:

88.0%

FWHM:

36.0°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Green

Eff:

88.0%

FWHM:

36.0°

Cd/Im:

1.6

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HI Red

Eff:

88.0%

FWHM:

36.5°

Cd/Im:

1.6

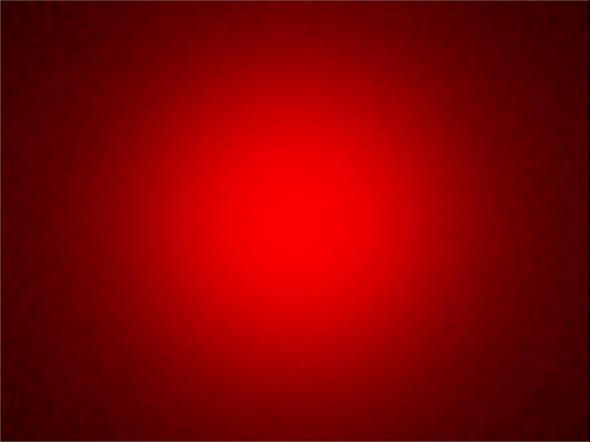

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

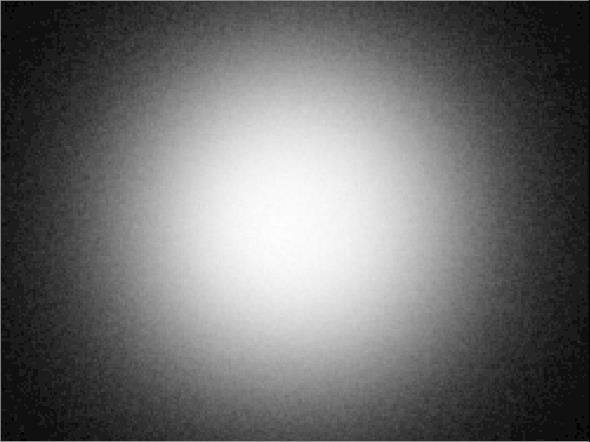

Cree XLamp XQ-E HI White

Eff:

82.0%

FWHM:

35.7°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Cree XLamp XQ-E HD White

Eff:

81.5%

FWHM:

41°

Cd/Im:

1.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Everlight Shuen White

Eff:

74.7%

FWHM:

48.8°

Cd/Im:

1.1

Spot Image

Cross Section

Download

ies

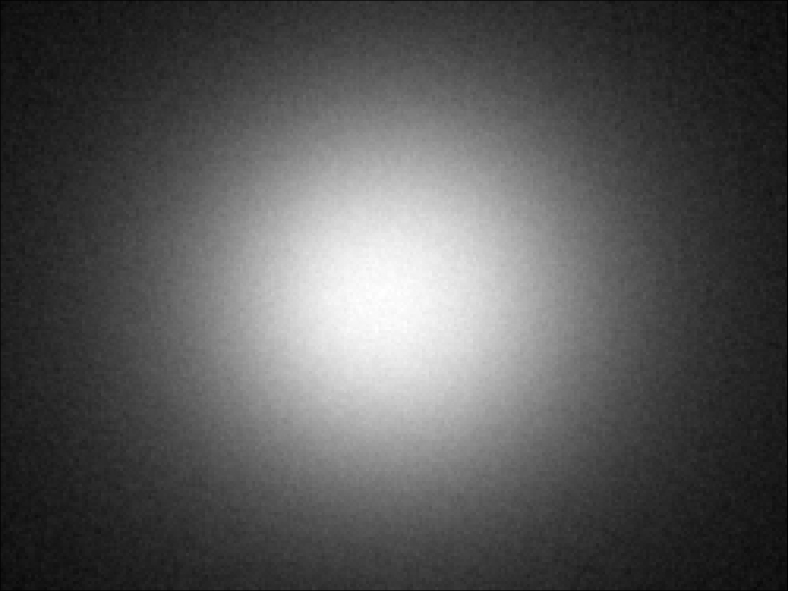

LUMILEDS LUXEON 3014 White

Eff:

88.5%

FWHM:

38°

Cd/Im:

1.9

Download

IES

LUMILEDS LUXEON 3030 HE Plus White

Eff:

88.0%

FWHM:

47°

Cd/Im:

1.3

Carclo Optics – 10624 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10624 – Luxeon_3030_HE_Plus_cross vertical section

Download

ies

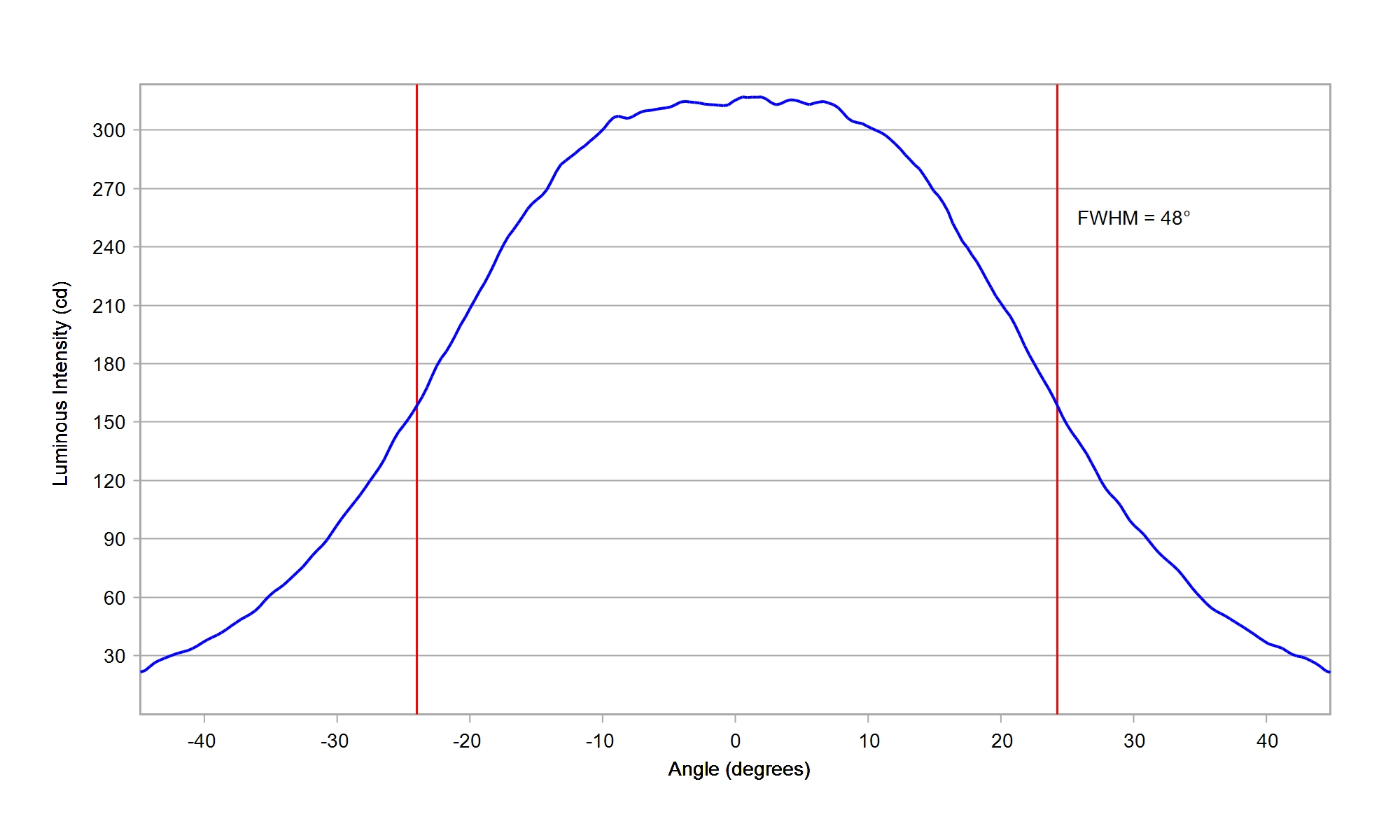

LUMILEDS LUXEON 3030 LUXEON White

Eff:

80.0%

FWHM:

47.5°

Cd/Im:

1.0

carclo optics - simulated spot image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON 3535 HV White

Eff:

81.7%

FWHM:

43°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

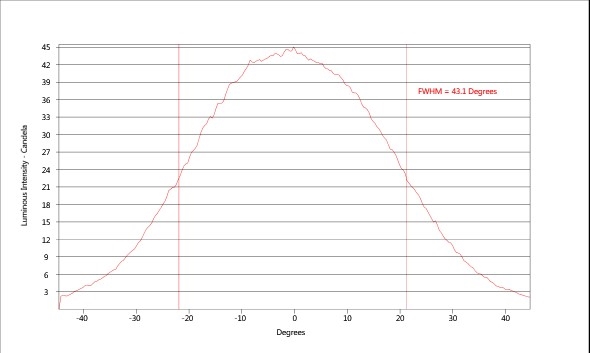

LUMILEDS LUXEON 3535 L White

Eff:

82.0%

FWHM:

42°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON C Blue

Eff:

83.0%

FWHM:

31.0°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

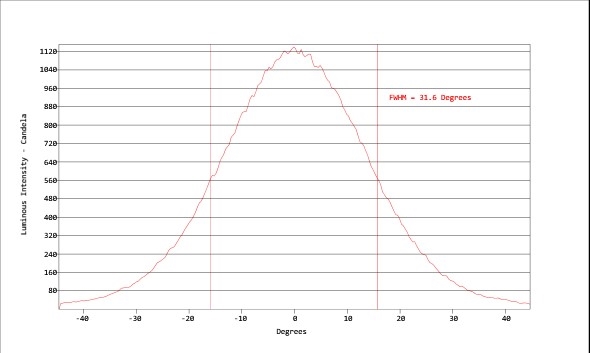

LUMILEDS LUXEON C Lime

Eff:

84.5%

FWHM:

31.5°

Cd/Im:

2.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON C Red

Eff:

82.5%

FWHM:

24.0°

Cd/Im:

3.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CSP 05 White

Eff:

85.0%

FWHM:

49.3°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CSP 10 White

Eff:

83.0%

FWHM:

48.5°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON CZ White

Eff:

89.0%

FWHM:

33.5°

Cd/Im:

2.7

Carclo Optics 10624 Spot Image Luxeon CZ CW

Carclo Optics 10624 Cross Section Luxeon CZ CW

Download

ies

LUMILEDS LUXEON HL1Z CSP White

Eff:

89.0%

FWHM:

45°

Cd/Im:

1.4

Download

ies

LUMILEDS LUXEON IR 2720

Eff:

90.5%

FWHM:

42.0°

Ipk/W:

1.6

Carclo Optics - 10613 10mm Wide Frosted Spot Image Luxeon IR 2720

Carclo Optics - 10613 10mm Wide Frosted Cross Section Luxeon IR 2720

Download

ies

LUMILEDS LUXEON IR Compact 850nm

Eff:

90.5%

FWHM:

35.5°

Ipk/W:

1.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

90.5%

FWHM:

32.5°

Cd/Im:

2.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

LUMILEDS LUXEON MZ White

Eff:

84.0%

FWHM:

58.5°

Cd/Im:

0.6

carclo simulated spot image

carclo simulated cross section

Download

ies

LUMILEDS LUXEON Q White

Eff:

81.7%

FWHM:

40.5°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON R White

Eff:

75.8%

FWHM:

45.8°

Cd/Im:

1.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel ES White

Eff:

75.8%

FWHM:

45.8°

Cd/Im:

1.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rebel White

Eff:

78.0%

FWHM:

39.2°

Cd/Im:

1.4

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON Rubix Blue

Eff:

90.0%

FWHM:

32°

Cd/Im:

2.8

Carclo Optics - 10624 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics - 10624 Cross Section Lumileds Luxeon Rubix Blue

Download

ies

LUMILEDS LUXEON Rubix Green

Eff:

90.0%

FWHM:

32°

Cd/Im:

2.7

Carclo Optics – 10624 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10624 Cross Section Lumileds Luxeon Rubix Green

Download

ies

LUMILEDS LUXEON Rubix Red

Eff:

90.5%

FWHM:

32°

Cd/Im:

2.8

Carclo Optics – 10624 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10624 Cross Section Lumileds Luxeon Rubix Red

Download

ies

LUMILEDS LUXEON Rubix Royal Blue

Eff:

89.5%

FWHM:

32°

Cd/Im:

3.1

Carclo Optics – 10624 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10624 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

ies

LUMILEDS LUXEON Rubix White

Eff:

89.5%

FWHM:

32.0°

Cd/Im:

2.7

Carclo Optics - 10624 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10624 Cross Section Lumileds Luxeon Rubix White

Download

ies

LUMILEDS LUXEON T White

Eff:

76.0%

FWHM:

45.9°

Cd/Im:

1.3

Spot Image

Cross Section

Download

ies

LUMILEDS LUXEON TX White

Eff:

82.5%

FWHM:

41.6°

Cd/Im:

1.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

82.2%

FWHM:

38°

Cd/Im:

1.6

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Luminus Devices SST 10-B-B130 Blue

Eff:

87.5%

FWHM:

40°

Cd/Im:

2.0

Carclo Optics - 10624 Luminus_SST-10_B_B130 - spot image

Carclo Optics - 10624 Luminus_SST-10_B_B130 - cross section image

Download

ies

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

90.5%

FWHM:

35°

Cd/Im:

2.2

Carclo Optics – 10624 Luminus_SST-10_DR_B130- Spot - image

Carclo Optics – 10624 Luminus_SST-10_DR_B130- Cross section – image

Download

ies

Luminus Devices SST 10-G-B130 Green

Eff:

89.0%

FWHM:

40°

Cd/Im:

1.9

Carclo Optics - 10624 Luminus_SST-10_G_B130 - spot - image

Carclo Optics - 10624 Luminus_SST-10_G_B130 - cross - image

Download

ies

Luminus Devices SST 10-IR-B130 940nm

Eff:

91.0%

FWHM:

40.0°

Ipk/W:

1.8

Carclo Optics - 10624 Spot Image Luminus SST-10-IR-B130

Carclo Optics - 10624 Cross Section Luminus SST-10-IR-B130

Download

ies

Luminus Devices SST 10-IRD-B130 810nm

Eff:

91.5%

FWHM:

39°

Ipk/W:

1.9


Download

ies

Nichia 757 White

Eff:

82.0%

FWHM:

49°

Cd/Im:

0.9

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Nichia 757G White

Eff:

86.0%

FWHM:

48.0°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia 757G White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.4

Carclo Optics 10624 10mm Simulated Spot Image Nichia 757G-MT

Carclo Optics 10624 10mm Cross Section Nichia 757G-MT

Download

ies

Nichia NCSW CSP E17A White

Eff:

80.0%

FWHM:

51°

Cd/Im:

0.8

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSL 219B White

Eff:

86.5%

FWHM:

41.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia NVSW CSP E21A White

Eff:

81.0%

FWHM:

54.0°

Cd/Im:

0.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Nichia Top Emitting NCSL 119-H3 White

Eff:

72.1%

FWHM:

44.5°

Cd/Im:

1.3

Spot Image

Cross Section

Download

ies

Osram OS DURIS E 2835 Gen2

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.3

Carclo Optics - 10624 10mm Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10624 10mm Cross Section Osram DURIS E 2835 Gen2

Download

ies

Osram OS DURIS E 2835 White

Eff:

86.0%

FWHM:

43°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E2 White

Eff:

81.0%

FWHM:

41.6°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS E3 White

Eff:

87.3%

FWHM:

30.4°

Cd/Im:

2.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section Image

Download

ies

Osram OS DURIS S2 White

Eff:

88.3%

FWHM:

40.8°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

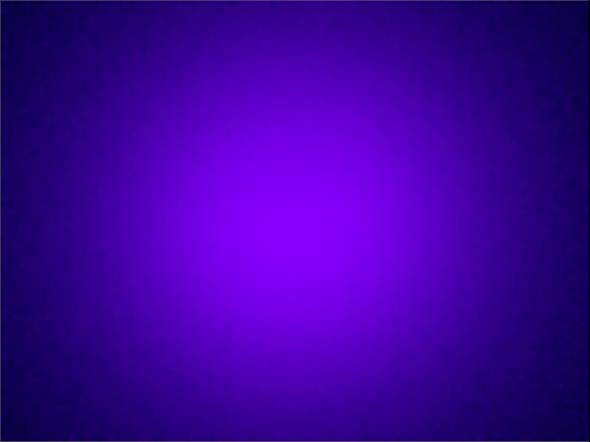

Osram OS DURIS S5 Deep Blue

Eff:

86.0%

FWHM:

45.0°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 Green

Eff:

91.5%

FWHM:

44.5°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

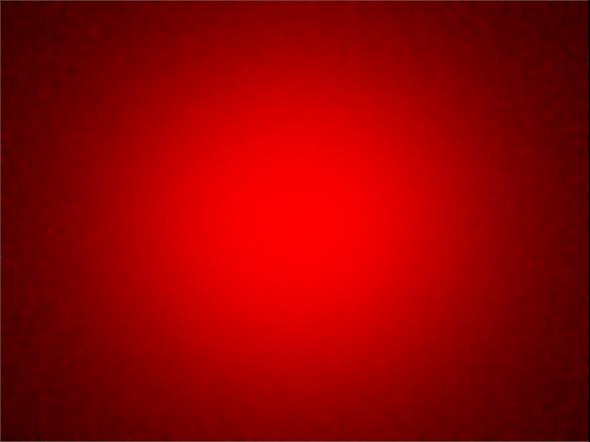

Osram OS DURIS S5 Red

Eff:

87.5%

FWHM:

43.0°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS DURIS S5 White

Eff:

82.0%

FWHM:

50°

Cd/Im:

0.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSCONIQ C 2424 White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.5

Carclo Optics - 10624 Spot Image OSCONIQ C2424

Carclo Optics - 10624 Cross Section OSCONIQ C2424

Download

ies

Osram OS OSLON Black SFH 4716AS IR

Eff:

91.0%

FWHM:

38°

Ipk/W:

1.9

Carclo Optics – 10624 Spot Image OSRAM OS Oslon Black IR SFH 4716AS

Carclo Optics – 10624 Cross Section OSRAM OS Oslon Black IR SFH 4716AS

Download

ies

Osram OS OSLON Boost HM KW CELMM1.TG

Eff:

89.5%

FWHM:

32°

Cd/Im:

2.7

Carclo Optics – 10624 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10624 – Osram_Oslon_Boost_KW_CELMM1_TG_cross vertical section

Download

ies

Osram OS OSLON Square Flat White

Eff:

87.0%

FWHM:

41°

Cd/Im:

1.4

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

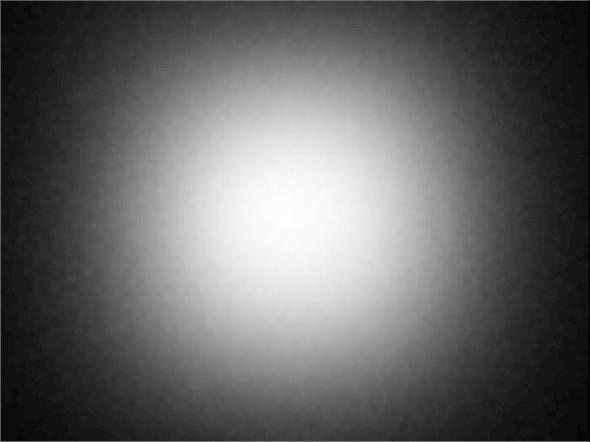

Osram OS OSLON Square Gen 3 White

Eff:

81.6%

FWHM:

44.6°

Cd/Im:

1.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON Square White

Eff:

81.0%

FWHM:

42°

Cd/Im:

1.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies

Osram OS OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

89.5%

FWHM:

33°

Cd/Im:

2.4

Carclo Optics – 10624 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10624 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

ies

Osram OS OSLON SSL 150 degree White

Eff:

79.9%

FWHM:

33.6°

Cd/Im:

2.4

Spot Image

Cross Section

Download

ies

Osram OS OSLON SSL 80 degree White

Eff:

75.0%

FWHM:

44.3°

Cd/Im:

1.2

Spot Image

Cross Section

Download

ies

Samsung 3030 LM301B White

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.5

Download

ies

Samsung 3535 LH351B White

Eff:

82.0%

FWHM:

42°

Cd/Im:

1.1

carclo simulated spot image

carclo simulated cross section

Download

ies

Samsung 3535 LH351Z White

Eff:

82.0%

FWHM:

39°

Cd/Im:

1.4

carclo simulated spot image

carclo simulated cross section

Download

ies

Seoul MidPower MJT3030 White

Eff:

82.2%

FWHM:

42°

Cd/Im:

1.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul STW8 C2SB-NT White

Eff:

88.0%

FWHM:

45.0°

Cd/Im:

1.3

Carclo Optics - 10624 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10624 Cross Section Seoul STW8 C2SB-NT

Download

ies

Seoul STWS C2PB-E0 White

Eff:

88.0%

FWHM:

46.0°

Cd/Im:

1.3

Carclo Optics - 10624 Spot Image STWS C2PB-E0

Carclo Optics - 10624 Cross Section STWS C2PB-E0

Download

ies

Seoul SunLike STW9 C2SB-S

Eff:

88.0%

FWHM:

45°

Cd/Im:

1.5

Carclo Optics - 10624 10mm Spot Image Seoul Sunlike 3030

Carclo Optics - 10624 10mm Cross Section Seoul Sunlike 3030

Download

ies

Seoul Z - Power Z5 M1 White

Eff:

82.1%

FWHM:

45.6°

Cd/Im:

1.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

ies

Seoul Z - Power Z5 White

Eff:

76.4%

FWHM:

37.2°

Cd/Im:

2.4

Spot Image

Cross Section

Download

ies

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

38.5°

Cd/Im:

1.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

81.0%

FWHM:

48.1°

Cd/Im:

1.0

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

ies
