Carclo Optics 10621
10.0mm Narrow Spot Top Lens TIR
Part number
10621
Dimensions
10.0mm
Drawing Number
60571
Optic type
TIR
Finish
Top Lens
Beam type
Narrow Spot
Applications
Architectural
Industrial
Landscape
Office
Horticultural
Retail
Warehouse
Security
Humancentric
Downloads

LEDs and Performances

Select and filter based on manufacturer(s)
Bridgelux SMD 3030 Gen2 White
Eff:
91.5%
FWHM:
15 x 18°
Cd/Im:
7.6
Download

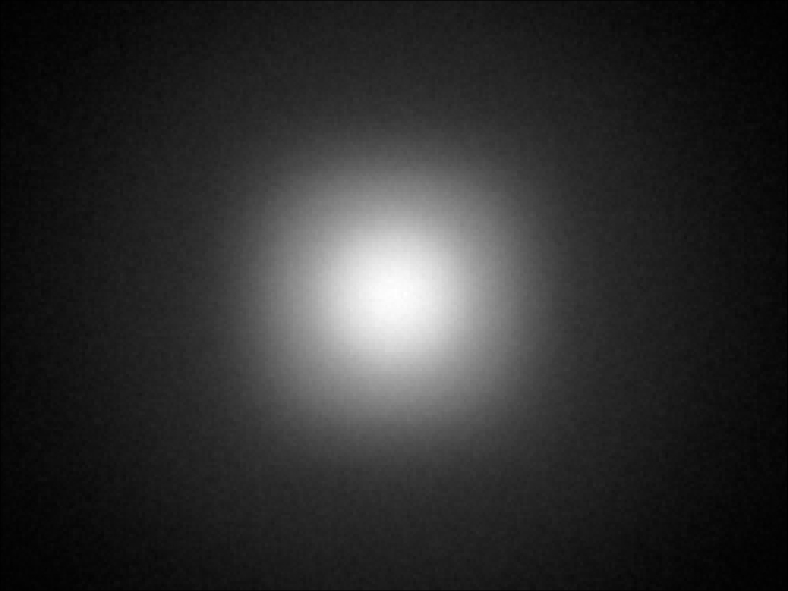

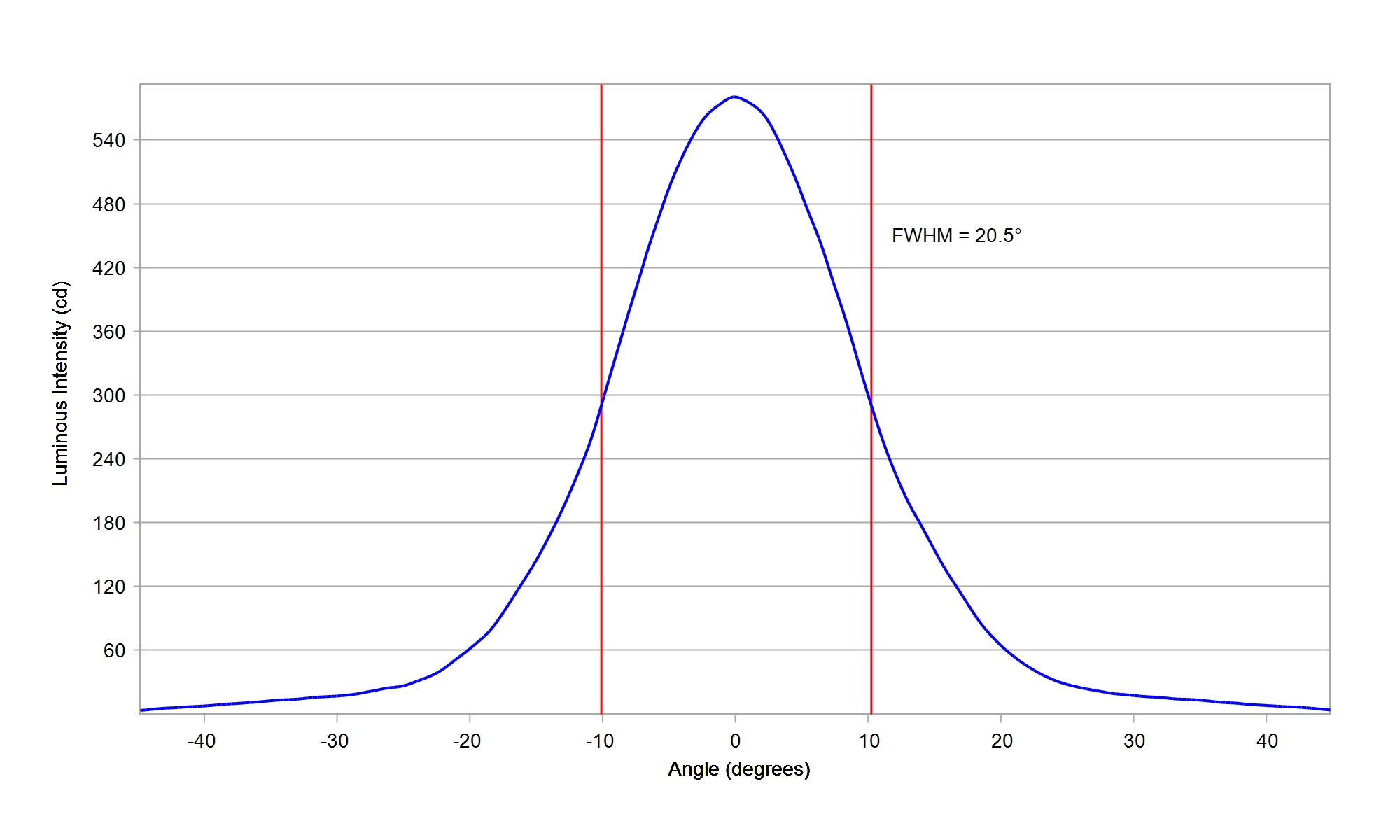

Cree JB3030 3V White
Eff:
91.5%
FWHM:
21.0°
Cd/Im:
4.5
Download
Cree XLamp CSP XD16 Cool White
Eff:
91.0%
FWHM:
17.0°
Cd/Im:
6.3
Download
Cree XLamp XB-H White
Eff:
89.5%
FWHM:
22°
Cd/Im:
5.7
Download
Cree XLamp XP-C White
Eff:
87.4%
FWHM:
10.4°
Cd/Im:
22.7
Download

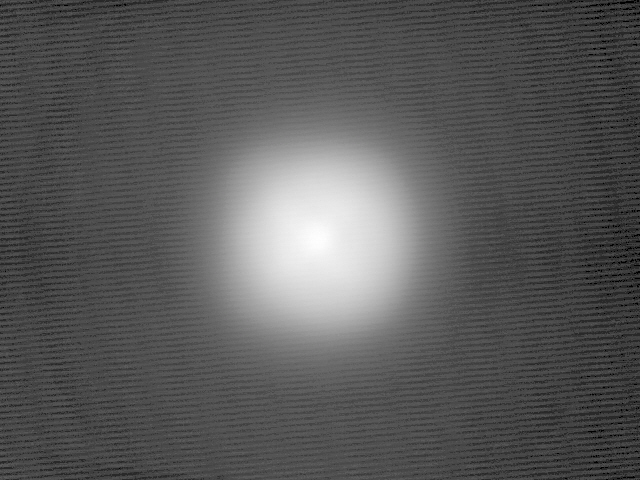

Cree XLamp XP-E White
Eff:
88.7%
FWHM:
16.4°
Cd/Im:
9.8
Download

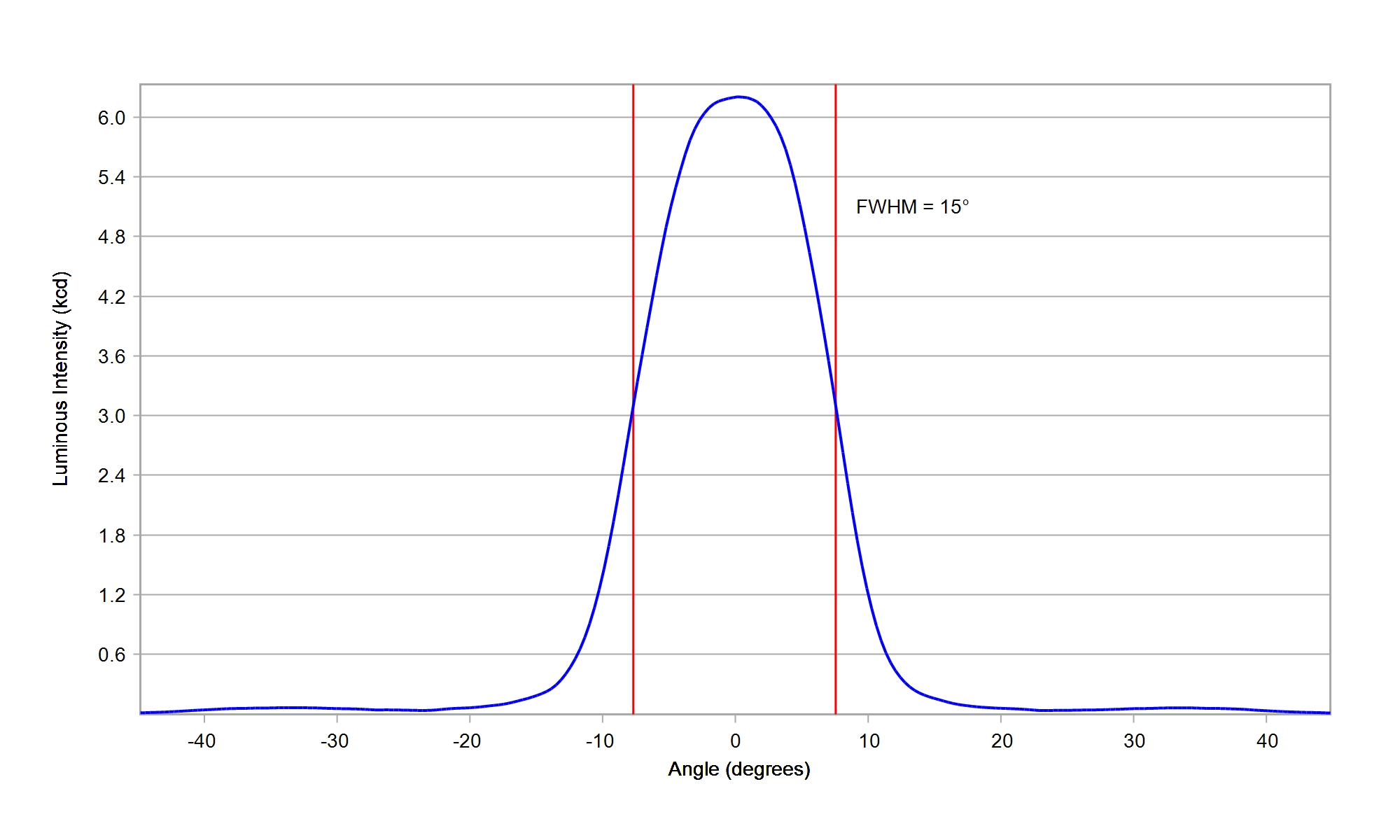

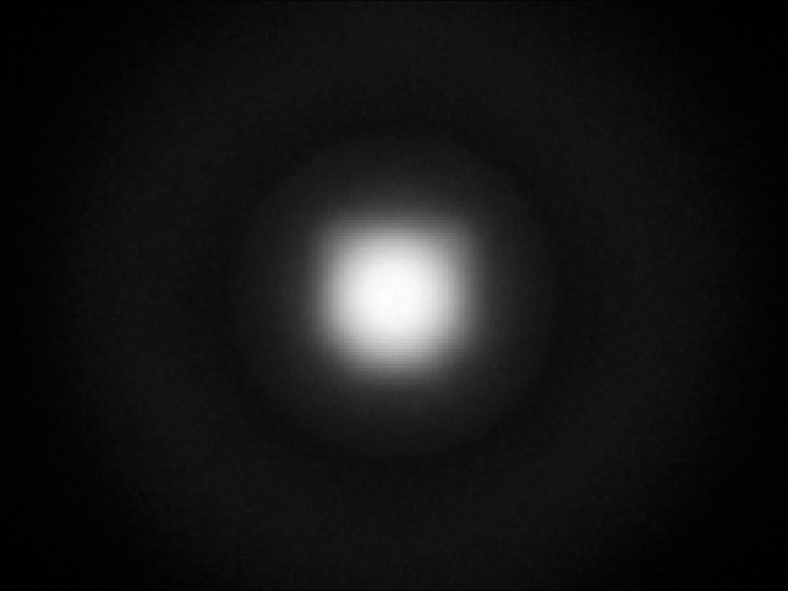

Cree XLamp XP-E2 White
Eff:
89.0%
FWHM:
14.5°
Cd/Im:
11.1
Download

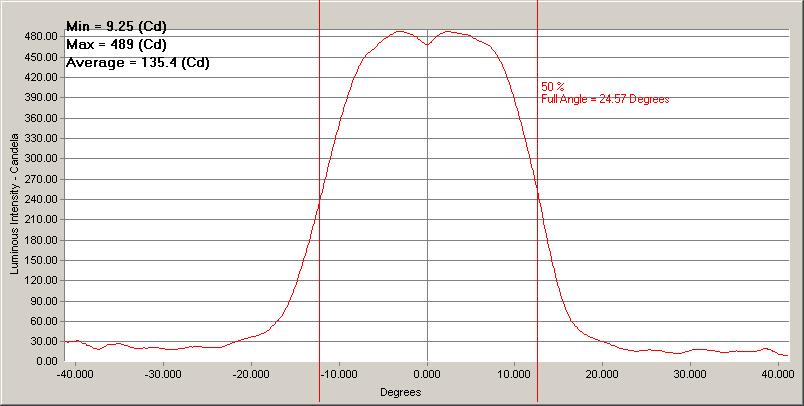

Cree XLamp XP-G White
Eff:
87.3%
FWHM:
24°
Cd/Im:
4.9
Download
Cree XLamp XP-G3 White
Eff:
86.0%
FWHM:
24.5°
Cd/Im:
3.4
Download

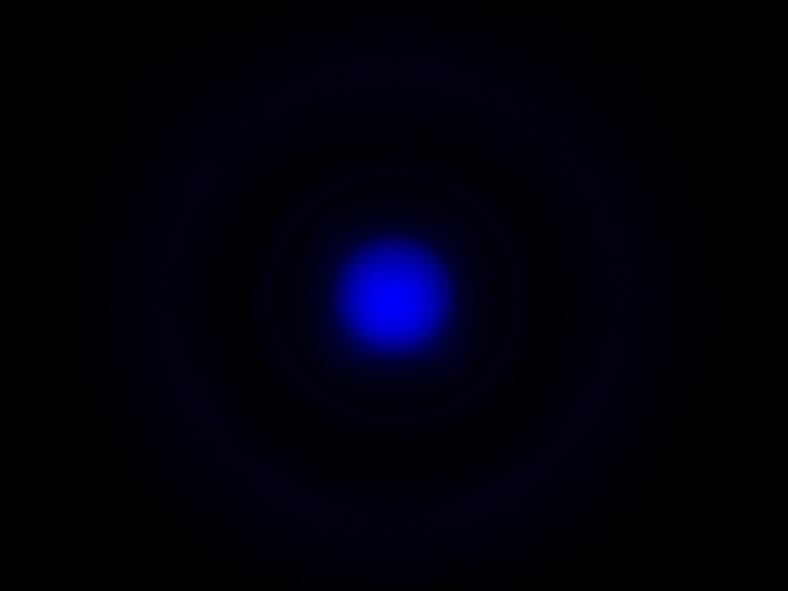

Cree XLamp XQ-A Blue
Eff:
89.0%
FWHM:
9.7°
Cd/Im:
26.7
Download

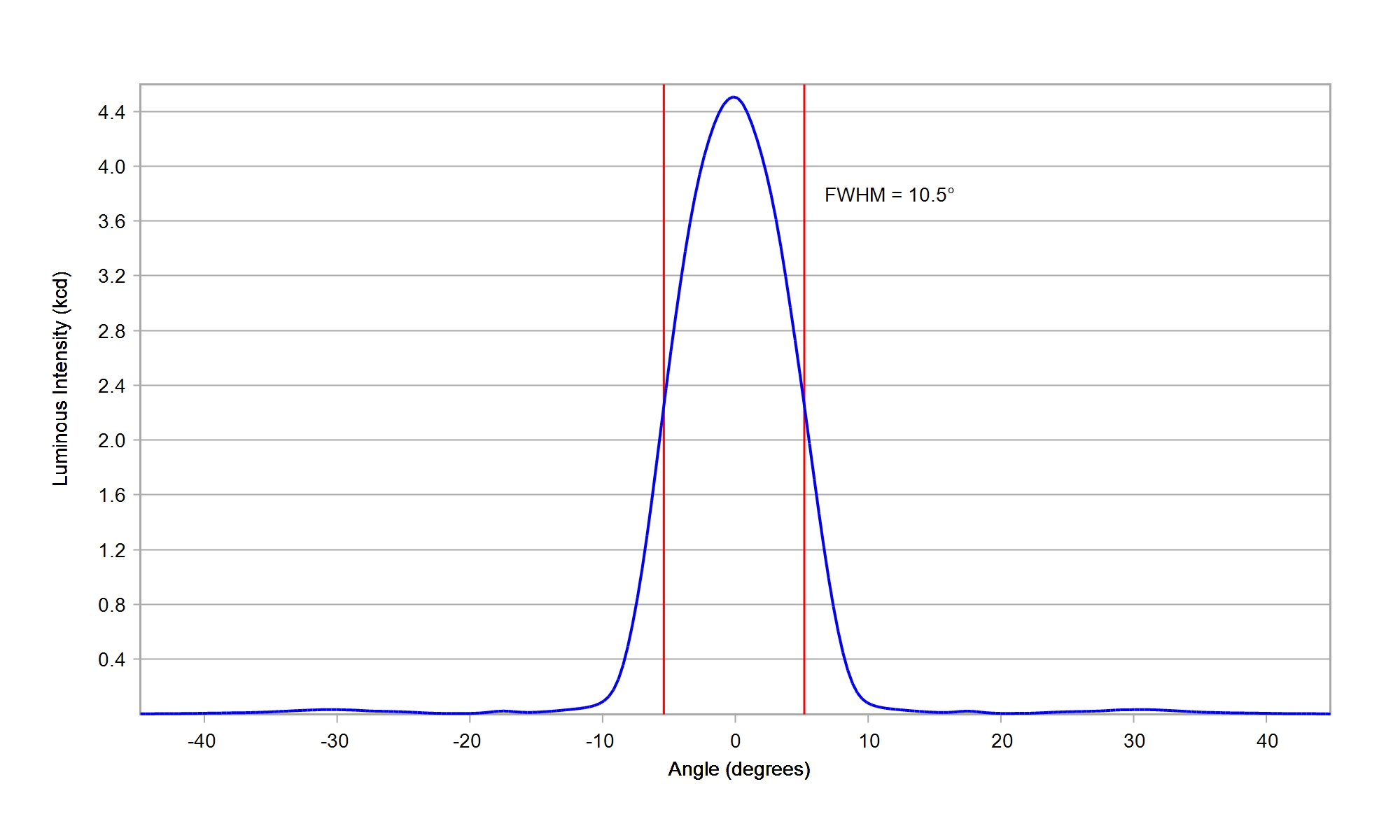

Cree XLamp XQ-A Green
Eff:
89.5%
FWHM:
9.7°
Cd/Im:
26.0
Download

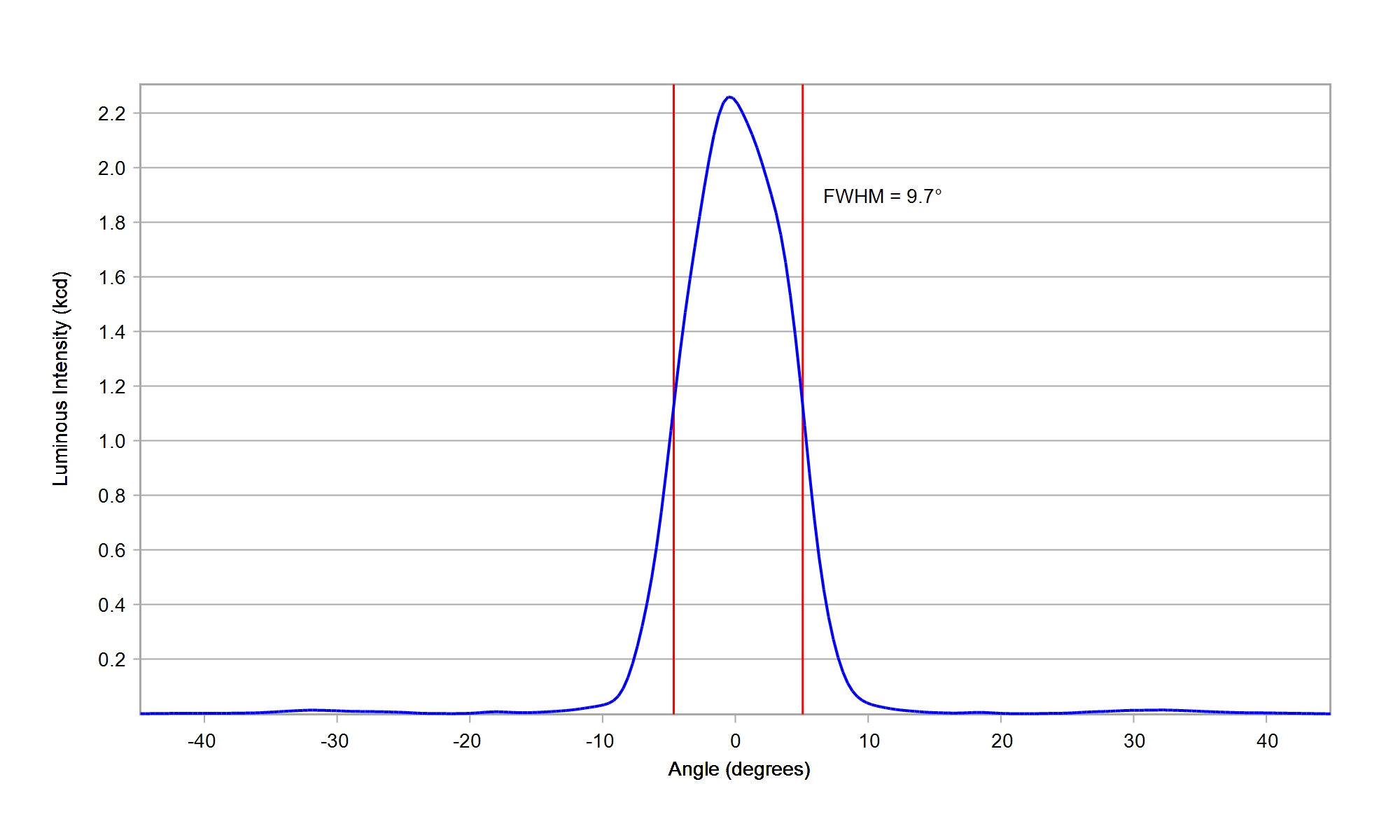

Cree XLamp XQ-A Red
Eff:
89.5%
FWHM:
10.0°
Cd/Im:
24.8
Download

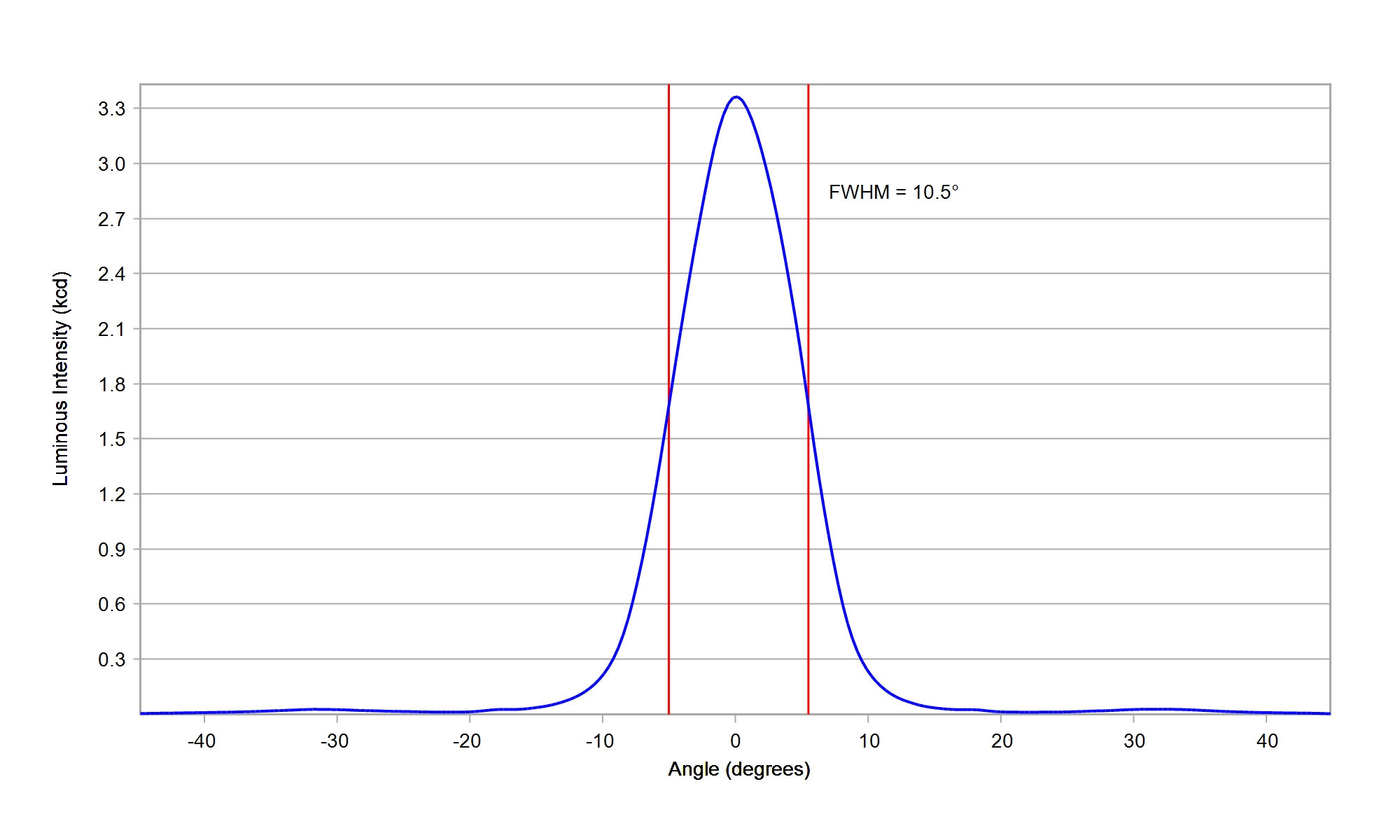

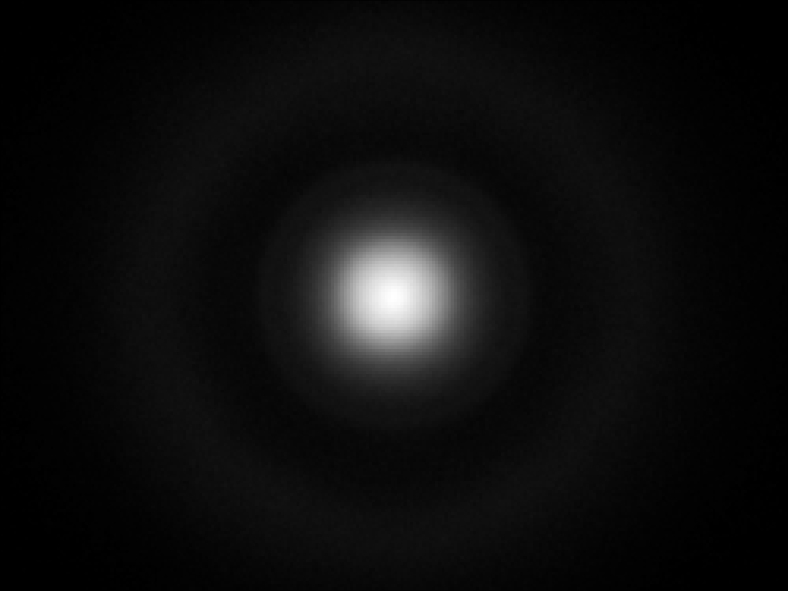

Cree XLamp XQ-A White
Eff:
86.0%
FWHM:
10.9°
Cd/Im:
22.1
Download

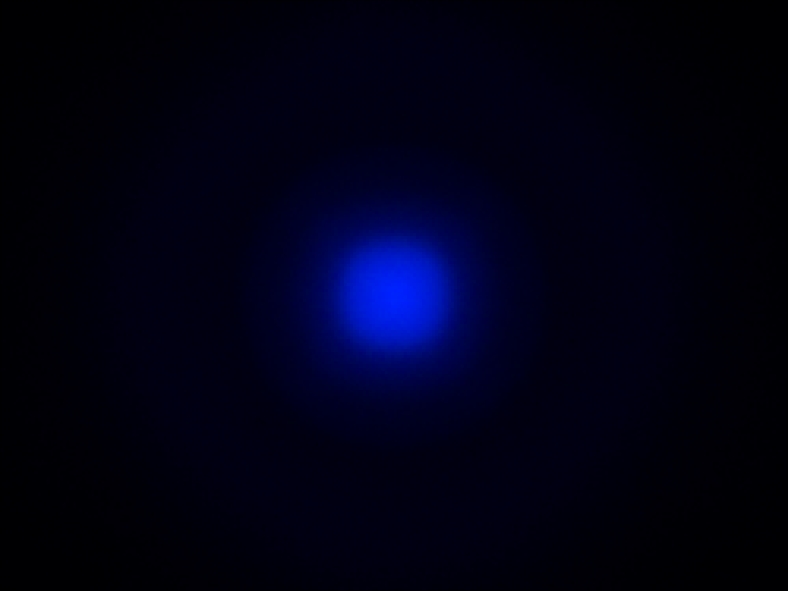

Cree XLamp XQ-E HI Blue
Eff:
89.5%
FWHM:
11.5°
Cd/Im:
14.7
Download
Cree XLamp XQ-E HI Green
Eff:
90.0%
FWHM:
11.5°
Cd/Im:
14.6
Download
Cree XLamp XQ-E HI Red
Eff:
90.5%
FWHM:
11.5°
Cd/Im:
16.2
Download

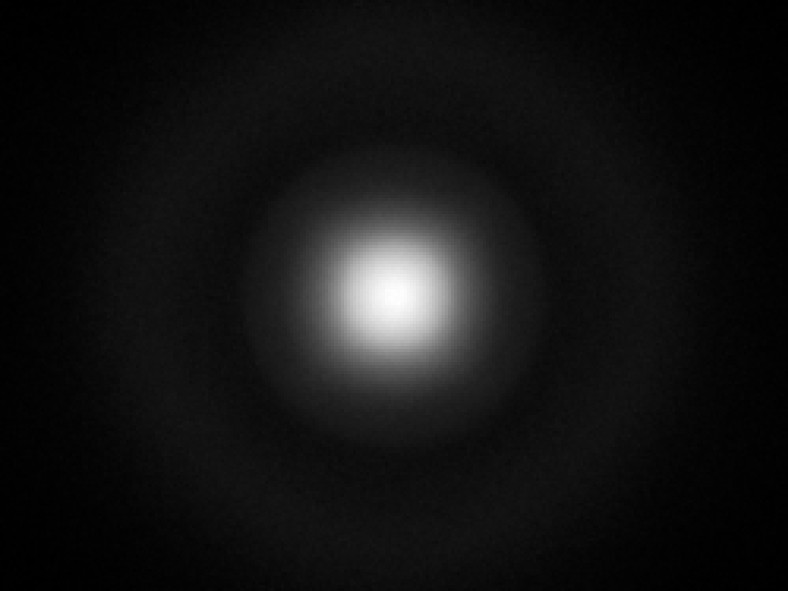

Cree XLamp XQ-E HI White
Eff:
87.0%
FWHM:
10.8°
Cd/Im:
15.9
Download
Cree XLamp XQ-E White
Eff:
87.0%
FWHM:
15°
Cd/Im:
9.3
Download

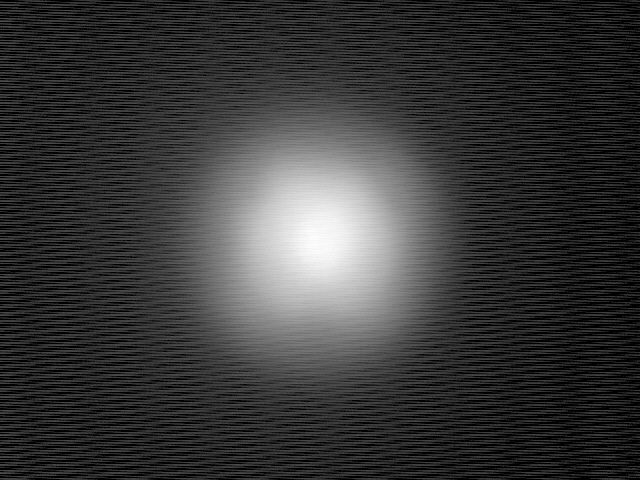

Everlight Shuen White
Eff:
85.0%
FWHM:
21.1°
Cd/Im:
5.2
Download
Lite-On R38386AS - S R38 IR
Eff:
91.0%
FWHM:
24.0°
Cd/Im:
4.5
Download

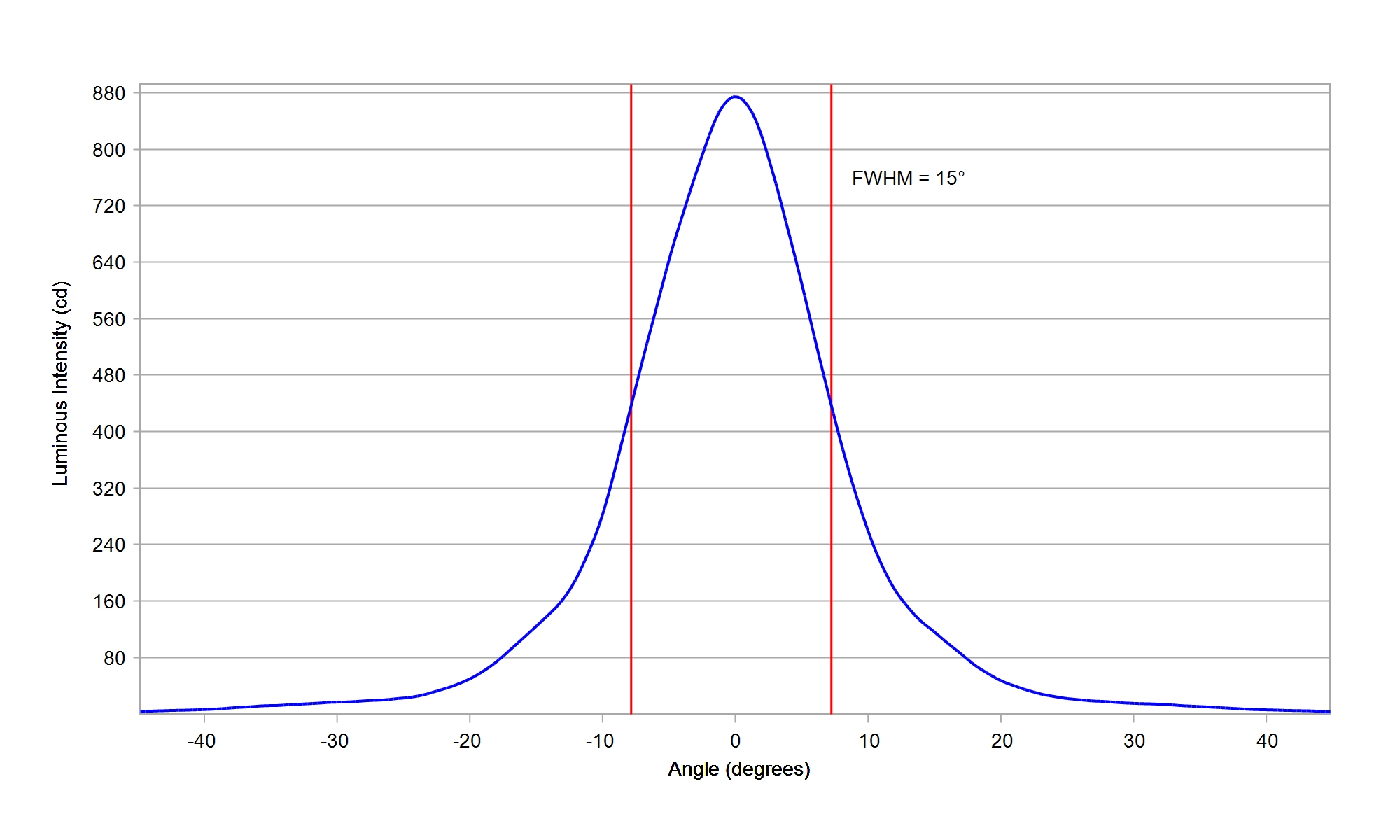

LUMILEDS LUXEON 3030 HE Plus White
Eff:
91.0%
FWHM:
19.5°
Cd/Im:
5.7
Download

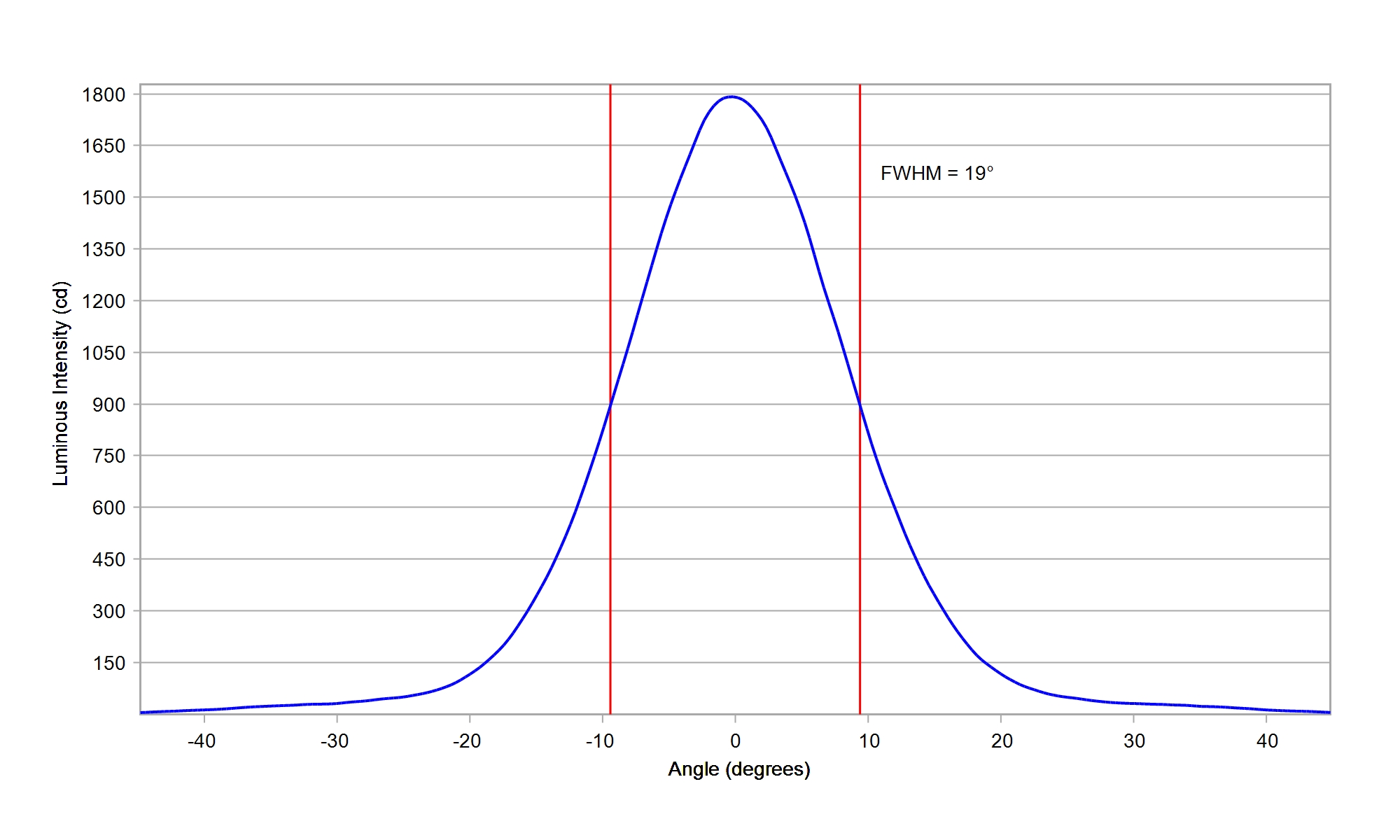

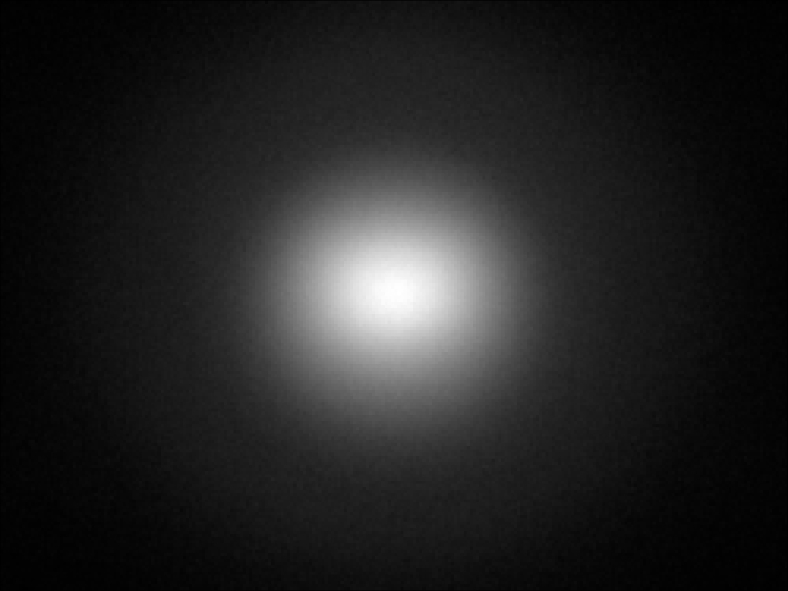

LUMILEDS LUXEON 3030 LUXEON White
Eff:
86.0%
FWHM:
19.3 x 15.1°
Cd/Im:
5.3
Download
LUMILEDS LUXEON 3535 HV White
Eff:
87.2%
FWHM:
16°
Cd/Im:
6.3
Download
LUMILEDS LUXEON 3535 L White
Eff:
87.0%
FWHM:
16°
Cd/Im:
6.4
Download
LUMILEDS LUXEON C Lime
Eff:
83.0%
FWHM:
15.0°
Cd/Im:
8.8
Download
LUMILEDS LUXEON C White
Eff:
83.3%
FWHM:
12°
Cd/Im:
15.8
Download
LUMILEDS LUXEON CSP 10 White
Eff:
88.0%
FWHM:
16°
Cd/Im:
3.7
Download
LUMILEDS LUXEON CZ
Eff:
90.0%
FWHM:
11°
Cd/Im:
19.3
Download
LUMILEDS LUXEON HL2Z White
Eff:
91.5%
FWHM:
19°
Cd/Im:
5.7
Download
LUMILEDS LUXEON IR 2720
Eff:
93.0%
FWHM:
16.0°
Cd/Im:
10.0
Download
LUMILEDS LUXEON IR Compact 850nm
Eff:
91.0%
FWHM:
13.5°
Cd/Im:
11.1
Download
LUMILEDS LUXEON IR Domed 150 Degree
Eff:
89.0%
FWHM:
17.0°
Cd/Im:
7.9
Download
LUMILEDS LUXEON MZ White
Eff:
88.5%
FWHM:
31°
Cd/Im:
1.7
Download
LUMILEDS LUXEON Q White
Eff:
84.6%
FWHM:
20.4°
Cd/Im:
4.4
Download
LUMILEDS LUXEON R White
Eff:
86.2%
FWHM:
24.5°
Cd/Im:
4.9
Download

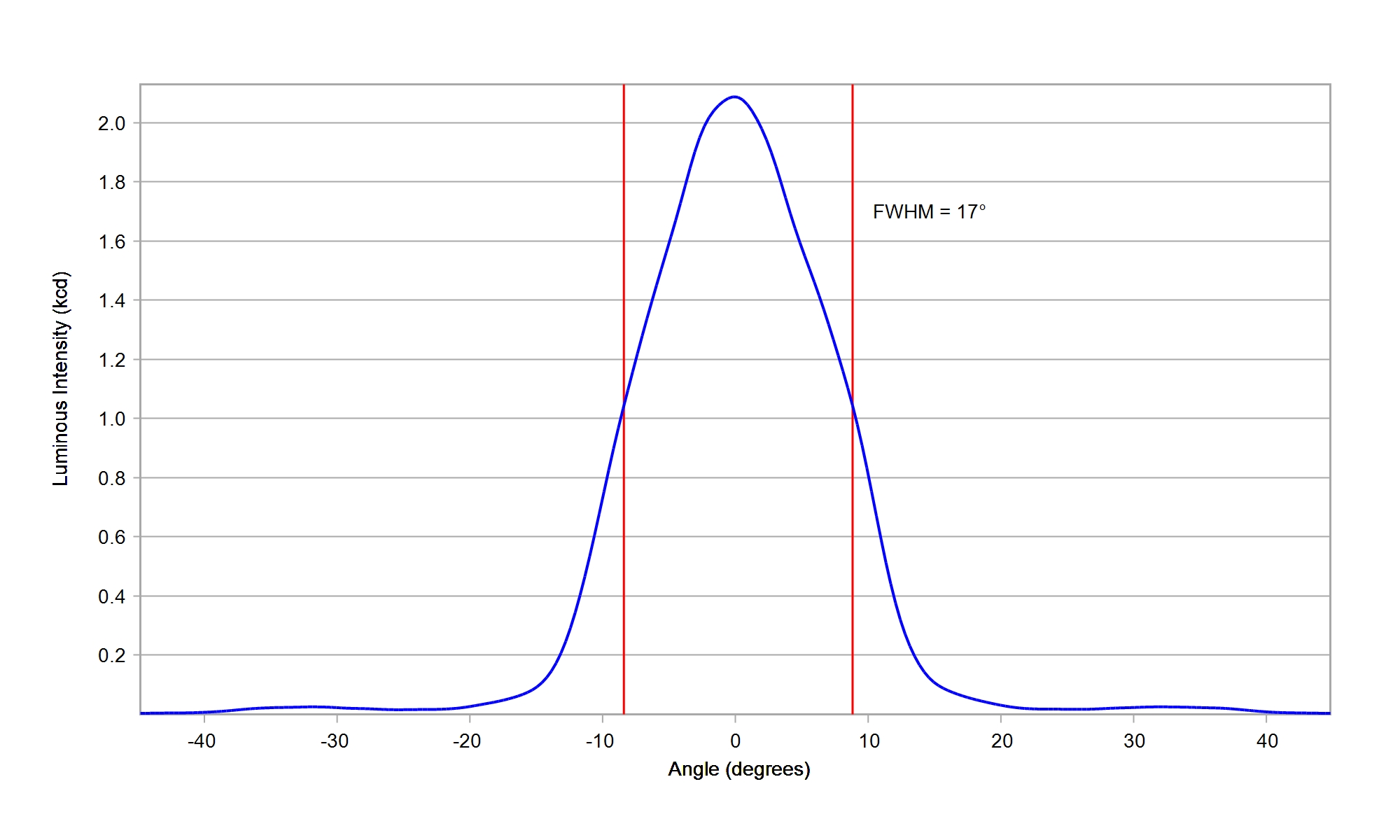

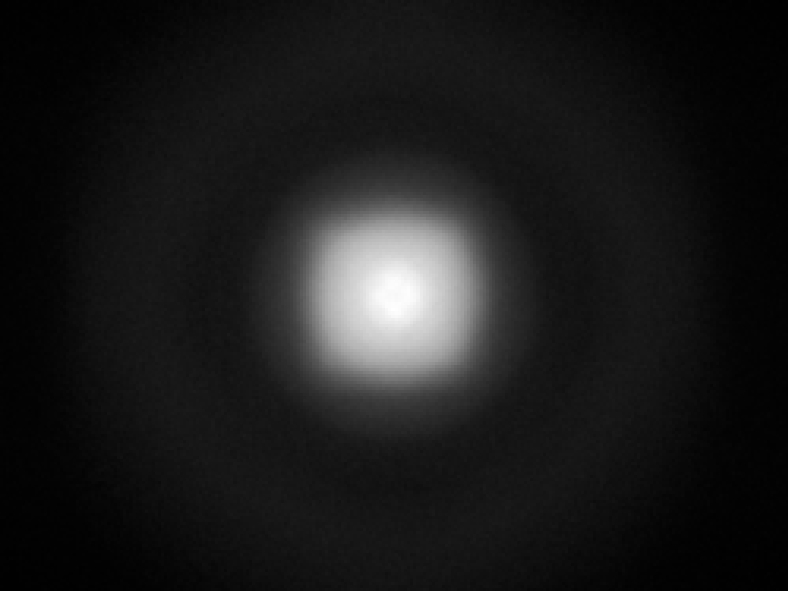

LUMILEDS LUXEON Rebel White
Eff:
84.5%
FWHM:
17.7°
Cd/Im:
9.7
Download
LUMILEDS LUXEON Rubix Blue
Eff:
89.0%
FWHM:
11.5°
Cd/Im:
18.3
Download
LUMILEDS LUXEON Rubix Green
Eff:
89.5%
FWHM:
11.5°
Cd/Im:
18.2
Download
LUMILEDS LUXEON Rubix Red
Eff:
90.5%
FWHM:
11°
Cd/Im:
20.6
Download
LUMILEDS LUXEON Rubix Royal Blue
Eff:
88.5%
FWHM:
11.5°
Cd/Im:
19.5
Download
LUMILEDS LUXEON Rubix White
Eff:
89.5%
FWHM:
12.0°
Cd/Im:
17.1
Download
LUMILEDS LUXEON T White
Eff:
86.2%
FWHM:
24.5°
Cd/Im:
9.7
Download
LUMILEDS LUXEON TX White
Eff:
86.2%
FWHM:
21.7°
Cd/Im:
4.7
Download
LUMILEDS LUXEON Z ES White
Eff:
89.0%
FWHM:
16°
Cd/Im:
8.3
Download
LUMILEDS LUXEON Z White
Eff:
87.0%
FWHM:
12°
Cd/Im:
14.5
Download
Luminus Devices SST 10-B-B130 Blue
Eff:
90.0%
FWHM:
18°
Cd/Im:
9.5
Download
Luminus Devices SST 10-B-B90 Blue
Eff:
89.0%
FWHM:
18.5°
Cd/Im:
8.1
Download
Luminus Devices SST 10-DR-B130 Deep Red
Eff:
90.0%
FWHM:
18.5°
Cd/Im:
7.3
Download

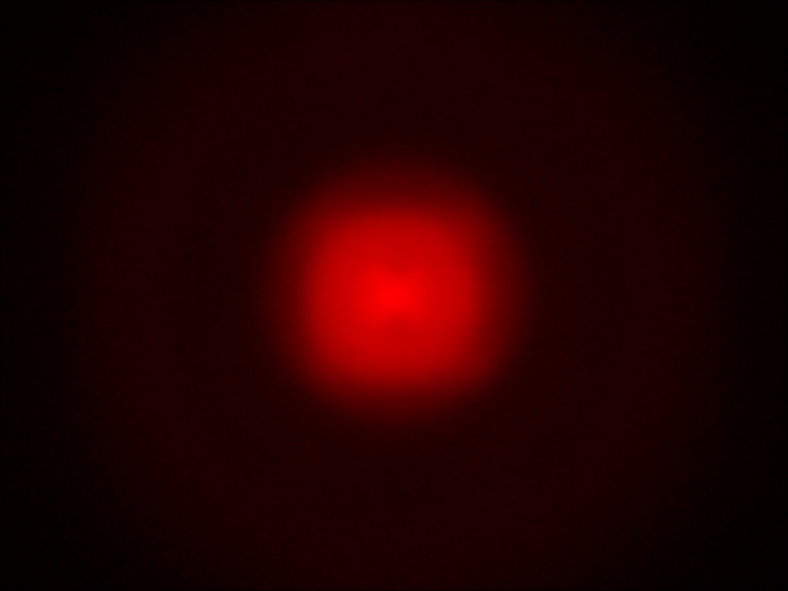

Luminus Devices SST 10-DR-B90 Deep Red
Eff:
90.0%
FWHM:
20.5°
Cd/Im:
7.7
Download
Luminus Devices SST 10-G-B130 Green
Eff:
91.0%
FWHM:
18°
Cd/Im:
9.7
Download
Luminus Devices SST 10-G-B90 Green
Eff:
90.0%
FWHM:
19.5°
Cd/Im:
8.0
Download
Luminus Devices SST 20-WxH White Hi CRI
Eff:
91.0%
FWHM:
19°
Cd/Im:
6.8
Download
Luminus Devices SST-10-IR B130 IR
Eff:
92.5%
FWHM:
20.0°
Cd/Im:
7.1
Download
Luminus Devices SST-10-IR B90 IR
Eff:
91.5%
FWHM:
22.5°
Cd/Im:
6.3
Download
Nichia 757 White
Eff:
88.0%
FWHM:
18°
Cd/Im:
4.1
Download
Nichia 757G White
Eff:
90.5%
FWHM:
20.5°
Cd/Im:
5.2
Download
Nichia 757G White
Eff:
90.5%
FWHM:
19.5°
Cd/Im:
4.5
Download

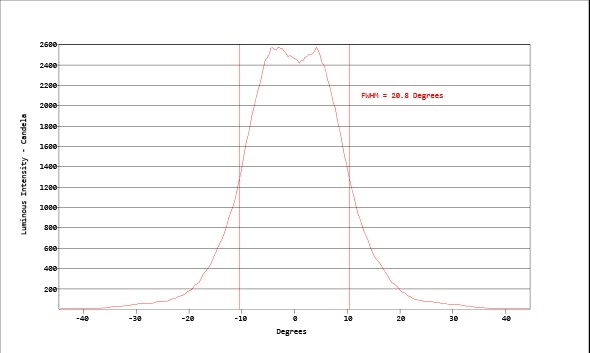

Nichia NCSW CSP E17A White
Eff:
87.0%
FWHM:
20.8°
Cd/Im:
4.2
Download
Nichia NF2W 385AR-V2 White
Eff:
90.0%
FWHM:
25.0°
Cd/Im:
3.8
Download
Nichia NVSL 219B White
Eff:
88.5%
FWHM:
18.0°
Cd/Im:
6.4
Download
Nichia NVSW 219C White
Eff:
89.0%
FWHM:
26.0°
Cd/Im:
3.5
Download
Nichia NVSW 219F White
Eff:
89.0%
FWHM:
26°
Cd/Im:
4.1
Download
Nichia NVSW 319A White
Eff:
88.0%
FWHM:
29.0°
Cd/Im:
2.7
Download
Nichia NVSW CSP E21A White
Eff:
87.0%
FWHM:
19.7°
Cd/Im:
4.2
Download
Nichia Top Emitting NCSL 119-H3 White
Eff:
82.6%
FWHM:
16.7°
Cd/Im:
7.7
Download
Osram OS DURIS E 2835 Gen2
Eff:
91.5%
FWHM:
16°
Cd/Im:
7.2
Download
Osram OS DURIS E 2835 White
Eff:
90.0%
FWHM:
18.5°
Cd/Im:
6.0
Download
Osram OS DURIS E2 White
Eff:
88.0%
FWHM:
15.4 x 12.3°
Cd/Im:
10.7
Download
Osram OS DURIS E3 White
Eff:
89.1%
FWHM:
8.6°
Cd/Im:
14.9
Download
Osram OS DURIS S2 White
Eff:
92.7%
FWHM:
13.6°
Cd/Im:
7.4
Download
Osram OS DURIS S5 Deep Blue
Eff:
89.5%
FWHM:
18.0°
Cd/Im:
6.1
Download
Osram OS DURIS S5 Green
Eff:
90.5%
FWHM:
17°
Cd/Im:
6.5
Download
Osram OS DURIS S5 Red
Eff:
91.0%
FWHM:
16.0°
Cd/Im:
7.8
Download
Osram OS DURIS S5 White
Eff:
88.0%
FWHM:
18.7°
Cd/Im:
4.7
Download

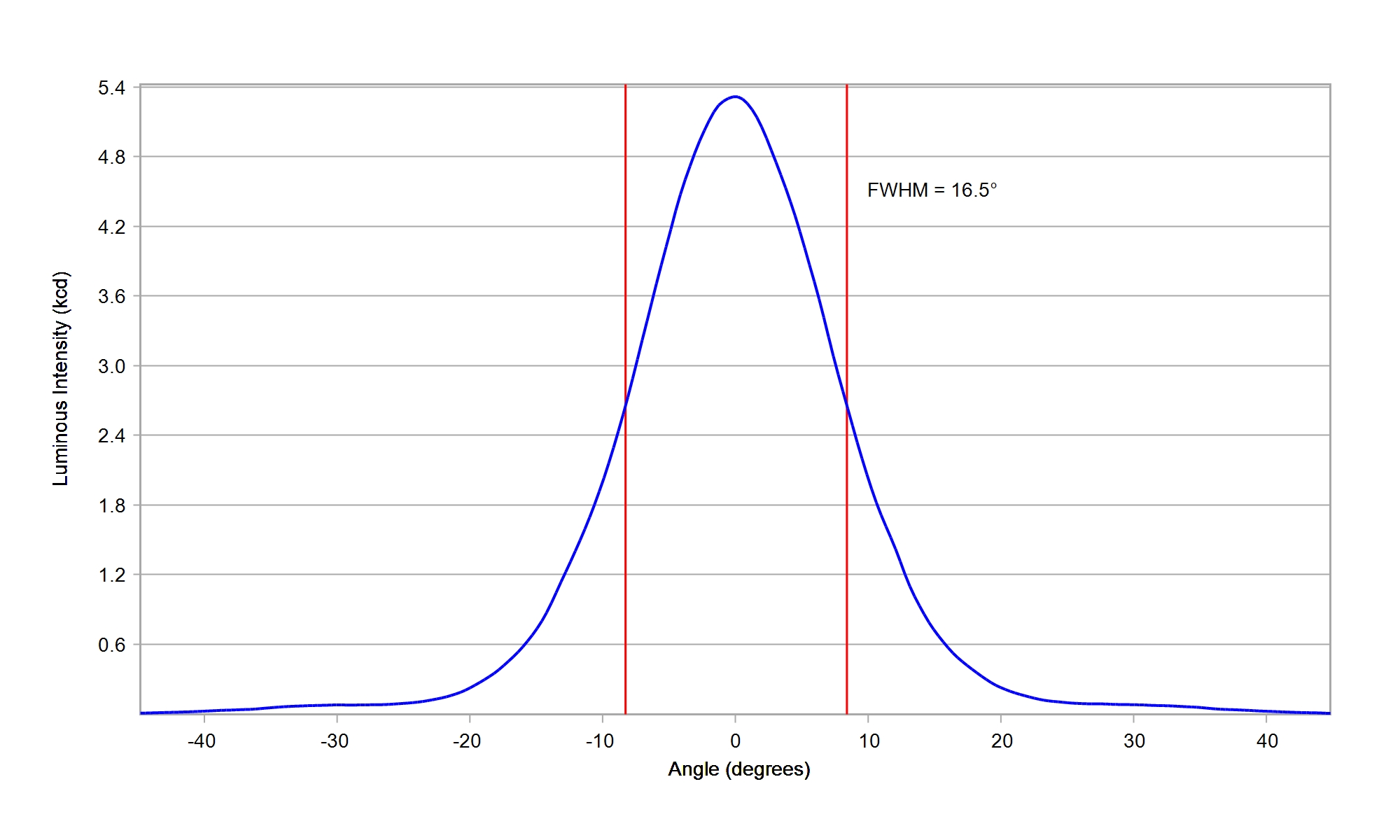

Osram OS OSCONIQ C 2424 White
Eff:
91.5%
FWHM:
16.5°
Cd/Im:
7.6
Download

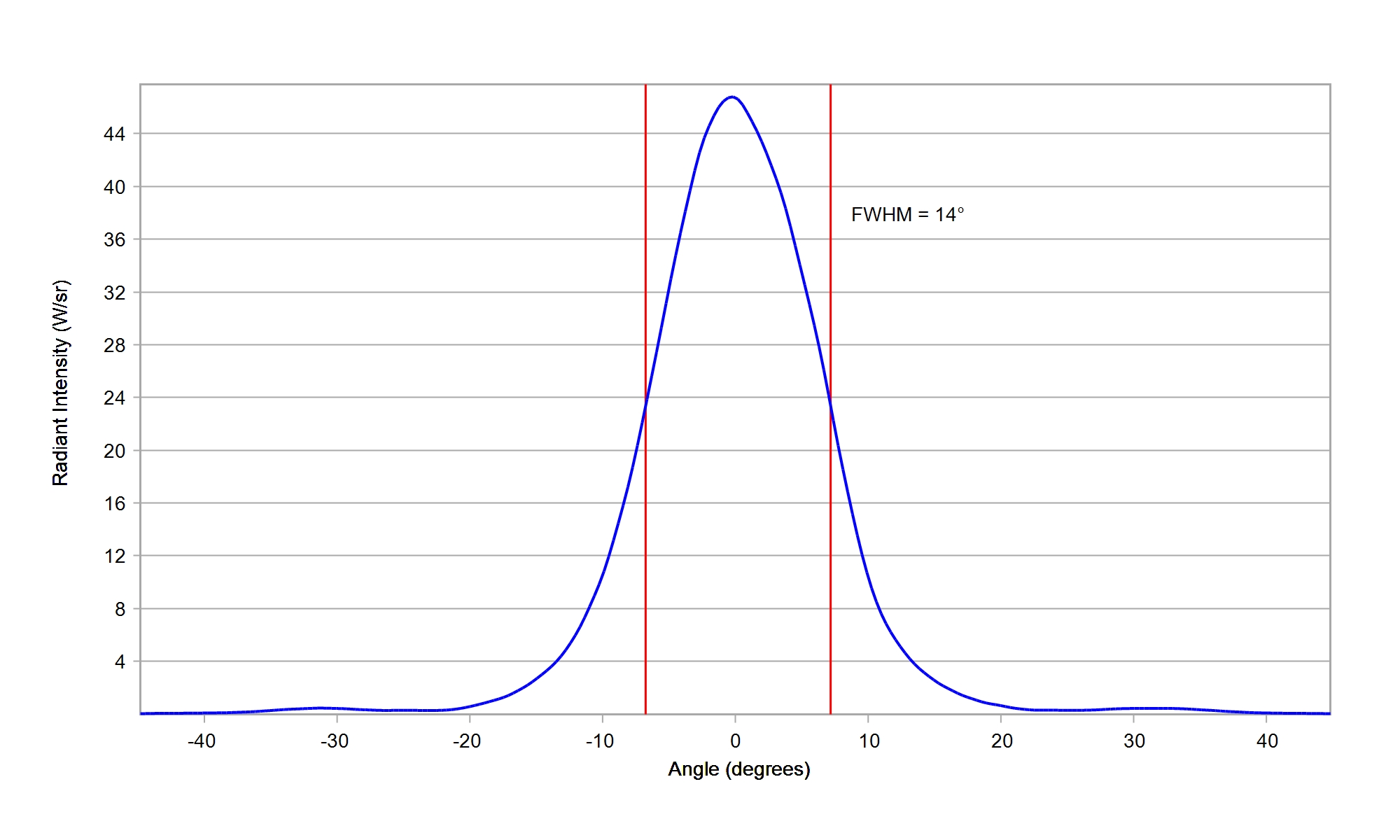

Osram OS OSLON Black SFH 4716AS IR
Eff:
93.0%
FWHM:
14°
Cd/Im:
11.4
Download
Osram OS OSLON Black SFH 4725S IR
Eff:
92.5%
FWHM:
22°
Cd/Im:
6.0
Download
Osram OS OSLON Boost HM KW CELMM1.TG
Eff:
90.5%
FWHM:
Cd/Im:
31.4
Download
Osram OS OSLON Square Flat White
Eff:
90.0%
FWHM:
15.0°
Cd/Im:
9.0
Download
Osram OS OSLON Square Gen 3 White
Eff:
83.8%
FWHM:
20.4°
Cd/Im:
5.2
Download

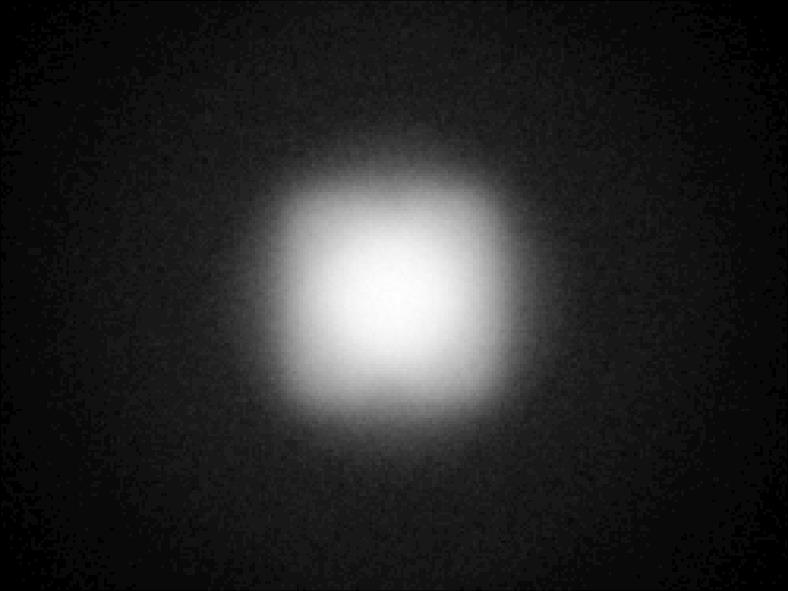

Osram OS OSLON Square Gen 5 GW CSSRM3
Eff:
90.0%
FWHM:
23 x 22°
Cd/Im:
5.1
Download
Osram OS OSLON Square White
Eff:
88.0%
FWHM:
20°
Cd/Im:
5.3
Download
Osram OS OSLON SSL 150 degree White
Eff:
85.7%
FWHM:
14.3°
Cd/Im:
12.7
Download

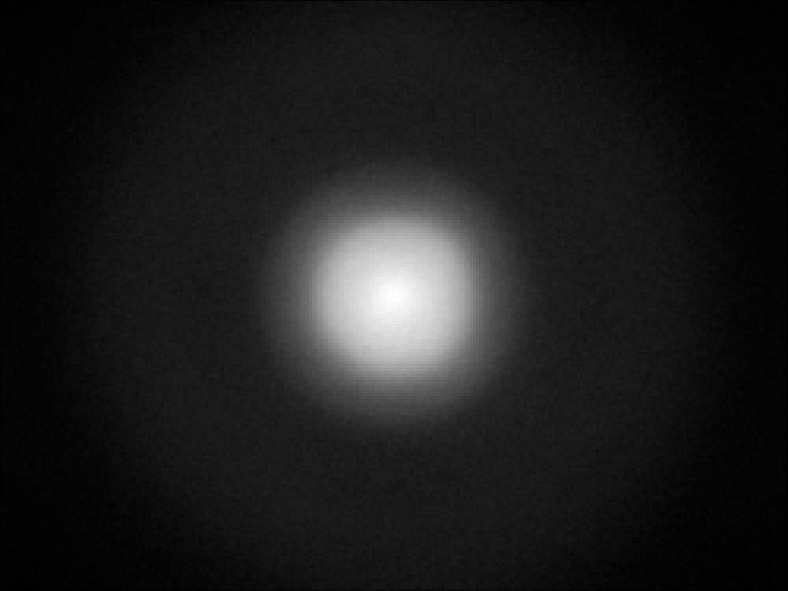

Osram OS OSLON SSL 80 degree White
Eff:
85.5%
FWHM:
18.5°
Cd/Im:
8.6
Download
Samsung 3030 LM301B White
Eff:
91.0%
FWHM:
18°
Cd/Im:
6.8
Download
Samsung 3535 LH351B White
Eff:
86.7%
FWHM:
25°
Cd/Im:
3.7
Download
Samsung 3535 LH351Z White
Eff:
86.5%
FWHM:
20.5°
Cd/Im:
5.9
Download
Samsung CSP LH151B White
Eff:
92.0%
FWHM:
18°
Cd/Im:
6.7
Download
Samsung CSP LH181B White
Eff:
92.0%
FWHM:
20.5 °
Cd/Im:
4.9
Download
Samsung CSP LM101B White
Eff:
92.0%
FWHM:
18°
Cd/Im:
6.7
Download
Seoul MidPower MJT3030 White
Eff:
87.0%
FWHM:
16°
Cd/Im:
6.0
Download
Seoul STW8 C2SB-NT White
Eff:
91.0%
FWHM:
19.0°
Cd/Im:
5.4
Download
Seoul STWS C2PB-E0 White
Eff:
91.5%
FWHM:
19.0°
Cd/Im:
5.3
Download
Seoul SunLike STW9 C2SB-S
Eff:
91.5%
FWHM:
17.5°
Cd/Im:
6.4
Download
Seoul Z - Power Z5 M1 White
Eff:
87.0%
FWHM:
21.9°
Cd/Im:
4.6
Download
Seoul Z - Power Z5 M4 White
Eff:
90.0%
FWHM:
26°
Cd/Im:
3.9
Download
Seoul Z - Power Z5 White
Eff:
85.4%
FWHM:
16.4°
Cd/Im:
11.9
Download
Toshiba TL 1L2 White
Eff:
85.0%
FWHM:
22.7°
Cd/Im:
4.4
Download
Toshiba TL 1L4 White
Eff:
86.0%
FWHM:
21.8°
Cd/Im:
4.2
Download
