19.7mm Hemispherical Plain Bubble | Carclo Optics

Carclo Optics 10620

19.7mm Hemispherical Plain Bubble

Part number

10620

Dimensions

19.7mm

Drawing Number

60570

Optic type

Bubble

Finish

Plain

Beam type

Hemispherical

Applications

Architectural

Wide Area

Emergency / Hazard

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

86.5%

FWHM:

179 x 178°

Cd/Im:

0.3

Carclo Optics - 10620 Bubble Spot Image Bridgelux 3030 Gen2

Carclo Optics - 10620 Bubble Cross Section Bridgelux 3030 Gen2

Download

IES

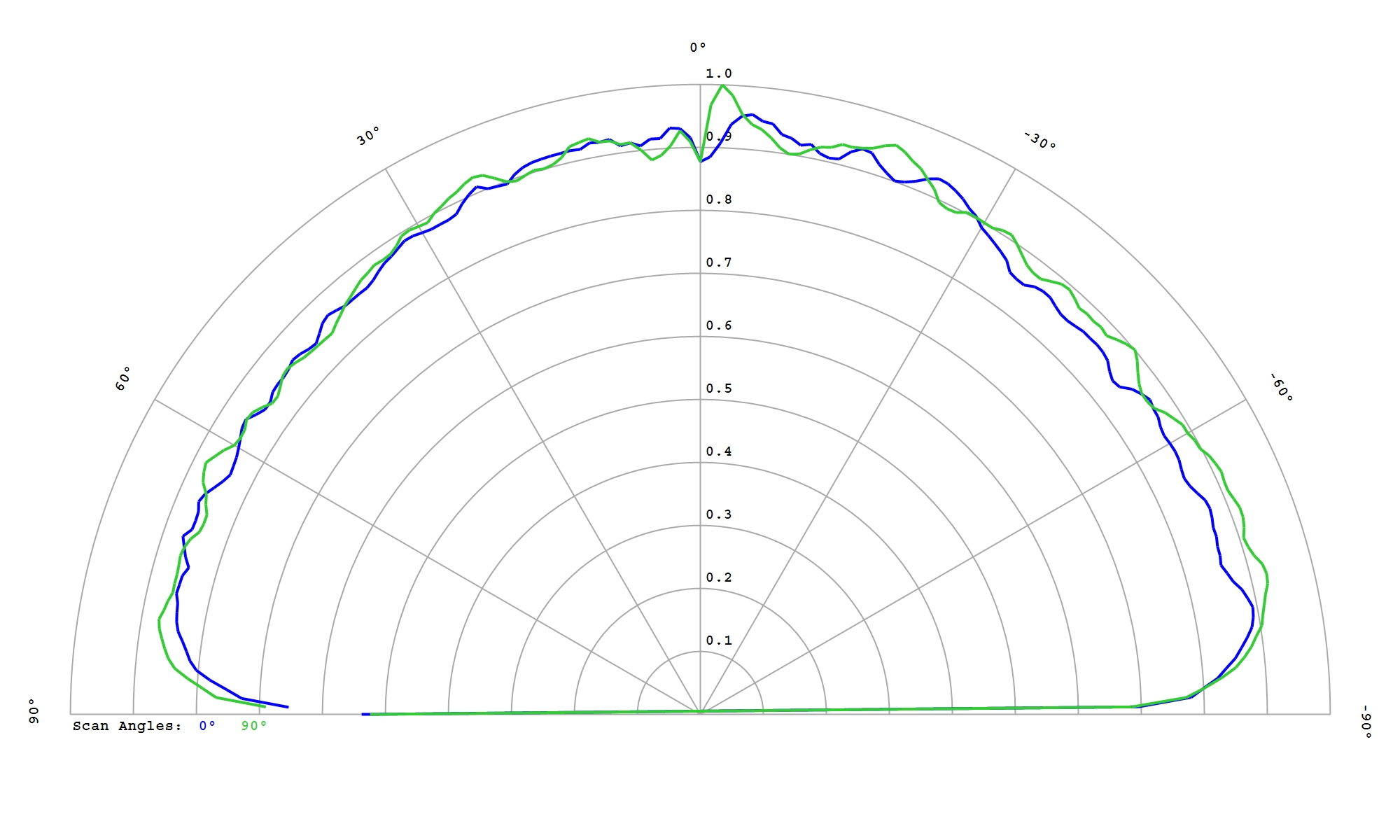

Cree JB2835B 3V G-Class White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.2


Download

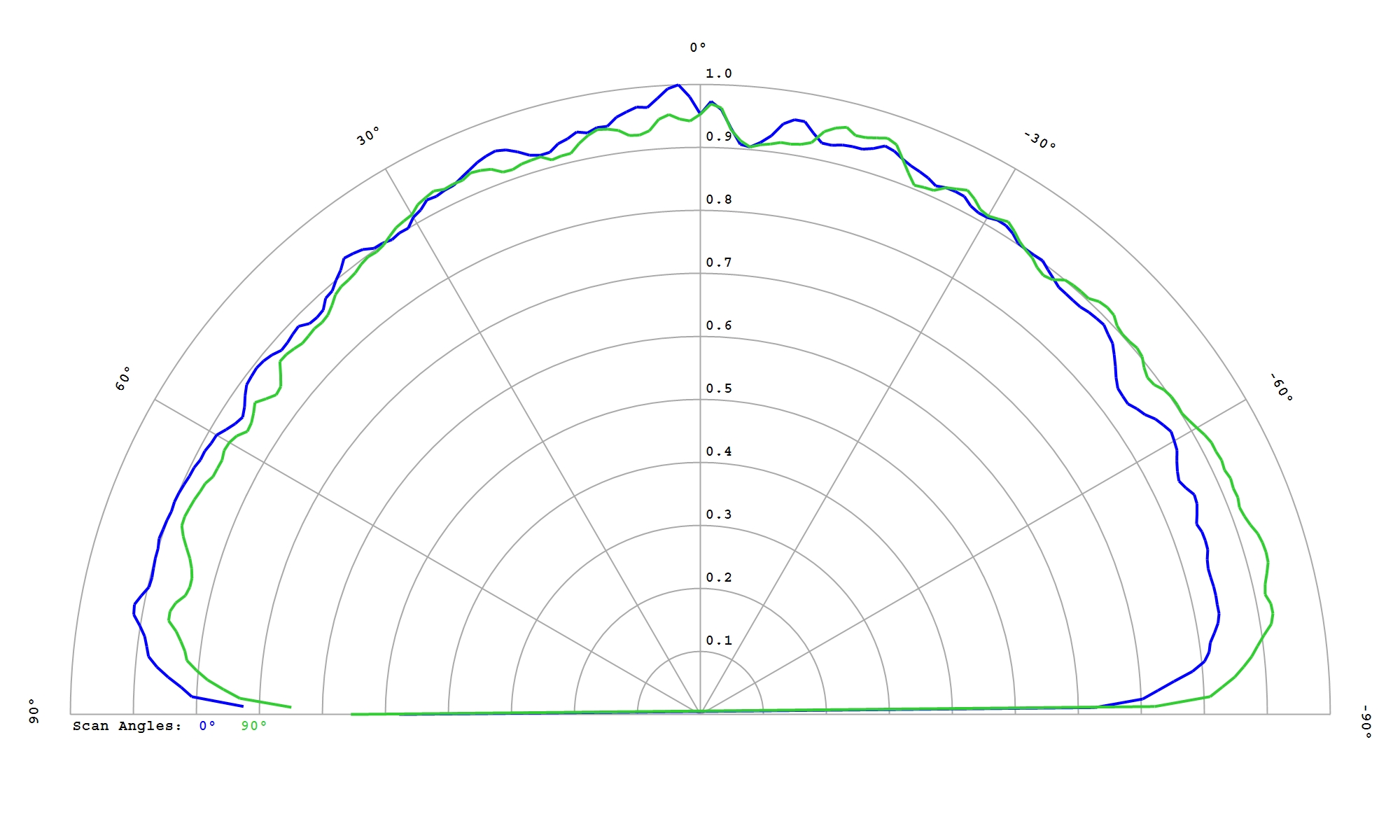

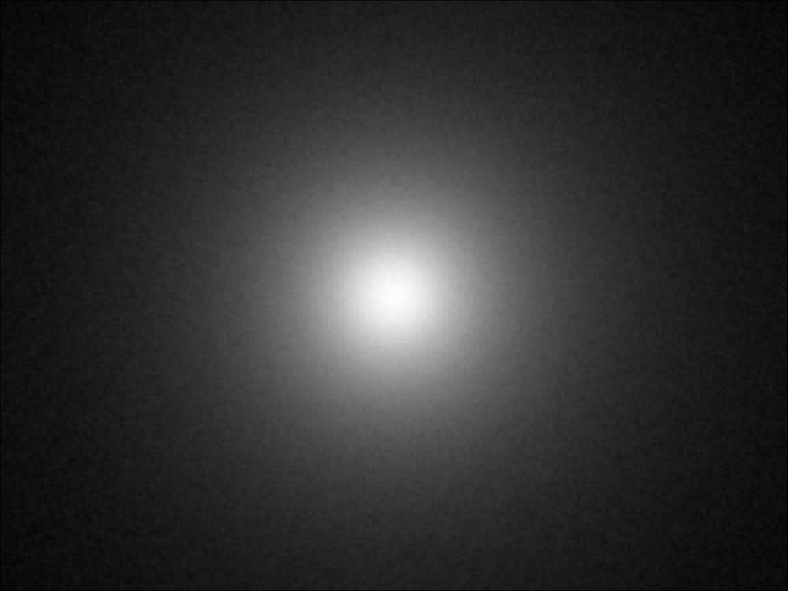

Cree JB2835B 3V J-Class White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.2


Download

Cree JB3030 3V P-Class White

Eff:

87.5%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image Cree JB3030 3V White

Carclo Optics - 10620 Cross Section Cree JB3030 3V White

Download

IES

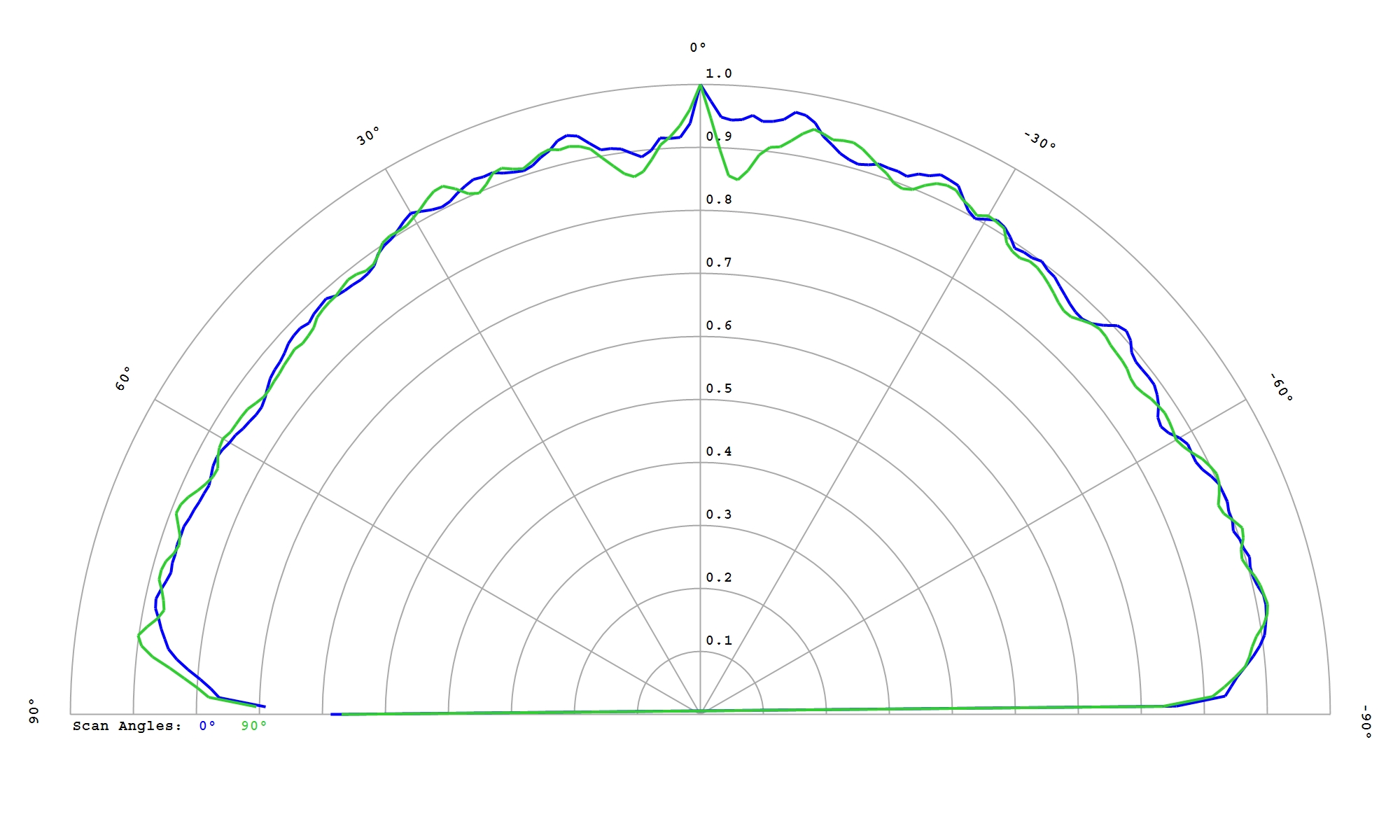

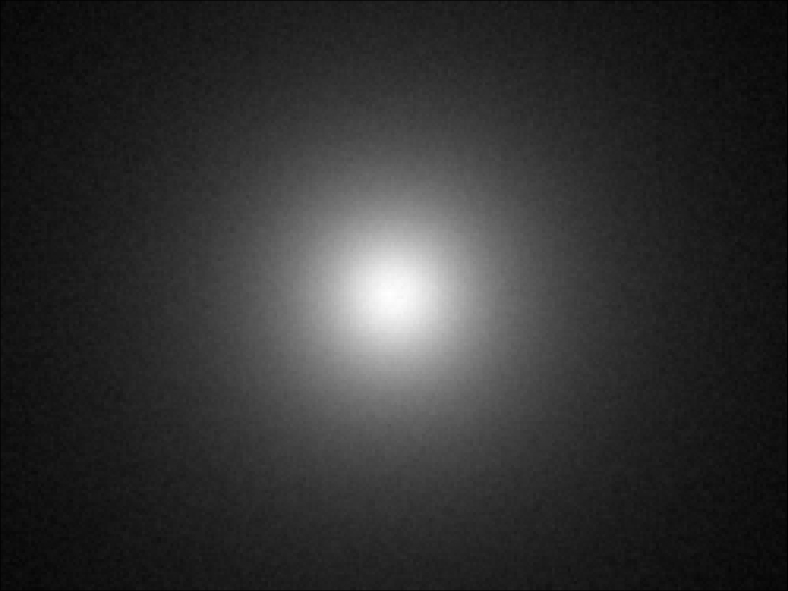

Cree JB3030C 3V E-Class White

Eff:

84.0%

FWHM:

179°

Cd/Im:

0.3


Download

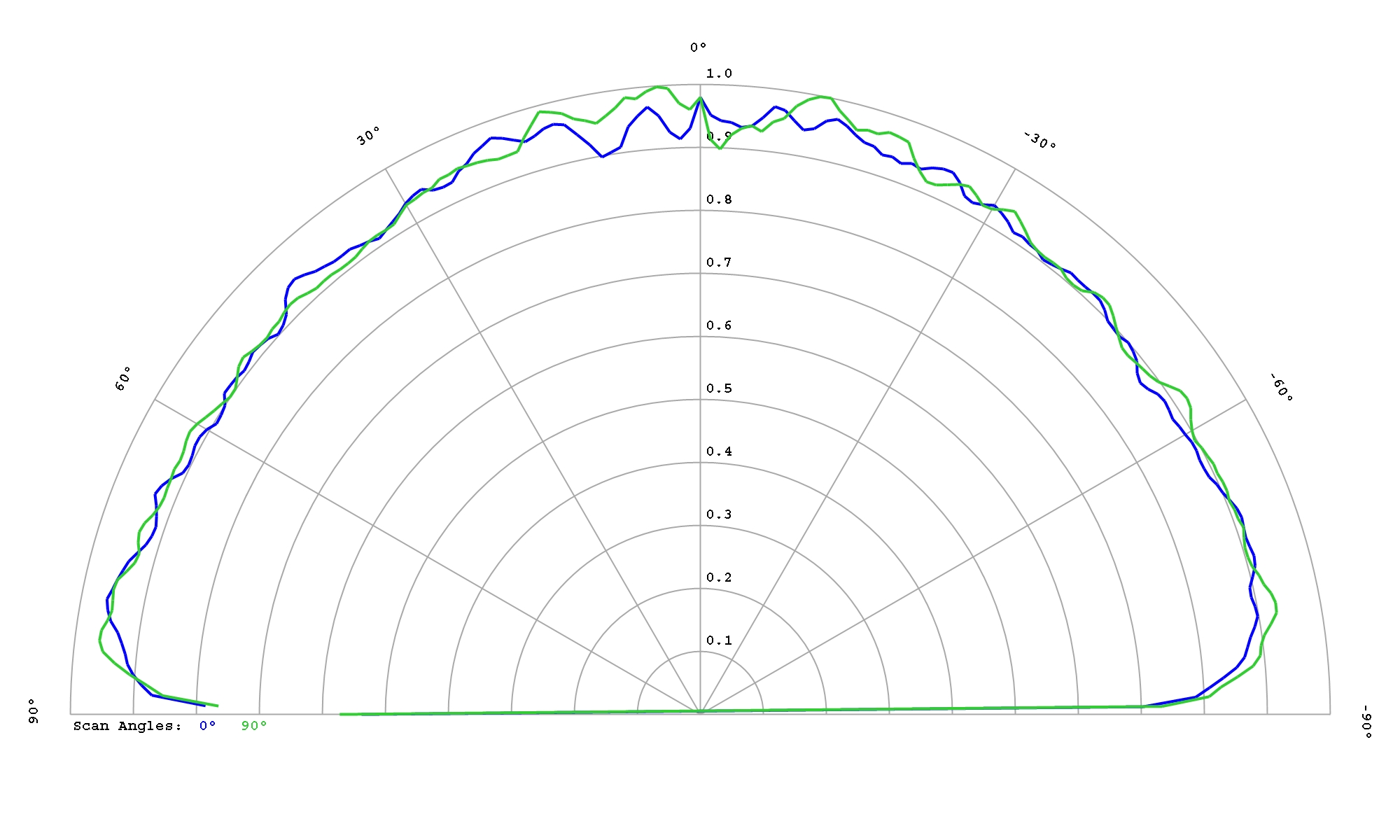

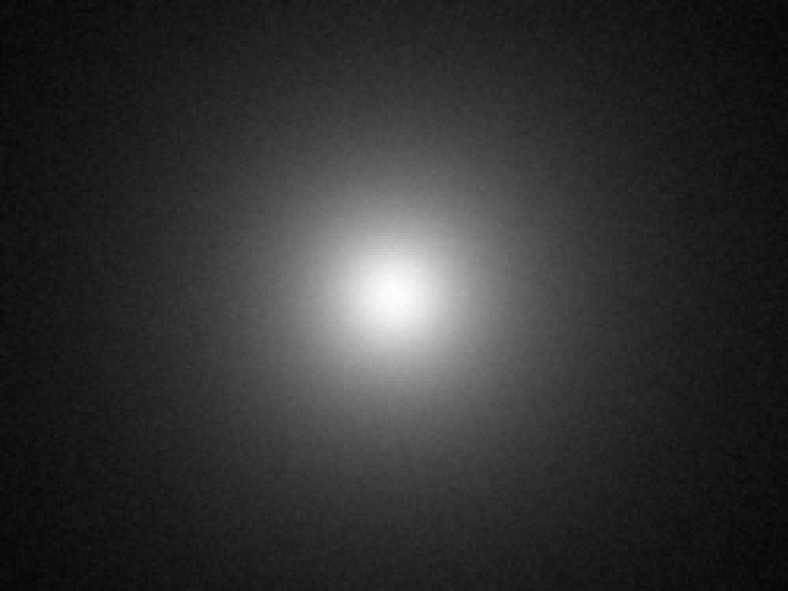

Cree JB3030C 3V F-Class White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3


Download

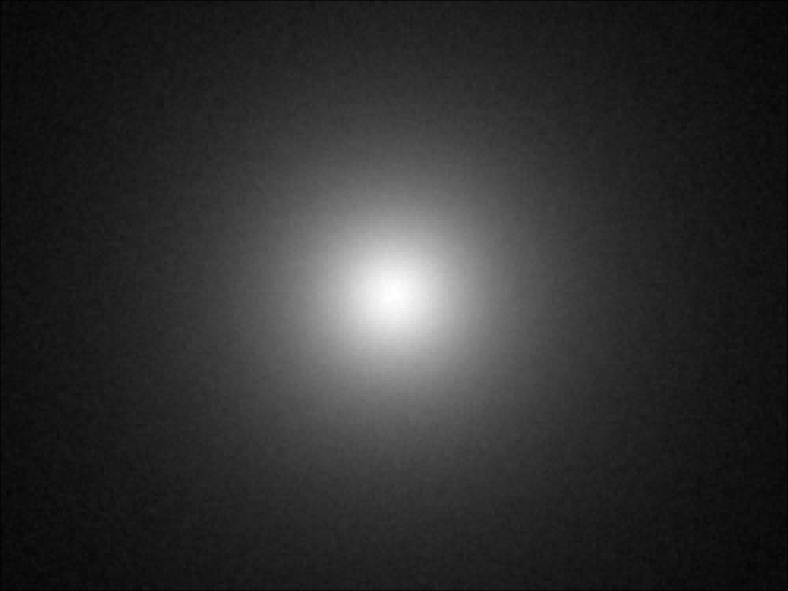

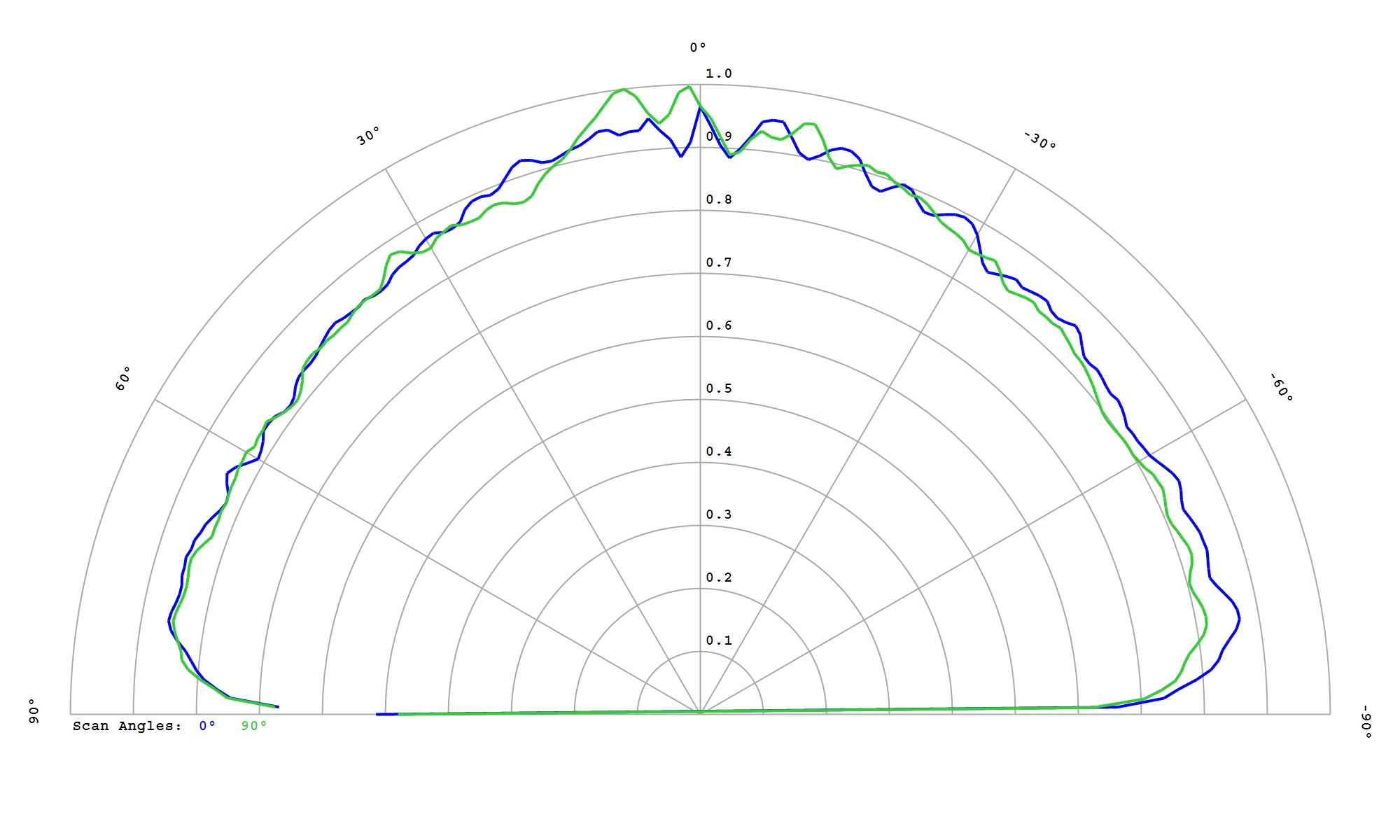

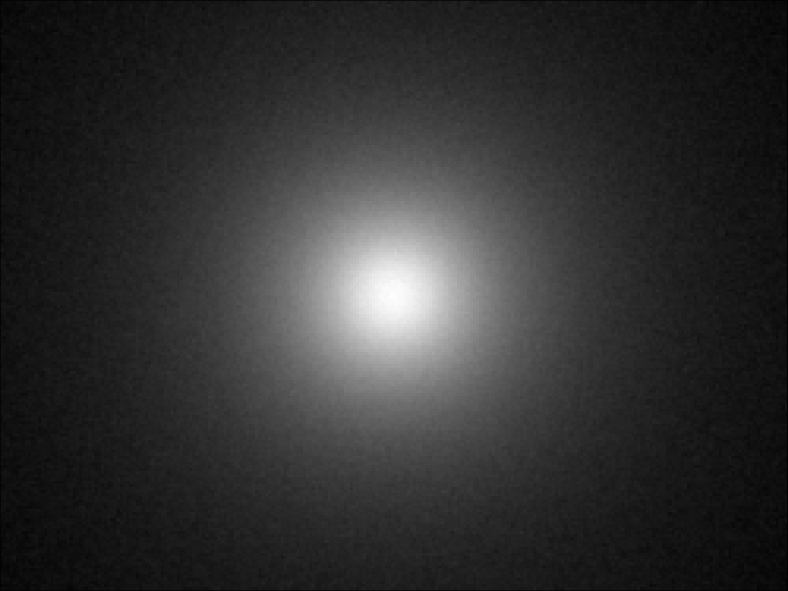

Cree JE2835 3V White

Eff:

85.5%

FWHM:

178°

Cd/Im:

0.3

Download

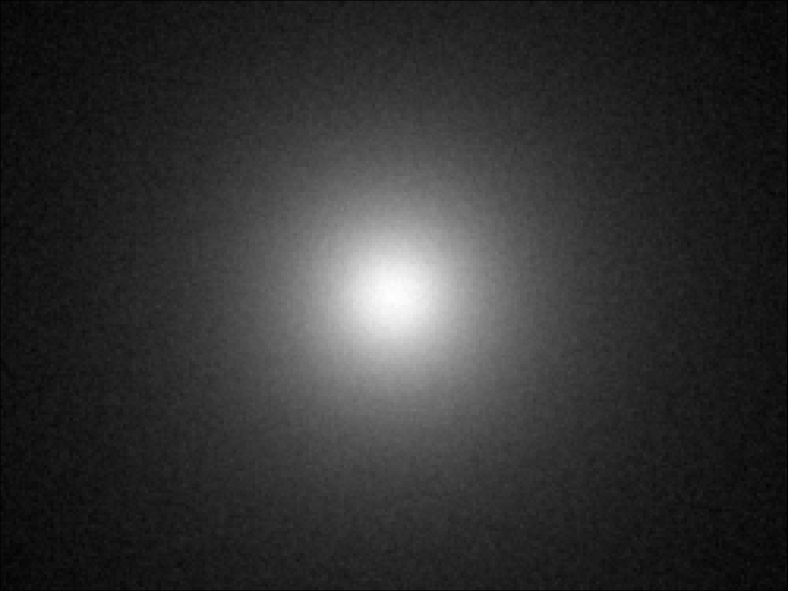

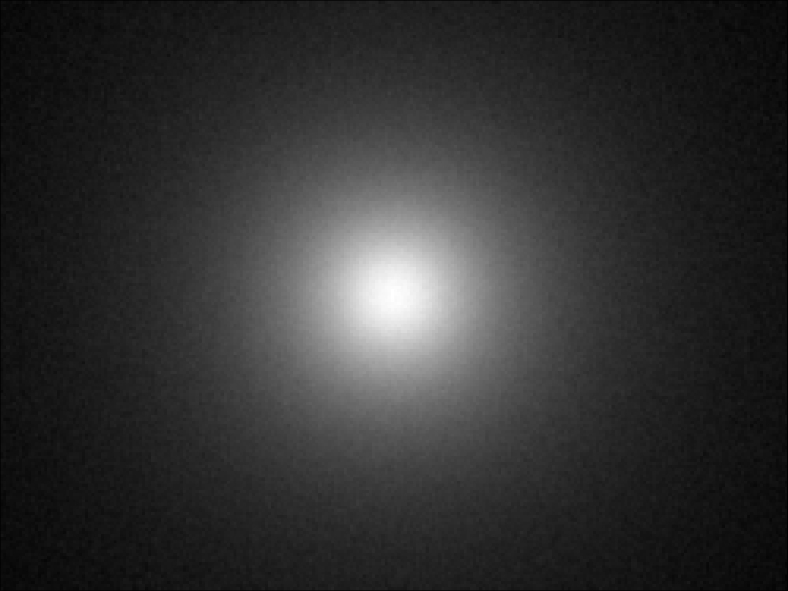

Cree JK2835 6V White

Eff:

86.0%

FWHM:

179°

Cd/Im:

0.3

Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

78.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

82.0%

FWHM:

179°

Cd/Im:

0.2

Download

IES

Cree XLamp XB-H White

Eff:

85.5%

FWHM:

154°

Cd/Im:

0.3

Carclo Optics - 10620 Bubble Spot Image Cree XLamp XB-H

Carclo Optics - 10620 Bubble Cross Section Cree XLamp XB-H

Download

IES

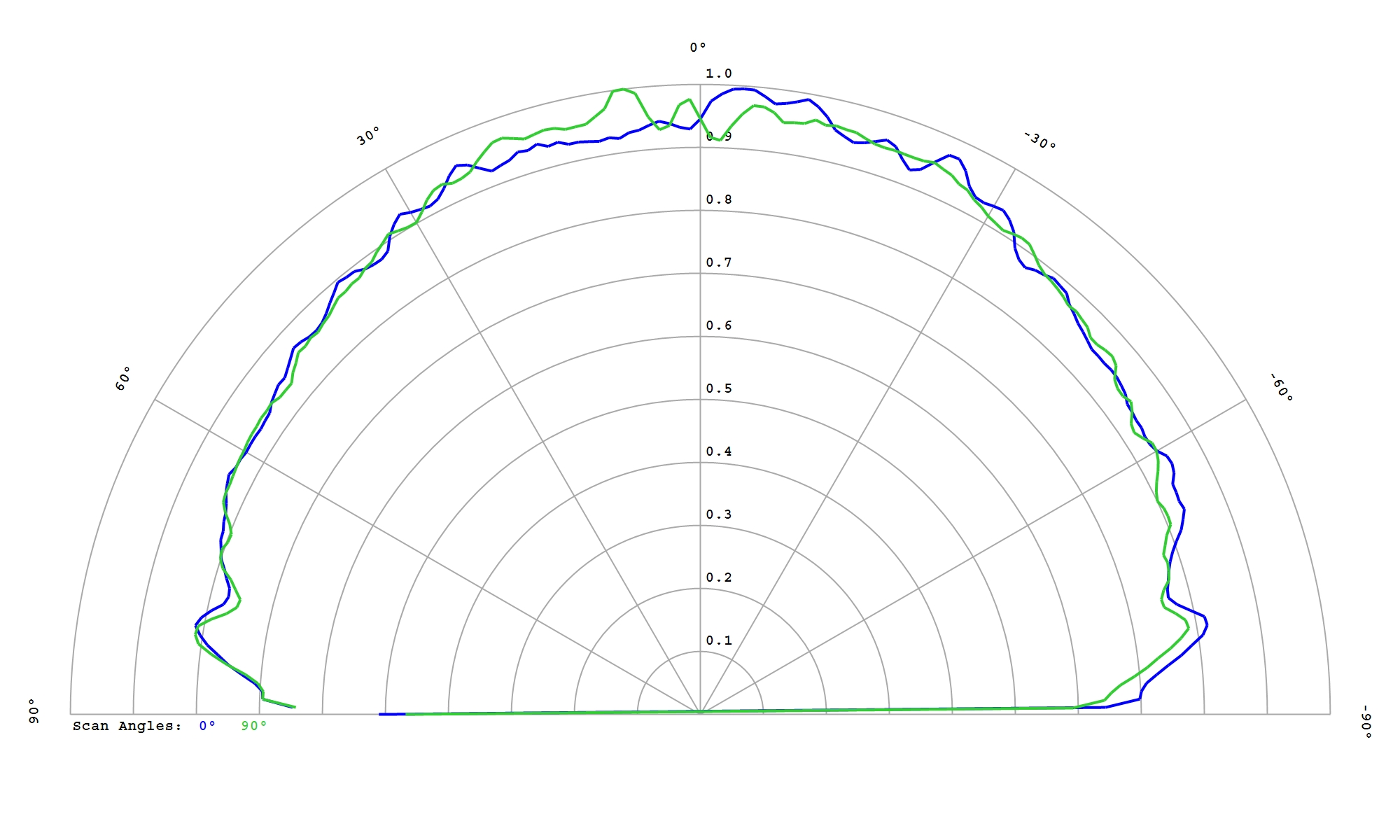

Cree XLamp XE-G White

Eff:

80.0%

FWHM:

178°

Cd/Im:

0.3

Download

IES

Cree XLamp XH-B White

Eff:

74.4%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XHP35 HI White

Eff:

80.3%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XHP35 HD White

Eff:

77.6%

FWHM:

180.0°

Cd/Im:

0.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XP-E White

Eff:

81.2%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-E2 White

Eff:

84.0%

FWHM:

173°

Cd/Im:

0.3

Download

IES

Cree XLamp XP-G White

Eff:

78.4%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XP-G2 White

Eff:

79.2%

FWHM:

180°

Cd/Im:

0.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

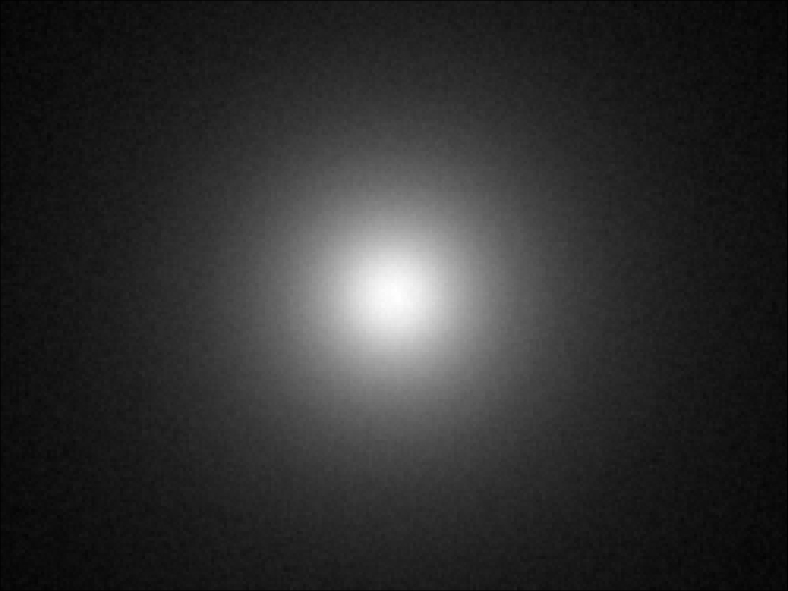

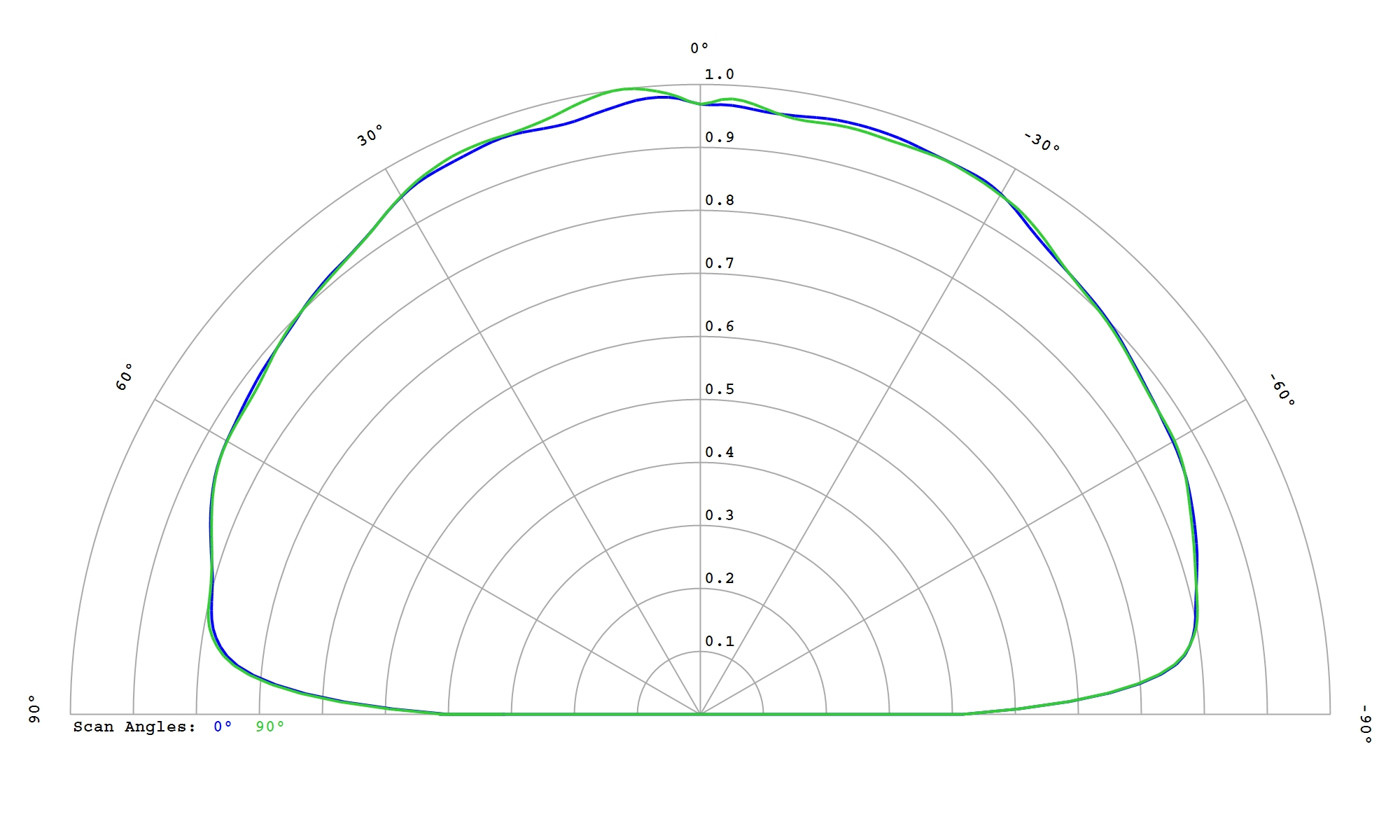

Cree XLamp XP-GR White

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.3

Download

Cree XLamp XP-L White

Eff:

81.0%

FWHM:

175°

Cd/Im:

0.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

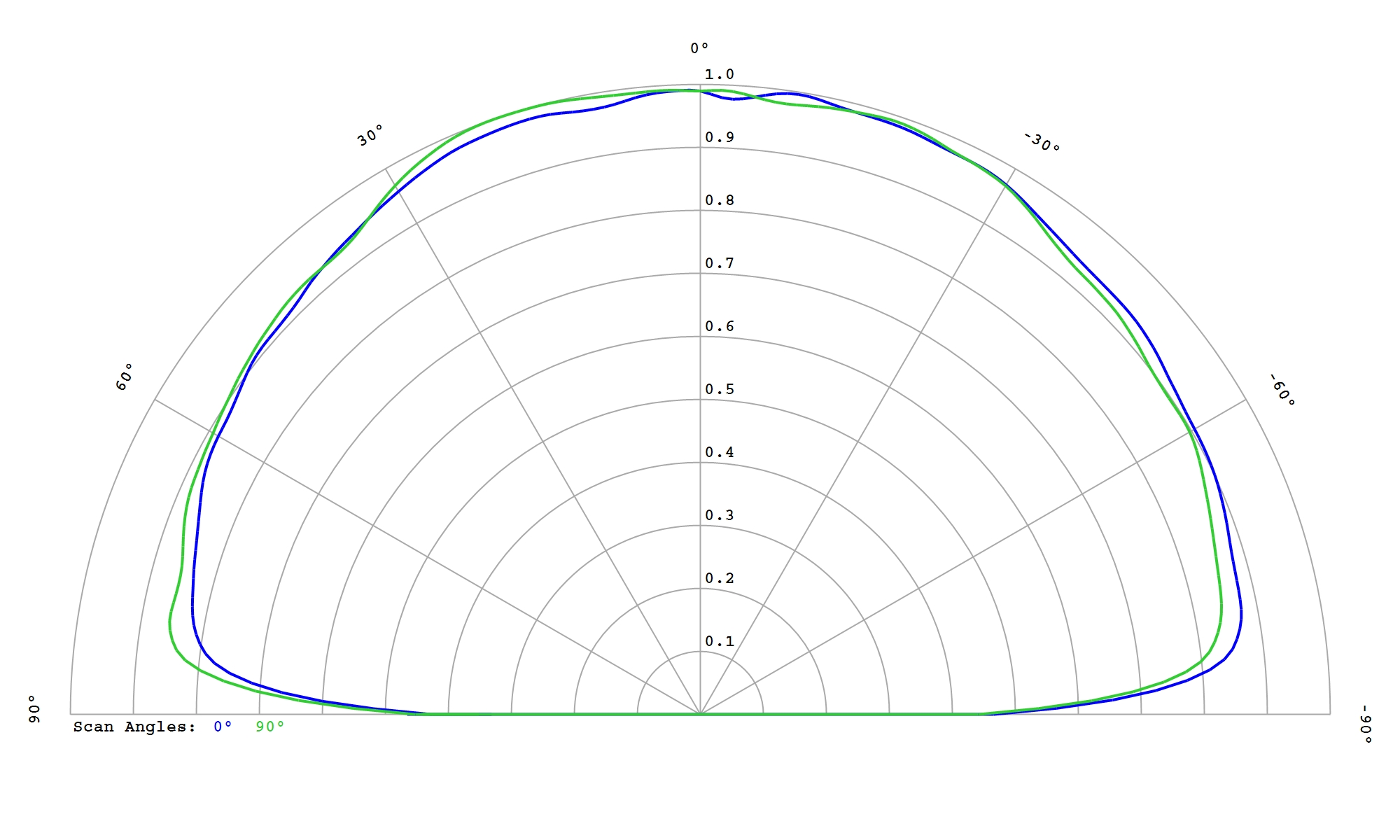

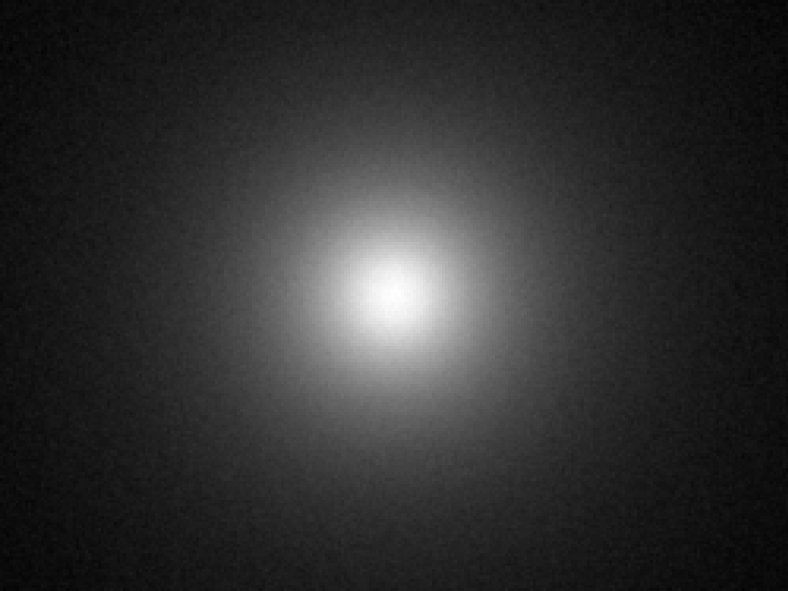

Cree XLamp XP-LR White

Eff:

84.5%

FWHM:

178°

Cd/Im:

0.3

Download

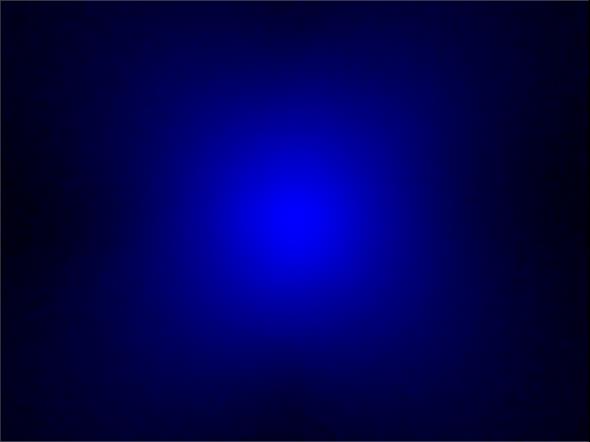

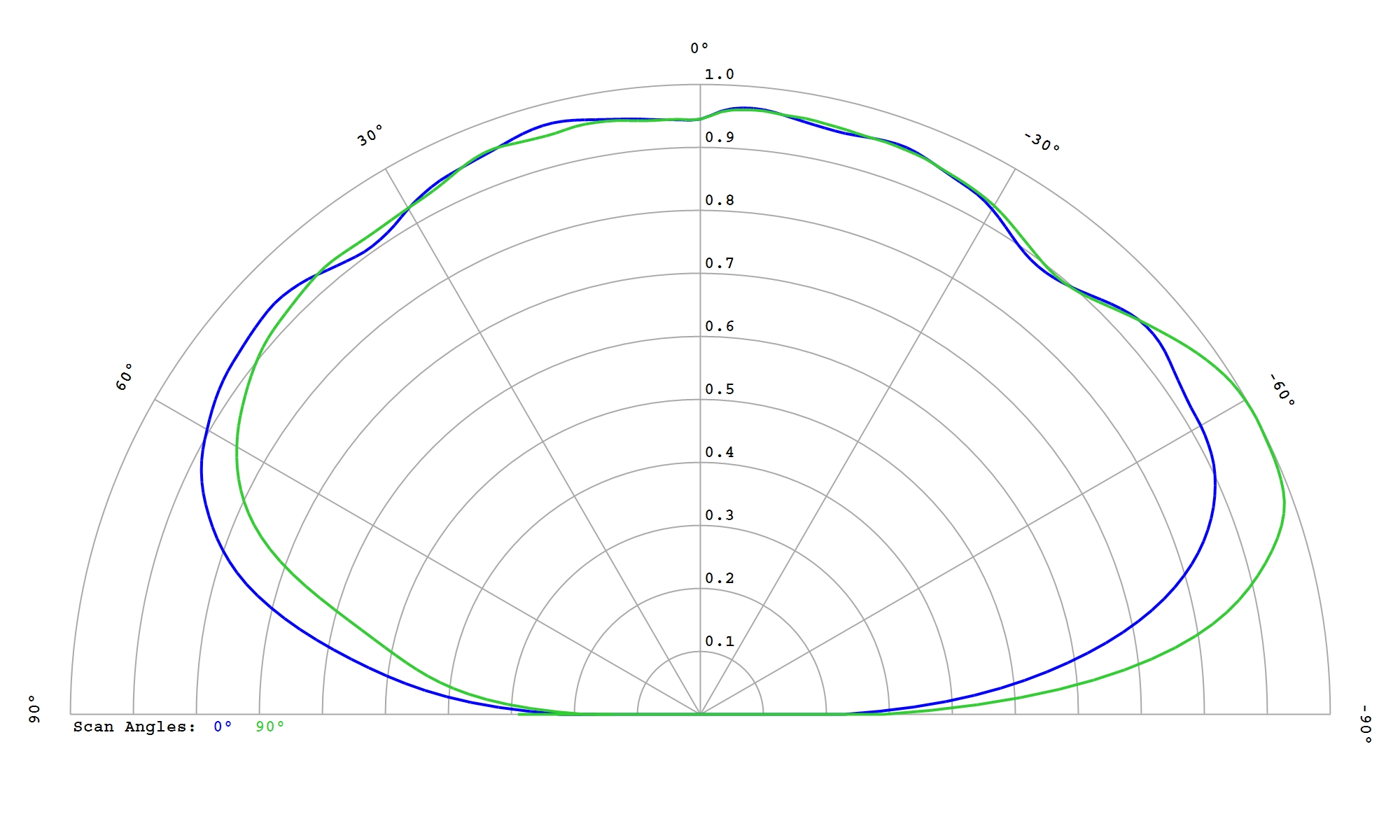

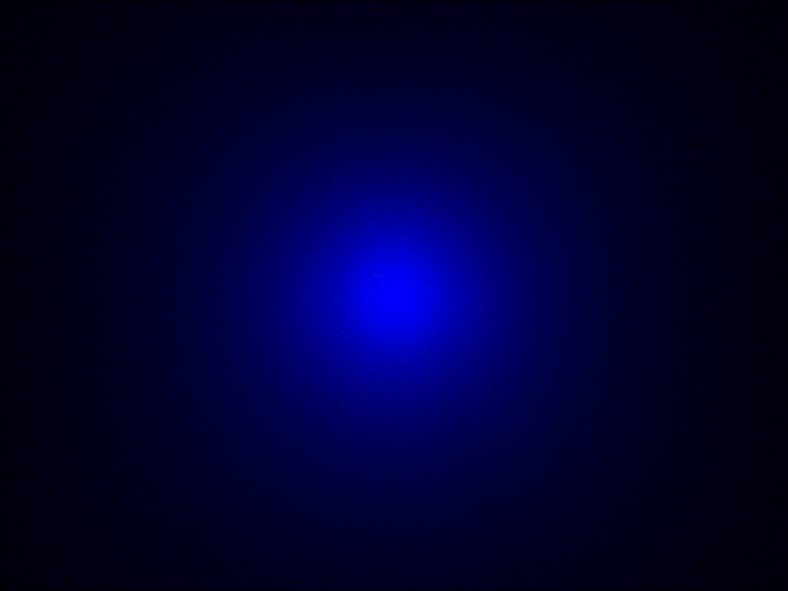

Cree XLamp XQ-A Blue

Eff:

84.5%

FWHM:

164°

Cd/Im:

0.2

Download

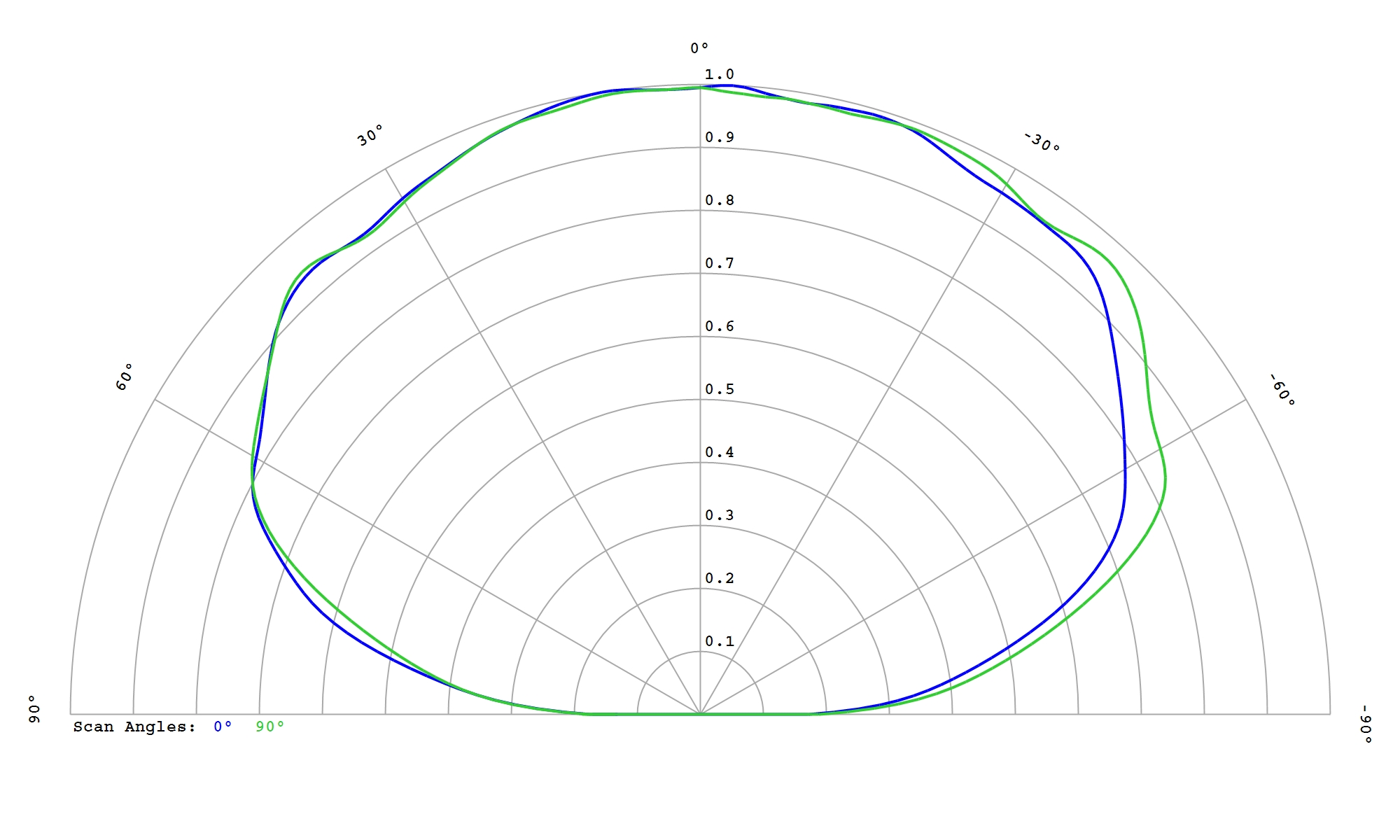

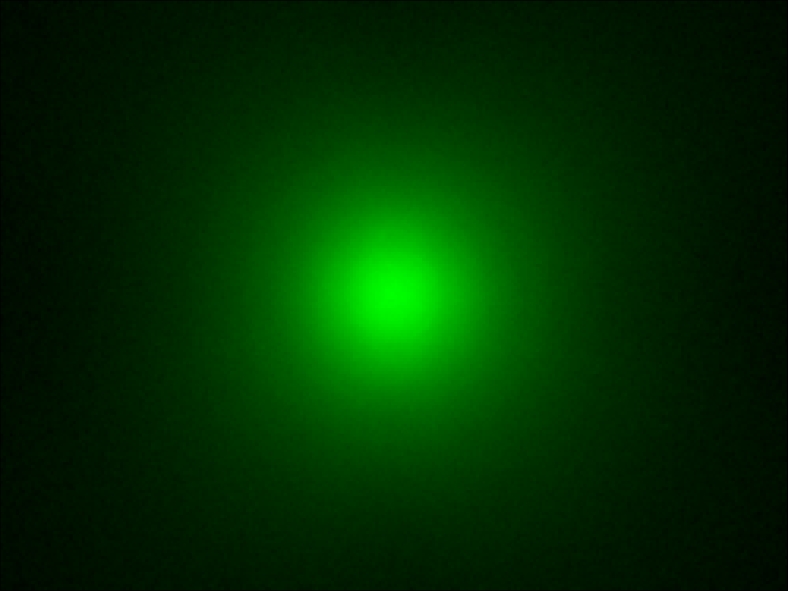

Cree XLamp XQ-A Green

Eff:

85.5%

FWHM:

154°

Cd/Im:

0.2

Download

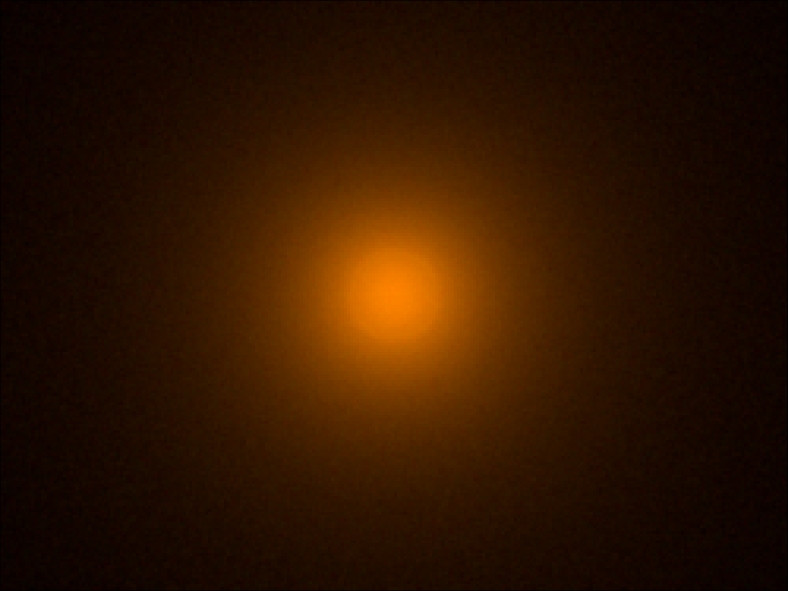

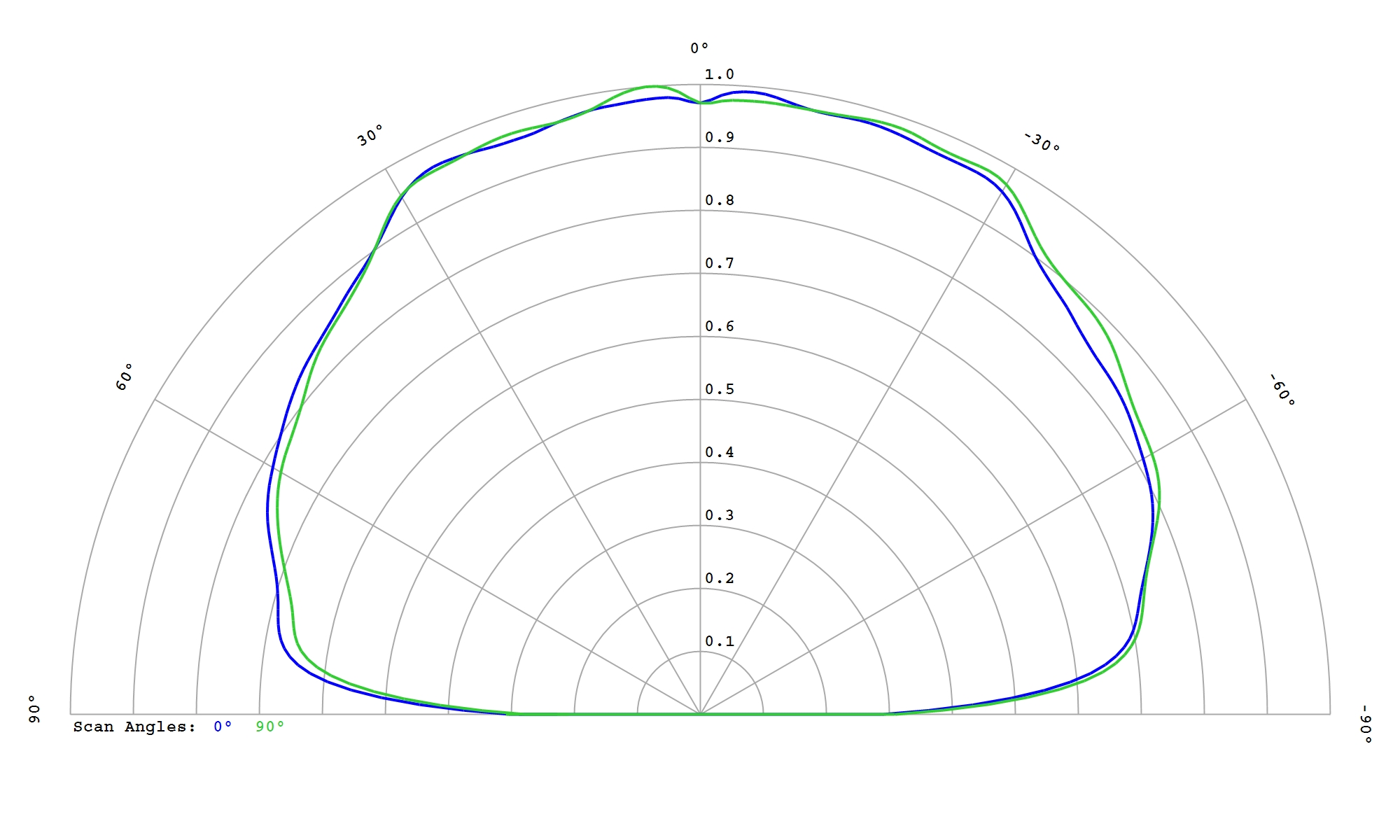

Cree XLamp XQ-A PC Amber

Eff:

83.5%

FWHM:

175°

Cd/Im:

0.3

Download

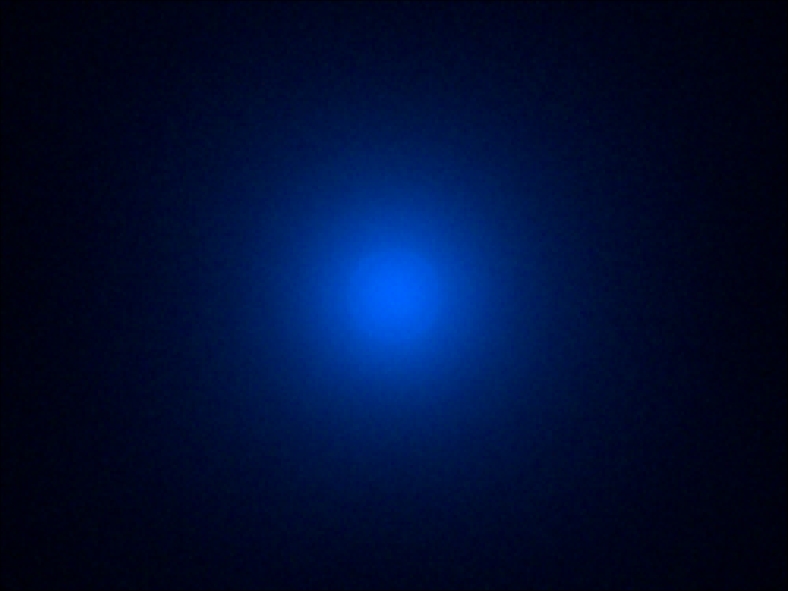

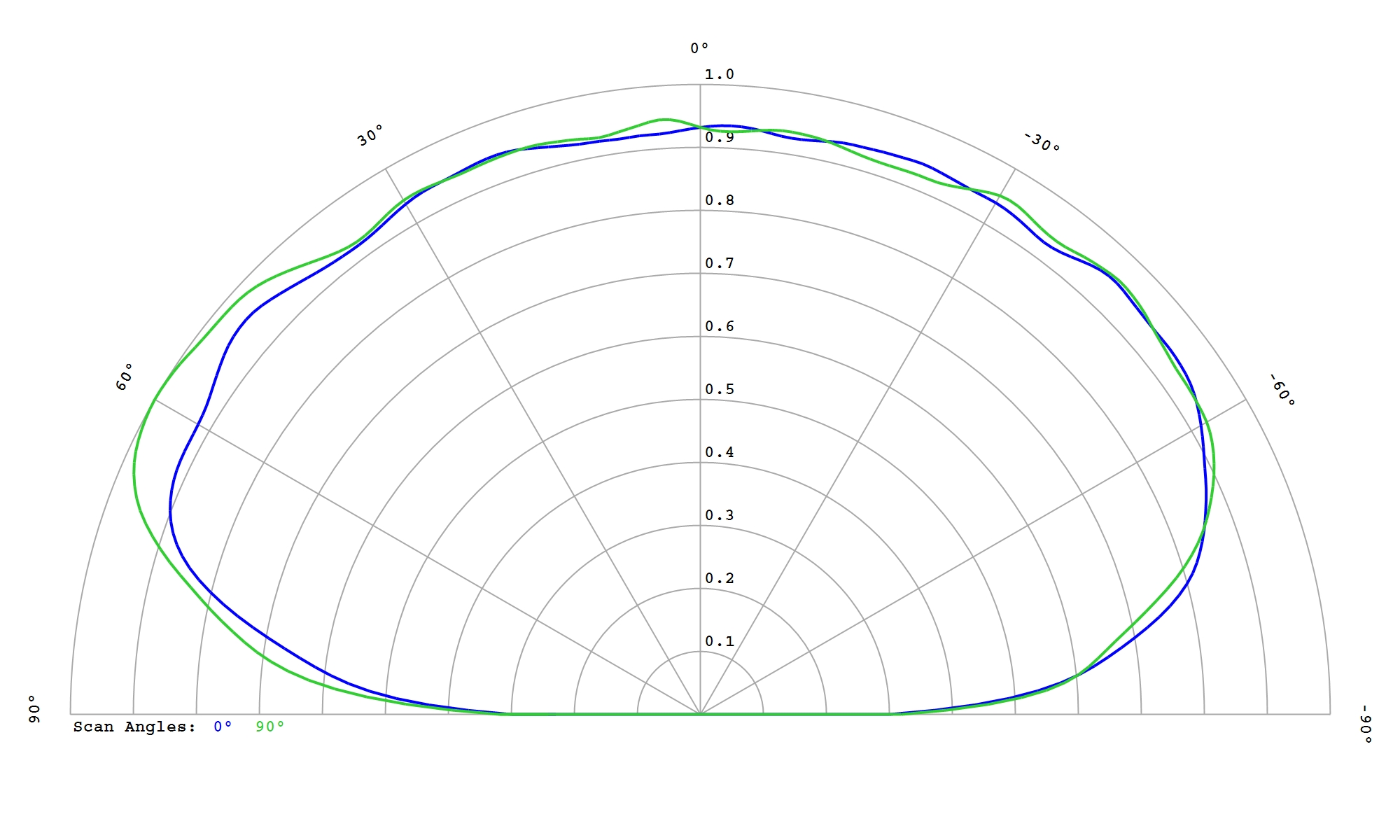

Cree XLamp XQ-A PC Blue

Eff:

80.0%

FWHM:

177°

Cd/Im:

0.3

Download

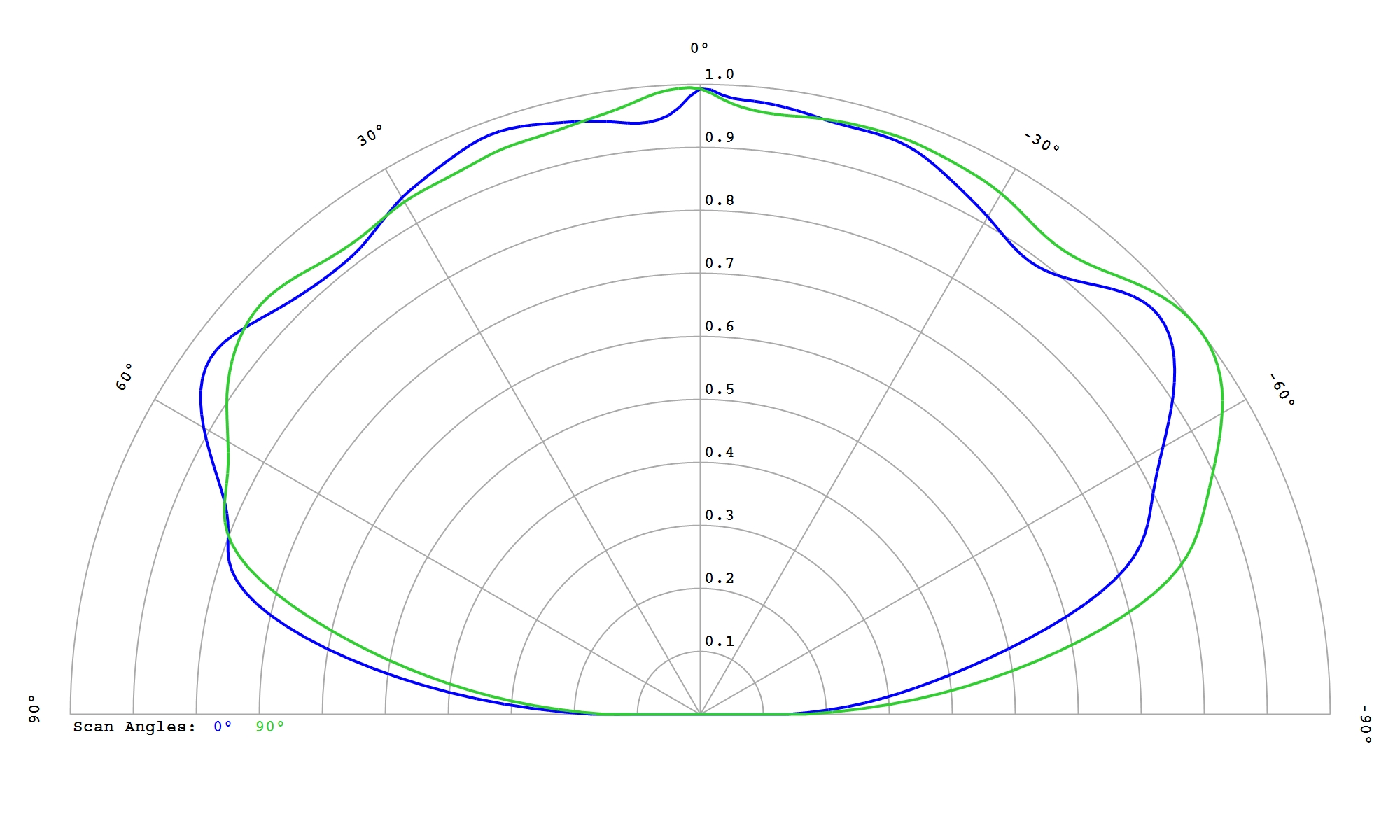

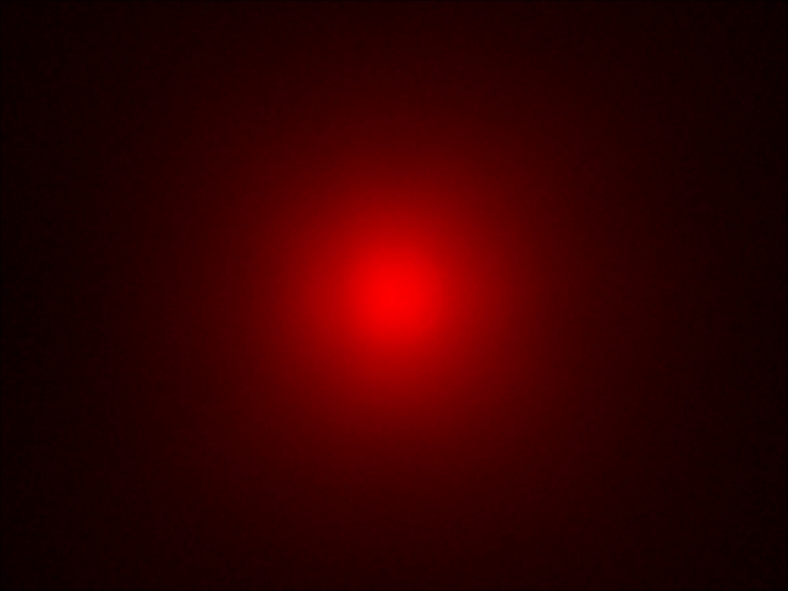

Cree XLamp XQ-A Red

Eff:

86.0%

FWHM:

158°

Cd/Im:

0.2

Download

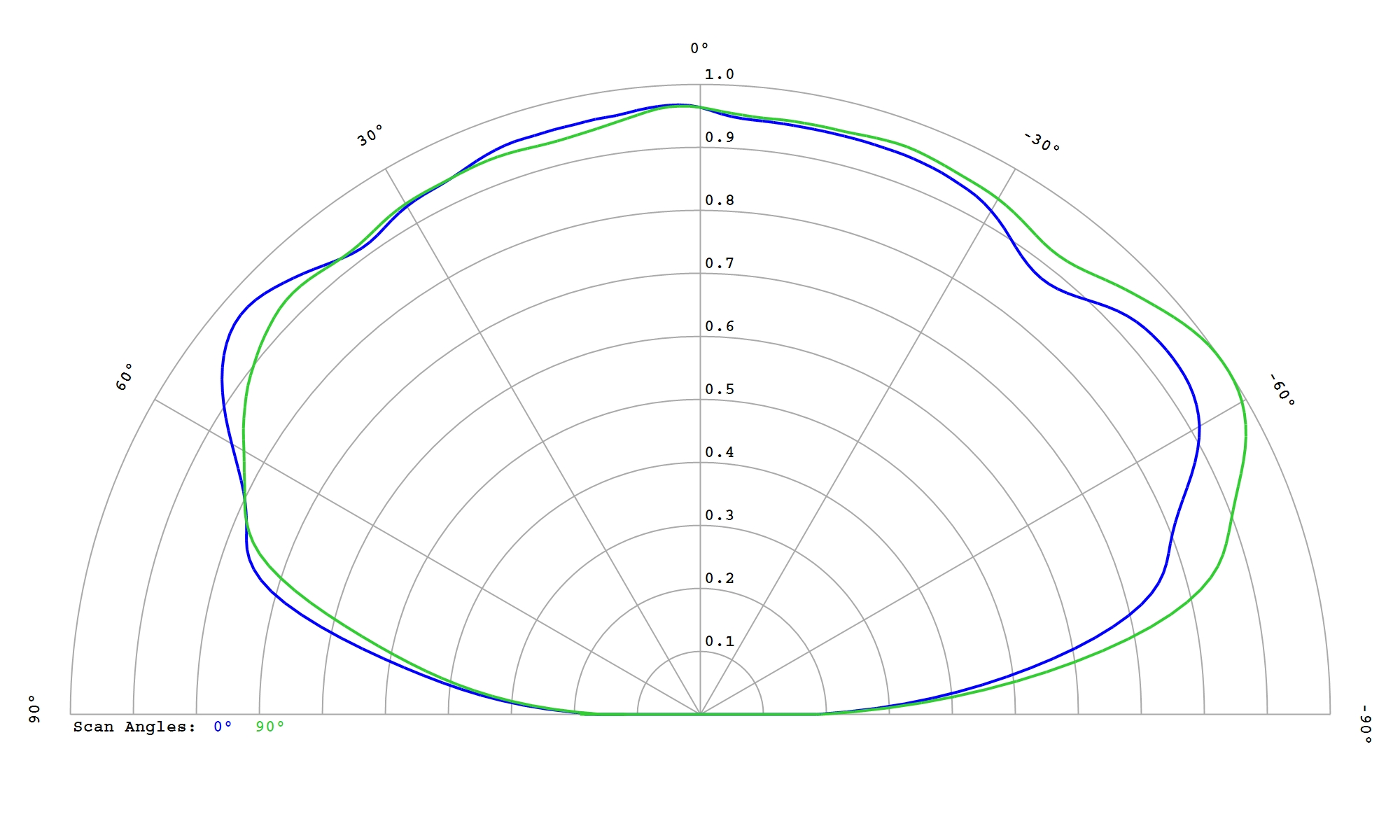

Cree XLamp XQ-A Red-Orange

Eff:

85.5%

FWHM:

161°

Cd/Im:

0.3


Download

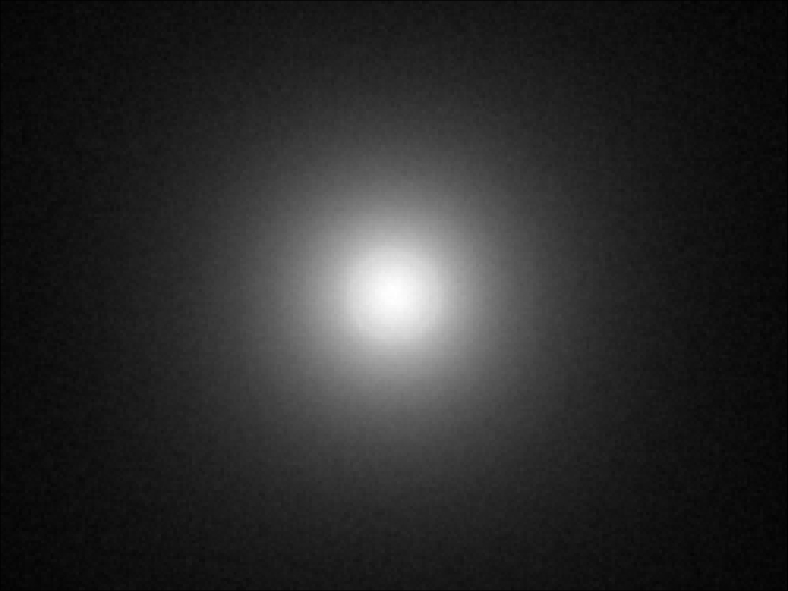

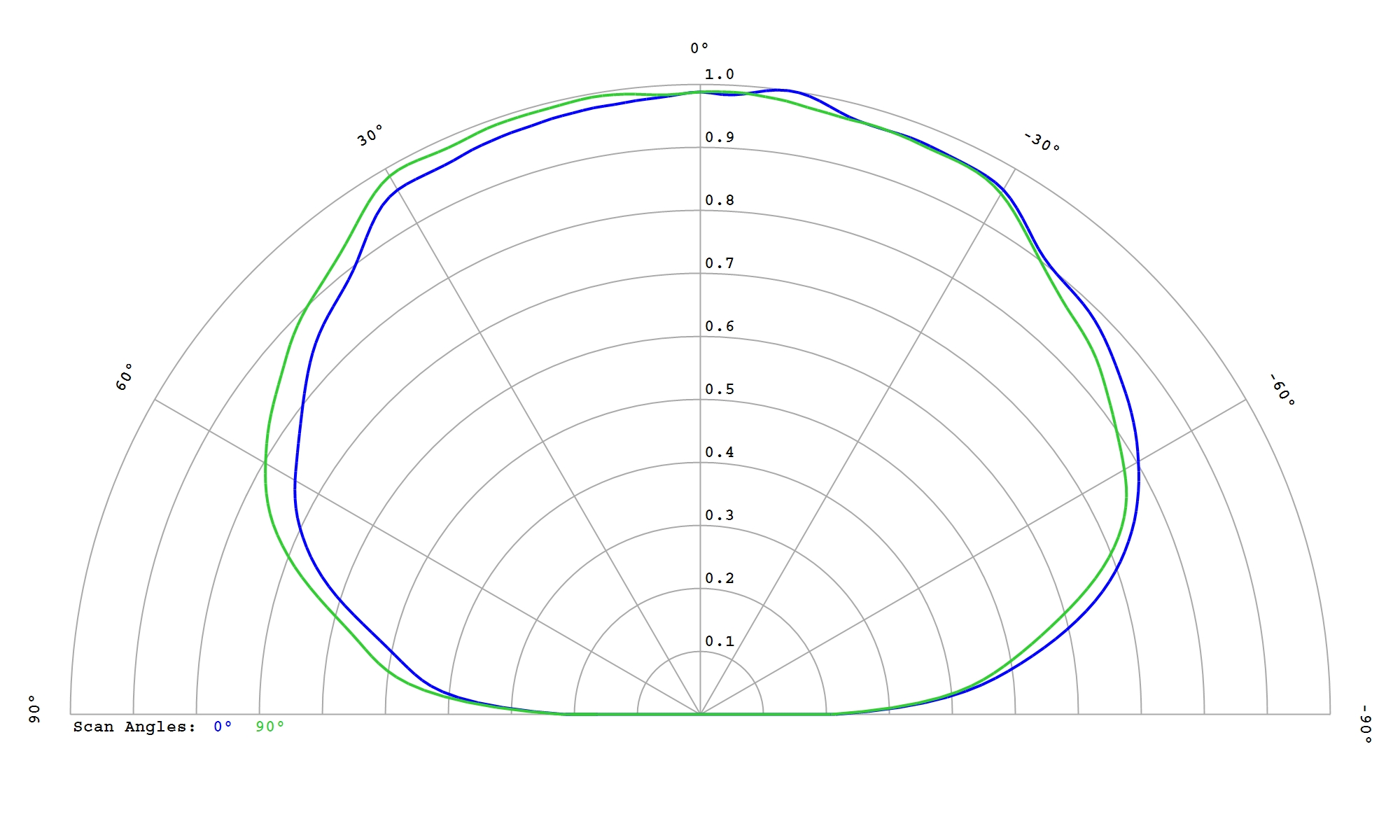

Cree XLamp XQ-A White

Eff:

84.5%

FWHM:

155°

Cd/Im:

0.3

Download

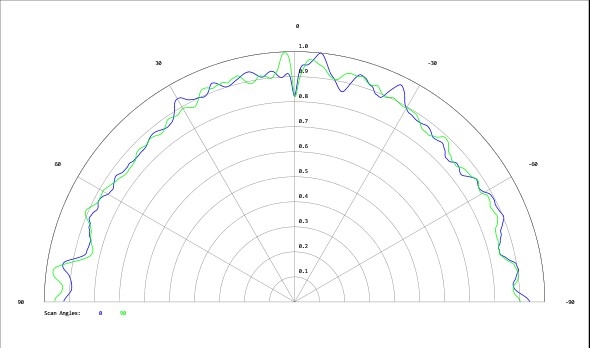

Cree XLamp XQ-E HI Blue

Eff:

78.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Green

Eff:

78.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI Red

Eff:

80.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Cree XLamp XQ-E HI White

Eff:

78.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

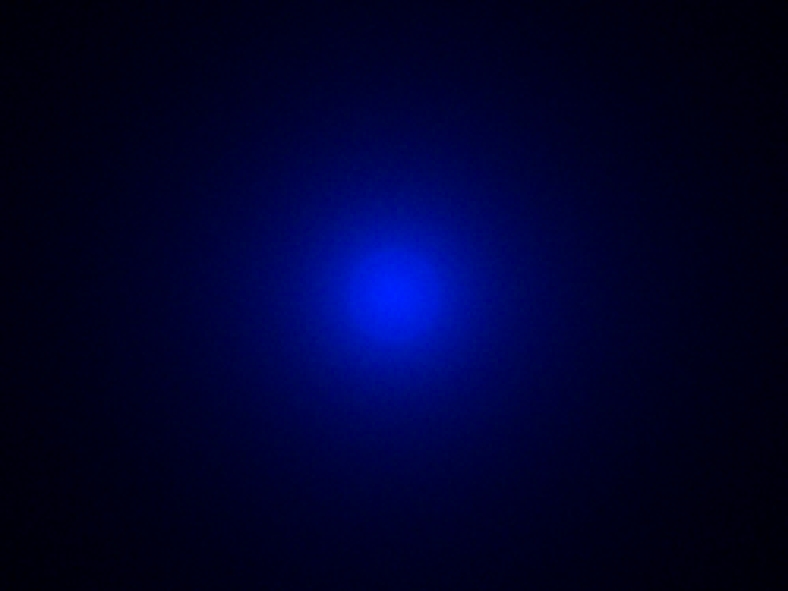

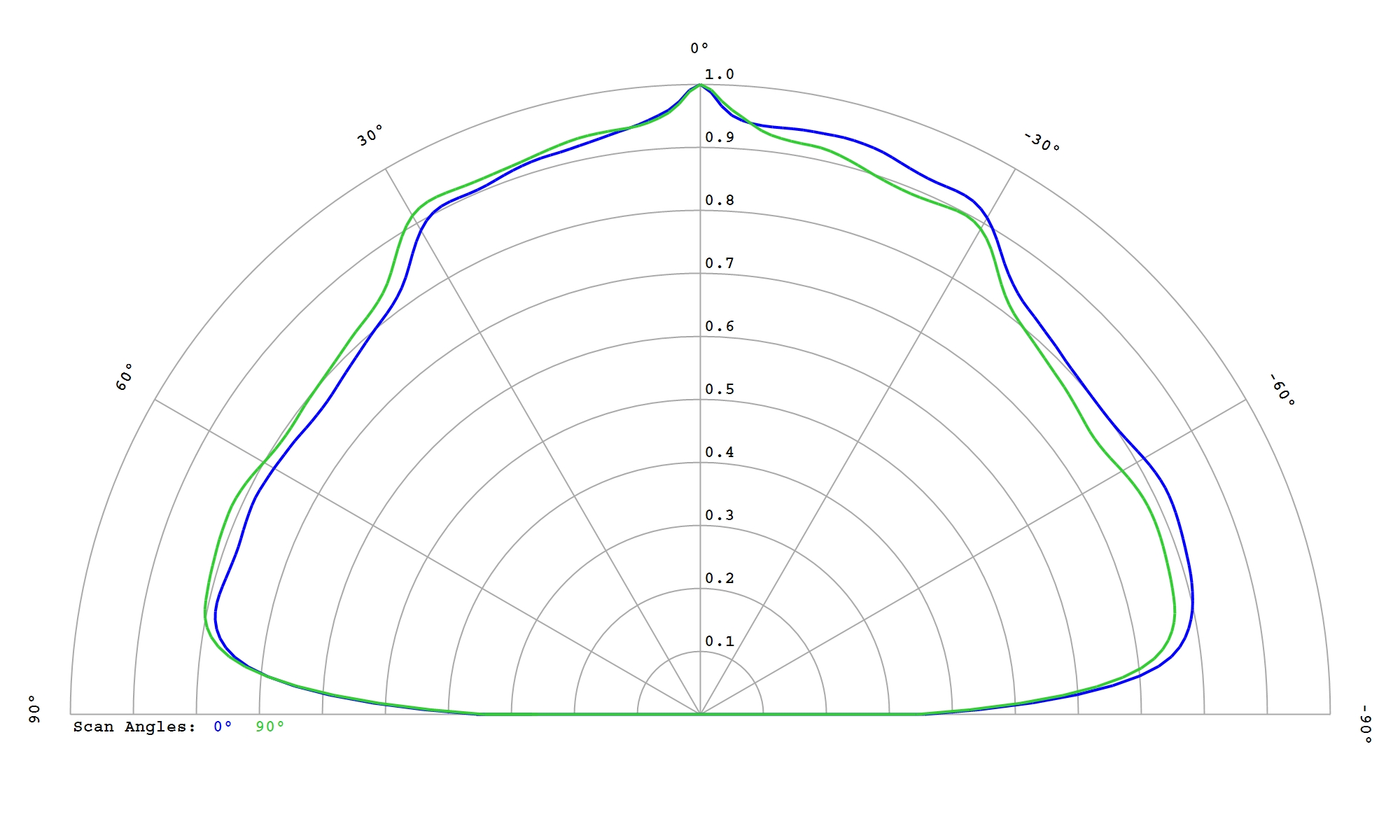

Cree XLamp XQ-E Plus HD Blue

Eff:

83.0%

FWHM:

178°

Cd/Im:

0.3


Download

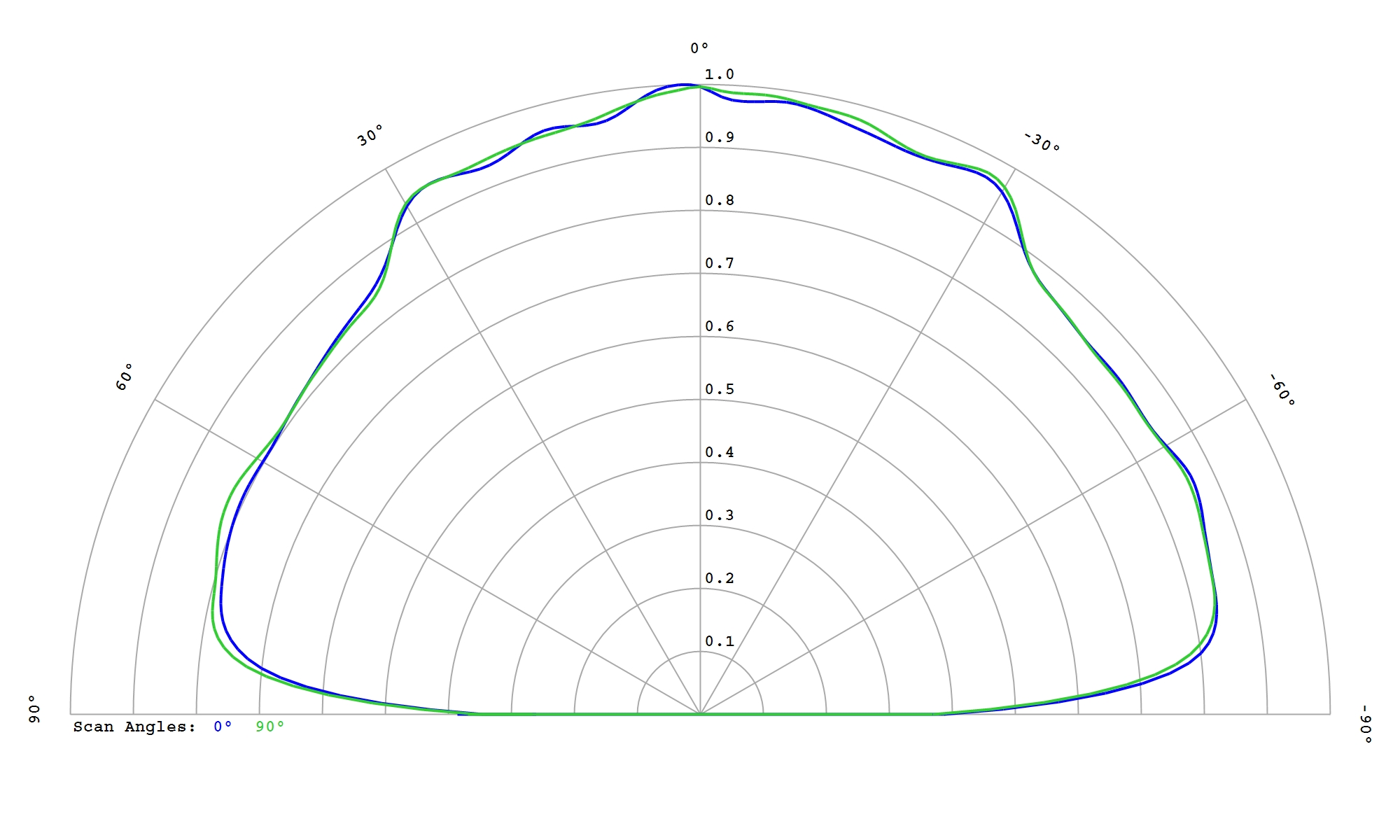

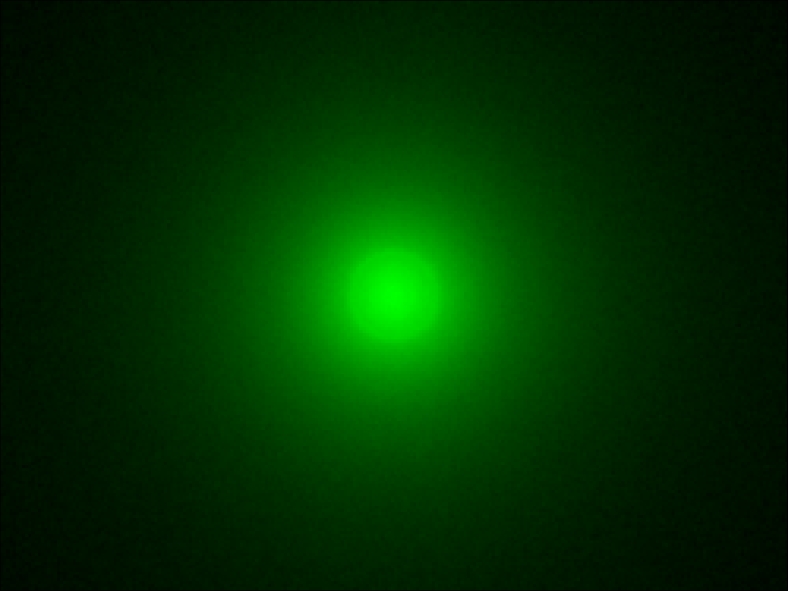

Cree XLamp XQ-E Plus HD Green

Eff:

82.5%

FWHM:

178°

Cd/Im:

0.2


Download

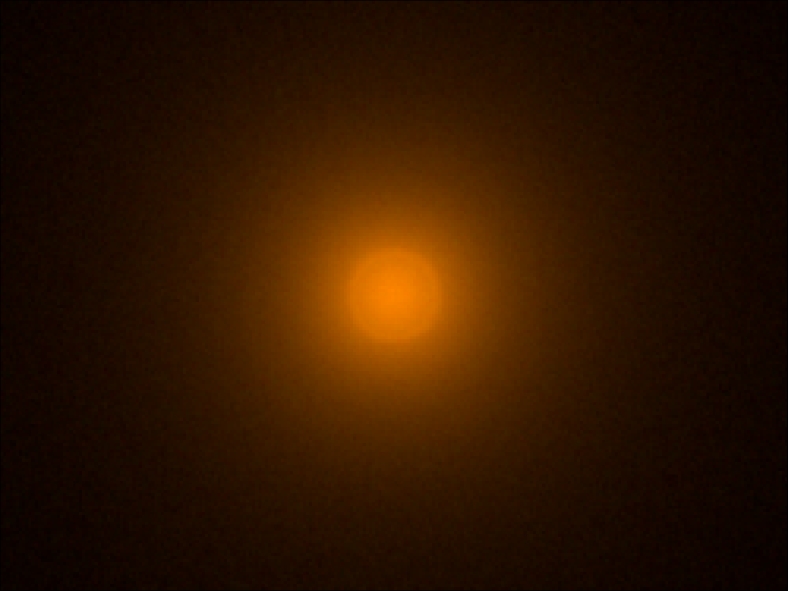

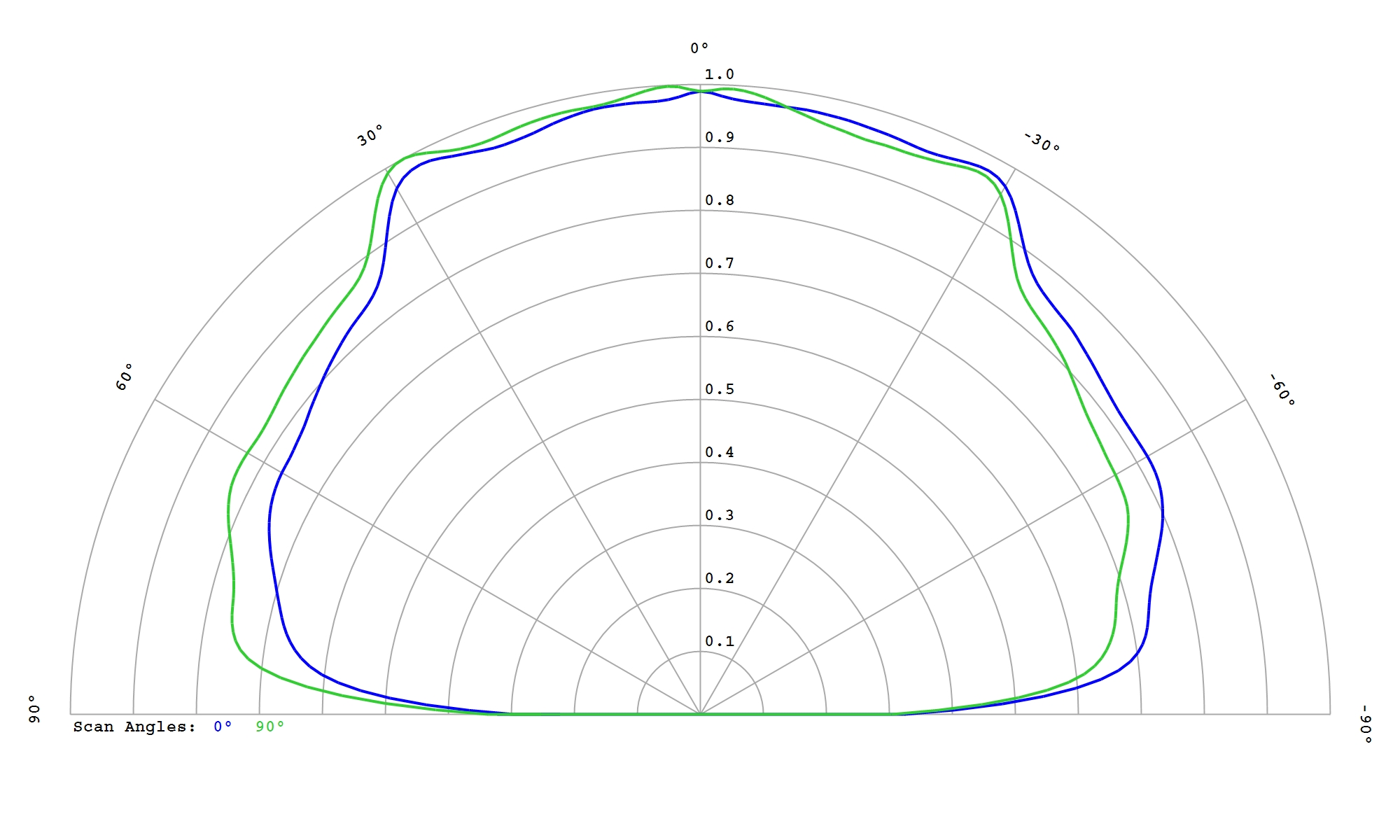

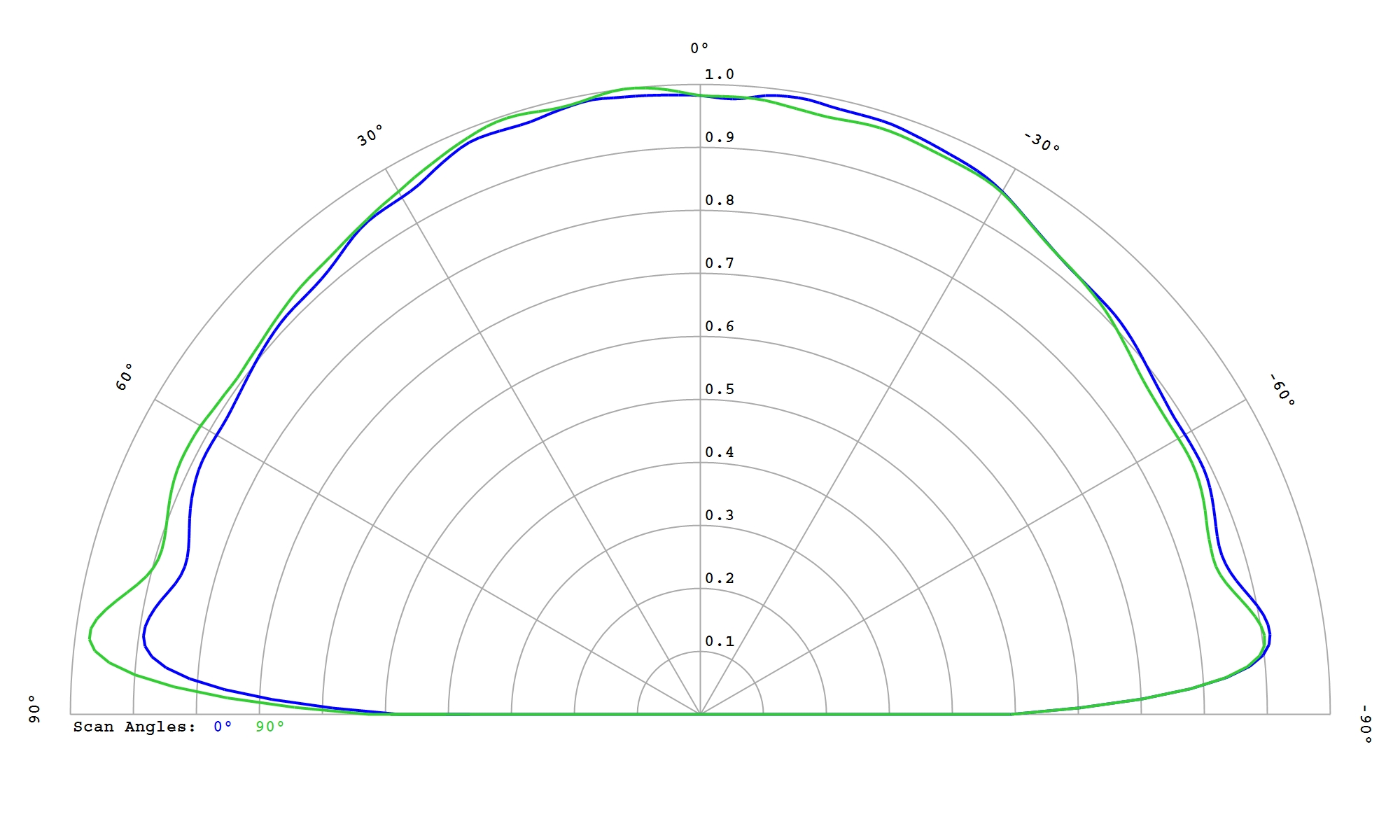

Cree XLamp XQ-E Plus HD PC Amber

Eff:

83.0%

FWHM:

177°

Cd/Im:

0.3


Download

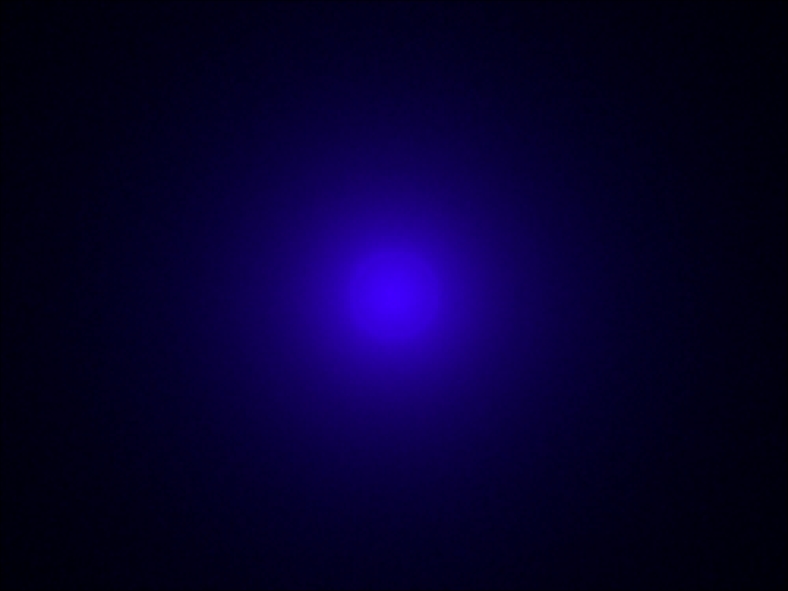

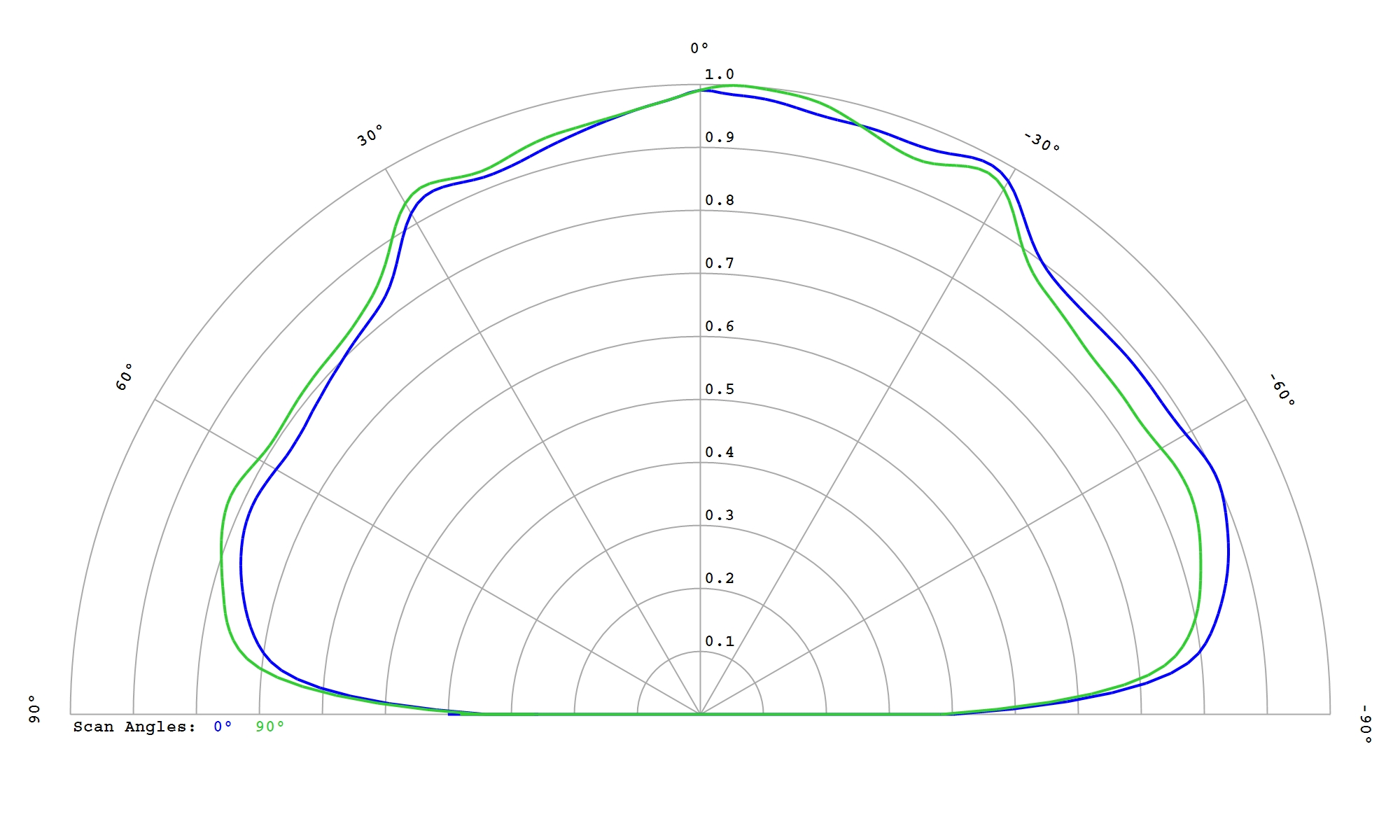

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

81.5%

FWHM:

178°

Ipk/W:

0.2


Download

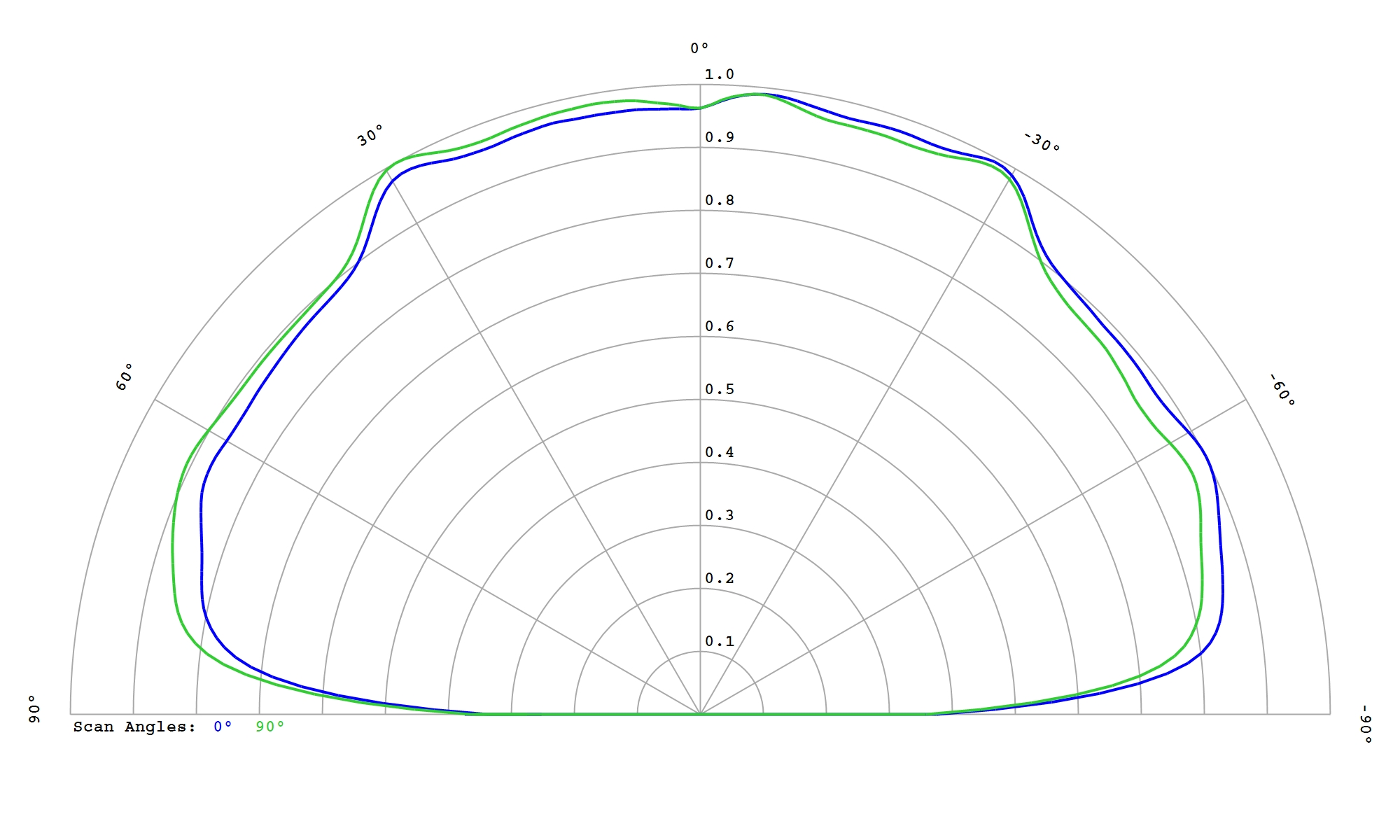

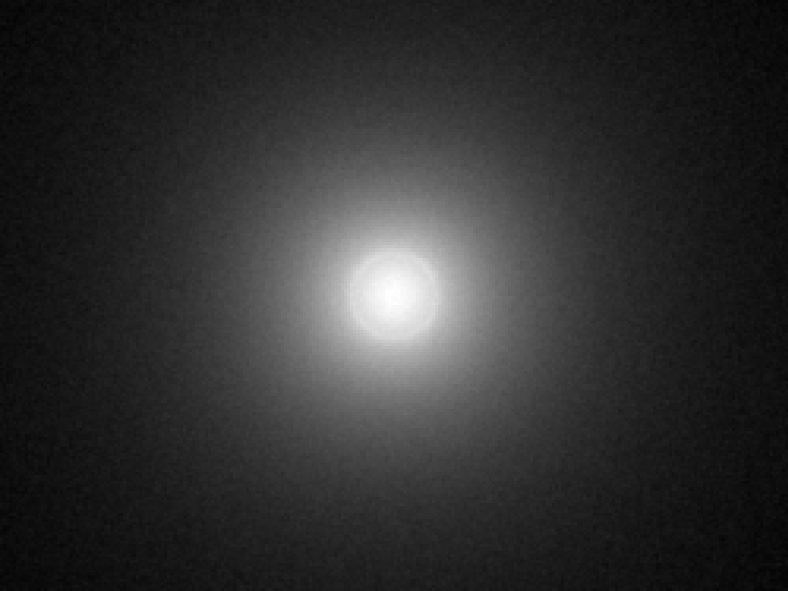

Cree XLamp XQ-E Plus HD White

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3


Download

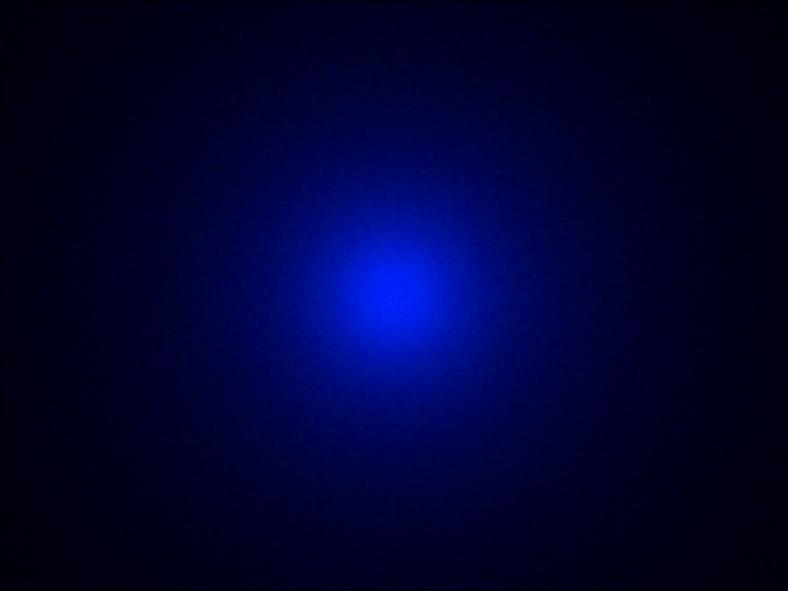

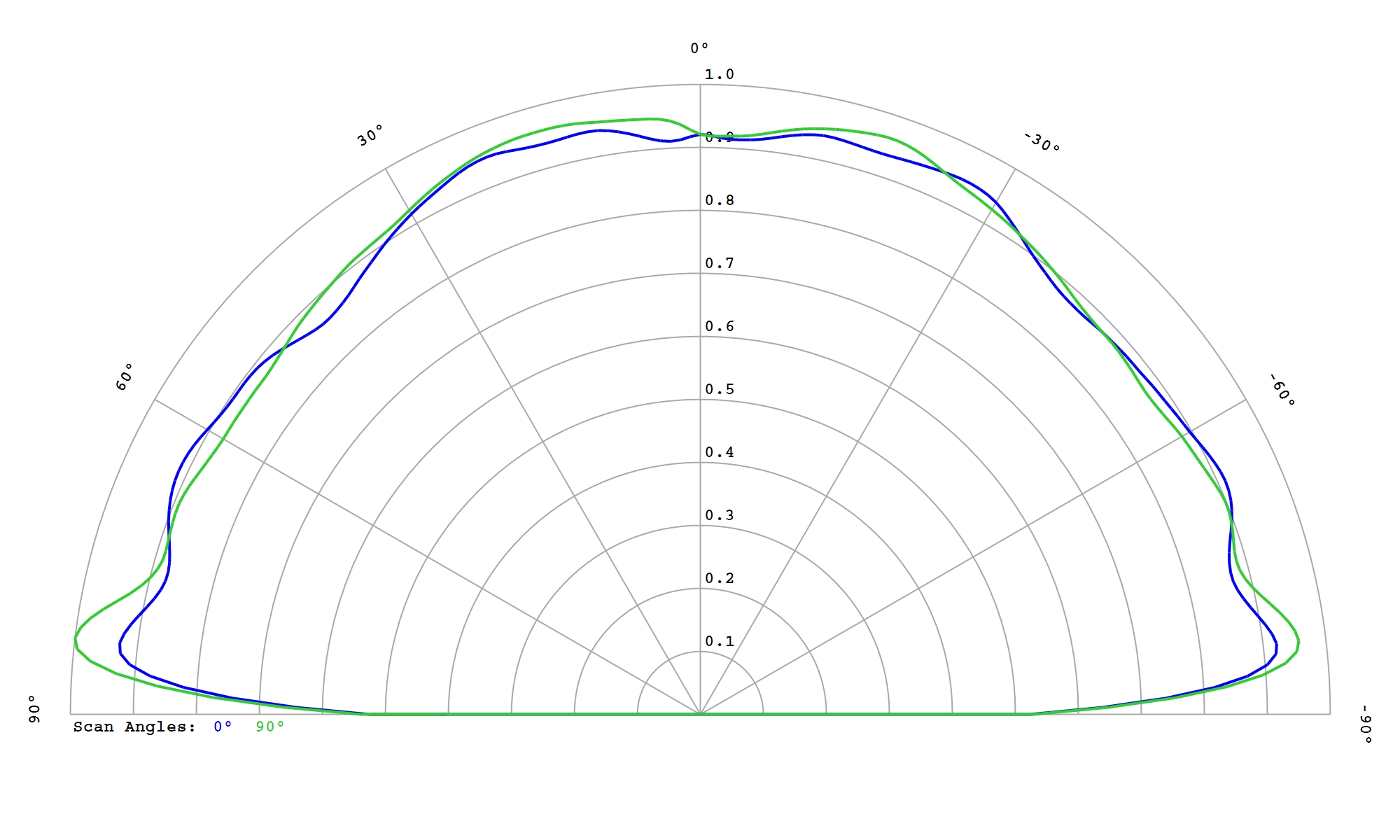

Cree XLamp XQ-E Plus HI Blue

Eff:

77.0%

FWHM:

179°

Cd/Im:

0.2


Download

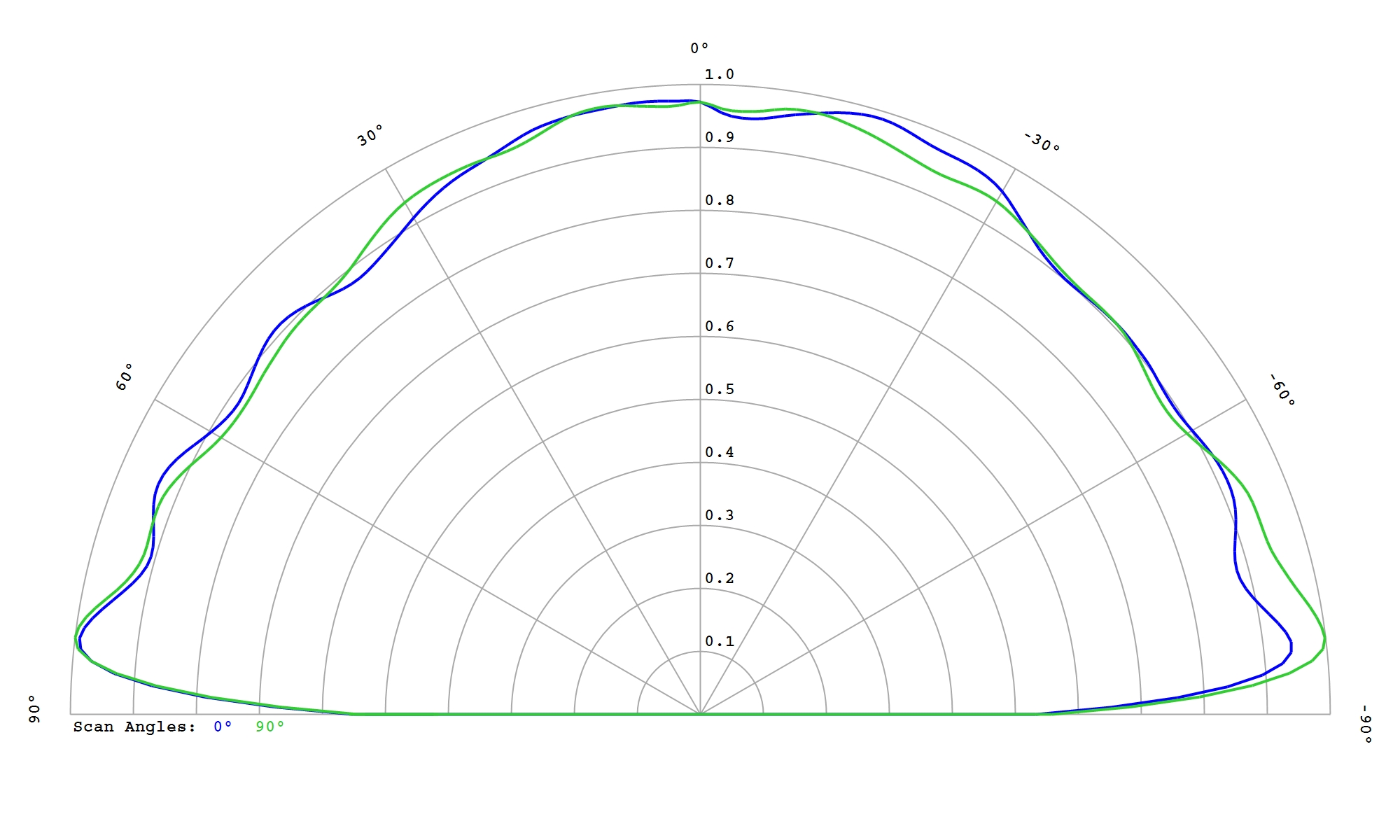

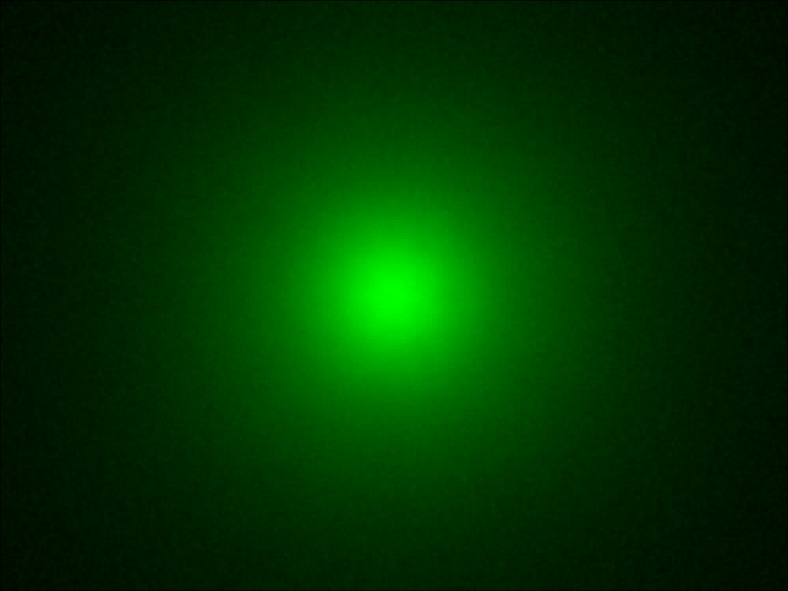

Cree XLamp XQ-E Plus HI Green

Eff:

77.5%

FWHM:

179°

Cd/Im:

0.2


Download

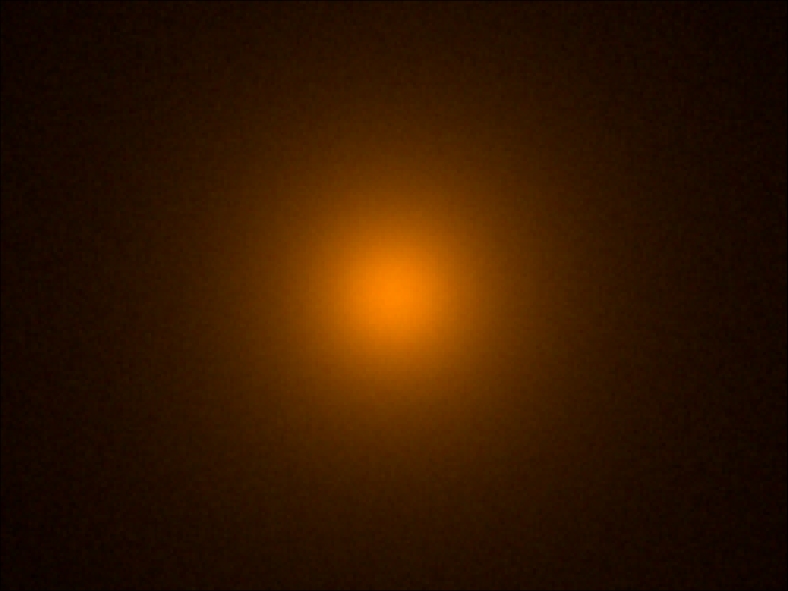

Cree XLamp XQ-E Plus HI PC Amber

Eff:

78.5%

FWHM:

179°

Cd/Im:

0.2


Download

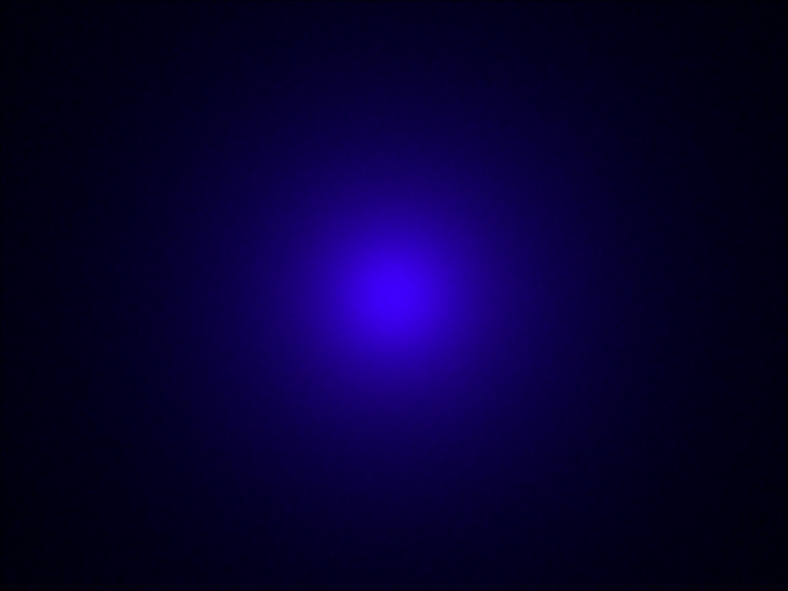

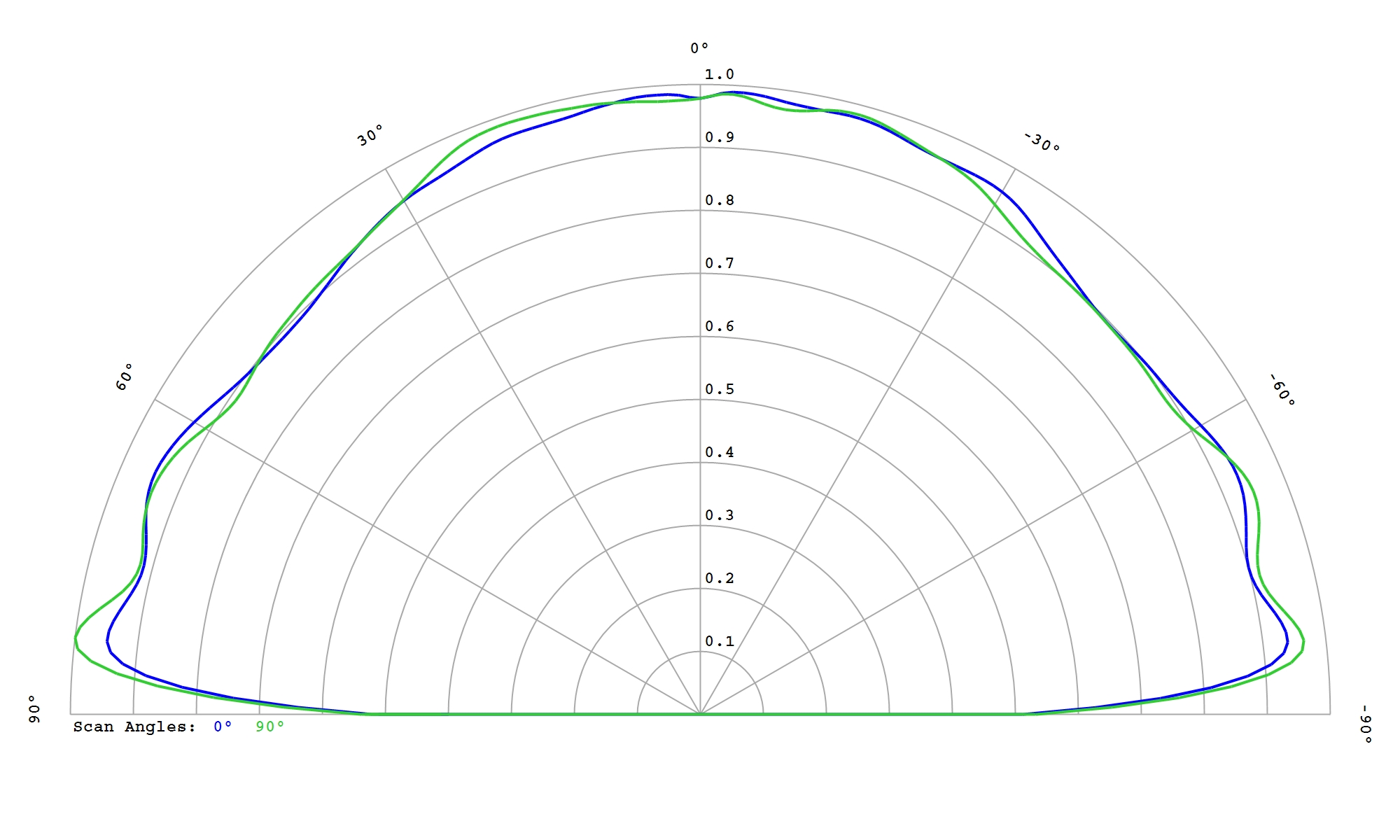

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

76.0%

FWHM:

179°

Ipk/W:

0.2


Download

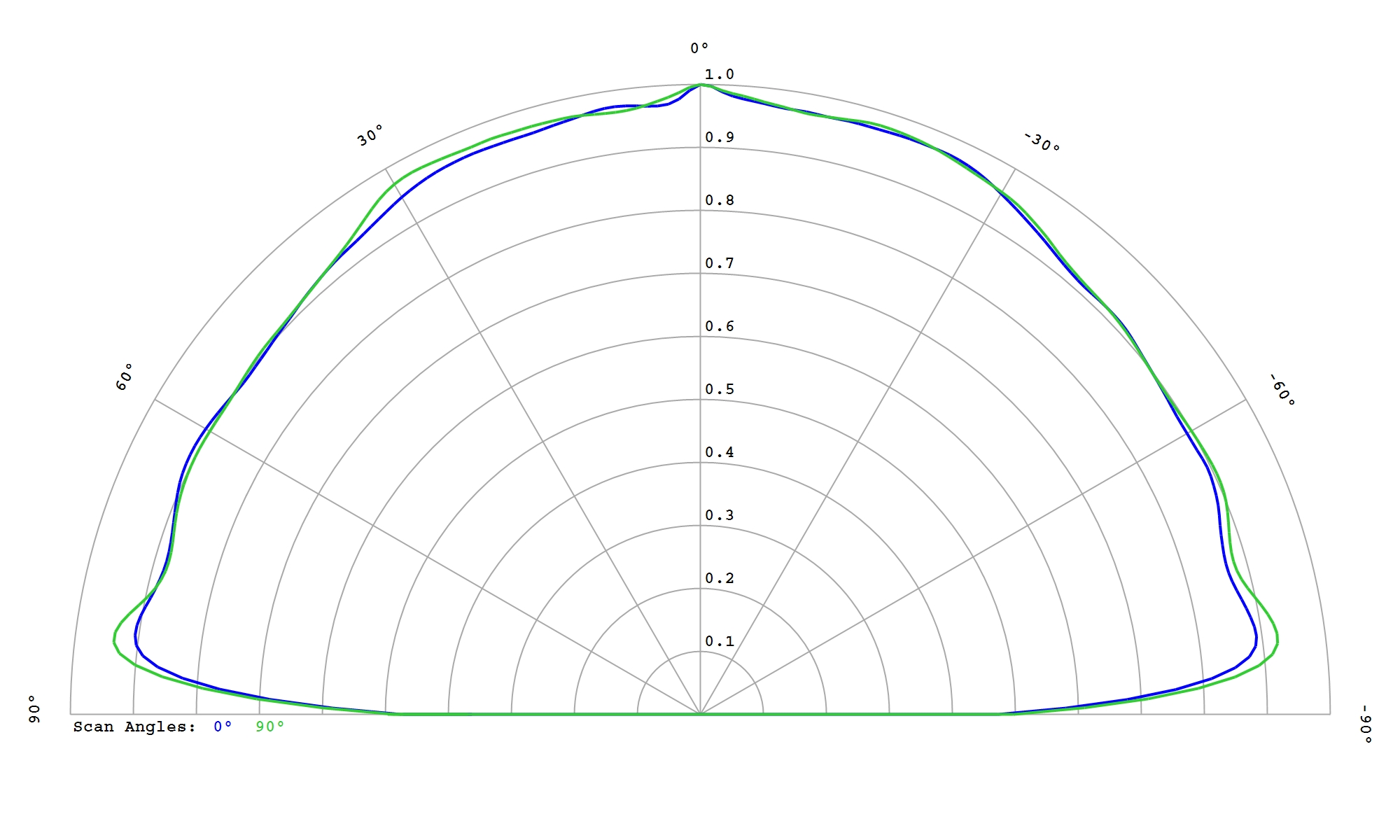

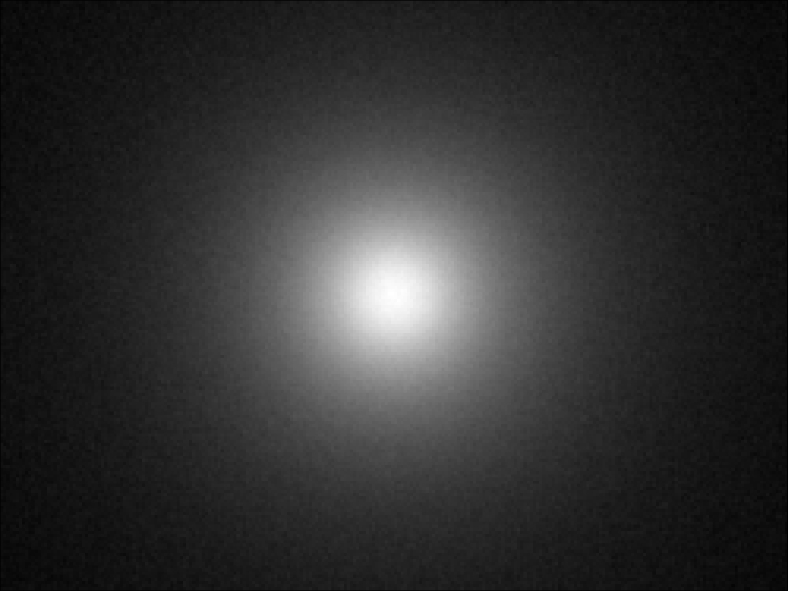

Cree XLamp XQ-E Plus HI White

Eff:

79.0%

FWHM:

179°

Cd/Im:

0.2


Download

Cree XLamp XQ-E HD White

Eff:

84.5%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Cree XLamp XT-E White

Eff:

74.5%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LG Innotek 3535LG White

Eff:

94.0%

FWHM:

180°

Cd/Im:

0.2

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.2

Download

LUMILEDS LUXEON 2835E 9V White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.2

Download

LUMILEDS LUXEON 2835N 3V White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3

Download

LUMILEDS LUXEON 2835S 3V White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.2

Download

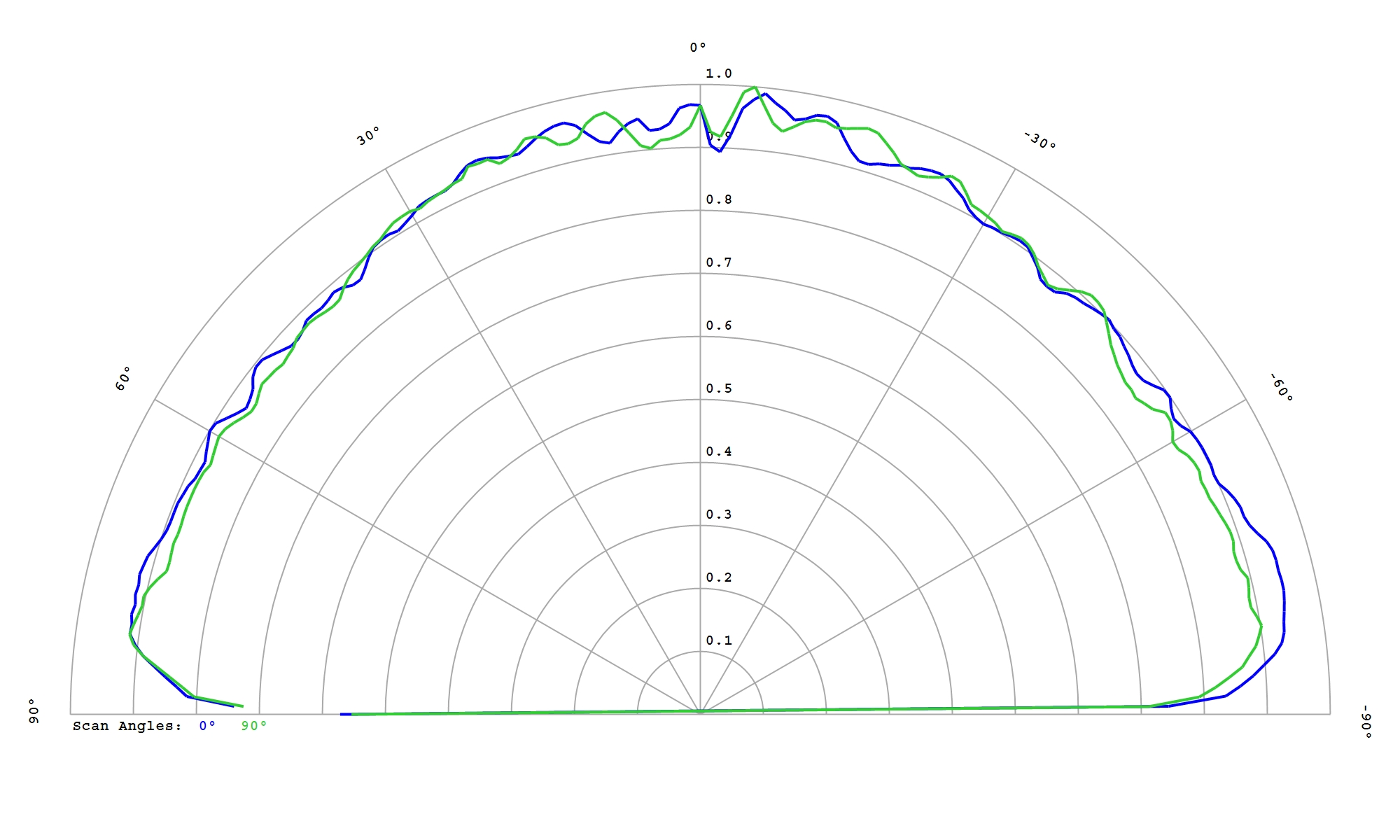

LUMILEDS LUXEON 2835S 6V White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.2

Download

LUMILEDS LUXEON 3014 White

Eff:

84.5%

FWHM:

178°

Cd/Im:

0.3

Download

IES

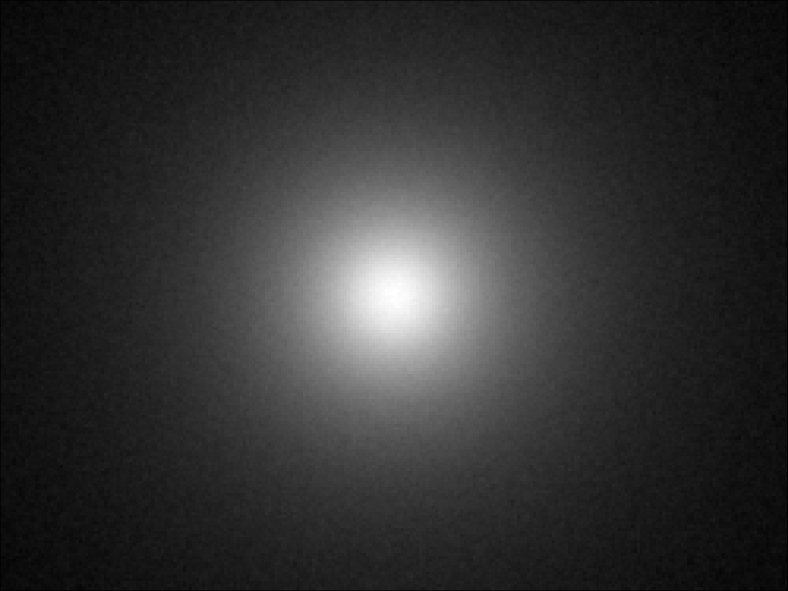

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

84.0%

FWHM:

179°

Cd/Im:

0.2


Download

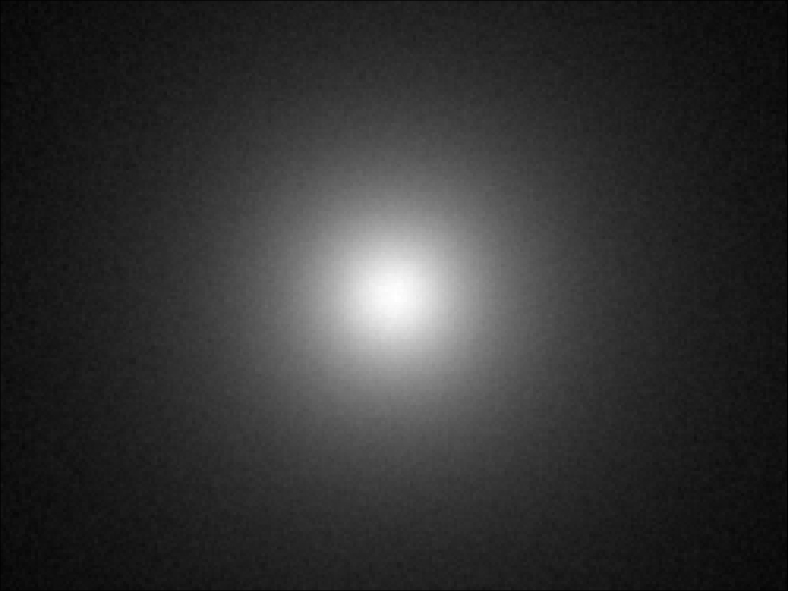

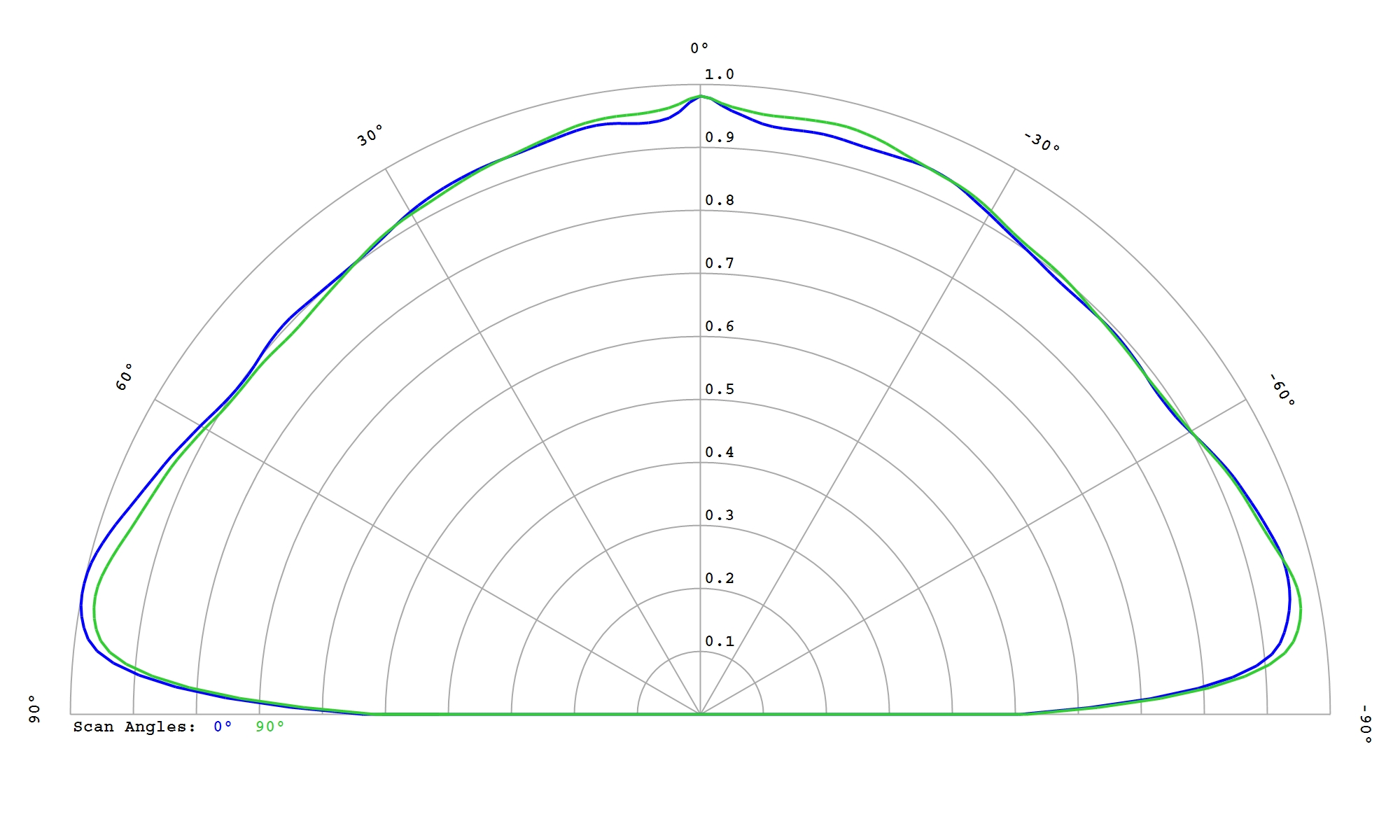

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.2


Download

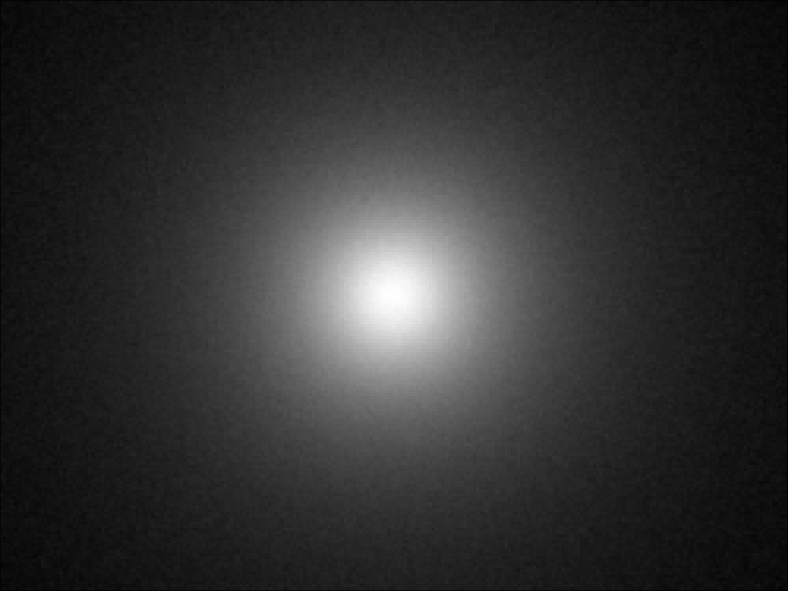

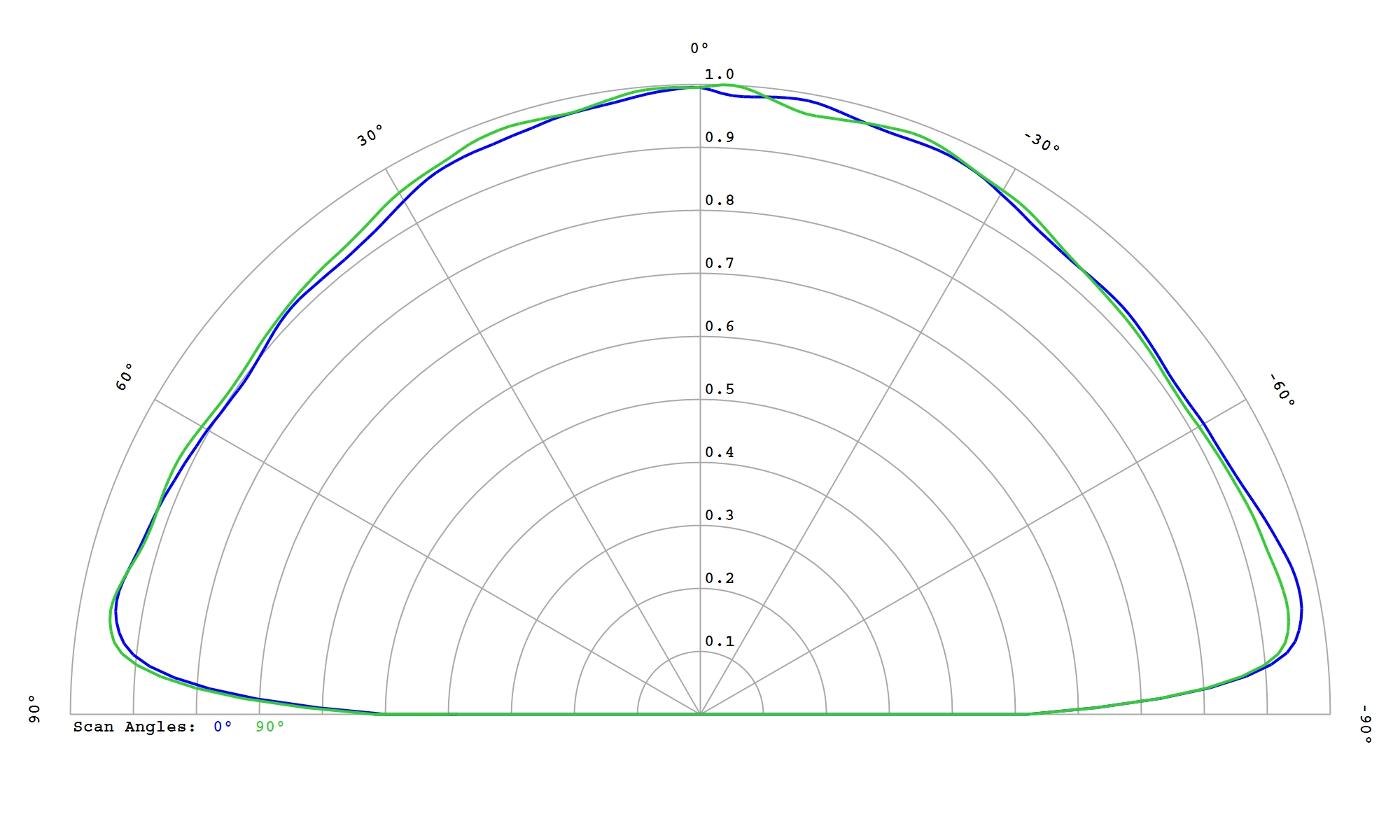

LUMILEDS LUXEON 3030 2D Square White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.2


Download

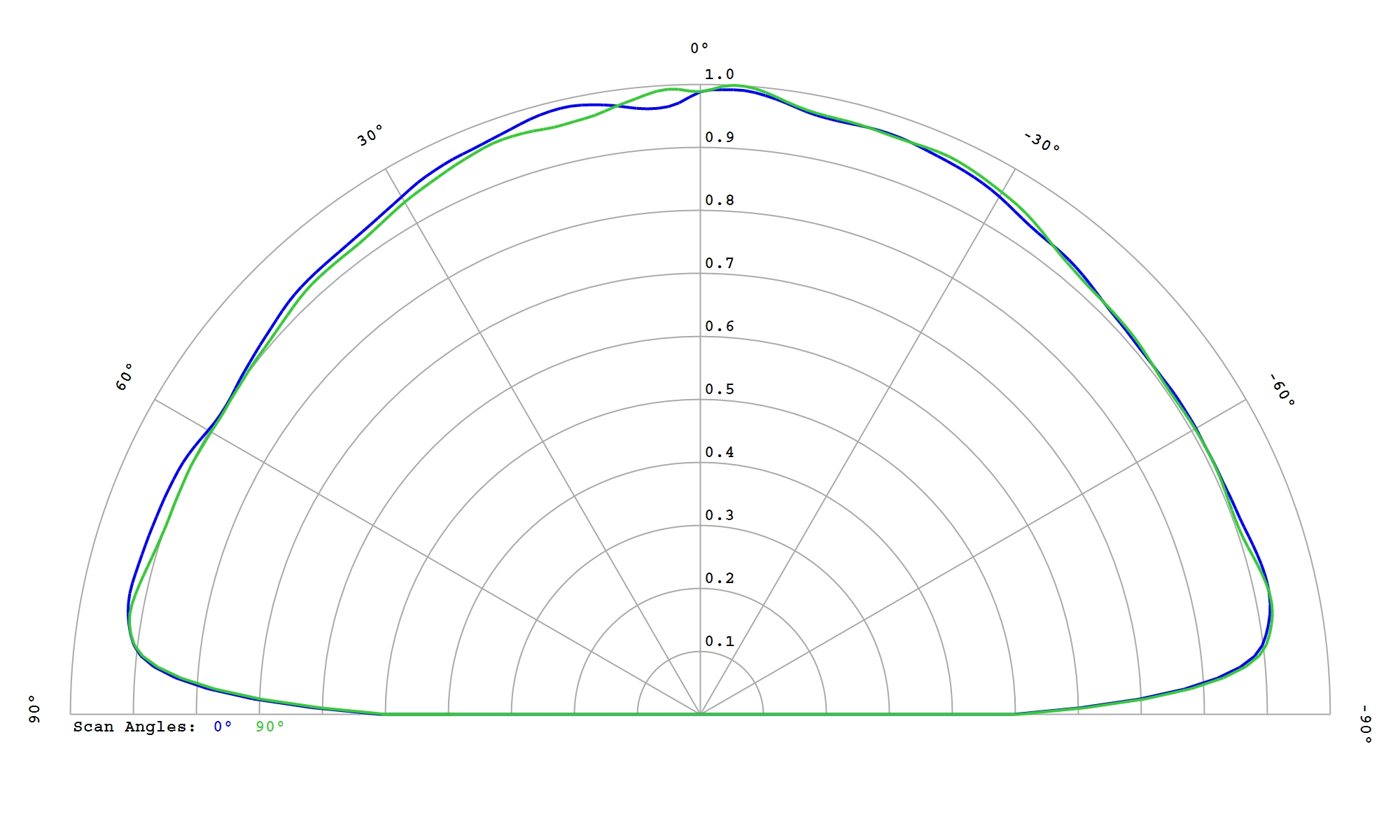

LUMILEDS LUXEON 3030 2D Round White

Eff:

86.0%

FWHM:

179°

Cd/Im:

0.2

Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics – 10620 – Luxeon_3030_HE_Plus_spot-image

Carclo Optics – 10620 – Luxeon_3030_HE_Plus_cross vertical section

Download

IES

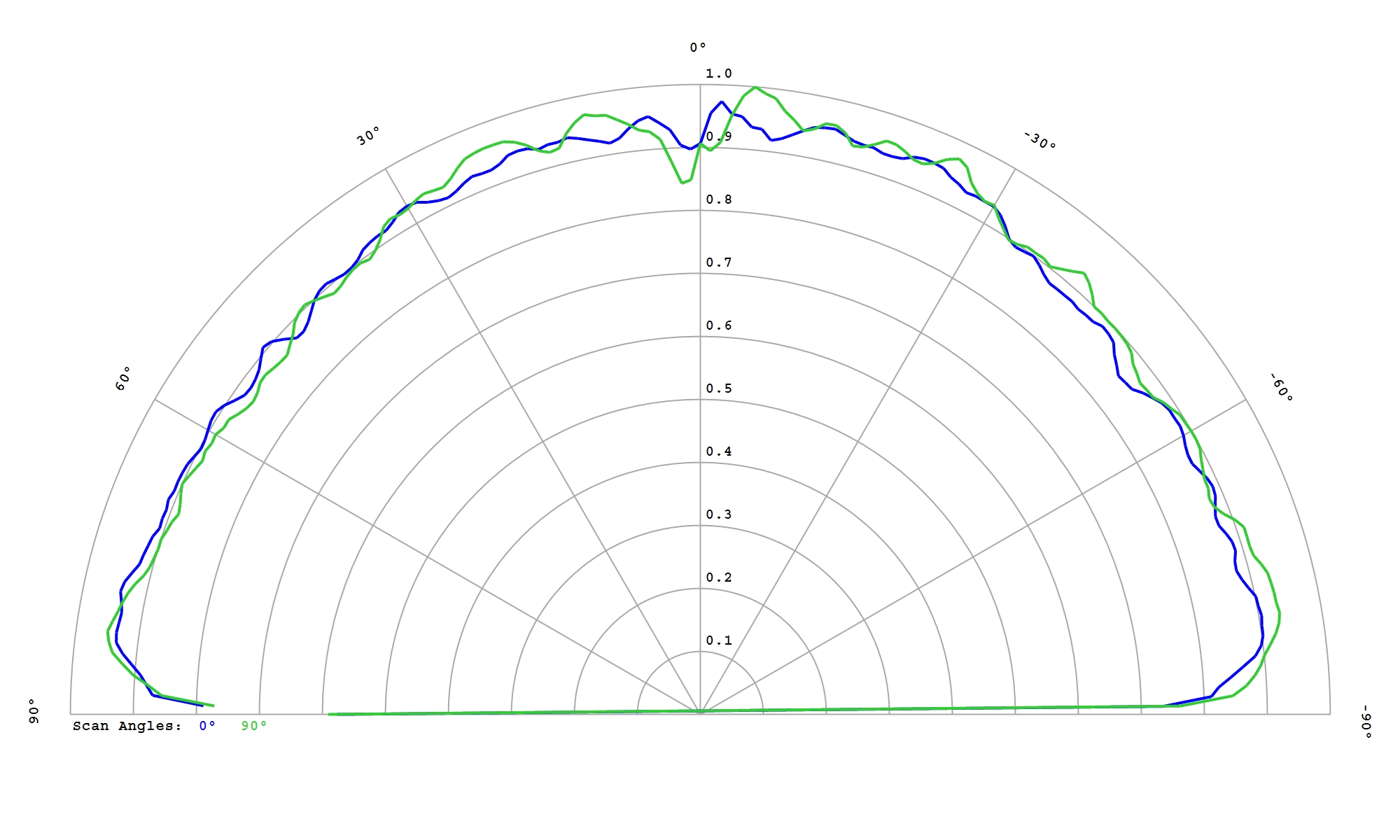

LUMILEDS LUXEON 3030 HE White

Eff:

84.0%

FWHM:

179°

Cd/Im:

0.2

Download

LUMILEDS LUXEON 3535 HV White

Eff:

82.0%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON 3535 L White

Eff:

81.4%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON C Blue

Eff:

66.5%

FWHM:

180°

Cd/Im:

0.1

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON C Lime

Eff:

72.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C Red

Eff:

68.0%

FWHM:

180°

Cd/Im:

0.1

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

LUMILEDS LUXEON C White

Eff:

70.5%

FWHM:

179°

Cd/Im:

0.2

Download

LUMILEDS LUXEON CZ White

Eff:

83.0%

FWHM:

180°

Cd/Im:

0.3

Carclo Optics 10620 Spot Image Luxeon CZ 5M CW

Carclo Optics 10620 Cross Section Luxeon CZ 5M CW

Download

IES

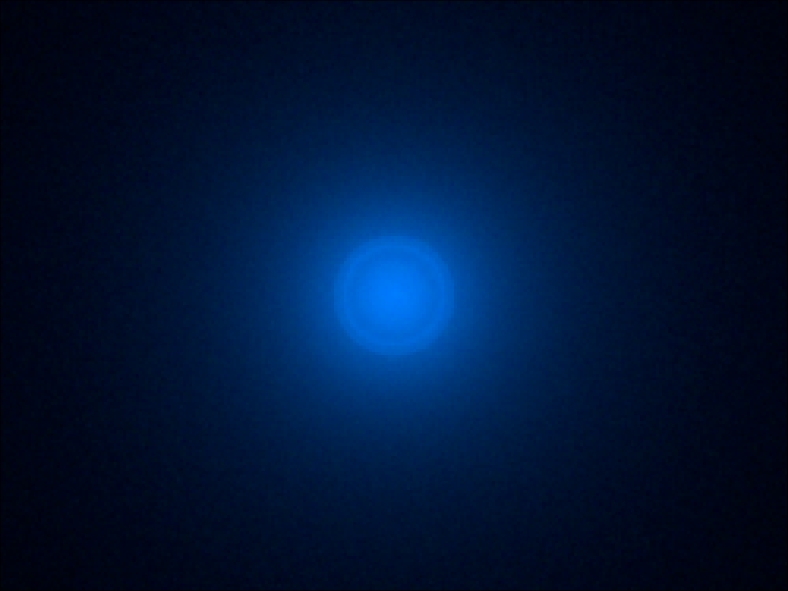

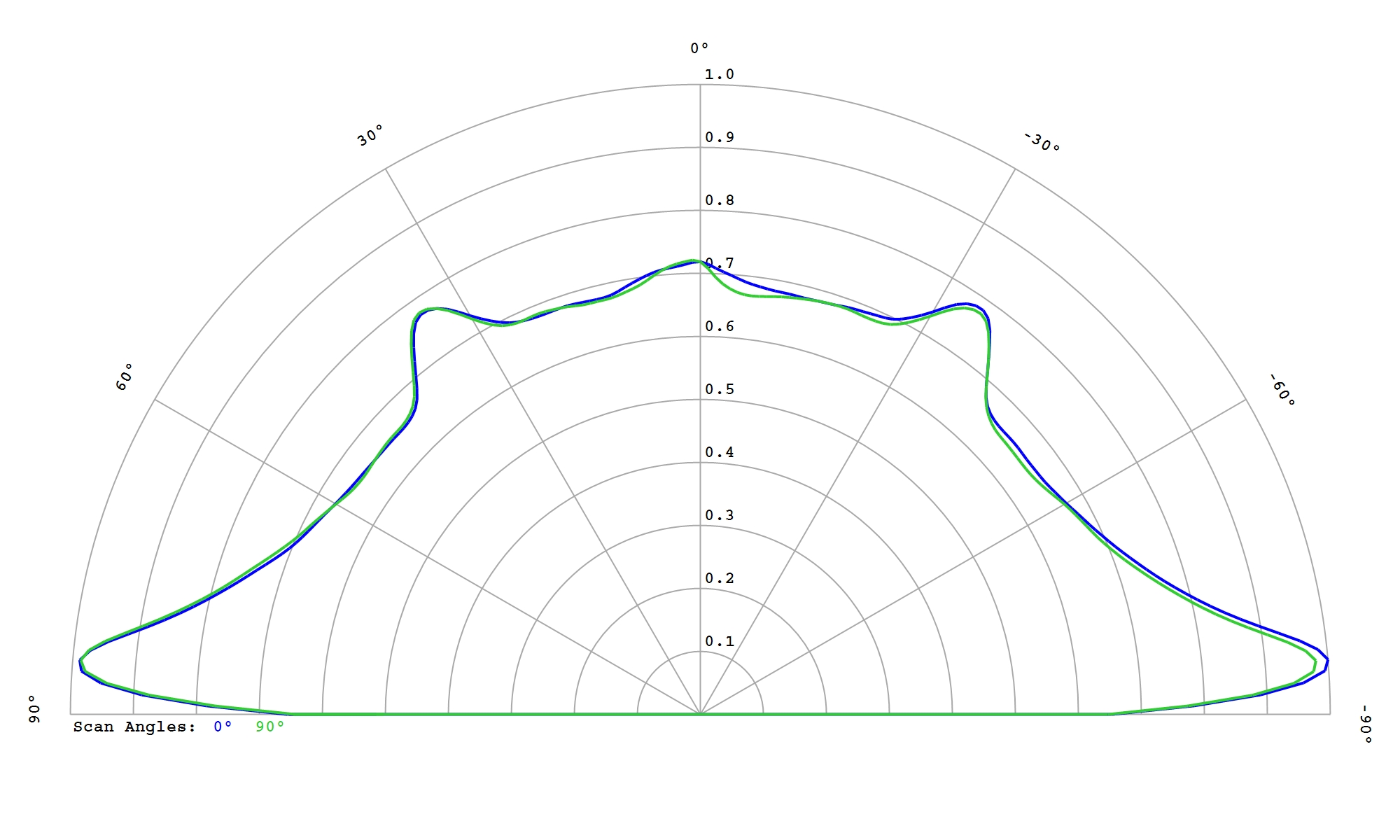

LUMILEDS LUXEON HL1Z Color Blue

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.2

Download

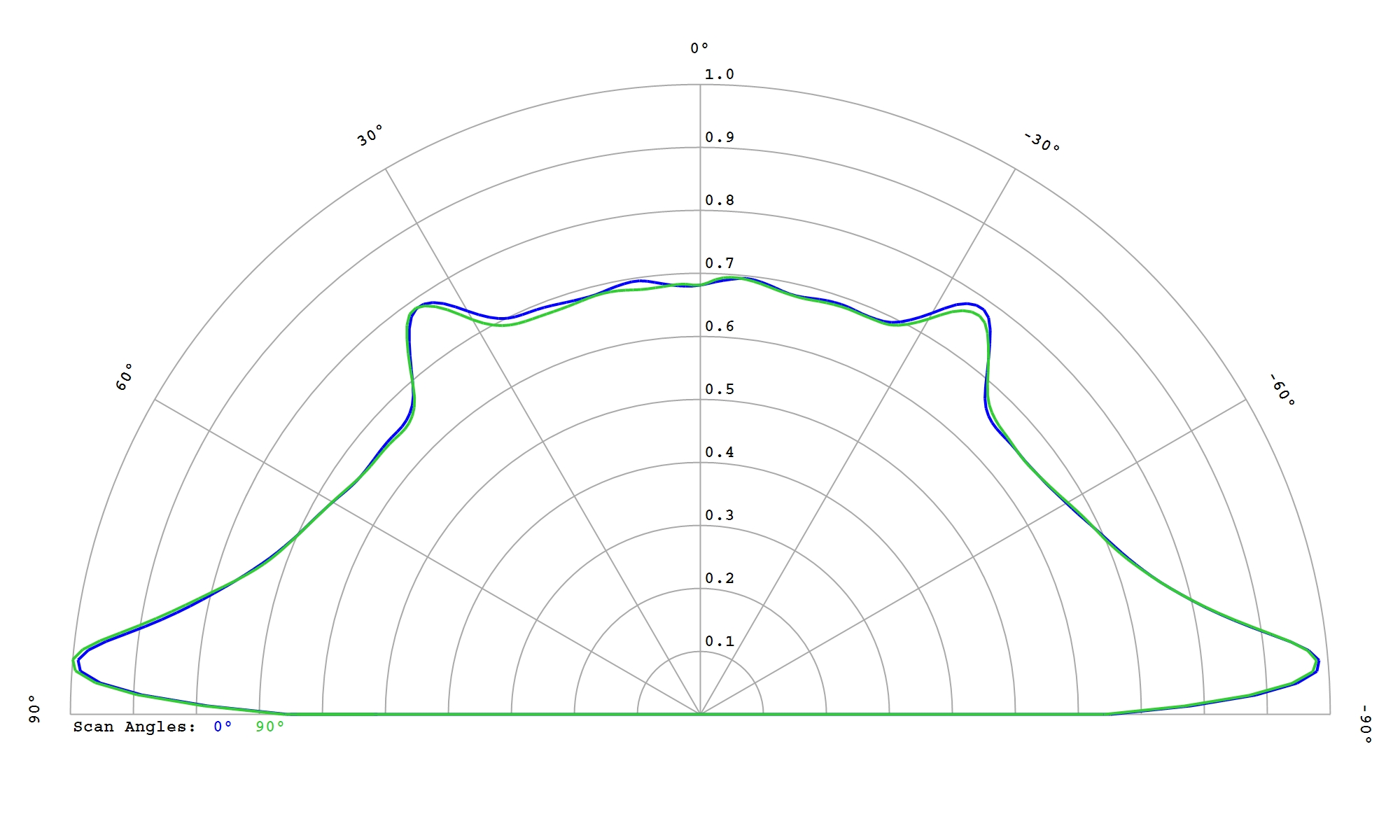

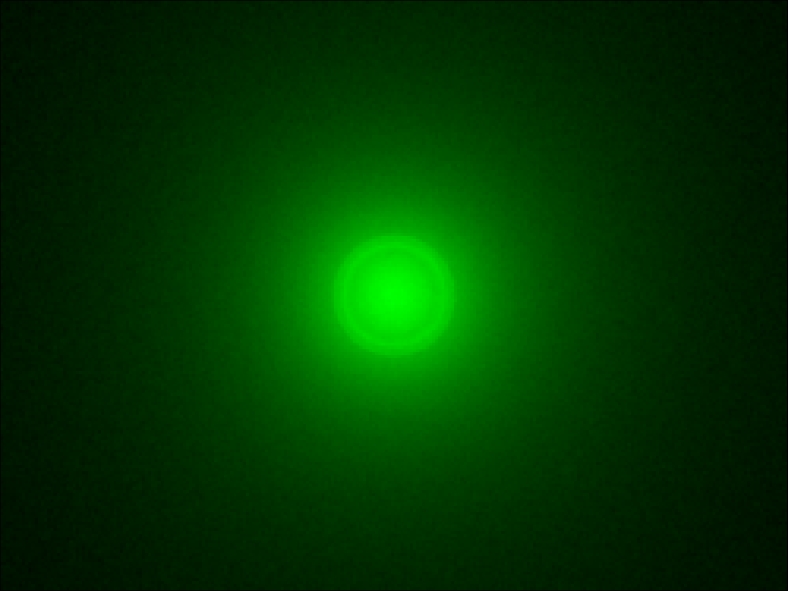

LUMILEDS LUXEON HL1Z Color Green

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.2

Download

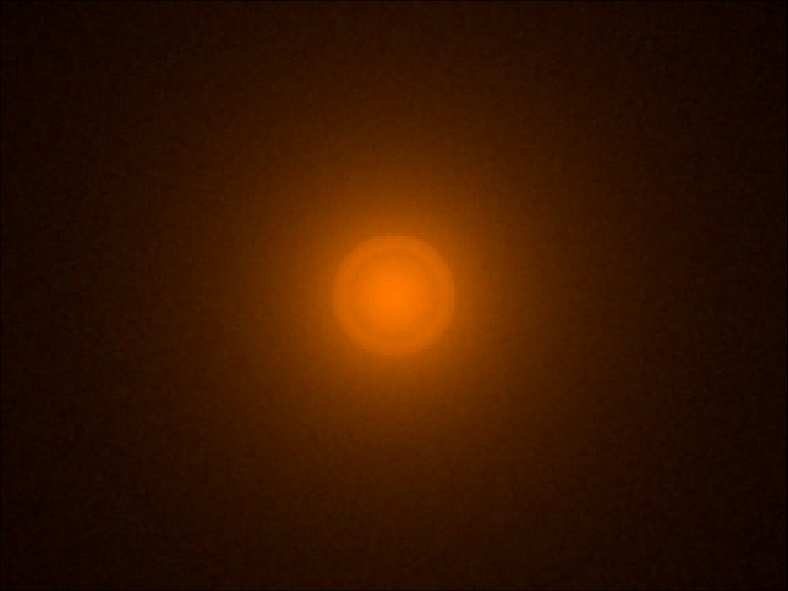

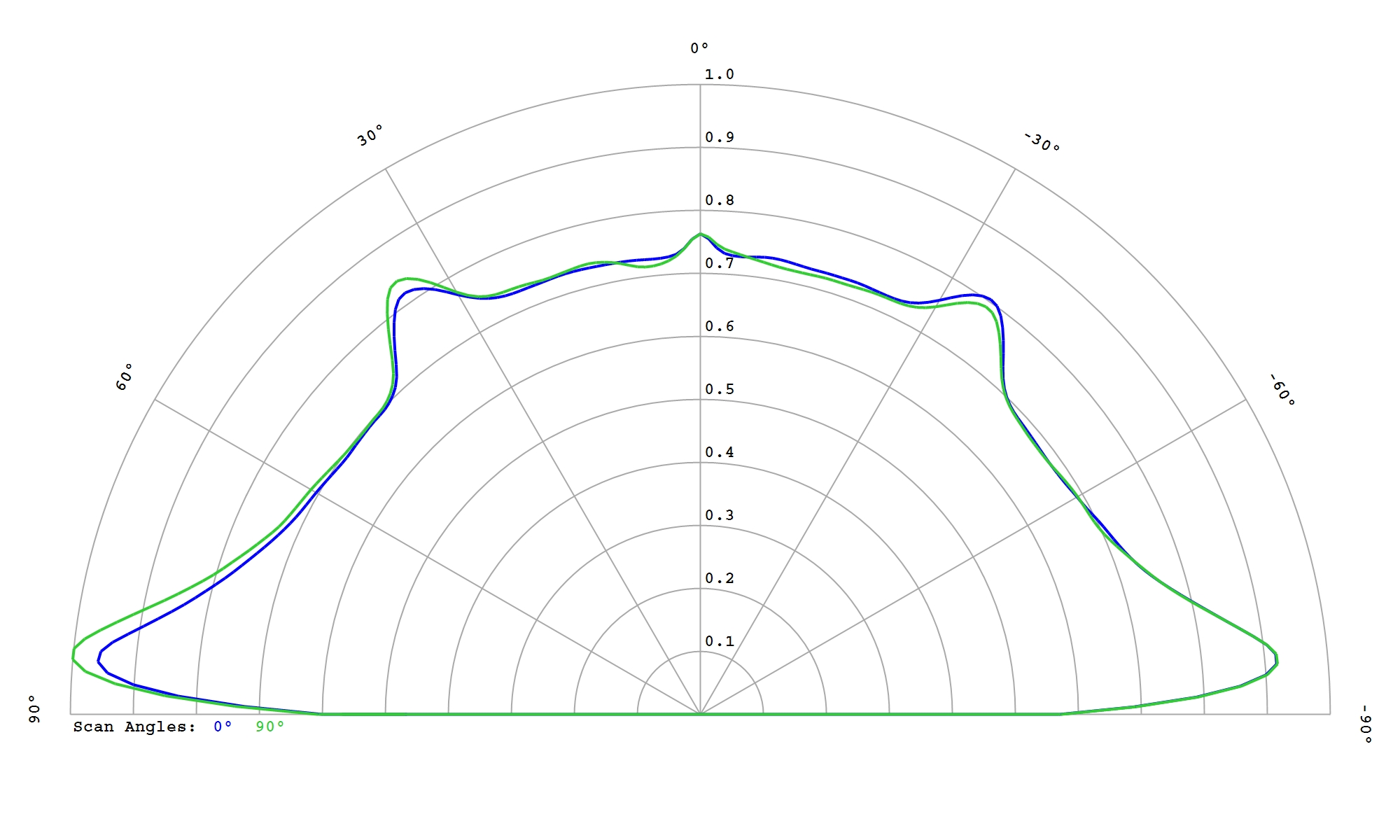

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

86.0%

FWHM:

179°

Cd/Im:

0.2


Download

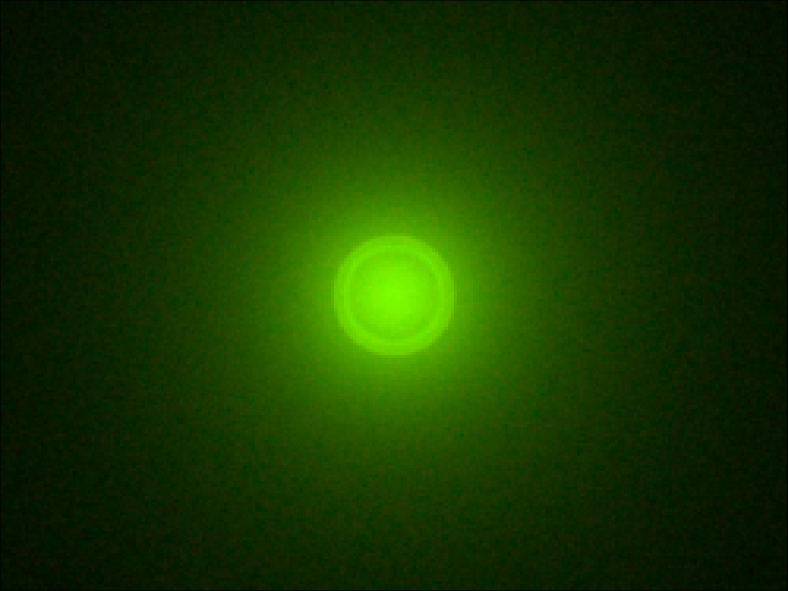

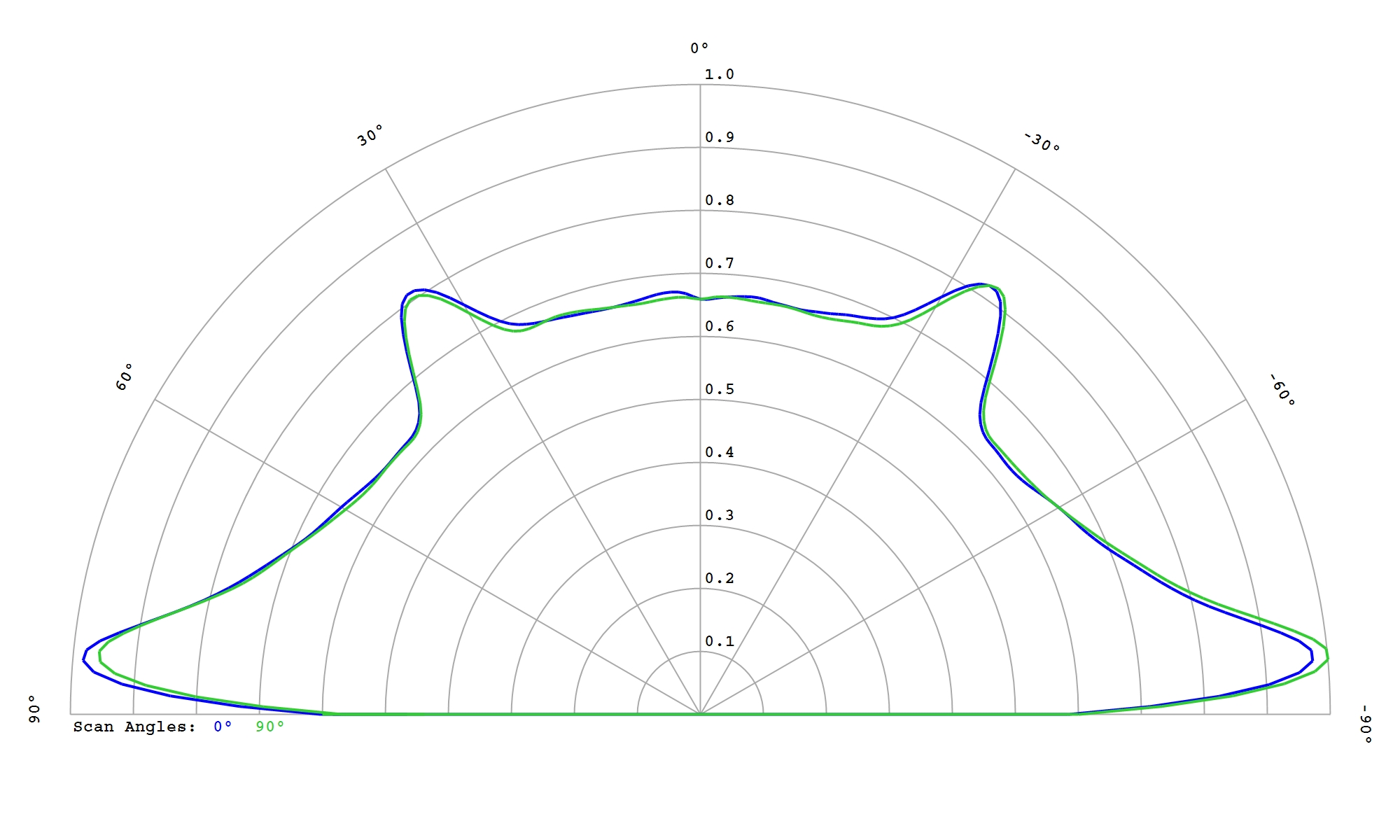

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.2


Download

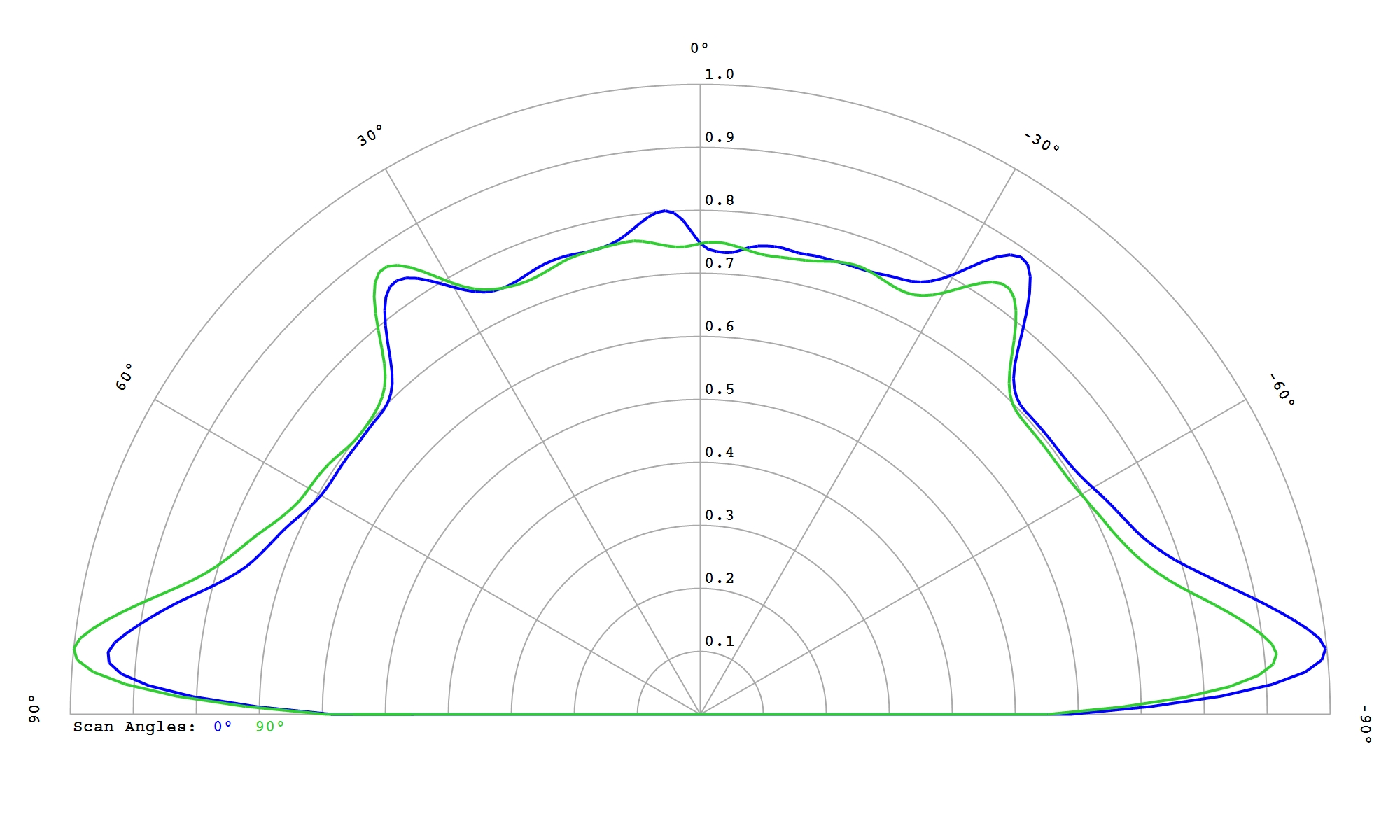

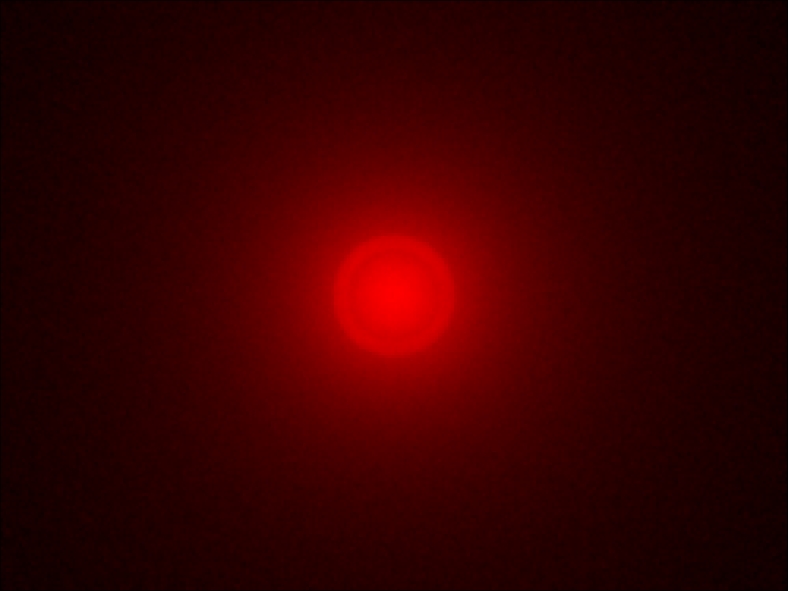

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

86.5%

FWHM:

179°

Cd/Im:

0.3

Download

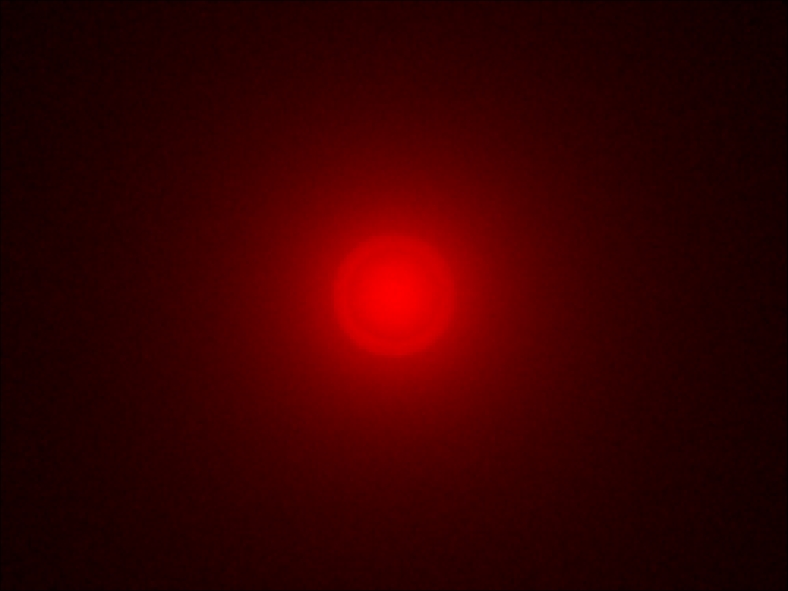

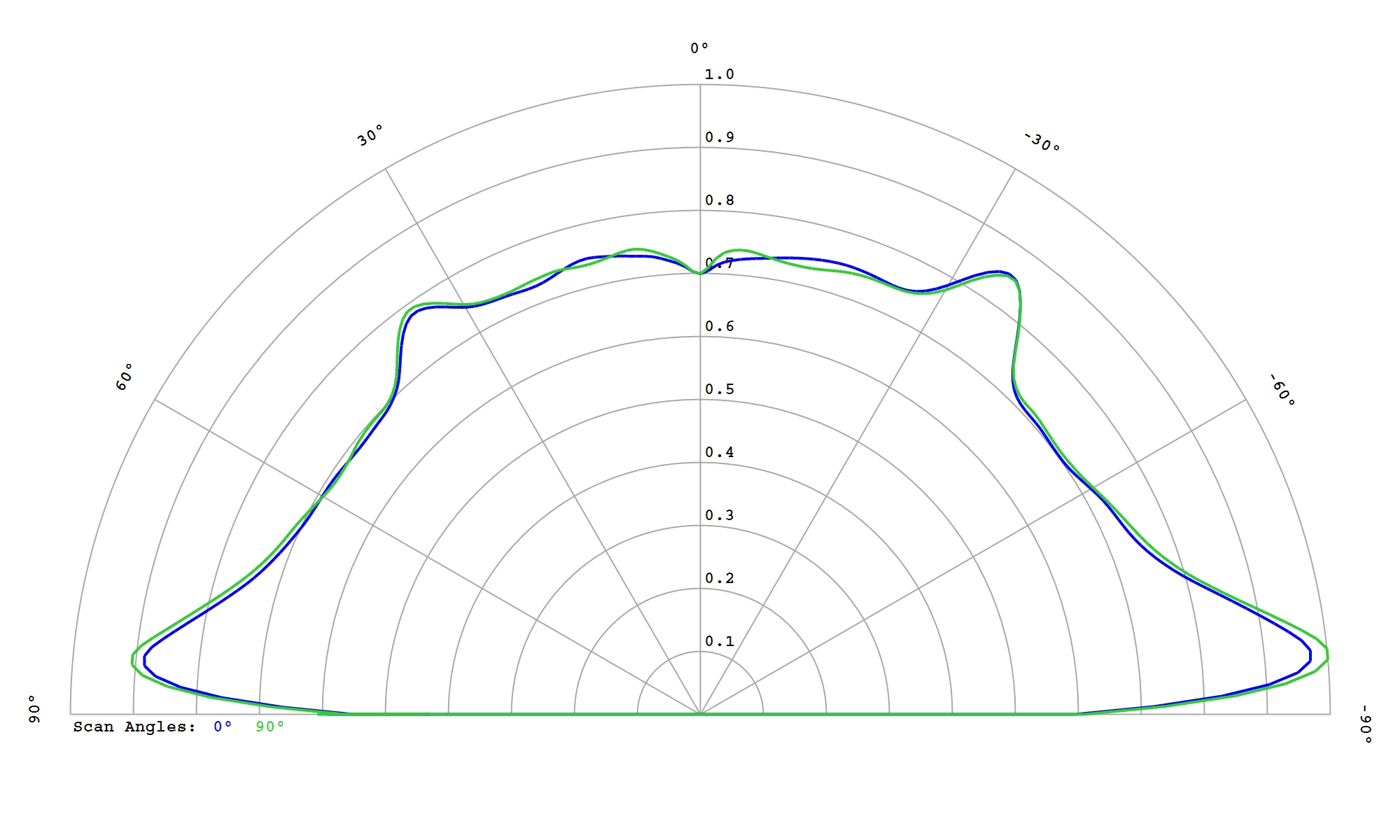

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

86.0%

FWHM:

179°

Cd/Im:

0.2


Download

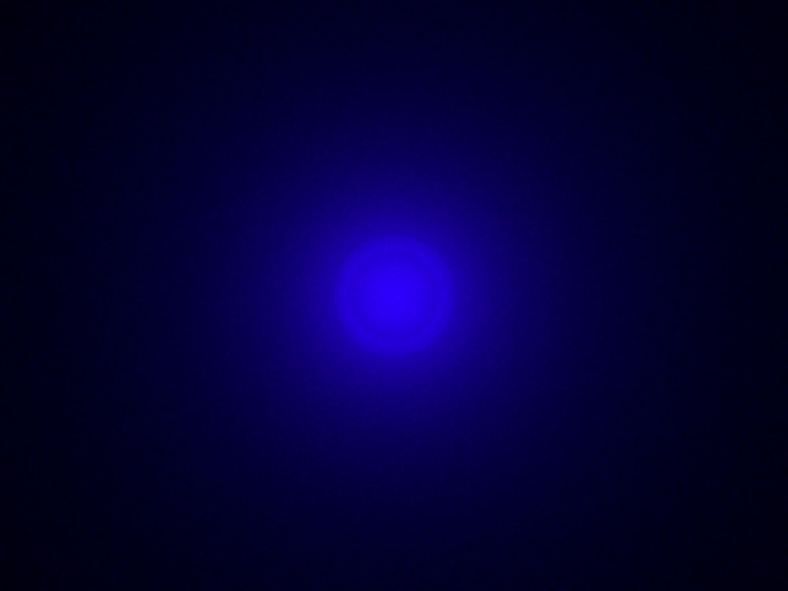

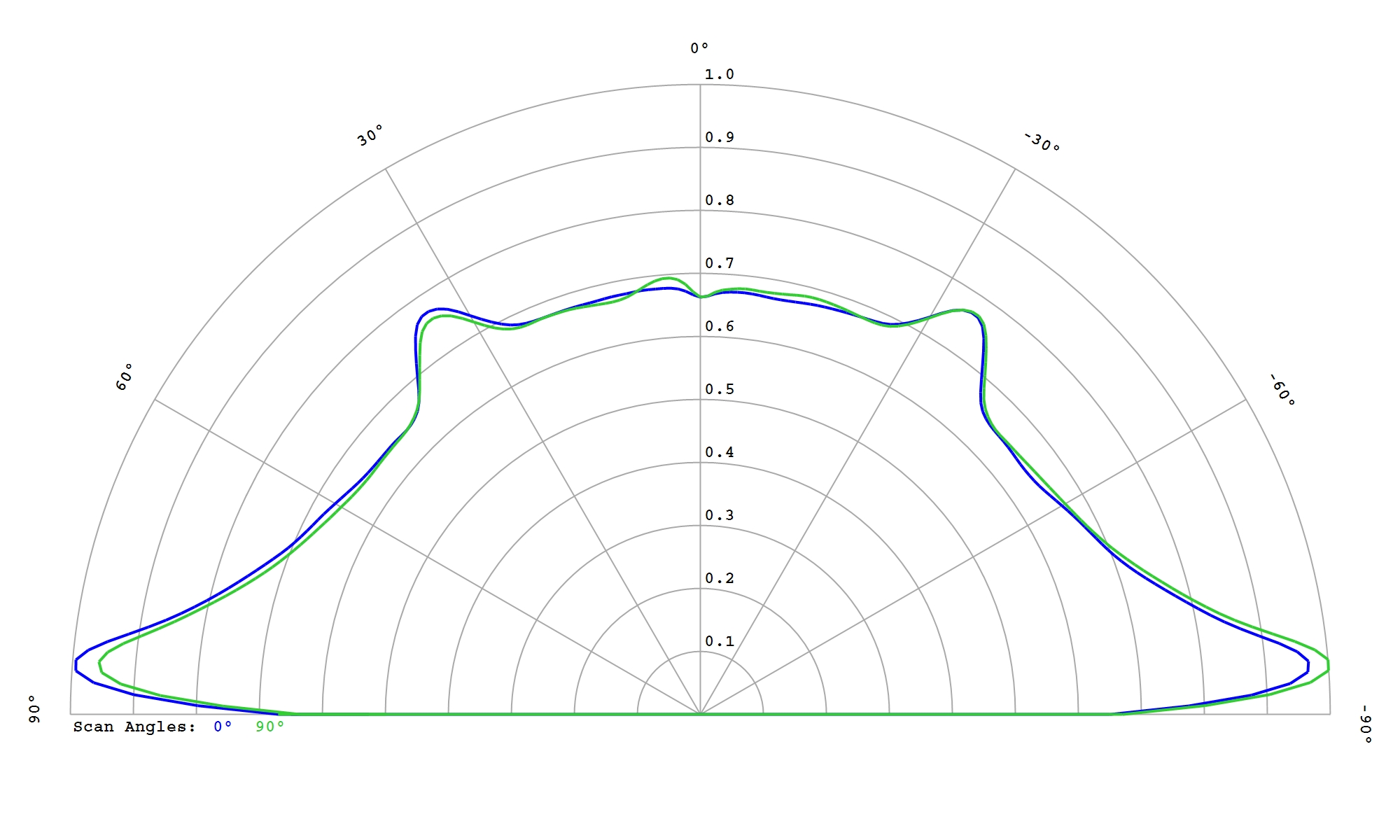

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

84.0%

FWHM:

179°

Ipk/W:

0.2


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

85.5%

FWHM:

179°

Cd/Im:

0.2

Download

IES

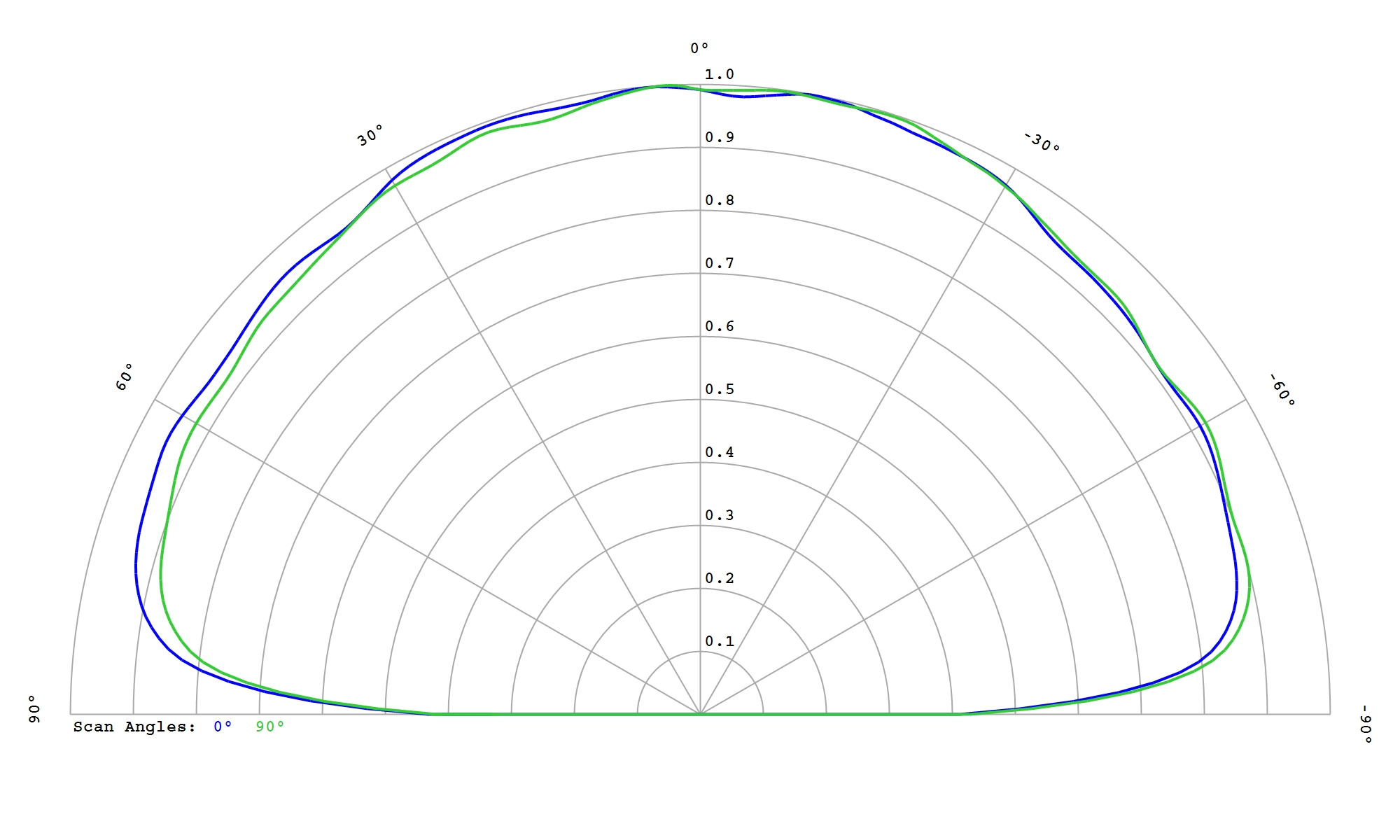

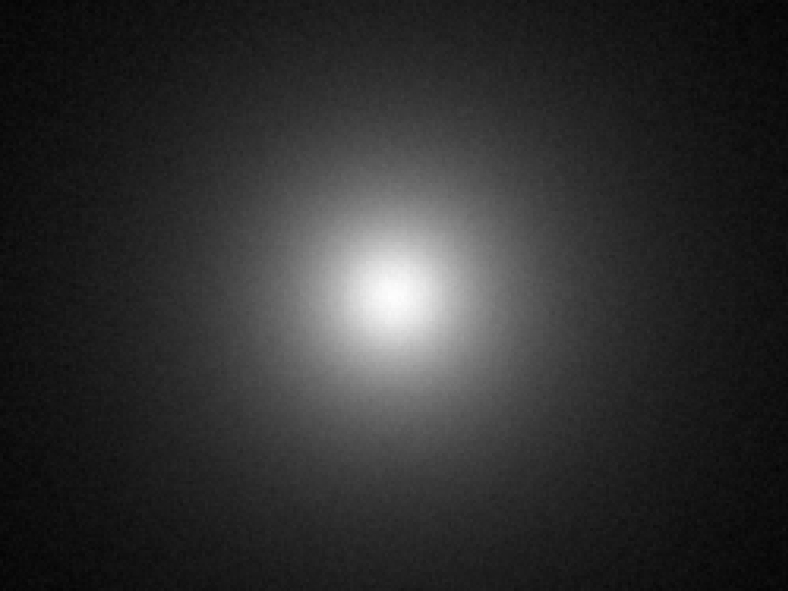

LUMILEDS LUXEON HL2X-E White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.3

Download

LUMILEDS LUXEON HL2Z White

Eff:

86.5%

FWHM:

179°

Cd/Im:

0.2

Carclo Optics – 10620 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10620 Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

87.5%

FWHM:

179.0°

Ipk/W:

0.3

Carclo Optics - 10620 Hemispherical Bubble Spot Image Luxeon IR 2720

Carclo Optics - 10620 Hemispherical Bubble Cross Section Luxeon IR 2720

Download

IES

LUMILEDS LUXEON MZ White

Eff:

82.9%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel ES White

Eff:

79.3%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rebel White

Eff:

80.1%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Rubix Blue

Eff:

81.5%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics – 10620 Spot Image Lumileds Luxeon Rubix Blue

Carclo Optics – 10620 Cross Section Lumileds Luxeon Rubix Blue

Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

82.0%

FWHM:

179°

Cd/Im:

0.2

Carclo Optics – 10620 Spot Image Lumileds Luxeon Rubix Green

Carclo Optics – 10620 Cross Section Lumileds Luxeon Rubix Green

Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics – 10620 Spot Image Lumileds Luxeon Rubix Red

Carclo Optics – 10620 Cross Section Lumileds Luxeon Rubix Red

Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

81.0%

FWHM:

178°

Cd/Im:

0.6

Carclo Optics – 10620 Spot Image Lumileds Luxeon Rubix Royal Blue

Carclo Optics – 10620 Cross Section Lumileds Luxeon Rubix Royal Blue

Download

IES

LUMILEDS LUXEON Rubix White

Eff:

82.0%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image Lumileds Luxeon Rubix White

Carclo Optics - 10620 Cross Section Lumileds Luxeon Rubix White

Download

IES

LUMILEDS LUXEON TX White

Eff:

78.0%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z ES White

Eff:

82.0%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

LUMILEDS LUXEON Z White

Eff:

80.7%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

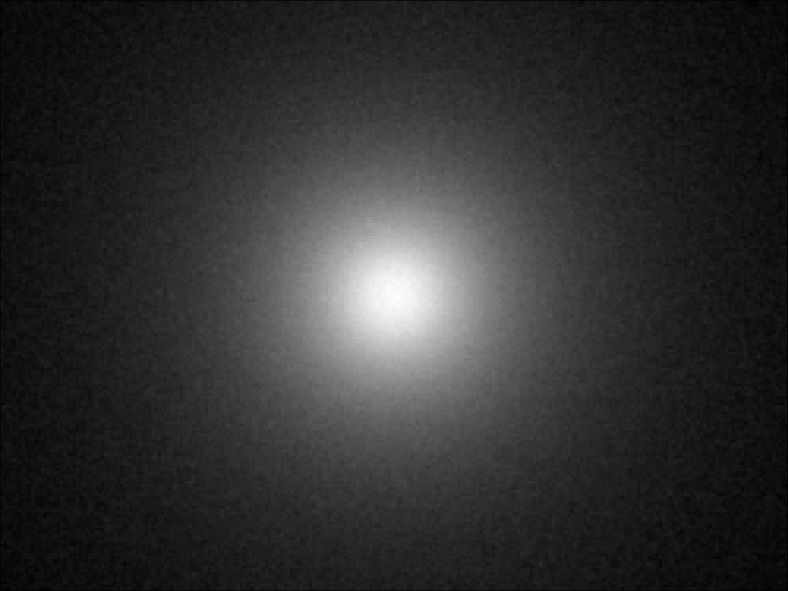

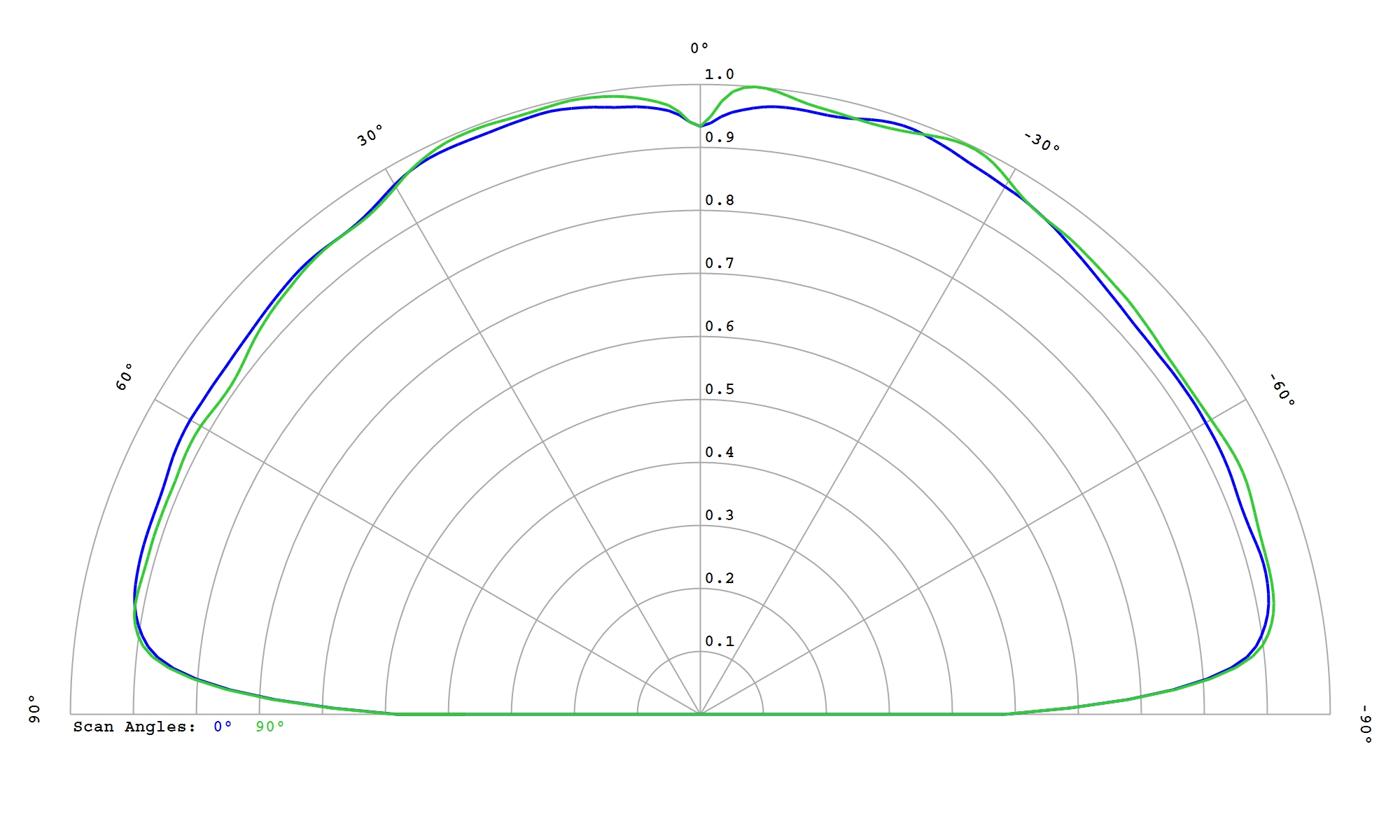

Luminus Devices MP-3030-11F2 White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.3


Download

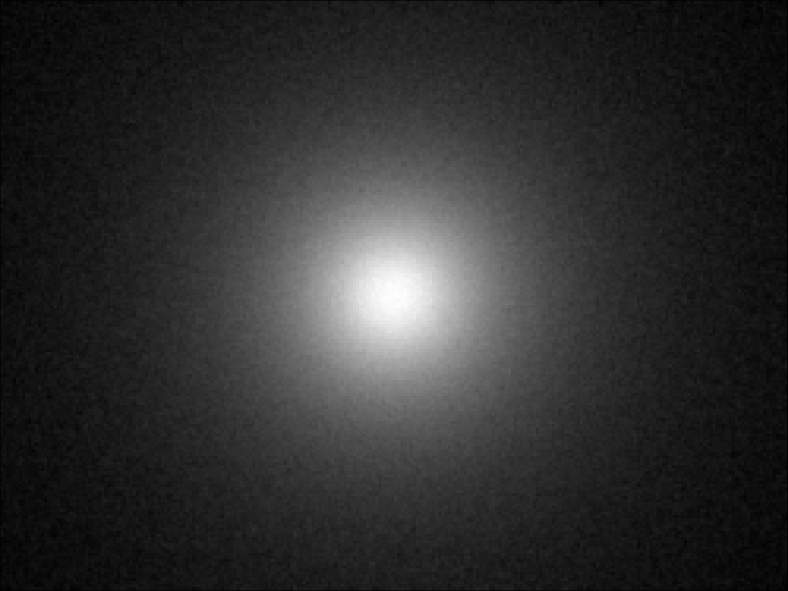

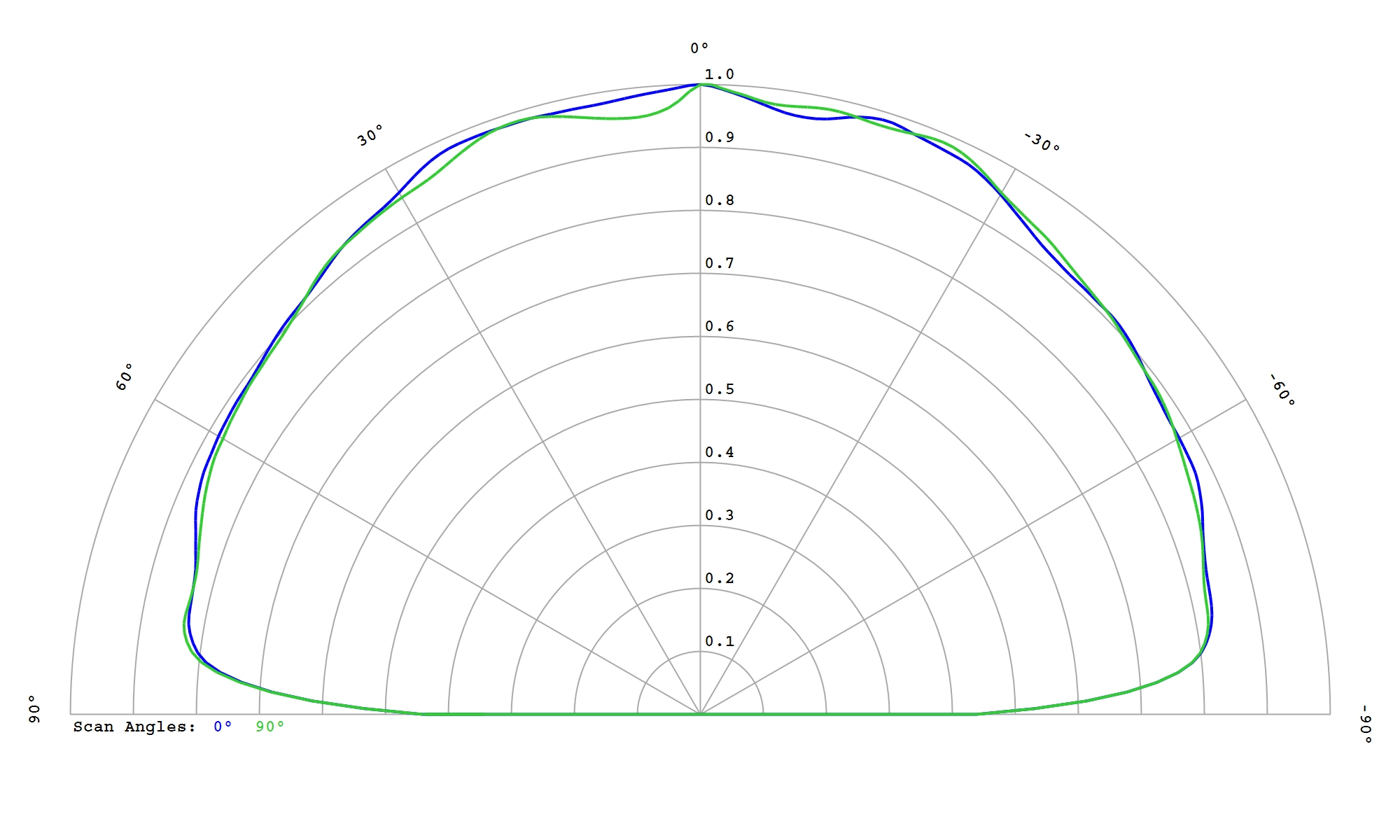

Luminus Devices SFT-12R-WES-A White

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.3


Download

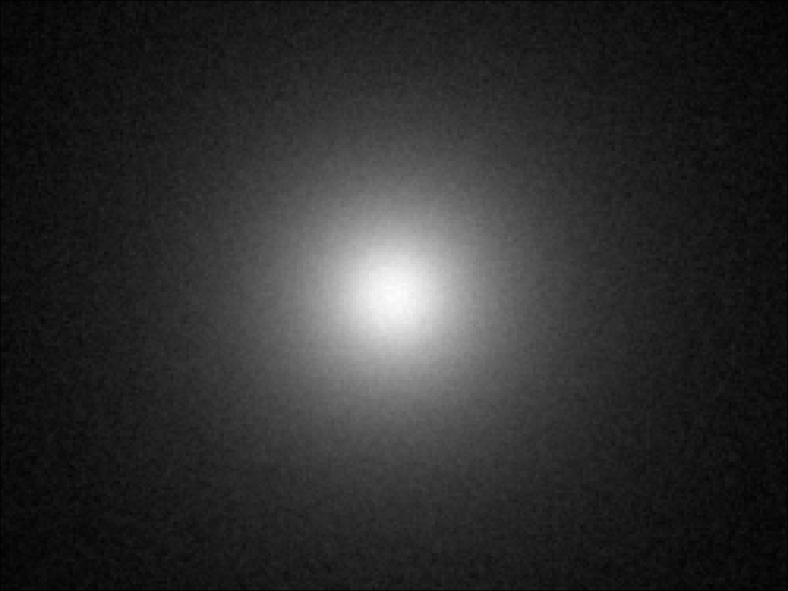

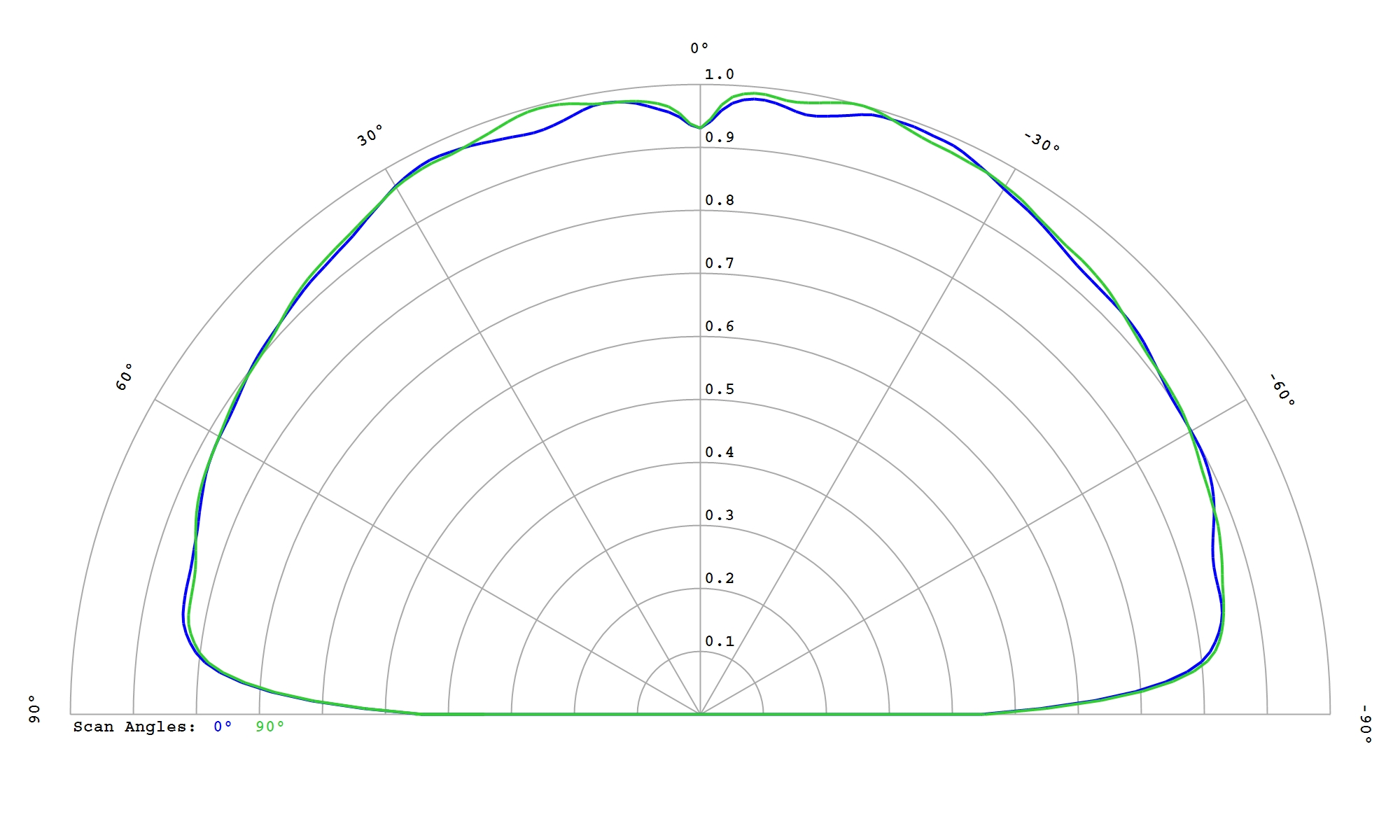

Luminus Devices SFT-25R-WES-A White

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3


Download

Luminus Devices SST 10-B-B90 Blue

Eff:

82.0%

FWHM:

134°

Cd/Im:

0.3

Carclo Optics - 10620 Luminus_SST-10_B_B90 - spot - image

Carclo Optics - 10620 Luminus_SST-10_B_B90 - cross section vertical image

Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

86.0%

FWHM:

135°

Cd/Im:

0.4

Carclo Optics - 10620 Luminus_SST-10_DR_B90 - Spot Image

Carclo Optics - 10620 Luminus_SST-10_DR_B90 - Cross section image

Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

83.5%

FWHM:

133°

Cd/Im:

0.3

Carclo Optics - 10620 Luminus_SST-10_G_B90- Spot - image

Carclo Optics - 10620 Luminus_SST-10_G_B90- Cross section - image

Download

IES

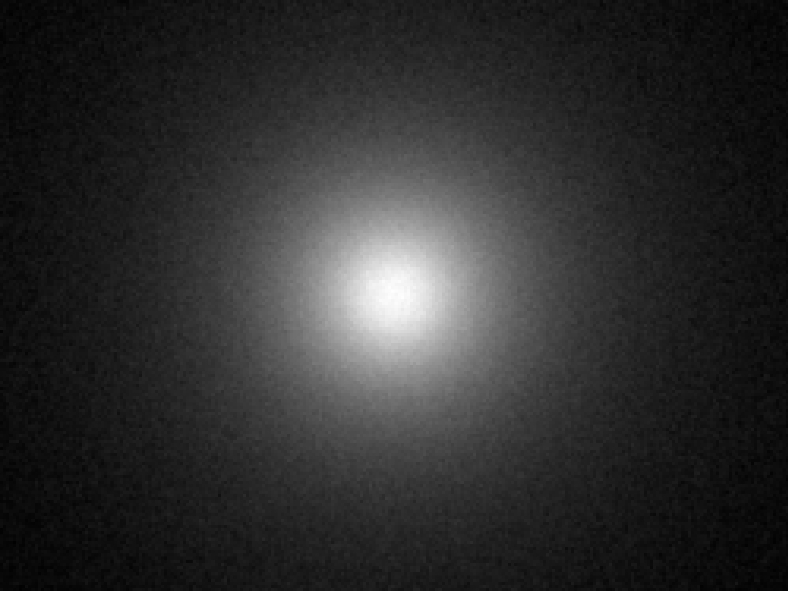

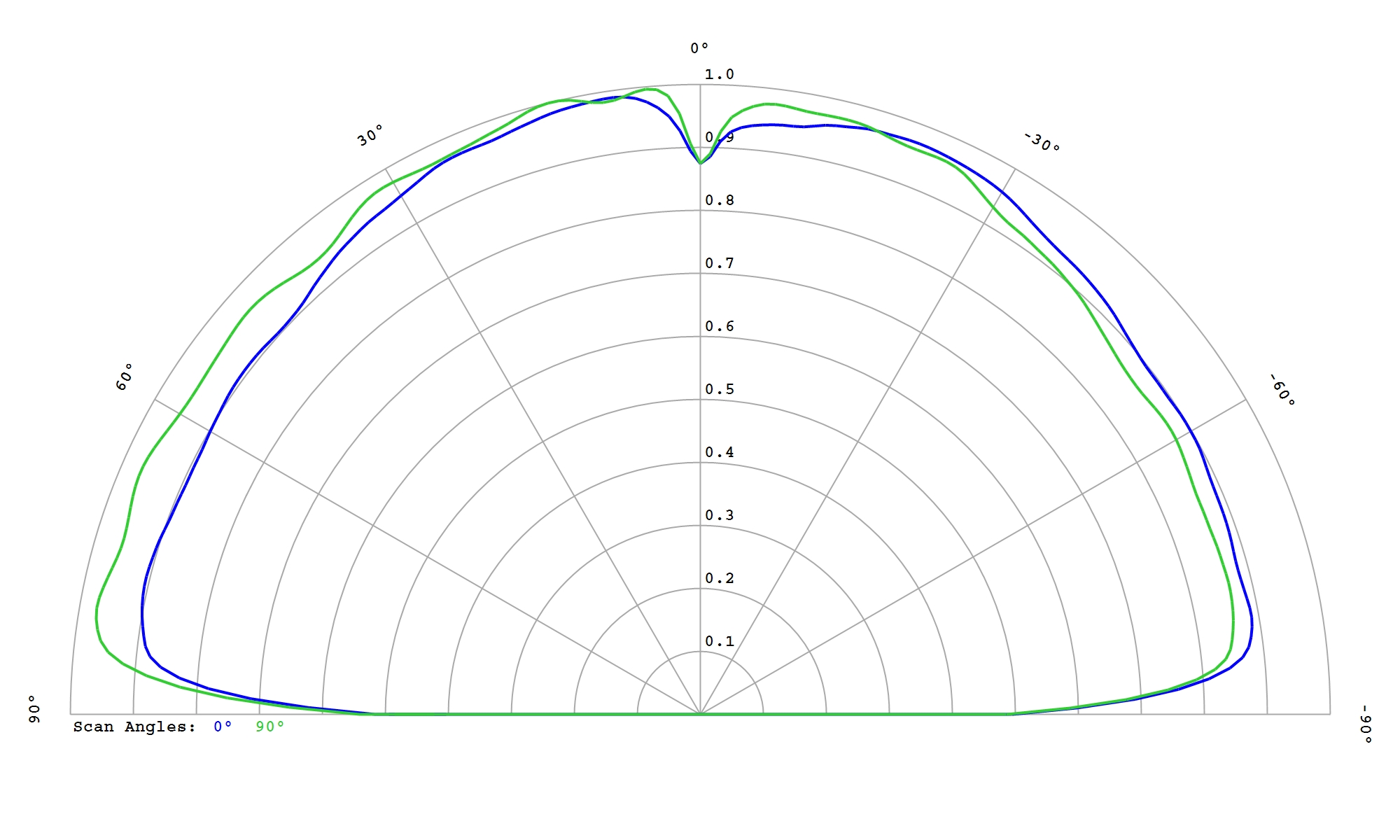

Luminus Devices SST-20-W Gen2 White

Eff:

82.0%

FWHM:

179°

Cd/Im:

0.3


Download

Nichia 219 White

Eff:

77.5%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Nichia 757 White

Eff:

83.8%

FWHM:

180°

Cd/Im:

0.2

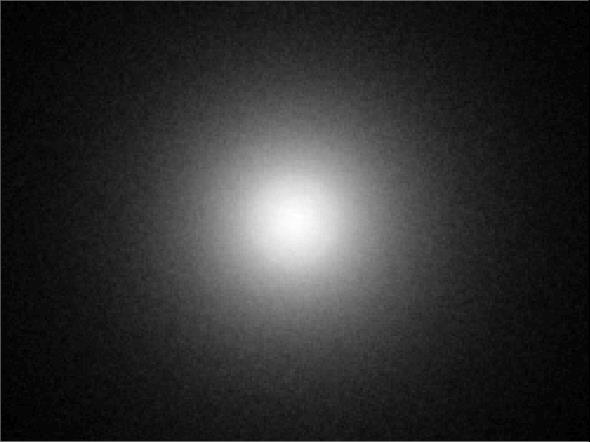

carclo optics - simulated spot image

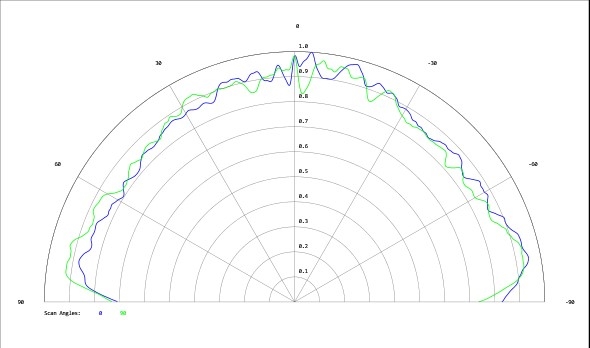

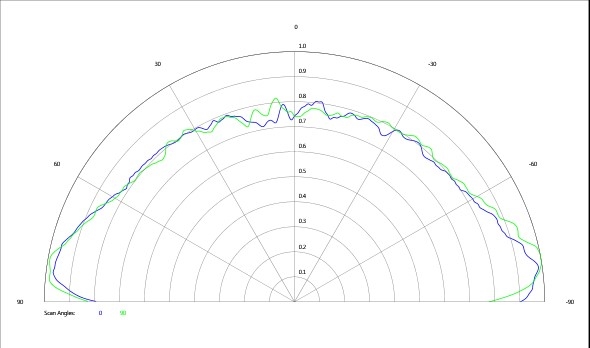

carclo optics - simulated cross section

Download

IES

Nichia 757G White

Eff:

85.0%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics 10620 Simulated Spot Image Nichia 757G-MT

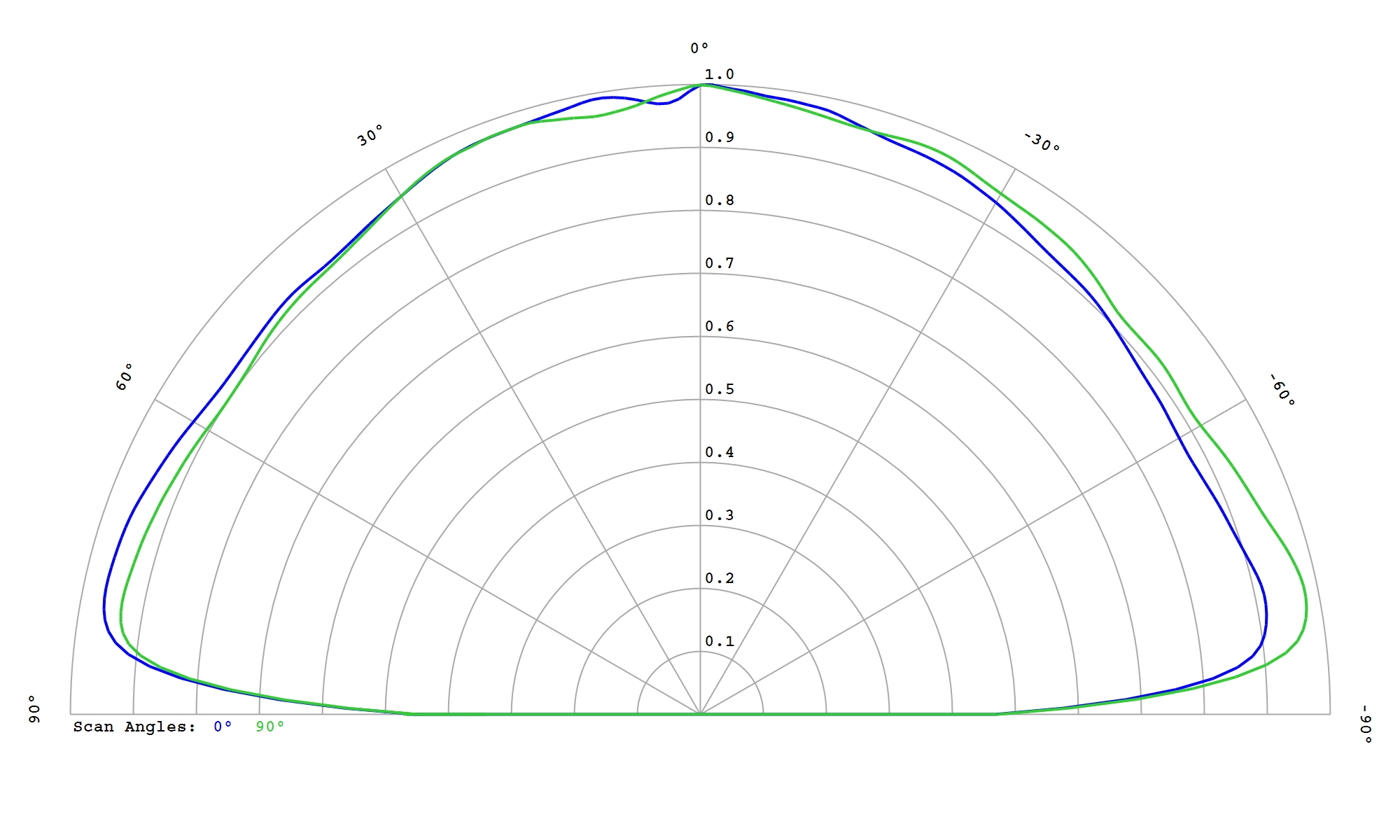

Carclo Optics 10620 Simulated cross section Nichia 757G-MT

Download

IES

Nichia 757G White

Eff:

86.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NCSW CSP E17A White

Eff:

88.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

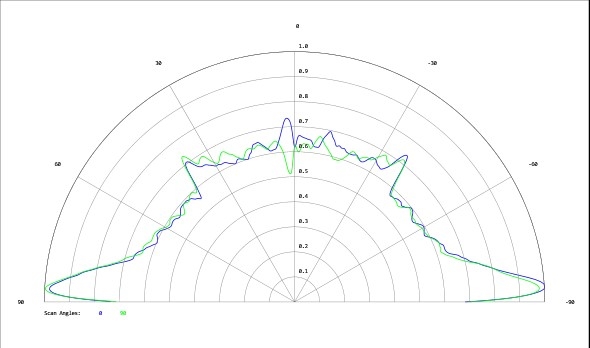

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NFSW CSP E11A White

Eff:

87.5%

FWHM:

179°

Cd/Im:

0.3

Download

IES

Nichia NVSW 219C White

Eff:

84.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

84.0%

FWHM:

105°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E 2835 Gen2

Eff:

85.5%

FWHM:

179°

Cd/Im:

0.2

Carclo Optics - 10620 Bubble Spot Image Osram DURIS E 2835 Gen2

Carclo Optics - 10620 Bubble Cross Section Osram DURIS E 2835 Gen2

Download

IES

Osram DURIS E 2835 White

Eff:

85.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E2 White

Eff:

82.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

82.1%

FWHM:

79.2x30.4°

Cd/Im:

0.3

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS E3 White

Eff:

84.3%

FWHM:

180.0°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Deep Blue

Eff:

82.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Green

Eff:

85.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 Red

Eff:

86.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram DURIS S5 White

Eff:

83.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSCONIQ C 2424 White

Eff:

85.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image OSCONIQ C2424

Carclo Optics - 10620 Cross Section OSCONIQ C2424

Download

IES

Osram OSLON Boost HM KW CELMM1.TG

Eff:

82.5%

FWHM:

178°

Cd/Im:

0.3

Carclo Optics – 10620 – Osram_Oslon_Boost_KW_CELMM1_TG_spot-image

Carclo Optics – 10620 – Osram_Oslon_Boost_KW_CELMM1_TG_cross section

Download

IES

Osram OSLON Pure 1010 CSP GC VJLPE1.13 Cyan

Eff:

92.0%

FWHM:

177°

Cd/Im:

0.3


Download

IES

Osram OSLON Pure 1010 CSP GD VJLPE1.14 Deep Blue

Eff:

90.5%

FWHM:

178°

Ipk/W:

0.3


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

90.5%

FWHM:

178°

Cd/Im:

0.3


Download

IES

Osram OSLON Pure 1010 CSP GR VJLPE1.F3 Red

Eff:

87.5%

FWHM:

179°

Cd/Im:

0.3


Download

IES

Osram OSLON Pure 1010 CSP GT VJLPE1.13 True Green

Eff:

92.0%

FWHM:

176°

Cd/Im:

0.3


Download

IES

Osram OSLON Pure 1010 CSP GW VJLPE1.CM White

Eff:

90.5%

FWHM:

178°

Cd/Im:

0.3



Download

IES

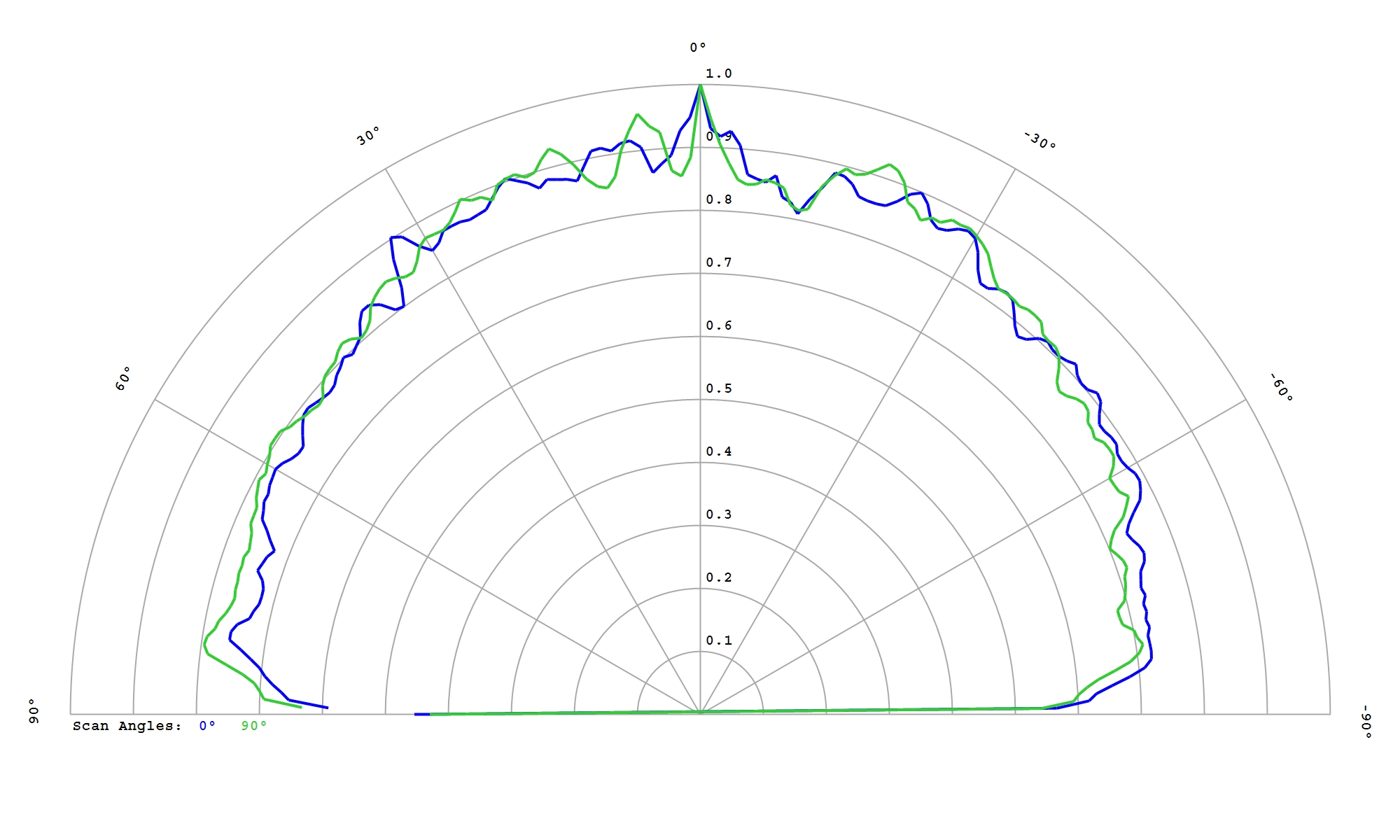

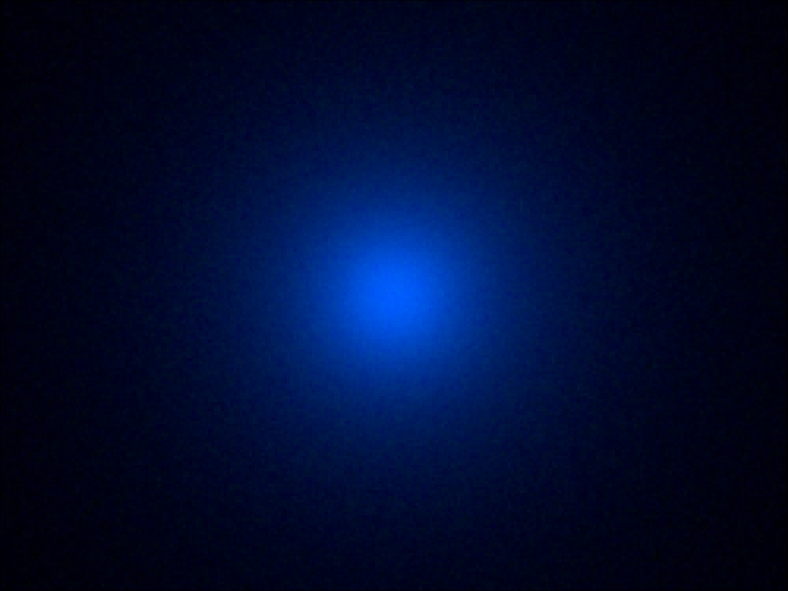

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.4


Download

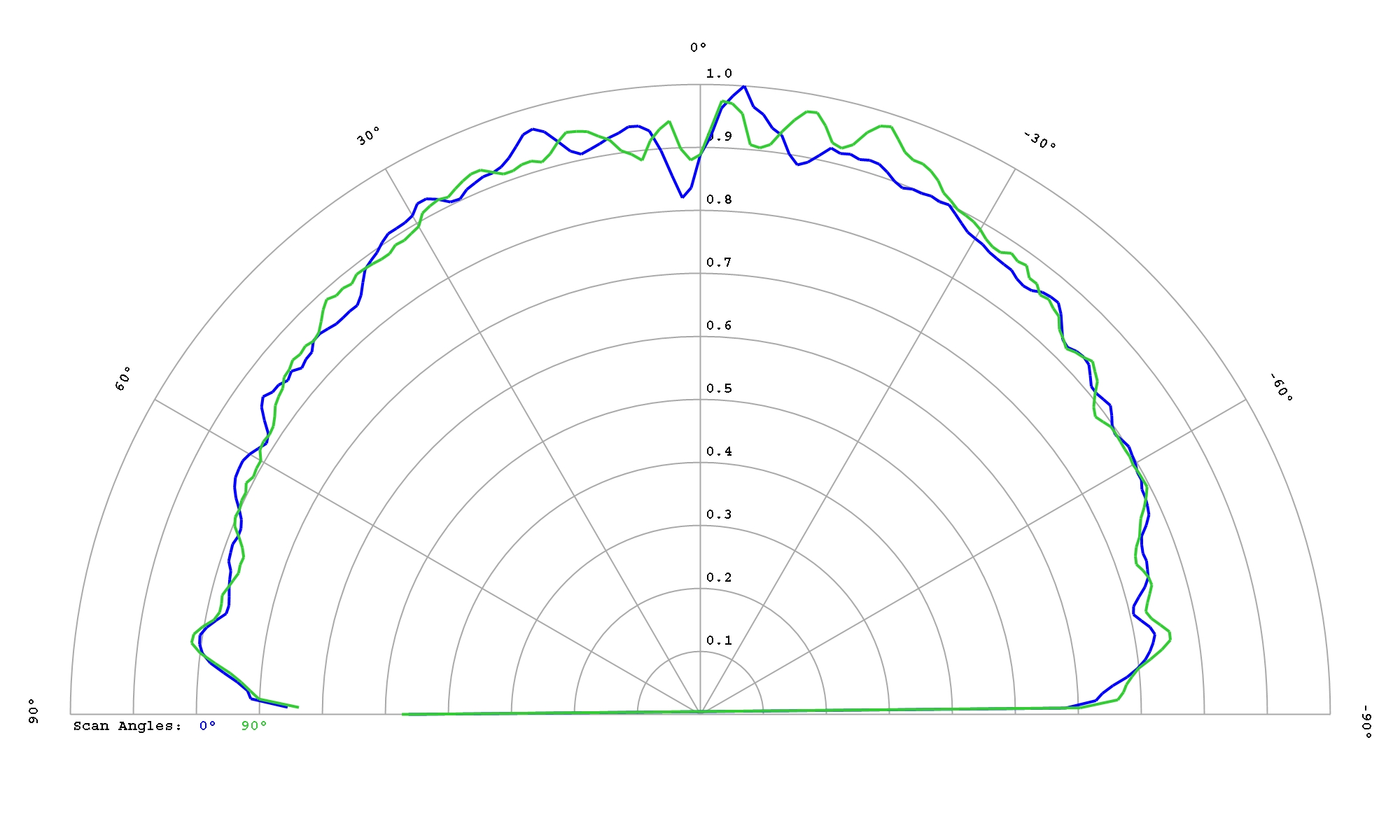

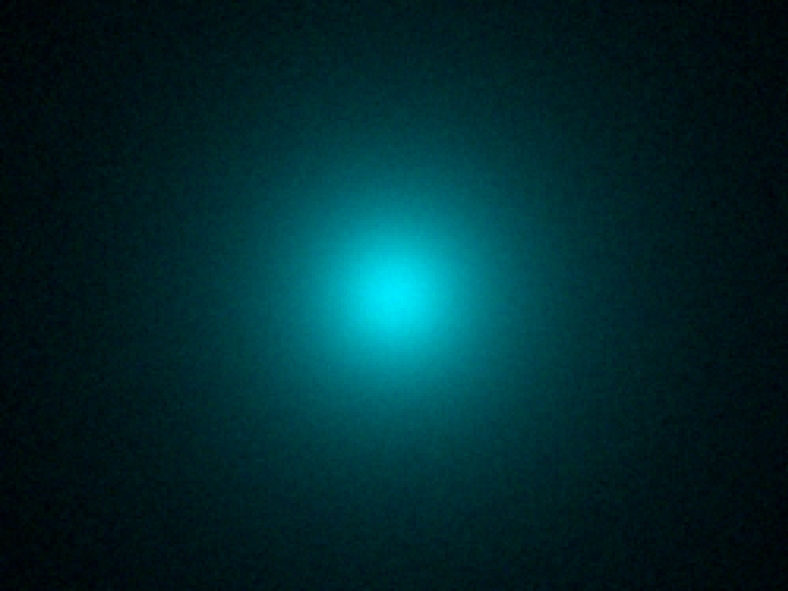

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3


Download

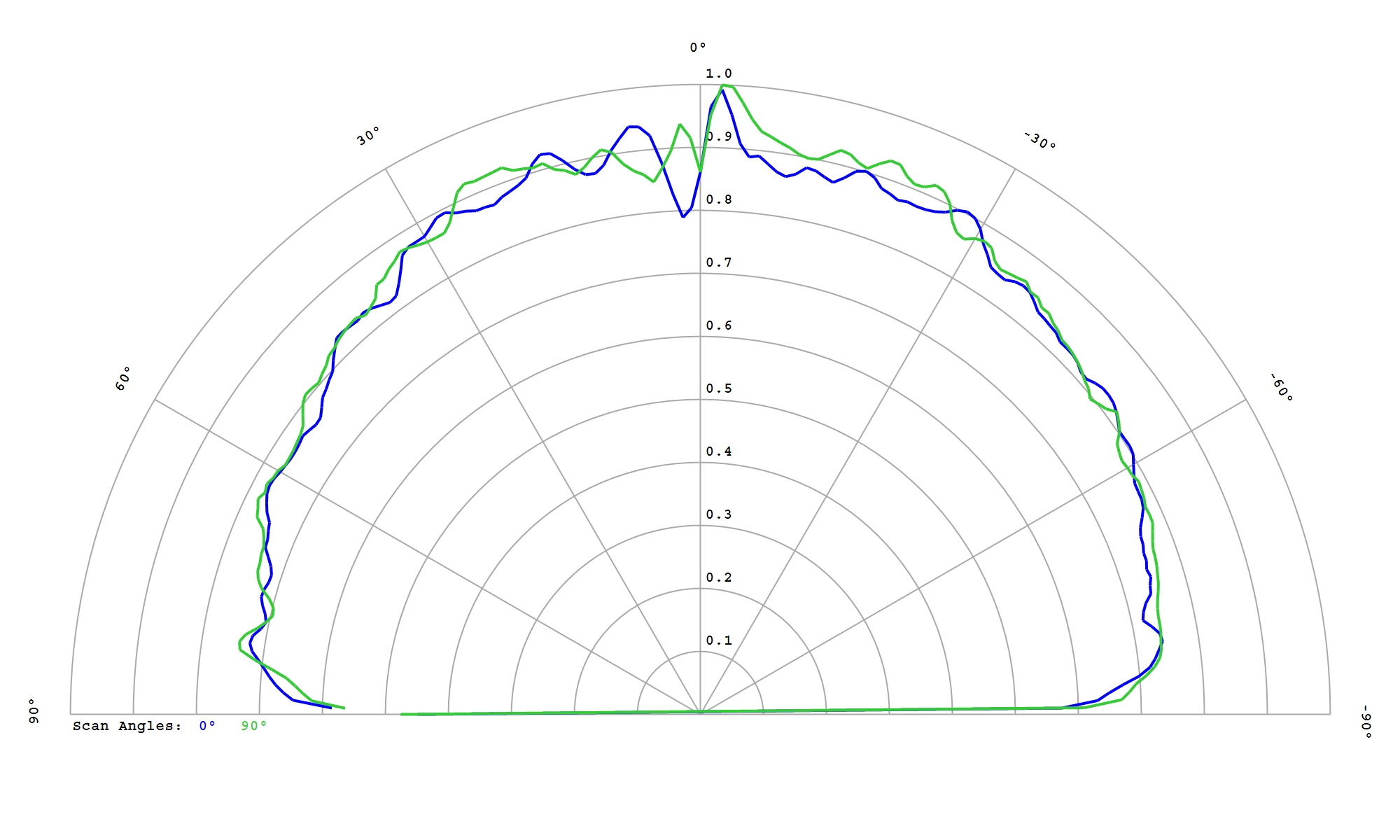

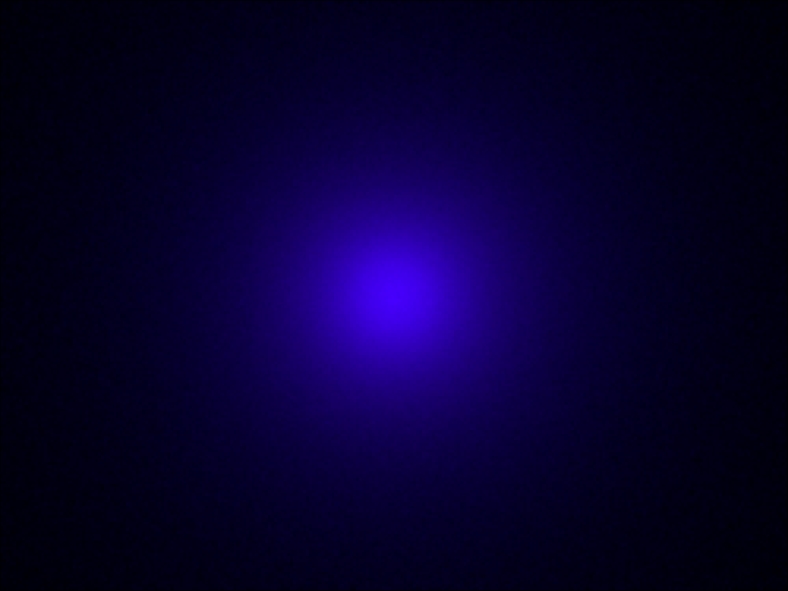

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

82.5%

FWHM:

178°

Ipk/W:

0.3


Download

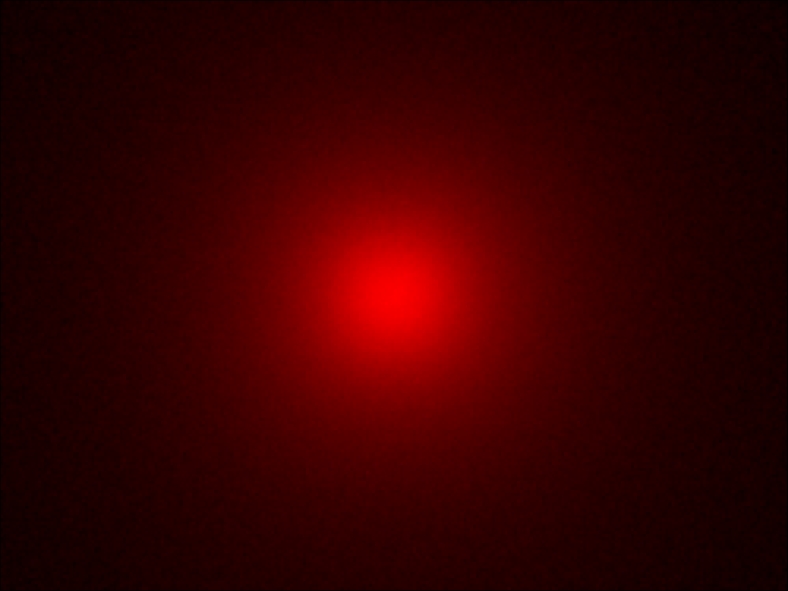

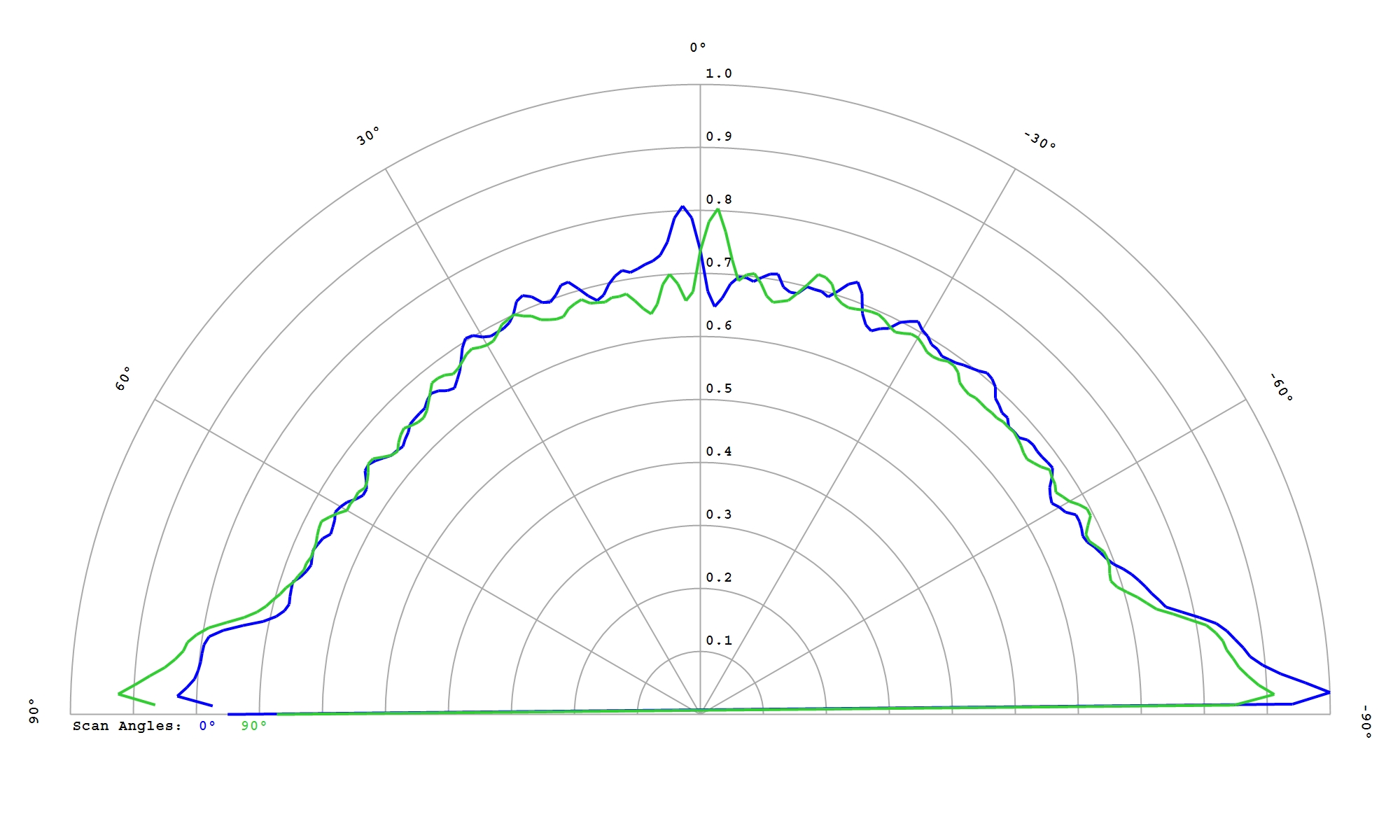

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

80.0%

FWHM:

179°

Cd/Im:

0.2


Download

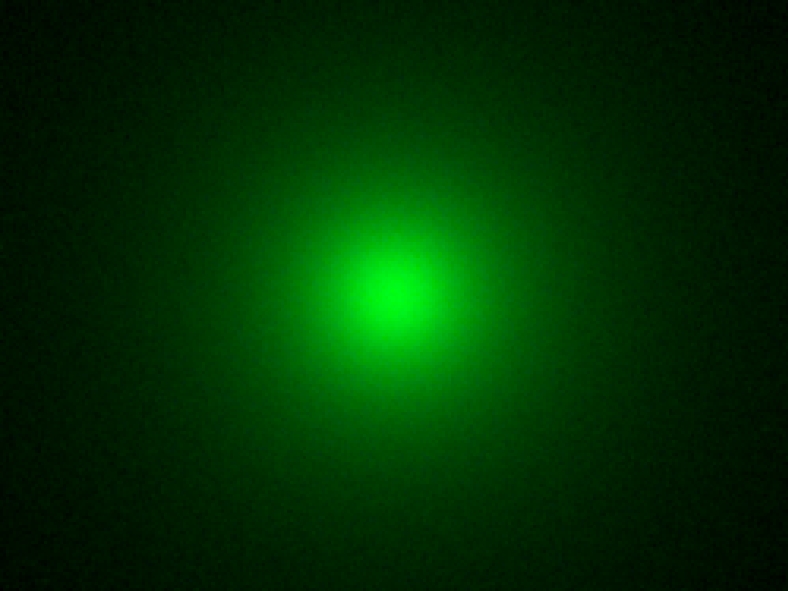

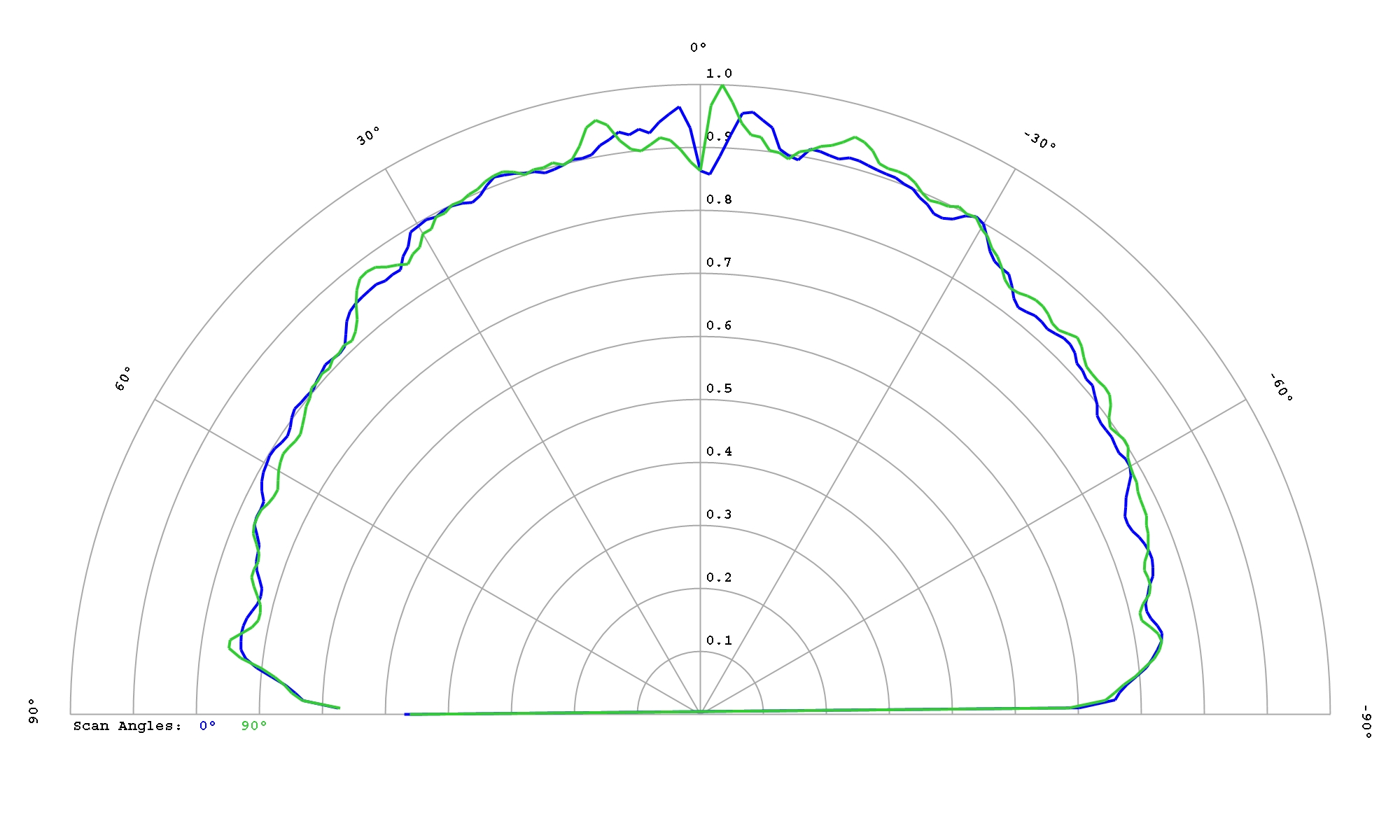

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3


Download

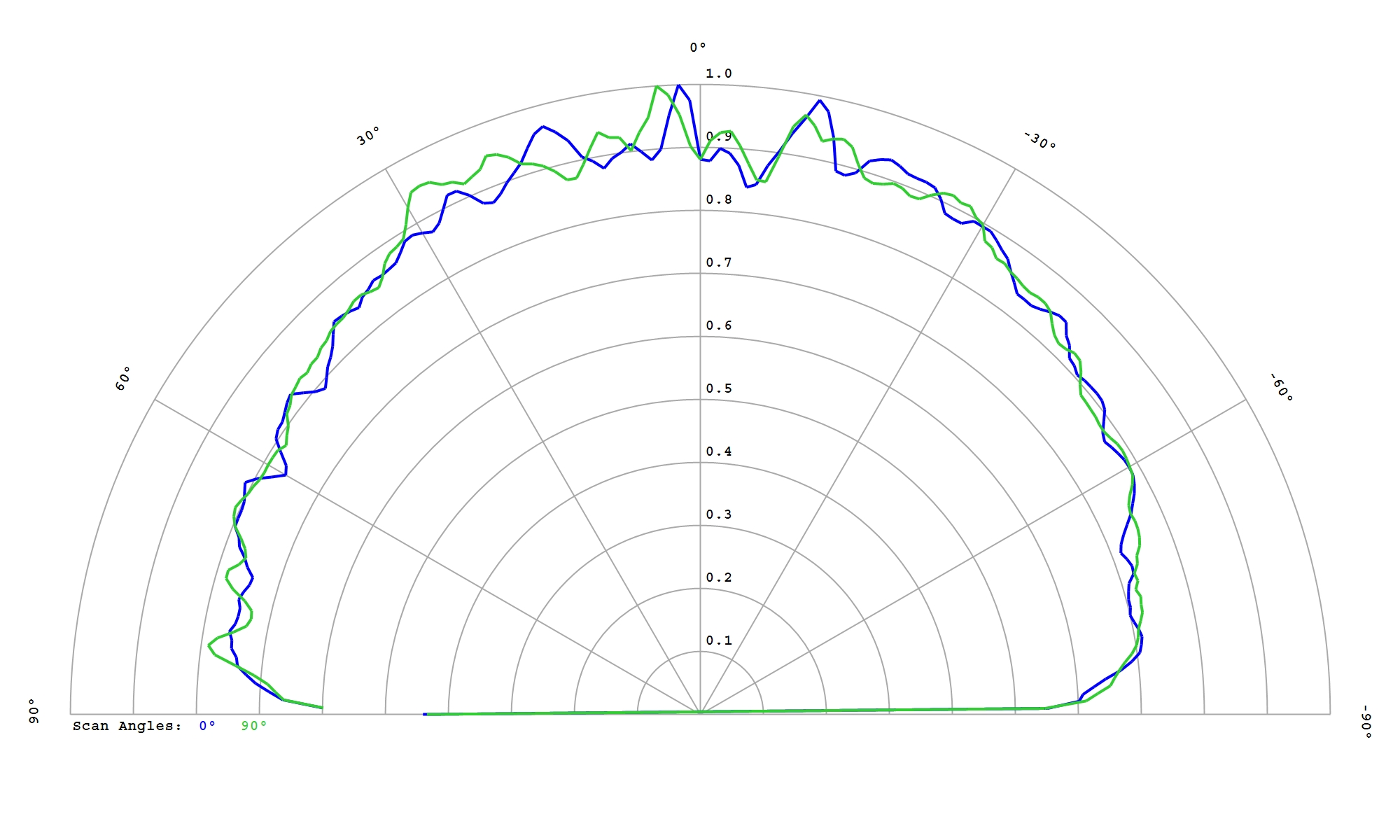

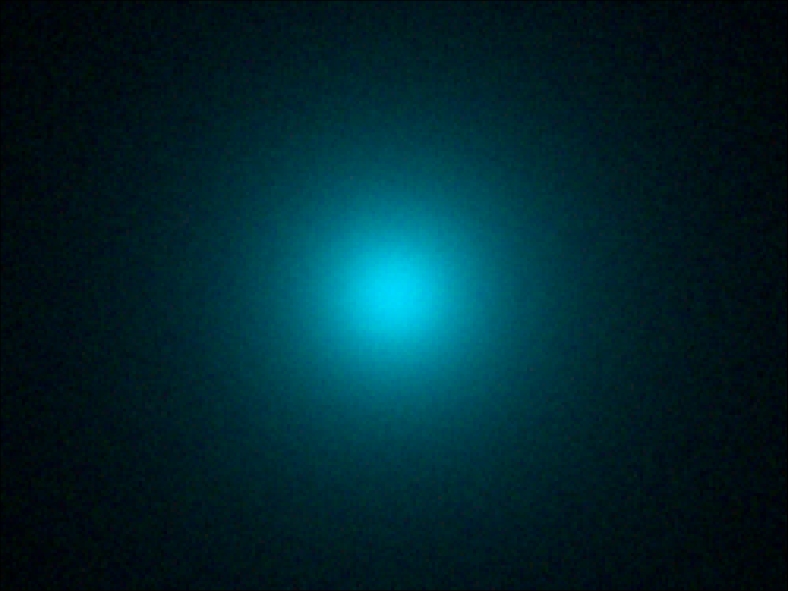

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.3


Download

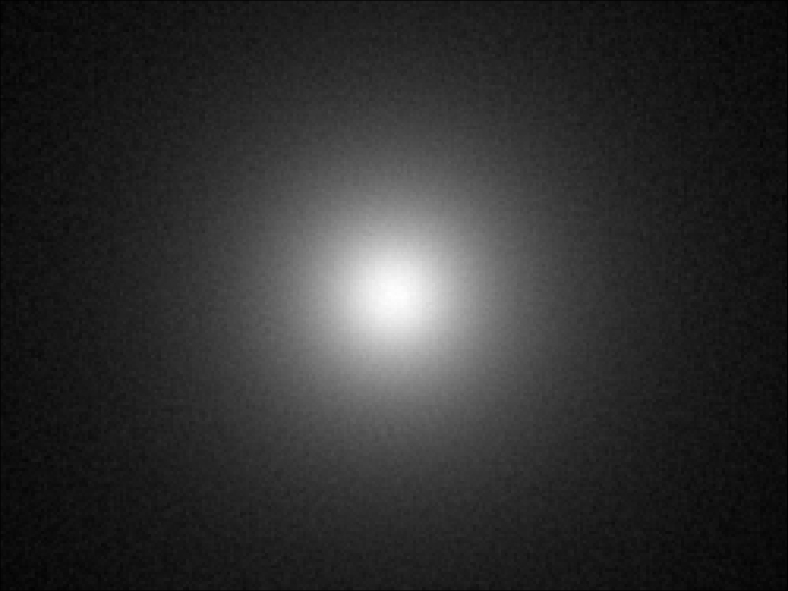

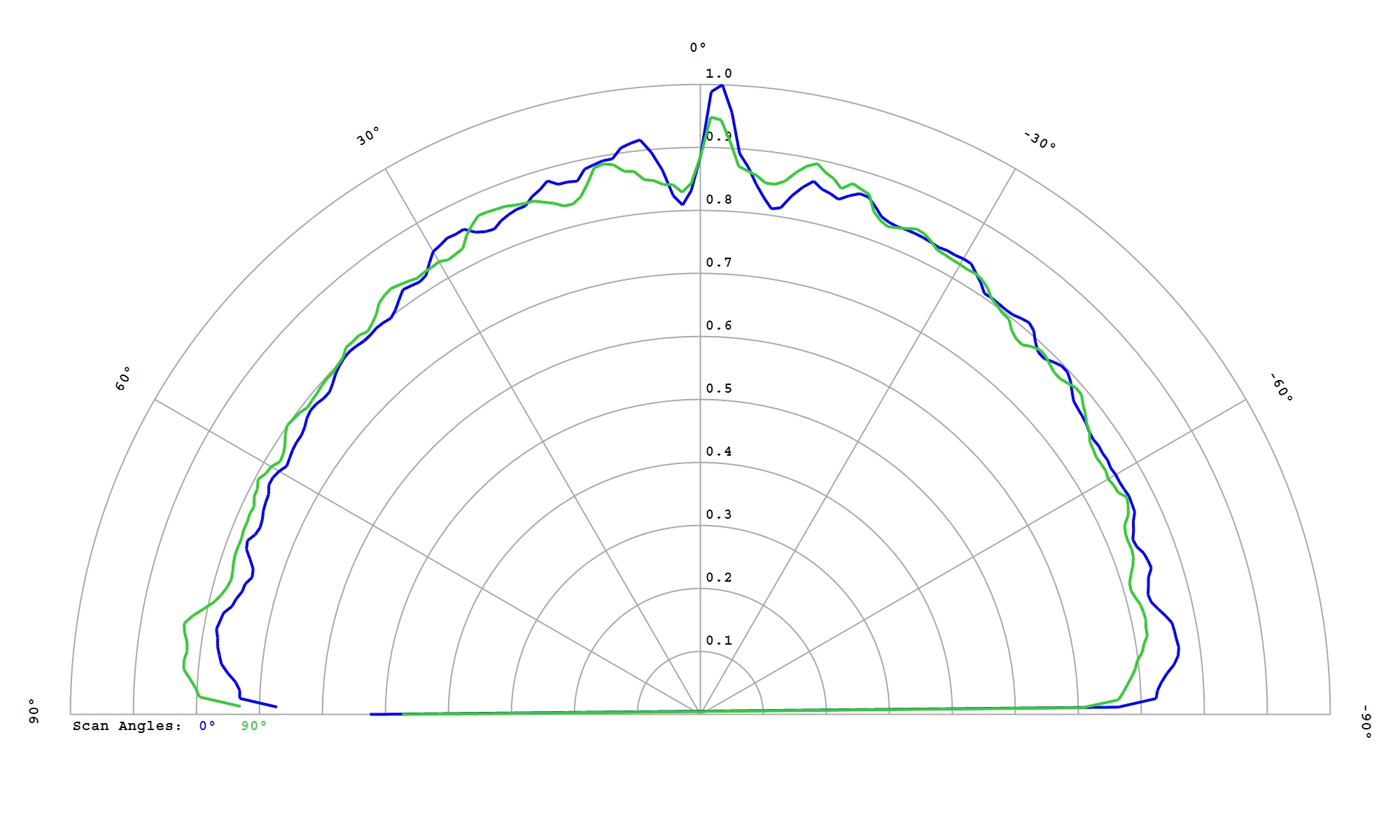

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

84.5%

FWHM:

178°

Cd/Im:

0.3

Download

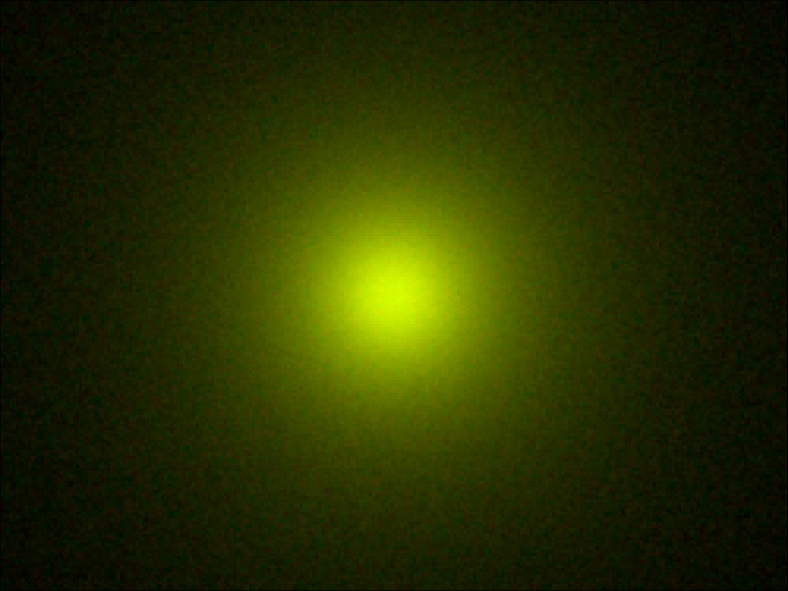

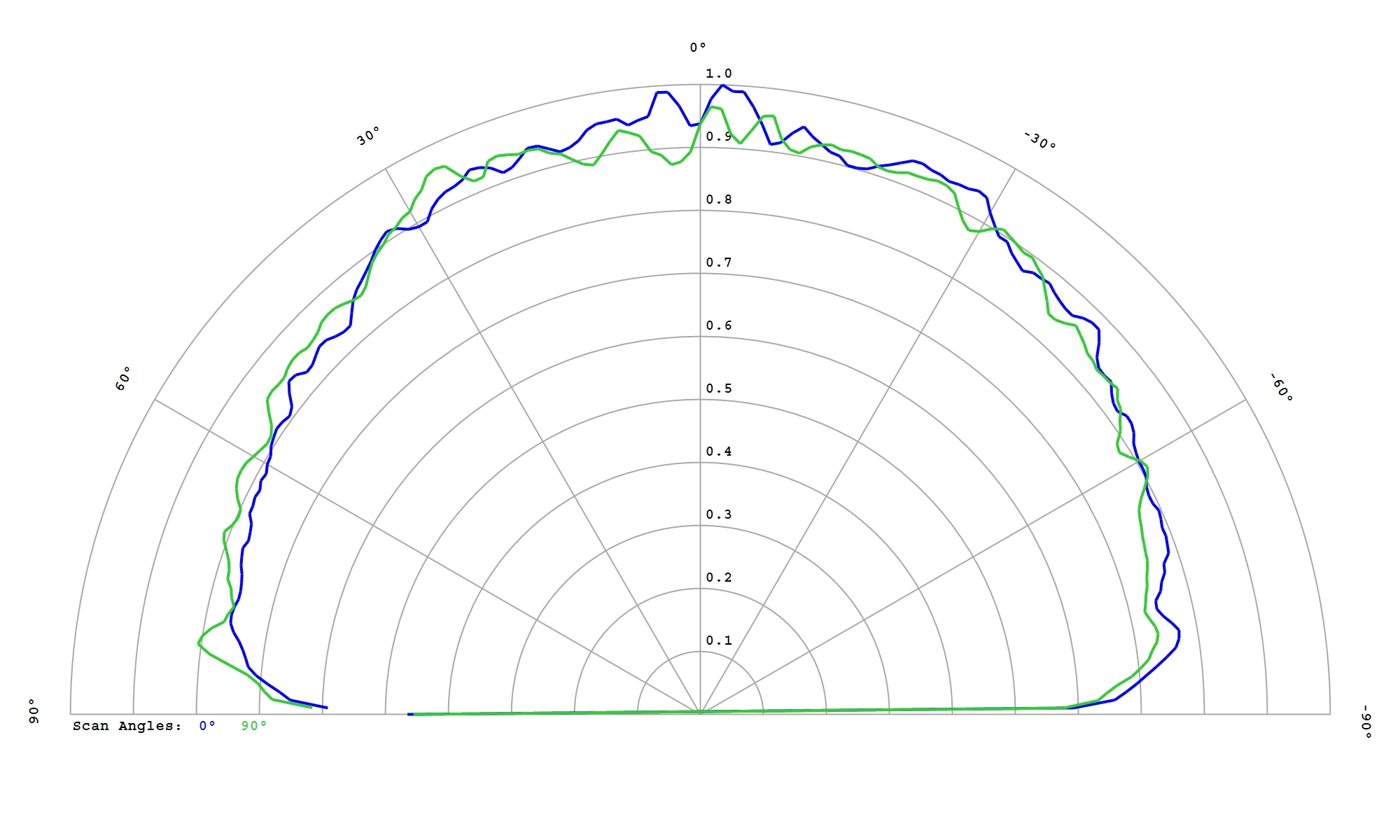

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.3


Download

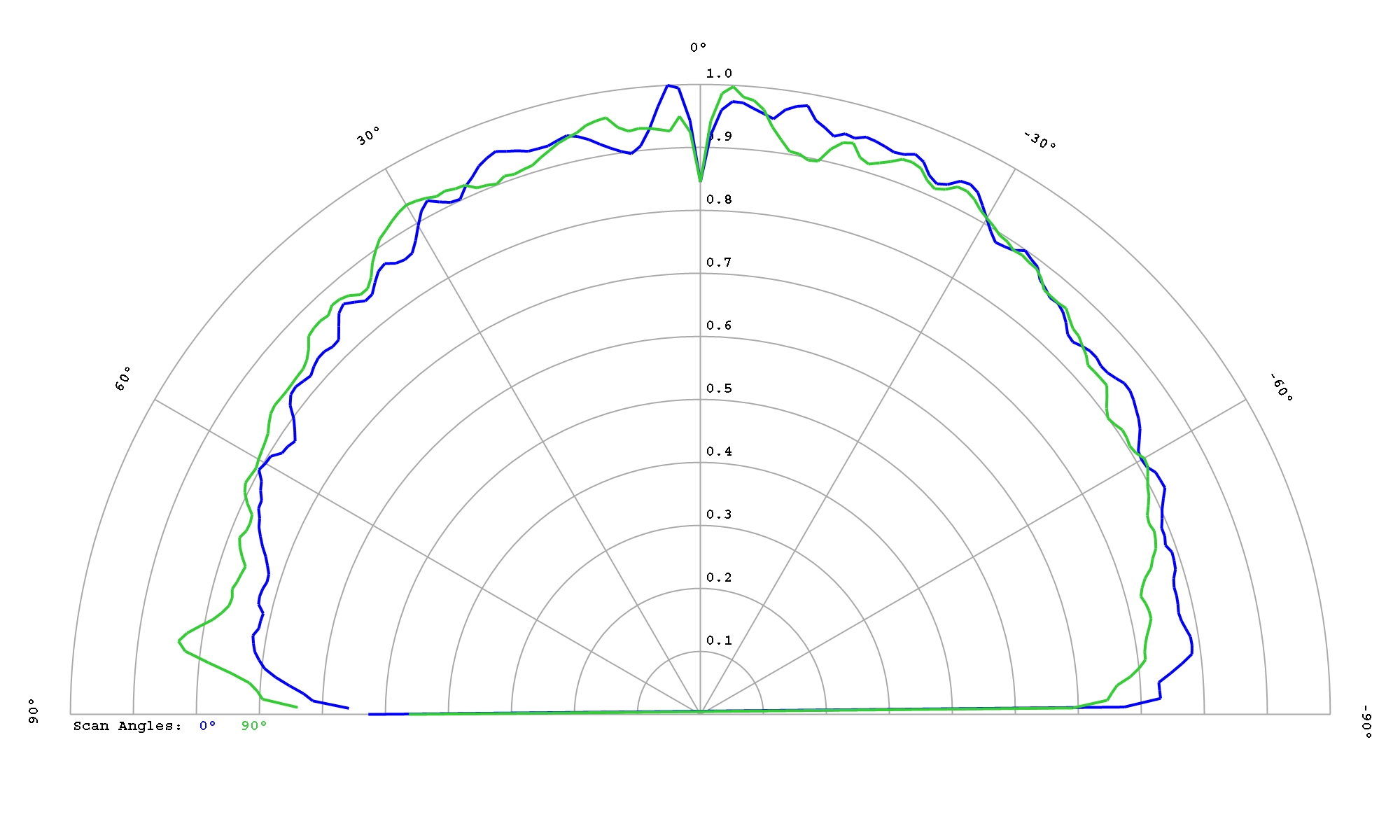

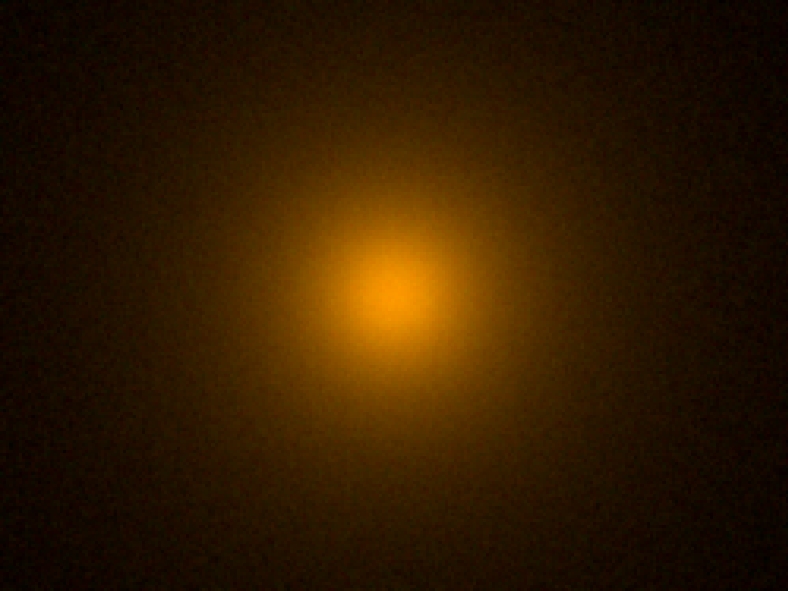

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

83.5%

FWHM:

178°

Cd/Im:

0.2


Download

Osram OSLON Square Flat White

Eff:

83.5%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 3 White

Eff:

79.7%

FWHM:

180.0°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

84.0%

FWHM:

178°

Cd/Im:

0.3

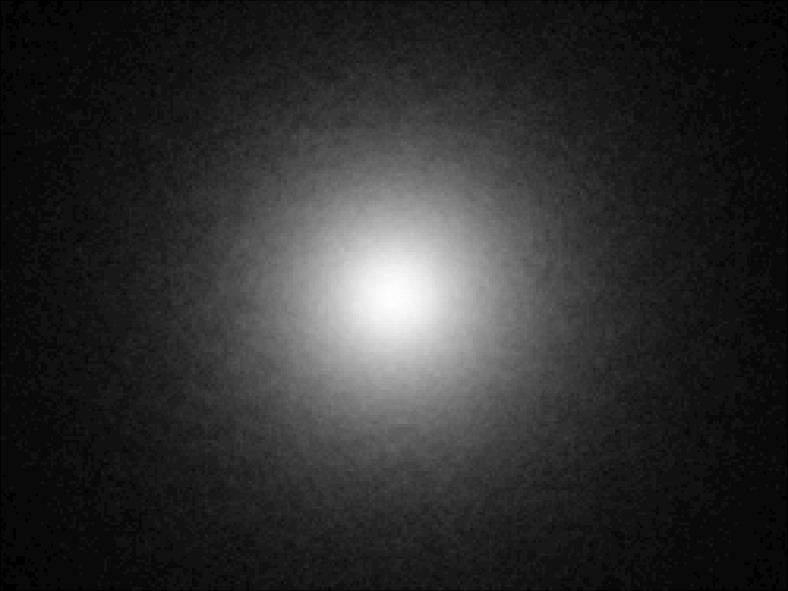

Carclo Optics - 10620 Bubble Spot Image Oslon Square Gen 5

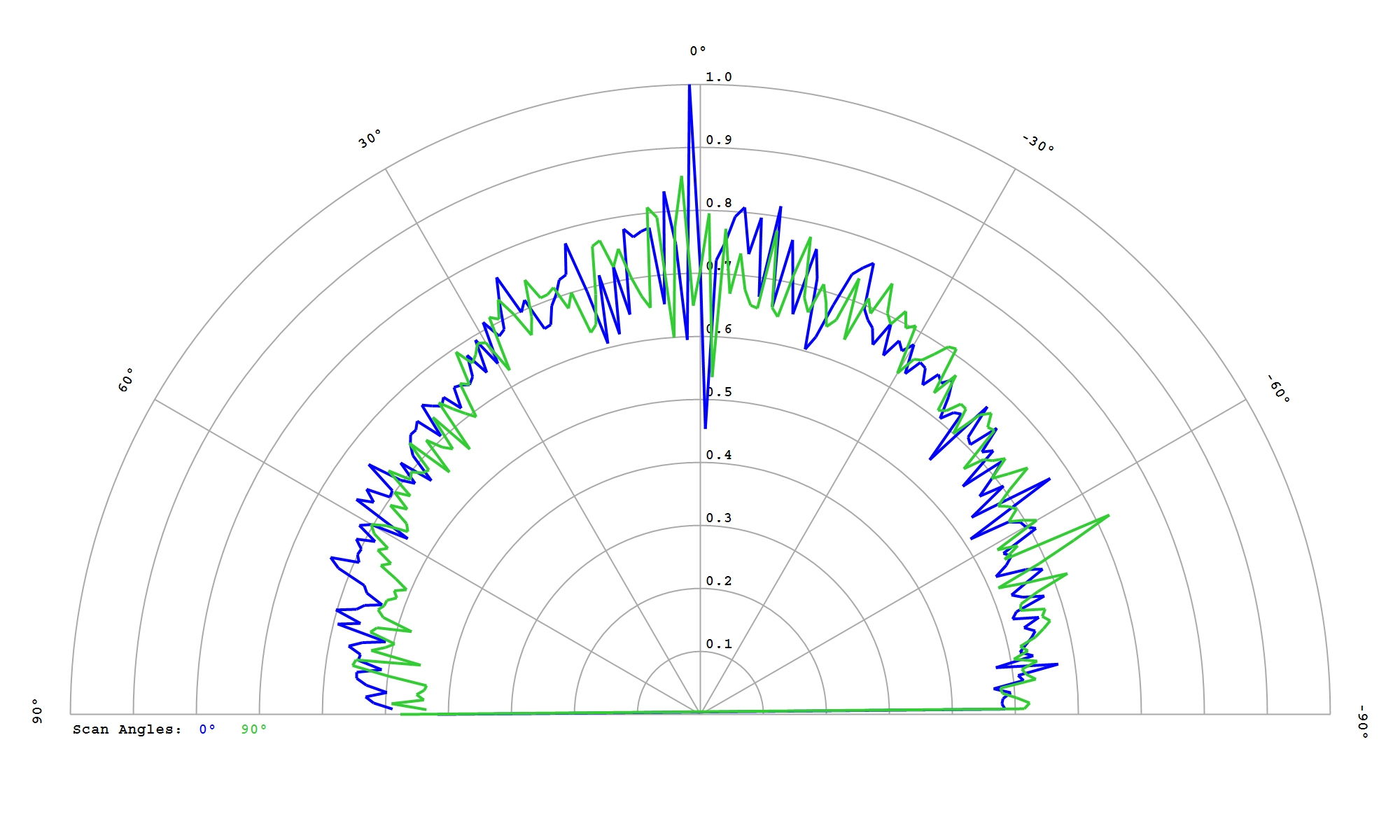

Carclo Optics - 10620 30mm Cross Section Oslon Square Gen 5

Download

IES

Osram OSLON Square White

Eff:

81.0%

FWHM:

180°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Osram OSLON SSL 150 degree GW CSHPM1.PM White

Eff:

81.0%

FWHM:

179°

Cd/Im:

0.2

Carclo Optics – 10620 Spot Image OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Carclo Optics – 10620 Cross Section OSRAM OS Oslon SSL 150 degree GW CSHPM1.PM White

Download

IES

Osram OSLON SSL 150 degree White

Eff:

75.5%

FWHM:

141°

Cd/Im:

0.3

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Osram OSLON SSL 80 White

Eff:

82.9%

FWHM:

121°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

85.0%

FWHM:

123°

Ipk/W:

0.4


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

88.0%

FWHM:

118°

Cd/Im:

0.4



Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

84.5%

FWHM:

124°

Cd/Im:

0.3


Download

IES

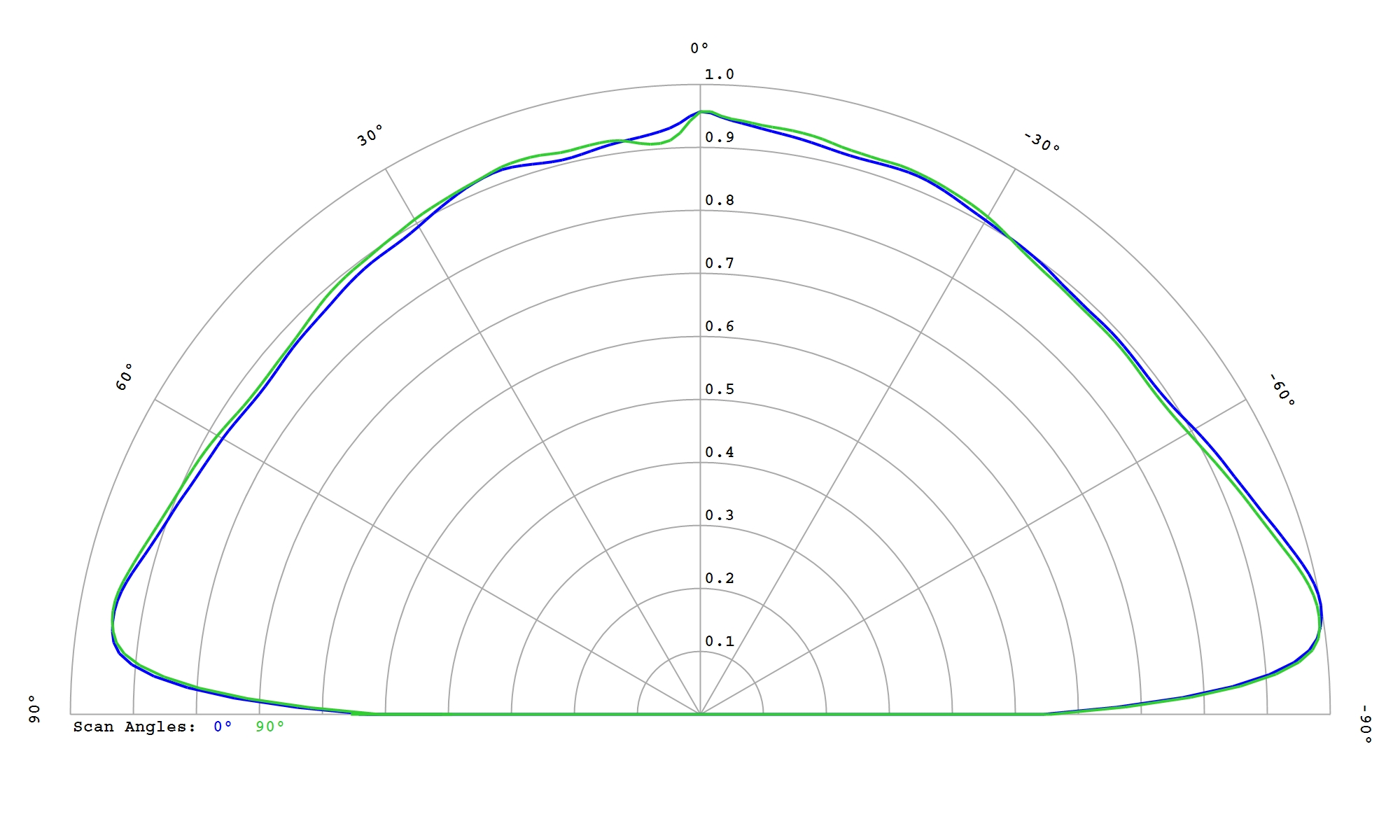

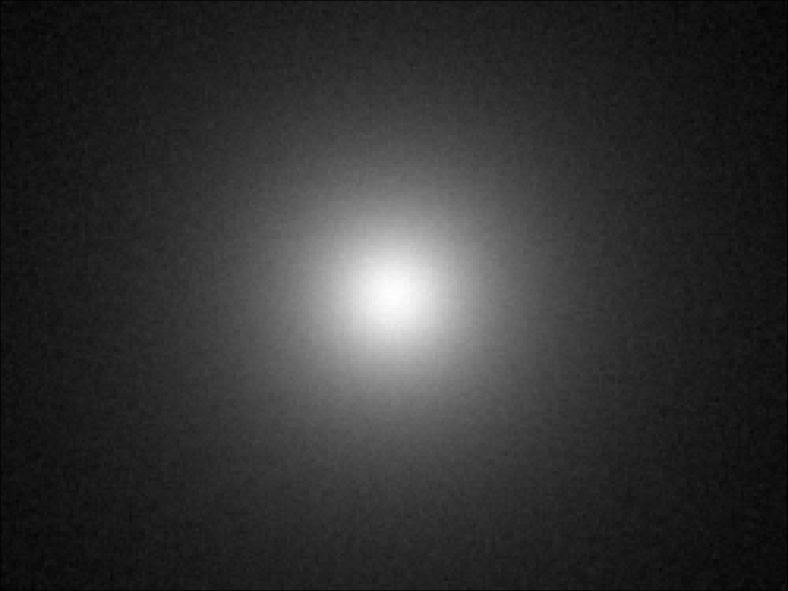

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

85.5%

FWHM:

179°

Cd/Im:

0.3

Download

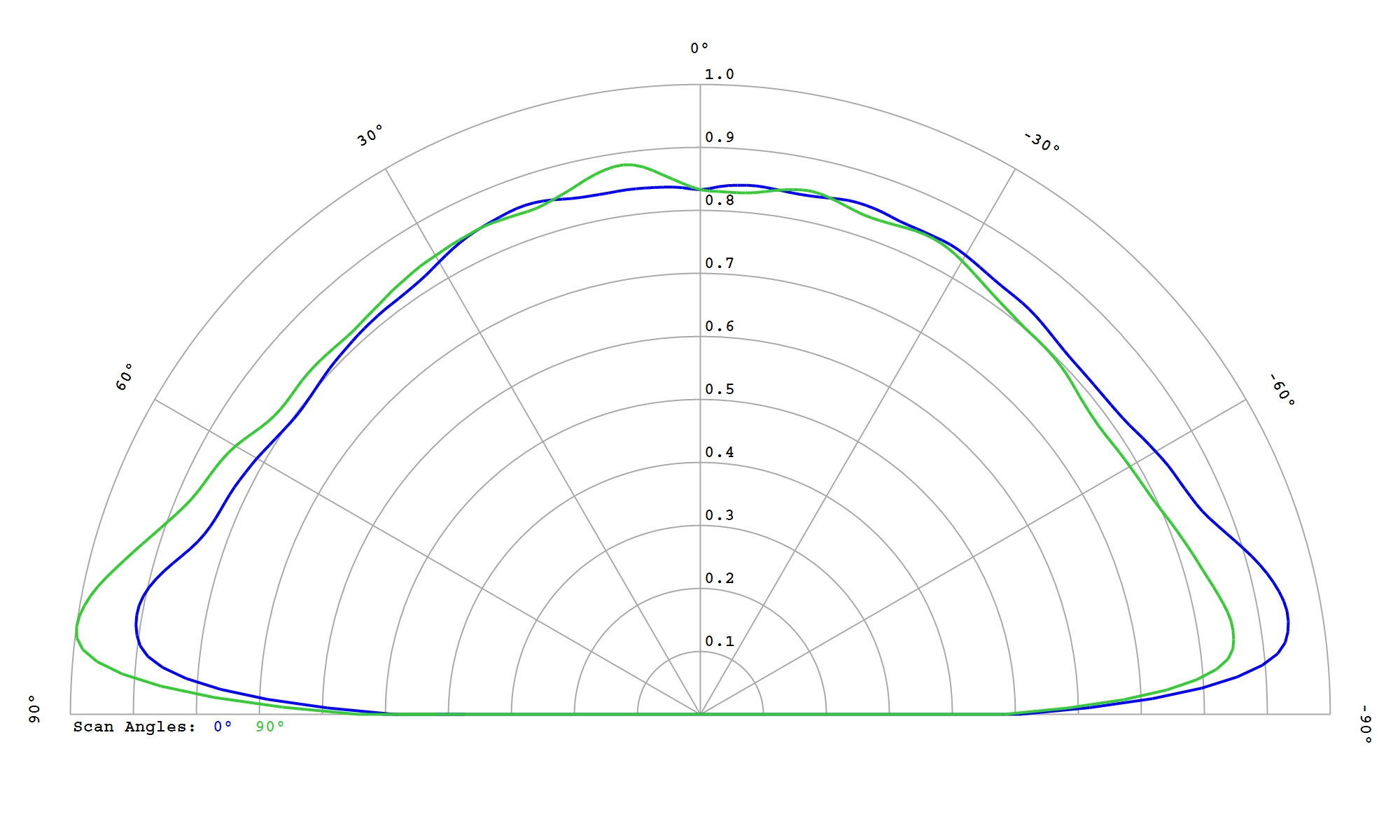

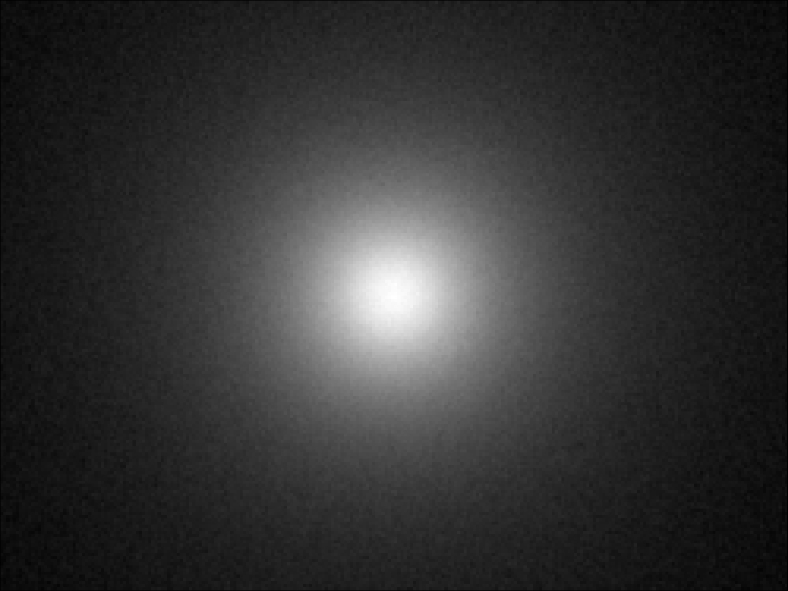

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

86.5%

FWHM:

179°

Cd/Im:

0.2

Download

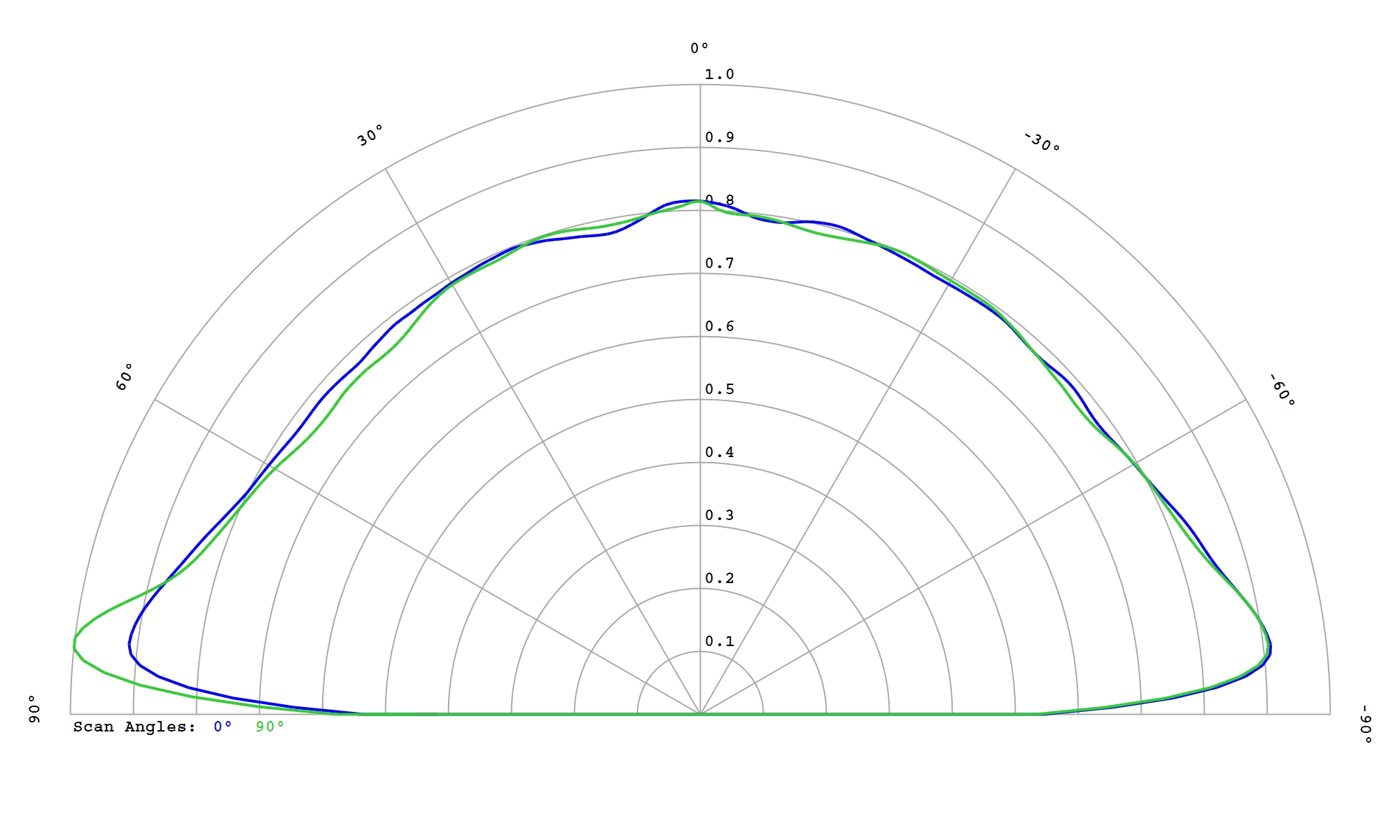

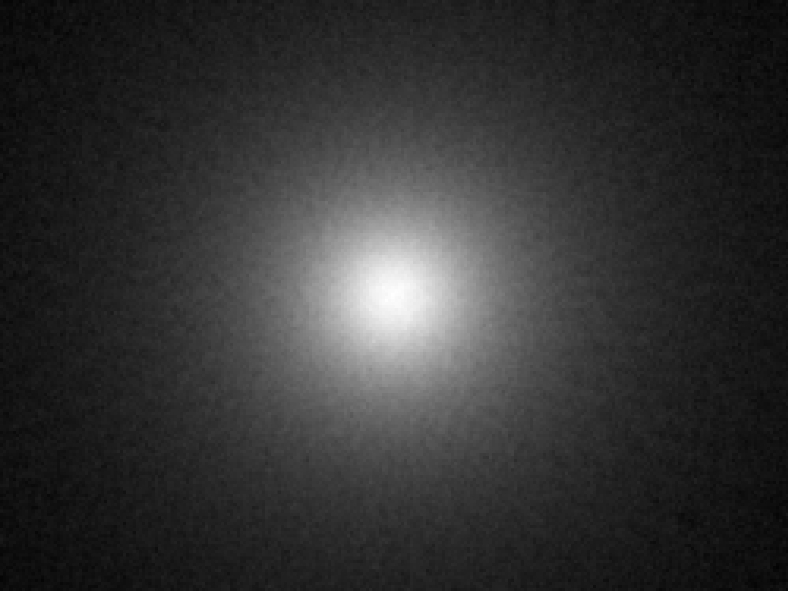

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

80.5%

FWHM:

179°

Cd/Im:

0.2

Download

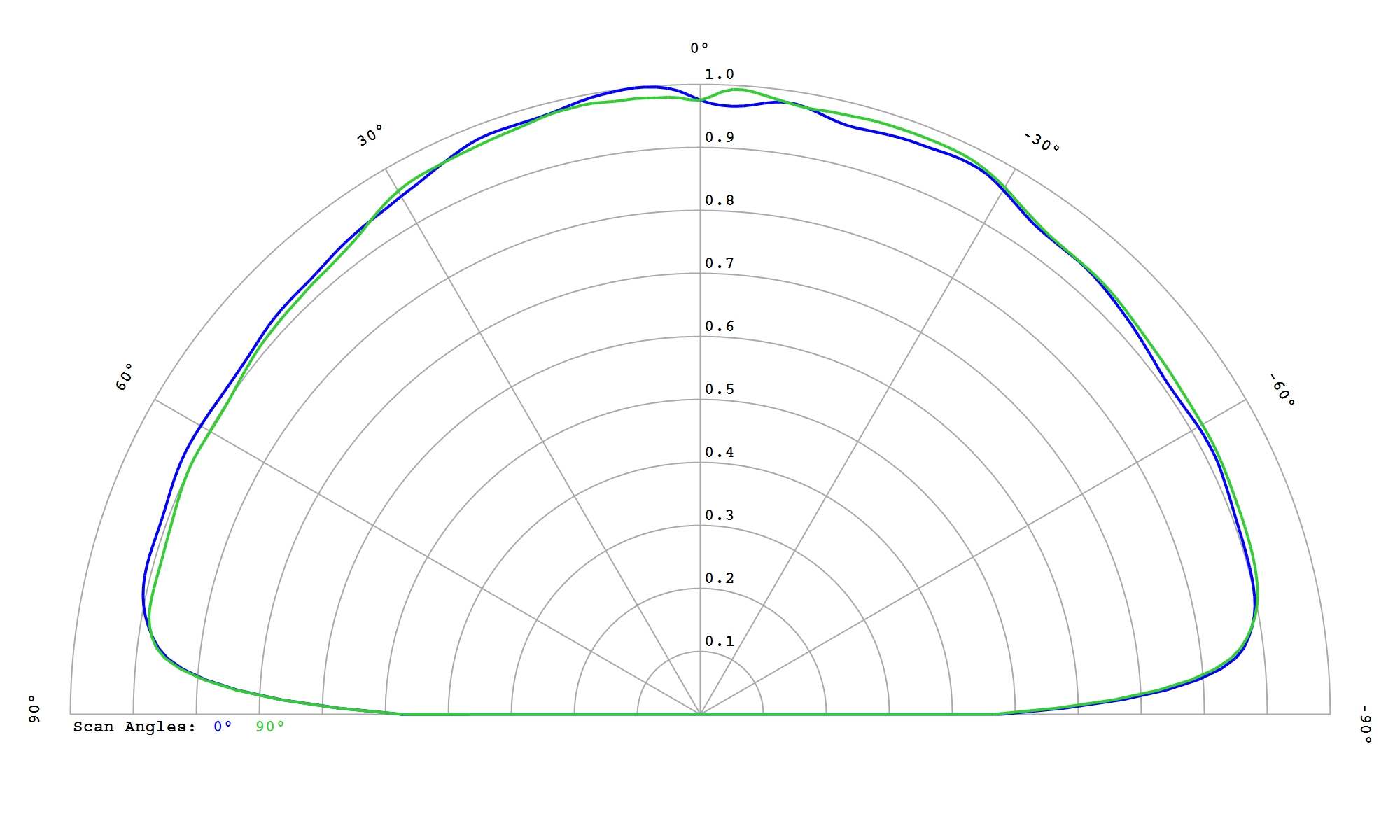

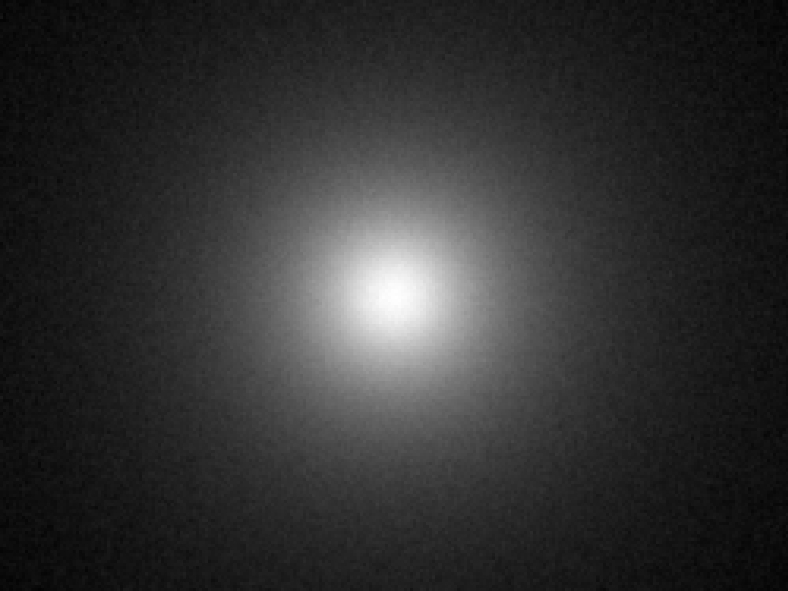

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3

Download

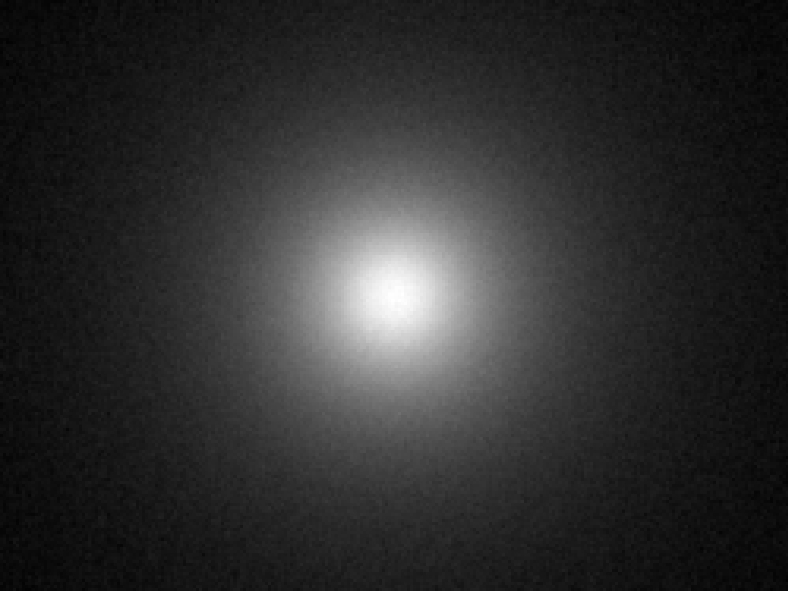

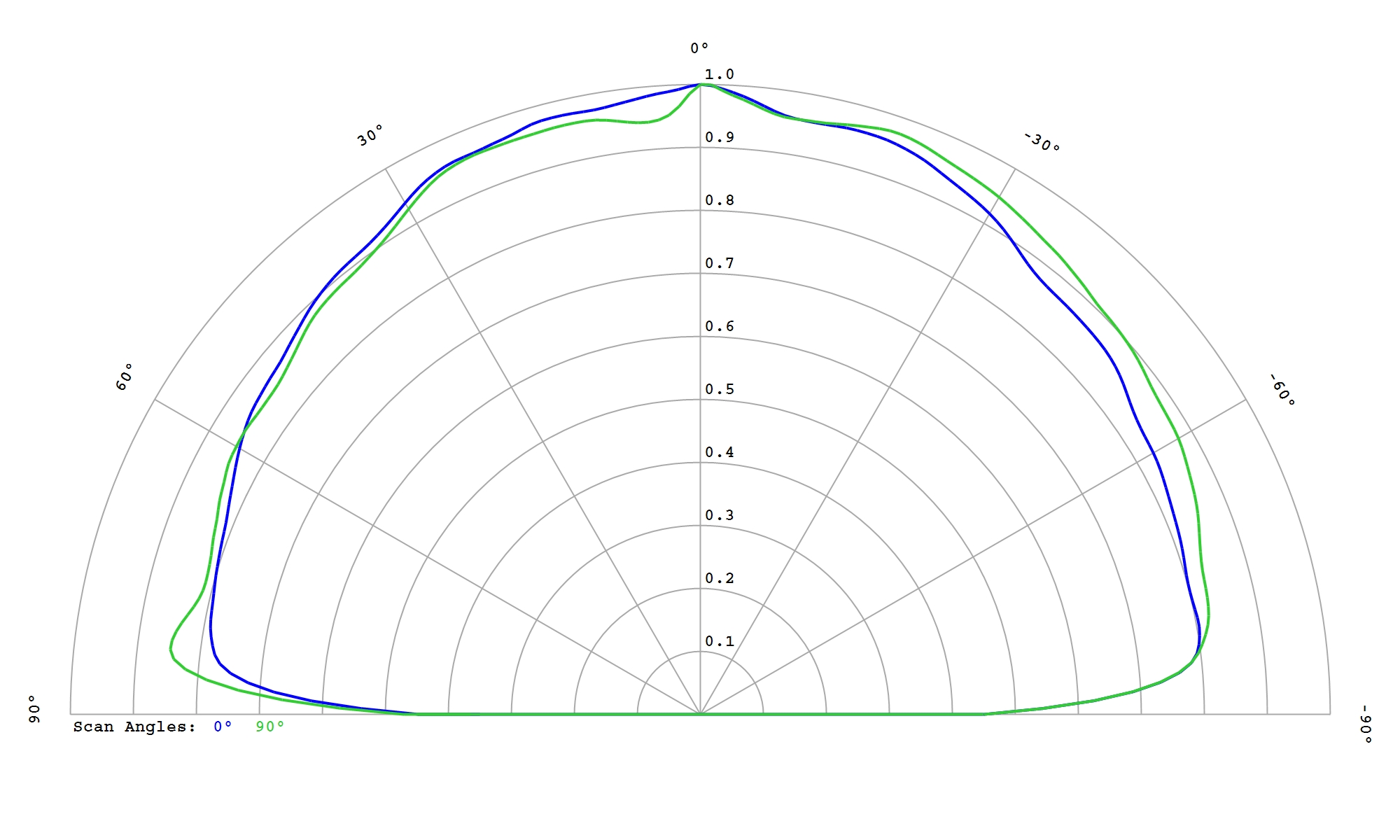

Osram OSLON Signal LUW CRBP.01 White

Eff:

80.5%

FWHM:

178°

Cd/Im:

0.3


Download

Samsung 2835 LM281B+ White

Eff:

82.0%

FWHM:

179°

Cd/Im:

0.2



Download

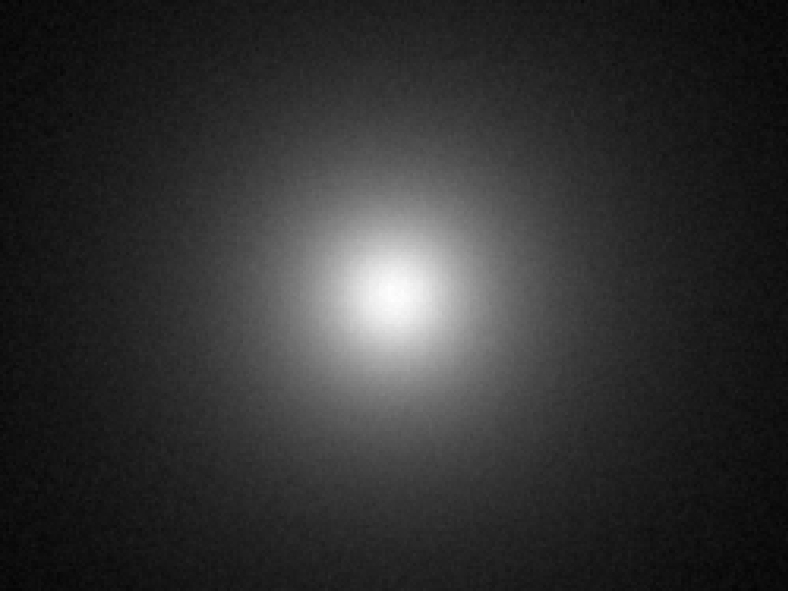

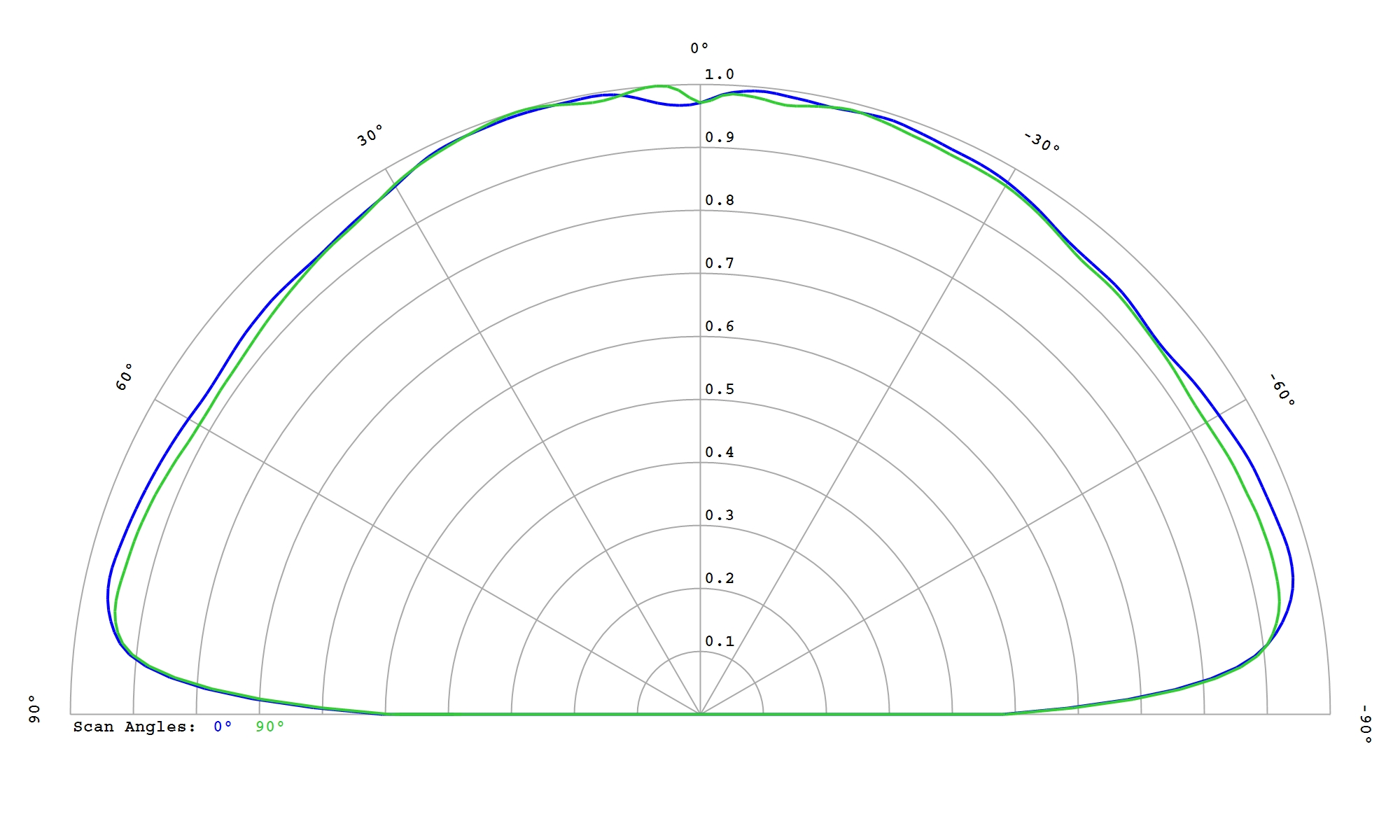

Samsung 2835 LM282B+ White

Eff:

86.0%

FWHM:

179°

Cd/Im:

0.2



Download

Samsung 3030 LM301B White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3

Download

IES

Samsung 3535 LH351B White

Eff:

85.4%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung 3535 LH351Z White

Eff:

86.2%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Samsung CSP LH151B White

Eff:

89.0%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics – 10620 – Samsung_LH151B_spot-image

Carclo Optics – 10620 – Samsung_LH151B_cross section

Download

IES

Samsung CSP LH181B White

Eff:

88.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics -10620 Sport Image - Samsung LH181B 4000K

Carclo Optics -10620 Cross Section Image - Samsung LH181B 4000K

Download

IES

Samsung CSP LH181B White

Eff:

88.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics -10620 Sport Image - Samsung LH181B 4000K

Carclo Optics -10620 Cross Section Image - Samsung LH181B 4000K

Download

IES

Samsung CSP LH231B White

Eff:

88.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image Samsung LH231B 5000K

Carclo Optics -10620 Cross Section - Samsung LH231B 5000K

Download

IES

Samsung CSP LM101B White

Eff:

88.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics -10620 Sport Image - Samsung LM101B 5000K

Carclo Optics -10620 Cross Section Image - Samsung LM101B 5000K

Download

IES

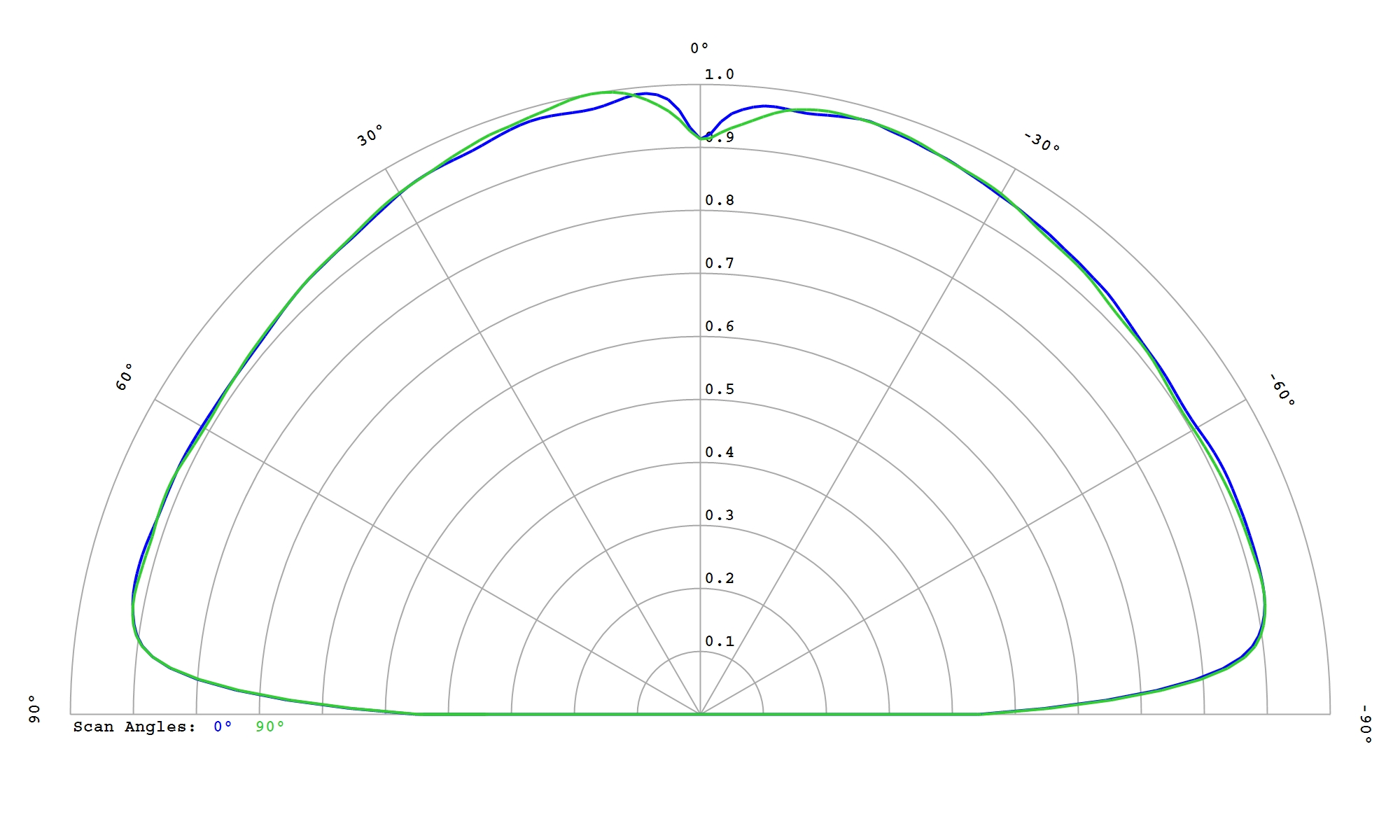

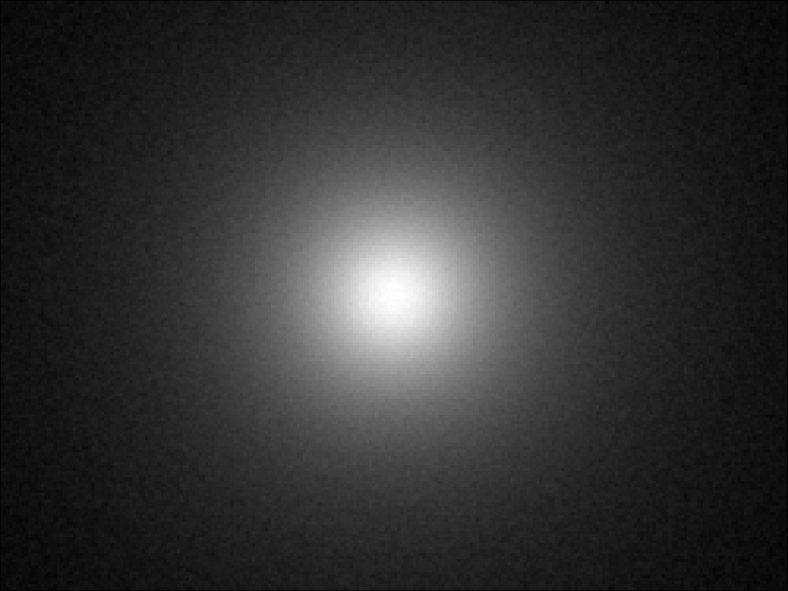

Seoul 3030 STW8C12E-E0 White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3

Download

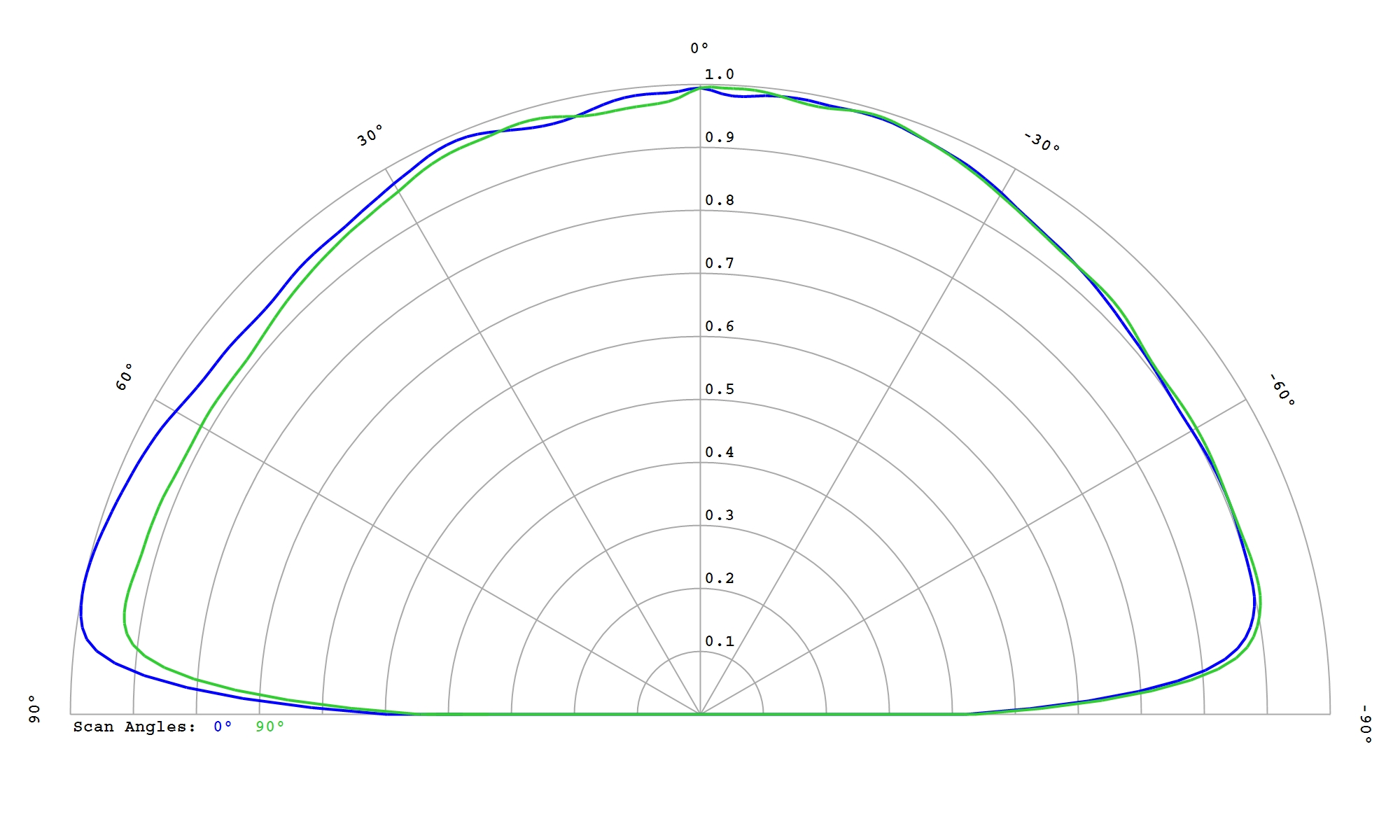

Seoul 3528 G STW8A2PD-G700 White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.3

Download

Seoul CSP SZ8Y11 White

Eff:

83.0%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics -10620 Spot Image - Seoul Z8Y11

Carclo Optics -10620 Cross Section Image - Seoul Z8Y11

Download

IES

Seoul CSP SZ8Y15 White

Eff:

86.0%

FWHM:

78°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y19 White

Eff:

81.0%

FWHM:

178°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Seoul CSP SZ8Y22 White

Eff:

86.0%

FWHM:

179 x 178°

Cd/Im:

0.2

Carclo Optics -10620 Spot Image - Seoul SZ8Y22

Carclo Optics -10620 Cross Section Image - Seoul SZ8Y22

Download

IES

Seoul CSP SZ8Y22P White

Eff:

78.0%

FWHM:

179°

Cd/Im:

0.2

Carclo Optics - 10620 Spot Image - Seoul SZ8Y22P

Carclo Optics - 10620 Cross Section Image - Seoul SZ8Y22P

Download

IES

Seoul MidPower MJT3030 White

Eff:

83.0%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul MidPower MJT4040 White

Eff:

82.0%

FWHM:

180°

Cd/Im:

0.2

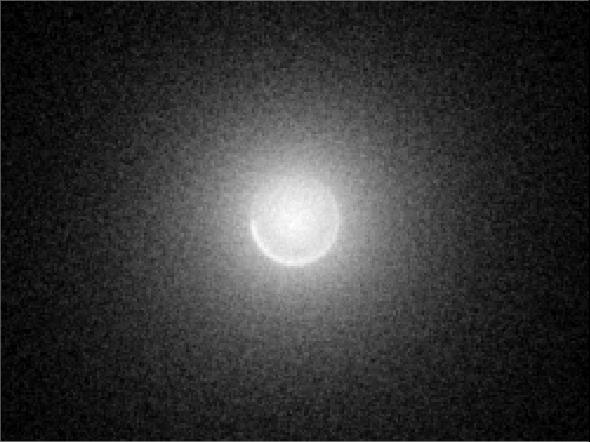

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Seoul 3030 STW8C2SB-NT White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image Seoul STW8 C2SB-NT

Carclo Optics - 10620 Cross Section Seoul STW8 C2SB-NT

Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

85.0%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics - 10620 Spot Image STWS C2PB-E0

Carclo Optics - 10620 Cross Section STWS C2PB-E0

Download

IES

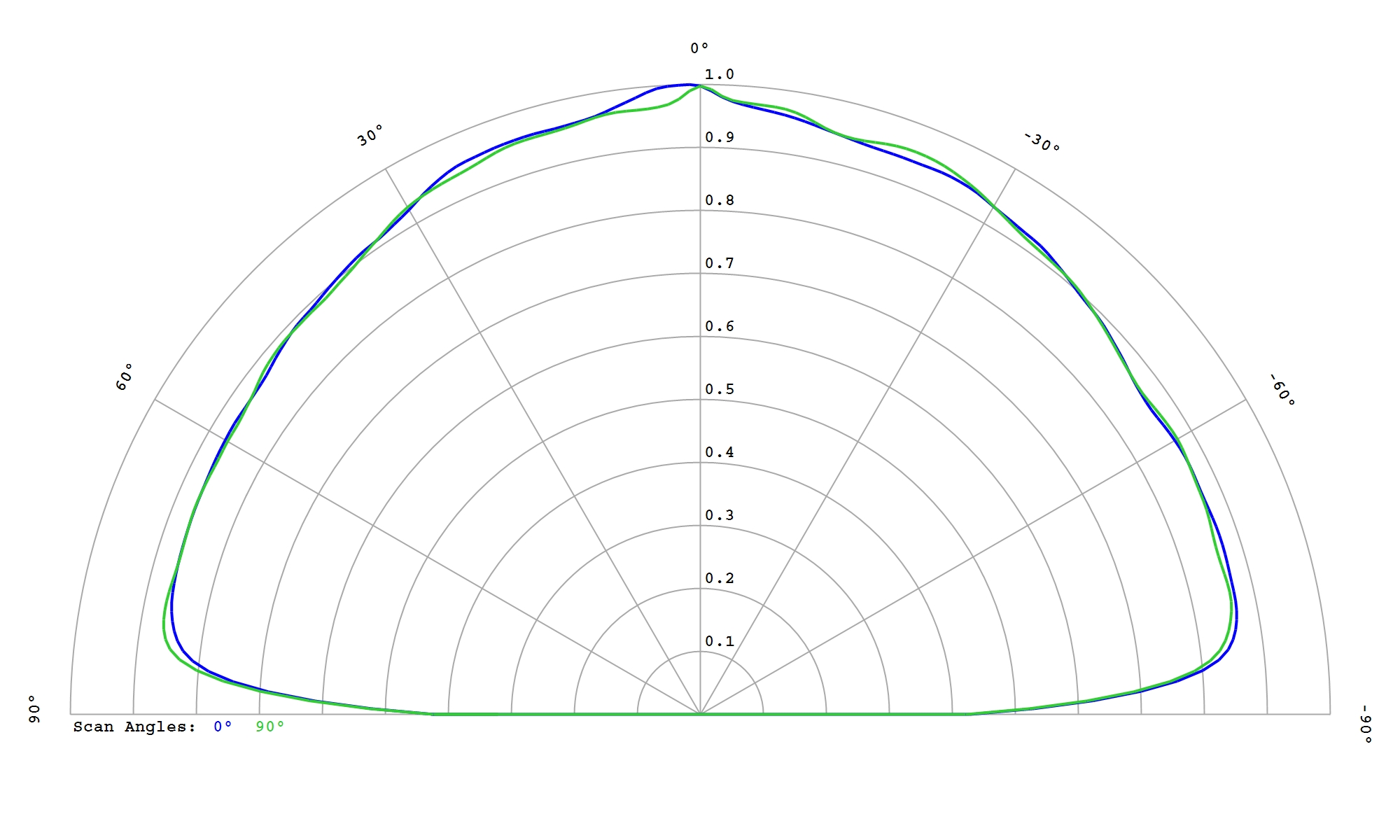

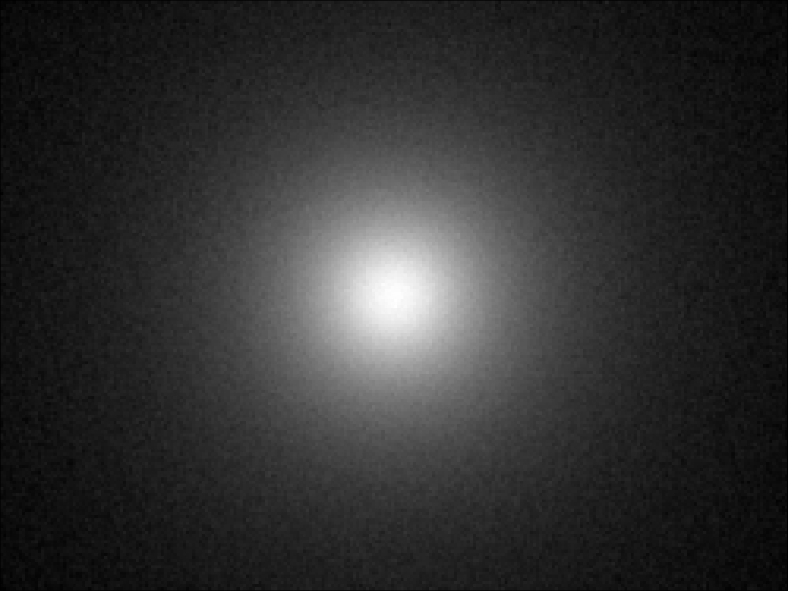

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

84.5%

FWHM:

178°

Cd/Im:

0.3

Download

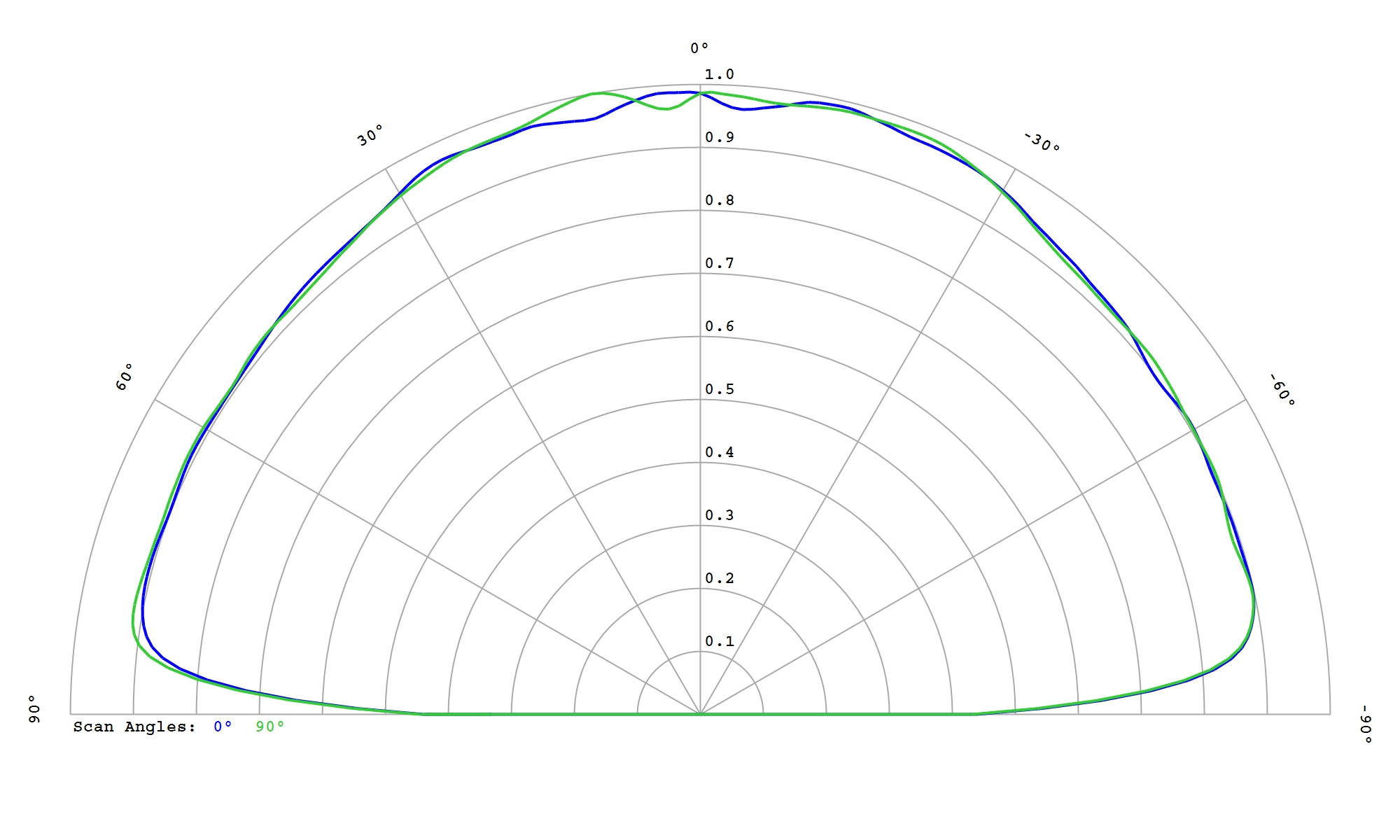

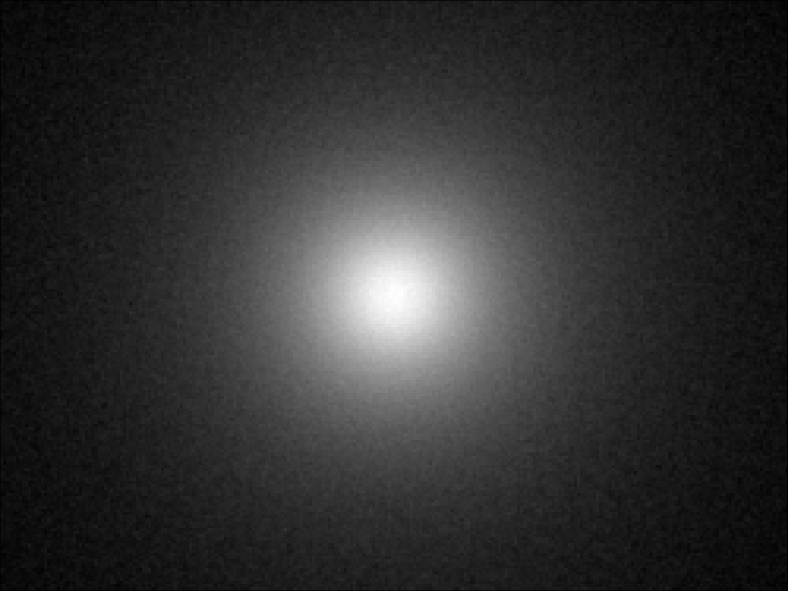

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

84.5%

FWHM:

178°

Cd/Im:

0.3

Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

84.5%

FWHM:

179°

Cd/Im:

0.3

Carclo Optics - 10620 Bubble Spot Image Seoul Sunlike 3030

Carclo Optics - 10620 Bubble Cross Section Seoul Sunlike 3030

Download

IES

Seoul Z - Power Z5-M0 White

Eff:

82.0%

FWHM:

180°

Cd/Im:

0.2

Download

ies

Seoul Z - Power Z5-M1 White

Eff:

83.4%

FWHM:

178.3°

Cd/Im:

0.2

carclo optics - simulated spot image

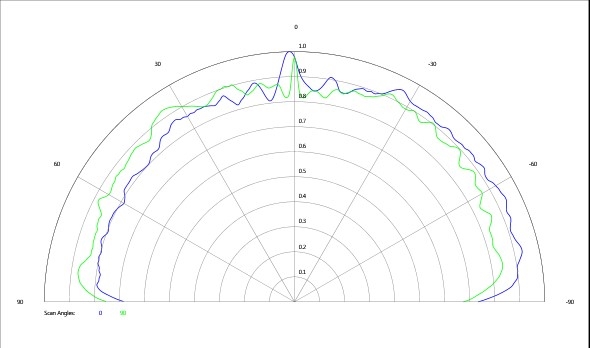

carclo optics - simulated cross section

Download

IES

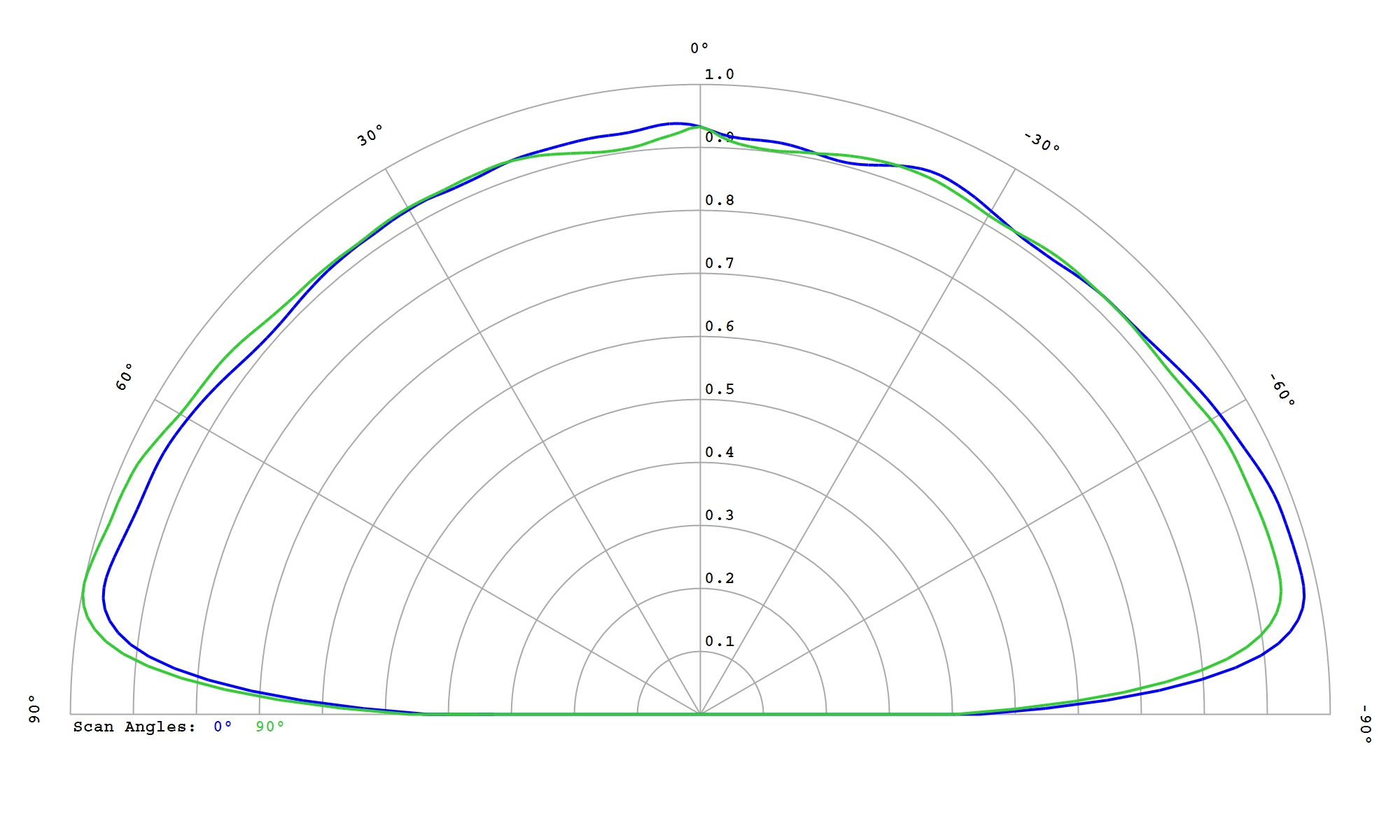

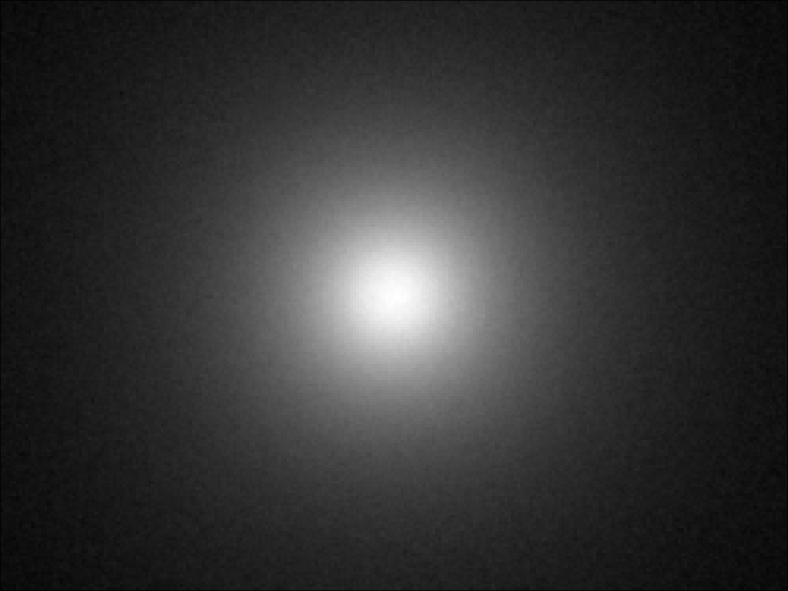

Seoul Z - Power Z5-M5 White

Eff:

83.0%

FWHM:

178°

Cd/Im:

0.2

Download

Seoul Z - Power Z5-P0 White

Eff:

79.6%

FWHM:

180°

Cd/Im:

0.2

carclo optics - simulated spot image

carclo optics - simulated cross section

Download

IES

Toshiba TL 1L2 White

Eff:

76.0%

FWHM:

180°

Cd/Im:

0.2

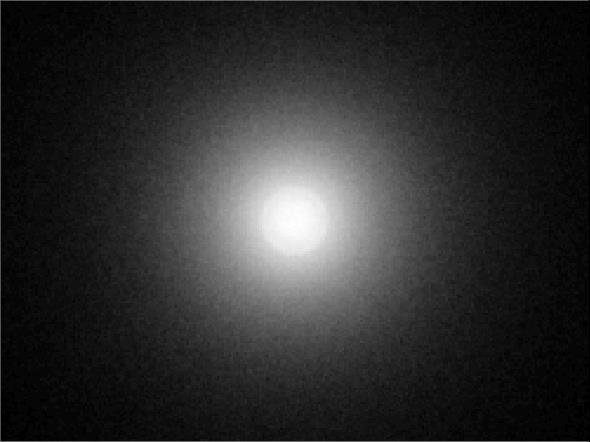

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES

Toshiba TL 1L4 White

Eff:

84.0%

FWHM:

180.0°

Cd/Im:

0.2

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Cross Section

Download

IES
