10.0mm Elliptical Ripple Linear TIR LED Lenses

Part number

10510

Dimensions

10.0mm

Drawing Number

60525

Optic type

TIR LED Lenses

Finish

Ripple Linear

Beam type

Elliptical

Applications

Architectural

Landscape & Garden

Wide Area

Downloads

Request a sample

LEDs and Performances

Select and filter based on manufacturer(s)

Bridgelux SMD 3030 Gen2 White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

IES

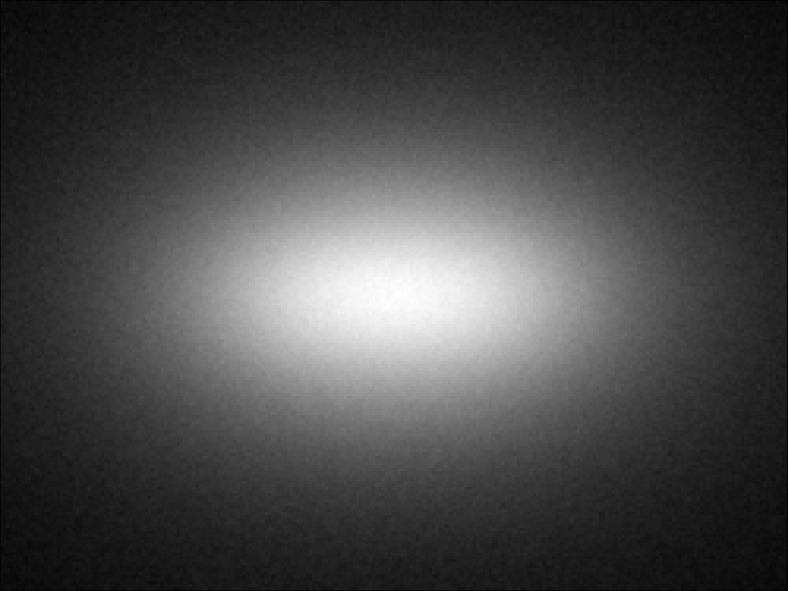

Cree JB2835B 3V G-Class White

Eff:

88.5%

FWHM:

44 x 21.5°

Cd/Im:

2.5


,


Download

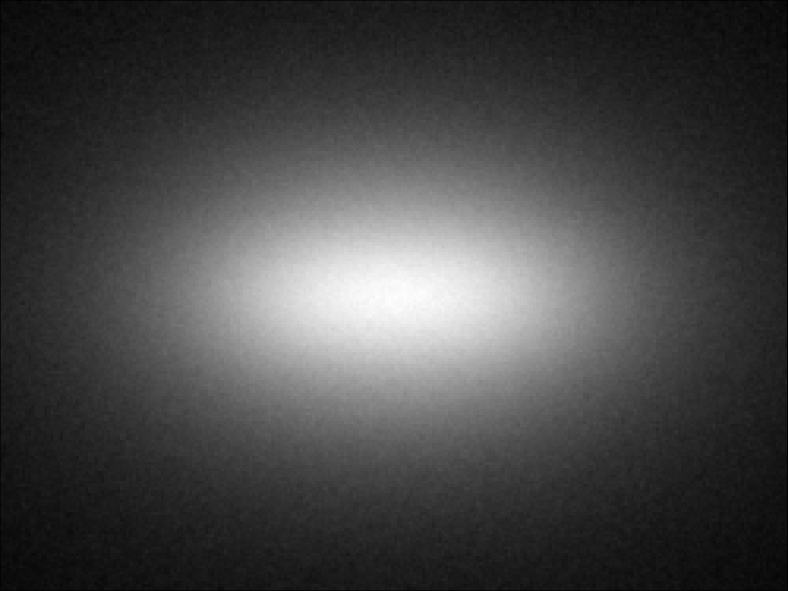

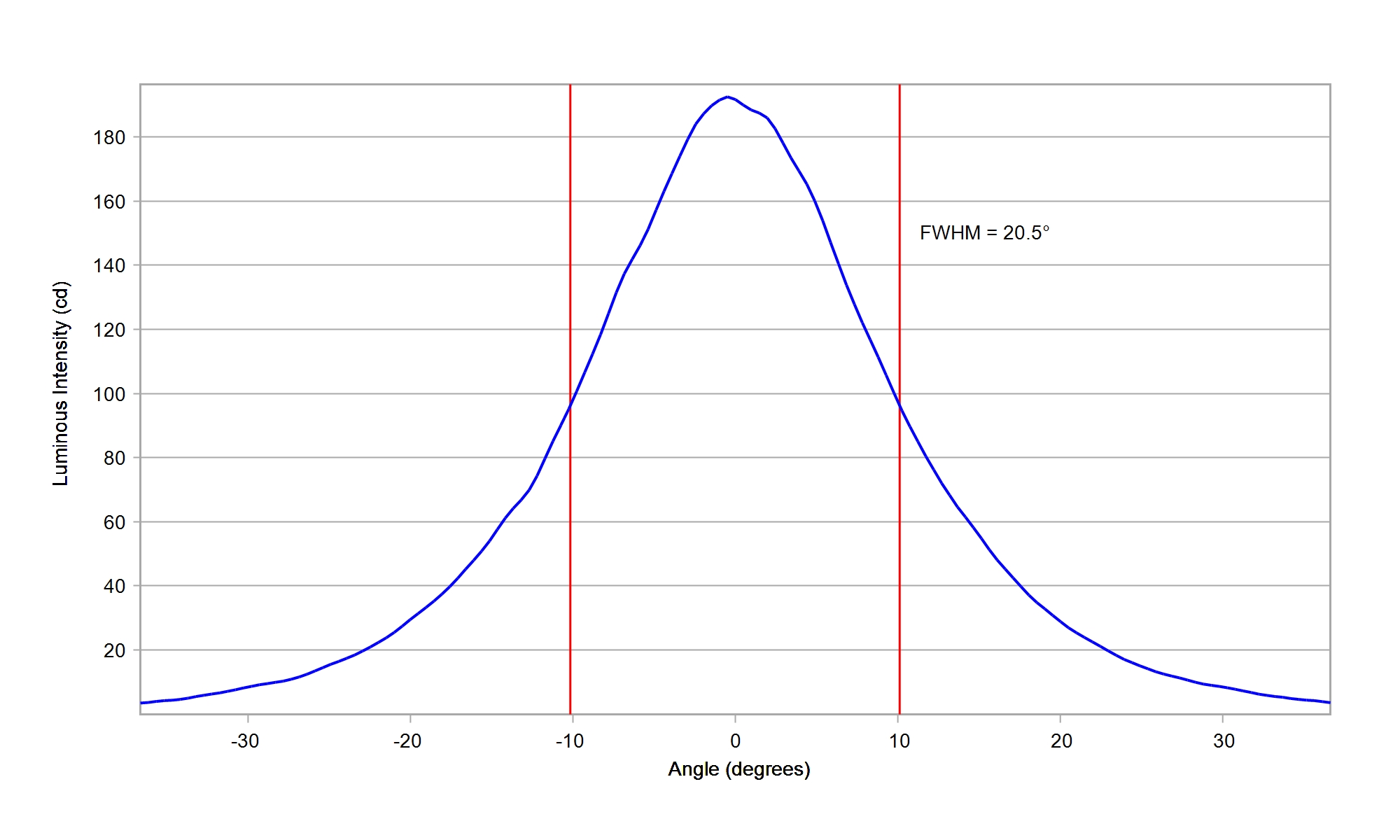

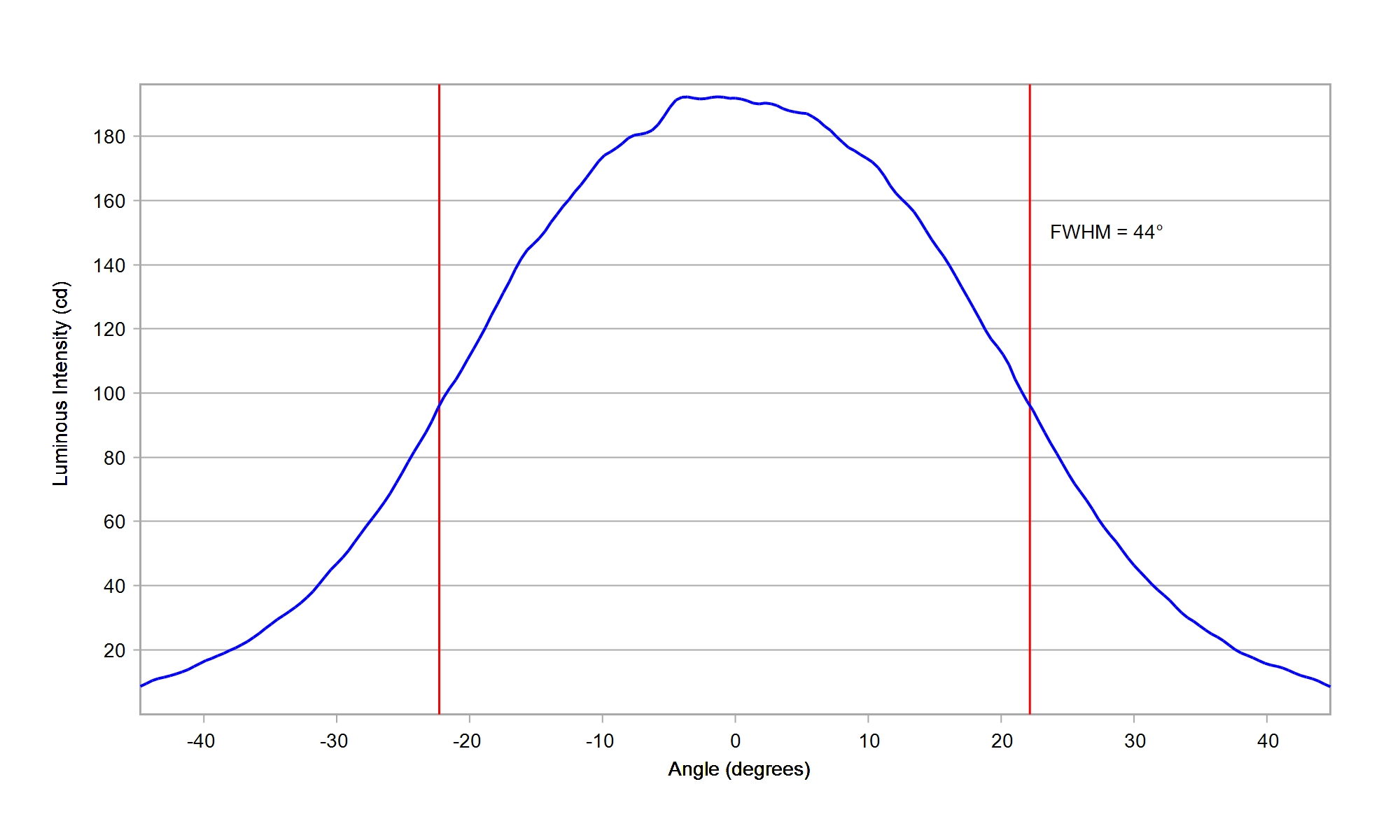

Cree JB2835B 3V J-Class White

Eff:

89.0%

FWHM:

44 x 20.5°

Cd/Im:

2.6


,


Download

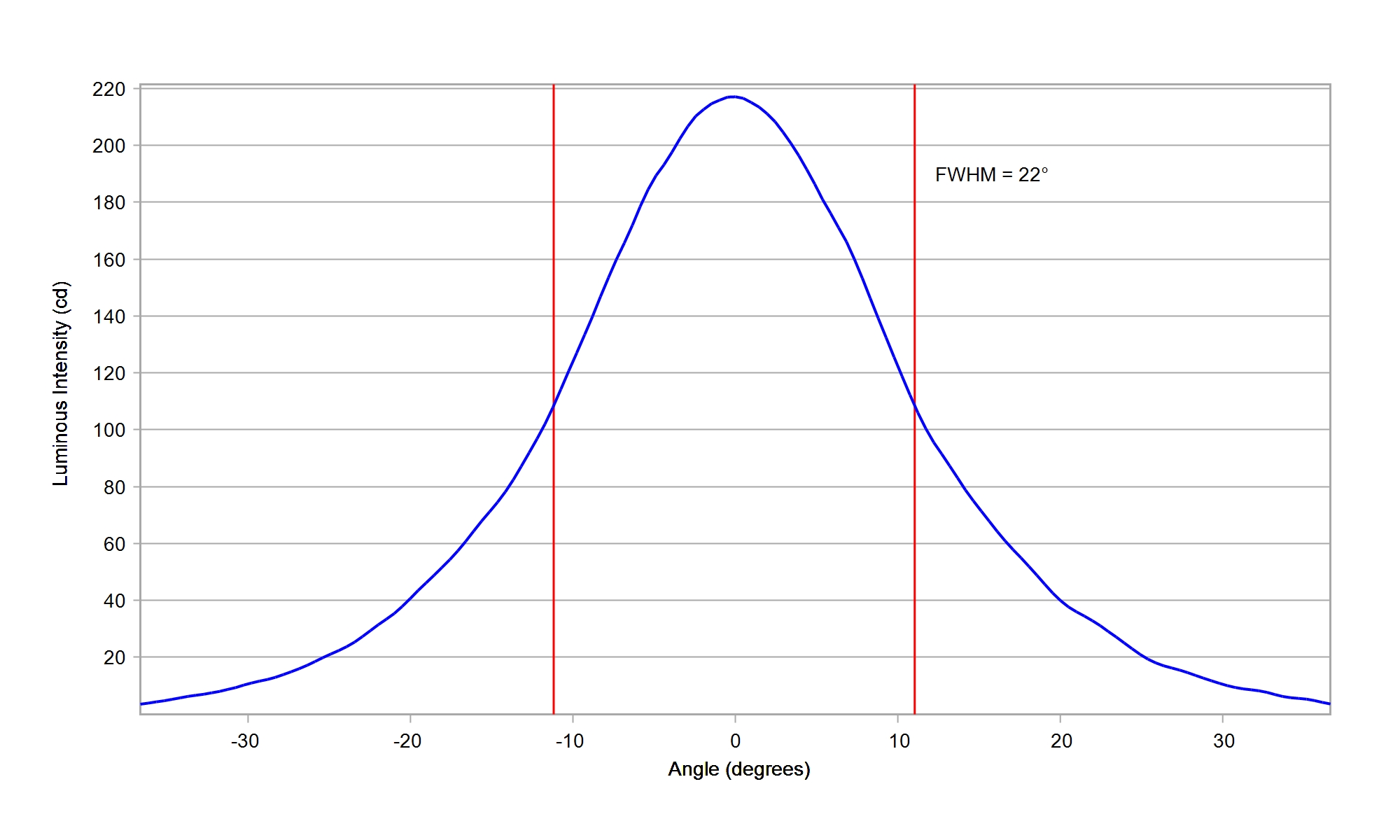

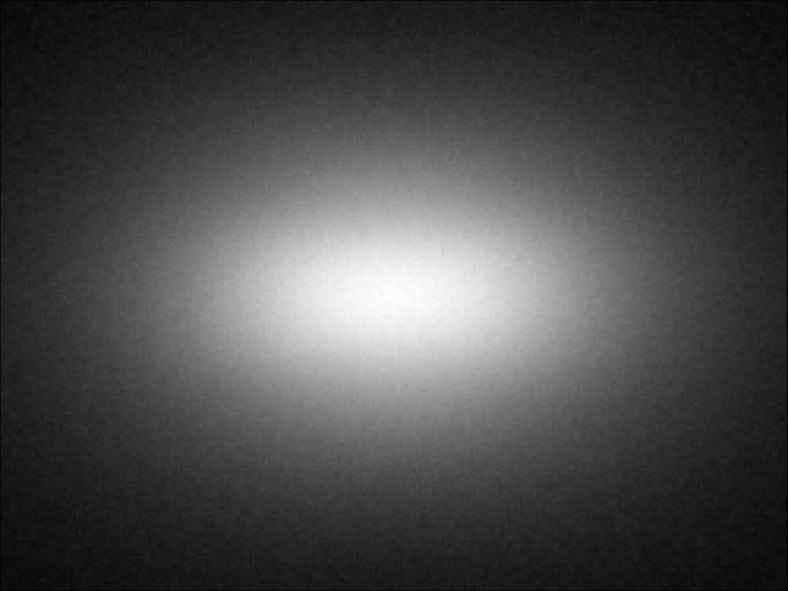

Cree JB3030C 3V E-Class White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.4


,


Download

Cree JB3030C 3V F-Class White

Eff:

89.0%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

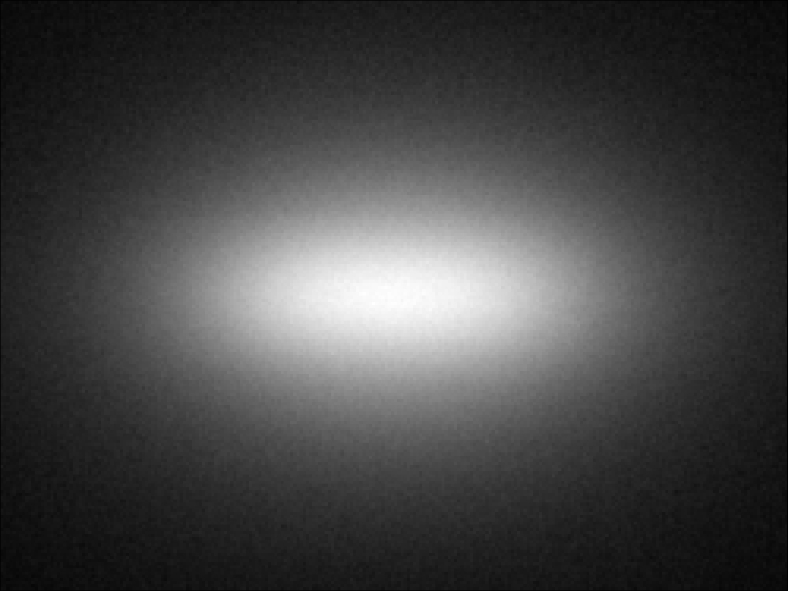

Cree JE2835 3V White

Eff:

89.0%

FWHM:

45 x 18.5°

Cd/Im:

2.9


,


Download

Cree JK2835 6V White

Eff:

88.5%

FWHM:

44 x 21.5°

Cd/Im:

2.7


,


Download

IES

Cree XLamp CSP XD16 Cool White

Eff:

89.5%

FWHM:

44 x 18°

Cd/Im:

2.9


,


Download

IES

Cree XLamp CSP XD16 Premium White

Eff:

90.5%

FWHM:

45 x 16.5°

Cd/Im:

3.6


,


Download

IES

Cree XLamp XB-D White

Eff:

85.6%

FWHM:

44.7 x 20.7°

Cd/Im:

3.0

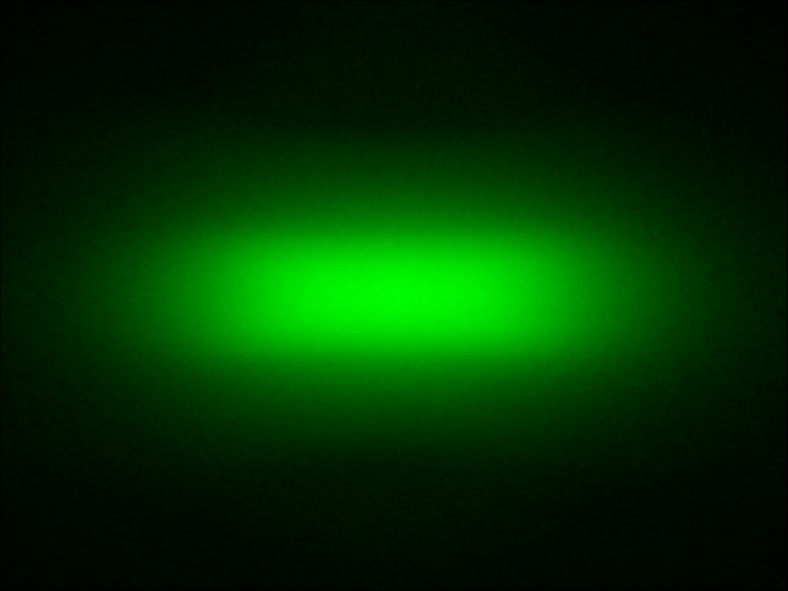

Spot Image

Cross Section

Download

ies

Cree XLamp XB-H White

Eff:

88.5%

FWHM:

43 x 20.5°

Cd/Im:

2.6

Carclo Optics - 10510 10mm Spot Image Cree XLamp XB-H

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XB-H

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XB-H

Download

IES

Cree XLamp XE-G Blue

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G Green

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

3.7


,


Download

IES

Cree XLamp XE-G Red

Eff:

88.5%

FWHM:

45 x 14°

Cd/Im:

3.9


,


Download

IES

Cree XLamp XE-G White

Eff:

89.5%

FWHM:

45 x 14.5°

Cd/Im:

3.8


,


Download

IES

Cree XLamp XP-C White

Eff:

87.8%

FWHM:

46.2 x 12.5°

Cd/Im:

5.0

Spot Image

Cross Section

Download

ies

Cree XLamp XP-E White

Eff:

88.1%

FWHM:

43 x 16°

Cd/Im:

3.5

Spot Image

Cross Section

Download

ies

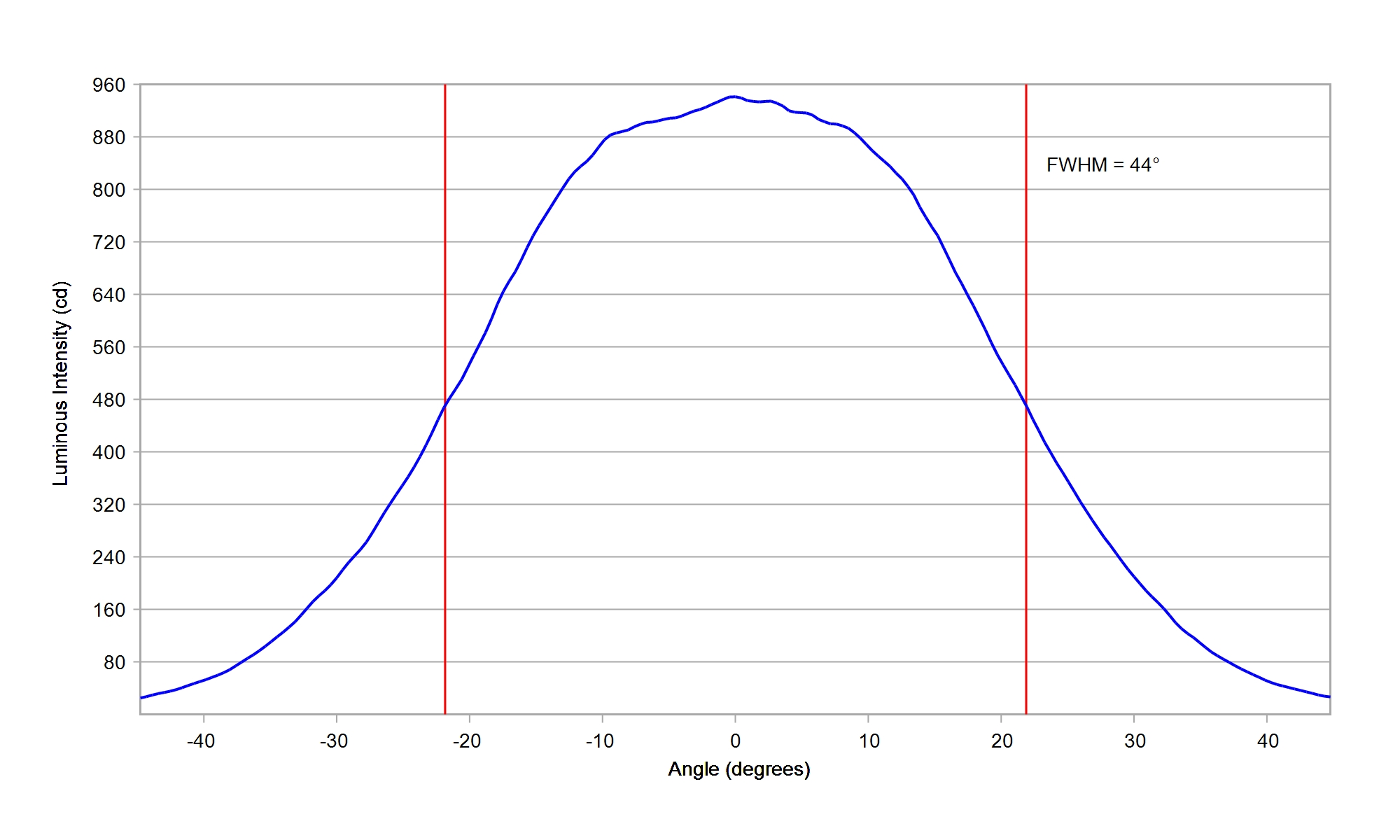

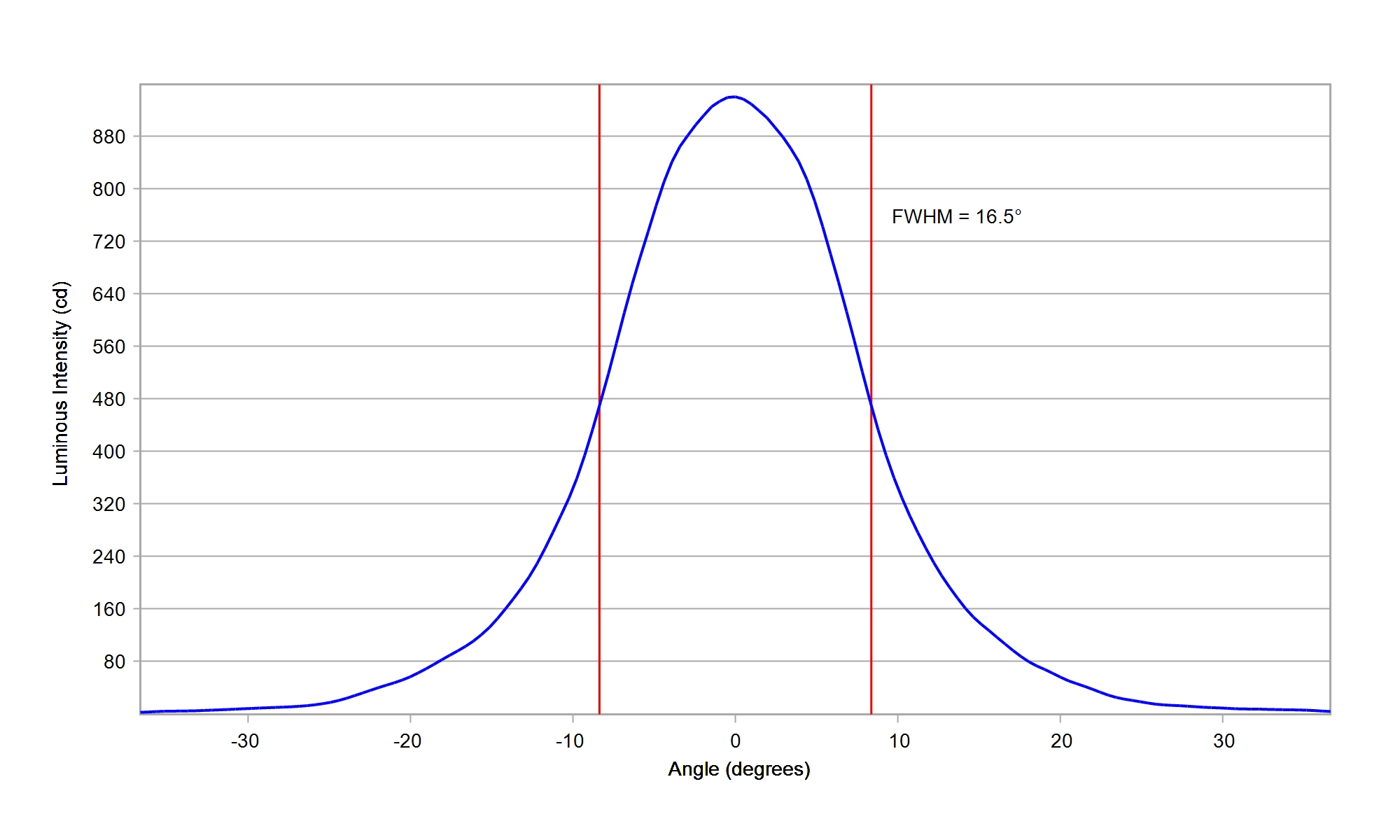

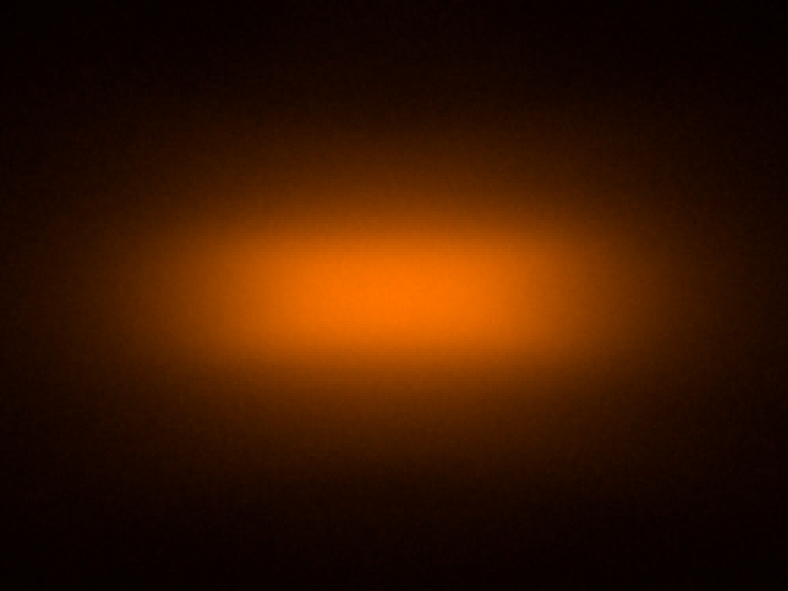

Cree XLamp XP-E2 Amber

Eff:

90.5%

FWHM:

44 x 16.5°

Cd/Im:

3.2


,


Download

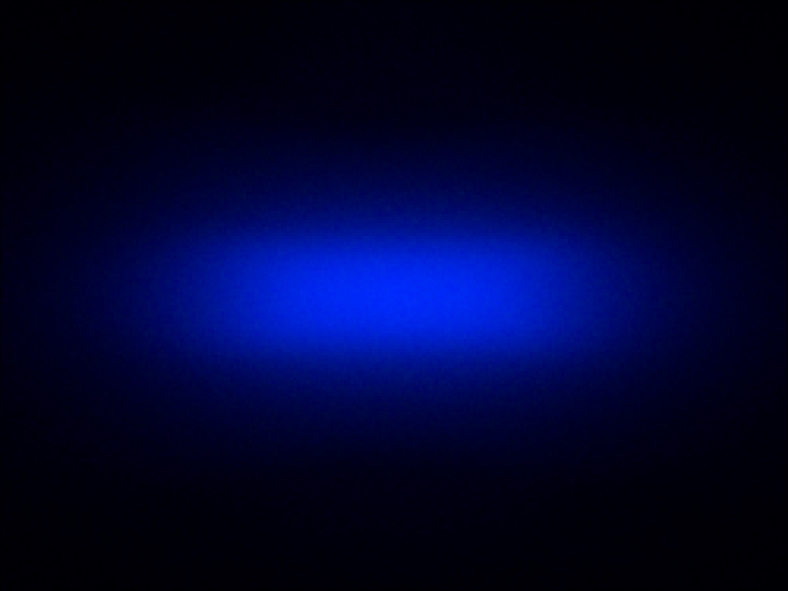

Cree XLamp XP-E2 Blue

Eff:

90.5%

FWHM:

46 x 14.5°

Cd/Im:

3.5


,


Download

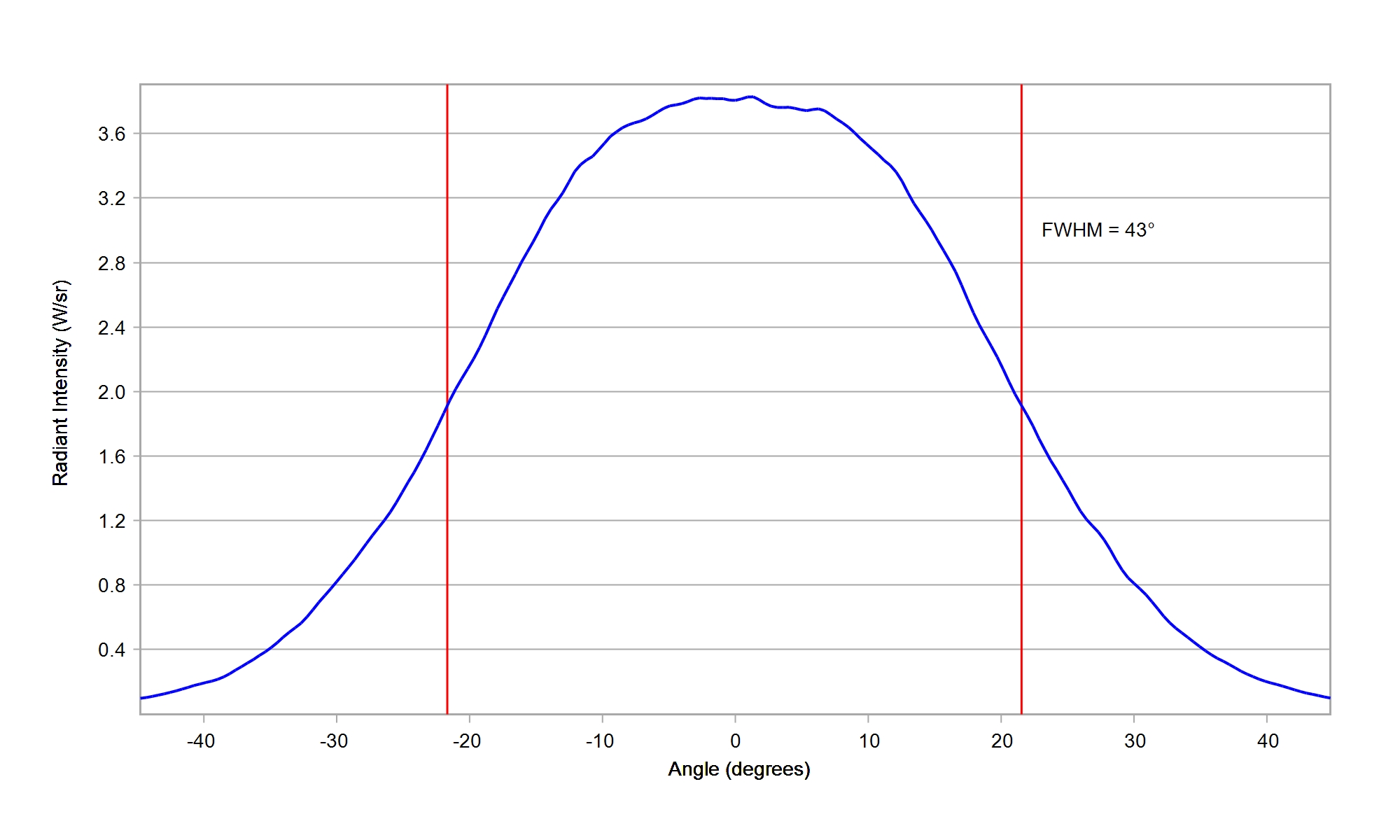

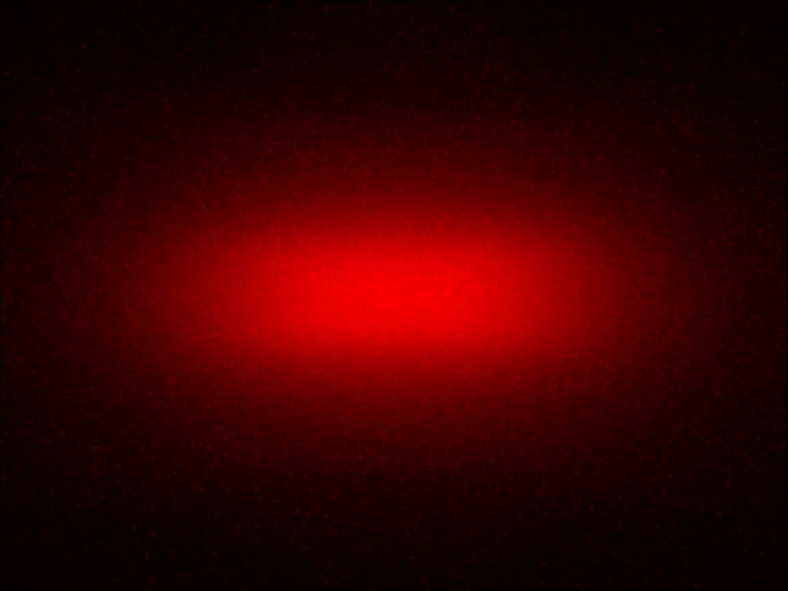

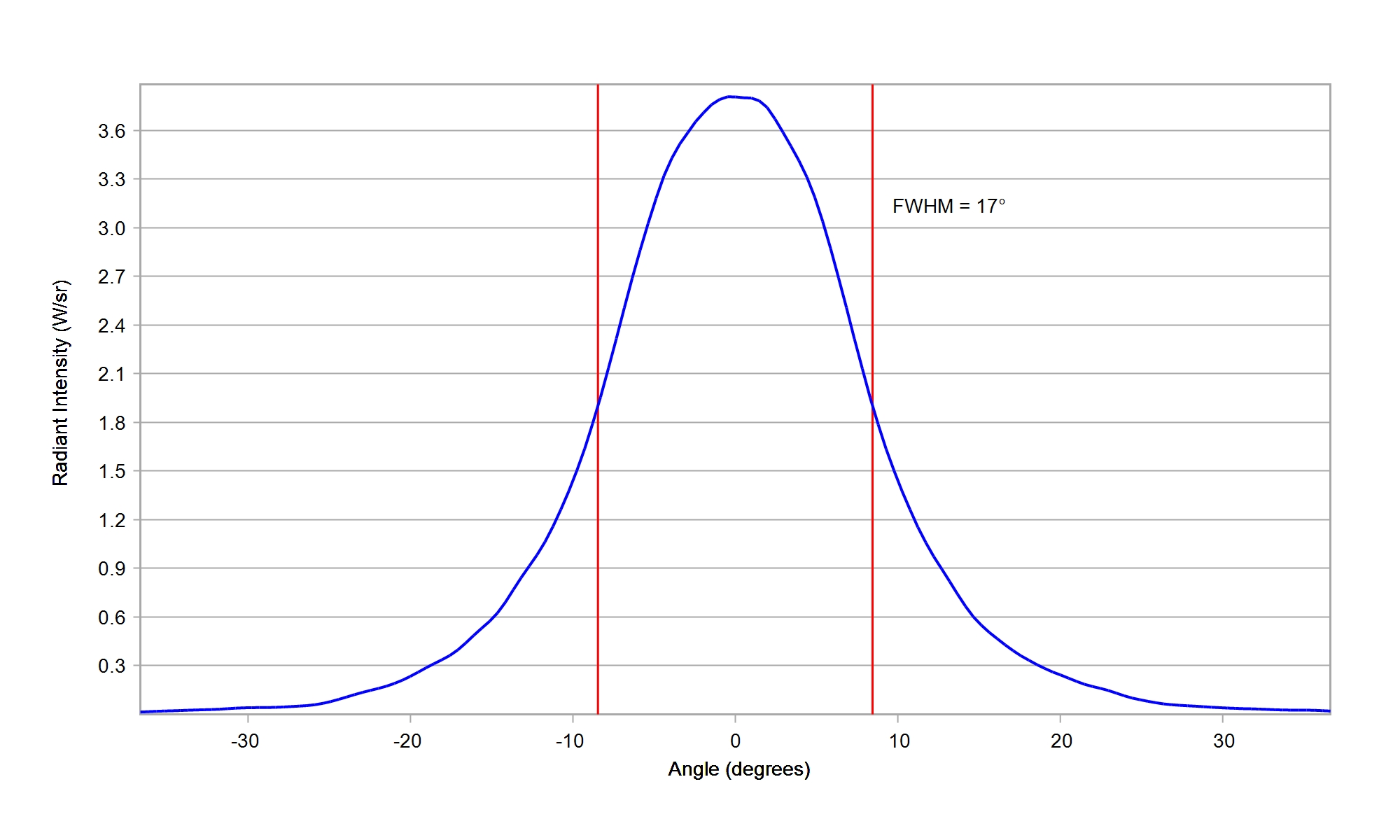

Cree XLamp XP-E2 Far Red

Eff:

92.0%

FWHM:

43 x 17°

Ipk/W:

3.2


,


Download

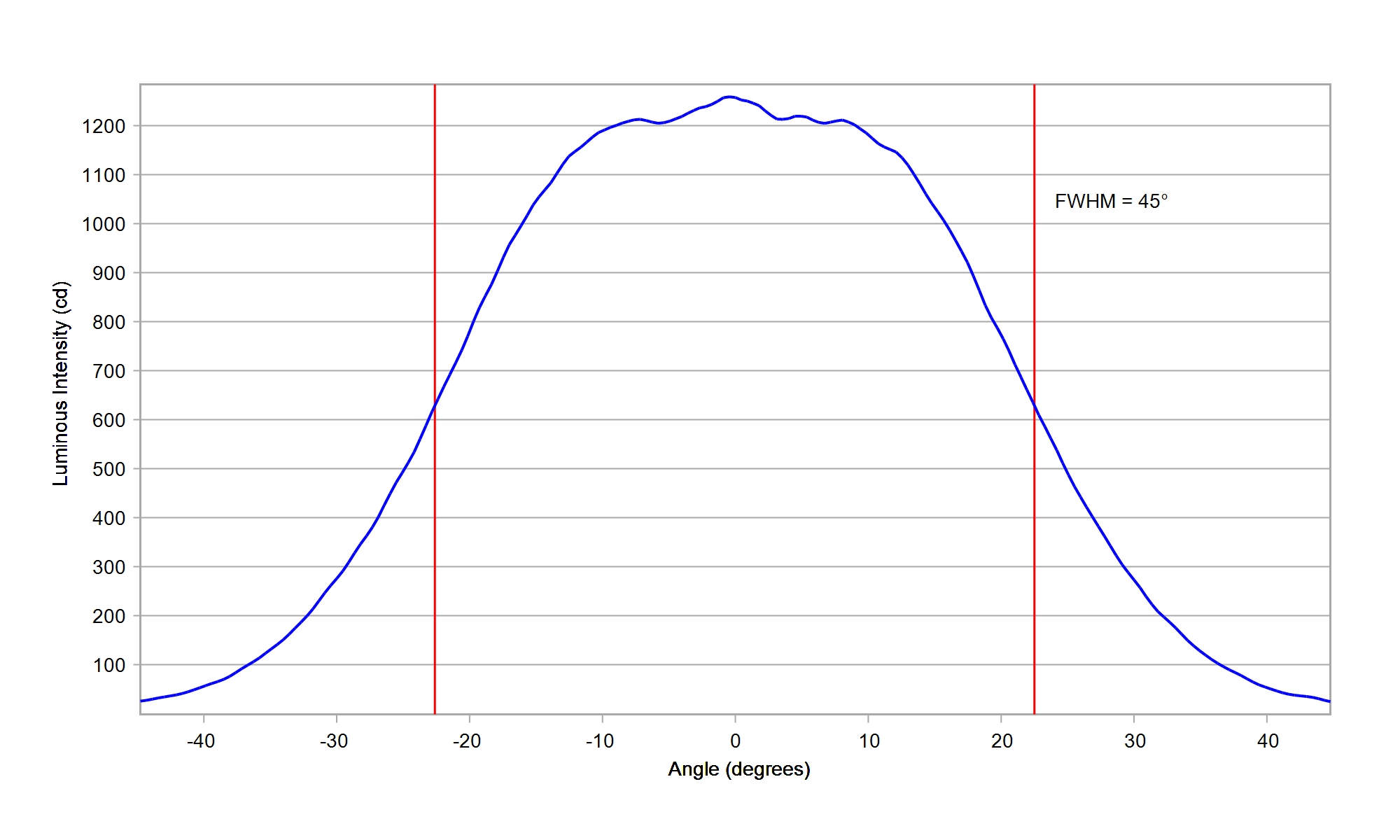

Cree XLamp XP-E2 Green

Eff:

90.5%

FWHM:

45 x 14.5°

Cd/Im:

3.6


,


Download

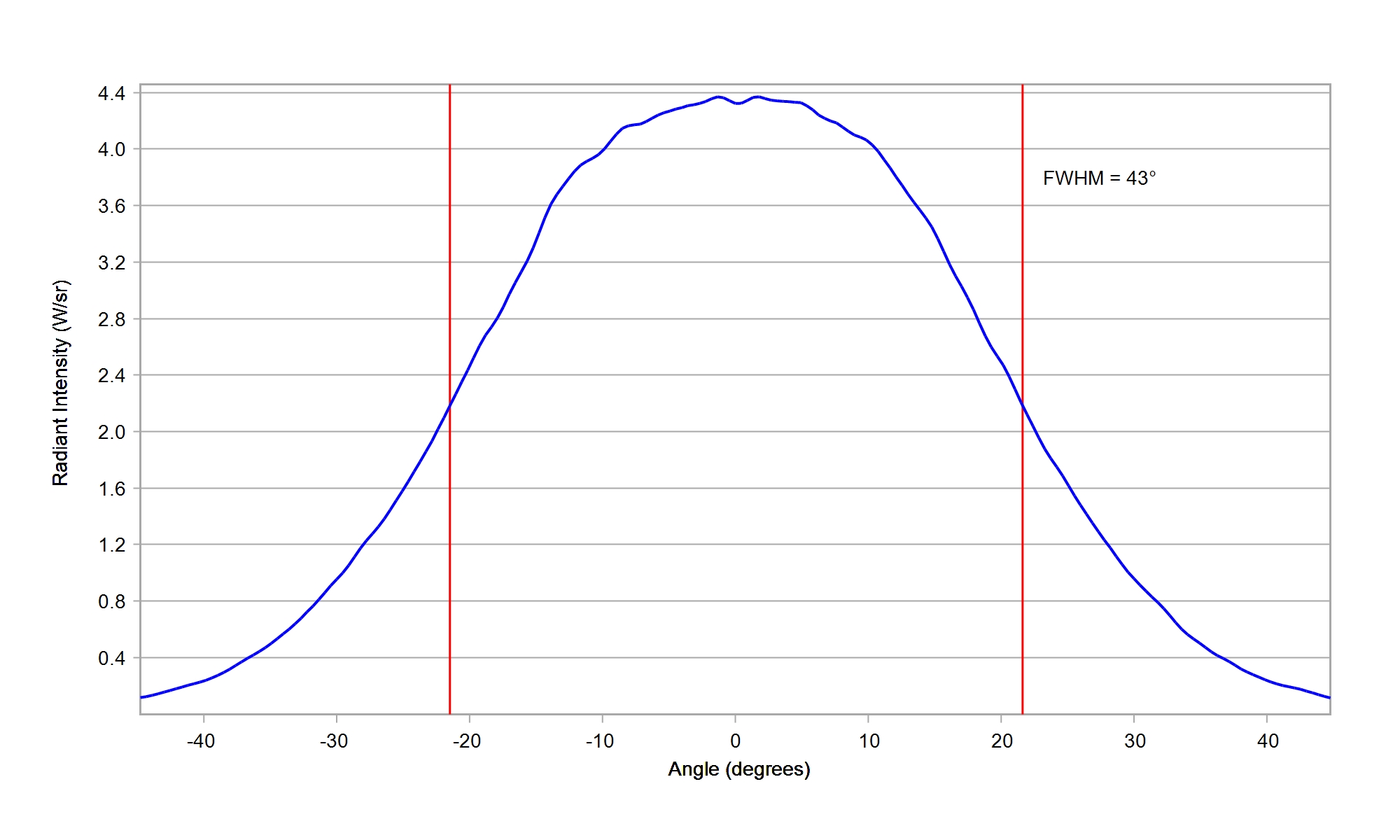

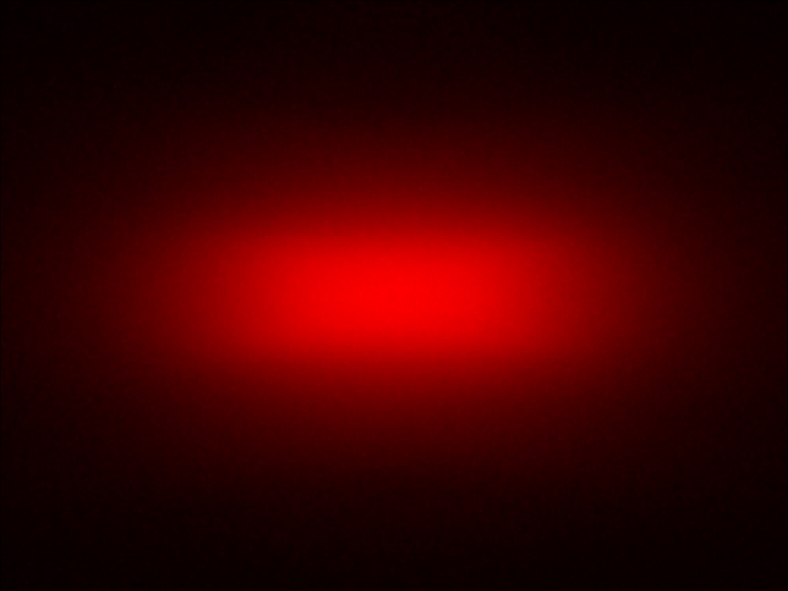

Cree XLamp XP-E2 Photo Red

Eff:

90.5%

FWHM:

43 x 17.5°

Ipk/W:

3.1


,


Download

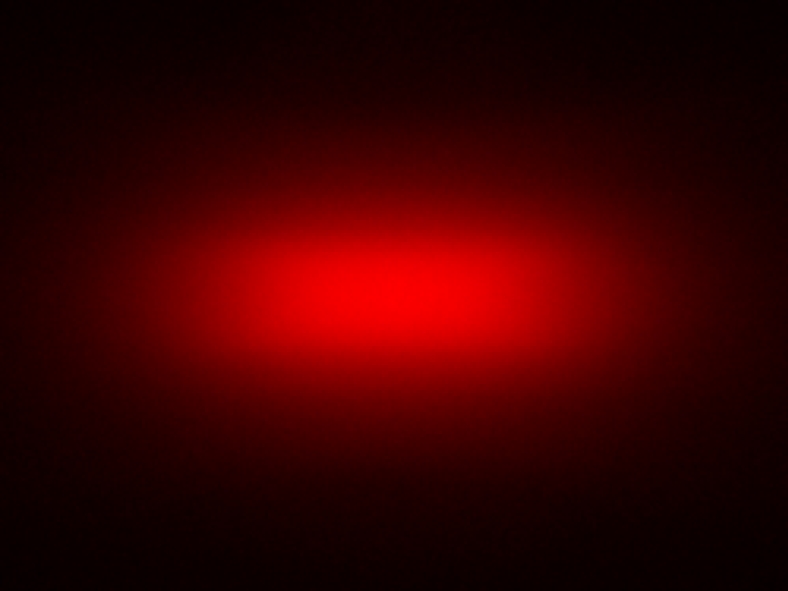

Cree XLamp XP-E2 Red

Eff:

91.0%

FWHM:

44 x 16.5°

Cd/Im:

3.1


,


Download

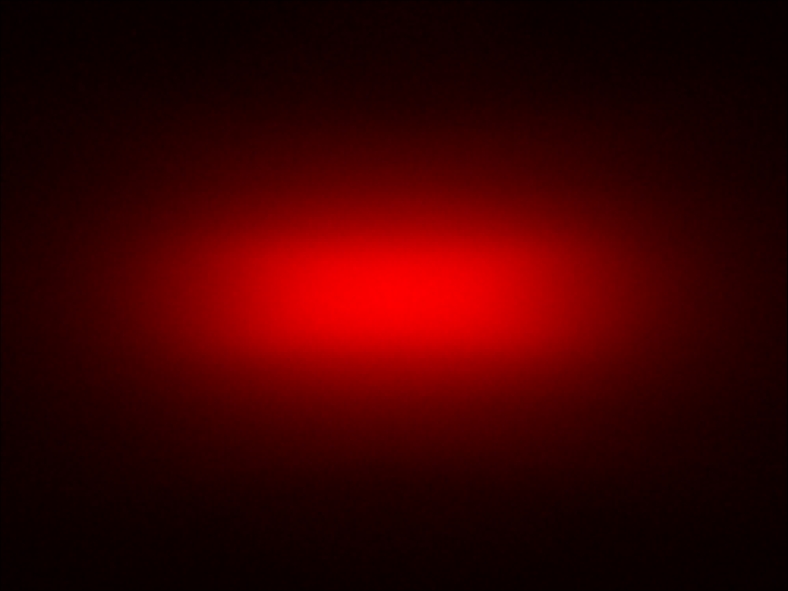

Cree XLamp XP-E2 Red-Orange

Eff:

90.5%

FWHM:

44 x 16.5°

Cd/Im:

3.1


,


Download

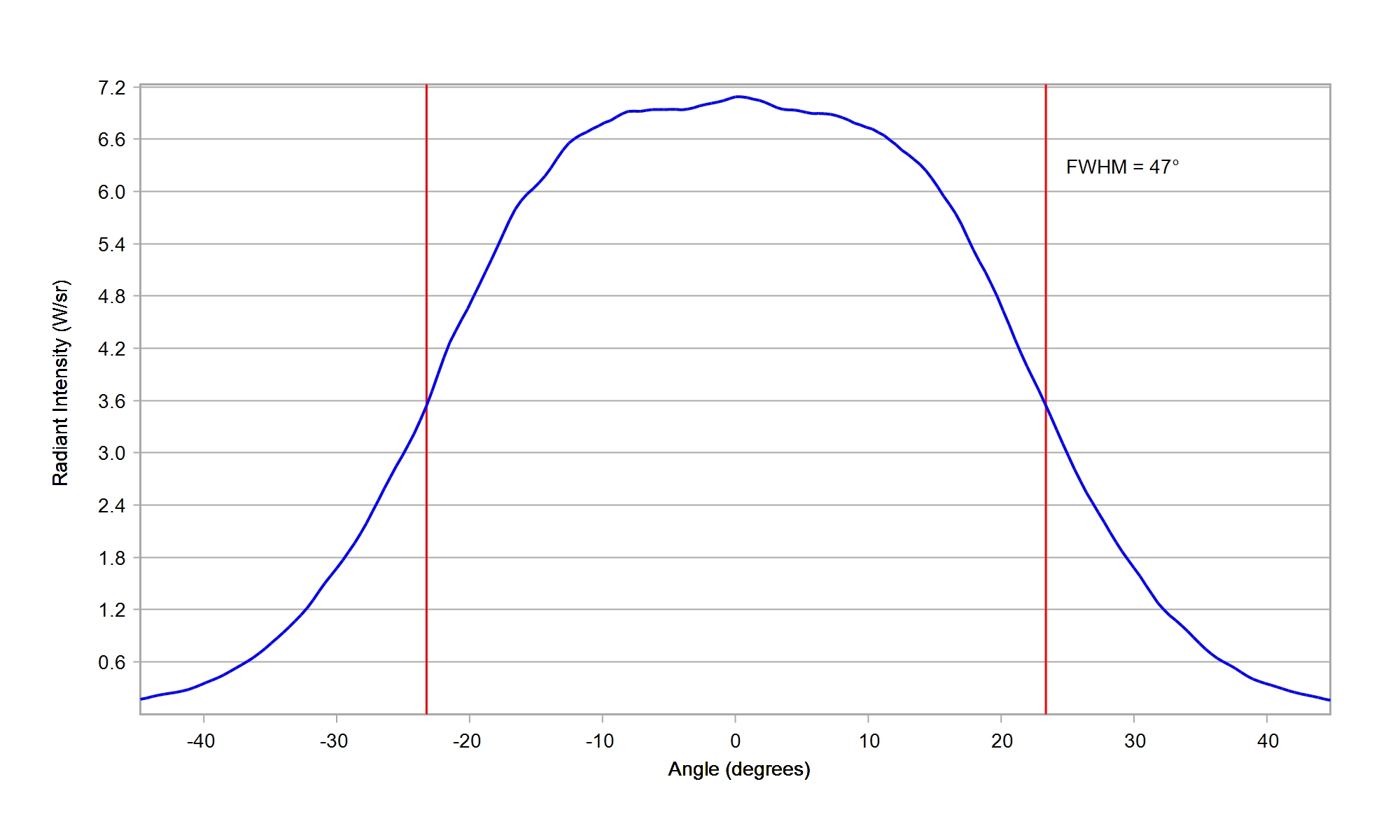

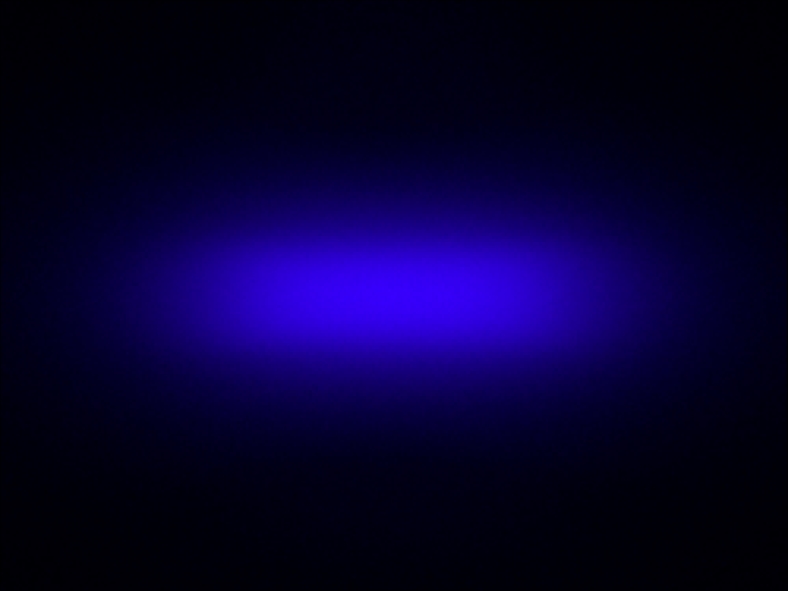

Cree XLamp XP-E2 Royal Blue

Eff:

89.5%

FWHM:

47 x 14°

Ipk/W:

3.5


,


Download

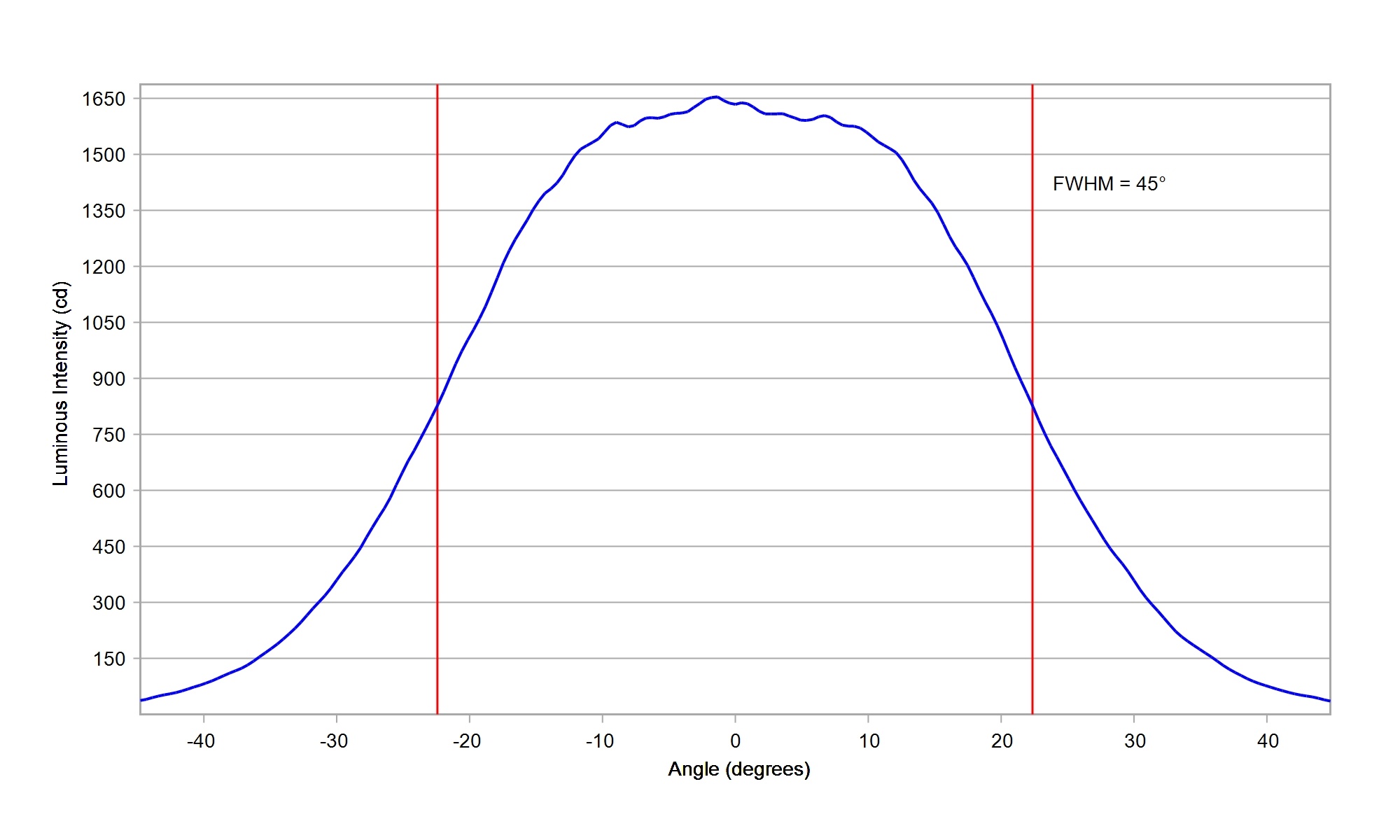

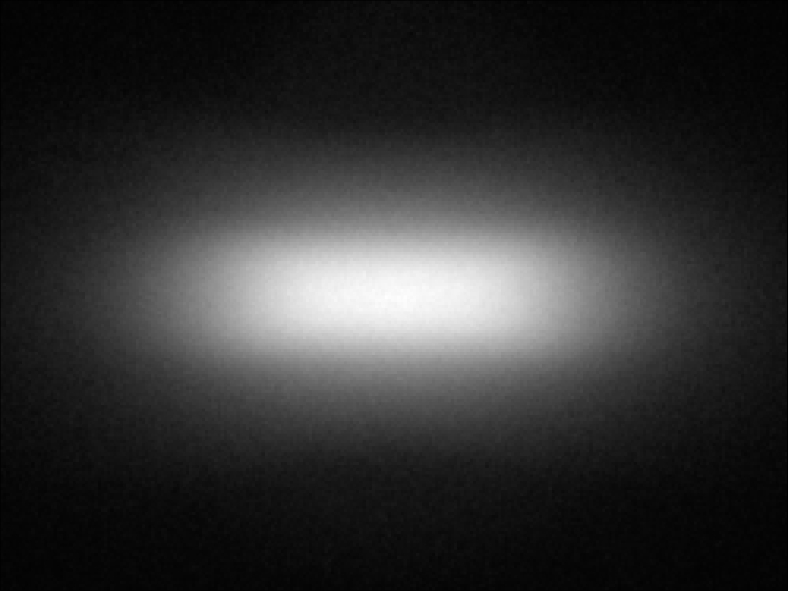

Cree XLamp XP-E2 White

Eff:

90.0%

FWHM:

45 x 15°

Cd/Im:

3.5


,


Download

Cree XLamp XP-G White

Eff:

86.5%

FWHM:

43.6 x 23.3°

Cd/Im:

2.6

Spot Image

Cross Section

Download

ies

Cree XLamp XP-G3 White

Eff:

87.0%

FWHM:

43 x 25°

Cd/Im:

2.2

Carclo Optics - 10510 10mm Spot Image Cree XLamp XP-G3

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XP-G3

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XP-G3

Download

IES

Cree XLamp XP-G4 White

Eff:

88.5%

FWHM:

42 x 22°

Cd/Im:

2.6


,


Download

IES

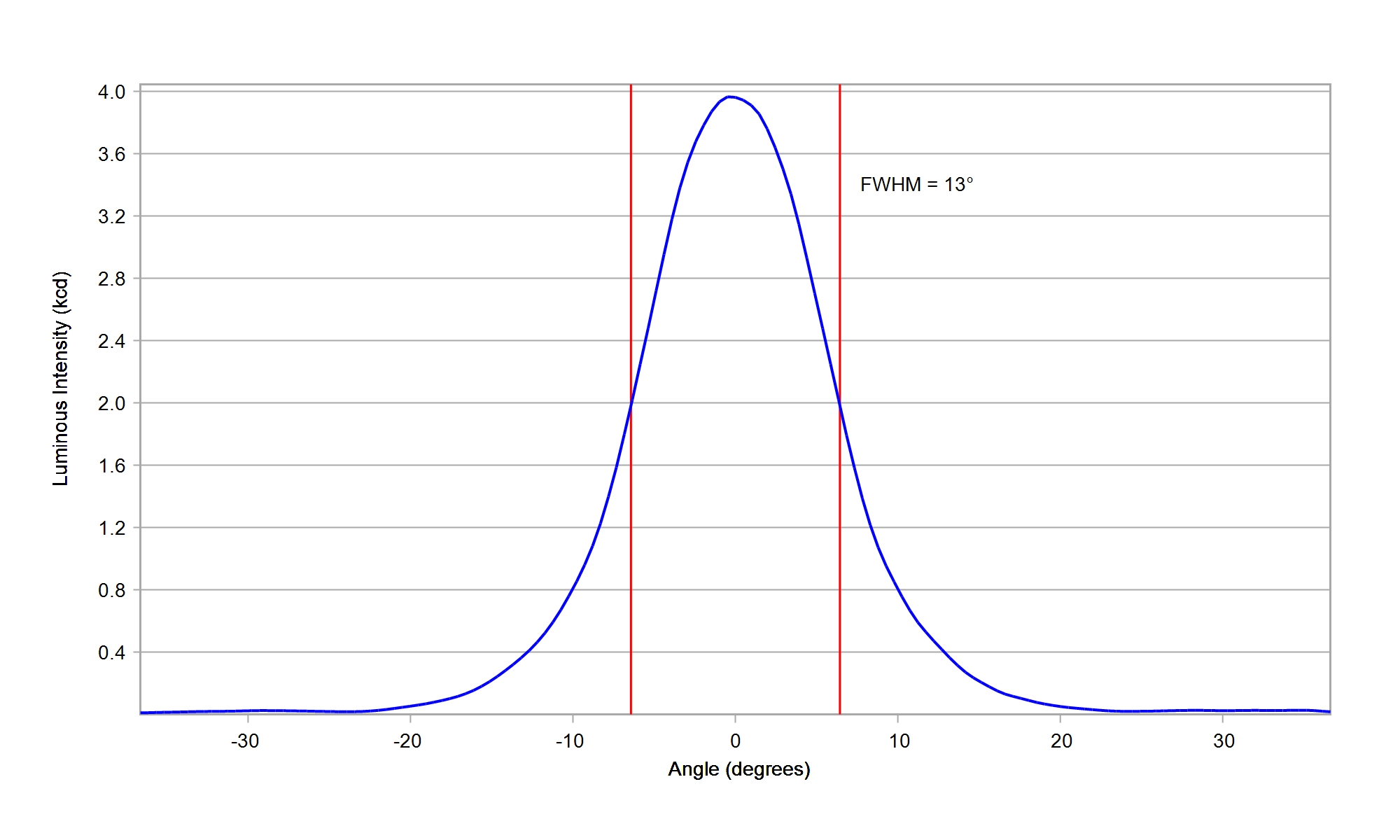

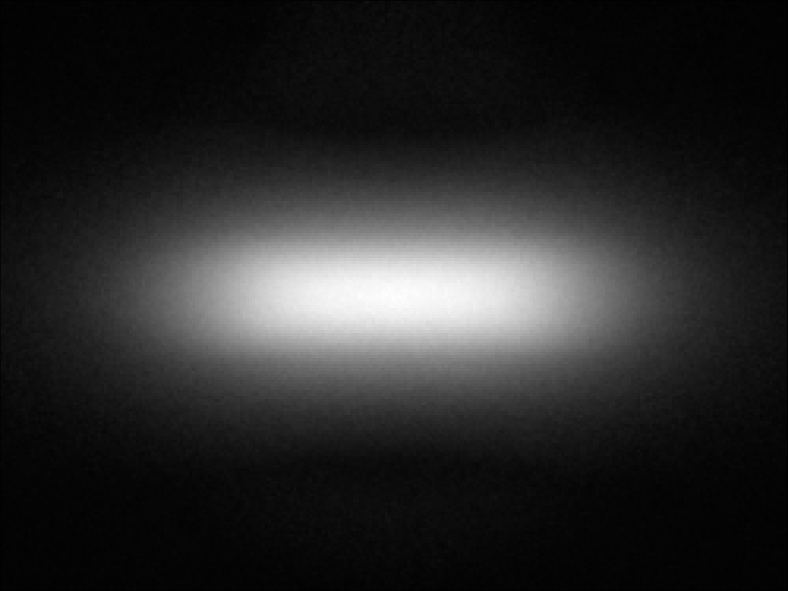

Cree XLamp XP-GR White

Eff:

91.0%

FWHM:

46 x 13°

Cd/Im:

4.1


,


Download

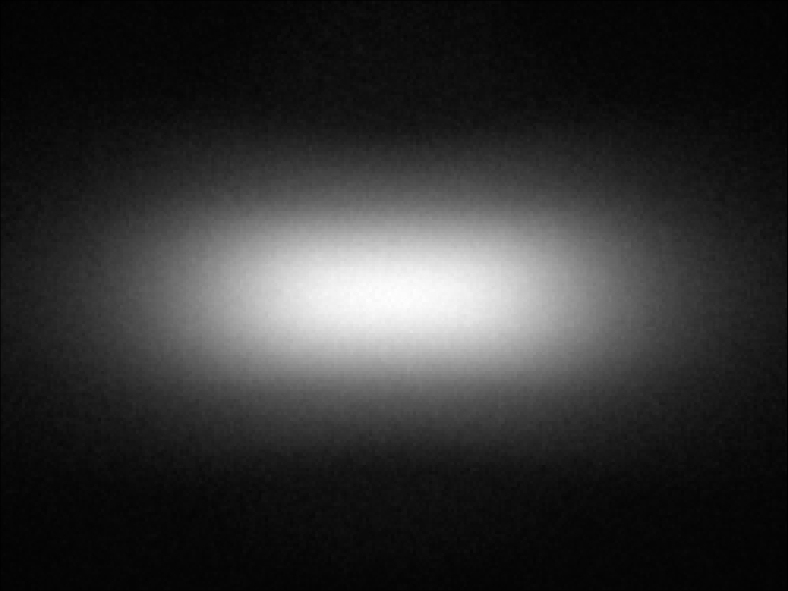

Cree XLamp XP-LR White

Eff:

90.5%

FWHM:

45 x 16°

Cd/Im:

3.4


,


Download

Cree XLamp XQ-A Blue

Eff:

90.5%

FWHM:

48 x 10.5°

Cd/Im:

4.8


,


Download

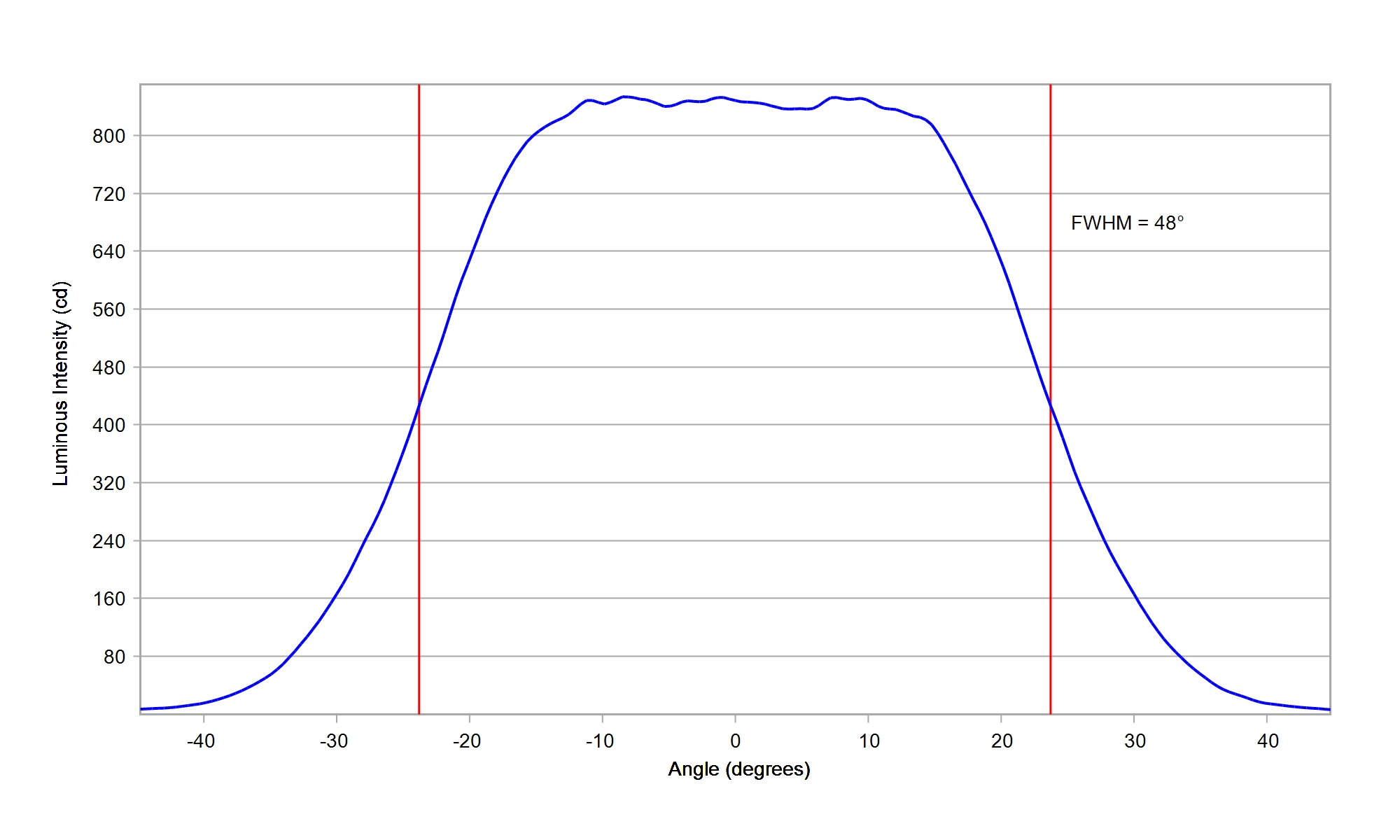

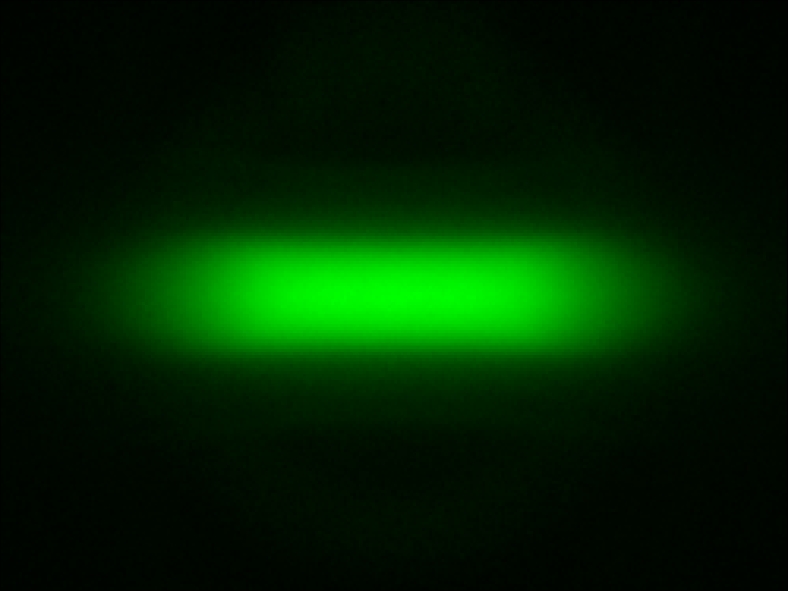

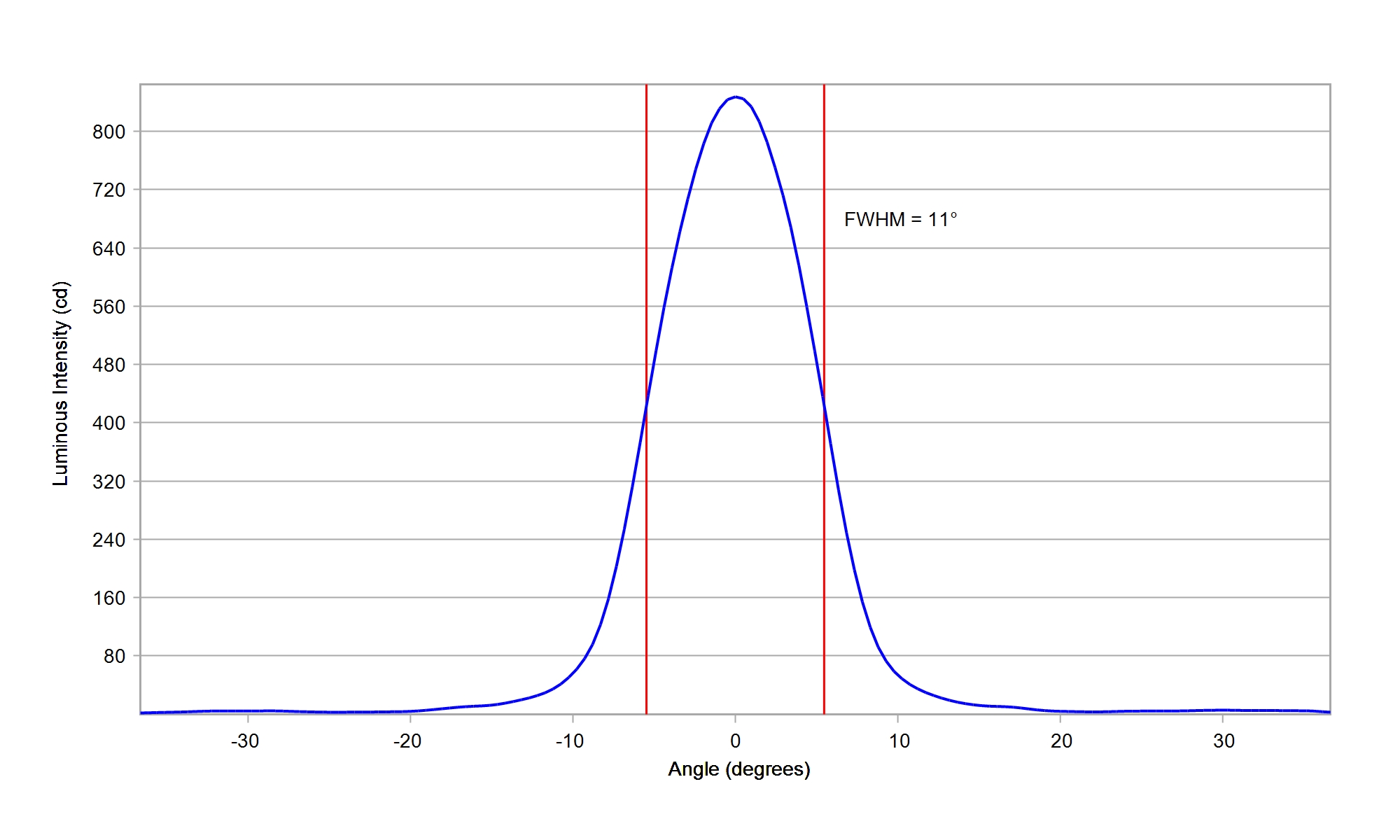

Cree XLamp XQ-A Green

Eff:

90.5%

FWHM:

48 x 11°

Cd/Im:

4.8


,


Download

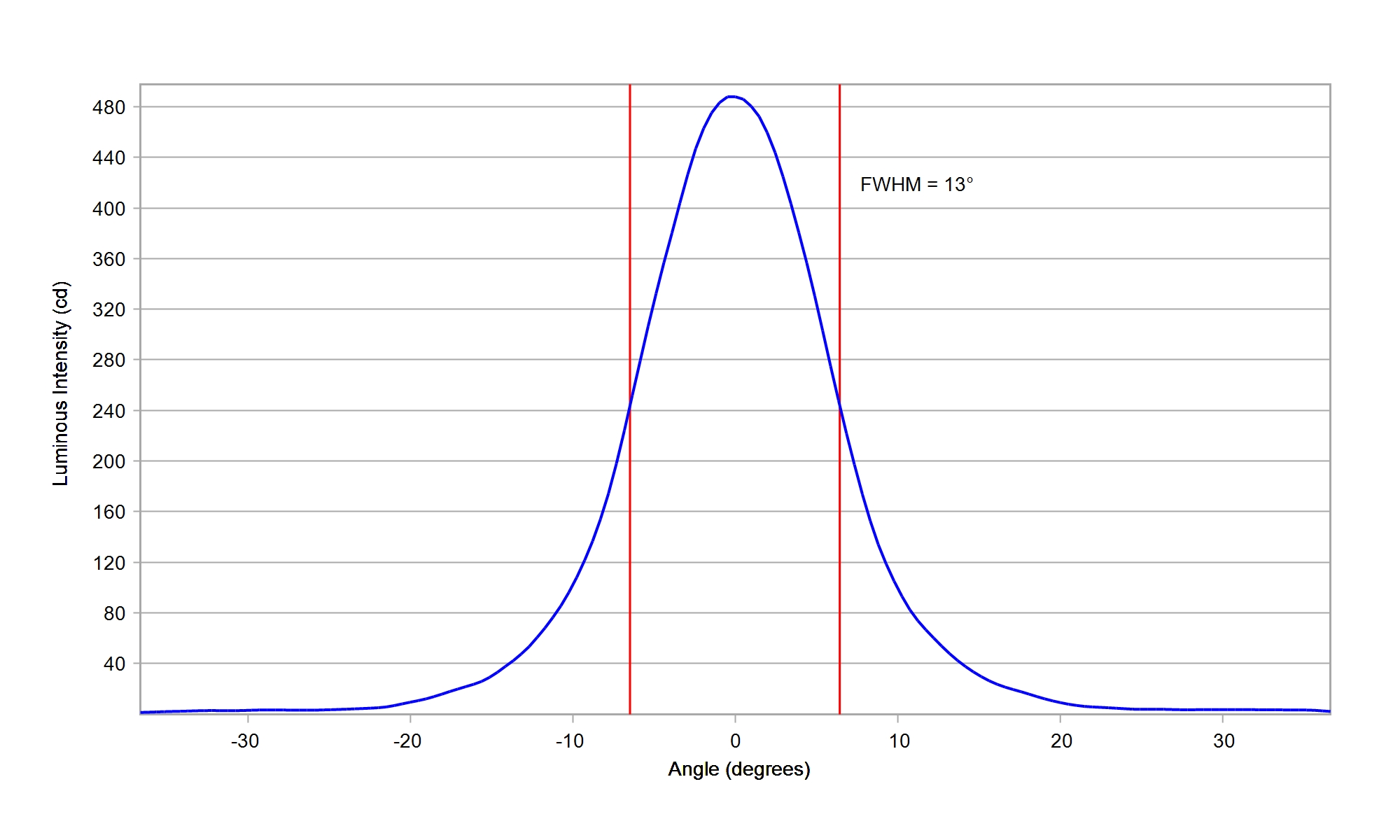

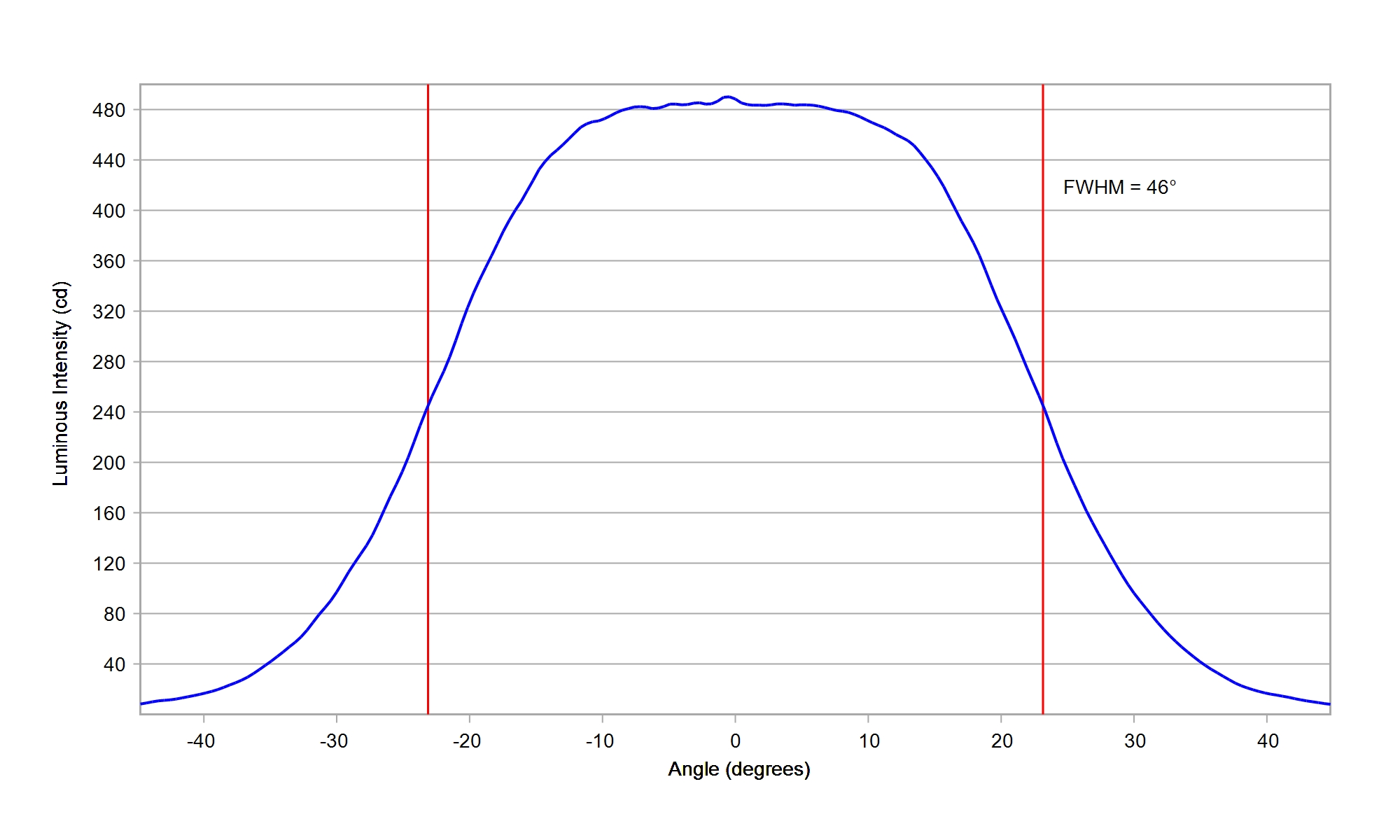

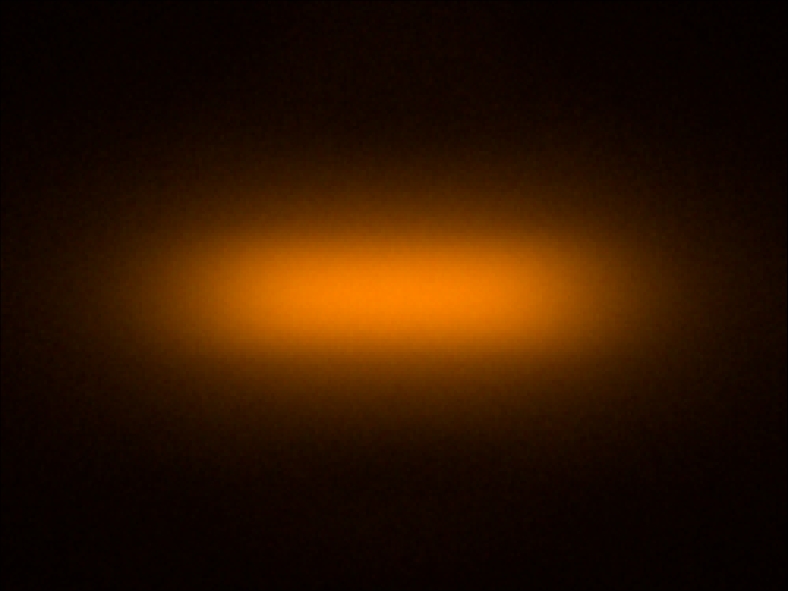

Cree XLamp XQ-A PC Amber

Eff:

90.5%

FWHM:

46 x 13°

Cd/Im:

3.9


,


Download

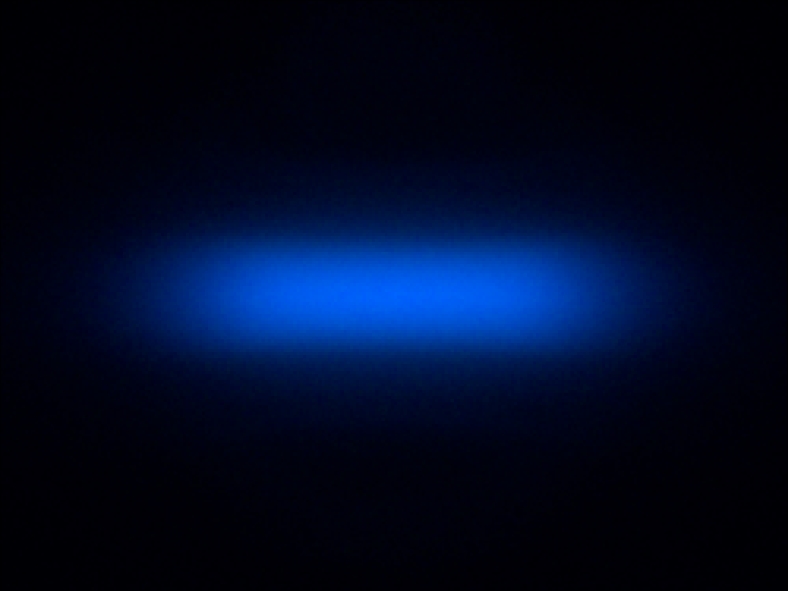

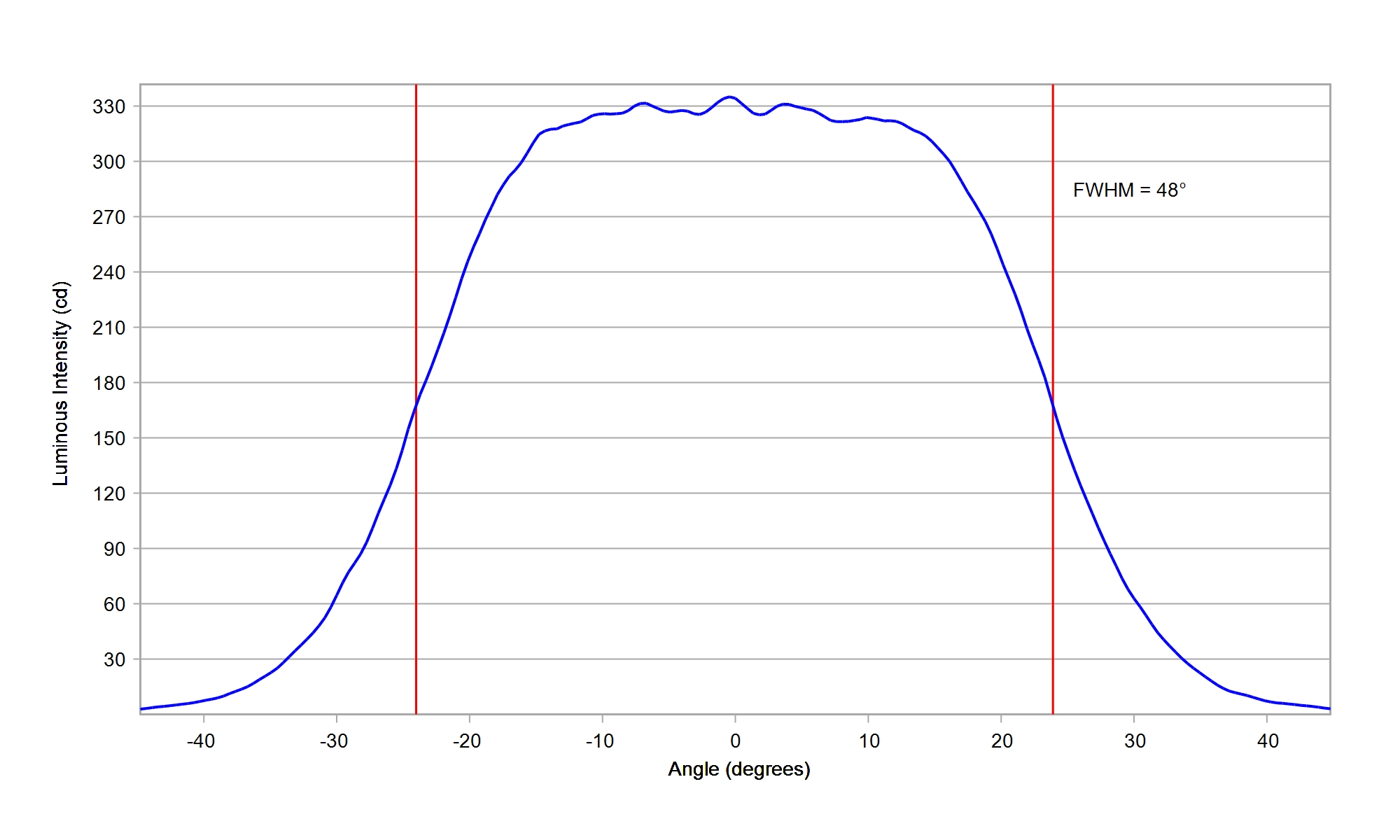

Cree XLamp XQ-A PC Blue

Eff:

90.5%

FWHM:

48 x 10.5°

Cd/Im:

4.7


,


Download

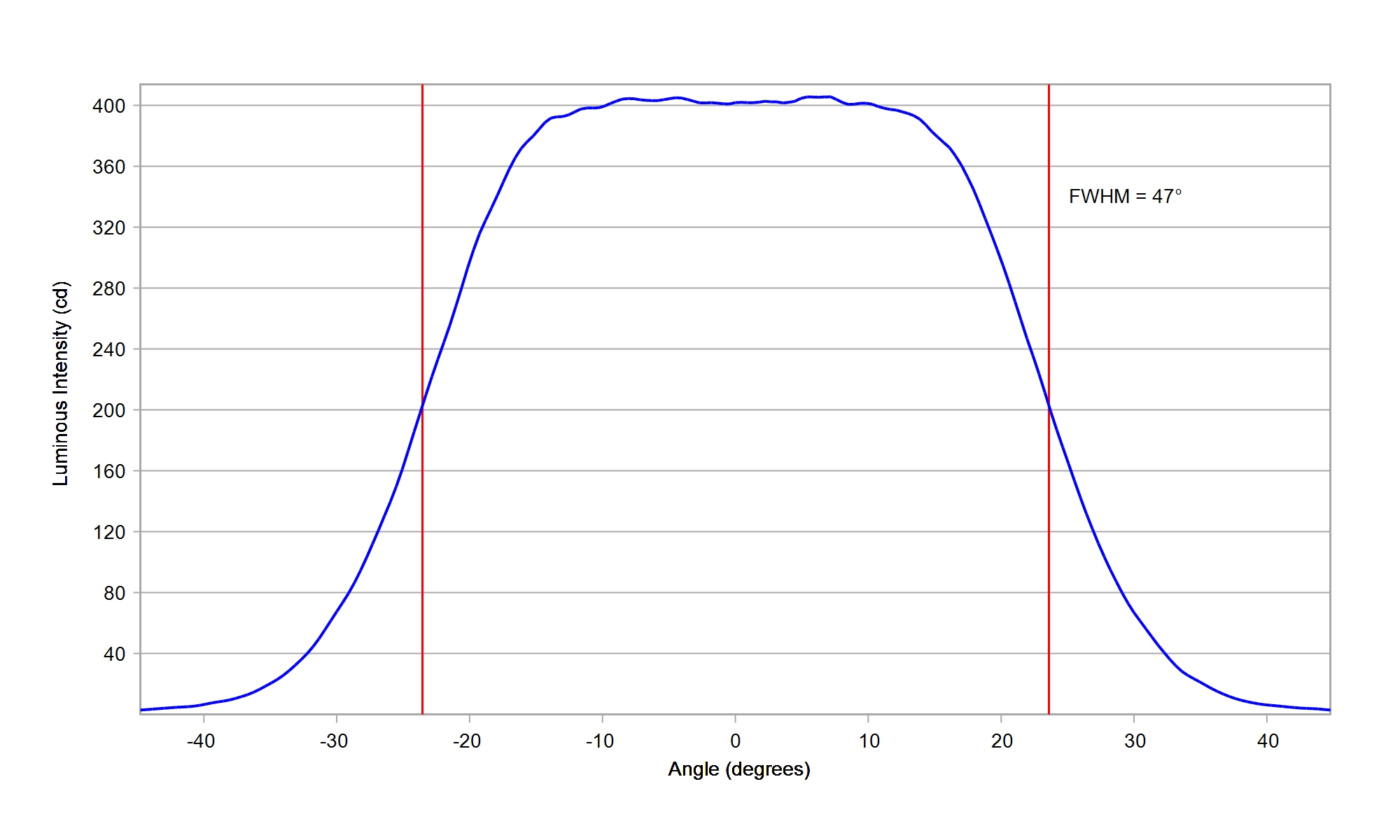

Cree XLamp XQ-A Red

Eff:

91.5%

FWHM:

47 x 10°

Cd/Im:

5.2


,


Download

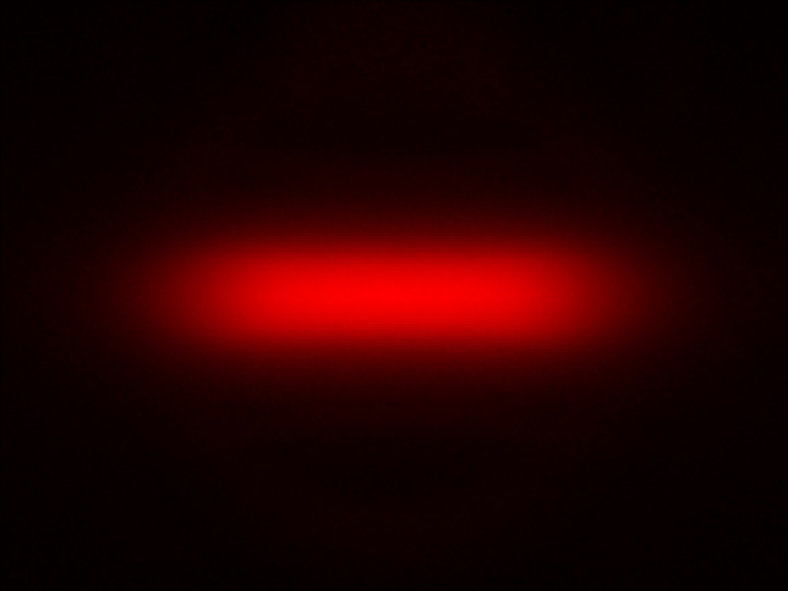

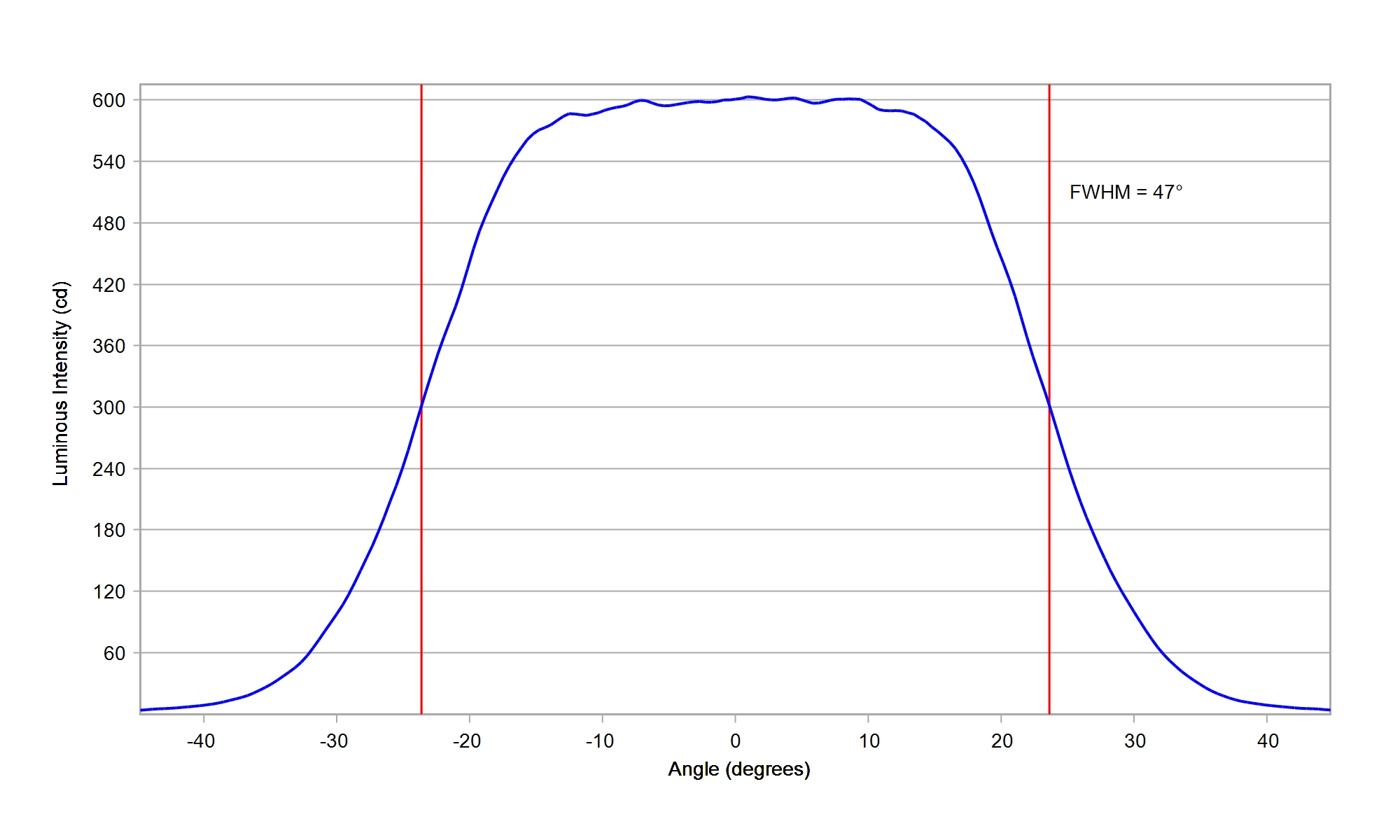

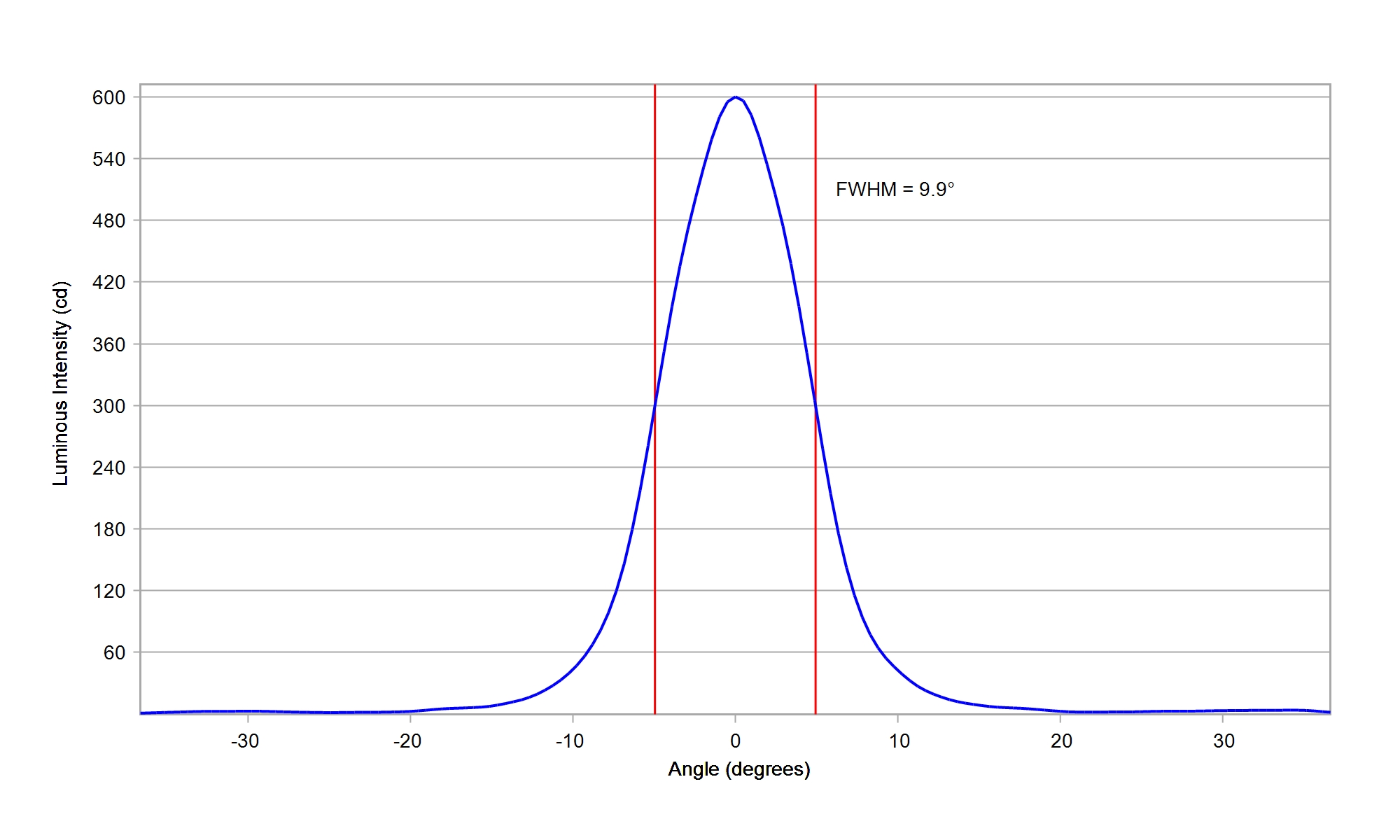

Cree XLamp XQ-A Red-Orange

Eff:

91.0%

FWHM:

47 x 9.9°

Cd/Im:

5.3


,


Download

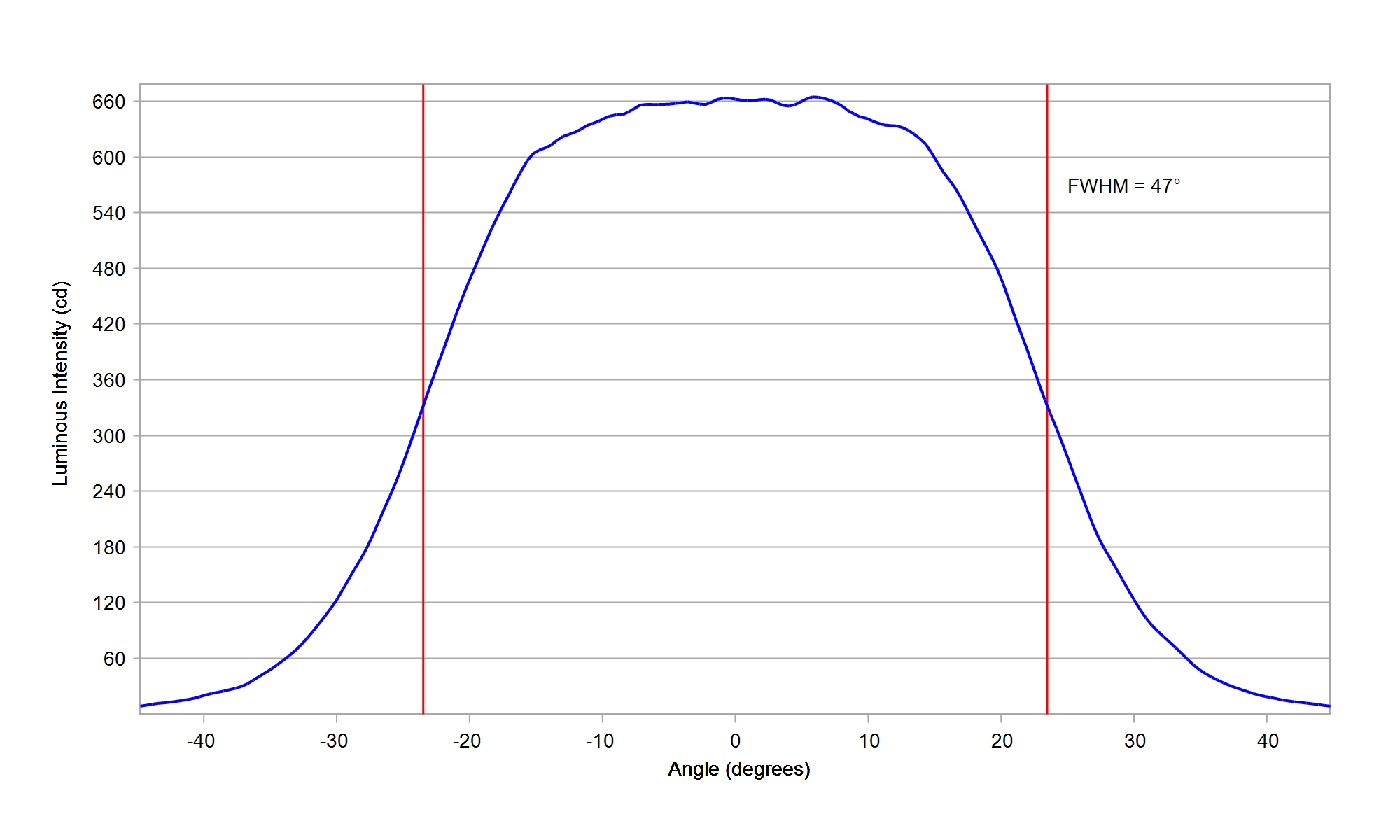

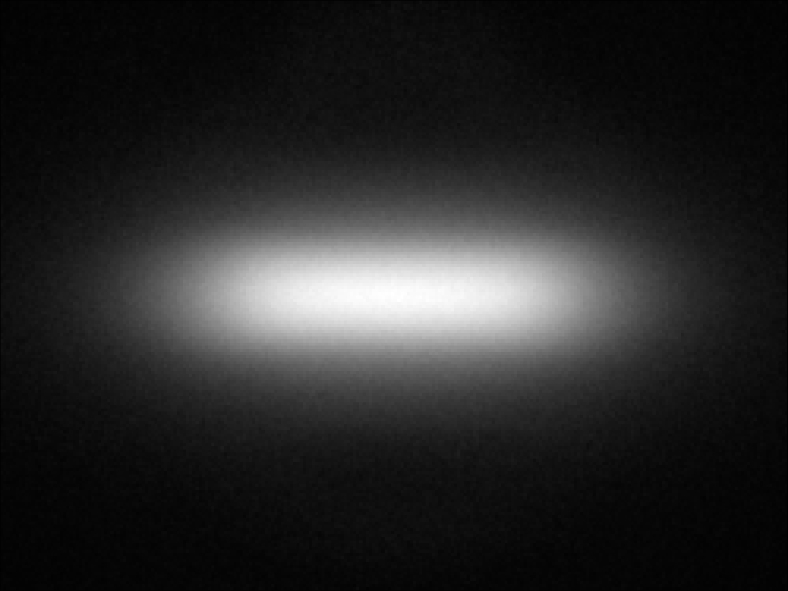

Cree XLamp XQ-A White

Eff:

90.0%

FWHM:

47 x 11.5°

Cd/Im:

4.3


,


Download

Cree XLamp XQ-E HI Blue

Eff:

89.5%

FWHM:

48 x 12°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E_HI_Blue

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Blue

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Blue

Download

IES

Cree XLamp XQ-E HI Green

Eff:

89.5%

FWHM:

47 x 12°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E_HI_Green

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Blue

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Green

Download

IES

Cree XLamp XQ-E HI Red

Eff:

90.5%

FWHM:

47 x 12°

Cd/Im:

4.1

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E HI Red

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E_HI_Red

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E_HI_Red

Download

IES

Cree XLamp XQ-E HI White

Eff:

90.5%

FWHM:

47 x 11.5°

Cd/Im:

5.0


,


Download

IES

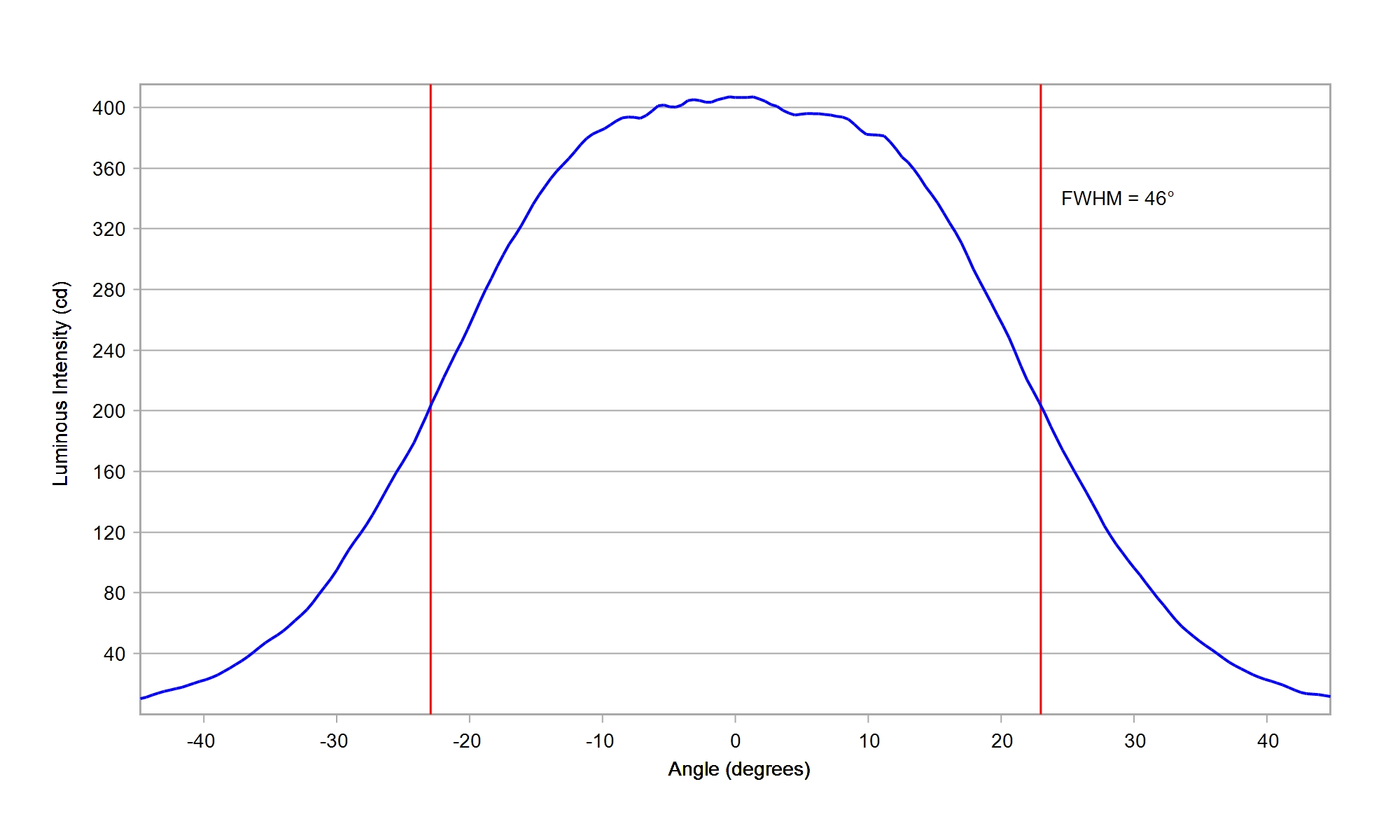

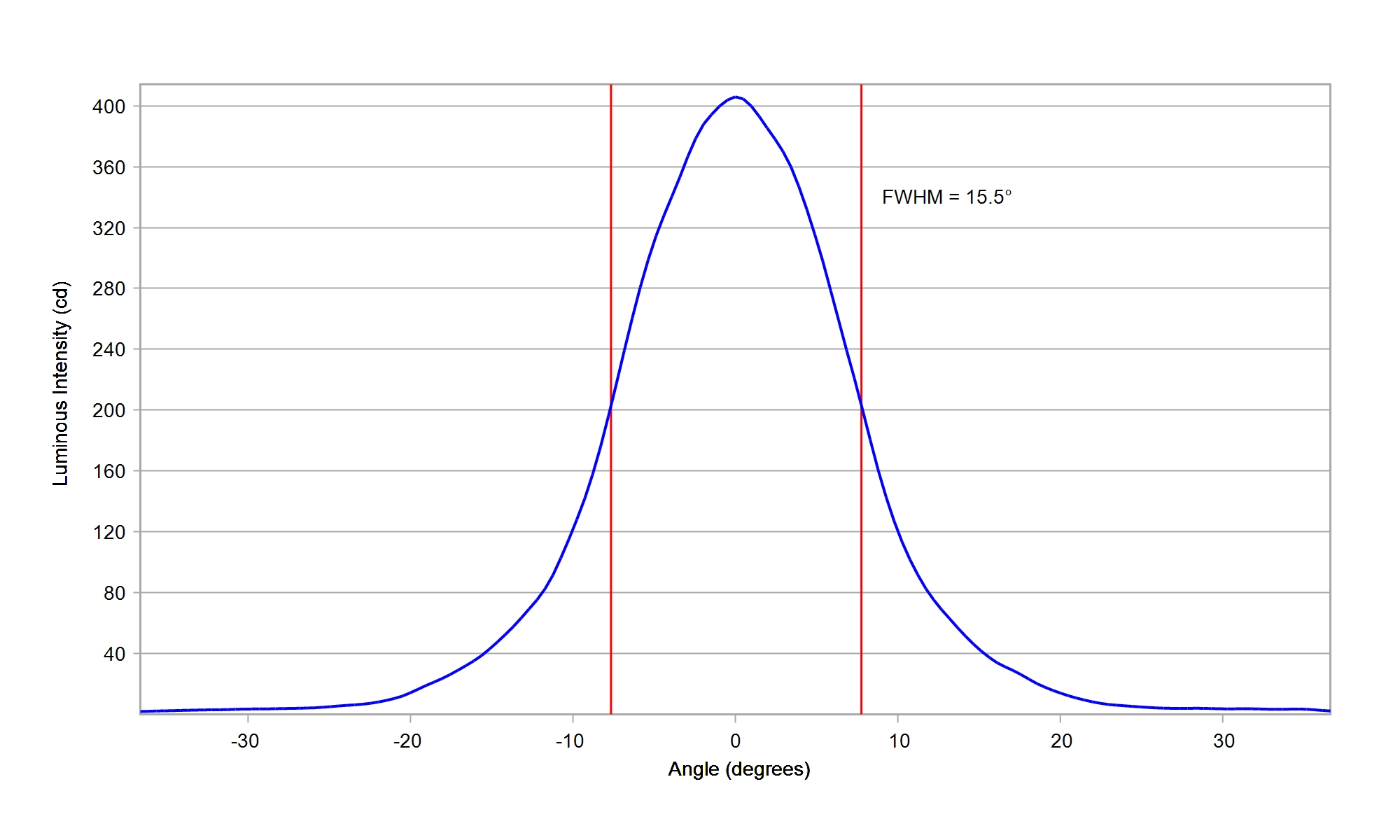

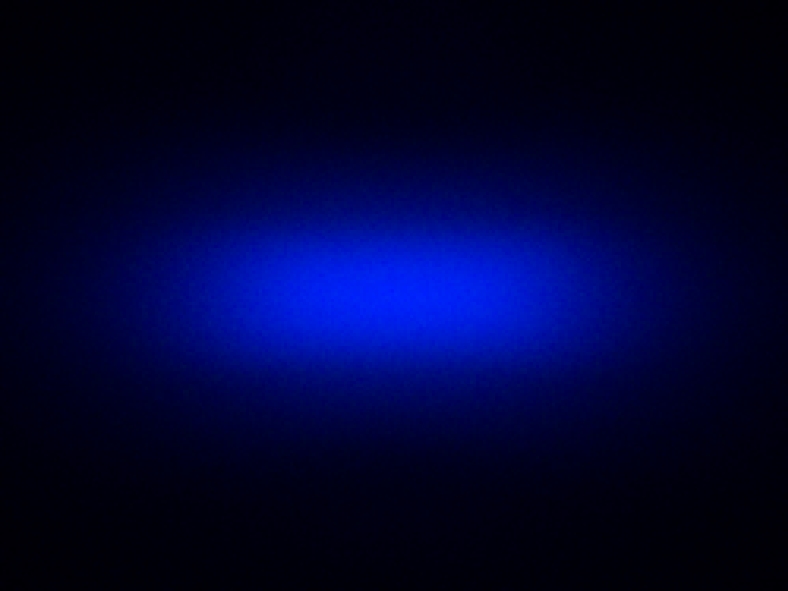

Cree XLamp XQ-E Plus HD Blue

Eff:

90.0%

FWHM:

46 x 15.5°

Cd/Im:

3.2


,


Download

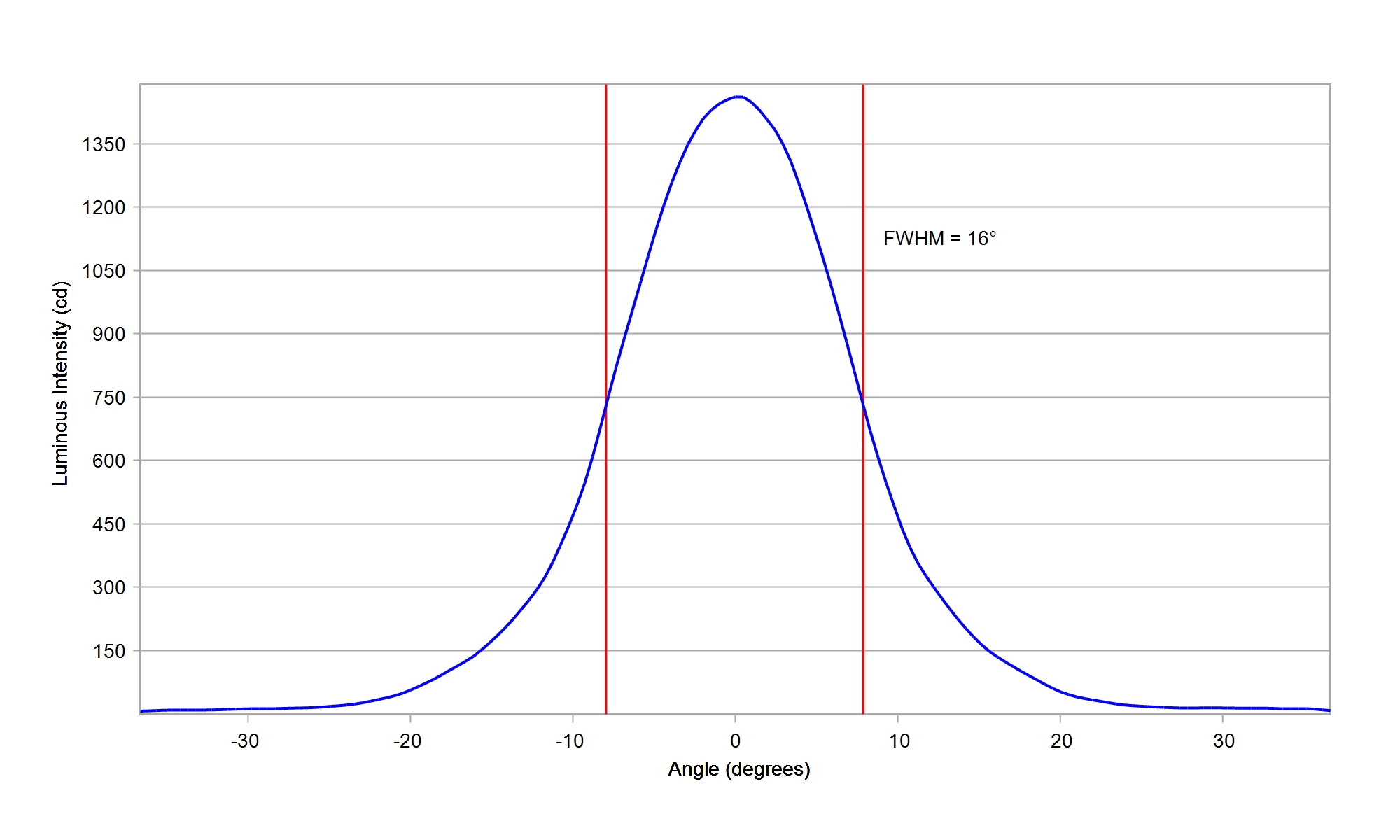

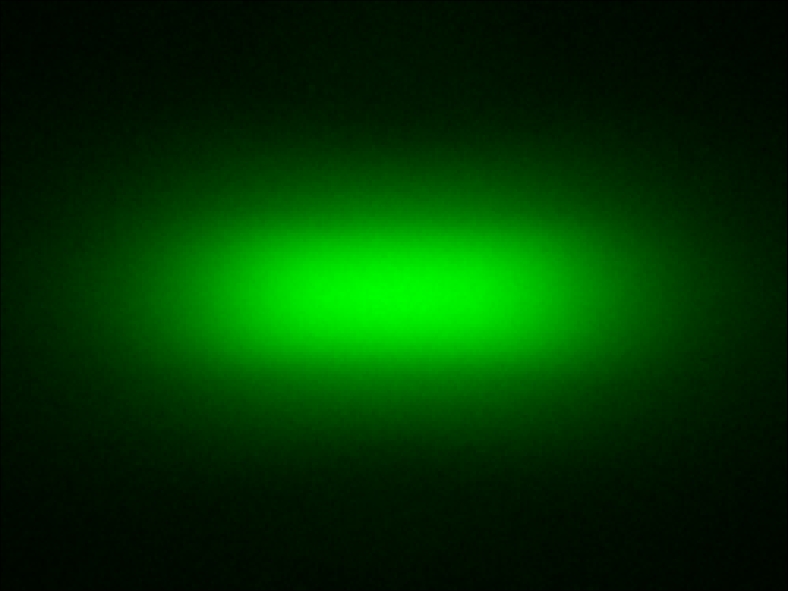

Cree XLamp XQ-E Plus HD Green

Eff:

90.0%

FWHM:

45 x 16°

Cd/Im:

3.2


,


Download

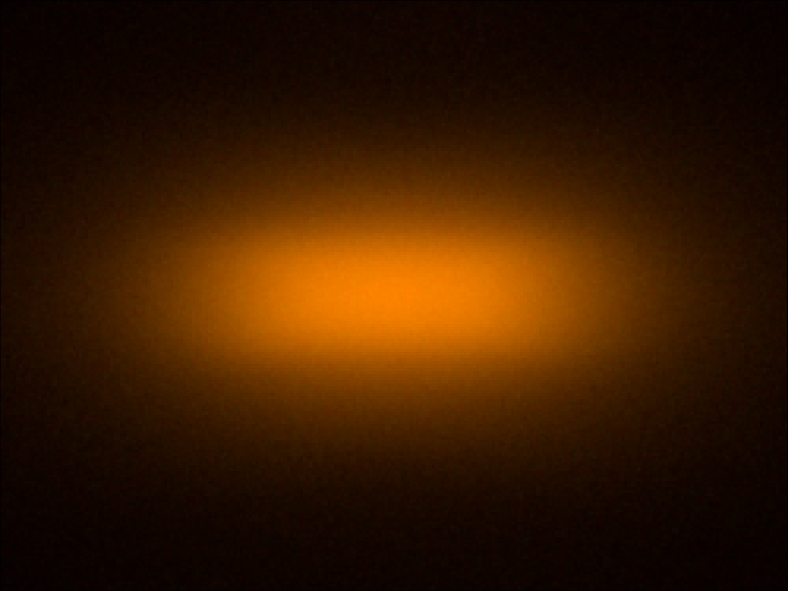

Cree XLamp XQ-E Plus HD PC Amber

Eff:

89.5%

FWHM:

44 x 16.5°

Cd/Im:

3.0


,


Download

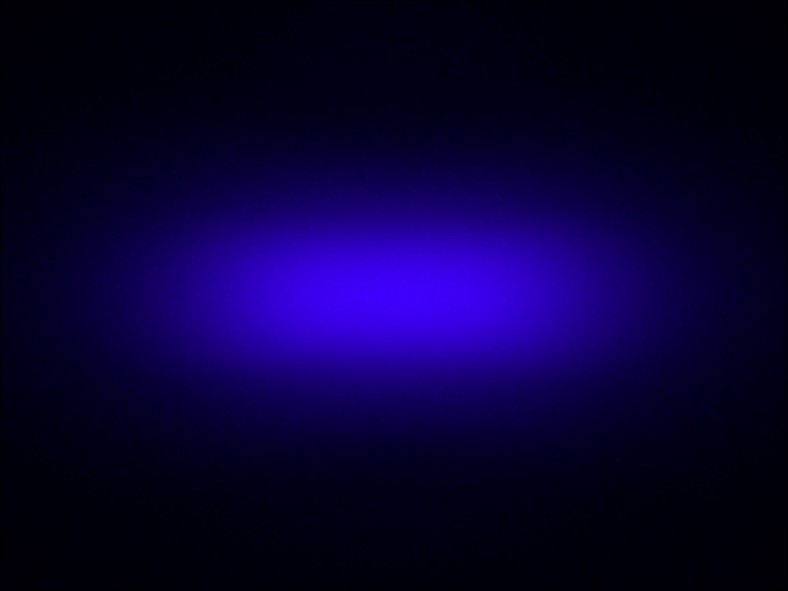

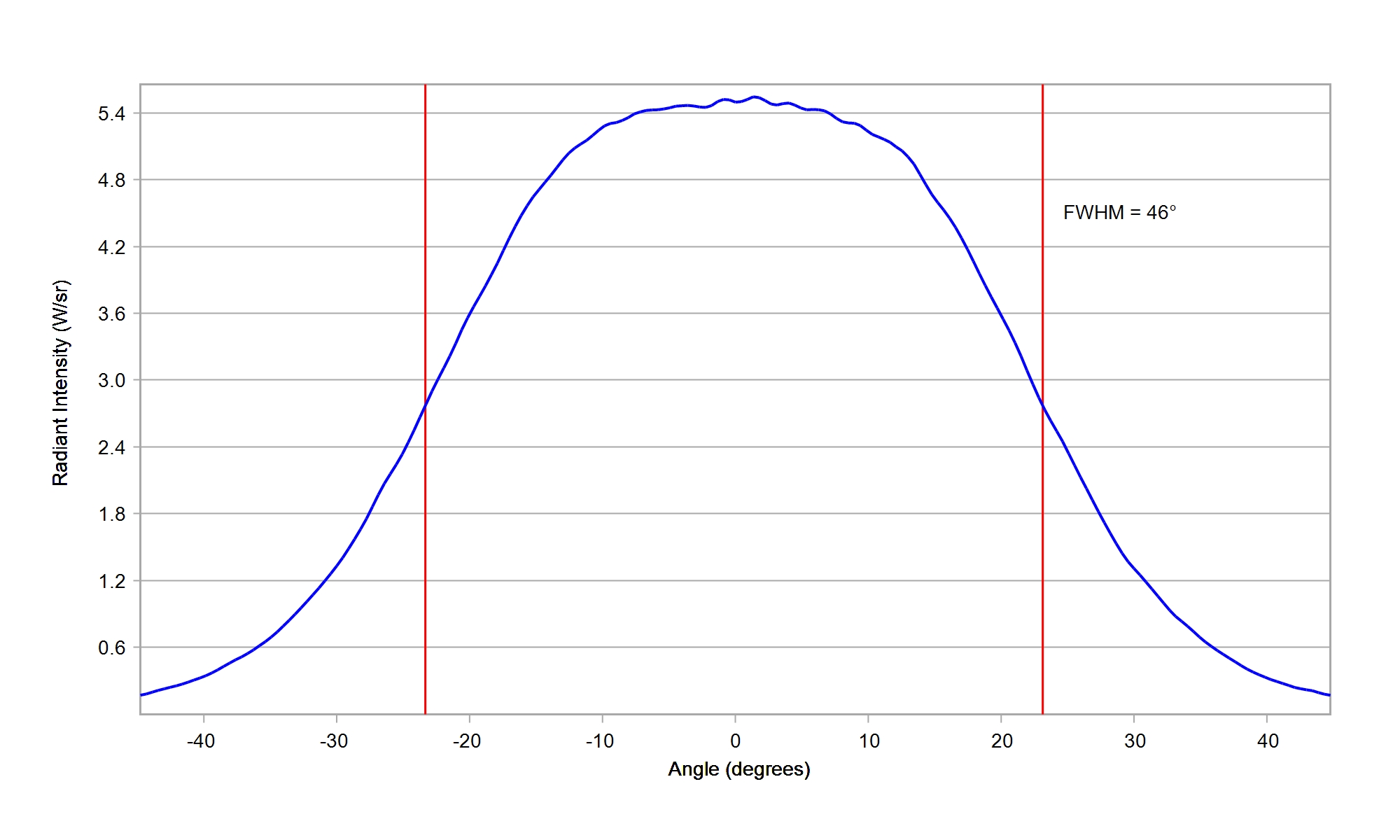

Cree XLamp XQ-E Plus HD Royal Blue

Eff:

89.0%

FWHM:

46 x 16°

Ipk/W:

3.1


,


Download

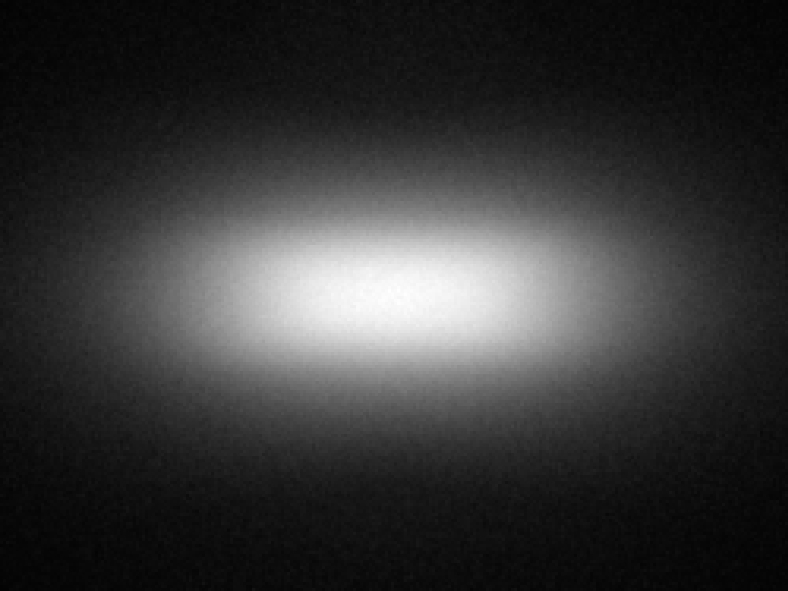

Cree XLamp XQ-E Plus HD White

Eff:

89.5%

FWHM:

44 x 17°

Cd/Im:

3.0


,


Download

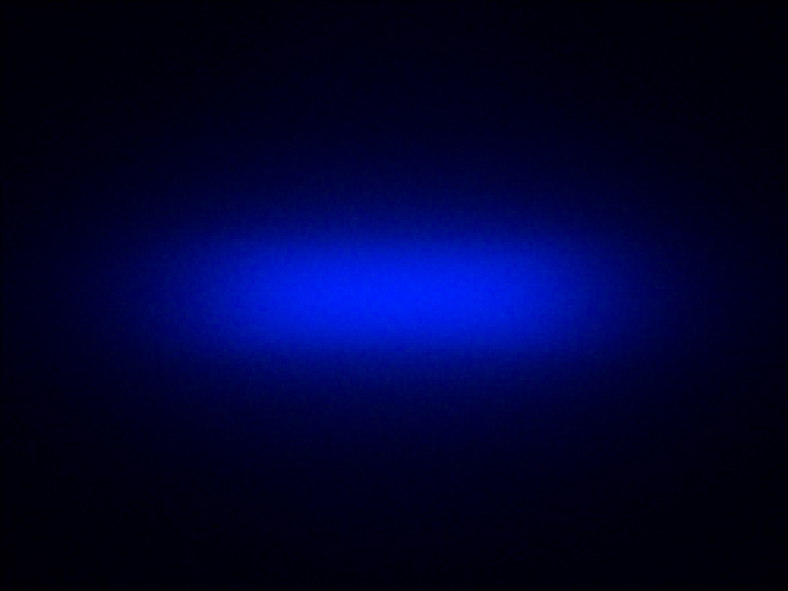

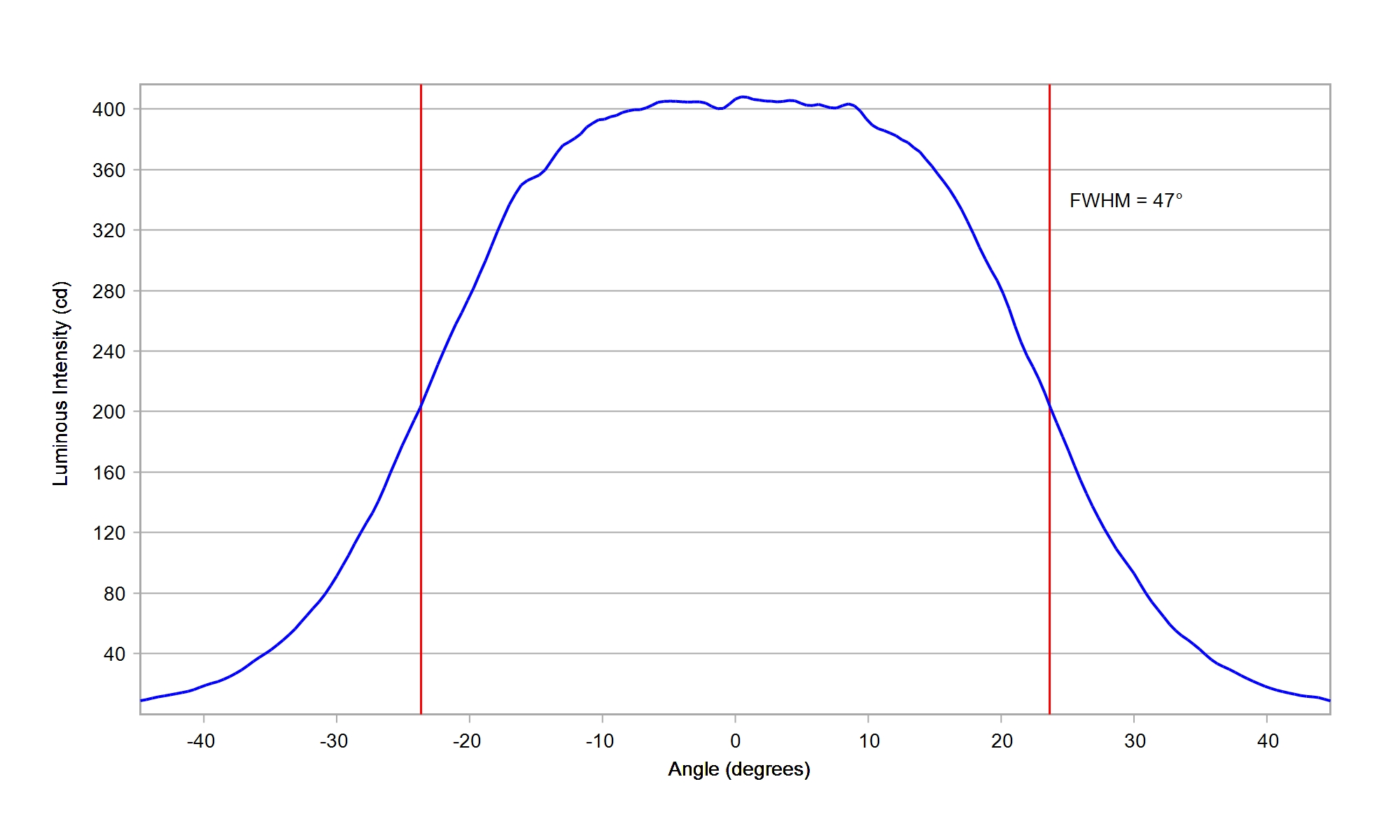

Cree XLamp XQ-E Plus HI Blue

Eff:

90.0%

FWHM:

47 x 13.5°

Cd/Im:

3.4


,


Download

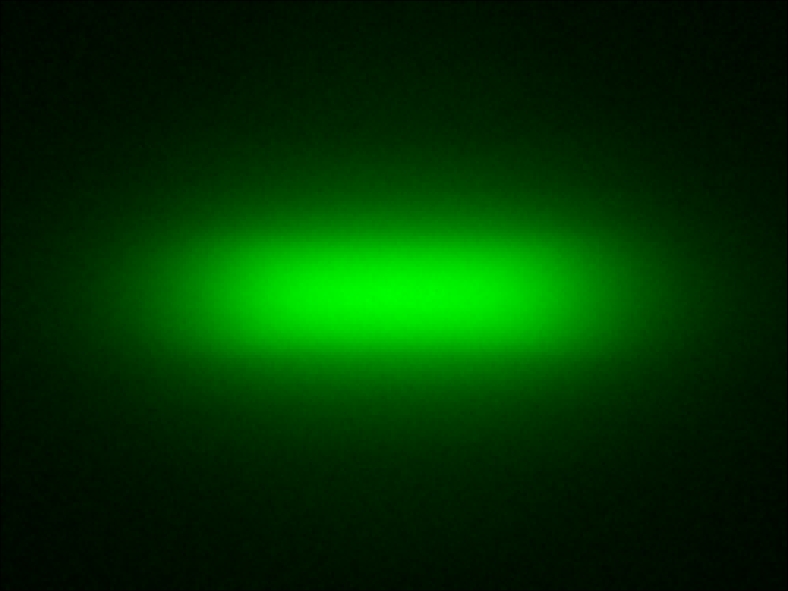

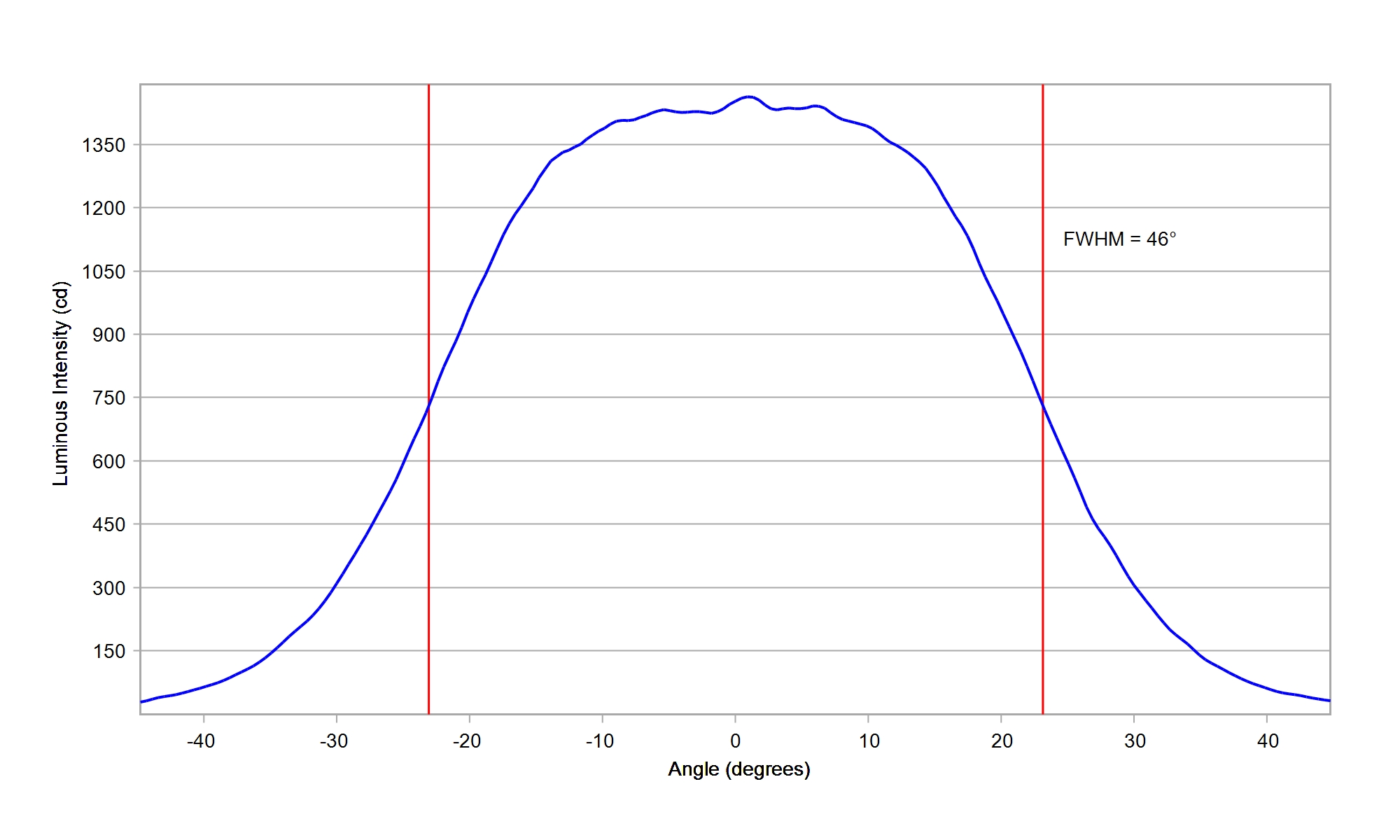

Cree XLamp XQ-E Plus HI Green

Eff:

90.0%

FWHM:

46 x 13.5°

Cd/Im:

3.4


,


Download

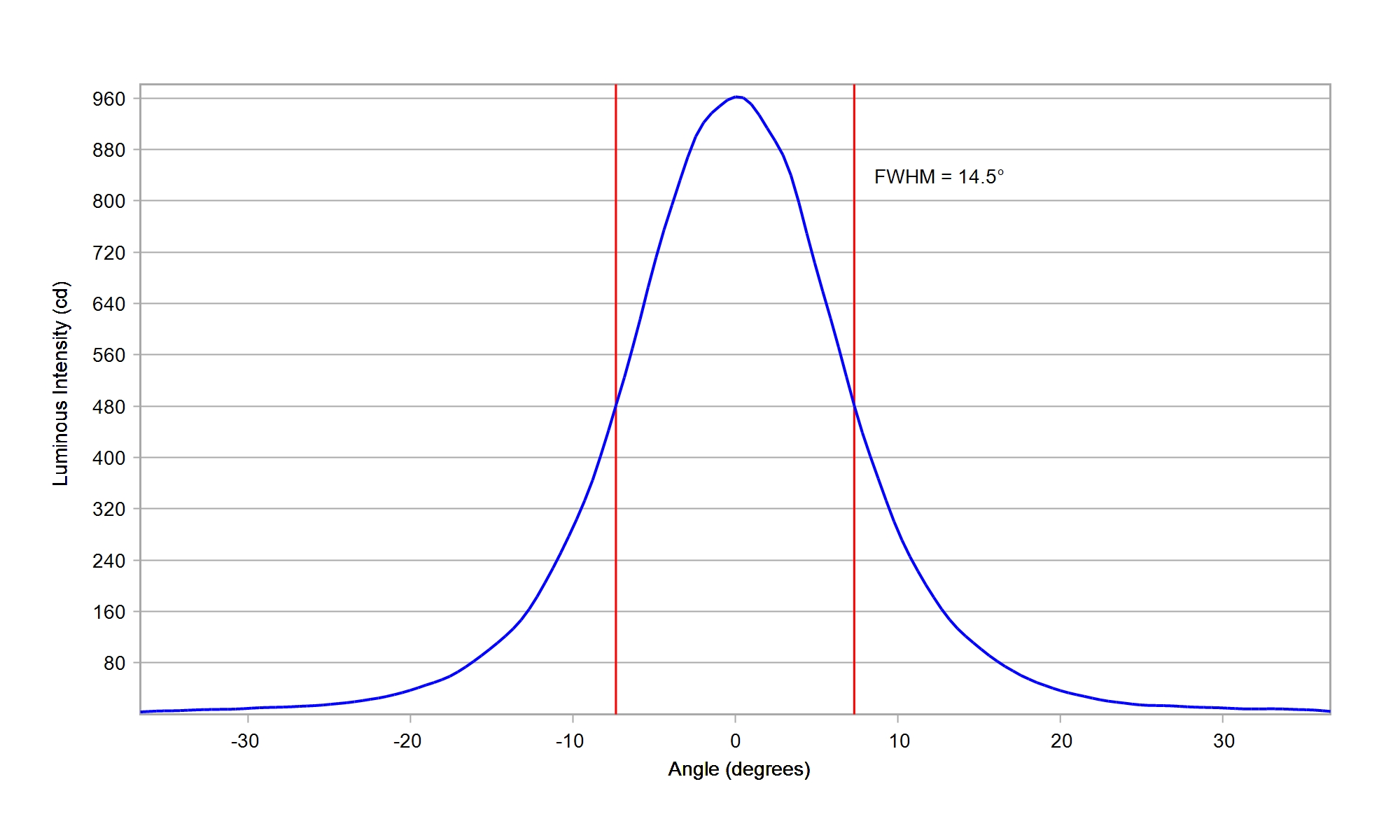

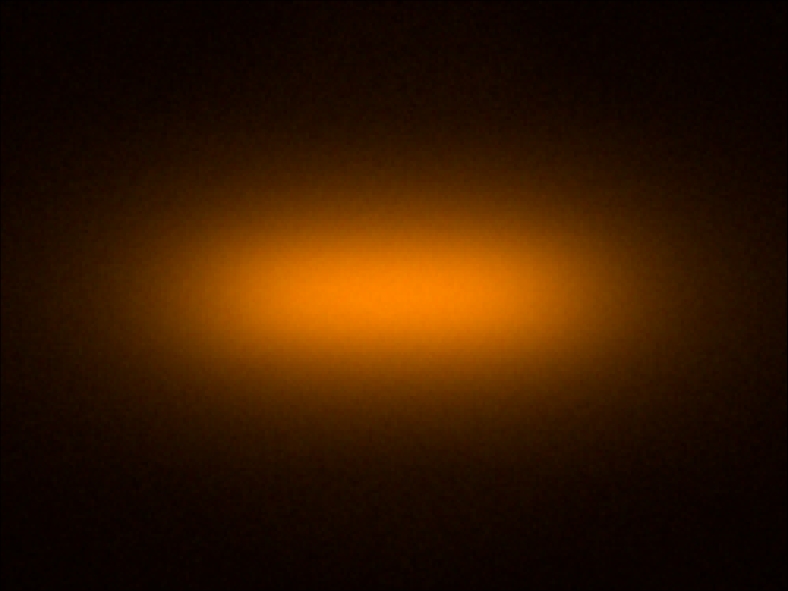

Cree XLamp XQ-E Plus HI PC Amber

Eff:

90.0%

FWHM:

45 x 14.5°

Cd/Im:

3.3


,


Download

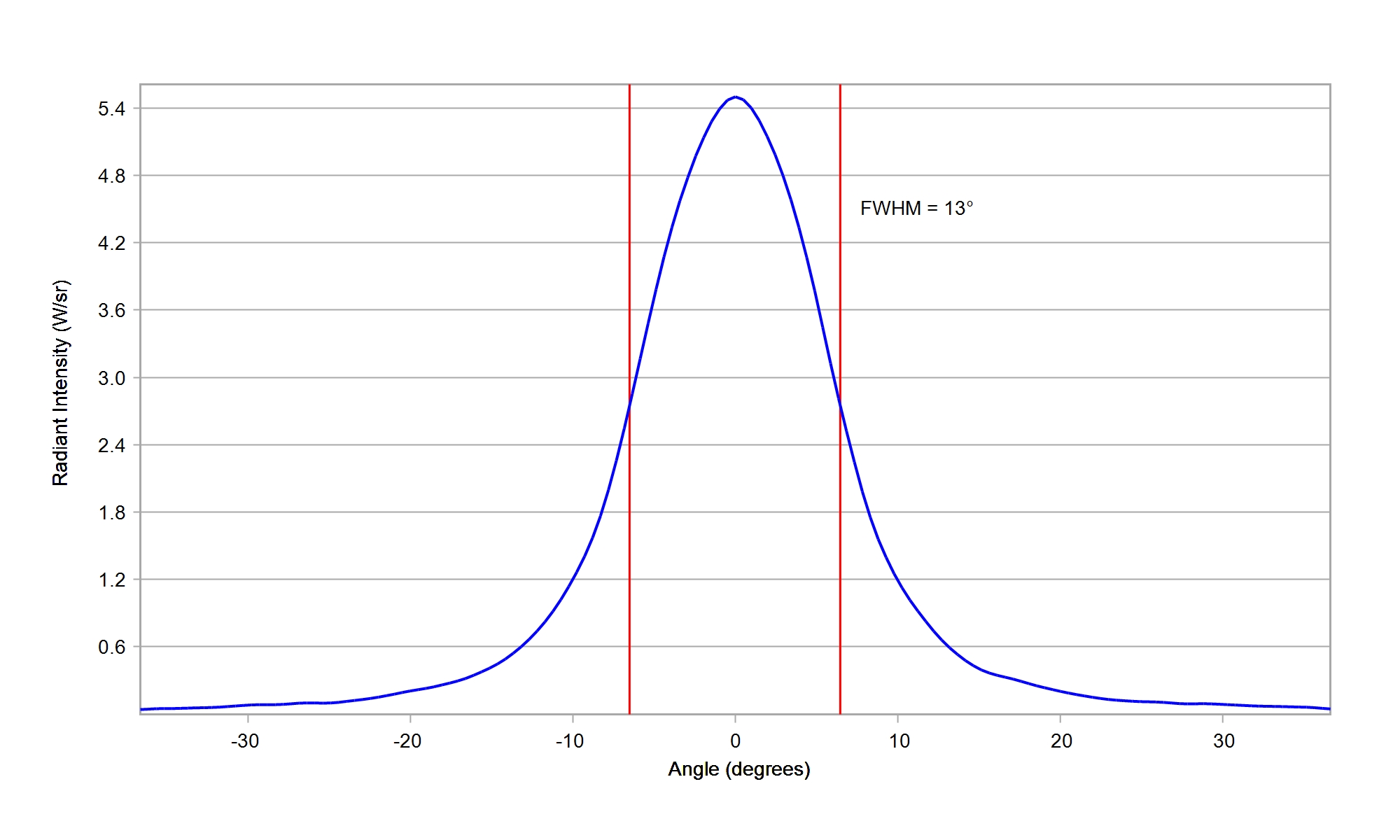

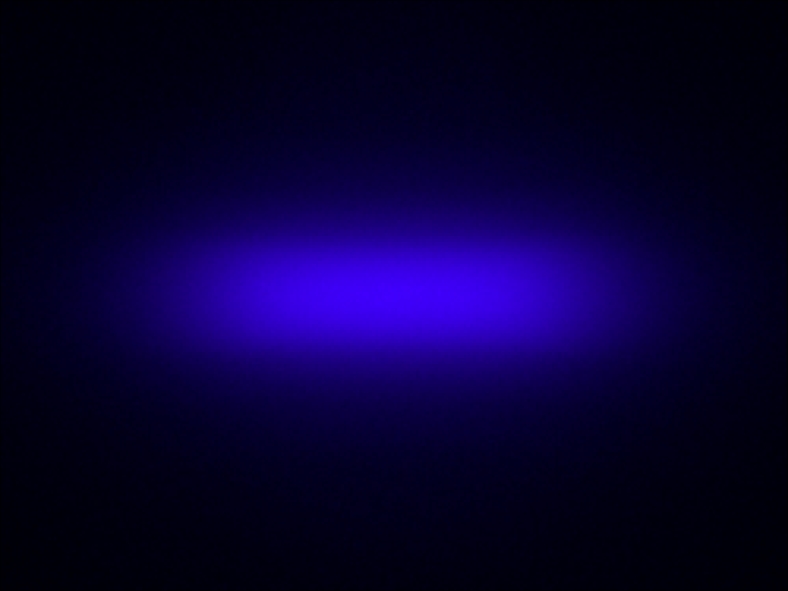

Cree XLamp XQ-E Plus HI Royal Blue

Eff:

89.0%

FWHM:

48 x 13°

Ipk/W:

3.4


,


Download

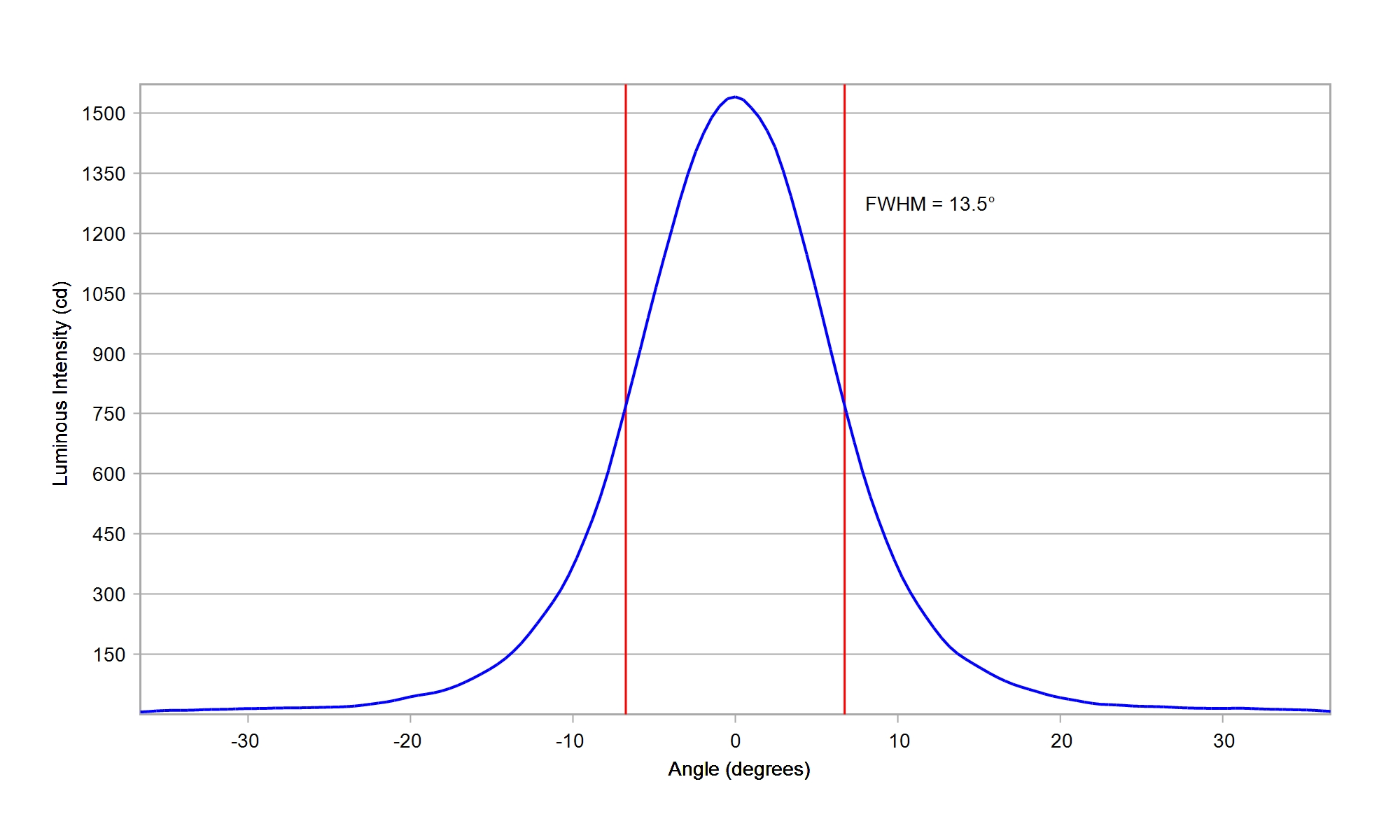

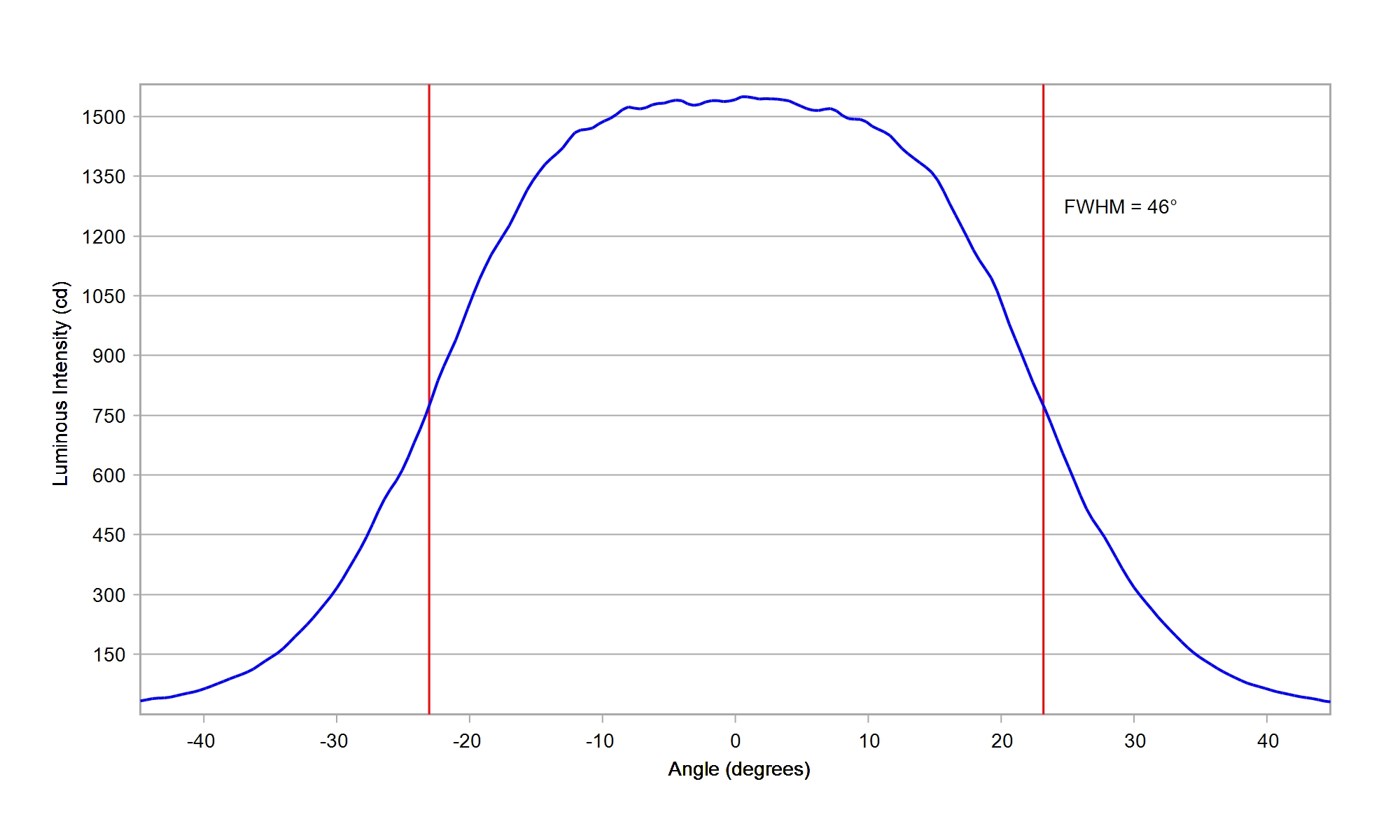

Cree XLamp XQ-E Plus HI White

Eff:

90.5%

FWHM:

46 x 13.5°

Cd/Im:

3.6


,


Download

Cree XLamp XQ-E HD White

Eff:

90.0%

FWHM:

46 x 14°

Cd/Im:

4.0

Carclo Optics - 10510 10mm Spot Image Cree XLamp XQ-E

Carclo Optics - 10510 10mm Horizontal Cross Section Cree XLamp XQ-E

,

Carclo Optics - 10510 10mm Vertical Cross Section Cree XLamp XQ-E

Download

IES

Everlight Shuen White

Eff:

82.6%

FWHM:

45.1 x 25.2°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

Lite-On R38386AS - S R38 IR

Eff:

87.0%

FWHM:

45.5 x 26.0°

Ipk/W:

1.9

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

LUMILEDS LUXEON 2835C 6V White

Eff:

89.0%

FWHM:

44 x 20°

Cd/Im:

2.7


,


Download

LUMILEDS LUXEON 2835E 9V White

Eff:

89.0%

FWHM:

44 x 19.5°

Cd/Im:

2.8


,


Download

LUMILEDS LUXEON 2835N 3V White

Eff:

88.5%

FWHM:

44 x 21°

Cd/Im:

2.5


,


Download

LUMILEDS LUXEON 2835S 3V White

Eff:

88.5%

FWHM:

43 x 22.5°

Cd/Im:

2.5


,


Download

LUMILEDS LUXEON 2835S 6V White

Eff:

88.5%

FWHM:

44 x 22.5°

Cd/Im:

2.6


,


Download

LUMILEDS LUXEON 3014 White

Eff:

90.5%

FWHM:

46 x 12.5°

Cd/Im:

4.0


,


Download

IES

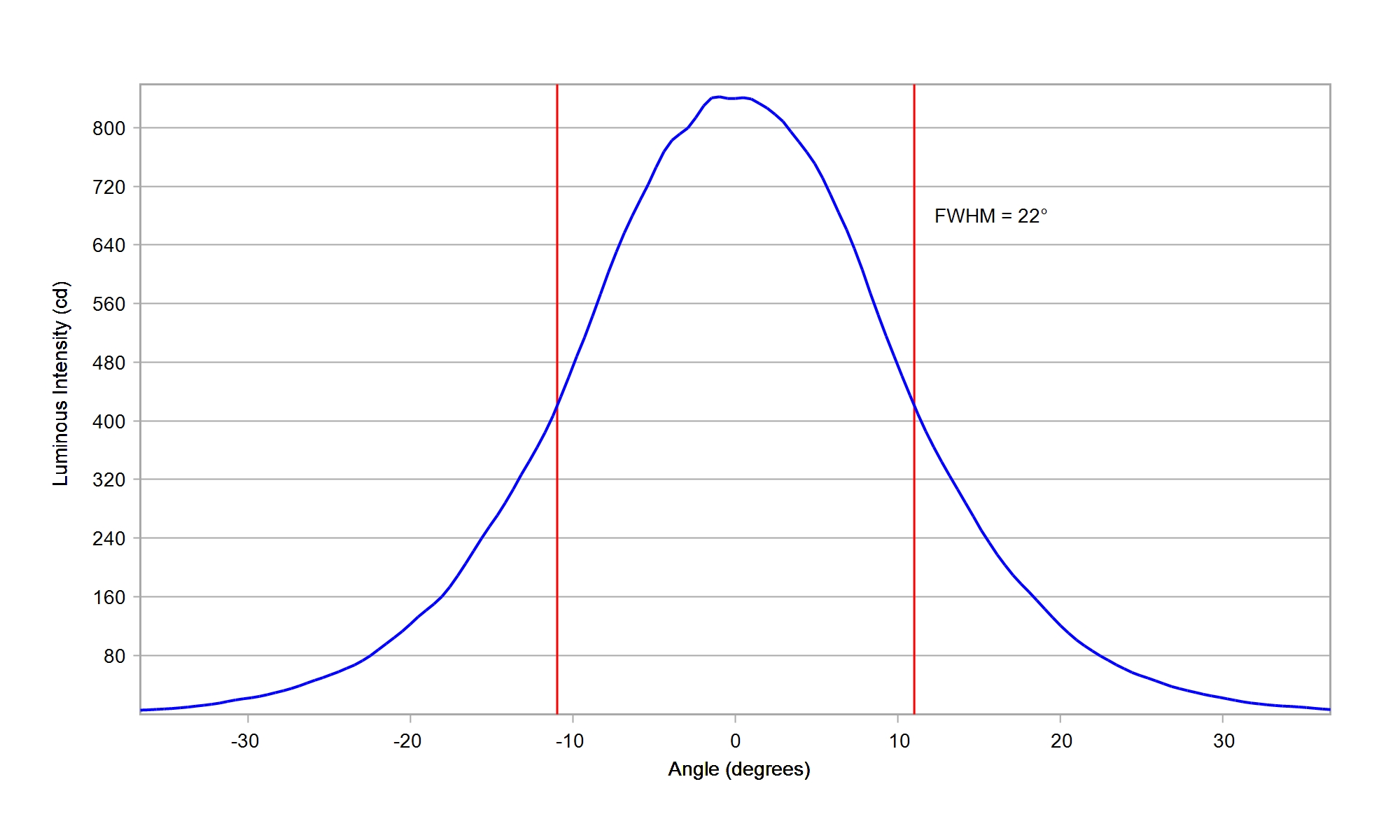

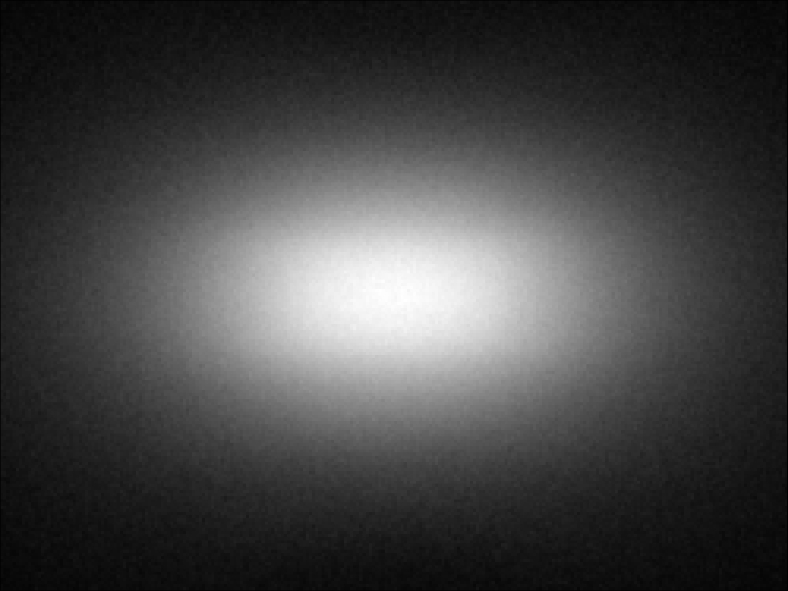

LUMILEDS LUXEON 3030 2D Plus Round White

Eff:

89.5%

FWHM:

42 x 22°

Cd/Im:

2.4


,


Download

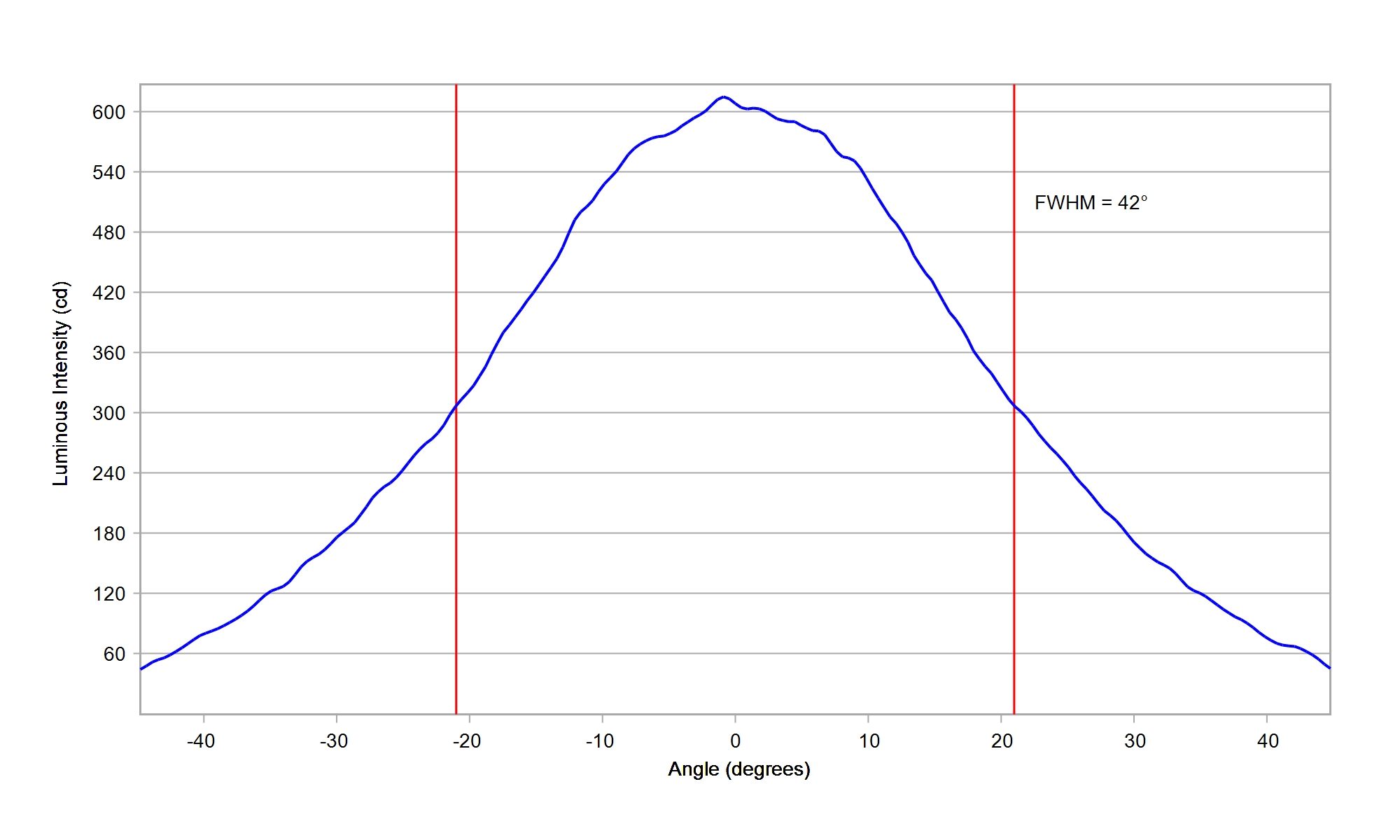

LUMILEDS LUXEON 3030 2D Plus Square White

Eff:

88.0%

FWHM:

42 x 30°

Cd/Im:

1.6

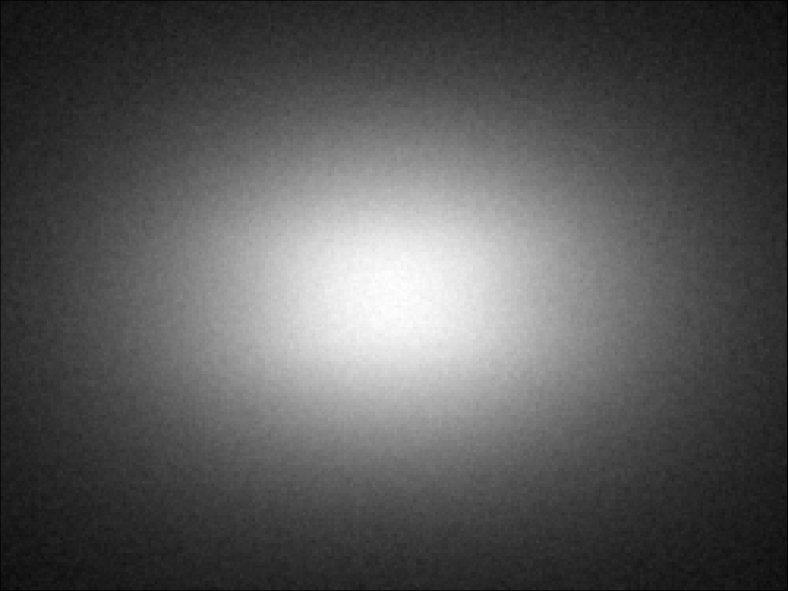

spot image


,


Download

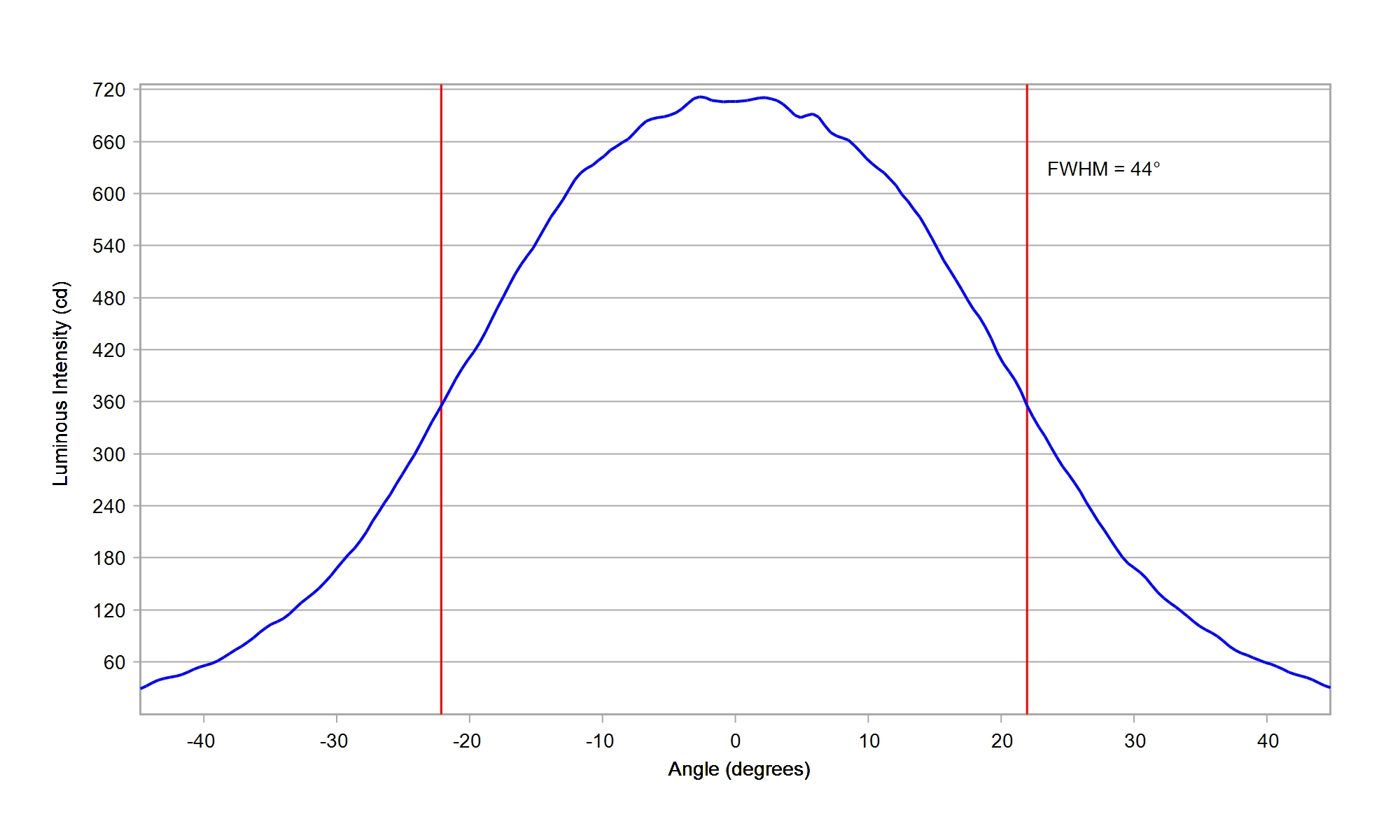

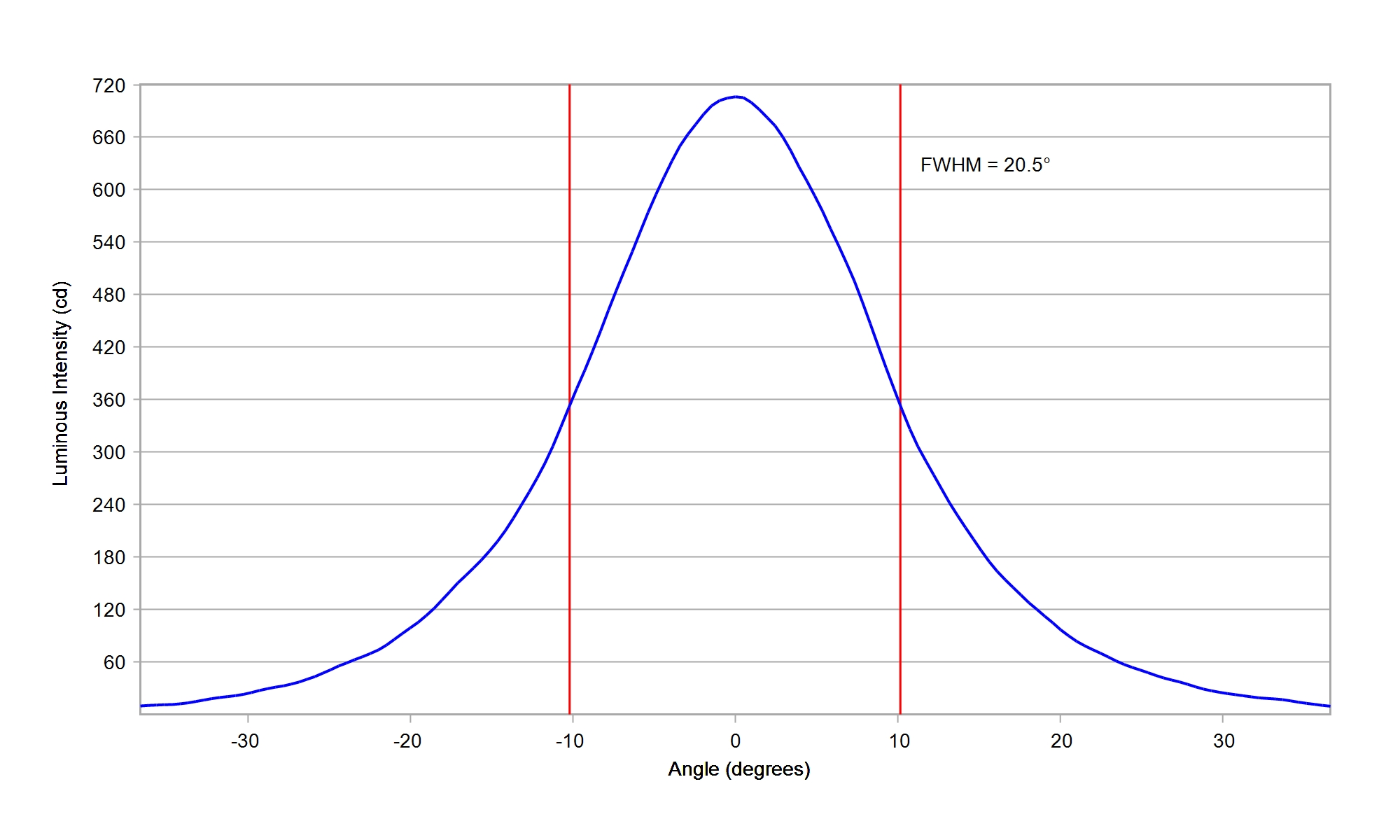

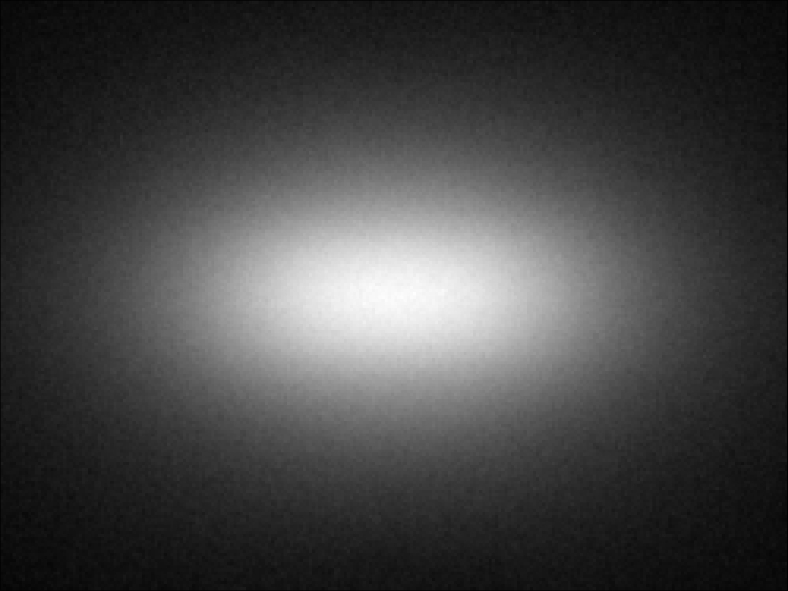

LUMILEDS LUXEON 3030 2D Square White

Eff:

89.0%

FWHM:

44 x 20.5°

Cd/Im:

2.4


,


Download

LUMILEDS LUXEON 3030 2D Round White

Eff:

89.5%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

LUMILEDS LUXEON 3030 HE Plus White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.7

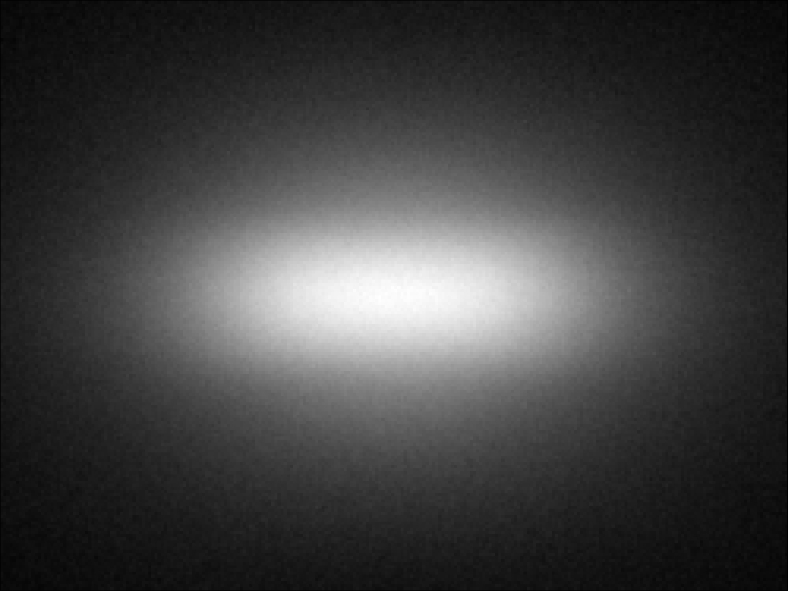

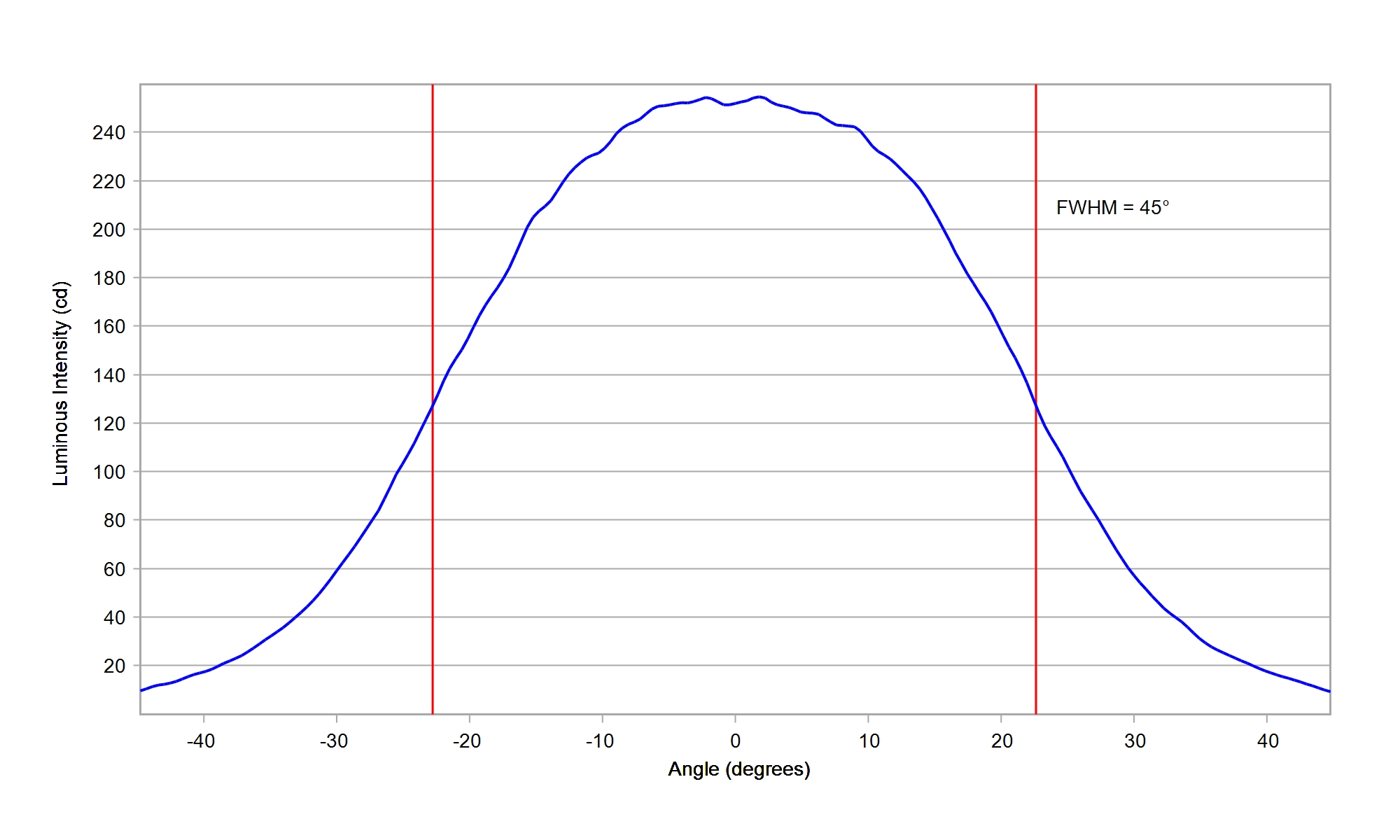

Carclo Optics - 10510 10mm Spot Image Luxeon 3030 HE Plus

Carclo Optics - 10510 10mm Horizontal Cross Section Luxeon 3030 HE Plus

,

Carclo Optics - 10510 10mm Vertical Cross Section Luxeon 3030 HE Plus

Download

IES

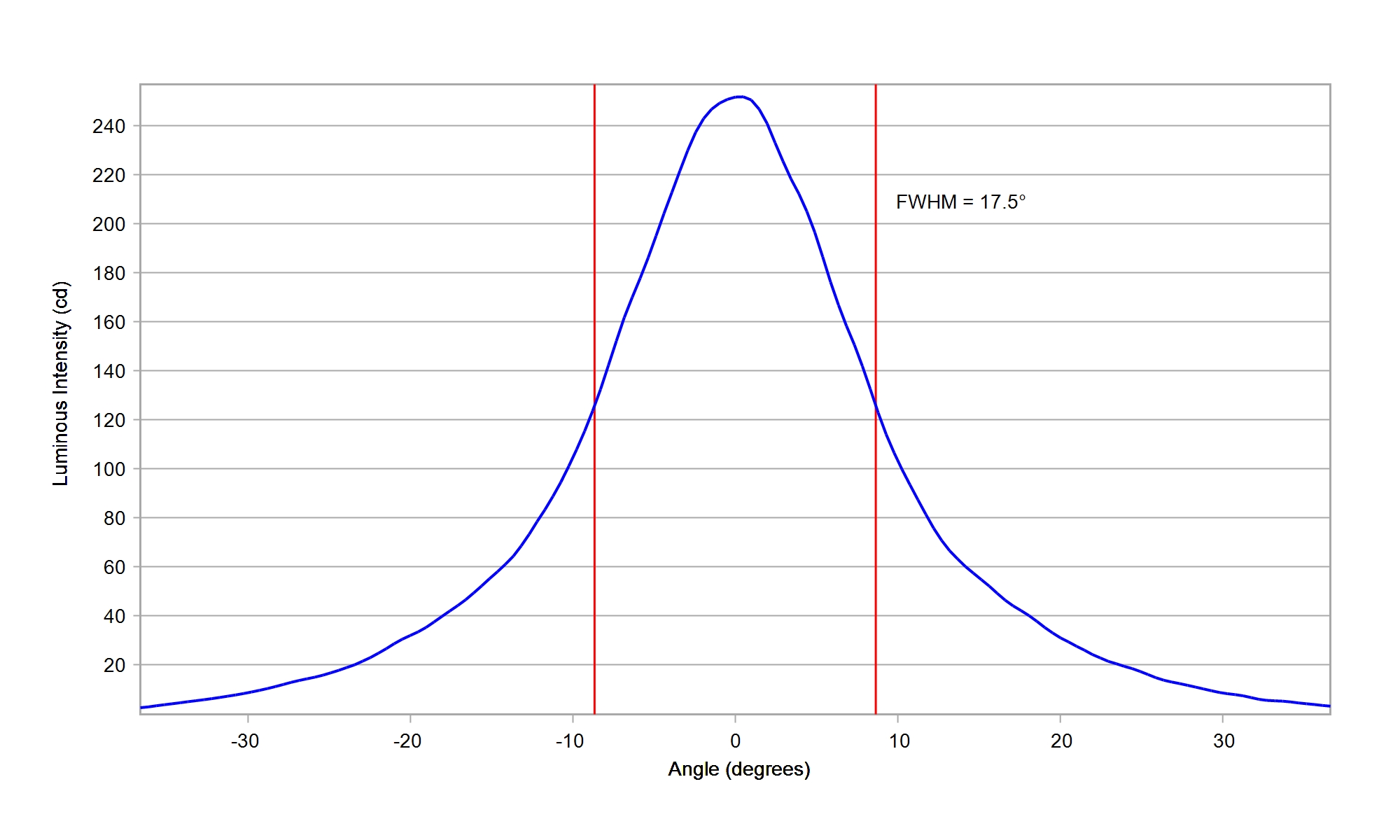

LUMILEDS LUXEON 3030 HE White

Eff:

89.0%

FWHM:

45 x 17.5°

Cd/Im:

3.0


,


Download

LUMILEDS LUXEON 3535 HV White

Eff:

83.7%

FWHM:

53 X 23.6°

Cd/Im:

1.7

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON 3535 L White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

3.1


,


Download

IES

LUMILEDS LUXEON C Lime

Eff:

87.0%

FWHM:

45 x 15.5°

Cd/Im:

3.7


,


Download

IES

LUMILEDS LUXEON C White

Eff:

86.5%

FWHM:

45 x 15°

Cd/Im:

3.6


,


Download

LUMILEDS LUXEON CZ White

Eff:

91.0%

FWHM:

47 x 11.5°

Cd/Im:

5.1


,


Download

IES

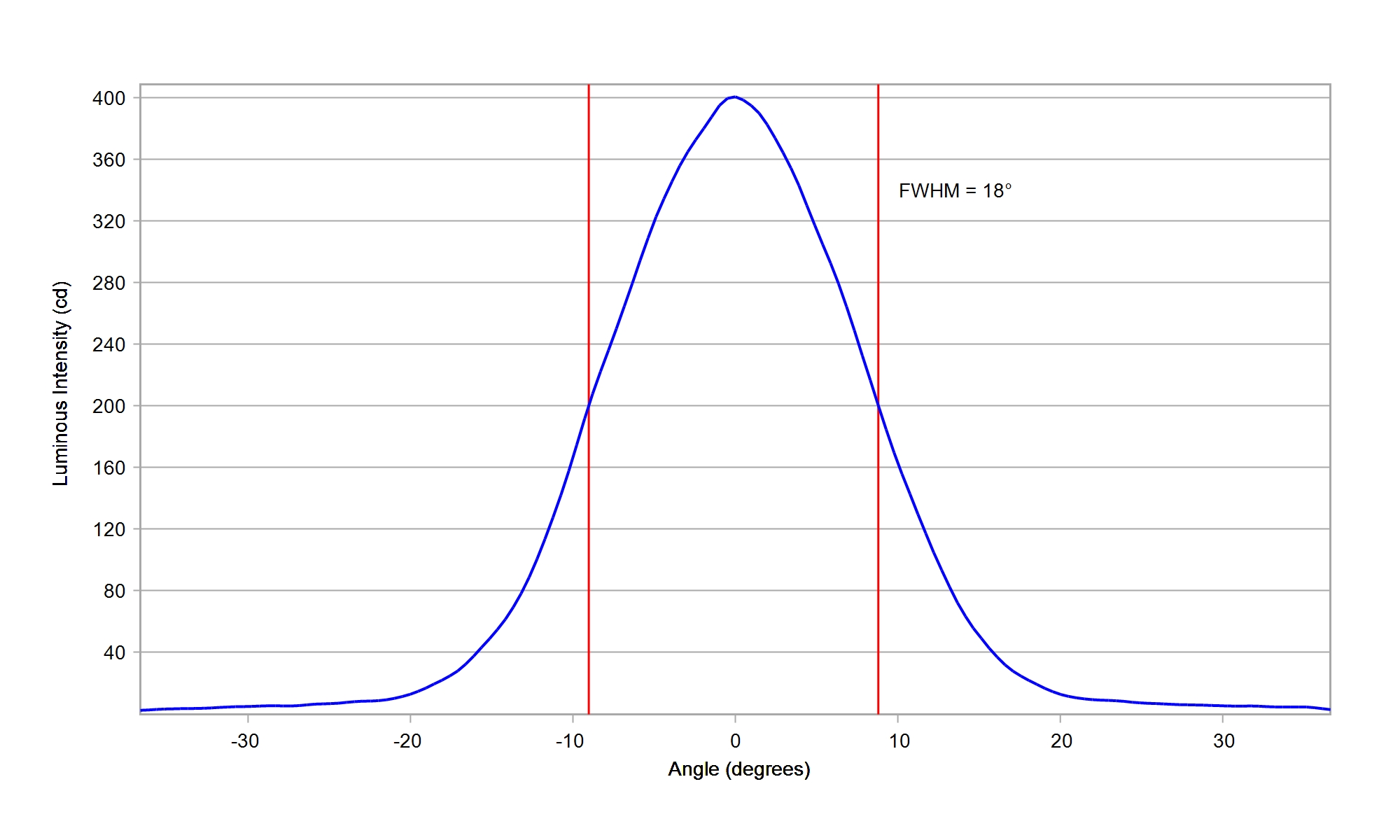

LUMILEDS LUXEON HL1Z Color Blue

Eff:

89.5%

FWHM:

45 x 18°

Cd/Im:

2.6


,


Download

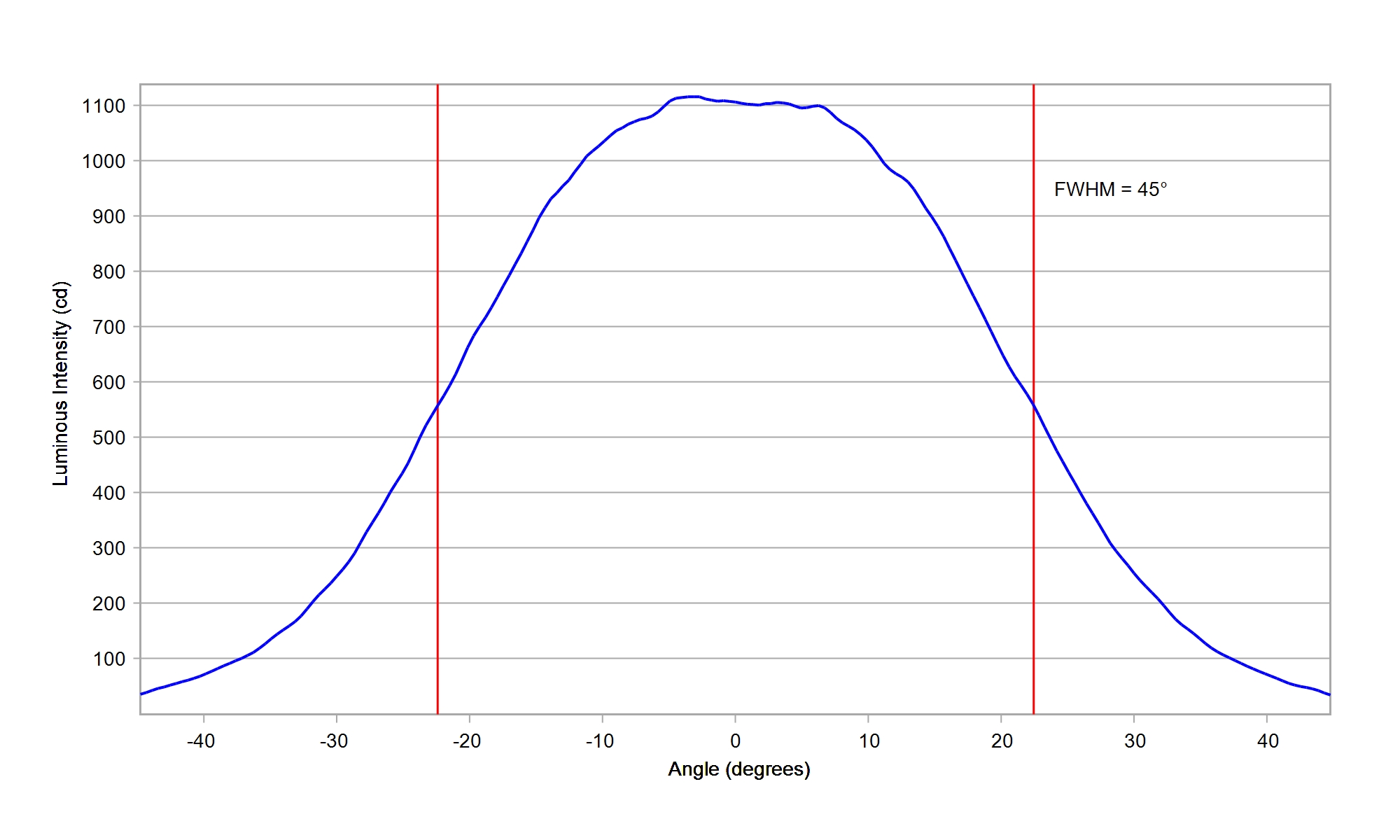

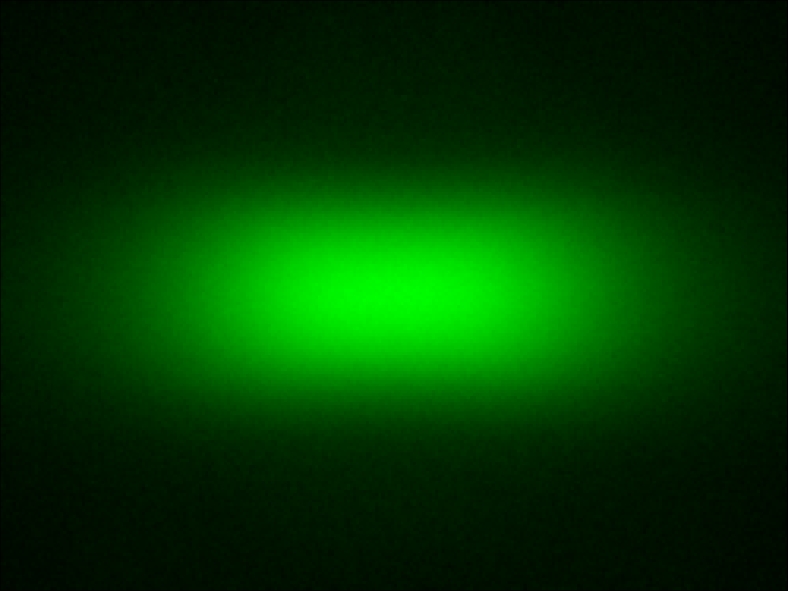

LUMILEDS LUXEON HL1Z Color Green

Eff:

89.5%

FWHM:

45 x 17.5°

Cd/Im:

2.7


,


Download

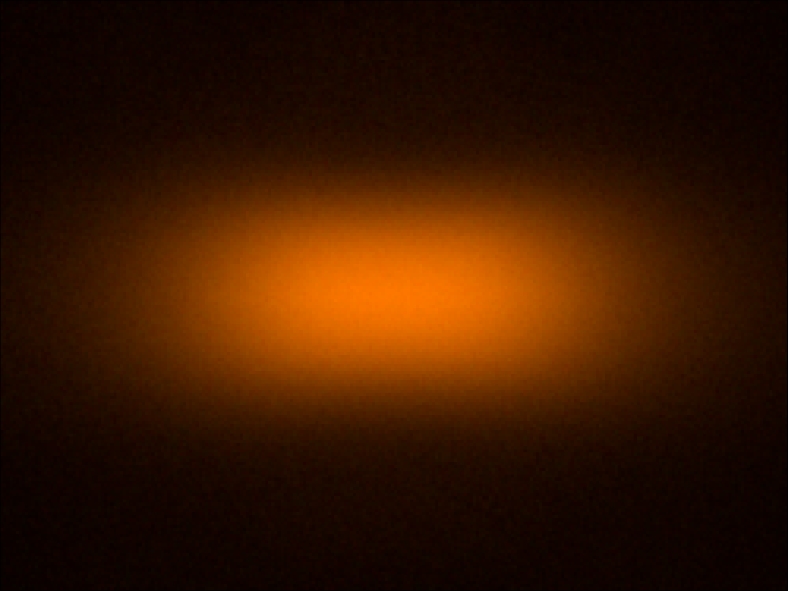

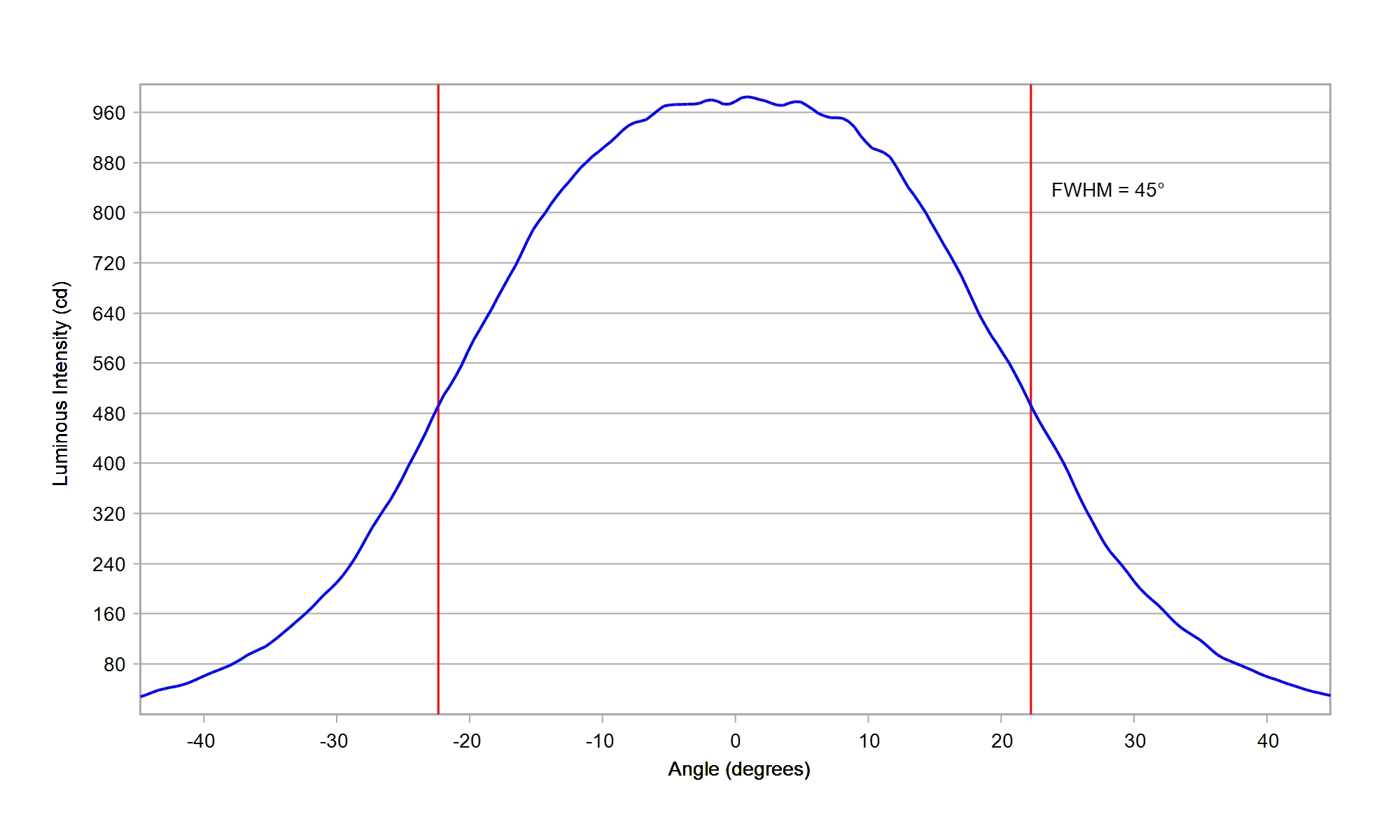

LUMILEDS LUXEON HL1Z Color PC Amber

Eff:

90.0%

FWHM:

45 x 17.5°

Cd/Im:

2.8


,


Download

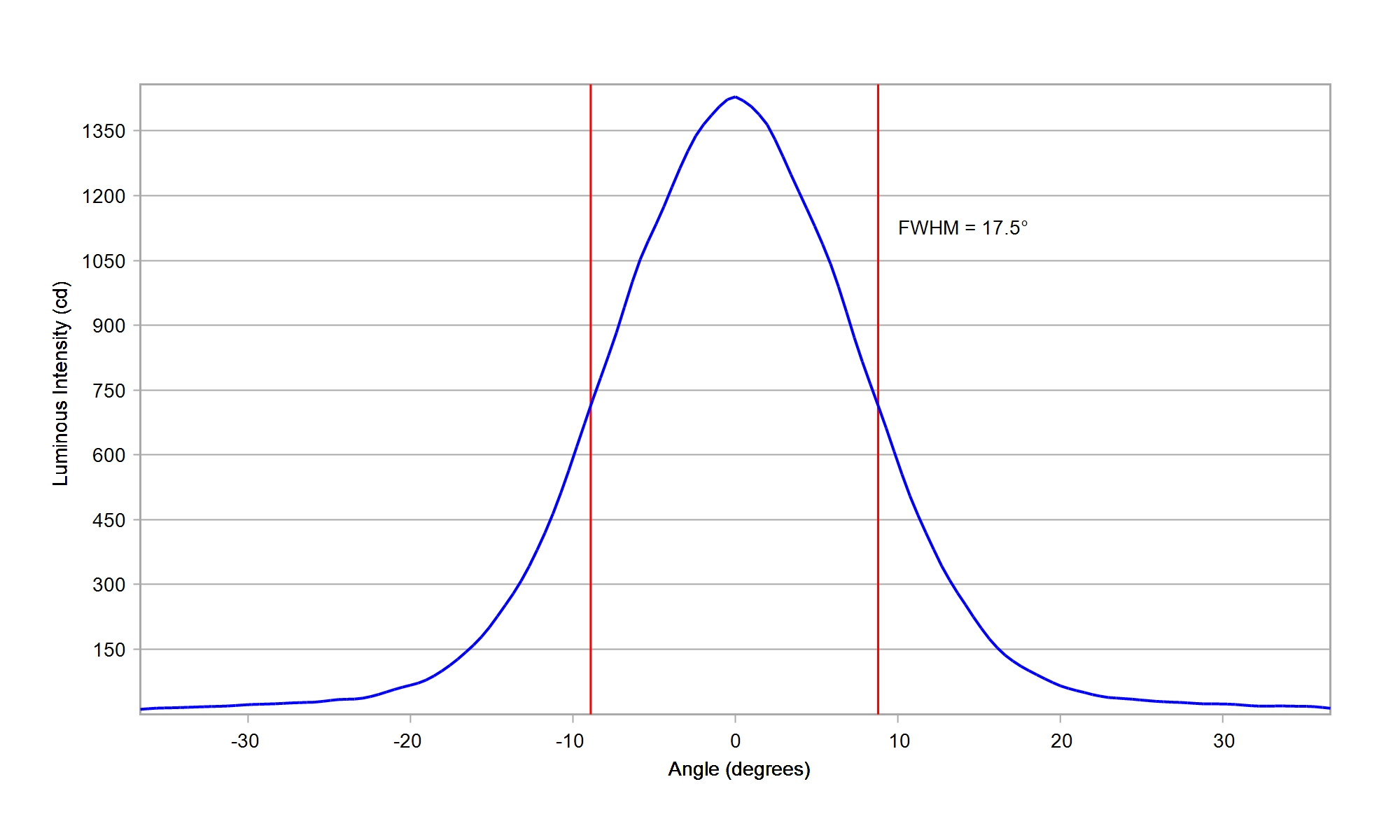

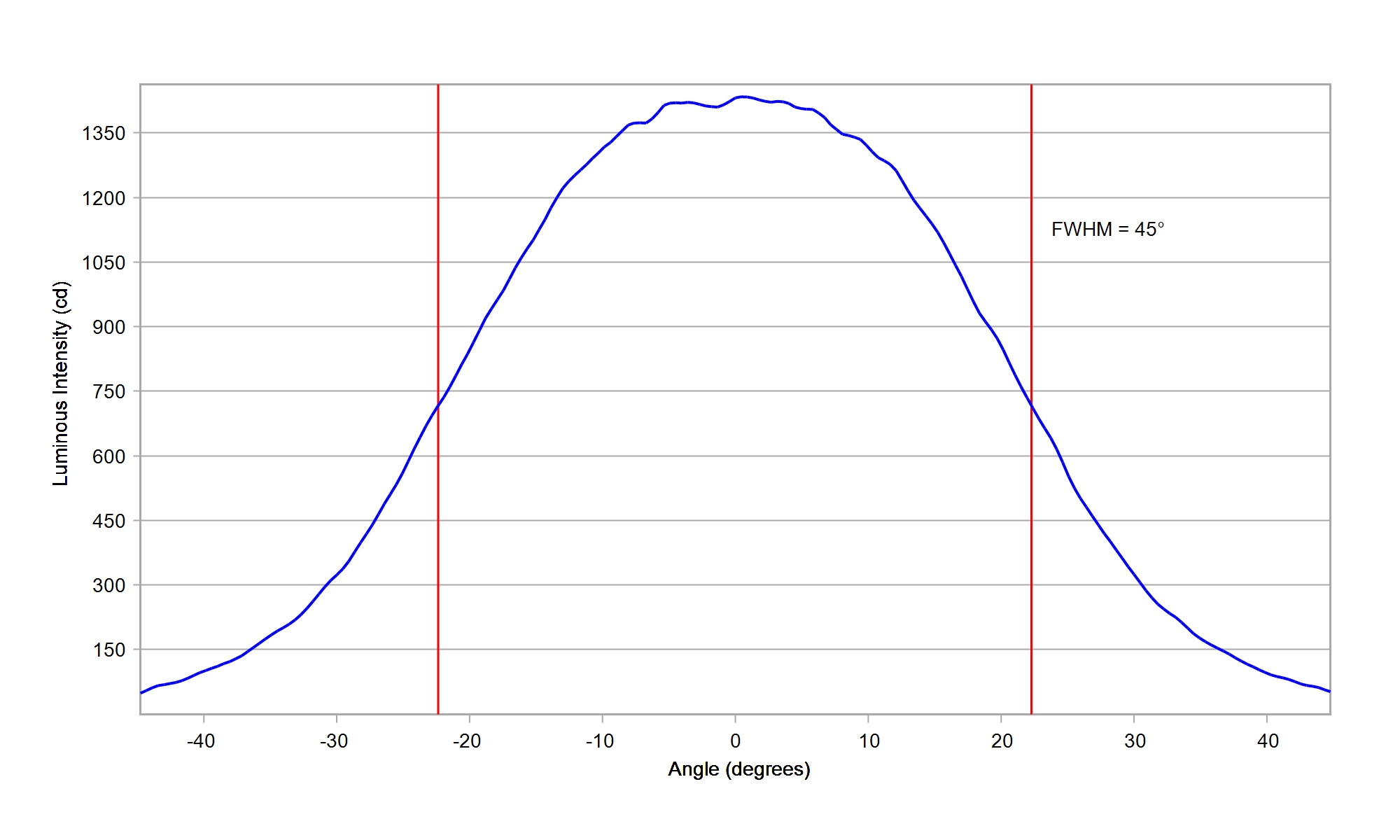

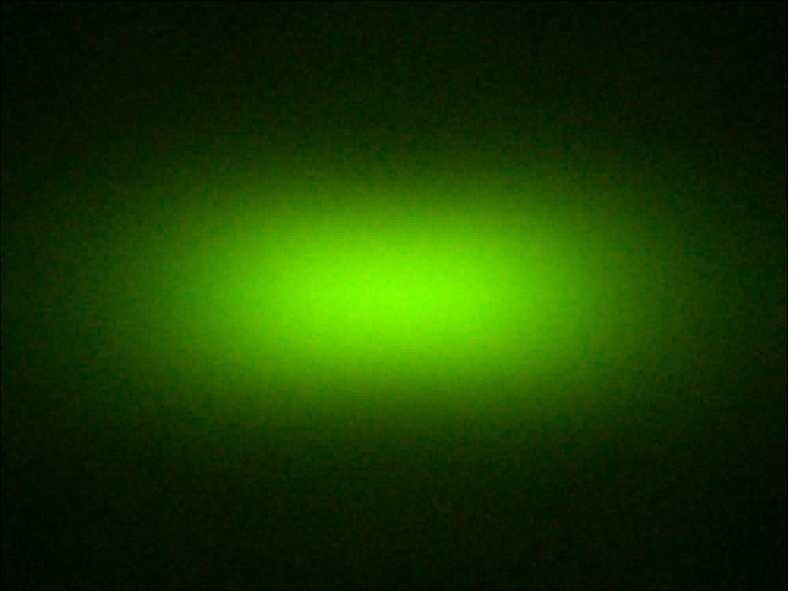

LUMILEDS LUXEON HL1Z Color PC Green

Eff:

89.0%

FWHM:

45 x 17.5°

Cd/Im:

2.5


,


Download

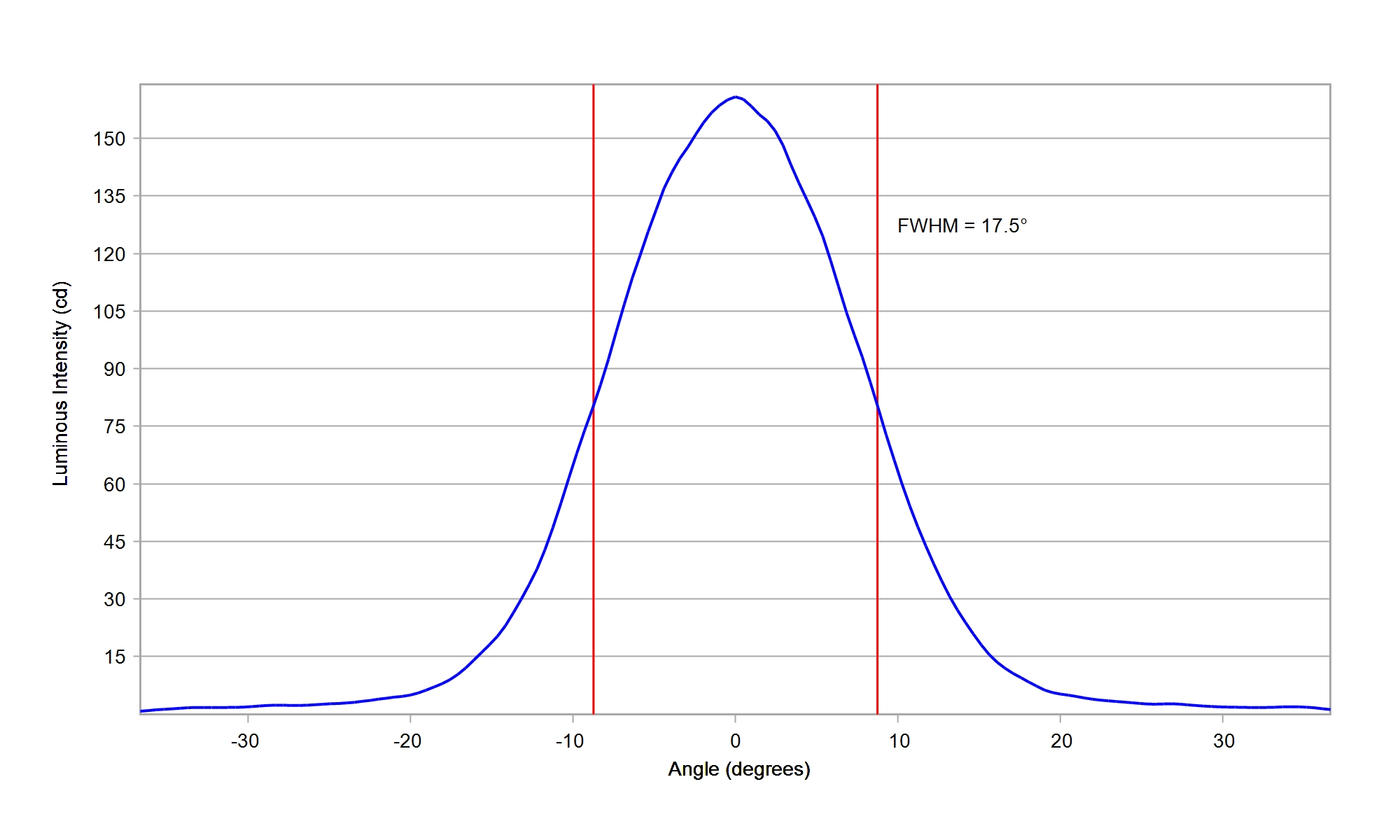

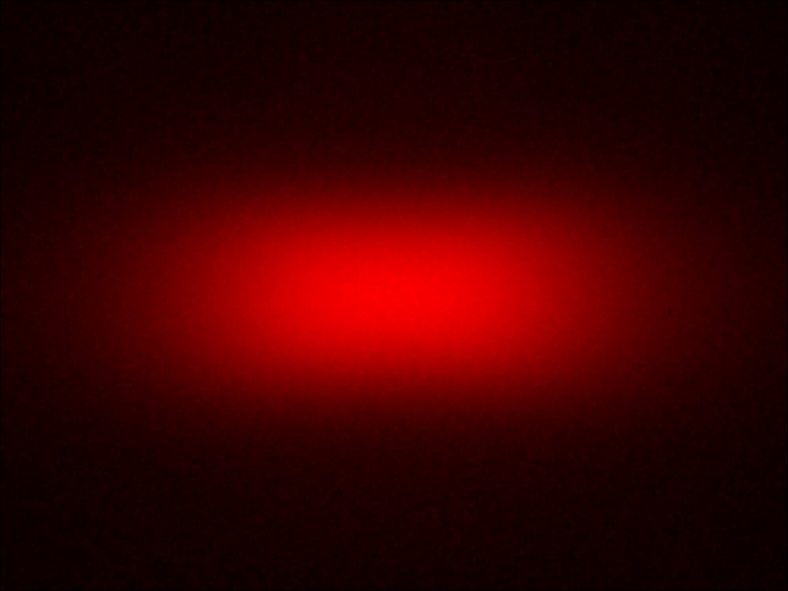

LUMILEDS LUXEON HL1Z Color PC Red

Eff:

90.0%

FWHM:

43 x 17.5°

Cd/Im:

2.7


,


Download

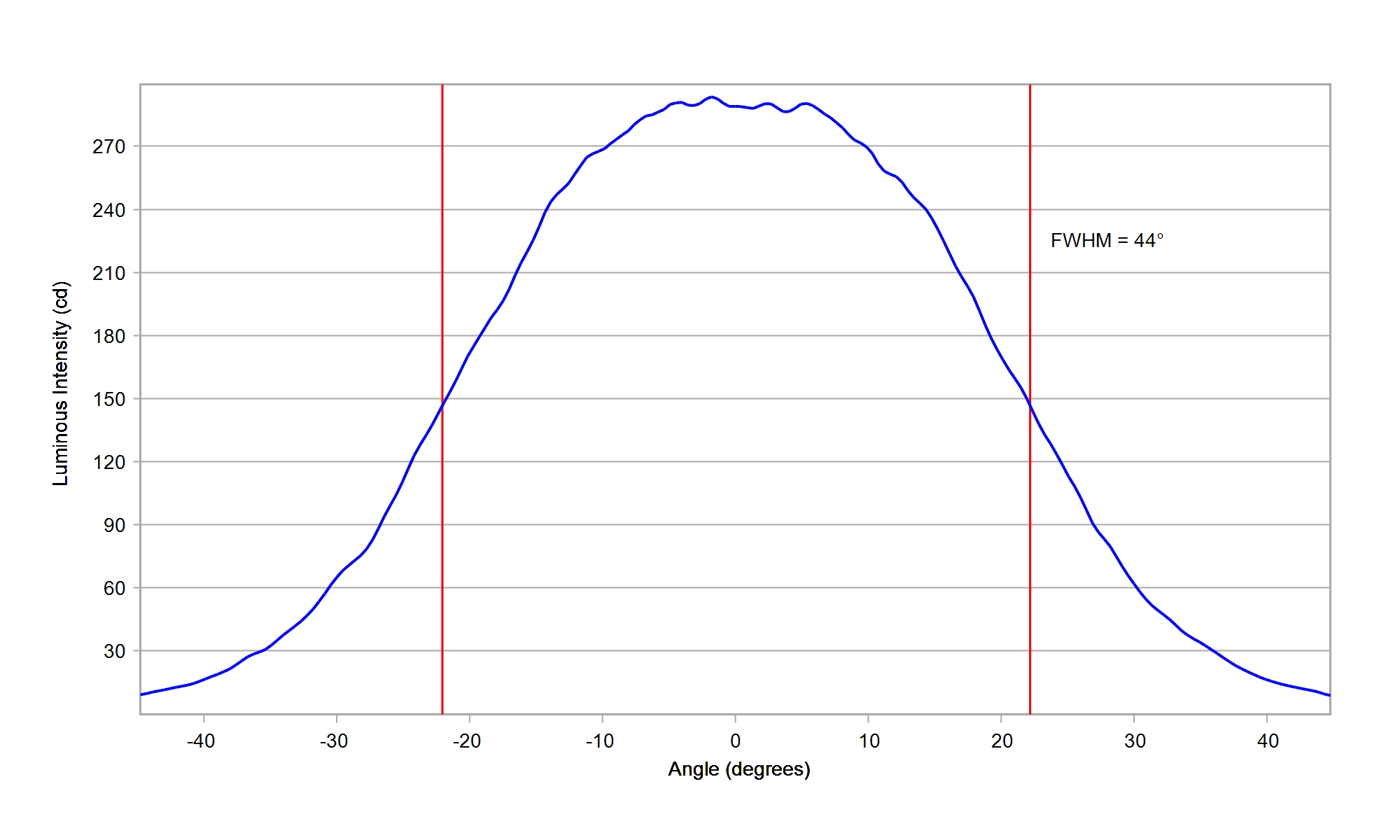

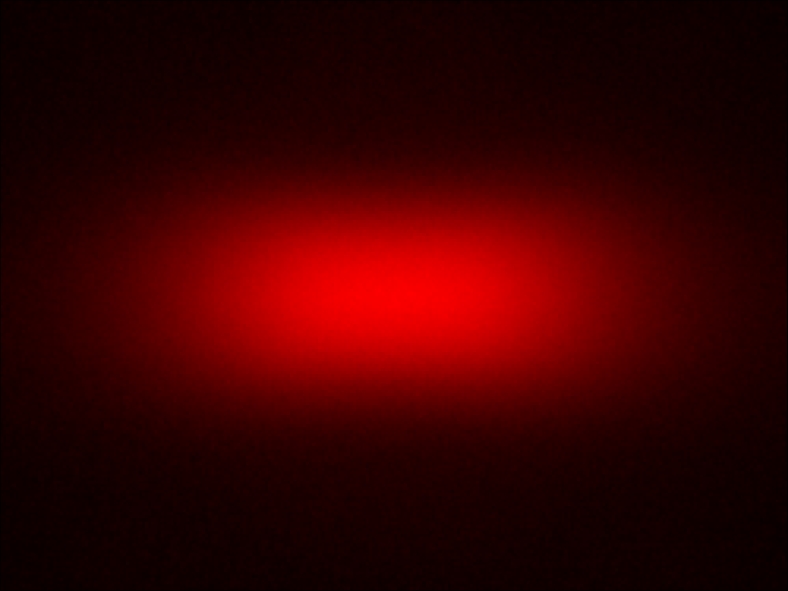

LUMILEDS LUXEON HL1Z Color PC Red Orange

Eff:

90.0%

FWHM:

44 x 17°

Cd/Im:

2.8


,


Download

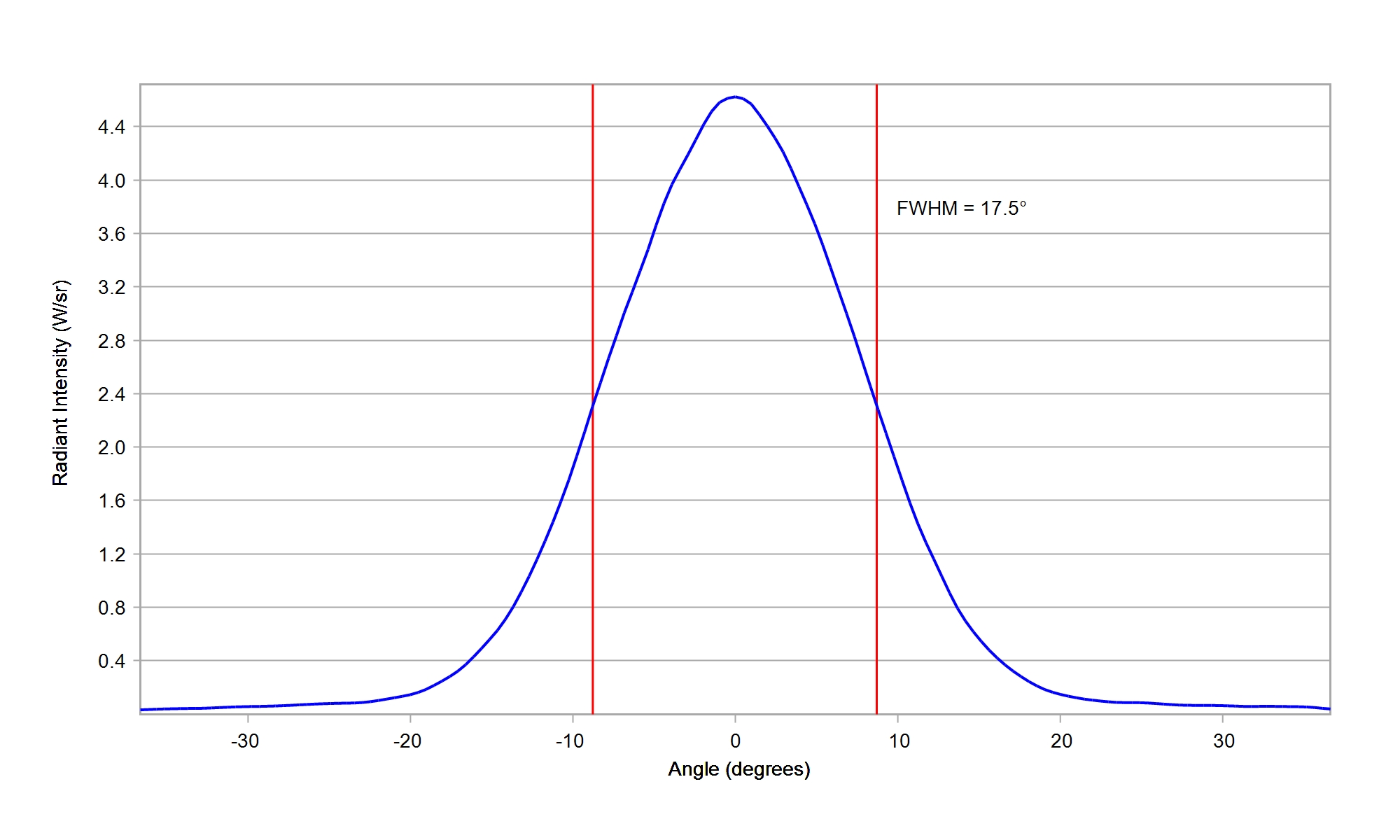

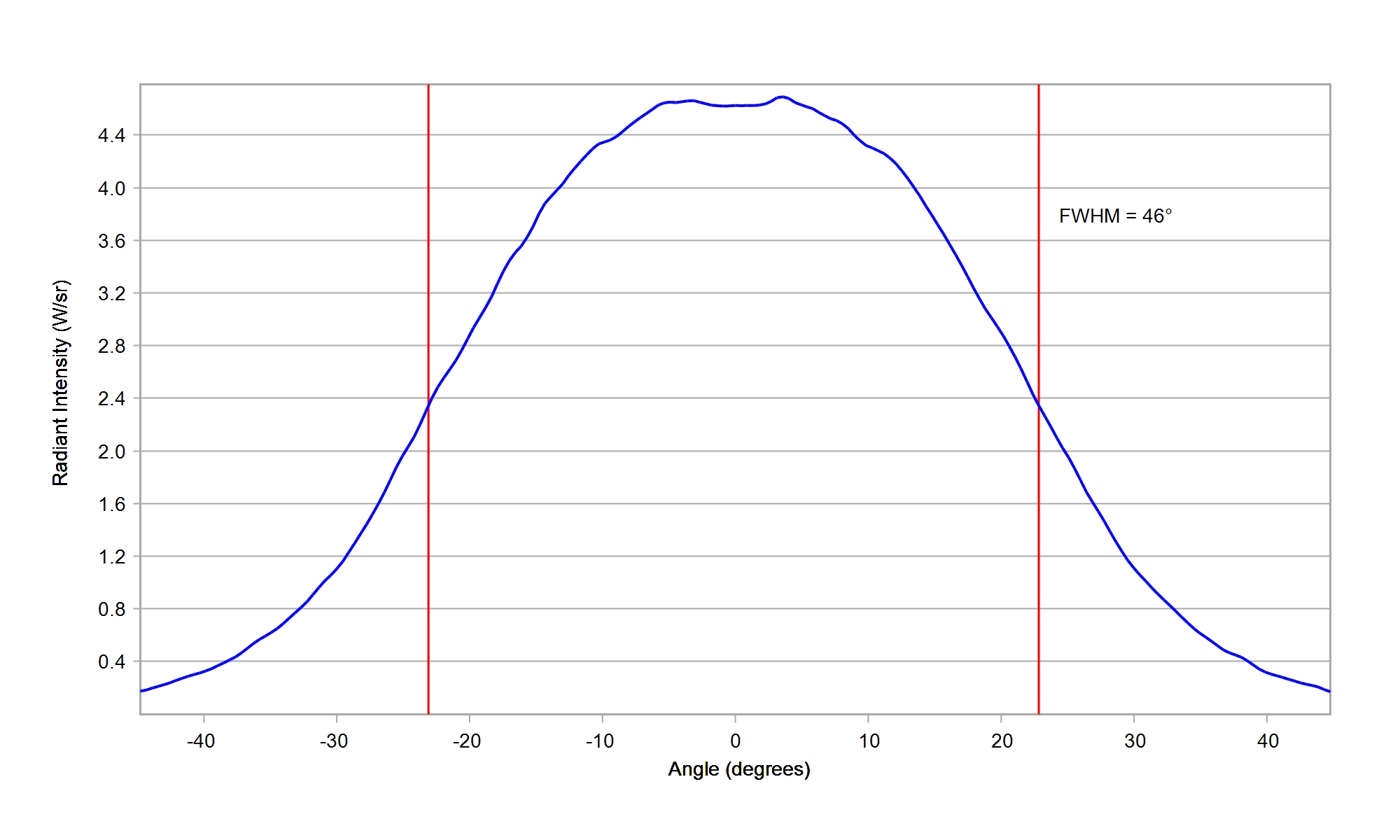

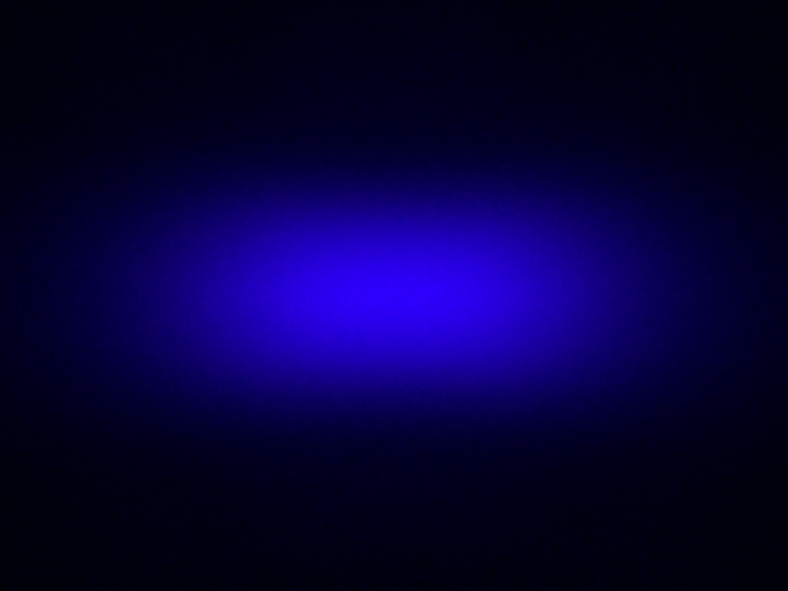

LUMILEDS LUXEON HL1Z Color Royal Blue

Eff:

89.0%

FWHM:

46 x 17.5°

Ipk/W:

2.6


,


Download

LUMILEDS LUXEON HL1Z CSP White

Eff:

90.0%

FWHM:

45 x 17.5°

Cd/Im:

3.3


,


Download

IES

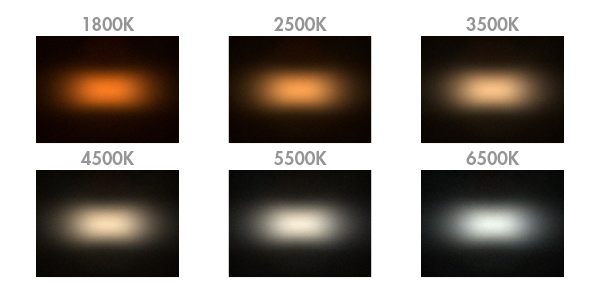

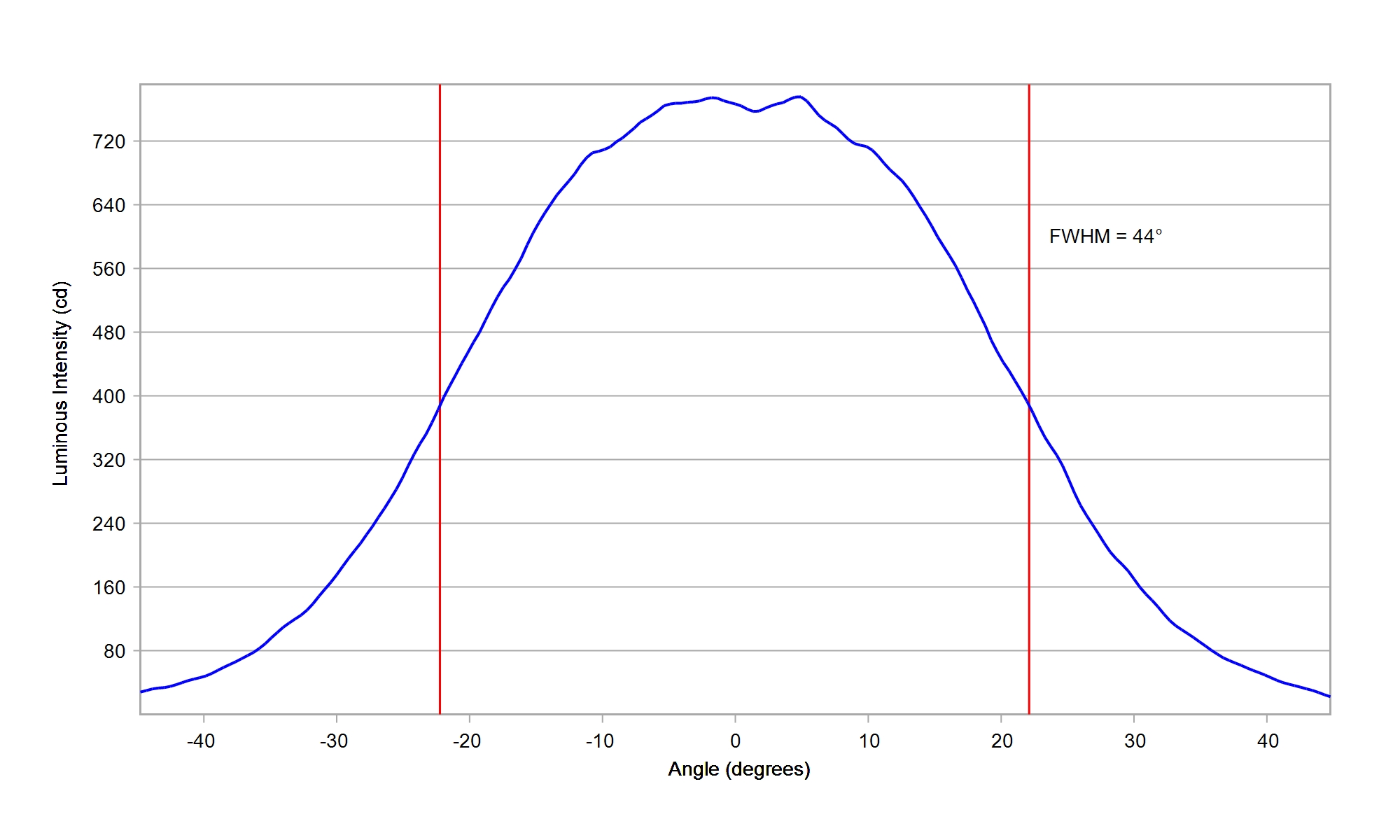

LUMILEDS LUXEON HL1Z Fusion Tunable White 1800-6500K

Eff:

90.0%

FWHM:

44 x 17.5°

Cd/Im:

2.8

optic-10510-Luxeon-HL1Z-Fusion-Colour-Spots


,


Download

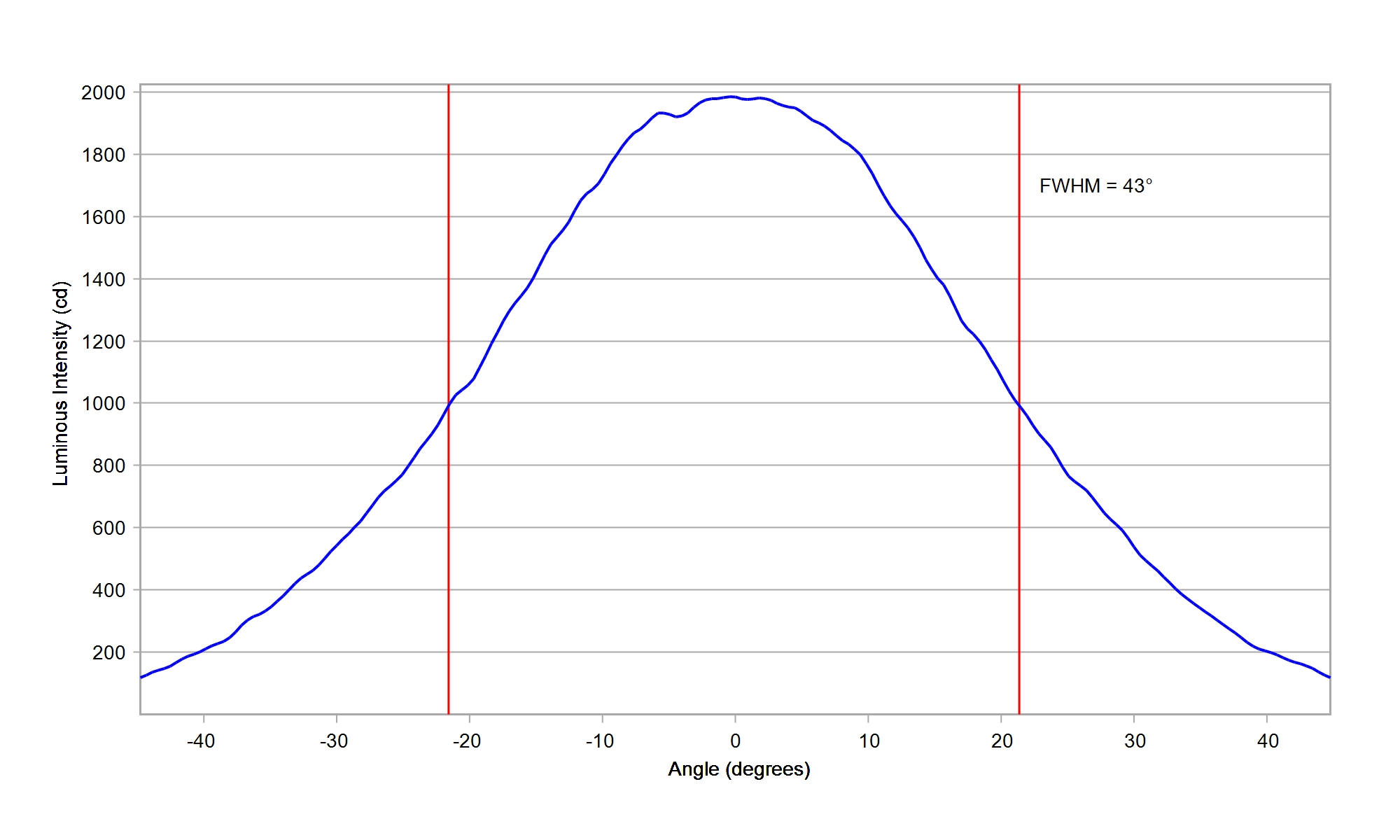

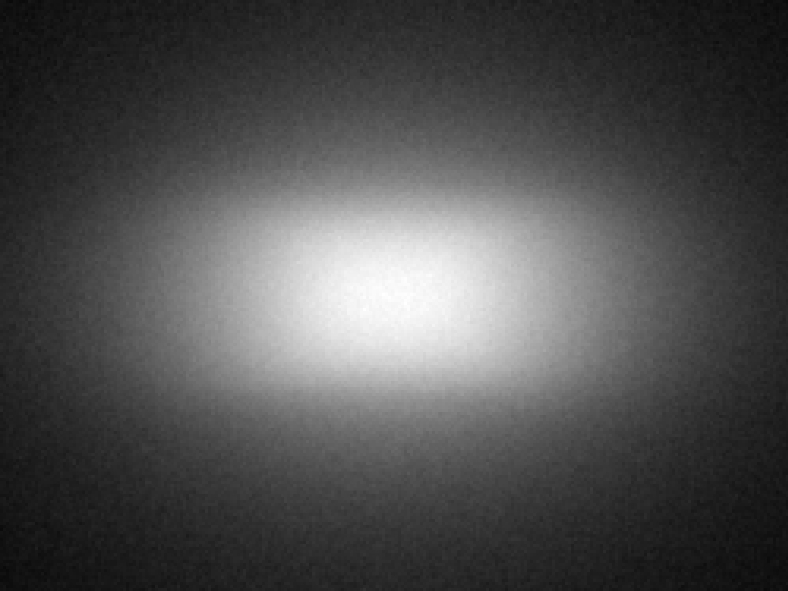

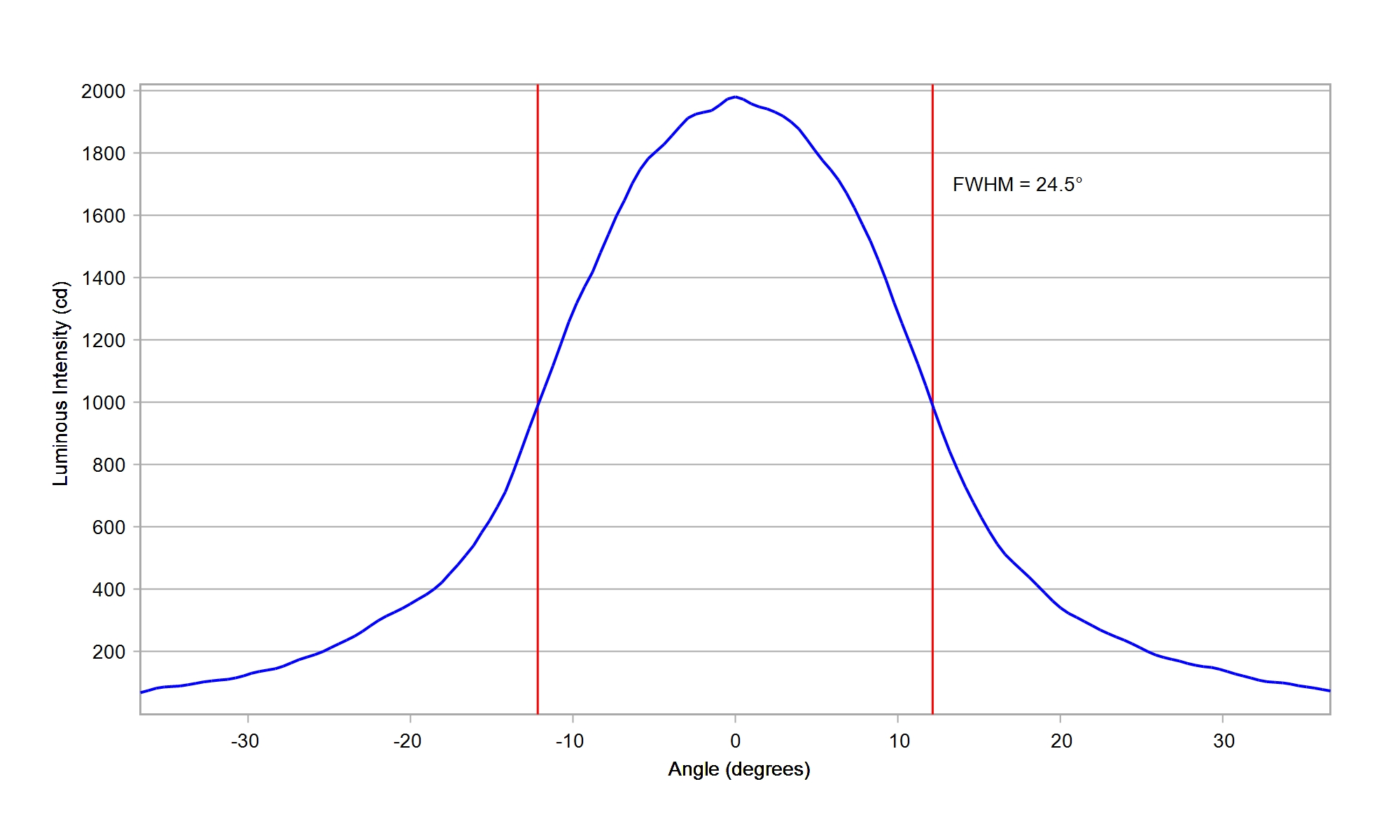

LUMILEDS LUXEON HL2X-V White

Eff:

88.0%

FWHM:

43 x 24.5°

Cd/Im:

2.0


,


Download

LUMILEDS LUXEON HL2Z White

Eff:

88.5%

FWHM:

43 x 21.5°

Cd/Im:

2.6

Carclo Optics – 10510 Lumileds Luxeon HL2Z - Spot Image

Carclo Optics – 10510 Horizontal Lumileds Luxeon HL2Z - Cross-Section

,

Carclo Optics – 10510 Vertical Lumileds Luxeon HL2Z - Cross-Section

Download

IES

LUMILEDS LUXEON IR 2720

Eff:

91.5%

FWHM:

44 x 17°

Ipk/W:

3.6


,


Download

IES

LUMILEDS LUXEON IR Compact 850nm

Eff:

91.5%

FWHM:

44 x 14.5°

Ipk/W:

3.8


,


Download

IES

LUMILEDS LUXEON IR Domed 150 Degree

Eff:

91.5%

FWHM:

42 x 17°

Ipk/W:

3.6


,


Download

IES

LUMILEDS LUXEON MZ White

Eff:

86.5%

FWHM:

43 x 34°

Cd/Im:

1.5


,

Download

IES

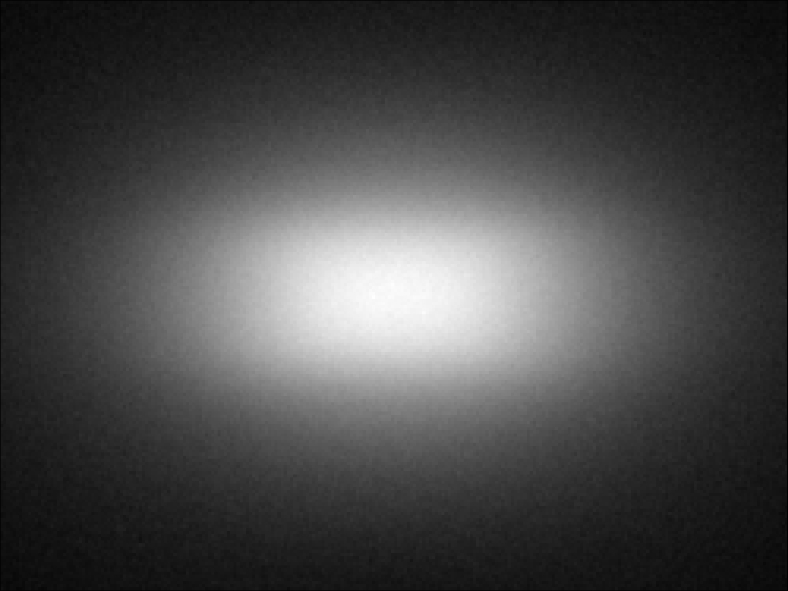

LUMILEDS LUXEON Rebel ES White

Eff:

88.0%

FWHM:

43 x 22°

Cd/Im:

2.2


,


Download

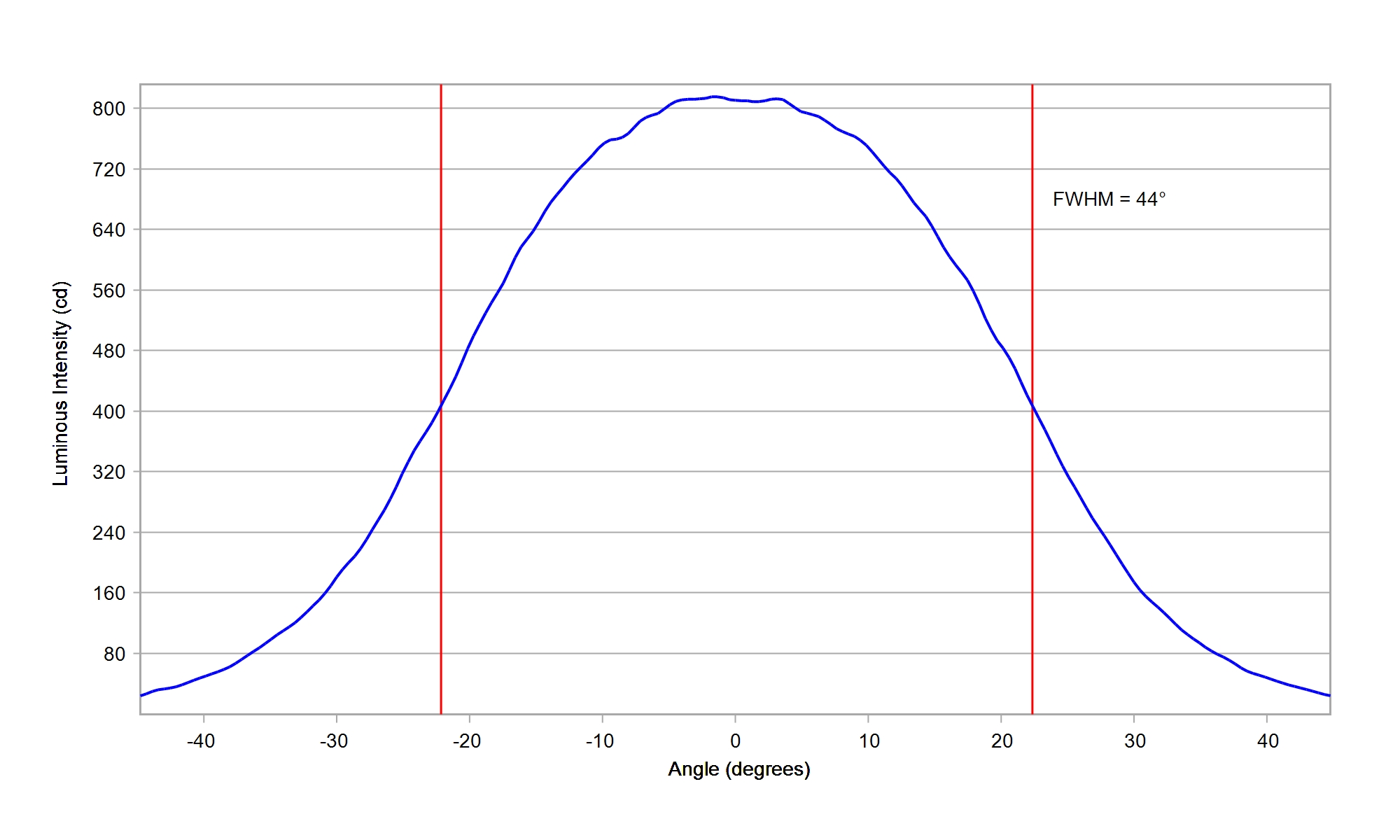

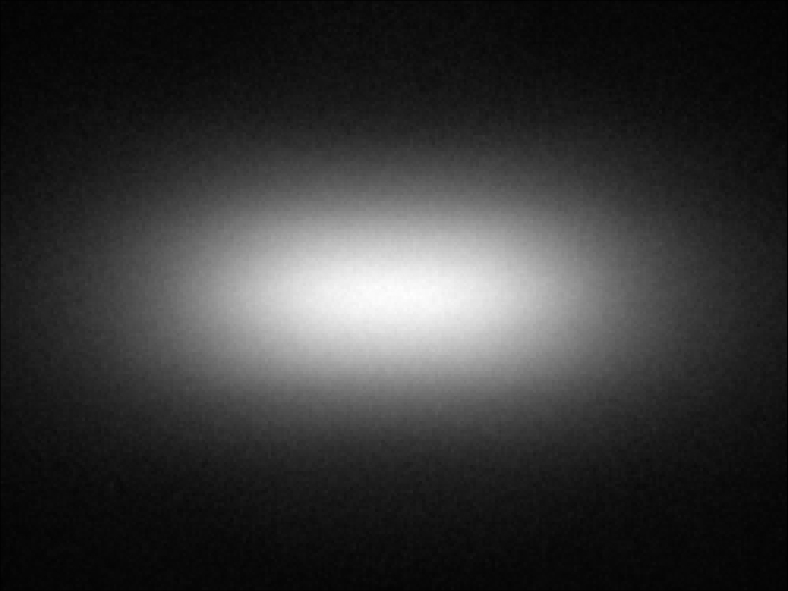

LUMILEDS LUXEON Rebel Plus White

Eff:

89.5%

FWHM:

44 x 17.5°

Cd/Im:

3.0


,


Download

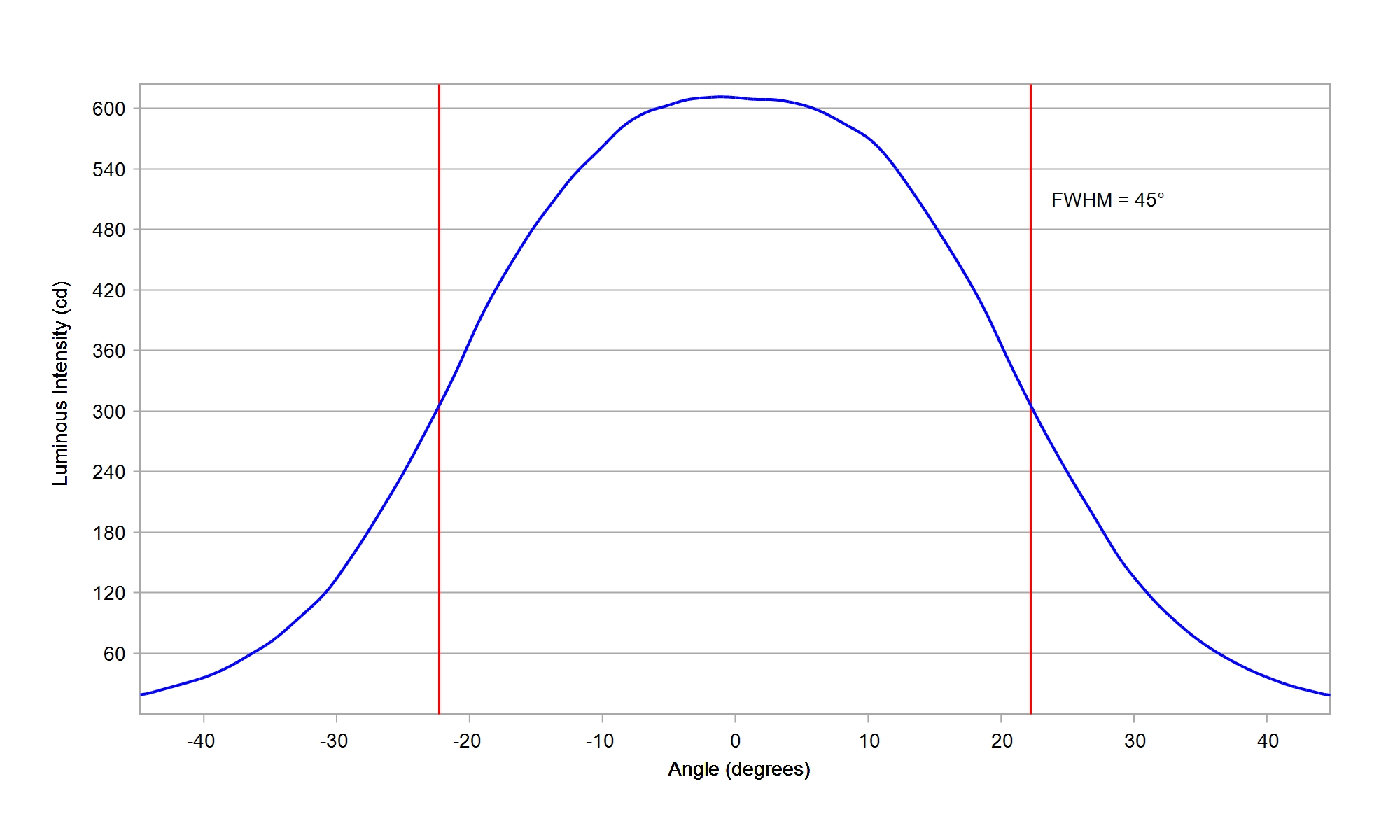

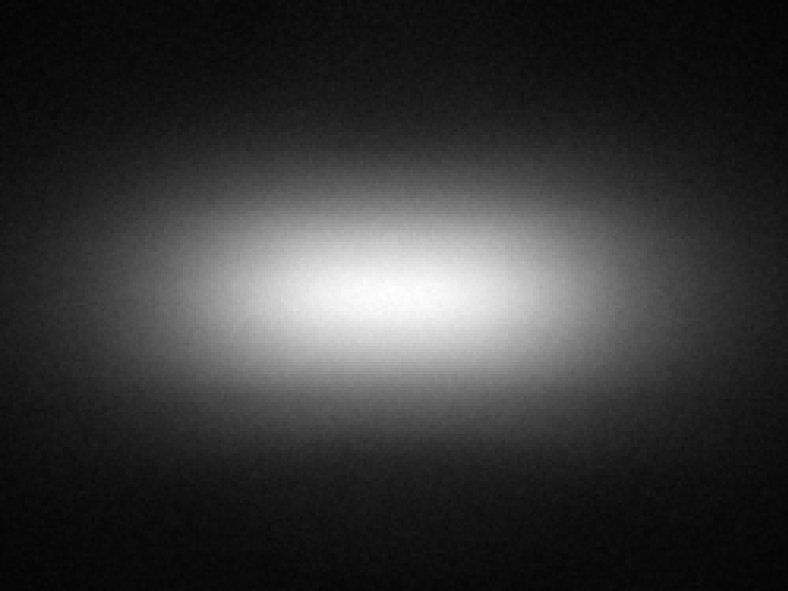

LUMILEDS LUXEON Rebel White

Eff:

89.5%

FWHM:

45 x 17.5°

Cd/Im:

3.1


,


Download

LUMILEDS LUXEON Rubix Blue

Eff:

91.0%

FWHM:

47 x 12°

Cd/Im:

5.1


,


Download

IES

LUMILEDS LUXEON Rubix Green

Eff:

91.0%

FWHM:

47 x 12°

Cd/Im:

4.9


,


Download

IES

LUMILEDS LUXEON Rubix Red

Eff:

92.0%

FWHM:

46 x 11.5°

Cd/Im:

5.5


,


Download

IES

LUMILEDS LUXEON Rubix Royal Blue

Eff:

90.5%

FWHM:

48 x 11.5°

Cd/Im:

5.1


,


Download

IES

LUMILEDS LUXEON Rubix White

Eff:

91.0%

FWHM:

46 x 12.5°

Cd/Im:

4.7


,


Download

IES

LUMILEDS LUXEON TX White

Eff:

83.0%

FWHM:

49.6 x 26.4°

Cd/Im:

1.5

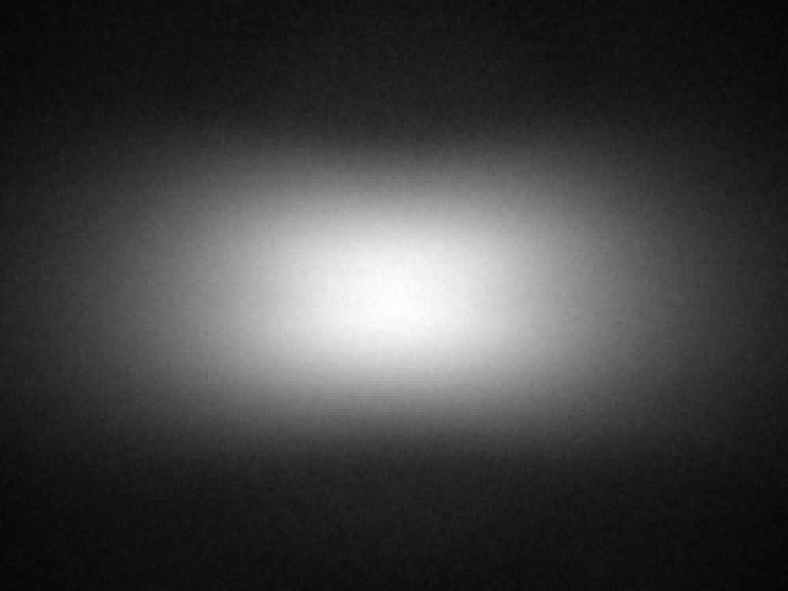

carclo optics - simulated spot image

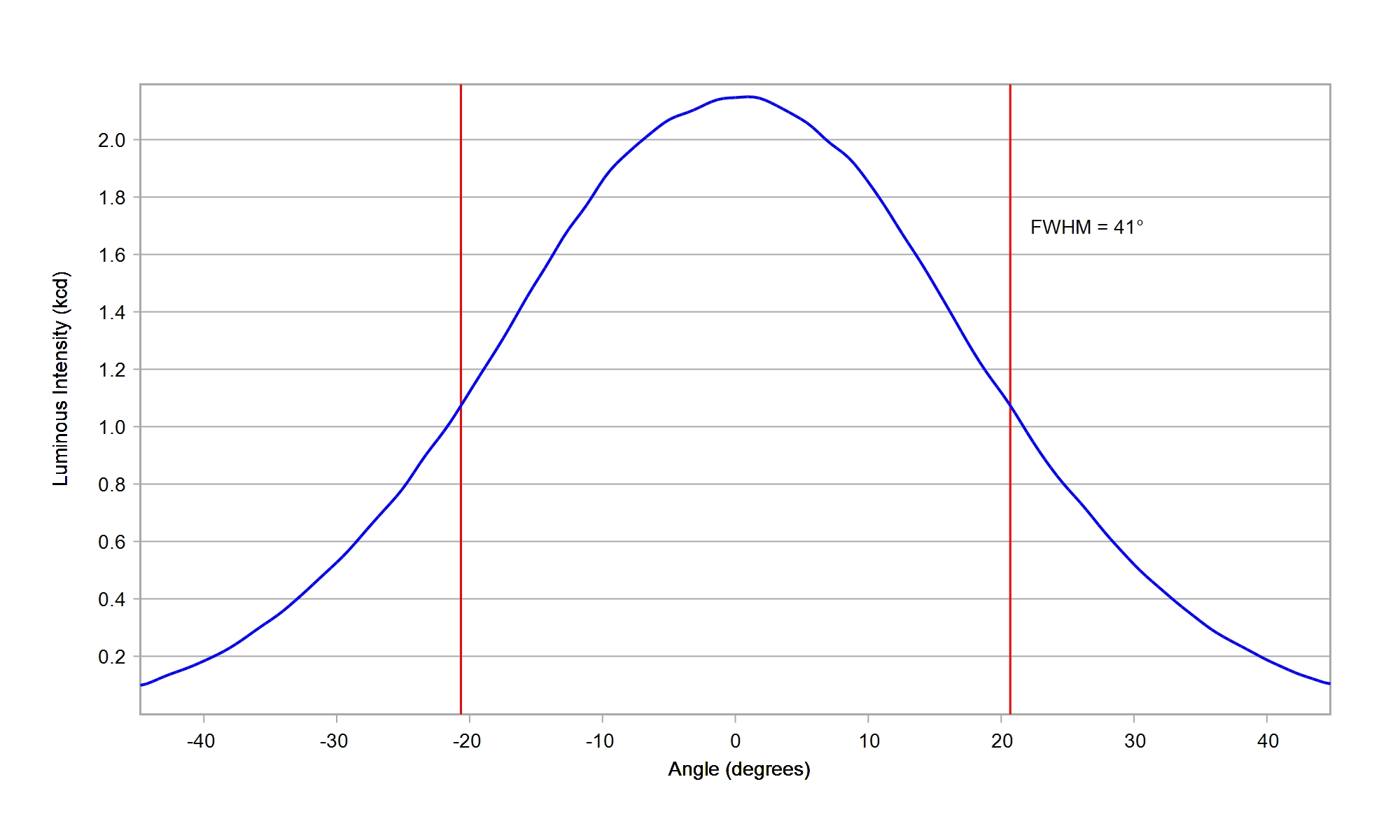

carclo optics - simulated horizontal cross section

,

carclo optics - simulated vertical cross section

Download

ies

LUMILEDS LUXEON Z White

Eff:

90.5%

FWHM:

47 x 12°

Cd/Im:

5.0


,

Download

IES

Luminus Devices MP-3030-11F2 White

Eff:

89.5%

FWHM:

45 x 18°

Cd/Im:

2.7


,


Download

Luminus Devices SST 10-B-B130 Blue

Eff:

89.0%

FWHM:

46 x 16.5°

Cd/Im:

3.5


,


Download

IES

Luminus Devices SST 10-B-B90 Blue

Eff:

88.0%

FWHM:

46 x 19°

Cd/Im:

3.0


,


Download

IES

Luminus Devices SST 10-DR-B130 Deep Red

Eff:

91.0%

FWHM:

43 x 18°

Cd/Im:

3.6


,


Download

IES

Luminus Devices SST 10-DR-B90 Deep Red

Eff:

89.5%

FWHM:

44 x 19.5°

Cd/Im:

3.1


,


Download

IES

Luminus Devices SST 10-G-B130 Green

Eff:

90.5%

FWHM:

45 x 17°

Cd/Im:

3.7


,


Download

IES

Luminus Devices SST 10-G-B90 Green

Eff:

89.0%

FWHM:

44 x 19.5°

Cd/Im:

3.0


,


Download

IES

Luminus Devices SST 10-IR-B130 940nm

Eff:

92.0%

FWHM:

41 x 19.5°

Ipk/W:

3.5


,


Download

IES

Luminus Devices SST 10-IR-B90 940nm

Eff:

91.0%

FWHM:

42 x 21.5°

Ipk/W:

3.0


,


Download

IES

Luminus Devices SST 10-IRD-B130 810nm

Eff:

92.5%

FWHM:

42 x 17.5°

Ipk/W:

3.6


,


Download

IES

Luminus Devices SST 10-IRD-B90 810nm

Eff:

91.0%

FWHM:

43 x 20°

Ipk/W:

3.1


,


Download

IES

Luminus Devices SST 20-WxH White Hi CRI

Eff:

89.5%

FWHM:

44 x 19°

Cd/Im:

3.0


,


Download

IES

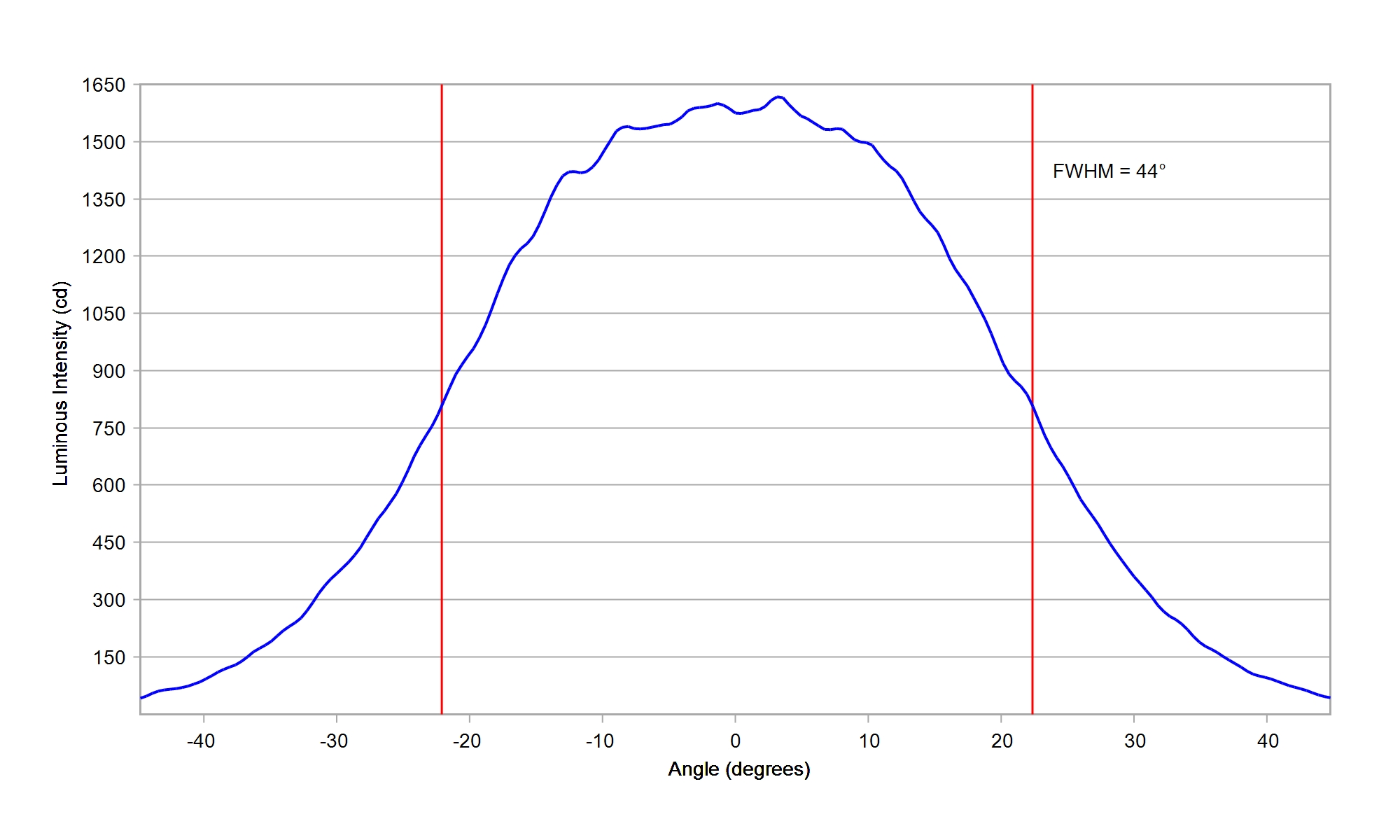

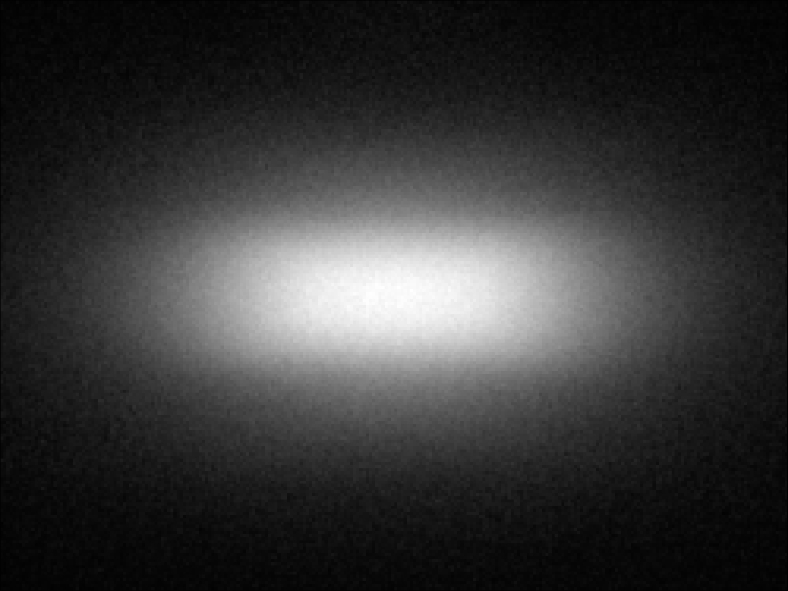

Luminus Devices SST-12-WS Gen2 White

Eff:

90.0%

FWHM:

44 x 17°

Cd/Im:

3.1


,


Download

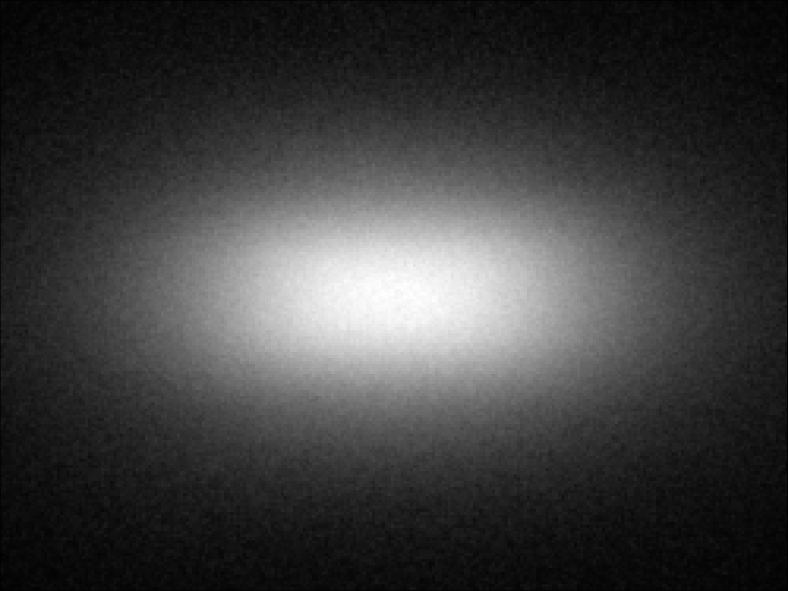

Luminus Devices SST-20-W Gen2 White

Eff:

89.5%

FWHM:

43 x 20°

Cd/Im:

2.6


,


Download

Nichia 757 White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

IES

Nichia 757G White

Eff:

88.0%

FWHM:

42 x 24.5°

Cd/Im:

2.5


,


Download

IES

Nichia NCSW CSP E17A White

Eff:

89.0%

FWHM:

43 x 20.5°

Cd/Im:

2.8


,


Download

IES

Nichia NF2W 385AR-V2 White

Eff:

88.5%

FWHM:

43 x 24°

Cd/Im:

2.4


,


Download

IES

Nichia NVSL 219B White

Eff:

88.5%

FWHM:

44 x 18.5°

Cd/Im:

3.2


,


Download

IES

Nichia NVSW 219C White

Eff:

87.5%

FWHM:

42 x 24.5°

Cd/Im:

2.5


,


Download

IES

Nichia NVSW 219F White

Eff:

87.5%

FWHM:

43 x 24°

Cd/Im:

2.3

Carclo Optics – 10510 Nichia NVSW 219F White - Spot Image

Carclo Optics – 10510 Horizontal Nichia NVSW 219F White - Cross-Section

,

Carclo Optics – 10510 Vertical Nichia NVSW 219F White - Cross-Section

Download

IES

Nichia NVSW CSP E21A White

Eff:

88.0%

FWHM:

43 x 22.5°

Cd/Im:

2.7


,


Download

IES

Nichia Top Emitting NCSL 119-H3 White

Eff:

81.4%

FWHM:

44.7 x 21.7°

Cd/Im:

2.3

Spot Image

Cross Section

Download

ies

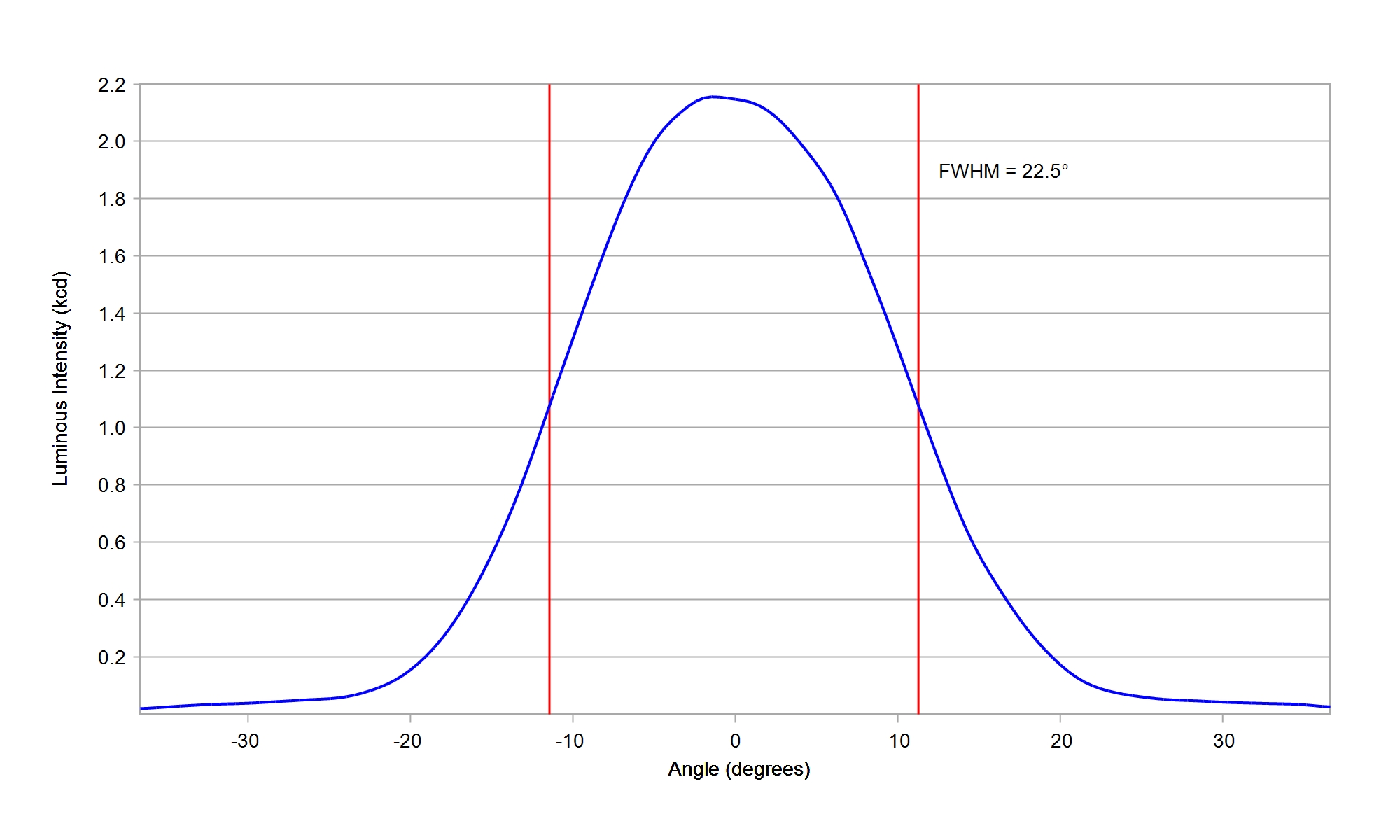

Osram LED ENGIN LuxiGen LZ1 00CW02 White

Eff:

89.0%

FWHM:

41 x 22.5°

Cd/Im:

2.4


,


Download

Osram LED ENGIN LuxiGen LZ1 00R702 IR940nm

Eff:

91.0%

FWHM:

40 x 24.5°

Ipk/W:

2.8


,


Download

IES

Osram DURIS E 2835 Gen2

Eff:

89.0%

FWHM:

45 x 18.5°

Cd/Im:

2.9



,


Download

IES

Osram DURIS E 2835 White

Eff:

89.0%

FWHM:

45 x 19.5°

Cd/Im:

2.7


,


Download

IES

Osram DURIS E2 White

Eff:

90.5%

FWHM:

45 x 13.5°

Cd/Im:

4.1


,


Download

IES

Osram DURIS E3 White

Eff:

90.0%

FWHM:

47 x 14.5°

Cd/Im:

3.9


,


Download

IES

Osram DURIS S2 White

Eff:

88.5%

FWHM:

45 x 16.5°

Cd/Im:

3.0


,


Download

IES

Osram DURIS S5 Deep Blue

Eff:

83.5%

FWHM:

55.0 x 23°

Cd/Im:

1.7

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Osram DURIS S5 Green

Eff:

89.0%

FWHM:

45 x 19.5°

Cd/Im:

2.8


,


Download

IES

Osram DURIS S5 Red

Eff:

90.0%

FWHM:

44 x 18°

Cd/Im:

3.3


,


Download

IES

Osram DURIS S5 White

Eff:

89.0%

FWHM:

44 x 22°

Cd/Im:

2.8


,


Download

IES

Osram OSCONIQ C 2424 White

Eff:

89.5%

FWHM:

44 x 19°

Cd/Im:

3.1


,


Download

IES

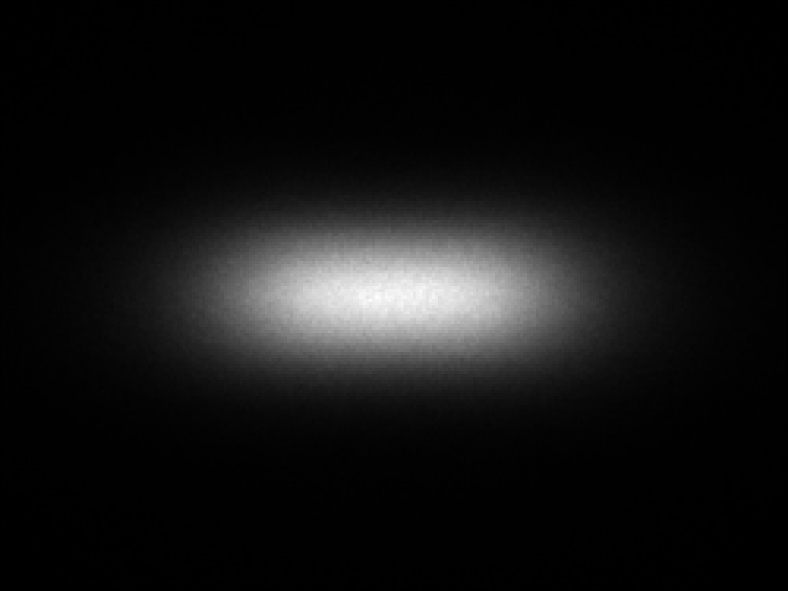

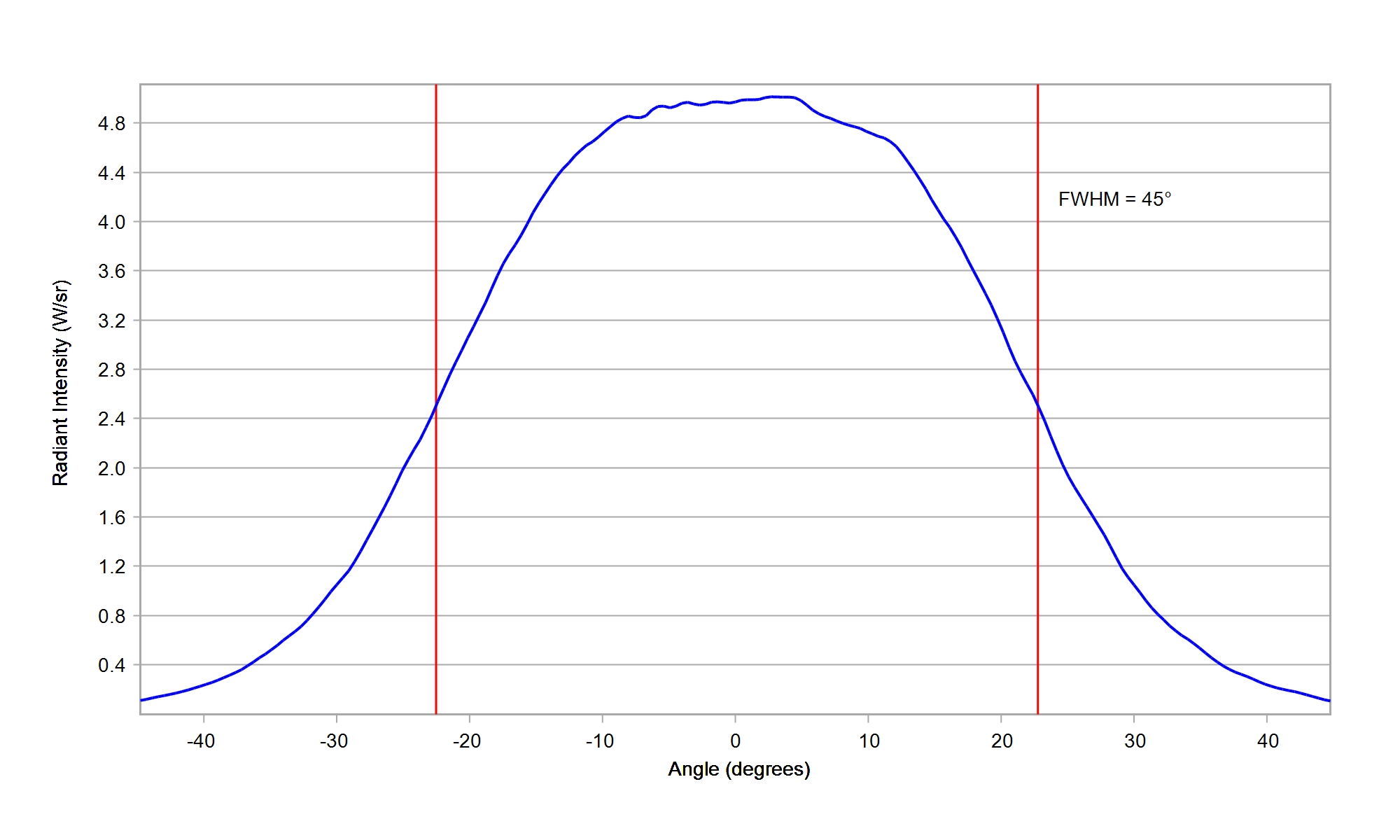

Osram OSLON Black SFH 4716AS IR

Eff:

90.5%

FWHM:

45 x 15.5°

Ipk/W:

3.7


,


Download

Osram OSLON Boost HM KW CELMM1.TG

Eff:

91.0%

FWHM:

48 x 9.4°

Cd/Im:

5.9


,


Download

IES

Osram OSLON Pure 1010 CSP GG VJLPE1.F3 Green

Eff:

90.0%

FWHM:

42 x 18°

Cd/Im:

2.9


,


Download

IES

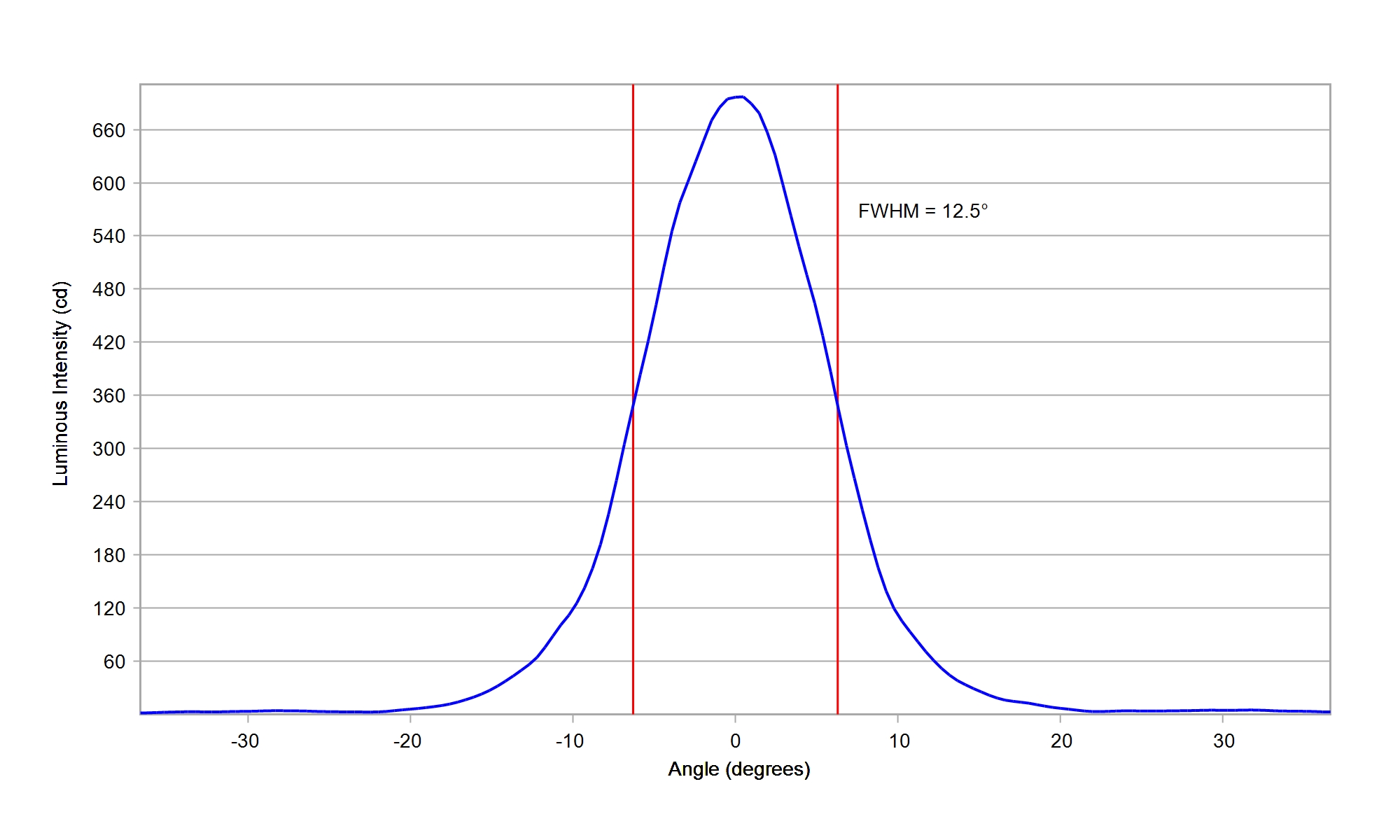

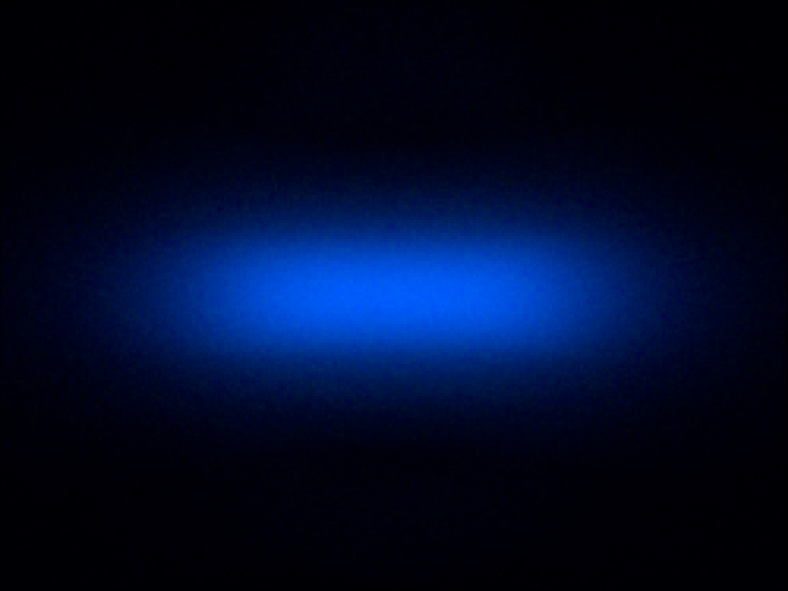

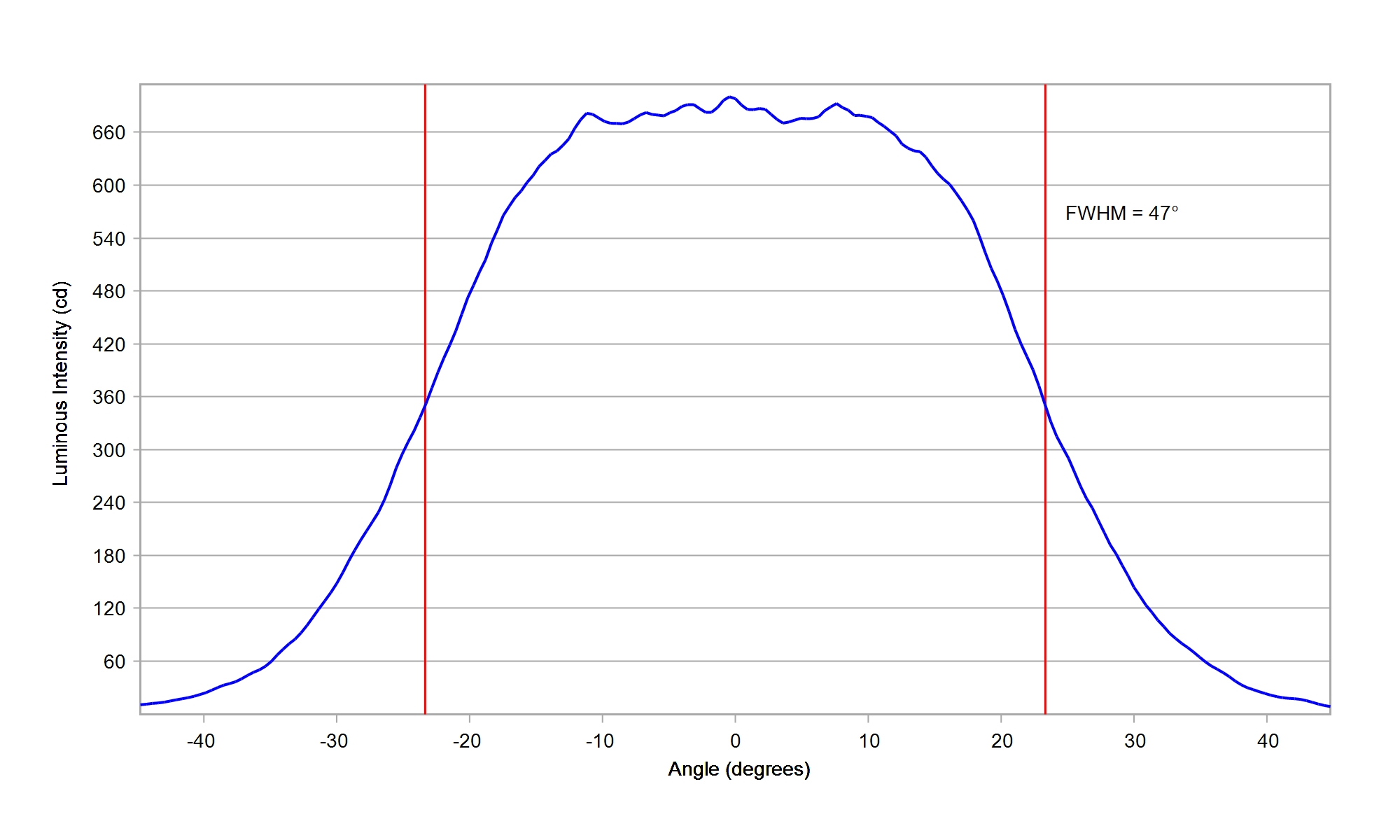

Osram OSLON Pure 1414 GB VJLPL1.F3 Blue

Eff:

91.0%

FWHM:

47 x 12.5°

Cd/Im:

5.2


,


Download

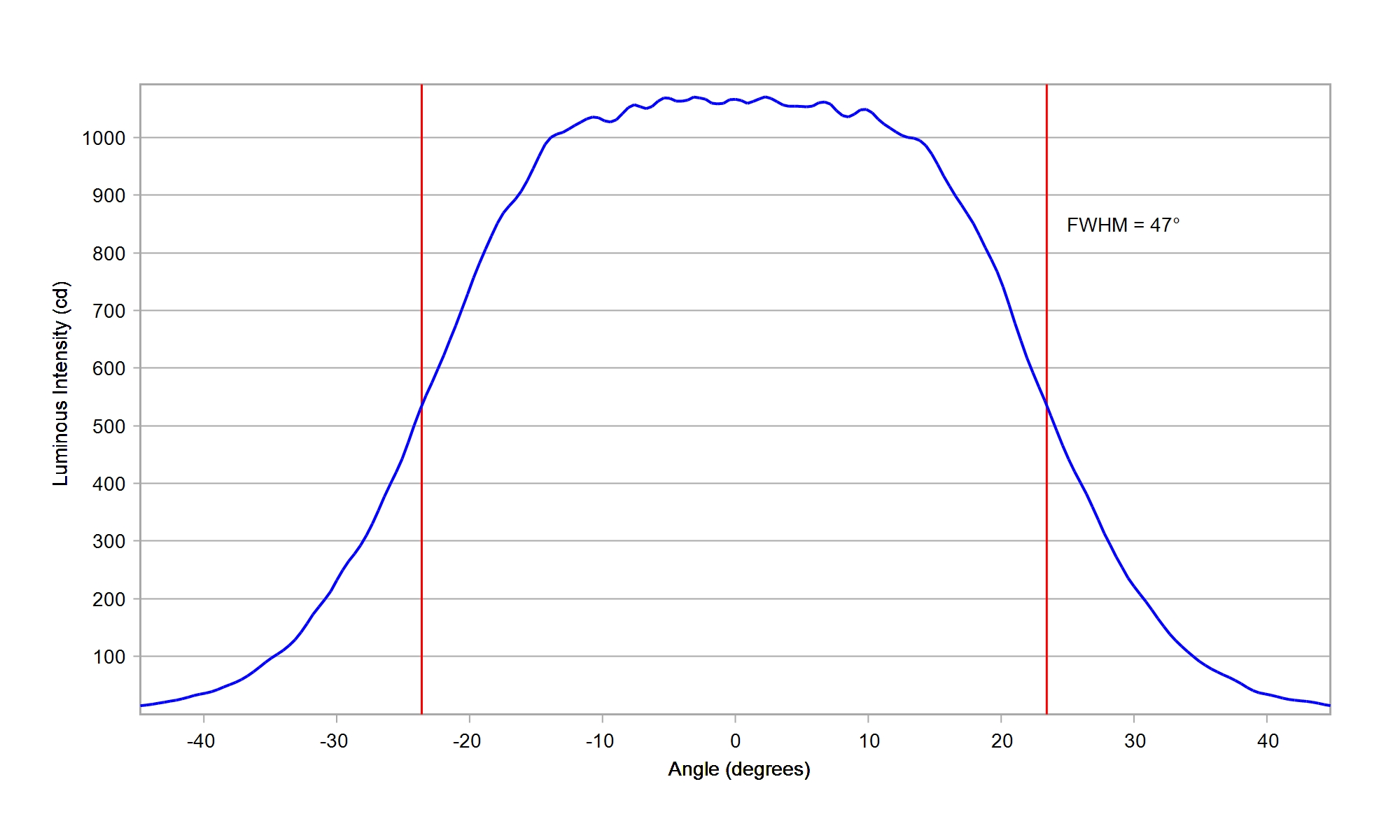

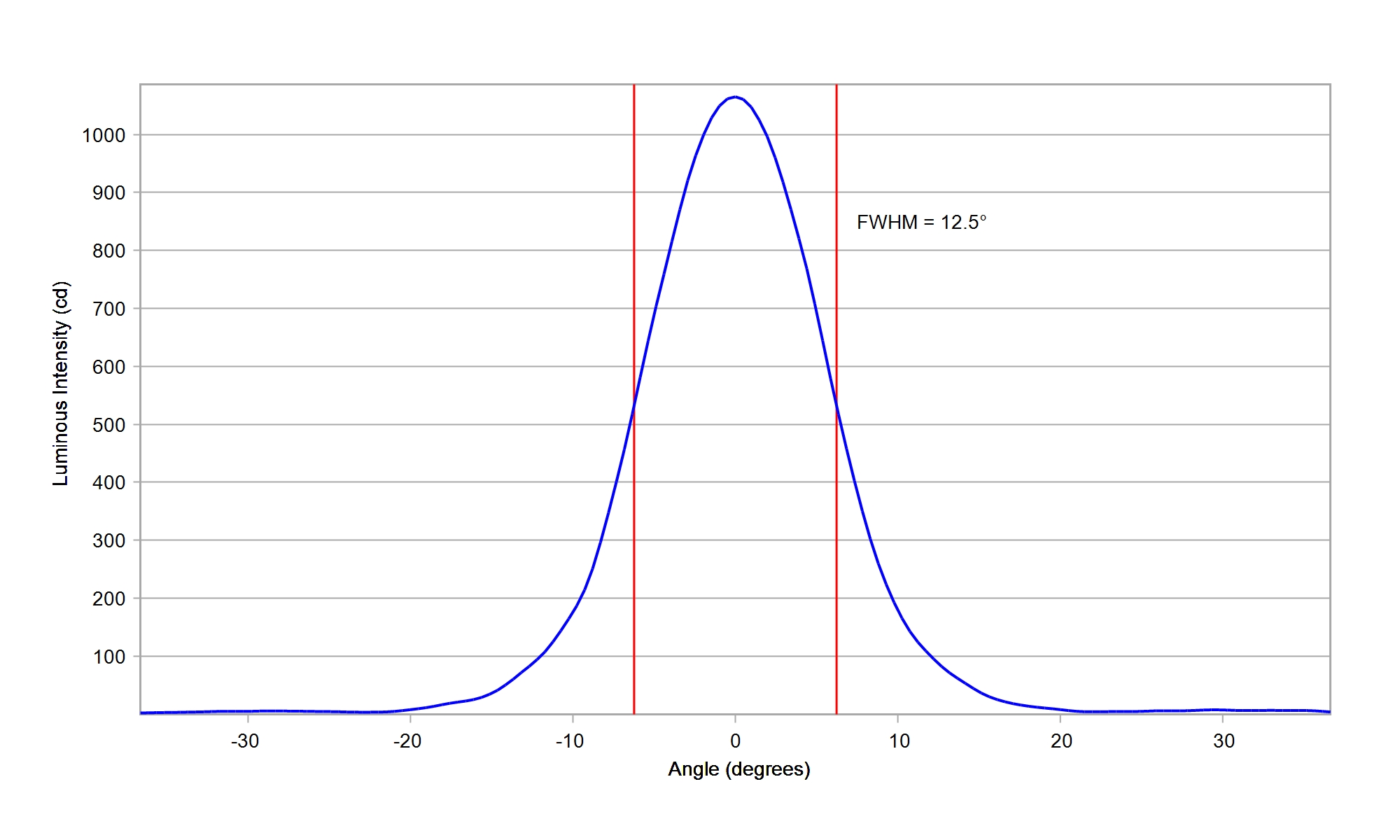

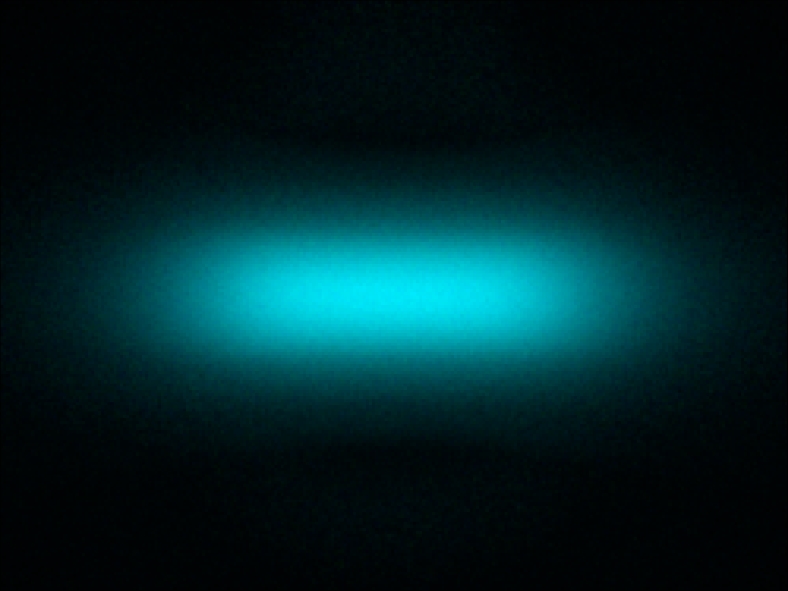

Osram OSLON Pure 1414 GC VJLPL1.13 Cyan

Eff:

91.0%

FWHM:

47 x 12.5°

Cd/Im:

4.8


,


Download

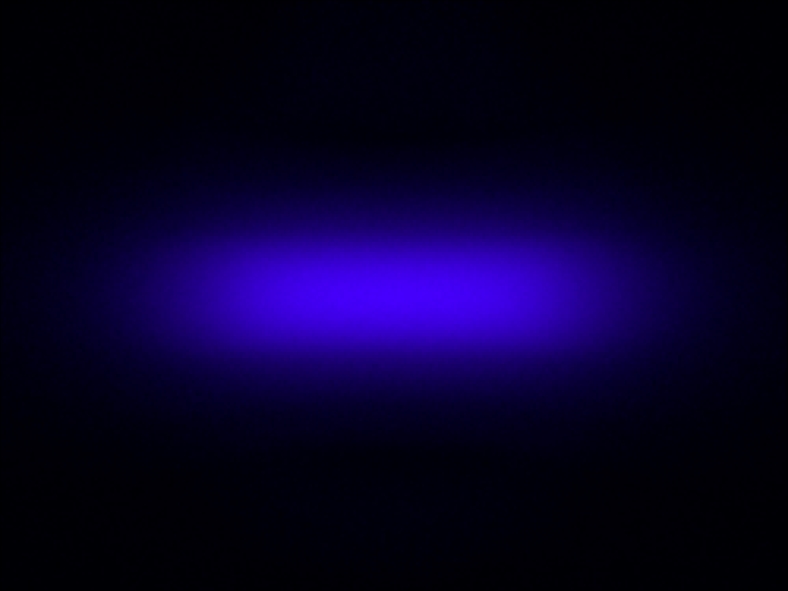

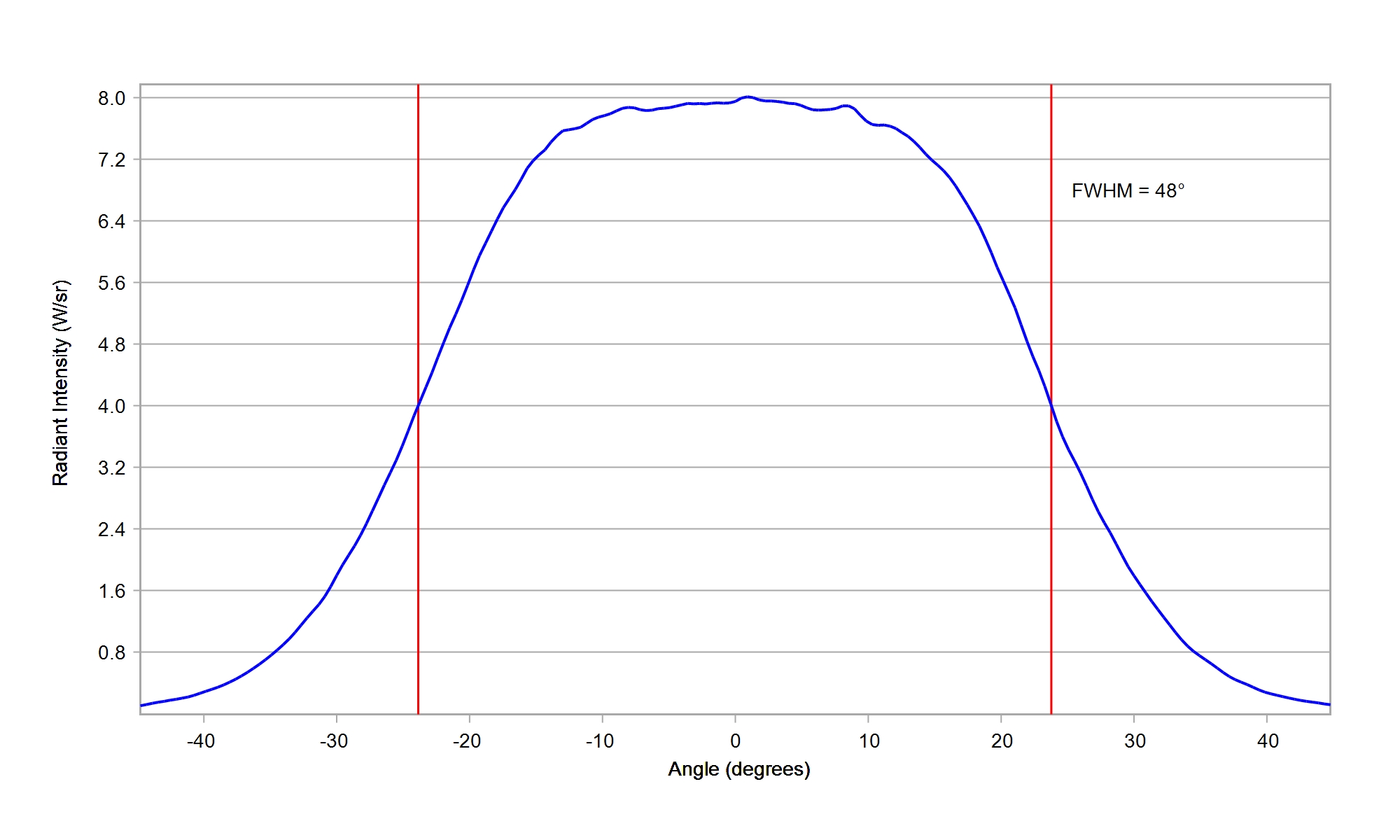

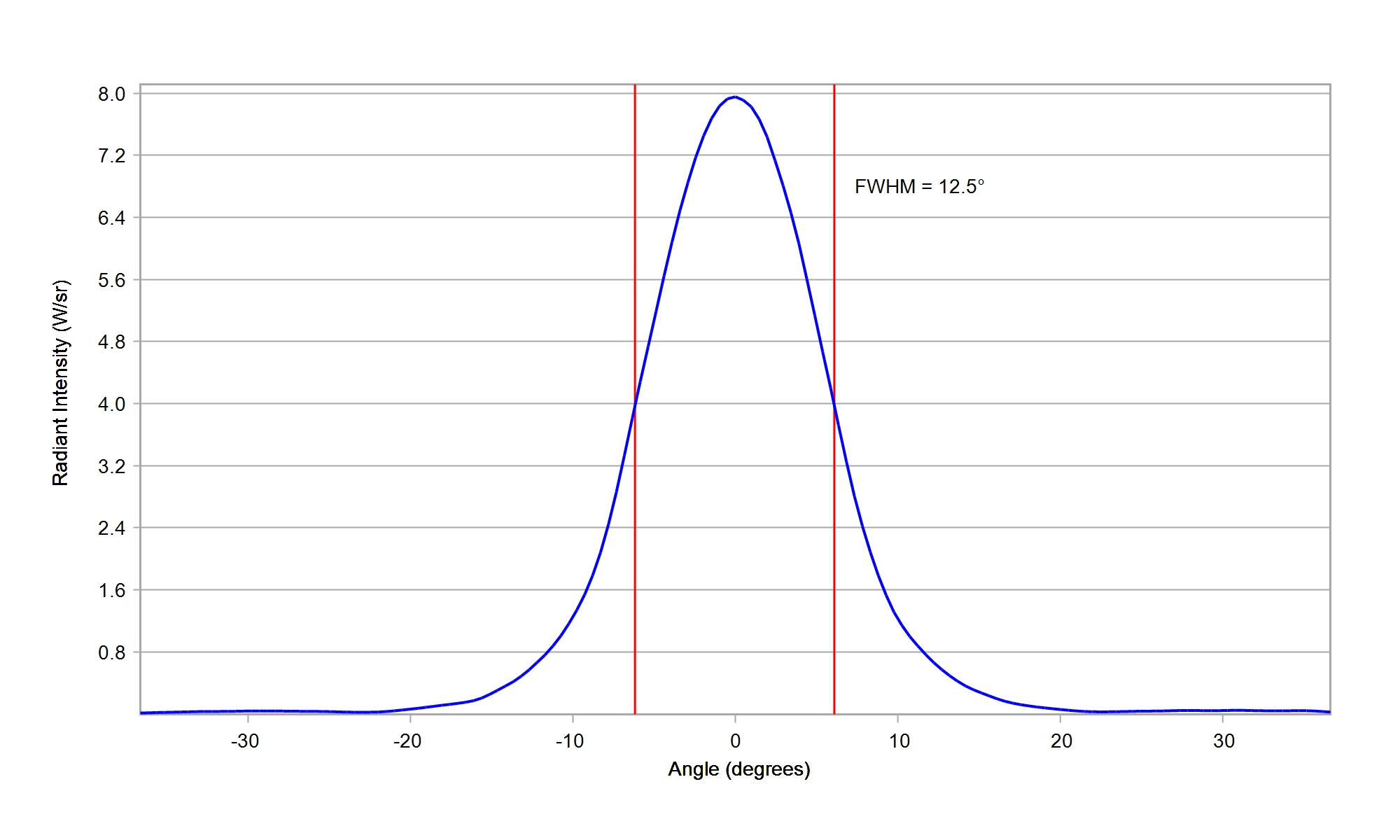

Osram OSLON Pure 1414 GD VJLPL1.14 Deep Blue

Eff:

90.0%

FWHM:

48 x 12.5°

Ipk/W:

4.6


,


Download

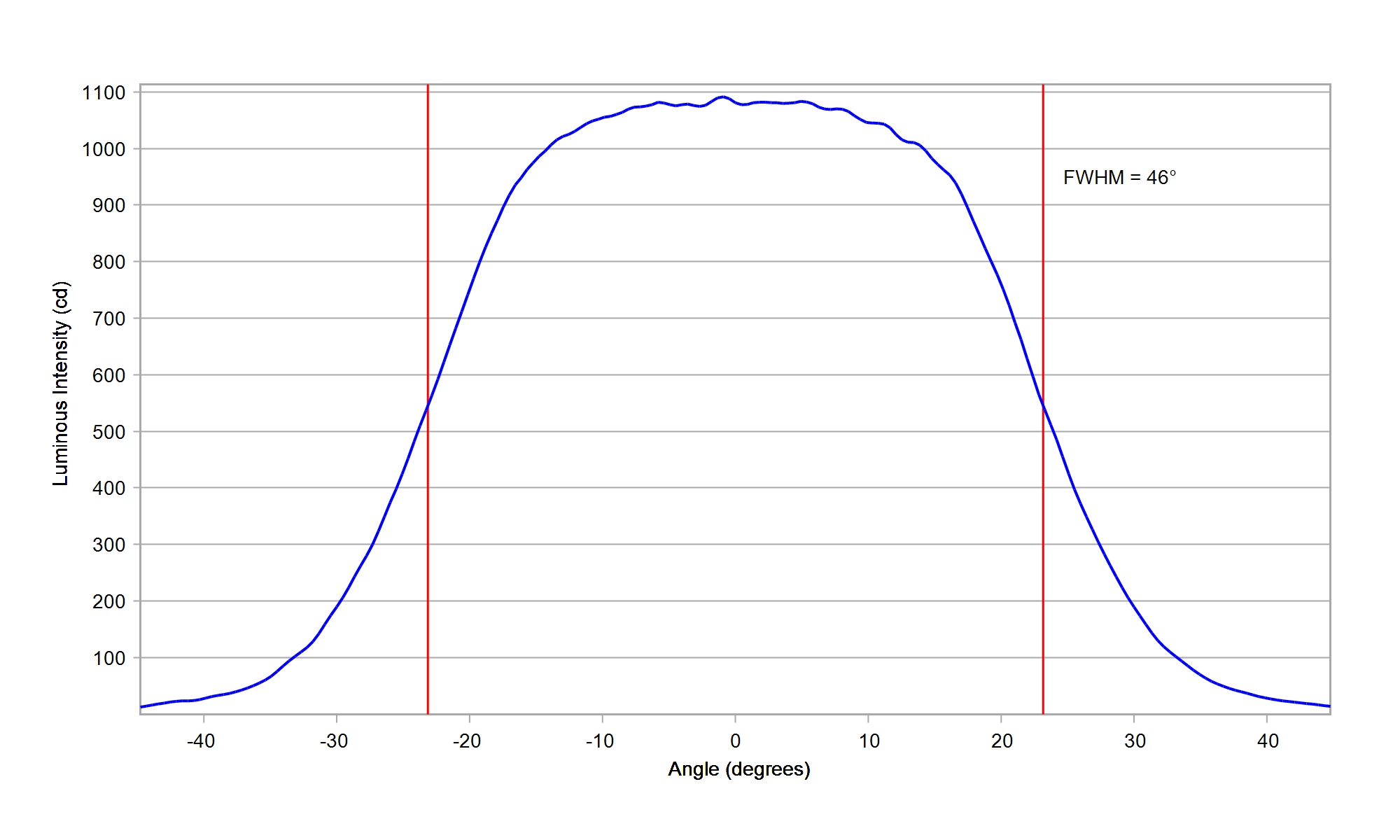

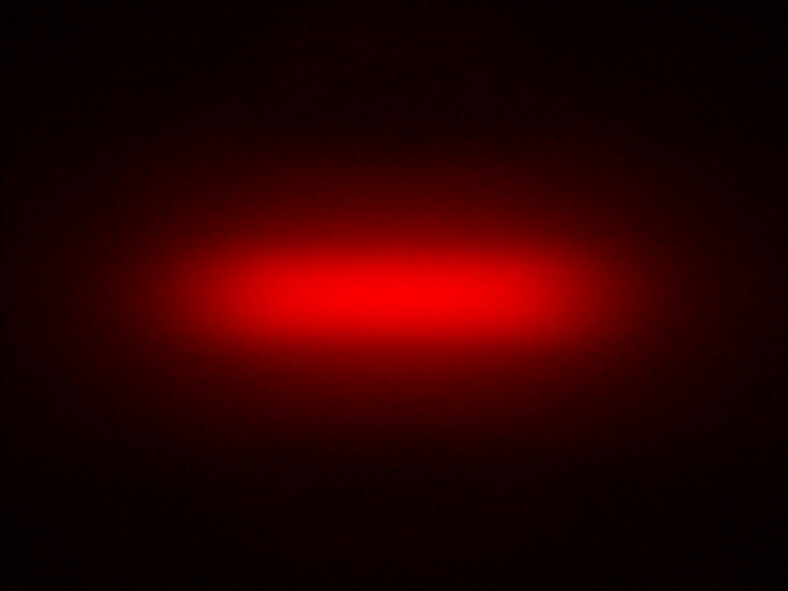

Osram OSLON Pure 1414 GR VJLPL1.23 Red

Eff:

91.0%

FWHM:

46 x 11°

Cd/Im:

4.9


,


Download

Osram OSLON Pure 1414 GT VJLPL1.13 True Green

Eff:

91.0%

FWHM:

47 x 12.5°

Cd/Im:

4.2

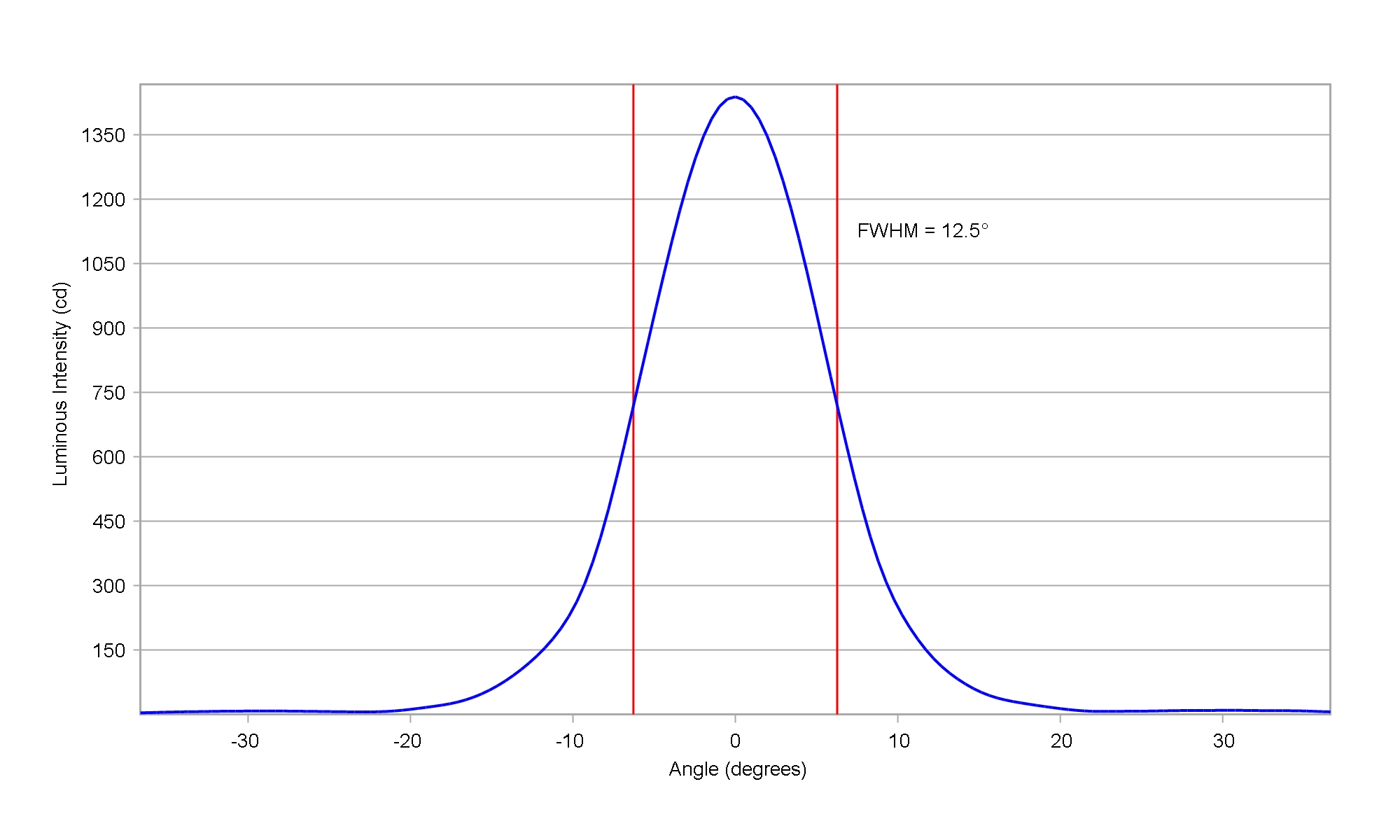

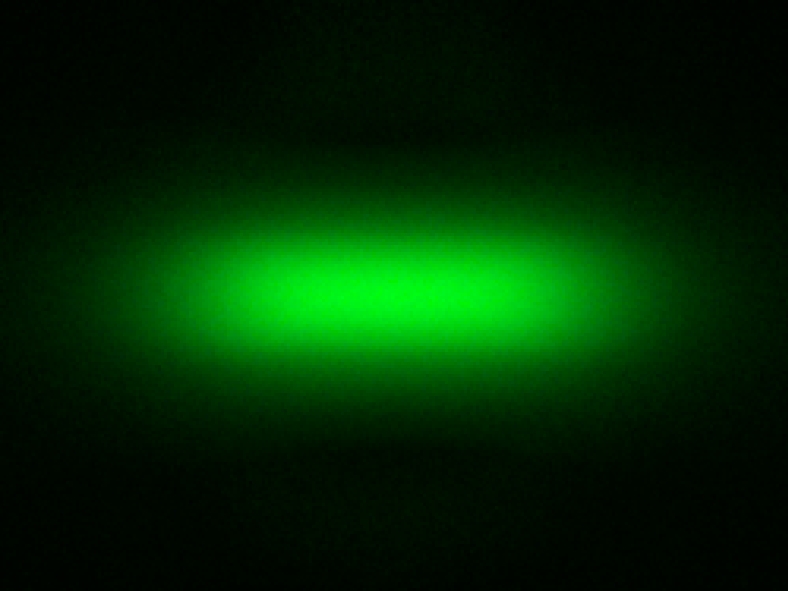

optic-10510-Oslon_Pure_1414_TrueGreen-image-horizontal

,

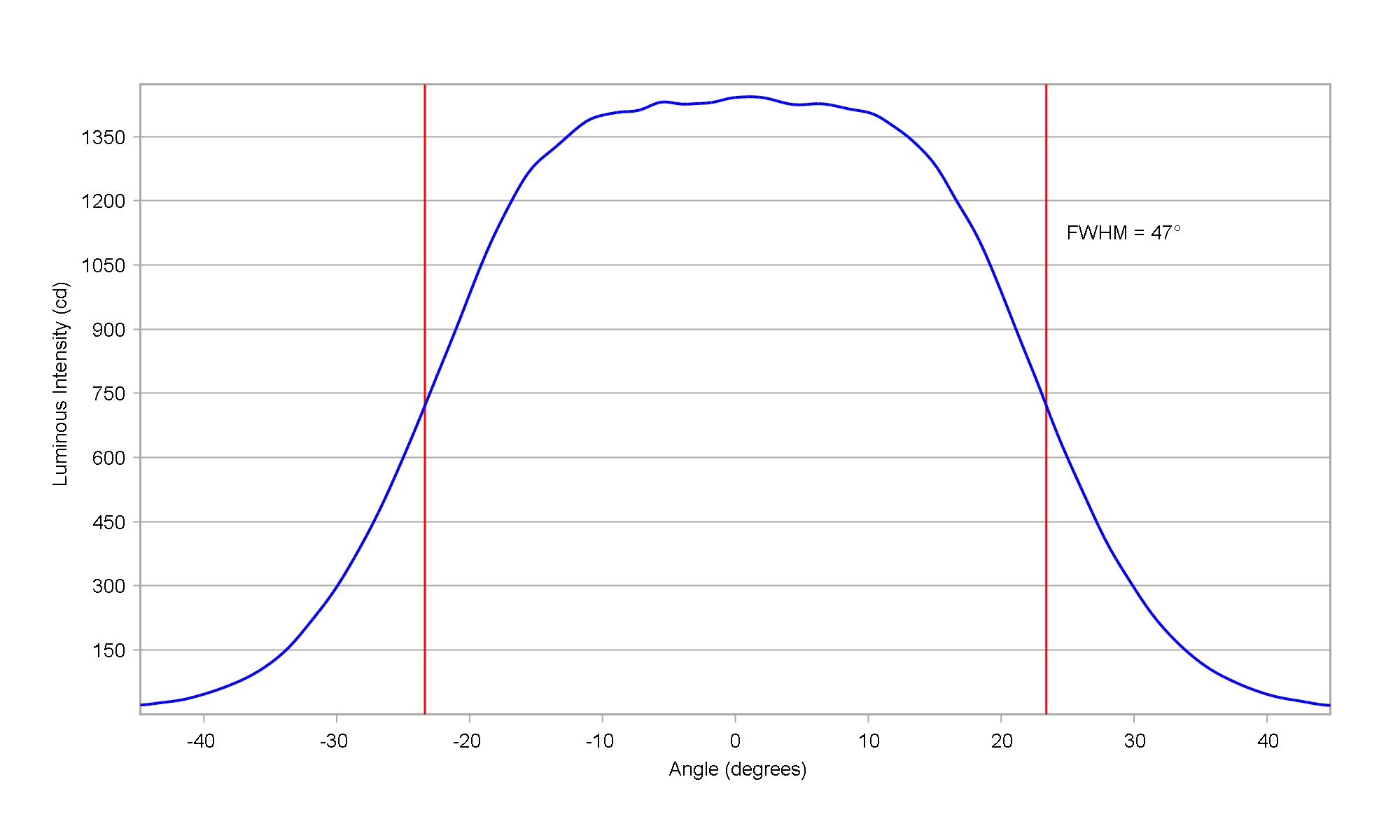

optic-10510-Oslon_Pure_1414_TrueGreen-image-vertical

Download

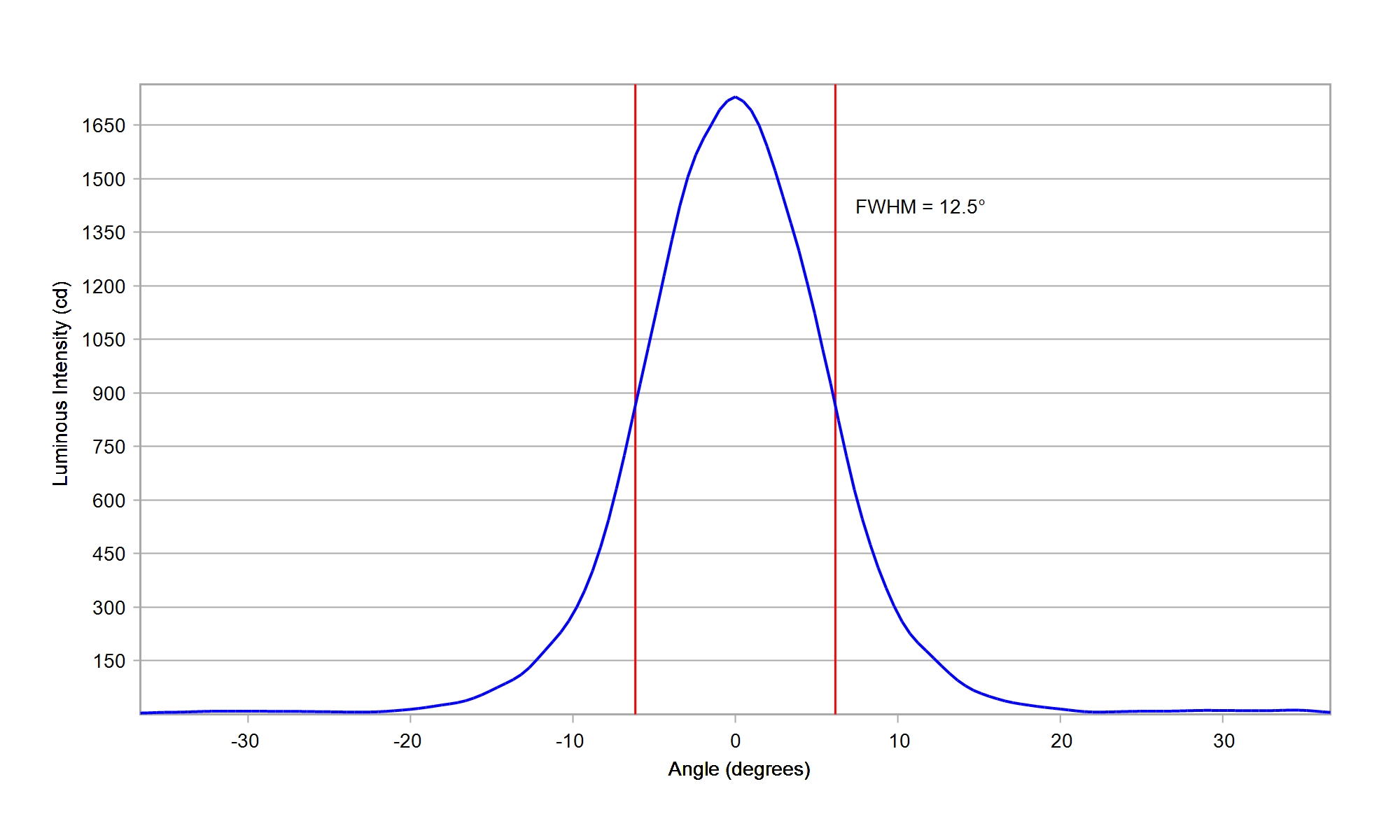

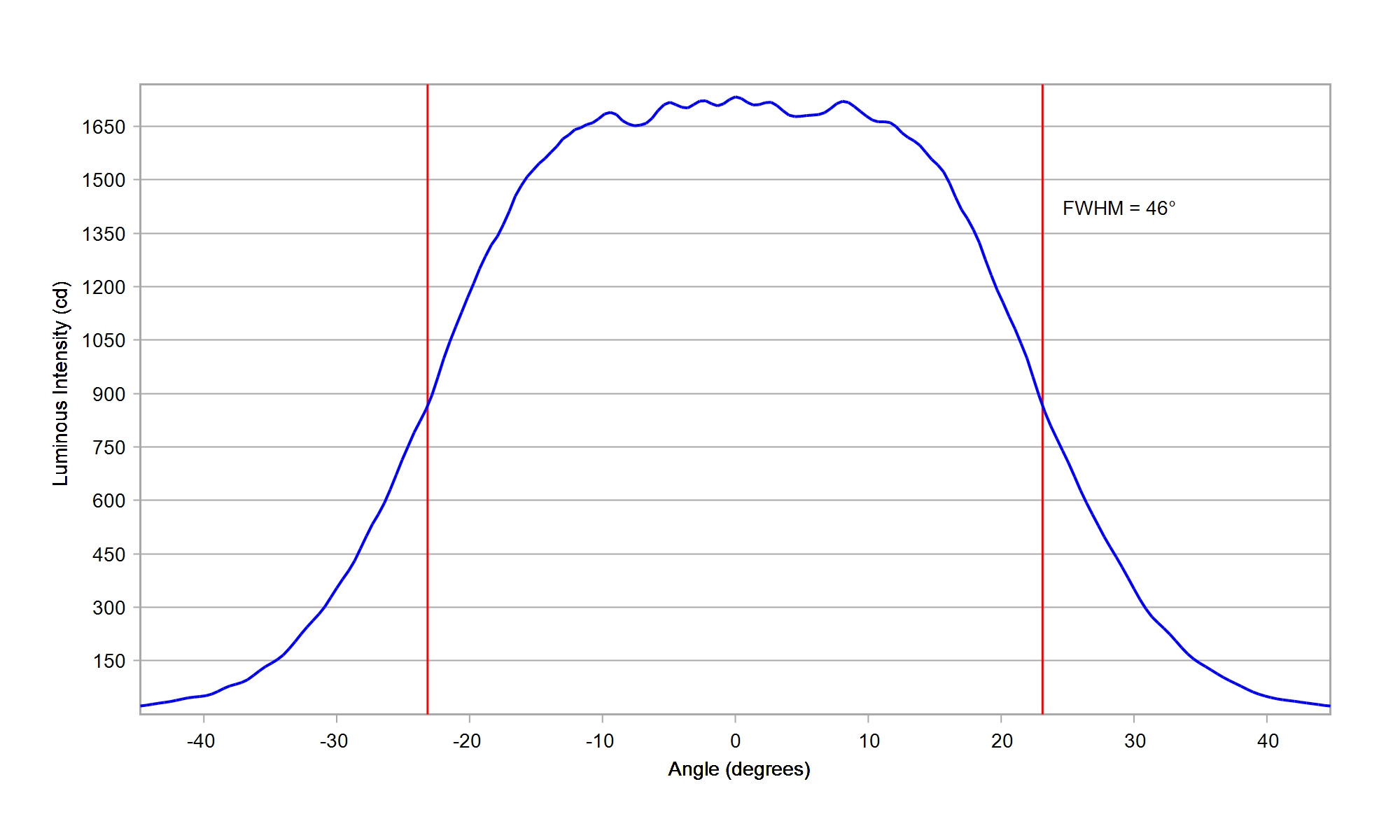

Osram OSLON Pure 1414 GV VJLPL1.F3 Verde

Eff:

91.0%

FWHM:

46 x 12.5°

Cd/Im:

5.2


,


Download

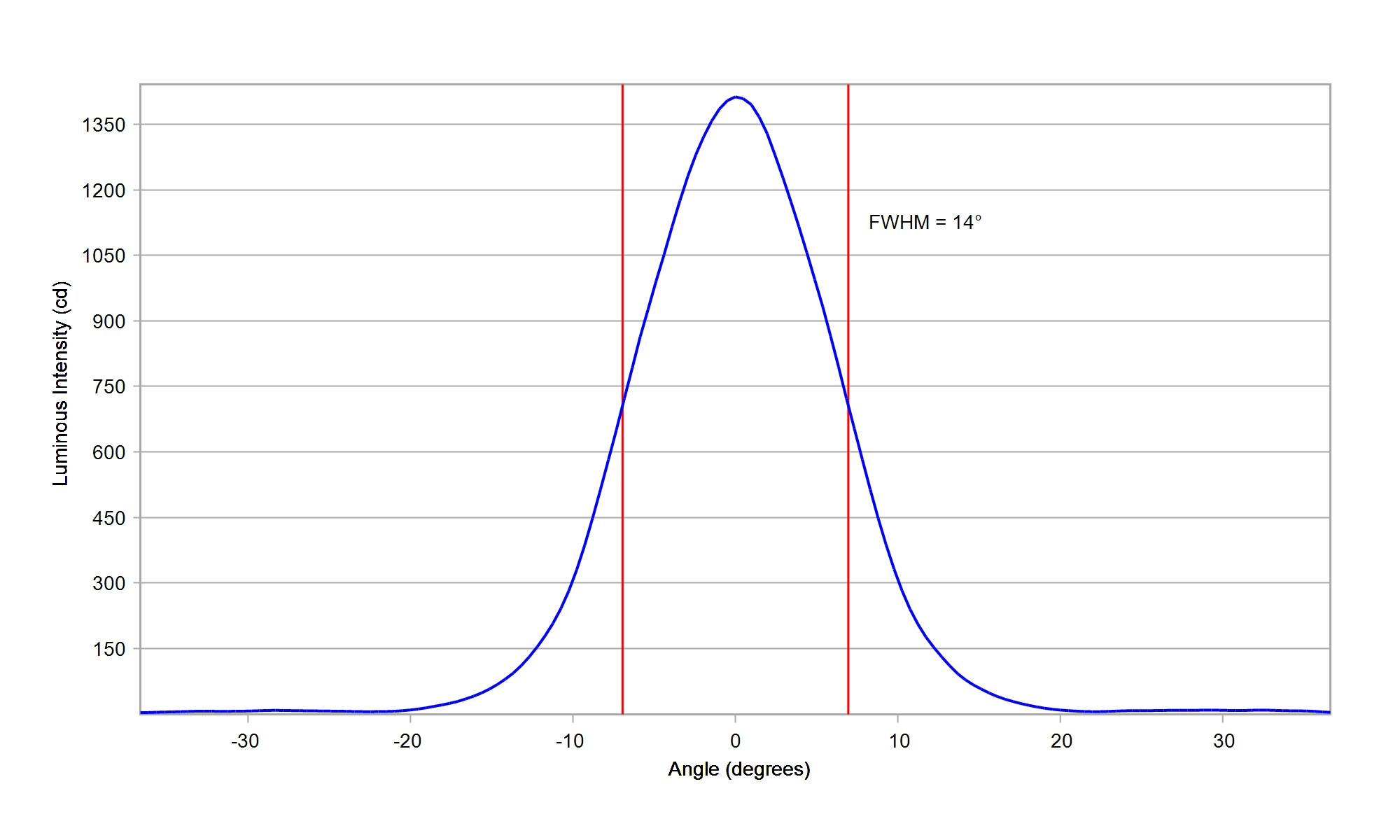

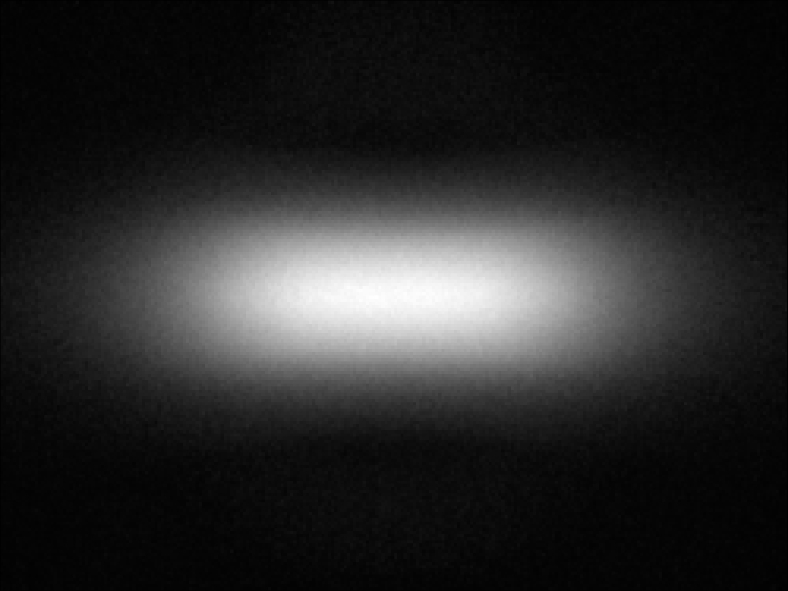

Osram OSLON Pure 1414 GW VJLPL1.CM White

Eff:

91.0%

FWHM:

46 x 14°

Cd/Im:

4.5


,


Download

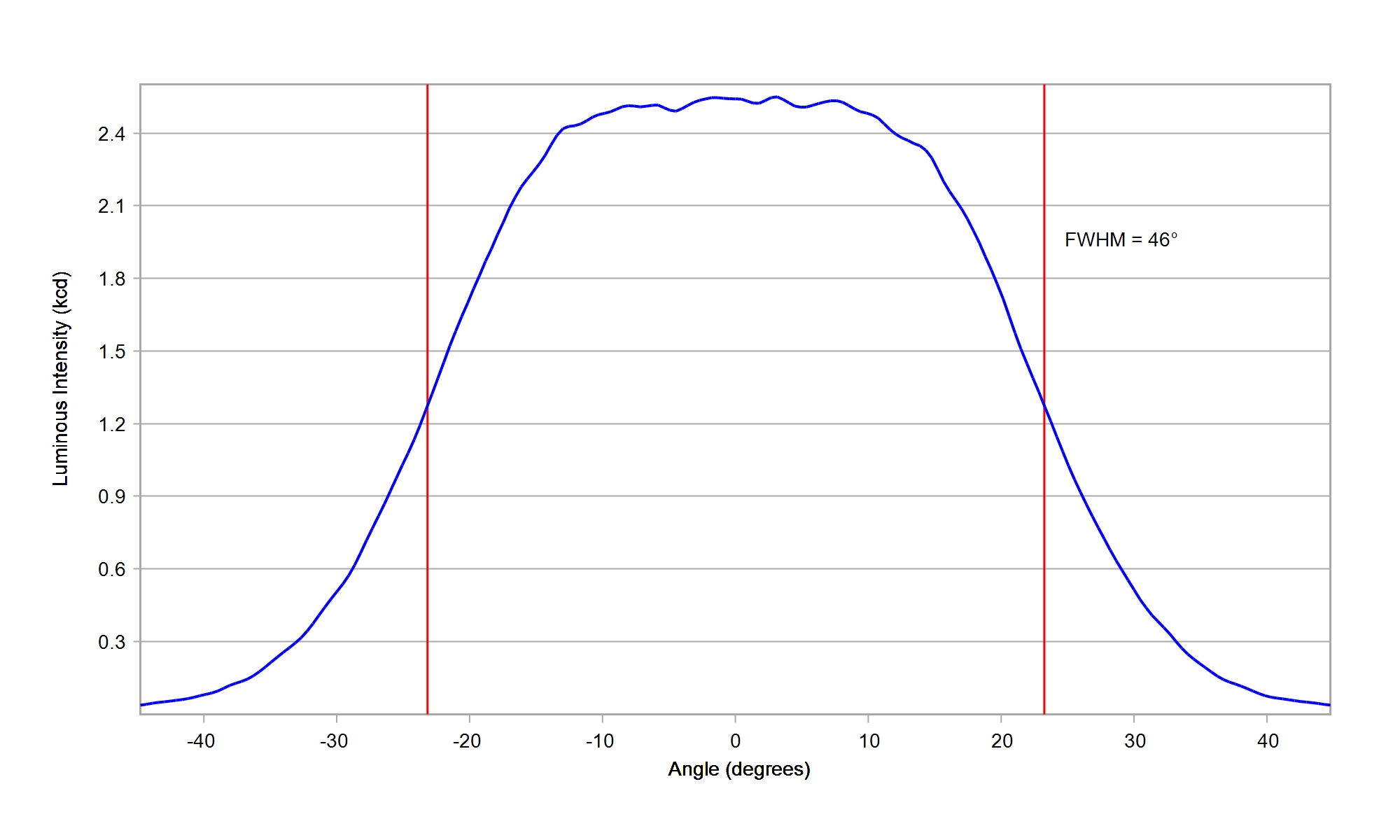

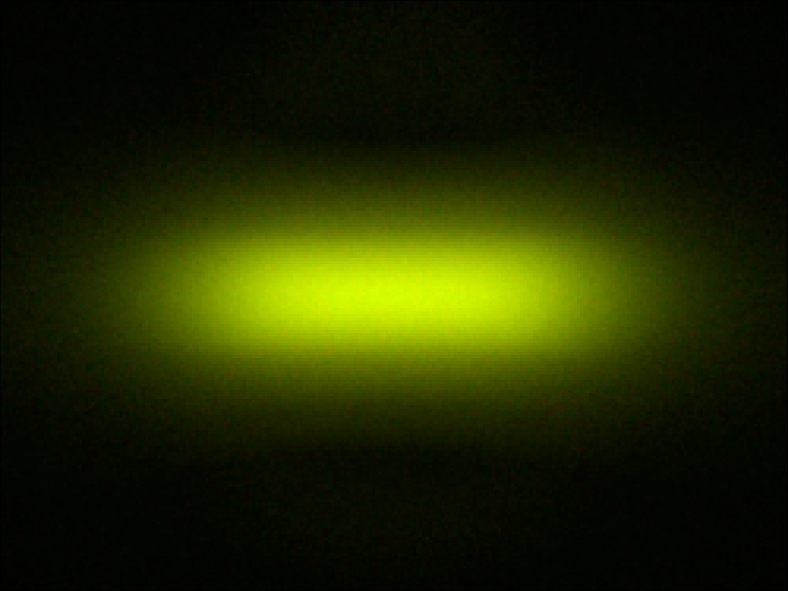

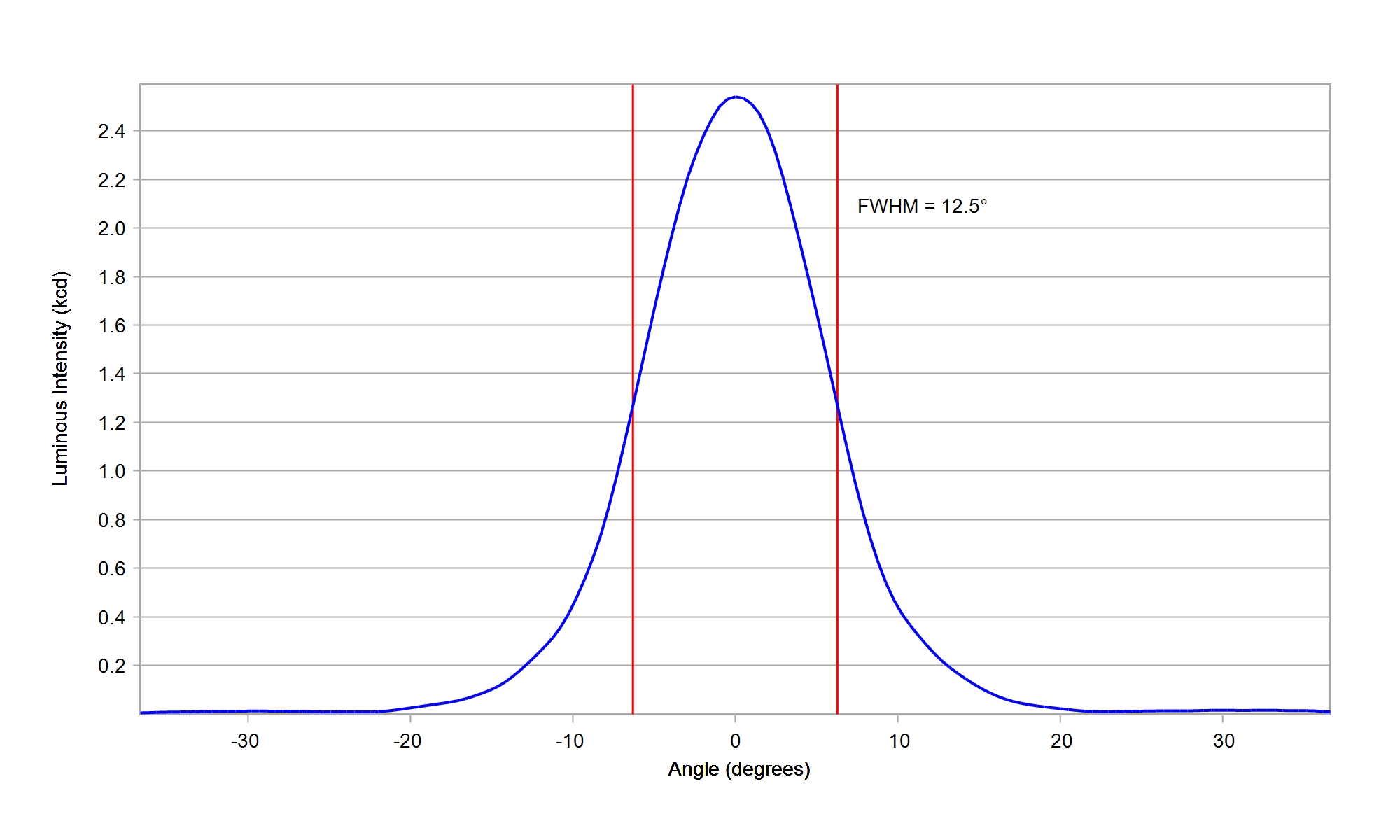

Osram OSLON Pure 1414 GW VJLPL1.UL Green

Eff:

91.0%

FWHM:

46 x 12.5°

Cd/Im:

4.6


,


Download

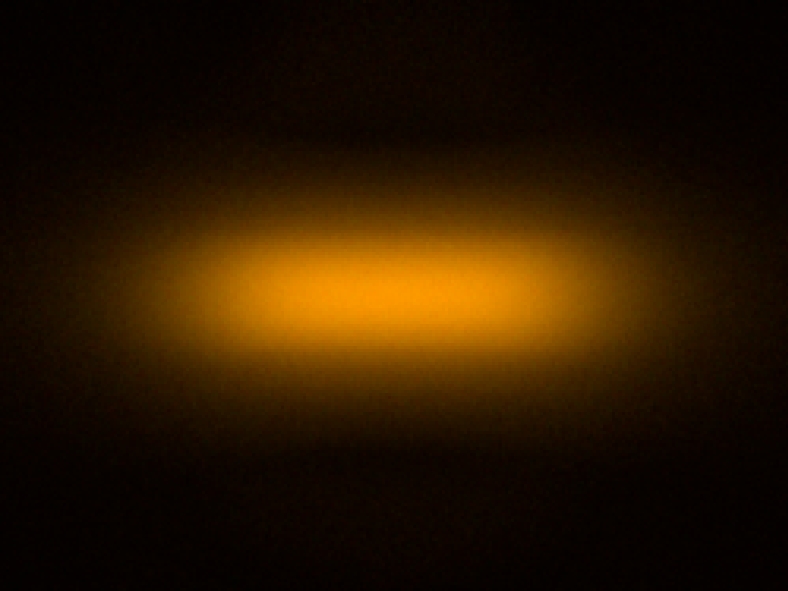

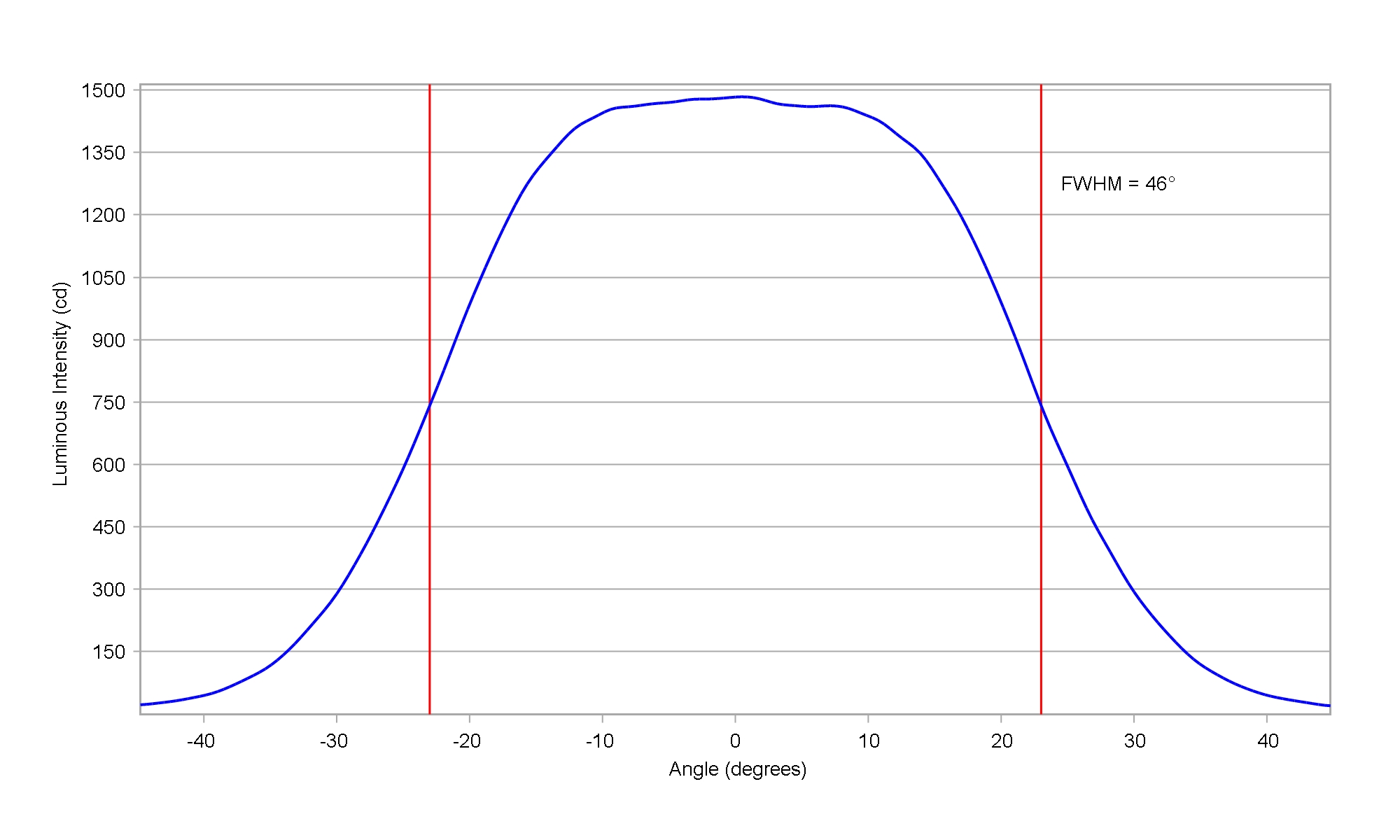

Osram OSLON Pure 1414 GY VJLPL1.F3 Yellow

Eff:

91.0%

FWHM:

46 x 13°

Cd/Im:

4.2


,


Download

Osram OSLON Square Flat White

Eff:

89.0%

FWHM:

45 x 16°

Cd/Im:

3.3


,


Download

IES

Osram OSLON Square Gen 3 White

Eff:

88.5%

FWHM:

43 x 21.5°

Cd/Im:

2.7


,


Download

IES

Osram OSLON Square Gen 5 GW CSSRM3

Eff:

88.5%

FWHM:

43 x 22°

Cd/Im:

2.8



,


Download

IES

Osram OSLON Square White

Eff:

89.0%

FWHM:

43 x 20°

Cd/Im:

3.0


,


Download

IES

Osram OSLON SSL 150 degree White

Eff:

90.0%

FWHM:

45 x 15°

Cd/Im:

4.1


,


Download

IES

Osram OSLON SSL 80 White

Eff:

85.5%

FWHM:

44.8 x 19.7°

Cd/Im:

3.2

Spot Image

Cross Section

Download

ies

Osram OSLON SSL 80 GH CS8PM1.24 Hyper Red

Eff:

89.0%

FWHM:

44 x 19.5°

Ipk/W:

3.1


,


Download

IES

Osram OSLON SSL 80 GT CS8PM1.13 True Green

Eff:

89.0%

FWHM:

43 x 21.5°

Cd/Im:

2.7



,


Download

IES

Osram OSLON SSL 80 GW CS8PM1.PM White

Eff:

89.0%

FWHM:

45 x 18°

Cd/Im:

3.3


,


Download

IES

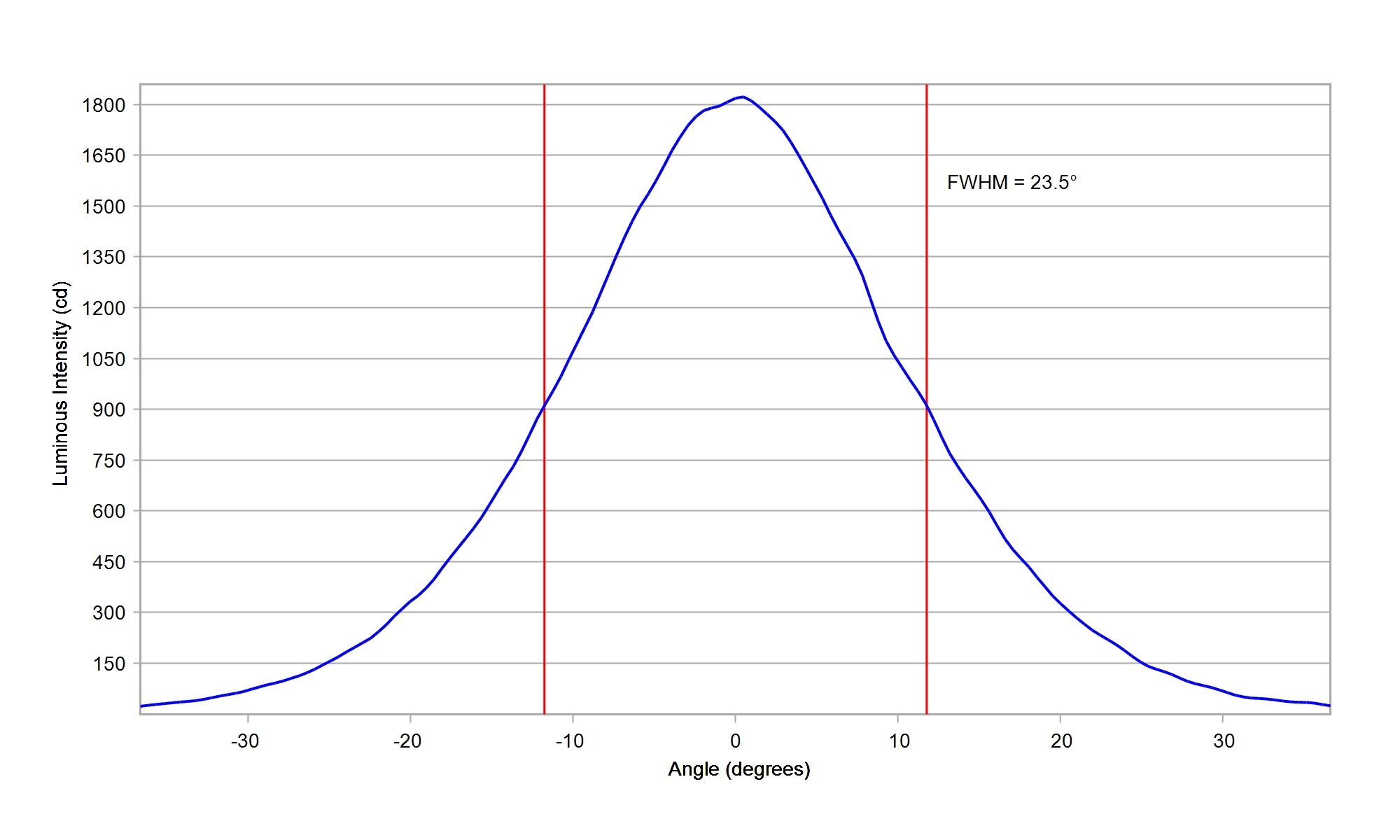

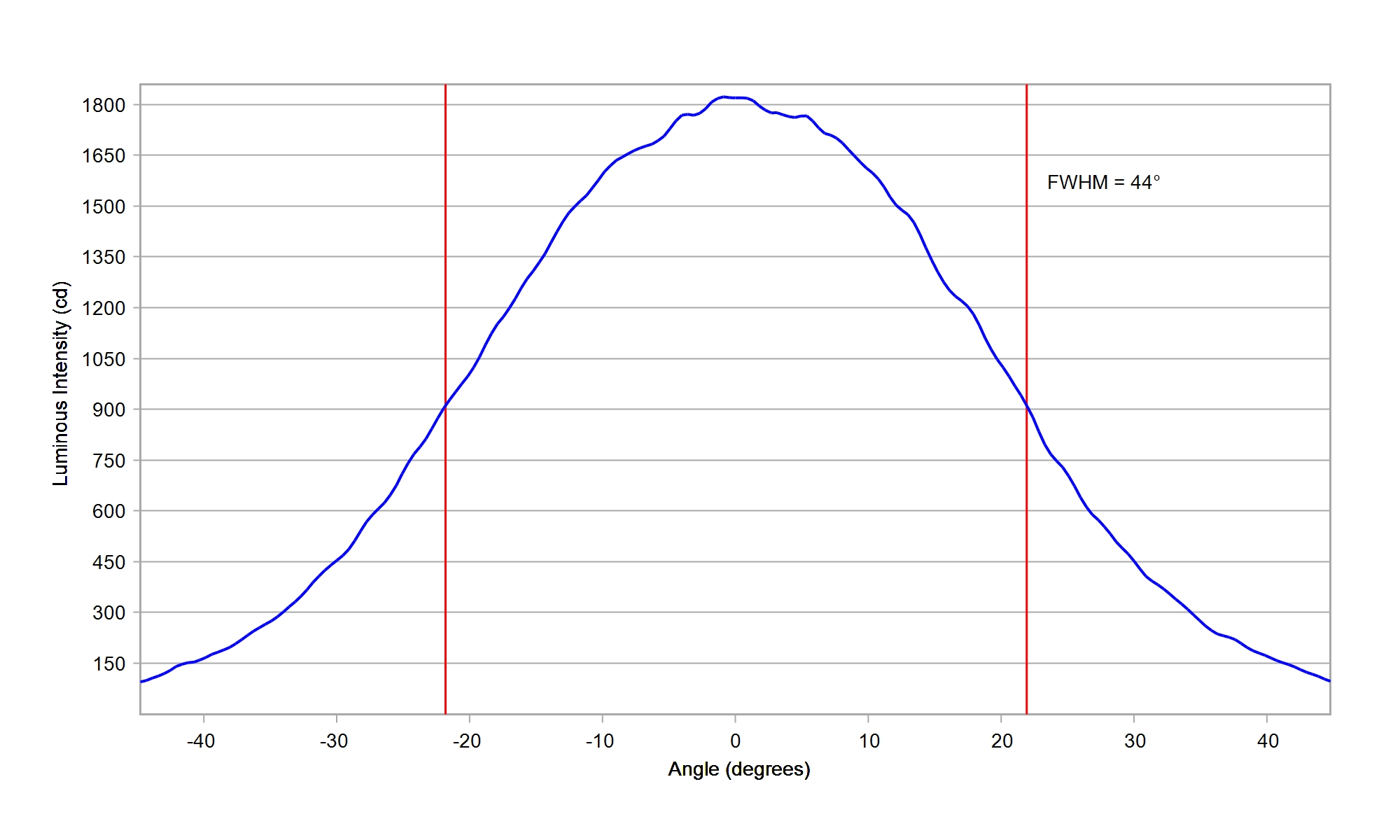

Osram OSCONIQ C 3030 GW PLTRA1.PM White

Eff:

88.5%

FWHM:

44 x 23.5°

Cd/Im:

2.1


,


Download

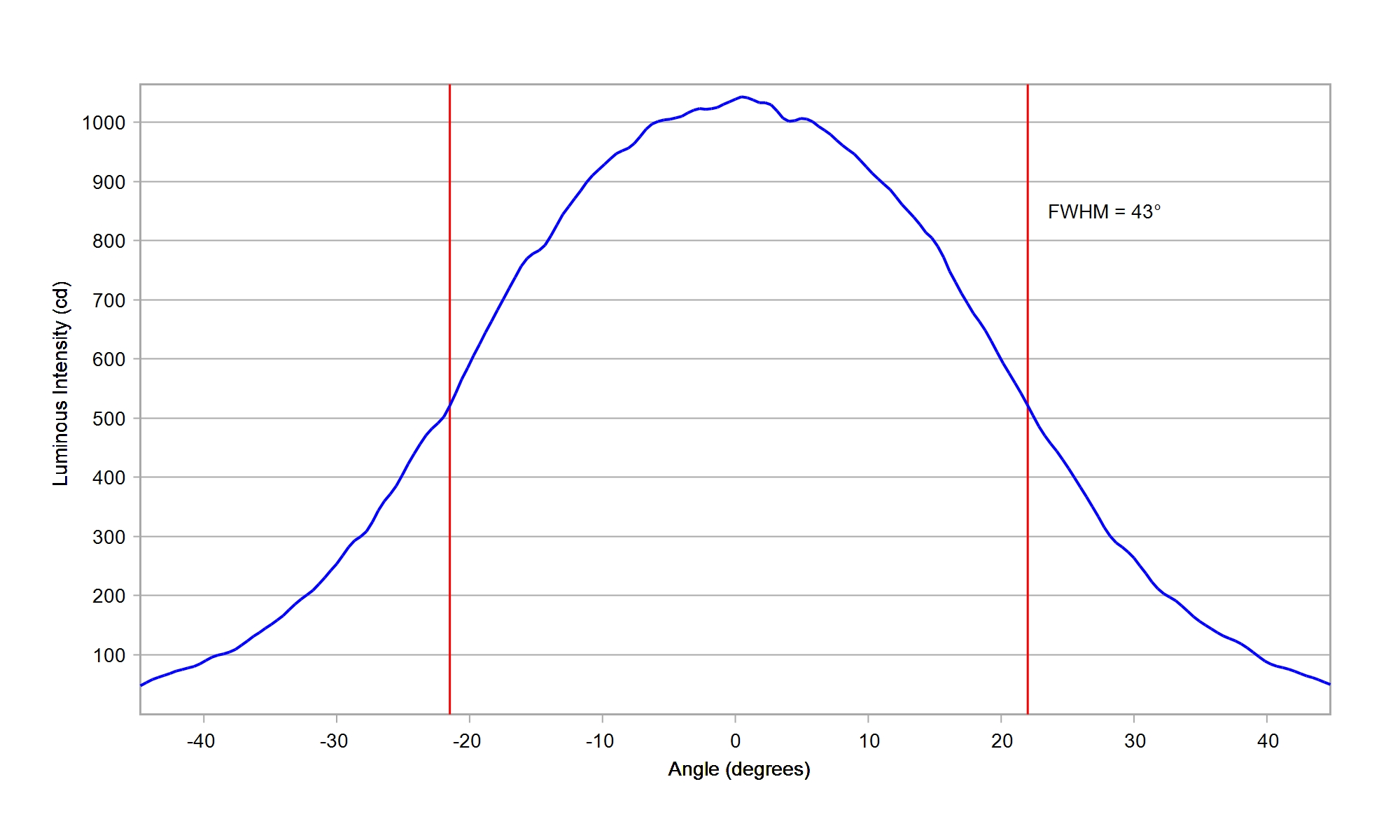

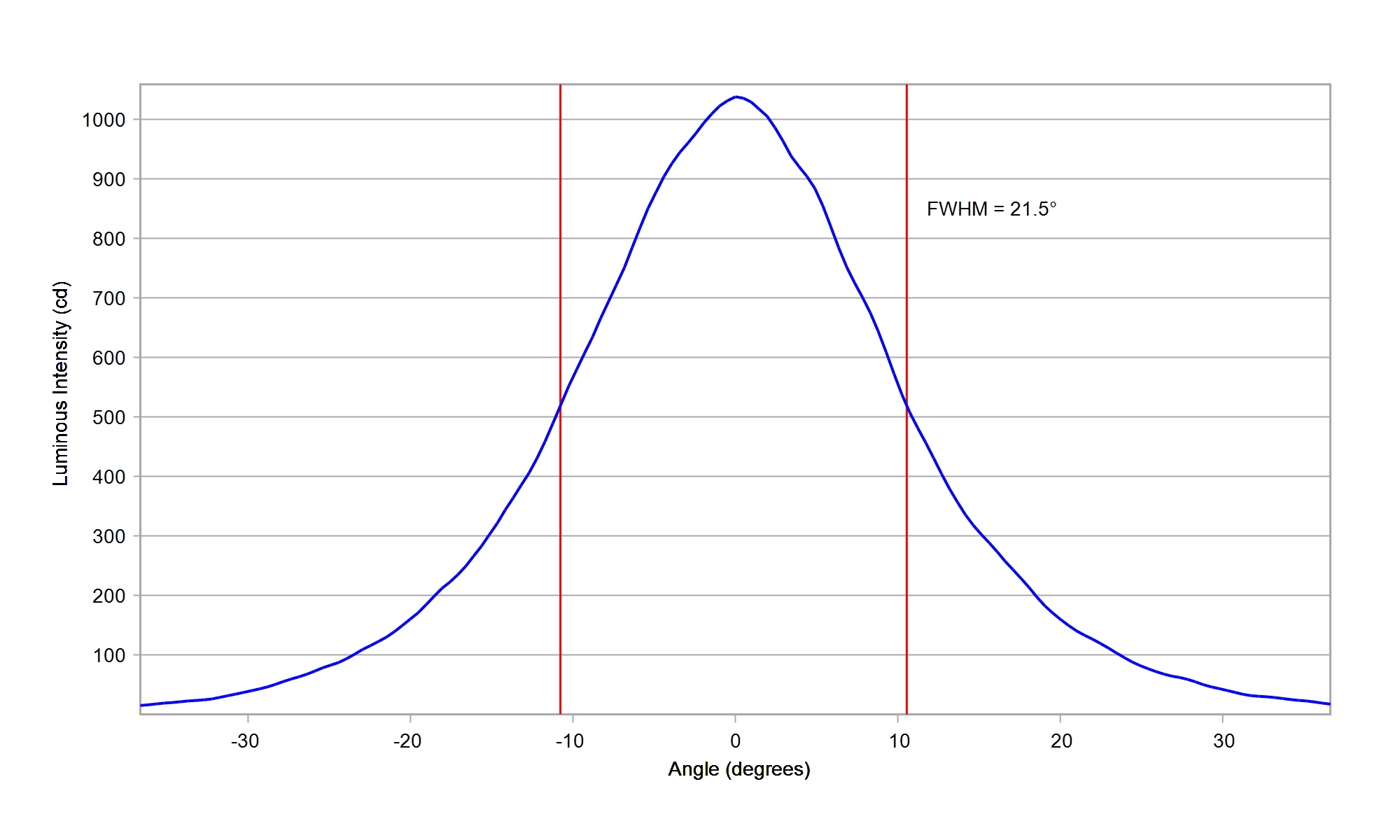

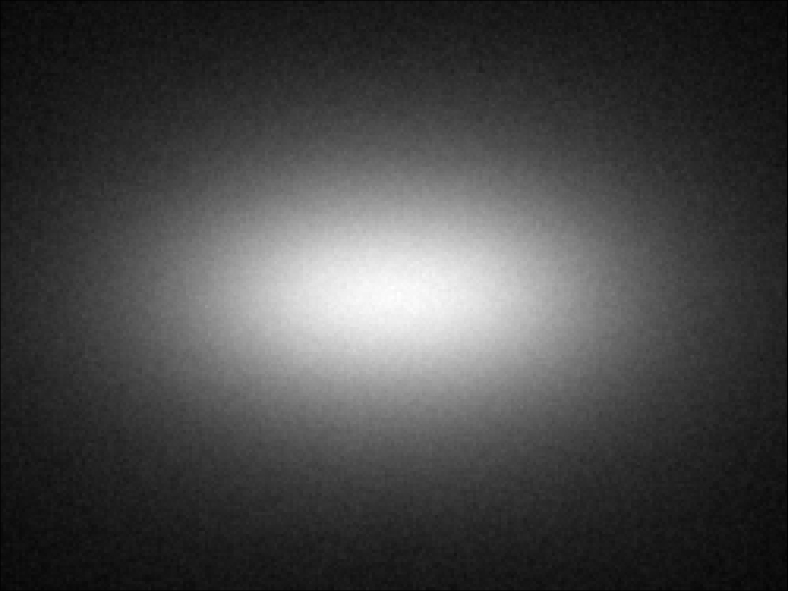

Osram OSCONIQ E 3030 GW QSLPS1.EM White

Eff:

88.5%

FWHM:

43 x 21.5°

Cd/Im:

2.2


,


Download

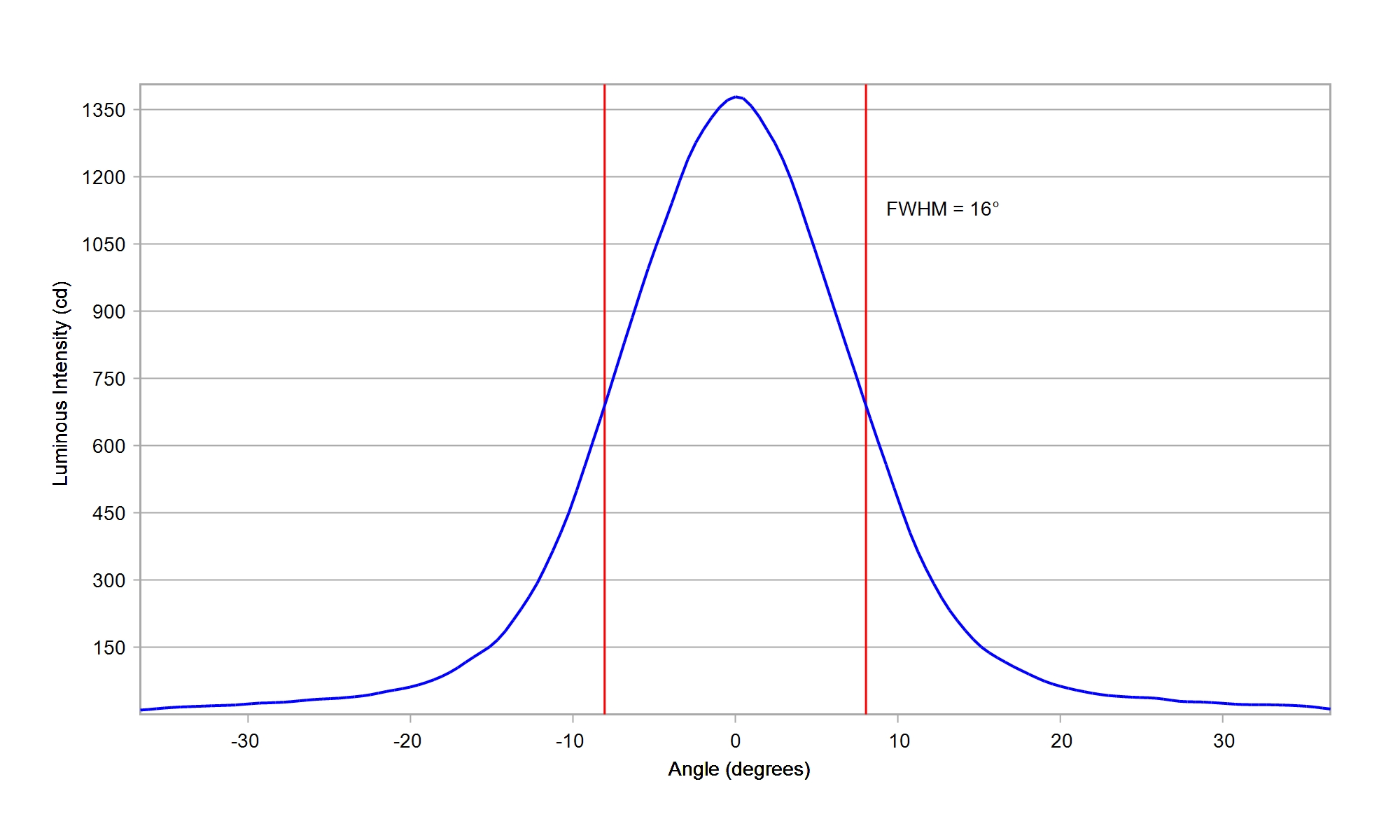

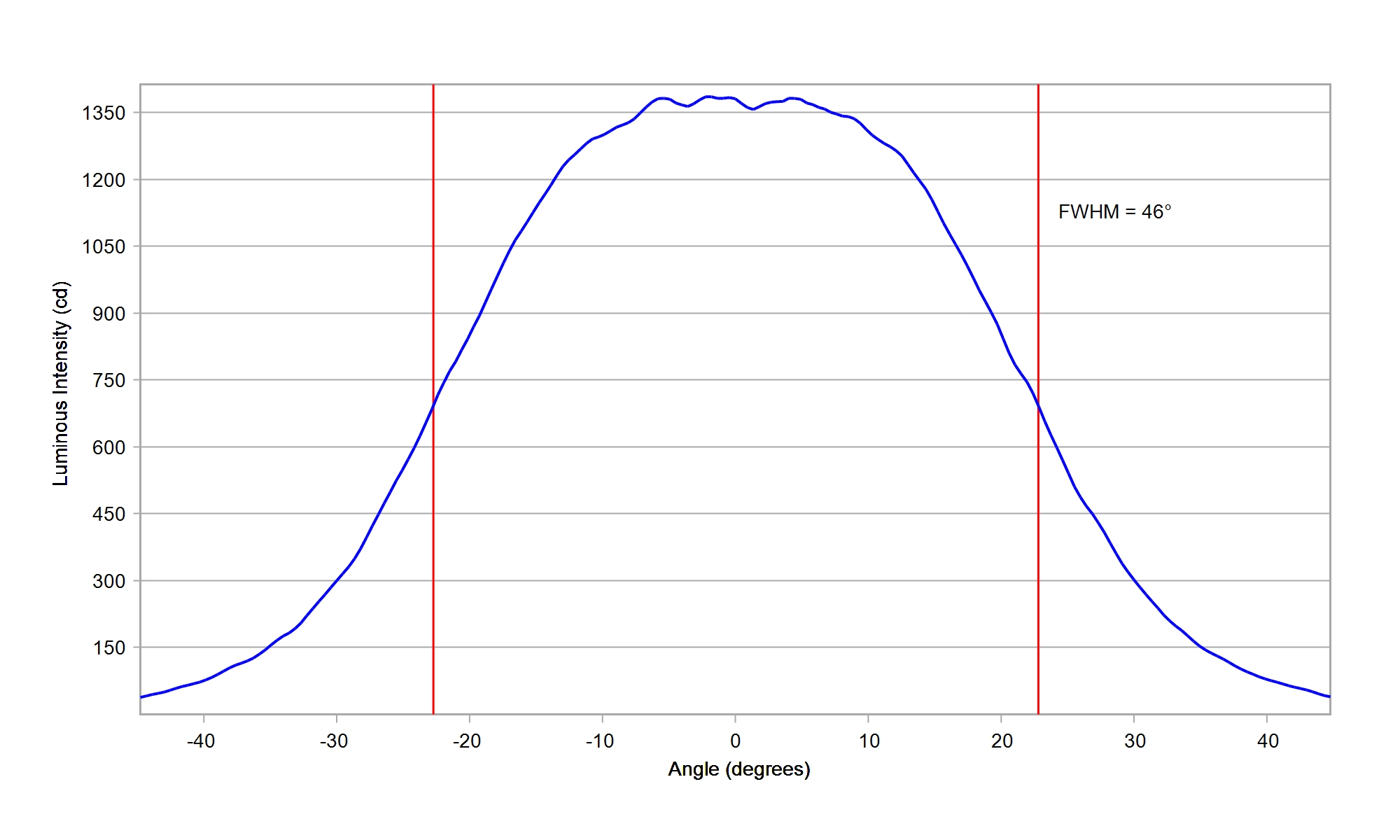

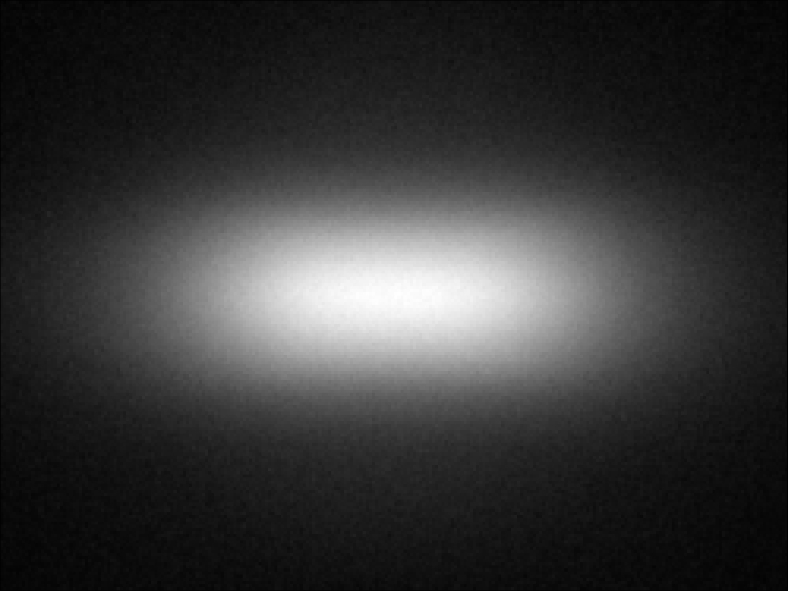

Osram OSCONIQ P 3030 GW QSSPA1.PM White

Eff:

89.5%

FWHM:

46 x 16°

Cd/Im:

3.1


,


Download

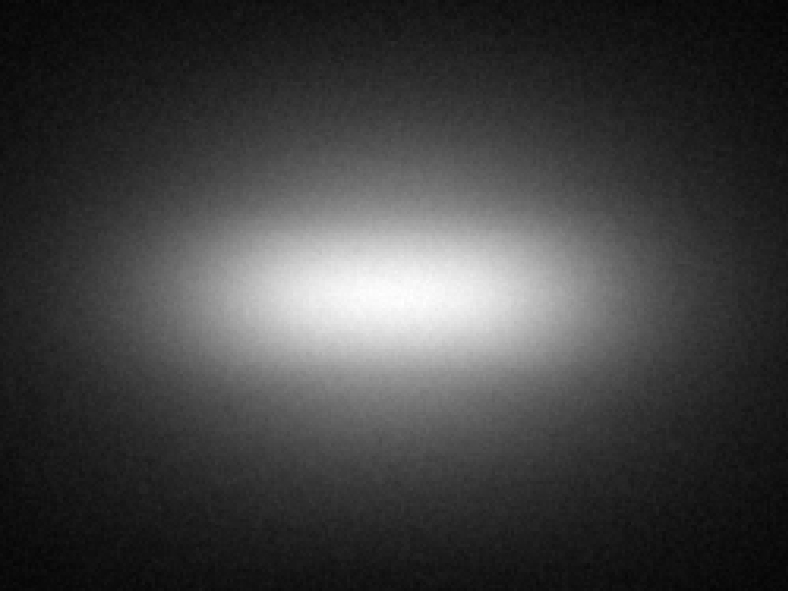

Osram OSCONIQ S 3030 GW QSLMS3.EM White

Eff:

89.0%

FWHM:

45 x 18°

Cd/Im:

2.6


,


Download

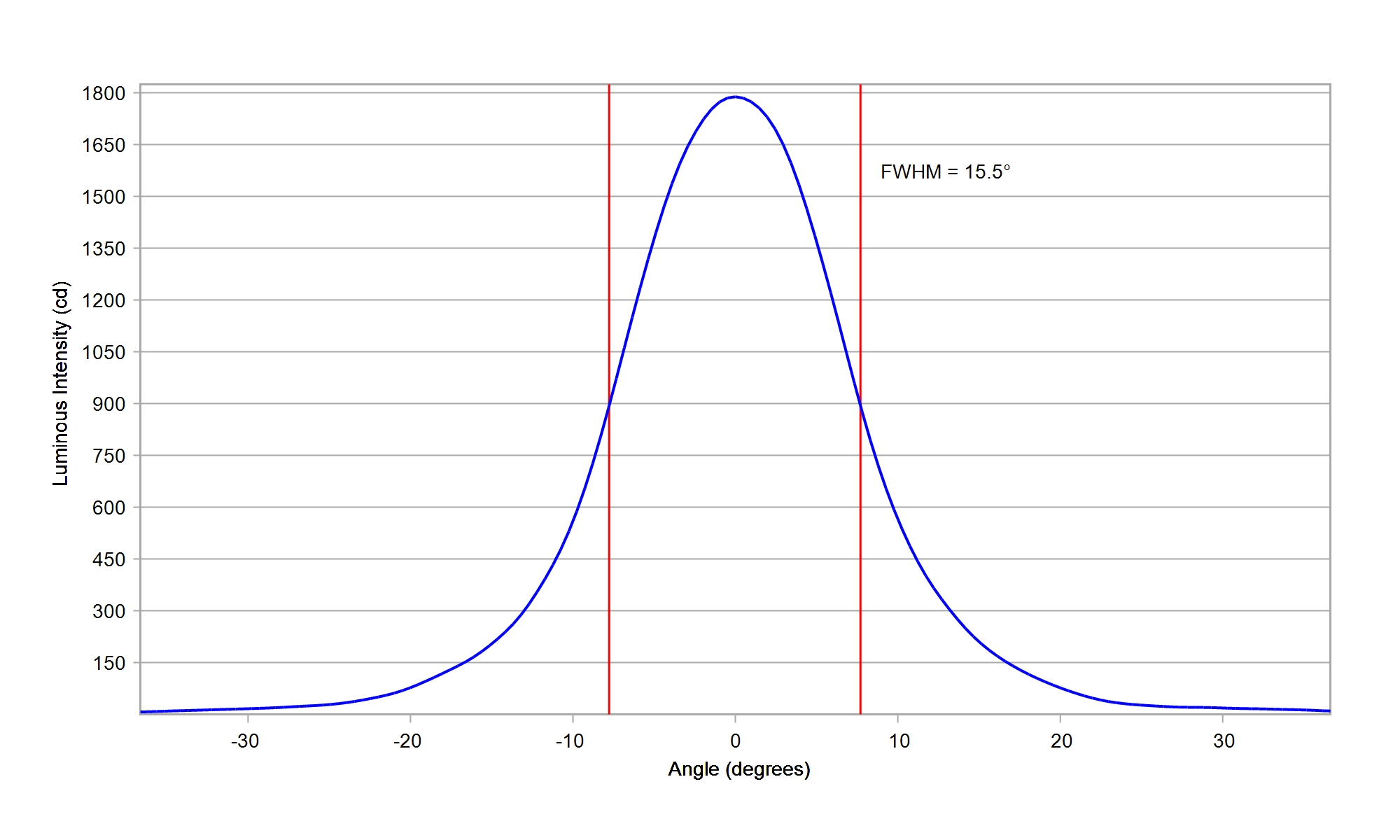

Osram OSLON Signal LUW CRBP.01 White

Eff:

90.0%

FWHM:

45 x 15.5°

Cd/Im:

3.4


,


Download

Samsung 2835 LM281B+ White

Eff:

87.5%

FWHM:

44 x 22.5°

Cd/Im:

2.3



,


Download

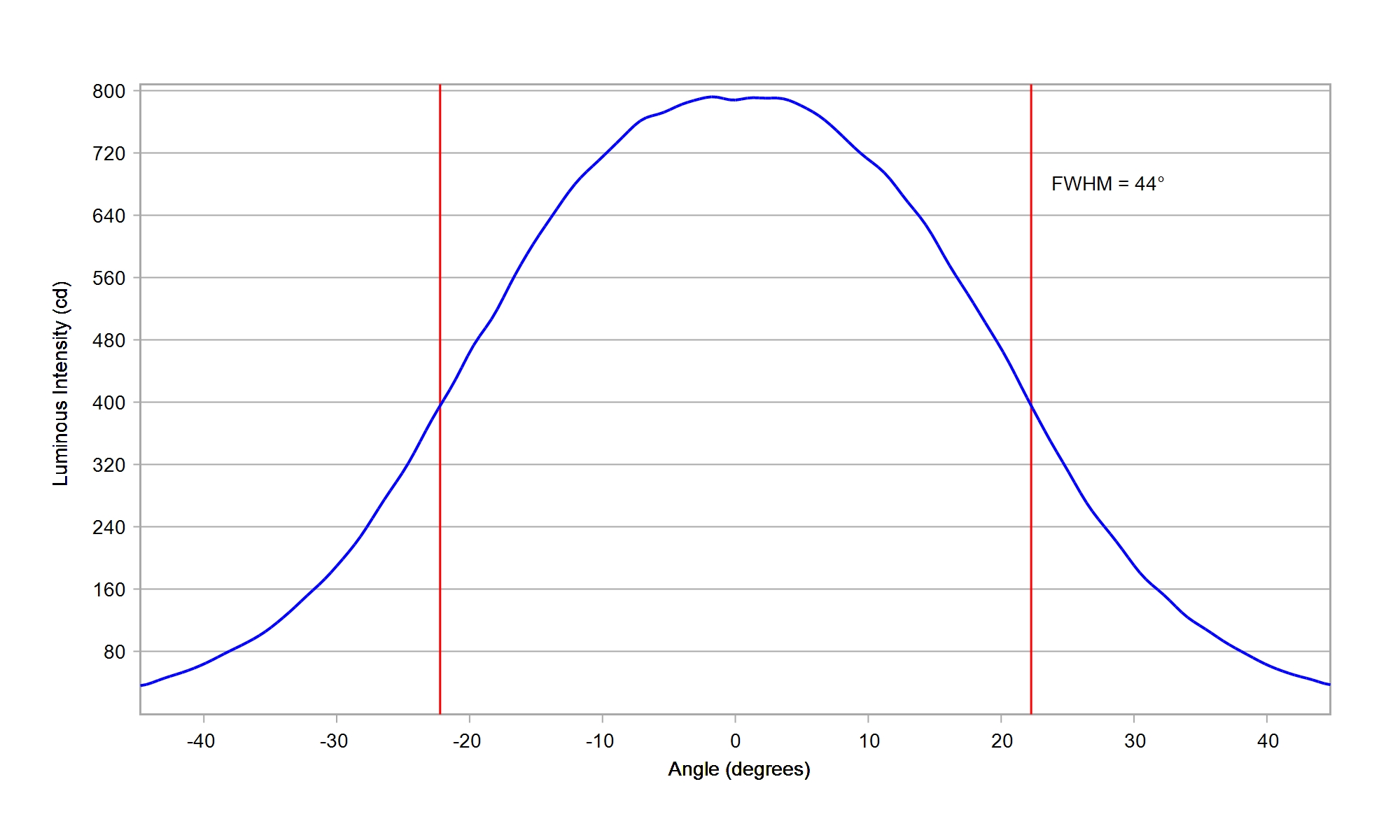

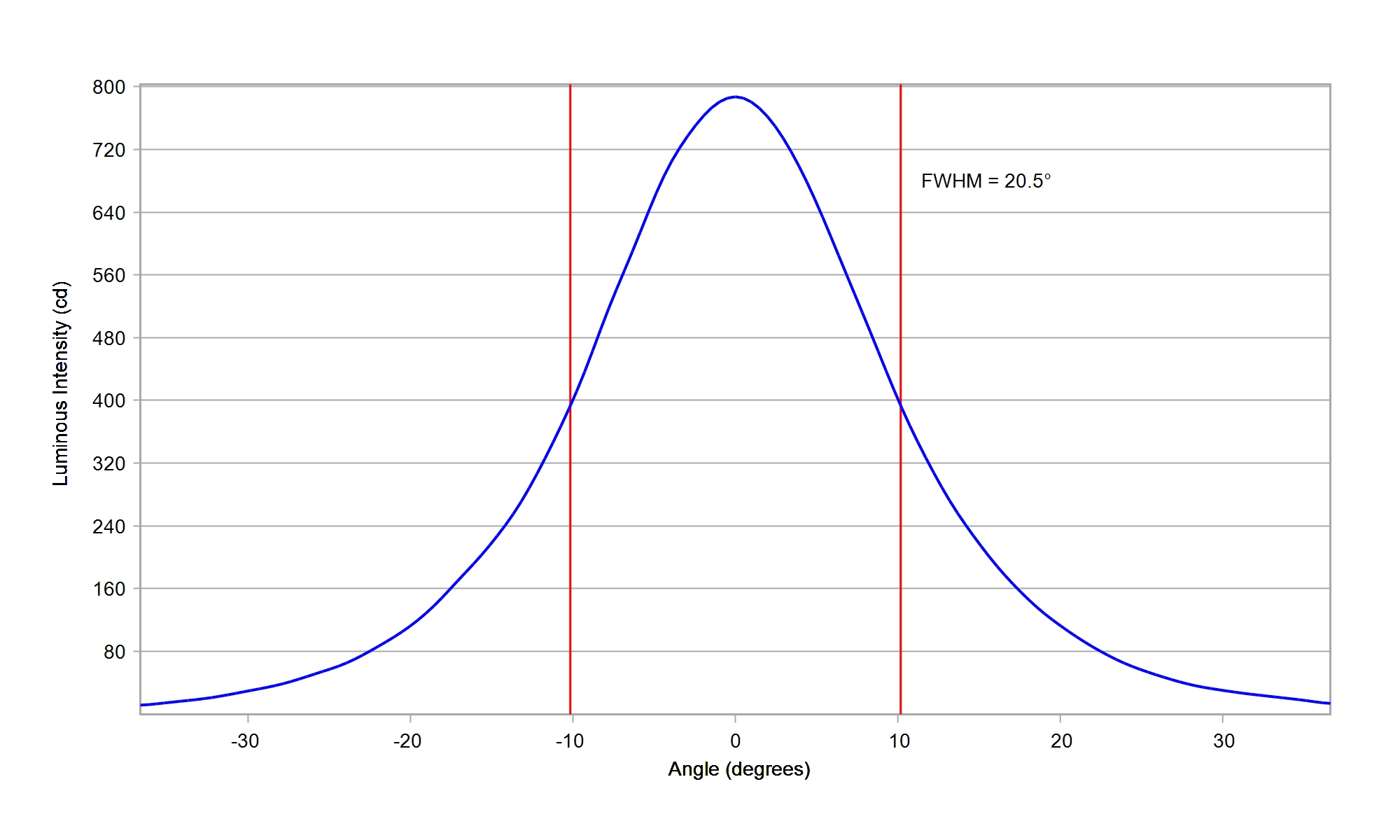

Samsung 2835 LM282B+ White

Eff:

89.0%

FWHM:

44 x 20.5°

Cd/Im:

2.4



,


Download

Samsung 3030 LM301B White

Eff:

88.5%

FWHM:

44 x 20°

Cd/Im:

2.9


,


Download

IES

Samsung 3535 LH351B White

Eff:

88.5%

FWHM:

43 x 24.5°

Cd/Im:

2.8


,


Download

IES

Samsung 3535 LH351Z White

Eff:

84.0%

FWHM:

53.7 x 24.3°

Cd/Im:

1.6

carclo simulated spot image

carclo simulated horizontal cross section

,

carclo simulated vertical cross section

Download

ies

Samsung CSP LH231B White

Eff:

87.5%

FWHM:

44 x 27°

Cd/Im:

2.0


,


Download

IES

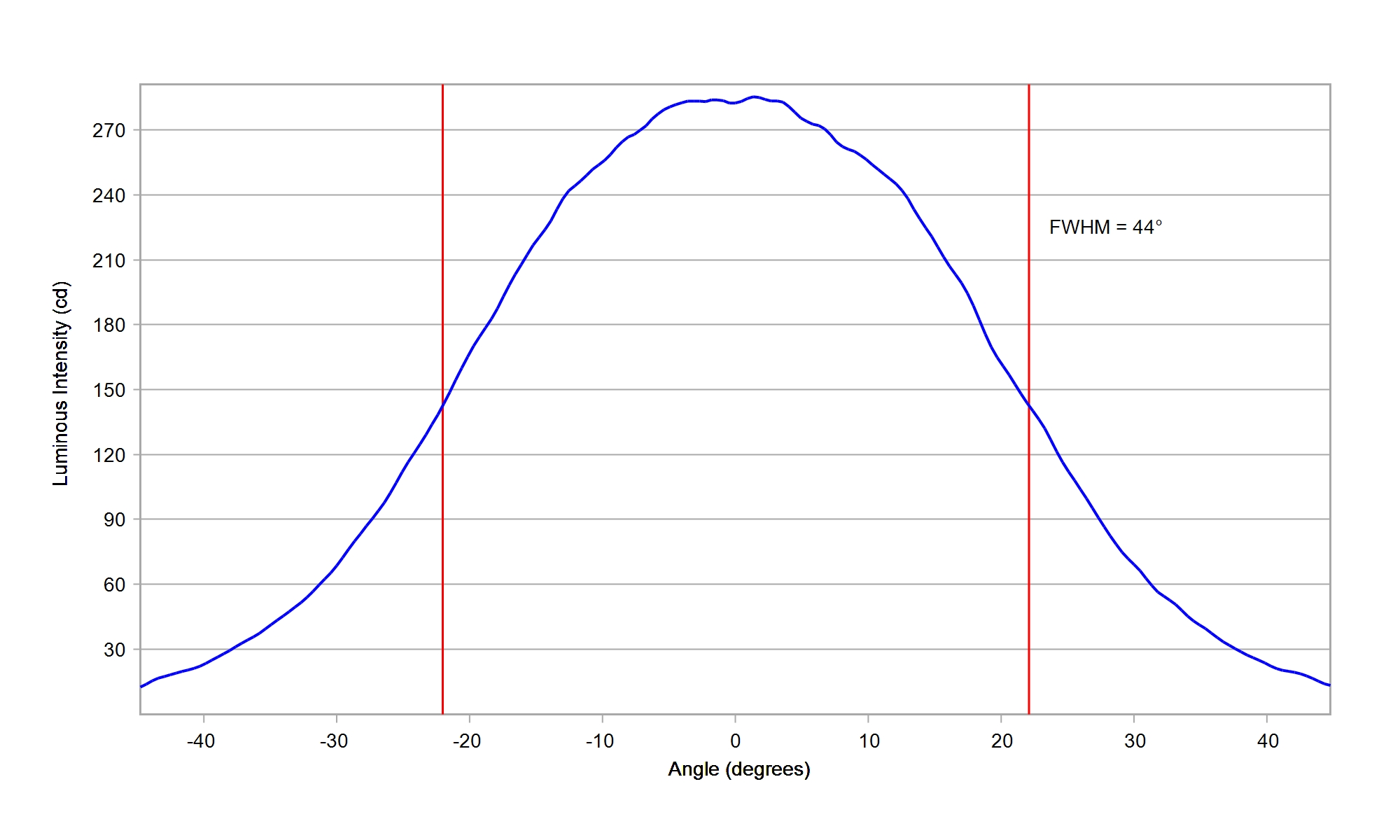

Seoul 3030 STW8C12E-E0 White

Eff:

89.0%

FWHM:

44 x 21°

Cd/Im:

2.4


,


Download

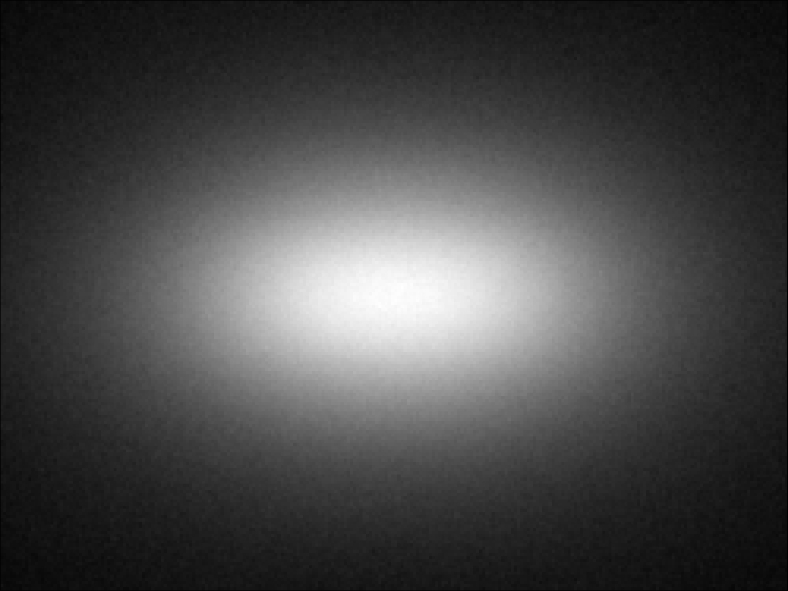

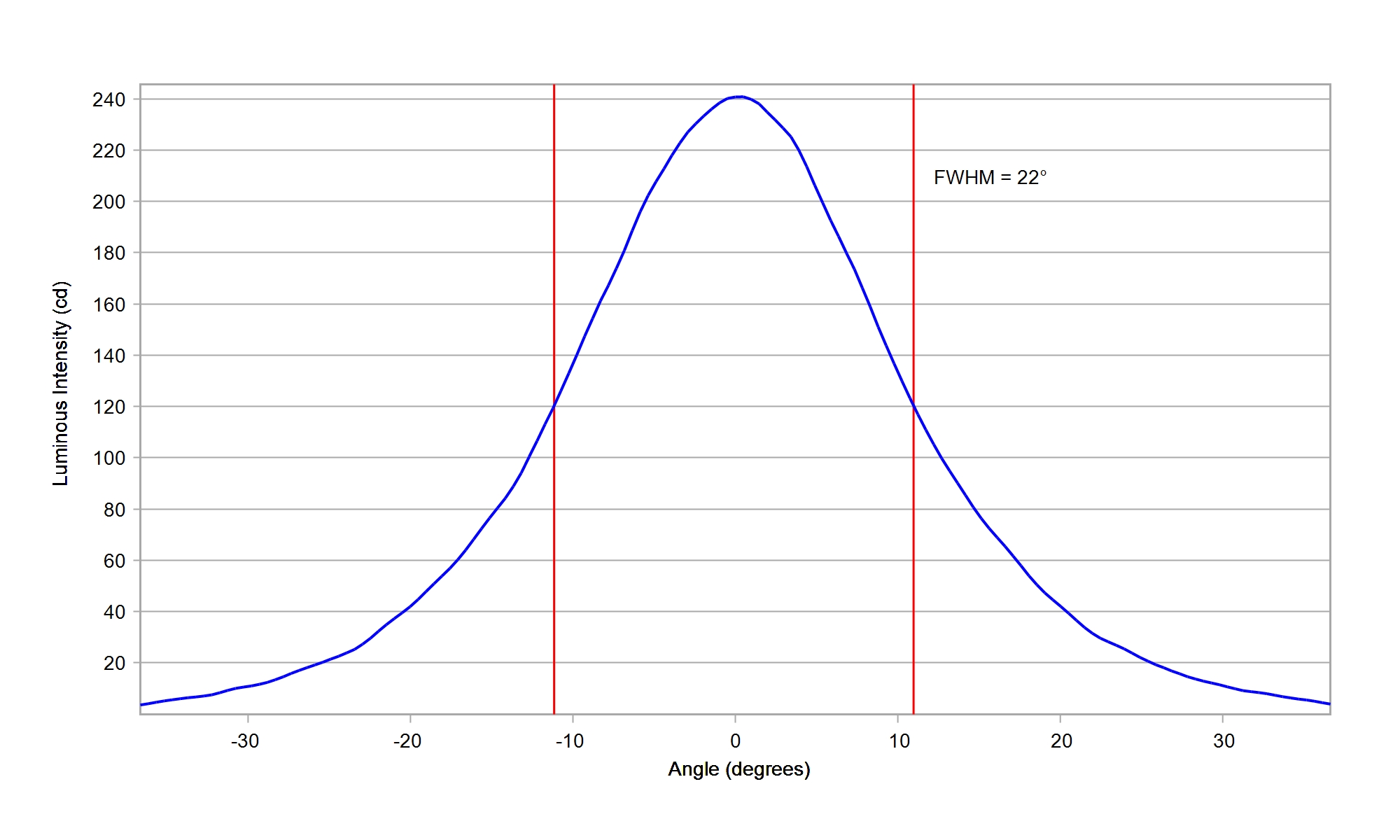

Seoul 3528 G STW8A2PD-G700 White

Eff:

89.0%

FWHM:

44 x 22°

Cd/Im:

2.2


,


Download

Seoul MidPower MJT3030 White

Eff:

83.5%

FWHM:

51 x 25°

Cd/Im:

1.5

carclo optics - simulated spot image

carclo optics - horizontal simulated cross section

,

carclo optics - simulated vertical cross section

Download

ies

Seoul 3030 STW8C2SB-NT White

Eff:

88.5%

FWHM:

44 x 22°

Cd/Im:

2.6


,


Download

IES

Seoul SunLike 3030 STWSC2PB-E0 White

Eff:

88.5%

FWHM:

44 x 21.5°

Cd/Im:

2.5


,


Download

IES

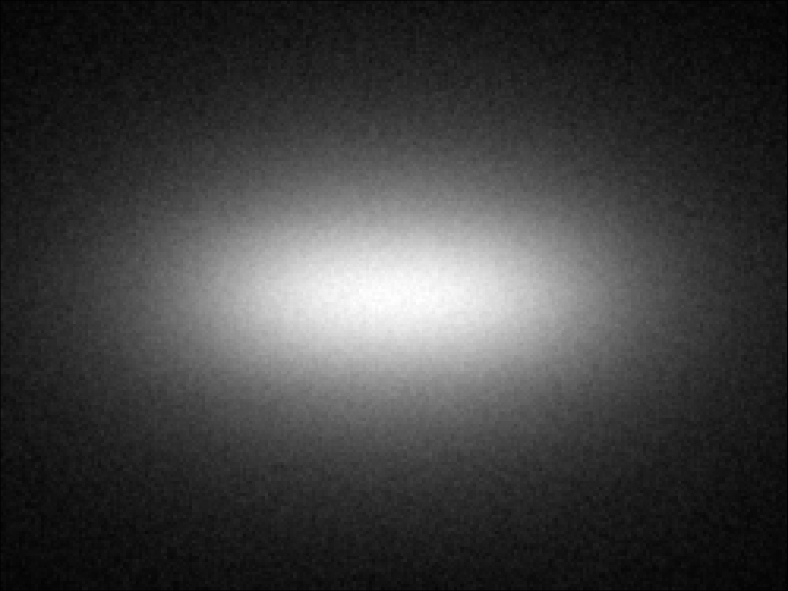

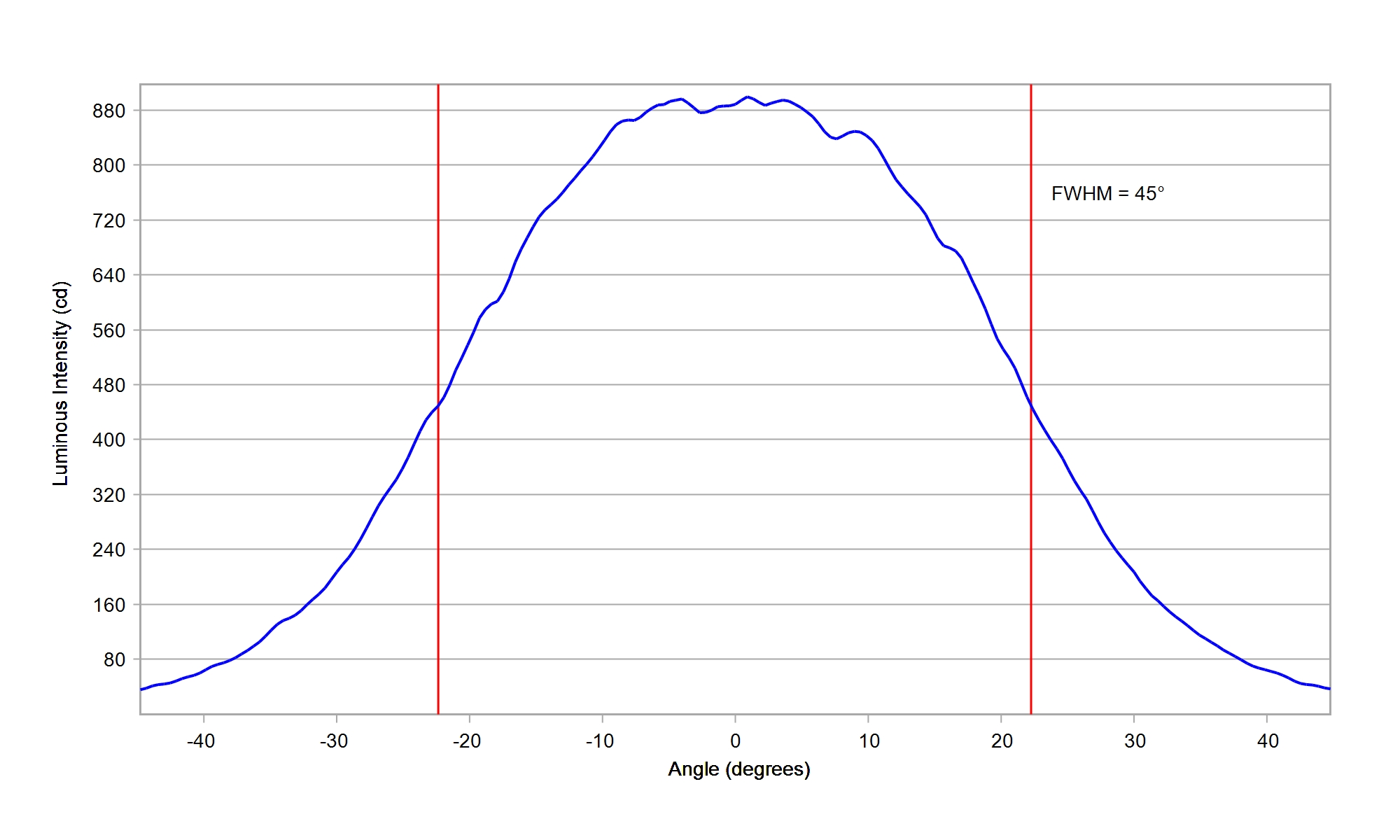

Seoul SunLike 3030 STWSC12S-E1 White

Eff:

89.5%

FWHM:

45 x 18°

Cd/Im:

2.7


,


Download

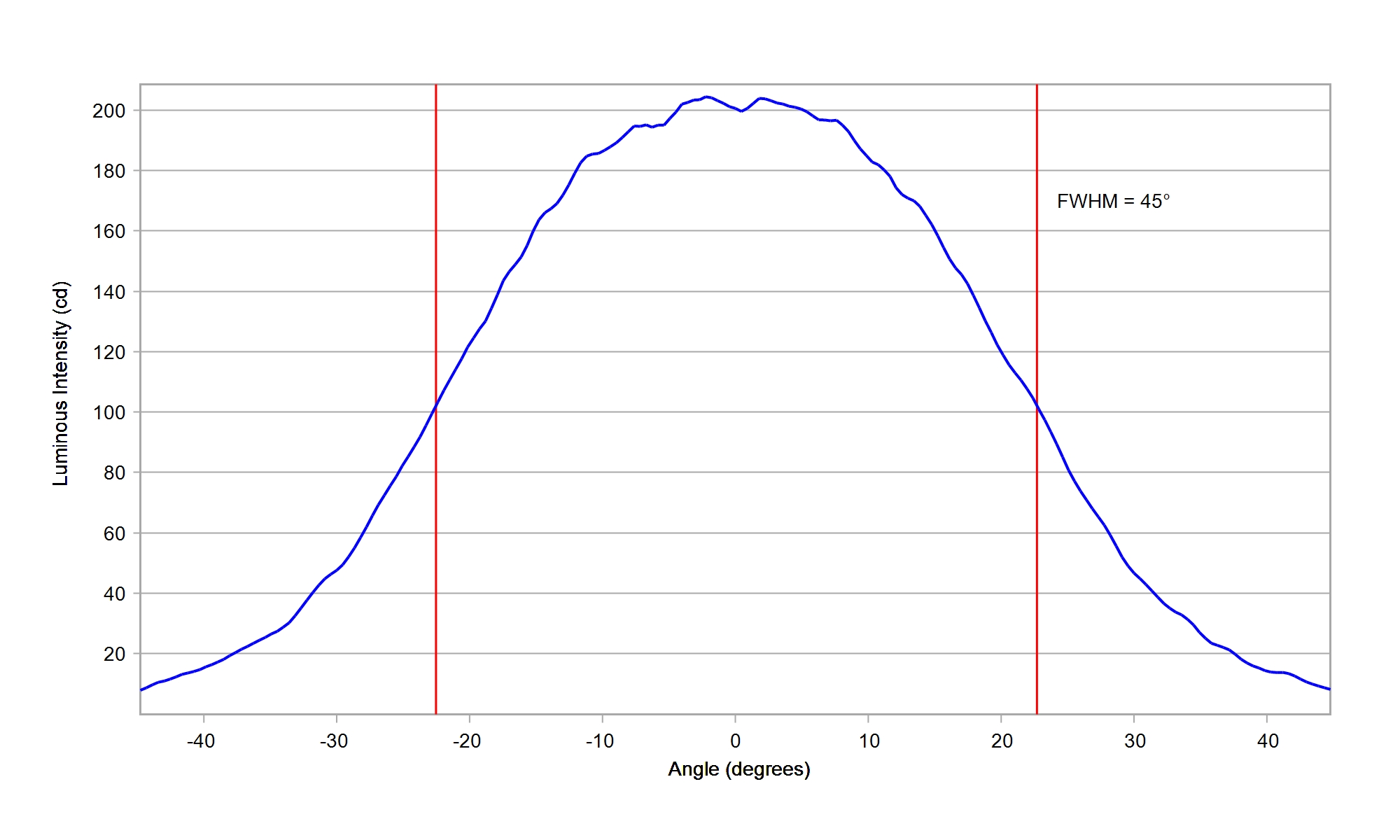

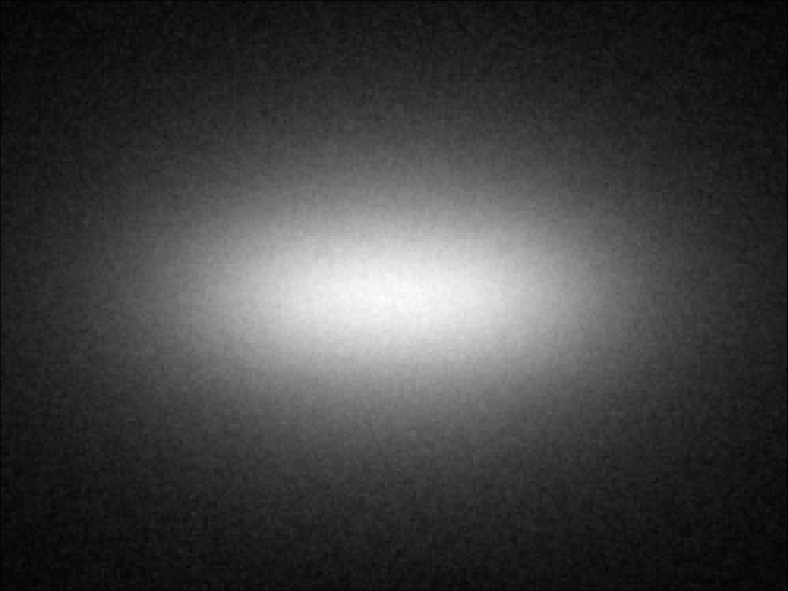

Seoul SunLike 3030 STWSC12S-E2 White

Eff:

89.5%

FWHM:

45 x 19°

Cd/Im:

2.6


,


Download

Seoul SunLike 3030 STW9C2SB-S White

Eff:

89.0%

FWHM:

43 x 22°

Cd/Im:

2.8


,


Download

IES

Seoul Z - Power Z5-M1 White

Eff:

89.0%

FWHM:

42 x 21.5°

Cd/Im:

2.8


,


Download

IES

Seoul Z - Power Z5-M4 White

Eff:

88.0%

FWHM:

43 x 25°

Cd/Im:

2.4


,


Download

IES

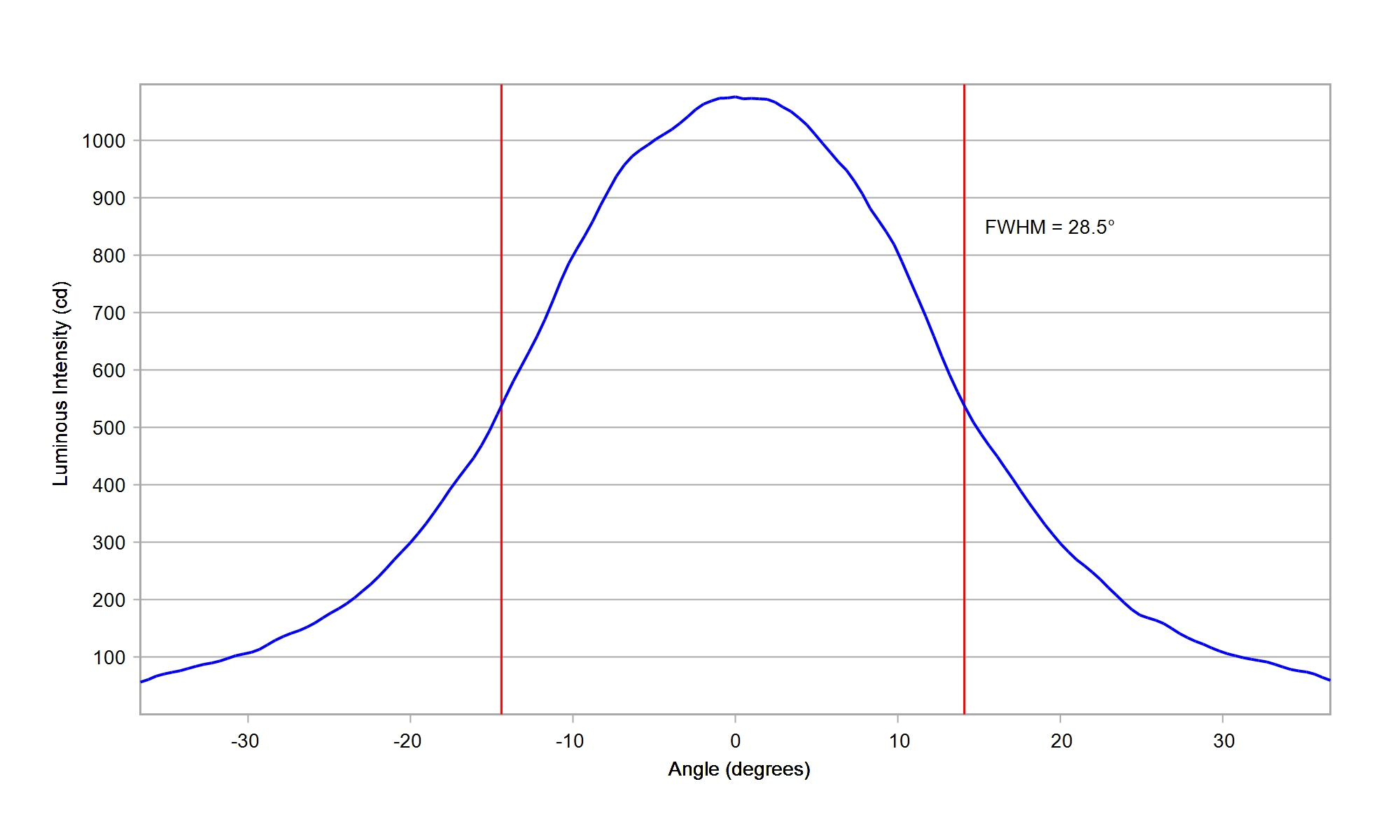

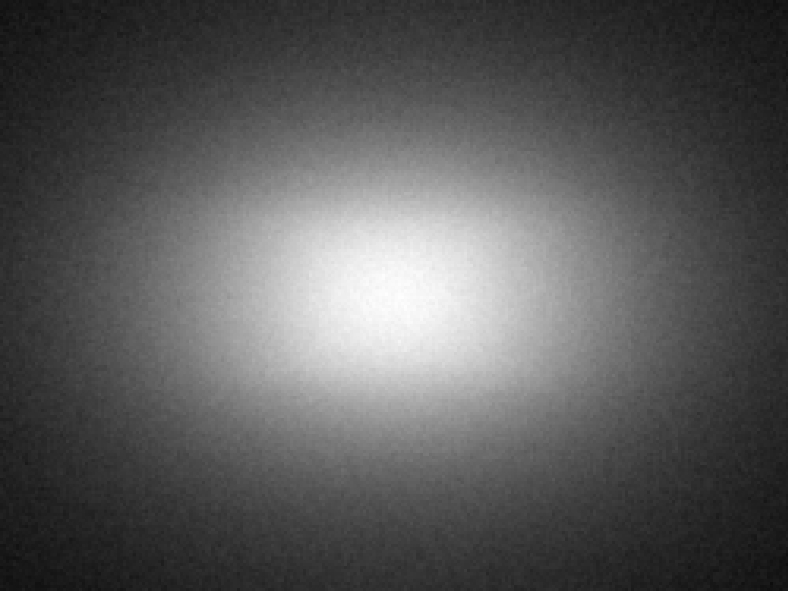

Seoul Z - Power Z5-M White

Eff:

87.0%

FWHM:

43 x 28.5°

Cd/Im:

1.6


,


Download

Stanley FWR1108MS IR 755nm

Eff:

92.5%

FWHM:

43 x 16.5°

Ipk/W:

3.8


,


Download

Toshiba TL 1L2 White

Eff:

82.0%

FWHM:

50.9 x 27°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies

Toshiba TL 1L4 White

Eff:

83.0%

FWHM:

48.9 x 27.6°

Cd/Im:

1.5

Carclo Optics - Simulated Spot Image

Carclo Optics - Simulated Horizontal Cross Section

,

Carclo Optics - Simulated Vertical Cross Section

Download

ies
